Arm® TBSAv8-M Architecture Test Validation Methodology and User Guide
Table of Contents
Preface
- About this book
- Feedback
  - Feedback on this product
  - Feedback on content
1 : Introduction
2 : Porting steps
- 2.1 : Prerequisites for running DPM related tests in TBSA-v8M test suite
3 : Architecture test suite
A : Revisions
- A.1 : Revisions

Arm® TBSAv8-M Architecture Test

Revision: r0p0

Validation Methodology and User Guide

101308_0000-0.6dev_02_en

Arm® TBSAv8-M Architecture Test

Validation Methodology and User Guide

Release Information

Document History

Issue Date Confidentiality Change

PJDOC-2042731200-3327 March 2018 Confidential Pre alpha release

PJDOC-2042731200-3327 March 2018 Confidential Alpha release

0000-01 15 June 2018 Non-Confidential Dev0.5 release. Note: The document now follows a

new numbering format.

0000-02 29 June 2018 Non-Confidential Dev0.6 release.

Non-Confidential Proprietary Notice

This document is protected by copyright and other related rights and the practice or implementation of the information contained in

this document may be protected by one or more patents or pending patent applications. No part of this document may be

reproduced in any form by any means without the express prior written permission of Arm. No license, express or implied, by

estoppel or otherwise to any intellectual property rights is granted by this document unless specifically stated.

Your access to the information in this document is conditional upon your acceptance that you will not use or permit others to use

the information for the purposes of determining whether implementations infringe any third party patents.

THIS DOCUMENT IS PROVIDED “AS IS”. ARM PROVIDES NO REPRESENTATIONS AND NO WARRANTIES,

EXPRESS, IMPLIED OR STATUTORY, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF

MERCHANTABILITY, SATISFACTORY QUALITY, NON-INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE

WITH RESPECT TO THE DOCUMENT. For the avoidance of doubt, Arm makes no representation with respect to, and has

undertaken no analysis to identify or understand the scope and content of, third party patents, copyrights, trade secrets, or other

rights.

This document may include technical inaccuracies or typographical errors.

TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL ARM BE LIABLE FOR ANY DAMAGES,

INCLUDING WITHOUT LIMITATION ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE, OR

CONSEQUENTIAL DAMAGES, HOWEVER CAUSED AND REGARDLESS OF THE THEORY OF LIABILITY, ARISING

OUT OF ANY USE OF THIS DOCUMENT, EVEN IF ARM HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES.

This document consists solely of commercial items. You shall be responsible for ensuring that any use, duplication or disclosure of

this document complies fully with any relevant export laws and regulations to assure that this document or any portion thereof is

not exported, directly or indirectly, in violation of such export laws. Use of the word “partner” in reference to Arm’s customers is

not intended to create or refer to any partnership relationship with any other company. Arm may make changes to this document at

any time and without notice.

If any of the provisions contained in these terms conflict with any of the provisions of any click through or signed written

agreement covering this document with Arm, then the click through or signed written agreement prevails over and supersedes the

conflicting provisions of these terms. This document may be translated into other languages for convenience, and you agree that if

there is any conflict between the English version of this document and any translation, the terms of the English version of the

Agreement shall prevail.

The Arm corporate logo and words marked with ® or ™ are registered trademarks or trademarks of Arm Limited (or its

trademarks of their respective owners. Please follow Arm’s trademark usage guidelines at http://www.arm.com/company/policies/

trademarks.

Arm Limited. Company 02557590 registered in England.

Arm® TBSAv8-M Architecture Test

Non-Confidential - Alpha

110 Fulbourn Road, Cambridge, England CB1 9NJ.

LES-PRE-20349

Confidentiality Status

This document is Non-Confidential. The right to use, copy and disclose this document may be subject to license restrictions in

accordance with the terms of the agreement entered into by Arm and the party that Arm delivered this document to.

Unrestricted Access is an Arm internal classification.

Product Status

The information in this document is for an Alpha product, that is a product under development.

Web Address

http://www.arm.com

Arm® TBSAv8-M Architecture Test

Non-Confidential - Alpha

Contents

Arm® TBSAv8-M Architecture Test Validation

Methodology and User Guide

Preface

About this book ...................................................... ...................................................... 7

Feedback ...................................................................................................................... 9

Chapter 1 Introduction

1.1 Abbreviations ..................................................... ..................................................... 1-11

1.2 TBSA-v8M test suite ................................................................................................ 1-12

1.3 Components of the test suite ......................................... ......................................... 1-13

1.4 Compliance sign-off process ......................................... ......................................... 1-14

1.5 Getting started .................................................... .................................................... 1-15

1.6 Feedback, contributions, and support .................................. .................................. 1-17

Chapter 2 Porting steps

2.1 Prerequisites for running DPM related tests in TBSA-v8M test suite ...................... 2-19

Chapter 3 Architecture test suite

3.1 Test layering details ................................................ ................................................ 3-21

3.2 Build flow ........................................................ ........................................................ 3-22

3.3 Test execution flow .................................................................................................. 3-23

3.4 Test dispatcher .................................................... .................................................... 3-25

3.5 Test naming conventions ............................................ ............................................ 3-27

3.6 Test status reporting ................................................................................................ 3-28

Non-Confidential - Alpha

Appendix A Revisions

A.1 Revisions ................................................... ................................................... Appx-A-30

Non-Confidential - Alpha

Preface

This preface introduces the Arm® TBSAv8-M Architecture Test Validation Methodology and User Guide.

It contains the following:

•About this book on page 7.

•Feedback on page 9.

Non-Confidential - Alpha

About this book

This book describes the TBSAv8-M Architecture Test Validation Methodology.

Product revision status

The rmpn identifier indicates the revision status of the product described in this book, for example, r1p2,

where:

rmIdentifies the major revision of the product, for example, r1.

pnIdentifies the minor revision or modification status of the product, for example, p2.

Intended audience

This user guide is written for engineers who are validating an implementation of the Trusted Base

System Architecture Test Suites for Armv8-M.

Using this book

This book is organized into the following chapters:

Chapter 1 Introduction

Read this chapter for an introduction to the features and components of the Trusted Base System

Architecture Test Suites for Armv8-M.

Chapter 2 Porting steps

Read this chapter for information on configuring the test suite.

Chapter 3 Architecture test suite

Read this chapter for information on the tests that are provided with the test suite.

Appendix A Revisions

This appendix describes the technical changes between released issues of this book.

Glossary

The Arm® Glossary is a list of terms used in Arm documentation, together with definitions for those

terms. The Arm Glossary does not contain terms that are industry standard unless the Arm meaning

differs from the generally accepted meaning.

See the Arm® Glossary for more information.

Typographic conventions

italic

Introduces special terminology, denotes cross-references, and citations.

bold

Highlights interface elements, such as menu names. Denotes signal names. Also used for terms

in descriptive lists, where appropriate.

monospace

Denotes text that you can enter at the keyboard, such as commands, file and program names,

and source code.

monospace

Denotes a permitted abbreviation for a command or option. You can enter the underlined text

instead of the full command or option name.

monospace italic

Denotes arguments to monospace text where the argument is to be replaced by a specific value.

monospace bold

Denotes language keywords when used outside example code.

Preface

About this book

Non-Confidential - Alpha

<and>

Encloses replaceable terms for assembler syntax where they appear in code or code fragments.

For example:

MRC p15, 0, <Rd>, <CRn>, <CRm>, <Opcode_2>

SMALL CAPITALS

Used in body text for a few terms that have specific technical meanings, that are defined in the

Arm® Glossary. For example, IMPLEMENTATION DEFINED, IMPLEMENTATION SPECIFIC, UNKNOWN, and

UNPREDICTABLE.

Timing diagrams

The following figure explains the components used in timing diagrams. Variations, when they occur,

have clear labels. You must not assume any timing information that is not explicit in the diagrams.

Shaded bus and signal areas are undefined, so the bus or signal can assume any value within the shaded

area at that time. The actual level is unimportant and does not affect normal operation.

Clock

HIGH to LOW

Transient

HIGH/LOW to HIGH

Bus stable

Bus to high impedance

Bus change

High impedance to stable bus

Figure 1 Key to timing diagram conventions

Signals

The signal conventions are:

Signal level

The level of an asserted signal depends on whether the signal is active-HIGH or active-LOW.

Asserted means:

• HIGH for active-HIGH signals.

• LOW for active-LOW signals.

Lowercase n

At the start or end of a signal name denotes an active-LOW signal.

Additional reading

This book contains information that is specific to this product. See the following documents for other

relevant information.

Arm publications

•Arm® Platform Security Architecture Trusted Base System Architecture for Armv8-M version

Beta-1 () DEN 0062A.

•Arm®v8-M Architecture Reference Manual (ARM DDI 00553A.b).

Other publications

None.

Preface

About this book

Non-Confidential - Alpha

Feedback

Feedback on this product

If you have any comments or suggestions about this product, contact your supplier and give:

• The product name.

• The product revision or version.

• An explanation with as much information as you can provide. Include symptoms and diagnostic

procedures if appropriate.

Feedback on content

If you have comments on content then send an e-mail to errata@arm.com. Give:

• The title Arm TBSAv8-M Architecture Test Validation Methodology and User Guide.

• The number 101308_0000-0.6dev_02_en.

• If applicable, the page number(s) to which your comments refer.

• A concise explanation of your comments.

Arm also welcomes general suggestions for additions and improvements.

Note

Arm tests the PDF only in Adobe Acrobat and Acrobat Reader, and cannot guarantee the quality of the

represented document when used with any other PDF reader.

Preface

Feedback

Non-Confidential - Alpha

Chapter 1

Introduction

Read this chapter for an introduction to the features and components of the Trusted Base System

Architecture Test Suites for Armv8-M.

It contains the following sections:

•1.1 Abbreviations on page 1-11.

•1.2 TBSA-v8M test suite on page 1-12.

•1.3 Components of the test suite on page 1-13.

•1.4 Compliance sign-off process on page 1-14.

•1.5 Getting started on page 1-15.

•1.6 Feedback, contributions, and support on page 1-17.

Non-Confidential - Alpha

1.1 Abbreviations

This section lists the acronyms that are used in this document.

Table 1-1 Abbreviations and expansions

Abbreviation Expansion

AES Advanced Encryption Standard

DPM Debug Protection Mechanism

I2C Inter-Integrated Circuit

IDAU Implementation Defined Attribution Unit

MPC Memory Protection Controller

MPU Memory Protection Unit

NSC Non-secure Callable

NVIC Nested Vector Interrupt Controller

NVM Non-Volatile Memory

OTP One-time Programmable

PAL Platform Abstraction Layer

PE Processing Element

PPC Peripheral Protection Controller

SAU Security Attribution Unit

SPI Serial Peripheral Interface

TBSA Trusted Base System Architecture

VAL Validation Abstraction Layer

1 Introduction

1.1 Abbreviations

Non-Confidential - Alpha

1.2 TBSA-v8M test suite

The test suite checks whether an implementation conforms to the behaviors described in the TBSA

specifications.

The TBSA-v8M that is described in the TBSA-v8M specification defines the behavior of an abstract

machine, referred to as a TBSA-v8M system. Implementations compliant with TBSA-v8M architecture

must conform to the described behavior of the TBSA-v8M System.

The test suite includes the following examples:

1. Invariant behaviors that are provided by the TBSA-v8M Architecture Specification. You can use

these examples to verify if these behaviors are interpreted correctly.

2. Areas of the architecture that are fundamental, known pitfalls, and common misinterpretations. The

tests are not exhaustive and implementers are responsible for device verification.

The TBSA-v8M test suite contains basic and assisted architecture tests. The system designers building a

basic implementation of TBSA-v8M architecture must show compliance using the basic architecture test

suites. System designers building an assisted implementation of TBSA-v8M must show compliance

using both the basic and assisted architecture test suites.

The test suites contain self-checking tests. These tests have checks that are embedded within the test

code. Tests are coded in assembly and C.

To facilitate test reporting and management of observing aspects, the TBSA-v8M system must contain at

least one UART for printing the status of tests.

This section contains the following subsection:

•1.2.1 Scope of the document on page 1-12.

1.2.1 Scope of the document

This document describes the layers of TBSA-v8M test suite and its usage. This document is intended to

solicit feedback from partners so that TBSA-v8M test suite can be used agnostic to various system

implementations.

Since TBSA-v8M test suite is at Alpha stage, only a subset of tests released with this suite are validated

in the Arm internal platform. There are possibilities to have tests where the test code is complete for a

particular scenario but cannot be validated in the Arm internal platform.

1 Introduction

1.2 TBSA-v8M test suite

Non-Confidential - Alpha

1.3 Components of the test suite

The test suite consists of the components that are described in the following table.

Components Description

Suites The suites are organized to align with the features of the TBSA-v8M architecture. These suites contain self-checking

tests that are written in C language.

Substructure Test supporting layers consist of a framework and libraries setup as:

• Scripts to build the test suites

• VAL library

• PAL library

Documentation Kit-specific documents.

1 Introduction

1.3 Components of the test suite

Non-Confidential - Alpha

1.4 Compliance sign-off process

More details on the compliance sign-off or certification process and expectations from partner on this

process will be published in the upcoming releases of this document.

1 Introduction

1.4 Compliance sign-off process

Non-Confidential - Alpha

1.5 Getting started

This section provides an overview about getting started with the test suite.

This section contains the following subsections:

•1.5.1 Directory structure on page 1-15.

•1.5.2 Software, tools, and licensing requirements on page 1-16.

•1.5.3 Environment requirements on page 1-16.

1.5.1 Directory structure

Validation tests require that the components of the test suite are in a specific hierarchy.

When the test suite release package is downloaded from GitHub, the top-level directory contains the files

that are shown in the following figure.

tbsa-v8m/

Makefile

platform

tbsa_app

test_pool

tools

val

README.md

docs

Figure 1-1 Test suite directory structure

docs

This directory contains the test suite documentation.

platform

This directory contains files to form PAL. PAL is the closest to hardware and is aware of

underlying hardware details. Since this layer interacts with hardware, it is ported or tailored to

specific hardware required for system components present in a platform. This layer is also

responsible for presenting a consistent interface to the validation abstraction layer required for

the tests.

tbsa_app

This directory contains the entry point for TBSA-v8M test suites. It is expected from partner

that the System under test – boot software would give control to the TBSA-v8M test suite

application entry point in Secure privileged mode.

test_pool

This directory contains the test suites. This test suite is a set of C-based directed tests, each of

which verifies the implementation against a test scenario that is described by the TBSA-v8M

specification. These tests are abstracted from the underlying hardware platform by the VAL.

tools

This directory contains subdirectories for the tools and scripts that are used in the test suite.

val

This directory contains subdirectories for the VAL libraries. This layer provides a uniform and

consistent view of the available test infrastructure to the tests in the test pool. The VAL makes

appropriate calls to the PAL to achieve this functionality. This layer is not ported when the

underlying hardware changes.

1 Introduction

1.5 Getting started

Non-Confidential - Alpha

1.5.2 Software, tools, and licensing requirements

The test suite requires specific versions of software to operate. The following list provides the details of

the platform and tools that are needed for the test suite.

• Host Operating System: Ubuntu, Cygwin

• Scripting tools: Perl 5.22.1

• Other open-source tools: GCC 6.3.1

TBSA-v8M test suite is distributed under Apache v2.0 license.

1.5.3 Environment requirements

The following are the minimum memory requirements for TBSA-v8M test suite to run.

• 64KB of Secure memory and 16KB of Non-secure memory to store VAL or PAL functions and

related data

• 16KB of Secure Contiguous Memory for secure tests

• 16KB of Non-secure Contiguous Memory for Non-secure tests

• 4KB of NSC memory

This memory must be usable for both code execution and data access.

Note

• There is no specific requirement on the number of MPU and SAU regions for TBSA-v8M test suites.

• For Non-secure and NSC memory, it is assumed that SAU or IDAU regions are programmed

correctly with Non-secure and Non-secure Callable attributes respectively before getting into

tbsa_entry point.

To learn the details of your hardware environment, the validation tests read the tbsa_tgt.cfg file. Refer

to Chapter 2 Porting steps on page 2-18.

1 Introduction

1.5 Getting started

Non-Confidential - Alpha

1.6 Feedback, contributions, and support

For feedback, use the GitHub Issue Tracker that is associated with this repository.

For support, send an e-mail to support-psa-arch-tests@arm.com with the details.

Arm licensees can contact Arm directly through their partner managers. Arm welcomes code

contributions through GitHub pull requests. See GitHub documentation on how to raise pull requests.

1 Introduction

1.6 Feedback, contributions, and support

Non-Confidential - Alpha

Chapter 2

Porting steps

Read this chapter for information on configuring the test suite.

It contains the following section:

•2.1 Prerequisites for running DPM related tests in TBSA-v8M test suite on page 2-19.

Non-Confidential - Alpha

2.1 Prerequisites for running DPM related tests in TBSA-v8M test suite

Since DPM scenarios in TBSA-v8M involve verifying whether debug access is allowed in a target or not

based on DPM settings, an external debugger is required.

The handshaking and data transfer protocol between the external debugger and Processing Element is

handled by two memory mapped registers named as data and flag register. The description of these

registers is given in the following table.

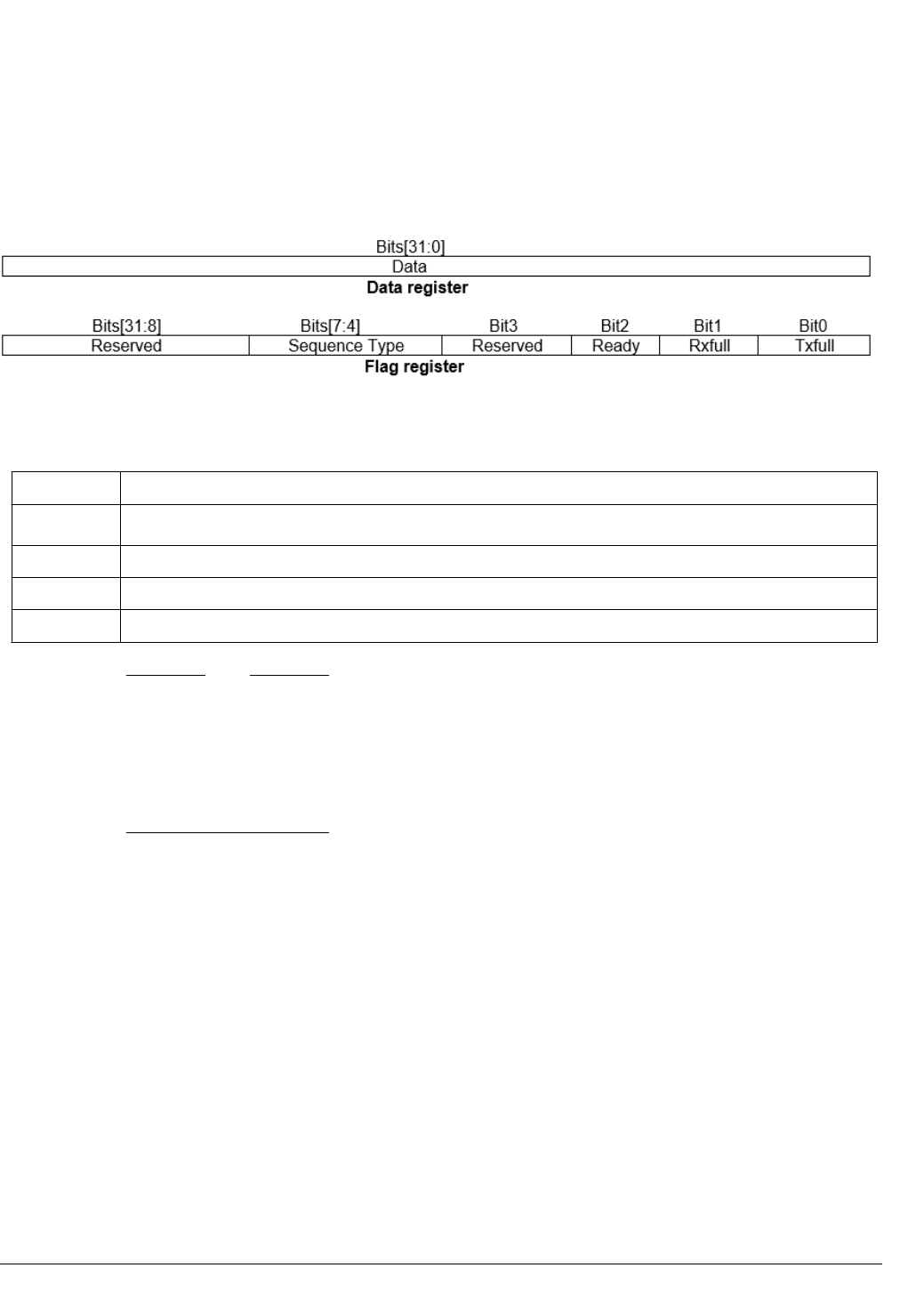

Figure 2-1 Data and flag registers

Table 2-1 Bit field and description

Bit field Description

Txfull This bit is set when CPU writes to Data register. This bit is cleared when debugger reads the data from Data register.

Rxfull This bit is set when debugger writes to the data register and cleared when CPU reads the Data register

Ready When this bit is set, debugger is ready to receive commands (Data).

Sequence Type This field indicates debugger to choose appropriate sequence, which the test expects.

Note

• The memory mapped address for these two registers must be chosen in such a way that debug access

to these addresses are allowed even when Invasive Debug is not allowed. The address for these two

registers should be populated in syscomp_tbsa_m/boards/<platform_name>/tbsa_tgt.cfg.

• A reference program for DS-5 external debugger is available at syscomp_tbsa_m/tools/debug/

debugger_script.py. If you use your specific debugger, then you must port this program to use in

your debugger-specific commands.

2 Porting steps

2.1 Prerequisites for running DPM related tests in TBSA-v8M test suite

Non-Confidential - Alpha

Chapter 3

Architecture test suite

Read this chapter for information on the tests that are provided with the test suite.

It contains the following sections:

•3.1 Test layering details on page 3-21.

•3.2 Build flow on page 3-22.

•3.3 Test execution flow on page 3-23.

•3.4 Test dispatcher on page 3-25.

•3.5 Test naming conventions on page 3-27.

•3.6 Test status reporting on page 3-28.

Non-Confidential - Alpha

3.1 Test layering details

TBSA-v8M tests are self-checking, portable C-based tests with directed stimulus.

The tests use the layered software-stack approach to enable porting across different test platforms. The

constituents of the layered stack are:

1. Test suite

2. VAL

3. PAL

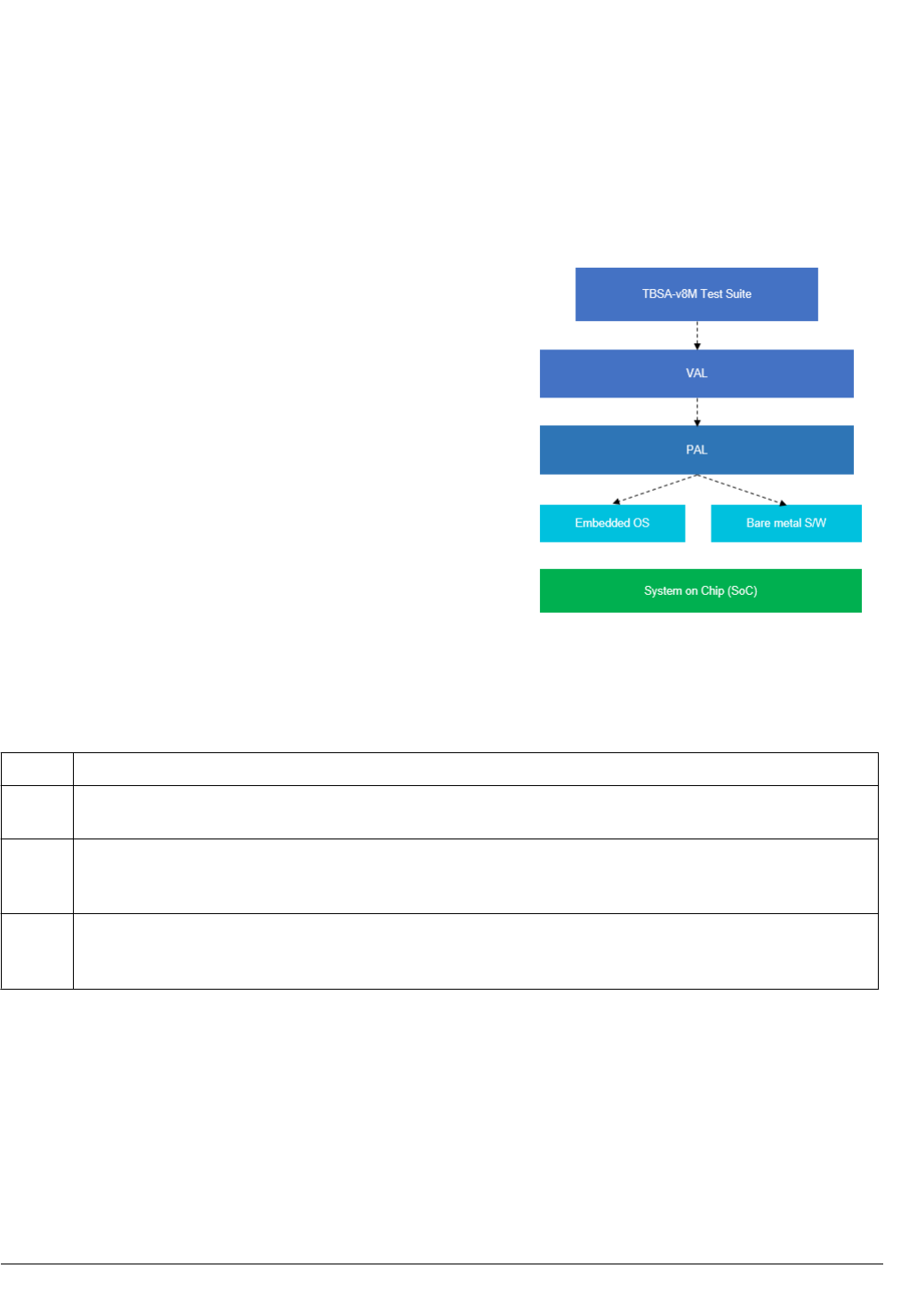

Figure 3-1 Layered software stack

The following table describes the different layers of the test.

Table 3-1 Test layers and descriptions

Layer Description

Test suite Collection of targeted tests that validate the compliance of the target system. These tests use interfaces that are provided by

the VAL.

VAL Contains subdirectories for the VAL libraries. This layer provides a uniform and consistent view of the available test

infrastructure to the tests in the test pool. The VAL makes appropriate calls to the PAL to achieve this functionality. This

layer is not ported when the underlying hardware changes.

PAL This layer is the closest to hardware and is aware of underlying hardware details. Since it interacts with hardware, it must

be ported or tailored to specific hardware required for system components present in a platform. It is also responsible for

presenting a consistent interface to the validation abstraction layer required for the tests.

3 Architecture test suite

3.1 Test layering details

Non-Confidential - Alpha

3.2 Build flow

Each test file must have a metadata section that describes the high-level details of the test such as Test

ID, test name, and secure specification requirement. The metadata is filled in the form of macros.

As a precompile step, the metadata in each file is extracted, parsed, and saved in a separate file. The

metadata file is used during the package creation phase to fill the tbsa_test_hdr. VAL and PAL files

are not required to have a metadata section.

Figure 3-2 Build flow

Build steps

To compile and build the test images for the complete test suite, use the following command:

make TARGET=<target_directory_name>

For example,

make TARGET=fvp

Build outputs

The output of the build process is a collection of tests along with metadata of each test packaged

as a single binary file and an ELF file. These files are:

•tbsa_test_combined.bin

•tbsa.elf

Both tbsa_test_combined.bin and tbsa.elf are available under ./out/<target_directory_name>/

The following figure shows the directory structure after building the test ELF images.

out/fvp/

tbsa.asm

tbsa.bin

tbsa.elf

tbsa.hex

tbsa.map

tbsa_pal.a

tbsa_val.a

tbsa_test_combined.bin

tbsa_test_combined.hex

Figure 3-3 TBSA test suite directory structure

3 Architecture test suite

3.2 Build flow

Non-Confidential - Alpha

3.3 Test execution flow

The System Under Test (SUT) boots to an environment that enables the PAL functionality.

At this point, the SUT boot software gives control to the TBSA-v8M test suite application entry point

tbsa_entry that comes from ELF header of tbsa.elf image in Secure privileged mode.

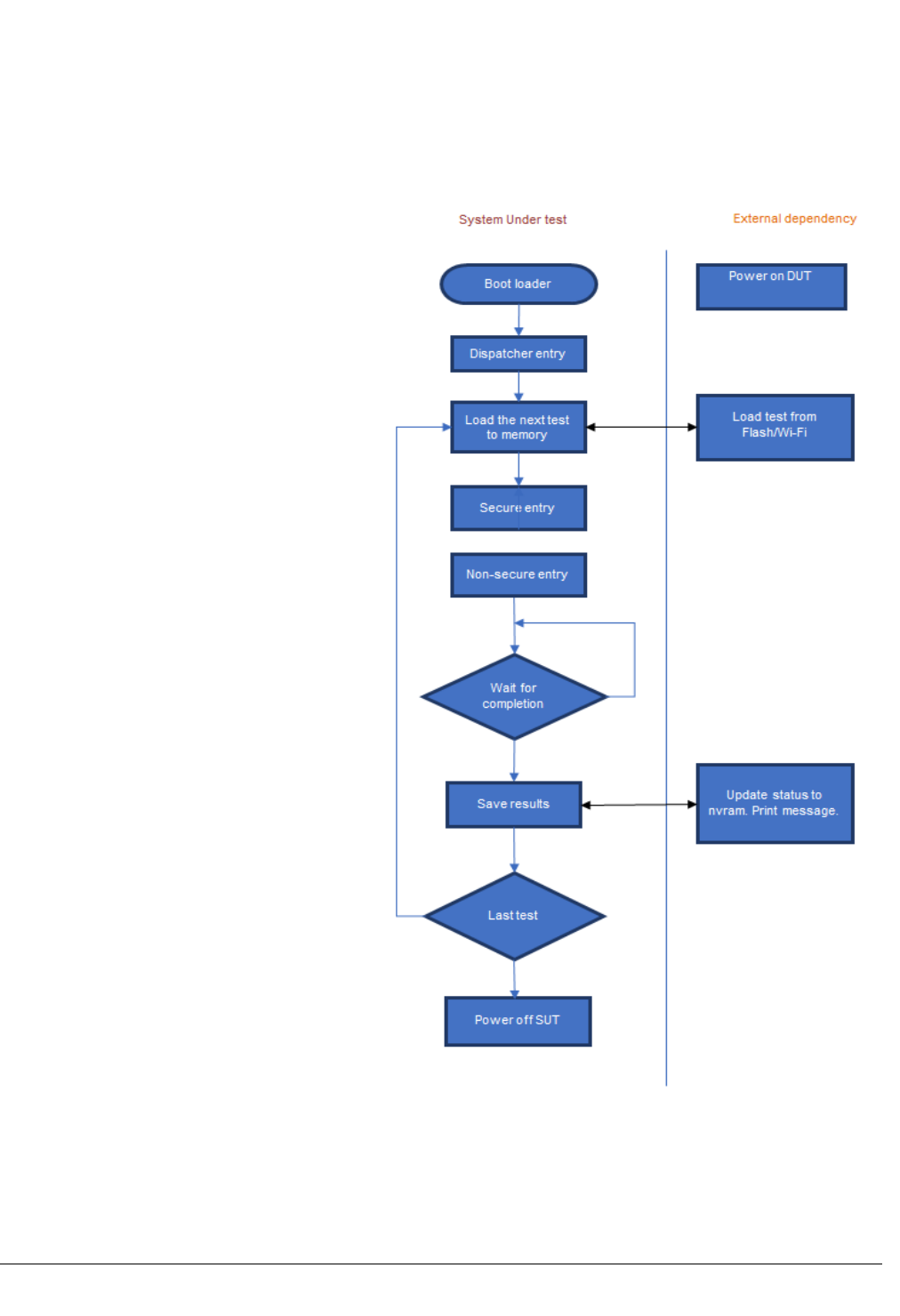

Figure 3-4 Test execution flow

The TBSA-v8M test suite application queries the VAL layer to get the necessary information to run the

tests. This information includes memory maps, interrupt maps, and hardware controller maps.

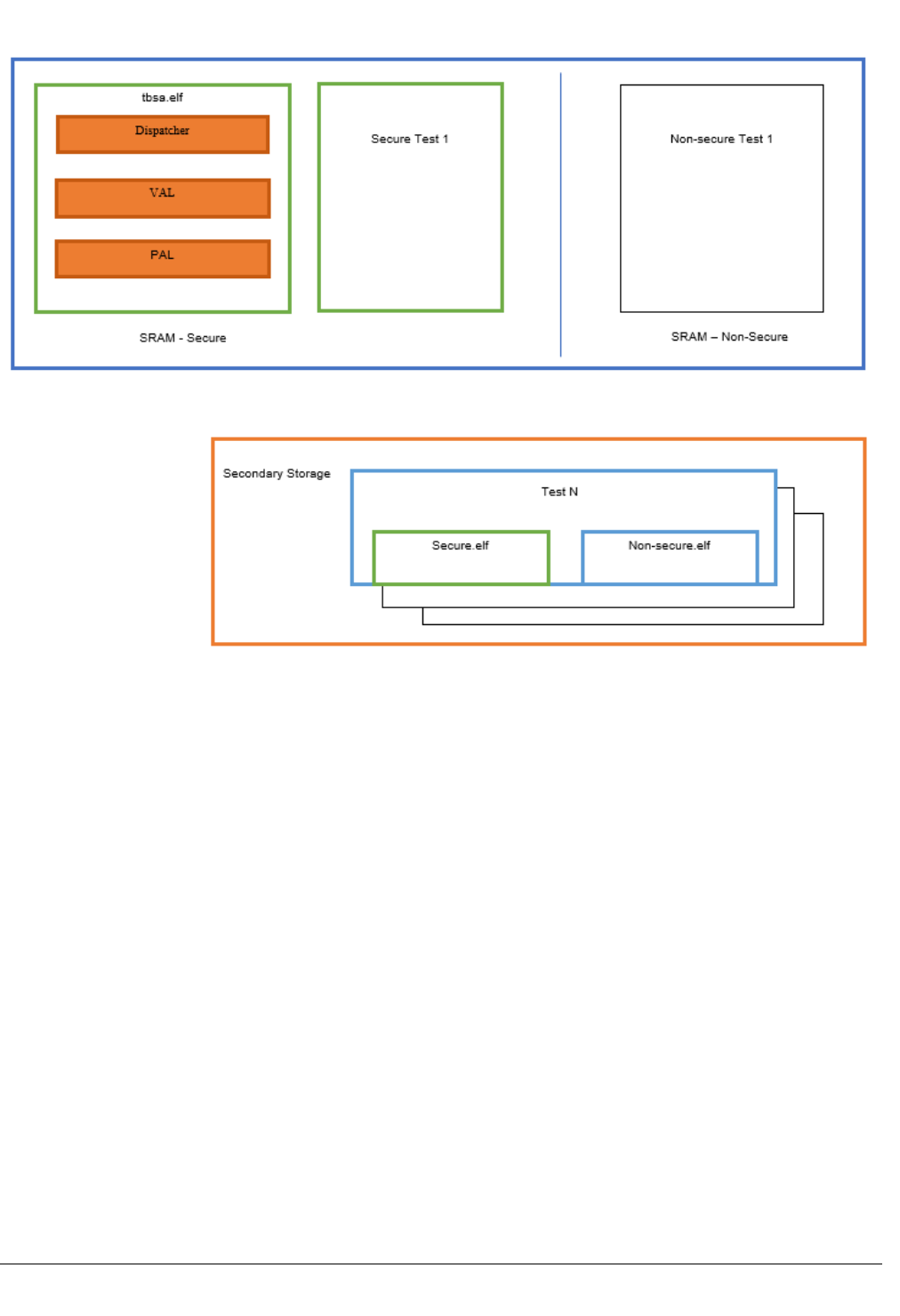

Due to RAM and flash size constraints, all the tests may not be available at the same time. The

dispatcher in the VAL queries the PAL to load the next test on the completion of the present test. The

3 Architecture test suite

3.3 Test execution flow

Non-Confidential - Alpha

PAL may optionally communicate with the external world to load the next test. Also, the dispatcher

makes VAL (and in turn PAL) calls to save and report each of the test results.

Each test must present Secure and Non-secure entry points. If a scenario does not warrant either Secure

or Non-secure functionality, then the entry functions will be empty.

To achieve some of the above-mentioned functions, the PAL may optionally make calls that are handled

outside the system under test.

The following are some of the responsibilities that require external support:

• Feed the tests to the design under test.

• Collate and print the test status and messages.

Power ON/OFF the system as required by the test sequence. The environment in which a host test

harness is running is beyond the scope of this document. But, it is envisioned that the SUT is

communicating with the host using Serial port, JTAG, Wi-Fi, USB or any other means that allow for

access to the external world.

3 Architecture test suite

3.3 Test execution flow

Non-Confidential - Alpha

3.4 Test dispatcher

Each test must present the following test entry points to the dispatcher.

1. Secure

a. Entry hook

b. Payload

c. Exit hook

2. Non-secure

a. Entry hook

b. Payload

c. Exit hook

To each of the entry points, the dispatcher passes a pointer to a structure containing the function pointers

to all the available VAL functions. The Secure entry points receive the function pointers to the Secure

VAL APIs. The Non-secure entry points receive function points to the Non-secure wrapper functions in

the NSC region. These functions make the appropriate secure VAL function call.

The dispatcher first makes the Secure function calls and on success, calls the Non-secure functions.

The flow of the dispatcher is described in the following steps.

1. Request VAL to load the metadata of the next test into the main memory.

2. Parse the metadata that is associated with the test.

3. Verify that test is compatible with the system under test.

4. Load the test code and data sections to the appropriate locations in the main memory.

5. Call the Secure entry hook function of the test.

6. Call the Secure payload test function.

7. Call the Secure exit hook.

8. Call the Non-secure entry hook function.

9. Call the Non-secure payload function.

10. Call the Non-secure exit hook function.

11. Signal test completion and log test status.

The results from execution of each test are saved to memory. If a display console is not available, the

PAL must make available the test results to the external world through other means.

3 Architecture test suite

3.4 Test dispatcher

Non-Confidential - Alpha

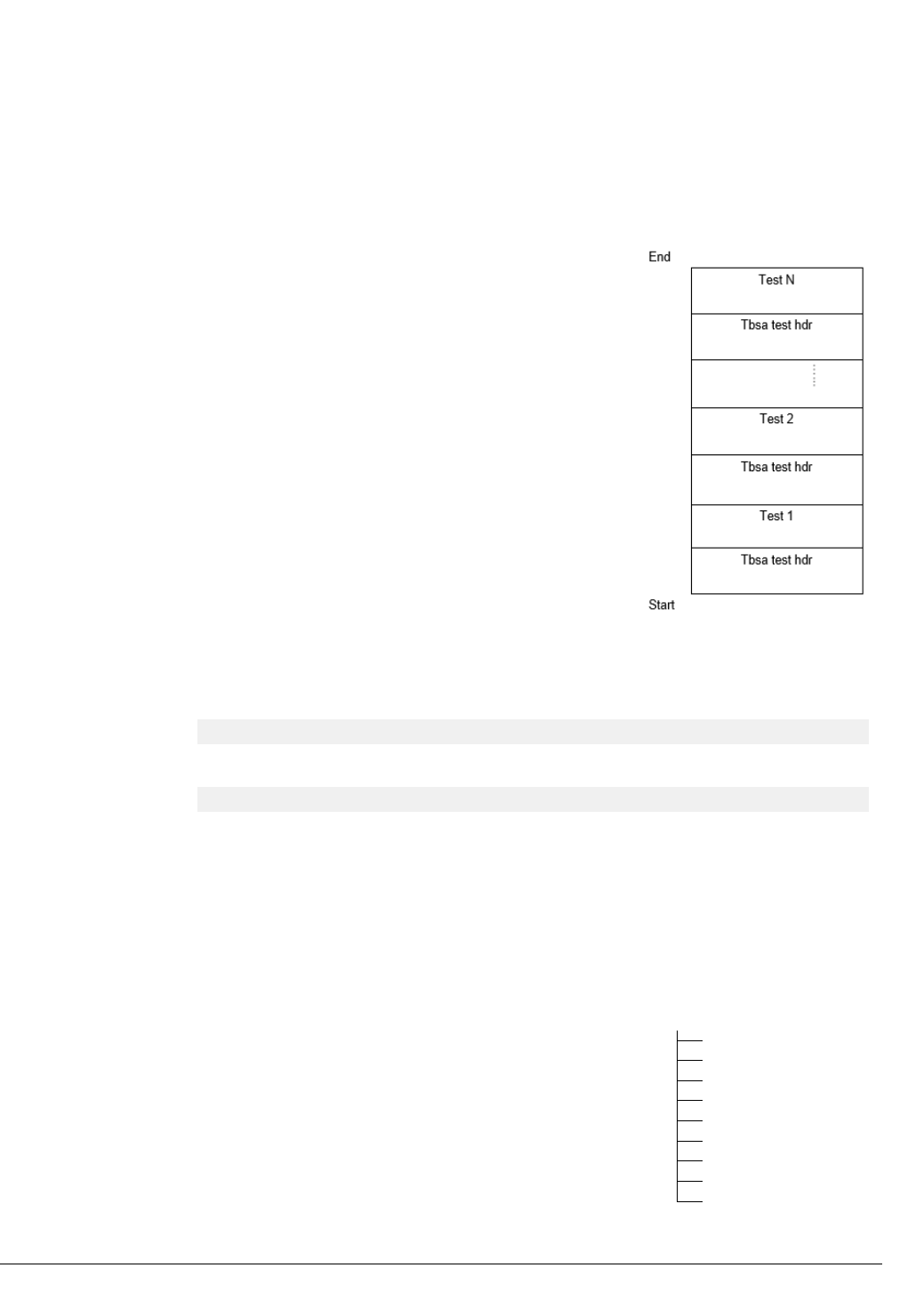

Figure 3-5 Loading a test from secondary storage

The tbsa.elf is loaded by the bootloader or embedded OS to the Secure memory. The dispatcher within

the tbsa.elf loads each of the Secure test section to Secure memory and Non-secure test section to

Non-secure memory. The addresses of the various sections are predetermined for a given platform as

defined by the user and vary for different targets.

3 Architecture test suite

3.4 Test dispatcher

Non-Confidential - Alpha

3.5 Test naming conventions

TBSA-v8M tests are named based on the components as defined in the following table.

Table 3-2 Test naming conventions

Component name Base address Test number range

Base 0 1-19

Boot 1 21-39

Crypto 2 41-59

Debug 3 61-79

EIP 4 81-99

Interrupts 5 101-119

Secure RAM 6 121-139

Peripherals 7 141-159

Trusted timers 8 161-179

Version counters 9 181-199

Each component can have a maximum of 19 tests. Hence the test numbers will be incremented from their

respective base values.

For example, if you see a display as shown below, then for the Secure RAM, the component base value is

200. The test name reports it as 201, which means that it is the first test in the Secure RAM component.

-------------------- Secure RAM Tests --------------------

201 : "R180_TBSA_INFRA"

3 Architecture test suite

3.5 Test naming conventions

Non-Confidential - Alpha

3.6 Test status reporting

When the test suite is run on a target platform, each successfully run test of the suite must report either

PASS or SKIP.

The following is a snippet of a successful pass test on the display console.

----------------------- Secure RAM Tests ------------------------

201 : "R180_TBSA_INFRA"

"Secure RAM access from Trusted world only"

# Secure PASS

# Non Secure PASS

The following is a snippet of a successful skip test on the display console.

----------------------- Secure RAM Tests --–---------------------

201 : "R180_TBSA_INFRA"

"Secure RAM access from Trusted world only"

# Secure SKIP

# Non Secure SKIP

This section contains the following subsection:

•3.6.1 Debugging of a failing test on page 3-28.

3.6.1 Debugging of a failing test

Since each test is organized with a logical set of self-checking code, if there is a failure then searching

for the relevant self-checking point will be a useful point to start off with debugging.

Consider the below snippet of a failing test on the display console.

----------------------- Trusted Boot Tests --–---------------------

11 : "R020/R090_TBSA_BOOT"

"Trusted boot operation from Trusted and Non-trusted world"

# Secure

Checkpoint C01 : Status = 8C

FAIL

# Non Secure

FAIL

Here are some debugging points to consider.

1. This test is failing for ‘Trusted Boot’ component. Hence the test should be under test_pool/boot/

directory.

2. The test ID is 11 which means first test in ‘Trusted Boot’ component. Hence the test is test_pool/

boot/test_s001 directory.

3. Each test will have a Secure portion and a Non-secure portion. In the above snippet, the failure is

from the Secure portion. Hence it is required to see test_pool/boot/test_s001/secure.c file.

4. Since the failure is shown as ‘Checkpoint C01, the first checkpoint is failing with a status ‘8C’.

5. Status of the failure is mapped with a structure tbsa_status_t that is available at val/include/

val_common.h. In this example, ‘8C’ means that the test is failing for an incorrect value.

3 Architecture test suite

3.6 Test status reporting

Non-Confidential - Alpha

Appendix A

Revisions

This appendix describes the technical changes between released issues of this book.

It contains the following section:

•A.1 Revisions on page Appx-A-30.

Non-Confidential - Alpha

A.1 Revisions

Table A-1 Issue PJDOC-2042731200-3327

Change Location Affects

This is the first revision of the document. - All revisions

Table A-2 Differences between Issue PJDOC-2042731200-3327 and Issue 101308-01

Change Location Affects

Updated directory structure. See 1.5.1 Directory structure on page 1-15. All revisions

Updated porting steps. See Porting steps to create a new target. All revisions

Updated test naming conventions. See 3.5 Test naming conventions on page 3-27. All revisions

Table A-3 Differences between Issue 101308-01 and Issue 101308-02

Change Location Affects

Updated test naming conventions table. See 3.5 Test naming conventions on page 3-27 All revisions.

Updated PAL APIs. See PAL APIs All revisions.

A Revisions

A.1 Revisions

Non-Confidential - Alpha
