Artificial Intelligence is often perceived as being a highly complicated, even

frightening subject in Computer Science. This view is compounded by books in this

area being crowded with complex matrix algebra and differential equations – until

now. This book, evolving from lectures given to students with little knowledge of

calculus, assumes no prior programming experience and demonstrates that most

of the underlying ideas in intelligent systems are, in reality, simple and straight-

forward. Are you looking for a genuinely lucid, introductory text for a course in AI

or Intelligent Systems Design? Perhaps you’re a non-computer science professional

looking for a self-study guide to the state-of-the art in knowledge based systems?

Either way, you can’t afford to ignore this book.

Covers:

✦Rule-based expert systems

✦Fuzzy expert systems

✦Frame-based expert systems

✦Artificial neural networks

✦Evolutionary computation

✦Hybrid intelligent systems

✦Knowledge engineering

✦Data mining

New to this edition:

✦New demonstration rule-based system, MEDIA ADVISOR

✦New section on genetic algorithms

✦Four new case studies

✦Completely updated to incorporate the latest developments in this

fast-paced field

Dr Michael Negnevitsky is a Professor in Electrical Engineering and Computer

Science at the University of Tasmania, Australia. The book has developed from

lectures to undergraduates. Its material has also been extensively tested through

short courses introduced at Otto-von-Guericke-Universität Magdeburg, Institut

Elektroantriebstechnik, Magdeburg, Germany, Hiroshima University, Japan and

Boston University and Rochester Institute of Technology, USA.

Educated as an electrical engineer, Dr Negnevitsky’s many interests include artificial

intelligence and soft computing. His research involves the development and

application of intelligent systems in electrical engineering, process control and

environmental engineering. He has authored and co-authored over 250 research

publications including numerous journal articles, four patents for inventions and

two books.

Cover image by Anthony Rule

Artificial Intelligence/Soft Computing

Artificial

Intelligence

A Guide to Intelligent Systems

Artificial Intelligence

MICHAEL NEGNEVITSKY

NEGNEVITSKY

www.pearson-books.com

Artificial

Intelligence

A Guide to Intelligent Systems

Second Edition

An imprint of

Artiﬁcial Intelligence

We work with leading authors to develop the

strongest educational materials in computer science,

bringing cutting-edge thinking and best learning

practice to a global market.

Under a range of well-known imprints, including

Addison-Wesley, we craft high quality print and

electronic publications which help readers to

understand and apply their content, whether

studying or at work.

To ﬁnd out more about the complete range of our

publishing please visit us on the World Wide Web at:

www.pearsoned.co.uk

Artiﬁcial Intelligence

A Guide to Intelligent Systems

Second Edition

Michael Negnevitsky

Pearson Education Limited

Edinburgh Gate

Harlow

Essex CM20 2JE

England

and Associated Companies throughout the World.

Visit us on the World Wide Web at:

www.pearsoned.co.uk

First published 2002

Second edition published 2005

#Pearson Education Limited 2002

The right of Michael Negnevitsky to be identiﬁed as author of this Work has been asserted

by the author in accordance with the Copyright, Designs and Patents Act 1988.

system, or transmitted in any form or by any means, electronic, mechanical,

photocopying, recording or otherwise, without either the prior written permission of the

publisher or a licence permitting restricted copying in the United Kingdom issued by the

The programs in this book have been included for their instructional value. They have been

tested with care but are not guaranteed for any particular purpose. The publisher does not offer

any warranties or representations nor does it accept any liabilities with respect to the programs.

All trademarks used herein are the property of their respective owners. The use of any

trademarks in this text does not vest in the author or publisher any trademark ownership rights

in such trademarks, nor does the use of such trademarks imply any afﬁliation with or

endorsement of this book by such owners.

ISBN 0 321 20466 2

British Library Cataloguing-in-Publication Data

A catalogue record for this book can be obtained from the British Library

Library of Congress Cataloging-in-Publication Data

Negnevitsky, Michael.

Artiﬁcial intelligence: a guide to intelligent systems/Michael Negnevitsky.

p. cm.

Includes bibliographical references and index.

ISBN 0-321-20466-2 (case: alk. paper)

1. Expert systems (Computer science) 2. Artiﬁcial intelligence. I. Title.

QA76.76.E95N445 2004

006.3’3—dc22

2004051817

10987654321

08 07 06 05 04

Typeset in 9/12pt Stone Serif by 68

Printed and bound in Great Britain by Biddles Ltd, King’s Lynn

The publisher’s policy is to use paper manufactured from sustainable forests.

For my son, Vlad

Contents

Preface xi

Preface to the second edition xv

Acknowledgements xvii

1 Introduction to knowledge-based intelligent systems 1

1.1 Intelligent machines, or what machines can do 1

1.2 The history of artiﬁcial intelligence, or from the ‘Dark Ages’

to knowledge-based systems 4

1.3 Summary 17

Questions for review 21

References 22

2 Rule-based expert systems 25

2.1 Introduction, or what is knowledge? 25

2.2 Rules as a knowledge representation technique 26

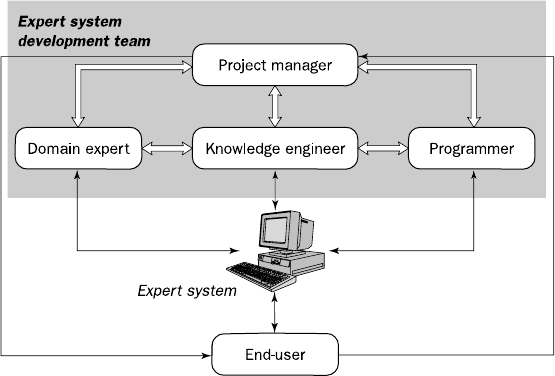

2.3 The main players in the expert system development team 28

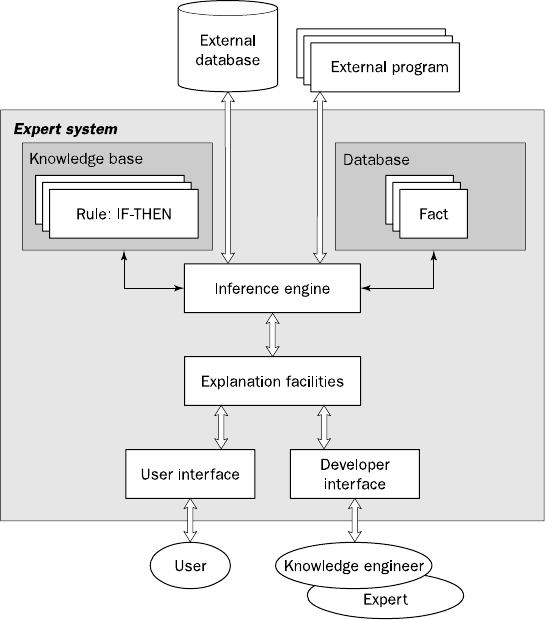

2.4 Structure of a rule-based expert system 30

2.5 Fundamental characteristics of an expert system 33

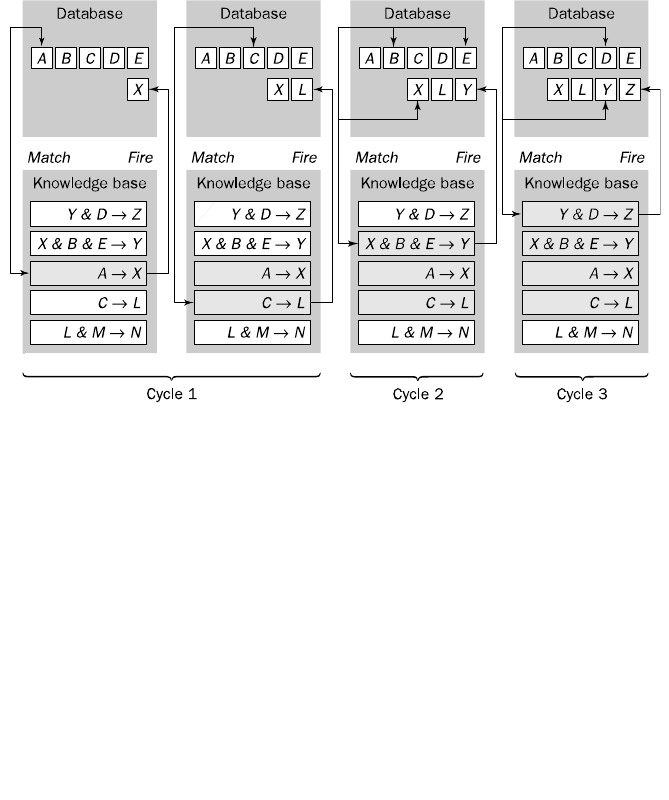

2.6 Forward chaining and backward chaining inference

techniques 35

2.7 MEDIA ADVISOR: a demonstration rule-based expert system 41

2.8 Conﬂict resolution 47

2.9 Advantages and disadvantages of rule-based expert systems 50

2.10 Summary 51

Questions for review 53

References 54

3 Uncertainty management in rule-based expert systems 55

3.1 Introduction, or what is uncertainty? 55

3.2 Basic probability theory 57

3.3 Bayesian reasoning 61

3.4 FORECAST: Bayesian accumulation of evidence 65

3.5 Bias of the Bayesian method 72

3.6 Certainty factors theory and evidential reasoning 74

3.7 FORECAST: an application of certainty factors 80

3.8 Comparison of Bayesian reasoning and certainty factors 82

3.9 Summary 83

Questions for review 85

References 85

4 Fuzzy expert systems 87

4.1 Introduction, or what is fuzzy thinking? 87

4.2 Fuzzy sets 89

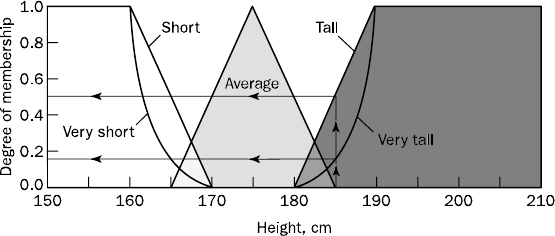

4.3 Linguistic variables and hedges 94

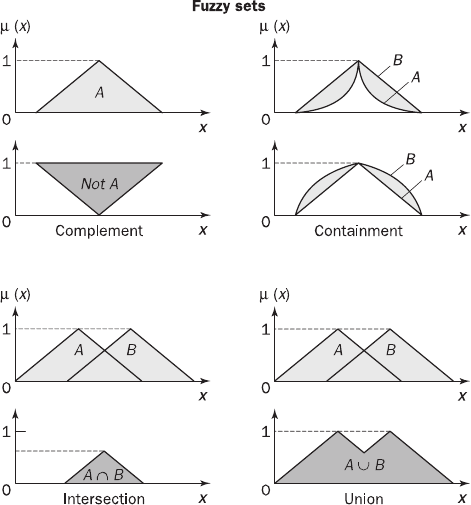

4.4 Operations of fuzzy sets 97

4.5 Fuzzy rules 103

4.6 Fuzzy inference 106

4.7 Building a fuzzy expert system 114

4.8 Summary 125

Questions for review 126

References 127

Bibliography 127

5 Frame-based expert systems 131

5.1 Introduction, or what is a frame? 131

5.2 Frames as a knowledge representation technique 133

5.3 Inheritance in frame-based systems 138

5.4 Methods and demons 142

5.5 Interaction of frames and rules 146

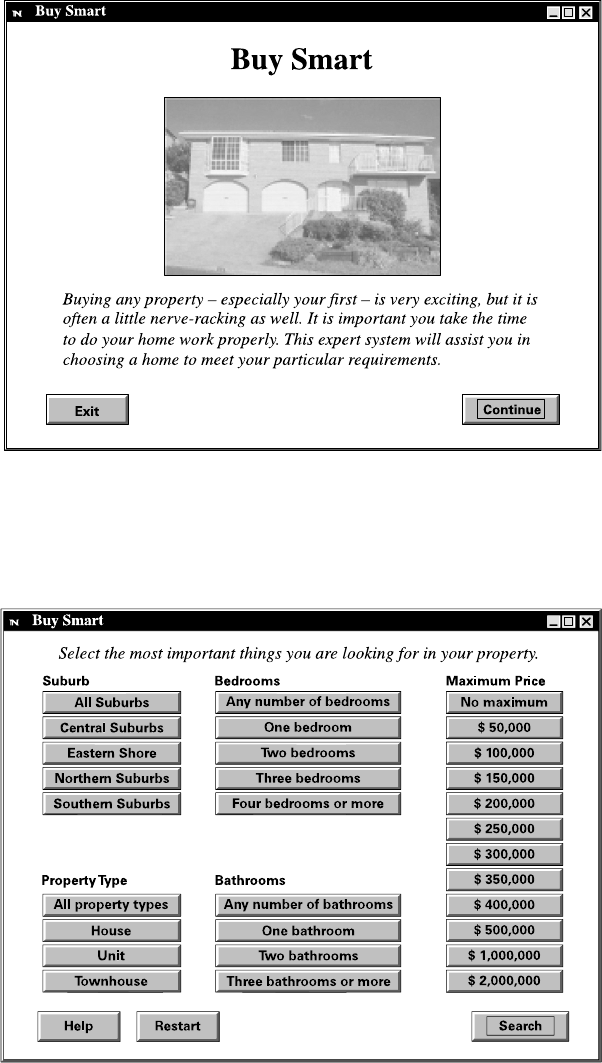

5.6 Buy Smart: a frame-based expert system 149

5.7 Summary 161

Questions for review 163

References 163

Bibliography 164

6 Artiﬁcial neural networks 165

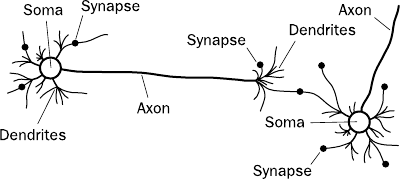

6.1 Introduction, or how the brain works 165

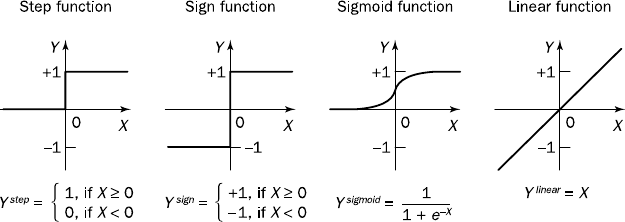

6.2 The neuron as a simple computing element 168

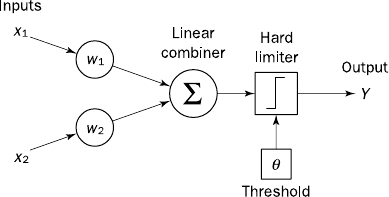

6.3 The perceptron 170

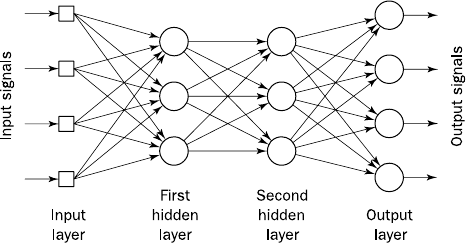

6.4 Multilayer neural networks 175

6.5 Accelerated learning in multilayer neural networks 185

6.6 The Hopﬁeld network 188

6.7 Bidirectional associative memory 196

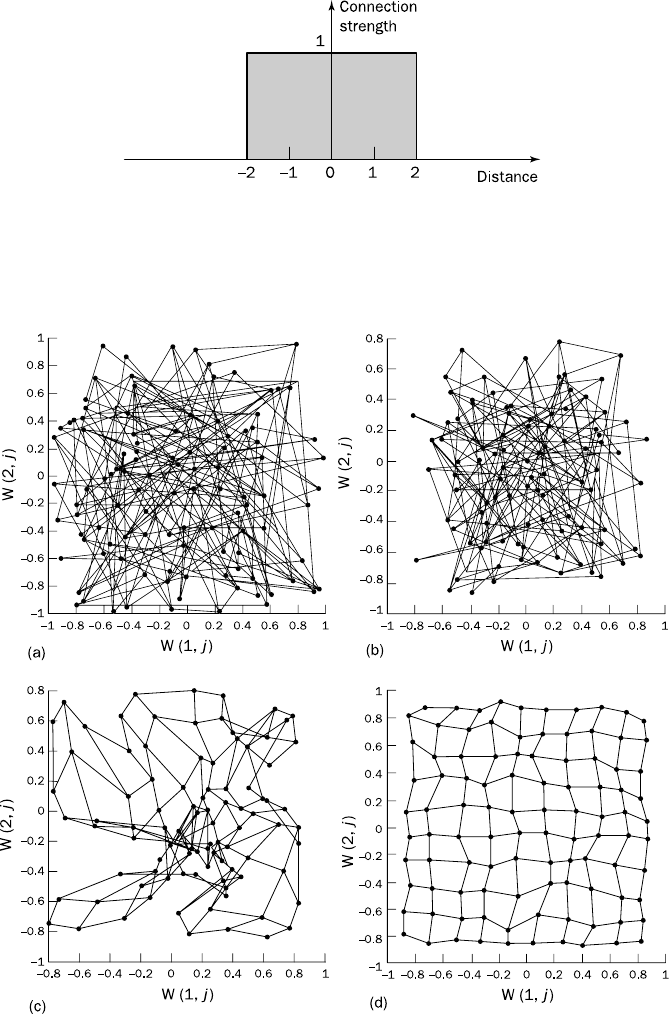

6.8 Self-organising neural networks 200

6.9 Summary 212

Questions for review 215

References 216

CONTENTSviii

7 Evolutionary computation 219

7.1 Introduction, or can evolution be intelligent? 219

7.2 Simulation of natural evolution 219

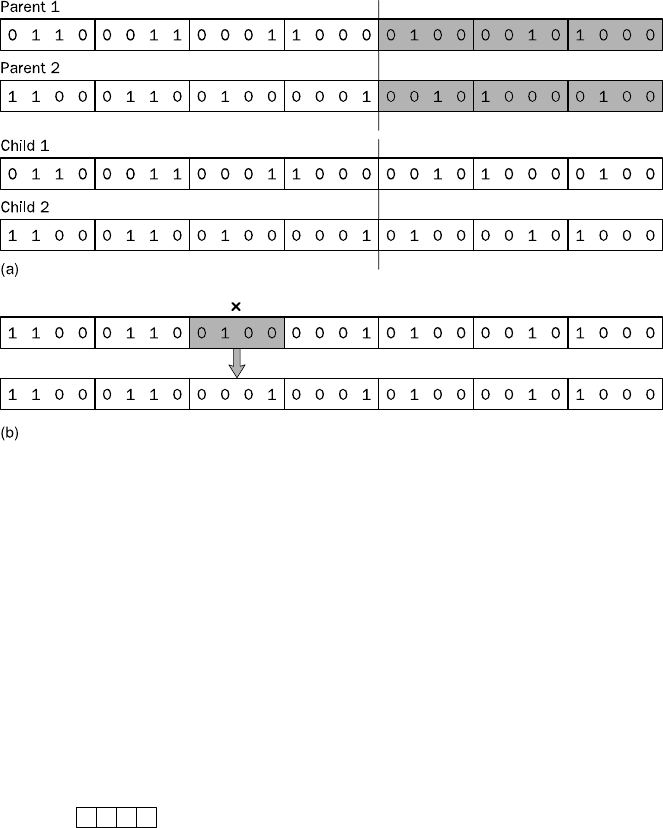

7.3 Genetic algorithms 222

7.4 Why genetic algorithms work 232

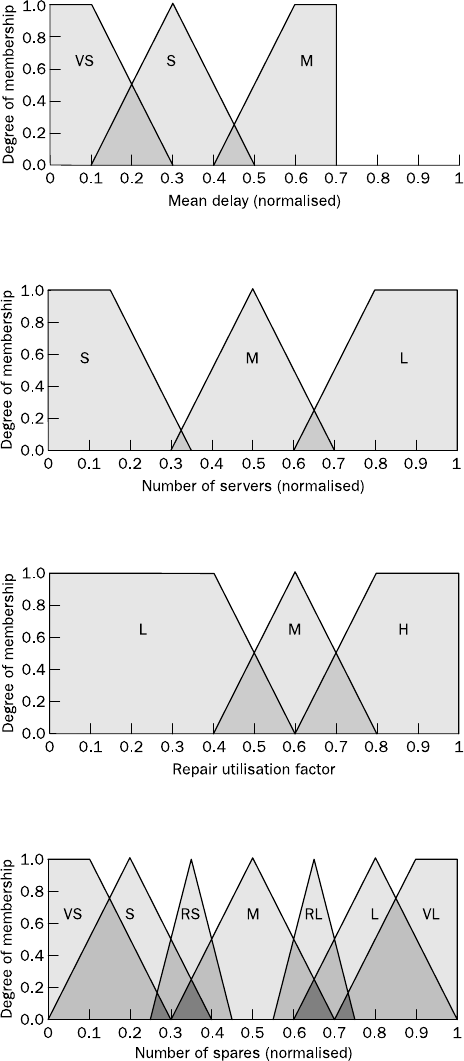

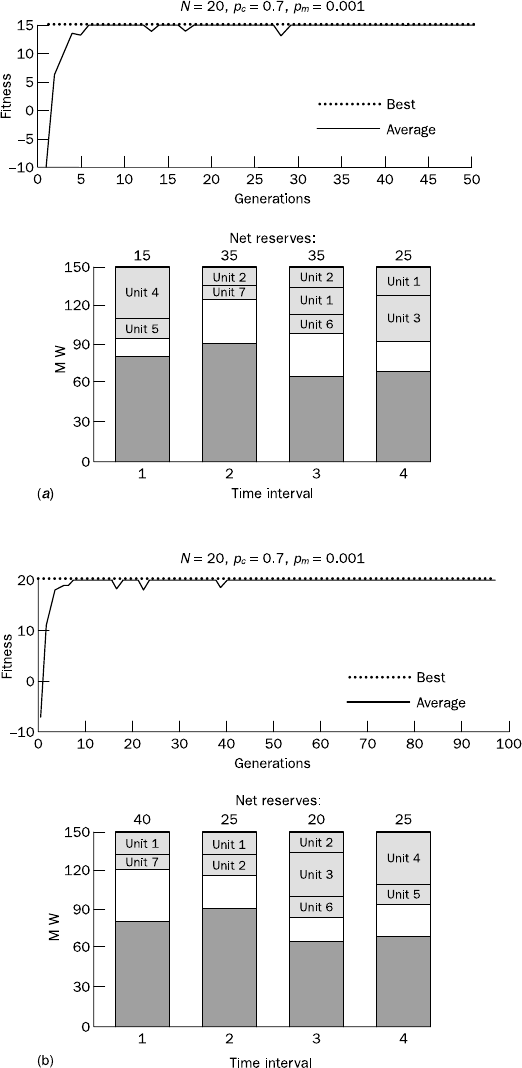

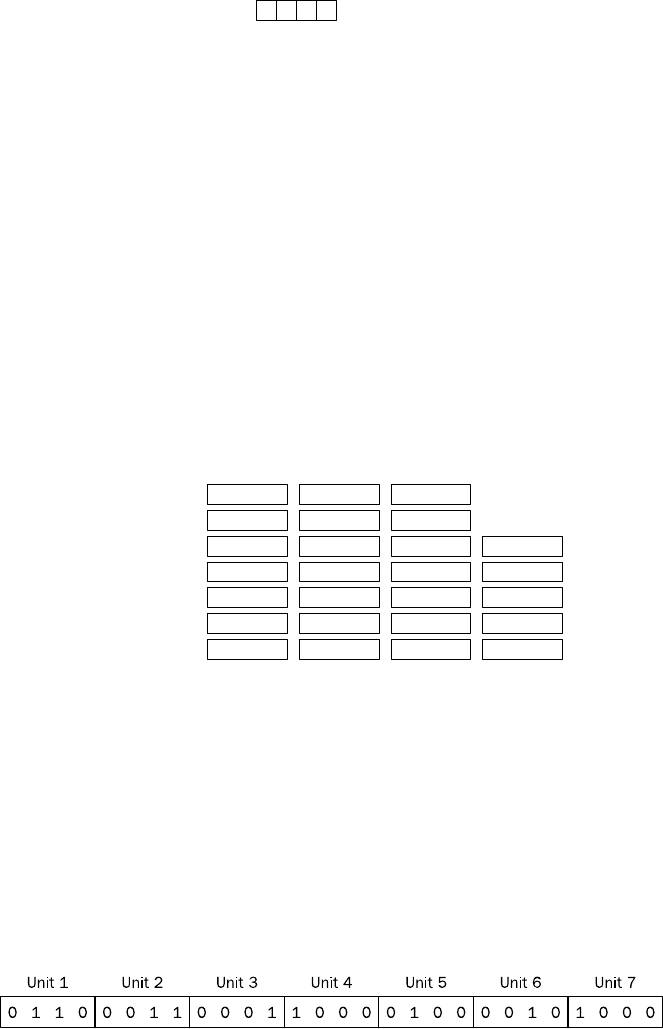

7.5 Case study: maintenance scheduling with genetic

algorithms 235

7.6 Evolution strategies 242

7.7 Genetic programming 245

7.8 Summary 254

Questions for review 255

References 256

Bibliography 257

8 Hybrid intelligent systems 259

8.1 Introduction, or how to combine German mechanics with

Italian love 259

8.2 Neural expert systems 261

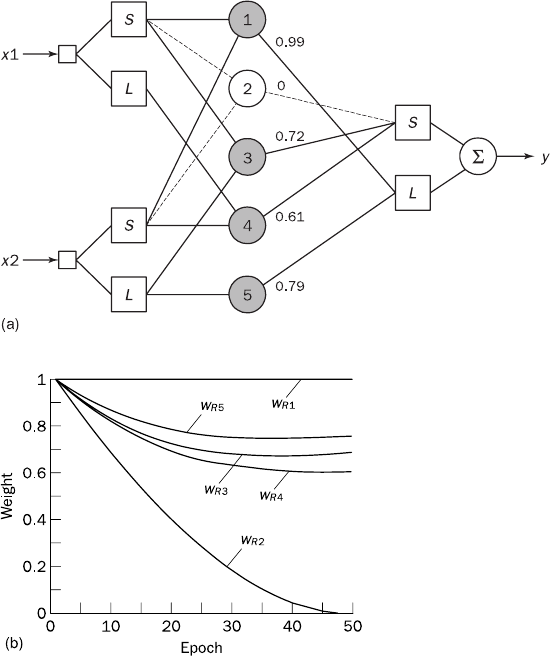

8.3 Neuro-fuzzy systems 268

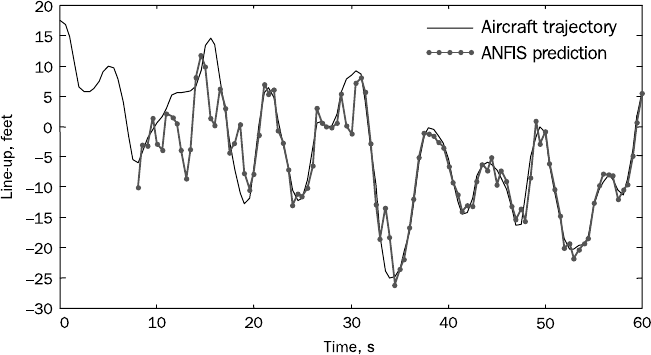

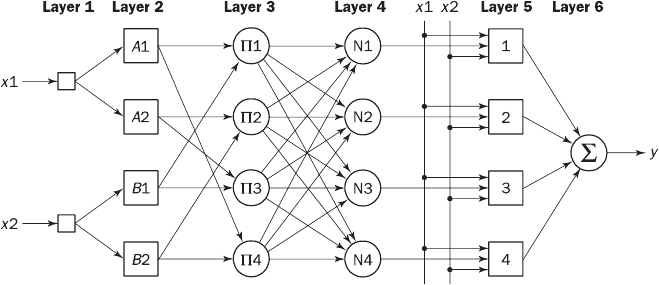

8.4 ANFIS: Adaptive Neuro-Fuzzy Inference System 277

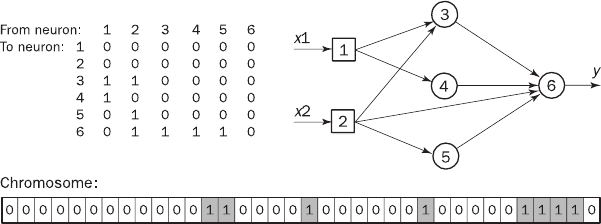

8.5 Evolutionary neural networks 285

8.6 Fuzzy evolutionary systems 290

8.7 Summary 296

Questions for review 297

References 298

9 Knowledge engineering and data mining 301

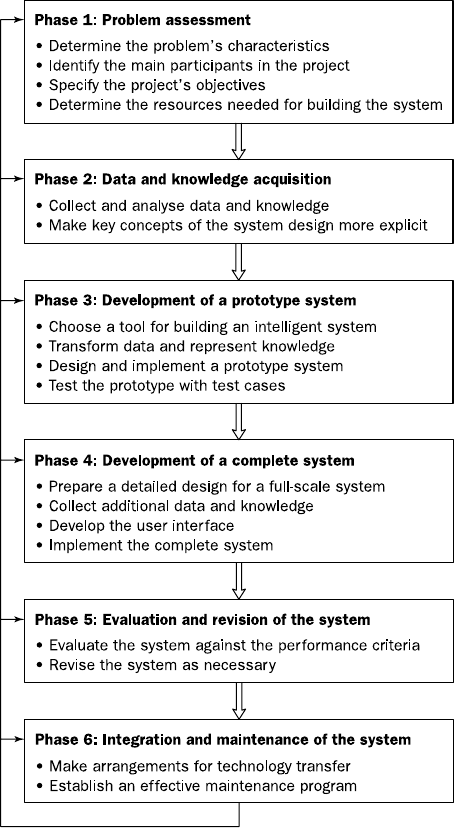

9.1 Introduction, or what is knowledge engineering? 301

9.2 Will an expert system work for my problem? 308

9.3 Will a fuzzy expert system work for my problem? 317

9.4 Will a neural network work for my problem? 323

9.5 Will genetic algorithms work for my problem? 336

9.6 Will a hybrid intelligent system work for my problem? 339

9.7 Data mining and knowledge discovery 349

9.8 Summary 361

Questions for review 362

References 363

Glossary 365

Appendix 391

Index 407

ixCONTENTS

Trademark notice

The following are trademarks or registered trademarks of their respective

companies:

KnowledgeSEEKER is a trademark of Angoss Software Corporation; Outlook and

Windows are trademarks of Microsoft Corporation; MATLAB is a trademark of

The MathWorks, Inc; Unix is a trademark of the Open Group.

See Appendix for AI tools and their respective vendors.

Preface

‘The only way not to succeed is not to try.’

Edward Teller

Another book on artiﬁcial intelligence . . . I’ve already seen so many of them.

Why should I bother with this one? What makes this book different from the

others?

Each year hundreds of books and doctoral theses extend our knowledge of

computer, or artiﬁcial, intelligence. Expert systems, artiﬁcial neural networks,

fuzzy systems and evolutionary computation are major technologies used in

intelligent systems. Hundreds of tools support these technologies, and thou-

sands of scientiﬁc papers continue to push their boundaries. The contents of any

chapter in this book can be, and in fact is, the subject of dozens of monographs.

However, I wanted to write a book that would explain the basics of intelligent

systems, and perhaps even more importantly, eliminate the fear of artiﬁcial

intelligence.

Most of the literature on artiﬁcial intelligence is expressed in the jargon of

computer science, and crowded with complex matrix algebra and differential

equations. This, of course, gives artiﬁcial intelligence an aura of respectability,

and until recently kept non-computer scientists at bay. But the situation has

changed!

The personal computer has become indispensable in our everyday life. We use

it as a typewriter and a calculator, a calendar and a communication system, an

interactive database and a decision-support system. And we want more. We want

our computers to act intelligently! We see that intelligent systems are rapidly

coming out of research laboratories, and we want to use them to our advantage.

What are the principles behind intelligent systems? How are they built? What

are intelligent systems useful for? How do we choose the right tool for the job?

These questions are answered in this book.

Unlike many books on computer intelligence, this one shows that most ideas

behind intelligent systems are wonderfully simple and straightforward. The book

is based on lectures given to students who have little knowledge of calculus. And

readers do not need to learn a programming language! The material in this book

has been extensively tested through several courses taught by the author for the

past decade. Typical questions and suggestions from my students inﬂuenced

the way this book was written.

The book is an introduction to the ﬁeld of computer intelligence. It covers

rule-based expert systems, fuzzy expert systems, frame-based expert systems,

artiﬁcial neural networks, evolutionary computation, hybrid intelligent systems

and knowledge engineering.

In a university setting, this book provides an introductory course for under-

graduate students in computer science, computer information systems, and

engineering. In the courses I teach, my students develop small rule-based and

frame-based expert systems, design a fuzzy system, explore artiﬁcial neural

networks, and implement a simple problem as a genetic algorithm. They use

expert system shells (Leonardo, XpertRule, Level5 Object and Visual Rule

Studio), MATLAB Fuzzy Logic Toolbox and MATLAB Neural Network Toolbox.

I chose these tools because they can easily demonstrate the theory being

presented. However, the book is not tied to any speciﬁc tool; the examples given

in the book are easy to implement with different tools.

This book is also suitable as a self-study guide for non-computer science

professionals. For them, the book provides access to the state of the art in

knowledge-based systems and computational intelligence. In fact, this book is

aimed at a large professional audience: engineers and scientists, managers and

businessmen, doctors and lawyers – everyone who faces challenging problems

and cannot solve them by using traditional approaches, everyone who wants to

understand the tremendous achievements in computer intelligence. The book

will help to develop a practical understanding of what intelligent systems can

and cannot do, discover which tools are most relevant for your task and, ﬁnally,

how to use these tools.

The book consists of nine chapters.

In Chapter 1, we brieﬂy discuss the history of artiﬁcial intelligence from the

era of great ideas and great expectations in the 1960s to the disillusionment and

funding cutbacks in the early 1970s; from the development of the ﬁrst expert

systems such as DENDRAL, MYCIN and PROSPECTOR in the seventies to the

maturity of expert system technology and its massive applications in different

areas in the 1980s and 1990s; from a simple binary model of neurons proposed in

the 1940s to a dramatic resurgence of the ﬁeld of artiﬁcial neural networks in the

1980s; from the introduction of fuzzy set theory and its being ignored by

the West in the 1960s to numerous ‘fuzzy’ consumer products offered by the

Japanese in the 1980s and world-wide acceptance of ‘soft’ computing and

computing with words in the 1990s.

In Chapter 2, we present an overview of rule-based expert systems. We brieﬂy

discuss what knowledge is, and how experts express their knowledge in the form

of production rules. We identify the main players in the expert system develop-

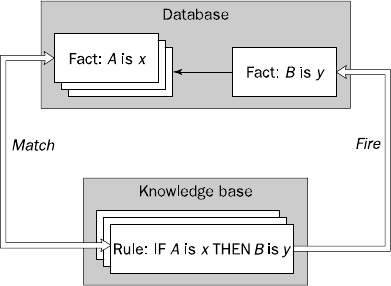

ment team and show the structure of a rule-based system. We discuss

fundamental characteristics of expert systems and note that expert systems can

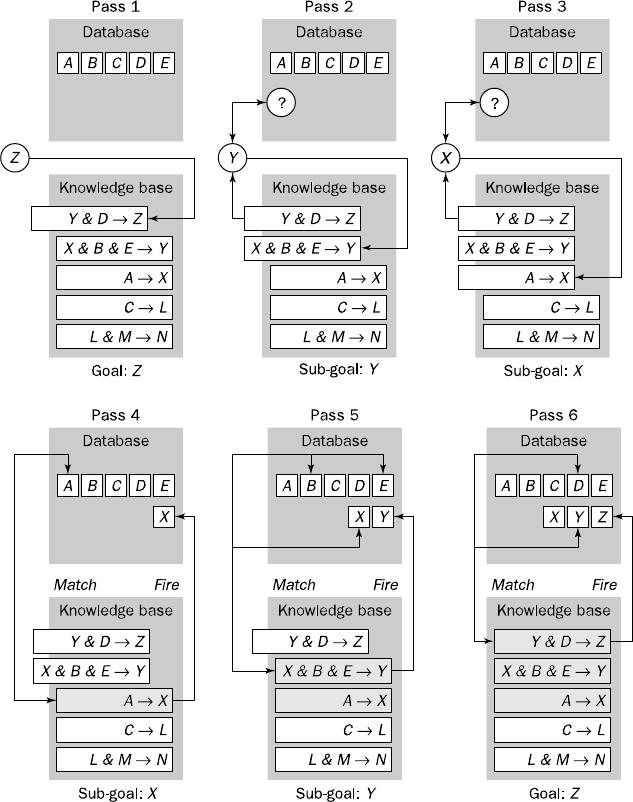

make mistakes. Then we review the forward and backward chaining inference

techniques and debate conﬂict resolution strategies. Finally, the advantages and

disadvantages of rule-based expert systems are examined.

PREFACExii

In Chapter 3, we present two uncertainty management techniques used in

expert systems: Bayesian reasoning and certainty factors. We identify the main

sources of uncertain knowledge and brieﬂy review probability theory. We consider

the Bayesian method of accumulating evidence and develop a simple expert

system based on the Bayesian approach. Then we examine the certainty factors

theory (a popular alternative to Bayesian reasoning) and develop an expert system

based on evidential reasoning. Finally, we compare Bayesian reasoning and

certainty factors, and determine appropriate areas for their applications.

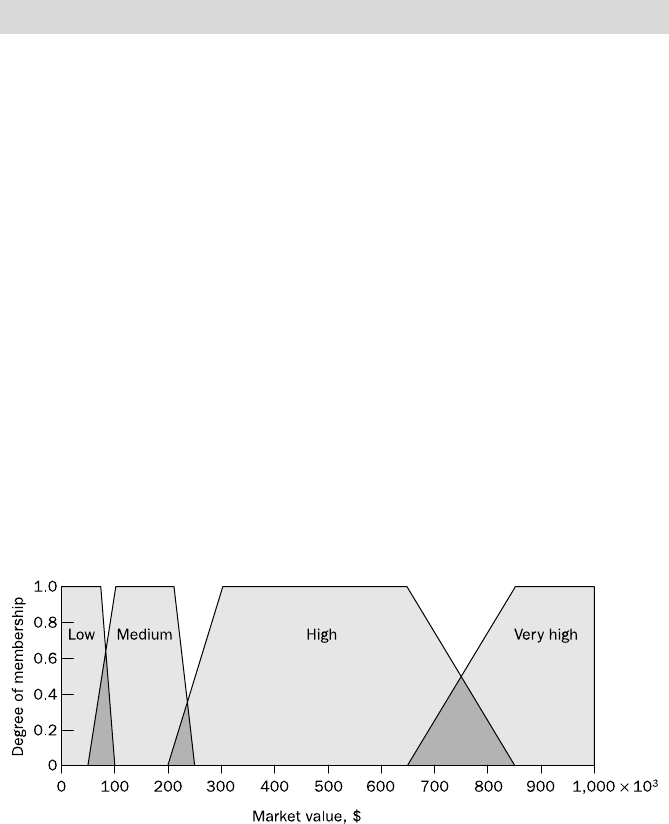

In Chapter 4, we introduce fuzzy logic and discuss the philosophical ideas

behind it. We present the concept of fuzzy sets, consider how to represent a fuzzy

set in a computer, and examine operations of fuzzy sets. We also deﬁne linguistic

variables and hedges. Then we present fuzzy rules and explain the main differences

between classical and fuzzy rules. We explore two fuzzy inference techniques –

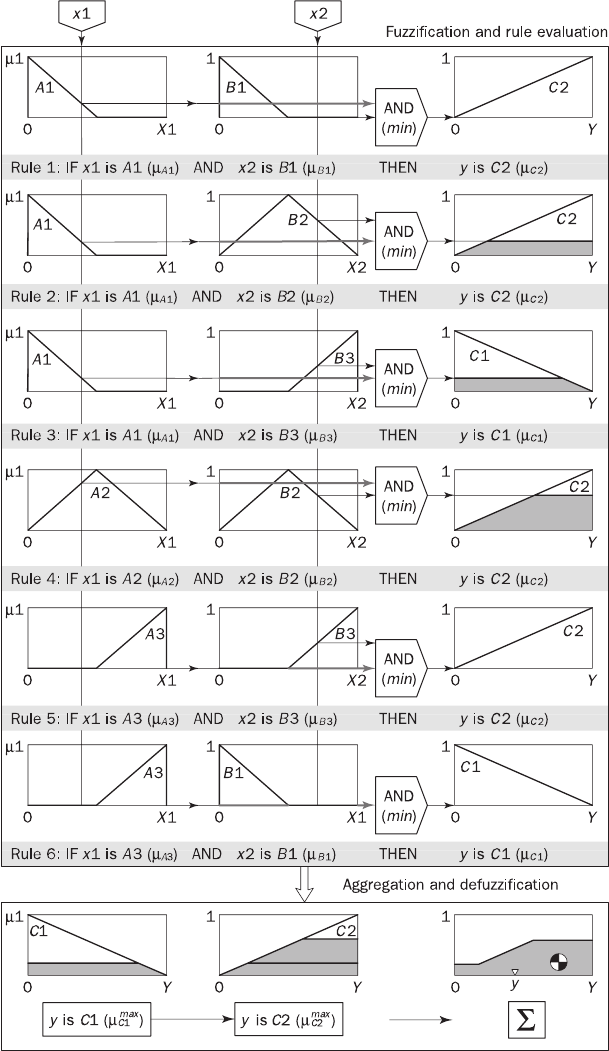

Mamdani and Sugeno – and suggest appropriate areas for their application. Finally,

we introduce the main steps in developing a fuzzy expert system, and illustrate the

theory through the actual process of building and tuning a fuzzy system.

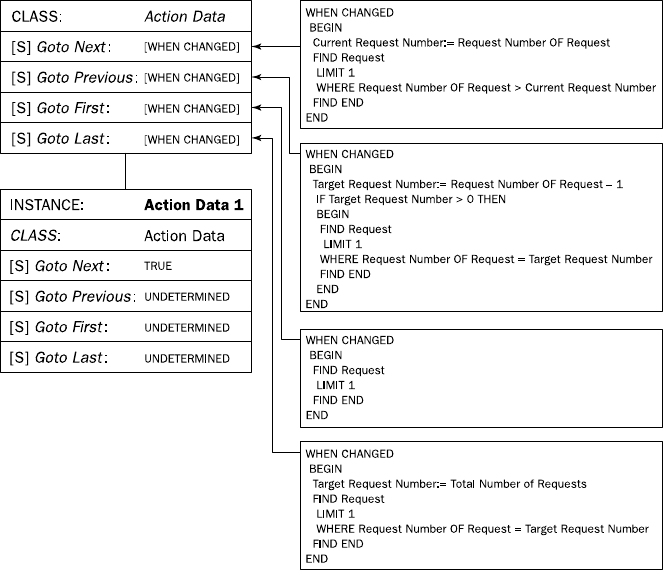

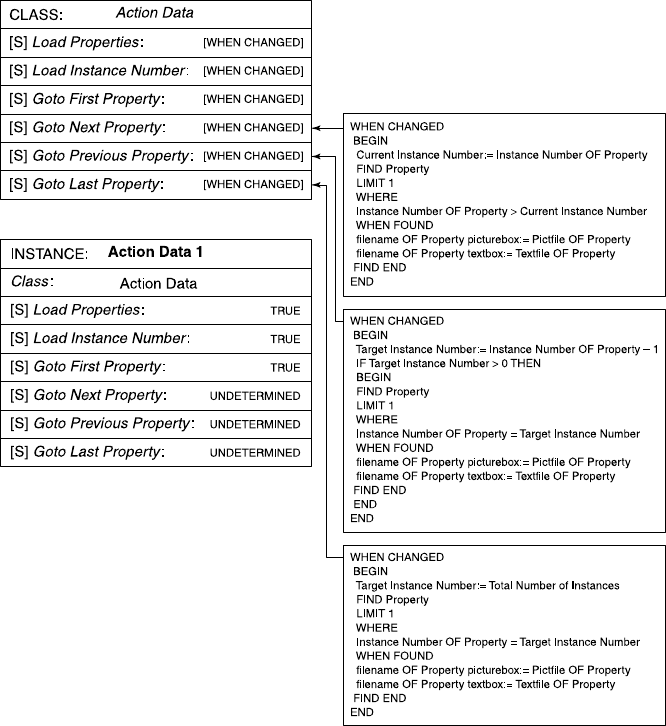

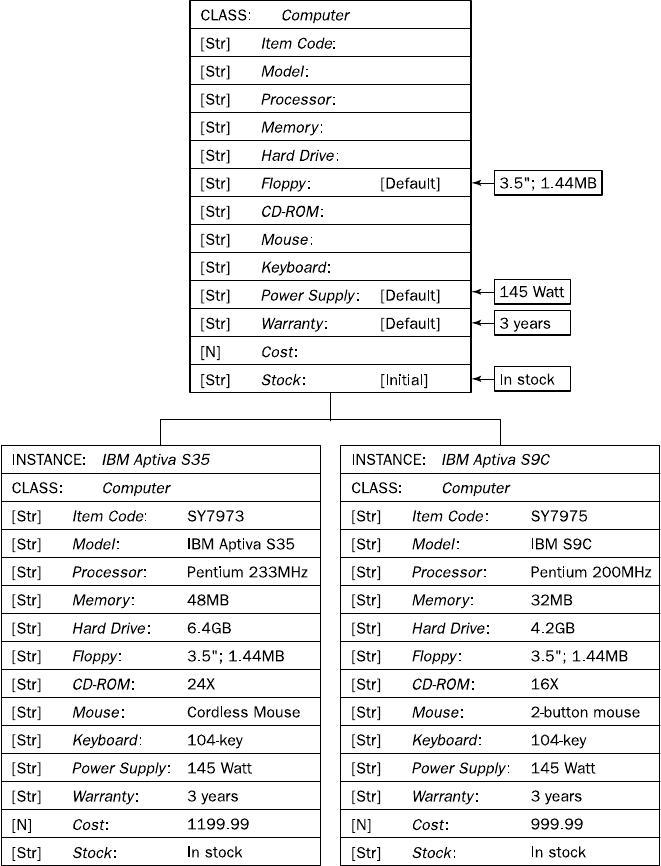

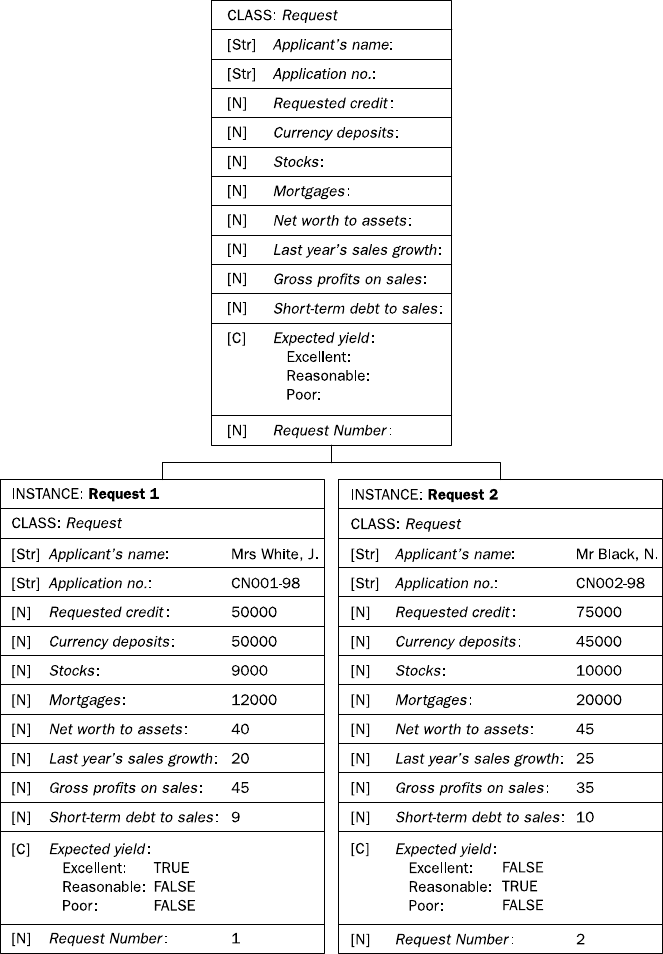

In Chapter 5, we present an overview of frame-based expert systems. We

consider the concept of a frame and discuss how to use frames for knowledge

representation. We ﬁnd that inheritance is an essential feature of frame

based systems. We examine the application of methods, demons and rules. Finally,

we consider the development of a frame-based expert system through an example.

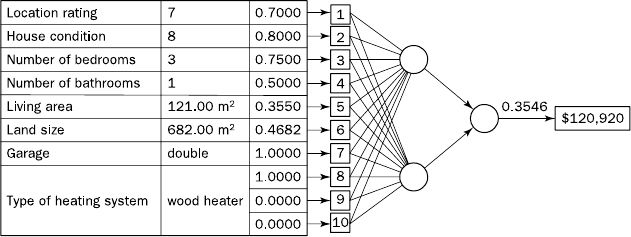

In Chapter 6, we introduce artiﬁcial neural networks and discuss the basic

ideas behind machine learning. We present the concept of a perceptron as a

simple computing element and consider the perceptron learning rule. We

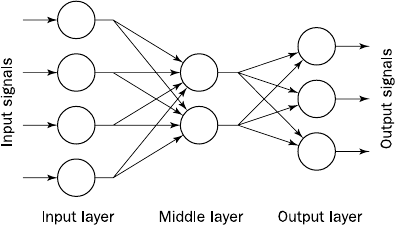

explore multilayer neural networks and discuss how to improve the computa-

tional efﬁciency of the back-propagation learning algorithm. Then we introduce

recurrent neural networks, consider the Hopﬁeld network training algorithm

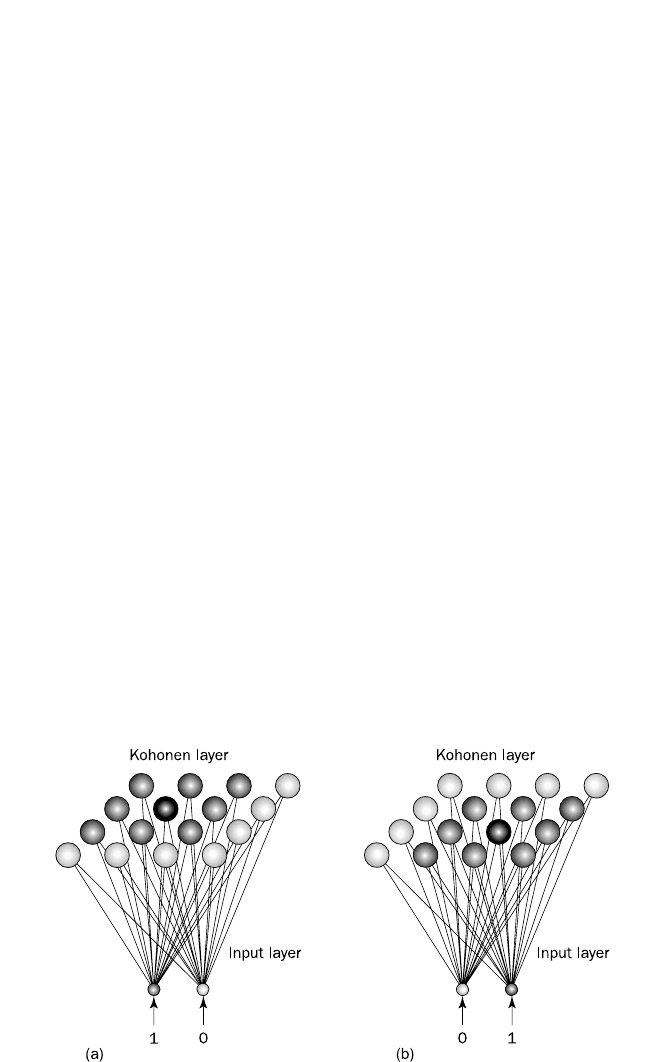

and bidirectional associative memory (BAM). Finally, we present self-organising

neural networks and explore Hebbian and competitive learning.

In Chapter 7, we present an overview of evolutionary computation. We consider

genetic algorithms, evolution strategies and genetic programming. We introduce the

main steps in developing a genetic algorithm, discuss why genetic algorithms work,

and illustrate the theory through actual applications of genetic algorithms. Then we

present a basic concept of evolutionary strategies and determine the differences

between evolutionary strategies and genetic algorithms. Finally, we consider genetic

programming and its application to real problems.

In Chapter 8, we consider hybrid intelligent systems as a combination of

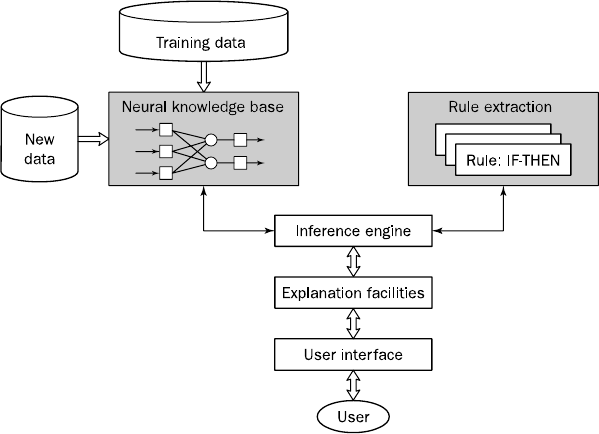

different intelligent technologies. First we introduce a new breed of expert

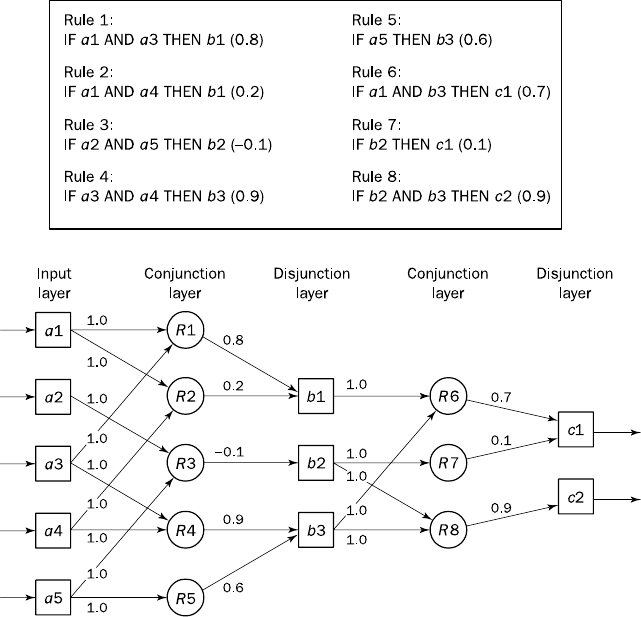

systems, called neural expert systems, which combine neural networks and rule-

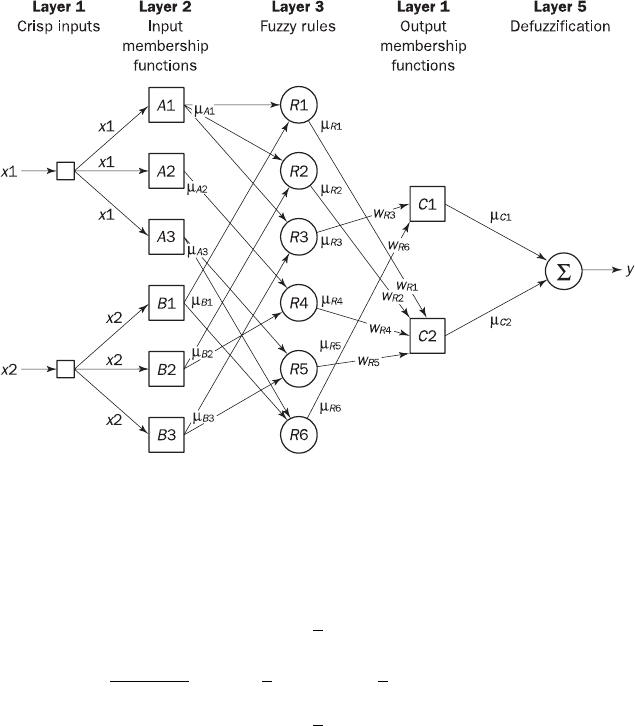

based expert systems. Then we consider a neuro-fuzzy system that is functionally

equivalent to the Mamdani fuzzy inference model, and an adaptive neuro-fuzzy

inference system (ANFIS), equivalent to the Sugeno fuzzy inference model. Finally,

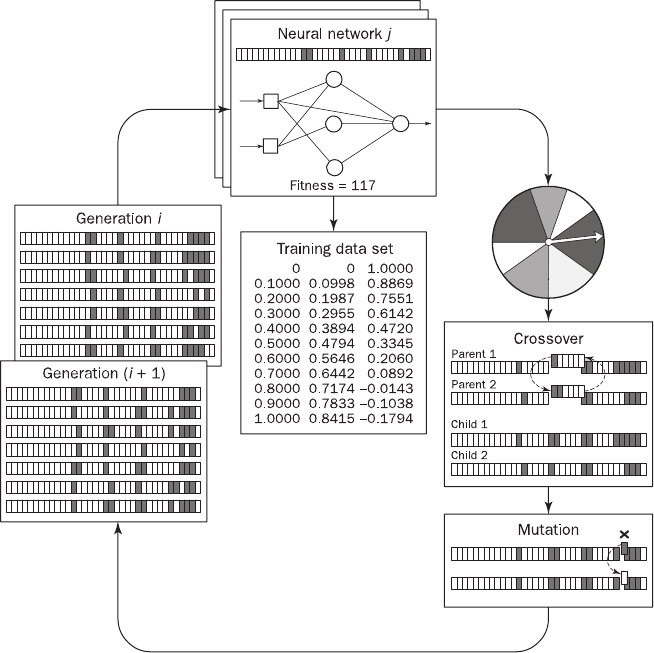

we discuss evolutionary neural networks and fuzzy evolutionary systems.

In Chapter 9, we consider knowledge engineering and data mining. First we

discuss what kind of problems can be addressed with intelligent systems and

introduce six main phases of the knowledge engineering process. Then we study

xiiiPREFACE

typical applications of intelligent systems, including diagnosis, classiﬁcation,

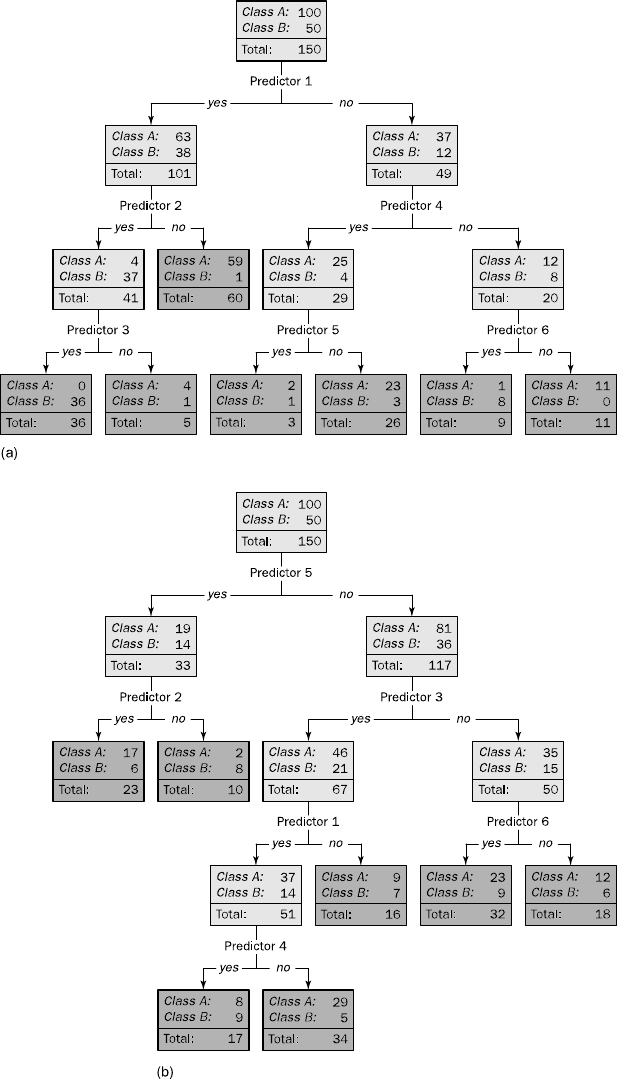

decision support, pattern recognition and prediction. Finally, we examine an

application of decision trees in data mining.

The book also has an appendix and a glossary. The appendix provides a list

of commercially available AI tools. The glossary contains deﬁnitions of over

250 terms used in expert systems, fuzzy logic, neural networks, evolutionary

computation, knowledge engineering and data mining.

I hope that the reader will share my excitement on the subject of artiﬁcial

intelligence and soft computing and will ﬁnd this book useful.

The website can be accessed at: http://www.booksites.net/negnevitsky

Michael Negnevitsky

Hobart, Tasmania, Australia

February 2001

xiv PREFACE

Prefacetothesecondedition

The main objective of the book remains the same as in the ﬁrst edition – to

provide the reader with practical understanding of the ﬁeld of computer

intelligence. It is intended as an introductory text suitable for a one-semester

course, and assumes the students have no programming experience.

In terms of the coverage, in this edition we demonstrate several new

applications of intelligent tools for solving speciﬁc problems. The changes are

in the following chapters:

.In Chapter 2, we introduce a new demonstration rule-based expert system,

MEDIA ADVISOR.

.In Chapter 9, we add a new case study on classiﬁcation neural networks with

competitive learning.

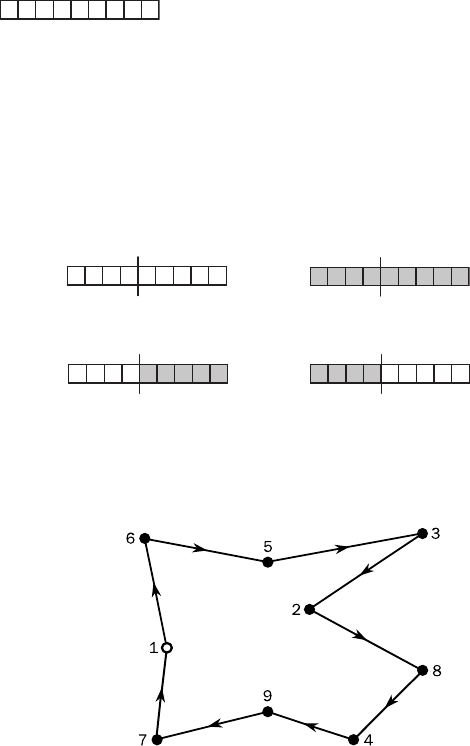

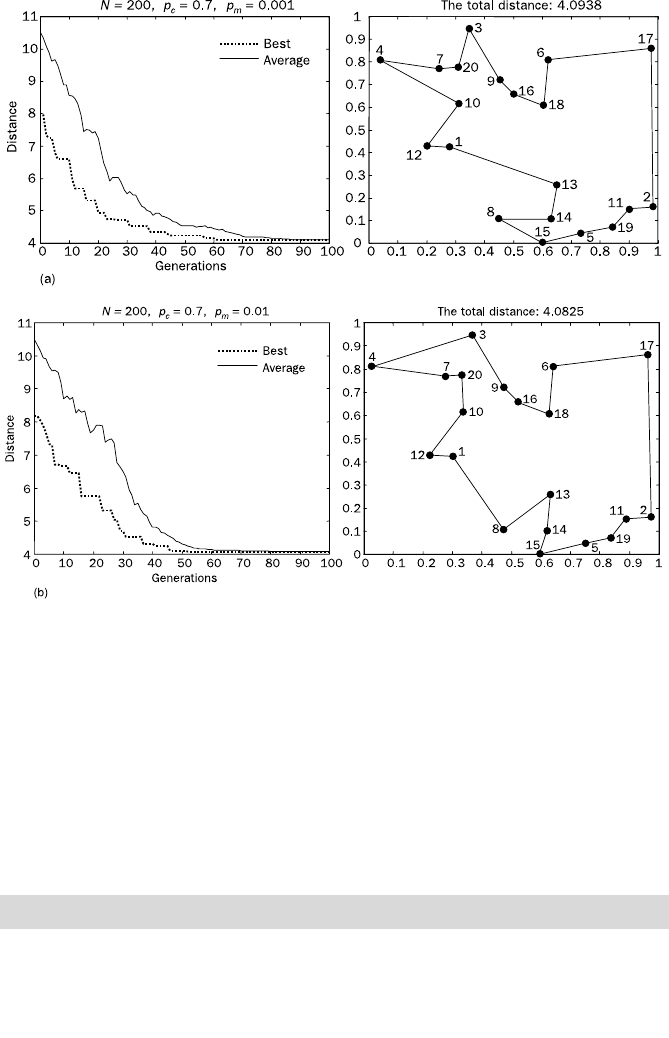

.In Chapter 9, we introduce a section ‘Will genetic algorithms work for my

problem?’. The section includes a case study with the travelling salesman

problem.

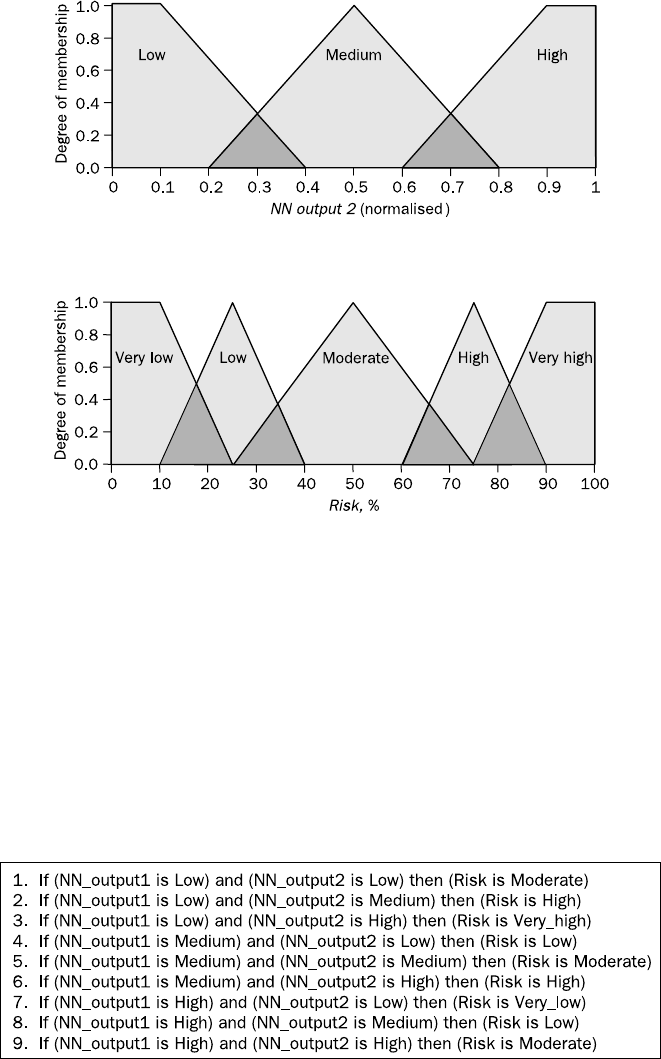

.Also in Chapter 9, we add a new section ‘Will a hybrid intelligent system work

for my problem?’. This section includes two case studies: the ﬁrst covers a

neuro-fuzzy decision-support system with a heterogeneous structure, and the

second explores an adaptive neuro-fuzzy inference system (ANFIS) with a

homogeneous structure.

Finally, we have expanded the book’s references and bibliographies, and updated

the list of AI tools and vendors in the appendix.

Michael Negnevitsky

Hobart, Tasmania, Australia

January 2004

Acknowledgements

I am deeply indebted to many people who, directly or indirectly, are responsible

for this book coming into being. I am most grateful to Dr Vitaly Faybisovich for

his constructive criticism of my research on soft computing, and most of all for

his friendship and support in all my endeavours for the last twenty years.

I am also very grateful to numerous reviewers of my book for their comments

and helpful suggestions, and to the Pearson Education editors, particularly Keith

Mansﬁeld, Owen Knight and Liz Johnson, who led me through the process of

publishing this book.

I also thank my undergraduate and postgraduate students from the University

of Tasmania, especially my former Ph.D. students Tan Loc Le, Quang Ha and

Steven Carter, whose desire for new knowledge was both a challenge and an

inspiration to me.

I am indebted to Professor Stephen Grossberg from Boston University,

Professor Frank Palis from the Otto-von-Guericke-Universita¨t Magdeburg,

Germany, Professor Hiroshi Sasaki from Hiroshima University, Japan and

Professor Walter Wolf from the Rochester Institute of Technology, USA for

giving me the opportunity to test the book’s material on their students.

I am also truly grateful to Dr Vivienne Mawson and Margaret Eldridge for

proof-reading the draft text.

Although the ﬁrst edition of this book appeared just two years ago, I cannot

possibly thank all the people who have already used it and sent me their

comments. However, I must acknowledge at least those who made especially

helpful suggestions: Martin Beck (University of Plymouth, UK), Mike Brooks

(University of Adelaide, Australia), Genard Catalano (Columbia College, USA),

Warren du Plessis (University of Pretoria, South Africa), Salah Amin Elewa

(American University, Egypt), John Fronckowiak (Medaille College, USA), Lev

Goldfarb (University of New Brunswick, Canada), Susan Haller (University of

Wisconsin, USA), Evor Hines (University of Warwick, UK), Philip Hingston (Edith

Cowan University, Australia), Sam Hui (Stanford University, USA), David Lee

(University of Hertfordshire, UK), Leon Reznik (Rochester Institute of Technology,

USA), Simon Shiu (Hong Kong Polytechnic University), Thomas Uthmann

(Johannes Gutenberg-Universita¨t Mainz, Germany), Anne Venables (Victoria

University, Australia), Brigitte Verdonk (University of Antwerp, Belgium), Ken

Vollmar (Southwest Missouri State University, USA) and Kok Wai Wong (Nanyang

Technological University, Singapore).

1Introduction to knowledge-

based intelligent systems

In which we consider what it means to be intelligent and whether

machines could be such a thing.

1.1 Intelligent machines, or what machines can do

Philosophers have been trying for over two thousand years to understand and

resolve two big questions of the universe: how does a human mind work, and

can non-humans have minds? However, these questions are still unanswered.

Some philosophers have picked up the computational approach originated by

computer scientists and accepted the idea that machines can do everything that

humans can do. Others have openly opposed this idea, claiming that such

highly sophisticated behaviour as love, creative discovery and moral choice will

always be beyond the scope of any machine.

The nature of philosophy allows for disagreements to remain unresolved. In

fact, engineers and scientists have already built machines that we can call

‘intelligent’. So what does the word ‘intelligence’ mean? Let us look at a

dictionary deﬁnition.

1 Someone’s intelligence is their ability to understand and learn things.

2Intelligence is the ability to think and understand instead of doing things

by instinct or automatically.

(Essential English Dictionary, Collins, London, 1990)

Thus, according to the ﬁrst deﬁnition, intelligence is the quality possessed by

humans. But the second deﬁnition suggests a completely different approach and

gives some ﬂexibility; it does not specify whether it is someone or something

that has the ability to think and understand. Now we should discover what

thinking means. Let us consult our dictionary again.

Thinking is the activity of using your brain to consider a problem or to create

an idea.

(Essential English Dictionary, Collins, London, 1990)

So, in order to think, someone or something has to have a brain, or in other

words, an organ that enables someone or something to learn and understand

things, to solve problems and to make decisions. So we can deﬁne intelligence as

‘the ability to learn and understand, to solve problems and to make decisions’.

The very question that asks whether computers can be intelligent, or whether

machines can think, came to us from the ‘dark ages’ of artiﬁcial intelligence

(from the late 1940s). The goal of artiﬁcial intelligence (AI) as a science is to

make machines do things that would require intelligence if done by humans

(Boden, 1977). Therefore, the answer to the question ‘Can machines think?’ was

vitally important to the discipline. However, the answer is not a simple ‘Yes’ or

‘No’, but rather a vague or fuzzy one. Your everyday experience and common

sense would have told you that. Some people are smarter in some ways than

others. Sometimes we make very intelligent decisions but sometimes we also

make very silly mistakes. Some of us deal with complex mathematical and

engineering problems but are moronic in philosophy and history. Some people

are good at making money, while others are better at spending it. As humans, we

all have the ability to learn and understand, to solve problems and to make

decisions; however, our abilities are not equal and lie in different areas. There-

fore, we should expect that if machines can think, some of them might be

smarter than others in some ways.

One of the earliest and most signiﬁcant papers on machine intelligence,

‘Computing machinery and intelligence’, was written by the British mathema-

tician Alan Turing over ﬁfty years ago (Turing, 1950). However, it has stood up

well to the test of time, and Turing’s approach remains universal.

Alan Turing began his scientiﬁc career in the early 1930s by rediscovering the

Central Limit Theorem. In 1937 he wrote a paper on computable numbers, in

which he proposed the concept of a universal machine. Later, during the Second

World War, he was a key player in deciphering Enigma, the German military

encoding machine. After the war, Turing designed the ‘Automatic Computing

Engine’. He also wrote the ﬁrst program capable of playing a complete chess

game; it was later implemented on the Manchester University computer.

Turing’s theoretical concept of the universal computer and his practical experi-

ence in building code-breaking systems equipped him to approach the key

fundamental question of artiﬁcial intelligence. He asked: Is there thought

without experience? Is there mind without communication? Is there language

without living? Is there intelligence without life? All these questions, as you can

see, are just variations on the fundamental question of artiﬁcial intelligence, Can

machines think?

Turing did not provide deﬁnitions of machines and thinking, he just avoided

semantic arguments by inventing a game, the Turing imitation game. Instead

of asking, ‘Can machines think?’, Turing said we should ask, ‘Can machines pass

a behaviour test for intelligence?’ He predicted that by the year 2000, a computer

could be programmed to have a conversation with a human interrogator for ﬁve

minutes and would have a 30 per cent chance of deceiving the interrogator that

it was a human. Turing deﬁned the intelligent behaviour of a computer as the

ability to achieve the human-level performance in cognitive tasks. In other

INTRODUCTION TO KNOWLEDGE-BASED INTELLIGENT SYSTEMS2

words, a computer passes the test if interrogators cannot distinguish the

machine from a human on the basis of the answers to their questions.

The imitation game proposed by Turing originally included two phases. In

the ﬁrst phase, shown in Figure 1.1, the interrogator, a man and a woman are

each placed in separate rooms and can communicate only via a neutral medium

such as a remote terminal. The interrogator’s objective is to work out who is the

man and who is the woman by questioning them. The rules of the game are

that the man should attempt to deceive the interrogator that he is the woman,

while the woman has to convince the interrogator that she is the woman.

In the second phase of the game, shown in Figure 1.2, the man is replaced by a

computer programmed to deceive the interrogator as the man did. It would even

be programmed to make mistakes and provide fuzzy answers in the way a human

would. If the computer can fool the interrogator as often as the man did, we may

say this computer has passed the intelligent behaviour test.

Physical simulation of a human is not important for intelligence. Hence, in

the Turing test the interrogator does not see, touch or hear the computer and is

therefore not inﬂuenced by its appearance or voice. However, the interrogator

is allowed to ask any questions, even provocative ones, in order to identify

the machine. The interrogator may, for example, ask both the human and the

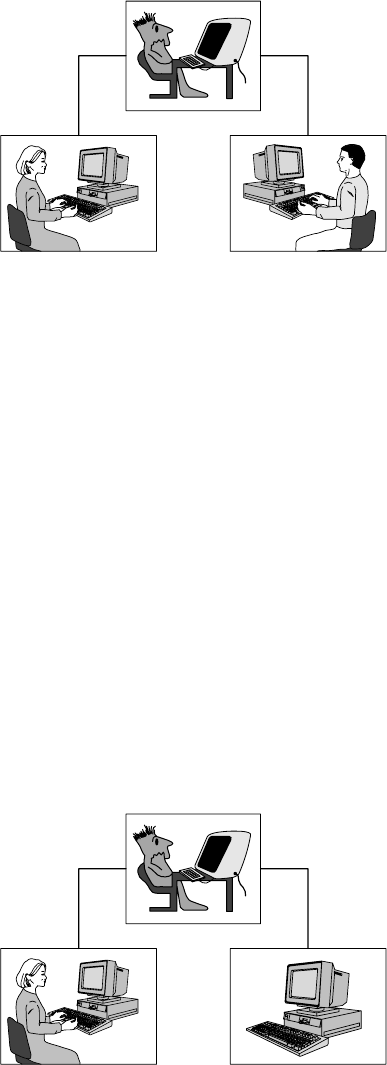

Figure 1.1 Turing imitation game: phase 1

Figure 1.2 Turing imitation game: phase 2

INTELLIGENT MACHINES 3

machine to perform complex mathematical calculations, expecting that the

computer will provide a correct solution and will do it faster than the human.

Thus, the computer will need to know when to make a mistake and when to

delay its answer. The interrogator also may attempt to discover the emotional

nature of the human, and thus, he might ask both subjects to examine a short

novel or poem or even painting. Obviously, the computer will be required here

to simulate a human’s emotional understanding of the work.

The Turing test has two remarkable qualities that make it really universal.

.By maintaining communication between the human and the machine via

terminals, the test gives us an objective standard view on intelligence. It

avoids debates over the human nature of intelligence and eliminates any bias

in favour of humans.

.The test itself is quite independent from the details of the experiment. It can

be conducted either as a two-phase game as just described, or even as a single-

phase game in which the interrogator needs to choose between the human

and the machine from the beginning of the test. The interrogator is also free

to ask any question in any ﬁeld and can concentrate solely on the content of

the answers provided.

Turing believed that by the end of the 20th century it would be possible to

program a digital computer to play the imitation game. Although modern

computers still cannot pass the Turing test, it provides a basis for the veriﬁcation

and validation of knowledge-based systems. A program thought intelligent in

some narrow area of expertise is evaluated by comparing its performance with

the performance of a human expert.

Our brain stores the equivalent of over 1018 bits and can process information

at the equivalent of about 1015 bits per second. By 2020, the brain will probably

be modelled by a chip the size of a sugar cube – and perhaps by then there will be

a computer that can play – even win – the Turing imitation game. However, do

we really want the machine to perform mathematical calculations as slowly and

inaccurately as humans do? From a practical point of view, an intelligent

machine should help humans to make decisions, to search for information, to

control complex objects, and ﬁnally to understand the meaning of words. There

is probably no point in trying to achieve the abstract and elusive goal of

developing machines with human-like intelligence. To build an intelligent

computer system, we have to capture, organise and use human expert knowl-

edge in some narrow area of expertise.

1.2 The history of artiﬁcial intelligence, or from the ‘Dark

Ages’ to knowledge-based systems

Artiﬁcial intelligence as a science was founded by three generations of research-

ers. Some of the most important events and contributors from each generation

are described next.

INTRODUCTION TO KNOWLEDGE-BASED INTELLIGENT SYSTEMS4

1.2.1 The ‘Dark Ages’, or the birth of artiﬁcial intelligence (1943–56)

The ﬁrst work recognised in the ﬁeld of artiﬁcial intelligence (AI) was presented

by Warren McCulloch and Walter Pitts in 1943. McCulloch had degrees in

philosophy and medicine from Columbia University and became the Director of

the Basic Research Laboratory in the Department of Psychiatry at the University

of Illinois. His research on the central nervous system resulted in the ﬁrst major

contribution to AI: a model of neurons of the brain.

McCulloch and his co-author Walter Pitts, a young mathematician, proposed

a model of artiﬁcial neural networks in which each neuron was postulated as

being in binary state, that is, in either on or off condition (McCulloch and Pitts,

1943). They demonstrated that their neural network model was, in fact,

equivalent to the Turing machine, and proved that any computable function

could be computed by some network of connected neurons. McCulloch and Pitts

also showed that simple network structures could learn.

The neural network model stimulated both theoretical and experimental

work to model the brain in the laboratory. However, experiments clearly

demonstrated that the binary model of neurons was not correct. In fact,

a neuron has highly non-linear characteristics and cannot be considered as a

simple two-state device. Nonetheless, McCulloch, the second ‘founding father’

of AI after Alan Turing, had created the cornerstone of neural computing and

artiﬁcial neural networks (ANN). After a decline in the 1970s, the ﬁeld of ANN

was revived in the late 1980s.

The third founder of AI was John von Neumann, the brilliant Hungarian-

born mathematician. In 1930, he joined the Princeton University, lecturing in

mathematical physics. He was a colleague and friend of Alan Turing. During the

Second World War, von Neumann played a key role in the Manhattan Project

that built the nuclear bomb. He also became an adviser for the Electronic

Numerical Integrator and Calculator (ENIAC) project at the University of

Pennsylvania and helped to design the Electronic Discrete Variable Automatic

Computer (EDVAC), a stored program machine. He was inﬂuenced by

McCulloch and Pitts’s neural network model. When Marvin Minsky and Dean

Edmonds, two graduate students in the Princeton mathematics department,

built the ﬁrst neural network computer in 1951, von Neumann encouraged and

supported them.

Another of the ﬁrst-generation researchers was Claude Shannon. He gradu-

ated from Massachusetts Institute of Technology (MIT) and joined Bell

Telephone Laboratories in 1941. Shannon shared Alan Turing’s ideas on the

possibility of machine intelligence. In 1950, he published a paper on chess-

playing machines, which pointed out that a typical chess game involved about

10120 possible moves (Shannon, 1950). Even if the new von Neumann-type

computer could examine one move per microsecond, it would take 3 10106

years to make its ﬁrst move. Thus Shannon demonstrated the need to use

heuristics in the search for the solution.

Princeton University was also home to John McCarthy, another founder of AI.

He convinced Martin Minsky and Claude Shannon to organise a summer

5THE HISTORY OF ARTIFICIAL INTELLIGENCE

workshop at Dartmouth College, where McCarthy worked after graduating from

Princeton. In 1956, they brought together researchers interested in the study of

machine intelligence, artiﬁcial neural nets and automata theory. The workshop

was sponsored by IBM. Although there were just ten researchers, this workshop

gave birth to a new science called artiﬁcial intelligence. For the next twenty

years the ﬁeld of AI would be dominated by the participants at the Dartmouth

workshop and their students.

1.2.2 The rise of artiﬁcial intelligence, or the era of great expectations

(1956–late 1960s)

The early years of AI are characterised by tremendous enthusiasm, great ideas

and very limited success. Only a few years before, computers had been intro-

duced to perform routine mathematical calculations, but now AI researchers

were demonstrating that computers could do more than that. It was an era of

great expectations.

John McCarthy, one of the organisers of the Dartmouth workshop and the

inventor of the term ‘artiﬁcial intelligence’, moved from Dartmouth to MIT. He

deﬁned the high-level language LISP – one of the oldest programming languages

(FORTRAN is just two years older), which is still in current use. In 1958,

McCarthy presented a paper, ‘Programs with Common Sense’, in which he

proposed a program called the Advice Taker to search for solutions to general

problems of the world (McCarthy, 1958). McCarthy demonstrated how his

program could generate, for example, a plan to drive to the airport, based on

some simple axioms. Most importantly, the program was designed to accept new

axioms, or in other words new knowledge, in different areas of expertise without

being reprogrammed. Thus the Advice Taker was the ﬁrst complete knowledge-

based system incorporating the central principles of knowledge representation

and reasoning.

Another organiser of the Dartmouth workshop, Marvin Minsky, also moved

to MIT. However, unlike McCarthy with his focus on formal logic, Minsky

developed an anti-logical outlook on knowledge representation and reasoning.

His theory of frames (Minsky, 1975) was a major contribution to knowledge

engineering.

The early work on neural computing and artiﬁcial neural networks started by

McCulloch and Pitts was continued. Learning methods were improved and Frank

Rosenblatt proved the perceptron convergence theorem, demonstrating that

his learning algorithm could adjust the connection strengths of a perceptron

(Rosenblatt, 1962).

One of the most ambitious projects of the era of great expectations was the

General Problem Solver (GPS) (Newell and Simon, 1961, 1972). Allen Newell and

Herbert Simon from the Carnegie Mellon University developed a general-

purpose program to simulate human problem-solving methods. GPS was

probably the ﬁrst attempt to separate the problem-solving technique from the

data. It was based on the technique now referred to as means-ends analysis.

INTRODUCTION TO KNOWLEDGE-BASED INTELLIGENT SYSTEMS6

Newell and Simon postulated that a problem to be solved could be deﬁned in

terms of states. The means-ends analysis was used to determine a difference

between the current state and the desirable state or the goal state of the

problem, and to choose and apply operators to reach the goal state. If the goal

state could not be immediately reached from the current state, a new state closer

to the goal would be established and the procedure repeated until the goal state

was reached. The set of operators determined the solution plan.

However, GPS failed to solve complicated problems. The program was based

on formal logic and therefore could generate an inﬁnite number of possible

operators, which is inherently inefﬁcient. The amount of computer time and

memory that GPS required to solve real-world problems led to the project being

abandoned.

In summary, we can say that in the 1960s, AI researchers attempted to

simulate the complex thinking process by inventing general methods for

solving broad classes of problems. They used the general-purpose search

mechanism to ﬁnd a solution to the problem. Such approaches, now referred

to as weak methods, applied weak information about the problem domain; this

resulted in weak performance of the programs developed.

However, it was also a time when the ﬁeld of AI attracted great scientists who

introduced fundamental new ideas in such areas as knowledge representation,

learning algorithms, neural computing and computing with words. These ideas

could not be implemented then because of the limited capabilities of computers,

but two decades later they have led to the development of real-life practical

applications.

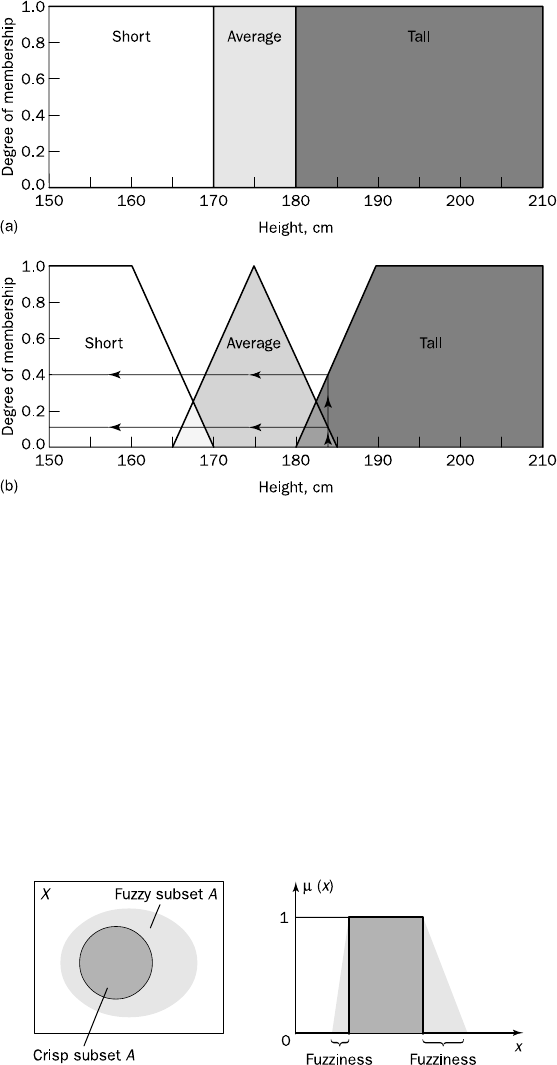

It is interesting to note that Lotﬁ Zadeh, a professor from the University of

California at Berkeley, published his famous paper ‘Fuzzy sets’ also in the 1960s

(Zadeh, 1965). This paper is now considered the foundation of the fuzzy set

theory. Two decades later, fuzzy researchers have built hundreds of smart

machines and intelligent systems.

By 1970, the euphoria about AI was gone, and most government funding for

AI projects was cancelled. AI was still a relatively new ﬁeld, academic in nature,

with few practical applications apart from playing games (Samuel, 1959, 1967;

Greenblatt et al., 1967). So, to the outsider, the achievements would be seen as

toys, as no AI system at that time could manage real-world problems.

1.2.3 Unfulﬁlled promises, or the impact of reality

(late 1960s–early 1970s)

From the mid-1950s, AI researchers were making promises to build all-purpose

intelligent machines on a human-scale knowledge base by the 1980s, and to

exceed human intelligence by the year 2000. By 1970, however, they realised

that such claims were too optimistic. Although a few AI programs could

demonstrate some level of machine intelligence in one or two toy problems,

almost no AI projects could deal with a wider selection of tasks or more difﬁcult

real-world problems.

7THE HISTORY OF ARTIFICIAL INTELLIGENCE

The main difﬁculties for AI in the late 1960s were:

.Because AI researchers were developing general methods for broad classes

of problems, early programs contained little or even no knowledge about a

problem domain. To solve problems, programs applied a search strategy by

trying out different combinations of small steps, until the right one was

found. This method worked for ‘toy’ problems, so it seemed reasonable that, if

the programs could be ‘scaled up’ to solve large problems, they would ﬁnally

succeed. However, this approach was wrong.

Easy, or tractable, problems can be solved in polynomial time, i.e. for a

problem of size n, the time or number of steps needed to ﬁnd the solution is

a polynomial function of n. On the other hand, hard or intractable problems

require times that are exponential functions of the problem size. While a

polynomial-time algorithm is considered to be efﬁcient, an exponential-time

algorithm is inefﬁcient, because its execution time increases rapidly with the

problem size. The theory of NP-completeness (Cook, 1971; Karp, 1972),

developed in the early 1970s, showed the existence of a large class of non-

deterministic polynomial problems (NP problems) that are NP-complete. A

problem is called NP if its solution (if one exists) can be guessed and veriﬁed

in polynomial time; non-deterministic means that no particular algorithm

is followed to make the guess. The hardest problems in this class are

NP-complete. Even with faster computers and larger memories, these

problems are hard to solve.

.Many of the problems that AI attempted to solve were too broad and too

difﬁcult. A typical task for early AI was machine translation. For example, the

National Research Council, USA, funded the translation of Russian scientiﬁc

papers after the launch of the ﬁrst artiﬁcial satellite (Sputnik) in 1957.

Initially, the project team tried simply replacing Russian words with English,

using an electronic dictionary. However, it was soon found that translation

requires a general understanding of the subject to choose the correct words.

This task was too difﬁcult. In 1966, all translation projects funded by the US

government were cancelled.

.In 1971, the British government also suspended support for AI research. Sir

James Lighthill had been commissioned by the Science Research Council of

Great Britain to review the current state of AI (Lighthill, 1973). He did not

ﬁnd any major or even signiﬁcant results from AI research, and therefore saw

no need to have a separate science called ‘artiﬁcial intelligence’.

1.2.4 The technology of expert systems, or the key to success

(early 1970s–mid-1980s)

Probably the most important development in the 1970s was the realisation

that the problem domain for intelligent machines had to be sufﬁciently

restricted. Previously, AI researchers had believed that clever search algorithms

and reasoning techniques could be invented to emulate general, human-like,

problem-solving methods. A general-purpose search mechanism could rely on

INTRODUCTION TO KNOWLEDGE-BASED INTELLIGENT SYSTEMS8

elementary reasoning steps to ﬁnd complete solutions and could use weak

knowledge about domain. However, when weak methods failed, researchers

ﬁnally realised that the only way to deliver practical results was to solve typical

cases in narrow areas of expertise by making large reasoning steps.

The DENDRAL program is a typical example of the emerging technology

(Buchanan et al., 1969). DENDRAL was developed at Stanford University

to analyse chemicals. The project was supported by NASA, because an un-

manned spacecraft was to be launched to Mars and a program was required to

determine the molecular structure of Martian soil, based on the mass spectral

data provided by a mass spectrometer. Edward Feigenbaum (a former student

of Herbert Simon), Bruce Buchanan (a computer scientist) and Joshua Lederberg

(a Nobel prize winner in genetics) formed a team to solve this challenging

problem.

The traditional method of solving such problems relies on a generate-

and-test technique: all possible molecular structures consistent with the mass

spectrogram are generated ﬁrst, and then the mass spectrum is determined

or predicted for each structure and tested against the actual spectrum.

However, this method failed because millions of possible structures could be

generated – the problem rapidly became intractable even for decent-sized

molecules.

To add to the difﬁculties of the challenge, there was no scientiﬁc algorithm

for mapping the mass spectrum into its molecular structure. However, analytical

chemists, such as Lederberg, could solve this problem by using their skills,

experience and expertise. They could enormously reduce the number of possible

structures by looking for well-known patterns of peaks in the spectrum, and

thus provide just a few feasible solutions for further examination. Therefore,

Feigenbaum’s job became to incorporate the expertise of Lederberg into a

computer program to make it perform at a human expert level. Such programs

were later called expert systems. To understand and adopt Lederberg’s knowl-

edge and operate with his terminology, Feigenbaum had to learn basic ideas in

chemistry and spectral analysis. However, it became apparent that Feigenbaum

used not only rules of chemistry but also his own heuristics, or rules-of-thumb,

based on his experience, and even guesswork. Soon Feigenbaum identiﬁed one

of the major difﬁculties in the project, which he called the ‘knowledge acquisi-

tion bottleneck’ – how to extract knowledge from human experts to apply to

computers. To articulate his knowledge, Lederberg even needed to study basics

in computing.

Working as a team, Feigenbaum, Buchanan and Lederberg developed

DENDRAL, the ﬁrst successful knowledge-based system. The key to their success

was mapping all the relevant theoretical knowledge from its general form to

highly speciﬁc rules (‘cookbook recipes’) (Feigenbaum et al., 1971).

The signiﬁcance of DENDRAL can be summarised as follows:

.DENDRAL marked a major ‘paradigm shift’ in AI: a shift from general-

purpose, knowledge-sparse, weak methods to domain-speciﬁc, knowledge-

intensive techniques.

9THE HISTORY OF ARTIFICIAL INTELLIGENCE

.The aim of the project was to develop a computer program to attain the level

of performance of an experienced human chemist. Using heuristics in the

form of high-quality speciﬁc rules – rules-of-thumb – elicited from human

experts, the DENDRAL team proved that computers could equal an expert in

narrow, deﬁned, problem areas.

.The DENDRAL project originated the fundamental idea of the new method-

ology of expert systems – knowledge engineering, which encompassed

techniques of capturing, analysing and expressing in rules an expert’s

‘know-how’.

DENDRAL proved to be a useful analytical tool for chemists and was marketed

commercially in the United States.

The next major project undertaken by Feigenbaum and others at Stanford

University was in the area of medical diagnosis. The project, called MYCIN,

started in 1972. It later became the Ph.D. thesis of Edward Shortliffe (Shortliffe,

1976). MYCIN was a rule-based expert system for the diagnosis of infectious

blood diseases. It also provided a doctor with therapeutic advice in a convenient,

user-friendly manner.

MYCIN had a number of characteristics common to early expert systems,

including:

.MYCIN could perform at a level equivalent to human experts in the ﬁeld and

considerably better than junior doctors.

.MYCIN’s knowledge consisted of about 450 independent rules of IF-THEN

form derived from human knowledge in a narrow domain through extensive

interviewing of experts.

.The knowledge incorporated in the form of rules was clearly separated from

the reasoning mechanism. The system developer could easily manipulate

knowledge in the system by inserting or deleting some rules. For example, a

domain-independent version of MYCIN called EMYCIN (Empty MYCIN) was

later produced at Stanford University (van Melle, 1979; van Melle et al., 1981).

It had all the features of the MYCIN system except the knowledge of

infectious blood diseases. EMYCIN facilitated the development of a variety

of diagnostic applications. System developers just had to add new knowledge

in the form of rules to obtain a new application.

MYCIN also introduced a few new features. Rules incorporated in MYCIN

reﬂected the uncertainty associated with knowledge, in this case with medical

diagnosis. It tested rule conditions (the IF part) against available data or data

requested from the physician. When appropriate, MYCIN inferred the truth of a

condition through a calculus of uncertainty called certainty factors. Reasoning

in the face of uncertainty was the most important part of the system.

Another probabilistic system that generated enormous publicity was

PROSPECTOR, an expert system for mineral exploration developed by the

Stanford Research Institute (Duda et al., 1979). The project ran from 1974 to

INTRODUCTION TO KNOWLEDGE-BASED INTELLIGENT SYSTEMS10

1983. Nine experts contributed their knowledge and expertise. To represent their

knowledge, PROSPECTOR used a combined structure that incorporated rules and

a semantic network. PROSPECTOR had over a thousand rules to represent

extensive domain knowledge. It also had a sophisticated support package

including a knowledge acquisition system.

PROSPECTOR operates as follows. The user, an exploration geologist, is asked

to input the characteristics of a suspected deposit: the geological setting,

structures, kinds of rocks and minerals. Then the program compares these

characteristics with models of ore deposits and, if necessary, queries the user to

obtain additional information. Finally, PROSPECTOR makes an assessment of

the suspected mineral deposit and presents its conclusion. It can also explain the

steps it used to reach the conclusion.

In exploration geology, important decisions are usually made in the face of

uncertainty, with knowledge that is incomplete or fuzzy. To deal with such

knowledge, PROSPECTOR incorporated Bayes’s rules of evidence to propagate

uncertainties through the system. PROSPECTOR performed at the level of an

expert geologist and proved itself in practice. In 1980, it identiﬁed a molybde-

num deposit near Mount Tolman in Washington State. Subsequent drilling by a

mining company conﬁrmed the deposit was worth over $100 million. You

couldn’t hope for a better justiﬁcation for using expert systems.

The expert systems mentioned above have now become classics. A growing

number of successful applications of expert systems in the late 1970s

showed that AI technology could move successfully from the research laboratory

to the commercial environment. During this period, however, most expert

systems were developed with special AI languages, such as LISP, PROLOG and

OPS, based on powerful workstations. The need to have rather expensive

hardware and complicated programming languages meant that the challenge

of expert system development was left in the hands of a few research groups at

Stanford University, MIT, Stanford Research Institute and Carnegie-Mellon

University. Only in the 1980s, with the arrival of personal computers (PCs) and

easy-to-use expert system development tools – shells – could ordinary researchers

and engineers in all disciplines take up the opportunity to develop expert

systems.

A 1986 survey reported a remarkable number of successful expert system

applications in different areas: chemistry, electronics, engineering, geology,

management, medicine, process control and military science (Waterman,

1986). Although Waterman found nearly 200 expert systems, most of the

applications were in the ﬁeld of medical diagnosis. Seven years later a similar

survey reported over 2500 developed expert systems (Durkin, 1994). The new

growing area was business and manufacturing, which accounted for about 60 per

cent of the applications. Expert system technology had clearly matured.

Are expert systems really the key to success in any ﬁeld? In spite of a great

number of successful developments and implementations of expert systems in

different areas of human knowledge, it would be a mistake to overestimate the

capability of this technology. The difﬁculties are rather complex and lie in both

technical and sociological spheres. They include the following:

11THE HISTORY OF ARTIFICIAL INTELLIGENCE

.Expert systems are restricted to a very narrow domain of expertise. For

example, MYCIN, which was developed for the diagnosis of infectious blood

diseases, lacks any real knowledge of human physiology. If a patient has more

than one disease, we cannot rely on MYCIN. In fact, therapy prescribed for

the blood disease might even be harmful because of the other disease.

.Because of the narrow domain, expert systems are not as robust and ﬂexible as

a user might want. Furthermore, expert systems can have difﬁculty recognis-

ing domain boundaries. When given a task different from the typical

problems, an expert system might attempt to solve it and fail in rather

unpredictable ways.

.Expert systems have limited explanation capabilities. They can show the

sequence of the rules they applied to reach a solution, but cannot relate

accumulated, heuristic knowledge to any deeper understanding of the

problem domain.

.Expert systems are also difﬁcult to verify and validate. No general technique

has yet been developed for analysing their completeness and consistency.

Heuristic rules represent knowledge in abstract form and lack even basic

understanding of the domain area. It makes the task of identifying incorrect,

incomplete or inconsistent knowledge very difﬁcult.

.Expert systems, especially the ﬁrst generation, have little or no ability to learn

from their experience. Expert systems are built individually and cannot be

developed fast. It might take from ﬁve to ten person-years to build an expert

system to solve a moderately difﬁcult problem (Waterman, 1986). Complex

systems such as DENDRAL, MYCIN or PROSPECTOR can take over 30 person-

years to build. This large effort, however, would be difﬁcult to justify if

improvements to the expert system’s performance depended on further

attention from its developers.

Despite all these difﬁculties, expert systems have made the breakthrough and

proved their value in a number of important applications.

1.2.5 How to make a machine learn, or the rebirth of neural networks

(mid-1980s–onwards)

In the mid-1980s, researchers, engineers and experts found that building an

expert system required much more than just buying a reasoning system or expert

system shell and putting enough rules in it. Disillusion about the applicability of

expert system technology even led to people predicting an AI ‘winter’ with

severely squeezed funding for AI projects. AI researchers decided to have a new

look at neural networks.

By the late 1960s, most of the basic ideas and concepts necessary for

neural computing had already been formulated (Cowan, 1990). However, only

in the mid-1980s did the solution emerge. The major reason for the delay was

technological: there were no PCs or powerful workstations to model and

INTRODUCTION TO KNOWLEDGE-BASED INTELLIGENT SYSTEMS12

experiment with artiﬁcial neural networks. The other reasons were psychological

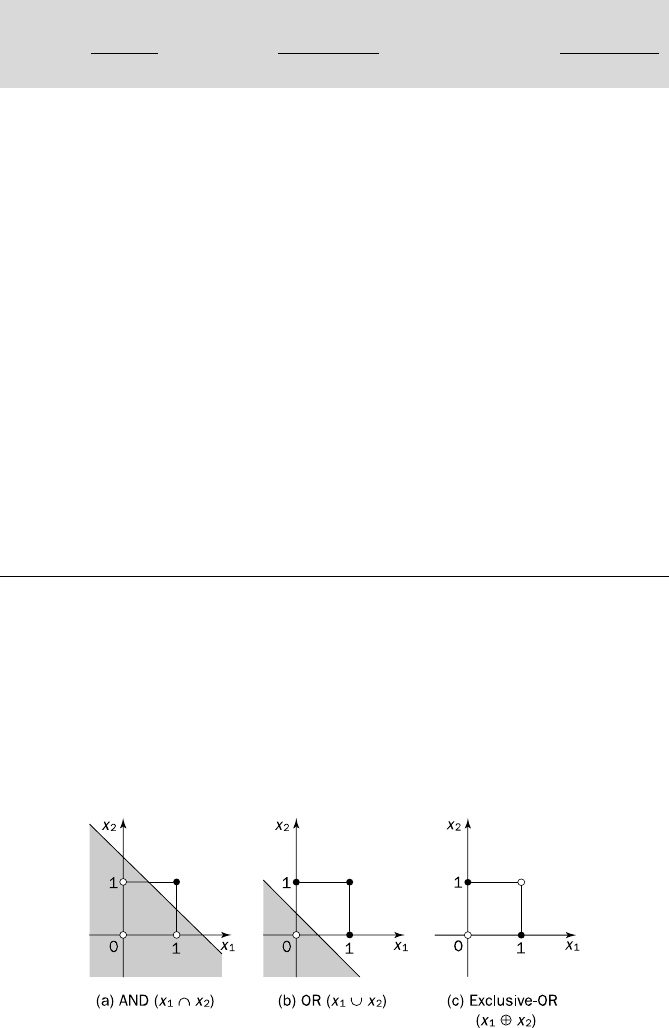

and ﬁnancial. For example, in 1969, Minsky and Papert had mathematically

demonstrated the fundamental computational limitations of one-layer

perceptrons (Minsky and Papert, 1969). They also said there was no reason to

expect that more complex multilayer perceptrons would represent much. This

certainly would not encourage anyone to work on perceptrons, and as a

result, most AI researchers deserted the ﬁeld of artiﬁcial neural networks in the

1970s.

In the 1980s, because of the need for brain-like information processing, as

well as the advances in computer technology and progress in neuroscience, the

ﬁeld of neural networks experienced a dramatic resurgence. Major contributions

to both theory and design were made on several fronts. Grossberg established a

new principle of self-organisation (adaptive resonance theory), which provided

the basis for a new class of neural networks (Grossberg, 1980). Hopﬁeld

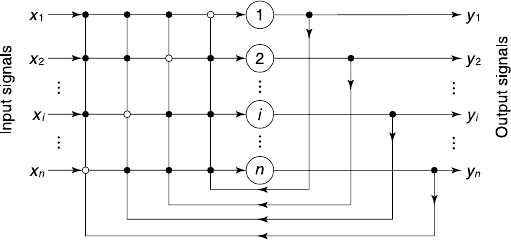

introduced neural networks with feedback – Hopﬁeld networks, which attracted

much attention in the 1980s (Hopﬁeld, 1982). Kohonen published a paper on

self-organised maps (Kohonen, 1982). Barto, Sutton and Anderson published

their work on reinforcement learning and its application in control (Barto et al.,

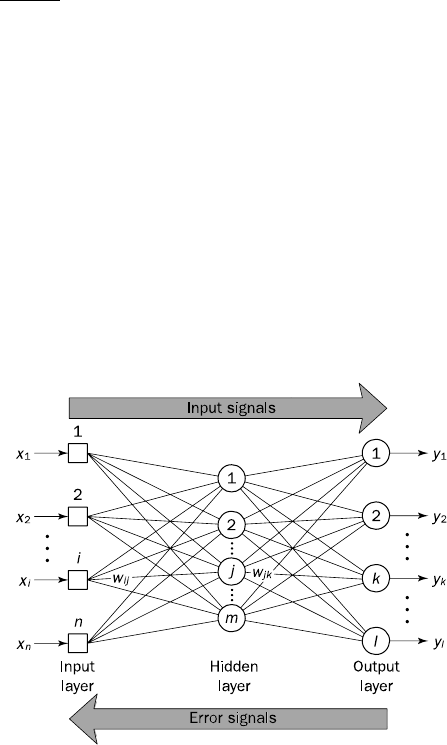

1983). But the real breakthrough came in 1986 when the back-propagation

learning algorithm, ﬁrst introduced by Bryson and Ho in 1969 (Bryson and Ho,

1969), was reinvented by Rumelhart and McClelland in Parallel Distributed

Processing: Explorations in the Microstructures of Cognition (Rumelhart and

McClelland, 1986). At the same time, back-propagation learning was also

discovered by Parker (Parker, 1987) and LeCun (LeCun, 1988), and since then

has become the most popular technique for training multilayer perceptrons. In

1988, Broomhead and Lowe found a procedure to design layered feedforward

networks using radial basis functions, an alternative to multilayer perceptrons

(Broomhead and Lowe, 1988).

Artiﬁcial neural networks have come a long way from the early models of

McCulloch and Pitts to an interdisciplinary subject with roots in neuroscience,

psychology, mathematics and engineering, and will continue to develop in both

theory and practical applications. However, Hopﬁeld’s paper (Hopﬁeld, 1982)

and Rumelhart and McClelland’s book (Rumelhart and McClelland, 1986) were

the most signiﬁcant and inﬂuential works responsible for the rebirth of neural

networks in the 1980s.

1.2.6 Evolutionary computation, or learning by doing

(early 1970s–onwards)

Natural intelligence is a product of evolution. Therefore, by simulating bio-

logical evolution, we might expect to discover how living systems are propelled

towards high-level intelligence. Nature learns by doing; biological systems are

not told how to adapt to a speciﬁc environment – they simply compete for

survival. The ﬁttest species have a greater chance to reproduce, and thereby to

pass their genetic material to the next generation.

13THE HISTORY OF ARTIFICIAL INTELLIGENCE

The evolutionary approach to artiﬁcial intelligence is based on the com-

putational models of natural selection and genetics. Evolutionary computation

works by simulating a population of individuals, evaluating their performance,

generating a new population, and repeating this process a number of times.

Evolutionary computation combines three main techniques: genetic algo-

rithms, evolutionary strategies, and genetic programming.

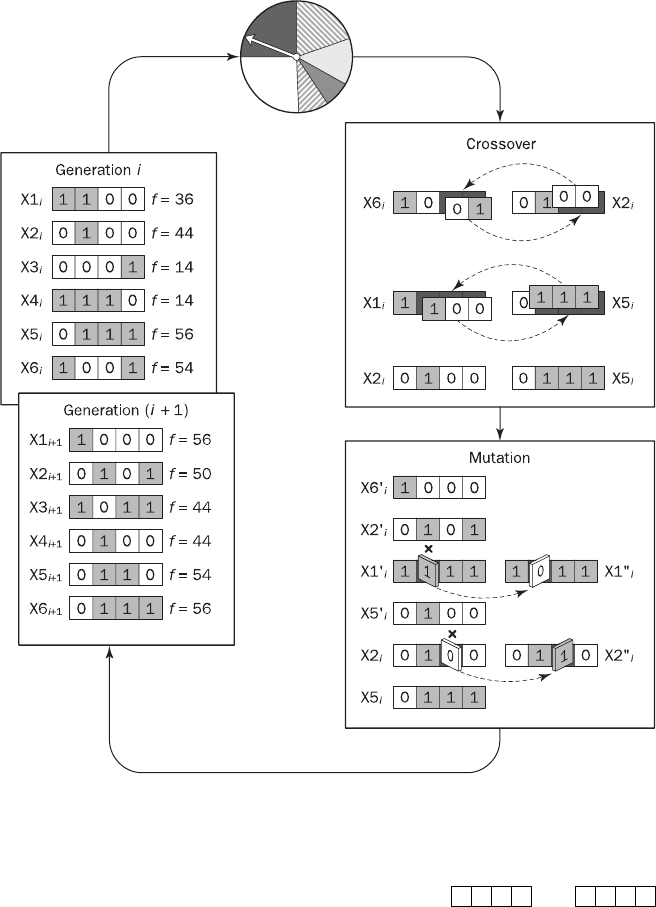

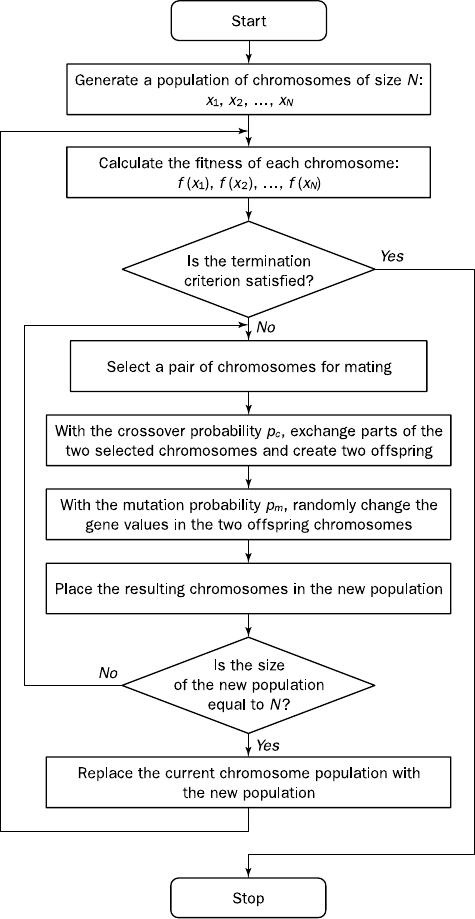

The concept of genetic algorithms was introduced by John Holland in the

early 1970s (Holland, 1975). He developed an algorithm for manipulating

artiﬁcial ‘chromosomes’ (strings of binary digits), using such genetic operations

as selection, crossover and mutation. Genetic algorithms are based on a solid

theoretical foundation of the Schema Theorem (Holland, 1975; Goldberg, 1989).

In the early 1960s, independently of Holland’s genetic algorithms, Ingo

Rechenberg and Hans-Paul Schwefel, students of the Technical University of

Berlin, proposed a new optimisation method called evolutionary strategies

(Rechenberg, 1965). Evolutionary strategies were designed speciﬁcally for solving

parameter optimisation problems in engineering. Rechenberg and Schwefel

suggested using random changes in the parameters, as happens in natural

mutation. In fact, an evolutionary strategies approach can be considered as an

alternative to the engineer’s intuition. Evolutionary strategies use a numerical

optimisation procedure, similar to a focused Monte Carlo search.

Both genetic algorithms and evolutionary strategies can solve a wide range of

problems. They provide robust and reliable solutions for highly complex, non-

linear search and optimisation problems that previously could not be solved at

all (Holland, 1995; Schwefel, 1995).

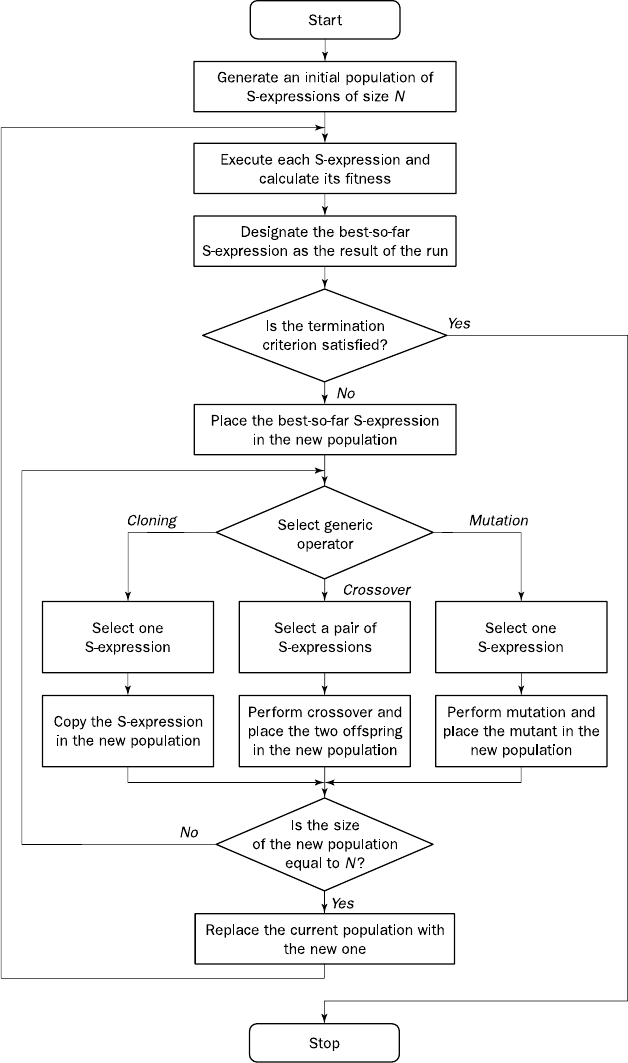

Genetic programming represents an application of the genetic model of

learning to programming. Its goal is to evolve not a coded representation

of some problem, but rather a computer code that solves the problem. That is,

genetic programming generates computer programs as the solution.

The interest in genetic programming was greatly stimulated by John Koza in

the 1990s (Koza, 1992, 1994). He used genetic operations to manipulate

symbolic code representing LISP programs. Genetic programming offers a

solution to the main challenge of computer science – making computers solve

problems without being explicitly programmed.

Genetic algorithms, evolutionary strategies and genetic programming repre-

sent rapidly growing areas of AI, and have great potential.

1.2.7 The new era of knowledge engineering, or computing with words

(late 1980s–onwards)

Neural network technology offers more natural interaction with the real world

than do systems based on symbolic reasoning. Neural networks can learn, adapt

to changes in a problem’s environment, establish patterns in situations where

rules are not known, and deal with fuzzy or incomplete information. However,

they lack explanation facilities and usually act as a black box. The process of

training neural networks with current technologies is slow, and frequent

retraining can cause serious difﬁculties.

INTRODUCTION TO KNOWLEDGE-BASED INTELLIGENT SYSTEMS14

Although in some special cases, particularly in knowledge-poor situations,

ANNs can solve problems better than expert systems, the two technologies are

not in competition now. They rather nicely complement each other.

Classic expert systems are especially good for closed-system applications with

precise inputs and logical outputs. They use expert knowledge in the form of

rules and, if required, can interact with the user to establish a particular fact. A

major drawback is that human experts cannot always express their knowledge in

terms of rules or explain the line of their reasoning. This can prevent the expert

system from accumulating the necessary knowledge, and consequently lead to

its failure. To overcome this limitation, neural computing can be used for

extracting hidden knowledge in large data sets to obtain rules for expert systems

(Medsker and Leibowitz, 1994; Zahedi, 1993). ANNs can also be used for

correcting rules in traditional rule-based expert systems (Omlin and Giles,

1996). In other words, where acquired knowledge is incomplete, neural networks

can reﬁne the knowledge, and where the knowledge is inconsistent with some

given data, neural networks can revise the rules.

Another very important technology dealing with vague, imprecise and

uncertain knowledge and data is fuzzy logic. Most methods of handling

imprecision in classic expert systems are based on the probability concept.

MYCIN, for example, introduced certainty factors, while PROSPECTOR incorp-

orated Bayes’ rules to propagate uncertainties. However, experts do not usually

think in probability values, but in such terms as often,generally,sometimes,

occasionally and rarely. Fuzzy logic is concerned with the use of fuzzy values

that capture the meaning of words, human reasoning and decision making. As a

method to encode and apply human knowledge in a form that accurately reﬂects

an expert’s understanding of difﬁcult, complex problems, fuzzy logic provides

the way to break through the computational bottlenecks of traditional expert

systems.

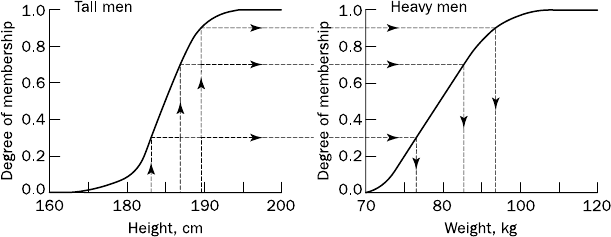

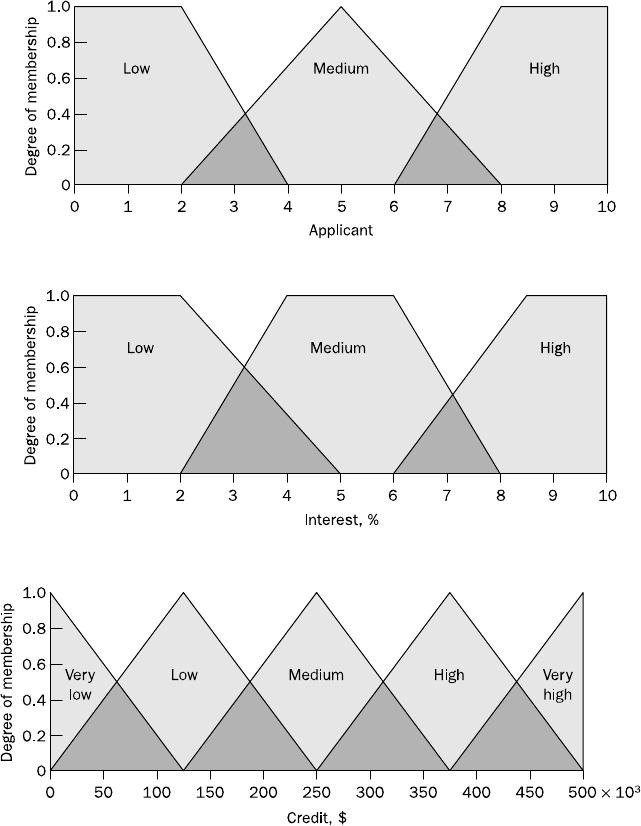

At the heart of fuzzy logic lies the concept of a linguistic variable. The values

of the linguistic variable are words rather than numbers. Similar to expert

systems, fuzzy systems use IF-THEN rules to incorporate human knowledge, but

these rules are fuzzy, such as:

IF speed is high THEN stopping_distance is long

IF speed is low THEN stopping_distance is short.

Fuzzy logic or fuzzy set theory was introduced by Professor Lotﬁ Zadeh,

Berkeley’s electrical engineering department chairman, in 1965 (Zadeh, 1965). It

provided a means of computing with words. However, acceptance of fuzzy set

theory by the technical community was slow and difﬁcult. Part of the problem

was the provocative name – ‘fuzzy’ – which seemed too light-hearted to be taken

seriously. Eventually, fuzzy theory, ignored in the West, was taken seriously

in the East – by the Japanese. It has been used successfully since 1987 in

Japanese-designed dishwashers, washing machines, air conditioners, television

sets, copiers and even cars.

15THE HISTORY OF ARTIFICIAL INTELLIGENCE

The introduction of fuzzy products gave rise to tremendous interest in

this apparently ‘new’ technology ﬁrst proposed over 30 years ago. Hundreds of

books and thousands of technical papers have been written on this topic. Some

of the classics are: Fuzzy Sets, Neural Networks and Soft Computing (Yager and

Zadeh, eds, 1994); The Fuzzy Systems Handbook (Cox, 1999); Fuzzy Engineering

(Kosko, 1997); Expert Systems and Fuzzy Systems (Negoita, 1985); and also the

best-seller science book, Fuzzy Thinking (Kosko, 1993), which popularised the

ﬁeld of fuzzy logic.

Most fuzzy logic applications have been in the area of control engineering.

However, fuzzy control systems use only a small part of fuzzy logic’s power of

knowledge representation. Beneﬁts derived from the application of fuzzy logic

models in knowledge-based and decision-support systems can be summarised as

follows (Cox, 1999; Turban and Aronson, 2000):

.Improved computational power: Fuzzy rule-based systems perform faster

than conventional expert systems and require fewer rules. A fuzzy expert

system merges the rules, making them more powerful. Lotﬁ Zadeh believes

that in a few years most expert systems will use fuzzy logic to solve highly

nonlinear and computationally difﬁcult problems.

.Improved cognitive modelling: Fuzzy systems allow the encoding of knowl-

edge in a form that reﬂects the way experts think about a complex problem.

They usually think in such imprecise terms as high and low,fast and slow,

heavy and light, and they also use such terms as very often and almost

never,usually and hardly ever,frequently and occasionally. In order to

build conventional rules, we need to deﬁne the crisp boundaries for these

terms, thus breaking down the expertise into fragments. However, this

fragmentation leads to the poor performance of conventional expert systems

when they deal with highly complex problems. In contrast, fuzzy expert

systems model imprecise information, capturing expertise much more closely

to the way it is represented in the expert mind, and thus improve cognitive

modelling of the problem.

.The ability to represent multiple experts: Conventional expert systems are

built for a very narrow domain with clearly deﬁned expertise. It makes the

system’s performance fully dependent on the right choice of experts.

Although a common strategy is to ﬁnd just one expert, when a more complex

expert system is being built or when expertise is not well deﬁned, multiple

experts might be needed. Multiple experts can expand the domain, syn-

thesise expertise and eliminate the need for a world-class expert, who is likely

to be both very expensive and hard to access. However, multiple experts

seldom reach close agreements; there are often differences in opinions and

even conﬂicts. This is especially true in areas such as business and manage-

ment where no simple solution exists and conﬂicting views should be taken

into account. Fuzzy expert systems can help to represent the expertise of

multiple experts when they have opposing views.

INTRODUCTION TO KNOWLEDGE-BASED INTELLIGENT SYSTEMS16

Although fuzzy systems allow expression of expert knowledge in a more

natural way, they still depend on the rules extracted from the experts, and thus

might be smart or dumb. Some experts can provide very clever fuzzy rules – but

some just guess and may even get them wrong. Therefore, all rules must be tested

and tuned, which can be a prolonged and tedious process. For example, it took

Hitachi engineers several years to test and tune only 54 fuzzy rules to guide the

Sendai Subway System.

Using fuzzy logic development tools, we can easily build a simple fuzzy

system, but then we may spend days, weeks and even months trying out new

rules and tuning our system. How do we make this process faster or, in other

words, how do we generate good fuzzy rules automatically?

In recent years, several methods based on neural network technology have

been used to search numerical data for fuzzy rules. Adaptive or neural fuzzy

systems can ﬁnd new fuzzy rules, or change and tune existing ones based on the

data provided. In other words, data in – rules out, or experience in – common

sense out.

So, where is knowledge engineering heading?

Expert, neural and fuzzy systems have now matured and have been applied to

a broad range of different problems, mainly in engineering, medicine, ﬁnance,

business and management. Each technology handles the uncertainty and

ambiguity of human knowledge differently, and each technology has found its

place in knowledge engineering. They no longer compete; rather they comple-

ment each other. A synergy of expert systems with fuzzy logic and neural

computing improves adaptability, robustness, fault-tolerance and speed of

knowledge-based systems. Besides, computing with words makes them more

‘human’. It is now common practice to build intelligent systems using existing

theories rather than to propose new ones, and to apply these systems to real-

world problems rather than to ‘toy’ problems.

1.3 Summary

We live in the era of the knowledge revolution, when the power of a nation is

determined not by the number of soldiers in its army but the knowledge it

possesses. Science, medicine, engineering and business propel nations towards a

higher quality of life, but they also require highly qualiﬁed and skilful people.

We are now adopting intelligent machines that can capture the expertise of such

knowledgeable people and reason in a manner similar to humans.

The desire for intelligent machines was just an elusive dream until the ﬁrst

computer was developed. The early computers could manipulate large data bases

effectively by following prescribed algorithms, but could not reason about the

information provided. This gave rise to the question of whether computers could

ever think. Alan Turing deﬁned the intelligent behaviour of a computer as the

ability to achieve human-level performance in a cognitive task. The Turing test

provided a basis for the veriﬁcation and validation of knowledge-based systems.

17SUMMARY

In 1956, a summer workshop at Dartmouth College brought together ten

researchers interested in the study of machine intelligence, and a new science –

artiﬁcial intelligence – was born.

Since the early 1950s, AI technology has developed from the curiosity of a

few researchers to a valuable tool to support humans making decisions. We

have seen historical cycles of AI from the era of great ideas and great

expectations in the 1960s to the disillusionment and funding cutbacks in

the early 1970s; from the development of the ﬁrst expert systems such as

DENDRAL, MYCIN and PROSPECTOR in the 1970s to the maturity of expert

system technology and its massive applications in different areas in the 1980s/

90s; from a simple binary model of neurons proposed in the 1940s to a

dramatic resurgence of the ﬁeld of artiﬁcial neural networks in the 1980s; from

the introduction of fuzzy set theory and its being ignored by the West in the

1960s to numerous ‘fuzzy’ consumer products offered by the Japanese in

the 1980s and world-wide acceptance of ‘soft’ computing and computing with

words in the 1990s.

The development of expert systems created knowledge engineering, the

process of building intelligent systems. Today it deals not only with expert

systems but also with neural networks and fuzzy logic. Knowledge engineering

is still an art rather than engineering, but attempts have already been made

to extract rules automatically from numerical data through neural network

technology.

Table 1.1 summarises the key events in the history of AI and knowledge

engineering from the ﬁrst work on AI by McCulloch and Pitts in 1943, to the

recent trends of combining the strengths of expert systems, fuzzy logic and

neural computing in modern knowledge-based systems capable of computing

with words.

The most important lessons learned in this chapter are:

.Intelligence is the ability to learn and understand, to solve problems and to

make decisions.

.Artiﬁcial intelligence is a science that has deﬁned its goal as making machines

do things that would require intelligence if done by humans.

.A machine is thought intelligent if it can achieve human-level performance in

some cognitive task. To build an intelligent machine, we have to capture,

organise and use human expert knowledge in some problem area.

.The realisation that the problem domain for intelligent machines had to be

sufﬁciently restricted marked a major ‘paradigm shift’ in AI from general-

purpose, knowledge-sparse, weak methods to domain-speciﬁc, knowledge-

intensive methods. This led to the development of expert systems – computer

programs capable of performing at a human-expert level in a narrow problem

area. Expert systems use human knowledge and expertise in the form of

speciﬁc rules, and are distinguished by the clean separation of the knowledge

and the reasoning mechanism. They can also explain their reasoning

procedures.

INTRODUCTION TO KNOWLEDGE-BASED INTELLIGENT SYSTEMS18

Table 1.1 A summary of the main events in the history of AI and knowledge engineering

Period Key events

The birth of artiﬁcial

intelligence

(1943–56)

McCulloch and Pitts, A Logical Calculus of the Ideas

Immanent in Nervous Activity, 1943

Turing, Computing Machinery and Intelligence, 1950

The Electronic Numerical Integrator and Calculator project

(von Neumann)

Shannon, Programming a Computer for Playing Chess,

1950

The Dartmouth College summer workshop on machine

intelligence, artiﬁcial neural nets and automata theory,

1956

The rise of artiﬁcial

intelligence

(1956–late 1960s)

LISP (McCarthy)

The General Problem Solver (GPR) project (Newell and

Simon)

Newell and Simon, Human Problem Solving, 1972

Minsky, A Framework for Representing Knowledge, 1975

The disillusionment in

artiﬁcial intelligence

(late 1960s–early

1970s)

Cook, The Complexity of Theorem Proving Procedures,

1971

Karp, Reducibility Among Combinatorial Problems, 1972

The Lighthill Report, 1971

The discovery of

expert systems (early

1970s–mid-1980s)

DENDRAL (Feigenbaum, Buchanan and Lederberg, Stanford

University)

MYCIN (Feigenbaum and Shortliffe, Stanford University)

PROSPECTOR (Stanford Research Institute)

PROLOG – a Logic Programming Language (Colmerauer,

Roussel and Kowalski, France)

EMYCIN (Stanford University)

Waterman, A Guide to Expert Systems, 1986

The rebirth of artiﬁcial

neural networks

(1965–onwards)

Hopﬁeld, Neural Networks and Physical Systems with

Emergent Collective Computational Abilities, 1982

Kohonen, Self-Organized Formation of Topologically Correct

Feature Maps, 1982

Rumelhart and McClelland, Parallel Distributed Processing,

1986

The First IEEE International Conference on Neural

Networks, 1987

Haykin, Neural Networks, 1994

Neural Network, MATLAB Application Toolbox (The

MathWork, Inc.)

19SUMMARY

.One of the main difﬁculties in building intelligent machines, or in other

words in knowledge engineering, is the ‘knowledge acquisition bottleneck’ –

extracting knowledge from human experts.

.Experts think in imprecise terms, such as very often and almost never,

usually and hardly ever,frequently and occasionally, and use linguistic

variables, such as high and low,fast and slow,heavy and light. Fuzzy logic

Table 1.1 (cont.)

Period Key events

Evolutionary

computation (early

1970s–onwards)

Rechenberg, Evolutionsstrategien – Optimierung

Technischer Systeme Nach Prinzipien der Biologischen

Information, 1973

Holland, Adaptation in Natural and Artiﬁcial Systems,

1975

Koza, Genetic Programming: On the Programming of the

Computers by Means of Natural Selection, 1992

Schwefel, Evolution and Optimum Seeking, 1995

Fogel, Evolutionary Computation – Towards a New

Philosophy of Machine Intelligence, 1995

Computing with words

(late 1980s–onwards)

Zadeh, Fuzzy Sets, 1965

Zadeh, Fuzzy Algorithms, 1969

Mamdani, Application of Fuzzy Logic to Approximate

Reasoning Using Linguistic Synthesis, 1977

Sugeno, Fuzzy Theory, 1983

Japanese ‘fuzzy’ consumer products (dishwashers,

washing machines, air conditioners, television sets,

copiers)

Sendai Subway System (Hitachi, Japan), 1986

Negoita, Expert Systems and Fuzzy Systems, 1985

The First IEEE International Conference on Fuzzy Systems,

1992

Kosko, Neural Networks and Fuzzy Systems, 1992

Kosko, Fuzzy Thinking, 1993

Yager and Zadeh, Fuzzy Sets, Neural Networks and Soft

Computing, 1994

Cox, The Fuzzy Systems Handbook, 1994

Kosko, Fuzzy Engineering, 1996

Zadeh, Computing with Words – A Paradigm Shift, 1996

Fuzzy Logic, MATLAB Application Toolbox (The MathWork,

Inc.)

INTRODUCTION TO KNOWLEDGE-BASED INTELLIGENT SYSTEMS20

or fuzzy set theory provides a means to compute with words. It concentrates

on the use of fuzzy values that capture the meaning of words, human

reasoning and decision making, and provides a way of breaking through the

computational burden of traditional expert systems.

.Expert systems can neither learn nor improve themselves through experience.

They are individually created and demand large efforts for their development.

It can take from ﬁve to ten person-years to build even a moderate expert

system. Machine learning can accelerate this process signiﬁcantly and

enhance the quality of knowledge by adding new rules or changing incorrect

ones.

.Artiﬁcial neural networks, inspired by biological neural networks, learn from

historical cases and make it possible to generate rules automatically and thus

avoid the tedious and expensive processes of knowledge acquisition, valida-

tion and revision.

.Integration of expert systems and ANNs, and fuzzy logic and ANNs improve

the adaptability, fault tolerance and speed of knowledge-based systems.

Questions for review

1 Deﬁne intelligence. What is the intelligent behaviour of a machine?

2 Describe the Turing test for artiﬁcial intelligence and justify its validity from a modern

standpoint.

3 Deﬁne artiﬁcial intelligence as a science. When was artiﬁcial intelligence born?

4 What are weak methods? Identify the main difﬁculties that led to the disillusion with AI

in the early 1970s.

5 Deﬁne expert systems. What is the main difference between weak methods and the

expert system technology?

6 List the common characteristics of early expert systems such as DENDRAL, MYCIN

and PROSPECTOR.

7 What are the limitations of expert systems?

8 What are the differences between expert systems and artiﬁcial neural networks?

9 Why was the ﬁeld of ANN reborn in the 1980s?

10 What are the premises on which fuzzy logic is based? When was fuzzy set theory

introduced?

11 What are the main advantages of applying fuzzy logic in knowledge-based systems?

12 What are the beneﬁts of integrating expert systems, fuzzy logic and neural

computing?

21QUESTIONS FOR REVIEW

References

Barto, A.G., Sutton, R.S. and Anderson C.W. (1983). Neurolike adaptive elements that

can solve difﬁcult learning control problems, IEEE Transactions on Systems, Man

and Cybernetics, SMC-13, pp. 834–846.

Boden, M.A. (1977). Artiﬁcial Intelligence and Natural Man. Basic Books, New York.

Broomhead, D.S. and Lowe, D. (1988). Multivariable functional interpolation and

adaptive networks, Complex Systems, 2, 321–355.

Bryson, A.E. and Ho, Y.-C. (1969). Applied Optimal Control. Blaisdell, New York.

Buchanan, B.G., Sutherland, G.L. and Feigenbaum, E.A. (1969). Heuristic DENDRAL:

a program for generating explanatory hypotheses in organic chemistry, Machine

Intelligence 4, B. Meltzer, D. Michie and M. Swann, eds, Edinburgh University Press,

Edinburgh, Scotland, pp. 209–254.

Cook, S.A. (1971). The complexity of theorem proving procedures, Proceedings of the

Third Annual ACM Symposium on Theory of Computing, New York, pp. 151–158.

Cowan, J.D. (1990). Neural networks: the early days, Advances in Neural Information

Processing Systems 2, D.S. Tourefzky, ed., San Mateo, CA: Morgan Kaufman,

pp. 828–842.

Cox, E. (1999). The Fuzzy Systems Handbook: A Practitioner’s Guide to Building, Using,

and Maintaining Fuzzy Systems, 2nd edn. Academic Press, San Diego, CA.

Duda, R., Gaschnig, J. and Hart, P. (1979). Model design in the PROSPECTOR

consultant system for mineral exploration, Expert Systems in the Microelectronic

Age, D. Michie, ed., Edinburgh University Press, Edinburgh, Scotland, pp. 153–167.

Durkin, J. (1994). Expert Systems Design and Development. Prentice Hall, Englewood

Cliffs, NJ.

Feigenbaum, E.A., Buchanan, B.G. and Lederberg, J. (1971). On generality and

problem solving: a case study using the DENDRAL program, Machine Intelligence

6, B. Meltzer and D. Michie, eds, Edinburgh University Press, Edinburgh, Scotland,

pp. 165–190.

Fogel, D.B. (1995). Evolutionary Computation – Towards a New Philosophy of Machine

Intelligence. IEEE Press, Piscataway, NJ.

Goldberg, D.E. (1989). Genetic Algorithms in Search, Optimisation and Machine Learning.

Addison-Wesley Publishing Company, Reading, MA.

Greenblatt, R.D., Eastlake, D.E. and Crocker, S.D. (1967). The Greenblatt Chess

Program, Proceedings of the Fall Joint Computer Conference, pp. 801–810.

Grossberg, S. (1980). How does a brain build a cognitive code?, Psychological Review,

87, pp. 1–51.

Holland, J.H. (1975). Adaptation in Natural and Artiﬁcial Systems. University of

Michigan Press, Ann Arbor.

Holland, J.H. (1995). Hidden Order: How Adaptation Builds Complexity. Addison-

Wesley, Reading, MA.

Hopﬁeld, J.J. (1982). Neural networks and physical systems with emergent collective

computational abilities, Proceedings of the National Academy of Sciences of the USA,

79, pp. 2554–2558.

Karp, R.M. (1972). Reducibility among combinatorial problems, Complexity of Computer

Computations, R.E. Miller and J.W. Thatcher, eds, Plenum, New York, pp. 85–103.

Kohonen, T. (1982). Self-organized formation of topologically correct feature maps,

Biological Cybernetics, 43, pp. 59–69.

Kosko, B. (1993). Fuzzy Thinking: The New Science of Fuzzy Logic. Hyperion, New

York.

INTRODUCTION TO KNOWLEDGE-BASED INTELLIGENT SYSTEMS22

Kosko, B. (1997). Fuzzy Engineering. Prentice Hall, Upper Saddle River, NJ.

Koza, J.R. (1992). Genetic Programming: On the Programming of the Computers by Means

of Natural Selection. MIT Press, Cambridge, MA.

Koza, J.R. (1994). Genetic Programming II: Automatic Discovery of Reusable Programs. MIT

Press, Cambridge, MA.

LeCun, Y. (1988). A theoretical framework for back-propagation, Proceedings of the

1988 Connectionist Models Summer School, D. Touretzky, G. Hilton and T. Sejnowski,

eds, Morgan Kaufmann, San Mateo, CA, pp. 21–28.

Lighthill, J. (1973). Artiﬁcial intelligence: a general survey, Artiﬁcial Intelligence: A

Paper Symposium. J. Lighthill, N.S. Sutherland, R.M. Needham, H.C. Longuest-

Higgins and D. Michie, eds, Science Research Council of Great Britain, London.

McCarthy, J. (1958). Programs with common sense, Proceedings of the Symposium on

Mechanisation of Thought Processes, vol. 1, London, pp. 77–84.

McCulloch, W.S. and Pitts, W. (1943). A logical calculus of the ideas immanent in

nervous activity, Bulletin of Mathematical Biophysics, vol. 5, pp. 115–137.

Medsker, L. and Leibowitz, J. (1994). Design and Development of Expert Systems and

Neural Computing. Macmillan, New York.

Minsky, M.L. (1975). A framework for representing knowledge, The Psychology of

Computer Vision, P. Winston, ed., McGraw-Hill, New York, pp. 211–277.

Minsky, M.L. and Papert, S.A. (1969). Perceptrons. MIT Press, Cambridge, MA.

Negoita, C.V. (1985). Expert Systems and Fuzzy Systems. Benjamin/Cummings, Menlo

Park, CA.

Newell, A. and Simon, H.A. (1961). GPS, a program that simulates human thought,

Lernende Automatten, H. Billing, ed., R. Oldenbourg, Munich, pp. 109–124.

Newell, A. and Simon, H.A. (1972). Human Problem Solving. Prentice Hall, Englewood

Cliffs, NJ.

Omlin, C.W. and Giles, C.L. (1996). Rule revision with recurrent neural networks,

IEEE Transactions on Knowledge and Data Engineering, 8(1), 183–188.

Parker, D.B. (1987). Optimal algorithms for adaptive networks: second order back

propagation, second order direct propagation, and second order Hebbian learning,

Proceedings of the IEEE 1st International Conference on Neural Networks, San Diego,

CA, vol. 2, pp. 593–600.

Rechenberg, I. (1965). Cybernetic Solution Path of an Experimental Problem. Ministry of

Aviation, Royal Aircraft Establishment, Library Translation No. 1122, August.

Rechenberg, I. (1973). Evolutionsstrategien – Optimierung Technischer Systeme Nach

Prinzipien der Biologischen Information. Friedrich Frommann Verlag (Gu¨nther

Holzboog K.G.), Stuttgart–Bad Cannstatt.

Rosenblatt, F. (1962). Principles of Neurodynamics. Spartan, Chicago.

Rumelhart, D.E. and McClelland, J.L., eds (1986). Parallel Distributed Processing:

Explorations in the Microstructures of Cognition. 2 vols, MIT Press, Cambridge, MA.

Samuel, A.L. (1959). Some studies in machine learning using the game of checkers,

IBM Journal of Research and Development, 3(3), 210–229.

Samuel, A.L. (1967). Some studies in machine learning using the game of checkers II –

recent progress, IBM Journal of Research and Development, 11(6), 601–617.

Schwefel, H.-P. (1995). Evolution and Optimum Seeking. John Wiley, New York.

Shannon, C.E. (1950). Programming a computer for playing chess, Philosophical

Magazine, 41(4), 256–275.

Shortliffe, E.H. (1976). MYCIN: Computer-Based Medical Consultations. Elsevier Press,

New York.

23REFERENCES

Turban, E. and Aronson, J.E. (2000). Decision Support Systems and Intelligent Systems,

6th edn. Prentice Hall, Englewood Cliffs, NJ.

Turing, A.M. (1950). Computing machinery and intelligence, Mind, 59, 433–460.

van Melle, W. (1979). A domain independent production-rule system for consulta-

tion programs, Proceedings of the IJCAI 6, pp. 923–925.

van Melle, W., Shortliffe, E.H. and Buchanan B.G. (1981). EMYCIN: A domain-

independent system that aids in constructing knowledge-based consultation

programs, Machine Intelligence, Infotech State of the Art Report 9, no. 3.

Waterman, D.A. (1986). A Guide to Expert Systems. Addison-Wesley, Reading, MA.

Yager, R.R. and Zadeh, L.A., eds (1994). Fuzzy Sets, Neural Networks and Soft Computing.

Van Nostrand Reinhold, New York.

Zadeh, L. (1965). Fuzzy sets, Information and Control, 8(3), 338–353.

Zahedi, F. (1993). Intelligent Systems for Business: Expert Systems with Neural Networks.

Wadsworth, Belmont, CA.

INTRODUCTION TO KNOWLEDGE-BASED INTELLIGENT SYSTEMS24

2Rule-based expert systems

In which we introduce the most popular choice for building

knowledge-based systems: rule-based expert systems.

2.1 Introduction, or what is knowledge?

In the 1970s, it was ﬁnally accepted that to make a machine solve an intellectual

problem one had to know the solution. In other words, one has to have

knowledge, ‘know-how’, in some speciﬁc domain.

What is knowledge?

Knowledge is a theoretical or practical understanding of a subject or a domain.

Knowledge is also the sum of what is currently known, and apparently knowl-

edge is power. Those who possess knowledge are called experts. They are the

most powerful and important people in their organisations. Any successful

company has at least a few ﬁrst-class experts and it cannot remain in business

without them.

Who is generally acknowledged as an expert?

Anyone can be considered a domain expert if he or she has deep knowledge (of

both facts and rules) and strong practical experience in a particular domain. The

area of the domain may be limited. For example, experts in electrical machines

may have only general knowledge about transformers, while experts in life

insurance marketing might have limited understanding of a real estate insurance

policy. In general, an expert is a skilful person who can do things other people

cannot.

How do experts think?

The human mental process is internal, and it is too complex to be represented as

an algorithm. However, most experts are capable of expressing their knowledge

in the form of rules for problem solving. Consider a simple example. Imagine,

you meet an alien! He wants to cross a road. Can you help him? You are an

expert in crossing roads – you’ve been on this job for several years. Thus you are

able to teach the alien. How would you do this?

You explain to the alien that he can cross the road safely when the trafﬁc light

is green, and he must stop when the trafﬁc light is red. These are the basic rules.

Your knowledge can be formulated as the following simple statements:

IF the ‘trafﬁc light’ is green

THEN the action is go

IF the ‘trafﬁc light’ is red

THEN the action is stop

These statements represented in the IF-THEN form are called production

rules or just rules. The term ‘rule’ in AI, which is the most commonly used type

of knowledge representation, can be deﬁned as an IF-THEN structure that relates

given information or facts in the IF part to some action in the THEN part. A rule

provides some description of how to solve a problem. Rules are relatively easy to

create and understand.

2.2 Rules as a knowledge representation technique

Any rule consists of two parts: the IF part, called the antecedent (premise or

condition) and the THEN part called the consequent (conclusion or action).

The basic syntax of a rule is:

IF <antecedent>

THEN <consequent>

In general, a rule can have multiple antecedents joined by the keywords AND

(conjunction), OR (disjunction) or a combination of both. However, it is a good

habit to avoid mixing conjunctions and disjunctions in the same rule.

IF <antecedent 1>

AND <antecedent 2>

AND <antecedent n>

THEN <consequent>

IF <antecedent 1>

OR <antecedent 2>

OR <antecedent n>

THEN <consequent>

26 RULE-BASED EXPERT SYSTEMS

The consequent of a rule can also have multiple clauses:

IF <antecedent>

THEN <consequent 1>

The antecedent of a rule incorporates two parts: an object (linguistic object)

and its value. In our road crossing example, the linguistic object ‘trafﬁc light’

can take either the value green or the value red. The object and its value are linked

by an operator. The operator identiﬁes the object and assigns the value.

Operators such as is,are,is not,are not are used to assign a symbolic value to a

linguistic object. But expert systems can also use mathematical operators to

deﬁne an object as numerical and assign it to the numerical value. For example,

IF ‘age of the customer’ < 18

AND ‘cash withdrawal’ > 1000

THEN ‘signature of the parent’ is required

Similar to a rule antecedent, a consequent combines an object and a value

connected by an operator. The operator assigns the value to the linguistic object.

In the road crossing example, if the value of trafﬁc light is green, the ﬁrst rule sets

the linguistic object action to the value go. Numerical objects and even simple

arithmetical expression can also be used in a rule consequent.

IF ‘taxable income’ > 16283

THEN ‘Medicare levy’ ¼‘taxable income’ 1.5 / 100

Rules can represent relations, recommendations, directives, strategies and

heuristics (Durkin, 1994).

Relation

IF the ‘fuel tank’ is empty

THEN the car is dead

Recommendation

IF the season is autumn

AND the sky is cloudy

AND the forecast is drizzle

THEN the advice is ‘take an umbrella’

Directive

IF the car is dead

AND the ‘fuel tank’ is empty

THEN the action is ‘refuel the car’

RULES AS A KNOWLEDGE REPRESENTATION TECHNIQUE 27

Strategy

IF the car is dead

THEN the action is ‘check the fuel tank’;

step1 is complete

IF step1 is complete

AND the ‘fuel tank’ is full

THEN the action is ‘check the battery’;

step2 is complete

Heuristic

IF the spill is liquid

AND the ‘spill pH’ < 6

AND the ‘spill smell’ is vinegar

THEN the ‘spill material’ is ‘acetic acid’

2.3 The main players in the expert system development team

As soon as knowledge is provided by a human expert, we can input it into a

computer. We expect the computer to act as an intelligent assistant in some

speciﬁc domain of expertise or to solve a problem that would otherwise have to

be solved by an expert. We also would like the computer to be able to integrate

new knowledge and to show its knowledge in a form that is easy to read and

understand, and to deal with simple sentences in a natural language rather than

an artiﬁcial programming language. Finally, we want our computer to explain

how it reaches a particular conclusion. In other words, we have to build an

expert system, a computer program capable of performing at the level of a

human expert in a narrow problem area.

The most popular expert systems are rule-based systems. A great number have

been built and successfully applied in such areas as business and engineering,

medicine and geology, power systems and mining. A large number of companies

produce and market software for rule-based expert system development – expert

system shells for personal computers.

Expert system shells are becoming particularly popular for developing rule-

based systems. Their main advantage is that the system builder can now

concentrate on the knowledge itself rather than on learning a programming

language.

What is an expert system shell?

An expert system shell can be considered as an expert system with the

knowledge removed. Therefore, all the user has to do is to add the knowledge

in the form of rules and provide relevant data to solve a problem.

Let us now look at who is needed to develop an expert system and what skills

are needed.

In general, there are ﬁve members of the expert system development

team: the domain expert, the knowledge engineer, the programmer, the project

28 RULE-BASED EXPERT SYSTEMS

manager and the end-user. The success of their expert system entirely depends

on how well the members work together. The basic relations in the development

team are summarised in Figure 2.1.

The domain expert is a knowledgeable and skilled person capable of solving

problems in a speciﬁc area or domain. This person has the greatest expertise in a

given domain. This expertise is to be captured in the expert system. Therefore,

the expert must be able to communicate his or her knowledge, be willing to

participate in the expert system development and commit a substantial amount

of time to the project. The domain expert is the most important player in the

expert system development team.

The knowledge engineer is someone who is capable of designing, building

and testing an expert system. This person is responsible for selecting an

appropriate task for the expert system. He or she interviews the domain expert

to ﬁnd out how a particular problem is solved. Through interaction with the

expert, the knowledge engineer establishes what reasoning methods the expert

uses to handle facts and rules and decides how to represent them in the expert

system. The knowledge engineer then chooses some development software or an

expert system shell, or looks at programming languages for encoding the

knowledge (and sometimes encodes it himself). And ﬁnally, the knowledge

engineer is responsible for testing, revising and integrating the expert system

into the workplace. Thus, the knowledge engineer is committed to the project

from the initial design stage to the ﬁnal delivery of the expert system, and even

after the project is completed, he or she may also be involved in maintaining the

system.

The programmer is the person responsible for the actual programming,

describing the domain knowledge in terms that a computer can understand.

The programmer needs to have skills in symbolic programming in such AI

Figure 2.1 The main players of the expert system development team

29THE MAIN PLAYERS IN THE EXPERT SYSTEM DEVELOPMENT TEAM

languages as LISP, Prolog and OPS5 and also some experience in the application

of different types of expert system shells. In addition, the programmer should

know conventional programming languages like C, Pascal, FORTRAN and Basic.

If an expert system shell is used, the knowledge engineer can easily encode the

knowledge into the expert system and thus eliminate the need for the program-

mer. However, if a shell cannot be used, a programmer must develop the

knowledge and data representation structures (knowledge base and database),

control structure (inference engine) and dialogue structure (user interface). The

programmer may also be involved in testing the expert system.

The project manager is the leader of the expert system development team,

responsible for keeping the project on track. He or she makes sure that all

deliverables and milestones are met, interacts with the expert, knowledge

engineer, programmer and end-user.

The end-user, often called just the user, is a person who uses the expert

system when it is developed. The user might be an analytical chemist determin-

ing the molecular structure of soil from Mars (Feigenbaum et al., 1971), a junior

doctor diagnosing an infectious blood disease (Shortliffe, 1976), an exploration

geologist trying to discover a new mineral deposit (Duda et al., 1979), or a power

system operator needing advice in an emergency (Negnevitsky, 1996). Each of

these users of expert systems has different needs, which the system must meet:

the system’s ﬁnal acceptance will depend on the user’s satisfaction. The user

must not only be conﬁdent in the expert system performance but also feel

comfortable using it. Therefore, the design of the user interface of the expert

system is also vital for the project’s success; the end-user’s contribution here can

be crucial.

The development of an expert system can be started when all ﬁve players have

joined the team. However, many expert systems are now developed on personal

computers using expert system shells. This can eliminate the need for the

programmer and also might reduce the role of the knowledge engineer. For

small expert systems, the project manager, knowledge engineer, programmer

and even the expert could be the same person. But all team players are required

when large expert systems are developed.

2.4 Structure of a rule-based expert system

In the early 1970s, Newell and Simon from Carnegie-Mellon University proposed

a production system model, the foundation of the modern rule-based expert

systems (Newell and Simon, 1972). The production model is based on the idea

that humans solve problems by applying their knowledge (expressed as produc-

tion rules) to a given problem represented by problem-speciﬁc information. The

production rules are stored in the long-term memory and the problem-speciﬁc

information or facts in the short-term memory. The production system model

and the basic structure of a rule-based expert system are shown in Figure 2.2.

A rule-based expert system has ﬁve components: the knowledge base, the

database, the inference engine, the explanation facilities, and the user interface.

30 RULE-BASED EXPERT SYSTEMS

The knowledge base contains the domain knowledge useful for problem

solving. In a rule-based expert system, the knowledge is represented as a set

of rules. Each rule speciﬁes a relation, recommendation, directive, strategy or

heuristic and has the IF (condition) THEN (action) structure. When the condition

part of a rule is satisﬁed, the rule is said to ﬁre and the action part is executed.

The database includes a set of facts used to match against the IF (condition)

parts of rules stored in the knowledge base.

The inference engine carries out the reasoning whereby the expert system

reaches a solution. It links the rules given in the knowledge base with the facts

provided in the database.

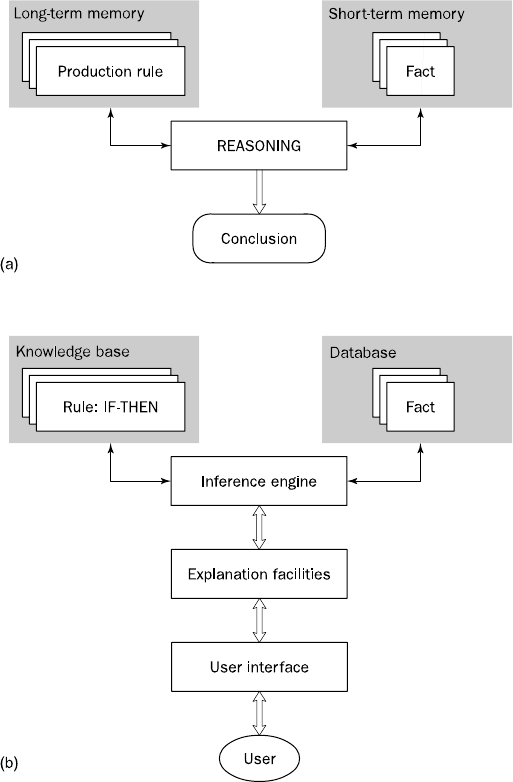

Figure 2.2 Production system and basic structure of a rule-based expert system:

(a) production system model; (b) basic structure of a rule-based expert system

31STRUCTURE OF A RULE-BASED EXPERT SYSTEM

The explanation facilities enable the user to ask the expert system how a

particular conclusion is reached and why a speciﬁc fact is needed. An expert

system must be able to explain its reasoning and justify its advice, analysis or

conclusion.

The user interface is the means of communication between a user seeking a

solution to the problem and an expert system. The communication should be as

meaningful and friendly as possible.

These ﬁve components are essential for any rule-based expert system. They

constitute its core, but there may be a few additional components.

The external interface allows an expert system to work with external data

ﬁles and programs written in conventional programming languages such as C,

Pascal, FORTRAN and Basic. The complete structure of a rule-based expert system

is shown in Figure 2.3.

The developer interface usually includes knowledge base editors, debugging

aids and input/output facilities.

All expert system shells provide a simple text editor to input and modify

rules, and to check their correct format and spelling. Many expert systems also

Figure 2.3 Complete structure of a rule-based expert system

32 RULE-BASED EXPERT SYSTEMS

include book-keeping facilities to monitor the changes made by the knowledge

engineer or expert. If a rule is changed, the editor will automatically store the

change date and the name of the person who made this change for later

reference. This is very important when a number of knowledge engineers and

experts have access to the knowledge base and can modify it.

Debugging aids usually consist of tracing facilities and break packages.

Tracing provides a list of all rules ﬁred during the program’s execution, and a

break package makes it possible to tell the expert system in advance where to

stop so that the knowledge engineer or the expert can examine the current

values in the database.

Most expert systems also accommodate input/output facilities such as run-

time knowledge acquisition. This enables the running expert system to ask for

needed information whenever this information is not available in the database.

When the requested information is input by the knowledge engineer or the

expert, the program resumes.

In general, the developer interface, and knowledge acquisition facilities in

particular, are designed to enable a domain expert to input his or her knowledge

directly in the expert system and thus to minimise the intervention of a

knowledge engineer.

2.5 Fundamental characteristics of an expert system

An expert system is built to perform at a human expert level in a narrow,

specialised domain. Thus, the most important characteristic of an expert

system is its high-quality performance. No matter how fast the system can solve

a problem, the user will not be satisﬁed if the result is wrong. On the other hand,

the speed of reaching a solution is very important. Even the most accurate

decision or diagnosis may not be useful if it is too late to apply, for instance, in

an emergency, when a patient dies or a nuclear power plant explodes. Experts

use their practical experience and understanding of the problem to ﬁnd short

cuts to a solution. Experts use rules of thumb or heuristics. Like their human

counterparts, expert systems should apply heuristics to guide the reasoning and

thus reduce the search area for a solution.

A unique feature of an expert system is its explanation capability. This

enables the expert system to review its own reasoning and explain its decisions.

An explanation in expert systems in effect traces the rules ﬁred during a

problem-solving session. This is, of course, a simpliﬁcation; however a real or

‘human’ explanation is not yet possible because it requires basic understanding

of the domain. Although a sequence of rules ﬁred cannot be used to justify a

conclusion, we can attach appropriate fundamental principles of the domain

expressed as text to each rule, or at least each high-level rule, stored in the

knowledge base. This is probably as far as the explanation capability can be

taken. However, the ability to explain a line of reasoning may not be essential for

some expert systems. For example, a scientiﬁc system built for experts may not

be required to provide extensive explanations, because the conclusion it reaches

FUNDAMENTAL CHARACTERISTICS OF AN EXPERT SYSTEM

can be self-explanatory to other experts; a simple rule-tracing might be quite

appropriate. On the other hand, expert systems used in decision making usually

demand complete and thoughtful explanations, as the cost of a wrong decision

may be very high.

Expert systems employ symbolic reasoning when solving a problem.

Symbols are used to represent different types of knowledge such as facts,

concepts and rules. Unlike conventional programs written for numerical data

processing, expert systems are built for knowledge processing and can easily deal

with qualitative data.

Conventional programs process data using algorithms, or in other words, a

series of well-deﬁned step-by-step operations. An algorithm always performs the

same operations in the same order, and it always provides an exact solution.

Conventional programs do not make mistakes – but programmers sometimes do.

Unlike conventional programs, expert systems do not follow a prescribed

sequence of steps. They permit inexact reasoning and can deal with incomplete,

uncertain and fuzzy data.

Can expert systems make mistakes?

Even a brilliant expert is only a human and thus can make mistakes. This

suggests that an expert system built to perform at a human expert level also

should be allowed to make mistakes. But we still trust experts, although we do

recognise that their judgements are sometimes wrong. Likewise, at least in most

cases, we can rely on solutions provided by expert systems, but mistakes are

possible and we should be aware of this.

Does it mean that conventional programs have an advantage over expert

systems?

In theory, conventional programs always provide the same ‘correct’ solutions.

However, we must remember that conventional programs can tackle problems if,

and only if, the data is complete and exact. When the data is incomplete or

includes some errors, a conventional program will provide either no solution at

all or an incorrect one. In contrast, expert systems recognise that the available

information may be incomplete or fuzzy, but they can work in such situations

and still arrive at some reasonable conclusion.

Another important feature that distinguishes expert systems from conven-

tional programs is that knowledge is separated from its processing (the

knowledge base and the inference engine are split up). A conventional program

is a mixture of knowledge and the control structure to process this knowledge.

This mixing leads to difﬁculties in understanding and reviewing the program

code, as any change to the code affects both the knowledge and its processing. In

expert systems, knowledge is clearly separated from the processing mechanism.

This makes expert systems much easier to build and maintain. When an expert

system shell is used, a knowledge engineer or an expert simply enters rules in the

knowledge base. Each new rule adds some new knowledge and makes the expert

system smarter. The system can then be easily modiﬁed by changing or

subtracting rules.

34 RULE-BASED EXPERT SYSTEMS

The characteristics of expert systems discussed above make them different

from conventional systems and human experts. A comparison is shown in

Table 2.1.

2.6 Forward chaining and backward chaining inference

techniques

In a rule-based expert system, the domain knowledge is represented by a set of

IF-THEN production rules and data is represented by a set of facts about

the current situation. The inference engine compares each rule stored in the

Table 2.1 Comparison of expert systems with conventional systems and human experts

Human experts Expert systems Conventional programs

Use knowledge in the

form of rules of thumb or

heuristics to solve

problems in a narrow

domain.

Process knowledge

expressed in the form of

rules and use symbolic

reasoning to solve

problems in a narrow

domain.

Process data and use

algorithms, a series of

well-deﬁned operations, to

solve general numerical

problems.

In a human brain,

knowledge exists in a

compiled form.

Provide a clear separation

of knowledge from its

processing.

Do not separate

knowledge from the

control structure to

process this knowledge.

Capable of explaining a

line of reasoning and

providing the details.

Trace the rules ﬁred during

a problem-solving session

and explain how a

particular conclusion was

reached and why speciﬁc

data was needed.

Do not explain how a

particular result was

obtained and why input

data was needed.

Use inexact reasoning

and can deal with

incomplete, uncertain and

fuzzy information.

Permit inexact reasoning

and can deal with

incomplete, uncertain and

fuzzy data.

Work only on problems

where data is complete

and exact.

Can make mistakes when

information is incomplete

or fuzzy.

Can make mistakes when

data is incomplete or fuzzy.

Provide no solution at all,

or a wrong one, when data

is incomplete or fuzzy.

Enhance the quality of

problem solving via years

of learning and practical

training. This process is

slow, inefﬁcient and

expensive.

Enhance the quality of

problem solving by adding

new rules or adjusting old

ones in the knowledge

base. When new knowledge

is acquired, changes are

easy to accomplish.

Enhance the quality of

problem solving by

changing the program

code, which affects both

the knowledge and its

processing, making

changes difﬁcult.

35FORWARD AND BACKWARD CHAINING INFERENCE TECHNIQUES

knowledge base with facts contained in the database. When the IF (condition)

part of the rule matches a fact, the rule is ﬁred and its THEN (action) part is

executed. The ﬁred rule may change the set of facts by adding a new fact, as

shown in Figure 2.4. Letters in the database and the knowledge base are used to

represent situations or concepts.

The matching of the rule IF parts to the facts produces inference chains.

The inference chain indicates how an expert system applies the rules to reach

a conclusion. To illustrate chaining inference techniques, consider a simple

example.

Suppose the database initially includes facts A,B,C,Dand E, and the

knowledge base contains only three rules:

Rule 1: IF Yis true

AND Dis true

THEN Zis true

Rule 2: IF Xis true

AND Bis true

AND Eis true

THEN Yis true

Rule 3: IF Ais true

THEN Xis true

The inference chain shown in Figure 2.5 indicates how the expert system

applies the rules to infer fact Z. First Rule 3 is ﬁred to deduce new fact Xfrom

given fact A. Then Rule 2 is executed to infer fact Yfrom initially known facts B

and E, and already known fact X. And ﬁnally, Rule 1 applies initially known fact

Dand just-obtained fact Yto arrive at conclusion Z.

An expert system can display its inference chain to explain how a particular

conclusion was reached; this is an essential part of its explanation facilities.

Figure 2.4 The inference engine cycles via a match-ﬁre procedure

36 RULE-BASED EXPERT SYSTEMS

The inference engine must decide when the rules have to be ﬁred. There are

two principal ways in which rules are executed. One is called forward chaining

and the other backward chaining (Waterman and Hayes-Roth, 1978).

2.6.1 Forward chaining

The example discussed above uses forward chaining. Now consider this tech-

nique in more detail. Let us ﬁrst rewrite our rules in the following form:

Rule 1: Y&D!Z

Rule 2: X&B&E!Y

Rule 3: A!X

Arrows here indicate the IF and THEN parts of the rules. Let us also add two more

rules:

Rule 4: C!L

Rule 5: L&M!N

Figure 2.6 shows how forward chaining works for this simple set of rules.

Forward chaining is the data-driven reasoning. The reasoning starts from the

known data and proceeds forward with that data. Each time only the topmost

rule is executed. When ﬁred, the rule adds a new fact in the database. Any rule

can be executed only once. The match-ﬁre cycle stops when no further rules can

be ﬁred.

In the ﬁrst cycle, only two rules, Rule 3: A!Xand Rule 4: C!L, match facts

in the database. Rule 3: A!Xis ﬁred ﬁrst as the topmost one. The IF part of this

rule matches fact Ain the database, its THEN part is executed and new fact Xis

added to the database. Then Rule 4: C!Lis ﬁred and fact Lis also placed in the

database.

In the second cycle, Rule 2: X&B&E!Yis ﬁred because facts B,Eand Xare

already in the database, and as a consequence fact Yis inferred and put in the

database. This in turn causes Rule 1: Y&D!Zto execute, placing fact Zin

the database (cycle 3). Now the match-ﬁre cycles stop because the IF part of

Rule 5: L&M!Ndoes not match all facts in the database and thus Rule 5

cannot be ﬁred.

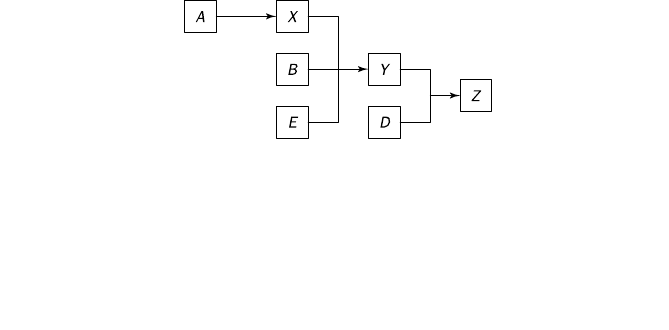

Figure 2.5 An example of an inference chain

37FORWARD AND BACKWARD CHAINING INFERENCE TECHNIQUES

Forward chaining is a technique for gathering information and then inferring

from it whatever can be inferred. However, in forward chaining, many rules may

be executed that have nothing to do with the established goal. Suppose, in our

example, the goal was to determine fact Z. We had only ﬁve rules in the

knowledge base and four of them were ﬁred. But Rule 4: C!L, which is

unrelated to fact Z, was also ﬁred among others. A real rule-based expert system

can have hundreds of rules, many of which might be ﬁred to derive new facts

that are valid, but unfortunately unrelated to the goal. Therefore, if our goal is to

infer only one particular fact, the forward chaining inference technique would

not be efﬁcient.

In such a situation, backward chaining is more appropriate.

2.6.2 Backward chaining

Backward chaining is the goal-driven reasoning. In backward chaining, an

expert system has the goal (a hypothetical solution) and the inference engine

attempts to ﬁnd the evidence to prove it. First, the knowledge base is searched to

ﬁnd rules that might have the desired solution. Such rules must have the goal in

their THEN (action) parts. If such a rule is found and its IF (condition) part

matches data in the database, then the rule is ﬁred and the goal is proved.

However, this is rarely the case. Thus the inference engine puts aside the rule it is

working with (the rule is said to stack) and sets up a new goal, a sub-goal, to

prove the IF part of this rule. Then the knowledge base is searched again for rules

that can prove the sub-goal. The inference engine repeats the process of stacking

the rules until no rules are found in the knowledge base to prove the current

sub-goal.

Figure 2.6 Forward chaining

38 RULE-BASED EXPERT SYSTEMS

Figure 2.7 shows how backward chaining works, using the rules for the

forward chaining example.

In Pass 1, the inference engine attempts to infer fact Z. It searches the

knowledge base to ﬁnd the rule that has the goal, in our case fact Z, in its THEN

part. The inference engine ﬁnds and stacks Rule 1: Y&D!Z. The IF part of

Rule 1 includes facts Yand D, and thus these facts must be established.

In Pass 2, the inference engine sets up the sub-goal, fact Y, and tries to

determine it. First it checks the database, but fact Yis not there. Then the

knowledge base is searched again for the rule with fact Yin its THEN part. The

Figure 2.7 Backward chaining

39FORWARD AND BACKWARD CHAINING INFERENCE TECHNIQUES

inference engine locates and stacks Rule 2: X&B&E!Y. The IF part of Rule 2

consists of facts X,Band E, and these facts also have to be established.

In Pass 3, the inference engine sets up a new sub-goal, fact X. It checks the

database for fact X, and when that fails, searches for the rule that infers X.

The inference engine ﬁnds and stacks Rule 3: A!X. Now it must determine

fact A.

In Pass 4, the inference engine ﬁnds fact Ain the database, Rule 3: A!Xis

ﬁred and new fact Xis inferred.

In Pass 5, the inference engine returns to the sub-goal fact Yand once again

tries to execute Rule 2: X&B&E!Y. Facts X,Band Eare in the database and

thus Rule 2 is ﬁred and a new fact, fact Y, is added to the database.

In Pass 6, the system returns to Rule 1: Y&D!Ztrying to establish the

original goal, fact Z. The IF part of Rule 1 matches all facts in the database, Rule 1

is executed and thus the original goal is ﬁnally established.

Let us now compare Figure 2.6 with Figure 2.7. As you can see, four rules were

ﬁred when forward chaining was used, but just three rules when we applied

backward chaining. This simple example shows that the backward chaining

inference technique is more effective when we need to infer one particular fact,

in our case fact Z. In forward chaining, the data is known at the beginning of the

inference process, and the user is never asked to input additional facts. In

backward chaining, the goal is set up and the only data used is the data needed

to support the direct line of reasoning, and the user may be asked to input any

fact that is not in the database.

How do we choose between forward and backward chaining?

The answer is to study how a domain expert solves a problem. If an expert ﬁrst

needs to gather some information and then tries to infer from it whatever can be

inferred, choose the forward chaining inference engine. However, if your expert

begins with a hypothetical solution and then attempts to ﬁnd facts to prove it,

choose the backward chaining inference engine.

Forward chaining is a natural way to design expert systems for analysis and

interpretation. For example, DENDRAL, an expert system for determining the

molecular structure of unknown soil based on its mass spectral data (Feigenbaum

et al., 1971), uses forward chaining. Most backward chaining expert systems

are used for diagnostic purposes. For instance, MYCIN, a medical expert system

for diagnosing infectious blood diseases (Shortliffe, 1976), uses backward

chaining.

Can we combine forward and backward chaining?

Many expert system shells use a combination of forward and backward chaining

inference techniques, so the knowledge engineer does not have to choose

between them. However, the basic inference mechanism is usually backward

chaining. Only when a new fact is established is forward chaining employed to

maximise the use of the new data.

40 RULE-BASED EXPERT SYSTEMS

2.7 MEDIA ADVISOR: a demonstration rule-based expert

system

To illustrate some of the ideas discussed above, we next consider a simple rule-

based expert system. The Leonardo expert system shell was selected as a tool to

build a decision-support system called MEDIA ADVISOR. The system provides

advice on selecting a medium for delivering a training program based on the

trainee’s job. For example, if a trainee is a mechanical technician responsible for

maintaining hydraulic systems, an appropriate medium might be a workshop,

where the trainee could learn how basic hydraulic components operate, how to

troubleshoot hydraulics problems and how to make simple repairs to hydraulic

systems. On the other hand, if a trainee is a clerk assessing insurance applica-

tions, a training program might include lectures on speciﬁc problems of the task,

as well as tutorials where the trainee could evaluate real applications. For

complex tasks, where trainees are likely to make mistakes, a training program

should also include feedback on the trainee’s performance.

Knowledge base

/*MEDIA ADVISOR: a demonstration rule-based expert system

Rule: 1

if the environment is papers

or the environment is manuals

or the environment is documents

or the environment is textbooks

then the stimulus_situation is verbal

Rule: 2

if the environment is pictures

or the environment is illustrations

or the environment is photographs

or the environment is diagrams

then the stimulus_situation is visual

Rule: 3

if the environment is machines

or the environment is buildings

or the environment is tools

then the stimulus_situation is ‘physical object’

Rule: 4

if the environment is numbers

or the environment is formulas

or the environment is ‘computer programs’

then the stimulus_situation is symbolic

MEDIA ADVISOR: A DEMONSTRATION RULE-BASED EXPERT SYSTEM

Rule: 5

if the job is lecturing

or the job is advising

or the job is counselling

then the stimulus_response is oral

Rule: 6

if the job is building

or the job is repairing

or the job is troubleshooting

then the stimulus_response is ‘hands-on’

Rule: 7

if the job is writing

or the job is typing

or the job is drawing

then the stimulus_response is documented

Rule: 8

if the job is evaluating

or the job is reasoning

or the job is investigating

then the stimulus_response is analytical

Rule: 9

if the stimulus_situation is ‘physical object’

and the stimulus_response is ‘hands-on’

and feedback is required

then medium is workshop

Rule: 10

if the stimulus_situation is symbolic

and the stimulus_response is analytical

and feedback is required

then medium is ‘lecture – tutorial’

Rule: 11

if the stimulus_situation is visual

and the stimulus_response is documented

and feedback is not required

then medium is videocassette

Rule: 12

if the stimulus_situation is visual

and the stimulus_response is oral

and feedback is required

then medium is ‘lecture – tutorial’

42 RULE-BASED EXPERT SYSTEMS

Rule: 13

if the stimulus_situation is verbal

and the stimulus_response is analytical

and feedback is required

then medium is ‘lecture – tutorial’

Rule: 14

if the stimulus_situation is verbal

and the stimulus_response is oral

and feedback is required

then medium is ‘role-play exercises’

/*The SEEK directive sets up the goal of the rule set

seek medium

Objects

MEDIA ADVISOR uses six linguistic objects: environment, stimulus_situation, job,

stimulus_response, feedback and medium. Each object can take one of the allowed

values (for example, object environment can take the value of papers, manuals,

documents, textbooks, pictures, illustrations, photographs, diagrams, machines, build-

ings, tools, numbers, formulas, computer programs). An object and its value

constitute a fact (for instance, the environment is machines, and the job is

repairing). All facts are placed in the database.

Object Allowed values Object Allowed values

environment papers job lecturing

manuals advising

documents counselling

textbooks building

pictures repairing

illustrations troubleshooting

photographs writing

diagrams typing

machines drawing

buildings evaluating

tools reasoning

numbers

formulas

investigating

computer programs stimulus_ response oral

hands-on

documented

analytical

stimulus_situation verbal

visual

physical object feedback required

symbolic not required

MEDIA ADVISOR: A DEMONSTRATION RULE-BASED EXPERT SYSTEM 43

Options

The ﬁnal goal of the rule-based expert system is to produce a solution to the

problem based on input data. In MEDIA ADVISOR, the solution is a medium

selected from the list of four options:

medium is workshop

medium is ‘lecture – tutorial’

medium is videocassette

medium is ‘role-play exercises’

Dialogue

In the dialogue shown below, the expert system asks the user to input the data

needed to solve the problem (the environment, the job and feedback). Based on

the answers supplied by the user (answers are indicated by arrows), the expert

system applies rules from its knowledge base to infer that the stimulus_situation is

physical object, and the stimulus_response is hands-on. Rule 9 then selects one of

the allowed values of medium.

What sort of environment is a trainee dealing with on the job?

)machines

Rule: 3

if the environment is machines

or the environment is buildings

or the environment is tools

then the stimulus_situation is ‘physical object’

In what way is a trainee expected to act or respond on the job?

)repairing

Rule: 6

if the job is building

or the job is repairing

or the job is troubleshooting

then the stimulus_response is ‘hands-on’

Is feedback on the trainee’s progress required during training?

)required

Rule: 9

if the stimulus_situation is ‘physical object’

and the stimulus_response is ‘hands-on’

and feedback is required

then medium is workshop

medium is workshop

44 RULE-BASED EXPERT SYSTEMS

Inference techniques

The standard inference technique in Leonardo is backward chaining with

opportunistic forward chaining, which is the most efﬁcient way to deal with

the available information. However, Leonardo also enables the user to turn off

either backward or forward chaining, and thus allows us to study each inference

technique separately.

Forward chaining is data-driven reasoning, so we need ﬁrst to provide some

data. Assume that

the environment is machines

‘environment’ instantiated by user input to ‘machines’

the job is repairing

‘job’ instantiated by user input to ‘repairing’

feedback is required

‘feedback’ instantiated by user input to ‘required’

The following process will then happen:

Rule: 3 ﬁres ‘stimulus_situation’ instantiated by Rule: 3 to ‘physical object’

Rule: 6 ﬁres ‘stimulus_response’ instantiated by Rule: 6 to ‘hands-on’

Rule: 9 ﬁres ‘medium’ instantiated by Rule: 9 to ‘workshop’

No rules ﬁre stop

Backward chaining is goal-driven reasoning, so we need ﬁrst to establish a

hypothetical solution (the goal). Let us, for example, set up the following goal:

‘medium’ is ‘workshop’

Pass 1

Trying Rule: 9 Need to ﬁnd object ‘stimulus_situation’

Rule: 9 stacked Object ‘stimulus_situation’ sought as ‘physical

object’

Pass 2

Trying Rule: 3 Need to ﬁnd object ‘environment’

Rule: 3 stacked Object ‘environment’ sought as ‘machines’

ask environment

)machines ‘environment’ instantiated by user input to

‘machines’

Trying Rule: 3 ‘stimulus_situation’ instantiated by Rule: 3 to

‘physical object’

Pass 3

Trying Rule: 9 Need to ﬁnd object ‘stimulus_response’

Rule: 9 stacked Object ‘stimulus_response’soughtas‘hands-on’

MEDIA: A DEMONSTRATION RULE-BASED EXPERT SYSTEM

Pass 4

Trying Rule: 6 Need to ﬁnd object ‘job’

Rule: 6 stacked Object ‘job’ sought as ‘building’

ask job

)repairing ‘job’ instantiated by user input to ‘repairing’

Trying Rule: 6 ‘stimulus_response’ instantiated by Rule: 6 to

‘hands-on’

Pass 5

Trying Rule: 9 Need to ﬁnd object ‘feedback’

Rule: 9 stacked Object ‘feedback’ sought as ‘required’

ask feedback

)required ‘feedback’ instantiated by user input to ‘required’

Trying Rule: 9 ‘medium’ instantiated by Rule: 9 to ‘workshop’

medium is workshop

It is useful to have a tree diagram that maps a consultation session with an

expert system. A diagram for MEDIA ADVISOR is shown in Figure 2.8. The root

node is the goal; when the system is started, the inference engine seeks to

determine the goal’s value.

Goal: medium

stimulus

situation

Rule: 10Rule: 9 Rule: 11 Rule: 12 Rule: 13 Rule: 14

Rule: 2Rule: 1 Rule: 3 Rule: 4 Rule: 5 Rule: 6 Rule: 7 Rule: 8

stimulus

response

environment

Ask:

environment

job

Ask:

job

feedback

Ask:

feedback

Figure 2.8 Tree diagram for the rule-based expert system MEDIA ADVISOR

46 RULE-BASED EXPERT SYSTEMS

Does MEDIA ADVISOR handle all possible situations?

When we start to use our expert system more often, we might ﬁnd that the

provided options do not cover all possible situations. For instance, the following

dialogue might occur:

What sort of environment is a trainee dealing with on the job?

)illustrations

In what way is a trainee expected to act or respond on the job?

)drawing

Is feedback on the trainee’s progress required during training?

)required

I am unable to draw any conclusions on the basis of the data.

Thus, MEDIA ADVISOR in its present state cannot handle this particular

situation. Fortunately, the expert system can easily be expanded to accommo-

date more rules until it ﬁnally does what the user wants it to do.

2.8 Conﬂict resolution

Earlier in this chapter, we considered two simple rules for crossing a road. Let us

now add a third rule. We will get the following set of rules:

Rule 1:

IF the ‘trafﬁc light’ is green

THEN the action is go

Rule 2:

IF the ‘trafﬁc light’ is red

THEN the action is stop

Rule 3:

IF the ‘trafﬁc light’ is red

THEN the action is go

What will happen?

The inference engine compares IF (condition) parts of the rules with data

available in the database, and when conditions are satisﬁed the rules are set to

ﬁre. The ﬁring of one rule may affect the activation of other rules, and therefore

the inference engine must allow only one rule to ﬁre at a time. In our road

crossing example, we have two rules, Rule 2 and Rule 3, with the same IF part.

Thus both of them can be set to ﬁre when the condition part is satisﬁed. These

rules represent a conﬂict set. The inference engine must determine which rule to

ﬁre from such a set. A method for choosing a rule to ﬁre when more than one

rule can be ﬁred in a given cycle is called conﬂict resolution.

CONFLICT RESOLUTION

If the trafﬁc light is red, which rule should be executed?

In forward chaining, both rules would be ﬁred. Rule 2 is ﬁred ﬁrst as the top-

most one, and as a result, its THEN part is executed and linguistic object action

obtains value stop. However, Rule 3 is also ﬁred because the condition part of

this rule matches the fact ‘trafﬁc light’ is red, which is still in the database.

As a consequence, object action takes new value go. This simple example shows

that the rule order is vital when the forward chaining inference technique is used.

How can we resolve a conﬂict?

The obvious strategy for resolving conﬂicts is to establish a goal and stop the rule

execution when the goal is reached. In our problem, for example, the goal is to

establish a value for linguistic object action. When the expert system determines

a value for action, it has reached the goal and stops. Thus if the trafﬁc light is

red, Rule 2 is executed, object action attains value stop and the expert system

stops. In the given example, the expert system makes a right decision; however if

we arranged the rules in the reverse order, the conclusion would be wrong. It

means that the rule order in the knowledge base is still very important.

Are there any other conﬂict resolution methods?

Several methods are in use (Giarratano and Riley, 1998; Shirai and Tsuji, 1982):

.Fire the rule with the highest priority. In simple applications, the priority can

be established by placing the rules in an appropriate order in the knowledge

base. Usually this strategy works well for expert systems with around 100

rules. However, in some applications, the data should be processed in order of

importance. For example, in a medical consultation system (Durkin, 1994),

the following priorities are introduced:

Goal 1. Prescription is? Prescription

RULE 1 Meningitis Prescription1

(Priority 100)

IF Infection is Meningitis

AND The Patient is a Child

THEN Prescription is Number_1

AND Drug Recommendation is Ampicillin

AND Drug Recommendation is Gentamicin

AND Display Meningitis Prescription1

RULE 2 Meningitis Prescription2

(Priority 90)

IF Infection is Meningitis

AND The Patient is an Adult

THEN Prescription is Number_2

AND Drug Recommendation is Penicillin

AND Display Meningitis Prescription2

48 RULE-BASED EXPERT SYSTEMS

.Fire the most speciﬁc rule. This method is also known as the longest

matching strategy. It is based on the assumption that a speciﬁc rule processes

more information than a general one. For example,

Rule 1:

IF the season is autumn

AND the sky is cloudy

AND the forecast is rain

THEN the advice is ‘stay home’

Rule 2:

IF the season is autumn

THEN the advice is ‘take an umbrella’

If the season is autumn, the sky is cloudy and the forecast is rain, then Rule 1

would be ﬁred because its antecedent, the matching part, is more speciﬁc than

that of Rule 2. But if it is known only that the season is autumn, then Rule 2

would be executed.

.Fire the rule that uses the data most recently entered in the database. This

method relies on time tags attached to each fact in the database. In the conﬂict

set, the expert system ﬁrst ﬁres the rule whose antecedent uses the data most

recently added to the database. For example,

Rule 1:

IF the forecast is rain [08:16 PM 11/25/96]

THEN the advice is ‘take an umbrella’

Rule 2:

IF the weather is wet [10:18 AM 11/26/96]

THEN the advice is ‘stay home’

Assume that the IF parts of both rules match facts in the database. In this

case, Rule 2 would be ﬁred since the fact weather is wet was entered after the

fact forecast is rain. This technique is especially useful for real-time expert

system applications when information in the database is constantly updated.

The conﬂict resolution methods considered above are simple and easily

implemented. In most cases, these methods provide satisfactory solutions.

However, as a program grows larger and more complex, it becomes increasingly

difﬁcult for the knowledge engineer to manage and oversee rules in the

knowledge base. The expert system itself must take at least some of the burden

and understand its own behaviour.

To improve the performance of an expert system, we should supply the

system with some knowledge about the knowledge it possesses, or in other

words, metaknowledge.

Metaknowledge can be simply deﬁned as knowledge about knowledge.

Metaknowledge is knowledge about the use and control of domain knowledge

in an expert system (Waterman, 1986). In rule-based expert systems, meta-

knowledge is represented by metarules. A metarule determines a strategy for the

use of task-speciﬁc rules in the expert system.

CONFLICT RESOLUTION

What is the origin of metaknowledge?

The knowledge engineer transfers the knowledge of the domain expert to the

expert system, learns how problem-speciﬁc rules are used, and gradually creates

in his or her own mind a new body of knowledge, knowledge about the overall

behaviour of the expert system. This new knowledge, or metaknowledge, is

largely domain-independent. For example,

Metarule 1:

Rules supplied by experts have higher priorities than rules supplied by

novices.

Metarule 2:

Rules governing the rescue of human lives have higher priorities than rules

concerned with clearing overloads on power system equipment.

Can an expert system understand and use metarules?

Some expert systems provide a separate inference engine for metarules. However,

most expert systems cannot distinguish between rules and metarules. Thus

metarules should be given the highest priority in the existing knowledge base.

When ﬁred, a metarule ‘injects’ some important information into the database

that can change the priorities of some other rules.

2.9 Advantages and disadvantages of rule-based expert

systems

Rule-based expert systems are generally accepted as the best option for building

knowledge-based systems.

Which features make rule-based expert systems particularly attractive for

knowledge engineers?

Among these features are:

.Natural knowledge representation. An expert usually explains the problem-

solving procedure with such expressions as this: ‘In such-and-such situation,

I do so-and-so’. These expressions can be represented quite naturally as

IF-THEN production rules.

.Uniform structure. Production rules have the uniform IF-THEN structure.

Each rule is an independent piece of knowledge. The very syntax of produc-

tion rules enables them to be self-documented.

.Separation of knowledge from its processing. The structure of a rule-based

expert system provides an effective separation of the knowledge base from the

inference engine. This makes it possible to develop different applications

using the same expert system shell. It also allows a graceful and easy

expansion of the expert system. To make the system smarter, a knowledge

engineer simply adds some rules to the knowledge base without intervening

in the control structure.

50 RULE-BASED EXPERT SYSTEMS

.Dealing with incomplete and uncertain knowledge. Most rule-based expert

systems are capable of representing and reasoning with incomplete and

uncertain knowledge. For example, the rule

IF season is autumn

AND sky is ‘cloudy’

AND wind is low

THEN forecast is clear { cf 0.1 };

forecast is drizzle { cf 1.0 };

forecast is rain { cf 0.9 }

could be used to express the uncertainty of the following statement, ‘If the

season is autumn and it looks like drizzle, then it will probably be another wet

day today’.

The rule represents the uncertainty by numbers called certainty factors

fcf 0.1g. The expert system uses certainty factors to establish the degree of

conﬁdence or level of belief that the rule’s conclusion is true. This topic will

be considered in detail in Chapter 3.

All these features of the rule-based expert systems make them highly desirable

for knowledge representation in real-world problems.

Are rule-based expert systems problem-free?

There are three main shortcomings:

.Opaque relations between rules. Although the individual production rules

tend to be relatively simple and self-documented, their logical interactions

within the large set of rules may be opaque. Rule-based systems make it

difﬁcult to observe how individual rules serve the overall strategy. This

problem is related to the lack of hierarchical knowledge representation in

the rule-based expert systems.

.Ineffective search strategy. The inference engine applies an exhaustive

search through all the production rules during each cycle. Expert systems

with a large set of rules (over 100 rules) can be slow, and thus large rule-based

systems can be unsuitable for real-time applications.

.Inability to learn. In general, rule-based expert systems do not have an

ability to learn from the experience. Unlike a human expert, who knows

when to ‘break the rules’, an expert system cannot automatically modify its

knowledge base, or adjust existing rules or add new ones. The knowledge

engineer is still responsible for revising and maintaining the system.

2.10 Summary

In this chapter, we presented an overview of rule-based expert systems. We

brieﬂy discussed what knowledge is, and how experts express their knowledge in

the form of production rules. We identiﬁed the main players in the expert

SUMMARY

system development team and showed the structure of a rule-based system. We

discussed fundamental characteristics of expert systems and noted that expert

systems can make mistakes. Then we reviewed the forward and backward

chaining inference techniques and debated conﬂict resolution strategies. Finally,

the advantages and disadvantages of rule-based expert systems were examined.

The most important lessons learned in this chapter are:

.Knowledge is a theoretical or practical understanding of a subject. Knowledge

is the sum of what is currently known.

.An expert is a person who has deep knowledge in the form of facts and rules

and strong practical experience in a particular domain. An expert can do

things other people cannot.

.The experts can usually express their knowledge in the form of production

rules.

.Production rules are represented as IF (antecedent) THEN (consequent)

statements. A production rule is the most popular type of knowledge

representation. Rules can express relations, recommendations, directives,

strategies and heuristics.

.A computer program capable of performing at a human-expert level in a

narrow problem domain area is called an expert system. The most popular

expert systems are rule-based expert systems.

.In developing rule-based expert systems, shells are becoming particularly

common. An expert system shell is a skeleton expert system with the

knowledge removed. To build a new expert system application, all the user

has to do is to add the knowledge in the form of rules and provide relevant

data. Expert system shells offer a dramatic reduction in the development time

of expert systems.

.The expert system development team should include the domain expert, the

knowledge engineer, the programmer, the project manager and the end-user.

The knowledge engineer designs, builds and tests an expert system. He or she

captures the knowledge from the domain expert, establishes reasoning

methods and chooses the development software. For small expert systems

based on expert system shells, the project manager, knowledge engineer,

programmer and even the expert could be the same person.

.A rule-based expert system has ﬁve basic components: the knowledge base,

the database, the inference engine, the explanation facilities and the user

interface. The knowledge base contains the domain knowledge represented as

a set of rules. The database includes a set of facts used to match against the IF

parts of rules. The inference engine links the rules with the facts and carries

out the reasoning whereby the expert system reaches a solution. The

explanation facilities enable the user to query the expert system about how

a particular conclusion is reached and why a speciﬁc fact is needed. The user

interface is the means of communication between a user and an expert

system.

52 RULE-BASED EXPERT SYSTEMS

.Expert systems separate knowledge from its processing by splitting up the

knowledge base and the inference engine. This makes the task of building and

maintaining an expert system much easier. When an expert system shell is

used, a knowledge engineer or an expert simply enter rules in the knowledge

base. Each new rule adds some new knowledge and makes the expert system

smarter.

.Expert systems provide a limited explanation capability by tracing the rules

ﬁred during a problem-solving session.

.Unlike conventional programs, expert systems can deal with incomplete and

uncertain data and permit inexact reasoning. However, like their human

counterparts, expert systems can make mistakes when information is incom-

plete or fuzzy.

.There are two principal methods to direct search and reasoning: forward

chaining and backward chaining inference techniques. Forward chaining is

data-driven reasoning; it starts from the known data and proceeds forward

until no further rules can be ﬁred. Backward chaining is goal-driven reason-

ing; an expert system has a hypothetical solution (the goal), and the inference

engine attempts to ﬁnd the evidence to prove it.

.If more than one rule can be ﬁred in a given cycle, the inference engine

must decide which rule to ﬁre. A method for deciding is called conﬂict

resolution.

.Rule-based expert systems have the advantages of natural knowledge repres-

entation, uniform structure, separation of knowledge from its processing, and

coping with incomplete and uncertain knowledge.

.Rule-based expert systems also have disadvantages, especially opaque rela-

tions between rules, ineffective search strategy, and inability to learn.

Questions for review

1 What is knowledge? Explain why experts usually have detailed knowledge of a limited

area of a speciﬁc domain. What do we mean by heuristic?

2 What is a production rule? Give an example and deﬁne two basic parts of the

production rule.

3 List and describe the ﬁve major players in the expert system development team. What

is the role of the knowledge engineer?

4 What is an expert system shell? Explain why the use of an expert system shell can

dramatically reduce the development time of an expert system.

5 What is a production system model? List and deﬁne the ﬁve basic components of an

expert system.

6 What are the fundamental characteristics of an expert system? What are the

differences between expert systems and conventional programs?

53QUESTIONS FOR REVIEW

7 Can an expert system make mistakes? Why?

8 Describe the forward chaining inference process. Give an example.

9 Describe the backward chaining inference process. Give an example.

10 List problems for which the forward chaining inference technique is appropriate. Why is

backward chaining used for diagnostic problems?

11 What is a conﬂict set of rules? How can we resolve a conﬂict? List and describe the

basic conﬂict resolution methods.

12 List advantages of rule-based expert systems. What are their disadvantages?

References

Duda, R., Gaschnig, J. and Hart, P. (1979). Model design in the PROSPECTOR

consultant system for mineral exploration, Expert Systems in the Microelectronic

Age, D. Michie, ed., Edinburgh University Press, Edinburgh, Scotland, pp. 153–167.

Durkin, J. (1994). Expert Systems Design and Development. Prentice Hall, Englewood

Cliffs, NJ.

Feigenbaum, E.A., Buchanan, B.G. and Lederberg, J. (1971). On generality and

problem solving: a case study using the DENDRAL program, Machine Intelligence

6, B. Meltzer and D. Michie, eds, Edinburgh University Press, Edinburgh, Scotland,

pp. 165–190.

Giarratano, J. and Riley, G. (1998). Expert Systems: Principles and Programming, 3rd edn.

PWS Publishing Company, Boston.

Negnevitsky, M. (1996). Crisis management in power systems: a knowledge based

approach, Applications of Artiﬁcial Intelligence in Engineering XI, R.A. Adey,

G. Rzevski and A.K. Sunol, eds, Computational Mechanics Publications, South-

ampton, UK, pp. 122–141.

Newell, A. and Simon, H.A. (1972). Human Problem Solving. Prentice Hall, Englewood

Cliffs, NJ.

Shirai, Y. and Tsuji, J. (1982). Artiﬁcial Intelligence: Concepts, Technologies and Applica-

tions. John Wiley, New York.

Shortliffe, E.H. (1976). MYCIN: Computer-Based Medical Consultations. Elsevier Press,

New York.

Waterman, D.A. (1986). A Guide to Expert Systems. Addison-Wesley, Reading, MA.

Waterman, D.A. and Hayes-Roth, F. (1978). An overview of pattern-directed inference

systems, Pattern-Directed Inference Systems, D.A. Waterman and F. Hayes-Roth, eds,

Academic Press, New York.

54 RULE-BASED EXPERT SYSTEMS

3Uncertainty management in

rule-based expert systems

In which we present the main uncertainty management paradigms,

Bayesian reasoning and certainty factors, discuss their relative

merits and consider examples to illustrate the theory.

3.1 Introduction, or what is uncertainty?

One of the common characteristics of the information available to human

experts is its imperfection. Information can be incomplete, inconsistent, un-

certain, or all three. In other words, information is often unsuitable for solving a

problem. However, an expert can cope with these defects and can usually make

correct judgements and right decisions. Expert systems also have to be able to

handle uncertainty and draw valid conclusions.

What is uncertainty in expert systems?

Uncertainty can be deﬁned as the lack of the exact knowledge that would enable

us to reach a perfectly reliable conclusion (Stephanou and Sage, 1987). Classical

logic permits only exact reasoning. It assumes that perfect knowledge always

exists and the law of the excluded middle can always be applied:

IF Ais true

THEN Ais not false

and

IF Bis false

THEN Bis not true

Unfortunately most real-world problems where expert systems could be used

do not provide us with such clear-cut knowledge. The available information

often contains inexact, incomplete or even unmeasurable data.

What are the sources of uncertain knowledge in expert systems?

In general, we can identify four main sources: weak implications, imprecise

language, unknown data, and the difﬁculty of combining the views of different

experts (Bonissone and Tong, 1985). Let us consider these sources in more

detail.

.Weak implications. Rule-based expert systems often suffer from weak

implications and vague associations. Domain experts and knowledge engi-

neers have the painful, and rather hopeless, task of establishing concrete

correlations between IF (condition) and THEN (action) parts of the rules.

Therefore, expert systems need to have the ability to handle vague associa-

tions, for example by accepting the degree of correlations as numerical

certainty factors.

.Imprecise language. Our natural language is inherently ambiguous and

imprecise. We describe facts with such terms as often and sometimes,

frequently and hardly ever. As a result, it can be difﬁcult to express

knowledge in the precise IF-THEN form of production rules. However, if the

meaning of the facts is quantiﬁed, it can be used in expert systems. In 1944,

Ray Simpson asked 355 high school and college students to place 20 terms

like often on a scale between 1 and 100 (Simpson, 1944). In 1968, Milton

Hakel repeated this experiment (Hakel, 1968). Their results are presented in

Table 3.1.

Quantifying the meaning of the terms enables an expert system to

establish an appropriate matching of the IF (condition) part of the rules with

facts available in the database.

.Unknown data. When the data is incomplete or missing, the only solution is

to accept the value ‘unknown’ and proceed to an approximate reasoning with

this value.

.Combining the views of different experts. Large expert systems usually

combine the knowledge and expertise of a number of experts. For example,

nine experts participated in the development of PROSPECTOR, an expert

system for mineral exploration (Duda et al., 1979). Unfortunately, experts

seldom reach exactly the same conclusions. Usually, experts have contra-

dictory opinions and produce conﬂicting rules. To resolve the conﬂict, the

knowledge engineer has to attach a weight to each expert and then calculate

the composite conclusion. However, even a domain expert generally does not

have the same uniform level of expertise throughout a domain. In addition,

no systematic method exists to obtain weights.

In summary, an expert system should be able to manage uncertainties because

any real-world domain contains inexact knowledge and needs to cope with

incomplete, inconsistent or even missing data. A number of numeric and non-

numeric methods have been developed to deal with uncertainty in rule-based

expert systems (Bhatnagar and Kanal, 1986). In this chapter, we consider the

most popular uncertainty management paradigms: Bayesian reasoning and

certainty factors. However, we ﬁrst look at the basic principles of classical

probability theory.

56 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

3.2 Basic probability theory

The basic concept of probability plays a signiﬁcant role in our everyday life. We

try to determine the probability of rain and the prospects of our promotion,

the odds that the Australian cricket team will win the next test match, and the

likelihood of winning a million dollars in Tattslotto.

The concept of probability has a long history that goes back thousands of

years when words like ‘probably’, ‘likely’, ‘maybe’, ‘perhaps’ and ‘possibly’ were

introduced into spoken languages (Good, 1959). However, the mathematical

theory of probability was formulated only in the 17th century.

How can we deﬁne probability?

The probability of an event is the proportion of cases in which the event occurs

(Good, 1959). Probability can also be deﬁned as a scientiﬁc measure of chance.

Detailed analysis of modern probability theory can be found in such well-known

textbooks as Feller (1957) and Fine (1973). In this chapter, we examine only the

basic ideas used in representing uncertainties in expert systems.

Probability can be expressed mathematically as a numerical index with a

range between zero (an absolute impossibility) to unity (an absolute certainty).

Most events have a probability index strictly between 0 and 1, which means that

Table 3.1 Quantiﬁcation of ambiguous and imprecise terms on a time-frequency scale

Ray Simpson (1944) Milton Hakel (1968)

Term Mean value Term Mean value

Always 99 Always 100

Very often 88 Very often 87

Usually 85 Usually 79

Often 78 Often 74

Generally 78 Rather often 74

Frequently 73 Frequently 72

Rather often 65 Generally 72

About as often as not 50 About as often as not 50

Now and then 20 Now and then 34

Sometimes 20 Sometimes 29

Occasionally 20 Occasionally 28

Once in a while 15 Once in a while 22

Not often 13 Not often 16

Usually not 10 Usually not 16

Seldom 10 Seldom 9

Hardly ever 7 Hardly ever 8

Very seldom 6 Very seldom 7

Rarely 5 Rarely 5

Almost never 3 Almost never 2

Never 0 Never 0

57BASIC PROBABILITY THEORY

each event has at least two possible outcomes: favourable outcome or success,

and unfavourable outcome or failure.

The probability of success and failure can be determined as follows:

PðsuccessÞ¼ the number of successes

the number of possible outcomes ð3:1Þ

PðfailureÞ¼ the number of failures

the number of possible outcomes ð3:2Þ

Therefore, if sis the number of times success can occur, and fis the number of

times failure can occur, then

PðsuccessÞ¼p¼s

sþfð3:3Þ

PðfailureÞ¼q¼f

sþfð3:4Þ

and

pþq¼1ð3:5Þ

Let us consider classical examples with a coin and a die. If we throw a coin,

the probability of getting a head will be equal to the probability of getting a tail.

In a single throw, s¼f¼1, and therefore the probability of getting a head (or a

tail) is 0.5.

Consider now a dice and determine the probability of getting a 6 from a single

throw. If we assume a 6 as the only success, then s¼1 and f¼5, since there is

just one way of getting a 6, and there are ﬁve ways of not getting a 6 in a single

throw. Therefore, the probability of getting a 6 is

p¼1

1þ5¼0:1666

and the probability of not getting a 6 is

q¼5

1þ5¼0:8333

So far, we have been concerned with events that are independent and

mutually exclusive (i.e. events that cannot happen simultaneously). In the dice

experiment, the two events of obtaining a 6 and, for example, a 1 are mutually

exclusive because we cannot obtain a 6 and a 1 simultaneously in a single throw.

However, events that are not independent may affect the likelihood of one or

the other occurring. Consider, for instance, the probability of getting a 6 in a

58 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

single throw, knowing this time that a 1 has not come up. There are still ﬁve

ways of not getting a 6, but one of them can be eliminated as we know that a 1

has not been obtained. Thus,

p¼1

1þð51Þ

Let Abe an event in the world and Bbe another event. Suppose that events A

and Bare not mutually exclusive, but occur conditionally on the occurrence of

the other. The probability that event Awill occur if event Boccurs is called the

conditional probability. Conditional probability is denoted mathematically as

pðAjBÞin which the vertical bar represents GIVEN and the complete probability

expression is interpreted as ‘Conditional probability of event Aoccurring given

that event Bhas occurred’.

pðAjBÞ¼the number of times Aand Bcan occur

the number of times Bcan occur ð3:6Þ

The number of times Aand Bcan occur, or the probability that both Aand B

will occur, is called the joint probability of Aand B. It is represented

mathematically as pðA\BÞ. The number of ways Bcan occur is the probability

of B,pðBÞ, and thus

pðAjBÞ¼pðA\BÞ

pðBÞð3:7Þ

Similarly, the conditional probability of event Boccurring given that event A

has occurred equals

pðBjAÞ¼pðB\AÞ

pðAÞð3:8Þ

Hence,

pðB\AÞ¼pðBjAÞpðAÞð3:9Þ

The joint probability is commutative, thus

pðA\BÞ¼pðB\AÞ

Therefore,

pðA\BÞ¼pðBjAÞpðAÞð3:10Þ

59BASIC PROBABILITY THEORY

Substituting Eq. (3.10) into Eq. (3.7) yields the following equation:

pðAjBÞ¼pðBjAÞpðAÞ

pðBÞ;ð3:11Þ

where:

pðAjBÞis the conditional probability that event Aoccurs given that event

Bhas occurred;

pðBjAÞis the conditional probability of event Boccurring given that event A

has occurred;

pðAÞis the probability of event Aoccurring;

pðBÞis the probability of event Boccurring.

Equation (3.11) is known as the Bayesian rule, which is named after Thomas

Bayes, an 18th-century British mathematician who introduced this rule.

The concept of conditional probability introduced so far considered that

event Awas dependent upon event B. This principle can be extended to event A

being dependent on a number of mutually exclusive events B1;B2;...;Bn. The

following set of equations can then be derived from Eq. (3.7):

pðA\B1Þ¼pðAjB1ÞpðB1Þ

pðA\B2Þ¼pðAjB2ÞpðB2Þ

pðA\BnÞ¼pðAjBnÞpðBnÞ

or when combined:

i¼1

pðA\BiÞ¼X

i¼1

pðAjBiÞpðBiÞð3:12Þ

If Eq. (3.12) is summed over an exhaustive list of events for Bias illustrated in

Figure 3.1, we obtain

i¼1

pðA\BiÞ¼pðAÞð3:13Þ

It reduces Eq. (3.12) to the following conditional probability equation:

pðAÞ¼X

i¼1

pðAjBiÞpðBiÞð3:14Þ

60 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

If the occurrence of event Adepends on only two mutually exclusive events,

i.e. Band NOT B, then Eq. (3.14) becomes

pðAÞ¼pðAjBÞpðBÞþpðAj:BÞpð:BÞ;ð3:15Þ

where :is the logical function NOT.

Similarly,

pðBÞ¼pðBjAÞpðAÞþpðBj:AÞpð:AÞð3:16Þ

Let us now substitute Eq. (3.16) into the Bayesian rule (3.11) to yield

pðAjBÞ¼ pðBjAÞpðAÞ

pðBjAÞpðAÞþpðBj:AÞpð:AÞð3:17Þ

Equation (3.17) provides the background for the application of probability

theory to manage uncertainty in expert systems.

3.3 Bayesian reasoning

With Eq. (3.17) we can now leave basic probability theory and turn our attention

back to expert systems. Suppose all rules in the knowledge base are represented

in the following form:

IF Eis true

THEN His true {with probability p}

This rule implies that if event Eoccurs, then the probability that event Hwill

occur is p.

What if event Ehas occurred but we do not know whether event Hhas

occurred? Can we compute the probability that event Hhas occurred as

well?

Equation (3.17) tells us how to do this. We simply use Hand Einstead of Aand B.

In expert systems, Husually represents a hypothesis and Edenotes evidence to

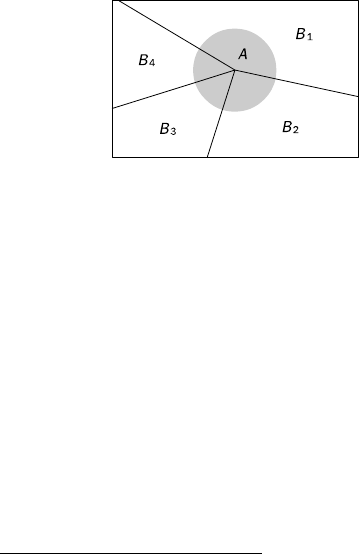

Figure 3.1 The joint probability

61BAYESIAN REASONING

support this hypothesis. Thus, Eq. (3.17) expressed in terms of hypotheses and

evidence looks like this (Firebaugh, 1989):

pðHjEÞ¼ pðEjHÞpðHÞ

pðEjHÞpðHÞþpðEj:HÞpð:HÞð3:18Þ

where:

pðHÞis the prior probability of hypothesis Hbeing true;

pðEjHÞis the probability that hypothesis Hbeing true will result in evidence E;

pð:HÞis the prior probability of hypothesis Hbeing false;

pðEj:HÞis the probability of ﬁnding evidence Eeven when hypothesis His

false.

Equation (3.18) suggests that the probability of hypothesis H,pðHÞ, has to be

deﬁned before any evidence is examined. In expert systems, the probabilities

required to solve a problem are provided by experts. An expert determines the

prior probabilities for possible hypotheses pðHÞand pð:HÞ, and also the con-

ditional probabilities for observing evidence Eif hypothesis His true, pðEjHÞ, and

if hypothesis His false, pðEj:HÞ. Users provide information about the evidence

observed and the expert system computes pðHjEÞfor hypothesis Hin light of the

user-supplied evidence E. Probability pðHjEÞis called the posterior probability

of hypothesis Hupon observing evidence E.

What if the expert, based on single evidence E, cannot choose a single

hypothesis but rather provides multiple hypotheses H1,H2, ..., Hm?Or

given multiple evidences E1,E2, ..., En, the expert also produces

multiple hypotheses?

We can generalise Eq. (3.18) to take into account both multiple hypotheses

H1;H2;...;Hmand multiple evidences E1;E2;...;En. But the hypotheses as well as

the evidences must be mutually exclusive and exhaustive.

Single evidence Eand multiple hypotheses H1;H2;...;Hmfollow:

pðHijEÞ¼ pðEjHiÞpðHiÞ

k¼1

pðEjHkÞpðHkÞð3:19Þ

Multiple evidences E1;E2;...;Enand multiple hypotheses H1;H2;...;Hm

follow:

pðHijE1E2...EnÞ¼ pðE1E2...EnjHiÞpðHiÞ

k¼1

pðE1E2...EnjHkÞpðHkÞð3:20Þ

An application of Eq. (3.20) requires us to obtain the conditional probabilities

of all possible combinations of evidences for all hypotheses. This requirement

62 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

places an enormous burden on the expert and makes his or her task practically

impossible. Therefore, in expert systems, subtleties of evidence should be

suppressed and conditional independence among different evidences assumed

(Ng and Abramson, 1990). Thus, instead of unworkable Eq. (3.20), we attain:

pðHijE1E2...EnÞ¼ pðE1jHiÞpðE2jHiÞ...pðEnjHiÞpðHiÞ

k¼1

pðE1jHkÞpðE2jHkÞ...pðEnjHkÞpðHkÞð3:21Þ

How does an expert system compute all posterior probabilities and ﬁnally

rank potentially true hypotheses?

Let us consider a simple example. Suppose an expert, given three conditionally

independent evidences E1,E2and E3, creates three mutually exclusive and

exhaustive hypotheses H1,H2and H3, and provides prior probabilities for these

hypotheses – pðH1Þ,pðH2Þand pðH3Þ, respectively. The expert also determines the

conditional probabilities of observing each evidence for all possible hypotheses.

Table 3.2 illustrates the prior and conditional probabilities provided by the expert.

Assume that we ﬁrst observe evidence E3. The expert system computes the

posterior probabilities for all hypotheses according to Eq. (3.19):

pðHijE3Þ¼ pðE3jHiÞpðHiÞ

k¼1

pðE3jHkÞpðHkÞ

;i¼1;2;3

Thus,

pðH1jE3Þ¼ 0:60:40

0:60:40 þ0:70:35 þ0:90:25 ¼0:34

pðH2jE3Þ¼ 0:70:35

0:60:40 þ0:70:35 þ0:90:25 ¼0:34

pðH3jE3Þ¼ 0:90:25

0:60:40 þ0:70:35 þ0:90:25 ¼0:32

Table 3.2 The prior and conditional probabilities

Hypothesis

Probability i¼1i¼2i¼3

pðHiÞ0.40 0.35 0.25

pðE1jHiÞ0.3 0.8 0.5

pðE2jHiÞ0.9 0.0 0.7

pðE3jHiÞ0.6 0.7 0.9

63BAYESIAN REASONING

As you can see, after evidence E3is observed, belief in hypothesis H1decreases

and becomes equal to belief in hypothesis H2. Belief in hypothesis H3increases

and even nearly reaches beliefs in hypotheses H1and H2.

Suppose now that we observe evidence E1. The posterior probabilities are

calculated by Eq. (3.21):

pðHijE1E3Þ¼ pðE1jHiÞpðE3jHiÞpðHiÞ

k¼1

pðE1jHkÞpðE3jHkÞpðHkÞ

;i¼1;2;3

Hence,

pðH1jE1E3Þ¼ 0:30:60:40

0:30:60:40 þ0:80:70:35 þ0:50:90:25 ¼0:19

pðH2jE1E3Þ¼ 0:80:70:35

0:30:60:40 þ0:80:70:35 þ0:50:90:25 ¼0:52

pðH3jE1E3Þ¼ 0:50:90:25

0:30:60:40 þ0:80:70:35 þ0:50:90:25 ¼0:29

Hypothesis H2is now considered as the most likely one, while belief in

hypothesis H1has decreased dramatically.

After observing evidence E2as well, the expert system calculates the ﬁnal

posterior probabilities for all hypotheses:

pðHijE1E2E3Þ¼ pðE1jHiÞpðE2jHiÞpðE3jHiÞpðHiÞ

k¼1

pðE1jHkÞpðE2jHkÞpðE3jHkÞpðHkÞ

;i¼1;2;3

Thus,

pðH1jE1E2E3Þ¼ 0:30:90:60:40

0:30:90:60:40þ0:80:00:70:35þ0:50:70:90:25

¼0:45

pðH2jE1E2E3Þ¼ 0:80:00:70:35

0:30:90:60:40þ0:80:00:70:35þ0:50:70:90:25

¼0

pðH3jE1E2E3Þ¼ 0:50:70:90:25

0:30:90:60:40þ0:80:00:70:35þ0:50:70:90:25

¼0:55

Although the initial ranking provided by the expert was H1,H2and H3, only

hypotheses H1and H3remain under consideration after all evidences (E1,E2and

64 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

E3) were observed. Hypothesis H2can now be completely abandoned. Note that

hypothesis H3is considered more likely than hypothesis H1.

PROSPECTOR, an expert system for mineral exploration, was the ﬁrst system

to use Bayesian rules of evidence to compute pðHjEÞand propagate uncertainties

throughout the system (Duda et al., 1979). To help interpret Bayesian reasoning

in expert systems, consider a simple example.

3.4 FORECAST: Bayesian accumulation of evidence

Let us develop an expert system for a real problem such as the weather forecast.

Our expert system will be required to work out if it is going to rain tomorrow. It

will need some real data, which can be obtained from the weather bureau.

Table 3.3 summarises London weather for March 1982. It gives the minimum

and maximum temperatures, rainfall and sunshine for each day. If rainfall is zero

it is a dry day.

The expert system should give us two possible outcomes – tomorrow is rain and

tomorrow is dry – and provide their likelihood. In other words, the expert system

must determine the conditional probabilities of the two hypotheses tomorrow is

rain and tomorrow is dry.

To apply the Bayesian rule (3.18), we should provide the prior probabilities of

these hypotheses.

The ﬁrst thing to do is to write two basic rules that, with the data provided,

could predict the weather for tomorrow.

Rule: 1

IF today is rain

THEN tomorrow is rain

Rule: 2

IF today is dry

THEN tomorrow is dry

Using these rules we will make only ten mistakes – every time a wet day

precedes a dry one, or a dry day precedes a wet one. Thus, we can accept the prior

probabilities of 0.5 for both hypotheses and rewrite our rules in the following

form:

Rule: 1

IF today is rain {LS 2.5 LN .6}

THEN tomorrow is rain {prior .5}

Rule: 2

IF today is dry {LS 1.6 LN .4}

THEN tomorrow is dry {prior .5}

65FORECAST: BAYESIAN ACCUMULATION OF EVIDENCE

The value of LS represents a measure of the expert belief in hypothesis Hif

evidence Eis present. It is called likelihood of sufﬁciency. The likelihood of

sufﬁciency is deﬁned as the ratio of pðEjHÞover pðEj:HÞ

LS ¼pðEjHÞ

pðEj:HÞð3:22Þ

In our case, LS is the probability of getting rain today if we have rain tomorrow,

divided by the probability of getting rain today if there is no rain tomorrow:

LS ¼pðtoday is rain jtomorrow is rainÞ

pðtoday is rain jtomorrow is dryÞ

Table 3.3 London weather summary for March 1982

Day of

month

Min. temp.

Max. temp.

Rainfall

Sunshine

hours

Actual

weather

Weather

forecast

1 9.4 11.0 17.5 3.2 Rain –

2 4.2 12.5 4.1 6.2 Rain Rain

3 7.6 11.2 7.7 1.1 Rain Rain

4 5.7 10.5 0.0 4.3 Dry Rain*

5 3.0 12.0 0.0 9.5 Dry Dry

6 4.4 9.6 0.0 3.5 Dry Dry

7 4.8 9.4 4.6 10.1 Rain Rain

8 1.8 9.2 5.5 7.8 Rain Rain

9 2.4 10.2 4.8 4.1 Rain Rain

10 5.5 12.7 4.2 3.8 Rain Rain

11 3.7 10.9 4.4 9.2 Rain Rain

12 5.9 10.0 4.8 7.1 Rain Rain

13 3.0 11.9 0.0 8.3 Dry Rain*

14 5.4 12.1 4.8 1.8 Rain Dry*

15 8.8 9.1 8.8 0.0 Rain Rain

16 2.4 8.4 3.0 3.1 Rain Rain

17 4.3 10.8 0.0 4.3 Dry Dry

18 3.4 11.1 4.2 6.6 Rain Rain

19 4.4 8.4 5.4 0.7 Rain Rain

20 5.1 7.9 3.0 0.1 Rain Rain

21 4.4 7.3 0.0 0.0 Dry Dry

22 5.6 14.0 0.0 6.8 Dry Dry

23 5.7 14.0 0.0 8.8 Dry Dry

24 2.9 13.9 0.0 9.5 Dry Dry

25 5.8 16.4 0.0 10.3 Dry Dry

26 3.9 17.0 0.0 9.9 Dry Dry

27 3.8 18.3 0.0 8.3 Dry Dry

28 5.8 15.4 3.2 7.0 Rain Dry*

29 6.7 8.8 0.0 4.2 Dry Dry

30 4.5 9.6 4.8 8.8 Rain Rain

31 4.6 9.6 3.2 4.2 Rain Rain

*errors in weather forecast

66 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

LN, as you may already have guessed, is a measure of discredit to hypothesis H

if evidence Eis missing. LN is called likelihood of necessity and deﬁned as:

LN ¼pð:EjHÞ

pð:Ej:HÞð3:23Þ

In our weather example, LN is the probability of not getting rain today if we

have rain tomorrow, divided by the probability of not getting rain today if there

is no rain tomorrow:

LN ¼pðtoday is dry jtomorrow is rainÞ

pðtoday is dry jtomorrow is dryÞ

Note that LN cannot be derived from LS. The domain expert must provide

both values independently.

How does the domain expert determine values of the likelihood of

sufﬁciency and the likelihood of necessity? Is the expert required to deal

with conditional probabilities?

To provide values for LS and LN, an expert does not need to determine exact

values of conditional probabilities. The expert decides likelihood ratios directly.

High values of LS ðLS >> 1Þindicate that the rule strongly supports the

hypothesis if the evidence is observed, and low values of LN ð0<LN <1Þsuggest

that the rule also strongly opposes the hypothesis if the evidence is missing.

Since the conditional probabilities can be easily computed from the likelihood

ratios LS and LN, this approach can use the Bayesian rule to propagate evidence.

Go back now to the London weather. Rule 1 tells us that if it is raining today,

there is a high probability of rain tomorrow ðLS ¼2:5Þ. But even if there is no

rain today, or in other words today is dry, there is still some chance of having

rain tomorrow ðLN ¼0:6Þ.

Rule 2, on the other hand, clariﬁes the situation with a dry day. If it is dry

today, then the probability of a dry day tomorrow is also high ðLS ¼1:6Þ.

However, as you can see, the probability of rain tomorrow if it is raining today

is higher than the probability of a dry day tomorrow if it is dry today. Why? The

values of LS and LN are usually determined by the domain expert. In our weather

example, these values can also be conﬁrmed from the statistical information

published by the weather bureau. Rule 2 also determines the chance of a dry day

tomorrow even if today we have rain ðLN ¼0:4Þ.

How does the expert system get the overall probability of a dry or wet

day tomorrow?

In the rule-based expert system, the prior probability of the consequent, pðHÞ,is

converted into the prior odds:

OðHÞ¼ pðHÞ

1pðHÞð3:24Þ

67FORECAST: BAYESIAN ACCUMULATION OF EVIDENCE

The prior probability is only used when the uncertainty of the consequent is

adjusted for the ﬁrst time. Then in order to obtain the posterior odds, the prior

odds are updated by LS if the antecedent of the rule (in other words evidence) is

true and by LN if the antecedent is false:

OðHjEÞ¼LS OðHÞð3:25Þ

and

OðHj:EÞ¼LN OðHÞð3:26Þ

The posterior odds are then used to recover the posterior probabilities:

pðHjEÞ¼ OðHjEÞ

1þOðHjEÞð3:27Þ

and

pðHj:EÞ¼ OðHj:EÞ

1þOðHj:EÞð3:28Þ

Our London weather example shows how this scheme works. Suppose the

user indicates that today is rain. Rule 1 is ﬁred and the prior probability of

tomorrow is rain is converted into the prior odds:

Oðtomorrow is rainÞ¼ 0:5

10:5¼1:0

The evidence today is rain increases the odds by a factor of 2.5, thereby raising the

probability from 0.5 to 0.71:

Oðtomorrow is rain jtoday is rainÞ¼2:51:0¼2:5

pðtomorrow is rain jtoday is rainÞ¼ 2:5

1þ2:5¼0:71

Rule 2 is also ﬁred. The prior probability of tomorrow is dry is converted into

the prior odds, but the evidence today is rain reduces the odds by a factor of 0.4.

This, in turn, diminishes the probability of tomorrow is dry from 0.5 to 0.29:

Oðtomorrow is dryÞ¼ 0:5

10:5¼1:0

Oðtomorrow is dry jtoday is rainÞ¼0:41:0¼0:4

pðtomorrow is dry jtoday is rainÞ¼ 0:4

1þ0:4¼0:29

68 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

Hence if it is raining today there is a 71 per cent chance of it raining and a

29 per cent chance of it being dry tomorrow.

Further suppose that the user input is today is dry. By a similar calculation

there is a 62 per cent chance of it being dry and a 38 per cent chance of it raining

tomorrow.

Now we have examined the basic principles of Bayesian rules of evidence, we

can incorporate some new knowledge in our expert system. To do this, we need

to determine conditions when the weather actually did change. Analysis of the

data provided in Table 3.3 allows us to develop the following knowledge base

(the Leonardo expert system shell is used here).

Knowledge base

/*FORECAST: BAYESIAN ACCUMULATION OF EVIDENCE

control bayes

Rule: 1

if today is rain {LS 2.5 LN .6}

then tomorrow is rain {prior .5}

Rule: 2

if today is dry {LS 1.6 LN .4}

then tomorrow is dry {prior .5}

Rule: 3

if today is rain

and rainfall is low {LS 10 LN 1}

then tomorrow is dry {prior .5}

Rule: 4

if today is rain

and rainfall is low

and temperature is cold {LS 1.5 LN 1}

then tomorrow is dry {prior .5}

Rule: 5

if today is dry

and temperature is warm {LS 2 LN .9}

then tomorrow is rain {prior .5}

Rule: 6

if today is dry

and temperature is warm

and sky is overcast {LS 5 LN 1}

then tomorrow is rain {prior .5}

/*The SEEK directive sets up the goal of the rule set

seek tomorrow

69FORECAST: BAYESIAN ACCUMULATION OF EVIDENCE

Dialogue

Based on the information provided by the user, the expert system determines

whether we can expect a dry day tomorrow. The user’s answers are indicated by

arrows. We assume that rainfall is low if it is less than 4.1 mm, the temperature is

cold if the average daily temperature is lower than or equal to 7.08C, and warm if

it is higher than 7.08C. Finally, sunshine less than 4.6 hours a day stands for

overcast.

What is the weather today?

)rain

Rule: 1

if today is rain {LS 2.5 LN .6}

then tomorrow is rain {prior .5}

Oðtomorrow is rainÞ¼ 0:5

10:5¼1:0

Oðtomorrow is rain jtoday is rainÞ¼2:51:0¼2:5

pðtomorrow is rain jtoday is rainÞ¼ 2:5

1þ2:5¼0:71

tomorrow is rain {0.71}

Rule: 2

if today is dry {LS 1.6 LN .4}

then tomorrow is dry {prior .5}

Oðtomorrow is dryÞ¼ 0:5

10:5¼1:0

Oðtomorrow is dry jtoday is rainÞ¼0:41:0¼0:4

pðtomorrow is dry jtoday is rainÞ¼ 0:4

1þ0:4¼0:29

tomorrow is rain {0.71}

dry {0.29}

What is the rainfall today?

)low

Rule: 3

if today is rain

and rainfall is low {LS 10 LN 1}

then tomorrow is dry {prior .5}

Oðtomorrow is dryÞ¼ 0:29

10:29 ¼0:41

Oðtomorrow is dry jtoday is rain \rainfall is lowÞ¼10 0:41 ¼4:1

70 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

pðtomorrow is dry jtoday is rain \rainfall is lowÞ¼ 4:1

1þ4:1¼0:80

tomorrow is dry {0.80}

rain {0.71}

What is the temperature today?

)cold

Rule: 4

if today is rain

and rainfall is low

and temperature is cold {LS 1.5 LN 1}

then tomorrow is dry {prior .5}

Oðtomorrow is dryÞ¼ 0:80

10:80 ¼4

Oðtomorrow is dry jtoday is rain \rainfall is low \temperature is coldÞ

¼1:50 4¼6

pðtomorrow is dry jtoday is rain \rainfall is low \temperature is coldÞ

¼6

1þ6¼0:86

tomorrow is dry {0.86}

rain {0.71}

Rule: 5

if today is dry

and temperature is warm {LS 2 LN .9}

then tomorrow is rain {prior .5}

Oðtomorrow is rainÞ¼ 0:71

10:71 ¼2:45

Oðtomorrow is rain jtoday is not dry \temperature is not warmÞ¼0:92:45 ¼2:21

pðtomorrow is rain jtoday is not dry \temperature is not warmÞ¼ 2:21

1þ2:21 ¼0:69

tomorrow is dry {0.86}

rain {0.69}

What is the cloud cover today?

)overcast

Rule: 6

if today is dry

and temperature is warm

and sky is overcast {LS 5 LN 1}

then tomorrow is rain {prior .5}

71FORECAST: BAYESIAN ACCUMULATION OF EVIDENCE

Oðtomorrow is rainÞ¼ 0:69

10:69 ¼2:23

Oðtomorrow is rain jtoday is not dry \temperature is not warm \sky is overcastÞ

¼1:02:23 ¼2:23

pðtomorrow is rain jtoday is not dry \temperature is not warm \sky is overcastÞ

¼2:23

1þ2:23 ¼0:69

tomorrow is dry {0.86}

rain {0.69}

This means that we have two potentially true hypotheses, tomorrow is dry and

tomorrow is rain, but the likelihood of the ﬁrst one is higher.

From Table 3.3 you can see that our expert system made only four mistakes.

This is an 86 per cent success rate, which compares well with the results provided

in Naylor (1987) for the same case of the London weather.

3.5 Bias of the Bayesian method

The framework for Bayesian reasoning requires probability values as primary

inputs. The assessment of these values usually involves human judgement.

However, psychological research shows that humans either cannot elicit prob-

ability values consistent with the Bayesian rules or do it badly (Burns and Pearl,

1981; Tversky and Kahneman, 1982). This suggests that the conditional prob-

abilities may be inconsistent with the prior probabilities given by the expert.

Consider, for example, a car that does not start and makes odd noises when you

press the starter. The conditional probability of the starter being faulty if the car

makes odd noises may be expressed as:

IF the symptom is ‘odd noises’

THEN the starter is bad {with probability 0.7}

Apparently the conditional probability that the starter is not bad if the car

makes odd noises is:

pðstarter is not bad jodd noisesÞ¼pðstarter is good jodd noisesÞ¼10:7¼0:3

Therefore, we can obtain a companion rule that states

IF the symptom is ‘odd noises’

THEN the starter is good {with probability 0.3}

72 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

Domain experts do not deal easily with conditional probabilities and quite

often deny the very existence of the hidden implicit probability (0.3 in our

example).

In our case, we would use available statistical information and empirical

studies to derive the following two rules:

IF the starter is bad

THEN the symptom is ‘odd noises’ {with probability 0.85}

IF the starter is bad

THEN the symptom is not ‘odd noises’ {with probability 0.15}

To use the Bayesian rule, we still need the prior probability, the probability

that the starter is bad if the car does not start. Here we need an expert judgement.

Suppose, the expert supplies us the value of 5 per cent. Now we can apply the

Bayesian rule (3.18) to obtain

pðstarter is bad jodd noisesÞ¼ 0:85 0:05

0:85 0:05 þ0:15 0:95 ¼0:23

The number obtained is signiﬁcantly lower than the expert’s estimate of 0.7

given at the beginning of this section.

Why this inconsistency? Did the expert make a mistake?

The most obvious reason for the inconsistency is that the expert made different

assumptions when assessing the conditional and prior probabilities. We may

attempt to investigate it by working backwards from the posterior probability

pðstarter is bad jodd noisesÞto the prior probability pðstarter is badÞ. In our case,

we can assume that

pðstarter is goodÞ¼1pðstarter is badÞ

From Eq. (3.18) we obtain:

pðHÞ¼ pðHjEÞpðEj:HÞ

pðHjEÞpðEj:HÞþpðEjHÞ½1pðHjEÞ

where:

pðHÞ¼pðstarter is badÞ;

pðHjEÞ¼pðstarter is bad jodd noisesÞ;

pðEjHÞ¼pðodd noises jstarter is badÞ;

pðEj:HÞ¼pðodd noises jstarter is goodÞ.

If we now take the value of 0.7, pðstarter is badjodd noisesÞ, provided by the

expert as the correct one, the prior probability pðstarter is badÞwould have

73BIAS OF THE BAYESIAN METHOD

to be:

pðHÞ¼ 0:70:15

0:70:15 þ0:85 ð10:7Þ¼0:29

This value is almost six times larger than the ﬁgure of 5 per cent provided by

the expert. Thus the expert indeed uses quite different estimates of the prior and

conditional probabilities.

In fact, the prior probabilities also provided by the expert are likely to be

inconsistent with the likelihood of sufﬁciency, LS, and the likelihood of

necessity, LN. Several methods are proposed to handle this problem (Duda

et al., 1976). The most popular technique, ﬁrst applied in PROSPECTOR, is the

use of a piecewise linear interpolation model (Duda et al., 1979).

However, to use the subjective Bayesian approach, we must satisfy many

assumptions, including the conditional independence of evidence under both a

hypothesis and its negation. As these assumptions are rarely satisﬁed in real

world problems, only a few systems have been built based on Bayesian reason-

ing. The best known one is PROSPECTOR, an expert system for mineral

exploration (Duda et al., 1979).

3.6 Certainty factors theory and evidential reasoning

Certainty factors theory is a popular alternative to Bayesian reasoning. The basic

principles of this theory were ﬁrst introduced in MYCIN, an expert system for the

diagnosis and therapy of blood infections and meningitis (Shortliffe and

Buchanan, 1975). The developers of MYCIN found that medical experts

expressed the strength of their belief in terms that were neither logical nor

mathematically consistent. In addition, reliable statistical data about the

problem domain was not available. Therefore, the MYCIN team was unable to

use a classical probability approach. Instead they decided to introduce a

certainty factor (cf ), a number to measure the expert’s belief. The maximum

value of the certainty factor was þ1:0 (deﬁnitely true) and the minimum 1:0

(deﬁnitely false). A positive value represented a degree of belief and a negative

a degree of disbelief. For example, if the expert stated that some evidence

was almost certainly true, a cf value of 0.8 would be assigned to this evidence.

Table 3.4 shows some uncertain terms interpreted in MYCIN (Durkin, 1994).

In expert systems with certainty factors, the knowledge base consists of a set

of rules that have the following syntax:

IF <evidence>

THEN <hypothesis> {cf}

where cf represents belief in hypothesis Hgiven that evidence Ehas occurred.

The certainty factors theory is based on two functions: measure of belief

MBðH;EÞ, and measure of disbelief MDðH;EÞ(Shortliffe and Buchanan, 1975).

74 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

These functions indicate, respectively, the degree to which belief in hypothesis H

would be increased if evidence Ewere observed, and the degree to which

disbelief in hypothesis Hwould be increased by observing the same evidence E.

The measure of belief and disbelief can be deﬁned in terms of prior and

conditional probabilities as follows (Ng and Abramson, 1990):

MBðH;EÞ¼

1ifpðHÞ¼1

max ½pðHjEÞ;pðHÞ  pðHÞ

max ½1;0pðHÞotherwise

:ð3:29Þ

MDðH;EÞ¼

1ifpðHÞ¼0

min ½pðHjEÞ;pðHÞ  pðHÞ

min ½1;0pðHÞotherwise

:ð3:30Þ

where:

pðHÞis the prior probability of hypothesis Hbeing true;

pðHjEÞis the probability that hypothesis His true given evidence E.

The values of MBðH;EÞand MDðH;EÞrange between 0 and 1. The strength of

belief or disbelief in hypothesis Hdepends on the kind of evidence Eobserved.

Some facts may increase the strength of belief, but some increase the strength of

disbelief.

How can we determine the total strength of belief or disbelief in a

hypothesis?

To combine them into one number, the certainty factor, the following equation

is used:

cf ¼MBðH;EÞMDðH;EÞ

1min ½MBðH;EÞ;MDðH;EÞ ð3:31Þ

Table 3.4 Uncertain terms and their interpretation

Term Certainty factor

Deﬁnitely not 1:0

Almost certainly not 0:8

Probably not 0:6

Maybe not 0:4

Unknown 0:2toþ0:2

Maybe þ0:4

Probably þ0:6

Almost certainly þ0:8

Deﬁnitely þ1:0

75CERTAINTY FACTORS THEORY AND EVIDENTIAL REASONING

Thus cf, which can range in MYCIN from 1toþ1, indicates the total belief in

hypothesis H.

The MYCIN approach can be illustrated through an example. Consider a

simple rule:

IF Ais X

THEN Bis Y

Quite often, an expert may not be absolutely certain that this rule holds. Also

suppose it has been observed that in some cases, even when the IF part of the

rule is satisﬁed and object Atakes on value X, object Bcan acquire some different

value Z. In other words, we have here the uncertainty of a quasi-statistical kind.

The expert usually can associate a certainty factor with each possible value B

given that Ahas value X. Thus our rule might look as follows:

IF Ais X

THEN Bis Y{cf 0.7};

Bis Z{cf 0.2}

What does it mean? Where is the other 10 per cent?

It means that, given Ahas received value X,Bwill be Y70 per cent and Z20 per

cent of the time. The other 10 per cent of the time it could be anything. In such a

way the expert might reserve a possibility that object Bcan take not only two

known values, Yand Z, but also some other value that has not yet been observed.

Note that we assign multiple values to object B.

The certainty factor assigned by a rule is then propagated through the

reasoning chain. Propagation of the certainty factor involves establishing the

net certainty of the rule consequent when the evidence in the rule antecedent is

uncertain. The net certainty for a single antecedent rule, cf ðH;EÞ, can be easily

calculated by multiplying the certainty factor of the antecedent, cf ðEÞ, with

the rule certainty factor, cf

cf ðH;EÞ¼cf ðEÞcf ð3:32Þ

For example,

IF the sky is clear

THEN the forecast is sunny {cf 0.8}

and the current certainty factor of sky is clear is 0.5, then

cf ðH;EÞ¼0:50:8¼0:4

This result, according to Table 3.4, would read as ‘It may be sunny’.

76 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

How does an expert system establish the certainty factor for rules with

multiple antecedents?

For conjunctive rules such as

IF <evidence E1>

AND <evidence E2>

AND <evidence En>

THEN <hypothesis H>{cf}

the net certainty of the consequent, or in other words the certainty of hypothesis

H, is established as follows:

cf ðH;E1\E2\...\EnÞ¼min ½cf ðE1Þ;cf ðE2Þ;...;cf ðEnÞ  cf ð3:33Þ

For example,

IF sky is clear

AND the forecast is sunny

THEN the action is ‘wear sunglasses’ {cf 0.8}

and the certainty of sky is clear is 0.9 and the certainty of the forecast is sunny

is 0.7, then

cf ðH;E1\E2Þ¼min ½0:9;0:70:8¼0:70:8¼0:56

According to Table 3.4, this conclusion might be interpreted as ‘Probably it

would be a good idea to wear sunglasses today’.

For disjunctive rules such as

IF <evidence E1>

OR <evidence E2>

OR <evidence En>

THEN <hypothesis H>{cf}

the certainty of hypothesis H, is determined as follows:

cf ðH;E1[E2[...[EnÞ¼max ½cf ðE1Þ;cf ðE2Þ;...;cf ðEnÞ  cf ð3:34Þ

77CERTAINTY FACTORS THEORY AND EVIDENTIAL REASONING

For example,

IF sky is overcast

OR the forecast is rain

THEN the action is ‘take an umbrella’ {cf 0.9}

and the certainty of sky is overcast is 0.6 and the certainty of the forecast is rain

is 0.8, then

cf ðH;E1[E2Þ¼max ½0:6;0:80:9¼0:80:9¼0:72;

which can be interpreted as ‘Almost certainly an umbrella should be taken today’.

Sometimes two or even more rules can affect the same hypothesis. How

does an expert system cope with such situations?

When the same consequent is obtained as a result of the execution of two or

more rules, the individual certainty factors of these rules must be merged to give

a combined certainty factor for a hypothesis. Suppose the knowledge base

consists of the following rules:

Rule 1: IF Ais X

THEN Cis Z{cf 0.8}

Rule 2: IF Bis Y

THEN Cis Z{cf 0.6}

What certainty should be assigned to object Chaving value Zif both Rule 1 and

Rule 2 are ﬁred? Our common sense suggests that, if we have two pieces of

evidence (Ais Xand Bis Y) from different sources (Rule 1 and Rule 2) supporting

the same hypothesis (Cis Z), then the conﬁdence in this hypothesis should

increase and become stronger than if only one piece of evidence had been

obtained.

To calculate a combined certainty factor we can use the following equation

(Durkin, 1994):

cf ðcf1;cf2Þ¼

cf1þcf2ð1cf1Þif cf1>0 and cf2>0

cf1þcf2

1min ½jcf1j;jcf2j if cf1<0orcf2<0

cf1þcf2ð1þcf1Þif cf1<0 and cf2<0

:ð3:35Þ

where:

cf1is the conﬁdence in hypothesis Hestablished by Rule 1;

cf2is the conﬁdence in hypothesis Hestablished by Rule 2;

jcf1jand jcf2jare absolute magnitudes of cf1and cf2, respectively.

78 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

Thus, if we assume that

cf ðE1Þ¼cf ðE2Þ¼1:0

then from Eq. (3.32) we get:

cf1ðH;E1Þ¼cf ðE1Þcf1¼1:00:8¼0:8

cf2ðH;E2Þ¼cf ðE2Þcf2¼1:00:6¼0:6

and from Eq. (3.35) we obtain:

cf ðcf1;cf2Þ¼cf1ðH;E1Þþcf2ðH;E2Þ½1cf1ðH;E1Þ

¼0:8þ0:6ð10:8Þ¼0:92

This example shows an incremental increase of belief in a hypothesis and also

conﬁrms our expectations.

Consider now a case when rule certainty factors have the opposite signs.

Suppose that

cf ðE1Þ¼1 and cf ðE2Þ¼1:0;

then

cf1ðH;E1Þ¼1:00:8¼0:8

cf2ðH;E2Þ¼1:00:6¼0:6

and from Eq. (3.35) we obtain:

cf ðcf1;cf2Þ¼ cf1ðH;E1Þþcf2ðH;E2Þ

1min ½jcf1ðH;E1Þj;jcf2ðH;E2Þj ¼0:80:6

1min ½0:8;0:6¼0:5

This example shows how a combined certainty factor, or in other words net

belief, is obtained when one rule, Rule 1, conﬁrms a hypothesis but another,

Rule 2, discounts it.

Let us consider now the case when rule certainty factors have negative signs.

Suppose that:

cf ðE1Þ¼cf ðE2Þ¼1:0;

then

cf1ðH;E1Þ¼1:00:8¼0:8

cf2ðH;E2Þ¼1:00:6¼0:6

79CERTAINTY FACTORS THEORY AND EVIDENTIAL REASONING

and from Eq. (3.35) we obtain:

cf ðcf1;cf2Þ¼cf1ðH;E1Þþcf2ðH;E2Þ½1þcf1ðH;E1Þ

¼0:80:6ð10:8Þ¼0:92

This example represents an incremental increase of disbelief in a hypothesis.

The certainty factors theory provides a practical alternative to Bayesian

reasoning. The heuristic manner of combining certainty factors is different from

the manner in which they would be combined if they were probabilities. The

certainty theory is not ‘mathematically pure’ but does mimic the thinking

process of a human expert.

To illustrate the evidential reasoning and the method of certainty factors

propagation through a set of rules, consider again the FORECAST expert system

developed in section 3.4.

3.7 FORECAST: an application of certainty factors

The expert system is required to predict whether it will rain tomorrow, or in

other words to establish certainty factors for the multivalued object tomorrow.To

simplify our task, we use the same set of rules as in section 3.4.

Knowledge base

/*FORECAST: AN APPLICATION OF CERTAINTY FACTORS

control cf

control ‘threshold 0.01’

Rule: 1

if today is rain

then tomorrow is rain {cf 0.5}

Rule: 2

if today is dry

then tomorrow is dry {cf 0.5}

Rule: 3

if today is rain

and rainfall is low

then tomorrow is dry {cf 0.6}

Rule: 4

if today is rain

and rainfall is low

and temperature is cold

then tomorrow is dry {cf 0.7}

80 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

Rule: 5

if today is dry

and temperature is warm

then tomorrow is rain {cf 0.65}

Rule: 6

if today is dry

and temperature is warm

and sky is overcast

then tomorrow is rain {cf 0.55}

seek tomorrow

Dialogue

To apply an inexact reasoning technique based on certainty factors, the expert

system prompts the user to input not only the object value but also the certainty

associated with this value. For example, using the Leonardo scale from 0 to 1.0,

the following dialogue might be obtained:

What is the weather today?

)rain

Rule: 1

if today is rain

then tomorrow is rain {cf 0.5}

cf ðtomorrow is rain, today is rainÞ¼cf ðtoday is rainÞcf ¼1:00:5¼0:5

tomorrow is rain {0.50}

What is the rainfall today?

)low

To what degree do you believe the rainfall is low? Enter a numeric certainty

between 0 and 1.0 inclusive.

)0.8

Rule: 3

if today is rain

and rainfall is low

then tomorrow is dry {cf 0.6}

cf ðtomorrow is dry, today is rain \rainfall is lowÞ

¼min ½cf ðtoday is rainÞ;cf ðrainfall is lowÞ  cf ¼min ½1;0:80:6¼0:48

tomorrow is rain {0.50}

dry {0.48}

81FORECAST: AN APPLICATION OF CERTAINTY FACTORS

What is the temperature today?

)cold

To what degree do you believe the temperature is cold? Enter a numeric certainty

between 0 and 1.0 inclusive.

)0.9

Rule: 4

if today is rain

and rainfall is low

and temperature is cold

then tomorrow is dry {cf 0.7}

cf ðtomorrow is dry, today is rain \rainfall is low \temperature is coldÞ

¼min ½cf ðtoday is rainÞ;cf ðrainfall is lowÞ;cf ðtemperature is coldÞ  cf

¼min ½1;0:8;0:90:7¼0:56

tomorrow is dry {0.56}

rain {0.50}

cf ðcfRule:3;cfRule:4Þ¼cfRule:3 þcfRule:4 ð1cfRule:3Þ

¼0:48 þ0:56 ð10:48Þ¼0:77

tomorrow is dry {0.77}

rain {0.50}

Now we would conclude that the probability of having a dry day tomorrow is

almost certain; however we also may expect some rain!

3.8 Comparison of Bayesian reasoning and certainty factors

In the previous sections, we outlined the two most popular techniques for

uncertainty management in expert systems. Now we will compare these tech-

niques and determine the kinds of problems that can make effective use of either

Bayesian reasoning or certainty factors.

Probability theory is the oldest and best-established technique to deal with

inexact knowledge and random data. It works well in such areas as forecasting

and planning, where statistical data is usually available and accurate probability

statements can be made.

An expert system that applied the Bayesian technique, PROSPECTOR, was

developed to aid exploration geologists in their search for ore deposits. It

was very successful; for example using geological, geophysical and geochemical

data, PROSPECTOR predicted the existence of molybdenum near Mount Tolman

in Washington State (Campbell et al., 1982). But the PROSPECTOR team could

rely on valid data about known mineral deposits and reliable statistical informa-

tion. The probabilities of each event were deﬁned as well. The PROSPECTOR

82 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

team also could assume the conditional independence of evidence, a constraint

that must be satisﬁed in order to apply the Bayesian approach.

However, in many areas of possible applications of expert systems, reliable

statistical information is not available or we cannot assume the conditional

independence of evidence. As a result, many researchers have found the Bayesian

method unsuitable for their work. For example, Shortliffe and Buchanan

could not use a classical probability approach in MYCIN because the medical

ﬁeld often could not provide the required data (Shortliffe and Buchanan,

1975). This dissatisfaction motivated the development of the certainty factors

theory.

Although the certainty factors approach lacks the mathematical correctness

of the probability theory, it appears to outperform subjective Bayesian reasoning

in such areas as diagnostics, particularly in medicine. In diagnostic expert

systems like MYCIN, rules and certainty factors come from the expert’s knowl-

edge and his or her intuitive judgements. Certainty factors are used in cases

where the probabilities are not known or are too difﬁcult or expensive to obtain.

The evidential reasoning mechanism can manage incrementally acquired

evidence, the conjunction and disjunction of hypotheses, as well as evidences

with different degrees of belief. Besides, the certainty factors approach provides

better explanations of the control ﬂow through a rule-based expert system.

The Bayesian approach and certainty factors are different from one another,

but they share a common problem: ﬁnding an expert able to quantify personal,

subjective and qualitative information. Humans are easily biased, and therefore

the choice of an uncertainty management technique strongly depends on the

existing domain expert.

The Bayesian method is likely to be the most appropriate if reliable statistical

data exists, the knowledge engineer is able to lead, and the expert is available for

serious decision-analytical conversations. In the absence of any of the speciﬁed

conditions, the Bayesian approach might be too arbitrary and even biased to

produce meaningful results. It should also be mentioned that the Bayesian belief

propagation is of exponential complexity, and thus is impractical for large

knowledge bases.

The certainty factors technique, despite the lack of a formal foundation, offers

a simple approach for dealing with uncertainties in expert systems and delivers

results acceptable in many applications.

3.9 Summary

In this chapter, we presented two uncertainty management techniques used in

expert systems: Bayesian reasoning and certainty factors. We identiﬁed the main

sources of uncertain knowledge and brieﬂy reviewed probability theory. We

considered the Bayesian method of accumulating evidence and developed a

simple expert system based on the Bayesian approach. Then we examined the

certainty factors theory (a popular alternative to Bayesian reasoning) and

developed an expert system based on evidential reasoning. Finally, we compared

83SUMMARY

Bayesian reasoning and certainty factors, and determined appropriate areas for

their applications.

The most important lessons learned in this chapter are:

.Uncertainty is the lack of exact knowledge that would allow us to reach a

perfectly reliable conclusion. The main sources of uncertain knowledge in

expert systems are: weak implications, imprecise language, missing data and

combining the views of different experts.

.Probability theory provides an exact, mathematically correct, approach to

uncertainty management in expert systems. The Bayesian rule permits us

to determine the probability of a hypothesis given that some evidence has

been observed.

.PROSPECTOR, an expert system for mineral exploration, was the ﬁrst

successful system to employ Bayesian rules of evidence to propagate uncer-

tainties throughout the system.

.In the Bayesian approach, an expert is required to provide the prior

probability of hypothesis Hand values for the likelihood of sufﬁciency, LS,

to measure belief in the hypothesis if evidence Eis present, and the likelihood

of necessity, LN, to measure disbelief in hypothesis Hif the same evidence is

missing. The Bayesian method uses rules of the following form:

IF Eis true {LS,LN}

THEN His true {prior probability}

.To employ the Bayesian approach, we must satisfy the conditional independ-

ence of evidence. We also should have reliable statistical data and deﬁne the

prior probabilities for each hypothesis. As these requirements are rarely

satisﬁed in real-world problems, only a few systems have been built based

on Bayesian reasoning.

.Certainty factors theory is a popular alternative to Bayesian reasoning. The

basic principles of this theory were introduced in MYCIN, a diagnostic

medical expert system.

.Certainty factors theory provides a judgemental approach to uncertainty

management in expert systems. An expert is required to provide a certainty

factor, cf, to represent the level of belief in hypothesis Hgiven that evidence E

has been observed. The certainty factors method uses rules of the following

form:

IF Eis true

THEN His true {cf}

.Certainty factors are used if the probabilities are not known or cannot be

easily obtained. Certainty theory can manage incrementally acquired

evidence, the conjunction and disjunction of hypotheses, as well as evidences

with different degrees of belief.

84 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

.Both Bayesian reasoning and certainty theory share a common problem:

ﬁnding an expert able to quantify subjective and qualitative information.

Questions for review

1 What is uncertainty? When can knowledge be inexact and data incomplete or

inconsistent? Give an example of inexact knowledge.

2 What is probability? Describe mathematically the conditional probability of event A

occurring given that event Bhas occurred. What is the Bayesian rule?

3 What is Bayesian reasoning? How does an expert system rank potentially true

hypotheses? Give an example.

4 Why was the PROSPECTOR team able to apply the Bayesian approach as an

uncertainty management technique? What requirements must be satisﬁed before

Bayesian reasoning will be effective?

5 What are the likelihood of sufﬁciency and likelihood of necessity? How does an expert

determine values for LS and LN?

6 What is a prior probability? Give an example of the rule representation in the expert

system based on Bayesian reasoning.

7 How does a rule-based expert system propagate uncertainties using the Bayesian

approach?

8 Why may conditional probabilities be inconsistent with the prior probabilities provided

by the expert? Give an example of such an inconsistency.

9 Why is the certainty factors theory considered as a practical alternative to Bayesian

reasoning? What are the measure of belief and the measure of disbelief? Deﬁne a

certainty factor.

10 How does an expert system establish the net certainty for conjunctive and disjunctive

rules? Give an example for each case.

11 How does an expert system combine certainty factors of two or more rules affecting

the same hypothesis? Give an example.

12 Compare Bayesian reasoning and certainty factors. Which applications are most

suitable for Bayesian reasoning and which for certainty factors? Why? What is a

common problem in both methods?

References

Bhatnagar, R.K. and Kanal, L.N. (1986). Handling uncertain information: A review of

numeric and non-numeric methods, Uncertainty in AI, L.N. Kanal and J.F. Lemmer,

eds, Elsevier North-Holland, New York, pp. 3–26.

Bonissone, P.P. and Tong, R.M. (1985). Reasoning with uncertainty in expert systems,

International Journal on Man–Machine Studies, 22(3), 241–250.

85REFERENCES

Burns, M. and Pearl, J. (1981). Causal and diagnostic inferences: A comparison of

validity, Organizational Behaviour and Human Performance, 28, 379–394.

Campbell, A.N., Hollister, V.F., Duda, R.O. and Hart, P.E. (1982). Recognition of

a hidden mineral deposit by an artiﬁcial intelligence program, Science, 217(3),

927–929.

Good, I.J. (1959). Kinds of probability, Science, 129(3347), 443–447.

Duda, R.O., Hart, P.E. and Nilsson, N.L. (1976). Subjective Bayesian methods for a

rule-based inference system, Proceedings of the National Computer Conference

(AFIPS), vol. 45, pp. 1075–1082.

Duda, R.O., Gaschnig, J. and Hart, P.E. (1979). Model design in the PROSPECTOR

consultant system for mineral exploration, Expert Systems in the Microelectronic Age,

D. Michie, ed., Edinburgh University Press, Edinburgh, Scotland, pp. 153–167.

Durkin, J. (1994). Expert Systems Design and Development. Prentice Hall, Englewood

Cliffs, NJ.

Feller, W. (1957). An Introduction to Probability Theory and Its Applications. John Wiley,

New York.

Fine, T.L. (1973). Theories of Probability: An Examination of Foundations. Academic

Press, New York.

Firebaugh, M.W. (1989). Artiﬁcial Intelligence: A Knowledge-based Approach. PWS-KENT

Publishing Company, Boston.

Hakel, M.D. (1968). How often is often? American Psychologist, no. 23, 533–534.

Naylor, C. (1987). Build Your Own Expert System. Sigma Press, England.

Ng, K.-C. and Abramson, B. (1990). Uncertainty management in expert systems, IEEE

Expert, 5(2), 29–47.

Shortliffe, E.H. and Buchanan, B.G. (1975). A model of inexact reasoning in

medicine, Mathematical Biosciences, 23(3/4), 351–379.

Simpson, R. (1944). The speciﬁc meanings of certain terms indicating differing

degrees of frequency, The Quarterly Journal of Speech, no. 30, 328–330.

Stephanou, H.E. and Sage, A.P. (1987). Perspectives on imperfect information

processing, IEEE Transactions on Systems, Man, and Cybernetics, SMC-17(5),

780–798.

Tversky, A. and Kahneman, D. (1982). Causal schemes in judgements under

uncertainty, Judgements Under Uncertainty: Heuristics and Biases, D. Kahneman,

P. Slovic and A. Tversky, eds, Cambridge University Press, New York.

86 UNCERTAINTY MANAGEMENT IN RULE-BASED EXPERT SYSTEMS

4Fuzzy expert systems

In which we present fuzzy set theory, consider how to build fuzzy

expert systems and illustrate the theory through an example.

4.1 Introduction, or what is fuzzy thinking?

Experts usually rely on common sense when they solve problems. They also use

vague and ambiguous terms. For example, an expert might say, ‘Though the

power transformer is slightly overloaded, I can keep this load for a while’. Other

experts have no difﬁculties with understanding and interpreting this statement

because they have the background to hearing problems described like this.

However, a knowledge engineer would have difﬁculties providing a computer

with the same level of understanding. How can we represent expert knowledge

that uses vague and ambiguous terms in a computer? Can it be done at all?

This chapter attempts to answer these questions by exploring the fuzzy set

theory (or fuzzy logic). We review the philosophical ideas behind fuzzy logic,

study its apparatus and then consider how fuzzy logic is used in fuzzy expert

systems.

Let us begin with a trivial, but still basic and essential, statement: fuzzy logic is

not logic that is fuzzy, but logic that is used to describe fuzziness. Fuzzy logic

is the theory of fuzzy sets, sets that calibrate vagueness. Fuzzy logic is based on

the idea that all things admit of degrees. Temperature, height, speed, distance,

beauty – all come on a sliding scale. The motor is running really hot. Tom is

avery tall guy. Electric cars are not very fast.High-performance drives require

very rapid dynamics and precise regulation. Hobart is quite a short distance

from Melbourne. Sydney is a beautiful city. Such a sliding scale often makes it

impossible to distinguish members of a class from non-members. When does a

hill become a mountain?

Boolean or conventional logic uses sharp distinctions. It forces us to draw

lines between members of a class and non-members. It makes us draw lines in

the sand. For instance, we may say, ‘The maximum range of an electric vehicle is

short’, regarding a range of 300 km or less as short, and a range greater than

300 km as long. By this standard, any electric vehicle that can cover a distance of

301 km (or 300 km and 500 m or even 300 km and 1 m) would be described as

long-range. Similarly, we say Tom is tall because his height is 181 cm. If we drew

a line at 180 cm, we would ﬁnd that David, who is 179 cm, is small. Is David

really a small man or have we just drawn an arbitrary line in the sand? Fuzzy

logic makes it possible to avoid such absurdities.

Fuzzy logic reﬂects how people think. It attempts to model our sense of words,

our decision making and our common sense. As a result, it is leading to new,

more human, intelligent systems.

Fuzzy, or multi-valued logic was introduced in the 1930s by Jan Lukasiewicz, a

Polish logician and philosopher (Lukasiewicz, 1930). He studied the mathema-

tical representation of fuzziness based on such terms as tall,old and hot. While

classical logic operates with only two values 1 (true) and 0 (false), Lukasiewicz

introduced logic that extended the range of truth values to all real numbers in

the interval between 0 and 1. He used a number in this interval to represent the

possibility that a given statement was true or false. For example, the possibility

that a man 181 cm tall is really tall might be set to a value of 0.86. It is likely that

the man is tall. This work led to an inexact reasoning technique often called

possibility theory.

Later, in 1937, Max Black, a philosopher, published a paper called ‘Vagueness:

an exercise in logical analysis’ (Black, 1937). In this paper, he argued that a

continuum implies degrees. Imagine, he said, a line of countless ‘chairs’. At one

end is a Chippendale. Next to it is a near-Chippendale, in fact indistinguishable

from the ﬁrst item. Succeeding ‘chairs’ are less and less chair-like, until the line

ends with a log. When does a chair become a log? The concept chair does not

permit us to draw a clear line distinguishing chair from not-chair. Max Black

also stated that if a continuum is discrete, a number can be allocated to each

element. This number will indicate a degree. But the question is degree of what.

Black used the number to show the percentage of people who would call an

element in a line of ‘chairs’ a chair; in other words, he accepted vagueness as a

matter of probability.

However, Black’s most important contribution was in the paper’s appendix.

Here he deﬁned the ﬁrst simple fuzzy set and outlined the basic ideas of fuzzy set

operations.

In 1965 Lotﬁ Zadeh, Professor and Head of the Electrical Engineering

Department at the University of California at Berkeley, published his famous

paper ‘Fuzzy sets’. In fact, Zadeh rediscovered fuzziness, identiﬁed and explored

it, and promoted and fought for it.

Zadeh extended the work on possibility theory into a formal system of

mathematical logic, and even more importantly, he introduced a new concept

for applying natural language terms. This new logic for representing and

manipulating fuzzy terms was called fuzzy logic, and Zadeh became the Master

of fuzzy logic.

Why fuzzy?

As Zadeh said, the term is concrete, immediate and descriptive; we all know what

it means. However, many people in the West were repelled by the word fuzzy,

because it is usually used in a negative sense.

FUZZY EXPERT SYSTEMS88

Why logic?

Fuzziness rests on fuzzy set theory, and fuzzy logic is just a small part of that

theory. However, Zadeh used the term fuzzy logic in a broader sense (Zadeh,

1965):

Fuzzy logic is determined as a set of mathematical principles for knowledge

representation based on degrees of membership rather than on crisp member-

ship of classical binary logic.

Unlike two-valued Boolean logic, fuzzy logic is multi-valued. It deals with

degrees of membership and degrees of truth. Fuzzy logic uses the continuum

of logical values between 0 (completely false) and 1 (completely true). Instead of

just black and white, it employs the spectrum of colours, accepting that things

can be partly true and partly false at the same time. As can be seen in Figure 4.1,

fuzzy logic adds a range of logical values to Boolean logic. Classical binary logic

now can be considered as a special case of multi-valued fuzzy logic.

4.2 Fuzzy sets

The concept of a set is fundamental to mathematics. However, our own language

is the supreme expression of sets. For example, car indicates the set of cars. When

we say a car, we mean one out of the set of cars.

Let Xbe a classical (crisp) set and xan element. Then the element xeither

belongs to Xðx2XÞor does not belong to Xðx62 XÞ. That is, classical set theory

imposes a sharp boundary on this set and gives each member of the set the value

of 1, and all members that are not within the set a value of 0. This is known as

the principle of dichotomy. Let us now dispute this principle.

Consider the following classical paradoxes of logic.

1 Pythagorean School (400 BC):

Question: Does the Cretan philosopher tell the truth when he asserts that

‘All Cretans always lie’?

Boolean logic: This assertion contains a contradiction.

Fuzzy logic: The philosopher does and does not tell the truth!

2 Russell’s Paradox:

The barber of a village gives a hair cut only to those who do not cut their hair

themselves.

Figure 4.1 Range of logical values in Boolean and fuzzy logic: (a) Boolean logic; (b) multi-

valued logic

89FUZZY SETS

Question: Who cuts the barber’s hair?

Boolean logic: This assertion contains a contradiction.

Fuzzy logic: The barber cuts and doesn’t cut his own hair!

Crisp set theory is governed by a logic that uses one of only two values: true or

false. This logic cannot represent vague concepts, and therefore fails to give the

answers on the paradoxes. The basic idea of the fuzzy set theory is that an

element belongs to a fuzzy set with a certain degree of membership. Thus, a

proposition is not either true or false, but may be partly true (or partly false) to

any degree. This degree is usually taken as a real number in the interval [0,1].

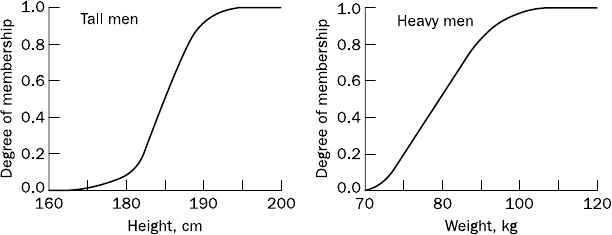

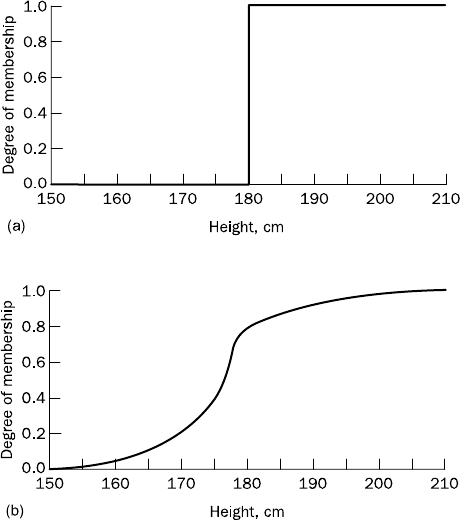

The classical example in the fuzzy set theory is tall men. The elements of the

fuzzy set ‘tall men’ are all men, but their degrees of membership depend on their

height, as shown in Table 4.1. Suppose, for example, Mark at 205 cm tall is given

a degree of 1, and Peter at 152 cm is given a degree of 0. All men of intermediate

height have intermediate degrees. They are partly tall. Obviously, different

people may have different views as to whether a given man should be considered

as tall. However, our candidates for tall men could have the memberships

presented in Table 4.1.

It can be seen that the crisp set asks the question, ‘Is the man tall?’ and draws

a line at, say, 180 cm. Tall men are above this height and not tall men below. In

contrast, the fuzzy set asks, ‘How tall is the man?’ The answer is the partial

membership in the fuzzy set, for example, Tom is 0.82 tall.

A fuzzy set is capable of providing a graceful transition across a boundary, as

shown in Figure 4.2.

We might consider a few other sets such as ‘very short men’, ‘short men’,

‘average men’ and ‘very tall men’.

In Figure 4.2 the horizontal axis represents the universe of discourse –

the range of all possible values applicable to a chosen variable. In our case, the

variable is the human height. According to this representation, the universe of

men’s heights consists of all tall men. However, there is often room for

Table 4.1 Degree of membership of ‘tall men’

Degree of membership

Name Height, cm Crisp Fuzzy

Chris 208 1 1.00

Mark 205 1 1.00

John 198 1 0.98

Tom 181 1 0.82

David 179 0 0.78

Mike 172 0 0.24

Bob 167 0 0.15

Steven 158 0 0.06

Bill 155 0 0.01

Peter 152 0 0.00

FUZZY EXPERT SYSTEMS90

discretion, since the context of the universe may vary. For example, the set of

‘tall men’ might be part of the universe of human heights or mammal heights, or

even all animal heights.

The vertical axis in Figure 4.2 represents the membership value of the fuzzy

set. In our case, the fuzzy set of ‘tall men’ maps height values into corresponding

membership values. As can be seen from Figure 4.2, David who is 179 cm tall,

which is just 2 cm less than Tom, no longer suddenly becomes a not tall (or short)

man (as he would in crisp sets). Now David and other men are gradually removed

from the set of ‘tall men’ according to the decrease of their heights.

What is a fuzzy set?

A fuzzy set can be simply deﬁned as a set with fuzzy boundaries.

Let Xbe the universe of discourse and its elements be denoted as x. In classical

set theory, crisp set Aof Xis deﬁned as function fAðxÞcalled the characteristic

function of A

fAðxÞ:X!0;1;ð4:1Þ

where

fAðxÞ¼ 1;if x2A

0;if x62 A



Figure 4.2 Crisp (a) and fuzzy (b) sets of ‘tall men’

91FUZZY SETS

This set maps universe Xto a set of two elements. For any element xof

universe X, characteristic function fAðxÞis equal to 1 if xis an element of set A,

and is equal to 0 if xis not an element of A.

In the fuzzy theory, fuzzy set Aof universe Xis deﬁned by function AðxÞ

called the membership function of set A

AðxÞ:X!½0;1;ð4:2Þ

where

AðxÞ¼1ifxis totally in A;

AðxÞ¼0ifxis not in A;

0<

AðxÞ<1ifxis partly in A.

This set allows a continuum of possible choices. For any element xof universe

X, membership function AðxÞequals the degree to which xis an element of set

A. This degree, a value between 0 and 1, represents the degree of membership,

also called membership value, of element xin set A.

How to represent a fuzzy set in a computer?

The membership function must be determined ﬁrst. A number of methods

learned from knowledge acquisition can be applied here. For example, one of the

most practical approaches for forming fuzzy sets relies on the knowledge of a

single expert. The expert is asked for his or her opinion whether various elements

belong to a given set. Another useful approach is to acquire knowledge from

multiple experts. A new technique to form fuzzy sets was recently introduced. It

is based on artiﬁcial neural networks, which learn available system operation

data and then derive the fuzzy sets automatically.

Now we return to our ‘tall men’ example. After acquiring the knowledge for

men’s heights, we could produce a fuzzy set of tall men. In a similar manner, we

could obtain fuzzy sets of short and average men. These sets are shown in Figure

4.3, along with crisp sets. The universe of discourse – the men’s heights – consists

of three sets: short,average and tall men. In fuzzy logic, as you can see, a man who

is 184 cm tall is a member of the average men set with a degree of membership

of 0.1, and at the same time, he is also a member of the tall men set with a degree of

0.4. This means that a man of 184 cm tall has partial membership in multiple sets.

Now assume that universe of discourse X, also called the reference super set,

is a crisp set containing ﬁve elements X¼fx1;x2;x3;x4;x5g. Let Abe a crisp

subset of Xand assume that Aconsists of only two elements, A¼fx2;x3g. Subset

Acan now be described by A¼fðx1;0Þ;ðx2;1Þ;ðx3;1Þ;ðx4;0Þ;ðx5;0Þg, i.e. as a set

of pairs fðxi;

AðxiÞg, where AðxiÞis the membership function of element xiin

the subset A.

The question is whether AðxÞcan take only two values, either 0 or 1, or any

value between 0 and 1. It was also the basic question in fuzzy sets examined by

Lotﬁ Zadeh in 1965 (Zadeh, 1965).

FUZZY EXPERT SYSTEMS92

If Xis the reference super set and Ais a subset of X, then Ais said to be a fuzzy

subset of Xif, and only if,

A¼fðx;

AðxÞg x2X;

AðxÞ:X!½0;1ð4:3Þ

In a special case, when X!f0;1gis used instead of X!½0;1, the fuzzy

subset Abecomes the crisp subset A.

Fuzzy and crisp sets can be also presented as shown in Figure 4.4.

Figure 4.3 Crisp (a) and fuzzy (b) sets of short, average and tall men

Figure 4.4 Representation of crisp and fuzzy subset of X

93FUZZY SETS

Fuzzy subset Aof the ﬁnite reference super set Xcan be expressed as,

A¼fðx1;

Aðx1Þg;fðx2;

Aðx2Þg;...;fðxn;

AðxnÞg ð4:4Þ

However, it is more convenient to represent Aas,

A¼fAðx1Þ=x1g;fAðx2Þ=x2g;...;fAðxnÞ=xng;ð4:5Þ

where the separating symbol / is used to associate the membership value with its

coordinate on the horizontal axis.

To represent a continuous fuzzy set in a computer, we need to express it as a

function and then to map the elements of the set to their degree of membership.

Typical functions that can be used are sigmoid, gaussian and pi. These functions

can represent the real data in fuzzy sets, but they also increase the time of

computation. Therefore, in practice, most applications use linear ﬁt functions

similar to those shown in Figure 4.3. For example, the fuzzy set of tall men in

Figure 4.3 can be represented as a ﬁt-vector,

tall men ¼(0/180, 0.5/185, 1/190) or

tall men ¼(0/180, 1/190)

Fuzzy sets of short and average men can be also represented in a similar manner,

short men ¼(1/160, 0.5/165, 0/170) or

short men ¼(1/160, 0/170)

average men ¼(0/165, 1/175, 0/185)

4.3 Linguistic variables and hedges

At the root of fuzzy set theory lies the idea of linguistic variables. A linguistic

variable is a fuzzy variable. For example, the statement ‘John is tall’ implies that

the linguistic variable John takes the linguistic value tall. In fuzzy expert systems,

linguistic variables are used in fuzzy rules. For example,

IF wind is strong

THEN sailing is good

IF project_duration is long

THEN completion_risk is high

IF speed is slow

THEN stopping_distance is short

The range of possible values of a linguistic variable represents the universe of

discourse of that variable. For example, the universe of discourse of the linguistic

FUZZY EXPERT SYSTEMS94

variable speed might have the range between 0 and 220 km per hour and may

include such fuzzy subsets as very slow,slow,medium,fast, and very fast. Each

fuzzy subset also represents a linguistic value of the corresponding linguistic

variable.

A linguistic variable carries with it the concept of fuzzy set qualiﬁers, called

hedges. Hedges are terms that modify the shape of fuzzy sets. They include

adverbs such as very,somewhat,quite,more or less and slightly. Hedges can modify

verbs, adjectives, adverbs or even whole sentences. They are used as

.All-purpose modiﬁers, such as very,quite or extremely.

.Truth-values, such as quite true or mostly false.

.Probabilities, such as likely or not very likely.

.Quantiﬁers, such as most,several or few.

.Possibilities, such as almost impossible or quite possible.

Hedges act as operations themselves. For instance, very performs concentra-

tion and creates a new subset. From the set of tall men, it derives the subset of very

tall men.Extremely serves the same purpose to a greater extent.

An operation opposite to concentration is dilation. It expands the set. More or

less performs dilation; for example, the set of more or less tall men is broader than

the set of tall men.

Hedges are useful as operations, but they can also break down continuums

into fuzzy intervals. For example, the following hedges could be used to describe

temperature: very cold,moderately cold,slightly cold,neutral,slightly hot,moderately

hot and very hot. Obviously these fuzzy sets overlap. Hedges help to reﬂect human

thinking, since people usually cannot distinguish between slightly hot and

moderately hot.

Figure 4.5 illustrates an application of hedges. The fuzzy sets shown previ-

ously in Figure 4.3 are now modiﬁed mathematically by the hedge very.

Consider, for example, a man who is 185 cm tall. He is a member of the tall

men set with a degree of membership of 0.5. However, he is also a member of the

set of very tall men with a degree of 0.15, which is fairly reasonable.

Figure 4.5 Fuzzy sets with very hedge

95LINGUISTIC VARIABLES AND HEDGES

Let us now consider the hedges often used in practical applications.

.Very, the operation of concentration, as we mentioned above, narrows a set

down and thus reduces the degree of membership of fuzzy elements. This

operation can be given as a mathematical square:

very

AðxÞ¼½AðxÞ2ð4:6Þ

Hence, if Tom has a 0.86 membership in the set of tall men, he will have a

0.7396 membership in the set of very tall men.

.Extremely serves the same purpose as very, but does it to a greater extent. This

operation can be performed by raising AðxÞto the third power:

extremely

AðxÞ¼½AðxÞ3ð4:7Þ

If Tom has a 0.86 membership in the set of tall men, he will have a 0.7396

membership in the set of very tall men and 0.6361 membership in the set of

extremely tall men.

.Very very is just an extension of concentration. It can be given as a square of

the operation of concentration:

very very

AðxÞ¼½very

AðxÞ2¼½AðxÞ4ð4:8Þ

For example, Tom, with a 0.86 membership in the tall men set and a 0.7396

membership in the very tall men set, will have a membership of 0.5470 in the

set of very very tall men.

.More or less, the operation of dilation, expands a set and thus increases the

degree of membership of fuzzy elements. This operation is presented as:

more or less

AðxÞ¼ ﬃﬃﬃﬃﬃﬃﬃﬃﬃﬃﬃﬃ

AðxÞ

pð4:9Þ

Hence, if Tom has a 0.86 membership in the set of tall men, he will have a

0.9274 membership in the set of more or less tall men.

.Indeed, the operation of intensiﬁcation, intensiﬁes the meaning of the whole

sentence. It can be done by increasing the degree of membership above 0.5

and decreasing those below 0.5. The hedge indeed may be given by either:

indeed

AðxÞ¼2½AðxÞ2if 0 4AðxÞ40:5ð4:10Þ

indeed

AðxÞ¼12½1AðxÞ2if 0:5<

AðxÞ41ð4:11Þ

If Tom has a 0.86 membership in the set of tall men, he can have a 0.9608

membership in the set of indeed tall men. In contrast, Mike, who has a

0.24 membership in tall men set, will have a 0.1152 membership in the indeed

tall men set.

FUZZY EXPERT SYSTEMS96

Mathematical and graphical representation of hedges are summarised in

Table 4.2.

4.4 Operations of fuzzy sets

The classical set theory developed in the late 19th century by Georg Cantor

describes how crisp sets can interact. These interactions are called operations.

Table 4.2 Representation of hedges in fuzzy logic

Hedge Mathematical expression Graphical representation

A little ½AðxÞ1:3

Slightly ½AðxÞ1:7

Very ½AðxÞ2

Extremely ½AðxÞ3

Very very ½AðxÞ4

More or less ﬃﬃﬃﬃﬃﬃﬃﬃﬃﬃﬃﬃ

AðxÞ

Somewhat ﬃﬃﬃﬃﬃﬃﬃﬃﬃﬃﬃﬃ

AðxÞ

Indeed 2½AðxÞ2if 0 4A40:5

12½1AðxÞ2if 0:5<

A41

97OPERATIONS OF FUZZY SETS

We look at four of them: complement, containment, intersection and union.

These operations are presented graphically in Figure 4.6. Let us compare

operations of classical and fuzzy sets.

Complement

.Crisp sets: Who does not belong to the set?

.Fuzzy sets: How much do elements not belong to the set?

The complement of a set is an opposite of this set. For example, if we have the set

of tall men, its complement is the set of NOT tall men. When we remove the tall

men set from the universe of discourse, we obtain the complement. If Ais the

fuzzy set, its complement :Acan be found as follows:

:AðxÞ¼1AðxÞð4:12Þ

For example, if we have a fuzzy set of tall men, we can easily obtain the fuzzy set

of NOT tall men:

tall men ¼ð0=180;0:25=182:5;0:5=185;0:75=187:5;1=190Þ

NOT tall men ¼ð1=180;0:75=182:5;0:5=185;0:25=187:5;0=190Þ

Containment

.Crisp sets: Which sets belong to which other sets?

.Fuzzy sets: Which sets belong to other sets?

Figure 4.6 Operations on classical sets

FUZZY EXPERT SYSTEMS98

Similar to a Chinese box or Russian doll, a set can contain other sets. The smaller

set is called the subset. For example, the set of tall men contains all tall men.

Therefore, very tall men is a subset of tall men. However, the tall men set is just a

subset of the set of men. In crisp sets, all elements of a subset entirely belong to

a larger set and their membership values are equal to 1. In fuzzy sets, however,

each element can belong less to the subset than to the larger set. Elements of the

fuzzy subset have smaller memberships in it than in the larger set.

tall men ¼ð0=180;0:25=182:5;0:50=185;0:75=187:5;1=190Þ

very tall men ¼ð0=180;0:06=182:5;0:25=185;0:56=187:5;1=190Þ

Intersection

.Crisp sets: Which element belongs to both sets?

.Fuzzy sets: How much of the element is in both sets?

In classical set theory, an intersection between two sets contains the elements

shared by these sets. If we have, for example, the set of tall men and the set of fat

men, the intersection is the area where these sets overlap, i.e. Tom is in the

intersection only if he is tall AND fat. In fuzzy sets, however, an element may

partly belong to both sets with different memberships. Thus, a fuzzy intersection

is the lower membership in both sets of each element.

The fuzzy operation for creating the intersection of two fuzzy sets Aand Bon

universe of discourse Xcan be obtained as:

A\BðxÞ¼min ½AðxÞ;

BðxÞ ¼ AðxÞ\BðxÞ;where x2Xð4:13Þ

Consider, for example, the fuzzy sets of tall and average men:

tall men ¼ð0=165;0=175;0:0=180;0:25=182:5;0:5=185;1=190Þ

average men ¼ð0=165;1=175;0:5=180;0:25=182:5;0:0=185;0=190Þ

According to Eq. (4.13), the intersection of these two sets is

tall men \average men ¼ð0=165;0=175;0=180;0:25=182:5;0=185;0=190Þ

tall men \average men ¼ð0=180;0:25=182:5;0=185Þ

This solution is represented graphically in Figure 4.3.

99OPERATIONS OF FUZZY SETS

Union

.Crisp sets: Which element belongs to either set?

.Fuzzy sets: How much of the element is in either set?

The union of two crisp sets consists of every element that falls into either set. For

example, the union of tall men and fat men contains all men who are tall OR fat,

i.e. Tom is in the union since he is tall, and it does not matter whether he is fat or

not. In fuzzy sets, the union is the reverse of the intersection. That is, the union

is the largest membership value of the element in either set.

The fuzzy operation for forming the union of two fuzzy sets Aand Bon

universe Xcan be given as:

A[BðxÞ¼max ½AðxÞ;

BðxÞ ¼ AðxÞ[BðxÞ;where x2Xð4:14Þ

Consider again the fuzzy sets of tall and average men:

tall men ¼ð0=165;0=175;0:0=180;0:25=182:5;0:5=185;1=190Þ

average men ¼ð0=165;1=175;0:5=180;0:25=182:5;0:0=185;0=190Þ

According to Eq. (4.14), the union of these two sets is

tall men [average men ¼ð0=165;1=175;0:5=180;0:25=182:5;0:5=185;1=190Þ

Diagrams for fuzzy set operations are shown in Figure 4.7.

Crisp and fuzzy sets have the same properties; crisp sets can be considered as

just a special case of fuzzy sets. Frequently used properties of fuzzy sets are

described below.

Commutativity

A[B¼B[A

A\B¼B\A

Example:

tall men OR short men ¼short men OR tall men

tall men AND short men ¼short men AND tall men

Associativity

A[ðB[CÞ¼ðA[BÞ[C

A\ðB\CÞ¼ðA\BÞ\C

FUZZY EXPERT SYSTEMS100

Example:

tall men OR (short men OR average men)¼(tall men OR short men)OR

average men

tall men AND (short men AND average men)¼(tall men AND short men) AND

average men

Distributivity

A[ðB\CÞ¼ðA[BÞ\ðA[CÞ

A\ðB[CÞ¼ðA\BÞ[ðA\CÞ

Example:

tall men OR (short men AND average men)¼(tall men OR short men) AND

(tall men OR average men)

tall men AND (short men OR average men)¼(tall men AND short men)OR

(tall men AND average men)

Idempotency

A[A¼A

A\A¼A

Figure 4.7 Operations of fuzzy sets

101OPERATIONS OF FUZZY SETS

Example:

tall men OR tall men ¼tall men

tall men AND tall men ¼tall men

Identity

A[=

O¼A

A\X¼A

A\=

O¼=

A[X¼X

Example:

tall men OR undeﬁned ¼tall men

tall men AND unknown ¼tall men

tall men AND undeﬁned ¼undeﬁned

tall men OR unknown ¼unknown

where undeﬁned is an empty (null) set, the set having all degree of member-

ships equal to 0, and unknown is a set having all degree of memberships equal

to 1.

Involution

:ð:AÞ¼A

Example:

NOT (NOT tall men)¼tall men

Transitivity

If ðABÞ\ðBCÞthen AC

Every set contains the subsets of its subsets.

Example:

IF (extremely tall men very tall men) AND (very tall men tall men)

THEN (extremely tall men tall men)

De Morgan’s Laws

:ðA\BÞ¼:A[:B

:ðA[BÞ¼:A\:B

FUZZY EXPERT SYSTEMS102

Example:

NOT (tall men AND short men)¼NOT tall men OR NOT short men

NOT (tall men OR short men)¼NOT tall men AND NOT short men

Using fuzzy set operations, their properties and hedges, we can easily obtain a

variety of fuzzy sets from the existing ones. For example, if we have fuzzy set A

of tall men and fuzzy set Bof short men, we can derive fuzzy set Cof not very tall

men and not very short men or even set Dof not very very tall and not very very short

men from the following operations:

CðxÞ¼½1AðxÞ2\½1ðBðxÞ2

DðxÞ¼½1AðxÞ4\½1ðBðxÞ4

Generally, we apply fuzzy operations and hedges to obtain fuzzy sets which

can represent linguistic descriptions of our natural language.

4.5 Fuzzy rules

In 1973, Lotﬁ Zadeh published his second most inﬂuential paper (Zadeh, 1973).

This paper outlined a new approach to analysis of complex systems, in which

Zadeh suggested capturing human knowledge in fuzzy rules.

What is a fuzzy rule?

A fuzzy rule can be deﬁned as a conditional statement in the form:

IF xis A

THEN yis B

where xand yare linguistic variables; and Aand Bare linguistic values

determined by fuzzy sets on the universe of discourses Xand Y, respectively.

What is the difference between classical and fuzzy rules?

A classical IF-THEN rule uses binary logic, for example,

Rule: 1

IF speed is > 100

THEN stopping_distance is long

Rule: 2

IF speed is < 40

THEN stopping_distance is short

The variable speed can have any numerical value between 0 and 220 km/h, but

the linguistic variable stopping_distance can take either value long or short.In

103FUZZY RULES

other words, classical rules are expressed in the black-and-white language of

Boolean logic. However, we can also represent the stopping distance rules in a

fuzzy form:

Rule: 1

IF speed is fast

THEN stopping_distance is long

Rule: 2

IF speed is slow

THEN stopping_distance is short

Here the linguistic variable speed also has the range (the universe of discourse)

between 0 and 220 km/h, but this range includes fuzzy sets, such as slow,medium

and fast. The universe of discourse of the linguistic variable stopping_distance can

be between 0 and 300 m and may include such fuzzy sets as short,medium and

long. Thus fuzzy rules relate to fuzzy sets.

Fuzzy expert systems merge the rules and consequently cut the number of

rules by at least 90 per cent.

How to reason with fuzzy rules?

Fuzzy reasoning includes two distinct parts: evaluating the rule antecedent (the

IF part of the rule) and implication or applying the result to the consequent

(the THEN part of the rule).

In classical rule-based systems, if the rule antecedent is true, then the

consequent is also true. In fuzzy systems, where the antecedent is a fuzzy

statement, all rules ﬁre to some extent, or in other words they ﬁre partially. If

the antecedent is true to some degree of membership, then the consequent is

also true to that same degree.

Consider, for example, two fuzzy sets, ‘tall men’ and ‘heavy men’ represented

in Figure 4.8.

Figure 4.8 Fuzzy sets of tall and heavy men

FUZZY EXPERT SYSTEMS104

These fuzzy sets provide the basis for a weight estimation model. The model

is based on a relationship between a man’s height and his weight, which is

expressed as a single fuzzy rule:

IF height is tall

THEN weight is heavy

The value of the output or a truth membership grade of the rule consequent

can be estimated directly from a corresponding truth membership grade in the

antecedent (Cox, 1999). This form of fuzzy inference uses a method called

monotonic selection. Figure 4.9 shows how various values of men’s weight are

derived from different values for men’s height.

Can the antecedent of a fuzzy rule have multiple parts?

As a production rule, a fuzzy rule can have multiple antecedents, for example:

IF project_duration is long

AND project_stafﬁng is large

AND project_funding is inadequate

THEN risk is high

IF service is excellent

OR food is delicious

THEN tip is generous

All parts of the antecedent are calculated simultaneously and resolved in a

single number, using fuzzy set operations considered in the previous section.

Can the consequent of a fuzzy rule have multiple parts?

The consequent of a fuzzy rule can also include multiple parts, for instance:

IF temperature is hot

THEN hot_water is reduced;

cold_water is increased

Figure 4.9 Monotonic selection of values for man weight

105FUZZY RULES

In this case, all parts of the consequent are affected equally by the antecedent.

In general, a fuzzy expert system incorporates not one but several rules that

describe expert knowledge and play off one another. The output of each rule is a

fuzzy set, but usually we need to obtain a single number representing the expert

system output. In other words, we want to get a precise solution, not a fuzzy one.

How are all these output fuzzy sets combined and transformed into a

single number?

To obtain a single crisp solution for the output variable, a fuzzy expert system

ﬁrst aggregates all output fuzzy sets into a single output fuzzy set, and then

defuzziﬁes the resulting fuzzy set into a single number. In the next section we

will see how the whole process works from the beginning to the end.

4.6 Fuzzy inference

Fuzzy inference can be deﬁned as a process of mapping from a given input to an

output, using the theory of fuzzy sets.

4.6.1 Mamdani-style inference

The most commonly used fuzzy inference technique is the so-called Mamdani

method. In 1975, Professor Ebrahim Mamdani of London University built one

of the ﬁrst fuzzy systems to control a steam engine and boiler combination

(Mamdani and Assilian, 1975). He applied a set of fuzzy rules supplied by

experienced human operators.

The Mamdani-style fuzzy inference process is performed in four steps:

fuzziﬁcation of the input variables, rule evaluation, aggregation of the rule

outputs, and ﬁnally defuzziﬁcation.

To see how everything ﬁts together, we examine a simple two-input one-

output problem that includes three rules:

Rule: 1 Rule: 1

IF xis A3IFproject_funding is adequate

OR yis B1ORproject_stafﬁng is small

THEN zis C1 THEN risk is low

Rule: 2 Rule: 2

IF xis A2IFproject_funding is marginal

AND yis B2 AND project_stafﬁng is large

THEN zis C2 THEN risk is normal

Rule: 3 Rule: 3

IF xis A1IFproject_funding is inadequate

THEN zis C3 THEN risk is high

where x,yand z(project funding,project stafﬁng and risk) are linguistic vari-

ables; A1, A2 and A3(inadequate,marginal and adequate) are linguistic values

FUZZY EXPERT SYSTEMS106

determined by fuzzy sets on universe of discourse X(project funding); B1 and B2

(small and large) are linguistic values determined by fuzzy sets on universe of

discourse Y(project stafﬁng); C1, C2 and C3(low,normal and high) are linguistic

values determined by fuzzy sets on universe of discourse Z(risk).

The basic structure of Mamdani-style fuzzy inference for our problem is

shown in Figure 4.10.

Step 1: Fuzziﬁcation

The ﬁrst step is to take the crisp inputs, x1 and y1(project funding and

project stafﬁng), and determine the degree to which these inputs belong

to each of the appropriate fuzzy sets.

What is a crisp input and how is it determined?

The crisp input is always a numerical value limited to the universe of

discourse. In our case, values of x1 and y1 are limited to the universe

of discourses Xand Y, respectively. The ranges of the universe of

discourses can be determined by expert judgements. For instance, if we

need to examine the risk involved in developing the ‘fuzzy’ project,

we can ask the expert to give numbers between 0 and 100 per cent that

represent the project funding and the project stafﬁng, respectively. In

other words, the expert is required to answer to what extent the project

funding and the project stafﬁng are really adequate. Of course, various

fuzzy systems use a variety of different crisp inputs. While some of the

inputs can be measured directly (height, weight, speed, distance,

temperature, pressure etc.), some of them can be based only on expert

estimate.

Once the crisp inputs, x1 and y1, are obtained, they are fuzziﬁed

against the appropriate linguistic fuzzy sets. The crisp input x1 (project

funding rated by the expert as 35 per cent) corresponds to the member-

ship functions A1 and A2(inadequate and marginal) to the degrees of 0.5

and 0.2, respectively, and the crisp input y1 (project stafﬁng rated as 60

per cent) maps the membership functions B1 and B2(small and large)to

the degrees of 0.1 and 0.7, respectively. In this manner, each input is

fuzziﬁed over all the membership functions used by the fuzzy rules.

Step 2: Rule evaluation

The second step is to take the fuzziﬁed inputs, ðx¼A1Þ¼0:5, ðx¼A2Þ¼

0:2, ðy¼B1Þ¼0:1 and ðy¼B2Þ¼0:7, and apply them to the antecedents

of the fuzzy rules. If a given fuzzy rule has multiple antecedents, the

fuzzy operator (AND or OR) is used to obtain a single number that

represents the result of the antecedent evaluation. This number (the

truth value) is then applied to the consequent membership function.

To evaluate the disjunction of the rule antecedents, we use the OR

fuzzy operation. Typically, fuzzy expert systems make use of the

classical fuzzy operation union (4.14) shown in Figure 4.10 (Rule 1):

A[BðxÞ¼max ½AðxÞ;

BðxÞ

107FUZZY INFERENCE

Figure 4.10 The basic structure of Mamdani-style fuzzy inference

FUZZY EXPERT SYSTEMS108

However, the OR operation can be easily customised if necessary. For

example, the MATLAB Fuzzy Logic Toolbox has two built-in OR

methods: max and the probabilistic OR method, probor. The probabil-

istic OR, also known as the algebraic sum, is calculated as:

A[BðxÞ¼probor ½AðxÞ;

BðxÞ ¼ AðxÞþBðxÞAðxÞBðxÞð4:15Þ

Similarly, in order to evaluate the conjunction of the rule ante-

cedents, we apply the AND fuzzy operation intersection (4.13) also

shown in Figure 4.10 (Rule 2):

A\BðxÞ¼min ½AðxÞ;

BðxÞ

The Fuzzy Logic Toolbox also supports two AND methods: min and the

product, prod. The product is calculated as:

A\BðxÞ¼prod ½AðxÞ;

BðxÞ ¼ AðxÞBðxÞð4:16Þ

Do different methods of the fuzzy operations produce different results?

Fuzzy researchers have proposed and applied several approaches to

execute AND and OR fuzzy operators (Cox, 1999) and, of course,

different methods may lead to different results. Most fuzzy packages

also allow us to customise the AND and OR fuzzy operations and a user

is required to make the choice.

Let us examine our rules again.

Rule: 1

IF xis A3 (0.0)

OR yis B1 (0.1)

THEN zis C1 (0.1)

C1ðzÞ¼max ½A3ðxÞ;

B1ðyÞ ¼ max ½0:0;0:1¼0:1

C1ðzÞ¼probor ½A3ðxÞ;

B1ðyÞ ¼ 0:0þ0:10:00:1¼0:1

Rule: 2

IF xis A2 (0.2)

AND yis B2 (0.7)

THEN zis C2 (0.2)

C2ðzÞ¼min ½A2ðxÞ;

B2ðyÞ ¼ min ½0:2;0:7¼0:2

C2ðzÞ¼prod ½A2ðxÞ;

B2ðyÞ ¼ 0:20:7¼0:14

Thus, Rule 2 can be also represented as shown in Figure 4.11.

Now the result of the antecedent evaluation can be applied to the

membership function of the consequent. In other words, the con-

sequent membership function is clipped or scaled to the level of the

truth value of the rule antecedent.

109FUZZY INFERENCE

What do we mean by ‘clipped or scaled’?

The most common method of correlating the rule consequent with the

truth value of the rule antecedent is to simply cut the consequent

membership function at the level of the antecedent truth. This method

is called clipping or correlation minimum. Since the top of the

membership function is sliced, the clipped fuzzy set loses some informa-

tion. However, clipping is still often preferred because it involves less

complex and faster mathematics, and generates an aggregated output

surface that is easier to defuzzify.

While clipping is a frequently used method, scaling or correlation

product offers a better approach for preserving the original shape of

the fuzzy set. The original membership function of the rule consequent

is adjusted by multiplying all its membership degrees by the truth value

of the rule antecedent. This method, which generally loses less

information, can be very useful in fuzzy expert systems.

Clipped and scaled membership functions are illustrated in

Figure 4.12.

Step 3: Aggregation of the rule outputs

Aggregation is the process of uniﬁcation of the outputs of all rules.

In other words, we take the membership functions of all rule conse-

quents previously clipped or scaled and combine them into a single

fuzzy set. Thus, the input of the aggregation process is the list of

clipped or scaled consequent membership functions, and the output is

one fuzzy set for each output variable. Figure 4.10 shows how the

output of each rule is aggregated into a single fuzzy set for the overall

fuzzy output.

Figure 4.11 The AND product fuzzy operation

Figure 4.12 Clipped (a) and scaled (b) membership functions

FUZZY EXPERT SYSTEMS110

Step 4: Defuzziﬁcation

The last step in the fuzzy inference process is defuzziﬁcation. Fuzziness

helps us to evaluate the rules, but the ﬁnal output of a fuzzy system has

to be a crisp number. The input for the defuzziﬁcation process is the

aggregate output fuzzy set and the output is a single number.

How do we defuzzify the aggregate fuzzy set?

There are several defuzziﬁcation methods (Cox, 1999), but probably the

most popular one is the centroid technique. It ﬁnds the point where a

vertical line would slice the aggregate set into two equal masses.

Mathematically this centre of gravity (COG) can be expressed as

COG ¼Zb

AðxÞxdx

AðxÞdx ð4:17Þ

As Figure 4.13 shows, a centroid defuzziﬁcation method ﬁnds a

point representing the centre of gravity of the fuzzy set, A, on the

interval, ab.

In theory, the COG is calculated over a continuum of points in

the aggregate output membership function, but in practice, a reason-

able estimate can be obtained by calculating it over a sample of

points, as shown in Figure 4.13. In this case, the following formula is

applied:

COG ¼X

x¼a

AðxÞx

x¼a

AðxÞð4:18Þ

Let us now calculate the centre of gravity for our problem. The

solution is presented in Figure 4.14.

Figure 4.13 The centroid method of defuzziﬁcation

111FUZZY INFERENCE

COG ¼ð0þ10 þ20Þ0:1þð30 þ40 þ50 þ60Þ0:2þð70 þ80 þ90 þ100Þ0:5

0:1þ0:1þ0:1þ0:2þ0:2þ0:2þ0:2þ0:5þ0:5þ0:5þ0:5

¼67:4

Thus, the result of defuzziﬁcation, crisp output z1, is 67.4. It means,

for instance, that the risk involved in our ‘fuzzy’ project is 67.4 per

cent.

4.6.2 Sugeno-style inference

Mamdani-style inference, as we have just seen, requires us to ﬁnd the centroid of

a two-dimensional shape by integrating across a continuously varying function.

In general, this process is not computationally efﬁcient.

Could we shorten the time of fuzzy inference?

We can use a single spike, a singleton, as the membership function of the rule

consequent. This method was ﬁrst introduced by Michio Sugeno, the ‘Zadeh of

Japan’, in 1985 (Sugeno, 1985). A singleton, or more precisely a fuzzy singleton,

is a fuzzy set with a membership function that is unity at a single particular point

on the universe of discourse and zero everywhere else.

Sugeno-style fuzzy inference is very similar to the Mamdani method. Sugeno

changed only a rule consequent. Instead of a fuzzy set, he used a mathematical

function of the input variable. The format of the Sugeno-style fuzzy rule is

IF xis A

AND yis B

THEN zis fðx;yÞ

where x,yand zare linguistic variables; Aand Bare fuzzy sets on universe of

discourses Xand Y, respectively; and fðx;yÞis a mathematical function.

Figure 4.14 Defuzzifying the solution variable’s fuzzy set

FUZZY EXPERT SYSTEMS112

Figure 4.15 The basic structure of Sugeno-style fuzzy inference

113FUZZY INFERENCE

The most commonly used zero-order Sugeno fuzzy model applies fuzzy rules

in the following form:

IF xis A

AND yis B

THEN zis k

where kis a constant.

In this case, the output of each fuzzy rule is constant. In other words, all

consequent membership functions are represented by singleton spikes. Figure

4.15 shows the fuzzy inference process for a zero-order Sugeno model. Let us

compare Figure 4.15 with Figure 4.10. The similarity of Sugeno and Mamdani

methods is quite noticeable. The only distinction is that rule consequents are

singletons in Sugeno’s method.

How is the result, crisp output, obtained?

As you can see from Figure 4.15, the aggregation operation simply includes all

the singletons. Now we can ﬁnd the weighted average (WA) of these singletons:

WA ¼ðk1Þk1þðk2Þk2þðk3Þk3

ðk1Þþðk2Þþðk3Þ¼0:120 þ0:250 þ0:580

0:1þ0:2þ0:5¼65

Thus, a zero-order Sugeno system might be sufﬁcient for our problem’s needs.

Fortunately, singleton output functions satisfy the requirements of a given

problem quite often.

How do we make a decision on which method to apply – Mamdani or

Sugeno?

The Mamdani method is widely accepted for capturing expert knowledge. It

allows us to describe the expertise in more intuitive, more human-like manner.

However, Mamdani-type fuzzy inference entails a substantial computational

burden. On the other hand, the Sugeno method is computationally effective and

works well with optimisation and adaptive techniques, which makes it very

attractive in control problems, particularly for dynamic nonlinear systems.

4.7 Building a fuzzy expert system

To illustrate the design of a fuzzy expert system, we will consider a problem of

operating a service centre of spare parts (Turksen et al., 1992).

A service centre keeps spare parts and repairs failed ones. A customer brings a

failed item and receives a spare of the same type. Failed parts are repaired, placed

on the shelf, and thus become spares. If the required spare is available on the

shelf, the customer takes it and leaves the service centre. However, if there is no

spare on the shelf, the customer has to wait until the needed item becomes

available. The objective here is to advise a manager of the service centre on

certain decision policies to keep the customers satisﬁed.

FUZZY EXPERT SYSTEMS114

A typical process in developing the fuzzy expert system incorporates the

following steps:

1. Specify the problem and deﬁne linguistic variables.

2. Determine fuzzy sets.

3. Elicit and construct fuzzy rules.

4. Encode the fuzzy sets, fuzzy rules and procedures to perform fuzzy inference

into the expert system.

5. Evaluate and tune the system.

Step 1: Specify the problem and deﬁne linguistic variables

The ﬁrst, and probably the most important, step in building any expert

system is to specify the problem. We need to describe our problem in

terms of knowledge engineering. In other words, we need to determine

problem input and output variables and their ranges.

For our problem, there are four main linguistic variables: average

waiting time (mean delay) m, repair utilisation factor of the service

centre , number of servers s, and initial number of spare parts n.

The customer’s average waiting time, m, is the most important

criterion of the service centre’s performance. The actual mean delay

in service should not exceed the limits acceptable to customers.

The repair utilisation factor of the service centre, , is the ratio of the

customer arrival rate, , to the customer departure rate, . Magnitudes

of and indicate the rates of an item’s failure (failures per unit time)

and repair (repairs per unit time), respectively. Apparently, the

repair rate is proportional to the number of servers, s. To increase

the productivity of the service centre, its manager will try to keep the

repair utilisation factor as high as possible.

The number of servers, s, and the initial number of spares, n, directly

affect the customer’s average waiting time, and thus have a major

impact on the centre’s performance. By increasing sand n, we achieve

lower values of the mean delay, but, at the same time we increase the

costs of employing new servers, building up the number of spares and

expanding the inventory capacities of the service centre for additional

spares.

Let us determine the initial number of spares n, given the customer’s

mean delay m, number of servers s, and repair utilisation factor, .

Thus, in the decision model considered here, we have three inputs –

m,sand , and one output – n. In other words, a manager of the service

centre wants to determine the number of spares required to maintain

the actual mean delay in customer service within an acceptable range.

Now we need to specify the ranges of our linguistic variables.

Suppose we obtain the results shown in Table 4.3 where the intervals

for m,sand nare normalised to be within the range of ½0;1by dividing

base numerical values by the corresponding maximum magnitudes.

115BUILDING A FUZZY EXPERT SYSTEM

Note, that for the customer mean delay m, we consider only three

linguistic values – Very Short,Short and Medium because other values

such as Long and Very Long are simply not practical. A manager of the

service centre cannot afford to keep customers waiting longer than a

medium time.

In practice, all linguistic variables, linguistic values and their ranges

are usually chosen by the domain expert.

Step 2: Determine fuzzy sets

Fuzzy sets can have a variety of shapes. However, a triangle or a trapezoid

can often provide an adequate representation of the expert knowledge,

and at the same time signiﬁcantly simpliﬁes the process of computation.

Figures 4.16 to 4.19 show the fuzzy sets for all linguistic variables

used in our problem. As you may notice, one of the key points here is to

maintain sufﬁcient overlap in adjacent fuzzy sets for the fuzzy system

to respond smoothly.

Table 4.3 Linguistic variables and their ranges

Linguistic variable: Mean delay, m

Linguistic value Notation Numerical range (normalised)

Very Short VS [0, 0.3]

Short S [0.1, 0.5]

Medium M [0.4, 0.7]

Linguistic variable: Number of servers, s

Linguistic value Notation Numerical range (normalised)

Small S [0, 0.35]

Medium M [0.30, 0.70]

Large L [0.60, 1]

Linguistic variable: Repair utilisation factor, q

Linguistic value Notation Numerical range

Low L [0, 0.6]

Medium M [0.4, 0.8]

High H [0.6, 1]

Linguistic variable: Number of spares, n

Linguistic value Notation Numerical range (normalised)

Very Small VS [0, 0.30]

Small S [0, 0.40]

Rather Small RS [0.25, 0.45]

Medium M [0.30, 0.70]

Rather Large RL [0.55, 0.75]

Large L [0.60, 1]

Very Large VL [0.70, 1]

FUZZY EXPERT SYSTEMS116

Figure 4.16 Fuzzy sets of mean delay m

Figure 4.17 Fuzzy sets of number of servers s

Figure 4.18 Fuzzy sets of repair utilisation factor 

Figure 4.19 Fuzzy sets of number of spares n

117BUILDING A FUZZY EXPERT SYSTEM

Step 3: Elicit and construct fuzzy rules

Next we need to obtain fuzzy rules. To accomplish this task, we might

ask the expert to describe how the problem can be solved using the

fuzzy linguistic variables deﬁned previously.

Required knowledge also can be collected from other sources such as

books, computer databases, ﬂow diagrams and observed human behav-

iour. In our case, we could apply rules provided in the research paper

(Turksen et al., 1992).

There are three input and one output variables in our example. It is

often convenient to represent fuzzy rules in a matrix form. A two-by-

one system (two inputs and one output) is depicted as an M N matrix

of input variables. The linguistic values of one input variable form the

horizontal axis and the linguistic values of the other input variable

form the vertical axis. At the intersection of a row and a column lies

the linguistic value of the output variable. For a three-by-one system

(three inputs and one output), the representation takes the shape of an

MNK cube. This form of representation is called a fuzzy associa-

tive memory (FAM).

Let us ﬁrst make use of a very basic relation between the repair

utilisation factor , and the number of spares n, assuming that other

input variables are ﬁxed. This relation can be expressed in the following

form: if increases, then nwill not decrease. Thus we could write the

following three rules:

1. If (utilisation_factor is L) then (number_of_spares is S)

2. If (utilisation_factor is M) then (number_of_spares is M)

3. If (utilisation_factor is H) then (number_of_spares is L)

Now we can develop the 3 3 FAM that will represent the rest of

the rules in a matrix form. The results of this effort are shown in

Figure 4.20.

Meanwhile, a detailed analysis of the service centre operation,

together with an ‘expert touch’ (Turksen et al., 1992), may enable us

to derive 27 rules that represent complex relationships between all

variables used in the expert system. Table 4.4 contains these rules and

Figure 4.21 shows the cube ð333ÞFAM representation.

Figure 4.20 The square FAM representation

FUZZY EXPERT SYSTEMS118

First we developed 12 ð3þ33Þrules, but then we obtained 27

ð333Þrules. If we implement both schemes, we can compare

results; only the system’s performance can tell us which scheme is

better.

Rule Base 1

1. If (utilisation_factor is L) then (number_of_spares is S)

2. If (utilisation_factor is M) then (number_of_spares is M)

3. If (utilisation_factor is H) then (number_of_spares is L)

4. If (mean_delay is VS) and (number_of_servers is S)

then (number_of_spares is VL)

5. If (mean_delay is S) and (number_of_servers is S)

then (number_of_spares is L)

Table 4.4 The rule table

Rule msnRule msnRule msn

1 VS S L VS 10 VS S M S 19 VS S H VL

2 S S L VS 11 S S M VS 20 S S H L

3 M S L VS 12 M S M VS 21 M S H M

4 VSML VS 13 VSMMRS 22 VSMH M

5 S M L VS 14 S M M S 23 S M H M

6 M ML VS 15 M MMVS 24 M MH S
