Russell Bryant, Leif Madsen, and Jim Van Meggelen
FOURTH EDITION
Asterisk™: The Definitive Guide
www.it-ebooks.info
Asterisk™: The Definitive Guide, Fourth Edition
by Russell Bryant, Leif Madsen, and Jim Van Meggelen
Copyright © 2013 Russell Bryant, Leif Madsen, and Jim Van Meggelen. All rights reserved.
Printed in the United States of America.
Published by O’Reilly Media, Inc., 1005 Gravenstein Highway North, Sebastopol, CA 95472.
O’Reilly books may be purchased for educational, business, or sales promotional use. Online editions are
also available for most titles (http://my.safaribooksonline.com). For more information, contact our corporate/
institutional sales department: 800-998-9938 or corporate@oreilly.com.
Editors: Mike Loukides and Nathan Jepson
Production Editor: Kristen Borg
Copyeditor: Becca Freed
Proofreader: Kiel Van Horn
Indexer: Fred Brown
Cover Designer: Karen Montgomery
Interior Designer: David Futato
Illustrator: Rebecca Demarest
May 2013: Fourth Edition
Revision History for the Fourth Edition:
2013-05-07: First release
See http://oreilly.com/catalog/errata.csp?isbn=9781449332426 for release details.
Nutshell Handbook, the Nutshell Handbook logo, and the O’Reilly logo are registered trademarks of O’Reilly
Media, Inc. Asterisk: The Definitive Guide, the image of a starfish, and related trade dress are trademarks of
O’Reilly Media, Inc.
Many of the designations used by manufacturers and sellers to distinguish their products are claimed as
trademarks. Where those designations appear in this book, and O’Reilly Media, Inc., was aware of a trade‐
mark claim, the designations have been printed in caps or initial caps.
While every precaution has been taken in the preparation of this book, the publisher and authors assume
no responsibility for errors or omissions, or for damages resulting from the use of the information contained
herein.
ISBN: 978-1-449-33242-6
[LSI]
www.it-ebooks.info
Table of Contents
Foreword. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix
Preface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxv
1. A Telephony Revolution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Asterisk and VoIP: Bridging the Gap Between Traditional and Network
Telephony 2
The Zapata Telephony Project 2
Massive Change Requires Flexible Technology 3
Asterisk: The Hacker’s PBX 4
Asterisk: The Professional’s PBX 5
The Asterisk Community 5
The Asterisk Mailing Lists 6
Asterisk Wiki Sites 7
The IRC Channels 7
Asterisk User Groups 7
The Asterisk Documentation Project 8
The Business Case 8
Conclusion 8
2. Asterisk Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Modules 10
Applications 12
Bridging Modules 15
Call Detail Recording Modules 16
Channel Event Logging Modules 17
Channel Drivers 17
Codec Translators 18
Format Interpreters 19
Dialplan Functions 20
iii
www.it-ebooks.info
PBX Modules 22
Resource Modules 22
Add-on Modules 26
Test Modules 27
File Structure 27
Configuration Files 27
Modules 27
The Resource Library 28
The Spool 28
Logging 28
The Dialplan 28
Hardware 29
Asterisk Versioning 29
Previous Release Methodologies 30
The Current Release Methodology 31
Simplifying the Version Numbers 32
Conclusion 33
3. Installing Asterisk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Installation Cheat Sheet 37
Distribution Installation 41
RHEL Server 41
Ubuntu Server 45
Software Dependencies 49
Downloading What You Need 50
Getting the Source via Subversion 51
Getting the Source via wget 51
How to Install It 52
DAHDI 52
LibPRI 54
Asterisk 55
Setting File Permissions 56
Base Configuration 56
Initial Configuration 56
make menuselect 64
Updating Asterisk 70
Common Issues 72
-bash: wget: command not found 73
configure: error: no acceptable C compiler found in $PATH 73
make: gcc: command not found 73
configure: error: C++ preprocessor “/lib/cpp” fails sanity check 73
iv | Table of Contents
www.it-ebooks.info
configure: error: *** Please install GNU make. It is required to build
Asterisk! 73
configure: *** XML documentation will not be available because the
‘libxml2’ development package is missing. 74
configure: error: *** termcap support not found 74
You do not appear to have the sources for the 2.6.18-164.6.1.el5 kernel
installed. 74
E: Unable to lock the administration directory (/var/lib/dpkg/), are you
root? 74
Upgrading Asterisk 74
Conclusion 76
4. Initial Configuration Tasks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
asterisk.conf 77
The [directories] Section 77
The [options] Section 78
The [files] Section 82
The [compat] Section 82
modules.conf 83
The [modules] Section 84
indications.conf 84
musiconhold.conf 86
Converting Music to a Format That Works Best with Asterisk 87
Default musiconhold.conf file 89
Additional Configuration Files 91
Conclusion 91
5. User Device Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Telephone Naming Concepts 94
Hardphones, Softphones, and ATAs 96
Configuring Asterisk 98
How Channel Configuration Files Work with the Dialplan 99
sip.conf 101
iax.conf 107
Modifying Your Channel Configuration Files for Your Environment 112
Digium Phones with Asterisk 113
Loading Your New Channel Configurations 113
The Asterisk CLI 113
Testing to Ensure Your Devices Have Registered 114
Analog Phones 115
A Basic Dialplan to Test Your Devices 118
Under the Hood: Your First Call 119
Table of Contents | v
www.it-ebooks.info
Conclusion 120
6. Dialplan Basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Dialplan Syntax 121
Contexts 122
Extensions 124
Priorities 125
Applications 127
The Answer(), Playback(), and Hangup() Applications 128
A Simple Dialplan 129
Hello World 129
Building an Interactive Dialplan 131
The Goto(), Background(), and WaitExten() Applications 131
Handling Invalid Entries and Timeouts 133
Using the Dial() Application 134
Using Variables 137
Pattern Matching 140
Includes 145
Conclusion 145
7. Outside Connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
The Basics of Trunking 147
Fundamental Dialplan for Outside Connectivity 148
PSTN Circuits 150
Traditional PSTN Trunks 150
Installing PSTN Trunks 152
VoIP 161
Coping with Network Address Translation 161
PSTN Termination 170
PSTN Origination 171
VoIP to VoIP 173
Configuring VoIP Trunks 173
Emergency Dialing 181
Conclusion 183
8. Voicemail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Comedian Mail 185
The [general] Section 186
The [zonemessages] Section 195
The Contexts Section 196
An Initial voicemail.conf File 200
Standard Voicemail KeyMap 201
vi | Table of Contents
www.it-ebooks.info
Dialplan Integration 201
The VoiceMail() Dialplan Application 201
The VoiceMailMain() Dialplan Application 204
Creating a Dial-by-Name Directory 205
Using a Jitterbuffer 205
Storage Backends 206
Linux Filesystem 206
ODBC 207
IMAP 207
Using Asterisk as a Standalone Voicemail Server 208
Integrating Asterisk into a SIP Environment as a Standalone
Voicemail Server 208
SMDI (Simplified Message Desk Interface) 212
Database Integration 213
Conclusion 213
9. Internationalization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Devices External to the Asterisk Server 217
PSTN Connectivity, DAHDI, Digium Cards, and Analog Phones 219
DAHDI Drivers 221
Asterisk 224
Caller ID 224
Language and/or Accent of Prompts 225
Time/Date Stamps and Pronunciation 226
Conclusion—Easy Reference Cheat Sheet 228
10. Deeper into the Dialplan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Expressions and Variable Manipulation 231
Basic Expressions 231
Operators 232
Dialplan Functions 234
Syntax 235
Examples of Dialplan Functions 235
Conditional Branching 236
The GotoIf() Application 236
Time-Based Conditional Branching with GotoIfTime() 240
Macros 242
Defining Macros 243
Calling Macros from the Dialplan 244
Using Arguments in Macros 245
GoSub 246
Defining Subroutines 246
Table of Contents | vii
www.it-ebooks.info
Calling Subroutines from the Dialplan 247
Using Arguments in Subroutines 248
Returning from a Subroutine 249
Local Channels 250
Using the Asterisk Database (AstDB) 253
Storing Data in the AstDB 254
Retrieving Data from the AstDB 254
Deleting Data from the AstDB 254
Using the AstDB in the Dialplan 255
Creating a Hot-Desking Application with AstDB 256
Handy Asterisk Features 261
Zapateller() 261
Call Parking 261
Conferencing with MeetMe() 263
Conferencing with ConfBridge() 264
Conclusion 266
11. Parking, Paging, and Conferencing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
features.conf 267
The [general] section 268
The [featuremap] Section 271
The [applicationmap] Section 272
Application Map Grouping 275
Parking Lots 276
Overhead and “Underchin” Paging (a.k.a. Public Address) 277
Places to Send Your Pages 278
Zone Paging 284
Advanced Conferencing 284
The [general] Section 285
Options for User Profiles 285
Options for Bridge Profiles 287
ConfBridge Menu Options 289
Enabling a PIN 290
Waiting for the Marked User to Join 292
Using ConfBridge() Menus 293
Enabling Videoconferencing 296
Conclusion 298
12. Internet Call Routing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
DNS and SIP URIs 300
The SIP URI 300
SRV Records 301
viii | Table of Contents
www.it-ebooks.info
Accepting Calls to Your System 302
Dialing SIP URIs from Asterisk 309
ENUM and E.164 310
E.164 and the ITU 310
ENUM 311
Asterisk and ENUM 312
ISN, ITAD, and freenum.org 313
Got ISN? 314
ITAD Subscriber Numbers (ISNs) 315
Management of Internet Numbering 315
IP Telephony Administrative Domains (ITADs) 316
Create a DNS Entry for Your ITAD 317
Testing Your ITAD 318
Using ISNs in Your Asterisk System 318
Security and Identity 320
Toll Fraud 321
Spam over Internet Telephony (SPIT) 322
Distributed Denial of Service Attacks 323
Phishing 323
Security Is an Ongoing Process 323
Conclusion 323
13. Automatic Call Distribution (ACD) Queues. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
Creating a Simple ACD Queue 326
Queue Members 331
Controlling Queue Members via the CLI 331
Defining Queue Members in the queues.conf File 333
Controlling Queue Members with Dialplan Logic 333
Automatically Logging Into and Out of Multiple Queues 335
An Introduction to Device State 339
The queues.conf File 341
The agents.conf File 349
Advanced Queues 351
Priority Queue (Queue Weighting) 351
Queue Member Priority 353
Changing Penalties Dynamically (queuerules.conf) 354
Announcement Control 356
Overflow 361
Using Local Channels 363
Queue Statistics: The queue_log File 367
Table of Contents | ix
www.it-ebooks.info
Conclusion 370
14. Device States. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
Device States 371
Checking Device States 372
Extension States 373
Hints 374
Checking Extension States 375
SIP Presence 376
Asterisk Configuration 376
Using Custom Device States 378
An Example 378
Distributed Device States 380
Using Corosync 380
Using XMPP 385
Shared Line Appearances 389
Installing the SLA Applications 389
Configuration Overview 390
Key System Example with Analog Trunks 390
Key System Example with SIP Trunks 394
Alternate Key System Example with SIP Trunks 396
Shared Extension Example 399
Additional Configuration 401
Limitations 402
Creating a Callback Service 403
Conclusion 405
15. The Automated Attendant. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407
An Auto Attendant Is Not an IVR 407
Designing Your Auto Attendant 408
The Greeting 409
The Main Menu 410
Timeout 411
Invalid 411
Dial by Extension 412
Building Your Auto Attendant 412
Recording Prompts 412
The Dialplan 414
Delivering Incoming Calls to the Auto Attendant 416
IVR 416
x | Table of Contents
www.it-ebooks.info
Conclusion 416
16. Relational Database Integration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417
Installing and Configuring PostgreSQL and MySQL 418
Installing PostgreSQL for RHEL 418
Installing PostgreSQL for Ubuntu 418
Installing MySQL for RHEL 419
Installing MySQL for Ubuntu 419
Configuring PostgreSQL 419
Configuring MySQL 421
Installing and Configuring ODBC 422
Configuring ODBC for PostgreSQL 424
Configuring ODBC for MySQL 425
Configuring ODBC for Microsoft SQL 426
Validating the ODBC Connector 427
Compiling the ODBC Modules for Asterisk 428
Configuring res_odbc to Allow Asterisk to Connect Through ODBC 428
Managing Databases 429
Troubleshooting Database Issues 430
SQL Injection 430
Powering Your Dialplan with func_odbc 431
A Gentle Introduction to func_odbc 432
Getting Funky with func_odbc: Hot-Desking 433
Using Realtime 449
Static Realtime 450
Dynamic Realtime 453
Storing Call Detail Records (CDR) 458
ODBC Voicemail Message Storage 463
Compiling the app_voicemail Module to Support ODBC Storage 464
Creating the Large Object Type for PostgreSQL 465
ODBC Voicemail Storage Table Layout 467
Configuring voicemail.conf for ODBC Storage 468
Testing ODBC Voice Message Storage 469
Database Integration of ACD Queues 473
Storing queues.conf in a Database 473
Storing Dialplan Parameters for a Queue in a Database 476
Writing queue_log to Database 477
Conclusion 478
17. Interactive Voice Response. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 479
What Is IVR? 479
Components of an IVR 480
Table of Contents | xi
www.it-ebooks.info
IVR Design Considerations 482
Asterisk Modules for Building IVRs 483
CURL 483
func_odbc 483
AGI 483
AMI 483
A Simple IVR Using CURL 483
Installing the cURL Module 484
The Dialplan 484
A Prompt-Recording Application 484
Speech Recognition and Text-to-Speech 486
Text-to-Speech 486
Speech Recognition 486
Conclusion 487
18. External Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 489
Calendar Integration 490
Compiling Calendaring Support into Asterisk 490
Configuring Calendar Support for Asterisk 492
Triggering Calendar Reminders to Your Phone 494
Controlling Calls Based on Calendar Information 499
Writing Call Information to a Calendar 501
Additional Features 503
Voicemail IMAP Integration 503
Compiling IMAP Voicemail Support into Asterisk 504
Using XMPP (Jabber) with Asterisk 511
Compiling XMPP Support into Asterisk 512
Jabber Dialplan Commands 512
chan_motif 518
Out-of-Band Messaging (Messaging Infrastructure) 522
xmpp.conf Configuration 522
sip.conf Configuration 523
Dialplan Configuration 524
LDAP Integration 525
Configuring OpenLDAP 526
Compiling LDAP Support into Asterisk 528
Configuring Asterisk for LDAP Support 529
Text-to-Speech Utilities 531
Festival 531
Cepstral 534
xii | Table of Contents
www.it-ebooks.info
Conclusion 534
19. Fax. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 535
What Is a Fax? 535
Ways to Handle Faxes in Asterisk 535
spandsp 536
Obtaining spandsp 536
Compiling and Installing spandsp 537
Adding the spandsp Library to Your libpath 537
Recompiling Asterisk with spandsp Support 537
Disabling spandsp (Should You Want to Test Digium Fax) 538
Digium Fax For Asterisk 538
Obtaining Digium FFA 538
Disabling Digium FFA (Should You Want to Test spandsp) 539
Incoming Fax Handling 539
Fax to TIFF 540
Fax to Email 541
Fax Detection 542
Using T.38 543
Outgoing Fax Handling 544
Transmitting a Fax from Asterisk 544
File Format for Faxing 545
An Experiment in Email to Fax 546
Fax Pass-Through 549
Using Fax Buffers in chan_dahdi.conf 549
T.38 Gateway 550
Conclusion 551
20. Asterisk Manager Interface (AMI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 553
Quick Start 553
AMI over TCP 554
AMI over HTTP 555
Configuration 556
manager.conf 556
http.conf 561
Protocol Overview 562
Message Encoding 563
AMI over HTTP 564
Call Files 569
Example Usage 571
Originating a Call 571
Redirecting a Call 573
Table of Contents | xiii
www.it-ebooks.info
Originating a Call Using Python and StarPy 574
Development Frameworks 579
CSTA 580
Interesting Applications 580
Flash Operator Panel 580
Conclusion 581
21. Asterisk Gateway Interface (AGI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 583
Quick Start 583
AGI Variants 585
Process-Based AGI 585
DeadAGI Is Dead 586
FastAGI—AGI over TCP 586
Async AGI—AMI-Controlled AGI 587
AGI Communication Overview 588
Setting Up an AGI Session 588
Commands and Responses 590
Ending an AGI Session 594
Example: Account Database Access 596
Development Frameworks 599
Conclusion 599
22. Clustering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 601
Traditional PBXs 602
Hybrid Systems 603
Pure Asterisk, Nondistributed 605
Asterisk and Database Integration 606
Single Database 606
Replicated Databases 608
Asterisk and Distributed Device States 609
Distributing Device States over a LAN 610
Distributing Device States over a WAN 611
Multiple Queues, Multiple Sites 613
Conclusion 614
23. Distributed Universal Number Discovery (DUNDi). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 617
How Does DUNDi Work? 617
The dundi.conf File 619
Configuring Asterisk for Use with DUNDi 621
General Configuration 622
Initial DUNDi Peer Definition 623
Creating Mapping Contexts 625
xiv | Table of Contents
www.it-ebooks.info
Using Mapping Contexts with Peers 627
Allowing Remote Connections 629
Controlling Responses 630
Performing Lookups from the Dialplan 634
Conclusion 637
24. System Monitoring and Logging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 639
logger.conf 639
Reviewing Asterisk Logs 641
Logging to the Linux syslog Daemon 642
Verifying Logging 643
Log Rotation 643
Call Detail Records 643
CDR Contents 644
Dialplan Applications 645
cdr.conf 645
Backends 646
Example Call Detail Records 653
Caveats 653
CEL (Channel Event Logging) 654
Channel Event Types 654
Channel Event Contents 655
Dialplan Applications 656
cel.conf 657
Backends 657
Example Channel Events 663
SNMP 668
Installing the SNMP Module for Asterisk 668
Configuring SNMP for Asterisk Using OpenNMS 669
Monitoring Asterisk with OpenNMS 672
Conclusion 673
25. Web Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 675
Flash Operator Panel 676
Queue Status and Reporting 676
Queue Status Display 677
Queue Reporting 677
Call Detail Records 677
A2Billing 678
Conclusion 678
26. Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 679
Table of Contents | xv
www.it-ebooks.info
Scanning for Valid Accounts 679
Authentication Weaknesses 681
Fail2ban 681
Installation 682
Configuration 683
Encrypted Media 687
Dialplan Vulnerabilities 687
Securing Asterisk Network APIs 689
IAX2 Denial of Service 689
Other Risk Mitigation 691
CLI Permissions 693
Resources 694
Conclusion—A Better Idiot 694
27. Asterisk: A Future for Telephony. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 695
The Problems with Traditional Telephony 695
Closed Thinking 696
Limited Standards Compliance 697
Slow Release Cycles 697
Refusing to Let Go of the Past and Embrace the Future 698
Paradigm Shift 698
The Promise of Open Source Telephony 698
The Itch that Asterisk Scratches 698
Open Architecture 699
Standards Compliance 700
Lightning-Fast Response to New Technologies 700
Passionate Community 700
Some Things that Are Now Possible 701
The Future of Asterisk 705
Speech Processing 705
High-Fidelity Voice 706
Video 707
WebRTC 709
Wireless 709
Unified Messaging 710
Peering 710
Challenges 711
Opportunities 714
A. Understanding Telephony. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 717
B. Protocols for VoIP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 737
xvi | Table of Contents
www.it-ebooks.info
C. Preparing a System for Asterisk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 761
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 787
Table of Contents | xvii
www.it-ebooks.info
www.it-ebooks.info
Foreword
When we were thinking of who we could ask to write a foreword for the fourth edition
of the book, lots of names were tossed around. We had already had Mark Spencer (author
of Asterisk) write it for the first two editions of the book. Next, John Todd did a fantastic
job for the third edition. After batting around several names (of which you will see
below), we thought, “This is a book written by the community, how about we do a
community foreword?” With that idea in mind, we picked several people whom we
respect, and who have been using Asterisk as long as (if not longer than) ourselves.
When we were thinking of people, we wanted to get several perspectives and loosely
answer several questions about Asterisk. The questions we were looking at included:
•How has Asterisk helped in communities?
•What worldly endeavors has Asterisk contributed to?
•Where has Asterisk been and where is it going?
•Why is Asterisk being deployed and what needs does it solve?
These are all questions that most people who have used Asterisk for an extended period
of time are either asked, or have asked themselves. After posing those questions to the
following authors, they all came back with various viewpoints about the Asterisk soft‐
ware, and how it has changed the telecommunications industry and the lives of people.
We hope you enjoy reading about their contributions as much as we did.
Matt Jordan (Engineering Manager, Digium)
When Leif asked me to write a foreword for the updated edition of Asterisk: The De‐
finitive Guide, he posed the following question: “Where has Asterisk been and where is
it going?” This means some prognostication is ahead—you’ve been warned!
To answer the first part, I looked at how Asterisk has evolved over the past several
versions. Each version has built upon the previous in an iterative fashion, while still
xix
www.it-ebooks.info
remaining true to what made Asterisk great: a free and open source platform to build
telephony applications. As time passed and the telephony landscape changed, Asterisk
changed with it. Asterisk evolved with new functionality to meet the changing needs of
the people who used and developed it. At times, Asterisk has pushed the telephony
industry; at times it has responded to it. The result of this push and pull is the state of
Asterisk today—it is in many things and in many places. It powers the phone systems
of my local grocery store, drug store, and pizza chain—it is the engine of choice that
powers the PBXs of everyone from hobbyists to large enterprises.
The second part is trickier. As Asterisk nears its 15th birthday, the question in my mind
isn’t so much “where is Asterisk going,” but “where is the telephony industry going?”
The convergence of mobile platforms, hosted solutions, and WebRTC will fundamen‐
tally change not only our definition of a phone, but how businesses deploy their com‐
munication infrastructure and what it means to communicate. So how does Asterisk
respond to fundamental shifts in deployment, operability, and usage?
In my mind, the way it always has—by being innovative. By leading the way in adopting
standards for communication. By exposing new APIs that make it easier for anyone to
use Asterisk to build communication applications for a wide range of business needs.
And finally, by being willing to change. Asterisk has traditionally provided applications
for you—if you wanted call queues, you used the Queue application. If you wanted voice
mail, you used VoiceMail. As we go forward in the next major versions of Asterisk, I
see the emphasis being less on providing functionality for you and more on providing
the building blocks to build whatever communications functionality you need.
It is an exciting time to be a user and developer of Asterisk—and I look forward to
building Asterisk with you.
Alex Balashov (Principal, Evariste Systems)
Asterisk is most often celebrated for its free licensing and its generous feature set. How‐
ever, as most adopters of open source technology know, or quickly discover, it has im‐
plementation costs, too. The essential value of Asterisk does not, in my view, lie in the
economic or technical efficiency of a free PBX, but in the disruptive structural effect it
has had upon the larger domain of innovation in which it participates. It has irrevocably
shifted the conversation about possibilities in telephony.
Asterisk did not merely offer an open source challenge to incumbent PBX vendors. The
fact that it could run on commodity PC hardware and small, PC-compatible embedded
devices set off a tectonic shift toward the commoditization of business problems that
were previously solvable only by complex data interchange performed on expensive,
proprietary hardware or expensively licensed software, such as, for instance, interactive
voice response (IVR) systems that provide self-service interfaces to banks. Asterisk has
numerous integration pathways and APIs that allow it to connect to other commodity
xx | Foreword
www.it-ebooks.info
services using open standards and ubiquitous protocols, drastically lowering the cost
of making it talk to other systems. It is impossible to overstate the transformative impact
this has had, enabling entirely new business models to take flight, untethered by hitherto
prohibitive capital drag.
Asterisk can take credit for the fact that there are now entirely new, generational answers
to the question, “can we make the phone system do this?” Incumbent telecom vendors,
irrespective of the degree to which they view Asterisk as a competitor, have had to re-
frame their marketing message in terms of the possibilities that it has forced open.
Asterisk has changed the observational language—the vocabulary, the thought process,
the basic economic assumptions—of business telephony systems.
Asterisk’s interoperability and attachment to commodity hardware has also weakened
the walls of formidable fortresses of telecom monopoly that were previously thought
impregnable. I have witnessed its use with libss7 as an interconnection element by
competitive operators in several emerging-market countries, and as the backbone of
toll bypass applications and cost-efficient calling card services. The impact of this
Asterisk-driven pressure wave of innovative, low-cost alternatives is titanic, having cre‐
ated entirely new social connections, jobs, and livelihoods around the world, enriching
the lives of many people. My own family is scattered around the globe, and my Asterisk
PBX has made that world a whole lot smaller. We simply could not afford to commu‐
nicate so closely, regularly, and richly before.
In sum, I think that in the overall continuum of technological development, Asterisk
may well be remembered less for what is inside of it and more for what it has shoved
aside outside of it with its powerful elbows.
Kevin McAllister (VP of Engineering, CoreDial, LLC)
In the late summer of 2005 I was offered a job at a startup that planned to deliver hosted
IP PBX services to businesses. At the time I knew Linux system administration, IP
networking, and enough to be scared to death of voice.
The first reason for the fear of voice was that I knew how the Internet worked. Voice is
the canary in the coal mine that is the Internet—when the network breaks, the voice
dies first. The second reason to be afraid is that people are very familiar with phones,
and therefore they have strong ideas about what phones should do to help run their
business, and expect voice service to be more reliable than electricity. I would be re‐
sponsible for trying to make feature after feature work under these demanding
circumstances.
The plan was to build on top of an existing prototype based on Asterisk. So not only
would I have the daunting task of pushing voice through my network, but also learning
how to use a complex piece of open source software that traditionally offers documen‐
tation that is incomplete and often inaccurate. So the situation was I didn’t know what
Foreword | xxi
www.it-ebooks.info
I wanted it to do, I didn’t know how to make the software do it, and I had no way to find
out.
Luckily, there was only one book available to help at that time: Asterisk™: The Future of
Telephony. That first version of this book helped me to quickly understand not only the
Asterisk software, but the basics of VoIP. The presentation allowed me to see how I could
quickly combine the many and very flexible features of the Asterisk software to build
complex and reliable features demanded by my customers.
Now—almost eight years and countless millions of successful calls later—I have learned
firsthand the things that do and do not work when building Internet VoIP systems. But
I continue to rely heavily on Asterisk and on the authors of this book to help me quickly
understand this constantly changing and improving software. You’ve chosen a great
starting point for working with Asterisk. I wish you even more success than I have had.
Brian Capouch (Computer Science Department, Saint
Joseph’s College [Indiana])
“Well, you can actually do that pretty easily.” That observation, over and over, burned
itself into my brain back when I first began hacking with Asterisk. I had already been
playing around—enjoying some success but suffering a lot of misery, too—with some
early IP telephony products, when one day I first saw mention of Asterisk on a mailing
list. I fetched the code and built it (before it was versioned!), and I’ll forever remember
the first sound I heard: Allison Smith’s “Comedian Mail” voice prompt. I laughed and
laughed. What was going on here??!!??
I dug in, and it changed my life. At the time, I operated a wireless ISP. It was an inde‐
scribable thrill that I was able to set up a network of Asterisk servers running on cheap
eBay hardware, connected to local telco lines at fifteen POPs scattered over 500 square
miles of mostly desolate Indiana farmland. I not only got my own wide-area toll-free
calling zone, it was free—back in the days when minutes actually cost something.
For another project, I hooked up Asterisk and a $20 USB camera I bought on eBay, and
got live video surveillance of an old railroad hotel I own in Medaryville, Indiana. It was
built in 1853, and had not yet been outfitted with modern electrical service. The system
ran off a marine battery that I replaced every few days.
Later on, one summer evening my friend Bob staged a faux break-in at the hotel while
I was giving a late-afternoon presentation at a technical conference in faraway Califor‐
nia. My audience and I watched the entrance door through a live feed from the camera,
and before the image of Bob’s entry had refreshed on the display monitor, a portable
SIP phone in my pocket rang, annunciating a “security situation” at my hotel. Asterisk
servers handled the call point-to-point between the hotel and the conference center.
xxii | Foreword
www.it-ebooks.info
Asterisk is about all kinds of telephony functionality, for all kinds of situations, perfectly
free for anyone to use. It’s another example of the way open source products not only
save a lot of money, but do a better job than the commercial products from the big
players. For me, Asterisk is about empowerment, about freedom from the dying tyranny
of the greedy monopolists, and about new worlds yet to come. No matter what new
communications trick you could think to try, the answer is likely, “Well, you can do that
pretty easily.” This book was created by great friends who were, like me, almost present
at the creation. They energetically and creatively maintain an invaluable, friendly, and
comprehensive guide to one of the greatest open source products ever. Enjoy!
Foreword | xxiii
www.it-ebooks.info
www.it-ebooks.info
Preface
This is a book for anyone who uses Asterisk.
Asterisk is an open source, converged telephony platform, which is designed primarily
to run on Linux. Asterisk combines more than 100 years of telephony knowledge into
a robust suite of tightly integrated telecommunications applications. The power of
Asterisk lies in its customizable nature, complemented by unmatched standards com‐
pliance. No other private branch exchange (PBX) can be deployed in so many creative
ways.
Applications such as voicemail, hosted conferencing, call queuing and agents, music on
hold, and call parking are all standard features built right into the software. Moreover,
Asterisk can integrate with other business technologies in ways that closed, proprietary
PBXs can scarcely dream of.
Asterisk can appear quite daunting and complex to a new user, which is why documen‐
tation is so important to its growth. Documentation lowers the barrier to entry and
helps people contemplate the possibilities.
Produced with the generous support of O’Reilly Media, Asterisk: The Definitive Guide
is the fourth edition of what was formerly called Asterisk: The Future of Telephony. We
decided to change the name because Asterisk has been so wildly successful that it is no
longer an up-and-coming technology. Asterisk has arrived.
This book was written for, and by, members of the Asterisk community.
Audience
This book is intended to be gentle toward those new to Asterisk, but we assume that
you’re familiar with basic Linux administration, networking, and other IT disciplines.
If not, we encourage you to explore the vast and wonderful library of books that O’Reilly
publishes on these subjects. We also assume you’re fairly new to telecommunications
(both traditional switched telephony and the new world of Voice over IP).
xxv
www.it-ebooks.info
However, this book will also be useful for the more experienced Asterisk administrator.
We ourselves use the book as a reference for features that we haven’t used for a while.
Organization
The book is organized into these chapters:
Chapter 1, A Telephony Revolution
This is where we chop up the kindling and light the fire. Welcome to Asterisk!
Chapter 2, Asterisk Architecture
Discusses the file structure of an Asterisk system.
Chapter 3, Installing Asterisk
Covers obtaining, compiling, and installing Asterisk.
Chapter 4, Initial Configuration Tasks
Describes some initial configuration tasks for your new Asterisk system. This chap‐
ter goes over some of the configuration files required for all Asterisk installations.
Chapter 5, User Device Configuration
Provides guidance on configuring Asterisk to allow devices such as telephones to
connect and make calls.
Chapter 6, Dialplan Basics
Introduces the heart of Asterisk, the dialplan.
Chapter 7, Outside Connectivity
Discusses how to configure Asterisk to connect to other systems, such as other
Asterisk servers, Internet telephony service providers, or the plain old telephone
network.
Chapter 8, Voicemail
Covers using one of the most popular applications included with Asterisk, the voi‐
cemail system.
Chapter 9, Internationalization
Focuses on issues that an Asterisk administrator should be aware of when deploying
a system outside of North America.
Chapter 10, Deeper into the Dialplan
Goes over some more advanced dialplan concepts.
Chapter 11, Parking, Paging, and Conferencing
Describes the usage of popular telephony features included with Asterisk: call park‐
ing, paging, and conferencing.
xxvi | Preface
www.it-ebooks.info
Chapter 12, Internet Call Routing
Covers techniques for routing calls between different administrative domains on
the Internet.
Chapter 13, Automatic Call Distribution (ACD) Queues
Discusses how to build call queues in Asterisk.
Chapter 14, Device States
Introduces the concept of device states and how they can be used as presence
indicators.
Chapter 15, The Automated Attendant
Covers how to build a menuing system using the Asterisk dialplan.
Chapter 16, Relational Database Integration
Discusses various ways that Asterisk can be integrated with a database.
Chapter 17, Interactive Voice Response
Goes over how Asterisk can be used to build applications that act on input provided
by a caller.
Chapter 18, External Services
Provides instructions on how to connect to external services including LDAP, cal‐
endars, IMAP for voicemail, XMPP, out-of-band messaging, and text-to-speech.
Chapter 19, Fax
Discusses the various options for integrating sending and receiving faxes with an
Asterisk system.
Chapter 20, Asterisk Manager Interface (AMI)
Introduces a network API for monitoring and controlling an Asterisk system.
Chapter 21, Asterisk Gateway Interface (AGI)
Introduces the Asterisk API that allows call control to be implemented in any pro‐
gramming language.
Chapter 22, Clustering
Discusses a number of approaches for clustering multiple Asterisk servers together
once the demands of a deployment exceed the capabilities of a single server.
Chapter 23, Distributed Universal Number Discovery (DUNDi)
Covers a peer-to-peer protocol native to Asterisk that can be used for call routing.
Chapter 24, System Monitoring and Logging
Introduces some of the interfaces available for logging and monitoring an Asterisk
system.
Chapter 25, Web Interfaces
A survey of some of the web interfaces that complement an Asterisk installation.
Preface | xxvii
www.it-ebooks.info
Chapter 26, Security
Discusses some common security issues that Asterisk administrators should be
aware of.
Chapter 27, Asterisk: A Future for Telephony
In conclusion, we discuss some of the things we expect to see from open source
telephony in the near future.
Appendix A, Understanding Telephony
Explores the technologies in use in traditional telecom networks.
Appendix B, Protocols for VoIP
Delves into all the particularities of Voice over IP.
Appendix C, Preparing a System for Asterisk
Contains information you should be aware of and take into consideration when
planning an Asterisk deployment.
Software
This book is focused on documenting Asterisk version 11; however, many of the con‐
ventions and much of the information in this book is version-agnostic. Linux is the
operating system we have run and tested Asterisk on, and we have documented instal‐
lation instructions for both Red Hat Enterprise Linux (RHEL) and Ubuntu (Debian-
based) where they differ from each other.
Conventions Used in This Book
The following typographical conventions are used in this book:
Italic
Indicates new terms, URLs, email addresses, filenames, file extensions, pathnames,
directories, and package names, as well as Unix utilities, commands, modules,
parameters, and arguments.
Constant width
Used to display code samples, file contents, command-line interactions, database
commands, library names, and options.
Constant width bold
Indicates commands or other text that should be typed literally by the user. Also
used for emphasis in code.
Constant width italic
Shows text that should be replaced with user-supplied values.
xxviii | Preface
www.it-ebooks.info
[ Keywords and other stuff ]
Indicates optional keywords and arguments.
{ choice-1 | choice-2 }
Signifies either choice-1 or choice-2.
This icon signifies a tip, suggestion, or general note.
This icon indicates a warning or caution.
Using Code Examples
This book is here to help you get your job done. In general, if this book includes code
examples, you may use the code in your programs and documentation. You do not need
to contact us for permission unless you’re reproducing a significant portion of the code.
For example, writing a program that uses several chunks of code from this book does
not require permission. Selling or distributing a CD-ROM of examples from O’Reilly
books does require permission. Answering a question by citing this book and quoting
example code does not require permission. Incorporating a significant amount of ex‐
ample code from this book into your product’s documentation does require permission.
We appreciate, but do not require, attribution. An attribution usually includes the title,
author, publisher, and ISBN. For example: “Asterisk: The Definitive Guide, Fourth Ed‐
ition, by Russell Bryant, Leif Madsen, and Jim Van Meggelen (O’Reilly). Copyright 2013
Russell Bryant, Leif Madsen, and Jim Van Meggelen, 978-1-449-332342-6.”
If you feel your use of code examples falls outside fair use or the permission given above,
feel free to contact us at permissions@oreilly.com.
Safari® Books Online
Safari Books Online (www.safaribooksonline.com) is an on-demand
digital library that delivers expert content in both book and video
form from the world’s leading authors in technology and business.
Technology professionals, software developers, web designers, and business and crea‐
tive professionals use Safari Books Online as their primary resource for research, prob‐
lem solving, learning, and certification training.
Preface | xxix
www.it-ebooks.info
Safari Books Online offers a range of product mixes and pricing programs for organi‐
zations, government agencies, and individuals. Subscribers have access to thousands of
books, training videos, and prepublication manuscripts in one fully searchable database
from publishers like O’Reilly Media, Prentice Hall Professional, Addison-Wesley Pro‐
fessional, Microsoft Press, Sams, Que, Peachpit Press, Focal Press, Cisco Press, John
Wiley & Sons, Syngress, Morgan Kaufmann, IBM Redbooks, Packt, Adobe Press, FT
Press, Apress, Manning, New Riders, McGraw-Hill, Jones & Bartlett, Course Technol‐
ogy, and dozens more. For more information about Safari Books Online, please visit us
online.
How to Contact Us
Please address comments and questions concerning this book to the publisher:
O’Reilly Media, Inc.
1005 Gravenstein Highway North
Sebastopol, CA 95472
800-998-9938 (in the United States or Canada)
707-829-0515 (international or local)
707-829-0104 (fax)
We have a web page for this book, where we list errata, examples, and any additional
information. You can access this page at http://bit.ly/asterisk_tdg_4E.
To comment or ask technical questions about this book, send email to bookques
tions@oreilly.com.
For more information about our books, courses, conferences, and news, see our website
at http://www.oreilly.com.
Find us on Facebook: http://facebook.com/oreilly
Follow us on Twitter: http://twitter.com/oreillymedia
Watch us on YouTube: http://www.youtube.com/oreillymedia
Acknowledgments
To David Duffett, thanks for the excellent chapter on internationalization, which would
not have been served well by being written by us North Americans.
Next, we want to thank our fantastic editor, Michael Loukides, for your patience with
the first, second, and third editions of this book, which took too long to get off the
ground, and many long months to finally get written. Mike offered invaluable feedback
and found incredibly tactful ways to tell us to rewrite a section (or chapter) when it was
needed, and make us think it was our idea. Mike built us up when we were down, and
xxx | Preface
www.it-ebooks.info
1. We tried wherever possible to include the contributors’ names, but in some cases could not, and therefore
included their handles instead.
brought us back to earth when we got uppity. You are a master, Mike, and seeing how
many books have received your editorial oversight contributes to an understanding of
why O’Reilly Media is the success that it is.
Also thanks to the rest of the unsung heroes in O’Reilly’s production department. These
are the folks that take our book and make it an O’Reilly book.
During the course of writing this book, we had the pleasure of being able to consult with
many people with specific experience in various areas. Their generous contributions of
time and expertise were instrumental in our research. Thanks to Randy Resnick, or‐
ganizer of the VoIP User Group; Kevin Fleming; Lee Howard, author of iaxmodem and
hylafax; Joshua Colp of Digium; Phillip Mullis of the Toronto Asterisk Users Group;
Allison Smith, the Voice of Asterisk; Flavio E. Goncalves, author of books on Asterisk,
OpenSER, and OpenSIPS; J. Oquendo, Security Guru; Tzafrir Cohen, font of knowledge
about security and lots of other stuff; Jeff Gehlbach, for SNMP; Ovidiu Sas, for your
encyclopedic knowlege of SIP; Tomo Takebe, for some SMDI help; Michael S. White
and e4 Strategies for Polycom hardware; Steve Underwood, for help with fax and
spandsp; and Richard Genthner and John Covert, for helping with LDAP; Kinsey Moore
for reviewing the Python AMI example; Lisa Ulevich, who helped Alex Balashov with
his foreword contribution; and to Kevin McAllister, for letting the authors play on his
Minecraft server.
Additionally, we’d like to thank Tilghman Lesher for helping to update the chapter on
that which will not die, fax, and for providing solid review of other sections of the book.
A special thanks should also go to John Todd for being one of the first to write com‐
prehensive Asterisk how-tos, all those years ago, and for all the many other things you
do (and have done) for the Asterisk community.
Open Feedback Publishing System (OFPS)
While we were writing this book, we used the O’Reilly Open Feedback Publishing System
(OFPS), which allowed our book to appear on the Web as we were writing it. Community
members were able to submit feedback and comments, which was of enormous help to
us. The following is a list of their names or handles:1
Matthew McAughan, Matt Pusateri, David Van Ginneken, Asterisk Mania, Jared Smith,
Jason Parker, Giovanni Vallesi, Mark Petersen, thp4, David Row, tvc123, Frederic Jean,
John Todd, Steven Sokol, Laurent Steffan, Robert Dailey, Howard Harper, Joseph
Rensin, Howard White, Jay Eames, Vincent Thomasset, Dave Barnow, Sebastien Dio‐
nne, Igor Nikolaev, Arend van der Kolk, Anwar Hossain, craigesmith, nkabir, anest,
Nicholas Barnes, Alex Neuman, Justin Korkiner, Stefan Schmidt, Paul Belanger,
Preface | xxxi
www.it-ebooks.info
2. Years later while playing an MMORPG (massively multiplayer online role-playing game), I learned about
applications such as TeamSpeak; it’s probably a good thing I didn’t find that first.
jfinstrom, Rod Montgomery, Shae Erisson, Gaston Draque, Richard Genthner, Michael
S Collins, JoeBobCooter, reconwireless, prepro, stgnet, Mathieu D., Jeff Peeler, Billy
Chia, Antti Kallaskari, Alan Graham, Mark Petersen, and Walter Doekes.
A special thanks to Matt Jordan for an in-depth review of AMI and other sections of the
fourth edition of the book.
Thanks to all of you for your valuable contribution to this book.
Thanks to Sean Bright, Ed Guy, Simon Ditner, and Paul Belanger for assisting us with
clarifying best practices for user and group policies for Asterisk installation. In the past
it was common to just install Asterisk with root permissions, but we have elected to
describe an installation process that is more in keeping with Linux best practices
(without starting a holy war!), and these fine gents contributed to our discussions on
that.
Kudos to all the folks working on the FreeSWITCH, YATE, SER, Kamailio, OpenSIPS,
SER, sipXecs, Woomera, and any other open source telecom projects, for stimulating
new thoughts, and for pushing the envelope.
Everyone in the Asterisk community also needs to thank Jim Dixon for creating the first
open source telephony hardware interfaces, starting the revolution, and giving his cre‐
ations to the community at large.
Finally, and most importantly, thanks go to Mark Spencer, the original author of Asterisk
and founder of Digium, for Asterisk, for Pidgin, and for contributing his creations to
the open source community. Asterisk is your legacy!
Leif Madsen
It sort of amazes me where I started with Asterisk, and where I’ve gone with it. In 2002,
while attending school, a bunch of friends and myself were experimenting with voice
over the Internet using Microsoft’s MSN product. It worked quite well, and allowed us
to play video games while conversing with each other—at least, until we wanted to add
a third participant. So, I went out searching for some software that could handle multiple
voices (the word was conferencing, but I didn’t even know that at the time, having had
little exposure to PBX platforms). I searched the Internet but didn’t find anything in
particular I liked (or that was free).2 I turned to IRC and explained what I was looking
for. Someone (I wish I knew who) mentioned that I should check out some software
called Asterisk (he presumably must have thought I was looking for MeetMe(), which I
was).
xxxii | Preface
www.it-ebooks.info
Having the name, I grabbed the software and started looking at what it could do. In‐
credibly, the functionality I was looking for, which I thought would be the entirety of
the software, was only one component in a sea of functionality. And having run a BBS
for years prior to going to college, the fact that I could install a PCI card and connect it
to the phone network was not lost on me. After a couple of hours of looking at the
software and getting it compiled, I started telling one of my teachers about the PCI cards
and how maybe we could get some for the classroom for labs and such (our classroom
had 30 computers at 10 tables of 3). He liked the idea and started talking to the program
coordinator, and within about 30 minutes an order had been placed for 20 cards. Pretty
amazing considering they were TDM400Ps decked out with four daughtercards, and
they had only heard about them an hour prior to that.
Then the obsession began. I spent every extra moment of that semester with a couple
of computers dedicated to Asterisk use. In those two months, I learned a lot. Then we
had a co-op break. I didn’t find any work immediately, so I moved home and continued
working on Asterisk, spending time on IRC, reading through examples posted by John
Todd, and just trying to wrap my head around how the software worked. Luckily, I had
a lot of help on IRC (for these were the days prior to any documentation on Asterisk),
and I learned a lot more during that semester.
Seeing that the people who took a great interest in Asterisk at the time had a strong
sense of community, it caused me to also want to contribute back. Having no practical
level of coding knowledge, I decided documentation would be something useful to start
doing. Besides, I had been writing a lot of papers at school, so I was getting better at it.
One night I put up a website called The Asterisk Documentation Assignment (TADA)
and started writing down any documentation I could. A couple of weeks later Jared
Smith and I started talking, causing the birth of the Asterisk Documentation Project,
with the goal of writing an Asterisk book for the community. That project became the
basis of the first edition of this book, Asterisk: The Future of Telephony.
Eleven years later, I’m still writing Asterisk documentation, have become the primary
bug marshal and release manager for the Asterisk project, have spoken at every single
AstriCon since 2004 (at which Jared and I spoke about the Asterisk Documentation
Project; I still have the AsteriskDocs magnet his wife made), and become a consultant
specializing in database integration (thanks Tilghman for func_odbc) and clustering
(thanks Mark Spencer for DUNDi). I really love Asterisk and all that it’s allowed me to
do. I’m now the Lead Unified Communications Systems Engineer at Thinking Phone
Networks, where I get to continue building and enhancing a huge breadth of telecom‐
munications functionality.
First, thanks to my parents Rick and Carol, for the understanding and support in ev‐
erything I’ve done in my life. From the first computer they purchased for far too much
money when I was in grade 6 (I started taking an interest in computers in grade 2 using
a Commodore 64, and they got me a computer after a parent-teacher interview a few
Preface | xxxiii
www.it-ebooks.info
years later) to letting me use the home phone line for my BBS endeavors (and eventually
getting me my own phone line), and everything else they have ever done for me, I can
never thank them enough. I love you both more than you’ll ever imagine.
Thanks to my Grandma T for letting me use her 286 during the years when I didn’t have
a computer at home, and for taking me shopping every year on my birthday for 15 years.
Love lots!
To my beautiful wife, Danielle, for setting the alarm every morning before she left for
work, letting me sleep those extra 10 minutes before starting on this book, and under‐
standing when I had to work late because I went past my 9 A.M. stop-writing time, thank
you and I love you so much. (Also to our soon-to-be-born son, who helped me put a
firm date on delivery of the draft of this book :))
There are so many people who help me and teach me new things every day, but the most
influential on my life in Asterisk are the following: Mark Spencer for writing software
that has given me a fantastic career; John Todd for his early examples; Brian K. West for
his early help and enthusiasm on IRC; Steve Sokol and Olle Johansson for flying me to
my first AstriCon (and subsequent ones!) and letting me be part of the first Asterisk
training classes; Jared Smith for helping start the documentation project and doing all
the infrastructure that I could never have done; Jim Van Meggelen for joining in early
on the project and teaching me new ways to look at life; and Russell Bryant for being a
great friend and confidant, for never breaking our FriendDA, and for not holding a
grudge about the bush.
Jim Van Meggelen
When we set out to write the very first edition of this book in 2004, we were confident
that Asterisk was going to be a huge success. Now, almost a decade later, we’ve written
this fourth edition of what the worldwide Asterisk community calls “The Asterisk Book,”
and we’ve matured from revolutionaries into Asterisk professionals.
Asterisk has proven that open source telecom is a lasting idea, and the open source
telecom landscape is nowadays complemented by more than just Asterisk. Projects like
FreeSWITCH, sipXecs (from SIPfoundry), OpenSER/Kamailio/OpenSIPS, and many,
many more (and more to come) help to round out the ecosystem.
I want to take this opportunity to thank my very good friend Leif Madsen, who has been
with me through all four editions. In our daily lives, we don’t always have many oppor‐
tunities to work with each other (or even grab a pint, these days!), and it’s always a delight
to work with you. I also want to thank Russell Bryant, who joined us for this edition,
and whose dedication to this project and the Asterisk project in general is an inspiration
to me. You’re a Renaissance man, Russell. To Jared Smith, who helped found the Asterisk
Documentation Project and coauthored the first two editions with Leif and me (but has
since moved on to the Fedora project), I can only say: Asterisk’s loss is Fedora’s gain.
xxxiv | Preface
www.it-ebooks.info
I would like to thank my business partners at Core Telecom Innovations and iConverged
LLC, without whom I could not do all the cool things I get to do in my professional
career.
I would like to thank all my friends in the improv community, for helping me to keep
laughing at all the challenges that life presents.
Thanks to all my family, who bring love into my life.
Finally, thanks to you, the Asterisk community. This book is our gift to you. We hope
you enjoy reading it as much as we’ve enjoyed writing it.
Russell Bryant
I started working on Asterisk in 2004. I was a student at Clemson University and was
working as a co-op engineer at ADTRAN in Huntsville, Alabama. My first job at
ADTRAN was working in the Product Qualification department. I remember working
with Keith Morgan to use Asterisk as a VoIP traffic generator for testing QoS across a
router test network. Meanwhile, a fellow co-op and friend, Adam Schreiber, introduced
me to Mark Spencer. Over the next six months, I immersed myself in Asterisk. I learned
as much as I could about Asterisk, telephony, and C programming. When Asterisk 1.0
was released in the fall of 2004, I was named the release maintainer.
At the beginning of 2005, I was hired by Digium to continue my work on Asterisk
professionally. I spent seven amazing years working with Digium to improve Asterisk.
I worked as a software developer, a software team lead, and as the engineering manager
of the Asterisk development team. I am extremely grateful for the opportunity to con‐
tribute to so many areas of the Asterisk project. There are many people that deserve
thanks for the support they have provided along the way.
To my wife, Julie, I cannot thank you enough for all the love and support you have given
me. Thank you for keeping my life balanced and happy. You are the best. I love you!
To my parents, thank you for giving me so many great opportunities in my life to explore
different things and find what I really enjoy. You taught me to work hard and never give
up.
To Leif and Jim, thank you for your invitation to contribute to this book. It has been a
fun project, largely due to the pleasure of working with the two of you. Thanks for the
laughs and for your dedication to this book as a team effort.
I have learned a lot from many people at Digium. There are three people who stand out
the most as my mentors: Mark Spencer, Kevin P. Fleming, and David Deaton. Thank
you all for going the extra mile to teach me along the way. I am extremely grateful.
Preface | xxxv
www.it-ebooks.info
To the Asterisk development community, thank you all for your hard work and dedi‐
cation. I have learned a lot from you all. It has been a pleasure to work with you over
the years.
To Travis Axtell, thank you for your help in my early days of learning about Linux and
for being a good friend.
To my dogs, Chloe and Baxter, thanks for keeping me company while I worked on the
book every morning.
To all of my friends and family, thank you for your love, support, and fun times.
To the entire Asterisk community, thank you for using, enjoying, and contributing to
Asterisk. We hope you enjoy the book!
xxxvi | Preface
www.it-ebooks.info
First they ignore you, then they laugh at you,
then they fight you, then you win.
—Mahatma Gandhi
CHAPTER 1
A Telephony Revolution
When we first set out in 2004 to write a book about Asterisk, we confidently predicted
that Asterisk would fundamentally change the telecommunications industry. Today, the
revolution we predicted is all but complete. Asterisk is now the most successful private
branch exchange (PBX) in the world, and is an accepted (albeit perhaps not always
loved) technology in the telecom industry.
Unfortunately, over the past nine years the telecom industry has continued to lose its
way. The methods by which we communicate have changed. Whereas 20 years ago
phone calls were the preferred way to converse across distances, the current trend is to
message via text (email, IM, etc.). The phone call is seen as a bit of a dead thing, especially
by up-and-coming generations.
Asterisk remains pretty awesome technology, and we believe it is still one of the best
hopes for any sort of sensible integration between telecom and all the other technologies
businesses might want to interconnect with.
With Asterisk, no one is telling you how your phone system should work, or what
technologies you are limited to. If you want it, you can have it. Asterisk lovingly em‐
braces the concept of standards compliance, while also enjoying the freedom to develop
its own innovations. What you choose to implement is up to you—Asterisk imposes no
limits.
Naturally, this incredible flexibility comes with a price: Asterisk is not a simple system
to configure. This is not because it’s illogical, confusing, or cryptic; on the contrary, it
is very sensible and practical. People’s eyes light up when they first see an Asterisk
dialplan and begin to contemplate the possibilities. But when there are literally thou‐
sands of ways to achieve a result, the process naturally requires extra effort. Perhaps it
1
www.it-ebooks.info
1. The term DSP also means digital signal processor, which is a device (usually a chip) that is capable of inter‐
preting and modifying signals of various sorts. In a voice network, DSPs are primarily responsible for en‐
coding, decoding, and transcoding audio information. This can require a lot of computational effort.
can be compared to building a house: the components are relatively easy to understand,
but a person contemplating such a task must either a) enlist competent help or b) develop
the required skills through instruction, practice, and a good book on the subject.
Asterisk and VoIP: Bridging the Gap Between Traditional
and Network Telephony
Voice over IP (VoIP) is often thought of as little more than a method of obtaining free
long-distance calling. The real value (and—let’s be honest—challenge as well) of VoIP
is that it allows voice to become nothing more than another application in the data
network.
It sometimes seems that we’ve forgotten that the purpose of the telephone is to allow
people to communicate. It is a simple goal, really, and it should be possible for us to
make it happen in far more flexible and creative ways than are currently available to us.
Technologies such as Asterisk lower the barriers to entry.
The Zapata Telephony Project
When the Asterisk project was started (in 1999), there were other open source telephony
projects in existence. However, Asterisk, in combination with the Zapata Telephony
Project, was able to provide public switched telephone network (PSTN) interfaces,
which represented an important milestone in transitioning the software from some‐
thing purely network-based to something more practical in the world of telecom at that
time, which was PSTN-centric.
The Zapata Telephony Project was conceived of by Jim Dixon, a telecommunications
consulting engineer who was inspired by the incredible advances in CPU speeds that
the computer industry has now come to take for granted. Dixon’s belief was that far
more economical telephony systems could be created if a card existed that had nothing
more on it than the basic electronic components required to interface with a telephone
circuit. Rather than having expensive components on the card, digital signal processing
(DSP)1 would be handled in the CPU by software. While this would impose a tremen‐
dous load on the CPU, Dixon was certain that the low cost of CPUs relative to their
performance made them far more attractive than expensive DSPs, and, more impor‐
tantly, that this price/performance ratio would continue to improve as CPUs continued
to increase in power.
Like so many visionaries, Dixon believed that many others would see this opportunity,
and that he merely had to wait for someone else to create what to him was an obvious
2 | Chapter 1: A Telephony Revolution
www.it-ebooks.info
2. Jim Dixon, “The History of Zapata Telephony and How It Relates to the Asterisk PBX”.
3. We realize that the technology of the Internet formed out of government and academic institutions, but what
we’re talking about here is not the technology of the Internet so much as the cultural phenomenon of it, which
exploded in the early ’90s.
improvement. After a few years, he noticed that not only had no one created these cards,
but it seemed unlikely that anyone was ever going to. At that point it was clear that if he
wanted a revolution, he was going to have to start it himself. And so the Zapata Tel‐
ephony Project was born:
Since this concept was so revolutionary, and was certain to make a lot of waves in the
industry, I decided on the Mexican revolutionary motif, and named the technology and
organization after the famous Mexican revolutionary Emiliano Zapata. I decided to call
the card the “tormenta” which, in Spanish, means “storm,” but contextually is usually used
to imply a big storm, like a hurricane or such.2
Perhaps we should be calling ourselves Asteristas. Regardless, we owe Jim Dixon a debt
of thanks, partly for thinking this up and partly for seeing it through, but mostly for
giving the results of his efforts to the open source community. As a result of Jim’s con‐
tribution, Asterisk’s public switched telephone network (PSTN) engine came to be.
Over the years, the Zapata Telephony interface in Asterisk has been modified and im‐
proved. The Digium Asterisk Hardware Device Interface (DAHDI) telephony interface
in use today is the offspring of Jim Dixon’s contribution.
Massive Change Requires Flexible Technology
Every PBX in existence suffers from shortcomings. No matter how fully featured it is,
something will always be left out, because even the most feature-rich PBX will always
fail to anticipate the creativity of the customer. A small group of users will desire an odd
little feature that the design team either did not think of or could not justify the cost of
building, and, since the system is closed, the users will not be able to build it themselves.
If the Internet had been thusly hampered by regulation and commercial interests, it is
doubtful that it would have developed the wide acceptance it currently enjoys. The
openness of the Internet meant that anyone could afford to get involved. So, everyone
did. The tens of thousands of minds that collaborated on the creation of the Internet
delivered something that no corporation ever could have.3
As with many other open source projects, such as Linux and so much of the critical
software running the Internet, the development of Asterisk was fueled by the dreams
of folks who knew that there had to be something more than what traditional industries
were producing. These people knew that if one could take the best parts of various PBXs
and separate them into interconnecting components—akin to a boxful of LEGO
bricks—one could begin to conceive of things that would not survive a traditional
Massive Change Requires Flexible Technology | 3
www.it-ebooks.info
4. Between the releases of Asterisk 1.2 and Asterisk 1.4, over 4,000 updates were made to the code in the SVN
repository. Between the releases of Asterisk 1.4 and 1.8, over 10,000 updates were made.
5. It should be noted that these folks need not leave disappointed. Several projects have arisen to lower the
barriers to entry for Asterisk. By far the most popular and well known is the FreePBX interface (and the
multitude of projects based on it). These interfaces—the VoIP-Info website can give you an idea of how many
there are—do not make it easier to learn Asterisk, because they separate you from the platform or dialplan
configuration, but many of them will deliver a working PBX to you much faster than the more hands-on
approach we employ in this book.
6. The telecom industry has been predicting a revolution since before the crash; time will tell how well it responds
to the open source revolution.
corporate risk-analysis process. While no one can seriously claim to have a complete
picture of what this thing should look like, there is no shortage of opinions and ideas.4
Many people new to Asterisk see it as unfinished. Perhaps these people can be likened
to visitors to an art studio, looking to obtain a signed, numbered print. They often leave
disappointed, because they discover that Asterisk is the blank canvas, the tubes of paint,
the unused brushes waiting.5
Asterisk’s success can be directly attributed to nurturing by a greater number of artists
than any other PBX. Most manufacturers dedicate no more than a few developers to
any one product; Asterisk has scores. Most proprietary PBXs have a worldwide support
team comprising a few dozen real experts; Asterisk has hundreds.
The depth and breadth of the expertise that surrounds this product is unmatched in the
telecom industry. Asterisk enjoys the loving attention of old telco guys who remember
when rotary dial mattered, enterprise telecom people who recall when voicemail was
the hottest new technology, and data communications geeks and coders who helped
build the Internet. These people all share a common belief—that the telecommunica‐
tions industry needs a proper revolution.6
Asterisk is the catalyst.
Asterisk: The Hacker’s PBX
Telecommunications companies that choose to ignore Asterisk do so at their peril. The
flexibility it delivers creates possibilities that the best proprietary systems can scarcely
dream of. This is because Asterisk is the ultimate hacker’s PBX.
The term hacker has, of course, been twisted by the mass media into meaning “malicious
cracker.” This is unfortunate, because the term actually existed long before the media
corrupted its meaning. Hackers built the networking engine that is the Internet. Hackers
built the Apple Macintosh and the Unix operating system. Hackers are also building
your next telecom system. Do not fear; these are the good guys, and they’ll be able to
build a system that’s far more secure than anything that exists today. Rather than being
4 | Chapter 1: A Telephony Revolution
www.it-ebooks.info
constricted by the dubious and easily cracked security of closed systems, the hackers
will be able to quickly respond to changing trends in security and fine-tune the telephone
system in response to both corporate policy and industry best practices.
Like other open source systems, Asterisk will be able to evolve into a far more secure
platform than any proprietary system, not in spite of its hacker roots, but rather because
of them.
Asterisk: The Professional’s PBX
Never in the history of telecommunications has a system so suited to the needs of busi‐
ness been available, at any price. Asterisk is an enabling technology, and as with Linux,
it will become increasingly rare to find an enterprise that is not running some version
of Asterisk, in some capacity, somewhere in the network, solving a problem as only
Asterisk can.
This acceptance is likely to happen much faster than it did with Linux, though, for several
reasons:
•Linux has already blazed the trail that led to open source acceptance. Asterisk is
following that lead.
•The telecom industry is crippled, with no leadership being provided by the giant
industry players. Asterisk has a compelling, realistic, and exciting vision.
•End users are fed up with incompatible and limited functionality, and horrible
support. Asterisk solves the first two problems; entrepreneurs and the community
are addressing the latter.
The Asterisk Community
One of the compelling strengths of Asterisk is the passionate community that developed
and supports it. This community, led by the fine folks at Digium, is keenly aware of the
cultural significance of Asterisk and has an optimistic view of the future.
One of the more powerful side effects of the Asterisk community’s energy is the coop‐
eration it has spawned among telecommunications, networking, and information tech‐
nology professionals who share a love for this phenomenon. While these cadres have
traditionally been at odds with each other, in the Asterisk community they delight in
each others’ skills. The significance of this cooperation cannot be underestimated.
If the dream of Asterisk is to be realized, the community must continue to grow—yet
one of the key challenges that the community currently faces is a rapid influx of new
users. The members of the existing community, having birthed this thing called
Asterisk, are generally welcoming of new users, but they’ve grown impatient with being
Asterisk: The Professional’s PBX | 5
www.it-ebooks.info
asked the kinds of questions whose answers can often be obtained independently, if one
is willing to devote some time to research and experimentation.
Obviously, new users do not fit any particular kind of mold. While some will happily
spend hours experimenting and reading various blogs describing the trials and tribu‐
lations of others, many people who have become enthusiastic about this technology are
completely uninterested in such pursuits. They want a simple, straightforward, step-by-
step guide that’ll get them up and running, followed by some sensible examples de‐
scribing the best methods of implementing common functionality (such as voicemail,
auto attendants, and the like).
To the members of the expert community, who (correctly) perceive that Asterisk is like
a web development language, this approach doesn’t make any sense. To them, it’s clear
that you have to immerse yourself in Asterisk to appreciate its subtleties. Would one ask
for a step-by-step guide to programming and expect to learn from it all that a language
has to offer?
Clearly, there’s no one approach that’s right for everyone. Asterisk is a different animal
altogether, and it requires a totally different mind-set. As you explore the community,
though, be aware that it includes people with many different skill sets and attitudes.
Some of these folks do not display much patience with new users, but that’s often due
to their passion for the subject, not because they don’t welcome your participation.
The Asterisk Mailing Lists
As with any community, there are places where members of the Asterisk community
meet to discuss matters of mutual interest. Of the mailing lists you will find at http://
lists.digium.com, these three are currently the most important:
Asterisk-Biz
Anything commercial with respect to Asterisk belongs in this list. If you’re selling
something Asterisk-related, sell it here. If you want to buy an Asterisk service or
product, post here.
Asterisk-Dev
The Asterisk developers hang out here. The list’s purpose is the discussion of de‐
veloping the software that is Asterisk, and its participants vigorously defend that
purpose. Expect a lot of heat if you post anything to this list not specifically relating
to programming or development of the Asterisk code base. General coding ques‐
tions (such as queries on interfacing with AGI or AMI) should be directed to the
Asterisk-Users list.
6 | Chapter 1: A Telephony Revolution
www.it-ebooks.info
7. The #asterisk-dev channel is for the discussion of changes to the underlying code base of Asterisk and is also
not second-tier support. Discussions related to programming external applications that interface with As‐
terisk via AGI or AMI are meant to be in #asterisk.
The Asterisk-Dev list is not second-level support! If you scroll
through the mailing list archives, you’ll see this is a strict rule. The
Asterisk-Dev mailing list is about discussion of core Asterisk de‐
velopment, and questions about interfacing your external pro‐
grams via AGI or AMI should be posted on the Asterisk-Users list.
Asterisk-Users
This is where most Asterisk users hang out. This list generates several hundred
messages per day and has over ten thousand subscribers. While you can go here for
help, you are expected to have done some reading on your own before you post a
query.
Asterisk Wiki Sites
Digium maintains a wiki for Asterisk at wiki.asterisk.org. This site is constantly kept up
to date by the Digium team, and scripts export the XML-based documentation from
the Asterisk source into the wiki itself, making you sure that the data you’re reading is
an accurate representation of the world.
An older wiki exists at www.voip-info.org, which is these days somewhat of an historical
curiosity, and a source of much enlightenment and confusion. While there is a massive
amount of information contained here, much of it is out of date.
The IRC Channels
The Asterisk community maintains Internet Relay Chat (IRC) channels on
irc.freenode.net. The two most active channels are #asterisk and #asterisk-dev.7 To cut
down on spambot intrusions, both of these channels require registration to join. To
register, run /msg nickserv help when you connect to the service via your favorite IRC
client.
Asterisk User Groups
Over the past decade, in many cities around the world, lonely Asterisk users began to
realize that there were other like-minded people in their towns. Asterisk User Groups
(AUGs) began to spring up all over the place. While these groups don’t have any official
affiliation with each other, they generally link to one another’s websites and welcome
members from anywhere. Type “Asterisk User Group” into Google to track down one
in your area.
The Asterisk Community | 7
www.it-ebooks.info
The Asterisk Documentation Project
The Asterisk Documentation Project was started by Leif Madsen and Jared Smith, but
several people in the community have contributed.
As part of the efforts of the Asterisk Docs project, this book has been released under a
Creative Commons license.
The Business Case
It is very rare to find businesses these days that do not have to reinvent themselves every
few years. It is equally rare to find a business that can afford to replace its communica‐
tions infrastructure each time it goes in a new direction. Today’s businesses need extreme
flexibility in all of their technology, including telecom.
In his book Crossing the Chasm (HarperBusiness, 2002), Geoffrey Moore opines, “The
idea that the value of the system will be discovered rather than known at the time of
installation implies, in turn, that product flexibility and adaptability, as well as ongoing
account service, should be critical components of any buyer’s evaluation checklist.”
What this means, in part, is that the true value of a technology is often not known until
it has been deployed.
How compelling, then, to have a system that holds at its very heart the concept of open‐
ness and the value of continuous innovation.
Conclusion
So where to begin? Well, when it comes to Asterisk, there is far more to talk about than
we can fit into one book. This book can only lay down the basics, but from this foun‐
dation you will be able to come to an understanding of the concept of Asterisk—and
from that, who knows what you will build?
8 | Chapter 1: A Telephony Revolution
www.it-ebooks.info
First things first, but not necessarily in that order.
—Doctor Who
CHAPTER 2
Asterisk Architecture
Asterisk is very different from other, more traditional PBXs, in that the dialplan in
Asterisk treats all incoming channels in essentially the same manner.
In a traditional PBX, there is a logical difference between stations (telephone sets) and
trunks (resources that connect to the outside world). This means, for example, that you
can’t install an external gateway on a station port and route external calls to it without
requiring your users to dial the extension number first. Also, the concept of an off-site
resource (such as a reception desk) is much more difficult to implement on a traditional
PBX, because the system will not allow external resources any access to internal features.
To be fair, many traditional PBXs do offer this sort of functionality. However, it is gen‐
erally kludgy, limited in features, and requires complex, proprietary software to be in‐
stalled in the PBX (such as vendor-specific protocol extensions).
Asterisk, on the other hand, does not have an internal concept of trunks or stations. In
Asterisk, everything that comes into or goes out of the system passes through a channel
of some sort. There are many different kinds of channels; however, the Asterisk dialplan
handles all channels in a similar manner, which means that, for example, an internal
user can exist on the end of an external trunk (e.g., a cell phone) and be treated by the
dialplan in exactly the same manner as that user would be if she were on an internal
extension. Unless you have worked with a traditional PBX, it may not be immediately
obvious how powerful and liberating this is. Figure 2-1 illustrates the differences be‐
tween the two architectures.
9
www.it-ebooks.info

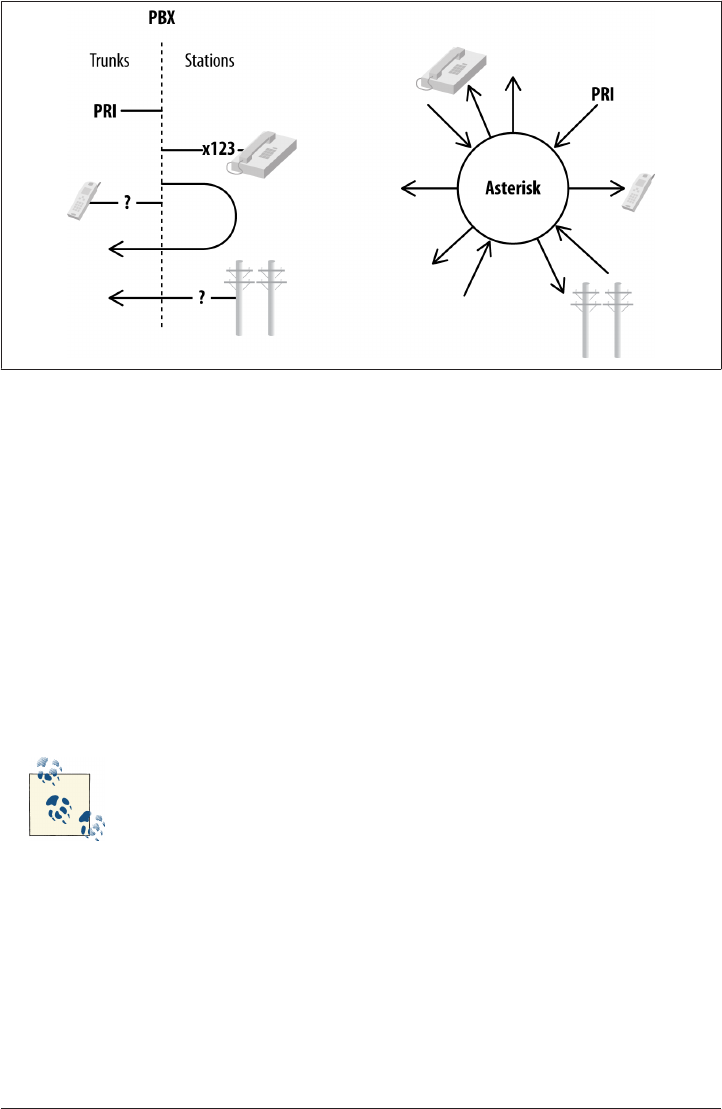

Figure 2-1. Asterisk versus PBX architecture
Modules
Asterisk is built on modules. A module is a loadable component that provides a specific
functionality, such as a channel driver (for example, chan_sip.so), or a resource that
allows connection to an external technology (such as func_odbc.so). Asterisk modules
are loaded based on the /etc/asterisk/modules.conf file. We will discuss the use of many
modules in this book. At this point we just want to introduce the concept of modules,
and give you a feel for the types of modules that are available.
It is actually possible to start Asterisk without any modules at all, although in this state
it will not be capable of doing anything. It is useful to understand the modular nature
of Asterisk in order to appreciate the architecture.
You can start Asterisk with no modules loaded by default and load each
desired module manually from the console, but this is not something
that you’d want to put into production; it would only be useful if you
were performance-tuning a system where you wanted to eliminate ev‐
erything not required by your specific application of Asterisk.
The types of modules in Asterisk include the following:
•Applications
•Bridging modules
•Call detail recording (CDR) modules
10 | Chapter 2: Asterisk Architecture
www.it-ebooks.info
• Channel event logging (CEL) modules
• Channel drivers
• Codec translators
• Format interpreters
•Dialplan functions
•PBX modules
•Resource modules
• Add-on modules
• Test modules
In the following sections we will list each module available within these categories,
briefly identify its purpose, and give our opinion on its relative popularity and/or im‐
portance (while some modules are proven and deservedly popular, others are quite old,
are barely ever used anymore, and are only maintained for the purpose of backward-
compatibility). The details of how specific modules work will be covered in various
chapters throughout the book, depending on what the module is and what it does. Some
modules will be covered thoroughly; others may not be covered at all.
Regarding the Popularity/Status column in the tables that follow, the following list con‐
tains our opinions with respect to the meanings we have chosen (your mileage may
vary):
Insignificant
This module is ancient history. If you use it, be aware that you are mostly on your
own when it comes to any sort of community support.
Unreliable
This module is new or experimental, and is not suitable for production.
Useful
This module is current, maintained, popular, and recommended.
Usable
This module works but may be incomplete or unpopular, and/or is not recom‐
mended by the authors.
NewThis module is quite new, and its completeness and popularity are difficult to gauge
at this time.
Deprecated
This module has been replaced by something that is considered superior.
Modules | 11
www.it-ebooks.info
Limited
This module has limitations that may make it unsuitable to your requirements.
Essential
This module is one you’ll never want to be without.
In addition to our opinions on the various modules, there is also an official list of support
status types included within menuselect. Within each grouping of the module types, the
list is sorted by subgroups, such as:
coreCore modules that ship with Asterisk receive the greatest level of support. In ad‐
dition to community development, these are the modules that the Digium devel‐
opment team focus their efforts on. Asterisk is a vast piece of software, and in order
to maintain it effectively, the greatest amount of Digium-sponsored resources are
applied to the modules of this support level.
extended
Extended modules are those supported by the community. Finding issues and re‐
porting them to the issue tracker will continue to be triaged as with all issues filed,
but may not recieve a great amount of attention.
deprecated
Deprecated modules receive no support and are generally unmaintained. Modules
that fall into the deprecated category should have alternative modules in either
extended or core support status.
Instead of duplicating data that could go out of date quickly, we’ll point you to menu‐
select to obtain the official supported list. The status of the variable modules is also
dynamic among major releases of Asterisk, as new functionality is added and existing
modules are moved to extended and deprecated status.
And now, without further ado, let’s take a look at the modules, grouped by module type.
Applications
Dialplan applications are used in extensions.conf to define the various actions that can
be applied to a call. The Dial() application, for example, is responsible for making
outgoing connections to external resources and is arguably the most important dialplan
application. The available applications are listed in Table 2-1.
Table 2-1. Dialplan applications
Name Purpose Popularity/Status
app_adsiprog Loads Analog Display Services Interface (ADSI) scripts into
compatible analog phones
Insignificant
app_alarmreceiver Supports receipt of reports from alarm equipment Insignificant
12 | Chapter 2: Asterisk Architecture
www.it-ebooks.info
Name Purpose Popularity/Status
app_amd Detects answering machines Unreliable
app_authenticate Compares dual-tone multifrequency (DTMF) input against a
provided string (password)
Useful
app_cdr Writes ad hoc record to CDR Useful
app_celgenuserevent Generates user-defined events for CEL New
app_chanisavail Checks the status of a channel Unreliable
app_channelredirect Forces another channel into a different part of the dialplan Useful
app_chanspy Allows a channel to listen to audio on another channel Useful
app_confbridge Provides conferencing (new version) Useful as of Asterisk 10,
Limited in Asterisk 1.8
app_controlplayback Plays back a prompt and offers fast forward and rewind functions Useful
app_dahdibarge Allows barging in on a DAHDI channel Deprecated—see
app_chanspy
app_dahdiras Creates a RAS (Remote Access Server) over a DAHDI channel (no
modem emulation)
Insignificant
app_db Used to add/change/delete records in Asterisk’s built-in SQLite
database
Deprecated—see
func_db
app_dial Used to connect channels together (i.e., make phone calls) Essential
app_dictate Plays back a recording and offers start/stop functions Useful
app_directed_pickup Answers a call for another extension Useful
app_directory Presents the list of names from voicemail.conf Useful
app_disa Provides dialtone and accepts DTMF input Usefula
app_dumpchan Dumps channel variables to Asterisk command-line interface (CLI) Useful
app_echo Loops received audio back to source channel Useful
app_exec Contains Exec(), TryExec(), and ExecIf(); executes a
dialplan application based on conditions
Useful
app_externalivr Controls Asterisk as with an AGI, only asynchronously Useful
app_fax Provides SendFax() and ReceiveFax() Usefulb
app_festival Enables basic text to speech using Festival TTS engine Usable
app_flash Performs a hook-switch flash on channels (primarily analog) Useful
app_followme Performs find me/follow me functionality based on followme.conf Useful
app_forkcdr Starts new CDR record on current call Usable
app_getcpeid Gets the ADSI CPE ID Insignificant
app_ices Sends audio to an Icecast server Usable
app_image Transmits an image to supported devices Limited
app_ivrdemo Sample application for developers Insignificant
Modules | 13
www.it-ebooks.info
Name Purpose Popularity/Status
app_jack Works with JACK Audio Connection Kit to share audio between
compatible applications
Useful
app_macro Triggers dialplan macros Deprecated—see Go
Sub()
app_meetme Provides multiparty conferencing Useful—fully featured,
but deprecated in favor of
ConfBridge() as of
Asterisk 10 since Conf
Bridge() does not
require DAHDI.
app_milliwatt Generates 1,004 Hz tone for testing loss on analog circuits Useful
app_minivm Provides primitive functions to allow you to build your own
voicemail application in dialplan
Usable
app_mixmonitor Records both sides of a call and mixes them together Useful
app_morsecode Generates Morse code Usable
app_mp3 Uses mpg123 to play an MP3 Insignificant
app_nbscat Streams audio from Network Broadcast Stream (NBS) Insignificant
app_originate Allows origination of a call Useful
app_osplookup Performs Open Settlement Protocol (OSP) lookup Usable
app_page Creates multiple audio connections to specified devices for public
address (paging)
Useful
app_parkandannounce Enables automated announcing of parked calls Usable
app_playback Plays a file to the channel (does not accept input) Useful
app_playtones Plays pairs of tones of specified frequencies Useful
app_privacy Requests input of caller’s phone number if no CallerID is received Insignificant
app_queue Provides Automatic Call Distribution (ACD) Useful
app_read Requests input of digits from callers and assigns input to a variable Useful
app_readexten Requests input of digits from callers and passes call to a
designated extension and context
Usable
app_readfile Loads contents of a text file into a channel variable Deprecated—see the
FILE() function in
func_env
app_record Records received audio to a file Useful
app_sayunixtime Plays back time in specified format Useful
app_senddtmf Transmits DTMF to calling party Useful
app_sendtext Sends a text string to compatible channels Insignificant
app_setcallerid Sets CallerID on a channel Deprecated—see
func_callerid
app_skel Sample application for developers Usefulc
14 | Chapter 2: Asterisk Architecture
www.it-ebooks.info
Name Purpose Popularity/Status
app_sms Sends SMS message in compatible countries Limited
app_softhangup Requests hangup of channel Useful
app_speech_utils Provides utilities relating to speech recognition Usefuld
app_stack Provides Gosub(), GoSubIf(), Return(), StackPop(),
LOCAL(), and LOCAL_PEEK()
Essential
app_system Executes commands in a Linux shell Useful
app_talkdetect Similar to app_background, but allows for any received audio
to interrupt playback
Useful
app_test Client/server testing application Usable
app_transfer Performs a transfer on the current channel Useful
app_url Passes a URI to the called channel Limited
app_userevent Generates a custom event in the Asterisk Manager Interface (AMI) Useful
app_verbose Generates a custom event in the Asterisk CLI Useful
app_voicemail Provides voicemail Essential
app_waitforring Waits for a RING signaling event (not to be confused with
RINGING); most likely unnecessary, as only chan_dahdi with
analog channels where ringing is received (such as an FXO port)
generates the RING signaling event
Insignificant
app_waitforsilence Includes WaitForSilence() and WaitForNoise();
listens to the incoming channel for a specified number of
milliseconds of noise/silence
Useful
app_waituntil Waits until current Linux epoch matches specified epoch Useful
app_while Includes While(), EndWhile(), ExitWhile(), and Con
tinueWhile(); provides while-loop functionality in the
dialplan
Useful
app_zapateller Generates SIT (Special Information Tone) to discourage
telemarketers
Usable
a The use of (DISA) can be a security risk if you are not careful with dialplan access control.
b Requires a suitable DSP engine to handle encoding/decoding of fax signaling (see Chapter 19).
c If you are a developer.
d Requires an external speech recognition application.
Bridging Modules
Bridging modules perform the actual bridging of channels in the new bridging API.
Each provides different features, which get used in different situations depending on
what a bridge needs. These modules, listed in Table 2-2, are currently only used for (and
are essential to) app_confbridge.
Modules | 15
www.it-ebooks.info
Table 2-2. Bridging modules
Name Purpose Popularity/Status
bridge_builtin_features Performs bridging when utilizing built-in user features (such as
those found in features.conf).
New
bridge_multiplexed Performs complex multiplexing, as would be required in a large
conference room (multiple participants). Currently only used by
app_confbridge.
Useful
bridge_simple Performs simple channel-to-channel bridging. Useful
bridge_softmix Performs simple multiplexing, as would be required in a large
conference room (multiple participants). Currently only used by
app_confbridge.
Useful
Call Detail Recording Modules
The CDR modules, listed in Table 2-3, are designed to facilitate as many methods of
storing call detail records as possible. You can store CDRs to a file (the default), a da‐
tabase, Remote Authentication Dial In User Service (RADIUS), or syslog.
Call detail records are not intended to be used in complex billing ap‐
plications. If you require more control over billing and call reporting,
you will want to look at channel event logging, discussed next. The
advantage of CDR is that it just works.
Table 2-3. Call detail recording modules
Name Purpose Popularity/Status
cdr_adaptive_odbc Allows writing of CDRs through ODBC
framework with ability to add custom fields
Useful
cdr_csv Writes CDRs to disk as a comma-separated
values file
Usable
cdr_custom Writes CDRs to a CSV file, but allows addition
of custom fields
Useful
cdr_manager Outputs CDRs to Asterisk Manager Interface
(AMI)
Useful
cdr_odbc Writes CDRs through ODBC framework Usable
cdr_pgsql Writes CDRs to PostgreSQL Useful
cdr_radius Writes CDRs to RADIUS Usable—does not support custom fields
cdr_sqlite Writes CDRs to SQLite2 database Deprecated—use sqlite3_custom
cdr_sqlite3_custom Writes CDRs to SQLite3 with custom fields Useful
cdr_syslog Writes CDRs to syslog Useful
cdr_tds Writes CDRs to Microsoft SQL or Sybase Usable—requires an old version of libtds
16 | Chapter 2: Asterisk Architecture
www.it-ebooks.info
We will discuss some reporting packages that you may wish to use with CDR in
Chapter 25.
Channel Event Logging Modules
Channel event logging (CEL) provides much more powerful control over reporting of
call activity. By the same token, it requires more careful planning of your dialplan, and
by no means will it work automatically. Asterisk’s CEL modules are listed in
Table 2-4.
Table 2-4. Channel event logging modules
Name Purpose Popularity/Status
cel_custom CEL to disk/file Useful
cel_manager CEL to AMI Useful
cel_odbc CEL to ODBC Useful
cel_pgsql CEL to PostgreSQL Useful
cel_radius CEL to RADIUS Usable—does not support custom fields
cel_sqlite3_custom CEL to SQLite3 Useful
cel_tds CEL to Microsoft SQL or Sybase Usable—requires an old version of libtds
Channel Drivers
Without channel drivers, Asterisk would have no way to make calls. Each channel driver
is specific to the protocol or channel type it supports (SIP, ISDN, etc.). The channel
module acts as a gateway to the Asterisk core. Asterisk’s channel drivers are listed in
Table 2-5.
Table 2-5. Channel drivers
Name Purpose Popularity/Status
chan_agent Provides agent channel for Queue() Useful
chan_alsa Provides connection to Advanced Linux Sound Architecture Useful
chan_bridge Used internally by the ConfBridge() application; should
not be used directly Essentiala
chan_console Utilizes the portaudio library to provide a cross-platform
console channel driver that uses the system sound device
Useful
chan_dahdi Provides connection to PSTN cards that use DAHDI channel
drivers
Useful
chan_gtalk Provides connection to Google Talk Deprecated as of Asterisk 11—
see chan_motif
chan_h323 Provides connection to H.323 endpoints Deprecated—see
chan_ooh323 in Table 2-17
Modules | 17
www.it-ebooks.info
1. More information about what codecs are and how they work is available in “Codecs” on page 746.
Name Purpose Popularity/Status
chan_iax2 Provides connection to IAX2 endpoints Useful
chan_jingle Provides connection to Jingle-enabled endpoints Deprecated as of Asterisk 11—
see chan_motif
chan_local Provides a mechanism to treat a portion of the dialplan as a
channel
Useful
chan_mgcp Media Gateway Control Protocol channel driver Usable
chan_misdn Provides connection to mISDN-supported ISDN cards Limited
chan_motif Implements the Jingle protocol, including the ability to
connect to Google Talk and Google Voice; introduced in
Asterisk 11
Useful
chan_multicast_rtp Provides connection to multicast Realtime Transport Protocol
(RTP) streams
Useful
chan_nbs Network Broadcast Sound channel driver Insignificant
chan_oss Open Sound System driver Useful
chan_phone Linux telephony interface driver (very old) Insignificant
chan_sip Session Initiation Protocol (SIP) channel driver Essential
chan_skinny Cisco Skinny Client Control Protocol (SCCP) channel driver Usable
chan_unistim Nortel Unistim protocol channel driver Usable
a If you are using the ConfBridge() application.
Codec Translators
The codec translators (Table 2-6) allow Asterisk to convert audio stream formats be‐
tween calls. So if a call comes in on a PRI circuit (using G.711) and needs to be passed
out a compressed SIP channel (e.g., using G.729, one of many codecs that SIP can han‐
dle), the relevant codec translator would perform the conversion.1
If a codec (such as G.729) uses a complex encoding algorithm, heavy
use of transcoding can place a massive burden on the CPU. Speci‐
alized hardware for the decoding/encoding of G.729 is available
from hardware manufacturers such as Sangoma and Digium (and
likely others).
18 | Chapter 2: Asterisk Architecture
www.it-ebooks.info
2. It is partly for this reason that we do not recommend the default GSM format for system recordings. WAV
recordings will sound better and use fewer CPU cycles.
3. Some codecs can impose a significant load on the CPU, such that a system that could support several hundred
channels without transcoding might be able to handle only a few dozen when transcoding is in use.
Table 2-6. Codec translators
Name Purpose Popularity/Status
codec_adpcm Adaptive Differential Pulse Coded Modulation (ADPCM) codec Insignificant
codec_alaw A-law PCM codec used all over the world (except Canada/USA) on the PSTN Essential
codec_g729 Does not come with Asterisk due to the fact that it is not a public domain codec,
but can be purchased from Digium; a very popular codec if compression is desired
(and CPU use is not an issue)
Useful
codec_a_mu A-law to mu-law direct converter Useful
codec_dahdi Utilizes proprietary Digium hardware transcoding card Essentiala
codec_g722 Wideband audio codec Useful
codec_g726 Flavor of ADPCM Insignificant
codec_gsm Global System for Mobile Communications (GSM) codec Useful
codec_ilbc Internet Low Bitrate Codec Insignificant
codec_lpc10 Linear Predictive Coding vocoder (extremely low bandwidth) Insignificant
codec_resample Resamples between 8-bit and 16-bit signed linear Usable
codec_speex Speex codec Usable
codec_ulaw Mu-law PCM codec used in Canada/USA on PSTN Essential
a If you are using a Digium codec transcoder card.
Digium distributes some additional useful codec modules: co
dec_g729, codec_silk, codec_siren7, and codec_siren14. These co‐
dec modules are not open source for various reasons. You must pur‐
chase a license to use codec_g729, but the others are free. You can find
them on the Digium site.
Format Interpreters
Format interpreters (Table 2-7) perform the function of codec translators, but they do
their work on files rather than channels. If you have a recording on a menu that has
been stored as GSM, a format interpreter would need to be used to play that recording
to any channels not using the GSM codec.2
If you store a recording in several formats (such as WAV, GSM, etc.), Asterisk will
determine the least costly format3 to use when a channel requires that recording.
Modules | 19
www.it-ebooks.info
Table 2-7. Format interpreters
Name Plays files stored in Popularity/Status
format_g723 G.723: .g723 Insignificant
format_g726 G.726: .g726 Insignificant
format_g729 G.729: .g729 Useful
format_gsm RPE-LTP (original GSM codec): .gsm Usable
format_h263 H.263—video: .h263 Usable
format_h264 H.264—video: .h264 Usable
format_ilbc Internet Low Bitrate Codec: .ilbc Insignificant
format_jpeg Graphic file: .jpeg, .jpg Insignificant
format _ogg_
vorbis
Ogg container: .ogg Usable
format_pcm Various Pulse-Coded Modulation
formats: .alaw, .al, .alw, .pcm, .ulaw, .ul, .mu, .ulw, .g722, .au
Useful
format_siren14 G.722.1 Annex C (14 kHz): .siren14 New
format_siren7 G.722.1 (7 kHz): .siren7 New
format_sln16 16-bit signed linear: .sln16 New
format_sln 8-bit signed linear: .sln, .raw Useful
format_vox .vox Insignificant
format_wav .wav Useful
format_wav_gsm GSM audio in a WAV container: .wav, .wav49 Usable
Dialplan Functions
Dialplan functions, listed in Table 2-8, complement the dialplan applications (see “Ap‐
plications” on page 12). They provide many useful enhancements to things like string
handling, time and date wrangling, and ODBC connectivity.
Table 2-8. Dialplan functions
Name Purpose Popularity/Status
func_aes Encrypts/decrypts an AES string Useful
func_audiohookinherit Allows calls to be recorded after transfer Useful
func_base64 Encodes/decodes a base-64 string Usable
func_blacklist Writes/reads blacklist in astdb Useful
func_callcompletion Gets/sets call-completion configuration parameters for the channel New
func_callerid Gets/sets CallerID Useful
func_cdr Gets/sets CDR variable Useful
func_channel Gets/sets channel information Useful
20 | Chapter 2: Asterisk Architecture
www.it-ebooks.info
Name Purpose Popularity/Status
func_config Includes AST_CONFIG(); reads variables from config file Usable
func_connectedline Changes connected-line information on supported handsets New
func_curl Uses cURL to obtain data from a URI Useful
func_cut Slices and dices strings Useful
func_db Provides astdb functions Useful
func_devstate Gets state of device Useful
func_dialgroup Creates a group for simultaneous dialing Useful
func_dialplan Validates that designated target exists in dialplan Useful
func_enum Performs ENUM lookup Useful
func_env Includes FILE(), STAT(), and ENV(); performs operating system
actions
Useful
func_extstate Returns status of a hinted extension Useful
func_global Gets/sets global variables Useful
func_groupcount Gets/sets channel count for members of a group Useful
func_hangupcause Gets/sets hangupcause information from the channel Useful
func_iconv Converts between character sets Usable
func_jitterbuffer Includes the JITTERBUFFER() function, which allows you to place
a jitterbuffer on a channel.
Useful
func_lock Includes LOCK(), UNLOCK(), and TRYLOCK(); sets a lock that can
be used to avoid race conditions in the dialplan
Useful
func_logic Includes ISNULL(), SET(), EXISTS(), IF(), IFTIME(), and
IMPORT(); performs various logical functions
Useful
func_math Includes MATH(), INC(), and DEC(); performs mathematical
functions
Useful
func_md5 Converts supplied string to an MD5 hash Useful
func_module Checks to see if supplied module is loaded into memory Usable
func_odbc Allows dialplan integration with ODBC resources Useful
func_pitchshift Shifts the pitch of an audio stream Useful
func_presencestate Gets/sets presence state; this is primarily used by Asterisk integration
with Digium phones
Useful
func_rand Returns a random number within a given range Useful
func_realtime Performs lookups within the Asterisk Realtime Architecture (ARA) Useful
func_redirecting Provides access to information about where this call was redirected
from
Useful
func_sha1 Converts supplied string to an SHA1 hash Useful
func_shell Performs Linux shell operations and returns results Useful
func_speex Reduces noise and performs dB gain/loss on an audio stream Useful
Modules | 21
www.it-ebooks.info
Name Purpose Popularity/Status
func_sprintf Performs string format functions similar to C function of same name Useful
func_srv Performs SRV lookups in the dialplan Useful
func_strings Includes over a dozen string manipulation functions Useful
func_sysinfo Gets system information such as RAM, swap, load average, etc. Useful
func_timeout Gets/sets timeouts on channel Useful
func_uri Converts strings to URI-safe encoding Useful
func_version Returns Asterisk version information Usable
func_vmcount Returns count of messages in a voicemail folder for a particular user Useful
func_volume Sets volume on a channel Useful
PBX Modules
The PBX modules are peripheral modules that provide enhanced control and config‐
uration mechanisms. For example, pbx_config is the module that loads the traditional
Asterisk dialplan. The currently available PBX modules are listed in Table 2-9.
Table 2-9. PBX modules
Name Purpose Popularity/Status
pbx_ael Asterisk Extension Logic (AEL) offers a dialplan scripting language that looks like a
modern programming language. Usablea
pbx_config This is the traditional, and most popular, dialplan language for Asterisk. Without this
module, Asterisk cannot read extensions.conf.
Useful
pbx_dundi Performs data lookups on remote Asterisk systems. Useful
pbx_loopback Performs something similar to a dialplan include, but in a deprecated manner. Insignificantb
pbx_lua Allows creation of a dialplan using the Lua scripting language. Useful
pbx_realtime Provides functionality related to the Asterisk Realtime Architecture. Useful
pbx_spool Provides outgoing spool support relating to Asterisk call files. Useful
a We have not found too many people using AEL. We suspect this is because most developers will tend to use AGI/AMI if they do
not want to use traditional dialplans.
b We’ve never heard of this being used in production.
Resource Modules
Resource modules integrate Asterisk with external resources. This group of modules
has effectively turned into a catchall for things that do not fit in other categories. We
will break them into some subgroups of modules that are related.
22 | Chapter 2: Asterisk Architecture
www.it-ebooks.info
Configuration backends
Asterisk is configured using text files in /etc/asterisk by default. These modules, listed
in Table 2-10, offer alternative configuration methods. See Chapter 16 for detailed doc‐
umentation on setting up database-backed configuration.
Table 2-10. Configuration backend modules
Name Purpose Popularity/Status
res_config_curl Pulls configuration information using cURL Useful
res_config_ldap Pulls configuration information using LDAP Usable
res_config_odbc Pulls configuration information using ODBC Useful
res_config_pgsql Pulls configuration information using PostgreSQL Usable
res_config_sqlite Pulls configuration information using SQLite (version 2) Usable
res_config_sqlite3 Pulls configuration information using SQLite (version 3) Usable
Timing interfaces
Some operations in Asterisk require a timing source. These modules provide timing to
Asterisk from a variety of sources. Some cases where Asterisk needs a timing source
include file playback and conferencing using the ConfBridge() application.
A common point of confusion is assuming that conferencing using the
MeetMe() application also requires the use of one of these timing
sources. That is not the case. MeetMe() does not use the Asterisk timing
interface and instead uses DAHDI directly. While DAHDI provides a
timing interface, MeetMe() does not use it. DAHDI provides a full con‐
ferencing engine which is the core of the MeetMe() application.
If you are unable to use res_timing_dahdi for some reason, such as running on a
machine where you cannot add the DAHDI kernel modules, you should use res_tim
ing_timerfd. Avoid using the res_timing_pthread module if at all possible, as it is
much less efficient and will impact the performance of Asterisk. Table 2-11 lists the
timing interface modules.
Table 2-11. Timing interface modules
Name Purpose Popularity/Status
res_timing_dahdi Provides timing using the DAHDI kernel interface Useful
res_timing_kqueue Provides timing using a kernel feature in some BSDs, including Mac OS X Useful
res_timing_pthread Provides timing using only parts of the standard pthread API; less
efficient but more portable than other timing modules
Usable
res_timing_timerfd Provides timing using the timerfd API provided by newer versions of the
Linux kernel
Useful
Modules | 23
www.it-ebooks.info
Calendar integration
Asterisk includes some integration with calendar systems. You can read and write cal‐
endar information from the dialplan. You can also have calls originated based on cal‐
endar entries. The core calendar integration is provided by the res_calendar module.
The rest of the modules provide the ability to connect to specific types of calendar
servers. Table 2-12 lists the calendar integration modules.
Table 2-12. Calendar integration modules
Name Purpose Popularity/Status
res_calendar Enables base integration to calendaring systems Useful
res_calendar_caldav Allows features provided by res_calendar to connect to
calendars via CalDAV
Useful
res_calendar_exchange Allows features provided by res_calendar to connect to MS
Exchange
Useful
res_calendar_icalendar Allows features provided by res_calendar to connect to Apple/
Google iCalendar
Useful
RTP implementations
The core of Asterisk does not include an RTP implementation. If you are using one of
the VoIP channel drivers that uses RTP, you must also load the res_rtp_asterisk
module. This RTP implementation could be replaced with a custom one if Asterisk was
used on a system that included custom hardware such as a DSP with more efficient RTP
processing.
The multicast RTP implementation is only used by the chan_multicast_rtp channel
driver, which is useful for paging a large number of phones. For more information on
multicast RTP, see Chapter 11. RTP implementation modules are listed in Table 2-13.
Table 2-13. RTP implementation modules
Name Purpose Popularity/Status
res_rtp_asterisk Provides RTP Essential
res_rtp_multicast Provides multicast RTP New
Format attribute handlers
One of the interfaces that an Asterisk module can implement is for processing attributes
associated with certain audio and video formats. The group of modules listed in
Table 2-14 implements that interface.
24 | Chapter 2: Asterisk Architecture
www.it-ebooks.info
Table 2-14. Format attribute handler modules
Name Purpose Popularity/Status
res_format_attr_celt Handles format attribute details for the CELT audio format Useful
res_format_attr_h263 Handles format attribute details for the H.263 video format Useful
res_format_attr_h264 Handles format attribute details for the H.264 video format Useful
res_format_attr_silk Handles format attribute details for the SILK audio format Useful
CLI extensions
This group of modules includes optional features for the Asterisk command-line
interface (CLI).
Table 2-15. CLI extension modules
Name Purpose Popularity/Status
res_clialiases Creates CLI aliases Useful
res_clioriginate Provides an Asterisk CLI command for originating calls Usable
res_convert Provides an Asterisk CLI command to perform file-format conversions Usable
res_limit Enables adjusting of system limits on the Asterisk process Usable
res_realtime Provides CLI commands for the Asterisk Realtime Architecture (ARA) Useful
Other resource modules
Table 2-16 includes the rest of the resource modules that did not fit into one of the
subgroups we defined earlier in this section.
Table 2-16. Resource modules
Name Purpose Popularity/Status
res_adsi Provides ADSI Essentiala
res_ael_share Provides shared routines for use with pbx_ael Essential if you’re using AEL
res_agi Provides the Asterisk Gateway Interface (see Chapter 21) Useful
res_corosync Provides distributed message waiting indication (MWI) and
device state notifications via the Corosync Cluster Engine
Useful
res_crypto Provides cryptographic capabilities Useful
res_curl Provides common subroutines for other cURL modules Useful
res_fax Provides common subroutines for other fax modules Useful
res_fax_spandsp Plug-in for fax using the spandsp package Useful
res_http_post Provides POST upload support for the Asterisk HTTP server Usable
res_http_websocket Provides WebSocket support for the Asterisk internal HTTP server;
also utilized by chan_sip to provide SIP over a WebSocket
connection, which is useful for rtcweb
Usable
Modules | 25
www.it-ebooks.info
Name Purpose Popularity/Status
res_jabber Provides Jabber/XMPP resources Deprecated (as of Asterisk
11)—see res_xmpp
res_monitor Provides call-recording resources Useful
res_musiconhold Provides music on hold (MOH) resources Essential
res_mutestream Allows muting/unmuting of audio streams New
res_odbc Provides common subroutines for other ODBC modules Useful
res_phoneprov Provisions phones from Asterisk HTTP server New
res_pktccops Provides PacketCable COPS resources New
res_security_log Enables logging of security events generated by other parts of
Asterisk
New
res_smdi Provides voicemail notification using the SMDI protocol Limited
res_snmp Provides system status information to an SNMP-managed
network
Usable
res_speech Generic speech recognition API Limitedb
res_xmpp Provides Jabber/XMPP resources Useful
a While most of the ADSI functionality in Asterisk is never used, the voicemail application uses this resource.
b Requires a separately licensed product in order to be used.
Add-on Modules
Add-on modules are community-developed modules with different usage or distribu‐
tion rights from those of the main code. They are kept in a separate directory and are
not compiled and installed by default. To enable these modules, use the menuselect build
configuration utility. Currently available add-on modules are listed in Table 2-17.
Table 2-17. Add-on modules
Name Purpose Popularity/Status
app_mysql Executes MySQL queries with a dialplan
application Deprecated—see func_odbc
app_saycountpl Says Polish counting words Deprecated—now integrated in
say.conf
cdr_mysql Logs CDRs to a MySQL database Usable—we recommend
cdr_adaptive_odbc instead
chan_mobile Enables making and receiving phone calls using
cell phones over Bluetooth Limiteda
chan_ooh323 Enables making and receiving VoIP calls using
the H.323 protocol
Usable
format_mp3 Allows Asterisk to play MP3 files Usable
26 | Chapter 2: Asterisk Architecture
www.it-ebooks.info
Name Purpose Popularity/Status
res_config_mysql Uses a MySQL database as a realtime
configuration backend
Useful
a While chan_mobile works great with many phones, problems have been reported with some models. When a problem does
occur, it is very difficult for developers to solve unless they have a phone of the same model to test with.
Test Modules
Test modules are used by the Asterisk development team to validate new code. They are
constantly changing and being added to, and are not useful unless you are developing
Asterisk software.
If you are an Asterisk developer, however, the Asterisk Test Suite may be of interest to
you, as you can build automated tests for Asterisk and submit those back to the project,
which runs on several different operating systems and types of machines. By expanding
the number of tests constantly, the Asterisk project avoids the creation of regressions
in code. By submitting your own tests to the project, you can feel more confident in
future upgrades.
More information about installing the Asterisk Test Suite is available in this blog post.
More information about building tests is available in this document, or you can join the
#asterisk-testing channel on the Freenode IRC network.
File Structure
Asterisk is a complex system, composed of many resources. These resources make use
of the filesystem in several ways. Since Linux is so flexible in this regard, it is helpful to
understand what data is being stored, so that you can understand where you are likely
to find a particular bit of stored data (such as voicemail messages or logfiles).
Configuration Files
The Asterisk configuration files include extensions.conf, sip.conf, modules.conf, and
dozens of other files that define parameters for the various channels, resources, modules,
and functions that may be in use.
These files will be found in /etc/asterisk. You will be working in this folder a lot as you
configure and administer your Asterisk system.
Modules
Asterisk modules are usually installed to the /usr/lib/asterisk/modules folder. You will
not normally have to interact with this folder; however, it will be occasionally useful to
know where the modules are located. For example, if you upgrade Asterisk and select
File Structure | 27
www.it-ebooks.info
4. Not call detail records (CDRs), but rather audio recordings of calls generated by the MixMonitor() and
related applications.
different modules during the menuselect phase of the install, the old (incompatible)
modules from the previous Asterisk version will not be deleted, and you will get a
warning from the install script. Those old files will need to be deleted from the modules
folder. This can be done either manually or with the “uninstall” make (make uninstall)
target.
The Resource Library
There are several resources that require external data sources. For example, music on
hold (MOH) can’t happen unless you have some music to play. System prompts also
need to be stored somewhere on the hard drive. The /var/lib/asterisk folder is where
system prompts, AGI scripts, music on hold, and other resource files are stored.
The Spool
The spool is where applications store files on a Linux system that are going to change
frequently, or that will be processed by other processes at a later time. For example,
Linux print jobs and pending emails are normally written to the spool until they are
processed.
In Asterisk, the spool is used to store transient items such as voice messages, call re‐
cordings,4 call files, and so forth.
The Asterisk spool will be found under the /var/spool/asterisk directory.
Logging
Asterisk is capable of generating several different kinds of log files. The /var/log/aster
isk folder is where things such as call detail records (CDRs), channel events from CEL,
debug logs, queue logs, messages, errors, and other output are written.
This folder will be extremely important for any troubleshooting efforts you undertake.
We will talk more about how to make use of Asterisk logs in Chapter 24.
The Dialplan
The dialplan is the heart of Asterisk. All channels that arrive in the system will be passed
through the dialplan, which contains the call-flow script that determines how the in‐
coming calls are handled.
28 | Chapter 2: Asterisk Architecture
www.it-ebooks.info
A dialplan can be written in one of three ways:
• Using traditional Asterisk dialplan syntax in /etc/asterisk/extensions.conf
• Using Asterisk Extension Logic (AEL) in /etc/asterisk/extensions.ael
•Using Lua in /etc/asterisk/extensions.lua
Later in this book, we devote several chapters to the subject of how to write a dialplan
using traditional dialplan syntax (by far the most popular choice). Once you learn this
language, it should be fairly easy to transition to AEL or Lua, should you desire.
Hardware
Asterisk is capable of communicating with a vast number of different technologies. In
general, these connections are made across a network connection; however, connections
to more traditional telecom technologies, such as the PSTN, require specific hardware.
Many companies produce this hardware, such as Digium (the sponsor, owner, and
primary developer of Asterisk), Sangoma, Rhino, OpenVox, Pika, Voicetronix,
Junghanns, Dialogic, Xorcom, beroNet, and many others. The authors prefer cards from
Digium and Sangoma; however, the products offered by other Asterisk hardware man‐
ufacturers may be more suitable to your requirements.
The most popular hardware for Asterisk is generally designed to work through the
Digium Asterisk Hardware Device Interface (known as DAHDI). These cards will all
have different installation requirements and different file locations.
In Chapter 7, we will discuss DAHDI in more detail; however, we will limit our discus‐
sion to DAHDI only. You will need to refer to the specific documentation provided by
the manufacturers of any cards you install for details on those cards.
Asterisk Versioning
The Asterisk release methodology has gone through a couple of iterations over the last
few years, and this section is designed to help you understand what the version numbers
mean. Of particular relevance is the change in versioning that happened with the
1.6.x series of releases, which followed a different numbering logic than all other Asterisk
releases (1.0 to 1.8), and where we’re at currently.
Hardware | 29
www.it-ebooks.info
Previous Release Methodologies
This section is of historical value, but it can be skipped unless you’ll be
working with older versions of Asterisk.
When we had just Asterisk 1.2 and 1.4, all new development was carried out in trunk
(it still is), and only bug fixes went into the 1.2 and 1.4 branches. (All branches prior to
1.8 have been marked as EOL [End of Life], and are no longer receiving bug fixes or
security updates.)
Because all new development was done in trunk, until the 1.6 branch was created people
were unable to get access to the new features and functionality. This isn’t to say the new
functionality wasn’t available, but with all the changes that can happen in trunk, running
a production server based on it requires a very Asterisk-savvy (and C code–savvy)
administrator.
To try to relieve the pressure on administrators, and to enable faster access to new
features (in the time frame of months, rather than years), a new methodology was cre‐
ated. Branches in 1.6 would actually be marked as 1.6.0, 1.6.1, 1.6.2, etc., with the third
number increasing by one each time a new feature release was created. The goal was to
provide new feature releases every three to four months (which would be branched from
trunk), providing a shorter and clearer upgrade path for administrators. If you needed
a new feature, you’d only have to wait a few months and could then upgrade to the next
branch.
Tags from these branches look like this:
•1.6.0.1 -- 1.6.0.2 -- 1.6.0.3 -- 1.6.0.4 -- etc.
•1.6.1.1 -- 1.6.1.2 -- 1.6.1.3 -- 1.6.1.4 -- etc.
•1.6.2.1 -- 1.6.2.2 -- 1.6.2.3 -- 1.6.2.4 -- etc.
Figure 2-2 gives a visual representation of the branching and tagging process in relation
to Asterisk trunk.
30 | Chapter 2: Asterisk Architecture
www.it-ebooks.info
Figure 2-2. The Asterisk 1.6.x release process
So far we have branches, which are 1.2, 1.4, 1.6.0, 1.6.1, and 1.6.2 (there is no 1.6 branch).
Within each of those branches, we create tags (releases), which look like 1.2.14, 1.4.30,
1.6.0.12, 1.6.1.12, and 1.6.2.15.
Unfortunately, it ended up not working out that 1.6.x branches were created from trunk
every three to four months: the development process has led to a minimum release time
of six to eight months. Not only that, but the 1.6.x numbering methodology adds prob‐
lems of its own. People got confused as to what version to run, and the 1.6.0, 1.6.1, and
1.6.2 branches were all separate major version upgrades. When you increase the number
from 1.2 to 1.4, and then to 1.8, it is obvious that those are distinct branches and major
version changes. With 1.6.0, 1.6.1, and 1.6.2, it is less obvious.
Luckily, this is all behind us, and generally for new deployments, you’ll be using the
latest LTS (long-term support) or latest regular release branches, which have a more
sane structure, as we’ll delve into in the next section.
The Current Release Methodology
The development team learned a lot of things during the 1.6.x releases. The idea sur‐
rounding the releases was noble, but the implementation ended up being flawed when
put into real use. So, with Asterisk 1.8, the methodology reverted to look a lot like what
was used in the 1.2 and 1.4 releases.
While the development team still wants to provide access to new features and core
changes on a more regular basis (every 12 months being the goal), there is recognition
that it is also good to provide long-term support to a stable, popular version of Asterisk.
You can think of the Asterisk 1.4 branch as being an LTS version. The 1.6.0, 1.6.1, and
1.6.2 branches can be thought of as feature releases that continue to receive bug fixes
after release, but are supported for a shorter period of time (about a year). The first
official LTS version was Asterisk 1.8, receiving bug fixes for four years with an additional
year of security releases after that. Overall, the Digium development team chose to
provide five years of support from initial release for Asterisk 1.8.
Asterisk Versioning | 31
www.it-ebooks.info
Asterisk 1.8 was released on 2010-10-21 and will move into security release–only mode
after four years (2014-10-21), at which point it will receive fixes for security issues, but
not general bug fixes, for one additional year. On 2015-10-21, Asterisk 1.8 will be given
a status of EOL, at which point no changes will be made to the 1.8 branch. (The source
code, as always, will continue to be widely available for those continuing to support
Asterisk 1.8 in their own private environments.)
This book is based on Asterisk 11, which was released on 2012-10-25 and will receive
bug fix support until 2016-10-25 and security support for a year beyond that.
The current status of all Asterisk branches—their release dates, when they will go into
security release–only mode, and when they will reach EOL status—are all documented
on the Asterisk wiki.
Simplifying the Version Numbers
In the past, it was said by Mark Spencer that the number 1 in front of the version numbers
1.0, 1.2, etc., would never change unless a major, fundamental shift in design had hap‐
pened in the Asterisk code base. Now that Asterisk is so popular and widely deployed,
any fundamental shift in the design would be incredibly disruptive to both development
contributors and those who deploy Asterisk on a regular basis. In an excellent blog
article by Kevin Fleming, it is explained why instead of moving from Asterisk 1.8 to
1.10, the Asterisk numbering scheme was shifted to drop the leading 1 and move just
to Asterisk 10. Essentially, what it comes down to is this: instead of having versions like
1.10, 1.12, 1.14 (where odd numbers are skipped for historical reasons), which leads to
potential version numbers that look like 1.10.3.1, and since the underlying base of As‐
terisk will not change so fundamentally over a single release that it would justify the 2.0
moniker, it made the most sense to just drop the 1 from the begininning of the version.
A look at the current branch structure is shown in Figure 2-3.
Figure 2-3. Current Asterisk branching process
32 | Chapter 2: Asterisk Architecture
www.it-ebooks.info
Versions going forward will follow the same release methodology (that of alternating
LTS and regular releases on a well-known schedule with a predefined scale-down of
support), except version numbering will now be simplified. Asterisk 10 was the first
version with the 1 moniker dropped, and was a regular support release. The first LTS
release was Asterisk 11. In this way, releases will alternate between regular and LTS.
Conclusion
Asterisk is composed of many different technologies, most of which are complicated in
their own right. As such, the understanding of Asterisk architecture can be overwhelm‐
ing. Still, the reality is that Asterisk is well-designed for what it does and, in our opinion,
has achieved a remarkable balance between flexibility and complexity.
Conclusion | 33
www.it-ebooks.info
www.it-ebooks.info
I long to accomplish great and noble tasks, but it
is my chief duty to accomplish humble tasks as
though they were great and noble. The world is
moved along, not only by the mighty shoves of its
heroes, but also by the aggregate of the tiny pushes
of each honest worker.
—Helen Keller
1. If you are using another distribution, we’re willing to bet you are quite comfortable with Linux and should
have no trouble installing Asterisk.
CHAPTER 3
Installing Asterisk
In this chapter we’re going to walk through the installation of Asterisk from the source
code. Many people shy away from this method, claiming that it is too difficult and time-
consuming. Our goal here is to demonstrate that installing Asterisk from source is not
actually that difficult to do. More importantly, we want to provide you with the best
Asterisk platform on which to learn.
In this book we will be helping you build a functioning Asterisk system from scratch.
In this chapter you will build a base platform for your Asterisk system. Given that we
are installing from source, there is potentially a lot of variation in how you can do this.
The process we discuss here is one that we’ve used for many years, and following it will
provide you with a suitable foundation for Asterisk.
As part of this process we will also explain installation of some of the software depen‐
dencies on the Linux platform that will be needed for topics we’ll cover later (such as
database integration). We will show instructions for installing Asterisk on both RHEL
(Red Hat Enterprise Linux) version 6.3 and Ubuntu (a Debian-based distribution) ver‐
sion 12.04, which we believe covers the vast majority of Linux distributions being in‐
stalled today. We’ll try to keep the instructions general enough that they should be useful
on any distribution of your choice.1
35
www.it-ebooks.info
2. Leif calls this “Oh-Eh-Sex,” but Jim thinks it should be pronounced “OS Ten.” We wasted several precious
minutes arguing about this.
We have chosen to install on RHEL and Ubuntu because these distributions and others
based on them are the most popular, but Asterisk is generally distribution-agnostic.
Asterisk will even install on Solaris, BSD, or OS X2 if you like. We won’t be covering
them in this book, though, as Asterisk is most heavily developed on the Linux platform.
Asterisk Packages
There are also packages that exist for Asterisk that can be installed using popular
package-management programs such as yum or apt-get. You are encouraged to use them
once you are familiar with Asterisk.
If you are using RHEL, Asterisk is available from the EPEL repository from the Fedora
project. Asterisk packages are available in the universe repository for Ubuntu.
Some commands you see in this chapter will be split into separate rows, each labeled
for the distribution on which the command should be performed. Commands for which
distributions are not specified are for common commands that can be run on both
distributions.
Asterisk-Based Projects
Many projects have been created that use Asterisk as their underlying platform. Some
of these, such as The FreePBX GUI, have become so popular that many people mistake
them for the Asterisk product itself (the FreePBX GUI is used in several Asterisk-based
projects). These projects generally will take the base Asterisk product and add a web-
based administration interface, a complex database, and a set of constraints on how
changes can be made to the configuration.
We have chosen not to cover these projects in this book, for several reasons:
1. This book tries, as much as possible, to focus on Asterisk and only Asterisk.
2. Books have already been written about many of these Asterisk-based projects.
3. We believe that if you learn Asterisk in the way that we will teach you, the knowledge
will serve you well regardless of whether or not you eventually choose to use one
of these prepackaged versions of Asterisk.
4. For us, the power of Asterisk is that it does not attempt to solve your problems for
you. These projects are truly amazing examples of what can be built with Asterisk.
However, if you are looking to build your own Asterisk application (which is really
what Asterisk is all about), these projects will impose limitations on you, because
36 | Chapter 3: Installing Asterisk
www.it-ebooks.info
3. After you read our book, of course.
4. Once you have experience with several Asterisk installations, you’ll agree that it’s a quick and painless process.
Nevertheless, this chapter may make the process look complex. This is simply because we have an obligation
to ensure you are provided with all the information you need to accomplish a successful install.
they are focused on simplifying the process of building a business PBX, not on
making it easier to access the full potential of the Asterisk platform.
Some of the most popular Asterisk-based projects include:
AsteriskNOW Managed by Digium. Uses FreePBX GUI.
Elastix Uses the FreePBX GUI.
FreePBX Distro Uses the FreePBX GUI.
PBX in a Flash Uses the FreePBX GUI.
We recommend that you check them out.3
Installation Cheat Sheet
If you just want the nitty-gritty on how to get Asterisk up and running quickly, perform
the following at the shell prompt. We encourage you to read through the entire chapter
at least once, though, in order to better understand the full process.4
The instructions provided here assume you’ve already installed either RHEL or Ubuntu
using the steps outlined in “Distribution Installation” on page 41.
1. Perform a system update and reboot:
RHEL # yum update -y && reboot
Ubuntu sudo apt-get update && sudo apt-get upgrade && sudo reboot
2. Synchronize time and install the NTP (Network Time Protocol) daemon:
RHEL # yum install -y ntp && ntpdate pool.ntp.org && \
chkconfig ntpd on && service ntpd start
Ubuntu sudo apt-get install ntp
Some additional configuration of text files is required on
Ubuntu. See “Enable NTP for accurate system time” on page
48.
Installation Cheat Sheet | 37
www.it-ebooks.info
3. On RHEL, add a new system user (see “Adding a system user” on page 44 for specific
information):
RHEL # adduser asteriskpbx && passwd asteriskpbx && \
yum install sudo && visudo
For an Ubuntu install, we are assuming that the user created during
the installation process is asteriskpbx.
4. Install software dependencies:
RHEL sudo yum install gcc gcc-c++ make wget subversion \
libxml2-devel ncurses-devel openssl-devel \
libxml2-devel sqlite-devel libuuid-devel vim-enhanced
Ubuntu sudo apt-get install build-essential subversion \
libncurses5-dev libssl-dev libxml2-dev libsqlite3-dev \
uuid-dev vim-nox
5. Create your directory structure:
$ mkdir -p ~/src/asterisk-complete/asterisk
$ cd ~/src/asterisk-complete/asterisk
6. Get the latest release in the Asterisk 11 series with wget:
$ wget \
http://downloads.asterisk.org/pub/telephony/asterisk/ \
asterisk-11-current.tar.gz
Alternatively, you can get the latest changes in the Asterisk 11 branch via
Subversion:
$ svn co http://svn.asterisk.org/svn/asterisk/branches/11
Or check out a specific tag (version) from Subversion:
$ svn co http://svn.asterisk.org/svn/asterisk/tags/11.3.0
7. Build and install the software:
$ cd ~/src/asterisk-complete/asterisk/11
If you are running 64-bit RHEL, run the configure script with the libdir option:
$ ./configure --libdir=/usr/lib64
On any other platform, run the configure script without any arguments:
$ ./configure
Finally, compile and install Asterisk:
38 | Chapter 3: Installing Asterisk
www.it-ebooks.info
$ make
$ sudo make install
$ sudo make config
8. Install additional sound prompts (Extra Sounds Packages) from menuselect:
$ cd ~/src/asterisk-complete/asterisk/11/
$ make menuselect
$ sudo make install
9. Modify the file permissions of the directories Asterisk was installed to:
$ sudo chown -R asteriskpbx:asteriskpbx /var/lib/asterisk/
$ sudo chown -R asteriskpbx:asteriskpbx /var/spool/asterisk/
$ sudo chown -R asteriskpbx:asteriskpbx /var/log/asterisk/
$ sudo chown -R asteriskpbx:asteriskpbx /var/run/asterisk/
Alternatively, you could update all the permissions in one line with:
sudo chown -R asteriskpbx:asteriskpbx {/var/lib,/var/spool,/var/
log,/var/run}/asterisk
10. Create the /etc/asterisk directory and copy the indications.conf sample file into it:
$ sudo mkdir -p /etc/asterisk
$ sudo chown asteriskpbx:asteriskpbx /etc/asterisk
$ cd /etc/asterisk/
$ cp ~/src/asterisk-complete/asterisk/11/configs/indications.conf.sample \
./indications.conf
11. Copy the sample asterisk.conf file into /etc/asterisk and change runuser and run
group to have values of asteriskpbx:
$ cp ~/src/asterisk-complete/asterisk/11/configs/asterisk.conf.sample \
/etc/asterisk/asterisk.conf
$ vim /etc/asterisk/asterisk.conf
See “indications.conf and asterisk.conf” on page 58 for more information.
12. Create the modules.conf file. Enable loading of modules automatically, and disable
extra modules:
$ cat >> /etc/asterisk/modules.conf
; The modules.conf file, used to define which modules Asterisk should load (or
; not load).
;
[modules]
autoload=yes
; Resource modules currently not needed
noload => res_speech.so
noload => res_phoneprov.so
Installation Cheat Sheet | 39
www.it-ebooks.info
noload => res_ael_share.so
noload => res_clialiases.so
noload => res_adsi.so
; PBX modules currently not needed
noload => pbx_ael.so
noload => pbx_dundi.so
; Channel modules currently not needed
noload => chan_oss.so
noload => chan_mgcp.so
noload => chan_skinny.so
noload => chan_phone.so
noload => chan_agent.so
noload => chan_unistim.so
noload => chan_alsa.so
; Application modules currently not needed
noload => app_nbscat.so
noload => app_amd.so
noload => app_minivm.so
noload => app_zapateller.so
noload => app_ices.so
noload => app_sendtext.so
noload => app_speech_utils.so
noload => app_mp3.so
noload => app_flash.so
noload => app_getcpeid.so
noload => app_setcallerid.so
noload => app_adsiprog.so
noload => app_forkcdr.so
noload => app_sms.so
noload => app_morsecode.so
noload => app_followme.so
noload => app_url.so
noload => app_alarmreceiver.so
noload => app_disa.so
noload => app_dahdiras.so
noload => app_senddtmf.so
noload => app_sayunixtime.so
noload => app_test.so
noload => app_externalivr.so
noload => app_image.so
noload => app_dictate.so
noload => app_festival.so
Ctrl+D
40 | Chapter 3: Installing Asterisk
www.it-ebooks.info
13. Configure musiconhold.conf:
$ cat > musiconhold.conf
; musiconhold.conf
[general]
[default]
mode=files
directory=moh
Ctrl+D
14. Save your changes and your module configuration is done. Your system is ready to
configure your dialplan and channels.
Distribution Installation
Because Asterisk relies so heavily on having priority access to the CPU, it is essential
that you install Asterisk onto a server without any graphical interface, such as the X
Windowing system (Gnome, KDE, etc.). Both RHEL and Ubuntu ship a GUI-free dis‐
tribution designed for server usage. We will cover instructions for both distributions.
RHEL Server
You will need to download an RHEL Server ISO from the Red Hat website. Download
instructions can be found on their site as well. Once you’ve downloaded the ISO file,
burn it to a CD or DVD and start the installation process. If you’re installing into a
virtual machine, you should be able to mount the ISO file directly and install from there.
Base system installation
Upon booting from the CD, select “Install or upgrade an existing system.” You will first
be asked whether you want to test the media. You should select OK the first time you
start an install from this CD. After the media checking is complete, the installation
interface will start. Select Next to proceed to the first step of the installer.
Choose your language and make a keyboard selection. If you’re in North America, you
will probably just select the defaults. You will then be asked what type of storage devices
your installation will involve. If you are not sure which option to select, choose Basic
Storage Devices.
In the next step you will be prompted to set the hostname for this machine. Set whatever
is appropriate for your installation and select Next.
You will then be prompted to choose a time zone. Again, select whatever is appropriate
for your installation and select Next.
Distribution Installation | 41
www.it-ebooks.info
At this point, you will be asked for a root password. Enter a secure password and type
it again to confirm. After entering your secure password, select Next.
The next screen will ask about the installation type. If you intend to use all of the storage
for this installation, select Use All Space. Otherwise, select the option most appropriate
for your situation. There are two checkboxes on this screen in the installer. One enables
hard drive encryption. The other allows you to review and potentially modify the par‐
titioning layout that the installer sets up for you. Feel free to choose either or both of
those options if you would like to. Once you have made the necessary choices, select
Next to continue. You may be asked for additional confirmation that you would like
your changes applied, as any data on the hard drive prior to the install will be lost after
this point.
Separating the /var Mount Point to Its Own Partition
On a system dedicated to Asterisk, the directory with the largest storage requirement
is /var. This is where Asterisk will store recordings, voicemails, logfiles, prompts, and a
myriad of constantly growing information. In normal operation, it is unlikely that As‐
terisk will fill the hard disk. However, if you have extensive logging turned on or are
recording all calls, this could, in theory, occur. (This is likely to happen several months
after you’ve completed the install and take your entire staff by surprise.)
If the drive on which the operating system is mounted fills up, there is the potential for
a kernel panic. By separating /var from the rest of the hard drive, you significantly lower
the risk of a system failure.
Having a full volume is still a major problem; however, you will at
least be able to log into the system to rectify the situation.
At the “Review and modify the partitioning layout” screen, you can create a separate
volume for /var. Selecting Yes will bring up the Partitioning tool. To partition the drive
accurately, you need to know what the hard drive size is; this may not jibe with what is
stamped on the outside of the drive because you have to tell the tool how to chop up the
drive. A limitation of the tool is that there is no option to say “use all available space”;
that is, you can’t simply use 500 MB on the / partition and then say “use the rest for /
var.” The workaround is to make a note of the size it has selected for / currently, as that
is the full space, subtract 500 MB from that, and make that the size for the / partition.
The subtracted amount will then be reserved for /var.
42 | Chapter 3: Installing Asterisk
www.it-ebooks.info
5. This reboot step is essential prior to installing Asterisk.
You will now be prompted to select a set of software to install. The default of Basic Server
is sufficient unless you know of a reason you need to select another choice based on
your specific deployment. It will be easy to install additional packages later. Once you
have made a choice, select Next to continue. The installer will then install all of the
packages necessary based on your selection. This will take a while.
At this point the installer is complete. It will ask you to reboot the system. Select Reboot.
Base system update
Once you’ve rebooted your system, you need to run the yum update command to make
sure you have the latest base packages. To do this, log in using the username root and
the password you created during installation. Once logged in, run the following:
# yum update
Is this ok [y/N]: y
When prompted to install the latest packages, press y and wait for the packages to
update. If you’re asked to accept a GPG key, press y. When complete, reboot the system
as it is likely the kernel will have been updated:5
# reboot
Congratulations! You’ve successfully installed and updated the base RHEL system.
Enabling NTP for accurate system time
Keeping accurate time is essential on your Asterisk system, both for maintaining accu‐
rate call detail records and for synchronization with your other programs. You don’t
want the times of your voicemail notifications to be off by 10 or 20 minutes, as this can
lead to confusion and panic from those who might think their voicemail notifications
are taking too long to be delivered. The ntpd command can be used to ensure that the
time on your Asterisk server remains in sync with the rest of the world:
# yum install ntp
...
Is this ok [y/N]: y
...
# ntpdate pool.ntp.org
# chkconfig ntpd on
# service ntpd start
The defaults shipped with RHEL are sufficient to synchronize the time and keep the
machine’s time in sync with the rest of the world.
Distribution Installation | 43
www.it-ebooks.info
6. sudo is an application that allows a user to execute commands as another user, such as root, or the superuser.
Adding a system user
The Ubuntu server install process asks you to add a system user other than root, but
RHEL does not. In order to be consistent in the book, we’re going to add another system
user and provide it sudo access.6 To add the new user, execute the adduser command:
# adduser asteriskpbx
# passwd asteriskpbx
Changing password for user asteriskpbx.
New UNIX password:
Retype new UNIX password:
Now we need to provide the asteriskpbx user sudo access. We do this by modifying the
sudoers file with the visudo command.
Execute the visudo command and look for the lines shown below:
# visudo
## Allows people in group wheel to run all commands
%wheel ALL=(ALL) ALL
With the %wheel line uncommented as shown in our example, save the file by pressing
Esc, then typing :wq and pressing Enter. Now open the /etc/group file in your favorite
editor (nano is easy to use) and find the line that starts with the word wheel. Add
asteriskpbx to the wheel group, like so:
wheel:x:10:asteriskpbx
Save the file, log out from root by typing exit, and log in as the asteriskpbx user you
created. Test your sudo access by running the following command:
$ sudo ls /root/
[sudo] password for asteriskpbx:
After typing your password, you should get the output of the /root directory. If you
don’t, go back and verify the steps to make sure you didn’t skip or mistype anything.
The rest of the instructions in this chapter will assume that you’re the asteriskpbx user
and that you have sudo access.
With the operating system installed, you’re ready to install the dependencies required
for Asterisk. The next section deals with Ubuntu, so you can skip ahead to the section
“Software Dependencies” on page 49, which provides an in-depth review of the Asterisk
installation process. Alternatively, if you’ve already reviewed the information in that
section, you may want to refer back to the “Installation Cheat Sheet” on page 37 for a
high-level review of how to install Asterisk.
44 | Chapter 3: Installing Asterisk
www.it-ebooks.info
7. Of course, projects can change their websites whenever they want. Hopefully the instructions we’ve provided
here are accurate enough to help guide you through the site even in the event of changes.
8. It is probably easiest to manually select a US keyboard, so unless you have special keyboard requirements,
save yourself some time, skip the autodetect process, and specify the US keyboard manually.
Ubuntu Server
Ubuntu Server is a popular Linux distribution loosely based on Debian. There is also a
popular desktop version of the software. The Ubuntu Server package contains no GUI
and is ideal for Asterisk installations.
To get the latest version of Ubuntu Server,7 visit http://www.ubuntu.com and select the
Server tab at the top of the page. You will be provided with a page that contains infor‐
mation about Ubuntu Server Edition. Clicking the orange Download button in the
upper-right corner will take you to a page where you can select either the 32-bit or 64-
bit version of Ubuntu Server. After selecting one of the options, you can press the “Start
download” button.
Once you’ve downloaded the ISO file, burn it to a CD and start the installation process.
If you’re installing into a virtual machine (which we don’t recommend for production
use, although it can be a great way to test out Asterisk), you should be able to mount
the ISO file directly and install from there.
Base system installation
Upon booting from the CD, you will be presented with a screen where you can select
your language of choice. By default English is the selected language, and after a timeout
period, it will be automatically selected. After selecting your language, press Enter.
The next screen will give you several options, the first of which is Install Ubuntu Server.
Select it by pressing Enter.
You will then be asked which language to use for the installation (yes, this is slightly
redundant). Select your language of choice (the default is English), and press Enter.
You will be presented with a list of countries. Once you’ve found your country and
highlighted it, press Enter.
You will then be asked if you would like to use the keyboard layout detector. If you know
which keyboard type you have, you can select No and then pick it from a list of formats.
If you are utilizing the keyboard layout detector, you will be prompted to press a series
of keys. If you use the keyboard detector and it does not detect your keyboard correctly
(typical when installing into a virtual machine via a remote console), you can go back
and select from a list manually.8
Distribution Installation | 45
www.it-ebooks.info
9. We have chosen to use Asterisk PBX as the full name for the account.
10. We will use the username asteriskpbx. Note that Ubuntu has reserved the username asterisk internally, which
is why we’ve chosen asteriskpbx as our username.
11. Ubuntu does not provide direct access to root, but instead uses the sudo application, which allows you to run
commands as root without being the root user.
Once you’ve picked your keyboard, the installation will continue by attempting to set
up your network automatically. If all goes well, you will be prompted to enter a hostname
for your system. You can pick anything you want here, unless your network requires
your system to a have a specific hostname. Input it now and then press Enter.
When the file installation is complete, you’ll be asked to enter the full name of the new
user, from which a username will be generated.9 Once you’ve entered a full name, the
system should suggest a username based on that name, however you are free to change
the username to whatever you like.10
After entering your username, you’ll be asked to supply a password, and then asked to
confirm the password you’ve entered. You’ll use these to log into the system once the
installer ends.11
The installer will then ask you if you want to encrypt your home directory. This is not
necessary and will add CPU overhead. Select No and press Enter.
The rest of the installation instructions will assume that aster‐
iskpbx was chosen as the username.
The installer will attempt to contact a Network Time Protocol (NTP) server to syn‐
chronize your clock. Ubuntu will then try to autodetect your time zone and present you
with its choice. If correct, select Yes, otherwise, select No and you’ll be presented with
a list of time zones to select from. Select your time zone, or select from the worldwide
list if your time zone is not shown. Once you’ve selected your time zone, press Enter to
continue.
The installer will then ask you some questions about partitioning your system. Typically
the defaults are fine; these are using the guided system, utilizing the entire disk, and
setting up the Logical Volume Manager (LVM). Press Enter once you’ve made your
selection. Then you’ll be asked which partition to install to, which likely is the only one
on your system. Press Enter to continue, at which point you’ll be asked to confirm the
changes to the partition table. Select Yes and press Enter to continue.
You will now be asked how much space to use (the default value will be to use the entire
disk). Press Enter once you’ve entered and confirmed the amount of space you want to
46 | Chapter 3: Installing Asterisk
www.it-ebooks.info
12. While we say Asterisk here, specifically it is DAHDI that is the problem. DAHDI is a set of Linux kernel
modules used with Asterisk.
use. The installer will then request one last confirmation before making the changes to
the disk. Select Yes to write the changes to disk. The installer will now format the hard
disk, write the partitioning scheme to disk, copy the files, and perform the file
installation.
If you are comfortable with more advanced filesystem configuration
techniques, you may want to consider placing the /var folder into a
separate partition from the rest of the filesystem. The thinking behind
this is that logfiles and spool files (asterisk uses the spool to store
voicemail and other recordings) are the files most likely to fill up your
hard drive, and if you place /var in a separate partition, you will have a
somewhat easier time getting access to the filesystem to perform emer‐
gency maintenance if needed.
If your system is behind a web proxy, enter the proxy information now. If you’re not
behind a proxy or don’t know if you are, simply press Enter.
You will then be asked if you want to install updates automatically. The default is to
perform No automatic updates, which is what we recommend. Should a system reboot
occur, an update to the kernel will render Asterisk nonstartable until you recompile
it12 (which won’t make you popular). It is better practice to identify updates on a regular
basis and perform them manually in a controlled manner. Normally, you would want
to advise your users of the expected downtime and schedule the downtime to happen
after business hours (or while a redundant system is running). Select No automatic
updates and press Enter. (The requirement to make sure your system is up to date is
another reason we use a minimal base install, as it will greatly reduce the number of
updates required.)
Since you’ll be installing our dependencies with apt-get, you only need to select one
package during the install: OpenSSH server. SSH is essential if you wish to perform
remote work on the system. However, if your local policy states that your server needs
to be managed directly, you may not want to install the OpenSSH server.
Pressing the Enter key will accept the current selections and move
on with the install. You need to use the space bar to toggle your
selections.
After you’ve selected OpenSSH server, press Enter.
Distribution Installation | 47
www.it-ebooks.info
If this is the only operating system on the machine (which it likely is), Ubuntu will give
you the option to install the GRUB bootloader on your system. It provides this prompt
in order to give you the option of skipping the GRUB installation, as it will modify the
master boot record (MBR) on your system. If there is another operating system it has
failed to detect that has information loaded into the MBR, it’s nice to be able to skip
modifying it. If this is the only operating system installed on your server, select Yes.
When the system has finished the install, you’ll be asked to remove any media in the
drives and to reboot the system by selecting Continue, at which point the installation
will be complete and the system will reboot.
Base system update
Now that you’ve completed installing Ubuntu Server, you need to perform a system
update with apt-get to make sure you have the latest packages installed. You’ll be pre‐
sented with a login prompt where you’ll log in with the username and password you
created in the installer (e.g., asteriskpbx). Once logged in, run the following command:
$ sudo apt-get update
[sudo] password for asteriskpbx:
...
Reading package lists... Done
$ sudo apt-get upgrade
Reading state information... Done
...
Do you want to continue [Y/n]? y
The password that sudo wants is the password you just logged in with.
Press Enter when prompted to continue, at which point the latest package updates will
be installed. When complete, reboot the system so the changes can take effect, as the
kernel has probably been updated:
$ sudo reboot
Congratulations! You’ve successfully installed and updated the base Ubuntu Server
system.
Enable NTP for accurate system time
Keeping accurate time is essential on your Asterisk system, both for maintaining accu‐
rate call detail records as well as for synchronization with your other programs. You
don’t want the times of your voicemail notifications to be off by 10 or 20 minutes, as
48 | Chapter 3: Installing Asterisk
www.it-ebooks.info
this can lead to confusion and panic from those who might think their voicemail noti‐
fication took too long to be delivered:
$ sudo apt-get install ntp
Now restart the NTP daemon:
$ sudo /etc/init.d/ntp restart
With the operating system installed, you’re ready to install the dependencies required
for Asterisk. The next section provides an in-depth review of the installation process.
If you’ve already reviewed the information in “Software Dependencies” on page 49, you
may want to refer back to “Installation Cheat Sheet” on page 37 for a high-level review
of how to install Asterisk.
Software Dependencies
The first thing you need to do once you’ve completed the installation of your operating
system is to install the software dependencies required by Asterisk. The commands
listed in Table 3-1 have been split into two columns, for Ubuntu Server and RHEL Server.
These packages will allow you to build a basic Asterisk system, along with DAHDI and
LibPRI. Not every module will be available at compile time with these dependencies;
only the most commonly used modules will be built. If additional dependencies are
required for other modules used later in the book, instructions will be provided as
necessary.
Table 3-1. Software dependencies for Asterisk on Ubuntu Server and RHEL Server
Ubuntu RHEL
sudo apt-get install build-essential \
subversion libncurses5-dev libssl-dev \
libxml2-dev libsqlite3-dev uuid-dev
vim-nox
sudo yum install gcc gcc-c++ make wget \
subversion libxml2-devel ncurses-devel \
openssl-devel sqlite-devel libuuid-devel
vim-enhanced
These packages will get you most of what you’ll need to get started with installing As‐
terisk, DAHDI, and LibPRI. Note that you will also need the software dependencies for
each package that we indicate must be installed. These will be resolved automatically
for you when you use either yum or apt-get.
We have also included the OpenSSL development libraries, which are not strictly nec‐
essary to compile Asterisk but are good to have: they enable key support and other
encryption functionality.
We have installed vim as our editor, but you can choose anything you want, such as
nano, joe, or emacs.
Software Dependencies | 49
www.it-ebooks.info
Asterisk contains a script that will install the dependencies for all fea‐
tures in Asterisk. Once you have downloaded Asterisk using the in‐
structions in “Downloading What You Need” on page 50, use the fol‐
lowing commands if you would like to run it:
$ cd ~/src/asterisk-complete/asterisk/11
$ sudo ./contrib/scripts/install_prereq install
$ sudo ./contrib/scripts/install_prereq install-unpackaged
Third-Party Repositories
For certain software dependencies, a third-party repository may be necessary. This ap‐
pears to be most often the case when using RHEL. A couple of repositories that seem
to be able to provide all the extra dependencies required are RPMforge and EPEL (Extra
Packages for Enterprise Linux).
We may occasionally refer to these third-party repositories when they are required to
obtain a dependency for a module we are trying to build and use.
Downloading What You Need
There are several methods of getting Asterisk: via the Subversion code repository, via
wget from the downloads site, or via a package-management system such as apt-get or
yum. We’re only going to cover the first two methods, since we’re interested in building
the latest version of Asterisk from source. Typically, package-management systems will
have versions that are older than those available from Subversion or the downloads site,
and we want to make sure we have the most recent fixes available to us, so we tend to
avoid them.
Before we start getting the source files, let’s create a directory structure to house the
downloaded code. We’ll create the directory structure within the home directory for
the asteriskpbx user on the system. Once everything is built, it will be installed with the
sudo command. We’ll then go back and change the permissions and ownership of the
installed files in order to build a secure system. To begin, issue the following command:
$ mkdir -p ~/src/asterisk-complete/asterisk
Now that we’ve created a directory structure to hold everything, let’s get the source code.
Choose one of the following two methods to get your files:
•Subversion
•wget
50 | Chapter 3: Installing Asterisk
www.it-ebooks.info
Getting the Latest Version
Asterisk is a constantly evolving project, and there are many different versions of the
software that you can implement.
In Chapter 2, we talked about Asterisk versioning. The concept of how Asterisk is ver‐
sioned is important to understand because the versioning system has undergone a few
changes of methodology over the years. So, if you’re not up to speed, we strongly rec‐
ommend that you go back and read “Asterisk Versioning” on page 29.
Having said all that, in most cases all you need to do is grab the latest version from the
Asterisk website. We will be installing and using Asterisk 11 throughout this book.
Getting the Source via Subversion
Subversion is a version control system that is used by developers to track changes to
code over a period of time. Each time the code is modified, it must first be checked out
of the repository; then it must be checked back in, at which point the changes are logged.
Thus, if a change creates a regression, the developers can go back to that change and
remove it if necessary. This is a powerful and robust system for development work. It
also happens to be useful for Asterisk administrators seeking to retrieve the software.
To download the source code to the latest version of Asterisk 11, use these commands:
$ cd ~/src/asterisk-complete/asterisk
$ svn co http://svn.asterisk.org/svn/asterisk/branches/11
You can now skip directly to “How to Install It” on page 52.
The preceding commands will retrieve the latest changes to the source
in that particular branch, which are changes that have been made after
the latest release. If you would prefer to use a released version, please
refer to the next section.
Getting the Source via wget
To obtain the latest released versions of DAHDI, LibPRI, and Asterisk using the wget
application, issue the following commands:
$ cd ~/src/asterisk-complete/asterisk
$ wget \
http://downloads.asterisk.org/pub/telephony/asterisk/asterisk-11-current.tar.gz
$ tar zxvf asterisk-11-current.tar.gz
$ wget \
http://downloads.asterisk.org/pub/telephony/libpri/libpri-1.4-current.tar.gz
$ tar zxvf libpri-1.4-current.tar.gz
Downloading What You Need | 51
www.it-ebooks.info
13. This package contains the kernel drivers to allow Asterisk to connect to traditional PSTN circuits. It is also
required for the MeetMe() conferencing application. Again, we will install this for completeness.
14. Strictly speaking, if you are not going to be using any ISDN connections (BRI and PRI), you can install
Asterisk without LibPRI. However, we are going to install it for the sake of completeness.
15. If you don’t install this, this book’s examples will not work, but it could still make a great bathroom reader.
Just sayin’.
$ wget \
http://downloads.asterisk.org/pub/telephony/dahdi-linux-complete/\
dahdi-linux-complete-current.tar.gz
$ tar zxvf dahdi-linux-complete.tar.gz
The next step is to compile and install the software, so onward to the next section.
How to Install It
With the source files downloaded you can compile the software and install it.
Normally, all that is needed to run Asterisk is the Asterisk software itself, however if
you are running a physical PSTN interface (such as a PRI circuit) into your system, there
are two software packages you will need in order to connect the PSTN interface to
Asterisk. Those two packages are named LibPRI and DAHDI. Later on we will discuss
these in more detail. For now, we are going to have you install them simply for com‐
pleteness. If you prefer, you can skip installation of LibPRI and DAHDI, however since
there is no harm or penalty in having them, we recommend building them into your
system right from the get go.
The order for installing is:
1. DAHDI13
2. LibPRI14
3. Asterisk15
Installing in this order ensures that any dependencies for DAHDI and Asterisk are
installed prior to running the configuration scripts, which will subsequently ensure that
any modules dependent on LibPRI or DAHDI will be built.
So, let’s get started.
DAHDI
The Digium Asterisk Hardware Device Interface, or DAHDI (formerly known as Zaptel),
is the software Asterisk uses to interface with telephony hardware. We recommend that
you install it even if you have no hardware installed, because DAHDI is a dependency
52 | Chapter 3: Installing Asterisk
www.it-ebooks.info
required for building the timing module res_timing_dahdi and is used for Asterisk
dialplan applications such as MeetMe().
DAHDI-tools and DAHDI-linux
DAHDI is actually a combination of two separate code bases: DAHDI-tools, which pro‐
vides various administrator tools such as dahdi_cfg, dahdi_scan, etc.; and DAHDI-
linux, which provides the kernel drivers. Unless you’re only updating one or the other,
you’ll be installing both at the same time, which is referred to as DAHDI-linux-
complete. The version numbering for DAHDI-linux-complete will look something like
2.6.1+2.6.1, where the number to the left of the plus sign is the version of DAHDI-
linux included, and the version number to the right of the plus sign is the DAHDI-
tools version included.
There are also FreeBSD drivers for DAHDI, which are maintained by the community.
These drivers are available at the Asterisk website.
Another dependency is required for installing DAHDI, and that is the kernel source. It
is important that the kernel version being used match exactly that of the kernel source
being installed. You can use uname -a to verify the currently running kernel version:
RHEL
sudo yum install kernel-devel
Ubuntu
sudo apt-get install linux-headers-`uname -r`
The use of uname -r surrounded by backticks (`) is for filling in the currently running
kernel version so the appropriate package is installed.
The following commands show how to install DAHDI-linux-complete 2.6.1+2.6.1.
There may be a newer version available by the time you are reading this, so check
downloads.asterisk.org first.
To list the current tags (versions) of DAHDI, you can run the command:
svn ls http://svn.asterisk.org/svn/dahdi/linux-complete/tags
If there is a newer version available, just replace the version number in the commands:
$ cd ~/src/asterisk-complete/
$ mkdir dahdi
$ cd dahdi/
$ svn co http://svn.asterisk.org/svn/dahdi/linux-complete/tags/2.6.1+2.6.1
$ cd 2.6.1+2.6.1
How to Install It | 53
www.it-ebooks.info
If you are using 64-bit RHEL, use the following commands to compile and install
DAHDI:
$ cd tools
$ ./configure --libdir=/usr/lib64
$ make
$ sudo make install
$ cd ../linux
$ make
$ sudo make install
$ cd ..
$ sudo make config
For any other platform, use this set of commands to compile and install DAHDI:
$ make all
$ sudo make install
$ sudo make config
You will need to have Internet access when running the make all com‐
mand, as it will attempt to download the latest hardware firmware from
the Digium servers.
After installing DAHDI, we can move on to installing LibPRI. Information about con‐
figuring DAHDI is available in “PSTN Circuits” on page 150.
You can also download the source via wget from the Asterisk site. Check
the website for the most current version, as these versions will most
likely be out of date by the time you read this.
LibPRI
LibPRI is a library that adds support for ISDN (PRI and BRI). The use of LibPRI is
optional, but since it takes very little time to install, doesn’t interfere with anything, and
will come in handy if you ever want to add cards to a system at a later point, we rec‐
ommend that you install it now. Be sure to install DAHDI prior to installation of LibPRI
as there is a dependency on a DAHDI header file during compilation.
Check out the latest version of LibPRI and compile it thus:
$ cd ~/src/asterisk-complete/
$ mkdir libpri
$ cd libpri/
$ svn co http://svn.asterisk.org/svn/libpri/tags/1.4.<your version number>
$ cd 1.4.<your version number>
$ make
54 | Chapter 3: Installing Asterisk
www.it-ebooks.info
Use the following command to install LibPRI if you are using 64-bit RHEL:
$ sudo make install libdir=/usr/lib64
For any other platform, use this command to install LibPRI:
$ sudo make install
You can also download the source via wget from the Asterisk website.
To list the current tags (versions) of LibPRI, you can run the command:
svn ls http://svn.asterisk.org/svn/libpri/tags.
Asterisk
With both DAHDI and LibPRI installed, we can now install Asterisk:
$ cd ~/src/asterisk-complete/asterisk/11
If you are running 64-bit RHEL, run the configure script with the libdir option:
$ ./configure --libdir=/usr/lib64
On any other platform, run the configure script without any arguments:
$ ./configure
Finally, compile and install Asterisk:
$ make
$ sudo make install
$ sudo make config
(make compiles the code, make install moves the compiled code to the correct location
on the filesystem, and make config configures the operating system to treat Asterisk as
a service, so that it will start at boot time.)
Even More Documentation Goodness
In Asterisk 11, full documentation for the Asterisk Manager Interface (and in the future,
likely even more documentation articles) can be had if Asterisk is built with make full
versus just make. The resulting files are located in the /doc subdirectory of your Asterisk
source, and are also installed into /var/lib/asterisk/documentation.
With the files now installed in their default locations, we need to modify the permissions
of the directories and their contents.
How to Install It | 55
www.it-ebooks.info
There is an additional step that is not strictly required but is quite com‐
mon (and arguably important): the make menuselect command, which
provides a graphical interface that allows detailed selection of which
modules and features will be compiled. We will discuss this in “make
menuselect” on page 64.
Setting File Permissions
In order to run our system more securely, we’ll be installing Asterisk and then running
it as the asteriskpbx user. After installing the files into their default locations, we need
to change the file permissions to match those of the user we’ll be running as. Execute
the following commands after running make install (which we did previously):
$ sudo chown -R asteriskpbx:asteriskpbx /var/lib/asterisk/
$ sudo chown -R asteriskpbx:asteriskpbx /var/spool/asterisk/
$ sudo chown -R asteriskpbx:asteriskpbx /var/log/asterisk/
$ sudo chown -R asteriskpbx:asteriskpbx /var/run/asterisk/
In order to use MeetMe() and DAHDI with Asterisk as non-root, you must change
the /etc/udev/rules.d/dahdi.rules so that the OWNER and GROUP fields match the non-root
user Asterisk will be running as. In this case, we’re using the asteriskpbx user.
Change the last line of the dahdi.rules file to the following:
SUBSYSTEM=="dahdi", OWNER="asteriskpbx", GROUP="asteriskpbx", MODE="0660"
With that out of the way, we can move on to performing the base configuration that
should be done after all installations.
Base Configuration
Now that we’ve got Asterisk installed, we can get our system up and running. The pur‐
pose here is to get Asterisk loaded up and ready to go, as it isn’t doing anything useful
yet. These are the steps that all system administrators will need to start out with when
installing a new system. If the commands that need to be run differ on RHEL and
Ubuntu, you will see a table with rows labeled for each distribution; otherwise, you will
see a single command that should be run regardless of which Linux distribution you
have chosen.
Initial Configuration
In order to get Asterisk up and running cleanly, we need to create some configuration
files. We could potentially install the sample files that come with Asterisk (by executing
the make samples command in our Asterisk source) and then modify those files to suit
our needs, but the make samples command installs many sample files, most of them for
modules that you will never use. We want to limit which modules we are loading, and
56 | Chapter 3: Installing Asterisk
www.it-ebooks.info
16. If your /etc/asterisk folder has files in it already, move those files to another directory, or delete them if you
are sure you don’t need what is there.
17. /usr/src/asterisk-complete/asterisk/asterisk-11.<your version>/
we also believe that it’s easier to understand Asterisk configuration if you build your
config files from scratch, so we’re going to create our own minimal set of configuration
files.16
The first thing we need to do (assuming it does not already exist) is create the /etc/
asterisk directory where our configuration files will live:
$ sudo mkdir -p /etc/asterisk/
$ sudo chown asteriskpbx:asteriskpbx /etc/asterisk/
You only need write permissions on /etc/asterisk for the instructions
below and for certain optional Asterisk features like file-based
voicemail configuration. (Users changing their voicemail PIN, for
example.)
Using make samples to Create Sample
Configuration Files for Future Reference
Even though we are not going to use the sample configuration files that come with
Asterisk, the fact is that they are an excellent reference. If there is a module that you are
not currently using but wish to put into production, the sample file will show you exactly
what syntax to use and what options are available for that module.
Running the sudo make samples command in your Asterisk source directory17 is harm‐
less on a new system that has just been built, but it is very dangerous to run on a system
that already has configuration files, as this command will overwrite any existing files
(which would be a disaster for you if you do not have a current backup).
If you’ve run the sudo make samples command, you will want to move the files that it
has created in /etc/asterisk to another folder. We like to create a folder called /etc/asterisk/
unused and put any sample/unused configuration files in there, but feel free to store
them wherever you like.
Running make samples on a system that already has configura‐
tion files will overwrite the existing files.
Base Configuration | 57
www.it-ebooks.info
18. So minimal, in fact, that it’s completely useless at this point. But we digress.
We’re now going to step through all the files that are required to get a simple Asterisk
system up and running.
indications.conf and asterisk.conf
The first file needed is indications.conf, a file that contains information about how to
detect different telephony tones for different countries. There is a perfectly good sample
file that we can use in the Asterisk source, so let’s copy it into our /etc/asterisk directory:
$ cp ~/src/asterisk-complete/asterisk/11/configs/indications.conf.sample \
/etc/asterisk/indications.conf
Because we’re running Asterisk as non-root, we need to tell Asterisk which user to run
as. This is done with the asterisk.conf file. We can copy a sample version of it from the
Asterisk source to /etc/asterisk:
$ cp ~/src/asterisk-complete/asterisk/11/configs/asterisk.conf.sample \
/etc/asterisk/asterisk.conf
The asterisk.conf file contains many options that we won’t go over here (they are covered
in “asterisk.conf” on page 77), but we do need to make an adjustment. Near the end of
the [options] section, there are two options we need to enable: runuser and rungroup.
Open the asterisk.conf file with an editor such as nano or vim: uncomment the runus
er and rungroup lines, and modify them so that they each contain asteriskpbx as the
assigned value. Open the /etc/asterisk/asterisk.conf file with vim:
$ vim /etc/asterisk/asterisk.conf
Then modify the file by uncommenting the two lines starting with runuser and run
group and modifying the value to asteriskpbx:
runuser=asteriskpbx
rungroup=asteriskpbx
We now have all the configuration files required to start a very minimal version of
Asterisk.18 Give it a shot by starting Asterisk up in the foreground:
$ /usr/sbin/asterisk -cvvv
We are specifying the full path to the asterisk binary, but if you mod‐
ify your PATH system variable to include the /usr/sbin directory you
don’t need to specify the full path. See “Adding a system user” on
page 44 for information about modifying the $PATH environment
variable.
58 | Chapter 3: Installing Asterisk
www.it-ebooks.info
19. You might see the res_adsi module, but you can ignore this, as it’s a bug with certain distro versions and
nothing to be concerned about.
Asterisk will start successfully without any errors or warnings (although it does warn
you that some files are missing), and present to you the Asterisk command-line interface
(CLI). At this point there are no modules, minimal core functionality, and no channel
modules with which to communicate, but Asterisk is up and running.
Executing the module show command at the Asterisk CLI shows that there are no ex‐
ternal modules loaded:19
*CLI> module show
Module Description Use Count
0 modules loaded
We’ve done this simply to demonstrate that Asterisk can be run in a very minimal state,
and doesn’t require the dozens of modules that a default install will enable. Let’s stop
Asterisk with the core stop now CLI command:
*CLI> core stop now
The Asterisk Shell Command
Asterisk can be run either as a daemon or as an application. In general, you will want
to run it as an application when you are building, testing, and troubleshooting, and as
a daemon when you put it into production.
The command to start Asterisk is the same regardless of whether you’re running it as a
daemon or an application:
asterisk
However, without any arguments, this command will assume certain defaults and start
Asterisk as a background application. In other words, you never want to run the com‐
mand asterisk on its own, but rather will want to pass some options to it to better define
the behavior you are looking for. The following list provides some examples of common
usages:
-h This command displays a helpful list of the options you can use. For a complete list
of all the options and their descriptions, run the command man asterisk.
-c This option starts Asterisk as an application (in the foreground). This means that
Asterisk is tied to your user session. In other words, if you close your user session
by logging out or losing the connection, Asterisk dies. This is the option you will
typically use when building, testing, and debugging, but you would not want to use
Base Configuration | 59
www.it-ebooks.info
it in production. If you started Asterisk in this manner, type core stop now at the
CLI prompt to stop Asterisk and exit.
-v, -vv, -vvv, -vvvv, etc.
This option can be used with other options (e.g., -cvvv) in order to increase the
verbosity of the console output. It does exactly the same thing as the CLI command
core set verbose n where n is any integer between 0 and 5 (any integer greater than
5 will work, but will not provide any more verbosity). Sometimes it’s useful to not
set the verbosity at all. For example, if you are looking to see only startup errors,
notices, and warnings, leaving verbosity off will prevent all the other startup mes‐
sages from being displayed.
-d, -dd, -ddd, -dddd, etc.
This option can be used in the same way as -v, but instead of normal output, this
will specify the level of debug output (which is primarily useful for developers who
wish to troubleshoot problems with the code). You will also need to enable output
of debugging information in the logger.conf file (which we will cover in more detail
in Chapter 24).
-r This command is essential if you want to connect to the CLI of an Asterisk process
running as a daemon. You will probably use this option more than any other for
Asterisk systems that are in production. This option will only work if you have a
daemonized instance of Asterisk already running. To exit the CLI when this option
has been used, type exit.
-T This option will add a timestamp to CLI output.
-x This command allows you to pass a string to Asterisk that will be executed as if it
had been typed at the CLI. As an example, to get a quick listing of all the channels
in use without having to start the Asterisk console, simply type asterisk -rx 'core
show channels' from the shell, and you’ll get the output you are looking for.
-g This option instructs Asterisk to dump a core file if it crashes.
We recommend you try out a few combinations of these commands to see what they
do.
60 | Chapter 3: Installing Asterisk
www.it-ebooks.info
safe_asterisk
When you install Asterisk using the make config directive, it will create a script called
safe_asterisk, which is run during the init process of Linux each time you boot.
The safe_asterisk script provides the following benefits:
• Restarts Asterisk automatically after a crash
• Can be configured to email the administrator if a crash has occurred
• Defines where crash files are stored (/tmp by default)
• Executes a script if a crash has occurred
You don’t need to know too much about this script, other than to understand that it
should normally be running. In most environments this script works fine in its default
format.
modules.conf
So, we’ve managed to get Asterisk running, but it’s not able to do anything useful for us
yet. To tell Asterisk what modules we expect it to load, we’ll need a modules.conf file.
Create the file modules.conf in your /etc/asterisk directory with the following command
(replace the >> with > if you instead want to overwrite an existing file):
$ cat >> /etc/asterisk/modules.conf
Type (or paste) the following lines, and press Ctrl+D on a new line when you’re
finished:
; The modules.conf file, used to define which modules Asterisk should load (or
; not load).
;
[modules]
autoload=yes
Ctrl+D
Base Configuration | 61
www.it-ebooks.info
Using cat to Quickly Create Files and Add Content to Them
There are many cases in a Linux system where it is necessary to create a file, and then
add some content to it. This is commonly done by using the touch command to create
the file, and then opening it with an editor to add the content. However, there is a less-
known way of doing this that lets you create the file and add the content all at once:
•Use the cat program to redirect output to the file you want (use >> to append, or
> to overwrite).
• Paste or type the content you want to add to the file.
• Press Ctrl+D to complete your changes.
Presto! File created and content added.
The autoload=yes line will tell Asterisk to automatically load all modules located in
the /usr/lib/asterisk/modules directory. If you wanted to, you could leave the file like
this, and Asterisk would simply load any modules it found in the modules folder.
With your new modules.conf file in place, starting Asterisk will cause a whole slew of
modules to be loaded. You can verify this by starting Asterisk and running the module
show command:
$ asterisk -c
*CLI> module show
Module Description Use Count
app_adsiprog.so Asterisk ADSI Programming Application 0
app_alarmreceiver.so Alarm Receiver for Asterisk 0
...
res_timing_timerfd.so Timerfd Timing Interface 0
195 modules loaded
We now have many modules loaded, and many additional dialplan applications and
functions at our disposal.
You’ll notice some modules not getting loaded because their configu‐
ration files have not been created. We’ll deal with the modules we care
about later.
We don’t need all these resources loaded, though, so let’s filter out some of the more
obscure modules that we don’t need at the moment. Modify your modules.conf file to
contain the following noload lines, which will tell Asterisk to skip loading the identified
modules:
62 | Chapter 3: Installing Asterisk
www.it-ebooks.info
; The modules.conf file, used to determine which modules Asterisk should load (or
; not load.
;
[modules]
autoload=yes
; Resource modules
noload => res_speech.so
noload => res_phoneprov.so
noload => res_ael_share.so
noload => res_clialiases.so
noload => res_adsi.so
; PBX modules
noload => pbx_ael.so
noload => pbx_dundi.so
; Channel modules
noload => chan_oss.so
noload => chan_mgcp.so
noload => chan_skinny.so
noload => chan_phone.so
noload => chan_agent.so
noload => chan_unistim.so
noload => chan_alsa.so
; Application modules
noload => app_nbscat.so
noload => app_amd.so
noload => app_minivm.so
noload => app_zapateller.so
noload => app_ices.so
noload => app_sendtext.so
noload => app_speech_utils.so
noload => app_mp3.so
noload => app_flash.so
noload => app_getcpeid.so
noload => app_setcallerid.so
noload => app_adsiprog.so
noload => app_forkcdr.so
noload => app_sms.so
noload => app_morsecode.so
noload => app_followme.so
noload => app_url.so
noload => app_alarmreceiver.so
noload => app_disa.so
noload => app_dahdiras.so
noload => app_senddtmf.so
noload => app_sayunixtime.so
noload => app_test.so
noload => app_externalivr.so
noload => app_image.so
Base Configuration | 63
www.it-ebooks.info
noload => app_dictate.so
noload => app_festival.so
There are, of course, other modules that you could remove, and others that you may
find extremely useful, so feel free to tweak this file as you wish. Ideally, you should be
loading only the modules that you need for the system you are running. The examples
in this book assume that your modules.conf file looks like our example here.
Additional information about the modules.conf file can be found in the section “mod‐
ules.conf” on page 83.
musiconhold.conf
The musiconhold.conf file defines the classes for music on hold (MOH) in your Asterisk
system. By defining different classes, you can specify different hold music to be used in
various situations, such as different announcements to be played while holding in a
queue, or different hold music if you have multiple PBXs hosted on the same system.
For now, we’ll just create a default MOH class, so we have at least some music to play
when placing callers on hold:
$ cd /etc/asterisk/
$ cat > musiconhold.conf
; musiconhold.conf
[general]
[default]
mode=files
directory=moh
Ctrl+D
We’ve created a musiconhold.conf file and defined our [default] hold music class. We’re
also assuming you installed the hold music from the menuselect system; by default there
is at least one MOH package installed, so unless you disabled it, you should have music
in at least one format.
Additional information about musiconhold.conf can be found in the section “musicon‐
hold.conf” on page 86.
make menuselect
menuselect is a text-based menu system in Asterisk used to configure which modules
to compile and install. The modules are what give Asterisk its power and functionality.
New modules are constantly being created.
64 | Chapter 3: Installing Asterisk
www.it-ebooks.info
20. A good way to put the final touches on your new system is to install some appropriate sound files to be used
as MOH. There are only three songs installed by default, and callers will quickly tire of listening to the same
three songs over and over again. We’ll discuss this more in “musiconhold.conf” on page 86.
Within each of the different categories, the list of modules is further
broken down into three sections, which represent the support states of
the modules. More information about the module support states is
available in “Modules” on page 10 and on the Asterisk wiki.
In the installation sections, we conveniently skipped over using the menuselect system
in order to keep the instructions simple and straightforward. However, it is important
enough that we have given menuselect its own section.
In addition to specifying which modules to install, menuselect also allows you to set
flags that can aid in debugging issues (see Chapter 2), set optimization flags, choose
different sound prompt files and formats, and do various other nifty things.
Uses for menuselect
We would need a whole chapter in order to fully explore menuselect, and for the most
part you won’t need to make many changes to it. However, the following example will
give you an idea of how menuselect works, and it is recommended for any installation.
By default Asterisk only installs the core sound prompt files, and only in GSM format.
Also, the three OpSound MOH files available for download are only selected in .wav
format.20
We’re going to want extra sound prompts installed instead of just the default core sound
prompts, and in a better-sounding format than GSM. We can do this with the
menuselect system by running make menuselect in the Asterisk source directory. Before
exploring that, though, let’s talk about the different menuselect interfaces.
menuselect interfaces
There are two interfaces available for menuselect: curses and newt. If the libnewt li‐
braries are installed, you will get the blue and red interface shown in Figure 3-1. Other‐
wise, by default menuselect will use the curses (black and white) interface shown in
Figure 3-2.
Base Configuration | 65
www.it-ebooks.info
The minimum screen size for the curses interface is 80×27 pixels, which
means it may not load if you’re using the default terminal size for a
simple distribution installation. This is not a problem when you’re using
SSH to reach the server remotely, as typically your terminal can be re‐
sized, but if you’re working at the terminal directly you may need to
have screen buffers installed to enable a higher resolution, which is not
recommended for a system running Asterisk. The solution is to use the
newt-based menuselect system.
Figure 3-1. menuselect using the newt interface
66 | Chapter 3: Installing Asterisk
www.it-ebooks.info
Figure 3-2. menuselect using the curses interface
Installing Dependencies for newt-Based menuselect
To get the newt-based menuselect working, you need to have the libnewt development
libraries installed:
RHEL
sudo yum install libnewt-devel
Ubuntu
sudo apt-get install libnewt-dev
If you’ve previously used menuselect with the curses interface, you need to rebuild. You
can do this with the following commands:
$ cd ~/src/asterisk-complete/asterisk/11.<your version>/
$ cd menuselect
$ make clean
$ ./configure
$ cd ..
$ make menuselect
After that you should have the newt-based interface available to you.
Base Configuration | 67
www.it-ebooks.info
21. Which we will cover in Chapter 16, along with many other cool things.
22. If you want to understand all about mu-law and A-law, read the section “Logarithmic companding” on page
727. All you need to know here is that outside of North America and Japan, A-law is used.
Using menuselect
Run the following commands to start menuselect:
$ cd ~/src/asterisk-complete/asterisk/11.<your version>/
$ make menuselect
You will be presented with a screen like the one in either Figure 3-1 or Figure 3-2. You
can use the arrow keys on your keyboard to move up and down. The right arrow key
will take you into a submenu, and the left arrow key will take you back. You can use the
space bar or Enter key to select and deselect modules. Pressing the q key will quit
without saving, while the x key will save your selections and then quit.
Module Dependencies
Modules that have XXX in front of them cannot be compiled because the configure script
was not able to find the dependencies required (for example, if you don’t have the
unixODBC development package installed, you will not be able to compile func_odbc21).
Whenever you install a dependency, you will always need to rerun configure before you
run menuselect, so that the new dependency will be properly located. The dependent
module will at that point be available in menuselect. If the module selection still contains
XXX, either the configure script is still unable to find the dependency or not all depen‐
dencies have been satisfied.
Once you’ve started menuselect, scroll down to Core Sound Packages and press the
right arrow key (or Enter) to open the menu. You will be presented with a list of available
options. These options represent the core sound files in various languages and formats.
By default, the only set of files selected is CORE-SOUNDS-EN-GSM, which is the English-
language Core Sounds package in GSM format.
Select CORE-SOUNDS-EN-WAV and CORE-SOUNDS-EN-ULAW (or ALAW if you’re outside of
North America or Japan22), and any other sound files that may be applicable in your
network.
The reason we have multiple formats for the same files is that As‐
terisk can play back the appropriate format depending on which
codec is negotiated by an endpoint. This can lower the CPU load
on a system significantly.
68 | Chapter 3: Installing Asterisk
www.it-ebooks.info
After selecting the appropriate sound files, press the left arrow key to go back to the
main menu. Then scroll down two lines to the Extra Sound Packages menu and press
the right arrow key (or Enter). You will notice that by default there are no packages
selected. As with the core sound files, select the appropriate language and format to be
installed. A good option is probably to install the English sound files in the WAV, ULAW,
and ALAW formats.
Once you’ve completed selecting the sound files, press the x key to save and exit
menuselect. You then need to install your new prompts by downloading them from the
Asterisk downloads site. This is done simply by running make install again:
$ sudo make install
$ sudo chown -R asteriskpbx:asteriskpbx /var/lib/asterisk/sounds/
The files will be downloaded, extracted, and installed into the appropriate location
(/var/lib/asterisk/sounds/<language> by default). Your Asterisk server will need to have
a working Internet connection in order to retrieve the files.
Scripting menuselect
Administrators often build tools when performing installations on several machines,
and Asterisk is no exception. If you need to install Asterisk onto several machines, you
may wish to build a set of scripts to help automate this process. The menuselect system
contains command-line options that you can use to enable or disable the modules that
are built and installed by Asterisk.
If you are starting with a fresh checkout of Asterisk, you must first execute the
configure script in order to determine what dependencies are installed on the system.
Then you need to build the menuselect application and run the make menuselect-tree
command to build the initial tree structure:
$ cd ~/src/asterisk-complete/asterisk/11.<your version>/
$ ./configure
$ cd menuselect
$ make menuselect
$ cd ..
$ make menuselect-tree
Generating input for menuselect ...
For details about the options available, run menuselect/menuselect --help from the top
level of your Asterisk source directory. You will see output similar to this:
Usage: menuselect/menuselect [--enable <option>] [--disable <option>]
[--enable-category <category>] [--enable-all]
[--disable-category <category>] [--disable-all] [...]
[<config-file> [...]]
Usage: menuselect/menuselect { --check-deps | --list-options
| --list-category <category> | --category-list | --help }
[<config-file> [...]]
Base Configuration | 69
www.it-ebooks.info
The options displayed can then be used to control which modules are installed via the
menuselect application. For example, if you wanted to disable all modules and install a
base system (which wouldn’t be of much use) you could use the command:
$ menuselect/menuselect --disable-all menuselect.makeopts
If you then look at the menuselect.makeopts file, you will see a large amount of text that
displays all the modules and categories that have been disabled. Let’s say you now want
to enable the SIP channel and the Dial() application. Enabling those modules can be
done with the following command, but before doing that, look at the current menuse
lect.makeopts (after disabling all the modules) and locate app_dial in the MENUSE
LECT_APPS category and chan_sip in the MENUSELECT_CHANNELS category. After exe‐
cuting the following command, look at the menuselect.makeopts file again, and you will
see that those modules are no longer listed:
$ menuselect/menuselect --disable-all --enable chan_sip \
--enable app_dial menuselect.makeopts
The modules listed in the menuselect.makeopts file are those that will not
be built—modules that are not listed will be built when the make ap‐
plication is executed.
You can then build the menuselect.makeopts file in any way you want by utilizing the
other commands, which will allow you to build custom installation scripts for your
system using any scripting language you prefer.
Updating Asterisk
If this is your first installation, you can go to the section “Base Configuration” on page
56. If you’re in the process of updating your system, however, there are a couple of things
you should be aware of.
When we say updating your system, that is quite different from up‐
grading your system. Updating your system is the process of installing
new minor versions of the same branch. For example, if your system is
running Asterisk 11.2.0 and you need to upgrade to the latest bug fix
version for the 11 branch, which was version 11.3.0, you’d be updat‐
ing your system to 11.3.0. In contrast, we use the term upgrade to refer
to changes between Asterisk branches (major version number increa‐
ses). So, for example, an upgrade would be going from Asterisk 10.0.0
to Asterisk 11.0.0.
70 | Chapter 3: Installing Asterisk
www.it-ebooks.info
When performing an update, you follow the same instructions outlined in the section
“How to Install It” on page 52.
Additionally, if you’ve checked out a new directory for this version of
Asterisk (versus running svn up on a checked-out branch), and previ‐
ously used menuselect to tweak the modules to be compiled, you can
copy the menuselect.makeopts file from one directory to another prior
to running ./configure. By copying menuselect.makeopts from the old
version to the new version, you save the step of having to (de)select all
your modules again.
The basic steps are:
$ cd ~/src/asterisk-complete/asterisk/11.<your version number>/
$ ./configure
$ make
$ sudo make install
$ sudo chown -R asteriskpbx:asteriskpbx
{/var/lib,/var/spool,/var/log,/var/run}/asterisk
Upon installation, however, you may get a message like the following:
WARNING WARNING WARNING
Your Asterisk modules directory, located at
/usr/lib/asterisk/modules
contains modules that were not installed by this
version of Asterisk. Please ensure that these
modules are compatible with this version before
attempting to run Asterisk.
chan_mgcp.so
chan_oss.so
chan_phone.so
chan_skinny.so
codec_g729a.so
WARNING WARNING WARNING
This warning message is indicating that modules installed in the /usr/lib/asterisk/
modules directory are not compatible with the version you’ve just installed. This most
often occurs when you have installed modules in one version of Asterisk, and then
installed a new version of Asterisk without compiling those modules (as the installation
process will overwrite any modules that existed previously, replacing them with their
upgraded versions).
Updating Asterisk | 71
www.it-ebooks.info
You can safely make install on top of a running Asterisk system. Trying
to manually cp over a loaded module will likely get you a segfault (crash)
though. The former replaces instead of overwrites.
To get around the warning message, you can clear out the /usr/lib/asterisk/modules
directory prior to running make install. There is a caveat here, though: if you’ve installed
third-party modules, such as commercial modules from Digium (including
res_fax_digium, codec_g729a, etc.), you will need to reinstall those if you’ve cleared
out your modules directory.
It is recommended that you keep a directory with your third-party modules in it that
you can reinstall from when you update your Asterisk system. So, for example, you
might create the /usr/src/asterisk-complete/thirdparty/11 directory as follows:
$ cd ~/src/asterisk-complete/
$ mkdir thirdparty/
$ mkdir thirdparty/11/
Downloading third-party modules into this directory allows you to easily reinstall those
modules when you upgrade. Just follow the installation instructions for your module,
many of which will be as simple as rerunning make install from the modules source
directory or copying the precompiled binary to the /usr/lib/asterisk/modules directory.
Be sure to change the file permissions to match those of the user running
Asterisk!
Common Issues
In this section we’re going to cover some common issues you may run into while
compiling Asterisk, DAHDI, or LibPRI. Most of the issues you’ll run into have to do
with missing dependencies. If that is the case, please review “Software Dependencies”
on page 49 to make sure you’ve installed everything you need. For each of the issues
listed below, we’ve provided the command needed to install the missing dependency,
for both Ubuntu and RHEL.
Any time you install additional packages, you will need to run
the ./configure script in your Asterisk source in order for the new pack‐
age to be detected.
72 | Chapter 3: Installing Asterisk
www.it-ebooks.info
-bash: wget: command not found
This message means you have not installed the wget application, which is required for
you to download packages from the Asterisk downloads site, for Asterisk to download
sound files, or for DAHDI to download firmware for hardware.
Ubuntu RHEL
$ sudo apt-get install wget $ sudo yum -y install wget
configure: error: no acceptable C compiler found in $PATH
This means that the Asterisk configure script is unable to find your C compiler, which
typically means you have not yet installed one. Be sure to install the gcc package for your
system.
Ubuntu RHEL
$ sudo apt-get install gcc $ sudo yum install gcc
make: gcc: command not found
This means that the Asterisk configure script is unable to find your C compiler, which
typically means you have not yet installed one. Be sure to install the gcc package for your
system.
Ubuntu RHEL
$ sudo apt-get install gcc $ sudo yum install gcc
configure: error: C++ preprocessor “/lib/cpp” fails sanity check
This error is presented by the Asterisk configure script when you have not installed the
GCC C++ preprocessor.
Ubuntu RHEL
$ sudo apt-get install g++ $ sudo yum install gcc-c++
configure: error: *** Please install GNU make. It is required to build
Asterisk!
This error is encountered when you have not installed the make application, which is
required to build Asterisk.
Ubuntu RHEL
$ sudo apt-get install make $ sudo yum install make
Common Issues | 73
www.it-ebooks.info
configure: *** XML documentation will not be available because the
‘libxml2’ development package is missing.
You will encounter this error when the XML parser libraries are not installed. These are
required by Asterisk, since console documentation (e.g., when you run core show ap‐
plication dial on the Asterisk CLI) is generated from XML.
Ubuntu RHEL
$ sudo apt-get install libxml2-dev $ sudo yum install libxml2-devel
configure: error: *** termcap support not found
This error happens when you don’t have the ncurses development library installed,
which is required by menuselect and for other console output in Asterisk.
Ubuntu RHEL
$ sudo apt-get install ncurses-dev $ sudo yum install ncurses-devel
You do not appear to have the sources for the 2.6.18-164.6.1.el5
kernel installed.
You will get this error when attempting to build DAHDI without having installed the
Linux headers, which are required for building Linux drivers.
Ubuntu RHEL
$ sudo apt-get install linux-
headers-`uname -r`
$ sudo yum install kernel-devel
kernel-headers
E: Unable to lock the administration directory (/var/lib/dpkg/), are
you root?
If you encounter this error, it’s likely that you forgot to prepend sudo to the start of the
command you were running, which requires root permissions.
Upgrading Asterisk
Upgrading Asterisk between major versions, such as from 1.6.2 to 1.8 or from 10 to 11
is akin to upgrading an operating system. Once a phone switch is in production, it is
terribly disruptive for that system to be unavailable for nearly any length of time, and
the upgrade of that phone system needs to be well thought-out, planned, and tested as
much as possible prior to deployment. And because every deployment is different, it is
difficult, if not impossible, for us to walk you through a real system upgrade. However,
we can certainly point you in the right direction for the information you require in order
to perform such an upgrade, thereby giving you the tools you need to be successful.
74 | Chapter 3: Installing Asterisk
www.it-ebooks.info
23. More information about Asterisk releases and their support schedule is available at the Asterisk wiki.
A production Asterisk system should never be upgraded between major versions
without first deploying it into a development environment where the existing config‐
uration files can be tested and reviewed against new features and syntax changes between
versions. For example, it may be that your dialplan relies on a deprecated command and
should be updated to use a new command that contains more functionality, has a better
code base, and will be updated on a more regular basis. Commands that are deprecated
are typically left in the code for backward-compatibility, but issues reported about these
deprecated commands will be given lower priority than issues related to the newer
preferred methods.
Two files should be read prior to any system upgrade: CHANGES and UPGRADE.txt,
which are shipped with the Asterisk source code. These files contain details on changes
to syntax and other things to be aware of when upgrading between major versions. The
files are broken into different sections that reference things such as dialplan syntax
changes, channel driver syntax changes, functionality changes, and deprecation of
functionality, with suggestions that you update your configuration files to use the new
methods.
Another thing to consider when performing an upgrade is whether you really need to
perform the upgrade in the first place. If you’re using a long-term support (LTS)23
version of Asterisk and that version is working well for you, there may be no reason to
upgrade your existing production system. An alternative to upgrading the entire system
is simply to add functionality to your system by running two versions simultaneously
on separate systems. By running separate boxes, you can access the functionality added
to a later version of Asterisk without having to disrupt your existing production system.
You can then perform the migration more gradually, rather than doing a complete sys‐
tem upgrade instantly.
We strongly recommend that you do not use your production system
to test out new functions and releases. Instead, build a separate system
(a virtual machine can be excellent for this), which you can use as a
sandbox. You can connect it to your production system by means of
a SIP trunk between the two, so that you can make your external trunks
and extensions available to the sandbox system. In addition to this, if
you are planning an upgrade of your production system, you may want
to build a fresh install of Asterisk on another virtual machine, and test
the upgrade out before committing to upgrading the production sys‐
tem. Once you have tested the upgrade and are happy with the results,
you will have much more confidence during the actual upgrade.
Upgrading Asterisk | 75
www.it-ebooks.info
Two parts of Asterisk should be thoroughly tested when performing an upgrade between
major versions: the Asterisk Manager Interface (AMI) and the Asterisk Gateway
Interface (AGI).
These two parts of Asterisk rely on testing your code to make sure any cleanup of syntax
changes in either the AMI or the AGI, or added functionality, do not interfere with your
existing code. By performing a code audit on what your program is expecting to send
or receive against what actually happens, you can save yourself a headache down the
road.
The testing of call detail records (CDRs) is also quite important, especially if they are
relied upon for billing. The entire CDR structure is really designed for simple call flows,
but it is often employed in complex call flows, and when someone reports an issue to
the tracker and it is fixed, it can sometimes have an effect on others who are relying on
the same functionality for different purposes. Asterisk 11 includes channel event logging
(CEL), which is a system designed to get around some of the limitations of CDR in more
complex call flows (such as those that involve transfers, etc.). More information about
CEL is available in “CEL (Channel Event Logging)” on page 654.
Upgrading Asterisk can be a successful endeavor as long as sufficient planning and
testing are carried out prior to the full rollout. In some cases migrating to a separate
physical machine on which you’ve performed testing is preferred, as it can give you a
system to roll back to in case of some failure that can’t be resolved immediately. It’s the
planning, and particularly having a backup plan, that is the most important aspect of
an Asterisk upgrade.
Conclusion
In this chapter we looked at how to install an operating system appropriate for Asterisk
(either Ubuntu or RHEL), as well as Asterisk itself. We improved security by using sudo
and running Asterisk as the non-root user asteriskpbx. We now have a solid foundation
on which to build our Asterisk system. In the following chapters we will explore how
to connect devices to our Asterisk system in order to start placing calls internally, and
look at how to connect Asterisk to outside services in order to place and accept phone
calls to endpoints connected to the PSTN.
76 | Chapter 3: Installing Asterisk
www.it-ebooks.info
Careful. We don’t want to learn from this.
—Calvin & Hobbes
CHAPTER 4
Initial Configuration Tasks
In the last chapter, we covered how to install Asterisk. But where should you get started
with configuration? That is the question this chapter answers. There are a few common
configuration files that are relevant regardless of what you are using Asterisk to ac‐
complish. In some cases they may not require any modification, but you need to be
aware of them.
asterisk.conf
The asterisk.conf configuration file allows you to tweak various settings that can affect
how Asterisk runs as a whole.
There is a sample asterisk.conf file included with the Asterisk source. It is not necessary
to have this file in your /etc/asterisk folder to have a working system, but you may find
that some of the possible options will be of use to you.
Asterisk will look for asterisk.conf in the default configuration location,
which is usually /etc/asterisk. To specify a different location for aster
isk.conf, use the -C command-line option:
$ asterisk -C /custom/path/to/asterisk.conf
The [directories] Section
For most installations of Asterisk, changing the directories is not necessary. However,
this can be useful for running more than one instance of Asterisk at the same time, or
if you would like files stored in nonstandard locations.
77
www.it-ebooks.info
The default directory locations and the options you can use to modify them are listed
in Table 4-1. For additional information about the usage of these directories, see “File
Structure” on page 27 in Chapter 2.
The [directories] header in the sample asterisk.conf contains a (!)
that marks it as a template (meaning changes under this header will not
take effect). To make the changes under [directories] take effect, re‐
move the (!). See “sip.conf” on page 101 for a tip on using templates.
Table 4-1. asterisk.conf [directories] section
Option Value/Example Notes
astetcdir /etc/asterisk The location where the Asterisk configuration files are stored.
astmoddir /usr/lib/asterisk/
modules
The location where loadable modules are stored.
astvarlibdir /var/lib/asterisk The base location for variable state information used by various parts
of Asterisk. This includes items that are written out by Asterisk at
runtime.
astdbdir /var/lib/asterisk Asterisk will store its internal database in this directory as a file called
astdb.
astkeydir /var/lib/asterisk Asterisk will use a subdirectory called keys in this directory as the
default location for loading keys for encryption.
astdatadir /var/lib/asterisk This is the base directory for system-provided data, such as the sound
files that come with Asterisk.
astagidir /var/lib/asterisk/
agi-bin
Asterisk will use a subdirectory called agi-bin in this directory as the
default location for loading AGI scripts.
astspooldir /var/spool/asterisk The Asterisk spool directory, where voicemail, call recordings, and the
call origination spool are stored.
astrundir /var/run/asterisk The location where Asterisk will write out its Unix control socket as
well as its process ID (PID) file.
astlogdir /var/log/asterisk The directory where Asterisk will store its logfiles.
The [options] Section
This section of the asterisk.conf file configures defaults for global runtime options. The
available options are listed in Table 4-2. Most of these are also controllable via
command-line parameters to the asterisk application. For a complete list of the
command-line options that relate to these options, see the Asterisk manpage:
$ man asterisk
78 | Chapter 4: Initial Configuration Tasks
www.it-ebooks.info
Table 4-2. asterisk.conf [options] section
Option Value/Example Notes
verbose 3 Sets the default verbose setting for the Asterisk logger. This value
is also set by the -v command-line option. The verbose level is 0
by default.
debug 3 Sets the default debug setting for the Asterisk logger. This value is
also set by the -d command-line option. The debug level is 0 by
default.
alwaysfork yes Forking forces Asterisk to always run in the background. This
option is set to no by default.
nofork yes Forces Asterisk to always run in the foreground. This option is set
to no by default.
quiet yes Quiet mode reduces the amount of output seen at the console
when Asterisk is run in the foreground. This option is set to no by
default.
timestamp yes Adds timestamps to all output except output from a CLI command.
This option is set to no by default.
execincludes yes Enables the use of #exec in Asterisk configuration files. This
option is set to no by default.
console yes Runs Asterisk in console mode. Asterisk will run in the foreground
and will present a prompt for CLI commands. This option is set to
no by default.
highpriority yes Runs the Asterisk application with realtime priority. This option is
set to no by default.
initcrypto yes Loads keys from the astkeydir at startup. This option is set to
no by default.a
nocolor yes Suppresses color output from the Asterisk console. This is useful
when saving console output to a file. This option is set to no by
default.
dontwarn yes Disables a few warning messages. This option was put in place to
silence warnings that are generally correct but may be considered
to be so obvious that they become an annoyance. This option is set
to no by default.
dumpcore yes Tells Asterisk to generate a core dump in the case of a crash. This
option is set to no by default.b
languageprefix yes Configures how the prompt language is used in building the path
for a sound file. By default, this is yes, which places the language
before any subdirectories, such as en/digits/1.gsm. Setting this
option to no causes Asterisk to behave as it did in previous
versions, placing the language as the last directory in the path
(e.g., digits/en/1.gsm).
asterisk.conf | 79
www.it-ebooks.info
Option Value/Example Notes
internal_timing yes Uses a timing source to synchronize audio that will be sent out to
a channel in cases such as file playback or music on hold. This
option is set to yes by default and should be left that way; its
usefulness has greatly diminished over the last few major versions
of Asterisk.
systemname my_ system _name Gives this instance of Asterisk a unique name. When this has been
set, the system name will be used as part of the uniqueid field
for channels. This is incredibly useful if more than one system will
be logging CDRs to the same database table. By default, this
option is not set.
autosystemname yes Automatically sets the system name by using the hostname of the
system. This option is set to no by default.
mindtmfduration 80 Sets the minimum duration of DTMF messages. If Asterisk receives
a DTMF message with a duration less than this minimum amount,
the duration value of the DTMF message will be changed to the
amount configured by this option.
maxcalls 100 Sets a maximum number of simultaneous inbound channels. No
limit is set by default.
maxload 0.9 Sets a maximum load average. If the load average is at or above
this threshold, Asterisk will not accept new calls. No threshold is
set by default.
maxfiles 1000 Sets the maximum number of file descriptors that Asterisk is
allowed to have open. The default limit imposed by the system is
commonly 1024, which is not enough for heavily loaded systems.
It is common to set this limit to a very high number. By default, a
system-imposed limit is used.c
minmemfree 1 Sets the minimum number of megabytes of free memory required
for Asterisk to continue accepting calls. If Asterisk detects that
there is less free memory available than this threshold, new calls
will not be accepted. This option is not set by default.
cache_record_files yes When doing recording, stores the file in the re
cord_cache_dir until recording is complete. Once complete,
it will be moved into the originally specified destination. The
default for this option is no.
record_cache_dir /tmp Sets the directory to be used when cache_record_files is
set to yes. The default location is a directory called tmp within
the astspooldir.
transmit_silence yes Transmits silence to the caller in cases where there is no other
audio source. This includes call recording and the Wait() family
of dialplan applications, among other things. The default for this
option is no.d
transcode_via_sln yes When building a codec translation path, forces signed linear to be
one of the steps in the path. The default for this option is yes.
80 | Chapter 4: Initial Configuration Tasks
www.it-ebooks.info
Option Value/Example Notes
runuser asterisk Sets the system user that the Asterisk application should run as.
This option is not set by default, meaning that the application will
continue to run as the user that executed the application.
rungroup asterisk Sets the system group that the Asterisk application should run as.
This option is not set by default.
lightbackground yes When using colors in the Asterisk console, it will output colors that
are compatible with a light-colored background. This option is set
to no by default, in which case Asterisk uses colors that look best
on a black background.
forceblackbackground yes In terminals with light-colored backgrounds, you can force
Asterisk to set the background color to black in order for the colors
on the console to show up correctly.
defaultlanguage en Sets the default language.
documentation_language en_US The built-in documentation for Asterisk applications, functions,
and other things is included in an external XML document. This
option specifies the preferred language for documentation. If it is
not available, the default of en_US will be used.
hideconnect yes Setting this option to yes causes Asterisk to not display
notifications of remote console connections and disconnections at
the Asterisk CLI. This is useful on systems where there are scripts
that use remote consoles heavily. The default setting is no.
lockconfdir no When this option is enabled, the Asterisk configuration directory
will be protected with a lock. This helps protect against having
more than one application attempting to write to the same file at
the same time. The default value is no.
stdexten gosub When using users.conf, the hasvoicemail=yes option
invokes a stdexten routine. In Asterisk 1.4, this would be done
using a macro, but in later versions of Asterisk it uses a GoSub
(the preferred method since Asterisk 1.6.0). This option is used for
backwards compatibility.
asterisk.conf | 81
www.it-ebooks.info
Option Value/Example Notes
a If any of the keys require a passphrase, it will block Asterisk’s startup process. An alternative is to run keys init at the Asterisk
command line.
b This is critical for debugging crashes. However, Asterisk must be compiled with the DONT_OPTIMIZE option enabled in menuselect
for the core dump to be useful.
c In order to determine what the current value is, you can run:
$ sudo cat /proc/`pidof asterisk`/limits
It will show you the various system set limits, including maximum number of open files. A good value for max open files is somewhere
around “peak calls” multiplied by 5 (assuming 2 RTP and RTCP ports per channel, plus overhead). So if you were going to have 300
simultaneous calls, you would want at least 1,500 max open files.
You can either set this with the asterisk.conf file using the maxfiles option, or you can set it with in the /etc/security/
limits.conf file for your operating system.
d It’s important to note that when this option is enabled, the silence is generated in uncompressed signed linear format, so it will
have to be transcoded into the format that the caller’s channel expects. The result may be that transcoding is required for a call
that would not normally require it.
The [files] Section
This section of asterisk.conf includes options related to the Asterisk control socket. It is
primarily used by remote consoles (asterisk -r). The available options are listed in
Table 4-3.
Table 4-3. asterisk.conf [files] section
Option Value/Example Notes
astctlpermissions 0660 Sets the permissions for the Asterisk control socket.
astctlowner root Sets the owner for the Asterisk control socket.
astctlgroup apache Sets the group for the Asterisk control socket.
astctl asterisk.ctl Sets the filename for the Asterisk control socket. The default is asterisk.ctl.
The [compat] Section
Occasionally, the Asterisk development team decides that the best way forward involves
making a change that is not backward-compatible. This section contains some options
(listed in Table 4-4) that allow reverting behavior of certain modules back to previous
behavior.
Table 4-4. asterisk.conf [compat] section
Option Value/Example Notes
pbx_realtime 1.6 In versions earlier than Asterisk 1.6.x, the pbx_realtime module would
automatically convert pipe characters into commas for arguments to Asterisk
applications. This is no longer done by default. To enable this previous behavior, set this
option to 1.4.
82 | Chapter 4: Initial Configuration Tasks
www.it-ebooks.info
Option Value/Example Notes
res_agi 1.6 In versions earlier than Asterisk 1.6.x, the EXEC AGI command would automatically
convert pipe characters into commas for arguments to Asterisk applications. This is no
longer done by default. To enable this previous behavior, set this option to 1.4.
app_set 1.6 Starting with the Asterisk 1.6.x releases, the Set() application only allows setting the
value of a single variable. Previously, Set() would allow setting more than one
variable by separating them with a &. This was done to allow any characters in the value
of a variable, including the & character, which was previously used as a separator.
MSet() is a new application that behaves like Set() used to. However, setting this
option to 1.4 makes Set() behave like MSet().
modules.conf
This file is not strictly required in an Asterisk installation; however, without any modules
Asterisk won’t really be able to do anything, so for all practical purposes, you need a
modules.conf file in your /etc/asterisk folder. If you simply define autoload=yes in your
modules.conf file, Asterisk will search for all modules in the /usr/lib/asterisk/modules
folder and load them at startup.
Although most modules do not use much in the way of resources, and they all load very
quickly, it just seems cleaner to our minds to load only those modules that you are
planning on using in your system. Additionally, there are security benefits to not loading
modules that accept connections over a network.
In the past we felt that explicitly loading each desired module was the best way to handle
this, but we have since found that this practice creates extra work. After every upgrade
we found ourselves having to edit the modules.conf file to correct all the module differ‐
ences between releases, and the whole process ended up being needlessly complicated.
What we prefer to do these days is to allow Asterisk to automatically load the modules
that it finds, but to explicitly tell Asterisk not to load any modules we do not want loaded
by use of the noload directive. A sample modules.conf file can be found in “mod‐
ules.conf” on page 61.
Using menuselect to Control Which Modules Are Compiled
and Installed
One other way that you can control which modules Asterisk loads is to simply not
compile and install them in the first place. During the Asterisk installation process, the
make menuselect command provides you with a menu interface that allows you to specify
many different directives to the compiler, including which modules to compile and
install. If you never compile and install a module, the effect of this at load time is that
it won’t exist, and therefore won’t be loaded. If you are new to Linux and Asterisk, this
modules.conf | 83
www.it-ebooks.info
may create confusion for you if you later want to use a module and discover that it doesn’t
exist on your system.
More information about menuselect is available in “make menuselect” on page 64.
The [modules] Section
The modules.conf file contains a single section. The options available in this section are
listed in Table 4-5. With the exception of autoload, all of the options may be specified
more than once.
A list of all loadable modules is available in Chapter 2, with notes on
our opinions regarding the popularity/status of each of them.
Table 4-5. modules.conf [modules] section
Option Value/Example Notes
autoload yes Instead of explicitly listing which modules to load, you can use this directive to tell
Asterisk to load all modules it finds in the modules directory, with the exception of
modules listed as not to be loaded using the noload directive. The default, and our
recommendation, is to set this option to yes.
preload res_odbc.so Indicates that a module should be loaded at the beginning of the module load order.
This directive is much less relevant than it used to be; modules now have a load
priority built into them that solves the problems this directive was previously used to
solve.
load chan_sip.so Defines a module that should be loaded. This directive is only relevant if autoload is
set to no.
noload chan_alsa.so Defines a module that should not be loaded. This directive is only relevant if auto
load is set to yes.
require chan_sip.so Does the same thing as load; additionally, Asterisk will exit if this module fails to
load for some reason.
preload-
require
res_odbc.so Does the same thing as preload; additionally, Asterisk will exit if this module fails to
load for some reason.
indications.conf
The sounds that people expect from the telephone network vary in different parts of
the world. Different countries or regions present different sounds for events such as
dialtone, busy signal, ringback, congestion, and so forth.
The indications.conf file defines the parameters for the various sounds that a telephone
system might be expected to produce, and allows you to customize them. In the early
84 | Chapter 4: Initial Configuration Tasks
www.it-ebooks.info
days of Asterisk, this file only contained sounds for a limited number of countries, but
it is now quite comprehensive.
To assign the tones common for your region to channels, you can simply assign the
tonezone using the CHANNEL() function, and that tonezone will apply for the duration
of the call (unless changed later):
Set(CHANNEL(tonezone)=[yourcountry]) ; i.e., uk, de, etc.
However, since signaling from a call could come from various places (from the carrier,
from Asterisk, or even from the set itself), you should note that simply setting the
tonezone in your dialplan does not guarantee that those tones will be presented in all
situations.
Hacking indications.conf for Fun and Profit
If you have too much time on your hands, you can do all sorts of pointless but enter‐
taining things with your indications. For example, fans of Star Wars can make the fol‐
lowing change to the end of their indications.conf files:
[starwars](us)
description = Star Wars Theme Song
ring = 262/400,392/500,0/100,349/400,330/400,294/400,524/400,392/500,0/100,
349/400,330/400,294/400,524/400,392/500,0/100,349/400,330/400,349/400,
294/500,0/2000
If you then use the country named 'starwars' in your configuration files or dialplan,
any ringing you pass back will sound quite different from the standard ring you are used
to. Try the following dialplan code to test out your new ringing sound:
exten => 500,1,Answer()
same => n,Set(CHANNEL(tonezone)=starwars)
same => n,Dial(SIP/0000FFFF0002) ; or whatever your channel
; is named in sip.conf
Depending on the type of device used to call into this example, you
may wonder if it will actually work. SIP phones, for example, typ‐
ically generate their own tones instead of having Asterisk generate
them. This example was carefully crafted to ensure that Asterisk
will generate a ringback tone to the caller. The key is the An
swer() that is executed first. Later, when an outbound call is made
to another device, the only method Asterisk has available to pass
back a ringing indication to the caller is by generating inband audio,
since as far as the caller’s phone is concerned, this call has already
been answered.
indications.conf | 85
www.it-ebooks.info
While Asterisk will run without an indications.conf file, it is strongly recommended that
you include one: copy the sample over with sudo cp ~/src/asterisk-complete/11/
configs/indications.conf.sample, modify the country parameter in the [gener
al] section to match your region, and restart Asterisk.
chan_dahdi Ignores indications.conf
DAHDI does not use the indications.conf file from Asterisk, but rather has the tones
compiled in. For more information, see Chapter 7.
If your system supports multiple countries (for example, if you have a centralized
Asterisk system that has users from different regions), you may not be able to simply
define the default country. In this case, you have a couple of options:
1. Define the country in the channel definition file for the user.
2. Define the country in the dialplan using the CHANNEL(tonezone) function.
For more information about using Asterisk in different countries, see Chapter 9.
musiconhold.conf
If you plan on selling Asterisk-based telephone systems and you do not change the
default music on hold that ships with Asterisk, you are sending the message, loud and
clear, that you don’t really know what you are doing.
Sometimes it’s nearly impossible to find a set of hold music files that
can satisfy your customers requirements. Alternatively, you can just
play beep tones instead of music. One website that has a free copy of a
beep tone is http://www.university-music-on-hold.com/.
Part of the problem with music on hold (MOH) is that while in the past it was common
to just plug a radio or CD player into the phone system, the legal reality is that most
music licenses do not actually allow you to do this. That’s right: if you want to play music
on hold, somebody, somewhere, typically wants you to pay them for the privilege.
So how should you deal with this? There are two legal ways: 1) pay for a music on hold
license from the copyright holder, or 2) find a source of music that is released under a
license suitable for Asterisk.
We’re not here to give you legal advice; you are responsible for understanding what is
required of you in order to use a particular piece of music as your music on hold source.
86 | Chapter 4: Initial Configuration Tasks
www.it-ebooks.info
What we will do, however, is show you how to take the music you have and make it
work with Asterisk.
Getting Free Music
There are several websites that offer music that has been released under Creative Com‐
mons or other licenses. Lately, we’ve been enjoying music from Jamendo. Each song
may have its own licensing requirements, and just because you can download a song for
free does not mean you have permission to use it as music on hold. Be aware of the
licensing terms for the music you are planning to use for your music on hold.
Converting Music to a Format That Works Best with Asterisk
It’s quite common to have music in MP3 format these days. While Asterisk can use MP3s
as a music source, this method is not at all ideal. MP3s are heavily compressed, and in
order to play them the CPU has to do some serious work to decompress them in real
time. This is fine when you are only playing one song and want to save space on your
iPod, but for music on hold, the proper thing to do is convert the MP3 to a format that
is easier on the CPU.
RHEL Prerequisite
Since RHEL does not have MP3 capability installed with sox, you will have to install
mpg123 before you can convert MP3 files for use with Asterisk.
First you will need to install the rpmforge repository. To find out which version you
need, open your web browser and go to http://repoforge.org/use/. Select the text for the
version/architecture you want to install and paste it into your shell:
$ rpm -Uhv http://pkgs.repoforge.org/rpmforge-release/\
rpmforge-release-....rpm
Once the repository has been added, you can proceed to get mpg123:
$ yum install mpg123
Once that’s done, your RHEL system is ready to convert MP3 files for use with
Asterisk.
If you are familiar with the file formats and have some experience working with audio
engineering software such as Audacity, you can convert the files on your PC and upload
them to Asterisk. We find it is simpler to upload the source MP3 files to the Asterisk
server (say, to the /tmp folder), and then convert them from the command line.
musiconhold.conf | 87
www.it-ebooks.info
To convert your MP3 files to a format that Asterisk understands, you need to run the
commands outlined here (in this example we are using a file named SilentCity.mp3).
RHEL
First, convert the MP3 file to a WAV file:
$ mpg123 -w SilentCity.wav SilentCity.mp3
Then, downsample the resulting WAV file to a sampling rate that Asterisk understands:
$ sox SilentCity.wav -t raw -r 8000 -s -2 -c 1 SilentCity.sln
If you don’t have sox installed yet, you can do so with yum install sox.
Ubuntu
If you have not done so already, install sox, and the libsox-fmt-all package:
$ sudo apt-get install sox libsox-fmt-all
Then, convert your MP3 file directly to the uncompressed SLN format:
$ sox SilentCity.mp3 -t raw -r 8000 -s -2 -c 1 SilentCity.sln
In previous versions of sox (e.g., versions before 14.3.0), the -2 option
was previously -w.
Completing file conversion
The resulting file will exist in the /tmp folder (or wherever you uploaded to) and needs
to be copied to the /var/lib/asterisk/moh folder:
$ cp *.sln /var/lib/asterisk/moh
You now need to reload musiconhold in Asterisk in order to have it recognize your new
files:
$ asterisk -rx "module unload res_musiconhold.so"
$ asterisk -rx "module load res_musiconhold.so"
To test that your music is working correctly, add the following to the [UserServices]
context in your dialplan:
exten => 664,1,NoOp()
same => n,Progress()
same => n,MusicOnHold()
88 | Chapter 4: Initial Configuration Tasks
www.it-ebooks.info
Dialing 664 from one of your sets should play a random file from your moh directory.
Default musiconhold.conf file
Let’s look at the basic musiconhold.conf file that comes in the sample files with Asterisk.
We’ve cleaned it up a bit, but this file can be dropped into your /etc/asterisk directory
to enable the basic music on hold functionality.
You’ll need to install some music on hold files, which is enabled in
menuselect by default, before you’ll get any music.
This is what the default file contains:
[general]
[default]
mode=files
directory=moh
In the next couple of sections, we’ll review what other options are available in the
musiconhold.conf file.
The [general] section
The [general] section only has a single option (as shown in Table 4-6), and it is only
useful when loading music on hold from realtime (see “Dynamic Realtime” on page 453
for information about the extconfig.conf and dynamic realtime functionality).
Table 4-6. musiconhold.conf [general] section
Option Value/Example Notes
cachertclasses yes This option is used to tell Asterisk to cache realtime MOH classes into memory when they are
loaded. The default value is no. Available values are yes or no.
The music on hold classes sections
Below the [general] section, you define classes of music on hold with a name between
square braces; e.g., [jazz]. The following options, listed in Table 4-7, are available.
musiconhold.conf | 89
www.it-ebooks.info
Table 4-7. musiconhold.conf classes sections
Option Value/Example Notes
mode files The mode determines how the music on hold class should behave. When
the mode is set to files, then files are played from a directory on the
filesystem (see the description of the directory option, below). If the mode
is set to custom, then an application can be used to stream music rather
than play it off the filesystem directly (see the description of the application
option, below). Additional values include:
quietmp3
Plays back MP3 files; must use the format_mp3 module, which can be
enabled in the Add-Ons menu within menuselect
mp3
Same as above, but a louder version
mp3nb
Same as above, but unbuffered
quietmp3nb
Same as quietmp3, but unbuffered
directory moh A directory name that specifies where the files exist. The path is relative
to /var/lib/asterisk (or the path defined by astvarlibdir in aster
isk.conf).
digit # If the digit option is defined for a MOH class, then when a caller is
listening to MOH and they press this digit, then the MOH class will switch to
the class that defines this digit.
announcement queue-thankyou If defined for a MOH class, then prior to music being played this announce
ment will be presented to the caller. It will also be presented when
switching between music files. The most common scenario to use this is
likely with queues. See “Playing Announcements Between Music on Hold
Files” on page 356 for more information.
sort alpha Allows sorting of the files to be played alphanumerically. If this option is not
set, then the sort order will be undefined.
application /usr/bin/stream
player
172.16.0.100 888
When used in conjunction with mode=custom, you can define an
application that will supply the audio to the channel when MOH is called.a
format ulaw If using a stream of audio from a remote location in conjunction with
mode=custom and application, you can define what format
Asterisk can expect to handle.
a This can be quite expensive if the application lives locally and is doing re-encoding of the file for every channel. If that is the case,
then you’re best off converting your MOH files to a native format like ulaw and using mode=files.
90 | Chapter 4: Initial Configuration Tasks
www.it-ebooks.info
Additional Configuration Files
Based on the modules that you installed during the installation phase (those that you
selected in menuselect, compiled, and subsequently installed), you’ll have additional
configuration files that you’ll need to add to the /etc/asterisk directory in order to get a
clean start. To determine what files you might be missing, you can start Asterisk in the
foreground with the asterisk -c command.
Once you’ve started Asterisk in the foreground, you’ll see output similar to the following:
[ Initializing Custom Configuration Options ]
Unable to load config file 'acl.conf'
Unable to open AMI configuration manager.conf, or configuration is invalid.
Asterisk management interface (AMI) disabled.
Unable to load config file 'udptl.conf'
Could not reload udptl config
Could not load features.conf
Could not find valid ccss.conf file. Using cc_max_requests default
Could not find valid ccss.conf file. Using cc_[state]_devstate defaults
130 modules will be loaded.
...Unable to load config res_stun_monitor.conf
Unable to load config smdi.conf: SMDI disabled
No SMDI interfaces are available to listen on, not starting SMDI listener.
If we look at our output, we can see we’re missing the following configuration files:
acl.conf, manager.conf, udptl.conf, features.conf, ccss.conf, res_stun_monitor.conf, and
smdi.conf.
To get started with a full set of configuration files, we’ll often copy in from the sample
directory the base set of files, and then go back and modify them as appropriate. This
is often the quickest way to get going with a full set of configuration data, but without
the bulk of using something like make samples. An example command that we might
run in bash could be:
$ cd ~/src/asterisk-complete/asterisk/11
$ for f in acl manager udptl features ccss res_stun_monitor smdi; do
cp configs/$f.conf.sample /etc/asterisk/$f.conf;
done
From here, we can start Asterisk and validate that we’re starting clean.
Conclusion
This chapter helped you complete some initial configuration of Asterisk. From here you
can move on to setting up some phones and taking advantage of the many features
Asterisk has to offer.
Additional Configuration Files | 91
www.it-ebooks.info
www.it-ebooks.info
I don’t always know what I’m talking about,
but I know I’m right.
—Muhammad Ali
1. This has nothing to do with Asterisk configuration, and each hardware manufacturer will have its own tools
to allow you to configure its devices. Most SIP telephones have some sort of web interface, and most soft‐
phones have a configuration menu built into their GUI.
CHAPTER 5
User Device Configuration
In this chapter, we’ll delve into the user devices that you may want to connect to Asterisk;
typically, VoIP telephones of some sort. Configuring a channel in Asterisk for the device
to connect through is relatively straightforward, but you also need to configure the
device itself so it knows where to send its calls.1 In other words, there are two separate
tasks needed to configure a device to work with Asterisk: 1) telling Asterisk about the
device, and 2) telling the device about Asterisk.
Some Thoughts About the SIP Protocol
The Session Initiation Protocol (SIP) is a peer-to-peer protocol, and while it is common
to have a setup where endpoints act as clients, and some sort of gateway acts as a server,
the protocol itself thinks in terms of peer-to-peer relationships. What this means is that
a SIP telephone is quite capable of making a direct connection to another SIP telephone,
without a PBX in between.
The reality is that most SIP transactions happen through a server of some sort, and in
the case of Asterisk, it is common to have the PBX remain in the middle, bridging all
connections. When a SIP call is made from a telephone to another telephone through
Asterisk, there are actually two calls happening: a call from the originating set to Asterisk,
and another separate call from Asterisk to the destination set (this second leg of the call
might not even use SIP). Asterisk bridges the two together.
93
www.it-ebooks.info
2. Actually, Asterisk does try to implement and abstract the concepts of users and devices internally by using
the users.conf file; however, it is typically only used by the Asterisk GUI. Abstracting the concepts logically
using the dialplan is easier to understand and far more flexible.
Using a SIP phone with Asterisk means that you will want to configure the SIP telephone
to send all its calls to Asterisk, even though the device is quite capable of directly con‐
necting to another SIP endpoint without the Asterisk server. The phone will treat As‐
terisk as its proxy server (even though Asterisk is in fact a Back to Back User Agent, or
B2BUA), and will look to Asterisk for routing decisions for all calls.
While most devices will have a web-based interface for defining parameters, if you’re
putting more than one or two phones into production, we recommend using a server-
based configuration process, wherein the set only needs to be given the location of a
configuration server. The set will connect to the server, identify itself, and download
customized files that define the required parameters for that telephone (it is very com‐
mon to use the MAC address of the telephone as an identifier for naming each unique
config file). As an example, configuration files could be in XML format, located on an
HTTPS server. The exact download process, protocol, and syntax of these files will differ
from manufacturer to manufacturer (most manufacturers offer more than one way to
serve up config files). There are dozens of different manufacturers of SIP telephones,
each having a slightly different method of handling server-based configuration, and to
attempt to cover all of them (and keep ever-changing processes up to date) would be
impossible. Most manufacturers offer freely downloadable and detailed configuration
guides for their telephones, so if you’re familiar with configuring Linux and you do a
bit of research, you will find a wealth of information on the subject online. In our
experience the documentation provided by each manufacturer is excellent, and will
represent the most up-to-date information on provisioning their devices.
This is a book about Asterisk, and in this chapter we focus on the configuration of sets
from the perspective of Asterisk.
Telephone Naming Concepts
Before we get started with configuring Asterisk for our telephones, we are going to
recommend some best practices regarding telephone naming: abstracting the concepts
of users, extension numbers, and telephones.
In Asterisk, all the system cares about is the channel name. There is really no concept
of a user at all,2 and extensions are nothing more than triggers that initiate a sequence
of instructions. For example, you might write a bit of dialplan specifying that when
extension number 100 is requested, it should call the phone on my desk. However,
extension 100 could just as easily call a company voicemail box, play back a prompt,
join a conference room, or any number of other things. We can even specify that
94 | Chapter 5: User Device Configuration
www.it-ebooks.info
extension 100 should ring the device on my desk from Monday to Friday between 9
A.M. and 5 P.M., but ring a device on someone else’s desk the rest of the time. Inversely,
when a call is made from a device during business hours, the callerID could show a
daytime number, and the rest of the time could show an after-hours number (many
reception desks become security desks at night).
Asterisk Extensions
The concept of an extension in Asterisk is crucial. In most PBXs, an extension is a
number that you dial to cause a phone or service to ring. In Asterisk, an extension is the
name of a grouping of instructions in the dialplan. Think of an Asterisk extension as a
script name, and you’re on the right track. Yes, an Asterisk extension could be a number
(such as 100) that rings a phone, but it could just as easily be a name (such as voice
mail) that runs a sequence of dialplan applications.
We’ll be going into Asterisk extensions in far more detail throughout this book, but
before we do that we want to get some phones set up.
The abstraction between the name of an extension and what that extension does is a
powerful concept in Asterisk, as extension 100 could do a number of things depending
on any number of variables that are programmed into the system. This is especially
relevant in the context of features such as hot-desking.
Hot-desking is a feature that allows someone to log into a device and receive his calls at
that device. Let’s say we have three sales agents who typically work outside of the office,
but spend a couple of days each month in the office to do paperwork. Since they are
unlikely to be onsite at the same time, instead of having a separate telephone for each
of those three sales agents, they could share a single office phone (or on a larger scale,
a dozen folks could share a pool of, say, three phones). This scenario illustrates the
convenience (and necessity) of allowing the system to separate the concept of a user and
extension from the physical phone.
So what are some examples of bad names for telephone devices? Something like a per‐
son’s name, such as [SimonLeBon], would be a poor name for a telephone, as the phone
may also be used by Joan Jett and Rick Astley. The same reasoning can be applied to
why you would not want to name a phone based on an extension number: a phone name
of [100] would be a poor choice since you might want to reprovision the device for
extension 160 in the future, or it might be used by several people with different exten‐
sions in a hot-desking solution. Using numeric account names is also very bad from a
security perspective and is discussed in more detail in Chapter 26.
A popular way to name a phone is using the MAC address of the device. This is a unique
identifier specific to the phone that follows it where it goes and doesn’t directly relate
to the user operating the phone or the extension number currently associated with it.
Telephone Naming Concepts | 95
www.it-ebooks.info
Some corporations have stickers they place on their equipment with a bar code and
other information that allows them to keep stock of provisioned equipment; these
unique codes would also be an acceptable choice to use for phone names as they don’t
provide any logical relation to a particular person, but do provide specific information
about the devices themselves.
The choice is yours as to how you want to name your phones, but we primarily want to
abstract any concept of the telephone being owned by a person, or even its location in
the network, since these concepts are outside the realm of Asterisk and can change at
any time.
Throughout this book, you’ll see us using phone names that look like MAC addresses
(such as 0000FFFF0001 and 0000FFFF0002) to differentiate among devices. You will want
to use phone names that match the hardware you are using (or some other string that
is unique to the device you are registering).
As a final consideration, we should make it clear that what we are suggesting regarding
device names is not a technical requirement. You are free to name your devices anything
you want, as long as your names meet the requirements of Asterisk’s naming conven‐
tions for devices (stay with alphanumeric characters with no spaces and you’ll be fine).
Hardphones, Softphones, and ATAs
There are three types of endpoints you would typically provide your users with that
could serve as a telephone set. They are popularly referred to as hardphones, softphones,
and Analog Terminal Adapters (ATAs).
A hardphone is a physical device. It looks just like an office telephone: it has a handset,
numbered buttons, a screen of some sort, etc. It connects directly to the network, and
it’s what people are referring to when they talk about a VoIP telephone (or a SIP tele‐
phone).
A softphone is a software application that runs on a laptop, desktop, smart phone, or
other computing device. The audio must pass through the device’s sound system, so you
normally need a headset that will work well with telephony applications. More recently,
softphone applications have been written for smart phones that allow you to connect
to networks other than just the cellular network. The interface of the softphone is often
styled to look like a physical telephone, but this is not necessary.
An ATA is designed to allow traditional analog telephones (and other analog devices,
such as fax machines, cordless phones, paging amplifiers, and such) to connect to a SIP
96 | Chapter 5: User Device Configuration
www.it-ebooks.info
3. Or any other network, for that matter. ATAs could more formally be said to be analog-to-digital gateways,
where the nature of the digital protocol may vary (e.g., proprietary ATAs on traditional PBXs). The point is,
an ATA is not necessarily a SIP device.
4. An ATA is not the only way to connect analog phones. Hardware vendors such as Digium sell cards that go
in the Asterisk server and provide analog telephony ports.
network,3 and will typically be a sandwich-sized box that contains an RJ11 connector
for the phone (commonly referred to as a Foreign eXchange Station, or FXS, port), an
RJ45 connector for the network, and a power connector. Some ATAs may support more
than one phone. Other ATAs may have advanced features in them such as a firewall, or
a Foreign eXchange Office (FXO) port (an analog port that can connect to a PSTN
circuit).
Hardphones have the advantage that the handsets have good acoustic properties for
voice communications. Any decent-quality telephone is engineered to pick up the fre‐
quencies of the human voice, filter out unwanted background noise, and normalize the
resulting waveform. People have been using telephones for as long as the telephone
network has existed, and we tend to like what is familiar, so having a device that com‐
municates with Asterisk using a familiar interface will be attractive to many users. Also,
a hardphone does not require your computer to be running all the time.
Disadvantages to hardphones include that they are nonportable and expensive, relative
to the many quality softphones on the market today that are available for free. Also, the
extra clutter on your desk may not be desirable if you have limited work space, and if
you move around a lot and are not generally at the same location, a hardphone is not
likely to suit your needs (although, one at each location you frequent might be a valid
solution).
Softphones solve the portability issue by being installed on a device that is likely already
moving with you, such as your laptop or smart phone. Also, their minimal cost (typically
free, or around $30 for a fully featured one) is attractive. Because many softphones are
free, it is likely that the first telephone set you connect to Asterisk will be a softphone.
Also, because softphones are just software, they are easy to install and upgrade, and they
commonly have other features that utilize other peripherals, like a webcam for video
calling, or perhaps an ability to load files from your desktop for faxing.
Some of the disadvantages of softphones are the not-always-on nature of the devices,
the necessity to put on a headset each time you take a call, and the fact that many PCs
will at random times during the day choose to do something other than what the user
wants them to do, which might cause the softphone to stop working while some back‐
ground task hogs the CPU.
ATAs have the advantage of allowing you to connect analog devices4 to your SIP net‐
work, such as cordless phones (which are still superior in many cases to more advanced
Hardphones, Softphones, and ATAs | 97
www.it-ebooks.info
5. For a really awesome cordless analog phone, you want to check out the EnGenius DuraFon devices, which
are expensive, but impressive.
types of wireless phones5), paging amplifiers, and ringers. ATAs can also sometimes be
used to connect to old wiring, where a network connection might not function
correctly.
The main disadvantage of an ATA is that you will not get the same features through
an analog line as you would from a SIP telephone. This is technology that is over a
century old.
With Asterisk, we don’t necessarily need to make the choice between having a softphone,
a hardphone, or an ATA; it’s entirely possible and quite common to have a single ex‐
tension number that rings multiple devices at the same time, such as a desk phone, the
softphone on a laptop, a cell phone, and perhaps a strobe light in the back of the factory
(where there is too much noise for a ringer to be heard).
Asterisk will happily allow you to interact with the outside world in ways that were
scarcely dreamed of only a few years ago. As we see more unification of communications
applications with the popularity of social networks, communities such as Skype, and
more focus on network-based services such as those provided by Google, the flexibility
and popularity of software-based endpoints will continue to grow. The blurring of the
lines between voice and applications is constantly evolving, and softphones are well
positioned to rapidly respond to these changes.
We still like a desk phone, though.
Configuring Asterisk
In this section we’ll cover how to create the sip.conf and iax.conf configuration files in
the /etc/asterisk directory, which are used for defining the parameters by which SIP and
IAX2 devices can communicate with your system.
Asterisk allows devices using many different protocols to speak to it
(and therefore to each other). However, the SIP and IAX2 protocols
are the most popular and mature VoIP modules, so we will focus our
attention on them. For your first Asterisk build, you’re probably best
off not bothering with the other protocols (such as Skinny/SCCP,
Unistim, H.323, and MGCP). If you are interested in one of those other
protocols, focus on getting comfortable working with SIP and IAX2
first. The configuration for the other protocols is similar, and the sam‐
ple configuration files are full of information and examples, so once
you have the basics down, other protocols should be relatively easy to
work with.
98 | Chapter 5: User Device Configuration
www.it-ebooks.info
The channel configuration files, such as sip.conf and iax.conf, contain the configuration
information relevant to that channel driver (such as chan_iax2.so or chan_sip.so), as
well as the parameters and credentials specific to the telephony devices you wish to
connect to Asterisk through that technology type.
Common information about the channel driver is contained at the top of the configu‐
ration file, in the [general] section. All section names are encased in square brackets,
including device names. Anything that follows a section name (or device definition,
which for our purposes is essentially the same thing) is applied to that section. The
[general] section can also contain information to define defaults for device configu‐
rations. Anything in the [general] section can be overridden in the section specific to
each device (or a template assigned to that section). Asterisk also comes with defaults
that are hardcoded, so while some settings are mandatory, many other settings can be
ignored as long as you are happy with the defaults.
Asterisk will assign parameters using the following ranking:
1. The specific section for the relevant channel
2. The template for the section
3. The [general] section
4. The hardcoded defaults
This means that even if you haven’t specified a setting for a particular
parameter in a channel section, your channel will still have a setting for
that parameter. If you are not sure, you can always set the parameter
explicitly in the section of the configuration file that deals with that
specific channel (or in the relevant template). Having said that, many
of the defaults are settings that won’t need to be changed, so don’t worry
too much about parameters that are not specific to your needs; the de‐
faults should be fine.
This concept should make more sense as you read on.
How Channel Configuration Files Work with the Dialplan
While we haven’t discussed Asterisk dialplans yet, it is useful to be able to visualize the
relationship between the channel configuration files (sip.conf, iax.conf) and the dialplan
(extensions.conf). The dialplan is the heart of an Asterisk system: it controls how call
logic is applied to any connection from any channel, such as what happens when a device
dials extension 101 or an incoming call from an external provider is routed. Both the
relevant channel configuration file and the extensions.conf file play a role in most calls
Configuring Asterisk | 99
www.it-ebooks.info
6. The concept of a dialplan context is discussed in detail in the dialplan chapters. It is the context that defines
where in the dialplan a call coming in on a channel will be handled.
routed through the system. Figure 5-1 provides a graphical representation of the rela‐
tionship between the sip.conf and extensions.conf files.6
When a call comes into Asterisk, the identity of the incoming call is matched in the
channel configuration file for the protocol in use (e.g., sip.conf). The channel configu‐
ration file also handles authentication and defines where that channel will enter the
dialplan.
Once Asterisk has determined how to handle the channel, it will pass call control to the
correct context in the dialplan. The context parameter in the channel configuration
file tells the channel where it will enter the dialplan (which contains all the information
about how to handle and route the call).
Figure 5-1. Relationship of sip.conf to extensions.conf
Conversely, if the dialplan has been programmed to dial another device (in the above
example, this would happen at the point where extension 101 triggers the Dial() ap‐
plication), a request to dial telephony device 0000FFFF0002 will use the channel con‐
figuration file to determine how to pass the call back out of the dialplan to the destination
telephone on the network (including such details as authentication, codec, and so forth).
The destination does not have to be a telephone. It can be any type of channel that
Asterisk knows about.
A key point to remember is that the channel configuration files control not only how
calls enter the system, but also how they leave the system. So, for example, if one set
calls another set, the channel configuration file is used not only to pass the call into the
dialplan, but also to direct the call out from the dialplan to the destination.
100 | Chapter 5: User Device Configuration
www.it-ebooks.info
7. The SIP RFC is a long read, but about the first 25 pages are a good introduction.
sip.conf
The SIP7 channel module is arguably the most mature and feature-rich of all the channel
modules in Asterisk. This is due to the enormous popularity of the SIP protocol, which
has taken over the VoIP/telecom industry and been implemented in thousands of de‐
vices and PBXs. If you look through the sip.conf.sample file in the ./configs subdirectory
of your Asterisk source, you will notice a wealth of options available. Fortunately, the
default options are normally all you need to get going, and therefore you can create a
very simple configuration file that will allow most standard SIP telephones to connect
with Asterisk.
The first thing you need to do is create a configuration file in your /etc/asterisk directory
called sip.conf.
Paste or type the following information into the file:
[general]
context=unauthenticated ; default context for incoming calls
allowguest=no ; disable unauthenticated calls
srvlookup=no ; disable DNS SRV record lookup on outbound calls
; (unless you have a reliable DNS connection,
; in which case yes)
udpbindaddr=0.0.0.0 ; listen for UDP requests on all interfaces
tcpenable=no ; disable TCP support
[office-phone](!) ; create a template for our devices
type=friend ; the channel driver will match on username first,
; IP second
context=LocalSets ; this is where calls from the device will enter
; the dialplan
host=dynamic ; the device will register with asterisk
nat=force_rport,comedia ; assume device is behind NAT
; *** NAT stands for Network Address Translation,
; which allows multiple internal devices to share an
; external IP address.
dtmfmode=auto ; accept touch-tones from the devices, negotiated
; automatically
disallow=all ; reset which voice codecs this device will accept or offer
allow=g722 ; audio codecs to accept from, and request to, the device
allow=ulaw ; in the order we prefer
allow=alaw
; define a device name and use the office-phone template
[0000FFFF0001](office-phone)
secret=4VQ96sg6ROc ; a unique password for this device --
; DON'T USE THE PASSWORD WE'VE USED IN THIS EXAMPLE!
Configuring Asterisk | 101
www.it-ebooks.info
; define another device name using the same template
[0000FFFF0002](office-phone)
secret=sKAw7GCTtcA ; a unique password for this device --
; DON'T USE THE PASSWORD WE'VE USED IN THIS EXAMPLE!
Open the sip.conf file you’ve just created, and we’ll go over each item.
We’ve created four sections, the first one being the [general] section. This is a standard
section that appears at the top of the configuration file for all channel modules, and
must always be named in this way. The [general] section contains general configura‐
tion options for how that protocol relates to your system, and can be used to define
default parameters as well.
For example, we’ve defined the default context as unauthenticated, to ensure that we
have explicitly declared where unauthenticated guest calls will enter the dialplan (rather
than leaving that to chance). We’ve named it unauthenticated to make it obvious that
calls processed in this context are not trusted, and thus should not be able to do things
such as make outbound calls to the PSTN (which could potentially cost money, or
represent identity theft). You should be aware that we could have used any name we
wanted, and also that there needs to be an identically named context in exten
sions.conf to define the call flow for unauthenticated calls.
The next option is allowguest, which we’ve disabled as we don’t want to accept any
unauthenticated calls at this time. Keep in mind that for some channels you may actually
want to accept unauthenticated calls. A common use for allowing unauthenticated calls
is for companies that allow dialing by uniform resource identifiers (URIs), like email
addresses. If we wanted to allow customers to call us from their phones without having
to authenticate, we could enable guest calls and handle them in the unauthenticated
context defined by the previous option.
You may be wondering why you might ever want to allow unauthenti‐
cated calls. The reason is that if you publish your SIP URI on your
business cards (e.g., sip:leif.madsen@shifteight.org), calls to that
URI will fail if your unauthenticated context simply hangs up. What
you want instead is for your unauthenticated context to put incoming
calls into a controlled environment. You may wish to allow the calls,
since it’s a good thing to be able to let people call you, but you can’t trust
those calls (in terms of allowing them access to system resources, such
as outgoing lines). The concept here is similar to a network DMZ.
The whole concept of security and trust on a VoIP network is something
that can become quite complex. Spammers are already hard at work
figuring out this technology, and you need to be aware of the concepts.
We’ll cover this in more depth later in the book, such as in Chapters 7
and 26.
102 | Chapter 5: User Device Configuration
www.it-ebooks.info
8. If you have srvlookup set to yes, and your Internet or DNS connection is down, this can cause all sorts of
performance issues.
9. The complement to this option is tcpbindaddr, used for listening for requests carried via the TCP network
transport protocol.
The srvlookup option is used to instruct Asterisk to perform a lookup via a DNS SRV
record, which is typically used for outbound connections to service providers. If DNS
is not available to your system, this should be set to no.8 We’ll talk more about Asterisk
and DNS in Chapter 12.
The udpbindaddr9 option takes the value of an IP address or 0.0.0.0 to tell Asterisk
which network interface it should listen to for requests carried by the UDP network
transport protocol (which is the protocol that actually carries the voice channels in a
SIP call). By defining 0.0.0.0, we’re instructing the channel driver to listen on all avail‐
able interfaces. Alternatively, we could limit VoIP connections for this protocol to a
single interface by defining the IP address of a specific network interface on our system.
Currently in Asterisk the udpbindaddr and tcpbindaddr options are
an all-or-one proposition. In other words, if you have three NICs in
your system, you can’t restrict VoIP traffic to two of them: it’s either
one only, or all of them.
IPv6 in sip.conf
Asterisk supports IPv6 for both SIP and RTP traffic. All of the configuration options
in /etc/asterisk/sip.conf related to IP addresses can accept either an IPv4 or an IPv6 ad‐
dress. As an example, consider the different values for the udpbindaddr option:
udpbindaddr value Description
192.168.100.50 Bind to a specific IPv4 address
2001:db8::1 Bind to a specific IPv6 address
0.0.0.0 Bind to all IPv4 addresses on the
system
:: Bind to all IPv4 and IPv6 addresses
The tcpenable option allows us to accept requests via the TCP network transport pro‐
tocol. For now we’ve disabled it, as the UDP method is currently more mature (and
more popular) and we’re attempting to eliminate as many barriers as possible. Having
said that, feel free to test TCP support once you’re comfortable configuring your
devices.
Configuring Asterisk | 103
www.it-ebooks.info
There are also tlsenable and tlsbindaddr options for enabling SIP
over Transport Layer Security (TLS, or encrypted SIP). We’ll cover the
configuration of SIP with TLS in Chapter 7.
The next section we’ve defined is a template we have chosen to name [office-phone]
(!). We’ve created it as a template so that we can use the values within it for all of our
devices.
Following the section name in a configuration file with (!) tells Asterisk
to treat this section as a template. By doing this we eliminate the need
to repetitively add and change configuration options for every device
we choose to define. Templates are extremely useful and are available
in all of Asterisk’s configuration files. If you want to change something
for an individual device that was previously defined in the template for
that device, you can do that under the section header for that device
only, and it will override what was defined by the template. It is not
necessary to use templates, but they are extremely useful, and we use
them extensively.
In the [office-phone](!) template, we’ve defined several options required for au‐
thentication and control of calls to and from devices that use that template. The first
option we’ve configured is the type, which we’ve set to friend. This tells the channel
driver to attempt to match on name first, and then IP address.
SIP Configuration Matching and the type Option
In the example we have provided, the configuration for SIP phones is set with
type=friend. There are two other type definitions you can use: user and peer. The
differences among them have to do with how Asterisk interprets incoming SIP requests.
The rules are covered in this table:
type = Description
peer Match incoming requests to a configuration entry using the
source IP address and port number.
user Match incoming requests to a configuration entry using the
username in the From header of the SIP request. This name is
matched to a section in sip.conf with the same name in square
brackets.
friend This enables matching rules for both peer and user. This is
the setting most commonly used for SIP phones.
104 | Chapter 5: User Device Configuration
www.it-ebooks.info
10. This process is known as registration. See “Testing to Ensure Your Devices Have Registered” on page 114 for
more information about device registration concepts.
When a request from a telephone is received and authenticated by Asterisk, the re‐
quested extension number is handled by the dialplan in the context defined in the
device configuration; in our case, the context named LocalSets. In other words, this is
how we define how a channel enters the dialplan.
The host parameter defines the IP address of the far end for this channel (needed when
we want to send a call to it). If we define the value as dynamic, we let Asterisk know that
the telephone will tell us where it is on the network instead of having its location defined
statically.10 If we wanted to define the address statically, we could replace dynamic with
an IP address such as 192.168.128.30. Bear in mind that if you define a static address
for a SIP channel, connections on that channel will no longer work if the address of the
device changes. The advantage of defining a static IP address is that the device will not
need to register in order for Asterisk to know where it is located.
Strictly speaking, the nat parameter is only needed when the remote device (the tele‐
phone) is behind a firewall with network address translation (NAT). This is important
because the SIP protocol includes IP addresses in messages. If a phone is on a private
network, it may end up placing private addresses in SIP messages, which are often not
useful.
More information about configuration of Asterisk for interaction
with devices behind NAT and Asterisk itself behind NAT is in
“Coping with Network Address Translation” on page 161.
The dtmfmode option is used to define which DTMF (touch-tone) format Asterisk
should expect to be sent by the telephone. The four options are: info, inband,
rfc2833, and auto. The info value means to use the SIP INFO method, inband is for
inband audio tones, and rfc2833 is for the out-of-band method defined by that RFC.
Using auto allows Asterisk to automatically determine which DTMF mode to use (it
prefers rfc2833 if available).
The last two options, disallow and allow (sip.conf), are used to control which audio
codecs are accepted from and offered to the telephone. By defining disallow=all first,
we’re telling Asterisk to reset any previously defined codec definitions in the [gener
al] section (or the internal defaults); then we explicitly declare which codecs we’ll accept
(and the order we prefer). In our example we’ve enabled both ulaw and alaw, with ulaw
most preferred (if you are outside of Canada or the US, you’ll likely want to declare alaw
first).
Configuring Asterisk | 105
www.it-ebooks.info
Now that we’re finished with our template, we can define our device names and, utilizing
the office-phone template, greatly simplify the amount of detail required under each
device section. The device name is defined in the square brackets, and the template to
be applied is defined in the parentheses following the device name. We can add addi‐
tional options to the device name by specifying them below the device name:
[0000FFFF0003](office-phone) ; template must be on same line and no space between
secret=o3dbMtrRV6U ; DON'T USE THE PASSWORD WE'VE USED IN THIS EXAMPLE!
allow=gsm
The password for the device is defined by the secret parameter. The SIP protocol is
quite happy to allow pretty much any sort of password (including none at all); however,
you should note that it is quite common for unsavory folks to run phishing scripts that
look for exposed VoIP accounts with simple device names and insecure passwords (such
as a device name of 100 with a password of 1234). By utilizing an uncommon device
name such as a MAC address, and a password that contains a string that will slow down
a dictionary attack, we can significantly lower the risk to our system should we need to
expose it to the outside world.
Do not use the password we have defined in the example. This book
will be available online and can be downloaded by anyone, and that
particular password is almost certain to become one of the first pass‐
words added to the list employed by VoIP phishing scripts in brute-
force password attacks. If your SIP ports are exposed to the Internet
and you use simple passwords, rest assured that you will eventually be
defrauded.
You can generate a secure password using one of several password generators
available on the Internet and on your operating system. Here is a simple script
that you can run at your console to generate one:
$ dd if=/dev/random count=1 bs=8 2>/dev/null | base64 | sed -e 's/=*$//'
When the SIP module reads the sip.conf configuration file, it will interpret each section
including the template. The previous channel example, therefore, will be configured as
if it had been written thus:
[0000FFFF0003]
type=friend
context=LocalSets
host=dynamic
nat=force_rport,comedia
dtmfmode=auto
disallow=all
allow=g722
allow=ulaw
106 | Chapter 5: User Device Configuration
www.it-ebooks.info
11. Pronounced “EEKS” (as in “weeks”). No need to say “eeks two,” since there’s no such thing as version one
anymore.
allow=alaw
; The above options came from the template.
secret=o3dbMtrRV6U ; Overrides the secret from the template
allow=gsm ; Adds gsm to the list of allowed codecs
;The rest of the options were defined for this channel only.
Note that if you specify an option that was also defined in the template, the module will
see that option twice. For most options, the value in the channel section will override
the value obtained from the template, however for some, such as type, allow, and
disallow, it may not.
Firewalls and Network Address Translation
A telephone call using the SIP protocol is actually composed of three separate network
connections: 1) the SIP connection (signaling for the call), 2) the outgoing audio stream
(RTP), 3) the incoming audio stream (RTP).
If a firewall between the two ends of the connection does not recognize the incoming
RTP stream (i.e., does not associate it with the SIP connection in progress), it is liable
to discard it. When this happens, users will not be able to hear one side of the phone
call.
In “VoIP” on page 161, we discuss this concept in more detail.
Finding a consistent and reliable solution for this is an ongoing pain for the SIP com‐
munity, given the many different types of firewalls, and the many different ways the SIP
protocol can be implemented (not just by Asterisk, but also all the other SIP-enabled
devices and systems in use today).
iax.conf
IAX211 stands for the Inter-Asterisk eXchange protocol, version 2. IAX2 was designed
to simplify the process of carrying VoIP calls across firewalls (by carrying signaling and
media through the same connection), and to easily traverse networks that employed
NAT devices (which historically have been problematic for the SIP protocol).
As Asterisk has developed over the years, the IAX2 protocol has matured. An Infor‐
mational RFC (RFC 5456 - IAX: Inter-Asterisk eXchange Version 2) was published in
2010. However, IAX2 has not become popular with hardware vendors, possibly due to
the relative newness of the IAX2 RFC, but certainly in large part due to the fact that SIP
is far and away the most recognized VoIP protocol in terms of mind-share (i.e.,
Configuring Asterisk | 107
www.it-ebooks.info
12. SIP, which has separate signaling and voice data protocols and ports, uses one port for signaling (the SIP
messages), but also requires at least two RTP connections for every active call to carry the audio. By default,
Asterisk uses port 5060 for SIP and ports 10,000 through 20,000 for RTP. The SIP and RTP protocols allow
for different ports to be used, and thus these things can be defined more clearly in the rtp.conf file.
nontechnical folks have more likely heard of SIP than any other VoIP protocol). IAX2,
however, does have advantages that make it worth discussing.
One of the primary advantages of IAX is single-port firewall penetration. All traffic,
including signaling and audio data, is transferred over a single UDP port (by default,
over port 4569), which can greatly simplify the configuration and troubleshooting of
external connections to Asterisk.12
Another advantage of IAX2 is its trunking capability, which encapsulates packets for
several voice frames into the same datagram using a single IAX2 header. The benefit of
this is a reduction in the amount of bandwidth overhead required to send many simul‐
taneous calls between two endpoints. The amount of bandwidth saved with IAX2
trunking when sending just a couple of calls between locations is insignificant, but when
you start scaling to the size of dozens or hundreds of calls, the savings can be substantial.
For now, we’re only interested in the minimal configuration required to get our IAX2
endpoints talking to each other, so let’s explore what we need to configure in iax.conf
to do so.
Since IAX2 is more commonly used to build trunking facilities between Asterisk sys‐
tems, we are going to provide an example of this (rather than an example of using IAX2
for user devices). If you have an IAX2 user device (such as a softphone), you will find
that familiarity with the sip.conf file will help you in configuring iax.conf to handle
extensions.
First, we need to create our iax.conf file. Note that since this example is discussing an
IAX trunk, you will need two Asterisk systems, each with a working dialplan, in order
to configure this. On each end you will need an appropriate iax.conf file. In the /etc/
asterisk configuration directory create a file named iax.conf, and add the following
configuration information to it:
[general]
; don't stall for a long time if other endpoint doesn't respond
autokill=yes
; disable DNS SRV lookups for outbound calls
srvlookup=no
; ---------------------------------------------------
; template for IAX-based inter-office connections
[inter-office-trunk](!)
108 | Chapter 5: User Device Configuration
www.it-ebooks.info
13. We also encourage you to read “sip.conf” on page 101 in this chapter, as it contains many concepts that apply
equally to other Asterisk configuration files.
; Asterisk will allow calls to and from this phone
type=friend
; the context where incoming requests will enter the dialplan
context=LocalSets
delayreject=yes ; delay authentication reject (limit brute force attacks)
disallow=all ; reset the available voice codecs
allow=ulaw ; prefer the ulaw codec
allow=alaw ; but also allow the alaw codec
; ---------------------------------------------------
; define a trunk to our first location
[head-office](inter-office-trunk)
; a secure password -- which means DON'T USE THIS ONE!
secret=NuFuYhg4iHI
; Define the IP address of the Asterisk system at the
; other end of this connection
host=[ip address of far end]
; ---------------------------------------------------
; define another trunk using the same template
[branch-office](inter-office-trunk)
; a secure password -- which means DON'T USE THIS ONE!
secret=o8XBEf2DfQI
; IP address of Asterisk system at the other end
host=[ip address of far end]
The LocalSets context has been used in this example to simplify things. In a
production environment, you would typically build out separate contexts to
handle your trunking facilities. This is especially important for security, as you
must always minimize the risk of unauthorized calling.
Let’s go over the options we added to this file, starting first with the [general]
section. This is where we define our default configuration, our global options, and our
general channel driver setup. There are many options we can define here, and we en‐
courage you to check out the iax.conf.sample file in the configs directory of your Asterisk
source,13 but since we’re looking for a straightforward configuration, we’re going to allow
many of the default options to be applied.
Configuring Asterisk | 109
www.it-ebooks.info
The next section we’ve defined is named [inter-office-trunk](!), which is a tem‐
plate that contains the options common to all of our IAX circuits.
As mentioned in the preceding section, following the section name with
(!) tells Asterisk to treat this section as a template. Templates are useful,
so use them(!).
The first option we’ve configured in our template is the type. We’ve defined the type
to be friend, which informs Asterisk that we plan on both placing calls to the circuit
and receiving requests (calls) from the circuit.
The other two types are user and peer. In IAX2, a friend is a combi‐
nation of both a user and a peer, which is common because interoffice
trunks will typically have calls flowing both ways. We could alternatively
define two separate sections with the same name with types of user and
peer, and then define only the required information for each of those
types; or if we only ever expected to send calls to or place calls using a
section (such as in the case of an inbound- or outbound-only service
provider), we would define it as only either a user or a peer. However,
in the vast majority of cases, just utilizing the type of friend is the most
logical choice.
Note the difference between the meaning of the type option in iax.conf
versus sip.conf (see the sidebar “SIP Configuration Matching and the
type Option” on page 104). In iax.conf, the meaning is much simpler: it
only has to do with the direction of the phone calls.
Following the type option, we’ve set host to dynamic, which means the phone will
register with us to identify where it exists on the network (so that we know where to
send its calls). Alternatively, we could statically define an IP address, such as
192.168.128.50, where all calls will be sent to and accepted from. This will only work
if the device will always have the same IP address.
The context option defines the context at which this channel will enter the dialplan.
When a call is placed by a telephone and the request is received by Asterisk, it is handled
by the logic defined in the context configured here within the dialplan (extensions.conf).
The delayreject=yes option tells Asterisk to introduce a slight delay to any reject
messages due to a failed authentication. The purpose of this is to increase the level of
protection against brute-force attacks (which in a default configuration can run through
hundreds of attempts in a matter of seconds).
110 | Chapter 5: User Device Configuration
www.it-ebooks.info
14. If you wish to use more complex, compressed codecs, we encourage you to try them out, but get the channel
working first with the most basic codecs, and then experiment with other codecs later.
Following that are the disallow and allow options. These define the codecs that will
be allowed for this channel (in order of preference). The directive disallow=all resets
any default codecs that may have been permitted in the [general] section (or as part
of the channel defaults). Then, we define the specific codecs we wish to permit with
allow. In our example we have explicitly allowed only the ulaw and alaw codecs. This
is recommended for testing purposes.14
Now that we have our template, we can create the specific channel definitions for each
endpoint we want to support. We only need to specify those parameters not defined in
the template.
We have named two channels, head-office and branch-office. You can name your
channels whatever you wish; however, bear in mind that since we’re using
type=friend, the channel will need to have the same name at both ends of the circuit,
and should therefore be given a name that makes sense at both ends.
We have assigned our template inter-office-trunk to both channels, which will au‐
tomatically assign all paramaters in the template to this channel.
The secret parameter defines the password.
You should make sure you are implementing a secure password here,
especially if you plan on opening your system up to the outside world
at all. Do not use something stupid such as 1234, or you’ll regret it.
No, seriously. We’re not kidding. Not even in the lab.
The number of successful attacks on VoIP-enabled telephone systems (not just Asterisk)
is on the rise, and will continue to get worse. Commonly, successful intrusions are due
to weak passwords. If you get in the habit of using strong passwords now, you’ll have
that much more protection in the future.
You can generate a complex password using a password generator like those
available on the Internet and on your operating system. Here is a simple script
that you can run at the Linux shell prompt to generate a string that’ll be suitable
as a password:
$ dd if=/dev/random count=1 bs=8 2>/dev/null | base64 | sed -e 's/=*$//'
Configuring Asterisk | 111
www.it-ebooks.info
Do not use the passwords we have defined in the example. You can be
sure that shortly after this book is published, that will be one of the first
passwords a brute-force bot will try to use on your system.
Finally, we define the IP address of the far end of this circuit. We have chosen to hardcode
the IP address in this case, however you can also define a host as dynamic, which will
require that the far end register to you. And that’s it for IAX.
Modifying Your Channel Configuration Files for Your Environment
Our examples so far have been based on hypothetical device names. To create actual
channels based on whatever you have in your environment, you will want to change the
device names in your sip.conf and iax.conf files to something that makes more sense.
For example, if you have a Polycom IP 430 set with a MAC address of 0004f2119698,
you’ll want to define a device identifier in sip.conf for that device:
[0004f2119698](office-phone)
In sip.conf, you can also add a description value, which can then be
viewed on the Asterisk console when running sip show peers. For
example:
[0004f2119698](office-phone)
description=Polycom IP670 Phone
Bear in mind that while you can describe things such as “Phone in John’s
office” or “Phone in Room 213,” the reality is that things move around,
so best practice would be to keep the description simple, and something
not likely to change (the model of the phone, for example, is never going
to change). Some companies assign asset-tracking tags to equipment.
This might be a useful place to note such details.
You might also consider using the description parameter as part of
your template (i.e., description=office-phone), which would allow
you to see at the Asterisk console what template a device was using.
If you have an IAX softphone on your PC that you wish to use, your iax.conf file may
want something like this:
[001b63a28ccc](office-phone)
secret=n4AgD7LURvg
Remember that you can name your devices anything you want (Asterisk doesn’t care),
but for ease of management, make sure you choose a naming convention that is logical,
scalable, sustainable, and secure (by which we mean: don’t use extension numbers as
channel names).
112 | Chapter 5: User Device Configuration
www.it-ebooks.info
Digium Phones with Asterisk
Digium offers a series of SIP telephones that have been designed to work with Asterisk.
While these are standard SIP telephones, the addition of the DPMA (Digium Phone
Module for Asterisk) module to Asterisk allows these devices to work more tightly with
Asterisk than any other model of SIP telephone. DPMA also allows for much easier
automated configuration of these sets.
The Digium Phone Module for Asterisk (DPMA) is a proprietary technology which
allows a secure connection between an Asterisk system and a Digium telephone. The
advantage of DPMA is that configuration of user devices is greatly simplified, coupled
with the fact that DPMA-enabled sets can be more tightly integrated with Asterisk fea‐
tures. Specific Asterisk integration enabled by DPMA includes:
•A simplified provisioning process. Phones automatically discover Asterisk servers
and retrieve their configuration.
• Phone-added contacts can be stored on the Asterisk server.
•Integration with the following Asterisk features: voicemail, directory, parking, call
recordings, call queues, and more.
• Enhanced user-based presence support.
•The ability to write custom applications in Javascript that run on the phone. This
capability is still in beta at the time of writing, but is sure to be an incredibly powerful
addition.
Detailed documentation on how to set up DPMA can be found on the Digium wiki.
Loading Your New Channel Configurations
In order to inform Asterisk of the new configurations, you will need to pass it a com‐
mand that instructs it to reload the relevant configuration file. The Asterisk CLI is where
you can pass various commands to a running Asterisk system.
The Asterisk CLI
The best way to see what is happening with your Asterisk system is through the Asterisk
CLI. This interface provides various levels of output to let you know what is happening
on your system, and offers a wealth of useful utilities to allow you to affect your running
system. Begin by calling up the Asterisk CLI and reloading the configuration files for
your channel modules:
$ sudo asterisk -r
*CLI> module reload chan_sip.so
*CLI> module reload chan_iax2.so
Digium Phones with Asterisk | 113
www.it-ebooks.info
Verify that your new channels have been loaded:
*CLI> sip show peers
*CLI> sip show users
*CLI> iax2 show peers
*CLI> iax2 show users
At this point, your Asterisk system should be configured to handle reg‐
istrations from the defined devices. All registration does is define the
location of a device. Registration in and of itself has nothing to do with
whether a set is allowed to make calls or not (although successful reg‐
istration does suggest that the set is using correct credentials, and is thus
likely to also be successful in making calls).
Calls to and from the sets will not work until the configuration on the
devices has been completed. Since each device is different in this regard,
detailed configuration instructions for each model are outside of the
scope of this book. Most device manufacturers provide excellent in‐
structions for configuration, and in many cases offer Asterisk-specific
examples.
Testing to Ensure Your Devices Have Registered
Once your device has registered to Asterisk, you will be able to query the location and
state of the device from the Asterisk CLI.
It is a common misconception that registration is how a device authen‐
ticates itself for the purpose of obtaining permission to make calls. This
is incorrect. The only purpose of registration is to allow a device to
identify its location on the network, so that Asterisk (or any other SIP
registrar server, for that matter) knows where to send calls intended for
that device.
Authentication for outgoing calls is an entirely separate process and
always happens on a per-call basis, regardless of whether a set has reg‐
istered. This means that your set may be able to make calls but not
receive them. This will normally happen when the set has not registered
successfully (so Asterisk does not know where it is), and yet has the
correct credentials for making calls (so Asterisk is willing to accept calls
from it).
114 | Chapter 5: User Device Configuration
www.it-ebooks.info
15. Refer to Chapter 3 for more information about reinstalling Asterisk after installing DAHDI.
To check the registration status of a device, simply call up the Asterisk CLI:
$ sudo asterisk -r
Typing the following command returns a listing of all the peers that Asterisk knows
about (regardless of their state):
*CLI> sip show peers
Name/username Host Dyn Nat ACL Port Status
0000FFFF0001/0000FFFF0001 192.168.1.100 D N 5060 Unmonitored
0000FFFF0002/0000FFFF0002 192.168.1.101 D N 5060 Unmonitored
You may notice that the Name/username field does not always show the
full name of the device. This is because this field is limited to 25
characters.
Note that the Status in our example is set to Unmonitored. This is because we are not
using the qualify=yes option in our sip.conf file.
Analog Phones
There are two popular methods for connecting analog phones to Asterisk. The first is
by using an ATA that most commonly connects to Asterisk using the SIP protocol. The
Asterisk configuration for an ATA is the same as it would be for any other SIP-based
handset. The other method is to directly connect the phones to the Asterisk server using
telephony hardware from a vendor such as Digium. Digium sells telephony cards that
can be added to your server to provide FXS ports for connecting analog phones (or fax
machines). For the purposes of demonstrating the configuration, we’re going to show
the configuration required if you had a Digium AEX440E card, which is an AEX410
half-length PCI Express with four FXS modules and hardware-based echo cancellation.
Regardless of which hardware you are using, consult your vendor’s
documentation for any hardware-specific configuration requirements.
First, ensure that both Asterisk and DAHDI are installed (refer back to “How to Install
It” on page 52 for instructions). Note that DAHDI must be installed before you install
Asterisk.15 When you install DAHDI, be sure to install the init script as well (which in
most cases is installed automatically for you, otherwise, use make config from the tools
Analog Phones | 115
www.it-ebooks.info
directory). This will ensure that your hardware is properly initialized when the system
boots up. The init script is installed from the DAHDI-tools package.
The init script uses the /etc/dahdi/modules file to determine which modules should be
loaded to support the hardware in the system. The installation of the init script attempts
to automatically set up this file for you, but you should check it to make sure it is correct:
# Autogenerated by tools/xpp/dahdi_genconf (Dahdi::Config::Gen::Modules) on
# Tue Jul 27 10:31:46 2010
# If you edit this file and execute tools/xpp/dahdi_genconf again,
# your manual changes will be LOST.
wctdm24xxp
There is one more configuration file required for DAHDI: /etc/dahdi/system.conf. It
looks like this:
# Specify that we would like DAHDI to generate tones that are
# used in the United States.
loadzone = us
defaultzone = us
# We have 4 FXS ports; configure them to use FXO signaling.
fxoks = 1-4
This configuration assumes the card is being used in the United States.
For some tips on internationalization, see Chapter 9.
If the card you are configuring does not have hardware-based echo cancellation, another
line will need to be added to /etc/dahdi/system.conf to enable software-based echo
cancellation:
echocanceller = mg2,1-4
MG2 is the echo canceller that comes with the official DAHDI package.
Another open source echo canceller compatible with DAHDI is OSLEC
(Open Source Line Echo Canceller). Most people report excellent
results with OSLEC (it is included in the Linux kernel). For more in‐
formation about the installation of OSLEC on your system, see this
website.
Now, use the init script to load the proper modules and initialize the hardware:
$ sudo /etc/init.d/dahdi start
Loading DAHDI hardware modules:
wctdm24xxp: [ OK ]
116 | Chapter 5: User Device Configuration
www.it-ebooks.info
Running dahdi_cfg: [ OK ]
Now that DAHDI has been configured, it is time to move on to the relevant configu‐
ration of Asterisk. Once Asterisk is installed, ensure that the chan_dahdi module has
been installed. If it is not loaded in Asterisk, check to see if it exists in /usr/lib/asterisk/
modules. If it is there, edit /etc/asterisk/modules.conf to load chan_dahdi.so. If the mod‐
ule is not present on disk, DAHDI was not installed before installing Asterisk; go back
and install it now (see “DAHDI” on page 52 for details). You can verify its presence
using the following command:
*CLI> module show like chan_dahdi.so
Module Description Use Count
chan_dahdi.so DAHDI Telephony Driver 0
1 modules loaded
Next, you must configure /etc/asterisk/chan_dahdi.conf. This is the configuration file
for the chan_dahdi module, which is the interface between Asterisk and DAHDI. It
should look like this:
[trunkgroups]
; No trunk groups are needed in this configuration.
[channels]
; The channels context is used when defining channels using the
; older deprecated method. Don't use this as a section name.
[phone](!)
;
; A template to hold common options for all phones.
;
usecallerid = yes
hidecallerid = no
callwaiting = no
threewaycalling = yes
transfer = yes
echocancel = yes
echotraining = yes
immediate = no
context = LocalSets
signalling = fxo_ks ; Uses FXO signaling for an FXS channel
[phone1](phone)
callerid = "Mark Michelson" <(256)555-1212>
dahdichan = 1
[phone2](phone)
callerid = "David Vossel" <(256)555-2121>
dahdichan = 2
Analog Phones | 117
www.it-ebooks.info
[phone3](phone)
callerid = "Jason Parker" <(256)555-3434>
dahdichan = 3
[phone4](phone)
callerid = "Matthew Nicholson" <(256)555-4343>
dahdichan = 4
You can verify that Asterisk has loaded your configuration by running the dahdi show
channels CLI command:
*CLI> dahdi show channels
Chan Extension Context Language MOH Interpret Blocked State
pseudo default default In Service
1 LocalSets default In Service
2 LocalSets default In Service
3 LocalSets default In Service
4 LocalSets default In Service
For detailed information on a specific channel, you can run dahdi show channel 1.
A Basic Dialplan to Test Your Devices
We’re not going to dive too deeply into the dialplan just yet, but an initial dialplan that
you can use to test your newly registered devices will be helpful. Place the following
contents in /etc/asterisk/extensions.conf:
[LocalSets]
exten => 101,1,Dial(SIP/0000FFFF0001) ; Replace 0000FFFF0001 with your device name
exten => 102,1,Dial(SIP/0000FFFF0002) ; Replace 0000FFFF0002 with your device name
exten => 103,1,Dial(SIP/0000FFFF0003) ; Replace 0000FFFF0003 with your device name
exten => 104,1,Dial(IAX2/0000FFFF0004) ; Replace 0000FFFF0004 with your device name
exten => 105,1,Dial(IAX2/0000FFFF0005) ; Replace 0000FFFF0005 with your device name
;
; These will allow you to dial each of the 4 analog phones configured
; in the previous section.
;
exten => 106,1,Dial(DAHDI/1)
exten => 107,1,Dial(DAHDI/2)
exten => 108,1,Dial(DAHDI/3)
exten => 109,1,Dial(DAHDI/4)
exten => 200,1,Answer()
same => n,Playback(hello-world)
same => n,Hangup()
118 | Chapter 5: User Device Configuration
www.it-ebooks.info
exten => 3101,1,Dial(IAX2/head-office/101) ; Dial extension 101 at head office
exten => 3102,1,Dial(IAX2/head-office/102) ; Dial extension 102 at head office
exten => _3XXX,1,Dial(IAX2/head-office/${EXTEN})
This basic dialplan will allow you to dial your SIP devices using extensions 100, 101,
and 102. IAX2-based devices can be dialed at extensions 104 and 105. The four lines of
the analog card can be dialed with extensions 106 through 109, respectively. You can
also listen to the hello-world prompt that was created for this book by dialing extension
200. Dialing 3 plus any three-digit number will attempt to send that call across your IAX
trunk to the head office. All of these extensions are arbitrary numbers, and could be
anything you want. Also, this is by no means a complete dialplan; we’ll develop it further
in later chapters.
You will need to reload your dialplan before changes will take effect in Asterisk. You
can reload it from the Linux shell:
$ asterisk -rx "dialplan reload"
or from the Asterisk CLI:
*CLI> dialplan reload
You should now be able to dial between your two new extensions. Open up the CLI in
order to see the call progression. You should see something like this (and the set you
are calling should ring):
-- Executing [100@LocalSets:1] Dial("SIP/0000FFFF0001-0000000c",
"SIP/0000FFFF0001") in new stack
-- Called 0000FFFF0001
-- SIP/0000FFFF0001-0000000d is ringing
If this does not happen, you are going to need to review your configuration and ensure
you have not made any typos.
Under the Hood: Your First Call
In order to get you thinking about what is happening under the hood, we’re going to
briefly cover some of what is actually happening with the SIP protocol when two sets
on the same Asterisk system call each other.
Under the Hood: Your First Call | 119
www.it-ebooks.info
Asterisk as a B2BUA
Bear in mind that there are actually two calls going on here: one from
the originating set to Asterisk, and another from Asterisk to the desti‐
nation set. SIP is a peer-to-peer protocol, and from the perspective of
the protocol there are two calls happening. The SIP protocol is not aware
that Asterisk is bridging the calls; each set understands its connection
to Asterisk, with no real knowledge of the set on the other side. It is for
this reason that Asterisk is often referred to as a B2BUA (Back to Back
User Agent). This is also why it is so easy to bridge different protocols
together using Asterisk.
For the call you just made, the dialogs shown in Figure 5-2 will have taken place.
For more details on how SIP messaging works, please refer to Appendix B and the SIP
RFC.
Figure 5-2. SIP dialogs
Conclusion
In this chapter, we learned best practices for device naming by abstracting the concepts
of users, extension numbers, and devices, and how to define the device configuration
and authentication parameters in the channel configuration files. Next, we’ll delve into
the magic of Asterisk that is the dialplan, and see how simple things can create
great results.
120 | Chapter 5: User Device Configuration
www.it-ebooks.info
Everything should be made as simple as possible,
but not simpler.
—Albert Einstein
CHAPTER 6
Dialplan Basics
The dialplan is the heart of your Asterisk system. It defines how calls flow into and out
of the system. A form of scripting language, the dialplan contains instructions that
Asterisk follows in response to external triggers. In contrast to traditional phone sys‐
tems, Asterisk’s dialplan is fully customizable.
This chapter introduces the essential concepts of the dialplan. The information pre‐
sented here is critical to your understanding of dialplan code and will form the basis of
any dialplan you write. The examples have been designed to build upon one another,
and we recommend that you do not skip too much of this chapter, since it is so funda‐
mentally important to Asterisk. Please also note that this chapter is by no means an
exhaustive survey of all the possible things dialplans can do; our aim is to cover just the
essentials. We’ll cover more advanced dialplan topics in later chapters. You are encour‐
aged to experiment.
Dialplan Syntax
The Asterisk dialplan is specified in the configuration file named extensions.conf.
The extensions.conf file usually resides in the /etc/asterisk directory, but
its location may vary depending on how you installed Asterisk. Other
common locations for this file include /usr/local/etc/asterisk and /opt/etc/
asterisk.
121
www.it-ebooks.info
1. Automated attendants are covered in Chapter 15.
2. This is a very important consideration. With traditional PBXs, there are generally a set of defaults for things
like reception, which means that if you forget to define them, they will probably work anyway. In Asterisk,
the opposite is true. If you do not tell Asterisk how to handle every situation, and it comes across something
it cannot handle, the call will typically be disconnected. We’ll cover some best practices later that will help
ensure this does not happen. See “Handling Invalid Entries and Timeouts” on page 133 for more information.
The dialplan is made up of four main concepts: contexts, extensions, priorities, and
applications. After explaining the role each of these elements plays in the dialplan, we’ll
have you build a basic but functioning dialplan.
Sample Configuration Files
If you installed the sample configuration files when you installed Asterisk, you will most
likely have an existing extensions.conf file. Instead of starting with the sample file, we
suggest that you build your extensions.conf file from scratch. Starting with the sample
file is not the best or easiest way to learn how to build dialplans.
That being said, the sample extensions.conf file remains a fantastic resource, full of ex‐
amples and ideas that you can use after you’ve learned the basic concepts. If you followed
our installation instructions, you will find the file extensions.conf.sample in the folder
~/src/asterisk-complete/asterisk/11/configs (along with many other sample config files).
Contexts
Dialplans are broken into sections called contexts. Contexts keep different parts of the
dialplan from interacting with one another. An extension that is defined in one context
is completely isolated from extensions in any other context, unless interaction is specif‐
ically allowed. (We’ll cover how to allow interaction between contexts near the end of
the chapter. See “Includes” on page 145 for more information.)
As a simple example, let’s imagine we have two companies sharing an Asterisk server.
If we place each company’s automated attendant1 in its own context, they will be com‐
pletely separated from each other. This allows us to independently define what happens
when, say, extension 0 is dialed: callers dialing 0 from Company A’s voice menu will get
Company A’s receptionist, while callers dialing 0 at Company B’s voice menu will get
Company B’s receptionist. (This assumes, of course, that we’ve told Asterisk to transfer
the calls to the receptionists when callers press 0.2)
122 | Chapter 6: Dialplan Basics
www.it-ebooks.info
3. Please note that the space is conspicuously absent from the list of allowed characters. Don’t use spaces in your
context names—you won’t like the result!
Contexts are defined by placing the name of the context inside square brackets ([]).
The name can be made up of the letters A through Z (upper- and lowercase), the num‐
bers 0 through 9, and the hyphen and underscore.3 A context for incoming calls might
look like this:
[incoming]
Context names have a maximum length of 79 characters (80
characters – 1 terminating null).
All of the instructions placed after a context definition are part of that context, until the
next context is defined. At the beginning of the dialplan, there are two special contexts
named [general] and [globals]. The [general] section contains a list of general
dialplan settings (which you’ll probably never have to worry about), and we will discuss
the [globals] context in the section “Global variables” on page 138. For now, it’s just
important to know that these two labels are not really contexts. Avoid the use of [gen
eral], [default], and [globals] as context names, but otherwise name your contexts
anything you wish.
When you define a channel (which is not done in the extensions.conf file, but rather in
files such as sip.conf, iax.conf, chan_dahdi.conf, etc.), one of the required parameters in
each channel definition is context. The context is the point in the dialplan where con‐
nections from that channel will begin. The context setting for the channel is how you
plug the channel into the dialplan. Figure 6-1 illustrates the relationship between chan‐
nel configuration files and contexts in the dialplan.
Figure 6-1. Relation between channel configuration files and contexts in the dialplan
Dialplan Syntax | 123
www.it-ebooks.info
This is one of the most important concepts to understand when dealing
with channels and dialplans. Once you understand the relationship of
the context definition in a channel to the matching context in the
dialplan, you will find it much easier to troubleshoot the call flow
through an Asterisk system.
An important use of contexts (perhaps the most important use) is to provide security.
By using contexts correctly, you can give certain callers access to features (such as long-
distance calling) that aren’t made available to others. If you do not design your dialplan
carefully, you may inadvertently allow others to fraudulently use your system. Please
keep this in mind as you build your Asterisk system; there are many bots on the Internet
that were specifically written to identify and exploit poorly secured Asterisk systems.
The Asterisk wiki outlines several steps you should take to keep your
Asterisk system secure. (Chapter 26 in this book also deals with secu‐
rity.) It is vitally important that you read and understand this page. If
you ignore the security precautions outlined there, you may end up
allowing anyone and everyone to make long-distance or toll calls at
your expense!
If you don’t take the security of your Asterisk system seriously, you may
end up paying—literally. Please take the time and effort to secure your
system from toll fraud.
Extensions
In the world of telecommunications, the word extension usually refers to a numeric
identifier that, when dialed, will ring a phone (or system resource such as voicemail or
a queue). In Asterisk, an extension is far more powerful, as it defines the unique series
of steps (each step containing an application) through which Asterisk will take that call.
Within each context, we can define as many (or few) extensions as required. When a
particular extension is triggered (by an incoming call or by digits being dialed on a
channel), Asterisk will follow the steps defined for that extension. It is the extensions,
therefore, that specify what happens to calls as they make their way through the
dialplan. Although extensions can, of course, be used to specify phone extensions in the
traditional sense (i.e., extension 153 will cause the SIP telephone set on John’s desk to
ring), in an Asterisk dialplan, they can be used for much more.
The syntax for an extension is the word exten, followed by an arrow formed by the
equals sign and the greater-than sign, like this:
exten =>
124 | Chapter 6: Dialplan Basics
www.it-ebooks.info
This is followed by the name (or number) of the extension. When dealing with tradi‐
tional telephone systems, we tend to think of extensions as the numbers you would dial
to make another phone ring. In Asterisk, you get a whole lot more; for example, exten‐
sion names can be any combination of numbers and letters. Over the course of this
chapter and the next, we’ll use both numeric and alphanumeric extensions.
Assigning names to extensions may seem like a revolutionary concept,
but when you realize that many VoIP transports support (or even ac‐
tively encourage) dialing by name or email address rather than just by
number, it makes perfect sense. This is one of the features that makes
Asterisk so flexible and powerful.
Each step in an extension has three components:
• The name (or number) of the extension
•The priority (each extension can include multiple steps; the step number is called
the “priority”)
• The application (or command) that will take place at that step
These three components are separated by commas, like this:
exten => name,priority,application()
Here’s a simple example of what a real extension might look like:
exten => 123,1,Answer()
In this example, the extension name is 123, the priority is 1, and the application is
Answer().
Priorities
Each extension can have multiple steps, called priorities. The priorities are numbered
sequentially, starting with 1, and each executes one specific application. As an example,
the following extension would answer the phone (in priority number 1), and then hang
it up (in priority number 2):
exten => 123,1,Answer()
exten => 123,2,Hangup()
It’s pretty obvious that this code doesn’t really do anything useful. We’ll get there. The
key point to note here is that for a particular extension, Asterisk follows the priorities
in order. This style of dialplan syntax is still seen from time to time, although (as you’ll
see momentarily) it is not generally used anymore for new code:
Dialplan Syntax | 125
www.it-ebooks.info
4. Asterisk permits simple arithmetic within the priority, such as n+200, and the priority s (for same), but their
usage is somewhat deprecated due to the existence of priority labels. Please note that extension s and prior‐
ity s are two distinct concepts.
exten => 123,1,Answer()
exten => 123,2,do something
exten => 123,3,do something else
exten => 123,4,do one last thing
exten => 123,5,Hangup()
Unnumbered priorities
In older releases of Asterisk, the numbering of priorities caused a lot of problems.
Imagine having an extension that had 15 priorities, and then needing to add something
at step 2: all of the subsequent priorities would have to be manually renumbered.
Asterisk does not handle missing steps or misnumbered priorities, and debugging these
types of errors was frustrating.
Beginning with version 1.2, Asterisk addressed this problem: it introduced the use of
the n priority, which stands for “next.” Each time Asterisk encounters a priority named
n, it takes the number of the previous priority and adds 1. This makes it easier to make
changes to your dialplan, as you don’t have to keep renumbering all your steps. For
example, your dialplan might look something like this:
exten => 123,1,Answer()
exten => 123,n,do something
exten => 123,n,do something else
exten => 123,n,do one last thing
exten => 123,n,Hangup()
Internally, Asterisk will calculate the next priority number every time it encounters an
n.4 Bear in mind that you must always specify priority number 1. If you accidentally put
an n instead of 1 for the first priority (a common mistake even among experienced
dialplan coders), you’ll find after reloading the dialplan that the extension will not exist.
The same => operator
In the never-ending effort to simplify coding effort, a new construct was created to make
extension building and management even easier. As long as the extension remains the
same, rather than having to type the full extension on each line, you can simply type
same => , followed by the priority and application:
exten => 123,1,Answer()
same => n,do something
same => n,do something else
same => n,do one last thing
same => n,Hangup()
126 | Chapter 6: Dialplan Basics
www.it-ebooks.info
The indentation is not required, but it may make for easier reading. This style of dialplan
will also make it easier to copy code from one extension to another. We prefer this style
ourselves, and highly recommend it.
Priority labels
Priority labels allow you to assign a name to a priority within an extension. This is to
ensure that you can refer to a priority by something other than its number (which
probably isn’t known, given that dialplans now generally use unnumbered priorities).
The reason it is important to be able to address a particular priority in an extension is
that you will often want to send calls from other parts of the dialplan to a particular
priority in a particular extension. We’ll talk about that more later. To assign a text label
to a priority, simply add the label inside parentheses after the priority, like this:
exten => 123,n(label),application()
Later, we’ll cover how to jump between different priorities based on dialplan logic. You’ll
see a lot more of priority labels, and you’ll use them often in your dialplans.
A very common mistake when writing labels is to insert a comma be‐
tween the n and the (, like this:
exten => 123,n,(label),application() ;<-- THIS IS NOT GOING TO WORK
This mistake will break that part of your dialplan, and you will get an
error stating that the application cannot be found.
Applications
Applications are the workhorses of the dialplan. Each application performs a specific
action on the current channel, such as playing a sound, accepting touch-tone input,
looking something up in a database, dialing a channel, hanging up the call, and so forth.
In the previous example, you were introduced to two simple applications: Answer() and
Hangup(). You’ll learn more about how these work momentarily.
Some applications, including Answer() and Hangup(), need no other instructions to do
their jobs. Most applications, however, require additional information. These additional
elements, or arguments, are passed on to the applications to affect how they perform
their actions. To pass arguments to an application, place them between the parentheses
that follow the application name, separated by commas.
Occasionally, you may see the pipe character (|) used as a separator
between arguments, instead of a comma. Starting in Asterisk 1.6.0,
support for the pipe as a separator has been removed (except in some
parts of voicemail.conf).
Dialplan Syntax | 127
www.it-ebooks.info
5. There is another application called Background() that is very similar to Playback(), except that it does
allow input from the caller. You can read more about this application in Chapters 15 and 17.
The Answer(), Playback(), and Hangup() Applications
The Answer() application is used to answer a channel that is ringing. This does the
initial setup for the channel that receives the incoming call. As we mentioned earlier,
Answer() takes no arguments. Answer() is not always required (in fact, in some cases
it may not be desirable at all), but it is an effective way to ensure a channel is connected
before performing further actions.
The Progress() Application
Sometimes it is useful to be able to pass information back to the network before an‐
swering a call. The Progress() application attempts to provide call progress information
to the originating channel. Some carriers expect this, and thus you may be able to resolve
strange signaling problems by inserting Progress() into the dialplan where your in‐
coming calls arrive. In terms of billing, the use of Progress() lets the carrier know you’re
handling the call without starting the billing meter.
The Playback() application is used for playing a previously recorded sound file over a
channel. Input from the user is ignored, which means that you would not use Play
back() in an auto attendant, for example, unless you did not want to accept input at
that point.5
Asterisk comes with many professionally recorded sound files, which
should be found in the default sounds directory (usually /var/lib/aster
isk/sounds). When you compile Asterisk, you can choose to install
various sets of sample sounds that have been recorded in a variety of
languages and file formats. We’ll be using these files in many of our
examples. Several of the files in our examples come from the Extra
Sound Package, so please take the time to install it (see Chapter 3). You
can also have your own sound prompts recorded in the same voices
as the stock prompts by visiting http://www.theivrvoice.com. Later in
the book, we’ll talk more about how you can use a telephone and the
dialplan to create and manage your own system recordings.
To use Playback(), specify a filename (without a file extension) as the argument. For
example, Playback(filename) would play the sound file called filename.wav, assuming
it was located in the default sounds directory. Note that you can include the full path to
the file if you want, like this:
128 | Chapter 6: Dialplan Basics
www.it-ebooks.info
6. Asterisk selects the best file based on translation cost—that is, it selects the file that is the least CPU-intensive
to convert to its native audio format. When you start Asterisk, it calculates the translation costs between the
different audio formats (they often vary from system to system). You can see these translation costs by typing
show translation at the Asterisk command-line interface. The numbers shown represent how many milli‐
seconds it takes Asterisk to transcode one second of audio. We’ll talk more about the different audio formats
(known as codecs) in “Codecs” on page 746.
Playback(/home/john/sounds/filename)
The previous example would play filename.wav from the /home/john/sounds directory.
You can also use relative paths from the Asterisk sounds directory, as follows:
Playback(custom/filename)
This example would play filename.wav from the /custom subdirectory of the default
sounds directory (probably /var/lib/asterisk/sounds/custom/filename.wav). Note that if
the specified directory contains more than one file with that filename but with different
file extensions, Asterisk automatically plays the best file.6
The Hangup() application does exactly as its name implies: it hangs up the active chan‐
nel. You should use this application at the end of a context when you want to end the
current call, to ensure that callers don’t continue on in the dialplan in a way you might
not have anticipated. The Hangup() application does not require any arguments, but
you can pass an ISDN cause code if you want, such as Hangup(16).
As we work through the book, we will be introducing you to many more Asterisk
applications.
A Simple Dialplan
OK, enough theory. Open up the file /etc/asterisk/extensions.conf, and let’s take a look
at your first dialplan (which was created in Chapter 5). We’re going to add to that.
Hello World
As is typical in many technology books (especially computer programming books), our
first example is called “Hello World!”
In the first priority of our extension, we answer the call. In the second, we play a sound
file named hello-world, and in the third we hang up the call. The code we are interested
in for this example looks like this:
exten => 200,1,Answer()
same => n,Playback(hello-world)
same => n,Hangup()
A Simple Dialplan | 129
www.it-ebooks.info
If you followed along in Chapter 5, you’ll already have a channel or two configured, as
well as the sample dialplan that contains this code. If not, what you need is an exten
sions.conf file in your /etc/asterisk directory that contains the following code:
[LocalSets] ; this is the context name
exten => 100,1,Dial(SIP/0000FFFF0001) ; Replace 0000FFFF0001 with your device name
exten => 101,1,Dial(SIP/0000FFFF0002) ; Replace 0000FFFF0002 with your device name
exten => 200,1,Answer()
same => n,Playback(hello-world)
same => n,Hangup()
If you don’t have any channels configured, now is the time to do so.
There is real satisfaction that comes from passing your first call into an
Asterisk dialplan on a system that you’ve built from scratch. People get
this funny grin on their faces as they realize that they have just created
a telephone system. This pleasure can be yours as well, so please, don’t
go any further until you have made this little bit of dialplan work. If you
have any problems, get back to Chapter 5 and work through the
examples there.
If you don’t have this dialplan code built yet, you’ll need to add it and reload the dialplan
with this CLI command:
*CLI> dialplan reload
or from the shell with:
$ sudo /usr/sbin/asterisk -rx "dialplan reload"
Calling extension 200 from either of your configured phones should reward you with
the voice of Allison Smith saying “Hello, world.”
If it doesn’t work, check the Asterisk console for error messages, and make sure your
channels are assigned to the LocalSets context.
We do not recommend that you move forward in this book until you
have verified the following:
1. Calls between extension 100 and 101 are working
2. Calling extension 200 plays “Hello World”
Even though this example is very short and simple, it emphasizes the core concepts of
contexts, extensions, priorities, and applications. You now have the fundamental knowl‐
edge on which all dialplans are built.
130 | Chapter 6: Dialplan Basics
www.it-ebooks.info
7. It should be noted that some people expect that Background(), due to its name, will continue onward through
the next steps in the dialplan while the sound is being played. In reality, its name refers to the fact that it is
playing a sound in the background, while waiting for DTMF in the foreground.
Building an Interactive Dialplan
The dialplan we just built was static; it will always perform the same actions on every
call. Many dialplans will also need logic to perform different actions based on input
from the user, so let’s take a look at that now.
The Goto(), Background(), and WaitExten() Applications
As its name implies, the Goto() application is used to send a call to another part of the
dialplan. The syntax for the Goto() application requires us to pass the destination con‐
text, extension, and priority on as arguments to the application, like this:
same => n,Goto(context,extension,priority)
We’re going to create a new context called TestMenu, and create an extension in our
LocalSets context that will pass calls to that context using Goto():
exten => 201,1,Goto(TestMenu,start,1) ; add this to the end of the
; [LocalSets] context
[TestMenu]
exten => start,1,Answer()
Now, whenever a device enters the LocalSets context and dials 201, the call will be
passed to the start extension in the TestMenu context (which currently won’t do any‐
thing interesting because we still have more code to write).
We used the extension start in this example, but we could have used
anything we wanted as an extension name, either numeric or alpha. We
prefer to use alpha characters for extensions that are not directly dial‐
able, as this makes the dialplan easier to read. Point being, we could
have used 123 or xyz123, or 99luftballons, or whatever we wanted
instead of start. The word “start” doesn’t actually mean anything to
the dialplan; it’s just another extension.
One of the most useful applications in an interactive Asterisk dialplan is the Back
ground()7 application. Like Playback(), it plays a recorded sound file. Unlike
Playback(), however, when the caller presses a key (or series of keys) on her telephone
keypad, it interrupts the playback and passes the call to the extension that corresponds
with the pressed digit(s). If a caller presses 5, for example, Asterisk will stop playing the
Building an Interactive Dialplan | 131
www.it-ebooks.info
8. More information about auto attendants can be found in Chapter 15.
9. See the dialplan function TIMEOUT() for information on how to change the default timeouts. See Chap‐
ter 10 for information on what dialplan functions are.
sound prompt and send control of the call to the first priority of extension 5 (assuming
there is an extension 5 to send the call to).
The most common use of the Background() application is to create voice menus (often
called auto attendants8 or phone trees). Many companies use voice menus to direct callers
to the proper extensions, thus relieving their receptionists from having to answer every
single call.
Background() has the same syntax as Playback():
[TestMenu]
exten => start,1,Answer()
same => n,Background(enter-ext-of-person)
If you want Asterisk to wait for input from the caller after the sound prompt has finished
playing, you can use WaitExten(). The WaitExten() application waits for the caller to
enter DTMF digits and is used directly following the Background() application, like
this:
[TestMenu]
exten => start,1,Answer()
same => n,Background(enter-ext-of-person)
same => n,WaitExten()
If you’d like the WaitExten() application to wait a specific number of seconds for a
response (instead of using the default timeout),9 simply pass the number of seconds as
the first argument to WaitExten(), like this:
same => n,WaitExten(5) ; We always pass a time argument to WaitExten()
Both Background() and WaitExten() allow the caller to enter DTMF digits. Asterisk
then attempts to find an extension in the current context that matches the digits that
the caller entered. If Asterisk finds a match, it will send the call to that extension. Let’s
demonstrate by adding a few lines to our dialplan example:
[TestMenu]
exten => start,1,Answer()
same => n,Background(enter-ext-of-person)
same => n,WaitExten(5)
exten => 1,1,Playback(digits/1)
exten => 2,1,Playback(digits/2)
After making these changes, save and reload your dialplan:
132 | Chapter 6: Dialplan Basics
www.it-ebooks.info
*CLI> dialplan reload
If you call into extension 201, you should hear a sound prompt that says “Enter the
extension of the person you are trying to reach.” The system will then wait 5 seconds
for you to enter a digit. If the digit you press is either 1 or 2, Asterisk will match the
relevant extension, and read that digit back to you. Since we didn’t provide any further
instructions, your call will then end. You’ll also find that if you enter a different digit
(such as 3), the dialplan will be unable to proceed.
Let’s embellish things a little. We’re going to use the Goto() application to have the
dialplan repeat the greeting after playing back the number:
[TestMenu]
exten => start,1,Answer()
same => n,Background(enter-ext-of-person)
same => n,WaitExten(5)
exten => 1,1,Playback(digits/1)
same => n,Goto(TestMenu,start,1)
exten => 2,1,Playback(digits/2)
same => n,Goto(TestMenu,start,1)
These new lines will send control of the call back to the start extension after playing
back the selected number. This is generally considered friendlier than just hanging up.
If you look up the details of the Goto() application, you’ll find that you
can actually pass either one, two, or three arguments to the application.
If you pass a single argument, Asterisk will assume it’s the destination
priority in the current extension. If you pass two arguments, Asterisk
will treat them as the extension and the priority to go to in the current
context.
In this example, we’ve passed all three arguments for the sake of clarity,
but passing just the extension and priority would have had the same
effect, since the destination context is the same as the source context.
Handling Invalid Entries and Timeouts
Now that our first voice menu is starting to come together, let’s add some additional
special extensions. First, we need an extension for invalid entries. In Asterisk, when a
context receives a request for an extension that is not valid within that context (e.g.,
pressing 9 in the preceding example), the call is sent to the i extension. We also need
an extension to handle situations when the caller doesn’t give input in time (the default
timeout is 10 seconds). Calls will be sent to the t extension if the caller takes too long
to press a digit after WaitExten() has been called. Here is what our dialplan will look
like after we’ve added these two extensions:
Building an Interactive Dialplan | 133
www.it-ebooks.info
10. The i extension is for catching invalid entries supplied to a dialplan application such as Background(). It is
not used for matching on invalidly dialed extensions or nonmatching pattern matches.
[TestMenu]
exten => start,1,Answer()
same => n,Background(enter-ext-of-person)
same => n,WaitExten(5)
exten => 1,1,Playback(digits/1)
same => n,Goto(TestMenu,start,1)
exten => 2,1,Playback(digits/2)
same => n,Goto(TestMenu,start,1)
exten => i,1,Playback(pbx-invalid)
same => n,Goto(TestMenu,start,1)
exten => t,1,Playback(vm-goodbye)
same => n,Hangup()
Using the i10 and t extensions makes our menu a little more robust and user-friendly.
That being said, it is still quite limited, because outside callers still have no way of con‐
necting to a live person. To do that, we’ll need to learn about another application, called
Dial().
Using the Dial() Application
One of Asterisk’s most valuable features is its ability to connect different callers to each
other. This is especially useful when callers are using different methods of communi‐
cation. For example, caller A might be communicating over the traditional analog
telephone network, while user B might be sitting in a café halfway around the world
and speaking on an IP telephone. Luckily, Asterisk takes much of the hard work out of
connecting and translating between disparate networks. All you have to do is learn how
to use the Dial() application.
The syntax of the Dial() application is more complex than that of the other applications
we’ve used so far, but don’t let that scare you off. Dial() takes up to four arguments,
which we’ll look at next.
Argument 1: destination
The first argument is the destination you’re attempting to call, which (in its simplest
form) is made up of a technology (or transport) across which to make the call, a forward
slash, and the address of the remote endpoint or resource. Common technology types
include DAHDI (for analog and T1/E1/J1 channels), SIP, and IAX2.
For example, let’s assume that we want to call a DAHDI endpoint identified by DAHDI/
1, which is an FXS channel with an analog phone plugged into it. The technology is
134 | Chapter 6: Dialplan Basics
www.it-ebooks.info
11. If this were a production environment, this would not actually be a good name for this device. If you had
more than one softphone on your system (or add another in the future), how would you tell them apart?
12. We’ll cover variables in the upcoming section “Using Variables” on page 137. In future chapters we’ll discuss
how to have your dialplan make decisions based on the value of DIALSTATUS.
13. Bear in mind that this assumes that this channel connects to something that knows how to reach external
numbers.
DAHDI, and the resource (or channel identifier) is 1. Similarly, a call to a SIP device (as
defined in sip.conf) might have a destination of SIP/0004F2001122, and a call to an IAX
device (defined in iax.conf) might have a destination of IAX2/Softphone.11 If we wanted
Asterisk to ring the DAHDI/1 channel when extension 105 is reached in the dialplan,
we’d add the following extension:
exten => 105,1,Dial(DAHDI/1)
We can also dial multiple channels at the same time, by concatenating the destinations
with an ampersand (&), like this:
exten => 105,1,Dial(DAHDI/1&SIP/0004F2001122&IAX2/Softphone)
The Dial() application will ring all of the specified destinations simultaneously, and
bridge the inbound call with whichever destination channel answers first (the other
channels will immediately stop ringing). If the Dial() application can’t contact any of
the destinations, Asterisk will set a variable called DIALSTATUS with the reason that it
couldn’t dial the destinations, and continue with the next priority in the extension.12
The Dial() application also allows you to connect to a remote VoIP endpoint not pre‐
viously defined in one of the channel configuration files. The full syntax is:
Dial(technology/user[:password]@remote_host[:port][/remote_extension])
As an example, you can dial into a demonstration server at Digium using the IAX2
protocol by using the following extension:
exten => 500,1,Dial(IAX2/guest@misery.digium.com/s)
The full syntax for the Dial() application is slightly different for DAHDI channels:
Dial(DAHDI/[gGrR]channel_or_group[/remote_extension])
For example, here is how you would dial 1-800-555-1212 on DAHDI channel number
4:13
exten => 501,1,Dial(DAHDI/4/18005551212)
Argument 2: timeout
The second argument to the Dial() application is a timeout, specified in seconds. If a
timeout is given, Dial() will attempt to call the specified destination(s) for that number
of seconds before giving up and moving on to the next priority in the extension. If no
Building an Interactive Dialplan | 135
www.it-ebooks.info
timeout is specified, Dial() will continue to dial the called channel(s) until someone
answers or the caller hangs up. Let’s add a timeout of 10 seconds to our extension:
exten => 502,1,Dial(DAHDI/1,10)
If the call is answered before the timeout, the channels are bridged and the dialplan is
done. If the destination simply does not answer, is busy, or is otherwise unavailable,
Asterisk will set a variable called DIALSTATUS and then continue on with the next priority
in the extension.
Let’s put what we’ve learned so far into another example:
exten => 502,1,Dial(DAHDI/1,10)
same => n,Playback(vm-nobodyavail)
same => n,Hangup()
As you can see, this example will play the vm-nobodyavail.gsm sound file if the call goes
unanswered.
Argument 3: option
The third argument to Dial() is an option string. It may contain one or more characters
that modify the behavior of the Dial() application. While the list of possible options is
too long to cover here, one of the most popular is the m option. If you place the letter m
as the third argument, the calling party will hear hold music instead of ringing while
the destination channel is being called (assuming, of course, that music on hold has
been configured correctly). To add the m option to our last example, we simply change
the first line:
exten => 502,1,Dial(DAHDI/1,10,m)
same => n,Playback(vm-nobodyavail)
same => n,Hangup()
Argument 4: URI
The fourth and final argument to the Dial() application is a URI. If the destination
channel supports receiving a URI at the time of the call, the specified URI will be sent
(for example, if you have an IP telephone that supports receiving a URI, it will appear
on the phone’s display; likewise, if you’re using a softphone, the URI might pop up on
your computer screen). This argument is very rarely used.
Few (if any) phones support URI information being passed to them. If
you’re looking for something like a screen pop, you might want to check
out Chapter 18, and more specifically the section on Jabber in “Using
XMPP (Jabber) with Asterisk” on page 511.
136 | Chapter 6: Dialplan Basics
www.it-ebooks.info
Updating the dialplan
Let’s modify extensions 1 and 2 in our menu to use the Dial() application:
[TestMenu]
exten => start,1,Answer()
same => n,Background(enter-ext-of-person)
same => n,WaitExten(5)
exten => 1,1,Dial(SIP/0000FFFF0001,10) ; Replace 0000FFFF0001 with your device name
same => n,Playback(vm-nobodyavail)
same => n,Hangup()
exten => 2,1,Dial(SIP/0000FFFF0002,10) ; Replace 0000FFFF0002 with your device name
same => n,Playback(vm-nobodyavail)
same => n,Hangup()
exten => i,1,Playback(pbx-invalid)
same => n,Goto(TestMenu,start,1)
exten => t,1,Playback(vm-goodbye)
same => n,Hangup()
Blank arguments
Note that the second, third, and fourth arguments may be left blank; only the first
argument is required. For example, if you want to specify an option but not a timeout,
simply leave the timeout argument blank, like this:
exten => 1,1,Dial(DAHDI/1,,m)
Using Variables
Variables can be used in an Asterisk dialplan to help reduce typing, improve clarity, or
add logic. If you have some computer programming experience, you already understand
what a variable is. If not, we’ll briefly explain what variables are and how they are used.
They are a vitally important Asterisk dialplan concept (and something you will not find
in the dialplan of any proprietary PBX).
A variable is a named container that can hold a value. The advantage of a variable is
that its contents may change, but its name does not, which means you can write code
that references the variable name and not worry about what the value will be. So, for
example, we might create a variable called JOHN and assign it the value of DAHDI/1. This
way, when we’re writing our dialplan we can refer to John’s channel by name, instead of
remembering that John is using the channel named DAHDI/1. If at some point we change
John’s channel to something else, we don’t have to change any of our code that references
the JOHN variable; we only have to change the value assigned to the variable.
There are two ways to reference a variable. To reference the variable’s name, simply type
the name of the variable, such as LEIF. If, on the other hand, you want to reference the
Building an Interactive Dialplan | 137
www.it-ebooks.info
value of the variable, you must type a dollar sign, an opening curly brace, the name of
the variable, and a closing curly brace (in the case of LEIF, we would reference the value
of the variable with ${LEIF}). Here’s how we might use a variable inside the Dial()
application:
exten => 301,1,Set(LEIF=SIP/0000FFFF0001)
same => n,Dial(${LEIF})
In our dialplan, whenever we refer to ${LEIF}, Asterisk will automatically replace it
with whatever value has been assigned to the variable named LEIF.
Note that variable names are case-sensitive. A variable named LEIF is
different than a variable named Leif. For readability’s sake, all our
variable names in the examples will be written in uppercase. You should
also be aware that any variables set by Asterisk will be uppercase. Some
variables, such as CHANNEL and EXTEN, are reserved by Asterisk. You
should not attempt to set these variables. It is popular to write global
variables in uppercase and channel variables in Pascal/Camel case.
There are three types of variables we can use in our dialplan: global variables, channel
variables, and environment variables. Let’s take a moment to look at each type.
Global variables
As their name implies, global variables are visible to all channels at all times. Global
variables are useful in that they can be used anywhere within a dialplan to increase
readability and manageability. Suppose for a moment that you had a large dialplan and
several hundred references to the SIP/0000FFFF0001 channel. Now imagine you had
to go through your dialplan and change all of those references to SIP/0000FFFF0002.
It would be a long and error-prone process, to say the least.
On the other hand, if you had defined a global variable that contained the value SIP/
0000FFFF0001 at the beginning of your dialplan and then referenced that instead, you
would have to change only one line of code to affect all places in the dialplan where that
channel was used.
Global variables should be declared in the [globals] context at the beginning of the
extensions.conf file. As an example, we will create a global variable named LEIF with a
value of SIP/0000FFFF0001. This variable is set at the time Asterisk parses the dialplan:
[globals]
LEIF=SIP/0000FFFF0001
138 | Chapter 6: Dialplan Basics
www.it-ebooks.info
14. We’ll get into dialplan functions later. Don’t worry too much about environment variables right now. They
are not important to understanding the dialplan.
Channel variables
A channel variable is a variable that is associated only with a particular call. Unlike global
variables, channel variables are defined only for the duration of the current call and are
available only to the channels participating in that call.
There are many predefined channel variables available for use within the dialplan, which
are explained in the Asterisk wiki. Channel variables are set via the Set() application:
exten => 202,1,Set(MagicNumber=42)
same => n,SayNumber(${MagicNumber})
You’re going to be seeing a lot more channel variables. Read on.
Environment variables
Environment variables are a way of accessing Unix environment variables from within
Asterisk. These are referenced using the ENV() dialplan function.14 The syntax looks like
${ENV(var)}, where var is the Unix environment variable you wish to reference. En‐
vironment variables aren’t commonly used in Asterisk dialplans, but they are available
should you need them.
Adding variables to our dialplan
Now that we’ve learned about variables, let’s put them to work in our dialplan. We’re
going to add three global variables that will associate a variable name to a channel name:
[globals]
LEIF=SIP/0000FFFF0001
JIM=SIP/0000FFFF0002
RUSSELL=SIP/0000FFFF0003
[LocalSets]
exten => 101,1,Dial(${LEIF})
exten => leif,1,Dial(${LEIF})
exten => 102,1,Dial(${JIM})
exten => jim,1,Dial(${JIM})
exten => 103,1,Dial(${RUSSELL})
exten => russell,1,Dial(${RUSSELL})
exten => 201,1,Goto(TestMenu,start,1) ; access the TestMenu context
[TestMenu]
exten => start,1,Answer()
same => n,Background(enter-ext-of-person)
Building an Interactive Dialplan | 139
www.it-ebooks.info
same => n,WaitExten()
exten => 1,1,Dial(DAHDI/1,10)
same => n,Playback(vm-nobodyavail)
same => n,Hangup()
exten => 2,1,Dial(SIP/Jane,10)
same => n,Playback(vm-nobodyavail)
same => n,Hangup()
exten => i,1,Playback(pbx-invalid)
same => n,Goto(TestMenu,start,1)
exten => t,1,Playback(vm-goodbye)
same => n,Hangup()
You’ll notice we’ve added pseudonym extension names for our extension numbers. In
“Extensions” on page 124, we explained that Asterisk does not care which naming
scheme you use to identify an extension. We’ve simply added both numeric and named
extension identifiers for reaching the same endpoint; extensions 101 and leif both
reach the device located at SIP/0000FFFF0001; extensions 102 and jim both reach the
device located at SIP/0000FFFF0002; and both 103 and russell reach the device located
at SIP/0000FFFF0003. The devices are identified with the global variables ${LEIF},
${JIM}, and ${RUSSELL}, respectively, and we’re dialing those locations using the Dial()
application.
In our test menu we’ve simply picked a couple of random endpoints to dial, such as
DAHDI/1 and SIP/Jane. These could be replaced with any available endpoints that you
wish. Our TestMenu context has been built to start giving you an idea as to what an
Asterisk dialplan looks like.
Pattern Matching
If we want to be able to allow people to dial through Asterisk and have Asterisk connect
them to outside resources, we need a way to match on any possible phone number that
the caller might dial. For situations like this, Asterisk offers pattern matching. Pattern
matching allows you to create one extension in your dialplan that matches many dif‐
ferent numbers. This is enormously useful.
Pattern-matching syntax
When using pattern matching, certain letters and symbols represent what we are trying
to match. Patterns always start with an underscore (_). This tells Asterisk that we’re
matching on a pattern, and not on an explicit extension name.
140 | Chapter 6: Dialplan Basics
www.it-ebooks.info
If you forget the underscore at the beginning of your pattern, Asterisk
will think it’s just a named extension and won’t do any pattern matching.
This is one of the most common mistakes people make when starting
to learn Asterisk.
After the underscore, you can use one or more of the following characters:
X
Matches any single digit from 0 to 9.
Z
Matches any single digit from 1 to 9.
N
Matches any single digit from 2 to 9.
Another common mistake is to try and use the letters X, Z, and N
literally in a pattern match; to do that, wrap them in square brackets
(case insensitive), e.g. _[n]o[x]ious-XXX.
[15-7]
Matches a single character from the range of digits specified. In this case, the pattern
matches a single 1, as well as any number in the range 5, 6, 7.
. (period)
Wildcard match; matches one or more characters, no matter what they are.
If you’re not careful, wildcard matches can make your dialplans do
things you’re not expecting (like matching built-in extensions such
as i or h). You should use the wildcard match in a pattern only after
you’ve matched as many other digits as possible. For example, the
following pattern match should probably never be used:
_.
In fact, Asterisk will warn you if you try to use it. Instead, if you
really need a catchall pattern match, use this one to match all strings
that start with a digit followed by one or more characters (see ! if
you want to be able to match on zero or more characters):
_X.
Or this one, to match any alphanumeric string:
_[0-9a-zA-Z].
! (bang)
Wildcard match; matches zero or more characters, no matter what they are.
Building an Interactive Dialplan | 141
www.it-ebooks.info
To use pattern matching in your dialplan, simply put the pattern in the place of the
extension name (or number):
exten => _NXX,1,Playback(silence/1&auth-thankyou)
In this example, the pattern matches any three-digit extension from 200 through 999
(the N matches any digit between 2 and 9, and each X matches a digit between 0 and 9).
That is to say, if a caller dialed any three-digit extension between 200 and 999 in this
context, he would hear the sound file auth-thankyou.gsm.
One other important thing to know about pattern matching is that if Asterisk finds more
than one pattern that matches the dialed extension, it will use the most specific one (going
from left to right). Say you had defined the following two patterns, and a caller dialed
555-1212:
exten => _555XXXX,1,Playback(silence/1&digits/1)
exten => _55512XX,1,Playback(silence/1&digits/2)
In this case the second extension would be selected, because it is more specific.
Pattern-matching examples
This pattern matches any seven-digit number, as long as the first digit is 2 or higher:
_NXXXXXX
The preceding pattern would be compatible with any North American Numbering Plan
local seven-digit number.
In areas with 10-digit dialing, that pattern would look like this:
_NXXNXXXXXX
Note that neither of these two patterns would handle long-distance calls. We’ll cover
those shortly.
The NANP and Toll Fraud
The North American Numbering Plan (NANP) is a shared telephone numbering
scheme used by 19 countries in North America and the Caribbean. All of these countries
share country code 1.
In the United States and Canada, telecom regulations are similar (and sensible) enough
that you can place a long-distance call to most numbers in country code 1 and expect
to pay a reasonable toll. However, many people don’t realize that 17 other countries,
many of which have very different telecom regulations, share the NANP.
One popular scam using the NANP tries to trick naïve North Americans into calling
expensive per-minute toll numbers in a Caribbean country; the callers believe that since
they dialed 1-NPA-NXX-XXXX to reach the number, they’ll be paying their standard
142 | Chapter 6: Dialplan Basics
www.it-ebooks.info
15. If you grew up in North America, you may believe that the 1 you dial before a long-distance call is “the long-
distance code.” This is incorrect. The number 1 is the international country code for NANP. Keep this in mind
if you send your phone number to someone in another country. The recipient may not know your country
code, and thus be unable to call you with just your area code and phone number. Your full phone number
with country code is +1 NPA NXX XXXX (where NPA is your area code)—e.g., +1 416 555 1212.
national long-distance rate for the call. Since the country in question may have regula‐
tions that allow for this form of extortion, the caller is ultimately held responsible for
the call charges.
The only way to prevent this sort of activity is to block calls to certain area codes (809,
for example) and remove the restrictions only on an as-needed basis.
Let’s try another:
_1NXXNXXXXXX
This one will match the number 1, followed by an area code between 200 and 999, then
any seven-digit number. In the NANP calling area, you would use this pattern to match
any long-distance number.15
And finally this one:
_011.
Note the period on the end. This pattern matches any number that starts with 011 and
has at least one more digit. In the NANP, this indicates an international phone number.
(We’ll be using these patterns in the next section to add outbound dialing capabilities
to our dialplan.)
Pattern Matches in Other Countries
The examples in this section were NANP-centric, but the basic logic applies in any
country. Here are some examples for other countries (note that we were not able to test
these, and they are almost certainly incomplete):
; UK, Germany, Italy, China, etc.
_00. ; international dialing code
_0. ; national dialing prefix
; Australia
_0011. ; international dialing code
_0. ; national dialing prefix
This is by no means comprehensive, but it should give you a general idea of the patterns
you’ll want to consider for your own country.
Building an Interactive Dialplan | 143
www.it-ebooks.info
Using the ${EXTEN} channel variable
So what happens if you want to use pattern matching but need to know which digits
were actually dialed? Enter the ${EXTEN} channel variable. Whenever you dial an ex‐
tension, Asterisk sets the ${EXTEN} channel variable to the digits that were dialed. We
can use an application called SayDigits() to test this out:
exten => _XXX,1,Answer()
same => n,SayDigits(${EXTEN})
In this example, the SayDigits() application will read back to you the three-digit ex‐
tension you dialed.
Often, it’s useful to manipulate the ${EXTEN} by stripping a certain number of digits off
the front of the extension. This is accomplished by using the syntax ${EXTEN:x}, where
x is where you want the returned string to start, from left to right. For example, if the
value of ${EXTEN} is 95551212, ${EXTEN:1} equals 5551212. Let’s try another example:
exten => _XXX,1,Answer()
same => n,SayDigits(${EXTEN:1})
In this example, the SayDigits() application would start at the second digit, and thus
read back only the last two digits of the dialed extension.
More Advanced Digit Manipulation
The ${EXTEN} variable properly has the syntax ${EXTEN:x:y}, where x is the starting
position and y is the number of digits to return. Given the following dial string:
94169671111
we can extract the following digit strings using the ${EXTEN:x:y} construct:
•${EXTEN:1:3} would contain 416
•${EXTEN:4:7} would contain 9671111
•${EXTEN:-4:4} would start four digits from the end and return four digits, giving
us 1111
•${EXTEN:2:-4} would start two digits in and exclude the last four digits, giving us
16967
•${EXTEN:-6:-4} would start six digits from the end and exclude the last four digits,
giving us 67
•${EXTEN:1} would give us everything after the first digit, or 4169671111 (if the
number of digits to return is left blank, it will return the entire remaining string)
144 | Chapter 6: Dialplan Basics
www.it-ebooks.info
This is a very powerful construct, but most of these variations are not very common in
normal use. For the most part, you will be using ${EXTEN} (or perhaps ${EXTEN:1} if
you need to strip off an external access code, such as a prepended 9).
Includes
Asterisk has an important feature that allows extensions from one context to be available
from within another context. This is accomplished through use of the include directive.
The include directive allows us to control access to different sections of the dialplan.
The include statement takes the following form, where context is the name of the
remote context we want to include in the current context:
include => context
Including one context within another context allows extensions within the included
context to be dialable.
When we include other contexts within our current context, we have to be mindful of
the order in which we are including them. Asterisk will first try to match the dialed
extension in the current context. If unsuccessful, it will then try the first included context
(including any contexts included in that context), and then continue to the other in‐
cluded contexts in the order in which they were included.
We will discuss the include directive more in Chapter 7.
Conclusion
And there you have it—a basic but functional dialplan. There is still much we have not
covered, but you’ve got all of the fundamentals. In the following chapters, we’ll continue
to build on this foundation.
If parts of this dialplan don’t make sense, you may want to go back and reread a section
or two before continuing on to the next chapter. It’s imperative that you understand
these principles and how to apply them, as the next chapters build on this information.
Conclusion | 145
www.it-ebooks.info
www.it-ebooks.info
You cannot always control what goes on outside.
But you can always control what goes on inside.
—Wayne Dyer
CHAPTER 7
Outside Connectivity
In the previous chapters, we have covered a lot of important information that is essential
to a working Asterisk system. However, we have yet to accomplish the one thing that is
vital to any useful PBX: namely, connecting it to the outside world. In this chapter we
will rectify that situation.
The architecture of Asterisk is significant, due in large part to the fact that it treats all
channel types as equal. This is in contrast to a traditional PBX, where trunks (which
connect to the outside world) and extensions (which connect to users and resources)
are very different. The fact that the Asterisk dialplan treats all channels in a similar
manner means that in an Asterisk system you can accomplish very easily things that are
much more difficult (or impossible) to achieve on a traditional PBX.
This flexibility does come with a price, however. Since the system does not inherently
know the difference between an internal resource (such as a telephone set) and an ex‐
ternal resource (such as a telco circuit), it is up to you to ensure that your dialplan
handles each type of resource appropriately.
The Basics of Trunking
The purpose of trunking is to provide a shared connection between two entities. For
example, a trunk road would be a highway that connects two towns together. Railroads
used the term “trunk” extensively, to refer to a major line that connected feeder lines
together.
Similarly, in telecom, trunking is used to connect two systems together. Carriers use
telecom trunks to connect their networks together, and in a PBX, the circuits that
147
www.it-ebooks.info
1. But do not collect $200.
2. In a key system, each line has a corresponding button on each telephone, and lines are accessed by pressing
the desired line key.
connect the PBX to the outside world are commonly referred to as trunks (although the
carriers themselves do not generally consider these to be trunks). From a technical
perspective, the definition of a trunk is not as clear as it used to be (PBX trunks used
totally different technology from station circuits), but as a concept, trunks are still very
important. For example, with VoIP, everything is actually peer-to-peer (so from a tech‐
nology perspective there isn’t really such a thing as a trunk anymore), but it is still useful
to be able to differentiate between VoIP resources that connect to the outside world and
VoIP resources that connect to user endpoints (such as SIP telephones).
It’s probably easiest to think of a trunk as a collection of circuits that service a route. So,
in an Asterisk PBX, you might have trunks that go to your VoIP provider for long-
distance calls, trunks for your PSTN circuits, and trunks that connect your various
offices together. These trunks might actually run across the same network connection,
but in your dialplan you could treat them quite differently.
While we believe that VoIP will eventually completely replace the PSTN, many of the
concepts that are in use on VoIP circuits (such as a “phone number”) owe their existence
more to history than any technical requirement, and thus we feel it will be helpful to
discuss using traditional PSTN circuits with Asterisk before we get into VoIP.
If the system you are installing will use VoIP circuits only, that is not a problem. Go
straight to the VoIP section of this chapter,1 and we’ll take you through what you need
to do. We do recommend reading the PSTN sections at your convenience, since there
may be general knowledge in them that could be of use to you, but it is not strictly
required in order to understand and use Asterisk.
Fundamental Dialplan for Outside Connectivity
In a traditional PBX, external lines are generally accessed by way of an access code that
must be dialed before the number.2 It is common to use the digit 9 for this purpose.
In Asterisk, it is similarly possible to assign 9 for routing of external calls, but since the
Asterisk dialplan is so much more intelligent, it is not really necessary to force your
users to dial 9 before placing a call. Typically, you will have an extension range for your
system (say, 100–199), and a feature code range (*00 to *99). Anything outside those
ranges that matches the dialing pattern for your country or region can be treated as an
external call.
If you have one carrier providing all of your external routing, you can handle your
external dialing through a few simple pattern matches. The example in this section is
148 | Chapter 7: Outside Connectivity
www.it-ebooks.info
3. You can name these anything you wish. The words “local” and “toll” do not have any built-in meaning to the
Asterisk dialplan.
4. For more information on pattern matches, see Chapter 6.
valid for the North American Numbering Plan (NANP). If your country is not within
the NANP (which serves Canada, the US, and several Caribbean countries), you will
need a different pattern match.
The [globals] section contains two variables, named LOCAL and TOLL.3 The purpose of
these variables is to simplify management of your dialplan should you ever need to
change carriers. They allow you to make one change to the dialplan that will affect all
places where the specified channel is referenced:
[globals]
LOCAL=DAHDI/G0 ; assuming you have a PSTN card in your system
TOLL=SIP/YourVoipCarrier ; as defined in sip.conf
The [external] section contains the actual dialplan code that will recognize the num‐
bers dialed and pass them to the Dial() application:4
[external]
exten => _NXXNXXXXXX,1,Dial(${LOCAL}/${EXTEN}) ; 10-digit pattern match for NANP
exten => _NXXXXXX,1,Dial(${LOCAL}/${EXTEN}) ; 7-digit pattern match for NANP
exten => _1NXXNXXXXXX,1,Dial(${TOLL}/${EXTEN}) ; Long-distance pattern match
; for NANP
exten => _011.,1,Dial(${TOLL}/${EXTEN}) ; International pattern match for
; calls made from NANP
; This section is functionally the same as the above section.
; It is for people who like to dial '9' before their calls
exten => _9NXXNXXXXXX,1,Dial(${LOCAL}/${EXTEN:1})
exten => _9NXXXXXX,1,Dial(${LOCAL}/${EXTEN:1})
exten => _91NXXNXXXXXX,1,Dial(${TOLL}/${EXTEN:1})
exten => _9011.,1,Dial(${TOLL}/${EXTEN:1})
In any context that would be used by sets or user devices, you would use an in
clude=> directive to allow access to the external context:
[LocalSets]
include => external
It is critically important that you do not include access to the external
lines in any context that might process an incoming call. The risk here
is that a phishing bot could eventually gain access to your outgoing
trunks (you’d be surprised at how common these phishing bots are).
We cannot stress enough how important it is that you ensure that no
external resource can access your toll lines.
Fundamental Dialplan for Outside Connectivity | 149
www.it-ebooks.info
5. You would use the exact same card if you wanted to connect a traditional home telephone line to your Asterisk
system.
PSTN Circuits
The public switched telephone network (PSTN) has existed for over a century. It is the
precursor to many of the technologies that shape our world today, from the Internet to
MP3 players.
Traditional PSTN Trunks
There are two types of fundamental technology that phone carriers use to deliver tele‐
phone circuits: analog and digital.
Analog telephony
The first telephone networks were all analog. The audio signal that you generated with
your voice was used to generate an electrical signal that was carried to the other end.
The electrical signal had the same characteristics as the sound being produced.
Analog circuits have several characteristics that differentiate them from other circuits
you might wish to connect to Asterisk:
• No signaling channel exists—most signaling is electromechanical.
•Disconnect supervision is usually delayed by several seconds, and is not completely
reliable.
• Far-end supervision is minimal (for example, answer supervision is lacking).
•Differences in circuits means that audio characteristics will vary from circuit to
circuit and will require tuning.
Analog circuits that you wish to connect to your Asterisk system will need to connect
to a Foreign eXchange Office (FXO) port. Since there is no such thing as an FXO port
in any standard computer, an FXO card must be purchased and installed in the system
in order to connect traditional analog lines.5
150 | Chapter 7: Outside Connectivity
www.it-ebooks.info
FXO and FXS
For any analog circuit, there are two ends: the office (typically the central office of the
PSTN), and the station (typically a phone, but could also be a card such as a modem or
line card in a PBX).
The central office is responsible for:
• Power on the line (nominally 48 volts of direct current)
• Ringing voltage (nominally 90 volts of alternating current)
• Providing dialtone
• Detecting hook state (off-hook and on-hook)
• Sending supplementary signaling such as caller ID
The station is responsible for:
•Providing a ringer (or at least being able to handle ringing voltage in some manner)
• Providing a dialpad (or some way of sending DTMF)
• Providing a hook switch to indicate the status of the line
A Foreign eXchange (FX) port is named by what it connects to, not by what it does. So,
for example, a Foreign eXchange Office (FXO) port is actually a station: it connects to
the central office. A Foreign eXchange Station (FXS) port is actually a port that provides
the services of a central office (in other words, you would plug an analog set into an FXS
port).
This is why the signaling settings in the Asterisk config files seem backwards: FXO ports
use FXS signaling; FXS ports use FXO signaling. When you understand that the name
of the physical port type is based on what it connects to, the signaling names in Asterisk
make a bit more sense: if an FXO port connects to the central office, it needs to be able
to behave as a station, and therefore needs FXS signaling.
Note that changing from FXO to FXS is not something you can simply do with a settings
change. FXO and FXS ports require completely different electronics. Most analog cards
available for Asterisk use some form of daughtercard that connects to the main card
and provides the correct channel type, meaning that you have some flexibility in defining
what types of ports you have on your card.
Analog ports are not generally used in medium to large systems. They are most com‐
monly used in smaller offices (less than 10 lines; less than 30 phones). Your decision to
use analog might be based on some of the following factors:
PSTN Circuits | 151
www.it-ebooks.info
• Availability of digital trunks in your area
•Cost (analog is less expensive at smaller densities, but more expensive at higher
densities)
• Logistics (if you already have analog lines installed, you may wish to keep them)
From a technical perspective, you would normally want to have digital rather than
analog circuits. Reality does not always accommodate, though, so analog will likely be
around for a few more years yet.
Digital telephony
Digital telephony was developed in order to overcome many of the limitations of analog.
Some of the benefits of digital circuits include:
• No loss of amplitude over long distances
• Reduced noise on circuits (especially long-distance circuits)
• Ability to carry more than one call per circuit
• Faster call setup and teardown
• Richer signaling information (especially if using ISDN)
•Lower cost for carriers
•Lower cost for customers (at higher densities)
In an Asterisk system (or any PBX, for that matter), there are several types of digital
circuits you might want to connect:
T1 (24 channels)
Used in Canada and the United States (mostly for ISDN-PRI)
E1 (32 channels)
Used in the rest of the world (ISDN-PRI or MFC/R2)
BRI (2 channels)
Used for ISDN-BRI circuits (Euro-ISDN)
Note that the physical circuit can be further defined by the protocol running on the
circuit. For example, a T1 could be used for either ISDN-PRI or CAS, and an E1 could
be used for ISDN-PRI, CAS, or MFC/R2. We’ll discuss the different protocols in the
next section.
Installing PSTN Trunks
Depending on the hardware you have installed, the process for installing your PSTN
cards will vary. We will discuss installation in general terms, which will apply to all
152 | Chapter 7: Outside Connectivity
www.it-ebooks.info
6. Don’t ask.
7. There are other ways of getting a timing source, and if you want a really tight system it is possible to run
Asterisk without DAHDI, but it’s not something we’re going to cover here.
Digium PSTN cards. Other manufacturers tend to provide installation scripts with their
hardware, which will automate much of this for you.
Downloading and installing DAHDI
The Digium Asterisk Hardware Device Interface, a.k.a. DAHDI (DAW-dee),6 is the
software framework required to enable communication between PSTN cards and
Asterisk. Even if you do not have any PSTN hardware, we recommend installing DAHDI
since it is a simple, reliable way to get a valid timing source.7 Complete DAHDI instal‐
lation instructions can be found in Chapter 3.
Disable Loading Extra DAHDI Modules
By default DAHDI will load all compiled modules into memory. As this is unnecessary,
let’s disable loading any of the hardware modules for now. If no modules are loaded in
the configuration files, DAHDI will load the dahdi_dummy driver, which provides an
interface for Asterisk to get timing from the kernel so that timing-dependent modules
such as MeetMe and IAX2 trunking work correctly.
As of DAHDI 2.3.0, the requirement to load dahdi_dummy for
a timing interface no longer exists. The same functionality has
now been integrated into the main dahdi kernel module.
The configuration file defining which modules DAHDI will load is in /etc/dahdi/
modules. To disable loading of extra modules, all we need to do is edit the modules file
and comment out all the modules by placing a hash (#) at the start of each line. When
you’re done, your modules configuration file should look similar to the following:
# Contains the list of modules to be loaded / unloaded by /etc/init.d/dahdi.
#
# NOTE: Please add/edit /etc/modprobe.d/dahdi or /etc/modprobe.conf if you
# would like to add any module parameters.
#
# Format of this file: list of modules, each in its own line.
# Anything after a '#' is ignored, likewise trailing and leading
# whitespace and empty lines.
# Digium TE205P/TE207P/TE210P/TE212P: PCI dual-port T1/E1/J1
# Digium TE405P/TE407P/TE410P/TE412P: PCI quad-port T1/E1/J1
# Digium TE220: PCI-Express dual-port T1/E1/J1
# Digium TE420: PCI-Express quad-port T1/E1/J1
PSTN Circuits | 153
www.it-ebooks.info
#wct4xxp
# Digium TE120P: PCI single-port T1/E1/J1
# Digium TE121: PCI-Express single-port T1/E1/J1
# Digium TE122: PCI single-port T1/E1/J1
#wcte12xp
# Digium T100P: PCI single-port T1
# Digium E100P: PCI single-port E1
#wct1xxp
# Digium TE110P: PCI single-port T1/E1/J1
#wcte11xp
# Digium TDM2400P/AEX2400: up to 24 analog ports
# Digium TDM800P/AEX800: up to 8 analog ports
# Digium TDM410P/AEX410: up to 4 analog ports
#wctdm24xxp
# X100P - Single port FXO interface
# X101P - Single port FXO interface
#wcfxo
# Digium TDM400P: up to 4 analog ports
#wctdm
# Digium B410P: 4 NT/TE BRI ports
#wcb4xxp
# Digium TC400B: G729 / G723 Transcoding Engine
#wctc4xxp
# Xorcom Astribank Devices
#xpp_usb
You can also use dahdi_genconf modules to generate a proper empty
configuration file. The dahdi_genconf application will search your
system for hardware and, if none is found, create a modules file that
does not load any hardware modules.
You can then restart your DAHDI process to unload any existing drivers that were
loaded, and load just the dahdi_dummy module with the init script:
$ sudo /etc/init.d/dahdi restart
Unloading DAHDI hardware modules: done
Loading DAHDI hardware modules:
No hardware timing source found in /proc/dahdi, loading dahdi_dummy
Running dahdi_cfg: [ OK ]
Before you can start using your hardware, though, you’ll need to configure the /etc/
dahdi/system.conf file; this process is described in “Configuring digital circuits” on page
155 and “Configuring analog circuits” on page 159.
154 | Chapter 7: Outside Connectivity
www.it-ebooks.info
8. Sometimes circuits are referenced by the number of B- and D-channels they contain, so a single T1 running
the PRI protocol in North America might be referred to as 23B+D, and a dual T1 circuit with a backup
D-channel would be a 46B+2D. We’ve even seen PRI referenced as nB+nD, although this can get a little bit
pedantic.
Configuring digital circuits
Digital telephony was developed by carriers as a way to reduce the cost of long-distance
circuits, as well as improve transmission quality. The entire PSTN backbone has been
fully digital for many years now. The essence of a digital circuit is the digitization of the
audio, but digital trunks also allow for more complex and reliable signaling. Several
standards have been developed and deployed, and for each standard there may be re‐
gional differences as well.
You can use dahdi_hardware and lsdahdi to help you determine
what telephony hardware your system contains. You can also use dah‐
di_genconf modules to build an /etc/asterisk/modules file for you based
on the found hardware.
PRI ISDN. Primary Rate Interface ISDN (commonly known as PRI) is a protocol de‐
signed to run primarily on a DS1 circuit (a T1 or E1, depending on where you are in
the world) between a carrier and a customer. PRI uses one of the DS0 channels as a
signaling channel (referred to as the D-channel). A typical PRI circuit is therefore broken
down into a group of B-channels (the bearer channels that actually carry the calls), and
a D-channel for signaling. Although it is most common to find a PRI circuit being
carried across a single physical circuit (such as a T1 or E1), it is possible to have a PRI
circuit span multiple DS1s, and even to have multiple D-channels.8
While there are many different ways to configure PRI circuits, we are hoping to avoid
confusing you with all the options (many of which are obsolete or at least no longer in
common use), and instead provide examples of the more common configurations.
When installing telephony hardware, be sure you update the /etc/
dahdi/modules file to enable the appropriate modules for your hard‐
ware and then reload DAHDI with the init script (/etc/init.d/dahdi).
You can use the dahdi_genconf modules command to generate the
modules file for your system as well.
Most PRI circuits in North America will use a T1 with the following characteristics:
PSTN Circuits | 155
www.it-ebooks.info
• Line code: B8ZS (bipolar with 8-zeros substitution)
• Framing: ESF (extended superframe)
You will need to configure two files. The /etc/dahdi/system.conf file should look some‐
thing like this:
loadzone = us
defaultzone = us
span = 1,1,0,esf,b8zs
bchan = 1-23
echocanceller = mg2,1-23
hardhdlc = 24
And the /etc/asterisk/chan_dahdi.conf file should look like this:
[trunkgroups]
[channels]
usecallerid = yes
hidecallerid = no
callwaiting = yes
usecallingpres = yes
callwaitingcallerid = yes
threewaycalling = yes
transfer = yes
canpark = yes
cancallforward = yes
callreturn = yes
echocancel = yes
echocancelwhenbridged = yes
relaxdtmf = yes
rxgain = 0.0
txgain = 0.0
group = 1
callgroup = 1
pickupgroup = 1
immediate = no
switchtype = national ; commonly referred to as NI2
context = from-pstn
group = 0
echocancel = yes
signalling = pri_cpe
channel => 1-23
Some carriers will use Nortel’s DMS switch, which commonly uses the DMS100 protocol
instead of National ISDN 2. In this case you would set the switchtype to DMS100:
switchtype = dms100
156 | Chapter 7: Outside Connectivity
www.it-ebooks.info
Outside of Canada and the US, PRI circuits will be carried on an E1 circuit.
In Europe, an E1 circuit used for PRI will normally have the following characteristics:
• Line code: CCS
•Framing: HDB3 (high-density bipolar)
The /etc/dahdi/system.conf file might look something like this:
span = 1,0,0,ccs,hdb3,crc4
bchan = 1-15,17-31
hardhdlc = 16
And the /etc/asterisk/chan_dahdi.conf file should look something like this:
[trunkgroups]
[channels]
usecallerid = yes
hidecallerid = no
callwaiting = yes
usecallingpres = yes
callwaitingcallerid = yes
threewaycalling = yes
transfer = yes
canpark = yes
cancallforward = yes
callreturn = yes
echocancel = yes
echocancelwhenbridged = yes
relaxdtmf = yes
rxgain = 0.0
txgain = 0.0
group = 1
callgroup = 1
pickupgroup = 1
immediate = no
switchtype = qsig
context = pri_incoming
group = 0
signalling = pri_cpe
channel => 1-15,17-31
BRI ISDN. Basic Rate Interface ISDN (commonly known as BRI, or sometimes even just
ISDN) was intended to be the smaller sibling to PRI. BRI only provides two 64K
B-channels and a 16K D-channel. The use of BRI has been somewhat limited in North
America (we don’t recommend using it for any reason), but in some countries in Europe
it is widely used and has almost completely replaced analog.
PSTN Circuits | 157
www.it-ebooks.info
BRI support under Asterisk will be different depending on the BRI card you are instal‐
ling. The manufacturer of your BRI card will provide specific installation instructions
for its hardware.
When installing telephony hardware, be sure you update the /etc/dahdi/
modules file to enable the appropriate modules for your hardware and
then reload DAHDI with the init script (/etc/init.d/dahdi). You can use
the dahdi_genconf modules command to generate the modules file for
your system as well.
MFC/R2. The MFC/R2 protocol could be thought of as a precursor to ISDN. It was at
first used on analog circuits, but it is now mostly deployed on the same E1 circuits that
also carry ISDN-PRI. This protocol is not typically found in Canada, the US, or Western
Europe, but it is very popular in some parts of the world (especially Latin America and
Asia), mostly because it tends to be a less expensive service offering from the carriers.
There are many different flavors of this protocol, each country having a different re‐
gional variant.
The OpenR2 project provides the libopenr2 library, which needs to be installed on
your system in order for Asterisk to support your R2 circuits. Before installing
libopenr2, however, you need to have DAHDI installed.
The compilation and installation order, therefore, is:
1. DAHDI
2. libopenr2
3. Asterisk
Once OpenR2 has been installed, you can use the r2test application to see a list of variants
that are supported:
$ r2test -l
Variant Code Country
AR Argentina
BR Brazil
CN China
CZ Czech Republic
CO Colombia
EC Ecuador
ITU International Telecommunication Union
MX Mexico
PH Philippines
VE Venezuela
158 | Chapter 7: Outside Connectivity
www.it-ebooks.info
For additional information on configuring R2 support in Asterisk, see the configs/
chan_dahdi.conf.sample file included in the Asterisk source tree (search for “mfcr2”).
Additionally, OpenR2 contains some sample configuration files for connecting Asterisk
to networks in various countries. To read information about some of the country
variants, search the /doc/asterisk folder and refer to the documents inside the appro‐
priate subdirectory:
$ ls doc/asterisk/
ar br ec mx ve
As an example, OpenR2 provides a sample configuration for connecting to Telmex or
Axtel in Mexico. We’ll step you through this to give you an idea of the process. First,
you must configure DAHDI by modifying /etc/dahdi/system.conf as shown here:
loadzone = us
defaultzone = us
span = 1,1,0,cas,hdb3
cas = 1-15:1101
cas = 17-31:1101
span = 2,1,0,cas,hdb3
cas = 32-46:1101
cas = 48-62:1101
Next, you must configure Asterisk by modifying /etc/asterisk/chan_dahdi.conf as
follows:
signalling = mfcr2
mfcr2_variant = mx
mfcr2_get_ani_first = no
mfcr2_max_ani = 10
mfcr2_max_dnis = 4
mfcr2_category = national_subscriber
mfcr2_mfback_timeout = -1
mfcr2_metering_pulse_timeout = -1
; this is for debugging purposes
mfcr2_logdir = log
mfcr2_logging = all
; end debugging configuration
channel => 1-15
channel => 17-31
Configuring analog circuits
There are many companies producing PSTN cards for Asterisk. The card will need to
have its drivers installed so that Linux can recognize it (DAHDI ships with these drivers
for Digium cards). From that point, configuration is handled by the Asterisk module
chan_dahdi.
PSTN Circuits | 159
www.it-ebooks.info
9. In theory, these cards could be used for any software that supports DAHDI; therefore, the basic card con‐
figuration is not a part of Asterisk.
You can use dahdi_hardware and lsdahdi to determine what telephony
hardware your system contains.
When installing telephony hardware, be sure you update the /etc/dahdi/
modules file to enable the appropriate modules for your hardware, and
then reload DAHDI with the init script (/etc/init.d/dahdi). You can use
the dahdi_genconf modules command to generate the modules file for
your system as well.
In order to configure an FXO card to work with Asterisk, two files are required: the first
is not an Asterisk configuration file, and is thus located in the /etc/dahdi folder on your
system.9 This file, system.conf, allows you to define some basic parameters, as well as
specify the channels that will be available to your system. Our example assumes a four-
port FXO card, but many different combinations are possible, depending on your
hardware:
loadzone = us ; tonezone defines sounds the interface must produce
; (dialtone, busy signal, ringback, etc.)
defaultzone = us ; define a default tonezone
fxsks = 1-4 ; which channels on the card will have these parameters
Once your card and channels are known to the operating system, you must configure
them for Asterisk by means of the file /etc/asterisk/chan_dahdi.conf:
[channels]
;
; To apply other options to these channels, put them before "channel".
;
signalling = fxs_ks ; in Asterisk, FXO channels use FXS signaling
; (and yes, FXS channels use FXO signaling)
channel => 1-4 ; apply all the previously defined settings to this channel
In this example, we have told Asterisk that the first four DAHDI channels in the system
are FXO ports.
The s extension. If you are connecting to the PSTN using analog channels, we need to
explain extension s. When calls enter a context without a specific destination extension
(for example, a ringing FXO line from the PSTN), they are passed to the s extension.
(The s stands for “start,” as this is where a call will start if no extension information was
passed with the call). This extension can also be useful for accepting calls that have been
redirected from other parts of the dialplan. For example, if we had a list of Direct Inward
Dialing (DID) numbers that were all going to the same place, we might want to point
160 | Chapter 7: Outside Connectivity
www.it-ebooks.info
10. There’s not really anything special about any context name. We could have named this context
[stuff_that_comes_in], and as long as that was the context assigned in the channel definition in sip.conf,
iax.conf, chan_dahdi.conf, et al., the channel would enter the dialplan in that context. Having said that, it is
strongly recommended that you give your contexts names that help you to understand their purpose. Some
good context names might include [incoming], [local_calls], [long_distance], [sip_telephones],
[user_services], [experimental], [remote_locations], and so forth. Always remember that a context
determines how a channel enters the dialplan, so name accordingly.
11. The Wikipedia page on network address translation is actually quite good. For more information about
different types of NAT, and how NAT operates in general, check it out!
each DID to the s extension, rather than having to code duplicate dialplan logic for each
DID.
Since this is exactly what we need for our dialplan, let’s begin to fill in the pieces.
We will be performing three actions on the call (answer it, play a sound file, and
hang it up), so our s extension will need three priorities. We’ll place the three priorities
below [incoming], because we have decided that all incoming calls should start in this
context:10
[incoming]
exten => s,1,Answer()
same => n,Playback(tt-weasels)
same => n,Hangup()
Obviously, you would not normally want to answer a call and then hang up. Typically,
an incoming call will either be answered by an automated attendant, or ring directly to
a phone (or group of phones).
VoIP
Compared to the vast history of telecom, VoIP is still a relatively new concept. For the
century or so prior to VoIP, the only way to connect your site to the PSTN was through
the use of circuits provided for that purpose by your local telephone company. VoIP
now allows for connections between endpoints without the PSTN having to be involved
at all (although in most VoIP scenarios, there will still be a PSTN component at some
point, especially if there is a traditional E.164 phone number involved).
Coping with Network Address Translation
If you are going to be using VoIP across any sort of wide-area network (such as the
Internet), you will be dealing with firewalls and network address translation (NAT).11
A basic understanding of how the SIP and RTP protocols work together to create a VoIP
call can be helpful in understanding and debugging functional problems (such as the
very common “one-way audio” issue, which NAT configuration issues will often create).
NAT allows a single external IP address to be shared by multiple devices behind a router.
VoIP | 161
www.it-ebooks.info
12. SIP is not the only VoIP protocol to use RTP to carry the media streams.
Since NAT is typically handled in the firewall, it also forms part of the security layer
between a private network and the Internet.
A VoIP call using SIP doesn’t consist just of the signaling messages to set up the call (the
SIP part of the connection). It also requires the RTP streams (the media), which carry
the actual audio connection,12 as shown in Figure 7-1.

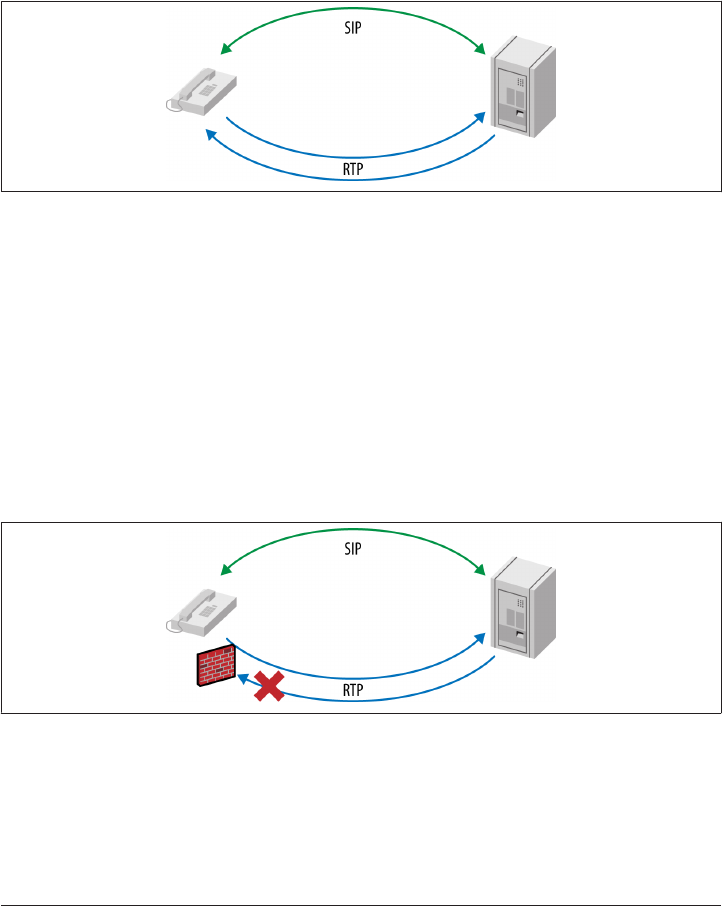

Figure 7-1. SIP and RTP
The use of separate protocols to carry the audio is what can make NAT traversal trou‐
blesome for VoIP connections, especially if the remote phones are behind one NAT, and
the PBX is behind a different NAT. The problem is caused by the fact that while the SIP
signaling will typically be allowed to pass through the firewalls at both ends, the RTP
streams may not be recognized as part of the SIP session taking place, and thus will be
ignored or blocked, as shown in Figure 7-2. The effect of one or both of the RTP streams
being blocked is that users will complain that they are seeing their calls happen, and can
answer them, but cannot hear (or cannot be heard).

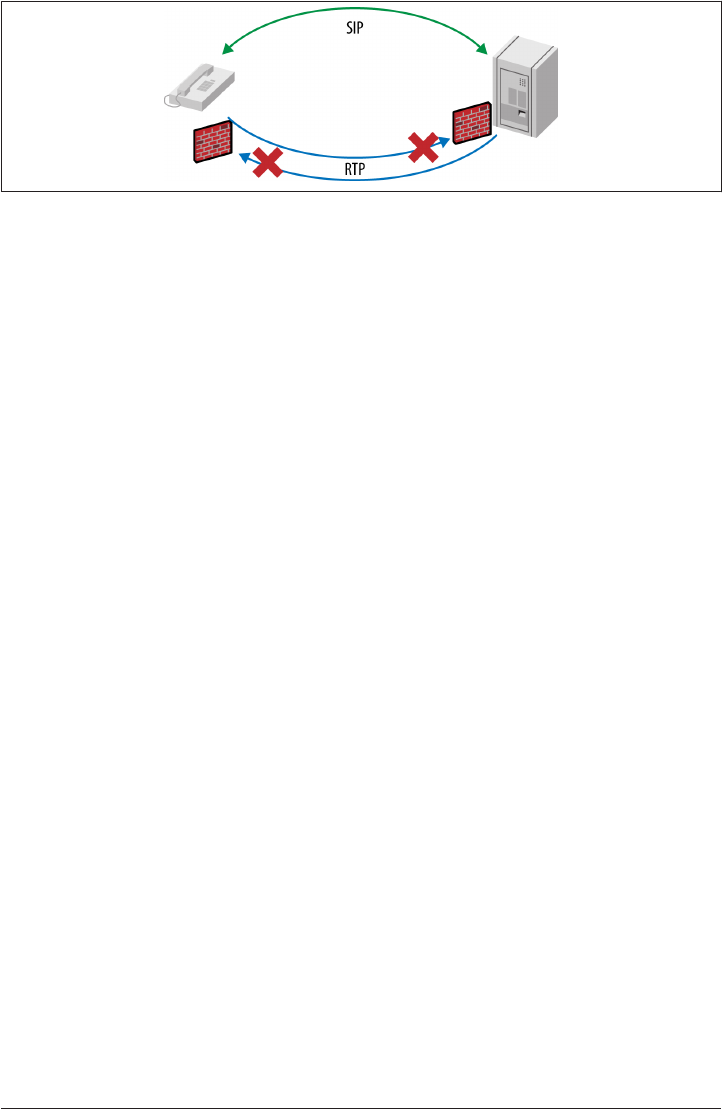

Figure 7-2. RTP blocked by firewall
162 | Chapter 7: Outside Connectivity
www.it-ebooks.info
13. Yes, you could have both scenarios in effect at the same time, which is popularly termed a “double-NAT.”
In this section we will discuss some of the methods you may employ to alleviate issues
caused by NAT. There are two different scenarios that need to be considered; each re‐
quiring you to define parameters within the sip.conf file. As long as you understand
which scenario you are dealing with,13 most NAT issues become a thing of the past.
Devices behind NAT
First, let’s deal with devices behind a remote NAT connecting to your Asterisk box, as
shown in Figure 7-3.

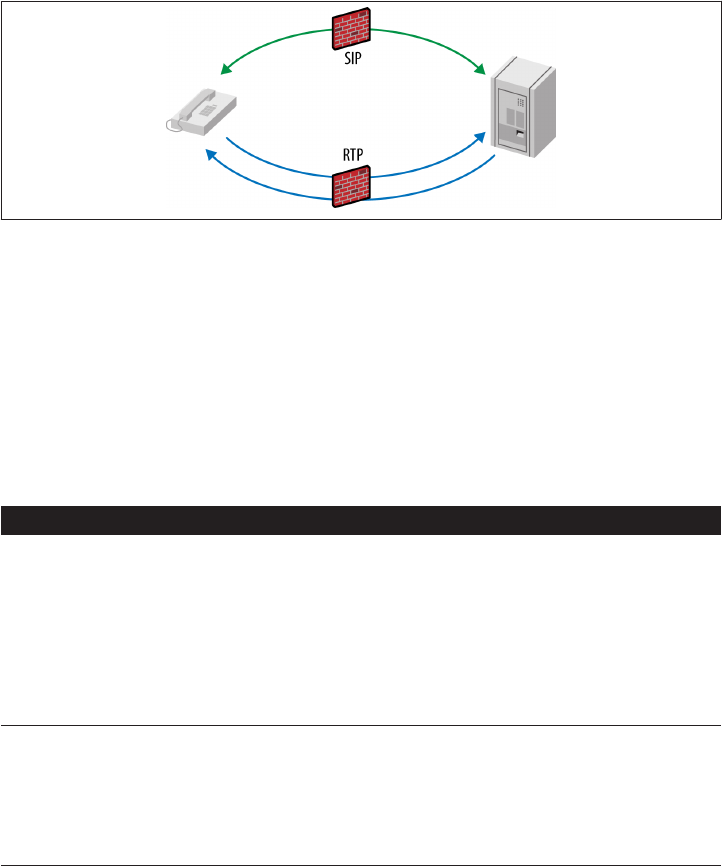

Figure 7-3. Remote devices behind NAT
When a device attempts to initiate a session, it will construct a SIP message that contains
its IP address and some additional information. When Asterisk sees this information,
it uses it to determine where to respond to. Since the device is behind NAT, the SIP
message will have a reply address that is not routable (e.g., 192.168.1.104). However, we
can tell Asterisk to ignore this SIP message address, and instead use what is supplied by
the network stack. We enable this via the nat option in sip.conf. Table 7-1 lists the
arguments we can set with the nat option.
Table 7-1. Arguments available to nat in sip.conf
Argument Description
no Perform no special NAT handling other than what is specified in RFC 3581.a
force_rport Even if no rport parameter was specified, act as if there had been.
comedia Send media back to the port it was received from and ignore the requested port in the
SDP header.
auto_force_rport If Asterisk can determine that the device is behind NAT, set the force_rport option.
This is the default.
auto_comedia If Asterisk can determine that the device is behind NAT, set the comedia option.
a http://www.ietf.org/rfc/rfc3581.txt
VoIP | 163
www.it-ebooks.info
RFC 3581 allows a device to use the rport parameter to signal to the far end that it
should respond to the source IP and port the request originated from, rather than using
the address supplied in the SIP header. Supplying the rport parameter can happen when
the device knows it is behind a NAT and can’t write the information that would be
required to communicate bidirectionally in the SIP header. Asterisk will always honor
the rport parameter if it is supplied, but since this isn’t as common as one would like,
we can force Asterisk to assume that the device would have supplied an rport parameter
if it had known better. By doing this, we instruct Asterisk to always respond to the source
IP and port from which it received the request. If no nat setting is explicitly defined,
Asterisk will default to auto_force_rport as the nat parameter setting. You can force
this behavior by setting nat=force_rport.
The comedia (connection-oriented media) option can be used to instruct Asterisk to
send media (RTP) to the address and port that the far-end media came from. This is
used when a device is behind NAT and can’t tell Asterisk the correct location to send
media to.
You can also specify multiple options to the nat setting by separating arguments with
a comma. For example, it is common to set both force_rport and comedia as the NAT
handling method (which is what we recommend you start with):
nat=force_rport,comedia
It is important to note that if the nat setting in the general section differs
from that in the peer section, it then becomes possible to discover valid
peers on the system. This is a security issue, and it is highly recom‐
mended that you only set the values for nat in the general section. The
discovery of peers is done by performing a scan of the system, and those
peers with different nat settings will respond differently, thereby al‐
lowing a potential attacker to discover which peers are valid on the
system.
Another trick when dealing with devices behind NAT is to enable the qualify option.
In many NAT systems, if a dialog isn’t maintained periodically, then the device providing
the NAT may close the connection. By using qualify, Asterisk will send a request to the
far end, which should then be responded to. By default, if you use qualify=yes on a
peer, then the time for these transactions is every 2,000 milliseconds (2 seconds). You
can also specify the time in milliseconds instead of using yes:
qualifyfreq=60 ; probe far end peer every 60 seconds
qualify=120000 ; allow 10 seconds for a reply (qualify)
164 | Chapter 7: Outside Connectivity
www.it-ebooks.info
14. Whether it is the best solution is something we have yet to debate.
Keeping a Remote Firewall Open
Sometimes a problem with a SIP telephone will surface wherein the phone will register
and function when it is first booted, but then it will suddenly become unreachable. What
is often happening here is that the remote firewall, seeing no activity coming from the
set, will close the external connection to the telephone, and thus the PBX will lose the
ability to send to the set. The effect is that if the PBX tries to send a call to the phone, it
will fail to connect (the remote firewall will reject the connection). If, on the other hand,
the user makes a call out, for a few minutes the set will again be able to accept incoming
calls. Naturally this can cause a lot of confusion for the users.
A relatively simple solution to this problem14 involves setting the registration timer on
the remote phone to a low enough value that it will stimulate the connection every
minute or so, and thus convince the firewall that this connection can be allowed to exist
for a little while longer. It’s a bit of a hack, but it has proven successful. The challenge
with proposing a universal solution is that there are many different models of firewalls,
from inexpensive consumer-grade units to complex session border controllers, and this
is one of the few solutions that seems to address the problem reliably in almost all cases.
This approach is best on smaller systems (fewer than 100 telephones). A larger system
with hundreds or thousands of phones will not be well served by this solution, as there
will be an increased load on the system due to a near-constant flood of registrations
from remote phones. In such a case, some more careful thought will need to be given
to the overall design (for example, a dedicated registrar server could be used in place of
Asterisk to handle the registration traffic).
In a perfect world, you would be able to specify a particular model of firewall, and devise
a configuration for those firewalls that would ensure your SIP traffic was properly han‐
dled. In reality, you will come up against not just different models of firewall, but even
different firmware versions for the same model firewall.
Asterisk behind NAT
The second scenario is that Asterisk is behind NAT, as illustrated in Figure 7-4.
VoIP | 165
www.it-ebooks.info
15. The reason we highlight this fact is that if you do not have a reliable DNS service, you will experience all
manner of unpleasant behavior in Asterisk, as it patiently waits for hostnames to resolve while you’re impa‐
tiently waiting for the SIP channel driver to start working (DNS resolution problems can cause all sorts of
strange behavior in Asterisk).
Figure 7-4. Asterisk behind NAT
In this case, we have a couple of ways to write the SIP headers in a manner friendly to
the other end.
There are two primary options when Asterisk is behind NAT: externip and extern
host. Use of these options is a one-or-the-other decision, since they effectively perform
the same functionality: compose the SIP header using the external interface address.
Since our Asterisk box will have a nonroutable IP address across the Internet (we’re
behind NAT), we can tell Asterisk what its external routable address is, so that we can
place that in the headers of our SIP message.
If our external IP address was something like 98.139.183.24, we could set externip like
so:
externip=98.139.183.24
We can also specify the port number that should be responded to:
externip=98.139.183.24:9999
If no port number is provided, then the port number specified with the udpbindaddr
option will be used.
Alternatively, you can use the externhost option, which is similar to the externip, but
the IP address will be resolved whenever chan_sip.so is loaded into memory (or on sub‐
sequent reloads).15 The format is similar to externip except you use a hostname. You
can also specify a port number. For example:
externhost=pbx.shifteight.org:9999
If you want the external hostname to be refreshed periodically, you can use the
externrefresh option. The value specified is in seconds:
166 | Chapter 7: Outside Connectivity
www.it-ebooks.info
16. http://www.ietf.org/rfc/rfc4961.txt
externhost=pbx.shifteight.org:5060
externrefresh=300
If you have deployed your Asterisk server behind NAT, it is likely that you will also have
local telephone sets attached to it. We don’t want to mangle the headers of SIP messages
we’re sending to our local sets, so we can specify which IP addresses are considered part
of our local network. That way Asterisk will respond simply with the headers as they
would be on an internal network. We use the localnet option to specify which networks
are considered local to our Asterisk system.
It’s also important to set the localnet parameter even if no local devices
will be communicating with Asterisk, as the Asterisk system itself is part
of the local network. Using the localnet option in combination with
externip or externhost will help Asterisk understand what network
addresses to look for in the SIP headers in order to rewrite.
The localnet option takes the format of an IP address and subnet mask. You can either
use CIDR notation or dotted notation. Multiple entries are permitted:
externip=98.139.183.24
localnet=172.16.0.0/24
localnet=192.168.100.0/255.255.255.0
Media (RTP) handling
In this section we’ll explore how Asterisk handles media and outline some options
available to you. If you have a simple network topology where your Asterisk box is
connected directly to the PSTN via traditional hardware (analog or digital connections)
and your peers are all on the same LAN as Asterisk, the default configuration is likely
fine and you can move on to the next section. If you’re connecting to an Internet tel‐
ephony service provider (ITSP) via SIP, you may want to start with setting directme
dia=no in your sip.conf file. Unless you have a reason to direct media away from your
Asterisk box, then use of directmedia=no typically makes the configuration a little
easier to deal with:
•Asterisk will always use the symmetric RTP mode as defined in RFC 4961,16 which
means Asterisk will always send packets from the same port that it initially received
the media on. The text in RFC 4961 is quite short and is a useful read about how
Asterisk will handle the RTP media between endpoints. This knowledge should
simplify your network design efforts should you expect to handle peers outside of
your LAN environment at any point in the future.
VoIP | 167
www.it-ebooks.info
17. Session Description Protocol—a component of the SIP messaging that defines the media parameters.
•If you need to override the IP address used for media, you can do that with the
media_address option. This option will allow you to ignore the media address
supplied in the SDP17 headers and direct the media somewhere else. Using the
media_address option cannot be set per peer: it is a general (global) option only.
•By default Asterisk will attempt to re-INVITE the media between the endpoints
directly. The redirecting of the media happens when Asterisk determines it doesn’t
need to stay in the media path. (Times when Asterisk needs to be in the media path
include call recording and listening for DTMF.) When Asterisk is on the outside of
a network where the endpoints are behind a NAT, redirecting of the media doesn’t
work very well (or at all). In this case you should use the directmedia=no option
to prevent redirection of the media.
The default setting is directmedia=yes, so if you have endpoints behind a NAT
that Asterisk is not a part of, you should set the option to directmedia=no.
Changing the directmedia option only affects the re-INVITE
of media streams, and not other instances of re-INVITE, such
as during T.38 negotiation.
There does exist an option that allows Asterisk to redirect media between endpoints
on the same network as Asterisk, at least as best determined by the RTP core.
Enabling redirection of media on the local LAN can be done with directme
dia=nonat. If you want to perform an UPDATE instead of a re-INVITE when redi‐
recting the media, you can do that with directmedia=update. If you combine
update with nonat (e.g., directmedia=nonat,update), then you effectively are
performing a directmedia=yes.
If you have a peer that you know is itself going to send Asterisk a re-INVITE upon
an incoming call, you can set directmedia=outgoing in order to instruct Asterisk
to not bother attempting a re-INVITE for media from this peer (since the far end is
expected to attempt it). Setting this option can help avoid glare situations, where
both ends simultaneously attempt to redirect the media after initial call setup (see
Figures 7-5 and 7-6).
168 | Chapter 7: Outside Connectivity
www.it-ebooks.info

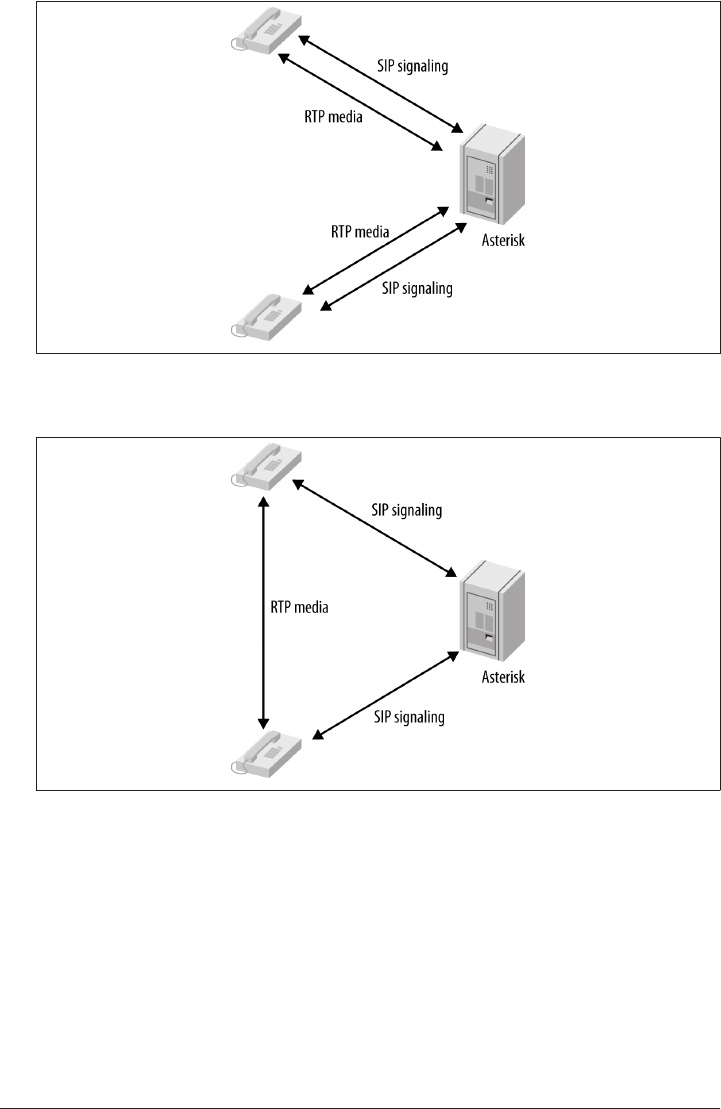

Figure 7-5. RTP without re-INVITE
Figure 7-6. RTP with re-INVITE
The SIP protocol was designed to enable endpoints to negotiate media capabilities
and subsequently make direct connections to each other. The concept was that
servers would not need to handle the media load for clients that had the capability
to exchange media directly with each other (such as two telephones engaged in a
phone call). However, due to the challenges inherent in NAT-enabled firewalls and
other complex network topologies, coupled with the incredible processing power
of modern servers, it is often simpler to always pass all media through the server,
VoIP | 169
www.it-ebooks.info
rather than deal with the complexity of sorting out re-INVITE issues across all sorts
of different networks and topologies.
•Asterisk can also attempt to set up media directly between peers without a re-INVITE
by enabling directrtpsetup=yes. Usage of directrtpmedia comes with some
caveats, though; it is considered experimental, and it will not work for video or cases
where the callee sends RTP payloads and fmtp headers in the 200 OK that don’t
match the caller’s INVITE. Additionally, this option can’t be used when the peers are
behind NAT.
•You can control which endpoints can attempt to send directmedia to each other
with directmediadeny and directmediapermit. This is useful in situations where
your networking topology doesn’t allow certain networks to pass media to each
other, instead requiring the media to flow through Asterisk. An example of the
usage would be to deny all media flowing between networks, then explicitly permit
certain networks to send directmedia:
directmediadeny=0.0.0.0/0
directmediapermit=192.168.101.0/24
directmediapermit=172.16.1.0/24
As you can see, there are several options that allow you to control how media is handled
by Asterisk. This flexibility is what makes Asterisk so compelling to use in so many
networks. WIth the right set of options (and lots of patience), you should be able to
handle traversing almost any networking obstacle.
PSTN Termination
Until VoIP totally replaces the PSTN, there will be a need to connect calls from VoIP
networks to the public telephone network. This process is referred to as termination.
What it means is that at some point a gateway connected to the PSTN needs to accept
calls from the VoIP network and connect them to the PSTN network. From the per‐
spective of the PSTN, the call will appear to have originated at the termination point.
Asterisk can be used as a PSTN termination point. In fact, given that Asterisk handles
protocol conversion with ease, this can be an excellent use for an Asterisk system.
In order to provide termination, an Asterisk box will need to be able to handle all of the
protocols you wish to connect to the PSTN. In general, this means that your Asterisk
box will need a PRI circuit to handle the PSTN connection, and SIP channels to handle
the calls coming from the VoIP network. The underlying principle is the same regardless
of whether you’re running a small system providing PSTN trunks to an office full of
VoIP telephones, or a complex network of gateway machines deployed in strategic lo‐
cations, offering termination to thousands of subscribers.
Calls from the VoIP network will arrive in the dialplan in whatever context you assigned
to the incoming SIP channels, and the dialplan will relay the calls out through the PSTN
170 | Chapter 7: Outside Connectivity
www.it-ebooks.info
interface. At its very simplest, a portion of a dialplan that supports termination could
look like this:
[from-voip-network]
exten => _X.,1,Verbose(2, Call from VoIP network to ${EXTEN})
same => n,Dial(DAHDI/g0/${EXTEN})
In reality, though, you will often have to handle a more complex routing plan that takes
into consideration things like geography, corporate policy, cost, available resources, and
so forth.
Given that most PSTN circuits will allow you to dial any number, any‐
where in the world, and given that you will be expected to pay for all
incurred charges, we cannot stress enough the importance of security
on any gateway machine that is providing PSTN termination. Criminals
put a lot of effort into cracking phone systems (especially poorly secured
Asterisk systems), and if you do not pay careful attention to all aspects
of security, you will be the victim of toll fraud. It’s only a matter of time.
Do not allow any unsecured VoIP connections into any context that
contains PSTN termination.
PSTN Origination
Obviously, if you want to pass calls from your VoIP network to the PSTN, you might
also want to be able to accept calls from the PSTN into your VoIP network. The process
of doing this is commonly referred to as origination. This simply means that the call
originated in the PSTN.
In order to provide origination, a phone number is required. You will therefore need to
obtain a circuit from your local phone company, which you will connect to your Asterisk
system. Depending on where you are in the world, there are several different types of
circuits that could provide this functionality, from a basic analog POTS line to a carrier-
grade SS7 circuit.
Phone numbers as used for the purpose of origination are commonly
called direct inward dialing numbers (DIDs). This is not strictly the case
in all situations (for example, the phone number on a traditional analog
line would not be considered a DID), but the term is useful enough that
it has caught on. Historically, a DID referred to a phone number asso‐
ciated with a trunk connected to customer premise equipment (CPE).
Since phone numbers are controlled by the traditional telecom industry, you will need
to obtain the number either from a carrier directly, or from one of the many companies
that purchase numbers in bulk and resell them in smaller blocks. If you obtain a circuit
VoIP | 171
www.it-ebooks.info
18. In traditional PBXs, the purpose of DIDs was to allow connection directly to an extension in the office. Many
PBXs could not support concepts such as number translation or flexible digit lengths, and thus the carrier
had to pass the extension number as the DID digits, rather than the number that was dialed (the DNIS
number). For example, the phone number 416-555-1234 might have been mapped to extension 100, and thus
the carrier would have sent the digits 100 to the PBX instead of the DNIS of 4165551234. If you ever replace
an old PBX with an Asterisk system, you may find this translation in place, and you’ll need to obtain a list of
mappings between the numbers that the caller dials and the numbers that are sent to the PBX. It is also
common to see the carrier only pass the last four digits of the DNIS number, which the PBX then translates
into an internal number.
such as a PRI circuit, you will normally be able to order DID numbers to be delivered
with that circuit.
In order to accept a call from a circuit you are using for origination, you will normally
need to handle the passing of the phone number that was called. This is because PSTN
trunks can typically handle more than one phone number, and thus the carrier needs
to identify which number was called so that your Asterisk system will know how to
route the call. The number that was dialed is commonly referred to as the Dialed Number
Identification Service (DNIS) number. The DNIS number and the DID do not have to
match,18 but typically they will. If you are ordering a circuit from the carrier, you will
want to ask that they send the DNIS (if they don’t understand that, you may want to
consider another carrier).
In the dialplan, you associate the incoming circuit with a context that will know how to
handle the incoming digits. As an example, it could look something like this:
[from-pstn]
; This is the context that would be listed in the config file
; for the circuit (i.e. chan_dahdi.conf)
exten => _X.,1,Verbose(2,Incoming call to ${EXTEN})
same => n,Goto(number-mapping,${EXTEN},1)
[number-mapping]
; This context is not strictly required, but will make it easier
; to keep track of your DIDs in a single location in your dialplan.
; From here you can pass the call to another part of the dialplan
; where the actual dialplan work will take place.
exten => 4165551234,1,Dial(SIP/0000FFFF0001)
exten => 4165554321,1,Goto(autoattendant-context,start,1)
exten => 4165559876,1,VoiceMailMain() ; a handy back door for listening
; to voice messages
exten => i,1,Verbose(2,Incoming call to invalid number)
In the number-mapping context, you explicitly list all of the DIDs that you expect to
handle, plus an invalid handler for any DIDs that are not listed (you could send invalid
172 | Chapter 7: Outside Connectivity
www.it-ebooks.info
19. There are many proprietary PBX systems on the market that have a basic configuration that will work right
out of the box. Asterisk deployments are far more flexible, but seldom as simple.
numbers to reception, or to an automated attendant, or to some context that plays an
invalid prompt).
VoIP to VoIP
Eventually, the need for the PSTN will likely vanish, and most voice communications
will take place over network connections.
The original thinking behind the SIP protocol was that it was to be a peer-to-peer
protocol. Technically, this is still the case. However, issues such as security, privacy,
corporate policies, integration, centralization, and so forth have made things a bit more
involved than simply putting a URI into a SIP phone and having a SIP phone somewhere
else ring in response.
Unauthenticated Calls for SIP Dialing
As we alluded to in Chapter 5, you can configure the unauthenticated context in the
general section of sip.conf and set allowguest=yes. By doing this, you’ll allow unau‐
thenticated calls into your dialplan. This is a requirement when you want to accept calls
as you would an email. (A SIP URI would be something like sip:leif@shifteight.org, which
is similar to mail:leif@shifteight.org.) Once you’ve configured your unauthenticated
context in extensions.conf, just include anything you would want publicly accessable from
the outside world; or build a new context to include in your unauthenticated context.
You might for example build a GoSub() that can look up people’s email addresses and
extensions from your database or LDAP server, and route calls based on SIP URIs that
match their email addresses.
The SIP protocol has become bloated and complex. Implementing SIP-based systems
and networks has arguably become even more complicated than implementing tradi‐
tional phone PBXs and networks.19
We are not going to get into the complexities of designing and implementing VoIP
networks in this book, but we will discuss some of the ways you can configure Asterisk
to support VoIP connectivity to other VoIP systems.
Configuring VoIP Trunks
In Asterisk, there is no need to explicitly install your VoIP modules (unless for some
reason you did not compile Asterisk with the required modules). There are several VoIP
VoIP | 173
www.it-ebooks.info
protocols that you can choose to use with Asterisk, but we will focus on the two most
popular: SIP and IAX.
Configuring SIP trunks between Asterisk systems
SIP is far and away the most popular of the VoIP protocols—so much so that many
people would consider other VoIP protocols to be obsolete (they are not, but it cannot
be denied that SIP has dominated VoIP for several years now).
The SIP protocol is peer-to-peer and does not really have a formal trunk specification.
This means that whether you are connecting a single phone to your server or connecting
two servers together, the SIP connections will be similar.
Connecting two Asterisk systems together with SIP. Being able to connect two Asterisk sys‐
tems together to allow calls to be sent between them is a fairly common requirement.
Perhaps you have a company with two physical locations and want to have a PBX at
each location, or maybe you’re the administrator of the company PBX and you like
Asterisk so much that you would also like to install it at home. This section provides a
quick guide on configuring two Asterisk servers to be able to pass calls to each other
over SIP. In our example, we will creatively refer to the two servers as serverA and
serverB.
The first file that must be modified is /etc/asterisk/sip.conf. This is the main configura‐
tion file for setting up SIP accounts. First, this entry must be added to sip.conf on
serverA. It defines a SIP peer for the other server:
[serverB]
;
; Specify the SIP account type as 'peer'. This means that incoming
; calls will be matched on IP address and port number. So, when Asterisk
; receives a call from 192.168.1.102 and the standard SIP port of 5060,
; it will match this entry in sip.conf. It will then request authentication
; and expect the password to match the 'secret' specified here.
;
type = peer
;
; This is the IP address for the remote box (serverB). This option can also
; be provided a hostname.
;
host = 192.168.1.102
;
; When we send calls to this SIP peer and must provide authentication,
; we use 'serverA' as our default username.
;
defaultuser = serverA
;
; This is the shared secret with serverB. It will be used as the password
; when either receiving a call from serverB, or sending a call to serverB.
174 | Chapter 7: Outside Connectivity
www.it-ebooks.info
;
secret = apples
;
; When receiving a call from serverB, match it against extensions
; in the 'incoming' context of extensions.conf.
;
context = incoming
;
; Start by clearing out the list of allowed codecs.
;
disallow = all
;
; Only allow the ulaw codec.
;
allow = ulaw
Be sure to change the host option to match the appropriate IP address
for your own setup.
Now put the following entry in /etc/asterisk/sip.conf on serverB. It is nearly identical
to the contents of the entry we put on serverA, but the name of the peer and the IP
address were changed:
[serverA]
type = peer
host = 192.168.1.101
defaultuser = serverB
secret = apples
context = incoming
disallow = all
allow = ulaw
At this point you should be able to verify that the configuration has been successfully
loaded into Asterisk using some CLI commands. The first command to try is sip show
peers. As the name implies, it will show all SIP peers that have been configured:
*CLI> sip show peers
Name/username Host Dyn Forcerport ACL Port Status
serverB/serverA 192.168.1.101 5060 Unmonitored
1 sip peers [Monitored: 0 online, 0 offline Unmonitored: 1 online, 0 offline]
You can also try sip show peer serverB. That command will show much
more detail.
VoIP | 175
www.it-ebooks.info
The last step in setting up SIP calls between two Asterisk servers is to modify the dialplan
in /etc/asterisk/extensions.conf. For example, if you wanted any calls made on serverA
to extensions 6000 through 6999 to be sent over to serverB, you would use this line in
the dialplan:
exten => _6XXX,1,Dial(SIP/${EXTEN}@serverB)
Connecting an Asterisk system to a SIP provider. When you sign up for a SIP provider, you
may have service for sending and/or receiving phone calls. The configuration will differ
slightly depending on your usage of the SIP provider. Further, the configuration will
differ between each provider. Ideally, the SIP provider that you sign up with will provide
Asterisk configuration examples to help get you connected as quickly as possible. In
case they do not, though, we will attempt to give you a common setup that will help you
get started.
If you will be receiving calls from your service provider, the service provider will most
likely require your server to register with one of its servers. To do so, you must add a
registration line to the [general] section of /etc/asterisk/sip.conf:
[general]
...
register => username:password@your.provider.tld
...
Next, you will need to create a peer entry in sip.conf for your service provider. Here is
a sample peer entry:
[myprovider]
type = peer
host = your.provider.tld
defaultuser = username
secret = password
; Most providers won't authenticate when they send calls to you,
; so you need this line to just accept their calls.
insecure = invite
dtmfmode = rfc2833
disallow = all
allow = ulaw
Now that the account has been defined, you must add some extensions in the dialplan
to allow you to send calls to your service provider:
exten => _1NXXNXXXXXX,1,Dial(SIP/${EXTEN}@myprovider)
Encrypting SIP calls. Asterisk supports TLS for encryption of the SIP signaling and Secure
Realtime Transport Protocol (SRTP) for encryption of the media streams of a phone
call. In this section we will set up calls using SIP TLS and SRTP between two Asterisk
servers. The first step is to ensure the proper dependencies have been installed. Ensure
176 | Chapter 7: Outside Connectivity
www.it-ebooks.info
that you have both OpenSSL and LibSRTP installed. If either one of these was not in‐
stalled, reinstall Asterisk after installing these dependencies to ensure that support for
TLS and SRTP are included. Once complete, make sure that the res_srtp module was
compiled and installed. To install OpenSSL, the package is openssl-devel on RHEL
and libssl-dev on Ubuntu. To install LibSRTP, the package is libsrtp-devel on RHEL
and libsrtp0-dev on Ubuntu.
Next, we will configure SIP TLS. You must enable TLS using the global tlsenable option
in the [general] section of /etc/asterisk/sip.conf on both servers. You can optionally
specify an address to bind to if you would like to limit listening for TLS connections to
a single IP address on the system. In this example, we have the IPv6 wildcard address
specified to allow TLS connections on all IPv4 and IPv6 addresses on the system:
[general]
tlsenable = yes
tlsbindaddr = ::
The next step is to get certificates in place. For the purposes of demonstrating the con‐
figuration and functionality, we are going to generate self-signed certificates using a
helper script distributed with Asterisk. If you were setting this up in a production en‐
vironment, you might not want to use self-signed certificates. However, if you do, there
are a number of applications out there that help make it easier to manage your own
certificate authority (CA), such as TinyCA.
The script that we are going to use is ast_tls_cert, which is in the /contrib/scripts directory
of the Asterisk source tree. We need to generate a CA certificate and two server certif‐
icates. The first invocation of ast_tls_cert will generate the CA cert and the server cert
for serverA. The second invocation of ast_tls_cert will generate the server cert for
serverB:
$ cd contrib/scripts
$ mkdir certs
$ ./ast_tls_cert -d certs -C serverA -o serverA
$ ./ast_tls_cert -d certs -C serverB -o serverB -c certs/ca.crt -k certs/ca.key
$ ls certs
ca.cfg ca.crt ca.key serverA.crt serverA.csr serverA.key serverA.pem
serverB.crt serverB.csr serverB.key serverB.pem tmp.cfg
Now that the certificates have been created, they need to be moved to the appropriate
locations on serverA and serverB. We will use the /var/lib/asterisk/keys directory to
hold the certificates. Move the following files to serverA:
•ca.crt
•serverA.pem
VoIP | 177
www.it-ebooks.info
And move these files to serverB:
•ca.crt
•serverB.pem
With the certificates in place, we can complete the Asterisk configuration. We need to
point Asterisk to the server certificate that we just created. Since we’re using self-signed
certificates, we also need to point to the CA certificate. In the [general] section of /etc/
asterisk/sip.conf on serverA, add these options:
[general]
tlscertfile = /var/lib/asterisk/keys/serverA.pem
tlscafile = /var/lib/asterisk/keys/ca.crt
Make the same changes to sip.conf on serverB:
[general]
tlscertfile = /var/lib/asterisk/keys/serverB.pem
tlscafile = /var/lib/asterisk/keys/ca.crt
When you create the server certificates, the Common Name field must
match the hostname of the server. If you use the ast_tls_cert script, this
is the value given to the -C option. If there is a problem verifying the
server certificate when you make a call, you may need to fix the Com‐
mon Name field. Alternatively, for the sake of testing, you can set the
tlsdontverifyserver option to yes in the [general] section of /etc/
asterisk/sip.conf, and Asterisk will allow the call to proceed even if it fails
verification of the server certificate.
In “Connecting two Asterisk systems together with SIP” on page 174, we created the
configuration necessary to pass calls between serverA and serverB. We are now going
to modify that configuration so that Asterisk knows that the calls between the two
servers should be encrypted. The only change required is to add the transport =
tls option to the peer entry for the other server.
On serverA:
[serverB]
type = peer
host = 192.168.1.102
defaultuser = serverA
secret = apples
context = incoming
disallow = all
178 | Chapter 7: Outside Connectivity
www.it-ebooks.info
allow = ulaw
transport = tls
On serverB:
[serverA]
type = peer
host = 192.168.1.101
defaultuser = serverB
secret = apples
context = incoming
disallow = all
allow = ulaw
transport = tls
Now when you make a call using Dial(SIP/serverA) or Dial(SIP/serverB), the SIP
signaling will be encrypted. You can modify the dialplan to force outgoing calls to have
encrypted signaling by setting the CHANNEL(secure_bridge_signaling) function to 1:
[default]
exten => 1234,1,Set(CHANNEL(secure_bridge_signaling)=1)
same => n,Dial(SIP/1234@serverB)
On the side receiving the call, you can check whether the signaling on an incoming call
is encrypted using the CHANNEL(secure_signaling) dialplan function. Consider the
following example dialplan:
[incoming]
exten => _X.,1,Answer()
same => n,GotoIf($["${CHANNEL(secure_signaling)}" = "1"]?secure:insecure)
same => n(secure),NoOp(Signaling is encrypted.)
same => n,Hangup()
same => n(insecure),NoOp(Signaling is not encrypted.)
same => n,Hangup()
When a call is sent from serverA to serverB using this configuration, you can see from
the output on the Asterisk console that the dialplan determines that the signaling of the
incoming call is encrypted:
-- Executing [1234@incoming:1] Answer("SIP/serverA-00000000", "")
in new stack
-- Executing [1234@incoming:2] GotoIf("SIP/serverA-00000000",
"1?secure:insecure") in new stack
-- Goto (incoming,1234,3)
-- Executing [1234@incoming:3] NoOp("SIP/serverA-00000000",
"Signaling is encrypted.") in new stack
-- Executing [1234@incoming:4] Hangup("SIP/serverA-00000000", "")
in new stack
VoIP | 179
www.it-ebooks.info
Now that SIP TLS has been set up for calls between serverA and serverB, we will set
up SRTP so that the media streams associated with the call are encrypted as well. Luckily,
it is quite easy to configure, compared with what was required to get SIP TLS working.
First, make sure that you have the res_srtp module loaded in Asterisk:
*CLI> module show like res_srtp.so
Module Description Use Count
res_srtp.so Secure RTP (SRTP) 0
1 modules loaded
To enable SRTP, set the CHANNEL(secure_bridge_media) function to 1:
[default]
exten => 1234,1,Set(CHANNEL(secure_bridge_signaling)=1)
same => n,Set(CHANNEL(secure_bridge_media)=1)
same => n,Dial(SIP/1234@serverB)
This indicates that encrypted media is required for an outbound call. When the call is
sent out via SIP, Asterisk will require that SRTP be used, or the call will fail.
With all of these tools in place, you can ensure that calls between two Asterisk servers
are fully encrypted. The same techniques should be applied for encrypting calls between
Asterisk and a SIP phone.
The dialplan functions provide a mechanism for verifying the encryption status of an
incoming call and forcing encryption on an outgoing call. However, keep in mind that
these tools only provide the means for controlling encryption for one hop of the call
path. If the call goes through multiple servers, these tools do not guarantee that the call
is encrypted through the entire call path. It is important to carefully consider what your
requirements are for secure calls and take all of the necessary steps to ensure that those
requirements are respected throughout the entire call path. Security is complicated, hard
work.
Configuring IAX trunks between Asterisk systems
The Inter-Asterisk eXchange protocol, version 2 (most commonly known as IAX), is
Asterisk’s own VoIP protocol. It is different from SIP in that the signaling and media
are carried in the same connection. This difference is one of the advantages of the IAX
protocol, as it makes getting IAX to work across NAT connections much simpler.
IAX trunking. One of the more unique features of the IAX protocol is IAX trunking.
Trunking an IAX connection could be useful on any network link that will often be
carrying multiple simultaneous VoIP calls between two systems. By encapsulating mul‐
tiple audio streams in one packet, IAX trunking cuts down on the overhead on the data
connection, which can save bandwidth on a heavily used network link.
180 | Chapter 7: Outside Connectivity
www.it-ebooks.info
20. Don’t assume this can’t happen. When somebody calls 911, it’s because they have an emergency, and it’s not
safe to assume that they’re going to be in a rational state of mind.
IAX encryption. The principal advantage of IAX encryption is that it requires one simple
change to the /etc/asterisk/iax.conf file:
[general]
encryption = yes
For extra protection, you can set the following option to ensure that no IAX connection
can happen without encryption:
forceencryption = yes
Both of these options can be specified in the [general] section, as well as in peer/user/
friend sections in iax.conf.
Emergency Dialing
In North America, people are used to being able to dial 911 in order to reach emergency
services. Outside of North America, well-known emergency numbers are 112 and 999. If
you make your Asterisk system available to people, you are obligated (in many cases
regulated) to ensure that calls can be made to emergency services from any telephone
connected to the system (even from phones that otherwise are restricted from making
calls).
One of the essential pieces of information the emergency response organization needs
to know is where the emergency is (i.e., where to send the fire trucks). In a traditional
PSTN trunk, this information is already known by the carrier and is subsequently passed
along to the Public Safety Answering Point (PSAP). With VoIP circuits things can get
a bit more complicated, by virtue of the fact that VoIP circuits are not physically tied to
any geographical location.
You need to ensure that your system will properly handle 911 calls from any phone
connected to it, and you need to communicate what is available to your users. As an
example, if you allow users to register to the system from softphones on their laptops,
what happens if they are in a hotel room in another country, and they dial 911?20
The dialplan for handling emergency calls does not need to be complicated. In fact, it’s
far better to keep it simple. People are often tempted to implement all sorts of fancy
functionality in the emergency services portions of their dialplans, but if a bug in one
of your fancy features causes an emergency call to fail, lives could be at risk. This is no
place for playing around. The [emergency-services] section of your dialplan might
look something like this:
Emergency Dialing | 181
www.it-ebooks.info
21. It’s not actually the carrier that’s offering this; rather it’s a capability of the PSAP. E911 is also used on PSTN
trunks, but since that happens without any involvement on your part (the PSTN carriers handle the paperwork
for you), you are generally not aware that you have E911 on your local lines.
[emergency-services]
exten => 911,1,Goto(dialpsap,1)
exten => 9911,1,Goto(dialpsap,1) ; some people will dial '9' because
; they're used to doing that from the PBX
exten => 999,1,Goto(dialpsap,1)
exten => 112,1,Goto(dialpsap,1)
exten => dialpsap,1,Verbose(1,Call initiated to PSAP!)
same => n,Dial(${LOCAL}/911) ; REPLACE 911 HERE WITH WHATEVER
; IS APPROPRIATE TO YOUR AREA
[internal]
include => emergency-services ; you have to have this in any context
; that has users in it
In contexts where you know the users are not onsite (for example, remote users with
their laptops), something like this might be best instead:
[no-emergency-services]
exten => 911,1,Goto(nopsap,1)
exten => 9911,1,Goto(nopsap,1) ; for people who dial '9' before external calls
exten => 999,1,Goto(nopsap,1)
exten => 112,1,Goto(nopsap,1)
exten => nopsap,1,Verbose(1,Call initiated to PSAP!)
same => n,Playback(no-emerg-service) ; you'll need to record this prompt
[remote-users]
include => no-emergency-services
In North America, regulations have obligated many VoIP carriers to offer what is pop‐
ularly known as E911.21 When you sign up for their services, they will require address
information for each DID that you wish to associate with outgoing calls. This address
information will then be sent to the PSAP appropriate to that address, and your emer‐
gency calls should be handled the same way they would be if they were dialed on a
traditional PSTN circuit.
The bottom line is that you need to make sure that the phone system you create allows
emergency calls.
182 | Chapter 7: Outside Connectivity
www.it-ebooks.info
Conclusion
Eventually, we believe that the PSTN will disappear entirely. Before that happens, how‐
ever, a distributed mechanism that is widely used and trusted will be needed to allow
organizations and individuals to publish addressing information so they can be found.
We’ll explore some of the ways this is already possible in Chapter 12.
Conclusion | 183
www.it-ebooks.info
www.it-ebooks.info
Just leave a message, maybe I’ll call.
—Joe Walsh
1. This name was a play on words, inspired in part by Nortel’s voicemail system Meridian Mail.
2. No, you really don’t have to pay for this—and yes, it really does work.
CHAPTER 8
Voicemail
Before email and instant messaging became ubiquitous, voicemail was a popular meth‐
od of electronic messaging. Even though most people prefer text-based messaging sys‐
tems, voicemail remains an essential component of any PBX.
Comedian Mail
One of the most popular (or, arguably, unpopular) features of any modern telephone
system is voicemail. Asterisk has a reasonably flexible voicemail system named
Comedian Mail.1 Voicemail in Asterisk is provided in the dialplan by the app_voice
mail.so module.
Some of the features of Asterisk’s voicemail system include:
•Unlimited password-protected voicemail boxes, each containing mailbox folders
for organizing voicemail
•Different greetings for busy and unavailable states
•Default and custom greetings
•The ability to associate phones with more than one mailbox and mailboxes with
more than one phone
•Email notification of voicemail, with the voicemail optionally attached as a sound
file2
185
www.it-ebooks.info
• Voicemail forwarding and broadcasts
•Message-waiting indicator (flashing light or stuttered dialtone) on many types of
phones
• Company directory of employees, based on voicemail boxes
And that’s just the tip of the iceberg!
The default version of the /etc/asterisk/voicemail.conf configuration file requires a few
tweaks in order to provide a configuration that will be suitable to most situations.
We’ll begin by going through the various options you can define in voicemail.conf, and
then we’ll provide a sample configuration file with the settings we recommend for most
deployments.
The voicemail.conf file contains several sections where parameters can be defined. The
following sections detail all the options that are available.
The [general] Section
The first section, [general], allows you to define global settings for your voicemail
system. The available options are listed in Table 8-1.
Table 8-1. [general] section options for voicemail.conf
Option Value/Example Notes
format wav49|gsm|wav For each format listed, Asterisk creates a separate recording in that format
whenever a message is left. The benefit is that some transcoding steps may
be saved if the stored format is the same as the codec used on the channel.
We like WAV because it is the highest quality, and WAV49 because it is
nicely compressed and easy to email. We don’t like GSM due to its scratchy
sound, but it enjoys some popularity.a
serveremail user@domain When an email is sent from Asterisk, this is the email address that it will
appear to come from.b
attach yes,no If an email address is specified for a mailbox, this determines whether the
message is attached to the email (if not, a simple message notification is
sent).
maxmsg 9999 By default, Asterisk only allows a maximum of 100 messages to be stored
per user. For users who delete messages, this is no problem. For people who
like to save their messages, this space can get eaten up quickly. With the
size of hard drives these days, you could easily store thousands of messages
for each user, so our current thinking is to set this to the maximum and let
the users manage things from there.
186 | Chapter 8: Voicemail
www.it-ebooks.info
Option Value/Example Notes
maxsecs 0 This type of setting was useful back when a large voicemail system might
have only 40 MBc of storage: it was necessary to limit the system because it
was easy to fill up the hard drive. This setting can be annoying to callers
(although it does force them to get to the point, so some people like it).
Nowadays, with terabyte drives common, there is no technical reason to
limit the length of a message. Two considerations are: 1) if a channel gets
hung in a mailbox, it’s good to set some sort of value so it doesn’t stay there
for days, but 2) if a user wants to use her mailbox to record notes to herself,
she won’t appreciate it if you cut her off after 3 minutes. A setting
somewhere between 600 seconds (10 minutes) and 3600 seconds (1
hour) will probably be about right.
minsecs 4 Many folks will hang up instead of leaving a message when they call
somebody and get voicemail. Sometimes this hangup happens after
recording has started, so the mailbox owner gets an annoying 2-second
message of somebody hanging up. This setting ensures that Asterisk will
ignore messages that are shorter than the configured minimum length. You
should take care not to set this to a value that is too high, though, because
then a message like “Hey it’s me, give me a call” (which can be said in less
than 1 second) will get lost, and you’ll get complaints of messages
disappearing. Three seconds seems to be about right. To discourage people
from leaving ultrashort messages that might be discarded, your greeting
can request callers to identify themselves and leave some information
about why they called.
maxgreet 1800 You can define the maximum greeting length if you want. Again, since
storage is not a problem and setting this too low will annoy your more
verbose users, we suggest setting this to a high value and letting your users
figure out an appropriate length for themselves.
skipms 3000 When listening to messages, users can skip ahead or backwards by pressing
(by default) * and #. This setting indicates the length of the jump (in
milliseconds).
maxsilence 5 This setting defines the maximum time for which the caller can remain
silent before the recording is stopped. We like to set this setting to 1 second
longer than minsecs (if you set it equal to or greater than minsecs, you
will get a warning stating “maxsilence should be less than minsecs or you
may get empty messages”). This value is probably most useful when you
have analog trunks, as far-end disconnect can be dodgy on such circuits.
With any sort of digital circuit (PRI or VoIP), a far-end disconnect message
will tend to handle the end of the message quite neatly, and in fact you
might want to consider increasing this value to 10 seconds, to reduce the
chance that quiet folks accidentally get disconnected midmessage.
Comedian Mail | 187
www.it-ebooks.info
Option Value/Example Notes
silencethreshold 128 This parameter allows you to fine-tune the silence sensitivity of the
previous parameter, maxsilence. Valid values are from 0 to 32767. The
default value is 128. The value helps app_voicemail decide what
amplitude to use as a reference point as to what it will consider “silence.”
Since this is a linear value, and amplitude needs to be properly considered
in terms of decibels (which are logarithmic), we don’t recommend adjusting
this parameter unless you have a solid understanding of amplitude,
decibels, logarithmic scales, C programming, digital signal processing, and
so forth. If you have audio problems with your system, this is not the first
place to go to attempt to solve them.
maxlogins 3 This little security feature is intended to make brute-force attacks on your
mailbox passwords more time-consuming. If a bad password is received this
many times, voicemail will hang up and you’ll have to call back in to try
again. Note that this will not lock up the mailbox. Patient snoopers can
continue to try to log into your mailbox as many times as they like, they’ll
just have to call back every third attempt. If you have a lot of sausage-
fingered users, you can set this to something like 5.
moveheard yes This setting will move listened-to messages to the Old folder. We
recommend leaving this at the default.
forward _ urgent _
auto
no Setting this to yes will preserve the original urgency setting of any
messages the user receives and then forwards on. If you leave it at no, users
can set the urgency level themselves on messages that they forward.
userscontext default If you use the users.conf file (we don’t), you can define here the context
where entries are registered.
externnotify /path/to/script If you wish to run an external app whenever a message is left, you can
define it here.
smdienable no If you are using Asterisk as a voicemail server on a PBX that supports SMDI,
you can enable it here.
smdiport /dev/ttyS0 Here is where you would define the SMDI port that messages between
Asterisk and the external PBX would pass across.
externpass /path/to/script Any time the password on a mailbox is changed, the script you define here
will be notified of the context, mailbox, and new password. The
script will then be responsible for updating voicemail.conf (the Asterisk
voicemail app will not update the password if this parameter is defined).
externpassnotify /path/to/script Any time the password on a mailbox is changed, the script you define here
will be notified of the context, mailbox, and new password.
Asterisk will handle updating the password in voicemail.conf. If you have
defined externpass, this option will be ignored.
externpasscheck /usr/local/bin/voice
mailpwcheck.py
See the sidebar following this table for a description of this option.
directoryintro dir-intro The Directory() dialplan application uses the voicemail.conf file to
search by name from an auto attendant. There is a default prompt that
plays, called dir-intro. If you want, you can specify a different file to
play instead.
188 | Chapter 8: Voicemail
www.it-ebooks.info
Option Value/Example Notes
charset ISO-8859-1 If you need a character set other than ISO-8859-1 (a.k.a Latin 1) to be
supported, you can specify it here.
adsifdn 0000000F Use this option to configure the Feature Descriptor Number.d
adsisec 9BDBF7AC Use this option to configure the security lock code.
adsiver 1 This specifies the ADSI voicemail application version number.
pbxskip yes If you do not want emails from your voicemail to have the string [PBX]
added to the subject, you can set this to yes.
fromstring The Asterisk
PBX
You can use this setting to configure the From: name that will appear in
emails from your PBX.
usedirectory yes This option allows users composing messages from their mailboxes to take
advantage of the Directory.
odbcstorage <item from
res_odbc.conf>
If you want to store voice messages in a database, you can do that using the
Asterisk res_odbc connector. Here, you would set the name of the item
in the res_odbc file. For details, see Chapter 22.
odbctable <table name> This setting specifies the table name in the database that the odbcstor
age setting refers to. For details, see Chapter 22.
emailsubject [PBX]: New
message $
{VM_MSGNUM} in
mailbox $
{VM_MAILBOX}
When Asterisk sends an email, you can use this setting to define what the
Subject: line of the email will look like. See the voicemail.conf.sample
file for more details.
emailbody Dear $
{VM_NAME}:\n\n
\tjust wanted
to let you
know you were
just left a $
{VM_DUR} long
message (num
ber $
{VM_MSGNUM})
\nin mailbox $
{VM_MAILBOX u
might\nwant to
check it when
you get a
chance.
Thanks!\n\n\t
\t\t\t--
Asterisk\n
When Asterisk sends an email, you can use this setting to define what the
body of the email will look like. See the voicemail.conf.sample file for more
details.
Comedian Mail | 189
www.it-ebooks.info
Option Value/Example Notes
pagerfromstring The Asterisk
PBX
We don’t actually know anybody who uses pagers anymore (nor can we
recall having seen one in many years), but if you have one of these historical
oddities and you want to customize what Asterisk sends with its pager
notification, presumably you can do that with this. A very practical
application of this feature for short-message voicemail notifications is to
send a message to an email-to-SMS gateway.
pagersubject New VM As above.
pagerbody New ${VM_DUR}
long msg in
box ${VM_MAIL
BOX}\nfrom $
{VM_CALLERID},
on ${VM_DATE}
The formatting for this uses the same rules as emailbody.
emaildateformat %A, %d %B %Y
at %H:%M:%S
This option allows you to specify the date format in emails. Uses the same
rules as the C function STRFTIME.
pagerdateformat %A, %d %B %Y
at %H:%M:%S
This option allows you to specify the date format in pagerbody. Uses the
same rules as the C function STRFTIME.
mailcmd /usr/sbin/send
mail -t
If you want to override the default operating system application for sending
mail, you can specify it here.
pollmailboxes no, yes If the contents of mailboxes are changed by anything other than app_voi
cemail (such as external applications or another Asterisk system), setting
this to yes will cause app_voicemail to poll all the mailboxes for
changes, which will trigger proper message waiting indication (MWI)
updates.
pollfreq 30 Used in concert with pollmailboxes, this option specifies the number
of seconds to wait between mailbox polls.
imapgreetings no, yes This enables/disables remote storage of greetings in the IMAP folder. For
more details, see Chapter 18.
greetingsfolder INBOX If you’ve enabled imapgreetings, this parameter allows you to define
the folder your greetings will be stored in (defaults to INBOX).
imapparentfolder INBOX IMAP servers can handle parent folders in different ways. This field allows
you to specify the parent folder for your mailboxes. For more details, see
Chapter 7.
imapserver localhost Defines the IMAP server Asterisk should connect to.
imapport 143 Defines the port of the IMAP server to connect to.
imapflags ssl IMAP servers typically have different flags that can be passed along with
the mailbox name. A common flag to pass is ssl, which enables OpenSSL
encryption in the communication if the IMAP libraries were compiled with
OpenSSL support.
imapfolder INBOX The folder to store voicemail messages in on the IMAP server. The default is
INBOX.
190 | Chapter 8: Voicemail
www.it-ebooks.info
Option Value/Example Notes
authuser user If your IMAP server has been defined with an account that can access all
mailboxes, you can define that user for Asterisk to connect to the server
with.
authpassword password This option defines the password to be used with the authuser attribute.
imapopentimeout 60 The TCP open timeout in seconds.
imapclosetimeout 60 The TCP close timeout in seconds.
imapreadtimeout 60 The TCP read timeout in seconds.
imapwritetimeout 60 The TCP write timeout in seconds.
a The separator that is used for each format option must be the pipe (|) character.
b Sending email from Asterisk can require some careful configuration, because many spam filters will find Asterisk messages
suspicious and will simply ignore them. We talk more about how to set email for Asterisk in Chapter 18.
c Yes, you read that correctly: megabytes.
d The Analog Display Services Interface is a standard that allows for more complex feature interactions through the use of the phone
display and menus. With the advent of VoIP telephones, ADSI’s popularity has decreased in recent years.
External Validation of Voicemail Passwords
By default, Asterisk does not validate user passwords to ensure they are at least somewhat
secure. Anyone who maintains voicemail systems will tell you that a large percentage of
mailbox users set their passwords to something like 1234 or 1111, or some other string
that’s easy to guess. This represents a huge security hole in the voicemail system.
Since the app_voicemail.so module does not have the built-in ability to validate pass‐
words, the settings externpass, externpassnotify, and externpasscheck allow you
to validate them using an external program. Asterisk will call the program based on the
path you specify, and pass it the following arguments:
mailbox context oldpass newpass
The script will then evaluate the arguments based on rules that you defined in the ex‐
ternal script and, based on your rules, it should return to Asterisk a value of VALID for
success or INVALID for failure (actually, the return value for a failed password can be
anything except the words VALID or FAILURE). This value is typically printed to stdout.
If the script returns INVALID, Asterisk will play an invalid-password prompt and the
user will need to attempt something different.
Ideally, you would want to implement rules such as the following:
• Passwords must be a minimum of six digits in length
• Passwords must not be strings of repeated digits (e.g., 111111)
• Passwords must not be strings of contiguous digits (e.g., 123456 or 987654)
Comedian Mail | 191
www.it-ebooks.info
Asterisk comes with a simple script that will greatly improve the security of your
voicemail system. It is located in the source code under the folder: /contrib/scripts/voice
mailpwcheck.py.
We strongly recommend that you copy it to your /usr/local/bin folder (or wherever you
prefer to put such things), and then uncomment the externpasscheck= option in your
voicemail.conf file. Your voicemail system will then enforce the password security rules
you have established.
Part of the [general] section is an area that is referred to as advanced options. These
options (listed in Table 8-2) are defined in the same way as the other options in the
[general] section, but they can also be defined on a per-mailbox basis, which would
override whatever is defined under [general] for that particular setting.
Table 8-2. Advanced options for voicemail.conf
Option Value/Example Notes
tz eastern, euro
pean, etc.
Specifies the zonemessages name, as defined under
[zonemessages] (discussed in the next section).
locale de_DE.utf8,
es_US.utf8,
etc.
Used to define how Asterisk generates date/time strings in different
locales. To determine the locales that are valid on your Linux
system, type locale -a at the shell.
attach yes, no If an email address is specified for a mailbox, this determines
whether the messages are attached to the email notifications
(otherwise, a simple message notification is sent).
attachfmt wav49, wav, etc. If attach is enabled and messages are stored in different formats,
this defines which format is sent with the email notifications. Often
wav49 is a good choice, as it uses a better compression algorithm
and thus will use less bandwidth.
saycid yes, no This command will state the caller ID of the person who left the
message.
cidinternalcontexts <context>, <an
other con
text>
Any dialplan contexts listed here will be searched in an attempt to
locate the mailbox context, so that the name associated with the
mailbox number can be spoken. The voicemail box number needs to
match the extension number that the call came from, and the
voicemail context needs to match the dialplan context.a
sayduration yes, no This command will state the length of the message.
saydurationm 2 Use this to specify the minimum duration of a message to qualify for
its length being played back. For example, if you set this to 2, any
message less than 2 minutes in length will not have its length
stated. (The option really is saydurationm and isn’t a typo
here.)
192 | Chapter 8: Voicemail
www.it-ebooks.info
Option Value/Example Notes
dialout <context> If allowed, users can dial out from their mailboxes. This is
considered a very dangerous feature in a phone system (mainly
because many voicemail users like to use 1234 as their password),
and is therefore not recommended. If you insist on allowing this,
make sure you have a second level in the dialplan where another
password is specified. Even so, this is not a safe practice.
sendvoicemail yes, no This allows users to compose messages to other users from within
their mailboxes.
searchcontexts yes, no This allows voicemail applications in the dialplan to not have to
specify the voicemail context, since all contexts will be searched.
This is not recommended.
callback <context> This specifies which dialplan context to use to call back to the
sender of a message. The specified context will need to be able to
handle dialing of numbers in the format in which they are received
(for example, the country code may not be received with the caller
ID, but might be required for the outgoing call).
exitcontext <context> There are options that allow the callers to exit the voicemail system
when they are in the process of leaving a message (for example,
pressing 0 to get an operator). By default, the context the caller
came from will be used as the exit context. If desired, this setting
will define a different context for callers exiting the voicemail
system.
review yes, no This should almost always be set to yes (even though it defaults to
no). People get upset if your voicemail system does not allow them
to review their messages prior to delivering them.
operator yes, no Best practice dictates that you should allow your callers to “zero
out” from a mailbox, should they not wish to leave a message. Note
that an o extension (not “zero,” “oh”) is required in the exitcon
text in order to handle these calls.
envelope no, yes You can have voicemail play back the details of the message before
it plays the actual message. Since this information can also be
accessed by pressing 5, we generally set this to no.
delete no, yes After an email message notification is sent (which could include the
message itself), the message will be deleted. This option is risky,
because the fact that a message was emailed is not a guarantee
that it was received (spam filters seem to love to delete Asterisk
voicemail messages). On a new system, leave this at no until you
are certain that no messages are being lost due to spam filters.
volgain 0.0 This setting allows you to increase the volume of received messages.
Volume used to be a problem in older releases of Asterisk, but has
not been an issue for many years. We recommend leaving this at the
default. The sox utility is required for this to work.
Comedian Mail | 193
www.it-ebooks.info
Option Value/Example Notes
nextaftercmd yes, no This handy little setting will save you some time, as it takes you
directly to the next message once you’ve finished dealing with the
current message.
forcename yes, no This strange little setting will check whether the mailbox password
is the same as the mailbox number. If it is, it will force the user to
change his voicemail password and record his name.
forcegreetings yes, no As above, but for greetings.
hidefromdir no, yes If you wish, you can hide specific mailboxes from the
Directory() application using this setting.
tempgreetwarn yes, no Setting this to yes will warn the mailbox owner that she has a
temporary greeting set. This can be a useful reminder when people
return from trips or vacations.
passwordlocation spooldir If you want, you can have mailbox passwords stored in the spool
folder for each mailbox.b One of the advantages of using the
spooldir option is that it will allow you to define file #in
clude statements in voicemail.conf (meaning you can store
mailbox references in multiple files, as you can with, for example,
dialplan code). This is not possible otherwise, because app_voice
mail normally writes password changes to the filesystem, and
cannot update a mailbox password stored outside of either voice
mail.conf or the spool. If you do not use passwordlocation,
you will not be able to define mailboxes outside of voicemail.conf,
since password updates will not happen. Storing passwords in a file
in the specific mailbox folder in the spool solves this problem.
messagewrap no, yes If this is set to yes, when the user has listened to the last message,
pressing next (6) will take him to the first message. Also, pressing
previous (4) when at the first message will take the user to the last
message.
minpassword 6 This option enforces a minimum password length. Note that this
does not prevent users from setting their passwords to something
easy to guess (such as 123456).
vm-password custom_sound If you want, you can specify a custom sound here to use for the
password prompt in voicemail.
vm-newpassword custom_sound If you want, you can specify a custom sound here to use for the
“Please enter your new password followed by the pound key”
prompt in voicemail.
vm-passchanged custom_sound If you want, you can specify a custom sound here to use for the
“Your password has been changed” prompt in voicemail.
vm-reenterpassword custom_sound If you want, you can specify a custom sound here to use for the
“Please reenter your password followed by the pound key” prompt
in voicemail.
194 | Chapter 8: Voicemail
www.it-ebooks.info
Option Value/Example Notes
vm-mismatch custom_sound If you want, you can specify a custom sound here to use for the “The
passwords you entered and reentered did not match” prompt in
voicemail.
vm-invalid-password custom_sound If you want, you can specify a custom sound here to use for the
“That is not a valid password. Please try again” prompt in voicemail.
vm-pls-try-again custom_sound If you want, you can specify a custom sound here to use for the
“Please try again” prompt in voicemail.
vm-prepend-timeout custom_sound If you want, you can specify a custom sound here to use when a user
times out while recording a prepend message. The default prompt
is, “then press pound” and follows the vm-pls-try-again
prompt.
listen-control-
forward-key
#You can use this setting to customize the fast-forward key.
listen-control-
reverse-key
*You can use this setting to customize the rewind key.
listen-control-pause-
key
0You can use this setting to customize the pause/unpause key.
listen-control-
restart-key
2You can use this setting to customize the replay key.
listen-control-stop-
key
13456789 You can use this setting to customize the interrupt playback key.
backupdeleted 0 This setting will allow you to specify how many deleted messages
are automatically stored by the system. This is similar to a recycle
bin. Setting this to 0 disables this feature. Up to 9,999 messages can
be stored, after which the oldest message will be erased each time
another message is deleted.
a Yes, we found this a bit confusing, too.
b Typically the spool folder is /var/spool/asterisk, and it can be defined in /etc/asterisk/asterisk.conf.
The [zonemessages] Section
The next section of the voicemail.conf file is the [zonemessages] section. The purpose
of this section is to allow time zone–specific handling of messages, so you can play back
to the user messages with the correct timestamps. You can set the name of the zone to
whatever you need. Following the zone name, you can define which time zone you want
the name to refer to, as well as some options that define how timestamps are played
back. You can look at the ~/src/asterisk-complete/asterisk/11/configs/voicemail.conf.sam
ple file for syntax details. Asterisk includes the examples shown in Table 8-3.
Comedian Mail | 195
www.it-ebooks.info
Table 8-3. [zonemessages] section options for voicemail.conf
Zone name Value/Example Notes
eastern America/New_York|'vm-received' Q
'digits/at' IMp
This value would be suitable for the eastern time
zone (EST/EDT).
central America/Chicago|'vm-received' Q
'digits/at' IMp
This value would be suitable for the central time
zone (CST/CDT).
central24 America/Chicago|'vm-received' q
'digits/at' H N 'hours'
This value would also be suitable for CST/CDT,
but would play back the time in 24-hour format.
military Zulu|'vm-received' q 'digits/at'
H N 'hours' 'phonetic/z_p'
This value would be suitable for Universal Time
Coordinated (Zulu time, formerly GMT).
european Europe/Copenhagen|'vm-received' a
d b 'digits/at' HM
This value would be suitable for Central European
time (CEST).
The Contexts Section
All the remaining sections in the voicemail.conf file will be the voicemail contexts, which
allow you to segregate groups of mailboxes.
In many cases, you will only need one voicemail context, commonly named [de
fault]. This is worth noting, as it will make things simpler in the dialplan: all the
voicemail-related applications assume the context default if no context is specified. In
other words, if you don’t require separation of your voicemail users, use default as your
one and only voicemail context.
The format for the mailboxes is as follows (you should enter all of this on a single line):
mailbox => password[,FirstName LastName[,email addr[,pager addr
[,options[|options]]]]]
The pipe character (|) used to be more popular in Asterisk. For the first
few years, it was used as the standard delimiter. More recently, it has
almost completely been replaced by the comma; however, there are still
a few places where the pipe is used. One of them is in voicemail.conf: for
example, as a separator for any mailbox-specific options, and also as
the separator character in the format= declarative. You’ll see this in our
upcoming example, as well as in the voicemail.conf.sample file.
The parts of the mailbox definition are:
mailbox
This is the mailbox number. It usually corresponds with the extension number of
the associated set.
196 | Chapter 8: Voicemail
www.it-ebooks.info
password
This is the numeric password that the mailbox owner will use to access her voice‐
mail. If the user changes her password, the system will update this field in the
voicemail.conf file.
If the password is preceded by the hyphen (-) character, the user cannot change
their mailbox password.
If you are storing passwords in the spool (by use of the passwordlocation param‐
eter), this field is ignored. However, the parser still requires there to be a field here,
so if you are going to specify any other options for this mailbox, a comma will be
needed as a placeholder for the password field.
FirstName LastName
This is the name of the mailbox owner. The company directory uses the text in this
field to allow callers to spell usernames.
email address
This is the email address of the mailbox owner. Asterisk can send voicemail noti‐
fications (including the voicemail message itself, as an attachment) to the specified
email box.
pager address
This is the email address of the mailbox owner’s pager or cell phone. Asterisk can
send a short voicemail notification message to the specified email address.
options
This field is a list of options for setting the mailbox owner’s time zone and overriding
the global voicemail settings. There are quite a few valid options:
tz, locale, attach, attachfmt, saycid, cidinternalcontexts, sayduration, say
durationm, dialout, sendvoicemail, searchcontexts, callback, exitcontext,
review, operator, envelope, delete, volgain, nextaftercmd, forcename, force
greeting, hidefromdir, tempgreetwarn, passwordlocation, messagewrap, min
password.
These options should be in option = value pairs, separated by the pipe character
(|). See Table 8-4 for more details about what each of the options do.
The tz option sets the user’s time zone to a time zone previously defined in the
[zonemessages] section of voicemail.conf. The other options override the global
voicemail settings with the same names.
Comedian Mail | 197
www.it-ebooks.info
Table 8-4. Mailbox options
Option Description
attach Whether to attach the voicemail to the notification email versus the pager email. If set to yes, will
attach to the email defined by the email address field.
attachfmt Sets the format to attach to the email. Normally this is the first value defined by the format
option, but you can override that per mailbox by using this option. Option can only be set per
mailbox.
callback If defined, this option will allow the receiver of the email to call back the sender of the voicemail
directly from the Voicemail() application. This option defines which context the call will be
sent from. If not set, calling the sender back will not be permitted.
cidinternalcon
texts
This is a very old option from 2004, but essentially, you can define multiple contexts (separated by a
comma) that will tell Asterisk to check if the call came from an internal context. If so, it will play
back the person’s name recording instead of saying their extension number. It is unclear if this
option is still valid or functional. Likely best used in the [general] section of voicemail rather
than per mailbox.
delete After sending the voicemail via email, the voicemail is deleted from the server. This option is useful
for users who only want to receive voicemail via email. Valid options are yes or no. Option can only
be set per mailbox.
dialout If defined, option 4 from the advanced menu will allow you to dial out from the Voicemail
Main() application. The argument defines which context the dialing will be performed from. If
not defined, the option to dial out will not be prompted to the caller.
envelope Turns on or off envelope playback prior to playback of the voicemail message. Valid options are yes
or no. Default is yes.
exitcontext The context to exit to when pressing * or 0 from the Voicemail() application. Works in
conjunction with the operator option as well. Must have an extension a in the context for
exiting with *. Must have an extension o in the context for exiting with 0.
forcegreeting Forces the recording of a greeting for new mailboxes. A new mailbox is determined by the mailbox
number and password matching. Valid values are yes or no. Default is no.
forcename Forces the recording of the person’s name for new mailboxes. A new mailbox is determined by the
mailbox number and password matching. Valid values are yes or no. Default is no.
hidefromdir If set to yes, this mailbox will be hidden from the Directory() application. Default is no.
locale Allows you to set the locale for the mailbox in order to control formatting of the date/time strings.
See voicemail.sample.conf for more information.
messagewrap Allows the first and last messages to wrap around; e.g., allow last message to wrap back to the first
on the next message, or first message to wrap to the last message when going to the previous
message. Valid options are yes or no. Default is no.
minpassword Sets the minimum password length. Argument should be a whole number.
nextaftercmd Skips to the next message after pressing the 7 key (delete) or 9 key (save). Valid values are yes or
no. Default is yes.
operator Will allow the sender of a voicemail to hit 0 before, during, or after recording of a voicemail. Will
exit to the o extension in the same context, or the context defined by the exitcontext option.
Valid options are yes or no. Default is no.
198 | Chapter 8: Voicemail
www.it-ebooks.info
Option Description
passwordlocation By default, the password for voicemail is stored in the voicemail.conf file, and modified by Asterisk
whenever the password changes. This may not be desirable, especially if you want to parse the
password from an external location (or script). The alternate option for passwordlocation is
spooldir, which will place the password for the voicemail user in a file called secret.conf in the
user’s voicemail spool directory. Valid options are voicemail.conf and spooldir. The
default option if voicemail.conf.
review When enabled, will allow the user recording a voicemail message to re-record their message. After
pressing the # key to save their voicemail, they’ll be prompted whether they wish to re-record or
save the message. Valid options are yes or no. Default is no.
saycid If enabled, and a prompt exists in /var/spool/asterisk/voicemail/recordings/callerids, then that file
will be played prior to the message, playing the file instead of saying the digits of the callerID
number. Valid options are yes or no. Default is no.
sayduration Determines whether to play the duration of the message prior to message playback. Valid options
are yes or no. Default is yes.
saydurationm Allows you to set the minimum duration to play (in minutes). For example, if you set the value to 2,
you will not be informed of the message length for messages less than 2 minutes long. Valid values
are whole numbers. Default is 2.
searchcontexts For applications such as Voicemail(), VoicemailMain(), and Directory(), the
voicemail context is an optional argument. If the voicemail context is not specified, then the default
is to only search the default context. With this option enabled, all contexts will be searched. This
comes with a caveat that, if enabled, the mailbox number must be unique across all contexts—
otherwise there will be a collision, and the system will not understand which mailbox to use. Valid
options are yes and no. Default is no.
sendvoicemail Allows the user to compose and send a voicemail message from within the VoicemailMain()
application. Available as option 5 under the advanced menu. If this option is disabled, then option 5
in the advanced menu will not be prompted. Valid options are yes or no. Default is no.
tempgreetwarn Enables a notice to the user when their temporary greeting is enabled. Valid options are yes or no.
Default is no.
tz Sets the time zone for a voicemail user (or globally). See /usr/share/timezone for different available
time zones. Not applicable if envelope=no.
volgain The volgain option allows you to set volume gain for voicemail messages. The value is in
decibels (dB). The sox application must be installed for this to work.
The mailboxes you define in your voicemail.conf file might look like the following
examples:
[default]
100 => 5542,Mike Loukides,mike@shifteight.org
101 => 67674,Tim OReilly,tim@shifteight.org
102 => 36217,Mary JonesSmith,mary.jones-smith@shifteight.org
; *** This needs to all be on the same line
103 => 5426,Some Guy,,,dialout=fromvm|callback=fromvm
|review=yes|operator=yes|envelope=yes
Comedian Mail | 199
www.it-ebooks.info
[shifteight]
100 => 0107,Leif Madsen,leif@shifteight.org
101 => 0523,Jim VanMeggelen,jim@shifteight.org,,attach=no|maxmsg=100
102 => 11042,Tilghman Lesher,,,attach=no|tz=central
The Asterisk directory cannot handle the concept of a family name that
is anything other than a simple word. This means that family names
such as O’Reilly, Jones-Smith, and yes, even Van Meggelen, must have
any punctuation characters and spaces removed before being added to
voicemail.conf.
The contexts in voicemail.conf are an excellent and powerful concept, but you will likely
find that the default context will be all that you need in normal use. The primary reason
for multiple mailbox contexts is when your system is hosting more than one PBX and
you need mailbox separation.
An Initial voicemail.conf File
We recommend the following sample as a starting point. You can refer to ~/asterisk-
complete/asterisk/11/configs/voicemail.conf.sample for details on the various settings:
; Voicemail Configuration
[general]
format=wav49|wav
serveremail=voicemail@shifteight.org
attach=yes
skipms=3000
maxsilence=10
silencethreshold=128
maxlogins=3
emaildateformat=%A, %B %d, %Y at %r
pagerdateformat=%A, %B %d, %Y at %r
sendvoicemail=yes ; Allow the user to compose and send a voicemail while inside
[zonemessages]
eastern=America/New_York|'vm-received' Q 'digits/at' IMp
central=America/Chicago|'vm-received' Q 'digits/at' IMp
central24=America/Chicago|'vm-received' q 'digits/at' H N 'hours'
military=Zulu|'vm-received' q 'digits/at' H N 'hours' 'phonetic/z_p'
european=Europe/Copenhagen|'vm-received' a d b 'digits/at' HM
[shifteight.org]
100 => 1234,Leif Madsen,leif@shifteight.org
101 => 1234,Jim Van Meggelen,jim@shifteight.org
102 => 1234,Russell Bryant,russell@shifteight.org
103 => 1234,Jared Smith,jared@shifteight.org
200 | Chapter 8: Voicemail
www.it-ebooks.info
3. Also sometimes called a Message Transfer Agent.
Setting up a Linux server to handle the sending of email is a Linux
administration task that is beyond the scope of this book. You will
need to test your voicemail-to-email service to ensure that the email
is being handled appropriately by the Mail Transfer Agent (MTA),3
and that downstream spam filters are not rejecting the messages (one
reason this might happen is if your Asterisk server is using a hostname
in the email body that does not in fact resolve to it).
Standard Voicemail KeyMap
Here we’ll look at the standard keymap configuration for Comedian Mail. Some options
may be enabled or disabled based on the configuration of voicemail.conf (e.g.,
envelope=no), but our overview in Figure 8-1 will show the standard options available
with minimal configuration.
Dialplan Integration
There are two primary dialplan applications that are provided by the app_voice
mail.so module in Asterisk. The first, simply named VoiceMail(), does exactly what
you would expect it to, which is to record a message in a mailbox. The second one,
VoiceMailMain(), allows a caller to log into a mailbox to retrieve messages.
The VoiceMail() Dialplan Application
When you want to pass a call to voicemail, you need to provide two arguments: the
mailbox (or mailboxes) in which the message should be left, and any options relating
to this, such as which greeting to play or whether to mark the message as urgent. The
structure of the VoiceMail() command is this:
VoiceMail(mailbox[@context][&mailbox[@context][&...]][,options])
The options you can pass to VoiceMail() to provide a higher level of control are detailed
in Table 8-5.
Dialplan Integration | 201
www.it-ebooks.info
Figure 8-1. Keymap configuration for Comedian mail
Table 8-5. VoiceMail() optional arguments
Argument Purpose
bInstructs Asterisk to play the busy greeting for the mailbox (if no busy greeting is found, the unavailable
greeting will be played).
d([c]) Accepts digits to be processed by context c. If the context is not specified, it will default to the current
context.
g(#) Applies the specified amount of gain (in decibels) to the recording. Only works on DAHDI channels.
202 | Chapter 8: Voicemail
www.it-ebooks.info
Argument Purpose
sSuppresses playback of instructions to the callers after playing the greeting.
uInstructs Asterisk to play the unavailable greeting for the mailbox (this is the default behavior).
UIndicates that this message is to be marked as urgent. The most notable effect this has is when voicemail is
stored on an IMAP server. In that case, the email will be marked as urgent. When the mailbox owner calls in to
the Asterisk voicemail system, he should also be informed that the message is urgent.
PIndicates that this message is to be marked as priority.
The VoiceMail() application sends the caller to the specified mailbox, so that he can
leave a message. The mailbox should be specified as mailbox@context, where con
text is the name of the voicemail context. The option letters b or u can be added to
request the type of greeting. If the letter b is used, the caller will hear the mailbox owner’s
busy message. If the letter u is used, the caller will hear the mailbox owner’s unavaila‐
ble message (if one exists).
Consider this simple example extension 101, which allows people to call John:
exten => 101,1,NoOp()
same => n,Dial(${JOHN})
Let’s add an unavailable message that the caller will be played if John doesn’t answer the
phone. Remember, the second argument to the Dial() application is a timeout. If the
call is not answered before the timeout expires, the call is sent to the next priority. Let’s
add a 10-second timeout, and a priority to send the caller to voicemail if John doesn’t
answer in time:
exten => 101,1,NoOp()
same => n,Dial(${JOHN},10)
same => n,VoiceMail(101@default,u)
Now, let’s change it so that if John is busy (on another call), the caller will be sent to his
voicemail, where he will hear John’s busy message. To do this, we will make use of the
${DIALSTATUS} variable, which contains one of several status values (type core show
application Dial at the Asterisk console for a listing of all the possible values):
exten => 101,1,NoOp()
same => n,Dial(${JOHN},10)
same => n,GotoIf($["${DIALSTATUS}" = "BUSY"]?busy:unavail)
same => n(unavail),VoiceMail(101@default,u)
same => n,Hangup()
same => n(busy),VoiceMail(101@default,b)
same => n,Hangup()
Now callers will get John’s voicemail (with the appropriate greeting) if John is either
busy or unavailable. An alternative syntax is to use the IF() function to define which
of the unavailable or busy messages to use:
exten => 101,1,NoOp()
same => n,Dial(${JOHN},10)
Dialplan Integration | 203
www.it-ebooks.info
same => n,Voicemail(101@default,${IF($["${DIALSTATUS}" = "BUSY"]?b:u)})
same => n,Hangup()
A slight problem remains, however, in that John has no way of retrieving his messages.
We will remedy that in the next section.
The VoiceMailMain() Dialplan Application
Users can retrieve their voicemail messages, change their voicemail options, and record
their voicemail greetings using the VoiceMailMain() application. VoiceMailMain()
accepts two arguments: the mailbox number (and optionally the context) to be accessed,
and some options. Both arguments are optional.
The structure of the VoiceMailMain() application looks like this:
VoiceMailMain([mailbox][@context][,options])
If you do not pass any arguments to VoiceMailMain(), it will play a prompt asking the
caller to provide her mailbox number. The options that can be supplied are listed in
Table 8-6.
Table 8-6. VoiceMailMain() optional arguments
Argument Purpose
pAllows you to treat the mailbox parameter as a prefix to the mailbox number.
g(#)Increases the gain by # decibels when playing back messages.
sSkips the password check.
a(folder)Starts the session in one of the following voicemail folders (defaults to 0):
•0 - INBOX
•1 - Old
•2 - Work
•3 - Family
•4 - Friends
•5 - Cust1
•6 - Cust2
•7 - Cust3
•8 - Cust4
•9 - Cust5
To allow users to dial an extension to check their voicemail, you could add an extension
to the dialplan like this:
[Services]
exten => *98,1,NoOp(Access voicemail retrieval.)
same => n,VoiceMailMain()
You would then simply need to add an include in the [LocalSets] context so that you
could dial *98:
204 | Chapter 8: Voicemail
www.it-ebooks.info
4. This advice applies to any situation where Asterisk is the endpoint of a call. Another example would be when
using the MeetMe() or ConfBridge() applications for conferencing.
[LocalSets]
; existing dialplan above here
include => Services
Creating a Dial-by-Name Directory
One last feature of the Asterisk voicemail system that we should cover is the dial-by-
name directory. This is created with the Directory() application. This application uses
the names defined in the mailboxes in voicemail.conf to present the caller with a dial-
by-name directory of users.
Directory() takes up to three arguments: the voicemail context from which to read the
names, the optional dialplan context in which to dial the user, and an option string
(which is also optional). By default, Directory() searches for the user by last name, but
passing the f option forces it to search by first name instead. Let’s add two dial-by-name
directories to the incoming context of our sample dialplan, so that callers can search by
either first or last name:
exten => 8,1,Directory(default,incoming,f)
exten => 9,1,Directory(default,incoming)
If callers press 8, they’ll get a directory by first name. If they dial 9, they’ll get the directory
by last name.
Using a Jitterbuffer
When using Asterisk as a voicemail server,4 you may want to add a jitterbuffer in between
voicemail and the caller. The purpose of a jitterbuffer is to help deal with the fact that
when a call traverses an IP network, the traffic may not arrive with perfect timing and
in perfect order. If packets occasionally arrive with a bit of delay (jitter) or if they arrive
out of order, a jitterbuffer can fix it so that the voicemail system receives the voice stream
on time and in order. If the jitterbuffer detects that a packet was lost (or may arrive so
late that it will no longer matter), it can perform packet-loss concealment. That is, it will
attempt to make up a frame of audio to put in place of the lost audio to make it harder
to hear that audio was lost.
In Asterisk, jitterbuffer support can be enabled on a bridge between two channels in
two ways. In the case of voicemail, there is generally only a single channel connected to
one of the voicemail applications. The old method (which is required in versions prior
to Asterisk 10) is to enable the use of a jitterbuffer in front of voicemail by creating a
bridge between two channels using a Local channel and specifying the j option.
Dialplan Integration | 205
www.it-ebooks.info
5. Nortel used to store its messages in a sort of special partition, in a proprietary format, which made it pretty
much impossible to extract messages from the system, or email them, or archive them, or really do anything
with them.
Specifying the n option for the Local channel additionally ensures that the Local chan‐
nel is not optimized out of the call path in Asterisk:
[Services]
; old method -- only required in versions prior to Asterisk 10
exten => *98,1,Dial(Local/vmm@Services/nj)
exten => vmm,1,VoiceMailMain()
As of Asterisk 10, there exists a new JITTERBUFFER() dialplan function which, from the
user’s perspective, performs the same functionality. Simply by setting values in the di‐
alplan, we can enable a jitterbuffer prior to accessing a dialplan application such as
Voicemail():
[Services]
; new method -- available in Asterisk 10 and later
exten => *98,1,NoOp()
same => n,Set(JITTERBUFFER(fixed)=default)
same => n,VoiceMailMain()
There exists both a fixed and an adaptive jitterbuffer, along with several different set‐
tings. We’ve used the fixed jitterbuffer with the default settings, which are as follows.
See core show function JITTERBUFFER for more configuration options:
•200 ms buffer length
•If more than 1,000 ms of timestamp difference exists, the jitterbuffer will resync
Storage Backends
The storage of messages on traditional voicemail systems has always tended to be overly
complicated.5 Asterisk, on the other hand, not only provides you with a simple, logical,
filesystem-based storage mechanism, but also offers a few extra message storage options.
Linux Filesystem
By default, Asterisk stores voice messages in the spool folder, at /var/spool/asterisk/
voicemail/<context>/<mailbox>. The messages can be stored in multiple formats (such
as WAV and GSM), depending on what you specified as the format in the [general]
section of your voicemail.conf file. Your greetings are also stored in this folder.
206 | Chapter 8: Voicemail
www.it-ebooks.info
Asterisk will not create a folder for any mailboxes that do not have any
recordings yet (as would be the case with a new mailbox), so this folder
cannot be used as a reliable method of determining which mailboxes
exist on the system.
Here’s an example of what might be in a mailbox folder. This mailbox has no new mes‐
sages in the INBOX, has two saved messages in the Old folder, and has busy, unavaila
ble and name (greet) greetings recorded (as shown in Figure 8-2).
Figure 8-2. Sample mailbox folder
For each message, there is a matching msg####.txt file, which contains
the envelope information for the message. The msg####.txt file is also
critically important for message waiting indication (MWI), as this is the
file that Asterisk looks for in the INBOX to determine whether the mes‐
sage light for a user should be on or off.
ODBC
In a centralized or distributed system, you may find it desirable to store messages as
binary objects in a database, instead of as files on the filesystem. We’ll discuss this in
detail in “ODBC Voicemail Message Storage” on page 463.
IMAP
Many people would prefer to manage their voicemail as part of their email. This has
been called unified messaging by the telecom industry, and its implementation has tra‐
ditionally been expensive and complex. Asterisk allows for a fairly simple integration
between voicemail and email, either through its built-in voicemail-to-email handler, or
through a relationship with an IMAP server. We’ll discuss IMAP integration in detail
in “Voicemail IMAP Integration” on page 503.
Storage Backends | 207
www.it-ebooks.info
Using Asterisk as a Standalone Voicemail Server
In a traditional telecom environment, the voicemail server was typically a standalone
unit (provided either as a separate server altogether, or as an add-in card to the system).
Very few PBXs had fully integrated voicemail (in the sense that voicemail was an integral
part of the PBX rather than a peripheral device).
Asterisk is quite capable of serving as a standalone voicemail system. The two most
common reasons one might want to do this are:
1. If you are building a large, centralized system and have several servers each pro‐
viding a specific function (proxy server, media gateway, voicemail, conferencing,
etc.)
2. If you wish to replace the voicemail system on a traditional PBX with an Asterisk
voicemail
Asterisk can serve in either of these roles.
Integrating Asterisk into a SIP Environment as a Standalone
Voicemail Server
If you want to have Asterisk act as a dedicated voicemail server (i.e., with no sets reg‐
istered to it and no other types of calls passing through it), the process from the dialplan
perspective is quite simple. Getting message waiting to work can be a bit more difficult,
though.
Let’s start with a quick diagram. Figure 8-3 shows an overly simplified example of a
typical SIP enterprise environment. We don’t even have an Asterisk server in there (other
than for the voicemail), in order to give you a generic representation of how Asterisk
could serve as a standalone voicemail server in an otherwise non-Asterisk
environment.
Unfortunately, Asterisk cannot send message notifications to an endpoint if it doesn’t
know where that endpoint is. In a typical Asterisk system, where set registration and
voicemail are handled on the same machine, this is never a problem, since Asterisk
knows where the sets are. But in an environment where the sets are not registered to
Asterisk, this can become a complex problem.
There are several solutions on the Internet that recommend using the externnotify
option in voicemail.conf, triggering an external script whenever a message is left in a
mailbox (or deleted). While we can’t say that’s a bad approach, we find it a bit kludgy,
and it requires the administrator to understand how to write an external script or pro‐
gram to handle the actual passing of the message.
208 | Chapter 8: Voicemail
www.it-ebooks.info
Figure 8-3. Simplified SIP enterprise environment
Instead you can statically define an entry for each mailbox in the voicemail server’s
sip.conf file, indicating where the message notifications are to be sent. Rather than
defining the address of each endpoint, however, you can have the voicemail server send
all messages to the proxy, which will handle the relay of the message notifications to the
appropriate endpoints.
The voicemail server still needs to know about the SIP endpoints, even though the
devices are not registered directly to it. This can be done either through a sip.conf file
that identifies each SIP endpoint, or through a static realtime database that does the
same thing. Whether you use sip.conf or the Asterisk Realtime Architecture (ARA), each
endpoint will require an entry similar to this:
[messagewaiting](!) ; a template to handle the settings common
; to all mailboxes
type=peer
subscribecontext=voicemailbox ; the dialplan context on the voicemail server
context=voicemailbox ; the dialplan context on the voicemail server
host=192.168.1.1 ; ip address of presence server
[0000FFFF0001](messagewaiting) ; this will need to match the subscriber
; name on the proxy
mailbox=0000FFFF0001@DIR1 ; must be in the form mailbox@mailboxcontext
defaultuser=0000FFFF0001 ; this will need to match the subscriber
; name on the proxy
Using Asterisk as a Standalone Voicemail Server | 209
www.it-ebooks.info
6. As far as we know, there aren’t any specific SIP headers that are standardized for this sort of thing, so you
should be able to name the headers whatever you want. We chose these header names simply because they
make some sort of sense. You may find that other headers would suit your needs better.
Note that Asterisk’s dynamic realtime will not work with this configu‐
ration, as a peer’s information is only loaded into memory when there
is an actual call involving that peer. Since message notification is not a
call as far as Asterisk is concerned, using dynamic realtime will not allow
message waiting to happen for any peers not registered to Asterisk.
You will not want to implement this unless you have prototyped the basic operation of
the solution. Although we all agree that SIP is a protocol, not everyone agrees as to the
correct way to implement the protocol. As a result, there are many interoperability
challenges that need to be addressed in a solution like this. We have provided a basic
introduction to this concept in this book, but the implementation details will depend
on other factors external to Asterisk, such as the capabilities of the proxy.
The fact that no device has to register with Asterisk will significantly reduce the load
on the Asterisk server, and as a result this design should allow for a voicemail server
that can support several thousand subscribers.
Dialplan requirements
The dialplan of the voicemail server can be fairly simple. Two needs must be satisfied:
1. Receive incoming calls and direct them to the appropriate mailbox
2. Handle incoming calls from users wishing to check their messages
The system that is passing calls to the voicemail server should set some SIP headers in
order to pass additional information to the voicemail server. Typically, this information
would include the mailbox/username that is relevant to the call. In our example, we are
going to set the headers X-Voicemail-Mailbox and X-Voicemail-Context, which will
contain information we wish to pass to the voicemail server.6
210 | Chapter 8: Voicemail
www.it-ebooks.info
If the source system is also an Asterisk system, you might set the headers
using the SIPAddHeader() voicemail application, in a manner similar
to this:
exten => sendtovoicemail,1,Verbose(2,Set SIP headers for voicemail)
same => n,SIPAddHeader(X-Voicemail-Mailbox: mailbox number)
same => n,SIPAddHeader(X-Voicemail-Context: voicemailbox)
Note that this dialplan does not go on the voicemail server. It would only
be useful if one of the other servers in your environment was also an
Asterisk server. If you were using a different kind of server, you would
need to find out how to set custom headers in that platform, or find out
if it already uses specific headers for this sort of thing, and possibly mod‐
ify the dialplan on the voicemail server to handle those headers.
The voicemail server will need an extensions.conf file containing the following:
[voicemailbox]
; direct incoming calls to a mailbox
exten => Deliver,1,NoOp()
same => n,Set(Mailbox=${SIP_HEADER(X-Voicemail-Mailbox)})
same => n,Set(MailboxContext=${SIP_HEADER(X-Voicemail-Context)})
same => n,VoiceMail(${Mailbox}@${MailboxContext})
same => n,Hangup()
; connect users to their mailbox so that they can retrieve messages
exten => Retrieve,1,NoOp()
same => n,Set(Mailbox=${SIP_HEADER(X-Voicemail-Mailbox)})
same => n,Set(MailboxContext=${SIP_HEADER(X-Voicemail-Context)})
same => n,VoiceMailMain(${Mailbox}@${MailboxContext})
same => n,Hangup()
sip.conf requirements
In the sip.conf file on the voicemail server, not only are entries required for all the
mailboxes for message-waiting notification, but some sort of entry is required to define
the connection between the voicemail server and the rest of the SIP environment:
[VOICEMAILTRUNK]
type=peer
defaultuser=voicemail
fromuser=voicemail
secret=s0m3th1ngs3cur3
canreinvite=no
host=<address of proxy/registrar server>
disallow=all
allow=ulaw
dtmfmode=rfc2833
context=voicemailbox
Using Asterisk as a Standalone Voicemail Server | 211
www.it-ebooks.info
7. If you are not experienced with configuring and troubleshooting serial connections, you may find this whole
process far more trouble than it’s worth.
The other end of the connection (probably your proxy server) must be configured to
pass voicemail connections to the voicemail server.
Running Asterisk as a standalone voicemail server requires some knowledge of clus‐
tering and integration, but you can’t beat the price.
SMDI (Simplified Message Desk Interface)
The Simplified Message Desk Interface (SMDI) protocol is intended to allow commu‐
nication of basic message information between telephone systems and voicemail
systems.
Asterisk supports SMDI, but given that this is an old protocol that runs across a serial
connection, there are likely to be integration challenges. Support in various PBXs and
other devices may be spotty. Still, it’s a fairly simple protocol, so it’s certainly worth
testing out if you are considering using Asterisk as a voicemail replacement on an old
PBX.
The following is not a detailed explanation of how to configure SMDI for Asterisk, but
rather an introduction to the concepts, with some basic examples. If you are planning
on implementing SMDI, you will need to write some complex dialplan logic and have
a good understanding of how to interconnect systems via serial connections.7
SMDI is enabled in Asterisk by the use of two options in the [general] section of the
voicemail.conf file:
smdienable=yes
smdiport=/dev/ttyS0; or whatever serial port you are connecting your
; SMDI service to
Additionally, you will need an smdi.conf file in your /etc/asterisk folder to define the
details of your SMDI configuration. It should look something like this (see the
smdi.conf.sample file for more information on the available options):
[interfaces]
charsize=7
paritybit=even
baudrate=1200 ; hopefully a higher bitrate is supported
smdiport=/dev/ttyS0 ; or whatever serial port you'll be using to handle
; SMDI messages on asterisk
[mailboxes] ; map incoming digit strings (typically DID numbers)
; to a valid mailbox@context in voicemail.conf
smdiport=/dev/ttyS0 ; first declare which SMDI port the following mailboxes
; will use
212 | Chapter 8: Voicemail
www.it-ebooks.info
4169671111=1234@default
4165551212=9999@default
In the dialplan there are two functions that will be wanted in an SMDI configuration.
The SMDI_MSG_RETRIEVE() function pulls the relevant message from the SMDI message
queue. You need to pass the function a search key (typically the DID that is referred to
in the message), and it will pass back an ID number that can be referenced by the
SMDI_MSG() function:
SMDI_MSG_RETRIEVE(<smdi port>,<search key>[,timeout[,options]])
Once you have the SMDI message ID, you can use the SMDI_MSG() function to access
various details about the message, such as the station, callerID, and type (the SMDI
message type):
SMDI_MSG(<message_id>,<component>)
In your dialplan, you will need to handle the lookup of the SMDI messages that come
in, to ensure that calls are handled correctly. For example, if an incoming call is intended
for delivery to a mailbox, the message type might be one of B (for busy) or N (for un‐
answered calls). If, on the other hand, the call is intended to go to VoiceMailMain()
because the caller wants to retrieve his messages, the SMDI message type would be D,
and that would have to be handled.
Database Integration
The Asterisk voicemail application can be integrated into a database. This can be very
useful, especially in clustered and distributed systems. It is discussed in detail in Chap‐
ter 16.
Conclusion
While the Asterisk voicemail system is quite old in terms of Asterisk code, it is never‐
theless a powerful application that can (and does) compete quite successfully with ex‐
pensive, proprietary voicemail systems.
Database Integration | 213
www.it-ebooks.info
www.it-ebooks.info
I traveled a good deal all over the world, and I got
along pretty good in all these foreign countries, for
I have a theory that it’s their country and they got
a right to run it like they want to.
—Will Rogers
CHAPTER 9
Internationalization
David Duffett
Telephony is one of those areas of life where, whether at home or at work, people do
not like surprises. When people use phones, anything outside of the norm is an expect‐
ation not met, and as someone who is probably in the business of supplying telephone
systems, you will know that expectations going unmet can lead to untold misery in terms
of the extra work, lost money, and other problems that are associated with customer
dissatisfaction.
In addition to ensuring that the user experience is in keeping with what users expect,
there is also the need to make your Asterisk feel “at home.” For example, if an outbound
call is placed over an analog line (FXO), Asterisk will need to interpret the tones that it
“hears” on the line (busy, ringing, etc.).
By default (and maybe as one might expect, since it was “born in the USA”), Asterisk is
configured to work within North America. However, since Asterisk gets deployed in
many places and (thankfully) people from all over the world make contributions to it,
it is quite possible to tune Asterisk for correct operation just about anywhere you choose
to deploy it.
If you have been reading this book from the beginning, chapter by chapter, you will have
already made some choices during installation and initial configuration that will have
set up your Asterisk to work in your local area (and live up to your customers’
expectations).
215
www.it-ebooks.info
1. i18n is a term used to abbreviate the word internationalization, due to its length. The format is <first_let‐
ter><number><last_letter>, where <number> is the number of letters between the first and last letters. Other
words, such as localization (L10n), modularization (m12n), etc., have also found a home with this scheme,
which Leif finds a little bit ridiculous. More information can be found in the W3C glossary online.
Quite a few of the chapters in this book contain information that will help you inter‐
nationalize1 or (perhaps more properly) localize your Asterisk implementation. The
purpose of this chapter is to provide a single place where all aspects of the changes that
need to be made to your Asterisk-based telephone system in this context can be refer‐
enced, discussed, and explained. The reason for using the phrase “Asterisk-based tele‐
phone system” rather than just “Asterisk” is that some of the changes will need to be
made in other parts of the system (IP phones, ATAs, etc.), while other changes will be
implemented within Asterisk and DAHDI configuration files.
Let’s start by getting a list together (in no particular order) of the things that may need
to be changed in order to optimize your Asterisk-based telephone system for a given
location outside of North America. You can shout some out if you like…
• Language/accent of the prompts
• Physical connectorization for PSTN interfaces (FXO, BRI, PRI)
• Tones heard by users of IP phones and/or ATAs
• Caller ID format sent and/or received by analog interfaces
• Tones for analog interfaces to be supplied or detected by Asterisk
• Format of time/date stamps for voicemail
•The way the above time/date stamps are announced by Asterisk
•Patterns within the dialplan (of IP phones, ATAs, and Asterisk itself if you are using
the sample dialplan)
•The way to indicate to an analog device that voicemail is waiting (MWI)
•Tones supplied to callers by Asterisk (these come into play once a user is “inside”
the system; e.g., the tones heard during a call transfer)
We’ll cover everything in this list, adopting a strategy of working from the outer edge
of the system toward the very core (Asterisk itself). We will conclude with a handy
checklist of what you may need to change and where to change it.
Although the principles discussed in this chapter will allow you to adapt your Asterisk
installation specifically for your region (or that of your customer), for the sake of con‐
sistency, all of our examples will focus on how to adapt Asterisk for one region: the
United Kingdom.
216 | Chapter 9: Internationalization
www.it-ebooks.info
Devices External to the Asterisk Server
There are massive differences between a good old-fashioned analog telephone and any
one of the large number of IP phones out there, and we need to pick up on one of the
really fundamental differences in order to throw light on the next explanation, which
covers the settings we might need to change on devices external to Asterisk, such as IP
phones.
Have you ever considered the fact that an analog phone is a totally dumb device (we
know that a basic model is very, very cheap) that needs to connect to an intelligent
network (the PSTN), whereas an IP phone (e.g., SIP or IAX2) is a very intelligent device
that connects to a dumb network (the Internet, or any regular IP network)? Figures 9-1
and 9-2 illustrate the difference.
Figure 9-1. The old days: dumb devices connect to a smart network
Figure 9-2. The situation today: smart devices connect through a dumb network
Could we take two analog phones, connect them directly to each other and have the
functionality we would normally associate with a regular phone? No, of course not,
because the network supplies everything: the actual power to the phone, the dialtone
(from the local exchange or CO), the caller ID information, the ringing tone (from the
remote [closest to the destination phone] exchange or CO), all the signaling required,
and so on.
Conversely, could we take two IP phones, connect them directly to each other, and get
some sensible functionality? Sure we could, because all the intelligence is inside the IP
phones themselves—they provide the tones we hear (dialtone, ringing, busy) and run
Devices External to the Asterisk Server | 217
www.it-ebooks.info
the protocol that does all the required signaling (usually SIP). In fact, you can try this
for yourself—most midpriced IP phones have a built-in Ethernet switch, so you can
actually connect the two IP phones directly to each other with a regular (straight-
through) Ethernet patch cable, or just connect them through a regular switch. They will
need to have fixed IP addresses in the absence of a DHCP server, and you can usually
dial the IP address of the other phone just by using the * key for the dots in
the address.
Figure 9-2 points to the fact that on an IP phone, we are responsible for setting all of
the tones that the network would have provided in the old days. This can be done in
one of (at least) two ways. The first is to configure the tones provided by the IP phone
on the device’s own web GUI. This is done by browsing to the IP address of the phone
(the IP address can usually be obtained by a menu option on the phone) and then
selecting the appropriate options. For example, on a Yealink IP phone, the tones are set
on the Phone page of the web GUI, under the Tones tab (where you’ll find a list of the
different types of tones that can be changed—in the case of the Yealink, these are Dial,
Ring Back, Busy, Congestion, Call Waiting, Dial Recall, Record, Info, Stutter, Message,
and Auto Answer).
The other way that this configuration can be applied is to autoprovision the phone with
these settings. A full explanation of the mechanism for autoprovisioning is beyond the
scope of this book, but you can usually set up the tones in the appropriate attributes of
the relevant elements in the XML file.
While we are changing settings on the IP phones, there are two other things that may
need to be changed in order for the phones to look right and to function correctly as
part of the system.
Most phones display the time when idle and, since many people find it particularly
annoying when their phones show the wrong time, we need to ensure that the correct
local time is displayed. It should be fairly easy to find the appropriate page of the web
GUI (or XML attributes) to specify the time server. You will also find that there are
settings for daylight saving time and other relevant stuff nearby.
The last thing to change is a potential showstopper as far as the making of a phone call
is concerned—the dialplan. We’re not talking about the dialplan we find in /etc/asterisk/
extensions.conf, but the dialplan of the phone. Not everyone realizes that IP phones have
dialplans, too—although these dialplans are more concerned with which dial strings
are permitted than with what to do on a given dial.
The general rule seems to be that if you dial on-hook the built-in dialplan is bypassed,
but if you pick up the handset the dialplan comes into play, and it just might happen
that the dialplan will not allow the dial string you need to be dialed. Although this
problem can manifest itself with a refusal by the phone to pass certain types of numbers
through to Asterisk, it can also affect any feature codes you plan to use. This can easily
218 | Chapter 9: Internationalization
www.it-ebooks.info
be remedied by Googling the model number of the phone along with “UK dialplan” (or
the particular region you need), or you can go to the appropriate page on the web GUI
and either manually adjust the dialplan or pick the country you need from a drop-down
box (depending on the type of phone you are working with).
The prior discussion of IP phone configuration also applies to any analog telephone
adapters (ATAs) you plan to use—specifically, to those supporting an FXS interface. In
addition, you may need to specify some of the electrical characteristics of the telephony
interface, like line voltage and impedance, together with the caller ID format that will
work with local phones. All that differs is the way you obtain the IP address for the web
GUI—this is usually done by dialing a specific code on the attached analog phone, which
results in the IP address being read back to the caller.
Of course, an ATA may also feature an FXO interface, which will also need to be con‐
figured to properly interact with the analog line provided in your region. The types of
things that need to be changed are similar to the FXS interface.
What if you are connecting your analog phone or line to a Digium card? We’ll cover
this next.
PSTN Connectivity, DAHDI, Digium Cards, and Analog
Phones
Before we get to DAHDI and Asterisk configuration, we need to physically connect to
the PSTN. Unfortunately, there are no worldwide standards for these connections; in
fact, there are often variations from one part of a given country to another.
Primary Rate Interfaces (PRIs) are generally terminated in an RJ45 connection these
days, although the impedance of the connections can vary. In some countries (notably
in South America), it is still possible to find PRIs terminated in two BNC connectors,
one for transmit and one for receive.
Generally speaking, a PRI terminated in an RJ45 will be an ISDN connection, and if you
find the connection is made by a pair of BNC connectors (push-and-twist coaxial con‐
nectors), the likelihood is that you are dealing with a CAS-based protocol (like R2).

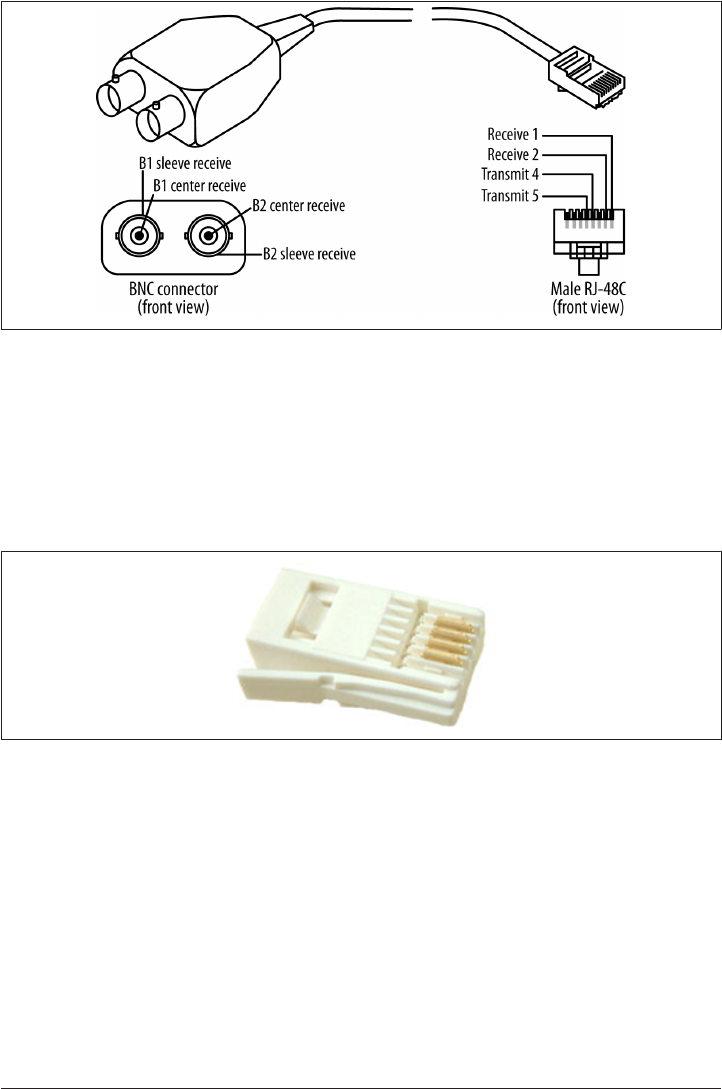

Figure 9-3 shows the adapter required if your telco has supplied BNC connectors (the
Digium cards require an RJ45 connection). It is called a balun, as it converts from a
balanced connection (RJ45) to an unbalanced connection (the BNCs), in addition to
changing the connection impedance.
Basic Rate Interfaces (BRIs) are common in continental Europe and are
almost always supplied via an RJ45 connection.
PSTN Connectivity, DAHDI, Digium Cards, and Analog Phones | 219
www.it-ebooks.info
Figure 9-3. A balun
Analog connections vary massively from place to place—you will know what kind of
connector is used in your locality. The important thing to remember is that the analog
line is only two wires, and these need to connect to the middle two pins of the RJ11 plug
that goes into the Digium card—the other end is the local one. Figure 9-4 shows the
plug used in the UK, where the two wires are connected to pins 2 and 5.
Figure 9-4. The BT plug used for analog PSTN connections in the UK (note only pins
2–5 are present)
The Digium Asterisk Hardware Device Interface, or DAHDI, actually covers a number
of things. It contains the kernel drivers for telephony adapter cards that work within
the DAHDI framework, as well as automatic configuration utilities and test tools. These
parts are contained in two separate packages (dahdi-linux and dahdi-tools), but we can
also use one complete package, called dahdi-linux-complete. All three packages are
available at the Digium site. The installation of DAHDI was covered in Chapter 3.
220 | Chapter 9: Internationalization
www.it-ebooks.info
Chapter 7 covered the use of analog and digital PSTN connections, and we will not
reiterate those details here. If you are using digital PSTN connections, your job is to
find out what sort of connection the telco is giving you. Generally, if you have requested
a PRI, this will be a T1 in North America, a J1 in Japan, or an E1 in pretty much the rest
of the world.
Once you have established the type of PRI connection the telco has given you, there are
some further details that you will require in order to properly configure DAHDI and
Asterisk (e.g., whether the connection is ISDN or a CAS-based protocol). Again, you
will find these in Chapter 7.
DAHDI Drivers
The connections where some real localization will need to take place are those of analog
interfaces. For the purposes of configuring your Asterisk-based telephone system to
work best in a given locality, you will first need to specifically configure some low-level
aspects of the way the Digium card interacts with the connected device or line. This is
done through the DAHDI kernel driver(s), in a file called /etc/dahdi/system.conf.
In the following lines (taken from the sample configuration that you get with a fresh
install of DAHDI), you will find both the loadzone and defaultzone settings. The
loadzone setting allows you to choose which tone set(s) the card will both generate (to
feed to analog telephones) and recognize (on the connected analog telephone lines):
# Tone Zone Data
# ^^^^^^^^^^^^^^
# Finally, you can preload some tone zones, to prevent them from getting
# overwritten by other users (if you allow non-root users to open /dev/dahdi/*
# interfaces anyway). Also this means they won't have to be loaded at runtime.
# The format is "loadzone=<zone>" where the zone is a two letter country code.
#
# You may also specify a default zone with "defaultzone=<zone>" where zone
# is a two letter country code.
#
# An up-to-date list of the zones can be found in the file zonedata.c
#
loadzone = us
#loadzone = us-old
#loadzone=gr
#loadzone=it
#loadzone=fr
#loadzone=de
#loadzone=uk
#loadzone=fi
#loadzone=jp
#loadzone=sp
#loadzone=no
PSTN Connectivity, DAHDI, Digium Cards, and Analog Phones | 221
www.it-ebooks.info
#loadzone=hu
#loadzone=lt
#loadzone=pl
defaultzone=us
#
The /etc/dahdi/system.conf file uses the hash symbol (#) to indicate a
comment instead of a semicolon (;) like the files in /etc/asterisk.
Although it is possible to load a number of different tone sets (you can see all the sets
of tones in detail in zonedata.c) and to switch between them, in most practical situations
you will only need:
loadzone=uk # to load the tone set
defaultzone=uk # to default DAHDI to using that set
…or whichever tones you need for your region.
If you perform a dahdi_genconf to automatically (or should that be auto-magically?)
configure your DAHDI adapters, you will notice that the newly generated /etc/dahdi/
system.conf will have defaulted both loadzone and defaultzone to being us. Despite
the warnings not to hand-edit the file, it is fine to change these settings to what you
need.
In case you were wondering how we tell whether there are any voicemails in the mailbox
associated with the channel an analog phone is plugged into, it is done with a stuttered
dialtone. The format of this stuttered dialtone is decided by the loadzone/default
zone combination you have used.
As a quick aside, analog phones that have a message-waiting indicator (e.g., an LED or
lamp that flashes to indicate new voicemail) achieve this by automatically going off-
hook periodically and listening for the stuttered dialtone. You can witness this by watch‐
ing the Asterisk command line to see the DAHDI channel go active (if you have nothing
better to do!).
That’s it at the DAHDI level. We chose the protocol(s) for PRI or BRI connections, the
type of signaling for the analog channels (all covered in Chapter 7), and the tones for
the analog connections that have just been discussed.
The relationship between Linux, DAHDI, and Asterisk (and therefore /etc/dahdi/
system.conf and /etc/asterisk/chan_dahdi.conf) is shown in Figure 9-5.
222 | Chapter 9: Internationalization
www.it-ebooks.info
Once you have completed your configuration at the DAHDI level
(in /etc/dahdi/system.conf), you need to perform a dahdi_cfg -vvv to have
DAHDI reread the configuration. This is also a good time to use
dahdi_tool to check that everything appears to be in order at the Linux
level.
This way, if things do not work properly after you have configured
Asterisk to work with the DAHDI adapters, you can be sure that the
problem is confined to chan_dahdi.conf (or an #included dahdi-
channels.conf if you are using this part of the dahdi_genconf output).
Figure 9-5. The relationship between Linux, DAHDI, and Asterisk
PSTN Connectivity, DAHDI, Digium Cards, and Analog Phones | 223
www.it-ebooks.info
Asterisk
With everything set at the Linux level, we now only need to configure Asterisk to make
use of the channels we just enabled at the Linux level and to customize the way that
Asterisk interprets and generates information that comes in from, or goes out over, these
channels. This work is done in /etc/asterisk/chan_dahdi.conf.
In this file we will not only tell Asterisk what sort of channels we have (these settings
will fit with what we already did in DAHDI), but also configure a number of things that
will ensure Asterisk is well suited to its new home.
Caller ID
A key component of this change is caller ID. While caller ID delivery methods are pretty
much standard within the BRI and PRI world, they vary widely in the analog world;
thus, if you plugged an American analog phone into the UK telephone network, it would
actually work as a phone, but caller ID information would not be displayed. This is
because that information is transmitted in different ways in different places around the
world, and an American phone would be looking for caller ID signaling in the US format,
while the UK telephone network would be supplying it (if it is enabled—it is not standard
in the UK; you have to pay for caller ID!) in the UK format.
Not only is the format different, but the method of telling a telephone (or Asterisk) to
look out for the caller ID may vary from place to place, too. This is important, as we do
not want Asterisk to waste time looking for caller ID information if it is not being
presented on the line.
Again, Asterisk defaults to the North American caller ID format (no entries in /etc/
asterisk/chan_dahdi.conf describe this, it’s just the default), and in order to change it we
will need to make some entries that describe the technical details of the caller ID system.
In the case of the UK, the delivery of caller ID information is signaled by a polarity
reversal on the telephone line (in other words, the A and B legs of the pair of telephone
wires are temporarily switched over), and the actual caller ID information is delivered
in a format known as V.23 (frequency shift keying, or FSK). So, the entries in chan_dah
di.conf to receive UK-style caller ID on any FXO interfaces will look like this:
cidstart=polarity ; the delivery of caller ID will be
; signaled by a polarity reversal
cidsignalling=v23 ; the delivery of the called ID information
; will be in V23 format
Of course, you may also need to send caller ID using the same local signaling information
to any analog phones that are connected to FXS interfaces, and one more entry may be
needed as in some locations the caller ID information is sent after a specified number
of rings. If this is the case, you can use this entry:
sendcalleridafter=2
224 | Chapter 9: Internationalization
www.it-ebooks.info
2. Who is, in fact, the same Allison who does the English prompts; June Wallack does the French prompts. The
male Australian-accented prompts are done by Cameron Twomey. All voiceover talent are available to record
additional prompts as well. See the Digium IVR page for more information.
Before you can make these entries, you will need to establish the details of your local
caller ID system (someone from your local telco or Google could be your friend here,
but there is also some good information in the sample /etc/asterisk/chan_dahdi.conf
file).
Language and/or Accent of Prompts
As you may know, the prompts (or recordings) that Asterisk will use are stored in /var/
lib/asterisk/sounds. In older versions of Asterisk all the sounds were in this actual di‐
rectory, but these days you will find a number of subdirectories that allow the use of
different languages or accents. The names of these subdirectories are arbitrary; you can
call them whatever you want.
Note that the filenames in these directories must be what Asterisk is expecting—for
example, in /var/lib/asterisk/sound/en, the file hello.gsm would contain the word “Hello”
(spoken by the lovely Allison), whereas hello.gsm in /var/lib/asterisk/sounds/es (for
Spanish in this case) would contain the word “Hola” (spoken by the Spanish equivalent
of the lovely Allison2).
The default directory used is /var/lib/asterisk/sounds/en, so how do you change that?
There are two ways. One is to set the language in the channel configuration file that calls
are arriving through using the language directive. For example, the line:
language=en_UK
placed in chan_dahdi.conf, sip.conf, and so on (to apply generally, or for just a given
channel or profile) will tell Asterisk to use sound files found in /var/lib/asterisk/sounds/
en_UK (which could contain British-accented prompts) for all calls that come in
through those channels.
The other way is to change the language during a phone call through the dialplan. This
(along with many attributes of an individual call) can be set using the CHANNEL() dialplan
function. See Chapter 10 for a full treatment of dialplan functions.
The following example would allow the caller to choose one of three languages in which
to continue the call:
; gives the choice of (1) French, (2) Spanish, or (3) German
exten => s,1,Background(choose-language)
same => n,WaitExten(5)
exten => 1,1,Set(CHANNEL(language)=fr)
Asterisk | 225
www.it-ebooks.info
exten => 2,1,Set(CHANNEL(language)=es)
exten => 3,1,Set(CHANNEL(language)=de)
; the next priority for extensions 1, 2, or 3 would be handled here
exten => _[123],n,Goto(menu,s,1)
If the caller pressed 1, sounds would be played from /var/lib/asterisk/sounds/fr; if he
pressed 2, the sounds would come from /var/lib/asterisk/sounds/es, and so on.
As already mentioned, the names of these directories are arbitrary and do not need to
be only two characters long—the main thing is that you match the name of the subdir‐
ectory you have created in the language directive in the channel configuration, or when
you set the CHANNEL(language) argument in the dialplan.
Time/Date Stamps and Pronunciation
Asterisk uses the Linux system time from the host server, as you would expect, but we
may have users of the system who are in different time zones, or even in different coun‐
tries. Voicemail is where the rubber hits the road, as this is where users come into contact
with time/date stamp information.
Consider a scenario where some users of the system are based in the US, while others
are in the UK.
As well as the time difference, another thing to consider is the way people in the two
locations are used to hearing date and time information—in the US, dates are usually
ordered month, day, year, and times are specified in 12-hour clock format (e.g.,
2:54 P.M.).
In contrast, in the UK dates are ordered day, month, year, and times are often specified
in 24-hour clock format (14:54 hrs)—although some people in the UK prefer 12-hour
clock format, so we will cover that, too.
Since all these things are connected to voicemail, you would be right to guess that we
configure it in /etc/asterisk/voicemail.conf—specifically, in the [zonemessages] section
of the file.
Here is the [zonemessages] part of the sample voicemail.conf file that comes with As‐
terisk, with UK24 (for UK people that like 24-hour clock format times) and UK12 (for
UK people that prefer 12-hour clock format) zones added:
[zonemessages]
; Users may be located in different timezones, or may have different
; message announcements for their introductory message when they enter
; the voicemail system. Set the message and the timezone each user
; hears here. Set the user into one of these zones with the tz=attribute
; in the options field of the mailbox. Of course, language substitution
226 | Chapter 9: Internationalization
www.it-ebooks.info
; still applies here so you may have several directory trees that have
; alternate language choices.
;
; Look in /usr/share/zoneinfo/ for names of timezones.
; Look at the manual page for strftime for a quick tutorial on how the
; variable substitution is done on the values below.
;
; Supported values:
; 'filename' filename of a soundfile (single ticks around the filename
; required)
; ${VAR} variable substitution
; A or a Day of week (Saturday, Sunday, ...)
; B or b or h Month name (January, February, ...)
; d or e numeric day of month (first, second, ... thirty-first)
; Y Year
; I or l Hour, 12 hour clock
; H Hour, 24 hour clock (single digit hours preceded by "oh")
; k Hour, 24 hour clock (single digit hours NOT preceded by "oh")
; M Minute, with 00 pronounced as "o'clock"
; N Minute, with 00 pronounced as "hundred" (US military time)
; P or p AM or PM
; Q "today", "yesterday" or ABdY
; (*note: not standard strftime value)
; q " (for today), "yesterday", weekday, or ABdY
; (*note: not standard strftime value)
; R 24 hour time, including minute
;
eastern=America/New_York|'vm-received' Q 'digits/at' IMp
central=America/Chicago|'vm-received' Q 'digits/at' IMp
central24=America/Chicago|'vm-received' q 'digits/at' H N 'hours'
military=Zulu|'vm-received' q 'digits/at' H N 'hours' 'phonetic/z_p'
european=Europe/Copenhagen|'vm-received' a d b 'digits/at' HM
UK24=Europe/London|'vm-received' q 'digits/at' H N 'hours'
UK12=Europe/London|'vm-received' Q 'digits/at' IMp
These zones not only specify a time, but also dictate the way times and dates are ordered
and read out.
Having created these zones, we can go to the voicemail context part of voicemail.conf
to associate the appropriate mailboxes with the correct zones:
[default]
4001 => 1234,Russell Bryant,rb@shifteight.org,,|tz=central
4002 => 4444,David Duffett,dd@shifteight.org,,|tz=UK24
4003 => 4450,Mary Poppins,mp@shifteight.org,,|tz=UK12|attach=yes
As you can see, when we declare a mailbox, we also (optionally) associate it with a
particular zone. Full details on voicemail can be found in Chapter 8.
The last thing to localize in our Asterisk configuration is the tones played to callers by
Asterisk once they are inside the system (e.g., the tones a caller hears during a transfer).
Asterisk | 227
www.it-ebooks.info
As identified earlier in this chapter, the initial tones that people hear when they are
calling into the system will come from the IP phone, or from DAHDI for analog
channels.
These tones are set in /etc/asterisk/indications.conf. Here is a part of the sample file,
where you can see a given region specified by the country directive. We just need to
change the country code as appropriate:
;
; indications.conf
;
; Configuration file for location specific tone indications
;
; NOTE:
; When adding countries to this file, please keep them in alphabetical
; order according to the 2-character country codes!
;
; The [general] category is for certain global variables.
; All other categories are interpreted as location specific indications
;
[general]
country=uk ; default is US, so we have changed it to UK
Your dialplan will need to reflect the numbering scheme for your region. If you do not
already know the scheme for your area, your local telecoms regulator will usually be
able to supply details of the plan. Also, the example dialplan in /etc/asterisk/exten
sions.conf is, of course, packed with North American numbers and patterns.
Conclusion—Easy Reference Cheat Sheet
As you can now see, there are quite a few things to change in order to fully localize your
Asterisk-based telephone system, and not all of them are in the Asterisk, or even DAH‐
DI, configuration—some things need to be changed on the connected IP phones or
ATAs themselves.
Before we leave the chapter, have a look at Table 9-1: a cheat sheet for what to change
and where to change it, for your future reference.
Table 9-1. Internationalization cheat sheet
What to change Where to change it
Call progress tones •IP phones—on the phone itself
•ATAs—on the ATA itself
•Analog phones—DAHDI (/etc/dahdi/system.conf)
Type of PRI/BRI and protocol DAHDI—/etc/dahdi/system.conf and /etc/asterisk/chan_dahdi.conf
228 | Chapter 9: Internationalization
www.it-ebooks.info
What to change Where to change it
Physical PSTN connections •Balun if required for PRI
•Get the analog pair to middle 2 pins of the RJ11 connecting to the Digium card
Caller ID on analog circuits Asterisk—/etc/asterisk/chan_dahdi.conf
Prompt language and/or accent •Channel—/etc/asterisk/sip.conf, /etc/asterisk/iax.conf, /etc/asterisk/
chan_dahdi.conf, etc.
•Dialplan—CHANNEL(language) function
Voicemail time/date stamps and
pronunciation
Asterisk—/etc/asterisk/voicemail.conf
Tones delivered by Asterisk Asterisk—/etc/asterisk/indications.conf
May all your Asterisk deployments feel at home…
Conclusion—Easy Reference Cheat Sheet | 229
www.it-ebooks.info
www.it-ebooks.info
For a list of all the ways technology has failed to
improve the quality of life, please press three.
—Alice Kahn
CHAPTER 10
Deeper into the Dialplan
Alrighty. You’ve got the basics of dialplans down, but you know there’s more to come.
If you don’t have Chapter 6 sorted out yet, please go back and give it another read. We’re
about to get into more advanced topics.
Expressions and Variable Manipulation
As we begin our dive into the deeper aspects of dialplans, it is time to introduce you to
a few tools that will greatly add to the power you can exercise in your dialplan. These
constructs add incredible intelligence to your dialplan by enabling it to make decisions
based on different criteria you define. Put on your thinking cap, and let’s get started.
Throughout this chapter we use best practices that have been developed
over the years in dialplan creation. The primary one you’ll notice is that
all the first priorities start with the NoOp() application, which simply
means No Operation; nothing functional will happen. The other one is
that all following lines will start with same => n, which is a shortcut
that says, “Use the same extension as was just previously defined.” Ad‐
ditionally, the indentation is four spaces.
Basic Expressions
Expressions are combinations of variables, operators, and values that you string together
to produce a result. An expression can test values, alter strings, or perform mathematical
calculations. Let’s say we have a variable called COUNT. In plain English, two expressions
231
www.it-ebooks.info
1. Remember that when you reference a variable you can call it by its name, but when you refer to a variable’s
value, you have to use the dollar sign and brackets around the variable name.
using that variable might be “COUNT plus 1” and “COUNT divided by 2.” Each of these
expressions has a particular result or value, depending on the value of the given variable.
In Asterisk, expressions always begin with a dollar sign and an opening square bracket
and end with a closing square bracket, as shown here:
$[expression]
Thus, we would write our two examples like this:
$[${COUNT} + 1]
$[${COUNT} / 2]
When Asterisk encounters an expression in a dialplan, it replaces the entire expression
with the resulting value. It is important to note that this takes place after variable sub‐
stitution. To demonstrate, let’s look at the following code:1
exten => 321,1,NoOp()
same => n,Answer()
same => n,Set(COUNT=3)
same => n,Set(NEWCOUNT=$[${COUNT} + 1])
same => n,SayNumber(${NEWCOUNT})
In the second priority, we assign the value of 3 to the variable named COUNT.
In the third priority, only one application—Set()—is involved, but three things actually
happen:
1. Asterisk substitutes ${COUNT} with the number 3 in the expression. The expression
effectively becomes this:
same => n,Set(NEWCOUNT=$[3 + 1])
2. Asterisk evaluates the expression, adding 1 to 3, and replaces it with its computed
value of 4:
same => n,Set(NEWCOUNT=4)
3. The Set() application assigns the value 4 to the NEWCOUNT variable
The third priority simply invokes the SayNumber() application, which speaks the current
value of the variable ${NEWCOUNT} (set to the value 4 in priority two).
Try it out in your own dialplan.
Operators
When you create an Asterisk dialplan, you’re really writing code in a specialized script‐
ing language. This means that the Asterisk dialplan—like any programming language—
232 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
recognizes symbols called operators that allow you to manipulate variables. Let’s look
at the types of operators that are available in Asterisk:
Boolean operators
These operators evaluate the “truth” of a statement. In computing terms, that es‐
sentially refers to whether the statement is something or nothing (nonzero or zero,
true or false, on or off, and so on). The Boolean operators are:
expr1 | expr2
This operator (called the “or” operator, or “pipe”) returns the evaluation of
expr1 if it is true (neither an empty string nor zero). Otherwise, it returns the
evaluation of expr2.
expr1 & expr2
This operator (called “and”) returns the evaluation of expr1 if both expressions
are true (i.e., neither expression evaluates to an empty string or zero). Other‐
wise, it returns zero.
expr1 {=, >, >=, <, <=, !=} expr2
These operators return the results of an integer comparison if both arguments
are integers; otherwise, they return the results of a string comparison. The result
of each comparison is 1 if the specified relation is true, or 0 if the relation is
false. (If you are doing string comparisons, they will be done in a manner that’s
consistent with the current local settings of your operating system.)
Mathematical operators
Want to perform a calculation? You’ll want one of these:
expr1 {+, -} expr2
These operators return the results of the addition or subtraction of integer-
valued arguments.
expr1 {*, /, %} expr2
These return, respectively, the results of the multiplication, integer division, or
remainder of integer-valued arguments.
Regular expression operator
You can also use the regular expression operator in Asterisk:
Some additional information about the peculiarities of the regular
expression operator in Asterisk can be found at Walter Doekes’
website.
Expressions and Variable Manipulation | 233
www.it-ebooks.info
2. For more on regular expressions, grab a copy of the ultimate reference, Jeffrey E. F. Friedl’s Mastering Regular
Expressions (O’Reilly, 2006), or visit http://www.regular-expressions.info.
3. If you don’t know what a ^ has to do with regular expressions, you simply must read Mastering Regular
Expressions. It will change your life!
expr1 : expr2
This operator matches expr1 against expr2, where expr2 must be a regular
expression.2 The regular expression is anchored to the beginning of the string
with an implicit ^.3
If the pattern contains no subexpression, the number of matched characters is
returned. This will be 0 if the match failed. If the pattern contains a subexpres‐
sion -- \(...\) -- the string corresponding to \1 is returned. If the match
fails, the empty string is returned.
expr1 =~ expr2
This operator works the same as the : operator, except that it is not anchored
to the beginning.
In Asterisk version 1.0, the parser was quite simple, so it required that you put at least
one space between the operator and any other values. Consequently, the following might
not have worked as expected:
exten => 123,1,Set(TEST=$[2+1])
This would have assigned the variable TEST to the string 2+1, instead of the value 3. In
order to remedy that, we would put spaces around the operator, like so:
exten => 234,1,Set(TEST=$[2 + 1])
This is no longer necessary in current versions of Asterisk, as the expression parser has
been made more forgiving in these types of scenarios. However, for readability’s sake,
we still recommend including the spaces around your operators.
To concatenate text onto the beginning or end of a variable, simply place them together,
like this:
exten => 234,1,Set(NEWTEST=blah${TEST})
Dialplan Functions
Dialplan functions allow you to add more power to your expressions; you can think of
them as intelligent variables. Dialplan functions allow you to calculate string lengths,
dates and times, MD5 checksums, and so on, all from within a dialplan expression.
234 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
You’ll see usage of Playback(silence/1) throughout the examples in
this chapter. We are doing this as it will answer the line if it hasn’t already
been answered for us, and plays back some silence on the line. This
allows other applications such as SayNumber() to play back audio
without gaps.
Syntax
Dialplan functions have the following basic syntax:
FUNCTION_NAME(argument)
You reference a function’s name the same way as a variable’s name, but you reference a
function’s value with the addition of a dollar sign, an opening curly brace, and a closing
curly brace:
${FUNCTION_NAME(argument)}
Functions can also encapsulate other functions, like so:
${FUNCTION_NAME(${FUNCTION_NAME(argument)})}
^ ^ ^ ^ ^^^^
1 2 3 4 4321
As you’ve probably already figured out, you must be very careful about making sure
you have matching parentheses and braces. In the preceding example, we have labeled
the opening parentheses and curly braces with numbers and their corresponding closing
counterparts with the same numbers.
Examples of Dialplan Functions
Functions are often used in conjunction with the Set() application to either get or set
the value of a variable. As a simple example, let’s look at the LEN() function. This function
calculates the string length of its argument. Let’s calculate the string length of a variable
and read back the length to the caller:
exten => 123,1,NoOp()
same => n,Set(TEST=example)
same => n,Playback(silence/1)
same => n,SayNumber(${LEN(${TEST})})
This example will first evaluate $TEST as example. The string “example” is then given to
the LEN() function, which will evaluate as the length of the string, 7. Finally, 7 is passed
as an argument to the SayNumber() application.
Let’s look at another simple example. If we wanted to set one of the various channel
timeouts, we could use the TIMEOUT() function. The TIMEOUT() function accepts one
of three arguments: absolute, digit, and response. To set the digit timeout with the
TIMEOUT() function, we could use the Set() application, like so:
Dialplan Functions | 235
www.it-ebooks.info
exten => s,1,Set(TIMEOUT(digit)=30)
Notice the lack of ${ } surrounding the function. Just as if we were assigning a value
to a variable, we assign a value to a function without the use of the ${ } encapsulation.
A complete list of available functions can be found by typing core show functions at the
Asterisk command-line interface.
Conditional Branching
Now that you’ve learned a bit about expressions and functions, it’s time to put them to
use. By using expressions and functions, you can add even more advanced logic to your
dialplan. To allow your dialplan to make decisions, you’ll use conditional branching.
Let’s take a closer look.
The GotoIf() Application
The key to conditional branching is the GotoIf() application. GotoIf() evaluates an
expression and sends the caller to a specific destination based on whether the expression
evaluates to true or false.
GotoIf() uses a special syntax, often called the conditional syntax:
GotoIf(expression?destination1:destination2)
If the expression evaluates to true, the caller is sent to destination1. If the expression
evaluates to false, the caller is sent to the second destination. So, what is true and what
is false? An empty string and the number 0 evaluate as false. Anything else evaluates
as true.
The destinations can each be one of the following:
•A priority label within the same extension, such as weasels
•An extension and a priority label within the same context, such as 123,weasels
•A context, extension, and priority label, such as incoming,123,weasels
Either of the destinations may be omitted, but not both. If the omitted destination is to
be followed, Asterisk simply goes on to the next priority in the current extension.
Let’s use GotoIf() in an example:
exten => 345,1,NoOp()
same => n,Set(TEST=1)
same => n,GotoIf($[${TEST} = 1]?weasels:iguanas)
same => n(weasels),Playback(weasels-eaten-phonesys)
same => n,Hangup()
same => n(iguanas),Playback(office-iguanas)
same => n,Hangup()
236 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
You will notice that we have used the Hangup() application following
each use of the Playback() application. This is done so that when we
jump to the weasels label, the call stops before execution gets to the
office-iguanas sound file. It is becoming increasingly common to see
extensions broken up into multiple components (protected from each
other by the Hangup() command), each one a distinct sequence of steps
executed following a GotoIf().
Providing Only a False Conditional Path
If we wanted to, we could have crafted the preceding example like this:
exten => 345,1,NoOp()
same => n,Answer()
same => n,Set(TEST=1)
same => n,GotoIf($[${TEST} = 1]?:iguanas) ; we don't have the weasels
; label anymore,
; but this will still work
same => n,Playback(weasels-eaten-phonesys)
same => n,Hangup()
same => n(iguanas),Playback(office-iguanas)
same => n,Hangup()
There’s nothing between the ? and the : so if the statement evaluates to true, execution
will continue at the next step. Since that’s what we want, a label isn’t needed.
We don’t really recommend doing this, because it’s hard to read, but you will see dialplans
like this, so it’s good to be aware that this syntax is totally correct.
Typically, when you have this type of layout where you end up wanting to prevent
Asterisk from falling through to the next priority after you’ve performed that jump, it’s
probably better to jump to separate extensions instead of priority labels. If anything, it
makes it a bit more clear when reading the dialplan. We could rewrite the previous bit
of dialplan like this:
exten => 345,1,NoOp()
same => n,Answer()
same => n,Set(TEST=1)
same => n,GotoIf($[${TEST} = 1]?weasels,1:iguanas,1) ; now we're going to
; extension,priority
exten => weasels,1,
same => n,Playback(weasels-eaten-phonesys) ; this is NOT a label.
; It is a different extension
same => n,Hangup()
exten => iguanas,1,NoOp()
Conditional Branching | 237
www.it-ebooks.info
same => n,Playback(office-iguanas)
same => n,Hangup()
By changing the value assigned to TEST in the seconds line, you should be able to have
your Asterisk server play a different greeting.
Let’s look at another example of conditional branching. This time, we’ll use both Goto()
and GotoIf() to count down from 10 and then hang up:
exten => 123,1,NoOp()
same => n,Answer()
same => n,Set(COUNT=10)
same => n(start),GotoIf($[${COUNT} > 0]?:goodbye)
same => n,SayNumber(${COUNT})
same => n,Set(COUNT=$[${COUNT} - 1])
same => n,Goto(start)
same => n(goodbye),Hangup()
Let’s analyze this example. In the second priority, we set the variable COUNT to 10. Next,
we check to see if COUNT is greater than 0. If it is, we move on to the next priority. (Don’t
forget that if we omit a destination in the GotoIf() application, control goes to the next
priority.) From there, we speak the number, subtract 1 from COUNT, and go back to
priority label start. If COUNT is less than or equal to 0, control goes to priority label
goodbye, and the call is hung up.
Quoting and Prefixing Variables in Conditional Branches
Now is a good time to take a moment to look at some nitpicky stuff with conditional
branches. In Asterisk, it is invalid to have a null value on either side of the comparison
operator. Let’s look at examples that would produce an error:
$[ = 0 ]
$[ foo = ]
$[ > 0 ]
$[ 1 + ]
Any of our examples would produce a warning like this:
WARNING[28400][C-000000eb]: ast_expr2.fl:470 ast_yyerror: ast_yyerror():
syntax error: syntax error, unexpected '=', expecting $end; Input:
= 0
^
It’s fairly unlikely (unless you have a typo) that you’d purposefully implement something
like our examples. However, when you perform math or a comparison with an unset
channel variable, this is effectively what you’re doing.
The examples we’ve used to show you how conditional branching works are not invalid.
Because we’ve first initialized the variable and can clearly see that the channel variable
238 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
we’re using in our comparison has been set, we’re safe. But what if you’re not always so
sure?
In Asterisk, strings do not need to be double- or single-quoted like in many program‐
ming languages. In fact, if you use a double or single quote, it is a literal construct in the
string. If we look at the following two Set() lines...
exten => n,Set(TEST_1=foo)
exten => n,Set(TEST_2='foo')
exten => n,NoOp($[${TEST_1} = ${TEST_2}])
...then the value returned by our comparison in the NoOp() will not be a value of 1 (values
match; or true) the return value will be 0 (values do not match; or false).
We can use this to our advantage when performing comparisons by wrapping our
channel variables in single or double quotes. By doing this we make sure even when the
channel variable might not be set, that our comparison is valid.
In the following example, we would get an error:
exten => 1000,1,NoOp()
same => n,GotoIf($[${TEST} = invalid]?error_handling)
same => n(error_handling),NoOp()
However, we can circumvent this by wrapping what we’re comparing in quotes. The
same example, but made valid:
exten => 1000,1,NoOp()
same => n,GotoIf($["${TEST}" = "invalid"]?error_handling)
same => n(error_handling),NoOp()
Even if ${TEST} hasn’t been set, we’re doing a comparison of:
$["" = "invalid"]
We can do the same type of safety net on comparisons that are performing numerical
comparisons by prefixing our numbers with a zero. Because 01 is the same as 1 when
comparing numbers, our potentially invalid example of:
exten => 1001,1,NoOp()
same => n,GotoIf($[${TEST} < 1]?error_handling)
same => n(error_handling),NoOp()
Can be made more safe like so:
exten => 1001,1,NoOp()
same => n,GotoIf($[0${TEST} < 1]?error_handling)
same => n(error_handling),NoOp()
If you get into the habit of recognizing these situations and using the wrapping and
prefixing techniques we’ve outlined, you’ll write much safer dialplans.
Conditional Branching | 239
www.it-ebooks.info
The classic example of conditional branching is affectionately known as the anti-
girlfriend logic. If the caller ID number of the incoming call matches the phone number
of the recipient’s ex-girlfriend, Asterisk gives a different message than it ordinarily would
to any other caller. While somewhat simple and primitive, it’s a good example for learn‐
ing about conditional branching within the Asterisk dialplan.
This example uses the CALLERID function, which allows us to retrieve the caller ID
information on the inbound call. Let’s assume for the sake of this example that the
victim’s phone number is 888-555-1212:
exten => 123,1,NoOp()
same => n,GotoIf($[${CALLERID(num)} = 8885551212]?reject:allow)
same => n(allow),Dial(DAHDI/4)
same => n,Hangup()
same => n(reject),Playback(abandon-all-hope)
same => n,Hangup()
In priority 1, we call the GotoIf() application. It tells Asterisk to go to priority label
reject if the caller ID number matches 8885551212, and otherwise to go to priority
label allow (we could have simply omitted the label name, causing the GotoIf() to fall
through). If the caller ID number matches, control of the call goes to priority label
reject, which plays back an uninspiring message to the undesired caller. Otherwise,
the call attempts to dial the recipient on channel DAHDI/4.
Time-Based Conditional Branching with GotoIfTime()
Another way to use conditional branching in your dialplan is with the GotoIfTime()
application. Whereas GotoIf() evaluates an expression to decide what to do, GotoIf
Time() looks at the current system time and uses that to decide whether or not to follow
a different branch in the dialplan.
The most obvious use of this application is to give your callers a different greeting before
and after normal business hours.
The syntax for the GotoIfTime() application looks like this:
GotoIfTime(times,days_of_week,days_of_month,months?label)
In short, GotoIfTime() sends the call to the specified label if the current date and time
match the criteria specified by times, days_of_week, days_of_month, and months. Let’s
look at each argument in more detail:
times
This is a list of one or more time ranges, in a 24-hour format. As an example, 9:00
A.M. through 5:00 P.M. would be specified as 09:00-17:00. The day starts at 0:00
and ends at 23:59.
240 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
It is worth noting that times will properly wrap around. So, if you
wish to specify the times your office is closed, you might write
18:00-9:00 in the times parameter, and it will perform as expect‐
ed. Note that this technique works as well for the other components
of GotoIfTime(). For example, you can write sat-sun to specify
the weekend days.
days_of_week
This is a list of one or more days of the week. The days should be specified as mon,
tue, wed, thu, fri, sat, and/or sun. Monday through Friday would be expressed as
mon-fri. Tuesday and Thursday would be expressed as tue&thu.
Note that you can specify a combination of ranges and single days,
as in: sun-mon&wed&fri-sat, or, more simply: wed&fri-mon.
days_of_month
This is a list of the numerical days of the month. Days are specified by the numbers
1 through 31. The 7th through the 12th would be expressed as 7-12, and the 15th
and 30th of the month would be written as 15&30.
months
This is a list of one or more months of the year. The months should be written as
jan-apr for a range, and separated with ampersands when wanting to include non‐
sequential months, such as jan&mar&jun. You can also combine them like so:
jan-apr&jun&oct-dec.
If you wish to match on all possible values for any of these arguments, simply put an *
in for that argument.
The label argument can be any of the following:
•A priority label within the same extension, such as time_has_passed
•An extension and a priority within the same context, such as 123,time_has_passed
•A context, extension, and priority, such as incoming,123,time_has_passed
Now that we’ve covered the syntax, let’s look at a couple of examples. The following
example would match from 9:00 A.M. to 5:59 P.M., on Monday through Friday, on any
day of the month, in any month of the year:
exten => s,1,NoOp()
same => n,GotoIfTime(09:00-17:59,mon-fri,*,*?open,s,1)
Conditional Branching | 241
www.it-ebooks.info
If the caller calls during these hours, the call will be sent to the first priority of the s
extension in the context named open. If the call is made outside of the specified times,
it will be sent to the next priority of the current extension. This allows you to easily
branch on multiple times, as shown in the next example (note that you should always
put your most specific time matches before the least specific ones):
; If it's any hour of the day, on any day of the week,
; during the fourth day of the month, in the month of July,
; we're closed
exten => s,1,NoOp()
same => n,GotoIfTime(*,*,4,jul?closed,s,1)
; During business hours, send calls to the open context
same => n,GotoIfTime(09:00-17:59,mon-fri,*,*?open,s,1)
same => n,GotoIfTime(09:00-11:59,sat,*,*?open,s,1)
; Otherwise, we're closed
same => n,Goto(closed,s,1)
If you run into the situation where you ask the question, “But I specified
17:58 and it’s now 17:59. Why is it still doing the same thing?” it should
be noted that the granularity of the GotoIfTime() application is only to
a two-minute period. So, if you specify 18:00 as the ending time of a
period, the system will continue to perform the same way until 18:01:59.
Macros
Macros are a very useful construct designed to avoid repetition in the dialplan. They
also help in making changes to the dialplan.
Although Macro() seems like a general-purpose dialplan subroutine, it
has a stack overflow problem that means you should not try to nest
Macro() calls more than five levels deep. If you plan to use a lot of
macros within macros (and call complex functions within them), you
may run into stability problems. You will know you have a problem with
just one test call, so if your dialplan tests out, you’re good to go. We also
recommend that you take a look at the GoSub() and Return() applica‐
tions (see “GoSub” on page 246), as a lot of macro functionality can be
implemented without actually using Macro().
As of Asterisk 11, the Macro() application has been deprecated in favor
of the GoSub() application. Being knowledgeable about Macro() is use‐
ful, though, as nearly any existing system you maintain or modify is
likely to contain at least a single usage of Macro().
242 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
To illustrate this point, let’s look at our sample dialplan again. If you remember the
changes we made for voicemail, we ended up with the following for John’s extension:
exten => 101,1,NoOp()
same => n,Dial(${JOHN},10)
same => n,GotoIf($["${DIALSTATUS}" = "BUSY"]?busy:unavail)
same => n(unavail),VoiceMail(101@default,u)
same => n,Hangup()
same => n(busy),VoiceMail(101@default,b)
same => n,Hangup()
In our GotoIf() example we wrap the ${DIALSTATUS} channel variable
in double quotes. For why we did this, see “Quoting and Prefixing Vari‐
ables in Conditional Branches” on page 238.
Now imagine you have a hundred users on your Asterisk system—setting up the ex‐
tensions would involve a lot of copying and pasting. Then imagine that you need to
make a change to the way your extensions work. That would involve a lot of editing,
and you’d be almost certain to have errors.
Instead, you can define a macro that contains a list of steps to take, and then have all of
the phone extensions refer to that macro. All you need to change is the macro, and
everything in the dialplan that references that macro will change as well.
If you’re familiar with computer programming, you’ll recognize that
macros are similar to subroutines in many modern programming
languages. If you’re not familiar with computer programming, don’t
worry—we’ll walk you through creating a macro.
The best way to appreciate macros is to see one in action, so let’s move right along.
Defining Macros
Let’s take the dialplan logic we used to set up voicemail for John and turn it into a macro.
Then we’ll use the macro to give John and Jane (and the rest of their coworkers) the
same functionality.
Macro definitions look a lot like contexts. (In fact, you could argue that they really are
small, limited contexts.) You define a macro by placing macro- and the name of your
macro in square brackets, like this:
[macro-voicemail]
Macro names must start with macro-. This distinguishes them from regular contexts.
The commands within the macro are built almost identically to anything else in the
Macros | 243
www.it-ebooks.info
dialplan; the only limiting factor is that macros use only the s extension. Let’s add our
voicemail logic to the macro, changing the extension to s as we go:
[macro-voicemail]
exten => s,1,NoOp()
same => n,Dial(${JOHN},10)
same => n,GotoIf($["${DIALSTATUS}" = "BUSY"]?busy:unavail)
same => n(unavail),VoiceMail(101@default,u)
same => n,Hangup()
same => n(busy),VoiceMail(101@default,b)
same => n,Hangup()
That’s a start, but it’s not perfect, as it’s still specific to John and his mailbox number. To
make the macro generic so that it will work not only for John but also for all of his
coworkers, we’ll take advantage of another property of macros: arguments. But first,
let’s see how we call macros in our dialplan.
Calling Macros from the Dialplan
To use a macro in our dialplan, we use the Macro() application. This application calls
the specified macro and passes it any arguments. For example, to call our voicemail
macro from our dialplan, we can do the following:
exten => 101,1,Macro(voicemail)
The Macro() application also defines several special variables for our use. They include:
${MACRO_CONTEXT}
The original context in which the macro was called.
${MACRO_EXTEN}
The original extension in which the macro was called.
${MACRO_PRIORITY}
The original priority in which the macro was called.
${ARG n }
The nth argument passed to the macro. For example, the first argument would be
${ARG1}, the second ${ARG2}, and so on.
As we explained earlier, the way we initially defined our macro was hardcoded for John,
instead of being generic. Let’s change our macro to use ${MACRO_EXTEN} instead of 101
for the mailbox number. That way, if we call the macro from extension 101, the voicemail
messages will go to mailbox 101; if we call the macro from extension 102, messages will
go to mailbox 102; and so on:
[macro-voicemail]
exten => s,1,NoOp()
same => n,Dial(${JOHN},10)
same => n,GotoIf($["${DIALSTATUS}" = "BUSY"]?busy:unavail)
same => n(unavail),VoiceMail(${MACRO_EXTEN}@default,u)
244 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
4. At the beginning of the chapter, we said we use the NoOp() application as the first priority, but in some cases
it makes sense to break with that tradition. The main case is when the extension will only ever contain a single
line. If additional functionality was added after the Macro(), then we’d have modified the first priority to
start with NoOp() as usual.
same => n,Hangup()
same => n(busy),VoiceMail(${MACRO_EXTEN}@default,b)
same => n,Hangup()
Using Arguments in Macros
Now we’re getting closer to having the macro the way we want it, but we still have one
thing left to change: we need to pass in the channel to dial, as it’s currently still hardcoded
for ${JOHN} (remember that we defined the variable JOHN as the channel to call when
we want to reach John). Let’s pass in the channel as an argument, and then our first
macro will be complete:
[macro-voicemail]
exten => s,1,NoOp()
same => n,Dial(${ARG1},10)
same => n,GotoIf($["${DIALSTATUS}" = "BUSY"]?busy:unavail)
same => n(unavail),VoiceMail(${MACRO_EXTEN}@default,u)
same => n,Hangup()
same => n(busy),VoiceMail(${MACRO_EXTEN}@default,b)
same => n,Hangup()
Now that our macro is done, we can use it in our dialplan. Here’s how we can call our
macro to provide voicemail to John, Jane, and Jack:4
exten => 101,1,Macro(voicemail,${JOHN})
exten => 102,1,Macro(voicemail,${JANE})
exten => 103,1,Macro(voicemail,${JACK})
With 50 or more users, this dialplan will still look neat and organized; we’ll simply have
one line per user, referencing a macro that can be as complicated as required. We could
even have a few different macros for various user types, such as executives, courte
sy_phones, call_center_agents, analog_sets, sales_department, and so on.
A more advanced version of the macro might look something like this:
[macro-voicemail]
exten => s,1,NoOp()
same => n,Dial(${ARG1},20)
same => n,Goto(s-${DIALSTATUS},1)
exten => s-NOANSWER,1,VoiceMail(${MACRO_EXTEN}@default,u)
same => n,Goto(incoming,s,1)
exten => s-BUSY,1,VoiceMail(${MACRO_EXTEN}@default,b)
same => n,Goto(incoming,s,1)
Macros | 245
www.it-ebooks.info
exten => _s-.,1,NoOp()
same => n,Goto(s-NOANSWER,1)
Since we know how to use dialplan functions now as well, here is another
way of controlling which voicemail prompt (unavailable versus busy) is
played to the caller. In the following example, we’ll be using the IF()
dialplan function:
[macro-voicemail]
exten => s,1,NoOp()
same => n,Dial(${ARG1},20)
same => n,VoiceMail(${MACRO_EXTEN}@default,${IF($[${DIALSTATUS}
= BUSY]?b:u)})
This macro depends on a nice side effect of the Dial() application: when you use the
Dial() application, it sets the DIALSTATUS variable to indicate whether the call was
successful or not. In this case, we’re handling the NOANSWER and BUSY cases, and treating
all other result codes as a NOANSWER.
GoSub
The GoSub() dialplan application is similar to the Macro() application, in that the pur‐
pose is to allow you to call a block of dialplan functionality, pass information to that
block, and return from it (optionally with a return value). GoSub() works in a different
manner from Macro(), though, in that it doesn’t have the stack space requirements, so
it nests effectively. Essentially, GoSub() acts like Goto() with a memory of where it
came from.
In this section we’re going to reimplement what we learned in “Macros” on page 242. If
necessary, you might want to review that section: it explains why we might use a sub‐
routine, and the goal we’re trying to accomplish.
Defining Subroutines
Unlike with Macro(), there are no special naming requirements when using GoSub() in
the dialplan. In fact, you can use GoSub() within the same context and extension if you
want to. In most cases, however, GoSub() is used in a similar fashion to Macro(), so
defining a new context is common. When creating the context, we like to prepend the
name with sub so we know the context is typically called from the GoSub() application
(of course, there is no requirement that you do so, but it seems like a sensible
convention).
Here is a simple example of how we might define a subroutine in Asterisk:
[subVoicemail]
246 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
Let’s take our example from “Macros” on page 242 and convert it to a subroutine. Here
is how it is defined for use with Macro():
[macro-voicemail]
exten => s,1,NoOp()
same => n,Dial(${JOHN},10)
same => n,GotoIf($["${DIALSTATUS}" = "BUSY"]?busy:unavail)
same => n(unavail),VoiceMail(101@default,u)
same => n,Hangup()
same => n(busy),VoiceMail(101@default,b)
same => n,Hangup()
If we were going to convert this to be used for a subroutine, it might look like this:
[subVoicemail]
exten => start,1,NoOp()
same => n,Dial(${JOHN},10)
same => n,GotoIf($["${DIALSTATUS}" = "BUSY"]?busy:unavail)
same => n(unavail),VoiceMail(101@default,u)
same => n,Hangup()
same => n(busy),VoiceMail(101@default,b)
same => n,Hangup()
Not much of a change, right? All we’ve altered in this example is the context name, from
[macro-voicemail] to [subVoicemail], and the extension, from s to start (since there
is no requirement that the extension be called anything in particular, unlike with
Macro(), which expects the extension to be s).
Of course, as in the example in the section “Macros” on page 242, we haven’t passed any
arguments to the subroutine, so whenever we call [subVoicemail], ${JOHN} will always
be called, and the voicemail box 101 will get used. In the following sections, we’ll dig a
little deeper. First we’ll look at how we would call a subroutine, and then we’ll learn how
to pass arguments.
Calling Subroutines from the Dialplan
Subroutines are called from the dialplan using the GoSub() application. The arguments
to GoSub() differ slightly than those for Macro(), because GoSub() has no naming re‐
quirements for the context or extension (or priority) that gets used. Additionally, no
special channel variables are set when calling a subroutine, other than the passed ar‐
guments, which are saved to ${ARGn} (where the first argument is ${ARG1}, the second
argument is ${ARG2}, and so forth).
Now that we’ve updated our voicemail macro to be called as a subroutine, let’s take a
look at how we call it using GoSub():
exten => 101,1,GoSub(subVoicemail,start,1())
GoSub | 247
www.it-ebooks.info
You’ll notice that we’ve placed a set of opening and closing parentheses
within our GoSub() application. These are the placeholders for any ar‐
guments we might pass to the subroutine, and while it is optional for
them to exist, it’s a programming style we prefer to use.
Next, let’s look at how we can pass arguments to our subroutine in order to make it more
general.
Using Arguments in Subroutines
The ability to use arguments is one of the major features of using Macro() or GoSub(),
because it allows you to abstract out code that would otherwise be duplicated across
your dialplan. Without the need to duplicate the code, we can better manage it, and we
can easily add functionality to large numbers of users by modifying a single location.
You are encouraged to move code into this form whenever you find yourself creating
duplicate code.
Before we start using our subroutine, we need to update it to accept arguments so that
it is generic enough to be used by multiple users:
[subVoicemail]
exten => start,1,NoOp()
same => n,Dial(${ARG1},10)
same => n,GotoIf($["${DIALSTATUS}" = "BUSY"]?busy:unavail)
same => n(unavail),VoiceMail(${ARG2}@default,u)
same => n,Hangup()
same => n(busy),VoiceMail(${ARG2}@default,b)
same => n,Hangup()
Recall that previously we had hardcoded the channel variable ${JOHN} as the location
to dial, and mailbox 101 as the voicemail box to be used if ${JOHN} wasn’t available. In
this code, we’ve replaced ${JOHN} and 101 with ${ARG1} and ${ARG2}, respectively. In
more complex subroutines we might even assign the variables ${ARG1} and ${ARG2} to
something like ${DESTINATION} and ${VMBOX}, to make it clear what the ${ARG1} and
${ARG2} represent.
Now that we’ve updated our subroutine, we can use it for several extensions:
[LocalSets]
exten => 101,1,GoSub(subVoicemail,start,1(${JOHN},${EXTEN}))
exten => 102,1,GoSub(subVoicemail,start,1(${JANE},${EXTEN}))
exten => 103,1,GoSub(subVoicemail,start,1(${JACK},${EXTEN}))
Again, our dialplan is nice and neat. We could even modify our subroutine down to just
three lines:
[subVoicemail]
exten => start,1,NoOp()
248 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
same => n,Dial(${ARG1},10)
same => n,VoiceMail(${ARG2}@default,${IF($[${DIALSTATUS} = BUSY]?b:u)})
same => n,Hangup()
One difference to note between GoSub() and Macro(), however, is that if we left our
subroutine like this, we’d never return. In this particular example that’s not a problem,
since after the voicemail is left, we would expect the caller to hang up anyway. In situa‐
tions where we want to do more after the subroutine has executed, though, we need to
implement the Return() application.
Returning from a Subroutine
Unlike Macro(), the GoSub() dialplan application does not return automatically once it
is done executing. In order to return from whence we came, we need to use the Re
turn() application. Now that we know how to call a subroutine and pass arguments,
we can look at an example where we might need to return from the subroutine.
Using our previous example, we could break out the dialing portion and the voicemail
portion into separate subroutines:
[subDialer]
exten => start,1,NoOp()
same => n,Dial(${ARG1},${ARG2})
same => n,Return()
[subVoicemail]
exten => start,1,NoOp()
same => n,VoiceMail(${ARG1}@${ARG2},${ARG3})
same => n,Hangup()
The [subDialer] context created here takes two arguments: ${ARG1}, which contains
the destination to dial; and ${ARG2}, which contains the ring cycle, defined in seconds.
We conclude the [subDialer] context with the dialplan application Return(), which
will return to the priority following the one that called GoSub() (the next line of the
dialplan).
The [subVoicemail] context contains the VoiceMail() application, which is using
three arguments passed to it: ${ARG1} contains the mailbox number, ${ARG2} contains
the voicemail context, and ${ARG3} contains a value to indicate which voicemail message
(unavailable or busy) to play to the caller.
Calling these subroutines might look like this:
exten => 101,1,NoOp()
same => n,GoSub(subDialer,start,1(${JOHN},30))
same => n,GoSub(subVoicemail,start,1(${EXTEN},default,u))
Here we’ve used the subDialer subroutine, which attempts to call ${JOHN}, ringing him
for 30 seconds. If the Dial() application returns (e.g., if the line was busy, or there was
no answer for 30 seconds), we Return() from the subroutine and execute the next line
GoSub | 249
www.it-ebooks.info
of our dialplan, which calls the subVoicemail subroutine. From there, we pass the ex‐
tension that was dialed (e.g., 101) as the mailbox number, and pass the values de
fault for the voicemail context and the letter u to play the unavailable message.
Our example has been hardcoded to play the unavailable voicemail message, but we can
modify the Return() application to return the ${DIALSTATUS} so that we can play the
busy message if its value is BUSY. To do this, we’ll use the ${GOSUB_RETVAL} channel
variable, which is set whenever we pass a value to the Return() application:
[subDialer]
exten => start,1,NoOp()
same => n,Dial(${ARG1},${ARG2})
same => n,Return(${DIALSTATUS})
[subVoicemail]
exten => start,1,NoOp()
same => n,VoiceMail(${ARG1}@${ARG2},${ARG3})
same => n,Hangup()
In this version we’ve made just the one change: Return() to Return(${DIALSTATUS}).
Now we can modify extension 101 to use the ${GOSUB_RETVAL} channel variable, which
will be set by Return():
exten => 101,1,NoOp()
same => n,GoSub(subDialer,start,1(${JOHN},30))
same => n,Set(VoicemailMessage=${IF($[${GOSUB_RETVAL} = BUSY]?b:u)})
same => n,GoSub(subVoicemail,start,1(${EXTEN},default,${VoicemailMessage}))
Our dialplan now has a new line that sets the ${VoicemailMessage} channel variable to
a value of u or b, using the IF() dialplan function and the value of ${GOSUB_RETVAL}.
We then pass the value of ${VoicemailMessage} as the third argument to our subVoi
cemail subroutine.
Before moving on, you might want to go back and review “Macros” on page 242 and
“GoSub” on page 246. We’ve given you a lot to digest here, but these concepts will save
you a lot of work as you start building your dialplans.
Local Channels
Local channels are a method of executing other areas of the dialplan from the Dial()
application (as opposed to sending the call out a channel). They may seem like a bit of
a strange concept when you first start using them, but believe us when we tell you they
are a glorious and extremely useful feature that you will almost certainly want to make
use of when you start writing advanced dialplans. The best way to illustrate the use of
Local channels is through an example. Let’s suppose we have a situation where we need
to ring multiple people, but we need to provide delays of different lengths before dialing
each of the members. The use of Local channels is the only solution to the problem.
250 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
With the Dial() application, you can certainly ring multiple endpoints, but all three
channels will ring at the same time, and for the same length of time. Dialing multiple
channels at the same time is done like so:
[LocalSets]
exten => 107,1,NoOp()
same => n,Verbose(2,Dialing multiple locations simultaneously)
same => n,Dial(SIP/0000FFFF0001&DAHDI/g0/14165551212&SIP/MyITSP/
12565551212,30)
same => n,Hangup()
This example dials three destinations for a period of 30 seconds. If none of those loca‐
tions answers the call within 30 seconds, the dialplan continues to the next line and the
call is hung up.
However, let’s say we want to introduce some delays, and stop ringing locations at dif‐
ferent times. Using Local channels gives us independent control over each of the chan‐
nels we want to dial, so we can introduce delays and control the period of time for which
each channel rings independently. We’re going to show you how this is done in the
dialplan, both within a table that shows the delays visually, and all together in a box, as
we’ve done for other portions of the dialplan. We’ll be building the dialplan to match
the time starts and stops described in Figure 10-1.

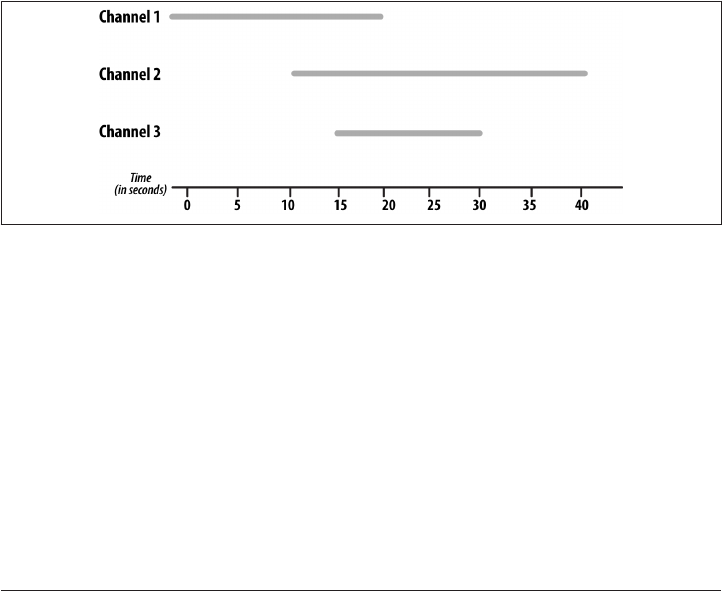

Figure 10-1. Time-delayed dialing with Local channels
First we need to call three Local channels, which will all execute different parts of the
dialplan. We do this with the Dial() application, like so:
[LocalSets]
exten => 107,1,Verbose(2,Dialing multiple locations with time delay)
; *** This all needs to be on a single line
same => n,Dial(Local/channel_1@TimeDelay&Local/channel_2@TimeDelay
&Local/channel_3@TimeDelay,40)
same => n,Hangup()
Now our Dial() application will dial three Local channels. The destinations will be the
channel_1, channel_2, and channel_3 extensions located within the TimeDelay
Local Channels | 251
www.it-ebooks.info
dialplan context. Remember that Local channels are a way of executing the dialplan
from within the Dial() application. Our master timeout for all the channels is 40 sec‐
onds, which means any Local channel that does not have a shorter timeout configured
will be hung up if it does not answer the call within that period of time.
As promised, Table 10-1 illustrates the delay configurations.
Table 10-1. Delayed dialing using Local channels
Time period
(in seconds)
channel_1 channel_2 channel_3
0Dial(SIP/
0000FFFF0001,20)
Wait(10) Wait(15)
5
10 Dial(DAHDI/
g0/14165551212)
15 Dial(SIP/MyITSP/
12565551212,15)
20 Hangup()
25
30 Hangup()
35
40
In this table, we can see that channel_1 started dialing location SIP/0000FFFF0001
immediately and waited for a period of 20 seconds. After 20 seconds, that Local channel
hung up. Our channel_2 waited for 10 seconds prior to dialing the endpoint DAHDI/
g0/14165551212. There was no maximum time associated with this Dial(), so its di‐
aling period ended when the master timeout of 40 seconds (which we set when we
initially called the Local channels) expired. Finally, channel_3 waited 15 seconds prior
to dialing, then dialed SIP/MyITSP/12565551212 and waited for a period of 15 seconds
prior to hanging up.
If we put all this together, we end up with the following dialplan:
[LocalSets]
exten => 107,1,Verbose(2,Dialing multiple locations with time delay)
; *** This all needs to be on a single line
same => n,Dial(Local/channel_1@TimeDelay&Local/channel_2@TimeDelay
&Local/channel_3@TimeDelay,40)
same => n,Hangup()
[TimeDelay]
exten => channel_1,1,Verbose(2,Dialing the first channel)
same => n,Dial(SIP/0000FFFF0001,20)
252 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
same => n,Hangup()
exten => channel_2,1,Verbose(2,Dialing the second channel with a delay)
same => n,Wait(10)
same => n,Dial(DAHDI/g0/14165551212)
exten => channel_3,1,Verbose(2,Dialing the third channel with a delay)
same => n,Wait(15)
same => n,Dial(SIP/MyITSP/12565551212,15)
same => n,Hangup()
You’ll see Local channels used throughout this book, for various purposes. Local chan‐
nels allow you to execute dialplan logic from applications that normally expect to di‐
rectly connect to a channel. For example, you can assign a Local channel as a queue
member, and run all sorts of fancy dialplan logic whenever the queue attempts to deliver
a call to an agent. We’ll discuss some of this in “Using Local Channels” on page 363.
Additional scenarios and information about Local channels and the modifier flags
(/n, /j, /m, /b) are available at the Asterisk wiki. If you will be making any sort of regular
use of Local channels, that is a very important document to read.
Using the Asterisk Database (AstDB)
Having fun yet? It gets even better!
Asterisk provides a powerful mechanism for storing values called the Asterisk database
(AstDB). The AstDB provides a simple way to store data for use within your dialplan.
For those of you with experience using relational databases such as
PostgreSQL or MySQL, the Asterisk database is not a traditional rela‐
tional database; it is an SQLite-backed database using key/value pairs.
There are several ways to store data from Asterisk in a relational data‐
base. Check out Chapter 16 for more about relational databases.
Initially (and for many years), AstDB used a Berkeley database (which,
as far as dialplan, functions, and CLI commands are concerned, worked
the same as the new SQLite database does). In other words, this change
should be mostly transparent to you.
The Asterisk database stores its data in groupings called families, with values identified
by keys. Within a family, a key may be used only once. For example, if we had a family
called test, we could store only one value with a key called count. Each stored value
must be associated with a family.
Using the Asterisk Database (AstDB) | 253
www.it-ebooks.info
5. Previous versions of Asterisk had applications called DBput() and DBget() that were used to set values in
and retrieve values from the AstDB. If you’re using an old version of Asterisk, you’ll want to use those
applications instead.
Storing Data in the AstDB
To store a new value in the Asterisk database, we use the Set() application,5 but instead
of using it to set a channel variable, we use it to set an AstDB variable. For example, to
assign the count key in the test family with the value of 1, we would write the following:
exten => 456,1,NoOp()
same => n,Set(DB(test/count)=1)
If a key named count already exists in the test family, its value will be overwritten with
the new value. You can also store values from the Asterisk command line, by running
the command database put <family> <key> <value>. For our example, you would type
database put test count 1.
Retrieving Data from the AstDB
To retrieve a value from the Asterisk database and assign it to a variable, we use the
Set() application again. Let’s retrieve the value of count (again, from the test family),
assign it to a variable called COUNT, and then speak the value to the caller:
exten => 456,1,NoOp()
same => n,Set(DB(test/count)=1)
same => n,Set(COUNT=${DB(test/count)})
same => n,Answer()
same => n,SayNumber(${COUNT})
You may also check the value of a given key from the Asterisk command line by running
the command database get <family> <key>. To view the entire contents of the AstDB,
use the database show command.
Deleting Data from the AstDB
There are two ways to delete data from the Asterisk database. To delete a key, you can
use the DB_DELETE() application. It takes the path to the key as its arguments, like this:
; deletes the key and returns its value in one step
exten => 457,1,Verbose(0, The value was ${DB_DELETE(test/count)})
You can also delete an entire key family by using the DBdeltree() application. The
DBdeltree() application takes a single argument: the name of the key family to delete.
To delete the entire test family, do the following:
exten => 457,1,DBdeltree(test)
254 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
To delete keys and key families from the AstDB via the command-line interface, use the
database del <key> and database deltree <family> commands, respectively.
Using the AstDB in the Dialplan
There are an infinite number of ways to use the Asterisk database in a dialplan. To
introduce the AstDB, we’ll look at two simple examples. The first is a simple counting
example to show that the Asterisk database is persistent (meaning that it survives system
reboots). In the second example, we’ll use the BLACKLIST() function to evaluate whether
or not a number is on the blacklist and should be blocked.
To begin the counting example, let’s first retrieve a number (the value of the count key)
from the database and assign it to a variable named COUNT. If the key doesn’t exist, DB()
will return NULL (no value). Therefore, we can use the ISNULL() function to verify
whether or not a value was returned. If not, we will initialize the AstDB with the Set()
application, where we will set the value in the database to 1. The next priority will send
us back to priority 1. This will happen the very first time we dial this extension:
exten => 678,1,NoOp()
same => n,Set(COUNT=${DB(test/count)})
same => n,GotoIf($[${ISNULL(${COUNT})}]?:continue)
same => n,Set(DB(test/count)=1)
same => n,Goto(1)
same => n(continue),NoOp()
Next, we’ll say the current value of COUNT, and then increment COUNT:
exten => 678,1,NoOp()
same => n,Set(COUNT=${DB(test/count)})
same => n,GotoIf($[${ISNULL(${COUNT})}]?:continue)
same => n,Set(DB(test/count)=1)
same => n,Goto(1)
same => n(continue),NoOp()
same => n,Playback(silence/1)
same => n,SayNumber(${COUNT})
same => n,Set(COUNT=$[${COUNT} + 1])
Now that we’ve incremented COUNT, let’s put the new value back into the database. Re‐
member that storing a value for an existing key overwrites the previous value:
exten => 678,1,NoOp()
same => n,Set(COUNT=${DB(test/count)})
same => n,GotoIf($[${ISNULL(${COUNT})}]?:continue)
same => n,Set(DB(test/count)=1)
same => n,Goto(1)
same => n(continue),NoOp()
same => n,Playback(silence/1)
same => n,SayNumber(${COUNT})
same => n,Set(COUNT=$[${COUNT} + 1])
same => n,Set(DB(test/count)=${COUNT})
Using the Asterisk Database (AstDB) | 255
www.it-ebooks.info
Finally, we’ll loop back to the first priority. This way, the application will continue
counting:
exten => 678,1,NoOp()
same => n,Set(COUNT=${DB(test/count)})
same => n,GotoIf($[${ISNULL(${COUNT})}]?:continue)
same => n,Set(DB(test/count)=1)
same => n,Goto(1)
same => n(continue),NoOp()
same => n,Playback(silence/1)
same => n,SayNumber(${COUNT})
same => n,Set(COUNT=$[${COUNT} + 1]
same => n,Set(DB(test/count)=${COUNT})
same => n,Goto(1)
Go ahead and try this example. Listen to it count for a while, and then hang up. When
you dial this extension again, it should continue counting from where it left off. The
value stored in the database will be persistent, even across a restart of Asterisk.
In the next example, we’ll create dialplan logic around the BLACKLIST() function, which
checks to see if the current caller ID number exists in the blacklist. (The blacklist is
simply a family called blacklist in the AstDB.) If BLACKLIST() finds the number in
the blacklist, it returns the value 1; otherwise, it will return 0. We can use these values
in combination with a GotoIf() to control whether the call will execute the Dial()
application:
exten => 124,1,NoOp()
same => n,GotoIf($[${BLACKLIST()}]?blocked,1)
same => n,Dial(${JOHN})
exten => blocked,1,NoOp()
same => n,Playback(silence/1)
same => n,Playback(privacy-you-are-blacklisted)
same => n,Playback(vm-goodbye)
same => n,Hangup()
To add a number to the blacklist, run the database put blacklist <number> 1 command
from the Asterisk command-line interface.
Creating a Hot-Desking Application with AstDB
With the built-in Asterisk database, you can build all sorts of applications without the
need to interface with anything external. In the example below, we’ve combined all the
knowledge we’ve discussed in this chapter in a single set of extensions that you can
include in your LocalSets context.
256 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
You can also find a relational database-powered version using SQL and
func_odbc in “Getting Funky with func_odbc: Hot-Desking” on page 433.
Hot-desking is a fairly common feature that is gathering increased traction as Asterisk
systems are deployed because of the inherent flexibility the dialplan provides. Older,
traditional PBX systems apply an extension number to either a line on the system or a
device itself. With Asterisk, we have the ability to apply dialplan logic and information
stored in a local database (or external database) to determine where an extension rings.
We could easily develop a system where an extension number does nothing but ring a
cell phone, or a combination of devices (like in a paging system, or a group of sales
agents).
In the dialplan provided for this example of hot-desking, we’ve allowed people to log
into any device by dialing 71XX where 1XX is the person’s extension number in the range
100 through 199. To log the extension out of the device, the user simply dials 7000 from
the device. While it has made the dialplan and logic more complicated, the dialplan also
takes into account other extensions already logged into a device someone wants to log
into, and automatically logs them out first. Additionally, if we were logged into another
device previously and didn’t log out before changing locations, the dialplan will log the
extension out of the other device before logging it into the new location.
Be aware that we haven’t added any logic to authenticate callers. Addi‐
tionally, we haven’t added any prompts notifying callers that an existing
extension is logged in prior to logging them out, as we wanted to keep
the fundamental logic of the hot-desking application so you have a base
to work with.
In order to understand the dialplan logic we’ve provided, it’s useful to see the call flow
route. We’ve shown this in Figure 10-2.
Using the Asterisk Database (AstDB) | 257
www.it-ebooks.info
Figure 10-2. Call flow for hot-desking application
It is possible that if two people attempt to log into the same extension
at the same time, or if someone else is logging into a device that was
previously in use by an extension moving locations (and attempting to
log in at the same time as the other person) that the database could get
out of sync. No locking has been performed here to keep the logic as
clean and simple as possible. If there exists a strong possibility of people
changing locations and logging in and out often on top of each other,
then you may wish to look into adding dialplan locking, which can be
done using the LOCK() and UNLOCK() dialplan functions.
[HotDesking]
; Control extension range using pattern matches
; Login with 71XX will logout existing extension at this location
; and log this device in with new extension.
; Logoff with 7000 from any device.
;
258 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
exten => 7000,1,Verbose(2,Attempting logoff from device ${CHANNEL(peername)})
same => n,Set(PeerName=${CHANNEL(peername)})
same => n,Set(CurrentExtension=${DB(HotDesk/${PeerName})})
same => n,GoSubIf($[${EXISTS(${CurrentExtension})}]?
subDeviceLogoff,1(${PeerName},${CurrentExtension}):loggedoff)
same => n,GotoIf($[${GOSUB_RETVAL} = 0]?loggedoff)
same => n,Playback(an-error-has-occurred)
same => n,Hangup()
same => n(loggedoff),Playback(silence/1&agent-loggedoff)
same => n,Hangup()
exten => _71XX,1,Verbose(2,Attempting to login device ${CHANNEL(peername)}
to extension ${EXTEN:1})
same => n,Set(NewPeerName=${CHANNEL(peername)})
same => n,Set(NewExtension=${EXTEN:1})
; Check if existing extension is logged in for this device (NewPeerName)
; -- If existing extension exists (ExistingExtension)
; -- get existing device name
; -- If no existing device
; -- (login) as we'll overwrite existing extension for this device
; -- If existing device name
; -- logoff ExistingExtension + ExistingDevice
; -- Goto check_device ---------------------------------------+
; -- If no existing extension exists |
; -- Check if existing device is logged in for this extension |
; (NewExtension) <-----------------------------------------------+
; -- If existing device exists
; -- Get existing extension
; -- If extension exists
; -- Logoff Device + Extension
; -- Login
; -- If no extension exists
; -- Remove device from AstDB
; -- Login
; -- If no device exists for NewExtension
; -- Login
; Tests:
; * Login 100 to 0000FFFF0001
; * Login 101 to 0000FFFF0001 (Result: Only 101 logged in)
; * Login 101 to 0000FFFF0002 (Result: Only 101 logged in to new location)
; * Login 100 to 0000FFFF0001 (Result: Both 100 and 101 logged in)
; * Login 100 to 0000FFFF0002 (Result: Only 100 logged into 0000FFFF0002
; -- change locations)
; * Login 100 to 0000FFFF0001 (Result: Only 100 logged in)
same => n,Set(ExistingExtension=${DB(HotDesk/${NewPeerName})})
same => n,GotoIf($[${EXISTS(${ExistingExtension})}]?get_existing_device)
Using the Asterisk Database (AstDB) | 259
www.it-ebooks.info
same => n(check_device),NoOp()
same => n,Set(ExistingDevice=${DB(HotDesk/${NewExtension})})
same => n,GotoIf($[${EXISTS(${ExistingDevice})}]?get_existing_extension)
same => n,NoOp(Nothing to logout)
same => n,Goto(login)
same => n(get_existing_device),NoOp()
same => n,Set(ExistingDevice=${DB(HotDesk/${ExistingExtension})})
same => n,GotoIf($[${ISNULL(${ExistingDevice})}]?login)
same => n,GoSub(subDeviceLogoff,1(${ExistingDevice},${ExistingExtension}))
same => n,GotoIf($[${GOSUB_RETVAL} = 0]?check_device)
same => n,Playback(silence/1&an-error-has-occurred)
same => n,Hangup()
same => n(get_existing_extension),NoOp()
same => n,Set(ExistingExtension=${DB(HotDesk/${ExistingDevice})})
same => n,GoSubIf($[${EXISTS(${ExistingExtension})}]?
subDeviceLogoff,1(${ExistingDevice},${ExistingExtension}):remove_device)
same => n,GotoIf($[${GOSUB_RETVAL} = 0]?loggedoff)
same => n,Playback(silence/1&an-error-has-occurred)
same => n,Hangup()
same => n(remove_device),NoOp()
same => n,Set(Result=${DB_DELETE(HotDesk/${ExistingDevice})})
same => n,Goto(loggedoff)
same => n(loggedoff),Verbose(2,Existing device and extensions have
been logged off prior to login)
same => n(login),Verbose(2,Now logging in extension ${NewExtension}
to device ${NewPeerName})
same => n,GoSub(subDeviceLogin,1(${NewPeerName},${NewExtension}))
same => n,GotoIf($[${GOSUB_RETVAL} = 0]?login_ok)
same => n,Playback(silence/1&an-error-has-occurred)
same => n,Hangup()
same => n(login_ok),Playback(silence/1&agent-loginok)
same => n,Hangup()
exten => subDeviceLogoff,1,NoOp()
same => n,Set(LOCAL(PeerName)=${ARG1})
same => n,Set(LOCAL(Extension)=${ARG2})
same => n,ExecIf($[${ISNULL(${LOCAL(PeerName)})} |
${ISNULL(${LOCAL(Extension)})}]?Return(-1))
same => n,Set(PeerNameResult=${DB_DELETE(HotDesk/${LOCAL(PeerName)})})
same => n,Set(ExtensionResult=${DB_DELETE(HotDesk/${LOCAL(Extension)})})
same => n,Return(0)
exten => subDeviceLogin,1,NoOp()
same => n,Set(LOCAL(PeerName)=${ARG1})
same => n,Set(LOCAL(Extension)=${ARG2})
same => n,ExecIf($[${ISNULL(${LOCAL(PeerName)})} |
${ISNULL(${LOCAL(Extension)})}]?Return(-1))
same => n,Set(DB(HotDesk/${LOCAL(PeerName)})=${LOCAL(Extension)})
260 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
same => n,Set(DB(HotDesk/${LOCAL(Extension)})=${LOCAL(PeerName)})
same => n,Set(ReturnResult=${IF($[${DB_EXISTS(HotDesk/${LOCAL(PeerName)})}
& ${DB_EXISTS(HotDesk/${LOCAL(Extension)})}]?0:-1)})
same => n,Return(${ReturnResult})
Handy Asterisk Features
Now that we’ve gone over some more of the basics, let’s look at a few popular functions
that have been incorporated into Asterisk.
Zapateller()
Zapateller() is a simple Asterisk application that plays a special information tone at
the beginning of a call, which causes autodialers (usually used by telemarketers) to think
that the line has been disconnected. Not only will they hang up, but their systems will
flag your number as out of service, which could help you avoid all kinds of telemarketing
calls. To use this functionality within your dialplan, simply call the Zapateller()
application.
We’ll also use the optional nocallerid option so that the tone will be played only when
there is no caller ID information on the incoming call. For example, you might use
Zapateller() in the s extension of your [incoming] context, like this:
[incoming]
exten => s,1,NoOp()
same => n,Zapateller(nocallerid)
same => n,Playback(enter-ext-of-person)
Call Parking
Another handy feature is called call parking. Call parking allows you to place a call on
hold in a “parking lot,” so that it can be taken off hold from another extension. Param‐
eters for call parking (such as the extensions to use, the number of spaces, and so on)
are all controlled within the features.conf configuration file. The [general] section of
the features.conf file contains four settings related to call parking:
parkext
This is the parking lot extension. Transfer a call to this extension, and the system
will tell you which parking position the call is in. By default, the parking extension
is 700.
parkpos
This option defines the number of parking slots. For example, setting it to 701-720
creates 20 parking positions, numbered 701 through 720.
Handy Asterisk Features | 261
www.it-ebooks.info
context
This is the name of the parking context. To be able to park calls, you must include
this context.
parkingtime
If set, this option controls how long (in seconds) a call can stay in the parking lot.
If the call isn’t picked up within the specified time, the extension that parked the
call will be called back.
Also note that because the user needs to be able to transfer the calls to the parking lot
extension, you should make sure you’re using the t and/or T options to the Dial()
application.
So, let’s create a simple dialplan to show off call parking:
[incoming]
include => parkedcalls
exten => 103,1,Dial(SIP/Bob,,tT)
exten => 104,1,Dial(SIP/Charlie,,tT)
To illustrate how call parking works, say that Alice calls into the system and dials ex‐
tension 103 to reach Bob. After a while, Bob transfers the call to extension 700, which
tells him that the call from Alice has been parked in position 701. Bob then dials Charlie
at extension 104, and tells him that Alice is at extension 701. Charlie then dials extension
701 and begins to talk to Alice. This is a simple and effective way of allowing callers to
be transferred between users.
Call parking is often used in combination with paging interfaces. A
receptionist might take calls for machinists in the back of a shop, where
they share a single phone. The call is parked, and the receptionist then
pages the back shop, saying who the call is for, and which parking space
they need to dial to retrieve the call.
It can also be useful when you take a call and need to change locations
in the building. You can park the call, then retrieve it at another location
in the office without having to run back to your initial location to talk
to the person.
262 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
6. In the world of legacy PBXs, this type of functionality is very expensive. Either you have to pay big bucks for
a dial-in service, or you have to add an expensive conferencing bridge to your proprietary PBX.
Conferencing with MeetMe()
Last but not least, let’s cover setting up an audio conference bridge with the MeetMe()
application.6 This application allows multiple callers to converse together, as if they were
all in the same physical location. Some of the main features include:
•The ability to create password-protected conferences
•Conference administration (mute conference, lock conference, or kick off
participants)
•The option of muting all but one participant (useful for company announcements,
broadcasts, etc.)
• Static or dynamic conference creation
You must have res_timing_dahdi selected in menuselect to be able to
compile app_meetme. This means you must have already installed
DAHDI, even without telephony hardware, as MeetMe() uses com‐
ponents of DAHDI to perform audio mixing. If you can’t use res_tim
ing_dahdi on your system, then you should look at ConfBridge(),
which can use different timing sources. See “Conferencing with Conf‐
Bridge()” on page 264.
Let’s walk through setting up a basic conference room. The configuration options for
the MeetMe conferencing system are found in meetme.conf. Inside the configuration
file, you define conference rooms and optional numeric passwords. (If a password is
defined here, it will be required to enter all conferences using that room.) For our ex‐
ample, let’s set up a conference room at extension 600. First, we’ll set up the conference
room in meetme.conf. We’ll call it 600, and we won’t assign a password at this time:
[rooms]
conf => 600
Now that the configuration file is complete, we’ll need to restart Asterisk so that it can
reread the meetme.conf file. Next, we’ll add support for the conference room to our
dialplan with the MeetMe() application. MeetMe() takes three arguments: the name of
the conference room (as defined in meetme.conf), a set of options, and the password the
user must enter to join this conference. Let’s set up a simple conference using room
600, the i option (which announces when people enter and exit the conference), and a
password of 54321:
Handy Asterisk Features | 263
www.it-ebooks.info
exten => 600,1,MeetMe(600,i,54321)
That’s all there is to it! When callers enter extension 600, they will be prompted for the
password. If they correctly enter 54321, they will be added to the conference. You can
run core show application MeetMe from the Asterisk CLI for a list of all the options
supported by the MeetMe() application.
Another useful application is MeetMeCount(). As its name suggests, this application
counts the number of users in a particular conference room. It takes up to two
arguments: the conference room in which to count the number of participants, and
optionally a variable name to assign the count to. If the variable name is not passed as
the second argument, the count is read to the caller:
exten => 601,1,NoOp()
same => n,Playback(conf-thereare)
same => n,MeetMeCount(600)
same => n,Playback(conf-peopleinconf)
If you pass a variable as the second argument to MeetMeCount(), the count is assigned
to the variable, and playback of the count is skipped. You might use this to limit the
number of participants, like this:
; limit the conference room to 10 participants
exten => 600,1,NoOp()
same => n,MeetMeCount(600,CONFCOUNT)
same => n,GotoIf($[${CONFCOUNT} <= 10]?meetme:conf_full,1)
same => n(meetme),MeetMe(600,i,54321)
exten => conf_full,1,Playback(conf-full)
Isn’t Asterisk fun?
Conferencing with ConfBridge()
The ConfBridge() application is the new hotness. It is essentially a replacement for the
MeetMe() application for Asterisk 10 and later.
Asterisk 1.8 also contained ConfBridge(), but its feature set is much
reduced from what’s available in Asterisk 10 and later.
ConfBridge() was introduced using the new bridging modules that allow alternate
timing sources to be used for mixing rather than only being limited to res_timing_dah
di, like MeetMe(). Additionally, several new features were added to ConfBridge() that
are not available to MeetMe() such as:
264 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
•High-definition audio that can be mixed at sample rates ranging from 8 kHz to 96
kHz
•Video capabilities, including the addition of dynamically switching video feeds
based on loudest talker
•Dynamically controlled menu system for both conference administrators and users
•Additional options available in the confbridge.conf configuration file
We’re going to start with a basic configuration in order to get your conference bridge
set up. ConfBridge() is configured via the confbridge.conf file, which contains many
options, including advanced functionality for users and bridges. We’re going to start
with a very basic configuration that uses the defaults. First, let’s create the de
fault_user and default_bridge sections in confbridge.conf:
$ cat >> confbridge.conf
[general]
[default_user]
type=user
[default_bridge]
type=bridge
Ctrl+D
After building the confbridge.conf file, we need to load the app_confbridge.so module.
This can be done at the Asterisk console:
$ asterisk -rx "module load app_confbridge.so"
With the module loaded, we can build a simple dialplan to access our conference bridge:
[ConferenceRooms]
exten => 602,1,NoOp()
same => n,ConfBridge(${EXTEN})
[LocalSets]
include => ConferenceRooms
We could have also defined the user and bridge profiles specifically in
the ConfBridge() application. By default, the ConfBridge() dialplan
application will use the default_user and default_bridge profiles, so
we haven’t defined them in our example, but the equivalent would look
like:
same => n,ConfBridge(${EXTEN},default_bridge,default_user)
Handy Asterisk Features | 265
www.it-ebooks.info
Of course now we need to reload our dialplan:
$ asterisk -r
*CLI> dialplan reload
If you now dial extension 602 from your phone, you should enter the conference bridge:
== Using SIP RTP CoS mark 5
-- Executing [602@LocalSets:1] NoOp("SIP/0000FFFF0001-00000001", "") in new
stack
-- Executing [602@LocalSets:2] ConfBridge("SIP/0000FFFF0001-00000001", "602")
in new stack
-- <SIP/0000FFFF0001-00000001> Playing 'conf-onlyperson.gsm' (language 'en')
-- <SIP/0000FFFF0001-00000001> Playing 'confbridge-join.gsm' (language 'en')
This is just the tip of the iceberg. We’ve got the base configuration done, but there is
much more functionality to be configured. Head over to “Advanced Conferencing” on
page 284.
Conclusion
In this chapter, we’ve covered a few more of the many applications in the Asterisk
dialplan, and hopefully we’ve given you some more tools that you can use to further
explore the creation of your own dialplans. As with other chapters, we invite you to go
back and reread any sections that require clarification.
266 | Chapter 10: Deeper into the Dialplan
www.it-ebooks.info
I don’t believe in angels, no. But I do have a wee
parking angel. It’s on my dashboard and you wind
it up. The wings flap and it’s supposed to give you
a parking space. It’s worked so far.
—Billy Connolly
CHAPTER 11
Parking, Paging, and Conferencing
This chapter will focus on two important aspects of a PBX system: parking calls to allow
them to be picked up from a location different from where they were originally an‐
swered, and paging, which allows the announcement of who the call is for and how it
can be retrieved.
In Asterisk, these two functionalities are exclusive to one another, and can be used
independently of one another. Some businesses that contain large warehouses, or have
employees who move around the office a lot and don’t necessarily sit at a desk all day,
utilize the paging and parking functionality of their systems to direct calls around the
office. In this chapter we’ll show you how to use both parking and paging in the tradi‐
tional setting, along with a couple of more modern takes on these commonly used
functions.
features.conf
Asterisk also provides several features common to most modern PBXs, many of which
have optional parameters. The features.conf file is where you can adjust or define the
various feature parameters in Asterisk.
267
www.it-ebooks.info
1. Yes, we realize that a SIP INFO message is in fact a SIP message and not technically part of the audio channel,
but the point is that you can’t use the “transfer” or “park” button on your SIP phone to access these features
while on a call. You’ll have to send DTMF.
DTMF-Based Features
Many of the parameters in features.conf only apply when invoked on calls that have been
bridged by the dialplan applications Dial() or Queue(), with one or more of the options
K, k, H, h, T, t, W, w, X, or x specified. Features accessed in this way are DTMF-based
(meaning they can’t be accessed via SIP messaging, but only through touch-tone
signals in the audio channel triggered by users dialing the required digits on their
dialpads).1
Transfers on SIP channels (for example from a SIP telephone) can be handled using the
capabilities of the phone itself and won’t be affected by anything in the features.conf file.
The [general] section
In the [general] section of features.conf, you can define options that fine-tune the
behavior of the park and transfer features in Asterisk. These options are listed in
Table 11-1.
Table 11-1. features.conf [general] section
Option Value/Example Notes
parkext 700 Sets the default extension used to park calls.
parkpos 701-720 Sets the range of extensions used as the parking lot. Parked calls
may be retrieved by dialing the numbers in this range.
context parkedcalls Sets the default dialplan context where the parking extension
and the parking lot extensions are created.
parkinghints no Enables/disables automatic creation of dialplan hints for the
parking lot extensions, so that phones can subscribe to the state
of extensions in the parking lot. The default is no.
parkingtime 45 Specifies the number of seconds a call will wait in the parking
lot before timing out.
comebacktoorigin yes Configures the handling of timed-out parked calls. For more
information on the behavior of this option, see the sidebar titled
“Handling Timed-Out Parked Calls with the comebacktoorigin
Option” on page 270.
courtesytone beep Specifies the sound file to be played to the parked caller when
the parked call is retrieved from the parking lot.
268 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
Option Value/Example Notes
parkedplay caller Indicates which side of the call to play the courtesytone to
when a parked call is picked up. Valid options include callee,
caller, both, or no. The default is no.
parkedcalltransfers caller Controls which side of a call has the ability to execute a DTMF-
based transfer in the call that results from picking up a parked
call. Valid options include callee, caller, both, or no.
The default is no.
parkedcallreparking caller Controls which side of a call has the ability to execute a DTMF-
based park in the call that results from picking up a parked call.a
Valid options include callee, caller, both, or no. The
default is no.
parkedcallhangup caller Controls which side of a call has the ability to execute a DTMF-
based hangup in the call that results from picking up a parked
call. Valid options include callee, caller, both, or no.
The default is no.
parkedcallrecording caller Controls which side of a call has the ability to initiate a DTMF-
based one-touch recording in the call that results from picking
up a parked call. Valid options include callee, caller,
both, or no. The default is no.
parkeddynamic yes Enables the dynamic creation of parking lots in the dialplan. The
channel variables PARKINGDYNAMIC, PARKINGDYNCON
TEXT, and PARKINGDYNPOS need to be set.
adsipark yes Passes ADSI information regarding the parked call back to the
originating set.
findslot next Configures the parking slot selection behavior. See “Parking
Lots” on page 276 for more details.
parkedmusicclass default Specifies the class to be used for the MOH played to a parked
caller. A music class set in the dialplan using the CHANNEL(mu
sicclass) dialplan function will override this setting.
transferdigittimeout 3 Sets the number of seconds to wait for each digit from the caller
executing a transfer.
xfersound beep Specifies the sound to be played to indicate that an attended
transfer is complete.
xferfailsound beeperr Specifies the sound to be played to indicate that an attended
transfer has failed to complete.
pickupexten *8 Configures the extension used for call pickup.
pickupsound beep Specifies the sound to be played to indicate a successful call
pickup attempt. No sound is played by default.
pickupfailsound beeperr Specifies the sound to be played to indicate a failed call pickup
attempt. No sound is played by default.
features.conf | 269
www.it-ebooks.info
Option Value/Example Notes
featuredigittimeout 1000 Sets the number of milliseconds to wait in between digits
pressed during a bridged call when matching against DTMF-
activated call features.
atxfernoanswertimeout 15 Configures the number of seconds to wait for the target of an
attended transfer to answer before considering the attempt
timed out.
atxferdropcall no Configures behavior of attended-transfer call handling when
the transferrer hangs up before the transfer is complete and the
transfer fails. By default, this option is set to no and a call will
be originated to attempt to connect the transferree back to the
caller who initiated the transfer. If set to yes, the call will be
dropped after the transfer fails.
atxferloopdelay 10 Sets the number of seconds to wait in between callback retries if
atxferdropcall is set to no.
atxfercallbackretries 2 Sets the number of callback attempts to make if atxferdrop
call is set to no. By default, this is set to 2 callback attempts.
a Read that again. It makes sense.
Handling Timed-Out Parked Calls with the comebacktoorigin Option
This option configures the behavior of call parking when the parked call times out (see
the parkingtime option). comebacktoorigin can have one of two values:
yes (default)
When the parked call timeout is exceeded, Asterisk will attempt to send the call
back to the peer that parked this call. If the channel is no longer available to
Asterisk, the caller will be disconnected.
no
This option would be used when you want to perform custom dialplan functionality
on parked calls that have exceeded their timeouts. The caller will be sent into a
specific area of the dialplan where logic can be applied to gracefully handle the
remainder of the call (this may involve simply returning the call to a different ex‐
tension, or performing a lookup of some sort).
You also may need to take into account calls where the originating channel cannot handle
a returned parked call. If, for example, the call was parked by a channel that is also a
trunk to another system, there would not be enough information to send the call back
to the correct person on that other system. The actions following a timeout would be
more complex than comebacktoorigin=yes could handle gracefully.
Parked calls that timeout with comebacktoorigin=no will always be sent into
the parkedcallstimeout context.
270 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
2. We hope you realize that the actual extension will be related to the channel name that parked the call, and
will not be SIP_0004F2040808 (unless Leif sells you the Polycom phone from his lab).
The dialplan (and contexts) were discussed in detail in Chapter 6.
The extension they will be sent to will be built from the name of the channel that parked
the call. For example, if a SIP peer named 0004F2040808 parked this call, the extension
will be SIP_0004F2040808.
If this extension does not exist, the call will be sent to the s extension in the parked
callstimeout context instead. Finally, if the s extension of parkedcallstimeout does
not exist, the call will be sent to the s extension of the default context.
Additionally, for any calls where comebacktoorigin=no, there will be an extension of
SIP_0004F2040808 created in the park-dial context. This extension will be set up to
do a Dial() to SIP/0004F2040808.2
The [featuremap] Section
This section allows you to define specific DTMF sequences, which will trigger various
features on channels that have been bridged via options in the Dial() or Queue()
application. The options are detailed in Table 11-2.
Table 11-2. features.conf [featuremap] section
Option Value/Example Notes Dial()/Queue()
Flags
blindxfer #1 Invokes a blind (unsupervised) transfer T, t
disconnect *0 Hangs up the call H, h
automon *1 Starts recording of the current call using the Moni
tor() application (pressing this key sequence a second
time stops the recording)
W, w
atxfer *2 Performs an automated transfer T, t
parkcall #72 Parks a call K, k
automixmon *3 Starts recording of the current call using the MixMoni
tor() application (pressing this key sequence again
stops the recording)
X, x
features.conf | 271
www.it-ebooks.info
3. There is some flexibility in the syntax (you can look at the sample file for details), but our example uses the
style we recommend, since it’s the most consistent with typical dialplan syntax.
The default blindxfer and disconnect codes are # and *, respectively.
Normally you’ll want to change them from the defaults, as they will
interfere with other things that you might want to do (for example, if
you use the Tt option in your Dial() command, every time you press
the # key you’ll initiate a transfer).
The [applicationmap] Section
This section of features.conf allows you to map DTMF codes to dialplan applications.
The caller will be placed on hold until the application has completed execution.
The syntax for defining an application map is as follows (it must appear on a single line;
line breaks are not allowed):3
<FeatureName> => <DTMF_sequence>,<ActivateOn>[/<ActivatedBy>]
,<Application>([<AppArguments>])[,MOH_Class]
What you are doing is the following:
1. Giving your map a name so that it can be enabled in the dialplan through the use
of the DYNAMIC_FEATURES channel variable.
2. Defining the DTMF sequence that activates this feature (we recommend using at
least two digits for this).
3. Defining which channel the feature will be activated on, and (optionally) which
participant is allowed to activate the feature (the default is to allow both channels
to use/activate this feature).
4. Giving the name of the application that this map will trigger, and its arguments.
5. Providing an optional music on hold (MOH) class to assign to this feature (which
the opposite channel will hear when the application is executing). If you do not
define any MOH class, the caller will hear only silence.
Here is an example of an application map that will trigger an AGI script:
agi_test => *6,self/callee,AGI(agi-test.agi),default
272 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
Since applications spawned from the application map are run outside
the PBX core, you cannot execute any applications that trigger the
dialplan (such as Goto(), Macro(), Background(), etc.). If you wish to
use the application map to spawn external processes (including exe‐
cuting dialplan code), you will need to trigger an external application
through an AGI() call or the System() application. The point is, if you
want anything complex to happen through the use of an application
map, you will need to test very carefully, as not all things will work as
you might expect.
To use an application map, you must declare it in the dialplan by setting the
DYNAMIC_FEATURES variable somewhere before the Dial() command that connects the
channels. Use the double underscore modifier on the variable name to ensure that the
application map is available to both channels throughout the life of the call. For example:
exten => 101,1,NoOp()
same => n,Set(__DYNAMIC_FEATURES=agi_test)
same => n,Dial(SIP/0000FFFF0002)
If you want to allow more than one application map to be available on
a call, you will need to use the # symbol as a delimiter between multiple
map names:
Set(__DYNAMIC_FEATURES=agi_test#my_other_map)
The reason why the # character was chosen instead of a simple comma
is that older versions of the Set() application interpreted the comma
differently than more recent versions, and the syntax for application
maps has never been updated.
Don’t forget to reload the features module after making changes to the features.conf file:
*CLI> features reload
You can verify that your changes have taken place through the CLI command features
show. Make sure you test out your application map before you turn it over to your users!
features.conf | 273
www.it-ebooks.info
Inheriting Channel Variables
Channel variables are always associated with the original channel that set them, and are
no longer available once the channel is transferred.
In order to allow channel variables to follow the channel as it is transferred around the
system, channel variable inheritance must be employed. There are two modifiers that
can allow the channel variable to follow the channel: single underscore and double
underscore.
The single underscore (_) causes the channel variable to be inherited by the channel for
a single transfer, after which it is no longer available for additional transfers. If you use
a double underscore (__), the channel variable will be inherited throughout the life of
that channel.
Setting channel variables for inheritance simply requires you to prefix the channel name
with a single or double underscore. The channel variables are then referenced exactly
the same as they would be normally (e.g., do not attempt to read the values of channel
variables with the underscores in the variable name).
Here’s an example of setting a channel variable for single transfer inheritance:
exten => example,1,Set(_MyVariable=thisValue)
Here’s an example of setting a channel variable for infinite transfer inheritance:
exten => example,1,Set(__MyVariable=thisValue)
To read the value of the channel variable, do not use underscore(s):
exten => example,1,Verbose(1,Value of MyVariable is: ${MyVariable})
And if you thought that sidebar was exciting, check out this sidebar!
Dynamic Feature-Map Creation from Dialplan
As of Asterisk 11, you can create feature maps from the dialplan directly, making the
definition of a feature and its DTMF mapping dynamic on a per-channel basis. This is
done with the FEATURE() and FEATUREMAP() dialplan functions. Valid values for FEA
TUREMAP() include the following values, which set or retrieve the DTMF sequence used
to trigger the functionality:
atxfer
Attended transfer
blindxfer
Blind transfer
274 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
automon
Auto Monitor() (call recording)
disconnect
Call disconnect
parkcall
Call parking
automixmon
Auto MixMonitor() (call recording)
With FEATUREMAP(), the function can be used to retrieve the current DTMF sequence
for that functionality:
exten => 199,1,Verbose(2,Current DTMF for atxfer: ${FEATUREMAP(atxfer)})
Or you can use the DTMF sequence for a feature function on the current channel:
exten => 199,1,NoOp()
same => n,Set(FEATUREMAP(atxfer)=*9)
If you want to set the parking timeout for a channel, you can do so with the FEA
TURE() function. It contains a single argument, parkingtime, which is a value in seconds
before the parked call is returned to the caller (or destination, depending on how you’ve
configured parking):
exten => 199,1,NoOp()
same => n,Set(FEATURE(parkingtime)=60)
Application Map Grouping
If you have a lot of features that you need to activate for a particular context or extension,
you can group several features together in an application-map grouping, so that one
assignment of the DYNAMIC_FEATURES variable will assign all of the designated features
of that map.
The application map groupings are added at the end of the features.conf file. Each
grouping is given a name, and then the relevant features are listed:
[shifteight]
unpauseMonitor => *1 ; custom key mapping
pauseMonitor => *2 ; custom key mapping
agi_test => ; no custom key mapping
features.conf | 275
www.it-ebooks.info
If you want to specify a custom key mapping to a feature in an appli‐
cation map grouping, simply follow the => with the key mapping you
want. If you do not specify a key mapping, the default key map for that
feature will be used (as found in the [featuremap] section). Regardless
of whether you want to assign a custom key mapping or not, the =>
operator is required.
In the dialplan, you would assign this application map grouping with the Set()
application:
Set(__DYNAMIC_FEATURES=shifteight) ; use the double underscore if you want
; to ensure both call legs have the
; variable assigned.
Parking Lots
A parking lot allows a call to be held in the system without being associated with a
particular extension. The call can then be retrieved by anyone who knows the park code
for that call. This feature is often used in conjunction with an overhead paging system
(PA system, or Tannoy, for our UK readers). For this reason, it is often referred to as
park-and-page; however, it should be noted that parking and paging are in fact separate.
To park a call in Asterisk, you need to transfer the caller to the feature code assigned to
parking, which is assigned in the features.conf file with the parkext directive. By default,
this is 700:
parkext => 700 ; What extension to dial to park (all parking lots)
You have to wait to complete the transfer until you get the number of the parking re‐
trieval slot from the system, or you will have no way of retrieving the call. By default the
retrieval slots, assigned with the parkpos directive in features.conf, are numbered from
701–720:
parkpos => 701-720 ; What extensions to park calls on (defafult parking lot)
Once the call is parked, anyone on the system can retrieve it by dialing the number of
the retrieval slot (parkpos) assigned to that call. The call will then be bridged to the
channel that dialed the retrieval code.
There are two common ways to define how retrieval slots are assigned. This is done
with the findslot directive in the features.conf file. The default method (findslot =>
first) always uses the lowest-numbered slot if it is available, and only assigns higher-
numbered codes if required. The second method (findslot => next) will rotate
through the retrieval codes with each successive park, returning to the first retrieval
code after the last one has been used. Which method you choose will depend on how
busy your parking lots are. If you use parking rarely, the default findslot of first will
276 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
be best (people will be used to their parked calls always being in the same slot). If you
use parking a lot (for example, in an automobile dealership), on the other hand, it is far
better for each successive page to assign the next slot, since you will often have more
than one call parked at a time. Your users will get used to listening carefully to the actual
parking lot number (instead of just always dialing 701), and this will minimize the
chance of people accidentally retrieving the wrong call on a busy system.
If you are using parking, you are probably also going to need a way to announce the
parked calls so that the intended parties know how to retrieve them. While you could
just run down the hall yelling “Bob, there’s a call for you on 701!,” the more professional
method is to use a paging system (more formally known as a public address system),
which we will discuss in the next section.
Overhead and “Underchin” Paging (a.k.a. Public Address)
In many PBX systems, it is desirable to be able to allow a user to send his voice from a
telephone into a public address system. This normally involves dialing a feature code
or extension that makes a connection to a public address resource of some kind, and
then making an announcement through the handset of the telephone that is broadcast
to all devices associated with that paging resource. Often, this will be an external paging
system consisting of an amplifier connected to overhead speakers; however, paging
through the speakers of office telephones is also popular (mainly for cost reasons). If
you have the budget (or an existing overhead paging system), overhead paging is gen‐
erally better, but set paging (a.k.a. “underchin” paging) can work well in many envi‐
ronments. What is perhaps most common is to have a mix of set and overhead paging,
where, for example, set-based paging might be in use for offices, but overhead paging
would be used for warehouse, hallway, and public areas (cafeteria, reception, etc.).
In Asterisk, the Page() application is used for paging. This application simply takes a
list of channels as its argument, calls all of the listed channels simultaneously, and, as
they are answered, puts each one into a conference room. With this in mind, it becomes
obvious that one requirement for paging to work is that each destination channel must
be able to automatically answer the incoming connection and place the resultant audio
onto a speaker of some sort (in other words, Page() won’t work if all the phones just
ring).
So, while the Page() application itself is painless and simple to use, getting all the des‐
tination channels to handle the incoming pages correctly is a bit trickier. We’ll get to
that shortly.
The Page() application takes three arguments, defining the group of channels the page
is to be connected to, the options, and the timeout:
exten => *724,1,Page(${ChannelsToPage},i,120)
Overhead and “Underchin” Paging (a.k.a. Public Address) | 277
www.it-ebooks.info
The options (outlined in Table 11-3) give you some flexibility with respect to how Page()
works, but the majority of the configuration is going to have to do with how the target
devices handle the incoming connection. We’ll dive into the various ways you can con‐
figure devices to receive pages in the next section.
Table 11-3. Page() options
Option Description Discussion
dEnables full-duplex audio Sometimes referred to as “talkback paging,” the use of this option implies that the
equipment that receives the page has the ability to transmit audio back at the same
time as it is receiving audio. Generally, you would not want to use this unless you had
a specific need for it.
iIgnores attempts to forward
the call
You would normally want this option enabled.
qDoes not play beep to caller
(quiet mode)
Normally you won’t use this, but if you have an external amplifier that provides its
own tone, you may want to set this option.
rRecords the page into a file If you intended to use the same page multiple times in the future, you could record
the page and then use it again later by triggering it using Originate() or using
the A(x) option to Page().
sDials a channel only if the
device state is NOT_INUSE
This option is likely only useful (and reliable) on SIP-bound channels, and even so
may not work if a single line is allowed to host multiple calls simultaneously.
Therefore, don’t rely on this option in all cases.
A(x) Plays announcement x to all
participants
You could use a previously recorded file to be played over the paging system. If you
combined this with Originate() and Record(), you could implement a
delayed paging system.
nDoes not play announcement
simultaneously to caller
(implies A(x))
By default, the system will play the paged audio to both the caller and the callee. If
this option is enabled, the paged audio will not be played to the caller (the person
paging).
Because of how Page() works, it is very resource-intensive. We cannot stress this
enough. Carefully read on, and we’ll cover how to ensure that paging does not cause
performance problems in a production environment (which it is almost certain to do
if not designed correctly).
Places to Send Your Pages
As we stated before, Page() is in and of itself very simple. The trick is how to bring it
all together. Pages can be sent to different kinds of channels, and they all require different
configuration.
External paging
If a public address system is installed in the building, it is common to connect the
telephone system to an external amplifier and send pages to it through a call to a channel.
One way of doing this is to plug the sound card of your server into the amplifier and
278 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
4. The Bogen UTI1 is useful because it can handle all manner of different kinds of incoming and outgoing
connections, which pretty nearly guarantees that you’ll be able to painlessly connect your telephone system
to any sort of external paging equipment, no matter how old or obscure.
5. In this book we’re assuming that the external paging equipment is already installed and was working with
the old phone system.
send calls to the channel named Console/DSP, but this assumes that the sound drivers
on your server are working correctly and the audio levels are normalized correctly on
that channel. Another way (potentially simpler, and possibly more robust) to handle
external paging is to use an FXS device of some kind (such as an ATA), which is con‐
nected to a paging interface such as a Bogen UTI1,4 which then connects to the paging
amplifier.5
In your dialplan, paging to an external amplifier would look like a simple Dial() to the
device that is connected to the paging equipment. For example, if you had an ATA
configured in sip.conf as [PagingATA], and you plugged the ATA into a Bogen UTI1,
you would perform paging by dialing:
exten => *724,1,Verbose(2,Paging to external amplifier) ; note the '*' in the
; extension is part of
; what you actually dial
same => n,Set(PageDevice=SIP/PagingATA)
same => n,Page(${PageDevice},i,120)
Note that for this to work you will have had to register your ATA as a SIP device under
sip.conf, and in this case we named the device [PagingATA]. You can name this device
anything you want (for example, we often use the MAC address as the name of a SIP
device), but for anything that is not a user telephone, it can be helpful to use a name
that makes it stand out from other devices.
If you had an FXS card in your system and you connected the UTI1 to that, you would
Dial() to the channel for that FXS port instead:
same => n,Dial(DAHDI/25)
The UTI1 answers the call and opens a channel to the paging system; you then make
your announcement and hang up.
Set paging
Set-based paging first became popular in key telephone systems, where the speakers of
the office telephones are used as a poor-man’s public address system. Most SIP tele‐
phones have the ability to auto-answer a call on handsfree, which accomplishes what is
required on a per-telephone basis. In addition to this, however, it is necessary to pass
the audio to more than one set at the same time. Asterisk uses its built-in conferencing
engine to handle the under-the-hood details. You use the Page() application to make
it happen.
Overhead and “Underchin” Paging (a.k.a. Public Address) | 279
www.it-ebooks.info
Like Dial(), the Page() application can handle several channels. Since you will gener‐
ally want Page() to signal several sets at once (perhaps even all the sets on your system)
you may end up with lengthy device strings that look something like this:
Page(SIP/SET1&SIP/SET2&SIP/SET3&SIP/SET4&SIP/SET5&SIP/SET6&SIP/SET7&...
Beyond a certain size, your Asterisk system will be unable to page mul‐
tiple sets. For example, in an office with 200 telephones, using SIP to
page every set would not be possible; the traffic and CPU load on your
Asterisk server would simply be too much. In cases like this, you should
be looking at either multicast paging or external paging.
Perhaps the trickiest part of SIP-based paging is the fact that you usually have to tell
each set that it must auto-answer, but different manufacturers of SIP telephones use
different SIP messages for this purpose. So, depending on the telephone model you are
using, the commands needed to accomplish SIP-based set paging will be different. Here
are some examples:
• For Aastra:
exten => *724,1,Verbose(2,Paging to Aastra sets)
same => n,SIPAddHeader(Alert-Info: info=alert-autoanswer)
same => n,Set(PageDevice=SIP/00085D000000)
same => n,Page(${PageDevice},i)
•For Polycom:
exten => *724,1,Verbose(2,Paging to Polycom sets)
same => n,SIPAddHeader(Alert-Info: Ring Answer)
same => n,Set(PageDevice=SIP/0004F2000000)
same => n,Page(${PageDevice},i)
•For Snom:
exten => *724,1,Verbose(2,Paging to Snom sets)
same => n,Set(VXML_URL=intercom=true)
; replace 'domain.com' with the domain of your system
same => n,SIPAddHeader(Call-Info: sip:domain.com\;answer-after=0)
same => n,Set(PageDevice=SIP/000413000000)
same => n,Page(${PageDevice},i)
•For Cisco SPA (the former Linksys phones, not the 79XX series):
exten => *724,1,Verbose(2,Paging to Cisco SPA sets, but not Cisco 79XX sets)
same => n,SIPAddHeader(Call-Info:\;answer-after=0) ; Cisco SPA phones
same => n,Set(PageDevice=SIP/0004F2000000)
same => n,Page(${PageDevice},i)
280 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
6. Hint: the Local channel will be your friend here.
7. It even has its own Class D reserved IP address space, from 224.0.0.0 to 239.255.255.255 (but read up on IP
multicast before you just grab one of these and assign it). Parts of this address space are private, parts are
public, and parts are designated for purposes other than what you might want to use them for. For information
about multicast addressing, see this Wikipedia page.
Assuming you’ve figured that out, what happens if you have a mix of phones in your
environment? How do you control which headers to send to which phones?6
Any way you slice it, it’s not pretty.
Fortunately, many of these sets support IP multicast, which is a far better way to send a
page to multiple sets (read on for details). Still, if you only have a few phones on your
system and they are all from the same manufacturer, SIP-based paging could be the
simplest method, so we don’t want to scare you off it completely.
Multicast paging via the MulticastRTP channel
If you are serious about paging through the sets on your system, and you have more
than a handful of phones, you will need to look at using IP multicast. The concept of IP
multicast has been around for a long time,7 but it has not been widely used. Nevertheless,
it is ideal for paging within a single location.
Asterisk has a channel (chan_multicast_rtp) that is designed to create an RTP multi‐
cast. This stream is then subscribed to by the various phones, and the result is that
whenever media appears on the multicast stream, the phones will pass that media to
their speakers.
Since MulticastRTP is a channel driver, it does not have an application, but instead will
work anywhere in the dialplan that you might otherwise use a channel. In our case, we’ll
be using the Page() application to initiate our multicast.
To use the multicast channel, you simply send a call to it the same as you would to any
other channel. The syntax for the channel is as follows:
MulticastRTP/<type>/<ip address:port>[/<linksys address:port>]
The type can be either basic or linksys. The basic syntax of the MulticastRTP channel
looks like this:
exten => *723,1,Page(MulticastRTP/basic/239.0.0.1:1234)
Overhead and “Underchin” Paging (a.k.a. Public Address) | 281
www.it-ebooks.info
8. Very loud, and no way to adjust gain.
Not all sets support IP multicast, but we have tested it out on Snom,8 Linksys/Cisco,
Polycom (firmware 4.x or later), and Aastra, and it works swell.
Multicast Paging on Cisco SPA Telephones
The multicast paging feature on Cisco SPA phones is a bit strange, but once configured
it works fine. The trick of it is that the address you put into the phone is not the multicast
address that the page is sent across, but rather a sort of signaling channel.
What we have found is that you can make this address the same as the multicast address,
but simply use a different port number.
The dialplan looks like this:
exten => *724,1,Page(MulticastRTP/linksys/239.0.0.1:1234/239.0.0.1:6061)
In the SPA phone, you need to log into the Administration interface and navigate to the
SIP tab. At the very bottom of the page you will find the section called Linksys Key System
Parameters. You need to set the following parameters:
•Linksys Key System: Yes
•Multicast Address: 239.0.0.1:6061
Note that the multicast address you assign to the phone is the one that comes second in
the channel definition (in our example, the one using port 6061).
Note that you can write the Page() command in this format in an environment where
there is a mix of SPA (f.k.a. Linksys, now Cisco) phones and other types of phones. The
other phones will use the first address and will work the same as if you had used basic
instead of linksys.
VoIP paging adapters
Recently, some VoIP-based paging speakers have been introduced to the market. These
devices are addressed in the dialplan in the exact same way as a SIP ATA connected to
a UTI1, but they can be installed in the same manner as overhead speakers would be.
Since they auto-answer, there is no need to pass them any extra information, the way
you would need to with a SIP telephone set.
For smaller installations (where no more than perhaps a half-dozen speakers are re‐
quired), these devices may be cost-effective. However, for anything larger than that, (or
installation in a complex environment such as a warehouse or parking lot), you will get
282 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
better performance at far less cost with a traditional analog paging system connected
to the phone system by an analog (FXS) interface.
We don’t know if these devices support multicast. Keep this in mind if you are planning
to use a large number of them.
Combination paging
In many organizations, there may be a need for both set-based and external paging. As
an example, a manufacturing facility might want to use set-based paging for the office
area but overhead paging for the plant and warehouse. From Asterisk’s perspective, this
is fairly simple to accomplish. When you call the Page() application, you simply specify
the various resources you want to page, separated by the & character, and they will all
be included in the conference that the Page() application creates.
Bringing it all together
At this point you should have a list of the various channel types that you want to page.
Since Page() will nearly always want to signal more than one channel, we recommend
setting a global variable that defines the list of channels to include, and then calling the
Page() application with that string:
[global]
MULTICAST=MulticastRTP/linksys/239.0.0.1:1234
;MULTICAST=MulticastRTP/linksys/239.0.0.1:1234/239.0.0.1:6061 ; if you have SPA
; (Linksys/Cisco)
; phones
BOGEN=SIP/ATAforPaging ; This assumes an ATA in your sip.conf file named
; [ATAforPaging]
;BOGEN=DAHDI/25 ; We could do this too, assuming we have an analog
; FXS card at DAHDI channel 25
PAGELIST=${MULTICAST}&${BOGEN} ; All of these variable names are arbitrary.
; Asterisk doesn't care what you call these
; strings.
[page_context] ; You don't need a page context, so long as the extension you
; assign to paging is dialable by your sets
exten => *724,1,Page(${PAGELIST},i,120)
This example offers several possible configurations, depending on the hardware. While
it is not strictly required to have a PAGELIST variable defined, we have found that this
will tend to simplify the management of multiple paging resources, especially during
the configuration and testing process.
We created a context for paging for the purposes of this example. In order for this to
work, you’ll need to either include this context in the contexts where your sets enter
Overhead and “Underchin” Paging (a.k.a. Public Address) | 283
www.it-ebooks.info
9. ConfBridge() did exist with Asterisk 1.8, but it was a simple implementation that did not contain high-
definition audio- or video-conferencing.
the dialplan, or code a Goto() in those contexts to take the user to this context and
extension (i.e., Goto(page_context,*724,1)). Alternatively, you could hardcode an
extension for the Page() application in each context that services sets.
Zone Paging
Zone paging is popular in places such as automobile dealerships, where the parts de‐
partment, the sales department, and perhaps the used car department all require paging,
but have no need to hear each other’s pages.
In zone paging, the person sending the page needs to select which zone she wishes to
page into. A zone paging controller such as a Bogen PCM2000 is generally used to allow
signaling of the different zones: the Page() application signals the zone controller, the
zone controller answers, and then an additional digit is sent to select which zone the
page is to be sent to. Most zone controllers will allow for a page to all zones, in addition
to combining zones (for example, a page to both the new- and used-car sales
departments).
You could also have separate extensions in the dialplan going to separate ATAs (or
groups of telephones), but this may prove more complicated and expensive than simply
purchasing a paging controller that is designed to handle this. Zone paging doesn’t
require any significantly different technology, but it does require a little more thought
and planning with respect to both the dialplan and the hardware.
Advanced Conferencing
The ConfBridge() application is an enhanced conferencing application in Asterisk that
allows fine-grained control of participants in a conference, in addition to high-
definition audio and video conferencing. The current implementation of Conf
Bridge() was released along with Asterisk 10.9 As of Asterisk 10, the ConfBridge()
application is the de facto replacement for MeetMe(), which still works well, but doesn’t
contain the advanced features of ConfBridge(). We previously introduced a basic
working setup for ConfBridge() (see “Conferencing with ConfBridge()” on page 264)
and would encourage you to start there if you haven’t already configured your first
conference bridge.
In the confbridge.conf file, we configure both user types and bridge types. The user
type allows us to create profiles that we can assign to users before they enter the con‐
ference in order to control their permissions and assign different functionality. One
example might be having a participant profile and an administrator profile, where the
284 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
administrator has the ability to mute participants in the conference. Another might be
that no audio is passed in the conference until the leader of the conference joins. Beyond
the user profile, we also have bridge profiles that are used to define attributes for the
conference bridge itself. Some options include defining the maximum number of par‐
ticipants on the bridge, or whether to record the conference (and where to save the
recorded files).
In “Conferencing with ConfBridge()” on page 264 we configured our default user and
bridge types with a minimal set of data. Let’s take a moment to look at the available
options for each of the types.
The [general] Section
The [general] section is reserved for future use and currently doesn’t contain any global
settings.
Options for User Profiles
The options in Table 11-4 are for user profiles, which define options available to par‐
ticipants of a conference.
Table 11-4. User profile options in confbridge.conf
Option Description
admin Determines if the user is marked as an administrator of the conference. Users marked as
administrators can be given different options only available to administrators in the user
menu. The menus are defined in confbridge.conf and selected when the Conf
Bridge() application is called from the dialplan. Available options are yes or no.
Default is no.
marked Sets whether user in this profile should be marked or not. Used to start a conference
when waiting on a marked user. See wait_marked and end_marked. Available
options are yes or no. Default is no.
startmuted Sets users in this profile as muted when initially joining the conference. Available
options are yes or no. Default is no.
music_on_hold_when_empty Determines whether MOH should be played when only one conference participant
exists, or when the conference is waiting on a marked user. Available options are yes or
no. Default is no.
music_on_hold_class Sets which MOH class should be used. Default value is default.
quiet If enabled, this option will limit the sounds played into the conference, such as join
sounds and user announcements. Available options are yes or no. Default is no.
announce_user_count If enabled, the number of users in the conference are announced to the joining
participant prior to entering the conference. Available options are yes or no. Default is
no.
Advanced Conferencing | 285
www.it-ebooks.info
Option Description
announce_user_count_all Used for announcing the participant count to all members of the conference. If set to a
number, then the announcement is only played when the number of participants is
above the set number. Available options are yes, no, or a whole number. Default is no.
announce_only_user If enabled, a prompt will be played when the first participant of a conference joins,
notifying they are the only member of the conference. Available options are yes or no.
Default is yes.
wait_marked If enabled, the participant of the conference must wait for a marked user to join.
Available options are yes or no. Default is no.
end_marked Determines if remaining users after the last marked user leaves the conference are
removed from the conference. Available options are yes or no. Default is no.
dsp_drop_silence When enabled, Asterisk will drop what it detects as silence from the conference,
drastically deducing the buildup of background noise in the conference. Recommended
for large conferences where background noise can become a problem. Available options
are yes or no. Default is no.
dsp_talking_threshold A value in milliseconds—the length of time sound has remained above the baseline
value the DSP has established. The value should not be changed unless you are familiar
with the internals of how this number can affect your conference. See the conf
bridge.conf.sample file in the contribs directory of your Asterisk source for more
information.
dsp_silence_threshold Similar to dsp_talking_threshold, but looking for silence. Value in milliseconds.
Not recommended to be tuned.
talk_detection_events If enabled, a notification of when a speaker begins and ends talking is sent as an event
over AMI. Available options are yes or no. Default is no.
denoise The denoise option is useful if you’re using the speex codec, and the talker has an
elevated level of background noise. When enabled, this option will attempt to remove
background noise before the audio is mixed into the conference, while preserving the
desired speech audio. This option should not be confused with dsp_drop_silence.
Additionally, this option does come at a slight performance hit. Available options are
yes or no. Default is no.
jitterbuffer If enabled, then the jitterbuffer will be enabled on the user’s audio channel prior to
mixing. This is desirable in that it can help smooth out the audio played into the
conference bridge, at the expense of a slight delay. This option utilizes the JITTER
BUFFER() dialplan function’s adaptive mode. If fine-tuned configuration of the
jitterbuffer is desired, then disable this option, and use the JITTERBUFFER()
function prior to calling the ConfBridge() application. Available options are yes or
no. Default is no.
pin If set, then the person entering the conference will be prompted for a PIN. Valid value is
any integer.
announce_join_leave If enabled, the person entering the conference will be prompted to record their name
prior to joining the conference. The name will then be played, announcing the person
joining and leaving the conference. Available options are yes or no. Default is no.
286 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
Option Description
dtmf_passthrough When enabled, this option will allow DTMF to be passed through the conference. This is
useful when the conference bridge may be connected to an endpoint that you want to
receive DTMF; otherwise, it is absorbed by Asterisk. Available options are yes or no.
Default is no.
announcement If set, an announcement prompt is played to users when they join the conference. Value
should be a path to an announcement file.
Options for Bridge Profiles
The options listed in Table 11-5 are for bridge profiles and define settings for the con‐
ference bridge itself.
Table 11-5. Bridge profile options in confbridge.conf
Option Description
max_members Defines the maximum number of conference participants for a single conference. When the limit is
reached, the conference will be locked until a participant leaves. The only exception is that
administrators are always able to join the conference, regardless of the number of participants. Value
should be an integer. Default is unlimited participants.
record_confer
ence
When enabled, the conference will start being recorded when the first participant joins the
conference, and stop recording when the last participant leaves. The filename for the recording is in
the format confbridge-<name of the conference bridge>-<start time>.wav. The
file by default will be recorded in 8 kHz slinear. The recording will be saved in the monitoring directory
configured in asterisk.conf. Available options are yes or no.
record_file If record_conference is enabled, you can specify the filename for the recorded conference.
However, since multiple conferences could potentially use the same bridge profile, it is not
recommended to specify this option in the confbridge.conf file itself. Instead, use the CONF
BRIDGE() function to dynamically set the filename prior to entering the conference in the dialplan.
internal_sam
ple_rate
This option will set the internal conference native sampling rate at which mixing will occur. By
default, the sample rate is automatically selected; however, you can specify a value between 8,000
and 192,000. If you set a sample rate that Asterisk doesn’t support, the closest rate that Asterisk does
support will be used. Available values are auto or a value between 8000 and 192000. Default is
auto.
mixing_interval This option sets the internal mixing interval of the conference bridge, in milliseconds. Setting a higher
mixing interval can reduce the amount of load used by large conferences at the expense of a more
loosely coupled conference (e.g., delay). Valid values are 10, 20, 40, and 80. Default value is 20.
video_mode The video_mode option is used for controlling how video is distributed to conference participants
who can source and/or view video feeds.a
Participants who want to view and be the source of video must share the same video codec, such as
H.264 (in sip.conf, use allow=h264 in addition to your audio codecs). Additionally, it is recommended
that you turn off the jitterbuffer, since the jitterbuffer only works on the audio portion of the conference,
and thus can cause the audio and video to become out of sync. The available modes can be seen in
Table 11-6.
a Mixing of different video codecs is not possible. Additionally, video displayed in the conference is done for one participant at a
time (i.e., you can’t do “Brady Bunch” video).
Advanced Conferencing | 287
www.it-ebooks.info
Table 11-6. Available video modes
Option Description
none By default, no video sources are selected. You can still enable a video source for the conference via DTMF
or the AMI.
follow_talker The source video will be that of whoever is talking in the conference (loudest) and which has a video
source. The video source will see the last selected source of video, and not their own.
last_marked The source video will be the last marked user to have joined the conference. If multiple marked
conference participants joined the conference and the last marked user leaves, then the marked
participant who joined just prior to the last will become the source (and so forth).
first_marked Similar to last_marked, the first marked participant of a conference with a video source will be the
source of video for the conference. If that participant leaves, then the next marked participant with a
video source will become the source video for the conference.
Customizable conference bridge sounds
Also within the bridge profile section, you can define custom sounds to be used for that
bridge profile. The options listed in Table 11-7 show the available sound settings.
Table 11-7. Available sound options for bridge profiles
Option Description
sound_join Sound played when a participant joins the conference
sound_leave Sound played when a participant leaves the conference
sound_has_joined Sound played when announcing the name of a joining participant
sound_has_left Sound played when announcing the name of a leaving participant
sound_kicked Sound played to a participant when they have been removed from the conference
sound_muted Sound played to a participant when they have been muted
sound_unmuted Sound played to a participant when they have been unmuted
sound_only_person Sound played to a participant when they are the only member of the conference
sound_only_one Sound played to a joining participant when there is only one other participant in
the conference
sound_there_are Sound played when announcing how many participants are in the conference
sound_other_in_party The adjoining sound used with sound_there_are; the sound files are
concatenated like this: sound_there_are number_of_participants
sound_other_in_party
sound_place_into_conference Sound played to the participant when being placed into a conference after waiting
for the marked user to join
sound_wait_for_leader Sound played to the participant notifying them they are waiting for a marked user
to join the conference
sound_leader_has_left Sound played when the last marked user has left the conference
sound_get_pin Sound played to the participant when requesting a PIN for the conference
sound_invalid_pin Sound played to the participant when they have entered an invalid PIN
288 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
Option Description
sound_locked Sound played to the participant when they have attempted to join a locked
conference
sound_locked_now Sound played to an administrator after they have locked the conference
sound_unlocked_now Sound played to an administrator after they have unlocked the conference
sound_error_menu Sound played when an invalid menu option has been entered
ConfBridge Menu Options
The ConfBridge() dialplan application also has the ability to customize menus for par‐
ticipants of a conference. Options are available via DTMF and can be specified as an
argument to the ConfBridge() dialplan application like user profiles and bridge profiles.
In Table 11-8 we’ll look at the available options for custom menus as defined in conf
bridge.conf.
It is possible to string multiple options together using a single DTMF
sequence. Executing multiple actions is done by delimiting each action
with a comma (,).
Table 11-8. ConfBridge() menu options
Option Description
playback(<audio_file
name>[[&<audio_filename>]])
The playback option can be used to play audio to the participant entering
the DTMF string. The audio cannot be interupted with this option. Similar in
style to the Playback() dialplan application.
playback_and_continue(<au
dio_filename>[[&<audio_file
name>]])
Similar to playback except that it will listen for DTMF while the audio is
being played. This is useful in situations where you create an audio menu and
wish to allow DTMF to be entered during playback. Similar in style to the
Background() dialplan application.
toggle_mute Toggles mute between on and off states for the participant. While mute is
enabled, the participant’s audio will not play into the conference bridge, but
she will still be able to listen.
no_op The no_op option performs No Operation. Its purpose is simply for reserving
DTMF sequences in the menu.
decrease_listening_volume Decrease the listening volume of the participant.
increase_listening_volume Increase the listening volume of the participant.
reset_listening_volume Reset the listening volume of the participant to the default value.
decrease_talking_volume Decrease the talking volume of the participant.
increase_talking_volume Increase the talking volume of the participant.
reset_talking_volume Reset the talking volume of the participant to the default value.
Advanced Conferencing | 289
www.it-ebooks.info
Option Description
dialplan_exec(context,exten
sion,priority_label)
Use of the dialplan_exec option allows a participant to leave the
conference, execute a dialplan, and at the end of the dialplan be returned to
the conference.
leave_conference Allows the participant to leave the conference through the use of a DTMF
sequence. Dialplan execution will continue after the ConfBridge()
application.
admin_kick_last Allows an administrator to kick the last joining participant from the
conference. This option is only available to administrators so it can be safely
enabled in a common menu between users and admins.
admin_toggle_conference_lock Allows an administrator to toggle the conference being locked between on
and off. Can only be utilized by admins even if enabled in a user menu.
set_as_single_video_src Allows a participant to set themselves as the single video source for the
conference. This enables video to be stuck to a single participant, regardless
of which mode video_mode is set to.
release_as_single_video_src Releases the participant from being the sole video source for the bridge. Upon
release, the conference bridge will return to the video_mode that was set
for the conference.
admin_toggle_mute_participants Allows an administrator to toggle between muting and unmuting all
nonadmin participants in the conference. Admins will still be able to speak to
the conference. When this option is toggled, all participants including
administrators will be notified that the conference has been muted.
participant_count When used, will tell the participant how many total participants are in the
conference.
Enabling a PIN
In “Conferencing with ConfBridge()” on page 264 we built a basic configuration that
allowed us to join a ConfBridge()-based conference bridge. We’re now going to expand
on that and add a PIN to the user profile. If you haven’t already configured the basic
conference, then go ahead and do that now before continuing.
First we start with our base configuration of confbridge.conf and simply add the pin
option to the default_user profile:
[general]
[default_user]
type=user
pin=1234
[default_bridge]
type=bridge
290 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
After that we just run module reload app_confbridge.so from the console and attempt
to call our conference bridge at extension 602. When doing that we’ll see console output
similar to the following:
*CLI> module reload app_confbridge.so
-- Reloading module 'app_confbridge.so' (Conference Bridge Application)
== Using SIP RTP CoS mark 5
-- Executing [602@LocalSets:1] NoOp("SIP/0000FFFF0001-00000003", "") in new
stack
-- Executing [602@LocalSets:2] ConfBridge("SIP/0000FFFF0001-00000003", "602")
in new stack
-- <SIP/0000FFFF0001-00000003> Playing 'conf-getpin.gsm' (language 'en')
-- <SIP/0000FFFF0001-00000003> Playing 'conf-onlyperson.gsm' (language 'en')
-- <SIP/0000FFFF0001-00000003> Playing 'confbridge-join.gsm' (language 'en')
-- <Bridge/0x7fdddc004378-input> Playing 'confbridge-join.gsm' (language 'en')
Pretty straightforward, right? Well, what if we wanted to make the PIN dynamic? Per‐
haps we want to look up a PIN in a database that could be modified by an external
application. We can do this simply through the use of dynamic profiles in our dialplan.
First we’ll start with a statically defined PIN, but set from the dialplan.
We start with this simple dialplan:
[ConferenceRooms]
exten => 602,1,NoOp()
same => n,ConfBridge(${EXTEN})
We then make use of the CONFBRIDGE() dialplan function to dynamically set profile
settings prior to joining the conference. We’ll use CONFBRIDGE() to set a different PIN
than we’ve defined in the default_user profile:
[ConferenceRooms]
exten => 602,1,NoOp()
same => n,Set(CONFBRIDGE(user,pin)=4321)
same => n,ConfBridge(${EXTEN})
After making your change, just perform a dialplan reload and dial extension 602. You’ll
still be prompted for a PIN, but this time it’ll be 4321 instead of 1234.
At the risk of boring you with talk of conference PINs, let’s look at one more example.
This time we’ll override the default PIN with one contained in the AstDB. We could
also return a PIN from an external database such as MySQL, but the AstDB is nice and
simple. (See Chapter 16 for information about func_odbc, which you could use for
returning a PIN from a relational database.)
First, let’s place a PIN into our AstDB from the Asterisk console:
*CLI> database put confbridge 602/pin 1200
Updated database successfully
*CLI> database show confbridge
/confbridge/602/pin : 1200
Advanced Conferencing | 291
www.it-ebooks.info
10. Even if we had done something like Set(CONFBRIDGE(user,pin)=), the statically defined PIN in conf
bridge.conf would have taken priority, which means it’s not possible to override the PIN to nothing. We
consider this a security feature.
With our PIN of 1200 set up for conference bridge 602, we can modify our dialplan to
look up the PIN we should use for ConfBridge():
[ConferenceRooms]
exten => 602,1,NoOp()
; lookup pin for conference
same => n,Set(CONF_PIN=${DB(confbridge/${EXTEN}/pin)})
; check for blank returned value
same => n,GotoIf($[${ISNULL(${CONF_PIN})}]?join)
; set the pin
same => n,Set(CONFBRIDGE(user,pin)=${CONF_PIN})
; join the conference
same => n(join),ConfBridge(${EXTEN})
After running dialplan reload, our console output would look like this when dialing
extension 602:
-- Executing [602@LocalSets:1] NoOp("SIP/0000FFFF0001-00000006", "")
in new stack
-- Executing [602@LocalSets:2] Set("SIP/0000FFFF0001-00000006",
"CONF_PIN=1200") in new stack
-- Executing [602@LocalSets:3] GotoIf("SIP/0000FFFF0001-00000006",
"0?join") in new stack
-- Executing [602@LocalSets:4] Set("SIP/0000FFFF0001-00000006",
"CONFBRIDGE(user,pin)=1200") in new stack
-- Executing [602@LocalSets:5] ConfBridge("SIP/0000FFFF0001-00000006", "602")
in new stack
You’ll notice that we’ve added a priority label called join beside the call to the Conf
Bridge() application. We’ve done this so we have a place to jump to after checking for
a null10 value returned from the AstDB lookup. It just gives us one extra layer of control
so that if no PIN were returned, we’d fail over to the default PIN we set in confbridge.conf.
Waiting for the Marked User to Join
In certain cases it is useful to create a conference where all participants can join the
conference before the start time and wait in a waiting room prior to the leader of the
conference joining. We can enable this functionality with the use of a couple options
and a marked user. The marked user will be the leader of the conference, and when they
join, it will trigger all the participants to be moved into the conference room where they
can all speak to each other normally.
292 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
We’ll be utilizing the CONFBRIDGE() dialplan function to set up our
normal and marked participant, but it would be straightforward for you
to modify the confbridge.conf file if you preferred that method.
First, let’s set up our dialplan so that people joining the conference must wait for the
marked user, and are removed from the conference when the last marked user leaves
the conference. (Multiple marked users could join the conference, so if, say, three man‐
agers were joining the conference and one had to leave early, the conference would
continue until the last manager left.) For example:
[ConferenceRooms]
; standard participant
exten => 602,1,NoOp()
same => n,Set(CONFBRIDGE(user,wait_marked)=yes)
same => n,Set(CONFBRIDGE(user,end_marked)=yes)
same => n,Goto(conference,1)
; marked participant (with pin)
exten => 603,1,NoOp()
same => n,Set(CONFBRIDGE(user,marked)=yes)
same => n,Set(CONFBRIDGE(user,pin)=1200)
same => n,Goto(conference,1)
; same bridge for everyone
exten => conference,1,NoOp()
same => n,ConfBridge(primary)
Let’s step through our dialplan a bit. First, we have two extensions: 602 and 603. Ex‐
tension 602 has no PIN on it, and will set up people joining the conference to wait for
the first marked user to join, and will remove them from the conference when the last
marked user leaves the conference. After setting the options wait_marked and
end_marked to yes, a Goto() is performed where the ConfBridge() application is run.
Extension 603 is used to set the marked user prior to joining the conference. We also
require them to enter a PIN since we don’t just want anyone to enter as the marked user.
That’s pretty much it. Once you’ve modified your dialplan, just perform a dialplan re‐
load and everything is gravy.
Using ConfBridge() Menus
ConfBridge() menus are a method of performing various conference-based function‐
alities by entering DTMF sequences from your phone, and triggering an action while
remaining in the conference. The use of DTMF-based menus in ConfBridge() is done
by defining them in the confbridge.conf file. Once you have enabled your menu, you can
pass the name of your menu to the ConfBridge() application, which will make it active
Advanced Conferencing | 293
www.it-ebooks.info
for that participant. The various menu options are listed and described in “ConfBridge
Menu Options” on page 289. First, let’s look at how to define a new menu.
Our first menu: volume control
Let’s create a simple menu in the confbridge.conf file. Just place it at the bottom of your
file below the [default_bridge] section:
Don’t forget type=menu as the first line under the header—otherwise,
your menu won’t load into Asterisk.
[volume_ctrl_menu]
type=menu
*5=toggle_mute
1=increase_listening_volume
4=decrease_listening_volume
7=reset_listening_volume
3=increase_talking_volume
6=decrease_talking_volume
9=reset_talking_volume
The menu we’ve created allows a participant to toggle their mute status, to increase and
decrease both talking and listening volumes, and to reset them. To enable this menu,
we simply pass volume_ctrl_menu as an argument to the ConfBridge() dialplan ap‐
plication. Enabling the menu is done by reloading the app_confbridge.so module:
*CLI> module reload app_confbridge.so
-- Reloading module 'app_confbridge.so' (Conference Bridge Application)
== Parsing '/etc/asterisk/confbridge.conf': Found
Now let’s modify our dialplan so that anyone joining our conference can perform vol‐
ume control in the conference. We’ll be using our example from “Waiting for the Marked
User to Join” on page 292 as the basis of this configuration:
; same bridge for everyone
exten => conference,1,NoOp()
same => n,ConfBridge(primary,,,volume_ctrl_menu)
The only change we had to make was adding ,,,volume_ctrl_menu after the word
primary on the line that loads the ConfBridge() application. We need the three leading
commas since the menu is the fourth argument. (The second argument is the bridge
profile; the third argument is the user profile, which we’ve left blank since we’re using
the default profiles.)
After saving your change, reload the dialplan:
*CLI> dialplan reload
294 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
Log into the conference bridge. After logging in, try dialing *5. You should hear a mes‐
sage that says, “You are now muted.” If you dial *5 again, you’ll hear “You are now
unmuted.”
Advanced menus: using dialplan_exec
Let’s say we have thought of some functionality we want to perform from the conference
bridge, but looking through the available options for the ConfBridge() menu, none of
them satisfy the requirement. Luckily we have the dialplan_exec option, which allows
us to execute whatever functionality we want using dialplan programming.
The example we’re going to use is exiting from a conference temporarily, being presented
a menu to choose a phone number that you want joined into the conference, and re‐
questing to return to the conference, along with the new person being called. Let’s see
how we can do that with the dialplan_exec option:
[ConferenceRooms]
; standard participant
exten => 602,1,NoOp()
same => n,Goto(conference,1)
exten => conference,1,NoOp()
same => n,Set(thisBridge=primary)
same => n,ConfBridge(${thisBridge},,,volume_ctrl_menu)
exten => conference_joiner,1,NoOp()
same => n,Read(numberToDial,vm-enter-num-to-call)
same => n,Originate(SIP/my_itsp/${numberToDial},exten,ConferenceRooms,602,1)
In the first part of our dialplan we define extension 602, which simply does a Goto()
into the conference extension. We’ve removed the CONFBRIDGE() dialplan function
configuration, as it’s not required here. The conference extension then joins the con‐
ference bridge and passes in our volume_ctrl_menu, which will contain a DTMF se‐
quence to execute the next part of the dialplan. The conference_joiner extension is
where the magic happens. The first line performs a Read(), which asks the participant
to enter the number they wish to call.
In this case we’ve established the very bare minimum of functionality
required to make the system do what we want. In a production system,
you will likely want to put in some additional controls and checks to
make sure valid numbers are dialed, etc.
The following line makes use of the Originate() dialplan application to place the call
to the participant. The first argument is the endpoint we’re calling; we’re using SIP/
my_itsp peer, along with the number requested in the Read() application to make up
the request line. The second argument is the word exten, meaning we wish to connect
Advanced Conferencing | 295
www.it-ebooks.info
the called user to an extension in the dialplan. The following three arguments are the
location in the dialplan: ConferenceRooms context, extension 602, and priority 1.
With the changes to our dialplan made, we need a way to execute the conference_join
er extension once inside the conference bridge. We do this with a modification of our
confbridge.conf file. We’ll modify our existing volume_ctrl_menu ConfBridge() menu
to add the dialplan_exec DTMF option:
[volume_ctrl_menu]
type=menu
*5=toggle_mute
1=increase_listening_volume
4=decrease_listening_volume
7=reset_listening_volume
3=increase_talking_volume
6=decrease_talking_volume
9=reset_talking_volume
0=dialplan_exec(ConferenceRooms,conference_joiner,1)
After making the changes, we need to reload our dialplan and conference bridge
application:
*CLI> dialplan reload
*CLI> module reload app_confbridge.so
And now we can test our functionality by calling into the conference bridge, then press‐
ing the number 0. We’ll be presented with a prompt asking us to enter the number we
wish to call. After entering the number, Asterisk will call that extension and attempt to
join them to the conference bridge after answer.
Enabling Videoconferencing
One of the major features of the new ConfBridge() application is the use of videocon‐
ferencing. Probably the best part about it is that it’s really quite straightforward to im‐
plement. There are a couple of things you should know about possible gotchas in
implementing videoconferencing:
•All video participants must be using the same video codec; no video transcoding is
available in Asterisk.
•There is no video multiplexing in Asterisk; only one video source can be shown at
a time to a participant.
Beyond those two caveats, the videoconferencing in Asterisk works quite well. Let’s get
started by enabling a couple of options in sip.conf, since we’ll be focusing on using SIP
clients for our configuration.
In sip.conf there are two options we need to enable, both of which we can turn on in the
[general] section (if we just want to enable it generally for all our peers) or in a peer
296 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
configuration. We’ll control which peers get the options enabled by modifying our ex‐
isting office-phone template:
[office-phone](!)
type=friend
context=LocalSets
host=dynamic
nat=force_rport,comedia
secret=welcome
dtmfmode=auto
videosupport=yes
disallow=all
allow=g722
allow=ulaw
allow=alaw
allow=h264
We’ve added videosupport=yes and allow=h264 to our office-phone template in
sip.conf. With our changes there, let’s reload the chan_sip module while we’re thinking
of it:
*CLI> module reload chan_sip.so
We can verify our changes by running sip show peer <peer_identifier> at the Asterisk
console:
*CLI> sip show peer 0000FFFF0001
...
User=Phone : No
Video Support: Yes
Text Support : No
...
Def. Username: 0000FFFF0001
SIP Options : (none)
Codecs : (ulaw|alaw|g722|h264)
Codec Order : (g722:20,ulaw:20,alaw:20,h264:0)
...
The next step is to enable video support in our confbridge.conf file. Enabling vid
eo_mode in the bridge profile will allow us to set the type of video mode enabled in the
conference bridge. There are four types, we which we describe in “Options for Bridge
Profiles” on page 287:
•none
•follow_talker
•last_marked
•first_marked
Advanced Conferencing | 297
www.it-ebooks.info
The most popular option is follow_talker, which causes the video source to switch
among the conference bridge participants based on who is talking. We’ll enable this in
our bridge profile within the confbridge.conf file:
[default_bridge]
type=bridge
video_mode=follow_talker
With any change to the confbridge.conf file, we need to reload app_confbridge.so:
*CLI> module reload app_confbridge.so
That’s it. We can now call into the conference bridge with a SIP client that supports
H.264 video. One that has been well tested with Asterisk is Jitsi, which is cross platform
across Windows, OSX, and Linux.
Conclusion
In this chapter we explored the features.conf file, which contains the functionality for
enabling DTMF-based transfers, enabling the recording of calls during a call, and con‐
figuring parking lots for one or more companies. We also looked at various ways of
announcing calls and information to people in the office using a multitude of paging
methods, including traditional overhead paging systems and multicast paging to the
phone sets on employees’ desks. After that we delved into the ConfBridge() application,
which is extremely flexible in configuration and rich in available features. This explo‐
ration of the various methods of implementing the traditional parking, paging, and
conferencing features in a modern way will hopefully show you the flexibility Asterisk
can offer.
298 | Chapter 11: Parking, Paging, and Conferencing
www.it-ebooks.info
There ain’t no such thing as a free lunch
(TANSTAAFL).
—Robert Heinlein
1. Seriously, get your butt over to freenum.org and get your ISN today. It’s simple and free, and soon all the cool
kids will have one.
CHAPTER 12
Internet Call Routing
One of the attractions of VoIP is the concept of avoiding the use of the PSTN altogether,
and routing all calls directly between endpoints using the Internet at little or no cost.
While the technology to do this has been around for some time, the reality is that most
phone calls still cost money—even those that are routed across VoIP services.
From a technology standpoint, there are still many systems out there that cannot handle
routing VoIP calls using anything other than a dialpad on a telephone.
From a cultural standpoint, we are still used to calling each other using a numerical
string (a.k.a. a phone number). With VoIP, the concept of being able to phone somebody
using name@domain (just as we do with email) makes sense, but there are a few things
to consider before we can get there.
So what’s holding everything up?
freenum.org
The first few sections of this chapter may put you off the whole idea entirely, so we want
to start off by saying that freenum.org proposes an interim solution to the whole mess
that is so elegant, we can’t see any reason why everyone in the VoIP community won’t
embrace it.1 The basic idea behind freenum.org is, because folks are accustomed to using
a numeric dialpad on their phone, and because the Internet has an unused RFC lying
around that allows for the assignment of custom numbering plans, why not tie these
299
www.it-ebooks.info
2. Do you know where the @ symbol is on your dialpad?
3. Bear in mind that an extension in Asterisk can be any alphanumeric string, such as leif or 100.
together and deliver a DNS-compatible numbering plan that is easy to configure and
works with existing technologies? It might seem a bit complex, but it’s really rather
simple.
DNS and SIP URIs
The Domain Name System (DNS) is designed to make it easier for humans to locate
resources on the Internet. While ultimately all connections between endpoints are han‐
dled through numerical IP addresses, it can be very helpful to associate a name (such
as www.google.com) with what may in fact be multiple IP addresses.
In the case of VoIP, the use of a domain name can take something like 100@192.168.1.1
(extension@server) and make it available as leif@shifteight.org (which looks so
much sexier on a business card).
The SIP URI
A SIP URI generally looks like sip:endpoint@domain.tld. Depending on your SIP
client, you may be able to dial a SIP URI as endpoint@domain.tld, or even just as
endpoint (if you have a proxy server and the endpoint you are calling is part of your
domain).
For a SIP telephone, which often only has a numerical dialpad, it can be problematic to
dial a SIP URI by name,2 so it has become common to use numerical dialing to reach
external resources. We are also used to making “phone calls” using “phone numbers.”
The SIP protocol itself, however, only understands resource@address, so whatever you
dial must ultimately be converted to this format before SIP can do anything with it.
Usually the only reason you can dial something by “phone number” from your SIP
phone is because you are registered to a resource that understands how to convert the
numerical strings you dial into SIP URIs.
In Asterisk, the resource part of the URI (the part before the @) must match an extension
in the dialplan.3 The address portion will be the address (or hostname) of the Asterisk
server itself. So, a URI of sip:100@shifteight.org will end up at an extension called
100, somewhere in the dialplan of the server that provides SIP service for
shifteight.org.
300 | Chapter 12: Internet Call Routing
www.it-ebooks.info
4. You could actually dial this URI directly from your phone and bypass the Asterisk server, but you can see
how dialing 100 is going to be a lot more popular than trying to figure out how to type
0004f2a1b2c3@192.168.1.99 into your phone using just the numeric dialpad (it can be done, by the way).
What is dialed (100) may not in any way relate to the actual identifier of the endpoint
being connected to. For example, we might have a user named Leif whose phone may
be a device that registers itself by its MAC address, and therefore could be something
like 0000FFFF0001@192.168.1.99.4 Much of the purpose of the Asterisk dialplan is to
simplify addressing for users and to handle the complexities of the various protocols
that Asterisk supports.
SRV Records
A Service Record (SRV) is a somewhat new type of DNS record that provides informa‐
tion about available services. Defined in RFC 2782, it is often used by newer protocols
(SIP being one of them). If you want to support SIP lookups on your domain, you will
require a relevant SRV record in order to properly respond.
When a SIP connection does a lookup on leif@shifteight.org, for the purposes of
SIP, the SRV record can respond that the requested service (SIP) is actually found on
the server pbx.shifteight.org (or possibly even on a completely different domain,
such as pbx.tothemoon.net).
Internet hosting providers typically offer a web-based interface for setting up DNS re‐
cords, but many of them do not provide a good interface for SRV records (assuming
they offer anything at all). You can generally set up A records and MX records easily
enough, but SRV records can be trickier. If your host does not support SRV records,
you will need to move your DNS hosting to another provider if you want to be able to
support SIP SRV lookups for your domain.
The majority of DNS servers run BIND (Berkeley Internet Name Daemon). The BIND
record for an SRV entry for SIP will look something like this:
_sip._udp.shifteight.org. 86400 IN SRV 0 0 5060 pbx.shifteight.org.
The form of the record is detailed in Table 12-1.
Table 12-1. Components of a SIP SRV record
Name Description Example
Service Symbolic name of service _sip.
Proto Transport protocol _udp.
Name Domain name for this recordashifteight.org.
TTL Time to live (in seconds) 86400
Class DNS class field (always IN)IN
DNS and SIP URIs | 301
www.it-ebooks.info
5. This could just as easily be a proxy server, or any other server capable of handling incoming SIP connections.
Name Description Example
Priority Target host priority 0
Weight Relative weight of this record 0
Port TCP/UDP port number 5060
Target Hostname of machine providing this service pbx.shifteight.org.
a Note the trailing dot.
When you configure an SRV record, you can test it with the following Linux command:
# dig SRV _sip._udp.shifteight.org
The result will contain several components, but the section you are interested in is:
;; ANSWER SECTION:
_sip._udp.shifteight.org. 14210 IN SRV 0 0 5060 pbx.shifteight.org.
This means that your DNS server is responding correctly to an SRV lookup for
SIP to your domain by responding with the hostname of your PBX (in this case,
pbx.shifteight.org).
Any SIP requests to your domain will be referred to your Asterisk server, which will be
responsible for handling incoming SIP connections.5
If your dialplan does not understand the name/resource/endpoint portion of the SIP
URI, calls will fail. This means that if you want to be able to offer resources in your
Asterisk system by name, you will need relevant dialplan entries.
Accepting Calls to Your System
When a SIP URI comes into your Asterisk system, the resource portion of the URI will
arrive in the dialplan as an ${EXTEN}. So, for example, leif@shifteight.org would
arrive in the dialplan as leif within the ${EXTEN} channel variable in whatever context
you use to handle unauthenticated SIP calls (if you are building your dialplan using the
examples in this book, that will be the unauthenticated dialplan context).
Modifying sip.conf
Once you are familiar with the security implications of allowing unauthenticated SIP
connections, you will need to ensure that your sip.conf file allows for them. While As‐
terisk allows them by default, in earlier chapters of this book we have instructed you to
disable unauthenticated SIP calls. The logic for this is simple: if you don’t need it, don’t
enable it.
302 | Chapter 12: Internet Call Routing
www.it-ebooks.info
Since we are now interested in allowing calls from the Internet, we will need to allow
unauthenticated SIP calls. We do that by setting a general variable in the /etc/asterisk/
sip.conf file, as follows:
[general]
context=unauthenticated ; default context for incoming calls
allowguest=yes ; enable unauthenticated calls
After making this change, don’t forget to reload SIP, using this command from the
command line:
$ sudo asterisk -rx "sip reload"
or this one from the Asterisk CLI:
*CLI> sip reload
You can verify that the changes have succeeded using the Asterisk CLI command sip
show settings. What you want to see is Allow unknown access: Yes under the Global
Settings section, and Context: unauthenticated under the Default Settings
header.
Standard dialplan
In order to handle an incoming name, your dialplan needs to contain an extension that
matches that name.
A dialplan entry on the pbx.shifteight.org system might look like this:
[unauthenticated]
exten => leif,1,Goto(PublicExtensions,100,1)
exten => jim,1,Goto(PublicExtensions,101,1)
exten => tilghman,1,Goto(PublicExtensions,102,1)
exten => russell,1,Goto(PublicExtensions,103,1)
This is by far the simplest way to implement name dialing, but it is also complex to
maintain, especially in systems with hundreds of users.
In order to implement name handling in a more powerful way, you could add something
like the following to your extensions.conf file. Note that some lines have been wrapped
in this example due to space restrictions. These lines must appear on a single line in the
dialplan. All lines should start with exten =>, same =>, or a comment indicator (;).
[unauthenticated]
exten => _[A-Za-z0-9].,1,Verbose(2,UNAUTHENTICATED REQUEST TO ${EXTEN} FROM
${CALLERID(all)})
same => n,Set(FilteredExtension=${FILTER(A-Za-z0-9,${EXTEN})})
same => n,Set(CheckPublicExtensionResult=${DIALPLAN_EXISTS(PublicExtensions,
${FilteredExtension},1)})
DNS and SIP URIs | 303
www.it-ebooks.info
same => n,GotoIf($["${CheckPublicExtensionResult}" = "0"]?CheckEmailLookup)
same => n,Goto(PublicExtensions,${FilteredExtension},1)
; This is our handler for when someone dials a SIP URI with a name
same => n(CheckEmailLookup),GoSub(subEmailToExtensionLookup,start,1
(${TOLOWER(${FilteredExtension})}))
same => n,GotoIf($["${GOSUB_RETVAL}" = "NoResult"]?i,1:PublicExtensions,
${GOSUB_RETVAL},1)
same => n,Goto(i,1)
; This handles invalid numbers/names
exten => i,1,Verbose(2,Incoming call from ${CALLERID(all)} to context ${CONTEXT}
found no result)
same => n,Playback(silence/1&invalid)
same => n,Hangup()
; These are explicit extension matches (useful on small systems)
exten => leif,1,Goto(PublicExtensions,100,1)
exten => jim,1,Goto(PublicExtensions,101,1)
exten => tilghman,1,Goto(PublicExtensions,102,1)
exten => russell,1,Goto(PublicExtensions,103,1)
When a call enters the dialplan, it can match in one of two places: it can match our
pattern match at the top, or it can match the explicit named extensions closer to the
bottom of our example (i.e., leif, jim, tilghman, or russell).
If the call does not explicitly match our named extensions, the pattern match will be
utilized. Our pattern match of _[A-Za-z0-9]. matches any string starting with an al‐
phanumeric character followed by one or more other characters.
The incoming string needs to be made safe, so we utilize the FILTER() function to
remove nonalphanumeric characters and assign the result to the FilteredExtension
channel variable.
The DIALPLAN_EXISTS() function will be used to see if the request matches anything in
the PublicExtensions context. This function will return either a 0 (if no match is
found) or a 1 (when a match is found) and assign the result to the
CheckPublicExtensionResult channel variable.
The next line is a GotoIf() that checks the status of the CheckPublicExtensionRe
sult variable. If the result returned was 0, the dialplan will continue at the CheckEmail
Lookup priority label. If the result was anything other than 0 (in this case, the other result
could have been a 1), the next line of the dialplan will be executed. This line will perform
a Goto() and continue execution in the PublicExtensions context (presumably to dial
our destination endpoint).
304 | Chapter 12: Internet Call Routing
www.it-ebooks.info
6. We explain the use of subEmailToExtensionLookup in the following section.
Assuming our CheckPublicExtensionResult variable was a 0, our dialplan will con‐
tinue at the CheckEmailLookup priority label, where we use the subroutine
subEmailToExtensionLookup via a GoSub().6 We pass the value contained within the
FilteredExtension channel variable to the subroutine, but you’ll notice that we’ve
wrapped it in the TOLOWER() dialplan function (which expects your email addresses to
be stored in lowercase as opposed to mixed case).
Upon return from the subEmailToExtensionLookup subroutine, we check the GO
SUB_RETVAL channel variable (which was automatically set when the subroutine re‐
turned). The result will be one of two things: the extension number that matches the
name that was passed to the subroutine, or the string NoResult. Our dialplan checks
${GOSUB_RETVAL}, and if it contains NoResult, the caller is passed to the i (invalid)
extension, where we inform the caller that the extension dialed is invalid. If all is well,
the call will continue execution in the PublicExtensions context.
File parsing
This little trick will allow you to use the voicemail.conf file to look up valid usernames
against their email address. This could end up being kludgy, and it requires that the
email field in voicemail.conf is filled out and contains a username (before the @ symbol)
that you will support in your dialplan, but it’s simple to code in the dialplan, and if
nothing else it will give you some ideas about how you might provide a more automated
way to link names to extension numbers for SIP URI dialing. Note that this method will
not allow you to exclude some people from name dialing. It’s all or nothing.
We’ve written this as a subroutine, which is invoked something like this:
; where 'name' is the username as found in the email address
GoSub(subEmailToExtensionLookup,start,1(name))
The subroutine looks like this:
[subEmailToExtensionLookup]
exten => start,1,Verbose(2,Checking for user in voicemail.conf)
same => n,Set(LOCAL(FilteredExtension)=${FILTER(a-z0-9,${ARG1})})
same => n,Set(LOCAL(Result)=${SHELL(grep "${LOCAL(FilteredExtension)}@"
/etc/asterisk/voicemail.conf)})
same => n,GotoIf($[${ISNULL(${LOCAL(Result)})}]?no_Result,1)
same => n,Set(LOCAL(ExtensionToDial)=${CUT(${LOCAL(Result)},=,1)})
same => n,Set(LOCAL(ExtensionToDial)=${FILTER(0-9,${LOCAL(ExtensionToDial)})})
same => n,Return(${LOCAL(ExtensionToDial)})
exten => no_Result,1,Verbose(2,No user ${ARG1} found in voicemail.conf)
same => n,Return(NoResult)
DNS and SIP URIs | 305
www.it-ebooks.info
While it may be useful to denote ${LOCAL(Result)} as being a local
variable, once that variable name has been set as LOCAL() by the Set()
application, it is no longer necessary to refer to it with the LOCAL()
construct. You can additionally Set() the variable name a second time
(without the LOCAL() prefix), and it still refers to the LOCAL() construct,
and it will still go away when the subroutine returns.
Let’s go over this code, because there are some useful actions being performed that you
may be able to apply to other purposes.
First, a channel variable named FilteredExtension is created. This variable is local to
the subroutine:
Set(LOCAL(FilteredExtension)=${FILTER(a-z0-9,${ARG1})})
The FILTER() function looks at the entire ${ARG1} and removes any nonalphanumeric
characters. This is primarily for security reasons. We are passing this string out to the
shell, so it’s critical to ensure it will only contain characters that we expect.
The next step is where the coolness happens:
Set(LOCAL(Result)=${SHELL(grep "${LOCAL(FilteredExtension)}@"
/etc/asterisk/voicemail.conf)})
The shell is invoked in order to run the grep shell application, which will search through
the voicemail.conf file, return any lines that contain name@, and assign the result to the
variable ${Result}:
GotoIf($[${ISNULL(${LOCAL(Result)})}]?no_result,1)
If no lines contain the string we’re looking for, we’ll return from the subroutine the value
NoResult (which will be found in the ${GOSUB_RETVAL} channel variable). The dialplan
section that called the subroutine will need to handle this condition.
Alternatively, instead of using no_result,1 for your location, you could set the
same thing using an arbitrarily high priority number along with a priority label
to make things a bit cleaner. If you do this, then the destination would simply be
no_result (instead of no_result,1) and your destination would look like:
same => 10000(no_result),Verbose(2,No user ${ARG1} found in voicemail.conf)
same => n,Return(NoResult)
We’ve created an extension named no_result for this purpose:
exten => no_result,1,Verbose(2,No user ${ARG1} found in voicemail.conf)
same => n,Return(NoResult)
306 | Chapter 12: Internet Call Routing
www.it-ebooks.info
7. In actual fact, what we are extracting is the voicemail box number; however, this number is generally going
to be the same as the user’s dialable internal extension number. If it is not the same, this particular technique
will not accomplish name-to-extension lookups, and another way will have to be found.
If ${Result} is not null, the next steps will clean up ${Result} in order to extract the
extension number7 of the user with the name passed in ${ARG1}:
Set(LOCAL(ExtensionToDial)=${CUT(${LOCAL(Result)},=,1)})
The CUT() function will use the = symbol as the field delimiter and will assign the value
from the first field found in ${Result} to the new variable ExtensionToDial. From
there, we simply need to trim any trailing spaces by filtering all nonnumeric characters:
Set(LOCAL(ExtensionToDial)=${FILTER(0-9,${LOCAL(ExtensionToDial)})})
We can now return the extension number of the name we received:
Return(${LOCAL(ExtensionToDial)})
This example was something we whipped up for the purposes of illustrating some
methods you can employ in order to easily match names to extension numbers for the
purposes of SIP URI dialing. This is by no means the best way of doing this, but it is
fairly simple to implement, and in many cases may be all that you need.
Database lookup
Using a database is by far the best way to handle user information on larger, more
complex systems. We will discuss integrating Asterisk with databases in more detail in
Chapter 16, but it is useful to introduce the concept here.
A database is ideal for handling name lookup, as it makes maintenance of user data (and
integration with external systems such as web interfaces) far simpler. However, it does
require a bit more effort to design and implement.
The example we will use in this chapter will work, but for a production environment it
is probably too simplistic. Our goal here is simply to give you enough information to
understand the concept; a tighter integration is part of what is covered in Chapter 16.
First, we’ll need a table to handle our name-to-extension mapping. This could be a
separate table from the main user table, or it could be handled in the main user table,
provided that that table contains a field that will contain the exact strings that users will
publish as their SIP URIs (as an example, some companies have rules regarding how
email addresses look, so Leif might have a URI such as lmadsen@shifteight.org, or
leif.madsen@shifteight.org).
If you are serious about implementing this example in a production
system, make sure you are familiar with the material in Chap‐
ter 16, as some key concepts are covered there that we omit here.
DNS and SIP URIs | 307
www.it-ebooks.info
Our sample NameMapping table looks like Table 12-2.
Table 12-2. NameMapping table
Name Extension Context
leif 100 publicExtensions
leif.madsen 100 publicExtensions
lmadsen 100 publicExtensions
jim 101 publicExtensions
reception 0 Servicesa
voicemail *98 Services
a Make sure this context exists on your system.
We believe that having a separate table that only handles name-to-extension/context
mapping is the most useful solution, since this table can be used to handle more than
just users with telephone sets. You are encouraged to come up with other ways to handle
this that may be more suitable to your environment.
In the dialplan, we would refer to this table using Asterisk’s func_odbc function:
[subLookupNameInNameMappingTable]
exten => start,1,Verbose(2,Looking up ${ARG1})
; where 'name' is the username as found in the email address
same => n,Set(ARRAY(CalleeExtension,CalleeContext)=${ODBC_NAME_LOOKUP(${ARG1})})
same => n,GotoIf($[${ISNULL(${CalleeExtension})}]?no_result,1)
same => n,GotoIf($[${ISNULL(${CalleeContext})}]?no_result,1)
same => n,Return() ; You'll need to handle the new CalleeExtension and
; CalleeContext variables in the code that called this
; subroutine
exten => no_result,1,Verbose(2,Name was not found in the database.)
same => n,Return(NoResult)
The /etc/asterisk/func_odbc.conf file will require the following entry:
[NAME_LOOKUP](DB)
readsql=SELECT Extension,Context FROM NameMapping WHERE Name='${SQL_ESC(${ARG1})}'
Keep in mind that there’s no reason you can’t reference more than one
datastore to look up names. For example, you might have a table such
as the one we’ve described here, but also have a secondary lookup that
goes to, say, an LDAP database to try to resolve names there as well.
This can get complicated to configure and maintain, but if designed
right it can also mean that your Asterisk system can be tightly integrated
with other systems in your enterprise.
308 | Chapter 12: Internet Call Routing
www.it-ebooks.info
8. Technically, the characters ! # $ % & ' * + / = ? ^ ` { | } ~ are also valid as part of the local-
part of an email address; however, they are uncommon, and we have elected not to allow them in our dialplan
examples.
Details on how to handle all of this in your dialplan are beyond the scope of this book.
Suffice it to say that in your dialplan you will still need to handle the values that your
subroutine creates or assigns.
Dialing SIP URIs from Asterisk
Asterisk can dial a SIP URI as easily as any other sort of destination, but it is the endpoint
(namely, your telephone) that is ultimately going to shoulder the burden of composing
the address, and therein lies the difficulty.
Most SIP telephones will allow you to compose a SIP URI using the dialpad. This sounds
like a great idea at first, but since there are no typewriter keys on a phone set, in order
to dial something like jim.vanmeggelen@shifteight.org, what you would need to
actually input into the phone would be something along the lines of:
5-444-6-*-888-2-66(pause)-6-33-4(pause)-4-33-555-33-66-#-7777-44(pause)
-444-333-8-33-
444-(pause)-4(pause)-44-8-*-666-777-4
To support this in your dialplan, you would need something similar to this:8
exten => _[0-9a-zA-Z].,1,Verbose()
same => n,Set(FilteredExtension=${FILTER(0-9a-zA-Z@-_.,${EXTEN})})
same => n,Dial(SIP/${FilteredExtension})
It’s simple, it’s fun, and it works! … ?
The reality is that until all phones support complex and flexible address books, as well
as a QWERTY-style keyboard (perhaps via touchscreen), SIP URI dialing is not going
to take off.
If you have a SIP URI that you want to dial on a regular basis (for example, during the
writing of this book there were many calls made between Jim and Leif), you could add
something like this to your dialplan:
exten => 5343,1,Dial(SIP/leif.madsen@shifteight.org)
With this in your dialplan, you could dial 5343 (LEIF) on your phone and the Asterisk
dialplan would translate it into the appropriate SIP URI. It’s not practical for a large
number of URIs, but for a few here and there it can be a helpful shortcut.
But keep reading, because there are some very useful components of DNS that simplify
the process of dialing directly between systems without the use of the PSTN.
DNS and SIP URIs | 309
www.it-ebooks.info
9. With the exception of 24 countries and territories in country code 1, which are all part of the North American
Numbering Plan Authority (NANPA).
ENUM and E.164
Although the SIP protocol really doesn’t think in terms of phone numbers, the reality
is that phone numbers are not going away any time soon, and if you want to properly
integrate a VoIP system with as many telephone networks as possible, you’re going to
need to handle the PSTN in some way.
ENUM maps telephone numbers onto the Domain Name System (DNS). In theory,
ENUM is a great idea. Why not cut out the PSTN altogether, and simply route phone
calls directly between endpoints using the same numbering plan? We’re not sure this
idea is ever going to become what the emerging telecom community would like it to be,
though. The reason? Nobody really can say who owns phone numbers.
E.164 and the ITU
The International Telecommunication Union (ITU) is a United Nations agency that is
actually older than the UN itself. It was founded in 1865 as the International Telegraph
Union. The ITU-T sector, known for many decades as CCITT (Comité consultatif in‐
ternational téléphonique et télégraphique), is the standards body responsible for all of
the protocols used by the PSTN, as well as many that are used in VoIP. Prior to the advent
of VoIP, the workings of the ITU-T sector were of little interest to the average person,
and membership was generally limited to industries and institutions that had a vested
interest in telecommunications standards.
ITU standards tend to follow a letter-dot-number format. ITU-T standards you may
have heard of include H.323, H.264, G.711, G.729, and so forth.
E.164 is the ITU-T standard that defines the international numbering plan for the PSTN.
If you’ve ever used a telephone, you’ve used E.164 addressing.
Each country in the world has been assigned a country code,9 and control of addressing
in those countries is handled by the local authorities.
E.164 numbers are limited to 15 digits in length (excluding the prefix).
In Asterisk, there is nothing special that needs to be done in order to handle E.164
addressing, other than to make sure your dialplan is suitable to the needs of any PSTN-
compatible channels you may have.
For example, if you’re operating in a NANP country, you will probably need to have the
following pattern matches:
_NXXNXXXXXX
_1NXXNXXXXXX
310 | Chapter 12: Internet Call Routing
www.it-ebooks.info
_011X.
_N11
In the UK, you might need something more like this:
_0[123789]XXXXXXXXX
_0[123789]XXXXXXXX
And in Australia, your dialplan might have these pattern matches:
_NXXXXXXX
_0XXXXXXXXX
Please don’t just copy and paste these pattern matches into your
dialplan. The peculiarities of regional dialplans are tricky, and change
constantly. One important item that needs to be carefully considered is
the region-specific number for emergency calling, as discussed in
“Emergency Dialing” on page 181. You don’t want to get this stuff
wrong.
The North American Numbering Plan Authority
In much of North America, the North American Numbering Plan (NANP) is in use. All
countries in the NANP are assigned to country code 1. Canada and the US are the most
well-known of these countries, but the NANP actually includes around 24 different
countries and territories (mostly in the Caribbean).
ENUM
In order to allow the mapping of E.164 numbers onto the DNS namespace, a way of
representing phone numbers as DNS names had to be devised.
This concept is defined in RFC 3761, helpfully named “The E.164 to Uniform Resource
Identifiers (URI) Dynamic Delegation Discovery System (DDDS) Application
(ENUM).” ENUM reportedly stands for Electronic NUmber Mapping.
According to the RFC, converting a phone number into an ENUM-compatible address
requires the following algorithm:
1. Remove all characters with the exception of the digits.
For example, the First Well Known Rule produced the Key
"+442079460148". This step would simply remove the
leading "+", producing "442079460148".
2. Put dots (".") between each digit. Example:
4.4.2.0.7.9.4.6.0.1.4.8
3. Reverse the order of the digits. Example:
ENUM and E.164 | 311
www.it-ebooks.info
8.4.1.0.6.4.9.7.0.2.4.4
4. Append the string ".e164.arpa" to the end. Example:
8.4.1.0.6.4.9.7.0.2.4.4.e164.arpa
Clear as mud?
ENUM has not taken off. The reasons appear to be mostly political in nature. The
problem stems from the fact that there is no one organization that controls numbering
on the PSTN the way that IANA does for the Internet. Since no one entity has a clear
mandate for managing E.164 numbers globally, the challenge of maintaining an accurate
and authoritative database for ENUM has proved elusive.
Some countries in Europe have done a good job of delivering reliable ENUM databases,
but in country code 1 (NANP), which contains multiple countries and therefore multiple
regulatory bodies, the situation has become an illogical mess. This is hardly surprising,
since the carriers that control E.164 addressing can’t reasonably be expected to get en‐
thusiastic about allowing you to bypass their networks. The organizations responsible
for implementing ENUM in North America have tended to work toward creating a
PSTN on the Internet, which could save them money, but not you or me.
This is not at all what is wanted. Why would I want to route VoIP calls from my system
to yours across a network that wants to charge me for the privilege? SIP is designed to
route calls between endpoints, and has no real use for the concept of a carrier.
The advantage of all this is supposed to be that when an ENUM lookup is performed,
a valid SIP URI is returned.
Asterisk and ENUM
Asterisk can perform lookups against ENUM databases using either the ENUMLOOK
UP() function or a combination of the ENUMQUERY() and ENUMRESULT() dialplan func‐
tions. ENUMLOOKUP() only returns a single value back from the lookup, and is useful
when you know there is likely to only be one return value (such as the SIP URI you want
the system to dial), or if you simply want to get the number of records available.
Status of ENUM Around the World
In the NANP (and many other) countries, the official e164.arpa zone has not been for‐
mally implemented, and therefore there is no official place to go to perform ENUM
lookups for NANP numbers.
A list of the statuses of various countries’ implementations of ENUM can be found at
http://enumdata.org/. For those countries fortunate enough to have ENUM in produc‐
tion, you can perform ENUM lookups directly to their e164.arpa zones.
312 | Chapter 12: Internet Call Routing
www.it-ebooks.info
10. More to the point, perhaps, is that E.164 numbers are controlled by far too many organizations, each one
subjected to different regulations, and having goals that are not always compatible with the concept of global,
free VoIP calling.
For countries without e164.arpa zones, there are several alternative places to perform
lookups, the most popular currently being http://www.e164.org. Note that these
organizations have no formal mandate to maintain the zones they represent. They are
community-based, best-effort projects, and the data contained in them will frequently
be out-of-date.
An ENUM lookup in the dialplan might look like this:
exten => _X.,1,Set(CurrentExten=${FILTER(0-9,${EXTEN})})
same => n,Set(LookupResult=${ENUMLOOKUP(${CurrentExten},sip,,,e164.arpa)})
same => n,GotoIf($[${EXISTS(${LookupResult})}]?HaveLocation,1)
same => n,Set(LookupResult=${ENUMLOOKUP(${CurrentExten},sip,,,e164.org)})
same => n,GotoIf($[${ISNULL(${LookupResult})}]?NormalCall,1:HaveLocation,1)
exten => HaveLocation,1,Verbose(2,Handle dialing via SIP URI returned)
exten => ...
exten => NormalCall,1,Verbose(2,Handle dialing via standard PSTN route)
exten => ...
The dialplan code we just looked at will take the number dialed and pass it to the
ENUMLOOKUP() function. It requests the method type to be sip (we want the SIP URI
returned) and the lookup to be performed first against the listings in DNS found in the
e164.arpa zone, and next against the records found at http://www.e164.org.
Outside the countries that have implemented it, there is little uptake of ENUM. As such,
many ENUM queries will not return any results. This is not expected to change in the
near future, and ENUM will remain a curiosity until more widely implemented.
ISN, ITAD, and freenum.org
Finally we get to the cool part of this chapter.
The biggest shortcoming of ENUM is that it uses a numbering system that is not under
the control of any Internet numbering authorities.10 The freenum.org project solves this
problem by utilizing a numbering scheme that is managed by IANA. This means that a
formal, globally valid, nongeographic numbering system for VoIP can be immediately
and easily implemented without getting mired in the bureaucracy and politics that bur‐
den the E.164 numbering system.
ISN, ITAD, and freenum.org | 313
www.it-ebooks.info
11. This character has nothing to do with the software that is the subject of this book; it simply refers to the *
that is on the dialpad of every telephone. We wonder what might have been if, instead of Asterisk, Mark
Spencer had decided to call his creation Octothorpe.
12. ITAD 1273 is assigned to shifteight.org.
13. If you think of the string 0*1273 in terms of email address formatting, the 0 is your name, the asterisk symbol
as the @ symbol representative of email addresses, and the ITAD number as the numerical representation of
your company’s domain name.
Goal of the freenum.org Project
John Todd, who manages the project, notes that:
Freenum.org is a DNS service that uses ENUM-like mapping methods to allow many
services to be mapped to a keypad-friendly string. The most obvious and widely used
method for this is connecting VoIP users together for free by creating an easily re‐
membered dial string that maps to SIP URIs in the background. However, anything that
can appear in a NAPTR record (email, instant messenger, web addresses) can be mapped
to an ISN-style freenum.org address. The goal of the project is to provide free numeric
pointers to the billions of phones that support only 0–9, *, and # characters and allow
those devices to communicate via VoIP or other next-generation protocols. The project
is spread out across more than 30 DNS servers worldwide.
Got ISN?
The heart of the freenum.org concept is the ITAD Subscriber Number (ISN). The ISN
is a numeric string that is composed of an extension number on your system, an asterisk
character separator (*),11 and a number that is unique to your organization called an IP
Telephony Administrative Domain (ITAD) number. The advantage of the ISN is that it
can be dialed from any telephone. An ISN would look something like this:
0*1273
which would represent extension zero at ITAD 127312 and would resolve
to sip:0@shifteight.org.
You control your extension numbers (everything to the left of the *). Your ITAD is
assigned by IANA (the same organization that controls IP and MAC addresses).13
Once your ITAD is assigned, you will be able to publish ISNs on your website, or on
business cards, or wherever you would normally publish phone numbers.
314 | Chapter 12: Internet Call Routing
www.it-ebooks.info
14. Although freenum.org can handle ITADs that resolve to non-SIP URIs, the handling of multiple protocols is
beyond the scope of this book. For now, we recommend you restrict your ISN to handling SIP URIs.
15. AfriNIC, APNIC, ARIN, LACNIC, and RIPE NCC.
As consultants, we’ve recently started assigning ITAD numbers to all
the organizations we perform deployments for. A lot of companies won’t
really understand why they might want to use ISN numbers, but it be‐
comes a nice feature when their contact lists contain your own direct
ISN number for service, or they start interacting with other organiza‐
tions that have ITADs. Leif has even set it up at his wife’s office so he
can call her at lunch for free.
Any system capable of dialing ISNs will allow its users to call you by dialing your ISN.
Calls will be routed directly between the two systems using the SIP URI that freenum.org
returns.
ITAD Subscriber Numbers (ISNs)
The ISN does not replace a SIP URI, but rather complements it by allowing dialing of
VoIP numbers using only characters found on a standard telephone dialpad. In order
to resolve an ISN into a valid URI, the DNS system will query the ISN against the
freenum.org domain. Any DNS lookup against your ISN will return a URI that defines
how your system expects to receive calls to that ISN.14
Management of Internet Numbering
The Internet Assigned Numbers Authority (IANA) is the body responsible for managing
any numbering system that exists as a result of an RFC that requires a numerical database
of some kind. The most well-known responsibility of IANA is the delegation of IP
addresses to the five Regional Internet Registries that control all of the public IP ad‐
dresses on the planet.15 These organizations are responsible for the assignment of
IP addresses within their regions.
There are many other numbering schemes that have been created as a result of an RFC.
Other IANA-managed numbers include MAC addresses—specifically, the Organiza‐
tionally Unique Identifier (OUI) portion of the MAC addressing space.
Several years ago, a protocol named TRIP (Telephony Routing over IP) was created.
While this protocol never took off, and is unlikely to see any future growth, it did offer
us one incredibly useful thing: the ITAD. Since ITADs are part of an RFC, the IANA is
mandated to maintain a database of ITADs. This is what makes freenum.org possible.
ISN, ITAD, and freenum.org | 315
www.it-ebooks.info
16. Note that freenum.org has consulted with the folks at IANA in regard to the use of ITADs with protocols
other than TRIP.
IP Telephony Administrative Domains (ITADs)
Freenum.org takes advantage of IANA’s responsibility to maintain a database of ITAD
numbers and allows us to build simple, standards-based, globally relevant, and
community-driven numbering plans for VoIP.16 You can find the list of currently as‐
signed ITAD numbers at the IANA website.
You will want to obtain your own ITAD number by submitting the form located at
http://www.iana.org/cgi-bin/assignments.pl.
This form should be filled out as shown in Figure 12-1.
Figure 12-1. Request for Assignments form
The following information is required on the form:
1. Name of the person responsible for this application.
2. Email address of said person.
3. ITAD (IP Telephony Administrative Domain).
316 | Chapter 12: Internet Call Routing
www.it-ebooks.info
17. This may take a few days, so if you’ve received your ITAD from IANA but not yet a password from
freenum.org, give it some time.
4. General IANA directory of ITAD number listings, as found at http://www.iana.org/
assignments/trip-parameters.
5. Participation in ISN trial (http://www.freenum.org).
6. ITADs (IP Telephony Administrative Domain) are defined in “Telephony Routing
over IP (TRIP)” [RFC 3219].
Additionally, be sure to include your postal mailing address, as this is a requirement
for ITAD registration.
Your application will be reviewed by a Real Human Being™, and within a few days you
should be assigned an ITAD by IANA. A few days later, you will also receive information
for your freenum.org account (there is currently a simple review process to ensure that
bots and spammers don’t abuse the system). You will then need to log onto the
freenum.org site and define the parameters for your ITAD.
Create a DNS Entry for Your ITAD
In the top-right corner of the freenum.org site, you will see a “Sign in here” link. Your
username is the email address you registered with IANA, and your password will have
been emailed to you by the freenum.org system.17
You will be presented with a list of your assigned ITADs. In order for your new ITAD
to work, you will need to ensure the DNS records are up-to-date.
There are two methods of handling DNS for your ITAD. The first
(and simplest) is to have a Name Authority Pointer (NAPTR) record
inserted into the freenum.org zone. The other way is to create a zone
for your ITAD, and have freenum.org delegate that zone to your name
servers. We will only discuss the first method here, but if you are
familiar with NAPTR/ENUM administration for a DNS server, you
can use the second method.
The freenum.org folks have created the Freenum Automated Self-Service Tool (FASST)
to simplify DNS record entry for you. The essential fields will already be filled out. The
only thing you need to change is under the DNS Setting section of the form: specify the
hostname of your PBX and save the changes. The FASST tool uses a regular expression
to convert an ISN lookup to a SIP URI.
ISN, ITAD, and freenum.org | 317
www.it-ebooks.info
In order to specify your hostname, you will need to modify the sample regular expres‐
sion provided by FASST, changing the sample hostname sip.yourdomain.com to the
hostname of your PBX. So, for example, in our case we would want to change:
!^\\+*([^\\*]*)!sip:\\1@sip.yourdomain.com!
to:
!^\\+*([^\\*]*)!sip:\\1@pbx.shifteight.org!
The other fields in the DNS entry should not be changed unless you know what you are
doing. The rest of the fields in the form are optional, and can be filled out as you see fit.
Using Delegated Zones for Geographically Diverse Offices
John Todd notes:
For those sites which have extremely complex configurations or geographically diverse
offices with different SIP servers handling different prefixes (for instance: 12xxx goes
to the Asterisk server in France, 13xxx to the Asterisk server in Germany, and so on)
then there are more sophisticated methods where you run your own delegated zone out
of the freenum.org domain, but those are outside the scope of this book but can be
learned about on the freenum.org site.
Testing Your ITAD
As is often the case with DNS changes, it can take a few days for your changes to prop‐
agate through the system. To check, you can Google for “online dig tool” to find a web-
based lookup tool, or use the dig tool under Linux:
$ dig NAPTR 4.3.2.1.1273.freenum.org
Once your record is updated in the system, the result will include the following:
;; ANSWER SECTION:
4.3.2.1.1273.freenum.org. 86400 IN NAPTR 100 10 "u" "E2U+sip"
"!^\\+*([^\\*]*)!sip:\\1@shifteight.org!" .
If the answer section does not include the regular expression containing your domain
name, the records have not updated and you should wait a few more hours (or even
leave it for a day).
Using ISNs in Your Asterisk System
So now that you’ve got your own ITAD (you did sign up, right?), you’ll want to make it
available to others, and also configure your dialplan to allow you to dial other ITADs.
318 | Chapter 12: Internet Call Routing
www.it-ebooks.info
18. If people publish the users’ full DIDs instead of their internal extension numbers, the pattern matches will
need to support up to 15 digits.
Under the [globals] section of your dialplan (/etc/asterisk/extensions.conf), add a
global variable that contains your ITAD:
[globals]
ITAD = 1273 ; replace '1273' with your own ITAD number
To allow calling to ITADs from your system, you will need something like the following
dialplan code:18
[OutgoingISN]
exten => _X*X!,1,GoSub(subFreenum,start,1(${EXTEN}))
exten => _XX*X!,1,GoSub(subFreenum,start,1(${EXTEN}))
exten => _XXX*X!,1,GoSub(subFreenum,start,1(${EXTEN}))
exten => _XXXX*X!,1,GoSub(subFreenum,start,1(${EXTEN}))
exten => _XXXXX*X!,1,GoSub(subFreenum,start,1(${EXTEN}))
; you may need to add more lines here to handle…
[subFreenum]
exten => start,1,Verbose(2,Performing ISN lookup)
same => n,Set(ISN=${FILTER(0-9*,${ARG1})})
same => n,Set(Result=${ENUMLOOKUP(${ISN},sip,s,,freenum.org)})
same => n,GotoIf($[${EXISTS(${Result})}]?call,1:no_result,1)
exten => call,1,Verbose(2,Placing call to ISN --${ISN}-- via ${Result})
same => n,Dial(SIP/${Result})
same => n,Return()
exten => no_result,1,Verbose(2,Lookup for ISN: --${ISN}-- returned no result)
same => n,Playback(silence/1&invalid)
same => n,Return()
We have added two new contexts to our dialplan: OutgoingISN and subFreenum. The
OutgoingISN context controls who can dial ISN numbers from within your dialplan. If
you have been following our examples throughout this book, you should have a context
called LocalSets, which is the context where all your telephones enter the dialplan.
Including OutgoingISN within LocalSets enables dialing of ISN numbers:
[LocalSets]
include => OutgoingISN ; include the context that enables ISN dialing
include => external ; use subroutine to determine what you can dial
We have placed the OutgoingISN include above the external include
because Asterisk will perform extension matching in the order of the
includes, and since external has a more general pattern match than
our OutgoingISN pattern matches, we need to make sure
OutgoingISN appears first.
ISN, ITAD, and freenum.org | 319
www.it-ebooks.info
19. If you’ve set up your ITAD and ISN correctly, the conversion from ISN dial string to SIP URI will take place
before the call arrives on your doorstep.
The magic for dialing ISN numbers is handled in the subFreenum context. Our Out
goingISN context will pass the requested extension (e.g., 1234*256) to the subFree
num subroutine. After the initial call to Verbose() on the first line, the subroutine will
filter the request for numbers and the asterisk (*) character to make the extension safe.
The result will then be assigned to the ISN channel variable:
exten => start,n,Set(ISN=${FILTER(0-9*,${ARG1})})
The subroutine will then perform a lookup for the ISN via the DNS system using the
ENUMLOOKUP() dialplan function. Options passed to the ENUMLOOKUP() function include:
•The ISN number to look up
• The method type to look up and return (SIP)
•The s option, which tells Asterisk to perform an ISN-style lookup instead of a
standard ENUM lookup
•The zone suffix for performing the lookups (we’ll use freenum.org, but the default
is e164.arpa)
Our code for performing the lookup then looks like this:
exten => start,n,Set(Result=${ENUMLOOKUP(${ISN},sip,s,,freenum.org)})
Following the lookup and storing the result in the ${Result} channel variable, our
subroutine will verify whether we received a result or not:
exten => start,n,GotoIf($[${EXISTS(${Result})}]?call,1:no_result,1)
If no result is received, the call will be handled in the no_result extension. If a result is
received back from our lookup, then execution will continue at the call extension where
the call will be placed using the result stored in the ${Result} channel variable.
Receiving calls to your ITAD
Receiving calls to your ITAD is much simpler. If your system supports incoming SIP
URIs, ISNs will already work for you.19 We showed the configuration required to accept
calls to your system in “Accepting Calls to Your System” on page 302.
Security and Identity
It is a sad fact of the Internet that there are a few selfish, greedy criminal types out there
who think nothing of attempting to take advantage of people for their own gain. In
telecom, this behavior represents several risks to you.
320 | Chapter 12: Internet Call Routing
www.it-ebooks.info
20. A DMZ is any portion of your network that you expose to the Internet (such as your website), and therefore
cannot completely trust. It is not uncommon for organizations to place the PBX within a DMZ.
In this section, we will focus on security issues relating to the portions of your system
that you intend to make publicly available through the Internet. While it would be simple
to just refuse to allow any sort of external connections, the reality is that if you want
people to be able to call you for free from the Internet (for example, if you intend to
publish your company’s SIP URIs on your web page), you are going to have to define a
secure place within your system where those calls will arrive. Securing your incoming
public VoIP connections is conceptually similar to implementing a DMZ in traditional
networking.20
In Asterisk, certain contexts in your dialplan cannot be trusted. This means that you
will need to carefully consider what resources are available to channels that enter the
system through these contexts, and ensure that only certain services and features are
available.
Toll Fraud
Toll fraud is by far the biggest risk to your phone system in terms of the potential for
ruinous cost. It is not unheard of for fraudsters to rack up tens of thousands of dollars
in stolen phone calls over the course of a few days.
Toll fraud is not a new thing, having existed prior to VoIP; however, the enabling nature
of VoIP makes it easier for fraudsters to take advantage of unsecured systems. Most
carriers will not take responsibility for these costs, and thus if your system is compro‐
mised you could be stuck with a very large phone bill. While carriers are getting better
and better at alerting their customers to suspicious activity, that does not absolve you
of responsibility for ensuring your system is hardened against this very real and very
dangerous threat.
Within your Asterisk system, it is vitally important that you know what resources on
your system are exposed to the outside world and ensure that those resources are secure.
The most common form of toll fraud these days is accomplished by brute-force attack.
In this scenario, the thieves have a script that contacts your system and attempts to
register as a valid user. If they are able to register as a telephone on your system, the
flood of calls will commence, and you will be stuck with the bill. If you are using simple
extension numbers and easy-to-guess passwords, and your system accepts registrations
from outside your firewall, it is certain that you will eventually be the victim of toll fraud.
Brute-force attacks can also cause performance problems with your system, as one of
these scripts can flood your router and PBX with massive numbers of registration
attempts.
Security and Identity | 321
www.it-ebooks.info
21. Actually, since it’s published in this book, it is no longer a good password, but you get the idea.
The following tactics have proven successful in minimizing the risk of toll fraud:
1. Do not use easy-to-guess passwords. Passwords should be at least eight characters
long and contain a mix of digits, letters, and characters. 8a$j03H% is a good pass‐
word.21 1234 is not.
2. Do not use extension numbers for your SIP registrations in sip.conf. Instead of
[1000], use something like a MAC address (something like [0004f2123456] would
be much more difficult for a brute-force script to guess).
3. Use an analysis script such as fail2ban to tweak your internal firewall to block IP
addresses that are displaying abusive behavior, such as massive packet floods.
The fail2ban daemon is emerging as a popular way to automati‐
cally respond to security threats. We’ll discuss it further in Chap‐
ter 26.
Spam over Internet Telephony (SPIT)
VoIP spam has not yet taken off, but rest assured, it will. Spammers all over the world
are drooling at the prospect of being able to freely assault anyone and everyone with an
Internet-enabled phone system.
Like email, VoIP entails a certain level of trust, in that it assumes that every phone call
is legitimate. Unfortunately, as with email spam, it only takes a few bad apples to spoil
things for the rest of us.
Many organizations and persons are working on ways to address SPIT now, before it
becomes a problem. Some concepts being worked on include certificates and whitelists.
No one method has emerged as the definitive solution.
While it would be easy to simply lock our systems away from the world, the fact is that
Internet telephony is something that every business will be expected to support in the
not-too-distant future. SPIT will increasingly become a problem as more and more
unsavory characters decide that this is the new road to riches.
Solving the SPIT problem will be an ongoing process: a battle between us and The Bad
Guys™.
322 | Chapter 12: Internet Call Routing
www.it-ebooks.info
Distributed Denial of Service Attacks
SIP denial of service attacks are already happening on the Internet. Amazon’s EC2 cloud
has become a popular place to originate these attacks from, and other cloud-based or
compromised systems will become popular for these activities as well. The actual attacks
are not strictly denial of service attacks (in the sense that they are not deliberately trying
to choke your system); rather, they are attack campaigns that are typically trying to use
brute force to locate exploitable holes in any systems they can find. As the sheer number
of these attacks increases, the effect on the network will be similar to that of email spam.
The previously mentioned fail2ban daemon can be useful in minimizing the effects of
these attacks. Refer to Chapter 26 for more details.
Phishing
When a VoIP system has been compromised, one popular use of the compromised
system is to relay fraud campaigns using the identity of the compromised system. Crim‐
inals engaging in so-called phishing expeditions will make random calls to lists of
numbers, attempting to obtain credit card or other sensitive information, while posing
as your organization.
Security Is an Ongoing Process
In contrast to previous editions, throughout this book we have tried to provide examples
and best practices that take security into consideration at all stages. Whatever you are
working on, you should be thinking about security. While implementing good security
requires more design, development, and testing effort, it will save you time and money
in the long run.
Most security holes happen as a result of something that was hastily implemented and
wasn’t locked down later. “I’ll just quickly build this now, and I’ll clean it up later” are
words you never want to say (or hear).
Conclusion
One of the dreams of VoIP was that it was going to make phone calls free. Over a decade
later, we’re still paying for our phone calls. The technology has existed for some time,
but the ease of use has not been there.
It costs nothing to register your ITAD and set up your system to handle ISNs. If every
Asterisk system deployed had an ITAD, and people started publishing their ISNs on
websites, vCards, and business cards, the weight of the Asterisk community would drive
industry adoption.
Conclusion | 323
www.it-ebooks.info
Security considerations for VoIP have to be taken into consideration, but we expect that
the benefits will outweigh the risks.
Our collective dream of free Internet calling may be closer than we think.
324 | Chapter 12: Internet Call Routing
www.it-ebooks.info
An Englishman, even if he is alone,
forms an orderly queue of one.
—George Mikes
1. It is a common misconception that a queue can allow you to handle more calls. This is not strictly true: your
callers will still want to speak to a live person, and they will only be willing to wait for so long. In other words,
if you are short-staffed, your queue could end up being nothing more than an obstacle to your callers. This
is the same whether you’re on the phone or at the Wal-Mart checkout. Nobody likes to wait in line. The ideal
queue is invisible to the callers, since their calls get answered immediately without them having to wait.
CHAPTER 13
Automatic Call Distribution (ACD) Queues
Automatic Call Distribution (ACD), or call queuing, provides a way for a PBX to queue
up incoming calls from a group of users: it aggregates multiple calls into a holding
pattern, assigns each call a rank, and determines the order in which that call should be
delivered to an available agent (typically, first in first out). When an agent becomes
available, the highest-ranked caller in the queue is delivered to that agent, and everyone
else moves up a rank.
If you have ever called an organization and heard “all of our representatives are busy,”
you have experienced ACD. The advantage of ACD to the callers is that they don’t have
to keep dialing back in an attempt to reach someone, and the advantages to the organ‐
izations are that they are able to better serve their customers and to temporarily handle
situations where there are more callers than there are agents.1
There are two types of call centers: inbound and outbound. ACD
refers to the technology that handles inbound call centers, whereas
the term Dialer (or Predictive Dialer) refers to the technology that
handles outbound call centers. In this book we will primarily focus
on inbound calling.
325
www.it-ebooks.info
2. There are several books available that discuss call center metrics and available queuing strategies, such as
James C. Abbott’s The Executive Guide to Call Center Metrics (Robert Houston Smith).
We’ve all been frustrated by poorly designed and managed queues: enduring hold music
from a radio that isn’t in tune, mind-numbing wait times, and pointless messages that
tell you every 20 seconds how important your call is, despite that fact that you’ve been
waiting for 30 minutes and have heard the message so many times you can quote it from
memory. From a customer service perspective, queue design may be one of the most
important aspects of your telephone system. As with an automated attendant, what must
be kept in mind above all else is that your callers are not interested in holding in a
queue. They called because they want to talk to you. All your design decisions must keep
this crucial fact front-and-center in your mind: people want to talk to other people; not
to your phone system.2
The purpose of this chapter is to teach you how to create and design queues that get
callers to their intended destinations as quickly and painlessly as possible.
In this chapter, we may flip back and forth between the usage of the
terms queue members and agents. Since we’re not going to spend
much time on the Asterisk module named chan_agent (using Agent
Login()), we need to make it clear that in this book, when we use the
term “agent,” we’re referring to an endpoint—a human being, and not
the channel technology in Asterisk named chan_agent. Read on, and
this should make more sense.
Creating a Simple ACD Queue
To start with, we’re going to create a simple ACD queue. It will accept callers and attempt
to deliver them to a member of the queue.
In Asterisk, the term member refers to a channel (typically a SIP peer)
assigned to a queue that can be dialed, such as SIP/0000FFFF0001. An
agent technically refers to the Agent channel also used for dialing
endpoints. Unfortunately, the Agent channel is a deprecated technol‐
ogy in Asterisk, as it is limited in flexibility and can cause unexpected
issues that can be hard to diagnose and resolve. We will not be covering
the use of chan_agent, so be aware that we will generally use the term
member to refer to the telephone device and agent to refer to the person
who handles the call. Since one isn’t generally effective without the
other, either term may refer to both.
326 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
We’ll create the queue(s) in the queues.conf file, and manually add queue members to
it through the Asterisk console. In the section “Queue Members” on page 331, we’ll look
into how to create a dialplan that allows us to dynamically add and remove queue
members (as well as pause and unpause them).
The first step is to create an empty agents.conf file in your /etc/asterisk configuration
directory. We will not use or edit this file, however the app_queue module expects to
find it, and will not load if it does not exist:
$ cd /etc/asterisk
$ touch agents.conf
Next you need to create the queues.conf file, which is where configuration for the actual
queues is defined:
$ touch queues.conf
Populate it with the following configuration, which will create two queues named
[sales] and [support]. You can name them anything you want, but we will be using
these names later in the book, so if you use different queue names from what we’ve
recommended here, make note of your choices for future reference:
[general]
autofill=yes ; distribute all waiting callers to available members
shared_lastcall=yes ; respect the wrapup time for members logged into more
; than one queue
[StandardQueue](!) ; template to provide common features
musicclass=default ; play [default] music
strategy=rrmemory ; use the Round Robin Memory strategy
joinempty=no ; do not join the queue when no members available
leavewhenempty=yes ; leave the queue when no members available
ringinuse=no ; don't ring members when already InUse (prevents
; multiple calls to an agent)
[sales](StandardQueue) ; create the sales queue using the parameters in the
; StandardQueue template
[support](StandardQueue) ; create the support queue using the parameters in the
; StandardQueue template
The [general] section defines the default behavior and global options. We’ve only
specified two options in the [general] section, since the built-in defaults are sufficient
for our needs at this point.
The first option is autofill, which tells the queue to distribute all waiting callers to all
available members immediately. Previous versions of Asterisk would only distribute
one caller at a time, which meant that while Asterisk was signaling an agent, all other
calls were held (even if other agents were available) until the first caller in line had been
connected to an agent (which obviously led to bottlenecks in older versions of Asterisk
Creating a Simple ACD Queue | 327
www.it-ebooks.info
3. Wrapup time is used for agents who may need to perform some sort of logging or other function once a call
is done. It gives them a grace period of several seconds to perform this task before taking another call.
where large, busy queues were being used). Unless you have a particular need for
backward-compatibility, this option should always be set to yes.
The second option in the [general] section of queues.conf is shared_lastcall. When
we enable shared_lastcall, the last call to an agent who is logged into multiple queues
will be the call that is counted for wrapup time3 in order to avoid sending a call to an
agent from another queue during the wrap period. If this option is set to no, the wrap
timer will only apply to the queue the last call came from, which means an agent who
was wrapping up a call from the support queue might still get a call from the sales queue.
This option should also always be set to yes (the default).
The next section, [StandardQueue](!) is the template we’ll apply to our sales and sup‐
port queues (we declared it a template by adding (!)). We’ve defined the musicclass
to be the default music on hold, as configured in the musiconhold.conf file. The strat
egy we’ll employ is rrmemory, which stands for Round-Robin with Memory. The rrme
mory strategy works by rotating through the agents in the queue in sequential order,
keeping track of which agent got the last call, and presenting the next call to the next
agent. When it gets to the last agent, it goes back to the top (as agents log in, they are
added to the end of the list). We’ve set joinempty to no since it is generally bad form to
put callers into a queue where there are no agents available to take their calls.
You could set this to yes for ease of testing, but we would not rec‐
ommend putting it into production unless you are using the queue
for some function that is not about getting your callers to your
agents. Nobody wants to wait in a line that is not going anywhere.
The leavewhenempty option is used to control whether callers should fall out of the
Queue() application and continue on in the dialplan if no members are available to take
their calls. We’ve set this to yes because you won’t normally want callers waiting in a
queue with no logged-in agents.
328 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
From a business perspective, you should be telling your agents to clear
all calls out of the queue before logging off for the day. If you find that
there are a lot of calls queued up at the end of the day, you might want
to consider extending someone’s shift to deal with them. Otherwise,
they’ll just add to your stress when they call back the next day, in a worse
mood.
You can use GotoIfTime() near the end of the day to redirect callers to
voicemail, or some other appropriate location in your dialplan, while
your agents clear out any remaining calls in the queue.
Finally, we’ve set ringinuse to no, which tells Asterisk not to ring members when their
devices are already ringing. The purpose of setting ringinuse to no is to avoid multiple
calls to the same member from one or more queues.
It should be mentioned that joinempty and leavewhenempty are look‐
ing for either no members logged into the queue, or all members
unavailable. Agents that are Ringing or InUse are not considered un‐
available, so will not block callers from joining the queue or cause them
to be kicked out when joinempty=no and/or leavewhenempty=yes.
Once you’ve finished configuring your queues.conf file, you can save it and reload the
app_queue.so module from your Asterisk CLI:
$ asterisk -r
*CLI> module reload app_queue.so
-- Reloading module 'app_queue.so' (True Call Queueing)
Then verify that your queues were loaded into memory (don’t forget to ensure an empty
agents.conf file exists as well):
localhost*CLI> queue show
support has 0 calls (max unlimited) in 'rrmemory' strategy
(0s holdtime, 0s talktime), W:0, C:0, A:0, SL:0.0% within 0s
No Members
No Callers
sales has 0 calls (max unlimited) in 'rrmemory' strategy
(0s holdtime, 0s talktime), W:0, C:0, A:0, SL:0.0% within 0s
No Members
No Callers
The output of queue show provides various pieces of information, including those parts
detailed in Table 13-1.
Creating a Simple ACD Queue | 329
www.it-ebooks.info
Table 13-1. Output of queue show CLI command
Field Description
W:Queue weight
C:Number of calls presented to this queue
A:Number of calls that have been answered by a member
SL:Service level
Now that you’ve created the queues, you need to configure your dialplan to allow calls
to enter the queue.
Add the following dialplan logic to the extensions.conf file:
[Queues]
exten => 7001,1,Verbose(2,${CALLERID(all)} entering the support queue)
same => n,Queue(support)
same => n,Hangup()
exten => 7002,1,Verbose(2,${CALLERID(all)} entering the sales queue)
same => n,Queue(sales)
same => n,Hangup()
[LocalSets]
include => Queues ; allow phones to call queues
We’ve included the Queues context in the LocalSets context so that our telephones can
call the queues we’ve set up. In Chapter 15, we’ll define menu items that go to these
queues. Save the changes to your extensions.conf file, and reload the dialplan with the
dialplan reload CLI command.
If you dial extension 7001 or 7002 at this point, you will end up with output like the
following:
-- Executing [7001@LocalSets:1] Verbose("SIP/0000FFFF0003-00000001",
"2,"Leif Madsen" <100> entering the support queue") in new stack
== "Leif Madsen" <1--> entering the support queue
-- Executing [7001@LocalSets:2] Queue("SIP/0000FFFF0003-00000001",
"support") in new stack
[2011-02-14 08:59:39] WARNING[13981]: app_queue.c:5738 queue_exec:
Unable to join queue 'support'
-- Executing [7001@LocalSets:3]
Hangup("SIP/0000FFFF0003-00000001", "") in new stack
== Spawn extension (LocalSets, 7001, 3) exited non-zero on
'SIP/0000FFFF0003-00000001'
You don’t join the queue at this point, as there are no agents in the queue to answer calls.
Because we have joinempty=no and leavewhenempty=yes configured in queues.conf,
callers will not be placed into the queue. (This would be a good opportunity to experi‐
ment with the joinempty and leavewhenempty options in queues.conf to better under‐
stand their impact on queues.)
330 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
In the next section, we’ll demonstrate how to add members to your queue (as well as
other member interactions with the queue, such as pause/unpause).
Queue Members
Queues aren’t very useful without someone to answer the calls that come into them, so
we need a method for allowing agents to be logged into the queues to answer calls. There
are various ways of going about this, so we’ll show you how to add members to the
queue both manually (as an administrator, via either the CLI, or hardcoded in the
queues.conf file) and dynamically (as the agent, through an extension defined in the
dialplan). We’ll start with the Asterisk CLI method, which allows you to easily add
members to the queue for testing and minimal dialplan changes. Next we’ll show how
you can define members in the queues.conf file (which will add defined members when‐
ever app_queue is reloaded). Finally, we’ll show you how to add dialplan logic that allows
agents to log themselves into and out of the queues and to pause and unpause themselves
in queues they are logged into.
Controlling Queue Members via the CLI
We can add queue members to any available queue through the Asterisk CLI command
queue add. The format of the queue add command is (all on one line):
*CLI> queue add member <channel> to <queue> [[[penalty <penalty>] as
<membername>] state_interface <interface>]
The <channel> is the channel we want to add to the queue, such as SIP/
0000FFFF0003, and the <queue> name will be something like support or sales—any
queue name that exists in /etc/asterisk/queues.conf. For now we’ll ignore the <penal
ty> option, but we’ll discuss it in “Advanced Queues” on page 351 (penalty is used to
control the rank of a member within a queue, which can be important for agents who
are logged into multiple queues, or have differing skills). We can define the <member
name> to provide details to the queue-logging engine.
The state_interface option is something that we need to take a closer look at. Because
it is so important for all aspects of queues and their members in Asterisk, we’ve written
a little section about it, so go ahead and read “An Introduction to Device State” on page
339. Once you’ve set that up, come back here and continue on. Don’t worry, we’ll wait.
Now that you’ve added callcounter=yes to sip.conf (we’ll be using SIP channels
throughout the rest of our examples), let’s see how to add members to our queues from
the Asterisk CLI.
Adding a queue member to the support queue can be done with the queue add
member command:
Queue Members | 331
www.it-ebooks.info
*CLI> queue add member SIP/0000FFFF0001 to support
Added interface 'SIP/0000FFFF0001' to queue 'support'
A query of the queue will verify that our new member has been added:
*CLI> queue show support
support has 0 calls (max unlimited) in 'rrmemory' strategy
(0s holdtime, 0s talktime), W:0, C:0, A:0, SL:0.0% within 0s
Members:
SIP/0000FFFF0001 (dynamic) (Not in use) has taken no calls yet
No Callers
To remove a queue member, you would use the queue remove member command:
*CLI> queue remove member SIP/0000FFFF0001 from support
Removed interface 'SIP/0000FFFF0001' from queue 'support'
Of course, you can use the queue show command again to verify that your member has
been removed from the queue.
We can also pause and unpause members in a queue from the Asterisk console, with
the queue pause member and queue unpause member commands. They take a similar
format to the previous commands we’ve been using:
*CLI> queue pause member SIP/0000FFFF0001 queue support reason DoingCallbacks
paused interface 'SIP/0000FFFF0001' in queue 'support' for reason 'DoingCallBacks'
*CLI> queue show support
support has 0 calls (max unlimited) in 'rrmemory' strategy
(0s holdtime, 0s talktime), W:0, C:0, A:0, SL:0.0% within 0s
Members:
SIP/0000FFFF0001 (dynamic) (paused) (Not in use) has taken no calls yet
No Callers
By adding a reason for pausing the queue member, such as lunchtime, you ensure that
your queue logs will contain some additional information that may be useful. Here’s
how to unpause the member:
*CLI> queue unpause member SIP/0000FFFF0001 queue support reason off-break
unpaused interface 'SIP/0000FFFF0001' in queue 'support' for reason 'off-break'
*CLI> queue show support
support has 0 calls (max unlimited) in 'rrmemory' strategy
(0s holdtime, 0s talktime), W:0, C:0, A:0, SL:0.0% within 0s
Members:
SIP/0000FFFF0001 (dynamic) (Not in use) has taken no calls yet
No Callers
In a production environment, the CLI would not normally be the best way to control
the state of agents in a queue. Instead, there are dialplan applications that allow agents
to inform the queue as to their availability.
332 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
Defining Queue Members in the queues.conf File
If you define a queue member in the queues.conf file, that member will always be logged
into the queue, whenever it is reloaded. Typically, you would only use this method if
you want to ensure a member is always logged in (which is generally not a good idea if
your members are human beings, since humans tend to get up and move about).
Within each queue definition, you simply define the members thus:
[general]
; all the general settings we've discussed before
[sales](StandardQueue)
member => SIP/0000FFFF0005 ; or any other channel
[service](StandardQueue)
member => SIP/0000FFFF0006
In a typical queue (one in which you have a group of people responsible for answering
calls), you will find that defining the members in the queues.conf file will not serve you
well. Agents need to be able to log in and out (and not be automatically logged in
whenever the queue is reloaded). We do not recommend defining members in the
queues.conf file, unless they have some other purpose (such as a bank of devices that
answer calls, where you want to use the queue to load-balance calls to the device pool,
or a ring group, where all phones ring for all calls all the time).
Controlling Queue Members with Dialplan Logic
In a call center staffed by live agents, it is most common to have the agents themselves
log in and log out at the start and end of their shifts (or whenever they go for lunch, or
to the bathroom, or are otherwise not available to the queue).
To enable this, we will make use of the following dialplan applications:
•AddQueueMember()
•RemoveQueueMember()
While logged into a queue, it may be that an agent needs to put herself into a state where
she is temporarily unavailable to take calls. The following applications will allow this:
•PauseQueueMember()
•UnpauseQueueMember()
It may be easier to think of these applications in the following manner: the add and
remove applications are used to log in and log out, and the pause/unpause pair are used
for short periods of agent unavailability. The difference is simply that pause/unpause
set the member as unavailable/available without actually removing them from the
Queue Members | 333
www.it-ebooks.info
queue. This is mostly useful for reporting purposes (if a member is paused, the queue
supervisor can see that she is logged into the queue, but simply not available to take calls
at that moment). If you’re not sure which one to use, we recommend that the agents use
add/remove whenever they are not physically at their phone, and pause/unpause when
they are at their desk, but temporarily not available.
Using Pause and Unpause
The use of pause and unpause is a matter of preference. In some environments, these
options may be used for all activities during the day that render an agent unavailable
(such as during the lunch hour and when performing work that is not queue-related).
In most call centers, however, if an agent is not beside his phone and ready to take a call
at that moment, he should not be logged in at all, even if he is only going to be away
from his desk for a few minutes (such as for a bathroom break).
Some supervisors like to use the add/remove and pause/unpause settings as a sort of
punch clock, so that they can track when their staff arrive for work and leave at the end
of the day, and how long they spend at their desks and on breaks. We do not feel this is
a sound practice, as the purpose of these applications is to inform the queue as to agent
availability, not to enable tracking of employees’ activities.
An important thing to note here relates to the joinempty setting in queues.conf, which
was discussed earlier. If an agent is paused, he is considered logged into the queue. Let’s
say it is near the end of the day, and one agent put himself into pause a few hours earlier
to work on a project. All the other agents have logged out and gone home. A call comes
in. The queue will note that an agent is logged into the queue, and will therefore queue
the call, even though the reality is that there are no people actually staffing that queue
at that time. This caller may end up holding in an unstaffed queue indefinitely.
In short, agents who are not sitting at their desks and planning to be available to take
calls in the next few minutes should log out. Pause/unpause should only be used for
brief moments of unavailability (if at all). If you want to use your phone system as a
punch clock, there are lots of great ways to do that using Asterisk, but the queue member
applications are not the way we would recommend.
Let’s build some simple dialplan logic that will allow our agents to indicate their avail‐
ability to the queue. We are going to use the CUT() dialplan function to extract the name
of our channel from our call to the system, so that the queue will know which channel
to log into the queue.
334 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
We have built this dialplan to show a simple process for logging into and out of a queue,
and changing the paused status of a member in a queue. We are doing this only for a
single queue that we previously defined in the queues.conf file. The status channel vari‐
ables that the AddQueueMember(), RemoveQueueMember(), PauseQueueMember(), and
UnpauseQueueMember() applications set might be used to Playback() announcements
to the queue members after they’ve performed certain functions to let them know
whether they have successfully logged in/out or paused/unpaused):
[QueueMemberFunctions]
exten => *54,1,Verbose(2,Logging In Queue Member)
same => n,Set(MemberChannel=${CHANNEL(channeltype)}/${CHANNEL(peername)})
same => n,AddQueueMember(support,${MemberChannel})
same => n,Verbose(1,${AQMSTATUS}) ; ADDED, MEMBERALREADY, NOSUCHQUEUE
same => n,Playback(agent-loginok)
same => n,Hangup()
exten => *56,1,Verbose(2,Logging Out Queue Member)
same => n,Set(MemberChannel=${CHANNEL(channeltype)}/${CHANNEL(peername)})
same => n,RemoveQueueMember(support,${MemberChannel})
same => n,Verbose(1,${RQMSTATUS}; REMOVED, NOTINQUEUE, NOSUCHQUEUE
same => n,Playback(agent-loggedoff)
same => n,Hangup()
exten => *72,1,Verbose(2,Pause Queue Member)
same => n,Set(MemberChannel=${CHANNEL(channeltype)}/${CHANNEL(peername)})
same => n,PauseQueueMember(support,${MemberChannel})
same => n,Verbose(1,${PQMSTATUS}); PAUSED, NOTFOUND
same => n,Playback(dictate/paused)
same => n,Hangup()
exten => *87,1,Verbose(2,Unpause Queue Member)
same => n,Set(MemberChannel=${CHANNEL(channeltype)}/${CHANNEL(peername)})
same => n,UnpauseQueueMember(support,${MemberChannel})
same => n,Verbose(1,${UPQMSTATUS}); UNPAUSED, NOTFOUND
same => n,Playback(agent-loginok)
same => n,Hangup()
Automatically Logging Into and Out of Multiple Queues
It is quite common for an agent to be a member of more than one queue. Rather than
having a separate extension for logging into each queue (or demanding information
from the agents about which queues they want to log into), this code uses the Asterisk
database (astdb) to store queue membership information for each agent, and then loops
through each queue the agents are a member of, logging them into each one in turn.
Queue Members | 335
www.it-ebooks.info
4. We’re going to use the ^ character as a delimiter. You could probably use another character instead, just so
long as it’s not one the Asterisk parser would see as a normal delimiter (and thus get confused by). So avoid
commas, semicolons, and so forth.
In order for this code to work, an entry similar to the following will need to be added
to the AstDB via the Asterisk CLI. For example, the following would store the member
0000FFFF0001 as being in both the support and sales queues:4
*CLI> database put queue_agent 0000FFFF0001/available_queues support^sales
You will need to do this once for each agent, regardless of how many queues they are
members of.
If you then query the Asterisk database, you should get a result similar to the following:
pbx*CLI> database show queue_agent
/queue_agent/0000FFFF0001/available_queues : support^sales
The following dialplan code is an example of how to allow this queue member to be
automatically added to both the support and sales queues. We’ve defined a subroutine
that is used to set up three channel variables (MemberChannel, MemberChanType,
AvailableQueues). These channel variables are then used by the login (*54), logout
(*56), pause (*72), and unpause (*87) extensions. Each of the extensions uses the
subSetupAvailableQueues subroutine to set these channel variables and to verify that
the AstDB contains a list of one or more queues for the device the queue member is
calling from:
[subSetupAvailableQueues]
;
; This subroutine is used by the various login/logout/pausing/unpausing routines
; in the [ACD] context. The purpose of the subroutine is to centralize the retrieval
; of information easier.
;
exten => start,1,Verbose(2,Checking for available queues)
; Get the current channel's peer name (0000FFFF0001)
same => n,Set(MemberChannel=${CHANNEL(peername)})
; Get the current channel's technology type (SIP, IAX, etc)
same => n,Set(MemberChanType=${CHANNEL(channeltype)})
; Get the list of queues available for this agent
same => n,Set(AvailableQueues=${DB(queue_agent/${MemberChannel}/
available_queues)})
; *** This should all be on a single line
; if there are no queues assigned to this agent we'll handle it in the
; no_queues_available extension
same => n,GotoIf($[${ISNULL(${AvailableQueues})}]?no_queues_available,1)
336 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
same => n,Return()
exten => no_queues_available,1,Verbose(2,No queues available for agent
${MemberChannel})
; *** This should all be on a single line
; playback a message stating the channel has not yet been assigned
same => n,Playback(silence/1&channel&not-yet-assigned)
same => n,Hangup()
[ACD]
;
; Used for logging agents into all configured queues per the AstDB
;
;
; Logging into multiple queues via the AstDB system
exten => *54,1,Verbose(2,Logging into multiple queues per the database values)
; get the available queues for this channel
same => n,GoSub(subSetupAvailableQueues,start,1())
same => n,Set(QueueCounter=1) ; setup a counter variable
; using CUT(), get the first listed queue returned from the AstDB
; Note that we've used '^' as our delimiter
same => n,Set(WorkingQueue=${CUT(AvailableQueues,^,${QueueCounter})})
; While the WorkingQueue channel variable contains a value, loop
same => n,While($[${EXISTS(${WorkingQueue})}])
; AddQueueMember(queuename[,interface[,penalty[,options[,membername
; [,stateinterface]]]]])
; Add the channel to a queue, setting the interface for calling
; and the interface for monitoring of device state
;
; *** This should all be on a single line
same => n,AddQueueMember(${WorkingQueue},${MemberChanType}/
${MemberChannel},,,${MemberChanType}/${MemberChannel})
same => n,Set(QueueCounter=$[${QueueCounter} + 1]) ; increase our counter
; get the next available queue; if it is null our loop will end
same => n,Set(WorkingQueue=${CUT(AvailableQueues,^,${QueueCounter})})
same => n,EndWhile()
; let the agent know they were logged in okay
same => n,Playback(silence/1&agent-loginok)
same => n,Hangup()
exten => no_queues_available,1,Verbose(2,No queues available for ${MemberChannel})
same => n,Playback(silence/1&channel&not-yet-assigned)
Queue Members | 337
www.it-ebooks.info
same => n,Hangup()
; -------------------------
; Used for logging agents out of all configured queues per the AstDB
exten => *56,1,Verbose(2,Logging out of multiple queues)
; Because we reused some code, we've placed the duplicate code into a subroutine
same => n,GoSub(subSetupAvailableQueues,start,1())
same => n,Set(QueueCounter=1)
same => n,Set(WorkingQueue=${CUT(AvailableQueues,^,${QueueCounter})})
same => n,While($[${EXISTS(${WorkingQueue})}])
same => n,RemoveQueueMember(${WorkingQueue},${MemberChanType}/${MemberChannel})
same => n,Set(QueueCounter=$[${QueueCounter} + 1])
same => n,Set(WorkingQueue=${CUT(AvailableQueues,^,${QueueCounter})})
same => n,EndWhile()
same => n,Playback(silence/1&agent-loggedoff)
same => n,Hangup()
; -------------------------
; Used for pausing agents in all available queues
exten => *72,1,Verbose(2,Pausing member in all queues)
same => n,GoSub(subSetupAvailableQueues,start,1())
; if we don't define a queue, the member is paused in all queues
same => n,PauseQueueMember(,${MemberChanType}/${MemberChannel})
same => n,GotoIf($[${PQMSTATUS} = PAUSED]?agent_paused,1:agent_not_found,1)
exten => agent_paused,1,Verbose(2,Agent paused successfully)
same => n,Playback(silence/1&unavailable)
same => n,Hangup()
; -------------------------
; Used for unpausing agents in all available queues
exten => *87,1,Verbose(2,UnPausing member in all queues)
same => n,GoSub(subSetupAvailableQueues,start,1())
; if we don't define a queue, then the member is unpaused from all queues
same => n,UnPauseQueueMember(,${MemberChanType}/${MemberChannel})
same => n,GotoIf($[${UPQMSTATUS} = UNPAUSED]?agent_unpaused,1:agent_not_found,1)
exten => agent_unpaused,1,Verbose(2,Agent paused successfully)
same => n,Playback(silence/1&available)
same => n,Hangup()
; -------------------------
; Used by both pausing and unpausing dialplan functionality
exten => agent_not_found,1,Verbose(2,Agent was not found)
same => n,Playback(silence/1&cannot-complete-as-dialed)
338 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
5. It could be useful in some cases to allow a queue to present multiple calls to a member, but in general a person
can only handle one call at a time.
You could further refine these login and logout routines to take into account that the
AQMSTATUS and RQMSTATUS channel variables are set each time AddQueueMember() and
RemoveQueueMember() are used. For example, you could set a flag that lets the queue
member know he has not been added to a queue by setting a flag, or even add recordings
or text-to-speech systems to play back the particular queue that is producing the prob‐
lem. Or, if you’re monitoring this via the Asterisk Manager Interface, you could have a
screen pop, or use JabberSend() to inform the queue member via instant messaging,
or…(ain’t Asterisk fun?).
An Introduction to Device State
Device states in Asterisk are used to inform various applications as to whether your
device is currently in use or not. This is especially important for queues, as we don’t
typically want to send callers to an agent who is already on the phone.5 Device states are
controlled by the channel module, and in Asterisk only chan_sip has the appropriate
handling. When the queue asks for the state of a device, it first queries the channel driver
(e.g., chan_sip). If the channel cannot provide the device state directly (as is the case
with chan_iax2), it asks the Asterisk core to determine it, which it does by searching
through channels currently in progress.
Unfortunately, simply asking the core to search through active channels isn’t accurate,
so getting device state from channels other than chan_sip is less reliable when working
with queues. We’ll explore some methods of controlling calls to other channel types in
“Advanced Queues” on page 351, but for now we’ll focus on SIP channels, which do not
have complex device-state requirements. For more information about device states, see
Chapter 14.
In order to correctly determine the state of a device in Asterisk, we need to enable call
counters in sip.conf. By enabling call counters, we’re telling Asterisk to track the active
calls for a device so that this information can be reported back to the channel module
and the state can be accurately reflected in our queues. First, let’s see what happens to
our queue without the callcounter option:
*CLI> queue show support
support has 0 calls (max unlimited) in 'rrmemory' strategy
(0s holdtime, 0s talktime), W:0, C:0, A:0, SL:0.0% within 0s
Members:
SIP/0000FFFF0001 (dynamic) (Not in use) has taken no calls yet
No Callers
Now suppose we have an extension in our dialplan, 555, that calls MusicOnHold(). If
we dial that extension without having enabled call counters, a query of the support
Queue Members | 339
www.it-ebooks.info
queue (of which SIP/0000FFFF0001 is a member) from the Asterisk CLI will show
something similar to the following:
-- Executing [555@LocalSets:1] MusicOnHold("SIP/0000FFFF0001-00000000",
"") in new stack
-- Started music on hold, class 'default', on SIP/0000FFFF0001-00000000
*CLI> queue show support
support has 0 calls (max unlimited) in 'rrmemory' strategy
(0s holdtime, 0s talktime), W:0, C:0, A:0, SL:0.0% within 0s
Members:
SIP/0000FFFF0001 (dynamic) (Not in use) has taken no calls yet
No Callers
Notice that even though our phone should be marked as In Use because it is on a call,
it does not show up that way when we look at the queue status. This is obviously a
problem since the queue will consider this device as available, even though it is already
on a call.
To correct this problem, we need to add callcounter=yes to the [general] section of
our sip.conf file. We can also specifically configure this for any template or peer (since
it is a peer-level configuration option); however, this is really something you’ll want to
set for all peers that might ever be part of a queue, so it’s normally going to be best to
put this option in the [general] section, or as part of each template.
Edit your sip.conf file so it looks similar to the following:
[general]
context=unauthenticated ; default context for incoming calls
allowguest=no ; disable unauthenticated calls
srvlookup=yes ; enabled DNS SRV record lookup on outbound calls
udpbindaddr=0.0.0.0 ; listen for UDP request on all interfaces
tcpenable=no ; disable TCP support
callcounter=yes ; enable device states for SIP devices
Then reload the chan_sip module and perform the same test again:
*CLI> sip reload
Reloading SIP
== Parsing '/etc/asterisk/sip.conf': == Found
The device should now show In use when a call is in progress from that device:
== Parsing '/etc/asterisk/sip.conf': == Found
== Using SIP RTP CoS mark 5
-- Executing [555@LocalSets:1] MusicOnHold("SIP/0000FFFF0001-00000001",
"") in new stack
-- Started music on hold, class 'default', on SIP/0000FFFF0001-00000001
*CLI> queue show support
support has 0 calls (max unlimited) in 'rrmemory' strategy
(0s holdtime, 0s talktime), W:0, C:0, A:0, SL:0.0% within 0s
340 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
Members:
SIP/0000FFFF0001 (dynamic) (In use) has taken no calls yet
No Callers
In short, Queue() needs to know the state of a device in order to properly manage call
distribution. The callcounter option in sip.conf is an essential component of a properly
functioning queue.
The queues.conf File
We’ve mentioned the queues.conf file already, but there are many options in this file,
and we figured it would be right and proper for us to go over some of them with you.
Table 13-2 contains the options available in the [general] section of queues.conf.
Table 13-2. Available options for [general] section of queues.conf
Option Available values Description
persistentmembers yes, no Set this to yes to store dynamically added members to queues in the
Asterisk database so they will be automatically re-added upon Asterisk
restart.
autofill yes, no With autofill disabled, the queue application will attempt to deliver
calls to agents in a serial manner. This means only one call is attempted to
be distributed to agents at a time. Additional callers are not distributed to
agents until that caller is connected to an agent. With autofill
enabled, callers are distributed to available agents simultaneously. You
always want this set to yes.
monitor-type MixMonitor,
<unspecified>
If you set this as MixMonitor, you are directing Asterisk to use the Mix
Monitor() application for recording calls within the queue. If you do not
specify a value or comment out the option, the Monitor() dialplan
application will be used instead to record calls.
updatecdr yes, no Set this to yes so that when a queue call is answered by an agent, Asterisk
populates the dstchannel field of the CDR with the name of the queue
member. The value is defined when the agent logs in using the Add
QueueMember() application. This option is used to mimic the behavior
of chan_agent channels within the CDR.
shared_lastcall yes, no This value is important when you have members logged into more than
one queue. It ensures that reference to their last call is shared across all
queues to ensure all queues will respect the wrapup time of other queues.
Table 13-3 describes the options available for configuring parameters specific to each
queue.
The queues.conf File | 341
www.it-ebooks.info
Table 13-3. Available options for defined queues in queues.conf
Option Available values Description
musicclass Music class as
defined by musicon
hold.conf
Sets the music class to be used by a particular queue. You can
also override this value on a per-call basis using
the CHANNEL(musicclass) channel variable.
announce Filename of the
announcement
Used for playing an announcement to the agent that
answers the call, typically to let him know which queue the
caller is coming from. Useful when the agent is in multiple
queues, especially when calls from the queue are set to auto-
answer. Bear in mind that the length of time it takes to play
this recording is added to the length of time the caller has to
wait (since they cannot hear it). Also consider that your
agents will hear this recording several times per day, and
aren’t going to benefit from a long-winded message. If you
use this option, keep the recordings short; one or two words
at most (and no more than a second in length).
strategy ringall,
leastrecent,
fewestcalls,
random, rrmemo
ry, linear,
wrandom
ringall
Rings all available members (default). This distribution
strategy doesn’t really count as ACD (automatic call
distribution). In traditional telephony terms, this would
be known as a Ring Group.
leastrecent
Rings the interface that least recently received a call. In
a queue where there are many calls of roughly the same
duration, this can work. It doesn’t work as well if an
agent has been on a call for an hour, and their colleagues
all got their last call 30 minutes ago, because the agent
who just finished the 60-minute call will get the next
one.
fewestcalls
Rings the interface that has completed the fewest calls
in this queue. This can be unfair if calls are not always
of the same duration. An agent could handle three calls
of 15 minutes each and her colleague had four 5-second
calls; the agent who handled three calls will get the next
one.
random
Rings a random interface. This actually can work very
well and end up being very fair in terms of evenly
distributing calls among agents.
rrmemory
Rings members in a round-robin fashion, remembering
where it left off last for the next caller. This can also work
out to be very fair, but not as much as random.
linear
Rings members in the order specified, always starting
at the beginning of the list. This works if you have a team
where there are some agents who are supposed to
342 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
Option Available values Description
handle most calls, and other agents who should only
get calls if the primary agents are busy.
wrandom
Rings a random member, but uses the members’
penalties as a weight. Worth considering in a larger
queue with complex weighting among the agents.
servicelevel Value in seconds This setting is not as useful as it should be. The idea is to
define the maximum acceptable time for a caller to wait
before being answered. You then note how many calls are
answered within that threshold, and they go toward your
service level. So, for example, if your service level is 60
seconds, and 4 out of 5 calls are answered in 60 seconds or
less, your service level is 80%. The reason this metric is not so
useful in Asterisk is because it’s not broken down in any
useful way (by hour or day of the week, for example).
Instead, it gives you the threshold for all calls answered since
the last time app_queue was reloaded. It is a good idea,
but not really all that practical.
context Dialplan context Allows a caller to exit the queue by pressing a single DTMF
digit. If a context is specified and the caller enters a number,
that digit will attempt to be matched in the context
specified, and dialplan execution will continue there. Note
that by doing this, the caller also loses their place in line.
penaltymemberslimit Value of 0 or
greater
Used to disregard penalty values if the number of members
in the queue is lower than the value specified.
timeout Value in seconds Specifies the number of seconds to ring a member’s device.
Also see timeoutpriority.
retry Value in seconds Specifies the number of seconds to wait before attempting
the next member in the queue if the timeout value is
exhausted while attempting to ring a member of the queue.
timeoutpriority app, conf Used to control the priority of the two possible timeout
options specified for a queue. The Queue() application has
a timeout value that can be specified to control the absolute
time a caller can be in the queue. The timeout value in
queues.conf controls the amount of time (along with re
try) to ring a member for. Sometime these values conflict,
so you can control which value takes precedence. The default
is app, as this is the way it works in previous versions.
weight Value of 0 or higher Defines the weight of a queue. A queue with a higher weight
defined will get first priority when members are associated
with multiple queues. Keep in mind that if you have a very
busy queue with a high weight, callers in a lower-weight
queue might never get answered (or have to wait for a long
time).
The queues.conf File | 343
www.it-ebooks.info
Option Available values Description
wrapuptime Value in seconds The number of seconds to keep a member unavailable in a
queue after completing a call. This time allows an agent to
finish any postcall processing they may need to handle
before they are presented with the next call.
autofill yes, no Same as defined in the [general] section. This value can
be defined per queue.
autopause yes, no, all Enables/disables the automatic pausing of members who fail
to answer a call. A value of all causes this member to be
paused in all queues she is a member of. This parameter can
be tricky in a live environment, because if the agent doesn’t
know they’ve been paused, you could end up with agents
waiting for calls, not knowing they’ve been paused. Never
use this unless you have a way to indicate to the members
that they’ve been paused, or have a supervisor who is
watching the status of the queue in real time. This is also a
training issue, in that agents need to be taught that
answering a call from the queue is not optional; the queue
expects them to answer every call it presents to them.
maxlen Value of 0 or higher Specifies the maximum number of callers allowed to be
waiting in a queue. A value of zero means an unlimited
number of callers are allowed in the queue.
announce-frequency Value in seconds Defines how often we should announce the caller’s position
and/or estimated hold time in the queue. Set this value to
zero to disable. In a small call center, it is unlikely that the
system will be able to make accurate estimates, and thus
callers are more likely to find this information frustrating.
min-announce-frequency Value in seconds Specifies the minimum amount of time that must pass
before we announce the caller’s position in the queue again.
This is used when the caller’s position may change
frequently, to prevent the caller hearing multiple updates in
a short period of time.
periodic-announce-frequency Value in seconds Indicates how often we should make periodic
announcements to the caller. Bear in mind that playing a
message to callers on a regular basis will tend to upset them,
so give some thought to a) keeping this message short, and
b) not playing it too frequently. Pleasant music will keep
your callers far more happy than endlessly repeated
apologies or advertising.
random-periodic-announce yes, no If set to yes, will play the defined periodic announcements
in a random order. See periodic-announce.
relative-periodic-announce yes, no If set to yes, the periodic-announce-frequency
timer will start from when the end of the file being played
back is reached, instead of from the beginning. Defaults to
no.
344 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
Option Available values Description
announce-holdtime yes, no, once Defines whether the estimated hold time should be played
along with the periodic announcements. Can be set to yes,
no, or only once.
announce-position yes, no, limit,
more
Defines whether the caller’s position in the queue should be
announced to her. If set to no, the position will never be
announced. If set to yes, the caller’s position will always be
announced. If the value is set to limit, the caller will hear
her position in the queue only if it is within the limit defined
by announce-position-limit. If the value is set to
more, the caller will hear her position if it is beyond the
number defined by announce-position-limit. If
you have any logic in your system that can promote callers in
rank (i.e., high-priority calls get moved to the front of the
queue), it is best not to use this option. Very few things
upset a caller more than hearing that they’ve been moved
toward the back of the line.
announce-position-limit Number of zero or
greater Used if you’ve defined announce-position as either
limit or more.
announce-round-seconds Value in seconds If this value is nonzero, the number of seconds is announced
and rounded to the value defined.
queue-thankyou Filename of prompt
to play
If not defined, plays the default value (“Thank you for your
patience”). If set to an empty value, prompt will not be
played at all.
queue-youarenext Filename of prompt
to play
If not defined, plays the default value (“You are now first in
line”). If set to an empty value, prompt will not be played at
all.
queue-thereare Filename of prompt
to play
If not defined, plays the default value (“There are”). If set to
an empty value, prompt will not be played at all.
queue-callswaiting Filename of prompt
to play
If not defined, plays the default value (“calls waiting”). If set
to an empty value, prompt will not be played at all.
queue-holdtime Filename of prompt
to play
If not defined, plays the default value (“The current
estimated hold time is”). If set to an empty value, prompt
will not be played at all.
queue-minutes Filename of prompt
to play
If not defined, plays the default value (“minutes”). If set to
an empty value, prompt will not be played at all.
queue-seconds Filename of prompt
to play
If not defined, plays the default value (“seconds”). If set to an
empty value, prompt will not be played at all.
queue-reporthold Filename of prompt
to play
If not defined, plays the default value (“Hold time”). If set to
an empty value, prompt will not be played at all.
periodic-announce A set of periodic
announcements to
be played,
separated by
commas
Prompts are played in the order they are defined. Defaults to
queue-periodic-announce (“All representatives are
currently busy assisting other callers. Please wait for the next
available representative”).
The queues.conf File | 345
www.it-ebooks.info
Option Available values Description
monitor-format gsm, wav, wav49,
<any valid
file format>
Specifies the file format to use when recording. If
monitor-format is commented out, calls will not be
recorded.
monitor-type MixMonitor Same as monitor-type as defined in the [general]
section, but on a per-queue basis. If you want the old
monitor behavior, simply remove or remark out this option
entirely.
joinempty paused, penal
ty, inuse, ring
ing, unavaila
ble, invalid,
unknown, wrap
up
Controls whether a caller is added to the queue when no
members are available. Comma-separated options can be
included to define how this option determines whether
members are available. The definitions for the values are:
paused
Members are considered unavailable if they are paused.
penalty
Members are considered unavailable if their penalties
are less than QUEUE_MAX_PENALTY.
inuse
Members are considered unavailable if their device
status is In Use.
ringing
Members are considered unavailable if their device
status is Ringing.
unavailable
Applies primarily to agent channels; if the agent is not
logged in but is a member of the queue, the channel is
considered unavailable.
invalid
Members are considered unavailable if their device
status is Invalid. This is typically an error condition.
unknown
Members are considered unavailable if device status is
unknown.
wrapup
Members are considered unavailable if they are currently
in the wrapup time after the completion of a call.
leavewhenempty paused, penal
ty, inuse, ring
ing, unavaila
ble, invalid,
unknown, wrap
up
Used to control whether callers are kicked out of the queue
when members are no longer available to take calls. See
joinempty for more information on the assignable
values.
eventwhencalled yes, no, vars If set to yes, the following manager events will be sent to
the Asterisk Manager Interface (AMI):
•AgentCalled
•AgentDump
346 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
Option Available values Description
•AgentConnect
•AgentComplete
If set to vars, all channel variables associated with the agent
will also be sent to the AMI.
eventmemberstatus yes, no If set to yes, the QueueMemberStatus event will be
sent to AMI. Note that this may generate a lot of manager
events.
reportholdtime yes, no Enables reporting of the caller’s hold time to the queue
member prior to bridging. Keep in mind that playing this
information to the agent will consume time, which to the
caller will represent even more hold time.
ringinuse yes, no Used to avoid sending calls to members whose status is In
Use. Recall from our discussion in the preceding section that
only the SIP channel driver is currently able to accurately
report this status.
memberdelay Value in seconds Used if you want a delay prior to the caller and queue
member being connected to each other.
timeoutrestart yes, no If set to yes, resets the timeout for an agent to answer if
either a BUSY or CONGESTION status is received from the
channel. This can be useful if the agent is allowed to reject or
cancel a call.
defaultrule Rule as defined in
queuerules.conf
Associates a queue rule as defined in queuerules.conf to this
queue; is used to dynamically change the minimum and
maximum penalties, which are then used to select an
available agent. See “Changing Penalties Dynamically
(queuerules.conf)” on page 354.
member Device Used to define static members in a queue. To define a static
member, you supply its Technology/Device_ID (e.g.,
Agent/1234, SIP/0000FFFF0001, DAHDI/
g0/14165551212).
The values shown in Table 13-4 are related to the bridging of a call to a queue member.
These variables can be useful for logging purposes; however, they cannot be used to
perform routing decisons as they are only set at the moment the call is bridged (i.e., the
agent answers), and unfortunately not while the call is being presented to the agent (the
agent is ringing).
The queues.conf File | 347
www.it-ebooks.info
Table 13-4. Call bridging parameters
Option Available
values
Description
setinterfacevar yes If set to yes, the following channel variables will be set just prior to bridging the
caller to the queue member:
MEMBERINTERFACE
The member’s interface, such as Agent/1234
MEMBERNAME
The name of the member
MEMBERCALLS
The number of calls the interface has taken
MEMBERLASTCALL
The last time the member took a call
MEMBERPENALTY
The penalty value of the member
MEMBERDYNAMIC
Indicates whether the member was dynamically added to the queue or not
MEMBERREALTIME
Indicates whether the member is included from real time or not
setqueueentryvar yes, no If set to yes, the following channel variables will be set just prior to the call being
bridged:
QEHOLDTIME
The amount of time the caller was held in the queue
QEORIGINALPOS
The position the caller originally entered the queue at
setqueuevar yes, no If set to yes, the following channel variables will be set just prior to the call being
bridged:
QUEUENAME
The name of the queue
QUEUEMAX
The maximum number of calls allowed in this queue
QUEUESTRATEGY
The strategy method defined for the queue
QUEUECALLS
The number of calls currently in the queue
QUEUEHOLDTIME
The current average hold time of callers in the queue
QUEUECOMPLETED
The number of completed calls in this queue
QUEUEABANDONED
The number of abandoned calls
QUEUESRVLEVEL
The queue service level
QUEUESRVLEVELPERF
The queue’s service-level performance
348 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
Option Available
values
Description
membermacro Name of a
macro
defined in
the dialplan
Defines a macro to be executed just prior to bridging the caller and the queue
member. You can use this macro with the previous options (which set the additional
channel variables), allowing you to evaluate queue conditions in your system at the
very moment a call is delivered to an agent. If this interests you, make sure you look
into using the Asterisk Local channel instead (define your queue members as Local
channels). You will then be able to implement routing decisions that take place right
before a call is presented to an agent, which can give you far more control over your
queues than app_queue can provide on its own.
The agents.conf File
If you’ve browsed through the samples in the ~/src/asterisk-complete/11/configs direc‐
tory, you may have noticed the agents.conf file. It may seem tempting, and it has its
places, but overall the best way to implement queues is through the use of SIP channels.
There are two reasons for this. The first is that SIP channels are the only type that provide
true device-state information. The other reason is that agent channels are always con‐
nected when logged in, and if you’re using remote agents, the bandwidth requirements
of having all those nailed-up channels may be greater than you wish. However, in busy
call centers it may be desirable to force agents to answer calls immediately rather than
having them press the answer button on the phone, and the agent channels can be useful
for that in some cases (we’d still rather prefer using SIP channels, and having an
auto-answer ring sent to the set).
The agents.conf file is used to define agents for queues using the agents channel. This
channel is similar in nature to the other channel types in Asterisk (local, SIP, IAX2, etc.),
but it is more of a pseudochannel in that it is used to connect callers to agents who have
logged into the system using other types of transport channel. For example, suppose we
use our SIP-enabled phone to log into Asterisk using the AgentLogin() dialplan appli‐
cation. Once we’re logged in, the channel remains open the entire time it is available
(logged on), and calls are then passed to it through the agent channel to the telephone.
Let’s take a look at the various options available to us in the agents.conf file to get a better
idea of what it provides us. Table 13-5 shows the single option available in the [gener
al] section of agents.conf. Table 13-6 shows the available options under the [agents]
header.
Table 13-5. Options available under the [general] header in agents.conf
Option Available values Description
multiplelogin yes, no If set to yes, a single line on a device can log in as multiple agents. Defaults to yes.
The agents.conf File | 349
www.it-ebooks.info
Table 13-6. Options available under the [agents] header in agents.conf
Option Available values Description
maxloginretries Integer value Specifies the maximum number of tries an agent has to log in before the
system considers it a failed attempt and ends the call. Defaults to 3. This
does not lock the account, so the user can immediately retry, as often as
they wish.
autologoff Value in seconds Specifies the number of seconds that an agent’s device should ring before
the agent is automatically logged off.
autologoffunavail yes, no If set to yes, the agent is automatically logged off when the device being
called returns a status of CHANUNAVAIL.
ackcall yes, no If set to yes, the agent must enter a single DTMF digit to accept the call. To
be used in conjunction with acceptdtmf. Defaults to no.
acceptdtmf Single DTMF
character Used in conjunction with ackcall, this option defines the DTMF character
to be used to accept a call. Defaults to #.
endcall yes, no If set to yes, allows an agent to end a call with a single DTMF digit. To be
used in conjunction with enddtmf. Defaults to yes.
enddtmf Single DTMF
character Used with endcall, this option defines the DTMF character to be used to
end a call. Defaults to *.
wrapuptime Value in
milliseconds
Specifies the amount of time after disconnection of a caller for which an
agent will not be available to accept another call. Used when agents must
perform a function after each call (such as entering call details into a log).
musiconhold Music class as
defined in musicon
hold.conf
Defines the default music class agents listen to when logged in.
goodbye Name of file
(relative to /var/lib/
asterisk/sounds/
<lang>)
Defines the default goodbye sound played to agents. Defaults to vm-
goodbye.
updatecdr yes, no Used in CDRs to change the source channel field to the agent/
agent_id.
group Integer value Allows you to define groups for sets of agents. The use of agent groups is
somewhat deprecated functionality that we do not recommend you use. If you
define group1, you can use Agent/@1 in queues.conf to call that group
of agents. The call will be connected arbitrarily to one of those agents. If no
agents are available, it will return back to the queue like any other
unanswered call. If you use Agent/:1, it will wait for a member of the
group to become available. The use of strategies has no effect on agent
groups. Do not use these.
recordagentcalls yes, no Enables/disables the recording of agent calls. Disabled by default.
recordformat File format (gsm,
wav, etc.)
Defines the format to be used when recording agent calls. Default is wav.
urlprefix String (URL) Accepts a string as its argument. The string can be formed as a URL and is
appended to the start of the text to be added to the name of the recording.
350 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
Option Available values Description
savecallsin Filesystem path
(e.g., /var/calls)
Accepts a filesystem path as its argument. Allows you to override the default
path of /var/spool/asterisk/monitor with one of your choosing.a
custom_beep Name of file
(relative to /var/lib/
asterisk/sounds/
<lang>)
Accepts a filename as its argument. Can be used to define a custom
notification tone to signal to an always-connected agent that there is an
incoming call. Ideally, you will keep this recording short (a few hundred
milliseconds at most).
agent Agent definition
(see description)
Where the rubber hits the road. This parameter can be repeated as often as
required. Each instance defines an agent for use by Queue() and Agent
Login(). These are agents that will log in and stay connected to the
system, waiting for calls to be delivered by the Queue() dialplan
application. Agents are defined like so:
agent => agent_id,agent_password,name
An example of a defined agent would be:
agent => 1000,1234,Danielle Roberts
a Since the storage of calls will require a large amount of hard drive space, you will want to define a strategy to handle storing and
managing these recordings. This location should probably reside on a separate volume, one with very-high-performance
characteristics.
Advanced Queues
In this section we’ll take a look at some of the finer-grained queue controls, such as
options for controlling announcements and when callers should be placed into (or re‐
moved from) the queue. We’ll also look at penalties and priorities, exploring how we
can control the agents in our queue by giving preference to a pool of agents to answer
the call and increase that pool dynamically based on the wait times in the queue. Finally,
we’ll look at using Local channels as queue members, which gives us the ability to per‐
form dialplan functionality prior to connecting the caller to an agent.
Priority Queue (Queue Weighting)
Sometimes you need to add people to a queue at a higher priority than that given to
other callers. Perhaps the caller has already spent time waiting in a queue, and an agent
has taken some information but realized the caller needed to be transferred to another
queue. In this case, to minimize the caller’s overall wait time, it might be desirable to
transfer the call to a priority queue that has a higher weight (and thus a higher prefer‐
ence), so it will be answered quickly.
Setting a higher priority on a queue is done with the weight option. If you have two
queues with differing weights (e.g., support and support-priority), agents assigned
to both queues will be passed calls from the higher-priority queue in preference to calls
from the lower-priority queue. Those agents will not take any calls from the lower-
priority queue until the higher-priority queue is cleared. (Normally, there will be some
Advanced Queues | 351
www.it-ebooks.info
agents who are assigned only to the lower-priority queue, to ensure that those calls are
dealt with in a timely manner.) For example, if we place queue member James Shaw into
both the support and support-priority queues, callers in the support-priority
queue will have a preferred standing with James over callers in the support queue.
Let’s take a look at how we could make this work. First, we need to create two queues
that are identical except for the weight option. We can use a template for this to ensure
that the two queues remain identical if anything should need to change in the future:
[support_template](!)
musicclass=default
strategy=rrmemory
joinempty=no
leavewhenempty=yes
ringinuse=no
[support](support_template)
weight=0
[support-priority](support_template)
weight=10
With our queues configured (and subsequently reloaded using module reload
app_queue.so from the Asterisk console), we can now create two extensions to transfer
callers to. This can be done wherever you would normally place your dialplan logic to
perform transfers. We’re going to use the LocalSets context, which we’ve previously
enabled as the starting context for our devices:
[LocalSets]
include => Queue ; allow direct transfer of calls to queues
[Queues]
exten => 7000,1,Verbose(2,Entering the support queue)
same => n,Queue(support) ; standard support queue available
; at extension 7000
same => n,VoiceMail(7000@queues,u) ; if there are no members in the queue,
; we exit and send the caller to voicemail
same => n,Hangup()
exten => 8000,1,Verbose(2,Entering the priority support queue)
same => n,Queue(support-priority) ; priority queue available at
; extension 8000
same => n,VoiceMail(7000@queues,u) ; if there are no members in the queue,
; we exit and send the caller to voicemail
same => n,Hangup()
There you have it: two queues defined with different weights. We’ve configured our
standard queues to start at extension 7000, and our priority queues to start at 8000. We
can mirror this for several queues by simply matching between the 7XXX and 8XXX ranges.
So, for example, if we have our sales queue at extension 7004, our priority-sales
352 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
queue (for returning customers, perhaps?) could be placed in the mirrored queue at
8004, which has a higher weight.
The only other configuration left to do is to make sure some or all of your queue mem‐
bers are placed in both queues. If you have more callers in your 7XXX queues, you may
want to have more queue members logged into that queue, with a percentage of your
queue members logged into both queues. Exactly how you wish to configure your queues
will depend on your local policy and circumstances.
Queue Member Priority
Within a queue, we can penalize members in order to lower their preference for being
called when there are people waiting in a particular queue. For example, we may penalize
queue members when we want them to be a member of a queue, but only receive calls
when the queue gets full enough that all our preferred agents are unavailable. This means
we can have three queues (say, support, sales, and billing), each containing the same
three queue members: James Shaw, Kay Madsen, and Danielle Roberts.
Suppose, however, that we want James Shaw to be the preferred contact in the support
queue, Kay Madsen preferred in sales, and Danielle Roberts preferred in billing. By
penalizing Kay Madsen and Danielle Roberts in support, we ensure that James Shaw
will be the preferred queue member called. Similarly, we can penalize James Shaw and
Danielle Roberts in the sales queue so Kay Madsen is preferred, and penalize James
Shaw and Kay Madsen in the billing queue so Danielle Roberts is preferred.
Penalizing queue members can be done either in the queues.conf file (if you’re specifying
queue members statically), or through the AddQueueMember() dialplan application. Let’s
look at how our queues would be set up with static members in queues.conf. Our example
assumes your queues.conf file still contains the StandardQueue template we defined
earlier in this chapter:
[support](StandardQueue)
member => SIP/0000FFFF0001,0,James Shaw ; preferred
member => SIP/0000FFFF0002,10,Kay Madsen ; second preferred
member => SIP/0000FFFF0003,20,Danielle Roberts ; least preferred
[sales](StandardQueue)
member => SIP/0000FFFF0002,0,Kay Madsen
member => SIP/0000FFFF0003,10,Danielle Roberts
member => SIP/0000FFFF0001,20,James Shaw
[billing](StandardQueue)
member => SIP/0000FFFF0003,0,Danielle Roberts
member => SIP/0000FFFF0001,10,James Shaw
member => SIP/0000FFFF0002,20,Kay Madsen
Advanced Queues | 353
www.it-ebooks.info
6. Similar to adding ballast to a jockey or racing car.
By defining different penalties for each member of the queue,6 we can help control the
preference for where callers are delivered, but still ensure that other queue members
will be available to answer calls if the preferred member is unavailable. Penalties can
also be defined using AddQueueMember(), as the following example demonstrates:
exten => *54,1,Verbose(2,Logging In Queue Member)
same => n,Set(MemberChannel=${CHANNEL(channeltype)}/${CHANNEL(peername)})
; *CLI> database put queue support/0000FFFF0001/penalty 0
same => n,Set(QueuePenalty=${DB(queue/support/${CHANNEL(peername)}/penalty)})
; *CLI> database put queue support/0000FFFF0001/membername "James Shaw"
same => n,Set(MemberName=${DB(queue/support/${CHANNEL(peername)}/membername)})
; AddQueueMember(queuename[,interface[,penalty[,options[,membername
; [,stateinterface]]]]])
same => n,AddQueueMember(support,${MemberChannel},
${QueuePenalty},,${MemberName})
Using AddQueueMember(), we’ve shown how you could retrieve the penalty associated
with a given member name for a particular queue and assign that value to the member
when she logs into the queue. Some additional abstraction would need to be done to
make this work for multiple queues; for more information see “Automatically Logging
Into and Out of Multiple Queues” on page 335.
Changing Penalties Dynamically (queuerules.conf)
Using the queuerules.conf file, it is possible to specify rules to change the values of the
QUEUE_MIN_PENALTY and QUEUE_MAX_PENALTY channel variables. The QUEUE_MIN_PEN
ALTY and QUEUE_MAX_PENALTY channel variables are used to control which members of
a queue are preferred for servicing callers. Let’s say we have a queue called support, and
we have five queue members with various penalties ranging from 1 through 5. If, prior
to a caller entering the queue, the QUEUE_MIN_PENALTY channel variable is set to a value
of 2 and the QUEUE_MAX_PENALTY is set to a value of 4, only queue members whose
penalties are set to values ranging from 2 through 4 will be considered available to
answer that call:
[Queues]
exten => 7000,1,Verbose(2,Entering the support queue)
same => n,Set(QUEUE_MIN_PENALTY=2) ; set minimum member penalty
same => n,Set(QUEUE_MAX_PENALTY=4) ; set maximum member penalty
same => n,Queue(support) ; entering the queue with min and max
; member penalties to be used
354 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
What’s more, during the caller’s stay in the queue, we can dynamically change the values
of QUEUE_MIN_PENALTY and QUEUE_MAX_PENALTY for that caller. This allows either more
or a different set of queue members to be used, depending on how long the caller waits
in the queue. For instance, in the previous example, we could modify the minimum
penalty to 1 and the maximum penalty to 5 if the caller has to wait more than 60 seconds
in the queue.
The rules are defined using the queuerules.conf file. Multiple rules can be created in
order to facilitate different penalty changes throughout the call. Let’s take a look at how
we’d define the changes described in the previous paragraph:
[more_members]
penaltychange => 60,5,1
If you make changes to the queuerules.conf file and reload
app_queue.so, the new rules will affect only new callers entering the
queue, not existing callers already holding.
We’ve defined the rule more_members in queuerules.conf and passed the following values
to penaltychange:
60
The number of seconds to wait before changing the penalty values.
5
The new QUEUE_MAX_PENALTY.
1
The new QUEUE_MIN_PENALTY.
With our new rule defined, we must reload app_queue.so to implement the changes:
*CLI> module reload app_queue.so
-- Reloading module 'app_queue.so' (True Call Queueing)
== Parsing '/etc/asterisk/queuerules.conf': == Found
We can also verify our rules at the console with queue show rules:
*CLI> queue show rules
Rule: more_members
After 60 seconds, adjust QUEUE_MAX_PENALTY to 5 and QUEUE_MIN_PENALTY to 1
With our rule now loaded into memory, we can modify our dialplan to make use of it.
Simply modify the Queue() line to include the new rule, like so:
[Queues]
exten => 7000,1,Verbose(2,Entering the support queue)
same => n,Set(QUEUE_MIN_PENALTY=2) ; set minimum queue member penalty
same => n,Set(QUEUE_MAX_PENALTY=4) ; set maximum queue member penalty
Advanced Queues | 355
www.it-ebooks.info
; Queue(queuename[,options[,URL[,announceoverride[,timeout[,AGI[,macro
; [,gosub[,rule[,position]]]]]]]]])
same => n,Queue(support,,,,,,,,more_members) ; enter queue with minimum and
; maximum member penalties
The queuerules.conf file is quite flexible. We can define our rule using relative instead
of absolute penalty values, and we can define multiple rules:
[more_members]
penaltychange => 30,+1
penaltychange => 45,,-1
penaltychange => 60,+1
penaltychange => 120,+2
Here, we’ve modified our more_members rule to use relative values. After 30 seconds,
we increase the maximum penalty by 1 (which would take us to 5 using our sample
dialplan). After 45 seconds, we decrease the minimum penalty by 1, and so on. We can
verify our new rule changes after a module reload app_queue.so at the Asterisk console:
*CLI> queue show rules
Rule: more_members
After 30 seconds, adjust QUEUE_MAX_PENALTY by 1 and QUEUE_MIN_PENALTY by 0
After 45 seconds, adjust QUEUE_MAX_PENALTY by 0 and QUEUE_MIN_PENALTY by -1
After 60 seconds, adjust QUEUE_MAX_PENALTY by 1 and QUEUE_MIN_PENALTY by 0
After 120 seconds, adjust QUEUE_MAX_PENALTY by 2 and QUEUE_MIN_PENALTY by 0
Announcement Control
Asterisk has the ability to play several announcements to callers waiting in the queue.
For example, you might want to announce the caller’s position in the queue, the average
wait time, or make periodic announcements thanking your callers for waiting (or what‐
ever your audio files say). It’s important to carefully tune the values that control when
these announcements are played to the callers, because announcing their position,
thanking them for waiting, and informing them of the average hold time too frequently
is going to tend to annoy them, which is not the goal of these things.
Playing Announcements Between Music on Hold Files
Instead of handling the intricacies of announcements for each of your queues, you could
alternatively (or in conjunction) utilize the announcement functionality defined in
musiconhold.conf. Prior to playing a file for music, the announcement file will be played,
and then played again between audio files. Let’s say for example you have a 5-minute
loop of audio, but you want to play a “Thank you for waiting” message every 30 seconds.
You could split the audio file into 30-second segments, set their filenames as starting
with 00-, 01-, 02-, etc. (to keep them playing in order), and then define the announce
ment. The musiconhold.conf class might look something like this:
356 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
[moh_jazz_queue]
mode=files
sort=alpha
announcement=queue-thankyou
directory=moh_jazz_queue
There are several options in the queues.conf file that you can use to fine-tune what and
when announcements are played to your callers. The full list of queue options is available
in “The queues.conf File” on page 341, but we’ll review the relevant ones here.
Table 13-7 lists the options you can use to control when announcements are played to
the caller.
Table 13-7. Options related to prompt control timing within a queue
Option Available values Description
announce-
frequency
Value in seconds Defines how often we should announce the caller’s position and/or estimated hold
time in the queue. Set this value to zero to disable.
min-announce-
frequency
Value in seconds Indicates the minimum amount of time that must pass before we announce the
caller’s position in the queue again. This is used when the caller’s position may
change frequently, to prevent the caller hearing multiple updates in a short period
of time.
periodic-
announce-
frequency
Value in seconds Specifies how often to make periodic announcements to the caller.
random-
periodic-
announce
yes, no If set to yes, will play the defined periodic announcements in a random order.
See periodic-announce.
relative-
periodic-
announce
yes, no If set to yes, the periodic-announce-frequency timer will start when
the end of the file being played back is reached, instead of from the beginning.
Defaults to no.
announce-
holdtime
yes, no, once Defines whether the estimated hold time should be played along with the
periodic announcements. Can be set to yes, no, or only once.
announce-
position
yes, no, lim
it, more
Defines whether the caller’s position in the queue should be announced to her. If
set to no, the position will never be announced. If set to yes, the caller’s position
will always be announced. If the value is set to limit, the caller will hear her
position in the queue only if it is within the limit defined by announce-
position-limit. If the value is set to more, the caller will hear her position
only if it is beyond the number defined by announce-position-limit.
announce-
position-limit
Number of zero
or greater Used if you’ve defined announce-position as either limit or more.
announce-round-
seconds
Value in seconds If this value is nonzero, the number of seconds is announced as well, and rounded
to the value defined.
Advanced Queues | 357
www.it-ebooks.info
Table 13-8 shows the files that will be used when announcements are played to the caller.
Table 13-8. Options for controlling the playback of prompts within a queue
Option Available values Description
musicclass Music class as defined by musi
conhold.conf
Sets the music class to be used by a particular queue. You can also
override this value with the CHANNEL(musicclass) channel
variable.
queue-
thankyou
Filename of prompt to play If not defined, plays the default value (“Thank you for your patience”).
If set to an empty value, prompt will not be played at all.
queue-
youarenext
Filename of prompt to play If not defined, plays the default value (“You are now first in line”). If set
to an empty value, prompt will not be played at all.
queue-
thereare
Filename of prompt to play If not defined, plays the default value (“There are”). If set to an empty
value, prompt will not be played at all.
queue - calls
waiting
Filename of prompt to play If not defined, plays the default value (“calls waiting”). If set to an
empty value, prompt will not be played at all.
queue-
holdtime
Filename of prompt to play If not defined, plays the default value (“The current estimated hold
time is”). If set to an empty value, prompt will not be played at all.
queue-minutes Filename of prompt to play If not defined, plays the default value (“minutes”). If set to an empty
value, prompt will not be played at all.
queue-seconds Filename of prompt to play If not defined, plays the default value (“seconds”). If set to an empty
value, prompt will not be played at all.
queue-
reporthold
Filename of prompt to play If not defined, plays the default value (“Hold time”). If set to an empty
value, prompt will not be played at all.
periodic-
announce
A set of periodic
announcements to be played,
separated by commas
Prompts are played in the order they are defined. Defaults to queue-
periodic-announce (“All representatives are currently busy
assisting other callers. Please wait for the next available
representative”).
If the number of options devoted to playing announcements to callers is any indication
of their importance, it’s probably in our best interest to use them to their fullest potential.
The options in Table 13-7 help us define when we’ll play announcements to callers, and
the options in Table 13-8 help us control what we play to our callers. With those tables
in hand, let’s take a look at an example queue where we’ve defined some values. We’ll
use our basic queue template as a starting point:
[general]
autofill=yes ; distribute all waiting callers to available members
shared_lastcall=yes ; respect the wrapup time for members logged into more
; than one queue
[StandardQueue](!) ; template to provide common features
musicclass=default ; play [default] music
strategy=rrmemory ; use the Round Robin Memory strategy
joinempty=yes ; do not join the queue when no members available
leavewhenempty=no ; leave the queue when no members available
358 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
7. Callers’ positions and hold times are only announced if more than one person is holding in the queue.
8. Note that in production you may want to set this to more than 30 seconds, especially if your average hold
times are such that a caller may hear this prompt more than once while holding. Set the value so that most
callers will never hear this prompt more than twice before they are answered.
ringinuse=no ; don't ring members when already InUse (prevents
; multiple calls to an agent)
[sales](StandardQueue) ; create the sales queue using the parameters in the
; StandardQueue template
[support](StandardQueue) ; create the support queue using the parameters in the
; StandardQueue template
We’ll now modify the StardardQueue template to control our announcements:
[StandardQueue](!) ; template to provide common features
musicclass=default ; play [default] music
strategy=rrmemory ; use the Round Robin Memory strategy
joinempty=yes ; do not join the queue when no members available
leavewhenempty=no ; leave the queue when no members available
ringinuse=no ; don't ring members when already InUse (prevents
; multiple calls to an agent)
; -------- Announcement Control --------
announce-frequency=30 ; announces caller's hold time and position
; every 30 seconds
min-announce-frequency=30 ; minimum amount of time that must pass before
; the caller's position is announced
periodic-announce-frequency=45 ; defines how often to play a periodic
; announcement to caller
random-periodic-announce=no ; defines whether to play periodic announcements
; in a random order, or serially
relative-periodic-announce=yes ; defines whether the timer starts at the end of
; file playback (yes) or the beginning (no)
announce-holdtime=once ; defines whether the estimated hold time should
; be played along with the periodic announcement
announce-position=limit ; defines if we should announce the caller's
; position in the queue
announce-position-limit=10 ; defines the limit value where we announce the
; caller's position (when announce-position is
; set to limit or more)
announce-round-seconds=30 ; rounds the hold time announcement to the
; nearest 30-second value
Let’s describe what we’ve just set in our StandardQueue template.
We’ll announce the caller’s hold time and position every 30 seconds (announce-
frequency),7 and make sure the minimum amount of time that passes before we an‐
nounce it again is at least 30 seconds (min-announce-frequency).8 We need to limit
how often our announcements are played to callers, in order to prevent the updates
Advanced Queues | 359
www.it-ebooks.info
9. Thank them, but don’t apologize, as this just ends up sounding insincere, since in essence they are being
apologized to by a machine, and they know it. The primary purpose of these prompts is to help the caller
understand that the system has still got them in queue.
10. Just sayin’.
from becoming annoying. Periodically, we’ll play an announcement to the callers that
thanks them for holding9 and assures them that an agent will be with them shortly. (The
announcement is defined by the periodic-announcement setting. We’re using the de‐
fault announcement, but you can define one or more announcements yourself using
periodic-announce.)
These periodic announcements will be played every 45 seconds (periodic-announce-
frequency), in the order they were defined (random-period-announce). To determine
when the periodic-announce-frequency timer should start, we use relative-
periodic-announce. The yes setting means the timer will start after the announcement
has finished playing, rather than when it starts to play. The problem you could run into
if you set this to no is that if your periodic announcement runs for any significant length
of time, say 30 seconds, it will appear as if it is being played every 15 seconds, rather
than every 45 seconds as may be intended. Also, if you’ve found some half-decent hold
music, and your callers are enjoying it, an interruption to play yet another message runs
the risk of really setting their blood boiling. When they are finally answered, your poor
agents will get the brunt of their anger, even though it is actually your fault.10
How many times we announce the hold time to the caller is controlled via the announce-
holdtime option, which we’ve set to once. Setting the value to yes will announce it every
time, and setting to no will disable it.
We configure how and when we announce the caller’s estimated remaining hold time
via announce-position, which we’ve set to limit. Using the value of limit for
announce-position lets us announce the caller’s position only if it is within the limit
defined by announce-position-limit. So, in this case we’re only announcing the call‐
ers’ positions if they are in the first 10 positions of the queue. We could also use yes to
announce the position every time the periodic announcement is played, set it to no to
never announce it, or use the value more if we want to announce the position only when
it is greater than the value set for announce-position-limit.
Our last option, announce-round-seconds, controls the value to round to when we
announce the caller’s hold time. In this case, instead of saying “1 minute and 23 seconds,”
the value would be rounded to the nearest 30-second value, which would result in a
prompt of “1 minute and 30 seconds.”
360 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
Overflow
Overflowing out of the queue is done either with a timeout value or when no queue
members are available (as defined by joinempty or leavewhenempty). In this section
we’ll discuss how to control when overflow happens.
Controlling timeouts
The Queue() application supports two kinds of timeout: one is for the maximum period
of time a caller stays in the queue, and the other is how long to ring a device when
attempting to connect a caller to a queue member. The two are unrelated but can affect
each other. In this section we’ll be talking about the maximum period of time a caller
stays in the Queue() application before the call overflows to the next step in the dialplan,
which could be something like VoiceMail(), or even another queue. Once the call has
fallen out of the queue, it can go anywhere that a call could normally go when controlled
by the dialplan.
The timeouts are specified in two locations. The timeout that indicates how long to ring
queue members for is specified in the queues.conf file. The absolute timeout (how long
the caller stays in the queue) is controlled via the Queue() application. To set a maximum
amount of time for callers to stay in a queue, simply specify it after the queue name in
the Queue() application:
[Queues]
exten => 7000,1,Verbose(2,Joining the support queue for a maximum of 2 minutes)
same => n,Queue(support,120)
same => n,VoiceMail(support@queues,u)
same => n,Hangup()
Of course, we could define a different destination, but the VoiceMail() application is
a common overflow destination for a queue. Obviously, sending callers to voicemail is
not ideal (they were hoping to speak to someone live), so make sure someone checks it
regularly and calls your customers back.
Now let’s say we have set our absolute timeout to 10 seconds, our timeout value for
ringing queue members to 5 seconds, and our retry timeout value to 4 seconds. In this
scenario, we would ring the queue member for 5 seconds, then wait 4 seconds before
attempting another queue member. That brings us up to 9 seconds of our absolute
timeout of 10 seconds. At this point, should we ring the second queue member for 1
second and then exit the queue, or should we ring this member for the full 5 seconds
before exiting?
We control which timeout value has priority with the timeoutpriority option in
queues.conf. The available values are app and conf. If we want the application timeout
(the absolute timeout) to take priority, which would cause our caller to be kicked out
after exactly 10 seconds, we should set the timeoutpriority value to app. If we want
the configuration file timeout to take priority and finish ringing the queue member,
Advanced Queues | 361
www.it-ebooks.info
11. If the priority n+1 (from where the Queue() application was called) is not defined, the call will be hung up.
In other words, don’t use this functionality unless your dialplan does something useful at the step immediately
following Queue().
which will cause the caller to stay in the queue a little longer, we should set timeout
priority to conf. The default value is app (which is the default behavior in previous
versions of Asterisk).
Controlling when to join and leave a queue
Asterisk provides two options that control when callers can join and are forced to leave
queues, based on the statuses of the queue members. The first option, joinempty, is
used to control whether callers can enter a queue. The leavewhenempty option is used
to control when callers already in a queue should be removed from that queue (i.e., if
all of the queue members become unavailable). Both options take a comma-separated
list of values that controls this behavior. The factors are listed in Table 13-9.
Table 13-9. Options that can be set for joinempty or leavewhenempty
Value Description
paused Members are considered unavailable if they are paused.
penalty Members are considered unavailable if their penalties are less than QUEUE_MAX_PENALTY.
inuse Members are considered unavailable if their device status is In Use.
ringing Members are considered unavailable if their device status is Ringing.
unavailable Applies primarily to agent channels; if the agent is not logged in but is a member of the queue, the channel
is considered unavailable.
invalid Members are considered unavailable if their device status is Invalid. This is typically an error condition.
unknown Members are considered unavailable if device status is unknown.
wrapup Members are considered unavailable if they are currently in the wrapup time after the completion of a call.
For joinempty, prior to placing a caller into the queue, all the members are checked for
availability using the factors you list as criteria. If all members are deemed to be un‐
available, the caller will not be permitted to enter the queue, and dialplan execution will
continue at the next priority.11 For the leavewhenempty option, the members’ statuses
are checked periodically against the listed conditions; if it is determined that no
members are available to take calls, the caller is removed from the queue, with dialplan
execution continuing at the next priority.
An example use of joinempty could be:
joinempty=paused,inuse,invalid
362 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
With this configuration, prior to a caller entering the queue the statuses of all queue
members will be checked, and the caller will not be permitted to enter the queue unless
at least one queue member is found to have a status that is not paused, inuse, or invalid.
The leavewhenempty example could be something like:
leavewhenempty=inuse,ringing
In this case, the queue members’ statuses will be checked periodically, and callers will
be removed from the queue if no queue members can be found who do not have a status
of either inuse or ringing.
Previous versions of Asterisk used the values yes, no, strict, and loose as the available
values to be assigned. The mapping of those values is shown in Table 13-10.
Table 13-10. Mapping between old and new values for controlling when callers join and
leave queues
Value Mapping (joinempty) Mapping (leavewhenempty)
yes (empty) penalty,paused,invalid
no penalty,paused,invalid (empty)
strict penalty,paused,invalid,unavailable penalty,paused,invalid,unavailable
loose penalty,invalid penalty,invalid
Using Local Channels
The use of Local channels as queue members is a powerful way of executing dialplan
code prior to dialing the actual agent’s device. For example, it allows us to define custom
channel variables, write to a log file, set some limit on call length (e.g., if it is a paid
service), send messages of all sorts all over the place, perform database transactions,
and many of the other actions we might wish to do at the exact moment the Queue()
application has decided to present a caller to a specific member (including returning
Congestion(), which will have the effect of returning the caller to the queue, since the
queue will not consider this call to have been successfully delivered to an agent).
When using Local channels for queues, they are added just like any other channels,
typically by either defining them in the queues.conf file, or adding them dynamically
through the AddQueueMember() dialplan application.
If you want to define them in the queues.conf file, adding a Local channel would look
something like this:
Advanced Queues | 363
www.it-ebooks.info
; queues.conf
[support](StandardQueue)
member => Local/SIP-0000FFFF0001@MemberConnector ; pass the technology to dial
; over and the device
; identifier, separated by a
; hyphen. We'll break it apart
; inside the MemberConnector
; context.
Notice how we passed the type of technology we want to call along with
the device identifier to the MemberConnector context. We’ve simply used
a hyphen (although we could have used nearly anything as a separator
argument) as the field marker. We’ll use the CUT() function inside the
MemberConnector context and assign the first field (SIP) to one channel
variable and the second field (0000FFFF0001) to another channel vari‐
able, which will then be used to call the endpoint.
Passing information to be later “exploded” in the context used by the
Local channel is a common and useful technique (kind of like the ex
plode() function in PHP).
Since our Local channel is referring to the MemberConnector context, we’ll need that
context in our dialplan to contain the intelligence necessary to actually connect the caller
to the physical channel the agent is using (ideally a SIP telephone of some sort):
[MemberConnector]
exten => _[A-Za-z0-9].,1,Verbose(2,Connect ${CALLERID(all)} to Agent at ${EXTEN})
; filter out any bad characters, allow alphanumeric chars and hyphen
same => n,Set(QueueMember=${FILTER(A-Za-z0-9\-,${EXTEN})})
; assign the first field of QueueMember to Technology; hyphen as separator
same => n,Set(Technology=${CUT(QueueMember,-,1)})
; assign the second field of QueueMember to Device using the hyphen separator
same => n,Set(Device=${CUT(QueueMember,-,2)})
; dial the agent
same => n,Dial(${Technology}/${Device})
same => n,Hangup()
We now have all the code required to pass a queue call to an agent through a Local
channel. However, because the queue member is a Local channel and not a SIP channel,
the Queue() won’t necessarily know the state the call is in, especially when the Local
channel is optimized out of the path [see the Asterisk wiki for information about the /n
modifier, which causes the Local channel to not be optimized out of the path]. The queue
will be monitoring the state of the Local channel, and not that of the device we really
364 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
want to monitor; thus, the actual state of the channel the agent is using will not be known
to the queue.
Fortunately, we can provide Queue() with the actual physical device to monitor, and
associate that with the Local channel, so that the queue member’s state is always that of
the device we’ll end up calling. Our queue member should be modified in the queues.conf
file like so:
; queues.conf
[support](StandardQueue)
member => Local/SIP-0000FFFF0001@MemberConnector,,,SIP/0000FFFF0001
Only SIP channels are capable of sending back reliable device-state in‐
formation, so it is highly recommended that you use only these channels
when using Local channels as queue members, or at least be aware that
state information may not be reliable for other channel technology
types (such as DAHDI, IAX2, and so forth).
In addition to defining a member in the queues.conf file, you can also use the AddQueue
Member() and RemoveQueueMember() applications to add and remove Local channel
members from a queue using dialplan code (as you can with any channel type). Add
QueueMember() also has the ability to set the state interface, similar to what we defined
statically in the queues.conf file. An example of how you might do this follows:
[QueueMemberLogin]
exten => 500,1,Verbose(2,Logging in device ${CHANNEL(peername)}
into the support queue)
; Save the device's technology to the MemberTech channel variable
same => n,Set(MemberTech=${CHANNEL(channeltype)})
; Save the device's identifier to the MemberIdent channel variable
same => n,Set(MemberIdent=${CHANNEL(peername)})
; Build up the interface name from the channel type and peer name
; and assign it to the Interface channel variable
same => n,Set(Interface=${MemberTech}/${MemberIdent})
; Add the member to the support queue using a Local channel.
; We're using the same format as before, separating the
; technology and the device indentifier witha hyphen and
; passing that information to the MemberConnector context.
; We then use the IF() function to determine if the member's
; technology is SIP and, if so, to pass back the contents of
; the Interface channel variable as the value to the state
; interface field of the AddQueueMember() application.
;
; When debugging, you might want to hard code
; an AddQueueMember with a single interface specified, to
Advanced Queues | 365
www.it-ebooks.info
; get a feel for the syntax, such as:
; ***This line should not have any line breaks
same => n,AddQueueMember(support,Local/SIP-0000FFFF0001
@MemberConnector,,,SIP/0000FFFF0001)
; your dialplan, however, should be coded to handle all
; channels and members, like this:
; *** This line should not have any line breaks
same => n,AddQueueMember(support,Local/${MemberTech}-${MemberIdent}
@MemberConnector,,,${IF($[${MemberTech} = SIP]?${Interface})})
same => n,Playback(silence/1)
; Play back either the agent-loginok or agent-incorrect file, depending on
; what the AQMSTATUS variable is set to.
same => n,Playback(${IF($[${AQMSTATUS} = ADDED]?agent-loginok:agent-incorrect)})
same => n,Hangup()
Now that we can add devices to the queue using Local channels, let’s look at how this
might be useful. In our example, we’re going to control the number of calls to either
non-SIP channels or SIP devices with more than one line (which is typical for a factory-
standard SIP phone). We can make use of the GROUP() and GROUP_COUNT() functions
to track call counts to an endpoint. We’ll modify our MemberConnector context to take
this into account:
[MemberConnector]
exten => _[A-Za-z0-9].,1,Verbose(2,Connect ${CALLERID(all)} to ${EXTEN})
; filter out any bad characters, allowing alphanumeric and hyphen
same => n,Set(QueueMember=${FILTER(A-Za-z0-9\-,${EXTEN})})
; assign the first field to Technology using hyphen as separator
same => n,Set(Technology=${CUT(QueueMember,-,1)})
; assign the second field of to Device using hyphen as separator
same => n,Set(Device=${CUT(QueueMember,-,2)})
; Increase value of group inside queue_members category by one
same => n,Set(GROUP(queue_members)=${Technology}-${Device})
; Check if the group@category greater than 1, and return Congestion()
; (too many channels)
;
; *** This line should not have any line breaks
same => n,ExecIf($[${GROUP_COUNT(${Technology}-${Device}@queue_members)} > 1]
?Congestion())
; dial the agent
same => n,Dial(${Technology}/${Device})
same => n,Hangup()
The passing back of Congestion() will cause the caller to be returned to the queue
(while this is happening, the caller gets no indication that anything is amiss and keeps
366 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
12. Obviously, don’t use any dialplan code in your Local channel that will answer, such as Answer(), Play
back(), and so forth.
hearing music until their call is answered by a channel of some sort12). Ideally, your
queue is programmed to try another agent; however, you need to keep in mind that if
app_queue determines that this member is still its first choice to present the call to, the
call will simply be reconnected to the same agent (and get congestion again, and thus
potentially create a CPU-hogging logic loop). To avoid this, you will need to ensure your
queue is using a distribution strategy such as round_robin, random, or any strategy that
ensures the same member is not tried over and over.
We’ve also used this same method to create a type of reservation process. If you want
to call an agent directly (for example, if the caller needs to follow up with a particular
agent), you could reserve that agent by using the GROUP() and GROUP_COUNT() functions
to essentially pause the agent in the queue until the caller can be connected. This is
particularly useful in situations where you need to play some announcements to the
caller prior to connecting her with the agent, but you don’t want the agent to get con‐
nected to another caller while the announcements are being played.
The use of Local channels for your member channels will not make queue design and
debugging easier, but it does give you far more power over your queues than just using
app_queue on its own, so if you have a complex queue requirement, the use of Local
channels may give you a level of control you might not have otherwise.
Queue Statistics: The queue_log File
The queue_log file (commonly located in /var/log/asterisk) contains cumulative event
information about the queues defined in your system (when a queue is reloaded, when
queue members are added or removed, etc.) as well as some call details (e.g., their status
and which channels the callers were connected to). The queue log is enabled by default,
but it can be controlled via the logger.conf file. There are three options related to the
queue_log file specifically:
queue_log
Controls whether the queue log is enabled or not. Valid values are yes or no (defaults
to yes).
queue_log_to_file
Controls whether the queue log should be written to a file even when a realtime
backend is present. Valid values are yes or no (defaults to no).
queue_log_name
Controls the name of the queue log. The default is queue_log.
Queue Statistics: The queue_log File | 367
www.it-ebooks.info
The queue log is a pipe-separated list of events. The fields in the queue_log file are as
follows:
• Epoch timestamp of the event
• Unique ID of the call
•Name of the queue
•Name of bridged channel
• Type of event
•Zero or more event parameters
The information contained in the event parameters depends on the type of event. A
typical queue_log file will look something like the following:
1292281046|psy1-1292281041.87|7100|NONE|ENTERQUEUE||4165551212|1
1292281046|psy1-1292281041.87|7100|Local/9996@MemberConnector|RINGNOANSWER|0
1292281048|psy1-1292281041.87|7100|Local/9990@MemberConnector|CONNECT|2
|psy1-1292281046.90|0
1292284121|psy1-1292281041.87|7100|Local/9990@MemberCo|COMPLETECALLER|2|3073|1
1292284222|MANAGER|7100|Local/9990@MemberConnector|REMOVEMEMBER|
1292284222|MANAGER|7200|Local/9990@MemberConnector|REMOVEMEMBER|
1292284491|MANAGER|7100|Local/9990@MemberConnector|ADDMEMBER|
1292284491|MANAGER|7200|Local/9990@MemberConnector|ADDMEMBER|
1292284519|psy1-1292284515.93|7100|NONE|ENTERQUEUE||4165551212|1
1292284519|psy1-1292284515.93|7100|Local/9996@MemberConnector|RINGNOANSWER|0
1292284521|psy1-1292284515.93|7100|Local/9990@MemberConnector|CONNECT|2
|psy1-1292284519.96|0
1292284552|MANAGER|7100|Local/9990@MemberConnector|REMOVEMEMBER|
1292284552|MANAGER|7200|Local/9990@MemberConnector|REMOVEMEMBER|
1292284562|psy1-1292284515.93|7100|Local/9990@MemberCo|COMPLETECALLER|2|41|1
As you can see from this example, there may not always be a unique ID for the event.
External services, such as the Asterisk Manager Interface (AMI), can perform actions
on the queue, and in these cases you’ll see something like MANAGER in the Unique ID
field.
The available events and the information they provide are described in Table 13-11.
Table 13-11. Events in the Asterisk queue log
Event Information provided
ABANDON Written when a caller in a queue hangs up before his call is answered by an agent. Three parameters
are provided for ABANDON: the position of the caller at hangup, the original position of the caller
when entering the queue, and the amount of time the caller waited prior to hanging up.
ADDMEMBER Written when a member is added to the queue. The bridged channel name will be populated with the
name of the channel added to the queue.
368 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
Event Information provided
AGENTDUMP Indicates that the agent hung up on the caller while the queue announcement was being played, prior
to them being bridged together.
AGENTLOGIN Recorded when an agent logs in. The bridged channel field will contain something like Agent/9994
if logging in with chan_agent, and the first parameter field will contain the channel logging in
(e.g., SIP/0000FFFF0001).
AGENTLOGOFF Logged when an agent logs off, along with a parameter indicating how long the agent was logged in
for. Note that since you will often use RemoveQueueMember() for agent log off, this parameter
may not be written. See the REMOVEMEMBER event instead.
COMPLETEAGENT Recorded when a call is bridged to an agent and the agent hangs up, along with parameters indicating
the amount of time the caller was held in the queue, the length of the call with the agent, and the
original position at which the caller entered the queue.
COMPLETECALLER Same as COMPLETEAGENT, except the caller hung up and not the agent.
CONFIGURELOAD Indicates that the queue configuration was reloaded (e.g., via module reload app_queue.so).
CONNECT Written when the caller and the agent are bridged together. Three parameters are also written: the
amount of time the caller waited in the queue, the unique ID of the queue member’s channel to which
the caller was bridged, and the amount of time the queue member’s phone rang prior to being
answered.
ENTERQUEUE Written when a caller enters the queue. Two parameters are also written: the URL (if specified) and the
caller ID of the caller.
EXITEMPTY Written when the caller is removed from the queue due to a lack of agents available to answer the call
(as specified by the leavewhenempty parameter). Three parameters are also written: the position
of the caller in the queue, the original position at which the caller entered the queue, and the amount
of time the caller was held in the queue.
EXITWITHKEY Written when the caller exits the queue by pressing a single DTMF key on his phone to exit the queue
and continue in the dialplan (as enabled by the context parameter in queues.conf). Four parameters
are recorded: the key used to exit the queue, the position of the caller in the queue upon exit, the
original position the caller entered the queue at, and the amount of time the caller was waiting in the
queue.
EXITWITHTIMEOUT Written when the caller is removed from the queue due to timeout (as specified by the timeout
parameter to Queue()). Three parameters are also recorded: the position the caller was in when
exiting the queue, the original position of the caller when entering the queue, and the amount of time
the caller waited in the queue.
PAUSE Written when a queue member is paused.
PAUSEALL Written when all members of a queue are paused.
UNPAUSE Written when a queue member is unpaused.
UNPAUSEALL Written when all members of a queue are unpaused.
PENALTY Written when a member’s penalty is modified. The penalty can be changed through several means,
such as the QUEUE_MEMBER_PENALTY() function, the Asterisk Manager Interface, or the Asterisk
CLI commands.
REMOVEMEMBER Written when a queue member is removed from the queue. The bridge channel field will contain the
name of the member removed from the queue.
Queue Statistics: The queue_log File | 369
www.it-ebooks.info
Event Information provided
RINGNOANSWER Logged when a queue member is rung for a period of time, and the timeout value for ringing the
queue member is exceeded. A single parameter will also be written indicating the amount of time the
member’s extension rang.
TRANSFER Written when a caller is transferred to another extension. Additional parameters are also written,
which include: the extension and context the caller was transferred to, the hold time of the caller in
the queue, the amount of time the caller was speaking to a member of the queue, and the original
position of the caller when he entered the queue.a
SYSCOMPAT Recorded if an agent attempts to answer a call, but the call cannot be set up due to incompatibilities in
the media setup.
a Please note that when the caller is transferred using SIP transfers (rather than the built-in transfers triggered by DTMF and
configured in features.conf), the TRANSFER event may not be written.
Conclusion
We started this chapter with a look at basic call queues, discussing what they are, how
they work, and when you might want to use one. After building a simple queue, we
explored how to control queue members through various means (including the use of
Local channels, which provide the ability to perform some dialplan logic just prior to
connecting to a queue member). We also explored all the options available to us in the
queues.conf, agents.conf, and queuerules.conf files, which offer us fine-grained control
over any queues we configure. Of course, we need the ability to monitor what our queues
are doing, so we had a quick look at the queue logfile, and the various fields written as
a result of events happening in our queues.
With the knowledge provided in this chapter, you should be well on your way to im‐
plementing a successful set of queues for your company.
370 | Chapter 13: Automatic Call Distribution (ACD) Queues
www.it-ebooks.info
Out of clutter, find simplicity.
—Albert Einstein
CHAPTER 14
Device States
It is often useful to be able to determine the state of the devices that are attached to a
telephone system. For example, a receptionist might require the ability to see the statuses
of everyone in the office in order to determine whether somebody can take a phone call.
Asterisk itself needs this same information. As another example, if you were building a
call queue, as discussed in Chapter 13, Asterisk needs to know when an agent is available
so that another call can be delivered. This chapter discusses device state concepts in
Asterisk, as well as how devices and applications use and access this information.
Device States
There are two types of devices that device states refer to: real devices and virtual devices.
Real devices are telephony endpoints that can make or receive calls, such as SIP phones.
Virtual devices include things that are inside Asterisk but provide useful state infor‐
mation. Table 14-1 lists the available virtual devices in Asterisk.
Table 14-1. Virtual devices in Asterisk
Virtual device Description
MeetMe:<conference
bridge>
The state of a MeetMe conference bridge. The state will reflect whether or not the
conference bridge currently has participants called in. More information on using
MeetMe() for call conferencing can be found in “Conferencing with MeetMe()” on
page 263.
SLA:<shared line> Shared Line Appearance state information. This state is manipulated by the SLA
Trunk() and SLAStation() applications. More detail can be found in “Shared
Line Appearances” on page 389.
371
www.it-ebooks.info
Virtual device Description
Custom:<custom name> Custom device states. These states have custom names and are modified using the
DEVICE_STATE() function. Example usage can be found in “Using Custom Device
States” on page 378.
Park:<exten@context> The state of a spot in a call parking lot. The state information will reflect whether or not
a caller is currently parked at that extension. More information about call parking in
Asterisk can be found in “Parking Lots” on page 276.
Calendar:<calendar name> Calendar state. Asterisk will use the contents of the named calendar to set the state to
available or busy. More information about calendar integration in Asterisk can be
found in Chapter 18.
A device state is a simple one-to-one mapping to a device. Figure 14-1 shows this
mapping.
Figure 14-1. Device state mappings
Checking Device States
The DEVICE_STATE() dialplan function can be used to read the current state of a device.
Here is a simple example of it being used in the dialplan:
exten => 7012,1,Answer()
; *** This line should not have any line breaks
same => n,Verbose(3,The state of SIP/0004F2060EB4 is
${DEVICE_STATE(SIP/0004F2060EB4)})
same => n,Hangup()
If we call extension 7012 from the same device that we are checking the state of, the
following verbose message comes up on the Asterisk console:
-- The state of SIP/0004F2060EB4 is INUSE
372 | Chapter 14: Device States
www.it-ebooks.info
Chapter 20 discusses the Asterisk Manager Interface (AMI). The Get
Var manager action can be used to retrieve device state values in an
external program. You can use it to get the value of either a normal
variable or a dialplan function, such as DEVICE_STATE().
The following list includes the possible values that will come back from the
DEVICE_STATE() function:
•UNKNOWN
•NOT_INUSE
•INUSE
•BUSY
•INVALID
•UNAVAILABLE
•RINGING
•RINGINUSE
•ONHOLD
Extension States
Extension states are another important concept in Asterisk. Extension states are what
SIP devices subscribe to for presence information. (SIP presence is discussed in more
detail in “SIP Presence” on page 376). The state of an extension is determined by checking
the state of one or more devices. The list of devices that map to extension states is defined
in the Asterisk dialplan, /etc/asterisk/extensions.conf, using a special hint directive.
Figure 14-2 shows the mapping between devices, device states, and extension states.
Extension States | 373
www.it-ebooks.info
Figure 14-2. Extension state mappings
Hints
To define an extension state hint in the dialplan, the keyword hint is used in place of a
priority. Here is a simple example dialplan that relates to Figure 14-2:
[default]
exten => 1234,hint,SIP/phoneA&SIP/phoneB&SIP/phoneC
exten => 5555,hint,DAHDI/1
exten => 31337,hint,MeetMe:31337
Typically, hints are simply defined along with the rest of the extension. This next example
adds simple extension entries for what would happen if each of these extensions were
called:
[default]
exten => 1234,hint,SIP/phoneA&SIP/phoneB&SIP/phoneC
exten => 1234,1,Dial(SIP/phoneA&SIP/phoneB&SIP/phoneC)
exten => 5555,hint,DAHDI/1
exten => 5555,1,Dial(DAHDI/1)
374 | Chapter 14: Device States
www.it-ebooks.info
exten => 31337,hint,MeetMe:31337
exten => 31337,1,MeetMe(31337,dM)
In our example we’ve made a direct correlation between the hint’s extension number
and the extension number being dialed, although there is no requirement that this be
the case.
Checking Extension States
The easiest way to check the current state of an extension is at the Asterisk CLI. The
core show hints command will show you all currently configured hints. Consider the
following hint definition:
[phones]
exten => 7001,hint,SIP/0004F2060EB4
When core show hints is executed at the Asterisk CLI, the following output is presented
when the device is currently in use:
*CLI> core show hints
-= Registered Asterisk Dial Plan Hints =-
7001@phones : SIP/0004F2060EB4 State:InUse Watchers 0
----------------
- 1 hints registered
In addition to showing you the state of the extension, the output of core show hints also
provides a count of watchers. A watcher is something in Asterisk that has subscribed to
receive updates on the state of this extension. If a SIP phone subscribes to the state of
an extension, the watcher count will be increased.
Extension state can also be retrieved with a dialplan function, EXTENSION_STATE(). This
function operates much like the DEVICE_STATE() function described in the preceding
section. The following example shows an extension that will print the current state of
another extension to the Asterisk console:
exten => 7013,1,Answer()
same => n,Verbose(3,The state of 7001@phones is
${EXTENSION_STATE(7001@phones)})
same => n,Hangup()
When this extension is called, this is the verbose message that shows up on the Aster‐
isk console:
-- The state of 7001@phones is INUSE
Extension States | 375
www.it-ebooks.info
1. Some also like to call these “blinky lamps” or “blinky lights” for their phones. Geeks and their LEDs…
The following list includes the possible values that may be returned from the EXTEN
SION_STATE() function:
•UNKNOWN
•NOT_INUSE
•INUSE
•BUSY
•UNAVAILABLE
•RINGING
•RINGINUSE
•HOLDINUSE
•ONHOLD
SIP Presence
Asterisk gives devices the capability to subscribe to extension state using the SIP pro‐
tocol. This functionality is often referred to as BLF (Busy Lamp Field).1
Asterisk Configuration
To get this working, hints must be defined in /etc/asterisk/extensions.conf (see “Hints”
on page 374 for more information on configuring hints in the dialplan). Additionally,
some important options must be set in the configuration file for the SIP channel driver,
which is /etc/asterisk/sip.conf. The following list discusses these options:
callcounter
Enables/disables call counters. This must be enabled for Asterisk to be able to pro‐
vide state information for SIP devices. This option may be set either in the [gener
al] section or in peer-specific sections of sip.conf.
If you would like device states to work for SIP devices, you must
at least set the callcounter option to yes. Otherwise, the SIP
channel driver will not bother tracking calls to and from
devices and will provide no state information about them.
376 | Chapter 14: Device States
www.it-ebooks.info
busylevel
Sets the number of calls that must be in progress for Asterisk to report that a device
is busy. This option may only be set in peer-specific sections of sip.conf. By default,
this option is not set. This means that Asterisk will report that a device is in use,
but never busy.
call-limit
This option has been deprecated in favor of using the GROUP() and GROUP_COUNT()
functions in the Asterisk dialplan. You may find older documentation that suggests
that this option is required for SIP presence to work. That used to be the case, but
this option has been replaced by the callcounter option for that purpose.
allowsubscribe
Allows you to disable support for subscriptions. If this option has not been set,
subscriptions will be enabled. To disable subscription support completely, set al
lowsubscribe to no in the [general] section of sip.conf.
subscribecontext
Allows you to set a specific context for subscriptions. Without this set, the context
defined by the context option will be used. This option may be set either in the
[general] section or in peer-specific sections of sip.conf.
notifyringing
Controls whether or not a notification will be sent when an extension goes into a
ringing state. This option is set to yes by default. It only has an effect on subscrip‐
tions that use the dialog-info event package. This option can only be set globally in
the [general] section of sip.conf.
notifyhold
Allows chan_sip to set SIP devices’ states to ONHOLD. This is set to yes by default.
This option can only be set globally in the [general] section of sip.conf.
notifycid
Enables/disables sending of an inbound call’s caller ID information to an extension.
This option applies to devices that subscribe to dialog-info+xml-based extension
state notifications, such as Snom phones. Displaying caller ID information can be
useful to help an agent decide whether to execute a pickup on an incoming call.
This option is set to no by default.
SIP Presence | 377
www.it-ebooks.info
This magic pickup only works if the extension and context of the
hint are the same as the extension and context of the incoming call.
Notably, the usage of the subscribecontext option usually breaks
this option. This option can also be set to the value ignore-
context. This will bypass the context issue, but should only be used
in an environment where there is only a single instance of the ex‐
tension that has been subscribed to. Otherwise, you might acci‐
dentally pick up calls that you did not mean to pick up.
Using Custom Device States
Asterisk provides the ability to create custom device states, which lends itself to the
development of some interesting custom applications. We’ll start by showing the basic
syntax for controlling custom device states, and then we’ll build an example that uses
them.
Custom device states all start with a prefix of Custom:. The text that comes after the
prefix can be anything you want. To set or read the value of a custom device state, use
the DEVICE_STATE() dialplan function. For example, to set a custom device state:
exten => example,1,Set(DEVICE_STATE(Custom:example)=BUSY)
Similarly, to read the current value of a custom device state:
exten => Verbose(1,The state of Custom:example is
${DEVICE_STATE(Custom:example)})
Custom device states can be used as a way to directly control the state shown on a device
that has subscribed to the state of an extension. Just map an extension to a custom device
state using a hint in the dialplan:
exten => example,hint,Custom:example
An Example
There are a number of interesting use cases for custom device states. In this section we
will build an example that implements a custom “Do not disturb” (DND) button on a
SIP phone. This same approach could be applied to many other things that you might
like to be able to toggle at the touch of a button. For example, this approach could be
used to let members know if they are currently logged into a queue or not.
The first piece of the example is the hint in the dialplan. This is required so BLF can be
configured on a SIP phone to subscribe to this extension. In this case, the phone must
be configured to subscribe to the state of DND_7015:
exten => DND_7015,hint,Custom:DND_7015
378 | Chapter 14: Device States
www.it-ebooks.info
Next, we will create an extension that will be called when the user presses the key asso‐
ciated with the custom DND feature. It is interesting to note that this extension does
nothing with audio. In fact, the user of the phone most likely will not even know that a
call is placed when he presses the button. As far as the user is concerned, pressing that
key simply turns on or off the light next to the button that reflects whether or not DND
is enabled. The extension should look like this:
exten => DND_7015,1,Answer()
same => n,GotoIf($["${DEVICE_STATE(Custom:DND_7015)}"="BUSY"]?
turn_off:turn_on)
same => n(turn_off),Set(DEVICE_STATE(Custom:DND_7015)=NOT_INUSE)
same => n,Hangup()
same => n(turn_on),Set(DEVICE_STATE(Custom:DND_7015)=BUSY)
same => n,Hangup()
The final part of this example shows how the DND state is used in the dialplan. If DND
is enabled, a message is played to the caller saying that the agent is unavailable. If it is
disabled, a call will be made to a SIP device:
exten => 7015,1,GotoIf($["${DEVICE_STATE(Custom:DND_7015)}"="BUSY"]?busy:available)
same => n(available),Verbose(3,DND is currently off for 7015.)
same => n,Dial(SIP/exampledevice)
same => n,Hangup()
same => n(busy),Verbose(3,DND is on for 7015.)
same => n,Playback(vm-theperson)
same => n,Playback(digits/7&digits/0&digits/1&digits/5)
same => n,Playback(vm-isunavail)
same => n,Playback(vm-goodbye)
same => n,Hangup()
Example 14-1 shows the full set of extensions as they would appear in /etc/asterisk/
extensions.conf.
Example 14-1. Custom “Do not disturb” functionality using custom device states
;
; A hint so a phone can use BLF to signal the DND state.
;
exten => DND_7015,hint,Custom:DND_7015
;
; An extension to dial when the user presses the custom DND
; key on his phone. This will toggle the state and will result
; in the light on the phone turning on or off.
;
exten => DND_7015,1,Answer()
same => n,GotoIf($["${DEVICE_STATE(Custom:DND_7015)}"="BUSY"]?turn_off:turn_on)
same => n(turn_off),Set(DEVICE_STATE(Custom:DND_7015)=NOT_INUSE)
Using Custom Device States | 379
www.it-ebooks.info
same => n,Hangup()
same => n(turn_on),Set(DEVICE_STATE(Custom:DND_7015)=BUSY)
same => n,Hangup()
;
; Example usage of the DND state.
;
exten => 7015,1,GotoIf($["${DEVICE_STATE(Custom:DND_7015)}"="BUSY"]?busy:available)
same => n(available),Verbose(3,DND is currently off for 7015.)
same => n,Dial(SIP/exampledevice)
same => n,Hangup()
same => n(busy),Verbose(3,DND is on for 7015.)
same => n,Playback(vm-theperson)
same => n,Playback(digits/7&digits/0&digits/1&digits/5)
same => n,Playback(vm-isunavail)
same => n,Playback(vm-goodbye)
same => n,Hangup()
Distributed Device States
Asterisk is primarily designed to run on a single system. However, as requirements for
scalability increase, it is common for deployments to require multiple Asterisk servers.
Since that has become increasingly common, some features have been added to make
it easier to coordinate multiple Asterisk servers. One of those features is distributed
device state support.
This means that if a device is on a call on one Asterisk server, the state of that device on
all servers reflects that. To be more specific, the way this works is that every server knows
the state of each device from the perspective of each server. Using this collection of
states, each server will calculate what the overall device-state value is to report to the
rest of Asterisk.
To accomplish distributed device state, some sort of messaging mechanism must be
used for the servers to communicate with each other. Two such mechanisms are sup‐
ported as of Asterisk 11: Corosync and XMPP.
Using Corosync
Corosync provides a set of APIs useful for clustered applications. Asterisk uses Coro‐
sync’s group communication API to distribute events among a cluster of Asterisk
servers.
Corosync is built in such a way that nodes must be located on the same high-speed, low-
latency LAN. If your deployment is geographically distributed, you should use the
380 | Chapter 14: Device States
www.it-ebooks.info
XMPP-based distributed device state support, which is discussed in “Using XMPP” on
page 385.
Installation
Next, install Corosync. The easiest way to install it is from the distribution’s package
management system. On RHEL:
$ sudo yum install corosync corosynclib corosynclib-devel
On Ubuntu:
$ sudo apt-get install corosync corosync-dev
If you installed Asterisk prior to installing Corosync, you will need to recompile and
reinstall Asterisk to get Corosync support. Start by running the Asterisk configure script.
The configure script is responsible for inspecting the system to find out which optional
dependencies can be found so that the build system knows which modules can be built:
$ cd /path/to/asterisk
$ ./configure
After running the configure script, run the menuselect tool to ensure that Asterisk has
been told to build the res_corosync module (this module can be found in the Resource
Modules section of menuselect):
$ make menuselect
Finally, compile and install Asterisk:
$ make
$ sudo make install
This is a pretty quick and crude set of instructions for compiling and
installing Asterisk. For a much more complete set of instructions, please
see Chapter 3.
Corosync configuration
Now that Corosync has been installed, it needs to be configured. There is a configuration
file for Corosync that must be put in place. Check to see if /etc/corosync/corosync.conf
exists. If not, there should be some samples in /etc/corosync to get you started.
While writing this section, the following configuration was used in corosync.conf for a
simple setup between two virtual machines. This setup uses the udpu transport, which
means that it’s doing unicast between the two nodes instead of multicast, which is the
traditional Corosync transport:
# Please read the corosync.conf.5 manual page
compatibility: whitetank
Distributed Device States | 381
www.it-ebooks.info
totem {
version: 2
secauth: off
interface {
member {
memberaddr: 192.168.122.250
}
member {
memberaddr: 192.168.122.94
}
ringnumber: 0
bindnetaddr: 192.168.122.0
mcastport: 5405
ttl: 1
}
transport: udpu
}
logging {
fileline: off
to_logfile: yes
to_syslog: yes
debug: on
logfile: /var/log/corosync/corosync.log
debug: off
timestamp: on
logger_subsys {
subsys: AMF
debug: off
}
}
For detailed documentation on the options in this configuration file, see the associated
manpage:
$ man corosync.conf
There is one other file that must be created for Corosync. Corosync must be told that
applications running as the asteriskpbx user are allowed to connect to it. Place the
following contents in a new file called /etc/corosync/uidgid.d/asterisk:
uidgid {
uid: asteriskpbx
gid: asteriskpbx
}
Once configuration has been completed, start the Corosync service:
$ sudo service corosync start
382 | Chapter 14: Device States
www.it-ebooks.info
If you have any trouble getting the nodes to sync up with each other,
one thing to check is that there are no firewall rules on the nodes that
are blocking the multicast traffic used for the nodes to communicate
with each other.
Asterisk configuration
The res_corosync module for Asterisk has a single configuration file, /etc/asterisk/
res_corosync.conf. One short section is required in this file to enable distributed device
state in a Corosync cluster. Place the following contents in the /etc/asterisk/res_coro
sync.conf file:
[general]
publish_event = device_state
subscribe_event = device_state
An Asterisk CLI command can be used to ensure that this configuration has been loaded
properly:
*CLI> corosync show config
=============================================================
=== res_corosync config =====================================
=============================================================
===
=== ==> Publishing Event Type: device_state
=== ==> Subscribing to Event Type: device_state
=== ==> Publishing Event Type: ping
=== ==> Subscribing to Event Type: ping
===
=============================================================
Another useful Asterisk CLI command provided by the res_corosync module is used
to list the members of the Corosync cluster:
*CLI> corosync show members
=============================================================
=== Cluster members =========================================
=============================================================
===
=== Node 1
=== --> Group: asterisk
=== --> Address 1: 192.168.122.94
=== Node 2
=== --> Group: asterisk
=== --> Address 1: 192.168.122.250
===
=============================================================
Distributed Device States | 383
www.it-ebooks.info
Testing device state changes
Now that you’ve set up and configured distributed device state using Corosync, there
are some simple tests that can be done using custom device states to ensure that device
states are being communicated among the servers. Start by creating a test hint in the
Asterisk dialplan, /etc/asterisk/extensions.conf:
[devstate_test]
exten => foo,hint,Custom:abc
Now, you can adjust the custom device state from the Asterisk CLI using the dialplan
set global CLI command and then check the state on each server using the core show
hints command. For example, we can use this command to set the state on one server:
pbx1*CLI> dialplan set global DEVICE_STATE(Custom:abc) INUSE
-- Global variable 'DEVICE_STATE(Custom:abc)' set to 'INUSE'
and then, check the state on another server using this command:
*CLI> core show hints
-= Registered Asterisk Dial Plan Hints =-
foo@devstatetest : Custom:abc State:InUse Watchers 0
If you would like to dive deeper into the processing of distributed device state changes,
some useful debug messages can be enabled. First, enable debug on the Asterisk console
in /etc/asterisk/logger.conf. Then, enable debugging at the Asterisk CLI:
*CLI> core set debug 1
With the debug output enabled, you will see some messages that show how Asterisk is
processing each state change. When the state of a device changes on one server, Aster‐
isk checks the state information it has for that device on all servers and determines the
overall device state. The following examples illustrate:
*CLI> dialplan set global DEVICE_STATE(Custom:abc) NOT_INUSE
-- Global variable 'DEVICE_STATE(Custom:abc)' set to 'NOT_INUSE'
[Nov 13 13:27:12] DEBUG[14801]: devicestate.c:652
handle_devstate_change: Processing device state change for 'Custom:abc'
[Nov 13 13:27:12] DEBUG[14801]: devicestate.c:602
process_collection: Adding per-server state of 'Not in use' for 'Custom:abc'
[Nov 13 13:27:12] DEBUG[14801]: devicestate.c:602
process_collection: Adding per-server state of 'Not in use' for 'Custom:abc'
[Nov 13 13:27:12] DEBUG[14801]: devicestate.c:609
process_collection: Aggregate devstate result is 'Not in use' for 'Custom:abc'
[Nov 13 13:27:12] DEBUG[14801]: devicestate.c:631
process_collection: Aggregate state for device 'Custom:abc' has changed to
'Not in use'
384 | Chapter 14: Device States
www.it-ebooks.info
*CLI> dialplan set global DEVICE_STATE(Custom:abc) INUSE
-- Global variable 'DEVICE_STATE(Custom:abc)' set to 'INUSE'
[Nov 13 13:29:30] DEBUG[14801]: devicestate.c:652 handle_devstate_change:
Processing device state change for 'Custom:abc'
[Nov 13 13:29:30] DEBUG[14801]: devicestate.c:602 process_collection:
Adding per-server state of 'Not in use' for 'Custom:abc'
[Nov 13 13:29:30] DEBUG[14801]: devicestate.c:602 process_collection:
Adding per-server state of 'In use' for 'Custom:abc'
[Nov 13 13:29:30] DEBUG[14801]: devicestate.c:609 process_collection:
Aggregate devstate result is 'In use' for 'Custom:abc'
[Nov 13 13:29:30] DEBUG[14801]: devicestate.c:631 process_collection:
Aggregate state for device 'Custom:abc' has changed to 'In use'
Using XMPP
The eXtensible Messaging and Presence Protocol (XMPP), formerly (and still com‐
monly) known as Jabber, is a communications protocol standardized by the Internet
Engineering Task Force (IETF). It is most commonly known as an IM protocol, but it
can be used for a number of other interesting applications as well. The XMPP Standards
Foundation (XSF) works to standardize extensions to the XMPP protocol. One such
extension, referred to as PubSub, provides a publish/subscribe mechanism.
Asterisk has the ability to use XMPP PubSub to distribute device state information. One
of the nice things about using XMPP this way is that it works very well for geographically
distributed Asterisk servers.
Installation
To distribute device states using XMPP, you will need an XMPP server that supports
PubSub. One such server that has been successfully tested against Asterisk is Tigase.
The Tigase website has instructions for installing and configuring the Tigase server. We
suggest that you follow those instructions (or the instructions provided for whatever
other server you may choose to use) and come back to this book when you’re ready to
work on the Asterisk-specific parts.
On the Asterisk side of things, you will need to ensure that you have installed the
res_jabber module. You can check to see if it is already loaded at the Asterisk CLI:
*CLI> module show like jabber
Module Description Use Count
res_jabber.so AJI - Asterisk Jabber Interface 0
1 modules loaded
Distributed Device States | 385
www.it-ebooks.info
If you are using a custom /etc/asterisk/modules.conf file that lists only specific modules
to be loaded, you can also check the filesystem to see if the module was compiled and
installed:
$ cd /usr/lib/asterisk/modules
$ ls -l res_jabber.so
-rwxr-xr-x 1 root root 837436
2010-11-12 15:33 res_jabber.so
If you do not yet have res_jabber installed, you will need to install the iksemel and
OpenSSL libraries. Then, you will need to recompile and reinstall Asterisk. Start by
running the Asterisk configure script, which is responsible for inspecting the system
and locating optional dependencies, so that the build system knows which modules can
be built:
$ cd /path/to/asterisk
$ ./configure
After running the configure script, run the menuselect tool to ensure that Asterisk has
been told to build the res_jabber module. This module can be found in the Resource
Modules section of menuselect:
$ make menuselect
Finally, compile and install Asterisk:
$ make
$ sudo make install
This is a pretty quick and crude set of instructions for compiling and
installing Asterisk. For a much more complete set of instructions, please
see Chapter 3.
Creating XMPP accounts
Unfortunately, Asterisk is currently not able to register new accounts on an XMPP
server. You will have to create an account for each server via some other mechanism.
The method we used while testing was to complete account registration via an XMPP
client such as Pidgin. After account registration is complete, the XMPP client is no
longer needed. For the rest of the examples, we will use the following two buddies, both
of which are on the server jabber.shifteight.org:
•server1@jabber.shifteight.org/astvoip1
•server2@jabber.shifteight.org/astvoip2
386 | Chapter 14: Device States
www.it-ebooks.info
Asterisk configuration
The /etc/asterisk/jabber.conf file will need to be configured on each server. We will show
the configuration for a two-server setup here, but the configuration can easily be ex‐
panded to more servers as needed. Example 14-2 shows the contents of the configuration
file for server 1, and Example 14-3 shows the contents of the configuration file for server
2. For additional information on the jabber.conf options associated with distributed
device states, see the configs/jabber.conf.sample file that is included in the Asterisk source
tree.
Example 14-2. jabber.conf for server1
[general]
autoregister = yes
[asterisk]
type = client
serverhost = jabber.shifteight.org
pubsub_node = pubsub.jabber.shifteight.org
username = server1@jabber.shifteight.org/astvoip1
secret = mypassword
distribute_events = yes
status = available
usetls = no
usesasl = yes
buddy = server2@jabber.shifteight.org/astvoip2
Example 14-3. jabber.conf for server2
[general]
autoregister = yes
[asterisk]
type = client
serverhost = jabber.shifteight.org
pubsub_node = pubsub.jabber.shifteight.org
username = server2@jabber.shifteight.org/astvoip2
secret = mypassword
distribute_events = yes
status = available
usetls = no
usesasl = yes
buddy = server1@jabber.shifteight.org/astvoip1
Testing
To ensure that everything is working properly, start by doing some verification of the
jabber.conf settings on each server. A couple of relevant Asterisk CLI commands can
be used here. The first is the jabber show connected command, which will verify that
Asterisk has successfully logged in with an account on the jabber server. The output of
this command on the first server shows:
Distributed Device States | 387
www.it-ebooks.info
*CLI> jabber show connected
Jabber Users and their status:
User: server1@jabber.shifteight.org/astvoip1 - Connected
----
Number of users: 1
Meanwhile, if jabber show connected is executed on the second server, it shows:
*CLI> jabber show connected
Jabber Users and their status:
User: server2@jabber.shifteight.org/astvoip2 - Connected
----
Number of users: 1
The next useful command for verifying the setup is jabber show buddies. This command
allows you to verify that the other server is correctly listed on your buddy list. It also
lets you see if the other server is seen as currently connected. If you were to run this
command on the first server without Asterisk currently running on the second server,
the output would look like this:
*CLI> jabber show buddies
Jabber buddy lists
Client: server1@jabber.shifteight.org/astvoip1
Buddy: server2@jabber.shifteight.org
Resource: None
Buddy: server2@jabber.shifteight.org/astvoip2
Resource: None
Next, start Asterisk on the second server and run jabber show buddies on that server.
The output will contain more information, since the second server will see the first
server online:
*CLI> jabber show buddies
Jabber buddy lists
Client: server2@jabber.shifteight.org/astvoip2
Buddy: server1@jabber.shifteight.org
Resource: astvoip1
node: http://www.asterisk.org/xmpp/client/caps
version: asterisk-xmpp
Jingle capable: yes
Status: 1
Priority: 0
Buddy: server1@jabber.shifteight.org/astvoip1
Resource: None
At this point, you should be ready to test out the distribution of device states. The
procedure is the same as that for testing device states with Corosync, which can be found
in “Testing device state changes” on page 384.
388 | Chapter 14: Device States
www.it-ebooks.info
Shared Line Appearances
In Asterisk, Shared Line Appearances (SLA)—sometimes also referred to in the industry
as Bridged Line Appearances (BLA)—can be used. This functionality can be used to
satisfy two primary use cases, which include emulating a simple key system and creating
shared extensions on a PBX.
Building key system emulation is what these applications were primarily designed for.
In this environment, you have some small number of trunks coming into the PBX, such
as analog phone lines, and each phone has a dedicated button for calls on that trunk.
You may refer to these trunks as line 1, line 2, and line 3, for example.
Another use case is for creating shared extensions on your PBX. This use case seems to
be the most common these days. There are many reasons you might want to do this; for
example, you may want an extension to appear on the phones of both an executive and
her administrative assistant. Another example would be if you want the same extension
to appear on all the phones in the same lab.
While these use cases are supported to an extent, there are limitations. There is still
more work to be done in Asterisk to make these features work really well for what people
want to do with them. This is discussed in “Limitations” on page 402.
Installing the SLA Applications
The SLA applications are built on two key technologies in Asterisk. The first is device
state processing, and the second is conferencing. Specifically, the conferencing used by
these applications is the MeetMe() application. The SLA applications come with the same
module as the MeetMe() application, so you must install the app_meetme module.
You can check at the Asterisk CLI to see if you already have the module:
pbx*CLI> module show like app_meetme.so
Module Description Use Count
0 modules loaded
In this case, the module is not present. The most common reason an Asterisk system
would not have the app_meetme module is if DAHDI had not been installed. The
MeetMe() application uses DAHDI to perform conference mixing.
See “Conferencing with MeetMe()” on page 263 for more information
about MeetMe() conferencing. You will require res_timing_dahdi and
the DAHDI to be installed, as MeetMe() requires it to perform mixing.
Unfortunately, as of Asterisk 11, the ConfBridge() application has yet
to add the necessary functionality for SLA.
Shared Line Appearances | 389
www.it-ebooks.info
2. Admittedly, none of the configuration for SLA is simple.
Once DAHDI is installed (refer to Chapter 3 for installation information), rerun the
Asterisk configure script, recompile with make, and reinstall with sudo make install.
Once the module has been properly installed (you can use module load
app_meetme.so from the Asterisk console), you should be able to see it at the CLI:
*CLI> module show like app_meetme.so
Module Description Use Count
app_meetme.so MeetMe conference bridge 0
1 modules loaded
Once the app_meetme module is loaded, you should have both the SLAStation() and
SLATrunk() applications available:
*CLI> core show applications like SLA
-= Matching Asterisk Applications =-
SLAStation: Shared Line Appearance Station.
SLATrunk: Shared Line Appearance Trunk.
-= 2 Applications Matching =-
Configuration Overview
The two main configuration files that must be edited to set up SLA are /etc/asterisk/
extensions.conf and /etc/asterisk/sla.conf. The sla.conf file is used for defining trunks and
stations. A station is any SIP phone that will be using SLA. Trunks are the literal trunks
or shared extensions that will be appearing on two or more stations. The Asterisk
dialplan, extensions.conf, provides some important glue that pulls an SLA configuration
together. The dialplan includes some extension state hints and extensions that define
how calls get into and out of an SLA setup. The next few sections provide detailed
examples of the configuration for a few different use cases.
Key System Example with Analog Trunks
This usage of SLA comes with the simplest configuration.2 This scenario would typically
be used for a fairly small installation, where you have a few analog lines and SIP phones
that all have line keys directly associated with the analog lines. For the purposes of this
example, we will say we have two analog lines and four SIP phones. Each SIP phone will
have a button for line1 and a button for line2. This section will assume that you have
done some configuration up front, including:
•Configuring the four SIP phones. For more information on setting up SIP phones,
see Chapter 5.
390 | Chapter 14: Device States
www.it-ebooks.info
•Configuring the two analog lines. Fore more information on setting up analog lines
with Asterisk, see Chapter 7.
For this example, we will use the following device names for the SIP phones and analog
lines. Be sure to adapt the examples to match your own configuration:
•SIP/station1
•SIP/station2
•SIP/station3
•SIP/station4
•DAHDI/1
•DAHDI/2
sla.conf
As mentioned previously, sla.conf contains a configuration that maps devices to trunks
and stations. For this example, we will start by defining the two trunks:
[line1]
type = trunk
device = DAHDI/1
[line2]
type = trunk
device = DAHDI/2
Next, we will set up the station definitions. We have four SIP phones, which will each
use both trunks. Note that the section names in sla.conf for stations do not need to match
the SIP device names, but it is done that way here for convenience:
[station1]
type = station
device = SIP/station1
trunk = line1
trunk = line2
[station2]
type = station
device = SIP/station2
trunk = line1
trunk = line2
[station3]
type = station
device = SIP/station3
trunk = line1
trunk = line2
Shared Line Appearances | 391
www.it-ebooks.info
[station4]
type = station
device = SIP/station4
trunk = line1
trunk = line2
The station configuration is a bit repetitive. Asterisk configuration-file template sections
come in handy here to collapse the configuration down a bit. Here is the station con‐
figuration again, but this time using a template:
[station](!)
type = station
trunk = line1
trunk = line2
[station1](station)
device = SIP/station1
[station2](station)
device = SIP/station2
[station3](station)
device = SIP/station3
[station4](station)
device = SIP/station4
After making changes to sla.conf and saving them, be sure to reload the app_meetme.so
module in order for the changes to take effect. You can do this with module reload
app_meetme.so from the Asterisk console.
extensions.conf
The next configuration file required for this example is /etc/asterisk/extensions.conf.
There are three contexts. First, we have the line1 and line2 contexts. When a call comes
in on one of the analog lines, it will come in to one of these contexts in the dialplan and
execute the SLATrunk() application. This application will take care of ringing all of the
appropriate stations:
[line1]
exten => s,1,SLATrunk(line1)
[line2]
exten => s,1,SLATrunk(line2)
The next section of the dialplan is the sla_stations context. All calls from the SIP
phones should be sent to this context. Further, the SIP phones should be configured so
that as soon as they go off-hook, they immediately make a call to the station1 extension
(or station2, station3, etc., as appropriate). If the line1 key on the phone is pressed,
a call should be sent to the station1_line1 extension (or station2_line1, etc.).
392 | Chapter 14: Device States
www.it-ebooks.info
The format of station1_line1 has special meaning to the SLASta
tion() application. The separator of underscore (_) is what determines
which station and trunk to use for the call. Be aware of this when naming
your stations or trunks, as using an underscore in their names will break
functionality.
Any time that a phone goes off-hook or a line key is pressed, the call that is made will
immediately connect it to one of the analog lines. For a line that is not already in use,
the analog line will be providing a dialtone, and the user will be able to send digits to
make a call. If a user presses a line key for a line that is already in use, that user will be
bridged into the existing call on that line. The sla_stations context looks like this:
[sla_stations]
exten => station1,1,SLAStation(station1)
exten => station1_line1,hint,SLA:station1_line1
exten => station1_line1,1,SLAStation(station1_line1)
exten => station1_line2,hint,SLA:station1_line2
exten => station1_line2,1,SLAStation(station1_line2)
exten => station2,1,SLAStation(station2)
exten => station2_line1,hint,SLA:station2_line1
exten => station2_line1,1,SLAStation(station2_line1)
exten => station2_line2,hint,SLA:station2_line2
exten => station2_line2,1,SLAStation(station2_line2)
exten => station3,1,SLAStation(station3)
exten => station3_line1,hint,SLA:station3_line1
exten => station3_line1,1,SLAStation(station3_line1)
exten => station3_line2,hint,SLA:station3_line2
exten => station3_line2,1,SLAStation(station3_line2)
exten => station4,1,SLAStation(station4)
exten => station4_line1,hint,SLA:station4_line1
exten => station4_line1,1,SLAStation(station4_line1)
exten => station4_line2,hint,SLA:station4_line2
exten => station4_line2,1,SLAStation(station4_line2)
After making your changes, be sure to reload your dialplan with dialplan reload.
Additional phone configuration tasks
The previous section covered the dialplan for trunks and stations. There are some spe‐
cific things to keep in mind when setting up phones for use with this setup. First, each
phone should be configured to send a call as soon as it is taken off-hook.
The other important item is the configuration of the line keys. Asterisk uses extension
state subscriptions to control the LEDs next to the line buttons. Beyond that, each line
key should be configured as a speed dial. Use the following checklist for your line key
Shared Line Appearances | 393
www.it-ebooks.info
3. Read: a hack.
configuration (how you accomplish these tasks will depend on the specific phones you
are using):
• Set the label of the key to be Line 1 (etc.), or whatever you deem appropriate.
•Set up the keys so that the Line 1 key on station1 subscribes to the state of sta
tion1_line1, and so on. This is required so Asterisk can make the LEDs reflect the
state of the lines.
•Ensure that if the Line 1 key on station1 is pressed, a call is sent to the sta
tion1_line1 extension, and so on.
Key System Example with SIP Trunks
This example is intended to be identical in functionality to the previous example. The
difference is that instead of using analog lines as trunks, we will use a connection to a
SIP provider that will terminate the calls to the PSTN. For more information on setting
up Asterisk to connect to a SIP provider, see Chapter 7.
sla.conf
The sla.conf file for this scenario is a bit tricky.3 You might expect to see the device line
in the trunk configuration have a SIP channel listed, but instead we’re going to use a
Local channel. This will allow us to use some additional dialplan logic for call processing.
The purpose of the Local channel will become clearer in the next section, when the
dialplan example is discussed. Here are the trunk configurations:
[line1]
type = trunk
device = Local/disa@line1_outbound
[line2]
type = trunk
device = Local/disa@line2_outbound
The station configuration is identical to the last example, so let’s get right to it:
[station](!)
type = trunk
trunk = line1
trunk = line2
[station1](station)
device = SIP/station1
[station2](station)
394 | Chapter 14: Device States
www.it-ebooks.info
device = SIP/station2
[station3](station)
device = SIP/station3
[station4](station)
device = SIP/station4
extensions.conf
As in the last example, you will need line1 and line2 contexts to process incoming
calls on these trunks:
[line1]
exten => s,1,SLATrunk(line1)
;
; If the provider specifies your phone number when sending you
; a call, you will need another rule in the dialplan to match that.
;
exten => _X.,1,Goto(s,1)
[line2]
exten => s,1,SLATrunk(line2)
exten => _X.,1,Goto(s,1)
This example requires an sla_stations context, as well. This is for all calls coming
from the phones. It’s the same as it was in the last example:
[sla_stations]
exten => station1,1,SLAStation(station1)
exten => station1_line1,hint,SLA:station1_line1
exten => station1_line1,1,SLAStation(station1_line1)
exten => station1_line2,hint,SLA:station1_line2
exten => station1_line2,1,SLAStation(station1_line2)
exten => station2,1,SLAStation(station2)
exten => station2_line1,hint,SLA:station2_line1
exten => station2_line1,1,SLAStation(station2_line1)
exten => station2_line2,hint,SLA:station2_line2
exten => station2_line2,1,SLAStation(station2_line2)
exten => station3,1,SLAStation(station3)
exten => station3_line1,hint,SLA:station3_line1
exten => station3_line1,1,SLAStation(station3_line1)
exten => station3_line2,hint,SLA:station3_line2
exten => station3_line2,1,SLAStation(station3_line2)
exten => station4,1,SLAStation(station4)
exten => station4_line1,hint,SLA:station4_line1
exten => station4_line1,1,SLAStation(station4_line1)
exten => station4_line2,hint,SLA:station4_line2
exten => station4_line2,1,SLAStation(station4_line2)
Shared Line Appearances | 395
www.it-ebooks.info
The last piece of the dialplan that is required is the implementation of the line1_out
bound and line2_outbound contexts. This is what the SLA applications use when they
want to send calls out to a SIP provider. The key to this setup is the usage of the Read()
application. In the last example, phones were directly connected to an analog line, al‐
lowing the upstream switch to provide a dialtone, collect digits, and complete the call.
In this example, we use the Read() application locally to provide a dialtone and collect
digits. Normally the Read() application would play a sound file, but with the use of the
i option, we can specify which indication to play from the indications.conf file. In this
case, we’ll use dial, which plays a dialtone. The number dialed will be saved to the
Request channel variable, and we’ll stop collecting digits either after a timeout, or after
a maximum of 11 digits have been dialed.
Once a complete number has been dialed, the call will proceed to go out to a SIP provider:
[line1_outbound]
exten => disa,1,NoOp()
same => n,Read(Request,dial,11,i)
same => n,Goto(${Request},1)
; Add extensions for whatever numbers you would like to
; allow to be dialed.
;
exten => _1NXXNXXXXXX,1,Dial(SIP/${EXTEN}@myprovider)
[line2_outbound]
exten => disa,1,NoOp()
same => n,Read(Request,dial,11,i)
same => n,Goto(${Request},1)
exten => _1NXXNXXXXXX,1,Dial(SIP/${EXTEN}@myprovider)
Alternate Key System Example with SIP Trunks
In order to help demonstrate some of the flexibility with regard to line configuration,
we’ll show an example of implementing line key functionality with SIP trunks and sta‐
tions. We’ll be using the same concepts as in the previous sections, so it might be useful
to review those before continuing. What we’ll be building could be described as a sort
of hybrid model, in that we’ll have a single registration line that can be used just like a
standard line on your Asterisk system. It won’t have any limitations to its functionality,
including the ability to transfer calls. The additional lines we’ll define will act more like
the traditional SLA system in that transfers are not possible, but the sharing of trunks
will be possible.
For our example, we’ll be defining separate lines for each of our stations in sla.conf. This
alternative method lets us subscribe line keys on our phone to each of the different lines
that have been defined. First, we define our trunks as we have previously (slightly modi‐
fied, however):
396 | Chapter 14: Device States
www.it-ebooks.info
[T1] ; Line 1
type=trunk
device=Local/trunk1@sla_trunks/n
[T2] ; Line 2
type=trunk
device=Local/trunk2@sla_trunks/n
We then need to define our lines, which we’ll associate with the phones. In order not to
be overly verbose, we’ll be defining lines for two stations and two lines for each:
[L1-0000FFFF0005] ; Line 1
type=station
device=SIP/0000FFFF0005
trunk=T1
[L2-0000FFFF0005] ; Line 2
type=station
device=SIP/0000FFFF0005
trunk=T2
[L1-0000FFFF0006] ; Line 1
type=station
device=SIP/0000FFFF0006
trunk=T1
[L2-0000FFFF0006] ; Line 2
type=station
device=SIP/0000FFFF0006
trunk=T2
As you can see, there are four stations defined, from the viewpoint of Asterisk. We’ve
logically separated each of the trunks into separate line keys that can be subscribed to
from any device. It is implied here that our stations are SIP/0000FFFF0005 and SIP/
0000FFFF0006 and they will each contain two line keys that associate with trunks T1 and
T2. After making our changes to sla.conf we must be sure to reload app_meetme.so with
module reload app_meetme.so from the Asterisk console.
Next is to configure our dialplan. We’ll add to the existing LocalSets context since we
want the phones to be able to place calls normally in addition to using the SLA line keys.
In our example, we’ll just show the parts relevant to SLA:
[LocalSets]
include => SLA_Outbound
exten => L1-0000FFFF0005_T1,hint,SLA:L1-0000FFFF0005_T1
exten => L2-0000FFFF0005_T2,hint,SLA:L2-0000FFFF0005_T2
exten => L1-0000FFFF0006_T1,hint,SLA:L1-0000FFFF0006_T1
exten => L2-0000FFFF0006_T2,hint,SLA:L2-0000FFFF0006_T2
Shared Line Appearances | 397
www.it-ebooks.info
Here we’ve included a new context called SLA_Outbound that will process requests made
by the phone when the line key is pressed. We’ve included our SLA hints as well, which
will be used by the SLA dialplan applications to control the line-key lights.
Now let’s add the SLA_Outbound context:
[SLA_Outbound]
exten => _LX!,1,NoOp()
same => n,SLAStation(${EXTEN})
same => n,Hangup()
And we’ll also need the sla_trunks context, which is used to actually place the outbound
calls. We defined what is using this context earlier in the sla.conf file when we created
our trunks.
The reason we have [n] in the pattern match _tru[n]kX is that the letter
n would match not literally, but as a number between 2 and 9. Since we
want to match the word trunk, we can make n literal by wrapping it in
square braces. The letter X will match on the numbers 0 through 9.
[sla_trunks]
exten => _tru[n]kX,1,NoOp()
same => n,Read(Request,dial,10,i)
same => n,Dial(SIP/my_itsp/${Request})
The last bit of dialplan we need to add is for inbound calls for the SLA trunks. We can
add this with the following bit of dialplan:
[SLA_Inbound]
exten => _LX!,1,NoOp()
same => n,Set(slaLineId=${EXTEN:1:1})
same => n,SLATrunk(T${slaLineId})
same => n,Hangup()
After making changes to extensions.conf you’ll want to perform a dialplan reload from
the Asterisk console.
At this point, we’ve completed the configuration of Asterisk for SLA usage, but config‐
uration of the phones is really the trickiest part. We can’t really delve into the configu‐
ration of every manufacturer, but we can at least give you a starting point. On the
Polycom phones (tested with Soundpoint IP450 and Soundpoint IP650), you can use
the attendant configuration in order to create line keys that subscribe to the state of the
SLA hints we created. When placing calls via these lines, they use the first line key defined
for the phone, so you will actually have three line keys configured. The first line key will
be the standard one that can perform transfers and other standard functionality. The
other two line keys will act like SLA lines.
398 | Chapter 14: Device States
www.it-ebooks.info
A sample configuration we used in the lab looks like the following. This might give you
enough data to get started:
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<!-- Generated reg-basic.cfg Configuration File -->
<polycomConfig xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:noNamespaceSchemaLocation="polycomConfig.xsd">
<call call.callsPerLineKey="24">
</call>
<reg reg.1.address="0000FFFF0005"
reg.1.auth.password="welcome"
reg.1.auth.userId="0000FFFF0005"
reg.1.label="ATDG5"
reg.1.lineKeys="1"
reg.1.outboundProxy.address="">
</reg>
<attendant
attendant.reg="1"
attendant.behaviors.display.spontaneousCallAppearances.normal="1"
attendant.behaviors.display.remoteCallerID.normal="1"
attendant.resourceList.1.address="L1-0000FFFF0005_T1"
attendant.resourceList.1.label="L1"
attendant.resourceList.1.type="normal"
attendant.resourceList.2.address="L2-0000FFFF0005_T2"
attendant.resourceList.2.label="L2"
attendant.resourceList.2.type="normal"
/>
</polycomConfig>
Shared Extension Example
The previous two examples were for small key system emulation. For this example, we’ll
try something quite different. Many PBX vendors offer the ability to have the same
extension shared across multiple phones. This is not simply a matter of having multiple
phones ring when an extension is called: it is deeper integration than that. The behavior
of the line key for a shared extension is similar to that of a line key on a key system. For
example, you can simply put a call on hold from one phone and pick it up from another.
Also, if multiple phones press the key for the shared extension, they will all be bridged
into the same call. That is why this functionality is often also referred to as Bridged Line
Appearances (BLA).
In the previous two examples, we had two trunks and four stations. For this example,
we’re going to set up a single shared extension on two phones. The shared extension
will be referred to as extension 5001.
Shared Line Appearances | 399
www.it-ebooks.info
sla.conf
Every usage of the SLA applications requires trunk and station definitions. This exam‐
ple, like the previous ones, will be making use of the Read() application, and the sla.conf
file will look very similar:
[5001]
type = trunk
device = Local/disa@5001_outbound
[5001-phone1]
device = SIP/5001_phone1
trunk = 5001
[5001-phone2]
device = SIP/5001_phone2
trunk = 5001
extensions.conf
The first part of the dialplan required is what will be executed when extension 5001 is
dialed on the PBX. Normally, to call a phone you would use the Dial() application. In
this case, we’re going to use the SLATrunk() application. This will take care of ringing
both phones and keeping them bridged together:
exten => 5001,1,SLATrunk(5001)
Next, we will need a context that will be used for making outbound calls from this shared
extension. This assumes that 5001_phone1 and 5001_phone2 have been configured with
their context options set to 5001 in sip.conf:
[5001]
;
; This extension is needed if you want the shared extension to
; be used by default. In that case, have this extension dialed
; when the phone goes off-hook.
;
exten => 5001-phone1,1,SLAStation(5001-phone1)
;
; This is the extension that should be dialed when the 5001 key is
; pressed on 5001_phone1.
;
exten => 5001-phone1_5001,hint,SLA:5001-phone1_5001
exten => 5001-phone1_5001,1,SLAStation(5001-phone1_5001)
exten => 5001-phone2,1,SLAStation(5001-phone2)
exten => 5001-phone2_5001,hint,SLA:5001-phone2_5001
exten => 5001-phone2_5001,1,SLAStation(5001-phone2_5001)
Finally, we need an implementation of the 5001_outbound context. This will be used to
provide a dialtone and collect digits on the bridged line:
400 | Chapter 14: Device States
www.it-ebooks.info
[5001_outbound]
exten => disa,1,Read(Request,dial,,i)
same => n,Goto(${Request},1)
;
; This context will also need to be able to see whatever
; extensions you would like to be reachable from this extension.
;
include => pbx_extensions
Additional Configuration
The /etc/asterisk/sla.conf file has some optional configuration parameters that were not
used in any of the examples in this chapter. To give you an idea of what other behavior
can be configured, the options are covered here. This file has a [general] section that
is reserved for global configuration options. Currently, there is only a single option that
can be specified in this section:
attemptcallerid = yes
This option specifies whether or not the SLA applications should attempt to pass
caller ID information. It is set to no by default. If this is enabled, the display of the
phones may not be what you would expect in some situations.
The trunk definitions in the previous examples only specified the type and device. Here
are some additional options that can be specified for a trunk:
autocontext = line1
If this option is set, Asterisk will automatically create a dialplan context using this
name. The context will contain an s extension that executes the SLATrunk() appli‐
cation with the appropriate argument for this trunk. By default, all dialplan entries
must be created manually.
ringtimeout = 20
This option allows you to specify the number of seconds to allow an inbound call
on this trunk to ring before the SLATrunk() application will exit and consider it an
unanswered call. By default, this option is not set.
barge = no
The barge option specifies whether or not other stations are allowed to join a call
that is in progress on this trunk by pressing the same line button. Barging into a
call on a trunk is allowed by default.
hold = private
The hold option specifies hold permissions for this trunk. If this option is set to
open, any station can place this trunk on hold and any other station is allowed to
take it back off hold. If this option is set to private, only the station that placed the
trunk on hold is allowed to take it back off hold. This option is set to open by default.
Shared Line Appearances | 401
www.it-ebooks.info
When we defined the stations in the previous examples, we only supplied the type,
device, and a list of trunks. However, station definitions accept some additional con‐
figuration options as well. They are listed here:
autocontext = sla_stations
If this option is specified, Asterisk will automatically create the extensions required
for calls coming from this station in the context specified. This is off by default,
which means that all extensions must be specified manually.
ringtimeout = 20
A timeout may be specified in seconds for how long this station will ring before the
call is considered unanswered. There is no timeout set by default.
ringdelay = 5
A ring delay in seconds can be specified for a station. If a delay is specified, this
station will not start ringing until this number of seconds after the call first came
in on this shared line. There is no delay set by default.
hold = private
Hold permissions can be specified for a specific station as well. If this option is set
to private, any trunks put on hold by this station can only be picked back up by
this station. By default, this is set to open.
trunk = line1,ringtimeout=20
A ringtimeout can be applied to calls coming from only a specific trunk.
trunk = line1,ringdelay=5
A ringdelay can also be applied to calls from a specific trunk.
Limitations
While Asterisk makes many things easy, SLA is not one of them. This functionality was
intended to emulate simple features, but the configuration required to make it work is
fairly complex. Someone who is new to Asterisk and only wants a simple key-system
setup will have to learn a lot of complex Asterisk and SIP phone concepts to get it
working.
Another feature that still needs some development before it will work seamlessly with
SLA is caller ID. At the time that this functionality was written, Asterisk did not have
the appropriate infrastructure in place to be able to update caller ID information
throughout the duration of the call. Based on how this functionality is implemented,
this infrastructure is required to make the display on the phones useful. It does exist as
of Asterisk 1.8, but the SLA applications have not yet been updated to use it. The end
result is that you can either have no caller ID information at all, or you can enable it and
understand that the phone displays are not always going to display correctly as changes
happen throughout the duration of a call.
402 | Chapter 14: Device States
www.it-ebooks.info
Another limitation, most relevant to usage of shared extensions, is that transfers do not
work. The main reason is that transfers generally involve putting a call on hold for a
short time. Call hold is processed in a special way with SLA, in that the held call is not
controlled by the phone that initiated the hold. This breaks transfer processing.
In summary, SLA is not necessarily simple to set up, and it comes with some significant
limitations. With that said, if what does exist suits your needs, by all means go for it.
Creating a Callback Service
After a call has failed due to the destination being busy or otherwise unavailable, a
callback service lets you give the caller the option to be called back automatically when
the destination becomes available. Call Completion Supplementary Services (CCSS)
allows you to request that Asterisk call you back after an unanswered or busy call at‐
tempt. This section shows how to enable this feature for use between phones connected
to the same Asterisk system.
For this example we will enable this service for two SIP phones. To do so, add the
following to /etc/asterisk/sip.conf:
[phone1]
...
cc_agent_policy = generic
cc_monitor_policy = generic
[phone2]
...
cc_agent_policy = generic
cc_monitor_policy = generic
Now add the following extensions to the dialplan:
[phones]
;
; The extensions for dialing phones do not need to be changed.
; These are just simple examples of dialing a phone with a
; 20-second timeout.
;
exten => 7101,1,Dial(SIP/phone1,20)
same => n,Hangup()
exten => 7102,1,Dial(SIP/phone2,20)
same => n,Hangup()
;
; Dial *30 to request call completion services for the last
; call attempt.
;
exten => *30,1,CallCompletionRequest()
same => n,Hangup()
Creating a Callback Service | 403
www.it-ebooks.info
;
; Dial *31 to cancel a call completion request.
;
exten => *31,1,CallCompletionCancel()
same => n,Hangup()
In this example, we have used the generic agent and monitor policies. This method of
configuration is the easiest to get working, but it only works for calls between phones
connected to the same Asterisk system. The agent is the part of the system that operates
on behalf of the caller requesting call-completion services. The monitor is the part of
the system in charge of monitoring the device (or devices) that were called to determine
when they become available.
Using this dialplan, let’s go through an example where CCSS is used. We’ll start by having
7001 call 7002, but we’ll let the call time out after the configured 20 seconds. In this case,
the call has failed due to no response. The caller, 7001, can now request CCSS by dialing
*30. This is referred to as Call Completion No Response (CCNR). You can verify the
CCNR request at the Asterisk CLI:
*CLI> cc report status
1 Call completion transactions
Core ID Caller Status
----------------------------------------------------------------------------
20 SIP/phone1 CC accepted by callee
|-->7102@phones
|-->SIP/phone2(CCNR)
At this point, Asterisk is using its generic monitor implementation to wait for SIP/
phone2 to become available. In the case of CCNR, it determines availability by waiting
for the phone to make a call. When that call ends, Asterisk will initiate a call between
SIP/phone1 and SIP/phone2, and the CCNR request will have been completed.
Another scenario is Call Completion Busy Subscriber (CCBS). This is the case when
the called party is already on the phone. Requesting call-completion services in this
scenario works the same as before. The generic monitor will determine availability by
waiting for the call that the device is on to end.
Asterisk also supports extending CCSS across multiple servers using either SIP or ISDN
(specifically ISDN in Europe). However, the configuration and operation of the
protocol-specific methods is outside the scope of this recipe. For more information
about using CCSS with Asterisk, see the sample Asterisk configuration files, as well as
the information on the Asterisk wiki.
404 | Chapter 14: Device States
www.it-ebooks.info
Conclusion
This chapter discussed many aspects of device-state handling in Asterisk. We started by
discussing the core concepts of device states and extension states, and built up from
there. We covered how SIP phones can subscribe to states, tools for creating custom
states, and two mechanisms that can be used for distributing states among many servers.
Finally, we covered one of the features in Asterisk, Shared Line Appearances, that relies
heavily on the device-state infrastructure in Asterisk to operate.
Conclusion | 405
www.it-ebooks.info
www.it-ebooks.info
I don’t answer the phone. I get the feeling whenever
I do that there will be someone on the other end.
—Fred Couples
CHAPTER 15
The Automated Attendant
In many PBXs it is common to have a menuing system in place to answer incoming
calls automatically, and allow callers to direct themselves to various extensions and
resources in the system through menu choices. This is known in the telecom industry
as an automated attendant (AA). An auto attendant normally provides the following
features:
•Transfer to extension
•Transfer to voicemail
•Transfer to a queue
•Play message (e.g., “our address is…”)
•Connect to a submenu (e.g., “for a listing of our departments...”)
•Connect to reception
•Repeat choices
For anything else—especially if there is external integration required, such as a database
lookup—an Interactive Voice Response (IVR) would normally be needed.
An Auto Attendant Is Not an IVR
In the open source telecom community, you will often hear the term IVR used to de‐
scribe an automated attendant. However, in the telecom industry, an IVR is distinct
from an auto attendant. For this reason, when you are talking to somebody about any
sort of telecom menu, you should ensure that you are talking about the same thing. To
407
www.it-ebooks.info
1. It should be noted that Asterisk is an excellent IVR-creation tool. It’s not bad for building automated attend‐
ants, either.
a telecom professional, the term IVR implies a relatively complex and involved devel‐
opment effort (and subsequent costs), whereas an automated attendant is a simple and
inexpensive thing that is common to most PBXs.
In this chapter, we talk about building an automated attendant. In Chapter 17 we will
discuss IVR.1
Designing Your Auto Attendant
The most common mistake beginners make when designing an AA is needless com‐
plexity. While there can be much joy and sense of accomplishment in the creation of a
multilevel AA with dozens of nifty options and oodles of really cool prompts, your
callers have a different agenda. The reason people make phone calls is primarily because
they want to talk to someone. While people have become used to the reality of auto
attendants (and in some cases they can speed things up), for the most part people would
prefer to speak to somebody live. This means that there are two fundamental rules that
every auto attendant should adhere to:
1. Keep it simple.
2. Make sure you always include a handler for the folks who are going to press 0
whenever they hear an auto attendant. If you do not want to have a 0 option, be
aware that many people will be insulted by this, and they will hang up and not call
back. In business, this is generally a bad thing.
Before you start to code your AA, it is wise to design it. You will need to define a call
flow, and you will need to specify the prompts that will play at each step. Software
diagramming tools can be useful for this, but there’s no need to get fancy. Table 15-1
provides a good template for a basic auto attendant that will do what you need.
Table 15-1. A basic automated attendant
Step or choice Sample prompt Notes Filename
Greeting—
business hours
Thank you for calling ABC company. Day greeting. Played immediately after
the system answers the call.
daygreeting.wav
Greeting—
nonbusiness hours
Thank you for calling ABC company. Our
office is now closed.
Night greeting. As above, but plays
outside of business hours.
nightgreeting.wav
408 | Chapter 15: The Automated Attendant
www.it-ebooks.info
Step or choice Sample prompt Notes Filename
Main menu If you know the extension of the person
you wish to reach, please enter it now.
For sales, please press 1; for service,
press 2; for our company directory,
press #. For our address and fax
information, please press 3. To repeat
these choices press 9, or you can remain
on the line or press 0 to be connected
to our operator.
Main menu prompt. Plays immediately
after the greeting. For the caller, the
greeting and the main menu are heard as
a single prompt; however, in the system
it is helpful to keep these prompts
separate.
mainmenu.wav
1Please hold while we connect your call. Transfer to sales queue. holdwhilewecon
nect.wav
2Please hold while we connect your call. Transfer to support queue. holdwhilewecon
nect.wav
#n/a Run Directory() application n/a
3Our address is [address]. Our fax
number is [fax number]., etc.
Play a recording containing address and
fax information. Return caller to menu
prompt when done.
faxandaddress.wav
0Transferring to our attendant. Please
hold.
Transfer to reception/operator. transfertorecep
tion.wav
9n/a Repeat. Replay menu prompt (but not
greeting).
n/a
tn/a Timeout. If the caller does not make a
choice, treat the call as if caller has dialed
0 (or in some cases, replay the prompt).
iYou have made an invalid selection.
Please try again.
Caller pressed an invalid digit: replay
menu prompt (but not greeting).
invalid.wav
_XXX an/a Transfer call to dialed extension. holdwhilewecon
nect.wav
a This pattern match must be relevant to your extension range.
Let’s go over the various components of this template. Then we’ll show you the dialplan
code required to implement it, as well as how to create prompts for it.
The Greeting
The first thing the caller hears is actually two prompts.
The first prompt is the greeting. The only thing the greeting should do is greet the caller.
Examples of a greeting might be “Thank you for calling Bryant, Van Meggelen, and
Associates,” “Welcome to Leif’s School of Wisdom and T-Shirt Design,” or “You have
reached the offices of Dewey, Cheetum, and Howe, Attorneys.” That’s it—the choices
for the caller will come later. This allows you to record different greetings without having
to record a whole new menu. For example, for a few weeks each year you might want
Designing Your Auto Attendant | 409
www.it-ebooks.info
2. If necessary, you can use an audio editing program such as Audacity to remove silence, and even to speed up
the recording a bit.
3. In fact, we don’t normally recommend this in an AA because it adds to what the caller has to listen to, and
most people will go to a website for this sort of information.
your greeting to say “Season’s greetings” or whatever, but your menu will not need to
change. Also, if you want to play a different recording after hours (“Thank you for
calling. Our office is now closed.”), you can use different greetings, but the heart of the
menu can stay the same. Finally, if you want to be able to return callers to the menu
from a different part of the system, you will normally not want them to hear the greeting
again.
The Main Menu
The main menu prompt is where you inform your callers of the choices available to
them. You should speak this as quickly as possible (without sounding rushed).2 When
you record a choice, always tell the users the action that will be taken before giving them
the digit option to take that action. So, don’t say “press 1 for sales,” but rather say “for
sales, press 1.” The reason for this is that most people will not pay full attention to the
prompt until they hear the choice that is of interest to them. Once they hear their choice,
you will have their full attention and can tell them what button to press to get them to
where they want to go.
Another point to consider is what order to put the choices in. A typical business, for
example, will want sales to be the first menu choice, and most callers will expect this as
well. The important thing is to think of your callers. For example, most people will not
be interested in address and fax information, so don’t make that the first choice.3 Think
about the goal of getting the callers to their intended destinations as quickly as possible
when you make your design choices. Ruthlessly cut anything that is not absolutely
essential.
Selection 1
Option 1 in our example will be a simple transfer. Normally this would be to a resource
located in another context, and it would typically have an internal extension number so
that internal users could also transfer calls to it. In this example, we are going to use this
option to send callers to the queue called sales that was created in Chapter 13.
Selection 2
Option 2 will be technically identical to option 1. Only the destination will be different.
This selection will transfer callers to the support queue.
410 | Chapter 15: The Automated Attendant
www.it-ebooks.info
Selection #
It’s good to have the option for the directory as close to the beginning of the recording
as possible. Many people will use a directory if they know it is there, but can’t be bothered
to listen to the whole menu prompt to find out about it. Impatient people will press 0,
so the sooner you tell them about the directory, the better the odds that they’ll use it,
and thus reduce the workload on your receptionist.
Selection 3
When you have an option that does nothing but play a recording back to the caller (such
as address and fax information), you can leave all the code for that in the same context
as the menu, and simply return the caller to the main menu prompt at the end of the
recording. In general, these sorts of options are not as useful as we would like to think
they are, so in most cases you’ll probably want to leave this out.
Selection 9
It is very important to give the caller the option to hear the choices again. Many people
will not be paying attention throughout the whole menu, and if you don’t give them the
option to hear the choices again, they will most likely press 0.
Note that you do not have to play the greeting again, only the main menu prompt.
Selection 0
As stated before, and whether you like it or not, this is the choice that many (possibly
the majority) of your callers will select. If you really don’t want to have somebody handle
these calls, you can send this extension to a mailbox, but we don’t recommend it. If you
are a business, many of your callers will be your customers. You want to make it easy
for them to get in touch with you. Trust us.
Timeout
Many people will call a number and not pay too much attention to what is happening.
They know that if they just wait on the line, they will eventually be transferred to the
operator. Or perhaps they are in their cars, and really shouldn’t be pressing buttons on
their phones. Either way, oblige them. If they don’t make any selection, don’t harass
them and force them to do so. Connect them to the operator.
Invalid
People make mistakes. That’s OK. The invalid handler will let them know that whatever
they have chosen is not a valid option and will return them to the menu prompt so that
they can try again. Note that you should not play the greeting again, only the main menu
prompt.
Designing Your Auto Attendant | 411
www.it-ebooks.info
Dial by Extension
If somebody calls your system and knows the extension she wants to reach, your auto‐
mated attendant should have code in place to handle this.
Although Asterisk can handle an overlap between menu choices and
extension numbers (i.e., you can have a menu choice 1 and extensions
from 100–199), it is generally best to avoid this overlap. Otherwise, the
dialplan will always have to wait for the interdigit timeout whenever
somebody presses 1, because it won’t know if they are planning to dial
extension 123. The interdigit timeout is the delay the system will allow
between digits before it assumes the entire number has been input. This
timer ensures callers have enough time to dial a multidigit extension,
but it also causes a delay in the processing of single-digit inputs.
Building Your Auto Attendant
After you have designed your auto attendant, there are three things you need to do to
make it work properly:
•Record prompts.
•Build the dialplan for the menu.
•Direct the incoming channels to the auto attendant context.
We will start by talking about recordings.
Recording Prompts
Recording prompts for a telephone system is a critical task. This is what your callers
will hear when they interact with your system, and the quality and professionalism of
these prompts will reflect on your organization.
Asterisk is very flexible in this regard and can work with many different audio formats.
We have found that, in general, the most useful format to use is WAV. Files saved in this
format can be of many different kinds, but only one type of WAV file will work with
Asterisk: files must be encoded in 16-bit, 8,000 Hz, mono format.
412 | Chapter 15: The Automated Attendant
www.it-ebooks.info
4. Unless you are an expert in these areas, in which case go for it!
Recommended Prompt File Format
The WAV file format we have recommended is useful for system prompts because it can
easily be converted to any other format that your phones might use without distortion,
and almost any computer can play it without any special software. Thus, not only can
Asterisk handle the file easily, but it is also easy to work with it on a PC (which can be
useful). Asterisk can handle other file formats as well, and in some cases these may be
more suitable to your needs, but in general we find 16-bit 8 kHz WAV files to be the
easiest to work with and, most of the time, the best possible quality.
There are essentially two ways to get prompts into a system. One is to record sound files
in a studio or on a PC, and then move those files into the system. A second way is to
record the prompts directly onto the system using a telephone set. We prefer the second
method.
Our advice is this: don’t get hung up on the complexities of recording audio through a
PC or in a studio.4 It is generally not necessary. A telephone set will produce excellent-
quality recordings, and the reasons are simple: the microphone and electronics in a
telephone are carefully designed to capture the human voice in a format that is ideal for
transmission on telephone networks, and therefore a phone set is also ideal for doing
prompts. The set will capture the audio in the correct format, and will filter out back‐
ground noise and normalize the decibel level.
Yes, a properly produced studio prompt will be superior to a prompt
recorded over a telephone, but if you don’t have the equipment or
experience, take our advice and use a telephone to do your record‐
ings, because a poorly produced studio prompt will be much worse
than a prompt recorded through a phone set.
Using the dialplan to create recordings
The simplest method of recording prompts is to use the Record() application. For
example:
[UserServices]
exten => 500,1,Playback(vm-intro)
same => n,Record(daygreeting.wav)
same => n,Wait(2)
same => n,Playback(daygreeting)
same => n,Hangup
Building Your Auto Attendant | 413
www.it-ebooks.info
5. The vm-intro prompt isn’t perfect (it asks you to leave a message), but it’s close enough for our purposes. The
usage instructions at least are correct: press # to end the recording. Once you’ve gotten the hang of recording
prompts, you can go back, record a custom prompt, and change priority 1 to reflect more appropriate in‐
structions for recording your own prompts.
exten => 501,1,Playback(vm-intro)
same => n,Record(mainmenu.wav)
same => ... etc ... (create dialplan code for each prompt you need to record)
In order to use this context, you will need to include it in the context where your
sets enter the dialplan. So in your [LocalSets] context, you will want to add the
line include=>UserServices. In a production environment, you’ll probably
want a password on this so that not just anybody can record prompts.
This extension plays a prompt, issues a beep, makes a recording, and plays that recording
back.5 It’s notable that the Record() application takes the entire filename as its argument,
while the Playback() application excludes the filetype extension (.wav, .gsm, etc.). This
is because the Record() application needs to know which format the recording should
be made in, while the Playback() application does not. Instead, Playback() automat‐
ically selects the best audio format available, based upon the codec your handset is using
and the formats available in the sounds folder (for example, if you have a daygreet
ing.wav and a daygreeting.gsm file in your sounds folder, Playback(daygreeting) will
select the one that requires the least CPU to play back to the caller).
You’ll probably want a separate extension for recording each of the prompts, possibly
hidden away from your normal set of extensions, to avoid a mistyped extension from
wiping out any of your current menu prompts. If the number of prompts you have is
large, repeating this extension with slight modifications for each will get tedious, but
there are ways around that. We’ll show you how to make your prompt recording more
intelligent in Chapter 17, but for now the method described above will serve our im‐
mediate needs.
The Dialplan
Here is the code required to create the auto attendant that we designed earlier. We will
often use blank lines before labels within an extension to make the dialplan easier to
read, but note that just because there is a blank line does not mean there is a different
extension:
[main_menu]
exten => s,1,Verbose(1, Caller ${CALLERID(all)} has entered the auto attendant)
same => n,Answer()
414 | Chapter 15: The Automated Attendant
www.it-ebooks.info
; this sets the inter-digit timer
same => n,Set(TIMEOUT(digit)=2)
; wait one second to establish audio
same => n,Wait(1)
; If Mon-Fri 9-5 goto label daygreeting
same => n,GotoIfTime(9:00-17:00,mon-fri,*,*?daygreeting:afterhoursgreeting)
same => n(afterhoursgreeting),Background(nightgreeting) ; AFTER HOURS GREETING
same => n,Goto(menuprompt)
same => n(daygreeting),Background(daygreeting) ; DAY GREETING
same => n,Goto(menuprompt)
same => n(menuprompt),Background(mainmenu) ; MAIN MENU PROMPT
same => n,WaitExten(4) ; more than 4 seconds is probably
; too much
same => n,Goto(0,1) ; Treat as if caller has pressed '0'
exten => 1,1,Verbose(1, Caller ${CALLERID(all)} has entered the sales queue)
same => n,Goto(Queues,7002,1) ; Sales Queue - see Chapter 13 for details
exten => 2,1,Verbose(1, Caller ${CALLERID(all)} has entered the service queue)
same => n,Goto(Queues,7001,1) ; Service Queue - see Chapter 13 for details
exten => 3,1,Verbose(1, Caller ${CALLERID(all)} has requested address and fax info)
same => n,Background(faxandaddress) ; Address and fax info
same => n,Goto(s,menuprompt) ; Take caller back to main menu prompt
exten => #,1,Verbose(1, Caller ${CALLERID(all)} is entering the directory)
same => n,Directory(default) ; Send the caller to the directory.
; Use InternalSets as the dialing context
exten => 0,1,Verbose(1, Caller ${CALLERID(all)} is calling the operator)
same => n,Dial(SIP/operator) ; Operator extension/queue
exten => i,1,Verbose(1, Caller ${CALLERID(all)} has entered an invalid selection)
same => n,Playback(invalid)
same => n,Goto(s,menuprompt)
exten => t,1,Verbose(1, Caller ${CALLERID(all)} has timed out)
same => n,Goto(0,1)
; You will want to have a pattern match for the various extensions
; that you'll allow external callers to dial
; BUT DON'T JUST INCLUDE THE LocalSets CONTEXT
; OR EXTERNAL CALLERS WILL BE ABLE TO MAKE CALLS OUT OF YOUR SYSTEM
; WHATEVER YOU DO HERE, TEST IT CAREFULLY TO ENSURE EXTERNAL CALLERS
; WILL NOT BE ABLE TO DO ANYTHING BUT DIAL INTERNAL EXTENSIONS
Building Your Auto Attendant | 415
www.it-ebooks.info
exten => _1XX,1,Verbose(1,Call to an extension starting with '1'
same => n,Goto(InternalSets,${EXTEN},1)
Delivering Incoming Calls to the Auto Attendant
Any call coming into the system will enter the dialplan in the context defined for what‐
ever channel the call arrives on. In many cases this will be a context named incoming,
or from-pstn, or something similar. The calls will arrive either with an extension (as
would be the case with a DID) or without one (which would be the case with a traditional
analog line).
Whatever the name of the context, and whatever the name of the extension, you will
want to send each incoming call to the menu. Here are a few examples:
[from-pstn] ; an analog line that has context=from-pstn
; (typically a DAHDI channel)
exten => s,1,Goto(main_menu,s,1)
[incoming] ; a DID coming in on a channel with
; context=incoming (PRI, SIP, or IAX)
exten => 4169671111,1,Goto(main_menu,s,1)
Depending on how you configure your incoming channels, you will generally want to
use the Goto() application if you want to send the call to an auto attendant. This is far
neater than just coding your whole auto attendant in the incoming context.
IVR
We’ll cover Interactive Voice Response (IVR) in more depth in Chapter 17, but before
we do that, we’re going to talk about something that is essential to any IVR. Database
integration is the subject of the next chapter.
Conclusion
An automated attendant can provide a very useful service to callers. However, if it is not
designed and implemented well, it can also be a barrier to your callers that may well
drive them away. Take the time to carefully plan out your auto attendant, and keep it
simple.
416 | Chapter 15: The Automated Attendant
www.it-ebooks.info
Few things are harder to put up with than the
annoyance of a good example.
—Mark Twain
CHAPTER 16
Relational Database Integration
In this chapter, we are going to explore integrating some Asterisk features and functions
into a database. There are several databases available for Linux, but we have chosen to
limit our discussion to the two most popular: PostgreSQL and MySQL.
We will also explain how to configure Linux to connect to a Microsoft SQL database via
ODBC; however, configuration of the Windows/Microsoft portion is beyond the scope
of this book.
Regardless of which database you use, this chapter focuses primarily on the ODBC
connector, so as long as you have some familiarity with getting your favorite database
ODBC-ready, you shouldn’t have any problems with this chapter.
Integrating Asterisk with databases is one of the fundamental aspects of building a large
clustered or distributed system. The power of the database will enable you to use dy‐
namically changing data in your dialplans, for tasks such as sharing information across
an array of Asterisk systems or integrating with web-based services. Our favorite
dialplan function, which we will cover later in this chapter, is func_odbc.
While not all Asterisk deployments will require relational databases, understanding how
to harness them opens a treasure chest full of new ways to design your telecom solution.
417
www.it-ebooks.info
1. On a large, busy system you will want to install the database on a completely separate box from your Asterisk
system.
Installing and Configuring PostgreSQL and MySQL
In the following sections, we will show how to install and configure PostgreSQL and
MySQL on both RHEL and Ubuntu.1 It is recommended that you only install one da‐
tabase at a time while working through this section. Pick the database you are most
comfortable with, as there is no wrong choice.
Installing PostgreSQL for RHEL
The following command can be used to install the PostgreSQL server and its depen‐
dencies from the console:
$ sudo yum install postgresql-server
...
Install 3 Package(s)
Upgrade 0 Package(s)
Total download size: 6.3 M
Installed size: 29 M
Is this ok [y/N]: y
After installing the database, you must initialize it:
$ sudo service postgresql initdb
Then start the database:
$ sudo service postgresql start
Now head to “Configuring PostgreSQL” on page 419 for instructions on how to perform
the initial configuration.
Installing PostgreSQL for Ubuntu
To install PostgreSQL on Ubuntu, run the following command. You will be prompted
to also install any additional packages that are dependencies of the application. Press
Enter to accept the list of dependencies, at which point the packages will be installed
and PostgreSQL will be automatically started and initialized:
$ sudo apt-get install postgresql
...
After this operation, 19.1MB of additional disk space will be used.
Do you want to continue [Y/n]? y
Now head to “Configuring PostgreSQL” on page 419 for instructions on how to perform
the initial configuration.
418 | Chapter 16: Relational Database Integration
www.it-ebooks.info
Installing MySQL for RHEL
To install MySQL on RHEL, run the following command. You will be prompted to install
several dependencies. Press Enter to accept, and the MySQL server and dependency
packages will be installed:
$ sudo yum install mysql-server
...
Install 3 Package(s)
Upgrade 0 Package(s)
Total download size: 9.6 M
Installed size: 27 M
Is this ok [y/N]: y
Then start the MySQL database by running:
$ sudo service mysqld start
Now head to “Configuring MySQL” on page 421 to perform the initial configuration.
Installing MySQL for Ubuntu
To install MySQL on Ubuntu, run the following command. You will be prompted to
install several dependencies. Press Enter to accept, and the MySQL server and its de‐
pendency packages will be installed:
$ sudo apt-get install mysql-server
Need to get 24.0MB of archives.
After this operation, 60.6MB of additional disk space will be used.
Do you want to continue [Y/n]? y
During the installation, you will be placed into a configuration wizard to help you
through the initial configuration of the database. You will be prompted to enter a new
password for the root user. Type in a strong password and press Enter. You will then be
asked to confirm the password. Type your strong password again, followed by Enter.
You will then be returned to the console, where the installation will complete. The
MySQL service will now be running.
Now head to “Configuring MySQL” on page 421 to perform the initial configuration.
Configuring PostgreSQL
Next, create a user called asterisk, which you will use to connect to and manage the
database. You can switch to the postgres user by using the following command:
$ sudo su - postgres
Installing and Configuring PostgreSQL and MySQL | 419
www.it-ebooks.info
At the time of this writing, PostgreSQL version 8.4.x is utilized on RHEL
and Ubuntu.
Then run the following commands to create the asterisk user in the database and set up
permissions:
$ createuser -P
Enter name of user to add: asterisk
Enter password for new user:
Enter it again:
Shall the new role be a superuser? (y/n) n
Shall the new user be allowed to create databases? (y/n) y
Shall the new user be allowed to create more new users? (y/n) n
CREATE ROLE
Now, edit the pg_hba.conf file in order to allow the asterisk user you just created to
connect to the PostgreSQL server over the TCP/IP socket.
On RHEL, this file will be located at /var/lib/pgsql/data/pg_hba.conf. On Ubuntu, you
will find it at /etc/postgresql/8.4/main/pg_hba.conf.
At the end of the file, replace everything below this line:
# TYPE DATABASE USER CIDR-ADDRESS METHOD
with the following:
# TYPE DATABASE USER CIDR-ADDRESS METHOD
host all asterisk 127.0.0.1/32 md5
local all asterisk trust
Configuring PostgreSQL Database Access via IPv6 localhost
Also, on Ubuntu you will likely need to add the following line:
host all asterisk ::1/128 md5
Without it, when you get to “Validating the ODBC Connector” on page 427 you may end
up with the following error when connecting:
[28000][unixODBC]FATAL:no pg_hba.conf entry for host "::1", user "asterisk",
database "asterisk", SSL off
[ISQL]ERROR: Could not SQLConnect
Now you can create the database that we will use throughout this chapter. Call the
database asterisk and set the owner to your asterisk user:
420 | Chapter 16: Relational Database Integration
www.it-ebooks.info
2. If you installed on Ubuntu, you will have already set the root password. You will have to enter that password
while executing the script, at which point it will say you’ve already set a root password, so you don’t need to
change it.
$ createdb --owner=asterisk asterisk
CREATE DATABASE
You can set the password for the asterisk user like so:
$ psql -d template1
template1=# "ALTER USER asterisk WITH PASSWORD 'password'"
template1=# \q
Exit from the postgres user:
$ exit
Then restart the PostgreSQL server. On RHEL:
$ sudo service postgresql restart
You need to restart the PostgreSQL service because you made changes
to pg_hba.conf, not because you added a new user or changed the
password.
On Ubuntu:
$ sudo /etc/init.d/postgresql restart
You can verify your connection to the PostgreSQL server via TCP/IP, like so:
$ psql -h 127.0.0.1 -U asterisk
Password for user asterisk:
Welcome to psql 9.1, the PostgreSQL interactive terminal.
Type: \copyright for distribution terms
\h for help with SQL commands
\? for help with psql commands
\g or terminate with semicolon to execute query
\q to quit
asterisk=>
You’re now ready to move on to “Installing and Configuring ODBC” on page 422.
Configuring MySQL
With the MySQL database now running, you should secure your installation. Conven‐
iently, there is a script you can execute that will allow you to enter a new password2 for
Installing and Configuring PostgreSQL and MySQL | 421
www.it-ebooks.info
the root user, along with some additional options. The script is pretty straightforward,
and after entering and confirming your root password you can continue to select the
defaults unless you have a specific reason not to.
Execute the following script:
$ sudo /usr/bin/mysql_secure_installation
Then connect to the database console so you can create your asterisk user and set up
permissions:
$ mysql -u root -p
Enter password:
After entering the password, you will be presented with the mysql console prompt. You
can now create your asterisk user by executing the CREATE USER command. The % is a
wildcard indicating the asterisk user can connect from any host and is IDENTIFIED BY
the password some_secret_password (which you should obviously change). Note the
trailing semicolon:
mysql> CREATE USER 'asterisk'@'%' IDENTIFIED BY 'some_secret_password';
Query OK, 0 rows affected (0.00 sec)
Let’s also create the initial database you’ll use throughout this chapter:
mysql> CREATE DATABASE asterisk;
Query OK, 1 rows affected (0.00 sec)
Now that you’ve created your user and database, you need to assign permissions for the
asterisk user to access the asterisk database:
mysql> GRANT ALL PRIVILEGES ON asterisk.* TO 'asterisk'@'%';
Query OK, 0 rows affected (0.00 sec)
Finally, exit from the console and verify that your permissions are correct by logging
back into the asterisk database as the asterisk user:
mysql> exit
Bye
# mysql -u asterisk -p asterisk
Enter password:
mysql>
You will need this password when you configure and test the ODBC connector, so keep
it handy. You’re now ready to move on to the next section.
Installing and Configuring ODBC
The ODBC connector is a database abstraction layer that makes it possible for Asterisk
to communicate with a wide range of databases without requiring the developers to
create a separate connector for every database Asterisk wants to support. This saves a
422 | Chapter 16: Relational Database Integration
www.it-ebooks.info
lot of development effort and code maintenance. There is a slight performance cost,
because we are adding another application layer between Asterisk and the database, but
this can be mitigated with proper design and is well worth it when you need powerful,
flexible database capabilities in your Asterisk system.
Before you install the connector in Asterisk, you have to install ODBC into Linux itself.
To install the ODBC drivers, use one of the following commands.
On RHEL:
$ sudo yum install unixODBC unixODBC-devel libtool-ltdl libtool-ltdl-devel
On Ubuntu:
$ sudo apt-get install unixODBC unixODBC-dev
See Chapter 3 for the matrix of packages you should have installed.
You’ll also need to install the unixODBC development package, because Asterisk uses
it to build the ODBC modules we will be using throughout this chapter.
The unixODBC drivers shipped with distributions are often a few ver‐
sions behind the officially released versions available on the unixODBC
website.
If you have stability issues while using unixODBC, you may need to
install from source. Just be sure to remove the unixODBC drivers via
your package manager first, and then update the paths in your /etc/
odbcinst.ini file.
To install the MySQL ODBC connector on RHEL:
$ sudo yum install mysql-connector-odbc
To install the PostgreSQL ODBC connector on RHEL:
$ sudo yum install postgresql-odbc
To install the PostgreSQL ODBC connector on Ubuntu:
$ sudo apt-get install odbc-postgresql
Or to install the MySQL ODBC connector on Ubuntu:
$ sudo apt-get install libmyodbc
Installing and Configuring ODBC | 423
www.it-ebooks.info
3. Yes, this is excessively verbose. The only entries you really need are Driver, Database, and Servername.
Configuring ODBC for PostgreSQL
Configuration for the PostgreSQL ODBC driver is done in the /etc/odbcinst.ini file.
On RHEL, the default file already contains some data, including that for PostgreSQL,
so just verify that the data exists. The file will look like the following:
[PostgreSQL]
Description = ODBC for PostgreSQL
Driver = /usr/lib/psqlodbc.so
Setup = /usr/lib/libodbcpsqlS.so
Driver64 = /usr/lib64/psqlodbc.so
Setup64 = /usr/lib64/libodbcpsqlS.so
FileUsage = 1
On Ubuntu, the /etc/odbcinst.ini file will be blank, so you’ll need to add the data to that
configuration file. Add the following to the odbcinst.ini file:
[PostgreSQL]
Description = ODBC for PostgreSQL
Driver = /usr/lib/odbc/psqlodbca.so
Setup = /usr/lib/odbc/libodbcpsqlS.so
FileUsage = 1
On 64-bit systems, you will need to change the path of the libraries
from /usr/lib to /usr/lib64 in order to access the correct library files.
In either case, you can use cat > /etc/odbcinst.ini to write a clean configuration file, as
we’ve done in other chapters. Just use Ctrl+D to save the file once you’re done.
Verify that the system is able to see the driver by running the following command. It
should return the label name PostgreSQL if all is well:
$ odbcinst -q -d
[PostgreSQL]
Next, configure the /etc/odbc.ini file, which is used to create an identifier that Asterisk
will use to reference this configuration. If at any point in the future you need to change
the database to something else, you simply need to reconfigure this file, allowing
Asterisk to continue to point to the same place:3
[asterisk-connector]
Description = PostgreSQL connection to 'asterisk' database
Driver = PostgreSQL
Database = asterisk
Servername = localhost
424 | Chapter 16: Relational Database Integration
www.it-ebooks.info
Port = 5432
Protocol = 8.1
ReadOnly = No
RowVersioning = No
ShowSystemTables = No
ShowOidColumn = No
FakeOidIndex = No
ConnSettings =
Configuring ODBC for MySQL
Configuration for the MySQL ODBC driver is done in the /etc/odbcinst.ini file.
On RHEL, the default file already contains some data, including for MySQL, but it needs
to be uncommented and requires a couple of changes. Replace the existing text with the
following:
[MySQL]
Description = ODBC for MySQL
Driver = /usr/lib/libmyodbc5.so
Setup = /usr/lib/libodbcmyS.so
Driver64 = /usr/lib64/libmyodbc5.so
Setup64 = /usr/lib64/libodbcmyS.so
FileUsage = 1
On Ubuntu, the /etc/odbcinst.ini file will be blank, so you’ll need to add the data to that
configuration file. Add the following to the odbcinst.ini file:
[MySQL]
Description = ODBC for MySQL
Driver = /usr/lib/odbc/libmyodbc.so
Setup = /usr/lib/odbc/libodbcmyS.so
FileUsage = 1
On 64-bit systems, you will need to change the path of the libraries
from /usr/lib to /usr/lib64 in order to access the correct library files.
In either case, you can use cat > /etc/odbcinst.ini to write a clean configuration file, as
we’ve done in other chapters. Just use Ctrl+D to save the file once you’re done.
Verify that the system is able to see the driver by running the following command. It
should return the label name MySQL if all is well:
$ odbcinst -q -d
[MySQL]
Next, configure the /etc/odbc.ini file, which is used to create an identifier that Asterisk
will use to reference this configuration. If at any point in the future you need to change
Installing and Configuring ODBC | 425
www.it-ebooks.info
the database to something else, you simply need to reconfigure this file, allowing
Asterisk to continue to point to the same place:
[asterisk-connector]
Description = MySQL connection to 'asterisk' database
Driver = MySQL
Database = asterisk
Server = localhost
Port = 3306
Socket = /var/lib/mysql/mysql.sock
The location of this file could be different, so you might have to find it on your
system.
On Ubuntu, the socket location is /var/run/mysqld/mysqld.sock.
Configuring ODBC for Microsoft SQL
Connecting to Microsoft SQL (MS SQL) is similar to connecting to either MySQL or
PostgreSQL, as we’ve previously discussed. The configuration of MS SQL is beyond the
scope of this book, but the following information will get your Asterisk box configured
to connect to your MS SQL database once you’ve enabled the appropriate permissions
on your database.
To connect to MS SQL, you need to install the FreeTDS drivers using the package man‐
ager (or by compiling via the source files available at http://www.freetds.org).
On RHEL:
$ sudo yum install freetds
On Ubuntu:
$ sudo apt-get install tdsodbc
After installing the drivers, you need to configure the /etc/odbcinst.ini file, which tells
the system where the driver files are located.
Insert the following text into the /etc/odbcinst.ini file with your favorite text editor or
with the following command:
$ sudo cat > /etc/odbcinst.ini
[FreeTDS]
Description = ODBC for Microsoft SQL
Driver = /usr/lib/i386-linux-gnu/odbc/libtdsodbc.so
UsageCount = 1
Threading = 2
Ctrl+D
426 | Chapter 16: Relational Database Integration
www.it-ebooks.info
The Driver value should be /usr/lib/x86_64-linux-gnu/ if you’re on a 64-
bit install. If you compiled via source, the files may be located in /usr/
local/lib/ or (if you compiled on a 64-bit system) /usr/local/lib64/.
Verify that the system is able to see the driver by running the following command. It
should return the label name FreeTDS if all is well:
$ odbcinst -q -d
[FreeTDS]
Once you’ve configured the drivers, you need to modify the /etc/odbc.ini file to control
how to connect to the database:
[asterisk-connector]
Description = MS SQL connection to 'asterisk' database
Driver = FreeTDS
Database = asterisk
Server = 192.168.100.1
Trace = No
TDS_Version = 7.0
Port = 1433
In the next section, you will be able to validate your connection to the MS SQL server.
Validating the ODBC Connector
Now, verify that you can connect to your database using the isql application. echo the
select 1 statement and pipe it into isql, which will then connect using the asterisk-
connector section you added to /etc/odbc.ini. You should get the following output (or
at least something similar; we’re looking for a result of 1 rows fetched):
$ echo "select 1" | isql -v asterisk-connector asterisk some_secret_password
+---------------------------------------+
| Connected! |
| |
| sql-statement |
| help [tablename] |
| quit |
| |
+---------------------------------------+
SQL>
+------------+
| ?column? |
+------------+
| 1 |
+------------+
SQLRowCount returns 1
1 rows fetched
Installing and Configuring ODBC | 427
www.it-ebooks.info
The password you used when you created the 'asterisk'@ user in the
“Configuring MySQL” section.
Now that unixODBC is installed, configured, and verified to work, you need to recom‐
pile Asterisk so that the ODBC modules are created and installed. Change back to your
Asterisk source directory and run the ./configure script so it knows you have installed
unixODBC:
$ cd ~/src/asterisk-complete/asterisk/11
$ ./configure
$ make menuselect
$ make install
Almost everything in this chapter is turned on by default. You will want
to run make menuselect to verify that the ODBC-related modules are
enabled. These include cdr_odbc, cdr_adaptive_odbc, func_odbc,
func_realtime, pbx_realtime, res_config_odbc, and res_odbc. For
voicemail stored in an ODBC database, be sure to select ODBC_STOR
AGE from the Voicemail Build Options menu. You can verify that the
modules exist in the /usr/lib/asterisk/modules directory.
Once Linux is able to use ODBC, Asterisk will also be able to use ODBC. The point is,
get your ODBC going under Linux with no errors before you dive into the Asterisk
portion of the configuration process.
Compiling the ODBC Modules for Asterisk
Now that ODBC is installed and tested, you will need to compile the relevant modules
for Asterisk.
The easiest way to do this is to simply go back to your installation directory (“Aster‐
isk”), re-run sudo ./configure, followed by sudo make install, and automake will recog‐
nize that the dependencies for ODBC are now met and will automatically compile and
install the relevant modules for Asterisk. If you want, you can run make menuselect, and
verify that the Dialplan Function func_odbc now shows as [*] func_odbc, and the
Resource Module res_odbc also is listed as [*] res_odbc.
Configuring res_odbc to Allow Asterisk to Connect Through ODBC
Asterisk ODBC connections are configured in the res_odbc.conf file located in /etc/
asterisk. The res_odbc.conf file sets the parameters that various Asterisk modules will
use to connect to the database.
428 | Chapter 16: Relational Database Integration
www.it-ebooks.info
The pooling and limit options are quite useful for MS SQL and Sybase
databases. These permit you to establish multiple connections (up to
limit connections) to a database while ensuring that each connection
has only one statement executing at once (this is due to a limitation in
the protocol used by these database servers).
Modify the res_odbc.conf file so it looks like the following:
[asterisk]
enabled => yes
dsn => asterisk-connector
username => asterisk
password => welcome
pooling => no
limit => 1
pre-connect => yes
The dsn option points at the database connection you configured in /etc/odbc.ini, and
the pre-connect option tells Asterisk to open up and maintain a connection to the
database when loading the res_odbc.so module. This lowers some of the overhead that
would come from repeatedly setting up and tearing down the connection to the
database.
Once you’ve configured res_odbc.conf, start Asterisk and verify the database connection
with the odbc show CLI command:
*CLI> odbc show
ODBC DSN Settings
-----------------
Name: asterisk
DSN: asterisk-connector
Last connection attempt: 1969-12-31 19:00:00
Pooled: No
Connected: Yes
Managing Databases
While it isn’t within the scope of this book to teach you about how to manage your
databases, it is at least worth noting briefly some of the applications you could use to
help with database management. Several exist, some of which are local client applica‐
tions running from your computer and connecting to the database, and others being
web-based applications that could be served from the same computer running the da‐
tabase itself, thereby allowing you to connect remotely.
Managing Databases | 429
www.it-ebooks.info
4. This was actually an issue one of the authors had while working on this book, and the flag column was found
by looking at the statement logging during PostgreSQL testing.
Some of the ones we’ve used include:
•phpMyAdmin
•MySQL Workbench
•pgAdmin
•Navicat (commercial)
Troubleshooting Database Issues
When working with ODBC database connections and Asterisk, it is important to re‐
member that the ODBC connection abstracts some of the information passed between
Asterisk and the database. In cases where things are not working as expected, you may
need to enable logging on your database platform to see what Asterisk is sending to the
database (e.g., which SELECT, INSERT, or UPDATE statements are being triggered from
Asterisk), what the database is seeing, and why the database may be rejecting the
statements.
For example, one of the most common problems found with ODBC database integration
is an incorrectly defined table or a missing column that Asterisk expects to exist. While
great strides have been made in the form of adaptive modules, not all parts of Asterisk
are adaptive. In the case of ODBC voicemail storage, you may have missed a column
such as flag, which is a new column not found in versions of Asterisk prior to 11.4 In
order to debug why your data is not being written to the database as expected, you should
enable statement logging on the database side, and then determine what statement is
being executed and why the database is rejecting it.
SQL Injection
Security is always a consideration when building networked applications, and database
security is no exception.
In the case of Asterisk, you have to give thought to what input you are accepting from
users (typically what they are able to submit to the dialplan), and work to sanitize that
input to ensure you are only allowing characters that are valid to your application. As
an example, a typical telephone call would only allow digits as input (and possibly the
* and # characters), so there would be no reason to accept any other characters. Bear in
mind that the SIP protocol allows more than just numbers as part of an address, so don’t
assume that somebody attempting to compromise your system is limited to just digits.
430 | Chapter 16: Relational Database Integration
www.it-ebooks.info
5. Best-est?
6. And if you don’t know what a Dagwood is, that’s what Wikipedia is for. I am not that old.
A little extra time spent sanitizing your allowed input will improve the security of your
application.
Powering Your Dialplan with func_odbc
The func_odbc dialplan function is arguably the coolest5 and most powerful dialplan
function in Asterisk. It allows you to define and use relatively simple functions in your
dialplan that will retrieve information from databases as calls are being processed. There
are all kinds of ways in which this might be used, such as managing users or allowing
the sharing of dynamic information within a clustered set of Asterisk machines. We
won’t claim that this will make designing and writing dialplan code easier, but we will
promise that this will allow you to add a whole new level of power to your dialplans,
especially if you are comfortable working with databases. So far we can’t think of anyone
who does not love func_odbc.
What func_odbc allows you to do is define SQL queries to which you assign function
names. In effect, you are creating custom functions that obtain their results by executing
queries against a database. The func_odbc.conf file is where you specify the relationships
between the function names you create and the SQL statements you wish them to per‐
form. By referring to the named functions in the dialplan, you can retrieve and update
values in the database.
In order to get you into the right frame of mind for what follows, we want you to picture
a Dagwood sandwich.6
Can you relay the total experience of such a thing by showing someone a picture of a
tomato, or by waving a slice of cheese about? Not hardly. That is the conundrum we
faced when trying to give useful examples of why func_odbc is so powerful. So, we
decided to build the whole sandwich for you. It’s quite a mouthful, but after a few bites
of this, peanut butter and jelly is never going to be the same.
ODBC Configuration File Relationships
Several files must all line up in order for Asterisk to be able to use ODBC from the
dialplan. Figure 16-1 attempts to provide a visual understanding of this. You will prob‐
ably find this diagram more helpful once you have worked through the examples in the
following sections.
Powering Your Dialplan with func_odbc | 431
www.it-ebooks.info
Figure 16-1. Relationships between func_odbc.conf, res_odbc.conf, /etc/odbc.ini
(unixODBC), and the database connection
A Gentle Introduction to func_odbc
Before we dive into func_odbc, we feel a wee bit of history is in order.
The very first use of func_odbc, which occurred while its author was still writing it, is
also a good introduction to its use. A customer of one of the module’s authors noted
that some people calling into his switch had figured out a way to make free calls with
his system. While his eventual intent was to change his dialplan to avoid those problems,
he needed to blacklist certain caller IDs in the meantime, and the database he wanted
to use for this was a Microsoft SQL Server database.
With a few exceptions, this is the actual dialplan:
[span3pri]
exten => _50054XX,1,NoOp()
same => n,Set(CDR(accountcode)=pricall)
; Does this callerID appear in the database?
same => n,GotoIf($[${ODBC_ANIBLOCK(${CALLERID(number)})}]?busy)
same => n(dial),Dial(DAHDI/G1/${EXTEN})
432 | Chapter 16: Relational Database Integration
www.it-ebooks.info
7. We’re using the IF() SQL function to make sure we return a value of 0 or 1. This works on MySQL 5.1 or
later. If it does not work on your SQL installation, you could also check the returned result in the dialplan
using the IF() function there.
same => n(busy),Busy(10) ; Yes, you are on the blacklist.
same => n,Hangup
This dialplan, in a nutshell, passes all calls to another system for routing purposes, except
those calls whose caller IDs are in a blacklist. The calls coming into this system used a
block of 100 seven-digit DIDs. You will note a dialplan function is being used that you
won’t find listed in any of the functions that ship with Asterisk: ODBC_ANIBLOCK(). This
function was instead defined in another configuration file, func_odbc.conf:
[ANIBLOCK]
dsn=telesys
readsql=SELECT IF(COUNT(1)>0, 1, 0) FROM Aniblock WHERE NUMBER='${ARG1}'
So, your ODBC_ANIBLOCK()7 function connects to a data source in res_odbc.conf named
telesys and selects a count of records that have the NUMBER specified by the argument,
which is (referring to our dialplan above) the caller ID. Nominally, this function should
return either a 1 (indicating the caller ID exists in the Aniblock table) or a 0 (if it does
not). This value also evaluates directly to true or false, which means we don’t need to
use an expression in our dialplan to complicate the logic.
And that, in a nutshell, is what func_odbc is all about: writing custom dialplan functions
that return a result from a database. Next up, a more detailed example of how one might
use func_odbc.
Getting Funky with func_odbc: Hot-Desking
OK, back to the Dagwood sandwich we promised.
We believe the value of func_odbc will become very clear to you if you work through
the following example, which will produce a new feature on your Asterisk system that
depends heavily on func_ocbc.
Picture a small company with a sales force of five people who have to share two desks.
This is not as cruel as it seems, because these folks spend most of their time on the road,
and they are each only in the office for at most one day each week.
Still, when they do get into the office, they’d like the system to know which desk they
are sitting at, so that their calls can be directed there. Also, the boss wants to be able to
track when they are in the office and control calling privileges from those phones when
no one is there.
This need is typically solved by what is called a hot-desking feature. We have built one
for you in order to show you the power of func_odbc.
Getting Funky with func_odbc: Hot-Desking | 433
www.it-ebooks.info
Let’s start with the easy stuff, and create two desktop phones in the sip.conf file:
; sip.conf
; HOT DESK PHONES
[hot_desk_phone](!) ; template
type=friend
host=dynamic
context=hotdesk
qualify=yes
[0000FFFF0003](hot_desk_phone) ; first desk
secret=this_phone_needs_a_good_password
[0000FFFF0004](hot_desk_phone) ; second desk
secret=this_phone_also_needs_a_secret
; END HOT DESK PHONES
These two desk phones both enter the dialplan at the hotdesk context in exten
sions.conf, which we will define shortly. If you want to have these devices actually work,
you will of course need to set the appropriate parameters in the devices themselves, but
we covered all that in Chapter 5. If you are building these phones in your lab, the device
names we use can be replaced by whatever you feel best serves your needs (we recom‐
mend using the MAC address).
That’s all for sip.conf. We’ve got two slices of bread, which is hardly a sandwich yet.
Now let’s get the database part of it set up (we are assuming that you have an ODBC
database created and working, as outlined in the earlier parts of this chapter). First,
connect to the database console.
For PostgreSQL:
$ sudo su - postgres
$ psql -U asterisk -h localhost asterisk
Password:
Then create the table with the following bit of SQL:
CREATE TABLE ast_hotdesk
(
id serial NOT NULL,
extension int8,
first_name text,
last_name text,
cid_name text,
cid_number varchar(10),
pin int4,
context text,
status bool DEFAULT false,
"location" text,
CONSTRAINT ast_hotdesk_id_pk PRIMARY KEY (id)
434 | Chapter 16: Relational Database Integration
www.it-ebooks.info
)
WITHOUT OIDS;
For MySQL:
$ mysql -u asterisk -p asterisk
Enter password:
Then create the table with the following bit of SQL:
CREATE TABLE ast_hotdesk
(
id serial NOT NULL,
extension int8,
first_name text,
last_name text,
cid_name text,
cid_number varchar(10),
pin int4,
context text,
status bool DEFAULT false,
location text,
CONSTRAINT ast_hotdesk_id_pk PRIMARY KEY (id)
);
The table information is summarized in Table 16-1.
Table 16-1. Summary of ast_hotdesk table
Column name Column type
id Serial, autoincrementing
extension Integer
first_name Text
last_name Text
cid_name Text
cid_number Varchar 10
pin Integer
context Text
status Boolean, default false
location Text
After that, populate the database with the following information (some of the values
that you see actually will change only after the dialplan work is done, but we include it
here by way of example).
At the PostgreSQL console, run the following commands:
asterisk=> INSERT INTO ast_hotdesk ('extension', 'first_name', 'last_name',\
'cid_name','cid_number', 'pin', 'context', 'location') \
Getting Funky with func_odbc: Hot-Desking | 435
www.it-ebooks.info
8. Note that in the first example user we are assigning a status of 1 and a location, whereas for the second example
user we are not defining a value for these fields.
VALUES (1101, 'Leif', 'Madsen', 'Leif Madsen', '4165551101', '555',\
'longdistance','0000FFFF0003');
At the MySQL console, run the following commands:
mysql> INSERT INTO ast_hotdesk (extension, first_name, last_name, cid_name,
cid_number, pin, context, status, location)
VALUES (1101, 'Leif', 'Madsen', 'Leif Madsen',
'4165551101', '555', 'longdistance', 1, '0000FFFF0003');
mysql> INSERT INTO ast_hotdesk (extension, first_name,
last_name, cid_name, cid_number, pin, context)
VALUES (1104,'Mark','Spencer','Mark Spencer',
'4165551104','558','international');
Repeat these commands, changing the VALUES as needed, for all entries you wish to have
in the database.8 After you’ve input your sample data, you can view the data in the
ast_hotdesk table by running a simple SELECT statement from the database console:
mysql> SELECT * FROM ast_hotdesk;
which might give you something like the following output:
+----+-----------+------------+--------------+------------------+
| id | extension | first_name | last_name | cid_name |
+----+-----------+------------+--------------+------------------+
| 1 | 1101 | Leif | Madsen | Leif Madsen |
| 2 | 1104 | Mark | Spencer | Mark Spencer |
| 3 | 1105 | Matt | Jordan | Matt Jordan |
| 4 | 1102 | Jim | Van Meggelen | Jim Van Meggelen |
| 5 | 1103 | Russell | Bryant | Russell Bryant |
+----+-----------+------------+--------------+------------------+
+------------+------+---------------+--------+--------------+
| cid_number | pin | context | status | location |
+------------+------+---------------+--------+--------------+
| 4165551101 | 555 | longdistance | 1 | 0000FFFF0003 |
| 4165551104 | 558 | international | 0 | NULL |
| 4165551105 | 559 | local | 0 | NULL |
| 4165551102 | 556 | longdistance | 0 | NULL |
| 4165551103 | 557 | local | 0 | NULL |
+------------+------+---------------+--------+--------------+
We’ve got the condiments now, so let’s get to our dialplan. This is where the magic is
going to happen.
436 | Chapter 16: Relational Database Integration
www.it-ebooks.info
9. You should be able to reload your dialplan (dialplan reload) and func_odbc (module reload func_odbc.so),
and test the dialplan out thus far (dial 991101 from one of the sets you’ve assigned to this context). Make sure
your console verbosity is set to at least 3 (core set verbose 3), as you will only be able to see this dialplan working
by the console (a call to this dialplan will return a fast busy even if it runs successfully).
Somewhere in extensions.conf we are going to have to create the hotdesk context. To
start, let’s define a pattern-match extension that will allow the users to log in:
; extensions.conf
; Hot-Desking Feature
[hotdesk]
; Hot Desk Login
exten => _99110[1-5],1,NoOp()
same => n,Set(E=${EXTEN:2}) ; strip off the leading 99
same => n,Verbose(1,Hot Desk Extension ${E} is changing status)
same => n,Verbose(1,Checking current status of extension ${E})
same => n,Set(${E}_STATUS=${HOTDESK_INFO(status,${E})})
same => n,Set(${E}_PIN=${HOTDESK_INFO(pin,${E})})
We’re not done writing this extension yet, but we need to digress for a few pages to
discuss where we’re at so far.
When a sales agent sits down at a desk, he logs in by dialing 99 plus his own extension
number. In this case we have allowed the 1101 through 1105 extensions to log in with
our pattern match of _99110[1-5]. You could just as easily make this less restrictive by
using _9911XX (allowing 1100 through 1199). This extension uses func_odbc to perform
a lookup with the HOTDESK_INFO() dialplan function. This custom function (which we
will define in the func_odbc.conf file) performs an SQL statement and returns whatever
is retrieved from the database.
We would define the new function HOTDESK_INFO() in func_odbc.conf like so:
[INFO]
prefix=HOTDESK
dsn=asterisk
readsql=SELECT ${ARG1} FROM ast_hotdesk WHERE extension = '${ARG2}'
That’s a lot of stuff in just a few lines. Let’s quickly cover them before we move on.9
First of all, the prefix is optional (default prefix is 'ODBC'). This means that if you don’t
define a prefix, Asterisk adds 'ODBC' to the function name (in this case, INFO), which
means this function would become ODBC_INFO(). This is not very descriptive of what
the function is doing, so it can be helpful to assign a prefix that helps to relate your
ODBC functions to the tasks they are performing. We chose 'HOTDESK', which means
that this custom function will be named HOTDESK_INFO() in the dialplan.
Getting Funky with func_odbc: Hot-Desking | 437
www.it-ebooks.info
The reason why prefix is separate is that the author of the module
wanted to reduce possible collisions with existing dialplan functions.
The intent of prefix was to allow multiple copies of the same function,
connected to different databases, for multitenant Asterisk systems. We
as authors have been a bit more liberal in our use of prefix than the
developer originally intended.
The dsn attribute tells Asterisk which connection to use from res_odbc.conf. Since sev‐
eral database connections could be configured in res_odbc.conf, we specify which one
to use here. In Figure 16-1, we show the relationship between the various file configu‐
rations and how they reference down the chain to connect to the database.
The func_odbc.conf.sample file in the Asterisk source contains additional
information about how to handle multiple databases and control the
reading and writing of information to different DSN connections.
Specifically, the readhandle, writehandle, readsql, and writesql ar‐
guments will provide you with great flexibility for database integration
and control.
Finally, we define our SQL statement with the readsql attribute. Dialplan functions can
be called with two different formats: one for retrieving information, and one for setting
information. The readsql attribute is used when we call the HOTDESK_INFO() function
with the retrieve format (we could execute a separate SQL statement with the writesql
attribute; we’ll discuss the format for that attribute a little bit later in this chapter).
Reading values from this function would take this format in the dialplan:
exten => s,n,Set(RETURNED_VALUE=${HOTDESK_INFO(status,1101)})
This would return the value located in the database within the status column where
the extension column equals 1101. The status and 1101 we pass to the
HOTDESK_INFO() function are then placed into the SQL statement we assigned to the
readsql attribute, available as ${ARG1} and ${ARG2}, respectively. If we had passed a
third option, this would have been available as ${ARG3}.
After the SQL statement is executed, the value returned (if any) is assigned to the
RETURNED_VALUE channel variable.
438 | Chapter 16: Relational Database Integration
www.it-ebooks.info
Using the ARRAY() Function
In our example, we are utilizing two separate database calls and assigning those values
to a pair of channel variables, ${E}_STATUS and ${E}_PIN. This was done to simplify
the example:
exten => _110[1-5],1,NoOp()
same => n,Set(${E}_STATUS=${HOTDESK_INFO(status,${E})})
same => n,Set(${E}_PIN=${HOTDESK_INFO(pin,${E})})
As an alternative, we could have returned multiple columns and saved them to separate
variables utilizing the ARRAY() dialplan function. If we had defined our SQL statement
in the func_odbc.conf file like so:
readsql=SELECT pin,status FROM ast_hotdesk WHERE extension = '${E}'
we could have used the ARRAY() function to save each column of information for the
row to its own variable with a single call to the database:
exten => _110[1-5],1,Set(ARRAY(${E}_PIN,${E}_STATUS)=${HOTDESK_INFO(${E})})
Using ARRAY() is handy any time you might get comma-separated values back and want
to assign the values to separate variables, such as with CURL().
So, in the first two lines of the following block of code, we are passing the value status
and the value contained in the ${E} variable (e.g., 1101) to the HOTDESK_INFO() function.
The two values are then replaced in the SQL statement with ${ARG1} and ${ARG2},
respectively, and the SQL statement is executed. Finally, the value returned is assigned
to the ${E}_STATUS channel variable.
OK, let’s finish writing the pattern-match extension now:
same => n,Set(${E}_STATUS=${HOTDESK_INFO(status,${E})})
same => n,Set(${E}_PIN=${HOTDESK_INFO(pin,${E})})
same => n,GotoIf($[${ODBCROWS} < 0]?invalid_user,1)
same => n,GotoIf($[${${E}_STATUS} = 1]?logout,1:login,1)
After assigning the value of the status column to the ${E}_STATUS variable (if the user
identifies themself as extension 1101, the variable name will be 1101_STATUS), we check
if we’ve received a value back from the database (error checking) using the ${ODBCROWS}
channel variable.
The last row in the block checks the status of the phone and, if the agent is currently
logged in, logs him off. If the agent is not already logged in, it will go to extension
login, priority 1 within the same context.
Getting Funky with func_odbc: Hot-Desking | 439
www.it-ebooks.info
Remember that in a traditional phone system all extensions must be
numbers, but in Asterisk, extensions can have names as well. A possible
advantage of using an extension that’s not a number is that it will be
much harder for a user to dial it from her phone and, thus, more secure.
We’re going to use several named extensions in this example. If you
want to be absolutely sure that a malicious user cannot access those
named extensions, simply use the trick that the AEL loader uses: start
with a priority other than 1. You can access the first line of the extension
by assigning it a priority label and referencing it via the extension name/
priority label combination.
The login extension runs some initial checks to verify the PIN code entered by the
agent. (Additionally, we’ve used the FILTER() function to make sure only numbers were
entered to help avoid some SQL injection issues.) We allow him three tries to enter the
correct PIN, and if all tries are invalid we send the call to the login_fail extension
(which we will be writing later):
exten => login,1,NoOp() ; set initial counter values
same => n,Set(PIN_TRIES=1) ; pin tries counter
same => n,Set(MAX_PIN_TRIES=3) ; set max number of login attempts
same => n,Playback(silence/1) ; play back some silence so first prompt is
; not cut off
same => n(get_pin),NoOp()
same => n,Set(PIN_TRIES=$[${PIN_TRIES} + 1]) ; increase pin try counter
same => n,Read(PIN_ENTERED,enter-password,${LEN(${${E}_PIN})})
same => n,Read(PIN_ENTERED=${FILTER(0-9,${PIN_ENTERED})})
same => n,GotoIf($["${PIN_ENTERED}" = "${${E}_PIN}"]?valid_login,1)
same => n,Playback(pin-invalid)
same => n,GotoIf($[${PIN_TRIES} <= ${MAX_PIN_TRIES}]?get_pin:login_fail,1)
If the PIN entered matches, we validate the login with the valid_login extension.
First we utilize the CHANNEL variable to figure out which phone device the agent is calling
from. The CHANNEL variable is usually populated with something like SIP/
0000FFFF0001-ab4034c, so we make use of the CUT() function to first pull off the SIP/
portion of the string and assign that to LOCATION. We then strip off the -ab4034c part
of the string, discard it, and assign the remainder (0000FFFF0001) to the LOCATION
variable:
exten => valid_login,1,NoOp()
; CUT off the channel technology and assign it to the LOCATION variable
same => n,Set(LOCATION=${CUT(CHANNEL,/,2)})
; CUT off the unique identifier and save the remainder to the LOCATION variable
same => n,Set(LOCATION=${CUT(LOCATION,-,1)})
We utilize yet another custom function created in the func_odbc.conf file, HOT
DESK_CHECK_PHONE_LOGINS(), to check if any other users were previously logged into
this phone and forgot to log out. If the number of logged-in users is greater than 0 (it
440 | Chapter 16: Relational Database Integration
www.it-ebooks.info
should never be more than 1, but we check for higher values anyway and reset those,
too), it runs the logic in the logout_login extension:
; func_odbc.conf
[CHECK_PHONE_LOGINS]
prefix=HOTDESK
dsn=asterisk
readsql=SELECT COUNT(status) FROM ast_hotdesk WHERE status = '1'
readsql+= AND location = '${ARG1}'
Due to line-length limitations in the book, we’ve broken the readsql
command up into multiple lines using the += syntax, which tells Asterisk
to append the contents after readsql+= to the most recently defined
readsql= value. The usage of += is not only applicable to the readsql
option, but can be used in other places in other .conf files within As‐
terisk. For example, something like callerid+= could be used in
sip.conf.
If there are no other agents logged into the device, we update the login status for this
user with the HOTDESK_STATUS() function:
; Continuation of the valid_login extension below
same => n,Set(USERS_LOGGED_IN=${HOTDESK_CHECK_PHONE_
LOGINS(${LOCATION})})
same => n,GotoIf($[${USERS_LOGGED_IN} > 0]?logout_login,1)
same => n(set_login_status),NoOp()
; Set the status for the phone to '1' and where the agent is logged into
same => n,Set(HOTDESK_STATUS(${E})=1,${LOCATION})
same => n,GotoIf($[${ODBCROWS} < 1]?error,1)
same => n,Playback(agent-loginok)
same => n,Hangup()
We create a write function in func_odbc.conf like so:
[STATUS]
prefix=HOTDESK
dsn=asterisk
writesql=UPDATE ast_hotdesk SET status = '${SQL_ESC(${VAL1})}',
writesql+= location = '${SQL_ESC(${VAL2})}'
writesql+= WHERE extension = '${SQL_ESC(${ARG1})}'
The syntax is very similar to the readsql syntax discussed earlier in the chapter, but
there are a few new things here, so let’s discuss them before moving on.
The first thing you may have noticed is that we now have both ${VALx} and ${ARGx}
variables in our SQL statement.
Getting Funky with func_odbc: Hot-Desking | 441
www.it-ebooks.info
10. It could also pose a needless security risk.
We’ve wrapped the ${VALx} and ${ARGx} values in the SQL_ESC() func‐
tion as well, which will escape characters such as backticks that could
be used in an SQL injection attack.
These contain the values we pass to the function from the dialplan. In this case, we have
two VAL variables and a single ARG variable that were set from the dialplan via this
statement:
Set(HOTDESK_STATUS(${E})=1,${LOCATION})
Notice the syntax is slightly different from that of the read-style function. This signals
to Asterisk that you want to perform a write (this is the same syntax as that used for
other dialplan functions).
We are passing the value of the ${E} variable to the HOTDESK_STATUS() function, whose
value is then accessible in the SQL statement within func_odbc.conf with the ${ARG1}
variable. We then pass two values: 1 and ${LOCATION}. These are available to the SQL
statement in the ${VAL1} and ${VAL2} variables, respectively.
Using SQL Directly in Your Dialplan
Some people would prefer to write their SQL statements in the dialplan directly, as
opposed to crafting a custom function for each type of database transaction they might
want to perform.
In theory, you could create just one function in func_odbc.conf like this:
[SQL]
prefix=GENERIC
dsn=asterisk
readsql=${SQL_ESC(${ARG1})}
writesql=${SQL_ESC(${VAL1})}
Then, in your dialplan you could write pretty much any sort of SQL you wanted (pro‐
vided the ODBC connector could handle it, which has nothing to do with Asterisk).
That one function above would then submit whatever string you specified directly to
the ODBC connection to your database.10
Some would argue this makes for more verbosity in your dialplan; others will insist that
the benefit of having a much simpler func_odbc.conf file is worth it:
[odbc_hacking]
exten => 8811,1,Goto(odbcreadtest,1)
exten => 8822,1,Goto(odbcwritetest,1)
442 | Chapter 16: Relational Database Integration
www.it-ebooks.info
11. Also see “Multirow Functionality with func_odbc” on page 444 for more information and examples of parsing
multiple rows returned from the database.
exten => odbcreadtest,1,Noop()
same => n,Set(result=${GENERIC_SQL(SELECT first_name
FROM ast_hotdesk WHERE id=4)})
same => n,Verbose(1,${result})
same => n,Hangup()
;note the need to escape the quote characters
exten => odbcwritetest,1,Noop()
same => n,Set(GENERIC_SSQL()
=UPDATE ast_hotdesk SET
first_name=\'${EXTEN}\'WHERE id=4)
same => n,Verbose(1,ODBC_RESULT is ${OBDBC_RESULT})
same => n,Hangup()
We are inclined to think that it’s generally better to build functions using func_odbc.conf
to handle the queries you will perform from your dialplan; however, there’s no denying
the temptation to use one function to handle all SQL queries, and write the whole query
directly in the dialplan. Try both methods and see what works for you (you can even
use a combination of both types).
The bottom line is that func_odbc is a very flexible Asterisk module, which is no small
part of why we love it.
As mentioned previously, if we had to log out one or more agents before logging this
one in, we would check this with the logout_login extension. This dialplan logic will
utilize the ODBC_FETCH() function to pop information off the information stack returned
by the HOTDESK_LOGGED_IN_USER() function. More than likely this will execute only
one loop, but it’s a good example of how you might update or parse multiple rows in
the database.11
The first part of our dialplan returns an ID number that we can use with the
ODBC_FETCH() function to iterate through the values returned. We’re going to write a
section of dialplan to assign this ID to the LOGGED_IN_ID channel variable:
same => n,Set(LOGGED_IN_ID=${HOTDESK_LOGGED_IN_USER(${LOCATION})})
Here is the logout_login extension, which could potentially loop through multiple
rows:
exten => logout_login,1,NoOp()
; set all logged-in users on this device to logged-out status
same => n,Set(LOGGED_IN_ID=${HOTDESK_LOGGED_IN_USER(${LOCATION})})
same => n(start_loop),NoOp()
same => n,Set(WHO=${ODBC_FETCH(${LOGGED_IN_ID})})
same => n,GotoIf($["${ODBC_FETCH_STATUS}" = "FAILURE"]?cleanup)
same => n,Set(HOTDESK_STATUS(${WHO})=0) ; log out phone
Getting Funky with func_odbc: Hot-Desking | 443
www.it-ebooks.info
same => n,Goto(start_loop)
same => n(cleanup),ODBCFinish(${LOGGED_IN_ID})
same => n,Goto(valid_login,set_login_status) ; return to logging in
And here’s the function we’d add to func_odbc.conf (remember to reload the
func_odbc.so module):
[LOGGED_IN_USER]
prefix=HOTDESK
dsn=asterisk
mode=multirow
readsql=SELECT extension FROM ast_hotdesk
readsql+= WHERE status = '1'
readsql+= AND location = '${SQL_ESC(${ARG1})}'
We assign the first value returned from the database (e.g., the extension 1101) to the
WHO channel. Before doing anything, though, we check to see if the ODBC_FETCH() func‐
tion was successful in returning data. If the ODBC_FETCH_STATUS channel variable con‐
tains FAILURE, we have no data to work with, so we move to the cleanup priority label.
If we have data, we then pass the value of ${WHO} as an argument to the
HOTDESK_STATUS() function, which contains a value of 0. This is the first value passed
to HOTDESK_STATUS() and is shown as ${VAL1} in func_odbc.conf, where the function
is declared.
If you look at the HOTDESK_STATUS() function in func_odbc.conf, you will see we could
also pass a second value, but we’re not doing that here since we want to remove any
values from that column in order to log out the user, which setting no value does
effectively.
After using HOTDESK_STATUS() to log out the user, we return to the start_loop priority
label to loop through all values, which simply executes a NoOp(). After attempting to
retrieve a value, we again check ODBC_FETCH_STATUS for FAILURE. If that value is found,
we move to the cleanup priority label, where we execute the ODBCFinish() dialplan
application to perform cleanup. We then return to the valid_login extension at the
set_login_status priority label.
Multirow Functionality with func_odbc
A mode exists that allows Asterisk to handle multiple rows of data returned from the
database. For example, if we were to create a dialplan function in func_odbc.conf that
returned all available extensions, we would need to enable multirow mode for the func‐
tion. This would cause the function to work a little differently, returning an ID number
that could then be passed to the ODBC_FETCH() function to return each row in turn.
444 | Chapter 16: Relational Database Integration
www.it-ebooks.info
A long time ago, we needed to use the SQL functions LIMIT and OFFSET to control data
being returned to Asterisk for iteration. This was resource-intensive (at least in relation
to multirow mode), as it required multiple queries to the database for each row.
A simple example follows. Suppose we have the following func_odbc.conf:
[ALL_AVAIL_EXTENS]
prefix=GET
dsn=asterisk-connector
mode=multirow
readsql=SELECT extension FROM ast_hotdesk WHERE status = '${ARG1}'
and a dialplan in extensions.conf that looks something like this:
[multirow_example]
exten => start,1,Verbose(1,Looping example)
same => n,Set(ODBC_ID=${GET_ALL_AVAIL_EXTENS(1)})
same => n,GotoIf($[${ODBCROWS} < 1]?no_rows,1)
same => n,Set(COUNTER=1)
same => n,While($[${COUNTER} <= ${ODBCROWS}])
same => n,Set(AVAIL_EXTEN_${COUNTER}=${ODBC_FETCH(${ODBC_ID})})
same => n,Set(COUNTER=$[${COUNTER + 1])
same => n,EndWhile()
same => n,ODBCFinish()
exten => no_rows,1,Verbose(1,No rows returned)
same => n,Playback(silence/1&invalid)
same => n,Hangup()
The ODBC_FETCH() function will essentially treat the information as a stack, and each
call to it with the passed ODBC_ID will pop the next row of information off the stack. We
also have the option of using the ODBC_FETCH_STATUS channel variable, which is set once
the ODBC_FETCH() function (which returns SUCCESS if additional rows are available or
FAILURE if no additional rows are available) is called. This permits us to write a dialplan
like the following, which does not use a counter, but still loops through the data. This
may be useful if we’re looking for something specific and don’t need to look at all the
data. Once we’re done, the ODBCFinish() dialplan application should be called to clean
up any remaining data.
Here’s another extensions.conf example:
[multirow_example_2]
exten => start,1,Verbose(1,Looping example with break)
same => n,Set(ODBC_ID=${GET_ALL_AVAIL_EXTENS(1)})
same => n(loop_start),NoOp()
same => n,Set(ROW_RESULT=${ODBC_FETCH(${ODBC_ID})})
same => n,GotoIf($["${ODBC_FETCH_STATUS}" = "FAILURE"]?cleanup,1)
same => n,GotoIf($["${ROW_RESULT}" = "1104"]?good_exten,1)
same => n,Goto(loop_start)
exten => cleanup,1,Verbose(1,Cleaning up after all iterations)
same => n,Verbose(1,We did not find the extension we wanted)
Getting Funky with func_odbc: Hot-Desking | 445
www.it-ebooks.info
same => n,ODBCFinish(${ODBC_ID})
same => n,Hangup()
exten => good_exten,1,Verbose(1,Extension we want is available)
same => n,ODBCFinish(${ODBC_ID})
same => n,Verbose(1,Perform some action we wanted)
same => n,Hangup()
The rest of the context should be fairly straightforward (if some of this doesn’t make
sense, we suggest you go back and refresh your memory with Chapters 6 and 10). The
one trick you may be unfamiliar with could be the usage of the ${ODBCROWS} channel
variable, which is set by the HOTDESK_STATUS() function. This tells us how many rows
were affected in the SQL UPDATE, which we assume to be 1. If the value of ${ODBCROWS}
is less than 1, we assume an error and handle it appropriately:
exten => logout,1,NoOp()
same => n,Set(HOTDESK_STATUS(${E})=0)
same => n,GotoIf($[${ODBCROWS} < 1]?error,1)
same => n,Playback(silence/1&agent-loggedoff)
same => n,Hangup()
exten => login_fail,1,NoOp()
same => n,Playback(silence/1&login-fail)
same => n,Hangup()
exten => error,1,NoOp()
same => n,Playback(silence/1&connection-failed)
same => n,Hangup()
exten => invalid_user,1,NoOp()
same => n,Verbose(1,Hot Desk extension ${E} does not exist)
same => n,Playback(silence/2&invalid)
same => n,Hangup()
We also include the hotdesk_outbound context, which will handle our outgoing calls
after we have logged the agent into the system:
include => hotdesk_outbound
The hotdesk_outbound context utilizes many of the same principles already discussed.
This context uses a pattern match to catch any numbers dialed from the hot-desk
phones. We first set our LOCATION variable using the CHANNEL variable, then determine
which extension (agent) is logged into the system and assign that value to the WHO
variable. If this variable is NULL, we reject the outgoing call. If it is not NULL, then we get
the agent information using the HOTDESK_INFO() function and assign it to several CHAN
NEL variables, including the context to handle the call with, where we perform a Go
to() to the context we have been assigned (which controls our outbound access).
446 | Chapter 16: Relational Database Integration
www.it-ebooks.info
We will make use of the HOTDESK_PHONE_STATUS() dialplan function, which you can
define in func_odbc.conf like so:
[PHONE_STATUS]
prefix=HOTDESK
dsn=asterisk
readsql=SELECT extension FROM ast_hotdesk WHERE status = '1'
readsql+= AND location = '${SQL_ESC(${ARG1})}'
If we try to dial a number that is not handled by our context (or one of the transitive
contexts—i.e., international contains long distance, which also contains local), the built-
in extension i is executed, which plays back a message stating that the action cannot be
performed and hangs up the call:
[hotdesk_outbound]
exten => _X.,1,NoOp()
same => n,Set(LOCATION=${CUT(CHANNEL,/,2)})
same => n,Set(LOCATION=${CUT(LOCATION,-,1)})
same => n,Set(WHO=${HOTDESK_PHONE_STATUS(${LOCATION})})
same => n,GotoIf($[${ISNULL(${WHO})}]?no_outgoing,1)
same => n,Set(${WHO}_CID_NAME=${HOTDESK_INFO(cid_name,${WHO})})
same => n,Set(${WHO}_CID_NUMBER=${HOTDESK_INFO(cid_number,${WHO})})
same => n,Set(${WHO}_CONTEXT=${HOTDESK_INFO(context,${WHO})})
same => n,Goto(${${WHO}_CONTEXT},${EXTEN},1)
[international] ; as dialed from NANP
exten => _011.,1,NoOp()
same => n,Set(E=${EXTEN})
same => n,Goto(outgoing,call,1)
exten => i,1,NoOp()
same => n,Playback(silence/2&sorry-cant-let-you-do-that2)
same => n,Hangup()
include => longdistance
[longdistance] ; within NANP
exten => _1NXXNXXXXXX,1,NoOp()
same => n,Set(E=${EXTEN})
same => n,Goto(outgoing,call,1)
exten => _NXXNXXXXXX,1,Goto(1${EXTEN},1)
exten => i,1,NoOp()
same => n,Playback(silence/2&sorry-cant-let-you-do-that2)
same => n,Hangup()
include => local
Getting Funky with func_odbc: Hot-Desking | 447
www.it-ebooks.info
[local] ; within NANP NPA 416
exten => _416NXXXXXX,1,NoOp()
same => n,Set(E=${EXTEN})
same => n,Goto(outgoing,call,1)
exten => i,1,NoOp()
same => n,Playback(silence/2&sorry-cant-let-you-do-that2)
same => n,Hangup()
The example above is not intended to be a complete dialplan, but rather
to demonstrate the concept of how to route users through different parts
of the dialplan based on information stored in a database. We have used
very simplistic pattern matches here, and in a production environment
you would likely need a more detailed dialplan. As an example, the
actual NPA 416 contains an overlay (647), and there are also exchanges
within NPA 905/289 which would normally be dialable as locals calls
from NPA 416. Long-distance routing restrictions can and do get
complex.
If the call is allowed to be executed, it is sent to the [outgoing] context for processing,
and the caller ID name and number are set with the CALLERID() function. The call is
then placed via the SIP channel using the service_provider we created in the sip.conf
file:
[outgoing]
exten => call,1,NoOp()
same => n,Set(CALLERID(name)=${${WHO}_CID_NAME})
same => n,Set(CALLERID(number)=${${WHO}_CID_NUMBER})
same => n,Dial(SIP/service_provider/${E})
same => n,Playback(silence/2&pls-try-call-later)
same => n,Hangup()
Our service_provider might look something like this in sip.conf:
[service_provider]
type=friend
host=switch1.service_provider.net
defaultuser=my_username
fromuser=my_username
secret=welcome
context=incoming
canreinvite=no
disallow=all
allow=ulaw
448 | Chapter 16: Relational Database Integration
www.it-ebooks.info
12. Yes, calling this “realtime” is somewhat misleading, as updates to the data will not affect anything happening
in real time (until a reload of the relevant module is performed).
Now that we’ve implemented a fairly complex feature in the dialplan with the help of
func_odbc to retrieve and store data in a remote relational database, you can start to
see that with a handful of self-defined dialplan functions in the func_odbc.conf file and
a couple of tables in a database, you can create some powerful applications!
How many things have you just thought of that you could apply func_odbc to?
Using Realtime
The Asterisk Realtime Architecture (ARA) allows you to store all the parameters nor‐
mally stored in your Asterisk configuration files (commonly located in /etc/asterisk) in
a database. There are two types of realtime: static and dynamic.
The static version is similar to the traditional method of reading a configuration file
(information is only loaded when triggered from the CLI), except that the data is read
from the database instead.12
The dynamic realtime method, which loads and updates the information as it is used
by the live system, is commonly used for things such as SIP (or IAX2, etc.) user and peer
objects, as well as voicemail boxes.
Making changes to static information requires a reload, just as if you had changed a text
file on the system, but dynamic information is polled by Asterisk as needed, so no reload
is required when changes are made to this data. Realtime is configured in the extcon
fig.conf file located in the /etc/asterisk directory. This file tells Asterisk what to load from
the database and where to load it from, allowing certain files to be loaded from the
database and other files to be loaded from the standard configuration files.
Using Realtime | 449
www.it-ebooks.info
13. pgcluster appears to be a dead project, and Postgres-R appears to be in its infancy, so there may currently be
no good solution for master-master replication using PostgreSQL.
14. There are several tutorials on the Web describing how to set up replication with MySQL.
Another (arguably older) way to store Asterisk configuration was
through an external script, which would interact with a database and
generate the appropriate flat files (or .conf files), and then reload the
appropriate module once the new file was written. There is an advantage
to this (if the database goes down, your system will continue to function;
the script will simply not update any files until connectivity to the da‐
tabase is restored), but it also has disadvantages. One major disadvan‐
tage is that any changes you make to a user will not be available until
you run the update script. This is probably not a big issue on small
systems, but on large systems, waiting for changes to take effect can
cause issues, such as pausing a live call while a large file is loaded and
parsed.
You can relieve some of this by utilizing a replicated database system.
Asterisk provides the ability to fail over to another database system.
This way, you can cluster the database backend utilizing a master-
master relationship (for PostgreSQL, pgcluster, or Postgre-R;13 for
MySQL it’s native14), or a master-slave (for PostgreSQL or Slony-I; for
MySQL it’s native) replication system.
Our informal survey of such things suggests that using scripts to write
flat files from databases is not as popular as querying a database in real-
time (and ensuring the database has a proper amount of fault tolerance
to handle the fact that a live telecom system is dependent on it).
Static Realtime
Static realtime is useful when you want to load from a database the configuration that
you would normally place in the configuration files in /etc/asterisk. The same rules that
apply to flat files on your system still apply when using Static Realtime. For example,
after making changes to the configuration you must either run the global reload com‐
mand from the Asterisk CLI, or reload the specific module associated with the config‐
uration file (e.g., module reload chan_sip.so).
When using Static Realtime, we tell Asterisk which files we want to load from the da‐
tabase using the following syntax in the extconfig.conf file:
; /etc/asterisk/extconfig.conf
[settings]
filename.conf => driver,database[,table]
450 | Chapter 16: Relational Database Integration
www.it-ebooks.info
There is no configuration file called filename.conf. Instead, use the actual
name of the configuration file you are storing in the database. If the
table name is not specified, Asterisk will use the name of the file as the
table name instead (less the .conf part). Also, all settings inside the
extconfig.conf file should fall under the [settings] header. Be aware
that you can’t load certain files from realtime at all, including aster
isk.conf, extconfig.conf, and logger.conf.
The Static Realtime module uses a very specifically formatted table to allow Asterisk to
read the various static files from the database. Table 16-2 illustrates the columns as they
must be defined in your database:
Table 16-2. Table layout and description of ast_config
Column name Column type Description
id Serial,
autoincrementing
An autoincrementing unique value for each row in the table.
cat_metric Integer The weight of the category within the file. A lower metric means it appears higher in
the file (see the sidebar on page 451).
var_metric Integer The weight of an item within a category. A lower metric means it appears higher in
the list (see the sidebar on page 451). This is useful for things like codec order in
sip.conf, or iax.conf where you want disallow=all to appear first (metric of 0),
followed by allow=ulaw (metric of 1), then allow=gsm (metric of 2).
filename Varchar 128 The filename the module would normally read from the hard drive of your system
(e.g., musiconhold.conf, sip.conf, iax.conf).
category Varchar 128 The section name within the file, such as [general]. Do not include the square
brackets around the name when saving to the database.
var_name Varchar 128 The option on the left side of the equals sign (e.g., disallow is the var_name in
disallow=all).
var_val Varchar 128 The value of an option on the right side of the equals sign (e.g., all is the
var_val in disallow=all).
commented Integer Any value other than 0 will evaluate as if it were prefixed with a semicolon in the flat
file (commented out).
A Word About Metrics
The metrics in static realtime are used to control the order in which objects are read
into memory. Think of the cat_metric and var_metric as the original line numbers in
the flat file. A higher cat_metric is processed first, because Asterisk matches categories
from bottom to top. Within a category, through, a lower var_metric is processed first,
because Asterisk processes the options top-down (e.g., disallow=all should be set to
a value lower than the allow’s value within a category to make sure it is processed first).
Using Realtime | 451
www.it-ebooks.info
15. The musiconhold.conf file can also be loaded via dynamic realtime (and that may in fact be a better choice
for a production system), but we’re using it statically as it’s a simple file that makes a good example.
A simple file we can load from Static Realtime is the musiconhold.conf15 file. Let’s start
by moving this file to a temporary location:
$ cd /etc/asterisk
$ mv musiconhold.conf musiconhold.conf.old
In order for the classes to be removed from memory, we need to restart Asterisk. Then
we can verify that our classes are blank by running moh show classes:
*CLI> core restart now
*CLI> moh show classes
*CLI>
OK, now log into your database and create the following table:
mysql> create table ast_config (
-> id int(8) primary key auto_increment,
-> cat_metric int(8),
-> var_metric int(8),
-> filename varchar(128),
-> category varchar(128),
-> var_name varchar(128),
-> var_val varchar(128),
-> commented int default 0
-> );
Let’s put the [default] class back into Asterisk, but now we’ll load it from the database.
Connect to your database and execute the following INSERT statements:
> INSERT INTO ast_config
(cat_metric,var_metric,filename,category,var_name,var_val)
VALUES
(1,1,'musiconhold.conf','default','mode','files');
> INSERT INTO ast_config
(cat_metric,var_metric,filename,category,var_name,var_val)
VALUES
(1,2'musiconhold.conf','default','directory','/var/lib/asterisk/moh');
You can verify that your values have made it into the database by running a SELECT
statement:
asterisk=# SELECT filename,category,var_name,var_val FROM ast_config;
filename | category | var_name | var_val
------------------+----------------+--------------+------------------------
musiconhold.conf | default | mode | files
musiconhold.conf | default | directory | /var/lib/asterisk/moh
(2 rows)
452 | Chapter 16: Relational Database Integration
www.it-ebooks.info
There’s one last thing to modify in the extconfig.conf file in the /etc/asterisk directory to
tell Asterisk to get the data for musiconhold.conf from the database using the ODBC
connection. The first column states that we’re using the ODBC drivers to connect
(res_odbc.conf) and that the connection name is asterisk (as defined with [aster
isk] in res_odbc.conf). Add the following line to the end of the extconfig.conf file, and
then save it:
[settings]
musiconhold.conf => odbc,asterisk,ast_config
Then connect to the Asterisk console and perform a reload:
*CLI> module reload res_musiconhold.so
You can now verify that your music on hold classes are loading from the database by
running moh show classes:
*CLI> moh show classes
Class: general
Mode: files
Directory: /var/lib/asterisk/moh
And there you go: musiconhold.conf loaded from the database. If you have issues with
the reload of the module loading the data into memory, try restarting Asterisk. You can
perform the same steps in order to load other flat files from the database, as needed.
When to Use preload in modules.conf for Realtime Modules
In modules.conf, sometimes you might need to load the database connection modules
early on using the preload directive. The reason is that certain files, such as manag
er.conf, cdr.conf and rtp.conf, are not external modules but rather are loaded internally
when Asterisk starts up. Additionally, if these files, such as manager.conf, want to use
named ACLs from the database, you’ll need to preload in that situation as well.
If we were using ODBC as our realtime database interface, then we would need to add
the following lines to modules.conf just after the autoload option:
; modules.conf
[modules]
autoload=yes
preload => res_odbc.so
preload => res_odbc_config.so
Dynamic Realtime
The Dynamic Realtime system is used to load objects that may change often, such as
SIP/IAX2 users and peers, queues and their members, and voicemail messages.
Using Realtime | 453
www.it-ebooks.info
Likewise, when new records are likely to be added on a regular basis, we can utilize the
power of the database to let us load this information on an as-needed basis.
All of realtime is configured in the /etc/asterisk/extconfig.conf file; however, Dynamic
Realtime has explicitly defined configuration names. All the predefined names should
be configured under the [settings] header. For example, defining SIP peers is done
using the following format:
; extconfig.conf
[settings]
sippeers => driver,database[,table]
The table name is optional. If it is omitted, Asterisk will use the predefined name (i.e.,
sippeers) to identify the table in which to look up the data.
In our example, we’ll be using the ast_sippeers table to store our SIP peer information.
So, to configure Asterisk to load all SIP peers from our database using realtime, we
would define something like this:
; extconfig.conf
[settings]
sippeers => odbc,asterisk,ast_sippeers
Predefined Dynamic Realtime Names in extconfig.conf
The following names are predefined for dynamic realtime:
•iaxusers—IAX users
•iaxpeers—IAX peers
•sippeers—SIP peers and users
•sipregs—SIP registrations
•voicemail—voicemail boxes
•extensions—dialplan
•meetme—MeetMe conferences
•queues—queues
•queues_members—members of queues
•acls—access control lists
•musiconhold—music on hold
•queue_log—queue logging
454 | Chapter 16: Relational Database Integration
www.it-ebooks.info
Both SIP users and peers are loaded from the same table; defined via the sippeers
section of extconfig.conf. This is because there will be a type field (just as if we were
defining the type in the sip.conf file) that will let us define a type of user, peer, or
friend. If you unload chan_sip.so and then load it back into memory (i.e., using module
unload chan_sip.so followed by module load chan_sip.so) after configuring extcon
fig.conf, you will be greeted with some warnings telling you which columns you’re miss‐
ing for the realtime table. If you were to load from realtime now, you would get the
following similar output on the console (which has been trimmed due to space
requirements):
WARNING: Realtime table ast_sippeers@asterisk requires column
'name', but that column does not exist!
WARNING: Realtime table ast_sippeers@asterisk requires column
'ipaddr', but that column does not exist!
WARNING: Realtime table ast_sippeers@asterisk requires column
'port', but that column does not exist!
WARNING: Realtime table ast_sippeers@asterisk requires column
'regseconds', but that column does not exist!
WARNING: Realtime table ast_sippeers@asterisk requires column
'defaultuser', but that column does not exist!
WARNING: Realtime table ast_sippeers@asterisk requires column
'fullcontact', but that column does not exist!
WARNING: Realtime table ast_sippeers@asterisk requires column
'regserver', but that column does not exist!
WARNING: Realtime table ast_sippeers@asterisk requires column
'useragent', but that column does not exist!
WARNING: Realtime table ast_sippeers@asterisk requires column
'lastms', but that column does not exist!
As you can see, we are missing several columns from the table ast_sipfriends, which
we’ve defined as connecting to the asterisk object as defined in res_odbc.conf. The next
step is to create our ast_sipfriends table with all the columns listed by the warning
messages, in addition to the following: the type column, which is required to define
users, peers, and friends; the secret column, which is used for setting a password; and
the host column, which allows us to define whether the peer is dynamically registering
to us or has a static IP address. Table 16-3 lists all the columns that should appear in our
table, and their types.
Using Realtime | 455
www.it-ebooks.info
Table 16-3. Minimal sippeers/sipusers realtime table
Column name Column type
type Varchar 6
name Varchar 128
secret Varchar 128
context Varchar 128
host Varchar 128
ipaddr Varchar 128
port Varchar 5
regseconds Bigint
defaultuser Varchar 128
fullcontact Varchar 128
regserver Varchar 128
useragent Varchar 128
lastms Integer
The SQL code to create this table should look something like this:
create table ast_sippeers
(
type varchar(6)
name varchar(128),
secret varchar(128),
context varchar(128),
host varchar(128),
ipaddr varchar(128),
port varchar(5),
regseconds bigint,
defaultuser varchar(128),
fullcontact varchar(128),
regserver varchar(128),
useragent varchar(128),
lastms integer
);
For each peer you want to register, you need to insert data in the columns type, name,
secret, context, host, and defaultuser. The rest of the columns will be populated
automatically when the peer registers.
The port, regseconds, and ipaddr fields are required to let Asterisk store the registra‐
tion information for the peer so it can determine where to send the calls. (Note that if
the peer is static, you will have to populate the ipaddr field yourself.) The port field
is optional and defaults to the standard port defined in the [general] section, and the
456 | Chapter 16: Relational Database Integration
www.it-ebooks.info
regseconds will remain blank. Table 16-4 lists some sample values that we’ll use to
populate our ast_sipfriends table.
Table 16-4. Example information used to populate the ast_sipfriends table
Column name Value
type friend
name 0000FFFF0008
defaultuser 0000FFFF0008
host dynamic
secret dont-use-this-password-pick-another
context LocalSets
Prior to registering your peer, though, you need to enable realtime caching in sip.conf.
Otherwise, the peer will not be loaded into memory, and the registration will not be
remembered. If your peers only place calls and don’t need to register to your system,
you don’t need to enable realtime caching because the peers will be checked against the
database each time they place a call. However, if you load your peers into memory, the
database will only need to be contacted on initial registration and after the registration
expires.
Additional options in sip.conf exist for realtime peers. These are defined in the
[general] section and described in Table 16-5.
Table 16-5. Realtime options in sip.conf
Configuration option Description
rtcachefriends Caches peers in memory on an as-needed basis after they have contacted the server. That is, on
Asterisk start the peers are not loaded into memory automatically; only after a peer has contacted the
server (e.g., via a registration or phone call) is it loaded in memory. Values are yes or no.
rtsavesysname When a peer registers to the system, saves the systemname (as defined in asterisk.conf) into the
regserver field within the database. (See “Setting the systemname for Globally Unique IDs” on
page 459 for more information.) Using regserver is useful when you have multiple servers
registering peers to the same table. Values are yes or no.
rtupdate Sends registration information such as the IP address, the origination port, the registration period, and
the username of the user-agent to the database when a peer registers to Asterisk. Values are yes
or no, and the default is yes.
rtautoclear Automatically expires friends on the same schedule as if they had just registered. This causes a peer to
be removed from memory when the registration period has expired, until that peer is requested again
(e.g., via registration or placing a call). Values are yes, no, or an integer value that causes the peers to
be removed from memory after that number of seconds instead of the registration interval.
ignoreregexpire When enabled, peers are not removed from memory when the registration period expires. Instead, the
information is left in memory so that if a call is requested to an endpoint that has an expired
registration, the last known information (IP address, port, etc.) will be tried.
Using Realtime | 457
www.it-ebooks.info
After enabling rtcachefriends=yes in sip.conf and reloading chan_sip.so (using
module reload chan_sip.so), you can register your peer to Asterisk using realtime, and
the peer should then be populated into memory. You will be able to verify this by exe‐
cuting the sip show peers command on the Asterisk console:
Name/username Host Dyn Port Status Realtime
0000FFFF0008/0000FFFF0008 172.16.0.160 D 5060 Unmonitored Cached RT
If you were to look at the table in the database directly, you would see something
like this:
+--------+--------------+---------+-----------+---------+--------------+
| type | name | secret | context | host | ipaddr |
+--------+--------------+---------+-----------+---------+--------------+
| friend | 0000FFFF0008 | welcome | LocalSets | dynamic | 172.16.0.160 |
+--------+--------------+---------+-----------+---------+--------------+
+------+------------+--------------+-------------------------------------+
| port | regseconds | defaultuser | fullcontact |
+------+------------+--------------+-------------------------------------+
| 5060 | 1283928895 | 0000FFFF0008 | sip:0000FFFF0008@172.16.0.160:52722 |
+------+------------+--------------+-------------------------------------+
+-----------+-----------------+--------+
| regserver | useragent | lastms |
+-----------+-----------------+--------+
| NULL | Zoiper rev.6739 | 0 |
+-----------+-----------------+--------+
There are many more options that we can define for SIP friends, such as the caller ID;
adding that information is as simple as adding a callerid column to the table. See the
sip.conf.sample file for more options that can be defined for SIP friends.
Storing Call Detail Records (CDR)
Call detail records (CDR) contain information about calls that have passed through
your Asterisk system. They are discussed further in Chapter 24. Storing CDR is a popular
use of databases in Asterisk, because it makes them easier to manage (for example, you
can keep track of many Asterisk systems in a single table). Also, by placing records into
a database you open up many possibilities, including building your own web interface
for tracking statistics such as call usage and most-called locations, billing, or phone
company invoice verification.
458 | Chapter 16: Relational Database Integration
www.it-ebooks.info
16. We’re not sure this is a good idea, but it’s nice to know it’s possible.
We are inclined to suggest that, because storing CDR in a database is so useful, you
should always implement CDR storage to a database on any production system (you
can always store CDR to a file as well, so there’s nothing lost).
Setting the systemname for Globally Unique IDs
A CDR consists of a unique identifier and several fields of information about the call
(including the source and destination channel, length of call, last application executed,
and so forth). In a clustered set of Asterisk boxes, it is theoretically possible to have
duplication among unique identifiers, since each Asterisk system considers only itself.
To address this, we can automatically append a system identifier to the front of the
unique IDs by adding an option to /etc/asterisk/asterisk.conf. For each of your boxes, set
an identifier by adding something like:
[options]
systemname=toronto
The best way to store your call detail records is via the cdr_adaptive_odbc module.
This module allows you to choose which columns of data built into Asterisk are stored
in your table, and it permits you to add additional columns that can be populated with
the CDR() dialplan function. You can even store different parts of CDR data to different
tables and databases, if that is required.16
More information about the standard CDR columns in Asterisk is available in
Table 24-2. As of this writing, here is a sample SQL command to create the default
columns:
CREATE TABLE cdr (
calldate datetime NOT NULL default '0000-00-00 00:00:00',
clid varchar(80) NOT NULL default '',
src varchar(80) NOT NULL default '',
dst varchar(80) NOT NULL default '',
dcontext varchar(80) NOT NULL default '',
channel varchar(80) NOT NULL default '',
dstchannel varchar(80) NOT NULL default '',
lastapp varchar(80) NOT NULL default '',
lastdata varchar(80) NOT NULL default '',
duration int(11) NOT NULL default '0',
billsec int(11) NOT NULL default '0',
disposition varchar(45) NOT NULL default '',
amaflags int(11) NOT NULL default '0',
accountcode varchar(20) NOT NULL default '',
uniqueid varchar(32) NOT NULL default '',
userfield varchar(255) NOT NULL default '',
Storing Call Detail Records (CDR) | 459
www.it-ebooks.info
17. Which won’t work unless you’ve created a field in your CDR table per_minute_rate.
18. You may see different backends registered, depending on what configuration you have done with other
components of the various CDR modules.
peeraccount varchar(20) NOT NULL default '',
linkedid varchar(32) NOT NULL default '',
sequence int(11) NOT NULL default '0'
);
You can define all or any subset of these records in the database, and Asterisk will work
around what is available. You can also add more columns to store other data relevant
to the calls. For example, if you wanted to implement least-cost routing (LCR), you
could add columns for route, per-minute cost, and per-minute rate. Once you’ve added
those columns, they can be populated via the dialplan by using the CDR() function (e.g.,
Set(CDR(per_minute_rate)=0.01)17).
After creating the table named cdr in the database, you must configure the cdr_adap
tive_odbc.conf file in the /etc/asterisk folder. The following example will utilize the
asterisk connection we’ve defined in res_odbc.conf and store the data in the cdr table:
; cdr_adaptive_odbc.conf
[adaptive_connection]
connection=asterisk
table=cdr
Yes, really, that’s all you need. After configuring cdr_adaptive_odbc.conf, just reload the
cdr_adaptive_odbc.so module from the Asterisk console by running module reload
cdr_adaptive_odbc.so. You can verify that the Adaptive ODBC backend has been loaded
by running cdr show status:18
*CLI> cdr show status
Call Detail Record (CDR) settings
----------------------------------
Logging: Enabled
Mode: Simple
Log unanswered calls: No
Log congestion: No
* Registered Backends
-------------------
cdr-syslog
Adaptive ODBC
cdr-custom
csv
cdr_manager
460 | Chapter 16: Relational Database Integration
www.it-ebooks.info
Now place a call that gets answered (e.g., using Playback(), or Dial()ing another
channel and answering it). You should get some CDRs stored into your database. You
can check by running SELECT * FROM CDR; from your database console.
With the basic CDR information stored in the database, you might want to add some
additional information to the cdr table, such as the route rate. You can use the ALTER
TABLE directive to add a column called route_rate to the table:
sql> ALTER TABLE cdr ADD COLUMN route_rate varchar(10);
Now reload the cdr_adaptive_odbc.so module from the Asterisk console:
*CLI> module reload cdr_adaptive_odbc.so
and populate the new column from the Asterisk dialplan using the CDR() function,
like so:
exten => _NXXNXXXXXX,1,Verbose(1,Example of adaptive ODBC usage)
same => n,Set(CDR(route_rate)=0.01)
same => n,Dial(SIP/my_itsp/${EXTEN})
same => n,Hangup()
After the alteration to your database and dialplan, you can place a call and then look at
your CDRs. You should see something like the following:
+--------------+----------+---------+------------+
| src | duration | billsec | route_rate |
+--------------+----------+---------+------------+
| 0000FFFF0008 | 37 | 30 | 0.01 |
+--------------+----------+---------+------------+
In reality, storing rating in the call record might not be ideal (CDR is typically used as
a raw resource, and things such as rates are added downstream by billing software). The
ability to add custom fields to CDR is very useful, but be careful not to use your call
records to replace a proper billing platform. Best to keep your CDR clean and do further
processing downstream.
Additional Configuration Options for cdr_adaptive_odbc.conf
Some extra configuration options exist in the cdr_adaptive_odbc.conf file that may be
useful. The first is that you can define multiple databases or tables to store information
into, so if you have multiple databases that need the same information, you can simply
define them in res_odbc.conf, create tables in the databases, and then refer to them in
separate sections of the configuration:
[mysql_connection]
connection=asterisk_mysql
table=cdr
Storing Call Detail Records (CDR) | 461
www.it-ebooks.info
[mssql_connection]
connection=production_mssql
table=call_records
If you specify multiple sections using the same connection and
table, you will get duplicate records.
Beyond just configuring multiple connections and tables (which of course may or may
not contain the same information; the CDR module we’re using is adaptive to situations
like that), we can define aliases for the built-in variables, such as accountcode, src, dst,
billsec, etc.
If we were to add aliases for column names for our MS SQL connection, we might alter
our connection definition like so:
[mssql_connection]
connection=production_mssql
table=call_records
alias src => Source
alias dst => Destination
alias accountcode => AccountCode
alias billsec => BillableTime
In some situations you may specify a connection where you only want to log calls from
a specific source, or to a specific destination. We can do this with filters:
[logging_for_device_0000FFFF0008]
connection=asterisk_mysql
table=cdr_for_0000FFFF0008
filter src => 0000FFFF0008
If you need to populate a certain column with information based on a section name,
you can set it statically with the static option, which you may utilize with the filter
option:
[mysql_connection]
connection=asterisk_mysql
table=cdr
[filtered_mysql_connection]
connection=asterisk_mysql
table=cdr
filter src => 0000FFFF0008
static "DoNotCharge" => accountcode
462 | Chapter 16: Relational Database Integration
www.it-ebooks.info
In the preceding example, you will get duplicate records in the same
table, but all the information will be the same except for the popu‐
lated accountcode column, so you should be able to filter it out
using SQL.
ODBC Voicemail Message Storage
Asterisk enables you to store voicemail inside the database using the ODBC connector.
This is useful in a clustered environment where you want to abstract the voicemail data
from the local system so that multiple Asterisk boxes have access to the same data. Of
course, you have to take into consideration that you are centralizing a part of Asterisk,
and you need to act to protect that data, such as making regular backups and possibly
clustering the database backend using replication.
Asterisk stores each voicemail message inside a Binary Large OBject (BLOB). When
retrieving the data, it pulls the information out of the BLOB and temporarily stores it
on the hard drive while it is being played back to the user. Asterisk then removes the
BLOB and the record from the database when the user deletes the voicemail. Many
databases, such as MySQL, contain native support for BLOBs, but as you’ll see, with
PostgreSQL a couple of extra steps are required to utilize this functionality. After com‐
pleting this section you’ll be able to record, play back, and delete voicemail data from
the database just as if it were stored on the local hard drive.
This section builds upon previous configuration sections in this chap‐
ter. If you have not already done so, be sure to follow the steps in the
sections “Installing PostgreSQL for RHEL” on page 418 and “Installing
and Configuring ODBC” on page 422 before continuing. In the latter
section, be sure you have enabled ODBC_STORAGE in the menuselect sys‐
tem under Voicemail Options.
Alternate Centralization Method
Storing voicemail in a database is one way to centralize voicemail. Another method is
to run a standalone voicemail server, as we discussed in Chapter 8.
ODBC Voicemail Message Storage | 463
www.it-ebooks.info
In this section we are discussing the storage of voice messages in a da‐
tabase. This has nothing to do with storing the actual mailbox config‐
urations (i.e., each mailbox). If you want to do that you would need to
build a table to handle the voicemail.conf entries using either Static Re‐
altime or Dynamic Realtime (discussed earlier in this chapter).
Compiling the app_voicemail Module to Support ODBC Storage
In order to support writing voice messages to an ODBC database, the capability to do
so must be compiled into the voicemail module.
For any of this to work, you must have already compiled ODBC support
into Asterisk. See “Installing and Configuring ODBC” on page 422 for
details.
Navigate to the directory where you downloaded your Asterisk source code. If you
followed Chapter 3, you should find it somewhere around here:
cd ~/src/asterisk-complete/asterisk/11
Run make with the menuselect argument:
$ sudo make menuselect
This will start the Asterisk Module and Build Selection interface. You will want to
navigate to Voicemail Build Options and select ODBC_STORAGE:
Asterisk Module and Build Option Selection
Voicemail Build Options
--- core ---
( ) FILE_STORAGE
[*] ODBC_STORAGE
XXX IMAP_STORAGE
Then simply save, and run:
$ make install
and restart Asterisk. Your voicemail is ready to write to the database!
464 | Chapter 16: Relational Database Integration
www.it-ebooks.info
19. If you’re dead-set on storing voice messages as BLOB data, but you’re normally a Postgres user, might we
suggest you consider building a dedicated database server to store your voice messages, and installing MySQL
for just that purpose? There’s a lot of complexity here, and we can’t promise it’s going to be worth the effort.
Creating the Large Object Type for PostgreSQL
While MySQL has a BLOB (Binary Large OBject) type, we have to tell PostgreSQL how
to handle large objects.19 This includes creating a trigger to clean up the data when we
delete from the database a record that references a large object.
Connect to the database as the asterisk user from the console:
$ psql -h localhost -U asterisk asterisk
Password:
You must be a superuser to execute the following code. Also, if you
use the postgres user to create the table, you will need to use the
ALTER TABLE SQL directive to change the owner to the asterisk user.
At the PostgreSQL console, run the following script to create the large object type:
CREATE FUNCTION loin (cstring) RETURNS lo AS 'oidin' LANGUAGE internal
IMMUTABLE STRICT;
CREATE FUNCTION loout (lo) RETURNS cstring AS 'oidout' LANGUAGE internal
IMMUTABLE STRICT;
CREATE FUNCTION lorecv (internal) RETURNS lo AS 'oidrecv' LANGUAGE internal
IMMUTABLE STRICT;
CREATE FUNCTION losend (lo) RETURNS bytea AS 'oidrecv' LANGUAGE internal
IMMUTABLE STRICT;
CREATE TYPE lo ( INPUT = loin, OUTPUT = loout, RECEIVE = lorecv, SEND = losend,
INTERNALLENGTH = 4, PASSEDBYVALUE );
CREATE CAST (lo AS oid) WITHOUT FUNCTION AS IMPLICIT;
CREATE CAST (oid AS lo) WITHOUT FUNCTION AS IMPLICIT;
We’ll be making use of the PostgreSQL procedural language called pgSQL/PL to create
a function. This function will be called from a trigger that gets executed whenever we
modify or delete a record in the table used to store voicemail messages. This is so the
data is cleaned up and not left as an orphan in the database:
CREATE FUNCTION vm_lo_cleanup() RETURNS "trigger"
AS $$
declare
msgcount INTEGER;
begin
ODBC Voicemail Message Storage | 465
www.it-ebooks.info
-- raise notice 'Starting lo_cleanup function for large object with oid
%',old.recording;
-- If it is an update action but the BLOB (lo) field was not changed,
don't do anything
if (TG_OP = 'UPDATE') then
if ((old.recording = new.recording) or (old.recording is NULL)) then
raise notice 'Not cleaning up the large object table,
as recording has not changed';
return new;
end if;
end if;
if (old.recording IS NOT NULL) then
SELECT INTO msgcount COUNT(*) AS COUNT FROM voicemessages WHERE recording
= old.recording;
if (msgcount > 0) then
raise notice 'Not deleting record from the large object table, as object
is still referenced';
return new;
else
perform lo_unlink(old.recording);
if found then
raise notice 'Cleaning up the large object table';
return new;
else
raise exception 'Failed to clean up the large object table';
return old;
end if;
end if;
else
raise notice 'No need to clean up the large object table,
no recording on old row';
return new;
end if;
end$$
LANGUAGE plpgsql;
We’re going to create a table called voicemessages where the voicemail information
will be stored:
CREATE TABLE voicemessages
(
uniqueid serial PRIMARY KEY,
msgnum int4,
dir varchar(80),
context varchar(80),
macrocontext varchar(80),
callerid varchar(40),
origtime varchar(40),
duration varchar(20),
mailboxuser varchar(80),
mailboxcontext varchar(80),
recording lo,
466 | Chapter 16: Relational Database Integration
www.it-ebooks.info
label varchar(30),
"read" bool DEFAULT false,
flag varchar(10)
);
And now we need to associate a trigger with our newly created table in order to perform
cleanup whenever we change or delete a record in the voicemessages table:
CREATE TRIGGER vm_cleanup AFTER DELETE OR UPDATE ON voicemessages FOR EACH ROW
EXECUTE PROCEDURE vm_lo_cleanup();
ODBC Voicemail Storage Table Layout
We’ll be utilizing the voicemessages table for storing our voicemail information in an
ODBC-connected database. Table 16-6 describes the table configuration for ODBC
voicemail storage. If you’re using a PostgreSQL database, the table definition and large
object support were configured in the preceding section.
Table 16-6. ODBC voicemail storage table layout
Column name Column type
uniqueid Serial, primary key
dir Varchar 80
msgnum Integer
recording BLOB (Binary Large OBject)
context Varchar 80
macrocontext Varchar 80
callerid Varchar 40
origtime Varchar 40
duration Varchar 20
mailboxuser Varchar 80
mailboxcontext Varchar 80
label Varchar 30
readaBoolean, default false
flag Varchar 10
a read is a reserved word in both MySQL and PostgreSQL (and likely other databases), which means you’ll need to escape the
column name when you create it. In MySQL this is done with backticks (`) around the word read when you create the table, and
in PostgreSQL with double quotes ("). In MS SQL you would use square brackets, e.g., [read].
... are you absolutely sure you need to store your messages in a database table?
Here is an example of how to create this table under MySQL:
CREATE TABLE voicemessages
(
uniqueid serial PRIMARY KEY,
ODBC Voicemail Message Storage | 467
www.it-ebooks.info
msgnum int(4),
dir varchar(80),
context varchar(80),
macrocontext varchar(80),
callerid varchar(40),
origtime varchar(40),
duration varchar(20),
mailboxuser varchar(80),
mailboxcontext varchar(80),
recording blob,
label varchar(30),
`read` bool DEFAULT false,
flag varchar(10)
);
A PostgreSQL example is in the previous section.
Configuring voicemail.conf for ODBC Storage
There isn’t much to add to the voicemail.conf file to enable the ODBC voicemail storage.
In fact, it’s only three lines! Normally, you probably have multiple format types defined
in the [general] section of voicemail.conf, but we need to set this to a single format
because we can only save one file (format) to the database. The WAV49 format is a
compressed WAV file format that should be playable on both Linux and Microsoft
Windows desktops.
The odbcstorage option points at the name you defined in the res_odbc.conf file (if
you’ve been following along in this chapter, then we called it asterisk). The odbctable
option refers to the table where voicemail information should be stored. In the examples
in this chapter we use the table named voicemessages.
Edit the [general] section of your voicemail.conf file so that the following values are
set:
[general]
format=wav49
odbcstorage=asterisk
odbctable=voicemessages
To create the users you can either separate voicemail context, or simply use the default
voicemail section. Alternatively, you can skip creating a new user and use an existing
user, such as 0000FFFF0001. We’ll define the mailbox in the default section of the voice
mail.conf file like so:
[default]
1000 => 1000,J.P. Wiser
468 | Chapter 16: Relational Database Integration
www.it-ebooks.info
You can also use the voicemail definition in extconfig.conf to load your
users from the database. See “Dynamic Realtime” on page 453 for more
information about setting up certain module configuration options in
the database, and “Static Realtime” on page 450 for details on loading
the rest of the configuration file.
Now connect to your Asterisk console and unload, then load the app_voicemail.so
module:
*CLI> module unload app_voicemail.so
== Unregistered application 'VoiceMail'
== Unregistered application 'VoiceMailMain'
== Unregistered application 'MailboxExists'
== Unregistered application 'VMAuthenticate'
*CLI> module load app_voicemail.so
Loaded /usr/lib/asterisk/modules/app_voicemail.so =>
(Comedian Mail (Voicemail System))
== Registered application 'VoiceMail'
== Registered application 'VoiceMailMain'
== Registered application 'MailboxExists'
== Registered application 'VMAuthenticate'
== Parsing '/etc/asterisk/voicemail.conf': Found
Then verify that your new mailbox loaded successfully:
*CLI> voicemail show users for default
Context Mbox User Zone NewMsg
default 1000 J.P. Wiser 0
Testing ODBC Voice Message Storage
Let’s create some simple dialplan logic to leave and retrieve some voicemail from our
test voicemail box. You can add the simple dialplan logic that follows to your exten
sions.conf file (or, of course, any voicemail delivery and retrieval functionality you de‐
fined earlier in this book):
[odbc_vm_test]
exten => 100,1,VoiceMail(1000@default) ; leave a voicemail
exten => 200,1,VoiceMailMain(1000@default) ; retrieve a voicemail
In the above example, the dialplan will be accessible only by devices that
enter the dialplan in the [odbc_vm_test] context, or by any other con‐
text in the dialplan that has an include => odbc_vm_test statement to
allow this context to be dialable from another context.
ODBC Voicemail Message Storage | 469
www.it-ebooks.info
Once you’ve updated your extensions.conf file, be sure to reload the dialplan:
*CLI> dialplan reload
Then configure your phone or client with the username odbc_test_user and password
<supersecret>, and place a call to extension 100 to leave a voicemail. If successful, you
should see something like:
-- Executing VoiceMail("SIP/odbc_test_user-10228cac", "1000@default") in new
stack
-- Playing 'vm-intro' (language 'en')
-- Playing 'beep' (language 'en')
-- Recording the message
-- x=0, open writing: /var/spool/asterisk/voicemail/default/1000/tmp/dlZunm
format: wav49, 0x101f6534
-- User ended message by pressing #
-- Playing 'auth-thankyou' (language 'en')
== Parsing '/var/spool/asterisk/voicemail/default/1000/INBOX/msg0000.txt': Found
At this point you can check the database to verify that your data was
successfully written. See the upcoming sections for more information.
Now that you’ve confirmed everything was stored in the database correctly, you can try
listening to it via the VoiceMailMain() application by dialing extension 200:
*CLI>
-- Executing VoiceMailMain("SIP/odbc_test_user-10228cac",
"1000@default") in new stack
-- Playing 'vm-password' (language 'en')
-- Playing 'vm-youhave' (language 'en')
-- Playing 'digits/1' (language 'en')
-- Playing 'vm-INBOX' (language 'en')
-- Playing 'vm-message' (language 'en')
-- Playing 'vm-onefor' (language 'en')
-- Playing 'vm-INBOX' (language 'en')
-- Playing 'vm-messages' (language 'en')
-- Playing 'vm-opts' (language 'en')
-- Playing 'vm-first' (language 'en')
-- Playing 'vm-message' (language 'en')
== Parsing '/var/spool/asterisk/voicemail/default/1000/INBOX/msg0000.txt': Found
Verifying binary data stored in PostgreSQL
To make sure the recording really did make it into the database, use the psql application:
$ psql -h localhost -U asterisk asterisk
Password:
470 | Chapter 16: Relational Database Integration
www.it-ebooks.info
Next, run a SELECT statement to verify that you have some data in the voicemessages
table:
localhost=# SELECT uniqueid,dir,callerid,mailboxcontext,
recording FROM voicemessages;
uniqueid | dir | callerid
---------+--------------------------------------------------+--------------
1 | /var/spool/asterisk/voicemail/default/1000/INBOX | +18005551212
| mailboxcontext | recording |
+----------------+-----------+
| default | 47395 |
(1 row)
If the recording was placed in the database, you should get a row back. You’ll notice that
the recording column contains a number (which will most certainly be different from
what is listed here), which is really the object ID of the large object stored in a system
table. You can verify that the large object exists in this system table with the lo_list
command:
localhost=# \lo_list
Large objects
ID | Description
-------+-------------
47395 |
(1 row)
What you’re verifying is that the object ID in the voicemessages table matches what is
listed in the large object system table. You can also pull the data out of the database and
store it to the hard drive:
localhost=# \lo_export 47395 /tmp/voicemail-47395.wav
lo_export
Then verify the audio with your favorite audio application, such as play:
$ play /tmp/voicemail-47395.wav
Input Filename : /tmp/voicemail-47395.wav
Sample Size : 8-bits
Sample Encoding: wav
Channels : 1
Sample Rate : 8000
Time: 00:06.22 [00:00.00] of 00:00.00 ( 0.0%) Output Buffer: 298.36K
Done.
ODBC Voicemail Message Storage | 471
www.it-ebooks.info
20. If you’re used to using SELECT * FROM when listing table data, bear in mind that the data stored in the BLOB
may not display anything, or at least not anything that would be readable. A query that is intended to produce
text as output will not be able to handle binary data in a graceful manner.
Verifying binary data stored in MySQL
To verify that your data is being written correctly, you can use the mysql application to
log into your database and export the voicemail recording to a file:
$ mysql -u asterisk -p asterisk
Enter password:
Once logged into the database, you can use a SELECT statement to dump the contents
of the recording to a file. First, though, make sure you have at least a single recording
in your voicemessages table:20
mysql> SELECT uniqueid, msgnum, callerid, mailboxuser, mailboxcontext, `read`
-> FROM voicemessages;
+----------+--------+------------------------------+-------------
| uniqueid | msgnum | callerid | mailboxuser
+----------+--------+------------------------------+-------------
| 1 | 0 | "Leif Madsen" <100> | 100
| 2 | 1 | "Leif Madsen" <100> | 100
| 3 | 2 | "Leif Madsen" <100> | 100
| 5 | 0 | "Julie Bryant" <12565551111> | 100
+----------+--------+------------------------------+-------------
+----------------+------+
| mailboxcontext | read |
+----------------+------+
| shifteight.org | 0 |
| shifteight.org | 0 |
| shifteight.org | 0 |
| default | 0 |
+----------------+------+
You can also add the recording column to the SELECT statement,
but you’ll end up with a lot of gibberish on your screen.
Having verified that you have data in your voicemessages table, you can export one of
the recordings and play it back from the console:
mysql> SELECT recording FROM voicemessages WHERE uniqueid = '5'
-> DUMPFILE '/tmp/voicemail_recording.wav';
472 | Chapter 16: Relational Database Integration
www.it-ebooks.info
The user you’re exporting data with needs to have the FILE permission
in MySQL, which means it must have been granted ALL access. If you
did not grant ALL privileges to the asterisk user, you will need to utilize
the root user for file export.
Now exit the MySQL console, and use the play application from the console (assuming
you have speakers and a sound card configured on your Asterisk system, which you
might if you are going to use it for overhead paging), or copy the file to another system
and listen to it there:
$ play /tmp/voicemail_recording.wav
voicemail_recording.wav:
File Size: 7.28k Bit Rate: 13.1k
Encoding: GSM
Channels: 1 @ 16-bit
Samplerate: 8000Hz
Replaygain: off
Duration: 00:00:04.44
In:100% 00:00:04.44 [00:00:00.00] Out:35.5k [ | ] Hd:4.4 Clip:0
Done.
Database Integration of ACD Queues
One of the advantages of storing configuration information in a database is that it can
make it easier to create interfaces to manage the data (in theory this can be done with
configuration files, too; however, most web-based frameworks or interface development
environments assume that configuration details will be stored in a database).
With a Call Centre (often referred to as ACD Queues), it can be very useful to be able
to allow adjustment of queue parameters without having to edit and reload configura‐
tion files. Management of a call center can be a complex task, and allowing for simpler
adjustment of parameters can make everyone’s life a whole lot easier.
Storing queues.conf in a Database
Storing queues.conf in a database works the same as any other config file. You have the
choice of using either Static or Dynamic Realtime.
Database Integration of ACD Queues | 473
www.it-ebooks.info
21. We recommend using Dynamic Realtime instead, as discussed in the next section.
22. If a column is not defined, the queue will be loaded with the default value for that column. If app_queue does
not recognize a column, it will be ignored.
Storing queues.conf using Static Realtime
For Static Realtime,21 you store parameters in the same way as for any other config file,
as discussed in “Static Realtime” on page 450.
First, in extconfig.conf, you need a section that indicates queues.conf is going to be stored
in a database:
vim /etc/asterisk/extconfig.conf
[settings]
queues.conf => odbc,asterisk,ast_config
Second, in the table itself, you need to store the queue parameters as they would appear
in the queues.conf file.
An example of the syntax for a single-line entry would be something like this:
mysql> insert into ast_config
(cat_metric,var_metric,filename,category,var_name,var_val,commented)
VALUES
(2,1,'queues.conf','firstqueue','strategy','rrmemory',0);
This would produce an entry in the table looking something like Table 16-7.
Table 16-7. An example table entry
id cat_metric var_metric filename category var_name var_val commented
3 2 1 queues.conf first
queue
strategy rrmemory 0
You’ll need a few dozen entries to properly replicate your queues.conf file.
We recommend using Dynamic Realtime for storing your queue parameters.
Storing queues.conf using Dynamic Realtime
Storing queue parameters in a table makes a lot more sense if you use Dynamic Realtime.
The table you create will be a bit easier on the eyes (although it can end up containing
a lot of columns22), and each queue will be defined in a single record:
CREATE TABLE `Queues` (
`QueueID` mediumint(8) unsigned NOT NULL auto_increment,
`name` varchar(128) NOT NULL COMMENT 'Asterisk's name for the queue',
`description` varchar(128) default NULL,
`maxlen` tinyint(4) default NULL,
`reportholdtime` varchar(3) default 'no',
474 | Chapter 16: Relational Database Integration
www.it-ebooks.info
23. For realtime, you do not get to choose what name you use to refer to the module. For example, storing
queues.conf in a realtime database requires that you refer to it by the name queues =>.
`periodic_announce_frequency` varchar(4) default NULL,
`periodic_announce` varchar(128) default NULL,
`strategy` varchar(20) NOT NULL default 'rrmemory',
`joinempty` varchar(35) default 'no',
`leavewhenempty` varchar(35) default 'no',
`autopause` varchar(3) default 'no',
`announce_round_seconds` varchar(4) default NULL,
`retry` varchar(4) default NULL,
`wrapuptime` varchar(4) default NULL,
`announce_holdtime` varchar(3) default 'no',
`announce_frequency` varchar(4) default '0',
`timeout` varchar(4) default '60',
`context` varchar(128) NOT NULL,
`musicclass` varchar(128) default 'default',
`autofill` varchar(3) default 'yes',
`ringinuse` varchar(45) default 'no',
`musiconhold` varchar(128) default 'yes',
`monitor_type` varchar(128) default 'MixMonitor',
`monitor_format` varchar(128) default 'wav',
`servicelevel` varchar(4) default '60',
`queue_thankyou` varchar(128) default '',
`queue_youarenext` varchar(128) default '',
`queue_thereare` varchar(128) default '',
`queue_callswaiting` varchar(128) default '',
`queue_holdtime` varchar(128) default '',
`queue_minutes` varchar(128) default '',
`queue_seconds` varchar(128) default '',
`queue_lessthan` varchar(128) default '',
`queue_reporthold` varchar(128) default '',
`relative_periodic_announce` varchar(4) default 'yes',
PRIMARY KEY (`QueueID`),
UNIQUE KEY `name_UNIQUE` (`name`),
UNIQUE KEY `UniqueID_UNIQUE` (`QueueID`)
)
You then simply edit the extconfig.conf file to tell Asterisk you want to use this table to
store your queue configurations:23
vim /etc/asterisk/extconfig.conf
[settings]
queues => odbc,asterisk,queue_table
queue_members => odbc,asterisk,queue_member_table
In some versions of Asterisk, there is a bug that causes the queue to
fail to load if there is no reference to queue_members (even if you are
not planning to hardcode your queue members in a table).
Database Integration of ACD Queues | 475
www.it-ebooks.info
CREATE TABLE queue_member_table (
uniqueid INT(10) UNSIGNED PRIMARY KEY AUTO_INCREMENT,
membername varchar(40),
queue_name varchar(128),
interface varchar(128),
penalty INT(11),
paused INT(11),
UNIQUE KEY queue_interface (queue_name, interface)
);
queue_member_table does not need to have any data stored in it. It simply has to exist.
After restarting Asterisk, your queues should now be viewable via the console command
queue show, and of course you’ll also be able to use them in your dialplan.
Storing Dialplan Parameters for a Queue in a Database
The dialplan application Queue() allows for several parameters to be passed to it. The
CLI command core show application Queue defines the following syntax:
[Syntax]
Queue(queuename[,options[,URL[,announceoverride[,timeout[,AGI[,macro[,gosub[,
rule[,position]]]]]]]]])
Since we’re storing our queue in a database, why not also store the parameters you wish
to pass to the queue in a similar manner?
CREATE TABLE `QueueDialplanParameters` (
`QueueDialplanParametersID` mediumint(8) NOT NULL auto_increment,
`Description` varchar(128) NOT NULL,
`QueueID` mediumint(8) unsigned NOT NULL COMMENT 'Pointer to queues_table',
`options` varchar(45) default 'n',
`URL` varchar(256) default NULL,
`announceoverride` bit(1) default NULL,
`timeout` varchar(8) default NULL,
`AGI` varchar(128) default NULL,
`macro` varchar(128) default NULL,
`gosub` varchar(128) default NULL,
`rule` varchar(128) default NULL,
`position` tinyint(4) default NULL,
`queue_tableName` varchar(128) NOT NULL,
PRIMARY KEY (`QueueDialplanParametersID`)
);
Using func_odbc, you can write a function that will return the dialplan parameters
relevant to that queue:
[QUEUE_DETAILS]
prefix=GET
dsn=asterisk
readsql=SELECT * FROM QueueDialplanParameters
readsql+= WHERE QueueDialplanParametersID='${ARG1}'
476 | Chapter 16: Relational Database Integration
www.it-ebooks.info
Then pass those parameters to the Queue() application as calls arrive:
exten => s,1,Verbose(1,Call entering queue named ${SomeValidID)
same => n,Set(QueueParameters=${GET_QUEUE_DETAILS(SomeValidID)})
same => n,Queue(${QueueParameters})
While somewhat more complicated to develop than just writing appropriate dialplan,
the advantage is that you will be able to manage a larger number of queues, with a wider
variety of parameters, using dialplan that is flexible enough to handle any sort of pa‐
rameters the queueing application in Asterisk accepts. For anything more than a very
simple queue, we think you will find the use of a database for all this will be well worth
the effort.
Writing queue_log to Database
Finally, we can store our queue_log to a database, which can make it easier for external
applications to extract queue performance details from the system:
CREATE TABLE queue_log (
id int(10) UNSIGNED NOT NULL AUTO_INCREMENT,
time char(26) default NULL,
callid varchar(32) NOT NULL default '',
queuename varchar(32) NOT NULL default '',
agent varchar(32) NOT NULL default '',
event varchar(32) NOT NULL default '',
data1 varchar(100) NOT NULL default '',
data2 varchar(100) NOT NULL default '',
data3 varchar(100) NOT NULL default '',
data4 varchar(100) NOT NULL default '',
data5 varchar(100) NOT NULL default '',
PRIMARY KEY (`id`)
);
Edit your extconfig.conf file to refer to the queue_log table:
[settings]
queue_log => odbc,asterisk,queue_log
A restart of Asterisk and your queue will now log information to the database. As an
example, logging an agent into the sales queue should produce something like this:
mysql> select * from queue_log;
+----+----------------------------+----------------------+-----------+
| id | time | callid | queuename |
+----+----------------------------+----------------------+-----------+
| 1 | 2013-01-22 15:07:49.772263 | NONE | NONE |
| 2 | 2013-01-22 15:07:49.809028 | toronto-1358885269.1 | support |
+----+----------------------------+----------------------+-----------+
Database Integration of ACD Queues | 477
www.it-ebooks.info
+------------------+------------+-------+-------+-------+-------+-------+
| agent | event | data1 | data2 | data3 | data4 | data5 |
+------------------+------------+-------+-------+-------+-------+-------+
| NONE | QUEUESTART | | | | | |
| SIP/0000FFFF0001 | ADDMEMBER | | | | | |
+------------------+------------+-------+-------+-------+-------+-------+
If you’re developing any sort of external application that needs access to queue statistics,
having the data stored in this manner will prove far superior to using the /var/log/
asterisk/queue_log file.
Conclusion
In this chapter, we learned about several areas where Asterisk can integrate with a re‐
lational database. This is useful for systems where you need to start scaling by clustering
multiple Asterisk boxes working with the same centralized information, or when you
want to start building external applications to modify information without requiring a
reload of the system (i.e., not requiring the modification of flat files).
478 | Chapter 16: Relational Database Integration
www.it-ebooks.info
One day Alice came to a fork in the road and saw
a Cheshire cat in a tree. “Which road do I take?”
she asked.
“Where do you want to go?” was his response.
“I don’t know,” Alice answered.
“Then,” said the cat, “it doesn’t matter.”
—Lewis Carroll
1. We suspect this is because “IVR” is much easier to say than “automated attendant.”
2. In contrast to an auto attendant, the purpose of which is to route calls.
CHAPTER 17
Interactive Voice Response
In this chapter, we will talk about IVR. If what you want is an automated attendant, we
have written a chapter for that as well (Chapter 15). The term IVR is often misused to
refer to an automated attendant, but the two are very different things.1
What Is IVR?
The purpose of an Interactive Voice Response (IVR) system is to take input from a caller,
perform an action based on that input (commonly, looking up data in an external system
such as a database), and return a result to the caller.2 Traditionally, IVR systems have
been complex, expensive, and annoying to implement. Asterisk changes all that.
Asterisk blurs the lines between traditional PBXs and IVR systems.
The power and flexibility of the Asterisk dialplan results in a system
where nearly every extension could be considered an IVR in the
traditional sense of the term.
479
www.it-ebooks.info
Components of an IVR
The most basic elements of an IVR are quite similar to those of an automated attendant,
though the goal is different. We need at least one prompt to tell the caller what the IVR
expects from him, a method of receiving input from the caller, logic to verify that the
caller’s response is valid input, logic to determine what the next step of the IVR should
be, and finally, a storage mechanism for the responses, if applicable. We might think of
an IVR as a decision tree, although it need not have any branches. For example, a survey
may present exactly the same set of prompts to each caller, regardless of what choices
the callers make, and the only routing logic involved is whether the responses given are
valid for the questions.
From the caller’s perspective, every IVR needs to start with a prompt. This initial prompt
will tell the caller what the IVR is for and ask the caller to provide the first input. We
discussed prompts in the automated attendant in Chapter 15. Later, we’ll create a
dialplan that will allow you to better manage multiple voice prompts.
The second component of an IVR is a method for receiving input from the caller. Recall
that in Chapter 15 we discussed the Background() and WaitExten() applications for
receiving a new extension. While you could create an IVR using Background() and
WaitExten(), it is generally easier and more practical to use the Read() application,
which handles both the prompt and the capture of the response. The Read() application
was designed specifically for use with IVR systems. Its syntax is as follows:
Read(variable[,filename[&filename2...]][,maxdigits][,option][,attempts][,timeout])
The arguments are described in Table 17-1.
Table 17-1. The Read() application
Argument Purpose
variable The variable into which the caller’s response is stored. It is best practice to give each variable in your IVR a name
that is similar to the prompt associated with that variable. This will help later if, for business reasons or ease of
use, you need to reorder the steps of the IVR. Naming your variables var1, var2, etc., may seem easy in the
short term, but later in your life cycle it will make fixing bugs more difficult.
prompt A file (or list of files, joined together with the & character) to play for the caller, requesting input. Remember to
omit the format extension on the end of each filename.
maxdi
gits
The maximum number of characters to allow as input. In the case of yes/no and multiple-choice questions, it’s
best practice to limit this value to 1. In the case of longer lengths, the caller may always terminate input by
pressing the # key.
480 | Chapter 17: Interactive Voice Response
www.it-ebooks.info
Argument Purpose
options s (skip)
Exit immediately if the channel has not been answered.
i (indication)
Rather than playing a prompt, play an indication tone of some sort (such as the dialtone).
n (no answer)
Read digits from the caller, even if the line is not yet answered.
attempts
The number of times to play the prompt. If the caller fails to enter anything, the Read() application can
automatically reprompt the user. The default is one attempt.
timeout
The number of seconds the caller has to enter his input. The default value in Asterisk is 10 seconds, although
it can be altered for a single prompt using this option, or for the entire session by assigning a value using the
dialplan function TIMEOUT(response).
Once the input is received, it must be validated. If you do not validate the input, you are
more likely to find your callers complaining of an unstable application. It is not enough
to handle the inputs you are expecting; you also need to handle inputs you do not expect.
For example, callers may get frustrated and dial 0 when in your IVR; if you’ve done a
good job, you will handle this gracefully and connect them to somebody who can help
them, or provide a useful alternative. A well-designed IVR (just like any program) will
try to anticipate every possible input and provide mechanisms to gracefully handle that
input.
Once the input is validated, you can submit it to an external resource for processing.
This could be done via a database query, a submission to a URI, an AGI program, or
many other things. This external application should produce a result, which you will
want to relay back to the caller. This could be a detailed result, such as “Your account
balance is…” or a simple confirmation, such as “Your account has been updated.” We
can’t think of any real-world case where some sort of result returned to the caller is not
required.
Sometimes the IVR may have multiple steps, and therefore a result might include a
request for more information from the caller in order to move to the next step of the
IVR application.
It is possible to design very complex IVR systems, with dozens or even hundreds of
possible paths. We’ve said it before and we’ll say it again: people don’t like talking to
your phone system, regardless of how clever it is. Keep your IVR simple for your callers,
and they are much more likely to get some benefit from it.
Components of an IVR | 481
www.it-ebooks.info
3. Especially if it’s something like Van Meggelen.
A Perfectly Tasty IVR
An excellent example of an IVR that people love to use is one that many pizza delivery
outfits use: when you call to place your order, an IVR looks up your caller ID and says
“If you would like the exact same order as last time, press 1.”
That’s all it does, and it’s perfect.
Obviously, these companies could design massively complex IVRs that would allow you
to select each and every detail of your pie (“for seven-grain crust, press 7”), but how
many inebriated, starving customers could successfully navigate something like that at
3 A.M.?
The best IVRs are the ones that require the least input from the caller. Mash that 1 button
and your ’za is on its way! Woo hoo!
IVR Design Considerations
When designing your own IVR, there are some important things to keep in mind. We’ve
put together this list of things to do and things not to do in your IVR.
Do •Keep it simple.
•Have an option to dial 0 to reach a live person.
•Handle errors gracefully.
Don’t •Think that an IVR can completely replace people.
•Use your IVR to show people how clever you are.
•Try to replicate your website with an IVR.
•Bother building an IVR if you can’t take numeric input. Nobody wants to have
to spell her name on the dialpad of her phone.3
•Force your callers to listen to advertising. Remember that they can hang up at
any moment they wish.
482 | Chapter 17: Interactive Voice Response
www.it-ebooks.info
Asterisk Modules for Building IVRs
The “front end” of the IVR (the parts that interact with the callers) can be handled in
the dialplan. It is possible to build an IVR system using the dialplan alone (perhaps with
the astdb to store and retrieve data); however, you will typically need to communicate
with something external to Asterisk (the “backend” of the IVR).
CURL
The CURL() dialplan function in Asterisk allows you to span entire web applications
with a single line of dialplan code. We’ll use it in our sample IVR later in this chapter.
While you’ll find CURL() itself to be quite simple to use, the creation of the web appli‐
cation will require experience with web development.
func_odbc
Using func_odbc, it is possible to develop extremely complex applications in Asterisk
using nothing more than dialplan code and database lookups. If you are not a strong
programmer but are very adept with Asterisk dialplans and databases, you’ll love
func_odbc just as much as we do. Check it out in Chapter 16.
AGI
The Asterisk Gateway Interface is such an important part of integrating external appli‐
cations with Asterisk that we gave it its own chapter. You can find more information in
Chapter 21.
AMI
The Asterisk Manager Interface is a socket interface that you can use to get configuration
and status information, request actions to be performed, and be notified about things
happening to calls. We’ve written an entire chapter on AMI, as well. You can find more
information in Chapter 20.
A Simple IVR Using CURL
The GNU/Linux program cURL is useful for retrieving data from a URI. In Asterisk,
CURL() is a dialplan function.
We’re going to use CURL() as an example of what an extremely simple IVR can look like.
We’re going to request our external IP address from http://www.whatismyip.org.
Asterisk Modules for Building IVRs | 483
www.it-ebooks.info
In reality, most IVR applications are going to be far more complex. Even
most uses of CURL() will tend to be complex, since a URI can return a
massive and highly variable amount of data, the vast majority of which
will be incomprehensible to Asterisk. The point being that an IVR is
not just about the dialplan; it is also very much about the external ap‐
plications that are triggered by the dialplan, which are doing the real
work of the IVR.
Before you can use CURL(), you have to ensure it is installed.
Installing the cURL Module
Installing cURL is easy. If it was not on your system when you last compiled Asterisk,
after installing it you’ll need to recompile Asterisk so that it can locate the cURL de‐
pendencies and compile the func_curl.so module.
On RHEL:
$ sudo yum -y install libcurl-devel
On Ubuntu:
$ sudo apt-get install libcurl4-openssl-dev
The Dialplan
The dialplan for our example IVR is very simple. The CURL() function will retrieve our
IP address from http://www.whatismyip.org, and then SayAlpha() will speak the results
to the caller:
exten => *764,1,Verbose(2, Run CURL to get IP address from whatismyip.org)
same => n,Answer()
same => n,Set(MyIPAddressIs=${CURL(http://www.whatismyip.org/)})
same => n,SayAlpha(${MyIPAddressIs})
same => n,Hangup()
The simplicity of this is impossibly cool. In a traditional IVR system, this sort of thing
could take days to program.
A Prompt-Recording Application
In Chapter 15, we created a simple bit of dialplan to record prompts. It was fairly limited
in that it only recorded one filename, and thus for each prompt the file needed to be
copied before a new prompt could be recorded. Here, we expand upon that to create a
complete menu for recording prompts:
484 | Chapter 17: Interactive Voice Response
www.it-ebooks.info
[prompts]
exten => s,1,Answer
exten => s,n,Set(step1count=0) ; Initialize counters
; If we get no response after 3 times, we stop asking
same => n(beginning),GotoIf($[${step1count} > 2]?end)
same => n,Read(which,prompt-instructions,3)
same => n,Set(step1count=$[${step1count} + 1])
; All prompts must be 3 digits in length
same => n,GotoIf($[${LEN(${which})} != 3]?beginning)
same => n,Set(step1count=0) ; Successful response; reset counters
same => n,Set(step2count=0)
same => n(step2),Set(step2count=$[${step2count} + 1])
same => n,GotoIf($[${step2count} > 2]?beginning) ; No response after 3 tries
; If the file doesn't exist, then don't ask whether to play it
same => n,GotoIf($[${STAT(f,${which}.wav)} = 0]?recordonly)
same => n,Background(prompt-tolisten)
same => n(recordonly),Background(prompt-torecord)
same => n,WaitExten(10) ; Wait 10 seconds for a response
same => n,Goto(step2)
exten => 1,1,Set(step2count=0)
same => n,Background(${which})
same => n,Goto(s,step2)
exten => 2,1,Set(step2count=0)
same => n,Playback(prompt-waitforbeep)
same => n,Record(${CHANNEL(uniqueid)}.wav)
same => n(listen),Playback(${CHANNEL(uniqueid)})
same => n,Set(step3count=0)
same => n,Read(saveornot,prompt-1tolisten-2tosave-3todiscard,1)
same => n,GotoIf($["${saveornot}" = "1"]?listen)
same => n,GotoIf($["${saveornot}" = "2"]?saveit)
same => n,System(rm -f /var/lib/asterisk/sounds/${CHANNEL(uniqueid)}.wav)
same => n,Goto(s,beginning)
same => n(saveit),System(mv -f ${CHANNEL(uniqueid)}.wav ${which}.wav)
same => n,Playback(prompt-saved)
same => n,Goto(s,beginning)
In this system, the name of the prompt is no longer descriptive; instead, it is a number.
This means that you can record a far greater variety of prompts using the same mech‐
anism, but the trade-off is that your prompts will no longer have descriptive names.
A Prompt-Recording Application | 485
www.it-ebooks.info
4. And many other written languages are not at all phonetic.
5. Actually, most of us talk to our computers, but this is seldom polite.
Speech Recognition and Text-to-Speech
Although in most cases an IVR system presents prerecorded prompts to the caller and
accepts input by way of the dialpad, it is also possible to: a) generate prompts artificially,
popularly known as text-to-speech; and b) accept verbal inputs through a speech rec‐
ognition engine.
While the concept of being able to have an intelligent conversation with a machine is
something sci-fi authors have been promising us for many long years, the actual science
of this remains complex and error-prone. Despite their amazing capabilities, computers
are ill-suited to the task of appreciating the subtle nuances of human speech.
Having said that, it should be noted that over the last 50 years or so amazing advances
have been made in both text-to-speech and speech recognition. A well-designed system
created for a very specific purpose can work very well indeed.
Despite what the marketing people will say, your computer still can’t talk to you, and
you need to bear this in mind if you are contemplating any sort of system that combines
your telephone system with these technologies.
Text-to-Speech
Text-to-speech (also known as speech synthesis) requires that a system be able to arti‐
ficially construct speech from stored data. While it would be nice if we could simply
assign a sound to a letter and have the computer produce each sound as it reads the
letters, the written English language is not totally phonetic.4
While on the surface, the idea of a speaking computer is very attractive, in reality it has
limited usefulness. More information about integration of text-to-speech with Asterisk
can be found in Chapter 18.
Speech Recognition
As soon as we’ve convinced computers to talk to us, we will naturally want to be able to
talk to them.5 Anyone who has tried to learn a foreign language can begin to recognize
the complexity of teaching a computer to understand words; however, speech recogni‐
tion also has to take into account the fact that before a computer can attempt the task
of understanding the words, it must first convert the audio into a digital format. This
challenge is larger than one might at first think. For example, as humans we are naturally
able to recognize speech as distinct from, say, the sound of a barking dog or a car horn.
For a computer, this is a very complicated thing. Additionally, for a telephone-based
486 | Chapter 17: Interactive Voice Response
www.it-ebooks.info
6. If the speech recognition has to happen from a cell phone in a noisy conference hall, it becomes nearly
impossible.
speech recognition system, the audio that is received is always going to be of very low
fidelity, and thus the computer will have that much less information to work with.6
Asterisk does not have speech recognition built in, but there are many third-party speech
recognition packages that integrate with Asterisk. Much of that is outside of the scope
of this book, as those applications are external to Asterisk.
Conclusion
Asterisk has become extremely popular as an IVR platform. This entire book, in many
ways, is teaching you skills that can be applied to IVR development. While the main‐
stream media only really pays attention to Asterisk as a “free PBX,” the reality is that
Asterisk is quietly taking the IVR industry by storm. Within any respectable-sized or‐
ganization, it is very likely that the Linux system administrators are using Asterisk to
solve telecom problems that previously were either unsolvable or impossibly expensive
to solve. This is a stealthy revolution, but no less significant for its relative obscurity.
If you are in the IVR business, you need to get to know Asterisk.
Conclusion | 487
www.it-ebooks.info
www.it-ebooks.info
Correct me if I’m wrong—the gizmo is connected
to the flingflang connected to the watzis, watzis
connected to the doo-dad connected to the
ding dong.
—Patrick B. Oliphant
CHAPTER 18
External Services
Asterisk is pretty nifty all by itself, but one of the most powerful, industry-changing,
revolutionary aspects of Asterisk is the sheer number of wonderful ways it may be
connected to external applications and services. This is truly unprecedented in the world
of telecom. In this chapter, we’ll explore some popular services and applications that
you can integrate with your Asterisk system. Here are some of the external connections
we’ve decided to cover (Asterisk has more, but our editor is waiting for us to finish this
edition, which is already the largest Asterisk book yet):
•If you use Lightweight Directory Access Protocol (LDAP) in your network (such
as with Active Directory), we’ll show you how to load your SIP users from your
LDAP services.
•For the person on the go with a dynamically changing calendar, we’ll sample some
ideas on how you can integrate Asterisk with your calendaring server (allowing for
automatic call redirection based on your current status).
•If you’re a fan of instant messaging, there is a section on how to communicate with
Asterisk via the XMPP (Jabber) protocol.
•If you want to tie your voicemail into your Internet Message Access Protocol (IM‐
AP) server, we’ll take you through the basics.
•Want to teach your phone system to read? We’ll cover the basics of text-to-speech.
489
www.it-ebooks.info
1. And because the authors of this book do not have access to Exchange servers for testing. :)
There are many more external services that Asterisk can connect to, but these are the
ones we feel will give you the best sense of what it takes to integrate an external service
with Asterisk.
Calendar Integration
Asterisk can be integrated with several different kinds of calendar formats, such as iCal,
CalDAV, MS Exchange (Exchange 2003), and MS Exchange Web Services (Exchange
2007 and later). Integrating Asterisk with your calendar gives you the ability to manip‐
ulate call routing based on your current calendar information. For example, if you’re
not going to be in your office for the afternoon, it may make sense for people ringing
your desk phone to be routed directly to your voicemail.
Another advantage to calendar integration is the ability to originate calls based on cal‐
endar information. For example, if you set up a meeting on your conference server, you
can arrange to have a reminder call five minutes before the meeting starts, which then
places you into the conference room. We think this type of flexibility and integration is
pretty nifty and quite useful.
Compiling Calendaring Support into Asterisk
As there are several modules for calendaring support (allowing us to provide support
for different backends, such as MS Exchange, CalDAV, iCal, etc.), you’ll need to install
the dependencies for the backends you want to support. This modularized setup has
the advantage that you only need to install dependencies for the modules you need; also,
other backends can easily be integrated with the primary calendaring backend in the
future.
Because of the different dependencies of each module, we need to check menuselect for
what needs to be installed for each of the calendaring modules we wish to support. All
modules require the neon development library. res_calendar_ews (Exchange Web
Services) requires version 0.29 or later, which means some distributions will require
you to compile the neon library from source instead of using the precompiled package
available from the distribution.
While the configuration for all the calendaring modules is similar, we’ll be discussing
CalDAV integration specifically since it is widely supported by a range of calendar soft‐
ware and servers.1
RHEL dependencies
Since all the modules require the neon library, we’ll install that first:
490 | Chapter 18: External Services
www.it-ebooks.info
$ sudo yum install neon-devel
If you are planning to compile the res_calendar_ews module, you will
need a neon version 0.29 or later. Currently, RHEL 6.x is shipping with
0.29. If you’re using an older version of RHEL, you will have to compile
the neon library and link to it from the configure script. This can be done
via ./configure --with-neon29=<path to neon>.
The next step is to install the libical-devel dependency:
$ sudo yum install libical-devel
Versions of RHEL prior to 6.x require a third-party repository (see
“Third-Party Repositories” on page 50). In this case, older versions of
RHEL need to install libical-devel from the EPEL (Extra Packages
for Enterprise Linux) repository:
$ sudo yum --enablerepo=epel install libical-devel
After installing our dependencies, we can run the configure script in our Asterisk source
directory and enable both the res_calendar and res_calendar_caldav modules from
within the Resource Modules section of menuselect.
Ubuntu dependencies
Because all the modules require the neon development library, we’re going to install that
first. We’re going to install the latest version available to us:
$ sudo apt-get install libneon27-dev
If you are planning to compile the res_calendar_ews module, you will
need neon 0.29 or later. Currently, Ubuntu is shipping with 0.27, so you
will have to compile the neon library and link to it from the configure
script. This can be done via ./configure --with-neon29=<path to neon>.
With libneon installed, we can now install the libical-dev package and its dependencies
with apt-get:
$ sudo apt-get install libical-dev
Calendar Integration | 491
www.it-ebooks.info
After installing our dependencies, we can run the configure script in our Asterisk source
directory and enable both the res_calendar and res_calendar_caldav modules from
within the Resource Modules section of menuselect.
Configuring Calendar Support for Asterisk
In this section we’re going to discuss how to connect your Asterisk system to a Google
calendar. We’re using calendars from Google for the simple reason that they don’t require
any other configuration (such as setting up a calendaring server), which gets us up and
running far quicker. Of course, once you’re comfortable with configuring calendaring
support in Asterisk, you can connect it to any calendaring server you desire.
The first step is to make sure you have a Gmail account with Google, which will get you
access to a calendaring server. Once you’ve logged into your Gmail account, there should
be a link to your calendar in the upper-left corner. Click on the Calendar link and insert
a couple of items occurring within the next hour or two. When we configure our calen
dar.conf file, we’ll be instructing Asterisk to check for new events every 15 minutes and
pull in 60 minutes’ worth of data.
Be sure to verify the time on your server. If the time is not in sync with
the rest of the world—e.g., if is not updated via the Network Time Pro‐
tocol (NTP)—your events may not show, or may appear at the wrong
times. This tip is the result of running into this very issue while testing
and documenting. :)
The next step is to configure our calendar.conf file for polling our calendar server.
The calendar.conf.sample file has several examples for calendaring
servers, such as those supplied by Microsoft Exchange–, iCal-, and
CalDAV-based calendar servers.
The following configuration will connect to the Google calendaring server and poll for
new events every 15 minutes, retrieving 60 minutes’ worth of data. Feel free to change
these settings as necessary, but be aware that pulling more data (especially if you have
multiple calendars for people in your company) will utilize more memory:
$ cat >> calendar.conf
[myGoogleCal]
type=caldav
url=https://www.google.com/calendar/dav/<Gmail Email Address>/events/
user=<Gmail Email Address>
secret=<Gmail Password>
refresh=15
492 | Chapter 18: External Services
www.it-ebooks.info
2. As of this writing, there is a bug in the process of loading of the calendar modules after Asterisk has been
started. It was filed as issue 18067 at https://issues.asterisk.org and hopefully will have been resolved by the
time you read this. If not, be aware that you may need to restart Asterisk to get the modules loaded into
memory correctly.
timeframe=60
Ctrl+D
With calendar.conf configured, let’s load the calendaring modules into Asterisk. First
we’ll load the res_calendar.so module into memory, then we’ll follow it up by doing a
module reload, which will load the sister modules (such as res_calendar_caldav.so)
correctly:2
$ asterisk -r
*CLI> module load res_calendar.so
*CLI> module reload
After loading the modules we can check to make sure our calendar has connected to
the server and been loaded into memory correctly, by executing calendar show
calendars:
*CLI> calendar show calendars
Calendar Type Status
-------- ---- ------
myGoogleCal caldav busy
Our status is currently set to busy (which doesn’t have any bearing on our dialplan at
the moment, but simply means we have an event that has marked us as busy in the
calendar), and we can see the currently loaded events for our time range by running
calendar show calendar <myGoogleCal> from the Asterisk console:
*CLI> calendar show calendar <myGoogleCal>
Name : myGoogleCal
Notify channel :
Notify context :
Notify extension :
Notify applicatio :
Notify appdata :
Refresh time : 15
Timeframe : 60
Autoreminder : 0
Events
------
Summary : Awesome Call With Russell
Description :
Organizer :
Location :
Cartegories :
Priority : 0
UID : hlfhcpi0j360j8fteop49cvk68@google.com
Start : 2010-09-28 08:30:00 AM -0400
Calendar Integration | 493
www.it-ebooks.info
End : 2010-09-28 09:00:00 AM -0400
Alarm : 2010-09-28 04:20:00 AM -0400
The first field in the top section is the Name of our calendar. Following that are several
Notify fields that are used to dial a destination upon the start of a meeting, which we’ll
discuss in more detail shortly. The Refresh time and Timeframe fields are the values
we configured for how often to check for new events and how long a range we should
look at for data, respectively. The Autoreminder field controls how long prior to an event
we should execute the Notify options.
If you have not configured any of the Notify options but have an alarm
set to remind you in the calendar, you may get a WARNING message such
as:
WARNING[5196]: res_calendar.c:648 do_notify: Channel should be in
form Tech/Dest (was '')
The warning is triggered because an alarm was set for notification about
the start of the meeting, but Asterisk was unable to generate a call due
to values not being configured to place the call. This warning message
can be safely ignored if you don’t plan to place calls for event
notifications.
The rest of the screen output is a listing of events available within our Timeframe, along
with information about the events. The next steps are to look at some dialplan examples
of what we can do now that we have calendaring information in Asterisk, and to con‐
figure dialing notifications for reminders about upcoming meetings.
Triggering Calendar Reminders to Your Phone
In this section we’ll discuss how to configure the calendar.conf file to execute some
simple dialplan that will call your phone prior to a calendar event. While the dialplan
we’ll provide might not be ready for production, it certainly offers a good taste of the
possibilities that exist for triggering calls based on calendar state.
Triggering a wakeup call
In our first example, we’re going to call a device and play back a reminder notice for a
particular calendar event. It might be useful to get this type of reminder if you’re likely
to be napping at your desk when your weekly Monday meeting rolls around. To set up
a wakeup call reminder, we simply need to add the following lines to our calendar
configuration in calendar.conf:
channel=SIP/0000FFFF0001
app=Playback
appdata=this-is-yr-wakeup-call
494 | Chapter 18: External Services
www.it-ebooks.info
In your calendar, you need to make sure the event you’re adding has an
alarm or reminder associated with it. Otherwise, Asterisk won’t try to
generate a call.
After making this change, reload the res_calendar.so module from the Asterisk console:
*CLI> module reload res_calendar.so
When the event rolls around, Asterisk will generate a call to you and play back the sound
file this-is-yr-wakeup-call. The output on the console would look like this:
-- Dialing SIP/0000FFFF0001 for notification on calendar myGoogleCal
== Using SIP RTP CoS mark 5
-- Called 0000FFFF0001
-- SIP/0000FFFF0001-00000001 is ringing
-- SIP/0000FFFF0001-00000001 connected line has changed, passing it to
Calendar/myGoogleCal-5fd3c52
-- SIP/0000FFFF0001-00000001 answered Calendar/myGoogleCal-5fd3c52
-- <SIP/0000FFFF0001-00000001> Playing 'this-is-yr-wakeup-call.ulaw'
(language 'en')
If you modify the calendar event so it’s just a couple of minutes in the
future, you can trigger the events quickly by unloading and then loading
the res_calendar_caldav.so module from the Asterisk console. By doing
that, you’ll trigger Asterisk to generate the call immediately.
Remember that our refresh rate is set to 15 minutes, and we’re gathering 60 minutes’
worth of events. You might have to adjust these numbers if you wish to test this out on
your development server.
Scheduling calls between two participants
In this example, we’re going to show how you can use a combination of some simple
dialplan and the CALENDAR_EVENT() dialplan function to generate a call between two
participants based on the information in the location field. We’re going to fill in the
location field with 0000FFFF0002, which is the SIP device we wish to call after answering
our reminder.
Calendar Integration | 495
www.it-ebooks.info
We haven’t specified SIP/0000FFFF0002 directly in the calendar event
because we want to be a bit more secure with what we accept. Because
we will filter out anything but alphanumeric characters, we won’t be
able to accept a forward slash as the separator between the technology
and the location (e.g., SIP/0000FFFF0001). We could certainly allow
this, but we would run the risk of people making expensive outbound
calls, especially if a user opens his calendar publicly or is compromised.
With the method we’re going to employ, we simply limit our risk.
We add the following dialplan to our extensions.conf file:
[AutomatedMeetingSetup]
exten => start,1,Verbose(2,Triggering meeting setup for two participants)
same => n,Set(DeviceToDial=${FILTER(0-9A-Za-z,${CALENDAR_EVENT(location)})})
same => n,Dial(SIP/${DeviceToDial},30)
same => n,Hangup()
When the event time arrives, our device will receive a call, and when that call is answered
another call will be placed to the endpoint with which we wish to have our meeting. The
console output looks like the following:
This is where our calendar triggers a call to our device
-- Dialing SIP/0000FFFF0001 for notification on calendar myGoogleCal
== Using SIP RTP CoS mark 5
-- Called 0000FFFF0001
-- SIP/0000FFFF0001-00000004 is ringing
And now we have answered the call from Asterisk triggered by an event
-- SIP/0000FFFF0001-00000004 connected line has changed, passing it to
Calendar/myGoogleCal-347ec99
-- SIP/0000FFFF0001-00000004 answered Calendar/myGoogleCal-347ec99
Upon answer, we trigger some dialplan that looks up the endpoint to call
-- Executing [start@AutomatedMeetingSetup:1]
Verbose("SIP/0000FFFF0001-00000004", "2,
Triggering meeting setup for two participants") in new stack
== Triggering meeting setup for two participants
This is where we used CALENDAR_EVENT(location) to get the remote device
-- Executing [start@AutomatedMeetingSetup:2] Set("SIP/0000FFFF0001-00000004",
"DeviceToDial=0000FFFF0002") in new stack
And now we're dialing that endpoint
-- Executing [start@AutomatedMeetingSetup:3] Dial("SIP/0000FFFF0001-00000004",
"SIP/0000FFFF0002,30") in new stack
496 | Chapter 18: External Services
www.it-ebooks.info
== Using SIP RTP CoS mark 5
-- Called 0000FFFF0002
-- SIP/0000FFFF0002-00000005 is ringing
The other end answered the call, and Asterisk bridged us together
-- SIP/0000FFFF0002-00000005 answered SIP/0000FFFF0001-00000004
-- Locally bridging SIP/0000FFFF0001-00000004 and SIP/0000FFFF0002-00000005
Of course, the dialplan could be expanded to prompt the initial caller to acknowledge
being ready for the meeting prior to calling the other party. Likewise, we could add some
dialplan that plays a prompt to the other caller that lets her know that she has scheduled
a meeting and that if she presses 1 she will be connected with the other party immedi‐
ately. We could even have created a dialplan that would allow the original party to record
a message to be played back to the other caller.
Just for fun, we’ll show you an example of the functionality we just described. Feel free
to modify it to your heart’s content:
[AutomatedMeetingSetup]
exten => start,1,Verbose(2,Triggering meeting setup for two participants)
; *** This line should not have any line breaks
same => n,Read(CheckMeetingAcceptance,to-confirm-wakeup&press-1&otherwise
&press-2,,1)
same => n,GotoIf($["${CheckMeetingAcceptance}" != "1"]?hangup,1)
same => n,Playback(silence/1&pls-rcrd-name-at-tone&and-prs-pound-whn-finished)
; We set a random number and assign it to the end of the recording
; so that we have a unique filename in case this is used by multiple
; people at the same time.
;
; We also prefix it with a double underscore because the channel
; variable also needs to be available to the channel we're going to call
;
same => n,Set(__RandomNumber=${RAND()})
same => n,Record(/tmp/meeting-invite-${RandomNumber}.ulaw)
same => n,Set(DeviceToDial=${FILTER(0-9A-Za-z,${CALENDAR_EVENT(location)})})
same => n,Dial(SIP/${DeviceToDial},30,M(CheckConfirm))
same => n,Hangup()
exten => hangup,1,Verbose(2,Call was rejected)
same => n,Playback(vm-goodbye)
same => n,Hangup()
[macro-CheckConfirm]
exten => s,1,Verbose(2,Allowing called party to accept or reject)
same => n,Playback(/tmp/meeting-invite-${RandomNumber})
Calendar Integration | 497
www.it-ebooks.info
; *** This line should not have any line breaks
same => n,Read(CheckMeetingAcceptance,to-confirm-wakeup&press-1&otherwise
&press-2,,1)
same => n,GotoIf($["${CheckMeetingAcceptance}" != "1"]?hangup,1)
exten => hangup,1,Verbose(2,Call was rejected by called party)
same => n,Playback(vm-goodbye)
same => n,Hangup()
We hope you’ll be able to use this simple dialplan example as a jumping-off point. With
a little creativity and some dialplan skills, the possibilities are endless!
Calling meeting participants and placing them into a conference
To expand on the functionality in the previous section, we’re going to delve into the
logic problem of how you might be able to place multiple participants into a meeting.
Our goal is to use our calendar to call us when the meeting is scheduled to start, and
then, when we answer, to place calls to all the other members of the conference. As the
other participants answer their phones, they will be placed into a virtual conference
room, where they will wait for the meeting organizer to join. After all participants have
been dialed and answered (or perhaps not answered), the organizer will be placed into
the call, at which point the meeting will start.
This type of functionality increases the likelihood that the meeting will start on time,
and it means the meeting organizer doesn’t have to continually perform roll call as new
participants continue to join after the call is supposed to start (which invariably happens,
with people’s schedules typically being fairly busy).
The dialplan we’re going to show you isn’t necessarily a polished, production-ready
installation (for example, the data returned from the calendar comes from the descrip‐
tion field, only deals with device names, and assumes the technology is SIP). However,
we’ve done the hard work for you by developing the Local channel usage, along with
the M() flag (macro) usage with Dial(). With some testing and tweaks, this code could
certainly be developed more fully for your particular installation, but we’ve kept it gen‐
eral to allow it to be usable for more people in more situations. The example dialplan
looks like this:
[AutomatedMeetingSetup]
exten => start,1,Verbose(2,Calling multiple people and placing into a conference)
; Get information from calendar and save that information. Prefix
; CalLocation with an underscore so it is available to the Local
; channel (variable inheritance).
;
same => n,Set(CalDescription=${CALENDAR_EVENT(description)})
same => n,Set(_CalLocation=${CALENDAR_EVENT(location)})
same => n,Set(X=1)
498 | Chapter 18: External Services
www.it-ebooks.info
; Our separator is a caret (^), so the description should be in the
; format of: 0000FFFF0001^0000FFFF0002^etc...
;
same => n,Set(EndPoint=${CUT(CalDescription,^,${X})})
; This loop is used to build the ${ToDial} variable, which contains
; a list of Local channels to be dialed, thereby triggering the multiple
; Originate() actions simultaneously instead of linearly
;
same => n,While($[${EXISTS(${EndPoint})}])
; This statement must be on a single line
same => n,Set(ToDial=${IF($[${ISNULL(${ToDial})}]?
:${ToDial}&)}Local/${EndPoint}@MeetingOriginator)
same => n,Set(X=$[${X} + 1])
same => n,Set(EndPoint=${CUT(CalDescription,^,${X})})
same => n,EndWhile()
; If no values are passed back, then don't bother dialing
same => n,GotoIf($[${ISNULL(${ToDial})}]?hangup)
same => n,Dial(${ToDial})
; After our Dial() statement returns, we should be placed into
; the conference room. We are marked, so the conference can start
; (which is indicated by the 'A' flag to MeetMe).
;
same => n,MeetMe(${CalLocation},dA)
same => n(hangup),Hangup()
[MeetingOriginator]
exten => _[A-Za-z0-9].,1,NoOp()
same => n,Set(Peer=${FILTER(A-Za-z0-9,${EXTEN})})
; Originate calls to a peer as passed to us from the Local channel. Upon
; answer, the called party should execute the dialplan located at the
; _meetme-XXXX extension, where XXXX is the conference room number.
;
same => n,Originate(SIP/${Peer},exten,MeetingOriginator,meetme-${CalLocation},1)
same => n,Hangup()
; Join the meeting; using the 'w' flag, which means 'wait for marked
; user to join before starting'
;
exten => _meetme-XXXX,1,Verbose(2,Joining a meeting)
same => n,Answer()
same => n,MeetMe(${EXTEN:7},dw)
same => n,Hangup()
Controlling Calls Based on Calendar Information
Sometimes it is useful to redirect calls automatically—for example, when you’re in a
meeting or on vacation. In this section we’ll be using the CALENDAR_BUSY() dialplan
Calendar Integration | 499
www.it-ebooks.info
function, which allows us to check the current status of our calendar to determine if
we’re busy or not. A simple example of this would be to send all calls to voicemail using
the busy message whenever an event that marks us as busy has been scheduled.
The following dialplan shows a simple example where we check our calendar for busy
status prior to sending a call to a device. Notice that a lot of the information in this
example is static; more effort would be required to make it dynamic and suitable for
production:
exten => 3000,1,Verbose(2,Simple calendar busy check example)
same => n,Set(CurrentExten=${EXTEN})
same => n,Set(CalendarBusy=${CALENDAR_BUSY(myGoogleCal)})
same => n,GotoIf($["${CalendarBusy}" = "1"]?voicemail,1)
same => n,Dial(SIP/0000FFFF0002,30)
same => n,Goto(voicemail,1)
exten => voicemail,1,Verbose(2,Caller sent to voicemail)
; *** This line should not have any line breaks
same => n,GotoIf($["${DIALSTATUS}" = "BUSY" |
"${CalendarBusy}" = "1"]?busy:unavail)
same => n(busy),VoiceMail(${CurrentExten}@shifteight,b)
same => n,Hangup()
same => n(unavail),VoiceMail(${CurrentExten}@shifteight,u)
same => n,Hangup()
And here is a slightly more elaborate section of dialplan that utilizes a few of the tools
we’ve learned throughout the book, including DB_EXISTS(), GotoIf(), and the IF()
function:
exten => _3XXX,1,Verbose(2,Simple calendar busy check example)
same => n,Set(CurrentExten=${EXTEN})
same => n,GotoIf($[${DB_EXISTS(extension/${CurrentExten}/device)}]?
:no_device,1)
same => n,Set(CurrentDevice=${DB_RESULT})
same => n,GotoIf($[${DB_EXISTS(extension/${CurrentExten}/calendar)}]?
:no_calendar)
same => n,Set(CalendarBusy=${CALENDAR_BUSY(${DB_RESULT})})
same => n,GotoIf($[${CalendarBusy}]?voicemail,1)
same => n(no_calendar),Verbose(2,No calendar was found for this user)
same => n,Dial(SIP/${CurrentDevice},30)
same => n,Goto(voicemail,1)
exten => voicemail,1,Verbose(2,Sending caller to voicemail)
; *** This line should not have any line breaks
same => n,GotoIf($[${DB_EXISTS(extension/${CurrentExten}/voicemail_context)}]
?:no_voicemail)
same => n,Set(VoiceMailContext=${DB_RESULT})
500 | Chapter 18: External Services
www.it-ebooks.info
; *** This line should not have any line breaks
same => n,Set(VoiceMailStatus=${IF($["${DIALSTATUS}" = "BUSY" |
0${CalendarBusy}]?b:u)})
same => n,VoiceMail(${CurrentExten}@${VoiceMailContext},${VoiceMailStatus})
same => n,Hangup()
same => n(no_voicemail),Playback(number-not-answering)
same => n,Hangup()
exten => no_device,1,Verbose(2,No device found in the DB)
same => n,Playback(invalid)
same => n,Hangup()
Writing Call Information to a Calendar
Using the CALENDAR_WRITE() function opens some other possibilities in terms of cal‐
endar integration. From the Asterisk dialplan, we can insert information into a calendar,
which can be consumed by other devices and applications. Our next example is a cal‐
endar that tracks call logs. For anyone who may be on the phone a fair amount who
needs to track time for clients, writing all calls to a calendar for a visual reference can
be useful when verifying things at the end of the day.
We’re going to utilize the Google web calendar again for this example, but we’re going
to create a new, separate calendar just for tracking calls. In order to write to the calendar,
we’ll need to set up our calendar.conf file a little bit differently, by using the CalDAV
calendar format. First, though, we need to create our new calendar.
On the left side of the Google calendar interface will be a link labeled Add. Clicking this
will open a new window where we can create the calendar. We’ve called ours “Phone
Calls.”
Now we need to enable CalDAV calendar syncing for our calendar. Information about
how to do this is located at a Google support page. This page notes that only your primary
calendar will be synced to the device, but we want to make sure our calls are logged to
a separate calendar so we can easily hide them (and so our smartphone doesn’t syn‐
chronize the phone’s calls either, which may cause confusion). There are two links near
the bottom of the page: one for regular Google calendar users, and the other for Google
Apps users. When we click the appropriate link, our calendars appear. Then we see a
page that contains our calendars. We select the Phone Calls calendar and then select Save.
Next up is configuring our calendar.conf file for Asterisk. One of the parameters we
need is the link to the CalDAV calendar. There is a Calendar ID value that we need that
will identify our calendar specifically. To find the calendar ID, click the down arrow
beside the calendar name on the lefthand side of the calendar page and select Calendar
Settings. Near the bottom of the calendar settings will be two rows that contain the icons
for sharing the calendar (XML, ICAL, HTML). Beside the first set of icons inside the
Calendar Address box will be the calendar ID. It will look like this:
Calendar Integration | 501
www.it-ebooks.info
(Calendar ID: 2hfb6p5974gds924j61cmg4gfd@group.calendar.google.com)
If you’re setting this up via Google Apps, the calendar ID will be prefixed with your
domain name and an underscore (e.g., shifteight.org_). Make a note of this string,
as we’re going to use it next.
Open up the calendar.conf file and add a new calendar section. In our case we’ve called
it [phone_call_calendar]. You’ll recognize the formatting of the calendar from earlier,
so we won’t go through all the settings here. The key setting to note is the url parameter.
The format of this parameter is:
https://www.google.com/calendar/dav/<calendar_id>/events/
We need to replace the <calendar_id> with the calendar ID we recently made a note
of. The full configuration then ends up looking like this:
[phone_call_calendar]
type=caldav
; The URL must be on a single line
url=https://www.google.com/calendar/dav/
shifteight.org_2hfb6p5974gds924j61cmg4gfd@group.calendar.google.com/events/
user = leif@shifteight.org
secret = my_secret_password
refresh=15
timeframe=120
Now that we have our calendar configured, we need to load it into memory, which can
be done by reloading the res_calendar.so module:
*CLI> module reload res_calendar.so
Verify that the calendar has been loaded into memory successfully with the calendar
show command:
*CLI> calendar show calendars
Calendar Type Status
-------- ---- ------
phone_call_calendar caldav free
With our calendar successfully loaded into memory, we can write some dialplan around
our Dial() command to save our call information to the calendar with the CALEN
DAR_WRITE() function:
[LocalSets]
exten => _NXXNXXXXXX,1,Verbose(2,Outbound calls)
same => n,Set(CalendarStart=${EPOCH}) ; Used by CALENDAR_WRITE()
same => n,Set(X=${EXTEN}) ; Used by CALENDAR_WRITE()
same => n,Dial(SIP/ITSP/${EXTEN},30)
same => n,NoOp(Handle standard voicemail stuff here)
same => n,Hangup()
502 | Chapter 18: External Services
www.it-ebooks.info
3. In Unix, the epoch is the number of seconds that have elapsed since January 1, 1970, not counting leap seconds.
exten => h,1,Verbose(2,Call cleanup)
; Everything that follows must be on a single line
same => n,Set(CALENDAR_WRITE(phone_call_calendar,summary,description,
start,end)=
OUTBOUND: ${X},Phone call to ${X} lasted for ${CDR(billsec)} seconds.,
${CalendarStart},${EPOCH})
In our dialplan we’ve created a simple scenario where we place an outbound call through
our Internet telephony service provider (ITSP), but prior to placing the call we save the
epoch3 to a channel variable (so we can use it later when we write our calendar entry at
the end of the call). After our call, we write our calendar entry to the phone_call_cal
endar with the CALENDAR_WRITE() dialplan function within the built-in h extension.
There are several options we can pass to the calendar, such as the summary, description,
and start and end times. All of this information is then saved to the calendar.
We’ve also used the CDR() dialplan function in our description to show the number of
seconds the answered portion of the call lasted, so we can get a more accurate assessment
of whether a call was answered and, if so, how long the answered portion lasted. We
could also be clever and only write to the calendar if ${CDR(billsec)} was greater than
0 by wrapping the Set() application in an ExecIf(); e.g., same => n,ExecIf($[$
{CDR(billsec)} > 0]?Set(CALENDAR_WRITE...)).
Many possibilities exist for the CALENDAR_WRITE() function; this is just one that we’ve
implemented and enjoy.
Additional Features
Other calendar functions are available, such as CALENDAR_QUERY(), which allows you to
pull back a list of events within a given time period for a particular calendar, and
CALENDAR_QUERY_RESULT(), which allows you to access the specifics of those calendar
events. Additionally, you could create functionality that writes events into your calendar
with the CALENDAR_WRITE() function: for example, you may wish to develop some di‐
alplan that allows you to set aside blocks of times in your calendar from your phone
when you’re on the road without access to your laptop. Many possibilities exist, and all
it takes is a little creativity.
Voicemail IMAP Integration
“Unified messaging” has been a buzzword in the telecommunications industry for ages.
It’s all about integrating services so users can access the same types of data in multiple
locations, using different methods. One of the most touted applications is the integration
of email and voicemail. Asterisk has been doing this for years, but many larger
Voicemail IMAP Integration | 503
www.it-ebooks.info
4. When we say “it works,” what we mean is that Asterisk will compose the email and submit it to the MTA, and
the email will successfully be passed out of the system. What happens to it after it leaves the system is a bit
more complicated, and will often involve spam filters treating the mail as suspect and not actually delivering
it. This is not really Asterisk’s fault, but it’s something you’ll have to deal with.
companies are still trying to get this right. Asterisk has the ability to send users voice‐
mails via email, using the Mail Transport Agent (MTA) in your Linux distro (this always
used to be sendmail, but Postfix has become increasingly popular as an MTA). Voicemail
to email is one of the oldest features in Asterisk, and it normally works without any
configuration at all.4
Internet Message Access Protocol (IMAP) integration has existed in Asterisk (and been
steadily evolving) since version 1.4. IMAP voicemail integration means your users can
access their voicemails via a folder within their email accounts, which gives them the
ability to listen to, forward, and mark voicemail messages with the same flexibility that
the Asterisk VoiceMail() dialplan application gives. Asterisk will be aware of the sta‐
tuses of those messages when the users next log in via the phone system.
As the number of administrators integrating Asterisk with their IMAP servers has in‐
creased, the number of bugs filed and fixed has first increased and then decreased, to
the point where IMAP integration can be considered stable enough for production use.
In this section we’ll discuss how to compile in IMAP voicemail support and connect
your voicemail system to your IMAP server.
Compiling IMAP Voicemail Support into Asterisk
To get IMAP voicemail support into Asterisk, we need to compile the University of
Washington’s IMAP library. The UW IMAP toolkit will give us the functionality in
Asterisk to connect to our IMAP server. Before compiling the software, though, we need
to install some dependencies.
The dependencies for building the IMAP library include the tools required to build
Asterisk, but the way we’re building it also requires the development libraries for
OpenSSL and Pluggable Authentication Modules (PAM). We’ve included instructions
for both RHEL and Ubuntu.
RHEL dependencies
Installing both the OpenSSL and PAM development libraries on RHEL can be done
with the following command:
$ sudo yum install openssl-devel pam-devel
504 | Chapter 18: External Services
www.it-ebooks.info
Ubuntu dependencies
Installing both the OpenSSL and PAM development libraries on Ubuntu can be done
with the following command:
$ sudo apt-get install libssl-dev libpam0g-dev
If you try to install libpam-dev on Ubuntu, it will warn you that libpam-
dev is a virtual package and that you should explicitly install one of the
packages in the list it presents to you (which in our case contained only
a single package). If libpam0g-dev is not the correct package on your
version of Ubuntu, try installing the virtual package. This should give
you a list of valid packages for the PAM development library.
Compiling the IMAP library
Now that we have our dependencies satisfied, we can compile the IMAP library that
Asterisk will use to connect to our IMAP server.
The first thing to do is change to the thirdparty directory located under the asterisk-
complete directory. If you have not already created this directory, do so now:
$ cd ~/src/asterisk-complete
$ mkdir thirdparty
$ cd thirdparty
Next up is downloading the IMAP toolkit and compiling it. The next steps will get the
latest version of the IMAP toolkit from the University of Washington’s server (more
information about the toolkit is available at http://www.washington.edu/imap/):
$ wget ftp://ftp.cac.washington.edu/mail/imap.tar.Z
$ tar zxvf imap.tar.Z
$ cd imap-2007e
The directory name imap-2007e may change as new versions of the
toolkit become available.
There are a few options we need to pass to the make command when building the IMAP
library, and the values you should pass will depend on what platform you’re building
on (32-bit versus 64-bit), if you need OpenSSL support, and whether you need IPv6
support or just IPv4. Table 18-1 shows some of the various options you could pass on
different platforms.
Voicemail IMAP Integration | 505
www.it-ebooks.info
Table 18-1. IMAP library compile time options
Option Description
EXTRACFLAGS="-fPIC" Required when building on 64-bit platforms.
EXTRACFLAGS="-I/usr/
include/openssl"
Used for building in OpenSSL support.
IP6=4 Many platforms that support IPv6 prefer that method of connection, which may not be
desirable for all servers. If you would like to force IPv4 as the preferred connection
method, set this option.
If you look in the Makefile shipped with the IMAP library, you will find a list of platforms
for which the library can be compiled. In our case, we’ll be compiling for either RHEL
or Ubuntu with PAM support. If you’re compiling on other systems, take a look in the
Makefile for the three-letter code that tells the library how to compile for your platform.
To compile for a 64-bit platform with OpenSSL support and a preference for connecting
via IPv4:
$ make lnp EXTRACFLAGS="-fPIC -I/usr/include/openssl" IP6=4
To compile for a 32-bit platform with OpenSSL support and a preference for connecting
via IPv4:
$ make lnp EXTRACFLAGS="-I/usr/include/openssl" IP6=4
If you don’t wish to compile with OpenSSL support, simply remove the -I/usr/
include/openssl from the EXTRACFLAGS option. If you would prefer connecting by
IPv6 by default, simply don’t specify the IP6=4 option.
When installing IMAP support, we have always compiled the c-client
library from source. However, it may be available as a package for your
distribution. For example, Ubuntu has a libc-client-dev package avail‐
able. It may work and save you some trouble, but we have not tested it.
Compiling Asterisk
After compiling the IMAP library, we need to recompile the app_voicemail.so module
with IMAP support. The first step is to run the configure script and pass it the --with-
imap option to tell it where the IMAP library exists:
$ cd ~/src/asterisk-complete/asterisk/11
$ ./configure --with-imap=~/src/asterisk-complete/thirdparty/imap-2007e/
Once the configure script has finished executing, we need to enable IMAP voicemail
support in menuselect:
$ make menuselect
506 | Chapter 18: External Services
www.it-ebooks.info
5. We recently checked out the open source webmail project roundcube as well, and we were quite impressed.
From the menuselect interface, go to Voicemail Build Options. Within that menu, you
should have the option to select IMAP_STORAGE.
If you don’t have the ability to select that option, make sure your IMAP
library was built successfully (i.e., that you have all the required depen‐
dencies installed and that it didn’t error out when building) and that
you correctly specified the path to the IMAP library when running the
configure script. You can also verify that the IMAP library was found
correctly by looking in the config.log file (located in your Asterisk build
directory) for IMAP.
After selecting IMAP_STORAGE, save and exit from menuselect and run make install, which
will recompile the app_voicemail.so module and install it to the appropriate location.
The next step is to configure the voicemail.conf file located in /etc/asterisk.
Configuring Asterisk
Now that we’ve compiled IMAP support into Asterisk, we need to enable it by con‐
necting to an IMAP-enabled server. There are many IMAP servers we could use,
including those supplied with Microsoft servers, Dovecot, and Cyrus on Unix, or a web-
based IMAP server such as the one supplied by Google’s Gmail.5 Our instructions will
show how to connect Asterisk to a Gmail account with IMAP enabled, as it requires the
least amount of effort to get up and running with IMAP voicemail, but these instructions
can easily be adapted for use with any existing IMAP server.
Enabling IMAP on Gmail. Enabling IMAP support on your Gmail account is straightfor‐
ward (see Figure 18-1). Once logged into your account, select Settings from the upper-
right corner. Then select Forwarding and POP/IMAP from the menu bar under the
Settings header. In the IMAP Access section, select Enable IMAP. After enabling IMAP,
click the Save Changes button at the bottom of the screen.
Voicemail IMAP Integration | 507
www.it-ebooks.info
Figure 18-1. Enabling Gmail IMAP
Configuring voicemail.conf for IMAP. To enable our voicemail system to connect to an
IMAP system, we need to make sure IMAP support has been built into the app_voice
mail.so module per the instructions in “Compiling Asterisk” on page 506. With IMAP
support compiled into Asterisk, we just need to instruct the voicemail module how to
connect to our IMAP server.
We’re going to demonstrate how to connect to an IMAP-enabled Gmail account and
use that to store and retrieve our voicemail messages. If you haven’t already, read the
section “Enabling IMAP on Gmail” before proceeding. The final step is configuring
voicemail.conf to connect to the server.
In voicemail.conf, add the following lines to the [general] section. Be sure you only
specify a single format (we recommend wav49) for voicemail recordings, and remove
any references to ODBC voicemail storage if you’ve enabled that previously:
[general]
format=wav49 ; format to store files
imapserver=imap.gmail.com ; IMAP server location
imapport=993 ; port IMAP server listens to
imapflags=ssl ; flags required for connecting
508 | Chapter 18: External Services
www.it-ebooks.info
expungeonhangup=yes ; delete messages on hangup
pollmailboxes=yes ; used for message waiting indication
pollfreq=30 ; how often to check for message changes
Before we configure our user for connecting to the Gmail IMAP server, let’s discuss the
options we’ve just set in the [general] section. These are the basic options that will get
us started; we’ll do some more customization shortly, but let’s see what we’ve done
so far.
First, the format=wav49 option has declared that we’re going to save our files as GSM
with a WAV header, which can be played on most desktops (including Microsoft Win‐
dows) while retaining a small file size.
Next, we’ve configured Asterisk to connect to an imapserver located at im
ap.gmail.com on imapport 993. We’ve also set imapflags to ssl, as Gmail requires a
secure connection. Without the ssl IMAP flag being set, the server will reject our con‐
nection attempts (which is why it was important that we compiled our IMAP library
with OpenSSL support). Another option that may be required on private IMAP servers
such as Dovecot is to specify novalidate-cert for imapflags when an SSL connection
is necessary, but the certificate is not generated by a certificate authority.
Next, we’ve set expungeonhangup=yes, which causes messages marked for deletion to
be removed from the server upon hangup from the VoiceMail() application. Without
this option, messages are simply marked as read and left on the server until they have
been removed via an email application or web interface.
In order to get message waiting indication (MWI) updates correctly, we need to enable
pollmailboxes=yes, which causes Asterisk to check with the server for any changes to
the status of a message. For example, when someone leaves us a voicemail and we listen
to it by opening the message via our email application, the message will be marked as
read, but without polling the mailbox Asterisk will have no way of knowing this and
will enable the MWI light on the associated device indefinitely. Finally, we’ve set the
related option pollfreq to 30 seconds. This option controls how often Asterisk will ask
the server for the status of messages: set it appropriately to control the amount of traffic
going to the voicemail server.
Table 18-2 shows some of the other options available to us.
Table 18-2. Additional IMAP voicemail options
Option Description
imapfolder Provides the name of the folder in which to store voicemail messages on
your IMAP server. By default they are stored in the INBOX.a
imapgreetings Defines whether voicemail greetings are stored on the IMAP server or
stored locally on the server. Valid values are yes or no.
Voicemail IMAP Integration | 509
www.it-ebooks.info
Option Description
imapparentfolder Defines the parent folder on the IMAP server. Usually this is configured as
INBOX on the server, but if it is called something else, you can specify it
here.
greetingfolder Specifies the folder in which to save the voicemail greetings, if you’ve
enabled the imapgreetings option by setting it to yes. By default
greetings are saved in the INBOX.
authuser Specifies the master user to use for connecting to your IMAP server, if the
server is configured with a single user that has access to all mailboxes.
authpassword Complement to the authuser directive. See authuser for more
information.
opentimeout Specifies the TCP open timeout (in seconds).
closetimeout Specifies the TCP close timeout (in seconds).
readtimeout Specifies the TCP read timeout (in seconds).
writetimeout Specifies the TCP write timeout (in seconds).
a It is important to store your voicemail messages in a folder other than the INBOX if the number of messages contained in the INBOX
could be rather large. Asterisk will try to gather information about all the emails contained in the INBOX, and could either time out
before retrieving all the information or just take a very long time to store or retrieve voicemail messages, which is not desirable.
With our [general] section configured, let’s define a mailbox for connecting to the
IMAP server.
In Chapter 8 we defined some users in the [shifteight] voicemail context. Here is the
original configuration as defined in that chapter:
[shifteight]
100 => 0107,Leif Madsen,leif@shifteight.org
101 => 0523,Jim VanMeggelen,jim@shifteight.org,,attach=no|maxmsg=100
102 => 11042,Tilghman Lesher,,,attach=no|tz=central
We’re going to modify mailbox 100 in such a way that it connects to the Gmail IMAP
server to store and retrieve voicemail messages:
[shifteight]
100 => 0107,Leif Madsen,,,|imapuser=leif@shifteight.org|imappassword=secret
The voicemail.conf file uses both commas and pipes as separators, de‐
pending on which field is being used. The first few fields have specific
settings in them, and the last field can contain extra information about
the mailbox, which is separated by the pipe character (|).
We’ve removed the email address from the third field because we’re not going to use
sendmail to email us voicemails anymore: they are just going to be stored on the email
server directly now. We’ve configured the mailbox to connect with the IMAP username
510 | Chapter 18: External Services
www.it-ebooks.info
leif@shifteight.org (because we’ve enabled Google Apps for the domain that hosts
our email) and are connecting using the IMAP password secret.
After configuring Asterisk, we need to reload the app_voicemail.so module. If you enable
console debugging, you should see output similar to the following upon connection to
the voicemail server:
*CLI> core set debug 10
*CLI> module reload app_voicemail.so
DEBUG[3293]: app_voicemail.c:2734 mm_log: IMAP Info:
Trying IP address [74.125.53.109]
DEBUG[3293]: app_voicemail.c:2734 mm_log: IMAP Info: Gimap ready for requests
from 99.228.XXX.XXX 13if2973206wfc.0
DEBUG[3293]: app_voicemail.c:2757 mm_login: Entering callback mm_login
DEBUG[3293]: app_voicemail.c:2650 mm_exists:
Entering EXISTS callback for message 7
DEBUG[3293]: app_voicemail.c:3074 set_update:
User leif@shifteight.org mailbox set for update.
DEBUG[3293]: app_voicemail.c:2510 init_mailstream: Before mail_open, server:
{imap.gmail.com:993/imap/ssl/user=leif@shifteight.org}INBOX, box:0
DEBUG[3293]: app_voicemail.c:2734 mm_log: IMAP Info: Reusing connection to
gmail-imap.l.google.com/user="leif@shifteight.org"
If you get any ERRORs, check your configuration and verify that the IMAP library is
compiled with SSL support. Once app_voicemail.so is connected, try leaving yourself a
voicemail; then check your voicemail via the Gmail web interface and verify that your
message is stored correctly. You should also have an MWI light on your device if it
supports it, and if you’ve configured mailbox=100@shifteight for the device in
sip.conf. If you load the voicemail message envelope and mark it as read, the MWI light
should turn off within 30 seconds (or whatever value you set pollfreq to in voice
mail.conf).
Using XMPP (Jabber) with Asterisk
The eXtensible Messaging and Presence Protocol (XMPP, formerly called Jabber) is used
for instant messaging and communicating presence information across networks in
near real time. Within Asterisk, it is also used for call setup (signaling). We can do
various cool things with XMPP integration once it’s enabled, such as getting a message
whenever someone calls us. We can even send messages back to Asterisk, redirecting
our calls to voicemail or some other location. Additionally, with chan_motif, we can
accept and place calls over the Google Voice network or accept calls from Google Talk
users via the web client.
Using XMPP (Jabber) with Asterisk | 511
www.it-ebooks.info
Compiling XMPP Support into Asterisk
The res_xmpp module contains various dialplan applications and functions that are
useful from the Asterisk dialplan. It is also a dependency of the chan_motif channel
module. To get started with XMPP integration in Asterisk, we need to compile res_xmpp.
RHEL dependencies
To install res_xmpp, we need the iksemel development library. If the OpenSSL devel‐
opment library is installed, res_xmpp will also utilize that for secure connections (this
is recommended). We can install both on RHEL with the following command:
$ sudo yum install iksemel-devel openssl-devel
The iksemel library will be installed via EPEL.
Ubuntu dependencies
To install res_xmpp, we need the iksemel development library. If the OpenSSL devel‐
opment library is installed, res_xmpp will also utilize that for secure connections (this
is recommended). We can install both on Ubuntu with the following command:
$ sudo apt-get install libiksemel-dev libssl-dev
Installing res_xmpp
Once you’ve installed the dependencies, you need to run ./configure in your Asterisk
source and make menuselect. Then go into the Resource Modules menu and make sure
res_xmpp is enabled. After that, run make install to get the new modules.
Jabber Dialplan Commands
Several dialplan applications and functions can be used for communication using the
XMPP protocol via Asterisk. We’re going to explore how to connect Asterisk to an
XMPP server, how to send messages to the client from the dialplan, and how to route
calls based on responses to the initially sent messages. By sending a message via XMPP,
we’re essentially creating a simple screen-pop application to let users know when calls
are coming into the system.
Connecting to an XMPP server
Before we can start sending messages to our XMPP buddies, we need to connect to an
XMPP-enabled server. We’re going to utilize the XMPP server at Google, as it is open
and easily accessible by anyone. To do so, we need to configure the xmpp.conf file in
512 | Chapter 18: External Services
www.it-ebooks.info
our /etc/asterisk configuration directory. The following example will connect us to the
XMPP server at Google.
You must already have a Gmail account, which you can get at http://
www.gmail.com.
Our xmpp.conf file should look like this:
[general]
[asterisk]
type=client
serverhost=talk.google.com
username=asterisk@shifteight.org
secret=<super_secret_password>
priority=1
port=5222
usetls=yes
usesasl=yes
status=available
statusmessage="Ohai from Asterisk"
timeout=5
Let’s take a quick look at some of the options we just set so you understand what is going
on. The options are described in Table 18-3. We’ve described all the available options
in xmpp.conf even though we haven’t set all options in our example file.
Table 18-3. xmpp.conf options
Option Description
debug Enables/disables XMPP message debugging (which can be quite verbose). Available options are
yes or no.
autoprune Enables/disables autoremoval of users from your buddy list each time res_xmpp.so connects to your
accounts. Do not use this for accounts you might use outside of Asterisk (e.g., your personal
account). Available options are yes or no.
autoregister Specifies whether to automatically register users from your buddy list into memory. Available
options are yes or no.
collection_nodes Enables support for the XEP-0248 XMPP extension. This can be enabled for use with distributed
device state. Available options are yes or no. The default is no.
pubsub_autocreate If the PubSub server autocreates nodes, then Asterisk needs to explicitly pre-create the node before
publishing it. Available options are yes or no. Default is no.
auth_policy Determines whether or not we should automatically accept subscription requests. Available options
are accept or deny.
type Sets the type of client we will connect as. Available options are client or component. (You will
almost always want client.)
Using XMPP (Jabber) with Asterisk | 513
www.it-ebooks.info
Option Description
serverhost Indicates which host this connection should connect to (e.g., talk.google.com).
pubsub_node Name of the node to use for publishing events via PubSub. Value is a string.
username Provides the username that will be used to connect to the serverhost (e.g.,
asterisk@gmail.com).
secret Specifies the password that will be used to connect to the serverhost.
port Indicates which port we will attempt the connection to serverhost on (e.g., 5222).
usetls Specifies whether to use TLS or not when connecting to serverhost. Available options are yes
or no.
usesasl Specifies whether to use SASL or not when connecting to serverhost. Available options are
yes or no.
status Defines our default connection status when signed into our account. Available options are: chat,
available, away, xaway, and dnd.
statusmessage Sets a custom status message to use when connected with Asterisk, such as "Connected Via
Asterisk"; use double quotes around the message.
buddy Manually adds buddies to the list upon connection to the server. You can specify multiple buddies
on multiple buddy lines (e.g., buddy=jim@shifteight.org).
timeout Specifies the timeout (in seconds) that messages are stored on the message stack. Defaults to 5
seconds. This option only applies to incoming messages, which are intended to be processed by the
JABBER_RECEIVE() dialplan function.
priority Defines the priority of this resource in relation to other resources. The lower the number, the higher
the priority.
sendtodialplan If enabled, then incoming messages will be sent to the dialplan. Available options are yes or no.
Default is no. (See “Out-of-Band Messaging (Messaging Infrastructure)” on page 522)
context If sendtodialplan is enabled, then this specifies the context to send messages to. Default
context is default.
After configuring our xmpp.conf file, we can load (or reload) the res_xmpp.so module.
We can do this from the console with module reload res_xmpp.so:
*CLI> module reload res_xmpp.so
Reloaded res_xmpp.so
and check the connection with the xmpp show connections command:
*CLI> xmpp show connections
Jabber Users and their status:
User: asterisk@shifteight.org - Connected
----
Number of users: 1
If you’re having problems getting connected, you can try unloading the module and
then loading it back into memory. If you’re still having problems, you can run the xmpp
purge nodes command to remove any existing or bad connections from memory. Be‐
yond that, check your configuration and verify that you don’t have any configuration
514 | Chapter 18: External Services
www.it-ebooks.info
problems or typos. Once you’ve gotten connected, you can move on to the next sections,
where the fun starts.
Sending messages with JabberSend()
The JabberSend() dialplan application is used for sending messages to buddies from
the Asterisk dialplan. You can use this application in any place that you would normally
utilize the dialplan, which makes it quite flexible. We’re going to use it as a screen-pop
application for sending a message to a client prior to placing a call to the user’s phone.
Depending on the client used, you may be able to have the message pop up on the user’s
screen from the task bar.
Here is a simple example to get us started:
[LocalSets]
exten => 104,1,Answer()
; *** This line should not have any line breaks
same => n,JabberSend(asterisk,jim@shifteight.org,Incoming call from
${CALLERID(all)})
same => n,Dial(SIP/0000FFFF0002,30)
same => n,Hangup()
This example demonstrates how to use the JabberSend() application to send a message
to someone prior to dialing a device. Let’s break down the values we’ve used. The first
argument, asterisk, is the section header we defined in the xmpp.conf file as
[asterisk]. In our xmpp.conf example, we set up a user called asterisk@shifteight.org
to send messages via the Google XMPP server, and asterisk is the section name we
defined. The second argument, jim@shifteight.org, is the buddy we’re sending the
message to. We can define any buddy here, either as a bare JID (as we’ve done above)
or as a full JID with a resource (e.g., jim@shifteight.org/laptop). The third argument to
JabberSend() is the message we want to send to the buddy. In this case we’re sending
Incoming call from ${CALLERID(all)}, with the CALLERID() dialplan function being
used to enter the caller ID information in the message.
Obviously, we would have to further build out our dialplan to make this useful: specif‐
ically, we’d have to associate the buddy name (e.g., jim@shifteight.org) with the device
we’re calling (SIP/0000FFFF0002) so that we’re sending the message to the correct bud‐
dy. You can save these associations in any one of several locations, such as in the AstDB,
in a relational database retrieved with func_odbc, or even in a global variable.
Receiving messages with JABBER_RECEIVE()
The JABBER_RECEIVE() dialplan function allows us to receive responses via XMPP
messages, capture those responses, and presumably act on them. We would typically
use the JABBER_RECEIVE() function in conjunction with the JabberSend() dialplan
application, as we are likely to need to send a message to someone and prompt him with
Using XMPP (Jabber) with Asterisk | 515
www.it-ebooks.info
the acceptable values he can return. We could use the JABBER_RECEIVE() function either
personally, to direct calls to a particular device such as a cell phone or desk phone, or
as a text version of an auto attendant to be used when people who are likely to have
difficulty hearing the prompts dial in (e.g., users who are deaf or work at noisy job sites).
In the latter case, the system would have to be preconfigured to know where to send the
messages to, perhaps based on the caller ID of the person calling.
Here is a simple example that sends a message to someone, waits for a response, and
then routes the call based on the response:
exten => 106,1,Answer()
; All text must be on a single line.
same => n,JabberSend(asterisk,leif.madsen@gmail.com,Incoming call from
${CALLERID(all)}. Press 1 to route to desk. Press 2 to send to voicemail.)
same => n,Set(JabberResponse=${JABBER_RECEIVE(asterisk,leif@shifteight.org)})
same => n,GotoIf($["${JabberResponse}" = "1"]?dial,1)
same => n,GotoIf($["${JabberResponse}" = "2"]?voicemail,1)
same => n,Goto(dial,1)
exten => dial,1,Verbose(2,Calling our desk)
same => n,Dial(SIP/0000FFFF0002,6)
same => n,Goto(voicemail,1)
exten => voicemail,1,Verbose(2,VoiceMail)
; *** This line should not have any line breaks
same => n,Set(VoiceMailStatus=${IF($[${ISNULL(${DIALSTATUS})}
| "${DIALSTATUS}" = "BUSY"]?b:u)})
same => n,Playback(silence/1)
same => n,VoiceMail(100@lmentinc,${VoiceMailStatus})
same => n,Hangup()
Unfortunately, the JabberSend() application requires all of the message
to be sent on a single line. If you wish to break up the text onto multiple
lines, you will need to send it as multiple messages on separate lines
using JabberSend().
Our simple dialplan first sends a message to a Jabber account (leif@shifteight.org) via
our systems’ Jabber account (asterisk), as configured in xmpp.conf. We then use the
JABBER_RECEIVE() dialplan function to wait for a response from leif@shifteight.org. The
default timeout is 5 seconds (as defined in xmpp.conf), but you can specify a different
timeout with a third argument to JABBER_RECEIVE(). For example, to wait 10 seconds
for a response, we could have used a line like this:
516 | Chapter 18: External Services
www.it-ebooks.info
Set(JabberResponse=${JABBER_RECEIVE(asterisk,leif@shifteight.org,10)})
Once we’ve either received a response or the timeout has expired, we move on to
the next line of the dialplan, which starts checking the response saved to the
${JabberResponse} channel variable. If the value is 1, we continue our dialplan at dial,
1 of the current context. If the response is 2, we continue our dialplan at voicemail,1.
If no response (or an unknown response) is received, we continue the dialplan at
dial,1.
The dialplan at dial,1 and voicemail,1 should be fairly self-evident. This is a non-
production example; some additional dialplan should be implemented to make the
values dynamic.
There is a disadvantage to the way we’ve implemented the JABBER_RECEIVE() function,
though. Our function blocks, or waits, for a response from the endpoint. If we set the
response value low to minimize delay, we don’t give the recipient much time to respond.
However, if we set the response long enough for the recipient to comfortably respond,
we cause unnecessary delay in calling a device or sending to voicemail.
We can skirt this issue by using a Local channel. This allows us to execute two sections
of dialplan simultaneously, sending a call to the device at the same time we’re waiting
for a response from JABBER_RECEIVE(). If we get a response from JABBER_RECEIVE()
and we need to do something, we can Answer() the line and cause that section of dialplan
to continue. If the device answers the phone, our dialplan with JABBER_RECEIVE() will
just be hung up. Let’s take a look at a modified dialplan that implements the Local
channel:
exten => 106,1,Verbose(2,Example using the Local channel)
same => n,Dial(Local/xmpp@${CONTEXT}/n&Local/dial@${CONTEXT}/n)
exten => xmpp,1,Verbose(2,Send an XMPP message and expect a response)
; *** This line should not have any line breaks
same => n,JabberSend(asterisk,leif.madsen@gmail.com,Incoming call from
${CALLERID(all)}. Press 2 to send to voicemail.)
same => n,Set(JabberResponse=${
JABBER_RECEIVE(asterisk,leif@shifteight.org,6)})
same => n,GotoIf($["${JabberResponse}" = "2"]?voicemail,1)
same => n,Hangup()
exten => dial,1,Verbose(2,Calling our desk)
same => n,Dial(SIP/0000FFFF0002,15)
same => n,Goto(voicemail,1)
exten => voicemail,1,Verbose(2,VoiceMail)
same => n,Answer()
; *** This line should not have any line breaks
Using XMPP (Jabber) with Asterisk | 517
www.it-ebooks.info
same => n,Set(VoiceMailStatus=${IF($[${ISNULL(${DIALSTATUS})}
| "${DIALSTATUS}" = "BUSY"]?b:u)})
same => n,Playback(silence/1)
same => n,VoiceMail(100@shifteight,${VoiceMailStatus})
same => n,Hangup()
By adding a Dial() statement at the beginning and shifting our Jabber send and receive
functionality into a new extension called xmpp, we ensure that we can simultaneously
call the dial extension and the xmpp extension.
Notice that we removed the Answer() application from the first line of the example. The
reason for this is because we want to Answer() the line only after a device has answered
(which causes the xmpp extension to be hung up); otherwise, we want the voicemail
extension to Answer() the line. If the voicemail extension has answered the line, that
means either the xmpp extension has received a response and was told to Goto() the
voicemail extension, or the Dial() to our device timed out, causing the voicemail
extension to be executed, thereby causing the line to be Answer()ed.
With the examples provided here serving as a springboard, you should be able to develop
rich applications that send and receive messages via XMPP servers. Some other dialplan
applications and functions may help in the development of your application, such as
JABBER_STATUS() (or the JabberStatus() dialplan application), which is used for
checking on the status of a buddy; the JabberJoin() and JabberLeave() applications,
which are used for joining and leaving XMPP conference rooms; and the Jabber
SendGroup() application, which allows you to send messages to an XMPP chat room.
chan_motif
The chan_motif module can be used for connecting to Jingle-enabled networks. It sup‐
ports three different transport and protocol derivatives (in order of preference):
•Jingle as defined in the XEP-0166 specification
•Google Jingle, which follows the Jingle specification for the signaling, but uses
Google’s custom transport for the media
•Google-V1, the original Google implementation of a preliminary Jingle specifica‐
tion
The channel module is able to automatically determine which transport to use for in‐
coming sessions. For outgoing sessions, it is able to determine the transport automati‐
cally if the endpoint being called is in the roster. If the endpoint is not in the roster, then
chan_motif will attempt to connect in the preferred order as listed in the bullet points
above until all possibilities have either succeeded or failed.
518 | Chapter 18: External Services
www.it-ebooks.info
In our examples we’ll be using Google Talk (GTalk) for placing and receiving calls, since
it lets people using Google’s web apps and other tools place calls easily. GTalk is the
web-based voice system typically found in the Gmail web interface. Other clients and
add-ons do exist for external applications such as Pidgin, but we’ll be testing with the
web-based client from Google.
Deprecation of chan_gtalk and chan_jingle
With the creation of chan_motif, the usage of chan_gtalk and chan_jingle should be
considered deprecated. In versions prior to Asterisk 11, the usage of res_jabber and
the gtalk and jingle channel drivers were used for connecting to Gtalk and Jingle
services. However, these channel drivers have quite old implementations, and the main‐
tenance of these modules became difficult. With that, chan_motif was created to support
connecting to Jingle and Google Talk services. More information about the reasons for
creating chan_motif is available on the Digium blog.
Before we can get connected to chan_motif, we need to make sure we’re connected via
res_xmpp, so if you haven’t already done so, review “Connecting to an XMPP server”
on page 512 for information about how to connect to the Google XMPP servers.
motif.conf
Once we’re connected via res_xmpp, we can configure the motif.conf file, which defines
our connection for receiving and placing calls. A simple configuration file for allowing
connections over the Google network (e.g., calls to the web interface embedded in
Gmail) looks like the following:
[google]
context=google_incoming
disallow=all
allow=ulaw
connection=asterisk
Seems pretty straightforward, but let’s look at our configuration in some more detail.
First, we define the name of our connection, which we’ve called google (the name
between the square braces). You could name this anything you want, but this is what
we’ll use to reference this account in our dialplan when placing an outbound call. The
next line is the context name in our dialplan to which incoming calls will be directed.
We then disable all previously enabled codecs, then enable ulaw for this connection. On
the final line, we reference our xmpp.conf file by using the XMPP connection we con‐
figured in the previous section.
Once we’ve defined our section, we either need to load chan_motif.so (if not previously
loaded), or reload it so the channel driver can read in the new configuration information:
Using XMPP (Jabber) with Asterisk | 519
www.it-ebooks.info
6. See “The s extension” on page 160 for more information.
*CLI> module reload chan_motif.so
*CLI> -- Reloading module 'chan_motif.so' (Motif Jingle Channel Driver)
At this point our module has its configuration, and we can move onto configuring the
dialplan to allow incoming and outgoing calls.
Accepting calls from Google Talk
To accept calls from Google Talk, we need to add some functionality to our dialplan.
First, let’s define the context name in extensions.conf that we configured in motif.conf:
[google_incoming]
After defining our context, we can add an extension for routing the calls. Incoming calls
from the Google network will match extension s6 much like an analog channel coming
in via a DAHDI interface. Once the incoming call matches the extension, we can perform
any routing we wish, just as with any other incoming call. To make things simple, we’ll
direct the call to one of the SIP endpoints we configured previously:
[google_incoming]
exten => s,1,Verbose(2,Incoming call via Google from ${CALLERID(all)})
same => n,Dial(SIP/0000FFFF0001,24)
same => n,Voicemail(100@default,u)
same => n,Hangup()
Of course we can get a little fancier here, and we could perform call screening, redirect
to an auto attendant, forward to a cell phone, or whatever other methods we want to
employ.
After configuring our dialplan, we just need to run a dialplan reload to make it active.
Once done, try calling from another Gmail web interface (not the same account that
you’ve configured for your Asterisk system), and your call should be redirected to your
SIP endpoint. You can even see that the incoming caller has been added to the buddy
list of your Asterisk system:
*CLI> xmpp show buddies
XMPP buddy lists
Client: asterisk
Buddy: shifteight@gmail.com
Resource: gmail.64F29731
node: http://mail.google.com/xmpp/client/caps
version: 1.1
Google Talk capable: yes
Jingle capable: no
520 | Chapter 18: External Services
www.it-ebooks.info
Accepting calls from Google Voice
The configuration for accepting calls from Google Voice is similar (if not identical) to
that for Google Talk, which we set up in the preceding section. A little tip, though, is
that sometimes you can’t disable the call-screening functionality (for some reason we
still got it even when we’d disabled it in the Google Voice control panel). If you run into
this problem but don’t want to have to screen your calls, you can automatically send the
DTMF prior to ringing your device, by adding the three emphasized lines shown here
prior to performing the Dial():
[google_incoming]
exten => s,1,Verbose(2,Incoming call via Google from ${CALLERID(all)})
same => n,Answer()
same => n,Wait(2)
same => n,SendDTMF(1)
same => n,Dial(SIP/0000FFFF0001,24)
same => n,Voicemail(100@default,u)
same => n,Hangup()
Here, we’re using the Wait() and SendDTMF() applications to first wait 2 seconds after
answering the call (which is when the call-screening message will start) and then accept
the call automatically (by sending DTMF tones for the number 1). After that, we then
send the call off to our device.
Outgoing calls via Google Talk
To place a call to a Google Talk user, configure your dialplan like so:
[LocalSets]
exten => 123,1,Verbose(2,Extension 123 calling shifteight@gmail.com)
same => n,Dial(Motif/google/shifteight@gmail.com,30)
same => n,Hangup()
The Motif/google/shifteight@gmail.com part of the Dial() line can be broken into
three parts. The first part, Motif, is the protocol we’re using for placing the outgoing
call. The second part, asterisk, is the account name as defined in the motif.conf file.
The last part, shifteight@gmail.com, is the location we’re attempting to place a call to.
The person you’re calling via Google Talk must already exist in your
buddy list. If you’re using an existing connection (like your instant
messaging clients connection) then you may already have your buddies
listed. If not, then you’ll need to ask your friends to call you first so that
Asterisk can automatically accept and add them to your buddy list. This
is a requirement of the Google network, not of Asterisk. Control of
autoregistration of buddies is done via autoregister in the xmpp.conf
file for your connection.
Using XMPP (Jabber) with Asterisk | 521
www.it-ebooks.info
7. You may have to purchase credits from Google Voice in the control panel in order to place calls to certain
destinations.
Outgoing calls via Google Voice
To place calls using Google Voice to PSTN numbers, create a dialplan like the following:
[LocalSets]
exten => _1NXXNXXXXXX,1,Verbose(2,Placing call to ${EXTEN} via Google Voice)
same => n,Dial(Motif/google/${EXTEN}@voice.google.com)
same => n,Hangup()
Let’s discuss the Dial() line briefly, so you understand what is going on. We start with
Motif, which is the technology we’ll use to place the call. Following that, we have defined
the google user as the connection we’ll use when placing our outgoing call (this is
configured in motif.conf). Next is the number we’re attempting to place a call to, as
defined by the ${EXTEN} channel variable. We’ve appended @voice.google.com to let
the Google servers know this is a call that should be placed through Google Voice7 as
opposed to another Google Talk user.
Out-of-Band Messaging (Messaging Infrastructure)
Starting in Asterisk 10, the ability to accept messages out of band (e.g., receive a message
without an existing channel) was added in order to allow the triggering of the dialplan
based on a received message. Being able to accept a message means that you could
potentially trigger a call simply by sending a message to dialplan from your XMPP client.
As you can imagine, many possibilities exist for this, including being able to provide
menu options in advance of a call, looking up people in a directory, or getting infor‐
mation about a company without ever placing a call to the system. And once someone
was ready to receive a call, they could request the system to call them and connect them
with an agent.
The messaging infrastructure allows both receiving and sending messages through ei‐
ther SIP or XMPP using a combination of the MESSAGE() dialplan function, the Messa
geSend() dialplan application, and the configuration of either (or both) sip.conf and
xmpp.conf to direct incoming calls to an appropriate location in the dialplan.
xmpp.conf Configuration
We’ll assume you’ve already configured the xmpp.conf file per “Using XMPP (Jabber)
with Asterisk” on page 511 so we’ll skip over the initial configuration. The only thing
you need to do in order to accept messages via XMPP is to add two configuration
options, described in Table 18-4, to the [asterisk] account you created.
522 | Chapter 18: External Services
www.it-ebooks.info
Table 18-4. Options related to out-of-band messaging with XMPP
Option Description
sendtodialplan Whether to send incoming messages via XMPP into the dialplan. Available options are yes or no.
Default is no.
context The context that incoming messages should be handled in. If not set, then the default context will
be used.
Setting sendtodialplan of either no (default) or yes will control whether incoming
messages to this XMPP user will be sent to the dialplan. Which dialplan context will
parse the messages is controlled with the context setting. Our configuration in
xmpp.conf would look like:
[asterisk]
type=client
serverhost=talk.google.com
username=asterisk@shifteight.org
secret=<super_secret_password>
priority=1
port=5222
usetls=yes
usesasl=yes
status=available
statusmessage="Ohai from Asterisk"
timeout=5
sendtodialplan=yes
contexts=IncomingMessages
After updating your configuration in xmpp.conf, you can reload the res_xmpp.so module
in Asterisk:
$ asterisk -rx "module reload res_xmpp.so"
sip.conf Configuration
Asterisk has an initial implementation of SIP messaging. The functionality is very basic
in that it only supports the MESSAGE SIP method. Session-oriented messaging using a
Message Session Relay Protocol (MSRP) session is not supported. Unfortunately, SIP
clients typically support only session-oriented messaging. Since this isn’t part of Aster‐
isk, messaging over SIP is most useful between Asterisk boxes themselves.
Enabling messaging support is quite straightforward. There are three options (described
in Table 18-5) associated with messaging, two of which are already enabled by default.
Out-of-Band Messaging (Messaging Infrastructure) | 523
www.it-ebooks.info
Table 18-5. Options related to out-of-band messaging in SIP
Option Description
accept_outof
call_message
Controls whether out-of-call messaging is enabled. When messages are accepted, they are passed
to the dialplan. Available settings are yes and no. Default is yes.
auth_message_re
quests
Controls whether MESSAGE requests should be authenticated. Available options are yes or no.
Default is yes.
outofcall_mes
sage_context
Defines which context should handle out-of-call messages. If the option is not set, then the context
associated with the peer during matching is used. The option can be set at both the [general]
level and the peer level.
Instead of relying on the default settings in Asterisk, we’ll define all three options in the
[general] section of our sip.conf file. This way we can see explicitly what we’ve enabled:
; Out of band messaging
accept_outofcall_message=yes
outofcall_message_context=IncomingMessages
auth_message_requests=yes
If you want to override the default settings we’ve created here for specific
peers, just add outofcall_message_context=SomeOtherContext to
your SIP peers definition.
Once configured, reload the SIP channel driver:
$ asterisk -rx "sip reload"
Dialplan Configuration
In this section, we’ll demonstrate how to configure the dialplan to receive and send
messages over the XMPP protocol.
While sending and receiving of messages via SIP is possible, it is not
generally deployed. Consider the examples in this section to be a
springboard for your development if you need this functionality.
After we’ve configured our system as described in “xmpp.conf Configuration” on page
522, we need to configure our dialplan to handle incoming messages. First, let’s con‐
figure the dialplan so we can accept a message and display it to the Asterisk console:
[IncomingMessages]
exten => s,1,NoOp()
same => n,Verbose(2,Totally getting a message yo)
same => n,Verbose(2,Got message from ${MESSAGE(from)} destined for
${MESSAGE(to)} with body ${MESSAGE(body)}))
524 | Chapter 18: External Services
www.it-ebooks.info
As you can see, we’ve defined our context IncomingMessages. When a message is bound
for Asterisk, it will get matched in the context by the s extension. At our first priority
we simply execute a NoOp(). The next line outputs some standard text using the Ver
bose() application. On the last line, we use the Verbose() application again to show
the contents of the message body, and who the message came from, and who it was
destined to. The contents of the message body and the from and to headers are displayed
using the MESSAGE() function, which is used for both displaying received data (as we’ve
shown), and for sending data from our Asterisk system.
To test this dialplan example, type the following:
$ asterisk -r
*CLI> dialplan reload
*CLI> core set verbose 5
Now we send an XMPP message to the Asterisk server after adding our PBX to our
buddy list. After sending any message, we should see the Verbose() output on our
console. If not, we verify our connection with xmpp show connections and make sure
the user messaging the PBX is listed in xmpp show buddies.
To send a response, we use the MESSAGE() function to define the body of the message,
and the MessageSend() application to trigger the response being sent to the far end. We
simply add the following two lines after what’s already been defined in extensions.conf:
same => n,Set(MESSAGE(body)=Thank you for messaging the Shift-Eight PBX)
same => n,MessageSend(${MESSAGE(from)},XMPP:asterisk)
Let’s review what we’re doing. The first line defines the message body that we’ll respond
with to an incoming message. You can’t define multiple lines here, or have any new lines
in the message body. The second line is what passes the message body back to the
endpoints we received a message from. The arguments to MessageSend() are who to
respond to, and what account to use for responding.
Looking at our second line, our first argument uses the MESSAGE() function with the
from argument, which will cause the message to be sent to the same endpoint that we
received a message from. The second argument is a combination of the protocol to
respond over (XMPP in this case, the other option is SIP) and the account name as defined
in xmpp.conf (asterisk).
After making your changes, reload the dialplan with dialplan reload and send a mes‐
sage to the PBX. You should now get a response thanking you for messaging the Shift-
Eight PBX.
LDAP Integration
Asterisk supports the ability to connect to an existing Lightweight Directory Access
Protocol (LDAP) server to load information into your Asterisk server using the Asterisk
LDAP Integration | 525
www.it-ebooks.info
Realtime Architecture (ARA). The advantage of integrating Asterisk and LDAP will
become immediately obvious when you start centralizing your authentication mecha‐
nisms to the LDAP server and using it for several applications: you significantly cut
down the administrative overhead of managing your users by placing all their infor‐
mation in a central location.
There are both commercial and open source LDAP servers available, the most popular
commercial solution likely being the one implemented by Microsoft Windows servers.
A popular open source LDAP server is OpenLDAP. We will not delve into the config‐
uration of the LDAP server here, but we will show you the schema required to connect
Asterisk to your server and to use it to provide SIP connections and voicemail service
to your existing user base.
Configuring OpenLDAP
While a discussion of the installation and configuration of an LDAP server is beyond
the scope of this chapter, it is certainly applicable to show you how we expanded our
initial LDAP schema to include the information required for Asterisk integration. Our
initial installation followed instructions from the Ubuntu documentation page. We only
needed to follow the instructions up to and including the backend.example.com.ldif
import; the next step after importing the backend configuration is installing the
Asterisk-related schemas.
If you’re following along, with the backend imported, change into your Asterisk source
directory. Then copy the asterisk.ldap-schema file into the /etc/ldap/schema directory:
$ cd ~/src/asterisk-complete/asterisk/11/contrib/scripts/
$ sudo cp asterisk.ldap-schema /etc/ldap/schema/asterisk.schema
With the schema file copied in, restart the OpenLDAP server:
$ sudo /etc/init.d/slapd restart
Now we’re ready to import the contents of asterisk.ldif into our OpenLDAP server. The
asterisk.ldif file is located in the /contrib/scripts folder of the Asterisk source directory:
$ sudo ldapadd -Y EXTERNAL -H ldapi:/// -f asterisk.ldif
We can now continue with the online instructions and import the frontend.exam
ple.com.ldif file. Within that file is an initial user, which we can omit for now as we’re
going to modify the user import portion to include an objectClass for Asterisk (i.e.,
in the example file, the section of text that starts with uid=john can be deleted).
We’ll create a user and add the configuration values that will let the user register his
phone (which will likely be a softphone, since the hardphone on the user’s desk will, in
most cases, be configured from a central location) via SIP by using his username and
password, just as he would normally log in to check email and such.
526 | Chapter 18: External Services
www.it-ebooks.info
The configuration file we’ll create next will get imported with the ldapadd command
and will be added into the people object unit within the shifteight.org space. Be sure to
change the values to match those of the user you wish to set up in LDAP and to substitute
dc=shifteight,dc=org with your own location.
Before we create our file, though, we need to convert the password into an MD5 hash.
Asterisk will not authenticate phones using plain-text passwords when connecting via
LDAP. We can convert the password using the md5sum command:
$ echo "my_secret_password" | md5sum
a7be810a28ca1fc0668effb4ea982e58 -
We’ll insert the returned value (without the hyphen) into the following file within the
userPassword field, prefixed with {md5}:
$ cat > astuser.ldif
dn: uid=rbryant,ou=people,dc=shifteight,dc=org
objectClass: inetOrgPerson
objectClass: posixAccount
objectClass: shadowAccount
objectClass: AsteriskSIPUser
uid: rbryant
sn: Bryant
givenName: Russell
cn: RussellBryant
displayName: Russell Bryant
uidNumber: 1001
gidNumber: 10001
userPassword: {md5}a7be810a28ca1fc0668effb4ea982e58
gecos: Russell Bryant
loginShell: /bin/bash
homeDirectory: /home/russell
shadowExpire: -1
shadowFlag: 0
shadowWarning: 7
shadowMin: 8
shadowMax: 999999
shadowLastChange: 10877
mail: russell.bryant@shifteight.org
postalCode: 31000
l: Huntsville
o: shifteight
title: Asterisk User
postalAddress:
initials: RB
AstAccountCallerID: Russell Bryant
AstAccountContext: LocalSets
AstAccountDTMFMode: rfc2833
AstAccountMailbox: 101@shifteight
AstAccountNAT: yes
AstAccountQualify: yes
LDAP Integration | 527
www.it-ebooks.info
AstAccountType: friend
AstAccountDisallowedCodec: all
AstAccountAllowedCodec: ulaw
AstAccountMusicOnHold: default
Ctrl+D
The one field we should explicitly mention here is the userPassword
field. We require that the value in this field be in the format of an MD5
hash. In versions prior to Asterisk 1.8.0, the prefix of {md5} in front of
the hash was required. While it is no longer necessary, it is still
recommended.
With the file created, we can add the user to our LDAP server:
$ sudo ldapadd -x -D cn=admin,dc=shifteight,dc=org -f astusers.ldif -W
Enter LDAP Password:
adding new entry "uid=rbryant,ou=people,dc=shifteight,dc=org"
Our user has now been imported into LDAP. The next step is to configure Asterisk to
connect to the LDAP server and allow users to authenticate and register their phones.
Compiling LDAP Support into Asterisk
With our OpenLDAP server configured and the schema imported, we need to install
the dependencies for Asterisk and compile the res_config_ldap module. This module
is the key that will allow us to configure Asterisk realtime for accessing our peers
via LDAP.
Once we’ve installed the dependency, we need to rerun the ./configure script inside the
Asterisk source directory, then verify that the res_config_ldap module is selected.
Then we can run make install to compile and install the new module.
Ubuntu dependencies
On Ubuntu, we need to install the openldap-dev package to provide the dependency for
the res_config_ldap module:
$ sudo apt-get install openldap-dev
RHEL dependencies
On RHEL, we need to install the openldap-devel package to provide the dependency for
the res_config_ldap module:
$ sudo yum install openldap-devel
528 | Chapter 18: External Services
www.it-ebooks.info
Configuring Asterisk for LDAP Support
Now that we’ve configured our LDAP server and installed the res_config_ldap mod‐
ule, we need to configure Asterisk to support loading of peers from LDAP. To do this,
we need to configure the res_ldap.conf file to connect to the LDAP server, and the
extconfig.conf file to tell Asterisk what information to get from the LDAP server and
how. Once that is done, we can configure any remaining module configuration files,
such as sip.conf, iax.conf, voicemail.conf, and so on, where appropriate. In our example,
we’ll be configuring Asterisk to load our SIP peers from realtime using the LDAP server
as our database.
Configuring res_ldap.conf
The res_ldap.conf.sample file is a good place to start because it contains a good set of
templates. At the top of the file, though, under the [_general] section, we need to
configure how Asterisk is going to connect to our LDAP server. Our first option is
url, which will determine how to connect to the server. We have defined a connection
as ldap://172.16.0.103:389, which will connect to the LDAP server at IP address
172.16.0.103 on port 389. If you have a secure connection to your LDAP server, you
can replace ldap:// with ldaps://. Additionally, we have set protocol=3 to state that
we’re connecting with protocol version 3, which in most (if not all) cases will be correct.
The last three options, basedn, user, and pass, are used for authenticating to our LDAP
server. We need to specify:
•The basedn (dc=shifteight,dc=org), which is essentially our domain name
•The user name we’re going to authenticate to the LDAP server as (admin)
•The password for the user to authenticate with (canada)
If we put it all together, we end up with something like the following:
[_general]
url=ldap://172.16.0.103:389
protocol=3
basedn=dc=shifteight,dc=org
user=cn=admin,dc=shifteight,dc=org
pass=canada
Beyond this, in the rest of the sample configuration file we’ll see lots of templates we
can use for mapping the information in Asterisk onto our LDAP schema. Let’s take a
look at the first lines of the [sip] template that we’ll be using to map the information
of our SIP peers into the LDAP database:
[sip]
name = cn
amaflags = AstAccountAMAFlags
callgroup = AstAccountCallGroup
LDAP Integration | 529
www.it-ebooks.info
callerid = AstAccountCallerID
...
lastms = AstAccountLastQualifyMilliseconds
useragent = AstAccountUserAgent
additionalFilter=(objectClass=AsteriskSIPUser)
On the left side, we have the field name Asterisk will be looking up, and on the right is
the mapping to the LDAP schema for the request. Our first set of fields is mapping the
name field to the cn field on the LDAP server. If you look back at the data we imported
in “Configuring OpenLDAP” on page 526, you’ll see that we have created a user and
assigned the value of RussellBryant to the cn field. So, in this case, we’re mapping the
authentication name (the name field) from the SIP user to the value of the cn field in the
LDAP server (RussellBryant).
This goes for the rest of the values all the way down, with some fields (i.e., useragent,
lastms, ipaddr) simply needing to exist so Asterisk can write information (e.g., regis‐
tration information) to the LDAP server.
Configuring extconfig.conf
Our next step is to tell Asterisk what information to load via realtime and what tech‐
nology to use. Using the extconfig.conf file, we have the option of loading several modules
dynamically (and we can also load files statically). For more information about Asterisk
realtime, see “Using Realtime” on page 449.
For our example, we’re going to configure the sipusers and sippeers dynamic realtime
objects to load our SIP peers from LDAP. In the following example, we have a line
like this:
ldap,"ou=people,dc=shifteight,dc=org",sip
We’ve specified three arguments. The first is ldap, which is the technology we’re going
to use to connect to our realtime object. There are other technologies available, such as
odbc, pgsql, curl, and so on. Our second argument, enclosed in double quotes, specifies
which database we’re connecting to. In the case of LDAP, we’re connecting to the object-
unit people within the domain shifteight.org. Lastly, our third argument, sip, de‐
fines which template we’re using (as defined in res_ldap.conf) to map the realtime data
to the LDAP database.
Additionally, you can specify a fourth argument, which is the priority.
If you define multiple realtime objects, such as when defining queues
or sippeers, you can utilize the priority argument to control failover if
a particular storage engine becomes unavailable. Priorities must start
at 1 and increment sequentially.
530 | Chapter 18: External Services
www.it-ebooks.info
To define the use of sipusers and sippeers from the LDAP server, we would enable
these lines in extconfig.conf:
sipusers => ldap,"ou=people,dc=shifteight,dc=org",sip
sippeers => ldap,"ou=people,dc=shifteight,dc=org",sip
Configuring sip.conf for realtime
These steps are optional for configuring SIP for realtime, although you will likely expect
things to work in the manner we’re going to describe. In the sip.conf file, we will enable
a few realtime options that will cache information into memory as it is loaded from the
database. By doing this, we’ll allow Asterisk to place calls to devices by simply looking
at the information stored in memory. Not only does caching make realtime potentially
more efficient, but things like device-state updates simply can’t work unless the devices
are cached in memory.
A peer is only loaded into memory upon registration of the device or
placing a call to the device. If you run the command sip reload on the
console, the peers will be cleared from memory as well, so you may need
to adjust your registration times if that could cause issues in your
system.
To enable peer caching in Asterisk, use the rtcachefriends option in sip.conf:
rtcachefriends=yes
There are additional realtime options as well, such as rtsavesysname, rtupdate, rtau
toclear, and ignoreregexpire. These are all explained in the sip.conf.sample file lo‐
cated within your Asterisk source.
Text-to-Speech Utilities
Text-to-speech utilities are used to convert strings of words into audio that can be played
to your callers. Text-to-speech has been around for many years, and has been continually
improving. While we can’t recommend text-to-speech utilities to take the place of pro‐
fessionally recorded prompts, they do offer some degree of usefulness in applications
where dynamic data needs to be communicated to a caller.
Festival
Festival is one of the oldest running applications for text-to-speech on Linux. While the
quality of Festival is not sufficient for us to recommend it for production use, it is
certainly a useful way of testing a text-to-speech-based application. If a more polished
Text-to-Speech Utilities | 531
www.it-ebooks.info
sound is required for your application, we recommend you look at Cepstral (covered
next).
Installing Festival on RHEL
Installing Festival and its dependencies on RHEL is straightforward. Simply use yum to
install the festival package:
$ sudo yum install festival
Installing Festival on Ubuntu
To install Festival and its dependencies on Ubuntu, simply use apt-get to install the
festival package:
$ sudo apt-get install festival
Using Festival with Asterisk
With Festival installed, we need to modify the festival.scm file in order to enable Asterisk
to connect to the Festival server. On both RHEL and Ubuntu, the file is located in /usr/
share/festival. Open the file and place the following text just above the last line, (provide
'festival):
(define (tts_textasterisk string mode)
"(tts_textasterisk STRING MODE)
Apply tts to STRING. This function is specifically designed for
use in server mode so a single function call may synthesize the string.
This function name may be added to the server safe functions."
(let ((wholeutt (utt.synth (eval (list 'Utterance 'Text string)))))
(utt.wave.resample wholeutt 8000)
(utt.wave.rescale wholeutt 5)
(utt.send.wave.client wholeutt)))
After adding that, you need to start the Festival server:
$ sudo festival_server 2>&1 > /dev/null &
Using menuselect from your Asterisk source directory, verify that the app_festival
application has been selected under the Applications heading. If it was not already se‐
lected, be sure to run make install after selecting it to install the Festival() dialplan
application.
Before you can use the Festival() application, you need to tell Asterisk how to connect
to the Festival server. The festival.conf file is used to control how Asterisk connects to
and interacts with the Festival server. The sample festival.conf file located in the Asterisk
source directory is a good place to start, so copy festival.conf.sample from the /configs
subdirectory of your Asterisk source to the /etc/asterisk configuration directory now:
$ cp ~/asterisk-complete/asterisk/11/configs/festival.conf.sample \
/etc/asterisk/festival.conf
532 | Chapter 18: External Services
www.it-ebooks.info
The default configuration is typically enough to connect to the Festival server running
on the local machine, but you can optionally configure parameters such as the host
where the Festival server is running (if remote), the port to connect to, whether to
enable caching of files (defaults to no), the location of the cache directory (defaults
to /tmp), and the command Asterisk passes to the Festival server.
You can verify that the Festival() dialplan application is accessible by running core
show application festival from the Asterisk console:
*CLI> core show application festival
If you don’t get output, you may need to load the app_festival.so module:
*CLI> module load app_festival.so
Verify that the app_festival.so module exists in /usr/lib/asterisk/modules if you’re still
having issues with loading the module.
After loading the Festival() application into Asterisk, you need to create a test dialplan
extension to verify that Festival() is working:
[LocalSets]
exten => 203,1,Verbose(2,This is a Festival test)
same => n,Answer()
same => n,Playback(silence/1)
same => n,Festival(Hello World)
same => n,Hangup()
Reload the dialplan with the dialplan reload command from the Asterisk console, and
test out the connection to Festival by dialing extension 203.
Alternatively, if you’re having issues with the Festival server, you could use the following
method to generate files with the text2wave application supplied with the festival
package:
exten => 202,1,Verbose(2,Trying out Festival)
same => n,Answer()
; *** This line should not have any line breaks
same => n,System(echo "This is a test of Festival"
| /usr/bin/text2wave -scale 1.5 -F 8000 -o /tmp/festival.wav)
same => n,Playback(/tmp/festival)
same => n,System(rm -f /tmp/festival.wav)
same => n,Hangup()
You should now have enough to get started with generating text-to-speech audio for
your Asterisk system. The audio quality is not brilliant, and the speech generated is not
clear enough to be easily understood over a telephone, but for development and testing
purposes Festival can fill the gap until you’re ready for a more professional-sounding
text-to-speech generator such as Cepstral.
Text-to-Speech Utilities | 533
www.it-ebooks.info
Cepstral
Cepstral is a text-to-speech engine that works in a similar manner as the Festival()
application in the dialplan, but it produces much higher-quality sound. Not only is the
quality significantly better, but Cepstral has developed a text-to-speech engine that em‐
ulates Allison’s voice, so your text-to-speech engine can sound the same as the English
sound files that ship with Asterisk by default, to give a consistent experience to the caller.
Cepstral is a commercial module, but for around $30 you can have a text-to-speech
engine that is clearer, is more consistent with other sound prompts on your system, and
provides a more pleasurable experience for your callers. The Cepstral software and
installation instructions can be downloaded from the Digium.com webstore.
Conclusion
In this chapter, we focused on integrating Asterisk with external services that may not
be directly related to generating or handling calls, but do enable tighter coupling with
existing services on your network by providing information for call routing, or infor‐
mation about your users from your existing infrastructure.
534 | Chapter 18: External Services
www.it-ebooks.info
Have no fear of perfection. You’ll never reach it.
—Salvador Dali
CHAPTER 19
Fax
The concept of facsimile transmission has been around for over 100 years, but it was
not until the 1980s that the use of fax machines became essential in business. This lasted
for perhaps two decades. Then the Internet came along, and very shortly after that, the
fax quickly became almost irrelevant.
What Is a Fax?
A fax machine allows a facsimile (copy) of a document to be transmitted across a tele‐
phone line. In the Internet age, this sort of functionality seems useless; however, prior
to ubiquitous Internet access, this was a very useful thing indeed. Fax machines scan a
document into a digital format, transmit the digital information in a manner similar to
that used by an analog modem, and then convert and print the received information on
the other end.
Ways to Handle Faxes in Asterisk
Asterisk offers the ability to both send and receive faxes, but it should be noted that
Asterisk is only doing the basics of fax transport. This means that providing a complete
experience to your users will require external programs and resources beyond what
Asterisk delivers.
535
www.it-ebooks.info
Asterisk Fax can:
• Recognize an incoming fax connection and negotiate a session
• Store (receive) the incoming fax as a Tagged Image File Format (TIFF) file
•Accept TIFF files in a fax-compatible format
•Transmit TIFF files to another fax machine
Asterisk Fax cannot:
• Print faxes
• Accept documents for transmission in any format other than TIFF
Receiving is relatively simple, since the format of the document is determined at the
sending end, and thus all Asterisk needs to do is store the document.
Transmitting is somewhat more complex, since the transmitting end is responsible for
ensuring that the document to be sent is in the correct format for faxing. This typically
places a burden on the user to understand how to create a properly formatted document,
or requires complex client or server software to handle the formatting (for example,
through a print driver installed on the local PC) and placement of the fax job in a location
where the server can grab it and transmit it.
spandsp
Initially, the only way to handle faxing in Asterisk was through the spandsp library.
spandsp provides a multitude of digital signal processing (DSP) capabilities, but in this
context all we are interested in is its fax functionality.
Asterisk has the hooks built in to make use of spandsp, but due to incompatible licenses,
the spandsp libraries must be downloaded and compiled separately from Asterisk. Also,
since spandsp was not written only for Asterisk, it will not assume that it is being in‐
stalled for Asterisk. This means that a few extra steps will be required to ensure Asterisk
can use spandsp.
Obtaining spandsp
As of this writing, the current version of spandsp is 0.0.6.
Download and extract the spandsp source code as follows:
$ mkdir ~/src/asterisk-complete/thirdparty
$ cd ~/src/asterisk-complete/thirdparty
$ wget http://www.soft-switch.org/downloads/spandsp/spandsp-0.0.6pre21.tgz
$ tar zxvf spandsp-0.0.6pre21.tgz
$ cd spandsp-0.0.6
536 | Chapter 19: Fax
www.it-ebooks.info
Compiling and Installing spandsp
As spandsp relies heavily on image libraries, you will need to install several dependent
packages. Ubuntu makes this relatively easy, because you can install one package and
dependencies take care of the rest:
$ sudo apt-get install libtiff-dev
Or, on RHEL:
$ sudo yum install -y libtiff-devel
The spandsp software should compile and install with the following commands:
$ ./configure
$ make
$ sudo make install
This will install the library in the /usr/local/lib folder. On many Linux systems this folder
is not automatically part of the library path (libpath), so it will need to be added manually.
Adding the spandsp Library to Your libpath
In order to make the spandsp library visible to all applications on the system, the folder
where it is located must be added to the libpath for the system. This is typically done by
editing files in the /etc/ld.so.conf.d directory. You simply need to ensure that one of the
files in that directory has /usr/local/lib listed. If not, the following command will
create a suitable file for you:
$ sudo cat >> /etc/ld.so.conf.d/usrlocallib.conf
/usr/local/lib
Press Ctrl+D to save the file, then run the ldconfig command to refresh the library paths:
$ sudo ldconfig
You are now ready to recompile Asterisk for spandsp support.
Recompiling Asterisk with spandsp Support
Since the spandsp library was probably not installed on the system when Asterisk was
first compiled, you will need to do a quick recompile of Asterisk in order to have the
spandsp support added:
$ cd ~/src/asterisk-complete/asterisk/11/
$ ./configure
$ make menuselect
Ensure that under the Resource Modules heading, the section for spandsp looks like
this:
[*] res_fax_spandsp
spandsp | 537
www.it-ebooks.info
If you see this instead,
XXX res_fax_spandsp
it means that Asterisk was not able to find the spandsp library.
Once you have verified that Asterisk can see spandsp, you are ready to recompile. Save
and exit from menuselect, and run the following:
$ make
$ make install
You can verify that spandsp is working with Asterisk by issuing the following command
from the Asterisk CLI:
*CLI> module show like res_fax_spandsp.so
At this point the SendFAX() and ReceiveFAX() dialplan applications will be available
to you.
Disabling spandsp (Should You Want to Test Digium Fax)
The spandsp library and the Digium fax library, discussed in the next section, are mu‐
tually exclusive. If you want to try out the Digium fax product, you will need to ensure
that spandsp does not load. To disable spandsp in Asterisk, simply edit your /etc/asterisk/
modules.conf file as follows:
noload => res_fax_spandsp.so
;noload => res_fax_digium.so
Save the changes and restart Asterisk.
Digium Fax For Asterisk
Digium Fax For Asterisk (FFA) was developed out of a strong desire from the Asterisk
community to have a Digium-supported fax mechanism in Asterisk. Free for single-
channel use, this product can also be licensed from Digium to handle more than one
simultaneous fax channel.
Obtaining Digium FFA
Digium FFA can be obtained from the Digium website. The process of downloading,
installing, and registering this library is thoroughly documented in the Fax For Asterisk
Administrator Manual, which you can also download from Digium. You will need to
register at the Digium website in order to obtain your free, single-channel fax license
key and download the admin manual. There is also a comprehensive README file
included with the software, which details the steps necessary to get Digium FFA going
on your system.
538 | Chapter 19: Fax
www.it-ebooks.info
We also recommend running the benchfax test program multiple times to verify which
processor core is best on your system. In one case, the FFA core optimized for the Core
2 Duo actually performed better on an old dual-core Pentium II system, which was
clearly incorrect. Repeat testing bore out which core produced consistently better
results.
Disabling Digium FFA (Should You Want to Test spandsp)
The Digium FFA library and the spandsp library are mutually exclusive. If you want to
try out spandsp, you will need to ensure that Digium FFA does not load. To disable FFA,
simply edit your /etc/asterisk/modules.conf file as follows:
noload => res_fax_digium.so
;noload => res_fax_spandsp.so
We typically put the noload statements in pairs, then uncomment only one of
them, depending upon which one we want to test. This makes switching between
them as simple as commenting one out and uncommenting the other.
Save the changes and restart Asterisk.
Incoming Fax Handling
Received faxes are commonly encoded in Tagged Image File Format (TIFF). This
graphics file format, while not as well known as JPEG or GIF, is not as obscure as one
might think. In fact, we suspect your computer (whether you’re running Windows,
Linux, or MacOS) will already have the ability to interpret TIFF files built in. It has
become popular to offer PDF as a delivery format for received faxes mainly due to many
TIFF image viewers only expecting a single image contained within. If you’re viewing
a received TIFF image, expecting to see multiple pages, and only the first page is shown,
the image viewer is often the culprit. It is often easier simply to translate your TIFF
image to a PDF and view that, rather than trying to figure out which image program
will let you see the multiple pages of a TIFF fax image.
Received faxes will be stored by Asterisk as files. Where those files are stored will depend
on several factors, including:
•What software you are using to simulate a fax modem (e.g., IAXmodem, Digium
ReceiveFAX)
•The location in your filesystem that you have configured for storage of received
faxes
•Any post-receipt processing you have decided to perform on the files
Incoming Fax Handling | 539
www.it-ebooks.info
In the dialplan, you will need to build in enough intelligence to name faxes so that they
will be distinct from each other. There are many channel variables and functions that
can be used for this purpose, such as the STRFTIME() function. Asterisk can easily handle
capturing the fax to a file, but you will need to make sense out of what happens to that
file once it is stored on the system.
The use of certain variables within the name may be dangerous to your
system security, especially when using variables that may be set re‐
motely, such as ${CALLERID(name)} and even ${CALLERID(num)}. If
you try to use intelligent naming, you must be careful to ensure that
certain shell metacharacters are either removed from the name (easier)
or properly escaped (more difficult) when used with the shell. We rec‐
ommend that if you want to use CALLERID() values, you should wrap
them with the FILTER() dialplan function, as in ${FILTER(A-Za-z0-9\
\x28-\\x2F,${CALLERID(name)})}, to remove any potentially nasty
characters. The encoding of the range \\x28-\\x2F is intended to allow
characters like comma and parentheses without them being directly
interpreted by Asterisk.
Fax to TIFF
A subset of the TIFF file format has for a long time been the de facto file format used
for faxes. However, as image viewers regularly only show the first page of a fax stored
within a TIFF, directly viewing the image often results in a disappointment (or worse,
a false diagnosis that only the first page seems to have been received).
Once the incoming fax call has been completed, the resulting TIFF file can be opened
directly from the folder where it was stored or converted to PDF. You can install a helpful
command-line utility called tiff2pdf to do the translation, which can be installed on
RHEL with the command:
$ sudo yum install libtiff
and on Ubuntu with:
$ sudo apt-get install libtiff-tools
Once installed, the program can be a little tricky; it will output the source of the PDF
to your screen, unless you redirect the output to a file. This apparent shortcoming of
the utility is actually a feature; we use it with mail attachments that can take a command
as an argument, so the TIFF image is stored on our Asterisk server, since it is smaller
than the resulting PDF. If that seems too complicated, you can also simply create a PDF
file:
$ tiff2pdf filename.tiff > filename.pdf
540 | Chapter 19: Fax
www.it-ebooks.info
or, use the command to send the aforementioned attachment without storing an inter‐
mediate file:
You will need to install the MIME::Lite package for Perl to use this script.
For RHEL, the package name is perl-MIME-Lite. For Ubuntu, the
package name is libmime-lite-perl.
#!/usr/bin/perl
use MIME::Lite;
my ($filename,$person,$email) = @ARGV;
my $msg = MIME::Lite->new(
From => 'fax-server@shifteight.org',
To => $email,
Subject => "Fax received!",
Type => 'multipart/mixed'
);
$msg->attach(
Type => 'TEXT',
Data => "Dear $person,\n\n\tYou have received a fax. " .
"It is attached.\n\n--The ShiftEight Fax Server\n"
);
$msg->attach(
Type => 'application/pdf',
Path => "/usr/bin/tiff2pdf -a \"$cidname\"
"/var/spool/asterisk/faxes/$filename |",
Filename => "fax.pdf",
Disposition => 'attachment'
);
$msg->send;
The use of the MIME::Lite package is beyond the scope of this book; however, as
it makes it very easy to illustrate the use of the tiff2pdf utility, we felt it was
worth its inclusion.
Fax to Email
Once Asterisk has received a fax, the resulting TIFF file needs a way to get to its final
destination: a person.
The key consideration is that unless Asterisk knows enough detail about the fax, it may
not be possible to deduce the intended recipient without having someone actually read
the fax (it is common for a fax to have a cover page with the recipient’s information
written on it, which even the most capable text recognition software would have a dif‐
ficult time making sense of). In other words, unless you dedicate a DID to each user
Incoming Fax Handling | 541
www.it-ebooks.info
who might receive a fax, Asterisk isn’t going to be able to do much more than send all
faxes to a single email address. You could code something in the dialplan to handle this,
though, or have an external cron job or other daemon handle distributing the received
faxes.
A simple dialplan to handle fax to email might look something like this (you will need
the above Perl script installed as /opt/asteriskbook/bin/sendfax.pl):
exten => fax,1,Verbose(3,Incoming fax)
; folder where your incoming faxes will initially be stored
same => n,Set(FAXDEST=/tmp)
; put a timestamp on this call so the resulting file is unique
same => n,Set(tempfax=${STRFTIME(,,%C%y%m%d%H%M)})
same => n,ReceiveFax(${FAXDEST}/${tempfax}.tif)
same => n,Verbose(3,- Fax receipt completed with status: ${FAXSTATUS})
; *** This line should not have any line breaks
same => n,System(/opt/asteriskbook/bin/sendfax.pl ${FAXDEST}/${tempfax}.tif
"Leif Madsen" lmadsen@shifteight.org)
Obviously, this sample would not be suitable for production (for example, it does not
handle fax failure); however, it would be enough to start prototyping a more fully fea‐
tured incoming fax handler.
Fax to PDF
Delivering a fax to a user as a PDF is a popular request. Since PCs, Macs, and Linux
desktops can natively read TIFF files without any conversion required, this isn’t strictly
required. Nevertheless, many people insist on this functionality.
Fax Detection
You may have a dedicated phone number for receiving faxes. However, with Asterisk,
that is not a requirement. Asterisk has the ability to detect that an incoming call is a fax
and can handle it differently in the dialplan. Fax detection is available for both DAHDI
and SIP channels. To enable it for DAHDI, set the faxdetect option in /etc/asterisk/
chan_dahdi.conf. In most cases, you should set this option to incoming. Table 19-1 lists
the possible values for the faxdetect option in chan_dahdi.conf.
542 | Chapter 19: Fax
www.it-ebooks.info
1. Ninety percent might seem to be still too low, but most fax machines will automatically attempt a retransmit
upon a failure to send; this happens far more often than you might realize, because the fax reattempt is
automatic. In practice, this means a success rate closer to 99 percent.
Table 19-1. Possible values for the faxdetect option in chan_dahdi.conf
Value Description
incoming Enables fax detection on inbound calls. When a fax is detected, applies the faxbuffers option if it has been
set and redirects the call to the fax extension in the dialplan. For more information on the faxbuffers
option, see “Using Fax Buffers in chan_dahdi.conf” on page 549.
outgoing Enables fax detection on outbound calls. The dialplan is not executing on an outbound channel. If a fax is
detected, the faxbuffers option will be applied, and the channel will be redirected and start executing the
dialplan at the fax extension.
both Enables fax detection for both incoming and outgoing calls.
no Disables fax detection. This is the default.
To enable fax detection for SIP calls, you must set the faxdetect option in /etc/asterisk/
sip.conf. This option may be set in the [general] section, or for a specific peer. Table 19-2
covers the possible values for the faxdetect option in sip.conf.
Table 19-2. Possible values for the faxdetect option in sip.conf
Value Description
cng Enables fax detection by watching the audio for a CNG tone. If a CNG tone is detected, redirects the call to the fax
extension in the dialplan.
t38 Redirects the call to the fax extension in the dialplan if a T.38 reinvite is received.
yes Enables both cng and t38 fax detection.
no Disables fax detection. This is the default.
Using T.38
One of the first things you’ll notice when trying to receive faxes from a VoIP service
provider is the outstanding rate of failures. As discussed above, fax is particularly finicky
about the latency between the endpoints, and some fax machines simply will give up
quickly rather than trying to negotiate, while others will work fine. In a strictly audio-
based fax-over-VoIP scenario, we’ve seen a success rate of less than 50 percent when
attempting to receive faxes, and many sending fax machines simply won’t work at all.
T.38 is particularly helpful here, as the protocol is designed to negotiate around this
issue with latency. In its simplest sense, T.38 simply receives the fax piecemeal on one
side, sends the resulting pieces of the image over VoIP, then retransmits the fax on the
other end. By avoiding the idiosyncrasies of the fax signal, the success rate can be in‐
creased to over 90 percent.1
Incoming Fax Handling | 543
www.it-ebooks.info
We’ve found that received TIFF files smaller than about 2,000 bytes are
typically failures and don’t need to be emailed to the recipient.
Fortunately, there’s very little you need to do to enable the T.38 signaling; simply enable
t38pt_udptl in sip.conf:
t38pt_udptl = yes
This enables T.38 fax negotiation, if the remote endpoint supports it, and if not, SendFax
will attempt to fall back to audio-based transmittal.
Which VoIP Provider?
It’s also worth noting that some VoIP providers, including a Very Popular one, don’t
support T.38 for whatever reason. As there are many providers for most areas, we haven’t
found this to be a problem; simply provision with a provider which claims to support
T.38. We’ve used Flowroute in our testing and on production servers, and we’ve been
very pleased with the ease with which they support T.38.
Outgoing Fax Handling
Transmitting faxes from Asterisk is somewhat more difficult than receiving them. The
reason is simply that the preparation of the fax prior to transmission involves more
work. There isn’t anything particularly complex about fax transmittal, but you will need
to make some design decisions about things like:
•How to get the source fax file formatted for Asterisk
•How to get the source fax file into the Asterisk system (specifically, into some folder
where Asterisk can access it)
•What to do with transmitted faxes (save them? delete them? move them
somewhere?)
•How to handle transmission errors
Transmitting a Fax from Asterisk
To transmit a fax from Asterisk, you must have a TIFF file. How you generate this TIFF
is important and may involve many steps. However, from Asterisk’s perspective the
sending of a fax is fairly straightforward. You simply run the SendFAX() dialplan ap‐
plication, passing it the path to a valid TIFF file:
544 | Chapter 19: Fax
www.it-ebooks.info
2. One format we tried was using the Microsoft Office Document Image Writer, which offers “TIFF-
monochrome fax” as an output format. This seemed too good to be true, which is exactly what it turned out
to be (neither spandsp nor Digium FFA could handle the resulting file). It would have been ideal to find
something common to Windows PCs that could be used to “print” an Asterisk-compatible TIFF file.
exten => faxthis,1,NoOp()
same => n,SendFAX(/path/to/fax/file,dz)
In practice, you will normally want to set some parameters prior to transmission, so a
complete extension for sending a fax using Digium’s Fax For Asterisk might look some‐
thing like this:
exten => faxthis,1,Verbose(2,Set options and transmit fax)
; some folder where your outgoing faxes will be found
same => n,Set(faxlocation=/tmp)
; In production you would probably not want to hardcode the filename
same => n,Set(faxfile=faxfile.tif)
same => n,Set(FAXOPT(headerinfo)=Fax from ShiftEight.org)
same => n,Set(FAXOPT(localstationid=4169671111)
same => n,SendFax(${faxlocation}/${faxfile},z)
File Format for Faxing
The real trick of sending a fax is having a source file that is in a format that the fax engine
can handle. At a basic level, these files are known as TIFF files; however, the TIFF spec
allows for all sorts of parameters, not all of which are compatible with fax and not many
of which are documented in any useful way. Additionally, the types of TIFF formats that
spandsp can handle are different from those Digium FFA will handle.
In the absence of one simple, clear specification of what TIFF file format will work for
sending faxes from Asterisk, we will instead document what we know to work, and leave
it up to the reader to experiment to find other ways to generate the TIFF.2
Digium’s Fax For Asterisk Administration Manual documents a process for converting
a PDF file into a TIFF using commonly available Linux command-line tools. While
kludgy, this method should allow you to build Linux scripts to handle the file conversion,
and your users will be able to submit PDFs as fax jobs.
You will need the ghostscript PDF interpreter, which can be installed in RHEL by the
command:
$ sudo yum -y install ghostscript
and in Ubuntu with:
$ sudo apt-get install ghostscript
Outgoing Fax Handling | 545
www.it-ebooks.info
Once installed, ghostscript can convert the PDF into an Asterisk-compatible TIFF file
with the following command:
$ gs -q -dNOPAUSE -dBATCH -sDEVICE=tiffg4 -sPAPERSIZE=letter |
> -sOutputFile=<dest> <src>
Replace <dest> with the name of the output file, and specify the location of your source
PDF with <src>.
The ghostscript program should create a TIFF file from your PDF that will be suitable
for transmission using Asterisk SendFax().
An Experiment in Email to Fax
Many users would like to be able to send emails as fax documents, which presents the
challenge of ensuring that users submit their documents in a format suitable for faxing.
This ultimately requires some form of application development, which is outside the
scope of this book.
What we have done is provided a simple example of some methods that at least provide
a starting point for delivering email to fax capabilities.
To provide this capability, one of the first things you’d have to do is make a change to
your /etc/aliases file, to redirect incoming faxes to an application that can handle them.
We are not actually aware of any app that can do this, so you’ll have to write one. The
change to your /etc/aliases file would look something like this:
fax: "| /path/to/program/that/will/handle/incoming/fax/emails"
In our case, Russell built a little Python script called fax.py, so our /etc/aliases file would
read something like this:
fax: "| /asteriskpbx/fax.py"
We have included a copy of the Python script we developed for your reference in
Example 19-1. Note that this file is not suitable for production, but merely serves as an
example of how a very basic email-to-fax functionality might be implemented.
You will need to enable credentials for the Asterisk Manager Interface
(AMI) per Chapter 20 before utilizing this script.
Example 19-1. Proof-of-concept email-to-fax gateway, fax.py
#!/usr/bin/env python
"""Poor Man's Email to Fax Gateway.
546 | Chapter 19: Fax
www.it-ebooks.info
This is a proof of concept email to fax gateway. There are multiple aspects
that would have to be improved for it to be used in a production environment.
Copyright (C) 2010-2013 - Russell Bryant, Leif Madsen, Jim Van Meggelen
Asterisk: The Definitive Guide
"""
import sys
import os
import email
import base64
import shutil
import socket
AMI_HOST = "localhost"
AMI_PORT = 5038
AMI_USER = "hello"
AMI_PASS = "world"
# This script will pull a TIFF out of an email and save it off to disk to allow
# the SendFax() application in Asterisk to send it. This is the location on
# disk where the TIFF will be stored.
TIFF_LOCATION = "/tmp/loremipsum.tif"
# Read an email from stdin and parse it.
msg = email.message_from_file(sys.stdin)
# For testing purposes, if you wanted to read an email from a file, you could
# do this, instead.
#try:
# f = open("email.txt", "r")
# msg = email.message_from_file(f)
# f.close()
#except IOError:
# print "Failed to open email input file."
# sys.exit(1)
# This next part pulls out a TIFF file attachment from the email and saves it
# off to disk in a format that can be used by the SendFax() application. This
# part of the script is incredibly non-flexible. It assumes that the TIFF file
# will be in a specific location in the structure of the message (the second
# part of the payload, after the main body). Further, it assumes that the
# encoding of the TIFF attachment is base64. This was the case for the test
# email that we were using that we generated with mutt. Emails sent by users'
# desktop email clients will vary in _many_ ways. To be used with user-
# generated emails, this section would have to be much more flexible.
try:
f2 = open(TIFF_LOCATION, "w")
f2.write(base64.b64decode(msg.get_payload()[1].get_payload().replace("\n", "")))
f2.close()
Outgoing Fax Handling | 547
www.it-ebooks.info
except IOError:
print "Failed to open file for saving off TIFF attachment."
sys.exit(1)
# Now that we have a TIFF file to fax, connect to the Asterisk Manager Interface
# to originate a call.
ami_commands = """Action: Login\r
Username: %s\r
Secret: %s\r
\r
Action: Originate\r
Channel: Local/s@sendfax/n\r
Context: receivefax\r
Extension: s\r
Priority: 1\r
SetVar: SUBJECT=%s\r
\r
Action: Logoff\r
\r
""" % (AMI_USER, AMI_PASS, msg['subject'])
print ami_commands
def my_send(s, data):
"""Ensure that we send out the whole data buffer.
"""
sent = 0
while sent < len(data):
res = s.send(data[sent:])
if res == 0:
break
sent = sent + res
def my_recv(s):
"""Read input until there is nothing else to read.
"""
while True:
res = s.recv(4096)
if len(res) == 0:
break
print res
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect((AMI_HOST, AMI_PORT))
my_send(s, ami_commands)
my_recv(s)
s.shutdown(socket.SHUT_RDWR)
s.close()
We tested this at a very rudimentary level and proved the basic concept. If you want to
put email-to-fax into production, you should understand that you will have more work
548 | Chapter 19: Fax
www.it-ebooks.info
to do before you have something actually robust enough to turn over to an average
group of users.
Fax Pass-Through
In theory, it should be possible to connect a traditional fax machine to an FXS port of
some sort and then pass incoming faxes to that device (see Figure 19-1). This concept
is attractive for a few reasons:
1. It allows you to integrate existing fax machines with your Asterisk system.
2. It requires far less configuration in the dialplan.
Unfortunately, fax pass-through is not the home run we would like it to be. The analog
carrier signal that two fax machines use to communicate is a delicate thing, and any
corruption of that signal will often cause a transmission failure. In an Asterisk system
performing pass-through, internal timing issues—coupled with signal attenuation—
can create an environment that is unstable for fax use, especially for larger (multipage)
faxes.
Figure 19-1. Typical fax pass-through
If you are using fax on a casual basis (mostly noncritical, one-page faxes), this sort of
setup can work well. If faxing is critical to your business, or you are often expecting
multipage faxes, we must reluctantly recommend that you connect your fax machines
directly to the PSTN and leave Asterisk out of it.
Using Fax Buffers in chan_dahdi.conf
Many of the problems with fax pass-through are caused by inconsistent timing. Since
faxes are more tolerant of latency than voice calls (a fax has to be able to travel halfway
around the world, which takes a few dozen milliseconds), the introduction of a buffer
in DAHDI (which is strictly used for faxes) has reportedly corrected many of the prob‐
lems that have plagued fax pass-through.
Fax Pass-Through | 549
www.it-ebooks.info
3. The 96 ms comes from the number 12 because of how DAHDI works. In DAHDI, a chunk of data is in 8 ms
fragments, so 12 buffers of data is 12 buffers * 8 ms = 96 ms of buffer.
The currently preferred setting is as follows:
faxbuffers => 12,half
This would be placed in your /etc/asterisk/chan_dahdi.conf file and would cause
chan_dahdi to create a 96 ms3 buffer for fax calls and delay the start of transmission
until the buffer was half full.
You would also need to set faxdetect, since the fax buffers are part of the faxdetect
functionality:
faxdetect = both
We have not extensively tested this capability yet, but anecdotal evidence suggests that
this should greatly improve the performance of fax pass-through in Asterisk.
T.38 Gateway
Another form of fax pass-through is T.38 gateway support, which was added in Asterisk
10. In this scenario, Asterisk is passing through a fax with a T.38-capable endpoint on
one side and a traditional fax endpoint on the other. One example would be if you had
a fax machine connected to an FXS port on the Asterisk machine and forwarded the
fax calls out to a SIP provider that supports T.38.
This example scenario is fairly straightforward to implement. The key is enabling T.38
gateway support using the FAXOPT dialplan function. For this example, let us assume
that all outgoing fax calls from the local fax machine are sent to the outgoing-fax
context. The following dialplan would enable T.38 gateway support and send the call
off to the T.38-capable SIP provider:
[outgoing-fax]
exten => _1NXXNXXXXXX,1,NoOp()
same => n,Set(FAXOPT(gateway)=yes)
same => n,Dial(SIP/t38provider)
Additionally, you can set a timeout on the T.38 gateway mode so that it gets turned back
off if there is no fax activity within the specified timeout. To set the timeout, it’s provided
as a part of setting the FAXOPT function:
; Disable T.38 gateway if there is no fax activity within 10 seconds
same => n,Set(FAXOPT(gateway)=yes,10)
550 | Chapter 19: Fax
www.it-ebooks.info
Conclusion
Fax is a technology whose days are behind it. Having said that, it remains popular.
Asterisk has some interesting technology built in that allows you some level of creativity
in handling faxes. With careful planning and system design, and a patient prototyping
and debugging phase, you can use your Asterisk system to handle faxing in creative
ways.
Conclusion | 551
www.it-ebooks.info
www.it-ebooks.info
John Malkovich: I have seen a world that
NO man should see!
Craig Schwartz: Really? Because for most people
it’s a rather enjoyable experience.
—Being John Malkovich
CHAPTER 20
Asterisk Manager Interface (AMI)
The Asterisk Manager Interface (AMI) is a system monitoring and management inter‐
face provided by Asterisk. It allows live monitoring of events that occur in the system,
as well as enabling requests for Asterisk to perform some action. The available actions
are wide-ranging and include things such as returning status information and origi‐
nating new calls. Many interesting applications have been developed on top of Asterisk
that use the AMI as their primary interface to Asterisk.
This chapter also includes documentation on the use of call files. Asterisk’s call files are
an easy way to originate a few calls. Once call origination volume increases or your needs
become otherwise more complex, you can move on to using the AMI. Details can be
found in “Call Files” on page 569.
Quick Start
This section is for getting your hands dirty with the AMI as quickly as possible. First,
put the following configuration in /etc/asterisk/manager.conf:
;
; Turn on the AMI and ask it to only accept connections from localhost.
;
[general]
enabled = yes
webenabled = yes
bindaddr = 127.0.0.1
553
www.it-ebooks.info
;
; Create an account called "hello", with a password of "world"
;
[hello]
secret=world
read=all ; Receive all types of events
write=all ; Allow this user to execute all actions
This sample configuration is set up to allow only local connections to
the AMI. If you intend to make this interface available over a network,
it is strongly recommended that you only do so using TLS. The use of
TLS is discussed in more detail later in this chapter.
Once the AMI configuration is ready, enable the built-in HTTP server by putting the
following contents in /etc/asterisk/http.conf:
;
; Enable the built-in HTTP server, and only listen for connections on localhost.
;
[general]
enabled = yes
bindaddr = 127.0.0.1
AMI over TCP
There are multiple ways to connect to the AMI, but a TCP socket is the most common.
We will use telnet to demonstrate AMI connectivity. This example shows these steps:
1. Connect to the AMI over a TCP socket on port 5038.
2. Log in using the Login action.
3. Execute the Ping action.
4. Log off using the Logoff action.
Here’s how the AMI responds to those actions:
$ telnet localhost 5038
Trying 127.0.0.1...
Connected to localhost.
Escape character is '^]'.
Asterisk Call Manager/1.1
Action: Login
Username: hello
Secret: world
Response: Success
Message: Authentication accepted
554 | Chapter 20: Asterisk Manager Interface (AMI)
www.it-ebooks.info
Action: Ping
Response: Success
Ping: Pong
Timestamp: 1282739190.454046
Action: Logoff
Response: Goodbye
Message: Thanks for all the fish.
Connection closed by foreign host.
Once you have this working, you have verified that AMI is accepting connections via a
TCP connection.
AMI over HTTP
It is also possible to use the AMI over HTTP. In this section we will perform the same
actions as before, but over HTTP instead of the native TCP interface to the AMI. AMI
over HTTP is covered in more detail in “AMI over HTTP” on page 564.
Accounts used for connecting to the AMI over HTTP are the same
accounts configured in /etc/asterisk/manager.conf.
This example demonstrates how to access the AMI over HTTP, log in, execute the Ping
action, and log off:
$ wget "http://localhost:8088/rawman?action=login&username=hello&secret=world" \
> --save-cookies cookies.txt -O -
--2010-08-31 12:34:23--
Resolving localhost... 127.0.0.1
Connecting to localhost|127.0.0.1|:8088... connected.
HTTP request sent, awaiting response... 200 OK
Length: 55 [text/plain]
Saving to: `STDOUT'
Response: Success
Message: Authentication accepted
2010-08-31 12:34:23 (662 KB/s) - written to stdout [55/55]
$ wget "http://localhost:8088/rawman?action=ping" --load-cookies cookies.txt -O -
--2010-08-31 12:34:23--
Resolving localhost... 127.0.0.1
Quick Start | 555
www.it-ebooks.info
Connecting to localhost|127.0.0.1|:8088... connected.
HTTP request sent, awaiting response... 200 OK
Length: 63 [text/plain]
Saving to: `STDOUT'
Response: Success
Ping: Pong
Timestamp: 1283258063.040293
2010-08-31 12:34:23 (775 KB/s) - written to stdout [63/63]
$ wget "http://localhost:8088/rawman?action=logoff" --load-cookies cookies.txt -O -
--2010-08-31 12:34:23--
Resolving localhost... 127.0.0.1
Connecting to localhost|127.0.0.1|:8088... connected.
HTTP request sent, awaiting response... 200 OK
Length: 56 [text/plain]
Saving to: `STDOUT'
Response: Goodbye
Message: Thanks for all the fish.
2010-08-31 12:34:23 (696 KB/s) - written to stdout [56/56]
The HTTP interface to AMI lets you integrate Asterisk call control into a web service.-
Configuration
The section “Quick Start” on page 553 showed a very basic set of configuration files to
get you started. However, there are many more options available for the AMI.
manager.conf
The main configuration file for the AMI is /etc/asterisk/manager.conf. The [general]
section contains options (listed in Table 20-1) that control the overall operation of the
AMI. Any other sections in the manager.conf file will define accounts for logging in and
using the AMI.
Table 20-1. Options in the manager.conf [general] section
Option Value/Example Description
enabled yes Enables the AMI. The default is no.
webenabled yes Allows access to the AMI through the built-in HTTP
server. The default is no.a
port 5038 Sets the port number to listen on for AMI connections.
The default is 5038.
556 | Chapter 20: Asterisk Manager Interface (AMI)
www.it-ebooks.info
Option Value/Example Description
bindaddr 127.0.0.1 Sets the address to listen on for AMI connections. The
default is to listen on all addresses (0.0.0.0).
However, it is highly recommended to set this to
127.0.0.1.
tlsenable yes Enables listening for AMI connections using TLS. The
default is no. It is highly recommended to expose
connectivity only via the TLS outside the local
machine.b
tlsbindport 5039 Sets the port to listen on for TLS connections to the
AMI. The default is 5039.
tlsbindaddr 0.0.0.0 Sets the address to listen on for TLS-based AMI
connections. The default is to listen on all addresses
(0.0.0.0).
tlscertfile /var/lib/asterisk/keys/asterisk.pem Sets the path to the server certificate for TLS. This is
required if tlsenable is set to yes.
tlsprivatekey /var/lib/asterisk/keys/private.pem Sets the path to the private key for TLS. If this is not
specified, the tlscertfile will be checked to see if
it also contains the private key.
tlscipher <cipher string> Specifies a list of ciphers for OpenSSL to use. Setting
this is optional. To see a list of available ciphers, run
openssl ciphers -v at the command line.
allowmultiplelogin no Allows the same account to make more than one
connection at the same time. The default is yes.
displayconnects yes Reports connections to the AMI as verbose messages
printed to the Asterisk console. This is usually useful,
but it can get in the way on a system that uses scripts
that make a lot of connections to the AMI. The default
is yes.
timestampevents no Adds a Unix epoch-based timestamp to every event
reported to the AMI. The default is no.
brokeneventsaction no Restores previously broken behavior for the Events
AMI action, where a response would not be sent in
some circumstances. This option is there for the sake of
backward compatibility for applications that worked
around a bug; it should not be used unless absolutely
necessary. The default is no.
channelvars VAR1,VAR2,VAR3[,VAR4[...]] Specifies a list of channel variables to include with all
manager events that are channel-oriented. The default
is to include no channel variables.
debug no Enables some additional debugging in the AMI code.
This is primarily there for developers of the Asterisk C
code. The default is no.
Configuration | 557
www.it-ebooks.info
Option Value/Example Description
httptimeout 60 Sets the HTTP timeout, in seconds. This timeout affects
users of the AMI over HTTP: it sets the Max-Age of
the HTTP cookie, sets how long events are cached to
allow retrieval of the events over HTTP using the
WaitEvents action, and the amount of time that
the HTTP server keeps a session alive after completing
an AMI action. The default is 60 seconds.
a To access the AMI over HTTP, the built-in HTTP server must also be configured in /etc/asterisk/http.conf.
b The OpenSSL development package must be installed in order for Asterisk to use encryption. On Ubuntu, the package is libssl-
dev. On RHEL, the package is openssl-devel.
The manager.conf configuration file also contains the configuration of AMI user ac‐
counts. An account is created by adding a section with the username inside square
brackets. Within each [username] section there are options that can be set that will
apply only to that account. Table 20-2 lists the options available in a [username] section.
Table 20-2. Options for [username] sections
Option Value/Example Description
secret password Sets the password used for authentication.
This must be set.
deny 0.0.0.0/0.0.0.0 Sets an IP address Access Control List (ACL) for
addresses that should be denied the ability to
authenticate as this user. By default this
option is not set.
permit 192.168.1.0/255.255.255.0 Sets an IP address ACL for addresses that
should be allowed to authenticate as this user.
As with deny, by default this option is not
set. Without these options set, any IP address
that can reach the AMI will be allowed to
authenticate as this user.
writetimeout 100 Sets the timeout used by Asterisk when
writing data to the AMI connection for this
user. This option is specified in milliseconds.
The default value is 100.
display connects yes Also available in the [general] section
(refer to Table 20-1), but can be controlled on
a per-user basis.
read system,call[,...] Defines which manager events this user will
receive. By default, the user will receive no
events. Table 20-3 covers the available
permission types for the read and write
options.
558 | Chapter 20: Asterisk Manager Interface (AMI)
www.it-ebooks.info
Option Value/Example Description
write system,call[,...] Defines which manager actions this user is
allowed to execute. By default, the user will
not be able to execute any actions. Table 20-3
covers the available permission types for the
read and write options.
eventfilter !Channel: DAHDI* Used to provide a whitelist- or blacklist-style
filtering of manager events before they are
delivered to the AMI client application. Filters
are specified using a regular expression. A
specified filter is a whitelist filter unless
preceded by an exclamation point.a
a If no filters are specified, all events that are allowed based on the read option will be delivered. If only whitelist filters have been
specified, only events that match one of the filters will be delivered. If there are only blacklist-style filters, all events that do not
match any of the filters will be delivered. Finally, if there is a mix of whitelist- and blacklist-style filters, the whitelist filters will be
processed first, and then the blacklist filters.
As discussed in Table 20-2, the read and write options set which manager actions and
manager events a particular user has access to. Table 20-3 shows the available permission
values that can be specified for these options.
Take special notice of the system, command, and originate permissions.
These permissions grant significant power to an external application.
Only grant these permissions to applications that you have full control
over.
Table 20-3. Available values for AMI user account read/write options
Permission identifier read write
all Shorthand way of specifying that this user
should have access to all available privilege
options.
Grants user all privilege options.
system Allows user to receive general system
information, such as notifications of
configuration reloads.
Allows user to perform Asterisk system
management commands such as Restart, Reload, or
Shutdown. This permission also grants users the
ability to run system commands outside of Asterisk.
Granting this permission is equivalent to providing
shell access as the user/group that the Asterisk
process is running as. This is another good reason
why Asterisk should not by run as root.
call Allows user to receive events about channels on
the system.
Allows user to set information on channels.
log Gives user access to logging information.aread-only
Configuration | 559
www.it-ebooks.info
Permission identifier read write
verbose Gives user access to verbose logging
information.b
read-only
agent Gives user access to events regarding the status
of agents from the app_queue and
chan_agent modules.
Enables user to perform actions for managing and
retrieving the status of queues and agents.
user Grants access to user-defined events, as well as
events about Jabber/XMPP users. Lets user perform the UserEvent manager
action, which provides the ability to request that
Asterisk generate a user-defined event.c
config write-only Allows user to retrieve, update, and reload
configuration files.
command write-only Allows user to execute Asterisk CLI commands over
the AMI.
dtmf Allows user to receive events generated as DTMF
passes through the Asterisk core.d
read-only
reporting Gives user access to call-quality events, such as
jitterbuffer statistics or RTP Control Protocol
(RTCP) reports.
Enables user to execute a range of actions to
retrieve statistics and status information from
across the system.
cdr Grants user access to CDR records reported by the
cdr_manager module.
read-only
dialplan Allows user to receive events generated when
variables are set or new extensions are created.
read-only
originate write-only Allows user to execute the Originate action,
which allows an AMI client to request that Asterisk
create a new call.
agi Allows user to receive events generated when
AGI commands are processed.
Enables user to perform actions for managing
channels that are running AGI in its asynchronous
mode. AGI is discussed in more detail in Chapter 21.
cc Allows user to receive events related to Call
Completion Supplementary Services (CCSS).
read-only
aoc Lets user see Advice of Charge events generated
as AOC events are received. Allows user to execute the AOCMessage manager
action, for sending out AOC messages.
a This level has been defined, but it is not currently used anywhere in Asterisk.
b This level has been defined, but it is not currently used anywhere in Asterisk.
c The UserEvent action is a useful mechanism for having messages delivered to other AMI clients.
d DTMF events will not be generated in a bridged call between two channels unless generic bridging in the Asterisk core is being
used. For example, if the DTMF is being transmitted with the media stream, and the media stream is flowing directly between the
two endpoints, Asterisk will not be able to report the DTMF events.
560 | Chapter 20: Asterisk Manager Interface (AMI)
www.it-ebooks.info
http.conf
As we’ve seen, the Asterisk Manager Interface can be accessed over HTTP as well as
TCP. To make that work, a very simple HTTP server is embedded in Asterisk. All of the
options relevant to the AMI go in the [general] section of /etc/asterisk/http.conf.
Enabling access to the AMI over HTTP requires both /etc/asterisk/
manager.conf and /etc/asterisk/http.conf. The AMI must be enabled in
manager.conf with the enabled option set to yes, and the manager.conf
option webenabled must be set to yes to allow access over HTTP. Fi‐
nally, the enabled option in http.conf must be set to yes to turn on the
HTTP server itself.
The available options are listed in Table 20-4.
Table 20-4. Options in the http.conf [general] section
Option Value/Example Description
enabled yes Enables the built-in HTTP server. The default is no.
bindport 8088 Sets the port number to listen on for HTTP connections. The default is
8088.
bindaddr 127.0.0.1 Sets the address to listen on for HTTP connections. The default is to listen
on all addresses (0.0.0.0). However, it is highly recommended to set
this to 127.0.0.1.
tlsenable yes Enables listening for HTTPS connections. The default is no. It is highly
recommended that you only use HTTPS if you wish to expose HTTP
connectivity outside the local machine.a
tlsbindport 8089 Sets the port to listen on for HTTPS connections. The default is 8089.
tlsbindaddr 0.0.0.0 Sets the address to listen on for TLS-enabled AMI connections. The
default is to listen on all addresses (0.0.0.0).
tlscertfile /var/lib/asterisk/keys/aster
isk.pem
Sets the path to the HTTPS server certificate. This is required if
tlsenable is set to yes.
tlsprivatekey /var/lib/asterisk/keys/
private.pem
Sets the path to the HTTPS private key. If this is not specified, the
tlscertfile will be checked to see if it also contains the private key.
tlscipher <cipher string> Specifies a list of ciphers for OpenSSL to use. Setting this is optional. To
see a list of available ciphers, run openssl ciphers -v at the command line.
a The OpenSSL development package must be installed for Asterisk to be able to use encryption. On Ubuntu, the package is libssl-
dev. On RHEL, the package is openssl-devel.
Configuration | 561
www.it-ebooks.info
Protocol Overview
There are two main types of messages on the Asterisk Manager Interface: manager
events and manager actions.
Manager events are one-way messages sent from Asterisk to AMI clients to report
something that has occurred on the system. See Figure 20-1 for a graphical represen‐
tation of the transmission of manager events.

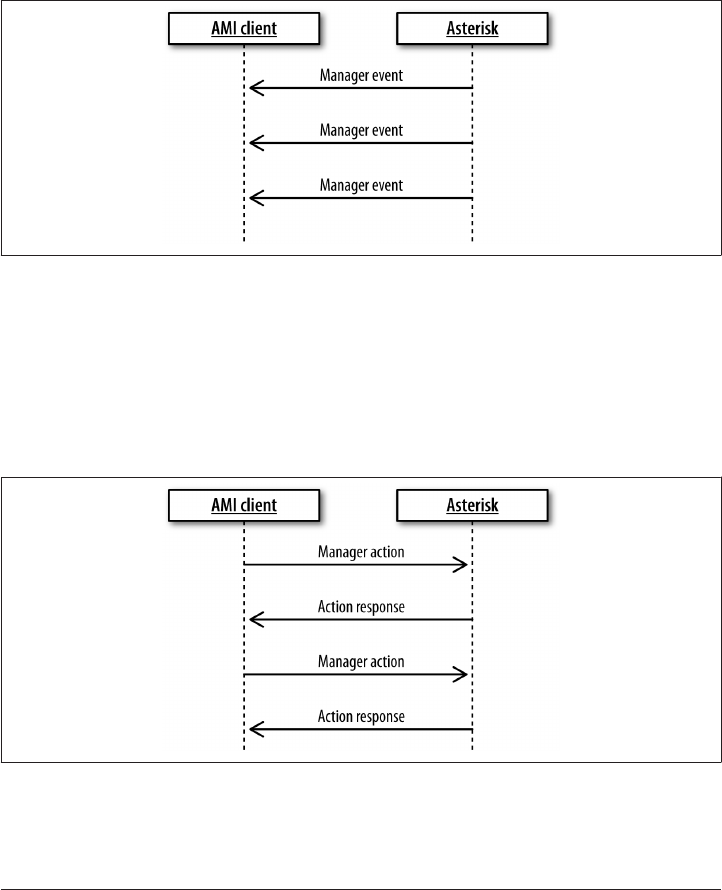

Figure 20-1. Manager events
Manager actions are requests from a client that have associated responses that come
back from Asterisk. That is, a manager action may be a request that Asterisk perform
some action and return the result. For example, there is an AMI action to originate a
new call. See Figure 20-2 for a graphical representation of a client sending manager
actions and receiving responses.
Figure 20-2. Manager actions
562 | Chapter 20: Asterisk Manager Interface (AMI)
www.it-ebooks.info
Other manager actions are requests for data that Asterisk knows about. For example,
there is a manager action to get a list of all active channels on the system: the details
about each channel are delivered as a manager event. When the list of results is complete,
a final message will be sent to indicate that the end has been reached. See Figure 20-3
for a graphical representation of a client sending this type of manager action and re‐
ceiving a list of responses.
Figure 20-3. Manager actions that return a list of data
Message Encoding
All AMI messages, including manager events, manager actions, and manager action
responses, are encoded the same way. The messages are text-based, with lines terminated
by a carriage return and a line-feed character. A message is terminated by a blank line:
Header1: This is the first header<CR><LF>
Header2: This is the second header<CR><LF>
Header3: This is the last header of this message<CR><LF>
<CR><LF>
Events
Manager events always have an Event header and a Privilege header. The Event header
gives the name of the event, while the Privilege header lists the permission levels
associated with the event. Any other headers included with the event are specific to the
event type. Here’s an example:
Event: Hangup
Privilege: call,all
Channel: SIP/0004F2060EB4-00000000
Uniqueid: 1283174108.0
CallerIDNum: 2565551212
Protocol Overview | 563
www.it-ebooks.info
CallerIDName: Russell Bryant
Cause: 16
Cause-txt: Normal Clearing
Asterisk 11 introduced the manager show events and manager show event <event> CLI
commands. Run these commands at the Asterisk CLI to get a list of events or to find
out the details of a specific event.
Note that manager event documentation is only available from the As‐
terisk CLI if Asterisk was built with the make full command, as opposed
to just make.
Actions
When executing a manager action, it must include the Action header. The Action
header identifies which manager action is being executed. The rest of the headers are
arguments to the manager action, and may or may not be required depending on the
action.
To get a list of the headers associated with a particular manager action, type manager
show command <Action> at the Asterisk command line. To get a full list of manager
actions supported by the version of Asterisk you are running, enter manager show com‐
mands at the Asterisk CLI.
The final response to a manager action is typically a message that includes the Re
sponse header. The value of the Response header will be Success if the manager action
was successfully executed. If the manager action was not successfully executed, the value
of the Response header will be Error. For example:
Action: Login
Username: russell
Secret: russell
Response: Success
Message: Authentication accepted
AMI over HTTP
In addition to the native TCP interface, it is also possible to access the Asterisk Manager
Interface over HTTP. Programmers with previous experience writing applications that
use web APIs will likely prefer this over the native TCP connectivity. While the TCP
interface only offers a single type of message structure, AMI over HTTP offers a few
encoding options. You can receive responses in the same format as the TCP interface,
in XML, or as a basic HTML page. The encoding type is chosen based on a field in the
request URL. The encoding options are discussed in more detail later in this section.
564 | Chapter 20: Asterisk Manager Interface (AMI)
www.it-ebooks.info
Authentication and session handling
There are two methods of performing authentication against the AMI over HTTP. The
first is to use the Login action, similar to authentication with the native TCP interface.
This is the method that was used in the quick-start example, as seen in “AMI over
HTTP” on page 555.
Once successfully authenticated, Asterisk will provide a cookie that identifies the au‐
thenticated session. Here is an example response to the Login action that includes a
session cookie from Asterisk:
$ curl -v "http://localhost:8088/rawman?action=login&username=hello&secret=world"
* About to connect() to localhost port 8088 (#0)
* Trying 127.0.0.1... connected
* Connected to localhost (127.0.0.1) port 8088 (#0)
> GET /rawman?action=login&username=hello&secret=worlda HTTP/1.1
> User-Agent: curl/7.19.7 (x86_64-pc-linux-gnu) libcurl/7.19.7
OpenSSL/0.9.8k zlib/1.2.3.3 libidn/1.15
> Host: localhost:8088
> Accept: */*
>
< HTTP/1.1 200 OK
< Server: Asterisk/SVN-branch-11-r378376
< Date: Tue, 07 Sep 2010 11:51:28 GMT
< Connection: close
< Cache-Control: no-cache, no-store
< Content-Length: 55
< Content-type: text/plain
< Cache-Control: no-cache;
< Set-Cookie: mansession_id="0e929e60"; Version=1; Max-Age=60
< Pragma: SuppressEvents
<
Response: Success
Message: Authentication accepted
* Closing connection #0
The second authentication option is HTTP digest authentication. In this example, the
requested encoding type based on the request URL is rawman. To indicate that HTTP
digest authentication should be used, prefix the encoding type in the request URL with
an a:
$ curl -v --digest -u hello:world http://127.0.0.1:8088/arawman?action=ping
* About to connect() to 127.0.0.1 port 8088 (#0)
* Trying 127.0.0.1...
* connected
* Connected to 127.0.0.1 (127.0.0.1) port 8088 (#0)
* Server auth using Digest with user 'hello'
> GET /arawman?action=ping HTTP/1.1
> User-Agent: curl/7.27.0
Protocol Overview | 565
www.it-ebooks.info
> Host: 127.0.0.1:8088
> Accept: */*
>
< HTTP/1.1 401 Unauthorized
< Server: Asterisk/SVN-branch-11-r378376
< Date: Thu, 17 Jan 2013 13:19:05 GMT
< Connection: close
< Cache-Control: no-cache, no-store
< Content-Length: 210
< WWW-authenticate: Digest algorithm=MD5, realm="asterisk", nonce="55b30b6d",
< qop="auth", opaque="55b30b6d"
< Content-type: text/html
<
* Closing connection #0
* Issue another request to this URL: 'http://127.0.0.1:8088/arawman?action=ping'
* About to connect() to 127.0.0.1 port 8088 (#0)
* Trying 127.0.0.1...
* connected
* Connected to 127.0.0.1 (127.0.0.1) port 8088 (#0)
* Server auth using Digest with user 'hello'
> GET /arawman?action=ping HTTP/1.1
> Authorization: Digest username="hello", realm="asterisk", nonce="55b30b6d",
> uri="/arawman?action=ping", cnonce="MTQ0MTQ5", nc=00000001,
> qop=auth, response="df8edf75f3571ad425cacb975d09280b",
> opaque="55b30b6d", algorithm="MD5"
> User-Agent: curl/7.27.0
> Host: 127.0.0.1:8088
> Accept: */*
>
< HTTP/1.1 200 OK
< Server: Asterisk/SVN-branch-11-r378376
< Date: Thu, 17 Jan 2013 13:19:05 GMT
< Connection: close
< Cache-Control: no-cache, no-store
< Content-Length: 63
< Content-type: text/plain
<
Response: Success
Ping: Pong
Timestamp: 1358428745.481800
* Closing connection #0
/rawman encoding
The rawman encoding type is what has been used in all the AMI over HTTP examples
in this chapter so far. The responses received from requests using rawman are formatted
in the exact same way that they would be if the requests were sent over a direct TCP
connection to the AMI.
566 | Chapter 20: Asterisk Manager Interface (AMI)
www.it-ebooks.info
/manager encoding
The manager encoding type provides a response in simple HTML form. This interface
is primarily useful for experimenting with the AMI. Here is an example Login using
this encoding type:
$ curl -v "http://localhost:8088/manager?
> "action=login&username=hello&secret=world"
* About to connect() to localhost port 8088 (#0)
* Trying 127.0.0.1... connected
* Connected to localhost (127.0.0.1) port 8088 (#0)
> GET /manager?action=login&username=hello&secret=world HTTP/1.1
> User-Agent: curl/7.19.7 (x86_64-pc-linux-gnu) libcurl/7.19.7
OpenSSL/0.9.8k zlib/1.2.3.3 libidn/1.15
> Host: localhost:8088
> Accept: */*
>
< HTTP/1.1 200 OK
< Server: Asterisk/SVN-branch-11-r378376
< Date: Tue, 07 Sep 2010 12:19:05 GMT
< Connection: close
< Cache-Control: no-cache, no-store
< Content-Length: 881
< Content-type: text/html
< Cache-Control: no-cache;
< Set-Cookie: mansession_id="139deda7"; Version=1; Max-Age=60
< Pragma: SuppressEvents
<
<title>Asterisk&trade; Manager Interface</title><body bgcolor="#ffffff">
<table align=center bgcolor="#f1f1f1" width="500">
<tr><td colspan="2" bgcolor="#f1f1ff"><h1>Manager Tester</h1></td></tr>
<tr><td colspan="2" bgcolor="#f1f1ff"><form action="manager" method="post">
Action: <select name="action">
<option value="">-----&gt;</option>
<option value="login">login</option>
<option value="command">Command</option>
<option value="waitevent">waitevent</option>
<option value="listcommands">listcommands</option>
</select>
or <input name="action"><br/>
CLI Command <input name="command"><br>
user <input name="username"> pass <input type="password" name="secret"><br>
<input type="submit">
</form>
</td></tr>
<tr><td>Response</td><td>Success</td></tr>
<tr><td>Message</td><td>Authentication accepted</td></tr>
<tr><td colspan="2"><hr></td></tr>
* Closing connection #0
</table></body>
Protocol Overview | 567
www.it-ebooks.info
/mxml encoding
The mxml encoding type provides responses to manager actions encoded in XML. Here
is an example Login using the mxml encoding type:
$ curl -v "http://localhost:8088/mxml?action=login&username=hello&secret=world"
* About to connect() to localhost port 8088 (#0)
* Trying 127.0.0.1... connected
* Connected to localhost (127.0.0.1) port 8088 (#0)
> GET /mxml?action=login&username=hello&secret=world HTTP/1.1
> User-Agent: curl/7.19.7 (x86_64-pc-linux-gnu) libcurl/7.19.7
OpenSSL/0.9.8k zlib/1.2.3.3 libidn/1.15
> Host: localhost:8088
> Accept: */*
>
< HTTP/1.1 200 OK
< Server: Asterisk/SVN-branch-11-r378376
< Date: Tue, 07 Sep 2010 12:26:58 GMT
< Connection: close
< Cache-Control: no-cache, no-store
< Content-Length: 146
< Content-type: text/xml
< Cache-Control: no-cache;
< Set-Cookie: mansession_id="536d17a4"; Version=1; Max-Age=60
< Pragma: SuppressEvents
<
<ajax-response>
<response type='object' id='unknown'>
<generic response='Success' message='Authentication accepted' />
</response>
* Closing connection #0
</ajax-response>
Manager events
When connected to the native TCP interface for the AMI, manager events are delivered
asynchronously. When using the AMI over HTTP, events must be retrieved by polling
for them. Events are retrieved over HTTP by executing the WaitEvent manager action.
The following example shows how events can be retrieved using the WaitEvent manager
action. The steps are:
1. Start an HTTP AMI session using the Login action.
2. Register a SIP phone to Asterisk to generate a manager event.
3. Retrieve the manager event using the WaitEvent action.
568 | Chapter 20: Asterisk Manager Interface (AMI)
www.it-ebooks.info
The interaction looks like this:
$ wget --save-cookies cookies.txt \
> "http://localhost:8088/mxml?action=login&username=hello&secret=world" -O -
<ajax-response>
<response type='object' id='unknown'>
<generic response='Success' message='Authentication accepted' />
</response>
</ajax-response>
$ wget --load-cookies cookies.txt \
< "http://localhost:8088/mxml?action=waitevent" -O -
<ajax-response>
<response type='object' id='unknown'>
<generic response='Success' message='Waiting for Event completed.' />
</response>
<response type='object' id='unknown'>
<generic event='PeerStatus' privilege='system,all'
channeltype='SIP' peer='SIP/0000FFFF0004'
peerstatus='Registered' address='172.16.0.160:5060' />
</response>
<response type='object' id='unknown'>
<generic event='WaitEventComplete' />
</response>
</ajax-response>
Call Files
Before we go into examples of using the AMI, it is worth talking about call files. Many
people look at the AMI for originating calls. For many situations, it’s easier to use call
files. A call file is a simple text file that describes the call that you would like Asterisk to
originate. After the call file is created, you move it into the /var/spool/asterisk/outgo
ing directory. Asterisk will detect that a file has been placed there and will process the
call promptly.
To use call files, Asterisk must load the pbx_spool module. Run the following command
at the Asterisk CLI to verify that the module is loaded. If the module is not loaded, check
the modules configuration file, /etc/asterisk/modules.conf:
*CLI> module show like spool
Module Description Use Count
pbx_spool.so Outgoing Spool Support 0
1 modules loaded
Asterisk comes with a sample call file. You can find the sample.call file in the root di‐
rectory of the Asterisk source tree.
Call Files | 569
www.it-ebooks.info
Call files have a simple syntax. You can place comments in the file by preceding the
comment with a #. The options specified in the file are key/value pairs, separated by a
colon. For example:
# This is a comment
Option: Value
Table 20-5 describes the options that may be specified in a call file.
Table 20-5. Call file options
Option Example value Description
Channel SIP/myphone This option is critical and must be in every call file. This describes the outbound call
that will be originated. The value is the same syntax that would be used for the
channel argument to the Dial() application in the dialplan.
Context default This option is used to specify a location in the dialplan to start executing once the
outbound call has answered. The Context, Extension, and Priority options
must be used together. When using these options, the Application and Data
options should not be used.
Extension s See the documentation for the Context option.
Priority 1 See the documentation for the Context option. If the Context and Extension
options are specified and Priority is not specified, it will default to 1.
Applica
tion
ConfBridge The Application and Data options can be used instead of the Context, Ex
tension, and Priority options. In this case, the outbound call is directly
connected to a single application once the call has been answered.
Data 500 See the documentation for the Application option.
MaxRetries 2 If the outbound call does not answer, the MaxRetries option specifies how many
times Asterisk will retry the call before giving up. If this is not specified, the default is
0.
RetryTime 60 If the outbound call is not answered, this option specifies how long to wait, in
seconds, before trying again. The default is 300 seconds (5 minutes).
WaitTime 30 This option specifies how long to wait in seconds for an answer before giving up on an
outbound call. The default is 45 seconds.
CallerID Jonathan Rose
<(555)
555-1212>
This option can be used to specify the CallerID used for the outbound call.
Account someaccount This option sets the CDR accountcode for the outbound call.
Set VARIABLE=VAL
UE or FUNC
TION(argu
ments)=VALUE
The Set option can be used to set both channel variables or channel functions on the
outbound channel. It can be specified multiple times in a call file.
Codecs ulaw,alaw This option can be used to limit which codecs are allowed for the outbound call. If not
specified, the set of codecs configured in the channel driver configuration file will still
be honored.
570 | Chapter 20: Asterisk Manager Interface (AMI)
www.it-ebooks.info
Option Example value Description
AlwaysDe
lete
yes By default, call files are always deleted after they have been processed. If this option
is set to no, Asterisk will check the modification time on the file. If that time is in the
future, the file will not be deleted.
Archive no If this option is set to yes, instead of deleting the call file, it will be moved into
the /var/spool/asterisk/outgoing_done directory. Asterisk will also add a Status line
to the call file that will reflect the outcome of the call file processing. The possible
values for Status are Completed, Expired (maximum retries have been
exceeded), or Failed (some type of error occurred).
Here is an example of creating a call file and then placing it in the proper directory so
Asterisk will process it:
$ cat > demo-congrats.call << EOF
> Channel: SIP/someone@shifteight.org
> Application: Playback
> Data: demo-congrats
> CallerID: Asterisk <(555) 555-1212>
>
> EOF
$ mv demo-congrats.call /var/spool/asterisk/outgoing/
The use of mv instead of cp here is important. Asterisk is watching for
contents to show up in the spool directory. If you use copy, Asterisk
may try to read the new file before the contents have been copied into
it. Creating a file and then moving it avoids this problem.
Originating calls using call files is easy and incredibly useful. It is great for low-volume
call origination. If you would like to reliably originate many calls at once, the AMI is
more appropriate. “Originating a Call Using Python and StarPy” on page 574 gives an
example of originating a call using the AMI.
Example Usage
Most of this chapter so far discussed the concepts and configuration related to the AMI.
This section will provide some example usage.
Originating a Call
The AMI has the Originate manager action that can be used to originate a call. Many
of the accepted headers are the same as the options placed in call files. Table 20-6 lists
the headers accepted by the Originate action.
Example Usage | 571
www.it-ebooks.info
Table 20-6. Headers for the Originate action
Option Example value Description
ActionID a3a58876-f7c9-4c28-
aa97-50d8166f658d
This header is accepted by most AMI actions. It is used to provide a unique
identifier that will also be included in all responses to the action. It gives
you a way to identify which request a response is associated with. This is
important since all actions, their responses, and events are all transmitted
over the same connection (unless using AMI over HTTP).
Channel SIP/myphone This header is critical and must be specified. This describes the outbound
call that will be originated. The value is the same syntax that would be
used for the channel argument to the Dial() application in the
dialplan.
Context default This header is used to specify a location in the dialplan to start executing
once the outbound call has answered. The Context, Exten, and Pri
ority headers must be used together. When using these headers, the
Application and Data headers should not be used.
Exten s See the documentation for the Context header.
Priority 1 See the documentation for the Context header.
Application ConfBridge The Application and Data headers can be used instead of the Con
text, Exten, and Priority headers. In this case, the outbound call
is directly connected to a single application once the call has been
answered.
Data 500 See the documentation for the Application header.
Timeout 30000 This header specifies how long to wait in milliseconds for an answer
before giving up on an outbound call. The default is 30000 milliseconds
(30 seconds).
CallerID Matthew Jordan
<(555) 867-5309>
This header can be used to specify the CallerID used for the outbound call.
Account someaccount This header sets the CDR accountcode for the outbound call.
Variable VARIABLE=VALUE or FUNC
TION(arguments)=VAL
UE
The Variable header can be used to set both channel variables or
channel functions on the outbound channel. It can be specified multiple
times.
Codecs ulaw,alaw This option can be used to limit which codecs are allowed for the
outbound call. If not specified, the set of codecs configured in the channel
driver configuration file will still be honored.
EarlyMedia true If this header is specified and set to true, the outbound call will get
connected to the specified extension or application as soon as there is any
early media.
Async true If this header is specified and set to true, this call will be originated
asynchronously. This will allow you to continue executing other actions on
the AMI connection while the call is being processed.
The simplest example of using the Originate action is via telnet:
572 | Chapter 20: Asterisk Manager Interface (AMI)
www.it-ebooks.info
$ telnet localhost 5038
Trying 127.0.0.1...
Connected to localhost.
Escape character is '^]'.
Asterisk Call Manager/1.3
Action: Login
Username: hello
Secret: world
Response: Success
Message: Authentication accepted
Action: Originate
Channel: Local/loop@test
Application: Playback
Data: demo-congrats
Response: Success
Message: Originate successfully queued
^]
telnet> quit
Connection closed.
Redirecting a Call
Redirecting (or transferring) a call from the AMI is another feature worth mentioning.
The Redirect AMI action can be used to send one or two channels to any other exten‐
sion in the Asterisk dialplan. If you need to redirect two channels that are bridged
together, do them both at the same time. Otherwise, once one channel has been redi‐
rected, the other will be hung up.
To redirect a single channel:
Action: Redirect
Channel: SIP/myphone-0011223344
Exten: 1234
Context: default
Priority: 1
To redirect two channels:
Action: Redirect
Channel: SIP/myphone-0011223344
Context: default
Exten: 1234
Priority: 1
ExtraChannel: SIP/otherphone-0011223344
ExtraContext: default
ExtraExten: 5678
ExtraPriority: 1
Example Usage | 573
www.it-ebooks.info
One fairly common use of the redirect action from an external application is to redirect
both parties of a call into a conference bridge. Place this context in your dialplan:
[confbridge]
exten => _X.,1,ConfBridge(${EXTEN})
For information about customizing the behavior of the ConfBridge
application, see “Advanced Conferencing” on page 284.
You could now redirect any two callers into a conference bridge using something like
this:
Action: Redirect
Channel: SIP/myphone-0011223344
Context: confbridge
Exten: 1234
Priority: 1
ExtraChannel: SIP/otherphone-0011223344
ExtraContext: confbridge
ExtraExten: 1234
ExtraPriority: 1
Now other callers could join this bridge, or the external application using the AMI could
proceed to redirect other channels to this bridge.
Originating a Call Using Python and StarPy
To help further demonstrate the use of the Originate action, we have provided a script
that uses it. The full script is in Example 20-1. It can be downloaded from https://
github.com/russellb/amiutils. To get an idea of the usage of the example application, here
is the help output:
$ ./amioriginate.py --help
Usage: amioriginate.py [options] <channel>
This program is used to originate a call on an Asterisk server using the
Asterisk Manager Interface (AMI). The channel argument to this application
tells Asterisk what outbound call to make. There are various options that can
be used to specify what the outbound call is connected to once it answers.
Options:
-h, --help show this help message and exit
-d, --debug Enable debug output
-u USERNAME, --username=USERNAME
AMI username
-p PASSWORD, --password=PASSWORD
AMI password
574 | Chapter 20: Asterisk Manager Interface (AMI)
www.it-ebooks.info
-H HOST, --host=HOST Hostname or IP address of the Asterisk server
-t PORT, --port=PORT Port number for the AMI
-a APPLICATION, --application=APPLICATION
Application to connect the call to. When using this
option, you may also specify arguments to the
application with the -D/--data option. Do not use this
option and the context, extension, and priority
options at the same time.
-D DATA, --data=DATA Arguments to pass to the dialplan application
specified with -a/--application.
-c CONTEXT, --context=CONTEXT
Context in the dialplan to send the call to once it
answers. If using this option, you must also specify
an extension and priority. Do not specify the
application or data options if using this option.
-e EXTEN, --extension=EXTEN
Extension to connect the call to. This should be used
along with the context and priority options.
-P PRIORITY, --priority=PRIORITY
Priority of the extension to connect the call to. This
should used along with the context and extension
options.
If you run the utility in debug mode, you can see the raw AMI message exchange. First,
here is an example of using the script to originate a call and connect it to an application.
The MSG OUT and Line In lines in the output identify the AMI exchange. The MSG
OUT lines are showing the AMI action in an internal format to the application instead
of the raw AMI format, but you can still see the headers and their values. The Line
In lines show the raw TCP response from Asterisk. The output shows:
1. The application requests to log into the AMI.
2. Asterisk responds, accepting the authentication request.
3. The application sends a request to originate a call.
4. Asterisk responds indicating that the origination request has been successfully
processed. The call will occur asynchronously since the originate request included
Async: True. Otherwise, we would not get a response until the outbound call either
answers or fails for some reason.
$ ./amioriginate.py -d -u hello -p world \
> -a playback -D demo-congrats SIP/myphone
DEBUG:AMI:MSG OUT: {'action': 'login', 'username': 'hello', 'secret': 'world',
'actionid': 'rhel6.3-server-28064728-1'}
DEBUG:AMI:Line In: 'Asterisk Call Manager/1.3'
DEBUG:AMI:Line In: 'Response: Success'
DEBUG:AMI:Line In: 'ActionID: rhel6.3-server-28064728-1'
DEBUG:AMI:Line In: 'Message: Authentication accepted'
DEBUG:AMI:Line In: ''
Example Usage | 575
www.it-ebooks.info
DEBUG:AMI:MSG OUT: {'application': 'playback',
'actionid': 'rhel6.3-server-28064728-2',
'variable': '', 'async': 'True', 'data': 'demo-congrats',
'action': 'originate', 'channel': 'SIP/myphone'}
DEBUG:AMI:Line In: 'Response: Success'
DEBUG:AMI:Line In: 'ActionID: rhel6.3-server-28064728-2'
DEBUG:AMI:Line In: 'Message: Originate successfully queued'
DEBUG:AMI:Line In: ''
This script uses two third-party Python modules: twisted and star
py. The twisted module is widely used and should be available as a
distribution package. The starpy module is not as common and may
need to be installed manually. See “Development Frameworks” on page
579.
Example 20-1. amioriginate.py
#!/usr/bin/env python
#
# Copyright (C) 2012, Russell Bryant
#
# Licensed under the Apache License, Version 2.0 (the "License"); you may
# not use this file except in compliance with the License. You may obtain
# a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
# WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
# License for the specific language governing permissions and limitations
# under the License.
#
'''Originate a call on an Asterisk server
Developed as an example for "Asterisk: The Definitive Guide"
'''
import getpass
import logging
import optparse
import sys
import starpy.manager
from twisted.internet import reactor
576 | Chapter 20: Asterisk Manager Interface (AMI)
www.it-ebooks.info
LOG = logging.getLogger(__name__)
class OriginateCall(object):
def __init__(self, options, channel):
self.options = options
self.channel = channel
self.ami = starpy.manager.AMIFactory(self.options.username,
self.options.password)
def _on_login(self, ami):
kwargs = dict(channel=self.channel, async=True)
if self.options.application:
kwargs['application'] = self.options.application
kwargs['data'] = self.options.data
else:
kwargs['context'] = self.options.context
kwargs['exten'] = self.options.exten
kwargs['priority'] = self.options.priority
def _on_success(ami):
reactor.stop()
def _on_error(reason):
LOG.error('Originate failed: %s' % reason.getErrorMessage())
reactor.stop()
ami.originate(**kwargs).addCallbacks(_on_success, _on_error)
def connect_and_call(self):
def _on_login_error(reason):
LOG.error('Failed to log in: %s' % reason.getErrorMessage())
reactor.stop()
df = self.ami.login(self.options.host, self.options.port)
df.addCallbacks(self._on_login, _on_login_error)
def main(argv=None):
if argv is None:
argv = sys.argv
logging.basicConfig(level=logging.INFO)
description = ('This program is used to originate a call on an Asterisk '
'server using the Asterisk Manager Interface (AMI). The '
'channel argument to this application tells Asterisk what '
'outbound call to make. There are various options that '
'can be used to specify what the outbound call is '
'connected to once it answers.')
usage = '%prog [options] <channel>'
Example Usage | 577
www.it-ebooks.info
parser = optparse.OptionParser(description=description, usage=usage)
parser.add_option('-d', '--debug', action='store_true',
dest='debug', help='Enable debug output')
parser.add_option('-u', '--username', action='store', type='string',
dest='username', default=None, help='AMI username')
parser.add_option('-p', '--password', action='store', type='string',
dest='password', default=None, help='AMI password')
parser.add_option('-H', '--host', action='store', type='string',
dest='host', default='localhost',
help='Hostname or IP address of the Asterisk server')
parser.add_option('-t', '--port', action='store', type='int',
dest='port', default=5038,
help='Port number for the AMI')
parser.add_option('-a', '--application', action='store', type='string',
dest='application', default='',
help='Application to connect the call to. When using '
'this option, you may also specify arguments to '
'the application with the -D/--data option. Do '
'not use this option and the context, extension, '
'and priority options at the same time.')
parser.add_option('-D', '--data', action='store', type='string',
dest='data', default='',
help='Arguments to pass to the dialplan application '
'specified with -a/--application.')
parser.add_option('-c', '--context', action='store', type='string',
dest='context', default='',
help='Context in the dialplan to send the call to '
'once it answers. If using this option, you '
'must also specify an extension and priority. '
'Do not specify the application or data options '
'if using this option.')
parser.add_option('-e', '--extension', action='store', type='string',
dest='exten', default='',
help='Extension to connect the call to. This should '
'be used along with the context and priority '
'options.')
parser.add_option('-P', '--priority', action='store', type='string',
dest='priority', default='',
help='Priority of the extension to connect the call '
'to. This should used along with the context '
'and extension options.')
(options, args) = parser.parse_args(argv)
if options.debug:
LOG.setLevel(logging.DEBUG)
starpy.manager.log.setLevel(logging.DEBUG)
578 | Chapter 20: Asterisk Manager Interface (AMI)
www.it-ebooks.info
if len(args) != 2 or not len(args[1]):
LOG.error('Please specify a single outbound channel.')
parser.print_usage()
return 1
channel = args[1]
valid_application = len(options.application)
valid_extension = (len(options.context) and len(options.exten) and
len(options.priority))
if not valid_application and not valid_extension:
LOG.error('Please specify a valid point to connect the call to once '
'it answers. Either specify an application or a context, '
'extension, and priority.')
parser.print_usage()
return 1
if valid_application and valid_extension:
LOG.error('Please specify only one of extension and application.')
parser.print_usage()
return 1
if not options.username:
user = raw_input('Username [%s]: ' % getpass.getuser())
if not user:
user = getpass.getuser()
options.username = user
if not options.password:
options.password = getpass.getpass()
o = OriginateCall(options, channel)
reactor.callWhenRunning(o.connect_and_call)
reactor.run()
return 0
if __name__ == '__main__':
sys.exit(main())
Development Frameworks
Many application developers write code that directly interfaces with the AMI. However,
there are a number of existing libraries that aim to make writing AMI applications easier.
Table 20-7 lists a few that we know are being used successfully. If you search for Asterisk
libraries in any popular programming language of your choice, you are likely to find
one.
Development Frameworks | 579
www.it-ebooks.info
Table 20-7. AMI development frameworks
Framework Language URL
Adhearsion Ruby http://adhearsion.com/
StarPy Python https://github.com/asterisk-org/starpy
Asterisk-Java Java http://asterisk-java.org/
CSTA
Computer-Supported Telecommunications Applications (CSTA) is a standard for Com‐
puter Telephony Integration (CTI) that is used by multiple manufacturers. Some of what
is provided by CSTA can be mapped to operations available in the AMI. There have
been multiple efforts to provide a CSTA interface to Asterisk, including the Open
CSTA project. While none of the authors have experience with this CSTA interface to
Asterisk, it is certainly worth considering if you have CSTA experience or an existing
CSTA application you would like to integrate with Asterisk.
Interesting Applications
Many useful applications have been developed that take advantage of the AMI. Here is
one example.
Flash Operator Panel
Flash Operator Panel is an application that runs in a web browser using Flash. It is
primarily used as an interface to see which extensions are currently ringing or in use. It
also includes the ability to monitor conference-room and call-queue status. Some call
actions can be performed as well, such as barging into a call and transferring calls.
Figure 20-4 shows the Flash Operator Panel interface.
Downloads and more detailed information on Flash Operator Panel can be found at
http://www.asternic.org and http://www.fop2.com.
580 | Chapter 20: Asterisk Manager Interface (AMI)
www.it-ebooks.info
Figure 20-4. Flash Operator Panel
Conclusion
The Asterisk Manager Interface provides an API for monitoring events from an Asterisk
system, as well as requesting that Asterisk perform a wide range of actions. An HTTP
interface has been provided and a number of frameworks have been developed that
make it easier to develop applications. All of this information, as well as the examples
we looked at at the end of this chapter, should get you thinking about what new appli‐
cations you might be able to build using the Asterisk Manager Interface.
Conclusion | 581
www.it-ebooks.info
www.it-ebooks.info
Caffeine. The gateway drug.
—Eddie Vedder
CHAPTER 21
Asterisk Gateway Interface (AGI)
The Asterisk dialplan has evolved into a simple yet powerful programming interface for
call handling. However, many people, especially those with a prior programming back‐
ground, still prefer implementing their custom call handling in a different programming
language. Using another programming language may also allow you to utilize existing
code for integration with other systems. The Asterisk Gateway Interface (AGI) allows
the development of first-party call control in the programming language of your choice.
If you are not interested in implementing call control outside the native Asterisk
dialplan, you may safely skip this chapter.
Quick Start
This section gives a quick example of using the AGI. First, add the following line to /etc/
asterisk/extensions.conf:
exten => 500,1,AGI(hello-world.sh)
Next, create a hello-world.sh script in /var/lib/asterisk/agi-bin, as shown in
Example 21-1.
Example 21-1. A sample AGI script, hello-world.sh
#!/bin/bash
# Consume all variables sent by Asterisk
while read VAR && [ -n ${VAR} ] ; do : ; done
# Answer the call.
echo "ANSWER"
read RESPONSE
583
www.it-ebooks.info
# Say the letters of "Hello World"
echo 'SAY ALPHA "Hello World" ""'
read RESPONSE
exit 0
Now, call extension 500 with AGI debugging turned on, and listen to Allison spell out
“Hello World”:
*CLI> agi set debug on
AGI Debugging Enabled
-- Executing [500@phones:1] AGI("SIP/0004F2060EB4-00000009",
"hello-world.sh") in new stack
-- Launched AGI Script /var/lib/asterisk/agi-bin/hello-world.sh
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_request: hello-world.sh
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_channel: SIP/0004F2060EB4-00000009
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_language: en
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_type: SIP
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_uniqueid: 1284382003.9
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_version: SVN-branch-11-r378376
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_callerid: 2563619899
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_calleridname: Russell Bryant
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_callingpres: 0
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_callingani2: 0
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_callington: 0
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_callingtns: 0
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_dnid: 7010
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_rdnis: unknown
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_context: phones
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_extension: 500
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_priority: 1
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_enhanced: 0.0
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_accountcode:
<SIP/0004F2060EB4-00000009>AGI Tx >> agi_threadid: 140071216785168
<SIP/0004F2060EB4-00000009>AGI Tx >>
<SIP/0004F2060EB4-00000009>AGI Rx << ANSWER
<SIP/0004F2060EB4-00000009>AGI Tx >> 200 result=0
<SIP/0004F2060EB4-00000009>AGI Rx << SAY ALPHA "Hello World" ""
-- <SIP/0004F2060EB4-00000009> Playing 'letters/h.gsm' (language 'en')
-- <SIP/0004F2060EB4-00000009> Playing 'letters/e.gsm' (language 'en')
-- <SIP/0004F2060EB4-00000009> Playing 'letters/l.gsm' (language 'en')
-- <SIP/0004F2060EB4-00000009> Playing 'letters/l.gsm' (language 'en')
-- <SIP/0004F2060EB4-00000009> Playing 'letters/o.gsm' (language 'en')
-- <SIP/0004F2060EB4-00000009> Playing 'letters/space.gsm' (language 'en')
-- <SIP/0004F2060EB4-00000009> Playing 'letters/w.gsm' (language 'en')
-- <SIP/0004F2060EB4-00000009> Playing 'letters/o.gsm' (language 'en')
-- <SIP/0004F2060EB4-00000009> Playing 'letters/r.gsm' (language 'en')
-- <SIP/0004F2060EB4-00000009> Playing 'letters/l.gsm' (language 'en')
-- <SIP/0004F2060EB4-00000009> Playing 'letters/d.gsm' (language 'en')
584 | Chapter 21: Asterisk Gateway Interface (AGI)
www.it-ebooks.info
<SIP/0004F2060EB4-00000009>AGI Tx >> 200 result=0
-- <SIP/0004F2060EB4-00000009>AGI Script hello-world.sh completed, returning 0
AGI Variants
There are a few variants of AGI that differ primarily in the method used to communicate
with Asterisk. It is good to be aware of all the options so you can make the best choice
based on the needs of your application.
Process-Based AGI
Process-based AGI is the simplest variant of AGI. The quick-start example at the be‐
ginning of this chapter is an example of a process-based AGI script. The script is invoked
using the AGI() application from the Asterisk dialplan. The application to run is speci‐
fied as the first argument to AGI(). Unless a full path is specified, the application is
expected to exist in the /var/lib/asterisk/agi-bin directory. Arguments to be passed to
your AGI application can be specified as additional arguments to the AGI() application
in the Asterisk dialplan. The syntax is:
AGI(command[,arg1[,arg2[,...]]])
Ensure that your application has the proper permissions set so that the
Asterisk process user has permissions to execute it. Otherwise, AGI()
will fail.
Once Asterisk executes your AGI application, communication between Asterisk and
your application will take place over stdin and stdout. More details about this commu‐
nication will be covered in “AGI Communication Overview” on page 588. For more details
about invoking AGI() from the dialplan, check the documentation built into Asterisk:
*CLI> core show application AGI
Pros of process-based AGI
It is the simplest form of AGI to implement.
Cons of process-based AGI
It is the least efficient form of AGI with regard to resource consumption. Systems
with high load should consider FastAGI, discussed in “FastAGI—AGI over TCP”
on page 586, instead.
EAGI
EAGI (Enhanced AGI) is a slight variant on AGI(). It is invoked in the Asterisk dialplan
as EAGI(). The difference is that in addition to the communication on stdin and stdout,
Asterisk also provides a unidirectional stream of audio coming from the channel on file
AGI Variants | 585
www.it-ebooks.info
descriptor 3. For more details on how to invoke EAGI() from the Asterisk dialplan,
check the documentation built into Asterisk:
*CLI> core show application EAGI
Pros of Enhanced AGI
It has the simplicity of process-based AGI, with the addition of a simple read-only
stream of the channel’s audio. This is the only variant that offers this feature.
Cons of Enhanced AGI
Since a new process must be spawned to run your application for every call, it has
the same efficiency concerns as regular, process-based AGI.
For an alternative way of gaining access to the audio outside
Asterisk, consider using JACK. Asterisk has a module for JACK
integration, called app_jack. It provides the JACK() dialplan ap‐
plication and the JACK_HOOK() dialplan function.
DeadAGI Is Dead
In versions of Asterisk prior to 1.8, there was a dialplan application called DeadAGI().
Its purpose was similar to that of AGI(), except you used it on a channel that had already
been hung up. This would usually be done in the special h extension, when you wanted
to use an AGI application to aid in some type of post-call processing. Invoking
DeadAGI() from the dialplan will still work, but you will get a WARNING message in the
Asterisk log. It has been deprecated in favor of using AGI() in all cases. The code for
AGI() has been updated so it knows how to correctly adjust its operation after a channel
has been hung up.
Pros of DeadAGI
None. It’s dead.
Cons of DeadAGI
It’s dead. Really, don’t use it. If you do, your configuration may break if DeadAGI()
is completely removed from Asterisk in a future version.
FastAGI—AGI over TCP
FastAGI is the term used for AGI call control over a TCP connection. With process-
based AGI, an instance of an AGI application is executed on the system for every call,
and communication with that application is done over stdin and stdout. With FastAGI,
a TCP connection is made to a FastAGI server. Call control is done using the same AGI
protocol, but the communication is over the TCP connection and does not require a
new process to be started for every call. The AGI protocol is discussed in more detail
586 | Chapter 21: Asterisk Gateway Interface (AGI)
www.it-ebooks.info
in “AGI Communication Overview” on page 588. Using FastAGI is much more scalable
than process-based AGI, though it is also more complex to implement.
FastAGI is used by invoking the AGI() application in the Asterisk dialplan, but instead
of providing the name of the application to execute, you provide an agi:// URL. For
example:
exten => 1234,1,AGI(agi://127.0.0.1)
The default port number for a FastAGI connection is 4573. A different port number can
be appended to the URL after a colon. For example:
exten => 1234,1,AGI(agi://127.0.0.1:4574)
Just as with process-based AGI, arguments can be passed to a FastAGI application. To
do so, add them as additional arguments to the AGI() application, delimited by commas:
exten => 1234,1,AGI(agi://192.168.1.199,arg1,arg2,arg3)
FastAGI also supports the usage of Service records (SRV records) if you provide a URL
in the form of hagi://. By using SRV records, you can list multiple hosts that Asterisk
can attempt to connect to for purposes of high availability and load balancing. In the
following example, to find a FastAGI server to connect to, Asterisk will do a DNS lookup
for _agi._tcp.shifteight.org:
exten => 1234,1,AGI(hagi://shifteight.org)
Pros of FastAGI
It’s more efficient than process-based AGI. Instead of spawning a process per call,
a FastAGI server can handle many calls.
DNS can be used to achieve high availability and load balancing among FastAGI
servers to further enhance scalability.
Cons of FastAGI
It is more complex to implement a FastAGI server than to implement a process-
based AGI application. However, implementing a TCP server has been done
countless times before, so there are many examples available for virtually any pro‐
gramming language.
Async AGI—AMI-Controlled AGI
Async AGI is a newer method of using AGI that was first introduced in Asterisk 1.6.0.
The purpose of async AGI is to allow an application that uses the Asterisk Manager
Interface (AMI) to asynchronously queue up AGI commands to be executed on a chan‐
nel. This can be especially useful if you are already making extensive use of the AMI
and would like to take advantage of the same application to handle call control, as
opposed to writing a detailed Asterisk dialplan or developing a separate FastAGI server.
AGI Variants | 587
www.it-ebooks.info
More information on the Asterisk Manager Interface can be found in
Chapter 20.
Async AGI is invoked by the AGI() application in the Asterisk dialplan. The argument
to AGI() should be agi:async, as shown in the following example:
exten => 1234,1,AGI(agi:async)
Additional information on how to use async AGI over the AMI can be found in the next
section.
Pros of async AGI
An existing AMI application can be used to control calls using AGI commands.
Cons of async AGI
It is the most complex way to implement AGI.
Setting Up /etc/asterisk/manager.conf for Async AGI
“Configuration” on page 556 discusses the configuration options in manager.conf in
detail. To make use of async AGI, an AMI account must have the agi permission for
both read and write. For example, the following user defined in manager.conf would be
able to both execute AGI manager actions and receive AGI manager events:
;
; Define a user called 'hello', with a password of 'world'.
; Give this user read/write permissions for AGI.
;
[hello]
secret = world
read = agi
write = agi
AGI Communication Overview
The preceding section discussed the variations of AGI that can be used. This section
goes into more detail about how your custom AGI application communicates with As‐
terisk once AGI() has been invoked.
Setting Up an AGI Session
Once AGI() or EAGI() has been invoked from the Asterisk dialplan, some information
is passed to the AGI application to set up the AGI session. This section discusses what
steps are taken at the beginning of an AGI session for the different variants of AGI.
588 | Chapter 21: Asterisk Gateway Interface (AGI)
www.it-ebooks.info
Process-based AGI/FastAGI
For a process-based AGI application or a connection to a FastAGI server, the variables
listed in Table 21-1 will be the first pieces of information sent from Asterisk to your
application. Each variable will be on its own line, in the form:
agi_variable: value
Table 21-1. AGI environment variables
Variable Value/Example Description
agi_request hello-world.sh The first argument that was passed to the AGI() or EA
GI() application. For process-based AGI, this is the name of
the AGI application that has been executed. For FastAGI, this
would be the URL that was used to reach the FastAGI server.
agi_channel SIP/
0004F2060EB4-00000009
The name of the channel that has executed the AGI() or
EAGI() application.
agi_language en The language set on agi_channel.
agi_type SIP The channel type for agi_channel.
agi_uniqueid 1284382003.9 The uniqueid of agi_channel.
agi_version 1.8.0-beta4 The Asterisk version in use.
agi_callerid 12565551212 The full caller ID string that is set on agi_channel.
agi_callerid
name
Russell Bryant The caller ID name that is set on agi_channel.
agi_callingpres 0 The caller presentation associated with the caller ID set on
agi_channel. For more information, see the output of
core show function CALLERPRES at the Asterisk CLI.
agi_callingani2 0 The caller ANI2 associated with agi_channel.
agi_callington 0 The caller ID TON (Type of Number) associated with
agi_channel.
agi_callingtns 0 The dialed number TNS (Transit Network Select) associated
with agi_channel.
agi_dnid 7010 The dialed number associated with agi_channel.
agi_rdnis unknown The redirecting number associated with agi_channel.
agi_context phones The context of the dialplan that agi_channel was in
when it executed the AGI() or EAGI() application.
agi_extension 500 The extension in the dialplan that agi_channel was
executing when it ran the AGI() or EAGI() application.
agi_priority 1 The priority of agi_extension in agi_context that
executed AGI() or EAGI().
agi_enhanced 0.0 An indication of whether AGI() or EAGI() was used from
the dialplan. 0.0 indicates that AGI() was used. 1.0
indicates that EAGI() was used.
agi_accountcode myaccount The accountcode associated with agi_channel.
AGI Communication Overview | 589
www.it-ebooks.info
Variable Value/Example Description
agi_threadid 140071216785168 The threadid of the thread in Asterisk that is running the
AGI() or EAGI() application. This may be useful for
associating logs generated by the AGI application with logs
generated by Asterisk, since the Asterisk logs contain thread
IDs.
agi_arg_<argu
ment number>
my argument These variables provide the contents of the additional
arguments provided to the AGI() or EAGI() application.
For an example of the variables that might be sent to an AGI application, see the AGI
communication debug output in “Quick Start” on page 583. The end of the list of vari‐
ables will be indicated by a blank line. Example 21-1 handles these variables by reading
lines of input in a loop until a blank line is received. At that point, the application
continues and begins executing AGI commands.
Async AGI
When you use async AGI, Asterisk will send out a manager event called AsyncAGI to
initiate the async AGI session. This event will allow applications listening to manager
events to take over control of the call via the AGI manager action. Here is an example
manager event sent out by Asterisk:
Event: AsyncAGI
Privilege: agi,all
SubEvent: Start
Channel: SIP/0000FFFF0001-00000000
Env: agi_request%3A%20async%0Aagi_channel%3A%20SIP%2F0000FFFF0001-00000000%0A \
agi_language%3A%20en%0Aagi_type%3A%20SIP%0A \
agi_uniqueid%3A%201285219743.0%0A \
agi_version%3A%201.8.0-beta5%0Aagi_callerid%3A%2012565551111%0A \
agi_calleridname%3A%20Julie%20Bryant%0Aagi_callingpres%3A%200%0A \
agi_callingani2%3A%200%0Aagi_callington%3A%200%0Aagi_callingtns%3A%200%0A \
agi_dnid%3A%20111%0Aagi_rdnis%3A%20unknown%0Aagi_context%3A%20LocalSets%0A \
agi_extension%3A%20111%0Aagi_priority%3A%201%0Aagi_enhanced%3A%200.0%0A \
agi_accountcode%3A%20%0Aagi_threadid%3A%20-1339524208%0A%0A
The value of the Env header in this AsyncAGI manager event is all on
one line. The long value of the Env header has been URI encoded.
Commands and Responses
Once an AGI session has been set up, Asterisk begins performing call processing in
response to commands sent from the AGI application. As soon as an AGI command
has been issued to Asterisk, no further commands will be processed on that channel
590 | Chapter 21: Asterisk Gateway Interface (AGI)
www.it-ebooks.info
until the current command has been completed. When it finishes processing a com‐
mand, Asterisk will respond with the result.
The AGI processes commands in a serial manner. Once a command
has been executed, no further commands can be executed until Asterisk
has returned a response. Some commands can take a very long time to
execute. For example, the EXEC AGI command executes an Asterisk
application. If the command is EXEC Dial, AGI communication is
blocked until the call is done. If your AGI application needs to interact
further with Asterisk at this point, it can do so using the AMI, which is
covered in Chapter 20.
A full list of available AGI commands can be retrieved from the Asterisk console by
running the command agi show commands. These commands are described in
Table 21-2. To get more detailed information on a specific AGI command, including
syntax information for any arguments that a command expects, use agi show commands
topic <COMMAND>. For example, to see the built-in documentation for the ANSWER AGI
command, you would use agi show commands topic ANSWER.
Table 21-2. AGI commands
AGI command Description
ANSWER Answer the incoming call.
ASYNCAGI BREAK End an async AGI session and have the channel return to the Asterisk dialplan.
CHANNEL STATUS Retrieve the status of the channel. This is used to retrieve the current state of the channel,
such as up (answered), down (hung up), or ringing.
DATABASE DEL Delete a key/value pair from the built-in AstDB.
DATABASE DELTREE Delete a tree of key/value pairs from the built-in AstDB.
DATABASE GET Retrieve the value for a key in the AstDB.
DATABASE PUT Set the value for a key in the AstDB.
EXEC Execute an Asterisk dialplan application on the channel. This command is very powerful in
that between EXEC and GET FULL VARIABLE, you can do anything with the call that
you can do from the Asterisk dialplan.
GET DATA Read digits from the caller.
GET FULL VARIABLE Evaluate an Asterisk dialplan expression. You can send a string that contains variables
and/or dialplan functions, and Asterisk will return the result after making the appropriate
substitutions. This command is very powerful in that between EXEC and GET FULL
VARIABLE, you can do anything with the call that you can do from the Asterisk dialplan.
GET OPTION Stream a sound file while waiting for a digit from the caller. This is similar to the Back
ground() dialplan application.
GET VARIABLE Retrieve the value of a channel variable.
HANGUP Hang up the channel.a
AGI Communication Overview | 591
www.it-ebooks.info
AGI command Description
NOOP Do nothing. You will get a result response from this command, just like any other. It can be
used as a simple test of the communication path with Asterisk.
RECEIVE CHAR Receive a single character. This only works for channel types that support it, such as IAX2
using TEXT frames or SIP using the MESSAGE method.
RECEIVE TEXT Receive a text message. This only works in the same cases as RECEIVE CHAR.
RECORD FILE Record the audio from the caller to a file. This is a blocking operation similar to the Re
cord() dialplan application. To record a call in the background while you perform other
operations, use EXEC Monitor or EXEC MixMonitor.
SAY ALPHA Say a string of characters. You can find an example of this in “Quick Start” on page 583. To
get localized handling of this and the other SAY commands, set the channel language
either in the device configuration file (e.g., sip.conf) or in the dialplan, by setting the CHAN
NEL(language) dialplan function.
SAY DIGITS Say a string of digits. For example, 100 would be said as “one zero zero” if the channel’s
language is set to English.
SAY NUMBER Say a number. For example, 100 would be said as “one hundred” if the channel’s language is
set to English.
SAY PHONETIC Say a string of characters, but use a common word for each letter (Alpha, Bravo, Charlie…).
SAY DATE Say a given date.
SAY TIME Say a given time.
SAY DATETIME Say a given date and time using a specified format.
SEND IMAGE Send an image to a channel. IAX2 supports this, but there are no actively developed IAX2
clients that support it that we know of.
SEND TEXT Send text to a channel that supports it. This can be used with SIP and IAX2 channels, at
least.
SET AUTOHANGUP Schedule the channel to be hung up at a specified point in time in the future.
SET CALLERID Set the caller ID name and number on the channel.
SET CONTEXT Set the current dialplan context on the channel.
SET EXTENSION Set the current dialplan extension on the channel.
SET MUSIC Start or stop music on hold on the channel.
SET PRIORITY Set the current dialplan priority on the channel.
SET VARIABLE Set a channel variable to a given value.
STREAM FILE Stream the contents of a file to a channel.
CONTROL STREAM FILE Stream the contents of a file to a channel, but also allow the channel to control the stream.
For example, the channel can pause, rewind, or fast-forward the stream.
TDD MODE Toggle the TDD (Telecommunications Device for the Deaf) mode on the channel.
VERBOSE Send a message to the verbose logger channel. Verbose messages show up on the Asterisk
console if the verbose setting is high enough. Verbose messages will also go to any logfile
that has been configured for the verbose logger channel in /etc/asterisk/logger.conf.
WAIT FOR DIGIT Wait for the caller to press a digit.
592 | Chapter 21: Asterisk Gateway Interface (AGI)
www.it-ebooks.info
AGI command Description
SPEECH CREATE Initialize speech recognition. This must be done before using other speech AGI commands.b
SPEECH SET Set a speech engine setting. The settings that are available are specific to the speech
recognition engine in use.
SPEECH DESTROY Destroy resources that were allocated for doing speech recognition. This command should
be the last speech command executed.
SPEECH LOAD GRAMMAR Load a grammar.
SPEECH UNLOAD GRAMMAR Unload a grammar.
SPEECH ACTIVATE GRAMMAR Activate a grammar that has been loaded.
SPEECH DEACTIVATE
GRAMMAR
Deactivate a grammar.
SPEECH RECOGNIZE Play a prompt and perform speech recognition, as well as wait for digits to be pressed.
GOSUB Execute a dialplan subroutine. This will perform in the same way as the GoSub() dialplan
application.
a When the HANGUP AGI command is used, the channel is not immediately hung up. Instead, the channel is marked as needing to
be hung up. Your AGI application must exit first before Asterisk will continue and perform the actual hangup process.
b While Asterisk includes a core API for handling speech recognition, it does not come with a module that provides a speech
recognition engine. Digium currently provides two commercial options for speech recognition: Lumenvox and Vestec.
Process-based AGI/FastAGI
AGI commands are sent to Asterisk on a single line. The line must end with a single
newline character. Once a command has been sent to Asterisk, no further commands
will be processed until the last command has finished and a response has been sent back
to the AGI application. Here is an example response to an AGI command:
200 result=0
The Asterisk console allows debugging the communications with an
AGI application. To enable AGI communication debugging, run the agi
set debug on command. To turn debugging off, use agi set debug off.
While this debugging mode is on, all communication to and from an
AGI application will be printed out to the Asterisk console. An example
of this output can be found in “Quick Start” on page 583.
Async AGI
When you’re using async AGI, commands are issued by using the AGI manager action.
To see the built-in documentation for the AGI manager action, run manager show com‐
mand AGI at the Asterisk CLI. A demonstration will help clarify how AGI commands
are executed using the async AGI method. First, an extension is created in the dialplan
that runs an async AGI session on a channel:
AGI Communication Overview | 593
www.it-ebooks.info
exten => 7011,1,AGI(agi:async)
When the AGI dialplan application is executed, a manager event called AsyncAGI will
be sent out with all the AGI environment variables. Details about this event are in “Async
AGI” on page 590. After this, AGI manager actions can start to take place via AMI.
The following shows an example manager-action execution and the manager events
that are emitted during async AGI processing. After the initial execution of the AGI
manager action, there is an immediate response to indicate that the command has been
queued up for execution. Later, there is a manager event that indicates that the queued
command has been executed. The CommandID header can be used to associate the initial
request with the event that indicates that the command has been executed:
Action: AGI
Channel: SIP/0004F2060EB4-00000013
ActionID: my-action-id
CommandID: my-command-id
Command: VERBOSE "Puppies like cotton candy." 1
Response: Success
ActionID: my-action-id
Message: Added AGI command to queue
Event: AsyncAGI
Privilege: agi,all
SubEvent: Exec
Channel: SIP/0004F2060EB4-00000013
CommandID: my-command-id
Result: 200%20result%3D1%0A
The following output is what was seen on the Asterisk console during this async AGI
session:
-- Executing [7011@phones:1] AGI("SIP/0004F2060EB4-00000013",
"agi:async") in new stack
agi:async: Puppies like cotton candy.
== Spawn extension (phones, 7011, 1)
exited non-zero on 'SIP/0004F2060EB4-00000013'
Ending an AGI Session
An AGI session ends when your AGI application is ready for it to end. The details about
how this happens depend on whether your application is using process-based AGI,
FastAGI, or async AGI.
Process-based AGI/FastAGI
Your AGI application may exit or close its connection at any time. As long as the channel
has not hung up before your application ends, dialplan execution will continue.
594 | Chapter 21: Asterisk Gateway Interface (AGI)
www.it-ebooks.info
If channel hangup occurs while your AGI session is still active, Asterisk will provide
notification that this has occurred so that your application can adjust its operation as
appropriate.
This is an area where behavior has changed since Asterisk 1.4. In
Asterisk 1.4 and earlier versions, AGI would automatically exit and stop
operation as soon as the channel hung up. It now gives your application
the opportunity to continue running if needed.
If a channel hangs up while your AGI application is still executing, a couple of things
will happen. If an AGI command is in the middle of executing, you may receive a result
code of -1. You should not depend on this, though, since not all AGI commands require
channel interaction. If the command being executed does not require channel interac‐
tion, the result will not reflect the hangup.
The next thing that happens after a channel hangs up is that an explicit notification of
the hangup is sent to your application. For process-based AGI, the signal SIGHUP will
be sent to the process to notify it of the hangup. For a FastAGI connection, Asterisk will
send a line containing the word HANGUP. If you would like to disable having Asterisk
send the SIGHUP signal to your process-based AGI application or the HANGUP string to
your FastAGI server, you can do so by setting the AGISIGHUP channel variable, as
demonstrated in the following short example:
;
; Don't send SIGHUP to an AGI process
; or the "HANGUP" string to a FastAGI server.
;
exten => 500,1,Set(AGISIGHUP=no)
same => n,AGI(my-agi-application)
At this point, Asterisk automatically adjusts its operation to be in DeadAGI mode. This
just means that an AGI application can run on a channel that has been hung up. The
only AGI commands that may be used at this point are those that do not require channel
interaction. The documentation for the AGI commands built into Asterisk includes an
indication of whether or not each command can be used once the channel has been
hung up.
Async AGI
When you’re using async AGI, the manager interface provides mechanisms to notify
you about channel hangups. When you would like to end an async AGI session for a
channel, you must execute the ASYNCAGI BREAK command. When the async AGI session
ends, Asterisk will send an AsyncAGI manager event with a SubEvent of End. The fol‐
lowing is an example of ending an async AGI session:
AGI Communication Overview | 595
www.it-ebooks.info
Action: AGI
Channel: SIP/0004F2060EB4-0000001b
ActionID: my-action-id
CommandID: my-command-id
Command: ASYNCAGI BREAK
Response: Success
ActionID: my-action-id
Message: Added AGI command to queue
Event: AsyncAGI
Privilege: agi,all
SubEvent: End
Channel: SIP/0004F2060EB4-0000001b
At this point, the channel returns to the Asterisk dialplan if it has not yet been hung up.
Example: Account Database Access
Example 21-2 is an example of an AGI script. To run this script you would first place it
in the /var/lib/asterisk/agi-bin directory. Then you would execute it from the Asterisk
dialplan like this:
exten => agiexample1,1,AGI(agiexample1.py)
This example is written in Python and is documented throughout. It shows how a script
could prompt a caller to enter an account number and then play back some information
from that account. More importantly, it shows generally how an AGI script interfaces
with Asterisk to run AGI commands and receive a response back from Asterisk.
Example 21-2. agiexample1.py
#!/usr/bin/env python
#
# An example for AGI (Asterisk Gateway Interface).
#
# Answer a call. Retrieve an account number from the caller and play back
# some account information to the caller.
#
# Developed for "Asterisk: The Definitive Guide"
#
import sys
#
# AGI commands are written to stdout. After a command is processed,
# the response from Asterisk comes in via stdin.
#
def agi_command(cmd):
'''Write out the command and return the response'''
# print sends the command out to stdout.
596 | Chapter 21: Asterisk Gateway Interface (AGI)
www.it-ebooks.info
print cmd
# Make sure it doesn't get buffered.
sys.stdout.flush()
# Read the response line from stdin. Use strip() to remove any whitespace
# that may be present (primarily the line ending).
return sys.stdin.readline().strip()
#
# Read the AGI environment variables sent from Asterisk to the script
# at startup. The input looks like:
# agi_request: example1.py
# agi_channel: SIP/000FF2266EE4-00000009
# ...
#
# After this bit of code you will be able to retrieve this information as:
# asterisk_env['agi_request']
# asterisk_env['agi_channel']
#
asterisk_env = {}
while True:
line = sys.stdin.readline().strip()
if not len(line):
break
var_name, var_value = line.split(':', 1)
asterisk_env[var_name] = var_value
#
# Set up a fake "database" of accounts. In a more realistic AGI script
# that is doing account data lookup, you would connect out to an external
# database or some other API to get this information. For the purpose of
# this example, we'll skip that and do the data lookup from this local
# example set.
#
ACCOUNTS = {
'12345678': {'balance': '50'},
'11223344': {'balance': '10'},
'87654321': {'balance': '100'},
}
#
# Answer the call using the ANSWER AGI command.
#
# See: *CLI> agi show commands topic ANSWER
#
response = agi_command('ANSWER')
#
# Prompt the caller to enter an account number using the GET DATA command.
# - Play a prompt called please-enter-account-number
# - Set a timeout of 30 seconds
# - Read a maximum of 8 digits (our account numbers are 8 digits long)
#
Example: Account Database Access | 597
www.it-ebooks.info
# See: *CLI> agi show commands topic GET DATA
#
response = agi_command('GET DATA please-enter-account-number 30000 8')
#
# If a timeout occurred, just exit back to the dialplan.
#
# The response will look like:
# 200 result=<digits> (timeout)
#
if 'timeout' in response:
sys.exit(0)
#
# The response will look like:
# 200 result=<digits>
# digits will be -1 if an error occurred.
#
# Split the response on the '=', a maximum of 1 time. The result is a two
# element array. The second element in the array (index 1) is the part that
# came after the '=' and is the account number we want.
#
account = response.split('=', 1)[1]
#
# If an error occurred, just hang up.
#
# See: *CLI> agi show commands topic HANGUP
#
if account == '-1':
response = agi_command('HANGUP')
sys.exit(0)
#
# If the account is invalid, tell the caller and then exit to the dialplan.
#
# See: *CLI> agi show commands topic STREAM FILE
#
if account not in ACCOUNTS:
response = agi_command('STREAM FILE invalid-account ""')
sys.exit(0)
balance = ACCOUNTS[account]['balance']
#
# Tell the caller the balance and then exit back to the dialplan.
#
# See: *CLI> agi show commands topic SAY NUMBER
#
response = agi_command('STREAM FILE your-balance-is ""')
response = agi_command('SAY NUMBER %s ""' % (balance))
sys.exit(0)
598 | Chapter 21: Asterisk Gateway Interface (AGI)
www.it-ebooks.info
Development Frameworks
There have been a number of efforts to create frameworks or libraries that make AGI
programming easier. Table 21-3 lists some of them. If you do not see a library listed here
for your preferred programming language, do a quick search for it and you’re likely to
find one, as others do exist.
Table 21-3. AGI development frameworks
Framework Language URL
Adhearsion Ruby http://adhearsion.com/
Asterisk-Java Java http://asterisk-java.org/
Asterisk-perl Perl http://asterisk.gnuinter.net/
PHPAGI PHP http://phpagi.sourceforge.net/
StarPy Python http://starpy.sourceforge.net/
Conclusion
AGI provides a powerful interface to Asterisk that allows you to implement first-party
call control in the programming language of your choice. You can take multiple ap‐
proaches to implementing an AGI application. Some approaches can provide better
performance, but at the cost of more complexity. AGI provides a programming envi‐
ronment that may make it easier to integrate Asterisk with other systems, or just provide
a more comfortable call-control programming environment for the experienced
programmer.
Development Frameworks | 599
www.it-ebooks.info
www.it-ebooks.info
You cannot eat a cluster of grapes at once, but it is
very easy if you eat them one by one.
—Jacques Roumain
CHAPTER 22
Clustering
The word “clustering” can mean different things to different people. Some people would
say clustering is simply having a replicated system on standby available to be turned on
when the primary system fails. To others, clustering is having several systems working
in concert with one another, with replicated data, fully redundant, and infinitely ex‐
pandable. For most people, it’s probably somewhere between those two extremes.
In this chapter, we’re going to explore the possibilities for clustering that exist with
Asterisk at a high level, giving you the knowledge and direction to start planning your
system into the future. As examples, we’ll discuss some of the tools that we’ve used in
our own large deployments. While there is no single way to go about building an Asterisk
cluster, the topologies we’ll cover have proven reliable and popular over time.
Our examples will delve into building a distributed call center, one of the more popular
reasons for building a distributed system. In some cases this is necessary simply because
a company has satellite offices it wants to tie into the primary system. For others, the
goal is to integrate remote employees, or to be able to handle a large number of seats.
We’ll start by looking at a simple, traditional PBX system, and see how that system can
eventually grow into something much larger.
601
www.it-ebooks.info
DevOps: Automated Deployments
Recently, cloud computing has been all the rage; it’s the new unified communications!
However, unlike unified communications, cloud computing seems to be steeped in real
development and has already produced large amounts of functionality (see OpenStack)
and has even created whole organizations (see Amazon Web Services and the like).
But we need a way to manage all these distributed systems and vast computing power.
Traditionally, many administrators would create documentation, bash scripts, and other
custom tools to help them deploy and manage their systems. Of course this gets cum‐
bersome as you start to scale, and you end up needing more people to help maintain the
systems.
Enter DevOps. The DevOps mentality is reproduceability to the extreme. By using a
framework that allows you to describe what your systems should “look like” (or rather,
what needs to be installed based on the role the system plays in your network) you are
better able to scale up and outward without the maintenance headache of maintaining
disparate systems. This has always been important, but with the advent of cloud com‐
puting, the need is even more pressing for today’s administrators.
There are a few different systems you can use, the most popular being Puppet from
PuppetLabs and Chef from Opscode. Both do essentially the same thing, but using
separate syntax (Puppet has its own domain-specific language; Chef uses native Ruby
with extra extensions). Give each a spin, watch some videos, and decide for yourself
which one you prefer. Both are amazing feats of systems engineering.
At AstriCon 2012, Paul Belanger of Polybeacon and Leif Madsen spoke about DevOps,
giving an overview of DevOps in an Asterisk environment.
Traditional PBXs
Most PBX systems deployed before the year 2000 look quite similar. They typically
involve a group of telephone circuits delivered either via PRI or through an array of
analog lines, connecting the outside world through the PBX, to a group of proprietary
handsets and peripheral applications. These systems provide a common set of PBX
functions, with extra capabilities such as voicemail and conferencing provided through
external hardware modules (typically adding thousands of dollars of cost to the system).
This topology is illustrated in Figure 22-1.
602 | Chapter 22: Clustering
www.it-ebooks.info
Figure 22-1. Traditional call center
Such systems utilize a set of rules for delivering calls to agents through the standard
automatic call distribution (ACD) rules, and have little flexibility. It is likely either im‐
possible or expensive to add remote agents, as calls need to be delivered over the PSTN,
which utilizes two phone lines: one for the incoming caller to the queue, and another
to be delivered to the remote agent (in most cases, the agents just need to reside at the
same physical location as the PBX itself).
These traditional phone systems are slowly being phased out, though, as more people
start clamoring for the features VoIP brings to the table. And even for systems that won’t
be using VoIP, solutions like Asterisk bring to the table features that once cost thousands
of dollars as an included part of the software.
Of course, with the money invested in expensive hardware in traditional systems, it is
natural that organizations with these systems will want to get as much use from them
as possible. Plus, simply swapping out an existing system is not only expensive (wiring
costs for SIP phones, replacement costs for proprietary handsets, etc.), but may be dis‐
ruptive to the call center, especially if it operates continuously.
Perhaps, though, the time to expand has come, and the existing system is no longer able
to keep up with the number of lines required and the number of seats necessary to keep
up with demand. In this case, it may be advantageous to look toward a hybrid system,
where the existing hardware continues to be used, but new seats and features are added
to the system using Asterisk.
Hybrid Systems
A hybrid phone system (Figure 22-2) contains the same functionality and hardware as
a traditional phone system, but it has another system such as Asterisk attached to it,
providing additional capacity and functionality. Adding Asterisk to a traditional system
is typically done via a PRI connection. From the viewpoint of the traditional system,
Asterisk will look like another phone company (central office, or CO). Depending on
the way the traditional system operates and the services available to or from the CO,
either Asterisk will deliver calls from the PRI through itself and to the existing PBX, or
the existing PBX will send calls over the PRI connection to Asterisk, which will then
direct the calls to the new endpoints (phones).
Hybrid Systems | 603
www.it-ebooks.info
Figure 22-2. Remote hybrid system
With Asterisk in the picture, functionality can be moved piecemeal from the existing
PBX system over to Asterisk, which can take on a greater role and command more of
the system over time. Eventually, the existing PBX system may simply be used as a
method for sending calls to the existing handsets on the agents’ desks, with those being
phased out over time and replaced with SIP-based phones, as the wiring is installed and
phones are purchased.
By adding Asterisk to the existing system, we gain a new set of functionality and ad‐
vantages, such as:
•Support for remote employees, with calls delivered over the existing Internet
connection
•Features such as conferencing and voicemail (with the possibility of users being
notified via email of new messages)
•Expanded phone lines using VoIP, and a reduction in long-distance costs
Such a system still suffers from a few disadvantages, as all the hardware needs to reside
at the call center facility, and we’re still restricted to using (relatively) expensive hardware
in the Asterisk system for connecting to the traditional PBX. We’re moving in the right
direction, though, and with the Asterisk system in place we can start the migration over
604 | Chapter 22: Clustering
www.it-ebooks.info
time, limiting interruptions to the business and taking a more gradual approach to
training users.
Pure Asterisk, Nondistributed
The next step in our journey is the pure Asterisk system. In this system we’ve successfully
migrated away from the existing PBX system and are now handling all functionality
through Asterisk. Our existing PRI has been attached to Asterisk, and we’ve expanded
our capacity by integrating an Internet telephony service provider (ITSP) into our sys‐
tem. All agents are now using SIP phones, and we’ve even added several remote em‐
ployees. This topology is illustrated in Figure 22-3.
Figure 22-3. Nondistributed Asterisk
Remote employees can be a great advantage for a company. Not only can letting your
employees work from remote locations increase morale by alleviating the burden of a
potentially long commute, but it allows people to work in an environment they are
comfortable in, which can make them more productive. Furthermore, the call center
manager does not have any less control over employee statistics: remote workers’ calls
can still be monitored for training purposes, and the statistical data gathered look no
different to the manager than for employees working onsite.
Pure Asterisk, Nondistributed | 605
www.it-ebooks.info
A measurable advantage for the company is the reduction in the amount of hardware
needed for each employee. If agents can utilize their existing computer systems, elec‐
trical grids, and Internet connections, the company can save a significant amount of
money by supporting remote employees. Additionally, those employees can be located
across the globe to expand the number of hours your agents are available, thereby al‐
lowing you to serve more time zones.
Using this system is simple and efficient, but as the company grows, the system may
reach a capacity issue. We’ll look at how the system can be expanded later in this chapter.
Asterisk and Database Integration
Integrating Asterisk with a database can add a great deal of functionality to your system.
Additionally, it provides a way to build web-based configuration utilities to make the
maintenance of an Asterisk system easier. What’s more, it allows instant access to in‐
formation from the dialplan and other parts of the Asterisk system.
Single Database
Adding database integration to Asterisk (Figure 22-4) is a powerful way of gaining access
to information that can be manipulated by other means. For example, we can read
information about the extensions and devices in the system from a database using the
Asterisk Realtime Architecture (discussed in Chapter 16), and we can modify the in‐
formation stored in the database via an external system, such as a web page.
Integration with a database adds a layer between Asterisk and a web interface that the
web designer is familiar with, and allows the manipulation of data in a way that doesn’t
require new skill sets. Knowledge of Asterisk itself is left to the Asterisk administrator,
and the web developer can happily work with tools she is familiar with.
Of course, this makes the Asterisk system slightly more complex to build, but integration
with a database via ODBC adds all sorts of possibilities (such as hot-desking, discussed
in “Getting Funky with func_odbc: Hot-Desking” on page 433). func_odbc is a powerful
tool for the Asterisk administrator, providing the ability to build a static dialplan using
data that is dynamic in nature. See Chapter 16 for more information about how to
integrate Asterisk with a database, and the functionality it provides.
We’re also quite fond of the func_curl module, which provides integration with web
services over HTTP directly from the dialplan.
606 | Chapter 22: Clustering
www.it-ebooks.info

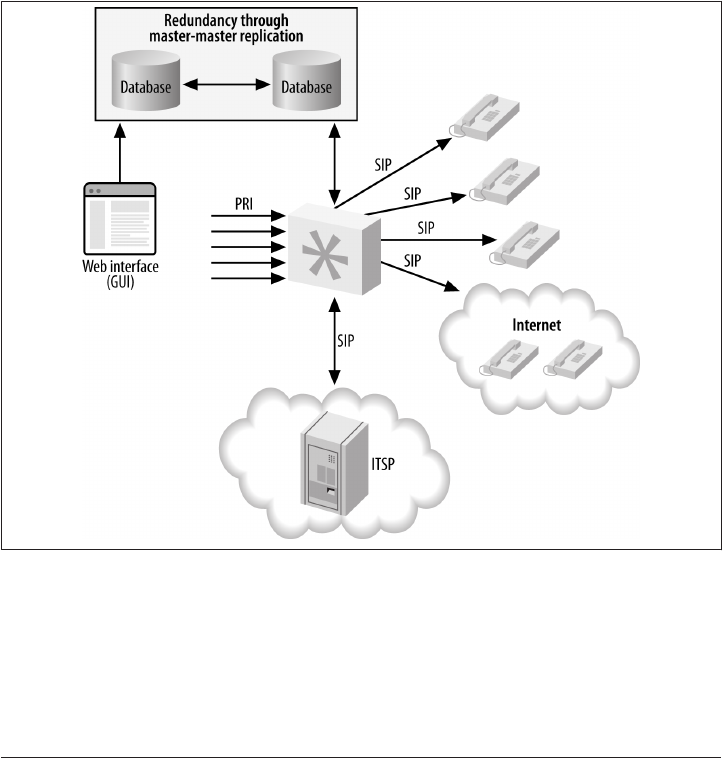

Figure 22-4. Asterisk database integration, single server
With the data abstracted from Asterisk directly, we will now have an easier time moving
toward a system that is getting ready to be clustered. We can use something like Linux-
HA to provide automatic failover between systems. While in the event of a failure the
calls on the system that failed will be lost, the failover will take only moments (less than
a second) to be detected, and the system will appear to its users to be immediately
available again. In this configuration, since our data is abstracted outside of Asterisk,
we can use applications such as unison or rsync to keep the configuration files synchron‐
ized between the primary and the backup system. We could also use subversion or git
to track changes to the configuration files, making it easy to roll back changes that don’t
work out.
Of course, if our database goes away due to a failure of the hardware or the software,
our system will be unavailable unless it is programmed so as to be able to work without
the database connection. This could be accomplished either by using a local database
that simply updates itself periodically from the primary database, or through informa‐
tion programmed directly into the dialplan. In most cases the functionality of the system
in this mode will be simpler than when the database was available, but at least the system
will not be entirely unusable.
Asterisk and Database Integration | 607
www.it-ebooks.info
A better solution would be to use a replicated database, which allows data written to
one database server to be written to another server at the same time. Asterisk can then
fail over to the other database automatically if the primary server becomes unavailable.
Replicated Databases
Using a replicated database provides some redundancy in the backend to help limit the
amount of downtime callers and agents experience if a database failure occurs. A master-
master database configuration is required so that data can be written to either database
and automatically replicated to the other system, ensuring that we have an exact copy
of the data on two physical machines. Another advantage to this approach is that a single
system no longer needs to handle all the transactions to the database; the load can be
divided among the servers. Figure 22-5 illustrates this distributed design.
Figure 22-5. Asterisk database integration, distributed database
608 | Chapter 22: Clustering
www.it-ebooks.info
1. Unfortunately, cdr_odbc currently lacks failover support.
We’ve used MySQL master-master replication before, and it works quite
well. It also isn’t all that difficult to set up, and several tutorials are
available on the Internet. It also worth noting that master-master rep‐
lication is a bit of a workaround for two noncolliding master-slave rep‐
lications, e.g.:
host1.master --> host2.slave
host1.slave <-- host2.master
This works quite well when you have only two servers, but as you start
to grow and expand and require even more database servers, you need
heavier-lifting technologies, such as MySQL Cluster or Galera Cluster
for MySQL.
Other database systems will likely contain this functionality as well,
especially if you’re using a commercial system such as Oracle or MS
SQL.
Failover can be done natively in Asterisk, as res_odbc and func_odbc1 do contain con‐
figuration options that allow you to specify multiple databases. In res_odbc, you can
specify the preferred order for database connections in case one fails. In func_odbc, you
can even specify different servers for reading data and writing data through the dialplan
functions you create. All of this flexibility allows you to provide a system that works
well for your business.
External programs can also be used for controlling failover between systems. The pen
application is a load balancer for simple TCP applications such as HTTP or SMTP, which
allows several servers to appear as one. This means Asterisk only needs to be configured
to connect to a single IP address (or hostname); the pen application will take care of
controlling which server gets used for each request.
Asterisk and Distributed Device States
Device states in Asterisk are important both from a software standpoint (Asterisk might
need to know the state of a device or the line on a device in order to know whether a
call can be placed to it) and from a user’s perspective (for example, a light may be turned
on or off to signify whether a particular line is in use, or whether an agent is available
for any more calls). From the viewpoint of a queue, it is extremely important to know
the status of the device an agent is using in order to determine whether the next caller
in the queue can be distributed to that agent. Without knowledge of the device’s state,
the queue would simply place multiple calls to the same endpoint.
Asterisk and Distributed Device States | 609
www.it-ebooks.info
Once you start expanding your single system to multiple boxes (potentially in multiple
physical locations, such as remote or satellite offices), you will need to distribute the
device state of endpoints among the systems. The kind of implementation that is re‐
quired will depend on whether you’re distributing them among systems on the same
LAN (low-latency links) or over a WAN (higher-latency links). We’ll discuss two device-
state distribution methods in this section: Corosync for low-latency links, and XMPP
for higher-latency links.
Distributing Device States over a LAN
The Corosync (previously OpenAIS) implementation was first added to Asterisk in the
1.6.1 branch, to enable distribution of device-state information across servers. The ad‐
dition of Corosync provided great possibilities for distributed systems, as device-state
awareness is an important aspect of such systems. Previous methods required the use
of GROUP() and GROUP_COUNT() for each channel, with that information queried for over
Distributed Universal Number Discovery (DUNDi). While this approach is useful in
some scenarios (we could use this functionality to look up the number of calls our
systems are handling and direct calls intelligently to systems handling fewer calls), as a
mechanism for determining device state information it is severely lacking.
Corosync did give us the first implementation of a system that allows the device states
and message-waiting indications to be distributed among multiple Asterisk systems (see
Figure 22-6). The downside of the Corosync implementation is that it requires all the
systems to live on low-latency links, which typically means they all need to reside in the
same physical location, attached to the same switch. That said, while the Corosync
library does not work across physically separate networks, it does allow a Queue() to
reside on one system and queue members to reside on another system (or multiple
systems). It does this without requiring us to use Local channels and test their availability
through other methods, thereby limiting (or eliminating) the number of connection
attempts made across the network, and multiple device ringing.
Using Corosync has an advantage, in that it is relatively easy to configure and get work‐
ing. The disadvantage is that it is not distributable over physical locations, although we
can use XMPP for device-state distribution over a wide area network, as you’ll see in
the next section.
More information about configuring distributed device states with Corosync is available
in “Using Corosync” on page 380.
610 | Chapter 22: Clustering
www.it-ebooks.info
Figure 22-6. Device state distribution with Corosync
Distributing Device States over a WAN
Because the XMPP protocol is designed for (or at least allows) usage across wide area
networks, we can have Asterisk systems at different physical locations distribute device-
state information to each other (see Figure 22-7). With the Corosync implementation,
the library would be used on each system, enabling them to distribute device-state in‐
formation. In the XMPP scenario, a central server (or cluster of servers) is used to
distribute the state among all the Asterisk boxes in the cluster. Currently, the best ap‐
plication for doing this is the Tigase XMPP server, because of its support for PubSub
events. While other XMPP servers may be supported in the future, only Tigase is known
to work at this time.
Asterisk and Distributed Device States | 611
www.it-ebooks.info
Figure 22-7. Device-state distribution with XMPP
With XMPP, the queues can be in different physical locations, and satellite offices can
take calls from the primary office, or vice versa. This provides another layer of redun‐
dancy, because if the primary site goes offline and the ITSP is set up in such a way as to
fail over to another office, the calls can be distributed among those satellite offices until
the primary site goes back online. This is quite exciting for many people, as it adds a
layer of functionality that was not previously available, and most of it can be done with
relatively minimal configuration.
The advantage to XMPP device-state distribution is that it is possible to distribute state
to multiple physical locations, which is not possible with Corosync. The disadvantage
is that it is more complex to set up (since you need an external service running the Tigase
XMPP server) than the Corosync implementation.
More information about configuring distributed device states with XMPP can be found
in “Using XMPP” on page 385.
612 | Chapter 22: Clustering
www.it-ebooks.info
Multiple Queues, Multiple Sites
Now, let’s get creative and use the various tools we’ve discussed in the previous sections
to build a distributed queue infrastructure. Figure 22-8 illustrates a sample setup where
we have five Asterisk servers being fronted by another cluster used to distribute/route
the calls to the various queues we have set up. Our ITSP sends calls to the routing cluster
(which could be something like Kamailio, or even multiple Asterisk servers imple‐
menting DUNDi or some other method to route and distribute calls), which then sends
the calls as appropriate to one of the three Asterisk systems on which we have our queues
configured. Each server handles a different queue, such as sales, technical support, and
returns. These servers in turn use the agents located at two separate physical locations.
The agents’ devices are registered to their own local registration servers (which may also
perform other functionality).
We are not showing all aspects of the system, in order to keep the dia‐
gram simple, but in this case we would be using the XMPP distributed
device-state system, as we’re implying that the agents are distributed
across multiple physical sites.
All the agents at the different locations can be loaded into one or more queues, and
because we’re distributing device-state information, each queue will know the current
state of the agents in the queue and will only distribute callers to the agents as appro‐
priate. Beyond that, we can configure penalties for the queues and/or for the agents in
order to get the callers to the best agents if they are available, and only use the other
agents when all the best agents are in use (for more information on penalties and pri‐
orities, refer to “Advanced Queues” on page 351).
We can add more agents to the system by adding more servers to the cluster at either
the same location or additional physical locations. We can also expand the number of
queues we support by adding more servers, each handling a different queue or queues.
A disadvantage to using this system is the way the Queue() application has been devel‐
oped. Queue() is one of the older applications in Asterisk, and it has unfortunately not
kept up with the pace of development in the realm of device-state distribution, so there
is no way to distribute the same Queue() across multiple boxes. For example, suppose
you have sales queues on two systems. If a caller enters the sales queue on the first
Asterisk system, and then another caller enters the sales queue on the second box, no
information will be distributed between those queues to indicate who is first and who
is second in line. The two queues are effectively separate. Perhaps future versions of
Asterisk will add this capability, but at this time it is not supported. We mention this so
you can plan your system accordingly.
Multiple Queues, Multiple Sites | 613
www.it-ebooks.info
Figure 22-8. Distributed queue infrastructure
Since queues in some implementations (such as call centers) may be required to handle
many calls at once, the processing and load requirements for a single system can be
quite steep. Having the ability to tap into the same agent resources across multiple
systems means we can distribute our callers among multiple boxes, significantly low‐
ering the processing requirements placed on any single system. No longer does one
system need to do it all—we can break out various components of the system on different
servers.
Conclusion
In this chapter, we explored how you can transition a traditional (non-Asterisk) tel‐
ephony system into a distributed call center. Along the way, we’ve seen how a call center
with just a few seats can grow into a system with hundreds of seats in different physical
locations.
614 | Chapter 22: Clustering
www.it-ebooks.info
While the ability to grow your business and plan for the future is crucial, it is also
important not to build a system that is more complex than it needs to be. The larger
you go, and the more distributed a system you build, the longer it will take to get off the
ground and the harder it will be to do all the things that are important when changes
occur—such as testing, implementing the changes, and keeping things synchronized.
If your system is never going to grow beyond a 40-seat call center, don’t build it for 500
seats. In that case all you’re doing is adding costs and complexity to accommodate a
system on a scale that may never be fully realized.
Building a simple system now and planning for the future and how you’re going to get
there (especially if you can do it in iterations, without having to rip your entire infra‐
structure apart or start from scratch) will get you up and running much more quickly.
As you grow, you can add more pieces and determine if the approach you’re taking is
correct. If it’s not right, you can go back and rework the problematic piece. This kind
of approach can save you a lot of headaches down the road, when you realize you don’t
have to redo your entire complex system because of some requirement that you didn’t
foresee at the beginning.
We also mentioned some advantages of having a distributed system with remote em‐
ployees, such as improved employee morale and cost savings. You can use your em‐
ployees’ existing Internet connections, hardware, and electricity, which can save the
company money, and your employees will benefit by avoiding the aggravation and costs
of commuting to an office every day. While not all situations allow this type of scenario,
it is worth exploring whether supporting remote employees would be useful to your
business.
Finally, distributed device state can open up a world of possibilities for your company,
allowing it to grow beyond the single Asterisk system that does everything. Breaking
out functionality to multiple boxes is now a reality, and it can be approached with a
measure of confidence not previously seen.
Conclusion | 615
www.it-ebooks.info
www.it-ebooks.info
A community is like a ship; everyone ought to be
prepared to take the helm.
—Henrik Ibsen
CHAPTER 23
Distributed Universal Number
Discovery (DUNDi)
Distributed Universal Number Discovery, or DUNDi, is a service discovery protocol
that can be used for locating resources at remote locations. The original intention of
DUNDi was to permit decentralized routing among many peers using a General Peering
Agreement (GPA). The GPA is intended to take on the role of a centralized control
authority with a document to create a trust relationship among the peers in the cloud.
While the idea is interesting and sound, the GPA has not taken off. That doesn’t mean
the DUNDi protocol itself hasn’t found a home, though: the original intention of DUN‐
Di has been expanded so that now it doesn’t act just as a location service, but can be
used to request and pass information among peers.
How Does DUNDi Work?
Think of DUNDi as a large phone book that allows you to ask peers if they know of an
alternative VoIP route to an extension number or PSTN telephone number.
For example, assume that you are connected to another set of Asterisk boxes listening
for and responding to DUNDi requests, and those boxes are in turn connected to other
Asterisk boxes listening for and responding to DUNDi requests. Assume also that your
system does not have direct access to request anything from the remote servers.
Figure 23-1 illustrates how DUNDi works. You ask your friend Bob if he knows how to
reach 4001, an extension to which you have no direct access. Bob replies, “I don’t know
how to reach that extension, but let me ask my peer, Sally.”
617
www.it-ebooks.info
Figure 23-1. DUNDi peer-to-peer request system
Bob asks Sally if she knows how to reach the requested extension, and she responds
with, “You can reach that extension at IAX2/dundi:very_long_password@hostname/
extension.” Bob then stores the address in his database and passes on to you the in‐
formation about how to reach 4001. With the newfound information, you can then
make a separate request to actually place the call to Sally’s box in order to reach extension
4001. (DUNDi only helps you find the information you need in order to connect; it does
not actually place the call.)
Because Bob has stored the information he found, he’ll be able to provide it to any peers
who later request the same number from him, so the lookup won’t have to go any further.
This helps reduce the load on the network and decreases response times for numbers
that are looked up often. (However, it should be noted that DUNDi creates a rotating
key, and thus stored information is valid for a limited period of time.)
DUNDi performs lookups dynamically, either with a switch => statement in your
extensions.conf file or with the use of the DUNDILOOKUP() dialplan function.
618 | Chapter 23: Distributed Universal Number Discovery (DUNDi)
www.it-ebooks.info
1. For public networks and those not controlled by your organization, use of ISN (ITAD Subscriber Number)
is our preferred method. We talk about ITAD and ISN in “ISN, ITAD, and freenum.org” on page 313.
While DUNDi was originally designed and intended to be used as a peering fabric for
the PSTN, it is used most frequently in private networks.1 If you’re the Asterisk admin‐
istrator of a large enterprise installation (or even an installation with only a pair of
Asterisk boxes at different physical locations), you may wish to simplify the adminis‐
tration of extension numbers. DUNDi is a fantastic tool for this, because it allows you
to simply share the extensions that have been configured at each location dynamically,
by requesting the extension numbers from the remote location when your local box
doesn’t know how to reach them.
Additionally, if one of the locations had a cheaper route to a PSTN number you wanted
to dial, you could request that route in your DUNDi cloud. For example, if one box was
located in Vancouver and the other in Toronto, the Vancouver office could send calls
destined for the Toronto area across the network using VoIP and out of the PRI in
Toronto, so they can be placed locally on the PSTN. Likewise, the Toronto office could
place calls destined for Vancouver out of the PRI at the Vancouver office.
The dundi.conf File
It is often useful to be aware of the options available to us prior to delving into the
configuration file, but feel free to skip this section for now and come back to reference
particular options after you’ve got your initial configuration up and working.
There are three sections in the dundi.conf file: the [general] section, the [mappings]
section, and the peer definitions, such as [FF:FF:FF:FF:FF:FF]. We’ll show the options
available for each section in separate tables.
Table 23-1 lists the options available in the [general] section of dundi.conf.
Table 23-1. Options available in the [general] section
Option Description
department Used when querying a remote system’s contact information. An example might be
Communications.
organization Used when querying a remote system’s contact information. An example might be
ShiftEight.org.
locality Used when querying a remote system’s contact information. An example might be Toronto.
stateprov Used when querying a remote system’s contact information. An example might be Ontario.
country Used when querying a remote system’s contact information. An example might be Canada.
email Used when querying a remote system’s contact information. An example might be
support@shifteight.org
The dundi.conf File | 619
www.it-ebooks.info
Option Description
phone Used when querying a remote system’s contact information. An example might be
+1-416-555-1212
bindaddr Used to control which IP address the system will bind to. This can only be an IPv4 address. The default
is 0.0.0.0, meaning the system will listen (and respond) on all available interfaces.
port The port to listen for requests on. The default is 4520.
tos The Terms of Service or Quality of Service (ToS/QoS) value to be used for requests. See the wiki for
more information about the values available and how to use them.
entityid The entity ID of the system. Should be an externally (network) facing MAC address. The format is
00:00:00:00:00:00.
cachetime How long peers should cache our responses for, in seconds. The default is 3600.
ttl The time-to-live, or maximum depth to search the network for a response. The maximum wait time
for a response is calculated using (2000 + 200 * ttl) ms.
autokill Used to control how long we wait for an ACK to our DPDISCOVER. Setting this timeout prevents the
lookups from stalling due to a latent peer. This can be yes, no, or a numeric value representing the
number of milliseconds to wait. You can use the qualify option to enable this per peer.
secretpath A rotating key is created and stored within the AstDB. The value is stored in the key 'secret'
under the family defined by secretpath. The default secretpath is dundi, resulting in the
key being stored in dundi/secret by default.
storehistory Used to indicate whether or not the history of the last several requests should be stored in memory,
along with how long the requests took. Valid values are yes and no (also available using the CLI
commands dundi store history and dundi no store history). This is a debugging tool that is disabled by
default due to possible performance impacts.
Table 23-2 lists the options you can configure in the [mappings] section of dundi.conf.
Table 23-2. Options available in the [mappings] section
Option Description
nounsolicited Used for advertising no unsolicited calls to the returned result. Used in public networks.
nocomunsolicit Used for advertising no commercial unsolicited calls to the returned result. Used in public networks.
residential Used to define the route returned as being a residential location. Used in public networks.
commercial Used to define the route returned as being a commercial location. Used in public networks.
mobile Used to define the route returned as being a mobile phone. Used in public networks.
nopartial Used to prevent partial-number lookups from being performed against this mapping.
${NUMBER} Variable that contains the value of the request being looked up.
${IPADDR} Variable that contains the IP address of the local system. Can be used to dynamically construct mapping
responses. Not recommended.
${SECRET} Variable that contains the value of the rotating secret key as defined in the secretpath location
within the AstDB.
620 | Chapter 23: Distributed Universal Number Discovery (DUNDi)
www.it-ebooks.info
2. The dundi.conf and extensions.conf files must be configured. We have chosen to configure sip.conf for the
purposes of address advertisement on our network, but DUNDi is protocol-agnostic, so iax.conf, h323.conf,
or mgcp.conf could be used instead. DUNDi simply performs the lookups; the standard methods of placing
calls are still required.
Finally, Table 23-3 lists the options available in the peer sections of dundi.conf.
Table 23-3. Options available for peer definitions in dundi.conf
Option Description
inkey The inbound authentication key.
outkey The key used for authentication to the remote peer.
host The hostname or IP address of the remote peer.
port The port on which to communicate with the remote peer.
order The search order associated with this peer. Values include primary, secondary, tertiary, and
quartiary. Will only search primary peers unless none are available, in which case secondary peers will be
searched, and so on.
include Used to control whether this peer is included in searches for the mapping defined. Can be set to the value of
all if used for all mappings.
noinclude Used to control whether this peer is excluded from searches for the mapping defined. Can be set to all if this
peer should be excluded from all lookups.
permit Used to control whether this peer can perform lookups against a particular mapping. If the value is set to all,
this peer can search against all defined mappings.
deny Used to control which mappings this peer is restricted from searching. The value can be set to all to restrict
this peer from being able to perform any lookups against defined mappings.
model Used to control whether this peer can receive requests (inbound), transmit requests (outbound), or do both
(symmetric).
precache Typically used when we have a node with only a few routes that wants to push those values up to another node
that is providing more responses (this is known as precaching, providing an answer when no request has been
received). The values include outgoing, incoming, and symmetric. If this is set to outgoing, we push
routes to this peer. If set to incoming, we receive routes from this peer. If set to symmetric, we do both.
Configuring Asterisk for Use with DUNDi
There are three files that need to be configured for DUNDi: dundi.conf, exten
sions.conf, and sip.conf.2 The dundi.conf file controls the authentication of peers whom
we allow to perform lookups through our system. This file also manages the list of peers
to whom we might submit our own lookup requests. Since it is possible to run several
different networks on the same box, it is necessary to define a different section for each
peer, and then configure the networks in which those peers are allowed to perform
lookups. Additionally, we need to define which peers we wish to use to perform
lookups.
Configuring Asterisk for Use with DUNDi | 621
www.it-ebooks.info
General Configuration
The [general] section of dundi.conf contains parameters relating to the overall oper‐
ation of the DUNDi client and server:
; DUNDi configuration file for Toronto
;
[general]
;
department=IT
organization=toronto.shifteight.org
locality=Toronto
stateprov=ON
country=CA
email=support@toronto.shifteight.org
phone=+14165551212
;
; Specify bind address and port number. Default is port 4520.
;bindaddr=0.0.0.0
port=4520
entityid=FF:FF:FF:FF:FF:FF
ttl=32
autokill=yes
;secretpath=dundi
The entity identifier defined by entityid should generally be the Media Access Control
(MAC) address of an interface in the machine. The entity ID defaults to the first Ethernet
address of the server, but you can override this with entityid, as long as it is set to the
MAC address of something you own. The MAC address of the primary external interface
is recommended. This is the address that other peers will use to identify you.
The time-to-live (ttl) field defines how many hops away the peers that we receive replies
from can be and is used to break loops. Each time a request is passed down the line
because the requested number is not known, the value in the TTL field is decreased by
one, much like the TTL field of an ICMP packet. The TTL field also defines the maxi‐
mum number of seconds we are willing to wait for a reply.
When you request a number lookup, an initial query (called a DPDISCOVER) is sent to
your peers requesting that number. If you do not receive an acknowledgment (ACK) of
your query (DPDISCOVER) within 2,000 ms (enough time for a single transmission only)
and autokill is set to yes, Asterisk will send a CANCEL to the peers. (Note that an
acknowledgment is not necessarily a reply to the query; it is just an acknowledgment
that the peer has received the request.) The purpose of autokill is to keep the lookup
from stalling due to hosts with high latency. In addition to the yes and no options, you
may also specify the number of milliseconds to wait.
The pbx_dundi module creates a rotating key and stores it in the local Asterisk database
(AstDB). The key name secret is stored in the dundi family. The value of the key can
622 | Chapter 23: Distributed Universal Number Discovery (DUNDi)
www.it-ebooks.info
be viewed with the database show command at the Asterisk console. The database family
can be overridden with the secretpath option.
We need another peer to interact with, so here’s the configuration for the other node:
; DUNDi configuration file for Vancouver
;
[general]
;
department=IT
organization=vancouver.shifteight.org
locality=Vancouver
stateprov=BC
country=CA
email=support@vancouver.shifteight.org
phone=+16135551212
;
; Specify bind address and port number. Default port is 4520.
;bindaddr=0.0.0.0
port=4520
entityid=00:00:00:00:00:00
ttl=32
autokill=yes
;secretpath=dundi
In the next section, we’ll create our initial DUNDi peers.
Initial DUNDi Peer Definition
A DUNDi peer is identified by the unique Layer 2 MAC address of an interface on the
remote system. The dundi.conf file is where we define what context to search for peers
requesting a lookup, and which peers we want to use when doing a lookup for a par‐
ticular network. The following configuration is defined in the dundi.conf file on our
Toronto system:
[00:00:00:00:00:00] ; Vancouver Remote Office
model = symmetric
host = vancouver.shifteight.org
inkey = vancouver
outkey = toronto
qualify = yes
dynamic=yes
The remote peer’s identifier (MAC address) is enclosed in square brackets ([]). The
inkey and outkey are the public/private key pairs that we use for authentication. Key
pairs are generated with the astgenkey script, located in the ~/src/asterisk-complete/
asterisk/11/contrib/scripts source directory. We use the -n flag so that we don’t have to
initialize passwords every time we start Asterisk:
$ cd /var/lib/asterisk/keys
$ sh ~/src/asterisk-complete/asterisk/11/contrib/scripts/astgenkey -n toronto
Configuring Asterisk for Use with DUNDi | 623
www.it-ebooks.info
We’ll place the resulting keys, toronto.pub and toronto.key, in our /var/lib/asterisk/
keys directory. The toronto.pub file is the public key, which we’ll post to a web server so
that it is easily accessible for anyone with whom we wish to peer. When we peer, we can
give our peers the HTTP-accessible public key, which they can then place in
their /var/lib/asterisk/keys directories (using something like wget).
On the Vancouver box, we’ll use the following peer configuration in dundi.conf:
[FF:FF:FF:FF:FF:FF] ; Toronto Remote Office
model = symmetric
host = toronto.shifteight.org
inkey = toronto
outkey = vancouver
qualify = yes
dynamic=yes
Then we’ll execute the same astgenkey script on the Vancouver box to generate the public
and private vancouver keys. Finally, we’ll place the toronto.pub key on the Vancouver
server in /var/lib/asterisk/keys and place the vancouver.pub file on the Toronto server
in the same location.
After downloading the keys, we must reload the res_crypto.so and pbx_dundi.so mod‐
ules in Asterisk:
toronto*CLI> module reload res_crypto.so
-- Reloading module 'res_crypto.so' (Cryptographic Digital Signatures)
-- Loaded PUBLIC key 'vancouver'
-- Loaded PUBLIC key 'toronto'
-- Loaded PRIVATE key 'toronto'
vancouver*CLI> module reload res_crypto.so
-- Reloading module 'res_crypto.so' (Cryptographic Digital Signatures)
-- Loaded PUBLIC key 'toronto'
-- Loaded PUBLIC key 'vancouver'
-- Loaded PRIVATE key 'vancouver'
We can verify the keys so we know they’re ready to be loaded at any time with the keys
show CLI command:
*CLI> keys show
Key Name Type Status Sum
------------------ -------- ---------------- --------------------------------
vancouver PRIVATE [Loaded] c02efb448c37f5386a546f03479f7d5e
vancouver PUBLIC [Loaded] 0a5e53420ede5c88de95e5d908274fb1
toronto PUBLIC [Loaded] 5f806860e0c8219f597f876caa6f2aff
3 known RSA keys.
With the keys loaded into memory, we can reload the pbx_dundi.so module on both
systems in order to peer them together:
624 | Chapter 23: Distributed Universal Number Discovery (DUNDi)
www.it-ebooks.info
*CLI> module reload pbx_dundi.so
-- Reloading module 'pbx_dundi.so' (Distributed Universal Number
Discovery (DUNDi))
== Parsing '/etc/asterisk/dundi.conf': Found
Sometimes a reload doesn’t quite cause the sync to happen as quickly as
we’d like. If you run into that, you can just module unload pbx_dundi.so
at both sides, then module load pbx_dundi.so on both systems to do a
fresh startup.
Finally, we can verify that the systems have peered successfully with dundi show peers:
toronto*CLI> dundi show peers
EID Host Port Model AvgTime Status
00:00:00:00:00:00 172.16.0.104 (S) 4520 Symmetric Unavail OK (3 ms)
1 dundi peers [1 online, 0 offline, 0 unmonitored]
Now, with our peers configured and reachable, we need to create the mapping contexts
that will control what information will be returned in a lookup.
Creating Mapping Contexts
The dundi.conf file defines DUNDi contexts that are mapped to dialplan contexts in
your extensions.conf file. DUNDi contexts are a way of defining distinct and separate
directory service groups. The contexts in the [mapping] section point to contexts in the
extensions.conf file, which control the numbers that you advertise.
When you create a peer, you need to define which mapping contexts you will allow this
peer to search. You do this with the permit statement (each peer may contain multiple
permit statements). Mapping contexts are related to dialplan contexts in the sense that
they are a security boundary for your peers. We’ll enable our mapping in the next section.
All DUNDi mapping contexts take the form of:
dundi_context => local_context,weight,technology,destination[,options]]
The following configuration creates a DUNDi mapping context that we’ll use to adver‐
tise our local extension numbers to the group. We’ll add this configuration to the dun
di.conf file on the Toronto system under the [mappings] header. Note that this should
all appear on one line:
[mappings]
; All on a single line
;
extensions => RegisteredDevices,0,SIP,dundi:very_secret_secret@
toronto.shifteight.org/
${NUMBER},nopartial
Configuring Asterisk for Use with DUNDi | 625
www.it-ebooks.info
The configuration on the Vancouver system will look like this:
[mappings]
; All on a single line
;
extensions => RegisteredDevices,0,SIP,dundi:very_secret_secret@
vancouver.shifteight.org/
${NUMBER},nopartial
In this example, the mapping context is extensions, which points to the Registered
Devices context within extensions.conf (providing a listing of extension numbers to
reply with: our phone book). Numbers that resolve to the PBX should be advertised
with a weight of zero (directly connected). Numbers higher than zero indicate an in‐
creased number of hops or paths to reach the final destination. This is useful when
multiple replies for the same lookup are received at the end that initially requested the
number; a path with a lower weight will be preferred. We’ll look at how to control
responses in “Controlling Responses” on page 630.
If we can reply to a lookup, our response will contain the method by which the other
end can connect to the system. This includes the technology to use (such as IAX2, SIP,
H.323, and so on), the username and password with which to authenticate, which host
to send the authentication to, and finally the extension number.
Asterisk provides some shortcuts to allow us to create a “template” with which we can
build our responses. The following channel variables can be used to construct the
template:
${SECRET}
Replaced with the password stored in the local AstDB. Only used with iax.conf.
${NUMBER}
The number being requested.
${IPADDR}
The IP address to connect to.
It is generally safest to statically configure the hostname, rather than
using the ${IPADDR} variable. The ${IPADDR} variable will sometimes
reply with an address in the private IP space, which is unreachable from
the Internet.
With our mapping configured, let’s create a simple dialplan context against which we
can perform lookups for testing. We’ll make this more dynamic in “Controlling Re‐
sponses” on page 630.
626 | Chapter 23: Distributed Universal Number Discovery (DUNDi)
www.it-ebooks.info
In extensions.conf, we can add the following on both systems:
[RegisteredDevices]
exten => 1000,1,NoOp()
With our dialplan and mappings configured, we need to load them into memory from
the CLI:
*CLI> dialplan reload
*CLI> module reload pbx_dundi.so
-- Reloading module 'pbx_dundi.so' (Distributed Universal Number
Discovery (DUNDi))
== Parsing '/etc/asterisk/dundi.conf': == Found
We can verify the mapping was loaded into memory with the dundi show mappings
command:
toronto*CLI> dundi show mappings
DUNDi Cntxt Weight Local Cntxt Options Tech Destination
extensions 0 RegisteredDe NONE SIP dundi:${SECRET}@172.16.0.
With our simple dialplan and mappings configured, we need to define the mappings
each of our peers is allowed to use. We’ll do this in the next section.
Using Mapping Contexts with Peers
With our mappings defined in the dundi.conf file, we need to give our peers permission
to use them. Control of the various mappings is done via the permit, deny, include,
and noinclude options within a peer definition. We use permit and deny to control
whether the remote peer is allowed to search a particular mapping on our local system.
We use include and noinclude to control which peers we will use to perform lookups
within a particular mapping.
Since we only have a single mapping defined (extensions), we’re going to permit and
include extensions within our peer definitions on both the Toronto and Vancouver
systems.
On Toronto, we’ll permit Vancouver to search the extensions mapping, and use Van‐
couver whenever we’re performing a lookup within the extensions mapping:
[00:00:00:00:00:00] ; Vancouver Remote Office
model = symmetric
host = vancouver.shifteight.org
inkey = vancouver
outkey = toronto
qualify = yes
dynamic=yes
permit=extensions
include=extensions
Configuring Asterisk for Use with DUNDi | 627
www.it-ebooks.info
Similarly, we’ll permit and include the extensions mapping for the Toronto office on
the Vancouver system:
[FF:FF:FF:FF:FF:FF] ; Toronto Remote Office
model = symmetric
host = toronto.shifteight.org
inkey = toronto
outkey = vancouver
qualify = yes
dynamic=yes
permit=extensions
include=extensions
After modifying the peers, we reload the pbx_dundi.so module to have the changes take
effect:
*CLI> module reload pbx_dundi.so
The include and permit configuration can be verified via the dundi show peer com‐
mand on the Asterisk CLI:
*CLI> dundi show peer 00:00:00:00:00:00
Peer: 00:00:00:00:00:00
Model: Symmetric
Host: 172.16.0.104
Port: 4520
Dynamic: no
Reg: No
In Key: vancouver
Out Key: toronto
Include logic:
-- include extensions
Query logic:
-- permit extensions
Now we can test our lookups. We can do this easily from the Asterisk CLI using the
dundi lookup command. If we perform a lookup from the Vancouver system, we’ll re‐
ceive a response from the Toronto system with an address we can use to place a call.
We’ve added the keyword bypass to the end of the lookup in order to bypass the cache
(in case we wish to perform several tests):
vancouver*CLI> dundi lookup 1000@extensions bypass
1. 0 SIP/dundi:very_secret_secret@172.16.0.161/1000 (EXISTS)
from ff:ff:ff:ff:ff:ff, expires in 3600 s
DUNDi lookup completed in 12 ms
The response of SIP/dundi:very_secret_secret@172.16.0.161/1000 gives us an ad‐
dress that we can use to call extension 1000. (Of course, we can’t use this address at the
moment because we haven’t configured any peers on the Toronto—or Vancouver—
system to actually receive the call, but at least we have the DUNDi lookup portion
working now!) In the next section we’ll explore how to receive calls into our system
after we’ve replied to a DUNDi response.
628 | Chapter 23: Distributed Universal Number Discovery (DUNDi)
www.it-ebooks.info
Allowing Remote Connections
Within our sip.conf file, we need to enable a peer that we can accept calls from and
handle that peer’s calls in the dialplan appropriately. The authentication is done using
a password as defined in the mapping within dundi.conf.
If you’re using iax.conf, you can use the ${SECRET} variable in the map‐
ping in place of the password, which is dynamically replaced with a
rotated key and is refreshed every 3,600 seconds (1 hour). The value of
the secret key is stored in the Asterisk database and is accessed using
the dbsecret option within the peer definition of iax.conf.
Here is the user definition for the dundi user as defined in sip.conf:
[dundi]
type=user
secret=very_secret_secret
context=DUNDi_Incoming
disallow=all
allow=ulaw
allow=alaw
The context entry, DUNDi_Incoming, is where authorized callers are sent in exten
sions.conf. From there, we can control the call just as we would in the dialplan of any
other incoming connection.
We could also use the permit and deny options for the peer in sip.conf
to control which IP addresses we’ll accept calls from. Controlling the
IP addresses will give us an extra layer of security if we’re only expecting
calls from known endpoints, such as those within our organization.
Be sure to reload chan_sip.so to enable the newly created user in sip.conf:
toronto*CLI> sip reload
To accept the incoming calls, define the [DUNDi_Incoming] context in extensions.conf
and add the following to the Toronto system’s dialplan:
[DUNDi_Incoming]
exten => 1000,1,Verbose(2,Incoming call from the DUNDi peer)
same => n,Answer()
same => n,Playback(silence/1)
same => n,Playback(tt-weasels)
same => n,Hangup()
Reload the dialplan with dialplan reload after saving your changes to extensions.conf.
Configuring Asterisk for Use with DUNDi | 629
www.it-ebooks.info
For our first test, we’ll create an extension in the LocalSets context and try placing a
call to extension 1000 using the information provided via DUNDi:
[LocalSets]
exten => 1000,1,Verbose(2,Test extension to place call to remote server)
same => n,Dial(SIP/dundi:very_secret_secret@172.16.0.161/1000,30)
same => n,Hangup()
If we reload the dialplan and try testing the extension by dialing 1000, we should be
connected to the tt-weasels prompt on the remote machine. With our user configured
correctly to accept incoming calls, let’s make our dialplan and responses more dynamic
with some additional tools.
Using dbsecret with iax.conf
If you use the iax.conf channel driver, you can authenticate incoming calls using the
dbsecret directive in iax.conf along with the ${SECRET} variable in your mapping. The
use of the ${SECRET} variable in the mapping causes a rotated password to be sent back
in the response, which can then be used for authentication via IAX2. Here is an example
of an authentication definition in the iax.conf file:
[dundi]
type=friend
context=DUNDi_Incoming
dbsecret=dundi/secret
disallow=all
allow=ulaw
allow=alaw
The password is stored in the AstDB and is rotated every 3,600 seconds (1 hour). To use
the password in your mappings, change the mappings in dundi.conf to use ${SECRET}
instead of very_secret_secret. This is the mapping we configured on the Vancouver
system:
[mappings]
; All on a single line
;
extensions => RegisteredDevices,0,SIP,dundi:${SECRET}@
vancouver.shifteight.org/
${NUMBER},nopartial
Controlling Responses
Responses are controlled with the dialplan. Whenever an incoming request matches the
dialplan configured for the mapping (whether the request is for a specific extension or
a pattern match), a response will be sent. If the request does not match within the
630 | Chapter 23: Distributed Universal Number Discovery (DUNDi)
www.it-ebooks.info
dialplan, no response is sent. In the example we’ve been building, the extension 1000 is
the only one that can be matched and thus generate a response.
In the next few sections we’ll look at some of the methods we can use to control what
requests are responded to.
Manually adding responses
The extensions.conf file handles what numbers you advertise and what you do with the
calls that connect to them.
The simple method to control responses is to add them manually to the [Registered
Devices] context. If we had several extensions at one of our locations, we could add
them all to that context:
[RegisteredDevices]
exten => 1000,1,NoOp()
exten => 1001,1,NoOp()
exten => 1002,1,NoOp()
The NoOp() dialplan application is used here because the matching and responding is
done only against the extension number, and no dialplan is executed. While we could
overload this context and cause it to also be the destination for our calls, it’s not rec‐
ommended. Other reasons for using the NoOp() application should become clear as we
progress.
Using pattern matches
Of course, adding everything we want to respond with manually would be silly, espe‐
cially if we wanted to advertise a larger set of numbers, such as all numbers for an area
code. As mentioned earlier, in our example we might wish to allow our Toronto and
Vancouver offices to call out from one another when placing calls that are free or cheap
to make from the other location.
We can respond with all of an area code using pattern matches, just as we do in other
parts of the dialplan:
[RegisteredDevices]
exten => _416NXXXXXX,1,NoOp()
exten => _647NXXXXXX,1,NoOp()
exten => _905NXXXXXX,1,NoOp()
We could also advertise a full or partial range of extensions using pattern matches:
[RegisteredDevices]
exten => _1[1-3]XX,1,NoOp() ; extensions 1100->1399
exten => _1[7-9]XX,1,NoOp() ; extensions 1700->1999
Configuring Asterisk for Use with DUNDi | 631
www.it-ebooks.info
Pattern matches are a good way of adding ranges of numbers, but these are still static.
In the next section we’ll explore how we can add some fluidity to the RegisteredDevices
context.
Dynamically adding extension numbers
In some cases, we might want to only advertise extensions at your location that are
currently registered to the system. Perhaps we have a salesperson who flies between the
Toronto and Vancouver offices, and plugs her laptop into the network and registers at
whichever location she is currently visiting. In that case, we would want to make sure
that calls to that person are routed to the appropriate office in order to avoid sending
calls across the country unnecessarily.
The regcontext and regexten options in iax.conf and sip.conf are useful for this. When
a peer registers, the value defined by regexten for the registering peer will cause that
same value to be populated inside the context, as defined by the regcontext attribute.
So, for example, if we define regcontext in the [general] section of sip.conf to contain
RegisteredDevices, and we define the regexten for each peer to contain the extension
number of that peer, when the peers register, the RegisteredDevices context will be
populated automatically for us. We’ll modify our sip.conf to look like this:
[general]
regcontext=RegisteredDevices
[0000FFFF0001](office-phone)
regexten=1001
and then reload chan_sip.so.
Now, we’ll register our device to the system and look at the RegisteredDevices context:
*CLI> dialplan show RegisteredDevices
[ Context 'RegisteredDevices' created by 'SIP' ]
'1001' => 1. Noop(0000FFFF0001) [SIP]
'1002' => 1. Noop(0000FFFF0002) [SIP]
With our devices registered and the context used for determining when to respond
populated, the only task left is to include the LocalSets context within the
DUNDi_Incoming context in order to permit routing of calls to the endpoints.
Using dialplan functions in mappings
Sometimes it’s useful to utilize a dialplan function within the mappings to control what
a peer responds with. Throughout this book we’ve been touting the advantages of de‐
coupling the user’s extension number from the device in order to permit hot-desking.
Because the other end is just going to request an extension number and won’t necessarily
know the location of the device on our system, we can use the DB() and DB_EXISTS()
632 | Chapter 23: Distributed Universal Number Discovery (DUNDi)
www.it-ebooks.info
3. …or func_odbc, or func_curl, or res_ldap (using the REALTIME_FIELD() function).
4. We’ve also looked at using the GROUP() and GROUP_COUNT() functions for looking up the current channel
usage on a remote system to determine which location to route calls to (the one with the lowest channel
usage) as a simple load balancer.
functions within the mapping to perform a lookup from our AstDB for the device to
call.3
Prior versions of Asterisk had a maximum length of the destina
tion field (see “Creating Mapping Contexts” on page 625) of 80
characters, which made the use of nested dialplan functions nearly
impossible. Currently, the maximum length is 512 characters.
First, we need to make sure our database is populated with the information we might
respond with. While this would normally be done by the dialplan written for the hot-
desking implementation, we’ll just add the content directly from the Asterisk console
for demonstration purposes:
*CLI> database put phones 1001/device 0000FFFF0001
Updated database successfully
With our database populated, we need to modify our mapping to utilize some dialplan
functions that will take the value requested, perform a lookup to our database for that
value, and return a value. If no value exists in the database, we’ll return the value of None.
Our existing mapping looks like this:
[mappings]
; The mapping exists on a single line
extensions => RegisteredDevices,0,SIP,
dundi:very_secret_secret@toronto.shifteight.org/${NUMBER},nopartial
Our current example simply reflects back the same extension number that was reques‐
ted, along with some authentication information. The number requested is the exten‐
sion the peer is looking for. However, because we’re using hot-desking, the extension
number may be at various phone locations, so we may want to return the device identifier
directly.4 We can do this by being clever with the use of dialplan functions in our re‐
sponse. While we may not have the full power of the dialplan (multiple lines, complex
logic, etc.) at our disposal, we can at least use some of the simpler dialplan functions,
such as DB(), DB_EXISTS(), and IF().
We’re going to replace ${NUMBER} with the following bit of dialplan logic:
; this should all be on a single line
${IF($[${DB_EXISTS(phones/${NUMBER}/device)}]?
${DB(phones/${NUMBER}/device)}:None)}
Configuring Asterisk for Use with DUNDi | 633
www.it-ebooks.info
If we break this down, we end up with an IF() statement that will return either true or
false. If false, we return the value of None. If true, we return the value located in the
database at phones/${NUMBER}/device (where ${NUMBER} contains the value of 1001
for our example) using the DB() function. To determine which value the IF() function
will return, we use the DB_EXISTS() function. This function checks whether a value
exists at phones/${NUMBER}/device within the AstDB, and returns either 1 or 0 (true
or false).
The DB_EXISTS() function not only returns 1 or 0, but also sets the
${DB_RESULT} channel variable that contains the value inside the data‐
base if the return value is 1. However, we can’t use that value because
the IF() function is evaluated prior to the condition field being evalu‐
ated, which means ${DB_RESULT} will be blank. Thus, we need to use
the DB() function to look up the value prior to the condition field being
evaluated.
After reloading pbx_dundi.so from the console (module reload pbx_dundi.so), we can
perform a lookup from another server and check out the result:
vancouver*CLI> dundi lookup 1001@extensions bypass
1. 0 SIP/dundi:very_awesome_password/0000FFFF0001 (EXISTS)
from ff:ff:ff:ff:ff:ff, expires in 3600 s
DUNDi lookup completed in 77 ms
With dialplan functions, you can make the responses in your dialplans a lot more dy‐
namic. In the next section, we’ll look at how you can perform these lookups from the
dialplan using the DUNDILOOKUP(), DUNDIQUERY(), and DUNDIRESULT() functions.
When you perform lookups using the example in this chapter, because
all the peers in your network will return a result (None, or the value you
want), you’ll need to use the DUNDIQUERY() and DUNDIRESULT() func‐
tions to parse through the list of results returned. The alternative would
be to try calling SIP/dundi:very_long_pass@remote_server/None,
but this wouldn’t be very effective. You might even want to handle the
extension None elegantly, in case it gets called.
Performing Lookups from the Dialplan
Performing lookups from the dialplan is really the bread and butter of all of this, because
it allows more dynamic routing from within the dialplan. With DUNDi, you can per‐
form lookups and route calls within your cluster using either the DUNDILOOKUP() or
DUNDIQUERY() and DUNDIRESULT() functions.
634 | Chapter 23: Distributed Universal Number Discovery (DUNDi)
www.it-ebooks.info
The DUNDILOOKUP() function replaces the old DUNDiLookup() dialplan application, per‐
forming nearly the same functionality. With DUNDILOOKUP(), you perform your lookup
as you would at the Asterisk console, and the result can then be saved into a channel
variable, or used wherever you might use a dialplan function. Here is an example:
[TestContext]
exten => 1001,1,Verbose(2,Look up extension 1001)
same => n,Set(DUNDi_Result=${DUNDILOOKUP(1001,extensions,b)})
same => n,Verbose(2,The result of the lookup was ${DUNDi_Result})
same => n,Hangup()
The arguments passed to DUNDILOOKUP() are: extension,context,options. Only one
option, b, is available for the DUNDILOOKUP() function, and that is used to bypass the
local cache. The advantage to using the DUNDILOOKUP() function is that it is straight‐
forward and easy to use. The disadvantage is that it will only set the first value returned;
if multiple values are returned, they will be discarded.
You won’t always want to use the bypass option when performing look‐
ups, because the use of the cache is what will lower the number of re‐
quests over your network and limit the amount of resources required.
We’re using it in our examples simply because it is useful for testing
purposes, so that we know we’ve returned a result each time rather than
just a cached value from the previous lookup.
To parse through multiple returned values, we need to use the DUNDIQUERY() and DUN
DIRESULT() functions. Each plays an important part in sifting through multiple re‐
turned values from a lookup. The DUNDIQUERY() function performs the initial lookup
and saves the resulting hash into memory. An ID value is then returned, which can be
stored in a channel variable. The ID value returned from the DUNDIQUERY() function
can then be passed to the DUNDIRESULT() function to parse through the returned values
from the query.
Let’s take a look at some dialplan that uses these functions:
[TestContext]
exten => _1XXX,1,Verbose(2,Looking up results for extension ${EXTEN})
; Perform our lookup and save the resulting ID to DUNDI_ID
same => n,Set(DUNDI_ID=${DUNDIQUERY(${EXTEN},extensions,b)})
same => n,Verbose(2,Showing all results returned from the DUNDi Query)
; The DUNDIRESULT() function can return the number of results using 'getnum'
same => n,Set(NumberOfResults=${DUNDIRESULT(${DUNDI_ID},getnum)})
same => n,Set(ResultCounter=1)
; If there is less than 1 result, no results were returned
same => n,GotoIf($[0${NumberOfResults} < 1]?NoResults,1)
Configuring Asterisk for Use with DUNDi | 635
www.it-ebooks.info
; The start of our loop showing the returned values
same => n,While($[0${ResultCounter} <= ${NumberOfResults}])
; Save the returned result at position ${ResultCounter} to thisResult
same => n,Set(thisResult=${DUNDIRESULT(${DUNDI_ID},${ResultCounter})})
; Show the current result on the console
same => n,Verbose(2,One of the results returned was: ${thisResult})
; Increase the counter by one
same => n,Set(ResultCounter=${INC(ResultCounter)})
; End of our loop
same => n,EndWhile()
same => n,Playback(silence/1)
same => n,Playback(vm-goodbye)
same => n,Hangup()
; If no results were found, execute this dialplan
exten => NoResults,1,Verbose(2,No results were found)
same => n,Playback(silence/1)
same => n,Playback(invalid)
same => n,Hangup()
Our example dialplan performs a lookup using the DUNDIQUERY() function and stores
the resulting ID value in the DUNDI_ID channel variable. Using the DUNDIRESULT()
function and the getnum option, we store the total number of returned results in the
NumberOfResults channel variable. We then set the ResultCounter channel variable to
1 as our starting position in the loop.
Using GotoIf(), we check if the ${NumberOfResults} returned is less than one and, if
so, jump to the NoResults extension, where we Playback() “Invalid extension.” If at
least one extension is found, we continue on in the dialplan.
Using the While() application, we check if the ${ResultCounter} is less than or equal
to the value of ${NumberOfResults}. If that is true, we continue on in the dialplan, and
otherwise, we jump to the EndWhile() application.
For each iteration of our loop, the DUNDIRESULT() function is used to save the value at
position ${ResultCounter} to the thisResult channel variable. After storing the value,
we output it to the Asterisk console using the Verbose() application. Following that,
we increase the value of ResultCounter by one using the INC() function. Our loop test
is then done again within the While() loop, and the loop will continue while the value
of ${ResultCounter} is less than or equal to the value of ${NumberOfResults}.
Using the same type of logic, we could check for values other than None and, if such a
value is found, ExitWhile() and continue in the dialplan to perform a call to the end‐
point. The dialplan logic might look something like this:
636 | Chapter 23: Distributed Universal Number Discovery (DUNDi)
www.it-ebooks.info
[subLookupExtension]
exten => _1XXX,1,Verbose(2,Looking up results for extension ${EXTEN})
; Perform our lookup and save the resulting ID to DUNDI_ID
same => n,Set(DUNDI_ID=${DUNDIQUERY(${EXTEN},extensions,b)})
same => n,Set(NumberOfResults=${DUNDIRESULT(${DUNDI_ID},getnum)})
same => n,Set(ResultCounter=1)
; If no results are found, return 'None'
same => n,GotoIf($[0${NumberOfResults} < 1]?NoResults,1)
; Perform our loop
same => n,While($[0${ResultCounter} <= ${NumberOfResults}])
; Get the current value
same => n,Set(thisResult=${DUNDIRESULT(${DUNDI_ID},${ResultCounter})})
; If the current value returned is not None, we have a resulting
; location to call and we can exit the loop
same => n,ExecIf($["${thisResult}" != "None"]?ExitWhile())
; If we made it this far, no value has been returned yet that we want to
; use, so increase the counter and try the next value.
same => n,Set(ResultCounter=${INC(ResultCounter)})
; End of our loop
same => n,EndWhile()
; We've made it here because we made it to the end of the loop or we found
; a value we want to return. Check to see which it is. If we just ran out of
; values, return 'None'.
;
same => n,GotoIf($["${thisResult}" = "None"]?NoResults,1)
; If we make it here, we have a value we want to return.
same => n,Return(${thisResult})
; If there were no acceptable results, return the value 'None'
exten => NoResults,1,Verbose(2,No results were found)
same => n,Return(None)
With the DUNDIQUERY() and DUNDIRESULT() functions, you have a lot of power to control
how to handle the results returned and perform routing logic with those values.
Conclusion
In this chapter, we looked at how the DUNDi protocol helps you to perform lookups
against the other Asterisk systems in your cluster, to perform dynamic routing. With
the use of DUNDi, you can take multiple systems and control when and where calls are
placed within them, providing toll-bypass capabilities and even giving your employees
Conclusion | 637
www.it-ebooks.info
the ability to move between physical locations, while also limiting the number of out-
of-system hops a call must take to find them.
While the original intention of DUNDi was to help us migrate away from centralized
directory services—an intention that has yet to come to fruition—DUNDi is an ex‐
tremely effective and useful tool that can be put to work in organizations to advertise
and route calls dynamically between systems in a cloud environment. DUNDi is a tool
that gives great power to Asterisk administrators looking to create a distributed
network.
638 | Chapter 23: Distributed Universal Number Discovery (DUNDi)
www.it-ebooks.info
Chaos is inherent in all compounded things.
Strive on with diligence.
—The Buddha
CHAPTER 24
System Monitoring and Logging
Asterisk comes with several subsystems that allow you to obtain detailed information
about the workings of your system. Whether for troubleshooting or for tracking usage
for billing or staffing purposes, Asterisk’s various monitoring modules can help you
keep tabs on the inner workings of your system.
logger.conf
When troubleshooting issues in your Asterisk system, you will find it very helpful to
refer to some sort of historical record of what was going on in the system at the time
the reported issue occurred. The parameters for the storing of this information are
defined in /etc/asterisk/logger.conf.
Ideally, one might want the system to store a record of each and every thing it does.
However, there is a cost to doing this. On a busy system, with full debug logging enabled,
it is possible to completely fill the hard drive with logged data within a day or so. It is
therefore necessary to achieve a balance between detail and storage requirements.
The /etc/asterisk/logger.conf file allows you to define all sorts of different levels of log‐
ging, to multiple files if desired. This flexibility is excellent, but it can also be confusing.
The format of an entry in the logger.conf file is as follows:
filename => type[,type[,type[,...]]]
A sample logger.conf file comes with the Asterisk source, but rather than just copying
over the sample file, we recommend that you use the following for your initial log
ger.conf file:
639
www.it-ebooks.info
[general]
[logfiles]
console => notice,warning,error,dtmf
messages => notice,warning,error
;verbose => notice,warning,error,verbose
When you have saved the file, you will need to reload the logger by issuing the following
command from the shell:
$ asterisk -rx 'logger reload'
or from the Asterisk CLI:
*CLI> logger reload
Verbose Logging: Useful but Dangerous
We struggled with whether to recommend adding the following line to your log
ger.conf file:
verbose => notice,warning,error,verbose
This is quite possibly one of the most useful debugging tools you have when building
and troubleshooting a dialplan, and therefore it is highly recommended. The danger
comes from the fact that if you forget to disable this when you are done with your
debugging, you will have left a ticking time bomb in your Asterisk system, which will
slowly fill up the hard drive and kill your system one day, several months or years from
now, when you are least expecting it.
Use it. It’s fantastic. Just remember to turn it off when you’re done!
You can specify any filename you want, but the special filename console will in fact print
the output to the Asterisk CLI, and not to any file on the hard drive. All other filenames
will be stored in the filesystem in the directory /var/log/asterisk. The logger.conf types
are outlined in Table 24-1.
Table 24-1. logger.conf types
Type Description
notice You will see a lot of these during a reload, but they will also happen during normal call flow. A notice is simply any
event that Asterisk wishes to inform you of.
warning A warning represents a problem that could be severe enough to affect a call (including disconnecting a call because
call flow cannot continue). Warnings need to be addressed.
error Errors represent significant problems in the system that must be addressed immediately.
640 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
Type Description
debug Debugging is only useful if you are troubleshooting a problem with the Asterisk code itself. You would not use
debug to troubleshoot your dialplan, but you would use it if the Asterisk developers asked you to provide logs for
a problem you were reporting. Do not use debug in production, as the amount of detail stored can fill up a hard
drive in a matter of days.a
verbose This is one of the most useful of the logging types, but it is also one of the more risky to leave unattended, due to
the possibility of the output filling your hard drive.b
dtmf Logging DTMF can be helpful if you are getting complaints that calls are not routing from the auto attendant
correctly.
fax This type of logging causes fax-related messages from the fax technology backend (res_fax_spandsp or
res_fax_digium) to be logged to the fax logger.
*This will log EVERYTHING (and we mean everything). Do not use this unless you understand the implications of
storing this amount of data. It will not end well.
a This is not theory. It has happened to us. It was not fun.
b It’s not as risky as debug, since it’ll take months to fill the hard drive, but the danger is that it will happen, say, a year later when
you’re on summer vacation, and it will not immediately be obvious what the problem is. Not fun.
There is a peculiarity in Asterisk’s logging system that will cause you
some consternation if you are unaware of it. The level of logging for the
verbose and debug logging types is tied to the verbosity as set in
the console. This means that if you are logging to a file with the ver
bose or debug type, and somebody logs into the CLI and issues the
command core set verbose 0, or core set debug 0, the logging of those
details to your logfile will stop.
Reviewing Asterisk Logs
Searching through logfiles can be a challenge. The trick is to be able to filter what you
are seeing so that you are only presented with information that is relevant to what you
are searching for.
To start with, you will need to have an approximate idea of when the trouble you are
looking for occurred. Once you are oriented to the approximate time, you will need to
find clues that will help you to identify the call in question. Obviously, the more infor‐
mation you have about the call, the faster you will be able to pin it down.
Asterisk 11 introduced a logging feature that helps with debugging a specific call. Log
entries associated with a call now include a call ID. This call ID can be used with grep
to find all log entries associated with that call. In the following example log entry, the
call ID is C-00000004:
[Dec 4 08:22:32] WARNING[14199][C-00000004]: app_voicemail.c:6286
leave_voicemail: No entry in voicemail config file for '234123452'
logger.conf | 641
www.it-ebooks.info
1. Which will normally be found at /etc/syslog.conf.
In earlier versions of Asterisk, there is another trick you can use. If, for example, you
are doing verbose logging, you should note that each distinct call has a thread identifier,
which, when used with grep, can often help you to filter out everything that does not
relate to the call you are trying to debug. For example, in the following verbose log, we
have more than one call in the log, and since the calls are happening at the same time,
it can be very confusing to trace one call:
$ tail -1000 verbose
[Mar 11 …] VERBOSE[31362] logger.c: -- IAX2/shifteight-4 answered Zap/1-1
[Mar 11 …] VERBOSE[2973] logger.c: -- Starting simple switch on 'Zap/1-1'
[Mar 11 …] VERBOSE[31362] logger.c: == Spawn extension (shifteight, s, 1)
exited non-zero on 'Zap/1-1'
[Mar 11 …] VERBOSE[2973] logger.c: -- Hungup 'Zap/1-1'
[Mar 11 …] VERBOSE[3680] logger.c: -- Starting simple switch on 'Zap/1-1'
[Mar 11 …] VERBOSE[31362] logger.c: -- Hungup 'Zap/1-1'
To filter on one call specifically, we could grep on the thread ID. For example:
$ grep 31362 verbose
would give us:
[Mar 11 …] VERBOSE[31362] logger.c: -- IAX2/shifteight-4 answered Zap/1-1
[Mar 11 …] VERBOSE[31362] logger.c: == Spawn extension (shifteight, s, 1)
exited non-zero on 'Zap/1-1'
[Mar 11 …] VERBOSE[31362] logger.c: -- Hungup 'Zap/1-1'
This method does not guarantee that you will see everything relating to one call, since
a call could in theory spawn additional threads, but for basic dialplan debugging we
find this approach to be very useful when the call IDs from Asterisk 11 are not available.
Logging to the Linux syslog Daemon
Linux contains a very powerful logging engine, which Asterisk can take advantage of.
While a discussion of all the various flavors of syslog and all the possible ways to handle
Asterisk logging would be beyond the scope of this book, suffice it to say that if you
want to have Asterisk send logs to the syslog daemon, you simply need to specify the
following in your /etc/asterisk/logger.conf file:
syslog.local0 => notice,warning,error ; or whatever type(s) you want to log
You will need a designation in your syslog configuration file1 named local0, which
should look something like:
local0.* /var/log/asterisk/syslog
642 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
2. And rsyslog, syslog-ng, and what-all-else.
You can use local0 through local7 for this, but check your syslog.conf
file to ensure that nothing else is using one of those syslog channels.
syslog2 allows much more powerful logging, but it also requires more knowledge than
simply allowing Asterisk to log to files.
Verifying Logging
You can view the status of all your logger.conf settings through the Asterisk CLI by
issuing the command:
*CLI> logger show channels
You should see output similar to:
Channel Type Status Configuration
------- ---- ------ -------------
syslog.local0 Syslog Enabled - NOTICE WARNING ERROR VERBOSE
/var/log/asterisk/verbose File Enabled - NOTICE WARNING ERROR VERBOSE
/var/log/asterisk/messages File Enabled - NOTICE WARNING ERROR
Console Enabled - NOTICE WARNING ERROR DTMF=
Log Rotation
There is some log rotation support built into Asterisk. Log rotation will be done in the
following cases:
•If you run the logger rotate Asterisk CLI command:
*CLI> logger rotate
•During a configuration reload if any existing log files are greater than 1 GB in size
•If Asterisk receives the SIGXFSZ signal, indicating that a file it was writing to is too
large
Call Detail Records
The CDR system in Asterisk is used to log the history of calls in the system. In some
deployments, these records are used for billing purposes. In others, call records are used
for analyzing call volumes over time. They can also be used as a debugging tool by
Asterisk administrators.
Call Detail Records | 643
www.it-ebooks.info
CDR Contents
A CDR has a number of fields that are included by default. Table 24-2 lists them.
Table 24-2. Default CDR fields
Option Value/Example Notes
accountcode 12345 An account ID. This field is user-defined and is empty by default.
src 12565551212 The calling party’s caller ID number. It is set automatically and is read-
only.
dst 102 The destination extension for the call. This field is set automatically and
is read-only.
dcontext PublicExtensions The destination context for the call. This field is set automatically and is
read-only.
clid "Big Bird"
<12565551212>
The full caller ID, including the name, of the calling party. This field is set
automatically and is read-only.
channel SIP/0004F2040808-
a1bc23ef
The calling party’s channel. This field is set automatically and is read-
only.
dstchannel SIP/
0004F2046969-9786b0b0
The called party’s channel. This field is set automatically and is read-only.
lastapp Dial The last dialplan application that was executed. This field is set
automatically and is read-only.
lastdata SIP/
0004F2046969,30,tT
The arguments passed to the lastapp. This field is set automatically
and is read-only.
start 2010-10-26 12:00:00 The start time of the call. This field is set automatically and is read-only.
answer 2010-10-26 12:00:15 The answered time of the call. This field is set automatically and is read-
only.
end 2010-10-26 12:03:15 The end time of the call. This field is set automatically and is read-only.
duration 195 The number of seconds between the start and end times for the call.
This field is set automatically and is read-only.
billsec 180 The number of seconds between the answer and end times for the
call. This field is set automatically and is read-only.
disposition ANSWERED An indication of what happened to the call. This may be NO ANSWER,
FAILED, BUSY, ANSWERED, or UNKNOWN.
amaflags DOCUMENTATION The Automatic Message Accounting (AMA) flag associated with this call.
This may be one of the following: OMIT, BILLING,
DOCUMENTATION, or Unknown.
userfield PerMinuteCharge:0.02 A general-purpose user field. This field is empty by default and can be set
to a user-defined string.a
uniqueid 1288112400.1 The unique ID for the src channel. This field is set automatically and is
read-only.
a The userfield is not as relevant now as it used to be. Custom CDR variables are a more flexible way to get custom data into
CDRs.
644 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
All fields of the CDR record can be accessed in the Asterisk dialplan by using the CDR()
function. The CDR() function is also used to set the fields of the CDR that are user-
defined:
exten => 115,1,Verbose(Call start time: ${CDR(start)})
same => n,Set(CDR(userfield)=zombie pancakes)
In addition to the fields that are always included in a CDR, it is possible to add custom
fields. This is done in the dialplan by using the Set() application with the CDR()
function:
exten => 115,1,NoOp()
same => n,Set(CDR(mycustomfield)=coffee)
same => n,Verbose(I need some more ${CDR(mycustomfield)})
If you choose to use custom CDR variables, make sure that the CDR
backend that you choose is capable of logging them.
To view the built-in documentation for the CDR() function, run the following command
at the Asterisk console:
*CLI> core show function CDR
In addition to the CDR() function, some dialplan applications may be used to influence
CDR records. We’ll look at these next.
Dialplan Applications
A few dialplan applications can be used to influence CDRs for the current call. To get a
list of the CDR applications that are loaded into the current version of Asterisk, we can
use the following CLI command:
*CLI> core show applications like CDR
-= Matching Asterisk Applications =-
ForkCDR: Forks the Call Data Record.
NoCDR: Tell Asterisk to not maintain a CDR for the current call
ResetCDR: Resets the Call Data Record.
-= 3 Applications Matching =-
Each application has documentation built into the Asterisk application, which can be
viewed using the following command:
*CLI> core show application <application name>
cdr.conf
The cdr.conf file has a [general] section that contains options that apply to the entire
CDR system. Additional optional sections may exist in this file that apply to specific
Call Detail Records | 645
www.it-ebooks.info
CDR logging backend modules. Table 24-3 lists the options available in the [general]
section.
Table 24-3. cdr.conf [general] section
Option Value/Example Notes
enable yes Enable CDR logging. The default is yes.
unanswered no Log unanswered calls. Normally, only answered calls result in a CDR. Logging all
call attempts can result in a large number of extra call records that most people
do not care about. The default value is no.
end before hexten no Close out CDRs before running the h extension in the Asterisk dialplan. Normally,
CDRs are not closed until the dialplan is completely finished running. The default
value is no.
initiated seconds no When calculating the billsec field, always round up. For example, if the
difference between when the call was answered and when the call ended is 1
second and 1 microsecond, billsec will be set to 2 seconds. This helps ensure
that Asterisk’s CDRs match the behavior used by telcos. The default value is no.
batch no Queue up CDRs to be logged in batches instead of logging synchronously at the
end of every call. This prevents CDR logging from blocking the completion of the
call teardown process within Asterisk. Using batch mode can be incredibly
useful when working with a database that may be slow to process requests. The
default value is no, but we recommend turning it on.a
size 100 Set the number of CDRs to queue up before they are logged during batch mode.
The default value is 100.
time 300 Set the maximum number of seconds that CDRs will wait in the batch queue
before being logged. The CDR batch-logging process will run at the end of this
time period, even if size has not been reached. The default value is 300
seconds.
scheduler only no Set whether CDR batch processing should be done by spawning a new thread, or
within the context of the CDR batch scheduler. The default value is no, and we
recommend not changing it.
safe shutdown yes Block Asterisk shutdown to ensure that all queued CDR records are logged. The
default is yes, and we recommend leaving it that way, as this option prevents
important data loss.
a The disadvantage of enabling this option is that if Asterisk were to crash or die for some reason, the CDR records would be lost, as
they are only stored in memory while the Asterisk process exists. See safeshutdown for more information.
Backends
Asterisk CDR backend modules provide a way to log CDRs. Most CDR backends require
specific configuration to get them going.
646 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
cdr_adaptive_odbc
As the name suggests, the cdr_adaptive_odbc module allows CDRs to be stored in a
database through ODBC. The “adaptive” part of the name refers to the fact that it works
to adapt to the table structure: there is no static table structure that must be used with
this module. When the module is loaded (or reloaded), it reads the table structure. When
logging CDRs, it looks for a CDR variable that matches each column name. This applies
to both the built-in CDR variables and custom variables. If you want to log the built-in
channel CDR variable, just create a column called channel.
Adding custom CDR content is as simple as setting it in the dialplan. For example, if
we wanted to log the User-Agent that is provided by a SIP device, we could add that as
a custom CDR variable:
exten => 105,n,Set(CDR(useragent)=${CHANNEL(useragent)})
To have this custom CDR variable inserted into the database by cdr_adaptive_odbc,
all we have to do is create a column called useragent.
Multiple tables may be configured in the cdr_adaptive_odbc configuration file. Each
goes into its own configuration section. The name of the section can be anything; the
module does not use it. Here is an example of a simple table configuration:
[mytable]
connection = asterisk
table = asterisk_cdr
A more detailed example of setting up a database for logging CDRs can be found in
“Storing Call Detail Records (CDR)” on page 458.
Table 24-4 lists the options that can be specified in a table configuration section in the
cdr_adaptive_odbc.conf file.
Table 24-4. cdr_adaptive_odbc.conf table configuration options
Option Value/Example Notes
connection pgsql1 The database connection to be used. This is a reference to the configured connection in
res_odbc.conf. This field is required.
table asterisk_cdr The table name. This field is required.
usegmtime no Indicates whether to log timestamps using GMT instead of local time. The default value
for this option is no.
In addition to the key/value pair fields that are shown in the previous table, cdr_adap
tive_odbc.conf allows for a few other configuration items. The first is a column alias.
Normally, CDR variables are logged to columns of the same name. An alias allows the
variable name to be mapped to a column with a different name. The syntax is:
alias <CDR variable> => <column name>
Call Detail Records | 647
www.it-ebooks.info
Here is an example column mapping using the alias option:
alias src => source
It is also possible to specify a content filter. This allows you to specify criteria that must
match for records to be inserted into the table. The syntax is:
filter <CDR variable> => <content>
Here is an example content filter:
filter accountcode => 123
Finally, cdr_adaptive_odbc.conf allows static content for a column to be defined. This
can be useful when used along with a set of filters. This static content can help dif‐
ferentiate records that were inserted into the same table by different configuration sec‐
tions. The syntax for static content is:
static <"Static Content Goes Here"> => <column name>
Here is an example of specifying static content to be inserted with CDRs:
static "My Content" => my_identifier
cdr_csv
The cdr_csv module is a very simple CDR backend that logs CDRs into a CSV (comma-
separated values) file. The file is /var/log/asterisk/cdr-csv/Master.csv. As long as CDR
logging is enabled in cdr.conf and this module has been loaded, CDRs will be logged to
the Master.csv file.
While no options are required to get this module working, there are some options that
customize its behavior. These options, listed in Table 24-5, are placed in the [csv]
section of cdr.conf.
Table 24-5. cdr.conf [csv] section options
Option Value/Example Notes
usegmtime no Log timestamps using GMT instead of local time. The default is no.
loguniqueid no Log the uniqueid CDR variable. The default is no.
loguserfield no Log the userfield CDR variable. The default is no.
accountlogs yes Create a separate CSV file for each different value of the accountcode CDR variable.
The default is yes.
The order of CDR variables in CSV files created by the cdr_csv module is:
<accountcode>,<src>,<dst>,<dcontext>,<clid>,<channel>,<dstchannel>,<lastapp>, \
<lastadata>,<start>,<answer>,<end>,<duration>,<billsec>,<disposition>, \
<amaflags>[,<uniqueid>][,<userfield>]
648 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
cdr_custom
This CDR backend allows for custom formatting of CDR records in a logfile. This
module is most commonly used for customized CSV output. The configuration file used
for this module is /etc/asterisk/cdr_custom.conf. A single section called [mappings]
should exist in this file. The [mappings] section contains mappings between a filename
and the custom template for a CDR. The template is specified using Asterisk dialplan
functions.
The following example shows a sample configuration for cdr_custom that enables a
single CDR logfile, Master.csv. This file will be created as /var/log/asterisk/cdr-custom/
Master.csv. The template that has been defined uses both the CDR() and CSV_QUOTE()
dialplan functions. The CDR() function retrieves values from the CDR being logged.
The CSV_QUOTE() function ensures that the values are properly escaped for the CSV file
format:
[mappings]
Master.csv => ${CSV_QUOTE(${CDR(clid)})},${CSV_QUOTE(${CDR(src)})},
${CSV_QUOTE(${CDR(dst)})},${CSV_QUOTE(${CDR(dcontext)})},
${CSV_QUOTE(${CDR(channel)})},${CSV_QUOTE(${CDR(dstchannel)})},
${CSV_QUOTE(${CDR(lastapp)})},${CSV_QUOTE(${CDR(lastdata)})},
${CSV_QUOTE(${CDR(start)})},${CSV_QUOTE(${CDR(answer)})},
${CSV_QUOTE(${CDR(end)})},${CSV_QUOTE(${CDR(duration)})},
${CSV_QUOTE(${CDR(billsec)})},${CSV_QUOTE(${CDR(disposition)})},
${CSV_QUOTE(${CDR(amaflags)})},${CSV_QUOTE(${CDR(accountcode)})},
${CSV_QUOTE(${CDR(uniqueid)})},${CSV_QUOTE(${CDR(userfield)})}
In the actual configuration file, the value in the Master.csv mapping
should be on a single line.
cdr_manager
The cdr_manager backend emits CDRs as events on the Asterisk Manager Interface
(AMI), which we discussed in detail in Chapter 20. This module is configured in
the /etc/asterisk/cdr_manager.conf file. The first section in this file is the [general]
section, which contains a single option to enable this module (the default value is no):
[general]
enabled = yes
The other section in cdr_manager.conf is the [mappings] section. This allows for adding
custom CDR variables to the manager event. The syntax is:
<CDR variable> => <Header name>
Call Detail Records | 649
www.it-ebooks.info
Here is an example of adding two custom CDR variables:
[mappings]
rate => Rate
carrier => Carrier
With this configuration in place, CDR records will appear as events on the manager
interface. To generate an example manager event, we will use the following dialplan
example:
exten => 110,1,Answer()
same => n,Set(CDR(rate)=0.02)
same => n,Set(CDR(carrier)=BS&S)
same => n,Hangup()
This is the command used to execute this extension and generate a sample manager
event:
*CLI> console dial 110@testing
Finally, this is an example manager event produced as a result of this test call:
Event: Cdr
Privilege: cdr,all
AccountCode:
Source:
Destination: 110
DestinationContext: testing
CallerID:
Channel: Console/dsp
DestinationChannel:
LastApplication: Hangup
LastData:
StartTime: 2010-08-23 08:27:21
AnswerTime: 2010-08-23 08:27:21
EndTime: 2010-08-23 08:27:21
Duration: 0
BillableSeconds: 0
Disposition: ANSWERED
AMAFlags: DOCUMENTATION
UniqueID: 1282570041.3
UserField:
Rate: 0.02
Carrier: BS&S
cdr_mysql
This module allows posting of CDRs to a MySQL database. We recommend that new
installations use cdr_adaptive_odbc instead.
650 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
cdr_odbc
This module enables the legacy ODBC interface for CDR logging. New installations
should use cdr_adaptive_odbc instead.
cdr_pgsql
This module allows posting of CDRs to a PostgreSQL database. We recommend that
new installations use cdr_adaptive_odbc instead.
cdr_radius
The cdr_radius backend allows posting of CDRs to a RADIUS server. When using this
module, each CDR is reported to the RADIUS server as a single stop event. This module
is configured in the /etc/asterisk/cdr.conf file. Options for this module are placed in a
section called [radius]. The available options are listed in Table 24-6.
Table 24-6. cdr.conf [radius] section options
Option Value/Example Notes
usegmtime no Enables logging of timestamps using GMT instead of local time. The
default is yes.
log unique id no Enables logging of the uniqueid CDR variable. The default is yes.
loguserfield no Enables logging of the userfield CDR variable. The default is yes.
radiuscfg /etc/ radius client -
ng/ radius
client .conf
Sets the location of the radiusclient-ng configuration file. The default
is /etc/radiusclient-ng/radiusclient.conf.
cdr_sqlite
This module allows posting of CDRs to an SQLite database using SQLite version 2.
Unless you have a specific need for SQLite version 2 as opposed to version 3, we rec‐
ommend that all new installations use cdr_sqlite3_custom.
This module requires no configuration to work. If the module has been compiled and
loaded into Asterisk, it will insert CDRs into a table called cdr in a database located
at /var/log/asterisk/cdr.db.
cdr_sqlite3_custom
This CDR backend inserts CDRs into an SQLite database using SQLite version 3. The
database created by this module lives at /var/log/asterisk/master.db. This module re‐
quires a configuration file, /etc/asterisk/cdr_sqlite3_custom.conf. The configuration file
identifies the table name, as well as customizes which CDR variables will be inserted
into the database:
Call Detail Records | 651
www.it-ebooks.info
[master]
table = cdr
;
; List the column names to use when inserting CDRs.
;
columns => calldate, clid, dcontext, channel, dstchannel, lastapp, lastdata,
duration, billsec, disposition, amaflags, accountcode, uniqueid, userfield,
test
;
; Map CDR contents to the previously specified columns.
;
values => '${CDR(start)}','${CDR(clid)}','${CDR(dcontext)}','${CDR(channel)}',
'${CDR(dstchannel)}','${CDR(lastapp)}','${CDR(lastdata)}','${CDR(duration)}',
'${CDR(billsec)}','${CDR(disposition)}','${CDR(amaflags)}',
'${CDR(accountcode)}','${CDR(uniqueid)}','${CDR(userfield)}','${CDR(test)}'
In the cdr_sqlite3_custom.conf file, the contents of the columns and val
ues options must each be on a single line.
cdr_syslog
This module allows logging of CDRs using syslog. To enable this, first add an entry to
the system’s syslog configuration file, /etc/syslog.conf. For example:
local4.* /var/log/asterisk/asterisk-cdr.log
The Asterisk module has a configuration file as well. Add the following section to /etc/
asterisk/cdr_syslog.conf:
[cdr]
facility = local4
priority = info
template = "We received a call from ${CDR(src)}"
Here is an example syslog entry using this configuration:
$ cat /var/log/asterisk/asterisk-cdr.log
Aug 12 19:17:36 pbx cdr: "We received a call from 2565551212"
652 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
cdr_tds
The cdr_tds module uses the FreeTDS library to post CDRs to a Microsoft SQL Serv‐
er or Sybase database. It is possible to use FreeTDS with unixODBC, so we recommend
using cdr_adaptive_odbc instead of this module.
Example Call Detail Records
We will use the cdr_custom module to illustrate some example CDR records for different
call scenarios. The configuration used for /etc/asterisk/cdr_custom.conf is shown in
“cdr_custom” on page 649.
Single-party call
In this example, we’ll show what a CDR looks like for a simple one-party call. Specifically,
we will use the example of a user calling in to check her voicemail. Here is the extension
from /etc/asterisk/extensions.conf:
exten => *98,1,VoiceMailMain(@${GLOBAL(VOICEMAIL_CONTEXT)})
This is the CDR from /var/log/asterisk/cdr-custom/Master.csv that was created as a result
of calling this extension:
"""Console"" <2565551212>","2565551212","*98","UserServices",
"Console/dsp","","VoiceMailMain","@shifteight.org","2010-08-16 01:08:44",
"2010-08-16 01:08:44","2010-08-16 01:08:53","9","9","ANSWERED",
"DOCUMENTATION","","1281935324.0","",0
Two-party call
For this next example, we show what a CDR looks like for a simple two-party call. We’ll
have one SIP phone place a call to another SIP phone. The call is answered and then
hung up after a short period of time. Here is the extension that was dialed:
exten => 101,1,Dial(SIP/0000FFFF0002)
Here is the CDR that was logged to Master.csv as a result of this call:
"""Console"" <2565551212>","2565551212","101","LocalSets","Console/dsp",
"SIP/0000FFFF0002-00000000","Dial","SIP/0000FFFF0002","2010-08-16 01:16:10",
"2010-08-16 01:16:16","2010-08-16 01:16:29","19","13","ANSWERED",
"DOCUMENTATION","","1281935770.2","",2
Caveats
The CDR system in Asterisk works very well for fairly simple call scenarios. However,
as call scenarios get more complicated—involving calls to multiple parties, transfers,
parking, and other such features—the CDR system starts to fall short. Many users report
that the records do not show all the information that they expect. Many bug fixes have
been made to address some of the issues, but the cost of regressions or changes in
Call Detail Records | 653
www.it-ebooks.info
behavior when making changes in this area is very high, since these records are used
for billing.
As a result, the Asterisk development team has become increasingly resistant to making
additional changes to the CDR system. Instead, a new system, channel event logging
(CEL), has been developed that is intended to help address logging of more complex
call scenarios. Bear in mind that call detail records are simpler and easier to consume,
though, so we still recommend using CDRs if they suit your needs.
CEL (Channel Event Logging)
Channel event logging (CEL) is a new system that was created to provide a more flexible
means of logging the details of complex call scenarios. Instead of collapsing a call down
to a single log entry, a series of events are logged for the call. This provides a more
accurate picture of what has happened to the call, at the expense of a more complex log.
Channel Event Types
Each CEL record represents an event that occurred for a channel in the Asterisk system.
Table 24-7 lists the events that are generated by Asterisk as calls are processed.
Table 24-7. CEL event types
CEL event type Description
CHAN_START A channel has been created.
CHAN_END A channel has been destroyed.
LINKEDID_END The last channel with a given linkedid has been destroyed.
ANSWER A channel has been answered. On a channel created for an outbound call, this event will be
generated when the remote end answers.
HANGUP A channel has hung up. Generally, this event will be followed very shortly by a CHAN_END event.
The difference is that this event occurs as soon as a hangup request is received, whereas CHAN_END
occurs after Asterisk has completed post-call cleanup, and all resources associated with that channel
have been released.
APP_START A tracked application has started executing on a channel. Tracked applications are set in the main CEL
configuration file, which is covered in “cel.conf” on page 657.
APP_END A tracked application has stopped executing on a channel.
PARK_START A channel has been parked.
PARK_END A channel has left the parking lot.
BRIDGE_START A channel bridge has started. This event occurs when two channels are bridged together by an
application such as Dial() or Queue().
BRIDGE_END A channel bridge has ended.
BRIDGE_UPDATE An update to a bridge has occurred. This event will reflect if a channel’s name or other information
has changed during a bridge.
654 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
3. If you submit a patch to add any of these events to the code and reference this footnote, Russell will send you
a free Asterisk t-shirt. Footnote bribery!
CEL event type Description
BLINDTRANSFER A channel has executed a blind transfer.
ATTENDEDTRANSFER A channel has executed an attended transfer.
USER_DEFINED A user-defined channel event has occurred. These events are generated by using the
CELGenUserEvent() application.
There are some more events that have been defined but are not yet used anywhere in
the Asterisk code. Presumably, some future version will generate these events in the
right place. They are listed in Table 24-8.3
Table 24-8. Defined but unused CEL event types
CEL event type Description
CONF_ENTER A channel has connected to a conference room.
CONF_EXIT A channel has left a conference room.
CONF_START A conference has started. This event occurs at the time the first channel enters a conference
room.
CONF_END A conference has ended. This event occurs at the time the last channel leaves a conference
room.
3WAY_START A three-way call has started.
3WAY_END A three-way call has ended.
TRANSFER A generic transfer has been executed.
HOOKFLASH A channel has reported a hookflash event.
Channel Event Contents
Each CEL event contains the fields listed in Table 24-9:
Table 24-9. CEL event fields
Field name Value/Example Notes
eventtype CHAN_START The name of the event. The list of events that may occur can be
found in Table 24-7.
eventtime 2010-08-19 07:27:19 The time that the event occurred.
cidname Julie Bryant The caller ID name set on the channel associated with this event.
cidnum 18435551212 The caller ID number set on the channel associated with this
event.
cidani 18435551212 The Automatic Number Identification (ANI) number set on the
channel associated with this event.
CEL (Channel Event Logging) | 655
www.it-ebooks.info
Field name Value/Example Notes
cidrdnis 18435551234 The redirecting number set on the channel associated with this
event.
ciddnid 18435550987 The dialed number set on the channel associated with this event.
exten 101 The extension in the dialplan that is currently being executed.
context LocalSets The context for the extension in the dialplan that is currently
being executed.
channame SIP/0004F2060EB4-00000010 The name of the channel associated with this event.
appname Dial The name of the dialplan application currently being executed.
appdata SIP/0004F2060E55 The arguments that were passed to the dialplan application that
is currently being executed.
amaflags DOCUMENTATION The Automatic Message Accounting (AMA) flag associated with
this call. This may be one of the following: OMIT, BILLING,
DOCUMENTATION, or Unknown.
accountcode 1234 An account ID. This field is user-defined and is empty by default.
uniqueid 1282218999.18 The unique ID for the channel that is associated with this event.
userfield I like waffles! User-defined event content.
linkedid 1282218999.18 The per-call ID. This ID helps tie together multiple events from
multiple channels that are all a part of the same logical call. The
ID comes from the uniqueid of the first channel in the call.
peer SIP/0004F2060E55-00000020 The name of the channel bridged to the channel identified by
channame.
Some of the contents of a CEL event are user-defined. For example, the userfield is
user-defined and will be empty by default. To set it to something, use the CHANNEL()
dialplan function. Here is an example of setting the userfield for a channel:
exten => 101,1,Set(CHANNEL(userfield)=I like waffles!)
Dialplan Applications
The CEL system includes a single dialplan application that lives in the app_celgenuser
event.so module. This application is used to generate custom user-defined events of the
type EV_USER_EVENT. A practical example of using this would be for logging a caller’s
choices in a menu:
exten => 7,1,CELGenUserEvent(MENU_CHOICE,Caller chose option 7)
For full current details on the syntax of the CELGenUserEvent() application, use the
built-in documentation from the Asterisk CLI:
*CLI> core show application CELGenUserEvent
656 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
cel.conf
The CEL system has a single configuration file, /etc/asterisk/cel.conf. All options set here
affect CEL processing, regardless of which logging backend modules are in use.
Table 24-10 shows the options that exist in this file. All options should be set in the
[general] section of the configuration file.
Table 24-10. cel.conf [general] section options
Option Value/Example Notes
enable yes Enables/disables CEL. The default is no.
apps dial,queue Sets which dialplan applications to track. The default is to track no
applications. EV_APP_START and EV_APP_END events will be
generated when channels start and stop executing any tracked application.
events CHAN_START,CHAN_END,
ANSWER,HANGUP
Lists which events to generate. This is useful if you are only interested in a
subset of the events generated by CEL. If you would like to see all events,
set this option to ALL. The default value is to generate no events.
datefor
mat
%F %T Specifies the format for the date when a CEL event includes a timestamp.
For syntax information, see the manpage for strftime by running man
strftime at the command line. The default format for the CEL timestamp is
seconds.microseconds since the epoch.
At a minimum, to start using CEL, you must set the enable and events
options in /etc/asterisk/cel.conf.
Backends
As with the CDR system, there are a number of backend modules available for logging
CEL events. In fact, all of the CEL backend modules were derived from CDR modules,
so their configuration is very similar. In addition to the configuration options for
cel.conf, which were described in the previous section, these modules require configu‐
ration to make them operate.
cel_odbc
The cel_odbc.so module provides the ability to log CEL events to a database using ODBC.
This module is not quite as adaptive as the CDR adaptive ODBC backend. For CEL
events, there are no custom variables. However, this module will still adapt to the struc‐
ture of the database, in that it will log the fields of CEL events for which there are
corresponding columns and will not produce an error if there is not a column for every
field. The configuration for this module goes in /etc/asterisk/cel_odbc.conf.
CEL (Channel Event Logging) | 657
www.it-ebooks.info
Multiple tables may be configured in the cel_odbc configuration file. Each goes into its
own configuration section. The name of the section can be anything; the module does
not use it. Here is an example of a simple table configuration:
[mytable]
connection = asterisk
table = asterisk_cel
The cel_odbc module will use the following columns, if they exist (see the table fol‐
lowing this list for a set of mappings between event types and their integer value that
will be inserted into the database):
•eventtype
•eventtime
•userdeftype
•cid_name
•cid_num
•cid_ani
•cid_rdnis
•cid_dnid
•exten
•context
•channame
•appname
•appdata
•accountcode
•peeraccount
•uniqueid
•linkedid
•amaflags
•userfield
•peer
Table 24-11 shows the mapping between event types and their integer values that will
be inserted into the eventtype column of the database.
658 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
Table 24-11. Event type to integer value mappings for the eventtype column
Event type Integer value
CHANNEL_START 1
CHANNEL_END 2
HANGUP 3
ANSWER 4
APP_START 5
APP_END 6
BRIDGE_START 7
BRIDGE_END 8
CONF_START 9
CONF_END 10
PARK_START 11
PARK_END 12
BLINDTRANSFER 13
ATTENDEDTRANSFER 14
TRANSFER 15
HOOKFLASH 16
3WAY_START 17
3WAY_END 18
CONF_ENTER 19
CONF_EXIT 20
USER_DEFINED 21
LINKEDID_END 22
BRIDGE_UPDATE 23
PICKUP 24
FORWARD 25
Table 24-12 shows the options that can be specified in a table configuration section in
the cel_odbc.conf file.
Table 24-12. cel_odbc.conf table configuration
Option Value/Example Notes
connection pgsql1 Specifies the database connection to be used. This is a reference to the configured
connection in res_odbc.conf. This field is required.
table asterisk_cdr Specifies the table name. This field is required.
usegmtime no Enables/disables logging of timestamps using GMT instead of local time. The default
value for this option is no.
CEL (Channel Event Logging) | 659
www.it-ebooks.info
In addition to the key/value pair fields that are shown in the previous table, cel_odbc.conf
allows for a few other configuration items. The first is a column alias. Normally, CEL
fields are logged to columns of the same name. An alias allows the variable name to
be mapped to a column with a different name. The syntax is:
alias <CEL field> => <column name>
Here is an example column mapping using the alias option:
alias exten => extension
It is also possible to specify a content filter. This allows you to specify criteria that must
match for records to be inserted into the table. The syntax is:
filter <CEL field> => <content>
Here is an example content filter:
filter appname => Dial
Finally, cel_odbc.conf allows static content to be specified for a column. This can be
useful when used along with a set of filters. This static content can help differentiate
records that were inserted into the same table by different configuration sections. The
syntax for static content is:
static <"Static Content Goes Here"> => <column name>
Here is an example of specifying static content to be inserted with a CEL event:
static "My Content" => my_identifier
cel_custom
This CEL backend allows for custom formatting of CEL events in a logfile. It is most
commonly used for customized CSV output. The configuration file used for this module
is /etc/asterisk/cel_custom.conf. A single section called [mappings] should exist in this
file. This section contains mappings between filenames and the custom templates for
CEL events. The templates are specified using Asterisk dialplan functions and a few
special CEL variables.
The following example shows a sample configuration for cel_custom that enables a
single CEL logfile, Master.csv. This file will be created as /var/log/asterisk/cel-custom/
Master.csv. The template that has been defined uses the CHANNEL(), CALLERID(), and
CSV_QUOTE() dialplan functions. The CSV_QUOTE() function ensures that the values are
properly escaped for the CSV file format. This example also references some special
CEL variables, which are listed in Table 24-13.
660 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
Table 24-13. CEL variables available for use in [mappings]
CEL variable Value/Example Description
${eventtype} CHAN_START The name of the CEL event.
${eventtime} 1281980238.660403 The timestamp of the CEL event. The timestamp is given in the default
format in this example.
${eventextra} Whiskey Tango Foxtrot Custom data included with a CEL event. Extra data is usually included
when CELGenUserEvent() is used.
Here is the example /etc/asterisk/cel_custom.conf file:
[mappings]
Master.csv => ${CSV_QUOTE(${eventtype})},${CSV_QUOTE(${eventtime})},
${CSV_QUOTE(${CALLERID(name)})},${CSV_QUOTE(${CALLERID(num)})},
${CSV_QUOTE(${CALLERID(ANI)})},${CSV_QUOTE(${CALLERID(RDNIS)})},
${CSV_QUOTE(${CALLERID(DNID)})},${CSV_QUOTE(${CHANNEL(exten)})},
${CSV_QUOTE(${CHANNEL(context)})},${CSV_QUOTE(${CHANNEL(channame)})},
${CSV_QUOTE(${CHANNEL(appname)})},${CSV_QUOTE(${CHANNEL(appdata)})},
${CSV_QUOTE(${CHANNEL(amaflags)})},${CSV_QUOTE(${CHANNEL(accountcode)})},
${CSV_QUOTE(${CHANNEL(uniqueid)})},${CSV_QUOTE(${CHANNEL(linkedid)})},
${CSV_QUOTE(${CHANNEL(peer)})},${CSV_QUOTE(${CHANNEL(userfield)})},
${CSV_QUOTE(${eventextra})}
In the actual configuration file, the value in the Master.csv mapping
should be on a single line.
cel_manager
The cel_manager backend emits CEL events on the Asterisk Manager Interface (we
discussed the AMI in detail in Chapter 20). This module is configured in the /etc/aster
isk/cel.conf file. This file should contain a single section called [manager], which con‐
tains a single option to enable this module. The default value is no, but you can enable
it as follows:
[manager]
enabled = yes
With this configuration in place, CEL events will appear as events on the manager in‐
terface. To generate example manager events, we will use the following dialplan
example:
exten => 111,1,Answer()
same => n,CELGenUserEvent(Custom Event,Whiskey Tango Foxtrot)
same => n,Hangup()
CEL (Channel Event Logging) | 661
www.it-ebooks.info
This is the command used to execute this extension and generate sample CEL events:
*CLI> console dial 111@testing
Finally, this is one of the example manager events produced as a result of this test call:
Event: CEL
Privilege: call,all
EventName: CHAN_START
AccountCode:
CallerIDnum:
CallerIDname:
CallerIDani:
CallerIDrdnis:
CallerIDdnid:
Exten: 111
Context: testing
Channel: Console/dsp
Application:
AppData:
EventTime: 2010-08-23 08:14:51
AMAFlags: NONE
UniqueID: 1282569291.1
LinkedID: 1282569291.1
Userfield:
Peer:
cel_pgsql
This module allows posting of CEL events to a PostgreSQL database. We recommend
that new installations use cel_odbc instead.
cel_radius
The cel_radius backend allows posting of CEL events to a RADIUS server. When using
this module, each CEL event is reported to the RADIUS server as a single stop event.
This module is configured in the /etc/asterisk/cel.conf file. The options for this module,
listed in Table 24-14, are placed in a section called [radius].
Table 24-14. Available options in the cel.conf [radius] section
Option Value/Example Notes
usegmtime no Logs timestamps using GMT instead of local time. The default is yes.
radiuscfg /etc/ radius client -ng/
radius client .conf
Sets the location of the radiusclient-ng configuration file. The
default is /etc/radiusclient-ng/radiusclient.conf.
cel_sqlite3_custom
This CEL backend inserts CEL events into a SQLite database using SQLite version 3.
The database created by this module lives at /var/log/asterisk/master.db. The configu‐
ration file for this module, /etc/asterisk/cel_sqlite3_custom.conf, identifies the table
662 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
name, as well as customizes which CEL variables will be inserted into the database. It
looks like this:
[master]
table = cel
;
; List the column names to use when inserting CEL events.
;
columns => eventtype, eventtime, cidname, cidnum, cidani, cidrdnis, ciddnid,
context, exten, channame, appname, appdata, amaflags, accountcode, uniqueid,
userfield, peer
;
; Map CEL event contents to the previously specified columns.
;
values => '${eventtype}','${eventtime}','${CALLERID(name)}','${CALLERID(num)}',
'${CALLERID(ANI)}','${CALLERID(RDNIS)}','${CALLERID(DNID)}',
'${CHANNEL(context)}','${CHANNEL(exten)}','${CHANNEL(channame)}',
'${CHANNEL(appname)}','${CHANNEL(appdata)}','${CHANNEL(amaflags)}',
'${CHANNEL(accountcode)}','${CHANNEL(uniqueid)}','${CHANNEL(userfield)}',
'${CHANNEL(peer)}'
In the cel_sqlite3_custom.conf file, the contents of the columns and val
ues options must appear on a single line.
cel_tds
The cel_tds module uses the FreeTDS library to post CEL events to a Microsoft SQL
Server or Sybase database. It is possible to use FreeTDS with unixODBC, so we recom‐
mend using cel_odbc instead of this module.
Example Channel Events
Now we will show you some example sets of call events from the CEL system. The
cel_custom module will be used for its simplicity. The configuration used for /etc/
asterisk/cel_custom.conf is the same as shown in “cel_custom” on page 660. Additionally,
the following configuration was used for /etc/asterisk/cel.conf:
[general]
enable = yes
apps = Dial,Playback
events = ALL
CEL (Channel Event Logging) | 663
www.it-ebooks.info
Single-party call
In this example, a single phone calls into an extension that plays back a prompt that says
“Hello World.” This is the dialplan:
exten => 200,1,Answer()
same => n,Playback(hello-world)
same => n,Hangup()
Here are the CEL events that are logged as a result of making this call:
"CHAN_START","1282062437.436130","Julie Bryant","12565553333","","","","200",
"LocalSets","SIP/0000FFFF0003-00000010","","","3","","1282062437.17",
"1282062437.17","",""
"ANSWER","1282062437.436513","Julie Bryant","12565553333","12565553333","",
"200","200","LocalSets","SIP/0000FFFF0003-00000010","Answer","","3","",
"1282062437.17","1282062437.17","",""
"APP_START","1282062437.501868","Julie Bryant","12565553333","12565553333",
"","200","200","LocalSets","SIP/0000FFFF0003-00000010","Playback",
"hello-world","3","","1282062437.17","1282062437.17","",""
"APP_END","1282062439.008997","Julie Bryant","12565553333","12565553333","",
"200","200","LocalSets","SIP/0000FFFF0003-00000010","Playback",
"hello-world","3","","1282062437.17","1282062437.17","",""
"HANGUP","1282062439.009127","Julie Bryant","12565553333","12565553333","",
"200","200","LocalSets","SIP/0000FFFF0003-00000010","","","3","",
"1282062437.17","1282062437.17","",""
"CHAN_END","1282062439.009666","Julie Bryant","12565553333","12565553333",
"","200","200","LocalSets","SIP/0000FFFF0003-00000010","","","3","",
"1282062437.17","1282062437.17","",""
"LINKEDID_END","1282062439.009707","Julie Bryant","12565553333",
"12565553333","","200","200","LocalSets","SIP/0000FFFF0003-00000010","",
"","3","","1282062437.17","1282062437.17","",""
Two-party call
For the second example, one phone will call another via extension 101. This results in
a call that has two channels that are bridged together. Here is the extension that was
called in the dialplan:
exten => 101,1,Dial(SIP/0000FFFF0001)
Here are the CEL events that are generated as a result of making this call:
"CHAN_START","1282062455.574611","Julie Bryant","12565553333","","","","101",
"LocalSets","SIP/0000FFFF0003-00000011","","","3","","1282062455.18",
"1282062455.18","",""
"APP_START","1282062455.574872","Julie Bryant","12565553333","12565553333","",
664 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
"101","101","LocalSets","SIP/0000FFFF0003-00000011","Dial",
"SIP/0000FFFF0001","3","","1282062455.18","1282062455.18","",""
"CHAN_START","1282062455.575044","Candice Yant","12565551111","","","","s",
"LocalSets","SIP/0000FFFF0001-00000012","","","3","","1282062455.19",
"1282062455.18","",""
"ANSWER","1282062458.068134","","101","12565551111","","","101","LocalSets",
"SIP/0000FFFF0001-00000012","AppDial","(Outgoing Line)","3","",
"1282062455.19","1282062455.18","",""
"ANSWER","1282062458.068361","Julie Bryant","12565553333","12565553333","",
"101","101","LocalSets","SIP/0000FFFF0003-00000011","Dial",
"SIP/0000FFFF0001","3","","1282062455.18","1282062455.18","",""
"BRIDGE_START","1282062458.068388","Julie Bryant","12565553333",
"12565553333","","101","101","LocalSets","SIP/0000FFFF0003-00000011",
"Dial","SIP/0000FFFF0001","3","","1282062455.18","1282062455.18","",""
"BRIDGE_END","1282062462.965704","Julie Bryant","12565553333","12565553333",
"","101","101","LocalSets","SIP/0000FFFF0003-00000011","Dial",
"SIP/0000FFFF0001","3","","1282062455.18","1282062455.18","",""
"HANGUP","1282062462.966097","","101","12565551111","","","","LocalSets",
"SIP/0000FFFF0001-00000012","AppDial","(Outgoing Line)","3","",
"1282062455.19","1282062455.18","",""
"CHAN_END","1282062462.966119","","101","12565551111","","","","LocalSets",
"SIP/0000FFFF0001-00000012","AppDial","(Outgoing Line)","3","",
"1282062455.19","1282062455.18","",""
"APP_END","1282062462.966156","Julie Bryant","12565553333","12565553333","",
"101","101","LocalSets","SIP/0000FFFF0003-00000011","Dial",
"SIP/0000FFFF0001","3","","1282062455.18","1282062455.18","",""
"HANGUP","1282062462.966215","Julie Bryant","12565553333","12565553333",
"","101","101","LocalSets","SIP/0000FFFF0003-00000011","","","3","",
"1282062455.18","1282062455.18","",""
"CHAN_END","1282062462.966418","Julie Bryant","12565553333","12565553333",
"","101","101","LocalSets","SIP/0000FFFF0003-00000011","","","3","",
"1282062455.18","1282062455.18","",""
"LINKEDID_END","1282062462.966441","Julie Bryant","12565553333",
"12565553333","","101","101","LocalSets","SIP/0000FFFF0003-00000011",
"","","3","","1282062455.18","1282062455.18","",""
Blind transfer
In this final example, a transfer will be executed. The call is started by calling a phone
via extension 102. That call is then transferred to another phone at extension 101. Here
is the relevant dialplan:
CEL (Channel Event Logging) | 665
www.it-ebooks.info
exten => 101,1,Dial(SIP/0000FFFF0001)
exten => 102,1,Dial(SIP/0000FFFF0002)
Here are the CEL events logged as a result of this call scenario:
"CHAN_START","1282062488.028200","Julie Bryant","12565553333","","","",
"102","LocalSets","SIP/0000FFFF0003-00000013","","","3","",
"1282062488.20","1282062488.20","",""
"APP_START","1282062488.028464","Julie Bryant","12565553333","12565553333",
"","102","102","LocalSets","SIP/0000FFFF0003-00000013","Dial",
"SIP/0000FFFF0002","3","","1282062488.20","1282062488.20","",""
"CHAN_START","1282062488.028762","Brooke Brown","12565552222","","","",
"s","LocalSets","SIP/0000FFFF0002-00000014","","","3","","1282062488.21",
"1282062488.20","",""
"ANSWER","1282062492.565759","","102","12565552222","","","102","LocalSets",
"SIP/0000FFFF0002-00000014","AppDial","(Outgoing Line)","3","",
"1282062488.21","1282062488.20","",""
"ANSWER","1282062492.565973","Julie Bryant","12565553333","12565553333","",
"102","102","LocalSets","SIP/0000FFFF0003-00000013","Dial",
"SIP/0000FFFF0002","3","","1282062488.20","1282062488.20","",""
"BRIDGE_START","1282062492.566001","Julie Bryant","12565553333",
"12565553333","","102","102","LocalSets","SIP/0000FFFF0003-00000013",
"Dial","SIP/0000FFFF0002","3","","1282062488.20","1282062488.20","",""
"CHAN_START","1282062497.940687","","","","","","s","LocalSets",
"AsyncGoto/SIP/0000FFFF0002-00000014","","","3","","1282062497.22",
"1282062488.20","",""
"BLINDTRANSFER","1282062497.940925","Julie Bryant","12565553333","12565553333","",
"102","102","LocalSets","SIP/0000FFFF0003-00000013","Dial","SIP/0000FFFF0002",
"3","","1282062488.20","1282062488.20",
"AsyncGoto/SIP/0000FFFF0002-00000014<ZOMBIE>",""
"BRIDGE_END","1282062497.940961","Julie Bryant","12565553333","12565553333","",
"102","102","LocalSets","SIP/0000FFFF0003-00000013","Dial",
"SIP/0000FFFF0002","3","","1282062488.20","1282062488.20","",""
"APP_START","1282062497.941021","","102","12565552222","","","101","LocalSets",
"SIP/0000FFFF0002-00000014","Dial","SIP/0000FFFF0001","3","",
"1282062497.22","1282062488.20","",""
"CHAN_START","1282062497.941207","Candice Yant","12565551111","","","","s",
"LocalSets","SIP/0000FFFF0001-00000015","","","3","","1282062497.23",
"1282062488.20","",""
"HANGUP","1282062497.941361","","","","","","","LocalSets",
"AsyncGoto/SIP/0000FFFF0002-00000014<ZOMBIE>","AppDial",
"(Outgoing Line)","3","","1282062488.21","1282062488.20","",""
666 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
"CHAN_END","1282062497.941380","","","","","","","LocalSets",
"AsyncGoto/SIP/0000FFFF0002-00000014<ZOMBIE>","AppDial","(Outgoing Line)",
"3","","1282062488.21","1282062488.20","",""
"APP_END","1282062497.941415","Julie Bryant","12565553333","12565553333","",
"102","102","LocalSets","SIP/0000FFFF0003-00000013","Dial",
"SIP/0000FFFF0002","3","","1282062488.20","1282062488.20","",""
"HANGUP","1282062497.941453","Julie Bryant","12565553333","12565553333",
"","102","102","LocalSets","SIP/0000FFFF0003-00000013","","","3","",
"1282062488.20","1282062488.20","",""
"CHAN_END","1282062497.941474","Julie Bryant","12565553333","12565553333",
"","102","102","LocalSets","SIP/0000FFFF0003-00000013","","","3","",
"1282062488.20","1282062488.20","",""
"ANSWER","1282062500.559578","","101","12565551111","","","101","LocalSets",
"SIP/0000FFFF0001-00000015","AppDial","(Outgoing Line)","3","",
"1282062497.23","1282062488.20","",""
"BRIDGE_START","1282062500.559720","","102","12565552222","","","101","LocalSets",
"SIP/0000FFFF0002-00000014","Dial","SIP/0000FFFF0001","3","","1282062497.22",
"1282062488.20","",""
"BRIDGE_END","1282062512.742600","","102","12565552222","","","101","LocalSets",
"SIP/0000FFFF0002-00000014","Dial","SIP/0000FFFF0001","3","","1282062497.22",
"1282062488.20","",""
"HANGUP","1282062512.743006","","101","12565551111","","","","LocalSets",
"SIP/0000FFFF0001-00000015","AppDial","(Outgoing Line)","3","","1282062497.23",
"1282062488.20","",""
"CHAN_END","1282062512.743211","","101","12565551111","","","","LocalSets",
"SIP/0000FFFF0001-00000015","AppDial","(Outgoing Line)","3","","1282062497.23",
"1282062488.20","",""
"APP_END","1282062512.743286","","102","12565552222","","","101","LocalSets",
"SIP/0000FFFF0002-00000014","Dial","SIP/0000FFFF0001","3","","1282062497.22",
"1282062488.20","",""
"HANGUP","1282062512.743346","","102","12565552222","","","101","LocalSets",
"SIP/0000FFFF0002-00000014","","","3","","1282062497.22","1282062488.20",
"",""
"CHAN_END","1282062512.743371","","102","12565552222","","","101","LocalSets",
"SIP/0000FFFF0002-00000014","","","3","","1282062497.22","1282062488.20",
"",""
"LINKEDID_END","1282062512.743391","","102","12565552222","","","101",
"LocalSets","SIP/0000FFFF0002-00000014","","","3","","1282062497.22",
"1282062488.20","",""
CEL (Channel Event Logging) | 667
www.it-ebooks.info
4. OpenNMS is certainly not the only platform that could be used with the res_snmp module. However, we
chose to discuss it here for a number of reasons. First, OpenNMS is a very good network management platform
that has Asterisk-specific integration. Second, it’s open source and 100% free. Lastly, Jeff Gehlbach of
OpenNMS has contributed to the development of Asterisk, most notably making significant improvements
to the SNMP support. He was also nice enough to help us get all of this stuff working so we could document
it.
SNMP
The Simple Network Management Protocol (SNMP) is a standardized protocol for
network management. It is very commonly used and implemented across many
applications and network devices. Platforms such as OpenNMS,4 an open source net‐
work management platform, use SNMP (among other things). Asterisk supports SNMP
through the res_snmp module. This section discusses the installation and configuration
of res_snmp, as well as how it can be utilized by a platform like OpenNMS.
Installing the SNMP Module for Asterisk
By default, Asterisk will not compile the SNMP development module, since a depend‐
ency needs to be satisfied first.
RHEL dependency
In RHEL,SNMP (Simple Network Management Protocol) you simply need to install
the net-snmp-devel package:
$ sudo yum install net-snmp-devel
See the upcoming section “Recompiling Asterisk with the res_snmp module” for a de‐
scription of how to recompile Asterisk with SNMP support.
Ubuntu dependency
Under Ubuntu, the following package needs to be installed:
$ sudo apt-get install snmp libsnmp-dev snmpd
Both the snmp and snmpd packages need to be installed explicitly on
Ubuntu, as they are not dependencies of the SNMP development
libraries, as they are on RHEL. The snmp package installs SNMP
tools like snmpwalk that we’ll need, and the snmpd package installs
the SNMP daemon.
See the next section for a description of how to recompile Asterisk with SNMP support.
668 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
5. Additionally, you can read a blog post on enabling SNMPv3 for OpenNMS.
Recompiling Asterisk with the res_snmp module
Once you’ve satisfied the dependencies for SNMP, you can recompile Asterisk with
SNMP support:
$ cd ~/src/asterisk-complete/asterisk/11/
$ ./configure
$ make menuselect # verify that res_snmp is selected under Resource Modules
$ make
$ sudo make install
You then need to copy the sample config file over to the /etc/asterisk folder:
$ cp ~/src/asterisk-complete/asterisk/11/configs/res_snmp.conf.sample \
/etc/asterisk/res_snmp.conf
We’ll talk about configuring this file for use with OpenNMS in the next section.
Configuring SNMP for Asterisk Using OpenNMS
The OpenNMS project provides an open source network management platform that
has Asterisk support built right in. A few steps must be taken to enable this support,
though. In this section, we’ll take you through what you need to do to get your Asterisk
server talking to OpenNMS.
Installing OpenNMS
The OpenNMS wiki has detailed instructions for installing OpenNMS.
OpenNMS should normally not be installed on your Asterisk server.
You will want to designate a separate machine as your OpenNMS server.
Since the OpenNMS wiki provides all the required instructions, we’ll leave it to the
experts to lead you through the first part of the installation. Once you’ve installed
OpenNMS, come back here and we’ll take you through how to configure it to work with
Asterisk.
The instructions for installing OpenNMS on the wiki use SNMPv2c, which is not a
secure method of abstracting data from the SNMP protocol. (We’ve attempted to use
SNMPv3 with OpenNMS; however, it is beyond the scope of this book.)5
It tends to be easier to configure the system for SNMPv2c first and then update it to
SNMPv3, as the steps to get SNMPv3 set up properly are more complex. More infor‐
mation about SNMPv3 support with OpenNMS can be found here.
SNMP | 669
www.it-ebooks.info
Editing /etc/asterisk/res_snmp.conf to work with your OpenNMS server
In the /etc/asterisk/res_snmp.conf file that you’ve copied over from your source direc‐
tory, there are two lines you must uncomment:
[general]
;subagent=yes
;enabled=yes
Modify the res_snmp.conf file so both the SNMP client and the subagent are enabled:
[general]
subagent=yes
enabled=yes
After modifying this file, you will need to reload the res_snmp.so module in order for
the changes to take effect:
*CLI> module unload res_snmp.so
Unloaded res_snmp.so
Unloading [Sub]Agent Module
== Terminating SubAgent
*CLI> module load res_snmp.so
Loaded res_snmp.so
== Parsing '/etc/asterisk/res_snmp.conf': == Found
Loading [Sub]Agent Module
Loaded res_snmp.so => (SNMP [Sub]Agent for Asterisk)
== Starting SubAgent
Editing /etc/snmp/snmpd.conf to work with your OpenNMS server
Now you can modify the /etc/snmp/snmpd.conf file for SNMP on the host machine.
Rename the current example configuration file and create a new snmpd.conf file:
$ cd /etc/snmp
$ sudo mv snmpd.conf snmpd.sample
The first thing to do is to add the permissions control to the file. We suggest you read
the /etc/snmpd/snmp.sample file that you just renamed to get a better idea of how the
permissions are being set up. Then, add the following to your snmpd.conf file:
$ sudo sh -c cat > snmpd.conf
com2sec notConfigUser default public
group notConfigGroup v1 notConfigUser
group notConfigGroup v2c notConfigUser
view all included .1
view system included .iso.org.dod.internet.mgmt.mib-2.system
access notConfigGroup "" any noauth exact all none none
670 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
syslocation Caledon, ON
syscontact Leif Madsen lmadsen@shifteight.org
Ctrl+D
The syslocation and syscontact lines are not necessary, but they can
make it easier to identify a particular server if you’re monitoring several
nodes.
Now you need to enable the AgentX subagent support so information about your As‐
terisk system can be found:
$ sudo sh -c cat >> snmpd.conf
master agentx
agentXSocket /var/agentx/master
agentXPerms 0660 0775 nobody root
sysObjectID .1.3.6.1.4.1.22736.1
Ctrl+D
By adding the master agentx line and the agentX options, you’ve enabled Asterisk to
communicate with the SNMP daemon. The agentXPerms option is stating that Asterisk
is running as root. If your Asterisk system is running in a different group, change root
to the group that Asterisk is running as.
Just below the AgentX configuration, you added the sysObjectID option. The purpose
of adding the sysObjectID string is so OpenNMS will know that this host system is
running Asterisk, allowing it to dynamically grab additional graphing information.
Once you’ve performed these configuration steps, you need to restart the SNMP
daemon:
$ sudo /etc/init.d/snmpd restart
To verify that the information can be polled correctly, utilize the snmpwalk application:
$ snmpwalk -On -v2c -c public 127.0.0.1 .1.3.6.1.4.1.22736
You should get several lines of information flowing across your screen if your config‐
uration is correct, much like the following:
.1.3.6.1.4.1.22736.1.5.4.1.4.3 = INTEGER: 2
.1.3.6.1.4.1.22736.1.5.4.1.4.4 = INTEGER: 2
.1.3.6.1.4.1.22736.1.5.4.1.4.5 = INTEGER: 1
.1.3.6.1.4.1.22736.1.5.4.1.4.6 = INTEGER: 1
.1.3.6.1.4.1.22736.1.5.4.1.5.1 = INTEGER: 1
...etc
SNMP | 671
www.it-ebooks.info
At this point your host system should be ready for OpenNMS to connect and gather the
information it needs. Proceed by adding a node to the system and filling in the appro‐
priate information. After a period of time, OpenNMS will poll the host system and have
access to the Asterisk statistics. You should be able to click Resource Graphs after se‐
lecting the node you created and see a selection of graphs available, such as SIP, DAHDI,
Local, etc.
Monitoring Asterisk with OpenNMS
Once you’ve installed OpenNMS and configured Asterisk with the res_snmp module,
you can use OpenNMS to monitor your Asterisk server. You can configure what sta‐
tistics are monitored, as well as what notifications you would like to receive based on
those statistics. Exploring the capabilities of OpenNMS is left as an exercise for the
reader. However, we have included a few graphs to demonstrate some of the basic in‐
formation you can collect from an Asterisk server. These graphs come from an Asterisk
server that is not very heavily loaded, but they still give a good indication of what you
might see.

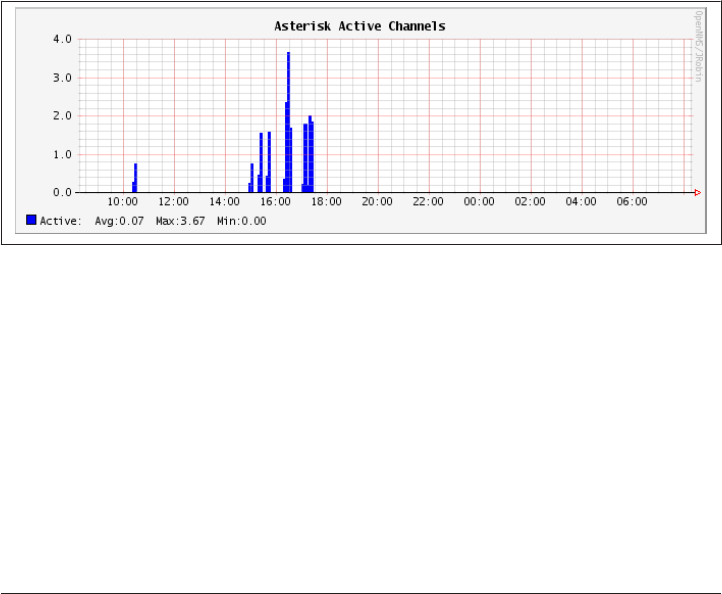

Figure 24-1 contains a graph of how many channels were active in Asterisk at different
times.
Figure 24-1. Graph of active Asterisk channels
Figure 24-2 shows a graph of active channels of a specific type. In this case, we’re looking
at how many DAHDI channels are active on the system. Monitoring DAHDI channels
is particularly interesting, since DAHDI channels are generally mapped to physical re‐
sources, and a predefined number of channels are available. It would be very useful to
monitor DAHDI channel utilization and get notified when usage passes a particular
threshold, as this might be a signal that additional capacity needs to be added.
672 | Chapter 24: System Monitoring and Logging
www.it-ebooks.info
Figure 24-2. Graph of active DAHDI channels
Finally, Figure 24-3 shows network interface utilization. As you can see, there were
spikes in the traffic flowing into and out of the system when SIP calls were in progress.
Figure 24-3. Graph of traffic on a network interface
Conclusion
Asterisk is very good at allowing you to keep track of many different facets of its oper‐
ation, from simple call detail records to full debugging of the running code. These var‐
ious mechanisms will help you in your efforts to manage your Asterisk PBX, and they
represent one of the ways that Asterisk is vastly superior to most (if not all) traditional
PBXs.
Conclusion | 673
www.it-ebooks.info
www.it-ebooks.info
A point of view can be a dangerous luxury when
substituted for insight and understanding.
—Marshall McLuhan
CHAPTER 25
Web Interfaces
Before you get too excited, this chapter is not going to talk about dialplan configuration
GUIs such as FreePBX. We recognize that much of the success of Asterisk is due to the
success of FreePBX-based projects such as AsteriskNOW and PBX in a Flash, but in
this book our focus is on Asterisk. As such, we will not be discussing any GUIs that
essentially remove your relationship with the dialplan. It’s not that we’re against these
things, but simply that we have only so much space in this book, and our goal is to look
at Asterisk from the bottom up. Most Asterisk GUI projects hide the inner workings of
Asterisk behind an interface, and for this reason they are not compatible with the goals
of this book. Our discussion of Asterisk web interfaces, therefore, will focus on interfaces
to components other than the dialplan.
The FreePBX Dialplan GUI
Now that we’ve promised not to talk about dialplan interfaces, we feel it would be wrong
to say nothing at all about FreePBX, the juggernaut of the Asterisk community. This
interface (which is at the heart of many of the most popular Asterisk distributions, such
as AsteriskNOW, Elastix, the FreePBX Distro, and PBX in a Flash), is unarguably a very
large part of why Asterisk has been as successful as it has. With the FreePBX interface,
you can configure and manage many aspects of an Asterisk system without touching a
single configuration file. While we purists may like everyone to work only with the
config files, we recognize that for many, learning Linux and editing these files by hand
is simply not going to happen. For those folks, there is FreePBX, and it has our respect
for the important contributions it has made to the success of Asterisk.
675
www.it-ebooks.info
What we will do in this chapter is introduce a few projects that provide web interfaces
into other parts of the system, and a selection of web-driven applications that are sig‐
nificant, useful, or recommended. In general, we have tended to focus on free and open
source applications, but we will mention some commercial products where we feel it’s
warranted.
Many third-party applications have been developed for Asterisk. The ones described
here are among the best, at the time of this writing.
Flash Operator Panel
The Flash Operator Panel (or FOP, as it’s more commonly known) is an interface pri‐
marily for the use of switchboard operators. FOP uses Adobe Flash to present an in‐
terface through a web browser, and connects to Asterisk through the Asterisk Manager
Interface (see Chapter 20 for a discussion of the AMI).
There are two versions of the Flash Operator Panel: the original release (version 0.30,
now a maintenance release only and likely incompatible with Asterisk 11), and FOP2
(shown in Figure 25-1), which is a vast improvement over the original FOP but requires
the purchase of a license for any system with more than 15 extensions.
Figure 25-1. FOP2
You can find FOP at http://www.asternic.org, and FOP2 at http://www.fop2.com.
Queue Status and Reporting
In most call centers, it is not enough simply to be able to route calls correctly. Of equal
importance to most call centers is the ability for supervisory and management staff to
determine how the queue and the agents are performing. For this, two things will be of
benefit: live queue status information, and some manner of reporting package.
676 | Chapter 25: Web Interfaces
www.it-ebooks.info
Queue Status Display
Queue status will often be displayed on a large, wall-mounted panel or a reader board.
Here are some of the kinds of information that might be included:
•Number of agents logged in
•Number of callers holding
•Number of calls in progress
•Current longest hold time
•Average hold time
• Abandon rate
• Service level
Other information might be desired as well; the goal of a queue status display is to present
to both supervisory staff and queue agents a quick visual indication of the state of the
queue at a particular moment in time.
Additionally, group or agent performance metrics may be displayed, as an informational
tool.
The Asternic Call Center Stats software provides a basic status display and is available
in an open source lite version. There are also several commercial products that offer
this functionality.
Queue Reporting
Queue reporting consists of reports and graphs that supervisory personnel can use to
look at queue and agent performance from a historical perspective. Many of the metrics
will be similar to those of the status display; however, the goal of reporting is to allow
management to monitor staffing levels, identify problems, and analyze trends.
We discussed a few queue reporting interfaces in Chapter 13.
Call Detail Records
While Asterisk does a good-enough job of generating and storing CDRs, the records
are in a very raw format, which makes it difficult to perform any sort of analysis on
them.
Enter the CDR reporting package. In the 1990s, when long-distance rates were complex
and expensive, an entire subindustry was spawned by companies looking to help other
companies make sense out of complex long-distance rates. Nowadays, with long dis‐
tance being far less expensive, as well as generally simpler in terms of pricing models,
there is less need for detailed analysis of call records. Nevertheless, many of these highly
Call Detail Records | 677
www.it-ebooks.info
1. It cannot provide you with business savvy, experience in running a phone company, or automatic security,
though, so please don’t think that all you have to do is download A2Billing before you can take on AT&T!
experienced companies have added support for Asterisk CDR analysis; thus, if you want
excellent reporting capabilities, you will find a huge industry with many experienced
participants.
For a simple interface to the call records, a popular program is CDR-Stats, which is the
successor to the hugely popular Asterisk-Stat package. This open source reporting in‐
terface provides a simple way to examine call detail records, as well as some basic metrics
on calling patterns.
A2Billing
The A2Billing project is not simply a billing interface for Asterisk: it is, in fact, a complete
VoIP carrier-in-a-box. This complex and comprehensive product delivers much of the
technology you would need to provide a VoIP reseller service.1
The A2Billing platform has been generously released under the GNU Affero General
Public License (APGL) as open source. The sponsor of the A2Billing project, Star2Bill‐
ing, offers consultancy services to get you up to speed faster.
Conclusion
In this brief chapter we have provided some pointers to popular graphical applications
that can be used in conjunction with Asterisk. While we didn’t cover them in detail, we
do acknowledge the importance of FreePBX, which provides a PBX configuration in‐
terface on top of Asterisk. If a full GUI solution for simple PBX configuration interests
you, we encourage you to take a look at it. To give it a try, we recommend using the
AsteriskNOW distribution, which provides FreePBX as its GUI.
678 | Chapter 25: Web Interfaces
www.it-ebooks.info
We spend our time searching for security and
hate it when we get it.
—John Steinbeck
1. The real IP address has been replaced with 127.0.0.1 in the log entries.
CHAPTER 26
Security
Security for your Asterisk system is critical, especially if the system is exposed to the
Internet. There is a lot of money to be made by attackers in exploiting systems to make
free phone calls. This chapter provides advice on how to provide stronger security for
your VoIP deployment.
Scanning for Valid Accounts
If you expose your Asterisk system to the public Internet, one of the things you will
almost certainly see is a scan for valid accounts. Example 26-1 contains log entries from
one of the authors’ production Asterisk systems.1 This scan began with checking various
common usernames, then later went on to scan for numbered accounts. It is common
for people to name SIP accounts the same as extensions on the PBX. This scan takes
advantage of that fact. This leads to our first tip for Asterisk security:
Tip #1: Use non-numeric usernames for your VoIP accounts to make them harder to
guess. For example, in parts of this book we use the MAC address of a SIP phone as its
account name in Asterisk.
Example 26-1. Log excerpts from account scanning
[Aug 22 15:17:15] NOTICE[25690] chan_sip.c: Registration from
'"123"<sip:123@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer
found
[Aug 22 15:17:15] NOTICE[25690] chan_sip.c: Registration from
679
www.it-ebooks.info
'"1234"<sip:1234@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer
found
[Aug 22 15:17:15] NOTICE[25690] chan_sip.c: Registration from
'"12345"<sip:12345@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer
found
[Aug 22 15:17:15] NOTICE[25690] chan_sip.c: Registration from
'"123456"<sip:123456@127.0.0.1>' failed for '203.86.167.220:5061' - No matching
peer found
[Aug 22 15:17:15] NOTICE[25690] chan_sip.c: Registration from
'"test"<sip:test@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer
found
[Aug 22 15:17:15] NOTICE[25690] chan_sip.c: Registration from
'"sip"<sip:sip@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer found
[Aug 22 15:17:15] NOTICE[25690] chan_sip.c: Registration from
'"user"<sip:user@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer
found
[Aug 22 15:17:16] NOTICE[25690] chan_sip.c: Registration from
'"admin"<sip:admin@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer
found
[Aug 22 15:17:16] NOTICE[25690] chan_sip.c: Registration from
'"pass"<sip:pass@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer
found
[Aug 22 15:17:16] NOTICE[25690] chan_sip.c: Registration from
'"password"<sip:password@127.0.0.1>' failed for '203.86.167.220:5061' - No matching
peer found
[Aug 22 15:17:16] NOTICE[25690] chan_sip.c: Registration from
'"testing"<sip:testing@127.0.0.1>' failed for '203.86.167.220:5061' - No matching
peer found
[Aug 22 15:17:16] NOTICE[25690] chan_sip.c: Registration from
'"guest"<sip:guest@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer
found
[Aug 22 15:17:16] NOTICE[25690] chan_sip.c: Registration from
'"voip"<sip:voip@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer
found
[Aug 22 15:17:16] NOTICE[25690] chan_sip.c: Registration from
'"account"<sip:account@127.0.0.1>' failed for '203.86.167.220:5061' - No matching
peer found
...
[Aug 22 15:17:17] NOTICE[25690] chan_sip.c: Registration from
'"100"<sip:100@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer found
[Aug 22 15:17:17] NOTICE[25690] chan_sip.c: Registration from
'"101"<sip:101@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer found
[Aug 22 15:17:17] NOTICE[25690] chan_sip.c: Registration from
'"102"<sip:102@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer found
[Aug 22 15:17:17] NOTICE[25690] chan_sip.c: Registration from
'"103"<sip:103@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer found
[Aug 22 15:17:17] NOTICE[25690] chan_sip.c: Registration from
'"104"<sip:104@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer found
[Aug 22 15:17:17] NOTICE[25690] chan_sip.c: Registration from
'"105"<sip:105@127.0.0.1>' failed for '203.86.167.220:5061' - No matching peer found
680 | Chapter 26: Security
www.it-ebooks.info
These account scans take advantage of the fact that the response coming back from the
server for a registration attempt will differ depending on whether or not the account
exists. If the account exists, the server will request authentication. If the account does
not exist, the server will immediately deny the registration attempt. This behavior is just
how the protocol is defined. This leads us to our second tip for Asterisk security:
Tip #2: Set alwaysauthreject to yes in the [general] section of /etc/asterisk/
sip.conf. This option tells Asterisk to respond as if every account is valid, which makes
scanning for valid usernames useless. Luckily, this is the default setting for this option.
Don’t change it.
Authentication Weaknesses
The first section of this chapter discussed scanning for usernames. Even if you have
usernames that are difficult to guess, it is critical that you have strong passwords as well.
If an attacker is able to obtain a valid username, he will attempt to brute-force the
password. Strong passwords make this much more difficult to do.
The default authentication scheme for both the SIP and IAX2 protocols is weak. Au‐
thentication is done using an MD5 challenge-and-response mechanism. If an attacker
is able to capture any call traffic, such as a SIP call made from a laptop on an open
wireless network, it will be much easier to work on brute-forcing the password, since it
will not require authentication requests to the server.
Tip #3: Use strong passwords. There are countless resources available on the Internet that
help define what constitutes a strong password. There are also many strong password
generators available. Use them!
IAX2 provides the option of using key-based authentication, as well as full encryption
of a call. The SIP support in Asterisk includes TLS support, which provides encryption
for the SIP signaling.
Tip #4: If you are using IAX2, use key-based authentication. This is a much stronger
authentication method than the default MD5-based, challenge-response method. For
further enhanced security with IAX2, use the option to encrypt the entire call. If you are
using SIP, use TLS to encrypt the SIP signaling. This will prevent an attacker from cap‐
turing a successful authentication exchange with the server.
For more information about setting up IAX2 or SIP encryption, see Chapter 7.
Fail2ban
The last two sections discussed attacks involving scanning for valid usernames and
brute-forcing passwords. Fail2ban is an application that can watch your Asterisk logs
Authentication Weaknesses | 681
www.it-ebooks.info
and update firewall rules to block the source of an attack in response to too many failed
authentication attempts.
Tip #5: Use Fail2ban when exposing Voice over IP services on untrusted networks, to
automatically update the firewall rules to block the sources of attacks.
Installation
Fail2ban is available as a package in many distributions. Alternatively, you can install it
from source by downloading it from the Fail2ban website. To install it on Ubuntu, use
the following command:
$ sudo apt-get install fail2ban
To install Fail2ban on RHEL, you must have the EPEL repository enabled. For more
information on the EPEL repository, see “Third-Party Repositories” on page 50. Once
the repository is enabled, Fail2ban can be installed by running the following command:
$ sudo yum install fail2ban
The installation of Fail2ban from a package will include an init script
to ensure that it runs when the machine boots up. If you install from
source, make sure that you take the necessary steps to ensure that
Fail2ban is always running.
iptables
For Fail2ban to be able to do anything useful after it detects an attack, you must also
have iptables installed. To ensure it is installed on Ubuntu, use the following command:
$ sudo apt-get install iptables
To ensure that iptables is installed on RHEL, use this command:
$ sudo yum install iptables
You can verify that iptables has been installed by running the iptables command. The
-L option requests that the current firewall rules be displayed. In this case, there are no
rules configured:
$ sudo iptables -L
Chain INPUT (policy ACCEPT)
target prot opt source destination
Chain FORWARD (policy ACCEPT)
target prot opt source destination
682 | Chapter 26: Security
www.it-ebooks.info
Chain OUTPUT (policy ACCEPT)
target prot opt source destination
Sending email
It is interesting and useful to allow Fail2ban to email the system administrator when it
bans an IP address. For this to work, an MTA must be installed. If you are not sure which
one to use, the one used during testing for writing this chapter was Postfix. To install
Postfix on Ubuntu, use the following command. You may be asked to answer a couple
of questions by the installer:
$ sudo apt-get install postfix
To install Postfix on RHEL, use this command:
$ sudo yum install postfix
To test the installation of your MTA, you can send a quick email using mutt. To install
it, use the same installation commands as given for installing Postfix, but substitute mutt
for the package name. Then run the following commands to test the MTA:
$ echo "Just testing." > email.txt
$ mutt -s "Testing" youraddress@shifteight.org < email.txt
Configuration
The first file that must be set up is the Asterisk logging configuration file. Here are the
contents of /etc/asterisk/logger.conf on a working system. Ensure that you at least have
dateformat and messages set, as those are required for Fail2ban:
[general]
dateformat = %F %T
[logfiles]
console => notice,warning,error,debug
messages => notice,warning,error
The next configuration file that must be created is the one that teaches Fail2ban what
to watch out for in Asterisk logfiles. Place the following contents in a new file called /etc/
fail2ban/filter.d/asterisk.conf:
[INCLUDES]
# Read common prefixes. If any customizations available -- read them from
# common.local
#before = common.conf
Fail2ban | 683
www.it-ebooks.info
[Definition]
#_daemon = asterisk
# Option: failregex
# Notes.: regex to match the password failures messages in the logfile. The
# host must be matched by a group named "host". The tag "<HOST>" can
# be used for standard IP/hostname matching and is only an alias for
# (?:::f{4,6}:)?(?P<host>\S+)
# Values: TEXT
#
# *** All lines below should start with NOTICE
# Some lines have been wrapped due to space requirements for
# the book. All new lines should start with NOTICE.
#
failregex = NOTICE.* .*: Registration from '.*' failed for '<HOST>'
- Wrong password
NOTICE.* .*: Registration from '.*' failed for '<HOST>'
- No matching peer found
NOTICE.* .*: Registration from '.*' failed for '<HOST>'
- Username/auth name mismatch
NOTICE.* .*: Registration from '.*' failed for '<HOST>'
- Device does not match ACL
NOTICE.* <HOST> failed to authenticate as '.*'$
NOTICE.* .*: No registration for peer '.*' \(from <HOST>\)
NOTICE.* .*: Host <HOST> failed MD5 authentication for '.*' (.*)
NOTICE.* .*: Failed to authenticate device .*@<HOST>.*
# Option: ignoreregex
# Notes.: regex to ignore. If this regex matches, the line is ignored.
# Values: TEXT
#
ignoreregex =
Next, you must enable the new Asterisk filter that you just created. To do so, append
the following contents to /etc/fail2ban/jail.conf. You will need to modify the dest and
sender options to specify the appropriate email addresses for the To and From headers:
[asterisk-iptables]
enabled = true
filter = asterisk
action = iptables-allports[name=ASTERISK, protocol=all]
sendmail-whois[name=ASTERISK, dest=me@shifteight.org,
sender=fail2ban@shifteight.org]
logpath = /var/log/asterisk/messages
maxretry = 5
bantime = 259200
Finally, there are a couple of options in the [DEFAULT] section of /etc/fail2ban/
jail.conf that should be updated. The ignoreip option specifies a list of IP addresses
684 | Chapter 26: Security
www.it-ebooks.info
2. Leif learned this one the hard way. He thought his PBX was down, while Russell and Jim had no problems
connecting to the conference bridge. It turned out that Fail2ban had banned him from his own PBX.
that should never be blocked. It is a good idea to list your IP address(es) here so that
you never accidentally block yourself if you make a mistake—while trying to set up a
phone, for example.2 You should consider adding other IP addresses as well, such as
that of your SIP provider. The whitelisting of good IP addresses protects you against
abuse of your Fail2ban configuration. A clever attacker could cause a denial of service
by crafting a series of packets that will result in Fail2ban blocking the IP address of their
choice.
The destemail option should be set, as well. This address will be used for emails not
specific to the Asterisk filter, such as the email Fail2ban sends out when it first starts up.
Here’s how you configure these options:
[DEFAULT]
# Multiple addresses can be specified, separated by a space.
ignoreip = 127.0.0.1 10.1.1.1
destemail = youraddress@shifteight.org
Asterisk Security Logfile
The log entry format used by our example configuration for fail2ban is intended to be
read by a human. Parsing it and automating actions based on the result is a bit ugly.
There is now an effort under way to provide a security event–specific logfile that is
intended to be used for automated processing. Unfortunately, it has not been used very
much and we have not seen any examples of tools that process entries from this logfile.
To enable the security logfile, add the following line to the [logfiles] section of /etc/
asterisk/logger.conf:
[logfiles]
security => security
Asterisk 11 will put entries in this file for things that happen in the AMI, as well as
chan_sip (identified as SIP in the security event log entries). The body of the log message
is a comma-separated list of key/value pairs. Each key/value pair is a bit of metadata
about the security event. Here is an example security log entry from an attempt to login
to the AMI with an invalid user:
[Dec 13 08:46:09] SECURITY[995] res_security_log.c:
SecurityEvent="InvalidAccountID",EventTV="1355406369-716573",
Severity="Error",Service="AMI",EventVersion="1",
AccountID="foo",SessionID="0x7f793ac32220",
Fail2ban | 685
www.it-ebooks.info
LocalAddress="IPV4/TCP/0.0.0.0/5038",
RemoteAddress="IPV4/TCP/127.0.0.1/58491",SessionTV="0-0"
Some events are considered errors while others are just informational. The value asso‐
ciated with the key of Severity will specify either Error or Informational.
The value associated with the key of SecurityEvent identifies the type of event that
occurred on the system. Asterisk 11 (at least as of Asterisk 11.1.0) is capable of emitting
the following types of security events. Some of these are not yet used in any part of
Asterisk. If you work on a tool that consumes these events, it’s worth knowing that they
exist for when they get used in the future.
FailedACL
An ACL defined by the permit and deny configuration options caused a request to
be denied. This is emitted for both AMI and SIP.
InvalidAccountID
A request was received with an invalid account identifier. This would normally be
a bad username. This is emitted for AMI.
SessionLimit
The number of sessions allowed for a given user has been exceeded. This is emitted
for both AMI and SIP.
MemoryLimit
A memory limit has been exceeded. This event is defined but not currently used.
LoadAverageLimit
A load average limit has been exceeded. This event is defined but not currently used.
RequestNotSupported
A request was received that is not supported. This event is defined but not currently
used.
RequestNotAllowed
A request was received that has been administratively prohibited. This emitted for
AMI.
AuthMethodNotAllowed
A method of authentication was attempted that is not allowed. This event is defined
but not currently used.
RequestBadFormat
A badly formatted request was received. This event is emitted for AMI.
SuccessfulAuth
Successful authentication has occurred. This event is emitted for both SIP and AMI.
UnexpectedAddress
A message was received from an unexpected source address for a session already
in progress. This event is defined but not currently used.
686 | Chapter 26: Security
www.it-ebooks.info
ChallengeResponseFailed
Challenge-response–based authentication failed. This event is emitted for both SIP
and AMI.
InvalidPassword
An invalid password was provided for a basic authentication attempt. This event is
emitted for both SIP and AMI.
ChallengeSent
A challenge was sent for challenge-response–based authentication. This event is
emitted for SIP.
InvalidTransport
An attempt was made by a peer to use an administratively denied transport (such
as using UDP when only TCP is enabled for that peer). This event is emitted for
SIP.
Encrypted Media
Be aware that the audio for a Voice over IP call is typically transmitted in an unencrypted
format. Anyone that can capture the traffic can listen to the audio of the phone call.
Luckily, Asterisk supports encrypting the media of VoIP calls. If you are using SIP, you
can encrypt the media using SRTP. IAX2 supports fully encrypting calls, as well. Detailed
information on encrypting media can be found in Chapter 7.
Tip #6: Encrypt the media for calls on untrusted networks using SRTP or IAX2
encryption.
Dialplan Vulnerabilities
The Asterisk dialplan is another area where taking security into consideration is critical.
The dialplan can be broken down into multiple contexts to provide access control to
extensions. For example, you may want to allow your office phones to make calls out
through your service provider. However, you do not want to allow anonymous callers
that come into your main company menu to be able to then dial out through your service
provider. Use contexts to ensure that only the callers you intend have access to services
that cost you money.
Tip #7: Build dialplan contexts with great care. Also, avoid putting any extensions that
could cost you money in the [default] context.
One of the more recent Asterisk dialplan vulnerabilities to have been discovered and
published is the idea of dialplan injection. A dialplan injection vulnerability begins with
Encrypted Media | 687
www.it-ebooks.info
an extension that has a pattern that ends with the match-all character, a period. Take
this extension as an example:
exten => _X.,1,Dial(IAX2/otherserver/${EXTEN},30)
The pattern for this extension matches all extensions (of any length) that begin with a
digit. Patterns like this are pretty common and convenient. The extension then sends
this call over to another server using the IAX2 protocol, with a dial timeout of 30 sec‐
onds. Note the usage of the ${EXTEN} variable here. That’s where the vulnerability exists.
In the world of Voice over IP, there is no reason that a dialed extension must be numeric.
In fact, it is quite common using SIP to be able to dial someone by name. Since it is
possible for non-numeric characters to be a part of a dialed extension, what would
happen if someone sent a call to this extension?
1234&DAHDI/g1/12565551212
A call like this is an attempt at exploiting a dialplan injection vulnerability. In the pre‐
vious extension definition, once ${EXTEN} has been evaluated, the actual Dial() state‐
ment that will be executed is:
exten => _X.,1,Dial(IAX2/otherserver/1234&DAHDI/g1/12565551212,30)
If the system has a PRI configured, this call will cause a call to go out on the PRI to a
number chosen by the attacker, even though you did not explicitly grant access to the
PRI to that caller. This problem can quickly cost you a whole lot of money.
There are (at least) two approaches for avoiding this problem. The first and easiest
approach is to always use strict pattern matching. If you know the length of extensions
you are expecting and expect only numeric extensions, use a strict numeric pattern
match. For example, this would work if you are expecting four-digit numeric extensions
only:
exten => _XXXX,1,Dial(IAX2/otherserver/${EXTEN},30)
The other approach to mitigating dialplan injection vulnerabilities is by using the FIL
TER() dialplan function. Perhaps you would like to allow numeric extensions of any
length. FILTER() makes that easy to achieve safely:
exten => _X.,1,Set(SAFE_EXTEN=${FILTER(0-9,${EXTEN})})
same => n,Dial(IAX2/otherserver/${SAFE_EXTEN},30)
For more information about the syntax for the FILTER() dialplan function, see the
output of the core show function FILTER command at the Asterisk CLI.
Tip #8: Be wary of dialplan injection vulnerabilities. Use strict pattern matching or use
the FILTER() dialplan function to avoid these problems.
688 | Chapter 26: Security
www.it-ebooks.info
Securing Asterisk Network APIs
FastAGI and the AMI are two network-based APIs commonly used in Asterisk deploy‐
ments. For more details on AGI, see Chapter 21. For more information on the AMI, see
Chapter 20.
In the case of FastAGI, there is no encryption or authentication available. It is up to you
as the administrator to ensure that the only communication allowed to the FastAGI
server is from Asterisk.
The AMI protocol includes authentication, but it is very weak. Further, the data ex‐
changed via the AMI is often sensitive, from a privacy standpoint. It is critical to secure
AMI connectivity. It is best to expose the AMI only on trusted networks. If it must be
exposed to an untrusted network, we recommend only allowing connections
using SSL.
It is critical to understand what power the AMI provides. If an AMI user is granted all
permissions that are available, that user will be able to run arbitrary commands on your
system. If the account has the ability to update configuration files, it will be able to add
an extension to the dialplan that runs the System() application, enabling it to run any
command it wants. If it also has access to originate calls, it can originate a call to that
extension, resulting in the execution of that command. Be careful when opening up
AMI access on your system, and restrict what permissions are granted to each account
in /etc/asterisk/manager.conf.
Tip #9: Secure Asterisk network APIs. Use firewall rules to restrict access to your FastAGI
server. Use encryption on the AMI. Restrict access provided to AMI accounts as much
as possible.
IAX2 Denial of Service
While SIP is a text-based protocol, IAX2 is a binary-encoded protocol. The IAX2 stan‐
dard is RFC 5456. Every IAX2 packet contains a call number that is used to associate
the packet with an active call. This is analogous to the Call-ID header in SIP. An IAX2
call number is a 15-bit field. It is large enough to deal with the number of calls that will
be practical on one system. Unfortunately, it is also small enough that it is pretty easy
for an attacker to send enough small packets to consume all available call numbers on
a system for a short period of time, resulting in a denial of service attack.
The IAX2 support in Asterisk has been modified to automatically protect against this
type of attack. This protection is referred to as call token support and requires a three-
way handshake to occur before a call number is allocated. However, older versions of
Asterisk and some non-Asterisk IAX2 implementations may not support this, so there
are a number of options that let you tweak the behavior.
Securing Asterisk Network APIs | 689
www.it-ebooks.info
By default, the security mechanisms are enabled and no configuration changes are re‐
quired. If for some reason you would like to disable call token support completely, you
can do so by using the following configuration in /etc/asterisk/iax.conf:
[general]
calltokenoptional = 0.0.0.0/0.0.0.0
maxcallnumbers = 16382
With the default configuration, a host that can pass the call token exchange can still
consume the call number table. The call token exchange ensures that call numbers are
only allocated once we know we have not received a request with a spoofed source IP
address. Once we know a request is legitimate, enforcing resource limits per host is
achievable. Consider the following options in iax.conf:
[general]
; Set the default call number limit per host
maxcallnumbers = 16
[callnumberlimits]
; Set a different call number limit for all hosts in a
; specified range.
192.168.1.0/255.255.255.0 = 1024
[some_peer]
; A dynamic peer's address is not known until that peer
; registers. A call number limit can be specified in the
; peer's section instead of the callnumberlimits section.
type = peer
host = dynamic
maxcallnumbers = 512
If a peer does not yet support call token validation, but you would like to turn it on as
soon as you detect that the peer has been upgraded to support it, there is an option that
allows for this behavior:
[some_other_peer]
requirecalltoken = auto
If you would like to allow guest access over IAX2, you will most likely want to disable
call token validation for unauthenticated calls. This will ensure that the largest number
of people can call your system over IAX2. However, if you do so, you should also set the
option that provides a global limit to how many call numbers can be consumed by hosts
that did not pass call token validation:
690 | Chapter 26: Security
www.it-ebooks.info
[general]
maxcallnumbers_nonvalidated = 2048
[guest]
type = user
requirecalltoken = no
If at any time you would like to see some statistics on call number usage on your system,
execute the iax2 show callnumber usage command at the Asterisk CLI.
Tip #10: Be happy knowing that IAX2 has been updated to secure itself from denial of
service attacks due to call number exhaustion. If you must turn off these security features
in some cases, use the options provided to limit your exposure to an attack.
Other Risk Mitigation
There are a couple more useful features in Asterisk that can be used to mitigate the risk
of attacks. The first is to use the permit and deny options to build access control lists
(ACLs) for privileged accounts. Consider a PBX that has SIP phones on a local network,
but also accepts SIP calls from the public Internet. Calls coming in over the Internet are
only granted access to the main company menu, while local SIP phones have the ability
to make outbound calls that cost you money. In this case, it is a very good idea to set
ACLs to ensure that only devices on your local network can use the accounts for the
phones. Here is an example of doing that in /etc/asterisk/sip.conf:
[phoneA] ; Use a better account name than this.
type = friend
; Start by denying everyone.
deny = 0.0.0.0/0.0.0.0
; Allow connections that originate from 192.168.X.X to attempt
; to authenticate against this account.
permit = 192.168.0.0/255.255.0.0
The permit and deny options are accepted almost everywhere that connections to IP
services are configured. Another useful place for ACLs is in /etc/asterisk/manag
er.conf, to restrict AMI accounts to the single host that is supposed to be using the
manager interface.
Asterisk 11 introduced a second method for configuring ACLs. If you apply the same
ACL rules in multiple places, you will find this very useful. Named ACLs can be defined
in /etc/asterisk/acl.conf.
[named_acl_1]
deny=0.0.0.0/0.0.0.0
Other Risk Mitigation | 691
www.it-ebooks.info
permit=10.1.1.50
permit=10.1.1.55
[named_acl_2] ; Named ACLs support IPv6, as well.
deny=::
permit=::1/128
[local_phones]
deny=0.0.0.0/0.0.0.0
permit=192.168.0.0/255.255.0.0
Once named ACLs have been defined in acl.conf, have Asterisk load them using the
reload acl command. Once loaded, they should be available via the Asterisk CLI:
*CLI> reload acl
*CLI> acl show
acl
---
named_acl_1
named_acl_2
local_phones
*CLI> acl show named_acl_1
ACL: named_acl_1
---------------------------------------------
0: deny - 0.0.0.0/0.0.0.0
1: allow - 10.1.1.50/255.255.255.255
2: allow - 10.1.1.55/255.255.255.255
Now, instead of having to potentially repeat the same permit and deny entries in multiple
places, you can apply an ACL by its name. An updated version of the first example of
using ACLs would now be:
[phoneA]
type=friend
acl=local_phones
Tip #11: Use ACLs when possible on all privileged accounts for network services.
Another way you can mitigate security risk is by configuring call limits. The recom‐
mended method for implementing call limits is to use the GROUP() and GROUP_COUNT()
dialplan functions. Here is an example that limits the number of calls from each SIP
peer to no more than two at a time:
exten => _X.,1,Set(GROUP(users)=${CHANNEL(peername)})
; *** This line should have no line breaks
same => n,NoOp(There are ${GROUP_COUNT(${CHANNEL(peername)})}
calls for account ${CHANNEL(peername)}.)
692 | Chapter 26: Security
www.it-ebooks.info
same => n,GotoIf($[${GROUP_COUNT(${CHANNEL(peername)})} > 2]?denied:continue)
same => n(denied),NoOp(There are too many calls up already. Hang up.)
same => n,HangUp()
same => n(continue),NoOp(continue processing call as normal here ...)
Tip #12: Use call limits to ensure that if an account is compromised, it cannot be used to
make hundreds of phone calls at a time.
CLI Permissions
The Asterisk CLI has a lot of power. There are commands to modify the dialplan, orig‐
inate calls, and hang up calls, among many others. Asterisk has the ability to grant a
local user access to a subset of the available CLI commands. This is done using the
configuration file /etc/asterisk/cli_permissions.conf.
By default, any local user that has access to the Asterisk CLI can run all of the Asterisk
CLI commands. If you would like to change that, start by adding the default_perm
option to the [general] section of cli_permissions.conf:
[general]
;
; Setting default_perm=permit grants users access to all commands
; by default, unless otherwise specified later in this file.
;
default_perm = deny
The rest of the file is used to set permissions for local users or groups. For example, if
you would like to grant full access to a user named admin, you would add this to the file:
[admin]
allow = all ; Give full access to a specific user
You can also set permissions for a local group. As an example, you could have a local
group called asterisksupport. You could grant access to only some basic diagnostic
commands to all users in this group. The prefix of @ in the section name indicates to
Asterisk that you are setting permissions for a local group:
[@asterisksupport]
deny = all
allow = sip show ; All commands that start with "sip show"
allow = core show ; All commands that start with "core show"
Tip #13: Set CLI permissions if you want to provide CLI access to more than system
administrators.
CLI Permissions | 693
www.it-ebooks.info
Resources
Some security vulnerabilities require modifications to the Asterisk source code to re‐
solve. When those issues are discovered, the Asterisk development team puts out new
releases that contain only fixes for the security issues, to allow for quick and easy up‐
grades. When this occurs, the Asterisk development team also publishes a security ad‐
visory document that discusses the details of the vulnerability. We recommend that you
subscribe to the asterisk-announce mailing list to make sure that you know about these
issues when they come up.
Tip #14: Subscribe to the asterisk-announce list to stay up-to-date on Asterisk se‐
curity vulnerabilities.
One of the most popular tools for SIP account scanning and password cracking is
SIPVicious. We strongly encourage that you take a look at it and use it to audit your
own systems. If your system is exposed to the Internet, others will likely run it against
your system, so make sure that you do it first.
Another resource for all things VoIP security–related is the VOIPSEC mailing list on
VOIPSA.org. The website contains some additional resources, as well.
Finally, the VoIP Blacklist Project has some useful information. The author provides a
list of addresses known to be the source of VoIP attacks, as well as instructions on how
to block all addresses on this list. The author also provides a sample script called Anti‐
Toll, which blocks all addresses outside of the United States.
Conclusion—A Better Idiot
There is a maxim in the technology industry that states, “As soon as something is made
idiot-proof, nature will invent a better idiot.” The point of this statement is that no
development effort can be considered complete. There is always room for improvement.
When it comes to security, you must always bear in mind that the people who are looking
to take advantage of your system are highly motivated. No matter how secure your
system is, somebody will always be looking to crack it.
We’re not advocating paranoia, but we are suggesting that what we have written here is
by no means the final word on VoIP security. While we have tried to be as comprehensive
as we can be in this book, you must accept responsibility for the security of your system.
As free Internet calling becomes more common, the criminals will be working hard to
find weaknesses, and exploit them.
694 | Chapter 26: Security
www.it-ebooks.info
Hey, I just met you,
And this is crazy,
But here’s my number,
So call me, maybe?
—Carly Rae Jepson
1. Ever heard of Elisha Gray or Antonio Meucci?
CHAPTER 27
Asterisk: A Future for Telephony
We have arrived at the final chapter of this book. We’ve covered a lot (and this book has
expanded over the years), but we hope that we have made it clear that this book has
merely scratched the surface of this phenomenon called Asterisk. To wrap things up,
we want to spend some time exploring what we might see from Asterisk and open source
telephony in the near future.
When we wrote the first edition of Asterisk: The Future of Telephony, we confidently
asserted that open source communications engines such as Asterisk would cause a shift
in thinking that would transform the telecommunications industry. In many ways, our
belief has been proven correct. While the telecom industry still has much evolving to
do, Asterisk has played a key role in fomenting a shift in thinking that has affected the
entire industry.
The Problems with Traditional Telephony
Although Alexander Graham Bell is most famously remembered as the father of the
telephone,1 the reality is that during the latter half of the 1800s, dozens of minds were
working toward the goal of carrying voice over telegraph lines. These people were mostly
business-minded folks, looking to create a product through which they might make
their fortunes.
695
www.it-ebooks.info
2. Contrast this with the IETF’s membership page, which states: “The IETF is not a membership organization
(no cards, no dues, no secret handshakes :-)…It is open to any interested individual…Welcome to the IETF.”
Talk about community!
3. Many people who are familiar with both protocols suggest that H.323 is in fact technically superior. Betamax,
anyone?
We have come to think of traditional telephone companies as monopolies, but this was
not true in their early days. The early history of telephone service took place in a very
competitive environment, with new companies springing up all over the world, often
with little or no respect for the patents they might be violating. Many famous monopolies
got their start through the waging (and winning) of patent wars.
It’s interesting to contrast the history of the telephone with the history of GNU Linux
and the Internet. While the telephone was created as a commercial exercise, and the
telecom industry was forged through lawsuits and corporate takeovers, Linux and the
Internet arose out of the academic community, which has always valued the sharing of
knowledge over profit.
The cultural differences are obvious. Telecommunications technologies tend to be
closed, confusing, and expensive, while networking technologies are comparatively
open, well documented, and competitive.
Closed Thinking
If one compares the culture of the telecommunications industry to that of the Internet,
it is sometimes difficult to believe the two are related. The technology of the Internet
was designed in large part by academics and enthusiasts, whereas contributing to the
development of the PSTN is impossible for any individual to contemplate. This is an
exclusive club; membership is not open to just anyone.2
Although the ITU is the United Nations’ sanctioned body responsible for international
telecommunications, many of the VoIP protocols (SIP, MGCP, RTP, STUN) come not
from the ITU, but rather from the IETF (which publishes all of its standards free to all,
and allows anyone to submit an Internet Draft for consideration).
Open protocols such as SIP may have a tactical advantage over ITU protocols such as
H.323 due to the ease with which one can obtain them.3 Although H.323 was widely
deployed by carriers as a VoIP protocol in the backbone, it is much more difficult to
find H.323-based endpoints; newer products are far more likely to support SIP.
The success of the IETF’s open approach has not gone unnoticed by the ITU. Since the
first edition of this book, the ITU has made all of the ITU-T and ITU-R recommenda‐
tions available as free downloads in PDF form from its website.
As for Asterisk, it embraces both the past and the future—H.323 support is available,
although the community has for the most part shunned H.323 in favor of the IETF
696 | Chapter 27: Asterisk: A Future for Telephony
www.it-ebooks.info
protocol SIP (and Asterisk’s own VoIP protocol, IAX, which has fallen from favour
somewhat as the dominance of SIP grows in the industry).
Limited Standards Compliance
One of the oddest things about all the standards in the world of legacy telecommuni‐
cations is the various manufacturers’ seeming inability to implement them consistently.
Each manufacturer desires a total monopoly, so the concept of interoperability tends to
take a backseat to being first to market with a creative new idea.
The ISDN protocols are a classic example of this. Deployment of ISDN was (and in
many ways still is) a painful and expensive proposition, as each manufacturer decided
to implement it in a slightly different way. ISDN could very well have helped to usher
in a massive public data network, 10 years before the Internet. Unfortunately, due to its
cost, complexity, and compatibility issues, ISDN never delivered much more than voice,
with the occasional video or data connection for those willing to pay. ISDN is quite
common (especially in Europe, and in North America in larger PBX implementations),
but it is not delivering anywhere near the capabilities that were envisioned for it.
As VoIP becomes more and more ubiquitous, the need for ISDN will disappear. This is
happening right now, and very rapidly, as more and more new systems are deployed
using VoIP only.
Slow Release Cycles
It can take months, or sometimes years, for the big guys to admit to a trend, let alone
release a product that is compatible with it. It seems that before a new technology can
be embraced, it must be analyzed to death, and then it must pass successfully through
various layers of bureaucracy before it is even scheduled into the development cycle.
Months or even years must pass before any useful product can be expected. When those
products are finally released, they are often based on hardware that is obsolete; they also
tend to be expensive and to offer no more than a minimal feature set.
These slow release cycles simply don’t work in today’s world of business communica‐
tions. On the Internet, new ideas can take root in a matter of weeks and become viable
in extremely short periods of time. Since every other technology must adapt to these
changes, so too must telecommunications.
Open source development is inherently better able to adapt to rapid technological
change, which gives it an enormous competitive advantage.
The spectacular crash of the telecom industry may have been caused in large part by an
inability to change. Now, there is no choice: change, or cease to be. Community-driven
technologies such as Asterisk are seeing to that.
The Problems with Traditional Telephony | 697
www.it-ebooks.info
4. Much of the following section is merely our interpretation of O’Reilly’s article. To get the full gist of these
ideas, the full read is highly recommended.
Refusing to Let Go of the Past and Embrace the Future
Traditional telecommunications companies have lost touch with their customers. While
the concept of adding functionality beyond the basic telephone is well understood, the
idea that the user should be the one defining this functionality is not.
Nowadays, people have nearly limitless flexibility in every other form of communica‐
tion. They simply cannot understand why telecommunications cannot be delivered as
flexibly as the industry has been promising for so many years. The concept of flexibility
is not familiar to the telecom industry, and very well might not be until open source
products such as Asterisk begin to transform the fundamental nature of the industry.
This is a revolution similar to the one Linux and the Internet willingly started over 20
years ago (and IBM unwittingly started with the PC, 15 years before that). What is this
revolution? The commoditization of telephony hardware and software, enabling a pro‐
liferation of tailor-made telecommunications systems.
Paradigm Shift
In his article “Paradigm Shift”, Tim O’Reilly talks about a shift occurring in the way
technology (both hardware and software) is delivered.4 O’Reilly identifies three trends:
the commoditization of software, network-enabled collaboration, and software custom‐
izability (software as a service). These three concepts suggest that open source telephony
is an idea whose time has come.
The Promise of Open Source Telephony
Every good work of software starts by scratching a developer’s personal itch.
—Eric S. Raymond, The Cathedral & the Bazaar
In his book The Cathedral & the Bazaar (O’Reilly, 2001), Eric S. Raymond explains that
“Given enough eyeballs, all bugs are shallow.” The reason open source software devel‐
opment produces such consistent quality is simple: crap can’t hide.
The Itch that Asterisk Scratches
In this era of custom database and website development, people are not only tired of
hearing that their telephone system “can’t do that,” but quite frankly they just don’t
believe it. The creative needs of customers, coupled with the limitations of the technol‐
ogy, have spawned a type of creativity born of necessity: telecom engineers are like
698 | Chapter 27: Asterisk: A Future for Telephony
www.it-ebooks.info
5. Junkyard Wars was a reality television show that was popular in 2005 when we wrote the first edition of this
book where teams would compete to build a machine out of scrap to solve a particular challenge.
6. From the perspective of the closed-source industry, their attitude is understandable. In his book The Mythical
Man-Month: Essays on Software Engineering (Addison-Wesley, 1995), Fred Brooks opined that “the com‐
plexity and communication costs of a project rise with the square of the number of developers, while work
done only rises linearly.” Without a community-based development methodology, it is very difficult to deliver
products that at best are little more than incremental improvements over their predecessors, and at worst are
merely collections of patches.
7. Eric S. Raymond, The Cathedral and the Bazaar.
contestants in an episode of Junkyard Wars,5 trying to create functional devices out of
a pile of mismatched components.
The development methodology of a proprietary telephone system dictates that it will
have a huge number of features, and that the number of features will in large part de‐
termine the price. Manufacturers will tell you that their products give you hundreds of
features, but if you only need five of them, who cares? Worse, if there’s one missing
feature you really can’t do without, the value of that system will be diluted by the fact
that it can’t completely address your needs.
The fact that a customer might only need five out of five hundred features is ignored,
and that customer’s desire to have five unavailable features that address the needs of his
business is dismissed as unreasonable.6 Until flexibility becomes standard, telecom will
remain stuck in the last century—all the VoIP in the world notwithstanding.
Asterisk addresses that problem directly, and solves it in a way that few other telecom
systems can. This is extremely disruptive technology, in large part because it is based
on concepts that have been proven time and time again: “the closed-source world cannot
win an evolutionary arms race with open-source communities that can put orders of
magnitude more skilled time into a problem.”7
Open Architecture
One of the stumbling blocks of the traditional telecommunications industry has been
its apparent refusal to cooperate with itself. The big telecommunications giants have all
been around for over a hundred years. The concept of closed, proprietary systems is so
ingrained in their culture that even their attempts at standards compliance are tainted
by their desire to get the jump on the competition, by adding that one feature that no
one else supports. For an example of this thinking, one simply has to look at the VoIP
products being offered by the telecom industry today. While they claim standards com‐
pliance, the thought that you would actually expect to be able to connect a Cisco phone
to a Nortel switch, or that an Avaya voicemail system could be integrated via IP to a
Siemens PBX, is not one that bears discussing.
The Promise of Open Source Telephony | 699
www.it-ebooks.info
In the computer industry, things are different. In the early ’80s, if you bought an IBM
server, you needed an IBM network and IBM terminals to talk to it. Now, that IBM
server is likely to interconnect to Dell terminals though a Cisco network (and run Linux,
of all things). Anyone can easily think of thousands of variations on this theme. If any
one of these companies were to suggest that we could only use their products with
whatever they told us, they would be laughed out of business.
The telecommunications industry is facing the same changes, but it’s in no hurry to
accept them. Asterisk, on the other hand, is in a big hurry to not only accept change,
but embrace it.
Cisco, Nortel, Avaya, and Polycom IP phones (to name just a few) have all been suc‐
cessfully connected to Asterisk systems. There is no other PBX in the world today that
can make this claim. None. Openness is the power of Asterisk.
Standards Compliance
In the past few years, it has become clear that standards evolve at such a rapid pace that
to keep up with them requires an ability to quickly respond to emerging technology
trends. Asterisk, by virtue of being an open source, community-driven effort, is uniquely
suited to the kind of rapid development that standards compliance demands.
Asterisk does not focus on cost-benefit analysis or market research. It evolves in re‐
sponse to whatever the community finds exciting—or necessary.
Lightning-Fast Response to New Technologies
After Mark Spencer attended his first SIP Interoperability Test (SIPIT) event, he had a
rudimentary but working SIP stack for Asterisk coded within a few days. This was before
SIP had emerged as the protocol of choice in the VoIP world, but he saw its value and
momentum and ensured that Asterisk would be ready.
This kind of foresight and flexibility is typical in an open-source development com‐
munity (and very unusual in a large corporation).
Passionate Community
The Asterisk-Users list receives over three hundred email messages per day. Over ten
thousand people are subscribed to it. This kind of community support is unheard of in
the world of proprietary telecommunications, while in the open source world it is
commonplace.
The very first AstriCon event was expected to attract one hundred participants. Nearly
five hundred showed up (far more wanted to but couldn’t attend). This kind of com‐
munity support virtually guarantees the success of an open source effort.
700 | Chapter 27: Asterisk: A Future for Telephony
www.it-ebooks.info
Some Things that Are Now Possible
So what sorts of things can be built using Asterisk? Let’s look at some of the things we’ve
come up with.
Legacy PBX migration gateway
Asterisk can be used as a fantastic bridge between an old PBX and the future. You can
place it in front of the PBX as a gateway (and migrate users off the PBX as needs dictate),
or you can put it behind the PBX as a peripheral application server. You can even do
both at the same time, as shown in Figure 27-1.

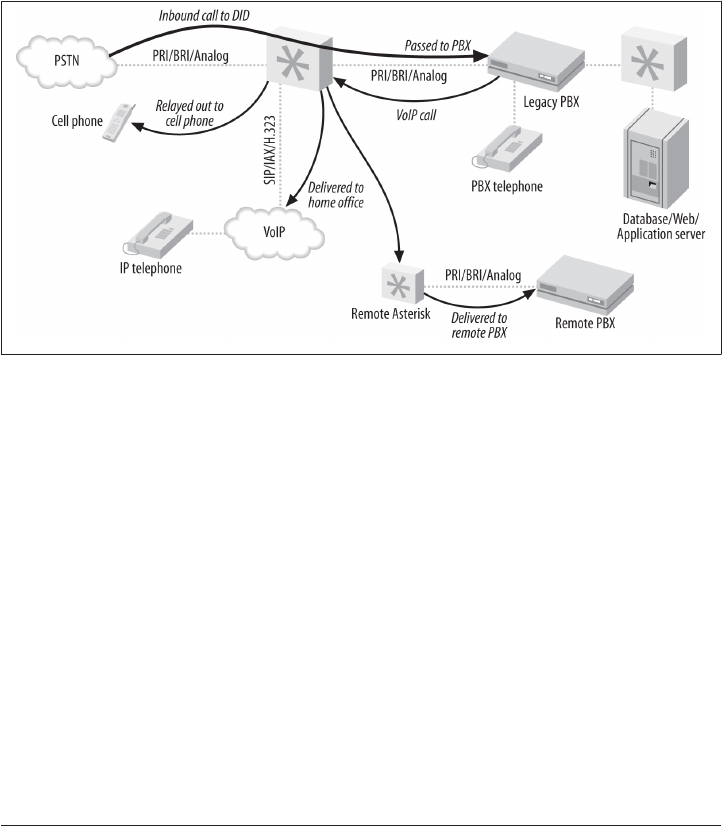

Figure 27-1. Asterisk as a PBX gateway
Here are some of the options you can implement:
Keep your old PBX, but evolve to IP
Companies that have spent vast sums of money in the past few years buying pro‐
prietary PBX equipment want a way out of proprietary jail, but they can’t stomach
the thought of throwing away all of their otherwise functioning equipment. No
problem—Asterisk can solve all kinds of problems, from replacing a voicemail sys‐
tem to providing a way to add IP-based users beyond the nominal capacity of the
system.
Find-me-follow-me
Provide the PBX a list of numbers where you can be reached, and it will ring them
all whenever a call to your DID (Direct Inward Dialing, a.k.a. phone) number ar‐
rives. Figure 27-2 illustrates this technology.
The Promise of Open Source Telephony | 701
www.it-ebooks.info
VoIP calling
If a legacy telephony connection from an Asterisk PBX to an old PBX can be es‐
tablished, Asterisk can provide access to VoIP services, while the old PBX continues
to connect to the outside world as it always has. As a gateway, Asterisk simply needs
to emulate the functions of the PSTN, and the old PBX won’t know that anything
has changed. Figure 27-3 shows how you can use Asterisk to VoIP-enable a legacy
PBX.

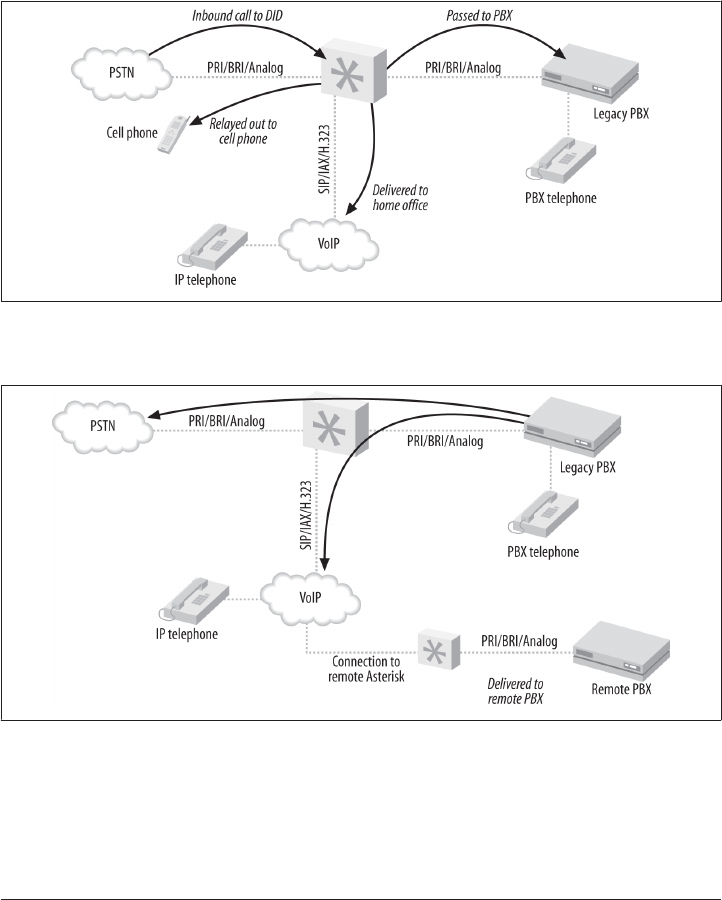

Figure 27-2. Find-me-follow-me
Figure 27-3. VoIP-enabling a legacy PBX
Low-barrier IVR
Many people confuse Interactive Voice Response (IVR) systems with automated at‐
tendants (AAs). Since the automated attendant was the very first thing IVR was used
702 | Chapter 27: Asterisk: A Future for Telephony
www.it-ebooks.info
for, this is understandable. Nevertheless, to the telecom industry, the term IVR repre‐
sents far more than an AA. An AA generally does little more than present a way for
callers to be transferred to extensions, and it is built into most proprietary voicemail
systems—but IVR is much more.
IVR systems are generally very expensive—not only to purchase, but also to configure.
A custom IVR system will usually require connectivity to an external database or ap‐
plication. Asterisk is arguably the perfect IVR, as it embraces the concepts of connec‐
tivity to databases and applications at its deepest level.
Here are a few examples of relatively simple IVRs an Asterisk system could be used to
create:
Weather reporting
Using the Internet, you can obtain text-based weather reports from around the
world in a myriad of ways. Capturing these reports and running them through a
purpose-built parser (Perl would probably eat this up) would allow the information
to be available to the dialplan. Asterisk’s sound library already contains all the re‐
quired prompts, so it would not be an onerous task to produce an interactive menu
to play current forecasts for anywhere in the world.
Math programs
Ed Guy (the architect of Pulver’s FWD network) made a presentation at AstriCon
2004 in which he talked about a little math program he’d cooked up for his daughter
to use. The program took him no more than an hour to write. What it did was
present her with a number of math questions, the answers to which she keyed into
the telephone. When all the questions were tabulated, the system presented her with
her score. This extremely simple Asterisk application would cost tens of thousands
of dollars to implement on any closed PBX platform, assuming it could be done at
all. As is so often the case, things that are simple for Asterisk would be either im‐
possible or massively expensive with any other IVR system.
Distributed IVR
The cost of a proprietary IVR system is such that when a company with many small
retail locations wants to provide IVR, it is forced to transfer callers to a central server
to process the transactions. With Asterisk, it becomes possible to distribute the
application to each node, and thus handle the requests locally. Literally thousands
of little Asterisk systems deployed at retail locations across the world could serve
up IVR functionality in a way that would be impossible to achieve with any other
system. No more long-distance transfers to a central IVR server, no more huge
trunking facility dedicated to the task—more power with less expense.
These are three rather simple examples of the potential of Asterisk.
The Promise of Open Source Telephony | 703
www.it-ebooks.info
8. Be aware when you’re in a conference room though. We have a friend who was participating in a conference
call. Someone else on the call was working from home and was the last person to speak before getting up to
use the lavatory. Unfortunately, the door was visible to the camera, left open, and only a pair of knees with
pants around ankles were to be seen for a period of time.
Conference rooms
This little gem is going to end up being one of the killer functions of Asterisk. In the
Asterisk community, people find themselves using conference rooms more and more,
for purposes such as these:
•Small companies need an easy way for business partners to get together for a chat.
•Sales teams want to have weekly meetings where reps can dial in from wherever
they are.
•Development teams need to designate a common place and time to update each
other on progress.
With the release of Asterisk 10, conference rooms got a lot more exciting, by adding
videoconferencing.8
Home automation
Asterisk is still too much of an über-geek’s tool to be able to serve in the average home,
but with no more than average Linux and Asterisk skills, the following things become
plausible:
Monitoring the kids
Parents who want to check up on the babysitter (or the kids home alone) could dial
an extension context protected by a password. Once authenticated, a two-way audio
connection would be created to all the IP phones in the house, allowing Mom and
Dad to listen for trouble. Creepy? Yes. But an interesting concept nonetheless.
Locking down your phones
Going out for the night? Don’t want the babysitter tying up the phone? No problem!
A simple tweak to the dialplan, and the only calls that can be made are to 911, your
cell phone, and the pizza parlor. Any other call attempt will get the recording “We
are paying you to babysit our kids, not make personal calls.”
Pretty evil, huh?
Controlling the alarm system
You get a call while on vacation from your mom who wants to borrow some cooking
utensils. She forgot her key, and is standing in front of the house shivering. Piece
of cake: a call to your Asterisk system, a quick digit string into the context you
created for the purpose, and your alarm system is instructed to disable the alarm
704 | Chapter 27: Asterisk: A Future for Telephony
www.it-ebooks.info
for 15 minutes. Mom better get her stuff and get out quick, though, or the cops’ll
be showing up!
Managing teenagers’ calls
How about allocating a specific phone-time limit to your teenagers? To use the
phone, they have to enter their access codes. They can earn extra minutes by doing
chores, scoring all As, dumping that annoying bum with the bad haircut—you get
the idea. Once they’ve used up their minutes…click…you get your phone back.
Incoming calls can be managed as well, via caller ID. “Donny, this is Suzy’s father.
She is no longer interested in seeing you, as she has decided to raise her standards
a bit. Also, you should consider getting a haircut.”
The Future of Asterisk
We’ve come to love the Internet, both because it is so rich in content and inexpensive
and, perhaps more importantly, because it allows us to define how we communicate. As
its ability to carry richer forms of media advances, we’ll find ourselves using it more
and more. Once Internet voice delivers quality that rivals (or betters) the capabilities of
the PSTN, the phone company had better look for another line of business. The PSTN
will cease to exist; all its complexity will be absorbed into the Internet, as just one more
technology. As with most of the rest of the Internet, open source technologies will lead
this transformation.
Speech Processing
The dream of having our technical inventions talk to us is older than the telephone itself.
Each advance in technology spurs a new wave of eager experimentation. Generally,
results never quite meet expectations, possibly because as soon as a machine says some‐
thing that sounds intelligent, most people assume that it is intelligent.
People who program and maintain computers realize their limitations, and thus tend
to allow for their weaknesses. Everybody else just expects their computers and software
to work. The amount of thinking a user must do to interact with a computer is often
inversely proportional to the amount of thinking the design team did. Simple interfaces
belie complex design decisions.
The challenge, therefore, is to design a system that has anticipated the most common
desires of its users, and can also adroitly handle unexpected challenges.
Festival and text-to-speech
The Festival text-to-speech server can transform text into spoken words. While this is
a whole lot of fun to play with, there are many challenges to overcome (for more on
integrating Festival with Asterisk, refer back to “Text-to-Speech Utilities” on page 531).
The Future of Asterisk | 705
www.it-ebooks.info
For Asterisk, an obvious benefit of text-to-speech might be the ability to have your
telephone system read your emails back to you. If you’ve noticed the somewhat poor
grammar, punctuation, and spelling typically found in email messages these days, you
can perhaps appreciate the challenges this poses.
One cannot help but wonder if the emergence of text-to-speech will inspire a new gen‐
eration of people dedicated to proper writing. Seeing spelling and punctuation errors
on the screen is frustrating enough—having to hear a computer speak such things will
require a level of Zazen that few possess.
Speech recognition
If text-to-speech is rocket science, speech recognition is science fiction.
Speech recognition can actually work very well, but unfortunately this is generally true
only if you provide it with the right conditions—and the right conditions are not those
found on a telephone network. Even a perfect PSTN connection is considered to be at
the lowest acceptable limit for accurate speech recognition. Add in compressed and
lossy VoIP connections, or a cell phone, and you will discover far more limitations
than uses.
Asterisk now has an entire speech API, so that outside companies (or even open source
projects) can tie their speech recognition engines into Asterisk. One company that has
done this is LumenVox. By using LumenVox’s speech recognition engine along with
Asterisk, you can make voice-driven menus and IVR systems in record time! For more
information, see http://www.lumenvox.com.
Recently, both Apple and Google have been integrating speech recognition into their
mobile devices. Apple has Siri, which allows you to search for items near you, such as,
“Siri, where is the closest coffee shop?” and Google has, without much fanfare, added
voice-to-text functionality to their messaging interface (that’s what the little microphone
is for on your keyboard). Additionally, Google has a cool little application that will even
let you speak in one language, and play back what you said in another language. Perhaps
someday we’ll have API interfaces for these applications so Asterisk can take advantage
of them.
High-Fidelity Voice
As we gain access to more and more bandwidth, it becomes less and less easy to un‐
derstand why we still use low-fidelity codecs. Many people do not realize that Skype
provides higher fidelity than a telephone; it’s a large part of the reason why Skype has a
reputation for sounding so good.
706 | Chapter 27: Asterisk: A Future for Telephony
www.it-ebooks.info
9. Allison Smith is The Voice of Asterisk—it is her voice in all of the system prompts. To have Allison produce
your own prompt, simply visit http://www.theivrvoice.com.
If you were ever to phone CNN, wouldn’t you love to hear James Earl Jones’s mellifluous
voice saying “This is CNN,” instead of some tinny electronic recording? And if you think
Allison Smith9 sounds good through the phone, you should hear her in person!
In 2005 we wrote: “In the future, we will expect, and get, high-fidelity voice through
our communications equipment.
“As more and more hardware vendors start building support for high-fidelity voice into
their VoIP hardware, you’ll see more support in Asterisk for making better-than-PSTN-
quality calls.”
In 2013, any new deployment of an Asterisk system with new telephone sets (softphones
or hardphones) provides the ability to deliver HD voice through codecs such as Speex
and G.722. Nearly all the SIP hardphone manufacturers include G.722, and even some
ITSPs are starting to deliver G.722 capabilities. Unfortunately, the quality is lost unless
you are speaking locally in the office, or are speaking to someone else on the same ITSP
who also has HD voice capabilities.
Cellular service companies have even started to get into the wideband codec game. The
iPhone 5 has HD voice capabilities, and cell phone companies in Canada (such as Bell
and Telus) have rolled it out along with their LTE data networks. Perhaps the days of
scratchy GSM are behind us?
Video
While most of this book focuses on audio, video is also supported in many ways within
Asterisk. We’ve had video voicemail for years, and with the release of Asterisk 10, vid‐
eoconferencing was added to the ConfBridge() application.
It’s not just Asterisk that has started to see the penetration of video into the market.
Google has created a videoconferencing solution called Google Hangouts that lets mul‐
tiple participants (up to 10 people) participate in a videoconference. A film-strip-like
set of panels is laid out horizonally across the window, which contains video of all the
conference participants, and much like Asterisk’s ConfBridge() application, talker de‐
tection is used to change the primary video panel to the person speaking.
Google Hangouts have become incredibly popular with the open source community.
Since most open source projects have developers spread all across the country and globe,
use of a videoconferencing solution (which costs nothing to utilize) in which multiple
participants can share screens and video, allows them to perform live code reviews.
Developers at Opscode perform weekly code reviews around the cloud infrastructure
automation software called Chef.
The Future of Asterisk | 707
www.it-ebooks.info
Additionally, other podcast and weekly conference-call shows have started to integrate
video into their formerly videoless meetings. Both the Voice Users Conference (VUC)
and the FoodFightShow have started using video, YouTube, and all sorts of other social
media to create a comprehensive immersion of social activity within their programs.
The challenge of videoconferencing
Smart phone makers have also started adding not only higher-quality back-facing cam‐
eras for taking pictures, but also front-facing cameras intended for videoconferencing.
Any modern Android-based or Apple smart phone includes a front-facing camera, and
so do modern-day tablets. These cameras offer endless possibilities for video-based
applications. Now it just comes down to the consumer, and whether the promise of
video from the early 1960s ever really comes to fruition.
The concept of videoconferencing has been around since the invention of the cathode
ray tube. The telecom industry has been promising a videoconferencing device in every
home for decades.
As with so many other communications technologies, if you have videoconferencing in
your house, you are probably running it over the Internet, with a simple, inexpensive
webcam. Still, it seems that people see videoconferencing as a bit gimmicky. Yes, you
can see the person you’re talking to, but there’s something missing.
Why we love videoconferencing
Videoconferencing promises a richer communications experience than the telephone.
Rather than simply hearing a disembodied voice, you have access to all the nuances of
speech that come from face-to-face communication.
Why videoconferencing may never totally replace voice
There are some challenges to overcome, though, and not all of them are technical.
Consider this: using a plain telephone, people working from their home offices can have
business conversations, unshowered, in their underwear, feet on the desk, coffee in
hand—if they use a telephone. A similar video conversation would require half an hour
of grooming to prepare for, and couldn’t happen in the kitchen, on the patio, or…well,
you get the idea.
Also, the promise of eye-to-eye communication over video will never happen as long
as the focal points of the participants are not in line with the cameras. If you look at the
camera, your audience will see you looking at them, but you won’t see them. If you look
at your screen to see whom you are talking to, the camera will show you looking down
at something—not at your audience. That looks impersonal. Perhaps if a videophone
could be designed like a Tele-Prompt-R, where the camera was behind the screen, it
wouldn’t feel so unnatural.
708 | Chapter 27: Asterisk: A Future for Telephony
www.it-ebooks.info
WebRTC
From the WebRTC site, “WebRTC is a free, open project that enables web browsers with
Real-Time Communications (RTC) capabilities via simple Javascript APIs.” A lot of peo‐
ple have started to look at WebRTC as a way they can start to place a softphone on a
website; but it’s so much more than that. The WebRTC project will allow for an im‐
mersive Internet which we have yet to experience. Development is still in the early
phases, but with the support of several browsers (Google Chrome, Firefox, Opera, and
Internet Explorer), the WebRTC APIs are sure to become ubiquitous in the not too
distant future.
Asterisk 11 has some early WebRTC support, but the APIs are currently being developed
and are under fairly constant change. Things will start to materialize though, and the
APIs will become more stable. When that starts to happen, you’ll start to see a great deal
of development going on around the Web. At first, it’s likely to be common things that
have already been done, like a softphone in your browser. These developments will let
developers learn by applying things they already know to a new technology. But once
they have been seasoned, we suspect you’ll start to see a lot more immersive technologies
spread throughout the web.
Joshua Colp and Tim Panton talked at AstriCon 2012 in Atlanta about WebRTC and
the integration that Asterisk 11 includes. You can find other AstriCon presentations at
the video archive.
Wireless
Since Asterisk is fully VoIP-enabled, wireless is part of the package.
WiFi
WiFi is going to be the office mobility solution for VoIP phones. This technology is
already quite mature. The biggest hurdle is the cost of handsets, which can be expected
to improve as competitive pressure from around the world drives down prices.
WiMAX
When we first wrote this chapter, we predicted:
“Since we are so bravely predicting so many things, it’s not hard to predict that WiMAX
spells the beginning of the end for traditional cellular telephone networks.
“With wireless Internet access within the reach of most communities, what value will
there be in expensive cellular service?”
It’s probably safe to say we were way off base. Since then, carriers have spent significant
sums of money on infrastructure upgrades, and have started deploying next-generation
networks such as LTE, which offer significant network performance improvements over
The Future of Asterisk | 709
www.it-ebooks.info
what we had in the past. It seems that WiMAX never really caught on for consumer
products, the main driver behind wireless network requirements.
We can picture an alternate universe where the initial iPhone rolled out with WiMAX
support, and a whole slew of new network carriers came online to provide data access
to those devices. This of course never happened, and it appears WiMAX was a great
idea without the follow-through.
Unified Messaging
This is a term that has been hyped by the telecom industry for years, but adoption has
been far slower than predicted.
Unified messaging refers to the concept of tying voice and text-messaging systems into
one. With Asterisk, the two don’t need to be artificially combined, as Asterisk already
treats them the same way.
Just by examining the terms, unified and messaging, we can see that the integration of
email and voicemail must be merely the beginning—unified messaging needs to do a
lot more than just that, if it is to deserve its name.
Perhaps we need to define “messaging” as communication that does not occur in real
time. In other words, when you send a message, you expect that the reply may take
moments, minutes, hours, or even days to arrive. You compose what you wish to say,
and your audience is expected to compose a reply.
Contrast this with conversing, which happens in real time. When you talk to someone
on a telephone connection, you expect no more than a few seconds’ delay before the
response arrives.
Several years ago, Tim O’Reilly delivered a speech entitled “Watching the Alpha Geeks:
OS X and the Next Big Thing”, in which he talked about someone piping IRC through
a text-to-speech engine. One could imagine doing the reverse as well, allowing us to
join an IRC or instant messaging chat over a WiFi phone, with our Asterisk PBX pro‐
viding the speech-to-text-to-speech translations.
Peering
As monopoly networks such as the PSTN give way to community-based networks like
the Internet, there will be a period of time when it is necessary to interconnect the two.
While the traditional providers would prefer that the existing model be carried into the
new paradigm, it is increasingly likely that telephone calls will become little more than
another application the Internet happily carries.
But a challenge remains: how to manage the telephone numbering plan with which we
are all familiar and comfortable?
710 | Chapter 27: Asterisk: A Future for Telephony
www.it-ebooks.info
E.164
The ITU defined a numbering plan in its E.164 specification. If you’ve used a telephone
to make a call across the PSTN, you can confidently state that you are familiar with the
concept of E.164 numbering. Prior to the advent of publicly available VoIP, nobody
cared about E.164 except the telephone companies—nobody needed to.
Now that calls are hopping from PSTN to Internet to who-knows-what, some consid‐
eration must be given to E.164.
ENUM
In response to this challenge, the IETF has sponsored the Electronic NUmber Mapping
(ENUM) working group, the purpose of which is to map E.164 numbers into the Do‐
main Name System (DNS).
While the concept of ENUM is sound, it requires cooperation from the telecom industry
to achieve success. However, cooperation is not what the telecom industry is famous
for, and thus far ENUM has foundered.
e164.org
The folks at http://e164.org are trying to contribute to the success of ENUM. You can
log onto this site, register your phone number, and inform the system of alternative
methods of communicating with you. This means that someone who knows your phone
number can connect a VoIP call to you, as the http://e164.org DNS zone will provide
the IP addressing and protocol information needed to connect to your location.
As more and more people publish VoIP connectivity information, fewer and fewer calls
will be connected through the PSTN.
freenum.org
Homegrown solutions such as freenum.org are trying to offer a stop-gap solution be‐
tween SIP URI dialing and traditional telephony set limitations (namely, most SIP
phones don’t come with a keyboard). This may start to change as touchscreens become
ubiquitous across devices. But for now, peering is still an issue. It’s unlikely we’ll ever
see the big telecommunications companies embrace a peering fabric that allows people
to circumvent their networks and profit margins—why would they?
Challenges
As is true with any worthwhile thing, Asterisk will face challenges. Let’s take a glance at
what some of them may be.
The Future of Asterisk | 711
www.it-ebooks.info
Too much change, too few standards
These days, the Internet is changing so fast and offers so much diverse content, that it
is impossible for even the most attentive geek to keep on top of it all. While this is as it
should be, it also means that an enormous amount of technology churn is an inevitable
part of keeping any communications system current.
Toll fraud
As long as long-distance calls cost money, there will be criminals who wish to steal. Toll
fraud is nothing new, but with many unsecured Asterisk systems now on the Internet,
the popularity of scripts to find these systems and compromise them has exploded.
Administrators of Internet-connected telephone systems will need to carefully design
their security to ensure that any calls made from their systems are made only by au‐
thorized users.
VoIP spam
Yes, it’s coming. There will always be people who believe they have the right to incon‐
venience and harass others in the pursuit of money. Efforts are under way to try to
address this, but only time will tell how efficacious they will be.
Fear, uncertainty, and doubt
The industry is making the transition from ignorance to laughter. If Gandhi is correct,
we can expect the fight to begin soon.
As their revenue streams become increasingly threatened by open source telephony, the
traditional industry players are certain to mount a fear campaign, in hopes of under‐
mining the revolution.
Bottleneck engineering
There is a rumor that the major network providers will artificially cripple VoIP traffic
by tagging and prioritizing the traffic of their premium VoIP services and, worse, de‐
tecting and bumping any VoIP traffic generated by services not approved by them.
Some of this is already taking place, with service providers blocking traffic of certain
types through their networks, ostensibly as a public service (such as blocking popular
file-sharing services to protect us from piracy). In the United States, the FCC has taken
a clear stand on the matter and fined companies that engage in such practices. In the
rest of the world, regulatory bodies are not always as accepting of VoIP.
What seems clear is that the community and the network will find ways around block‐
ages, just as they always have.
712 | Chapter 27: Asterisk: A Future for Telephony
www.it-ebooks.info
Regulatory wars
A former chairman of the United States Federal Communications Commission, Michael
Powell delivered a gift that may well have altered the path of the VoIP revolution. Rather
than attempting to regulate VoIP as a telecom service, he championed the concept that
VoIP represents an entirely new way of communicating and requires its own regulatory
space in which to evolve.
VoIP will become regulated, but not everywhere as a telephony service. Some of the
regulations that may be created include:
Presence information for emergency services
One of the characteristics of a traditional PSTN circuit is that it is always in the
same location. This is very helpful to emergency services, as they can pinpoint the
location of a caller by identifying the address of the circuit from which the call was
placed. The proliferation of cell phones has made this much more difficult to
achieve, since a cell phone does not have a known address. A cell phone can be
plugged into any network and can register to any server. If the phone does not
identify its physical location, an emergency call from it will provide no clue as to
where the caller is. VoIP creates similar challenges.
Call monitoring for law enforcement agencies
Law enforcement agencies have always been able to obtain wiretaps on traditional
circuit-switched telephone lines. While regulations are being enacted that are de‐
signed to achieve the same end on the network, the technical challenges of deliv‐
ering this functionality will probably never be completely solved. People value their
privacy, and the more governments want to stifle it, the more effort will be put
toward maintaining it.
Antimonopolistic practices
These practices are already being seen in the US, with fines being levied against
network providers who attempt to filter traffic based on content.
When it comes to regulation, Asterisk is both a saint and a devil: a saint because it feeds
the poor, and a devil because it empowers the phrackers and spammers like nothing
ever has. The regulation of open source telephony may in part be determined by how
well the community regulates itself. Concepts such as DUNDi, which incorporate anti-
spam processes, are an excellent start. On the other hand, concepts such as caller ID–
spoofing are rife with opportunities for abuse.
Quality of service
Due to the best-effort reality of the TCP/IP-based Internet, it is not yet known how
increasing real-time VoIP traffic will affect overall network performance. Currently,
there is so much excess bandwidth in the backbone that best-effort delivery is generally
The Future of Asterisk | 713
www.it-ebooks.info
10. Gordon Moore wrote a paper in 1965 that predicted the doubling of transistors on a processor every few
years.
11. This term refers to 99.999%, which is touted as the reliability of traditional telecom networks. Achieving five
nines requires that service interruptions for an entire year total no more than 5 minutes and 15 seconds.
Many people believe that VoIP will need to achieve this level of reliability before it can fully replace the PSTN.
Many other people believe that the PSTN doesn’t even come close to five-nines reliability. This could have
been an excellent term to describe high reliability, but marketing departments abuse it far too frequently.
quite good indeed. Still, it has been proven time and time again that whenever we are
provided with more bandwidth, we figure out a way to use it up.
Perhaps a corollary of Moore’s Law10 will apply to network bandwidth. QoS may become
moot, due to the network’s ability to deliver adequate performance without any special
processing. Organizations that require higher levels of reliability may elect to pay a
premium for a higher grade of service. Perhaps the era of paying by the minute for long-
distance connections will give way to paying by the millisecond for guaranteed low
latency, or by the percentage point for reduced packet loss. Premium services will offer
the five-nines11 reliability the traditional telecom companies have always touted as their
advantage over VoIP.
Complexity
Open systems require new approaches to solution design. Just because the hardware
and software are cheap doesn’t mean the solution will be. Asterisk does not come out
of the box ready to run; an Asterisk system has to be designed and built, and then
maintained. While the base software is free, and the hardware costs will be based on
commodity pricing, it is fair to say that the configuration costs for a highly customized
system will be a sizable part of the overall solution cost. In fact, in many cases, because
of Asterisk’s high degree of complexity and configurability, the cost will be more than
would be expected with a traditional PBX.
The rule of thumb is generally considered to be something like this: if it can be done in
the dialplan, the resources expended for system design will be roughly the same as for
any similarly featured traditional PBX. Beyond that, only experience will allow one to
accurately estimate the time required to build a system.
Opportunities
Open source telephony creates limitless opportunities. Here are some of the more com‐
pelling ones.
714 | Chapter 27: Asterisk: A Future for Telephony
www.it-ebooks.info
Tailor-made private telecommunications networks
Some people will tell you that price is the key, but we believe that the real reason Asterisk
will succeed is because it is now possible to build a telephone system as one would a
website: with complete, total customization of each and every facet of the system. Cus‐
tomers have wanted this for years. Only Asterisk can deliver it.
Low barrier to entry
Anyone can contribute to the future of communicating. It is now possible for someone
with an old $200 PC to develop a communications system that has the intelligence to
rival the most expensive proprietary systems. Granted, the hardware would not be
production-ready, but there is no reason the software couldn’t be. This is one of the
reasons why closed systems will have a hard time competing. The sheer number of
people who have access to the required equipment is impossible to equal in a
closed shop.
Creative possibilities
The design of a PBX was always a kind of art form, but before Asterisk, the art lay in
finding creative ways to overcome the limitations of the technology. With limitless
technology, those same creative skills can now be properly applied to the task of com‐
pletely answering the needs of the customer. Open source telephony engines such as
Asterisk will enable this. Telecom designers will dance for joy, as their considerable
creative skills will now actually serve the needs of their customers, rather than being
focused on managing kludge.
Proper integration of communications technologies
Ultimately, the promise of open source comes to nothing if it cannot fulfill the need
people have to solve problems. The closed industries lost sight of the customer, and tried
to fit the customer to the product.
Open source telephony brings voice communications in line with other information
technologies. It is finally possible to properly begin the task of integrating email, voice,
video, and anything else we might conceive of over flexible transport networks (whether
wired or wireless), in response to the needs of the user, not the whims of monopolies.
Welcome to the future of telecom!
The Future of Asterisk | 715
www.it-ebooks.info
www.it-ebooks.info
Utility is when you have one telephone, luxury is
when you have two, opulence is when you have
three—and paradise is when you have none.
—Doug Larson
1. If you want to play around with what different frequencies look like on an oscilloscope, grab a copy of Sound
Frequency Analyzer from Reliable Software. It’s a really simple and fun way to visualize what sounds “look”
like. The spectrograph gives a good picture of the complex harmonics our voices can generate, as well as an
appreciation for the background sounds that always surround us. You should also try the delightfully annoying
NCH Tone Generator, from NCH Swift Sound.
APPENDIX A
Understanding Telephony
In this appendix, we are going to talk about some of the technologies of the traditional
telephone network—especially those that people most commonly want to connect to
Asterisk. (We’ll discuss Voice over IP in Appendix B.)
While tomes could be written about the technologies in use in telecom networks, the
material included here was chosen based on our experiences in the community, which
helped us to define the specific items that might be most useful. Although this knowledge
may not be strictly required in order to configure your Asterisk system, it will be of great
benefit when interconnecting to systems (and talking with people) from the world of
traditional telecommunications.
Analog Telephony
The purpose of the public switched telephone network (PSTN) is to establish and
maintain audio connections between two endpoints in order to carry speech.
Although humans can perceive sound vibrations in the range of 20–20,000 Hz,1 most
of the sounds we make when speaking tend to be in the range of 250–3,000 Hz. Since
the purpose of the telephone network is to transmit the sounds of people speaking, it
717
www.it-ebooks.info
was designed with a bandwidth of somewhere in the range of 300–3,500 Hz. This limited
bandwidth means that some sound quality will be lost (as anyone who’s had to listen to
music on hold can attest to), especially in the higher frequencies.
Parts of an Analog Telephone
An analog phone is composed of five parts: the ringer, the dialpad, the hybrid (or net‐
work), and the hook switch and handset (both of which are considered parts of the
hybrid). The ringer, the dialpad, and the hybrid can operate completely independently
of one another.
Ringer
When the central office (CO) wants to signal an incoming call, it will connect an alter‐
nating current (AC) signal of roughly 90 volts to your circuit. This will cause the bell in
your telephone to produce a ringing sound. (In electronic telephones, this ringer may
be a small electronic warbler rather than a bell. Ultimately, a ringer can be anything that
is capable of reacting to the ringing voltage; for example, strobe lights are often employed
in noisy environments such as factories.)
Ringing voltage can be hazardous. Be very careful to take precautions
when working with an in-service telephone line.
Many people confuse the AC voltage that triggers the ringer with the direct current (DC)
voltage that powers the phone. Remember that a ringer needs an alternating current in
order to oscillate (just as a church bell won’t ring if you don’t supply the movement),
and you’ve got it.
In North America, the number of ringers you can connect to your line is dependent on
the Ringer Equivalence Number (REN) of your various devices. (The REN must be listed
on each device.) The total REN for all devices connected to your line cannot exceed 5.0.
An REN of 1.0 is equivalent to an old-fashioned analog set with an electromechanical
ringer. Some electronic phones have RENs of 0.3 or even less. If you connect too many
devices that require too much current, you will find that none of them will be able to
ring.
Dialpad
When you place a telephone call, you need some way of letting the network know the
address of the party you wish to reach. The dialpad is the portion of the phone that
provides this functionality. In the early days of the PSTN, dialpads were in fact rotary
devices that used pulses to indicate digits. This was a rather slow process, so the tele‐
phone companies eventually introduced touch-tone dialing. With touch-tone—also
718 | Appendix A: Understanding Telephony
www.it-ebooks.info
2. When referring to the state of an analog circuit, people often speak in terms of “off-hook” and “on-hook.”
When your line is “off-hook,” your telephone is “on” a call. If your phone is “on-hook,” the telephone is
essentially “off,” or idle. On is off and off is on.
known as Dual-Tone Multi Frequency (DTMF)—dialing, the dialpad consists of 12
buttons. Each button has two frequencies assigned to it (see Table A-1).
Table A-1. DTMF digits
1209 Hz 1336 Hz 1477 Hz 1633 Hz a
697 Hz 1 2 3 A
770 Hz 4 5 6 B
852 Hz 7 8 9 C
941 Hz * 0 # D
a Notice that this column contains letters that are not typically present as keys on a telephone dialpad. They are part of the DTMF
standard nonetheless, and any proper telephone contains the electronics required to create them, even if it doesn’t have the buttons
themselves. (These buttons actually do exist on some telephones, which are mostly used in military and government applications.)
When you press a button on your dialpad, the two corresponding frequencies are
transmitted down the line. The far end can interpret these frequencies and note which
digit was pressed.
Hybrid (or network)
The hybrid is a type of transformer that handles the need to combine the signals trans‐
mitted and received, across a single pair of wires from the PSTN and two pairs of wires
in the handset. One of the functions the hybrid performs is regulating sidetone, which
is the amount of your transmitted signal that is returned to your earpiece; its purpose
is to provide a more natural-sounding conversation. Too much sidetone, and your voice
will sound too loud; too little, and you’ll think the line has gone dead.
Hook switch (or switch hook). This device signals the state of the telephone circuit to the
CO. When you pick up your telephone, the hook switch closes the loop between you
and the CO, which is seen as a request for a dialtone. When you hang up, the hook
switch opens the circuit, which indicates that the call has ended.2
The hook switch can also be used for signaling purposes. Some electronic analog phones
have a button labeled Link that causes an event called a flash. You can perform a flash
manually by depressing the hook switch for a duration of between 200 and 1,200 mil‐
liseconds (nominally about 600 ms). If you leave it down for longer than that, the carrier
may assume you’ve hung up. The purpose of the Link button is to handle this timing
for you. If you’ve ever used call waiting or three-way calling on an analog line, you have
performed a hook-switch flash for the purpose of signaling the network.
Analog Telephony | 719
www.it-ebooks.info
3. They may have other names elsewhere in the world (such as A and B).
4. “The Last Mile” is a term that was originally used to describe the only portion of the PSTN that had not been
converted to fiber optics: the connection between the central office and the customer. The Last Mile is more
than that, however, as it also has significance as a valuable asset of the traditional phone companies; they own
a connection into your home. The Last Mile is becoming more and more difficult to describe in technical
terms, as there are now so many ways to connect the network to the customer. As a thing of strategic value
to telecom, cable, and other utilities, its importance is obvious.
Handset. The handset is composed of the transmitter and receiver. It performs the con‐
version between the sound energy humans use and the electrical energy the telephone
network uses. All handsets (including those in digital and VoIP phones) are analog.
Tip and Ring
In an analog telephone circuit, there are two wires. In North America, these wires are
referred to as Tip and Ring.3 This terminology comes from the days when telephone
calls were connected by live operators sitting at cord boards. The plugs they used had
two contacts—one located at the tip of the plug and the other connected to the ring
around the middle (Figure A-1).
Figure A-1. Tip and Ring
The Tip lead is the positive polarity wire. In North America, this wire is typically green
and provides the return path. The Ring wire is the negative polarity wire. In North
America, this wire is normally red. For modern Cat 5 and 6 cables, the Tip is usually
the white wire, and Ring is the colored wire. When your telephone is on-hook, the ring
wire will have a potential of –48V DC with respect to Tip. Off-hook, this voltage drops
to roughly –7V DC.
Digital Telephony
Analog telephony is almost dead.
In the PSTN, the famous Last Mile is the final remaining piece of the telephone network
still using technology pioneered well over a hundred years ago.4
One of the primary challenges when transmitting analog signals is that all sorts of things
can interfere with those signals, causing low volume, static, and all manner of other
undesired effects. Instead of trying to preserve an analog waveform over distances that
720 | Appendix A: Understanding Telephony
www.it-ebooks.info
5. Amplitude is essentially the power or strength of the signal. If you have ever held a skipping rope or garden
hose and given it a whip, you have seen the resultant wave. The taller the wave, the greater the amplitude.
may span thousands of kilometers, why not simply measure the characteristics of the
original sound and send that information to the far end? The original waveform wouldn’t
get there, but all the information needed to reconstruct it would.
This is the principle of all digital audio (including telephony): sample the characteristics
of the source waveform, store the measured information numerically, and send that data
to the far end. Then, at the far end, use the transmitted information to generate a com‐
pletely new audio signal that has the same characteristics as the original. The repro‐
duction is so good that the human ear can’t tell the difference.
The principal advantage of digital audio is that the sampled data can be mathematically
checked for errors all along the route to its destination, ensuring that a perfect duplicate
of the original arrives at the far end. Distance no longer affects quality, and interference
can be detected and eliminated.
Pulse-Code Modulation
There are several ways to digitally encode audio, but the most common method (and
the one used in telephony systems) is known as pulse-code modulation (PCM). To
illustrate how this works, let’s go through a few examples.
Digitally encoding an analog waveform
The principle of PCM is that the amplitude5 of the analog waveform is sampled at specific
intervals so that it can later be re-created. The amount of detail that is captured depends
both on the bit resolution of each sample and on how frequently the samples are taken.
A higher bit resolution and a higher sampling rate will provide greater accuracy, but
more bandwidth will be required to transmit this more detailed information.
To get a better idea of how PCM works, consider the waveform displayed in Figure A-2.
To digitally encode the wave, it must be sampled on a regular basis, and the amplitude
of the wave at each moment in time must be measured. The process of slicing up a
waveform into moments in time and measuring the energy at each moment is called
quantization, or sampling.
The samples will need to be taken frequently enough and will need to capture enough
information to ensure that the far end can re-create a sufficiently similar waveform. To
achieve a more accurate sample, more bits will be required. To explain this concept, we
will start with a very low resolution, using 4 bits to represent our amplitude. This will
make it easier to visualize both the quantization process itself and the effect that reso‐
lution has on quality.
Digital Telephony | 721
www.it-ebooks.info
Figure A-2. A simple sinusoidal (sine) wave
Figure A-3 shows the information that will be captured when we sample our sine wave
at 4-bit resolution.
Figure A-3. Sampling our sine wave using 4 bits
At each time interval, we measure the amplitude of the wave and record the corre‐
sponding intensity—in other words, we sample it. You will notice that the 4-bit reso‐
lution limits our accuracy. The first sample has to be rounded to 0011, and the next
quantization yields a sample of 0101. Then comes 0100, followed by 1001, 1011, and so
722 | Appendix A: Understanding Telephony
www.it-ebooks.info
forth. In total, we have 14 samples (in reality, several thousand samples must be taken
per second).
If we string together all the values, we can send them to the other side as:
0011 0101 0100 1001 1011 1011 1010 0001 0101 0101 0000 1100 1100 1010
On the wire, this code might look something like Figure A-4.

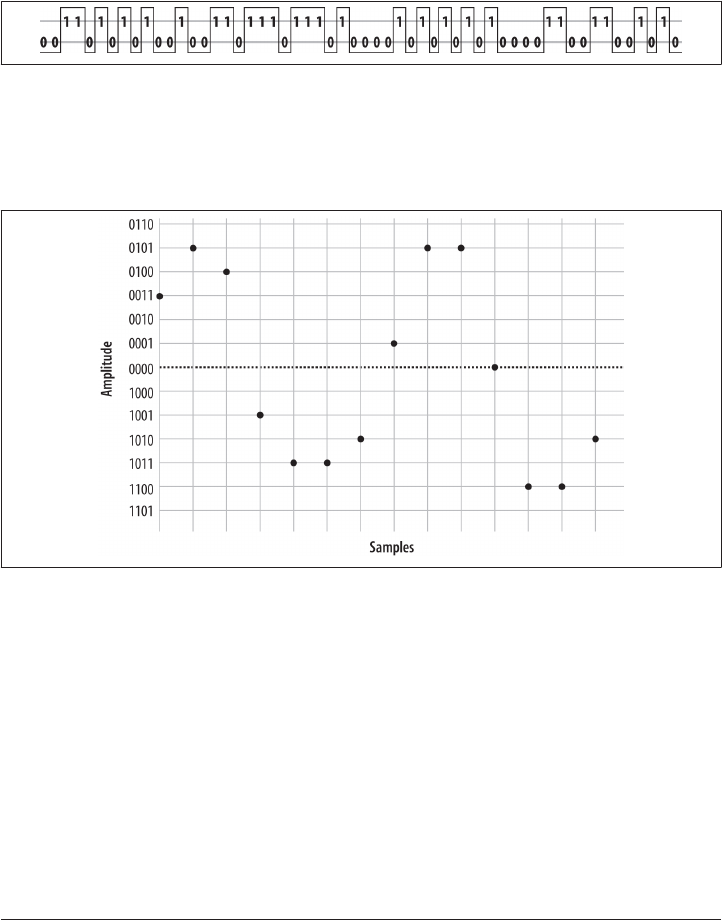

Figure A-4. PCM encoded waveform
When the far end’s digital-to-analog (D/A) converter receives this signal, it can use the
information to plot the samples, as shown in Figure A-5.
Figure A-5. Plotted PCM signal
From this information, the waveform can be reconstructed (see Figure A-6).
As you can see if you compare Figure A-2 with Figure A-6, this reconstruction of the
waveform is not very accurate. This was done intentionally, to demonstrate an important
point: the quality of the digitally encoded waveform is affected by the resolution and
rate at which it is sampled. At too low a sampling rate, and with too low a sample
resolution, the audio quality will not be acceptable.
Digital Telephony | 723
www.it-ebooks.info

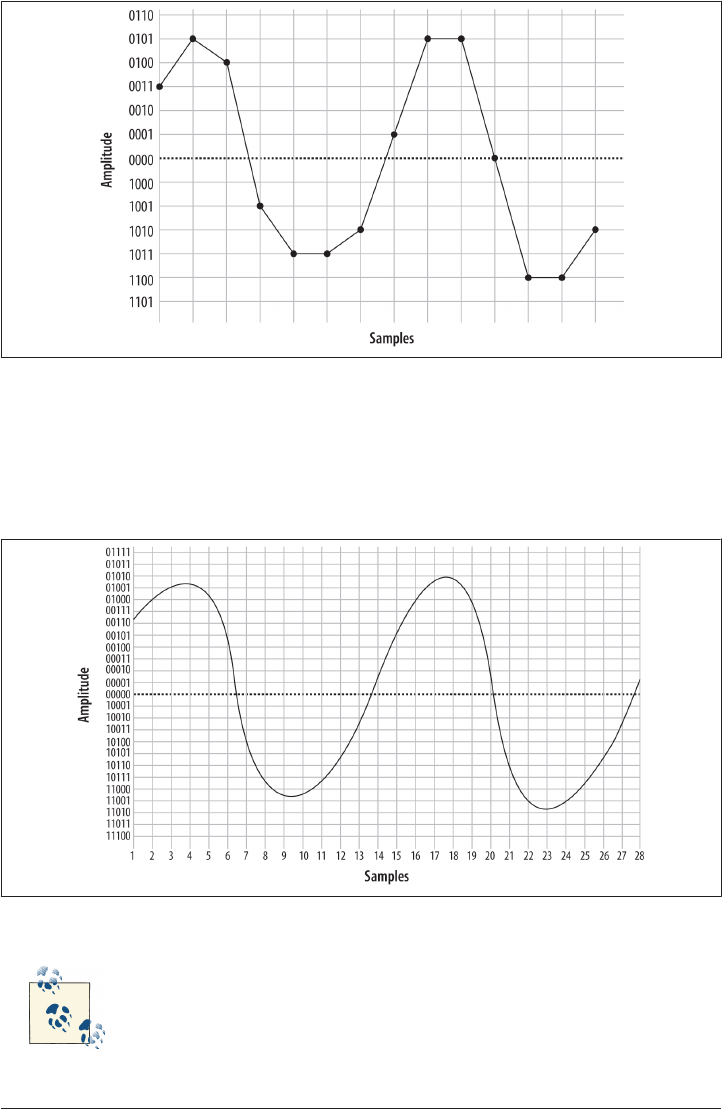

Figure A-6. Delineated signal
Increasing the sampling resolution and rate
Let’s take another look at our original waveform, this time using 5 bits to define our
quantization intervals (Figure A-7).
Figure A-7. The same waveform, on a higher-resolution overlay
In reality, there is no such thing as 5-bit PCM. In the telephone network,
PCM samples are encoded using 8 bits. Other digital audio methods
may employ 16 bits or more.
724 | Appendix A: Understanding Telephony
www.it-ebooks.info
We’ll also double our sampling frequency. The points plotted this time are shown in
Figure A-8.
Figure A-8. The same waveform at double the resolution
We now have twice the number of samples, at twice the resolution. Here they are:
00111 01000 01001 01001 01000 00101 10110 11000 11001 11001 11000 10111
10100 10001 00010 00111 01001 01010 01001 00111 00000 11000 11010 11010
11001 11000 10110 10001
When received at the other end, that information can now be plotted as shown in
Figure A-9.
From this information, the waveform shown in Figure A-10 can then be generated.
As you can see, the resultant waveform is a far more accurate representation of the
original. However, you can also see that there is still room for improvement.
Note that 40 bits were required to encode the waveform at 4-bit reso‐
lution, while 156 bits were needed to send the same waveform using 5-
bit resolution (and also doubling the sampling rate). The point is, there
is a trade-off: the higher the quality of audio you wish to encode, the
more bits are required to do it, and the more bits you wish to send (in
real time, naturally), the more bandwidth you will need to consume.
Digital Telephony | 725
www.it-ebooks.info
Figure A-9. Five-bit plotted PCM signal
Figure A-10. Waveform delineated from 5-bit PCM
Nyquist’s Theorem
So how much sampling is enough? That very same question was considered in the 1920s
by an electrical engineer (and AT&T/Bell employee) named Harry Nyquist. Nyquist’s
Theorem states: “When sampling a signal, the sampling frequency must be greater than
726 | Appendix A: Understanding Telephony
www.it-ebooks.info
6. Nyquist published two papers, “Certain Factors Affecting Telegraph Speed” (1924) and “Certain Topics in
Telegraph Transmission Theory” (1928), in which he postulated what became known as Nyquist’s Theorem.
Proven in 1949 by Claude Shannon (“Communication in the Presence of Noise”), it is also referred to as the
Nyquist-Shannon sampling theorem.
7. μlaw is often referred to as “u-law” because, let’s face it, how many of us have μ keys on our keyboards? μ is
in fact the Greek letter Mu; thus, you will also see μlaw written (more correctly) as “Mu-law.” When spoken,
it is correct to confidently say “Mew-law,” but if folks look at you strangely, and you’re feeling generous, you
can help them out and tell them it’s “You-law.” Many people just don’t appreciate trivia.
twice the bandwidth of the input signal in order to be able to reconstruct the original
perfectly from the sampled version.”6
In essence, this means that to accurately encode an analog signal you have to sample it
twice as often as the total bandwidth you wish to reproduce. Since the telephone network
will not carry frequencies below 300 Hz and above 4,000 Hz, a sampling frequency of
8,000 samples per second will be sufficient to reproduce any frequency within the
bandwidth of an analog telephone. Keep that 8,000 samples per second in mind; we’re
going to talk about it more later.
Logarithmic companding
We’ve gone over the basics of quantization, and we’ve discussed the fact that more
quantization intervals (i.e., a higher sampling rate) give better quality but also require
more bandwidth. Lastly, we’ve discussed the minimum sampling rate needed to accu‐
rately measure the range of frequencies we wish to be able to transmit (in the case of
the telephone, it’s 8,000 Hz). This is all starting to add up to a fair bit of data being sent
on the wire, so we’re going to want to talk about companding.
Companding is a method of improving the dynamic range of a sampling method without
losing important accuracy. It works by quantizing higher amplitudes in a much coarser
fashion than lower amplitudes. In other words, if you yell into your phone, you will not
be sampled as cleanly as you will be when speaking normally. Yelling is also not good
for your blood pressure, so it’s best to avoid it.
Two companding methods are commonly employed: μ-law7 in North America, and A-
law in the rest of the world. They operate on the same principles but are otherwise not
compatible with each other.
Companding divides the waveform into cords, each of which has several steps. Quanti‐
zation involves matching the measured amplitude to an appropriate step within a cord.
The value of the band and cord numbers (as well as the sign—positive or negative)
becomes the signal. The following diagrams will give you a visual idea of what com‐
panding does. They are not based on any standard, but rather were made up for the
purpose of illustration (again, in the telephone network, companding will be done at
an 8-bit, not 5-bit, resolution).
Digital Telephony | 727
www.it-ebooks.info

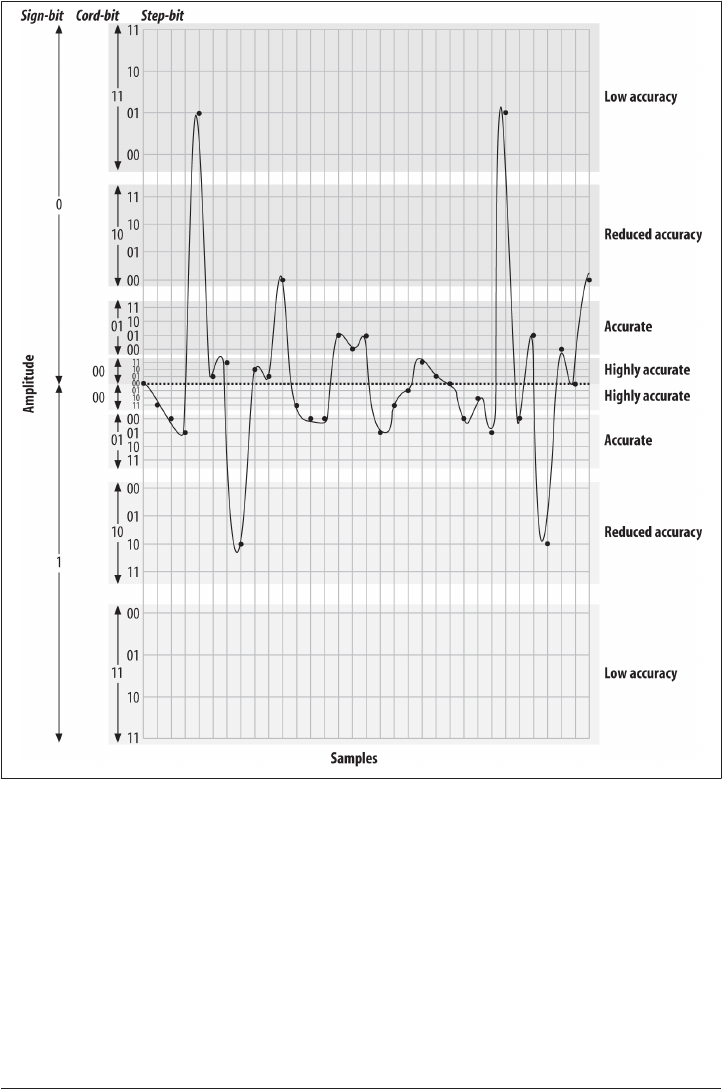

Figure A-11 illustrates 5-bit companding. As you can see, amplitudes near the zero-
crossing point will be sampled far more accurately than higher amplitudes (either pos‐
itive or negative). However, since the human ear, the transmitter, and the receiver will
also tend to distort loud signals, this isn’t really a problem.
Figure A-11. Five-bit companding
A quantized sample might look like Figure A-12. It yields the following bit stream:
00000 10011 10100 10101 01101 00001 00011 11010 00010 00001 01000 10011
10100 10100 00101 00100 00101 10101 10011 10001 00011 00001 00000 10100
10010 10101 01101 10100 00101 11010 00100 00000 01000
728 | Appendix A: Understanding Telephony
www.it-ebooks.info
Figure A-12. Quantized and companded at 5-bit resolution
Aliasing
If you’ve ever watched the wheels on a wagon turn backward in an old Western movie,
you’ve seen the effects of aliasing. The frame rate of the movie cannot keep up with the
rotational frequency of the spokes, and a false rotation is perceived.
In a digital audio system (which the modern PSTN arguably is), aliasing always occurs
if frequencies greater than one-half the sampling rate are presented to the analog-to-
digital (A/D) converter. In the PSTN, that includes any audio frequencies above 4,000
Digital Telephony | 729
www.it-ebooks.info
8. A low-pass filter, as its name implies, allows through only frequencies that are lower than its cutoff frequency.
Other types of filters are high-pass filters (which remove low frequencies) and band-pass filters (which filter
out both high and low frequencies and allow only a specific bandwidth to pass).
9. If you ever have to do audio recordings for a system, you might want to take advantage of the band-pass filter
that is built into most telephone sets. Doing a recording using even high-end recording equipment can pick
up all kinds of background noise that you don’t even hear until you downsample, at which point the back‐
ground noise produces aliasing (which can sound like all kinds of weird things). Conversely, the phone
captures audio in the correct format already, so the noise never enters the audio stream. Having said all that,
no matter what you use to do recordings, avoid environments that have a lot of background noise. Typical
offices can be a lot noisier than you’d think, as HVAC equipment can produce noise that we don’t even realize
is there.
10. Digital telephone sets (including IP sets) do the analog-to-digital conversion right at the point where the
handset plugs into the phone, so the DS-0 is created right at the phone set.
Hz (half the sampling rate of 8,000 Hz). This problem is easily corrected by passing the
audio through a low-pass filter8 before presenting it to the A/D converter.9
The Digital Circuit-Switched Telephone Network
For over a hundred years, telephone networks were exclusively circuit-switched. What
this meant was that for every telephone call made, a dedicated connection was estab‐
lished between the two endpoints, with a fixed amount of bandwidth allocated to that
circuit. Creating such a network was costly, and where distance was concerned, using
that network was costly as well. Although we are all predicting the end of the circuit-
switched network, many people still use it every day, and it really does work rather well.
Circuit Types
In the PSTN, there are many different sizes of circuits serving the various needs of the
network. Between the central office and a subscriber, one or more analog circuits, or a
few dozen channels delivered over a digital circuit, generally suffice. Between PSTN
offices (and with larger customers), fiber-optic circuits are generally used.
The humble DS-0—the foundation of it all
Since the standard method of digitizing a telephone call is to record an 8-bit sample
8,000 times per second, we can see that a PCM-encoded telephone circuit will need a
bandwidth of eight times 8,000 bits per second, or 64,000 bps. This 64 Kbps channel is
referred to as a DS-0 (that’s “Dee-Ess-Zero”). The DS-0 is the fundamental building
block of all digital telecommunications circuits.
Even the ubiquitous analog circuit is sampled into a DS-0 as soon as possible. Sometimes
this happens where your circuit terminates at the central office, and sometimes well
before.10
730 | Appendix A: Understanding Telephony
www.it-ebooks.info
11. The 24 DS-0s use 1.536 Mbps, and the remaining .008 Mbps is used by framing bits.
12. Conférence Européenne des Administrations des Postes et des Télécommunications.
T-carrier circuits
The venerable T1 is one of the more recognized digital telephony terms. A T1 is a digital
circuit consisting of 24 DS-0s multiplexed together into a 1.544 Mbps bit stream.11 This
bit stream is properly defined as a DS-1. Voice is encoded on a T1 using the μlaw com‐
panding algorithm.
The European version of the T1 was developed by the European
Conference of Postal and Telecommunications Administrations
(CEPT),12 and was first referred to as a CEPT-1. It is now called an E1.
The E1 is composed of 32 DS-0s, but the method of PCM encoding is
different: E1s use A-law companding. This means that connecting be‐
tween an E1-based network and a T1-based network will always re‐
quire a transcoding step. Note that an E1, although it has 32 channels,
is also considered a DS-1. It is likely that E1 is far more widely de‐
ployed, as it is used everywhere in the world except North America
and Japan.
The various other T-carriers (T2, T3, and T4) are multiples of the T1, each based on the
humble DS-0. Table A-2 illustrates the relationships between the different T-carrier
circuits.
Table A-2. T-carrier circuits
Carrier Equivalent data bitrate Number of DS-0s Data bitrate
T1 24 DS-0s 24 1.544 Mbps
T2 4 T1s 96 6.312 Mbps
T3 7 T2s 672 44.736 Mbps
T4 6 T3s 4,032 274.176 Mbps
At densities above T3, it is very uncommon to see a T-carrier circuit. For these speeds,
optical carrier (OC) circuits may be used.
SONET and OC circuits
The Synchronous Optical Network (SONET) was developed out of a desire to take the
T-carrier system to the next technological level: fiber optics. SONET is based on the
bandwidth of a T3 (44.736 Mbps), with a slight overhead making it 51.84 Mbps. This
is referred to as an OC-1 or STS-1. As Table A-3 shows, all higher-speed OC circuits are
multiples of this base rate.
The Digital Circuit-Switched Telephone Network | 731
www.it-ebooks.info
Table A-3. OC circuits
Carrier Equivalent data bitrate Number of DS-0s Data bitrate
OC-1 1 DS-3 (plus overhead) 672 51.840 Mbps
OC-3 3 DS-3s 2,016 155.520 Mbps
OC-12 12 DS-3s 8,064 622.080 Mbps
OC-48 48 DS-3s 32,256 2488.320 Mbps
OC-192 192 DS-3s 129,024 9953.280 Mbps
SONET was created in an effort to standardize optical circuits, but due to its high cost,
coupled with the value offered by many newer schemes, such as dense wave division
multiplexing (DWDM), there is some controversy surrounding its future.
Digital Signaling Protocols
As with any circuit, it is not enough for the circuits used in the PSTN to just carry (voice)
data between endpoints. Mechanisms must also be provided to pass information about
the state of the channel between the endpoints. (Disconnect and answer supervision are
two examples of basic signaling that might need to take place; caller ID is an example
of a more complex form of signaling.)
Channel-associated signaling (CAS)
Also known as robbed-bit signaling, CAS is used to transmit voice on a T1 when ISDN
is not available. Rather than taking advantage of the power of the digital circuit, CAS
simulates analog channels. CAS works by stealing bits from the audio stream for sig‐
naling purposes. Although the effect on audio quality is not really noticeable, the lack
of a powerful signaling channel limits flexibility.
When configuring a CAS T1, the signaling options at each end must match. E&M (Ear
& Mouth or recEive & transMit) signaling is generally preferred, as it offers the best
supervision. Having said that, in an Asterisk environment the most likely reason for
using CAS would be for a channel bank, which usually requires FXS signaling.
CAS is very rarely used on PSTN circuits anymore, due to the superiority of ISDN-PRI.
One of the limitations of CAS is that it does not allow the dynamic assignment of chan‐
nels to different functions. Also, caller ID information (which may not even be sup‐
ported) has to be sent as part of the audio stream. CAS is commonly used on the T1 link
in channel banks.
ISDN
The Integrated Services Digital Network (ISDN) has been around for more than 20
years. Because it separates the channels that carry the traffic (the bearer channels, or
732 | Appendix A: Understanding Telephony
www.it-ebooks.info
B-channels) from the channel that carries the signaling information (the D-channel),
ISDN allows for the delivery of a much richer set of features than CAS.
In the beginning, ISDN promised to deliver much the same sort of functionality that
the Internet has given us, including advanced capabilities for voice, video, and data
transfer. Unfortunately, rather than ratifying a standard and sticking to it, the respective
telecommunications manufacturers all decided to add their own tweaks to the protocol,
in the belief that their versions were superior and would eventually come to dominate
the market. As a result, getting two ISDN-compliant systems to connect to each other
was often a painful and expensive task. The carriers who had to implement and support
this expensive technology, in turn, priced it so that it was not rapidly adopted. Currently,
ISDN is rarely used for much more than basic trunking—in fact, the acronym ISDN
has become a joke in the telecom industry: “It Still Does Nothing.”
Having said that, ISDN has become quite popular for trunking, and it is now (mostly)
standards-compliant. If you have a PBX with more than a dozen lines connected to the
PSTN, there’s a very good chance that you’ll be running an ISDN-PRI (Primary Rate
Interface) circuit. Also, in places where DSL and cable access to the Internet are not
available (or are too expensive), an ISDN-BRI (Basic Rate Interface) circuit might pro‐
vide you with an affordable 128 Kbps connection. In much of North America, the use
of BRI for Internet connectivity has been deprecated in favor of DSL and cable modems
(and it is never used for voice), but in many European countries BRI has almost totally
replaced analog circuits.
ISDN-BRI/BRA. The Basic Rate Interface (or Basic Rate Access) flavor of ISDN is designed
to service small endpoints such as workstations.
This flavor is often referred to simply as “ISDN,” but this can be a source of confusion,
as ISDN is a protocol, not a type of circuit (not to mention that PRI circuits are also
correctly referred to as ISDN!).
A Basic Rate ISDN circuit consists of two 64 Kbps B-channels controlled by a 16 Kbps
D-channel, for a total of 144 Kbps.
Basic Rate ISDN has been a source of much confusion during its life, due to problems
with standards compliance, technical complexity, and poor documentation. Still, many
European telcos have widely implemented ISDN-BRI, and thus it is more popular in
Europe than in North America.
ISDN-PRI/PRA. The Primary Rate Interface (or Primary Rate Access) flavor of ISDN is
used to provide ISDN service over larger network connections. A Primary Rate ISDN
circuit uses a single DS-0 channel as a signaling link (the D-channel); the remaining
channels serve as B-channels.
The Digital Circuit-Switched Telephone Network | 733
www.it-ebooks.info
13. PRI is actually quite a bit more flexible than that, as it is possible to span a single PRI circuit across multiple
DS1 spans. This can give rise, for example, to a 47B+D circuit (where a single D-channel serves two T1s) or
a 46B+2D circuit (where primary and backup D-channels serve a pair of T1s). You will sometimes see PRI
described as nB+nD, because the number of B- and D-channels is, in fact, quite variable. For this reason, you
should never refer to a T1 carrying PRI as “a PRI.” For all you know, the PRI circuit spans multiple T1s, as is
common in larger PBX deployments.
In North America, Primary Rate ISDN is commonly carried on one or more T1 circuits.
Since a T1 has 24 channels, a North American PRI circuit typically consists of 23 B-
channels and 1 D-channel. For this reason, PRI is sometimes referred to as 23B+D.13
In Europe, a 32-channel E1 circuit is used, so a Primary Rate ISDN
circuit is referred to as 30B+D (the final channel is used for
synchronization).
Primary Rate ISDN is very popular, due to its technical benefits and generally compet‐
itive pricing at higher densities. If you believe you will require more than a dozen or so
PSTN lines, you should look into Primary Rate ISDN.
From a technical perspective, ISDN-PRI is always preferable to CAS.
Signaling System 7
Signaling System 7 (SS7) is the signaling system used by carriers. It is conceptually
similar to ISDN, and it is instrumental in providing a mechanism for the carriers to
transmit the additional information that ISDN endpoints typically need to pass. How‐
ever, the technology of SS7 is different from that of ISDN; one big difference is that SS7
runs on a completely separate network than the actual trunks that carry the calls.
SS7 support in Asterisk is on the horizon, as there is much interest in making Asterisk
compatible with the carrier networks. An open source version of SS7 exists, but work
is still needed for full SS7 compliance, and as of this writing it is not known whether
this version will be integrated with Asterisk. Another promising source of SS7 support
comes from Sangoma Technologies, which offers SS7 functionality in many of its
products.
It should be noted that adding support for SS7 in Asterisk is not going to be as simple
as writing a proper driver. Connecting equipment to an SS7 network will not be possible
without that equipment having passed extremely rigorous certification processes. Even
then, it seems doubtful that any traditional carrier is going to be in a hurry to allow such
a thing to happen, mostly for strategic and political reasons.
734 | Appendix A: Understanding Telephony
www.it-ebooks.info
Packet-Switched Networks
In the mid-1990s, network performance improved to the point where it became possible
to send a stream of media information in real time across a network connection. Because
the media stream is chopped up into segments, which are then wrapped in an addressing
envelope, such connections are referred to as packet-based. The challenge, of course, is
to send a flood of these packets between two endpoints, ensuring that the packets arrive
in the same order in which they were sent, in less than 150 milliseconds, with none lost.
This is the essence of Voice over IP.
Conclusion
This appendix has explored the technologies currently in use in the PSTN. In Appen‐
dix B, we will discuss protocols for VoIP: the carrying of telephone connections across
IP-based networks. These protocols define different mechanisms for carrying telephone
conversations, but their significance is far greater than just that. Bringing the telephone
network into the data network will finally erase the line between telephones and com‐
puters, which holds the promise of a revolution in the way we communicate.
Packet-Switched Networks | 735
www.it-ebooks.info
www.it-ebooks.info
The Internet is a telephone system
that’s gotten uppity.
—Clifford Stoll
APPENDIX B
Protocols for VoIP
The telecommunications industry spans over 100 years, and Asterisk integrates most—
if not all—of the major technologies that it has used over the last century. To make the
most out of Asterisk, you need not be a professional in all areas, but understanding the
differences between the various codecs and protocols will give you a greater appreciation
and understanding of the system as a whole.
This appendix explains Voice over IP and what makes VoIP networks different from
the traditional circuit-switched voice networks that were the topic of Appendix A. We
will explore the need for VoIP protocols, outlining the history and potential future of
each. We’ll also look at security considerations and these protocols’ abilities to work
within topologies such as Network Address Translation (NAT). The following VoIP
protocols will be discussed (some more briefly than others):
• IAX
• SIP
• H.323
• MGCP
• Skinny/SCCP
• UNISTIM
Codecs are the means by which analog voice can be converted to a digital signal and
carried across the Internet. Bandwidth at any location is finite, and the number of si‐
multaneous conversations any connection can carry is directly related to the type of
737
www.it-ebooks.info
1. This word hasn’t quite made it into the dictionary, but it is becoming increasingly common. It refers to the
process of chopping a steady stream of information into discrete chunks (or packets), suitable for delivery
independently of one another.
codec implemented. We’ll also explore the differences between the following codecs in
regard to bandwidth requirements (compression level) and quality:
• G.711
• G.726
•G.729A
•GSM
•iLBC
• Speex
• G.722
• MP3
We will then conclude the appendix with a discussion of how voice traffic can be routed
reliably, what causes echo and how to deal with it, and how Asterisk controls the au‐
thentication of inbound and outbound calls.
The Need for VoIP Protocols
The basic premise of VoIP is the packetization1 of audio streams for transport over
Internet Protocol–based networks. The challenges in accomplishing this relate to the
manner in which humans communicate. Not only must the signal arrive in essentially
the same form it was transmitted in, but it needs to do so in less than 150 milliseconds.
If packets are lost or delayed, the quality of the communications experience will be
degraded, meaning that two people will have difficulty carrying on a conversation.
The transport protocols that collectively are called “the Internet” were not originally
designed with realtime streaming of media in mind. Endpoints were expected to resolve
missing packets by waiting longer for them to arrive, requesting retransmission, or, in
some cases, considering the information to be gone for good and simply carrying on
without it. In a typical voice conversation, these mechanisms will not serve. Our con‐
versations do not adapt well to the loss of letters or words, nor to any appreciable delay
between transmittal and receipt.
The traditional PSTN was designed specifically for the purpose of voice transmission,
and it is perfectly suited to the task from a technical standpoint. From a flexibility
standpoint, however, its flaws are obvious even to people with a very limited under‐
standing of the technology.
738 | Appendix B: Protocols for VoIP
www.it-ebooks.info
2. It sounds like the name of a Dutch football team.
3. Go ahead. Say it. That sounds much better, doesn’t it?
4. Officially, the current version is IAX2 (officially standardized by the IETF in RFC 5456), but all support for
IAX1 has been dropped, so whether you say “IAX” or “IAX2,” it is expected that you are talking about
version 2.
VoIP holds the promise of incorporating voice communications into all the other pro‐
tocols we carry on our networks, but due to the special demands of a voice conversation,
special skills are needed to design, build, and maintain these networks.
The problem with packet-based voice transmission stems from the fact that the way we
speak is totally incompatible with the way IP transports data. Speaking and listening
consist of relaying a stream of audio, whereas the Internet protocols are designed to
chop everything up, encapsulate the bits of information into thousands of packages, and
then deliver each package in whatever way possible to the far end. Clearly, some way of
dealing with this is required.
VoIP Protocols
The mechanism for carrying a VoIP connection generally involves a series of signaling
transactions between the endpoints (and gateways in between), culminating in two
persistent media streams (one for each direction) that carry the actual conversation.
There are several protocols in existence to handle this. In this section, we will discuss
some that are important to VoIP in general and to Asterisk specifically.
IAX (the “Inter-Asterisk eXchange” Protocol)
If you claim to be one of the folks in the know when it comes to Asterisk, your test will
come when you have to pronounce the name of this protocol. It would seem that you
should say “eye-ay-ex,” but this hardly rolls off the tongue very well.2 Fortunately, the
proper pronunciation is in fact “eeks.”3 IAX is an open protocol, meaning that anyone
can download and develop for it.4
In Asterisk, IAX is supported by the chan_iax2.so module.
History
The IAX protocol was developed by Digium for the purpose of communicating with
other Asterisk servers (hence the name Inter-Asterisk eXchange). It is very important
to note that IAX is not at all limited to Asterisk. The standard is open for anyone to use,
and it is supported by many other open source telecom projects, as well as by several
hardware vendors. IAX is a transport protocol (much like SIP) that uses a single UDP
port (4569) for both the channel signaling and media streams. As discussed later in this
appendix, this makes it easier to manage when behind NATed firewalls.
VoIP Protocols | 739
www.it-ebooks.info
IAX also has the unique ability to trunk multiple sessions into one dataflow, which can
result in a tremendous bandwidth advantage when sending a lot of simultaneous chan‐
nels to a remote box. Trunking allows multiple media streams to be represented with a
single datagram header, which lowers the overhead associated with individual
channels. This helps to lower latency and reduce the processing power and bandwidth
required, allowing the protocol to scale much more easily with a large number of active
channels between endpoints. If you have a large quantity of IP calls to pass between two
endpoints, you should take a close look at IAX trunking.
Future
Since IAX was optimized for voice, it has received some criticism for not better sup‐
porting video—but in fact, IAX holds the potential to carry pretty much any media
stream desired. Because it is an open protocol, future media types are certain to be
incorporated as the community desires them.
Security considerations
IAX includes the ability to authenticate in three ways: plain text, MD5 hashing, and RSA
key exchange. This, of course, does nothing to encrypt the media path or headers be‐
tween endpoints. Many solutions involve using a Virtual Private Network (VPN) ap‐
pliance or software to encrypt the stream in another layer of technology, which requires
the endpoints to pre-establish a method of configuring and opening these tunnels.
However, IAX is now also able to encrypt the streams between endpoints with dynamic
key exchange at call setup (using the configuration option encryption=aes128), al‐
lowing the use of automatic key rollover.
IAX and NAT
The IAX2 protocol was deliberately designed to work from behind devices performing
NAT. The use of a single UDP port for both signaling and transmission of media also
keeps the number of holes required in your firewall to a minimum. These considerations
have helped make IAX one of the easiest protocols (if not the easiest) to implement in
secure networks.
SIP
The Session Initiation Protocol (SIP) has taken the telecommunications industry by
storm. SIP has pretty much dethroned the once-mighty H.323 as the VoIP protocol of
choice—certainly at the endpoints of the network. The premise of SIP is that each end
of a connection is a peer; the protocol negotiates capabilities between them. What makes
SIP compelling is that it is a relatively simple protocol, with a syntax similar to that of
740 | Appendix B: Protocols for VoIP
www.it-ebooks.info
5. Having just called SIP simple, it should be noted that it is by no means lightweight. It has been said that if
one were to read all of the IETF RFCs that are relevant to SIP, one would have more than 3,000 pages of
reading to do. SIP is quickly earning a reputation for being far too bloated, but that does nothing to lessen
its popularity.
6. RFC 3261, “SIP: Session Initiation Protocol,” p. 9, Section 2.
other familiar protocols such as HTTP and SMTP. SIP is supported in Asterisk with the
chan_sip.so module.5
History
SIP was originally submitted to the Internet Engineering Task Force (IETF) in February
1996 as “draft-ietf-mmusic-sip-00.” The initial draft looked nothing like the SIP we know
today and contained only a single request type: a call setup request. In March 1999, after
11 revisions, SIP RFC 2543 was born.
At first, SIP was all but ignored, as H.323 was considered the protocol of choice for VoIP
transport negotiation. However, as the buzz grew, SIP began to gain in popularity, and
while many different factors may have accelerated its growth, we’d like to think that a
large part of its success is due to its freely available specification.
SIP is an application-layer signaling protocol that uses the well-known port 5060 for
communications. SIP can be transported with either the UDP or TCP transport-layer
protocols. SIP is used to “establish, modify, and terminate multimedia sessions such as
Internet telephony calls.”6
SIP does not transport media (i.e., voice) between endpoints. Instead, the Realtime
Transport Protocol (RTP) is used for this purpose. RTP uses high-numbered, unprivi‐
leged ports in Asterisk (10,000 through 20,000, by default).
A common topology to illustrate SIP and RTP, commonly referred to as the “SIP tra‐
pezoid,” is shown in Figure B-1. When Alice wants to call Bob, Alice’s phone contacts
her proxy server, and the proxy tries to find Bob (often connecting through his proxy).
Once the phones have started the call, they communicate directly with each other (if
possible), so that the data doesn’t have to tie up the resources of the proxy.
SIP was not the first, and is not the only, VoIP protocol in use today (others include
H.323, MGCP, IAX, and so on), but currently it seems to have the most momentum
with hardware vendors. The advantages of the SIP protocol lie in its wide acceptance
and architectural flexibility (and, we used to say, simplicity!).
VoIP Protocols | 741
www.it-ebooks.info
Figure B-1. The SIP trapezoid
Future
SIP has earned its place as the protocol that justified VoIP. All new user and enterprise
products are expected to support SIP, and any existing products will now be a tough sell
unless a migration path to SIP is offered. SIP is widely expected to deliver far more than
VoIP capabilities, including the ability to transmit video, music, and any type of real-
time multimedia. While its use as a ubiquitous general-purpose media transport mech‐
anism seems doubtful, SIP is unarguably poised to deliver the majority of new voice
applications for the next few years.
Security considerations
SIP uses a challenge/response system to authenticate users. An initial INVITE is sent to
the proxy with which the end device wishes to communicate. The proxy then sends back
a 407 Proxy Authorization Request message, which contains a random set of characters
referred to as a nonce. This nonce is used along with the password to generate an MD5
hash, which is then sent back in the subsequent INVITE. Assuming the MD5 hash
matches the one that the proxy generated, the client is then authenticated.
Denial of service (DoS) attacks are probably the most common type of attack on VoIP
communications. A DoS attack can occur when a large number of invalid INVITE re‐
quests are sent to a proxy server in an attempt to overwhelm the system. These attacks
are relatively simple to implement, and their effects on the users of the system are im‐
mediate. SIP has several methods of minimizing the effects of DoS attacks, but ultimately
they are impossible to prevent.
SIP implements a scheme to guarantee that a secure, encrypted transport mechanism
(namely Transport Layer Security, or TLS) is used to establish communication between
the caller and the domain of the callee. Beyond that, the request is sent securely to the
end device, based upon the local security policies of the network. Note that the encryp‐
tion of the media (that is, the RTP stream) is beyond the scope of SIP itself and must be
dealt with separately.
742 | Appendix B: Protocols for VoIP
www.it-ebooks.info
More information regarding SIP security considerations, including registration hijack‐
ing, server impersonation, and session teardown, can be found in Section 26 of
SIP RFC 3261.
SIP and NAT
Probably the biggest technical hurdle SIP has to conquer is the challenge of carrying
out transactions across a NAT layer. Because SIP encapsulates addressing information
in its data frames, and NAT happens at a lower network layer, the addressing information
is not automatically modified, and thus the media streams will not have the correct
addressing information needed to complete the connection when NAT is in place. In
addition to this, the firewalls normally integrated with NAT will not consider the in‐
coming media stream to be part of the SIP transaction and will block the connection.
Newer firewalls and session border controllers (SBCs) are SIP-aware, but this is still
considered a shortcoming in this protocol, and it causes no end of trouble to network
professionals needing to connect SIP endpoints using existing network infrastructure.
H.323
This International Telecommunication Union (ITU) protocol was originally designed
to provide an IP transport mechanism for videoconferencing. It has become the stan‐
dard in IP-based videoconferencing equipment, and it briefly enjoyed fame as a VoIP
protocol as well. While there is much heated debate over whether SIP or H.323 (or IAX)
will come to dominate the VoIP protocol world, in Asterisk, H.323 has largely been
deprecated in favor of IAX and SIP. H.323 has not enjoyed much success among users
and enterprises, although it might still be the most widely used VoIP protocol among
carriers.
The three versions of H.323 supported in Asterisk are handled by the modules
chan_h323.so (supplied with Asterisk), chan_oh323.so (available as a free add-on), and
chan_ooh323.so (supplied in asterisk-addons).
You have probably used H.323 without even knowing it—Microsoft’s
NetMeeting client is arguably the most widely deployed H.323 client.
History
H.323 was developed by the ITU in May 1996 as a means to transmit voice, video, data,
and fax communications across an IP-based network while maintaining connectivity
with the PSTN. Since that time, H.323 has gone through several versions and annexes
(which add functionality to the protocol), allowing it to operate in pure VoIP networks
and more widely distributed networks.
VoIP Protocols | 743
www.it-ebooks.info
Future
The future of H.323 is a subject of debate. If the media is any measure, it doesn’t look
good for H.323; it hardly ever gets mentioned (certainly not with the regularity of SIP).
H.323 is often regarded as technically superior to SIP, but that sort of thing is seldom
the deciding factor in whether a technology enjoys success. One of the factors that makes
H.323 unpopular is its complexity (although many argue that the once-simple SIP is
starting to suffer from the same problem).
H.323 still carries by far the majority of worldwide carrier VoIP traffic, but as people
become less dependent on traditional carriers for their telecom needs, the future of
H.323 becomes more difficult to predict with any certainty. While H.323 may not be
the protocol of choice for new implementations, we can certainly expect to have to deal
with H.323 interoperability issues for some time to come.
Security considerations
H.323 is a relatively secure protocol and does not require many security considerations
beyond those that are common to any network communicating with the Internet. Since
H.323 uses the RTP protocol for media communications, it does not natively support
encrypted media paths. The use of a VPN or other encrypted tunnel between endpoints
is the most common way of securely encapsulating communications. Of course, this has
the disadvantage of requiring the establishment of these secure tunnels between end‐
points, which may not always be convenient (or even possible). As VoIP becomes used
more often to communicate with financial institutions such as banks, we’re likely to
require extensions to the most commonly used VoIP protocols to natively support
strong encryption methods.
H.323 and NAT
The H.323 standard uses the Internet Engineering Task Force (IETF) RTP protocol to
transport media between endpoints. Because of this, H.323 has the same issues as SIP
when dealing with network topologies involving NAT. The easiest method is to simply
forward the appropriate ports through your NAT device to the internal client.
To receive calls, you will always need to forward TCP port 1720 to the client. In addition,
you will need to forward the UDP ports for the RTP media and RTP Control Protocol
(RTCP) control streams (see the manual for your device for the port range it requires).
Older clients, such as Microsoft NetMeeting, will also require TCP ports forwarded for
H.245 tunneling (again, see your client’s manual for the port number range).
If you have a number of clients behind the NAT device, you will need to use a gatekeep‐
er running in proxy mode. The gatekeeper will require an interface attached to the
private IP subnet and the public Internet. Your H.323 client on the private IP subnet
will then register to the gatekeeper, which will proxy calls on the clients’ behalf. Note
744 | Appendix B: Protocols for VoIP
www.it-ebooks.info
7. RFC 3435 renders obsolete RFC 2705.
8. Cisco has recently announced that it will be migrating toward SIP in its future products.
that any external clients that wish to call you will also be required to register with the
proxy server.
At this time, Asterisk can’t act as an H.323 gatekeeper. You’ll have to use a separate
application, such as the open source OpenH323 Gatekeeper, for this purpose.
MGCP
The Media Gateway Control Protocol (MGCP) also comes to us from the IETF. While
MGCP deployment is more widespread than one might think, it is quickly losing ground
to protocols such as SIP and IAX. Still, Asterisk loves protocols, so naturally it has
rudimentary support for it.
MGCP is defined in RFC 3435.7 It was designed to make end devices (such as phones)
as simple as possible, and have all the call logic and processing handled by media gate‐
ways and call agents. Unlike SIP, MGCP uses a centralized model. MGCP phones cannot
directly call other MGCP phones; they must always go through some type of controller.
Asterisk supports MGCP through the chan_mgcp.so module, and the endpoints are
defined in the configuration file mgcp.conf. Since Asterisk provides only basic call-agent
services, it cannot emulate an MGCP phone (to register to another MGCP controller
as a user agent, for example).
If you have some MGCP phones lying around, you will be able to use them with
Asterisk. If you are planning to put MGCP phones into production on an Asterisk
system, keep in mind that the community has moved on to more popular protocols,
and you will therefore need to budget for your software support needs accordingly. If
possible (for example, with Cisco phones), you should upgrade MGCP phones to SIP.
Proprietary Protocols
Finally, let’s take a look at two proprietary protocols that are supported in Asterisk.
Skinny/SCCP
The Skinny Client Control Protocol (SCCP) is proprietary to Cisco VoIP equipment. It
is the default protocol for endpoints on a Cisco Call Manager PBX.8 Skinny is supported
in Asterisk, but if you are connecting Cisco phones to Asterisk, it is generally recom‐
mended that you obtain SIP images for any phones that support this and connect via
SIP instead.
VoIP Protocols | 745
www.it-ebooks.info
9. Read the following: “Aoccdrnig to rsereach at an Elingsh uinervtisy, it deosn’t mttaer in waht oredr the ltteers
in a wrod are, the olny iprmoetnt tihng is taht frist and lsat ltteres are in the rghit pclae. The rset can be a toatl
mses and you can sitll raed it wouthit a porbelm. Tihs is bcuseae we do not raed ervey lteter by istlef, but the
wrod as a wlohe.” (The source of this quote is unknown.) We do the same thing with sound: if there is enough
information, our brains can fill in the gaps.
10. On an audio CD, quality is far more important than saving bandwidth, so the audio is quantized at 16 bits
(times 2, as it’s stereo), with a sampling rate of 44,100 Hz. Considering that the CD was invented in the late
1970s, this was quite impressive stuff back then. The telephone network does not require this level of quality
(and needs to optimize bandwidth), so telephone signals are encoded using 8 bits, at a sampling frequency
of 8,000 Hz.
UNISTIM
Asterisk’s support for Nortel’s proprietary VoIP protocol, UNISTIM, makes it the first
PBX in history to natively support proprietary IP terminals from the two biggest players
in VoIP: Nortel and Cisco. UNISTIM support is totally experimental and does not yet
work well enough to put into production, but the fact that somebody has taken the
trouble to implement it demonstrates the power of the Asterisk platform.
Codecs
Codecs are generally understood to be various mathematical models used to digitally
encode (and compress) analog audio information. Many of these models take into ac‐
count the human brain’s ability to form an impression from incomplete information.
We’ve all seen optical illusions; likewise, voice-compression algorithms take advantage
of our tendency to interpret what we believe we should hear, rather than what we ac‐
tually hear.9 The purpose of the various encoding algorithms is to strike a balance be‐
tween efficiency and quality.10
Originally, the term codec referred to a COder/DECoder: a device that converts between
analog and digital. Now, COmpression/DECompression seems more relevant.
Before we dig into the individual codecs, take a look at Table B-1—it’s a quick reference
that you may want to refer back to.
Table B-1. Codec quick reference
Codec Data bitrate (Kbps) License required?
G.711 64 Kbps No
G.726 16, 24, 32, or 40 Kbps No
G.729A 8 Kbps Yes (no for pass-through)
GSM 13 Kbps No
iLBC 13.3 Kbps (30 ms frames) or 15.2 Kbps (20 ms frames) No
Speex Variable (between 2.15 and 22.4 Kbps) No
G.722 64 Kbps No
746 | Appendix B: Protocols for VoIP
www.it-ebooks.info
11. CELP is a popular method of compressing speech. By mathematically modeling the various ways humans
make sounds, a codebook of sounds can be built. Rather than sending an actual sampled sound, a code
corresponding to the sound is determined. CELP codecs take this information (which by itself would produce
a very robot-like sound) and attempt to add the personality back in. (Of course, there is much more to it than
that.) Jason Woodward’s Speech Coding page is a source of helpful information for the non-mathematically
inclined. This is fairly heavy stuff, though, so wear your thinking cap.
G.711
G.711 is the fundamental codec of the PSTN. In fact, if someone refers to PCM (dis‐
cussed in Appendix A) with respect to a telephone network, you are allowed to think
of G.711. Two companding methods are used: μlaw in North America and A-law in the
rest of the world. Either one delivers an 8-bit word transmitted 8,000 times per second.
If you do the math, you will see that this requires 64,000 bits to be transmitted per
second.
Many people will tell you that G.711 is an uncompressed codec. This is not exactly true,
as companding is considered a form of compression. What is true is that G.711 is the
base codec from which all of the others are derived.
G.711 imposes minimal (almost zero) load on the CPU.
G.726
This codec has been around for some time (it used to be G.721, which is now obsolete),
and it is one of the original compressed codecs. It is also known as Adaptive Differential
Pulse-Code Modulation (ADPCM), and it can run at several bitrates. The most common
rates are 16 Kbps, 24 Kbps, and 32 Kbps. As of this writing, Asterisk supports only the
ADPCM-32 rate, which is far and away the most popular rate for this codec.
G.726 offers nearly identical quality to G.711, but it uses only half the bandwidth. This
is possible because rather than sending the result of the quantization measurement, it
sends only enough information to describe the difference between the current sample
and the previous one. G.726 fell from favor in the 1990s due to its inability to carry
modem and fax signals, but because of its bandwidth/CPU performance ratio, it is now
making a comeback. G.726 is especially attractive because it does not require a lot of
computational work from the system.
G.729A
Considering how little bandwidth it uses, G.729A delivers impressive sound quality. It
does this through the use of Conjugate-Structure Algebraic-Code-Excited Linear
Prediction (CS-ACELP).11 Because of patents, you can’t use G.729A without paying a
licensing fee; however, it is extremely popular and is well supported on many different
phones and systems.
Codecs | 747
www.it-ebooks.info
To achieve its impressive compression ratio, this codec requires an equally impressive
amount of effort from the CPU. In an Asterisk system, the use of heavily compressed
codecs will quickly bog down the CPU.
G.729A uses 8 Kbps of bandwidth.
GSM
The Global System for Mobile Communications (GSM) codec is the darling of Asterisk.
This codec does not come encumbered with a licensing requirement the way that
G.729A does, and it offers outstanding performance with respect to the demand it places
on the CPU. The sound quality is generally considered to be of a lesser grade than that
produced by G.729A, but much of this comes down to personal opinion; be sure to try
it out. GSM operates at 13 Kbps.
iLBC
The Internet Low Bitrate Codec (iLBC) provides an attractive mix of low bandwidth
usage and quality, and it is especially well suited to sustaining reasonable quality on
lossy network links.
Naturally, Asterisk supports it (and support elsewhere is growing), but it is not as pop‐
ular as the ITU codecs and thus may not be compatible with common IP telephones
and commercial VoIP systems. IETF RFCs 3951 and 3952 have been published in sup‐
port of iLBC, and iLBC is on the IETF standards track.
Because iLBC uses complex algorithms to achieve its high levels of compression, it has
a fairly high CPU cost in Asterisk.
While you are allowed to use iLBC without paying royalty fees, the holder of the iLBC
patent, Global IP Sound (GIPS), wants to know whenever you use it in a commercial
application. The way you do that is by downloading and printing a copy of the iLBC
license, signing it, and returning it to GIPS. If you want to read about iLBC and its
license, you can do so at http://www.ilbcfreeware.org.
iLBC operates at 13.3 Kbps (30 ms frames) and 15.2 Kbps (20 ms frames).
Speex
Speex is a variable-bitrate (VBR) codec, which means it is able to dynamically modify
its bitrate to respond to changing network conditions. It is offered in both narrowband
and wideband versions, depending on whether you want telephone quality or better.
Speex is a totally free codec, licensed under the Xiph.org variant of the BSD license.
An Internet draft for Speex is available, and more information about Speex can be found
at its home page.
748 | Appendix B: Protocols for VoIP
www.it-ebooks.info
12. If you want to learn all about MPEG audio, do a web search for Davis Pan’s paper titled “A Tutorial on MPEG/
Audio Compression.”
Speex can operate at anywhere from 2.15 to 22.4 Kbps, due to its variable bitrate.
G.722
G.722 is an ITU-T standard codec that was approved in 1988. The G.722 codec produces
a much higher-quality voice in the same space as G.711 (64 Kbps) and is starting to
become popular among VoIP device manufacturers. The patents for G.722 have expired,
so it is freely available. If you have access to devices that support G.722, you’ll be im‐
pressed by the quality improvement.
MP3
Sure thing, MP3 is a codec. Specifically, it’s the Moving Picture Experts Group Audio
Layer 3 Encoding Standard.12 With a name like that, it’s no wonder we call it MP3! In
Asterisk, the MP3 codec is typically used for music on hold (MOH). MP3 is not a
telephony codec, as it is optimized for music, not voice; nevertheless, it’s very popular
with VoIP telephony systems as a method of delivering MOH.
Be aware that music cannot usually be broadcast without a license.
Many people assume that there is no legal problem with connecting
a radio station or CD as a music on hold source, but this is very
rarely true.
Quality of Service
Quality of Service, or QoS as it’s more popularly termed, refers to the challenge of de‐
livering a time-sensitive stream of data across a network that was designed to deliver
data in an ad hoc, best-effort sort of way. Although there is no hard rule, it is generally
accepted that if you can deliver the sound produced by the speaker to the listener’s ear
within 150 milliseconds, a normal flow of conversation is possible. When delay exceeds
300 milliseconds, it becomes difficult to avoid interrupting each other. Beyond 500
milliseconds, normal conversation becomes increasingly awkward and frustrating.
In addition to getting it there on time, it is also essential to ensure that the transmitted
information arrives intact. Too many lost packets will prevent the far end from com‐
pletely reproducing the sampled audio, and gaps in the data will be heard as static or, in
severe cases, entire missed words or sentences. Even packet loss of 5 percent can severely
impede a VoIP network.
Quality of Service | 749
www.it-ebooks.info
13. The order of arrival is important in voice communication, because the audio will be processed and sent to
the caller ASAP. However, with a jitter buffer the order of arrival isn’t as important, as it provides a small
window of time in which the packets can be reordered before being passed on to the caller.
14. Keep in mind that the upper-layer protocols or applications can implement their own packet-
acknowledgment systems.
TCP, UDP, and SCTP
If you’re going to send data on an IP-based network, it will be transported using one of
the three transport protocols discussed here.
Transmission Control Protocol
The Transmission Control Protocol (TCP) is almost never used for VoIP, for while it
does have mechanisms in place to ensure delivery, it is not inherently in any hurry to
do so. Unless there is an extremely low-latency interconnection between the two end‐
points, TCP will tend to cause more problems than it solves.
The purpose of TCP is to guarantee the delivery of packets. In order to do this, several
mechanisms are implemented, such as packet numbering (for reconstructing blocks of
data), delivery acknowledgment, and re-requesting of lost packets. In the world of VoIP,
getting the packets to the endpoint quickly is paramount—but 20 years of cellular tel‐
ephony has trained us to tolerate a few lost packets.13
TCP’s high processing overhead, state management, and acknowledgment of arrival
work well for transmitting large amounts of data, but they simply aren’t efficient enough
for realtime media communications.
User Datagram Protocol
Unlike TCP, the User Datagram Protocol (UDP) does not offer any sort of delivery
guarantee. Packets are placed on the wire as quickly as possible and released into the
world to find their way to their final destinations, with no word back as to whether they
got there or not. Since UDP itself does not offer any kind of guarantee that the data will
arrive,14 it achieves its efficiency by spending very little effort on what it is transporting.
TCP is a more “socially responsible” protocol because the band‐
width is more evenly distributed to clients connecting to a server.
As the percentage of UDP traffic increases, it is possible that a net‐
work could become overwhelmed.
Stream Control Transmission Protocol
Approved by the IETF as a proposed standard in RFC 2960, Stream Control Transmis‐
sion Protocol (SCTP) is a relatively new transport protocol. From the ground up, it was
750 | Appendix B: Protocols for VoIP
www.it-ebooks.info
designed to address the shortcomings of both TCP and UDP, especially as related to the
types of services that used to be delivered over circuit-switched telephony networks.
Some of the goals of SCTP were:
•Better congestion-avoidance techniques (specifically, avoiding denial-of-service
attacks)
•Strict sequencing of data delivery
•Lower latency for improved realtime transmission
By addressing the major shortcomings of TCP and UDP, SCTP’s developers hoped to
create a robust protocol for the transmission of SS7 and other types of PSTN signaling
over an IP-based network.
Differentiated Service
Differentiated service, or DiffServ, is not so much a QoS mechanism as a method by
which traffic can be flagged and given specific treatment. Obviously, DiffServ can help
to provide QoS by allowing certain types of packets to take precedence over others.
While this will certainly increase the chance of a VoIP packet passing quickly through
each link, it does not guarantee anything.
Guaranteed Service
The ultimate guarantee of QoS is provided by the PSTN. For each conversation, a 64
Kbps channel is completely dedicated to the call; the bandwidth is guaranteed. Similarly,
protocols that offer guaranteed service can ensure that a required amount of bandwidth
is dedicated to the connection being served. As with any packetized networking tech‐
nology, these mechanisms generally operate best when traffic is below maximum levels.
When a connection approaches its limits, it is next to impossible to eliminate
degradation.
MPLS
Multiprotocol Label Switching (MPLS) is a method for engineering network traffic
patterns independent of Layer-3 routing tables. The protocol works by assigning short
labels (MPLS frames) to network packets, which routers then use to forward the packets
to the MPLS egress router, and ultimately to their final destinations. Traditionally, rout‐
ers make an independent forwarding decision based on an IP table lookup at each hop
in the network. In an MPLS network, this lookup is performed only once, when the
packet enters the MPLS cloud at the ingress router. The packet is then assigned to a
stream, referred to as a Label-Switched Path (LSP), and identified by a label. The label
is used as a lookup index in the MPLS forwarding table, and the packet traverses the
LSP independent of Layer-3 routing decisions. This allows the administrators of large
Quality of Service | 751
www.it-ebooks.info
15. As discussed in Appendix A, sidetone is a function in your telephone that returns part of what you say back
to your own ear, to provide a more natural-sounding conversation.
networks to fine-tune routing decisions and make the best use of network resources.
Additionally, information can be associated with a label to prioritize packet forwarding.
RSVP
MPLS contains no method to dynamically establish LSPs, but you can use the Reser‐
vation Protocol (RSVP) with MPLS. RSVP is a signaling protocol used to simplify the
establishment of LSPs and to report problems to the MPLS ingress router. The advantage
of using RSVP in conjunction with MPLS is the reduction in administrative overhead.
If you don’t use RSVP with MPLS, you’ll have to go to every single router and configure
the labels and each path manually. Using RSVP makes the network more dynamic by
distributing control of labels to the routers. This enables the network to become more
responsive to changing conditions, because it can be set up to change the paths based
on certain conditions, such as a certain path going down (perhaps due to a faulty router).
The configuration within the router will then be able to use RSVP to distribute new
labels to the routers in the MPLS network, with no (or minimal) human intervention.
Best Effort
The simplest, least expensive approach to QoS is not to provide it at all—the “best effort”
method. While this might sound like a bad idea, it can in fact work very well. Any VoIP
call that traverses the public Internet is almost certain to be best-effort, as QoS mech‐
anisms are not yet common in this environment.
Echo
You may not realize it, but echo has been a problem in the PSTN for as long as there
have been telephones. You probably haven’t often experienced it, because the telecom
industry has spent large sums of money designing expensive echo-cancellation devices.
Also, when the endpoints are physically close—e.g., when you phone your neighbor
down the street—the delay is so minimal that anything you transmit will be returned
so quickly that it will be indistinguishable from the sidetone15 normally occurring in
your telephone. So, the fact is that there is echo on your local calls much of the time,
but you cannot perceive it with a regular telephone because it happens almost instan‐
taneously. It may help you to understand this if you consider that when you stand in a
room and speak, everything you say echoes back to you off the walls and ceiling (and
possibly the floor, if it’s not carpeted), but this does not cause any problems because it
happens so fast you do not perceive a delay.
752 | Appendix B: Protocols for VoIP
www.it-ebooks.info
16. Actually, the handset in any phone, be it traditional or VoIP, is an analog connection.
The reason that VoIP telephone systems such as Asterisk can experience echo is that
the addition of a VoIP telephone introduces a slight delay. It takes a few milliseconds
for the packets to travel from your phone to the server (and vice versa). Suddenly there
is an appreciable delay, which allows you to perceive the echo that was always there but
never really noticeable.
Why Echo Occurs
Before we discuss measures to deal with echo, let’s first take a look at why echo occurs
in the analog world.
If you hear echo, it’s not your phone that’s causing the problem; it’s the far end of the
circuit. Conversely, echo heard on the far end is being generated at your end. Echo can
be caused by the fact that an analog local loop circuit has to transmit and receive on the
same pair of wires. If this circuit is not electrically balanced, or if a low-quality telephone
is connected to the end of the circuit, signals it receives can be reflected back, becoming
part of the return transmission. When this reflected circuit gets back to you, you will
hear the words you spoke just moments before. Humans will perceive an echo beyond
a certain amount of delay (possibly as low as 20 milliseconds for some people). This
echo will become annoying as the delay increases.
In a cheap telephone, it is possible for echo to be generated in the body of the handset.
This is why some cheap IP phones can cause echo even when the entire end-to-end
connection does not contain an analog circuit.16 In the VoIP world, echo is usually
introduced either by an analog circuit somewhere in the connection, or by a cheap
endpoint reflecting back some of the signal (e.g., feedback through a hands-free or
poorly designed handset or headset). The greater the latency on the network, the more
annoying this echo can be.
Managing Echo on DAHDI Channels
You can enable and disable echo cancellation for DAHDI interfaces in the chan_dah
di.conf file. The default configuration enables echo cancellation with echocancel=yes.
echocancelwhenbridged=yes will enable echo cancellation for time division multi‐
plexing (TDM)–bridged calls. While bridged calls should not require echo cancellation,
this may improve call quality.
When echo cancellation is enabled, the echo canceler learns of echo on the line by
listening for it throughout the duration of the call. Consequently, echo may be heard at
the beginning of a call and lessen after a period of time. To avoid this situation, you can
employ a method called echo training, which will mute the line briefly at the beginning
of a call, and send a tone from which the amount of echo on the line can be determined.
Echo | 753
www.it-ebooks.info
17. In SIP, this is not always the case. If the endpoint is a SIP proxy service (as opposed to a user agent), Asterisk
will authenticate based on the peer definition, matching the IP address and port in the Contact field of the
SIP header against the hostname (and port, if specified) defined for the peer (if the port is not specified, the
one defined in the [general] section will be used).
This allows Asterisk to deal with the echo more quickly. Echo training can be enabled
with echotraining=yes.
Hardware Echo Cancellation
The most effective way to handle echo cancellation is not in software. If you are planning
on deploying a good-quality system, spend the extra money and purchase cards for the
system that have onboard hardware echo cancellation. These cards are a bit more ex‐
pensive, but they quickly pay for themselves in terms of reduced load on the CPU, as
well as reduced load on you due to fewer user complaints.
Asterisk and VoIP
It should come as no surprise that Asterisk loves to talk VoIP. But in order to do so,
Asterisk needs to know which function it is to perform: that of client, server, or both.
One of the most complex and often confusing concepts in Asterisk is the configuration
of inbound and outbound authentication.
Users and Peers and Friends—Oh My!
Connections that authenticate to us, or that we authenticate, are defined in the iax.conf
and sip.conf files as users and peers. Connections that do both may be defined as
friends. When determining which way the authentication is occurring, it is always im‐
portant to view the direction of the channels from Asterisk’s viewpoint, as connections
are accepted and created by the Asterisk server.
Users
A connection defined as a user is any system/user/endpoint that we allow to connect
to us. Keep in mind that a user definition does not provide a method with which to call
that user; the user type is used simply to create a channel for incoming calls.17 A user
definition will require a context name to be defined to indicate where the incoming
authenticated call will enter the dialplan (in extensions.conf).
Peers
A connection defined as a peer type is an outgoing connection. Think of it this way:
users place calls to us, while we place calls to our peers. Since peers do not place calls to
us, a peer definition does not typically require the configuration of a context name.
754 | Appendix B: Protocols for VoIP
www.it-ebooks.info
However, there is one exception: if calls that originate from your system are returned
to your system in a loopback, the incoming calls (which originate from a SIP proxy, not
a user agent) will be matched on the peer definition. The default context should handle
these incoming calls appropriately, although it’s preferable for contexts to be defined
for them on a per-peer basis.
In order to know where to send a call to a host, we must know its location in relation
to the Internet (that is, its IP address). The location of a peer may be defined either
statically or dynamically. A dynamic peer is configured with host=dynamic under the
peer definition heading. Because the IP address of a dynamic peer may change
constantly, it must register with the Asterisk box so calls can successfully be routed to
it. If the remote end is another Asterisk box, the use of a register statement is required,
as discussed in the next section.
Friends
Defining a type as a friend is a shortcut for defining it as both a user and a peer.
However, connections that are both users and peers aren’t always defined this way,
because defining each direction of call creation individually (with both a user and a
peer definition) allows more granularity and control over the individual connections.
Figure B-2 shows the flow of authentication control in relation to Asterisk.
Figure B-2. Call origination relationships of users, peers, and friends to Asterisk
Asterisk and VoIP | 755
www.it-ebooks.info
register Statements
A register statement is a way of telling a remote peer where your Asterisk box is in
relation to the Internet. Asterisk uses register statements to authenticate to remote
providers when you are employing a dynamic IP address, or when the provider does
not have your IP address on record. There are situations when a register statement is
not required, but to demonstrate when a register statement is required, let’s look at
an example.
Say you have a remote peer that is providing DID services to you. When someone calls
the number +1-800-555-1212, the call goes over the physical PSTN network to your
service provider and into its Asterisk server, possibly over its T1 connection. This call
is then routed to your Asterisk server via the Internet.
Your service provider will have a definition in either its sip.conf or iax.conf configuration
file (depending on whether you are connecting with the SIP or IAX protocol, respec‐
tively) for your Asterisk server. If you only receive calls from this provider, you will
define it as a user (if it is another Asterisk system, you might be defined in its system
as a peer).
Now let’s say that your box is on your home Internet connection, with a dynamic IP
address. Your service provider has a static IP address (or perhaps a fully qualified domain
name), which you place in your configuration file. Since you have a dynamic address,
your service provider specifies host=dynamic in its configuration file. In order to know
where to route your +1-800-555-1212 call, your service provider needs to know where
you are located in relation to the Internet. This is where the register statement comes
into use.
The register statement is a way of authenticating and telling your peer where you are.
In the [general] section of your configuration file, you place a statement similar to
this:
register => username:secret@my_remote_peer
You can verify a successful registration with the use of the iax2 show registry and sip
show registry commands at the Asterisk console.
VoIP Security
We can barely scratch the surface of the complex matter of VoIP security in this appen‐
dix; therefore, before we dig in, we want to steer you in the direction of the VoIP Security
Alliance. This fantastic resource contains an excellent mailing list, white papers, how-
tos, and a general compendium of all matters relating to VoIP security. Just as email has
been abused by the selfish and criminal, so too will voice. The fine folks at VoIPSA are
doing what they can to ensure that we address these challenges now, before they become
an epidemic. In the realm of books on the subject, we recommend the most excellent
756 | Appendix B: Protocols for VoIP
www.it-ebooks.info
Hacking Exposed VoIP by David Endler and Mark Collier (McGraw-Hill Osborne Me‐
dia, 2007). If you are responsible for deploying any VoIP system, you need to be aware
of this stuff.
Spam over Internet Telephony (SPIT)
We don’t want to think about this, but we know it’s coming. The simple fact is that there
are people in this world who lack certain social skills, and that, coupled with a kind of
mindless greed, means these folks think nothing of flooding the Internet with massive
volumes of email. These same types of characters will think little of doing the same with
voice. We already know what it’s like to get inundated with telemarketing calls; try to
imagine what might happen when those telemarketers realize they can send voice spam
at almost no cost. Regulation has not stopped email spam, and it will probably not stop
voice spam, so it will be up to us to prevent it.
Encrypting Audio with Secure RTP
If you can sniff the packets coming out of an Asterisk system, you can extract the audio
from the RTP streams. This data can be fed offline to a speech processing system, which
can listen for keywords such as “credit card number” or “PIN” and present the data it
gathers to someone who has an interest in it. The stream can also be evaluated to see if
there are DTMF tones embedded in it, which is dangerous because many services ask
for passwords and credit card information to be input via the dialpad. In business,
strategic information could also be gleaned from captured audio.
Using Secure RTP can combat this problem by encrypting the RTP streams. More in‐
formation about SRTP is available in “Encrypting SIP calls” on page 176.
Spoofing
In the traditional telephone network, it is very difficult to successfully adopt someone
else’s identity. Your activities can (and will) be traced back to you, and the authorities
will quickly put an end to the fun. In the world of IP, it is much easier to remain anony‐
mous. As such, it is no stretch to imagine that there are hordes of enterprising criminals
out there who will be only too happy to make calls to your credit card company or bank,
pretending to be you. If a trusted mechanism is not discovered to combat spoofing, we
will quickly learn that we cannot trust VoIP calls.
What Can Be Done?
The first thing to keep in mind when considering security on a VoIP system is that VoIP
is based on network protocols and needs be evaluated from that perspective. This is not
to say that traditional telecom security should be ignored, but we need to pay attention
to the underlying network.
VoIP Security | 757
www.it-ebooks.info
Basic network security
One of the most effective things that can be done is to secure access to the voice network.
The use of firewalls and virtual LANs (VLANs) are examples of how this can be achieved.
By default, the voice network should be accessible only to those things that have a need.
For example, if you do not have any softphones in use, do not allow client PCs access
to the voice network.
Segregating voice and data traffic. Unless there is a need to have voice and data on the
same network, there may be some value in keeping them separate (this can have other
benefits as well, such as simplifying QoS configurations). It is not unheard of to build
the internal voice network on a totally separate LAN, using existing Cat 3 cabling and
terminating on inexpensive network switches. This configuration can even be less
expensive.
DMZ. Placing your VoIP system in a demilitarized zone (DMZ) can provide an addi‐
tional layer of protection for your LAN, while still allowing connectivity for relevant
applications. Should your VoIP system be compromised, it will be much more difficult
to use it to launch an attack on the rest of your network, since it is not trusted. Regardless
of whether you deploy within a DMZ, any abnormal traffic coming out of the system
should be considered suspect.
Server hardening. Hardening your Asterisk server is critical. Not only are there perfor‐
mance benefits to doing this (running nonessential processes can eat up valuable CPU
and RAM resources), but the elimination of anything not required will reduce the
chance that an exploited vulnerability in the operating system can be used to gain access
and launch an attack on other parts of your network.
Running Asterisk as non-root is an essential part of system hardening. See Chapter 3
for more information.
Encryption
Asterisk 1.8 and later include the ability to use both SIP TLS for the encryption of
signaling and SRTP for the encryption of the media between endpoints. More infor‐
mation about encrypting SIP calls can be found in “Encrypting SIP calls” on page 176.
Asterisk has also supported encryption between endpoints using IAX2 since version
1.4). Information about enabling encryption across IAX2 trunks can be found in “IAX
encryption” on page 181.
Physical security
Physical security should not be ignored. All terminating equipment (such as switches,
routers, and the PBX itself) should be secured in an environment that can only be
accessed by authorized persons. At the user end (such as under desks), it can be more
758 | Appendix B: Protocols for VoIP
www.it-ebooks.info
difficult to deliver physical security, but if the network responds only to devices that it
is familiar with (e.g., restricting DHCP to devices whose MAC addresses are known),
the risk of unauthorized intrusions can be mitigated somewhat.
Conclusion
Over the last couple of years the telecom industry has embraced VoIP, which sets up
Asterisk to do quite well. While Asterisk has been doing VoIP for years (well over a
decade now), the integration of VoIP and traditional telephony into a single, powerful
platform has made Asterisk a major player in the telecommunications industry.
Conclusion | 759
www.it-ebooks.info
www.it-ebooks.info
Very early on, I knew that someday in some
“perfect” future out there over the horizon, it would
be commonplace for computers to handle all of the
necessary processing functionality internally,
making the necessary external hardware to
connect up to telecom interfaces very inexpensive
and, in some cases, trivial.
—Jim Dixon, “The History of Zapata Telephony
and How It Relates to the Asterisk PBX”
1. People have successfully compiled and run Asterisk on WRAP boards, Linksys WRT54G routers, Soekris
systems, Pentium 100s, PDAs, Apple Macs, Sun SPARCs, laptops, and more. Of course, whether you would
want to put such a system into production is another matter entirely. (Actually, the AstLinux distribution, by
Kristian Kielhofner, runs very well indeed on the Soekris 4801 board. Once you’ve grasped the basics of
Asterisk, this is something worth looking into further.)
APPENDIX C
Preparing a System for Asterisk
By this point, you must be anxious to get your Asterisk system up and running. For a
mission-critical deployment, however, some thought must be given to the environment
in which the Asterisk system will run. Make no mistake: Asterisk, being a very flexible
piece of software, will happily and successfully install on nearly any Linux platform you
can conceive of, and several non-Linux platforms as well.1 However, to arm you with
an understanding of the type of operating environment Asterisk will really thrive in,
this appendix will discuss issues you need to be aware of in order to deliver a reliable,
well-designed system.
In terms of its resource requirements, Asterisk’s needs are similar to those of an em‐
bedded, realtime application. This is due in large part to its need to have priority access
to the processor and system buses. It is, therefore, imperative that any functions on the
system not directly related to the call-processing tasks of Asterisk be run at a low priority,
if at all. On smaller systems and hobby systems, this might not be as much of an issue.
761
www.it-ebooks.info
However, on high-capacity systems, performance shortcomings will manifest as audio
quality problems for users, often experienced as echo, static, and the like. The symptoms
will resemble those experienced on a cell phone when going out of range, although the
underlying causes will be different. As loads increase, the system will have increasing
difficulty maintaining connections. For a PBX, such a situation is nothing short of dis‐
astrous, so careful attention to performance requirements is a critical consideration
during the platform selection process.
Table C-1 lists some very basic guidelines that you’ll want to keep in mind when planning
your system. The next section takes a close look at the various design and implemen‐
tation issues that will affect its performance. Keep in mind that no guide can tell you
exactly how many calls a server can handle. An incredibly high number of variables can
affect how many calls Asterisk can handle. The only way to figure out how many calls
a server can handle is to test it yourself in your own environment.
The size of an Asterisk system is actually not dictated by the number of
users or sets, but rather by the number of simultaneous calls it will be
expected to support. These numbers are very conservative, so feel free
to experiment and see what works for you.
Table C-1. System requirement guidelines
Purpose Number of channels Minimum recommended
Hobby system No more than 5 400 MHz x86, 256 MB RAM
SOHO system (small office/home office—
less than 3 lines and 5 sets)
5 to 10 1 GHz x86, 512 MB RAM
Small business system Up to 25 3 GHz x86, 1 GB RAM
Medium to large system More than 25 Dual CPUs, possibly also multiple servers in a distributed
architecture
With large Asterisk installations, it is common to deploy functionality across several
servers. One or more central units will be dedicated to call processing; these will be
complemented by one or more ancillary servers handling peripherals (such as a database
system, a voicemail system, a conferencing system, a management system, a web inter‐
face, a firewall, and so on). As is true in most Linux environments, Asterisk is well suited
to growing with your needs: a small system that used to be able to handle all your call-
processing and peripheral tasks can be distributed among several servers when in‐
creased demands exceed its abilities. Flexibility is a key reason why Asterisk is extremely
cost-effective for rapidly growing businesses; there is no effective maximum or mini‐
mum size to consider when budgeting the initial purchase. While some scalability is
possible with most telephone systems, we have yet to hear of one that can scale as flexibly
762 | Appendix C: Preparing a System for Asterisk
www.it-ebooks.info
as Asterisk. Having said that, distributed Asterisk systems are not simple to design—
this is not a task for someone new to Asterisk.
If you are sure that you need to set up a distributed Asterisk system,
you will want to study the DUNDi protocol, the Asterisk Realtime Ar‐
chitecture (ARA), func_odbc, and the various other database tools at
your disposal. This will help you to abstract the data your system re‐
quires from the dialplan logic your Asterisk systems will utilize, creating
a generic set of dialplan logic that can be used across multiple boxes.
This in turn will enable you to scale more simply by adding boxes to
the system. However, this is far beyond the scope of this book and will
be left as an exercise for the reader. If you want a teaser of some tools
you can use for scaling, see Chapter 22.
Server Hardware Selection
The selection of a server is both simple and complicated: simple because, really, any x86-
based platform will suffice, but complicated because the reliable performance of your
system will depend on the care that is put into the platform design. When selecting your
hardware, you must carefully consider the overall design of your system and what func‐
tionality you need to support. This will help you determine your requirements for the
CPU, motherboard, and power supply. If you are simply setting up your first Asterisk
system for the purpose of learning, you can safely ignore the information in this section.
If, however, you are building a mission-critical system suitable for deployment, these
are issues that require some thought.
Performance Issues
Among other considerations, when selecting the hardware for an Asterisk installation
you must bear in mind this critical question: how powerful must the system be? This is
not an easy question to answer, because the manner in which the system is to be used
will play a big role in the resources it will consume. There is no such thing as an Asterisk
performance-engineering matrix, so you will need to understand how Asterisk uses the
system in order to make intelligent decisions about what kinds of resources will be
required. You will need to consider several factors, including:
The maximum number of concurrent connections the system will be expected to
support
Each connection will increase the workload on the system.
Server Hardware Selection | 763
www.it-ebooks.info
2. Roughly 30 MHz of CPU power per channel.
The percentage of traffic that will require processor-intensive DSP of compressed codecs
(such as G.729 and GSM)
The digital signal processing (DSP) work that Asterisk performs in software can
have a staggering impact on the number of concurrent calls it will support. A system
that might happily handle 50 concurrent G.711 calls could be brought to its knees
by a request to conference together 10 G.729-compressed channels. We talk more
about G.729, GSM, G.711, and many other codecs in Appendix B.
Whether conferencing will be provided, and what level of conferencing activity is
expected
Will the system be used heavily? Conferencing requires the system to transcode and
mix each individual incoming audio stream into multiple outgoing streams. Mixing
multiple audio streams in near real time can place a significant load on the CPU.
Echo cancellation
Echo cancellation may be required on any call where a public switched telephone
network (PSTN) interface is involved. Since echo cancellation is a mathematical
function, the more of it the system has to perform, the higher the load on the CPU
will be.2 Some telephony hardware vendors offer hardware-based echo cancellation
to remove the burden of this task from the host CPU. Echo cancellation is discussed
briefly later in this appendix and in more depth in Appendix B.
Dialplan scripting logic
Whenever Asterisk has to pass call control to an external program, there is a per‐
formance penalty. As much logic as possible should be built into the dialplan. If
external scripts are used, they should be designed with performance and efficiency
as critical considerations.
As for the exact performance impact of these factors, it’s difficult to know for sure. The
effect of each is known in general terms, but an accurate performance calculator has
not yet been successfully defined. This is partly because the effect of each component
of the system is dependent on numerous variables, such as CPU power, motherboard
chipset and overall quality, total traffic load on the system, Linux kernel optimizations,
network traffic, number and type of PSTN interfaces, and PSTN traffic—not to mention
any non-Asterisk services the system is performing concurrently. Let’s take a look at the
effects of several key factors:
Codecs and transcoding
Simply put, a codec (short for coder/decoder, or compression/decompression) is a
set of mathematical rules that define how an analog waveform will be digitized. The
differences between the various codecs are due in large part to the levels of com‐
pression and quality that they offer. Generally speaking, the more compression
764 | Appendix C: Preparing a System for Asterisk
www.it-ebooks.info
that’s required, the more work the DSP must do to code or decode the signal. Un‐
compressed codecs, therefore, put far less strain on the CPU (but require more
network bandwidth). Codec selection must strike a balance between bandwidth
and processor usage. For more on codecs, see Appendix B.
Central processing unit (and floating point unit)
A CPU is composed of several components, one of which is the floating point unit
(FPU). The speed of the CPU, coupled with the efficiency of its FPU, will play a
significant role in the number of concurrent connections a system can effectively
support. The next section (“Choosing a Processor” on page 766) offers some general
guidelines for choosing a CPU that will meet the needs of your system.
Other processes running concurrently on the system
Being Unix-like, Linux is designed to be able to multitask several different processes.
A problem arises when one of those processes (such as Asterisk) demands a very
high level of responsiveness from the system. By default, Linux will distribute re‐
sources fairly to every application that requests them. If you install a system with
many different server applications, those applications will each be allowed their fair
use of the CPU. Since Asterisk requires frequent high-priority access to the CPU,
it does not get along well with other applications, and if Asterisk must coexist with
other apps, the system may require special optimization. This primarily involves
the assignment of priorities to various applications in the system and, during in‐
stallation, careful attention to which applications are installed as services.
Kernel optimizations
A kernel optimized for the performance of one specific application is something
that very few Linux distributions offer by default, and thus it requires some thought.
At the very minimum—whichever distribution you choose—you should download
and compile on your platform a fresh copy of the Linux kernel (available from the
Linux Kernel Archives). You may also be able to acquire patches that will yield
performance improvements, but these are considered hacks to the officially sup‐
ported kernels.
IRQ latency
Interrupt request (IRQ) latency is basically the delay between the moment a pe‐
ripheral card (such as a telephone interface card) asks the CPU to stop what it’s
doing and the moment when the CPU actually responds and is ready to handle the
task. Asterisk’s peripherals (especially the DAHDI cards) have historically been
intolerant of IRQ latency, though there have been extensive improvements in
DAHDI to help with these issues. This is not due to any problem with the cards,
but rather is part of the nature of how a software-based TDM engine has to work.
If we buffer the TDM data and send it on the bus as a larger packet, that may be
more efficient from a system perspective, but it will create a delay between the time
the audio is received on the card, and when it is delivered to the CPU. This makes
Server Hardware Selection | 765
www.it-ebooks.info
realtime processing of TDM data next to impossible. In the design of DAHDI, it
was decided that sending the data every 1 ms would create the best trade-off, but a
side effect of this is that any card in the system that uses the DAHDI interface will
ask the system to process an interrupt every millisecond. This used to be a factor
on older motherboards, but it has largely ceased to be a cause for concern.
Linux has historically had problems with its ability to service IRQs
quickly; this problem has caused enough trouble for audio developers
that several patches have been created to address this shortcoming. So
far, there has been some mild controversy over how to incorporate these
patches into the Linux kernel.
Kernel version
Asterisk is officially supported on Linux version 2.6. Almost all of Asterisk itself
does not really care about the kernel version, but DAHDI requires 2.6.
Linux distribution
Linux distributions are many and varied. Asterisk should work on all of them.
Choose the one that you are most comfortable with.
Choosing a Processor
Since the performance demands of Asterisk generally involve a large number of math
calculations, it is essential that you select a processor with a powerful FPU. The signal
processing that Asterisk performs can quickly demand a staggering quantity of complex
mathematical computations from the CPU. The efficiency with which these tasks are
carried out will be determined by the power of the FPU within the processor.
Actually naming a best processor for Asterisk in this book would fly in the face of Moore’s
Law. Even in the time between the authoring and publishing of this book, processor
speeds will undergo rapid improvements, as will Asterisk’s support for various archi‐
tectures. Obviously, this is a good thing, but it also makes the giving of advice on the
topic a thankless task. Naturally, the more powerful the FPU is, the more concurrent
DSP tasks Asterisk will be able to handle, so that is the ultimate consideration. When
you are selecting a processor, the raw clock speed is only part of the equation. How well
it handles floating-point operations will be a key differentiator, as DSP operations in
Asterisk will place a large demand on that process.
766 | Appendix C: Preparing a System for Asterisk
www.it-ebooks.info
3. If you want to be completely up-to-the-minute on which CPUs are leading the performance race, surf on
over to Tom’s Hardware or AnandTech, where you will find a wealth of information about both current and
out-of-date CPUs, motherboards, and chipsets.
4. Greg Boehnlein once compiled and ran Asterisk on a 133 MHz Pentium system, but that was mostly as an
experiment. Performance problems are far more likely in such conditions, and properly configuring such a
system requires an expert knowledge of Linux. We do not recommend running Asterisk on anything less
than a 500 MHz system (for a production system, 2 GHz might be a sensible minimum). Still, we think the
fact that Asterisk is so flexible is remarkable.
Both Intel and AMD CPUs have powerful FPUs. Current-generation chips from either
of those manufacturers can be expected to perform well.3
The obvious conclusion is that you should get the most powerful CPU your budget will
allow. However, don’t be too quick to buy the most expensive CPU out there. You’ll need
to keep the requirements of your system in mind; after all, a Formula 1 Ferrari is ill-
suited to the rigors of rush-hour traffic. Slower CPUs will often run cooler, so you might
be able to build a lower-powered, fanless Asterisk system for a small office, which could
work well in a dusty environment, for example.
To attempt to provide you with a frame of reference from which you can contemplate
your platform decision, we have chosen to define three sizes of Asterisk systems: small,
medium, and large.
Small systems
Small systems (up to 10 phones) are not immune to the performance requirements of
Asterisk, but the typical load placed on a smaller system will generally fall within the
capabilities of a modern processor.
If you are building a small system from older components you have lying around, be
aware that the resulting system cannot be expected to perform at the same level as a
more powerful machine, and performance will begin to degrade under a much lighter
load. Hobby systems can be run successfully on very low-powered hardware, although
this is by no means recommended for anyone who is not a whiz at Linux performance
tuning.4
If you are setting up an Asterisk system for learning purposes, you will be able to build
a fully featured platform using a relatively low-powered CPU. The authors of this book
run several Asterisk lab systems with 433 MHz to 700 MHz Celeron processors, but the
workload of these systems is minimal (never more than two concurrent calls).
Server Hardware Selection | 767
www.it-ebooks.info
AstLinux and Asterisk on OpenWRT
If you are really comfortable working with Linux on embedded platforms, you will want
to join the AstLinux mailing list and run Kristian Kielhofner’s creation, AstLinux, or get
yourself a Linksys WRT54GL and install Brian Capouch’s version of Asterisk for that
platform.
These projects strip Asterisk down to its essentials, and allow incredibly powerful PBX
applications to be deployed on very inexpensive hardware.
While both projects require a fair amount of knowledge and effort on your part, they
also share a huge coolness factor, are extremely popular, and are of excellent quality.
Medium systems
Medium-sized systems (from 10 to 50 phones) are where performance considerations
will be the most challenging to resolve. Generally, these systems will be deployed on one
or two servers only, and thus each machine will be required to handle more than one
specific task. As loads increase, the limits of the platform will become increasingly
stressed. Users may begin to perceive quality problems without realizing that the system
is not faulty in any way, but simply exceeding its capacity. These problems will get
progressively worse as more and more load is placed on the system, with the user ex‐
perience degrading accordingly. It is critical that performance problems be identified
and addressed before users notice them.
Monitoring performance on these systems and quickly acting on any developing trends
is key to ensuring that a quality telephony platform is provided.
Large systems
Large systems (more than 120 channels) can be distributed across multiple systems and
sites, and performance concerns can be managed through the addition of machines.
Very large Asterisk systems have been created in this way.
Building a large system requires an advanced level of knowledge in many different
disciplines. We will not discuss it in detail in this book, other than to say that the issues
you’ll encounter will be similar to those encountered during any deployment of multiple
servers handling a single, distributed task.
768 | Appendix C: Preparing a System for Asterisk
www.it-ebooks.info
5. With the advent of PCI-X and PCI-Express, it is becoming harder and harder to select a motherboard with
the correct type of slots. Be very certain that the motherboard you select has the correct type and number of
card slots for your hardware. Keep in mind that most companies producing hardware cards for Asterisk offer
PCI and PCI-Express versions, but it’s still up to you to make sure they make sense in whatever motherboard
and chassis combination you choose.
Choosing a Motherboard
Just to get any anticipation out of the way, we also cannot recommend specific moth‐
erboards in this book. With new motherboards coming out on a weekly basis, any rec‐
ommendations we could make would be rendered moot by obsolescence before the
published copy hit the shelves. Not only that, but motherboards are like automobiles:
while they are all very similar in principle, the difference is in the details. And as Asterisk
is a performance application, the details matter.
What we will do, therefore, is give you some idea of the kinds of motherboards that can
be expected to work well with Asterisk, and the features that will make for a good
motherboard. The key is to have both stability and high performance. Here are some
guidelines to follow:
•The various system buses must provide the minimum possible latency. If you are
planning a PSTN connection using analog or PRI interfaces (discussed later in this
appendix), having DAHDI cards in the system will generate 1,000 interrupt requests
per second. Having devices on the bus that interfere with this process will result in
degradation of call quality. Chipsets from Intel (for Intel CPUs) and nVidia nForce
(for AMD CPUs) seem to score the best marks in this area. Review the specific
chipset of any motherboard you are evaluating to ensure that it does not have known
problems with IRQ latency.
•If you are running DAHDI cards in your system, you will want to ensure that your
BIOS allows you maximum control over IRQ assignment. As a rule, high-end
motherboards will offer far greater flexibility with respect to BIOS tweaking; value-
priced boards will generally offer very little control. This may be a moot point,
however, as APIC-enabled motherboards turn IRQ control over to the operating
system.
•Server-class motherboards generally implement a different PCI standard than
workstation-class motherboards. While there are many differences, the most ob‐
vious and well known is that the two versions have different voltages. Depending
on which cards you purchase, you will need to know if you require 3.3V or 5V PCI
slots.5 Figure C-1 shows the visual differences between 3.3V and 5V slots. Most
server motherboards will have both types, but workstations will typically have only
the 5V version.
Server Hardware Selection | 769
www.it-ebooks.info
There is some evidence that suggests connecting together two com‐
pletely separate, single-CPU systems may provide far more benefits
than simply using two processors in the same machine. You not only
double your CPU power, but you also achieve a much better level of
redundancy at a similar cost to a single-chassis, dual-CPU machine.
Keep in mind, though, that a dual-server Asterisk solution will be more
complex to design than a single-machine solution.
Figure C-1. Visual identification of PCI slots
•Consider using multiple processors, or processors with multiple cores. This will
provide an improvement in the system’s ability to handle multiple tasks. For
Asterisk, this will be of special benefit in the area of floating-point operations.
•If you need a modem, install an external unit that connects to a serial port. If you
must have an internal modem, you will need to ensure that it is not a so-called “Win-
modem”—it must be a completely self-sufficient unit (note that these are very dif‐
ficult, if not impossible, to find).
•Consider that with built-in networking, if you have a network component failure,
the entire motherboard will need to be replaced. On the other hand, if you install
a peripheral Network Interface Card (NIC), there may be an increased chance of
failure due to the extra mechanical connections involved. It can also be useful to
have separate network cards serving sets and users (the internal network) and VoIP
providers and external sites (the external network). NICs are cheap; we suggest
always having at least two.
770 | Appendix C: Preparing a System for Asterisk
www.it-ebooks.info
6. OK, it wasn’t actually a locomotive, but it sure sounded like one. Does anyone know where to get quiet CPU
fans for Xeon processors? It’s getting too loud in the lab here.
7. Or any system that is expected to process audio.
•The stability and quality of your Asterisk system will depend on the components
you select for its architecture. Asterisk is a beast, and it expects to be fed the best.
As with just about anything, high cost is not always synonymous with quality, but
you will want to become a connoisseur of computer components.
Having said all that, we need to get back to the original point: Asterisk can and will
happily install on pretty much any system that will run Linux. The lab systems used to
write this book, for example, included everything from a Linksys WRT to a dual-Xeon
locomotive.6 We have not experienced any performance or stability problems running
less than five concurrent telephone connections. For the purposes of learning, do not
be afraid to install Asterisk on whatever system you can scrounge up. When you are
ready to put your system into production, however, you will need to understand the
ramifications of the choices you make with respect to your hardware.
Power Supply Requirements
One often-overlooked component in a PC is the power supply (and the supply of power).
For a telecommunications system,7 these components can play a significant role in the
quality of the user experience.
Computer power supplies
The power supply you select for your system will play a vital role in the stability of the
entire platform. Asterisk is not a particularly power-hungry application, but anything
relating to multimedia (whether it be telephony, professional audio, video, or the like)
is generally sensitive to power quality.
This oft-neglected component can turn an otherwise top-quality system into a poor
performer. By the same token, a top-notch power supply might enable an otherwise
cheap PC to perform like a champ.
The power supplied to a system must provide not only the energy a system needs to
perform its tasks but also stable, clean signal lines for all of the voltages the system
expects from it.
Spend the money and get a top-notch power supply (gamers are pretty passionate about
this sort of thing, so there are lots of choices out there).
Server Hardware Selection | 771
www.it-ebooks.info
8. Okay, look, you can plug it in wherever you’d like, and it’ll probably work, but if your system has strange
stability problems, please give this section another read. Deal?
9. In electronic devices, a binary zero (0) is generally related to a 0 volt signal, while a binary one (1) can be
represented by many different voltages (commonly between 2.5 and 5 volts). The grounding reference that
the system will consider 0 volts is often referred to as the logic ground. A poorly grounded system might have
electrical potential on the logic ground to such a degree that the electronics mistake a binary zero for a binary
one. This can wreak havoc with the system’s ability to process instructions.
Redundant power supplies
In a carrier-grade or high-availability environment, it is common to deploy servers that
use a redundant power supply. Essentially, this involves two completely independent
power supplies, either one of which is capable of meeting the power requirements of
the system.
If this is important to you, keep in mind that best practices suggest that to be properly
redundant, these power supplies should be connected to completely independent un‐
interruptible power supplies (UPSs) that are in turn fed by totally separate electrical
circuits. In truly mission-critical environments (such as hospitals), even the main elec‐
trical feeds into the building are redundant, and diesel-powered generators are on-site
to generate electricity during extended power failures.
Environment
Your system’s environment consists of all those factors that are not actually part of the
server itself but nevertheless play a crucial role in the reliability and quality to be ex‐
pected from the system. Electrical supplies, room temperature and humidity, sources
of interference, and security are all factors that should be contemplated.
Power Conditioning and Uninterruptible Power Supplies
When selecting the power sources for your system, consideration should be given not
only to the amount of power the system will use, but also to the manner in which this
power is delivered.
Power is not as simple as voltage coming from the outlet in the wall, and you should
never just plug a production system into whatever electrical source is near at hand.8
Giving some consideration to the supply of power to your system can ensure that you
provide a far more stable power environment, leading to a far more stable system.
One of the benefits of clean power is a reduction in heat, which means less stress on
components, leading to a longer life expectancy.
Properly grounded, conditioned power feeding a premium-quality power supply will
ensure a clean logic ground (a.k.a. 0 volt) reference9 for the system and keep electrical
noise on the motherboard to a minimum. These are industry-standard best practices
772 | Appendix C: Preparing a System for Asterisk
www.it-ebooks.info
10. It is a common misconception that all UPSs provide clean power. This is not at all true.
for this type of equipment, which should not be neglected. A relatively simple way to
achieve this is through the use of a power-conditioned uninterruptible power supply
(UPS).10
Power-conditioned UPSs
The UPS is well known for its role as a battery backup, but the power-conditioning
benefits that high-end UPS units also provide are less well understood.
Power conditioning can provide a valuable level of protection from the electrical envi‐
ronment by regenerating clean power through an isolation transformer. A quality power
conditioner in your UPS will eliminate most electrical noise from the power feed and
help to ensure a rock-steady supply of power to your system.
Unfortunately, not all UPS units are created equal; many of the less expensive units do
not provide clean power. What’s worse, manufacturers of these devices will often
promise all kinds of protection from surges, spikes, overvoltages, and transients. While
such devices may protect your system from getting fried in an electrical storm, they will
not clean up the power being fed to your system, and thus will do nothing to contribute
to stability.
Make sure your UPS is power conditioned. If it doesn’t say exactly that, it isn’t.
Grounding
Voltage is defined as the difference in electrical potential between two points. When
considering a ground (which is basically nothing more than an electrical path to earth),
the common assumption is that it represents 0 volts. But if we do not define that 0V in
relation to something, we are in danger of assuming things that may not be so. If you
measure the voltage between two grounding references, you’ll often find that there is a
voltage potential between them. This voltage potential between grounding points can
be significant enough to cause logic errors—or even damage—in a system where more
than one path to ground is present.
Environment | 773
www.it-ebooks.info
11. On a hobby system, this is probably too much to ask, but if you are planning on using Asterisk for anything
important, at least be sure to give it a fighting chance; don’t put anything like air conditioners, photocopiers,
laser printers, or motors on the same circuit. The strain such items place on your power supply will shorten
its life expectancy.
One of the authors recalls once frying a sound card he was trying to
connect to a friend’s stereo system. Even though both the computer and
the stereo were in the same room, more than 6 volts of difference was
measured between the ground conductors of the two electrical outlets
they were plugged into! The wire between the stereo and the PC (by
way of the sound card) provided a path that the voltage eagerly followed,
thus frying a sound card that was not designed to handle that much
current on its signal leads. Connecting both the PC and the stereo to
the same outlet fixed the problem.
When considering electrical regulations, the purpose of a ground is primarily human
safety. In a computer, the ground is used as a 0V logic reference. An electrical system
that provides proper safety will not always provide a proper logic reference—in fact, the
goals of safety and power quality are sometimes in disagreement. Naturally, when a
choice must be made, safety has to take precedence.
Since the difference between a binary zero and a binary one is repre‐
sented in computers by voltage differences of sometimes less than 3V,
it is entirely possible for unstable power conditions caused by poor
grounding or electrical noise to cause all kinds of intermittent system
problems. Some power and grounding advocates estimate that more
than 80 percent of unexplained computer glitches can be traced to
power quality. Most of us blame Microsoft.
Modern switching power supplies are somewhat isolated from power quality issues, but
any high-performance system will always benefit from a well-designed power environ‐
ment. In mainframes, proprietary PBXs, and other expensive computing platforms, the
grounding of the system is never left to chance. The electronics and frames of these
systems are always provided with a dedicated ground that does not depend on the safety
grounds supplied with the electrical feed.
Regardless of how much you are willing to invest in grounding, when you specify the
electrical supply to any PBX, ensure that the electrical circuit is completely dedicated
to your system (as discussed in the next section) and that an insulated, isolated ground‐
ing conductor is provided. This can be expensive to provision, but it will contribute
greatly to a quality power environment for your system.11
774 | Appendix C: Preparing a System for Asterisk
www.it-ebooks.info
It is also vital that each and every peripheral you connect to your system be connected
to the same electrical receptacle (or, more specifically, the same ground reference). This
will cut down on the occurrence of ground loops, which can cause anything from buzz‐
ing and humming noises to damaged or destroyed equipment.
Electrical Circuits
If you’ve ever seen the lights dim when an electrical appliance kicks in, you’ve seen the
effect that a high-energy device can have on an electrical circuit. If you were to look at
the effects of a multitude of such devices, each drawing power in its own way, you would
see that the harmonically perfect 50 or 60 Hz sine wave you may think you’re getting
with your power is anything but. Harmonic noise is extremely common on electrical
circuits, and it can wreak havoc on sensitive electronic equipment. For a PBX, these
problems can manifest as audio problems, logic errors, and system instability.
Ideally, you should never install a server on an electrical circuit that is shared with other
devices. There should be only one outlet on the circuit, and you should connect only
your telephone system (and associated peripherals) to it. The wire (including the
ground) should be run unbroken directly back to the electrical panel. The grounding
conductor should be insulated and isolated. There are far too many stories of photo‐
copiers, air conditioners, and vacuum cleaners wreaking havoc with sensitive electron‐
ics to ignore this rule of thumb.
The electrical regulations in your area must always take precedence over
any ideas presented here. If in doubt, consult a power quality expert in
your area on how to ensure that you adhere to electrical regulations.
Remember, electrical regulations take into account the fact that human
safety is far more important than the safety of the equipment.
The Equipment Room
Environmental conditions can wreak havoc on systems, yet it is quite common to see
critical systems deployed with little or no attention given to these matters. When the
system is installed, everything works well, but after as little as six months, components
begin to fail. Talk to anyone with experience in maintaining servers and systems, and
it becomes obvious that attention to environmental factors can play a significant role in
the stability and reliability of systems.
Humidity
Simply put, humidity is water in the air. Water is a disaster for electronics for two main
reasons: 1) water is a catalyst for corrosion, and 2) water is conductive enough that it
can cause short circuits. Do not install any electronic equipment in areas of high hu‐
midity without providing a means to remove the moisture.
Environment | 775
www.it-ebooks.info
12. Often called TDM networks, due to the time division multiplexing used to carry traffic through the PSTN.
13. Popularly called VoIP networks, although Voice over IP is not the only method of transmitting voice over
packet networks (Voice over Frame Relay was very popular in the late 1990s).
Temperature
Heat is the enemy of electronics. The cooler you keep your system, the more reliably it
will perform, and the longer it will last. If you cannot provide a properly cooled room
for your system, at a minimum ensure that it is placed in a location that ensures a steady
supply of clean, cool air. Also, keep the temperature steady. Changes in temperature can
lead to condensation and other damaging changes.
Dust
An old adage in the computer industry holds that dust bunnies inside a computer are
lucky. Let’s consider some of the realities of dust bunnies:
•Significant buildup of dust can restrict airflow inside the system, leading to in‐
creased levels of heat.
•Dust can contain metal particles, which, in sufficient quantities, can contribute to
signal degradation or shorts on circuit boards.
Put critical servers in a filtered environment, and clean out dust bunnies regularly.
Security
Server security naturally involves protecting against network-originated intrusions, but
the environment also plays a part in the security of a system. Telephone equipment
should always be locked away, and only persons who have a need to access the equipment
should be allowed near it.
Telephony Hardware
If you are going to connect Asterisk to any traditional telecommunications equipment,
you will need the correct hardware. The hardware you require will be determined by
what you want to achieve.
Connecting to the PSTN
Asterisk allows you to seamlessly bridge circuit-switched telecommunications net‐
works12 with packet-switched data networks.13
Because of Asterisk’s open architecture (and open source code), it is ultimately possible
to connect any standards-compliant interface hardware. The selection of open source
telephony interface boards is currently limited, but as interest in Asterisk grows, that
776 | Appendix C: Preparing a System for Asterisk
www.it-ebooks.info
14. The evolution of inexpensive, commodity-based telephony hardware is only slightly behind the telephony
software revolution. New companies spring up on a weekly basis, each one bringing new and inexpensive
standards-based devices into the market.
15. FXS and FXO refer to the opposing ends of an analog circuit. Which one you need will be determined by
what you want to connect to. Appendix A discusses these in more detail.
16. T1 and E1 are digital telephony circuits. We discuss them further in Appendix A.
will rapidly change.14 At the moment, one of the most popular and cost-effective ways
to connect to the PSTN is to use the interface cards that evolved from the work of the
Zapata Telephony Project, which has evolved into DAHDI.
Analog interface cards
Unless you need a lot of channels (or a have lot of money to spend each month on
telecommunications facilities), chances are that your PSTN interface will consist of one
or more analog circuits, each of which will require a Foreign eXchange Office (FXO)
port.
Digium, the company that sponsors Asterisk development, produces analog interface
cards for Asterisk. Check out its website for details on its extensive line of analog cards,
including the venerable TDM400P, the latest TDM800P, and the high-density
TDM2400P. As an example, the TDM800P is an eight-port base card that allows for the
insertion of up to two daughtercards, which each deliver either four FXO or four FXS
ports.15 The TDM800P can be purchased with these modules preinstalled, and a hard‐
ware echo canceler can be added as well.
Other companies that produce Asterisk-compatible analog cards include:
•Rhino
•Sangoma
•Voicetronix
•Pika Technologies
Digital interface cards
If you require more than 10 circuits, or require digital connectivity, chances are you’re
going to be in the market for a T1 or E1 card.16 Bear in mind, though, that the monthly
charges for a digital PSTN circuit vary widely. In some places, as few as five circuits can
justify a digital circuit; in others, the technology may never be cost-justifiable. The more
competition there is in your area, the better chance you have of finding a good deal. Be
sure to shop around.
Telephony Hardware | 777
www.it-ebooks.info
17. It should be noted that a Sangoma Frame Relay card played a role in the original development of Asterisk;
Sangoma has a long history of supporting open source WAN interfaces with Linux.
The Zapata Telephony Project originally produced a T1 card, the Tormenta, that is the
ancestor of most Asterisk-compatible T1 cards. The original Tormenta cards are now
considered obsolete, but they do still work with Asterisk.
Digium makes several different digital circuit interface cards. The features on the cards
are the same; the primary differences are whether they provide T1 or E1 interfaces, and
how many spans each card provides. Digium has been producing DAHDI cards for
Linux longer than anyone else; it was deeply involved with the development of DAHDI
(formerly Zaptel) on Linux, and has been the driving force behind DAHDI development
over the years.
Sangoma, which has been producing open source WAN cards for many years, added
Asterisk support for its T1/E1 cards a few years ago.17 Rhino has had T1 hardware for
Asterisk for a while now, and there are many other companies that offer digital interface
cards for Asterisk as well.
Channel banks
A channel bank is loosely defined as a device that allows a digital circuit to be de-
multiplexed into several analog circuits (and vice versa). More specifically, a channel
bank lets you connect analog telephones and lines into a system across a T1 line.
Figure C-2 shows how a channel bank fits into a typical office phone system.
Figure C-2. One way you might connect a channel bank
Although they can be expensive to purchase, many people feel very strongly that the
only proper way to integrate analog circuits and devices into Asterisk is through a
channel bank. Whether that is true or not depends on a lot of factors, but if you have
778 | Appendix C: Preparing a System for Asterisk
www.it-ebooks.info
18. We use channel banks to simulate a central office. One 24-port channel bank off an Asterisk system can
provide up to 24 analog lines—perfect for a classroom or lab.
19. BRI is very rarely used in North America but is very popular in Europe, and Digium has produced the B410P
card to address this need.
the budget, they can be very useful.18 You can often pick up used channel banks on eBay.
Look for units from Adtran and Carrier Access Corp. (Rhino makes great channel banks,
and they are very competitively priced, but they may be hard to find used.) Don’t forget
that you will need a T1 card in order to connect a channel bank to Asterisk.
Other types of PSTN interfaces
Many VoIP gateways exist that can be configured to provide access to PSTN circuits.
Generally speaking, these will be of most use in a smaller system (one or two lines).
They can also be very complicated to configure, as grasping the interaction between the
various networks and devices requires a solid understanding of both telephony and
VoIP fundamentals. For that reason, we will not discuss these devices in detail in this
book. They are worth looking into, however; popular units are made by Sipura, Grand‐
stream, Digium, and many other companies.
Another way to connect to the PSTN is through the use of Basic Rate Interface (BRI)
ISDN circuits. BRI is a digital telecom standard that specifies a two-channel circuit that
can carry up to 144 Kbps of traffic.19 Due to the variety of ways this technology has been
implemented, and a lack of testing equipment, we will not be discussing BRI in very
much detail in this book.
Connecting Exclusively to a Packet-Based Telephone Network
If you do not need to connect to the PSTN, Asterisk requires no hardware other than a
server with a NIC. However, you still may need to install the DAHDI kernel modules,
as DAHDI is required for using the MeetMe() application for conferencing.
Echo Cancellation
One of the issues that can arise if you use analog interfaces on a VoIP system is echo.
Echo is simply what you say being reflected back to you a short time later. The echo is
caused by the far end, but you are the one that hears it. It is a little-known fact that echo
would be a massive problem in the PSTN were it not for the fact that the carriers employ
complex (and expensive) strategies to eliminate it. We suggest that you consider adding
echo-cancellation hardware to any card you purchase for use as a PSTN interface. While
Asterisk can do some work with echo in software, it does not provide nearly enough
power to deal with the problem. Also, echo cancellation in software imposes a load on
the processor; hardware echo cancelers built into the PSTN card take this burden away
from the CPU.
Telephony Hardware | 779
www.it-ebooks.info
20. This software is not part of a normal Asterisk download because Digium has to pay to license it separately.
Nevertheless, it has grandfathered it into all of its cards, so it is available for free to anyone who has a Digium
analog card that is still under warranty. If you are running a non-Digium analog card, you can purchase a
keycode for this software echo canceler from Digium’s website.
21. Sangoma also offers free software echo cancellation on its analog cards (up to six channels).
Hardware echo cancellation can add several hundred dollars to your equipment cost,
but if you are serious about having a quality system, invest the extra money now instead
of suffering later. Echo problems are not pleasant at all, and your users will hate the
system if they experience it.
For more on the topic of echo cancellation, see Appendix B.
Several software echo cancelers have recently become available. We have not had a
chance to evaluate any of them, but we know that they employ the same algorithms the
hardware echo cancelers do. If you have a recently purchased Digium analog card, you
can call Digium sales for a keycode to allow its latest software echo canceler to work
with your system.20 There are other software options available for other types of cards,
but you may have to purchase a license to use them.21 Keep in mind that there is a
performance cost to using software echo cancelers. They will place a measurable load
on the CPU that needs to be taken into account when you design a system using these
technologies.
Types of Phones
We all know what a telephone is—but will it be the same five years from now? Part of
the revolution that Asterisk is contributing to is the evolution of the telephone, from a
simple audio communications device into a multimedia communications terminal pro‐
viding all kinds of yet-to-be-imagined functions.
As an introduction to this exciting concept, we will briefly discuss the various kinds of
devices we currently call “telephones” (any of which can easily be integrated with
Asterisk). We will also discuss some ideas about what these devices may evolve into in
the future (devices that will also easily integrate with Asterisk).
Physical Telephones
Any physical device whose primary purpose is terminating an on-demand audio com‐
munications circuit between two points can be classified as a physical telephone. At a
780 | Appendix C: Preparing a System for Asterisk
www.it-ebooks.info
minimum, such a device has a handset and a dialpad; it may also have feature keys, a
display screen, and various audio interfaces.
This section takes a brief look at the various user (or endpoint) devices you might want
to connect to your Asterisk system. We delve more deeply into the mechanics of analog
and digital telephony in Appendix A.
Analog telephones
Analog phones have been around since the invention of the telephone. Up until about
20 years ago, all telephones were analog. Although analog phones have some technical
differences in different countries, they all operate on similar principles.
When a human being speaks, the vocal cords, tongue, teeth, and lips create a complex
variety of sounds. The purpose of the telephone is to capture these sounds and convert
them into a format suitable for transmission over wires. In an analog telephone, the
transmitted signal is analogous to the sound waves produced by the person speaking.
If you could see the sound waves passing from the mouth to the microphone, they would
be proportional to the electrical signal you could measure on the wire.
Analog telephones are the only kind of phones that are commonly available in any retail
electronics store. In the next few years, that can be expected to change dramatically.
Proprietary digital telephones
As digital switching systems developed in the 1980s and 1990s, telecommunications
companies developed digital private branch exchanges (PBXs) and key telephone sys‐
tems (KTSs). The proprietary telephones developed for these systems were completely
dependent on the systems to which they were connected and could not be used on any
other systems. Even phones produced by the same manufacturer were not cross-
compatible (for example, a Nortel Norstar set will not work on a Nortel Meridian 1
PBX). The proprietary nature of digital telephones limits their future. In this emerging
era of standards-based communications, they will quickly be relegated to the dustbin
of history.
The handset in a digital telephone is generally identical in function to the handset in an
analog telephone, and they are often compatible with each other. Where the digital
phone is different is that inside the telephone, the analog signal is sampled and converted
into a digital signal—that is, a numerical representation of the analog waveform. We
discuss digital signals in more detail in Appendix A; for now, suffice it to say that the
primary advantage of a digital signal is that it can be transmitted over limitless distances
with no loss of signal quality.
Types of Phones | 781
www.it-ebooks.info
22. Citel has produced a fantastic product, but it is limited by the fact that it is too expensive. If you have old
proprietary PBX telephones, and you want to use them with your Asterisk system, Citel’s technology can do
the job, but make sure you understand how the per-port cost of these units stacks up against replacing the
old sets with pure VoIP telephones.
23. SIP is currently the most well-known and popular protocol for VoIP. We discuss it further in Appendix B.
24. If you are in North America, give up on this idea, unless you have a lot of patience and money and are a bit
of a masochist.
The chances of anyone ever making a proprietary digital phone directly compatible with
Asterisk are slim, but companies such as Citel22 have created gateways that convert the
proprietary signals to Session Initiation Protocol (SIP).23
ISDN telephones
Prior to VoIP, the closest thing to a standards-based digital telephone was an ISDN-BRI
terminal. Developed in the early 1980s, ISDN was expected to revolutionize the tele‐
communications industry in exactly the same way that VoIP promises to finally achieve
today.
There are two types of ISDN: Primary Rate Interface (PRI) and Basic
Rate Interface (BRI). PRI is commonly used to provide trunking
facilities between PBXs and the PSTN, and is widely deployed all
over the world. BRI is not at all popular in North America, but is
common in Europe.
While ISDN was widely deployed by the telephone companies, many consider the stan‐
dard to have been a flop, as it generally failed to live up to its promises. The high costs
of implementation, recurring charges, and lack of cooperation among the major in‐
dustry players contributed to an environment that caused more problems than it solved.
BRI was intended to service terminal devices and smaller sites (a BRI loop provides two
digital circuits). A wealth of BRI devices have been developed, but BRI has largely been
deprecated in favor of faster, less expensive technologies such as ADSL, cable modems,
and VoIP.
BRI is still very popular for use in videoconferencing equipment, as it provides a fixed-
bandwidth link. Also, BRI does not have the type of quality of service issues a VoIP
connection might, as it is circuit-switched.
BRI is still sometimes used in place of analog circuits to provide trunking to a PBX.
Whether or not this is a good idea depends mostly on how your local phone company
prices the service, and what features it is willing to provide.24
782 | Appendix C: Preparing a System for Asterisk
www.it-ebooks.info
25. Ever heard of Skype?
IP telephones
IP telephones are heralds of the most exciting change in the telecommunications in‐
dustry. Already, standards-based IP telephones are available in retail stores. The wealth
of possibilities inherent in these devices will cause an explosion of interesting applica‐
tions, from video phones to high-fidelity broadcasting devices to wireless mobility sol‐
utions to purpose-built sets for particular industries to flexible all-in-one multimedia
systems.
The revolution that IP telephones will spawn has nothing to do with a new type of wire
to connect your phone to, and everything to do with giving you the power to commu‐
nicate the way you want.
The early-model IP phones that have been available for several years now do not rep‐
resent the future of these exciting appliances. They are merely a stepping-stone, a fa‐
miliar package in which to wrap a fantastic new way of thinking.
The future is far more promising.
Softphones
A softphone is a software program that provides telephone functionality on a non-
telephone device, such as a PC or PDA. So how do we recognize such a beast? What
might at first glance seem a simple question actually raises many. A softphone should
probably have some sort of dialpad, and it should provide an interface that reminds
users of a telephone. But will this always be the case?
The term softphone can be expected to evolve rapidly, as our concept of what exactly a
telephone is undergoes a revolutionary metamorphosis.25 As an example of this evolu‐
tion, consider the following: would we correctly define popular communication pro‐
grams such as Instant Messenger as softphones? IM provides the ability to initiate and
receive standards-based VoIP connections. Does this not qualify it as a softphone? An‐
swering that question requires knowledge of the future that we do not yet possess. Suffice
it to say that, while at this point in time softphones are expected to look and sound like
traditional phones, that conception is likely to change in the very near future.
As standards evolve and we move away from the traditional telephone and toward a
multimedia communications culture, the line between softphones and physical tele‐
phones will become blurred indeed. For example, we might purchase a communications
terminal to serve as a telephone and install a softphone program onto it to provide the
functions we desire.
Having thus muddied the waters, the best we can do at this point is to define what the
term softphone will refer to in relation to this book, with the understanding that the
Types of Phones | 783
www.it-ebooks.info
26. OK, so you think you know what a phone call is? So did we. Let’s just wait a few years, shall we?
27. E.164 is the ITU standard that defines how phone numbers are assigned. If you’ve used a telephone, you’ve
used E.164 addressing.
meaning of the term can be expected to undergo massive change over the next few years.
For our purposes, we will define a softphone as any device that runs on a personal
computer, presents the look and feel of a telephone, and provides as its primary function
the ability to make and receive full-duplex audio communications (formerly known as
“phone calls”)26 through E.164 addressing.27
Telephony Adapters
A telephony adapter (usually referred to as an ATA, or Analog Terminal Adapter) can
loosely be described as an end-user device that converts communications circuits from
one protocol to another. Most commonly, these devices are used to convert from some
digital (IP or proprietary) signal to an analog connection that you can plug a standard
telephone or fax machine into.
These adapters could be described as gateways, for that is their function. However,
popular usage of the term telephony gateway would probably best describe a multiport
telephony adapter, generally with more complicated routing functions.
Telephony adapters will be with us for as long as there is a need to connect incompatible
standards and old devices to new networks. Eventually, our reliance on these devices
will disappear, as did our reliance on the modem—obsolescence through irrelevance.
Communications Terminals
Communications terminal is an old term that disappeared for a decade or two and is
being reintroduced here, very possibly for no other reason than that it needs to be
discussed so that it can eventually disappear again—once it becomes ubiquitous.
First, a little history. When digital PBX systems were first released, manufacturers of
these machines realized that they could not refer to their endpoints as telephones—their
proprietary nature prevented them from connecting to the PSTN. They were therefore
called terminals, or stations. Users, of course, weren’t having any of it. It looked like a
telephone and acted like a telephone, and therefore it was a telephone. You will still
occasionally find PBX sets referred to as terminals, but for the most part they are called
telephones.
The renewed relevance of the term communications terminal has nothing to do with
anything proprietary—rather, it’s the opposite. As we develop more creative ways of
communicating with each other, we gain access to many different devices that will allow
us to connect. Consider the following scenarios:
784 | Appendix C: Preparing a System for Asterisk
www.it-ebooks.info
•If I attach a video camera to my PC, connect to a company’s website, and request a
live chat with a customer service rep, is my PC now a telephone?
• If I use the IP phone in my kitchen to surf for recipes, is that a phone call?
The point is simply this: we’ll probably always be “phoning” each other, but will we
always use “telephones” to do so?
Linux Considerations
If you ask anyone at the Free Software Foundation, they will tell you that what we know
as Linux is in fact GNU/Linux. All etymological arguments aside, there is some valuable
truth to this statement. While the kernel of the operating system is indeed Linux, the
vast majority of the utilities installed on a Linux system and used regularly are in fact
GNU utilities. “Linux” is probably only 5 percent Linux, possibly 75 percent GNU, and
perhaps 20 percent everything else.
Why does this matter? Well, the flexibility of Linux is both a blessing and a curse. It is
a blessing because with Linux you can truly craft your very own operating system from
scratch. Since very few people ever do this, the curse is in large part due to the respon‐
sibility you must bear in determining which GNU utilities to install and how to configure
the system.
Conclusion
In this appendix, we’ve discussed all manner of issues that can contribute to the stability
and quality of an Asterisk installation. How much time and effort you should devote to
following the best practices and engineering tips in this appendix all depends on how
much work you expect the Asterisk server to perform and how much quality and reli‐
ability your system must provide. If you are experimenting with Asterisk, don’t worry
too much; just be aware that any problems you have may not be the fault of the Asterisk
system.
What we have attempted to do in this appendix is give you a feel for the kinds of best
practices that will help to ensure that your Asterisk system will be built on a reliable,
stable platform. Asterisk is quite willing to operate under far worse conditions, but the
amount of effort and consideration you decide to give these matters will play a part in
the stability of your PBX. Your decision should depend on how critical your Asterisk
system will be.
Linux Considerations | 785
www.it-ebooks.info
www.it-ebooks.info
We’d like to hear your suggestions for improving our indexes. Send email to index@oreilly.com.
Index
Symbols
${EXTEN} channel variable, 144
/var mount point, 42
A
A2Billing, web interfaces, 678
accent of prompts, internationalization, 225
accounts
database example, 596
scanning for valid accounts, 679
XMPP, 386
ACD (Automatic Call Distribution), 325–370,
473–478
agents.conf, 349
announcement control, 356–360
dialplan, 476
example, 326–331
Local channels, 363–367
overflow, 361–363
joining and leaving a queue, 362
timeouts, 361
priority queue, 351
queue members, 331–341
CLI command, 331
device states, 339
dialplan, 333
multiple queues, 335–339
priority, 353
queues.conf, 333
queuerules.conf, 354
queues.conf, 341–349, 473
queue_log, 367–370, 477
action, message encoding, 564
adapters, telephony adapters, 784
add-on modules, 26
agents, defined, 326
agents.conf, 349
AGI (Asterisk Gateway Interface), 483, 583–599
account database example, 596
async AGI, 587
commands and responses, 590–594
async AGI, 593
process-based AGI/FastAGI, 593
DeadAGI, 586
development frameworks, 599
FastAGI, 586
process-based AGI, 585
quick start, 583
sessions
ending, 594
setting up, 588
aliasing, 729
AMI (Asterisk Manager Interface), 483, 553–
581
Async AGI, 587
call files, 569
cel_manager, 661
787
www.it-ebooks.info
configuration, 556–561
http.conf, 561
manager.conf, 556
development frameworks, 579
documentation, 55
examples, 571–579
Flash Operator Panel, 580
originating a call, 571, 574–579
redirecting a call, 573
protocols, 562–569
AMI over HTTP, 564–569
message encoding, 563
quick start, 553–556
AMI over HTTP, 555
AMI over TCP, 554
security, 689
analog circuits, PSTN circuits, 159
analog interface cards, 777
analog telephones
about, 115, 781
internationalization, 219
analog telephony, 717–720
parts, 718
PSTN circuits, 150
Tip and Ring, 720
analog trunks, key system example, 390
announcement control, ACD queues, 356–360
Answer() application, 128
application map grouping, 275
applications
ConfBridge() application, 264, 289–290,
293–296
Dial() application, 134–137
blank arguments, 137
destination, 134
option string, 136
timeout, 135
updating the dialplan, 137
URI, 136
dialplan
about, 127
CDR, 645
CEL, 656
interactivity, 131–133
list of, 12–15
GoSub() application, 246–250
arguments, 248
calling subroutines, 247
defining subroutines, 246
returning, 249
GotoIf() application, 236–240
GotoIfTime() application, 240
JabberSend() application, 515
MeetMe() application, 263
Progress() application, 128
r2test application, 158
SLA, 389
VoiceMail() application, 201
VoiceMailMain() application, 204
Zapateller() application, 261
app_voicemail, compilation, 464
ARA (Asterisk Realtime Architecture), 449–458
dynamic realtime, 453–458
static realtime, 450–453
architecture, 9–33
dialplan, 28
file structure, 27–28
configuration files, 27
external data sources, 28
logging, 28
modules, 27
spool, 28
hardware, 29
modules, 10
add-on modules, 26
applications, 12–15
bridging modules, 15
CDR modules, 16
CEL modules, 17
channel drivers, 17
codec translators, 18
dialplan functions, 20
format interpreters, 19
PBX modules, 22
resource modules, 22–26
test modules, 27
open source telephony, 699
versioning, 29–33
current release methodology, 31
previous release methodologies, 30
simplifying the version numbers, 32
arguments
dialplan macros, 245
subroutines called from dialplan, 248
ARRAY() function, 439
AstDB (Asterisk database), 253–261
deleting, 254
hot-desking example, 256–261
788 | Index
www.it-ebooks.info
retrieving data, 254
storing data, 254
using, 255
Asterisk CLI, 113
Asterisk Documentation Project, 8
Asterisk Gateway Interface (see AGI)
Asterisk Manager Interface (see AMI)
Asterisk Realtime Architecture (see ARA)
Asterisk-Biz, Asterisk-Dev, and Asterisk-Users,
6
asterisk.conf, 58, 77–83
[compat] section, 82
[directories] section, 77
[files] section, 82
[options] section, 78
ast_tls_cert, 178
async AGI, 587, 590, 593, 595
ATAs, 96
authentication
AMI over HTTP, 565
security, 681
automated attendant, 407–416
building, 412–416
dialplan, 414
incoming calls, 416
recording prompts, 412
designing, 408–412
dial by extension, 412
greeting, 409
invalid handler, 411
main menu, 410
timeouts, 411
IVR comparison, 407
Automatic Call Distribution (see ACD)
B
B2BUA, 120
Background() application, 131–133
barriers to entry, telephony, 715
best effort, QoS, 752
billing (see CDR; CEL)
BLA (see SLA)
BLF (Busy Lamp Field), 376
blind transfer example, 665
Boolean operators, 233
bottleneck engineering, 712
branch structure, 32
BRI ISDN, 157
bridge profiles, conferencing, 287
Bridged Line Appearances (see SLA)
bridging modules, 15
buffers, fax buffers in chan_dahdi.conf, 549
business case for Asterisk, 8
Busy Lamp Field (BLF), 376
C
calendar, 490–503
calendar integration, 24
compilation, 490
RHEL dependencies, 490
Ubuntu dependencies, 491
configuration, 492
reminders, 494–499
additional features, 503
conferencing, 498
controlling calls, 499
scheduling calls, 495
wakeup calls, 494
writing call information, 501–503
call files, AMI, 569
call parking, 261
call queueing (see ACD)
callback service, device states, 403
caller ID, internationalization, 224
calling
dialplan macros, 244
subroutines from dialplan, 247
calls
automated attendant, 416
controlling based on calendar information,
499
Google Voice, 521
scheduling, 495
single-party call example, 664
SIP URIs, 302–309
database lookup, 307
dialplan, 303
file parsing, 305
sip.corf, 302
two-party call example, 664
unauthenticated calls, 173
wakeup calls, 494
writing call information to a calendar, 501–
503
cancellation, echo cancellation, 754, 779
CAS (channel-associated signaling), 732
cat, 62
Index | 789
www.it-ebooks.info
CDR (Call detail records), 458–463, 643–654
caveats, 653
cdr.conf, 645
cdr_adaptive_odbc, 647
cdr_csv, 648
cdr_custom, 649
cdr_manager, 649
cdr_mysql, 650
cdr_odbc, 651
cdr_pgsql, 651
cdr_radius, 651
cdr_sqlite and cdr_sqlite3_custom, 651
cdr_syslog, 652
cdr_tds, 653
dialplan applications, 645
fields, 644
modules, 16
single-party call example, 653
two-party call example, 653
web interfaces, 677
cdr_adaptive_odbc.conf, 461
CEL (Channel event logging), 654–667
blind transfer example, 665
cel.conf, 657
cel_custom, 660
cel_manager, 661
cel_odbc, 657
cel_pgsql, 662
cel_radius, 662
cel_sqlite3_custom, 662
cel_tds, 663
dialplan applications, 656
event types, 654
fields, 655
modules, 17
single-party call example, 664
two-party call example, 664
Cepstral, 534
channel banks, 778
channel configuration files
dialplan, 99
loading, 113
modifying for your environment, 112
channel drivers, 17
channel variables
about, 139
inheriting, 274
channel-associated signaling (CAS), 732
channels
Local channels and ACD queues, 363–367
Local channels in dialplan, 250
chan_dahdi.conf, 549
chan_gtalk, 519
chan_jingle, 519
chan_motif
Google Talk, 520, 521
Google Voice, 521, 522
motif.conf, 519
classes, musiconhold.conf, 89
CLI command, ACD queue members, 331
CLI extensions, 25
CLI permissions, 693
clustering, 601–615
databases, 606–609
replicated databases, 608
single database, 606
distributed device states, 609–612
over a LAN, 610
over a WAN, 611
hybrid phone systems, 603
nondistributed pure Asterisk, 605
PBXs, 602
queues, 613
codec translators, 18
codecs, 746–749
G.711, 747
G.722, 749
G.726, 747
G.729A, 747
GSM, 748
iLBC, 748
MP3, 87, 749
Speex, 748
combination paging, 283
comebacktoorigin, 270
Comedian Mail, 185–201
contexts section, 196–200
standard voicemail keymap configuration,
201
voicemail.conf, 200
[general] section, 186–195
[zonemessages] section, 195
communications terminals, 784
community, 5–7
Asterisk Documentation Project, 8
IRC channels, 7
mailing lists, 6
790 | Index
www.it-ebooks.info
open source telephony, 700
user groups, 7
wiki sites, 7
companding, 727
compilation
app_voicmail, 464
calendar, 490
RHEL dependencies, 490
Ubuntu dependencies, 491
IMAP voicemail, 504
LDAP, 528
ODBC modules, 428
res_odbc, 428
spandsp, 537
XMPP, 512
Computer-Supported Telecommunications Ap‐
plications (CSTA), AMI, 580
conditional branched, 238
ConfBridge() application, 264, 289–290, 293–
296
conferencing, 263–266, 284–290
bridge profiles, 287
calendar reminders for, 498
ConfBridge() application, 264, 289–290,
293–296
marked users, 292
MeetMe() application, 263
open source telephony, 704
PIN, 290
timing interfaces, 23
user profiles, 285
videoconferencing, 296
[general] section, 285
configuration
AMI, 556–561
http.conf, 561
manager.conf, 556
analog circuits, 159
Asterisk, 56–70, 77–91
additional configuration files, 91
asterisk.conf, 58, 77–83
Corosync, 383
indications.conf, 58, 84
menuselect, 64–70
modules.conf, 61, 83
musiconhold.conf, 64, 86–90
SIP and device states, 376
user devices, 98–112
XMPP, 387
Asterisk configuration for LDAP, 529–531
extconfig.conf, 530
res_ldap.conf, 529
sip.conf for realtime, 531
backends, resource modules, 23
calendar, 492
CEL, 657
configuration files, 27
Corosync, 381
dialplan out-of-band messaging, 524
digital circuits, 155
DUNDi, 619–637
dundi.conf, 619
lookups, 634–637
mapping contexts, 625–628
peer definition, 623
remote connections, 629
responses, 630–634
[general] section, 622
Fail2ban, 683–687
MySQL, 421
ODBC, 422
for Microsoft SQL, 426
for MySQL, 425
for PostgreSQL, 424
OpenLDAP, 526–528
PostgreSQL, 419
sip.conf, 523, 531
SLA, 390, 401
SNMP using OpenNMS, 669–672
installing OpenNMS, 669
res_snmp.conf, 670
snmpd.conf, 670
user devices, 93–120
analog telephones, 115
Asterisk, 98–112
Digium phones, 113
hardphones, sosftphones and ATAs, 96
loading new channel configuration files,
113
registration, 114
telephone naming concepts, 94
testing using dialplan, 118
voicemail.conf, 468
VoIP trunks, 173–181
IAX trunks between Asterisk systems,
180
SIP trunks between Asterisk systems,
174–180
Index | 791
www.it-ebooks.info
xmpp.conf, 522
configuration files
about, 27
agents.conf, 349
asterisk.conf, 58, 77–83
cdr.conf, 645
cdr_adaptive_odbc, 647
cel.conf, 657
chan_dahdi.conf, 549
dundi.conf, 619
extconfig.conf, 530
extensions.conf, 121, 392, 395, 400
features.conf, 267–277
http.conf, 561, 561
iax.conf, 107–112, 630
indications.conf, 58, 84
logger.conf, 639–643, 642, 643
manager.conf, 556, 588
modules.conf, 61, 83, 453
motif.conf, 519
musiconhold.conf, 64, 86–90
queuerules.conf, 354
queues.conf, 333, 341–349, 473, 473
res_ldap.conf, 529
res_snmp, 670
sip.conf, 101–107, 302, 523, 531
sla.conf, 391, 394, 400
snmpd.conf, 670
voicemail.conf, 200, 468, 508–511
xmpp.conf, 522
contexts
dialplan, 122
DUNDi, 625–628
Corosync, 380–384
configuration, 381
installation, 381
testing, 384
CSTA (Computer-Supported Telecommunica‐
tions Applications), AMI, 580
CURL() dialplan function, 483
cURL, IVR, 483
D
DAHDI (Digium Asterisk Hardware Device In‐
terface), 52
echo, 753
indications.conf, 86
internationalization, 219
modules, 153
dahdi_genconf, 155, 155, 158, 160, 222
dahdi_hardware, 155, 160
databases, 417
(see also Microsoft SQL; MySQL; Pro‐
greSQL; relational databases; SQL;
SQLite)
account database example, 596
AstDB, 253–261
deleting, 254
hot-desking example, 256–261
retrieving data, 254
storing data, 254
using, 255
clustering, 606–609
replicated databases, 608
single database, 606
lookups, 307
voicemail, 213
date/time stamps, internationalization, 226
dbsecret, iax.conf, 630
DeadAGI, 586
defaults, musiconhold.conf, 89
delegated zones, 318
deleting data from AstDB, 254
demilitarized zone (DMZ), VoIP, 758
denial of service attacks
distributed, 323
IAX2, 689
dependencies
calendar and RHEL dependencies, 490
calendar and Ubuntu dependencies, 491
modules, 68
software dependencies, 49
destination, Dial() application, 134
development frameworks
AGI, 599
AMI, 579
device states, 371–405
about, 371–373
ACD queue members, 339
callback service, 403
custom device states, 378
distributed device states, 380–388
Corosync, 380–384
XMPP, 385–388
extension states, 373–376
checking, 375
hints, 374
SIP, 376
792 | Index
www.it-ebooks.info
SLA, 389–400
applications installation, 389
configuration, 390, 401
key system example with analog trunks,
390
key system example with SIP trunks,
394–399
limitations, 402
shared extension example, 399
devices, 93
(see also user devices)
internationalization, 217–219
NAT, 163
DevOps, automated deployments, 602
dial by extension, automated attendant, 412
Dial() application, 134–137
blank arguments, 137
destination, 134
option string, 136
timeout, 135
updating the dialplan, 137
URI, 136
dial-by-name directories, 205
dialing SIP URIs, 309
dialpad, 718
dialplan, 121–145, 231–266
about, 28
ACD queue members, 333
ACD queues, 476
applications, 12–15
AstDB, 253–261
deleting, 254
hot-desking example, 256–261
retrieving data, 254
storing data, 254
using, 255
automated attendant, 414
call parking, 261
CDR, 645
CEL, 656
channel configuration files, 99
ConfBridge() application, 289–290, 295
conferencing
ConfBridge() application, 264
MeetMe() application, 263
cURL, 484
CURL() dialplan function, 483
Dial() application, 134–137
blank arguments, 137
destination, 134
option string, 136
timeout, 135
updating the dialplan, 137
URI, 136
DUNDi
lookups, 634–637
mappings, 632
expressions, 231
functions, 20, 234
func_odbc, 431–449
GoSub() application, 246–250
arguments, 248
calling subroutines, 247
defining subroutines, 246
returning, 249
Goto(), Background(), and WaitExten() Ap‐
plications, 131–133
GotoIf() application, 236–240
GotoIfTime() application, 240
Hello World example, 129
includes, 145
invalid entries and timeouts, 133
Local channels, 250
macros, 242–246
arguments, 245
calling, 244
defining, 243
operators, 232
out-of-band messaging, 524
outside connectivity, 148
pattern matching, 140–145
${EXTEN} channel variable, 144
examples, 142
syntax, 140
security, 687
SIP and Asterisk as a standalone voicemail
server, 210
SIP URIs, 303
SQL, 442
syntax, 121–129
applications, 127
contexts, 122
extensions, 124
priorities, 125
testing user devices, 118
variables, 137
voicemail, 201–206
dial-by-name directories, 205
Index | 793
www.it-ebooks.info
jitterbuffers, 205
VoiceMail() application, 201
VoiceMailMain() application, 204
XMPP, 512–518
connecting to an XMPP server, 512
JabberSend() application, 515
JABBER_RECEIVE() dialplan function,
515, 515
Zapateller() application, 261
dialplan_exec, 295
Differentiated service, 751
digital circuit-switched telephone network,
730–734
circuit types, 730
digital signaling protocols, 732
digital circuits, configuration, 155
digital interface cards, 777
digital telephones, 781
digital telephony
PSTN circuits, 152
pulse-code modulation, 721–730
aliasing, 729
companding, 727
digitally encoding an analog waveform,
721–723
Nyquist’s theorem, 726
sampling resolution and rate, 724
Digium Asterisk Hardware Device Interface (see
DAHDI)
Digium cards, internationalization, 219
Digium Fax For Asterisk, 538
Digium phones, 113
directories
dial-by-name directories, 205
family names, 200
disabling
Digium Fax For Asterisk, 539
spandsp, 538
distributed denial of service attacks, 323
distributed device states, 380–388, 609–612
Corosync, 380–384
configuration, 381
installation, 381
testing, 384
over a LAN, 610
over a WAN, 611
XMPP, 385–388
accounts, 386
Asterisk configuration, 387
installation, 385
testing, 387
Distributed Universal Number Discovery (see
DUNDi)
DMZ (demilitarized zone), VoIP, 758
DNS (Domain Name System)
ITAD, 317
URIs, 300
documentation, 5
(see also community)
AMI (Asterisk Manager Interface), 55
Asterisk Documentation Project, 8
downloading, 50–52
Subversion, 51
wget, 51
DS-0, 730
DTMF, 268
DUNDi (Distributed Universal Number Dis‐
covery), 617–638
about, 617
configuration, 619–637
dundi.conf, 619
lookups, 634–637
mapping contexts, 625–628
peer definition, 623
remote connections, 629
responses, 630–634
[general] section, 622
dust, equipment room, 776
dynamic realtime
about, 453–458
queues.conf, 474
dynamically adding extension numbers, 632
E
E.164, 310, 711
e164.org, 711
EAGI (Enhanced AGI), 585
echo, 752, 779
electrical circuits, 775
email
email to fax, 546
Fail2ban, 683
fax to email, 541
emergency dialing, 181
encryption
IAX, 181
security, 687
SIP calls, 176
794 | Index
www.it-ebooks.info
VoIP, 758
ENUM
about, 310–313
future, 711
environment variables, 139
equipment room, 775
events
CEL, 654
manager events and AMI over HTTP, 568
message encoding, 563
queue log, 368
expressions, dialplan, 231
extconfig.conf, 530
eXtensible Messaging and Presence Protocol
(see XMPP)
extension numbers, DUNDi, 632
extensions
about, 95
dial by extension, automated attendant, 412
dialplan, 124
names, 125
shared extension example, 399
states, 373–376
checking, 375
hints, 374
extensions.conf, 121, 392, 395, 400
external data sources, 28
external devices, internationalization, 217–219
external paging, 278
external services (see calendar; LDAP; out-of-
band messsaging; text-to-speech; voicemail;
XMPP)
F
Fail2ban, 681–687
configuration, 683–687
installation, 682
family names, directories, 200
FastAGI
about, 586
commands, 593
ending a session, 594
security, 689
variables, 589
fax, 535–551
about, 535
Digium Fax For Asterisk, 538
incoming, 539–544
fax detection, 542
fax to email, 541
fax to TIFF, 540
T.38, 543
outgoing, 544–549
email to fax, 546
file format, 545
transmitting, 544
pass-through, 549
spandsp, 536
features.conf, 267–277
application map grouping, 275
parking lots, 276
[applicationmpa] section, 272–275
[featuremap] section, 271
[general] section, 268–271
Festival text-to-speech server, 531, 705
files, 27
(see also configuration files)
call files and AMI, 569
fax file format, 545
format, prompt file, 413
parsing, 305
permissions, 56
structure, 27–28
configuration files, 27
external data sources, 28
logging, 28
modules, 27
spool, 28
firewalls
network address translation, 107
remote, 165
Flash Operator Panel example, 580
folders (see directories)
FOP (Flash Operator Panel), 676
format
attribute handlers, 24
fax file format, 545
interpreters, 19
musiconhold.conf, 87
prompt file, 413
freenum.org, 299, 711
FreePBX dialplan GUI, 675
FreeTDS library
cdr_tds, 653
cel_tds, 663
friends, VoIP, 755
functions
dialplan, 632
Index | 795
www.it-ebooks.info
functions, dialplan, 20, 234, 632
func_odbc, 431–449, 483
FXO, 151
FXS, 151
G
G.711, 747
G.722, 749
G.726, 747
G.729A, 747
Global System for Mobile Communications
(GSM), 748
global variables, 138
Gmail, IMAP, 507
Google Talk, 520, 521
Google Voice, 521, 522
GoSub() application, 246–250
arguments, 248
calling subroutines, 247
defining subroutines, 246
returning, 249
Goto() application, 131–133
GotoIf() application, 236–240
GotoIfTime() application, 240
greeting, automated attendant, 409
grounding, 773
GSM (Global System for Mobile Communica‐
tions), 748
H
H.323, 743
hackers, 4
hacking indications.conf, 85
handset, 720
Hangup() application, 129
hardphones, 96
hardware, 29, 761–785
echo, 779
electrical circuits, 775
equipment room, 775
grounding, 773
packet-based telephone network, 779
phones, 780
power conditioning and uninterruptible
power supplies, 772
PTSN, 776
servers, 763–772
motherboards, 769
performance, 763
power supply requirements, 771
processors, 766
telephones
analog telephones, 781
communications terminals, 784
digital telephones, 781
IP telephones, 783
ISDN telephones, 782
softphones, 783
telephony adapters, 784
Hello World example, dialplan, 129
high-fidelity voice, future, 706
hints, extension states, 374
home automation, open source telephony, 704
hook switch, 719
hot-desking, 95, 256–261, 433–449
HTTP
AMI over HTTP, 564–569
authentication and session handling, 565
manager encoding, 567
manager events, 568
mxml encoding, 568
quick start, 555
rawman encoding, 566
http.conf, 561
humidity, equipment room, 775
hybrid phone systems, 603
hybrid transformer, 719
I
IANA (Internet Assigned Numbers Authority),
315
IAX (Inter-Asterisk eXchange)
about, 739
trunks between Asterisk systems, VoIP, 180
iax.conf
about, 107–112
dbsecret, 630
IAX2 denial of service, 689
iLBC (Internet Low Bitrate Codec), 748
IMAP (Internet Message Access Protocol), voi‐
cemail, 207, 503–511
includes, dialplan, 145
incoming calls, automated attendant, 416
indications.conf, 58, 84
inheriting channel variables, 274
796 | Index
www.it-ebooks.info
installation
Asterisk, 35–76
cheat sheet, 37–41
configuration, 56–70
DAHDI, 52
downloading, 50–52
file permissions, 56
installation procedure, 52–56
issues, 72–74
LibPRI, 54
RHEL server, 41–44
software dependencies, 49
Ubuntu Server, 45–49
updating, 70
upgrading, 74
Corosync, 381
cURL, 484
Fail2ban, 682
Festival, 532
MySQL
for RHEL, 419
for Ubuntu, 419
ODBC, 422
PostgreSQL
for RHEL, 418
for Ubuntu, 418
PSTN circuits, 152–161
BRI ISDN, 157
DAHDI, 153
MFC/R2, 158
PRI ISDN, 155
res_xmpp, 512
SLA applications, 389
SNMP, 668
spandsp, 537
XMPP, 385
Integrated Services Digital Network (see ISDN)
integration
calendars, 24
telephony, 715
Inter-Asterisk eXchange (see IAX)
Interactive Voice Response (see IVR)
interfaces
menuselect, 65
timing interfaces, 23
internationalization, 215–229
caller ID, 224
cheat sheet, 228
date/time stamps, 226
external devices, 217–219
language and/or accent of prompts, 225
PSTN, DAHDI, Digium cards, analog
phones, 219
Internet Assigned Numbers Authority (IANA),
315
Internet Low Bitrate Codec (iLBC), 748
Internet Message Access Protocol (IMAP), voi‐
cemail, 207, 503
invalid entries and timeouts in dialplan, 133
invalid handler, automated attendant, 411
IP telephones, 783
iptables, 682
IPv6
PostgreSQL database access, 420
sip.conf, 103
IRC channels, Asterisk community, 7
ISDN (Integrated Services Digital Network)
about, 732
telephones, 782
ISN (ITAD Subscriber Number), 314
ITADs (IP Telephony Administrative Domains),
316–318
about, 316
DNS entries, 317
ISNs, 315
testing, 318
IVR (Interactive Voice Response), 479–487
about, 479
Asterisk modules, 483
compared to an automated attendant, 407
components, 480
cURL, 483
design considerations, 482
open source telephony, 702
prompt-recording, 484
speech recognition, 486
text-to-speech, 486
J
jabber (see XMPP)
JabberSend() application, 515
JABBER_RECEIVE() dialplan function, 515
jitterbuffers, 205
K
key system example
with analog trunks, 390
Index | 797
www.it-ebooks.info
with SIP trunks, 394–399
alternate example, 396–399
extensions.conf, 395
sla.conf, 394
keymap configuration, voicemail, 201
L
labels, priority labels, 127
LAN, distributed device states, 610
languages, internationalization, 225
large object type, PostgreSQL, 465
LDAP, 525–531
Asterisk configuration, 529–531
extconfig.conf, 530
res_ldap.conf, 529
sip.conf for realtime, 531
compilation, 528
OpenLDAP configuration, 526–528
legacy PBX migration gateway, 701
libpath, spandsp, 537
LibPRI, 54
libraries
external data sources, 28
LibPRI, 54
Linux, 45
(see also Ubuntu)
about, 785
DAHDI-linux, 53
logger.conf and syslog daemon, 642
voicemail filesystem, 206
Local channels
ACD queues, 363–367
dialplan, 250
logfiles
cel_custom, 660
security, 685
logger.conf, 639–643
Asterisk logs, 641
Linux syslog daemon, 642
log rotation, 643
verifying logging, 643
logging, 28
lookups
databases, 307
DUNDi and dialplan, 634
lsdahdi, 155, 160
M
macros, dialplan, 242–246
arguments, 245
calling, 244
defining, 243
mailing lists, Asterisk community, 6
main menu, automated attendant, 410
manager encoding, 567
manager events, AMI over HTTP, 568
manager.conf, 556, 588
mappings, DUNDi and dialplan functions, 632
marked users, conferencing, 292
mathematical operators, 233
Media Gateway Control Protocol (MGCP), 745
MeetMe() application, 263
menus
ConfBridge() application, 293–296
dialplan_exec, 295
main menu, automated attendant, 410
volume control menu, 294
menuselect, 64–70
add-on modules, 26
compiling and installing modules, 83
interfaces, 65
scripting, 69
status types, 12
using, 65, 68
messages
JabberSend() application, 515
JABBER_RECEIVE() dialplan function, 515
messaging, 522
(see also out-of-band messaging)
future, 710
metrics, 451
MFC/R2, 158
MGCP (Media Gateway Control Protocol), 745
Microsoft SQL, ODBC configuration, 426
modules, 10
add-on modules, 26
applications, 12–15
bridging modules, 15
CDR modules, 16
CEL modules, 17
channel drivers, 17
codec translators, 18
DAHDI, 153
dependencies, 68
dialplan functions, 20
file structure, 27
798 | Index
www.it-ebooks.info
format interpreters, 19
PBX modules, 22
resource modules, 22–26
calendar integration, 24
CLI extensions, 25
configuration backends, 23
format attribute handlers, 24
other resource modules, 25
RTP implementations, 24
timing interfaces, 23
test modules, 27
modules.conf, 61, 83, 453
monitoring SNMP with OpenNMS, 672
motherboards, 769
motif.conf, 519
MP3
about, 749
RHEL, 87
MPLS (Multiprotocol Label Switching), 751
multicast paging, 281
multicast RTP, 24
musiconhold.conf, 86–90
about, 64
default file, 89
format, 87
mxml encoding, 568
MySQL
cdr_mysql, 650
configuration, 421
ODBC, 425
installation
for RHEL, 419
for Ubuntu, 419
ODBC voicemail, testing, 472
N
names
extensions, 125
telephone naming concepts, 94
NANP (North American Numbering Plan)
about, 311
toll fraud, 142
NAT (network address translation), 161–170
Asterisk, 165
devices, 163
firewalls, 107
H.323, 744
IAX, 740
RTP handling, 167
SIP, 743
network transformer, 719
NTP
RHEL server, 43
Ubuntu Server, 48
Nyquist’s theorem, 726
O
OC circuits, 731
ODBC (Open Database Connectivity)
cdr_odbc, 651
cel_odbc, 657
compilation
for Asterisk, 428
res_odbc, 428
configuration, 422–429
for Microsoft SQL, 426
for MySQL, 425
for PostgreSQL, 424
installation, 422
validating the ODBC connector, 427
voicemail, 207
ODBC voicemail, 463–473
compiling app_voicmail, 464
configuring voicemail.conf, 468
large object type for PostgreSQL, 465
storage table layout, 467
testing, 469–473
MySQL, 472
PostgreSQL, 470
OpenLDAP, configuration, 526–528
OpenNMS
SNMP, 669–672
installing OpenNMS, 669
monitoring, 672
res_snmp.conf, 670
snmpd.conf, 670
OpenR2, 158
operators, dialplan, 232
originating a call example, 571, 574–579
out-of-band messaging, 522–525
dialplan configuration, 524
sip.conf, 523
xmpp.conf, 522
overflow, ACD queues, 361–363
joining and leaving a queue, 362
timeouts, 361
overhead, paging, 277–284
Index | 799
www.it-ebooks.info
P
packet-based telephone network, connecting to,
779
packet-switched networks, 735
paging, 277–284
combination paging, 283
example, 283
external paging, 278
multicast paging, 281
set paging, 279
VoIP paging adapters, 282
parking lots, 276
parsing files, 305
passwords, validation of voicemail passwords,
191
pattern matching
about, 140–145
DUNDi, 631
pause, 334
PBXs
compared to clustering, 602
legacy PBX migration gateway, 701
modules, 22
PDFs, faxes, 542
peering, future, 710
peers
DUNDi
definition, 623
mapping contexts, 627
VoIP, 754
penalties, ACD queues, 354
performance, servers, 763
permissions
CLI, 693
files, 56
phishing, 323
phones (see hardphones; softphones; tele‐
phones)
PINs, conferencing, 290
pizza, IVR, 482
Playback() application, 128
PostgreSQL
cdr_pgsql, 651
cel_pgsql, 662
configuration, 419
ODBC, 424
installation
for RHEL, 418
for Ubuntu, 418
large object type, 465
ODBC voicemail
testing, 470
power conditioning and uninterruptible power
supplies, 772
power supply requirements, 771
PRI ISDN, 155
priorities, dialplan, 125
priority queue, 351
private networks, 715
process-based AGI, 585, 589, 593, 594
processors, 766
Progress() application, 128
prompts
automated attendant, 412
internationalization, 225
IVR, 484
PSTN
connecting to, 776
internationalization, 219
origination, 171
VoIP, termination, 170
PSTN circuits, 150–161
analog circuits, 159
analog telephony, 150
digital telephony, 152
installation, 152–161
BRI ISDN, 157
DAHDI, 153
MFC/R2, 158
PRI ISDN, 155
pulse-code modulation, 721–730
aliasing, 729
companding, 727
digitally encoding an analog waveform, 721–
723
Nyquist’s theorem, 726
sampling resolution and rate, 724
Python, originating a call example, 574–579
Q
QoS (Quality of Service), 749
about, 713
best effort, 752
Differentiated service, 751
MPLS, 751
RSVP, 752
SCTP, 750
TCP, 750
800 | Index
www.it-ebooks.info
UDP, 750
queue member priority, 353
queue members, 326
queue weighting, 351
queuerules.conf, 354
queues, 325
(see also ACD)
clustering, 613
web interfaces, 676
queues.conf, 333, 341–349, 473
queue_log, 367–370, 477
quoting variables in conditional branched, 238
R
r2test application, 158
RADIUS server
cdr_radius, 651
cel_radius, 662
rawman encoding, 566
realtime, 449
(see also ARA)
sip.conf, 531
recording prompts, 412
redirecting a call example, 573
redundancy, power supply requirements, 772
register statements, 756
registration, testing devices, 114
regular expression operator, 233
regulations, VoIP and telephony, 713
relational databases, 417–478
ACD queues, 473–478
dialplan, 476
queues.conf, 473
queue_log, 477
ARA, 449–458
dynamic realtime, 453–458
static realtime, 450–453
CDR, 458–463
compiling the ODBC modules, 428
configuration, 419–429
MySQL, 421
ODBC, 422–429
PostgreSQL, 419
res_odbc, 428
func_odbc, 431–449
installation, 418–422
MySQL for RHEL, 419
MySQL for Ubuntu, 419
ODBC, 422
PostgreSQL for RHEL, 418
PostgreSQL for Ubuntu, 418
ODBC voicemail, 463–473
compiling app_voicmail, 464
configuring voicemail.conf, 468
large object type for PostgreSQL, 465
storage table layout, 467
testing, 469–473
SQL injection, 430
troubleshooting, 430
validating the ODBC connector, 427
release cycles, traditional telephony, 697
reminders
calendar, 494–499
additional features, 503
conferencing, 498
controlling calls, 499
scheduling calls, 495
wakeup calls, 494
writing call information, 501–503
remote connections, DUNDi configuration, 629
remote firewalls, 165
repositories, third-party repositories, 50
Reservation Protocol (RSVP), 752
resource library, 28
resource modules, 22–26
calendar integration, 24
CLI extensions, 25
configuration backends, 23
format attribute handlers, 24
other resource modules, 25
RTP implementations, 24
timing interfaces, 23
res_ldap.conf, 529
res_odbc, compilation, 428
res_snmp, 669, 670
res_xmpp, 512
RHEL
calendar compilation, 490
Festival, 532
IMAP voicemail, 504
LDAP compilation, 528
MP3, 87
musiconhold.conf, 88
MySQL installation, 419
PostgreSQL installation, 418
SNMP installation, 668
XMPP compilation, 512
Index | 801
www.it-ebooks.info
RHEL server, 41–44
adding system users, 44
base system installation, 41
base system update, 43
enabling NTP, 43
ringer, 718
robbed-bit signaling (see CAS)
rotation, logger.conf, 643
RSVP (Reservation Protocol), 752
RTP
implementations, 24
NAT, 167
SRTP, 757
S
s extension, 160
safe_asterisk, 61
same => operator, 126
sampling resolution and rate, 724
scanning for valid accounts, 679
SCCP (Skinny Client Control Protocol), 745
scheduling calls, 495
scripting, menuselect, 69
SCTP (Stream Control Transmission Protocol),
750
security, 320–323, 679–694
authentication, 681
CLI permissions, 693
dialplan, 687
distributed denial of service attacks, 323
encryption, 687
Fail2ban, 681–687
configuration, 683–687
installation, 682
faxes, 540
H.323, 744
hardware, 776
IAX, 740
IAX2 denial of service, 689
information available on Asterisk wiki, 124
network APIs, 689
other risk mitigation, 691
phishing, 323
resources, 694
scanning for valid accounts, 679
server hardening, 758
SIP, 742
SPIT, 322
SQL injection, 430
toll fraud, 321
VoIP, 756–759
DMZ, 758
encryption, 758
physical security, 758
segregating voice and data traffic, 758
SPLIT, 757
spoofing, 757
SRTP, 757
servers, 763–772
motherboards, 769
performance, 763
power supply requirements, 771
processors, 766
security, 758
sessions
AGI, 588
AMI over HTTP, 565
set paging, 279
shared extension example, 399
shell command, 59
Signaling System 7 (SS7), 734
Simple Network Management Protocol (see
SNMP)
Simplified Message Desk Interface (SMDI), voi‐
cemail, 212
single-party call examples
CDR, 653
CEL, 664
SIP (Session Initiation Protocol)
about, 93
Asterisk as a standalone voicemail server,
208
channels, 365
device states, 376
distributed denial of service attacks, 323
key system example with SIP trunks, 394–
399
alternate example, 396
extensions.conf, 395
sla.conf, 394
unauthenticated calls, 173
URIs, 300–309
about, 300
calls, 302–309
dialing, 309
SVR records, 301
VoIP, 174–180, 740
sip.conf, 101–107, 302, 523, 531
802 | Index
www.it-ebooks.info
Skinny Client Control Protocol (SCCP), 745
SLA (Shared Line Appearances), 389–400
applications installation, 389
configuration, 390, 401
key system example with analog trunks, 390
key system example with SIP trunks, 394–
399
alternate example, 396–399
extensions.conf, 395
sla.conf, 394
limitations, 402
shared extension example, 399
sla.conf, 391, 394, 400
SMDI (Simplified Message Desk Interface), voi‐
cemail, 212
SNMP (Simple Network Management Proto‐
col), 668–673
configuration for OpenNMS, 669–672
installing OpenNMS, 669
res_snmp.conf, 670
snmpd.conf, 670
installation, 668
monitoring with OpenNMS, 672
snmpd.conf, 670
softphones, 783
SONET (Synchronous Optical Network), 731
sosftphones, 96
sound
conference bridge, 288
high-fidelity voice, 706
spam, VoIP, 712
spandsp, 536
speech processing, future, 705
speech recognition
future, 706
IVR, 486
Speex, 748
SPIT (Spam over Internet Telephony)
about, 322
VoIP, 757
spoofing, VoIP, 757
spool, 28
SQL, 650
(see also Microsoft SQL; MySQL; Pro‐
greSQL; SQLite)
dialplan, 442
SQL injection, 430
SQLite
cdr_sqlite and cdr_sqlite3_custom, 651
cel_sqlite3_custom, 662
SRTP, VoIP, 757
SS7 (Signaling System 7), 734
standards compliance
future, 712
open source telephony, 700
traditional telephony, 697
StarPy, originating a call example, 574–579
static realtime
about, 450–453
queues.conf, 474
status types, menuselect, 12
storage backends, voicemail, 206
storage table layout, ODBC voicemail, 467
Stream Control Transmission Protocol (SCTP),
750
subroutines (see GoSub() application)
Subversion, 51
sudo, 44
switch hook, 719
Synchronous Optical Network (SONET), 731
syslog
cdr_syslog, 652
logger.conf, 642
system (see hardware)
system time, NTP, 43, 48
systemname, globally unique IDs, 459
T
T-carrier circuits, 731
T.38
fax pass-through, 550
incoming fax handling, 543
TCP (Transmission Control Protocol)
about, 750
AMI over TCP, 554
FastAGI, 586
telephones
analog, 115
analog telephones, 781
communications terminals, 784
digital telephones, 781
IP telephones, 783
ISDN telephones, 782
softphones, 783
telephone naming concepts, 94
telephony adapters, 784
Index | 803
www.it-ebooks.info
telephony, 695–715, 717–735
analog telephony, 717–720
parts, 718
Tip and Ring, 720
barriers to entry, 715
bottleneck engineering, 712
complexity, 714
creative possibilities, 715
digital circuit-switched telephone network,
730–734
circuit types, 730
digital signaling protocols, 732
digital telephony, 720–730
pulse-code modulation, 721–730
fear, uncertainty and doubt, 712
high-fidelity voice, 706
integration, 715
open source telephony, 698–705
about, 698
community, 700
conferencing, 704
home automation, 704
IVR, 702
legacy PBX migration gateway, 701
new technologies, 700
open architecture, 699
standards compliance, 700
packet-switched networks, 735
paradigm shift, 698
peering, 710
private networks, 715
quality of service, 713
regulations, 713
speech processing, 705
standards compliance, 712
toll fraud, 712
traditional telephony, 695–698
closed thinking, 696
past and future, 698
release cycles, 697
standards compliance, 697
unified messaging, 710
video, 707
VoIP spam, 712
WebRTC, 709
wireless, 709
telephony adapters, 784
temperature, equipment room, 776
terminals, communications terminals, 784
test modules, 27
testing
Corosync, 384
ITADs, 318
ODBC voicemail, 469
MySQL, 472
PostgreSQL, 470
user devices
registration, 114
using dialplan, 118
XMPP, 387
text-to-speech
future, 705
IVR, 486
utilities, 531
third-party repositories, 50
TIFF, fax to, 540
time, NTP, 43, 48
time/date stamps, internationalization, 226
timeouts
ACD queues, 361
automated attendant, 411
Dial() application, 135
invalid entries and timeouts in dialplan, 133
timing interfaces, 23
Tip and Ring, 720
toll fraud
about, 321
future of, 712
NANP, 142
transferring
blind transfer example, 665
call example, 573
Transmission Control Protocol (see TCP)
troubleshooting relational databases, 430
trunks
about, 147
VoIP, 173–181
IAX trunks between Asterisk systems,
180
SIP trunks between Asterisk systems,
174–180
two-party call examples
CDR, 653
CEL, 664
U
Ubuntu
calendar compilation, 491
804 | Index
www.it-ebooks.info
Festival, 532
IMAP voicemail, 505
LDAP compilation, 528
MySQL installation, 419
PostgreSQL installation, 418
SNMP installation, 668
XMPP compilation, 512
Ubuntu Server, 45–49
base system installation, 45
base system update, 48
enabling NTP, 48
musiconhold.conf, 88
UDP (User Datagram Protocol), 750
unauthenticated calls, 173
underchin paging (see paging)
unified messaging, future, 710
uninterruptible power supplies, 772
UNISTIM, 746
unnumbered priorities, 126
unpause, 334
updating
Asterisk, 70
dialplan, 137
upgrading Asterisk, 74
URIs
Dial() application, 136
SIP, 300–309
about, 300
calls, 302–309
dialing, 309
SVR records, 301
User Datagram Protocol (UDP), 750
user devices
analog telephones, 115
Asterisk, 98–112
Digium phones, 113
hardphones, sosftphones and ATAs, 96
loading new channel configuration files, 113
telephone naming concepts, 94, 94
testing
registration, 114
using dialplan, 118
users
groups, 7
profiles, conferencing, 285
VoIP, 754
V
validation
ODBC connector, 427
voicemail passwords, 191
variables
channel variables, 274
dialplan, 137
quoting in conditional branched, 238
verbose logging, 640
versioning, 29–33
current release methodology, 31
previous release methodologies, 30
simplifying the version numbers, 32
videoconferencing
enabling, 296
future, 707
virtual devices, 371
voice
high-fidelity voice, 706
versus videoconferencing, 708
voicemail, 185–213
(see also ODBC voicemail)
Comedian Mail, 185–201
contexts section, 196–200
standard voicemail keymap configura‐
tion, 201
voicemail.conf, 200
[general] section, 186–195
[zonemessages] section, 195
database integration, 213
dialplan, 201–206
dial-by-name directories, 205
jitterbuffers, 205
VoiceMail() application, 201
VoiceMailMain() application, 204
IMAP, 503–511
password validation, 191
standalone voicemail server, 208–213
SIP, 208
SMDI, 212
storage backends, 206
voicemail.conf
Comedian Mail, 200
IMAP, 508–511
ODBC voicemail, 468
VoIP (Voice over IP), 161–181, 737–759
about, 2
Asterisk, 754
Index | 805
www.it-ebooks.info
codecs, 746–749
G.711, 747
G.722, 749
G.726, 747
G.729A, 747
GSM, 748
iLBC, 748
MP3, 749
Speex, 748
echo, 752
NAT, 161–170
Asterisk, 165
devices, 163
RTP handling, 167
paging adapters, 282
protocols, 738–746
about, 738
H.323, 743
IAX, 739
MGCP, 745
SCCP, 745
SIP, 740
UNISTIM, 746
providers, 544
PSTN
origination, 171
termination, 170
QoS, 749–752
best effort, 752
Differentiated service, 751
MPLS, 751
RSVP, 752
SCTP, 750
TCP, 750
UDP, 750
regulations, 713
security, 756–759
DMZ, 758
encryption, 758
physical security, 758
segregating voice and data traffic, 758
server hardening, 758
SPLIT, 757
spoofing, 757
SRTP, 757
spam, 712
trunks, 173–181
IAX trunks between Asterisk systems,
180
SIP trunks between Asterisk systems,
174–180
to VoIP, 173
VoIP spam, 712
volume control menu, 294
W
WaitExten() application, 131–133
wakeup calls, 494
WAN, distributed device states, 611
web interfaces, 675–678
A2Billing, 678
CDRs, 677
FOP, 676
queue status and reporting, 676
WebRTC, future, 709
wget, 51
WiFi, future, 709
wiki sites, Asterisk community, 7
WiMAX, future, 709
wireless telephony, 709
X
XMPP (eXtensible Messaging and Presence Pro‐
tocol), 385–388, 511–522
accounts, 386
Asterisk configuration, 387
chan_motif, 518–522
Google Talk, 520, 521
Google Voice, 521, 522
motif.conf, 519
compilation, 512
dialplan, 512–518
connecting to an XMPP server, 512
JabberSend() application, 515
JABBER_RECEIVE() dialplan function,
515
installation, 385
testing, 387
xmpp.conf, 522
Z
Zapata Telephony Project, 2
Zapateller() application, 261
Zaptel (see DAHDI)
806 | Index
www.it-ebooks.info
About the Authors
Russell Bryant is a principal software engineer at Red Hat, where he works on the
OpenStack project. Beginning in 2004, Russell spent seven years working for Digium
on the Asterisk project. Russell’s role at Digium began as a software developer and
concluded with being the leader of the Asterisk project and engineering manager for
the team focused on Asterisk development.
Leif Madsen first got involved with the Asterisk community when he was looking for
a voice-conferencing solution. Once he learned that there was no official Asterisk doc‐
umentation, he cofounded the Asterisk Documentation Project. Leif is currently work‐
ing at Thinking Phone Networks, leading the unified communications backend team.
You can find out more about him at http://www.leifmadsen.com.
Jim Van Meggelen is president and CTO of Core Telecom Innovations, a Canada-based
provider of open-source telephony solutions. He has over 15 years of enterprise telecom
experience for such companies as Nortel, Williams, and Telus, and has extensive knowl‐
edge of both legacy and VoIP equipment from manufacturers such as Nortel, Cisco, and
Avaya. Jim is one of the principal contributors to the Asterisk Documentation Project,
and is coauthor of the bestselling O’Reilly book, Asterisk: The Future of Telephony.
Colophon
The animals on the cover of Asterisk: The Definitive Guide are starfish (Asteroidea), a
group of echinoderms (spiny-skinned invertebrates found only in the sea). Most starfish
have fivefold radial symmetry (arms or rays branching from a central body disc in
multiples of five), though some species have four or nine arms. There are over 1,500
species of starfish.
Starfish live on the floor of the sea and in tidal pools, clinging to rocks and moving
(slowly) using a water-based vascular system to manipulate hundreds of tiny, tube-like
legs, called podia. A small bulb or ampulla at the top of the tube contracts, expelling
water and expanding the starfish’s leg. The ampulla relaxes, and the leg retracts. At the
tip of each leg is a suction cup that allows the starfish to pry open clam, oyster, or mussel
shells. Starfish are carnivores; they eat coral, fish, and snails, as well as bivalves.
Starfish can flex and manipulate their arms to fit into small places. At the end of each
arm is an eyespot, a primitive sensor that detects light and helps the starfish determine
direction. Starfish also have the ability to regenerate a missing limb. Some species can
even regrow a complete, new starfish from a severed arm.
The cover image is from the Dover Pictorial Archive. The cover font is Adobe ITC
Garamond. The text font is Adobe Minion Pro; the heading font is Adobe Myriad Con‐
densed; and the code font is Dalton Maag’s Ubuntu Mono.
