585-302-502
Comcode 108359167
Issue 14
May 1999
AUDIX®
Administration and Data Acquisition
Package
Copyright 1999, Lucent Technologies
All Rights Reserved, Printed in U.S.A.
Notice
Every effort was made to ensure that the information in this book was
complete and accurate at the time of printing. However, information is
subject to change.
Your Responsibility for Your System’s Security
Toll fraud is the unauthorized use of your telecommunications system
by an unauthorized party, for example, persons other than your com-
pany’s employees, agents, subcontractors, or persons working on your
company’s behalf. Note that there may be a risk of toll fraud associated
with your telecommunications system and, if toll fraud occurs, it can
result in substantial additional charges for your telecommunications
services.
You and your system manager are responsible for the security of your
system, such as programming and configuring your equipment to pre-
vent unauthorized use. The system manager is also responsible for
reading all installation, instruction, and system administration docu-
ments provided with this product in order to fully understand the fea-
tures that can introduce risk of toll fraud and the steps that can be taken
to reduce that risk. Lucent Technologies does not warrant that this
product is immune from or will prevent unauthorized use of com-
mon-carrier telecommunication services or facilities accessed through
or connected to it. Lucent Technologies will not be responsible for any
charges that result from such unauthorized use.
Lucent Technologies Fraud Intervention
If you suspect you are being victimized by toll fraud and you need
technical support or assistance, call the appropriate BCS National Cus-
tomer Care Center telephone number. Users of the MERLIN®, PART-
NER®, and System 25 products should call 1 800 628 2888. Users of
the System 75, System 85, DEFINITY® Generic 1, 2 and 3, and
DEFINITY® ECS products should call 1 800 643 2353. Customers
outside the continental United States should contact their local Lucent
representative, or call one of the above numbers in the following man-
ner:
Dial the International Access Code; for example, 011.
Dial the country code for the U.S., that is, 01.
Lastly, dial either of the telephone numbers provided above.
Lucent Technologies Web Page
The world wide web home page for Lucent Technologies is:
http://www.lucent.com
Federal Communications Commission Statement
Part 15: Class A Statement. This equipment has been tested and
found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio-frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interfer-
ence to radio communications. Operation of this equipment in a resi-
dential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.
Industry Canada (IC) Interference Information
This digital apparatus does not exceed the Class A limits for radio
noise emissions set out in the radio interference regulations of Industry
Canada.
Le Présent Appareil Nomérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la class
A préscrites dans le reglement sur le brouillage radioélectrique édicté
par le Industrie Canada.
Trademarks
See the preface of this document.
Ordering Information
Call: Lucent Technologies BCS Publications Center
Voice 1 800 457-1235 International Voice 317 322-6791
Fax 1 800 457-1764 International Fax 317 322-6699
Write: Lucent Technologies BCS Publications Center
2855 N. Franklin Road
Indianapolis, IN 46219
Order: Document No. 585-302-502
Comcode 108359167
Issue 14, May 1999
For additional documents, refer to the section in “About This Docu-
ment” entitled “Related Resources.”
You can be placed on a standing order list for this and other documents
you may need. For more information on standing orders, or to be put on
a list to receive future issues of this document, contact the Lucent Tech-
nologies Publications Center.
Obtaining Products
To learn more about Lucent Technologies products and to order prod-
ucts, contact Lucent Direct, the direct-market organization of Lucent
Technologies Business Communications Systems. Access their web
site at www.lucentdirect.com. Or call the following numbers: custom-
ers 1 800 451 2100, account executives 1 888 778 1880 (voice) or 1
888 778 1881 (fax).
Warranty
Lucent Technologies provides a limited warranty on this product. Refer
to the “Limited Use Software License Agreement” card provided with
your package.
European Union Declaration of Conformity
The “CE” mark affixed to the equipment means that it conforms to the
following directives. Lucent Technologies Business Communications
Systems declares that DEFINITY AUDIX System equipment specified
in this document conforms to the referenced European Union (EU)
Directives and Harmonized Standards listed below:
EMC Directive 89/336/EEC
Low-Voltage Directive73/23/EEC
Acknowledgment
This document was prepared by OMD Technical Publications, Lucent
Technologies, Denver, CO. and Columbus, OH.
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
iii
Contents
Contents iii
About This Document xxi
Intended Audiences xxii
Prerequisite Skills and Knowledge xxii
Organization of This Document xxii
How to Use This Document xxiv
Conventions Used in This Document xxv
Trademarks and Service Marks xxv
Related Resources xxvi
How to Make Comments About This Document xxvi
1 Introduction 1-1
Overview 1-1
The PC2AUDIX User Interface 1-1
The ADAP Command Line Language User Interface 1-2
How ADAP Works 1-2
ADAP Data Retrieval 1-2
ADAP Database Modification 1-3
Screens Supported by ADAP 1-3
Data Retention Considerations 1-7
2 Installation 2-1
Installation Requirements 2-1
Recommended Hardware Configurations 2-2
ADAP Directory Structure 2-2
ADAP Diskette Contents 2-3
Installation Procedures 2-4
Install ADAP Software 2-4
Install PC2AUDIX Software (Optional) 2-5
Install dBASE III Plus Software (Optional) 2-6
Install Graphics Software (Optional) 2-6
Check Config.sys and Autoexec.bat Files 2-7
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
iv
3 Using PC2AUDIX Application Programs 3-1
Working in PC2AUDIX 3-2
Setting Up PC2AUDIX Interface in a New Work Area 3-3
Creating PC2AUDIX Subdirectories 3-3

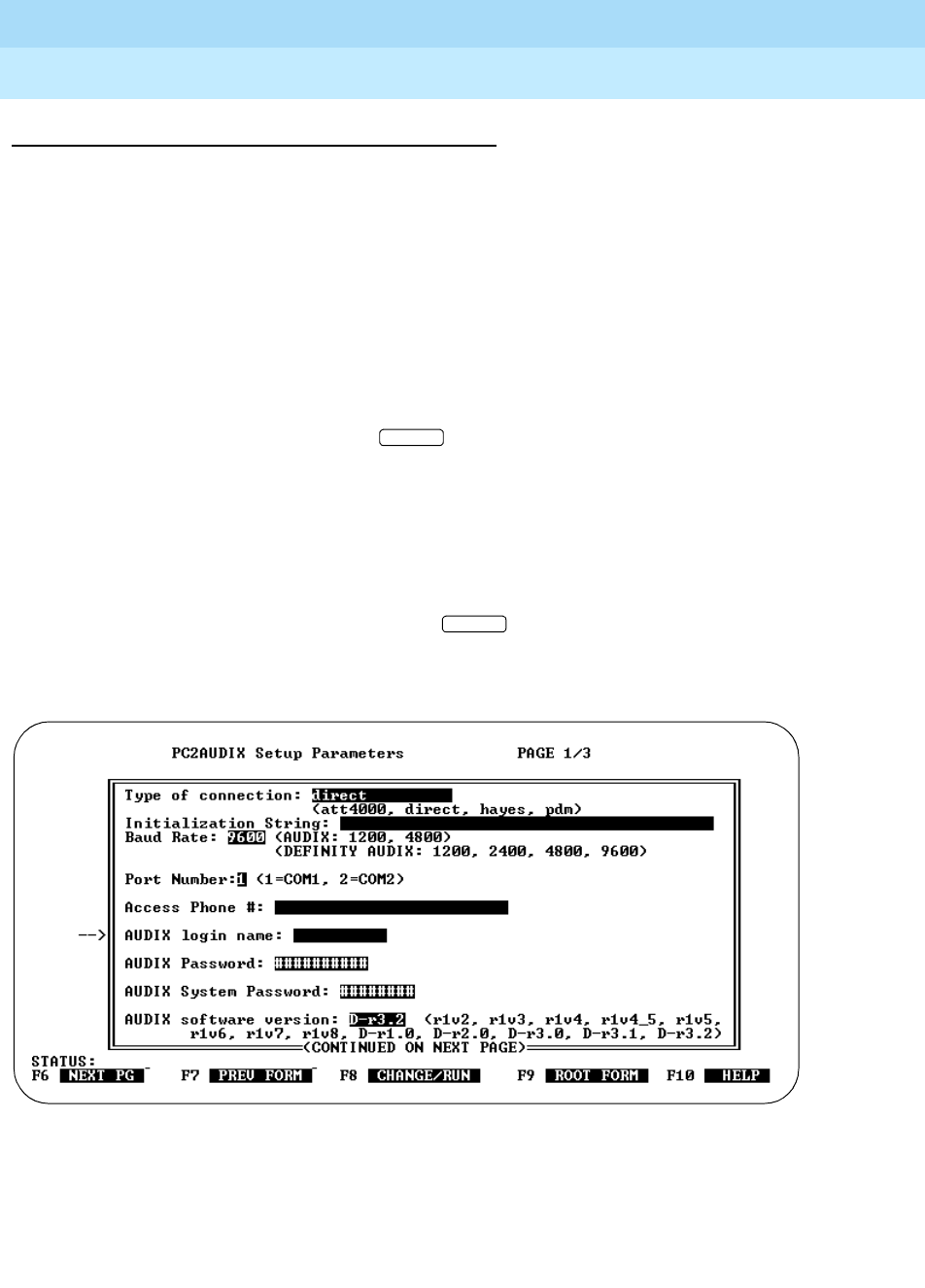

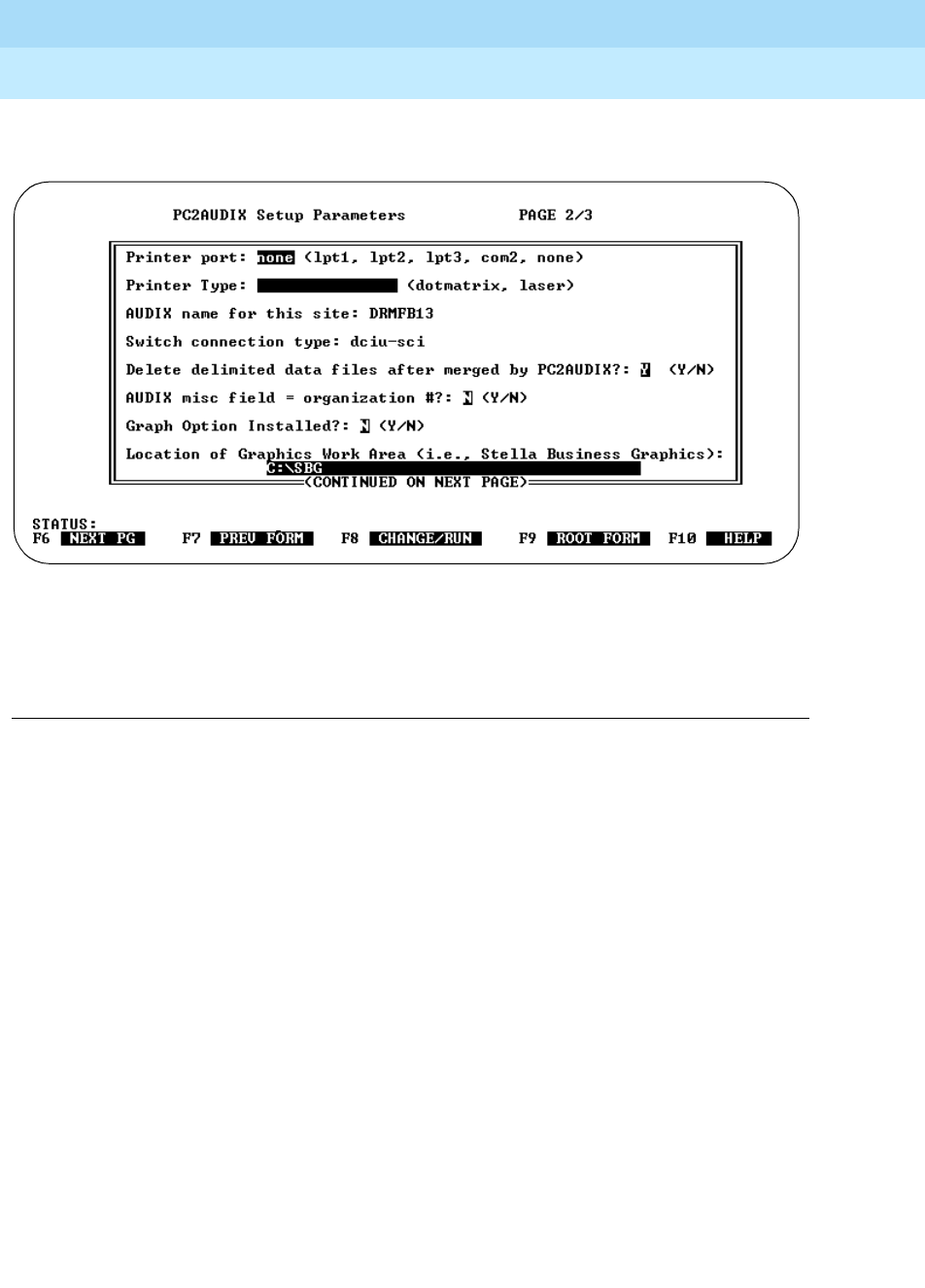

Establishing PC2AUDIX Setup Parameters 3-4
Establishing Setup Parameters for Call Detail
Recording (Optional) 3-9
Modifying PC2AUDIX Setup Parameters 3-11
Setting Up PC2AUDIX Interface in an
Existing Work Area 3-11
Starting the PC2AUDIX Interface 3-12
PC2AUDIX Root Menu Options 3-13
Using On-line Help Files 3-15
Directing PC2AUDIX Output 3-15
Redirecting Output to the Screen 3-15
Redirecting Output to a File 3-16
Using Graphical Output 3-16
Interrupting the PC2AUDIX Interface 3-16
Managing PC2AUDIX Data 3-17
Scheduling PC2AUDIX Processes 3-17
Deleting PC2AUDIX Data 3-17
Generating PC2AUDIX Reports 3-18
4 PC2AUDIX Data Retrieval 4-1
Overview 4-1
Prerequisites 4-2
Initiating PC2AUDIX Data Retrieval 4-4

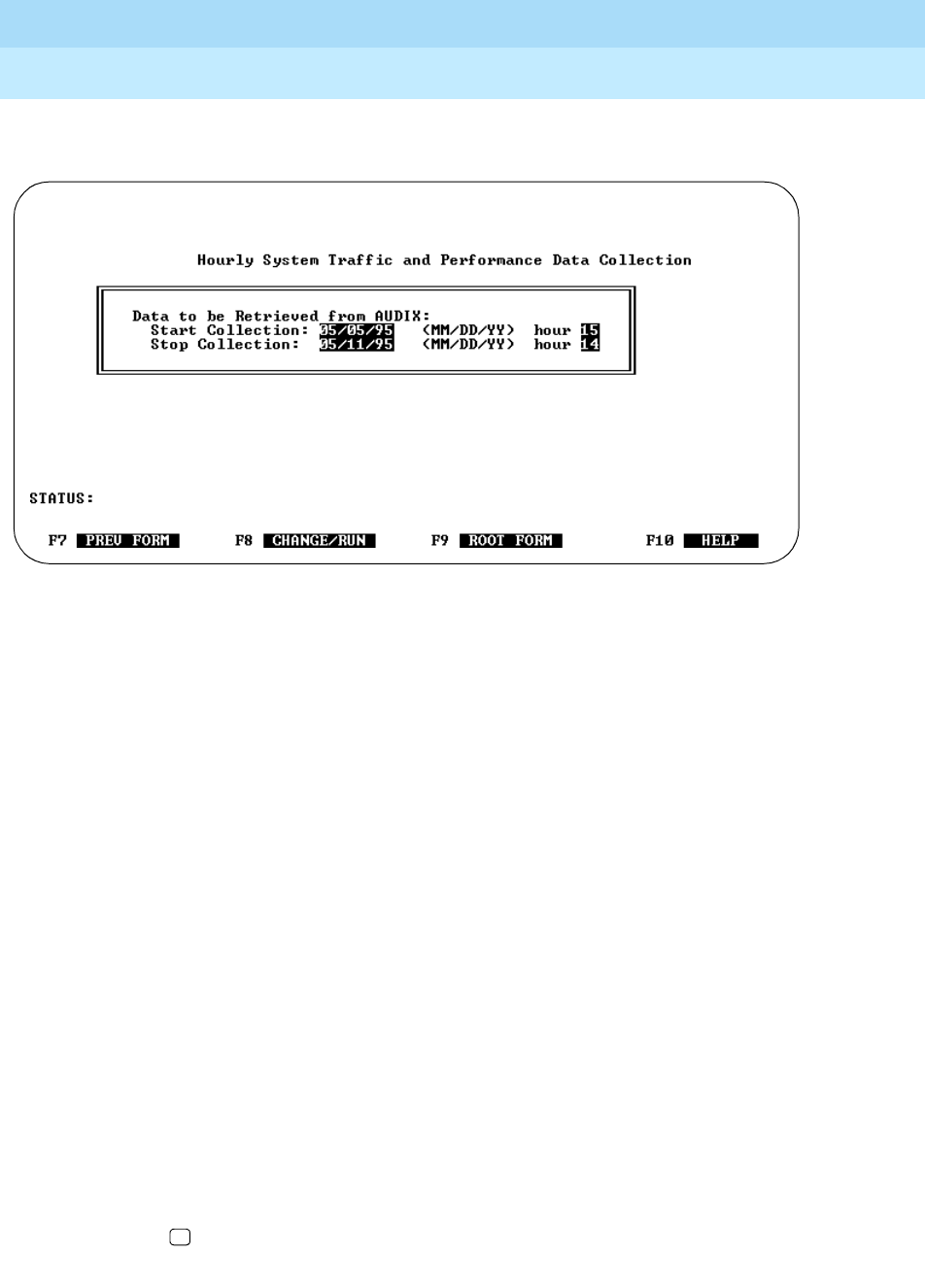

Hourly System Traffic Data Retrieval 4-5
Daily System Traffic Data Retrieval 4-6
Monthly System Traffic Data Retrieval 4-7
Monthly Subscriber Traffic Data Retrieval 4-8

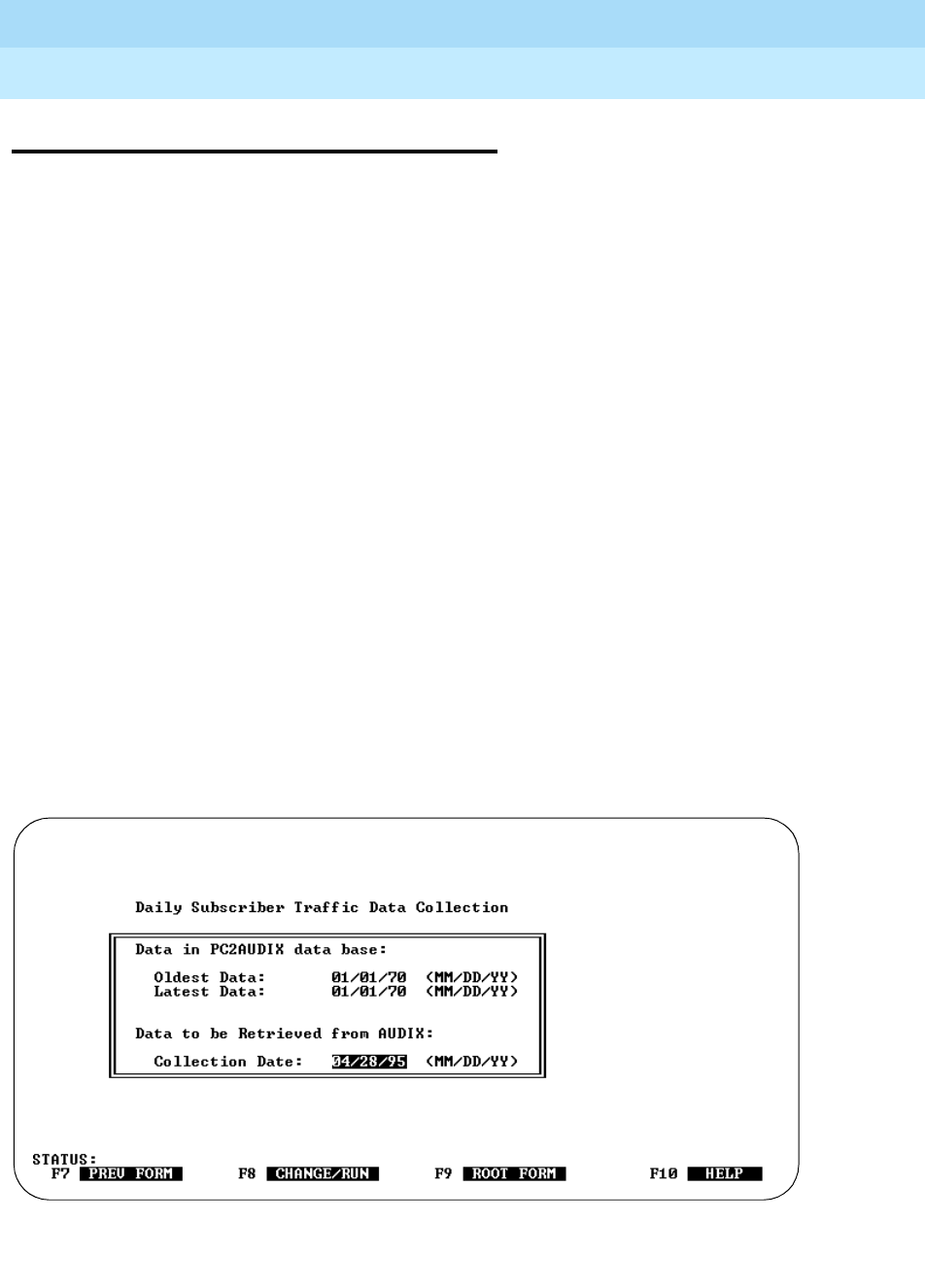

Daily Subscriber Traffic Data Retrieval 4-10
Local Subscriber Directory Verification 4-11

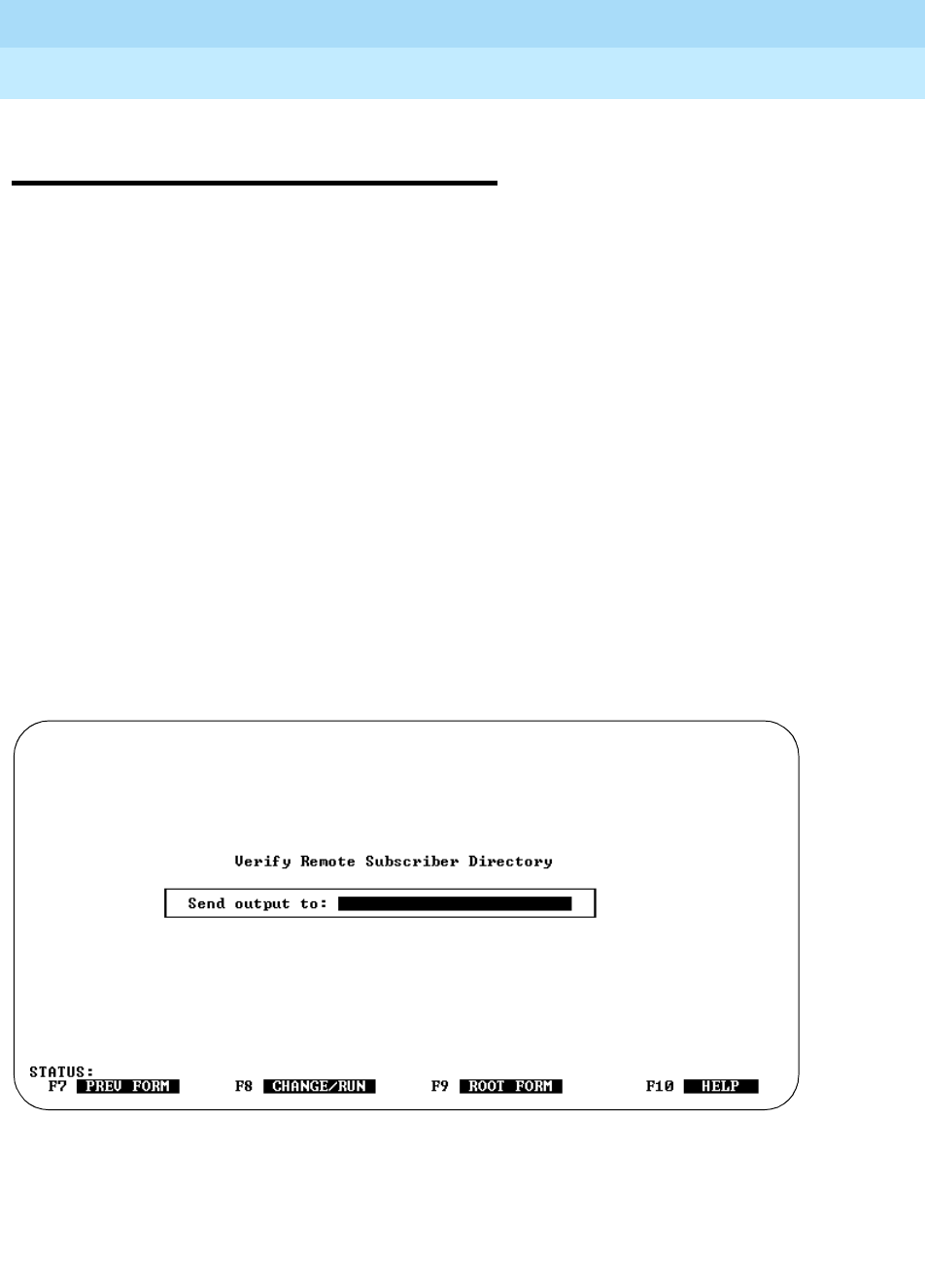

Remote Subscriber Directory Verification 4-13
Call Detail Recording (CDR) Data Retrieval 4-14
Performance Statistics Data Retrieval 4-15
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
v
5 PC2AUDIX Traffic Reports 5-1
Overview 5-1
Prerequisites 5-2
Producing Traffic Reports 5-2
Average Port Usage Report 5-3
Peak Port Usage Report 5-5
Hourly File System Usage Report 5-8

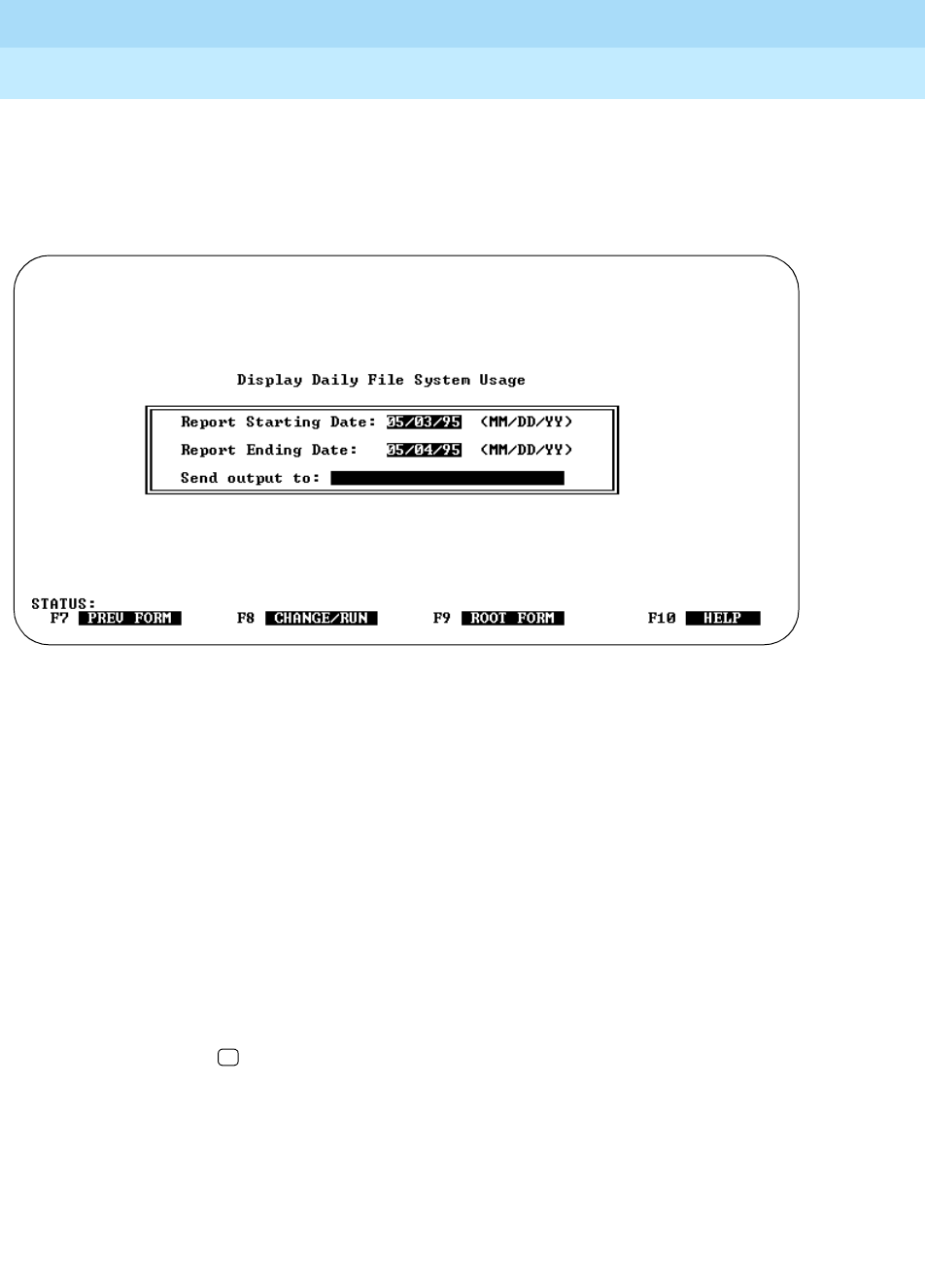

Daily File System Usage Report 5-10
Session Usage Traffic Report 5-12
Traffic Data Reports 5-14
View Hourly Feature Statistics 5-15
View Daily Feature Statistics 5-18
View Hourly Load Statistics 5-19

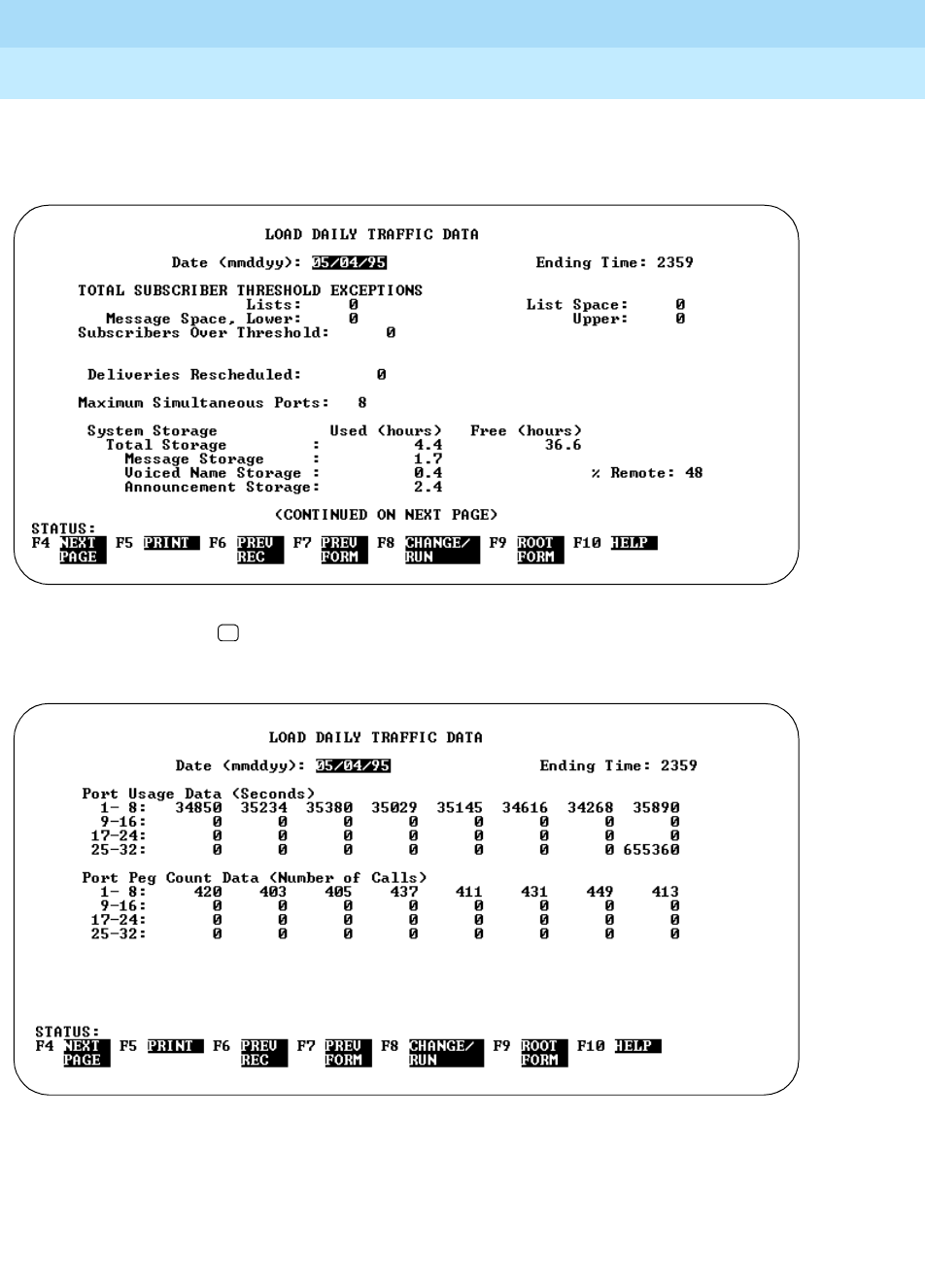

View Daily Load Statistics 5-21

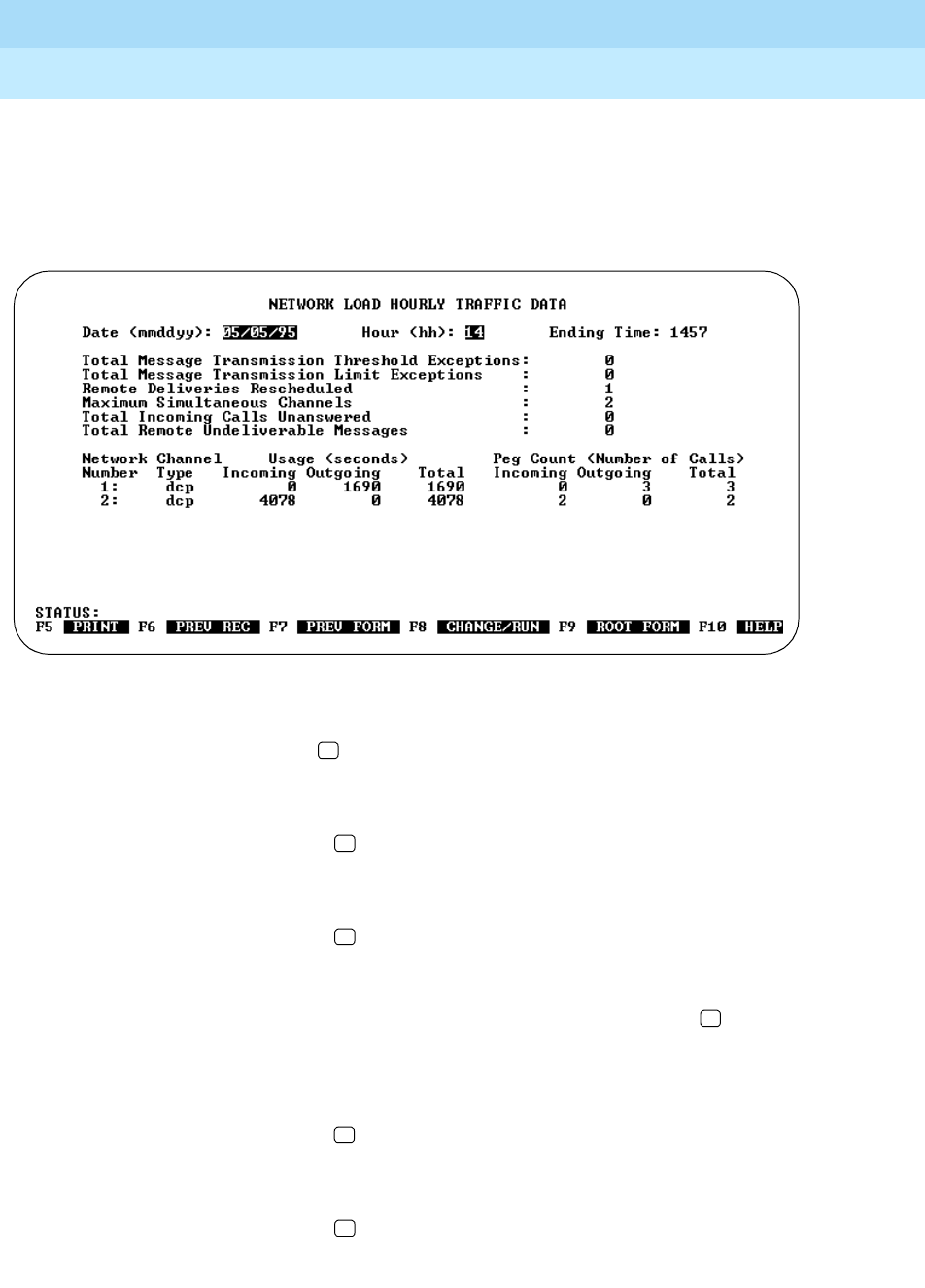

View Hourly Network Load Statistics 5-23
View Daily Network Load Statistics 5-25

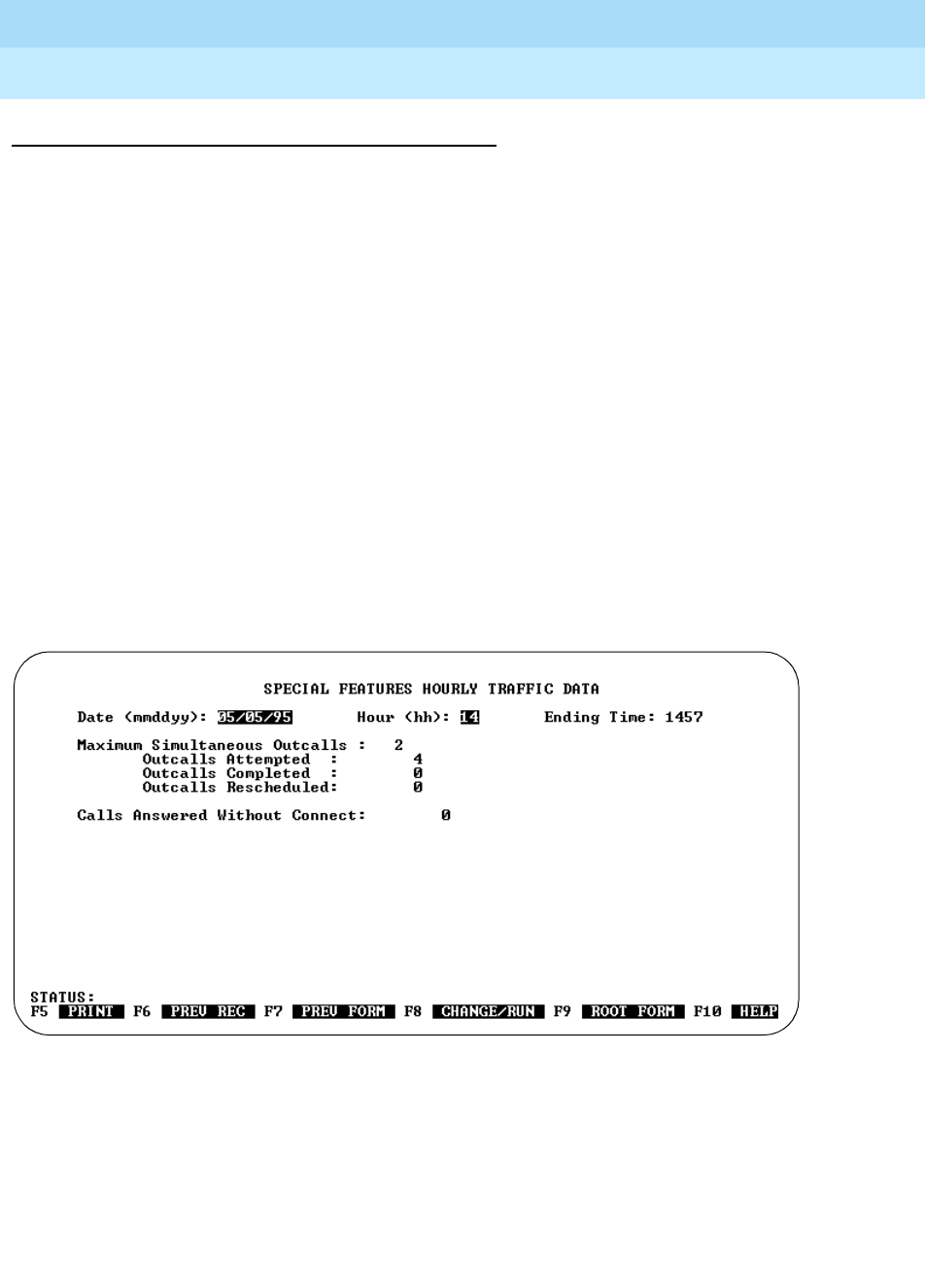

View Hourly Special Feature Statistics 5-26
View Daily Special Feature Statistics 5-27
View Hourly Community Statistics 5-28

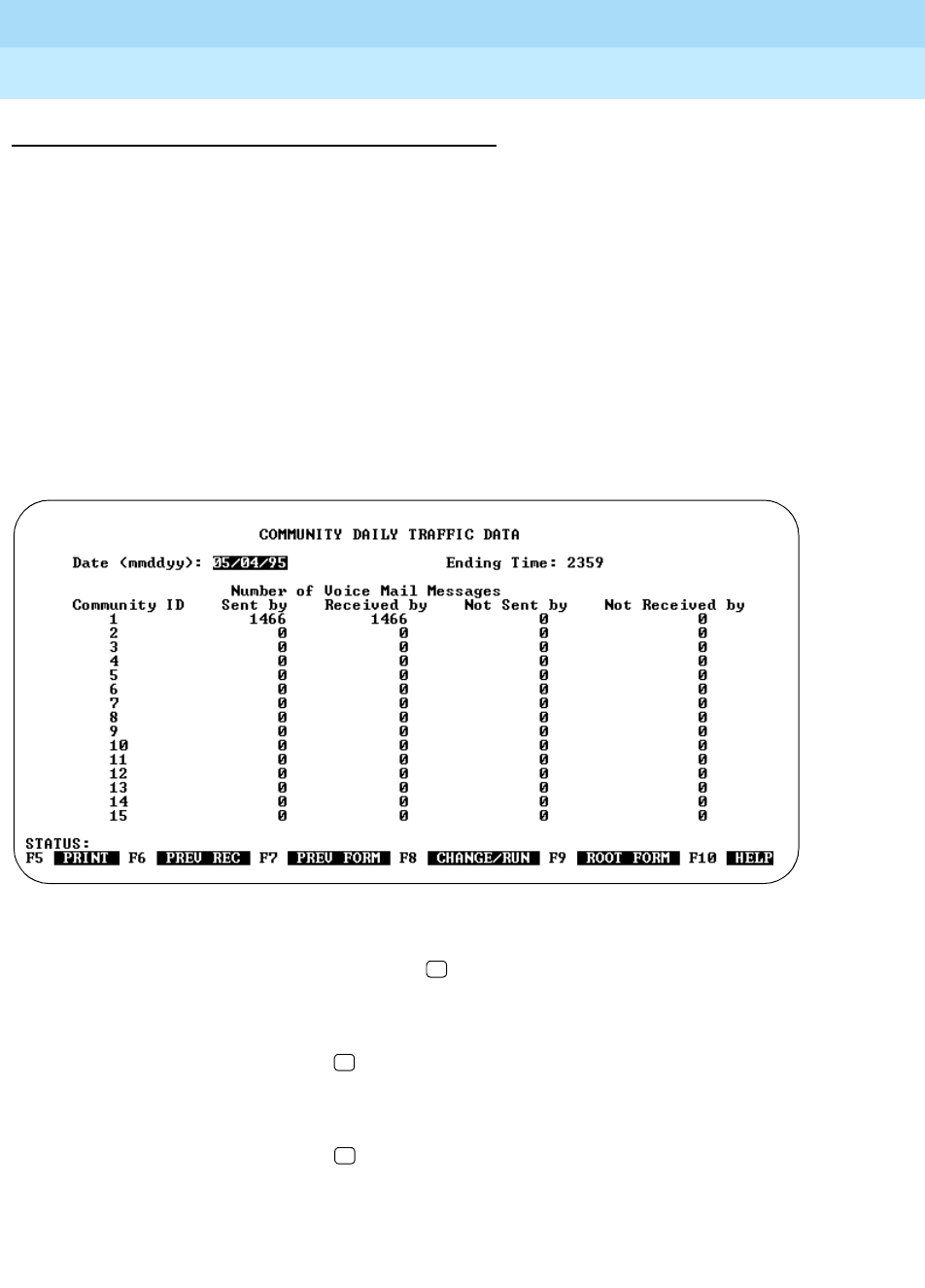

View Daily Community Statistics 5-30

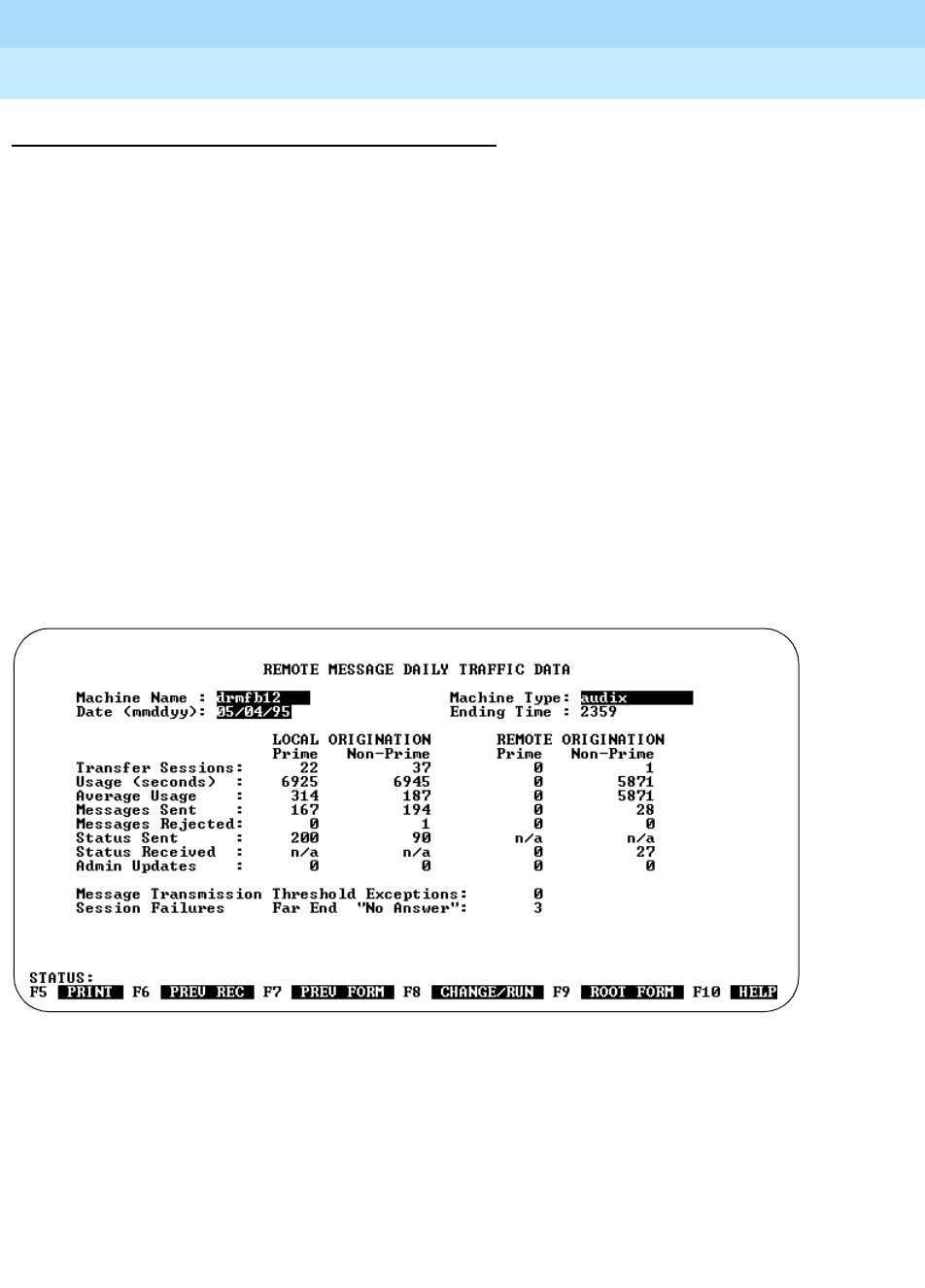

View Daily Remote Message Statistics 5-31
View Monthly Remote Message Statistics 5-32
View Daily Subscriber Statistics 5-34
View Monthly Subscriber Statistics 5-36
Remote Traffic Report 5-39

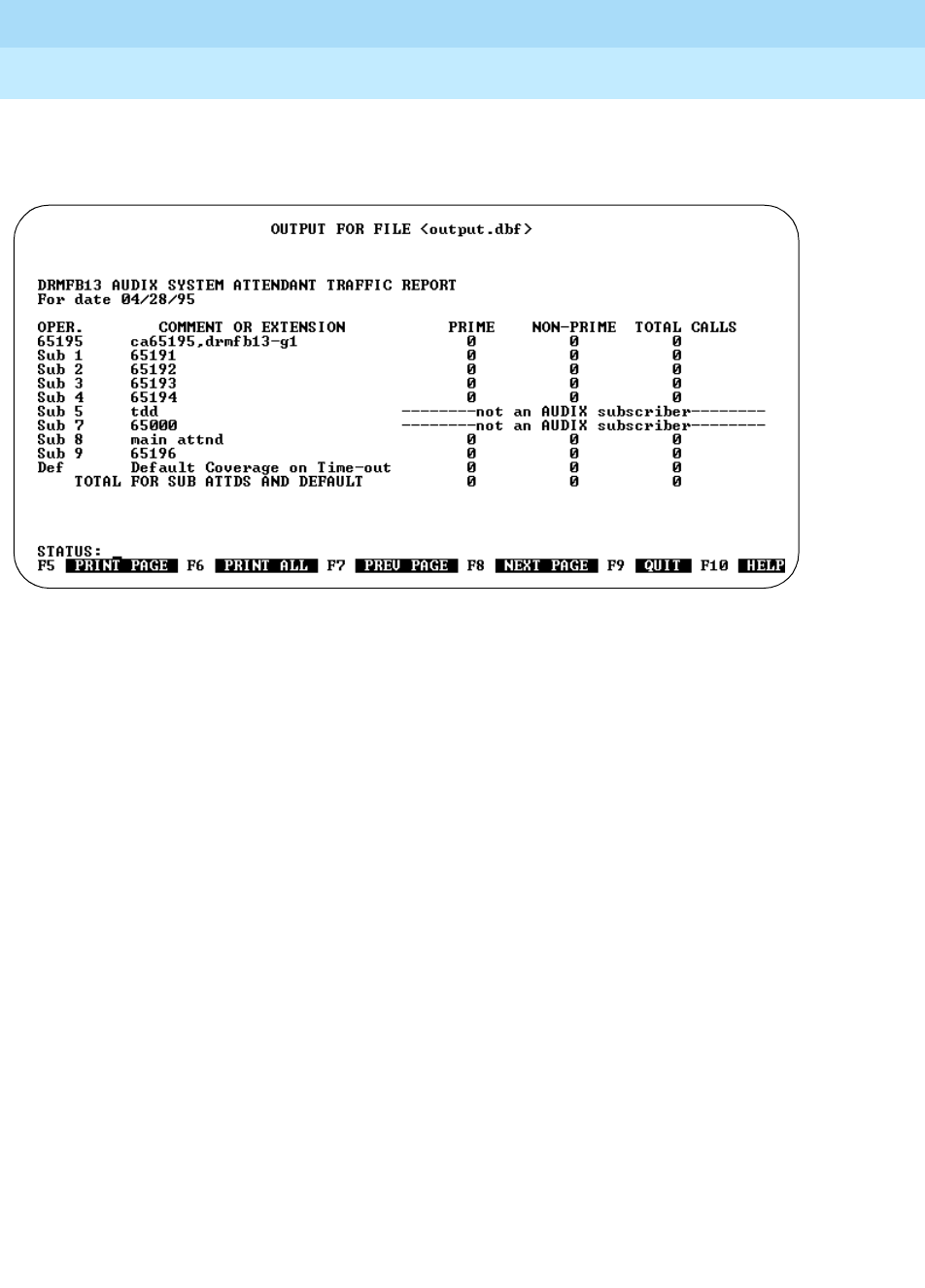

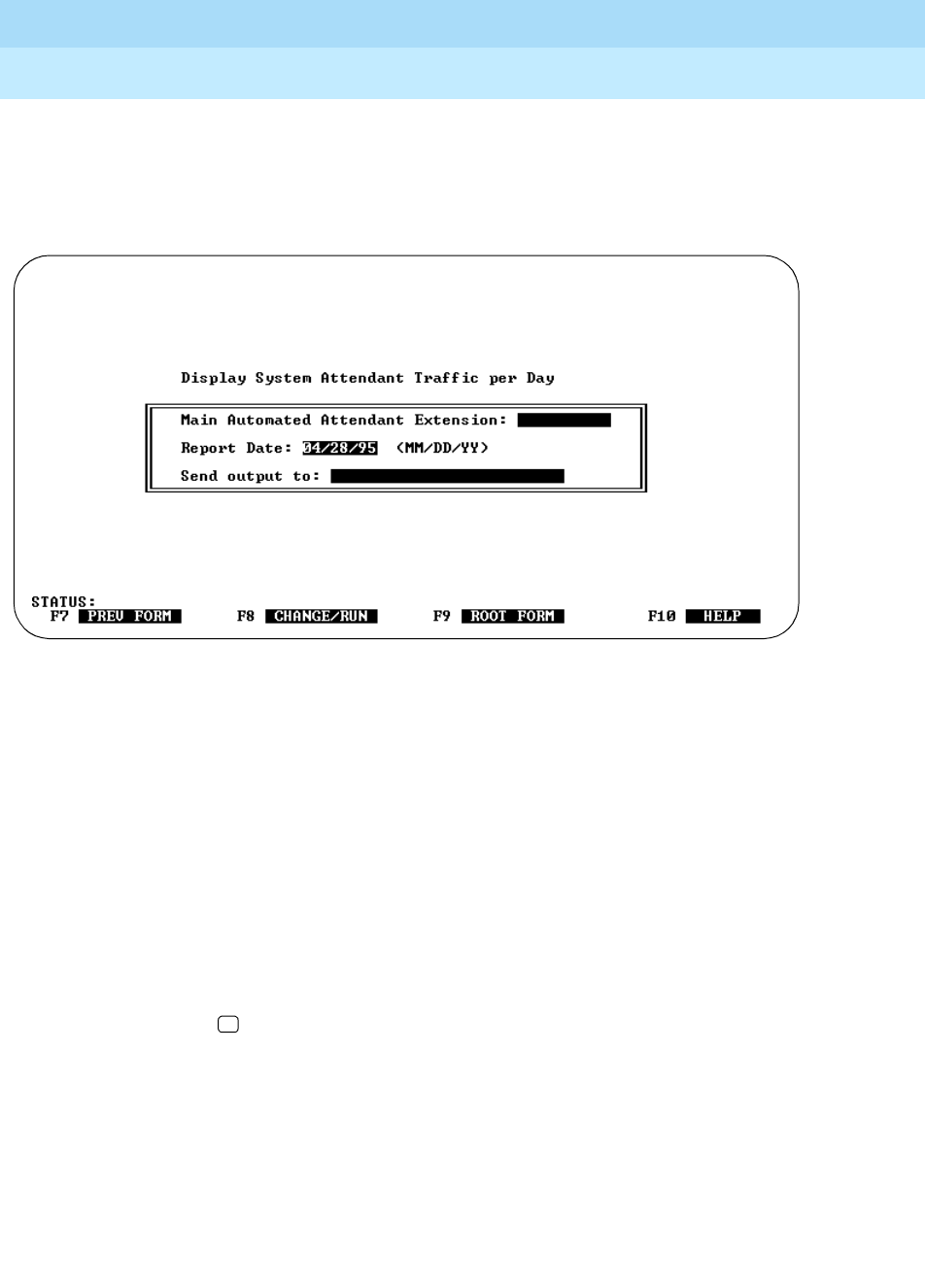

Daily System Attendant Traffic Report 5-41
Monthly System Attendant Traffic Report 5-44
6 PC2AUDIX Billing Reports 6-1
Overview 6-1
Organization Codes 6-2
Prerequisites 6-2
Starting the Billing Process 6-2
Define Price Breakdown 6-3
Monthly Bill Calculation 6-7
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
vi
Generate Billing Reports 6-8

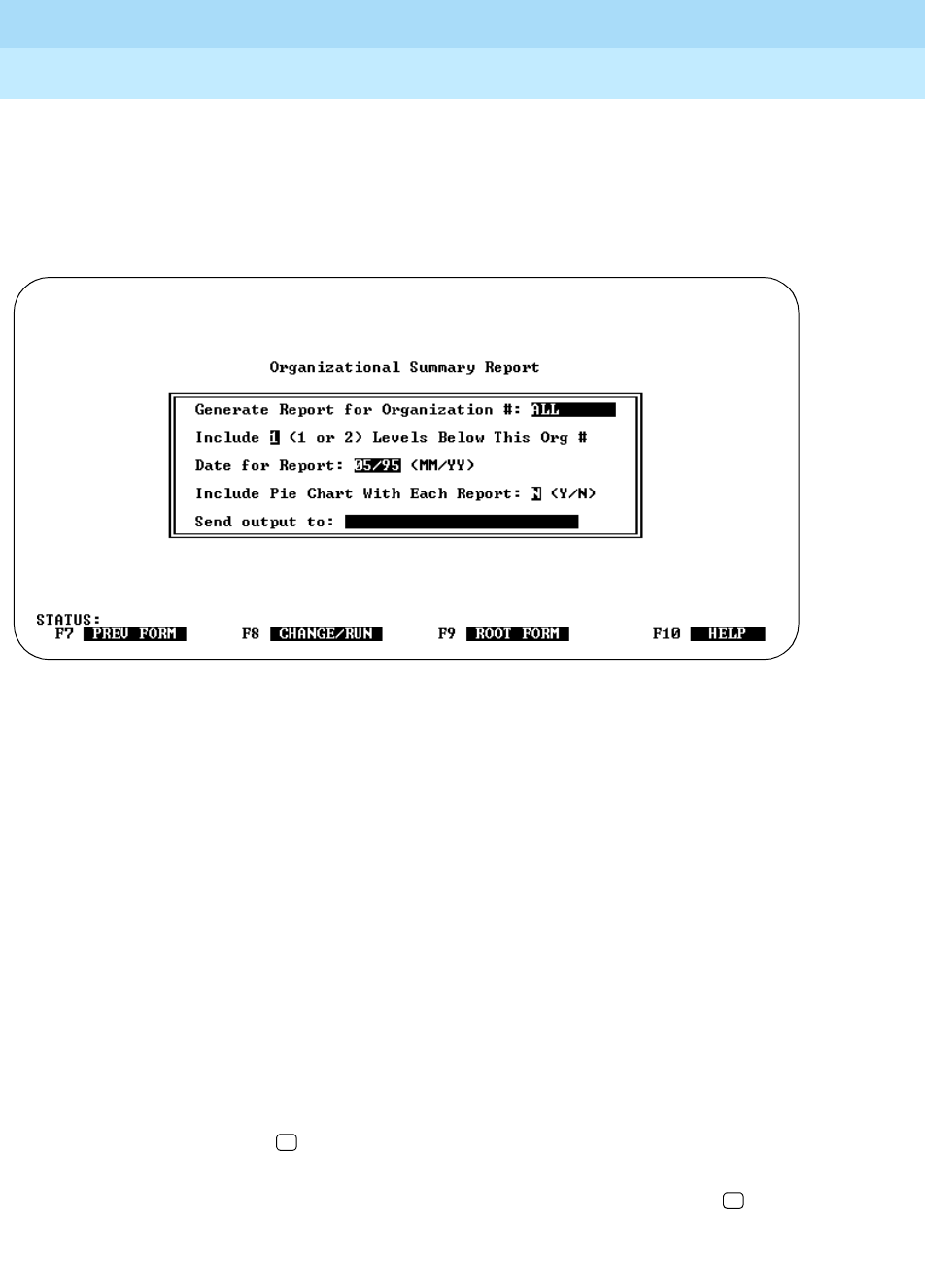

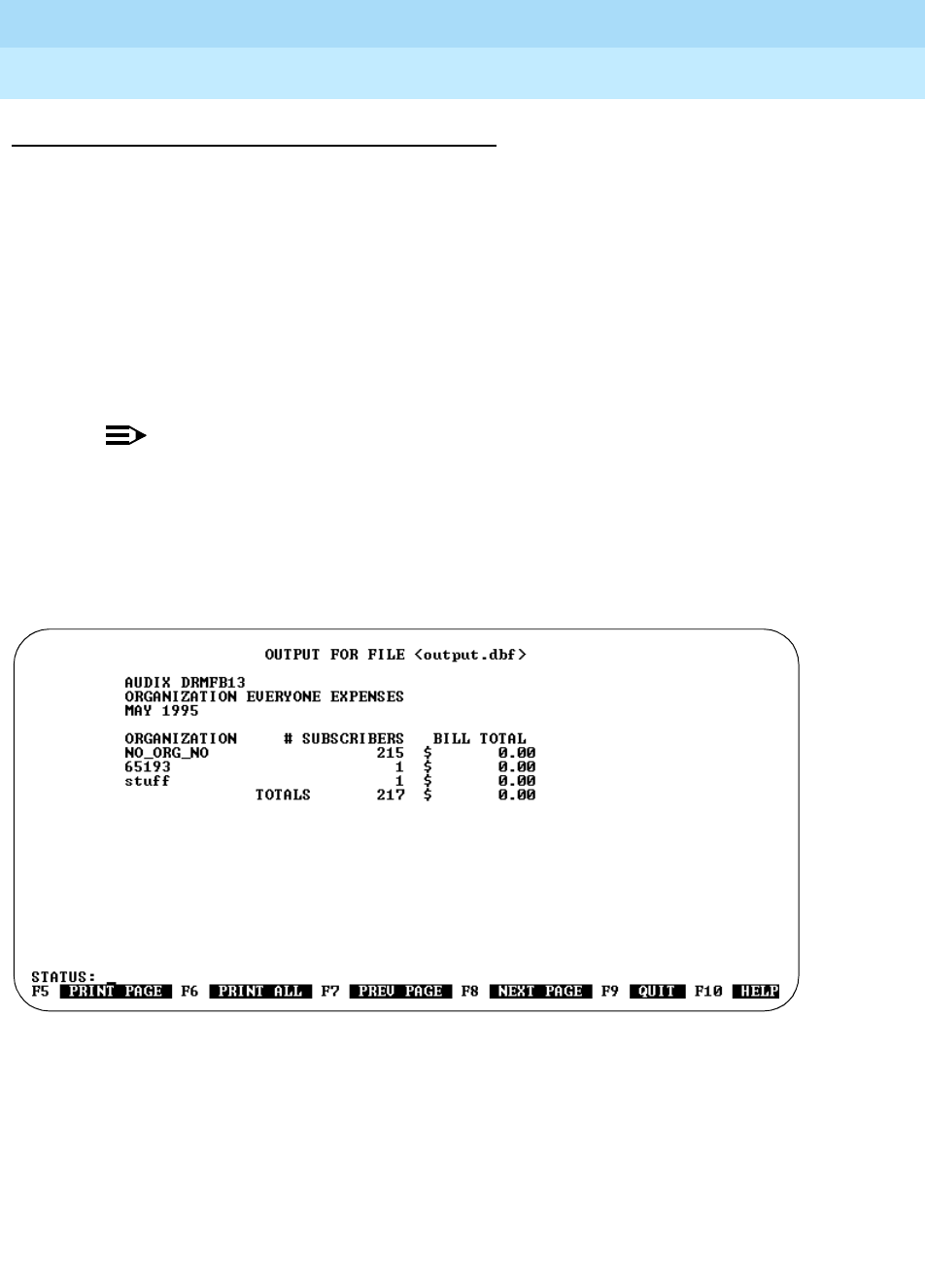

Generate Organizational Summary Report 6-9

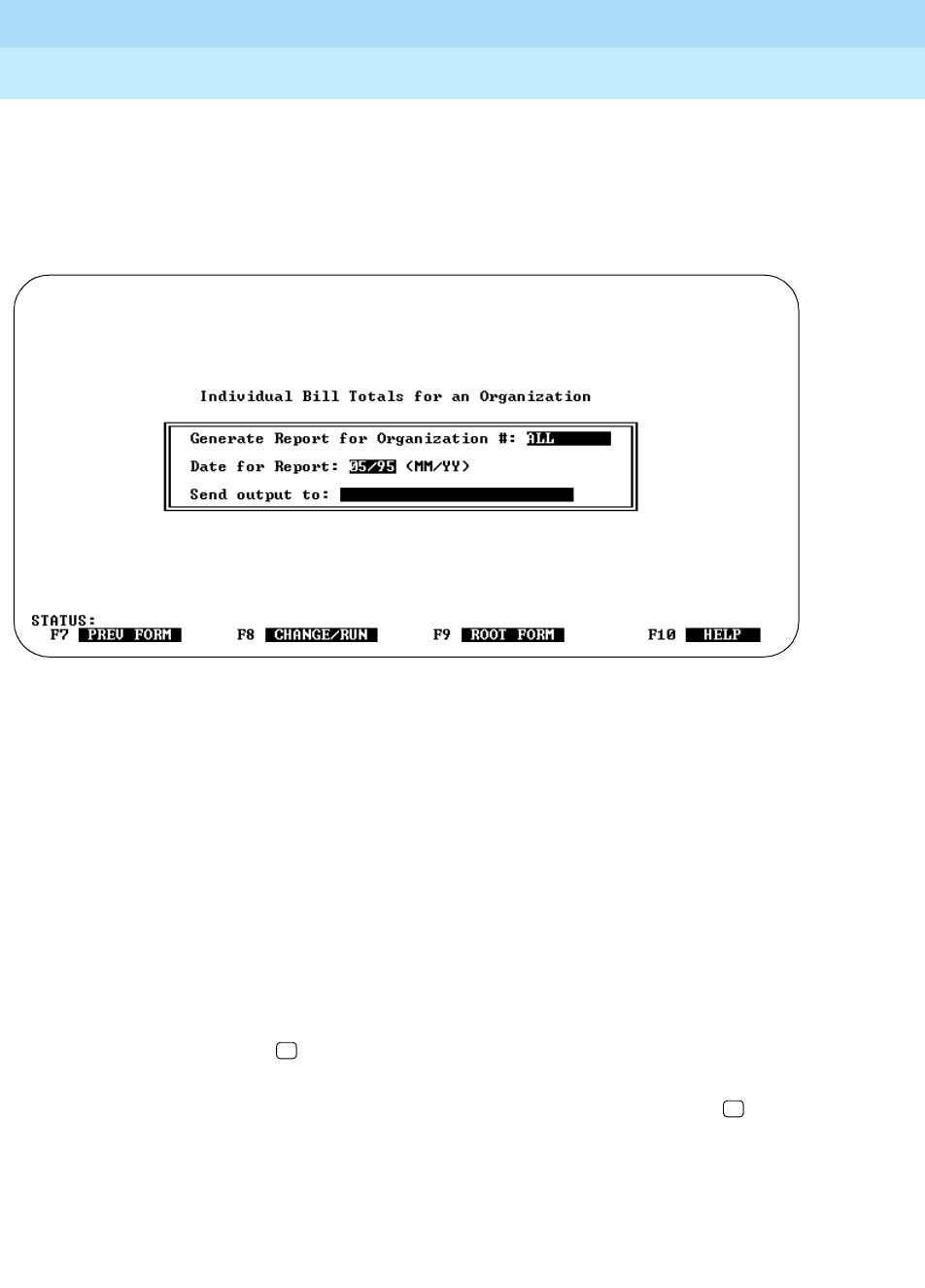

Generate Individual Bill Totals for an
Organization 6-11

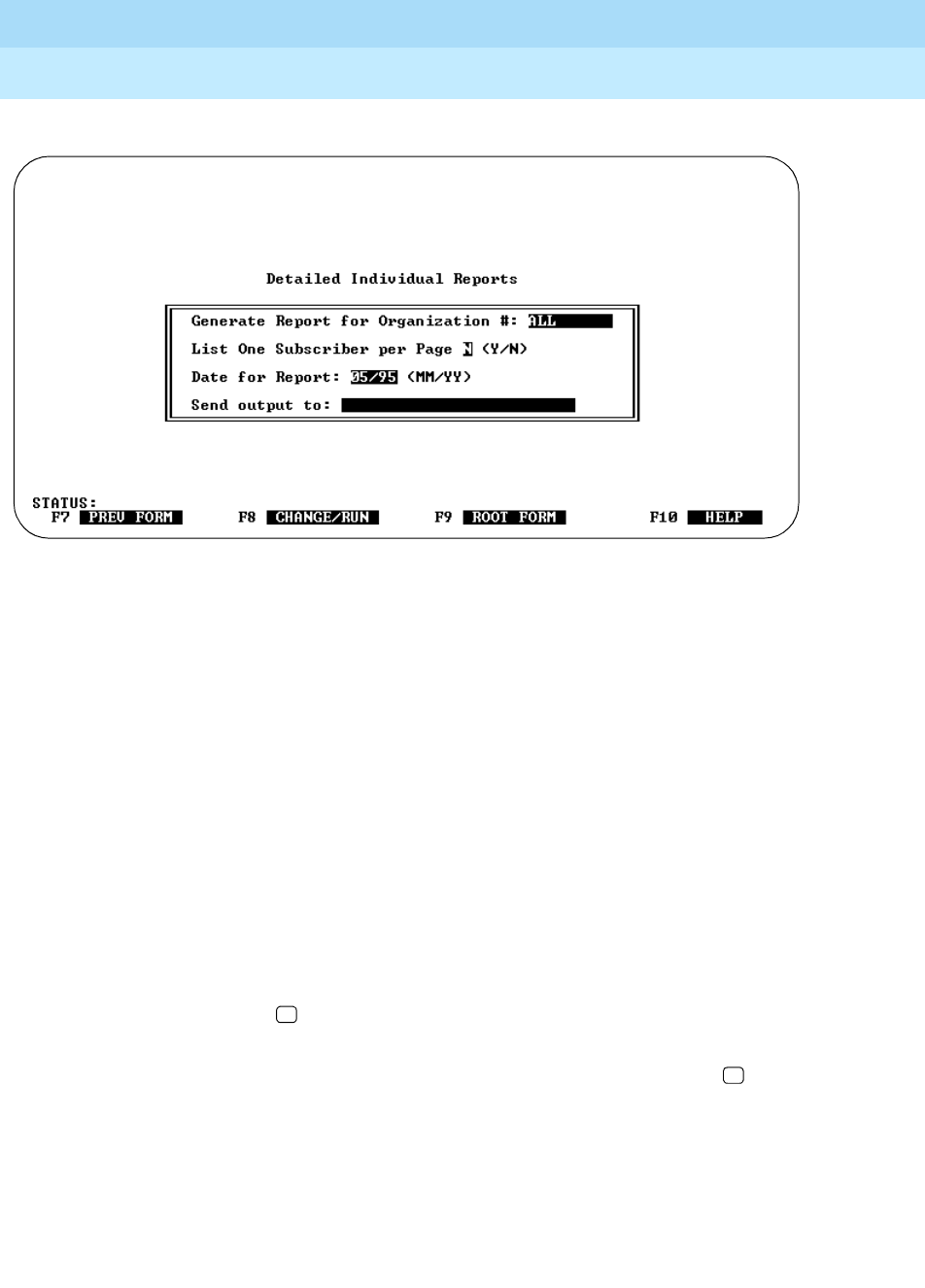

Generate Detailed Individual Report by
Organization 6-13
Generate Detailed Individual Report by
Subscriber Name 6-15
7 PC2AUDIX Database Searches 7-1
Overview 7-1
Initiating PC2AUDIX Database Searches 7-2
List Subscribers with Bills Over Specified Amount 7-3
List Subscribers with Usage Over/
Under Specified Limits 7-5

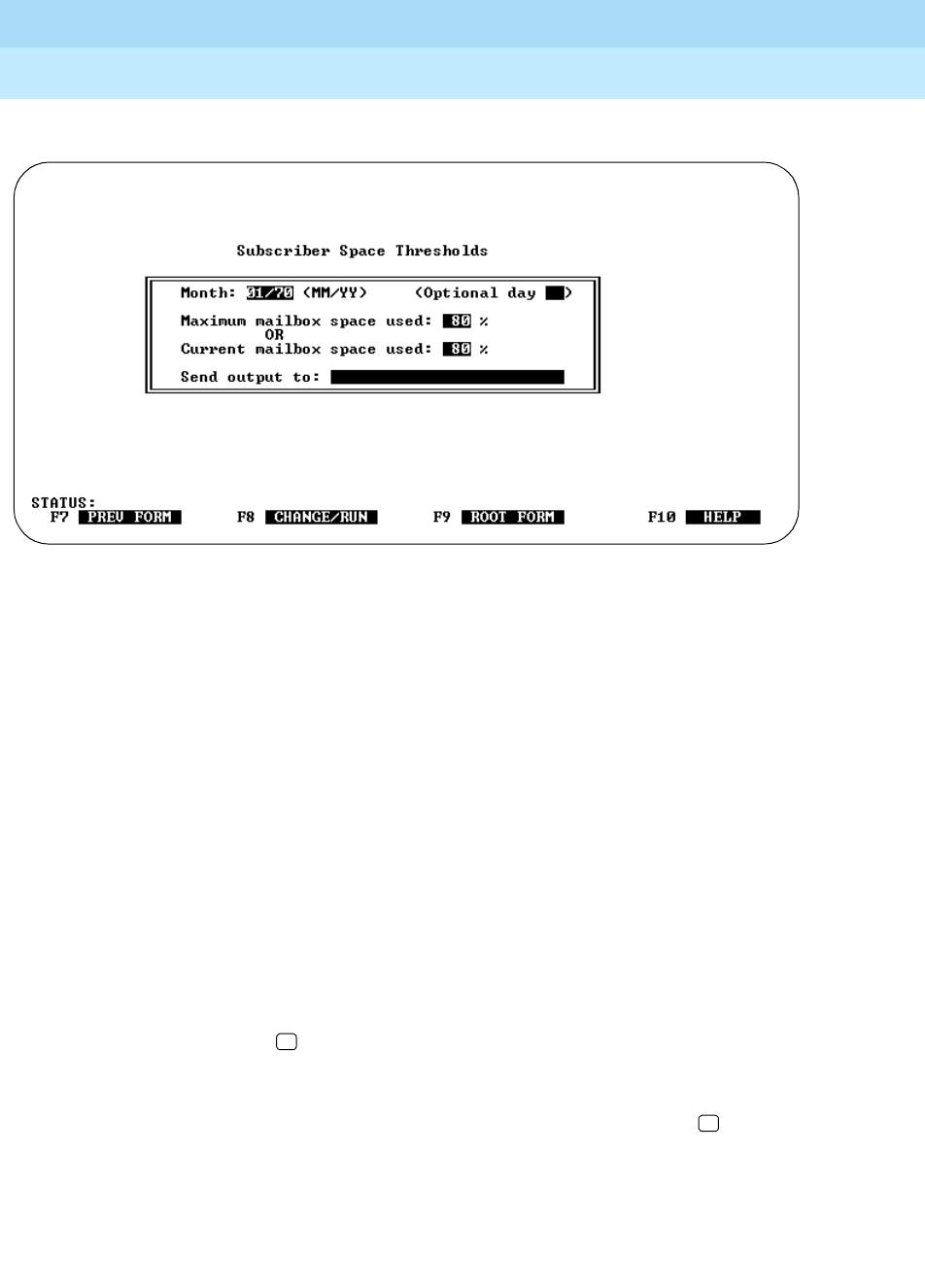

List Subscriber Space Threshold Exceptions 7-7
8 Scheduling PC2AUDIX Data Retrieval 8-1
Overview 8-1
Scheduling Events 8-2
Scheduling Call Detail Recording
(CDR) Data Retrieval 8-8
Displaying and Editing Scheduled Events 8-9
Displaying the Scheduled Event Log 8-11
9 PC2AUDIX Site Specific Data 9-1
Overview 9-1
Selecting Site Specific Data Options 9-2

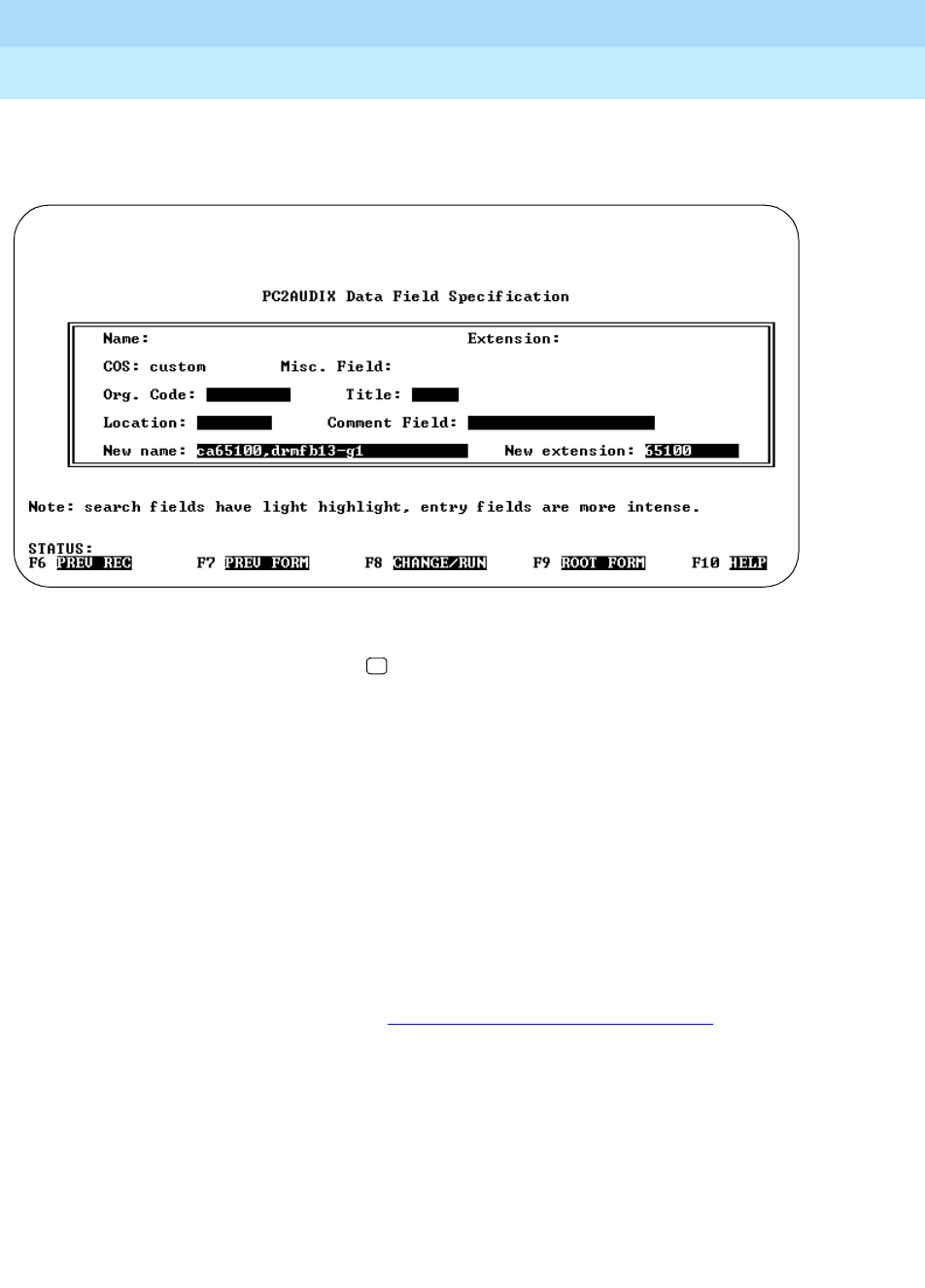

Display/Update Information for Local Subscribers 9-2
List All Fields for All Local Subscribers 9-4
Display Information for Remote Subscribers 9-6

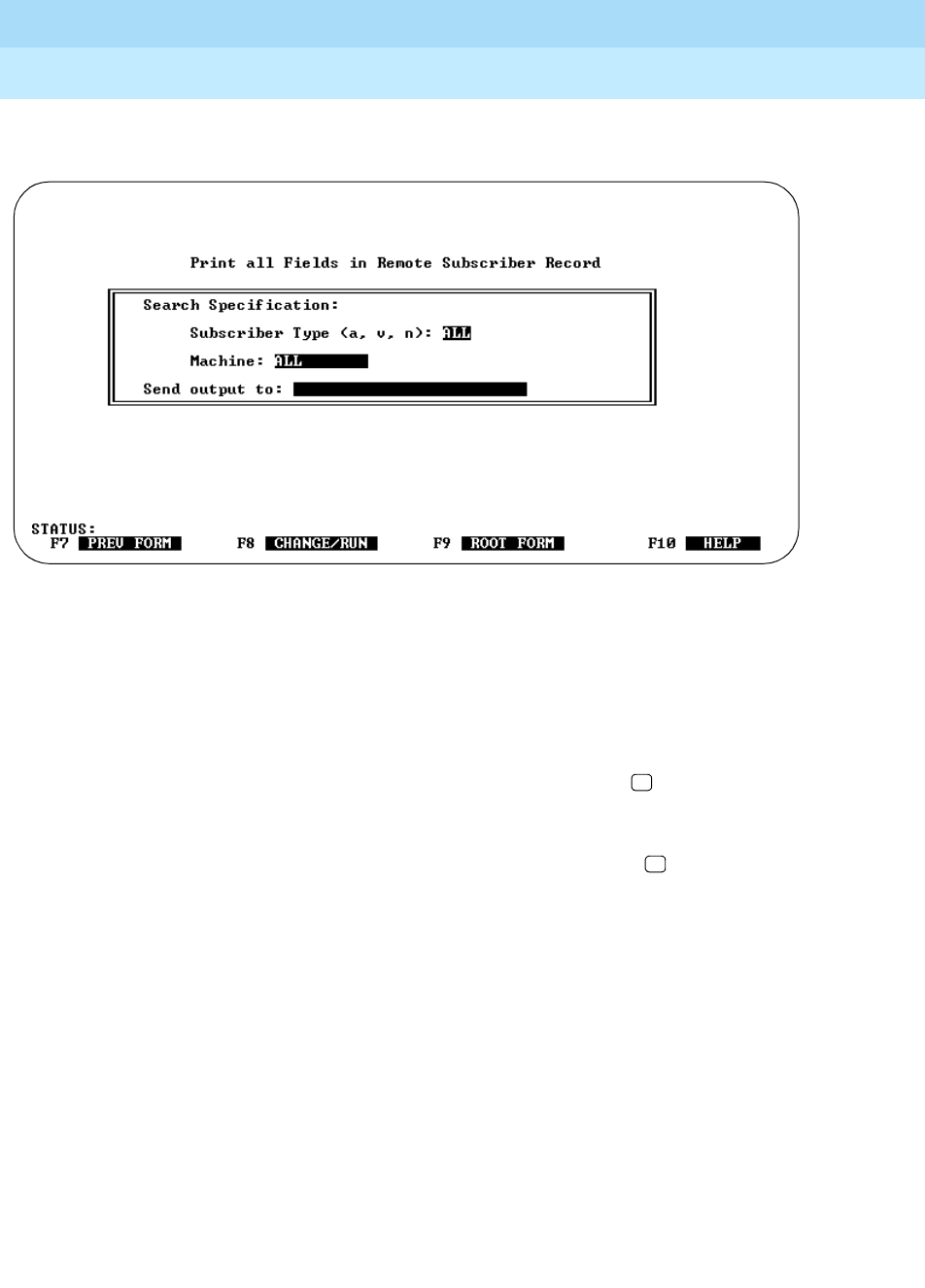

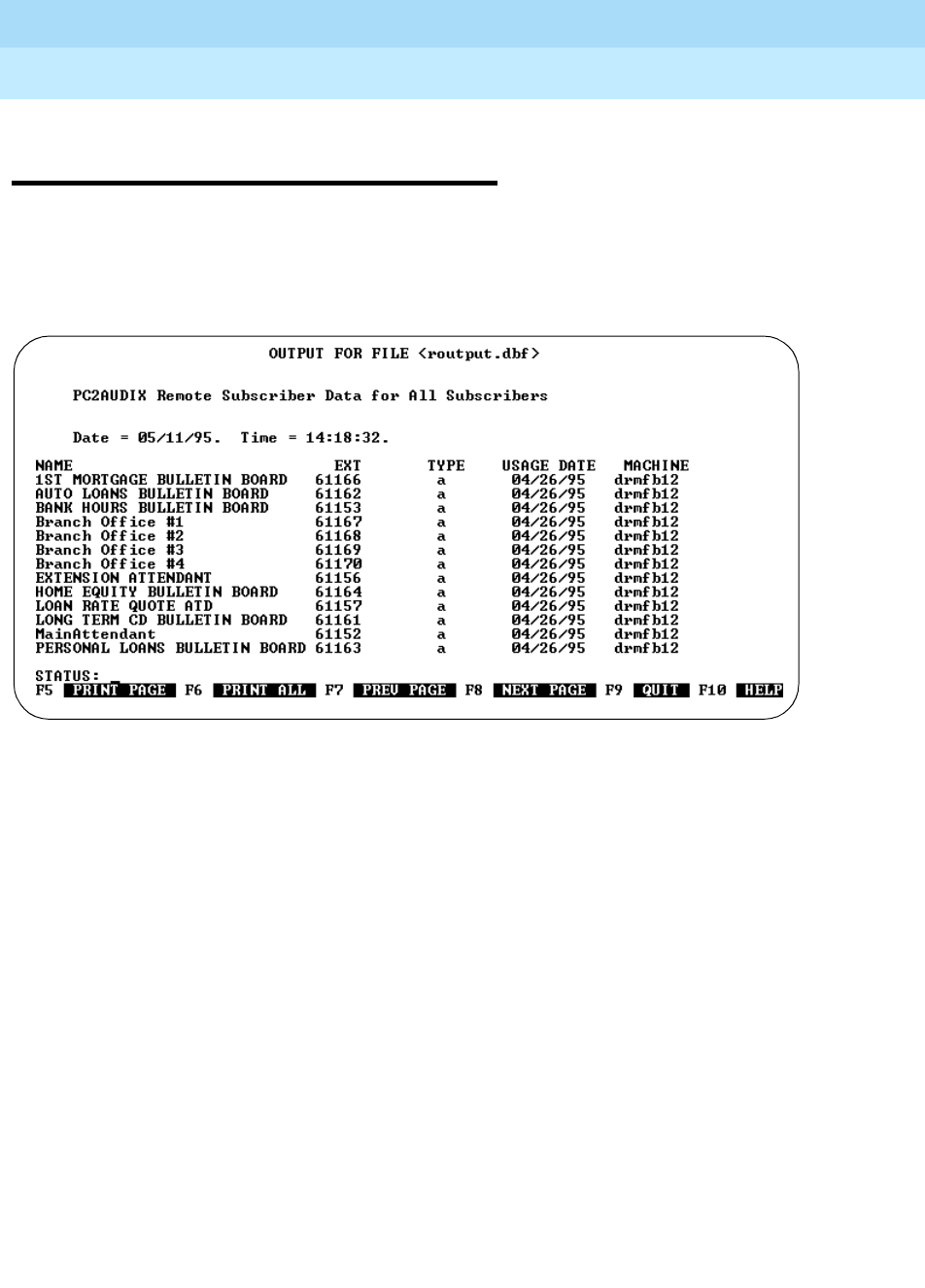

List All Fields for All Remote Subscribers 9-7
10 PC2AUDIX Database Management Tools 10-1
Overview 10-1
File Naming Conventions 10-2
Initiating Data Management Functions 10-2
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
vii

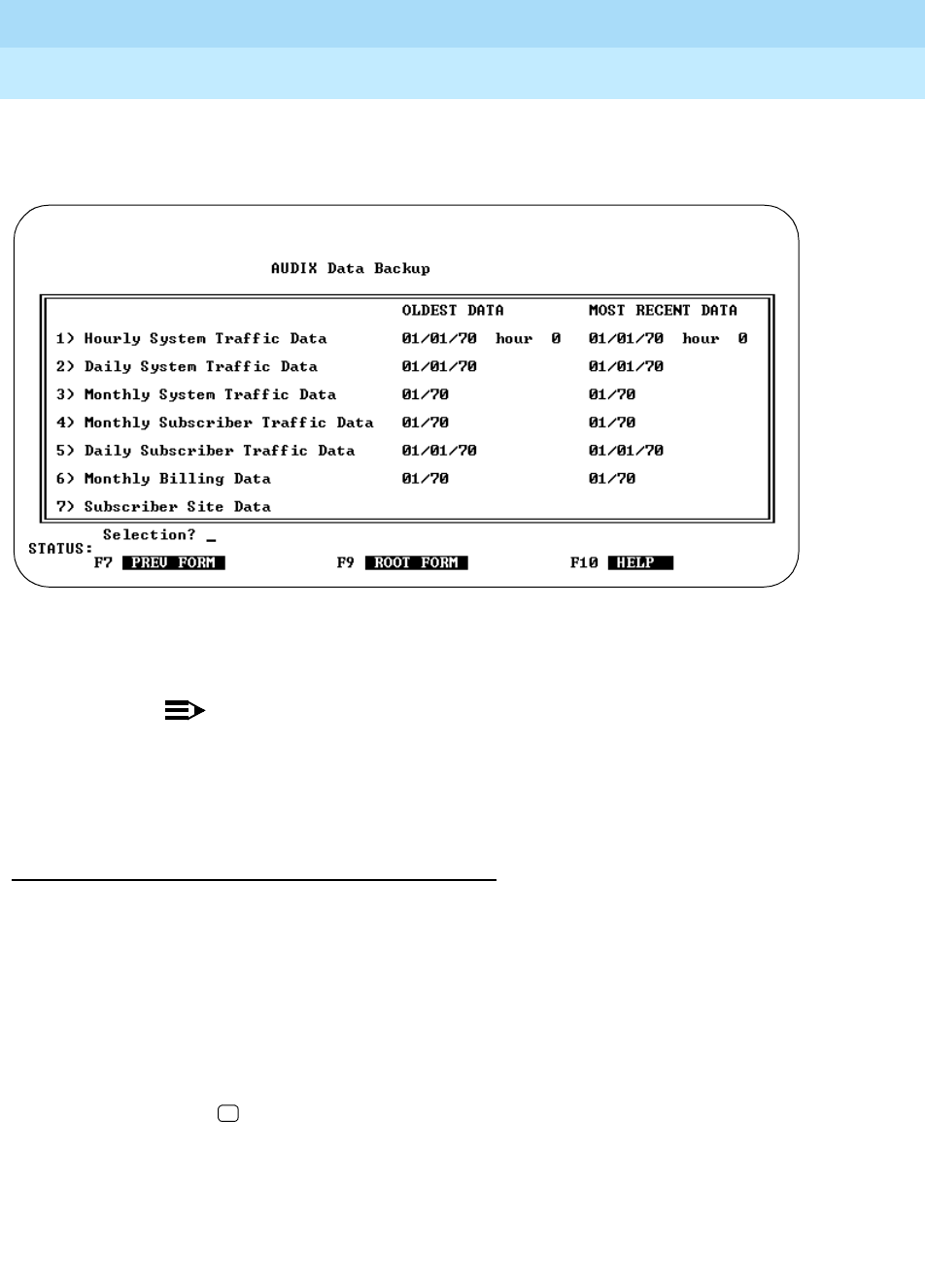

Backing Up Retrieved Data 10-3
Back Up Hourly System Traffic Data 10-4
Back Up Daily System Traffic Data 10-5
Back Up Monthly System Traffic Data 10-6

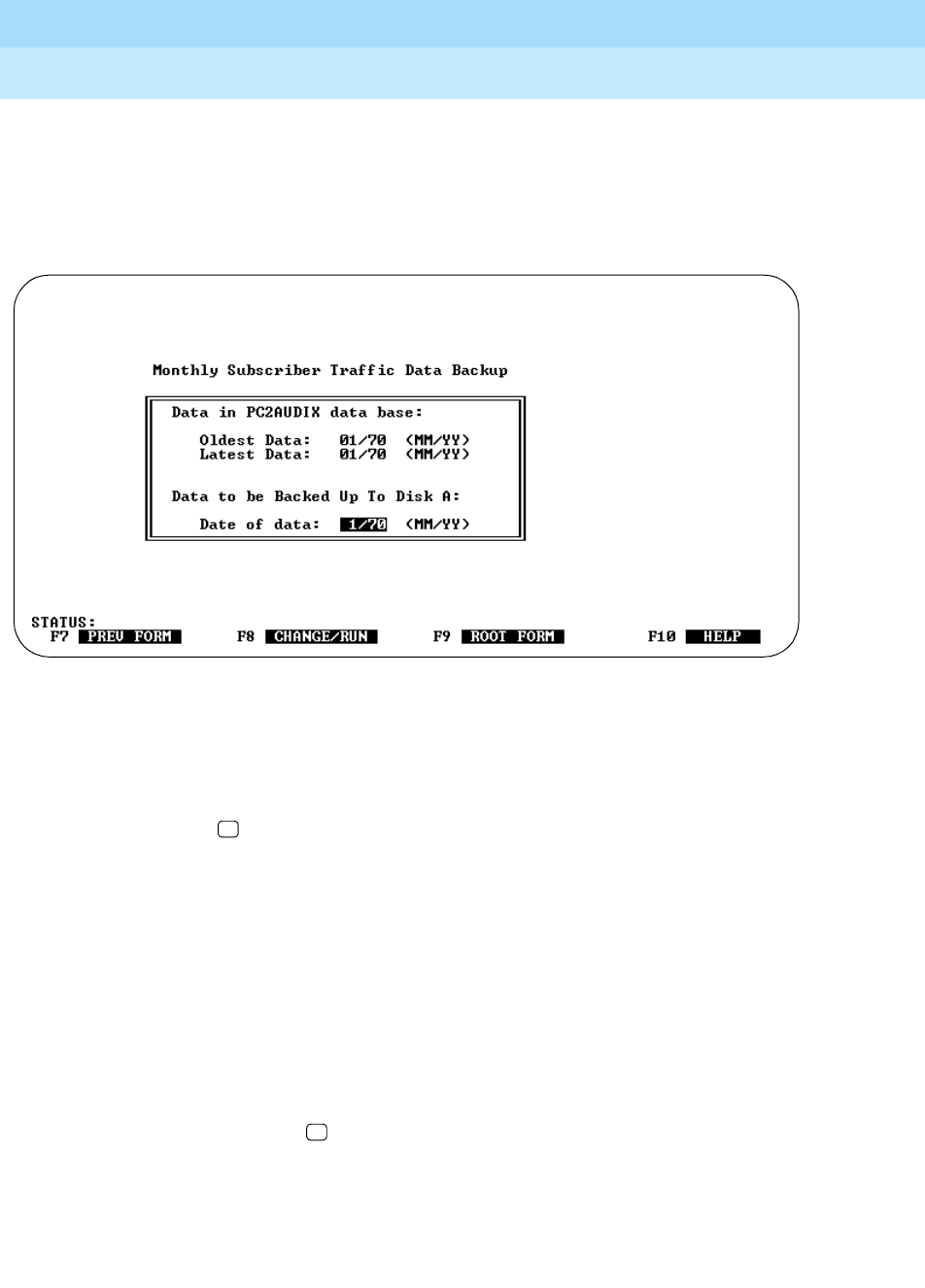

Back Up Monthly Subscriber Traffic Data 10-6
Back Up Daily Subscriber Traffic Data 10-8
Back Up Monthly Billing Data 10-9
Back Up Subscriber Site Data 10-10
Deleting Retrieved Data 10-11
Delete Hourly System Traffic Data 10-12

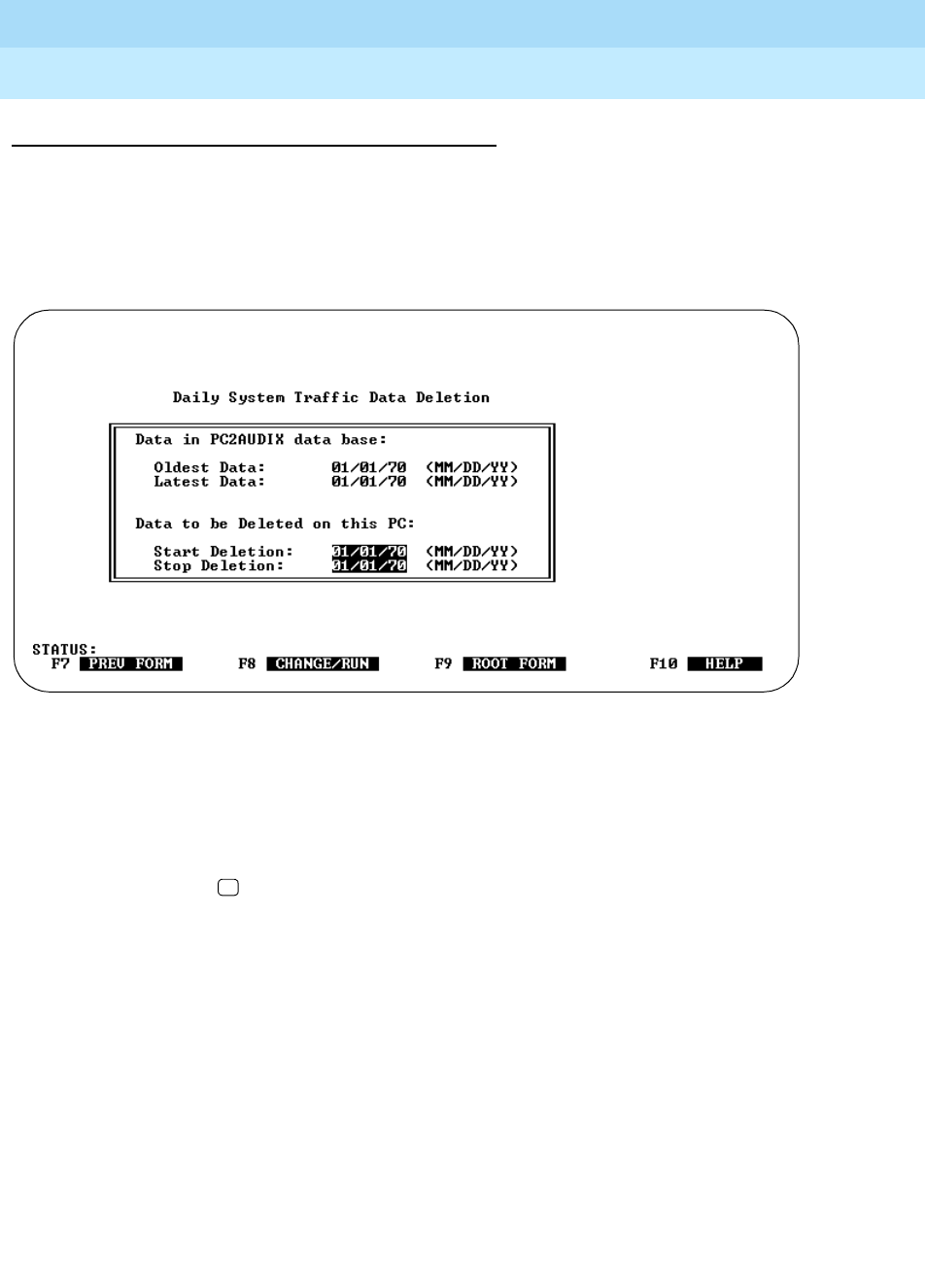

Delete Daily System Traffic Data 10-13
Delete Monthly System Traffic Data 10-14

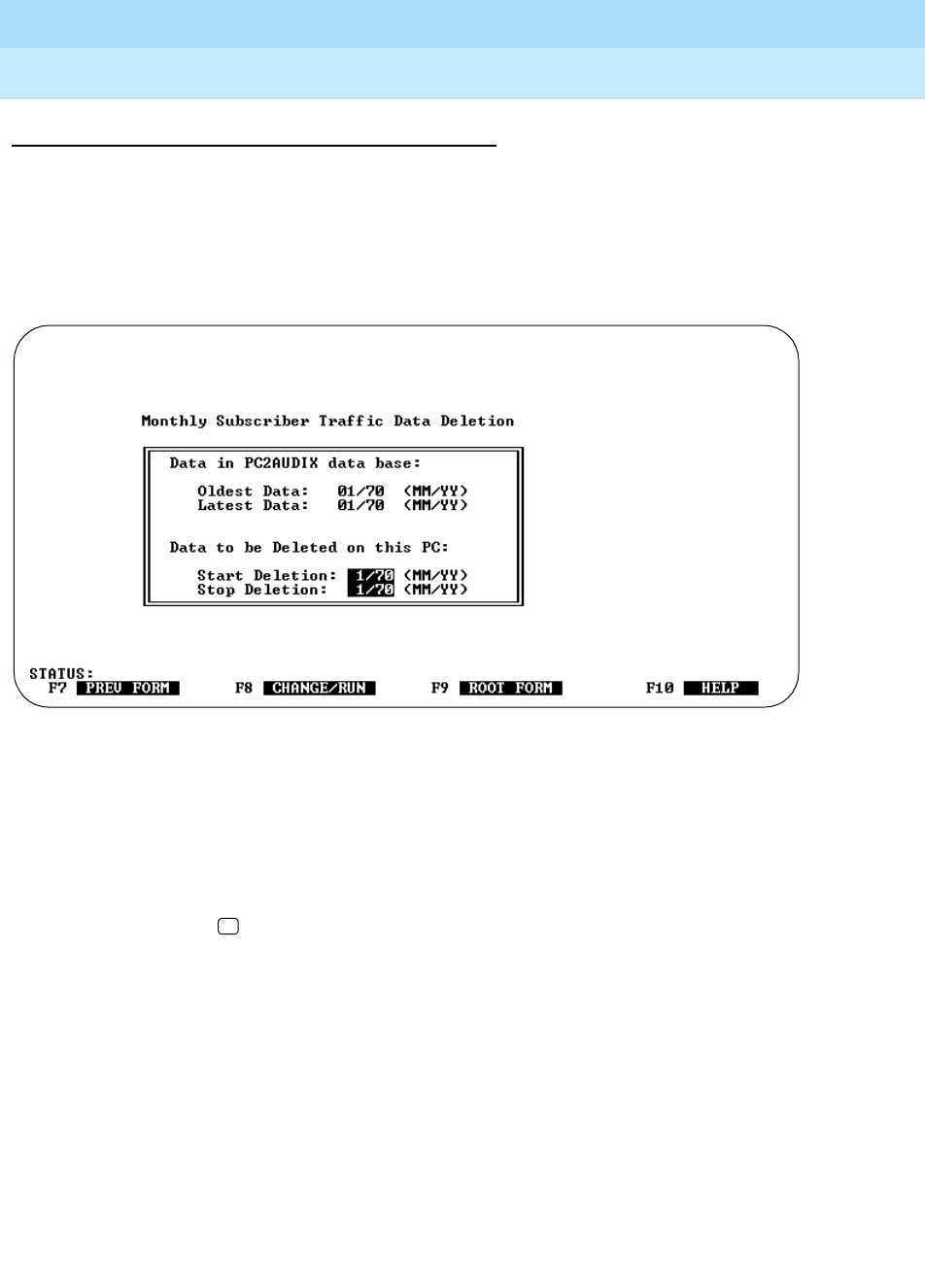

Delete Monthly Subscriber Traffic Data 10-15
Delete Daily Subscriber Traffic Data 10-16

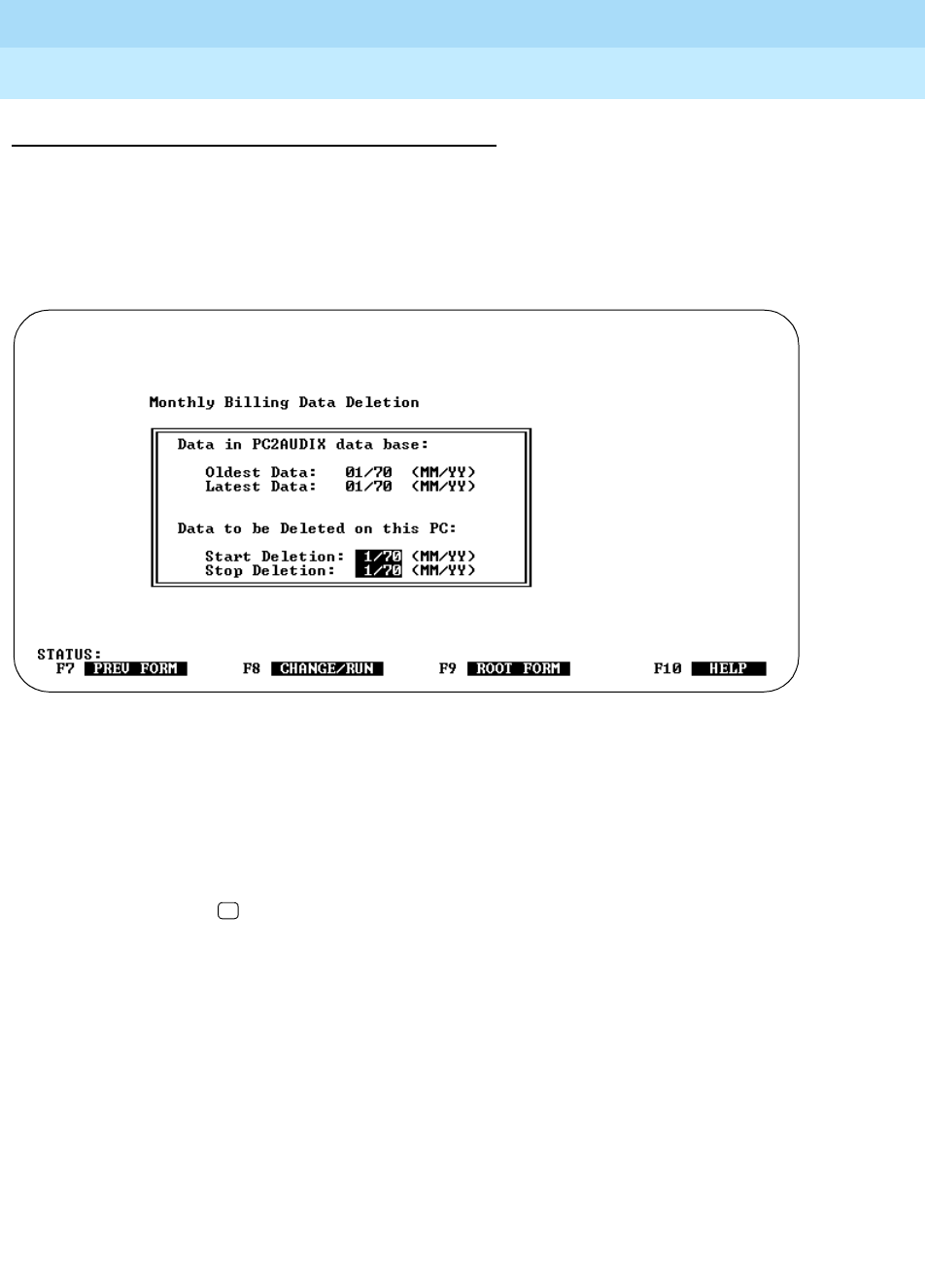

Delete Monthly Billing Data 10-17
Restoring Retrieved Data 10-18
Restore Hourly System Traffic Data 10-19
Restore Daily System Traffic Data 10-20
Restore Monthly System Traffic Data 10-21
Restore Monthly Subscriber Traffic Data 10-22
Restore Daily Subscriber Traffic Data 10-23
Restore Monthly Billing Data 10-24
Restore Subscriber Site Data 10-25
11 Using the ADAP Command Line Language 11-1
Overview 11-1
Logging Into the Voice Mail System 11-2
Automatic Login Procedure 11-2
Manual Login Procedure 11-5
Logging Out of the Voice Mail System 11-8
Interrupting a Command 11-8
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
viii
Command Line Commands 11-8
Command Format 11-9
Record Description Tables 11-12
Field Types 11-14
Voice Mail Version Columns 11-15
Input Records 11-16
Input File Format 11-16
Optional Input Fields 11-17
Input of Name or Extension
(DEFINITY/INTUITY AUDIX) 11-17
Redirecting Input from Files 11-18
Entering Data from the Keyboard 11-18
Output Records 11-18
Output Record Format 11-18
Delimiters 11-19
Output Field Separator 11-19
Backward Compatibility 11-19
Redirecting Output to Files 11-20
Using Output with dBASE III PLUS 11-20
Return Codes 11-21
Data Retrieval Commands 11-22
Database Modification Commands 11-24
12 Command Line Database Retrieval Commands 12-1
Overview 12-1
getaalar 12-2
Syntax 12-2
Description 12-2
Errors 12-5
Output Format 12-5
Example 12-6
getadj 12-7
Syntax 12-7
Description 12-7
Errors 12-7
Output Format 12-8
Example 12-9
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
ix
getalogp 12-10
Syntax 12-10
Description 12-10
Errors 12-11
Output Format 12-11
Example 12-11
getannc 12-12
Syntax 12-12
Description 12-12
Errors 12-13
Output Format 12-13
Example 12-13
getatt 12-14
Syntax 12-14
Description 12-14
Errors 12-14
Output Format 12-15
Example 12-15
get_cdr 12-16
Syntax 12-16
Description 12-16
Errors 12-18
Output Format 12-18
Example 12-18
getcomm 12-19
Syntax 12-19
Description 12-19
Errors 12-21
Output Format 12-21
Example 12-24
getcos 12-25
Syntax 12-25
Description 12-25
Errors 12-25
Output Format 12-26
Example 12-27
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
x
getdir 12-28
Syntax 12-28
Description 12-28
Errors 12-29
Output Format 12-29
Example 12-29
geterror 12-30
Syntax 12-30
Description 12-30
Errors 12-32
Output Format 12-33
Example 12-34
getevent 12-35
Syntax 12-35
Description 12-35
Errors 12-37
Output Format 12-38
Example 12-38
getfeat 12-39
Syntax 12-39
Description 12-39
Output Format 12-41
Errors 12-44
Example 12-44
getfrag 12-45
Syntax 12-45
Description 12-45
Errors 12-46
Output Format 12-46
Example 12-46
getlimit 12-47
Syntax 12-47
Description 12-47
Errors 12-47
Output Format 12-48
Example 12-48
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
xi
getlist 12-50
Syntax 12-50
Description 12-50
Errors 12-51
Output Format 12-51
Example 12-51
12 getload 12-52
Syntax 12-52
Description 12-52
Errors 12-54
Output Format 12-54
Example 12-66
getlog 12-67
Syntax 12-67
Description 12-67
Errors 12-69
Output Format 12-69
Example 12-70
getmaint 12-71
Syntax 12-71
Description 12-71
Errors 12-73
Output Format 12-73
Example 12-74
getmlist 12-75
Syntax 12-75
Description 12-75
Errors 12-76
Output Format 12-76
Example 12-76
getnet 12-77
Syntax 12-77
Description 12-77
Output Format 12-78
Example 12-88
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
xii
getperf 12-89
Syntax 12-89
Description 12-89
Errors 12-90
Output Format 12-91
General Information 12-91
Example 12-91
Data Types 12-100
Performance Data to be Collected 12-101
Data Collection 12-109
Output Format for Each Data Type 12-109
getralar 12-111
Syntax 12-111
Description 12-111
Errors 12-114
Output Format 12-114
Example 12-115
getrem 12-116
Syntax 12-116
Description 12-116
Errors 12-118
Output Format 12-118
Example 12-121
getrlist 12-122
Syntax 12-122
Description 12-122
Errors 12-123
Output Format 12-123
Example 12-123
getrsub 12-124
Syntax 12-124
Description 12-124
Errors 12-125
Input Format 12-125
Output Format 12-126
Example 12-128
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
xiii
getserve 12-129
Syntax 12-129
Description 12-129
Errors 12-130
Output Format 12-130
Example 12-130
getspfea 12-131
Syntax 12-131
Description 12-131
Errors 12-133
Output Format 12-133
Example 12-136
getsub 12-137
Syntax 12-137
Description 12-137
Errors 12-138
Input Format 12-138
Output Format 12-139
Example 12-141
getswitc 12-142
Syntax 12-142
Description 12-142
Errors 12-142
Output Format 12-143
Example 12-143
getsys 12-144
Syntax 12-144
Description 12-144
Errors 12-145
Output Format 12-146
Example 12-146
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
xiv
getsysat 12-147
Syntax 12-147
Description 12-147
Errors 12-148
Input Format 12-148
Output Format 12-148
Example 12-150
getsyscd 12-151
Syntax 12-151
Description 12-151
Errors 12-151
Output Format 12-152
Example 12-152
getsysfe 12-153
Syntax 12-153
Description 12-153
Errors 12-153
Output Format 12-154
Output Format 12-156
Example 12-158
gettlist 12-159
Syntax 12-159
Description 12-159
Errors 12-160
Output Format 12-160
Example 12-160
gettraf 12-161
Syntax 12-161
Description 12-161
Errors 12-163
Input Format 12-163
Output Format 12-164
Example 12-169
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
xv
13 Command Line Database Modification Commands 13-1
Overview 13-1
addrsub 13-2
Syntax 13-2
Description 13-2
Input Format 13-3
Output Format 13-3
Example 13-3
addsub 13-4
Syntax 13-4
Description 13-4
Input Format 13-5
Output Format 13-5
Example 13-6
changcex 13-7
Syntax 13-7
Description 13-7
Errors 13-8
Input Format 13-8
Output Format 13-8
Example 13-8
changcom 13-9
Syntax 13-9
Description 13-9
Errors 13-10
Input Format 13-10
Output Format 13-10
Example 13-10
changcos 13-11
Syntax 13-11
Description 13-11
Errors 13-12
Input Format 13-12
Output Format 13-12
Example 13-12
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
xvi
changext 13-13
Syntax 13-13
Description 13-13
Errors 13-14
Input Format 13-14
Output Format 13-14
Example 13-14
changmis 13-15
Syntax 13-15
Description 13-15
Errors 13-16
Input Format 13-16
Output Format 13-16
Example 13-16
changmsg 13-18
Syntax 13-18
Description 13-18
Errors 13-19
Input Format 13-19
Output Format 13-19
Example 13-19
changnam 13-20
Syntax 13-20
Description 13-20
Errors 13-21
Input Format 13-21
Output Format 13-21
Example 13-21
changpwd 13-22
Syntax 13-22
Description 13-22
Errors 13-23
Input Format 13-23
Output Format 13-23
Example 13-23
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
xvii
changsub 13-24
Syntax 13-24
Description 13-24
Errors 13-25
Input Format 13-25
Output Format 13-27
Example 13-29
changsw 13-31
Syntax 13-31
Description 13-31
Errors 13-32
Input Format 13-32
Output Format 13-32
Example 13-32
changtex 13-33
Syntax 13-33
Description 13-33
Errors 13-34
Input Format 13-34
Output Format 13-34
Example 13-35
chgrcom 13-36
Syntax 13-36
Description 13-36
Errors 13-37
Input Format 13-37
Output Format 13-37
Example 13-37
chgrext 13-38
Syntax 13-38
Description 13-38
Errors 13-39
Input Format 13-39
Output Format 13-39
Example 13-39
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
xviii
chgrmach 13-40
Syntax 13-40
Description 13-40
Errors 13-41
Input Format 13-41
Output Format 13-41
Example 13-41
chgrnam 13-42
Syntax 13-42
Description 13-42
Errors 13-43
Input Format 13-43
Output Format 13-43
Example 13-43
delrsub 13-44
Syntax 13-44
Description 13-44
Errors 13-45
Input Format 13-45
Output Format 13-45
Example 13-45
delsub 13-46
Syntax 13-46
Description 13-46
Errors 13-47
Input Format 13-47
Output Format 13-47
Example 13-47
setadj 13-48
Syntax 13-48
Description 13-48
Errors 13-49
Example 13-50
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
xix
setalogp 13-51
Syntax 13-51
Description 13-51
Errors 13-52
Example 13-52
setscdr 13-53
Syntax 13-53
Description 13-53
Errors 13-54
Example 13-54
A Troubleshooting A-1
Establishing a Connection to the System A-1
Terminating the Connecting to the System A-1
Retrieving Data During Peak Usage A-1
Interactions Between Terminals On AUDIX Systems A-2
Timeouts A-2
Data Acquisition Problems A-2
Alogin (Automated Login) Problems A-3
Common Problems and Solutions A-3
Connection Problems with Login Commands: A-3
Problems Encountered During Data Retrieval or
Database Modification:A-4
B RS-232 Driver Errors B-1
Converting Error Return Codes into
RS-232 Driver Error Codes B-1
AB Abbreviations AB-1
GL Glossary GL-1
IN Index IN-1
AUDIX Administration and Data Acquisition Package
585-302-502
Issue 14
May 1999
Contents
xx
About This Document
xxi
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
About This Document
This document describes how to use ADAP, the PC-based Administration and
Data Acquisition Package which allows voice mail customers to transfer data
from a voice mail system to the PC for further processing. Customers can also
use ADAP to modify data directly in the voice mail system subscriber database.
ADAP works with these voice mail systems:
Lucent INTUITY AUDIX R2.0, R3.2, R3.3, R4.0 and R5.0 systems
DEFINITY AUDIX R3.2 and earlier system versions
AUDIX R1V8 and earlier system versions
However, the Lucent INTUITY AUDIX version of ADAP works only for INTUITY
AUDIX System, and the AUDIX/DEFINITY AUDIX version works only with R1
AUDIX and DEFINITY AUDIX Systems.
ADAP gives you two ways to work with data from the voice mail database:
The command line language allows programmers to download data from
the voice mail system to the PC for use in customer-developed
applications. Using the command line language programmers can modify
also subscriber data in the voice mail system.
PC2AUDIX is a a menu-driven application allowing system administrators
to download data from the voice mail system to the PC and to use for
generating standardized traffic and billing reports with dBASE III PLUS
software.
NOTE:
You cannot use PC2AUDIX with INTUITY AUDIX systems.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
About This Document
xxiiIntended Audiences
Intended Audiences
This document contains information for the following two audiences:
Programmers who use the ADAP command line language to:
Retrieve data from the voice mail system to the PC for use in
customized applications
Modify subscriber records directly in the voice mail database
System administrators who use PC2AUDIX to:
Retrieve DEFINITY AUDIX or AUDIX data to the PC
Generate standardized reports
Modify subscriber records directly in the DEFINITY AUDIX or
AUDIX database
Prerequisite Skills and Knowledge
The system administrators who use the PC2AUDIX interface must know how to
use a PC. Knowledge of the dBASE III PLUS database management system is
helpful but not required.
Programmers who use the ADAP command line language to write application
programs should have a working knowledge of the PC, the MS-DOS operating
system, and the INTUITY AUDIX, DEFINITY AUDIX, or AUDIX administration
screens.
Organization of This Document
This document is organized as follows:
Chapter 1, "Introduction", describes what ADAP does and how it works,
introduces the two user interfaces that can be used, and lists the voice
mail administration screens supported by ADAP.
Chapter 2, "Installation" , describes ADAP installation requirements,
describers the ADAP directory structure on the PC, and tells you how to
install the ADAP software.
Chapter 3, "Using PC2AUDIX Application Programs", describes how to set
up and use the PC2AUDIX interface.
Chapter 4, "PC2AUDIX Data Retrieval", describes how to verify the
subscriber directory and to download database information to the PC. It
also tells you how to initiate data collection on demand and schedule data
collection for off-hours execution.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
About This Document
xxiiiOrganization of This Document
Chapter 5, "PC2AUDIX Traffic Reports", describes how to produce
standardized traffic reports using data that was previously retrieved from
the DEFINITY AUDIX or AUDIX database.

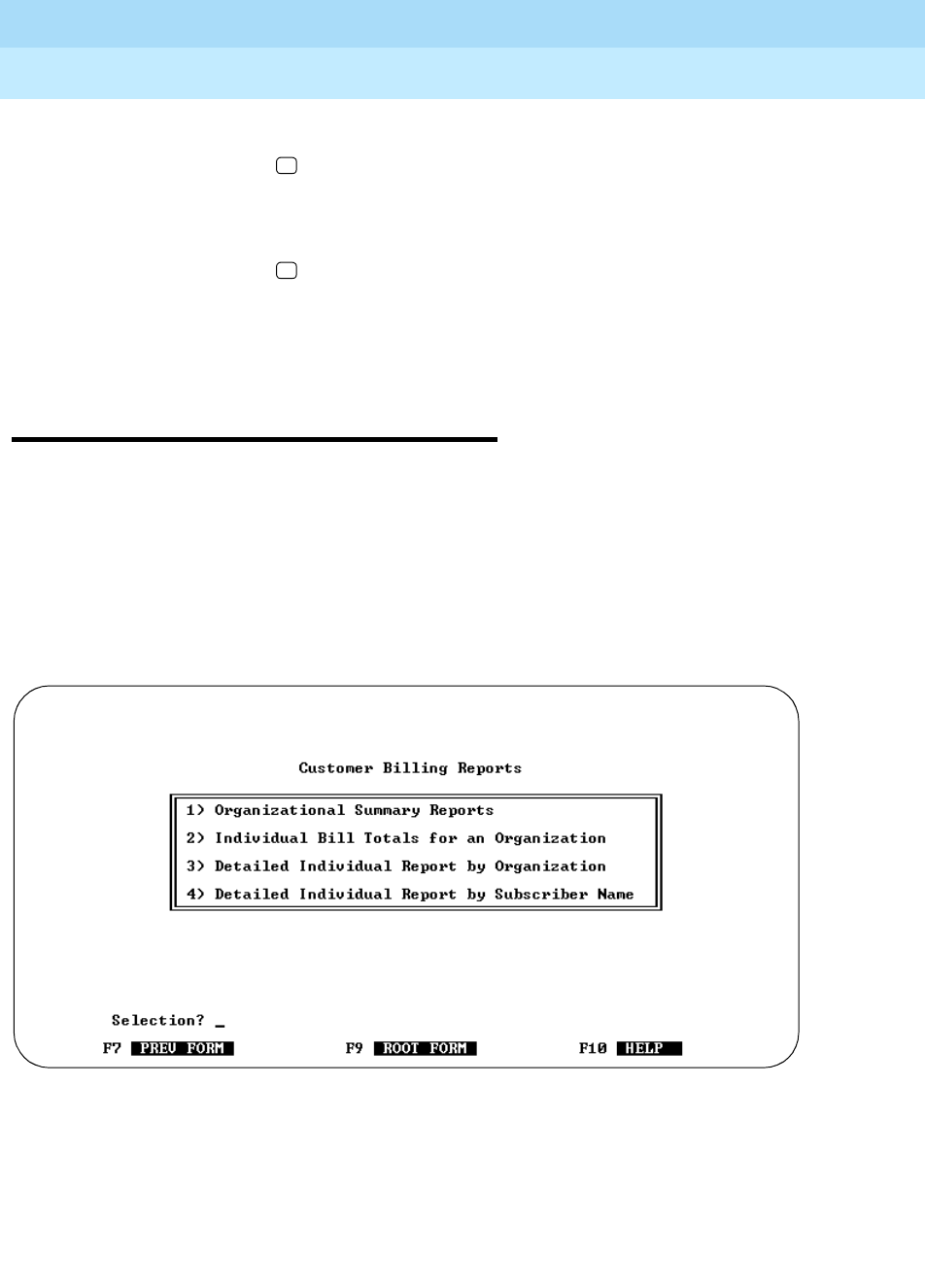

Chapter 6, "PC2AUDIX Billing Reports", describes how to produce
standardized billing reports using data that was previously retrieved from
the DEFINITY AUDIX or AUDIX database.
Chapter 7, "PC2AUDIX Database Searches", describes how to list
subscribers with bills over specified amounts, to list subscribers with
usage over/under a specified amount, and to list subscriber space
threshold exceptions.
Chapter 8, "Scheduling PC2AUDIX Data Retrieval", describes how to
schedule events, display and edit scheduled events, display the event
log, and schedule Call Detail Recording (CDR) data retrieval when CDR is
included with your AUDIX system.
Chapter 9, "PC2AUDIX Site Specific Data", describes how to display and
update information for local and remote subscribers.
Chapter 10, "PC2AUDIX Database Management Tools", describes how to
back up retrieved data, restore backed up data, and delete retrieved data
from the PC.
Chapter 11, "Using the ADAP Command Line Language", describes how
to use the ADAP command line language to retrieve data from the voice
mail database or to modify subscriber data in the database.
Chapter 12, "Command Line Database Retrieval Commands", lists and
describes commands that download information directly from the voice
mail database for use in customer-developed applications.
Chapter 13, "Command Line Database Modification Commands", lists and
describes commands that modify subscriber information in the voice mail
database.
Appendix A, "Troubleshooting", provides possible solutions for problems
that may occur while using the PC2AUDIX interface or the ADAP
command line language.
Appendix B, "RS-232 Driver Errors", lists driver error codes and
instructions for interpreting them.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
About This Document
xxivHow to Use This Document
How to Use This Document
This document reflects the unique interests, requirements, and skill levels of the
diverse audiences who use ADAP. Information is organized in Fs that meet the
specific technical requirements of each audience.
If you are a programmers using the ADAP command line language, you will use
the following chapters:
Chapter 1, "Introduction"
Chapter 2, "Installation"
Chapter 11, "Using the ADAP Command Line Language"
Chapter 12, "Command Line Database Retrieval Commands"
Chapter 13, "Command Line Database Modification Commands"
Appendix A, "Troubleshooting"
If you are a system administrator using PC2AUDIX, you will use the following
chapters:
Chapter 1, "Introduction"
Chapter 2, "Installation"
Chapter 3, "Using PC2AUDIX Application Programs"
Chapter 4, "PC2AUDIX Data Retrieval"
Chapter 5, "PC2AUDIX Traffic Reports"
Chapter 6, "PC2AUDIX Billing Reports"
Chapter 7, "PC2AUDIX Database Searches"
Chapter 8, "Scheduling PC2AUDIX Data Retrieval"
Chapter 9, "PC2AUDIX Site Specific Data"
Chapter 10, "PC2AUDIX Database Management Tools"
Appendix A, "Troubleshooting"
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
About This Document
xxvConventions Used in This Document
Conventions Used in This Document
The following conventions are used throughout this document:
Trademarks and Service Marks
The following trademarks are mentioned throughout this document:
INTUITY® is a registered trademark of Lucent Technologies.
AUDIX® is a registered trademark of Lucent Technologies.
dBASE III PLUS is a trademark of Ashton-Tate.
DEFINITY® is a registered trademark of Lucent Technologies.
Microsoft® is a registered trademark of Microsoft Corporation.
MS-DOS® is a registered trademark of Microsoft Corporation.
UNIX® is a registered trademark of UNIX Systems Laboratories.
Bold Command names and options to be entered exactly as
they are shown.
Example: For the command line getdir [-v] [
> ofile
] enter
getdir and (optionally) -v.
Italics Variables to be replaced with literal values.
Example: For
> ofile
(shown in the previous example),
enter the name of the output file to receive the data.
Brackets Optional arguments
Example: For [v], entering v is optional.
Each command option consists of a dash, followed
immediately by a one-letter option identifier. For an
identifier that requires an argument, you can insert a
space between the identifier and the argument for
readability, but it isn’t required.
Rounded box Encloses the name of a key that you will press.
Example:
Squared box Encloses the name of an action performed by the
software program.
Example: is a carriage return followed by a
linefeed, a combined action automatically performed by
the software at the end of each output record.
RETURN
NEWLINE
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
About This Document
xxviRelated Resources
Related Resources
For a complete description of the screens discussed in this document, refer to
the manual corresponding to your voice mail system:
DEFINITY AUDIX System — Screens Reference
, 585-300-211
AUDIX Release 1 Version 8 Forms Reference
, 585-305-209
Full instructions for using dBASE III PLUS database file structures can be found
in the manuals supplied with that software package.
To order additional Lucent Technologies documents, call the Lucent
Technologies Customer Information Center by dialing the toll free number
(1-800-432-6600) and requesting each item by the appropriate document
number.
For information about other DEFINITY AUDIX system or R1 AUDIX system
documents, refer to the documentation guide corresponding to your voice mail
system:
DEFINITY AUDIX System Documentation Guide
, 585-300-011
AUDIX Documentation Guide
, 585-300-011
How to Make Comments About This
Document
While we have tried to make this document fit your needs, we appreciate your
suggestions for its improvement. If you have any suggestions for improving this
document or a similar document, please send them to us on the reader comment
card. You will find the card behind the title page of this document.
If your reader comment card has been removed, please mail your comments to:
Lucent Technologies
Product Documentation Development Department
Room 22-2H15
11900 North Pecos Street
DENVER CO 80234 -2703
Introduction
1-1Overview
1
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
1
Introduction
Overview
The AUDIX Administration and Data Acquisition Package (ADAP) allows INTUITY
AUDIX, DEFINITY AUDIX, and AUDIX customers to download traffic data,
subscriber data, and other system data from the voice mail system to the PC for
further processing.
ADAP has two user interfaces: a menu-driven application called PC2AUDIX used
by system administrators, and a command line language used by programmers.
Each of these interfaces is described separately in this manual.
The PC2AUDIX User Interface
The PC2AUDIX interface is a menu-driven application program that runs under
dBASE III PLUS software. Using PC2AUDIX you can download data from a
DEFINITY AUDIX or AUDIX system to the PC and create standardized traffic
reports and billing reports using this data. Because PC2AUDIX uses the ADAP
command line language both ADAP software and dBASE III PLUS software must
reside on your PC before using PC2AUDIX.
NOTE:
If the Stella Business Graphics package is installed on your PC, PC2AUDIX
reports can be presented as bar charts and line charts. The Stella Business
Graphics package is no longer available, but you may have purchased it
with a previous version of the ADAP software.
Chapter 3 through Chapter 10 describe how to use the PC2AUDIX interface.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Introduction
1-2The ADAP Command Line Language User Interface
1
The ADAP Command Line Language
User Interface
The ADAP command line language provides a set of commands that
programmers can use to modify subscriber information directly in the voice mail
database and also to download data from voice mail database files to the PC for
use in customer-developed applications.
Chapter 11 through Chapter 13 describe how to use the ADAP command line
language.
How ADAP Works
The PC from which you run ADAP is connected to your voice mail system by
either a direct or dial-up connection. If you are using the ADAP command line
language, you log into the voice mail system from your PC and access the voice
mail database using an ADAP-supplied login command. For the PC2AUDIX
interface, the software automatically logs into the voice mail system whenever it
needs access to the database.
ADAP does not work directly with
live
data in the voice mail database, except for
database modification commands and the system attendant reports.
Live
data is
the information maintained by the voice mail system and stored on the system
itself. ADAP retrieves a
copy
of this data for storage on the PC. When you change
the retrieved that is data stored on your PC this does not change the data stored
on the voice mail system.
With the command line language, you can display the data on your PC screen,
direct it to a printer, or direct it to a file for further processing. If you retrieve data
to a file, you can develop your own programs to manipulate the data, or port the
data to a mainframe for further processing,
With PC2AUDIX, data is retrieved to a file.You can then process the retrieved
data on the PC using custom-developed dBASE III PLUS programs or formatted
the data in standardized dBASE III PLUS reports using PC2AUDIX menu options.
NOTE:
To register for a class on dBASE III PLUS, call your account team to see if a
local class is held in your area.
ADAP Data Retrieval
Data can be retrieved in four ways:
You can use PC2AUDIX menu options to retrieve data to your PC in a
dBASE III PLUS-compatible format.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Introduction
1-3Screens Supported by ADAP
1
You can write application programs using ADAP command line language
commands to retrieve database information to your PC. Data is written in a
flat ASCII format that can be read using dBASE III PLUS.
You can enter individual ADAP command line language commands from
the keyboard of the PC at the MS-DOS prompt to retrieve data to the PC in
a flat ASCII format.
You can execute ADAP command line language commands from an
MS-DOS batch file.
You can use retrieved data to:
Bill voice mail system users, either on a space, call, or time basis
Analyze daily, hourly, or monthly traffic information for local and network
traffic, and monthly traffic information for system attendant traffic
Analyze subscriber usage
Analyze AUDIX system call detail recording (CDR) data and AUDIX
system performance statistics
Produce reports to support a wide range of decisions — from
administrative decisions, such as changing the amount of time an
individual subscriber retains a message, to management decisions, such
as expanding the voice mail system to include more ports. For example,
you can determine
actual
system use and compare it with the type of use
that was
initially forecast
for your site when your system was configured.
ADAP Database Modification
You can use database modification commands to:
Add new local and remote subscriber records to the voice mail database
Delete existing local and remote subscriber records from the voice mail
database
Modify some local and remote subscriber field values in the voice mail
database
Modify CDR system data and adjunct machine data on the AUDIX system
Modify activity log system parameters on the DEFINITY AUDIX system
Screens Supported by ADAP
ADAP can retrieve data from the following system administration and
maintenance screens:
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Introduction
1-4Screens Supported by ADAP
1
Table 1-1. Screens Supported by ADAP
DEFINITY/INTUITY AUDIX
Screen Name
R1 AUDIX
Screen Name Screen Description
display activity-log system activity log display System activity log entries in
chronological order for a
selected set of entries
display
administration-log
(DEFINITY AUDIX only)
system log display Administration log entries in
chronological order
display administrator’s
log
(INTUITY AUDIX only)
none Administrator’s log entries in
chronological order
display alarms maintenance active alarm
display Active hardware alarms
display alarms maintenance resolved
alarm display Alarms that have been resolved
display cos class of service All service options for each
class of service
display errors maintenance error display Software or hardware errors
recorded in the error log
display events
(DEFINITY AUDIX only) none Internal events
display fragment system announcement
detail Information related to
announcement fragments
display events
(INTUITY AUDIX only) none Maintenance log entries
display
remote-subscriber subscriber remote Remote subscriber information
display subscriber subscriber local Local subscriber information
display subscriber system attendant Automated attendant
information
display
system-parameters
activity-log
none Activity log parameters
display
system-parameters
features
system translation switch
connection Type of switch connection,
such as dciu-sci.DEFINITY
AUDIX system feature
information.
Continued on next page
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Introduction
1-5Screens Supported by ADAP
1
display
system-parameters limits system limits Total system limits, such as
max. number of messages
allowed across all subscriber
mailboxes, max. number of
errors allowed in the error log,
and total number of lists and list
members allowed across all
subscriber logins
list attendants list attendant List of automated attendants
list extensions list extension local List of local subscribers’ names
by their extensions
list machines list machine Alphabetical list of names and
associated voice IDs of all
network machines (including
local machine)
list measurements
community day traffic community day Information about daily usage
of the sending restrictions
feature
list measurements
community hour traffic community hour Information about hourly usage
of the sending restrictions
feature
list measurements
feature day traffic feature day Traffic information for any given
day or for as many as 8 days
list measurements
feature hour traffic feature hour Traffic information for any given
hour or for as many as 192
hours
list measurements load
day traffic load day Port traffic information for any
given day or for as many as 32
days
list measurements load
hour traffic load hour Port traffic information for any
given hour or for as many as
192 hours
list measurements
remote-messages day traffic remote messages
day Information about message
traffic between the local voice
mail system and each remote
system for any given day or for
as many as eight days
Table 1-1. Screens Supported by ADAP — Continued
DEFINITY/INTUITY AUDIX
Screen Name
R1 AUDIX
Screen Name Screen Description
Continued on next page
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Introduction
1-6Screens Supported by ADAP
1
list measurements
remote-messages month traffic remote messages
month Information about message
traffic between the local voice
mail system and each remote
system for any given month or
for as many as 13 months
list measurements
special-features day traffic special features day Standalone and Outcalling
traffic for any given day or for
as many as eight days
list measurements
special-features hour traffic special features
hour Standalone and Outcalling
traffic for any given hour or for
as many as 192 hours
list measurements
subscriber day traffic subscriber day Subscriber traffic information
differentiated between call
answer calls and voice mail
calls, and between prime time
and nonprime time within these
categories for any given day or
for as many as eight days
list measurements
subscriber month traffic subscriber month Subscriber traffic information
differentiated between call
answer calls and voice mail
calls, and between prime time
and nonprime time within these
categories for any given month
or for as many as 13 months
list remote-extensions list extension remote List of remote subscribers’
names by their extensions
list
remote-text-addresses
(INTUITY AUDIX only)
none List of names and text
addresses for a given trusted
server
list subscribers list subscriber Alphabetical list of local
subscribers by name
list trusted-servers
(INTUITY AUDIX only) none List of trusted servers
associated with this AUDIX
system
none system cdr Call detail recording (CDR)
information
Table 1-1. Screens Supported by ADAP — Continued
DEFINITY/INTUITY AUDIX
Screen Name
R1 AUDIX
Screen Name Screen Description
Continued on next page
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Introduction
1-7Data Retention Considerations
1
For a complete description of these screens, refer to
DEFINITY AUDIX System
Screens Reference
, 585-300-207, or the
AUDIX Release 1 Version 8 Forms
Reference
, 585-306-204. For a table describing the relationships between screen
names, commands, and the voice mail versions, see Chapter 11, "Using the
ADAP Command Line Language".
Data Retention Considerations
To retain traffic data, you must activate traffic collection using the DEFINITY
AUDIX System-Parameters Feature screen, or the AUDIX System: Appearance
screen). This initiates traffic data collection on the voice mail system. You must
activate the traffic collection feature for at least as many days in the past as you
want to retrieve traffic data.
The voice mail systems do not retain collected traffic data for an indefinite period.
You must retrieve collected traffic data from the voice mail system in a timely
fashion before it is deleted from the system by internal audits.
system translation
machine adjunct Machines administered for use
as a CDR PC or text service
machine
list measurements
network load day traffic network load day Information about the number
and duration of calls on the
ACC data ports for any given
day or for as many as 32 days
list measurements
network load hour traffic network load hour Information about the number
and duration of calls on the
ACC data ports for any given
hour or for as many as 192
hours
Table 1-1. Screens Supported by ADAP — Continued
DEFINITY/INTUITY AUDIX
Screen Name
R1 AUDIX
Screen Name Screen Description
Continued on next page
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Introduction
1-8Data Retention Considerations
1
Information for the following screens is stored for 192 hours (eight days):
Information for the following screens is stored for 32 days:
Information for the following screens is stored for eight days:
Information for the following screens is stored for 13 months:
DEFINITY/INTUITY AUDIX Systems R1 AUDIX System
list measurements feature hour traffic feature hour
list measurements load hour traffic load hour
list measurements community hour traffic community hour
list measurements special-features hour traffic special features hour
list measurements network-load hour traffic network load hour
DEFINITY/INTUITY AUDIX Systems R1 AUDIX System
list measurements feature day traffic feature day
list measurements load day traffic load day
list measurements community day traffic community day
list measurements special-features day traffic special features day
list measurements network-load day traffic network load day
DEFINITY/INTUITY AUDIX System R1 AUDIX System
list measurements remote-messages day traffic remote messages day
list measurements subscriber day traffic subscriber day
DEFINITY/INTUITY AUDIX Systems R1 AUDIX System
list measurements remote-messages month traffic remote messages month
list measurements subscriber month traffic subscriber month
Installation
2-1Installation Requirements
2
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
2
Installation
This chapter tells you how to install ADAP software on your PC. This consists of
the following three tasks, described in detail later in this chapter.
1. Determine that required hardware is in place and configured properly.
2. Understand how the ADAP directories are organized on your PC.
3. Perform the installation. Installation procedures are the same whether you
install ADAP for the first time or upgrade from an earlier version of ADAP.
Installation Requirements
Before you install the ADAP software, check that your PC system consists of the
following:
An IBM-compatible PC with:
A minimum of 640 KB of RAM
A 3.5” 1.44 MB or 5.25” 1.2 MB floppy disk drive (DEFINITY AUDIX
and R1 AUDIX systems)
A 3.5” 1.44 MB floppy disk drive (INTUITY AUDIX systems)
One fixed disk (hard drive) with a minimum of 40 MB of storage
MS-DOS 3.1 or newer
NOTE:
If you have AUDIX Call Detail Recording (CDR), refer to
AUDIX Call
Detail Recording Package
, 585-305-506, for the CDR hardware
requirements. The DEFINITY AUDIX and INTUITY AUDIX systems do
not support CDR.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Installation
2-2ADAP Directory Structure
2
The following, optional items enhance and expand your use of the ADAP
software; they are available only for DEFINITY AUDIX and R1 AUDIX systems:
dBASE III PLUS, Version 1.1, supplied by you, the customer, is needed to
run the PC2AUDIX portion of ADAP. You can also use dBASE III PLUS with
application programs you develop.
Stella Business Graphics package or other graphics software, also
provided by the customer, which generates charts and graphs using data
from PC2AUDIX. This is optional. The dBASE utilities do
not
work with
Stella Business Graphics II.
NOTE:
The Stella Business Graphics package is no longer available, but
you may have purchased it with a previous version of the ADAP
software.
A PC–compatible, parallel port printer for printing text files.
Recommended Hardware Configurations
Your PC must be connected to the voice mail system through one of the following
configurations:
Directly, with a Group 311 RS-232 cable connected from your PC to a
Group 350 null modem cable, which in turn is connected to:
Port A on the DEFINITY AUDIX or INTUITY AUDIX system
or
The local administration terminal (LAT) connector on the back of the
R1 AUDIX system
The length of the RS-232 cable should not exceed 50 feet.
Through a switch using a Hayes-compatible modem
Through a switch using Modular Processor Data Module (MPDM)
ADAP Directory Structure
When you install the ADAP software for DEFINITY AUDIX/R1 AUDIX, the default
directory used by the ADAP setup software is PCIFCE unless the ADAPROOT
environment variable is set otherwise. Likewise, when you install the ADAP
software for INTUITY AUDIX, the default directory used by the ADAP setup
software is INT_ADAP, unless the ADAPROOT environment variable is set
otherwise. After installation is complete, these directories contain the appropriate

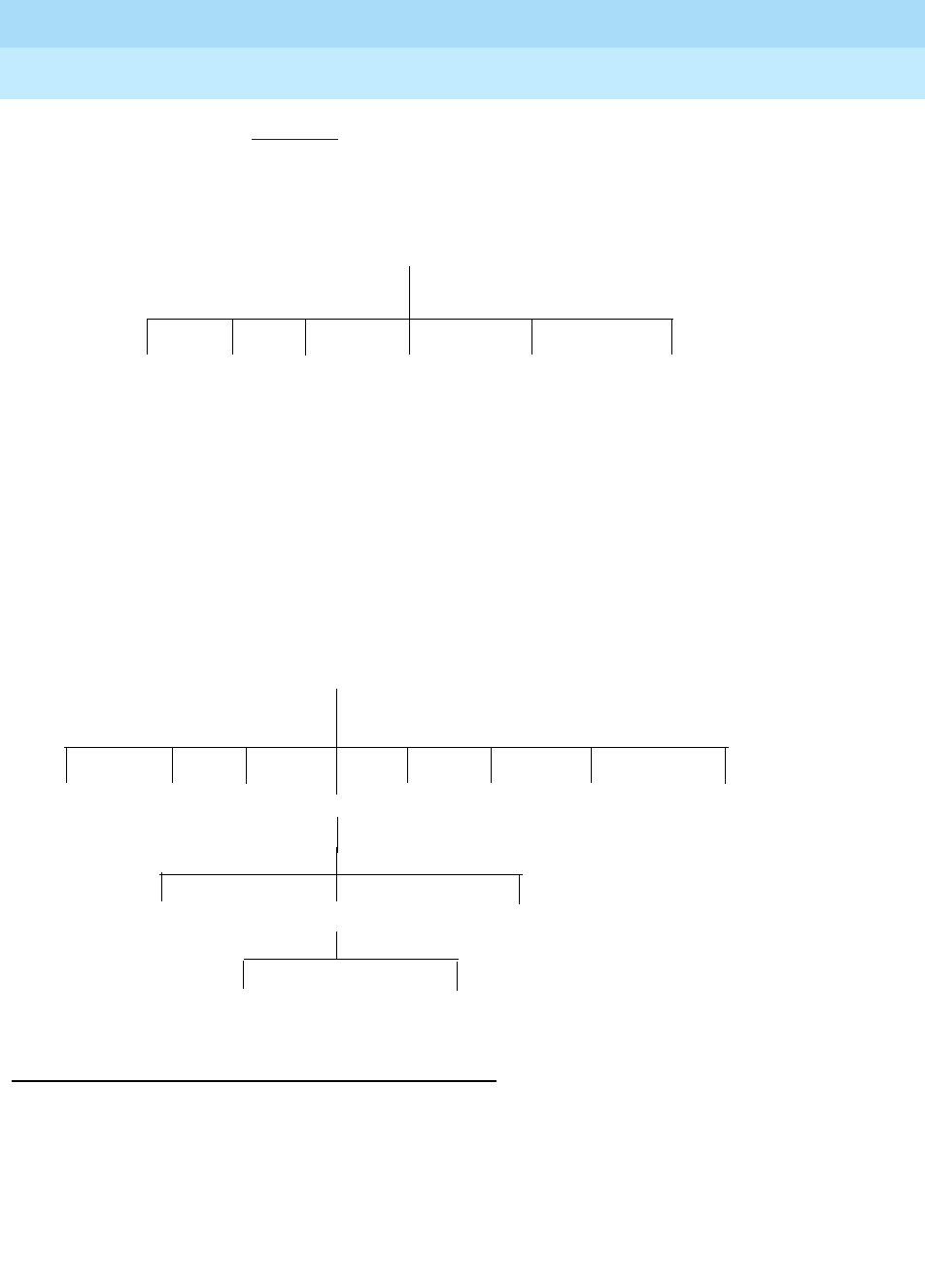

ADAP software. (See the following diagram.) Since both directories contain
programs with the same names, the PATH environment variable indicates which
of the two directories are to be used when you execute the ADAP software. You
must create the machine directories (<machine1>, <machine2>, etc.) according
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Installation
2-3ADAP Directory Structure
2
to instructions in Chapter 3; they will contain the data that you retrieve from each
voice mail machine using ADAP. If you are working with more than one voice mail
machine, you need to create a directory corresponding to each machine.
Installing PC2AUDIX, DBASEIII, and Stella Business Graphics creates the
additional directories and subdirectories shown in the figure below. The DBASE
directory contains the dBASEIII software, and the DB3_PROG.DIR and DB3_
STRU.DIR subdirectories to contain related dBASEIII program files and
database structures. The SBG directory contains the Stella Business Graphics,
software and the KEYFILES subdirectory contains links between PC2AUDIX and
Stella Business Graphics for running graphic reports.
ADAP Diskette Contents
Each diskette contains a readme file that lists the ADAP files and directories
contained on that diskette. To display the contents of the readme file, insert the
diskette in drive A and enter type a:readme at the DOS prompt. (If you use a
drive other than A, enter it instead.)
The ADAP software is contained on either 5-1/4-inch or 3-1/2-inch diskettes. Use
the diskettes that fit your PC.
Root Directory
<machine1> <machine3>
(optional) (optional)
<machine2> <machine4>
(optional)
PCIFCE INT_ADAP
DBASE SBG
(optional) PCIFCE
DB3_PROG.DIR DB3_STRU.DIR KEYFILES
AUDIX DEFAUDIX
INT_ADAP
Root Directory
<machine1> <machine4>
(optional)
(optional)
(optional)
<machine2> <machine3>
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Installation
2-4Installation Procedures
2
Installation Procedures
Installation procedures are the same whether you are installing ADAP for the first
time or upgrading from an earlier version of the ADAP software.
To install ADAP, you will perform the five following procedures, in the following
order (note that the second, third, and fourth tasks are optional and pertain only
to DEFINITY AUDIX and R1 AUDIX systems):
1. Install the ADAP software.
2. Install the PC2AUDIX software, which also sets up database file structures
on your PC (DEFINITY AUDIX and R1 AUDIX systems only). You must
install the ADAP software before installing PC2AUDIX software.
NOTE:
PC2AUDIX does not operate with INTUITY AUDIX systems.
3. Install the customer-provided dBASE III PLUS database management
software package (DEFINITY AUDIX and R1 AUDIX systems only).
4. Install graphics software (optional).
5. Verify that the config.sys and autoexec.bat files are set up properly for
ADAP.
Install ADAP Software
Perform the following steps to install the ADAP software. Installation automatically
builds the required subdirectories if they do not exist already.
1. ADAP software is installed by default to C:\PCIFCE or C:\INT_ADAP. If
you want to install to a different subdirectory or drive, insert the following
environment variable definition in your autoexec.bat file, and reboot your
PC:
SET ADAPROOT=
<drive>
:\
<directory>
(where
<drive>
is the drive letter and
<directory>
is the directory path
name)
2. Insert
AUDIX Administration and Data Acquisition Software, Disk 1
into
your floppy disk drive.
3. At the DOS prompt, enter a: to change to drive A. (If you use a
diskette drive other than drive A, enter that drive letter instead.)
4. Enter setup.
You are prompted for your floppy disk drive.
5. Enter your floppy disk drive letter name, or press Enter to default to drive
a:.
The Setup For AUDIX PC Software menu appears.
RETURN
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Installation
2-5Installation Procedures
2
6. Press a to select Install ADAP Command Line Software.
The Install ADAP Command Line Software screen appears.
7. Press i to select Install.
Messages describing installation progress appear. When installation of
the disk is finished, if there are more disks to install you are prompted to
insert the next disk. Each disk takes about a minute to install.
8. Insert the next disk and press any key to continue.
9. Repeat Step 8 for each diskette requested by the Setup program.
When installation is finished, an Installation Complete message appears.
10. Press any key to continue.
The Setup for AUDIX PC Software menu appears.
If you plan to use the PC2AUDX reporting package, install PC2AUDIX, according
to the following section. Otherwise, press q to quit the setup program and go to
the "Check Config.sys and Autoexec.bat Files" later in this chapter.
NOTE:
If you quit, and this is an initial installation, you must reboot the PC.
Install PC2AUDIX Software (Optional)
If you are upgrading from a previous version, PC2AUDIX preserves any
previously-retrieved data. If you are migrating from an R1 AUDIX to DEFINITY
AUDIX machine, PC2AUDIX automatically converts the data to the DEFINITY
AUDIX format. However, PC2AUDIX cannot convert DEFINITY AUDIX data to
R1 AUDIX format.
To install the PC2AUDIX software, perform the following steps:
1. In the Setup for AUDIX PC Software screen, press p to select Install
PC2AUDIX Application Software.
The Install PC2AUDIX Application Software screen appears.
2. Insert the first PC2AUDIX disk
3. Press i to install the PC2AUDIX program software.
Messages describing installation progress appear. This takes about five
minutes to install.
When the PC2AUDIX installation is finished, an Installation Complete
message appears.
4. Press any key to display the Setup menu.
5. In the Setup menu, enter q for quit the setup program.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Installation
2-6Installation Procedures
2
The PC2AUDIX installation is completed successfully and the DOS prompt
appears.
NOTE:
Installation copies all PC2AUDIX database structures to your PC,
except those contained in the TEMPLATE subdirectory. These are
useful if you are developing your own application programs. If you
wish, look at the contents of the TEMPLATE subdirectory on the
floppy disks and copy them to your PC if you want to use them.
Now that PC2AUDIX is installed, proceed to the next procedure to install
dBASE III, which is required to run PC2AUDIX.
NOTE:
PC2AUDIX, dBASE III, and graphics software only operate with DEFINITY
AUDIX and R1 AUDIX systems.
Install dBASE III Plus Software (Optional)
You must install the dBASE III PLUS database management package in order to
you use PC2AUDIX. If dBASE III PLUS is not installed already, perform the
following steps:
1. At the DOS prompt, enter mkdir dbase to create a subdirectory named
dbase. This directory is where the dBASE III PLUS programs will reside on
your PC.
2. Enter cd dbase to access the subdirectory that you just created.
3. Install the dBASE III PLUS software as instructed in the dBASE III PLUS
installation document,
Getting Started, dBASE III PLUS
, 10060-0214.
Now that dBASE III is installed, you can proceed with the next procedure to install
the graphics software, or skip to the last procedure to check the config.sys and
autoexec.bat files.
Install Graphics Software (Optional)
If you purchased the Stella Business Graphics Package when it was available,
you may need to install or re-install the package. To do so, perform the following
steps:
1. At the DOS prompt, enter mkdir sbg to create the directory where the
Stella Business Graphics programs will reside.
2. Enter cd sbg to access the sbg subdirectory that you just created.
3. Install the Stella Business Graphics package as instructed in
Stella
Business Graphics Twelve Formats for Powerful Charts and Graphs
.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Installation
2-7Installation Procedures
2
4. Use the setup.exe program included with the Stella Business Graphics
package to set up Stella to use either the Epson dot matrix printer or the
Hewlett-Packard LaserJet printer. This entry must match the entry in the
PC2AUDIX Setup Parameters Printer Type field.
Check Config.sys and Autoexec.bat Files
The installation automatically modifies data in the config.sys and autoexec.bat
files. Perform the following steps to ensure that these changes were made:
1. At the DOS prompt, enter type config.sys to display the contents of the
config.sys file.
2. Check for the rs232 device line:
device=c:\pcifce\ex_rs232.bin
This line identifies the device driver for communicating with the voice mail
system. If it is not present, use your text editor to add it to the file. (If you
changed the ADAP software subdirectory to a name other than PCIFCE or
INT_ADAP, the name you changed it to should appear in the file.)
3. Check for the following device line, which tells ADAP how to write things to
the screen:
device=c:\dos\ansi.sys
4. At the DOS prompt, enter type autoexec.bat to display the contents of the
autoexec.bat file.
5. Check for the line that begins with PATH= and validate the following:
a. You should see the entry c:\pcifce or c:\int_adap on this
line.
If you installed ADAP to a directory other than either of these, the
name you changed it to should appear on this line.
b. If you installed dBASE III PLUS, you should see:
c:\dbase in the PATH= line.
c. If you installed Stella Business Graphics, you should see:
c:\sbg in the PATH= line.
6. If the above entries are not included in your autoexec.bat file, use your text
editor to add them to the file.
7. If you made any changes in the previous steps, reboot your system.
Now that you have completed installation, you need to create a separate work
area corresponding to each machine. To do this, follow the instructions in "Setting
Up PC2AUDIX Interface in a New Work Area"
in
Chapter 3.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Installation
2-8Installation Procedures
2
Using PC2AUDIX Application Programs
3-1
3
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
3
Using PC2AUDIX Application
Programs
PC2AUDIX is a menu-driven application that downloads selected voice mail data
to your PC, and works with dBASE III PLUS software to generate standardized
traffic and billing reports. PC2AUDIX also provides tools for managing retrieved
data on the PC.
Using PC2AUDIX you can:
Retrieve traffic and subscriber data to the PC
Retrieve AUDIX system Call Detail Recording (CDR) data to the PC
Generate standardized traffic reports on the PC displayed in table format
or in graphical format with a compatible graphics package
Generate subscriber usage billing reports on the PC
Generate reports that reveal how subscribers use the voice mail system
(such as who creates voice mail messages and how many, who allows
mailboxes to reach a certain percentage, and who the heavy users are)
Schedule data retrieval from local and network machines for on-hours or
off-hours execution
Display individual local and remote subscriber records
Update specific PC2AUDIX data fields in PC2AUDIX subscriber records
(and Name and Ext fields in the subscriber database)
Back up, restore, and delete retrieved voice mail database files from your
PCs fixed disk
NOTE:
PC2AUDIX does not work with the INTUITY AUDIX system.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-2Working in PC2AUDIX
3
Working in PC2AUDIX
Before using PC2AUDIX, you must first install the ADAP and PC2AUDIX software
onto your PC following the installation instructions in Chapter 2. You also must
install dBASE III PLUS software, as described in Chapter 2, to use PC2AUDIX.
While working in PC2AUDIX you use screens to enter report parameters and
generate reports. The keys described below are your tools for moving around the
screen and entering values in the data entry fields:
Function keys appear at the bottom of each PC2AUDIX screen. Each display
key corresponds to a function key on your keyboard.The most typically used
function keys are shown below:
moves to the next field
moves to the previous field
moves back one character
moves forward one character
moves to the start of the next field
erases to the end of the field
toggles insert mode on or off
erases the character under the cursor
(NEXT PAGE) displays the next page of data for multiple-page
screens
(PRINT FORM) prints the screen with three screens to a printed page
(PREV REC) displays the previous record on the same screen
(PREV FORM returns to the previously-displayed screen
(CHANGE/RUN) saves changes that were made or starts execution of
the screen. Screens containing modifiable fields do
not start execution until you press
(CHANGE/RUN).
(ROOT MENU) returns to the PC2AUDIX Root Menu
(HELP) displays PC2AUDIX on-line help for the screen
RETURN
Ctrl-y
INS
DEL
F4
F5
F6
F7
F8
F8
F9
F10
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-3Setting Up PC2AUDIX Interface in a New Work Area
3
NOTE:
If you enter an invalid date in a date field, such as 99/99/99, dBASE III
PLUS does not allow you to leave that field, and function keys (including
HELP) do not function properly. You can either enter a valid date, or press
the key to restore the date field to its initial value. Make cautious use of
the key, or you may unintentionally halt a PC2AUDIX operation.
Setting Up PC2AUDIX Interface in a
New Work Area
To set up PC2AUDIX in a new work area on your PC, you must perform three
tasks:
1. Create PC2AUDIX subdirectories.
2. Establish PC2AUDIX Setup Parameters.
3. Establish Setup Parameters for Call Detail Recording (CDR).
Each of these tasks is described in this section.
Creating PC2AUDIX Subdirectories
PC2AUDIX works only in a subdirectory. Before using the interface, you must
create a subdirectory on your PC to serve as a work area for storing retrieved
data.
If you want to retrieve data from more than one voice mail system, you must first
create a separate subdirectory on your PC corresponding to each system. To do
this, perform the following steps:
1. Use the MS-DOS Date and Time commands to verify that the date and
time are correct on your PC.
2. At the DOS prompt, enter cd \ to ensure that you are in your PC’s root
directory (drive C:). You should see the C> prompt displayed. (If you are
using an alternate drive, such as drive D, you should see that drive letter
displayed.)
3. Enter mkdir
machine_name
(where
machine_name
is the name of your
voice mail system) to create a PC2AUDIX subdirectory for your system.
If you have more than one voice mail system in an your network, repeat step 3 for
each system.
ESC
ESC
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-4Setting Up PC2AUDIX Interface in a New Work Area
3
Establishing PC2AUDIX Setup Parameters
Setup parameters define the link between your PC and the voice mail system
from which your PC retrieves data. If you created subdirectories for more than
one system in the previous task, you must also establish separate setup
parameters for each system.
1. At the DOS prompt C>, enter cd
machine_name
to change to the AUDIX
system subdirectory you created in the previous task. (If you are using an
alternate disk drive, such as drive D:, that drive letter should be
displayed.)
2. Enter pc2audix to call the PC2AUDIX software. Copyright information
appears on the screen for approximately five seconds. If you want to
bypass this delay, press .
The PC2AUDIX software checks to see that you are currently in a
subdirectory, that no database structures are missing, and that the
database structures are a version prior to ADAP R1V8.
3. If subscriber data exists, a (re)indexing message appears
The PC2AUDIX Setup Parameters screen appears.
4. Position the cursor (using either or the down arrow key) at each of
the fields that are empty or that have incorrect default values, and enter
the correct values. Field descriptions and valid entries are shown below.
RETURN
RETURN
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-5Setting Up PC2AUDIX Interface in a New Work Area
3
Field Name Description Valid Entries
Type of
connection Connection type.
Default: direct
att4000 (ATT4000 modem)
direct (hardwired connection using NULL
modem)
hayes (Hayes-compatible modem)
pdm (Modular Processor Data Module
(MPDM) in conjunction with your Lucent
Technologies switch)
Initialization String Initialization string
for automatic
modem setup
Default: a null
string.
< 40 characters.
Spaces are legal in Hayes initialization strings.
You
cannot
use automatic modem setup with
the Lucent Technologies 7400B data module.
Baud Rate Sets the
communications
baud rate,
measured in bits
per second (bps),
if the connection
type is set to
anything other than
direct.
Default: 9600
1200, 2400, 4800, or 9600 (for D-r3.2 thru
D-r1.0.)
1200, 4800 (for R1 AUDIX software version)
NOTE:
Your modem must be able to transmit at the
selected bits per second.
Port Number Port that connects
your PC to the
voice mail system.
Default: COM1
1 (COM1)
2 (COM2)
Should specify number of the port to which the
null modem, modem, or PDM is connected.
Access Phone # Phone number for
your Local
Administration
Terminal.
The PC used to access the DEFINITY AUDIX
system must be connected to Port A on the
DEFINITY AUDIX MFB. The PC used to
access the AUDIX system must be connected
to the LAT (Local Administration Terminal) port
on the AUDIX equipment cabinet. You must
enter the phone number if the connection type
is set to anything other than direct.
NOTE:
When using a Hayes Compatible modem, you may input a “t” in
front of the access phone number to access the system more quickly
using touch-tone dialing.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-6Setting Up PC2AUDIX Interface in a New Work Area
3
5. Press (CHANGE/RUN) to save the changes you have made to page 1
of the PC2AUDIX Setup Parameters. (You can also wait until you have
made all changes to page 1 and page 2 of this screen before saving.)
ADAP logs into the voice mail system to verify the switch connection type
and logs out again.
If you specified D-r3.2, D-r3.1, D-r3.0, D-r2.0, or D-r1.0 as the AUDIX
software version, PC2AUDIX displays a message stating that you cannot
revert to an R1 environment for the PC2AUDIX.
6. Press (NEXT PG) to display page 2 of this screen.
7. Enter the desired information. Field descriptions and valid entries are
shown below the screen example.
AUDIX Login
Name Administrator’s
login ID.
AUDIX Password Password for
AUDIX Login
Name.
For security purposes, the password does not
appear on the screen after you press
(CHANGE/RUN). To make an entry you must
clear out remaining pound signs before
pressing .
AUDIX System
Password Password of the
DEFINITY AUDIX
system you want to
access.
Password is
required when the
AUDIX login name
is cust.
For security purposes, the password never
appears (hidden by pound [#] signs) on the
screen after you press (CHANGE/RUN). If
the DEFINITY AUDIX system does not have a
system password, place a set of double
quotes (“) in the field. To make an entry you
must clear out remaining pound signs before
pressing .
AUDIX software
version Version of the voice
mail system
software used on
this system.
Default: D-r3.2
NOTE:
This field
must
be set correctly in order for
PC2AUDIX to function properly.
Field Name Description Valid Entries
F8
F8
F8
F8
F8
F6
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-7Setting Up PC2AUDIX Interface in a New Work Area
3
Field Name Description Valid Entries
Printer Port The port on the PC
which connects the
local printer.
Default: lpt1
lpt1, lpt2, lpt3, com2
none (no printer connected; output is
displayed automatically on the PC screen).
You may redirect the printed output from lpt1
to a serial port, COM
n
, using the DOS mode
command. If you use the mode command,
enter lpt1 in the Printer port field.
Printer Type Indicates that there
is a printer
connected.
dotmatrix
(formats output for a 100-percent Epson
compatible dot matrix printer)
laser
(formats output printing for a Hewlett-Packard
LaserJet II or printer capable of 100 percent
emulation of a Hewlett-Packard LaserJet II
blank (no printer connected)
If the previous field is none, enter a blank.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-8Setting Up PC2AUDIX Interface in a New Work Area
3
AUDIX name for
this site Name of the voice
mail system, your
company, or other
identifier which
appears in the
header information
of reports
generated by
PC2AUDIX.
display-only field
Switch
connection type Identifies the type
of connection
between the switch
and the voice mail
system.
A default (dciu-sci)
initially displays;
this is verified and
changed (if
appropriate) when
the PC connects to
the system.
display-only field
dciu-sci, smsi, bri-api, sl1, sail, or stand-alone
For a DEFINITY AUDIX system, the connection
type in this field comes from the
System-Parameters Features form, and the
value is embedded.
For the AUDIX system, the connection type in
this field comes from the System : Translation :
Switch Connection screen.
Delete delimited
data files after
merged by
PC2AUDIX?
Determines if
intermediate data
files received from
the voice mail
system are deleted
from the PC.
Default: y
y (avoids unnecessary space usage on the
PC)
n (you must manually delete these files when
they are no longer needed)
AUDIX misc field
= organization #?: Interprets
organization codes
Default: n
y ( PC2AUDIX interprets org. codes from the
Miscellaneous field on the DEFINITY AUDIX
Subscriber screen or from the Misc field on
the AUDIX Subscriber : Local screen).
n (org. codes are interpreted from PC2AUDIX
site specific data fields).
Graph Option
Installed?: Defines whether
optional graphics
software is
installed.
Default: n
y (Stella Business Graphics package is
installed on this PC)
n (Stella not installed)
Location of
Graphics Work
Area
Graphics work
area location. Directory path for the directory in which the
Stella Business Graphics Package was
installed.
Field Name Description Valid Entries
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-9Setting Up PC2AUDIX Interface in a New Work Area
3
8. If you have the optional AUDIX Call Detail Recording (CDR) package
installed on the AUDIX system, you can continue with page 3 of the
PC2AUDIX setup Parameters. Refer to "Establishing Setup Parameters for
Call Detail Recording (Optional)" on the next page.
9. Press (CHANGE/RUN) to save the changes you have made to the
PC2AUDIX Setup Parameters.
You have now completed establishing the PC2AUDIX Setup Parameters.
10. Press (ROOT FORM) to return to the PC2AUDIX Root Menu.
11. At the PC2AUDIX Root Menu, select 9) EXIT to MS-DOS.
12. At the DOS prompt, enter cd \ to return to the root directory (C\>)
on your PC.
NOTE:
If you have more than one voice mail system in an your network,
repeat this task for each system.
Establishing Setup Parameters for Call Detail
Recording (Optional)
Perform the following steps if you have the optional AUDIX Call Detail Recording
(CDR) package installed on the AUDIX system. The Lucent INTUITY and DEFINITY
AUDIX systems do not support this package.
1. At the DOS prompt C>, enter cd
machine_name
to change to the
subdirectory you created for your AUDIX system in the previous task.
2. Enter pc2audix to call the PC2AUDIX software.
Copyright information appears on the screen for approximately five
seconds. If you want to bypass this delay, press .
3. In the PC2AUDIX Root Menu, select option 8 (Setup Parameters).
4. In page 1 of the PC2AUDIX Setup Parameters screen, press (NEXT
PG) to display page 2.
5. In page 2 of the PC2AUDIX Setup Parameters screen, press (NEXT
PG) again to display page 3.
Page 3 of the PC2AUDIX Setup Parameters defines the connection and
login specifics for retrieving CDR data from the AUDIX system to the PC.
Refer to
AUDIX Call Detail Recording Package
, 585-305-506, for
instructions on completing this page of the form.
F8
F9
RETURN
RETURN
F6
F6
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-10Setting Up PC2AUDIX Interface in a New Work Area
3
6. To use the automatic modem setup, enter an Initialization String of up to 40
characters; the default is a null string. Spaces are legal in Hayes
initialization strings. You cannot use automatic modem setup with the
Lucent Technologies 7400B data module. The get_cdr command uses
this initialization string when the -I option is specified.
7. When you have correctly set all values for Call Detail Recording, press
(CHANGE/RUN) to save your changes.
8. Press (ROOT FORM) to return to the PC2AUDIX Root Menu.
9. At the PC2AUDIX Root Menu, select option 9) EXIT to MS-DOS.
10. At the DOS prompt, enter cd \ to return to the root directory (C:\>) on your
PC.
If you have the Call Detail Recording option installed on more than one AUDIX
system in an AUDIX network, repeat this task for each AUDIX system with CDR.
F8
F9
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-11Modifying PC2AUDIX Setup Parameters
3
Modifying PC2AUDIX Setup
Parameters
Perform the following steps to change the PC2AUDIX Setup Parameters.
1. At the DOS prompt C>, enter cd
machine_name
to change to the
subdirectory for this voice mail system.
2. Enter pc2audix to call the PC2AUDIX software.
3. In the PC2AUDIX Root Menu, select option 8 (Setup Parameters).
4. Enter any changes to the data fields on page 1, page 2, and/or page 3.
5. Press (CHANGE/RUN) to save the changes.
6. Press (ROOT FORM) to return to the PC2AUDIX Root Menu.
7. Select 9) EXIT to MS-DOS.
8. At the DOS prompt, enter cd \ to return to the root directory (C:\).
If you need to make changes for other voice mail systems in your network, repeat
this task for each system.
Setting Up PC2AUDIX Interface in an
Existing Work Area
Follow the instructions in this section each time you set up PC2AUDIX in an
existing work area on your PC. If you are upgrading from a previous version of
the ADAP software, you can save any data that you had retrieved using the
previous version.
1. At the DOS prompt C>, enter cd
machine_name
to change to the
subdirectory where your database structures and text files reside. These
are the database structures and text files you want to upgrade to the new
version of the PC2AUDIX software.
2. Enter pc2audix to call the PC2AUDIX software.
The PC2AUDIX Root Menu appears.
3. Select option 8 from the PC2AUDIX Root Menu to display the PC2AUDIX
Setup Parameters screen.
4. In the PC2AUDIX Setup Parameters screen, change the AUDIX software
version to D-r3.2. If this field is set incorrectly, the software does not
function properly.
5. Press (CHANGE/RUN) to save the changes. ADAP tries to log into the
voice mail system to verify the switch connection type, then logs out again.
6. Press (ROOT FORM) to return to the PC2AUDIX Root Menu.
F8
F9
F8
F9
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-12Starting the PC2AUDIX Interface
3
Starting the PC2AUDIX Interface
The following steps describe how to start PC2AUDIX.
1. At the DOS C> prompt, enter cd
machine_name
where
machine_name
is the name of the subdirectory you set up to represent the voice mail
system. You run PC2AUDIX from this subdirectory.
2. Enter pc2audix at the DOS prompt.
The PC2AUDIX Root Menu appears.
3. Select options from the PC2AUDIX Root Menu as described in the next
section.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-13PC2AUDIX Root Menu Options
3
PC2AUDIX Root Menu Options
The PC2AUDIX Root Menu provides access to all PC2AUDIX functions. These
options are as follows:
Menu Option Menu/Screen it Accesses For More Info.
0) Run Scheduled
Events Schedule Mode screen, which
must display before scheduled
events begin and during
scheduled event execution.
Chapter 8,
"Scheduling
PC2AUDIX Data
Retrieval"
1) Data Retrieval Data Retrieval Menu, used to
retrieve and verify the PC2AUDIX
data needed before generating
traffic and billing reports or
performing data searches.
Chapter 4,
"PC2AUDIX Data
Retrieval"
2) Traffic Reports Traffic Reports Menu, used to
generate reports from traffic and
subscriber information previously
retrieved to the PC (excluding
system attendant reports).
Chapter 5,
"PC2AUDIX
Traffic Reports"
3) Customer Billing Customer Billing Menu, used to
define customer billing criteria and
to generate billing reports from
retrieved subscriber information.
Chapter 6,
"PC2AUDIX Billing
Reports"
4) Site Specific
Data Non-AUDIX Data Field
Specification Menu, used to:
1) enter data into non-AUDIX fields
in subscriber records on the PC
2) search for subscribers with
specific data in specified fields
3) list all subscribers;
4) list subscribers with specific
data in specified fields
5) modify names and extensions
directly in the DEFINITY AUDIX or
R1 AUDIX database.
Chapter 9,
"PC2AUDIX Site
Specific Data"
5) Schedule Editor Scheduling Menu, used to
schedule data retrieval and
database verification, executed
automatically from a queue at
specified times.
Chapter 8,
"Scheduling
PC2AUDIX Data
Retrieval"
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-14PC2AUDIX Root Menu Options
3
6) Searches Searches Menu, used to search for
and list:
1) subscribers with system usage
over or under a specified amount
2) subscribers with bills over a
specified amount
3) subscribers with mailbox space
over a specified threshold.
Chapter 7,
"PC2AUDIX
Database
Searches"
7) Data
Management Data Management Options Menu,
used to perform the following on
the fixed disk of your PC:
1) back up selected traffic and
subscriber data to a diskette
2) delete selected data
3) restore selected data from a
diskette.
Chapter 10,
"PC2AUDIX
Database
Management
Tools"
8) Setup
Parameters PC2AUDIX Setup Parameters
Menu, used to:
1) define the connection between
the PC and the voice mail system
2) enable the graphical output
option
3) define the connection to the R1
AUDIX system for the optional Call
Detail Recording (CDR) feature.
Described
previously in this
chapter.
9) EXIT to MS-DOS Exits you from PC2AUDIX to DOS
and terminates the DEFINITY
AUDIX or AUDIX system
connection, if any. Use this
selection to end a PC2AUDIX
interface session.
N/A
NOTE:
To execute a DOS command from the PC2AUDIX Root
Menu without quitting the PC2AUDIX interface, press
, press for suspend, and type the exclamation
mark character (!) followed by a command. To return to
PC2AUDIX, type resume, and press the desired key
from the PC2AUDIX Root Menu.
Menu Option Menu/Screen it Accesses For More Info.
ESC
s
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-15Using On-line Help Files
3
Using On-line Help Files
The PC2AUDIX help files provide detailed information about PC2AUDIX screens,
field definitions, function key definitions, and error messages. To display this
information at any time, press (HELP). Information about the current screen
appears. The help screens have several function keys that let you print the
screen, page forward or backward, access general information on operating
help, and exiting help.
You can print a copy of the complete on-line help files to retain as a reference:
1. At the C> prompt, enter audhelp printdoc >
myfile
where
myfile
is a file
name of your choosing that does not reside already on your fixed disk.
This copies a formatted ASCII version of the PC2AUDIX help information
to a file named
myfile
on your fixed disk.
2. Print the file
myfile
as you would any text file.
You can also print the help files from PC2AUDIX by pressing (HELP) and
then pressing (PRINT ALL). The printed help files are quite long.
Directing PC2AUDIX Output
All screens that generate output contain a “Send output” line that specifies an
output destination. The default destination is set in the Setup Parameters screen.
If you define a printer type and port, the default destination is the specified
printer. If you don’t define a printer, the output is displayed on the screen by
default.
Redirecting Output to the Screen
To display output on the screen, press while the cursor is in the destination
field, or blank out the printer variable. The output displays on your PC screen.
By sending reports to the PC screen, you can preview them and optionally send
a copy to the printer. You can print from the PC screen if a printer is defined on
the Setup Parameters screen and you override the default manually for individual
reports you produce.
When you display a report on the screen, you can scroll through the displayed
report using function keys defined at the bottom of the screen. You can also use
function keys to print all or part of the data you are viewing.
F10
F10
F6
Ctrl-y
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-16Interrupting the PC2AUDIX Interface
3

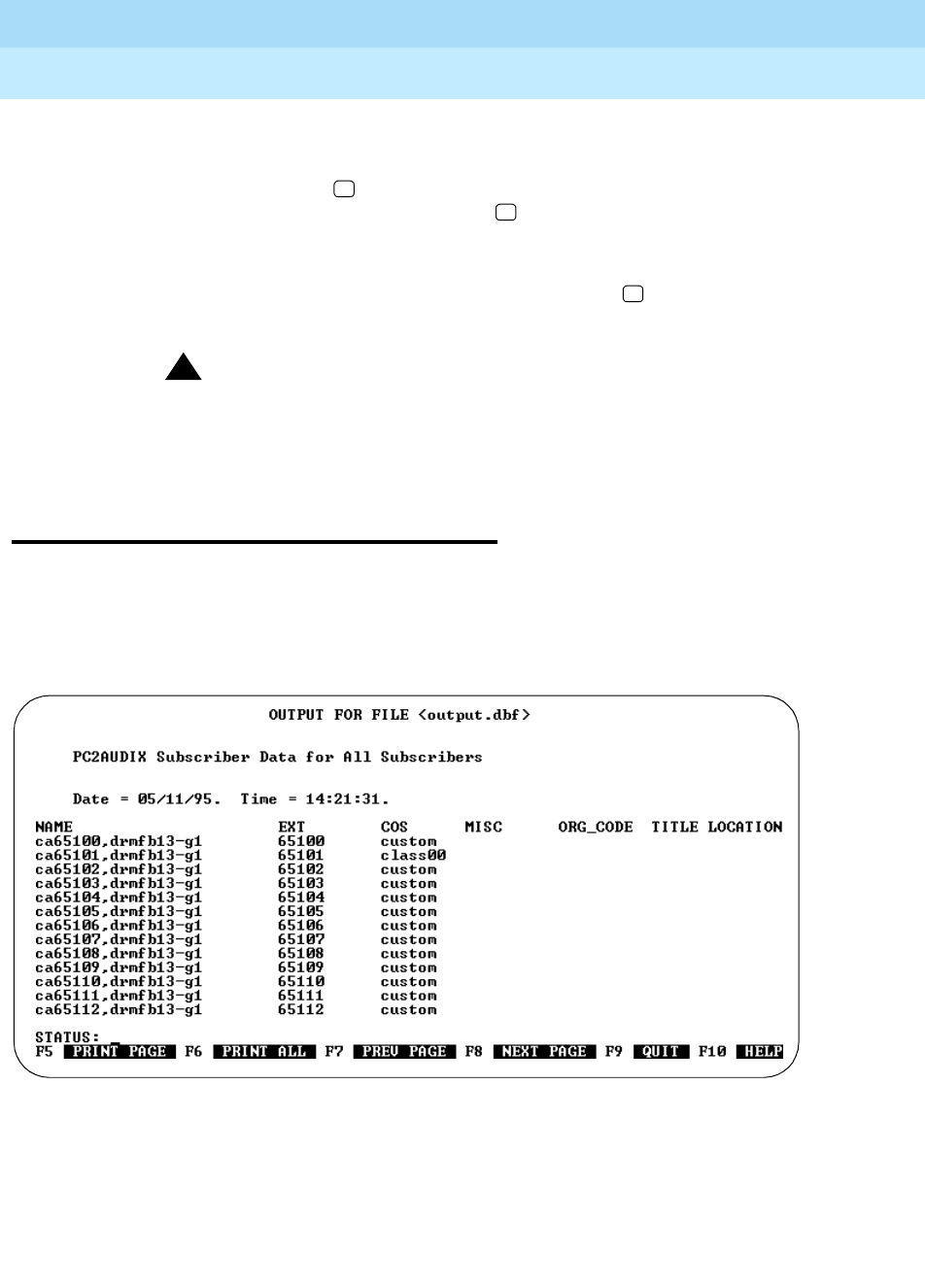

Redirecting Output to a File
For each screen report you generate, you can override the default and send the
output to a file on your PC by entering a file name; the output is stored in a file
with that name. The file contains all the control characters needed for printing, so
that you can later generate a printout by sending the file to the printer.
Using Graphical Output
You can graphically format for PC2AUDIX traffic reports (such as bar charts and
line charts) if you have the Stella Business Graphics package on your PC and
you so identified it in the PC2AUDIX Setup Parameters screen. If the graphics
software is not present, the data is presented in table format. When graphical
output is available, screens with graphic output capability prompt you to specify
if you want output displayed graphically for the report.
Interrupting the PC2AUDIX Interface
Depending on the state of PC2AUDIX, there are two ways to interrupt PC2AUDIX.
Only use these techniques if you
must
gain control quickly. It is safer to allow
normal program operation.
If PC2AUDIX is retrieving data from the voice mail system, halt the data
retrieval by typing (hold down the key and the key at the
same time).
If PC2AUDIX is not retrieving data, press the key to return to the
PC2AUDIX Root Menu, then type A. At the Root Menu, you can select
option 9 to terminate PC2AUDIX. You can select exit PC2AUDIX
temporarily from the Root Menu without breaking the connection to the
voice mail system by pressing the exclamation point (!) key.
To execute a DOS command from the PC2AUDIX Root Menu press ,
press for suspend, and type the exclamation mark character (!)
followed by a command. To return to PC2AUDIX, type resume, and press
the desired key from the PC2AUDIX Root Menu.
If you accidentally press the key, type I to ignore the escape
command and return to the procedure that was executing.
While the field edit mode is active on any of the forms, the key has no effect.
(Field edit mode is active when the cursor is inside an inverse video field on the
screen.) Use one of the screen exit choices — (ROOT FORM) or (PREV
FORM) — to exit while the field edit mode is active.
Do not use the key indiscriminately, because it usually leaves temporary files
in the work area.
Ctrl-c CONTROL C
ESC
ESC
s
ESC
ESC
F9 F7
ESC
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-17Managing PC2AUDIX Data
3
Managing PC2AUDIX Data
Now that you have PC2AUDIX up and running and are familiar with its basic
operation and capabilities, let’s discuss how you might use this tool in your
organization.
In time, your PC2AUDIX activities should be fairly cyclical in nature. First you
retrieve the data, then you generate reports, then you delete old data or archive it
on a diskette. For best results, these tasks should become part of your regular
system administration routine that you perform at the same time each week and
month, depending on the activity.
Scheduling PC2AUDIX Processes
After some trial and error, you can establish a schedule for performing
PC2AUDIX tasks. For example, if you plan to use the billing reports, you need to
establish a schedule for regularly retrieving billing data from the voice mail
database and then running the billing reports at the same time each month. The
same is true for traffic reports, where you need the same types of data each week
or month to generate reports for meaningful and accurate comparisons from one
reporting period to another.
NOTE:
The voice mail system does not store traffic and subscriber data
indefinitely. You must retrieve data from the voice mail database in a timely
fashion, before it is deleted by audits that are run weekly by the voice mail
system. Chapter 4, "PC2AUDIX Data Retrieval", tells you how long the voice
mail system retains the different types of retrievable data.
Since retrieving data can be a lengthy process that ties up your PC, you can use
the PC2AUDIX scheduling option to perform data retrieval during off-hours. This
frees up your PC for other duties during the workday, and automates essential
recurring activities. Refer to Chapter 8, "Scheduling PC2AUDIX Data Retrieval",
for information about the scheduling option.
Deleting PC2AUDIX Data
Remember that your PC does not have infinite storage space. You must
periodically delete retrieved data that you no longer need. Chapter 10,
"PC2AUDIX Database Management Tools", describes how to manage data on
your PC, such as backing up, deleting, and restoring data.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
Using PC2AUDIX Application Programs
3-18Managing PC2AUDIX Data
3
Generating PC2AUDIX Reports
The next seven chapters describe each of PC2AUDIX functions in detail and
provide tips on how you might use them in your organization. These chapters are
organized according to the PC2AUDIX Root Menu.
Chapter 4, "PC2AUDIX Data Retrieval"
Chapter 5, "PC2AUDIX Traffic Reports"
Chapter 6, "PC2AUDIX Billing Reports"
Chapter 7, "PC2AUDIX Database Searches"
Chapter 8, "Scheduling PC2AUDIX Data Retrieval"
Chapter 9, "PC2AUDIX Site Specific Data"
Chapter 10, "PC2AUDIX Database Management Tools"
PC2AUDIX Data Retrieval
4-1Overview
4
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
4
PC2AUDIX Data Retrieval
Overview
With a few exceptions, PC2AUDIX does not use
live
data from the voice mail
database for its traffic reports and billing operations. Therefore, before you can
generate PC2AUDIX traffic reports or perform billing operations, you must
capture
appropriate data from the voice mail and download it to disk files on your
PCs fixed disk.
How effective PC2AUDIX is for your organization depends on how retrieve data.
The PC2AUDIX traffic reports are valuable because they help you compare
aspects of your voice mail system operation over a period of time. This
information helps you spot trends, anticipate problems, and generally manage
your system more effectively.
For these tools to be effective, however, you must produce reports using the
same types of data for similar periods of time. If a report for one week contains
five days’ worth of data and the same report for the next week contains only three
days’ worth of data, comparing the two reports is of little value.
Similarly, the voice mail system billing operations can be accurate and useful
only if all appropriate data is reflected in their calculations. For best results, you
must determine:
the types of data you need to retrieve.
how frequently you need to retrieve this data.
how long you need to retain it.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
PC2AUDIX Data Retrieval
4-2Prerequisites
4
Once you have done this, then establish a routine for regularly retrieving this data
as part of your normal system administration. Be aware that the voice mail
system does not retain data indefinitely. For example, subscriber daily traffic
information is kept by the voice mail system for eight days and then deleted.
In addition to retrieving data, you must periodically verify the PC2AUDIX
subscribe database on our PC, comparing it to the subscriber database on the
voice mail system. This verification fixes any discrepancies by adding or deleting
subscribers in the PC database to match the
live
database on the system. You
must
perform this step before initially retrieving subscriber traffic data
using PC2AUDIX or no subscriber data will be retrieved. After this initial
verification, you must verify the database if you have added or changed
subscriber records in the voice mail database, otherwise those changes are not
updated in the retrieved data.
There are to two different ways to retrieve and verify data:
On demand, by selecting an option from the AUDIX Data Retrieval menu.
This retrieves and verifies data immediately, which means you cannot use
your PC for other purposes until the process is complete. This method can
tie up your PC for several minutes to several hours, depending on how
much data is being retrieved or verified or retrieved, and how busy the
voice mail system is at the time.
Scheduled automatically, using the PC2AUDIX scheduling option.
This method allows you to retrieve and verify data when it is more
convenient or when the system traffic is light, such as during off-hours.
This also frees up your PC, and lets you establish a regular schedule for
automatically verifying the PC database and retrieving the information for
generating reports. For best results, you should know how to retrieve data
using the AUDIX Data Retrieval menu before using the scheduling option
described in Chapter 8, "Scheduling PC2AUDIX Data Retrieval".
Prerequisites
Before you can retrieve data from the voice mail system to the PC, you must:
1. Be able to use your PC to connect and communicate with the voice mail
system as described in the previous chapters.
2. Activate traffic collection feature on the DEFINITY AUDIX
System-Parameters Feature screen or on the AUDIX System :
Appearance. Once the collection feature is active, the voice mail system
maintains data to describe the system activity. You must activate the
feature prior to the period for which you wish to retrieve data.
3. ADAP must retrieve collected data from the system in a timely fashion
before it is deleted from the voice mail system by internal audits:
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
PC2AUDIX Data Retrieval
4-3Prerequisites
4
4. There must be sufficient disk space available on your PC for the that data
you retrieve. PC2AUDIX calculates how much space is required for each
operation and does not collect data if there is not enough space available
on your fixed disk. If you have insufficient disk space, refer to Chapter 10,
"PC2AUDIX Database Management Tools", for instructions on backing up
selected retrieved data to a diskette and then deleting that data from your
fixed disk.
Voice Mail Data Type
PC2AUDIX
Report Type
Retention Time on the
Voice Mail System
Hourly system traffic
feature
load
network load
special features
community
192 hours (eight days)
Daily system traffic data
records
feature
load
network load
remote messages
special features
community
32 days
Monthly system traffic remote messages 13 months
Daily subscriber traffic subscriber eight days
Monthly subscriber traffic subscriber 13 months
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
PC2AUDIX Data Retrieval
4-4Initiating PC2AUDIX Data Retrieval
4
Initiating PC2AUDIX Data Retrieval
Perform the following steps to initiate data retrieval for the PC2AUDIX interface.
1. At the DOS prompt C>, enter cd
machine_name
to change to the directory
for the voice mail system you want to retrieve data from.
2. Enter pc2audix to call the PC2AUDIX software.
3. At the PC2AUDIX Root Menu, select 1) Data Retrieval.
The AUDIX Data Retrieval menu appears.
This menu displays the data that is available on the PC for report
generation. When you select an option, PC2AUDIX connects to the voice
mail system and retrieves the indicated data.
For each type of data, this screen displays the dates of the oldest data
and most recent data currently stored on your PC. This data may not be
continuous; the displayed dates are simply the oldest and newest dates
for each type. This screen also displays the most recent verification dates
for the local and remote subscriber directories, which should help you
determine if you need to verify the subscriber databases. If data has never
been retrieved or verified, the system creation date of 01/01/70 or 01/70
appears instead of an actual date or month.
4. Select the appropriate option for the type of data you wish to retrieve or
verify.
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
PC2AUDIX Data Retrieval
4-5Hourly System Traffic Data Retrieval
4
Hourly System Traffic Data Retrieval
Hourly System Traffic Records contain hourly information from the voice mail
system for hourly feature, load, community, special features, and network load
reports. The time involved for retrieving these records is minimal.
PC2AUDIX requires hourly system traffic data for the following reports:
Average Ports in Use Report
Peak Ports in Use Report
Hourly Filesystem Usage Report
Hourly Feature Statistics Report
Hourly Load Statistics Report
Hourly Network Load Statistics Report
Hourly Special Feature Statistics Report
Hourly Community Statistics Report

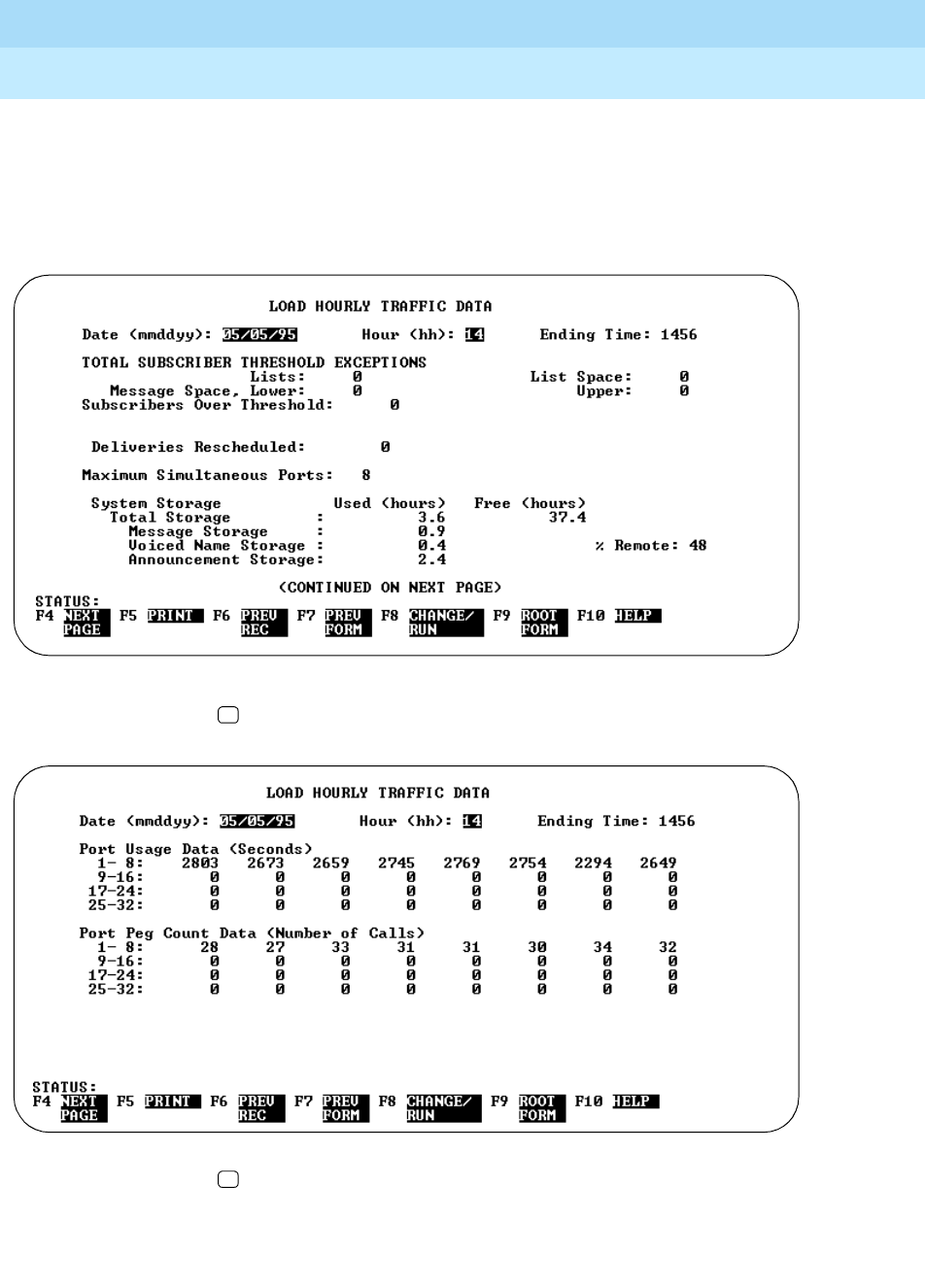

To retrieve hourly system traffic data:
1. At the AUDIX Data Retrieval menu, select 1) Hourly System Traffic Data.
The following screen appears:
AUDIX Administration and Data Acquisition Package
585-302-502 Issue 14
May 1999
PC2AUDIX Data Retrieval
4-6Daily System Traffic Data Retrieval
4
Defaults in the data fields are as follows:
Start collection date and time are the last hourly traffic data record
on the PC plus one hour or 191 hours previous to the current time,
whichever is greater.
Stop collection date and time is one hou
