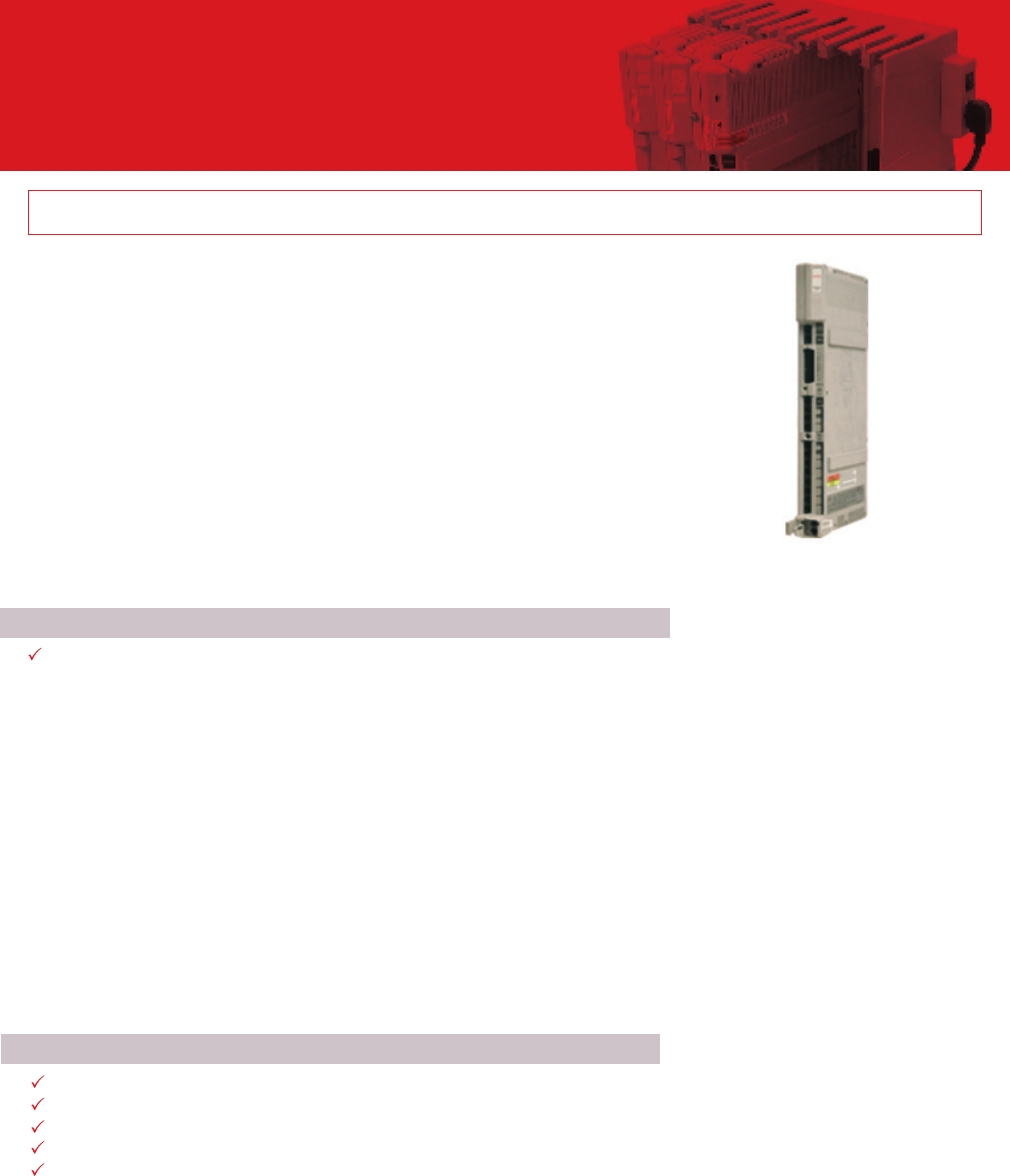

AVAYA PARTNER ACS R7.0 (5X9) CONTROL UNIT (700316474)
Introduced to the Partner family (July 2004)
The PARTNER ACS processor module provides the software intelligence that
controls the system’s features. It has jacks for 5 outside lines and 9 extensions,
a Music- On-Hold audio source, a grounding screw, a jack that supports an
adjunct for two Contact Closures, and a jack for a call reporting (SMDR) device,
such as a printer. You can connect a loudspeaker paging system to any line jack
on the PARTNER system. (If your loudspeaker paging system requires a “dry
contact relay,” you must connect the loudspeaker paging system to line jack 5.)
The processor module also has two PC Card slots, a two-color red and green
light-emitting diode (LED), and two AAA user-replaceable batteries to retain
customer memory translations (programming) for around 6 months without power
being supplied to the unit. The module provides support for integratedCaller ID
information on system display telephones.
The PARTNER ACS 509 processor module, which contains up to ve lines and
nine extensions.
Loudspeaker Paging Line to allow you to connect a loudspeaker paging system
to any linejack on any PARTNER module.
Enhanced backup/restore capabilities to allow you to back up the PARTNER
system programming to either the internal memory of the PARTNER ACS R7.0
processor module or a PC Card.
An RJ-45 serial port (Admin port) on the PARTNER ACS R7.0 processor module
to allow you to connect to the PARTNER system either directly from the COM
port of a PC or via an external modem that is connected to the Admin port and
administer the system via PARTNER ACS R7.0 PC Administration software.
Voicemail Capabilities:
Partner VS Mail (all releases)
Partner mail (all releases)
Partner Messaging (all releases)
PC Messaging (release 2.0 & higher)
3rd party voicemail interface through any extension of the ACS or an extension
on the 206 module R3.1 or higher/each port requires a station
Features:
Maximum system congurations: 11 outside lines x 48 station, 31 outside lines x 25 stations
All features of Partner ACS R6.0 & earlier
Hardware Compatibilities:
Modules:
Telephone sets:
System is compatible with the following telephone sets:
Compatible with the following modules using a 2 slot carrier or 5 slot carriers:
012 E
206 E R1.0, R2.0, R3.0, R3.1, R4.0, R4.1
206 EC R3, R3.1, R4.1
200 E R2.0, R3.1
308 EC R1.0, R3.0
362 EC (supports 3 lines caller ID x 8 Endeavor telephones)
400 E R2.0. R3.1
400 EC R3.0, R3.1
1600 DSL (only 1 per system)
Single line sets (LED message waiting light only supported – no neon message
waiting lights supported)
Remote Administration Software capabilities
MLS-6
MLS-12
MLS-12D
MLS-18D
MLS-34D
Partner 6 button
Partner 18 button
Partner 18D
Partner 34D
Partner Endeavor 6 button
Partner Endeavor 18 button
Partner Endeavor 18D
Partner Endeavor 34D
Partner 6D (series II)
Partner 18D (series II)
Partner 34D (series II)
CA-24 (Call assistant)
CA-48 (Call assistant)
Partner cordless MLC-6/905 cordless
Partner cordless MLC-6/905 cordless
Transtalk 9000/MDW 9000 cordless
Transtalk 9030/9031/9040
3910 Wireless
Partner Door Phone
Contact Closure Adjunct
