Azure Virtual Datacenter:
Lift and Shift Guide
Identify and plan the migration of applications and
servers to the Microsoft Cloud
By David Read, Thuy Le, Mark Ozur, Tycen Hopkins, and Ed Price
Azure Customer Advisory Team (AzureCAT)
2018
Azure Virtual Datacenter: Lift and Shift Guide
2
Contents
Introduction ........................................................................................................................................................ 4
Identifying potential lift and shift candidates ........................................................................................ 6
Step 1: Capture application inventory ................................................................................................................. 7
Operating System (OS) versions and patch levels.................................................................................. 7
Application frameworks and third-party libraries .................................................................................. 7
Device/infrastructure integration .................................................................................................................. 7
Operations integrations .................................................................................................................................... 7
Availability SLA ..................................................................................................................................................... 7
Usage and utilization metrics ......................................................................................................................... 7
Backup/archive, high availability, and disaster recovery ..................................................................... 8
Step 2: Verify operating system and platform support ................................................................................ 8
Step 3: Verify runtime frameworks and third-party library support ........................................................ 8
Step 4: Identify any potential infrastructure requirements or challenges ............................................. 9
Network connectivity and isolation requirements ................................................................................. 9
Specialized networking ..................................................................................................................................... 9
Special device/hardware integration ........................................................................................................... 9
Storage .................................................................................................................................................................... 9
Step 5: Validate other criteria and create a preliminary list of candidates ........................................ 10
Operations ........................................................................................................................................................... 10
Legal and regulatory requirements ........................................................................................................... 10
Costs ..................................................................................................................................................................... 10
Choosing the right deployment model ............................................................................................... 11
Use the correct Azure virtual machine sizes .................................................................................................. 11
Select the correct deployment patterns for your workload..................................................................... 11
Related services and features .............................................................................................................................. 13
Next steps ......................................................................................................................................................... 13
See also ............................................................................................................................................................. 14
Azure Virtual Datacenter: Lift and Shift Guide
3
List of figures
Figure 1. Multi-stage filtering process for potential lift and shift candidate applications ..................... 6

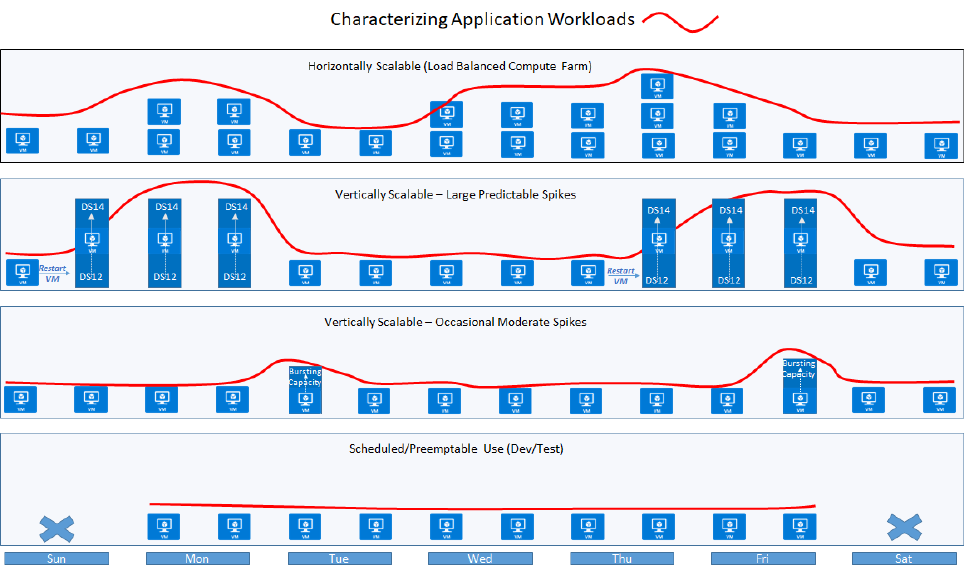

Figure 2. Comparing deployment patterns for application workloads ....................................................... 12
Authored by Thuy Le, David Read, Mark Ozur, and Tycen Hopkins from Microsoft Azure Customer Advisory Team
(AzureCAT). Edited by RoAnn Corbisier and Ed Price. © 2018 Microsoft Corporation. This document is for informational
purposes only. MICROSOFT MAKES NO WARRANTIES, EXPRESS OR IMPLIED, IN THIS SUMMARY. The names of actual
companies and products mentioned herein may be the trademarks of their respective owners.
Azure Virtual Datacenter: Lift and Shift Guide
4
Introduction
Large organizations often maintain a variety of well-established applications, resources, and
services that are used internally or by external customers. Traditionally, the hardware required to
host these resources was provided by physical datacenters, both on-premises and co-located
externally. This arrangement leaves an organization's IT department managing all the hardware,
software, and network configuration tasks required to keep these datacenters up and running.
The introduction of public cloud computing platforms offers IT departments a variety of new
options for developing, deploying, and maintaining applications and servers. To review all the
Azure Virtual Datacenter resources and tools, see the Azure Virtual Datacenter page on the Azure
Architecture Center. Servers, storage devices, and networking hardware previously required
physical assets and configuration, but they are now available as virtual devices and services that
can be spun up or down on demand. Rather than requiring a large initial investment in physical
hardware, cloud computing allows organizations to use only the computing, networking, and
storage resources they need, when they need them. Cloud services also offer several scalability
and availability options that are not available on physical hardware.
A standard part of IT planning includes reviewing and leveraging the options available on the
cloud, to drive down the required maintenance effort and total cost of ownership for your
infrastructure. That planning starts with an understanding of how to deploy or migrate
applications or services into the cloud. Microsoft Azure Migrate offers a way to easily discover,
assess, and migrate your on-premises virtual machines to Azure.
The Microsoft Azure cloud platform includes platform as a service (PaaS) and infrastructure as a
service (IaaS) offerings. PaaS on Azure provides application hosting, storage, and database
services without needing to worry about the underlying server resources. The Azure platform
handles most of the hosting, networking, infrastructure, and configuration tasks required in a
traditional datacenter. For example, you no longer need to patch your virtual machines or manage
virtual machine operating system health. By offloading responsibilities, you greatly reduce the
operations and support effort needed to stand up and maintain an application or service.
IaaS, on the other hand, allows you to create virtualized servers, storage, and network
infrastructure, giving you a similar level of control over your cloud-based assets as you would
have over the hardware in an on-premises datacenter. Applications or services hosted on IaaS
require more operations and maintenance than those running on PaaS (although still usually far
less than that required for on-premises physical hardware), but they offer more flexibility in how
those applications or services are structured.
Choosing the mix of PaaS and IaaS depends on the nature of the workloads you want to host on
the cloud. New applications or services are not bound by legacy infrastructure and can use a
greenfield (cloud-native) architecture, which allows you to take advantage of the PaaS and IaaS
features from the beginning of the design process.
However, if you built applications or services for an on-premises datacenter, you need to carefully
plan your migration to cloud services. You could invest a lot of development effort to refactor
workloads to take full advantage of cloud service offerings. In addition, your internal development
teams might not have the ability to modify third-party or legacy applications.
Your organization will want to minimize the amount of change required to get an application or
Azure Virtual Datacenter: Lift and Shift Guide
5
workload migrated to cloud hosting. In these scenarios, the lift and shift migration model might
be the right choice. For enterprise customers, the bulk of your application portfolio should be
supported by a lift and shift migration model. A follow-up paper will discuss handling the edge
cases and situations that don't fit this model.
The lift and shift model involves moving your existing applications or services to Azure-based
virtual machines, with an operating system and networking configuration as close to their current
on-premises configuration as is possible on a cloud platform. A successful lift and shift migration
takes advantage of the infrastructure benefits and management features of the cloud, while
minimizing the both the migration cost and decreasing the time required to complete the
migration.
You should consider whether PaaS can be part of your lift and shift migration (for example, simple
web applications migrating to Azure web app hosting), and you should not ignore these services
when moving through this process. However, for existing complex applications built around the
on-premises or physical datacenter model, making use of PaaS can require an extensive
retrofitting effort. This can potentially involve large development costs, which is what the lift and
shift model tries to avoid.
Because large preexisting enterprise applications tend to require more modifications to support
PaaS functionality, this document focuses on IaaS migrations, where you minimize the need for
refactoring by matching your existing hosting and network infrastructure. However, when you
choose between PaaS and IaaS technologies for migration, your decision might be based on
migration agility and speed. Which option gets your application running on the cloud? Which
choice allows you to migrate the most applications and services within a window of time?
Not all applications or services are a good fit for lift and shift migrations, and some that are a fit
can be more difficult to migrate than others. Hardware requirements, licensing issues, and
incompatibilities might make running software on IaaS resources problematic. In many ways, the
research and planning steps required for a conventional datacenter migration also apply to a lift
and shift process, and any existing information and requirements gathering processes in place for
migrations can also be applied to lift and shift.
Identifying lift and shift candidates from your pool of applications requires a few steps. The first
part of this document guides you through the information gathering process used to filter which
applications will be easiest and most cost effective to quickly migrate to Azure IaaS.
For those applications that are a good fit, migrating to Azure offers several benefits in resource
usage and scalability capabilities. The second part of this document discusses which deployment
model can best handle your application's resource requirements and usage patterns, and how to
optimize your costs based on those requirements.
This guide is a starting point when considering the migration of existing applications and services.
The processes described below are meant to be iterative. By working to identify a first round of
candidates for lift and shift, you will build an understanding of what's required to host and
maintain applications in Azure, along with increasing the accuracy of cost estimates. This
knowledge will make identifying subsequent candidates much easier.
Note that the Azure platform is continuously adding features and services, and costs can change
(generally lower) as new capabilities come online. Although applications and services might not
be candidates for lift and shift migrations now, they might be in the future, and any iterative
review process should take platform changes into account.
Azure Virtual Datacenter: Lift and Shift Guide
6
Identifying potential lift and shift
candidates
The process of identifying applications suitable for a lift and shift migration is essentially a multi-
stage filtering process. Your team will look at each application or service you are considering as a
candidate for moving to the cloud, and then generate a list of all the hosting resources used by
the application, including both physical and virtual devices.
The list of resources is used to assess the viability of hosting the candidate on Azure. This
validation occurs in several increasingly detailed steps. Any application or service that doesn't
meet the criteria assessed for a particular step in this process is moved to a separate list for
applications that require an alternative migration approach. Those that do meet the criteria
remain in the lift and shift migration candidate list and move on to the next step.
Figure 1. Multi-stage filtering process for potential lift and shift candidate applications
At the end of this process, you should have a list of candidate applications you can successfully
migrate to Azure hosting with a minimal reengineering investment. At that point, you can begin
to focus on how your application and service workloads can take advantage of cloud-specific
deployment models to optimize your use of cloud resources.
Azure Virtual Datacenter: Lift and Shift Guide
7
Step 1: Capture application inventory
For each candidate application or service, have the teams responsible for hosting and maintaining
it generate a full inventory of all dependencies. This inventory should not dive into extensive
detail about each resource, but it should be thorough in listing all types of resources used by the
candidate. It should focus on capturing key details about each resource type and what it does in
relation to the application or service.
Although automated network detection tools and preexisting documentation will be a great help
in creating these lists, it is important to manually review lists of datacenter resources, up to and
including inspecting the physical datacenter. Systems that involve specialized hardware or legacy
applications might have a lot of documentation that needs additional attention to make sure
nothing is missed.
Note which servers are running on physical hardware vs. which ones are virtualized, as this can
make a significant and measurable difference in the effort required to migrate servers. Virtualized
servers have already gone through many of the steps required in a cloud migration, and tools are
available to help migrate existing VMWare and Hyper-V virtual machines to Azure. Also note if
any software or licensing issues that require resources to run on physical hardware.
In general, the inventory should capture the following information.
Operating System (OS) versions and patch levels
For any servers used by a candidate application or service, it is important to note the platform,
operating system, version, and what patches have been applied.
Application frameworks and third-party libraries
For any software that is a part of your candidate application or service, identify any application
frameworks that are used, such as .NET or Java/JDK. Also make note of the framework version in
use.
Similarly, take note of any third-party code or libraries used, along with the currently installed
version.
Device/infrastructure integration
Identify any network switches, routers, specialized load balancers, firewalls, or other devices
required to run your application or service. Note any specialized appliances or other hosting
hardware, as well as any dedicated storage devices.
Operations integrations
List any automated agents or other processes providing monitoring, security, and notification
capabilities for your applications, services, or network infrastructure. If there are manual processes
involved in maintaining your system, note these as well.
Availability SLA
For each resource, document expected SLA and uptime requirements.
Usage and utilization metrics
Collect any usage and hardware utilization information for your server resources. Include
information about both nominal and peak loads, and note any predictable patterns of usage, such
Azure Virtual Datacenter: Lift and Shift Guide
8
as high traffic during particular dates or at specific times of day.
Backup/archive, high availability, and disaster recovery
Document how resources are backed up, and note archiving and retention policies. Note the
infrastructure in place to meet required availability SLAs, and list what disaster recovery policies
and practices are in place, including recovery point objectives (RPO) and recovery time objectives
(RTO).
Step 2: Verify operating system and platform support
Azure supports a wide range of guest OS images, including both Windows and Linux options.
However, that support is not limitless. You'll need to check if the list of OS versions you recorded
in your inventory are all supported.
Consult the list of Azure endorsed Linux distributions to see the officially supported Linux
distributions that qualify for the standard Azure platform SLA. See Information for Non-Endorsed
Distributions for more details on the minimum requirements to deploy a custom Linux guest OS.
For Windows servers, the Azure Marketplace provides supported preconfigured images for
Windows Server 2008 R2 and later. Using custom guest OS images, you can deploy older versions
that date back to Windows Server 2003. However, Windows versions past their end of support
date require a Custom Support Agreement (CSA).
Some Windows Server roles and features, like DHCP server, Hyper-V, and BitLocker data drive
encryption, are not supported on Azure guest virtual machines. See the full list of Microsoft server
software support for Microsoft Azure virtual machines for details. Also note that while these roles
and features might be not supported within Windows server virtual machines, almost all the
functionality they represent can be supported using other Azure-based services or applications.
Consider whether you can migrate software that is hosted on legacy or unsupported operating
systems, to newer Azure-supported versions, without requiring substantial changes or custom
development. If not, then that application or service should be moved to the alternative migration
approach list, while the remaining potential lift and shift candidates move to the next step.
Step 3: Verify runtime frameworks and third-party library support
Tied together with OS support, you will need to validate whether any application runtimes and
related technologies, used by the candidate application or service, are supported on Azure. This
includes making sure the currently used version of common frameworks, like .NET and Java, will
work. In addition, any third-party libraries used also need to work properly on the target OS
version.
You must be diligent on this issue, as upgrades to OS, frameworks, and libraries can introduce
cascading dependency issues that can be very difficult to deal with in the migration process. As
with OS support, if older frameworks and libraries cannot be upgraded to support the Azure
environment without substantial changes to your application or service, then move that
application or service to the alternative migration approach list before moving the remaining lift
and shift candidates to the next step.
Azure Virtual Datacenter: Lift and Shift Guide
9
Step 4: Identify any potential infrastructure requirements or challenges
After you determine that a candidate application or service can operate as an Azure guest virtual
machine, the next step is to identify any other technical concerns with hosting resources on Azure.
This stage can require in-depth research to compare Azure capabilities with your current on-
premises infrastructure, ensuring all the features and services required for the candidate are
available on Azure.
If the infrastructure requirements of a candidate can't be met on Azure without unacceptable
amounts of modification and cost, move that application or service to the alternative migration
approach list.
Each organization, application architecture, and datacenter can have a unique infrastructure, so
the list of potential issues to research will be unique to each of your candidate applications or
servers. That said, many of the most common infrastructure challenges can be broken into the
following broad categories.
Network connectivity and isolation requirements
How do resources within your candidate application or server communicate with each other and
the outside world? Is the candidate meant for internal use only? Will users need to access it over
the public network? What kind of routing and firewall capabilities do you need?
The Azure Virtual Datacenter provides a comprehensive approach to maintaining your overall
governance, security, and network design. Can the existing Azure Virtual Networks and network
virtual appliances support your needed capabilities?
Also, does the candidate application or service have any dependencies on resources that will need
to remain hosted on-premises, or at another datacenter or cloud location? Will on-premises
applications, services, or users need to use the candidate from within your local on-premises
network? Can Azure connectivity solutions, such as ExpressRoute or VPN connections, support
these requirements?
Specialized networking
Does your existing infrastructure depend on specialized networking capabilities (such as multicast,
Relocatable VIPs, Custom overlay networks, and so on)? Are these capabilities supported in Azure
Virtual Networks?
Special device/hardware integration
Are there any specialized hardware devices that the candidate application or service needs to
utilize (such as a Telephone/PBX or physical security device)? Are there equivalent virtual devices
or appliances to provide this capability on Azure?
Storage
What are your overall storage requirements? Here are some common questions:
How much total storage capacity do you need?
Do you need to share disks between virtual machines?
Do your virtual machines require high amounts (for example, greater than 50 TB) of
attached storage?
Azure Virtual Datacenter: Lift and Shift Guide
10
What kind of latency is acceptable for attached storage? Is ultra-low latency a
requirement?
Can Azure Storage, Managed Disks, and VHD files used in attached storage, support these
requirements?
Also take into account the organizational and legal requirements for archiving, and long-term
storage retention for the candidate application or service. Can the policies be supported in Azure?
Step 5: Validate other criteria and create a preliminary list of candidates
At this point, you should have a high level of confidence that your remaining list of applications
and services, on a technical level, are good lift and shift candidates. However, from an operations
perspective, less explicitly technical criteria can be just as important in deciding if a migration is
justified.
Operations
If a candidate is successfully migrated to Azure, how much will your operations processes need to
change? Here are some common concerns:
How will your backup and recovery mechanisms need to change when resources are
hosted on Azure? Will your disaster recover planning need to be modified?
Will existing monitoring tools work in the new environment, and, if not, how much work
will be required to identify and implement an alternative approach?
Will your existing high-availability architecture translate to Azure?
Will existing DevOps tools and processes need to be modified?
Legal and regulatory requirements
Are there legal or regulatory compliance concerns related to your application or service, such as
privacy laws or data retention requirements? As with any migration plan, you will likely need to
consult your organization's legal compliance team to thoroughly vet the lift and shift process for
your candidate applications and services.
Costs
Ultimately, a migration is a business decision, and if the cost of moving to the cloud can't be
justified, there's no point moving forward. The initial migration involves one-time costs related to
setting up your Azure environment and migrating applications and services. However, aside from
these migration costs, you must understand the ongoing operations costs required to host your
application or service.
You should now have a good idea about the number and type of resources you will need on
Azure to migrate your candidate application or service, and these should allow you to build cost
estimates for the migration. To understand ongoing costs, review and verify any assumptions you
have about operations and the related support tasks. Azure has extensive capabilities to scale
your application resource needs. As part of this review process, consider the deployment models
discussed in the following sections to optimize your Azure resource usage.
With this information, you can generate quality cost estimates for hosting and maintaining your
candidate applications and services.
Azure Virtual Datacenter: Lift and Shift Guide
11
Choosing the right deployment model
In a physical datacenter, the initial costs (notwithstanding depreciation models) of purchasing and
configuring hardware, can be very large in comparison to ongoing operations expenses. Your
peak loads might be much higher than most operations, and some workloads may only be
needed occasionally. However, you still need to purchase and operate all the server hardware
necessary to handle these higher loads.
On a public cloud platform, there is no hardware to purchase and no upfront costs to create a
new virtual machine. You pay for the compute, storage, and networking resources you actually
use. Virtual machines that aren't needed for a specific time can be shut down to save compute
and networking costs, and you can start them back up when they are needed. You can spin up
additional virtual machines during high-traffic or special events like Black Friday or month-end
processing. You can resize individual virtual machines to provide additional capacity, and when
the load diminishes, you can spin them down again. Azure Cost Management can help you
optimize what you spend on the cloud, while maximizing cloud potential.
The lift and shift migration model moves your applications and services to the cloud with as little
modification as possible. However, you will save a lot on your ongoing costs if you properly
understand your resource utilization and pick the best deployment model to use when you
migrate resources.
Use the correct Azure virtual machine sizes
The first step to optimize your Azure resource usage is to understand the capabilities of your
existing hardware. Use that information to select the best Azure virtual machine size to handle
that load. Larger virtual machines cost more to run, so make sure you use the right size for your
workload.
Consider the age and utilization levels of your current hosting platform. It is possible that a
Compute core on Azure is materially faster, requiring fewer cores than your current deployments.
Make good use of any utilization data you have on your existing hosts or virtual machines to
identify performance requirements. Note the nominal and peak usage on each server and map
these to an appropriate virtual machine size:
Sizes for Windows virtual machines in Azure
Sizes for Linux virtual machines in Azure
Virtual machines can easily be resized, so after deployment to Azure, continue to monitor and
tune your usage assumptions to make sure you're using the correct virtual machine sizes, as your
loads change over time.
Select the correct deployment patterns for your workload
The simplest way to set up an IaaS application or service in Azure is to create a fixed number of
always-on virtual machines, in sizes capable of handling your peak usage requirement. This will
handle your needs, but it imposes the costs of operating at peak capacity at all times.
One of the key advantages of IaaS on the Azure platform is the ability to scale your virtual
machines as your needs change. You can reduce costs by adding or removing additional virtual
Azure Virtual Datacenter: Lift and Shift Guide
12
machines instances, or by increasing the capabilities of existing virtual machines.
Figure 2. Comparing deployment patterns for application workloads
For each application or service that you are planning to migrate to Azure, review the following
deployment patterns to see if you can use them to optimize your resource utilization without
requiring any significant changes to the applications themselves.
Horizontal scale out/in
Horizontal scaling involves spinning up additional virtual machines to handle increased demand
on your application or service. When the demand declines, these additional virtual machines are
spun back down to reduce resource usage.
This pattern is well suited for stateless applications, such as the web tier of an n-tier application,
calculation services, or other processes that handle independent transactions. Applications that
already make use of a load balancer are usually good candidates for this pattern.
Vertical scale up/down
Vertical scaling involves increasing the size of individual virtual machines to handle increased
demands. When the demand decreases, the virtual machine size is decreased. If workload
increases are predictable (for example, based on a specific day each month), vertical scaling can
be scheduled to increase the virtual machine size during that period of time. Scaling can also be
set to happen dynamically, based on resource usage.
This pattern is suited for applications like monolithic database servers, stateful services, or
applications that need to track events across transactions.
If you scale between sizes, you do not need to restart the guest virtual machine. Any applications
or services that make use of this pattern, need to be able to tolerate this brief outage.
Azure Virtual Datacenter: Lift and Shift Guide
13
Scheduled on/off
For any workloads that do not need to be running 24/7, the relevant virtual machines can be
turned off when not needed. This can be done manually or managed using rules to schedule
when a virtual machine is started or stopped.
This is a particularly useful pattern for development and test resources that might only need to be
used occasionally, or for business applications that do not need to be on at all times, such as
reporting services.
Workload consolidation using containers
Some applications may be good candidates for containerization. Container platforms, like Docker
or Kubernetes, allow you to consolidate your code into an easy-to-deploy package that operates
in an isolated software environment within a larger host OS. This can provide a more efficient way
to run smaller applications that do not need the resources of a dedicated virtual machine.
Related services and features
Azure Automation
Virtual Machine Scale Sets
Azure Service Fabric
Azure App Service Environments
Azure Container Service
Azure DevTest Labs
Next steps
Many of the risks and concerns involved in a lift and shift migration are identical to those
experienced by IT teams contemplating any datacenter migration. You will need to understand
the full complexity of any systems you intend to move, and you must accommodate the existing
functionality in the new environment. Consider testing your approach to migration using Azure
Migrate.
The process described in this document explains what's involved in migrating workloads to the
cloud, and what kind of cost model this migration will entail. However, you might need to deploy
a few proof-of-concept applications to Azure before you feel confident estimating these costs.
Consider taking three or four representative migration candidates through this process to fully
understand what's required, and to further refine your cost model when planning for future
migrations. The more applications and services you move through this process, the higher
confidence you'll have in the costs and technical feasibility of future migrations. You can use the
provided example Excel spreadsheet to help track the high-level criteria for each application
candidate you are considering.
Azure Virtual Datacenter: Lift and Shift Guide
14
See also
Additional Virtual Datacenter Resources
Azure Virtual Datacenter on the Azure Architecture Center
Azure Virtual Datacenter eBook
Azure Virtual Datacenter: A Network Perspective
Azure Virtual Datacenter: Presentation Deck
Additional Lift and Shift Resources
Azure Migrate
Azure Cost Management
Lift and shift SQL Server Integration Services workloads to the cloud
Lift, shift, and modernize using containers on Azure Service Fabric

Navigation menu
