MODEL NO.
B2250
GB60YD
BASKETBALL SYSTEM
2L-7541-01
2013 Escalade Sports
© ®
1. Read this manual carefully before starting assembly. Read each step completely before beginning
each step.
2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons
before assembling or ordering parts.

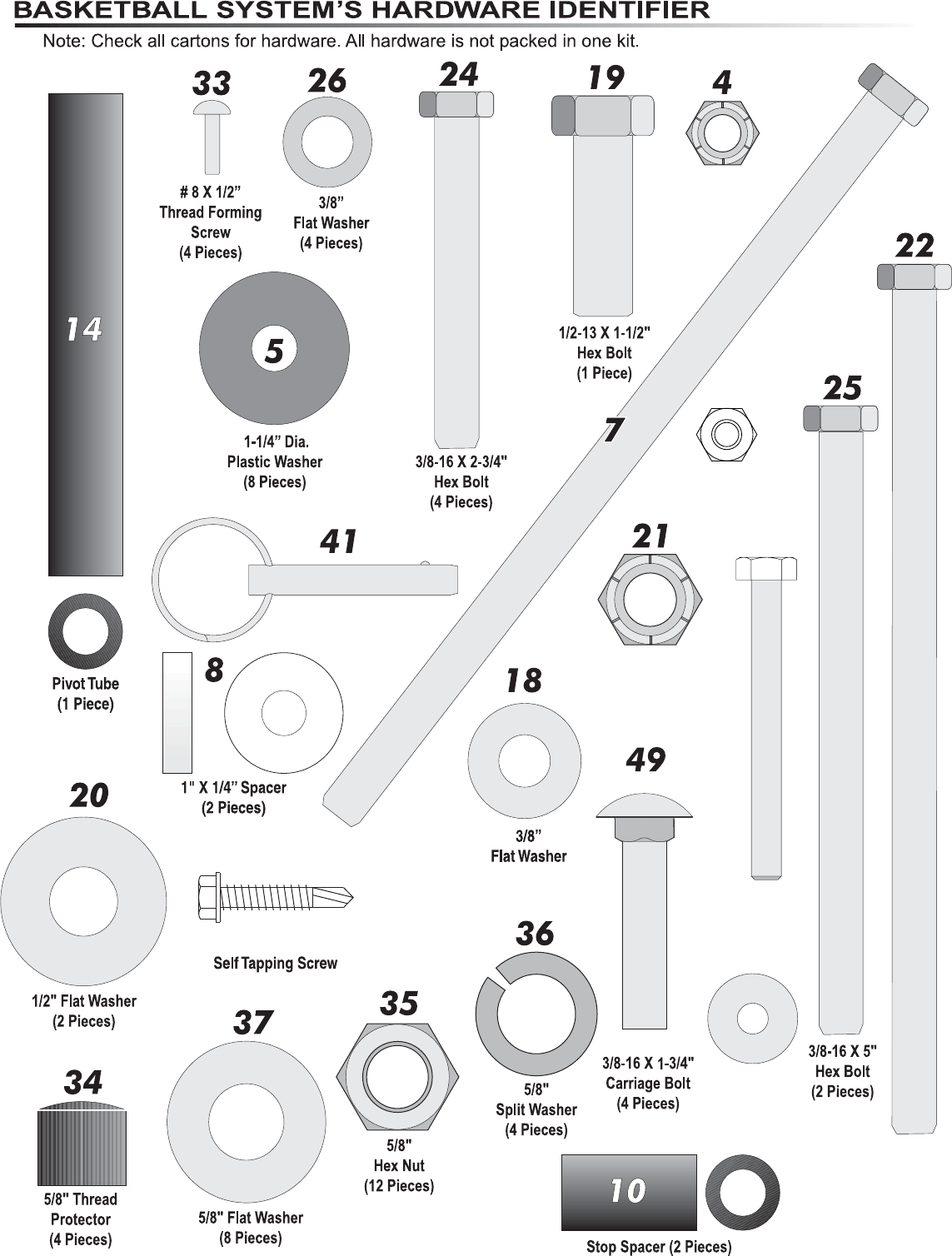

3. To make assembly of your basketball system easier, use the Hardware Identifier on page 4
to identify and sort all fasteners. Check all cartons for kits. All hardware may not be
located in one kit.
4. Do not tighten hardware until instructed to do so. If hardware is tightened too soon, mounting holes
may not align and parts may not easily fit together. Leave locknuts slightly loose until you are instructed to
tighten them.
O W N E R ' S M A N U A L
Please Do Not Return This Product To The Store!
Contact Escalade®Sports customer service department at:
Phone: 1-888-USA-GOAL T
Fax: 1-866-873-3536 T
E-mail: basketball@escaladesports.com
Mailing Address (correspondence only):
Escalade Sports
PO Box 889
Evansville, IN 47706
Please visit our World Wide Web site at: www.escaladesports.com
ON-LINE TROUBLE SHOOTING TECHNICAL ASSISTANCE
ON-LINE PARTS REQUESTS FREQUENTLY ASKED QUESTIONS
ADDITIONAL ESCALADE®SPORTS PRODUCT INFORMATION
Escalade®Sports products may be manufactured and/or licensed under the following patents:
6419596, 6179733, 5919102, 5071120, 4798381, 4424968, D326128, 7244046
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
oll Free!
oll Free!
5.
An electric screwdriver is helpful in assembly. However, please set at low torque and use caution
because you could overtighten the hardware and strip the screws.
6.
Save this instruction and your proof of purchase (receipt) in the event that the manufacturer
has to be contacted for replacement parts.
9 - 80 lb. bags of concrete
1 - Post hole digger (optional)
1 - wheel barrow
1 - garden hose
1 - Concrete form (see note after step 2)
ITEMS NEEDED (NOT INCLUDED)
1 - 15/16" Open end Wrench
1 - 15/16” Socket and Ratchet (optional)
1 - 9/16” Deep Well Socket & Ratchet
1 - 3/4” Socket & Ratchet
1 - 3/4” Open end Wrench
1 - Phillips Screwdriver
1 - Level
1 - Tape Measure
1 - Rubber Mallet
1 - Set of Padded
Saw Horses
1 - 9/16” Open end Wrench
1 - Cordless drill & 9/64” drill bit
1 - 5/16” socket driver (for cordless drill)
1 - Safety glasses
1 - Ladder
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
Owner must ensure that all players know and follow these rules for safe operation of the system.
Owner must ensure that all players know and follow these rules for safe operation of the system.
SAFETY INSTRUCTIONS
WARNING!
Failure to observe this warning
may cause property damage
and/or serious injury.
This product is NOT designed to support a player hanging from any
component of this basketball system.
Rim height adjustments should be made under parental supervision.
Wear a mouth guard when playing to avoid dental injuries.
During play, do not wear jewelry (rings, watches, necklaces, etc).
Objects may entangle in net.
7
(Affixed to backboard)
WARNING
FAILURE TO FOLLOW THESE WARNINGS MAY
RESULT IN SERIOUS INJURYAND/OR PROPERTY
DAMAGE.
Owner must ensure that all players know and
follow these rules for safe operation of the system.
Do not dunk on this unit
Do not hang from any part of the unit, including
the backboard, rim, support braces, or net.
Do not slide, climb, or play on pole.
Keep organic material away from pole base.
Grass, litter, etc. could cause corrosion and /or
deterioration.
Check pole system for signs of corrosion
(rust, pitting, chipping). Remove rust and/or
loose paint completely and repaint with
exterior enamel paint. If rust has penetrated
through the steel anywhere, replace pole
immediately.
Check system before each use for proper
ballast, loose hardware, excessive wear, and
signs of corrosion and repair before using.
During play, use extreme caution to keep
players face away from the backboard, rim,
and net. Serious injury could occur if
teeth/face come in contact with backboard,
rim, or net.
Wear a mouth guard when playing to avoid
dental injuries.
When adjusting height, keep hands and
fingers away from moving parts.
During play, do not wear jewelry (rings,
watches, necklaces, etc.). Objects may
entangle in net.
Do not allow children to adjust system.
Check system before each use for instability.
Never play on damaged equipment. 4L-7609-00
2
3
FAILURE TO FULLY ENGAGE THE
BOTTOM OF THE UPPER POLE TO
THE 6” MARK ON THIS BOTTOM
POLE STICKER, COULD CAUSE
YOUR UNIT TO COLLAPSE AND MAY
RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE.
BACKSIDE
Bottom of upper pole must cover the
above orange portion of this sticker
(6” mark).
WARNING
!
4L-8151-00
(Affixed to Bottom Post)
(Affixed to Top Post)
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!
4L-8156-00
WARNING
!
ŸCHECK PRODUCT FOR DAMAGE AND REPAIR BEFORE EACH USE
(LOOSE HARDWARE, RUST, TORN NETS, INSTABILITY) NEVER PLAY
ON DAMAGED EQUIPMENT!
ŸDO NOT CLIMB OR JUMP ON PRODUCT.
ŸDURING PLAY DO NO WEAR JEWELRY (WATCHES, RINGS, ECT.)
OBJECTS CAN ENTANGLE IN NET.
ŸPUT PRODUCT IN STORAGE POSITION WHEN NOT IN USE, DURING
STORMS, AND DURING AGGRESSIVE PLAY.
77
#10 X 1 1/8”
(10 Pieces)
4
3/8-16 X 7”
Hex Bolt
(2 Pieces)
3/8-16 X 71/2”
Hex Bolt
(2 Pieces)
(20 Pieces)
75
67
1/4” Washer
(8 pieces)
66
1/4-20 X 2 1/2”
Hex Bolt
(2 pieces)
1/4” Hex Nut
(2 pieces)
3/8”-16
Lock Nut
(14 pieces)
1/2”-13
Lock Nut
(1 piece)
Pull Pin
(1 piece)

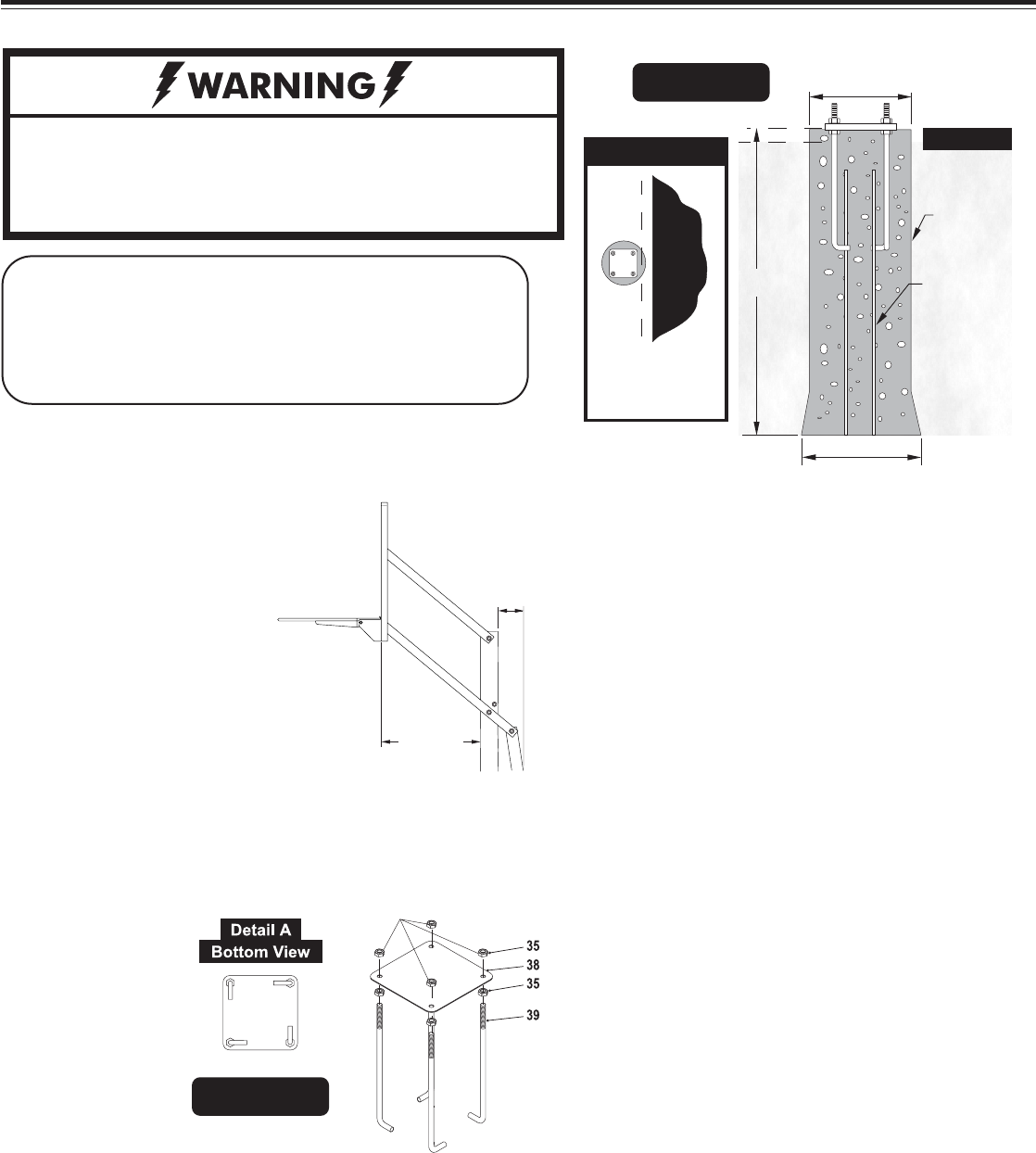

ANCHOR SYSTEM INSTALLATION INSTRUCTIONS (Day 1)
Figure 1
Note: It is recommended that you use some sort of
concrete form for the top 4" of the concrete. Cardboard
forms can be purchased at some hardware and home
stores or a wooden form can be constructed out of 2 x
4's.
3. Mix and pour concrete into hole. Follow instructions on
concrete bag. Stop about 18" below court level.
4. Insert four reinforcement bars (#40) into concrete 8" apart
creating a square in center on hole.
5. Finish pouring concrete up to court level.
6. Push anchor system into concrete and agitate to work out
voids in concrete. Immediately use a level to level and square
anchor plate to playing surface. Clean off any concrete that
may be on exposed threads.

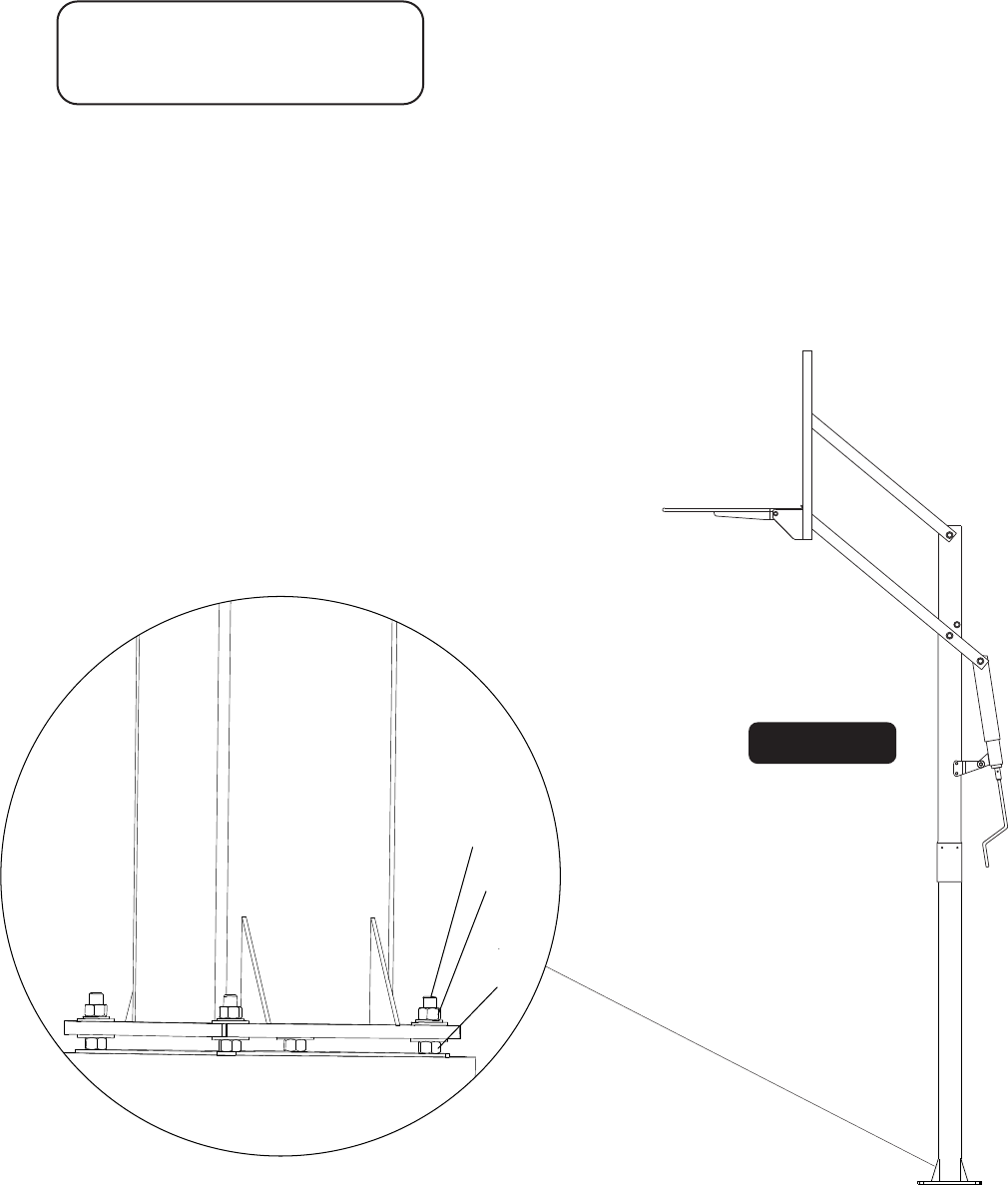

Note: The bottom four nuts will be forever embedded
in concrete. The top four nuts remain on bolts and
Let concrete stand for a MINIMUM of 72 hours.
INSTALLATION TIMELINE
1. Prior to anchor system and goal assembly, call utility services for location of underground utility lines before you dig.
2. Vertical main post assembly is a two part process.
PART 1
Day 1. Complete Anchor System Installation Instructions.
(Below)
Day 2-4. Allow concrete to cure.
PART 2
Day 5. Complete Goaliath®
assembly instructions. (Requires
four adults)
Before digging hole for anchor system, check for
buried power, gas, water, and telecommunication
lines! Failure to do so could result in serious or fatal
injury! Contact your local utility company if unsure.
Note: For best results with less vibration, anchor system
should be independent of court. If pouring concrete for
both at same time, add an expansion joint in between.
Figure 2
2. Assemble anchor system as follows: Thread nut (#35) to bottom
of threads on anchor bolt (#39) insert threads of anchor bolt
(#39) through hole on anchor plate (#38) and secure with
nut (#35). Repeat this step for the
remaining anchor
bolts. See Figure
2. Note: Each leg
of anchor bolts
should face the
anchor bolt to the
right. See Detail A.
1. Determine the location of the anchor
system. The proper location is as close to
the court without making contact, as
shown in Figure 1. This,
however, is a general rule.
If you need to locate the
anchor system in a location other than
this, use the following dimensions as a
guide.
Overhang when adjusted to 10 ft. = 27”
20” Diameter
16” Diameter
Concrete
Rebar #40
36”
Court
Court Level
Anchor Plate must be
square to your court so
the backboard will
line up with court.
Court
Top View
are used for leveling. (See Step 15 on page 9).
Items needed for Anchor Installation (not included)
9 - 80 lb. bags of concrete
1 - post hole digger (optional)
1 - 15/16” open end wrench
1 - 15/16” socket and ratchet (optional)
1 - wheel barrow
1 - garden hose
1 - level
1 - tape measure
1 - concrete form (see note after step 2)
OVERHANG
18 INCH
MINIMUM
REAR
CLEARANCE
REQUIRED
Note: When digging hole, if you hit rock
and cannot dig through contact a contractor.
Note: Minimum of 18” rear clearance is required behind pole.
THESE NUTS
USED FOR
LEVELING
5
Note: Failure to dig and fill hole as instructed will result
in increased system vibration.
6
Figure 3
NOTCHES IN BASE
PLATE MUST BE ON
SIDE AS SHOWN
FRONT
BACK SIDE
1.
2.
Be sure that the
“Back Side”
stickers are at the
back of the poles.
TOOLS REQUIRED FOR THE FOLLOWING STEPS
1 - 15/16" Open end Wrench
1 - 15/16” Socket and Ratchet (optional)
1 - 9/16” Deep Well Socket & Ratchet
1 - 3/4” Socket & Ratchet
1 - 3/4” Open end Wrench
1 - Phillips Screwdriver
1 - Level
1 - Tape Measure
1 - Rubber Mallet
1 - Set of Padded
Saw Horses
1 - 9/16” Open end Wrench
1 - Cordless drill & 9/64” drill bit
1 - 5/16” socket driver (for cordless drill)
1 - Safety glasses
1 - Ladder
If you want to see a video on how to put the poles together go to:
http://www.escaladesports.com/customer-service/instruction-videos/basketball
BACK SIDE
PIECE OF
CARDBOARD
(must be at least as
big as pole plate)
ASSEMBLY INSTRUCTIONS (Day 5)
FAILURE TO FULL
Y ENGAGE THE
BOTTOM OF THE UPPER POLE TO
THE 6” MARK ON THIS BOTTOM
POLE STICKER, COULD CAUSE
YOUR UNIT TO COLLAPSE AND MAY
RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE.
BACKSIDE
Bottom of upper pole must cover the
above orange portion of this sticker
(6” mark).
WARNING
!
4L-8151-00
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!
77
77

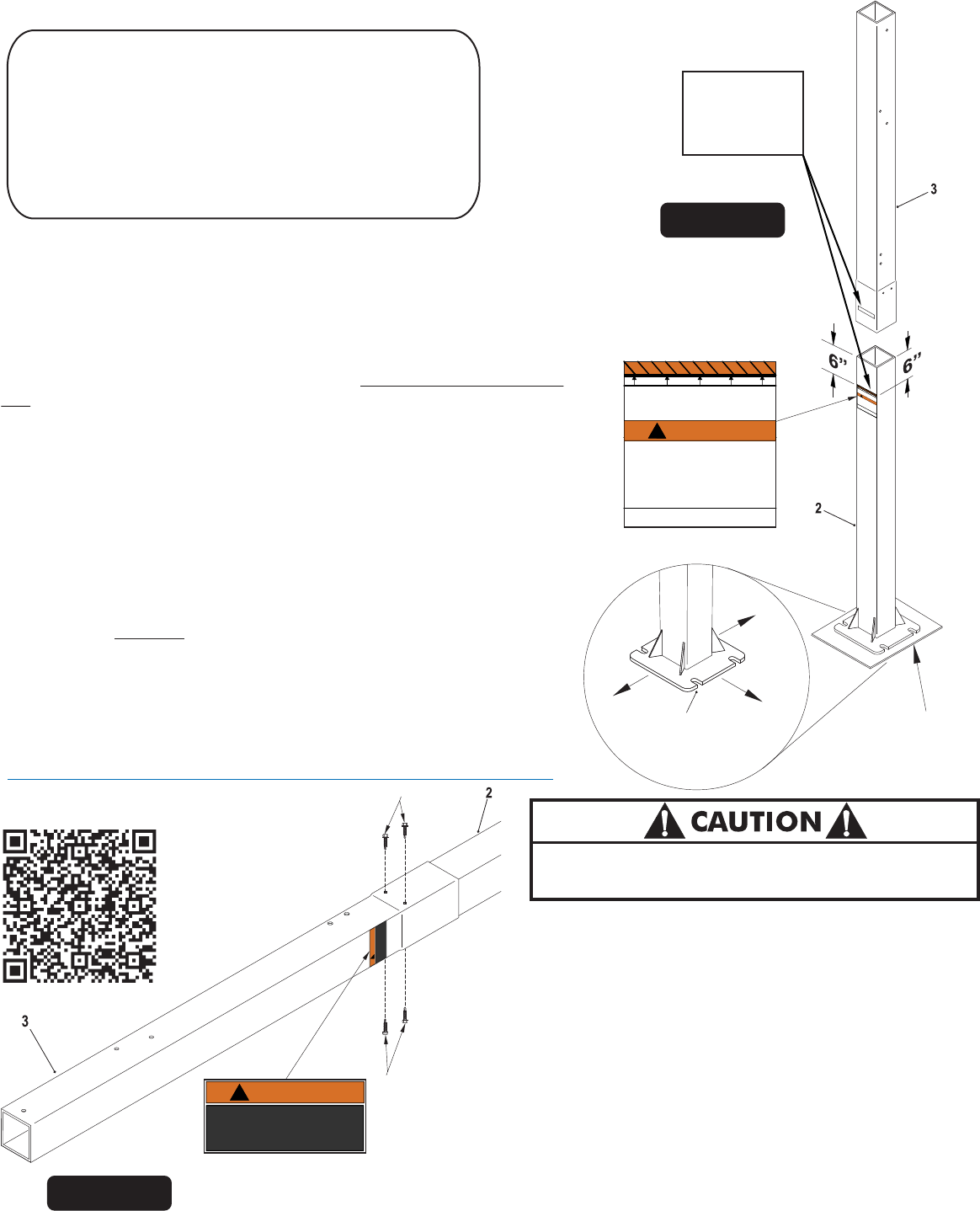

3. Once the Top pole is to the 6” Mark on the Warning Sticker, lay Pole
Assembly on its side on two padded saw horses. Insert a (#77) Screw into
each 3/16” hole in top Pole, two on each side of the Post Assembly. You
will need someone to hold the Pole assembly while inserting screws.
Screw must go through both Top and Bottom (Inner) Poles. Make sure to
not strip screws once they are all they way through. See Figure 4.
Figure 4
FAILURE TO FULLY ENGAGE THE
BOTTOM OF THE UPPER POLE TO
THE 6” MARK ON THIS BOTTOM
POLE STICKER, COULD CAUSE
YOUR UNIT TO COLLAPSE AND MAY
RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE.
BACKSIDE
Bottom of upper pole must cover the
above orange portion of this sticker
(6” mark).
WARNING
!
4L-8151-00
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!
SCREWS (#77) MUST BE INSTALLED TO POLE AS DESCRIBED
IN STEP 3. FAILURE TO INSTALL SCREWS COULD RESULT IN
SERIOUS INJURY OR PROPERTY DAMAGE.
NOTE: Cordless drill required for screw installation. Do not over
tighten screws causing screws to strip. Once Screw heads
touch pole, STOP! Overtightening will cause Pole to Warp
and damage system.
NOTE: To install screws, it will be easier if you use a cordless
drill with 5/16” socket (instead of Phillips head).
NOTE: Screws #77, used in step 3, are Self Drilling screws and
can be installed without drilling pilot holes. However, it
will be easier to install screws if you drill 9/64” pilot holes
in bottom pole. WEAR SAFETY GLASSES if drilling holes.
NOTE: Self Drilling screws
(#77) are used. Holes are
only on outside Pole. User
must insert screws through
BOTH POLES.
WARNING: This pole assembly is heavy. Step 2 may require two adults.
Make sure you can control the pole when slamming it together. If you
are unsure if you can safely control the pole ask another adult to help
you. This helper can stand on the opposite side of the pole. Attention
should be paid to one’s feet and toes during entire slamming process.
NOTE: When slamming poles together make sure to keep the poles straight.
Slamming the poles down crooked will damage the bottom of the pole and
base plate. Top Pole must cover upper orange area of sticker. If Pole goes
slightly past the 6” mark, it is OK.
IMPORTANT! DO NOT hit poles with hammer or sledge hammer to
attach poles together.
NOTE: Top Pole must cover upper
orange area of sticker. If Pole goes
slightly past the 6” mark, it is OK.
Before putting any of the poles tubes together, make sure that the
orange area of the Warning Sticker on Pole (#2) is 6 inches from the
top end. Be sure that the “Back Side” stickers are at the back
of the pole. See Figure 3.
Align the upper pole (#3) with the bottom pole (#2) as shown in Figure 3 and
slide them together. While maintaining control of the pole assembly stand poles up
STRAIGHT on a piece of cardboard from your box, lift poles up by bottom pole
below the 6” mark shown on sticker and slam down the bottom pole as many times
as needed on the cardboard until the bottom of the upper pole reaches the
6” mark (on Sticker) on the bottom pole. See Figure 3. Should any concerns exist
about damaging your driveway, use a 12” X 12” piece of Plywood or mdf board.
Or Scan with your
smart phone:
7
7.
6.
Figure 6
4. Attach Post Ears (#30) to holes near the bottom of Top Post
(#3) using two Hex Bolts (#25) four Washers (#18) and
two Lock Nuts (#4). Do not tighten nuts (#4) completely
until instructed to do so. See Figure5.
21
5.
Note: If necessary, use a rubber mallet to tap in
Pivot Tube (#14)
Figure 5
18
25
BACK SIDE
While still on the two padded saw horses, Slide tab on Actuator
(#16) between Post Ears (#30) and secure using one bolt (#19),
two washers (#20) and one lock nut (#21). Tighten Lock Nut
(#21) snug but do not over tighten. See Figure 6.
At this time also tighten nuts (#4) from Step 4.
Place Pole Cap (#1) onto top of Top Pole (#3). Note: Pole
Cap may be pre-installed by the factory.
8. Secure two stop spacers (#10) to pole, as shown in Figure
6, using one hex bolt (#7) and one lock nut (#4). Tighten
Lock Nut (#4) but do not over tighten.
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!
7
If not already pre-assembled, slide Plastic Actuator Sleeve (#15)
over Steel Actuator (#16) and place Actuator Cap (#13) on top.
Align holes in all 3 parts and slide Pivot Tube (#14) through holes
in Actuator Cap (#13), Plastic Actuator Sleeve (#15) and Steel
Actuator (#16) until equal amounts stick out through both sides of
actuator. See Figure 6.
Actuator Tab

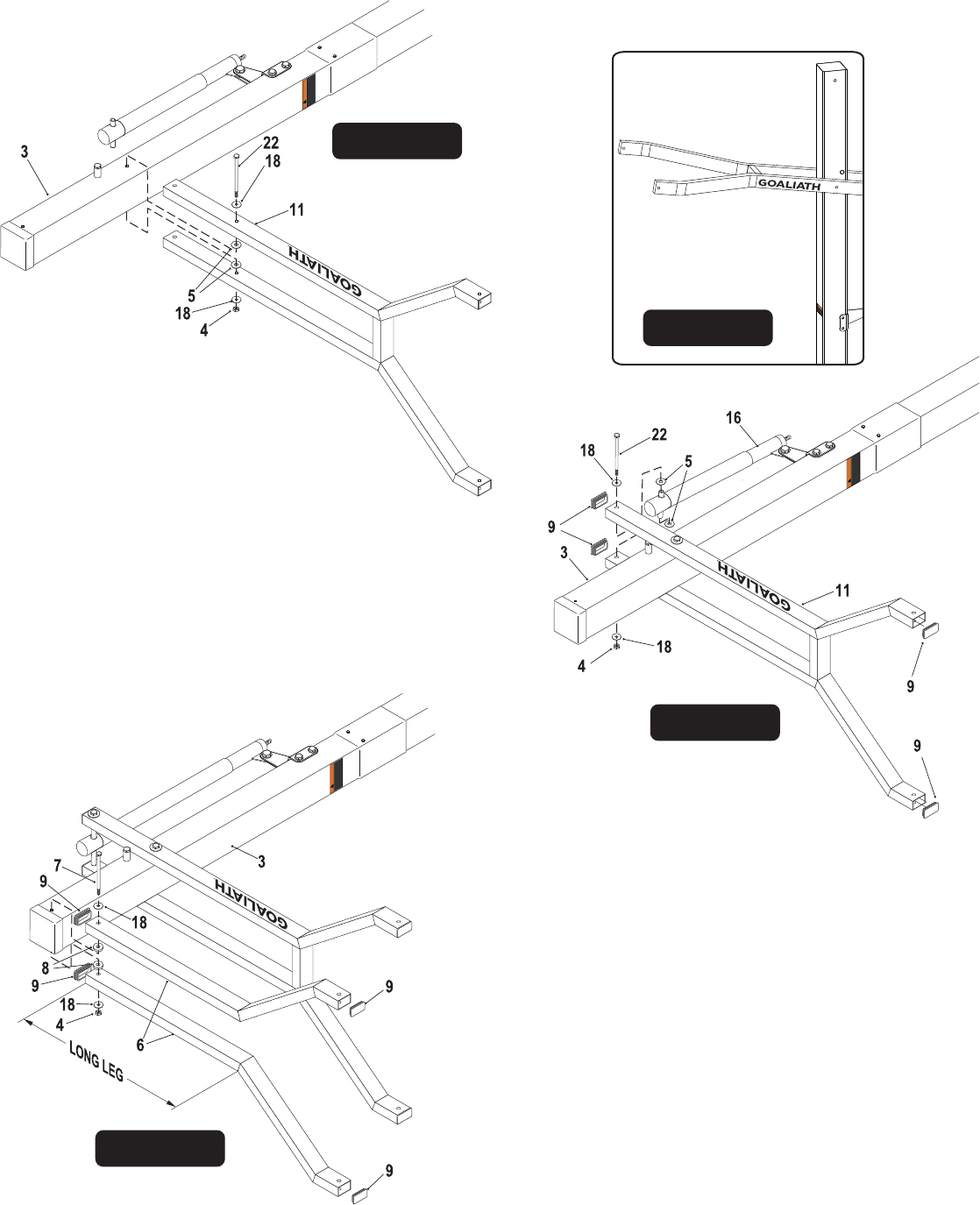

9. Attach lower arms (#11) to Top Pole (#3), as shown in
Figure 7, using a hex bolt (#22), two flat washers (#18),
two plastic washers (#5) and lock nut (#4).
Note: make sure lettering is right side up. (See Side View).
DO NOT tighten bolt (#22) at this time. (See Figure 7.)
Figure 8
12. Attach long leg of Upper Arms (#6) to Top Pole (#3), as
shown in Figure 9, using a bolt (#7), two flat washers (#18),
two spacers (#8) and one lock nut (#4).
Note: Tighten bolts snug but, do not over tighten. Board
Arms must pivot freely.
13. Insert four Tube Plugs (#9) into open ends of Upper Arms
(#6). It may be necessary to use a rubber mallet to tap plug
Figure 7Figure 9
in. See Figure 9. Note: Tube plugs may be pre-installed
by the factory.
Figure 7
10. Secure Actuator (#16) to Lower Arms (#11) using one bolt
(#22), two flat washers (#18), two plastic washers (#5) and
one lock nut (#4). See Figure 8. Tighten both bolts (#22)
snug but, do not over tighten. Board Arms must pivot
freely.
11. Insert four Tube Plugs (#9) into open ends of Lower Arms
(#11). It may be necessary to use a rubber mallet to tap them in.
IMPORTANT! Nylon washers (#5) adequately space
painted parts at all pivot points. Neglecting the use of
these washers will result in rusted parts.
NOTE: All board arms are made of rectangular tubing.
Tightening hardware too tight may damage tubing
and make adjustment of system difficult.
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!
SIDE VIEW
8
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!
Note: Tube plugs may be pre-installed
by the factory.
Note: Small amounts of clear tape can be used to adhere
Plastic Washers (#5) to Pole. This will make assembly easier.
9
Figure 10

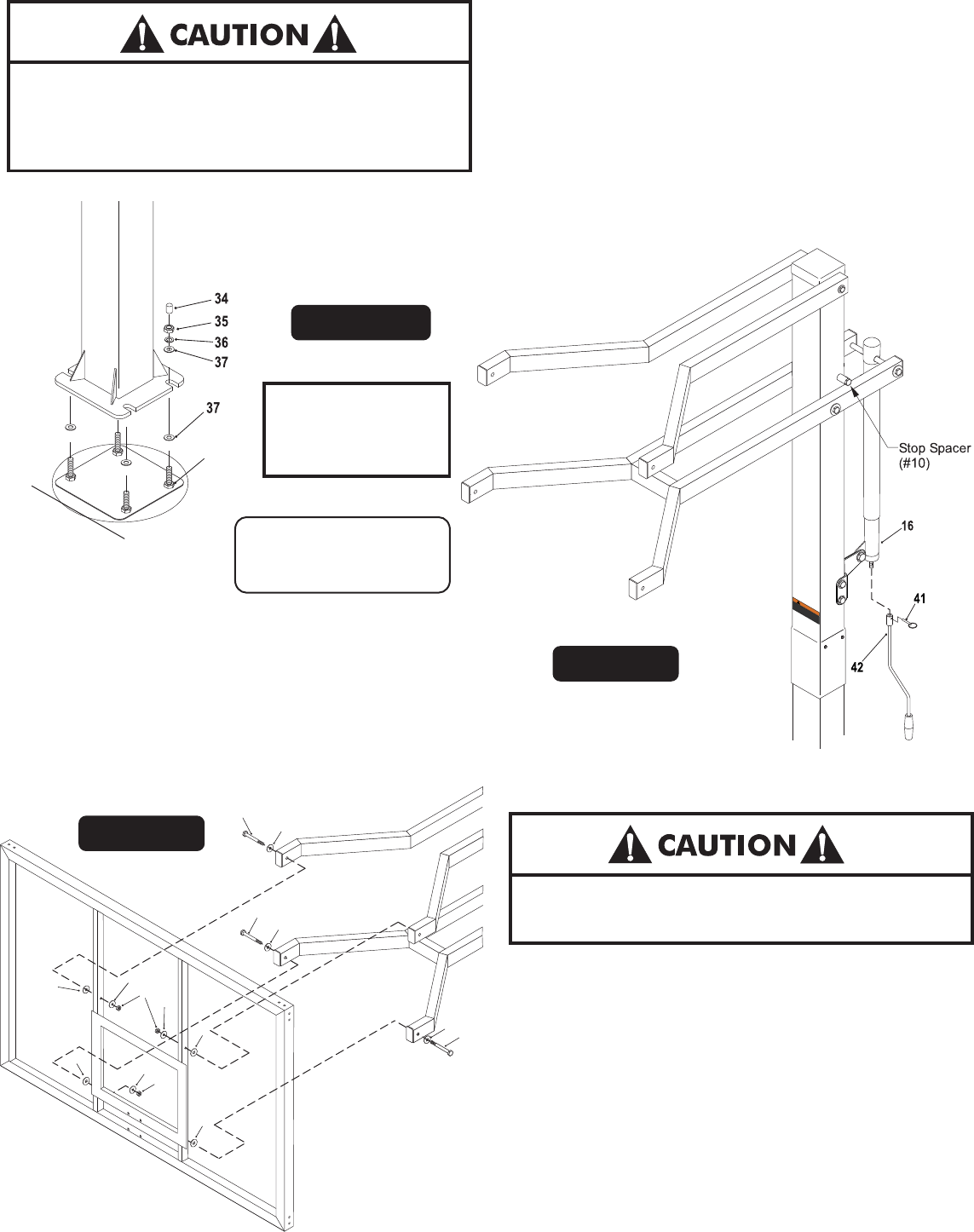

16. Slide Actuator Crank (#42) onto shaft on the bottom of
Actuator (#16). Line up hole in shaft with hole in Actuator
Crank and insert Pin (#41) to secure. See Figure 11.
17. To aid in the assembly of the backboard, lower the backboard,
by turning the Actuator Crank, until the lower arm makes
contact with Stop Spacer (#10).
BE SURE CONCRETE
HAS BEEN ALLOWED
TO CURE FOR AT
LEAST 3 DAYS
14. Locate hardware needed to mount pole to anchor bolts. You
will need, eight flat washers (#37), four lock washers (#36),
four hex nuts (#35) and four thread protectors (#34).
15.
PLACING THE POST ON THE ANCHOR SYSTEM
REQUIRES AT LEAST FOUR CAPABLE ADULTS.
POLE WILL WANT TO LEAN WHILE ATTEMPTING TO
STAND IT UP ON ANCHOR BOLTS.
18. With at least three capable people, raise the backboard assembly
up and have the fourth attach Lower Board Arms to lower mounting
tubes on backboard using two bolts (#24), two plastic washers
(#5), four washers (#18) and two lock nuts (#4). See Figure 12.
NOTE: DO NOT over tighten these bolts. This is a pivot point.
Snug is tight enough.
19. Attach Upper Board Arms to upper mounting tubes on backboard
using two bolts (#24), two plastic washers (#5), four washers
(#18) and two lock nuts (#4). See Figure 12.
NOTE: DO NOT over tighten these bolts. This is a pivot point.
Snug is tight enough.
Figure 12
ATTACHING BA CKBOARD TO BO ARD ARMS
REQUIRES AT LEAST FOUR CAPABLE ADULTS.
PLA
YING SURFACE
24 18
24 18
18 24
5
18
4
18
5
518 4
5
Note:
be used for leveling system.
See Step 14.
Bottom nuts #35 can
Note: Do not remove the nuts you installed in step 2 (pg. 5).
Put a flat washer (#37) on each anchor bolt. Lift post onto
anchor system and secure with one flatwasher (#37), one
lock washer (#36) and one hex nut (#35) for each anchor
bolt. Tighten Fasteners finger tight, leave loose enough to
level pole. Place a level on pole and adjust bottom nuts #35
until pole is level (left to right and front to back).
top four hex nuts #35 tight.
Tighten
Place a thread protector
(#34) on each anchor bolt. See Figure 10.
35
(Bottom Nut)
Figure 11
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET
.
4L-8152-00
WARNING
!
10
20.
21. Place a level across rim assembly and adjust rim until it is
level. Finish tightening the four nuts.

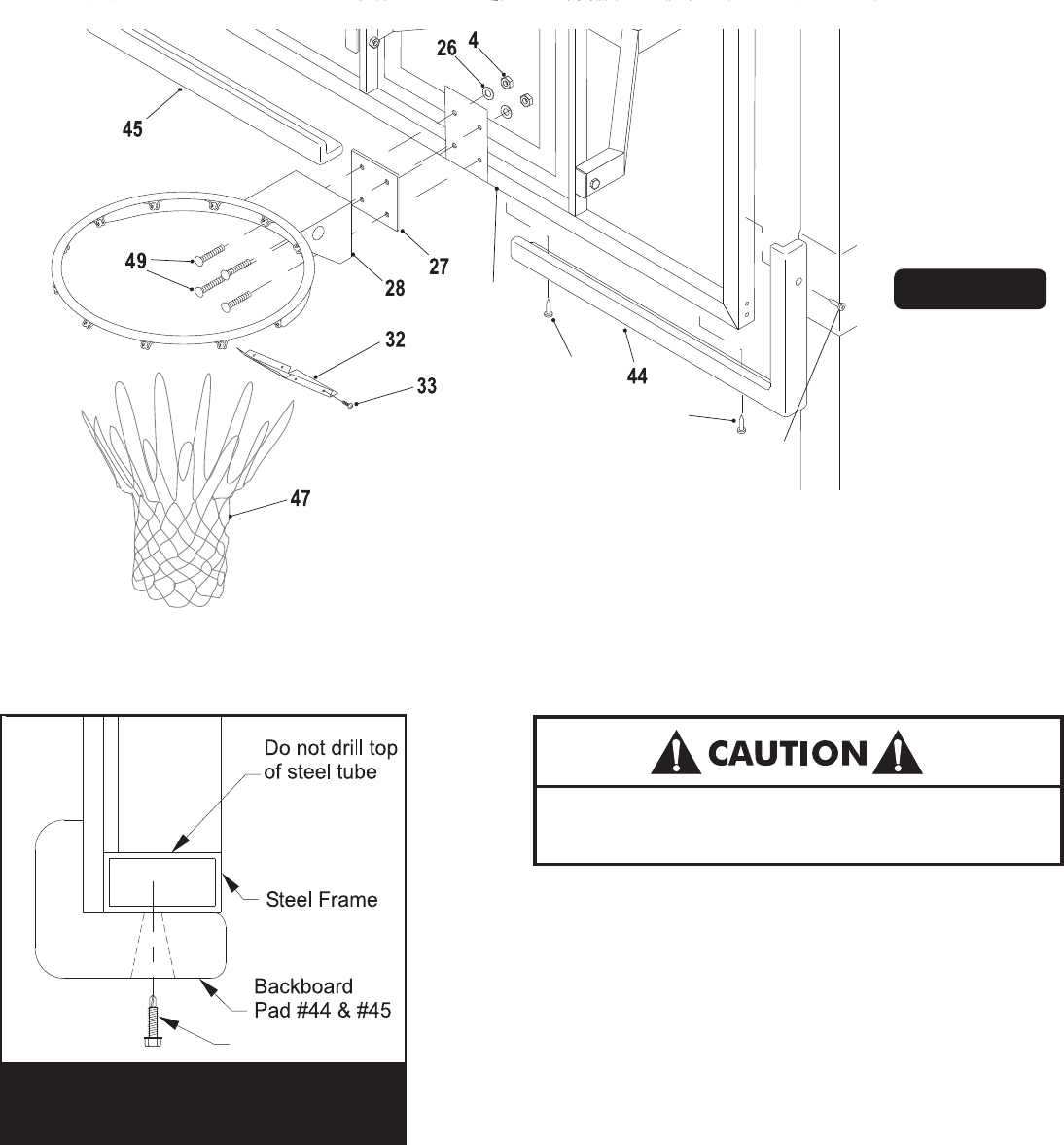

22. Attach Rim Cover Plate (#32) using four screws (#33). See
Figure 13.
23. Check all nuts and bolts and make sure everything is
tightened properly.DO NOT over tighten pivot points,
snug is tight enough.
24. Use the Backboard Pads (#44) and (#45) as a template and
mark the hole locations on the backboard frame. See Figure
13 and Detail A.
NEVER USE RIM WITH COVERPLATE REMOVED!
77
77
23
77
26. Secure Backboard Pads (#44) and (#45), as shown, using
screws (#77). Note: Tighten screws tight but, do not over
tighten.
Screw #77
Detail A
Note: Make sure (#27) Rim
Pad is installed between Rim
(#28) and Backboard (#23)
Figure 13
Note: Make sure (#27) Rim Pad is installed
between Rim (#28) and Backboard (#23)
Mount Goal Assembly (#28) and Rim Pad (#27) to
Backboard, as shown in Figure 13, using four bolts (#49),
four washers (#26), and four locknuts (#4). Tighten fasteners,
but leave them loose enough to level rim.
25. Drill 9/64" pilot holes into steel backboard frame. See
Detail A. Do not drill through both sides of tube.
Note: Cordless drill recommended for screw installation.
Do not over tighten screws causing screws to strip.
Note: Screws (#42), used in step 25, are Self Drilling
screws and can be installed without drilling pilot holes.
However, it will be easier to install screws if you drill
9/64” pilot holes. WEAR SAFETY GLASSES if drilling holes.
Note: To install screws, it will be easier if you use a
cordless drill with 5/16” socket (instead of Phillips head).
11

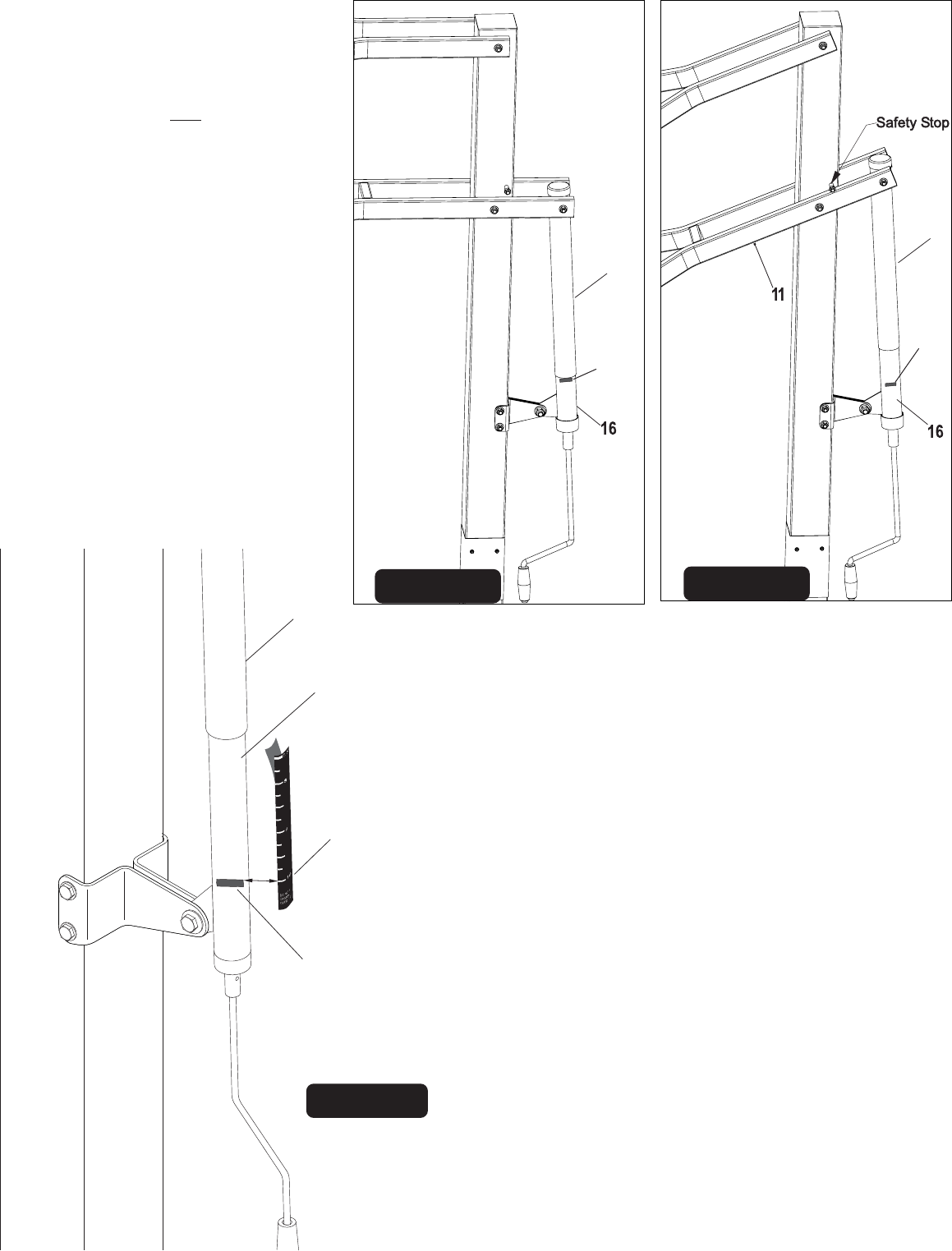

Raise Backboard to 10 FT. regulation playing
height. Measure from top of rim straight down
to the playing surface.
Using tape - mark the side of the steel actuator
(#16) just under the plastic actuator sleeve
(#15) at this 10 ft rim height. See Figure 14.
Lower backboard all the way down. Do not force
actuator once backboard is in it's lowest position.
See Figure 15.
Do not remove adhesive backing from height
decal (#17) yet. Carefully place height decal on
backside of steel actuator and line up the
10 ft mark on the tape with the 10 ft mark on the
height decal. Decal should fit correctly onto the
backside of the steel actuator. ( If not , simply
trim to fit the top of the actuator decal).
(#16)
27.
28.
29.
30.
31. Remove the adhesive backing from the Height Decal (#17).
Next, carefully align and stick decal to backside of steel
actuator (#16) starting at the 10 ft mark first. Be sure to
keep the height decal straight and rub out all air bubbles. See
Figure 16.
Set at 10 feet
Mark with
tape
15
Figure 14
Lowered all
the way down
Tape at
10 feet
Figure 15
15
Tape
17
16
15
Figure 16
Figure 17
Two adults are recommended for
this step, one to level and one to
adjust the bottom #35 nuts.
If further leveling is required loosen top #35 nuts but do
not loosen past the top of #39 “J” Bolt.
REMOVE NUTS #35 Place a level on pole and adjust
bottom nuts #35 with a 15/16” open end wrench until
pole is level. Tighten top #35 hex nuts. See Detail B.
DO NOT
.
32.
Detail B
35
39
35
(Bottom)
12
13

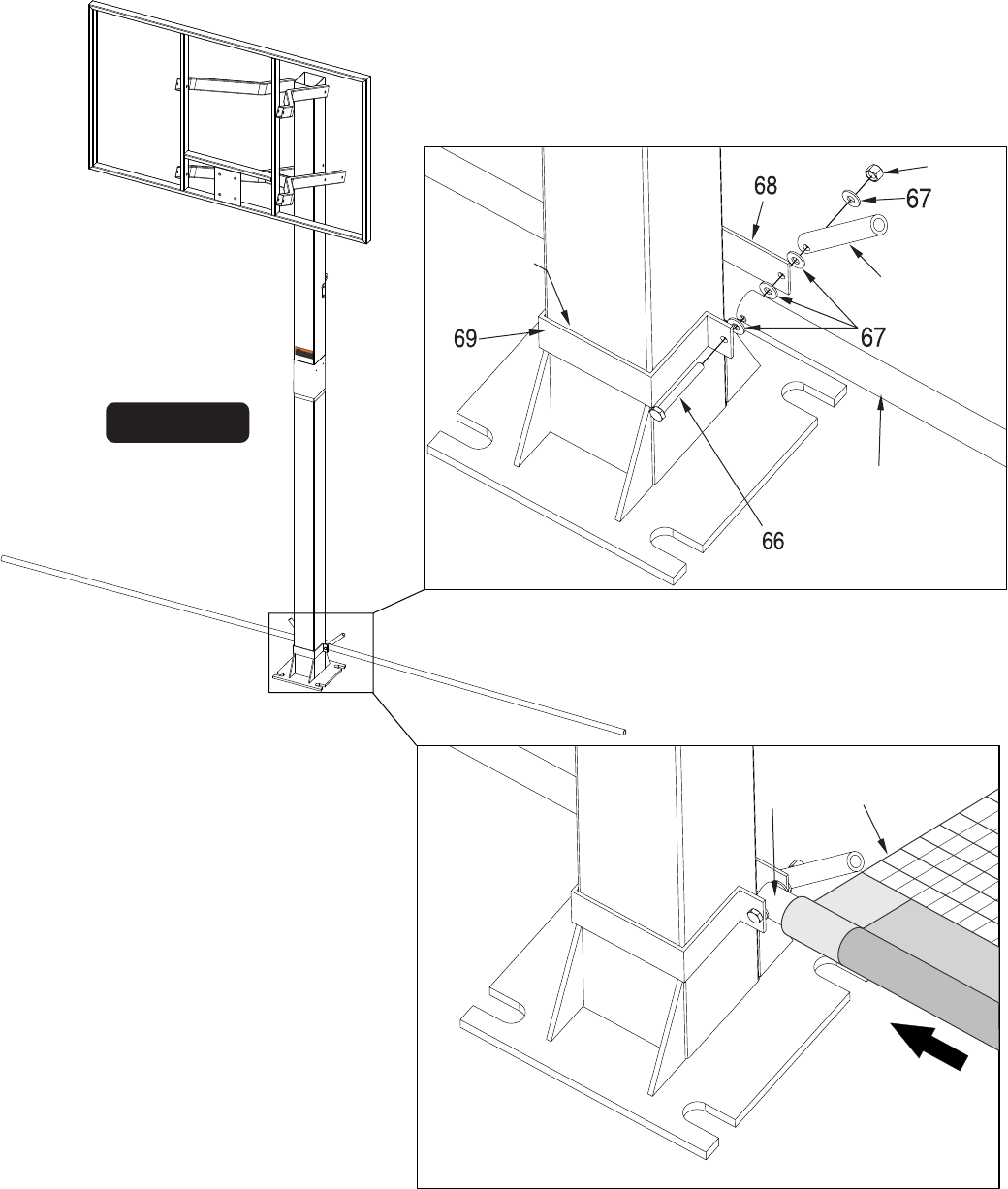

1. Put together yard defender bracket as shown. Using Bolt (#66), Washer (#67), Tube (#76), another Washer (#67) Back
Bracket (#68), Washer (#67), Pivot Tube (#71) Washer (#67) and Nut (#75). Tighten Nut secure so that the rods can
pivot up and down, but front to back wobble is eliminated. See Detail 1.
INSTALLING THE YARD DEFENDER
Detail 2
Figure 17
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!
Detail 1
76
71
75
73
76
Rubber part
goes on the
inside facing
the Pole
FRONT
OF POLE
FRONT
OF POLE
NOTE: Two adults are recommended for the Yard Defender installation.
NOTE: Make sure
Warning Label and
artwork face FRONT.
2. Slide R as shown in Detail 2. Repeat for Left Yard
Defender Net (#72 with warning Label).
NOTE: Make sure Warning Label and artwork on Yard Defender Nets face the FRONT of pole.
NOTE: DO NOT install pole pad until instructed to do so.
ight yard defender net (#73 with Goaliath Decal) onto Steel Tube (#76)

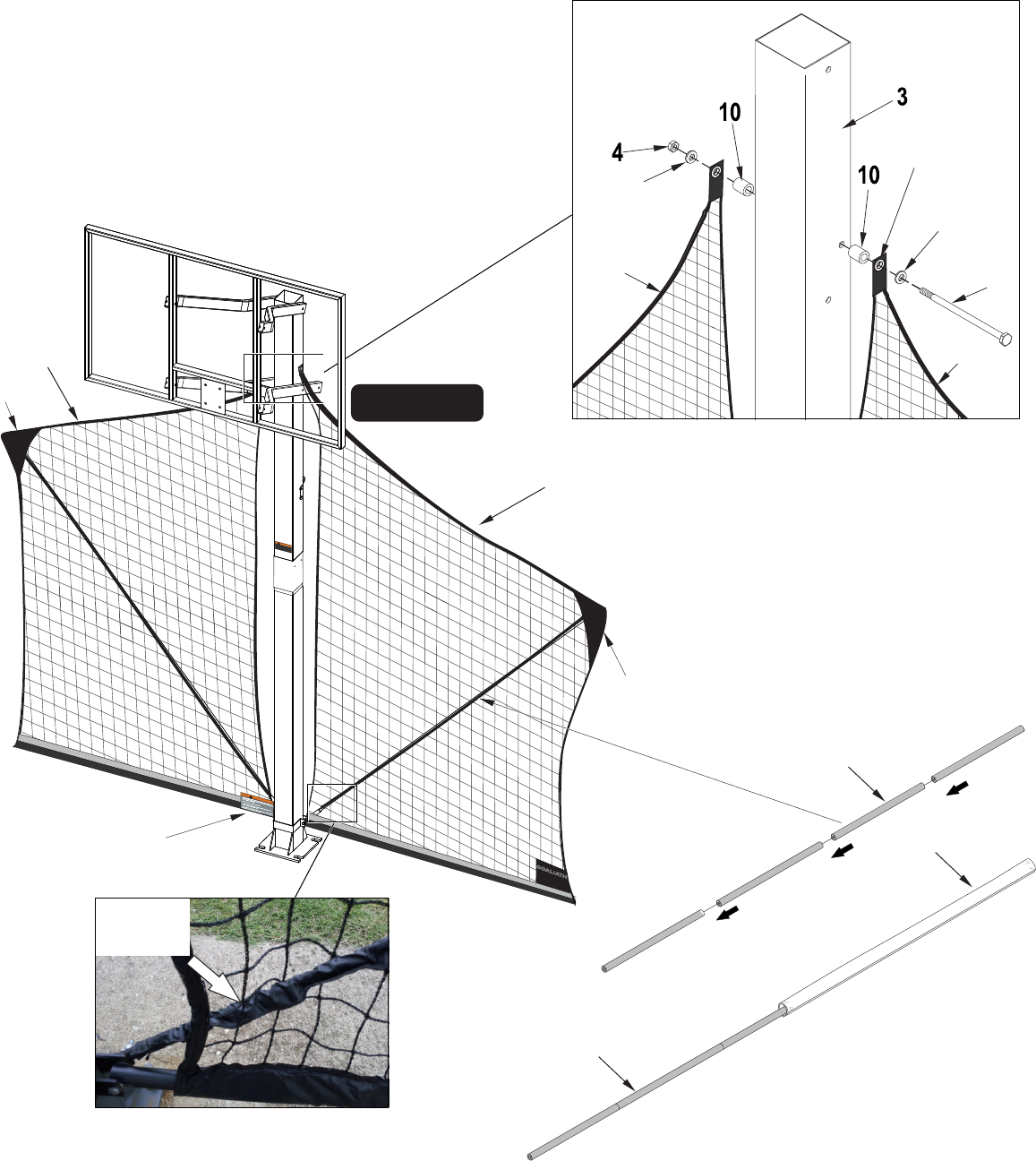

6. As shown, insert one end of the fiberglass rod into the
triangular pocket on the FRONT upper outside corners of
the net. The rod will then remain on the front of the net
until it reaches the second diagonal square from the
lower inside corner as shown in Detail 6. Please push it
though this hole and down into the fiberglass rod pivot
connector. Then carefully take the fiberglass tube sleeve
and slide it over the pivot connector as well.
Do this for both sides.
4. Carefully remove safety stop bolt assembly from pole. Using a
stable ladder, lift the upper parts of the nets one at a time and
slide the Safety Stop Bolt (#7) through Washer (#18), grommet
on net tab, Spacer (#10) and through the pole. Then slide the
bolt through another Spacer (#10) other grommet on net tab,
Washer (#18) and Nut (#4) as shown in Detail 3. After the
nets are attached, make sure to tighten Nut (#4) onto bolt
(#7) but be careful not to crush the grommet on net tab.
Detail 3 *Board Arms not
shown for clarity.
Yard Defender
Detail 5
Detail 4
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!
*Rim not shown
for clarity.
73
(Right)
72
(Left)
18
18
4L-8156-00
WARNING
!
NOTE: Make sure
Warning Label and
artwork face FRONT.
3. Raise the backboard, by turning the Actuator Crank, until the
lower arms are no longer making contact with the Safety Stops.
7
73
74
5. Assemble both fiberglass rods (#70) and then
carefully push them through the Vinyl sleeves
(#74). As shown in Detail 4 and Detail 5.
70
70
Detail 6
14
74
Pocket
Pocket Figure 18
Second
diagonal
square
Grommet
Yard Defender

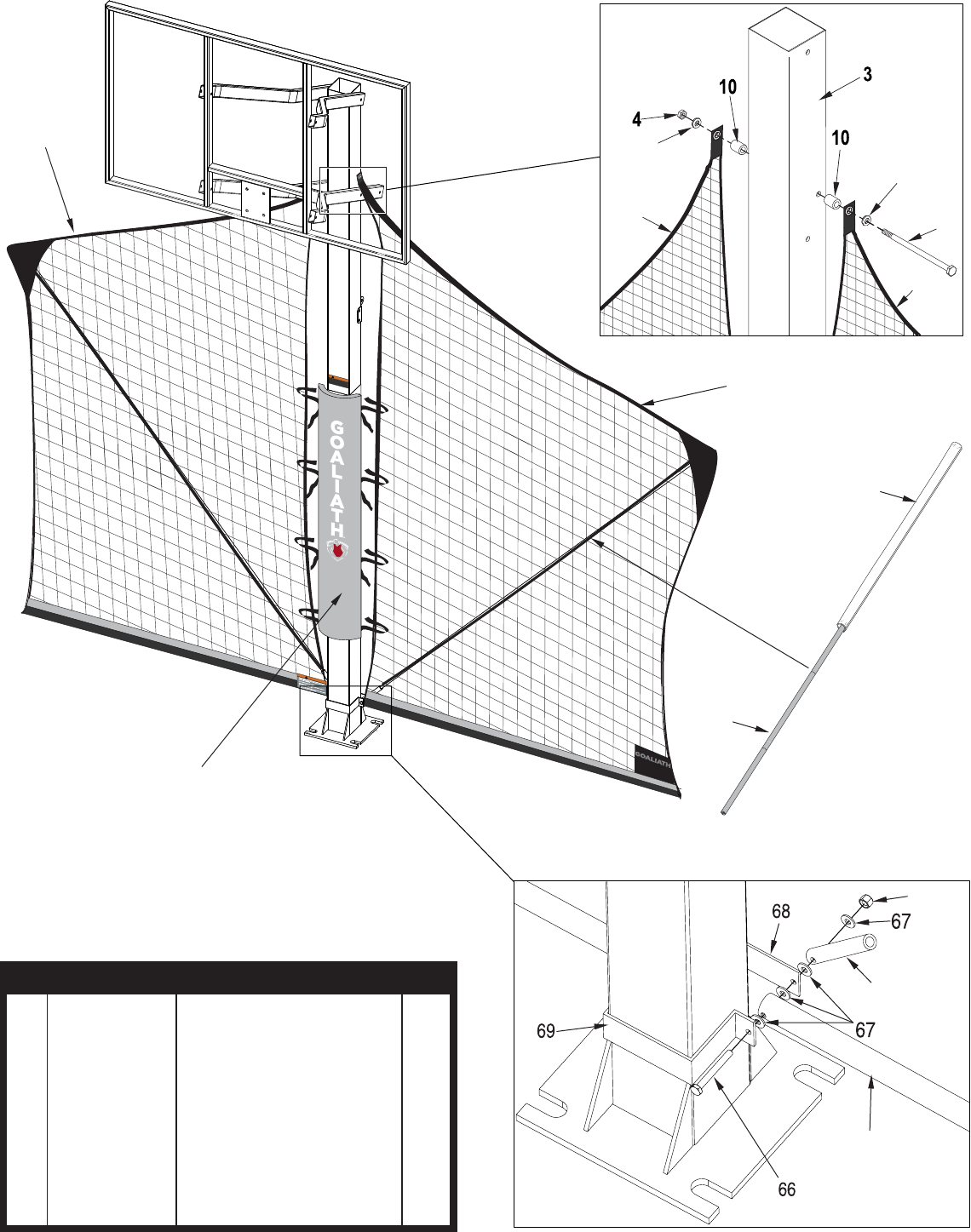

8. Your Yard defender is now in the "deployed" position. It is highly recommended that you put the yard defender back into
"storage" position during competitive play to avoid the risk of running into the Yard Defender. This could damage the
product or user. The Yard Defender should also be put into storage position any time the system in not in use or during
stormy weather. To do this, simply follow the instructions on the next page.
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!
15
4L-8156-00
WARNING
!
NOTE: Bottom Straps on the Pole Pad do not have Plastic Clips.
Figure 19
48
Warning
Label Velcro
Straps
Net
Border

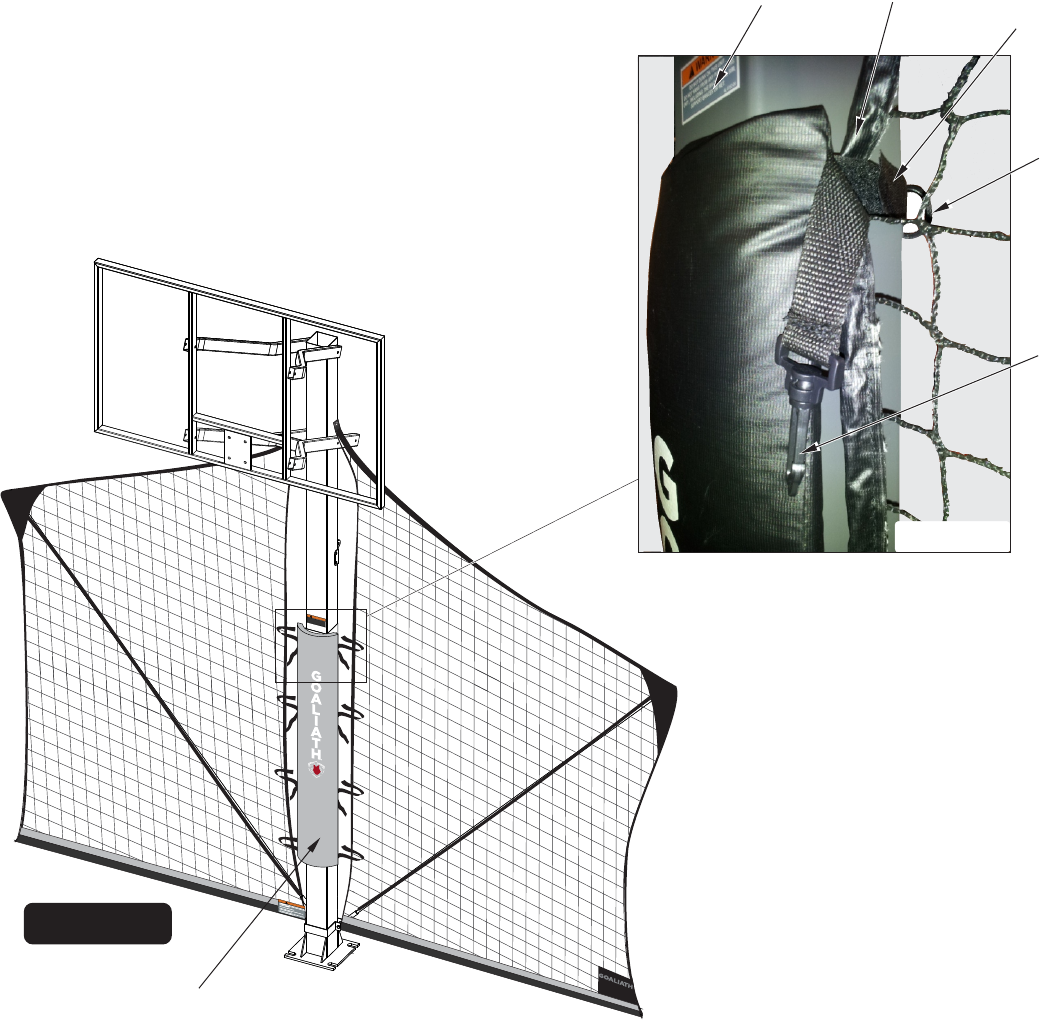

7. Your Yard Defender net should now be freestanding, please DO NOT stake down the outside of the net to the ground, it
should be able to raise and lower. This helps with ensuring the durability and performance of the product. It is time to put
on the pole pad (#48). Place the top edge of the pole pad just below the warning sticker on the front of the pole. Then
proceed to take the straps with the velcro and feed it through the border of the net closest to the pole. Connect
both straps behind the pole semi-tight so that the pole pad does not shift or fall as shown in the Side View. You should
do this for all four sets of straps. After completion, the pole pad should be holding the inside of the yard defender
nets against the pole.
Plastic
Clips
“D” Loop
SIDE VIEW
Storage instructions
16
Yard Defender
4L-8156-00
WARNING
!
Yard Defender
4L-8156-00
WARNING
!

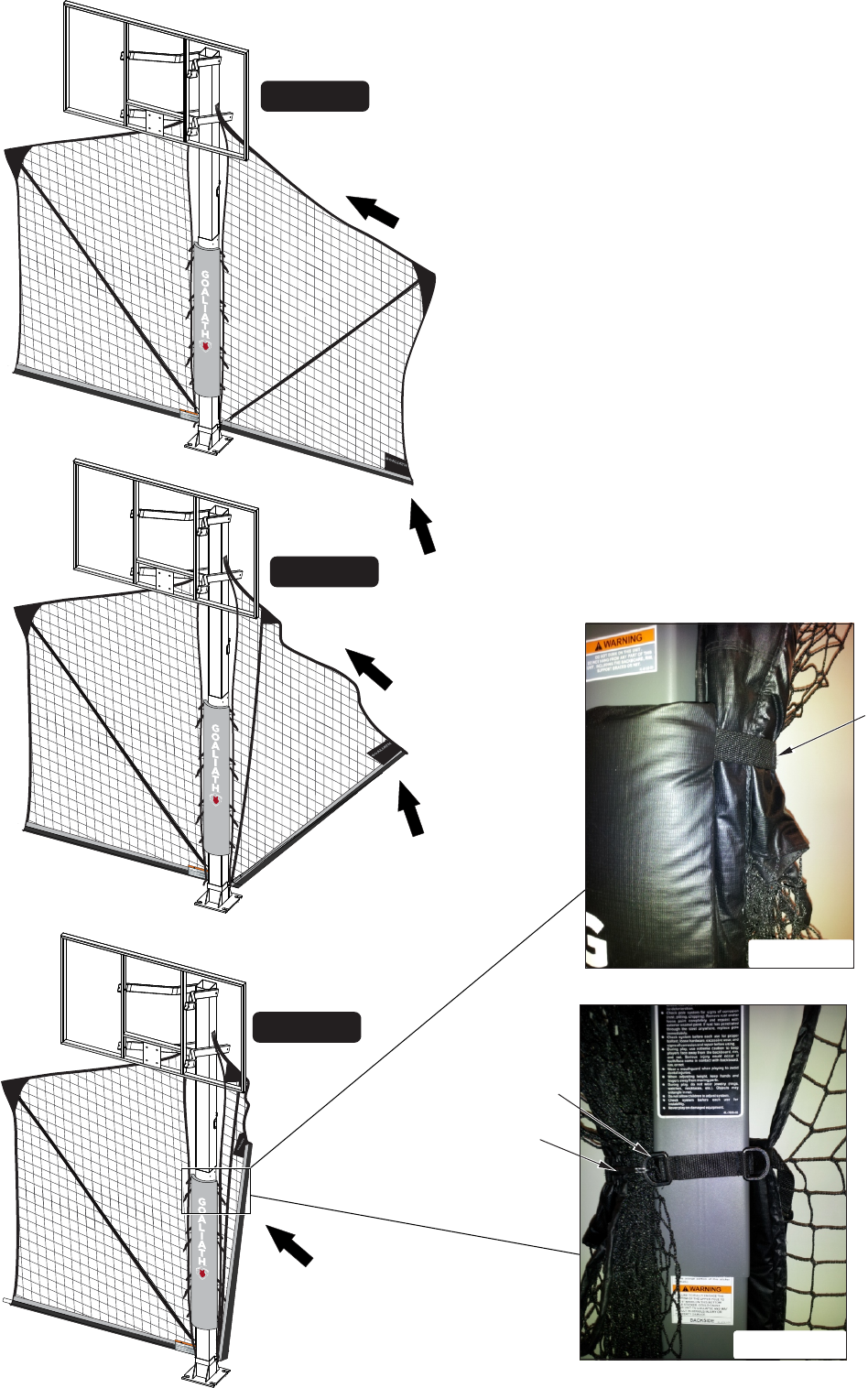

9. First, make sure all hooks have been disconnected from
their corresponding D loops. Carefully lift the bottom
tube of the Yard Defender upwards and toward the net.
Gather the excess netting to the pole with one hand while
using the other to grab the top storage Strap with the
Plastic Clip on the pole pad. Simply bring the Strap
with Plastic Clip around the outside of the yard
defender and connect the Clip to the closest plastic D
loop, located on the back on the pole pad See Figure
20-22, Side View and Back View. Connect the two lower
straps in the same manner. Repeat this same procedure
on the other side.
NOTE: Straps will be tight. This will help to secure
and Protect the Yard Defender.
BACK VIEW
“D” Loop
SIDE VIEW
Strap with
Plastic
Clips
Plastic
Clip
Yard Defender
4L-8156-00
WARNING
!
Figure 20
Figure 21
Figure 22
17
®
This consumer warranty extends to the original consumer purchase of any Escalade Sports Product (hereinafter referred to as the “Product”).
®
WARRANTY COVERAGE: Escalade Sports warrants to the original Consumer Purchaser that any Product of its manufacture is free
from defects in material and workmanship. THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN DAMAGED BY ACCIDENT,
UNREASONABLE USE, NEGLIGENCE, IMPROPER SERVICE, FAILURE TO FOLLOW INSTRUCTIONS PROVIDED WITH THE
PRODUCT OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL OR WORKMANSHIP.
®
Subject to proper installation and normal Residential use, Escalade Sports warrants, subject to the limitations below, to the original retail
®
purchaser all structural components (not accessories) of the Goaliath System to be free of defects in material and workmanship for a period
of Five (5) years from the original purchase.
®
Merchandise must be shipped prepaid with a copy of proof of purchase to Escalade Sports factory for examination to determine if the
basketball system needs to be repaired or replaced. Any labor costs, travel expenses and any other changes involved in the removal,
®
installation or replacement of the defective/repaired parts from/to your Goaliath System will be the purchaser's responsibility. Shipping
®
charges for replaced or warranted merchandise sent back to the customer from Escalade Sports factory must be prepaid by the customer
in advance. If not, the replacement shipment will be sent out collect.
®
Escalade Sports reserves the right to examine photographs or physical evidence of merchandise claimed to be defective, and to
recover said merchandise, prior to authorization of warranty claims. A “Returned Goods Authorization” number may be required,
please call for details prior to the return of any photographs or merchandise.
This limited 5 year warranty is expressly in lieu of all warranties, expressed or implied, including warranties of merchantability or fitness for use.
®
Escalade Sports does not assume or authorize any person or representative to assume for us, any other liability in connection with the sale
of our products.
® ®
The remedy of repair or replacement stated above is Escalade Sports exclusive remedy. Escalade Sports will not be liable for any other
®
damages or expenses which may incur, including but not limited to incidental or consequential damages. Escalade Sports assumes
®
no other obligations or liability on the part of the purchaser, and Escalade Sports neither assumes nor authorizes any other person
to assume for it any other liability in connection with the goods sold.
®
This warranty shall not apply in any manner to parts or accessories not manufactured by Escalade Sports.
NOT COVERED BY THIS WARRANTY
• Merchandise not intended to be in places of public assembly, such as, but not limited to, schools, parks, public or private
Recreational Facilities. .
• Any merchandise subjected to Non-residential abuse, negligence, improper installation, vandalism, acts of God, alteration of product, or
®
any other events beyond the control of Escalade Sports.
• Paint or rusted parts. If rust should appear, remove loose paint, sand lightly, primer and paint with exterior flat matte finish
Enamel Paint.
• HANGING ON RIM WILL VOID THE WARRANTY: Rims are not warranted for any defects other than workmanship. Torn.
back plates, damaged springs, bent rings, damaged eyebolts, and torn or distorted rim supports result from hanging on the
rim and are not warranted.
®
• Shipping charges both ways. Note: Any merchandise shipped to Escalade Sports collect will be refused.
• Dealer service charges, labor charges and travel expenses associated with replacement of repair of warranty item.
• “Yard Defender™” is warranted for one (1) year. Warranty is void if “Yard Defender™ is not used for it's
Intended use.
WARRANTY DISCLAIMERS: ANY IMPLIED WARRANTIES ARISING OUT OF THIS SALE, INCLUDING BUT NOT LIMITED TO THE
®
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION. ESCALADE
SPORTS SHALL NOT BE LIABLE FOR LOSS OF USE OF THE PRODUCT OR OTHER CONSEQUENTIAL OR INCIDENTAL COSTS.
EXPENSES OR DAMAGES INCURRED BY THE CONSUMER OF ANY OTHER USE.
Some states do not allow the exclusion or limitation of implied warranties or consequential or incidental damages, so the above limitations or
exclusions may not apply to you. LEGAL REMEDIES: This warranty gives you specific legal rights, and you may also have other rights which may
vary from state to state.
WARRANTY GUIDELINES IS REQUIRED FOR ALL WARRANTY CLAIMS
1. Proof of Purchase (original retail purchaser) is required for all warranty claims.
®
2. Call or write Escalade Sports to receive a Return Authorization # and determine specific needs.
Phone: 1-888-USA-GOAL / Warranty Dept.
® ®
Or Write Escalade Sports at: Escalade Sports - P.O. Box 889, Evansville, IN 47706 - Attn: Warranty Dept.
Or E-mail us at: basketball@escaladesports.com
LIMITED 5 YEAR WARRANTY
18
1 3M-6850-00 4" Square Tube Plug
2 1A-7686-01 Bottom Post
3 8S-6898-01 Top Post
4 901-28 3/8-16 Nylon Lock Nut
5 3M-6883-00 1-1/4" OD Plastic Washer
6 8S-6630-02 Upper Board Arm
7 1B-6483-10 3/8-16 X 7.5" Hex Bolt-Grade 5
8 3M-6269-00 1/4" Spacer
9 3M-6548-00 1 X 2 Tube Plug
10 8S-6657-00 Stop Spacer
11 1A-6331-02 Lower Board Arm
13 3M-8941-00 Actuator Cap (With hole)
14 8S-6658-00 Pivot Tube
15 3M-6542-00 Actuator Sleeve
16 4A-6605-00 Actuator
17 4L-7501-00 Height Decal
18 701-50 3/8 STD Washer
19 1B-6486-10 1/2-13 X 1-1/2" Hex Bolt
20 2B-6093-00 1/2 Flat Washer
21 2B-6095-00 1/2-13 Nylon Lock Nut
22 1B-6484-10 3/8-16 X 7" Hex Bolt-Grade 5
23 6A-7404-02 Backboard Assembly-60x33” Glass
24 1B-6195-00 3/8-16 X 2.75" Hex Bolt
Key# Part # Description Qty. Key# Part # Description Qty.
25 1B-6485-10 3/8-16 X 5" Hex Bolt 2
26 2B-6114-00 3/8 Flat Washer 4
27 3M-6473-00 3X4 Rim Pad 1
28 6A-6374-01 Goal Assembly 1
29 3M-6835-00 Goal Spacer Plate (Pre-Installed)
30 2S-6795-02 Post Ear 2
31
32 2S-6427-01 Rim Cover Plate 1
33 1B-6788-00 #8 x 1/2 Thread Forming Scr. 4
34 3M-6469-00 5/8 Thread Protector 4
35 2B-6097-00 5/8-11 Hex Nut 12
36 2B-6099-00 5/8 Split Lockwasher 4
37 2B-6098-01 5/8 SAE FLAT WSHR ZNC 8
38 2S-6453-00 Anchor Template 1.
39 2B-6112-00 5/8-11 X 14 "J" Bolt 4
40 1S-6167-00 #3 X 30" Rebar 4
41 7B-6255-00 Pull Pin 1
42 4A-6606-00 Actuator Handle 1
43 2L-7541-01 This Manual 1
44 3M-6580-00 48" Board Pad Right 1
45 3M-6581-00 48" Board Pad Left 1
46 Not Used
47 3F-6010-00 Net 1
48 3M-8960-00 Post Pad 1
49 1B-6782-00 3/8-16 x 1 3/4" Carriage Bolt 4
50 Not Used
77 1B-6821-00 Self Tapping Screw-#10 x 1 1/8" 10
2L-7541-01
1
B2250 REPLACEMENT PARTS LIST
Not Used
1
1
1
14
8
2
2
2
8
2
1
1
1
1
1
1
20
1
2
1
2
1
4
- BACKBOARD -
Items needed to clean backboard:
- 100% cotton soft cloth, (only)
- Glass Cleaner
Clean backboard using a 100% Cotton soft cloth and glass cleaner. Clean glass as you would household windows. Strong cleansers will damage
backboard and void warranty.
– RIM –
HANGING ON THE RIM WILL VOID YOUR WARRANTY. Rims are not warranted for any defects other than workmanship. Torn back plates,
damaged springs, bent rings, damaged eye bolts, and torn or distorted rim supports result from hanging on the rim and are not warranted.
The goal should not be cranked under 7-1/2' or over 10'. Adjustments of the goal should be done under adult supervision.
When attempting slam dunk activity you should always wear a mouth guard to avoid dental injury.
GOALIATH CARE INFORMATION
To ensure ease of operation, lubricate all pivot points at least every 6 months or as needed with a good lubricant such as WD-40.
Inspect your pole periodically, if rust should appear, remove loose paint, sand lightly, primer and paint with exterior flat matte finish
enamel paint.
– –MAINTENANCE
– – RUST
12 NOT USED
19 2L-7541-01
77
77
77
29
(Pre-Installed)
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!
77
20 2L-7541-01
66 1B-7034-00 1/4” X 2 1/2”Hex Bolt 2
67 2B-6014-00 1/4” Washer 8
68 Back Bracket 1
69 1A-7688-00 Front Bracket 1
70 6M-6543-00 Fiberglass pole assembly 2
71 Support Rod Pivot Connector 2
Key# Part # Description Qty.
72 YD Net (Left) 1
73 3F-6058-00 1
74 Vinyl Sleeve 2
75 1/4” Hex Nut 2
76 8S-6901-00 Steel Tube 2
1A-7687-00
8S-6902-00
3F-6057-00
3M-8959-00
2B-6306-00
YD Net (Right)
Yard Defender
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!
73
72
48
4L-8156-00
WARNING
!
*Board Arms not
shown for clarity.
18
18
7
73
74
74
70
76
71
75
