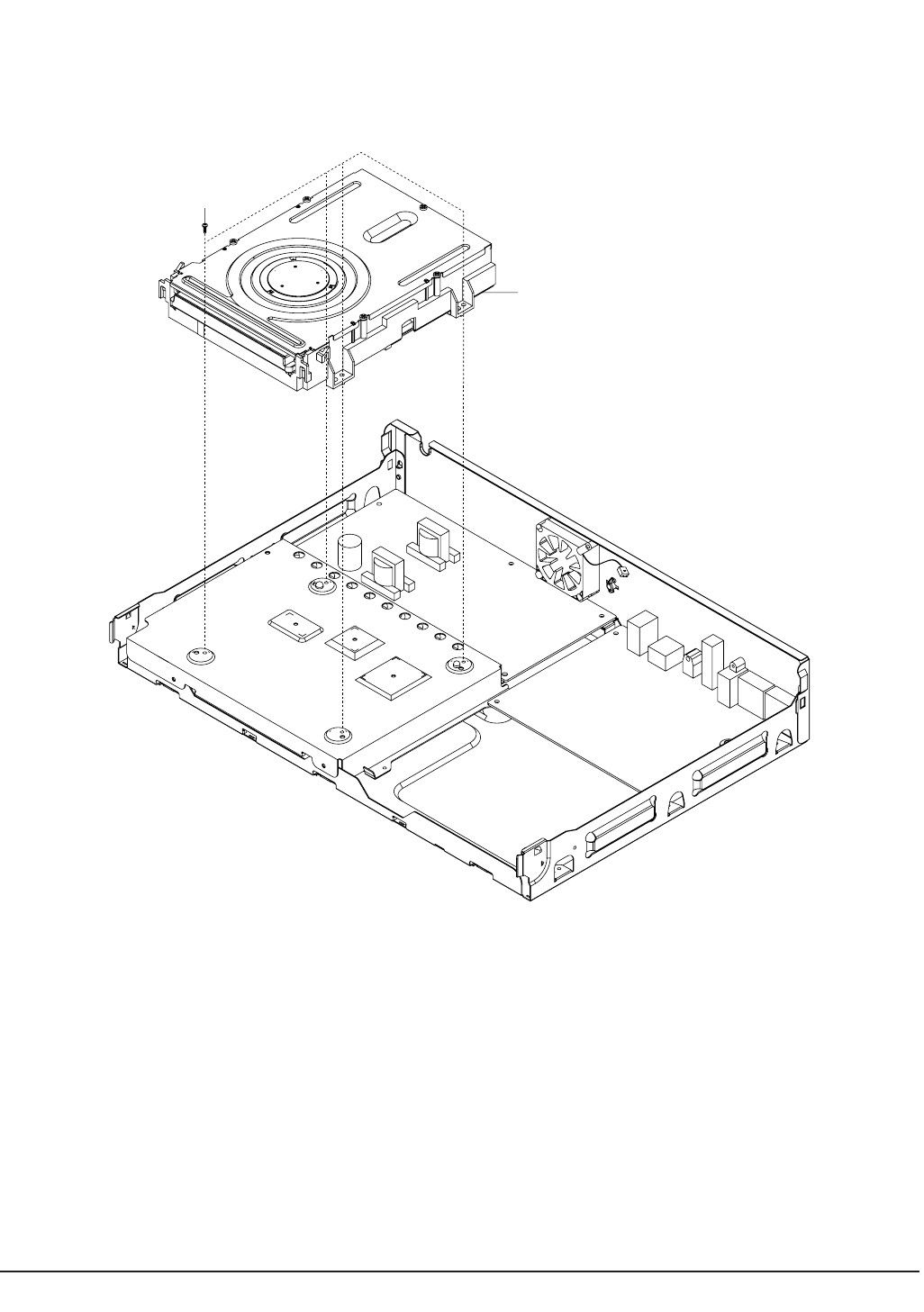

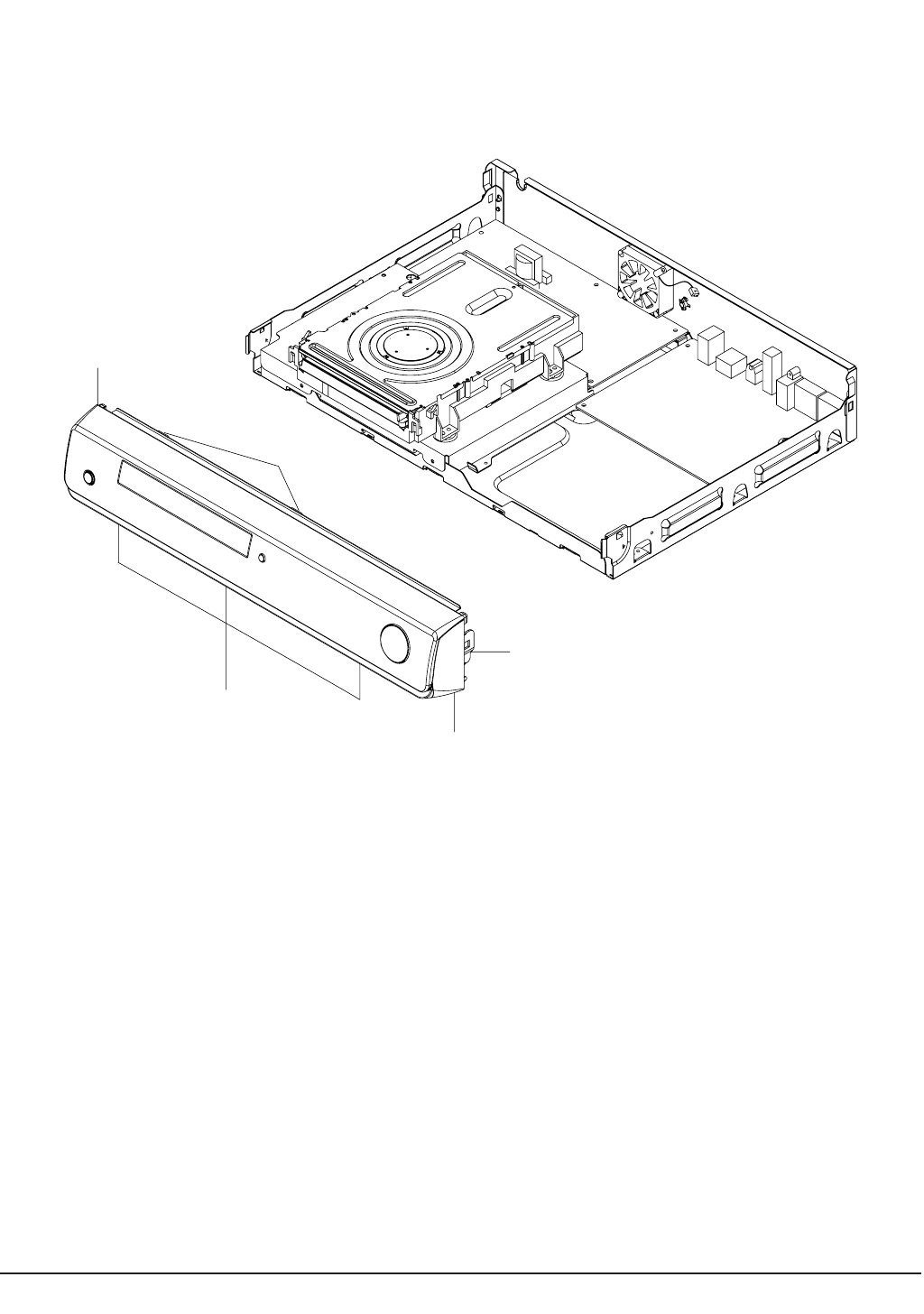

- 3-1 Cabinet and PCB
- 3-2 PCB Location
4.pdf

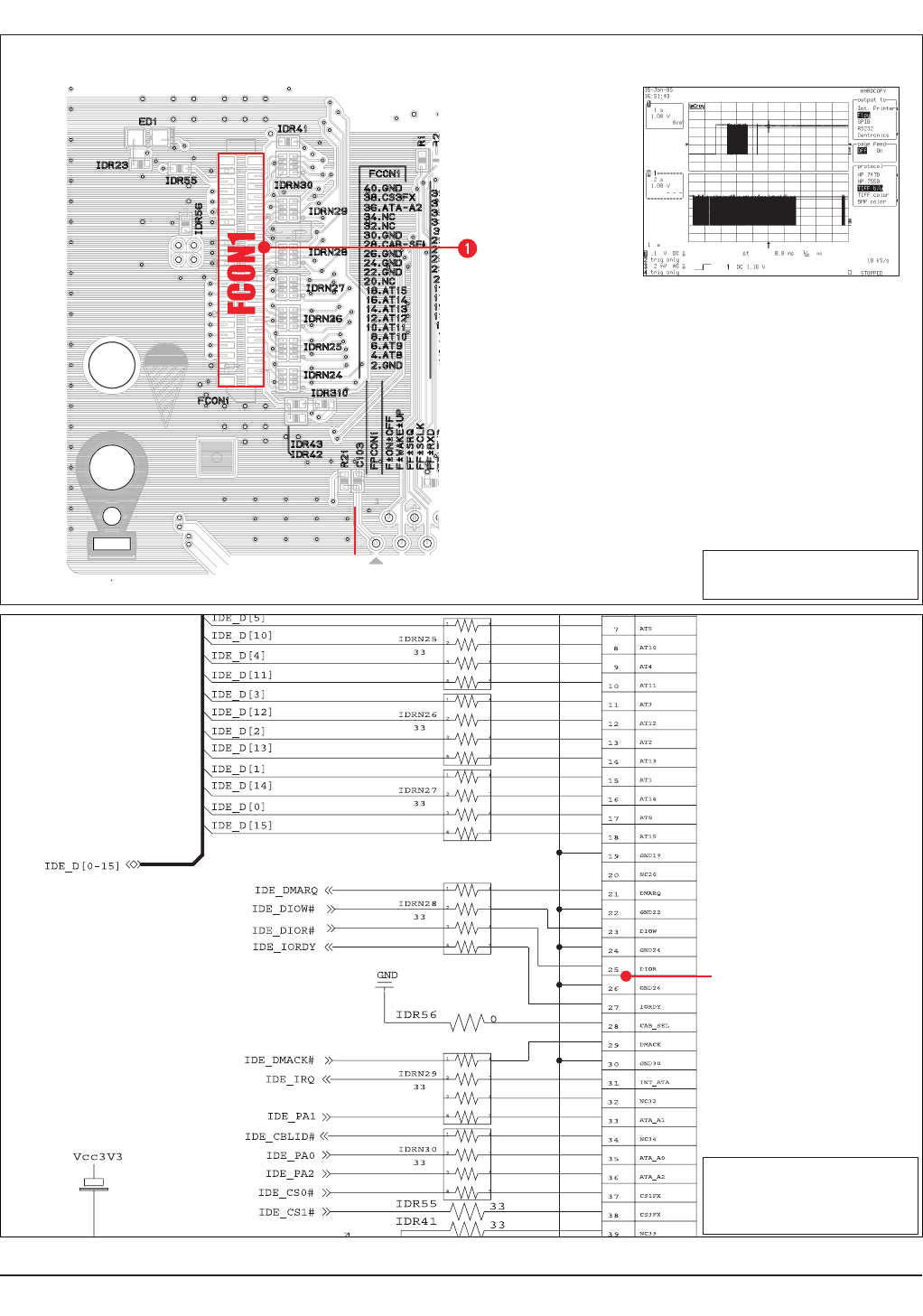

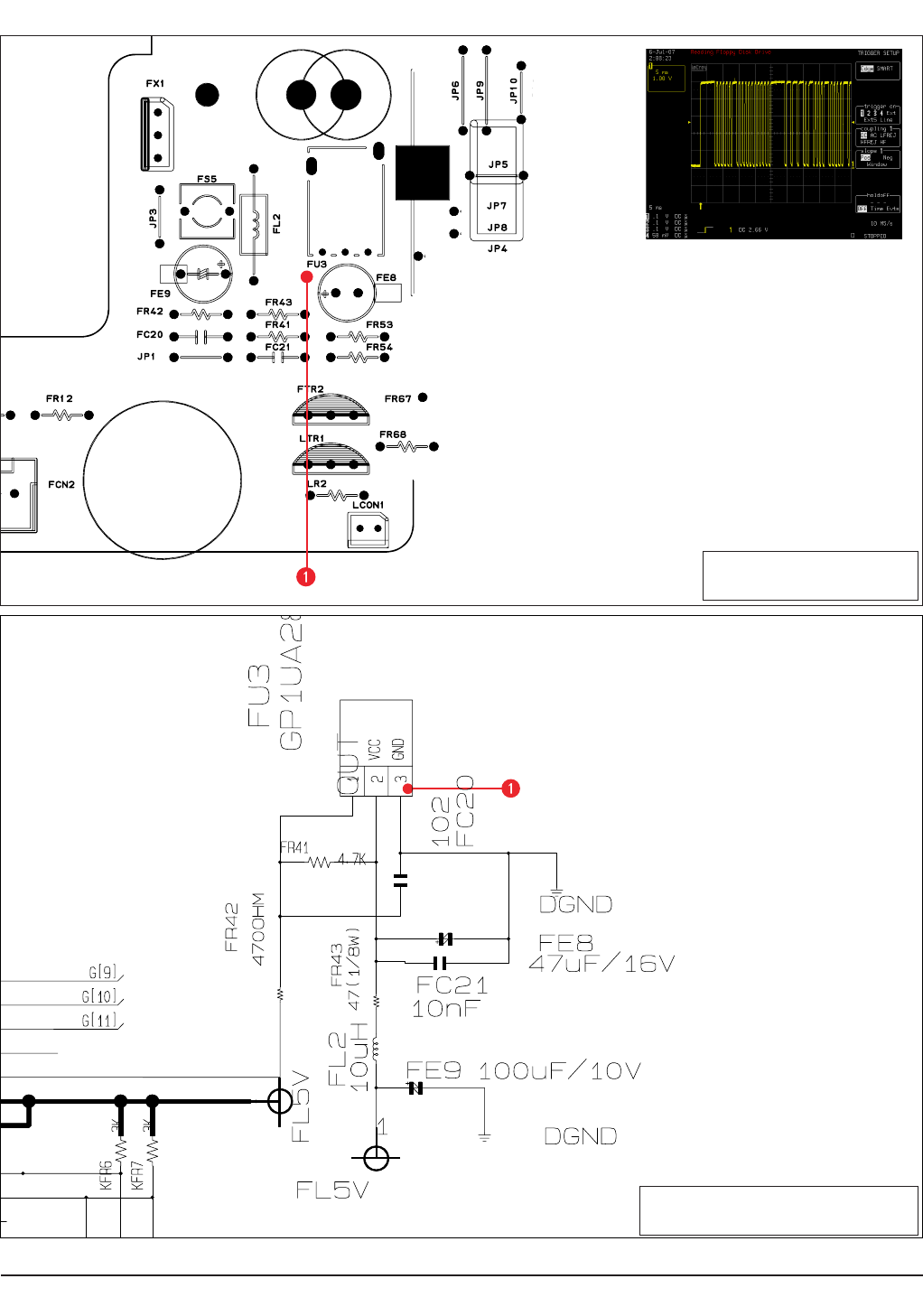

- 4-1 Trouble Shooting

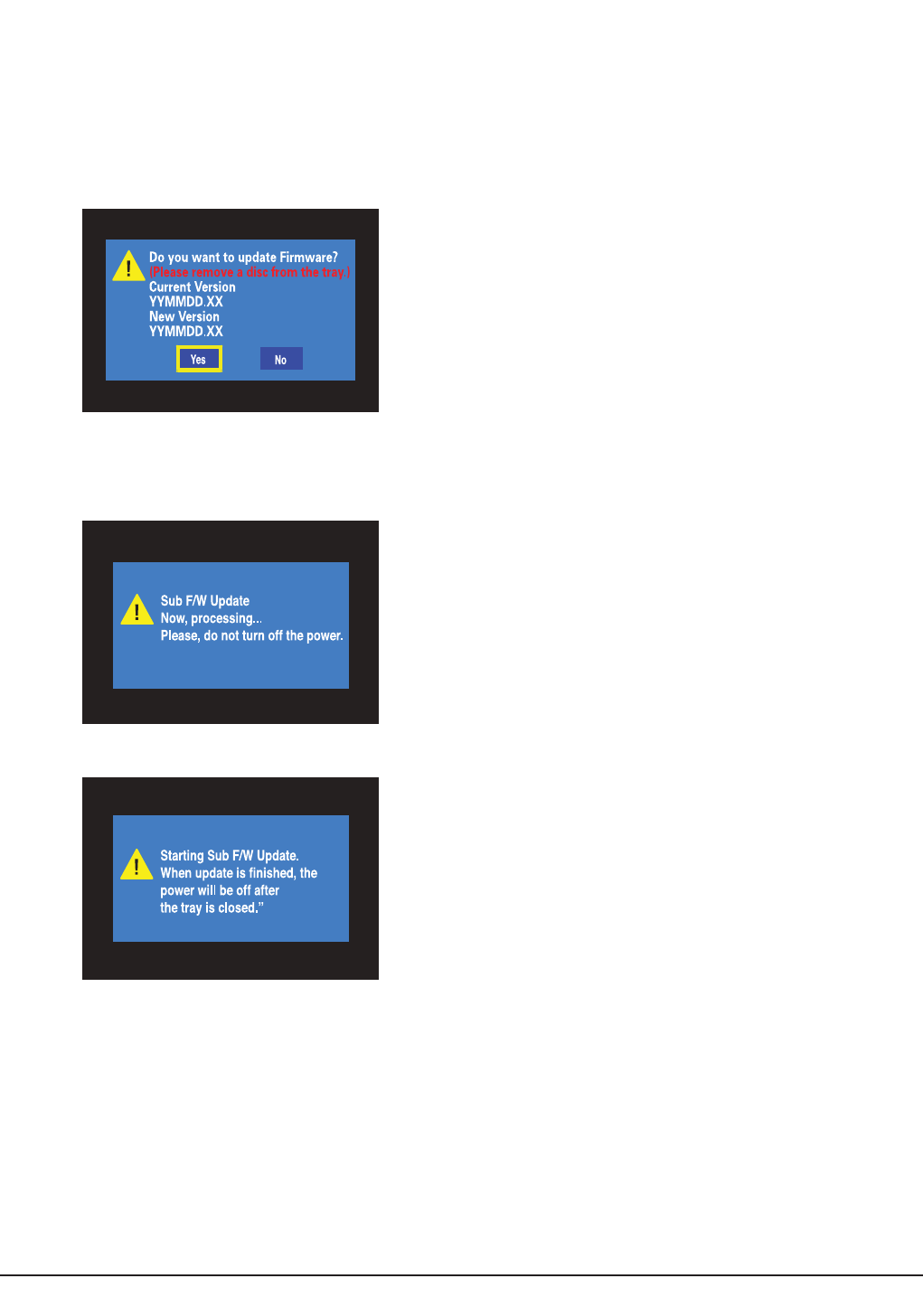

- 4-2 Software Update

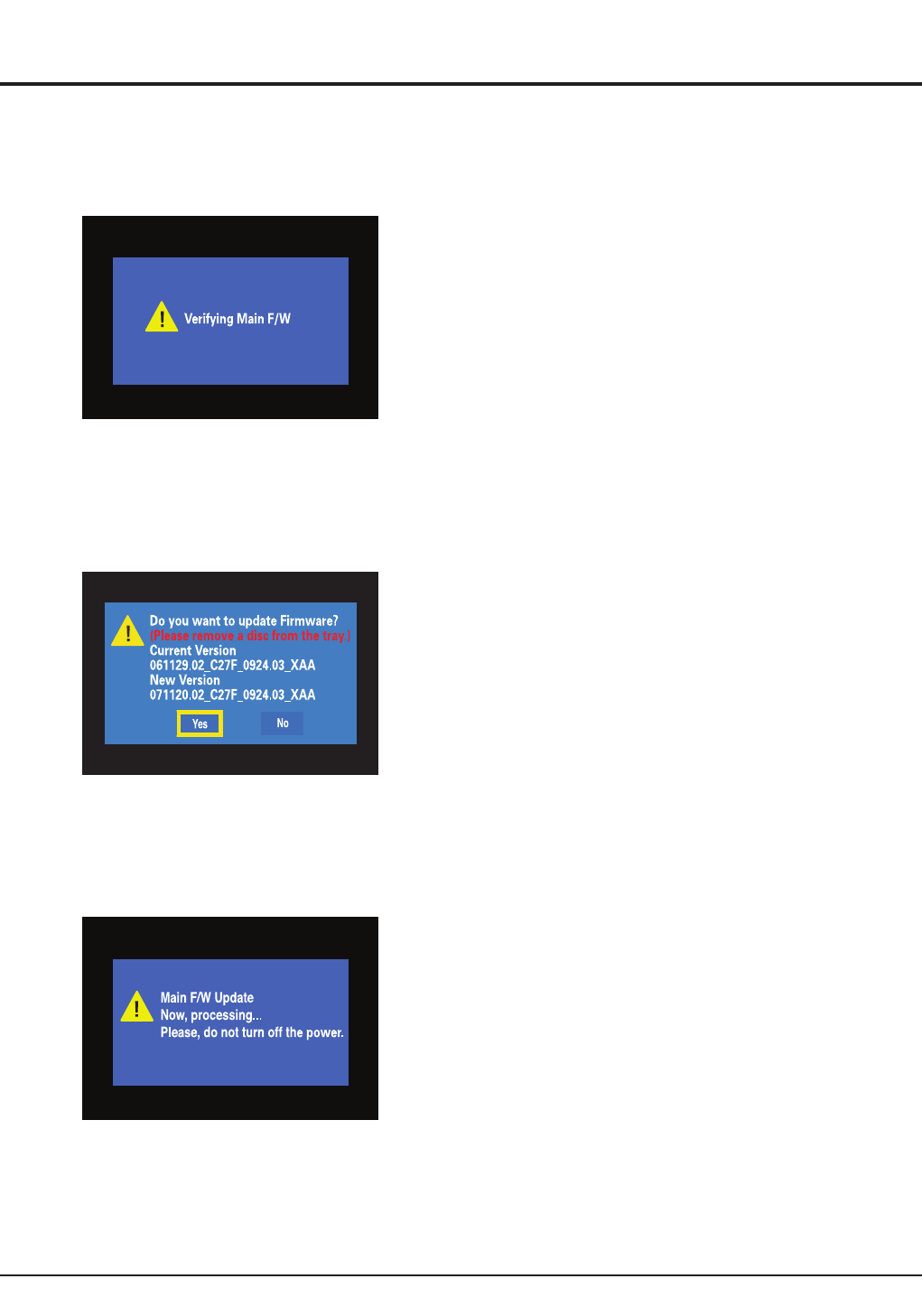

  - 4-2-1 Main F/W Update Method
  - 4-2-2 Loader F/W Update Method (for Disc Physical Problem)
5.pdf
- 5-1 Cabinet Assembly
- 5-2 Electrical Parts List
6.pdf
7.pdf

Blu-Ray Disc Player

SERVICE

1. Precautions

2. Product Specification

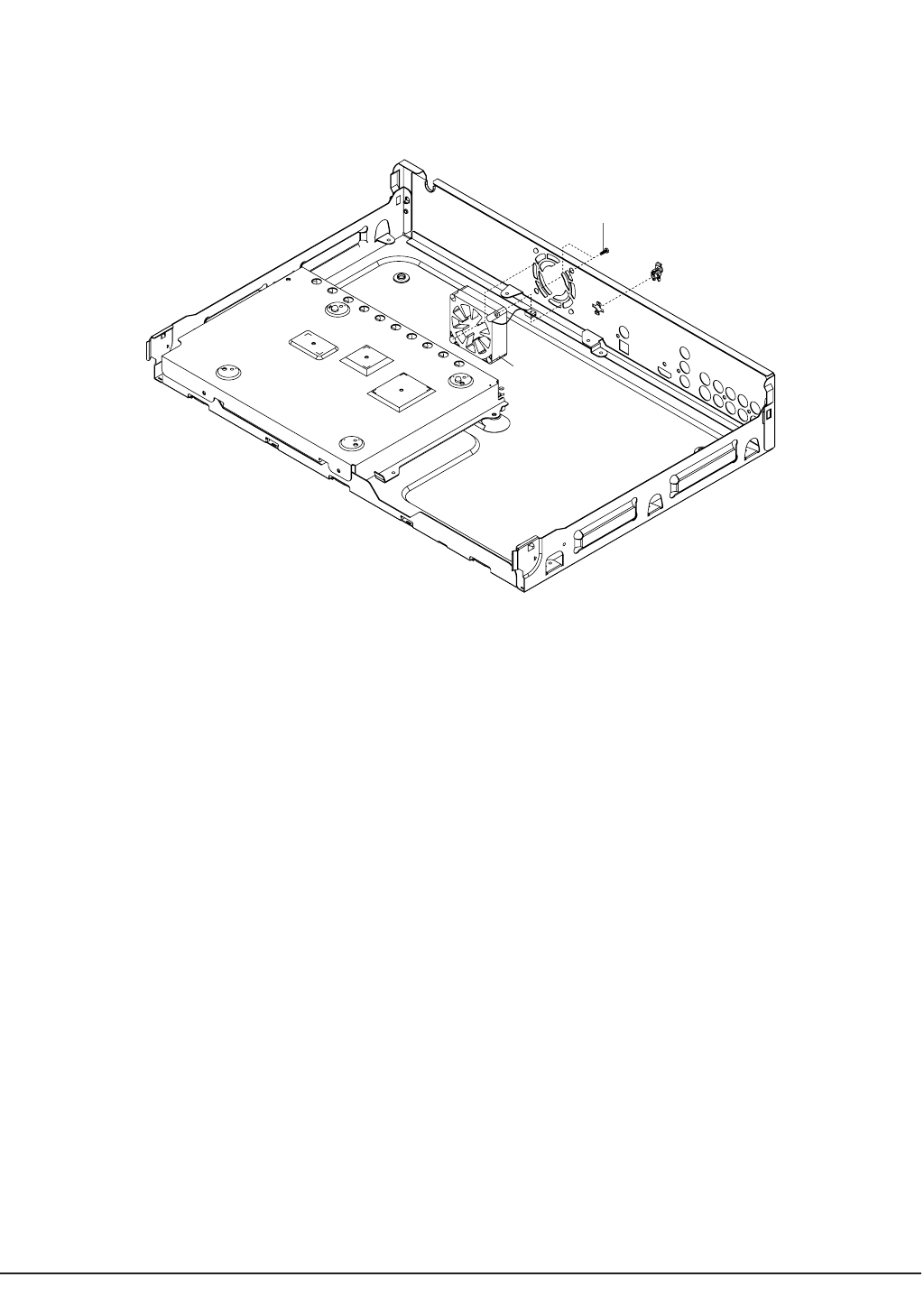

3. Disassembly and Reassembly

4. Trouble Shooting

5. Exploded View and Parts List

6. PCB Diagrams

7. Schematic Diagrams

Manual

Blu-Ray Disc Player Contents

SERVICE MANUAL BD-P1400

Printed in Korea

AK82-01241A

This Service Manual is a property of Samsung Electronics Co .,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Chassis : Blu- Ray

BASIC : BD-P1400

Application Model

: BD-P1400

Application Areas

: XEC, XEE, XEG, XEH, XEL,

XEO, XER, XET, XEU

If you want to know additional information which is not includ-

ed on this Service Manual, Please refer to the SKP(Samsung

Knowledge Portal) web site.

Area Web Site

North America URL ; http://service.samsungportal.com

Latin America URL ; http://latin.samsungportal.com

CIS URL ; http://cis.samsungportal.com

Europe URL ; http://europe.samsungportal.com

China URL ; http://china.samsungportal.com

Asia URL ; http://asia.samsungportal.com

Mideast & Africa URL ; http://mea.samsungportal.com

1. Precautions 1-1 ~ 1-6

1-1 Safety Precautions (1-1)

1-2 Servicing Precautions (1-3)

1-3 ESD Precautions (1-4)

1-4 Handling the optical pick-up (1-5)

 ~ 2-6

     

  

  

3. Disassembly and Reassembly 3-1 ~ 3-8

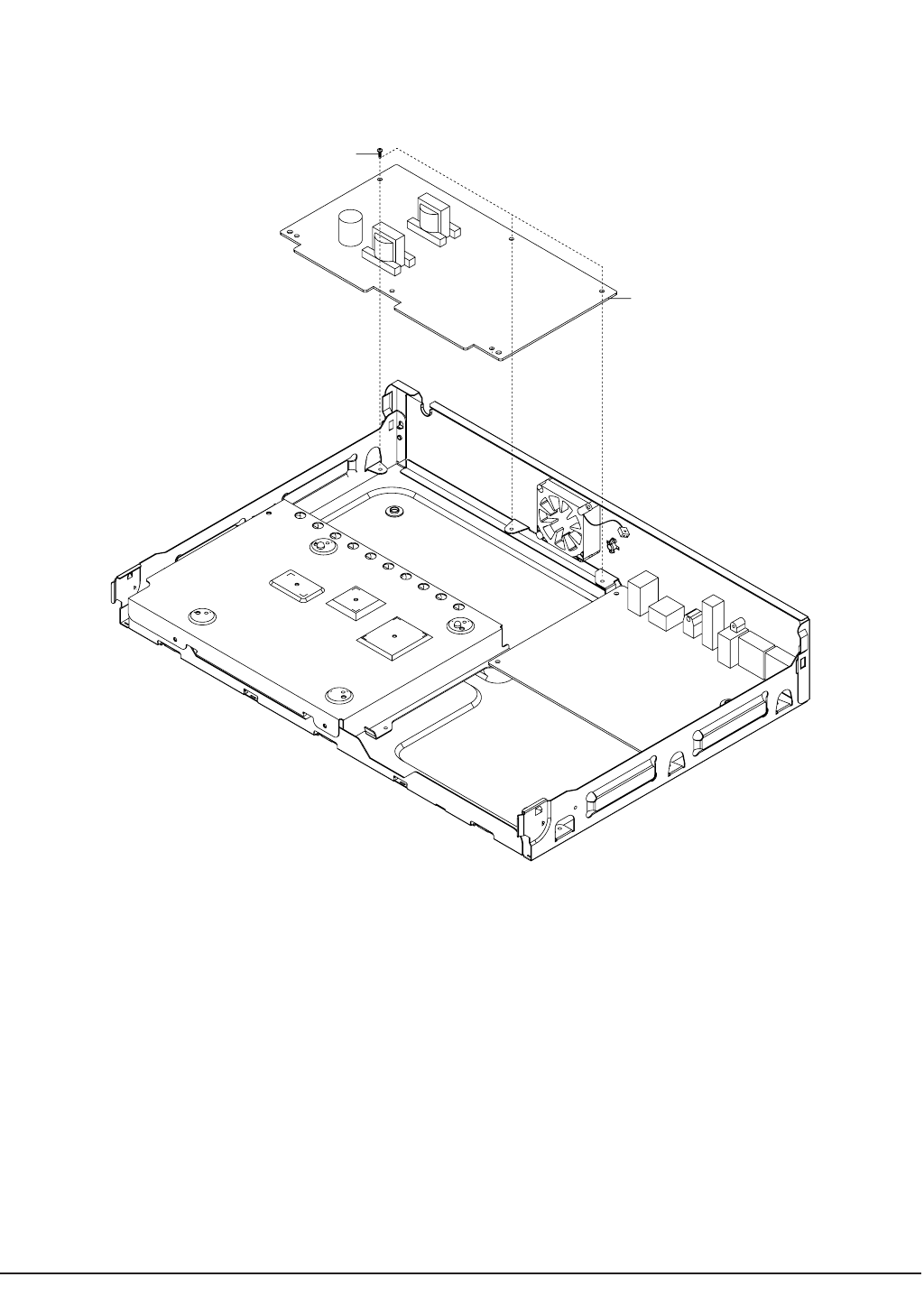

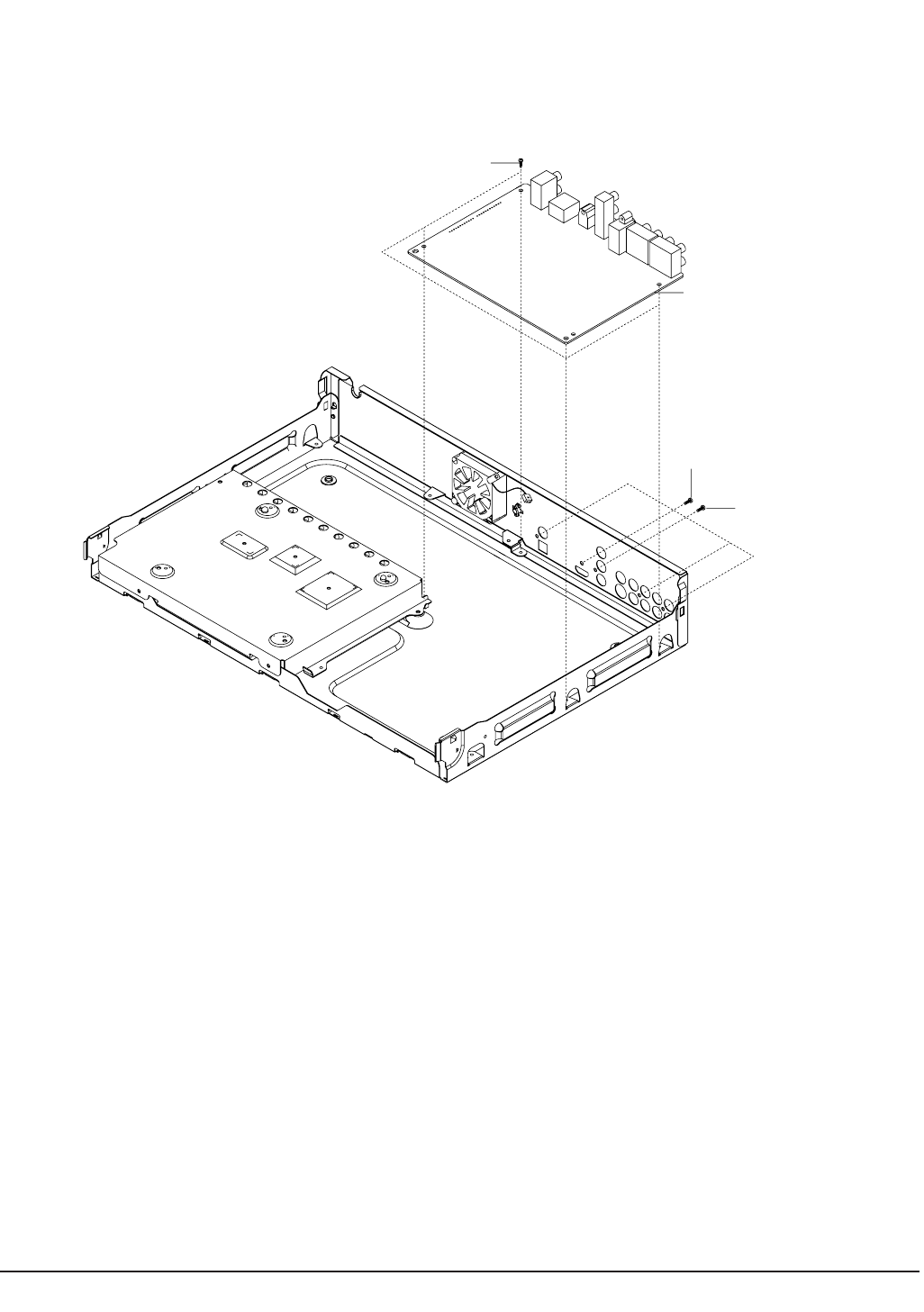

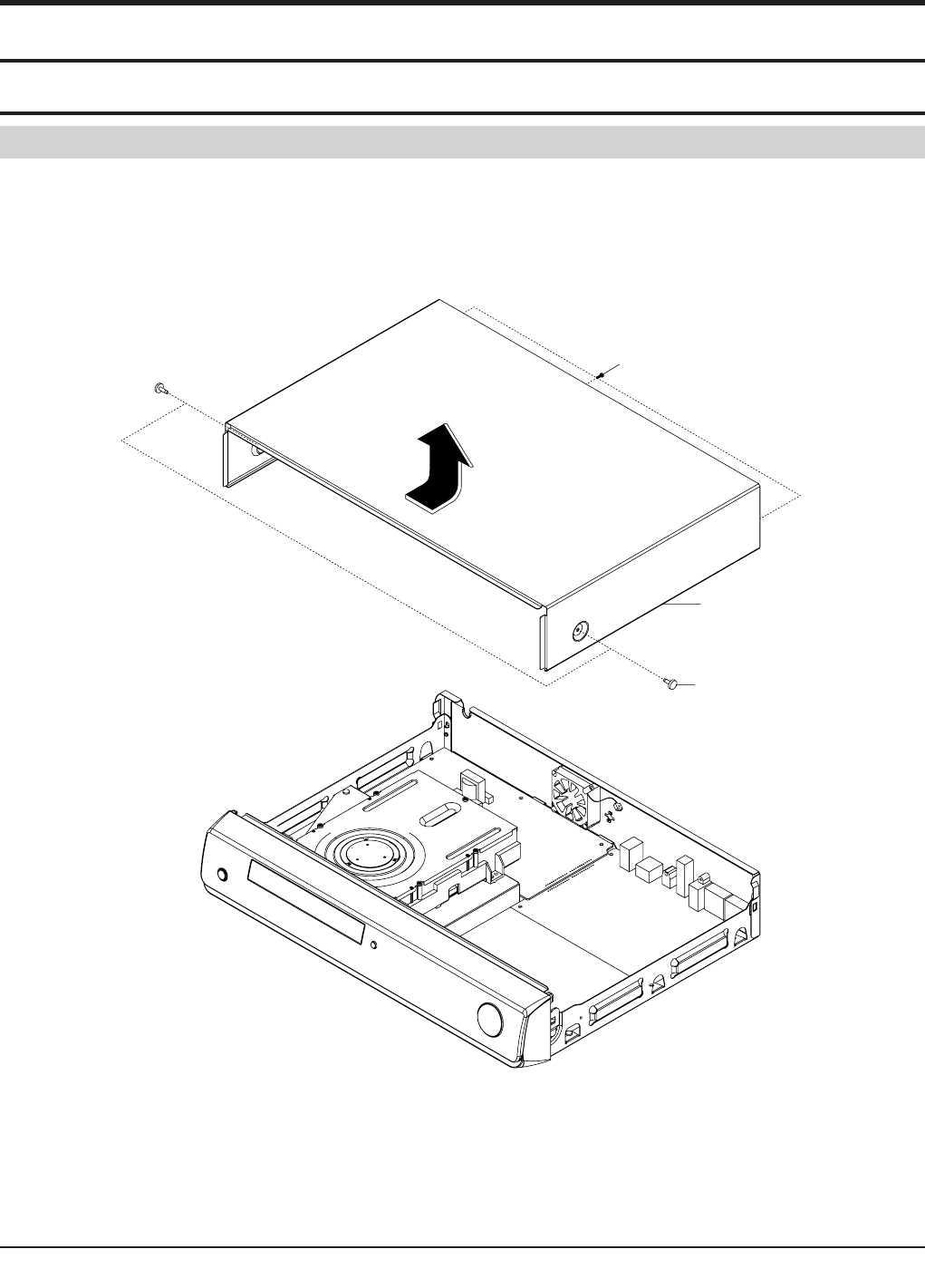

3-1 Cabinet and PCB (3-1)

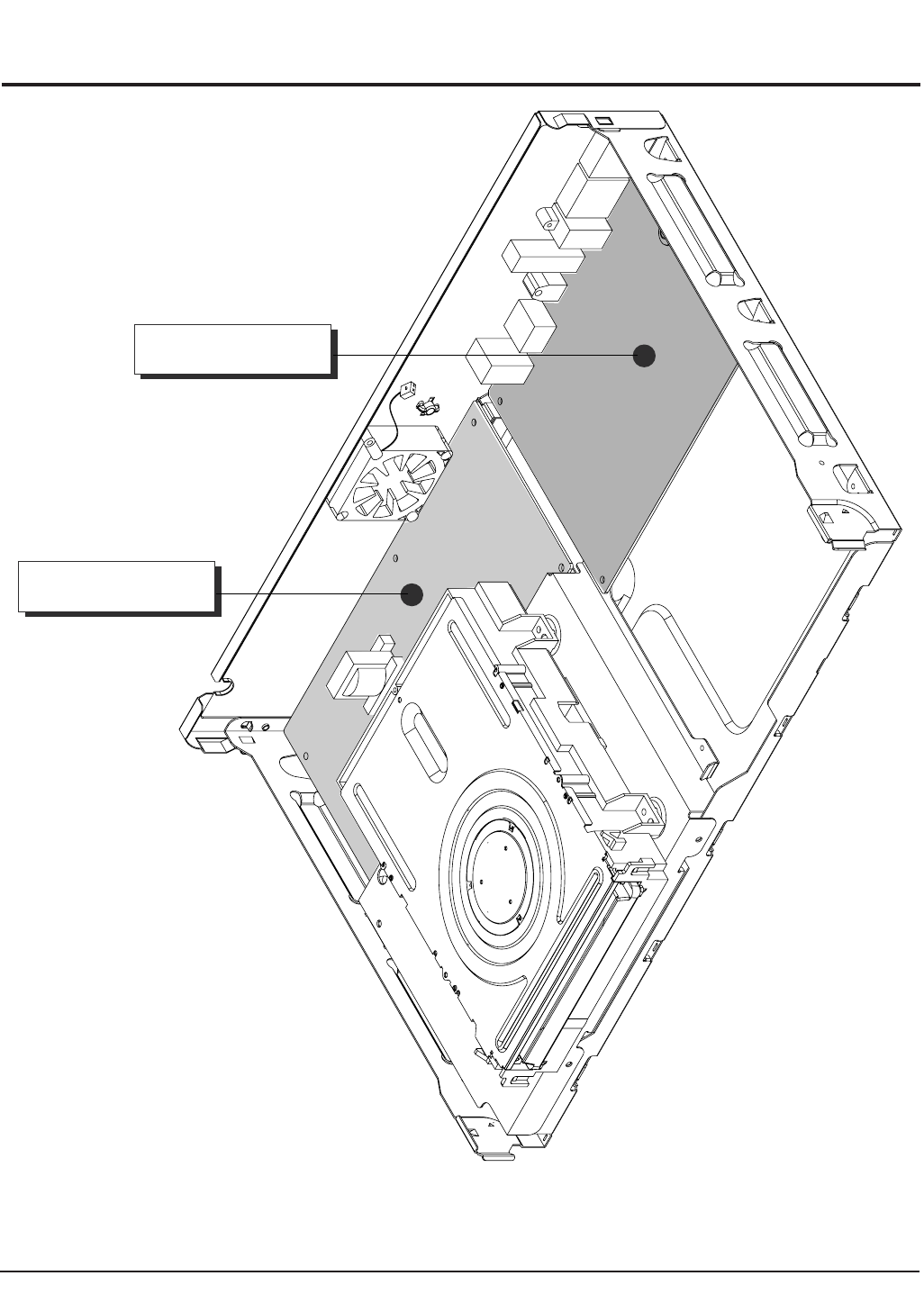

3-2 PCB Location (3-7)

4. Trouble Shooting 4-1 ~ 4-22

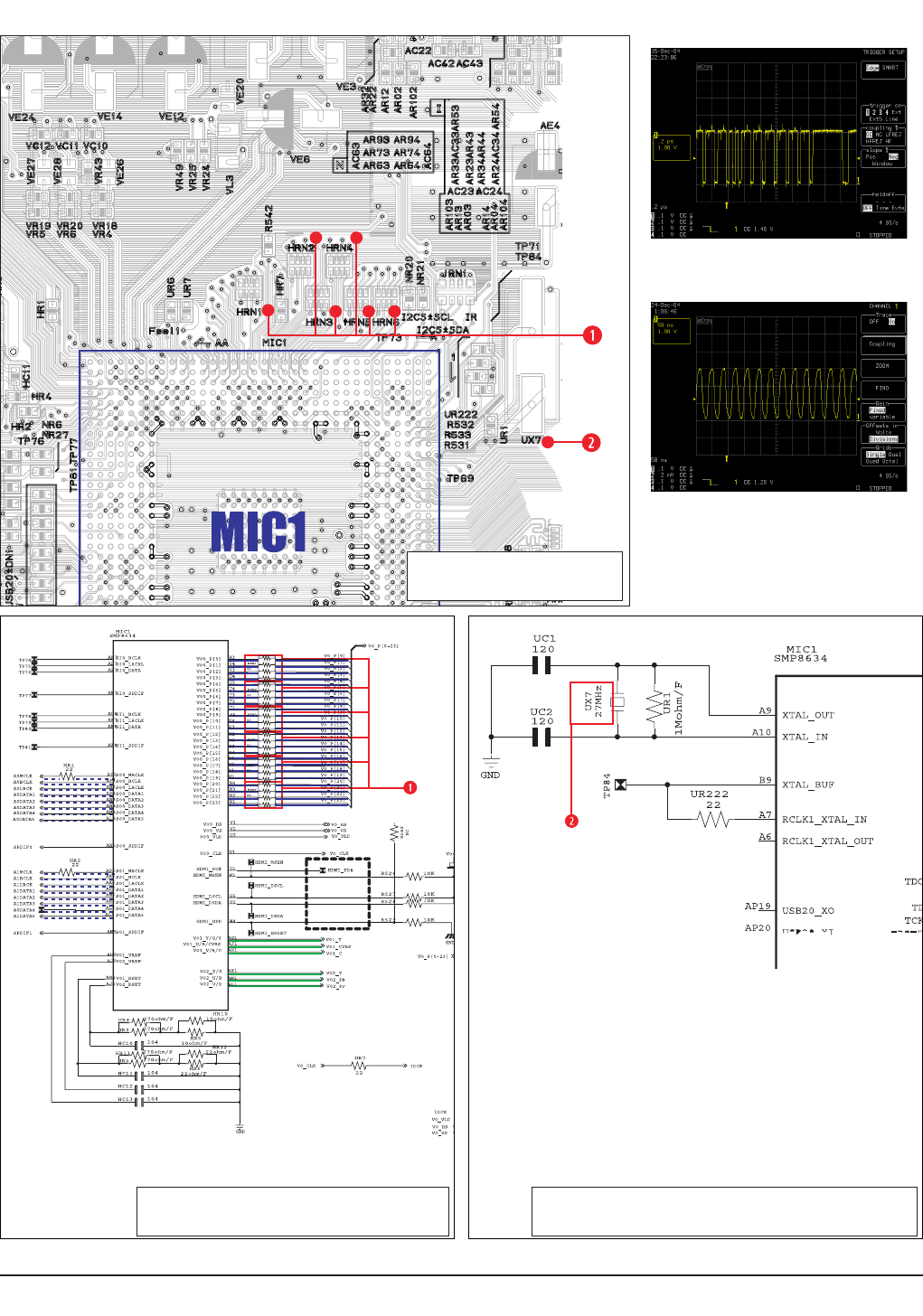

4-1 Trouble Shooting (4-2)

4-2 Software Update (4-21)

5. Exploded View and Parts List 5-1 ~ 5-18

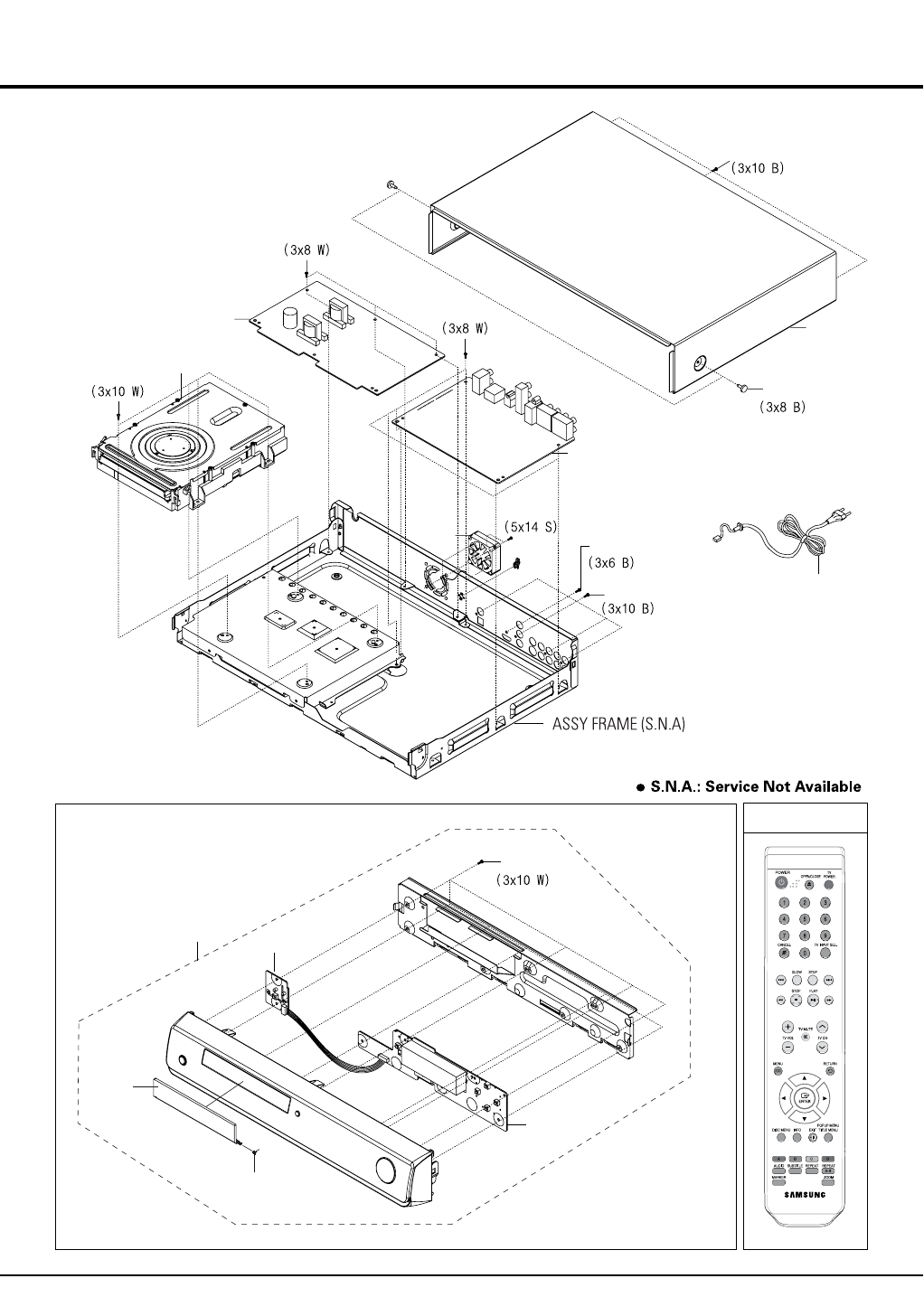

5-1 Cabinet Assembly (5-2)

5-2 Electrical Parts List (5-4)

6. PCB Diagrams 6-1 ~ 6-10

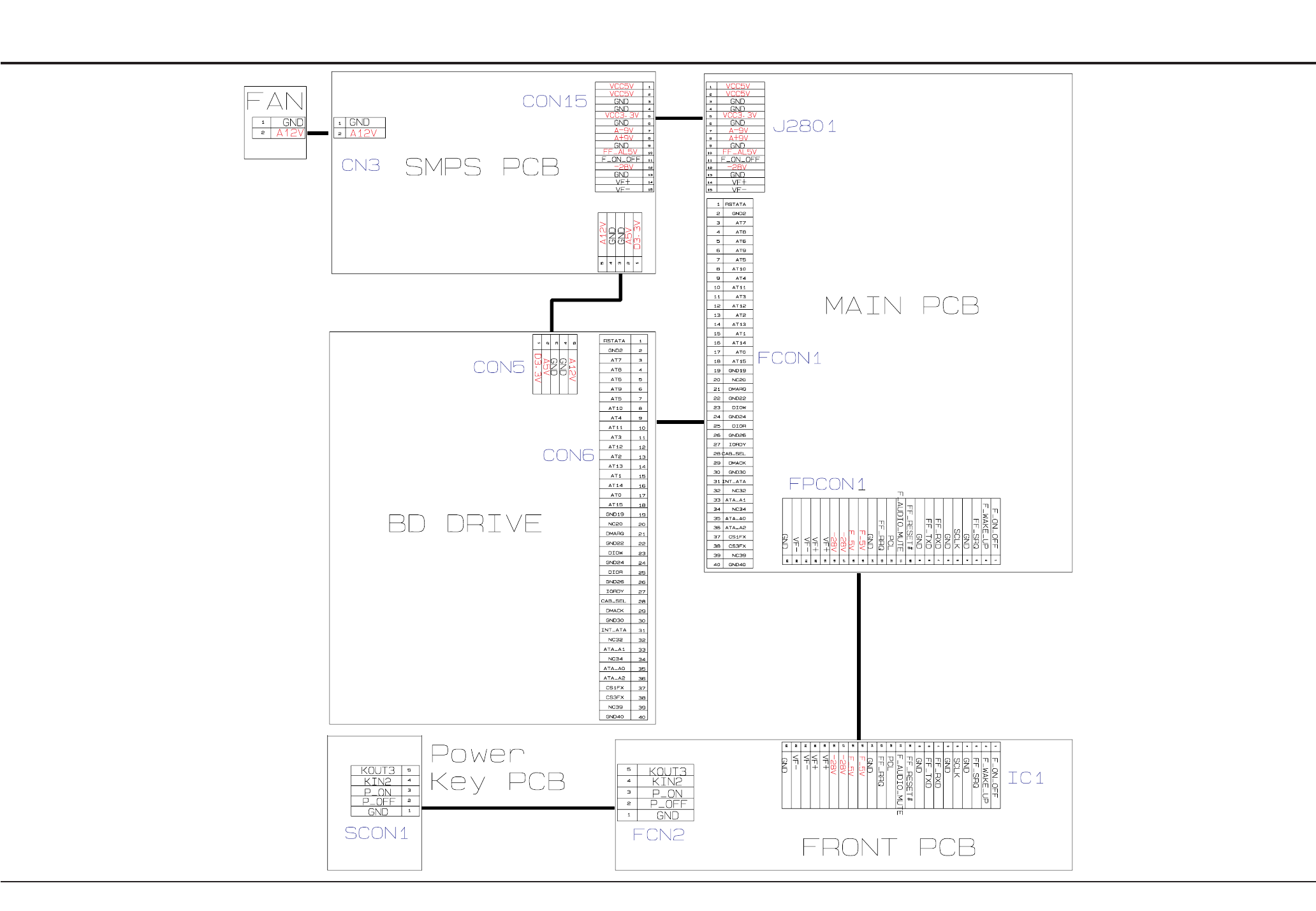

6-1 Wiring Diagram (6-2)

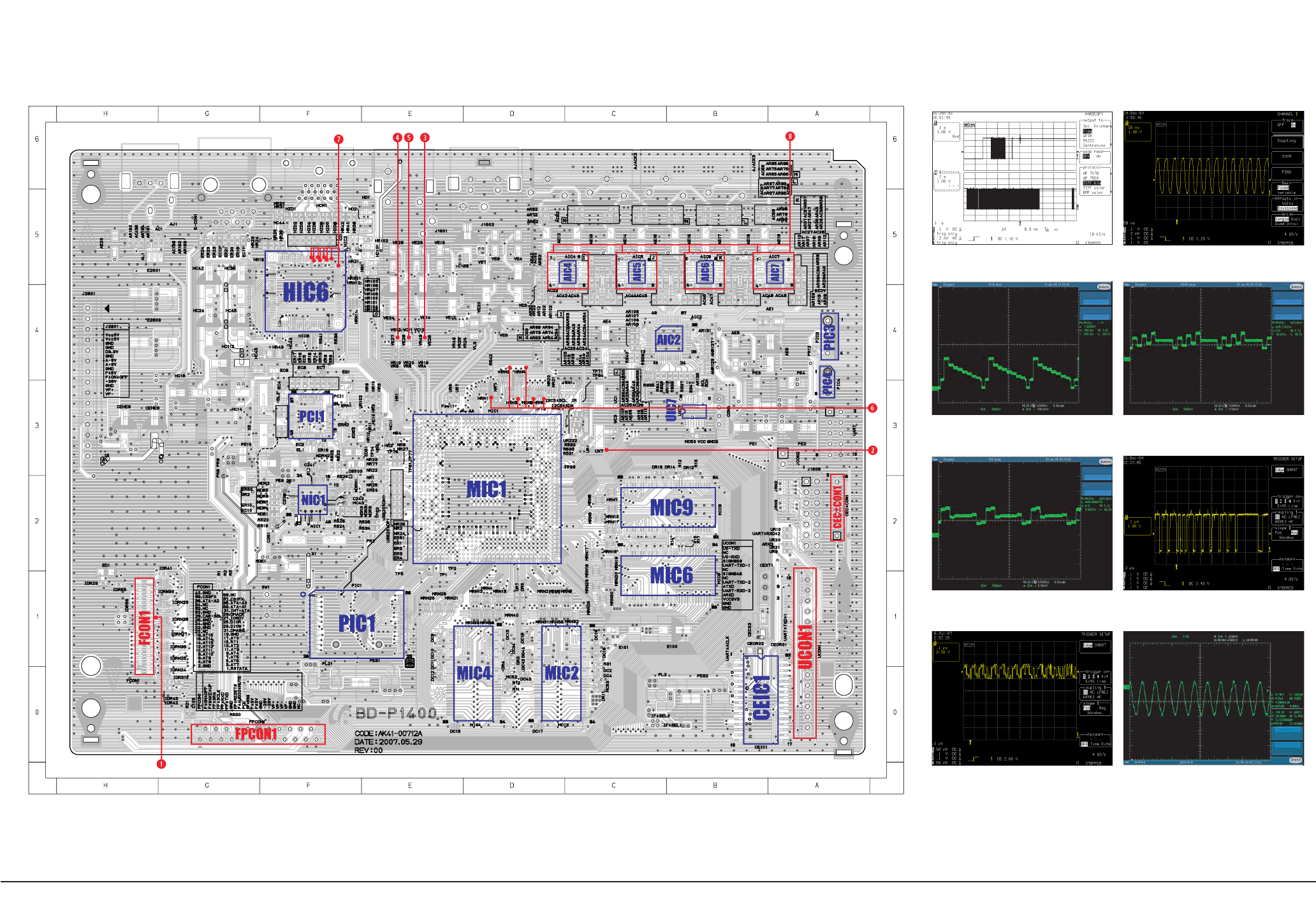

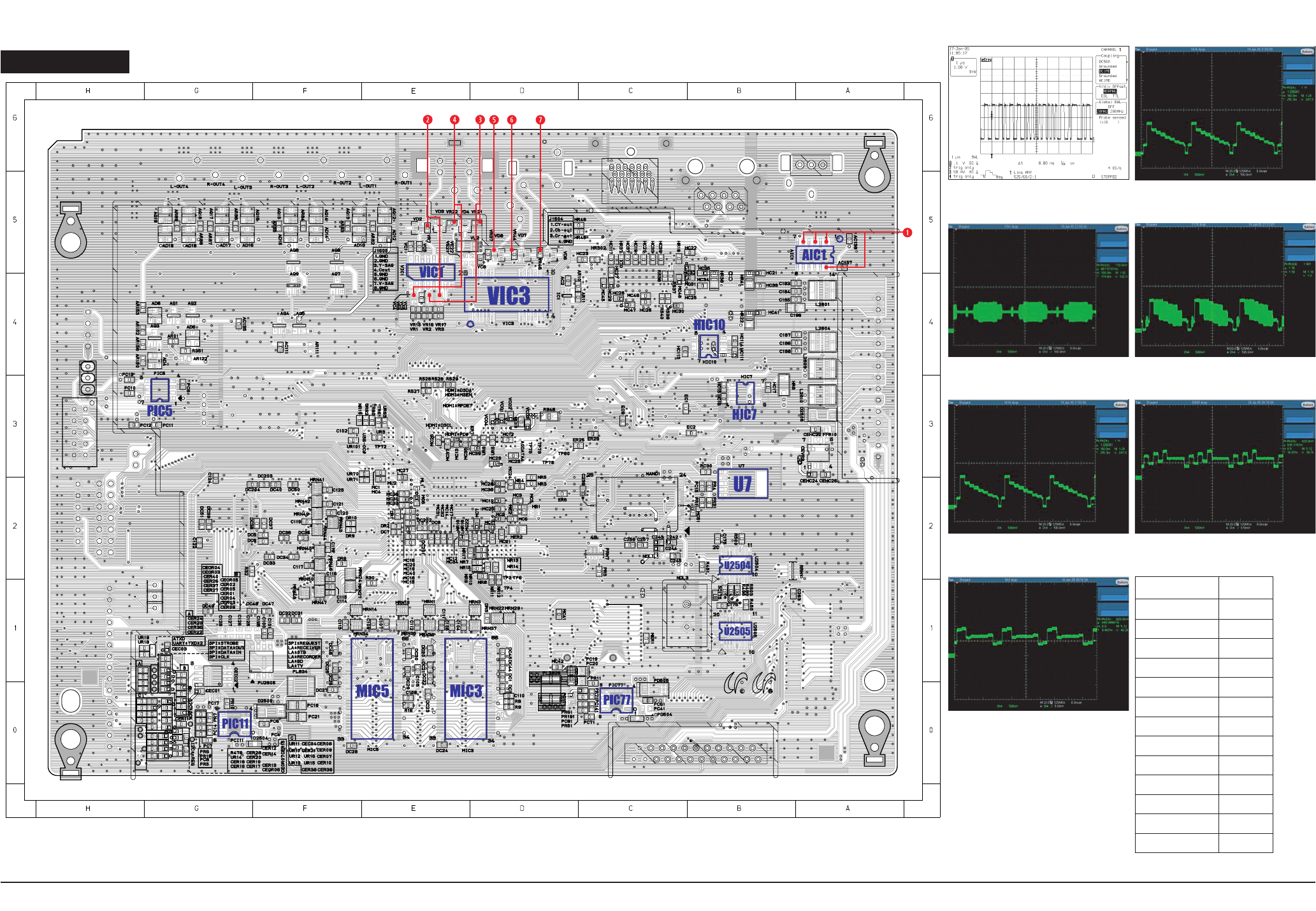

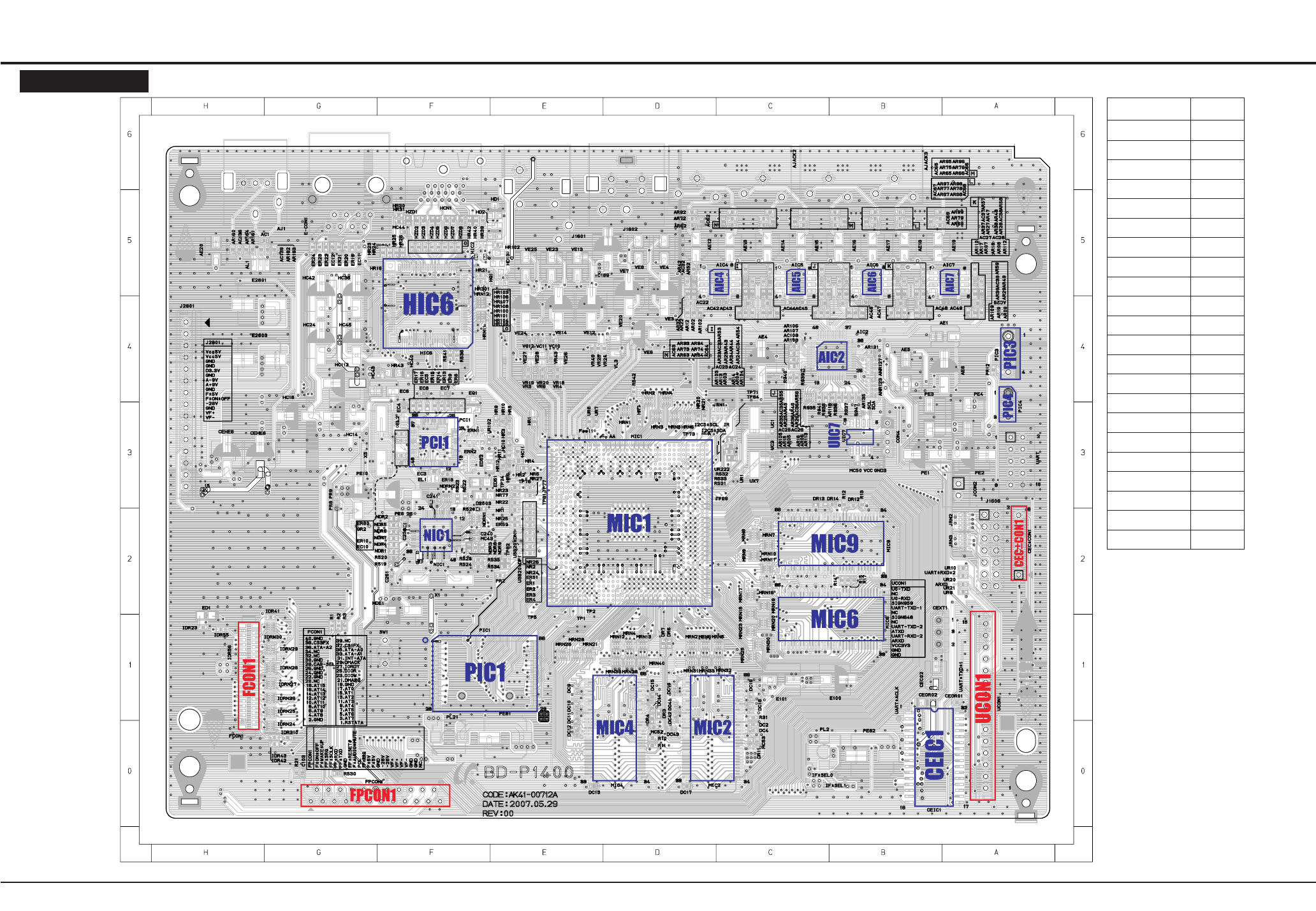

6-2 Main PCB (6-3)

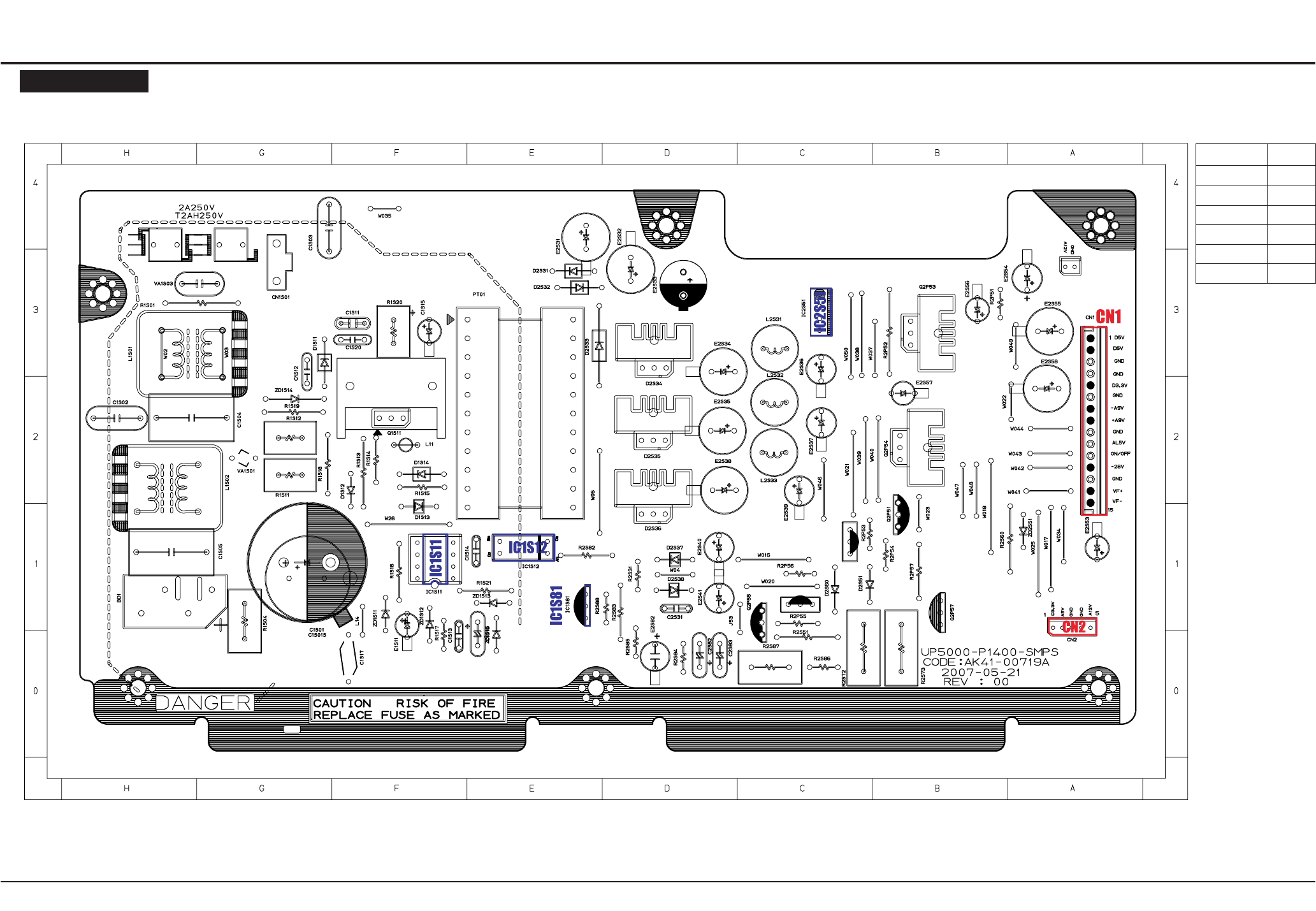

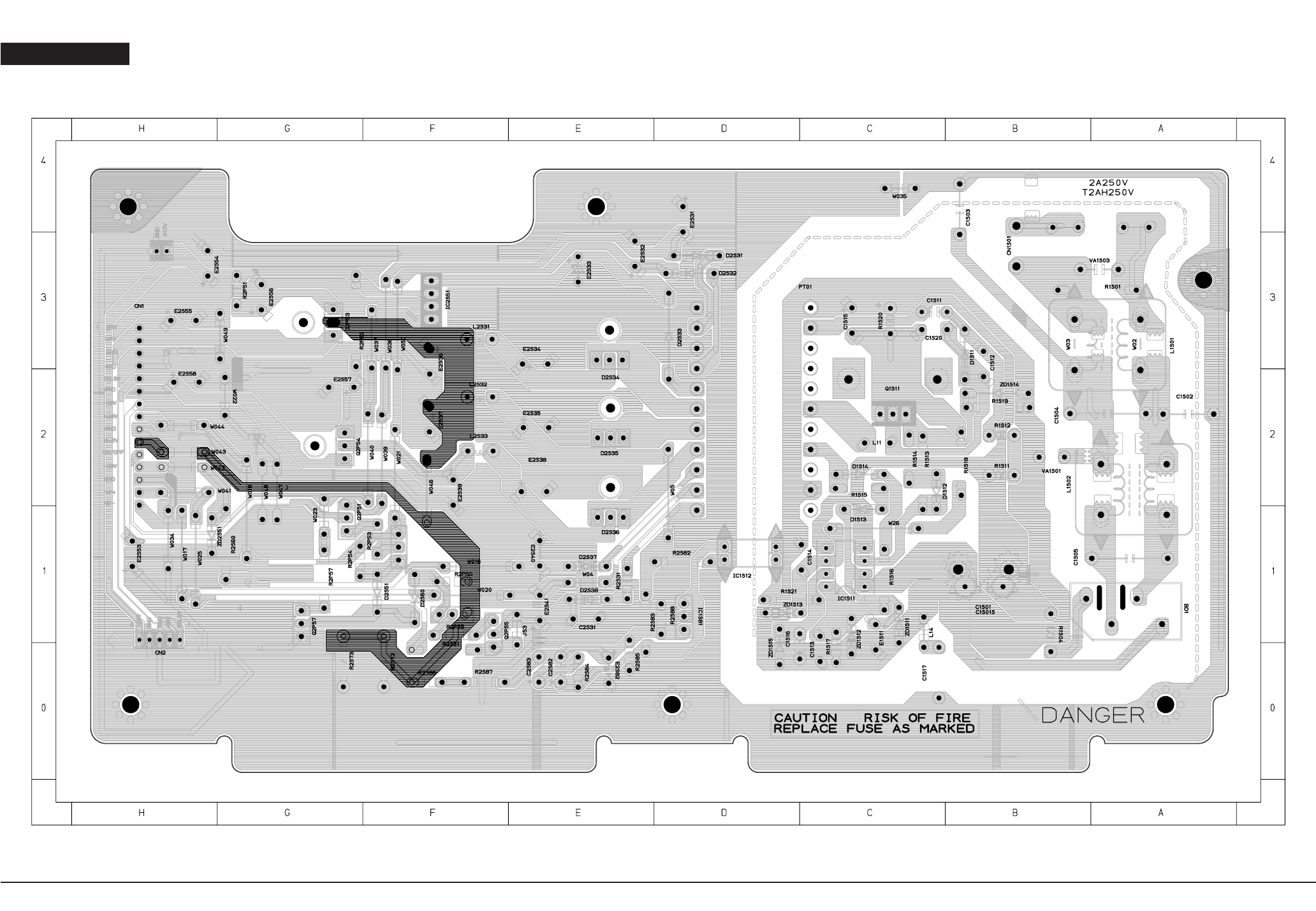

6-3 S.M.P.S PCB (6-6)

6-4 Front PCB (6-8)

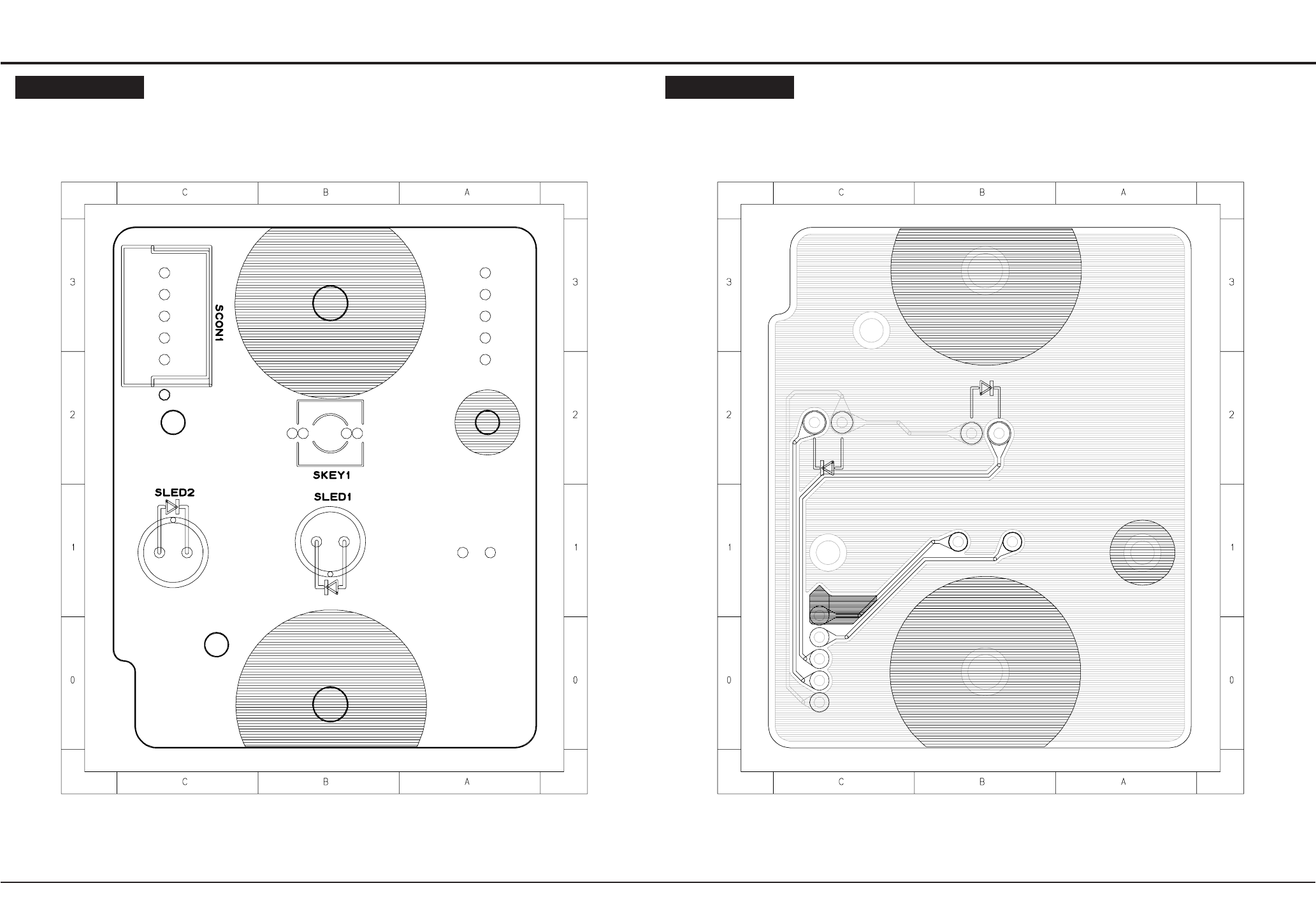

6-5 Power Key PCB (6-9)

7. Schematic Diagrams 7-1 ~ 7-22

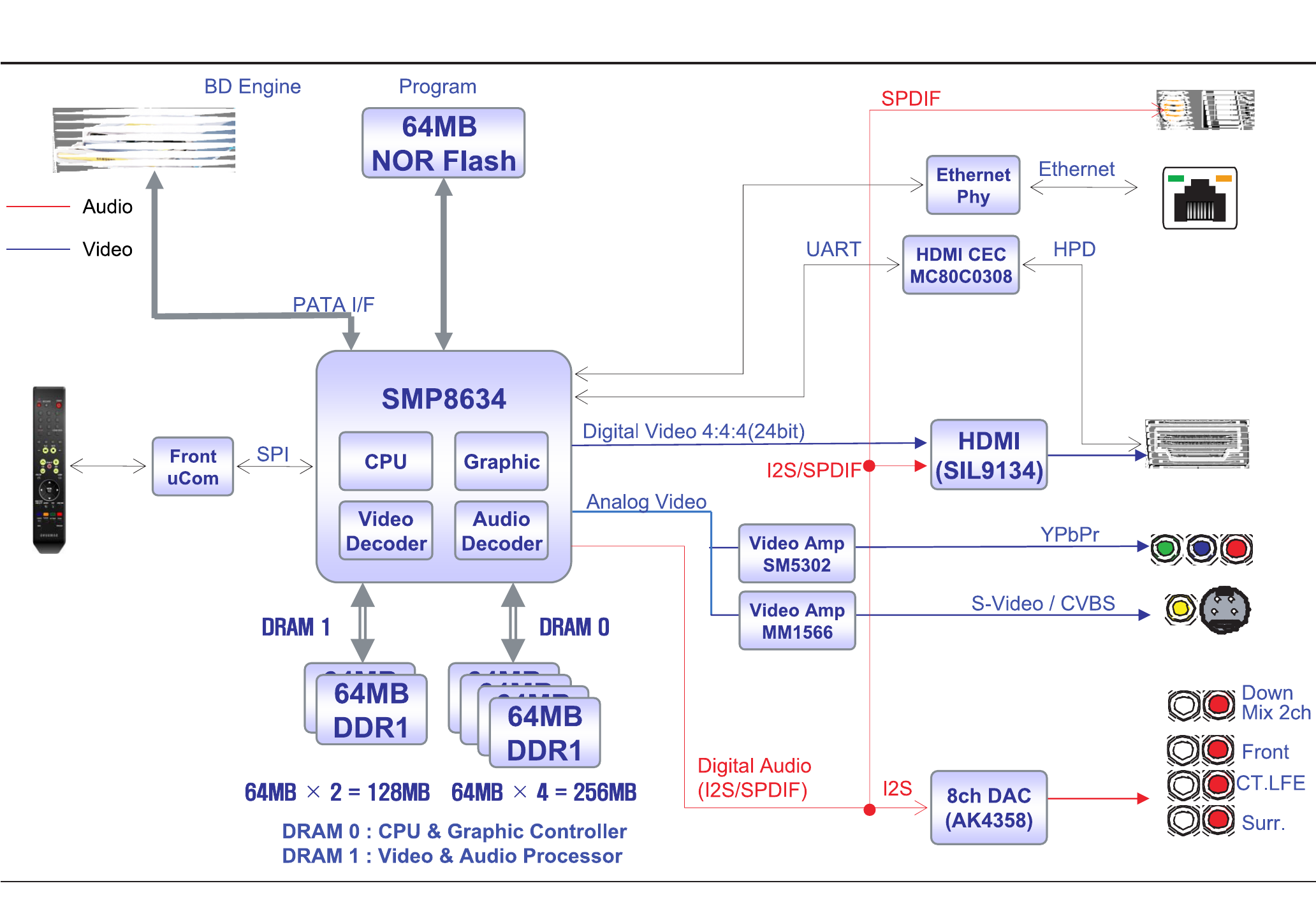

7-1 All block Diagram (7-2)

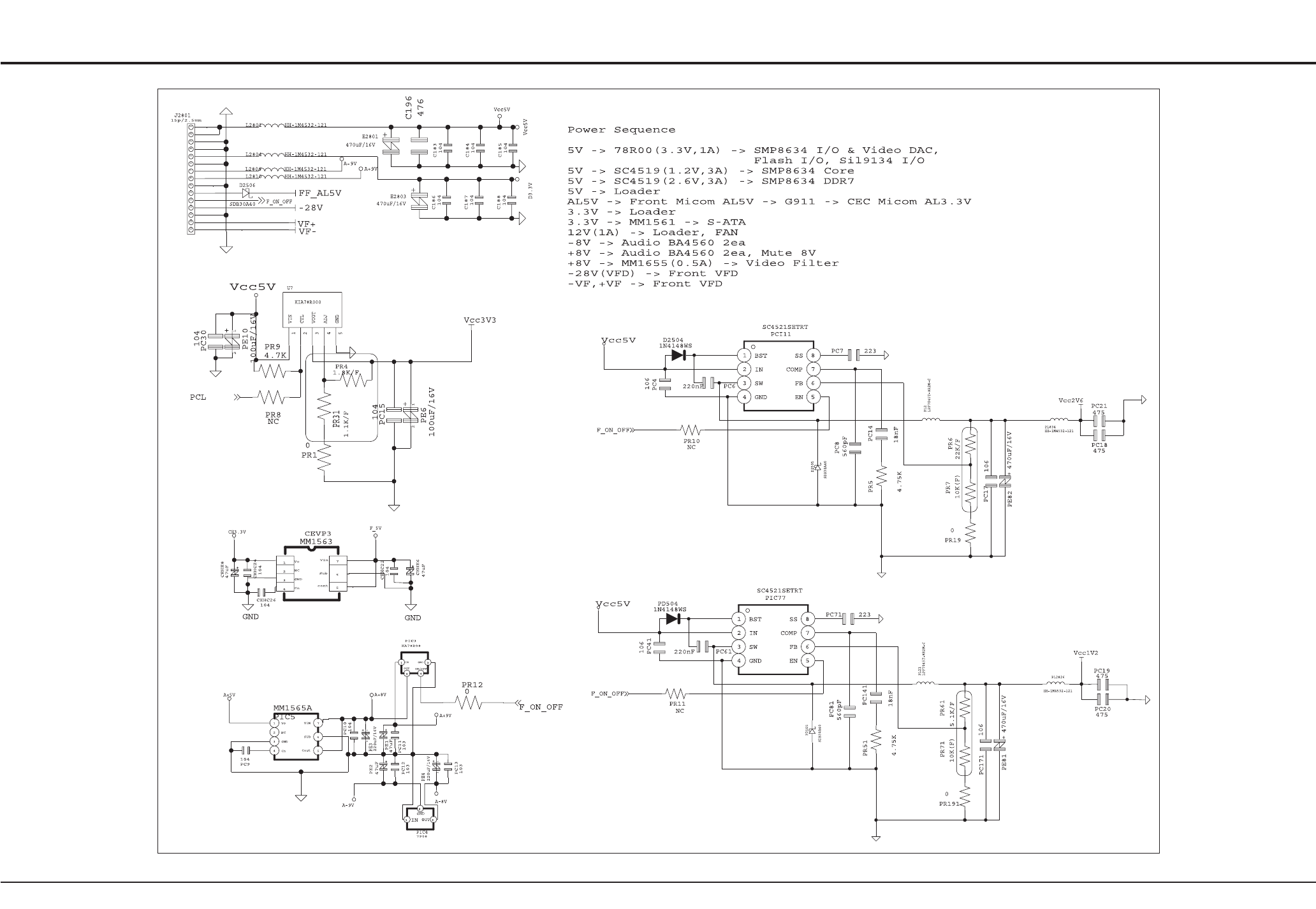

7-2 Power (7-3)

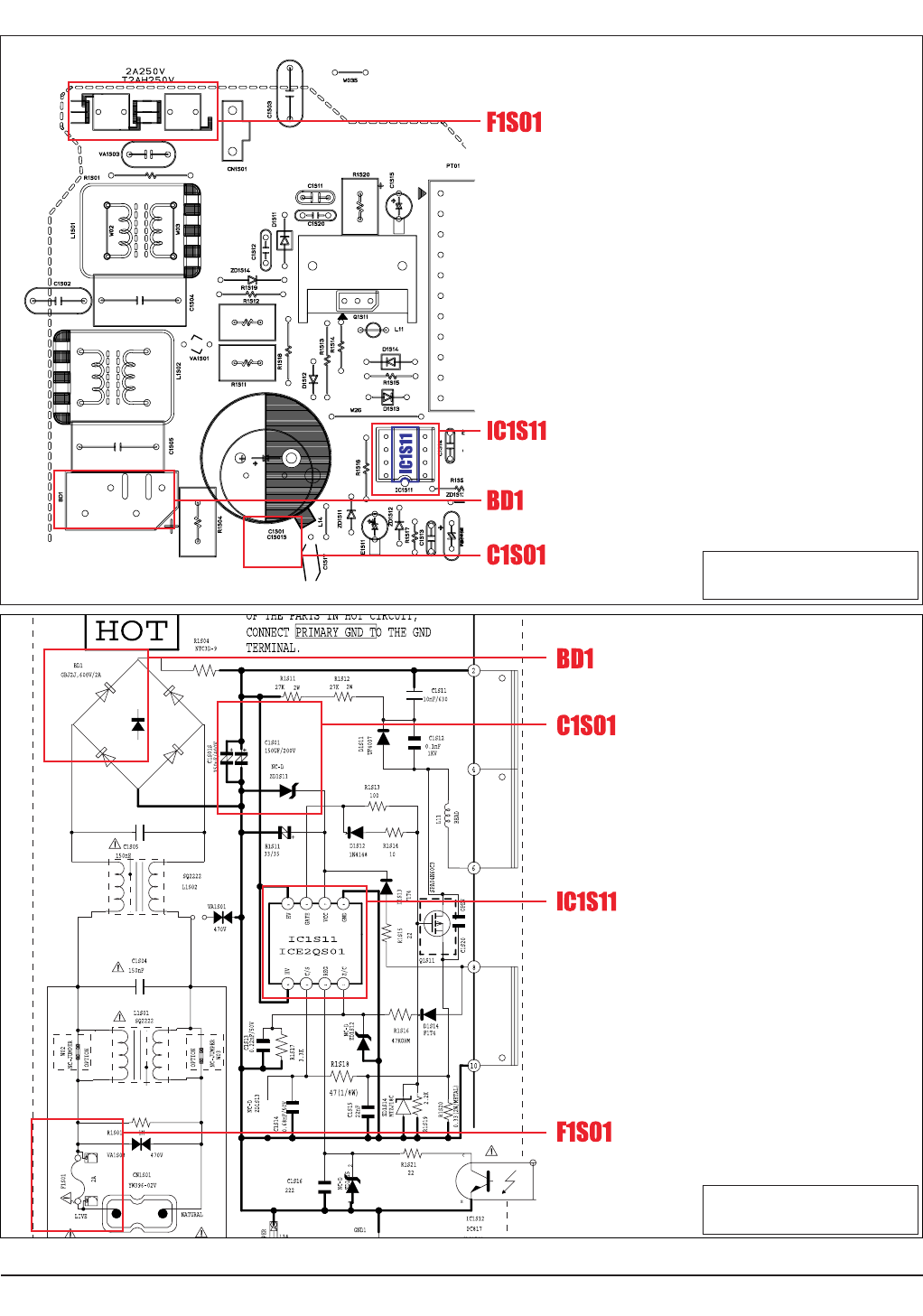

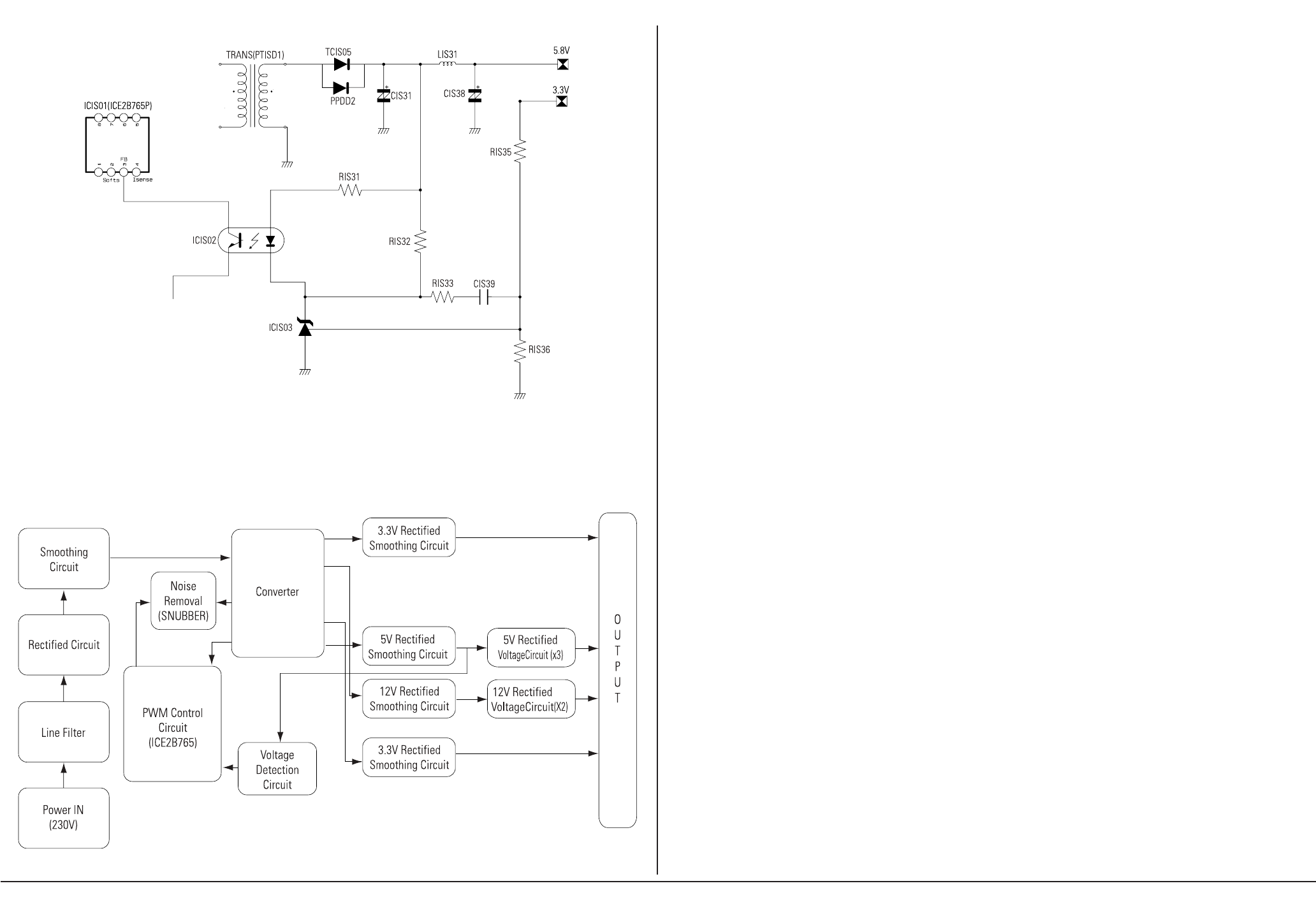

7-3 S.M.P.S (S.M.P.S PCB) (7-5)

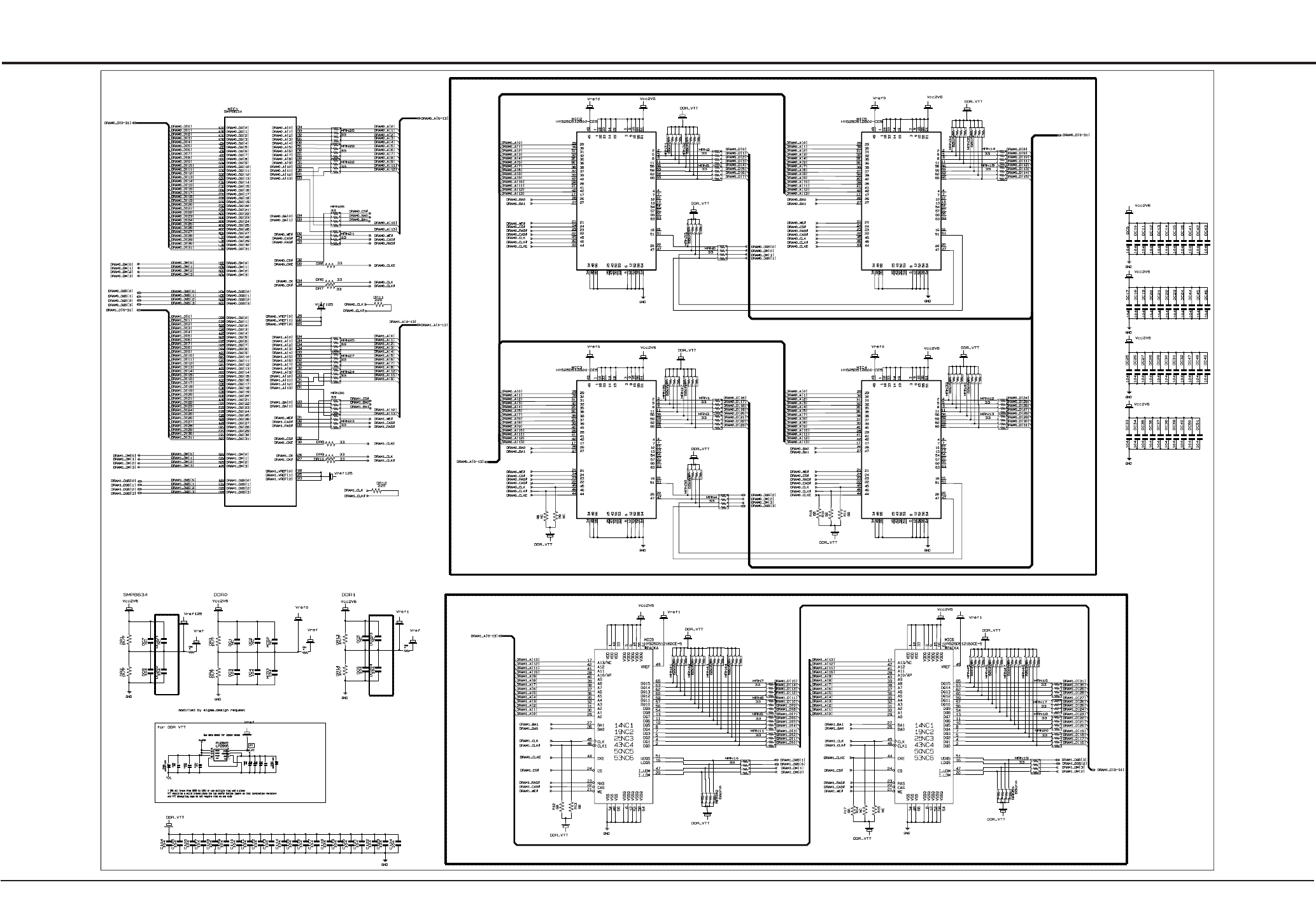

7-4 SMP8634 DDR SDRAM (Main PCB) (7-6)

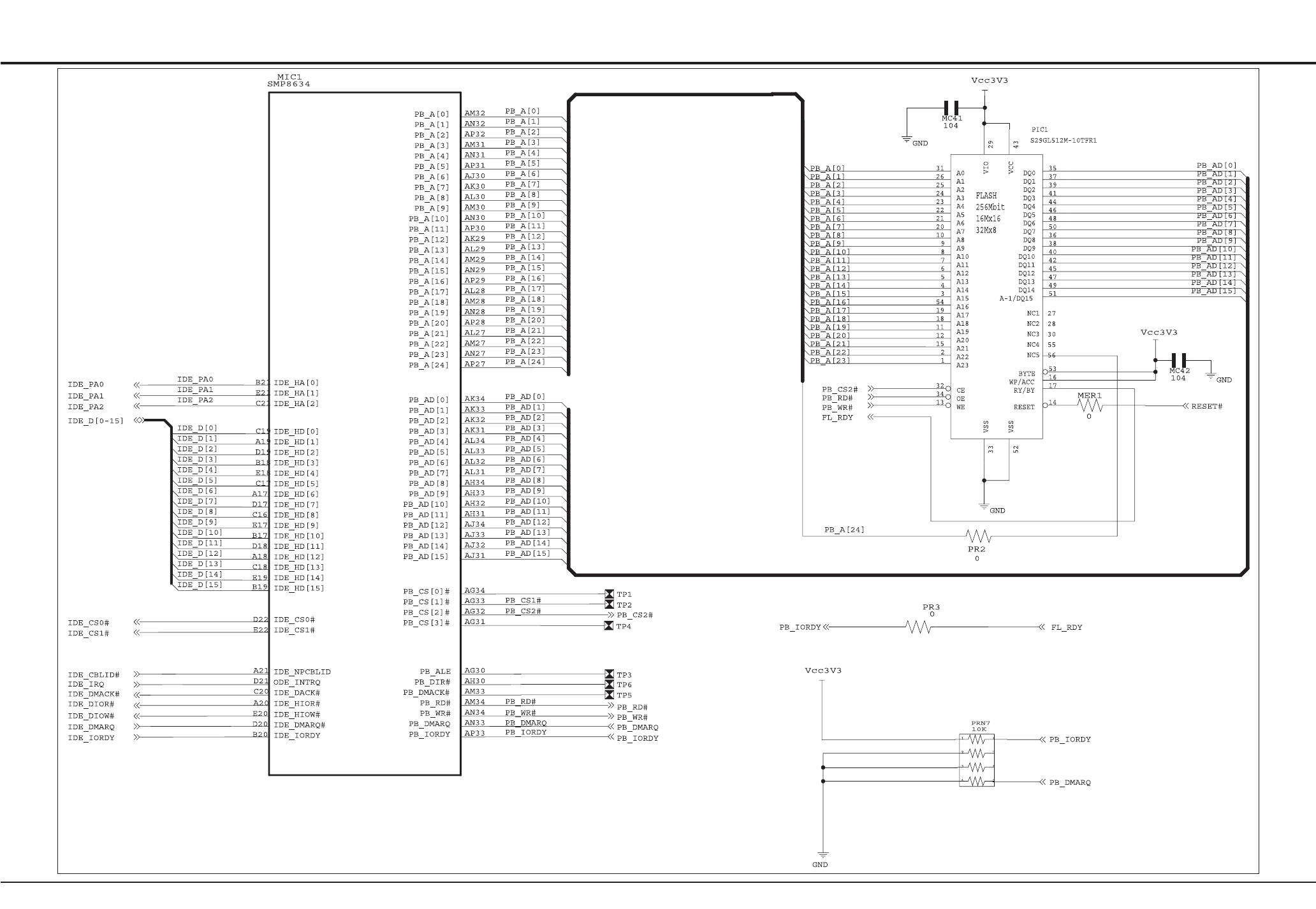

7-5 SMP8634 Flash Memory (Main PCB) (7-7)

7-6 Nand Flash, Controller (Main PCB) (7-8)

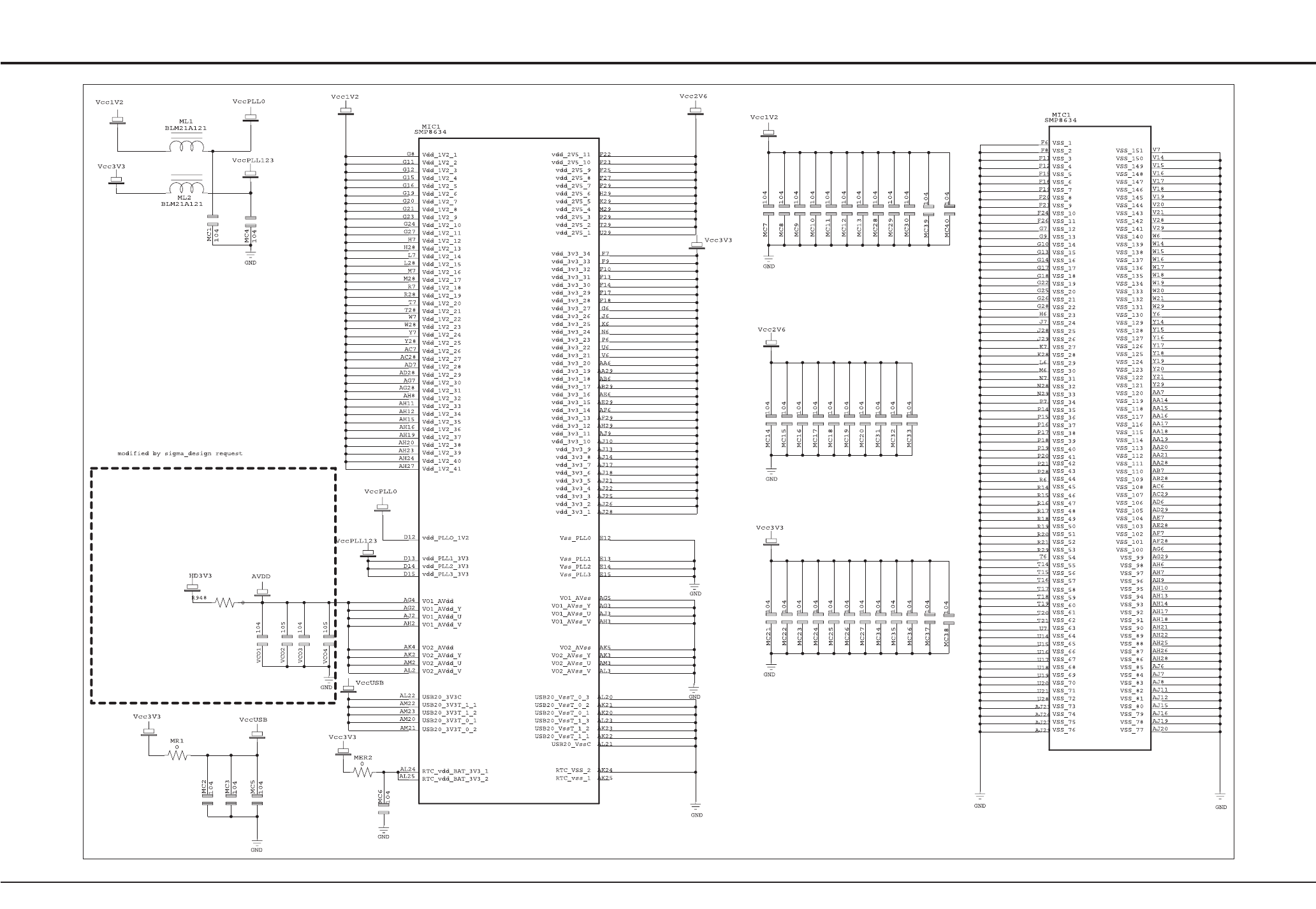

7-7 SMP8634 Power, Decoupling (Main PCB) (7-9)

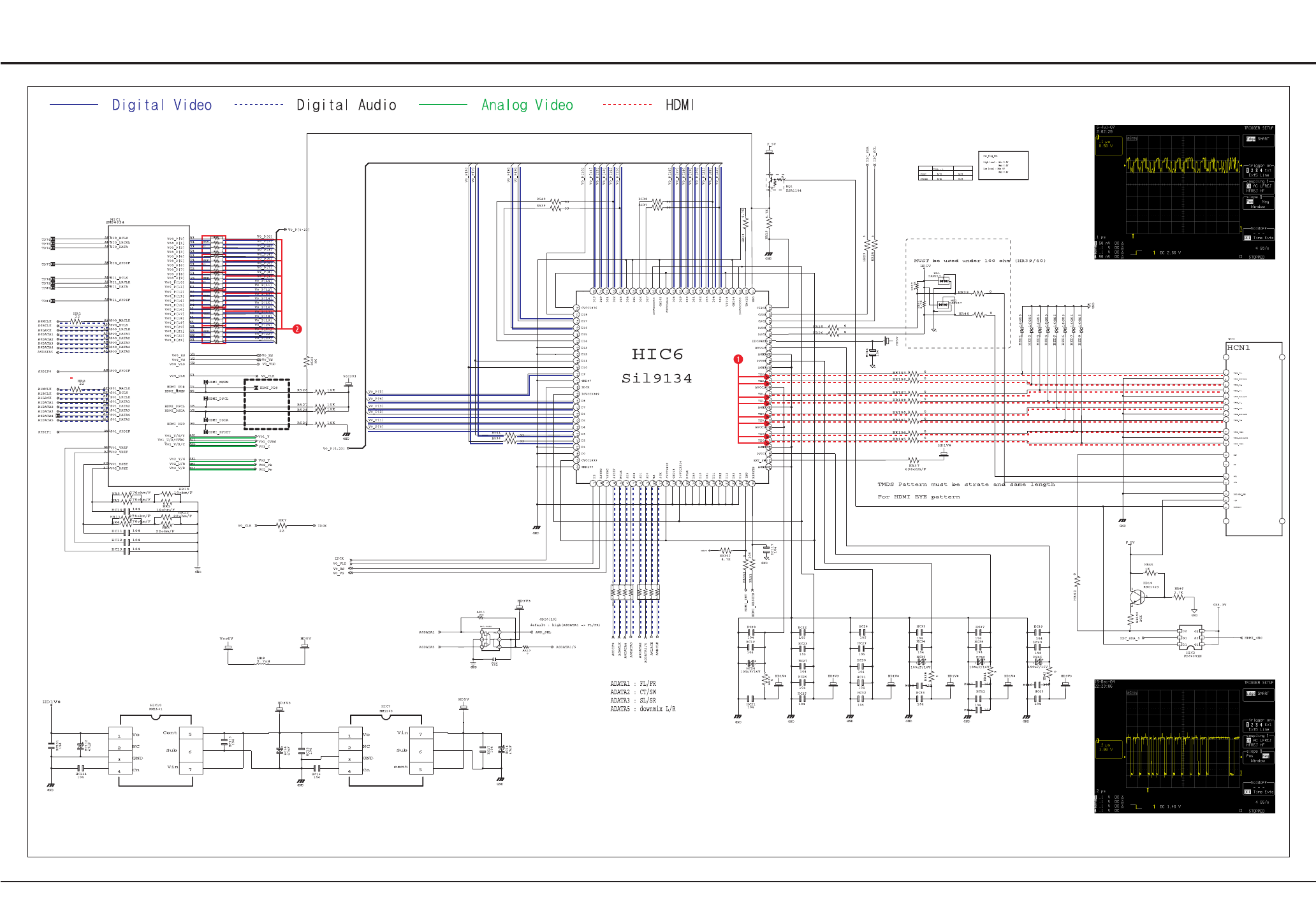

7-8 Sil9134 HDMI (Main PCB) (7-10)

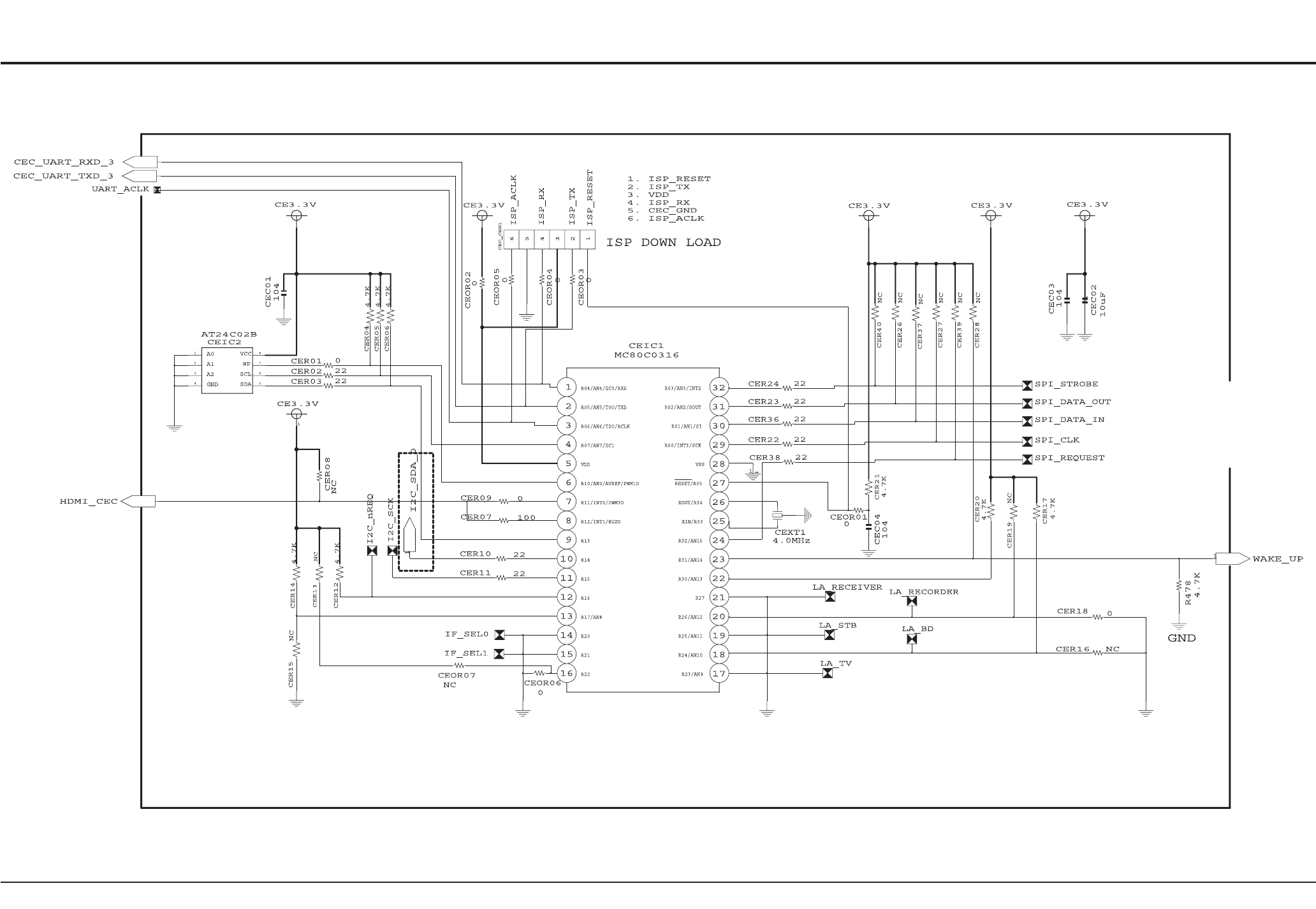

7-9 HDMI-CEC (Main PCB) (7-11)

7-10 Ethernet contol (Main PCB) (7-12)

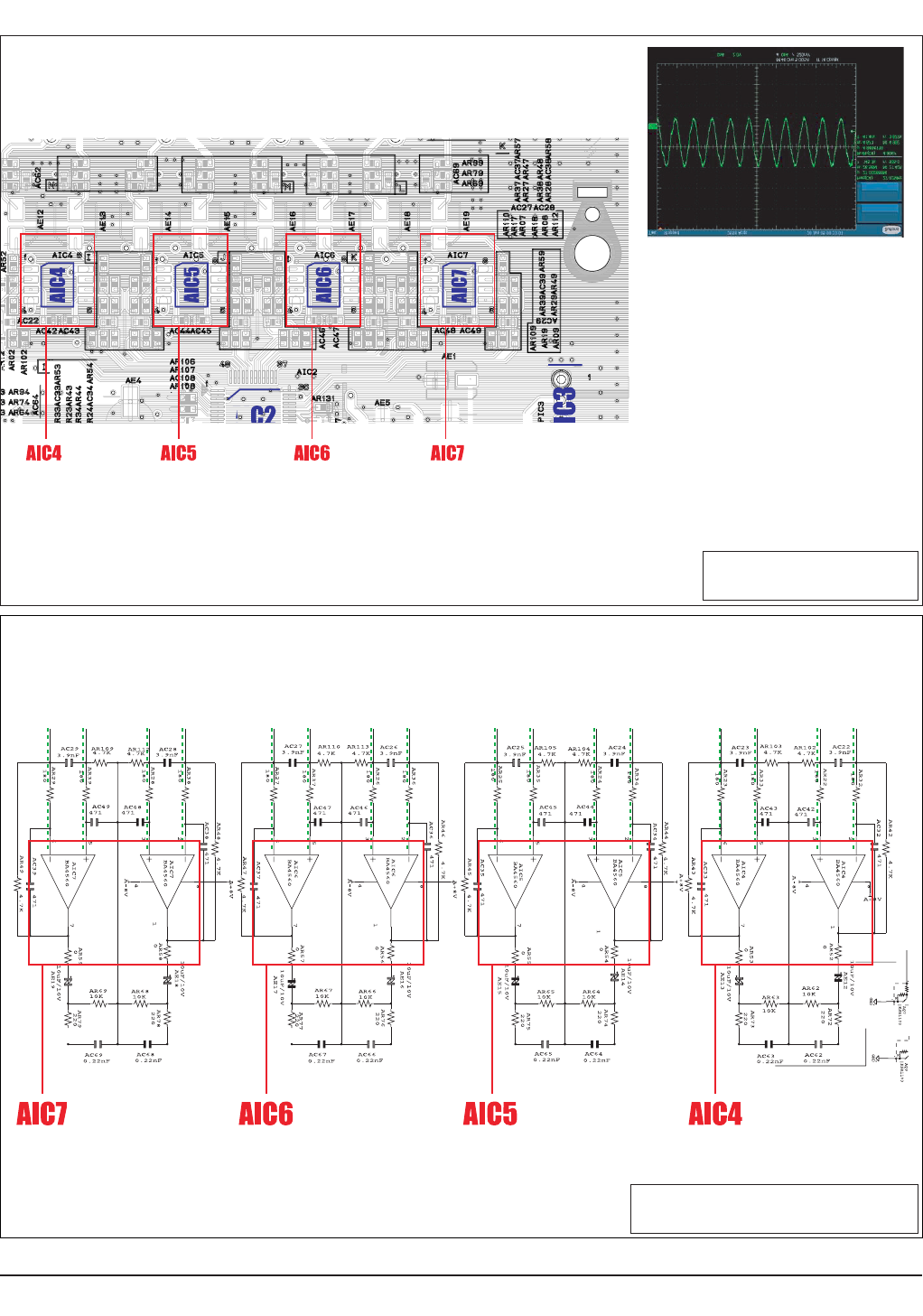

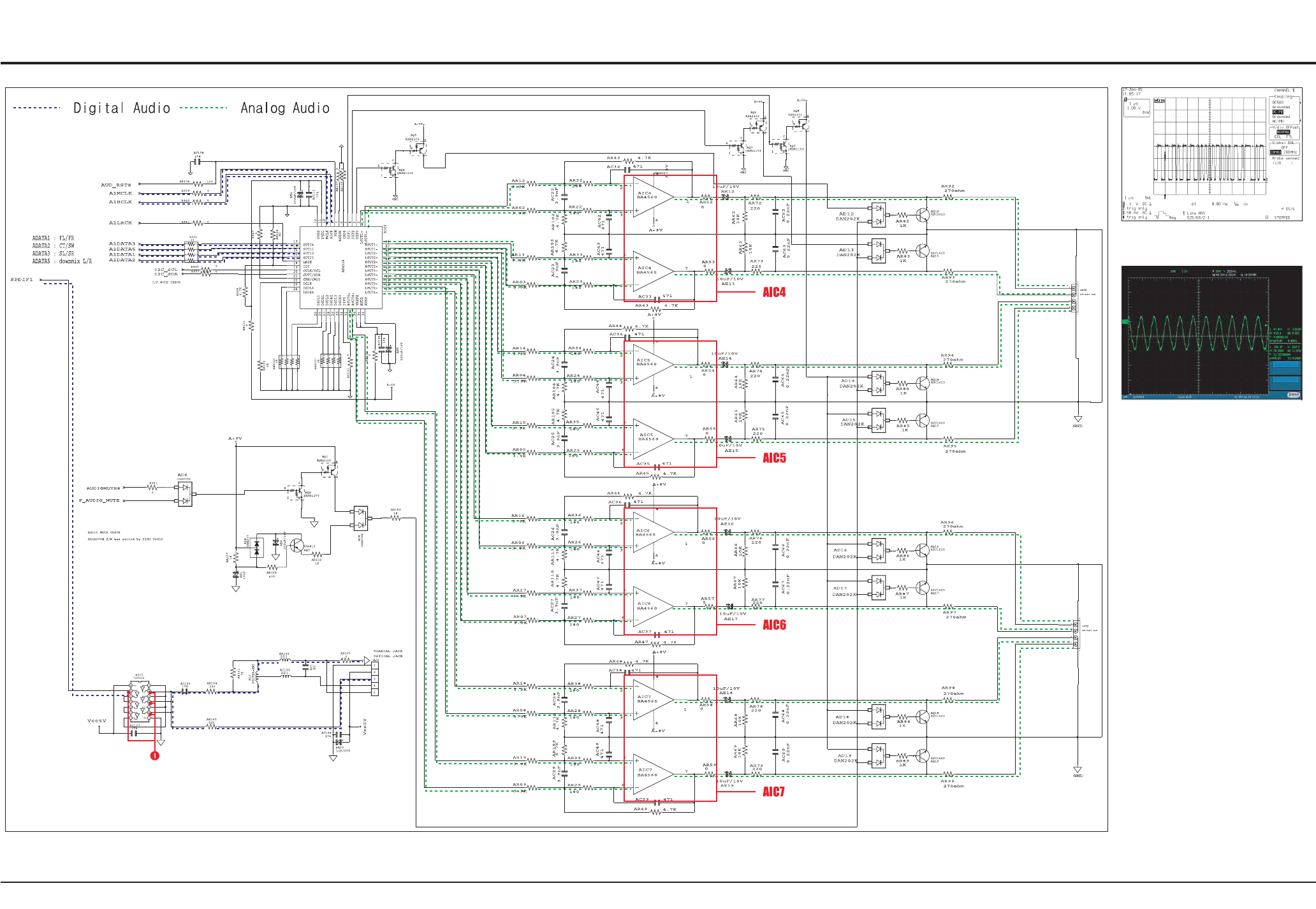

7-11 Audio (Main PCB) (7-13)

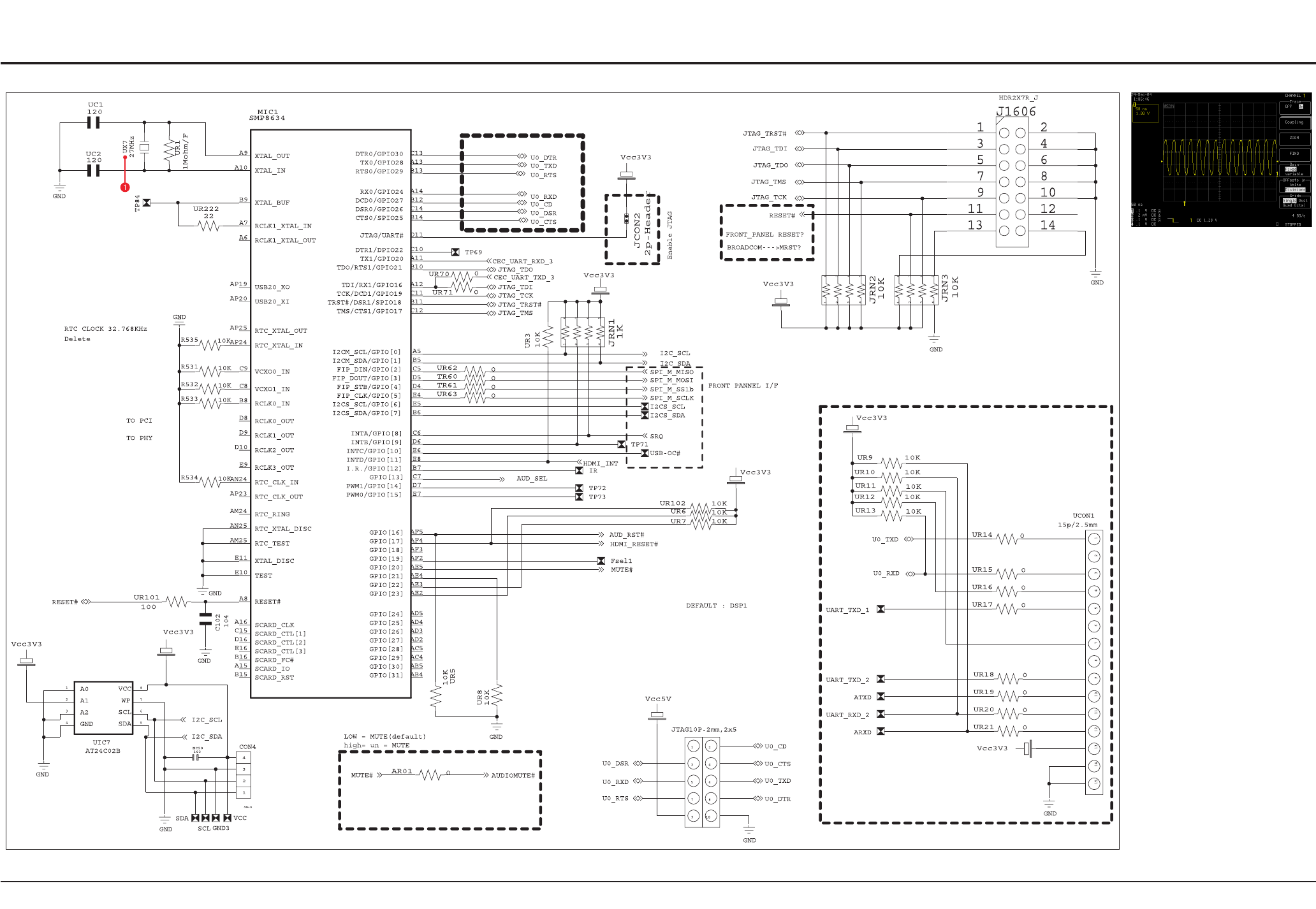

7-12 SMP8634 GPIO Control, JTAG, Debug (Main PCB) (7-14)

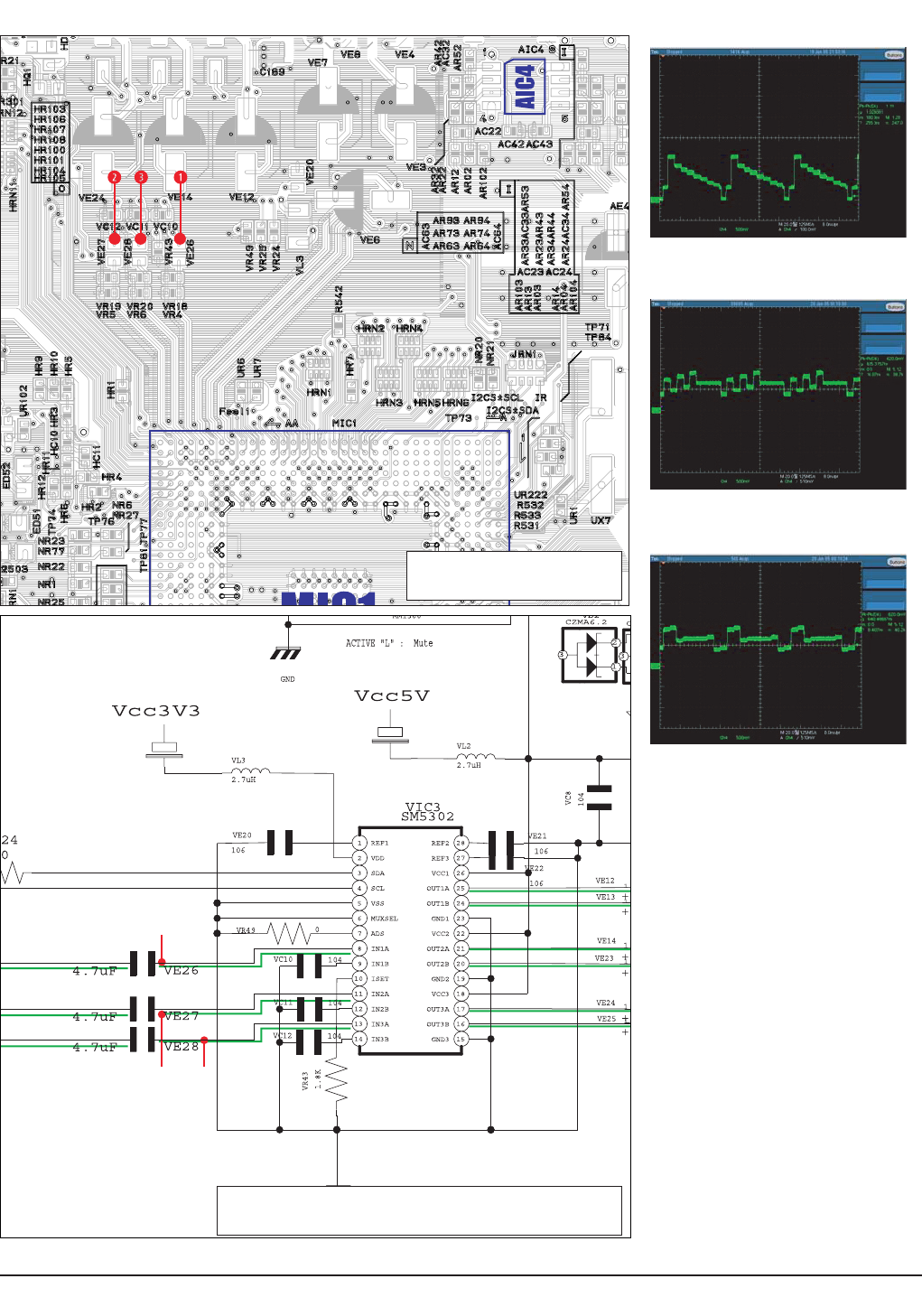

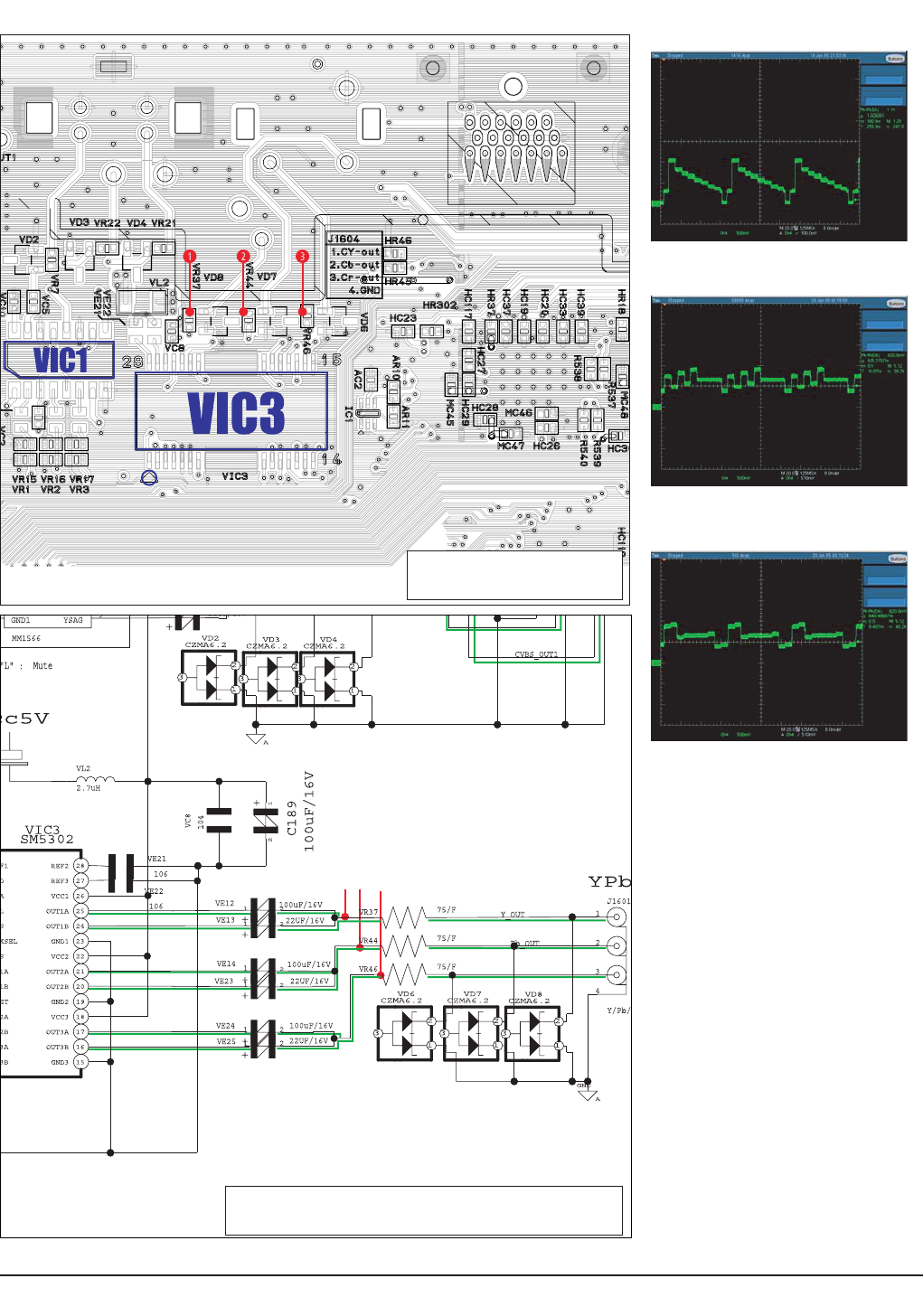

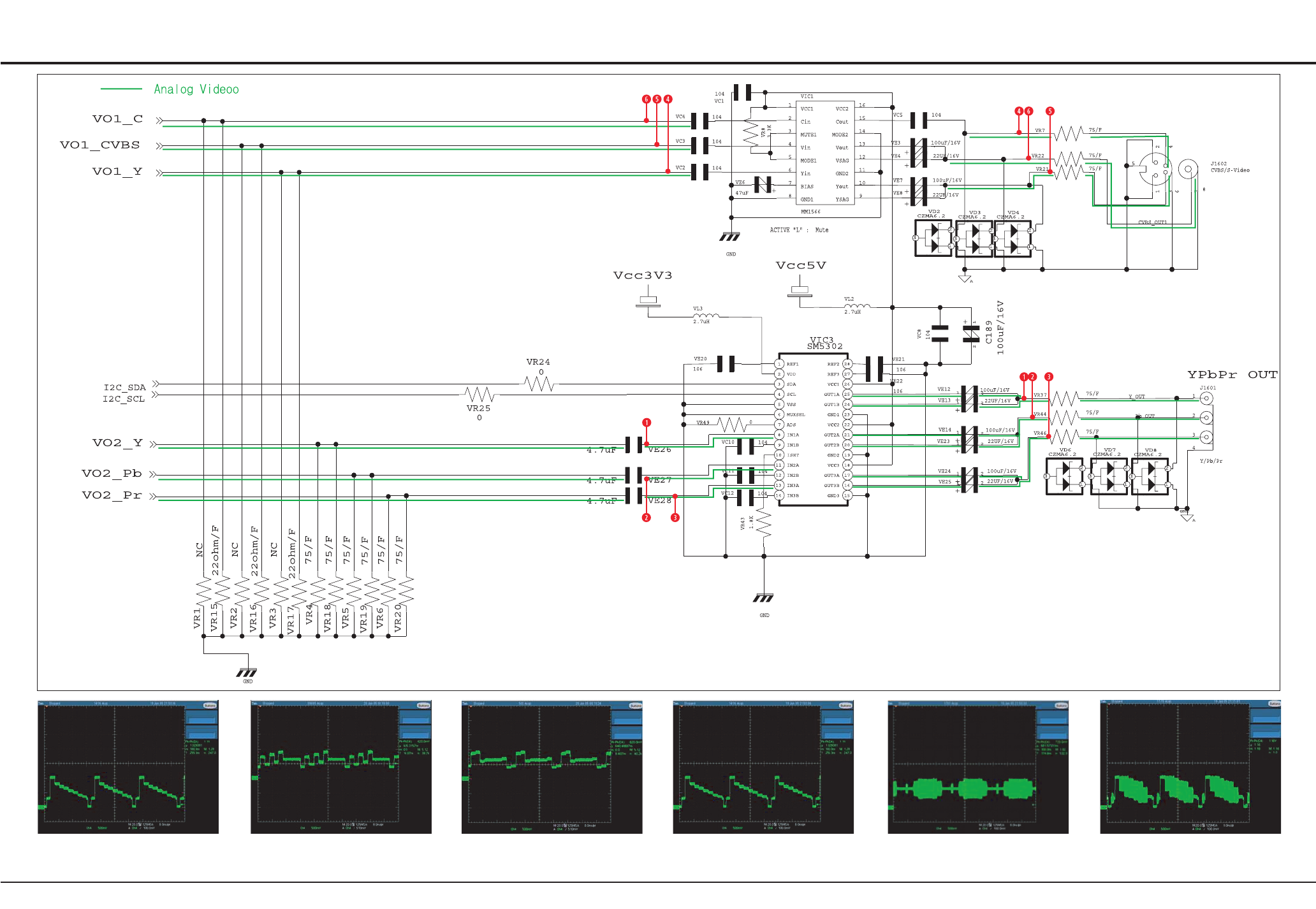

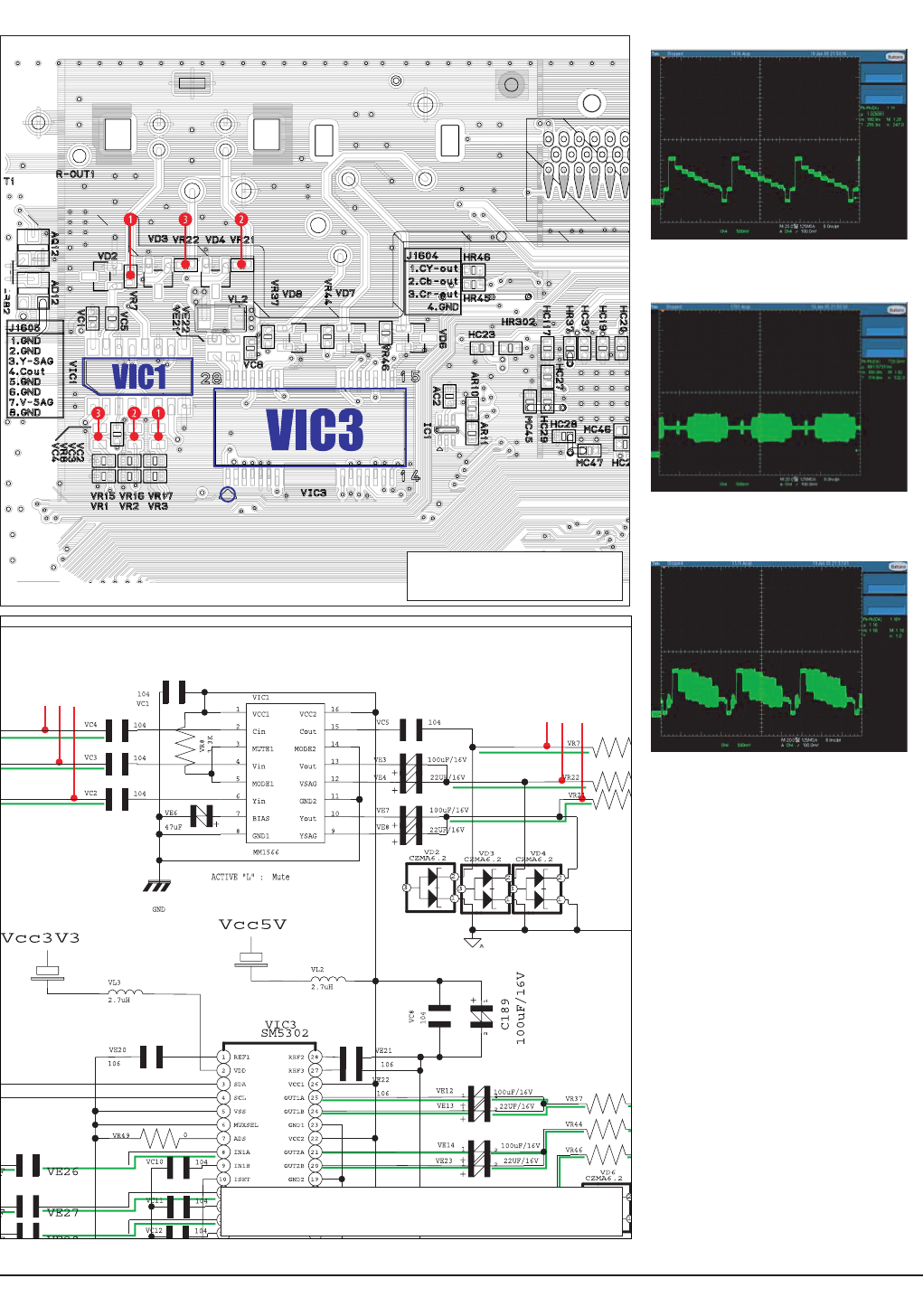

7-13 MM1757 Analog Video Out (Main PCB) (7-15)

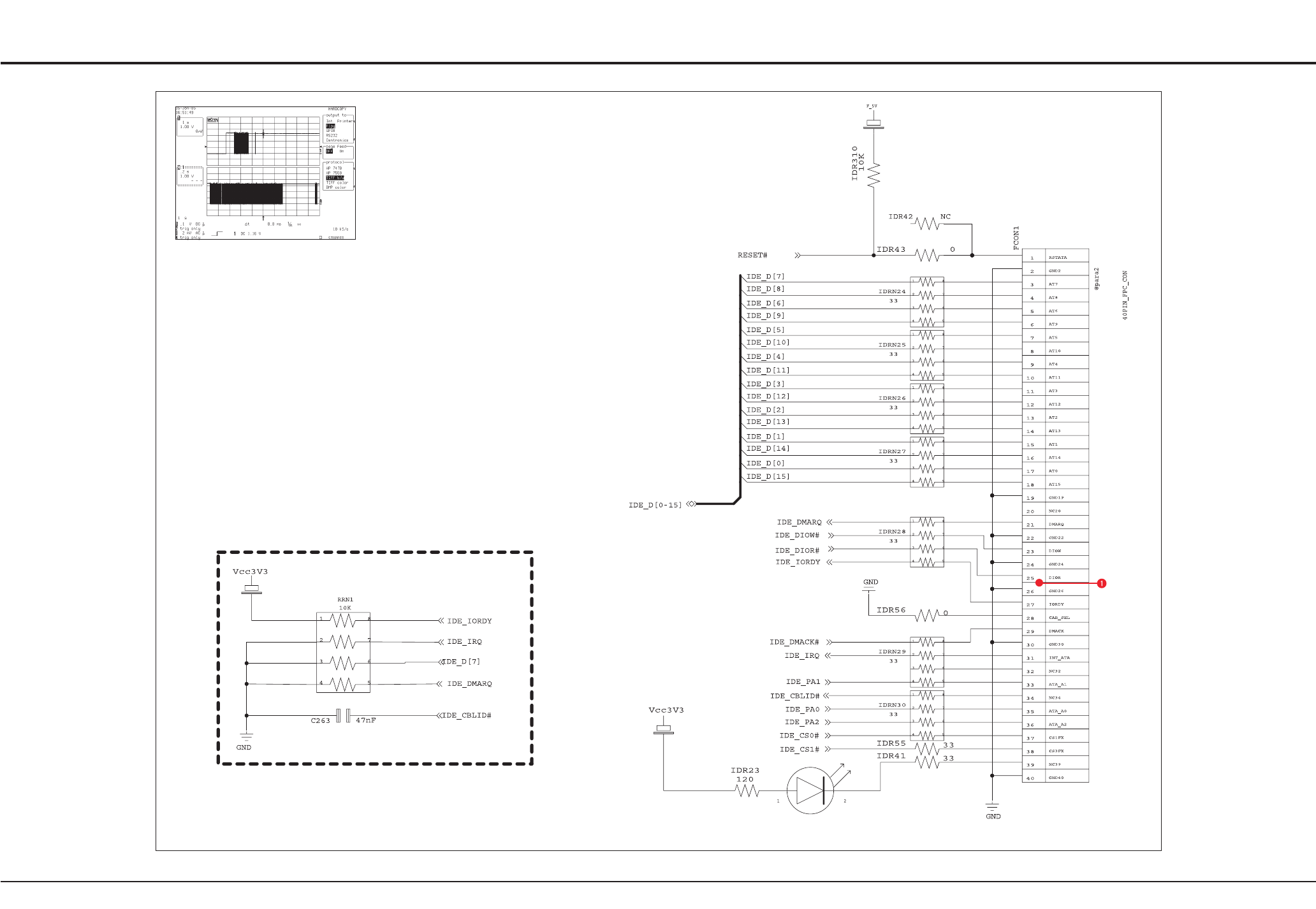

7-14 PATA Control (Main PCB) (7-16)

7-15 Power (Main PCB) (7-17)

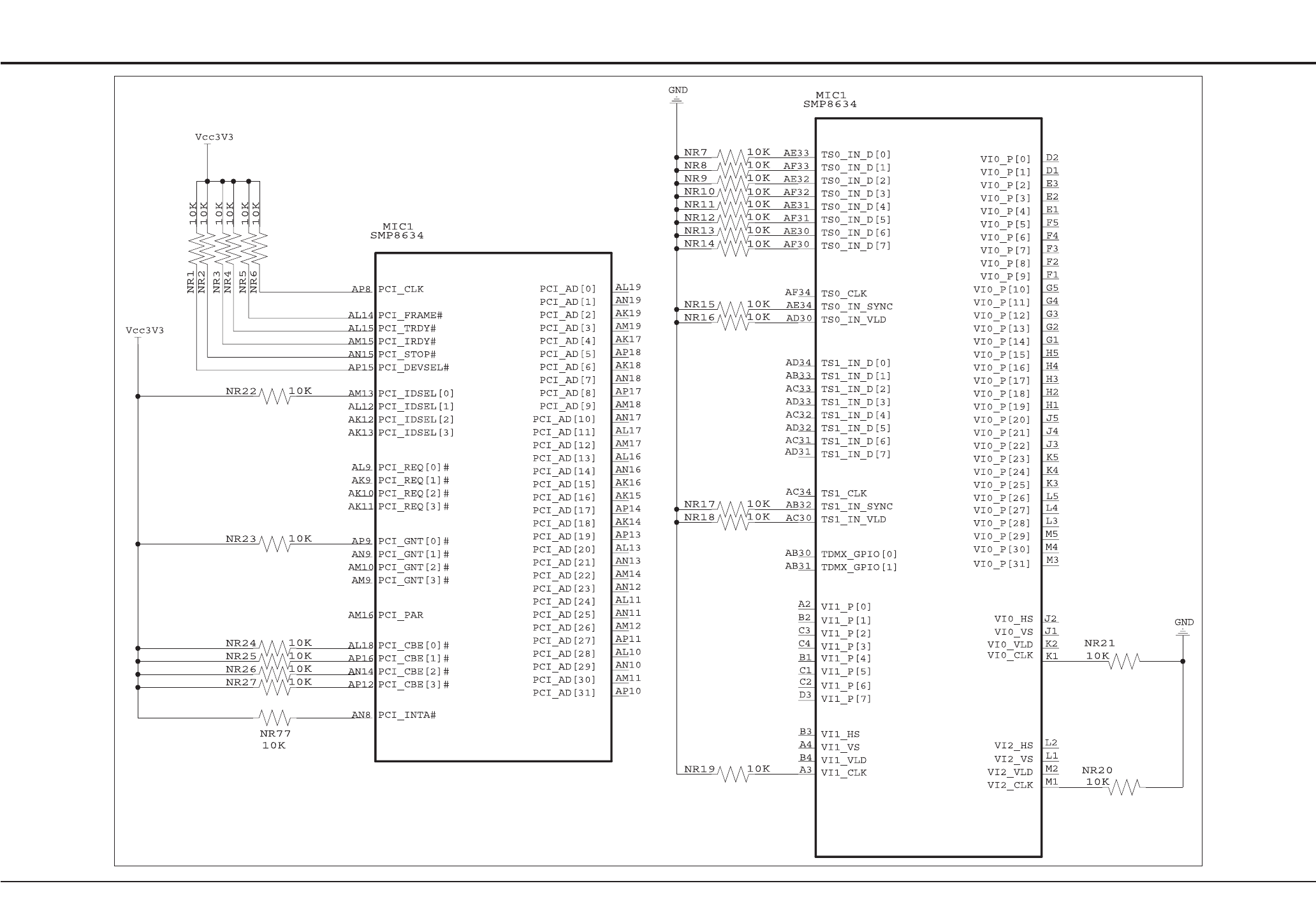

7-16 PCI, ETC (Main PCB) (7-18)

7-17 Front Interface (Main PCB) (7-19)

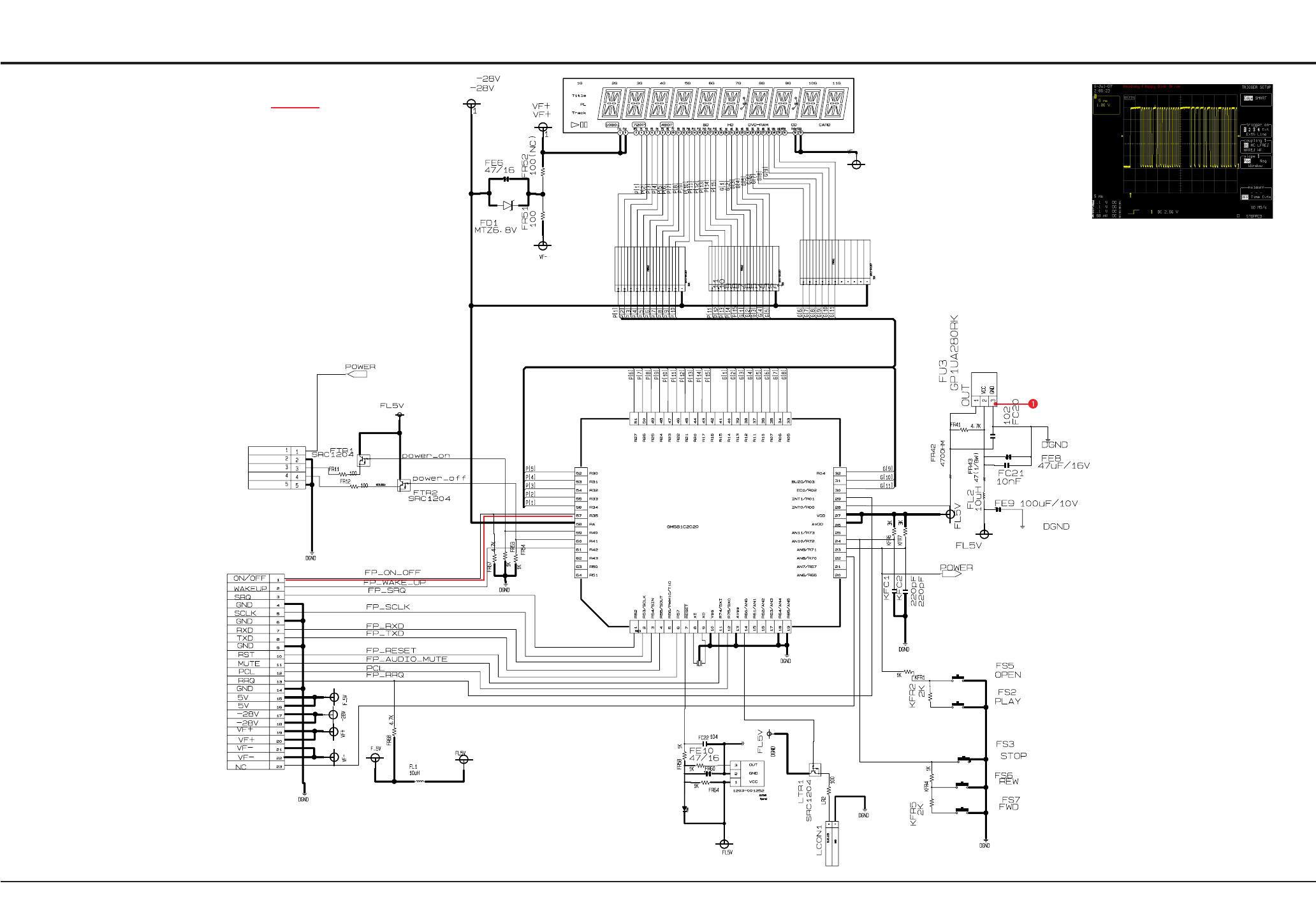

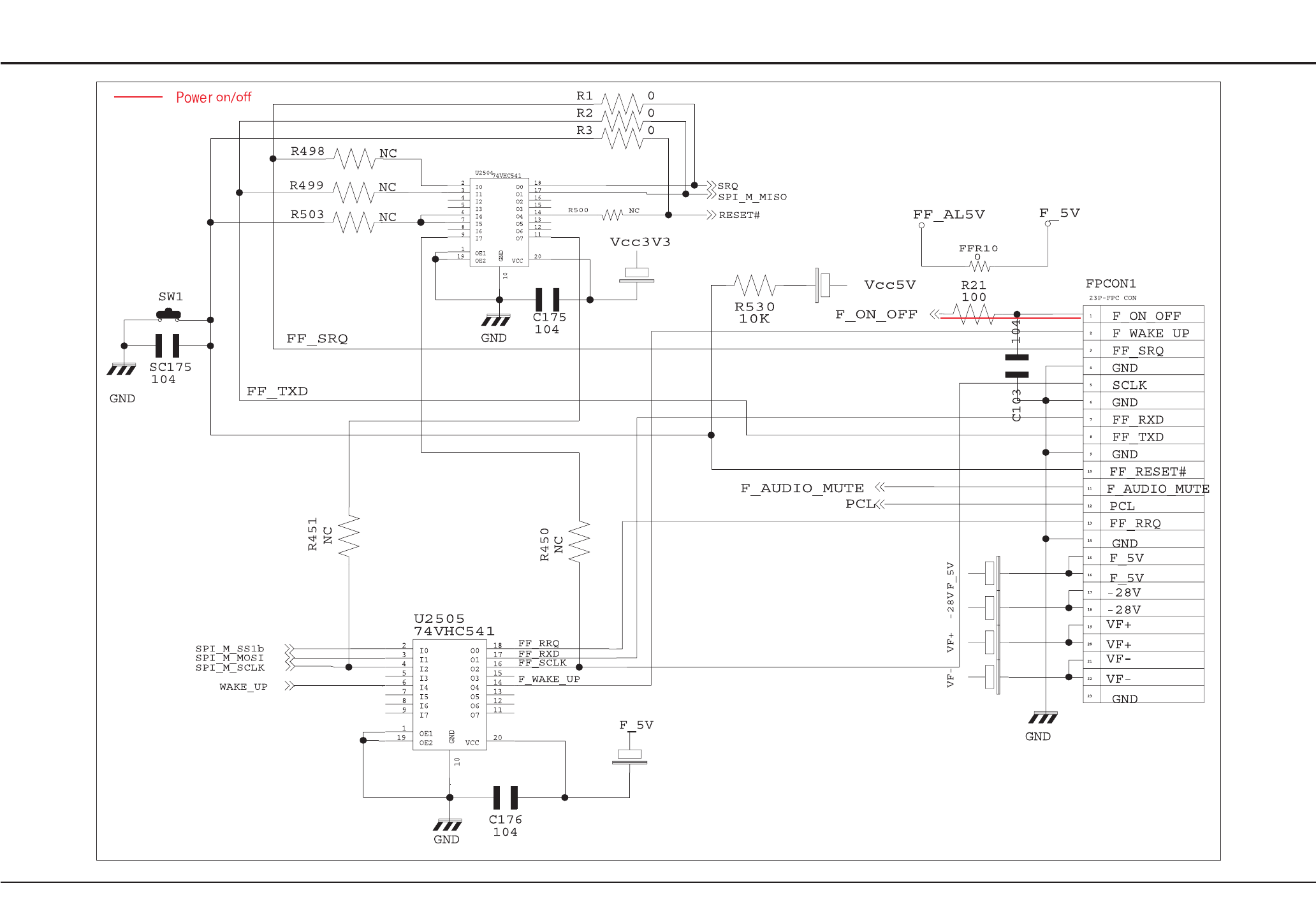

7-18 Front (Front PCB) (7-20)

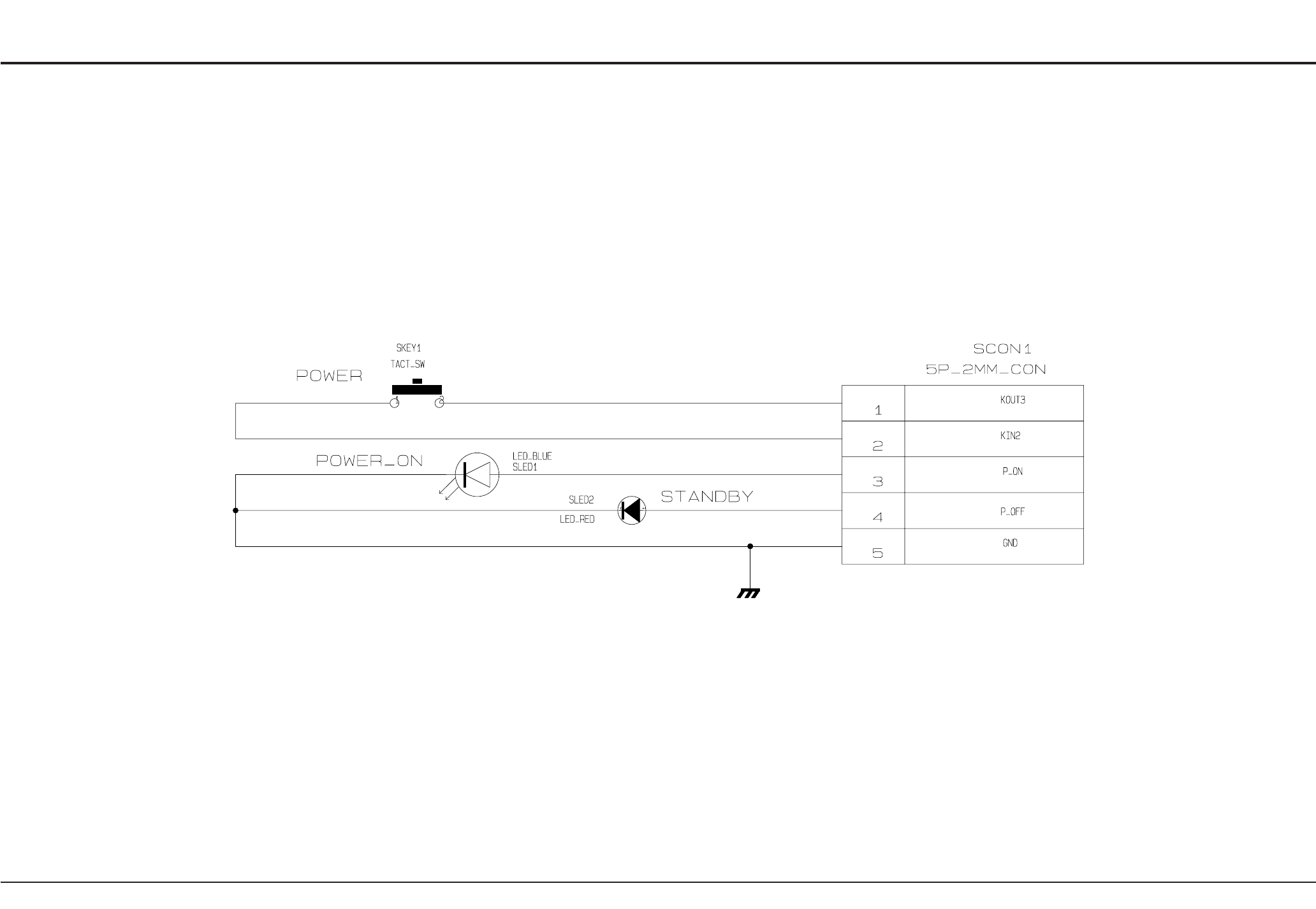

7-19 Power Key (Power Key PCB) (7-21)

CONTENTS CONTENTS

1. Precautions

1-1 Safety Precautions

Samsung electronics 1-1

1) Before returning an instrument to the customer,

always make a safety check of the entire instrument,

including, but not limited to, the following items:

(1) Be sure that no built-in protective devices are

defective or have been defeated during servicing.

(1)Protective shields are provided to protect both

the technician and the customer. Correctly replace

all missing protective shields, including any

removed for servicing convenience.

(2)When reinstalling the chassis and/or other

assembly in the cabinet, be sure to put back in place

all protective devices, including, but not limited to,

nonmetallic control knobs, insulating fish papers,

adjustment and compartment covers/shields, and

isolation resistor/capacitor networks. Do not operate

this instrument or permit it to be operated without

all protective devices correctly installed and

functioning.

(2) Be sure that there are no cabinet openings through

which adults or children might be able to insert

their fingers and contact a hazardous voltage. Such

openings include, but are not limited to, excessively

wide cabinet ventilation slots, and an improperly

fitted and/or incorrectly secured cabinet back

cover.

(3) Leakage Current Hot Check-With the instrument

completely reassembled, plug the AC line cord

directly into a 230V(220V ~ 240V) AC outlet. (Do

not use an isolation transformer during this test.)

Use a leakage current tester or a metering system

that complies with American National Standardsp

institute (ANSI) C101.1 Leakage Current for

Appliances and Underwriters Laboratories (UL)

1270 (40.7). With the instrument’s AC switch first in

the ON position and then in the OFF position,

measure from a known earth ground

(metal water pipe,

conduit, etc.) to all exposed metal parts of the

instrument (antennas, handle brackets, metal

cabinets,

screwheads, metallic overlays, control shafts,

etc.), especially any exposed metal parts that offer

an electrical return path to the chassis.

Any current measured must not exceed 0.5mA.

Reverse the instrument power cord plug in the outlet

and repeat the test. See Fig. 1-1.

Any measurements not within the limits specified

herein indicate a potential shock hazard that must

be eliminated before returning the instrument to

the customer.

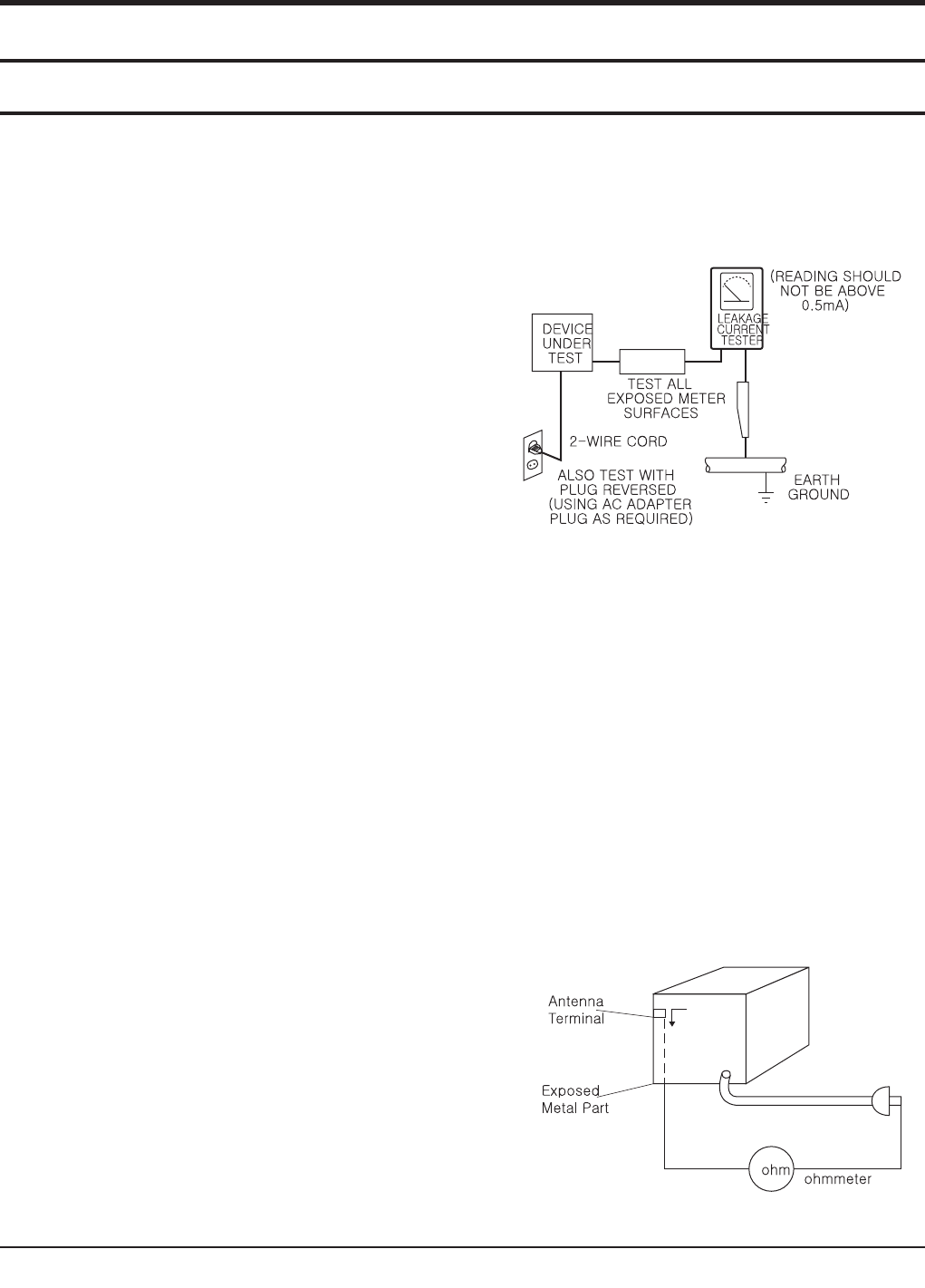

Fig. 1-1 AC Leakage Test

(4) Insulation Resistance Test Cold Check-(1) Unplug

the power supply cord and connect a jumper wire

between the two prongs of the plug. (2) Turn on the

power switch of the instrument. (3) Measure the

resistance with an ohmmeter between the

jumpered AC plug and all exposed metallic cabinet

parts on the instrument, such as screwheads,

antenna, control shafts, handle brackets, etc. When

an exposed metallic part has a return path to the

chassis, the reading should be between 1 and 5.2

megohm. When there is no return path to the chassis,

the reading must be infinite. If the reading is

not within the limits specified, there is the possibility

of a shock hazard, and the instrument must be

repaired and rechecked before it is returned to the

customer. See Fig. 1-2.

Fig. 1-2 Insulation Resistance Test

Precautions

1-2 Samsung Electronics

2) Read and comply with all caution and safety related

notes on or inside the cabinet, or on the chassis.

3) Design Alteration Warning-Do not alter or add to

the mechanical or electrical design of this

instrument.

Design alterations and additions, including

 butnotlimitedto,circuitmodicationsandthe

addition of items such as auxiliary audio output

connections, might alter the safety characteristics of

this instrument and create a hazard to the user. Any

design alterations or additions will make you, the

servicer, responsible for personal injury or property

damage resulting therefrom.

4) Observe original lead dress. Take extra care to

assure correct lead dress in the following areas:

(1) near sharp edges, (2) near thermally hot parts (be

sure that leads and components do not touch

thermally

hot parts), (3) the AC supply, (4) high voltage,

and (5) antenna wiring. Always inspect in all areas

for pinched, out-of-place, or frayed wiring, Do not

change spacing between a component and the

printed-circuit board. Check the AC power cord for

damage.

5) Components, parts, and/or wiring that appear to

have overheated or that are otherwise damaged

should be replaced with components, parts and/ or

 wiringthatmeetoriginalspecications.

Additionally, determine the cause of overheating

and/or damage and, if necessary, take corrective

action to remove any potential safety hazard.

6) Product Safety Notice-Some electrical and mechanical

parts have special safety-related characteristics

which are often not evident from visual inspection,

nor can the protection they give necessarily be

obtained by replacing them with components rated

for higher voltage, wattage, etc. Parts that have

 specialsafetycharacteristicsareidentiedby

shading,

an ( )or a ( )on schematics and parts lists. Use

of a substitute replacement that does not have the

same safety characteristics as the recommended

 replacementpartmightcreateshock,reand/or

other hazards. Product safety is under review

continuously and new instructions are issued

whenever appropriate.

Samsung Electronics 1-3

Precautions

1-2 Servicing Precautions

CAUTION : Before servicing units covered by this

service manual and its supplements, read and follow

the Safety Precautions section of this manual.

Note:Ifunforseencircumstancescreateconict

between the following servicing precautions and any

of the safety precautions, always follow the safety pre-

cautions.

Remember: Safety First.

1-2-1 General Servicing Precautions

(1) a. Always unplug the instrument’s AC powercord

from the AC power source before (1) re-moving

or reinstalling any component, circuit board,

module or any other instrument assembly, (2)

disconnecting any instrument electrical plug or

other electrical connection, (3) connecting a test

substitute in parallel with an electrolytic ca

pacitor in the instrument.

b. Do not defeat any plug/socket B+ voltage

interlocks with which instruments covered by

this service manual might be equipped.

c. Do not apply AC power to this instrument and

/or any of its electrical assemblies unless all

solid-state device heat sinks are correctly installed.

d. Always connect a test instrument’s ground lead

to the instrument chassis ground before connecting

the test instrument positive lead. Always

remove the test instrument ground lead last.

Note : Refer to the Safety Precautions section ground

lead last.

(2) The service precautions are indicated or printed on

the cabinet, chassis or components. When servicing,

follow the printed or indicated service precautions

and service materials.

(3)Thecomponentsusedintheunithaveaspecied

 ameresistanceanddielectricstrength.

When replacing components, use components

 whichhavethesameratings.Componentsidentied

by shading, by( ) or by ( ) in the circuit diagram

are important for safety or for the characteristics

of the unit. Always replace them with the exact

replacement components.

(4) An insulation tube or tape is sometimes used and

some components are raised above the printed

wiring board for safety. The internal wiring is

sometimes clamped to prevent contact with heating

components. Install such elements as they

were.

(5) After servicing, always check that the removed

screws, components, and wiring have been installed

correctly and that the portion around the

serviced part has not been damaged and so on.

Further, check the insulation between the blades of

the attachment plug and accessible conductive

parts.

1-2-2 Insulation Checking Procedure

Disconnect the attachment plug from the AC outlet

and turn the power ON. Connect the insulation resist-

ance meter (500V) to the blades of the attachment

plug. The insulation resistance between each blade of

the attachment plug and accessible conductive

parts(see note) should be more than 1 Megohm.

Note : Accessible conductive parts include metal panels,

input terminals, earphone jacks, etc.

Precautions

1-4 Samsung Electronics

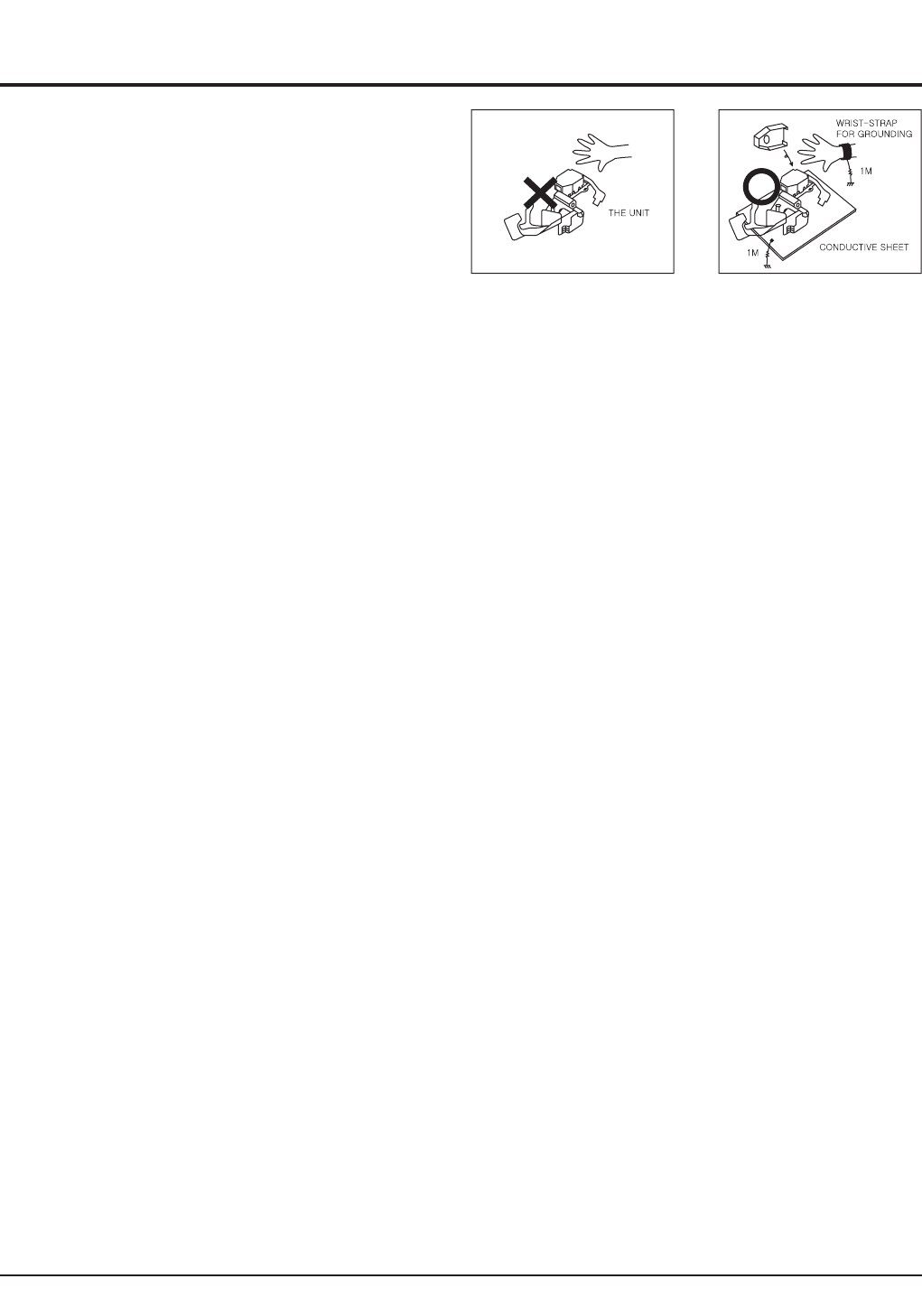

Electrostatically Sensitive Devices (ESD)

Some semiconductor (solid state) devices can be dam-

agedeasily by static electricity.

Such components commonly are called Electrostati-

cally Sensitive Devices(ESD). Examples of typical ESD

devicesareintegratedcircuitsandsomeeld-effect

transistors and semiconductor chip components. The

following techniques should be used to help reduce

the incidence of component damage caused by static

electricity.

(1) Immediately before handling any semiconductor

component or semiconductor-equipped assembly,

drain off any electrostatic charge on your body by

touching a known earth ground. Alternatively,

obtain and wear a commercially available

discharging wrist strap device, which should be

removed for potential shock reasons prior to

applying power to the unit under test.

(2) After removing an electrical assembly equipped

with ESD devices, place the assembly on a

conductive surface such as aluminum foil, to

prevent electrostatic

charge buildup or exposure of the assembly.

(3) Use only a grounded-tip soldering iron to solder or

unsolder ESD devices.

(4) Use only an anti-static solder removal devices.

 Somesolderremovaldevicesnotclassiedas

 “anti-static”cangenerateelectricalchargessuf

cient to damage ESD devices.

(5) Do not use freon-propelled chemicals. These can

 generateelectricalchargessufcienttodamage

ESD devices.

(6) Do not remove a replacement ESD device from its

protective package until immediately before your

are ready to install it.(Most replacement ESD

devices are packaged with leads electrically shorted

together by conductive foam, aluminum foil or

comparable conductive materials).

(7) Immediately before removing the protective

materials from the leads of a replacement ESD

device, touch the protective material to the

chassis or circuit assembly into which the device

will be installed.

CAUTION : Be sure no power is applied to the chassis

or circuit, and observe all other safety precautions.

(8) Minimize bodily motions when handling

unpackaged replacement ESD devices.

(Otherwise harmless

motion such as the brushing together of your

clothes fabric or the lifting of your foot from a

 carpetedoorcangeneratestaticelectricity

 sufcienttodamageanESDdevice).

1-3 ESD Precautions

Samsung Electronics 1-5

Precautions

1-4 Handling the optical pick-up

The laser diode in the optical pick up may suffer elec-

trostatic breakdown because of potential static electric-

ity from clothing and your body.

The following method is recommended.

(1) Place a conductive sheet on the work bench (The

black sheet used for wrapping repair parts.)

(2) Place the set on the conductive sheet so that the

chassis is grounded to the sheet.

(3) Place your hands on the conductive sheet(This

gives them the same ground as the sheet.)

(4) Remove the optical pick up block

(5) Perform work on top of the conductive sheet. Be

careful not to let your clothes or any other static

sources to touch the unit.

u Be sure to put on a wrist strap grounded to the

sheet.

u Be sure to lay a conductive sheet made of copper

etc. Which is grounded to the table.

(6) Short the short terminal on the PCB, which is inside

the Pick-Up ASS’Y, before replacing the Pick-

Up. (The short terminal is shorted when the Pick-

Up Ass’y is being lifted or moved.)

(7) After replacing the Pick-up, open the short terminal

on the PCB.

Fig.1-3

Precautions

1-6 Samsung Electronics

M E M O

2. Product Specication

2-1 Product Specication

Samsung Electronics 2-1

General

Power requirements AC (110V~240V) ~ 60Hz

Power consumption 29W

Weight 9.3 Ibs

Dimensions 16.9 (W) x 12.8 (D) x 3.1 (H) inches

Operating Temperature Range +41°F to 95°F

Operating Humidity Range 10 % to 75 %

Disc

BD Reading Speed : 4.917m/sec

DVD

(Digital Versatile Disc)

Reading Speed : 3.49 ~ 4.06 m/sec.

Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.

CD : 12cm

(COMPACT DISC)

Reading Speed : 4.8 ~ 5.6 m/sec.

Maximum Play Time : 74 min.

CD : 8cm

(COMPACT DISC)

Reading Speed : 4.8 ~ 5.6 m/sec.

Maximum Play Time : 20 min.

Video

Output

Composite Video 1 channel : 1.0 Vp-p (75 Ω load)

Blu-ray Disc : 480i DVD : 480i

Component Video

Y : 1.0 Vp-p (75 Ω load)

Pr : 0.70 Vp-p (75 Ω load)

Pb : 0.70 Vp-p (75 Ω load)

Blu-ray Disc : 1080i, 720p, 480p, 480i DVD : 480p, 480i

S-Video

Luminance Signal : 1.0 Vp-p (75 Ω load)

Chrominance Signal : 0.3 Vp-p (75 Ω load)

Blu-ray Disc : 480i DVD : 480i

Video/Audio HDMI 480p, 720p, 1080i. 1080p

PCM multichannel audio, bitstream audio, PCM audio

Colour system PAL

Audio

Output

2 Channel L(1/L), R(2/R)

5.1 Channel F/L, F/R, R/L, R/R, C/T, S/W

Digital Audio Output Optical/Coaxial

*Frequency Response 48 kHz Sampling : 4 Hz to 22 kHz

96 kHz Sampling : 4 Hz to 44 kHz

*S/N Ratio 110 dB

*Dynamic Range 100 dB

*Total Harmonic Distortion 0.003%

Product Specication

2-2 Samsung Electronics

2-1-1 Player Features

 qDigital Photo Viewer (JPEG)

You can enjoy digital photos on your TV.

 qMP3 Playback

  Thisunitcanplaymp3lesfromCD-R/-RW,DVD-R/-RWdiscs.

 qHDMI(HighDenitionMultimediaInterface)

  HDMIreducespicturenoisebyallowingapuredigitalvideo/audiosignalpathfromtheplayertoyourTV.

 qSimplay HD

  TheBD-P1400isSimplayHD™veried.

2-1-2 Blu-ray Disc Features

Blu-rayDiscscanstore25GB(singlelayer)or50GB(duallayer)onasinglesideddisc-about5to10timesthe

capacityofaDVD.Blu-rayDiscsalsosupportthehighestqualityHDvideoavailableintheindustry(upto1920x

1080at40Mbit/sec)-Largecapacitymeansnocompromiseonvideoquality.Furthermore,aBlu-rayDischasthe

samefamiliarsizeandlookasDVD.

*ThefollowingBlu-rayDiscfeaturesarediscdependantandwillvary.

Appearanceandnavigationoffeatureswillalsovaryfromdisctodisc.

Notalldiscswillhavethefeaturesdescribedbelow.

 qVideo highlights

  TheBD-ROMformatformoviedistributionsupportsthreehighlyadvancedvideocodecs,includingAVC,

  VC-1,andMPEG-2.

HD video resolutions are also available:

  -1920x1080HD

  -1280x720HD

 qForHigh-DenitionPlayback

  Toviewhigh-denitioncontentsinBDdiscs,anHDTV(HighDenitionTelevision)isrequired.Somediscs 

  mayrequireusingtheplayer'sHDMIOUTtoviewhigh-Denitioncontent.Theabilitytoview

  high-DenitioncontentonBDdiscsmaybelimiteddependingontheresolutionofyourTV.

 qGraphic planes

  Twoindividual,fullHDresolution(1920x1080)videolayersareavailable,ontopoftheHDvideolayer.

  Onelayerisassignedtovideo-relatedgraphics(likesubtitles),andtheotherlayerisassignedtointeractive

  elements,suchasbuttonsormenus.Variouswipes,fadesandscrolleffectsmaybeavailableonbothlayers.

 qMenu graphics

  Support256fullcolorresolutiongraphicsandanimation,therebygreatlysurpassingthecapabilitiesofDVD- 

  Video.UnlikeDVD,Menuscanbeaccessedduringvideoplayback.

 qMenu sounds

  WhenyouhighlightorselectamenuoptiononaBlu-raydisc,soundscanbeheardsuchasbuttonclicksora 

  voiceoverexplainingthehighlightedmenuchoice.

 qMulti-page/PopUpMenus

  WithDVD-Video,playbackisinterruptedeachtimeanewmenuscreenisaccessed.DuetoBlu-rayDisc's

  abilitytopreloaddatafromthediscwithoutinterruptingplayback,amenumayconsistofseveralpages.

  Youcanbrowsethroughthemenupagesorselectdifferentmenupaths,whiletheaudioandvideoremain

playing in the background.

 qInteractivity

Samsung Electronics 2-3

Product Specication

  CertainBlu-rayDiscsmaycontainAnimatedmenusandTriviagames.

 qUserBrowsableSlideshows

  WithBlu-rayDiscs,youcanbrowsethroughvariousstillpictureswhiletheaudioremainsplaying.

 qSubtitles

  DependingonwhatiscontainedontheBlu-rayDisc,youmaybeabletoselectdifferentfontstyles,sizesand

  colorsforthesubtitles,Subtitlesmayalsobeanimated,scrolledorfadedinandout.

2-1-3 Disc types that can be played

Disc Types Recorded content Disc Shape Max. Playing minute

BD-ROM AUDIO + VIDEO Single sided (25GB/50GB) –

DVD-VIDEO AUDIO + VIDEO

Single sided(5 inches) 240

Double sided(5 inches) 480

Single sided(3 1/2 inches) 80

Double sided(3 1/2 inches) 160

AUDIO-CD AUDIO Single sided(5 inches) 74

Single sided(3 1/2 inches) 20

DVD-RW(V mode and  nalized only) AUDIO + VIDEO 5 inches (4.7GB) 480(EX : Extended Play)

DVD-R(V mode and  nalized only) AUDIO + VIDEO 5 inches (4.7GB) 480(EX : Extended Play)

CD-R/-RW DVD-RW/-R JPEG MP3 – –

BD-ROM

Blu-ray Disc Read Only Memory. A BD-ROM disc contains pre-recorded data. Although a BD-ROM may contain any

form of data, most BD-ROM discs will contain movies in High Denition format, for playback on Blu-ray disc players.

This unit can play back pre-recorded commercial BD-ROM discs.

DVD-Video

A digital versatile disc (DVD) can contain up to 135-minutes of images, 8 audio languages and 32

subtitle languages. It is equipped with MPEG-2 picture compression and Dolby Digital surround, allowing you to

enjoy vivid and clear theatre quality images.

When switching from the  rst layer to the second layer of a dual-layered DVD Video disc, there may be momentary

distortion in the image and sound. This is not a malfunction of the unit. Once a DVD-RW/-R recorded in Video Mode

is  nalized, it becomes DVD-Video. Pre-recorded (prestamped)

commercial DVDs with movies are also referred to as DVD-Videos. This unit can play back

pre-recorded commercial DVD discs (DVD-Video discs) with movies.

AUDIO-CD

An audio disc on which 44.1kHz PCM Audio is recorded.

This unit can play back CD-DA format audio CD-R and CD-RW discs.

The unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.

DVD-RW(V mode

and  nalized only)

Use a 700MB(80 minutes) CD-R/-RW disc. If possible, do not use a 800MB(90 minutes) or above disc, as the disc

may not play back.

If the CD-R/-RW disc was not recorded as a closed session, you may experience a delay in the early

playback time, all recorded  les may not play.

Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used to burn them.

For contents recorded on CD-R/-RW media from CDs for your personal use, playability may vary depending on

contents and discs.

DVD-R(V mode

and  nalized only)

Once a DVD-R recorded in Video Mode is  nalized, it becomes DVD-Video.

This unit can play back DVD-R discs recorded and  nalized with a Samsung DVD video recorder. It may not be able

to play some DVD-R discs depending on the disc and the condition of the recording.

CD-R/-RW DVD-

RW/-R

Playback can be performed with DVD-RW discs in the Video Mode and  nalized only.

Once a DVD-RW recorded in Video Mode is  nalized, it becomes DVD-Video. Ability to play back may depend on

recording conditions

Product Specication

2-4 Samsung Electronics

2-1-4 Discs that cannot be played

 qBlu-rayDiscswitharegioncodeotherthan"RegionA".

 qBD-R,BD-RE

 qHD DVD Disc

 qDVD-Videowitharegionnumberotherthan“1”or“ALL”

 qDVD-RAM

 q3.9GBDVD-RDiscforAuthoring.

 qDVD-RW(VRmode)

 qDVD-ROM/PD/MV-Disc,etc

 qCVD/CD-ROM/CDV/CD-G/CD-I/LD

[Note]

 qSome commercial discs and DVD discs purchased outside your region may not be playable with this

  product.Whenthesediscsareplayed,either“Nodisc.”or“Pleasechecktheregionalcodeofthedisc.”

will be displayed.

 qIfaDVD-R/-RWdischasnotbeenrecordedproperlyinDVDvideoformat,itwillnotbeplayable.

2-1-5 Region code

BoththeBlu-raydiscplayerandthediscsarecodedbyregion.Theseregionalcodesmustmatchinorder

toplaythedisc.Ifthecodesdonotmatch,thediscwillnotplay.

TheRegionNumberforthisBlu-raydiscplayerisdescribedontherearpaneloftheBlu-raydiscplayer.

Disc Type Blu-ray DVD-Video

Region code

BD Region Code Area

ANorth America, Central America, South America, Korea, Japan, Taiwan, Hong Kong

and South East Asia.

B Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand.

C India, China, Russia, Central and South Asia.

2-1-6 Blu-ray Disc Compatibility

Blu-rayDiscisanewandevolvingformat.Accordingly,disccompatibilityissuesarepossible.Notalldiscs

arecompatibleandnoteverydiscwillplayback.Foradditionalinformation,refertotheComplianceand

CompatibilityNoticesectionofthisManual.Ifyouencountercompatibilityproblems,pleasecontactthe

SAMSUNGcustomercarecenter.ThisSamsungBlu-raydiscplayer(BD-P1400)supportsonlytheBDROM

Prole1version1.0specication.Ifyouwanttoplaylaterversiondiscs,youmayneedtoupdate

player'srmware.Pleaserefertohttp://www.samsung.comorcontactSAMSUNGcustomercarecenterat

1-800SAMSUNG.

Samsung Electronics 2-5

Product Specication

2-2 Chassis Product Specication

General Features BD-P1000/XEU BD-P1200/XEU BD-P1400/XEU

Chassis

Input /

Ouput

CVBS Output 1CH 1CH 1CH

S-Video Output 1CH 1CH 1CH

YPbPr Output 1CH 1CH 1CH

HDMI O O O

Digital Audio Output(Optical/Coaxial) O/O O/O O/O

AOnalog Audio Output (2ch/5.1ch) 1/1 1/1 1/1

HDMI CEC X O O

Audio/Video

Decoder

Video Decoder(Maker : DAC) ADV7322 BCM7438 SMP8634

Video DAC 14bit 10bit 10bit

Audio DAC 24bit 192kHz 24bit 192kHz 24bit 192kHz

Loader

BD-ROM O O O

BD-RE / BD-R O O X

DVD-RAM O O X

DVD-RW O O O

DVD-ROM O O O

DVD-R O O O

DVD+R X X X

DVD+RW X X X

CD-ROM O O O

CD-R O O O

CD-RW O O O

A/V Play-

able Media

BD-ROM O O O

BD-RE / BD-R O O X

DVD-Video O O O

DVD-Audio X X X

DVD-VR O O X

Not nalized DVD-V Mode X X X

VCD 1.1/2.0 X X X

SVCD/CVD X X X

CD-DA O O O

DTS CD O O O

HDCD X X X

SACD X X X

SACD CD Layer O O O

Picture CD O O O

DiVX X X X

Miscellane-

ous

Front Display VFD VFD VFD

Screen capture X X X

Closed Caption pass through from disc O O O

Main Menu (including Setup Menu) O O O

Product Specication

2-6 Samsung Electronics

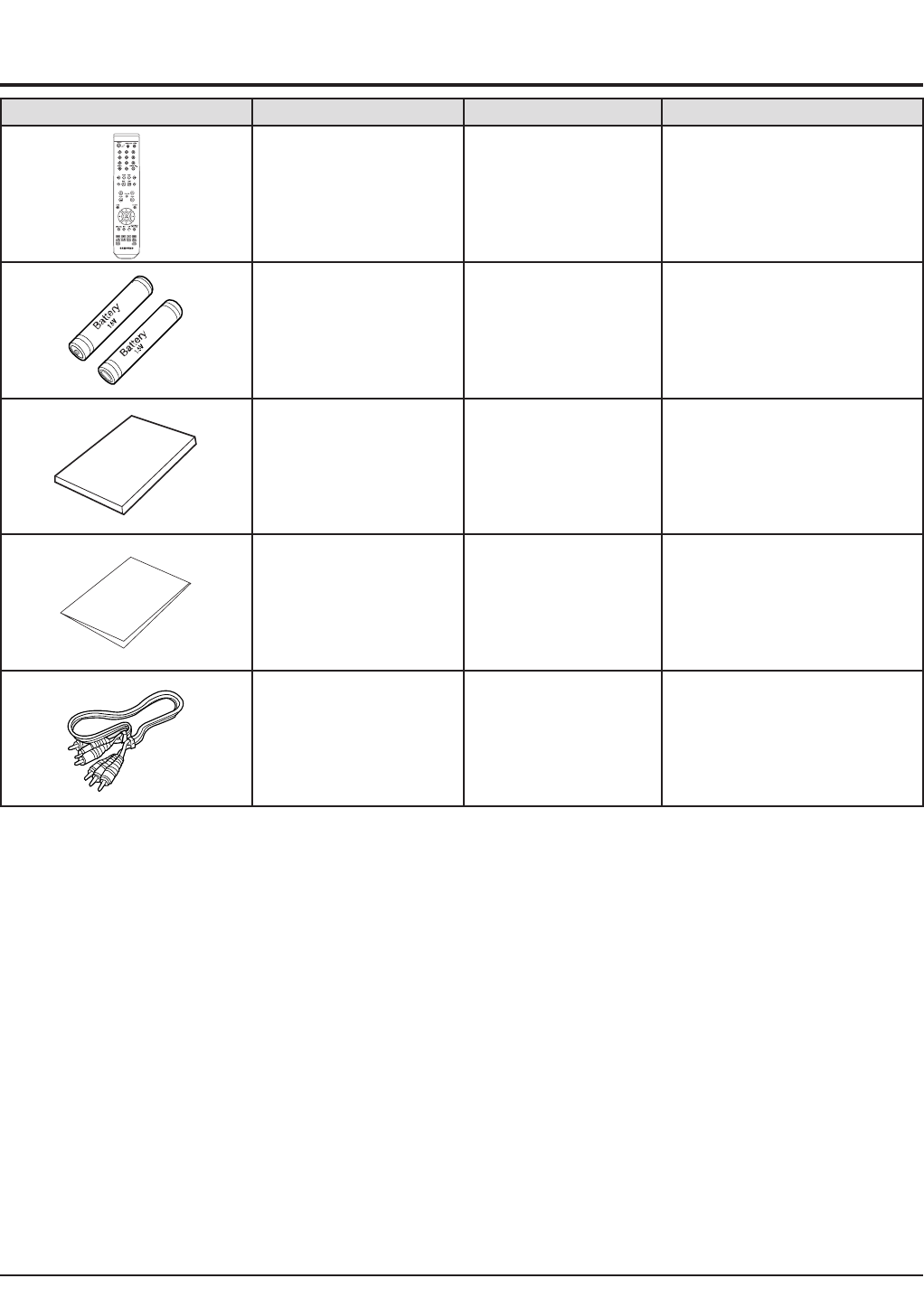

2-3 Option Product Specication

Description Fig Description Parts No Remark

Remote Control AK59-00070A Model Standard of

BD-P1400/XEU

Batteries for Remote Control 4301-001035

Model Standard of

BD-P1400/XEU

S.N.A

Instruction Manual AK68-01454A Model Standard of

BD-P1400/XEU

Quick Guide AK68-01455A

Model Standard of

BD-P1400/XEU

S.N.A

Component Cable 3809-001833 Model Standard of

BD-P1400/XEU

3. Disassembly and Reassembly

3-1 Cabinet and PCB

Samsung Electronics 3-1

3-1-1 Top Cabinet Removal

1) Remove 5 Screws q, w.

2) Lift up the Top Cabinet e in direction of arrow.

Fig. 3-1 Top Cabinet Removal

q 3 SCREWS

(3X10 B)

e TOP CABINET

CAUTION : Connector Must be remove with care

w 2 SCREWS

(3X8 B)

Disassembly and Reassembly

3-2 Samsung Electronics

3-1-2 Ass’y Front-Cabinet Removal

1) Release 7 Hooks q, w, e, r and Ass’y Front-Cabinet t.

Fig. 3-2 Ass’y Front-Cabinet Removal

w 1 HOOK

t ASS’Y FRONT-CABINET

r 2 HOOKS

e 3 HOOKS

q 1 HOOK

Samsung Electronics 3-3

Disassembly and Reassembly

3-1-3 Ass’y Deck Removal

1) Remove 4 Screws q from the Ass’y Deck w and lift it up.

Fig. 3-3 Ass’y Deck Removal

q 4 SCREWS

(3X10 W)

w ASS’Y DECK

Disassembly and Reassembly

3-4 Samsung Electronics

3-1-4 S.M.P.S PCB Removal

1) Remove 3 Screws q, from the S.M.P.S PCB w and lift it up.

Fig. 3-4 S.M.P.S PCB Removal

q 3 SCREWS

(3X8 W)

w S.M.P.S PCB

Samsung Electronics 3-5

Disassembly and Reassembly

3-1-5 Main PCB Removal

1) Remove 10 Screws q, w, efrom the Main PCB r and lift it up.

Fig. 3-5 Main PCB Removal

r MAIN PCB

w 1 SCREW

(3X6 B)

q 4 SCREWS

(3X6 W)

e 5 SCREWS

(3X10 B)

Disassembly and Reassembly

3-6 Samsung Electronics

3-1-6 FAN Removal

1) Remove 2 Screws q from the Fan w and lift it up.

Fig. 3-6 FAN Removal

q 2 SCREWS

(5X14 S)

w FAN

Samsung Electronics 3-7

Disassembly and Reassembly

3-2 PCB Location

Fig. 3-7 PCB Location

MAIN PCB

S.M.P.S PCB

Disassembly and Reassembly

3-8 Samsung Electronics

M E M O

4. Trouble Shooting

Samsung Electronics 4-1

4-1 Trouble Shooting -------------------------------------------------------------------------------- 4-2

4-2 Software Update ------------------------------------------------------------------------------- 4-21

Trouble Shooting

4-2 Samsung Electronics

4-1 Trouble Shooting

NO Power Detected

(Stand by LED OFF)

F1S01 is normal?

C1S01

voltage

is normal voltage?

Switching

operation

of IC1S11 is normal?

Change the SMPS PCB

Change fuse

Change BD1

Change IC1S11

Yes

Refer to a pattern

image of Table 4-1

Yes

Refer to a pattern

image of Table 4-1

Refer to a pattern

image of Table 4-1

Refer to a pattern

image of Table 4-1

Samsung Electronics 4-3

Trouble Shooting

Fig. 4-1

Refer to a pattern

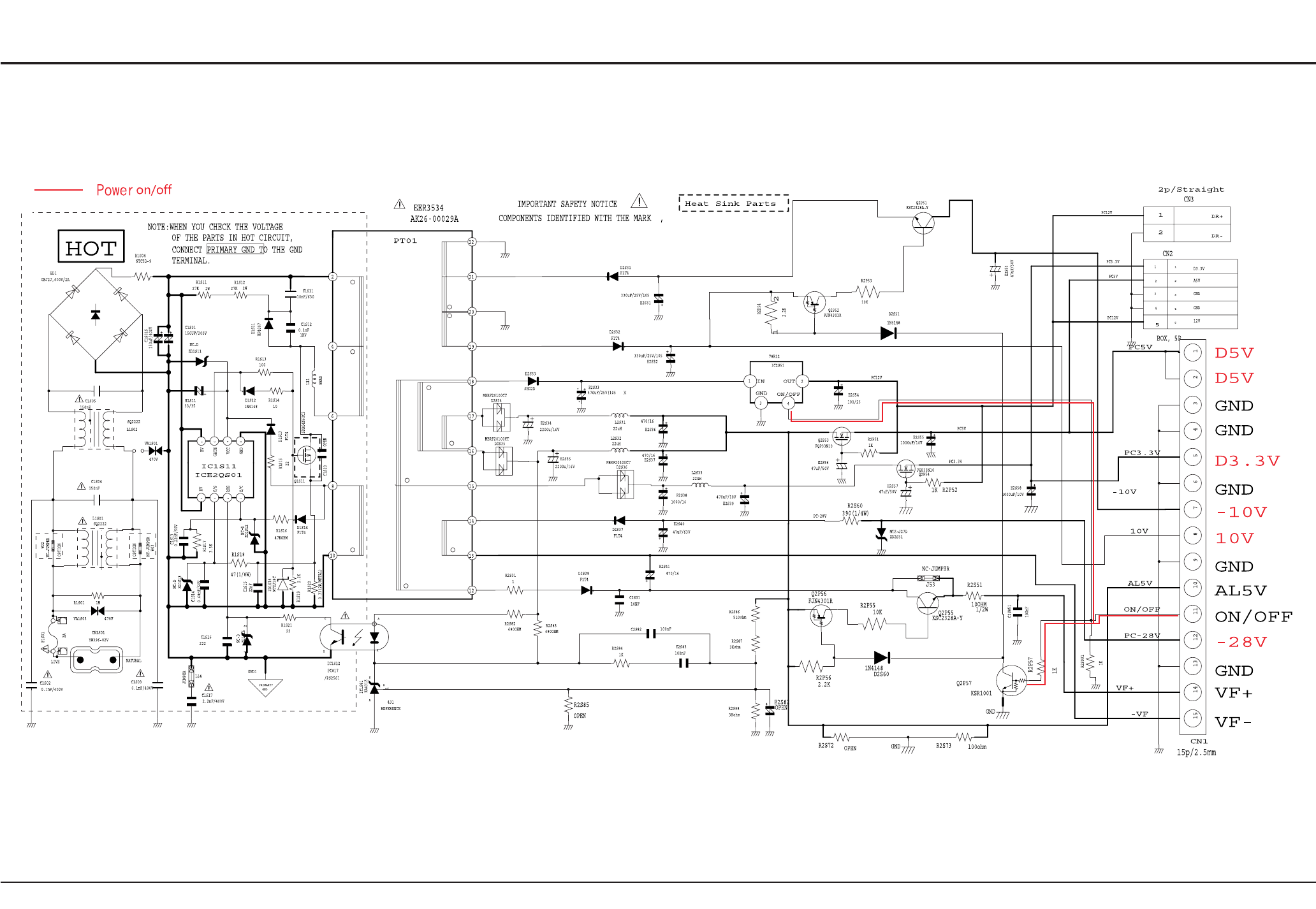

image of S.M.P.S Page 7-5

Refer to a pattern

image of S.M.P.S PCB page 6-6

Trouble Shooting

4-4 Samsung Electronics

There’s no Digital Audio Out

Check

Current Digital Audio

Setting is PCM. Set to Bitstream

Yes

Check

the A/V Receiver can

Decode Current

Bit-Steam

Yes

Check

Digital Audio Data

at AIC 1 (Pin 2,4,6)

Yes

Check AIC1 soldering or

replace AIC1

Digital Audio cable error

Check the

Audio Data at AIC1

(Pin 13)

Yes

Replace the Main PCB

Refer to a pattern

image of Table 4-2

Refer to a pattern

image of Table 4-2

Samsung Electronics 4-5

Trouble Shooting

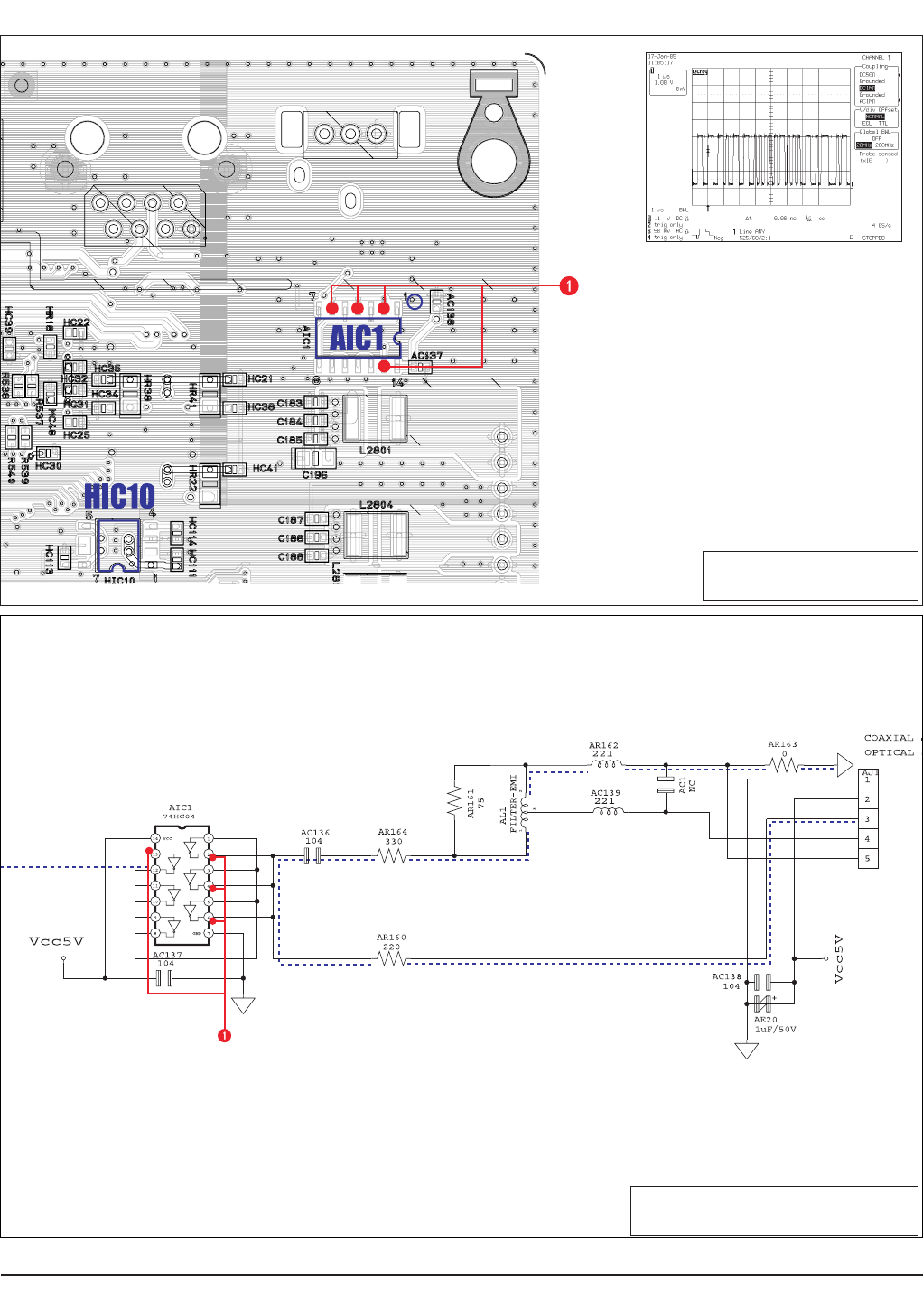

Fig. 4-2

Refer to a pattern

image of Audio (Main PCB) Page 7-13

Refer to a pattern

image of Main PCB page 6-5

q DIGITAL AUDIO DATA

AIC1 (Pin2,4,6,13)

Trouble Shooting

4-6 Samsung Electronics

There is no Audio Output

Check

the Audio

signal at PIN 13,14,15,16

of AIC2

Check

the Audio

signal at pin1,2,37~48 of

AIC2

Check

the Audio

signal at AIC4,5,6,7

Audio cable error

Replace the main PCB

Check AIC2 soldering or replace

AIC2

Check AIC4~7 soldering of

peripheral devices

Yes

Refer to a pattern

image of Table 4-3

Samsung Electronics 4-7

Trouble Shooting

Fig. 4-3

Refer to a pattern

image of Main PCB page 6-4

ANALOG AUDIO DATA(AIC4,5,6,7)

Refer to a pattern

image of Audio (Main PCB) Page 7-13

Trouble Shooting

4-8 Samsung Electronics

Disc Ioading error

Are Main

and deck power OK?

(5v, 12v)

the 40pin

FFC cable(between main &

deck) inserted correctly?

the wave-

from of FCON1 PIN 25

normal? (MAIN PCB)

Change the deck

Check the power

Reinsert FFC cable correctly

Change the Main board

Yes

Refer to a pattern

image of Table 4-4

Samsung Electronics 4-9

Trouble Shooting

Fig. 4-4

Refer to a pattern

image of PATA Control (Main

PCB) Page 7-16

Refer to a pattern

image of Main PCB page 6-4

q FCON1 PIN 25

Trouble Shooting

4-10 Samsung Electronics

Remote control does not work

Remocon battery

OK?

Is the

FFC cable (between

Front panel&Main)

OK?

FU3 PIN3

SIGNAL OK?

Check the Power of FMIC1(Pin51)

or change the Main PCB

Change the battery

Re-insert FFC cable correctly

Check FU3 or change

the Front panel PCB

Yes

Refer to a pattern

image of Table 4-5

Samsung Electronics 4-11

Trouble Shooting

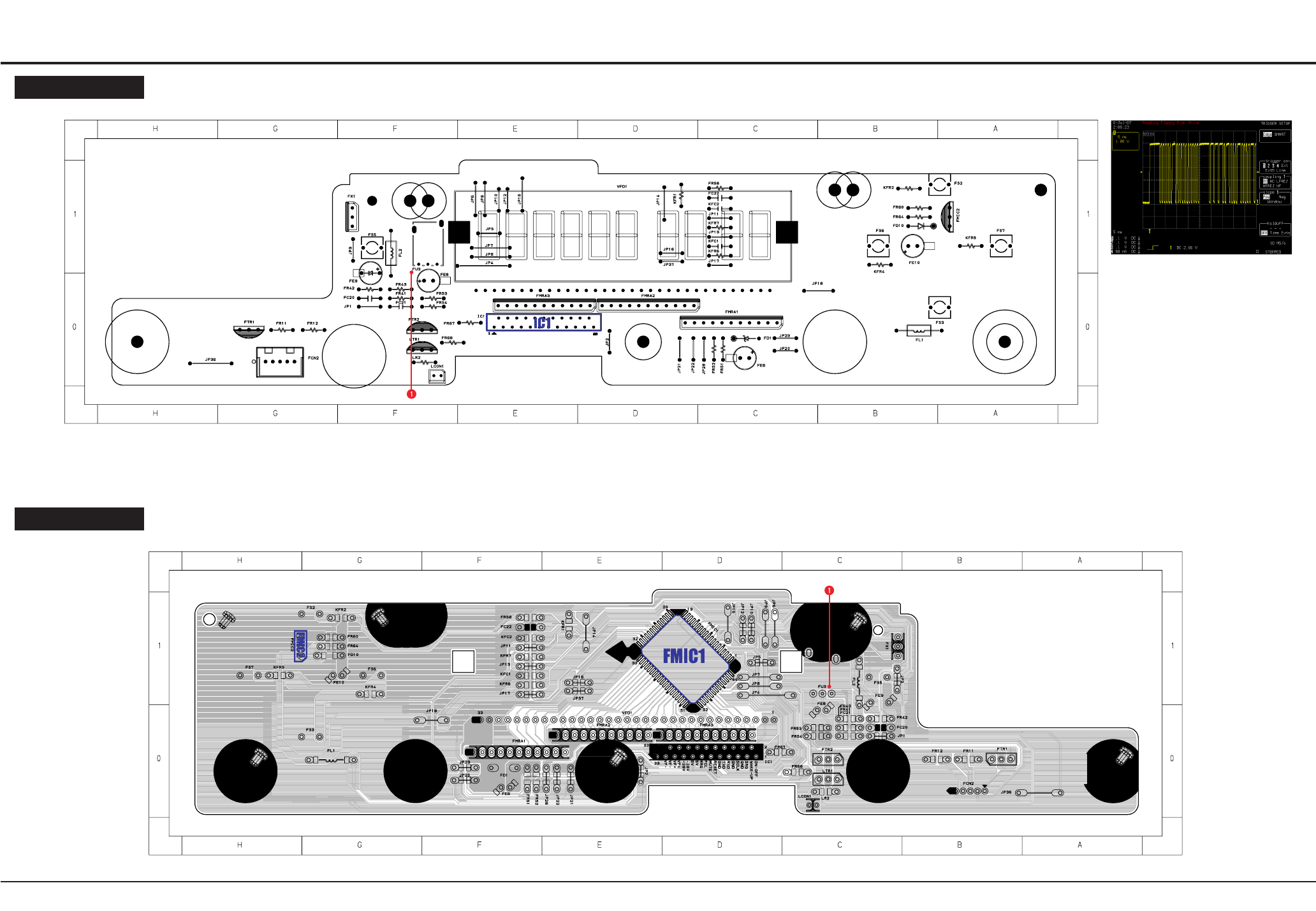

Fig. 4-5

Refer to a pattern

image of Front (Front PCB) Page 7-20

Refer to a pattern

image of Front PCB page 6-8

q Remote control eye data

FU3 Pin3

Trouble Shooting

4-12 Samsung Electronics

No Picture

Logo screen is OK ? NO LOGO(HDMI)

Yes

HDMI? No

Yes

BD/DVD Playback is

OK?

Yes

CHANGE THE MAIN PCB

NO LOGO(Component)

Component? No

Yes

NO LOGO

(CVBS/S-Video)

Samsung Electronics 4-13

Trouble Shooting

NO LOGO (HDMI)

Video

selection

accords with cable connection

and TV mode?

Clock,

data and

SYNC from MIC1

(HRN1~HRN6)

pin51 of

HIC1 is High?

(2.0~5.0V)

HDMI cable error

Check the Video select,

cable connection, TV mode

Check MIC1 power input, UX7

oscillation, Memory interface

Check HCN1 Connector and

HDMI cable connection

Yes

Refer to a pattern

image of Table 4-6

data

output from HIC6?

(pin30,31,33,34,36,37,39

,40)

Check the HIC1 power input

and peripheral devices

Yes

Refer to a pattern

image of Table 4-7

Refer to a pattern

image of Table 4-6

Trouble Shooting

4-14 Samsung Electronics

Refer to a pattern

image of Main PCB page 6-4

q Digital Video signal

MIC1 (HRN1~HRN6)

w UX7 _CLOCK SIGNAL (27MHz)

Fig. 4-6

Refer to a pattern

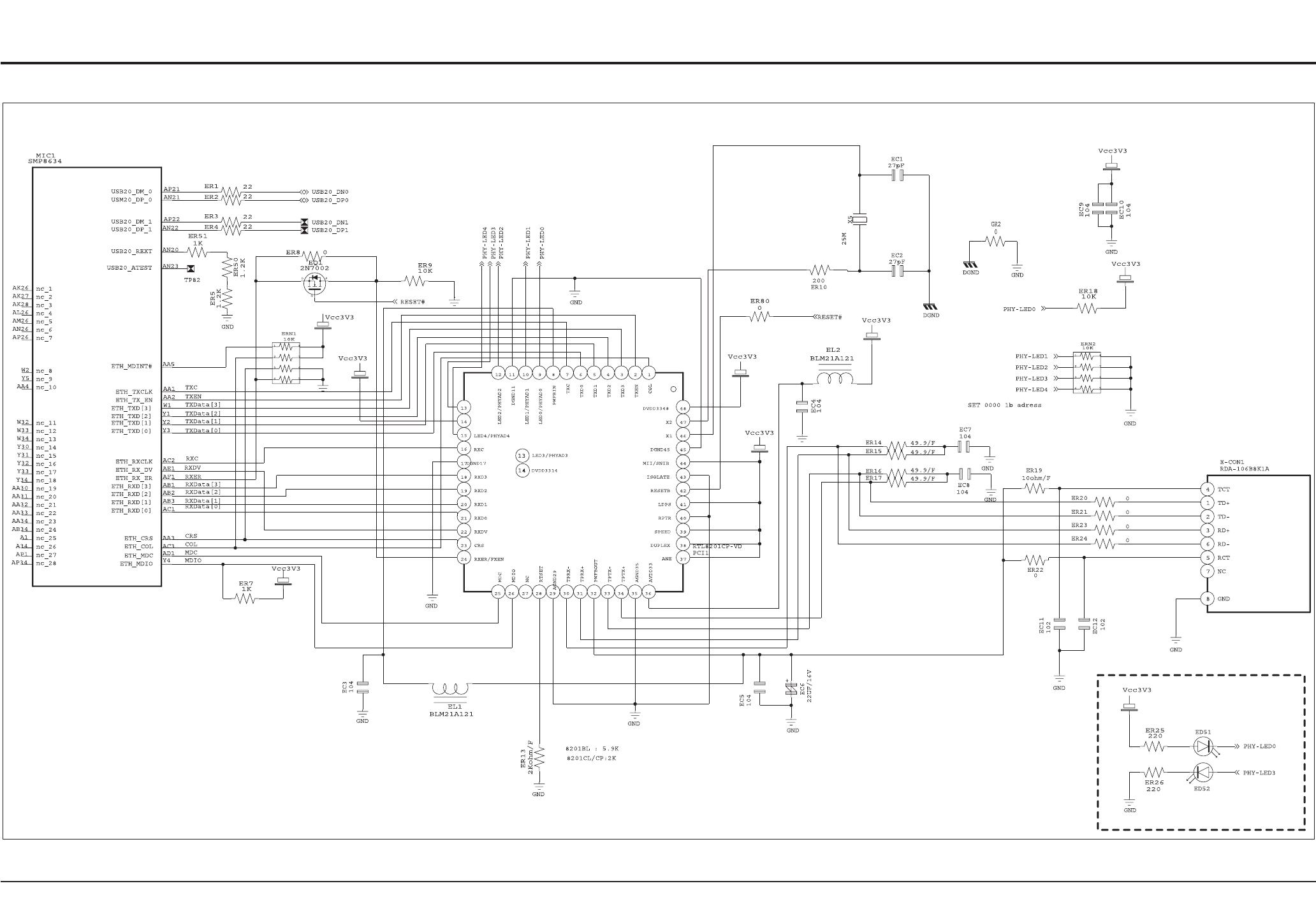

image of Sil9134 HDMI (Main PCB) Page 7-10

Refer to a pattern

image of SMP8634 GPIO Control (Main PCB) Page 7-14

Samsung Electronics 4-15

Trouble Shooting

Refer to a pattern

image of Sil9134 HDMI (Main PCB) Page 7-10

Refer to a pattern

image of Main PCB page 6-4

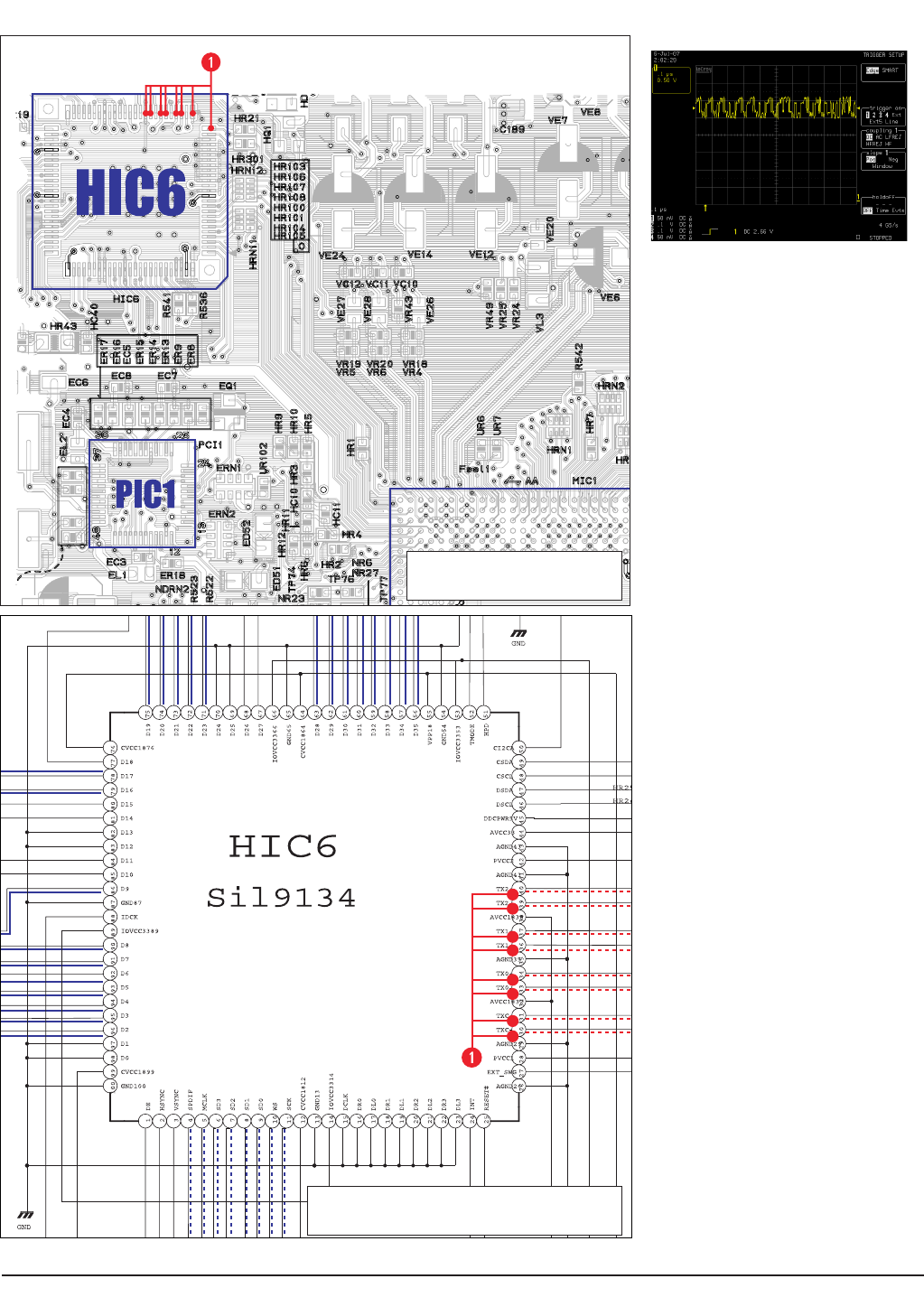

Fig. 4-7

q HDMI OUTPUT DATA

HIC6 (pin30,31,33,34,36,37,39,40)

Trouble Shooting

4-16 Samsung Electronics

NO LOGO (Component)

Video

selection

accords with cable connection

and TV mode?

Video

output from

MIC1 (VE26,27,28)

Video

output from

VIC3?(VR37,VR44,VR46)

Component cable error

Check the Video select, cable

connection, TV mode

MIC1 soldering error

Check VIC3 soldering of

peripheral devices

Yes

Refer to a pattern

image of Table 4-8

Refer to a pattern

image of Table 4-9

Samsung Electronics 4-17

Trouble Shooting

w e

qwe

w eq

Fig. 4-8

Refer to a pattern

image of MM1757 Analog Video Out (Main PCB) Page 7-15

Refer to a pattern

image of Main PCB page 6-4

e Pr(Color-bar)

Pin (MIC1-VE28)

w Pb(Color-bar)

Pin (MIC1-VE27)

q Y(Color-bar)

Pin (MIC1-VE26)

Trouble Shooting

4-18 Samsung Electronics

w eq

w e

qwe

Fig. 4-9

Refer to a pattern

image of MM1757 Analog Video Out (Main PCB) Page 7-15

Refer to a pattern

image of Main PCB page 6-5

q Y(Color-bar)

Pin-VR37

e Pr(Color-bar)

Pin-VR46

w Pb(Color-bar)

Pin-VR44

Samsung Electronics 4-19

Trouble Shooting

NO LOGO (CVBS, S-Video)

Video

selection

accords with cable connection

and TV mode?

Video

output from

MIC1 (VC2, VC3,VC4)

Video

output from

VIC1?(VR7,VR21,VR22)

Component cable error

Check the Video select, cable

connection, TV mode

MIC1 soldering error

Check VIC1 soldering of

peripheral devices

Yes

Refer to a pattern

image of Table 4-10

Refer to a pattern

image of Table 4-10

Trouble Shooting

4-20 Samsung Electronics

qwe

e wq

Fig. 4-10

Refer to a pattern

image of MM1757 Analog Video Out (Main PCB) Page 7-15

Refer to a pattern

image of Main PCB page 6-5

q Y(Color-bar)

Pin (MIC1-VC2,VIC1-VR7)

w C(Color-bar)

Pin (MIC1-VC3,VIC1-VR21)

e CVBS(Color-bar)

Pin (MIC1-VC4,VIC1-VR22)

Samsung Electronics 4-21

Trouble Shooting

4-2 Software Update

1) Insert update CD and close the tray.

4-2-1 Main F/W Update Method

Fig. 4-11

Fig. 4-12

Fig. 4-13

2) Tray opened automatically, then Press YES if the up

date CD you insert is a later one than before.

3) Wait about 7 minutes.

4) When nished , power goes off automatically.

Trouble Shooting

4-22 Samsung Electronics

1) Insert update CD and close the tray.

2) Tray opened automatically, then Press YES if the up

date CD you insert is a later one than before.

4-2-2 Loader F/W Update Method (for Disc Physical Problem)

Fig. 4-14

Fig. 4-15

Fig. 4-16

3) Wait about 1~2 minutes.

4) When nished , power goes off automatically.

5. Exploded View and Parts List

삼성전자 5-1

5-1 Cabinet Assembly ------------------------------------------------------------------------------- 5-2

5-2 Electrical Parts List ---------------------------------------------------------------------------- 5-4

Exploded Views and Parts List

5-2 This Document can not be used without Samsung’s authorization Samsung Electronics

5-1 Cabinet Assembly

P025

W001

M210

W348

W271

W344

W009

W001

W009

P001

P003

H003

P030

P007P

P007F

C001

A001

C015

W348

C002

C011

Samsung Electronics This Document can not be used without Samsung’s authorization 5-3

Exploded Views and Parts List

Loc. No Parts No. Description ; Speciﬁcation Q ty SNA Remark

A001 AK59-00070B REMOCON-ASSY;BD-P1400/XER,SEC,240 1 SA

C001 AK97-02081D ASSY-PANEL FRONT;ABS HB,BD-P1400/ 1 SA

C015 AK63-00313C COVER-TOP;BD-P1200,PCM,T0.7,W430, 1 SA

H003 AK97-02140A ASSY-BDP LOADER N;-,BD-P1400-SEC4 1 SA

M210 AK81-00006B WASHER-HEX;SWCH18A,7,12,2.5,BLK,- 2 SA

P001 AK92-01515A ASSY PCB-MAIN;BD-P1400/XEU,ASSY M 1 SA

P003 AK92-01516A ASSY PCB-SMPS;BD-P1400/XEU,ASSY S 1 SA

P007F AK92-01498B ASSY PCB-FRONT KEY;BD-P1400/XEL,A 1 SA

P007P AK92-01507A ASSY PCB-POWER KEY;BD-P1400,ASSY 1 SA

P025 AC39-10019A CBF-POWER CORD;KKP-419C,H03VVH2-F 1 SA

P030 3103-001158 FAN-DC;12V,20mA,2000rpm,0.125m^3/ 1 SA

W001 6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC 8 SA

W009 6003-000276 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC 13 SA

W271 6009-001411 SCREW-SPECIAL;TH,+,-,M5,L14,NI PL 2 SA

W344 6003-001076 SCREW-TAPTITE;BH,+,-,S,M3,L6,ZPC( 1 SA

W348 6003-000255 SCREW-TAPTITE;BWH,+,-,B,M3,L8,ZPC 7 SA

AK64-02105A

AK61-00519A

C002

C011

DOOR-TRAY;BD-P1400,ABS 94HB,T2,H20

SPRING ETC-DOOR;DVD-SR420,STS304WP

1 SA

Exploded Views and Parts List

5-4 This Document can not be used without Samsung’s authorization Samsung Electronics

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

Exploded Views and Parts List

5-4 This Document can not be used without Samsu ng’s authorization Samsung Electronics

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

P001 AK92-01515A ASSY PCB-MAIN;BD-P1400/XEU,ASSY M 1 SA

AC108 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

AC111 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

AC135 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

AC136 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

AC137 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

AC138 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

AC139 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm/70 1 SA

AC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

AC22 2203-000726 C-CER,CHIP;3.9nF,10%,50V,X7R,1608 1 SA

AC23 2203-000726 C-CER,CHIP;3.9nF,10%,50V,X7R,1608 1 SA

AC24 2203-000726 C-CER,CHIP;3.9nF,10%,50V,X7R,1608 1 SA

AC25 2203-000726 C-CER,CHIP;3.9nF,10%,50V,X7R,1608 1 SA

AC26 2203-000726 C-CER,CHIP;3.9nF,10%,50V,X7R,1608 1 SA

AC27 2203-000726 C-CER,CHIP;3.9nF,10%,50V,X7R,1608 1 SA

AC28 2203-000726 C-CER,CHIP;3.9nF,10%,50V,X7R,1608 1 SA

AC29 2203-000726 C-CER,CHIP;3.9nF,10%,50V,X7R,1608 1 SA

AC32 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC33 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC34 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC35 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC36 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC37 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC38 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC39 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC42 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC43 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC44 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC45 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC46 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC47 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC48 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC49 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

AC62 2203-005194 C-CER,CHIP;0.22nF,10%,50V,X7R,160 1 SA

AC63 2203-005194 C-CER,CHIP;0.22nF,10%,50V,X7R,160 1 SA

AC64 2203-005194 C-CER,CHIP;0.22nF,10%,50V,X7R,160 1 SA

AC65 2203-005194 C-CER,CHIP;0.22nF,10%,50V,X7R,160 1 SA

AC66 2203-005194 C-CER,CHIP;0.22nF,10%,50V,X7R,160 1 SA

AC67 2203-005194 C-CER,CHIP;0.22nF,10%,50V,X7R,160 1 SA

AC68 2203-005194 C-CER,CHIP;0.22nF,10%,50V,X7R,160 1 SA

AC69 2203-005194 C-CER,CHIP;0.22nF,10%,50V,X7R,160 1 SA

AD12 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2 1 SA

AD13 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2 1 SA

AD14 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2 1 SA

AD15 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2 1 SA

AD16 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2 1 SA

AD17 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2 1 SA

AD18 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2 1 SA

AD19 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2 1 SA

AD4 0401-000008 DIODE-SWITCHING;DAN217,80V,100MA, 1 SA

AD6 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2 1 SA

AD8 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2 1 SA

AE1 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4 1 SA

AE12 2402-001269 C-AL,SMD;10uF,20%,10V,WT(BP),REEL 1 SA

AE13 2402-001269 C-AL,SMD;10uF,20%,10V,WT(BP),REEL 1 SA

AE14 2402-001269 C-AL,SMD;10uF,20%,10V,WT(BP),REEL 1 SA

AE15 2402-001269 C-AL,SMD;10uF,20%,10V,WT(BP),REEL 1 SA

AE16 2402-001269 C-AL,SMD;10uF,20%,10V,WT(BP),REEL 1 SA

AE17 2402-001269 C-AL,SMD;10uF,20%,10V,WT(BP),REEL 1 SA

AE18 2402-001269 C-AL,SMD;10uF,20%,10V,WT(BP),REEL 1 SA

AE19 2402-001269 C-AL,SMD;10uF,20%,10V,WT(BP),REEL 1 SA

AE20 2402-000170 C-AL,SMD;1uF,20%,50V,GP,TP,4.3x4. 1 SA

AE4 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

AE5 2402-001096 C-AL,SMD;220UF,20%,16V,GP,TP,6.6X 1 SA

AE6 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

AIC1 AH14-10004R IC-CMOS LOGIC;74HCU04,-,SOP,14P,- 1 SA

AIC2 1002-001456 IC-D/A CONVERTER;AK4358,24Bits,LQ 1 SA

AIC4 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL 1 SA

AIC5 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL 1 SA

AIC6 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL 1 SA

AIC7 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL 1 SA

AJ1 3722-002272 JACK-PIN;2P,AU,BLK,ANGLE 1 SA

AJACK2 3722-002466 JACK-PIN;4P,Au,WHx2/RDx2,ANGLE 1 SA

AJACK3 3722-002466 JACK-PIN;4P,Au,WHx2/RDx2,ANGLE 1 SA

AL1 2901-001273 FILTER-EMI SMD;50V,2A,-,220pF,3.2 1 SA

ANR123 2011-000660 R-NETWORK;1Kohm,5%,1/16W,L,CHIP,8 1 SA

ANR127 2011-000660 R-NETWORK;1Kohm,5%,1/16W,L,CHIP,8 1 SA

AQ1 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/ 1 SA

AQ12 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200 1 SA

AQ13 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200 1 SA

AQ14 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200 1 SA

AQ15 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200 1 SA

AQ16 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200 1 SA

AQ17 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200 1 SA

AQ18 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200 1 SA

AQ19 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200 1 SA

AQ2 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SO 1 SA

AQ3 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150MW, 1 SA

AQ4 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SO 1 SA

AQ5 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/ 1 SA

AQ6 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/ 1 SA

AQ7 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SO 1 SA

AQ8 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/ 1 SA

AQ9 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SO 1 SA

AR01 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR02 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR03 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR04 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR05 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR06 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR07 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR08 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR09 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR10 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR102 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR103 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR104 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR105 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR106 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR107 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR108 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

AR109 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

5-2 Electrical Parts List

Exploded Views and Parts List

Samsung Electronics This Document can not be used without Samsung’s authorization 5-5

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

AR110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR111 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA

AR112 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR113 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR12 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR122 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA

AR13 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR131 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR135 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

AR14 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR15 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR150 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

AR152 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

AR153 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

AR158 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 SA

AR16 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR160 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

AR161 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA

AR162 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR163 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR164 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA

AR17 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR18 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR19 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA

AR22 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR23 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR24 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR25 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR26 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR27 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR28 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR29 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR32 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR33 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR34 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR35 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR36 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR37 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR38 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR39 2007-000450 R-CHIP;180ohm,5%,1/10W,TP,1608 1 SA

AR42 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR43 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR44 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR45 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR46 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR47 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR48 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR49 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

AR52 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR53 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR54 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR55 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR56 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR57 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR58 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR59 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

AR62 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

AR63 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

AR64 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

AR65 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

AR66 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

AR67 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

AR68 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

AR69 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

AR72 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

AR73 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

AR74 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

AR75 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

AR76 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

AR77 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

AR78 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

AR79 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

AR82 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

AR83 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

AR84 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

AR85 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

AR86 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

AR87 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

AR88 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

AR89 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

AR92 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA

AR93 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA

AR94 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA

AR95 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA

AR96 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA

AR97 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA

AR98 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA

AR99 2007-000643 R-CHIP;270ohm,5%,1/10W,TP,1608 1 SA

C100 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA

C101 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 SA

C102 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C103 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C104 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C105 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C106 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C107 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C108 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C109 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C110 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C111 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C112 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C113 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C114 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C115 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C116 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C117 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C118 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C119 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C120 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C121 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C122 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C123 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C124 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,20 1 SA

C126 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,20 1 SA

C127 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,20 1 SA

C128 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,20 1 SA

C175 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V, 1 SA

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

Exploded Views and Parts List

5-6 This Document can not be used without Samsu ng’s authorization Samsung Electronics

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

C176 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V, 1 SA

C183 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C184 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C185 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C186 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C187 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C188 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

C189 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

C195 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,20 1 SA

C263 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 SA

CEC01 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

CEC02 2402-000176 C-AL,SMD;10uF,20%,16V,GP,TP,4.3x4 1 SA

CEC03 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

CEC04 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

CEHC22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

CEHC24 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

CEHC26 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

CEHE6 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6 1 SA

CEHE8 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6 1 SA

CEIC2 1103-001398 IC-EEPROM;24C02,2Kbit,256Kx8,SOIC 1 SA

CEOR01 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

CEOR02 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA

CEOR03 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

CEOR04 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

CEOR05 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

CEOR06 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

CER01 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

CER02 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

CER03 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

CER04 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

CER05 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

CER06 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

CER07 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

CER09 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

CER10 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

CER11 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

CER12 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

CER14 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

CER17 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

CER18 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

CER20 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

CER21 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

CER22 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

CER23 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

CER24 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

CER36 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

CER38 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

CEVP3 1203-002178 IC-POSI.FIXED REG.;1563,SOP,7P,17 1 SA

CEXT1 2802-001094 RESONATOR-CERAMIC;4.0MHz,0.5%,TP, 1 SA

D2504 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150m 1 SA

D2505 0404-001036 DIODE-SCHOTTKY;SDB30A40,40V,3000M 1 SA

D2506 0404-001036 DIODE-SCHOTTKY;SDB30A40,40V,3000M 1 SA

DC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC16 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC17 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC18 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC20 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC202 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC204 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC21 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC23 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC24 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC25 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC26 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC27 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC28 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC29 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC30 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC31 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC32 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC33 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC34 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC35 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC36 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC37 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC38 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC39 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC40 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC41 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC42 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC43 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC44 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC45 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC46 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC47 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC48 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC49 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC50 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC51 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

DR1 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 SA

DR10 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

DR11 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

DR12 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

DR13 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 SA

DR14 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 SA

DR2 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 SA

DR3 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 SA

DR4 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 SA

DR5 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

DR6 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

DR7 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

DR8 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

DR9 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

E100 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

E101 2402-001096 C-AL,SMD;220UF,20%,16V,GP,TP,6.6X 1 SA

E2801 2402-001221 C-AL,SMD;470UF,20%,16V,-,TP,A8.3X 1 SA

E2803 2402-001221 C-AL,SMD;470UF,20%,16V,-,TP,A8.3X 1 SA

Exploded Views and Parts List

Samsung Electronics This Document can not be used without Samsung’s authorization 5-7

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

EC1 2203-000681 C-CER,CHIP;0.027nF,5%,50V,C0G,160 1 SA

EC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

EC11 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA

EC12 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA

EC2 2203-000681 C-CER,CHIP;0.027nF,5%,50V,C0G,160 1 SA

EC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

EC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

EC5 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

EC6 2402-001011 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5 1 SA

EC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

EC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

EC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

E-CON1 3722-002549 JACK-MODULAR;12P/8C,-,N,ANGLE,N,A 1 SA

EL1 3301-000353 BEAD-SMD;120ohm,2x1.25x0.9mm,-,TP 1 SA

EL2 3301-000353 BEAD-SMD;120ohm,2x1.25x0.9mm,-,TP 1 SA

EQ1 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7. 1 SA

ER1 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

ER10 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 SA

ER13 2007-000669 R-CHIP;2Kohm,1%,1/10W,TP,1608 1 SA

ER14 2007-007226 R-CHIP;49.9ohm,1%,1/10W,TP,1608 1 SA

ER15 2007-007226 R-CHIP;49.9ohm,1%,1/10W,TP,1608 1 SA

ER16 2007-007226 R-CHIP;49.9ohm,1%,1/10W,TP,1608 1 SA

ER17 2007-007226 R-CHIP;49.9ohm,1%,1/10W,TP,1608 1 SA

ER18 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

ER19 2007-002899 R-CHIP;10ohm,1%,1/10W,TP,1608 1 SA

ER2 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

ER20 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

ER21 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

ER22 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

ER23 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

ER24 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

ER25 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

ER26 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA

ER3 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

ER4 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

ER5 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA

ER50 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA

ER51 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

ER7 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

ER8 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

ER80 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

ER9 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

ERN1 2011-001011 R-NET;10Kohm,5%,1/16W,L,CHIP,8P,T 1 SA

ERN2 2011-001011 R-NET;10Kohm,5%,1/16W,L,CHIP,8P,T 1 SA

FCON1 3708-001935 CONNECTOR-FPC/FFC/PIC;40P,0.5mm,S 1 SA

FFR10 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA

FPCON1 3708-001845 CONNECTOR-FPC/FFC/PIC;23P,1.25mm, 1 SA

GR2 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC111 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC112 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6 1 SA

HC113 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC114 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC117 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC14 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6 1 SA

HC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC16 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC17 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC18 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6 1 SA

HC19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC20 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC21 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC22 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA

HC23 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA

HC24 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

HC25 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC26 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC27 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC28 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA

HC29 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA

HC30 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC31 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC32 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC33 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC34 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC35 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC36 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

HC37 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC38 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC39 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC40 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC41 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC42 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

HC43 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

HC45 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

HCN1 3701-001313 CONNECTOR-HDMI;19P,2R,PLUG,ANGLE, 1 SA

HD1 0401-000008 DIODE-SWITCHING;DAN217,80V,100MA, 1 SA

HD10 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200 1 SA

HD2 0401-000008 DIODE-SWITCHING;DAN217,80V,100MA, 1 SA

HIC10 1203-002577 IC-POSI.FIXED REG.;MM1561J,SOP,7P 1 SA

HIC2 0505-001679 FET-SILICON;FDC6301N,N,25V,0.22A, 1 SA

HIC6 1205-003113 IC-TRANSMITTER;SII9134CTU,TQFP,10 1 SA

HIC7 1203-002178 IC-POSI.FIXED REG.;1563,SOP,7P,17 1 SA

HQ1 0504-000129 TR-DIGITAL;KSR1104,NPN,200mW,47K/ 1 SA

HR1 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

HR10 2007-002899 R-CHIP;10ohm,1%,1/10W,TP,1608 1 SA

HR100 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR101 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR102 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 SA

HR103 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR104 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR105 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR106 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR107 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR108 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR11 2007-007852 R-CHIP;140ohm,1%,1/10W,TP,1608 1 SA

HR12 2007-000591 R-CHIP;22ohm,1%,1/10W,TP,1608 1 SA

HR18 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

HR19 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

HR2 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

HR21 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

HR22 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA

HR23 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR24 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR25 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

Exploded Views and Parts List

5-8 This Document can not be used without Samsu ng’s authorization Samsung Electronics

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

HR26 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR3 2007-000640 R-CHIP;270ohm,1%,1/10W,TP,1608 1 SA

HR30 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

HR301 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR302 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

HR31 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

HR37 2007-008107 R-CHIP;698ohm,1%,1/10W,TP,1608 1 SA

HR38 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA

HR39 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR4 2007-007852 R-CHIP;140ohm,1%,1/10W,TP,1608 1 SA

HR40 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR41 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA

HR42 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

HR43 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA

HR45 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

HR46 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 SA

HR5 2007-002899 R-CHIP;10ohm,1%,1/10W,TP,1608 1 SA

HR6 2007-000591 R-CHIP;22ohm,1%,1/10W,TP,1608 1 SA

HR7 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

HR8 2703-000166 INDUCTOR-SMD;2.7uH,5%,3225 1 SA

HR9 2007-000640 R-CHIP;270ohm,1%,1/10W,TP,1608 1 SA

HRN1 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

HRN11 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

HRN12 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

HRN2 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

HRN3 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

HRN4 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

HRN5 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

HRN6 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

HZD1 1405-001192 VARISTOR;12Vdc,30A,1.6x0.8x0.55mm 1 SA

HZD2 1405-001192 VARISTOR;12Vdc,30A,1.6x0.8x0.55mm 1 SA

HZD3 1405-001192 VARISTOR;12Vdc,30A,1.6x0.8x0.55mm 1 SA

HZD4 1405-001192 VARISTOR;12Vdc,30A,1.6x0.8x0.55mm 1 SA

HZD5 1405-001192 VARISTOR;12Vdc,30A,1.6x0.8x0.55mm 1 SA

HZD6 1405-001192 VARISTOR;12Vdc,30A,1.6x0.8x0.55mm 1 SA

HZD7 1405-001192 VARISTOR;12Vdc,30A,1.6x0.8x0.55mm 1 SA

HZD8 1405-001192 VARISTOR;12Vdc,30A,1.6x0.8x0.55mm 1 SA

IC1 0801-002611 IC-CMOS LOGIC;7SZ157,2-INPUT MULT 1 SA

IDR23 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608 1 SA

IDR310 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

IDR41 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

IDR43 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

IDR55 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

IDR56 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

IDRN24 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

IDRN25 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

IDRN26 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

IDRN27 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

IDRN28 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

IDRN29 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

IDRN30 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

J1601 3722-002467 JACK-PIN;3P,Au,GN/BU/RD,ANGLE 1 SA

J1602 3722-002468 JACK-PIN;1P+VHS,Au,YEL,ANGLE 1 SA

J2801 3711-003240 HEADER-BOARD TO CABLE;BOX,15P,1R, 1 SA

JRN1 2011-000660 R-NETWORK;1Kohm,5%,1/16W,L,CHIP,8 1 SA

JRN2 2011-001011 R-NET;10Kohm,5%,1/16W,L,CHIP,8P,T 1 SA

JRN3 2011-001011 R-NET;10Kohm,5%,1/16W,L,CHIP,8P,T 1 SA

L2801 3301-001202 BEAD-SMD;120ohm,4532,TP,167ohm/26 1 SA

L2804 3301-001202 BEAD-SMD;120ohm,4532,TP,167ohm/26 1 SA

L2809 3301-001202 BEAD-SMD;120ohm,4532,TP,167ohm/26 1 SA

L2810 3301-001202 BEAD-SMD;120ohm,4532,TP,167ohm/26 1 SA

MC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC15 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC16 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC17 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC18 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC20 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC21 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC23 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC24 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC25 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC26 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC27 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC28 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC29 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC30 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC31 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC32 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC33 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC34 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC35 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC36 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC37 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC38 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC39 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC40 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC41 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V, 1 SA

MC42 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V, 1 SA

MC44 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC45 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

MC46 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

MC47 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

MC48 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

MC5 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC50 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

MC53 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC7 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

MER1 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

MER2 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA

MIC1 0903-001506 IC-MICROCONTROLLER;SMP8634C-LF,BG 1 SA

MIC2 1105-001803 IC-DRAM;K4H510838,DDR,512Mbit,64M 1 SA

MIC3 1105-001803 IC-DRAM;K4H510838,DDR,512Mbit,64M 1 SA

MIC4 1105-001803 IC-DRAM;K4H510838,DDR,512Mbit,64M 1 SA

MIC5 1105-001803 IC-DRAM;K4H510838,DDR,512Mbit,64M 1 SA

MIC6 1105-001823 IC-DRAM;HYB25DC512160,DDR,512Mbit 1 SA

Exploded Views and Parts List

Samsung Electronics This Document can not be used without Samsung’s authorization 5-9

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

MIC9 1105-001823 IC-DRAM;HYB25DC512160,DDR,512Mbit 1 SA

ML1 3301-000353 BEAD-SMD;120ohm,2x1.25x0.9mm,-,TP 1 SA

ML2 3301-000353 BEAD-SMD;120ohm,2x1.25x0.9mm,-,TP 1 SA

MR1 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA

MRN1 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN10 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN11 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN12 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN13 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN14 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN15 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN16 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN17 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN18 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN19 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN2 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN20 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN21 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN22 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN23 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN24 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN25 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN26 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN27 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN28 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN29 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN3 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN30 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN31 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN32 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN33 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN34 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN35 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN36 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN37 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN38 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN39 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN4 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN40 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN41 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN42 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN43 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN44 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN45 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN46 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN47 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN48 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN49 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN5 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN50 2011-001346 R-NET;68ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

MRN6 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN7 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN8 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

MRN9 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

NR1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR10 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR11 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR12 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR13 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR14 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR15 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR16 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR17 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR18 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR19 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR2 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR20 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR21 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR22 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR23 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR24 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR25 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR26 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR27 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR3 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR4 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR5 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR6 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR7 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR77 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR8 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

NR9 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

PC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

PC11 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

PC12 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

PC13 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

PC14 2203-001587 C-CER,CHIP;18nF,10%,50V,X7R,1608 1 SA

PC141 2203-001587 C-CER,CHIP;18nF,10%,50V,X7R,1608 1 SA

PC15 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V, 1 SA

PC17 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,20 1 SA

PC171 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,20 1 SA

PC18 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V 1 SA

PC19 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V 1 SA

PC20 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V 1 SA

PC21 2203-001724 C-CER,CHIP;4700nF,+80-20%,16V,Y5V 1 SA

PC30 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V, 1 SA

PC4 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,20 1 SA

PC41 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,20 1 SA

PC6 2203-000560 C-CER,CHIP;220nF,+80-20%,25V,Y5V, 1 SA

PC61 2203-000560 C-CER,CHIP;220nF,+80-20%,25V,Y5V, 1 SA

PC7 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA

PC71 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA

PC8 2203-001052 C-CER,CHIP;0.56nF,10%,50V,X7R,TP, 1 SA

PC81 2203-001052 C-CER,CHIP;0.56nF,10%,50V,X7R,TP, 1 SA

PC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

PCI1 1205-002824 IC-TRANSCEIVER;RTL8201CP-VD,LQFP, 1 SA

PCI11 1203-004268 IC-DC/DC CONVERTER;SC4521SETRT,SO 1 SA

PD504 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150m 1 SA

PD505 0404-001036 DIODE-SCHOTTKY;SDB30A40,40V,3000M 1 SA

PE1 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6 1 SA

PE10 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

PE2 2402-001087 C-AL,SMD;47uF,20%,25V,GP,TP,6.6x6 1 SA

PE3 2402-001096 C-AL,SMD;220UF,20%,16V,GP,TP,6.6X 1 SA

PE4 2402-001096 C-AL,SMD;220UF,20%,16V,GP,TP,6.6X 1 SA

PE6 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

PE81 2402-001221 C-AL,SMD;470UF,20%,16V,-,TP,A8.3X 1 SA

PE82 2402-001221 C-AL,SMD;470UF,20%,16V,-,TP,A8.3X 1 SA

PIC1 1107-001595 IC-FLASH MEMORY;S29GL512N,512Mbit 1 SNA

PIC3 1203-001697 IC-POSI.FIXED REG.;78R08,TO-220,4 1 SA

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

Exploded Views and Parts List

5-10 This Document can not be used without Samsu ng’s authorization Samsung Electronics

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

PIC4 1203-000122 IC-NEGA.FIXED REG.;7908,TO-220,3P 1 SA

PIC5 1203-003180 IC-POSI.FIXED REG.;MM1565,SOP,7P, 1 SA

PIC77 1203-004268 IC-DC/DC CONVERTER;SC4521SETRT,SO 1 SA

PL2 2703-003248 INDUCTOR-SMD;8.2uH,20%,7272 1 SA

PL21 2703-003248 INDUCTOR-SMD;8.2uH,20%,7272 1 SA

PL2826 3301-001202 BEAD-SMD;120ohm,4532,TP,167ohm/26 1 SA

PL834 3301-001202 BEAD-SMD;120ohm,4532,TP,167ohm/26 1 SA

PR1 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

PR12 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

PR19 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

PR191 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

PR2 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

PR3 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

PR31 2007-000208 R-CHIP;1.1Kohm,1%,1/10W,TP,1608 1 SA

PR4 2007-000265 R-CHIP;1.8Kohm,1%,1/10W,TP,1608 1 SA

PR5 2007-002987 R-CHIP;4.75Kohm,1%,1/10W,TP,1608 1 SA

PR51 2007-002987 R-CHIP;4.75Kohm,1%,1/10W,TP,1608 1 SA

PR6 2007-000583 R-CHIP;22Kohm,1%,1/10W,TP,1608 1 SA

PR61 2007-000962 R-CHIP;5.1Kohm,1%,1/10W,TP,1608 1 SA

PR7 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA

PR71 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA

PR9 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

PRN7 2011-001011 R-NET;10Kohm,5%,1/16W,L,CHIP,8P,T 1 SA

PU2805 1203-003038 IC-POSI.ADJUST REG.;LP2995,SO,8P, 1 SA

R10 2007-001134 R-CHIP;68ohm,5%,1/10W,TP,1608 1 SA

R11 2007-001134 R-CHIP;68ohm,5%,1/10W,TP,1608 1 SA

R12 2007-001134 R-CHIP;68ohm,5%,1/10W,TP,1608 1 SA

R13 2007-001134 R-CHIP;68ohm,5%,1/10W,TP,1608 1 SA

R16 2007-001134 R-CHIP;68ohm,5%,1/10W,TP,1608 1 SA

R17 2007-001134 R-CHIP;68ohm,5%,1/10W,TP,1608 1 SA

R21 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

R30 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R31 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R32 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R351 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R478 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R498 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R499 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R500 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R503 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R526 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R527 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R528 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R529 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R530 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R531 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R532 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R533 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R534 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R535 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R536 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

R537 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

R538 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

R539 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

R540 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

R541 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

R935 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8 1 SA

R936 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R937 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R938 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R939 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R940 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R941 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R947 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R948 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA

RRN1 2011-001011 R-NET;10Kohm,5%,1/16W,L,CHIP,8P,T 1 SA

SC175 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V, 1 SA

TR60 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

TR61 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

U2504 0801-002522 IC-CMOS LOGIC;74VHC541,BUFFER/LIN 1 SA

U2505 0801-002522 IC-CMOS LOGIC;74VHC541,BUFFER/LIN 1 SA

U7 1203-003806 IC-POSI.ADJUST REG.;KIA78R000,DPA 1 SA

UC1 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,160 1 SA

UC2 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,160 1 SA

UIC7 1103-001398 IC-EEPROM;24C02,2Kbit,256Kx8,SOIC 1 SA

UR1 2007-000475 R-CHIP;1Mohm,1%,1/10W,TP,1608 1 SA

UR10 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UR101 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

UR102 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UR11 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UR12 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UR13 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UR14 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

UR15 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

UR16 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

UR17 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

UR18 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

UR19 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

UR20 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

UR21 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

UR222 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

UR3 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UR5 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UR6 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UR62 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

UR63 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

UR7 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UR70 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

UR71 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

UR8 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UR9 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

UX7 2801-004095 CRYSTAL-SMD;27MHz,20ppm,28-ABY,14 1 SA

VC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

VC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

VC11 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

VC12 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

VC2 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,2012 1 SA

VC3 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,2012 1 SA

VC4 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,2012 1 SA

VC5 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

VC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

VCO1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

VCO2 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA

VCO3 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1 1 SA

VCO4 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V 1 SA

VD2 0403-001412 DIODE-ZENER;-,5.93-6.47V,200MW,SO 1 SA

VD3 0403-001412 DIODE-ZENER;-,5.93-6.47V,200MW,SO 1 SA

VD4 0403-001412 DIODE-ZENER;-,5.93-6.47V,200MW,SO 1 SA

Exploded Views and Parts List

Samsung Electronics This Document can not be used without Samsung’s authorization 5-11

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

VD6 0403-001412 DIODE-ZENER;-,5.93-6.47V,200MW,SO 1 SA

VD7 0403-001412 DIODE-ZENER;-,5.93-6.47V,200MW,SO 1 SA

VD8 0403-001412 DIODE-ZENER;-,5.93-6.47V,200MW,SO 1 SA

VE12 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

VE13 2402-001011 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5 1 SA

VE14 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

VE20 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,20 1 SA

VE21 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,20 1 SA

VE22 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,20 1 SA

VE23 2402-001011 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5 1 SA

VE24 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

VE25 2402-001011 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5 1 SA

VE26 2203-005692 C-CER,CHIP;4700nF,+80-20%,16V,Y5V 1 SA

VE27 2203-005692 C-CER,CHIP;4700nF,+80-20%,16V,Y5V 1 SA

VE28 2203-005692 C-CER,CHIP;4700nF,+80-20%,16V,Y5V 1 SA

VE3 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

VE4 2402-001011 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5 1 SA

VE6 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6 1 SA

VE7 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

VE8 2402-001011 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5 1 SA

VIC1 1201-002008 IC-VIDEO AMP;MM1566AFBE,SOP,16P,9 1 SA

VIC3 1201-002406 IC-VIDEO AMP;SM5302AS,HSOP,28P,18 1 SA

VL2 2703-000166 INDUCTOR-SMD;2.7uH,5%,3225 1 SA

VL3 2703-000166 INDUCTOR-SMD;2.7uH,5%,3225 1 SA

VR15 2007-000591 R-CHIP;22ohm,1%,1/10W,TP,1608 1 SA

VR16 2007-000591 R-CHIP;22ohm,1%,1/10W,TP,1608 1 SA

VR17 2007-000591 R-CHIP;22ohm,1%,1/10W,TP,1608 1 SA

VR18 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA

VR19 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA

VR20 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA

VR21 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA

VR22 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA

VR24 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

VR25 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

VR37 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA

VR4 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA

VR43 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608 1 SA

VR44 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA

VR46 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA

VR49 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

VR5 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA

VR6 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA

VR7 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA

VR8 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA

X5 2801-004655 CRYSTAL-SMD;25MHz,50ppm,SX-3,18pF 1 SA

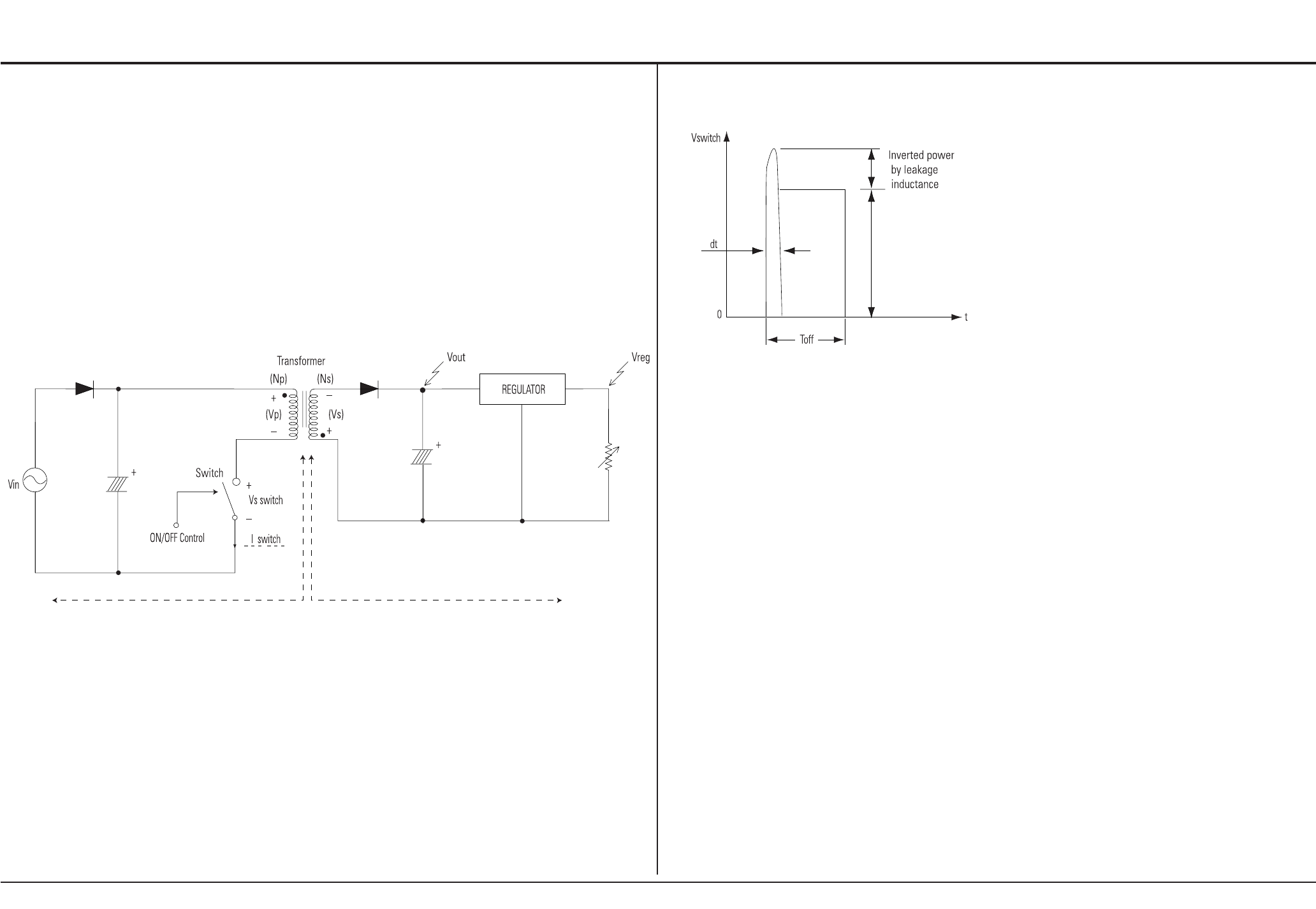

P003 AK92-01516A ASSY PCB-SMPS;BD-P1400/XEU,ASSY S 1 SA

BD1 0402-001608 DIODE-BRIDGE;GBJ2J,600V,2A,SIP-4, 1 SA

C1S01 2401-003243 C-AL;150uF,20%,400V,WT,BK,25x30,1 1 SA

C1S02 2201-002044 C-CERAMIC,DISC;0.1NF,10%,400V,Y5P 1 SA

C1S03 2201-002044 C-CERAMIC,DISC;0.1NF,10%,400V,Y5P 1 SA

C1S04 2301-001792 C-FILM,LEAD;150nF,20%,275V,BK,17. 1 SA

C1S05 2301-001792 C-FILM,LEAD;150nF,20%,275V,BK,17. 1 SA

C1S11 2305-001029 C-FILM,LEAD-PEF;10nF,10%,630V,TP, 1 SA

C1S12 2201-000129 C-CERAMIC,DISC;0.1nF,10%,1000V,Y5 1 SA

C1S13 2201-000576 C-CERAMIC,DISC;0.047nF,5%,50V,SL, 1 SA

C1S14 2201-000863 C-CERAMIC,DISC;0.68NF,10%,50V,Y5P 1 SA

C1S15 2301-000224 C-FILM,LEAD-PEF;22nF,5%,50V,TP,7. 1 SA

C1S16 2301-001679 C-FILM,PEF;2.2nF,5%,50V,TP,5.8x3x 1 SA

C1S17 2201-000987 C-CERAMIC,DISC;2.2NF,20%,400V,Y5U 1 SA

C2S31 2301-000383 C-FILM,LEAD-PEF;10nF,5%,50V,TP,6x 1 SA

C2S82 2301-000129 C-FILM,LEAD-PEF;100nF,5%,50V,TP,1 1 SA

C2S83 2301-000129 C-FILM,LEAD-PEF;100nF,5%,50V,TP,1 1 SA

C2S851 2301-000129 C-FILM,LEAD-PEF;100nF,5%,50V,TP,1 1 SA

CN1S01 3711-000203 HEADER-BOARD TO CABLE;1WALL,2P/3P 1 SA

CN2 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2 1 SA

CN3 3711-003942 HEADER-BOARD TO CABLE;BOX,2P,1R,2 1 SA

D1S11 0402-000012 DIODE-RECTIFIER;UF4007,1KV,1A,DO- 1 SA

D1S12 0401-000005 DIODE-SWITCHING;1N4148,75V,150mA, 1 SA

D1S13 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,DO-2 1 SA

D1S14 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,DO-2 1 SA

D2S31 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,DO-2 1 SA

D2S32 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,DO-2 1 SA

D2S33 0402-001624 DIODE-RECTIFIER;SF26,400V,2A,DO-1 1 SA

D2S34 0402-001600 DIODE-RECTIFIER;MBRF20100CT,100V, 1 SA

D2S35 0402-001600 DIODE-RECTIFIER;MBRF20100CT,100V, 1 SA

D2S36 0402-001600 DIODE-RECTIFIER;MBRF20100CT,100V, 1 SA

D2S37 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,DO-2 1 SA

D2S38 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,DO-2 1 SA

D2S51 0401-000005 DIODE-SWITCHING;1N4148,75V,150mA, 1 SA

D2S60 0401-000005 DIODE-SWITCHING;1N4148,75V,150mA, 1 SA

E1S11 2401-002608 C-AL;33uF,20%,35V,GP,TP,5x11,5 1 SA

E2S31 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12.5, 1 SA

E2S32 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12.5, 1 SA

E2S33 2401-003549 C-AL;470uF,20%,25V,LZ,TP,10x16,5 1 SA

E2S34 2401-003390 C-AL;2200uF,20%,16V,LZ,TP,13x31.5 1 SA

E2S35 2401-003390 C-AL;2200uF,20%,16V,LZ,TP,13x31.5 1 SA

E2S36 2401-001370 C-AL;470uF,20%,16V,GP,TP,8x11.5,5 1 SA

E2S37 2401-001370 C-AL;470uF,20%,16V,GP,TP,8x11.5,5 1 SA

E2S38 2401-003059 C-AL;1000UF,20%,16V,WT,TP,10X16,5 1 SA

E2S39 2401-001479 C-AL;470uF,20%,10V,GP,TP,6.3*11mm 1 SA

E2S40 2401-003621 C-AL;47uF,20%,63V,GP,TP,6.3x11mm, 1 SA

E2S41 2401-001370 C-AL;470uF,20%,16V,GP,TP,8x11.5,5 1 SA

E2S53 2401-002300 C-AL;47##F,20%,50V,GP,TP,6.3x11,5 1 SA

E2S54 2401-000302 C-AL;100uF,20%,25V,GP,TP,6.3x11,5 1 SA

E2S55 2401-003480 C-AL;1000UF,20%,10V,LZ,TP,10X16MM 1 SA

E2S56 2401-002300 C-AL;47##F,20%,50V,GP,TP,6.3x11,5 1 SA

E2S57 2401-002300 C-AL;47##F,20%,50V,GP,TP,6.3x11,5 1 SA

E2S58 2401-003480 C-AL;1000UF,20%,10V,LZ,TP,10X16MM 1 SA

F1S01 3601-000237 FUSE-CARTRIDGE;250V,2A,SLOW-BLOW, 1 SA

IC1S11 1203-004788 IC-PWM CONTROLLER;ICE2QS01,DIP,8P 1 SA

IC1S12 0604-001028 PHOTO-COUPLER;TR,50-600%,250mW,DI 1 SC

IC1S81 AC14-12006D IC;KA431Z,TO-92,TAPING 1 SA

IC2S51 AC14-12006N IC-VOLT REGU;KA78R12,SIP,STICK 1 SA

L11 AC27-92001M COIL-INDUCTOR;RH3.5X6.5RS,BEAD(RA 1 SC

L1S01 AK29-00002A FILTER EMI;RECORDER,SQ2222,0.42Oh 1 SA

L1S02 AK29-00002A FILTER EMI;RECORDER,SQ2222,0.42Oh 1 SA

L2S31 AH27-00039A COIL CHOKE;DR CHOKE(8*6),DVD-R200 1 SA

L2S32 AH27-00039A COIL CHOKE;DR CHOKE(8*6),DVD-R200 1 SA

L2S33 AH27-00039A COIL CHOKE;DR CHOKE(8*6),DVD-R200 1 SA

PT01 AK26-00029A TRANS SWITCHING;-,BD-P1400,-,110- 1 SA

Q1S11 0505-001729 FET-SILICON;SPA04N60C3,N,600V,4.5 1 SA

Q2P51 0501-000362 TR-SMALL SIGNAL;KSC2328A-Y,NPN,10 1 SA

Q2P52 0504-000142 TR-DIGITAL;FJN4301R,PNP,300MW,4.7 1 SA

Q2P53 0505-001522 FET-SILICON;FQP33N10,N,100V,33A,5 1 SA

Q2P54 0505-001522 FET-SILICON;FQP33N10,N,100V,33A,5 1 SA

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

Exploded Views and Parts List

5-12 This Document can not be used without Samsu ng’s authorization Samsung Electronics

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

Q2P55 0501-000362 TR-SMALL SIGNAL;KSC2328A-Y,NPN,10 1 SA

Q2P56 0504-000142 TR-DIGITAL;FJN4301R,PNP,300MW,4.7 1 SA

Q2P57 0504-000116 TR-DIGITAL;KSR1001,NPN,300MW,4.7K 1 SA

R1S01 2002-000121 R-COMPOSITION;1Mohm,10%,1/2W,AA,T 1 SA

R1S04 1404-001361 THERMISTOR-NTC;3ohm,4A,-,35mW/C,0 1 SA

R1S11 2006-000273 R-CEMENT;27KOHM,5%,2W,CA,BK,6.4X6 1 SA

R1S12 2006-000273 R-CEMENT;27KOHM,5%,2W,CA,BK,6.4X6 1 SA

R1S13 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8 1 SA

R1S14 2001-000440 R-CARBON;1OHM,5%,1/8W,AA,TP,1.8X3 1 SA

R1S15 2001-000527 R-CARBON;22OHM,5%,1/8W,AA,TP,1.8X 1 SA

R1S16 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8 1 SA

R1S17 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1. 1 SA

R1S18 2001-000793 R-CARBON;47OHM,5%,1/8W,AA,TP,1.8X 1 SA

R1S19 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1. 1 SA

R1S20 2003-000105 R-METAL OXIDE;0.33ohm,5%,2W,AD,TP 1 SA

R1S21 2001-000527 R-CARBON;22OHM,5%,1/8W,AA,TP,1.8X 1 SA

R2P51 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA

R2P52 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA

R2P53 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8 1 SA

R2P54 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1. 1 SA

R2P55 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8 1 SA

R2P56 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1. 1 SA

R2P57 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA

R2S31 2001-000440 R-CARBON;1OHM,5%,1/8W,AA,TP,1.8X3 1 SA

R2S51 2001-000019 R-CARBON(S);10OHM,5%,1/2W,AA,TP,2 1 SA

R2S60 2001-000038 R-CARBON;390OHM,5%,1/4W,AA,TP,2.4 1 SA

R2S74 2003-000502 R-METAL OXIDE(S);150ohm,5%,2W,AA, 1 SA

R2S82 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8 1 SA

R2S83 2001-000924 R-CARBON;680OHM,5%,1/8W,AA,TP,1.8 1 SA

R2S84 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA

R2S86 2001-000832 R-CARBON;510OHM,5%,1/8W,AA,TP,1.8 1 SA

R2S87 2004-000869 R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3 1 SA

R2S88 2004-000869 R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3 1 SA

R2S901 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA

VA1S01 1405-001026 VARISTOR;470V,600A,9x7mm,TP 1 SA

VA1S03 1405-000186 VARISTOR;470V,2500A,17.5x7.5mm,TP 1 SA

VS221 AK39-00116A LEAD CONNECTOR;BD-P1400,UL1007#24 1 SA

ZD1S11 0403-001167 DIODE-ZENER;MTZJ30D,29.02-30.51V, 1 SA

ZD1S14 0403-001158 DIODE-ZENER;MTZJ18C,17.42-18.33V, 1 SA

ZD2S51 0403-000753 DIODE-ZENER;MTZJ27D,26.2-27.6V,50 1 SA

P007F AK92-01498B ASSY PCB-FRONT KEY;BD-P1400/XEL,A 1 SA

FC20 2202-000173 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y 1 SA

FC21 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V, 1 SA

FC22 2202-000109 C-CERAMIC,MLC-AXIAL;100NF,+80-20% 1 SA

FCN2 3711-000988 HEADER-BOARD TO CABLE;BOX,5P,1R,2 1 SA

FD1 0403-000718 DIODE-ZENER;MTZJ6.8B,6.52-6.79V,5 1 SA

FD10 0401-000101 DIODE-SWITCHING;1N4148,75V,150mA, 1 SA

FE10 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5 1 SA

FE6 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5 1 SA

FE8 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5 1 SA

FE9 2401-000249 C-AL;100uF,20%,10V,GP,TP,6.3x5,5 1 SA

FL1 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534 1 SA

FL2 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534 1 SA

FL685 3809-001992 FFC CABLE-FLAT;30V,80C,210mm,23P, 1 SA

FMIC1 AK09-00177B IC MICOM;GMS81C2020,BD-P1400,64PI 1 SNA

FMIC2 1203-001252 IC-VOL. DETECTOR;7545,TO-92,3P,-, 1 SA

FR11 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8 1 SA

FR12 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8 1 SA

FR41 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1. 1 SA

FR42 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8 1 SA

FR43 2001-000793 R-CARBON;47OHM,5%,1/8W,AA,TP,1.8X 1 SA

FR51 2001-000027 R-CARBON;100OHM,5%,1/4W,AA,TP,2.4 1 SA

FR53 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA

FR54 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA

FR58 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA

FR60 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA

FR64 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA

FR67 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1. 1 SA

FR68 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1. 1 SA

FS2 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA

FS3 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA

FS5 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA

FS6 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA

FS7 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA

FTR1 0504-000119 TR-DIGITAL;KSR1004,NPN,300MW,47K/ 1 SA

FTR2 0504-000119 TR-DIGITAL;KSR1004,NPN,300MW,47K/ 1 SA

FU3 0609-001189 MODULE REMOCON;HORIZONTAL,16.4MM, 1 SC

FX1 2802-001094 RESONATOR-CERAMIC;4.0MHz,0.5%,TP, 1 SA

IC1 3708-002387 CONNECTOR-FPC/FFC/PIC;23P,1.25mm, 1 SA

KFC1 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V 1 SA

KFC2 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V 1 SA

KFR1 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA

KFR2 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X 1 SA

KFR4 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X 1 SA

KFR5 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1.8X 1 SA

KFR6 2001-000007 R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X 1 SA

KFR7 2001-000007 R-CARBON;3KOHM,5%,1/8W,AA,TP,1.8X 1 SA

VFD1 AK07-00053A VFD DISPLAY;BD-P1000,NHR-11SS63T, 1 SA

VFD1A AK61-00541A HOLDER-FLT;BD-P1000,ABS,-,-,-,BLK 1 SA

VS106 AK39-00094A LEAD CONNECTOR;BD-P1000,UL 1007#2 1 SA

P007P AK92-01507A ASSY PCB-POWER KEY;BD-P1400,ASSY 1 SA

SCON1 3711-000988 HEADER-BOARD TO CABLE;BOX,5P,1R,2 1 SA

SKEY1 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm, 1 SA

SLED1 0601-001928 LED;ROUND,BLUE,3mm,465nm,3.6x3.8m 1 SA

SLED2 0601-001874 LED;ROUND,RED,3,626nm,- 1 SA

H003 AK97-02140A ASSY-BDP LOADER N;-,BD-P1400-SEC4 1 SA

C1 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA

C10 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C101 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C102 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C103 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C104 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C105 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C108 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C109 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C11 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C110 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C111 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C112 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C113 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C115 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C116 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

Exploded Views and Parts List

Samsung Electronics This Document can not be used without Samsung’s authorization 5-13

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

C117 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C119 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C12 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

C120 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,160 1 SA

C121 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C122 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C124 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,160 1 SA

C125 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C126 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C128 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C13 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

C130 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C132 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C133 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C134 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C135 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C136 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C139 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C14 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C141 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C142 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C143 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C145 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C146 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C147 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C148 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C149 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C15 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C151 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,160 1 SA

C152 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,160 1 SA

C153 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C154 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C155 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C156 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C157 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C158 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C159 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C162 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C163 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C164 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C165 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C166 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C167 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C168 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C169 2203-000357 C-CER,CHIP;0.15nF,5%,50V,C0G,1608 1 SA

C170 2203-000357 C-CER,CHIP;0.15nF,5%,50V,C0G,1608 1 SA

C177 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C178 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C179 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C18 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C180 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C181 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C182 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C183 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C184 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C185 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C186 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C187 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C188 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C19 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C190 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C191 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C193 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C194 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C195 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C196 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C197 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C198 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C199 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C2 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA

C20 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C200 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C201 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C202 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C203 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C204 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C205 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C206 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C207 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C208 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C209 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C21 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C210 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C211 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C212 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C213 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C214 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C215 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C216 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C217 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C218 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C219 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C22 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C220 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C221 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C222 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C223 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C224 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C225 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C226 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C227 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C228 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C229 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C23 2203-000843 C-CER,CHIP;39nF,10%,25V,X7R,1608 1 SA

C230 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C232 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,160 1 SA

C233 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C234 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C235 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C236 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C237 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C238 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,160 1 SA

C24 2203-000843 C-CER,CHIP;39nF,10%,25V,X7R,1608 1 SA

C242 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C243 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C244 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,160 1 SA

C245 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C246 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

Exploded Views and Parts List

5-14 This Document can not be used without Samsu ng’s authorization Samsung Electronics

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

C247 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 SA

C248 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C249 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C25 2203-000843 C-CER,CHIP;39nF,10%,25V,X7R,1608 1 SA

C250 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C251 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C252 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA

C255 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA

C258 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA

C26 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C261 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C262 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C263 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C264 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C265 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C266 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C267 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C268 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C269 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C27 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C270 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C272 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C273 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA

C28 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C29 2203-000843 C-CER,CHIP;39nF,10%,25V,X7R,1608 1 SA

C3 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 SA

C30 2203-000843 C-CER,CHIP;39nF,10%,25V,X7R,1608 1 SA

C31 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C32 2203-000843 C-CER,CHIP;39nF,10%,25V,X7R,1608 1 SA

C33 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 SA

C35 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 SA

C36 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C37 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 SA

C38 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C39 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C4 2404-001150 C-TA,CHIP;22uF,20%,35V,LZ,TP,7343 1 SA

C40 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C41 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C42 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C43 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C44 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C45 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C46 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C47 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA

C49 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C5 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

C50 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C52 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C53 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C54 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C55 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C56 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C57 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C58 2203-001408 C-CER,CHIP;0.27nF,5%,50V,NP0,1608 1 SA

C59 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C6 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x 1 SA

C60 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA

C61 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C62 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA

C63 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C64 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C65 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C66 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C68 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C69 2404-000284 C-TA,CHIP;10uF,20%,16V,-,TP,3528 1 SA

C7 2203-006170 C-CER,CHIP;220nF,10%,16V,X7R,1608 1 SA

C70 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C71 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,160 1 SA

C73 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C74 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 SA

C75 2203-000140 C-CER,CHIP;1.5nF,10%,50V,X7R,1608 1 SA

C76 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C77 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C771 AK61-00514A HOLDER-WIRE;SOH-BP1,PPS,T6.6,W13. 1 SNA

C78 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C79 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C8 2203-006170 C-CER,CHIP;220nF,10%,16V,X7R,1608 1 SA

C81 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA

C82 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA

C83 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA

C84 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA

C85 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA

C86 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA

C87 2404-001150 C-TA,CHIP;22uF,20%,35V,LZ,TP,7343 1 SA

C9 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C90 2404-001150 C-TA,CHIP;22uF,20%,35V,LZ,TP,7343 1 SA

C92 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C93 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C94 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C95 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C96 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C97 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

C98 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 SA

C99 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA

CON1 3708-002092 CONNECTOR-FPC/FFC/PIC;54P,0.5mm,S 1 SA

CON2 3708-002018 CONNECTOR-FPC/FFC/PIC;4P,1MM,SMD- 1 SA

CON3 3708-001878 CONNECTOR-FPC/FFC/PIC;6P,1MM,SMD- 1 SA

CON4 3708-002067 CONNECTOR-FPC/FFC/PIC;12P,1mm,SMD 1 SA

CON5 3711-005872 HEADER-BOARD TO CABLE;BOX,5P,1R,2 1 SA

CON6 3708-002052 CONNECTOR-FPC/FFC/PIC;40P,0.5MM,S 1 SA

D1 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150m 1 SA

D2 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150m 1 SA

D3 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150m 1 SA

H102 AK61-00521A BODY CLAMPER-DISC;BD-P1,POM,T1,-, 1 SNA

H103 AK66-00061A GEAR-PULLEY;DP-RW,POM,-,-,-,-,-,B 1 SNA

H105 6602-001076 BELT-RECTANGULAR;CR,T1.2,4.3%,1.2 1 SA

H106 AK66-00062A GEAR-TRAY;DP-RW,POM,-,-,-,WHT,-,- 1 SNA

H203 AK66-00050A SHAFT-PU;BD-R1,SUS420J2,L97,3,-,H 2 SNA

H207 AK31-00036A MOTOR SPINDLE;BD-P2,8500,9.8mN.m, 1 SNA

H209 AK64-01010A CHASSIS-SUB;DP-RW,ABS,-,-,-,BLK,- 1 SNA

H211 AK97-02049A ASSY-PICK UP;-,SOH-BP3,- 1 SNA

H265 AK61-00402A BRACKET-SHAFT PU;DP-RW,SUS,T1.0,- 3 SNA

H268 AK61-00452A SPRING ETC-HINGE PU;DP-R2,SUS304W 1 SNA

H271 AK61-00520A HINGE-PU;BD-P1,POM KEPITAL,T10.7, 1 SNA

H401 AK61-00400A FRAME-MAIN;DP-RW,ABS,-,-,BLK,-,-, 1 SNA

IC1 1203-002454 IC-POSI.FIXED REG.;FAN1117A,TO-25 1 SA

IC11 1001-001305 IC-ANALOG SWITCH;74HC4066PW,-,TSS 1 SA

IC12 1001-001305 IC-ANALOG SWITCH;74HC4066PW,-,TSS 1 SA

IC13 AK13-00022A IC ASIC;S5L1900X,BD-PLAYER,256,3. 1 SA

Exploded Views and Parts List

Samsung Electronics This Document can not be used without Samsung’s authorization 5-15

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

IC14 AK13-00021A IC ASIC;S5L1800A,BD-PLAYER,256,3. 1 SA

IC15 1105-001397 IC-DRAM;K4S641632,-,64Mbit,1Mx16x 1 SA

IC17 1103-000170 IC-EEPROM;24C64A,64Kbit,8Kx8Bit,S 1 SA

IC2 1203-003176 IC-MULTI REG.;BA33C18HFP,HRP,5P,9 1 SA

IC20 1105-001397 IC-DRAM;K4S641632,-,64Mbit,1Mx16x 1 SA

IC22 AK09-00051A IC MICOM;-,-,-,-0.3 ~ +3.8V,30Mhz 1 SNA

IC24 0801-002097 IC-CMOS LOGIC;7ST08,AND GATE,SOP, 1 SA

IC25 0801-002542 IC-CMOS LOGIC;74ACT08,AND GATE,TS 1 SA

IC27 1003-001515 IC-MOTOR DRIVER;BA6846FV,SSOP,14P 1 SA

IC29 1203-003177 IC-VOL. DETECTOR;BD5326G,SSOP,5P, 1 SA

IC3 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL 1 SA

IC5 1003-001780 IC-MOTOR DRIVER;BD7954FS,SSOP,54P 1 SA

IC6 AK13-00023A IC ASIC;S1L1300X,BD-PLAYER,144,5 1 SNA

IC7 1203-001816 IC-POSI.FIXED REG.;78M08,TO-252,3 1 SA

L11 2703-000125 INDUCTOR-SMD;10uH,10%,2012 1 SA

L4 2901-001281 FILTER-EMI SMD;16V,2A,-,220000pF, 1 SA

L5 2901-001281 FILTER-EMI SMD;16V,2A,-,220000pF, 1 SA

L6 2901-001281 FILTER-EMI SMD;16V,2A,-,220000pF, 1 SA

L7 2901-001281 FILTER-EMI SMD;16V,2A,-,220000pF, 1 SA

P001 AK92-01533A ASSY PCB;BD-P1400-SEC4,FRONT-END 1 SNA

P198 AK97-01204A ASSY-PCB MOTOR;ASSY,DP-R2,DP-R2 1 SNA

P274 AK97-01370A ASSY-COVER;SECC,BD-P1,T:0.8 1 SNA

Q4 0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350m 1 SA

Q5 0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350m 1 SA

Q6 0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350m 1 SA

Q8 0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350m 1 SA

R1 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R10 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 1 SA

R106 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R108 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

R11 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA

R113 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA

R114 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R115 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R118 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R119 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA

R12 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA

R120 3301-001233 BEAD-SMD;300ohm,1608,-,-,- 1 SA

R13 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA

R135 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R138 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R141 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R142 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R143 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R145 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R148 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R150 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

R154 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

R158 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

R16 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 SA

R162 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

R166 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

R167 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA

R168 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA

R169 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

R17 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R170 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA

R171 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

R172 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 SA

R173 2007-000115 R-CHIP;82ohm,5%,1/10W,TP,1608 1 SA

R174 2011-001085 R-NET;82ohm,5%,1/16W,L,CHIP,8P,TP 1 SA

R178 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R179 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA

R18 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 SA

R180 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

R181 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R182 3301-001233 BEAD-SMD;300ohm,1608,-,-,- 1 SA

R183 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA

R184 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA

R185 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA

R186 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA

R187 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA

R188 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA

R189 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA

R19 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R190 2007-000083 R-CHIP;3Kohm,5%,1/10W,TP,1608 1 SA

R191 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608 1 SA

R192 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA

R193 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA

R194 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R195 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R196 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R197 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R198 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R199 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R2 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R200 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R201 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R202 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R203 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA

R204 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA

R206 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R207 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R208 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R209 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 SA

R210 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R211 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R212 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R213 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R214 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R215 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R216 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R219 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R22 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R222 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

R223 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

R224 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA

R225 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA

R226 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R229 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R233 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R237 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA

R238 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA

R239 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

R244 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R245 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R246 2007-000083 R-CHIP;3Kohm,5%,1/10W,TP,1608 1 SA

R247 2007-000116 R-CHIP;120ohm,5%,1/10W,TP,1608 1 SA

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

Exploded Views and Parts List

5-16 This Document can not be used without Samsu ng’s authorization Samsung Electronics

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

R248 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA

R249 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 SA

R25 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R254 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA

R257 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA

R258 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R259 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R26 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

R260 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R261 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R27 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

R28 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R281 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R283 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

R284 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

R286 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R288 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

R289 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA

R29 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R291 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R293 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R294 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 SA

R297 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

R299 2011-000660 R-NETWORK;1Kohm,5%,1/16W,L,CHIP,8 1 SA

R3 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R30 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA

R300 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R301 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R302 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R31 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA

R32 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 SA

R320 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R321 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R322 2011-000660 R-NETWORK;1Kohm,5%,1/16W,L,CHIP,8 1 SA

R323 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R324 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R325 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R326 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R327 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R328 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R329 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R33 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 SA

R330 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R331 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

R332 2007-000512 R-CHIP;2.4Kohm,5%,1/10W,TP,1608 1 SA

R333 2007-000512 R-CHIP;2.4Kohm,5%,1/10W,TP,1608 1 SA

R334 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608 1 SA

R337 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R340 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R345 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA

R346 2007-000798 R-CHIP;360ohm,5%,1/8W,TP,2012 1 SA

R347 2007-000798 R-CHIP;360ohm,5%,1/8W,TP,2012 1 SA

R349 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

R350 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R36 2007-000431 R-CHIP;16Kohm,5%,1/10W,TP,1608 1 SA

R37 2007-000093 R-CHIP;20Kohm,5%,1/10W,TP,1608 1 SA

R38 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA

R39 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA

R4 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R40 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA

R41 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA

R42 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA

R43 2007-000034 R-CHIP;1OHM,5%,1/4W,TP,3216 1 SA

R44 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R45 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R5 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA

R51 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

R54 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA

R55 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 SA

R57 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA

R58 2007-000502 R-CHIP;2.2ohm,5%,1/8W,TP,2012 1 SA

R59 2007-000502 R-CHIP;2.2ohm,5%,1/8W,TP,2012 1 SA

R6 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA

R60 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA

R61 2007-000502 R-CHIP;2.2ohm,5%,1/8W,TP,2012 1 SA

R62 2007-000502 R-CHIP;2.2ohm,5%,1/8W,TP,2012 1 SA

R63 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA

R65 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R66 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R67 2007-000130 R-CHIP;39Kohm,5%,1/10W,TP,1608 1 SA

R68 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA

R69 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608 1 SA

R7 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R70 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA

R71 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R72 2007-001010 R-CHIP;51Kohm,5%,1/10W,TP,1608 1 SA

R75 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R76 2007-000104 R-CHIP;150Kohm,5%,1/10W,TP,1608 1 SA

R78 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 1 SA

R79 2007-000104 R-CHIP;150Kohm,5%,1/10W,TP,1608 1 SA

R80 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R82 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA

R83 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

R84 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 SA

R90 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA

R91 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA

R94 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA

R95 3301-001419 BEAD-SMD;220ohm,1608,TP,133ohm/70 1 SA

R97 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA

R98 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA

S.N.A AK63-00262A GROUND-TERMINAL R;DP-R2,SECC,0.6T 1 SNA

S.N.A AK63-00263A GROUND-TERMINAL L;DP-R2,SECC,0.6T 1 SNA

S.N.A AK97-01203A ASSY-FRAME MAIN;ASSY,BD-P1,BD-P1 1 SNA

S.N.A AK63-00213A COVER-CLAMPER DISC PU;DP-RW,SECC, 1 SNA

S.N.A AK68-00433A LABEL WARNING-DRIVE;DP-R1,-,ART P 1 SNA

S.N.A AK97-01371A ASSY-CLAMPER;POM,SECC,BD-P1,T:0.6 1 SNA

S.N.A AK61-00524A BRACKET-MAGNET;BD-P1,SECC,T0.6,W1 1 SNA

S.N.A AK97-02114A ASSY-TRAVERSE;ASSY,BD-P1,######## 1 SNA

S.N.A AK31-00024A MOTOR STEP-FEED;-,DP-RW,727 mA,20 1 SNA

S.N.A AK41-00436A FFC-PU CABLE;BD-P1,B TYPE,FLAT,54 1 SNA

S.N.A AK61-00522A BRACKET-DECK;BD-P1,SECC 1/8H,T2,W 1 SNA

S.N.A AK61-00523A BRACKET-SHAFT FIX;BD-P1,SUS 301-C 1 SNA

S.N.A. 3409-001138 SWITCH-DETECTOR;5V DC,1A,DPST,30G 1 SA

S.N.A. AK41-00319A PCB-MOTOR;DP-R2,PHENOL,1,00,T1.6, 1 SNA

S.N.A. AK41-00320A FFC-HOUSING;DP-R2,PITCH1.0,PET,6P 1 SNA

S.N.A. AK31-00001A MOTOR-LOADING;RF-300EH-1D390,DP-9 1 SA

S.N.A. AK66-00038A PULLEY MOTOR;DP-R1,POM,-,BLK,1.95 1 SNA

S.N.A. AK63-00215A COVER-UPPER;DP-RW,SECC,T0.6,-,-,- 1 SNA

Exploded Views and Parts List

Samsung Electronics This Document can not be used without Samsung’s authorization 5-17

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

T037 AK66-00060A SLIDER-CAM;DP-RW,POM,-,-,-,WHT,- 1 SNA

VS149 AK97-01205A ASSY-MOTOR;ASSY,DP-R2,DP-R2 1 SNA

W018 6003-001450 SCREW-TAPTITE;PH,+,-,S,M2.6,L5,ZP 3 SA

W212 6003-001251 SCREW-TAPTITE;CH,+,-,B,M1.7,L3,ZP 7 SA

W352 6001-000883 SCREW-MACHINE;PH,+,M1.4,L5,ZPC(BL 1 SNA

W353 6003-001199 SCREW-TAPTITE;PWH,+,-,B,M2,L7,ZPC 4 SA

W376 6001-000805 SCREW-MACHINE;CH,+,-,M1.7,L3,NI P 3 SA

W377 6001-001291 SCREW-MACHINE;CH(0.5),*,-,M1.7,L4 3 SA

W378 6001-001452 SCREW-MACHINE;BH,+,-,M1.4,L2.5,ZP 2 SA

W378 6001-001452 SCREW-MACHINE;BH,+,-,M1.4,L2.5,ZP 1 SA

W379 6003-001442 SCREW-TAPTITE;BH,+,B,M1.7,L6,ZPC( 1 SA

W380 6001-001608 SCREW-MACHINE;PH,+,M1.7,L7.5,ZPC( 1 SNA

W381 6003-001449 SCREW-TAPTITE;BH,+,B,M2.6,L6,NI P 5 SNA

W381 6003-001449 SCREW-TAPTITE;BH,+,B,M2.6,L6,NI P 2 SNA

W382 6003-001478 SCREW-TAPTITE;PH,+,B,M2.6,L8,ZPC( 2 SA

W383 6009-001472 SCREW-SPECIAL;CH,HEX,-,M2.6,L6,SK 4 SNA

X1 2801-004180 CRYSTAL-SMD;33.8688MHZ,50PPM,28-A 1 SA

X2 2801-004180 CRYSTAL-SMD;33.8688MHZ,50PPM,28-A 1 SA

X3 2801-004074 CRYSTAL-SMD;40MHz,50ppm,28-AAN,18 1 SA

AK61-00518A HOLDER-FFC PU;BD-P1,POM,2,10,30,W 1 SNA

0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR- 0.167 SNA

AC99-40108S ASSY PCB-VCR MAIN,c;RDR-VX410B,DV 1 SNA

AC99-90105K ASSY SORT-LED,m;DVD-VR300/XAA,DVD 1 SNA

0202-001477 SOLDER-CREAM;LST309-M,-,D20~45##, 2.06 SNA

AK41-00530A PCB-FRONT END;BD-P1000,-,4L,-,T1. 0.5 SNA

AK97-02116A ASSY-BD PLAYER DECK;ASSY,BD-P1400 1 SNA

AK97-02055A ASSY-SUB PICK UP;-,SOH-BP3,BD-PLA 1 SNA

0201-000169 ADHESIVE-CYA;ARCN-A501F,NTR 0.01 SNA

0201-001081 ADHESIVE-AA;1401C,RED,-,BOND-LOCK 0.01 SNA

0201-001525 ADHESIVE-UV;8840L,YEL,TRANS,23000 0.02 SNA

0201-001553 ADHESIVE-TP;G-800-A,GRY,220##40Pa 0.06 SNA

0201-001819 ADHESIVE-UV;8833M,YELLOW,21000mPa 0.09 SNA

0202-001499 SOLDER-WIRE FLUX;SR34 SUPER LFM-4 1 SNA

AK61-00667A SPRING ETC-DVD HOE;SOH-BP1,Pbr,-, 1 SNA

AK63-00281A COVER-ACT;SOH-BP1,SUS-301,T0.3,W1 1 SNA

AK63-00382A PROTECTOR-FILM OL;SOH-DR3,PVC,0.0 1 SNA

AK67-00050A LENS-OL DVD CD;SOH-BP1,PLASTIC,NT 1 SNA

AK69-00488A PAD-THERMAL HOE;BD-P1000,-,T1,W2. 0.003 SNA

AK97-02054A ASSY-OPT;-,SOH-BP3,BD-PLAYER 1 SNA

0201-001081 ADHESIVE-AA;1401C,RED,-,BOND-LOCK 0.01 SNA

0201-001411 ADHESIVE-UV;8833,YEL,50000,250G/1 0.02 SNA

0201-001525 ADHESIVE-UV;8840L,YEL,TRANS,23000 0.02 SNA

0201-001819 ADHESIVE-UV;8833M,YELLOW,21000mPa 0.04 SNA

0201-001988 ADHESIVE-AA;EX-0136,WHT,20000-400 0.05 SNA

0202-001499 SOLDER-WIRE FLUX;SR34 SUPER LFM-4 0.05 SNA

AK61-00505A BASE-PU;SOH-BP3,ZnDC,T8.0,W34.7,L 1 SNA

AK61-00508A HOLDER-DVD CD;SOH-BP1,ZnDC,T1.6,W 1 SNA

AK61-00510A HOLDER-GT;SOH-BP1,ZnDC,T5.3,W5.4, 1 SNA

AK61-00511A HOLDER-ASL;SOH-BP1,ZnDC,T5.0,W10, 1 SNA

AK61-00812A PLATE-PD;SOH-BP3,Zn,T2.35,W12.0,L 1 SNA

AK63-00291A COVER-BASE;SOH-BP1,Pbr,T0.2,W31.5 1 SNA

AK63-00292A COVER-GT;SOH-BP1,Pbr,T0.3,W4.9,L9 1 SNA

AK67-00021B LENS-ASTIGMATIC BD;SOH-BP1,ZEONEX 1 SNA

AK67-00026B LENS-CONDENSING BD;SOH-BP1,ZEONEX 1 SNA

AK67-00042A LENS-MR BD;SOH-BP1,B270,NTR,8.0*5 1 SNA

AK67-00043A LENS-MR DVD;SOH-BP1,B270,NTR,8.0* 1 SNA

AK67-00044A LENS-CL DVD;SOH-BP1,PLASTIC,NTR,P 1 SNA

AK67-00045A LENS-GRATING;SOH-BP1,B270,NTR,3.0 1 SNA

AK67-00049A LENS-CBS;SOH-BP1,BK7,NTR,5*5,5,-, 1 SNA

AK67-00051A LENS-QWP;SOH-BP1,B270,NTR,5*5,1.0 1 SNA

AK97-02056A ASSY-BLU LD;SOH-BP3,BD-PLAYER 1 SNA

0201-001819 ADHESIVE-UV;8833M,YELLOW,21000mPa 0.003 SNA

0602-001153 DIODE-LASER;20mW,2,405nm,- 1 SNA

AK61-00506A HOLDER-BD LD;SOH-BP1,ZnDC,T5.9,W6 1 SNA

AK97-02058A ASSY-FPCB;-,SOH-BP3,BD-PLAYER 1 SNA

0202-001561 SOLDER-CREAM;PF141-LF1H0,41SN/58B 0.05 SNA

0602-001154 LASER-HOLOGRAM;6mW,1.5V,6V 1 SNA

0603-001212 PHOTO-RECEIVER;5.7V,15mA,405nm,- 1 SNA

0603-001213 PHOTO-RECEIVER;5.7V,23mA,405nm,- 1 SNA

1209-001426 IC-OSCILLATOR;EL6203,SOT-23,5P,63 3 SNA

2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA

2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA

2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 3 SA

2007-000156 R-CHIP;30Kohm,5%,1/16W,TP,1005 1 SA

2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 4 SA

2007-000962 R-CHIP;5.1Kohm,1%,1/10W,TP,1608 1 SA

2007-001175 R-CHIP;8.2Kohm,1%,1/10W,TP,1608 2 SA

2007-001433 R-CHIP;12Kohm,1%,1/10W,TP,1608 2 SA

2007-002796 R-CHIP;510OHM,5%,1/16W,TP,1005 1 SA

2104-001087 VR-SMD;2.2Kohm,25%,0.15W,TOP 2 SA

2104-001125 VR-SMD;1KOHM,25%,1/10W,TOP 1 SA

2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,1005 1 SA

2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1005 13 SA

3301-001808 BEAD-SMD;120ohm,1005,TP,530ohm/39 12 SA

3708-001175 CONNECTOR-FPC/FFC/PIC;8P,0.5MM,SM 1 SA

3708-001915 CONNECTOR-FPC/FFC/PIC;54P,0.5MM,S 1 SA

AK41-00734A FPC-BDP;SOH-BDP,3.3,RIGID FPDB,54 1 SNA

0202-001477 SOLDER-CREAM;LST309-M,-,D20~45##, 0.05 SNA

AK97-02060A ASSY-CLD;-,SOH-BP3,BD-PLAYER 1 SNA

0201-001388 ADHESIVE-CYA;LOCTITE 460,WHT,45 M 0.005 SNA

0201-001525 ADHESIVE-UV;8840L,YEL,TRANS,23000 0.02 SNA

0201-001709 ADHESIVE-UV;8839L,YEL,24500mPa.s, 0.01 SNA

0202-001499 SOLDER-WIRE FLUX;SR34 SUPER LFM-4 0.05 SNA

0205-001226 GREASE;FLOIL KG-513,WHT,1KG 0.01 SNA

0604-001302 PHOTO-INTERRUPTER;TR,-,100mW,-,- 1 SA

AK31-00030A MOTOR STEP-CLD;-,SOH-BP1,-,-,-,2. 1 SNA

AK41-00737A FPC-CLD;SOH-BDP3,-,POLYMIDE,8,0.1 1 SNA

AK61-00534A BASE-CLD;SOH-BP3,ZN,T4.6,W14.1,L2 1 SNA

AK61-00545A SPRING ETC-CLD;SOH-BP1,STS304-WBP 1 SNA

AK61-00811A HOLDER-CL;SOH-BP3,PPS,T1,W17.7,L2 1 SNA

AK66-00076A SHAFT-MAIN CLD;SOH-BP1,SUS303C,25 1 SNA

AK66-00077A SHAFT-SUB CLD;SOH-BP1,SUS303C,12. 1 SNA

AK67-00079A LENS-CL BD;SOH-BP3,GLASS,NTR,PI 5 1 SNA

AK97-02059A ASSY-ACT;-,SOH-BP3,BD-PLAYER 1 SNA

0201-001081 ADHESIVE-AA;1401C,RED,-,BOND-LOCK 0.005 SNA

0201-001230 ADHESIVE-CYA;LOCTITE 480,BLK,300, 0.005 SNA

0201-001371 ADHESIVE-SIL;KE3494,GRAY,50 PA,OL 0.005 SNA

0201-001525 ADHESIVE-UV;8840L,YEL,TRANS,23000 0.05 SNA

0201-001537 ADHESIVE-UV;SDM-378,WHT,11000mPas 0.05 SNA

0201-001709 ADHESIVE-UV;8839L,YEL,24500mPa.s, 1 SNA

0202-001499 SOLDER-WIRE FLUX;SR34 SUPER LFM-4 0.05 SNA

3302-001643 MAGNET-RARE EARTH;AF,-,14000Gauss 2 SNA

3812-001436 WIRE-NO SHEATH CU;SCM,-,15.5,-,-, 4 SNA

3812-001437 WIRE-NO SHEATH CU;SCM,-,15.5,-,-, 2 SNA

AK41-00413A PCB-HOLDER-WIRE;SOH-BP1,EPOXY,1,0 1 SNA

AK61-00513A BASE-YOKE;SOH-BP1,SPCC,T1.2,W18.5 1 SNA

AK67-00046A LENS-PHOE;SOH-BP1,B270,NTR,3.5*3. 1 SNA

AK67-00064A LENS-OL BD;SOH-BP1,GLASS,NTR,PI4. 1 SNA

AK97-01425A ASSY-BLADE;-,SOH-BP1,BD Player 1 SNA

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

Exploded Views and Parts List

5-18 This Document can not be used without Samsu ng’s authorization Samsung Electronics

Loc.No Loc.No Description ; Specification Q'ty S.N.A Remark

AK61-00512A BLADE;SOH-BP1,VECTRA A130,GRAY,9. 1 SNA

C002 AK64-02105A DOOR-TRAY;BD-P1400,ABS 94HB,T2,H2 1 SA

C011 AK61-00519A SPRING ETC-DOOR;DVD-SR420,STS304W 1 SA

C928 AK63-00197A GASKET-EMI;DP-R1,EMI sheet,T0.1,W 1 SA

FL623 3809-001833 CABLE-FLAT;30V,80C,200mm,40P,0.5m 1 SA

IB AK68-01457E MANUAL USERS;BD-P1400/XEF,XEF,FRA 1 SA

M210 AK81-00006B WASHER-HEX;SWCH18A,7,12,2.5,BLK,- 2 SA

P-CASE AK69-00574F PACKING CASE;BD-P1400/XEU,PAPER,S 1 SA

RCA/C MF39-00274A CABLE RCA;SIR-S4120R,-,-,3P,1830, 1 SA

VS227 AK39-00096A LEAD CONNECTOR;BD-P1000,UL 1007#2 1 SA

W001 6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC 8 SA

W009 6003-000276 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC 4 SA

W271 6009-001411 SCREW-SPECIAL;TH,+,-,M5,L14,NI PL 2 SA

W275 6003-001561 SCREW-TAPTITE;BH,+,-,B,M3,L6,ZPC( 3 SA

W344 6003-001076 SCREW-TAPTITE;BH,+,-,S,M3,L6,ZPC( 1 SA

W348 6003-000255 SCREW-TAPTITE;BWH,+,-,B,M3,L8,ZPC 7 SA

6. PCB Diagrams

6-1 Wiring Diagram ----------------------------------------------------------------------------------------------------------------- 6-2

6-2 Main PCB --------------------------------------------------------------------------------------------------------------------------- 6-3

6-3 S.M.P.S PCB ----------------------------------------------------------------------------------------------------------------------- 6-6

6-4 Front PCB -------------------------------------------------------------------------------------------------------------------------- 6-8

6-5 Power Key PCB ----------------------------------------------------------------------------------------------------------------- 6-9

Samsung Electronics 6-1

6-2 Samsung Electronics

PCB Diagrams

6-1 Wiring Diagram

Samsung Electronics

6-3

PCB Diagrams

6-2 Main PCB

COMPONENT SIDE

LOC.NO X-Y

UCON1 A-0

CEIC1 A-0

CEC+CON1 A-2

PIC4 A-3

PIC3 A-4

PIC7 A-5

MIC6 B-1

MIC9 B-2

UIC7 B-3

AIC2 B-4

AIC6 B-5

MIC2 C-0

AIC5 C-5

AIC4 C-5

MIC4 D-0

MIC1 D-2

PIC1 E-1

FPCON1 F-0

NIC1 F-2

PCI1 F-3

HIC6 F-4

FCON1 H-0

6-4 Samsung Electronics

PCB Diagrams

q FCON1 PIN 25

t Pr(Color-bar)

Pin (MIC1-VE26)

r Pb(Color-bar)

Pin (MIC1-VE27)

e Y(Color-bar)

Pin (MIC1-VE28)

y Digital Video signal

MIC1 (HRN1~HRN6)

w UX7 _CLOCK SIGNAL (27MHz)

u HDMI OUTPUT DATA

HIC6 (pin30,31,33,34,36,37,39,40)

i ANALOG AUDIO

DATA(AIC4,5,6,7)

Samsung Electronics

6-5

PCB Diagrams

q DIGITAL AUDIO DATA

AIC1 (Pin2,4,6,13)

w Y(Color-bar)

Pin (MIC1-VC2,VIC1-VR7)

e C(Color-bar)

Pin (MIC1-VC3,VIC1-VR21)

r CVBS(Color-bar)

Pin (MIC1-VC4,VIC1-VR22)

LOC.NO X-Y

AIC1 A-5

U2505 B-1

U2504 B-2

U7 B-2

HIC7 B-3

HIC10 B-4

PIC77 C-1

MIC3 D-0

VIC3 D-4

MIC5 E-0

VIC1 E-4

PIC11 G-0

PIC5 G-3

CONDUCTOR SIDE

u Pr(Color-bar)

Pin-VR46

y Pb(Color-bar)

Pin-VR44

t Y(Color-bar)

Pin-VR37

6-6 Samsung Electronics

PCB Diagrams

6-3 S.M.P.S PCB

COMPONENT SIDE

LOC.NO X-Y

CN2 A-0

CN1 A-1

IC2S51 C-3

IC1S81 E-1

IC1S12 E-1

IC1S11 F-1

Samsung Electronics

6-7

PCB Diagrams

CONDUCTOR SIDE

6-8 Samsung Electronics

PCB Diagrams

6-4 Front PCB

COMPONENT SIDE

CONDUCTOR SIDE

q Remote control eye data

FU3 Pin3

Samsung Electronics

6-9

PCB Diagrams

6-5 Power Key PCB

COMPONENT SIDE CONDUCTOR SIDE

6-10 Samsung Electronics

PCB Diagrams

M E M O

Samsung Electronics This Document can not be used without Samsung’s authorization 7-1

7. Schematic Diagrams

7-1 All block Diagram ----------------------------------------------------------------------------------------7-2

7-2 Power ------------------------------------------------------------------------------------------------------------7-3

7-3 S.M.P.S (S.M.P.S PCB) ----------------------------------------------------------------------------------7-5

7-4 SMP8634 DDR SDRAM (Main PCB) -------------------------------------------------------------7-6

7-5 SMP8634 Flash Memory (Main PCB) ----------------------------------------------------------7-7

7-6 Nand Flash, Controller (Main PCB) -------------------------------------------------------------7-8

7-7 SMP8634 Power, Decoupling (Main PCB) --------------------------------------------------7-9

7-8 Sil9134 HDMI (Main PCB) --------------------------------------------------------------------------7-10

7-9 HDMI-CEC (Main PCB) --------------------------------------------------------------------------------7-11

7-10 Ethernet contol (Main PCB) --------------------------------------------------------------------7-12

7-11 Audio (Main PCB) -------------------------------------------------------------------------------------7-13

7-12 SMP8634 GPIO Control, JTAG, Debug (Main PCB) ---------------------------------7-14

7-13 MM1757 Analog Video Out (Main PCB) --------------------------------------------------7-15

7-14 PATA Control (Main PCB) -------------------------------------------------------------------------7-16

7-15 Power (Main PCB) ------------------------------------------------------------------------------------7-17

7-16 PCI, ETC (Main PCB) ---------------------------------------------------------------------------------7-18

7-17 Front Interface (Main PCB) ---------------------------------------------------------------------7-19

7-18 Front (Front PCB) -------------------------------------------------------------------------------------7-20

7-19 Power Key (Power Key PCB) -------------------------------------------------------------------7-21

This ㅁDocument can not be used without Samsung’s authorization 7-1

Samsung Electronics

● For schematic Diagram

- Resistors are in ohms, 1/8W unless otherwise noted.

Note :

Do not use the part number shown on this drawing for ordering. The correct part number is shown in the parts list

(may be slightly different or amended since this drawing was prepared).

Special note :

Most semiconductor devices are electrostatically sensitive and therefore require the special handling techniques

described under the “electrostatically sensitive (ES) devices” section of this service manual.

Important safety notices :

Components identied with the mark have the special characteristics for safety. When replacing any of these

components. Use only the same type.

Note

7-2 This Document can not be used without Samsung’s authorization Samsung Electronics

Schematic Diagrams

7-1 All block Diagram

Schematic Diagrams

Samsung Electronics This Document can not be used without Samsung’s authorization 7-3

7-2 Power

7-2-1 About S.M.P.S (Ringing Choke Converter Method)

u Terms

1) 1st : Common power input to 1st winding.

2) 2nd : Circuit followings output winding of transformer.

3) f (Frequency) : Switching frequency (T : Switching cycle)

4) Duty : (Ton/T) x 100

7-2-2 Circuit description [FLY-Back RCC(Ringing Choke Converter)] Control

(a) AC Power Rectication/Smoothing Terminal

1) A01~04 : Convert AC power to DC (Wave rectication).

2) CIS01 : Smooth the voltage converted to DC.

3) LIS01, LISO2, CIS04, CIS05 : Noise removal at power input/output.

4) RIS04 : Rush current limit resistance at the momemt of power cord insertion.

· Without PLRU1, the bridge diode might be damaged as the rush current increases.

Fig. 7-1

Fig. 7-2

(b) SNUBBER Circuit :

RIS02, RIS03, CIS08, CIS07, DIS05

1) Prevent residual high voltage at the terminals of

switch during switch off/Suppress noise.

High inverted power occurs at switch off,

because of the 1st winding of transformer :

(V=-L1 xdi/dt. L1 : Leakage Induction)

A very high residual voltage exist on both terminals

of ICIS01 because dt is a very short.

2) SNUBBER circuit protects ICIS01 from damage

through leakage voltage suppression by RC,

(Charges the leakage voltage to DIS05 and CIS08

and discharges to RIS03, RIS02).

3) CIS07 : For noise removal

1) ICIS01, RIS05, RIS07,RIS08 : ICIS01 driving resistance (ICIS01 works through driving resistance at power

cord in)

2) ICIS01 Vcc : RIS05, RIS07, RIS08

  q Use the output of transformer as Vcc,because the current starts to ow into transformer while ICIS01 is

active

  w Rectify to DIS07 and smooth to CIS09.

  e Use the output of transformer as ICIS01 Vcc : The loads are different before and after ICIS01 driving.

(Vcc of ICIS01 decreases below OFF voltage , using only the resistance dut to lode increase after ICIS01

driving.)

7-4 This Document can not be used without Samsung’s authorization Samsung Electronics

Schematic Diagrams

(d) Feedback Control Circuit

Fig. 7-4

1) F/B terminal of PQIZ1 determines output duty cyle.

2) C-E (Collector-Emitter) of PQIZ1 and F/B potential of PQIZ1 are same.

7-2-3 Internal Block Diagram (Internal Block Diagram of S.M.P.S Circuit)

Fig. 7-3

Schematic Diagrams

Samsung Electronics This Document can not be used without Samsung’s authorization 7-5

7-3 S.M.P.S (S.M.P.S PCB)

7-6 This Document can not be used without Samsung’s authorization Samsung Electronics

Schematic Diagrams

7-4 SMP8634 DDR SDRAM (Main PCB)

Schematic Diagrams

Samsung Electronics This Document can not be used without Samsung’s authorization 7-7

7-5 SMP8634 Flash Memory (Main PCB)

7-8 This Document can not be used without Samsung’s authorization Samsung Electronics

Schematic Diagrams

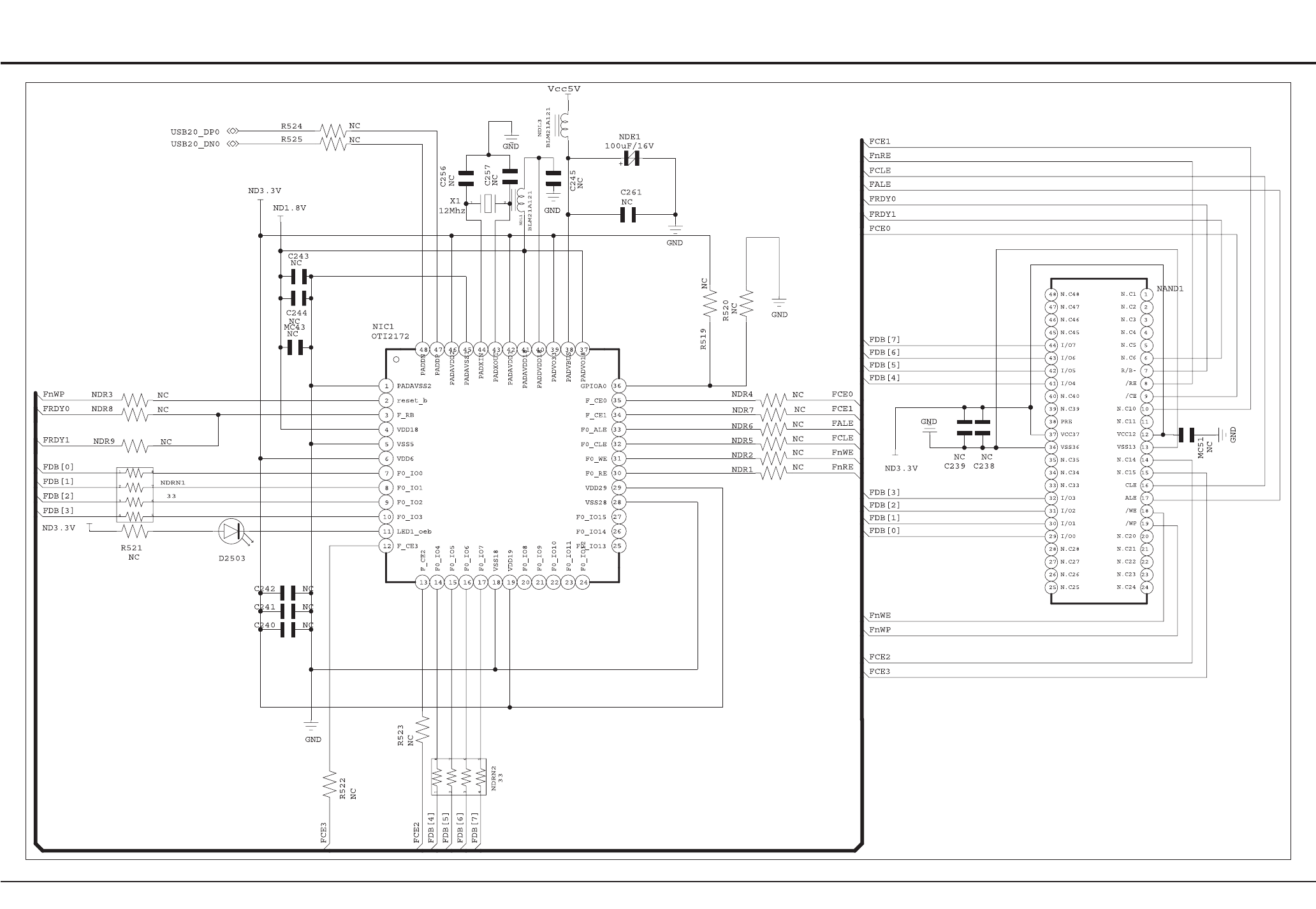

7-6 Nand Flash, Controller (Main PCB)

Schematic Diagrams

Samsung Electronics This Document can not be used without Samsung’s authorization 7-9

7-7 SMP8634 Power, Decoupling (Main PCB)

7-10 This Document can not be used without Samsung’s authorization Samsung Electronics

Schematic Diagrams

7-8 Sil9134 HDMI (Main PCB)

qHDMI OUTPUT DATA

HIC6 (pin30,31,33,34,36,37,39,40)

u These are the waveforms of BD-P1400

Caution There can be some differences (Voltage, Frequency, stc.) among cameras.

wDigital Video signal

MIC1 (HRN1~HRN6)

Schematic Diagrams

Samsung Electronics This Document can not be used without Samsung’s authorization 7-11

7-9 HDMI-CEC (Main PCB)

7-12 This Document can not be used without Samsung’s authorization Samsung Electronics

Schematic Diagrams

7-10 Ethernet contol (Main PCB)

Schematic Diagrams

Samsung Electronics This Document can not be used without Samsung’s authorization 7-13

7-11 Audio (Main PCB)

qDIGITAL AUDIO DATA

AIC1 (Pin2,4,6,13)

u These are the waveforms of

BD-P1400

Caution There can be some differ

ences (Voltage, Frequency, stc.)

among cameras.

ANALOG AUDIO DATA(AIC4,5,6,7)

7-14 This Document can not be used without Samsung’s authorization Samsung Electronics

Schematic Diagrams

7-12 SMP8634 GPIO Control, JTAG, Debug (Main PCB)

wUX7 _CLOCK SIGNAL (27MHz)

u These are the waveforms of

BD-P1400

Caution There can be some differ

ences (Voltage, Frequency, stc.)

among cameras.

Schematic Diagrams

Samsung Electronics This Document can not be used without Samsung’s authorization 7-15

7-13 MM1757 Analog Video Out (Main PCB)

ePr(Color-bar)

Pin (MIC1-VE28,VR46)

wPb(Color-bar)

Pin (MIC1-VE27,VR44)

qY(Color-bar)

Pin (MIC1-VE26,VR37)

rY(Color-bar)

Pin (MIC1-VC2,VIC1-VR7)

tC(Color-bar)

Pin (MIC1-VC3,VIC1-VR21)

yCVBS(Color-bar)

Pin (MIC1-VC4,VIC1-VR22)

u These are the waveforms of BD-P1400

Caution There can be some differences (Voltage, Frequency, stc.) among cameras.

7-16 This Document can not be used without Samsung’s authorization Samsung Electronics

Schematic Diagrams

7-14 PATA Control (Main PCB)

qFCON1 PIN 25

u These are the waveforms of BD-P1400

Caution There can be some differences (Voltage, Frequency, stc.) among cameras.

Schematic Diagrams

Samsung Electronics This Document can not be used without Samsung’s authorization 7-17

7-15 Power (Main PCB)

7-18 This Document can not be used without Samsung’s authorization Samsung Electronics

Schematic Diagrams

7-16 PCI, ETC (Main PCB)

Schematic Diagrams

Samsung Electronics This Document can not be used without Samsung’s authorization 7-19

7-17 Front Interface (Main PCB)

7-20 This Document can not be used without Samsung’s authorization Samsung Electronics

Schematic Diagrams

7-18 Front (Front PCB)

Power

qRemote control eye data

FU3 Pin3

u These are the waveforms of BD-P1400

Caution There can be some differences (Voltage,

Frequency, stc.) among cameras.

Schematic Diagrams

Samsung Electronics This Document can not be used without Samsung’s authorization 7-21

7-19 Power Key (Power Key PCB)

M E M O

7-22 Samsung Electronics

Schematic Diagrams

BDP1400

Navigation menu

Versions of this User Manual:

Views

Navigation
