IMPORTANT SAFETY NOTICE
Proper service and repair is important to the safe, reliable operation of all
Philips Equipment. The service procedures recommended by Philips and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.
It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Philips could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Philips has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Philips must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.
TABLE OF CONTENTS
LASER BEAM SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1
IMPORTANT SAFETY PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1
STANDARD NOTES FOR SERVICING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1
OPERATING CONTROLS AND FUNCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1
SIGNAL NAME ABBREVIATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1
CABINET DISASSEMBLY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1
HOW TO INITIALIZE THE BLU-RAY DISC PLAYER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1
FIRMWARE RENEWAL MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1
BLOCK DIAGRAMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1
SCHEMATIC DIAGRAMS / CBA’S. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1
WAVEFORMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1
SYSTEM CONTROL TIMING CHARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1
IC PIN FUNCTION DESCRIPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1
LEAD IDENTIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1
ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17-1
EXPLODED VIEWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18-1
MECHANICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19-1
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
1-1-1 B1.5P_LSP
LASER BEAM SAFETY PRECAUTIONS
This BD player uses a pickup that emits a laser beam.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.

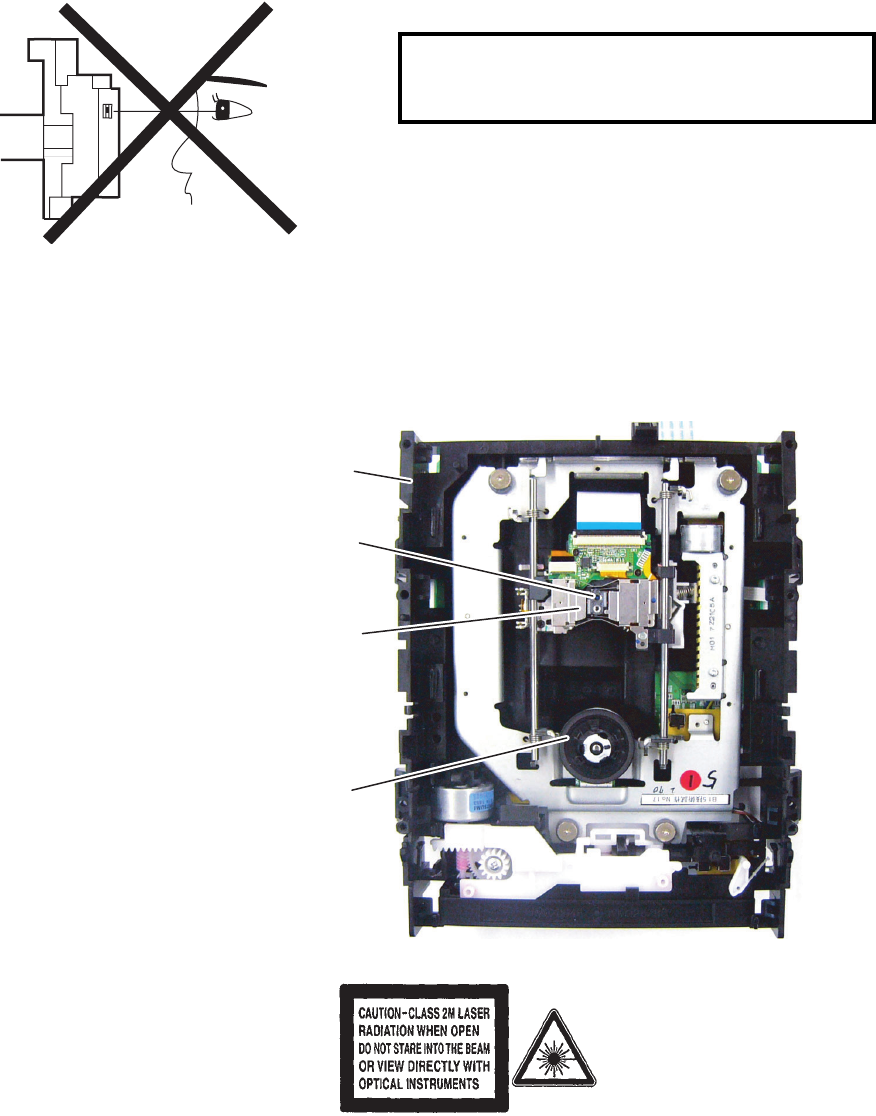

Location: Inside Top of BD mechanism.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
Drive Mechanism Assembly
Laser Beam Radiation
Laser Pickup
Turntable
1-2-1 BDP_ISP
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not evi-
dent from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a ! on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review continu-
ously and new instructions are issued whenever
appropriate. Prior to shipment from the factory, our
products are carefully inspected to confirm with the
recognized product safety and electrical codes of the
countries in which they are to be sold. However, in
order to maintain such compliance, it is equally impor-
tant to implement the following precautions when a set
is being serviced.
Precautions during Servicing
A. Parts identified by the ! symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise block-
ing capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1)Wires covered with PVC tubing
2)Double insulated wires
3)High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1)Insulation tape
2)PVC tubing
3)Spacers
4)Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder-
ing.
F. Observe that the wires do not contact heat produc-
ing parts (heatsinks, oxide metal film resistors, fus-
ible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Use care that foreign objects (screws, solder drop-
lets, etc.) do not remain inside the set.
K. When connecting or disconnecting the internal
connectors, first, disconnect the AC plug from the
AC outlet.
1-2-2 BDP_ISP
Safety Check after Servicing
Examine the area surrounding the repaired location
for damage or deterioration. Observe that screws,
parts, and wires have been returned to their original
positions. Afterwards, do the following tests and con-
firm the specified values to verify compliance with
safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between sol-
dered terminals, and between terminals and surround-
ing metallic parts. (See Fig. 1)
Table 1 : Ratings for selected area
Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF termi-
nals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.
Measuring Method (Power ON) :
Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.

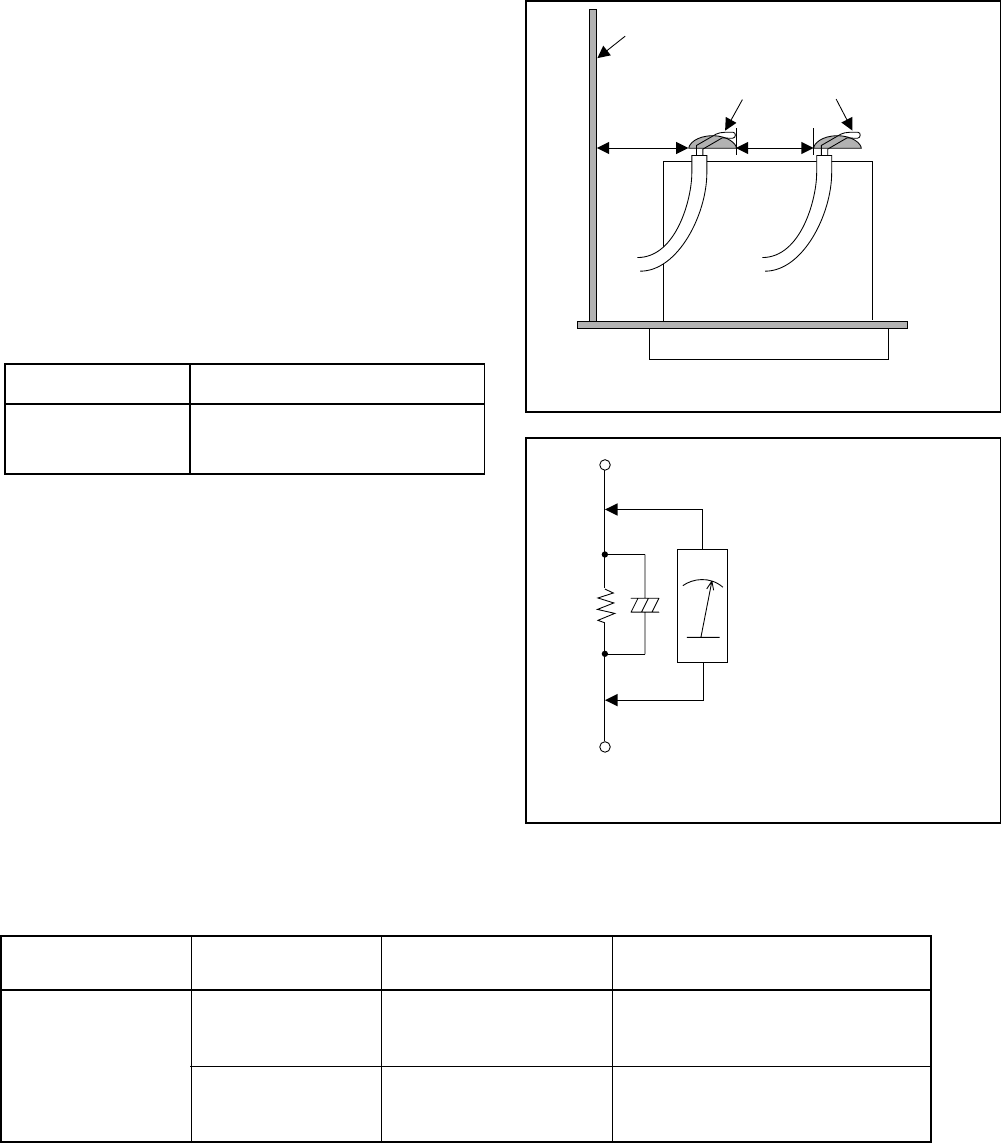

AC Line Voltage Clearance Distance (d), (d’)
230 V ≥ 3 mm(d)
≥ 6 mm(d’)
Fig. 1
Chassis or Secondary Conductor
Primary Circuit
d' d
AC Voltmeter
(High Impedance)
Exposed Accessible Part
BOne side of
Power Cord Plug Prongs
Z
Fig. 2
Table 2: Leakage current ratings for selected areas
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage Load Z Leakage Current (i) One side of power cord plug
prongs (B) to:
230 V
2kΩ RES.
Connected in
parallel
i≤0.7mA AC Peak
i≤2mA DC
RF or
Antenna terminals
50kΩ RES.
Connected in
parallel
i≤0.7mA AC Peak
i≤2mA DC A/V Input, Output
1-3-1 B1N_PC_SN
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is
indicated as shown.

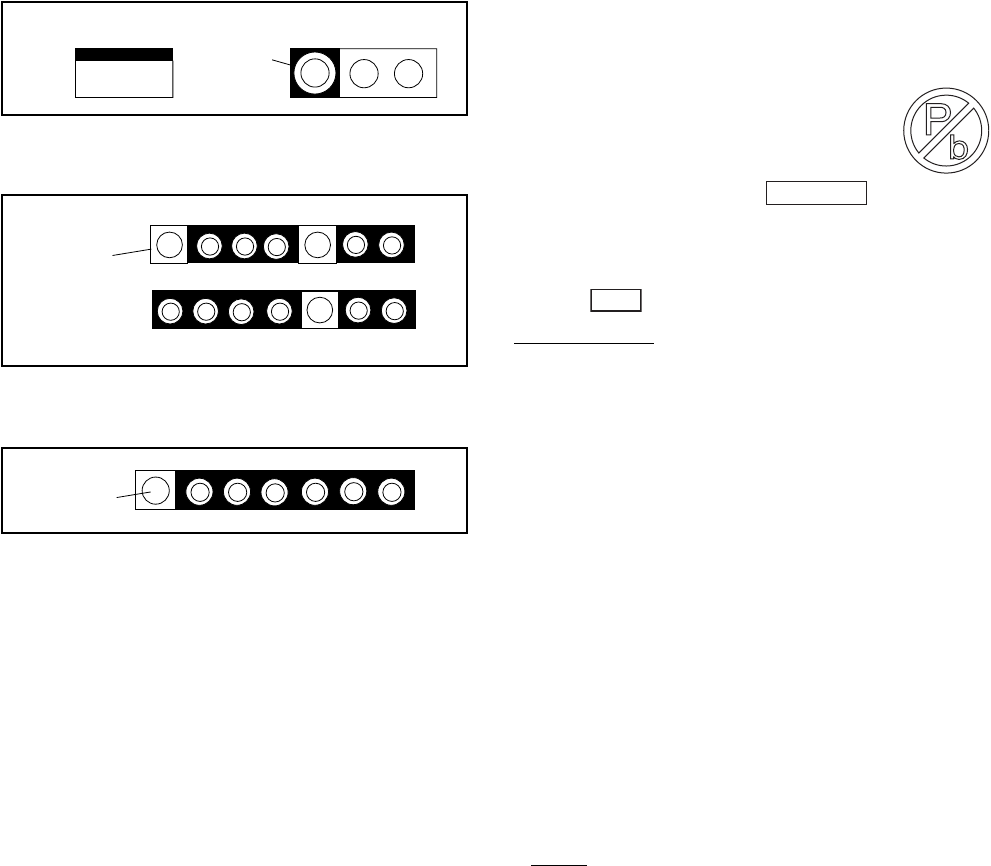

2. For other ICs, pin 1 and every fifth pin are
indicated as shown.
3. The 1st pin of every male connector is indicated as
shown.
Instructions for Connectors

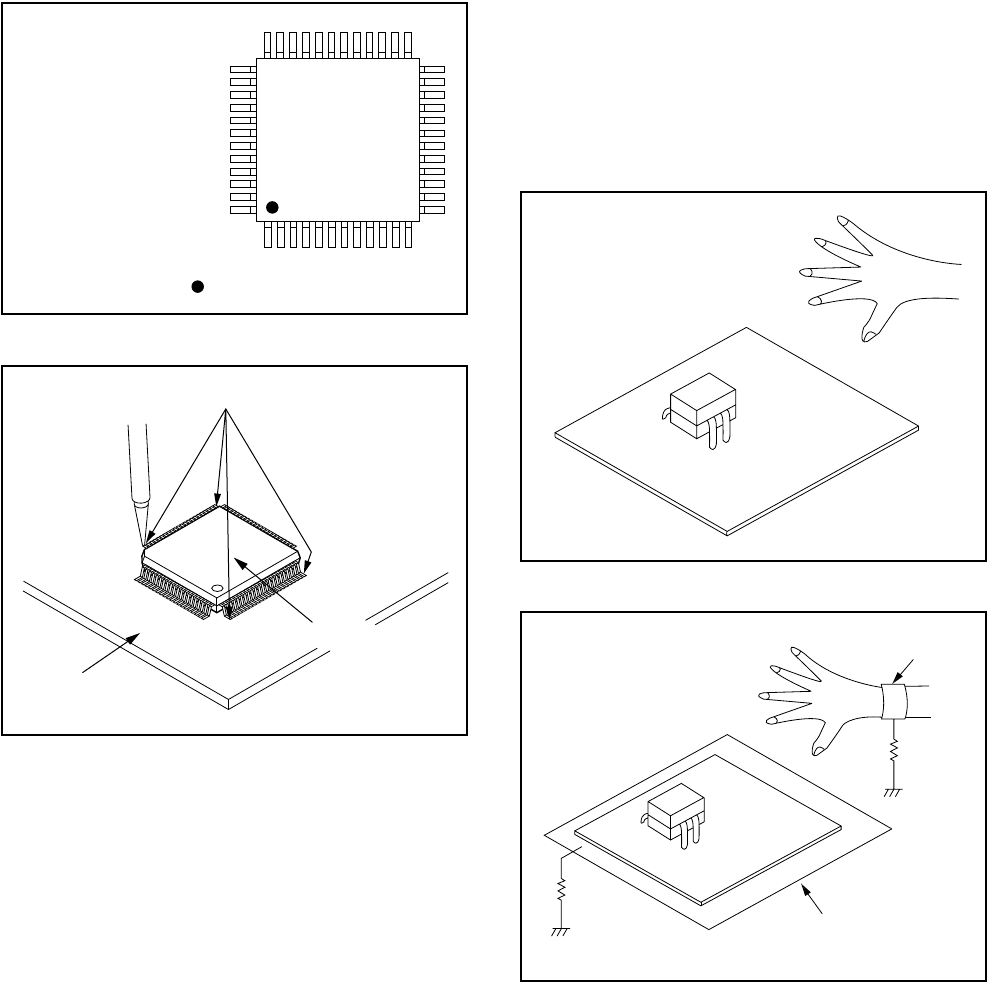

1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.
Information about lead-free soldering
Philips CE is producing lead-free sets from 1.1.2005
onwards.
IDENTIFICATION
Regardless of special logo (not always
indicated)
One must treat all sets from
onwards, according to the next rule:
Serial Number gives a 14-digit. Digit 5&6 shows the
YEAR, and digit 7&8 shows the WEEK.
So from onwards=from 1 Jan 2005 onwards
Important note: In fact also products of year 2004
must be treated in this way as long as you avoid
mixing solder-alloys (leaded/ lead-free). So best to
always use SAC305 and the higher temperatures
belong to this.
Due to lead-free technology some rules have to be
respected by the workshop during a repair:
•Use only lead-free solder alloy Philips SAC305 with
order code 0622 149 00106. If lead-free solder-
paste is required, please contact the manufacturer
of your solder-equipment. In general use of solder-
paste within workshops should be avoided because
paste is not easy to store and to handle.
•Use only adequate solder tools applicable for lead-
free solder alloy. The solder tool must be able
•To reach at least a solder-temperature of 400°C,
•To stabilize the adjusted temperature at the solder-
tip
•To exchange solder-tips for different applications.
•Adjust your solder tool so that a temperature around
360°C - 380°C is reached and stabilized at the
solder joint. Heating-time of the solder-joint should
not exceed ~ 4 sec. Avoid temperatures above
400°C otherwise wear-out of tips will rise drastically
and flux-fluid will be destroyed. To avoid wear-out of
tips switch off un-used equipment, or reduce heat.
•Mix of lead-free solder alloy / parts with leaded
solder alloy / parts is possible but PHILIPS
recommends strongly to avoid mixed solder alloy
types (leaded and lead-free).
If one cannot avoid or does not know whether
product is lead-free, clean carefully the solder-joint
from old solder alloy and re-solder with new solder
alloy (SAC305).
•Use only original spare-parts listed in the Service-
Manuals. Not listed standard-material (commodities)
has to be purchased at external companies.
Top View
Out In
Bottom View
Input
5
10
Pin 1
Pin 1
1 Jan 2005
0501
1-3-2 B1N_PC_SN
•Special information for BGA-ICs:
- always use the 12nc-recognizable soldering
temperature profile of the specific BGA (for de-
soldering always use the lead-free temperature
profile, in case of doubt)
- lead free BGA-ICs will be delivered in so-called
'dry-packaging' (sealed pack including a silica gel
pack) to protect the IC against moisture. After
opening, dependent of MSL-level seen on indicator-
label in the bag, the BGA-IC possibly still has to be
baked dry. (MSL=Moisture Sensitivity Level). This
will be communicated via AYS-website.
Do not re-use BGAs at all.
•For sets produced before 1.1.2005 (except products
of 2004), containing leaded solder-alloy and
components, all needed spare-parts will be available
till the end of the service-period. For repair of such
sets nothing changes.
•On our website
www.atyourservice.ce.Philips.com you find more
information to:
•BGA-de-/soldering (+ baking instructions)
•Heating-profiles of BGAs and other ICs used in
Philips-sets
You will find this and more technical information within
the “magazine”, chapter “workshop news”.
For additional questions please contact your local
repair-helpdesk.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
2. Remove the flat pack-IC with tweezers while
applying the hot air.
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
CAUTION:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

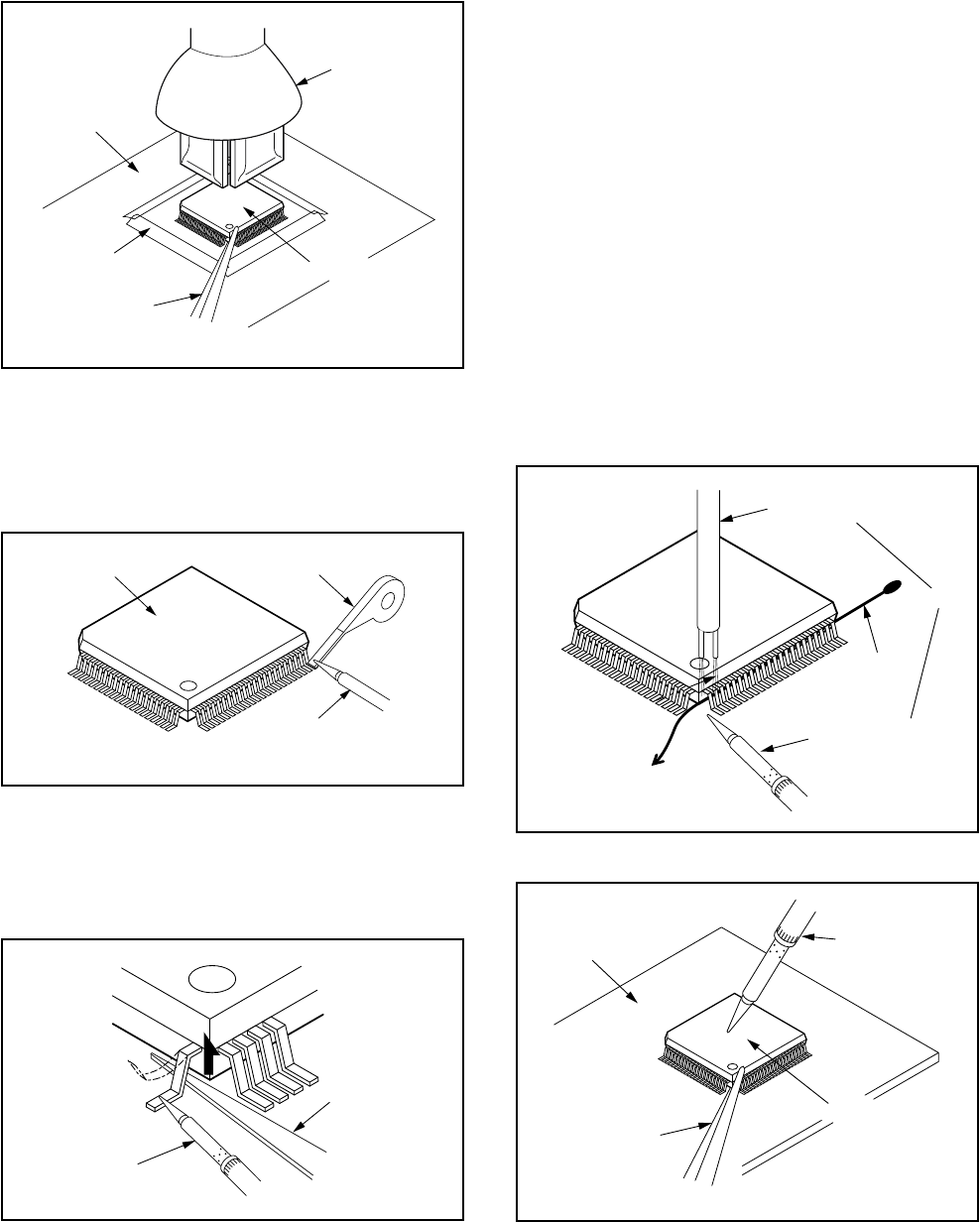

Fig. S-1-1
1-3-3 B1N_PC_SN
3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.
With Soldering Iron:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
With Iron Wire:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.
4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Note: When using a soldering iron, care must be
taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape
Fig. S-1-2
Flat Pack-IC Desoldering Braid
Soldering Iron
Fig. S-1-3
Fine Tip
Soldering Iron
Sharp
Pin
Fig. S-1-4
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6
1-3-4 B1N_PC_SN
2. Installation
1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
2. The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
Instructions for Handling Semi-
conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark. Fig. S-1-7
Presolder
CBA
Flat Pack-IC
Fig. S-1-8
<Incorrect>
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA
1-4-1 E5J10IB

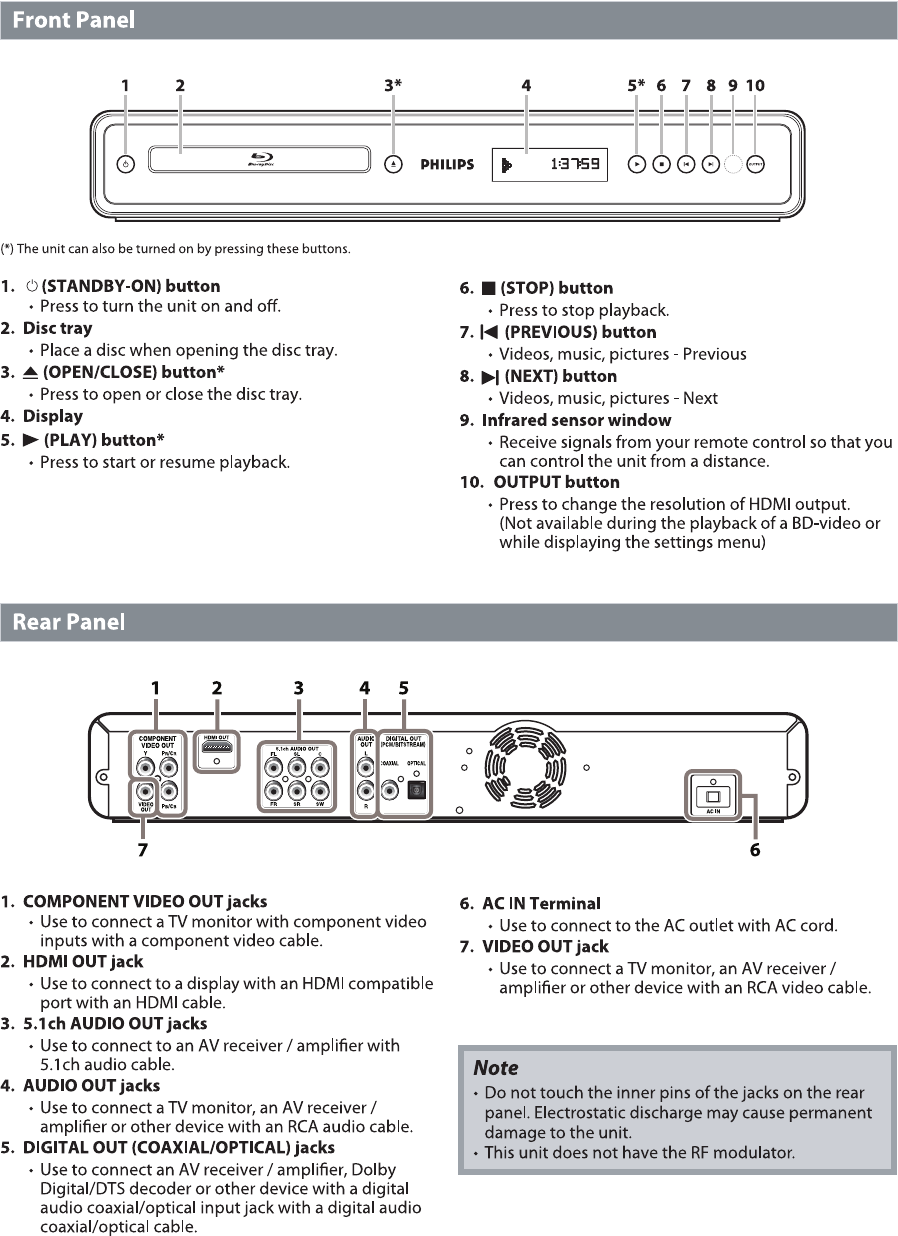

OPERATING CONTROLS AND FUNCTIONS
1-4-2 E5J10IB
1-5-1 E5J10SNA
SIGNAL NAME ABBREVIATIONS
Signal Name Function
A33-PW-CONT Power Regulator Control Signal
AL+12V Always +12V with AC Plug
Connected
AL+2.5V Always +2.5V with AC Plug
Connected
AL+5V Always +5V with AC Plug
Connected
AUDIO(L) Audio Left Signal
AUDIO(L)-
MUTE
Audio Mute Control Left Signal
(Mute = “H”)
AUDIO(R) Audio Right Signal
AUDIO(R)-
MUTE
Audio Mute Control Right Signal
(Mute = “H”)
AUDIO+3.3V +3.3V Power Supply (Audio)
AUDIO+5V +5V Power Supply (Audio)
AUDIO+12V +12V Power Supply (Audio)
AUDIO-MUTE Audio Mute Control Signal
CEC-IN CEC Signal Input
CEC-OUT CEC Signal Output
CENTER Center Audio Signal (5.1ch)
CENTER-MUTE Center Audio Mute Signal
(Mute=“L”)
EV+3.3V +3.3V Power Supply
F1 Filament Power Supply 1
F2 Filament Power Supply 2
FAN-CONT Fan Motor Control Signal
FAN-DETECT Fan Signal Detect
FAN-VCC Power Supply for Fan Motor
FL FIP Drive Power Supply
FL-CS FL Chip Select Signal
FL-RESET FL3000 Reset
FL-SCL FL Serial Clock
FL-SDA FL Serial Data
FL-SW FL On/Off Control Signal
FRONT-
AUDIO(L) Front Audio Left Signal (5.1ch)
FRONT-AUDIO
(L)-MUTE
Front Audio Mute Left Signal
(Mute=“L”)
FRONT-
AUDIO(R) Front Audio Right Signal (5.1ch)
FRONT-AUDIO
(R)-MUTE
Front Audio Mute Right Signal
(Mute=“L”)
GND Ground
IIC-BUS SCL IIC-BUS Serial Clock
IIC-BUS SDA IIC-BUS Serial Data
KEY-1 Key Data Input 1
MAIN-P-ON Power On Signal
MODE1 Mode 1 Signal
MODE2 Mode 2 Signal
OSC1 Main Clock Output
OSC2 Main Clock Input
P-ON+1.2V +1.2V at Power On Signal
P-ON+10.5V +10.5V at Power On Signal
P-ON+12V +12V at Power On Signal
P-ON+3.3V +3.3V at Power On Signal
P-ON+5V +5V at Power On Signal
PWSW1 Power On Signal Output1
PWSW2 Power On Signal Output2
PWSW3 Power On Signal Output3
RDY Ready/Busy communication
Control Signal
REMOTE Remote Signal Input
RESET Micro Controller Reset Signal
SAFETY Power Supply Failure Detection
SPDIF Digital Audio Interface Format
Signal
STANDBY-LED Standby LED Control Signal
SUB WOOFER Sub Woofer Signal
SUB WOOFER-
MUTE Sub Woofer Mute Signal (Mute=“L”)
SUB-RXD Reception Data from Main Micro
Controller
SUB-TXD Transmission Data to Main Micro
Controller
SURROUND(L) Surround Audio Left Signal (5.1ch)
SURROUND(R) Surround Audio Right Signal
(5.1ch)
SURROUND-
MUTE
Surround Audio Mute
Signal(Mute=“L”)
SYS-RESET System Reset Signal
V5V-PW-SW Video+5V Power Control
VDD +3.3V Power Supply
VIDEO Composite Video Signal
VIDEO-Pb/Cb Component Video Signal (Pb/Cb)
VIDEO-Pr/Cr Component Video Signal (Pr/Cr)
VIDEO-Y(I/P) Component Video (Luminance)
Signal (Interlace / Progressive)
VREF Ground
Signal Name Function
1-6-1 E5J10DC

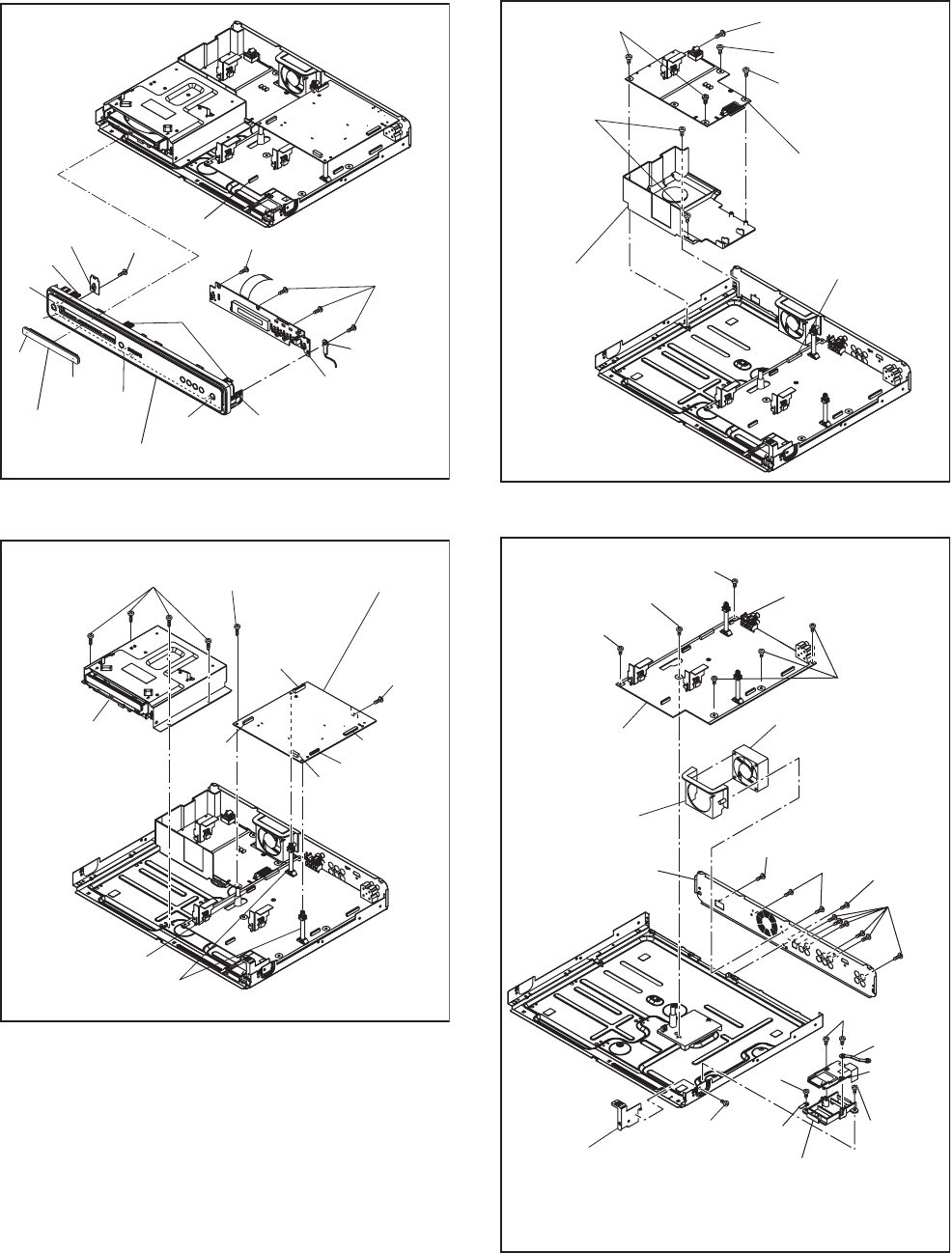

CABINET DISASSEMBLY INSTRUCTIONS

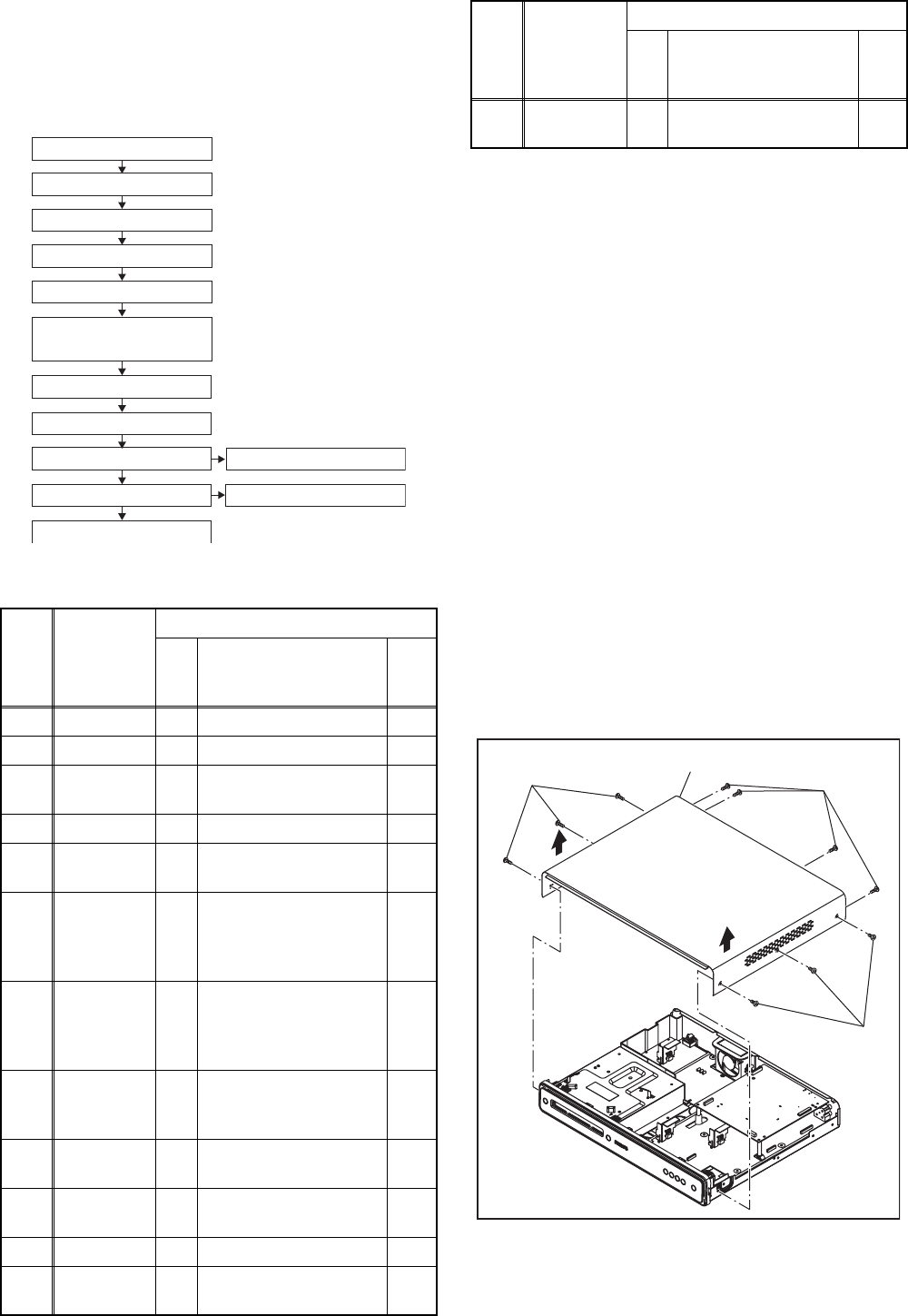

1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly Method
Note:
(1) Identification (location) No. of parts in the figures
(2) Name of the part
(3) Figure Number for reference
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5) Refer to “Reference Notes.”
Reference Notes
1. CAUTION 1: Locking Tabs (L-1), (L-2) and (L-3)
are fragile. Be careful not to break them.
2. The FE Main CBA & BD Mechanism Assembly is
adjusted as a unit at factory. Therefore, do not
disassemble it. Replace the FE Main CBA & BD
Mechanism Assembly as a unit.
ID/
Loc.
No.
Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder
Note
[1] Top Cover D1 10(S-1) ---
[2] Tray Panel D2 *2(L-1) 1
[3] Front
Assembly D2 *5(L-2), *3(L-3),
*CN2001 1
[4] Front CBA D2 4(S-2) ---
[5] Power SW
CBA D2 (S-3) ---
[6]
FE Main
CBA & BD
Mechanism
Assembly
D3 4(S-4), *CN2601,
*CN6401 2
[7]
BE Main
CBA Unit
D3
(S-5), (S-6), *CN7000,
*CN7001, *CN7401,
*CN7602, Locking
Card Spacers
---
[8]
Power
Supply CBA
D4
3(S-7a), (S-7b), (S-8),
2(S-9), *CN2600,
Power PCB Holder
---
[9] Rear Panel D5 6(S-10), (S-11),
(S-12), *CN2004 ---
[10] Motor DC
Fan D5 2(S-13), Fan Holder ---
[11] AV CBA D5 5(S-14), (S-15), ---
[12] SD CBA D5 2(S-16), 2(S-17),
SD Card Holder ---
[4] Front CBA
[5] Power SW CBA

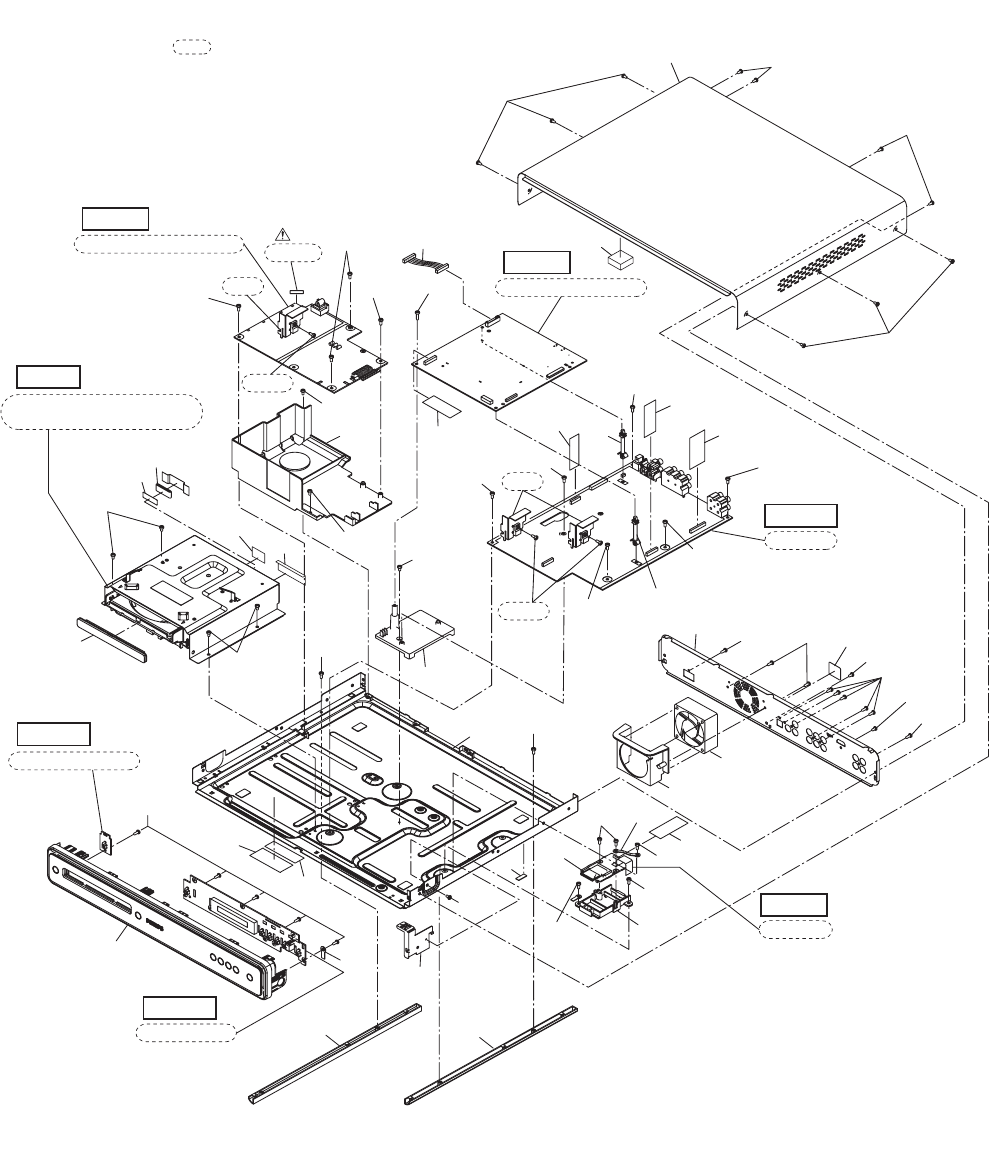

[3] Front Assembly
[1] Top Cover
[2] Tray Panel
[8] Power Supply CBA
[7] BE Main CBA Unit
[9] Rear Panel [10] Motor DC Fan
[13] Front Bracket R
[6] FE Main CBA &
BD Mechanism Assembly
[11] AV CBA [12] SD CBA
[13] Front
Bracket R D5 (S-18) ---
↓
(1)
↓
(2)
↓
(3)
↓
(4)
↓
(5)
ID/
Loc.
No.
Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder
Note
[1] Top Cover
(S-1)
(S-1)
(S-1)
Fig. D1
1-6-2 E5J10DC
[5] Power
SW CBA
[4] Front CBA
[3] Front Assembly
(S-2)
(S-2)
Wire
(S-3)
CN2001
(L-2)
(L-2)
(L-2)
(L-3)
(L-3)
(L-3)
(L-2)
[2] Tray
Panel
(L-1)
(L-1)
Fig. D2
[7] BE Main CBA
Unit
[6] FE Main
CBA& BD
Mechanism
Assembly
CN7000
CN7001
CN7401
CN2601
CN7602
CN6401
(S-6)
(S-5)
Locking Card
Spacers
(S-4)
Fig. D3
Fig. D4
[8] Power
Supply CBA
(S-8)
CN2600
Power PCB
Holder
(S-9)
(S-7a)
(S-7a)
(S-7b)
[11] AV CBA
[9] Rear Panel
[12]
SD CBA
(S-18)
(S-16)
(S-17)
(S-17)
SD Card Holder
(S-15)
(S-14)
(S-14)
CN2004
(S-14)
[10] Motor DC Fan
Fan Holder
[13] Front
Bracket R
(S-10)
(S-12) (S-13) (S-11)
Wire
Wire
Fig. D5
1-6-3 E5J10DC

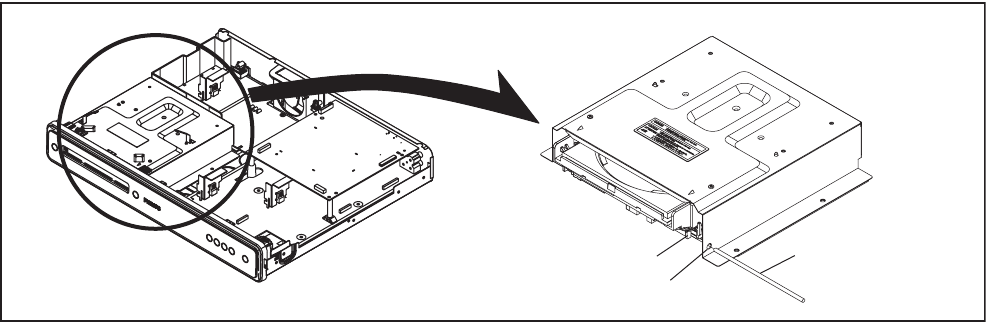

3. How to Eject Manually
1. Remove the Top Cover.
2. Insert a screwdriver, etc. into the Hole A straightly so that the Portion A is pushed.
3. Pull the tray out manually and remove a disc.
Screwdriver,
hexagon wrench
Hole A
Portion A
1-7-1 E5E10INT
HOW TO INITIALIZE THE BLU-RAY DISC PLAYER
To put the program back at the factory-default,
initialize the BD player as the following procedure.
1. Turn the power on.
2. Press [1], [2], [3], [4], and [INFO] buttons on the
remote control unit in that order.
Fig. a appears on the screen.
3. Press [STOP] button on the remote control unit.
Fig. b appears on the screen and Fig. c appears
on the VFD.
4. To exit this mode, press [ ] button.
Fi
g
. a
"*******" differ depending on the models.
Model Name
Version
Region
Version Info
: *******
: *.***
: *-*
EXIT <POWER>EEPROM CLEAR <STOP>
Fig. b
"*******" differ depending on the models.
Model Name
Version
Region
Version Info
: *******
: *.***
: *-*
EXIT <POWER>EEPROM CLEAR <STOP>
EEPROM CLEAR : OK
Fig. c
1-8-1 E5H10FW

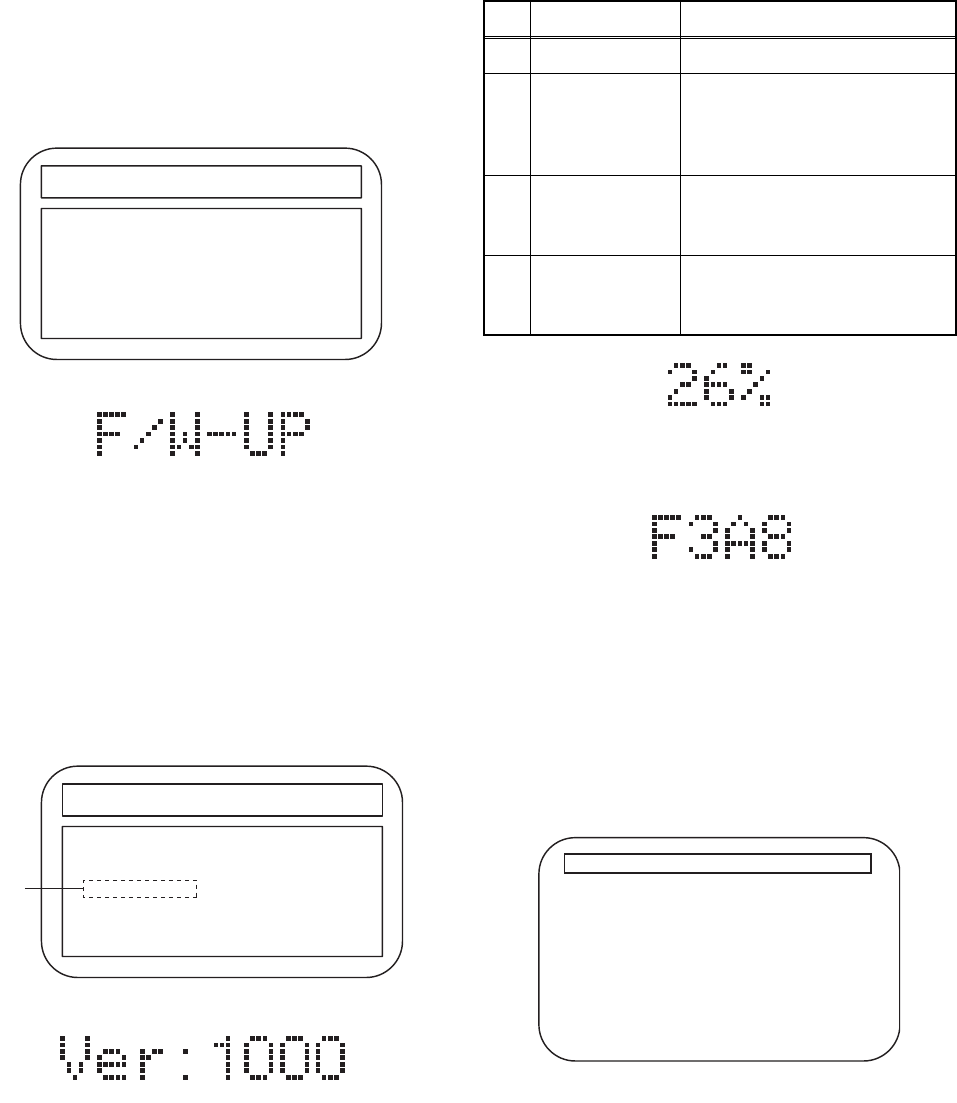

FIRMWARE RENEWAL MODE
1. Turn the power on and remove the disc on the tray.
2. To put the BD player into version up mode, press
[9], [8], [7], [6], and [DISC MENU/POP-UP MENU]
buttons on the remote control unit in that order.
The tray will open automatically.
Fig. a appears on the screen and Fig. b appears
on the VFD.
The BD player can also enter the version up mode
with the tray open. In this case, Fig. a will be
shown on the screen while the tray is open.
3. Load the disc for version up.
4. The BD player enters the F/W version up mode
automatically. Fig. c appears on the screen and
Fig. d appears on the VFD. If you enter the F/W for
different models, “Disc Error” will appear on the
screen, then the tray will open automatically.
The appearance shown in (*1) of Fig. c is
described as follows:
5. After programming is finished, the checksum on
the VFD (Fig. f).
At this time, no button is available.
6. Unplug the AC cord from the AC outlet. Then plug
it again.
7. Turn the power on.
8. Press [1], [2], [3], [4], and [INFO] buttons on the
remote control unit in that order.
Fig. g appears on the screen.
F/W VERSION UP MODE Model No. ******* Ver. *.***
Please insert a Disc
for F/W Version Up
"*******" differs depending on the models.
Fi
g
. a Version U
p
Mode Screen
Fig. b VFD in Version Up Mode
1. ALL
Now Loading...
Ver. *.*** ************B*.bin
(*1)
"*******" differs depending on the models.
Fi
g
. c Pro
g
rammin
g
Mode Screen
(
Exam
p
le
)
F/W VERSION UP MODE Model No. ******* Ver. *.***
EXIT : POWER
Fig. d VFD in Programming Mode (Example)
No. Appearance State
1 Now Loading... Loading the disc
2 Reading...
Sending files into the
memory.
After reading, automatically
the tray opens.
3Remove the
disc
Reading has finished.
Remove the disc and close
the tray.
4See FL display
Writing new version data,
the progress will be displayed
as shown in Fig. e.
Fig. e VFD in Version Up Mode
Fig. f VFD upon Finishing the Programming Mode (Example)
Fig. g
"*******" differ depending on the models.
Model Name
Version
Region
Version Info
: *******
: *.***
: *-*
EXIT <POWER>EEPROM CLEAR <STOP>
1-8-2 E5H10FW
9. Press [STOP] button on the remote control unit.
Fig. h appears on the screen and Fig. i appears on
the VFD.
10. To exit this mode, press [ ] button.
How to Verify the Firmware Version
1. Turn the power on.
2. Press [1], [2], [3], [4], and [INFO] buttons on the
remote control unit in that order.
Fig. j appears on the screen.
3. To exit this mode, press [ ] button.
Fi
g
. h
"*******" differ depending on the models.
Model Name
Version
Region
Version Info
: *******
: *.***
: *-*
EXIT <POWER>EEPROM CLEAR <STOP>
EEPROM CLEAR : OK
Fig. i
Fi
g
.
j
"*******" differ depending on the models.
Model Name
Version
Region
Version Info
: *******
: *.***
: *-*
EXIT <POWER>EEPROM CLEAR <STOP>
1-9-1 E5J10TR
TROUBLESHOOTING
FLOW CHART NO.2
The fuse blows out.
After servicing, replace the fuse.
Check the presence that the primary component
is leaking or shorted and service it if defective.
Check the presence that the rectifying diode or
circuit is shorted in each rectifying circuit of
secondary side, and service it if defective.
FLOW CHART NO.3
When the output voltage fluctuates.
Ye s
No
FLOW CHART NO.4
When buzz sound can be heard in the vicinity of power circuit.
Check if there is any short-circuit on the rectifying diode and the circuit in each rectifying circuit of the secondary
side
, and service it if defective.
(D1010, D1011, D1013, D1014, D1015, D1016, D1018, D1023, IC2600, IC2601,
Q2603, Q2604, Q2606, Q2607)
Does the photo coupler circuit on the secondary
side operate normally?
Check IC1001, IC1003, D1006 and their periphery,
and service it if defective.
Check IC1003, D1009 and their periphery,
and service it if defective.
FLOW CHART NO.5
FL is not outputted.
Is 34.5V voltage supplied to the emitter of Q2012? Check D1018, C1021 and periphery circuit,
and service it if defective.
Check FL-SW line and service
it if defective.
Is the "L" signal outputted to the collector of
Q2013?
Ye s
Ye s Ye s No
No
No
FLOW CHART NO.1
The power cannot be turned on.
Is the fuse normal?
Is normal state restored when once unplugged
power cord is plugged again after several seconds?
Is the AL+5V line voltage normal?
See FLOW CHART No.2 <The fuse blows out.>
Check if there is any leak or short-circuiting on the
primary circuit component, and service it if defective.
(IC1001,Q1003, T1001, D1001, D1002, D1003,
D1004, D1007, D1008, C1010, R1013)
Check each rectifying circuit of the secondary circuit
and service it if defective.
Ye s
Ye s
Ye s
No
No
No
Check Q2012, D2001
and their periphery,
and service it if defective.
Is the "H" signal inputted to the base of Q2013?
Replace Q2013.
1-9-2 E5J10TR
FLOW CHART NO.7
P-ON+5V (1) is not outputted.
Is 5V voltage inputted to the emitter of Q2606?
Replace Q2607.
Ye s
No
Is 11V voltage inputted to the base of Q2607? Is 12V voltage inputted to the base of Q2602?
Check D1020, D1023, C1018, C1024, L1003
and
their periphery, and service it if defective.
No
FLOW CHART NO.8
FLOW CHART NO.9
P-ON+10.5V is not outputted.
Is 13V voltage inputted to the collector of Q2607?
Ye s Ye s No
Ye s
Check D1016, C1020
and the periphery circuit,
and service it if defective.
Check Q2602, D2606,
and their periphery, and
service it if defective.
Check Q2601, D2613,
and PWSW3 line, and
service it if defective.
Is 2.5V voltage supplied to Pin(1) of IC2601?
Ye s
No
FLOW CHART NO.10
P-ON+1.2V is not outputted.
Replace IC2601.
FLOW CHART NO.6
P-ON+12V is not outputted.
Is 12V voltage supplied to the emitter of Q2603?
Is the voltage of base on Q2603 lower than the
voltage of emitter on Q2603 when turning the power on?
Replace Q2603.
Check D1011, D1019, C1017, L1005 and
their periphery circuit, and service it if defective.
Check Q2601 and PWSW3 line and service it if
defective.
Ye s
Ye s
No
No
Is the voltage of base on Q2606 lower than the
voltage of emitter on Q2606 when turning the power on?
Replace Q2606.
Check Q2605 and PWSW3 line and service it if
defective.
Ye s
No
Check D1013, D1014, D1015, C1019, C1025,
and their periphery, and service it if defective.
Check D1013, D1014, D1015, C1019, C1025,
and their periphery, and service it if defective.
Is 5V voltage inputted to the emitter of Q2604?
Ye s
No
Is the voltage of base on Q2604 lower than the
voltage of emitter on Q2604 when turning the power on?
Replace Q2604.
Check Q2605 and PWSW3 line and service it if
defective.
Ye s
No
No
P-ON+5V (2) is not outputted.
1-9-3 E5J10TR
Ye s
No
FLOW CHART NO.13
The key operation is not functioning.
Are the contact point and the installation state of the key
switches (SW3000-3005, SW3100) normal?
When pressing each switches (
SW3000-3005, SW3100
),
do the voltage of Pin(4) of IC2000 increase?
Check the switches (
SW3000-3005, SW3100
) and
their periphery, and service it if detective.
Check the line between the
RS3000 (remote control
receiver)
and the
Pin(27) of IC2000,
and service it if
detective.
No
Re-install the switches (
SW3000-3005, SW3100
)
correctly or replace the poor switch.
Replace IC2000.
Ye s
FLOW CHART NO.14
No operation is possible from the remote control unit.(Operation is possible from the unit.)
Replace the RS3000 (remote control receiver) or
remote control unit.
Is the "L" pulse sent out Pin(1) of RS3000 (remote
control receiver) when the remote control unit is activated?
Is the "H" pulse inputted to the Pin(27) of IC2000?
Replace IC2000.
Is 5V voltage supplied to Pin(2) of RS3000
(remote control receiver) ?
Ye s
No
Check AL+3.3V line and service it if defective.
No
No
Ye s
Ye s
Ye s
Ye s
Ye s No
Ye s No
Ye s
No
No
No
FLOW CHART NO.12
The fluorescent display tube does not light up.
Is 3.3V voltage supplied to Pin(24) of FL3000?
Is 8V voltage supplied to Pin(1,2) of FL3000?
Is 5V voltage supplied to Pins(29,30) of FL3000?
Replace FL3000.
Check P-ON+3.3V line and service it if defective.
Is 10V voltage supplied to the emitter of Q2014?
Check D1010, C1016,
R1018 and their periphery,
and service it if defective.
Check Q2013 and FL-SW
line
and service it if defective.
Replace Q2014.
Is 9V voltage inputted
to the base of Q2014?
Check F2
line and service it if defective.
FLOW CHART NO.11
P-ON+3.3V is not outputted.
Is 5V voltage supplied to Pin(1) of IC2600?
Replace IC2600.
Check D1013, D1014, D1015, D1021, C1025
and their periphery circuit, and service it if defective.
Ye s
No
1-9-4 E5J10TR
Ye s
FLOW CHART NO.16
The disc tray cannot be opened and closed.
[No Disc] indicated.
Both functions of picture and sound do not operate normally.
Replace the BE Main CBA Unit.
Original BE Main CBA Unit is poor.
Replace the FE Main CBA & BD Mechanism
Assembly.
No improvement can be found. No
Ye s
FLOW CHART NO.15
The disc tray cannot be opened and closed. (It can be done using the remote control unit.)
Is the normal control voltage inputted to Pin(4) of
IC2000?
Refer to "FLOW CHART NO.13" <The key
operation is not functioning.>
Refer to "FLOW CHART NO.16" <The disc tray
cannot be opened and closed.>
Replace the "OPEN/CLOSE" switch (SW3005).
No
1-9-5 E5J10TR
Is 5V voltage supplied to the Pin(4,18) of IC2300
and Pin(4) of IC2301?
Replace IC2300
or IC2301.
Check P-ON+5V(2) line and
service it if detective.
Are the video signals outputted to each pin
of IC2300 or IC2301?
Ye s No
Ye s
Ye s
No
IC2300 20PIN VIDEO-Y(I/P)
IC2300 17PIN VIDEO-Pb/Cb
IC2300 15PIN VIDEO-Pr/Cr
IC2301 5PIN VIDEO-CVBS
Check the periphery of JK2300 from Pin(15,17,20)
of IC2300 and service it if detective.
Check
the periphery of
JK2300 from Pin(5) of
IC2301
and service it if detective.
Are the video signals outputted to the specific
output terminal?
Are the component video signals outputted to the
VIDEO OUT terminal (JK2300)?
No
No
Are the composite video signals outputted to
the VIDEO OUT terminal (JK2300)?
FLOW CHART NO.17
Picture does not appear normally.
Set the disc on the disc tray, and playback.
Are the video signals outputted to each pin of
CN2000?
Replace the BE Main CBA Unit or
FE Main CBA &
BD Mechanism Assembly.
Check the line between each pin of CN2000 and
each pin of IC2300 or IC2301, and service
it if detective.
CN2000 9PIN → IC2301 3PIN VIDEO
CN2000 1PIN → IC2300 1PIN VIDEO-Y(I/P)
CN2000 3PIN → IC2300 3PIN VIDEO-Pb/Cb
CN2000 5PIN → IC2300 5PIN VIDEO-Pr/Cr
Are the video signals shown above inputted into
each pin of IC2300 or IC2301?
Ye s
No
No
CN2000 9PIN VIDEO
CN2000 1PIN VIDEO-Y(I/P)
CN2000 3PIN VIDEO-Pb/Cb
CN2000 5PIN VIDEO-Pr/Cr
IC2301 3PIN VIDEO
IC2300 1PIN VIDEO-Y(I/P)
IC2300 3PIN VIDEO-Pb/Cb
IC2300 5PIN VIDEO-Pr/Cr
1-9-6 E5J10TR
FLOW CHART NO.18
Audio is not outputted normally.
Set the disc on the disc tray, and playback.
Is the signal at Pin(31) of IC2000 "H" ?
Are the analog audio signals outputted to each pin
of CN2000?
Is the "H" level mute signal outputted to CN2000 ?
CN2000 27PIN AUDIO(L)
CN2000 25PIN AUDIO(R)
CN2000 23PIN AUDIO(R)-MUTE
CN2000 28PIN AUDIO(L)-MUTE
IC2200 7PIN AUDIO(L)
IC2200 1PIN AUDIO(R)
IC2200 6PIN AUDIO(L)
IC2200 2PIN AUDIO(R)
Replace the BE Main CBA Unit or
FE Main CBA &
BD Mechanism Assembly.
Replace the BE Main CBA Unit or
FE Main CBA &
BD Mechanism Assembly.
Replace IC2200.
Check the periphery between Pin(1,7) of IC2200
and JK2200, and service it if detective.
Check each line between each pin of CN2000
and each pin of IC2200, and service it if detective.
CN2000 27PIN → IC2200 6PIN AUDIO(L)
CN2000 25PIN → IC2200 2PIN AUDIO(R)
Are the analog audio signals inputted to each pin
of IC2200?
Are the analog audio signals outputted to each pin
of IC2200?
Are the audio signals outputted to the audio
terminal (JK2200)?
Ye s
Ye s
Ye s
Ye s
Ye s
No
Check
the AUDIO-MUTE line, and
service it if
detective.
No
No
No
No
No
1-9-7 E5J10TR
FLOW CHART NO.19
Audio is not outputted. (JK2701)
Set the disc (with 5.1ch Audio) on the disc tray, and playback.
Are the analog audio signals outputted to each pin
of CN2701?
CN2701 4PIN FRONT-AUDIO(L)
CN2701 2PIN FRONT-AUDIO(R)
CN2701 9PIN SURROUND(L)
CN2701 7PIN SURROUND(R)
CN2701 13PIN CENTER
CN2701 11PIN SUB WOOFER
IC2700 2, 6PIN FRONT-AUDIO(L/R)
IC2701 2, 6PIN CENTER/SUB WOOFER
IC2702 2, 6PIN SURROUND(L/R)
Replace the BE Main CBA or FE Main CBA &
BD Mechanism Assembly.
Replace
ICs (IC2700
, IC2701 or IC2702
)
.
Check each line between each pin of CN2701
and each pin of IC2700, IC2701 and IC2702
and service it if defective.
CN2701 2,4PIN → IC2700 2,6PIN FRONT-AUDIO(L/R)
CN2701 11,13PIN → IC2701 2,6PIN CENTER/SUB WOOFER
CN2701 7,9PIN → IC2702 2,6PIN SURROUND(L/R)
Are the analog audio signals inputted to each pin
of IC2700, IC2701 and IC2702.
Are the analog audio signals outputted to each pin
of IC2700, IC2701 and IC2702.
IC2700 1,7PIN FRONT-AUDIO(L/R)
IC2701 1,7PIN CENTER/SUB WOOFER
IC2702 1,7PIN SURROUND(L/R)
Ye s
Ye s
No
No
No
Check each line and service it if defective.
No
Replace the BE Main CBA Unit.
No
Ye s
Do the mute signals of CN2701 become to
"H" level?
FRONT-AUDIO(L) → CN2701 5PIN
FRONT-AUDIO(R) → CN2701 1PIN
SURROUND(L/R) → CN2701 6PIN
CENTER → CN2701 14PIN
SUB WOOFER → CN2701 10PIN
Ye s
Is the analog audio signal of each line outputted to
each terminal of JK2701 (as shown below) ?
IC2700 1PIN → JK2701 FRONT(R)-OUT
IC2700 7PIN → JK2701 FRONT(L)-OUT
IC2701 1PIN → JK2701 SUB WOOFER-OUT
IC2701 7PIN → JK2701 CENTER-OUT
IC2702 1PIN → JK2701 SURROUND(R)-OUT
IC2702 7PIN → JK2701 SURROUND(L)-OUT

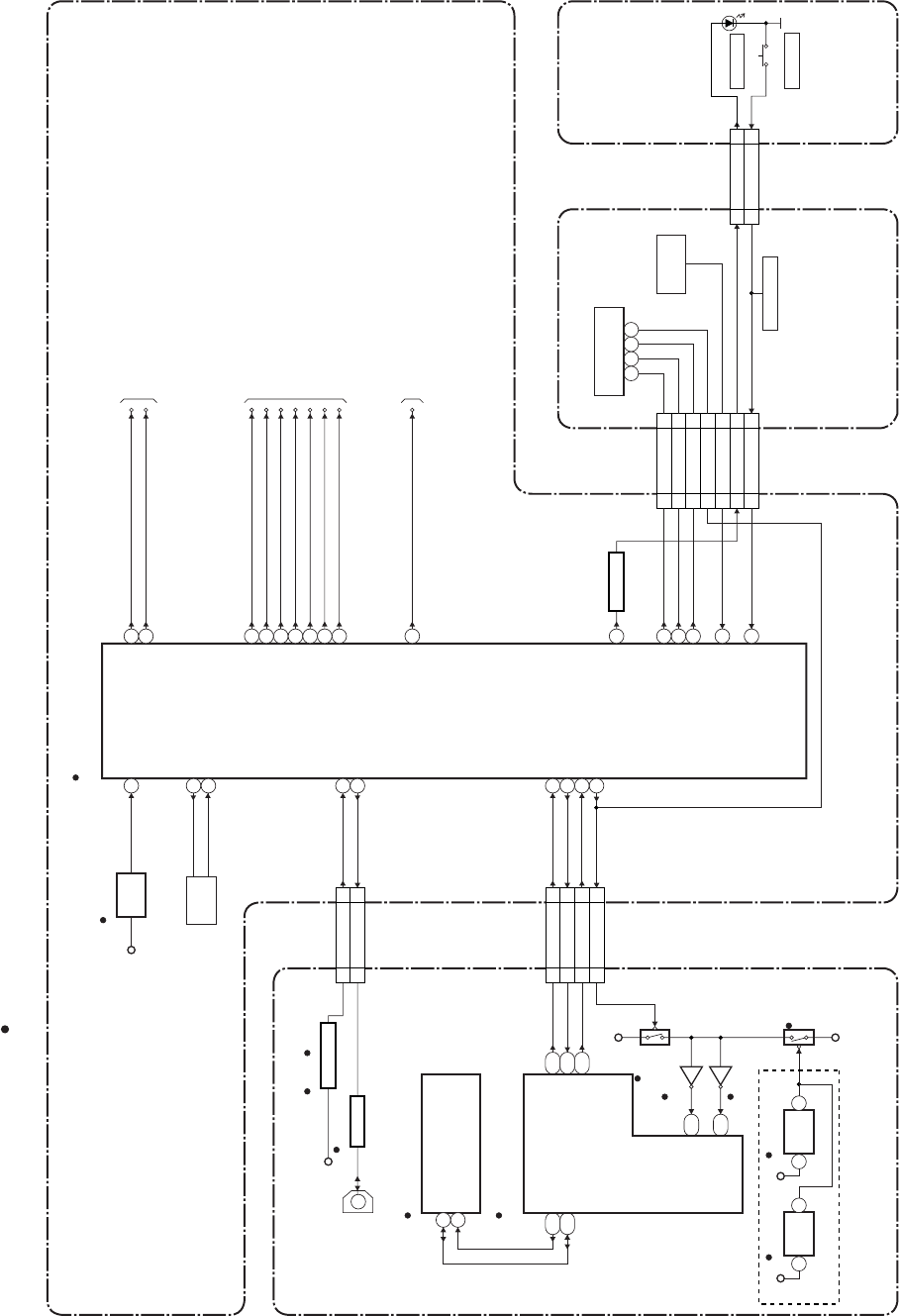

1-10-1 E5J10BLS
BLOCK DIAGRAMS
System Control Block Diagram
IC2000
IC6905 (EEPROM)
IC6001
(SUB MICRO CONTROLLER)
(MAIN MICRO CONTROLLER)
4
CN2001
15 15KEY-1
14 14REMOTE
13 13FL-RESET
12 12FL-CS
11 11FL-SCL
10 10FL-SDA
CN7001
XRST
XTRST
CN2000
CN7001 CN2000
15 15SUB-TXD
14 14SYS-RESET
13 13RDY
16 16SUB-RXD
19 19CEC-IN
18 18CEC-OUT
18 18
STANDBY-LED
BE MAIN CBA UNIT AV CBA
27
20
34
33
44
60
43
M3
LED DRIVE
14
8
9
RESET
29
PWSW2
37
PWSW3
25
40
A33-PW-CONT
48 SUB-TXD
49
L3
A16
SUB-RXD
28 CEC-IN
CEC 52 CEC-OUT
13
IIC-BUS SCL
39IIC-BUS SDA
IIC-BUS SCL
IIC-BUS SDA
PWSW2
PWSW3
A33-PW-CONT
STANDBY-LED
SYS-RESET
RDYRDY
B18
TXD1
G18
A18
A17 RXD1
SCL
SDA
SCL
SDA
FL-SDA
FL-SCL
FL-CS
REMOTE
KEY-1
OSC2
OSC1
8MHz
X'TAL
X2000
EV+3.3V
IC2001
RESET
D+3.3V
D+3.3V
Q2003
BUFFER
Q7501
JK7501
Q6702
Q6703
Q6701
26
FL-SW FL-SW TO POWER SUPPLY
BLOCK DIAGRAM
TO VIDEO
BLOCK DIAGRAM
31AUDIO-MUTE AUDIO-MUTE
45FAN-CONT FAN-CONT
50V5V-PW-SW V5V-PW-SW
24MAIN-P-ON MAIN-P-ON
TO AUDIO
BLOCK DIAGRAM
Q6704
SWITCHING
Q7503, Q7504
5
6
RESET
IC6702
1
D+3.3V
Either IC6701 or IC6702 is used for BE MAIN CBA UNIT.
D+3.3V
RESET
IC6701
2 1 3
19 20 21 22
SW3100
D3100
STANDBY
CN3100
CN3000
FL3000
VFD
CN3001
11KEY-1
22
STANDBY-LED
STANDBY
POWER SW CBAFRONT CBA
RS3000
REMOTE
SENSOR
KEY SWITCH
EV+3.3V
“ “ = SMD
1-10-2 E5J10BLD1
Digital Signal Process 1 Block Diagram
BD MECHANISM FE MAIN CBA
W1
V2
U3
HU(+) 5
HU(-) 6
HV(+) 7
HV(-) 8
HW(+) 9
HW(-) 10
CN903
IC001 (MAIN MICRO CONTROLLER/FE DIGITAL SIGNAL PROCESS)
IC902 (MOTOR DRIVE) IC301 (OP AMP)
TRACKING
ACTUATOR
DRIVE
OEIC
(CD/DVD)
IC903 (MOTOR DRIVE)
IC904
IC301 (OP AMP)
(MOTOR DRIVE)
16MBIT
NOR
FLASH
ROMDQ(0-15)
ROMA(1-20)
A(0-11)
DQ(0-15)
IC402 (NOR FLASH)
IC002 (RF AMP)
TO DIGITAL
SIGNAL PROCESS 2
BLOCK DIAGRAM
(CN6401)
CN501
3-18
AG22-AG24,
AH20-AH24,
AJ20-AJ22,
AK20-AK24
21,22,24,
25,27,29
AH12-AH18,
AG15-AG19
2-13,
42-53
1-9,
16-25,48
29-36,
38-45
22-26,
29-35
AJ11-AJ15,
AJ18,AJ19,
AK10-AK13,
AK15-AK19
N27,N28,N30,
P27-P30,R27-R30,
T27-T30,U27,U29,
U30,V27,W27
H28-H30,J28-J30,
K27-K30,L27,L28,
L30,M27,M28,M30
IDE1D(0-15)
37,38,40,
42,45,47
A5-A7,
B5-B7
C5-C7,
D5-D7
64MBIT
SDRAM
IC401 (SDRAM)
IC403 (EEPROM)
ATAPI
I/F
MEMORY
I/F
FE
DIGITAL
SIGNAL
PROCESS
MATRIX
RF EQ
AG28
AH4
AG5
U4
U3
T2
R3
T1
R4
AA1
Y3
K4100
125-128
AH29
AH28
AH30
2
4
7
9
10
11
12
13
14
SLD2(+) 4
SLD2(-) 3
SLD1(+) 2
SLD1(-) 1
CN902
LOAD(+) 5
LOAD(-) 6
LDSNS1 2
LDSNS2 1
CN901
TD 3
TR 4
FD1 1
FR1 2
EXPA(+) 9
EXPA(-) 7
EXPB(+) 10
EXPB(-) 8
A-D 21-24
E-H 26-29
OEVC 25
RF(+) 17
RF(-) 18
BDRF(+) 14
BDRF(-) 15
SDATA 40
SCLK
S D ATA
SCLK
S D ATA
SCLK
38
CN101
CN101
15
16
17
18
14
13
12
11
14
13
15
16
LOADING
MOTOR DRIVE
10
9
COLLIMATE
LENS
MOTOR DRIVE
SLED
MOTOR DRIVE
SPINDLE
MOTOR
DRIVE
FOCUS 1
ACTUATOR
DRIVE
TRKCTL-2
ADR(0-5)
ADW(0-5)
SWRF
TRKCTL-1
PCS1-B
PCS1-A
PCS2-B
PCS2-A
SLED1-CONTROL
SLED2-CONTROL
LOAD1-CONTROL
LDSNS1
LDSNS2
SPINDLE-CONTROL
SPINDLE-FG
LOAD2-CONTROL
LOAD-CONTROL
EXPA-CONTROL
EXPB-CONTROL
5
26
17
18
FOCUS 2
ACTUATOR
DRIVE
23
24
5
27
6
U2
U1
23
26
1
2
V4
AG10
AK5
3
V1
22 14 13
W1
19
115-118
114
141
140
143
142
75
74
J2
K2
102
103
SE
PI
K1
J3
104
105
TE
CE
H3106
FE
C2
C1
8
9
RF ADC
WOB ADCWOB FE
13
2
T4
T3
OEIC
(BD)
LASER
DIODE
DRIVE
SLED
MOTOR
TRAY
-OUT
TRAY
-IN
SPINDLE
MOTOR
FD2 6
FR2 5
LOADING
MOTOR
VIDEO SIGNAL AUDIO SIGNAL
SCK
SI
SCK_0
SO_0
6
5
/CEE2CS 1
SOSI_0 2
“ “ = SMD
1-10-3 E5J10BLD2

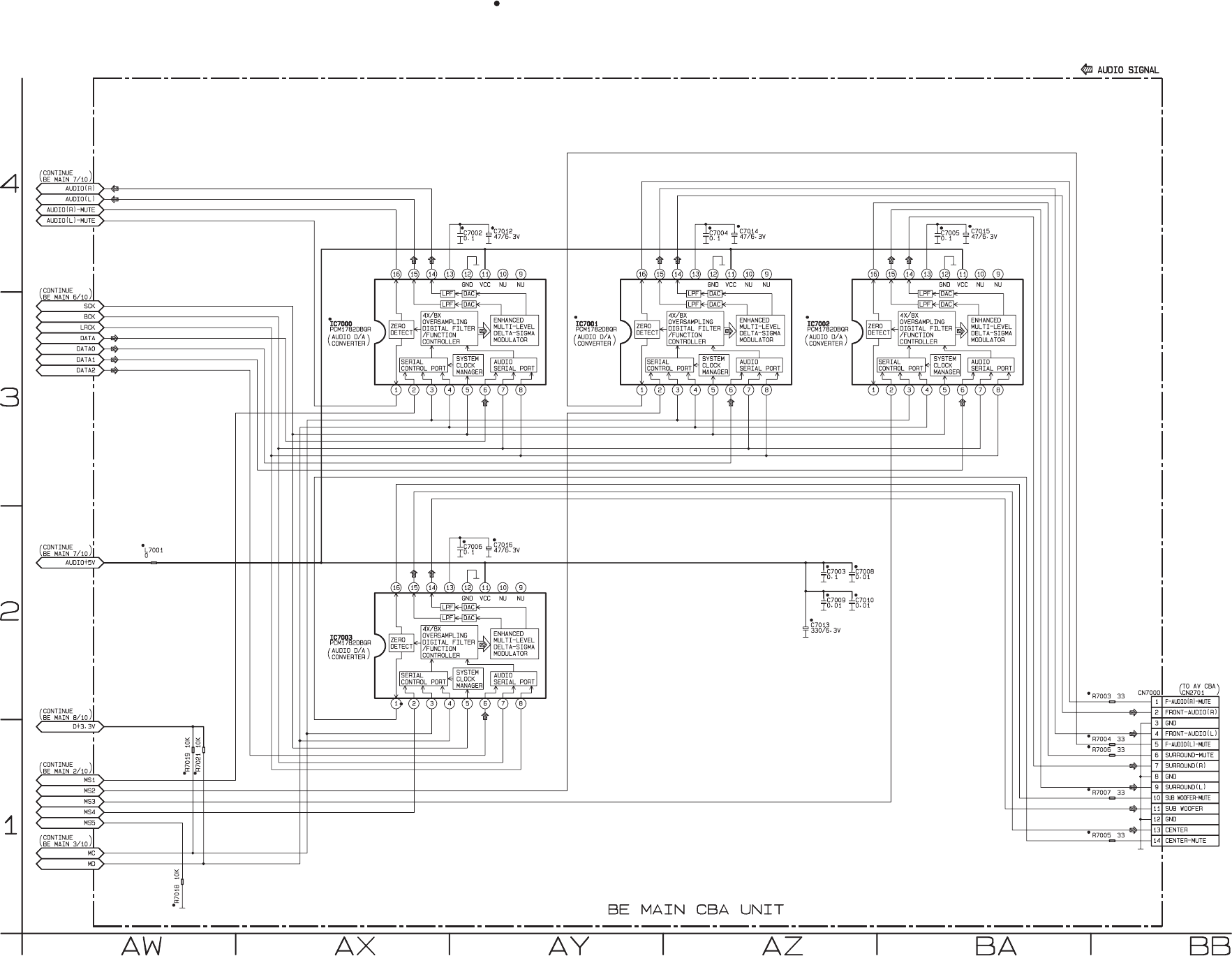

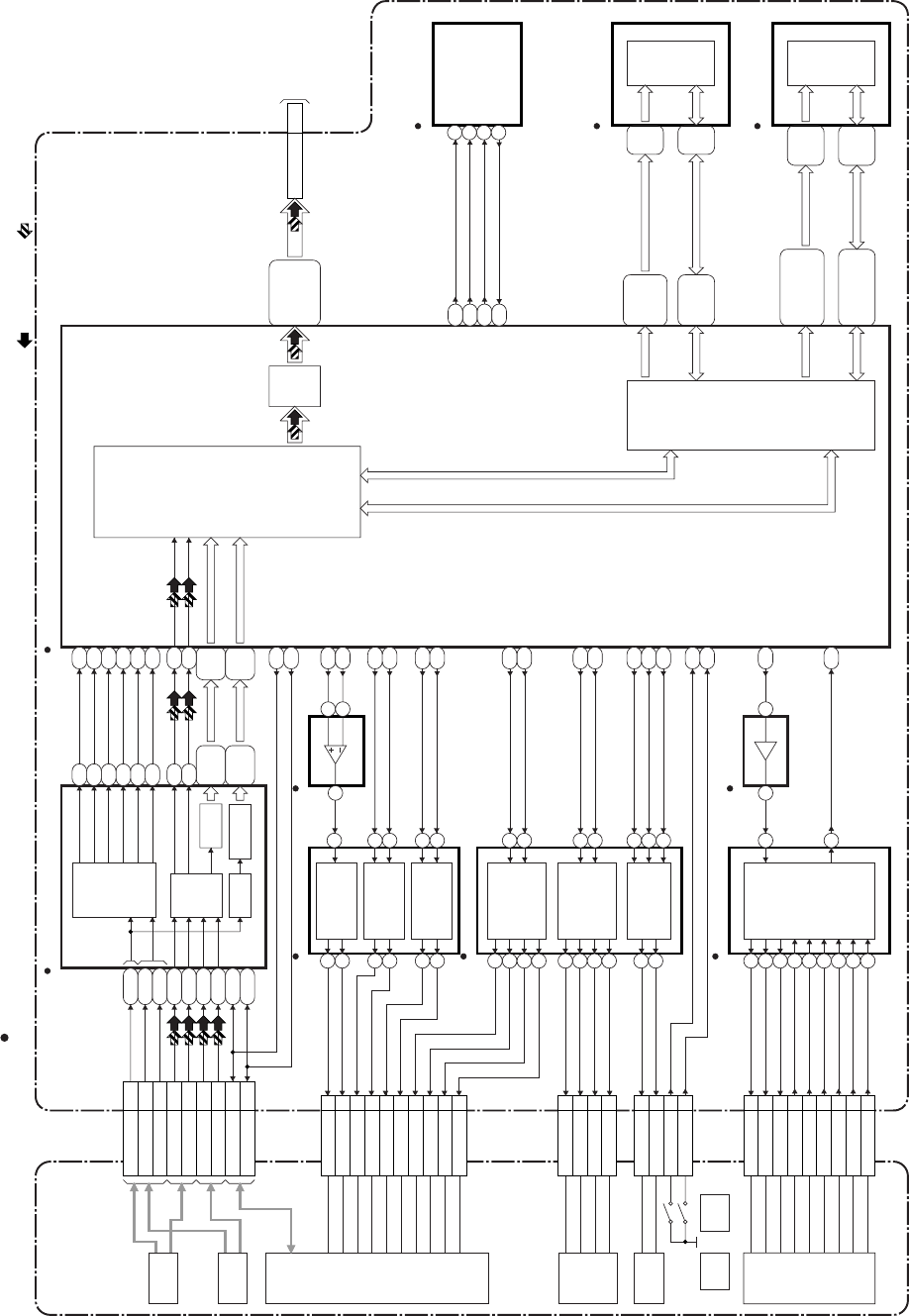

Digital Signal Process 2 Block Diagram
SD CBA BE MAIN CBA UNIT
STREAM
CONTROL
ATAPI I/F
ED (0-7)
ED (0-15) ED (0-15)
EA (1-22)
C0DQ (0-31)
PC0A (0-12)
C1DQ (0-31)
PC1A (0-12)
MEDIA
PROCESSOR
Java (BD-J)
MPEG-2
DECODER
HD (TS)
SD (PS)
COPY
PROTECT
AACS
/BD+
SD
CARD
SLOT
TO DIGITAL
SIGNAL PROCESS 1
BLOCK DIAGRAM
(CN501)
CN4001 CN7602
CN6401
CN4002
MEMORY
I/F
SD I/F
IC6001 (BE DIGITAL SIGNAL PROCESS)
IC6704 (CLOCK GENE.)
F25
A3
C14
C13
B14
IC6901 (NAND FLASH MEMORY)
NAND FLASH
MEMORY (64Mbit)
IC6902 (NOR FLASH MEMORY)
(DDR SDRAM)
NOR FLASH
MEMORY (8Mbit)
IC6501,IC6502,IC6503,IC6504
DDR SDRAM
(512Mbit x 4)
3-18 IDE1D(0-15)
13 13SDDAT0
15 15SDDAT1
11SDDAT2
33SDDAT3
11 11SDCLK
(DDR SDRAM)
IC6507,IC6508,IC6509,IC6510
DDR SDRAM
(512Mbit x 4)
D33,D34,E32-E34,
F32-F34,G30,G32,
H29,H30,H32,
J28-J30
A8,A9,A11,B8,B10,B11,
C11,E12,E13,F14,G13,G14
A10,A12,A13,B9,B12,B13,
C10,C12,E14,F13,F15,G15
A27,B27,
F26,G26
GRAPHICS
/OSD
PIXEL
DATA I/F
VIDEO
DAC
CLK
VS
HS
SD CLOCK
SD DATA(0-3)
TO VIDEO
BLOCK DIAGRAM
VIDEO
PRMCLK
PRMVS
PRMHS
PRMC(0-11)
PRMY(0-11)
SCL
33M CLOCK
33M CLOCK
74M CLOCK
27M CLOCK
768K CLOCK
SCL
SDA
HDMI-DATA0
HDMI-DATA1
HDMI-DATA2
HDMI-DATA3
HDMI-MCK
HDMI-BCK
HDMI-LRCK
HDMI-SPDIF
X6701
27MHz
OSC
CLOCK
GENE.
SDA
VIDEO-Y(I/P)
VIDEO-Pb/Cb
VIDEO-Pr/Cr
VIDEO SIGNAL AUDIO SIGNAL
E9
C5
G9
SCL B16
SDA C16
TO VIDEO
BLOCK DIAGRAM
E11
AP2
F11
D10
A6
C7
G11
B6
A5
2
3
1
16
7
8
9
10
F28
A31
B30
A28
MC
MD
SCK
BCK
LRCK
MS3
D ATA 1
MS4
D ATA 2
MS2
D ATA 0
MS1
DATA
SPDIF
TO AUDIO
BLOCK DIAGRAM
G19
G20
L1
K5
K3
P32
K1
P29
L5
N34
L6
M34
K2
M7
“ “ = SMD
1-10-4 E5J10BLV
Video Block Diagram
AV CBABE MAIN CBA UNIT
11VIDEO-Y(I/P)
33VIDEO-Pb/Cb
99VIDEO
55VIDEO-Pr/Cr
HDMI-DATA0
HDMI-DATA1
HDMI-DATA2
HDMI-DATA3
HDMI-MCK
HDMI-BCK
HDMI-LRCK
HDMI-SPDIF
70-73,75-78,
92,94,102,103
50,51,53-57,59,
87,88,90,91
TO DIGITAL
SIGNAL
PROCESS 2
BLOCK DIAGRAM
TO DIGITAL
SIGNAL
PROCESS 2
BLOCK DIAGRAM
IC2300 (VIDEO DRIVER)
DC
SHIFT
6dB
AMP
LPF DRIVER
17
DC
SHIFT
6dB
AMP
LPF DRIVER
3
15
DC
SHIFT
IIC
I/F
IIC-BUS SCL
VIDEO
SCL
SDA
PRMCLK
PRMVS
PRMHS
PRMC(0-11)
PRMY(0-11)
VIDEO-Y(I/P)
VIDEO-Pb/Cb
VIDEO-Pr/Cr
TO SYSTEM CONTROL
BLOCK DIAGRAM IIC-BUS SDA
6dB
AMP
LPF DRIVER
5
VIDEO-Pb/Cb
OUT
VIDEO-Y
OUT
VIDEO-Pr/Cr
OUT
JK2300
C2314
1 20
T.M.D.S DATA2-
T.M.D.S DATA2+
T.M.D.S DATA1-
T.M.D.S DATA1+
T.M.D.S DATA0-
T.M.D.S DATA0+
T.M.D.S CLOCK+
T.M.D.S CLOCK-
JK7501
HDMI-CONNECTOR
DDC DATA
DDC CLOCK
HOT PLUG
DETECT
IC7501 (HDMI INTERFACE)
6
4
9
7
10
12
3
1
15
19
16
REGISTER
IIC
I/F
VIDEO
I/F
DDC
I/F
AUTHENT
/CATION
KEY
EXCHANGE
IC7502
Q7505,Q7506
3.3V<-->5V
CONVERTER
AUDIO
I/F
HDCP
CIPHER/
ENCRYPTOR
TMDS
ENCODER
AV
CONTROLLER
TMDS
SERIALIZER
6
5
2
3
46
45
44
42
41
39
36
35
DRIVE
23
25
19
21
15
17
13
11
113
116 118
120
119
VIDEO SIGNAL AUDIO SIGNAL
CLK
CN2000CN7001
VS
HS
121
83
84
IC2301 (VIDEO DRIVER)
4dB
AMP LPF 5
8dB
AMP DRIVER
3VIDEO OUT
(COMPOSITE)
9
10
WF1 WF2
WF3
“ “ = SMD
1-10-5 E5J10BLA

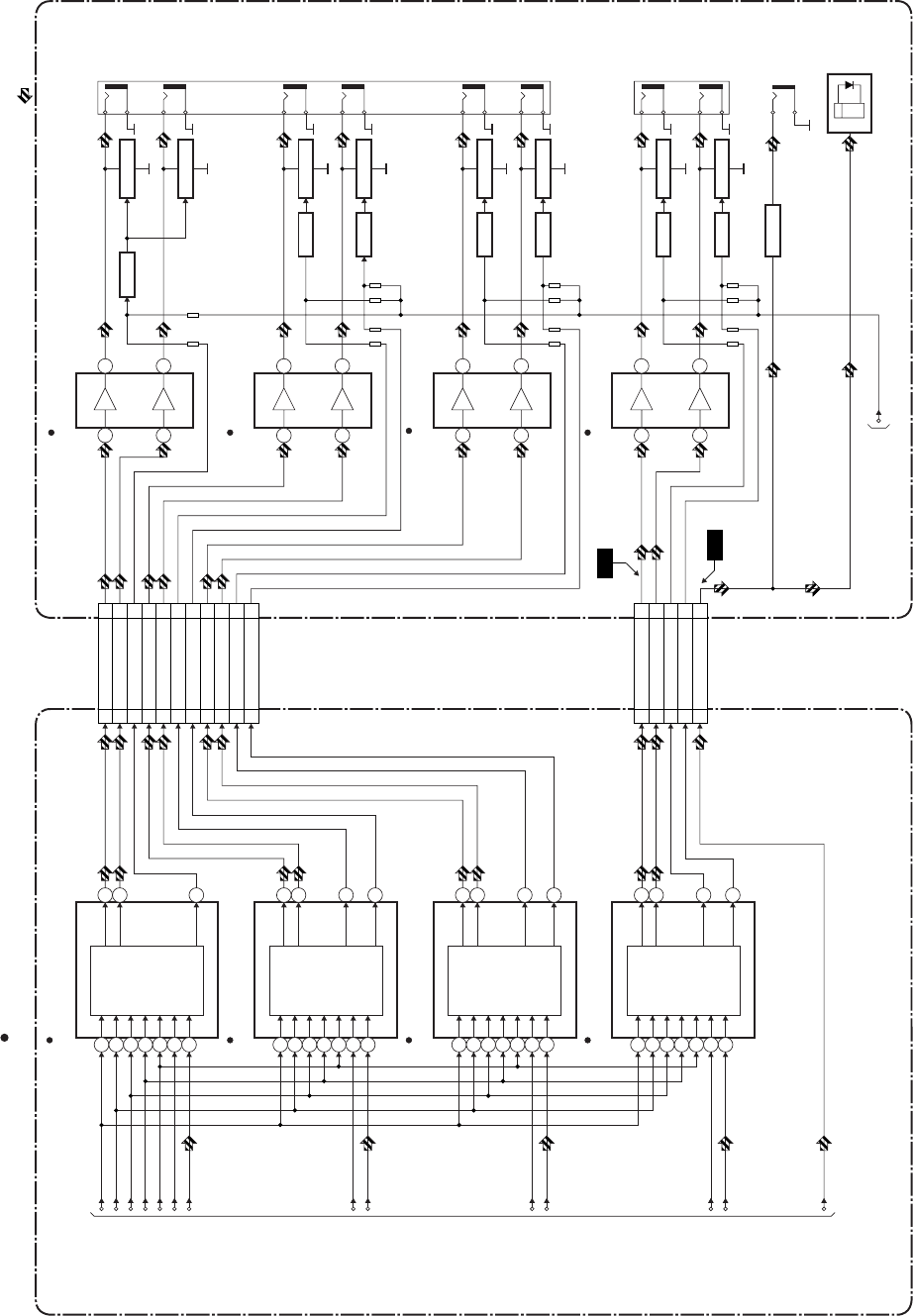

AV CBABE MAIN CBA UNIT
Q2709
MUTE-ON
Q2710
MUTE-ON
Q2708
DRIVE
Q2704
DRIVE
JK2701
IC7002
(AUDIO D/A CONVERTER)
IC2702
(OP AMP)
AUDIO
DAC
3
4
5
8
2
7
6
(L-CH)
(R-CH)
1
R-CH
MUTE
L-CH
MUTE
16
14
15
FRONT(L)-
OUT
FRONT(R)-
OUT
SURROUND(L)
-OUT
SURROUND(R)
-OUT
CENTER
-OUT
SUB
WOOFER
-OUT
AUDIO SIGNAL
7
1
6
2
Q2705
MUTE-ON
Q2706
MUTE-ON
Q2707
DRIVE
IC7003
(AUDIO D/A CONVERTER)
IC2701
(OP AMP)
AUDIO
DAC
3
4
5
8
2
7
6
(L-CH)
(R-CH)
R-CH
MUTE 16
14
15 7
1
6
2
Q2702
MUTE-ON
Q2703
MUTE-ON
Q2700
DRIVE
Q2701
DRIVE
IC7001
(AUDIO D/A CONVERTER)
IC2700
(OP AMP)
AUDIO
DAC
3
4
5
8
2
7
6
(L-CH)
(R-CH)
1
R-CH
MUTE
L-CH
MUTE
16
14
15
IC7000
(AUDIO D/A CONVERTER)
AUDIO
DAC
3
4
5
8
2
7
6
(L-CH)
(R-CH)
1
R-CH
MUTE
L-CH
MUTE
16
14
15
7
1
6
2
AUDIO(L)-
OUT
AUDIO(R)-
OUT
Q2203
MUTE-ON
Q2202
MUTE-ON
Q2200
DRIVE
Q2201
DRIVE
JK2200
IC2200
(OP AMP)
7
1
6
2
99SURROUND(L)
77SURROUND(R)
66
SURROUND-MUTE
13 13CENTER
11 11SUB WOOFER
14 14CENTER-MUTE
10 10
SUB WOOFER-MUTE
44FRONT-AUDIO(L)
22FRONT-AUDIO(R)
55
F-AUDIO(L)-MUTE
11
F-AUDIO(R)-MUTE
CN7000 CN2701
27 27AUDIO(L)
25 25AUDIO(R)
28 28AUDIO(L)-MUTE
23 23AUDIO(R)-MUTE
22 22SPDIF
CN7001 CN2000
DIGITAL
AUDIO OUT
(COAXIAL)
TO SYSTEM CONTROL
BLOCK DIAGRAM
AUDIO-MUTE
TO DIGITAL
SIGNAL
PROCESS 2
BLOCK DIAGRAM
MC
MD
SCK
BCK
LRCK
MS3
DATA1
MS4
DATA2
MS2
DATA0
MS1
DATA
SPDIF
DIGITAL
AUDIO OUT
(OPTICAL)
JK2100
JK2400
BUFFER
Q2100
WF4
WF5
Audio Block Diagram
“ “ = SMD
1-10-6 E5J10BLP
Power Supply Block Diagram
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
IC1001
(
SWITCHING CONTROL
)
HOT
COLD
Q2600
Q2604
Q2606
Q2603
Q2607
Q2602
Q2601
D1009
Q2605
Q1003
VDD
POWER SUPPLY CBA
2
4
7
6
T1001
RL1001
Q1012
11
12
15
13
10
9
16
14
AC1002 F1001
LINE
FILTER
FEEDBACK
VDD
CURR. LIMIT
VCC
OUTPUT
L1006
3
4
IC1003
ERROR
VOLTAGE DET
1
2
P-ON+12V(1)
P-ON+10.5V
SHUNT
REG.
IC2601
IC2600
IC1005
D1001 - D1004
BRIDGE
RECTIFIER
D1041 - D1044
BRIDGE
RECTIFIER
DC-DC
CONVERTER
SWITCHING
CONTROL
5
2
3-5 AL+5V
1
AL+2.5V
6 AL+3.3V
20 F1
22 F2
23 FL
2 AL+12V(1)
15-17
3-5
1
6
20
22
23
2
15-17
21 21
MAIN-P-ON
AL+12V(2)
CN1001 CN2600
11 AL+3.3V
CN1002
FAN-VCC 1
2GND
CN2004
SW+12V
AUDIO+3.3V
1-3 P-ON+10.5V
7,8 P-ON+5V(1)
CN2601
11 P-ON+1.2V
14,15
P-ON+3.3V
P-ON+3.3V
P-ON+1.2V
F1
F2
FL
TO SYSTEM
CONTROL
BLOCK
DIAGRAM
A33-PW-CONT
PWSW3
PWSW2
FL-SW
P-ON+5V(2)
P-ON+5V(1)
AL+3.3V
AUDIO+5V
VIDEO+5V
SW+10.5V
SW+5V
SW+5V
+3.3V
REG.
Q2280
+5V
REG.
Q2302
+5V
REG.
SW
+5V
+1.2V
REG.
Q2101
FL REG.
6
1
3
HOT CIRCUIT. BE CAREFUL.
FAN
Q2204,Q2205
SW+3.3V
AV CBA
Q2014
Q2012
Q2013
V5V-PW-SW
FAN-CONT
FAN
CONTROL
Q2000,Q2001
+12V
REG.
Q2005
AC CORD
1
2
3
5
6
T1002
9
5
4
3
1
2
2 8
7
3
8
3
4
IC1002
ERROR
VOLTAGE DET
1
2
D1031 SHUNT
REG.
2.5A L 250V
IC1004
(BATTERY CHARGER IPD)
MAIN-P-ON
TO FE MAIN
CBA
(CN001)
TO BE MAIN
CBA UNIT
(CN7401)
Q2300,Q2301
2-5 AL+5V
1-11-1 BDP_PC_SC
SCHEMATIC DIAGRAMS / CBA’S
Standard Notes
WARNING
Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “!” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.
Capacitor Temperature Markings

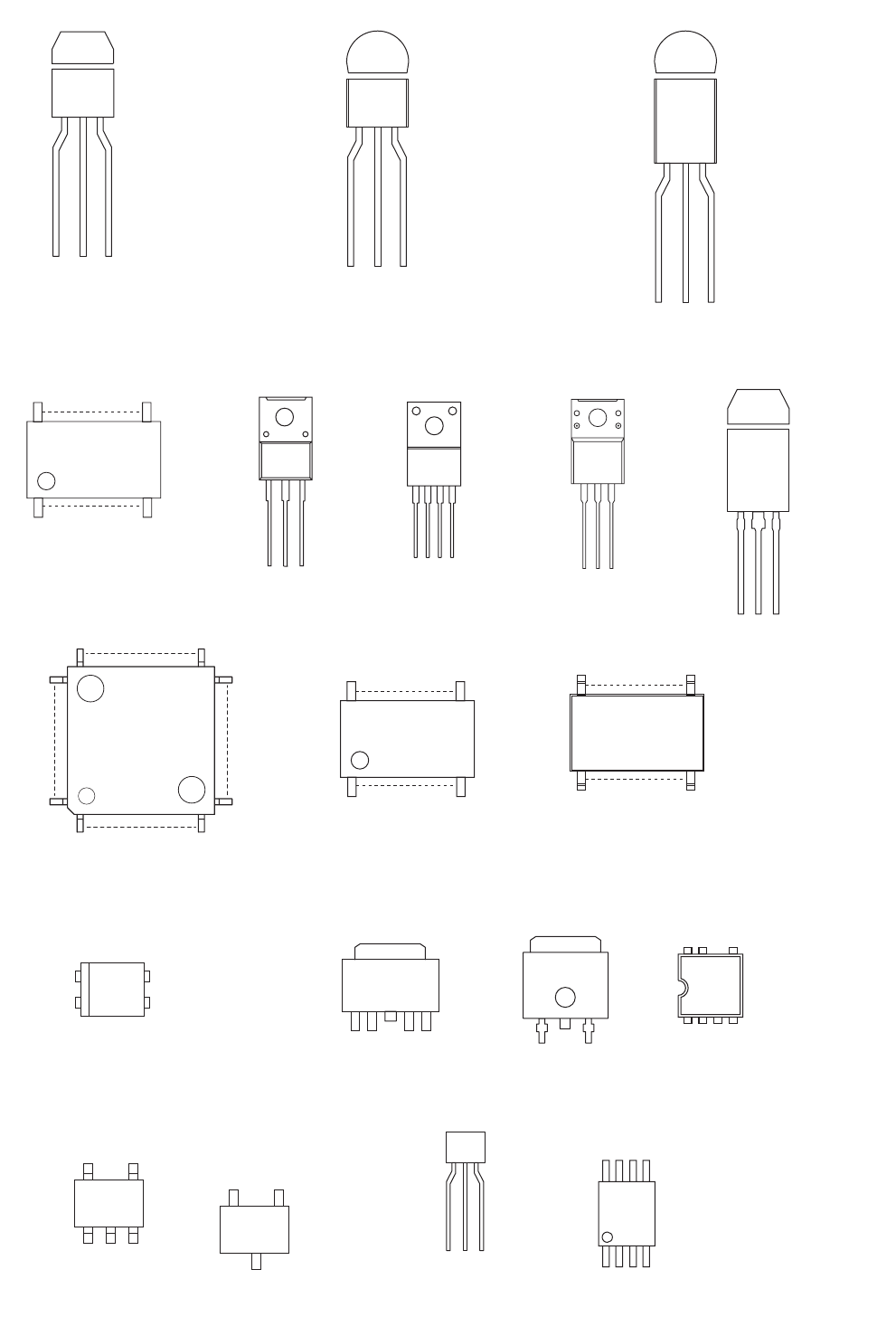

Capacitors and transistors are represented by the
following symbols.
Notes:
1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.
2. To maintain original function and reliability of
repaired units, use only original replacement parts
which are listed with their part numbers in the
parts list section of the service manual.
3. How to read converged lines.
Examples:
(1). "1-D3" means that line number "1" goes to the
line number "1" of the area "D3".
(2). "1-B1" means that line number "1" goes to the
line number"1" of the area "B1".
4. All resistance values are indicated in ohms
(K = 103, M = 106).
5. Resistor wattages are 1/6W unless otherwise
specified.
6. All capacitance values are indicated in µF
(P = 10-6 µF).
7. All voltages are DC voltages unless otherwise
specified.
8. Voltage indications for PLAY and STOP modes on
the schematics are as shown below.
Mark Capacity
change rate
Standard
temperature
Temperature
range
(B) ±10% 20°C -25~+85°C
(F) ±30 - 80% 20°C –25~+85°C
(SR) ±15% 20°C –25~+85°C
(Y) ±22.5% 20°C –25~+85°C
3
2
1
ABCD
1-B1
1-D3
AREA D3
AREA B1
1-D3
Distinction Area
Line Number
(1 to 3 digits)
AV 1/4 Schematic Diagram Parts Location Guide
1-11-2
Ref No. Position Ref No. Position Ref No. Position
C2000 A-1 Q2014 B-4 R2048 E-2
C2001 A-1 Q2101 A-4 R2049 E-3
C2002 C-1 R2050 E-3
C2004 A-1 R2000 B-1 R2052 E-2
C2005 E-2 R2002 B-1 R2053 E-2
C2007 E-2 R2005 C-3 R2055 E-2
C2009 E-1 R2006 A-1 R2057 E-1
C2011 D-2 R2012 C-1 R2058 D-1
C2012 E-3 R2014 C-3 R2059 E-3
C2013 E-1 R2015 C-2 R2067 A-1
C2016 C-1 R2017 C-3 R2068 D-1
C2019 D-1 R2018 C-3 R2078 A-2
R2019 C-2 R2091 B-4
CN2001 A-3 R2020 C-2 R2092 B-4
CN2003 F-1 R2021 C-2 R2094 B-4
CN2004 A-1 R2022 C-2 R2095 B-4
R2023 C-2 R2096 A-1
D2000 A-1 R2024 C-3 R2099 A-3
D2001 B-4 R2025 C-3 R2103 J-1
D2002 B-4 R2026 C-3 R2104 J-1
D2003 A-4 R2028 C-3 R2105 K-1
D2004 A-4 R2029 C-3 R2109 J-1
D2005 B-1 R2030 E-4 R2110 A-3
D2006 B-2 R2031 C-1 R2115 E-2
D2007 A-2 R2032 E-4 R2116 B-4
R2033 D-1 R2117 B-4
IC2000 D-2 R2034 D-3 R2118 B-4
IC2001 E-1 R2035 D-3 R2124 A-2
R2036 D-4 R2125 B-2
Q2000 B-1 R2037 D-3 R2126 E-2
Q2001 B-1 R2038 D-3 R2127 C-2
Q2003 B-2 R2043 E-3 R2129 C-2
Q2005 B-2 R2044 E-3 R2130 C-4
Q2012 B-4 R2045 E-2
Q2013 B-3 R2047 E-2 X2000 D-1
CRYSTAL OSCILLATOR
RESISTORSCAPACITORS
CONNECTORS
TRANSISTORS
ICS
TRANSISTORS
DIODES
RESISTORS

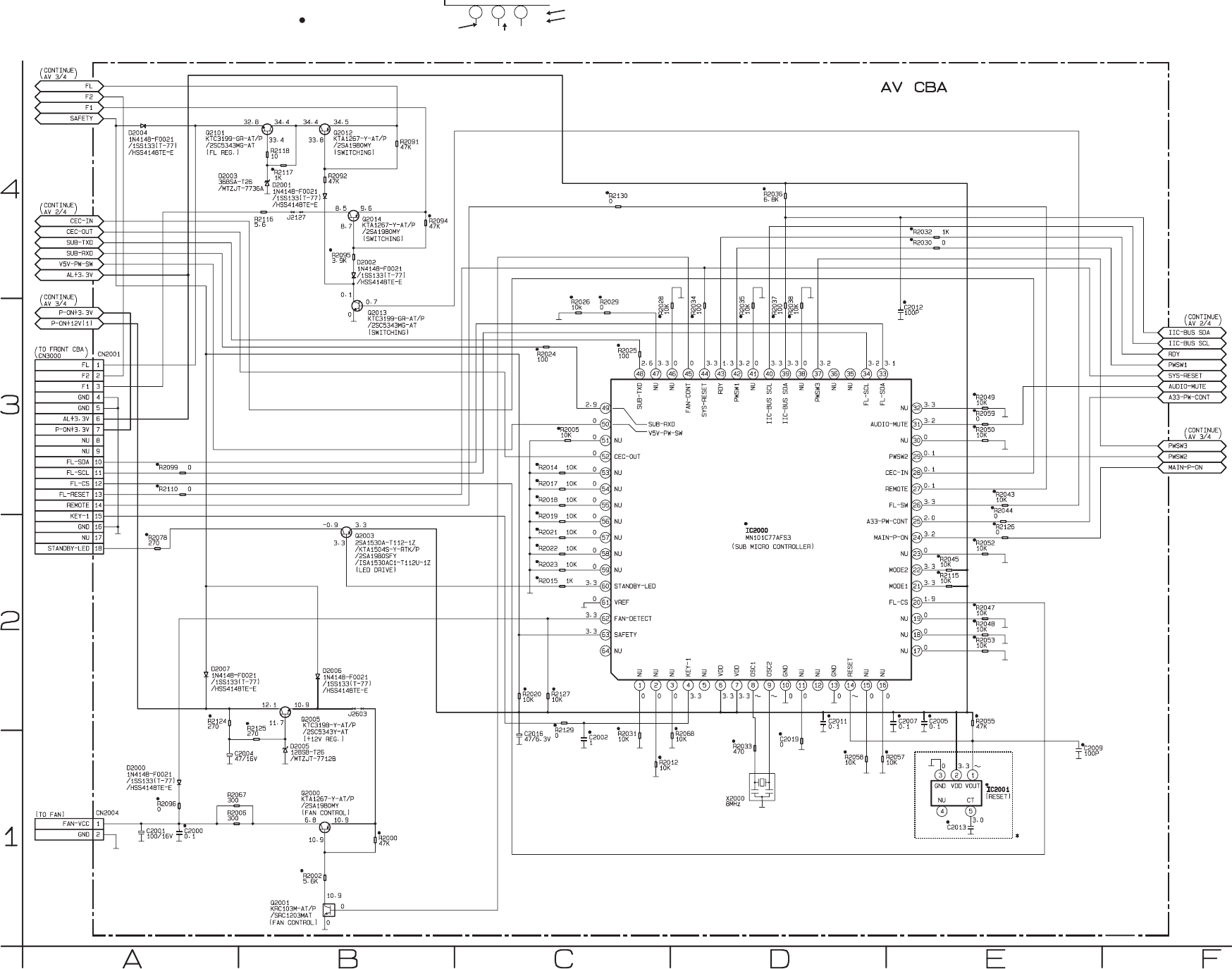

AV 1/4 Schematic Diagram
E5J10SCAV1
1-11-3
“ “ = SMD
3
5.0
(2.5)
PLAY mode
STOP mode
Voltage indications for PLAY and STOP modes
on the Schematic Diagrams are as shown below:
1 2 ~
5.0
The same voltage for
both PLAY & STOP modes.
Indicates that the voltage
is not consistent here.

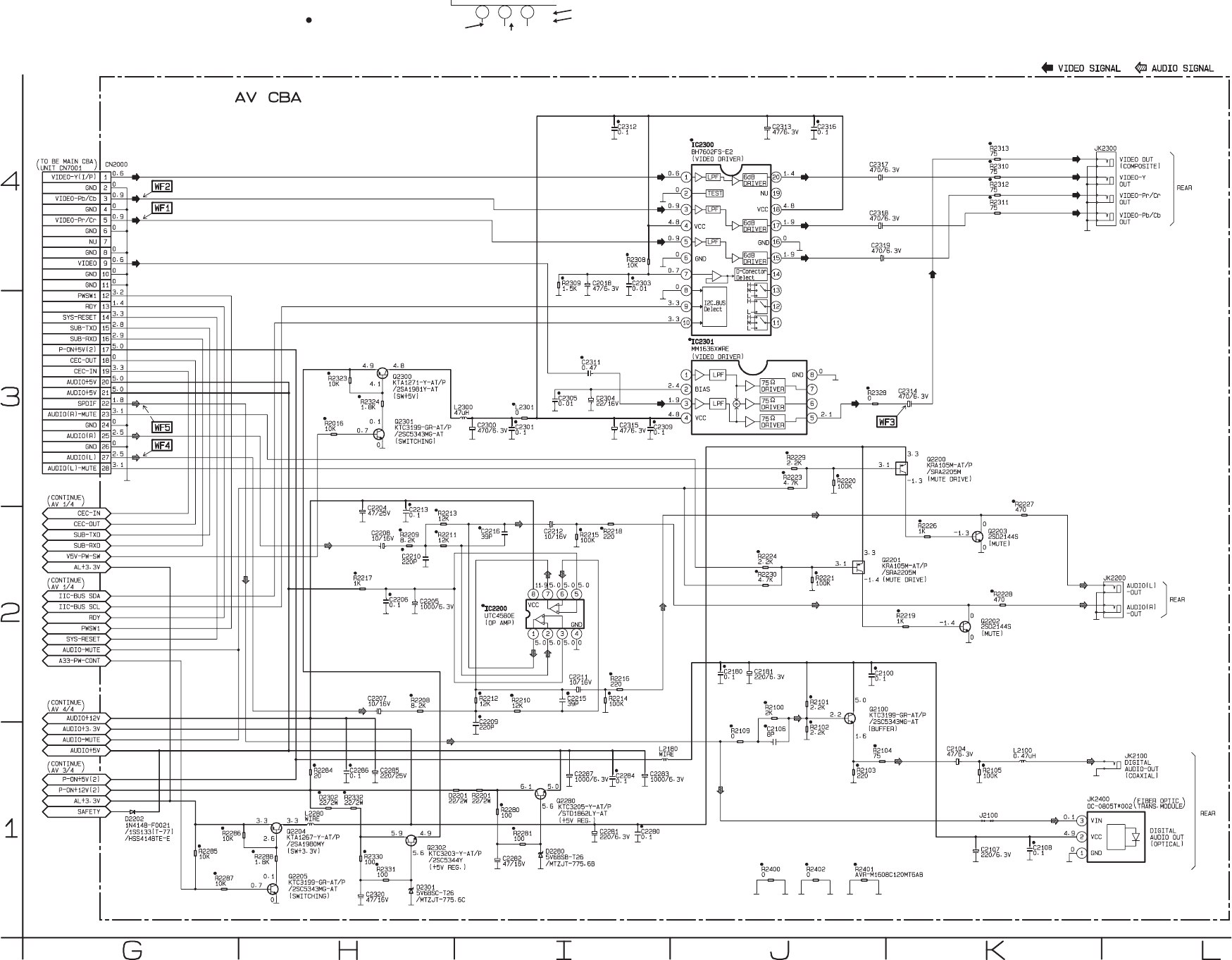

AV 2/4 Schematic Diagram
E5J10SCAV2
1-11-4
“ “ = SMD
3
5.0
(2.5)
PLAY mode
STOP mode
Voltage indications for PLAY and STOP modes
on the Schematic Diagrams are as shown below:
1 2 ~
5.0
The same voltage for
both PLAY & STOP modes.
Indicates that the voltage
is not consistent here.
1-11-5
AV 2/4 Schematic Diagram Parts Location Guide
Ref No. Position Ref No. Position Ref No. Position
C2018 I-4 C2320 H-1 R2214 I-2
C2100 J-2 R2215 I-2
C2104 K-1 CN2000 G-4 R2216 I-2
C2106 J-1 R2217 H-2
C2107 K-1 D2201 I-1 R2218 I-2
C2108 K-1 D2202 G-1 R2219 K-2
C2180 J-2 D2280 I-1 R2220 J-3
C2181 J-2 D2301 H-1 R2221 J-2
C2204 H-2 D2302 H-1 R2223 J-3
C2205 H-2 R2224 J-2
C2206 H-2 IC2200 I-2 R2226 K-2
C2207 H-2 IC2300 J-4 R2227 K-2
C2208 H-2 IC2301 J-3 R2228 K-2
C2209 I-1 R2229 J-3
C2210 H-2 L2100 K-1 R2230 J-2
C2211 I-2 L2180 I-1 R2280 I-1
C2212 I-2 L2280 H-1 R2281 I-1
C2213 H-2 L2300 I-3 R2284 H-1
C2215 I-2 L2301 I-3 R2285 G-1
C2216 I-2 R2286 G-1
C2280 I-1 Q2100 J-2 R2287 G-1
C2281 I-1 Q2200 K-3 R2288 H-1
C2282 I-1 Q2201 J-2 R2308 I-4
C2283 I-1 Q2202 K-2 R2309 I-4
C2284 I-1 Q2203 K-2 R2310 K-4
C2285 H-1 Q2204 H-1 R2311 K-4
C2286 H-1 Q2205 H-1 R2312 K-4
C2287 I-1 Q2280 I-1 R2313 K-4
C2300 I-3 Q2300 H-3 R2323 H-3
C2301 I-3 Q2301 H-3 R2324 H-3
C2303 I-4 Q2302 H-1 R2328 J-3
C2304 I-3 R2330 H-1
C2305 I-3 R2016 H-3 R2331 H-1
C2309 I-3 R2100 J-2 R2332 H-1
C2311 I-3 R2101 J-2 R2400 J-1
C2312 I-4 R2102 J-1 R2401 J-1
C2313 J-4 R2201 I-1 R2402 J-1
C2314 K-3 R2208 H-2
C2315 I-3 R2209 H-2 JK2100 L-1
C2316 J-4 R2210 I-2 JK2200 L-2
C2317 J-4 R2211 H-2 JK2300 L-4
C2318 J-4 R2212 I-2 JK2400 K-1
C2319 J-4 R2213 H-2
CAPACITORS
DIODES
RESISTORS
MISCELLANEOUS
CONNECTOR
COILS
RESISTORSCAPACITORS
TRANSISTORS
ICS
1-11-6
AV 3/4 Schematic Diagram Parts Location Guide
Ref No. Position Ref No. Position
C2600 O-1 L2601 P-4
C2601 O-3
C2602 O-2 Q2600 N-1
C2603 O-1 Q2601 N-3
C2604 O-3 Q2602 N-3
C2605 P-4 Q2603 O-4
C2606 O-2 Q2604 O-2
C2607 P-3 Q2605 O-2
C2608 P-2 Q2606 P-3
C2609 P-1 Q2607 O-3
C2610 P-2
C2611 P-1 R2600 N-2
C2614 O-2 R2601 N-3
R2602 N-2
CN2600 M-4 R2603 N-3
CN2601 R-4 R2604 N-3
R2606 N-4
D2600 N-2 R2607 O-4
D2601 O-4 R2608 O-2
D2605 P-3 R2609 P-3
D2606 O-3 R2610 O-3
D2608 Q-4 R2612 N-2
D2609 Q-3 R2613 O-1
D2610 Q-3 R2615 O-1
D2611 Q-2 R2616 O-2
D2612 Q-2 R2617 O-2
D2613 N-3 R2619 O-1
D2614 O-2 R2620 P-2
R2621 O-2
IC2600 O-2 R2622 P-3
IC2601 O-1 R2623 P-2
R2626 Q-4
L2400 O-2 R2632 P-2
L2600 O-3 R2636 O-3
ICS
DIODES
CAPACITORS
CONNECTORS
COILS
TRANSISTORS
COILS
RESISTORS
E5J10SCAV3

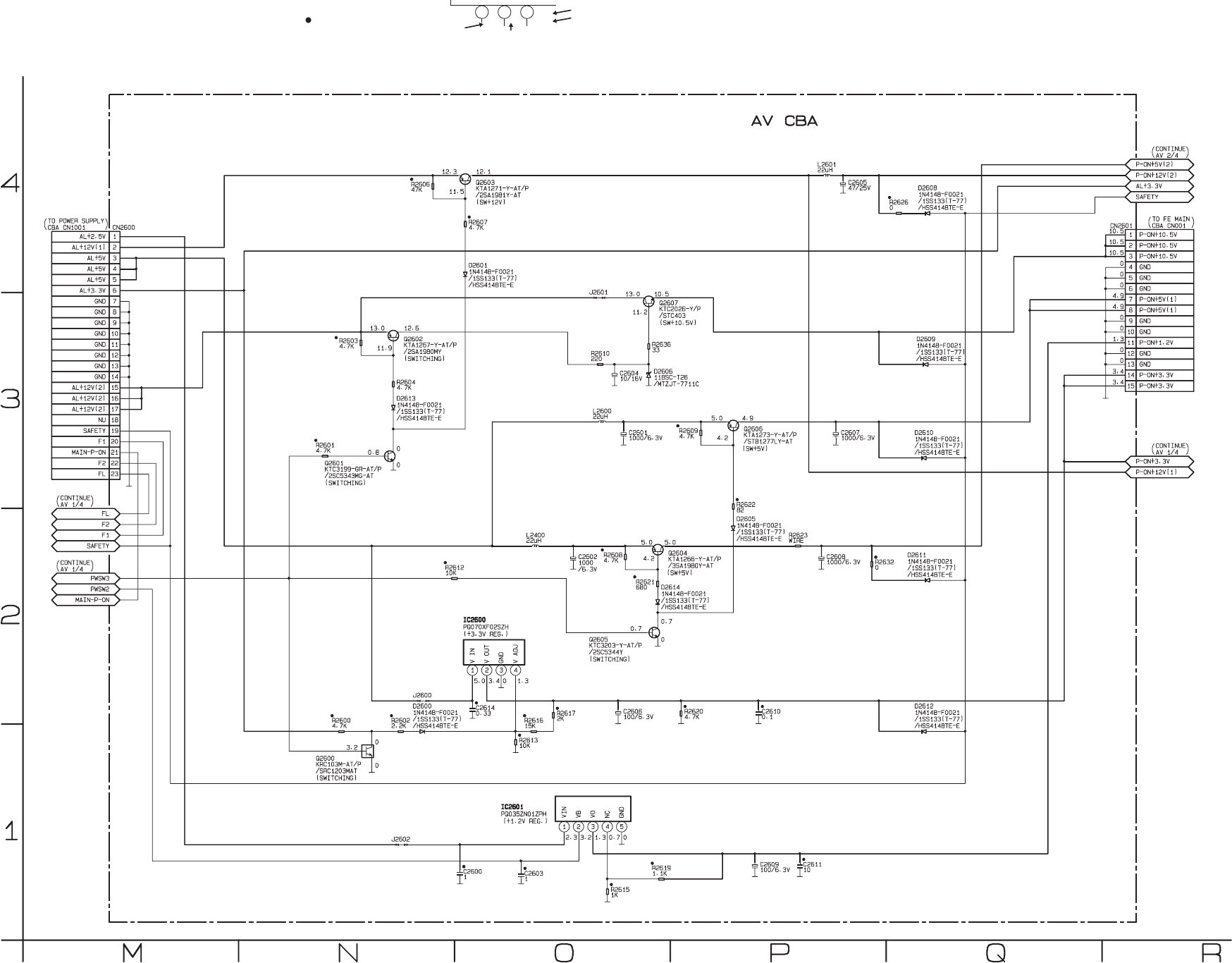

AV 3/4 Schematic Diagram
1-11-7
“ “ = SMD
3
5.0
(2.5)
PLAY mode
STOP mode
Voltage indications for PLAY and STOP modes
on the Schematic Diagrams are as shown below:
1 2 ~
5.0
The same voltage for
both PLAY & STOP modes.
Indicates that the voltage
is not consistent here.
E5J10SCAV4

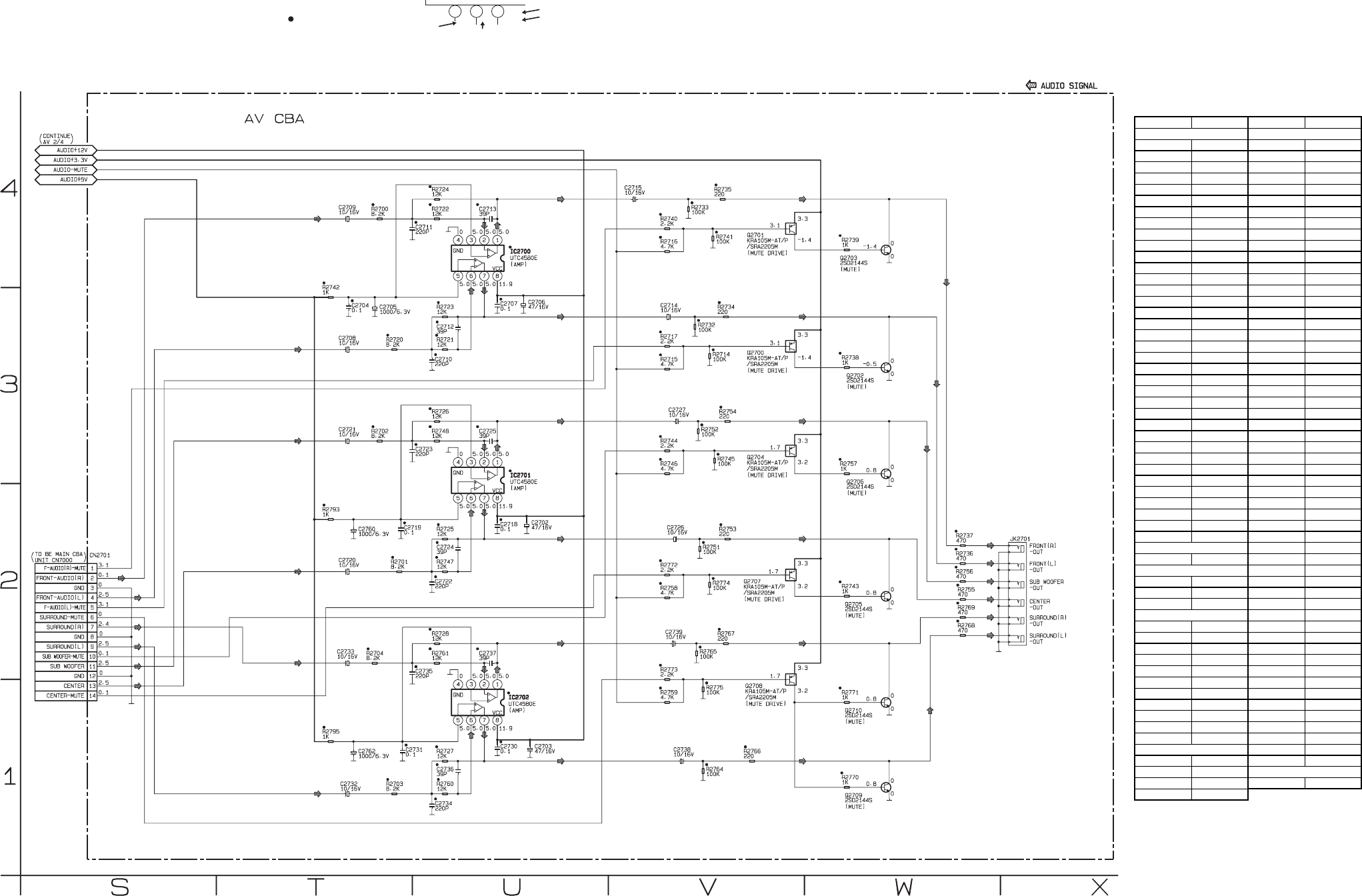

AV 4/4 Schematic Diagram
1-11-8
“ “ = SMD
3
5.0
(2.5)
PLAY mode
STOP mode
Voltage indications for PLAY and STOP modes
on the Schematic Diagrams are as shown below:
1 2
~
5.0
The same voltage for
both PLAY & STOP modes.
Indicates that the voltage
is not consistent here.
AV 4/4 Schematic Diagram Parts Location Guide
Ref No. Position Ref No. Position
C2702 U-2 R2704 T-2
C2703 U-1 R2714 V-3
C2704 T-3 R2715 V-3
C2705 T-3 R2716 V-4
C2706 U-3 R2717 V-3
C2707 U-3 R2720 T-3
C2708 T-3 R2721 U-3
C2709 T-4 R2722 U-4
C2710 U-3 R2723 U-3
C2711 U-4 R2724 U-4
C2712 U-3 R2725 U-2
C2713 U-4 R2726 U-3
C2714 V-3 R2727 U-1
C2715 V-4 R2728 U-2
C2718 U-2 R2732 V-3
C2719 T-2 R2733 V-4
C2720 T-2 R2734 V-3
C2721 T-3 R2735 V-4
C2722 U-2 R2736 W-2
C2723 U-3 R2737 W-2
C2724 U-2 R2738 W-3
C2725 U-3 R2739 W-4
C2726 V-2 R2740 V-4
C2727 V-3 R2741 V-4
C2730 U-1 R2742 T-3
C2731 T-1 R2743 W-2
C2732 T-1 R2744 V-3
C2733 T-2 R2745 V-3
C2734 U-1 R2746 V-3
C2735 U-2 R2747 U-2
C2736 U-1 R2748 U-3
C2737 U-2 R2751 V-2
C2738 V-1 R2752 V-3
C2739 V-2 R2753 V-2
C2760 T-2 R2754 V-3
C2762 T-1 R2755 W-2
R2756 W-2
CN2701 S-2 R2757 W-3
R2758 V-2
IC2700 U-4 R2759 V-1
IC2701 U-3 R2760 U-1
IC2702 U-1 R2761 U-2
R2764 V-1
Q2700 V-3 R2765 V-2
Q2701 V-4 R2766 V-1
Q2702 W-3 R2767 V-2
Q2703 W-4 R2768 W-2
Q2704 V-3 R2769 W-2
Q2705 W-2 R2770 W-1
Q2706 W-3 R2771 W-1
Q2707 V-2 R2772 V-2
Q2708 V-1 R2773 V-2
Q2709 W-1 R2774 V-2
Q2710 W-1 R2775 V-1
R2793 T-2
R2700 T-4 R2795 T-1
R2701 T-2
R2702 T-3 JK2701 X-2
R2703 T-1
CONNECTOR
RESISTORS
TRANSISTORS
ICS
RESISTORS
MISCELLANEOUS
CAPACITORS

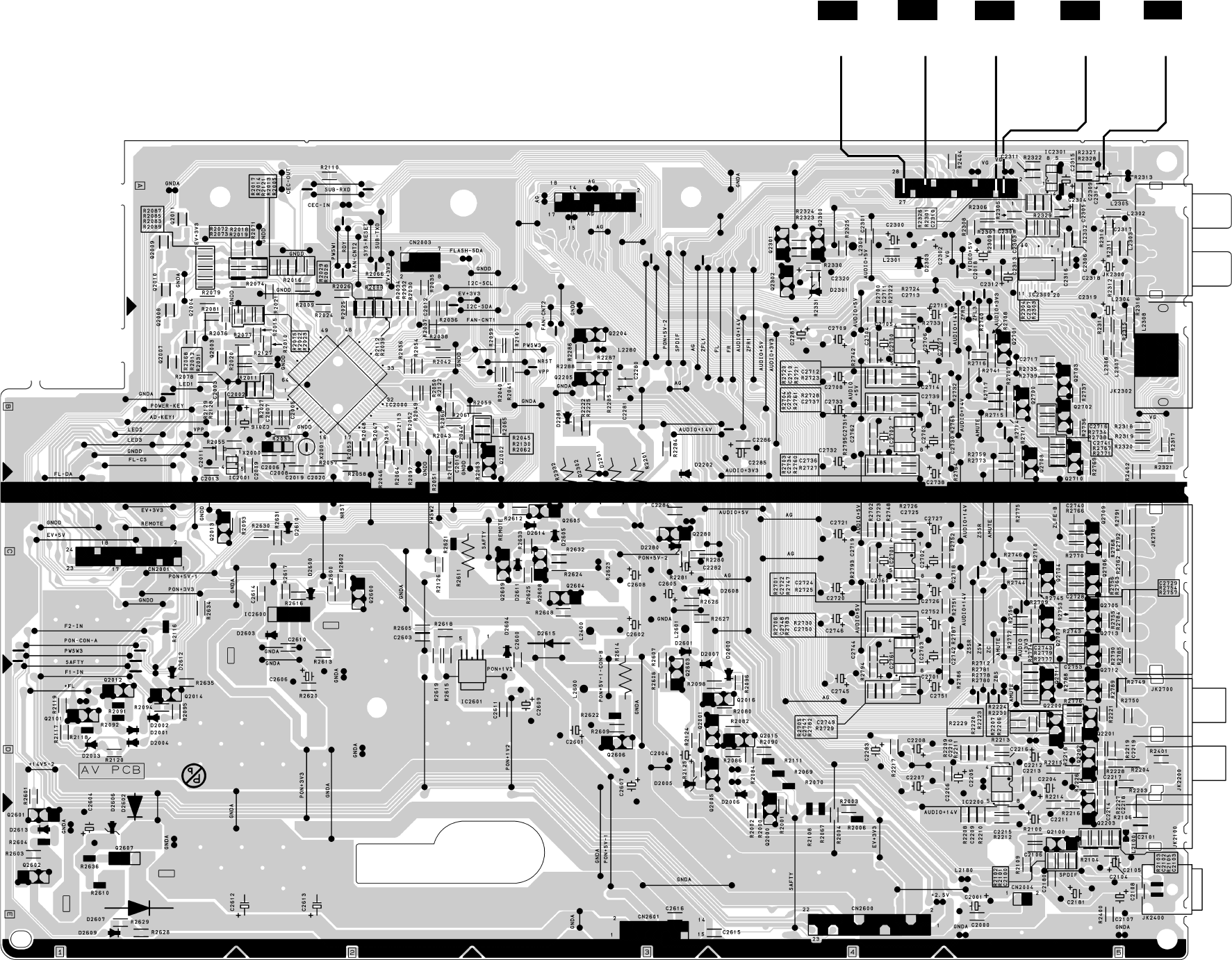

AV CBA Top View
BE5J10F01071A
1-11-9
PIN 3 OF
CN2000
PIN 22 OF
CN2000
PIN 27 OF
CN2000
WF6 WF4WF8 WF7 WF1
WF5 WF2WF4
PIN 5 OF
CN2000
WF3
C2314
PLUS LEAD

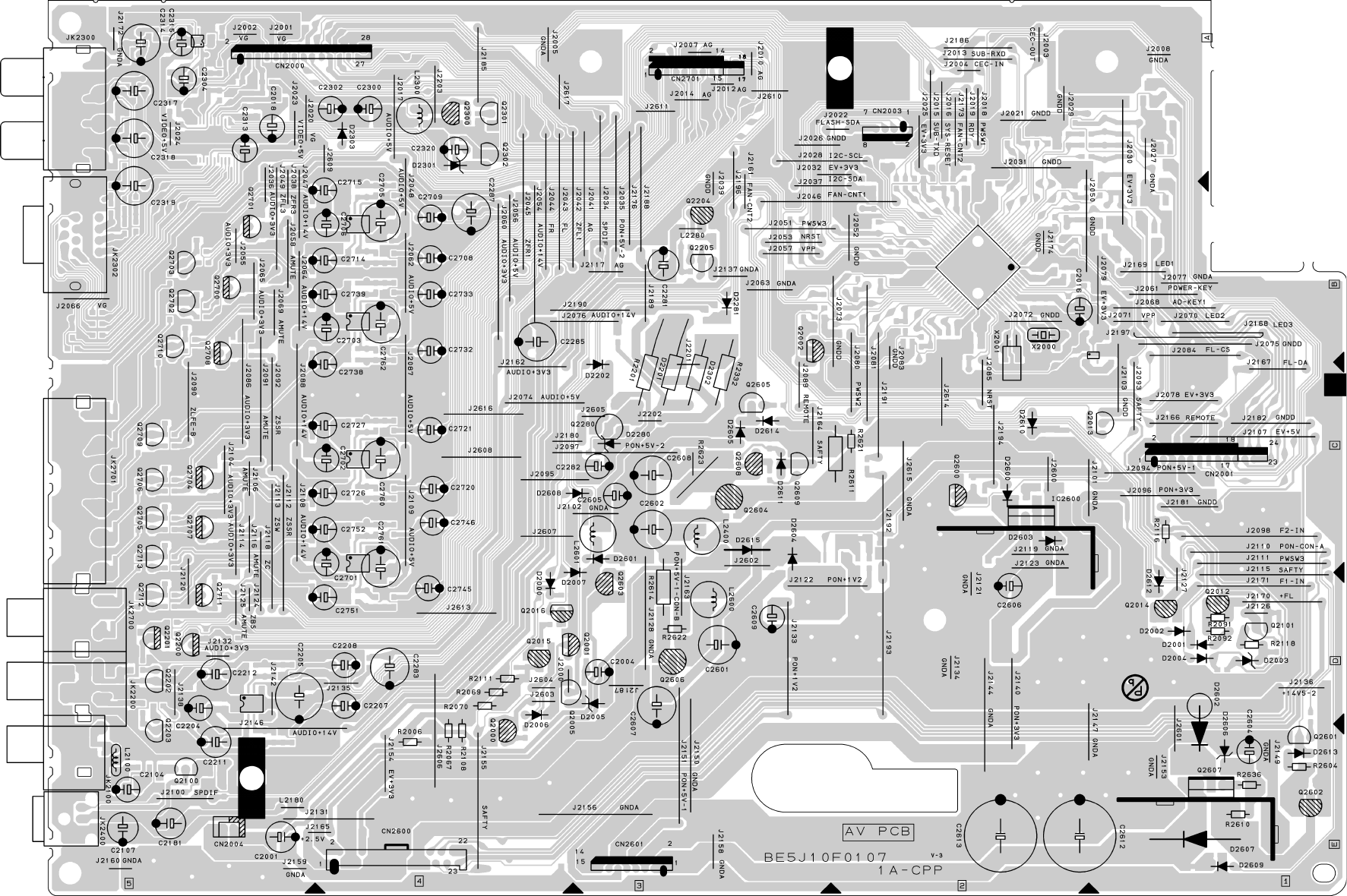

AV CBA Bottom View
BE5J10F01071A
1-11-10
1-11-11
AV CBA Parts Location Guide
Ref No. Position Ref No. Position Ref No. Position Ref No. Position
C2000 E-5 C2316 A-5 C2739 B-4 L2300 A-4
C2001 E-5 C2317 A-5 C2760 C-4 L2301 A-4
C2002 B-2 C2318 A-5 C2762 B-4 L2400 C-3
C2004 D-3 C2319 A-5 L2600 D-3
C2005 B-2 C2320 A-4 CN2000 A-5 L2601 C-3
C2007 B-2 C2600 C-3 CN2001 C-1
C2009 C-2 C2601 D-3 CN2003 A-2 Q2000 E-4
C2011 B-1 C2602 C-3 CN2004 E-5 Q2001 D-3
C2012 B-2 C2603 C-2 CN2600 E-4 Q2003 B-1
C2013 C-1 C2604 E-1 CN2601 E-3 Q2005 D-4
C2016 B-2 C2605 C-3 CN2701 A-3 Q2012 D-1
C2018 A-5 C2606 D-2 Q2013 C-1
C2019 C-2 C2607 D-3 D2000 C-4 Q2014 D-1
C2100 E-5 C2608 C-3 D2001 D-1 Q2100 E-5
C2104 E-5 C2609 D-3 D2002 D-1 Q2101 D-1
C2106 E-5 C2610 C-2 D2003 D-1 Q2200 D-5
C2107 E-5 C2611 D-3 D2004 D-1 Q2201 D-5
C2108 E-5 C2614 C-2 D2005 D-3 Q2202 D-5
C2180 E-5 C2702 C-4 D2006 D-4 Q2203 E-5
C2181 E-5 C2703 B-4 D2007 C-3 Q2204 B-3
C2204 D-5 C2704 B-4 D2201 B-3 Q2205 B-3
C2205 D-5 C2705 B-4 D2202 B-3 Q2280 C-3
C2206 D-5 C2706 B-4 D2280 C-3 Q2300 A-4
C2207 D-4 C2707 B-4 D2301 A-4 Q2301 A-4
C2208 D-4 C2708 B-4 D2302 C-3 Q2302 A-4
C2209 E-5 C2709 B-4 D2600 C-2 Q2600 C-2
C2210 D-5 C2710 B-4 D2601 C-3 Q2601 E-1
C2211 E-5 C2711 A-4 D2605 C-3 Q2602 E-1
C2212 D-5 C2712 B-4 D2606 E-1 Q2603 D-3
C2213 D-5 C2713 A-4 D2608 C-4 Q2604 C-3
C2215 E-5 C2714 B-4 D2609 E-1 Q2605 C-3
C2216 D-5 C2715 B-4 D2610 C-2 Q2606 D-3
C2280 B-3 C2718 C-5 D2611 C-3 Q2607 E-1
C2281 B-3 C2719 C-4 D2612 D-1 Q2700 B-5
C2282 C-3 C2720 C-4 D2613 E-1 Q2701 B-5
C2283 D-4 C2721 C-4 D2614 C-3 Q2702 B-5
C2284 C-3 C2722 C-4 Q2703 B-5
C2285 B-4 C2723 C-4 IC2000 B-2 Q2704 C-5
C2286 B-4 C2724 C-4 IC2001 C-1 Q2705 C-5
C2287 B-4 C2725 C-4 IC2200 D-5 Q2706 C-5
C2300 A-4 C2726 C-4 IC2300 A-5 Q2707 C-5
C2301 A-4 C2727 C-4 IC2301 A-5 Q2708 B-5
C2303 A-5 C2730 B-5 IC2600 C-2 Q2709 C-5
C2304 A-5 C2731 B-4 IC2601 D-2 Q2710 C-5
C2305 A-5 C2732 B-4 IC2700 B-4
C2309 A-5 C2733 B-4 IC2701 C-4 R2000 E-4
C2311 A-5 C2734 B-4 IC2702 B-4 R2002 E-4
C2312 A-5 C2735 B-4 R2005 A-2
C2313 A-5 C2736 B-4 L2100 E-5 R2006 E-4
C2314 A-5 C2737 B-4 L2180 E-5 R2012 B-1
C2315 A-5 C2738 C-4 L2280 B-3 R2014 A-2
COILS
COILS
CONNECTORS
ICS
TRANSISTORS
RESISTORS
CAPACITORS CAPACITORS
DIODES
CAPACITORS
Ref No. Position Ref No. Position Ref No. Position Ref No. Position
R2015 B-2 R2109 E-5 R2331 B-4 R2737 B-5
R2016 A-2 R2110 A-2 R2332 C-3 R2738 B-5
R2017 A-2 R2115 B-2 R2400 E-5 R2739 B-5
R2018 A-1 R2116 C-1 R2401 D-5 R2740 B-5
R2019 A-1 R2117 D-1 R2402 C-5 R2741 B-5
R2020 B-1 R2118 D-1 R2600 C-2 R2742 B-4
R2021 B-2 R2124 D-3 R2601 D-1 R2743 C-5
R2022 B-2 R2125 D-3 R2602 C-2 R2744 C-5
R2023 B-2 R2126 C-2 R2603 E-1 R2745 C-5
R2024 B-2 R2127 B-2 R2604 E-1 R2746 C-5
R2025 B-2 R2129 B-1 R2606 D-3 R2747 C-4
R2026 A-2 R2130 B-3 R2607 C-3 R2748 C-4
R2028 A-2 R2201 B-3 R2608 C-3 R2751 C-5
R2029 A-2 R2208 E-5 R2609 D-3 R2752 C-5
R2030 A-2 R2209 D-5 R2610 E-1 R2753 C-5
R2031 B-1 R2210 E-5 R2612 C-3 R2754 C-5
R2032 A-2 R2211 D-5 R2613 C-2 R2755 C-5
R2033 B-2 R2212 E-5 R2615 D-2 R2756 C-5
R2034 A-2 R2213 D-5 R2616 C-2 R2757 C-5
R2035 A-2 R2214 D-5 R2617 C-2 R2758 C-5
R2036 B-2 R2215 D-5 R2619 D-2 R2759 B-5
R2037 B-2 R2216 E-5 R2620 D-2 R2760 B-4
R2038 B-2 R2217 D-4 R2621 C-2 R2761 B-4
R2043 B-2 R2218 D-5 R2622 D-3 R2764 C-5
R2044 B-2 R2219 D-5 R2623 C-3 R2765 B-5
R2045 B-3 R2220 D-5 R2626 C-3 R2766 C-5
R2047 B-2 R2221 D-5 R2632 C-3 R2767 B-5
R2048 B-2 R2223 D-5 R2636 E-1 R2768 C-5
R2049 B-2 R2224 D-5 R2700 A-4 R2769 B-5
R2050 B-2 R2226 D-5 R2701 C-4 R2770 C-5
R2052 B-2 R2227 E-5 R2702 C-4 R2771 B-5
R2053 B-2 R2228 D-5 R2703 B-4 R2772 C-5
R2055 B-1 R2229 D-5 R2704 B-4 R2773 B-5
R2057 B-2 R2230 D-5 R2714 B-5 R2774 C-5
R2058 C-2 R2280 C-3 R2715 B-5 R2775 C-5
R2059 B-3 R2281 C-3 R2716 B-5 R2793 C-4
R2067 E-4 R2284 B-3 R2717 B-5 R2795 B-4
R2068 B-1 R2285 B-3 R2720 B-4
R2078 B-1 R2286 B-3 R2721 B-4 X2000 B-2
R2091 D-1 R2287 B-3 R2722 A-4
R2092 D-1 R2288 B-3 R2723 B-4 JK2100 E-5
R2094 D-1 R2308 A-5 R2724 A-4 JK2200 D-5
R2095 D-1 R2309 A-5 R2725 C-4 JK2300 A-5
R2096 D-4 R2310 A-5 R2726 C-4 JK2400 E-5
R2099 B-3 R2311 A-5 R2727 B-4 JK2701 C-5
R2100 E-5 R2312 A-5 R2728 B-4
R2101 E-5 R2313 A-5 R2732 B-5
R2102 E-5 R2323 A-4 R2733 B-4
R2103 E-5 R2324 A-4 R2734 B-5
R2104 E-5 R2328 A-5 R2735 B-5
R2105 E-5 R2330 A-4 R2736 B-5
CRYSTAL OSCILLATOR
MISCELLANEOUS
RESISTORSRESISTORSRESISTORS RESISTORS

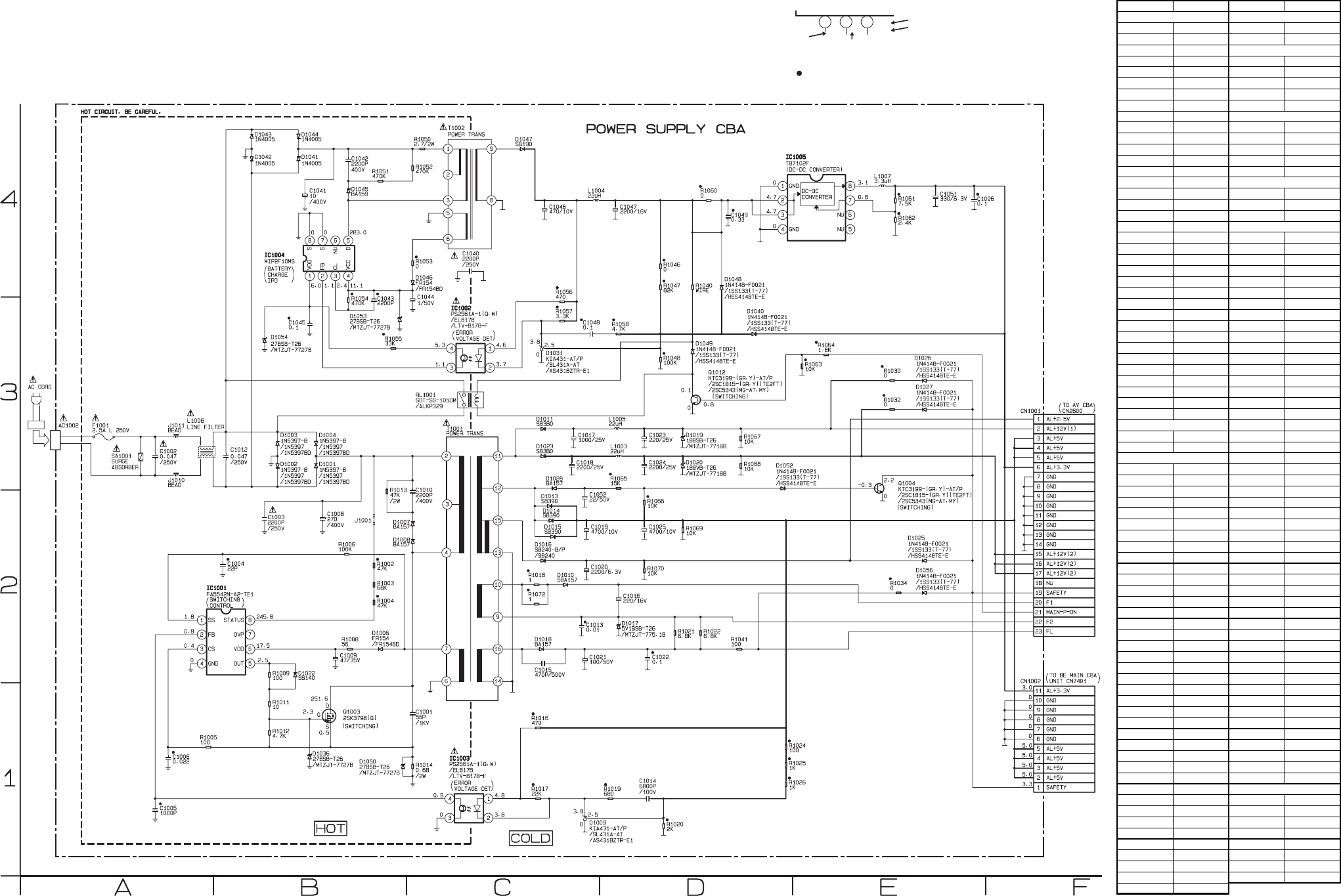

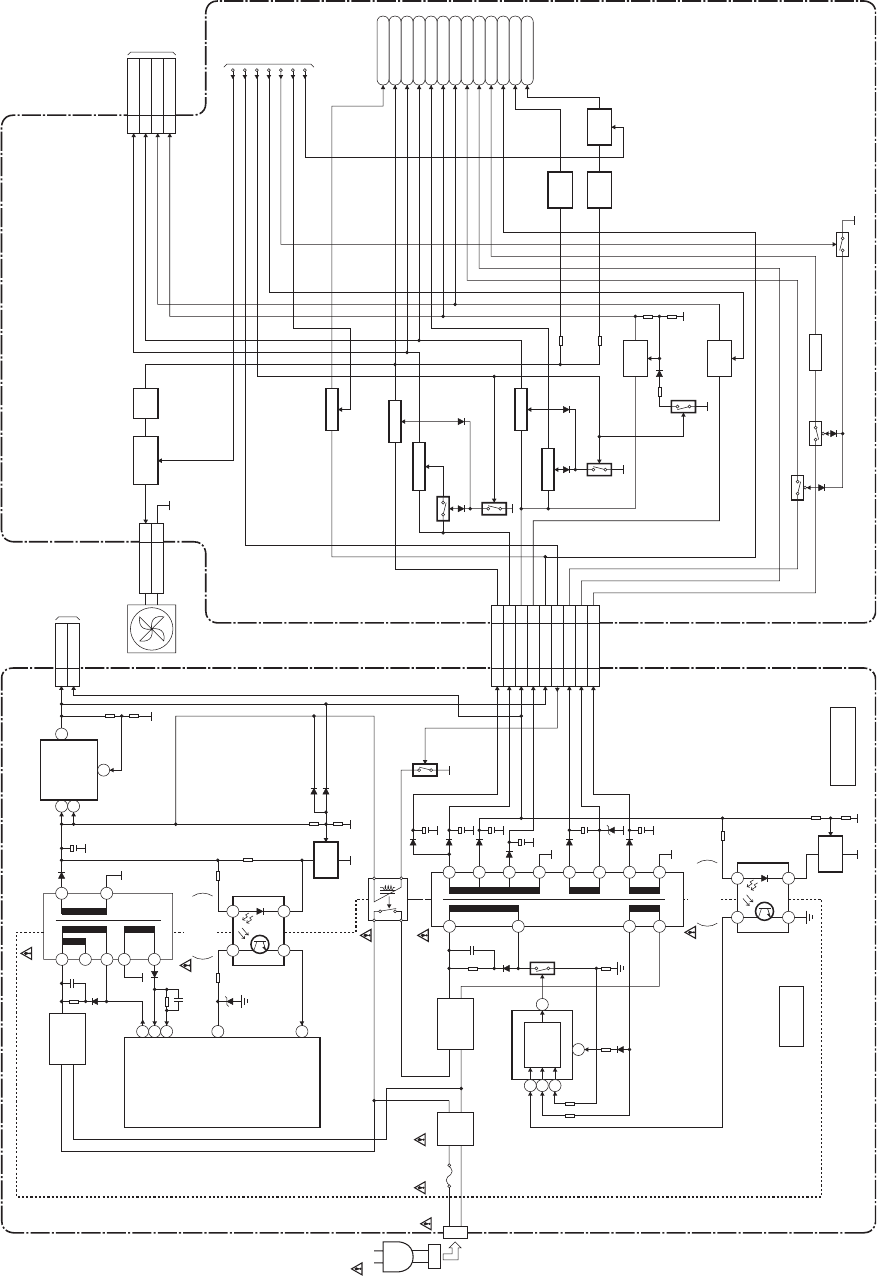

Power Supply Schematic Diagram
E5J10SCP
1-11-12
“ “ = SMD
3
5.0
(2.5)
PLAY mode
STOP mode
Voltage indications for PLAY and STOP modes
on the Schematic Diagrams are as shown below:
1 2
~
5.0
The same voltage for
both PLAY & STOP modes.
Indicates that the voltage
is not consistent here.
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
Power Supply Schematic Diagram Parts Location Guide
Ref No. Position Ref No. Position
C1001 C-1 D1054 B-3
C1002 A-3 D1056 E-2
C1003 B-2
C1004 B-2 IC1001! B-2
C1005 A-1 IC1002! C-3
C1006 A-1 IC1003! C-1
C1008 B-2 IC1004 B-4
C1009 B-2 IC1005 E-4
C1010 C-2
C1012 B-3 L1003 D-3
C1013 C-2 L1004 C-4
C1014 D-1 L1005 D-3
C1015 C-2 L1006 A-3
C1016 D-2 L1007 E-4
C1017 C-3
C1018 C-3 Q1003 B-1
C1019 C-2 Q1004 E-3
C1020 C-2 Q1012 D-3
C1021 C-2
C1022 D-2 R1002 B-2
C1023 D-3 R1003 B-2
C1024 D-3 R1004 B-2
C1025 D-2 R1005 A-1
C1026 E-4 R1006 B-2
C1040 C-4 R1008 B-2
C1041 B-4 R1009 B-2
C1042 B-4 R1011 B-1
C1043 B-4 R1012 B-1
C1044 C-3 R1013 B-2
C1045 B-3 R1014 C-1
C1046 C-4 R1016 C-1
C1047 D-4 R1017 C-1
C1048 C-3 R1018 C-2
C1049 D-4 R1019 D-1
C1051 E-4 R1020 D-1
C1052 C-2 R1021 D-2
R1022 D-2
CN1001 F-3 R1024 D-1
CN1002 F-2 R1025 D-1
R1026 D-1
RESISTORS
CAPACITORS
CONNECTORS
DIODES
DIODES
ICS
COILS
TRANSISTORS
D1001 B-3 R1030 E-3
D1002 B-3 R1032 E-3
D1003 B-3 R1034 E-2
D1004 B-3 R1040 D-4
D1006 B-2 R1041 D-2
D1007 B-2 R1046 D-4
D1008 B-2 R1047 D-4
D1009 C-1 R1048 D-3
D1010 C-2 R1050 C-4
D1011 C-3 R1051 B-4
D1013 C-2 R1052 C-4
D1014 C-2 R1053 C-4
D1015 C-2 R1054 B-3
D1016 C-2 R1055 B-3
D1017 D-2 R1056 C-4
D1018 C-2 R1057 C-3
D1019 D-3 R1058 D-3
D1020 D-3 R1060 D-4
D1022 B-2 R1061 E-4
D1023 C-3 R1062 E-4
D1025 E-2 R1063 E-3
D1026 E-3 R1064 E-3
D1027 E-3 R1065 D-3
D1028 C-3 R1066 D-2
D1031 C-3 R1067 D-3
D1036 B-1 R1068 D-3
D1040 D-3 R1069 D-2
D1041 B-4 R1070 D-2
D1042 B-4 R1072 C-2
D1043 B-4
D1044 B-4 AC1002 A-3
D1045 B-4 F1001 A-3
D1046 C-4 J1010 A-3
D1047 C-4 J1011 A-3
D1048 D-4 RL1001 C-3
D1049 D-3 SA1001 A-3
D1050 B-1 T1001 C-3
D1052 D-3 T1002 C-4
D1053 B-3
MISCELLANEOUS
BE5J10F01061
Power Supply CBA Top/Bottom View
1-11-13
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
Power Supply CBA Parts Location Guide
Ref No. Position Ref No. Position Ref No. Position Ref No. Position Ref No. Position
C1001 B-1 C1043 B-2 D1017 B-2 IC1001 C-2 R1016 B-2
C1002 C-1 C1044 B-2 D1018 B-1 IC1002 B-2 R1017 B-2
C1003 B-1 C1045 B-2 D1019 A-2 IC1003 B-2 R1018 B-2
C1004 B-2 C1046 B-2 D1020 A-2 IC1004 C-2 R1019 A-2
C1005 B-2 C1047 B-2 D1022 C-2 IC1005 A-2 R1020 A-2
C1006 B-2 C1048 B-2 D1023 B-2 R1021 A-2
C1008 C-1 C1049 B-2 D1025 A-1 L1003 B-2 R1022 A-2
C1009 B-2 C1051 A-2 D1026 A-1 L1004 B-2 R1024 A-2
C1010 C-1 C1052 A-1 D1027 A-2 L1005 A-2 R1025 A-2
C1012 C-2 D1028 B-2 L1006 C-2 R1026 A-2
C1013 B-2 CN1001 A-2 D1031 B-2 L1007 A-2 R1030 A-1
C1014 A-2 CN1002 A-2 D1036 B-1 R1032 A-2
C1015 B-1 D1040 A-2 Q1003 B-1 R1034 A-1
C1016 B-2 D1001 C-2 D1041 C-2 Q1004 A-1 R1040 A-2
C1017 B-2 D1002 C-2 D1042 C-2 Q1012 A-2 R1041 A-1
C1018 B-2 D1003 C-2 D1043 C-2 R1046 B-2
C1019 A-1 D1004 C-2 D1044 C-2 R1002 C-2 R1047 B-2
C1020 B-1 D1006 B-2 D1045 C-2 R1003 C-2 R1048 B-2
C1021 B-1 D1007 B-1 D1046 B-2 R1004 C-2 R1050 C-2
C1022 B-1 D1008 B-1 D1047 B-2 R1005 B-2 R1051 C-2
C1023 A-2 D1009 A-2 D1048 B-2 R1006 B-2 R1052 C-2
C1024 A-2 D1010 B-2 D1049 A-2 R1008 B-2 R1053 B-2
C1025 A-2 D1011 B-2 D1050 C-2 R1009 C-2 R1054 B-2
C1026 A-2 D1013 B-1 D1052 A-1 R1011 C-2 R1055 B-2
C1040 C-3 D1014 B-1 D1053 B-2 R1012 B-1 R1056 B-2
C1041 C-2 D1015 B-1 D1054 B-2 R1013 B-1 R1057 B-2
C1042 C-2 D1016 B-1 D1056 A-1 R1014 C-2 R1058 B-2
RESISTORS
RESISTORS
TRANSISTORS
CAPACITORS
CONNECTORS
DIODES
ICS
COILS
CAPACITORS DIODES
Ref No. Position
R1060 B-2
R1061 A-2
R1062 A-2
R1063 A-2
R1064 A-2
R1065 A-1
R1066 A-1
R1067 A-2
R1068 A-2
R1069 A-2
R1070 A-1
R1072 B-2
AC1002 C-1
F1001 C-1
J1010 C-1
J1011 C-1
RL1001 C-2
SA1001 C-1
T1001 B-2
T1002 B-2
RESISTORS
MISCELLANEOUS

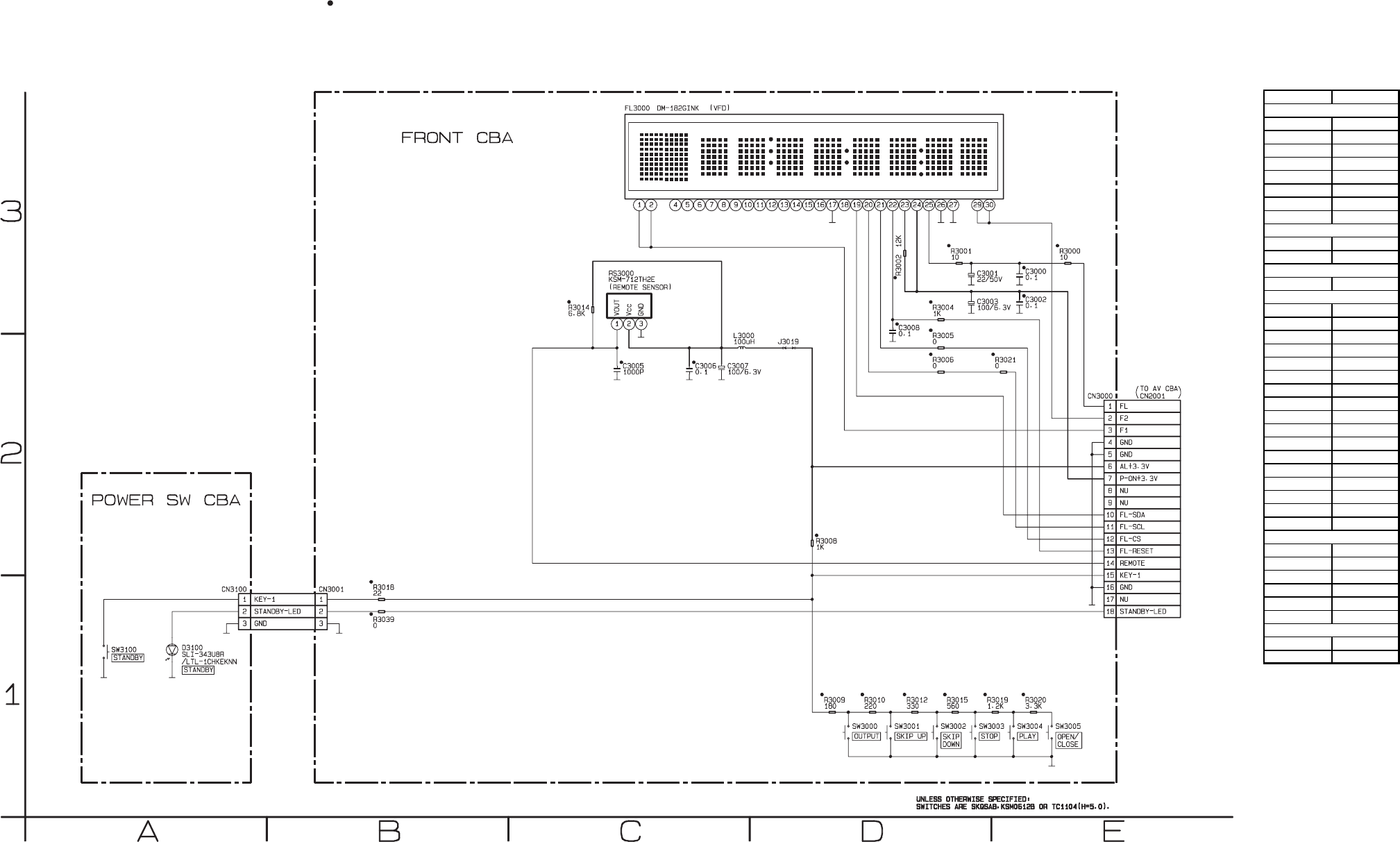

Front & Power SW Schematic Diagram
E5J10SCF
1-11-14
“ “ = SMD
Ref No. Position
C3000 E-3
C3001 D-3
C3002 E-3
C3003 D-3
C3005 C-2
C3006 C-2
C3007 C-2
C3008 D-3
CN3000 E-2
CN3001 B-1
L3000 C-2
R3000 E-3
R3001 D-3
R3002 D-3
R3004 D-3
R3005 D-2
R3006 D-2
R3008 D-2
R3009 D-1
R3010 D-1
R3012 D-1
R3014 C-3
R3015 D-1
R3018 B-1
R3019 E-1
R3020 E-1
R3021 E-2
R3039 B-1
SW3000 D-1
SW3001 D-1
SW3002 D-1
SW3003 D-1
SW3004 E-1
SW3005 E-1
FL3000 C-3
RS3000 C-3
Front Schematic Diagram
COIL
RESISTORS
MISCELLANEOUS
CAPACITORS
CONNECTORS
SWITCHES

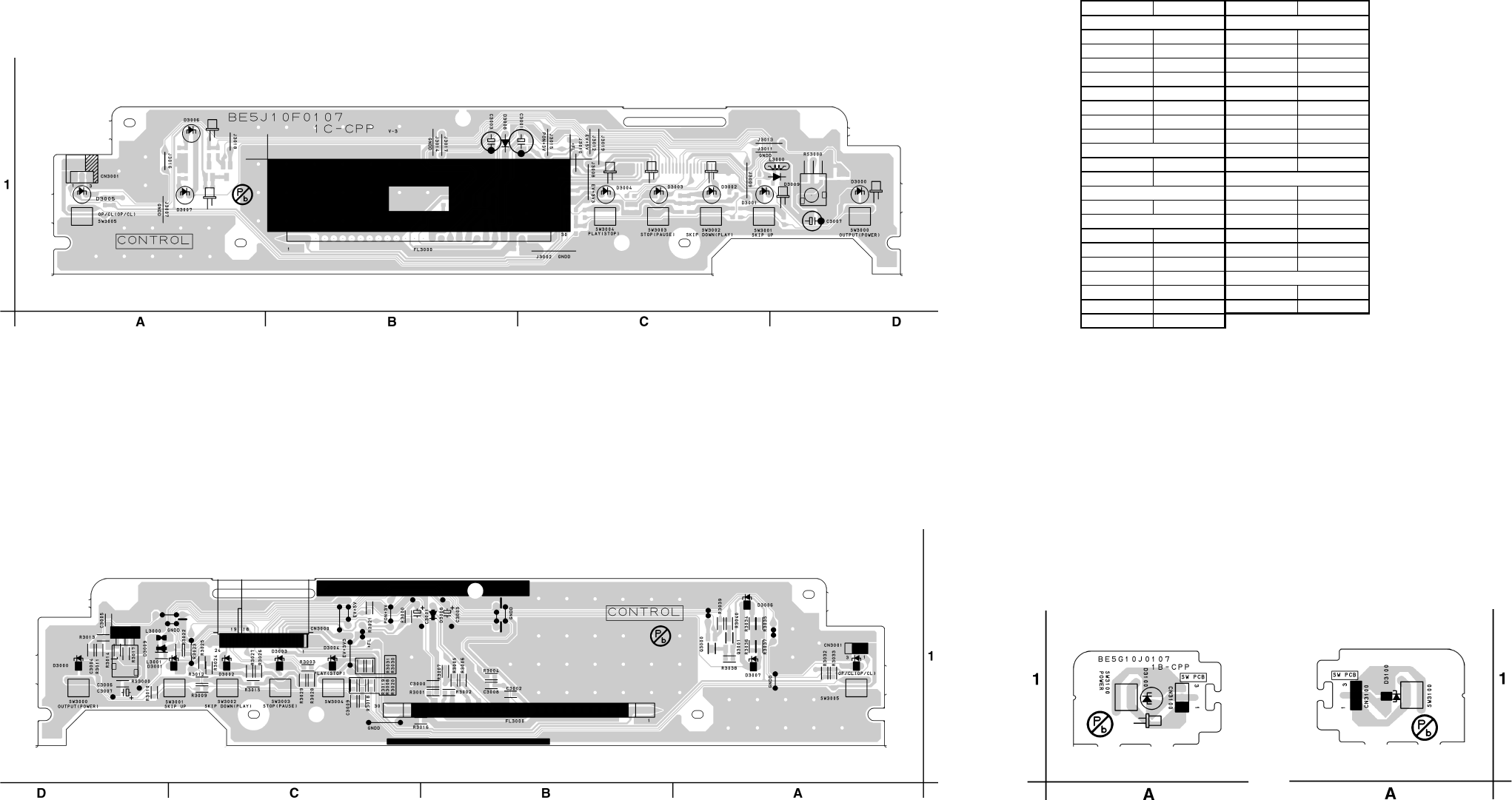

BE5J10F01071C
Power SW CBA
Top View
Front CBA Top View
Front CBA Bottom View
1-11-15
BE5J10F01071B
Power SW CBA
Bottom View
Front CBA Parts Location Guide
Ref No. Position Ref No. Position
C3000 B-1 R3009 C-1
C3001 B-1 R3010 D-1
C3002 B-1 R3012 C-1
C3003 B-1 R3014 D-1
C3005 D-1 R3015 C-1
C3006 D-1 R3018 C-1
C3007 D-1 R3019 C-1
C3008 B-1 R3020 C-1
R3021 C-1
CN3000 C-1 R3039 A-1
CN3001 A-1
SW3000 D-1
L3000 D-1 SW3001 C-1
SW3002 C-1
R3000 C-1 SW3003 C-1
R3001 B-1 SW3004 C-1
R3002 B-1 SW3005 A-1
R3004 B-1
R3005 B-1 FL3000 B-1
R3006 B-1 RS3000 D-1
R3008 C-1
SWITCHES
MISCELLANEOUS
CAPACITORS
CONNECTORS
COIL
RESISTORS
RESISTORS

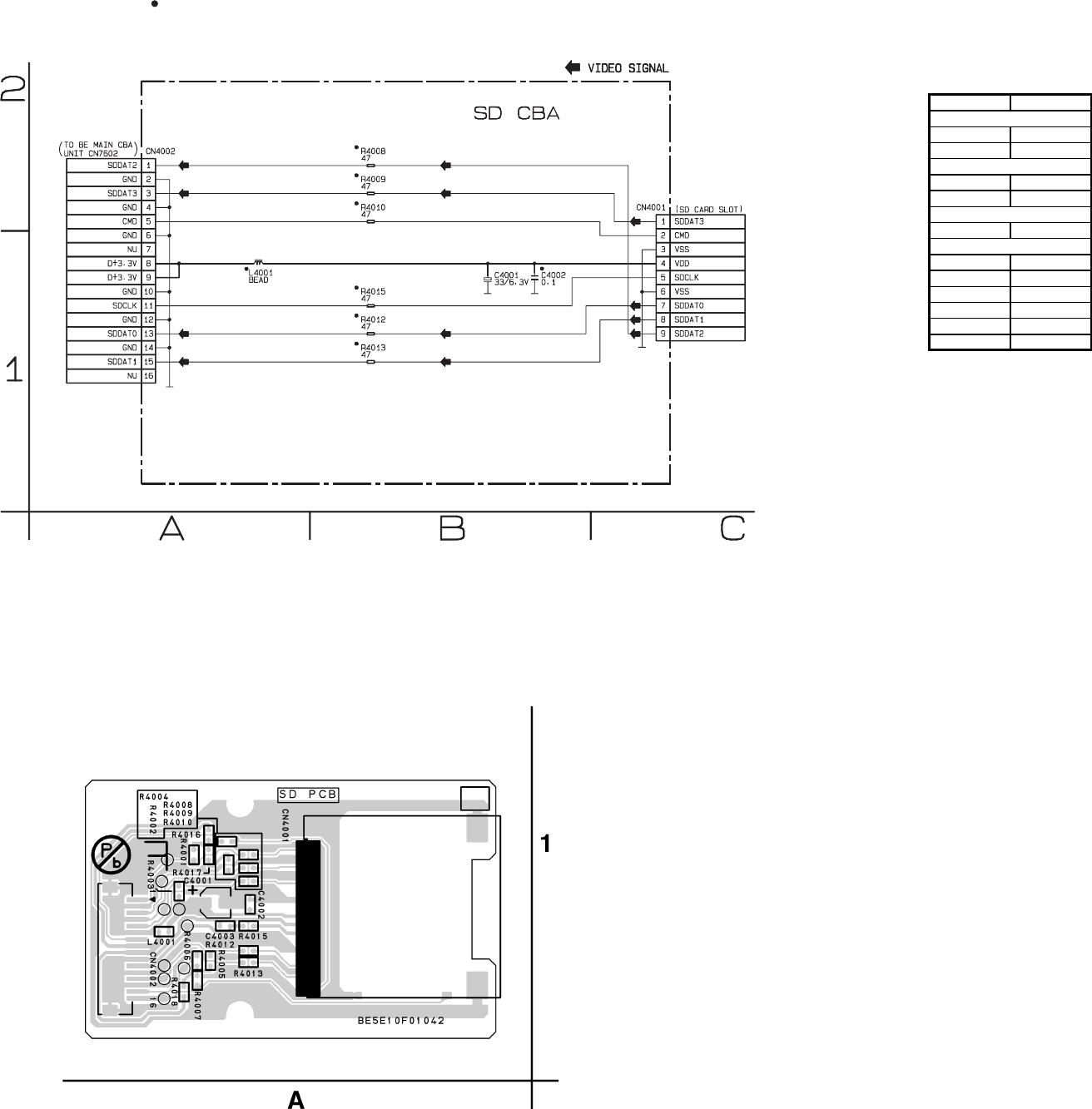

SD Schematic Diagram
E5E10SCSD
“ “ = SMD
1-11-16
BE5E10F01042
SD CBA Bottom View
Ref No. Position
C4001 B-1
C4002 B-1
CN4001 C-2
CN4002 A-2
L4001 A-1
R4008 B-2
R4009 B-2
R4010 B-2
R4012 B-1
R4013 B-1
R4015 B-1
CAPACITORS
CONNECTORS
RESISTORS
SD Schematic Diagram
Parts Location Guide
COIL
BE Main 1/10 Schematic Diagram
E5J10SCBM1
1-11-17
The order of pins shown in this diagram is different from that of actual IC6001.
IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section.
2 NOTE:
“ “ = SMD
1-11-18
BE Main 2/10 Schematic Diagram
E5J10SCBM2
The order of pins shown in this diagram is different from that of actual IC6001.
IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section.
2 NOTE:
“ “ = SMD
1-11-19

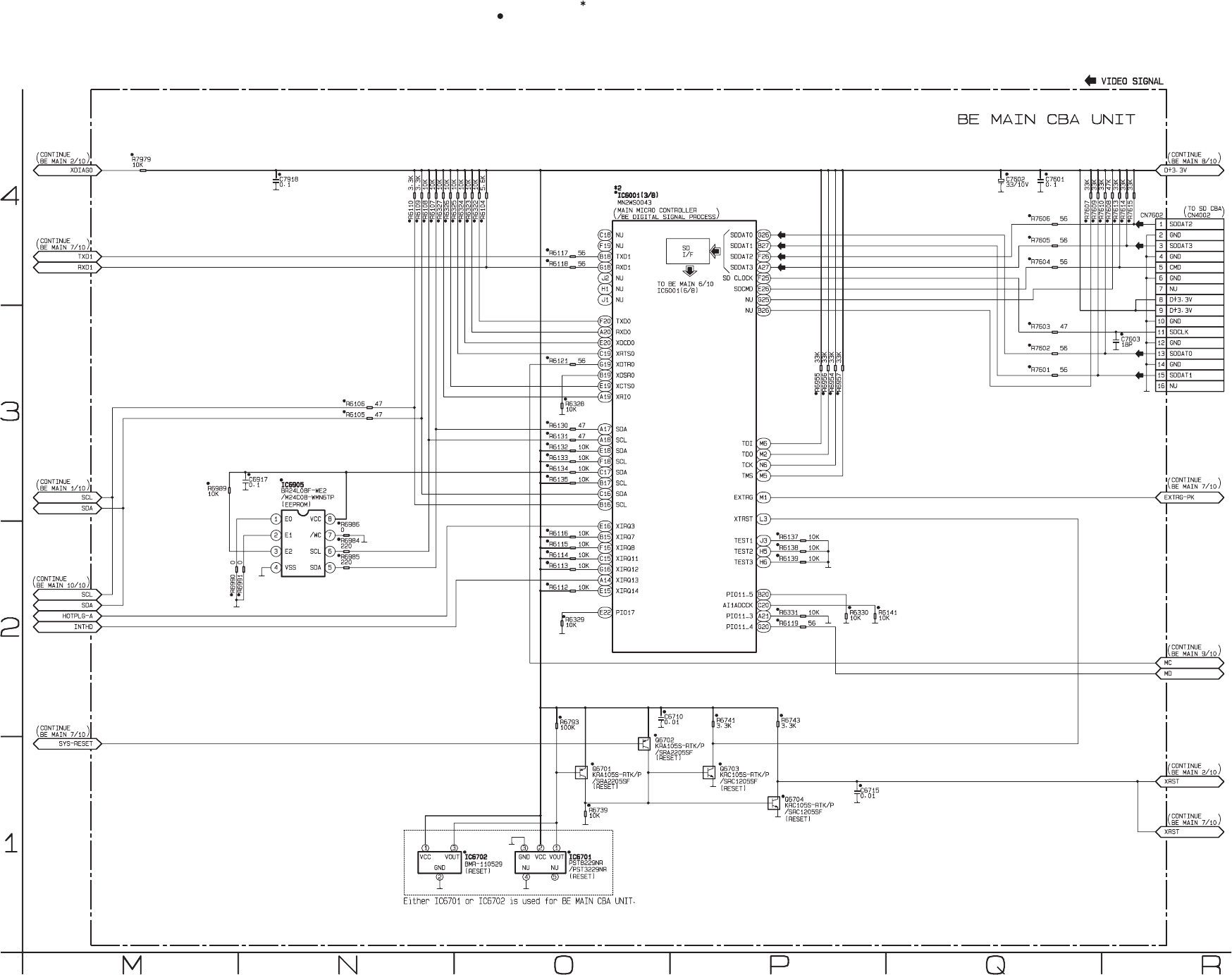

BE Main 3/10 Schematic Diagram
E5J10SCBM3
The order of pins shown in this diagram is different from that of actual IC6001.
IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section.
2 NOTE:
“ “ = SMD

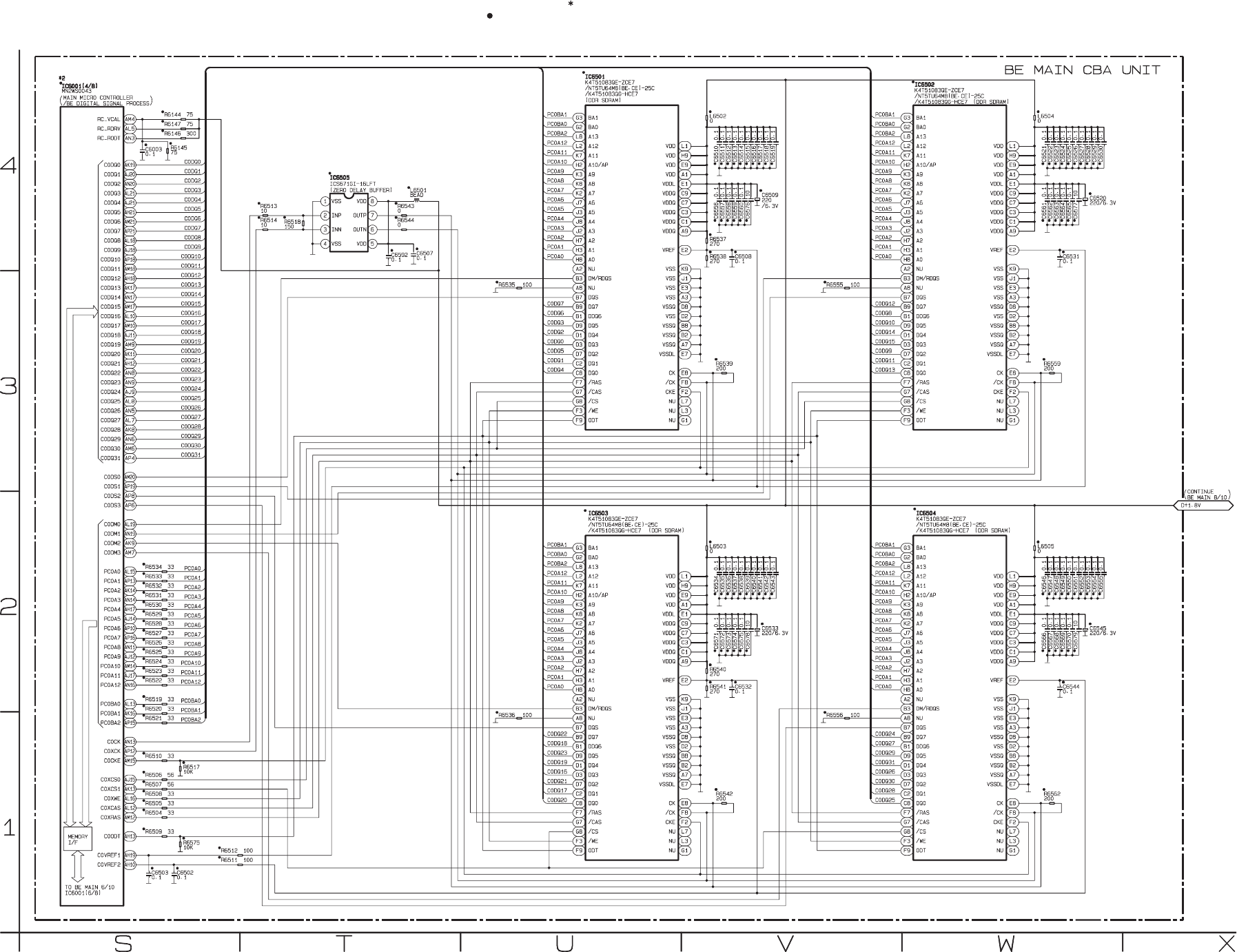

BE Main 4/10 Schematic Diagram
E5J10SCBM4
The order of pins shown in this diagram is different from that of actual IC6001.
IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section.
2 NOTE:
“ “ = SMD
1-11-20

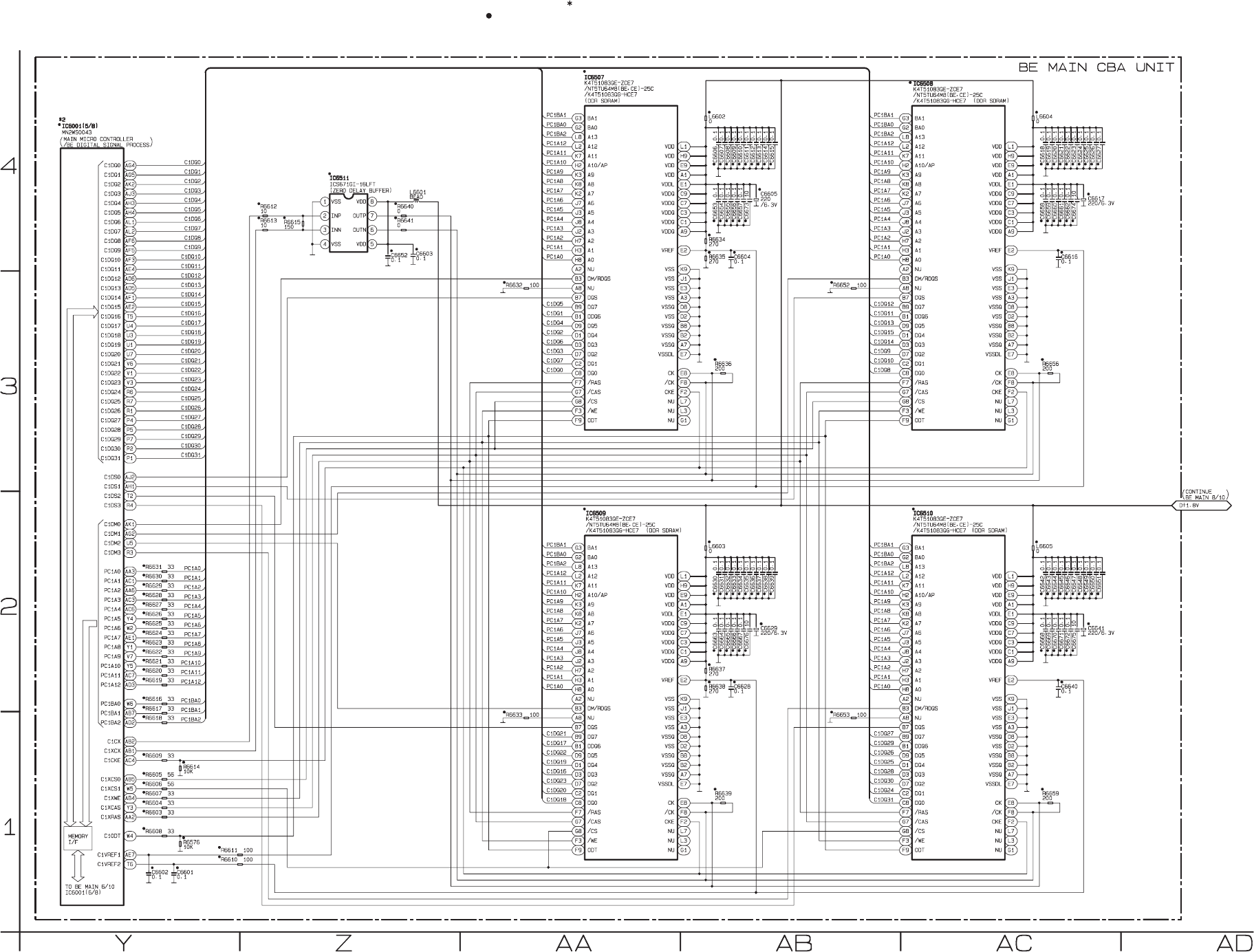

BE Main 5/10 Schematic Diagram
E5J10SCBM5
The order of pins shown in this diagram is different from that of actual IC6001.
IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section.
2 NOTE:
“ “ = SMD
1-11-21

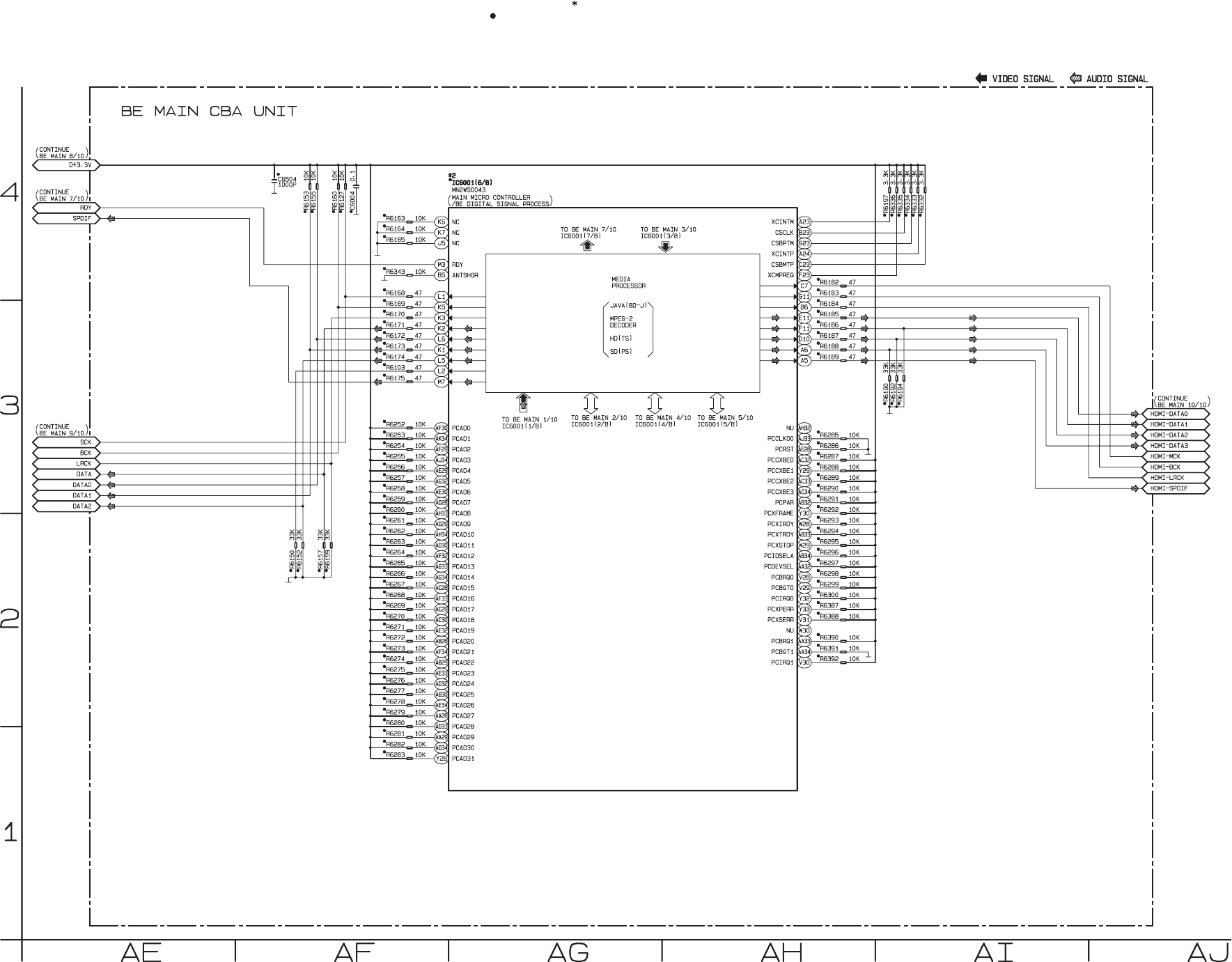

BE Main 6/10 Schematic Diagram
E5J10SCBM6
The order of pins shown in this diagram is different from that of actual IC6001.
IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section.
2 NOTE:
“ “ = SMD
1-11-22
BE Main 7/10 Schematic Diagram
E5J10SCBM7
The order of pins shown in this diagram is different from that of actual IC6001.
IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section.
2 NOTE:
“ “ = SMD
1-11-23

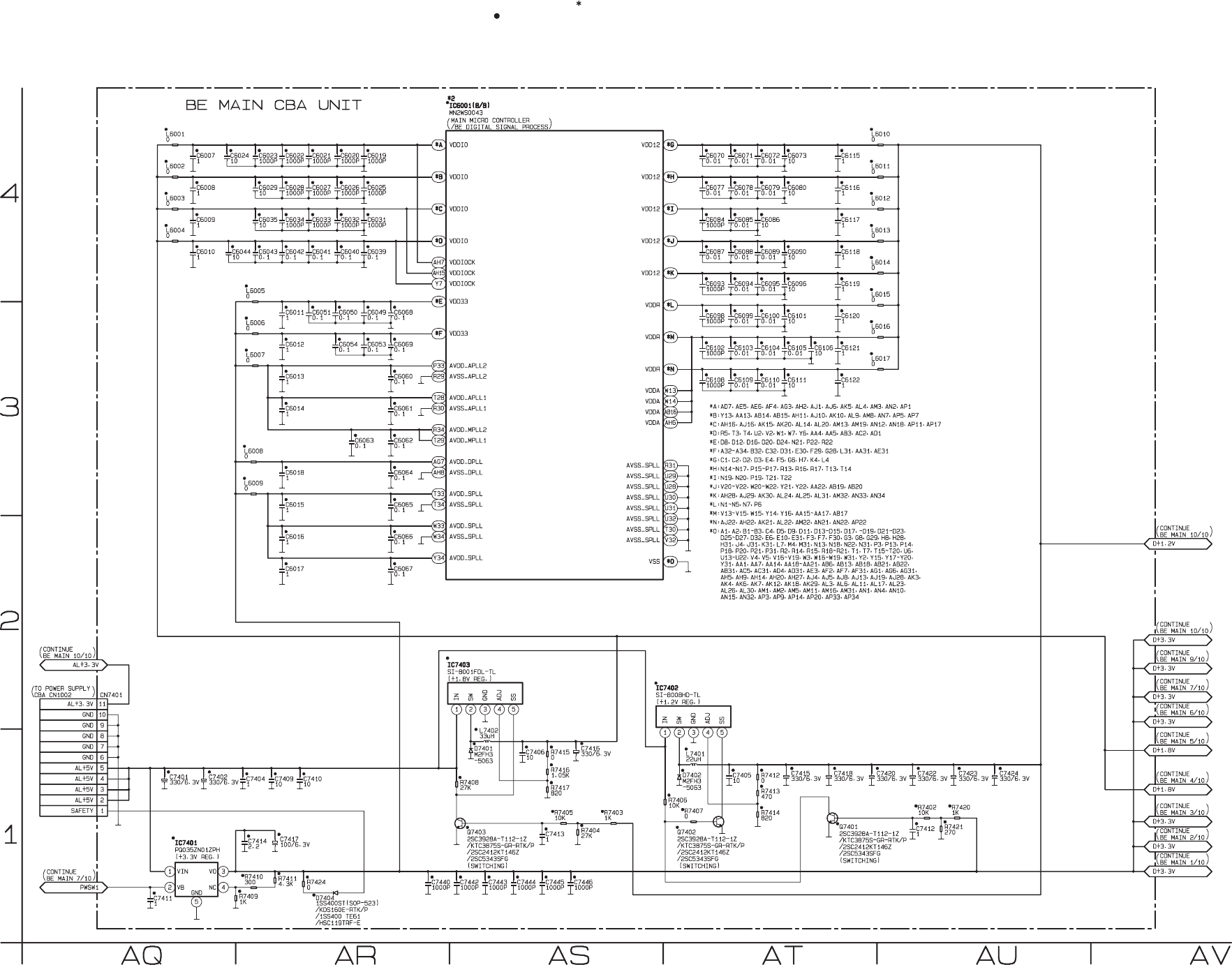

BE Main 8/10 Schematic Diagram
E5J10SCBM8
The order of pins shown in this diagram is different from that of actual IC6001.
IC6001 is divided into eight and shown as IC6001 (1/8) ~ IC6001 (8/8) in this BE Main Schematic Diagram Section.
2 NOTE:
“ “ = SMD
1-11-24
BE Main 9/10 Schematic Diagram
E5J10SCBM9
“ “ = SMD
1-11-25
BE Main 10/10 Schematic Diagram
E5J10SCBM10
“ “ = SMD
1-11-26

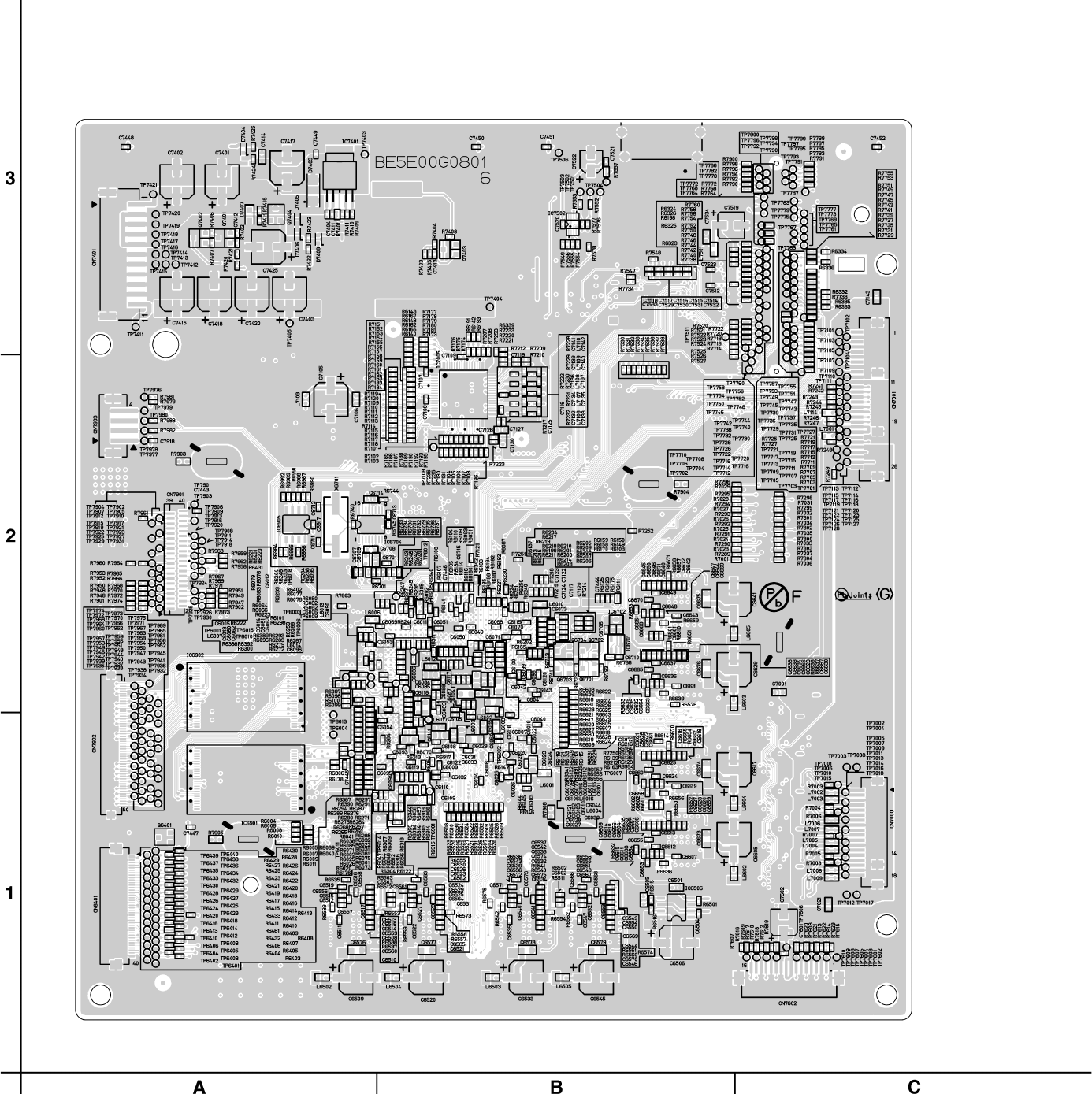

BE Main CBA Top View
1-11-27 BE5E00G08016

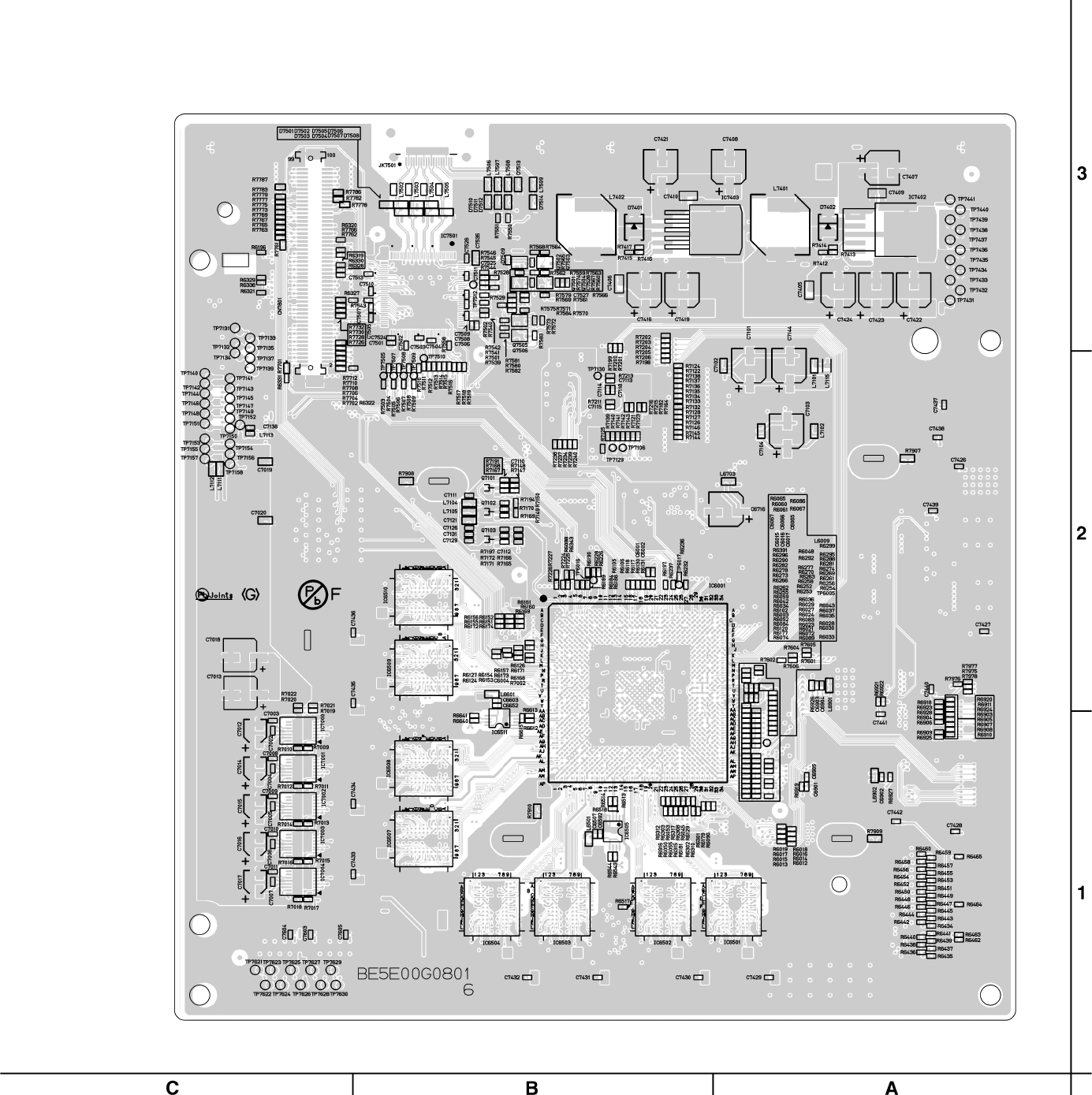

BE Main CBA Bottom View
1-11-28 BE5E00G08016

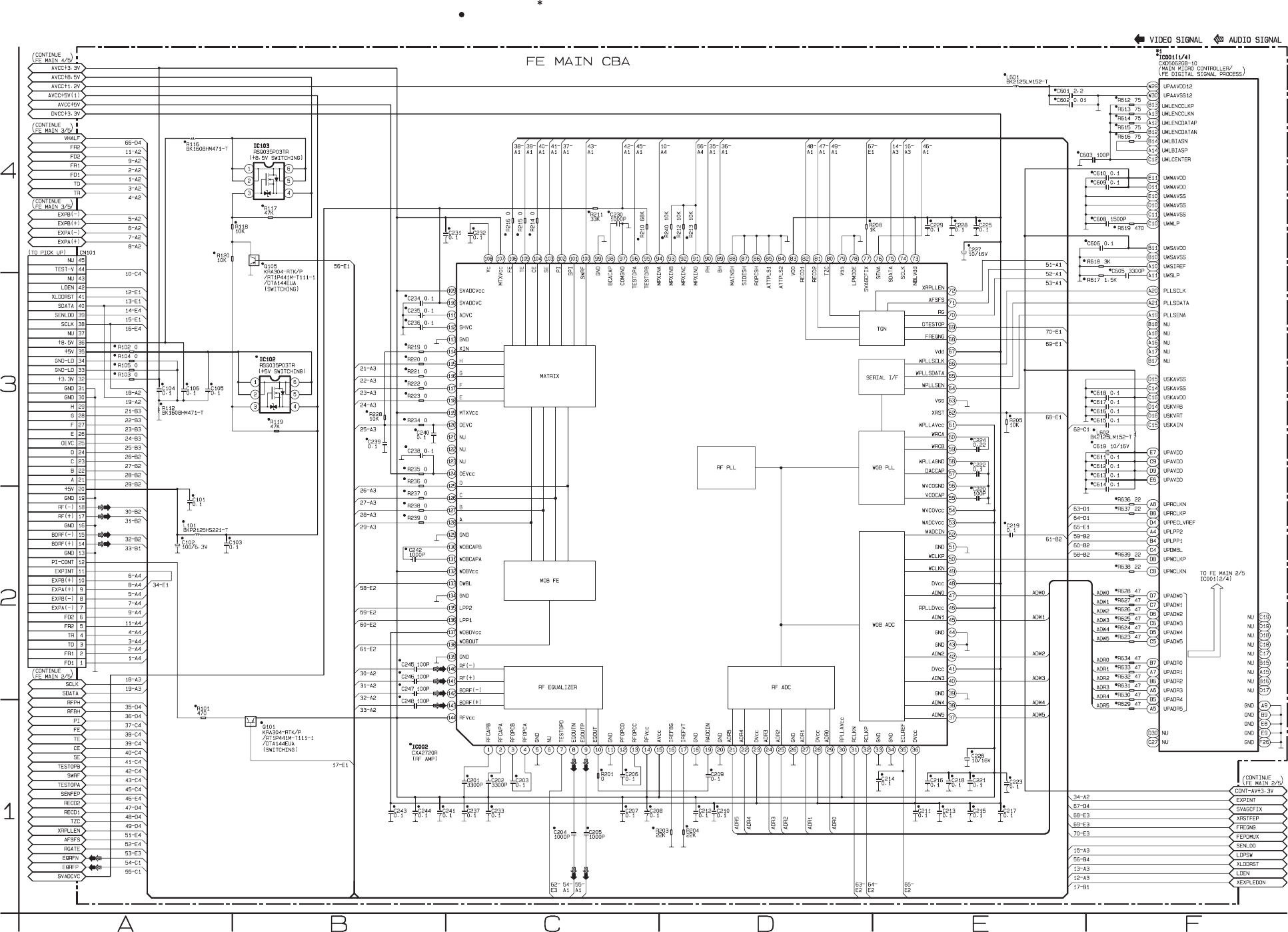

FE Main 1/5 Schematic Diagram
E5J10SCFM1
The order of pins shown in this diagram is different from that of actual IC001.
IC001 is divided into four and shown as IC001 (1/4) ~ IC001 (4/4) in this FE Main Schematic Diagram Section.
1 NOTE:
1-11-29
“ “ = SMD

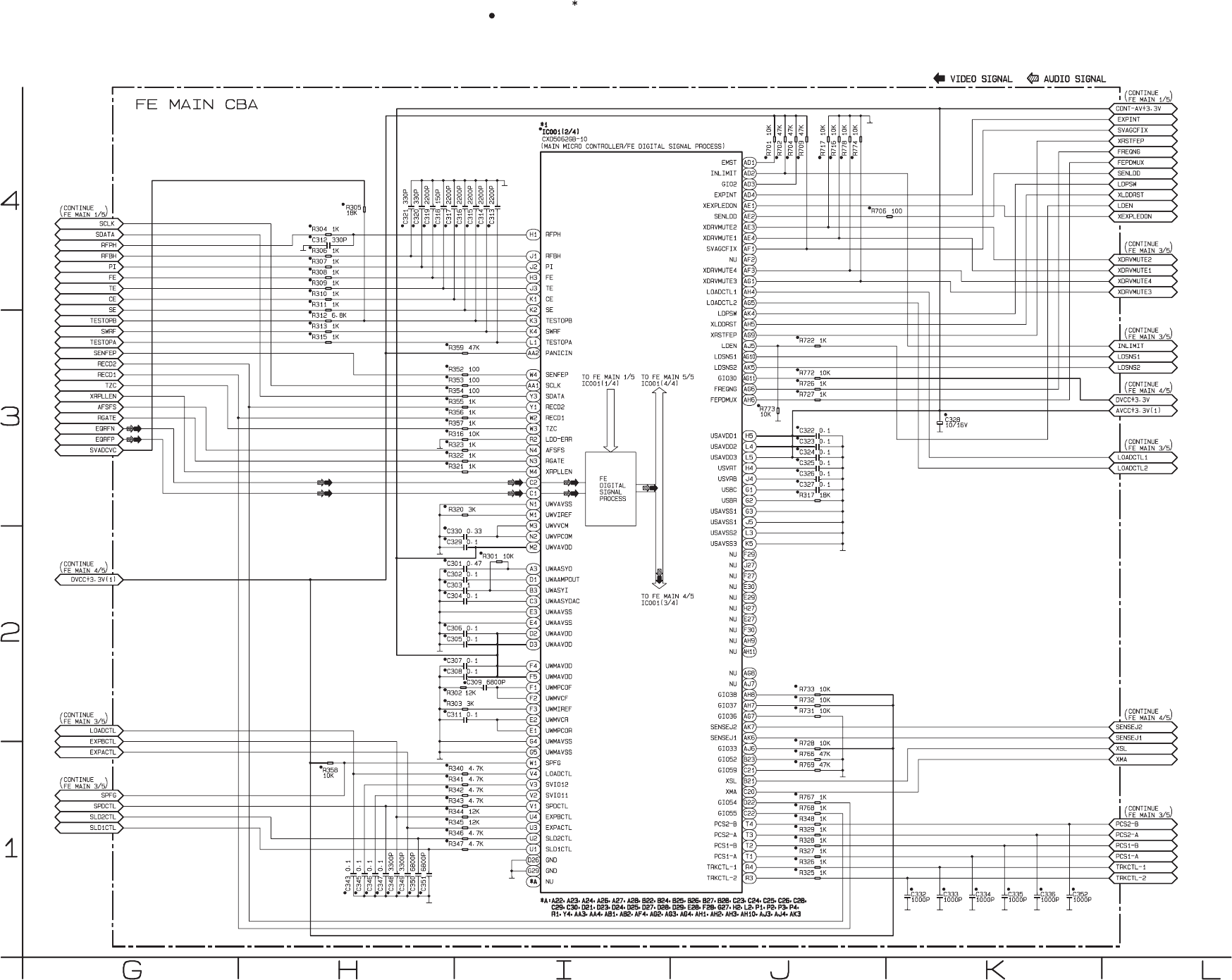

FE Main 2/5 Schematic Diagram
E5J10SCFM21-11-30
The order of pins shown in this diagram is different from that of actual IC001.
IC001 is divided into four and shown as IC001 (1/4) ~ IC001 (4/4) in this FE Main Schematic Diagram Section.
1 NOTE:
“ “ = SMD

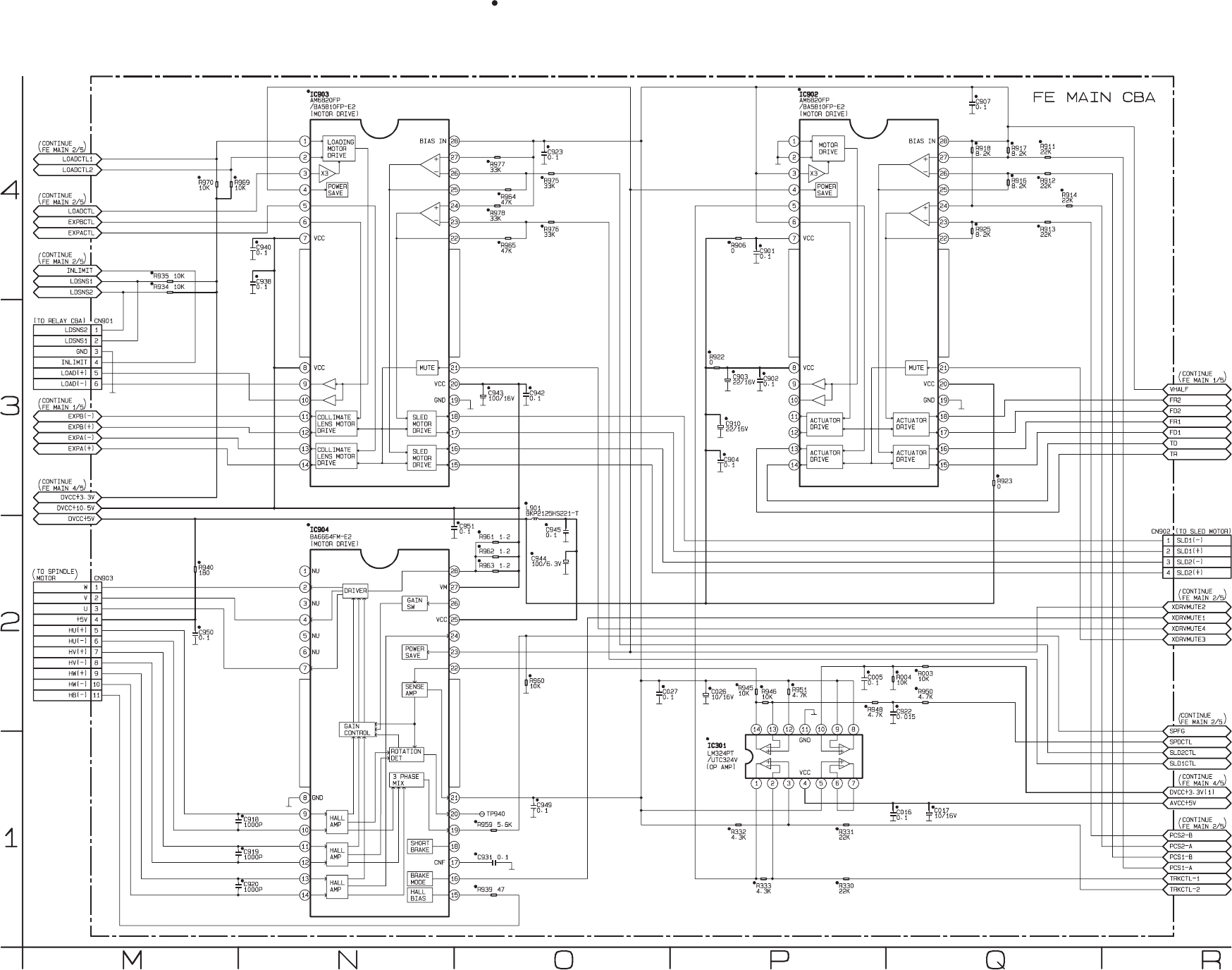

FE Main 3/5 Schematic Diagram
E5J10SCFM3
1-11-31
“ “ = SMD

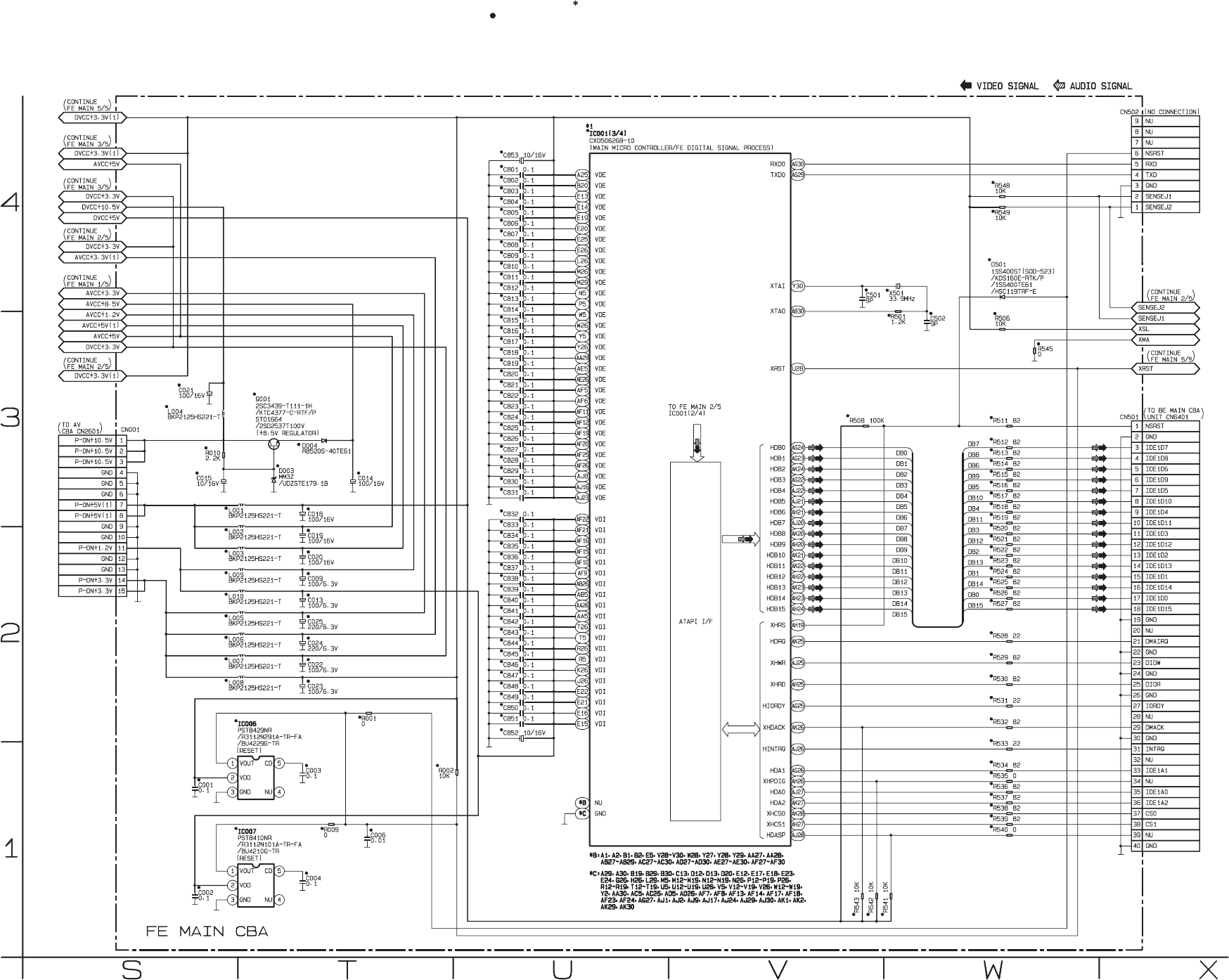

FE Main 4/5 Schematic Diagram
E5J10SCFM4
1-11-32
The order of pins shown in this diagram is different from that of actual IC001.
IC001 is divided into four and shown as IC001 (1/4) ~ IC001 (4/4) in this FE Main Schematic Diagram Section.
1 NOTE:
“ “ = SMD

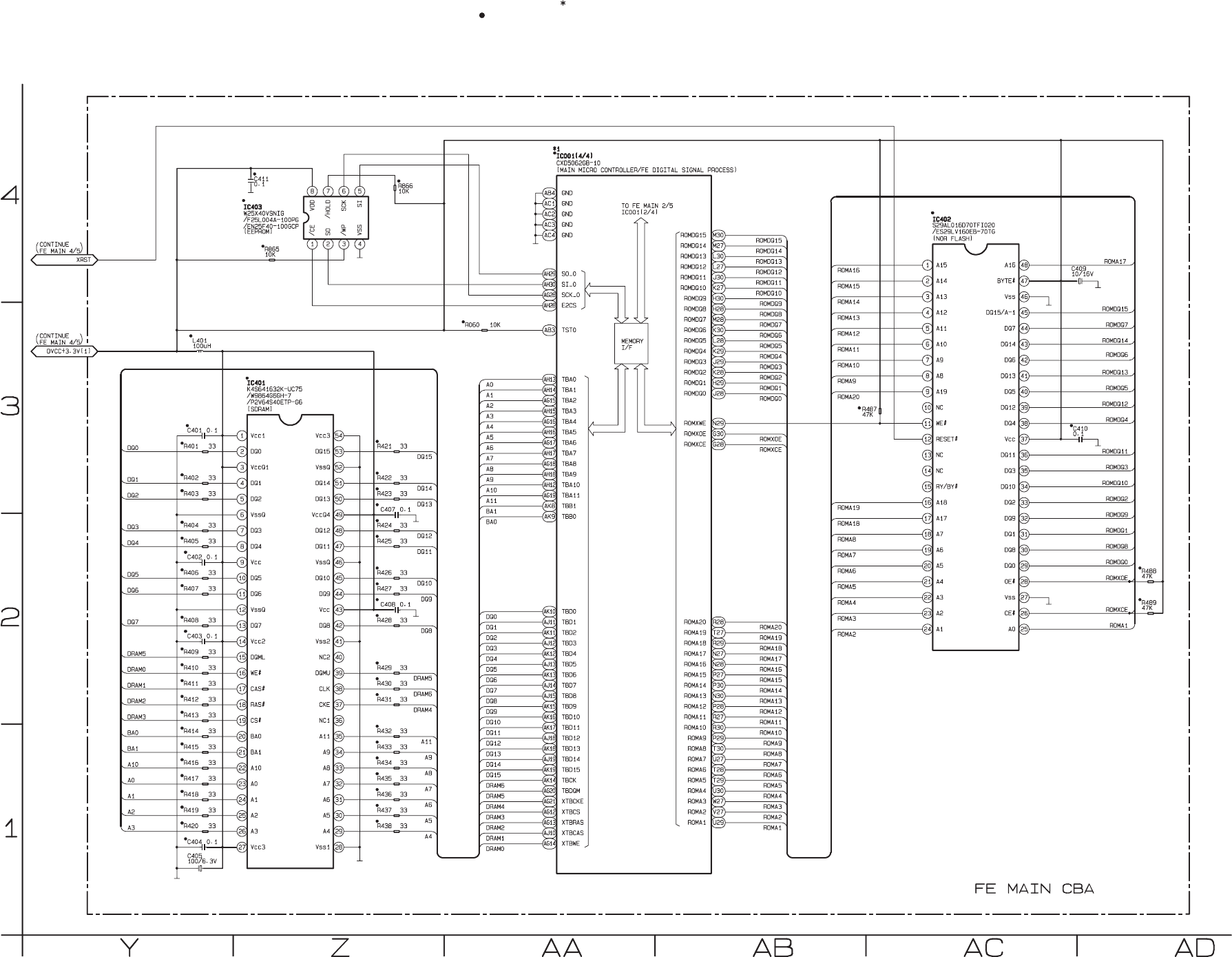

FE Main 5/5 Schematic Diagram
E5J10SCFM5
1-11-33
The order of pins shown in this diagram is different from that of actual IC001.
IC001 is divided into four and shown as IC001 (1/4) ~ IC001 (4/4) in this FE Main Schematic Diagram Section.
1 NOTE:
“ “ = SMD

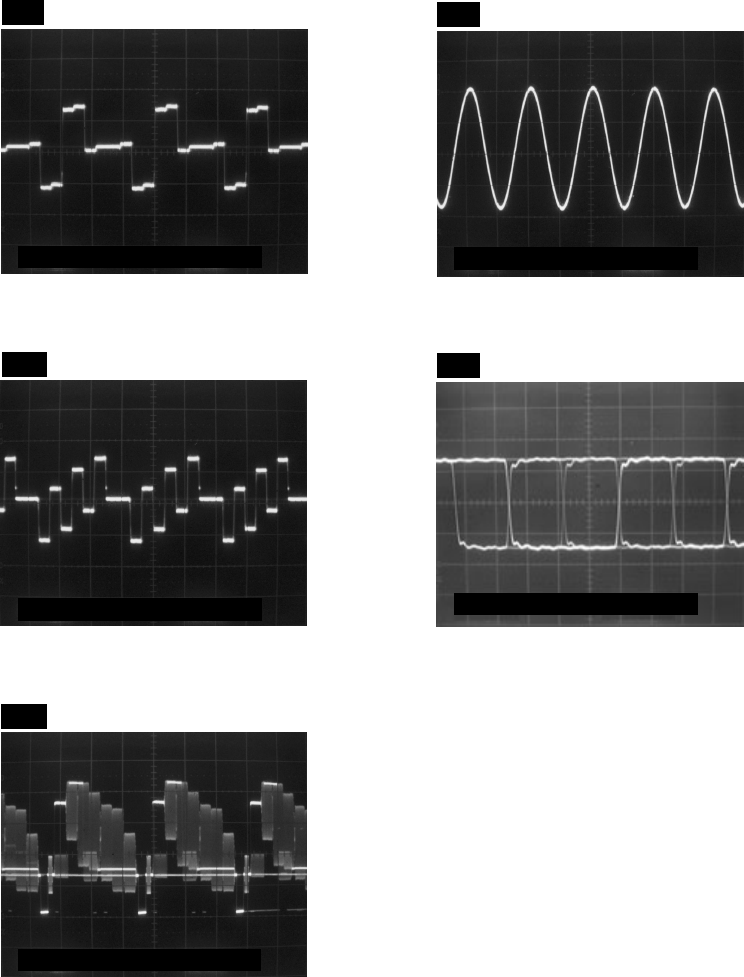

WAVEFORMS
WF4
WF1
WF2
WF3
Pin 27 of CN2000
Pin 5 of CN2000
WF5 Pin 22 of CN2000
Pin 3 of CN2000
C2314 PLUS LEAD
20
µ
s0.5VVIDEO-CVBS
VIDEO-Cr 0.2V 10
µ
s
VIDEO-Cb 0.2V 10
µ
s
AUDIO(L) 1V 0.5ms
SPDIF 1V 0.1
µ
s
NOTE:
Input Signal (DVD)
VIDEO: 75% COLOR BAR
AUDIO: 1KHz, 0dB
E5J10WF
1-12-1
E5J10WI
1-13-1

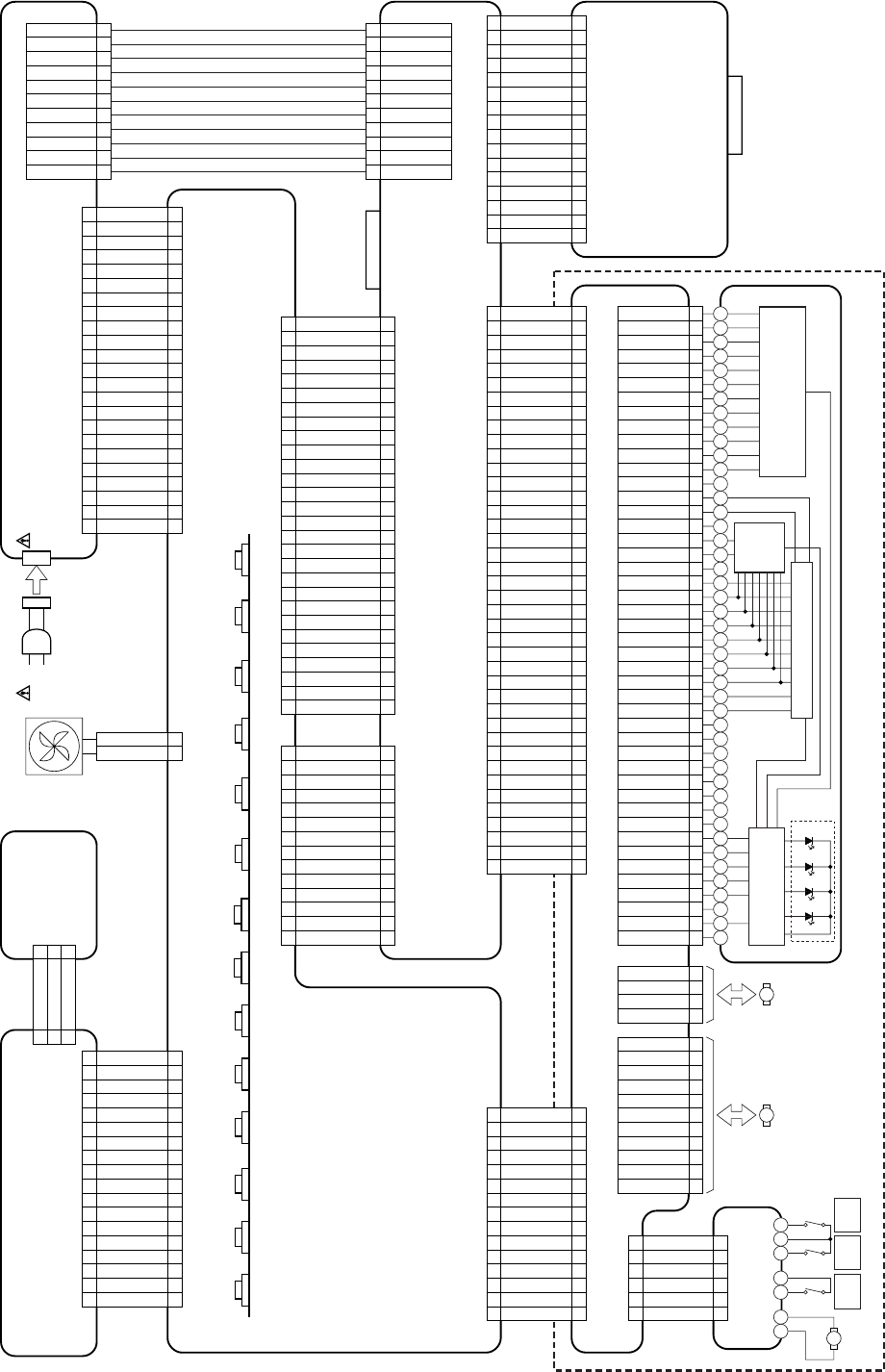

WIRING DIAGRAM
FE MAIN CBA & BD MECHANISM ASSEMBLY
AV CBA
FRONT CBA POWER SUPPLY CBA
BE MAIN CBA UNIT
FE MAIN CBA
RELAY CBA
PICKUP
SD CBA
CN1002
CN7401
CN6401
CN501
CN101CN902
CN901
CN903
HDMI-CONNECTOR
SD CARD SLOT
28
29
30
GND
31
GND
1
SLD1(-)
2
SLD1(+)
3
SLD2(-)
4
SLD2(+)
32
+3.3V
33
GND-LD
34
GND-LD
35
+5V
36
+8.5V
37
NU
38
SCLK
1
W
2
V
3
U
4
+5V
5
HU(+)
6
HU(-)
7
HV(+)
8
HV(-)
9
HW(+)
10
HW(-)
11
HB(-)
39
SENLDD
40
S D ATA
41
XLDDRST
42
LDEN
43
NU
44
TEST-V
45
NU
1
FD1
2
FR1
3
TD
4
TR
5
FR2
6
FD2
7
EXPA(-)
8
EXPB(-)
9
EXPA(+)
10
EXPB(+)
11
EXPINT
12
PI-CONT
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
FAN
BD-OEIC
LENS DRIVE
CD/DVD
-OEIC
CD-LD
BD-LD
PD-LD
DVD-LD
LASER DIODE DRIVE
SPINDLE
MOTOR
M
SLED
MOTOR
M
CN7602
CN4002
1
SDDAT2
2
GND
3
SDDAT3
4
GND
5
CMD
6
GND
7
NU
8
D+3.3V
9
D+3.3V
10
GND
11
SDCLK
12
GND
13
SDDAT0
14
GND
15
SDDAT1
16
NU
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
AL+3.3V
GND
GND
GND
GND
GND
AL+5V
AL+5V
AL+5V
AL+5V
SAFETY
11
10
9
8
7
6
5
4
3
2
1
11
AL+3.3V
10
GND
9
GND
8
GND
7
GND
6
GND
5
AL+5V
4
AL+5V
3
AL+5V
2
AL+5V
1
SAFETY
CN1001
CN2600
1
AL+2.5V
2
AL+12V(1)
3
AL+5V
4
AL+5V
5
AL+5V
6
AL+3.3V
7
GND
8
GND
9
GND
10
GND
11
GND
12
GND
13
GND
14
GND
15
AL+12V(2)
16
AL+12V(2)
17
AL+12V(2)
18
NU
19
SAFETY
20
F1
21
MAIN-P-ON
22
F2
23
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23 FL
CN7001
1
VIDEO-Y(I/P)
2
GND
3
VIDEO-Pb/Cb
4
GND
CN3000
CN2001
1
FL
2
F2
3
F1
4
GND
5
GND
6
AL+3.3V
7
P-ON+3.3V
8
NU
9
NU
10
FL-SDA
11
FL-SCL
12
FL-CS
13
FL-RESET
14
REMOTE
15
KEY-1
16
GND
17
NU
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
STANDBY
-LED
18
CN2601
CN001
1
P-ON+10.5V
2
P-ON+10.5V
3
P-ON+10.5V
4
GND
5
GND
6
GND
7
P-ON+5V(1)
8
P-ON+5V(1)
9
GND
10
GND
11
P-ON+1.2V
12
GND
13
GND
14
P-ON+3.3V
15
P-ON+3.3V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
CN2004
1
FAN-VCC
2
GND
1
NSRST
2
GND
3
IDE1D7
4
IDE1D8
5
IDE1D6
6
IDE1D9
7
IDE1D5
8
IDE1D10
9
IDE1D4
10
IDE1D11
11
IDE1D3
12
IDE1D12
13
IDE1D2
14
IDE1D13
15
IDE1D1
16
IDE1D14
17
IDE1D0
18
IDE1D15
19
GND
20
NU
21
DMAIRQ
22
GND
23
DIOW
24
GND
25
DIOR
26
GND
27
IORDY
28
NU
29
DMACK
30
GND
31
INTRQ
32
NU
33
IDE1A1
34
NU
35
IDE1A0
36
IDE1A2
37
CS0
38
CS1
39
NU
40
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40 GND
11 LDSNS2
22 LDSNS1
33 GND
44 INLIMIT
55 LOAD(+)
66 LOAD(-)
M
LOADING
MOTOR
TRAY
-IN
INNER
SW
TRAY
-OUT
CN2000
5
VIDEO-Pr/Cr
6
GND
7
NU
8
GND
9
VIDEO
11
GND
10
GND
12
PWSW1
13
RDY
14
SYS-RESET
15
SUB-TXD
16
SUB-RXD
17
P-ON+5V(2)
18
CEC-OUT
19
CEC-IN
20
AUDIO+5V
21
AUDIO+5V
22
SPDIF
23
AUDIO(R)-MUTE
28
AUDIO(L)-MUTE
24
GND
25
AUDIO(R)
26
GND
27
AUDIO(L)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
27
28
26
AC
CORD
AC1002
W08
W06
W07
W01
W04
H
BDRF(+)
BDRF(-)
GND
RF(+)
RF(-)
GND
+5V
A
B
C
D
OEVC
E
F
G
GND
POWER SW CBA
CN3001 CN3100
1
KEY-1
2
STANDBY-LED
3
GND
1
2
3
AUDIO(L)
-OUT
AUDIO(R)
-OUT
VIDEO
-OUT
DIGITAL
AUDIO OUT
(COAXIAL)
DIGITAL
AUDIO OUT
(OPTICAL)
VIDEO-Y
OUT
VIDEO-Pb/Cb
OUT
VIDEO-Pr/Cr
OUT
FRONT(L)
-OUT
FRONT(R)
-OUT
SURROUND
(L)-OUT
SURROUND
(R)-OUT
CENTER
-OUT
SUB WOOFER
-OUT
CN2701
CN7000
1
F-AUDIO(R)-MUTE
2
FRONT-AUDIO(R)
3
GND
4
FRONT-AUDIO(L)
5
F-AUDIO(L)-MUTE
6
SURROUND-MUTE
7
SURROUND(R)
8
GND
9
SURROUND(L)
10
SUB WOOFER-MUTE
11
SUB WOOFER
12
GND
13
CENTER
14
CENTER-MUTE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
W05
1-14-1 B1NTI
SYSTEM CONTROL TIMING CHARTS
Power on
Tray close
Pick-up position
moves
Pick-up position
moves
Note:
If other sequence is received during the sequence,
it will stops and other sequence starts.
Only if SLED is moving, it will stop after the moving is finished.
SLED position
initialization
Tray open
SLED position
initialization
SLED inner
around moves
[ Tray Open ]
Start
[ Tray Close ]
Start
[ Tray Close ]
End
[ Tray Open ]
End
SLED moves
Start
Power on
SLED moves
End
Hand close
Hand close
detection
Start

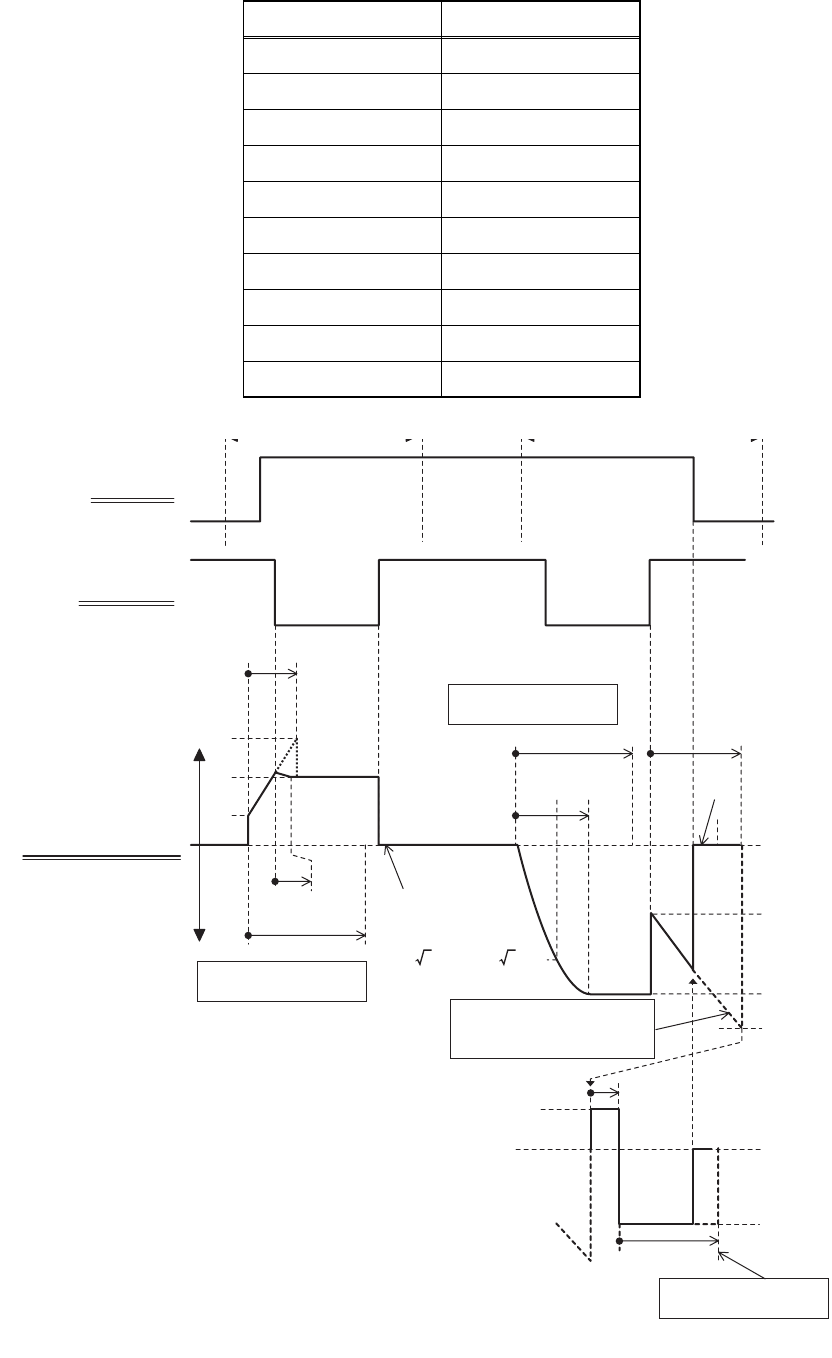

1-14-2 B1NTI
Parameter
V*: Voltage T*: Event timer
V0: 1.5 V T1: 0.3 s
V1: 6.8 V T3: 0.4 s
V2: 3.5 V T4: 2.0 s
V3: -3.5 V T5: 0.2 s
V4: -2.5 V T6: 3.0 s
V5: -6.8 V T7: 3.0 s
V6: 0.8 V T8: 2.0 s
V7: -4.0 V T9: 0.2 s
T10: 0.2 s
T11: 2.0 s
Motor voltage 0[V] 0[V]
0[V]
V4
V3
V5
V7
T10
V6
Tray-in-sw
Tray close (retry)
off
on
off
on
Tray-out-sw
Tray insertion direction
Tray ejection direction
T8
T3
t
T1
Time-out (T6)
Time-out (T7)
If Tray-out-sw is not OFF
within T7, it is Time-out.
V1
V2
V0 0
Time-out (T4)
Brake mode (T5)
Time-out (T11)
Brake mode (T9)
(t) X V3 / (T3)
If Tray-out-sw is not OFF
within T6, it is Time-out.
If Tray-in-sw is not ON
within T11, it is Time-out.
It raise up voltages until
Tray-in-sw is ON. If Tray-out-sw
is not ON within T4, it is retried.
1-15-1 E5J10PIN
IC PIN FUNCTION DESCRIPTIONS
IC2000 (SUB MICRO CONTROLLER)
Pin
No.
IN/
OUT
Signal
Name Function
1 - NU Not Used
2 - NU Not Used
3 - NU Not Used
4 IN KEY-1 Key Data Input 1
5 - NU Not Used
6 IN VDD +3.3V Power Supply
7 IN VDD +3.3V Power Supply
8 OUT OSC1 Main Clock Output
9 IN OSC2 Main Clock Input
10 - GND Ground
11 - NU Not Used
12 - NU Not Used
13 - GND Ground
14 IN RESET Micro Controller Reset
Signal
15 - NU Not Used
16 - NU Not Used
17 - NU Not Used
18 - NU Not Used
19 - NU Not Used
20 OUT FL-CS FL Chip Select Signal
21 OUT MODE1 Mode 1 Signal
22 OUT MODE2 Mode 2 Signal
23 - NU Not Used
24 OUT MAIN-P-
ON Power On Signal
25 OUT A33-PW-
CONT
Power Regulator Control
Signal
26 OUT FL-SW FL On/Off Control Signal
27 IN REMOTE Remote Signal Input
28 IN CEC-IN CEC Signal Input
29 OUT PWSW2 Power On Signal Output 2
30 - NU Not Used
31 OUT AUDIO-
MUTE Audio Mute Control Signal
32 - NU Not Used
33 OUT FL-SDA FL Serial Data
34 OUT FL-SCL FL Serial Clock
35 - NU Not Used
36 - NU Not Used
37 OUT PWSW3 Power On Signal Output 3
38 - NU Not Used
39 OUT IIC-BUS
SDA IIC-BUS Serial Data
40 OUT IIC-BUS
SCL IIC-BUS Serial Clock
41 - NU Not Used
42 OUT PWSW1 Power On Signal Output 1
43 IN RDY Ready/Busy communication
Control Signal
44 OUT SYS-
RESET System Reset Signal
45 OUT FAN-CONT Fan Motor Control Signal
46 - NU Not Used
47 - NU Not Used
48 OUT SUB-TXD Transmission Data to Main
Micro Controller
49 IN SUB-RXD Reception Data from Main
Micro Controller
50 OUT V5V-PW-
SW Video+5V Power Control
51 - NU Not Used
52 OUT CEC-OUT CEC Signal Output
53 - NU Not Used
54 - NU Not Used
55 - NU Not Used
56 - NU Not Used
57 - NU Not Used
58 - NU Not Used
59 - NU Not Used
60 OUT STANDBY-
LED Standby LED Signal Output
61 - VREF Ground
62 IN FAN-
DETECT Fan Signal Detect
63 IN SAFETY Power Supply Failure
Detection
64 - NU Not Used
Pin
No.
IN/
OUT
Signal
Name Function
1-16-1 E5J10LE
LEAD IDENTIFICATIONS
20 11
10
1
1234
48
17
32
33
16
1
64
49
123
54
1 4
8 5
1
2
4
3
1: Anode
2: Cathode
3: Emitter
4: Collector
85
4
1
C
BE
58
4
1
ECB
ECB
ECB
12 45
35
87
1234
1 2 3
1: GND
2: OUT
3: IN
ECB
ECB
GDS
Note:
A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
G: Gate
D: Drain
S: Source
BH7602FS-E2
2SA1981Y-AT
2SC1815-(GR,Y)(TE2 F T)
2SC5343Y-AT
KTA1266-Y-AT/P
KTA1271-Y-AT/P
KTC3198-Y-AT/P
STB1277LY-AT
STD1862LY-AT
2SA1980M Y
2SC5343MG-AT
2SC5343M Y
KRA105M-AT/P
KRC102M-AT/P
KRC103M-AT/P
KTA1267-Y-AT/P
KTC3199-GR-AT/P
KTC3205-Y-AT/P
SRA2205M
SRC1203MAT
PQ070XF02SZH
2SK3798(Q)
PST3630NR
PST8430NR
EL817B
LTV-817B-F
PS2561A-1(Q)
PS2561A-1(W)
FA5542N-A2-TE1
TB7102F
MM1636XWRE
2SA1530A-T112-1Z
2SA1980SFY
ISA1530AC1-T112U-1Z
KTA1504S-Y-RTK/P
2SD2144S
UTC4580E
MN101C77AFS3
STC403 MIP2F10MS
PQ035ZN01ZPH
PQ035ZNA1ZPH
KTC2026-Y/P KTA1273-Y-AT/P
20080818 1-17-1 E5J10EL
ELECTRICAL PARTS LIST
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTES:
Parts that are not assigned part numbers (---------) are
not available.
Tolerance of Capacitors and Resistors are noted with
the following symbols.
C.....±0.25% D.....±0.5% F.....±1%
G.....±2% J......±5% K.....±10%
M.....±20% N.....±30% Z.....+80/-20%
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
ASSY1 996510018699 FE MAIN CBA & BD MECHANISM
ASSEMBLY 1
ASSY2 996510018700 BE MAIN CBA UNIT 1
ASSY3 996510018701 AV ASSEMBLY 1
Consists of the following:
ASSY3a AV CBA 1
ASSY3b POWER SW CBA 1
ASSY3c FRONT CBA 1
AV CBA
2L055 SCREW S-TIGHT M3X8 BIND
HEAD+ 1
B47 POWER HEATSINK E4340UD 1
JK2100 RCA JACK(BLACK) MSP-251V-01 NI
FE LF 1
JK2100 RCA JACK BLACK RCA-117-03 1
JK2200 JACK RCA PCB L 02 MSP-242V-01 NI
FE 1
JK2300 JACK RCA PCB L MSP-244V10-46 NI
FE 1
JK2400 FIBER OPTIC TRANS.MODULE 0C-
0805T*002 1
JK2701 JACK RCA PCB L MSP-246V34-83 NI
FE 1
X2000 CERAMIC RESONATOR
ZTT8.00MT47 1
X2000 CERAMIC RESONETOR
CSTLS8M00G56-B0 1
CAPACITORS
C2000 CHIP CERAMIC CAP.(1608) B K
0.1UF/25V 1
C2001 ELECTROLYTIC CAP. 100UF/16V M 1
C2001 CAP ELECTROLYTIC 100UF/16V/M 1
C2002 CHIP CERAMIC CAP. (1608) B K 1UF/
16V 1
C2004 ELECTROLYTIC CAP. 47UF/16V M 1
C2004 CAP ELECTROLYTIC 47UF/16V/M 1
C2005 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2007 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2009 CHIP CERAMIC CAP.(1608) CH J
100PF/50V 1
C2011 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2012 CHIP CERAMIC CAP.(1608) CH J
100PF/50V 1
If C2013 is 0.1UF, then IC2001 is PST3630NR.
C2013 CHIP CERAMIC CAP.(1608) B K
0.1UF/25V 1
IC2001 RESET IC IC-PST3630NR 1
If C2013 is 0.01UF, then IC2001 is PST8430NR.
C2013 CHIP CERAMIC CAP. B K 0.01UF/50V 1
IC2001 RESET IC IC-PST8430NR 1
C2016 ELECTROLYTIC CAP. 47UF/6.3V M 1
C2016 CAP ELECTROLYTIC 47UF/6.3V/M 1
C2018 ELECTROLYTIC CAP. 47UF/6.3V M 1
C2018 CAP ELECTROLYTIC 47UF/6.3V/M 1
C2019 CHIP RES.(1608) 1/10W 0 OHM 1
C2019 RES CHIP 1608 1/10W J 0 OHM 1
C2100 CHIP CERAMIC CAP.(1608) B K
0.1UF/25V 1
C2104 ELECTROLYTIC CAP. 47UF/6.3V M 1
C2104 CAP ELECTROLYTIC 47UF/6.3V/M 1
C2106 CHIP CERAMIC CAP. CH D 8PF/50V 1
C2107 ELECTROLYTIC CAP. 220UF/6.3V M 1
C2107 CAP ELECTROLYTIC 220UF/6.3V/M 1
C2108 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2180 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2181 ELECTROLYTIC CAP. 220UF/6.3V M 1
C2181 CAP ELECTROLYTIC 220UF/6.3V/M 1
C2204 ELECTROLYTIC CAP. 47UF/25V M 1
C2204 CAP ELECTROLYTIC 47UF/25V/M 1
C2205 ELECTROLYTIC CAP. 1000UF/6.3V M 1
C2205 CAP ELECTROLYTIC 1000UF/6.3V/M 1
C2206 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2207 ELECTROLYTIC CAP. 10UF/16V M 1
C2207 CAP ELECTROLYTIC 10UF/16V/M 1
C2208 ELECTROLYTIC CAP. 10UF/16V M 1
C2208 CAP ELECTROLYTIC 10UF/16V/M 1
C2209 CHIP CERAMIC CAP. CH J 220PF/
50V 1
C2210 CHIP CERAMIC CAP. CH J 220PF/
50V 1
C2211 ELECTROLYTIC CAP. 10UF/16V M 1
C2211 CAP ELECTROLYTIC 10UF/16V/M 1
C2212 ELECTROLYTIC CAP. 10UF/16V M 1
C2212 CAP ELECTROLYTIC 10UF/16V/M 1
C2213 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2215 CHIP CERAMIC CAP. CH J 39PF/50V 1
C2216 CHIP CERAMIC CAP. CH J 39PF/50V 1
C2280 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2281 ELECTROLYTIC CAP. 220UF/6.3V M 1
C2281 CAP ELECTROLYTIC 220UF/6.3V/M 1
C2282 ELECTROLYTIC CAP. 47UF/16V M 1
C2282 CAP ELECTROLYTIC 47UF/16V/M 1
C2283 ELECTROLYTIC CAP. 1000UF/6.3V M 1
C2283 CAP ELECTROLYTIC 1000UF/6.3V/M 1
C2284 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2285 ELECTROLYTIC CAP. 220UF/25V M 1
C2285 CAP ELECTROLYTIC 220UF/25V/M 1
C2286 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2287 ELECTROLYTIC CAP. 1000UF/6.3V M 1
C2287 CAP ELECTROLYTIC 1000UF/6.3V/M 1
C2300 ELECTROLYTIC CAP. 470UF/6.3V M 1
C2300 CAP ELECTROLYTIC 470UF/6.3V/M 1
C2301 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2303 CHIP CERAMIC CAP. B K 0.01UF/50V 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
20080818 1-17-2 E5J10EL
C2304 ELECTROLYTIC CAP. 22UF/16V M 1
C2304 CAP ELECTROLYTIC 22UF/16V/M 1
C2305 CHIP CERAMIC CAP. B K 0.01UF/50V 1
C2309 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2311 CHIP CERAMIC CAP.(1608) B K
0.47UF/10V 1
C2312 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2313 ELECTROLYTIC CAP. 47UF/6.3V M 1
C2313 CAP ELECTROLYTIC 47UF/6.3V/M 1
C2314 ELECTROLYTIC CAP. 470UF/6.3V M 1
C2314 CAP ELECTROLYTIC 470UF/6.3V/M 1
C2315 ELECTROLYTIC CAP. 47UF/6.3V M 1
C2315 CAP ELECTROLYTIC 47UF/6.3V/M 1
C2316 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2317 ELECTROLYTIC CAP. 470UF/6.3V M 1
C2317 CAP ELECTROLYTIC 470UF/6.3V/M 1
C2318 ELECTROLYTIC CAP. 470UF/6.3V M 1
C2318 CAP ELECTROLYTIC 470UF/6.3V/M 1
C2319 ELECTROLYTIC CAP. 470UF/6.3V M 1
C2319 CAP ELECTROLYTIC 470UF/6.3V/M 1
C2320 ELECTROLYTIC CAP. 47UF/16V M 1
C2320 CAP ELECTROLYTIC 47UF/16V/M 1
C2600 CHIP CERAMIC CAP. (1608) B K 1UF/
16V 1
C2601 ELECTROLYTIC CAP. 1000UF/6.3V M 1
C2601 CAP ELECTROLYTIC 1000UF/6.3V/M 1
C2602 ELECTROLYTIC CAP. 1000UF/6.3V M 1
C2602 CAP ELECTROLYTIC 1000UF/6.3V/M 1
C2603 CHIP CERAMIC CAP. (1608) B K 1UF/
16V 1
C2604 ELECTROLYTIC CAP. 10UF/16V M 1
C2604 CAP ELECTROLYTIC 10UF/16V/M 1
C2605 ELECTROLYTIC CAP. 47UF/25V M 1
C2605 CAP ELECTROLYTIC 47UF/25V/M 1
C2606 ELECTROLYTIC CAP. 100UF/6.3V M 1
C2606 CAP ELECTROLYTIC 100UF/6.3V/M 1
C2607 ELECTROLYTIC CAP. 1000UF/6.3V M 1
C2607 CAP ELECTROLYTIC 1000UF/6.3V/M 1
C2608 ELECTROLYTIC CAP. 1000UF/6.3V M 1
C2608 CAP ELECTROLYTIC 1000UF/6.3V/M 1
C2609 ELECTROLYTIC CAP. 100UF/6.3V M 1
C2609 CAP ELECTROLYTIC 100UF/6.3V/M 1
C2610 CHIP CERAMIC CAP.(1608) B K
0.1UF/25V 1
C2611 CHIP CERAMIC CAP.(2125) F Z 10UF/
10V 1
C2614 CHIP CERAMIC CAP.(1608) B K
0.33UF/10V 1
C2702 ELECTROLYTIC CAP. 47UF/16V M 1
C2702 CAP ELECTROLYTIC 47UF/16V/M 1
C2703 ELECTROLYTIC CAP. 47UF/16V M 1
C2703 CAP ELECTROLYTIC 47UF/16V/M 1
C2704 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2705 ELECTROLYTIC CAP. 1000UF/6.3V M 1
C2705 CAP ELECTROLYTIC 1000UF/6.3V/M 1
C2706 ELECTROLYTIC CAP. 47UF/16V M 1
C2706 CAP ELECTROLYTIC 47UF/16V/M 1
C2707 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2708 ELECTROLYTIC CAP. 10UF/16V M 1
C2708 CAP ELECTROLYTIC 10UF/16V/M 1
C2709 ELECTROLYTIC CAP. 10UF/16V M 1
C2709 CAP ELECTROLYTIC 10UF/16V/M 1
C2710 CHIP CERAMIC CAP. CH J 220PF/
50V 1
C2711 CHIP CERAMIC CAP. CH J 220PF/
50V 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
C2712 CHIP CERAMIC CAP. CH J 39PF/50V 1
C2713 CHIP CERAMIC CAP. CH J 39PF/50V 1
C2714 ELECTROLYTIC CAP. 10UF/16V M 1
C2714 CAP ELECTROLYTIC 10UF/16V/M 1
C2715 ELECTROLYTIC CAP. 10UF/16V M 1
C2715 CAP ELECTROLYTIC 10UF/16V/M 1
C2718 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2719 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2720 ELECTROLYTIC CAP. 10UF/16V M 1
C2720 CAP ELECTROLYTIC 10UF/16V/M 1
C2721 ELECTROLYTIC CAP. 10UF/16V M 1
C2721 CAP ELECTROLYTIC 10UF/16V/M 1
C2722 CHIP CERAMIC CAP. CH J 220PF/
50V 1
C2723 CHIP CERAMIC CAP. CH J 220PF/
50V 1
C2724 CHIP CERAMIC CAP. CH J 39PF/50V 1
C2725 CHIP CERAMIC CAP. CH J 39PF/50V 1
C2726 ELECTROLYTIC CAP. 10UF/16V M 1
C2726 CAP ELECTROLYTIC 10UF/16V/M 1
C2727 ELECTROLYTIC CAP. 10UF/16V M 1
C2727 CAP ELECTROLYTIC 10UF/16V/M 1
C2730 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2731 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C2732 ELECTROLYTIC CAP. 10UF/16V M 1
C2732 CAP ELECTROLYTIC 10UF/16V/M 1
C2733 ELECTROLYTIC CAP. 10UF/16V M 1
C2733 CAP ELECTROLYTIC 10UF/16V/M 1
C2734 CHIP CERAMIC CAP. CH J 220PF/
50V 1
C2735 CHIP CERAMIC CAP. CH J 220PF/
50V 1
C2736 CHIP CERAMIC CAP. CH J 39PF/50V 1
C2737 CHIP CERAMIC CAP. CH J 39PF/50V 1
C2738 ELECTROLYTIC CAP. 10UF/16V M 1
C2738 CAP ELECTROLYTIC 10UF/16V/M 1
C2739 ELECTROLYTIC CAP. 10UF/16V M 1
C2739 CAP ELECTROLYTIC 10UF/16V/M 1
C2760 ELECTROLYTIC CAP. 1000UF/6.3V M 1
C2760 CAP ELECTROLYTIC 1000UF/6.3V/M 1
C2762 ELECTROLYTIC CAP. 1000UF/6.3V M 1
C2762 CAP ELECTROLYTIC 1000UF/6.3V/M 1
CONNECTORS
CN2000 FFC CONNECTOR IMSA-9615S-28A-
PP-A 1
CN2000 CONNECTOR FPC 28P 00 6232 028
006 800+ 1
CN2001 FFC CONNECTOR IMSA-9615S-18A-
PP-A 1
CN2001 CONNECTOR FPC 18P 00 6232 018
006 800+ 1
CN2004 PH CONNECTOR TOP 2P B2B-PH-K-
S (LF)(SN) 1
CN2600 BOARD CONNECTOR 23P(PB
FREE) 127301123K2 1
CN2601 FFC CONNECTOR 15P IMSA-9615S-
15A-PP-A 1
CN2601 CONNECTOR FPC 15P 00 6232 015
006 800+ 1
CN2701 FFC CONNECTOR 14P IMSA-9615S-
14A-PP-A 1
CN2701 CONNECTOR FPC 14P 00 6232 014
006 800+ 1
DIODES
D2000 DIODE SWITCHING 1N4148-F0021 1
D2000 SWITCHING DIODE 1SS133(T-77) 1
D2000 DIODE SWITCHING HSS4148TE-E 1
D2001 DIODE SWITCHING 1N4148-F0021 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
20080818 1-17-3 E5J10EL
D2001 SWITCHING DIODE 1SS133(T-77) 1
D2001 DIODE SWITCHING HSS4148TE-E 1
D2002 DIODE SWITCHING 1N4148-F0021 1
D2002 SWITCHING DIODE 1SS133(T-77) 1
D2002 DIODE SWITCHING HSS4148TE-E 1
D2003 DIODE ZENER 36BSA-T26 1
D2003 ZENER DIODE MTZJT-7736A 1
D2004 DIODE SWITCHING 1N4148-F0021 1
D2004 SWITCHING DIODE 1SS133(T-77) 1
D2004 DIODE SWITCHING HSS4148TE-E 1
D2005 DIODE ZENER 12BSB-T26 1
D2005 ZENER DIODE MTZJT-7712B 1
D2006 DIODE SWITCHING 1N4148-F0021 1
D2006 SWITCHING DIODE 1SS133(T-77) 1
D2006 DIODE SWITCHING HSS4148TE-E 1
D2007 DIODE SWITCHING 1N4148-F0021 1
D2007 SWITCHING DIODE 1SS133(T-77) 1
D2007 DIODE SWITCHING HSS4148TE-E 1
D2201 METAL OXIDE FILM RES. 2W J 22
OHM 1
D2201 METAL OXIDE FILM RES. 2W J 22
OHM 1
D2202 DIODE SWITCHING 1N4148-F0021 1
D2202 SWITCHING DIODE 1SS133(T-77) 1
D2202 DIODE SWITCHING HSS4148TE-E 1
D2280 DIODE ZENER 5V6BSB-T26 1
D2280 ZENER DIODE MTZJT-775.6B 1
D2301 DIODE ZENER 5V6BSC-T26 1
D2301 ZENER DIODE MTZJT-775.6C 1
D2302 METAL OXIDE FILM RES. 2W J 22
OHM 1
D2302 METAL OXIDE FILM RES. 2W J 22
OHM 1
D2600 DIODE SWITCHING 1N4148-F0021 1
D2600 SWITCHING DIODE 1SS133(T-77) 1
D2600 DIODE SWITCHING HSS4148TE-E 1
D2601 DIODE SWITCHING 1N4148-F0021 1
D2601 SWITCHING DIODE 1SS133(T-77) 1
D2601 DIODE SWITCHING HSS4148TE-E 1
D2605 DIODE SWITCHING 1N4148-F0021 1
D2605 SWITCHING DIODE 1SS133(T-77) 1
D2605 DIODE SWITCHING HSS4148TE-E 1
D2606 DIODE ZENER 11BSC-T26 1
D2606 ZENER DIODE MTZJT-7711C 1
D2608 DIODE SWITCHING 1N4148-F0021 1
D2608 SWITCHING DIODE 1SS133(T-77) 1
D2608 DIODE SWITCHING HSS4148TE-E 1
D2609 DIODE SWITCHING 1N4148-F0021 1
D2609 SWITCHING DIODE 1SS133(T-77) 1
D2609 DIODE SWITCHING HSS4148TE-E 1
D2610 DIODE SWITCHING 1N4148-F0021 1
D2610 SWITCHING DIODE 1SS133(T-77) 1
D2610 DIODE SWITCHING HSS4148TE-E 1
D2611 DIODE SWITCHING 1N4148-F0021 1
D2611 SWITCHING DIODE 1SS133(T-77) 1
D2611 DIODE SWITCHING HSS4148TE-E 1
D2612 DIODE SWITCHING 1N4148-F0021 1
D2612 SWITCHING DIODE 1SS133(T-77) 1
D2612 DIODE SWITCHING HSS4148TE-E 1
D2613 DIODE SWITCHING 1N4148-F0021 1
D2613 SWITCHING DIODE 1SS133(T-77) 1
D2613 DIODE SWITCHING HSS4148TE-E 1
D2614 DIODE SWITCHING 1N4148-F0021 1
D2614 SWITCHING DIODE 1SS133(T-77) 1
D2614 DIODE SWITCHING HSS4148TE-E 1
ICS
IC2000 IC SUB MICON MN101C77AFS3 1
If IC2001 is PST3630NR, then C2013 is 0.1UF.
IC2001 RESET IC IC-PST3630NR 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
C2013 CHIP CERAMIC CAP.(1608) B K
0.1UF/25V 1
If IC2001 is PST8430NR, then C2013 is 0.01UF.
IC2001 RESET IC IC-PST8430NR 1
C2013 CHIP CERAMIC CAP. B K 0.01UF/50V 1
IC2200 IC OP AMP UTC4580E 1
IC2300 VIDEO DRIVER BH7602FS-E2 1
IC2301 DRIVER FOR DVD MM1636XWRE 1
IC2600 IC VOLTAGE REGULATOR
PQ070XF02SZH 1
IC2601 IC REGULATOR PQ035ZN01ZPH 1
IC2700 IC OP AMP UTC4580E 1
IC2701 IC OP AMP UTC4580E 1
IC2702 IC OP AMP UTC4580E 1
COILS
L2100 INDUCTOR(0.47UH K) LAP02TAR47K 1
L2180 PCB JUMPER D0.6-P5.0 1
L2280 PCB JUMPER D0.6-P5.0 1
L2300 RADIAL TYPE CHOKE COIL CW68-
470K-841040NP 1
L2300 CHOKE COIL 47UH-K 1
L2301 CHIP RES.(1608) 1/10W 0 OHM 1
L2301 RES CHIP 1608 1/10W J 0 OHM 1
L2400 CHOKE COIL 22UH-K 1
L2400 CHOKE COIL 22UH-K 1
L2600 CHOKE COIL 22UH-K 1
L2600 CHOKE COIL 22UH-K 1
L2601 CHOKE COIL 22UH-K 1
L2601 CHOKE COIL 22UH-K 1
TRANSISTORS
Q2000 TRANSISTOR KTA1267-Y-AT/P 1
Q2000 PNP TRANSISTOR 2SA1980M Y 1
Q2001 NPN TRANSISTOR KRC103M-AT/P 1
Q2001 NPN TRANSISTOR RES-IN
SRC1203MAT 1
Q2003 CHIP TRANSISTOR 2SA1530A-T112-
1Z 1
Q2003 CHIP TRANSISTOR KTA1504S-Y-
RTK/P 1
Q2003 PNP TRANSISTOR SMD
2SA1980SFY 1
Q2003 PNP TRANSISTOR EPITAXIAL SMD
ISA1530AC1-T112U-1 Z 1
Q2005 TRANSISTOR KTC3198-Y-AT/P 1
Q2005 NPN TRANSISTOR 2SC5343Y-AT 1
Q2012 TRANSISTOR KTA1267-Y-AT/P 1
Q2012 PNP TRANSISTOR 2SA1980M Y 1
Q2013 TRANSISTOR KTC3199-GR-AT/P 1
Q2013 NPN TRANSISTOR 2SC5343MG-AT 1
Q2014 TRANSISTOR KTA1267-Y-AT/P 1
Q2014 PNP TRANSISTOR 2SA1980M Y 1
Q2100 TRANSISTOR KTC3199-GR-AT/P 1
Q2100 NPN TRANSISTOR 2SC5343MG-AT 1
Q2101 TRANSISTOR KTC3199-GR-AT/P 1
Q2101 NPN TRANSISTOR 2SC5343MG-AT 1
Q2200 RES. BUILT-IN TRANSISTOR
KRA105M-AT/P 1
Q2200 PNP TRANSISTOR RES-IN
SRA2205M 1
Q2201 RES. BUILT-IN TRANSISTOR
KRA105M-AT/P 1
Q2201 PNP TRANSISTOR RES-IN
SRA2205M 1
Q2202 MUTE TRANSISTOR 2SD2144S 1
Q2203 MUTE TRANSISTOR 2SD2144S 1
Q2204 TRANSISTOR KTA1267-Y-AT/P 1
Q2204 PNP TRANSISTOR 2SA1980M Y 1
Q2205 TRANSISTOR KTC3199-GR-AT/P 1
Q2205 NPN TRANSISTOR 2SC5343MG-AT 1
Q2280 TRANSISTOR KTC3205-Y-AT/P 1
Q2280 NPN TRANSISTOR STD1862LY-AT 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
20080818 1-17-4 E5J10EL
Q2300 TRANSISTOR (PB FREE) KTA1271-Y-
AT/P 1
Q2300 PNP TRANSISTOR 2SA1981Y-AT 1
Q2301 TRANSISTOR KTC3199-GR-AT/P 1
Q2301 NPN TRANSISTOR 2SC5343MG-AT 1
Q2302 TRANSISTOR KTC3203-Y-AT/P 1
Q2302 NPN TRANSISTOR 2SC5344 Y 1
Q2600 NPN TRANSISTOR KRC103M-AT/P 1
Q2600 NPN TRANSISTOR RES-IN
SRC1203MAT 1
Q2601 TRANSISTOR KTC3199-GR-AT/P 1
Q2601 NPN TRANSISTOR 2SC5343MG-AT 1
Q2602 TRANSISTOR KTA1267-Y-AT/P 1
Q2602 PNP TRANSISTOR 2SA1980M Y 1
Q2603 TRANSISTOR (PB FREE) KTA1271-Y-
AT/P 1
Q2603 PNP TRANSISTOR 2SA1981Y-AT 1
Q2604 TRANSISTOR KTA1266-Y-AT/P 1
Q2604 PNP TRANSISTOR 2SA1980Y-AT 1
Q2605 TRANSISTOR KTC3203-Y-AT/P 1
Q2605 NPN TRANSISTOR 2SC5344 Y 1
Q2606 TRANSISTOR KTA1273-Y-AT/P 1
Q2606 PNP TRANSISTOR STB1277LY-AT 1
Q2607 TRANSISTOR(PB FREE) KTC2026-Y/
P1
Q2607 NPN TRANSISTOR STC403 1
Q2700 RES. BUILT-IN TRANSISTOR
KRA105M-AT/P 1
Q2700 PNP TRANSISTOR RES-IN
SRA2205M 1
Q2701 RES. BUILT-IN TRANSISTOR
KRA105M-AT/P 1
Q2701 PNP TRANSISTOR RES-IN
SRA2205M 1
Q2702 MUTE TRANSISTOR 2SD2144S 1
Q2703 MUTE TRANSISTOR 2SD2144S 1
Q2704 RES. BUILT-IN TRANSISTOR
KRA105M-AT/P 1
Q2704 PNP TRANSISTOR RES-IN
SRA2205M 1
Q2705 MUTE TRANSISTOR 2SD2144S 1
Q2706 MUTE TRANSISTOR 2SD2144S 1
Q2707 RES. BUILT-IN TRANSISTOR
KRA105M-AT/P 1
Q2707 PNP TRANSISTOR RES-IN
SRA2205M 1
Q2708 RES. BUILT-IN TRANSISTOR
KRA105M-AT/P 1
Q2708 PNP TRANSISTOR RES-IN
SRA2205M 1
Q2709 MUTE TRANSISTOR 2SD2144S 1
Q2710 MUTE TRANSISTOR 2SD2144S 1
RESISTORS
R2000 CHIP RES. 1/10W J 47K OHM 1
R2000 RES CHIP 1608 1/10W J 47K OHM 1
R2002 CHIP RES. 1/10W J 5.6K OHM 1
R2002 RES CHIP 1608 1/10W J 5.6K OHM 1
R2005 CHIP RES. 1/10W J 10K OHM 1
R2005 RES CHIP 1608 1/10W J 10K OHM 1
R2006 CARBON RES. 1/4W J 300 OHM 1
R2012 CHIP RES. 1/10W J 10K OHM 1
R2012 RES CHIP 1608 1/10W J 10K OHM 1
R2014 CHIP RES. 1/10W J 10K OHM 1
R2014 RES CHIP 1608 1/10W J 10K OHM 1
R2015 CHIP RES. 1/10W J 1K OHM 1
R2015 RES CHIP 1608 1/10W J 1.0K OHM 1
R2016 CHIP RES. 1/10W J 10K OHM 1
R2016 RES CHIP 1608 1/10W J 10K OHM 1
R2017 CHIP RES. 1/10W J 10K OHM 1
R2017 RES CHIP 1608 1/10W J 10K OHM 1
R2018 CHIP RES. 1/10W J 10K OHM 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
R2018 RES CHIP 1608 1/10W J 10K OHM 1
R2019 CHIP RES. 1/10W J 10K OHM 1
R2019 RES CHIP 1608 1/10W J 10K OHM 1
R2020 CHIP RES. 1/10W J 10K OHM 1
R2020 RES CHIP 1608 1/10W J 10K OHM 1
R2021 CHIP RES. 1/10W J 10K OHM 1
R2021 RES CHIP 1608 1/10W J 10K OHM 1
R2022 CHIP RES. 1/10W J 10K OHM 1
R2022 RES CHIP 1608 1/10W J 10K OHM 1
R2023 CHIP RES. 1/10W J 10K OHM 1
R2023 RES CHIP 1608 1/10W J 10K OHM 1
R2024 CHIP RES. 1/10W J 100 OHM 1
R2024 RES CHIP 1608 1/10W J 100 OHM 1
R2025 CHIP RES. 1/10W J 100 OHM 1
R2025 RES CHIP 1608 1/10W J 100 OHM 1
R2026 CHIP RES. 1/10W J 10K OHM 1
R2026 RES CHIP 1608 1/10W J 10K OHM 1
R2028 CHIP RES. 1/10W J 10K OHM 1
R2028 RES CHIP 1608 1/10W J 10K OHM 1
R2029 CHIP RES.(1608) 1/10W 0 OHM 1
R2029 RES CHIP 1608 1/10W J 0 OHM 1
R2030 CHIP RES.(1608) 1/10W 0 OHM 1
R2030 RES CHIP 1608 1/10W J 0 OHM 1
R2031 CHIP RES. 1/10W J 10K OHM 1
R2031 RES CHIP 1608 1/10W J 10K OHM 1
R2032 CHIP RES. 1/10W J 1K OHM 1
R2032 RES CHIP 1608 1/10W J 1.0K OHM 1
R2033 CHIP RES. 1/10W J 470 OHM 1
R2033 RES CHIP 1608 1/10W J 470 OHM 1
R2034 CHIP RES. 1/10W J 100 OHM 1
R2034 RES CHIP 1608 1/10W J 100 OHM 1
R2035 CHIP RES. 1/10W J 10K OHM 1
R2035 RES CHIP 1608 1/10W J 10K OHM 1
R2036 CHIP RES. 1/10W J 6.8K OHM 1
R2036 RES CHIP 1608 1/10W J 6.8K OHM 1
R2037 CHIP RES. 1/10W J 100 OHM 1
R2037 RES CHIP 1608 1/10W J 100 OHM 1
R2038 CHIP RES. 1/10W J 10K OHM 1
R2038 RES CHIP 1608 1/10W J 10K OHM 1
R2043 CHIP RES. 1/10W J 10K OHM 1
R2043 RES CHIP 1608 1/10W J 10K OHM 1
R2044 CHIP RES.(1608) 1/10W 0 OHM 1
R2044 RES CHIP 1608 1/10W J 0 OHM 1
R2045 CHIP RES. 1/10W J 10K OHM 1
R2045 RES CHIP 1608 1/10W J 10K OHM 1
R2047 CHIP RES. 1/10W J 10K OHM 1
R2047 RES CHIP 1608 1/10W J 10K OHM 1
R2048 CHIP RES. 1/10W J 10K OHM 1
R2048 RES CHIP 1608 1/10W J 10K OHM 1
R2049 CHIP RES. 1/10W J 10K OHM 1
R2049 RES CHIP 1608 1/10W J 10K OHM 1
R2050 CHIP RES. 1/10W J 10K OHM 1
R2050 RES CHIP 1608 1/10W J 10K OHM 1
R2052 CHIP RES. 1/10W J 10K OHM 1
R2052 RES CHIP 1608 1/10W J 10K OHM 1
R2053 CHIP RES. 1/10W J 10K OHM 1
R2053 RES CHIP 1608 1/10W J 10K OHM 1
R2055 CHIP RES. 1/10W J 47K OHM 1
R2055 RES CHIP 1608 1/10W J 47K OHM 1
R2057 CHIP RES. 1/10W J 10K OHM 1
R2057 RES CHIP 1608 1/10W J 10K OHM 1
R2058 CHIP RES. 1/10W J 10K OHM 1
R2058 RES CHIP 1608 1/10W J 10K OHM 1
R2059 CHIP RES.(1608) 1/10W 0 OHM 1
R2059 RES CHIP 1608 1/10W J 0 OHM 1
R2067 CARBON RES. 1/4W J 300 OHM 1
R2068 CHIP RES. 1/10W J 10K OHM 1
R2068 RES CHIP 1608 1/10W J 10K OHM 1
R2078 CHIP RES. 1/10W J 270 OHM 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
20080818 1-17-5 E5J10EL
R2078 RES CHIP 1608 1/10W J 270 OHM 1
R2091 CARBON RES. 1/4W J 47K OHM 1
R2092 CARBON RES. 1/4W J 47K OHM 1
R2094 CHIP RES. 1/10W J 47K OHM 1
R2094 RES CHIP 1608 1/10W J 47K OHM 1
R2095 CHIP RES. 1/10W J 3.9K OHM 1
R2095 RES CHIP 1608 1/10W J 3.9K OHM 1
R2096 CHIP RES.(1608) 1/10W 0 OHM 1
R2096 RES CHIP 1608 1/10W J 0 OHM 1
R2099 CHIP RES.(1608) 1/10W 0 OHM 1
R2099 RES CHIP 1608 1/10W J 0 OHM 1
R2100 CHIP RES. 1/10W J 2K OHM 1
R2100 RES CHIP 1608 1/10W J 2.0K OHM 1
R2101 CHIP RES. 1/10W J 2.2K OHM 1
R2101 RES CHIP 1608 1/10W J 2.2K OHM 1
R2102 CHIP RES. 1/10W J 2.2K OHM 1
R2102 RES CHIP 1608 1/10W J 2.2K OHM 1
R2103 CHIP RES. 1/10W J 220 OHM 1
R2103 RES CHIP 1608 1/10W J 220 OHM 1
R2104 CHIP RES. 1/10W J 75 OHM 1
R2104 RES CHIP 1608 1/10W J 75 OHM 1
R2105 CHIP RES. 1/10W J 100K OHM 1
R2105 RES CHIP 1608 1/10W J 100K OHM 1
R2109 CHIP RES.(1608) 1/10W 0 OHM 1
R2109 RES CHIP 1608 1/10W J 0 OHM 1
R2110 CHIP RES.(1608) 1/10W 0 OHM 1
R2110 RES CHIP 1608 1/10W J 0 OHM 1
R2115 CHIP RES. 1/10W J 10K OHM 1
R2115 RES CHIP 1608 1/10W J 10K OHM 1
R2116 CARBON RES. 1/4W J 5.6 OHM 1
R2117 CHIP RES. 1/10W J 1K OHM 1
R2117 RES CHIP 1608 1/10W J 1.0K OHM 1
R2118 CARBON RES. 1/4W J 10 OHM 1
R2124 CHIP RES. 1/10W J 270 OHM 1
R2124 RES CHIP 1608 1/10W J 270 OHM 1
R2125 CHIP RES. 1/10W J 270 OHM 1
R2125 RES CHIP 1608 1/10W J 270 OHM 1
R2126 CHIP RES.(1608) 1/10W 0 OHM 1
R2126 RES CHIP 1608 1/10W J 0 OHM 1
R2127 CHIP RES. 1/10W J 10K OHM 1
R2127 RES CHIP 1608 1/10W J 10K OHM 1
R2129 CHIP RES.(1608) 1/10W 0 OHM 1
R2129 RES CHIP 1608 1/10W J 0 OHM 1
R2130 CHIP RES.(1608) 1/10W 0 OHM 1
R2130 RES CHIP 1608 1/10W J 0 OHM 1
R2201 METAL OXIDE FILM RES. 2W J 22
OHM 1
R2201 METAL OXIDE FILM RES. 2W J 22
OHM 1
R2208 CHIP RES. 1/10W F 8.2K OHM 1
R2208 CHIP RES.(1608) 1/10W F 8.2K OHM 1
R2208 RES CHIP 1608 1/10W F 8.20K OHM 1
R2209 CHIP RES. 1/10W F 8.2K OHM 1
R2209 CHIP RES.(1608) 1/10W F 8.2K OHM 1
R2209 RES CHIP 1608 1/10W F 8.20K OHM 1
R2210 CHIP RES. 1/10W J 12K OHM 1
R2210 RES CHIP 1608 1/10W J 12K OHM 1
R2211 CHIP RES. 1/10W J 12K OHM 1
R2211 RES CHIP 1608 1/10W J 12K OHM 1
R2212 CHIP RES. 1/10W F 12K OHM 1
R2212 CHIP RES.(1608) 1/10W F 12K OHM 1
R2212 RES CHIP 1608 1/10W F 12.0K OHM 1
R2213 CHIP RES. 1/10W F 12K OHM 1
R2213 CHIP RES.(1608) 1/10W F 12K OHM 1
R2213 RES CHIP 1608 1/10W F 12.0K OHM 1
R2214 CHIP RES. 1/10W J 100K OHM 1
R2214 RES CHIP 1608 1/10W J 100K OHM 1
R2215 CHIP RES. 1/10W J 100K OHM 1
R2215 RES CHIP 1608 1/10W J 100K OHM 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
R2216 CHIP RES. 1/10W J 220 OHM 1
R2216 RES CHIP 1608 1/10W J 220 OHM 1
R2217 CHIP RES. 1/10W J 1K OHM 1
R2217 RES CHIP 1608 1/10W J 1.0K OHM 1
R2218 CHIP RES. 1/10W J 220 OHM 1
R2218 RES CHIP 1608 1/10W J 220 OHM 1
R2219 CHIP RES. 1/10W J 1K OHM 1
R2219 RES CHIP 1608 1/10W J 1.0K OHM 1
R2220 CHIP RES. 1/10W J 100K OHM 1
R2220 RES CHIP 1608 1/10W J 100K OHM 1
R2221 CHIP RES. 1/10W J 100K OHM 1
R2221 RES CHIP 1608 1/10W J 100K OHM 1
R2223 CHIP RES. 1/10W J 4.7K OHM 1
R2223 RES CHIP 1608 1/10W J 4.7K OHM 1
R2224 CHIP RES. 1/10W J 2.2K OHM 1
R2224 RES CHIP 1608 1/10W J 2.2K OHM 1
R2226 CHIP RES. 1/10W J 1K OHM 1
R2226 RES CHIP 1608 1/10W J 1.0K OHM 1
R2227 CHIP RES. 1/10W J 470 OHM 1
R2227 RES CHIP 1608 1/10W J 470 OHM 1
R2228 CHIP RES. 1/10W J 470 OHM 1
R2228 RES CHIP 1608 1/10W J 470 OHM 1
R2229 CHIP RES. 1/10W J 2.2K OHM 1
R2229 RES CHIP 1608 1/10W J 2.2K OHM 1
R2230 CHIP RES. 1/10W J 4.7K OHM 1
R2230 RES CHIP 1608 1/10W J 4.7K OHM 1
R2280 CHIP RES. 1/10W J 100 OHM 1
R2280 RES CHIP 1608 1/10W J 100 OHM 1
R2281 CHIP RES. 1/10W J 100 OHM 1
R2281 RES CHIP 1608 1/10W J 100 OHM 1
R2284 CHIP RES. 1/10W J 20 OHM 1
R2284 RES CHIP 1608 1/10W J 20 OHM 1
R2285 CHIP RES. 1/10W J 10K OHM 1
R2285 RES CHIP 1608 1/10W J 10K OHM 1
R2286 CHIP RES. 1/10W J 10K OHM 1
R2286 RES CHIP 1608 1/10W J 10K OHM 1
R2287 CHIP RES. 1/10W J 10K OHM 1
R2287 RES CHIP 1608 1/10W J 10K OHM 1
R2288 CHIP RES. 1/10W J 1.8K OHM 1
R2288 RES CHIP 1608 1/10W J 1.8K OHM 1
R2308 CHIP RES. 1/10W J 10K OHM 1
R2308 RES CHIP 1608 1/10W J 10K OHM 1
R2309 CHIP RES. 1/10W J 1.5K OHM 1
R2309 RES CHIP 1608 1/10W J 1.5K OHM 1
R2310 CHIP RES. 1/10W J 75 OHM 1
R2310 RES CHIP 1608 1/10W J 75 OHM 1
R2311 CHIP RES. 1/10W J 75 OHM 1
R2311 RES CHIP 1608 1/10W J 75 OHM 1
R2312 CHIP RES. 1/10W J 75 OHM 1
R2312 RES CHIP 1608 1/10W J 75 OHM 1
R2313 CHIP RES. 1/10W J 75 OHM 1
R2313 RES CHIP 1608 1/10W J 75 OHM 1
R2323 CHIP RES. 1/10W J 10K OHM 1
R2323 RES CHIP 1608 1/10W J 10K OHM 1
R2324 CHIP RES. 1/10W J 1.8K OHM 1
R2324 RES CHIP 1608 1/10W J 1.8K OHM 1
R2328 CHIP RES.(1608) 1/10W 0 OHM 1
R2328 RES CHIP 1608 1/10W J 0 OHM 1
R2330 CHIP RES. 1/10W J 100 OHM 1
R2330 RES CHIP 1608 1/10W J 100 OHM 1
R2331 CHIP RES. 1/10W J 100 OHM 1
R2331 RES CHIP 1608 1/10W J 100 OHM 1
R2332 METAL OXIDE FILM RES. 2W J 22
OHM 1
R2332 METAL OXIDE FILM RES. 2W J 22
OHM 1
R2400 CHIP RES.(1608) 1/10W 0 OHM 1
R2400 RES CHIP 1608 1/10W J 0 OHM 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
20080818 1-17-6 E5J10EL
R2401 CHIP VARISTOR AVR-
M1608C120MT6AB 1
R2402 CHIP RES.(1608) 1/10W 0 OHM 1
R2402 RES CHIP 1608 1/10W J 0 OHM 1
R2600 CHIP RES. 1/10W J 4.7K OHM 1
R2600 RES CHIP 1608 1/10W J 4.7K OHM 1
R2601 CHIP RES. 1/10W J 4.7K OHM 1
R2601 RES CHIP 1608 1/10W J 4.7K OHM 1
R2602 CHIP RES. 1/10W J 2.2K OHM 1
R2602 RES CHIP 1608 1/10W J 2.2K OHM 1
R2603 CHIP RES. 1/10W J 4.7K OHM 1
R2603 RES CHIP 1608 1/10W J 4.7K OHM 1
R2604 CARBON RES. 1/4W J 4.7K OHM 1
R2606 CHIP RES. 1/10W J 47K OHM 1
R2606 RES CHIP 1608 1/10W J 47K OHM 1
R2607 CHIP RES. 1/10W J 4.7K OHM 1
R2607 RES CHIP 1608 1/10W J 4.7K OHM 1
R2608 CHIP RES. 1/10W J 4.7K OHM 1
R2608 RES CHIP 1608 1/10W J 4.7K OHM 1
R2609 CHIP RES. 1/10W J 4.7K OHM 1
R2609 RES CHIP 1608 1/10W J 4.7K OHM 1
R2610 CARBON RES. 1/4W J 220 OHM 1
R2612 CHIP RES. 1/10W J 10K OHM 1
R2612 RES CHIP 1608 1/10W J 10K OHM 1
R2613 CHIP RES. 1/10W F 10K OHM 1
R2613 CHIP RES. 1/10W F 10K OHM 1
R2613 RES CHIP 1608 1/10W F 10.0K OHM 1
R2615 CHIP RES. 1/10W F 1.0K OHM 1
R2615 CHIP RES. 1/10W F 1K OHM 1
R2615 RES CHIP 1608 1/10W F 1.00K OHM 1
R2616 CHIP RES. 1/10W F 15K OHM 1
R2616 CHIP RES. 1/10W F 15K OHM 1
R2616 RES CHIP 1608 1/10W F 15.0K OHM 1
R2617 CHIP RES. 1/10W F 2K OHM 1
R2617 CHIP RES. 1/10W F 2K OHM 1
R2617 RES CHIP 1608 1/10W F 2.00K OHM 1
R2619 CHIP RES. 1/10W F 1.1K OHM 1
R2619 CHIP RES. 1/10W F 1.1K OHM 1
R2619 RES CHIP 1608 1/10W F 1.10K OHM 1
R2620 CHIP RES. 1/10W J 4.7K OHM 1
R2620 RES CHIP 1608 1/10W J 4.7K OHM 1
R2621 CARBON RES. 1/4W J 680 OHM 1
R2622 CARBON RES. 1/4W J 82 OHM 1
R2623 PCB JUMPER D0.6-P5.0 1
R2626 CHIP RES.(1608) 1/10W 0 OHM 1
R2626 RES CHIP 1608 1/10W J 0 OHM 1
R2632 CHIP RES.(1608) 1/10W 0 OHM 1
R2632 RES CHIP 1608 1/10W J 0 OHM 1
R2636 CARBON RES. 1/4W J 33 OHM 1
R2700 CHIP RES. 1/10W F 8.2K OHM 1
R2700 CHIP RES.(1608) 1/10W F 8.2K OHM 1
R2700 RES CHIP 1608 1/10W F 8.20K OHM 1
R2701 CHIP RES. 1/10W F 8.2K OHM 1
R2701 CHIP RES.(1608) 1/10W F 8.2K OHM 1
R2701 RES CHIP 1608 1/10W F 8.20K OHM 1
R2702 CHIP RES. 1/10W F 8.2K OHM 1
R2702 CHIP RES.(1608) 1/10W F 8.2K OHM 1
R2702 RES CHIP 1608 1/10W F 8.20K OHM 1
R2703 CHIP RES. 1/10W F 8.2K OHM 1
R2703 CHIP RES.(1608) 1/10W F 8.2K OHM 1
R2703 RES CHIP 1608 1/10W F 8.20K OHM 1
R2704 CHIP RES. 1/10W F 8.2K OHM 1
R2704 CHIP RES.(1608) 1/10W F 8.2K OHM 1
R2704 RES CHIP 1608 1/10W F 8.20K OHM 1
R2714 CHIP RES. 1/10W J 100K OHM 1
R2714 RES CHIP 1608 1/10W J 100K OHM 1
R2715 CHIP RES. 1/10W J 4.7K OHM 1
R2715 RES CHIP 1608 1/10W J 4.7K OHM 1
R2716 CHIP RES. 1/10W J 4.7K OHM 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
R2716 RES CHIP 1608 1/10W J 4.7K OHM 1
R2717 CHIP RES. 1/10W J 2.2K OHM 1
R2717 RES CHIP 1608 1/10W J 2.2K OHM 1
R2720 CHIP RES. 1/10W F 8.2K OHM 1
R2720 CHIP RES.(1608) 1/10W F 8.2K OHM 1
R2720 RES CHIP 1608 1/10W F 8.20K OHM 1
R2721 CHIP RES. 1/10W J 12K OHM 1
R2721 RES CHIP 1608 1/10W J 12K OHM 1
R2722 CHIP RES. 1/10W J 12K OHM 1
R2722 RES CHIP 1608 1/10W J 12K OHM 1
R2723 CHIP RES. 1/10W F 12K OHM 1
R2723 CHIP RES.(1608) 1/10W F 12K OHM 1
R2723 RES CHIP 1608 1/10W F 12.0K OHM 1
R2724 CHIP RES. 1/10W F 12K OHM 1
R2724 CHIP RES.(1608) 1/10W F 12K OHM 1
R2724 RES CHIP 1608 1/10W F 12.0K OHM 1
R2725 CHIP RES. 1/10W F 12K OHM 1
R2725 CHIP RES.(1608) 1/10W F 12K OHM 1
R2725 RES CHIP 1608 1/10W F 12.0K OHM 1
R2726 CHIP RES. 1/10W F 12K OHM 1
R2726 CHIP RES.(1608) 1/10W F 12K OHM 1
R2726 RES CHIP 1608 1/10W F 12.0K OHM 1
R2727 CHIP RES. 1/10W F 12K OHM 1
R2727 CHIP RES.(1608) 1/10W F 12K OHM 1
R2727 RES CHIP 1608 1/10W F 12.0K OHM 1
R2728 CHIP RES. 1/10W F 12K OHM 1
R2728 CHIP RES.(1608) 1/10W F 12K OHM 1
R2728 RES CHIP 1608 1/10W F 12.0K OHM 1
R2732 CHIP RES. 1/10W J 100K OHM 1
R2732 RES CHIP 1608 1/10W J 100K OHM 1
R2733 CHIP RES. 1/10W J 100K OHM 1
R2733 RES CHIP 1608 1/10W J 100K OHM 1
R2734 CHIP RES. 1/10W J 220 OHM 1
R2734 RES CHIP 1608 1/10W J 220 OHM 1
R2735 CHIP RES. 1/10W J 220 OHM 1
R2735 RES CHIP 1608 1/10W J 220 OHM 1
R2736 CHIP RES. 1/10W J 470 OHM 1
R2736 RES CHIP 1608 1/10W J 470 OHM 1
R2737 CHIP RES. 1/10W J 470 OHM 1
R2737 RES CHIP 1608 1/10W J 470 OHM 1
R2738 CHIP RES. 1/10W J 1K OHM 1
R2738 RES CHIP 1608 1/10W J 1.0K OHM 1
R2739 CHIP RES. 1/10W J 1K OHM 1
R2739 RES CHIP 1608 1/10W J 1.0K OHM 1
R2740 CHIP RES. 1/10W J 2.2K OHM 1
R2740 RES CHIP 1608 1/10W J 2.2K OHM 1
R2741 CHIP RES. 1/10W J 100K OHM 1
R2741 RES CHIP 1608 1/10W J 100K OHM 1
R2742 CHIP RES. 1/10W J 1K OHM 1
R2742 RES CHIP 1608 1/10W J 1.0K OHM 1
R2743 CHIP RES. 1/10W J 1K OHM 1
R2743 RES CHIP 1608 1/10W J 1.0K OHM 1
R2744 CHIP RES. 1/10W J 2.2K OHM 1
R2744 RES CHIP 1608 1/10W J 2.2K OHM 1
R2745 CHIP RES. 1/10W J 100K OHM 1
R2745 RES CHIP 1608 1/10W J 100K OHM 1
R2746 CHIP RES. 1/10W J 4.7K OHM 1
R2746 RES CHIP 1608 1/10W J 4.7K OHM 1
R2747 CHIP RES. 1/10W J 12K OHM 1
R2747 RES CHIP 1608 1/10W J 12K OHM 1
R2748 CHIP RES. 1/10W J 12K OHM 1
R2748 RES CHIP 1608 1/10W J 12K OHM 1
R2751 CHIP RES. 1/10W J 100K OHM 1
R2751 RES CHIP 1608 1/10W J 100K OHM 1
R2752 CHIP RES. 1/10W J 100K OHM 1
R2752 RES CHIP 1608 1/10W J 100K OHM 1
R2753 CHIP RES. 1/10W J 220 OHM 1
R2753 RES CHIP 1608 1/10W J 220 OHM 1
R2754 CHIP RES. 1/10W J 220 OHM 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
20080818 1-17-7 E5J10EL
R2754 RES CHIP 1608 1/10W J 220 OHM 1
R2755 CHIP RES. 1/10W J 470 OHM 1
R2755 RES CHIP 1608 1/10W J 470 OHM 1
R2756 CHIP RES. 1/10W J 470 OHM 1
R2756 RES CHIP 1608 1/10W J 470 OHM 1
R2757 CHIP RES. 1/10W J 1K OHM 1
R2757 RES CHIP 1608 1/10W J 1.0K OHM 1
R2758 CHIP RES. 1/10W J 4.7K OHM 1
R2758 RES CHIP 1608 1/10W J 4.7K OHM 1
R2759 CHIP RES. 1/10W J 4.7K OHM 1
R2759 RES CHIP 1608 1/10W J 4.7K OHM 1
R2760 CHIP RES. 1/10W J 12K OHM 1
R2760 RES CHIP 1608 1/10W J 12K OHM 1
R2761 CHIP RES. 1/10W J 12K OHM 1
R2761 RES CHIP 1608 1/10W J 12K OHM 1
R2764 CHIP RES. 1/10W J 100K OHM 1
R2764 RES CHIP 1608 1/10W J 100K OHM 1
R2765 CHIP RES. 1/10W J 100K OHM 1
R2765 RES CHIP 1608 1/10W J 100K OHM 1
R2766 CHIP RES. 1/10W J 220 OHM 1
R2766 RES CHIP 1608 1/10W J 220 OHM 1
R2767 CHIP RES. 1/10W J 220 OHM 1
R2767 RES CHIP 1608 1/10W J 220 OHM 1
R2768 CHIP RES. 1/10W J 470 OHM 1
R2768 RES CHIP 1608 1/10W J 470 OHM 1
R2769 CHIP RES. 1/10W J 470 OHM 1
R2769 RES CHIP 1608 1/10W J 470 OHM 1
R2770 CHIP RES. 1/10W J 1K OHM 1
R2770 RES CHIP 1608 1/10W J 1.0K OHM 1
R2771 CHIP RES. 1/10W J 1K OHM 1
R2771 RES CHIP 1608 1/10W J 1.0K OHM 1
R2772 CHIP RES. 1/10W J 2.2K OHM 1
R2772 RES CHIP 1608 1/10W J 2.2K OHM 1
R2773 CHIP RES. 1/10W J 2.2K OHM 1
R2773 RES CHIP 1608 1/10W J 2.2K OHM 1
R2774 CHIP RES. 1/10W J 100K OHM 1
R2774 RES CHIP 1608 1/10W J 100K OHM 1
R2775 CHIP RES. 1/10W J 100K OHM 1
R2775 RES CHIP 1608 1/10W J 100K OHM 1
R2793 CHIP RES. 1/10W J 1K OHM 1
R2793 RES CHIP 1608 1/10W J 1.0K OHM 1
R2795 CHIP RES. 1/10W J 1K OHM 1
R2795 RES CHIP 1608 1/10W J 1.0K OHM 1
POWER SW CBA
CONNECTOR
CN3100 WX1E5E10-002 3/195/AWG26 1
DIODES
D3100 LED(RED) SLI-343U8R 1
D3100 LED(RED) LTL-1CHKEKNN 1
SWITCHES
SW3100 TACT SWITCH SKQSAB 1
SW3100 TACT SWITCH KSM0612B 1
SW3100 TACT SWITCH TC-1104(H=5.0) 1
FRONT CBA
FL3000 FL DM182-GINK 1
RS3000 SENSOR REMOTE RECEIVER KSM-
712TH2E 1
CAPACITORS
C3000 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C3001 ELECTROLYTIC CAP. 22UF/50V M H7 1
C3002 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C3003 ELECTROLYTIC CAP. 100UF/6.3V M
H7 1
C3005 CHIP CERAMIC CAP.(1608) B K
1000PF/50V 1
C3006 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
C3007 ELECTROLYTIC CAP. 100UF/6.3V M
H7 1
C3008 CHIP CERAMIC CAP.(1608) B K
0.1UF/25V 1
CONNECTORS
CN3000 WX1E5E10-003 18/155/1.0 1
CN3001 CONNECTOR PRINT OSU S3B-PH-
K-S(LF)(SN) 1
COIL
L3000 INDUCTOR(100UH K) LAP02TA101K 1
RESISTORS
R3000 CHIP RES. 1/10W J 10 OHM 1
R3000 RES CHIP 1608 1/10W J 10 OHM 1
R3001 CHIP RES. 1/10W J 10 OHM 1
R3001 RES CHIP 1608 1/10W J 10 OHM 1
R3002 CHIP RES. 1/10W J 12K OHM 1
R3002 RES CHIP 1608 1/10W J 12K OHM 1
R3004 CHIP RES. 1/10W J 1K OHM 1
R3004 RES CHIP 1608 1/10W J 1.0K OHM 1
R3005 CHIP RES.(1608) 1/10W 0 OHM 1
R3005 RES CHIP 1608 1/10W J 0 OHM 1
R3006 CHIP RES.(1608) 1/10W 0 OHM 1
R3006 RES CHIP 1608 1/10W J 0 OHM 1
R3008 CHIP RES. 1/10W J 1K OHM 1
R3008 RES CHIP 1608 1/10W J 1.0K OHM 1
R3009 CHIP RES. 1/10W J 180 OHM 1
R3009 RES CHIP 1608 1/10W J 180 OHM 1
R3010 CHIP RES. 1/10W J 220 OHM 1
R3010 RES CHIP 1608 1/10W J 220 OHM 1
R3012 CHIP RES. 1/10W J 330 OHM 1
R3012 RES CHIP 1608 1/10W J 330 OHM 1
R3014 CHIP RES. 1/10W J 6.8K OHM 1
R3014 RES CHIP 1608 1/10W J 6.8K OHM 1
R3015 CHIP RES. 1/10W J 560 OHM 1
R3015 RES CHIP 1608 1/10W J 560 OHM 1
R3018 CHIP RES. 1/10W J 22 OHM 1
R3018 RES CHIP 1608 1/10W J 22 OHM 1
R3019 CHIP RES. 1/10W J 1.2K OHM 1
R3019 RES CHIP 1608 1/10W J 1.2K OHM 1
R3020 CHIP RES. 1/10W J 3.3K OHM 1
R3020 RES CHIP 1608 1/10W J 3.3K OHM 1
R3021 CHIP RES.(1608) 1/10W 0 OHM 1
R3021 RES CHIP 1608 1/10W J 0 OHM 1
R3039 CHIP RES.(1608) 1/10W 0 OHM 1
R3039 RES CHIP 1608 1/10W J 0 OHM 1
SWITCHES
SW3000 TACT SWITCH SKQSAB 1
SW3000 TACT SWITCH KSM0612B 1
SW3000 TACT SWITCH TC-1104(H=5.0) 1
SW3001 TACT SWITCH SKQSAB 1
SW3001 TACT SWITCH KSM0612B 1
SW3001 TACT SWITCH TC-1104(H=5.0) 1
SW3002 TACT SWITCH SKQSAB 1
SW3002 TACT SWITCH KSM0612B 1
SW3002 TACT SWITCH TC-1104(H=5.0) 1
SW3003 TACT SWITCH SKQSAB 1
SW3003 TACT SWITCH KSM0612B 1
SW3003 TACT SWITCH TC-1104(H=5.0) 1
SW3004 TACT SWITCH SKQSAB 1
SW3004 TACT SWITCH KSM0612B 1
SW3004 TACT SWITCH TC-1104(H=5.0) 1
SW3005 TACT SWITCH SKQSAB 1
SW3005 TACT SWITCH KSM0612B 1
SW3005 TACT SWITCH TC-1104(H=5.0) 1
ASSY4 996510018702 POWER SUPPLY CBA 1
Consists of the following:
2L056 SCREW S-TIGHT M3X8 BIND
HEAD+ 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
20080818 1-17-8 E5J10EL
AC1002 #AC INLET YKE31-0148N 1
B49 POWER HEATSINK E4340UD 1
F1001 #FUSE TIME RAG FIH 250V 2.5A 1
F1001 #FUSE TIME RAG
TSC2.5A250VSVDEUC3CP 1
FH1001 FUSE HOLDER MSF-015 LF (B110) 1
FH1002 FUSE HOLDER MSF-015 LF (B110) 1
J1010 BEAD CORE HF70BTL3.5X9B-AG 1
J1011 BEAD CORE HF70BTL3.5X9B-AG 1
RL1001 RELAY SDT-SS-105DM 1
RL1001 RELAY ALKP329 1
SA1001 #SURGE ABSORBER 470V+-10PER 1
T1001 #TRANS BCK-35-0549 1
T1001 #TRANS 7785-S02 1
T1002 #TRANS BCK-16-033T 1
T1002 #TRANS 8727 1
CAPACITORS
C1001 CERAMIC CAP. SL K 56PF/1KV 1
C1002 #LINE ACROSS CAP. 0.047UF/250V K 1
C1002 #METALIZED FILM CAP. 0.047UF/250V
M1
C1003 #SAFETY CAP. 2200PF/250V 1
C1003 #SAFETY CAP. 2200PF/250V 1
C1004 CHIP CERAMIC CAP.(1608) CH J
22PF/50V 1
C1005 CHIP CERAMIC CAP.(1608) B K
1000PF/50V 1
C1006 CHIP CERAMIC CAP.(1608) B K
0.022UF/50V 1
C1008 CAP ELECTROLYTIC 270UF/400V/M/
25/45 1
C1008 ELECTROLYTIC CAP. 270UF/400V M 1
C1009 ELECTROLYTIC CAP. 47UF/35V M 1
C1009 CAP ELECTROLYTIC 47UF/35V/M 1
C1010 METALIZED FILM CAP. 0.0022UF/
400V K 1
C1012 LINE ACROSS CAP. 0.047UF/250V K 1
C1012 METALIZED FILM CAP. 0.047UF/250V
M1
C1013 CHIP CERAMIC CAP.(1608) B K
0.01UF/50V 1
C1014 POLYESTER FILM CAP. (PB FREE)
0.0068UF/100V J 1
C1014 FILM CAP.(P) 0.0068UF/50V J 1
C1014 FILM CAP.(P) 0.0068UF/50V J 1
C1015 CERAMIC CAP. B K 470PF/500V 1
C1016 ELECTROLYTIC CAP. 220UF/16V M 1
C1016 CAP ELECTROLYTIC 220UF/16V/M 1
C1017 ELECTROLYTIC CAP. 1000UF/25V M 1
C1017 CAP ELECTROLYTIC 1000UF/25V/M 1
C1018 ELECTROLYTIC CAP. 2200UF/25V SL 1
C1018 CAP ELECTROLYTIC 2200UF/25V/M 1
C1018 ELECTROLYTIC CAP. 2200UF/25V M 1
C1019 ELECTRIC CAP. 4700UF/10V 1
C1019 CAP ELECTROLYTIC 4700UF/10V/M 1
C1019 ELECTROLYTIC CAP. 4700UF/10V M 1
C1020 ELECTROLYTIC CAP. 2200UF/6.3V M 1
C1020 CAP ELECTROLYTIC 2200UF/6.3V/M 1
C1021 ELECTROLYTIC CAP. 100UF/50V M 1
C1021 CAP ELECTROLYTIC 100UF/50V/M 1
C1022 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C1023 ELECTROLYTIC CAP. 220UF/25V M 1
C1023 CAP ELECTROLYTIC 220UF/25V/M 1
C1024 ELECTROLYTIC CAP. 2200UF/25V SL 1
C1024 CAP ELECTROLYTIC 2200UF/25V/M 1
C1024 ELECTROLYTIC CAP. 2200UF/25V M 1
C1025 ELECTRIC CAP. 4700UF/10V 1
C1025 CAP ELECTROLYTIC 4700UF/10V/M 1
C1025 ELECTROLYTIC CAP. 4700UF/10V M 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
C1026 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C1040 SAFETY CAP. 2200PF/250V 1
C1040 SAFETY CAP. 2200PF/250V 1
C1041 ELECTROLYTIC CAP 10UF/400V M 1
C1041 CAP ELECTROLYTIC 10UF/400V/M 1
C1042 METALIZED FILM CAP. 0.0022UF/
400V K 1
C1043 CHIP CERAMIC CAP. B K 2200PF/
50V 1
C1044 ELECTROLYTIC CAP. 1UF/50V M 1
C1044 CAP ELECTROLYTIC 1UF/50V/M 1
C1045 CHIP CERAMIC CAP.(1608) F Z
0.1UF/50V 1
C1046 ELECTROLYTIC CAP. 470UF/10V M 1
C1046 CAP ELECTROLYTIC 470UF/10V/M 1
C1047 ELECTROLYTIC CAP. 220UF/16V M 1
C1047 CAP ELECTROLYTIC 220UF/16V/M 1
C1048 CHIP CERAMIC CAP.(1608) B K
0.1UF/50V 1
C1048 CHIP CERAMIC CAP.(1608) B K
0.1UF/25V 1
C1049 CHIP CERAMIC CAP. F Z 0.33UF/16V 1
C1051 ELECTROLYTIC CAP. 330UF/6.3V M 1
C1051 CAP ELECTROLYTIC 330UF/6.3V/M 1
C1052 ELECTROLYTIC CAP. 22UF/50V M 1
C1052 CAP ELECTROLYTIC 22UF/50V/M 1
CONNECTORS
CN1001 TWG CONNECTOR 23P TWG-P23P-
A1 1
CN1002 PH CONNECTOR TOP 11P B11B-
PH-K-S(LF)(SN) 1
DIODES
D1001 DIODE 1N5397-B 1
D1001 DIODE RECTIFIER 1N5397 1
D1001 DIODE 1N5397BD 1
D1002 DIODE 1N5397-B 1
D1002 DIODE RECTIFIER 1N5397 1
D1002 DIODE 1N5397BD 1
D1003 DIODE 1N5397-B 1
D1003 DIODE RECTIFIER 1N5397 1
D1003 DIODE 1N5397BD 1
D1004 DIODE 1N5397-B 1
D1004 DIODE RECTIFIER 1N5397 1
D1004 DIODE 1N5397BD 1
D1006 DIODE FR154 1
D1006 DIODE FR154BD 1
D1006 DIODE FAST RECOVERY FR154 1
D1007 RECTIFIER DIODE BA157 1
D1007 DIODE FAST BA157 1
D1007 RECTIFIER DIODE BA157 1
D1008 RECTIFIER DIODE BA157 1
D1008 DIODE FAST BA157 1
D1008 RECTIFIER DIODE BA157 1
D1009 IC SHUNT REGULATOR KIA431-AT/P 1
D1009 IC SHUNT REGULATOR SL431A-AT 1
D1009 IC SHUNT REGULATOR
AS431BZTR-E1 1
D1010 RECTIFIER DIODE BA157 1
D1010 DIODE FAST BA157 1
D1010 RECTIFIER DIODE BA157 1
D1011 SCHOTTKY BARRIER DIODE SB3B0 1
D1011 SCHOTTKY BARRIER DIODE SB3B0 1
D1013 SCHOTTKY BARRIER DIODE SB390 1
D1013 DIODE SCHOTTKY SB390 1
D1013 SCHOTTKY BARRIER DIODE SB390 1
D1014 SCHOTTKY BARRIER DIODE SB390 1
D1014 DIODE SCHOTTKY SB390 1
D1014 SCHOTTKY BARRIER DIODE SB390 1
D1015 SCHOTTKY BARRIER DIODE SB390 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
20080818 1-17-9 E5J10EL
D1015 DIODE SCHOTTKY SB390 1
D1015 SCHOTTKY BARRIER DIODE SB390 1
D1016 SCHOTTKY BARRIER DIODE
SB240-B/P 1
D1016 DIODE SCHOTTKY SB240 1
D1016 SCHOTTKY BARRIER DIODE
SB240-B/P 1
D1017 DIODE ZENER 5V1BSB-T26 1
D1017 ZENER DIODE MTZJT-775.1B 1
D1018 RECTIFIER DIODE BA157 1
D1018 DIODE FAST BA157 1
D1018 RECTIFIER DIODE BA157 1
D1019 DIODE ZENER 18BSB-T26 1
D1019 ZENER DIODE MTZJT-7718B 1
D1020 DIODE ZENER 18BSB-T26 1
D1020 ZENER DIODE MTZJT-7718B 1
D1022 SCHOTTKY BARRIER DIODE SB140 1
D1022 DIODE SCHOTTKY SB140 1
D1022 SCHOTTKY BARRIER DIODE SB140 1
D1023 SCHOTTKY BARRIER DIODE SB3B0 1
D1023 SCHOTTKY BARRIER DIODE SB3B0 1
D1025 DIODE SWITCHING 1N4148-F0021 1
D1025 SWITCHING DIODE 1SS133(T-77) 1
D1025 DIODE SWITCHING HSS4148TE-E 1
D1026 DIODE SWITCHING 1N4148-F0021 1
D1026 SWITCHING DIODE 1SS133(T-77) 1
D1026 DIODE SWITCHING HSS4148TE-E 1
D1027 DIODE SWITCHING 1N4148-F0021 1
D1027 SWITCHING DIODE 1SS133(T-77) 1
D1027 DIODE SWITCHING HSS4148TE-E 1
D1028 RECTIFIER DIODE BA157 1
D1028 DIODE FAST BA157 1
D1028 RECTIFIER DIODE BA157 1
D1031 IC SHUNT REGULATOR KIA431-AT/P 1
D1031 IC SHUNT REGULATOR SL431A-AT 1
D1031 IC SHUNT REGULATOR
AS431BZTR-E1 1
D1036 DIODE ZENER 27BSB-T26 1
D1036 ZENER DIODE MTZJT-7727B 1
D1040 DIODE SWITCHING 1N4148-F0021 1
D1040 SWITCHING DIODE 1SS133(T-77) 1
D1040 DIODE SWITCHING HSS4148TE-E 1
D1041 RECTIFIER DIODE 1N4005 1
D1041 DIODE RECTIFIER 1N4005 1
D1041 RECTIFIER DIODE 1N4005 1
D1042 RECTIFIER DIODE 1N4005 1
D1042 DIODE RECTIFIER 1N4005 1
D1042 RECTIFIER DIODE 1N4005 1
D1043 RECTIFIER DIODE 1N4005 1
D1043 DIODE RECTIFIER 1N4005 1
D1043 RECTIFIER DIODE 1N4005 1
D1044 RECTIFIER DIODE 1N4005 1
D1044 DIODE RECTIFIER 1N4005 1
D1044 RECTIFIER DIODE 1N4005 1
D1045 RECTIFIER DIODE BA159 1
D1045 DIODE FAST RECOVERY BA159 1
D1045 RECTIFIER DIODE BA159 1
D1046 DIODE FR154 1
D1046 DIODE FR154BD 1
D1046 DIODE FAST RECOVERY FR154 1
D1047 SCHOTTKY BARRIER DIODE SB190 1
D1047 DIODE SCHOTTKY SB190 1
D1047 SCHOTTKY BARRIER DIODE SB190 1
D1048 DIODE SWITCHING 1N4148-F0021 1
D1048 SWITCHING DIODE 1SS133(T-77) 1
D1048 DIODE SWITCHING HSS4148TE-E 1
D1049 DIODE SWITCHING 1N4148-F0021 1
D1049 SWITCHING DIODE 1SS133(T-77) 1
D1049 DIODE SWITCHING HSS4148TE-E 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
D1050 DIODE ZENER 27BSB-T26 1
D1050 ZENER DIODE MTZJT-7727B 1
D1052 DIODE SWITCHING 1N4148-F0021 1
D1052 SWITCHING DIODE 1SS133(T-77) 1
D1052 DIODE SWITCHING HSS4148TE-E 1
D1053 DIODE ZENER 27BSB-T26 1
D1053 ZENER DIODE MTZJT-7727B 1
D1054 DIODE ZENER 27BSB-T26 1
D1054 ZENER DIODE MTZJT-7727B 1
D1056 DIODE SWITCHING 1N4148-F0021 1
D1056 SWITCHING DIODE 1SS133(T-77) 1
D1056 DIODE SWITCHING HSS4148TE-E 1
ICS
IC1001 #IC SWITCHING FA5542N-A2-TE1
SOP8 1
IC1002 #PHOTOCOUPLER PS2561A-1(W) 1
IC1002 #PHOTOCOUPLER PS2561A-1(Q) 1
IC1002 #PHOTOCOUPLER EL817B 1
IC1002 #PHOTOCOUPLER LTV-817B-F 1
IC1003 #PHOTOCOUPLER PS2561A-1(W) 1
IC1003 #PHOTOCOUPLER PS2561A-1(Q) 1
IC1003 #PHOTOCOUPLER EL817B 1
IC1003 #PHOTOCOUPLER LTV-817B-F 1
IC1004 IC MIP2F10MS 1
IC1005 IC TB7102F 1
COILS
L1003 POWER INDUCTORS CWKBNP-
220K 1
L1003 POWER INDUCTORS TWKBNP-
220K 1
L1003 CHOKE COIL(22UH) LHL10NB220K 1
L1004 CHOKE COIL 22UH-K 1
L1004 CHOKE COIL 22UH-K 1
L1005 POWER INDUCTORS CWKBNP-
220K 1
L1005 POWER INDUCTORS TWKBNP-
220K 1
L1005 CHOKE COIL(22UH) LHL10NB220K 1
L1006 COIL LINE FILTER ST0707ET24-010 1
L1006 LINE FILTER HF2430-273Y0R7-T01 1
L1007 RADIAL TYPE CHOKE COIL
A70830035 1
TRANSISTORS
Q1003 #MOS FET 2SK3798(Q) 1
Q1004 TRANSISTOR KTC3199-GR-AT/P 1
Q1004 TRANSISTOR 2SC1815-GR(TE2 F T) 1
Q1004 NPN TRANSISTOR 2SC5343MG-AT 1
Q1004 TRANSISTOR KTC3199-Y-AT/P 1
Q1004 TRANSISTOR 2SC1815-Y(TE2 F T) 1
Q1004 NPN TRANSISTOR 2SC5343M Y 1
Q1012 TRANSISTOR KTC3199-GR-AT/P 1
Q1012 TRANSISTOR 2SC1815-GR(TE2 F T) 1
Q1012 NPN TRANSISTOR 2SC5343MG-AT 1
Q1012 TRANSISTOR KTC3199-Y-AT/P 1
Q1012 TRANSISTOR 2SC1815-Y(TE2 F T) 1
Q1012 NPN TRANSISTOR 2SC5343M Y 1
RESISTORS
R1002 CHIP RES. 1/10W J 47K OHM 1
R1002 RES CHIP 1608 1/10W J 47K OHM 1
R1003 CARBON RES. 1/4W J 68K OHM 1
R1004 CHIP RES. 1/10W J 47K OHM 1
R1004 RES CHIP 1608 1/10W J 47K OHM 1
R1005 CARBON RES. 1/4W J 100 OHM 1
R1006 CARBON RES. 1/4W J 100K OHM 1
R1008 CARBON RES. 1/4W J 56 OHM 1
R1009 CARBON RES. 1/4W J 100 OHM 1
R1011 CARBON RES. 1/4W J 10 OHM 1
R1012 CARBON RES. 1/4W J 4.7K OHM 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
20080818 1-17-10 E5J10EL
R1013 METAL OXIDE FILM RES. 2W J 47K
OHM 1
R1013 METAL OXIDE FILM RES. 2W J 47K
OHM 1
R1013 METAL OXIDE FILM RES. RSI-
2S473JHB55 1
R1014 METAL OXIDE FILM RES. 2W J 0.68
OHM 1
R1014 METAL OXIDE FILM RES. 2W J 0.68
OHM 1
R1014 METAL OXIDE FILM RES. 2W J 0.68
OHM 1
R1016 CHIP RES. 1/10W J 470 OHM 1
R1016 RES CHIP 1608 1/10W J 470 OHM 1
R1017 CHIP RES. 1/10W J 22K OHM 1
R1017 RES CHIP 1608 1/10W J 22K OHM 1
R1018 CHIP RES. 1/10W J 1 OHM 1
R1018 RES CHIP 1608 1/10W J 1 OHM 1
R1019 CHIP RES. 1/10W J 680 OHM 1
R1019 RES CHIP 1608 1/10W J 680 OHM 1
R1020 CHIP RES. 1/10W F 2K OHM 1
R1020 CHIP RES. 1/10W F 2K OHM 1
R1020 RES CHIP 1608 1/10W F 2.00K OHM 1
R1021 CARBON RES. 1/4W J 6.8K OHM 1
R1022 CARBON RES. 1/4W J 6.8K OHM 1
R1024 CHIP RES. 1/10W F 100 OHM 1
R1024 CHIP RES. 1/10W F 100 OHM 1
R1024 RES CHIP 1608 1/10W F 100 OHM 1
R1025 CHIP RES. 1/10W F 1.0K OHM 1
R1025 CHIP RES. 1/10W F 1K OHM 1
R1025 RES CHIP 1608 1/10W F 1.00K OHM 1
R1026 CHIP RES. 1/10W F 1.0K OHM 1
R1026 CHIP RES. 1/10W F 1K OHM 1
R1026 RES CHIP 1608 1/10W F 1.00K OHM 1
R1030 CHIP RES.(1608) 1/10W 0 OHM 1
R1030 RES CHIP 1608 1/10W J 0 OHM 1
R1032 CHIP RES.(1608) 1/10W 0 OHM 1
R1032 RES CHIP 1608 1/10W J 0 OHM 1
R1034 CHIP RES.(1608) 1/10W 0 OHM 1
R1034 RES CHIP 1608 1/10W J 0 OHM 1
R1040 PCB JUMPER D0.6-P5.0 1
R1041 CARBON RES. 1/4W J 100 OHM 1
R1046 CHIP RES.(1608) 1/10W 0 OHM 1
R1046 RES CHIP 1608 1/10W J 0 OHM 1
R1047 CHIP RES. 1/10W F 82.0 K OHM 1
R1047 CHIP RES. 1/10W F 82K OHM 1
R1047 RES CHIP 1608 1/10W F 82.0K OHM 1
R1048 CHIP RES. 1/10W F 100K OHM 1
R1048 CHIP RES. 1/10W F 100K OHM 1
R1048 RES CHIP 1608 1/10W F 100K OHM 1
R1050 METAL RESISTER. 2W J 2.7 OHM 1
R1050 METAL OXIDE FILM RES. 2W J 2.7
OHM 1
R1050 METAL OXIDE FILM RES. 2W J 2.7
OHM 1
R1051 CARBON RES. 1/4W J 470K OHM 1
R1052 CARBON RES. 1/4W J 470K OHM 1
R1053 CHIP RES.(1608) 1/10W 0 OHM 1
R1053 RES CHIP 1608 1/10W J 0 OHM 1
R1054 CHIP RES. 1/10W J 470K OHM 1
R1054 RES CHIP 1608 1/10W J 470K OHM 1
R1055 CHIP RES. 1/10W J 33K OHM 1
R1055 RES CHIP 1608 1/10W J 33K OHM 1
R1056 CHIP RES. 1/10W J 470 OHM 1
R1056 RES CHIP 1608 1/10W J 470 OHM 1
R1057 CHIP RES. 1/10W J 3.3K OHM 1
R1057 RES CHIP 1608 1/10W J 3.3K OHM 1
R1058 CHIP RES. 1/10W J 4.7K OHM 1
R1058 RES CHIP 1608 1/10W J 4.7K OHM 1
R1060 CHIP RES.(1608) 1/10W 0 OHM 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
R1060 RES CHIP 1608 1/10W J 0 OHM 1
R1061 CHIP RES. 1/10W F 7.50 K OHM 1
R1061 CHIP RES. 1/10W F 7.5K OHM 1
R1061 RES CHIP 1608 1/10W F 7.50K OHM 1
R1062 CHIP RES. 1/10W F 2.4K OHM 1
R1062 CHIP RES.(1608) 1/10W F 2.4K OHM 1
R1062 RES CHIP 1608 1/10W F 2.40K OHM 1
R1063 CHIP RES. 1/10W J 10K OHM 1
R1063 RES CHIP 1608 1/10W J 10K OHM 1
R1064 CHIP RES. 1/10W J 1.8K OHM 1
R1064 RES CHIP 1608 1/10W J 1.8K OHM 1
R1065 CHIP RES. 1/10W J 15K OHM 1
R1065 RES CHIP 1608 1/10W J 15K OHM 1
R1066 CHIP RES. 1/10W J 10K OHM 1
R1066 RES CHIP 1608 1/10W J 10K OHM 1
R1067 CARBON RES. 1/4W J 10K OHM 1
R1068 CARBON RES. 1/4W J 10K OHM 1
R1069 CARBON RES. 1/4W J 10K OHM 1
R1070 CARBON RES. 1/4W J 10K OHM 1
R1072 CHIP RES. 1/10W J 1 OHM 1
R1072 RES CHIP 1608 1/10W J 1 OHM 1
ASSY5 996510010188 SD CBA 1
Consists of the following:
CAPACITORS
C4001 CHIP ELECTROLYTIC CAP. 33UF/
6.3V M(WR) 1
C4001 CHIP ELECTROLYTIC CAP. 33UF/
6.3V M(MS) 1
C4002 CHIP CERAMIC CAP.(1608) B K
0.1UF/25V 1
CONNECTORS
CN4001 CONNECTOR IC CARD MES 9PIN
1939115-1 1
CN4002 FFC/FPC CONNECTOR 16P+ 04
6232 116 102 800+ 1
COILS
L4001 CHIP BEAD GZ1608D121T(F) 1
L4001 CHIP INDUCTOR BK1608HM121-T 1
RESISTORS
R4008 CHIP RES. 1/10W J 47 OHM 1
R4008 RES CHIP 1608 1/10W J 47 OHM 1
R4009 CHIP RES. 1/10W J 47 OHM 1
R4009 RES CHIP 1608 1/10W J 47 OHM 1
R4010 CHIP RES. 1/10W J 47 OHM 1
R4010 RES CHIP 1608 1/10W J 47 OHM 1
R4012 CHIP RES. 1/10W J 47 OHM 1
R4012 RES CHIP 1608 1/10W J 47 OHM 1
R4013 CHIP RES. 1/10W J 47 OHM 1
R4013 RES CHIP 1608 1/10W J 47 OHM 1
R4015 CHIP RES. 1/10W J 47 OHM 1
R4015 RES CHIP 1608 1/10W J 47 OHM 1
ELECTRICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
1-18-1 E5J10CEX
EXPLODED VIEWS
Cabinet
See Electrical Parts List
for parts with this mark.
Some Ref. Numbers are
not in sequence. 2L082
2L082
2L082
2L082
2L072 2L071
2L051
2L044
2L086
2L044
2L086
2L038
2L047
2L027
2L015
2L027 B49
A3
A4
B5
A2
B12
A6
B15
AV CBA
2L044
2L050
2L034
B14
B14
W01
2L085
B53
B54
2L085
A8
A21
2L037
B4
2L026
2L026
B34
B38
2L034
2L034
2L034
2L034
2L081
2L083
2L070
2L070
A24
SD01
FM01
W08
A11
A1X
A10
B13
A20
2L018
W11
W09
POWER SUPPLY CBA
BE MAIN CBA Unit
SD CBA
POWER SW CBA
FRONT CBA
FE MAIN CBA &
BD Mechanism Assembly
B52
W07
W06
W05
W04
B47
2L056
2L055
F1001
ASSY 4
ASSY 3a
ASSY 2
ASSY 5
ASSY 3b
ASSY 1
ASSY 3c

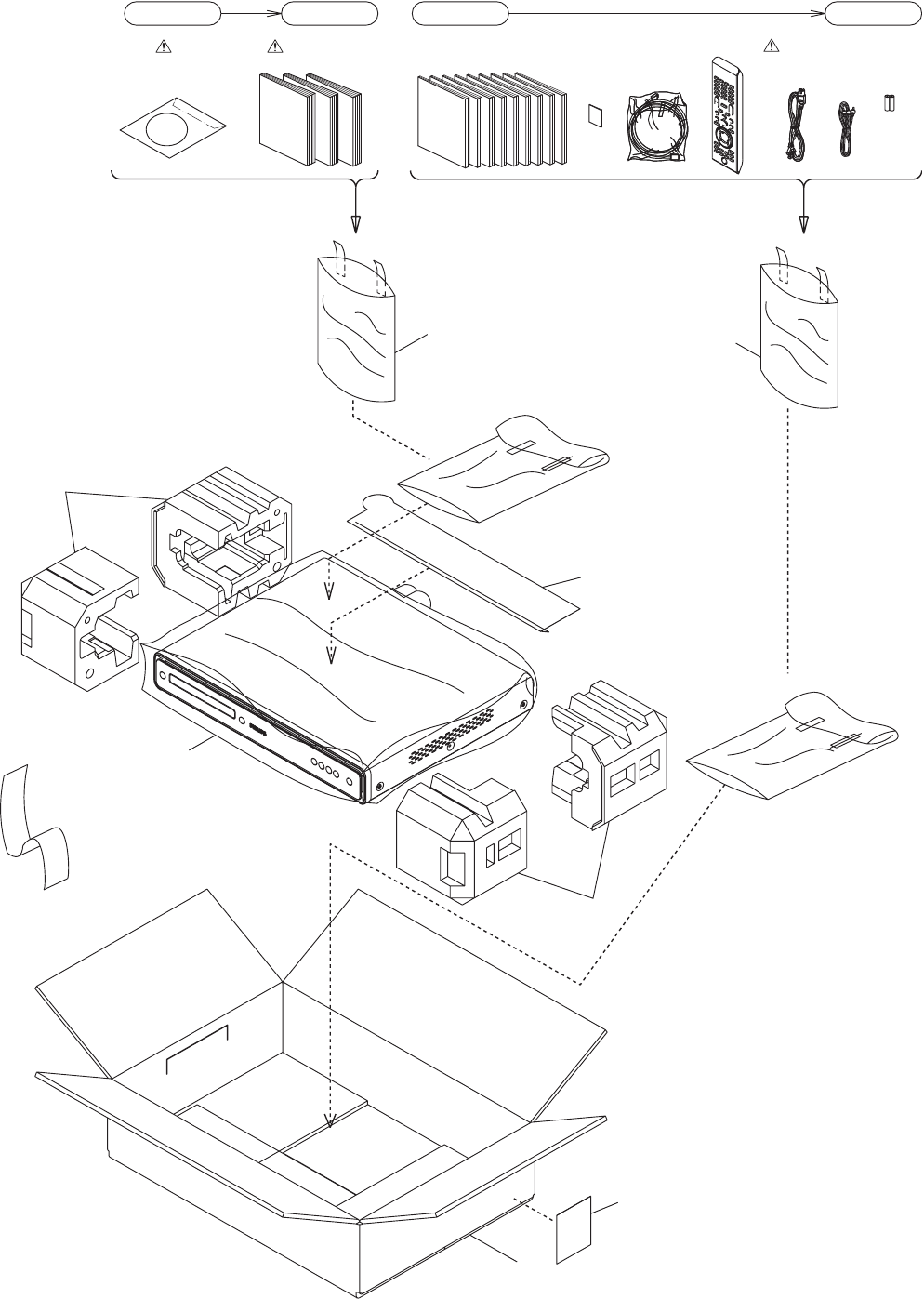

1-18-2 E5J10PEX
Packing
Unit
S2
A20
S3
S1
S1
X10
X19X24X38X3 X15 X14 X6
X10
Lower SideUpper SideLower SideUpper Side
X2-A,B,C,D,E,F,G,H,IX1-A,B,C
Some Ref. Numbers
are not in sequence.
A35
20080818 1-19-1 E5J10CA
MECHANICAL PARTS LIST
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
MECHANICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
A1X 996510018692 FRONT ASSEMBLY(PAL)
E5J10ED 1
A2 CHASSIS E5E10UD 1
A2 CHASSIS E5E10UD 1
A3 TOP COVER(PAL) E5J10ED 1
A4 REAR PANEL(PAL) E5J10ED 1
A6 996510018693 FOOT E5H40UD 1
A8 996510018694 TRAY PANEL ASSEMBLY(PAL)
E5J10ED 1
A10 BOTTOM GUIDE R E5E10UD 1
A11 BOTTOM GUIDE L E5E10UD 1
A20 BAR CODE LABEL E5J10ED 1
A21 MODEL NO LABEL E5J10ED 1
A24 VOID LABEL E5E10UD 1
A35 TOPPER POP E5J10ED 1
2L015 SCREW P-TIGHT M3X8 BIND
HEAD+ 1
2L018 SCREW P-TIGHT M3X8 BIND
HEAD+ 1
2L026 SCREW C-TIGHT M3X6 E5610UD 1
2L027 SCREW C-TIGHT M3X6 E5610UD 1
2L034 SCREW S-TIGHT M3X6 WASHER
HEAD+ 1
2L037 SCREW C-TIGHT M3X6 E5610UD 1
2L038 SCREW C-TIGHT M3X6 E5610UD 1
2L044 SCREW P-TIGHT M3X6 BIND
HEAD+ 1
2L047 SCREW P-TIGHT M3X10 BIND
HEAD+ 1
2L050 SCREW P-TIGHT M3X8 BIND
HEAD+ 1
2L051 SCREW P-TIGHT M3X8 BIND
HEAD+ 1
2L070 SCREW B-TIGHT M3X8 BIND
HEAD+ 1
2L071 SCREW B-TIGHT M3X8 BIND
HEAD+ 1
2L072 SCREW TAP TIGHT M3X8 BIND
PAN HEAD+BLK NI 1
2L081 SCREW TAP TIGHT M3X5 BIND
HEAD+BLK NI 1
2L082 SCREW C-TIGHT M3X5
E5E10UD 1
2L083 SCREW TAP TIGHT M3X5 BIND
HEAD+BLK NI 1
2L085 SCREW C-TIGHT M3X6 E5610UD 1
2L086 SCREW C-TIGHT M3X6 E5610UD 1
B4 POWER PCB HOLDER E5E10UD 1
B5 FAN HOLDER E5E10UD 1
B12 BE PCB HOLDER ASSEMBLY
E5H40UD 1
B13 FRONT BRAKET R E5E10UD 1
B14 996510010148 LOCKING CARD SPACER KGLS-
22S 1
B15 SD CARD HOLDER E5E10UD 1
B34 DOUBLE SIDE TAPE E5E10UD 1
B38 996510012103 CORE FERRITE
HF70SH25*0.7*10 1
B52 996510012104 CUSHIION E5E10UD 1
B53 996510012105 CONDUCTIVE TAPE CSTK-
026065 1
B54 996510012106 CONDUCTIVE TAPE CSTK-
040055 1
FM01 996510018695 MOTOR DC FAN 2D65BL100120 1
SD01 996510012107 SD MEMORY CARD RP-
SD256BFN0 1
SD01 SD CARD TS256MSDC6450SS 1
W01 996510012108 WX1E5E10-001 11/110/AWG24 1
W04 996510012109 WX1E5E10-004 28/75/1.0 1
W05 996510012110 WX1E5E10-005 14/80/1.0 1
W06 996510018696 WIRE ASSEMBLY FFC 15/218/1.0 1
W07 996510012112 WX1E5E10-007 40/240/0.5 1
W08 996510012113 WX1E5E10-008 16/115/1.0 1
W09 996510012114 WIRE ASSEMBLY 15/BLACK 1
W11 996510018697 WIRE ASSEMBLY RING TERMI-
NAL 48/BLACK 1
S1 SIDE PAD E5E10UD 1
S2 GIFT BOX CARTON E5J10ED 1
S3 UNIT BAG E5500UD 1
X1-A #OWNERS MANUAL(EN) E5J10ED 1
X1-B #OWNERS MANUAL(FR/DE/ES)
E5J10ED 1
X1-C #OWNERS MANUAL(NL/IT)
E5J10ED 1
X2-A QUICK GUIDE(EN) E5J10ED 1
X2-B QUICK GUIDE(ES) E5J10ED 1
X2-C QUICK GUIDE(FR) E5J10ED 1
X2-D QUICK GUIDE(DE) E5J10ED 1
X2-E QUICK GUIDE(IT) E5J10ED 1
X2-F QUICK GUIDE(NL) E5J10ED 1
X2-G QUICK GUIDE(SV) E5J10ED 1
X2-H QUICK GUIDE(FI) E5J10ED 1
X2-I QUICK GUIDE(NO/DA) E5J10ED 1
X3 #OWNERS MANUAL CD-ROM
E5J10ED 1
X6 DRY BATTERY 2PACK R6-B500/
01S 1
X10 ACCESSORY BAG E5795ED 1
X10 ACCESSORY BAG E5795ED 1
X14 996510010150 AV CORD 1500/BLACK 1
X15 #996510018698 AC CORD WITH A GND WIRE CB/
162/NO/BLACK 1
X15 #AC CORD W/O A GND WIRE
CEE/ 162/ NO/ BLACK 1
X19 996510010151 REMOTE CONTROL UNIT
YKF202-004 1
X24 996510010152 HDMI CABLE HIGH SPEED 2000/
BLACK 1
X38 WARRANTY CARD H9821MD 1
MECHANICAL PARTS LIST
BDP7200/12
Pos.No. #12 NC Description
