BDP S5000ES BDPS5000ES

User Manual: BDPS5000ES

Open the PDF directly: View PDF PDF.
Page Count: 177 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Sony Corporation
Video Business Group
SERVICE MANUAL
9-883-995-11
2008J0500-1
© 2008.10
Published by Quality Assurance Dept.
BLU-RAY DISC/DVD PLAYER
Ver. 1.0 2008.10
BDP-S5000ES
RMT-B103A/B103P
SPECIFICATIONS
US Model
Canadian Model
AEP Model
UK Model
Russian Model
TM
System
Laser: Semiconductor laser
Inputs and outputs
(Jack name:
Jack type/Output level/Load impedance)
AUDIO OUT L/R:
Phono jack/2 Vrms/10 kilohms
DIGITAL OUT (OPTICAL):
Optical output jack/–18 dBm
(wave length 660 nm)
DIGITAL OUT (COAXIAL):
Phono jack/0.5 Vp-p/75 ohms
MULTI CHANNEL OUTPUT:
Phono jack/2 Vrms/10 kilohms
HDMI OUT:
HDMI 19-pin standard connector
COMPONENT VIDEO OUT
(Y, PB, PR) (US, Canadian):
Phono jack/Y: 1.0 Vp-p/
PB, PR: 0.7 Vp-p/75 ohms
(Y, PB/CB, PR/CR) (AEP, UK, Russian):
Phono jack/Y: 1.0 Vp-p/
PB/CB, PR/CR: 0.7 Vp-p/75 ohms
VIDEO OUT VIDEO:
Phono jack/1.0 Vp-p/75 ohms
VIDEO OUT S VIDEO:
4-pin mini DIN/
Y: 1.0 Vp-p, C: 0.286 Vp-p/75 ohms
LAN (100):
100BASE-TX Terminal
EXT:
External memory slot (For connecting the
external memory)
DC output: 5 V 500 mA Max
CONTROL S IN/IR IN:
Mini jack
RS-232C port:
D-sub 9-pin
4-pin mini DIN/
Y: 1.0 Vp-p, C: 0.3 Vp-p/75 ohms
(US, Canadian)
(AEP, UK, Russian)
General
Power requirements:
120 V AC, 60 Hz
Power consumption:
42 W
Dimensions (approx.):
430 mm × 365 mm × 125 mm
(17 in. × 14 3/8in. × 5 in.)
(width/depth/height) incl. projecting parts
Mass (approx.):
10 kg (22 lb)
Operating temperature:
5 ºC t o 3 5 ºC ( 41 °F t o 95 °F)
Operating humidity:
25 % to 80 %
Supplied accessories
Specifications and design are subject to
change without notice.
220-240 V AC, 50/60 Hz
(US, Canadian)
(AEP, UK, Russian)
• Audio/video cable (phono plug ×3) (1)
• AC power cord (1)
• External memory (1)
• Remote commander (remote) (1)
• Size AA (R6) batteries (2)
– 2 –
BDP-S5000ES
SAFETY CHECK-OUT
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers' instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication
is 0.75V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
1. Check the area of your repair for unsoldered or poorly-soldered
connections. Check the entire board surface for solder splashes
and bridges.
2. Check the interboard wiring to ensure that no wires are “pinched”
or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly transistors,
that were installed during a previous repair. Point them out to
the customer and recommend their replacement.
4. Look for parts which, though functioning, show obvious signs
of deterioration. Point them out to the customer and recommend
their replacement.
5. Check the line cord for cracks and abrasion. Recommend the
replacement of any such line cord to the customer.
6. Check the B+ voltage to see it is at the values specified.
7. Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage. Check
leakage as described below.
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:
1.5 k
Ω
0.15 µF
AC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION,
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 25 cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0
SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE
DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE
FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS
QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT
DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉ-
MENTS PUBLIÉS PAR SONY.
Unleaded solder
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than
ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
CAUTION:
The use of optical instrument with this product will increase eye
hazard.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radia-
tion exposure.
2
WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus
to rain or moisture.
To avoid electrical shock, do not
open the cabinet. Refer servicing to
qualified personnel only.
Batteries or batteries installed
apparatus shall not be exposed to
excessive heat such as sunshine,
fire or the like.
CAUTION
The use of optical instruments with
this product will increase eye
hazard. As the laser beam used in
this Blu-ray Disc/DVD player is
harmful to eyes, do not attempt to
disassemble the cabinet.
Refer servicing to qualified
personnel only.
This label is located on the laser
protective housing inside the
enclosure.
This appliance is classified as a
CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT
MARKING is located on the laser
protective housing inside the
enclosure. (Except US, Canadian)
Notice for customers in the
United Kingdom and
Republic of Ireland
A molded plug complying with
BS1363 is fitted to this equipment
for your safety and convenience.
Should the fuse in the plug
supplied need to be replaced, a 5
AMP fuse approved by ASTA or
BSI to BS1362, (i.e., marked with
or mark) must be used.
If the plug supplied with this
equipment has a detachable fuse
cover, be sure to attach the fuse
cover after you change the fuse.
Never use the plug without the fuse
cover. If you should lose the fuse
cover, please contact your nearest
Sony service station.
Disposal of Old Electrical
& Electronic Equipment
(Applicable in the
European Union and
other European countries
with separate collection
systems)
This symbol on the product or on
its packaging indicates that this
product shall not be treated as
household waste. Instead it shall be
handed over to the applicable
collection point for the recycling of
electrical and electronic
equipment. By ensuring this
product is disposed of correctly,
you will help prevent potential
negative consequences for the
environment and human health,
which could otherwise be caused
by inappropriate waste handling of
this product. The recycling of
materials will help to conserve
natural resources. For more
detailed information about
recycling of this product, please
contact your local Civic Office,
your household waste disposal
service or the shop where you
purchased the product.
Disposal of waste
batteries (applicable in
the European Union and
other European countries
with separate collection
systems)
This symbol on the battery or on
the packaging indicates that the
battery provided with this product
shall not be treated as household
waste.
By ensuring these batteries are
disposed of correctly, you will help
prevent potentially negative
consequences for the environment
and human health which could
otherwise be caused by
inappropriate waste handling of the
battery. The recycling of the
materials will help to conserve
natural resources.
In case of products that for safety,
performance or data integrity
reasons require a permanent
connection with an incorporated
battery, this battery should be
replaced by qualified service staff
only.
To ensure that the battery will be
treated properly, hand over the
product at end-of-life to the
applicable collection point for the
recycling of electrical and
electronic equipment.
For all other batteries, please view
the section on how to remove the
battery from the product safely.
Hand the battery over to the
applicable collection point for the
recycling of waste batteries.
For more detailed information
about recycling of this product or
battery, please contact your local
Civic Office, your household
waste disposal service or the shop
where you purchased the product.
2
WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus
to rain or moisture.
To avoid electrical shock, do not
open the cabinet. Refer servicing to
qualified personnel only.
Batteries or batteries installed
apparatus shall not be exposed to
excessive heat such as sunshine,
fire or the like.
CAUTION
The use of optical instruments with
this product will increase eye
hazard. As the laser beam used in
this Blu-ray Disc/DVD player is
harmful to eyes, do not attempt to
disassemble the cabinet.
Refer servicing to qualified
personnel only.
This label is located on the laser
protective housing inside the
enclosure.
This appliance is classified as a
CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT
MARKING is located on the laser
protective housing inside the
enclosure. (Except US, Canadian)
Notice for customers in the
United Kingdom and
Republic of Ireland
A molded plug complying with
BS1363 is fitted to this equipment
for your safety and convenience.
Should the fuse in the plug
supplied need to be replaced, a 5
AMP fuse approved by ASTA or
BSI to BS1362, (i.e., marked with
or mark) must be used.
If the plug supplied with this
equipment has a detachable fuse
cover, be sure to attach the fuse
cover after you change the fuse.
Never use the plug without the fuse
cover. If you should lose the fuse
cover, please contact your nearest
Sony service station.
Disposal of Old Electrical
& Electronic Equipment
(Applicable in the
European Union and
other European countries
with separate collection
systems)
This symbol on the product or on
its packaging indicates that this
product shall not be treated as
household waste. Instead it shall be
handed over to the applicable
collection point for the recycling of
electrical and electronic
equipment. By ensuring this
product is disposed of correctly,
you will help prevent potential
negative consequences for the
environment and human health,
which could otherwise be caused
by inappropriate waste handling of
this product. The recycling of
materials will help to conserve
natural resources. For more
detailed information about
recycling of this product, please
contact your local Civic Office,
your household waste disposal
service or the shop where you
purchased the product.
Disposal of waste
batteries (applicable in
the European Union and
other European countries
with separate collection
systems)
This symbol on the battery or on
the packaging indicates that the
battery provided with this product
shall not be treated as household
waste.
By ensuring these batteries are
disposed of correctly, you will help
prevent potentially negative
consequences for the environment
and human health which could
otherwise be caused by
inappropriate waste handling of the
battery. The recycling of the
materials will help to conserve
natural resources.
In case of products that for safety,
performance or data integrity
reasons require a permanent
connection with an incorporated
battery, this battery should be
replaced by qualified service staff
only.
To ensure that the battery will be
treated properly, hand over the
product at end-of-life to the
applicable collection point for the
recycling of electrical and
electronic equipment.
For all other batteries, please view
the section on how to remove the
battery from the product safely.
Hand the battery over to the
applicable collection point for the
recycling of waste batteries.
For more detailed information
about recycling of this product or
battery, please contact your local
Civic Office, your household
waste disposal service or the shop
where you purchased the product.
– 3 –
BDP-S5000ES
TABLE OF CONTENTS
Section Title Page Section Title Page
1. SERVICE NOTE
1-1. Disc Removal Procedure If The Tray Cannot Be
Ejected (Forced Ejection) ............................................. 1-1
1-2. Test Disc ....................................................................... 1-1
1-2-1. Operation and Display .................................................. 1-1
2. DISASSEMBLY
2-1. Disassembly Flow ........................................................ 2-1
2-2. Top Case ...................................................................... 2-1
2-3. Tray Panel .................................................................... 2-2
2-4. USB-007 Board ............................................................ 2-2
2-5. AU-260 Board............................................................... 2-3
2-6. Power Transformer ....................................................... 2-3
2-7. Front Panel ................................................................... 2-4
2-8. ET-001 Board, RS-088 Board ...................................... 2-4
2-9. IFD-002 Board .............................................................. 2-5
2-10. BPD-200ES .................................................................. 2-5
2-11. VP-062 Board ............................................................... 2-6
2-12. MB-124 Board .............................................................. 2-6
2-13. Circuit Boards Location ................................................ 2-7
3. BLOCK DIAGRAMS
3-1. Overall Block Diagram (1/3) ......................................... 3-1
3-2. Overall Block Diagram (2/3) ......................................... 3-2
3-3. Overall Block Diagram (3/3) ......................................... 3-3
3-4. DSP Block Diagram ...................................................... 3-4
3-5. Video-1 Block Diagram ................................................. 3-5
3-6. Video-2 Block Diagram ................................................. 3-6
3-7. Audio Block Diagram .................................................... 3-7
3-8. USB/ETHER Block Diagram ........................................ 3-8
3-9. IT Block Diagram .......................................................... 3-9
3-10. Power Block Diagram (1/4) .......................................... 3-10
3-11. Power Block Diagram (2/4) .......................................... 3-11
3-12. Power Block Diagram (3/4) .......................................... 3-12
3-13. Power Block Diagram (4/4) .......................................... 3-13
4. SCHEMATIC DIAGRAMS
4-1. This Note Is Common For Schematic Diagrams .......... 4-1
4-2. Frame Schematic Diagram........................................... 4-2
4-3. AU-260 Board (1/2) (D/A CONVERTER) ..................... 4-3
4-4. AU-260 Board (2/2) (AUDIO OUT) ............................... 4-4
4-5. ET-001 Board (ETHER, CONTROL S IN) .................... 4-5
4-6. FC-095 Board (FLD, SIRCS)........................................ 4-6
4-7. FL-186 Board (POWER SWITCH, LED) ...................... 4-7
4-8. FR-292 Board (KEY) .................................................... 4-8
4-9. FS-089 Board (LED)..................................................... 4-9
4-10. FT-094 Board (CENTER LED) ..................................... 4-10
4-11. IFD-002 Board (1/3) (POWER) .................................... 4-11
4-12. IFD-002 Board (2/3) (IF CONTROLLER) ..................... 4-12
4-13. IFD-002 Board (3/3) (FAN CONTROL) ....................... 4-13
4-14. MB-124 Board (1/11) (DDR2-A) ................................... 4-14
4-15. MB-124 Board (2/11) (DDR2-B) ................................... 4-15
4-16. MB-124 Board (3/11) (POWER1) ................................. 4-16
4-17. MB-124 Board (4/11) (CLK/POWER2) ......................... 4-17
4-18. MB-124 Board (5/11) (FLASH/HOST) .......................... 4-18
4-19. MB-124 Board (6/11) (USB) ......................................... 4-19
4-20. MB-124 Board (7/11) (HDMI/SATA).............................. 4-20
4-21. MB-124 Board (8/11) (AUDIO/VIDEO) ......................... 4-21
4-22. MB-124 Board (9/11) (GPIO/JTAG) .............................. 4-22
4-23. MB-124 Board (10/11) (IPIO) ....................................... 4-23
4-24. MB-124 Board (11/11) (ETHERNET) ........................... 4-24
4-25. RS-088 Board (CIS) ..................................................... 4-25
4-26. USB-007 Board (USB CONNECTOR) ......................... 4-26
4-27. VP-062 Board (1/12) (MB-CN) ..................................... 4-27
4-28. VP-062 Board (2/12) (DVF CONVERTER) .................. 4-28
4-29. VP-062 Board (3/12) (SDRAM) .................................... 4-29
4-30. VP-062 Board (4/12) (GLUE) ....................................... 4-30
4-31. VP-062 Board (5/12) (HDMI) ........................................ 4-31
4-32. VP-062 Board (6/12) (HDMI-TX) .................................. 4-32
4-33. VP-062 Board (7/12) (DAC) ......................................... 4-33
4-34. VP-062 Board (8/12) (ANALOG OUT) ......................... 4-34
4-35. VP-062 Board (9/12) (PLL1)......................................... 4-35
4-36. VP-062 Board (10/12) (PLL2)....................................... 4-36
4-37. VP-062 Board (11/12) (VUCON) .................................. 4-37
4-38. VP-062 Board (12/12) (COMPONENT)........................ 4-38
4-39. Waveforms ................................................................... 4-39

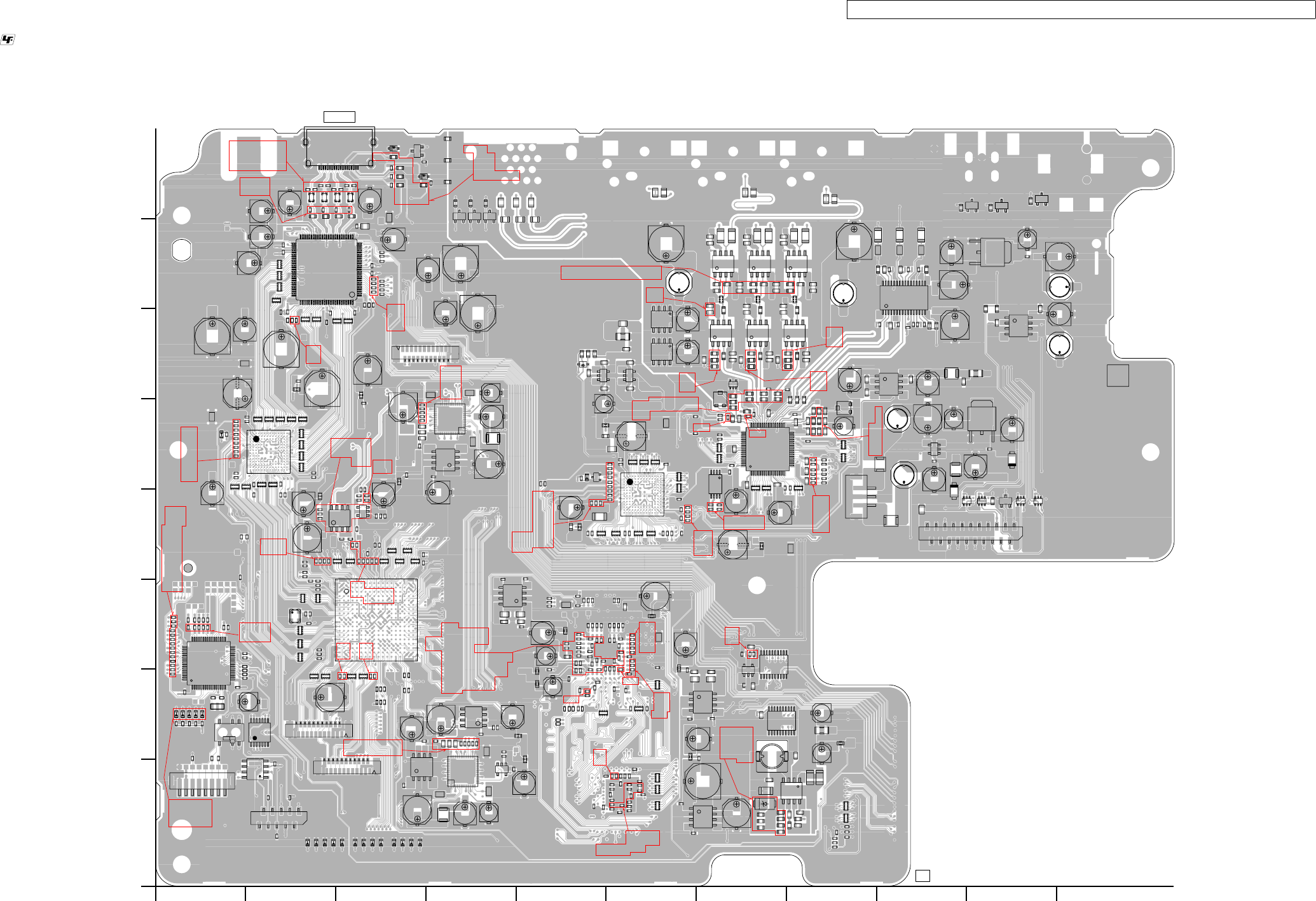

5. PRINTED WIRING BOARDS
5-1. This Note Is Common For Printed Wiring Boards ........ 5-1

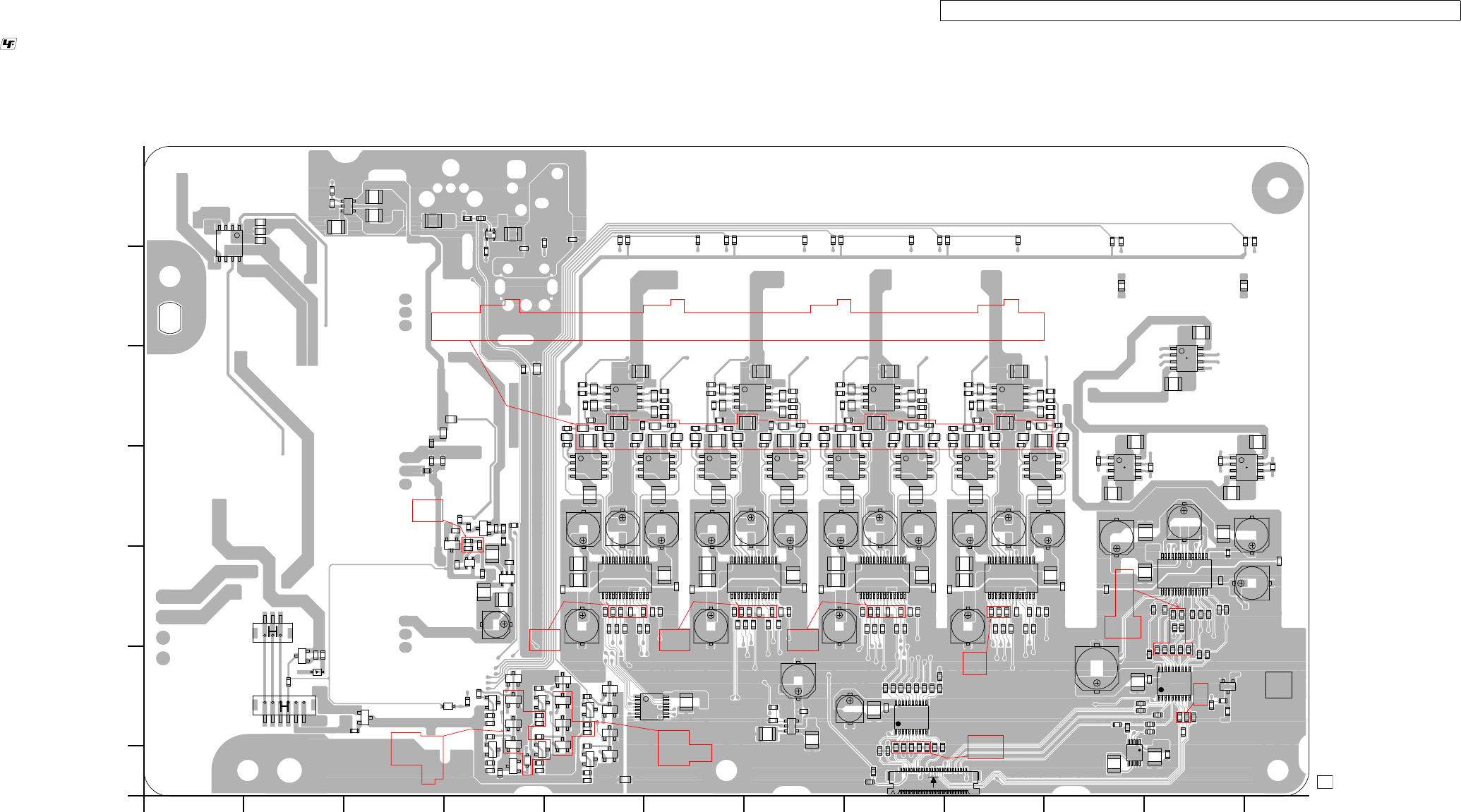

5-2. AU-260 Board (Side A) ................................................. 5-2

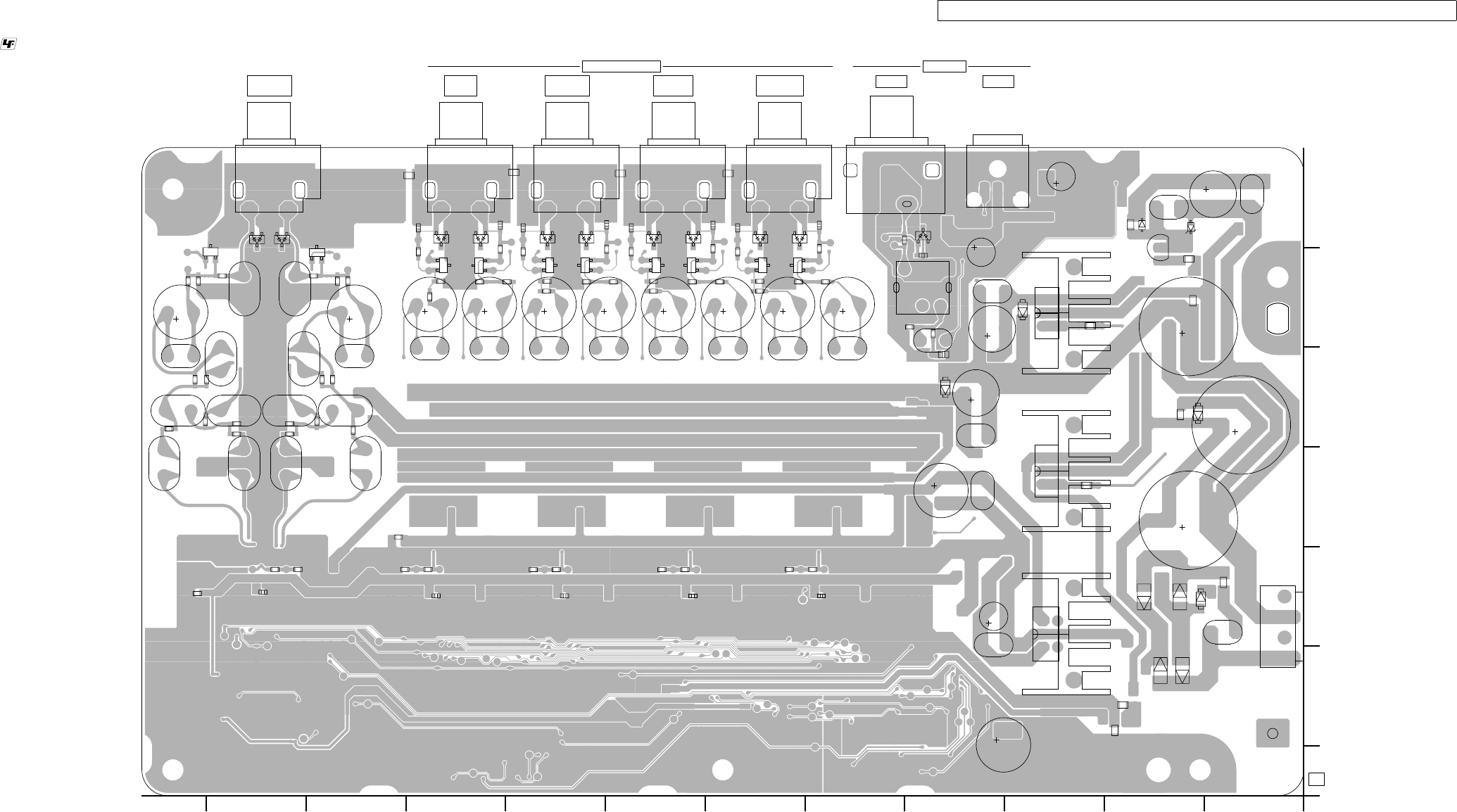

5-3. AU-260 Board (Side B)................................................. 5-3
5-4. ET-001 Board ............................................................... 5-4
5-5. FC-095 Board ............................................................... 5-5
5-6. FL-186 Board ............................................................... 5-6
5-7. FR-292 Board ............................................................... 5-7
5-8. FS-089 Board ............................................................... 5-8
5-9. FT-094 Board ............................................................... 5-9
5-10. IFD-002 Board (Side A) ................................................ 5-10
5-11. IFD-002 Board (Side B) ................................................ 5-11
5-12. MB-124 Board (Side A) ................................................ 5-12
5-13. MB-124 Board (Side B) ................................................ 5-13
5-14. RS-088 Board............................................................... 5-14
5-15. USB-007 Board ............................................................ 5-15
5-16. VP-062 Board (Side A) ................................................. 5-16
5-17. VP-062 Board (Side B) ................................................. 5-17
6. IC PIN FUNCTION DESCRIPTION ....................... 6-1
7. SERVICE MODE ...................................................... 7-1
8. ERROR LOG LIST ................................................... 8-1
9. TROUBLESHOOTING ............................................. 9-1
10. ELECTRICAL ADJUSTMENT ............................. 10-1
11. REPAIR PARTS LIST
11-1. Exploded Views ............................................................ 11-1
11-1-1. Case Section ........................................................... 11-1
11-1-2. Front Panel Section ................................................. 11-2
11-1-3. Drive Section ........................................................... 11-3
11-1-4. AU Shield Plate Section .......................................... 11-4
11-1-5. Rear Panel Section ................................................. 11-5
11-1-6. Chassis Section ...................................................... 11-6
11-1-7. Accessories ............................................................. 11-7
11-2. Electrical Parts List ....................................................... 11-8
1-1
BDP-S5000ES
SECTION 1
SERVICE NOTE
1-1. DISC REMOVAL PROCEDURE IF THE TRAY CANNOT BE EJECTED (FORCED EJECTION)
1. Remove the top case. (Refer to page 2-1)
2. Insert a clip in the hole of a drive and open a tray.
Note: Use a clip of about 1.2 mm in the diameter
1-2. TEST DISC
Part No. Description Layer
J-6090-199-A BLX-104 Single Layer
J-6090-200-A BLX-204 Dual Layer
3-702-101-01 CD (YEDS-18)
J-6090-088-A HLX-504 Single Layer (NTSC)
J-6090-089-A HLX-505 Dual Layer (NTSC)
J-6090-077-A HLX-506 Single Layer (PAL)
J-6090-078-A HLX-507 Dual Layer (PAL)

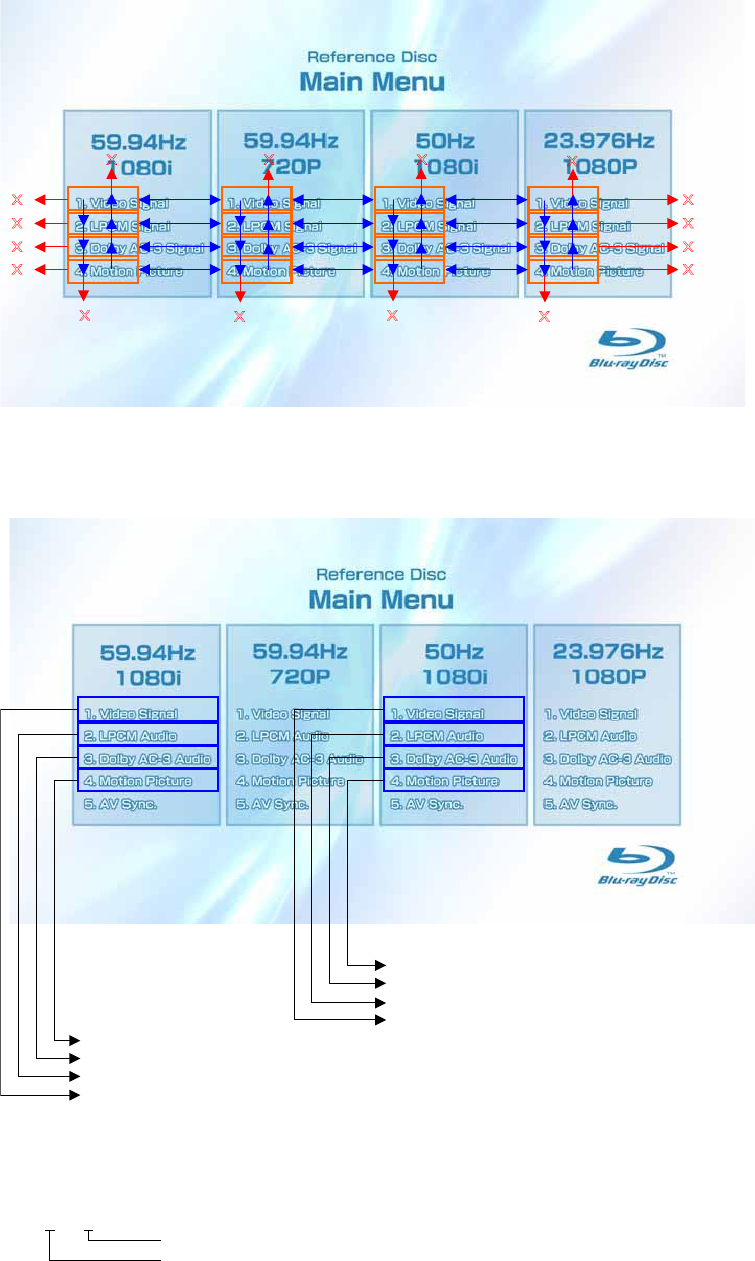

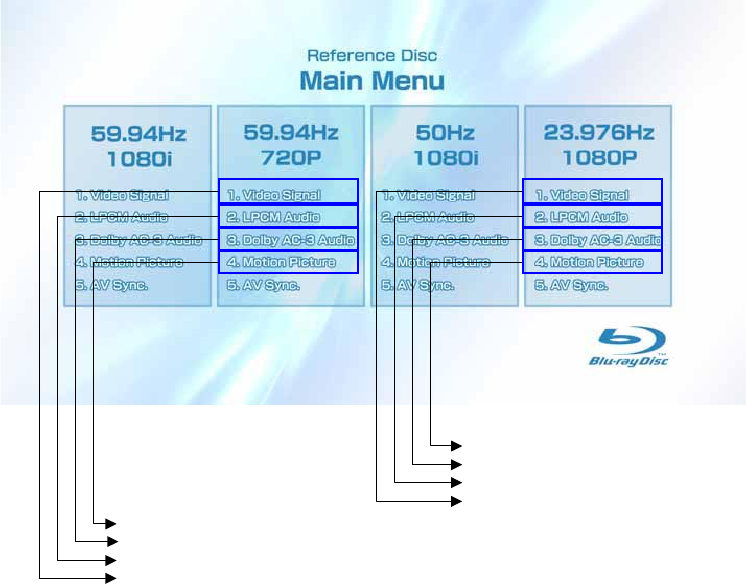

1-2-1. Operation and Display
Check Items
1) BLX-104
1. Select 23.976Hz/1080p
2. Play “4.Motion pictures”
3. Check whether player can play back or not
4. Check each outputs
Video:
Composite/S Video/component/HDMI
Audio:
Digital out (Coaxial/Optical)/Audio out/5.1Ch output
* When 1080/24p monitor is nothing, 1080i (59.94Hz or 50Hz) can use instead of 1080/24p.
However this is temporary correspondence.
2) BLX-204
1. Select 1080i (59.94Hz or 50Hz)
2. Play “4.Motion pictures”
3. Check whether player can play back or not
(Check the picture and sound output)
3) CD (YEDS-18)
Check whether player can play back or not
(Check the sound output)
4) HLX-504/505 (NTSC), HLX-506/507 (PAL)
1. After displayed Main Menu, select “1.Video”
2. Play “1.Color Bar 100%”
(Check the picture and sound output)
3. Return to Menu
4. Play “Demonstration 4:3” or “5.Demonstration 16:9”
(Check the picture and sound output)
1-2
BDP-S5000ES

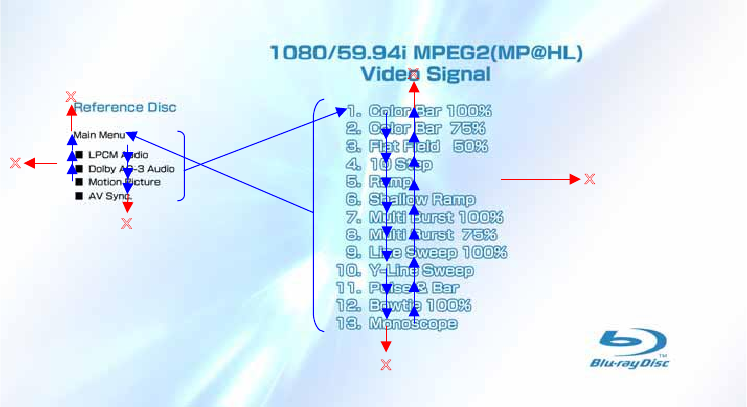

1-2-1-1. BLX-104 Menu Function (1)
Main Menu
X
X
X
X
X
X
X
X
X
X X X
XXX
X
1) When the disc is inserted, 1. Video Signal of 59.94Hz/1080i of the Main Menu is selectively displayed.
1-2-1-2. BLX-104 Menu Function (2)
Main Menu
Sub_menu1 is displayed
To Main Menu after playback from T2_C1 to T19_C1
To Main Menu after playback of T20_C1
To Main Menu after playback of T21_C1
Sub_menu3 is displayed
To Main Menu after playback from T54_C1 to T60_C1
To Main Menu after playback of T61_C1
To Main Menu after playback of T62_C1
* When returning to Main Menu after playback from each button of 59.94Hz/1080i, 1. Video Signal of 59.94Hz/1080i is selectively dis-
played.
* When returning to Main Menu after playback from each button of 50Hz/1080i, 1. Video Signal of 50Hz/1080i is selectively displayed.
* 5. AV Sync does not operate.
Note:
Txx_ Cxx
Chapter No.
Title No.
1-3
BDP-S5000ES

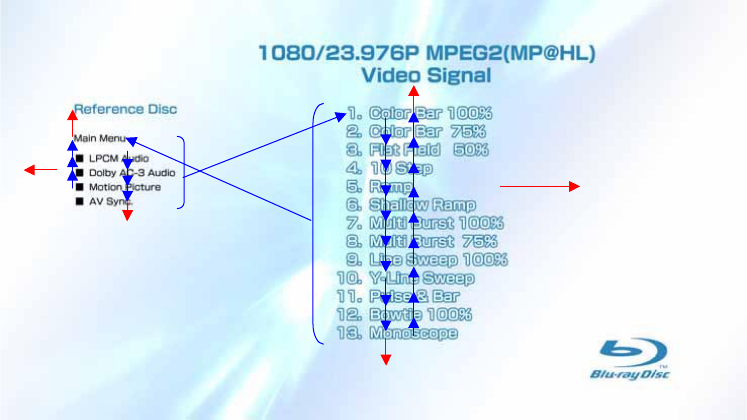

1-2-1-3. BLX-104 Menu Function (3)
Main Menu
To Main Menu after playback from T23_C1 to T40_C1
To Main Menu after playback of T41_C1
To Main Menu after playback of T42_C1
Sub_menu2 is displayed
To Main Menu after playback from T44_C1 to T50_C1
To Main Menu after playback of T51_C1
To Main Menu after playback of T52_C1
Sub_menu4 is displayed
* When returning to Main Menu after playback from each button of 59.94Hz/720P, 1. Video Signal of 59.94Hz/720P is selectively dis-
played.
* When returning to Main Menu after playback from each button of 23.976Hz/1080P, 1. Video Signal of 23.976Hz/1080P is selectively
displayed.
* 5. AV Sync does not operate.
1-4
BDP-S5000ES
1-2-1-4. BLX-104 Menu Function (4)
Sub menu1
X
X
X
X
X
X
1) At the display of Sub menu1, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu1 after seamless playback from T1_C1 to T1_C13. 1. Color Bar 100% is selec-
tively displayed on Sub menu1 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu1 after seamless playback from T1_C2 to T1_C13. 1. Color Bar 100% is selectively
displayed on Sub menu1 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu1, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 59.94Hz/
1080i is selectively displayed.
6) Selection of LPCM Audio t Playback from T2_C1 to T19_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu1 after playback. 1. Color Bar 100% is selectively displayed on Sub menu1 screen.
7) Selection of Dolby AC-3 Audio t Playback of T20_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu1 after playback. 1. Color Bar 100% is selectively displayed on Sub menu1 screen.
8) Selection of Motion Picture t Return to Sub menu1 after playback of T21_C1. 1. ColorBar 100% is selectively displayed on Sub
menu1 screen.
9) At the selection of Main Menu, 1. VideoSignal of 1080/59.94i of Main Menu is selectively displayed.
10) AV Sync does not operate.
1-5
BDP-S5000ES
1-2-1-5. BLX-104 Menu Function (5)
Sub menu2
X
X
X
X
X
X
1) At the display of Sub menu2, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu2 after seamless playback from T43_C1 to T43_C13. 1. Color Bar 100% is
selectively displayed on Sub menu2 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu2 after seamless playback from T43_C2 to T43_C13. 1. Color Bar 100% is se-
lectively displayed on Sub menu2 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu2, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 23.976Hz/
1080P is selectively displayed.
6) Selection of LPCM Audio t Playback from T44_C1 to T50_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu2 after playback. 1. Color Bar 100% is selectively displayed on Sub menu2 screen.
7) Selection of Dolby AC-3 Audio t Playback of T51_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu2 after playback. 1. Color Bar 100% is selectively displayed on Sub menu2 screen.
8) Selection of Motion Picture t Return to Sub menu2 after playback of T52_C1. 1. Color Bar 100% is selectively displayed on Sub
menu2 screen.
9) At the selection of Main Menu, 1. Video Signal of 1080/23.976P of Main Menu is selectively displayed.
10) AV Sync does not operate.
1-6
BDP-S5000ES
1-2-1-6. BLX-104 Menu Function (6)
Sub menu3
X
X
X
X
X
X
1) At the display of Sub menu3, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu3 after seamless playback from T53_C1 to T53_C13. 1. Color Bar 100% is
selectively displayed on Sub menu3 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu3 after seamless playback from T53_C2 to T53_C13. 1. Color Bar 100% is se-
lectively displayed on Sub menu3 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu3, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 50Hz/1080i
is selectively displayed.
6) Selection of LPCM Audio t Playback from T54_C1 to T60_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu3 after playback. 1. Color Bar 100% is selectively displayed on Sub menu3 screen.
7) Selection of Dolby AC-3 Audio t Playback of T61_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu3 after playback. 1. Color Bar 100% is selectively displayed on Sub menu3 screen.
8) Selection of Motion Picture t Return to Sub menu3 after playback of T62_C1. 1. Color Bar 100% is selectively displayed on Sub
menu3 screen.
9) At the selection of Main Menu, 1. Video Signal of 1080/50i of Main Menu is selectively displayed.
10) AV Sync does not operate.
1-7
BDP-S5000ES

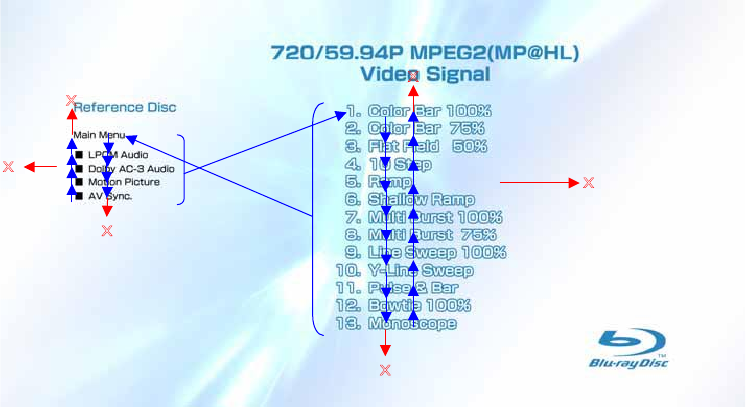

1-2-1-7. BLX-104 Menu Function (7)
Sub menu4
X
X
X
X
X
X
1) At the display of Sub menu4, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu4 after seamless playback from T22_C1 to T22_C13. 1. Color Bar 100% is
selectively displayed on Sub menu4 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu4 after seamless playback from T22_C2 to T22_C13. 1. Color Bar 100% is se-
lectively displayed on Sub menu4 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu4, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 59.94Hz/
720P is selectively displayed.
6) Selection of LPCM Audio t Playback from T44_C1 to T50_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu4 after playback. 1. Color Bar 100% is selectively displayed on Sub menu4 screen.
7) Selection of Dolby AC-3 Audio t Playback of T51_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu4 after playback. 1. Color Bar 100% is selectively displayed on Sub menu4 screen.
8) Selection of Motion Picture t Return to Sub menu4 after playback of T52_C1. 1. Color Bar 100% is selectively displayed on Sub
menu4 screen.
9) At the selection of Main Menu, 1. Video Signal of 720/59.94P of Main Menu is selectively displayed.
10) AV Sync does not operate.
1-8
BDP-S5000ES
1-2-2-1. BLX-204 Menu Function (1)
Main Menu
X
X
X
X
X
X
X
X
X
X X X X
XX
X
X
X
1) When the disc is inserted, 1. Video Signal of 59.94Hz/1080i of the Main Menu is selectively displayed.
1-2-2-2. BLX-204 Menu Function (2)
Main Menu
Sub_menu1 is displayed
To Main Menu after playback from T2_C1 to T19_C1
To Main Menu after playback of T20_C1
To Main Menu after playback of T21tT63tT64tT65tT66
Sub_menu3 is displayed
To Main Menu after playback of T54_C1-T60_C1tT83_C1-T94_C1
To Main Menu after playback of T61_C1
To Main Menu after playback of T62tT82
To Main Menu after playback of T67_C1
To Main Menu after playback of T83_C1
* When returning to Main Menu after playback from each button of 59.94Hz/1080i, 1. Video Signal of 59.94Hz/1080i is selectively dis-
played.
* When returning to Main Menu after playback from each button of 50Hz/1080i, 1. Video Signal of 50Hz/1080i is selectively displayed.
Note:
Txx_ Cxx
Chapter No.
Title No.
1-9
BDP-S5000ES
1-2-2-3. BLX-204 Menu Function (3)
Main Menu
Sub_menu4 is displayed
To Main Menu after playback from T23_C1 to T40_C1
To Main Menu after playback of T41_C1
To Main Menu after playback of T42_C1
Sub_menu2 is displayed
To Main Menu after playback of T44_C1-T50_C1tT71_C1-T81_C1
To Main Menu after playback of T51_C1
To Main Menu after playback of T52_C1tT69
To Main Menu after playback of T68_C1
To Main Menu after playback of T70_C1
* When returning to Main Menu after playback from each button of 59.94Hz/720P, 1. Video Signal of 59.94Hz/720P is selectively dis-
played.
* When returning to Main Menu after playback from each button of 23.976Hz/1080P, 1. Video Signal of 23.976Hz/1080P is selectively
displayed.
1-10
BDP-S5000ES
1-2-2-4. BLX-204 Menu Function (4)
Sub menu 1
X
X
X
X
X
X
1) At the display of Sub menu1, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu1 after seamless playback from T1_C1 to T1_C13. 1. Color Bar 100% is selec-
tively displayed on Sub menu1 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu1 after seamless playback from T1_C2 to T1_C13. 1. Color Bar 100% is selectively
displayed on Sub menu1 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu1, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 59.94Hz/
1080i is selectively displayed.
6) Selection of LPCM Audio t Playback from T2_C1 to T19_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu1 after playback. 1. Color Bar 100% is selectively displayed on Sub menu1 screen.
7) Selection of Dolby AC-3 Audio t Playback of T20_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu1 after playback. 1. Color Bar 100% is selectively displayed on Sub menu1 screen.
8) Selection of Motion Picture t Return to Sub menu1 after playback of T21_C1. 1. Color Bar 100% is selectively displayed on Sub
menu1 screen.
9) Selection of AV Sync t Return to Sub menu1 after playback of T67_C1. 1. Color Bar 100% is selectively displayed on Sub menu1
screen.
10) At the selection of Main Menu, 1. Video Signal of 1080/59.94i of Main Menu is selectively displayed.
1-11
BDP-S5000ES
1-2-2-5. BLX-204 Menu Function (5)
Sub menu 2
X
X
X
X
X
X
1) At the display of Sub menu2, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu2 after seamless playback from T43_C1 to T43_C13. 1. Color Bar 100% is
selectively displayed on Sub menu2 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu2 after seamless playback from T43_C2 to T43_C13. 1. Color Bar 100% is se-
lectively displayed on Sub menu2 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu2, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 23.976Hz/
1080P is selectively displayed.
6) Selection of LPCM Audio t Playback from T44_C1 to T50_C1 and from T71_C1 to T81_C1. SubPic that corresponds to Audio stream
1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu2 after playback. 1. Color Bar 100% is selectively displayed on Sub menu2 screen.
7) Selection of Dolby AC-3 Audio t Playback of T51_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu2 after playback. 1. Color Bar 100% is selectively displayed on Sub menu2 screen.
8) Selection of Motion Picture t Return to Sub menu2 after playback of T52_C1 and T69. 1. Color Bar 100% is selectively displayed on
Sub menu2 screen.
9) Selection of AV Sync t Return to Sub menu2 after playback of T70_C1. 1. Color Bar 100% is selectively displayed on Sub menu2
screen.
10) At the selection of Main Menu, 1. Video Signal of 1080/23.976P of Main Menu is selectively displayed.
1-12
BDP-S5000ES
1-2-2-6. BLX-204 Menu Function (6)
Sub menu 3
X
X
X
X
X
X
1) At the display of Sub menu3, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu3 after seamless playback from T53_C1 to T53_C13. 1. Color Bar 100% is
selectively displayed on Sub menu3 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu3 after seamless playback from T53_C2 to T53_C13. 1. Color Bar 100% is se-
lectively displayed on Sub menu3 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu3, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 50Hz/1080i
is selectively displayed.
6) Selection of LPCM Audio t Playback from T54_C1 to T60_C1 and from T84_C1 to T94_C1. SubPic that corresponds to Audio stream
1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu3 after playback. 1. Color Bar 100% is selectively displayed on Sub menu3 screen.
7) Selection of Dolby AC-3 Audio t Playback of T61_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu3 after playback. 1. Color Bar 100% is selectively displayed on Sub menu3 screen.
8) Selection of Motion Picture t Return to Sub menu3 after playback of T62_C1 and T82. 1. Color Bar 100% is selectively displayed on
Sub menu3 screen.
9) Selection of AV Sync t Return to Sub menu3 after playback of T83_C1. 1. Color Bar 100% is selectively displayed on Sub menu3
screen.
10) At the selection of Main Menu, 1. Video Signal of 1080/50i of Main Menu is selectively displayed.
1-13E
BDP-S5000ES
1-2-2-7. BLX-204 Menu Function (7)
Sub menu 4
X
X
X
X
X
X
1) At the display of Sub menu4, 1. Color Bar 100% is selectively displayed.
2) Selection of 1. Color Bar 100% t Return to Sub menu4 after seamless playback from T22_C1 to T22_C13. 1. Color Bar 100% is
selectively displayed on Sub menu4 screen.
3) Selection of 2. Color Bar 75% t Return to Sub menu4 after seamless playback from T22_C2 to T22_C13. 1. Color Bar 100% is se-
lectively displayed on Sub menu4 screen.
4) At the selection of 3 - 13, item 3 mentioned above is executed as the routine.
5) At the display of Sub menu4, Main Menu is selected t Jump to Main Menu. At the display of Main Menu, 1. Video Signal of 59.94Hz/
720P is selectively displayed.
6) Selection of LPCM Audio t Playback from T44_C1 to T50_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu4 after playback. 1. Color Bar 100% is selectively displayed on Sub menu4 screen.
7) Selection of Dolby AC-3 Audio t Playback of T51_C1. SubPic that corresponds to Audio stream 1 is forcibly displayed.
During the playback, when audio channel changes, the caption that corresponds to each audio stream is forcibly displayed. Return to
Sub menu4 after playback. 1. Color Bar 100% is selectively displayed on Sub menu4 screen.
8) Selection of Motion Picture t Return to Sub menu4 after playback of T52_C1. 1. Color Bar 100% is selectively displayed on Sub
menu4 screen.
9) Selection of AV Sync t Return to Sub menu4 after playback of T68_C1. 1. Color Bar 100% is selectively displayed on Sub menu4
screen.
10) At the selection of Main Menu, 1. Video Signal of 720/59.94P of Main Menu is selectively displayed.
2-1
BDP-S5000ES
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. TOP CASE
2-2. TOP CASE
(Page 2-1)
2-4. USB-007 BOARD
(Page 2-2)
2-5. AU-260 BOARD
(Page 2-3)
2-6. POWER TRANSFORMER
(Page 2-3)
2-3. TRAY PANEL
(Page 2-2)
2-8. ET-001 BOARD,RS-088 BOARD
(Page 2-4)
SET
2-7. FRONT PANEL
(Page 2-4)
2-9. IFD-002 BOARD
(Page 2-5)
2-10. BPD-200ES
(Page 2-5)
2-11. VP-062 BOARD
(Page 2-6)
2-12. MB-124 BOARD
(Page 2-6)
1two screws (BVST4 ×8)
3flat head screw
4top case
2two screws (BVST4 ×8)
2-2
BDP-S5000ES
2-3. TRAY PANEL
2-4. USB-007 BOARD
1screw (BV3)
3USB-007 board
2harness (UV-004)
(CN302)
2-3
BDP-S5000ES
2-5. AU-260 BOARD
2-6. POWER TRANSFORMER
1D.C.fan harness
(CN2003)
3flexible flat cable (FMA-024)
(CN1001)
2harness (IFR-001)
(CN2002)
4power transformer harness
(CN2001) 5five screws (BV3)
7AU-260 board
6seven screws
1AC inlet harness
(CN101)
3harness (BDS-001)
(CN201)
2power transformer harness
(CN102)
4harness (VPS-001)
(CN202)
5harness (IFP-001)
(CN203)
6six screws (BV3 (3-CR))
7power transformer
2-4
BDP-S5000ES
2-7. FRONT PANEL
2-8. ET-001 BOARD, RS-088 BOARD
1four tapping screws
3bracket (panel)
2screw (BV3)
4screw (BV3)
5bracket (panel)
7front panel
6flexible flat cable (FRI-001)
(CN504)
four screws (BV3 x 7)
AU shield plate
two screws (BV3)
two screws (BV3)
two screws (BV3)
two screws (RK3 x 8)
RS-088 board
harness (IFE-001)
(CN601) (Note)
harness (IFE-001)
(CN601)
R harness (ETH-002)
(CN602) *1
RB ET-001 board
*1 Note: Blue tube is MB-124 board side.
2-5
BDP-S5000ES
2-9. IFD-002 BOARD
2-10. BPD-200ES
1two screws (BV3)
3harness (IFP-001)
(CN101)
2two screws (BV3)
4harness (IFR-001)
(CN502)
8IFD-002 board
5harness (IFE-001)
(CN501)
6flexible flat cable (FMI-006)
(CN503)
7harness (IFM-001)
(CN102)
harness (BDS-002)
four screws (BV3 x 7)
harness (SAT-002)
BPD-200ES
2-6
BDP-S5000ES
2-11. VP-062 BOARD
q; VP-062 board
1four screws (BV3 x 7)
2two screws (BV3 x 7)
3drive bracket
4screw
5five screws
6flexible flat cable (FMA-023)
(CN801) (Note)
7harness (VPS-001)
(CN802)
8six screws (BV3)
9conector
(CN104)
power block
CN202
CN802
Note: Position of VPS-001 harness
VPS-001 harness
Front Side
Rear Side
VP-062 board
2-12. MB-124 BOARD
1flexible flat cable (FMA-024)
(CN803)
3harness (SAT-002)
(CN700)
2flexible flat cable (FMA-023)
(CN804)
4harness (IFM-001)
(CN301)
8MB-124 board
5flexible flat cable (FMI-006)
(CN904)
7five screws (BV3)
6harness (ETH-002)
(CN8001)
2-7E
BDP-S5000ES
2-13. CIRCUIT BOARDS LOCATION
power block
IFD-002 board
VP-062 board
FT-094 board AU-260 board
USB-007 board
FS-089 board
FR-292 board
FC-095 board
FL-186 board
RS-088 board
ET-001 board
MB-124 board
3-1
BDP-S5000ES
SECTION 3
BLOCK DIAGRAMS
3-1. OVERALL BLOCK DIAGRAM (1/3)
IC501
4M NOR
FLASH
ROM
IC502
2G NAND
FLASH
ROM
IC101 (1/3)
IC102
IC103
DDR2
SDRAM
IC202
IC203
DDR2
SDRAM
IC700
CLOCK
GENERATOR
MAIN SYSTEM CONTROL,
DSP, SATA I/F,
MEMORY CONTROL,
A/V OUT, HDMI,
ETHERNET I/F, USB I/F
MB-124 BOARD (1/3) AU-260 BOARD (1/2)
HT+/-0
HR+/-0
BD DRIVE
(1/2)
DVD
Blu-ray
DRIVE L
R
AUDIOOUT
BUFFER
IC1002
BUFFER
IC1002
AUDIO
D/A
CONVERTER
IC1004 AUDIO_L/R
AO1BD, EMMA_CSI0_DO
AO1BD,
EMMA_CSI0_DO
AO1BD,
EMMA_CSI0_DO
EMMA_CSI0_DO
L
R
FRONT
FRONT_L/R
L
R
SURROUND
SURROUND_L/R
L
R
SUR BACK
SUR BACK_L/R
CENTER
SUB WOOFER
CENTER/
SUB WOOFER
AO0BD0-3 AO0BD0-3
DAC_RST
DAC_RST
X701
25MHz
X401
27MHz
XIF_RST
1
COAXIAL
IC2008
OPTICAL
TRANSMITTER
OPTICAL
IC2005
GATE
SPDIF OUT
DIGITAL
OUT
OVERALL-3
(SEE PAGE 3-3)
05
AUDIO AMP
IC2005
IC2007
IC2011
AUDIO AMP
IC2001
IC2002
IC2020
AUDIO AMP
IC2003
IC2004
IC2021
AUDIO
D/A
CONVERTER
IC1005
I
IC1008
AUDIO AMP
IC2009
IC2017
IC2022
AUDIO AMP
IC2018
IC2019
IC2023
2OVERALL-2
(SEE PAGE 3-2)
EMMA_CSI0_DO
MULTI
CHANNEL
OUTPUT
3-2
BDP-S5000ES
3-2. OVERALL BLOCK DIAGRAM (2/3)
ET-001 BOARD
RS-088 BOARD
IC101 (2/3)
MAIN SYSTEM CONTROL,
DSP, SATA I/F,
MEMORY CONTROL,
A/V OUT, HDMI,
ETHERNET I/F, USB I/F
MB-124 BOARD (2/3) VP-062 BOARD (1/2)
05
E3P_Y2-9/C2-9 KYOTO_PRI_Y0-9/C0-9 GLUE_EDEN1_Y0-9/C0-9 EDEN1_VO00-35
KYOTO_AUX_V00-07
IC204
DIGITAL VIDEO
FORMAT
CONVERTER
IC401
FPGA
IC501
HDMI I/F
IC602
HDMI
TRANSMITTER
E3P_I2C1_SDA/SCL
X201
20MHz
X401
27MHz
BUFFER
IC604
TMDS_SDATA0-2, TMDS_COCK
HDMI OUT
SDA/SCL
CEC
ASD_CVBSOUT
HPD
E3P_I2C0_SDA/SCL
E3P_ABD0-3
CEC
E3P_SPDF
IC301
DDR SDRAM
IC402
CONFIGURATION
ROM
DATA OUT
ASDI
GION_VCXO_0_CLK
GLUE_CSI0_DO
IC1002
LVDS DRIVER
VCXO_GION_0_CLK IC1005
LVDS DRIVER
IC1003
CLOCK
CONDITIONER
GION_VCXO_0_CLK
BUFFER
IC105 E3P_CSI0_DO
E3P_CSI0_DO
EMMA_CSI0_DO
ABD0-3
SPDIF
E3P_ABD0-3
E3P_SPDIF
E3P_I2C0_SDA/SCL
BUFFER
IC103
GLUE_EDEN2_Y0-9/C0-9
GLUE_VDAC_V00-07
IC703
VIDEO ENCODER,
D/A CONVERTER
EDEN2_Y0-9/C0-9
IC1201
COMPONENT I/F
IC706
VIDEO AMP
S VIDEO
VIDEO
VIDEO OUT
ASD_SYOUT/SCOUT
Y
RB
PR
Y
PB
PR
COMPONENT
VIDEO OUT
OP AMP
IC803
IC805
I
IC809
X8001
50MHz
IC8001
ETHERNET
PHY
TX
RX
TXD0/1
RXD0/1
ETREFCLK
TX
RX
TX
RX
CEC
EMMA_RST
3
OVERALL-3
(SEE PAGE 3-3)
LAN (100)
RS232C
2
OVERALL-1
(SEE PAGE 3-1)
232C_TXD/RXD
CTRL_S
4
OVERALL-3
(SEE PAGE 3-3)
IC601
RS-232C
DRIVER/
RECEIVER
CONTROL S IN/
IR IN
3-3
BDP-S5000ES
3-3. OVERALL BLOCK DIAGRAM (3/3)
UNSW12V
UNSW5.8V
UNSW5.8V
UNSW3.3V
SW3.3V
IT3.3V
FR6V
DCSW5V
SW1.55V
REGULATOR
IF_SDI/IF_SDO
XIF_RST
SUB SYSTEM
CONTROL
IC101
I
IC104
DAC3.3V
STAT1.8V
EMMA_SW3.3V
SW3.3V
1V
VBUS(USB)
DDL1.0VV
CORE_1.05V
DDR2_1.8V
PLL1.05V
REGULATOR
IC307
I
IC310
IC304
IC303
IC803
IC701
IC703
IC704
IC601
REGULATOR
IC605
I
IC607
IC201
IC102
IC702
IC704
IC707
IC801
IC707
IC801
IC802
IC1001
IC203
IC603
IC701
IC101 (3/3)
UNSW 12V
UNSW 5.8V
UNSW 12V
UNSW 5.8V
AUDIO UNSW5V
AUDIO UNSW-12V
UNSW 12V
UNSW 5.8V
AC_10V
D3.3V
A+5V
SPDIF_5V
REGULATOR
IC2012
IC2013
IC2014
AC_10V
MB-124 BOARD (3/3) IFD-002 BOARD
AU-260 BOARD (2/2)
POWER
BLOCK
T101
POWER
TRANSFORMER
CEC
EMMA_RST
XIF_RST
XIF_RST
3
1
X402
10MHz
UNSW3.3V
(RESET)
IC401
RESET
X401
32.768kHz
UNSW5.8V
FR_6V FR_6V
IT_3.3V
PCONT1-4
IT_3.3V
FR_6V FR_6V
IT_3.3V IT_3.3V
SW5VD
IC403
IC402
P FAIL
IC901
BUFFER
(AC IN)
DRIVE SW12V
DRIVE SW5V
BD DRIVE
(2/2)
DVD
Blu-ray
DRIVE
X601
30MHz
IC602
USB HOST
D+/ D-
USB-007
BOARD
PCIP BUS
PCIP_AD0-31
PCIP_AD0-31
PCIP_CLK_USB
X600
33MHz
PCONT2-4
PCONT1
MAIN SYSTEM CONTROL,
DSP, SATA I/F,
MEMORY CONTROL,
A/V OUT, HDMI,
ETHERNET I/F, USB I/F
EXT
05
OVERALL-1
(SEE PAGE 3-1)
OVERALL-2
(SEE PAGE 3-2)
AC_10V
AC_10V
S361-364
FUNCTION SWITCH
KEY 1-3
FR-292 BOARD
LED_DIM
SEG1-18
GPD1-8
IC201
REMOTE CONTROL
RECEIVER
Q361, 363, 364
LED DRIVE
ND201
FLUORESCENT
INDICATOR
TUBE
F1,F2
-VF
Q201, 202
FL DRIVE
SWITCH
LED BD, LED PAUSE,
LED PLAY
LED BD, LED PAUSE,
LED PLAY
SIRCS
PLAY
PAUS
BD-ON, BD-ON2
PLAY
PAUS
BD-ON,
BD-ON2
FC-095 BOARD
LED_DT, LED_CK,
FLD_STB
LED_DIMLED_DIM
Q204, 205, T201
-VF DC/DC CONVERTER
IC202
FL DRIVER
HD AUDIO
D331
24P
D332
SBM
D333
FL-186 BOARD
FS-089 BOARD
N
D301
X
D302
FT-094 BOARD
FR_6V
(DISC TRAY ILLUMINATION)
D351-353
KEY 0 S331
I/1
UN3.3V
UNSW5.8V
S402
232C_TXD/RXD
CTRL_S
Q402-405
SIRCS
SWITCH
UNSW3.3V
4
OVERALL-2
(SEE PAGE 3-2)
IC501
FAN
CONTROL
FAN_CONT0-2
(FAN)
MM
VP-062 BOARD (2/2)
SW3.3V
SW1.5V
1.8V
SW2.5V
3.3V
-5V
SW_V_5V+
SW_V_5V-
SW3.3V
5V
M2001
3-4
BDP-S5000ES
3-4. DSP BLOCK DIAGRAM
EMI_AD1-18
MB-124 BOARD (1/5) IC101
MAIN SYSTEM CONTROL, DSP,SATA I/F,MEMORY CONTROL
(1/5)
AG29,AF29,AF30,AF31,
AF32,AF33,AE29,AE30,
AE31,AE32,AE33,AD29,
AD30,AD31,AD32,AD33
AN30,AN31,AM29,
AM30,AM31,AM32,AL29,
AL30,AL31,AL32,AL33,
AK29,AK30,AK31,AK32,
AK33,AJ29,AJ30
RDATA0-15
RADD1-18
FWEB AK28
FOEB AK26
FCSB0 AJ25
A27
K29
H29
G29
G32
F30
NREB AM27
NFOEB AN27
FCSB1 AK27
NCLE AL27
NALE AL26
NWEB AM26
GPIO13 C26
UMCSB1
UMDM1,UMDM0
UMDQS1,UMDQ0
UMWEB
UMCASB
UMRASB
UMCSB0
UMCK0
UMCKB0
UMCKE
DQ0-15
DQ0-15
A0-12
BA2
/WE
/CAS
/RAS
/CS
CK
/CK
CKE
UDQS/LDUS
UDM/LDM
R4,R3,P2,T4,T3,U3,U4,V1,
L4,L2,K3,N4,L3,M3,M4,P3,
AE4,AD4,AF3,AF2,AC4,AC3,AB4,AC2,
AK3,AJ4,AH5,AJ3,AG5,AF4,AH4,AG3,
Y7,W1,Y4,V3,
Y5,Y2,Y3,V6,
AA1,V7,U6,W6,
W4,
G8,G2,H7,H3,H1,H9,F1,F9,
C8,C2,D7,D3,D1,D9,B1,B9
UMBA0,UMBA1
U5,V2
BA0,BA1 L2,L3
B3,F3
B7,F7
R5
AA6
Y6
AA4
SATXP0
SATXN0
SARXN0
SARXP0
A21
B21
B23
A23
AA2
M1
N1
V5
K3
L1
L7
K7
L8
J8
K8
K2
UMCK1
UMCKB1
/CK
CKE
AG1
AH1
J8
K8
UMODT0
ODT AB1K9
J1,R1
N3,U2
UMDQSB1,UMDQSB0
/UDQS/ /LDUS A8,E8 K1,T1
UMDQ0-31
UMA0-12
IC102
DDR2 SDRAM
IC103
DDR2 SDRAM
M8,M3,M7,N2,N8,N3,N7,
P2,P8,P3,M2,P7,R2
D0DQ0-31D0DQ0-15
D0QD15-31
D0A0-12
IC502
2G NAND FLASH ROM
26
28
11
A0-17
DQ0-15
WE
OE
CE
25,24-18,
8-1,48,
17
29,31,33,35,
38,40,42,44,
30,32,34,36,
39,41,43,45
8
7
IO1-8
RY/BY
nRE
16
9nCE
CLE
18
17 ALE
WE
29-32,
41-44
EMI_DT0-7
EMI_DT0-15
EMI_XWE
EMI_XOE
EMI_XNRDY
EMI_XNOE
EMI_XFCS1
EMI_NCLE
EMI_NALE
EMI_XNWE
19 WP
NAND_WP
EMI_XFCS0
IC501
4M NOR FLASH ROM
12 RESET
EMMA_XRST 5
B
G8,G2,H7,H3,H1,H9,F1,F9,
C8,C2,D7,D3,D1,D9,B1,B9
UDQS/LDUS
UDM/LDM B3,F3
B7,F7
/UDQS/ /LDUS A8,E8
UMDM3,UMDM2
UMDQS3,UMDQ2
AK1,AD1
AJ2,AD3
UMDQSB3,UMDQSB2
AL1,AE1
WMCSB1
WMDM1,WMDM0
WMDQS1,WMDQ0
WMWEB
WMCASB
WMRASB
WMCSB0
WMCK0
WMCKB0
WMCKE
DQ0-15
DQ0-15
A0-12
BA2
/WE
/CAS
/RAS
/CS
CK
/CK
CKE
UDQS/LDUS
UDM/LDM
AK19,AL19,AM20,AK18,AL18,AL17,AK17,AN16,
AK24,AM23,AL24,AK21,AL23,AL22,AL22,AL20,
AK9,AK10,AL8,AM8,AK11,AL11,AK12,AM11,
AL4,AK5,AJ5,AL5,AJ7,AK8,AK6,AL7
AG14,AN15,AK14,AL16,
AJ14,AM14,AL14,AH16,
AN13,AG16,AH17,AH15,
AK15,
G8,G2,H7,H3,H1,H9,F1,F9,
C8,C2,D7,D3,D1,D9,B1,B9
WMBA0,UMBA1
AJ17,AM16
BA0,BA1 L2,L3
B3,F3
B7,F7
AJ19
AH13
AH14
AK13
AM13
AN21
AN22
AJ16
K3
L1
L7
K7
L8
J8
K8
K2
WMODT0
ODT AN12K9
WMCK1
WMCKB1
/CK
CKE
AN6
AN7
J8
K8
AN24,AN18
AL21,AM17
WMDQSB1,WMDQSB0
/UDQS/ /LDUS A8,E8 AN25,AN19
WMDQ0-31
WMA0-12
IC202
DDR2 SDRAM
IC203
DDR2 SDRAM
M8,M3,M7,N2,N8,N3,N7,
P2,P8,P3,M2,P7,R2
D1DQ0-31D1DQ0-15
D1QD15-31
D1A0-12
G8,G2,H7,H3,H1,H9,F1,F9,
C8,C2,D7,D3,D1,D9,B1,B9
UDQS/LDUS
UDM/LDM B3,F3
B7,F7
/UDQS/ /LDUS A8,E8
WMDM3,WMDM2
WMDQS3,WMDQ2
AN3,AN9
AM5,AL10
WMDQSB3,WMDQSB2
AN4,AN10
3
5
6
CN700
HT+0
HT-0
HR+0
HR-0
2
4
5
6
CN901
(JIG)
RXD
TXD
DIPSW0
DIPSW1
3
16
15
4
6
8
CN904
13
XIF_RST
17
IF_SDI
IF_SDO
IF_SCK
XIF_CS
2
19 TEMP
IF_START_BIT
SYSCON_REQ
TH901
CEC
J28
RSTSWB
S2DOUT
B15
SACREFP
K33
UAORXDB
L29
UAOTXDB
G25
GPIO11
B28
GPIO10
S2DIN
S2CKIN
S2CSB
UA0DSRB
GPIO14
CEC_VP
ALTERA_DONE
IC901
BUFFER
23 1B2Y
IC700
CLOCK GENERATOR
7SSCLK
2
XOUT X701
25MHz
3
XIN/CLKIN
BD DRIVE
DVD
Blu-ray
DRIVE
05
IT
(SEE PAGE 3-9)
(5/5)
(SEE PAGE 3-8)
AVIDEO
(SEE PAGE 3-5)
1
1A
3-5
BDP-S5000ES
3-5. VIDEO-1 BLOCK DIAGRAM
IC101 (2/5)
VIDEO OUT, HDMI
VP-062 BOARD (1/2)MB-124 BOARD (2/5)
IC204
DIGITAL VIDEO FORMAT CONVERTER
IC401
FPGA
IC1002
LVDS DRIVER
IC1003
CLOCK
CONDITIONER
IC301
DDR SDRAM
IC402
CONFIGURATION
ROM
IC403
AND
IC105
BUFFER
DT1[8-15]
H4, G3, E1,
F2, E2, D1,
E3, C1
C11, E10, B11,
F12, A10, D12,
F11, G13
HD0[10-19]
K16, K18,
J16-18, J15,
H18-15
N16, N15,
M18-15,
L18-15
T17, T16,
R18-15, P17, P16,
N18, N17
DT1[0-7]
H1, H2, J4,
H3, G1, G2,
F1, F3
E3P_VD -> HS E3P_HS
E3P_VD E3P_VD KYOTO_PRI_HS
KYOTO_PRI_VS
KYOTO_PRI_VCK
CN104CN7001
B40
A4
A8
A39-36,
A34-31
A1-2,
B1-2
B38 E3P_HD -> VS E3P_VS
ABD0-3 E3P_ABD0-3
E3P_VCK E3P_VCK
B36
ABCK E3P_ABCK
A6
GLUE_XCS
E3P_CSI0_GLUE_XCS
B11 HDE1_XCS
E3P_CSI0_EDEN1_XCS
B24 HDE2_XCS
E3P_CSI0_EDEN2_XCS
B21
I2CA_100k_SDA E3P_I2C0_SDA
A23 I2C_100k_SCL E3P_I2C0_SCL
A21
I2C_400k_SDA E3P_I2C1_SDA
A27 I2C_400k_SCL E3P_I2C1_SCL
A25
KYOTO_XRST KYOTO_XRST
KYOTO_XRST
B19 GLB_XRST
GLB_XRST
GLB_XRST
GLB_XRST
A19
HDMI_XRST HDMI_XRST
A17 HDMI_XINT HDMI_XINT
A13
CEC CEC_VP
A11
ALTERA_DONE ALTERA_DONE
B20
B34-27
2 DATA
E3P_Y2-9 E3P_Y2-9E3P_Y2-9 E3P_Y2-9
IPIDY2-7,
IPIDC0, IPIDC1
E13, F13, E12,
C12, A11, E14,
B12, F14
IPIDC4-7,
IPOCLK, IPOHSB,
IPOVSB, IPODY0
KYOTO_PRI_Y0-9
C656DT[0-7]
B16, A17, B18,
C14, C15, D12,
C16, C17
F18-15,
G18-15
KYOTO_AUX_V00-07
MAD[0-11] A0-7, A8(AP), A9-11
T15, V16, R14, U16,
T16, R15, V17, U17,
T17, U18, U15, T18
N5, N6, M6, N7,
N8, M9, N9-11,
M8, L6, M7
DDR_ADD0-11
MDT[0-31] DQ0-31
T1, U1, T2, U2, V2, T3, T4, U4, R4,
R5, T5, R7, U5, T6, U6, R6, T7, R8,
T8, U8, V8, R9, T9, U9, T10, R10,
U10, V11, U11, T11, R11, P11
B7, C5, B6, B5, C2, D3, D2, E2, K13,
K12, J13, J12, G13, G12, F13, F12,
F3, F2, G3, G2, J3, J2, K2, K3, E13,
D13, D12, C13, B10, B9, C9, B8
DDR_DATA0-31
HD0[0-9]
N18, M17, L15, M16,
M18, L17, L16, L18,
K15, K17
KYOTO_PRI_C0-9E3P_C2-9 E3P_C2-9E3P_C2-9 E3P_C2-9
8CLKOUT
18OUT1
1 CLKIN
2 IN1
ALRCK E3P_ALRCK
17OUT23 IN2
AMCK E3P_AMCK
12OUT78 IN7
A10 SPDIF E3P_SPDIF
11OUT89 IN8
B15 CSI_DO E3P_CSI0_DO
12OUT78 IN7
B17 CSI_CK E3P_CSI0_CKO
14OUT56 IN5
B13
B40
A4
A8
A39-36,
A34-31
A1-2,
B1-2
B38
B36
A6
B11
B24
B21
A23
A21
A27
A25
B19
A19
A17
A13
A11
B20
B34-27
A10
B15
B17
B13 CSI_DI E3P_CSI0_DI
E3P_CSI0_DO
E3P_CSI0_CKO
E3P_CSI0_DI
9IN811 OUT8
IC101
CLOCK BUFFER
IC103
BUFFER
4-7 16-13IN3-6 OUT3-6
C4 DT1_HS
B4 DT1_VS
C5 DT1_CK
B12 SDA
D10 SCL
A12 RESETZ
P17 XTAL1
R18 XTAL2
E15 H18
H17
J16
D17
D18
E17
E16
D16
C4
T12
U12
V12
V13
D4
HDMI_HS
G11IPIHSB E3P_HD E3P_HD
D11IPIVSB E3P_VCK E3P_VCK
C10IPICLK
EMMA_I2C1_SDA I2C_400k_SDA
M27SDA1 EMMA_I2C1_SCL I2C_400k_SCL
L27SCL1
KYOTO_XRST KYOTO_XRST
J31UA1CTSB GLB_XRST GLB_XRST
F25GPIO12
EMMA_CSI0_GLUE_XCS GLUE_XCS
H33UA1RTSB EMMA_CSI0_HDE1_XCS HDE1_XCS
C28GPIO0 EMMA_CSI0_HDE2_XCS HDE2_XCS
E27GPIO1
E3P_ABCK ABCK
F16IPODY3 E3P_ALRCK ALRCK
G15IPODY2 E3P_AMCK AMCK
C13IPODY1 E3P_ATX ATX
D14IPODC0
EMMA_I2C0_SDA I2CA_100k_SDA
M28SDA0 EMMA_I2C0_SCL I2C_100k_SCL
L28SCL0
HDMI_XRST HDMI_XRST
M29UA0RIB HDMI_XINT HDMI_XINT
H31UA1DCDB
CEC_VP CEC
E3P_ABD0-3 ABD0-3
G12, A12,
D17, E15
IPODY4-7
EMMA_CSI0_DO CSI_DO
EMMA_CSI0_DO
G30S0DOUT
EMMA_CSI0_CKO CSI_CK
EMMA_CSI0_CKO
G31S0CKOUT
CSI0_DI CSI_DI
G33S0DIN
ALTERA_DONE ALTERA_DONE
E16HDMI_VS
D18HDMI_CK
KYOTO_AUX_HS
B14C656HS KYOTO_AUX_VS
A15C656VS KYOTO_AUX_VCK
B15C656CK DPCLK4
J3 CLK0
H7DATA0
CLK3
KYOTO_AUX_FD
A16C656FD
DDR_WEZ
U12WEZ DDR_CASZ
T12CASZ DDR_RASZ
T13RASZ DDR_CS1Z
R13CS1Z DDR_CKE
R17CKE DDR_CLKZ
V14CLKZ DDR_CLK
GION_VCXO_0_CLK
V13CLK
L3 /WE
L2 /CAS
M2 /RAS
N2 /CS
N12 CKE
M12 /CK
M11 CK
DDR_BA0, 1
U13, U14 N4, M5BA0, BA1 BA0, BA1
DDR_DQS0-3
V3, V5, V7, V9 B2, H13, H2, B13DQS[0-3] DQS0-3
X201
20MHz
J2 nCONFIG
DEV_CLRn
SW3.3V
6 DCLKL1DCLK
E3P_CSI0_DO
E3P_CSI0_CKO
E3P_CSI0_DI
E3P_CSI0_DO
E3P_CSI0_CKO
E3P_CSI0_DI
1 nCSJ1nCSO
5 ASDIK6ASDO
K17 CONF_DONE
C3 INT_DONE
X401
27MHz
42
2 DI1
U15 GLUE_CSI1_DO 5 DATAuWire
U14 GLUE_CSI1_CKO 4 CLKuWireDPCLK7
DPCLK2
V15 GLUE_CSI1_XCS 6 LEuWire
E5 VCXO_TX_LOCK 12 LD
28 OSCIN
29 OSCIN*
7DO1+
8DO1-
IC1005
LVDS RECEIVER
B5 VCXO_GION_0_CLK 5 OUT 17 CLKout1
18 CLKout1*
3N+
4N-
1
Q401, 402
INITIAL SWITCH
D2
D1
F1
F3, F4,
G1-4,
H1-4
L2, L3,
M1-4,
N1-4
GLUE_EDEN1_HS
GLUE_EDEN1_VS
GLUE_EDEN1_VCK
GLUE_EDEN1_Y0-9
GLUE_EDEN1_C0-9
DPCLK1
D9
C9
A9
D13, C13, B13, A13,
D14, C14, B15, A15,
C16, B16
B10, A10, D11, C11,
B11, A11, D12, C12,
B12, A12
GLUE_EDEN2_HS
GLUE_EDEN2_VS
GLUE_EDEN2_VCK
GLUE_EDEN2_Y0-9
GLUE_EDEN2_C0-9
B4
A4
B8
C5, D5, A6,
B6, C6, D6,
A7, B7
GLUE_VDAC_HS
GLUE_VDAC_VS
GLUE_VDAC_VCK
GLUE_VDAC_V00-07
E7
D7
D8
EDEN2_GLUE_HS
EDEN2_GLUE_VS
EDEN2_GLUE_VCK
T10
U10
V10
U16
GLUE_CSI0_DI
GLUE_CSI0_CKO
GLUE_CSI0_XCS
GLUE_CSI0_DO
A
DSP
(SEE PAGE 3-4)
C
AUDIO
(SEE PAGE 3-7)
FVIDEO-2
(SEE PAGE 3-6)
DVIDEO-2
(SEE PAGE 3-6)
EVIDEO-2
(SEE PAGE 3-6)
JVIDEO-2
(SEE PAGE 3-6)
IVIDEO-2
(SEE PAGE 3-6)
HVIDEO-2
(SEE PAGE 3-6)
GVIDEO-2
(SEE PAGE 3-6)
05
3-6
BDP-S5000ES
3-6. VIDEO-2 BLOCK DIAGRAM
MB-124 BOARD (3/5)
IC101 (3/5)
VIDEO OUT
IC501
HDMI I/F
P9 VIHS
N9 VIVS
N10 VICK
D2 EDN_DI
D1 EDN_DO
E2 EDN_CKI
F1 EDN_XCS
VIDY0-9
P8, N8, P7, N7,
P6, N6, P5, N5,
P4, N4
VIDC0-9
P3, N3, P2, N1,
M2, M1, L2, L1,
K2, K1
GLUE_EDEN1_HS
GLUE_EDEN1_VS
GLUE_EDEN1_VCK
E3P_CSI0_DO
E3P_CSI0_CKO
E3P_CSI0_EDEN1_XCS
B1 XRST
GLB_XRST
E3P_CSI0_DI
GLUE_EDEN1_Y0-9
GLUE_EDEN1_C0-9
IC602
HDMI TRANSMITTER
IC604
BUFFER
Y CN804
CN801CN801
TMDS DATA0 +
CN601
6OUT
3 +IN
8 PD
6
J801
C
J802
J803
J804
Q601
LEVEL SHIFT
Q602
LEVEL SHIFT
4
5ASPECT0
ASPECT1
16
18
17
16
13
7
6
4
IC807
OP AMP
26SYOUT
30SCOUT
31SDCOUT
23YOUT
34TX0+
8 SYIN
3 SCIN
1 S1
16 PS1
15 PS2
10 YIN
IC706
VIDEO AMP
IC1201
COMPONENT I/F
37DAC6
38DAC5
39DAC4
N14VOHS
M13VOVS
G14
9-6 SD0-3
VOCK
B25GPIO18
A25GPIO20
D21GPIO21
P9 VIHS
N9 VIVS
N10 VICK
D2 EDN_DI
D1 EDN_DO
E2 EDN_CKI
F1 EDN_XCS
44DAC1
43DAC2
42DAC3
22
2-9,12,
13
VOD6, VOD7,
VOD16-23
J14, H13, C14, B14,
A13, B12, A12, B11,
A11, B10
VOD10, VOD11,
VOD28-35
F14, E13, A8, B7,
A7, B6, A6, B5,
B4, A3
VIDY0-9
P8, N8, P7, N7,
P6, N6, P5, N5,
P4, N4
VIDC0-9
P3, N3, P2, N1,
M2, M1, L2, L1,
K2, K1
14-18,
25-29
53-55,
58-62
P_HSYNC
P_Y[0-9]
63 CLKIN_B
50 S_HSYNC
48 MISO
IC703
VIDEO ENCODER,
D/A CONVERTER
6OUT3 +IN
8 PD
IC808
OP AMP
6OUT3 +IN
8 PD
IC809
OP AMP
6OUT3 +IN
8 PD
EDEN2_GLUE_HS
GLUE_EDEN2_HS
GLUE_EDEN2_VS
GLUE_EDEN2_VCK
EDEN2_GLUE_VS
23 P_VSYNC
GLUE_VDAC_HS
49 S_VSYNC
GLUE_VDAC_VS
30 CLKIN_A
GLUE_VDAC_VCK
GLUE_CSI0_DI
20 SCLK
GLUE_CSI0_CKO
19 XSPI_SS
GLUE_CSI0_XCS
21 SCL MOSI
GLUE_CSI0_DO
E3P_CSI0_DO
E3P_CSI0_CKO
E3P_CSI0_EDEN2_XCS
B1 XRST
GLB_XRST
E3P_CSI0_DI
EDEN2_GLUE_VCK
2 HSYNC
TMDS DATA0 - 9
33TX0- TMDS DATA1 +
37TX1+ TMDS DATA1 -
36TX1-
3
1
TMDS DATA2 +
40TX2+ TMDS DATA2 -
39TX2-
12
10
TMDS CLOCK +
31TXC+ TMDS CLOCK -
30TXC-
47DSDA SDA
15
SCL
CEC
ASD_CVBSOUT
ASD_SYOUT
ASD_SCOUT
CEC_VP
19
HPD
46
14
DSCL
51HPD
XVMUTE
ASPECT0
ASPECT1
XVMUTE
IC803
OP AMP
1CLKIN8 CLKOUT
IC1202
PLL CLOCK DRIVER
6OUT3 +IN
8 PD
IC805
OP AMP
6OUT3 +IN
8 PD
IC806
OP AMP
Q807
MUTE DRIVE
S[2-9]
98-90,
86-77,
75-67,
63-56
M14, L13, L14, K13, K14,
J13, J14, H13, H14, F13,
F14, E13, E14, D13, D14,
C13, C14, B14, A13, B12,
A12, B11, A11, B10, A10,
B9, A9, B8, A8, B7, A7,
B6, A6, B5, B4, A3
D0-35VOD0-35
GLUE_VDAC_V00-07
EDEN1_VO00-35
EDEN1_HS
3 VSYNC
EDEN1_VS
88 IDCK
EDEN1_VCK
11 SCK
E3P_ABCK
10 WS
E3P_ALRCK
5 MCLK
E3P_AMCK
4 SPDIF
E3P_SPDIF
49 CSDA
E3P_I2C0_SDA
48 CSCL
E3P_I2C0_SCL
24 INT
HDMI_XINT 25 RESET#
HDMI_XRST
E3P_ABD0-3
P_C[0-9]
GLUE_EDEN2_Y0-9
GLUE_EDEN2_C0-9
EDEN2_HS
AD_Y
AD_PB
AD_PR
EDEN2_VS
EDEN2_VCK
EDEN2_Y0-9
EDEN2_C0-9
N14VOHS
M13VOVS
G14VOCK
G
VIDEO-1
(SEE PAGE 3-5)
D
VIDEO-1
(SEE PAGE 3-5)
E
VIDEO-1
(SEE PAGE 3-5)
H
VIDEO-1
(SEE PAGE 3-5)
J
VIDEO-1
(SEE PAGE 3-5)
F
VIDEO-1
(SEE PAGE 3-5)
I
VIDEO-1
(SEE PAGE 3-5)
VP-062 BOARD (2/2)
05
HDMI
OUT
Y
PB
PR
S VIDEO
VIDEO
VIDEO OUT
COMPONENT
VIDEO OUT
Q701
MIX, LINE DRIVE
3-7
BDP-S5000ES
3-7. AUDIO BLOCK DIAGRAM
AU-260 BOARDMB-124 BOARD (4/5)
SWITCH
Q1014, 1016, 1018
MUTING
Q2012
SWITCH
Q1015, 1017, 1019
MUTING
Q2013
IC2011
AUDIO AMP
AO0BD0
AO0BD1
AO0BD2
AO0BD3
XAMUTE
SPDIF
AO0BCK
AO0LRCK
AO0MCK
EMMA_CSI0_DAC8_XCS
8
7
9
6
5
13
11
2
AO0BD
AO0BCK
AO0LRCK
AO0MCK
AO0BD1
AO0BD2
AO0BD3
UA0DTR8
1
7
6
5
3
2
+
+
-
-
IC2005
1
7
5
6
3
2
+
-
+
-
IC2007
L
R
AUDIO
OUT
J2006
J2005
COAXIAL
IC2008
OPTICAL
TRANSMITTER
OPTICAL
SPDIF
DIGITAL
OUT
IC101
A/V OUT
(4/5)
05
8
7
5
6
4
3
9
2
12
13
15
14
16
17
11
18
20
19
14
22
16
18
21
25
IC1001
BUFFER
25
5
6
4
7
AO1BD
AO1BCK
AO1LRCK
AO1MCK
EMMA_CSI0_DO
EMMA_CSI0_CKO
EMMA_CSI0_DAC2_XCS
DAC_XRST
20
22
19
24
16
15
17
18
AO1BD
AO1BCK
AO1LRCK
AO1MCK
GPIO15
GPIO16
CN1001CN803
E32
F32
F31
E33
E25
E24
C33
C32
D32
D33
E31
E30
D31
K31
F24
3
4
2
5
8
7
6
9
17
16
18
15
12
13
14
11
12
7
5
8
3
11
10
9
IC1002
BUFFER
DATA
BCK
LRCK
SCK
IC1004 AUDIO D/A
CONVERTER
IC1005 AUDIO D/A
CONVERTER
IC1006 AUDIO D/A
CONVERTER
IC1007 AUDIO D/A
CONVERTER
IC1008 AUDIO D/A
CONVERTER
5
6
4
7
DATA
IoutL+
26
IoutL-
17
IoutR+
18
IoutR-
1
ZELOL
2
ZELOR
ZELOL
ZELOR
11 MOI
12 MC
10 MS
14 RST
11 MOI
12 MC
10 MS
14 RST
11 MOI
12 MC
10 MS
14 RST
11 MOI
12 MC
10 MS
14 RST
11 MOI
12 MC
10 MS
14 RST
BCK
LRCK
SCK
5
6
4
7
DATA
BCK
LRCK
SCK
5
6
4
7
DATA
BCK
LRCK
SCK
5
6
4
7
DATA
BCK
LRCK
SCK
1
7
6
3
2
+
-
+
-
SWITCH
Q1002, 1006, 1012
MUTING
Q2001, 2002
IC2020
AUDIO AMP
1
7
6
5
2
3
+
+
-
-
IC2001
7
1
3
2
5
6
+
-
+
-
IC2002
AUDIO AMP
AUDIO AMP
AUDIO AMP
AUDIO AMP
AUDIO AMP
AUDIO AMP
AUDIO AMP
AUDIO AMP
AUDIO AMP
AUDIO AMP
L
R
J2001
FRONT
25
IoutL+
26
IoutL-
17
IoutR+
18
IoutR-
7
1
3
2
5
6
+
-
+
-
MUTING
Q2003, 2004
IC2021
AUDIO AMP
1
7
6
5
2
3
+
+
-
-
IC2003
7
1
3
2
5
6
+
-
+
-
IC2004
L
R
MULTI
CHANNEL
OUTPUT
J2002
SURROUND
25
IoutL+
26
IoutL-
17
IoutR+
18
IoutR-
7
1
3
2
5
6
+
-
+
-
MUTING
Q2005, 2006
IC2022
AUDIO AMP
1
7
6
5
2
3
+
+
-
-
IC2009
7
1
3
2
5
6
+
-
+
-
IC2017
L
R
J2003
SUR BACK
25
IoutL+
26
IoutL-
17
IoutR+
18
IoutR-
7
1
3
2
5
6
+
-
+
-
MUTING
Q2007, 2008
IC2023
AUDIO AMP
1
7
6
5
2
3
+
+
-
-
IC2018
7
1
3
2
5
6
+
-
+
-
IC2019
J2004
25
IoutL+
26
IoutL-
17
IoutR+
18
IoutR-
7
1
3
2
5
6
+
-
+
-
5
SWITCH
Q1003, 1007, 1013
SWITCH
Q1004, 1008, 1010
SWITCH
Q1005, 1009, 1011
CENTER
SUB WOOFER
IC1003
GATE
3
1
2
2
6
4
5
8
9
10
11
12
13
1
ZELOL
ZELOR 2
1
ZELOL
ZELOR 2
1
ZELOL
ZELOR 2
1
MUTE DRIVE
Q1001
D1002
261
324
IC2005
GATE
4
1
2
SPDIF_5V
GPIO17
B32
ATX
IC1009
CLOCK SHIFT
45 CLKIN CLKOUT
D1003
4
CN2002
1
2
3
1
2
CN2003
M2001
(FAN)
MM
D2019
AC_10V
Q2014-2016
PFAIL
SWITCH
FAN_DET1
FAN_OUT1
AU3.3VDET
FAN_DET1
FAN_OUT1
K
IT
(SEE PAGE 3-9)
VIDEO-1
(SEE PAGE 3-5)
EMMA_CSI0_DO
EMMA_CSI0_CKO
C
3-8
BDP-S5000ES
3-8. USB/ETHER BLOCK DIAGRAM
RXP
RXN
TXP
TXN
CN8001 CN1602
CN601 CN603
CN1603
J1601
IC8001
ETHERNET PHY
IC101
HDMI,ETHERNET I/F,USB I/F
23
24
36
18
2
4
17
32
31
29
1
2
5
6
28
X8001
50MHz
TXD0
ETTXD0
ETTXD1
ETMDC
ETMDIO
ETCRS
ETRXD0
ETRXD1
TXD1
MDC
MDIO
REFCLK
EMMA_XRST
CRS_DV
RXD0
RXD1
MB-124 BOARD (5/5)
(5/5)
14
nRST 5
AB29
AB28
Y28
Y29
AA30
AA28
AA29
21
ETRXER RX_ER
AA27
ETREFCLK Y30
IC602
USB HOST
68,55,42,28 CBE00-30
IDSEL
PAR DP2
DM2
IRDY0
FRAME0
SERR0
PERR0
TRDY0
DEVSEL0
STOP0
REQ0
GNT0
INTA0
PCLK
VBBRST0
79-76,74-72,70,67,
66,64-62,59,58,56,
41,40,38,36-32,
26-22,20,19,17
PCIP_AD0-31
PCI_AD24
AD0-31
PCIP_XCBE0-3
PCIP_PAR
PCIP_XIRDY
PCIP_XFRAME
PCIP_XSERR
PCIP_XPERR
PCIP_XTRDY
PCIP_XDEVSEL
PCIP_XSTOP
PCIP_XREQ2_USB
PCIP_XGNT2_USB
PCI_XINTD
PCIP_CLK_USB
PCIP_XRST
29
PCIOSEL
44
53
43
52
51
47
49
50
16
15
14
11
13
106
105
2
3
CN600
2
3
CN302
D+
D-
DP
DM
CN301
3
2
USB-007 BOARD
PCICBEB0
PCIAD0-31
G33-28,H33-27,
J33-29,L30-28,M33,
M32,M30,M29,M28,
N32-28,P33,P32,P30
F8
F4
B7
E5
F5
C5
B5
A5
E6
F6
B6
D6
C6
PCIP_XCBE0
PCICBEB1
PCIP_XCBE1
PCICBEB2
PCIP_XCBE2
PCICBEB3
PCIP_XCBE3
PCIFRAMEB
PCIP_XFRAME
PCIIRDYB
PCIP_XIRDY
PCITRDYB
PCIP_XTRDY
PCISTOPB
PCIP_XSTOP
PCIDEVSELB
PCIP_XDEVSEL
PCIPAR
PCIP_PAR
PCI_XINTA
PCIPERRB
PCIP_XPERR
PCISERRB
PCIP_XSERR
PCIREQB2
PCIP_XREQ2_USB
PCIGNTB1
PCIP_XGNT1_ETR
PCIGNTB2
PCIP_XGNT2_USB
PCIP_CLK_USB
F3
P27
E2
GPIO30
F21
PCICLKI
H3
GPIO9
B27
G1
F1
PCIP BUS PCIP BUS
PCIP_CONT
PCIP_CONT
X600
33MHz
PCIP_AD0-31
PCIP_AD0-31
XT2
XT1/SCLK
83
81
X601
30MHz
5
SYSXO
X401
27MHz SYSXI
LAN(100)
RS232C
EXT
05
(1/5)
(SEE PAGE 3-4)
3
7
6
8
CTRL_S GTRL_S
232C_TXD
232C_RXD
L
IT
(SEE PAGE 3-9)
CONTROL S IN/
IR IN
RX-
RX+
TX-
TXP
6
2
3
1
ET-001 BOARD
IC601
RS-232C
DRIVER/
RECEIVER
13
15
DIN1
ROUT1
17
16
DOUT1
RIN1
3
1
3
2
CN1601
1
RS-088 BOARD
3-9
BDP-S5000ES
3-9. IT BLOCK DIAGRAM
IFD-002 BOARD
4
5
16
14
12
CN503
26 63
FLD_SDO
27
25
39
36
5XCOUT
X402
10MHz
4XCIN
6/RESET
UNSW3.3V
50
64
FLD_SCK
2
FLD_STB
53
FLD_PCONT
34
LED_DIMMER
17
LED1
48
KEY1
24
SIRCS_IN
49
KEY0
54
57
58
47
KEY2
46
KEY3
SUB SYSTEM
CONTROL
2 1
VCC OUT
IC402
IC401
RESET
23
CONT
4ADJ
Vout
IC501
FAN
CONTROL
7XOUT
X401
32.768kHz
9XIN
S362, 363
FUNCTION SWITCH
KEY 1
KEY 2
KEY 3
SIRCS
743
XIF_RST 335
IF_SDI
IF_SDO
IF_SCK
XIF_CS
S361
FUNCTION SWITCH
S364
FUNCTION SWITCH
1
3
4
7
18
CN402
22
IF_SDI
IF_SDO
IF_SCK
SYSCON_RST
23 CEC_OUT
XIF_CS
TEMP
START_BIT
SYSCON_REQ
CEC_IN
TEMP
IF_START_BIT
SYSCON_REQ
CEC
2
FR-292 BOARD
25
14
7
8
11
CN361CN504
7
VEE
DIN
LED_DT
LED_CK
FLD_STB
LED_DIM
LED_24P
SEG1-18
SG1-16,
SEG17, 18
GPD1-8
GR1-8
CLK
9
30
STB
IC201
REMOTE CONTROL
RECEIVER
OUT
Q361, 363, 364
LED DRIVE
9
14-29, 31, 32 32-15
ND201
FLUORESCENT
INDICATOR
TUBE
F1,F2
-VF
-VF
FLD_PCONTFLD_PCONTFLD_PCONT
42-35 4-11
Q201, 202
FL DRIVE
SWITCH
22
16
21
18
6
14
7
8
11
9
22
16
21
18
18
LED2 12 LED SBM
12
19
LED3 13 LED HD AUDIO
LED_24P
LED SBM
LED HD AUDIO
13
15
LED4 24 LED PAUSE
24
14
LED5 23 LED PLAY
23
16
LED0 20 LED BD
20
SIRCS
PLAY
PAUS
BD-ON
BD-ON2
FC-095 BOARD
9
10
12
CN201
LED_DT
LED_CK
FLD_STB
LED_DIM
LED_24P
LED BD LIVE
LED HD AUDIO
LED_DIM
LED_24P
LED BD SBM
KEY 0KEY 0 KEY 0 KEY 0
LED HD AUDIO
LED_DIM
11
1
41
232C_OUT
40
232C_IN
232C_TXD
CTRL_S
232C_RXD
FAN_CONT0 1Vin
FAN_CONT1
FAN_CONT2
FAN_CONT0
FAN_CONT1
FAN_CONT2
55
FAN_DET1
Q501,503
FAN SPEED
CONTROL
45 PFIAL
3
MODE
IFCON FLASH
WRITTER
38
IF_RXD
RESET 37
IF_TXD
MODE
RXD1
TXD1
UNSW5.8V
2 1
VCC OUT
IC403
P FAIL
B
Q204, 205, T201
-VF DC/DC CONVERTER
DSP
(SEE PAGE 3-4)
05
9
10
12
CN364
LED_DT
LED_CK
FLD_STB
11
18
16
17
18
16
17
1
UNSW12V
44
AU3.3VDET
8
1414
CN331CN202
2
4
3
2
4
3
1 115 15 19 19
66
Q331
LED DRIVE
Q332
LED DRIVE
Q333
LED DRIVE
IC202
FL DRIVER
HD AUDIO
D331
24P
D332
SBM
D333
FL-186 BOARD
Q402-405
SIRCS
SWITCH
UNSW3.3V
1
3
5
CN501
4
3
CN362
1
2
CN363
FS-089 BOARD
1
2
CN301
N
D301
X
D302
FT-094 BOARD
1
2
CN351
FR_6V
(DISC TRAY ILLUMINATION)
D351-353
CTRL_S
232C_TXD
232C_RXD
FAN_OUT1
FAN_DET1
AU3.3VDET
1
4
2
CN502
L
USB/ETHER
(SEE PAGE 3-8)
K
AUDIO
(SEE PAGE 3-7)
Q400
(RESET)
S402
S331
I/1
3-10
BDP-S5000ES
3-10. POWER BLOCK DIAGRAM (1/4)
CN101
CN203
CN101
CN201
7-10 3, 4
3-57, 810-12
1
14
15
9
1, 24, 5
1
4
IN
IC103
32
BS
SW
1
FB 5
EN 7
D2009-D20212
RECT
L102
PS103
PCONT3 PCONT3
DCSW5V DCSW5V
UNSW3.3V
UNSW5.8V
D2019
A+5V
A+5V
DAC3.3V
UNSW3.3V
UNSW3.3V
SW3.3V
SW1.55V
PS101
PS102 CN102
CN504
UNSW12V
SW1.55V
FR_6V
IT_3.3V
FLD_PCONT
KEY 0
UNSW5.8VUNSW5.8V
FAN_OUT
D3.3V
SPDIF_5V
SW3.3V
13
1
IC2010
Q2010
B+ SWITCH
IC101
IC104
POWER
BLOCK
T101
POWER
TRANSFORMER
UNSW12V
UNSW12V
UNSW5.8V
CN2001
AC_10V
AC_10V
M
AU-260 BOARD
IFD-002 BOARD
1, 3
P.ON
6
(AC IN)
7-10 3, 4
13
IN
IC102
SW+3.3V
REGULATOR
UNSW+3.3V
REGULATOR
DCSW+5V
REGULATOR
SW+1.55V
REGULATOR
32
BS
SW
1
FB 5
EN 7
L101
PCONT1
ATA_PCONT
ATA PCONT
1
IC403IC401
IC402
P FAILRESET
SUB SYSTEM
CONTROL
2
3
CONT
1Vin Vout
IC501
FAN
CONTROL
Q101-104
SWITCH
Q2014-2016
PFAIL
SWITCH
54 1
CN502
CN2002
CN402
VCC
FAN_CONT0
FLD_CONT
PCONT4
PCONT2
31
53
KEY0
49
21
20
FAN_CONT0
PCONT1
28
33
4
1
4
1DRIVE SW12V
DRIVE SW5V
BD DRIVE
DVD
Blu-ray
DRIVE
IFCON FLASH
WRITTER
58
8PCONT2
CN503
CN501
PCONT3
PCONT4
O
9
10
05
POWER-2
(SEE PAGE 3-11)
NPOWER-4
(SEE PAGE 3-13)
POWER-2
(SEE PAGE 3-11)
Q2009
B- SWITCH
IC2012
IC2013
IC2008
1O
7
O
IC2006 IC2007 IC2011 IC2001 IC2020IC2002
IC2005
IC1004 IC1005 IC1006 IC1007 IC1008
IC2015
AUDIO
AMP
A+5V
REGULATOR
DAC+3.3V
REGULATOR
IC2003 IC2004 IC2021 IC2009 IC2017 IC2022 IC2018 IC2019 IC2023
AUDIO
AMP
AUDIO
AMP
AUDIO
AMP
AUDIO
AMP
AUDIO
AMP
AUDIO
AMP
AUDIO
AMP
AUDIO
AMP
AUDIO
AMP
AUDIO
AMP
AUDIO
AMP
AUDIO
AMP
AUDIO
AMP
AUDIO
AMP
AUDIO
AMP
PS501
54 1
UN3.3V
6
IC2014
IC1002 IC1003IC1001 IC1009
+5V
REGULATOR
OPTICAL
TRANSMITTER
GATE
AUDIO
D/A
CONVERTER
AUDIO
D/A
CONVERTER
AUDIO
D/A
CONVERTER
AUDIO
D/A
CONVERTER
AUDIO
D/A
CONVERTER
D+3.3V
REGULATOR
BUFFER GATEBUFFER CLOCK
SHIFT
M2001
(FAN)
3
1
CN2003
MM
4
3SPDIF
CN1001
Q
PCONT3
SPDIF
PCONT3 POWER-2
(SEE PAGE 3-11)
CN102
1, 3
CN202
3
1AUDIO UNSW5V
AUDIO UNSW-12V PPOWER-3
(SEE PAGE 3-12)
AU3.3VDET
44
3-11
BDP-S5000ES
3-11. POWER BLOCK DIAGRAM (2/4)
IC501 IC502
IC101
IC700
4M NOR
FLASH
ROM
2G NAND
FLASH
ROM
IC103
IC102
DDR2
SDRAM
IC203
IC202
DDR2
SDRAM
3.3V
IC602
USB HOST
IC8001
IC901
BUFFER
3, 57, 810-12
1
14
12
DCSW5V
CN301
UNSW12V
SW1.55V
UNSW6V
UNSW6V
SW3.3V
DCSW5V
UNSW12V
SW1.55V
UNSW5.8V
PCONT2
CN904
PCONT3
PCONT4
PCONT2
PCONT3
PCONT4
SW3.3V
M
O
S5
IC310
MULTI
REGULATOR
1912
VSIN
14
DRVL
DRVH
17
VD0QSNS 9
Q303,304
SWITCHING
L302 DDR2_1.8V
S5
IC309
MULTI
REGULATOR
1912
VSIN
14
DRVL
DRVH
17
VD0QSNS 9
Q301,302
SWITCHING
Q300
SWITCHING
D302
L301 OTHER_1.05V
CORE_1.05V
L700
L901
L802
L701
L702
L707
PS302
FL309
IC304
+5V
REGULATOR
IC601
+5V
REGULATOR
SW5VD
VBUS(USB)
IC703
+3.3V
REGULATOR
+3.3V
IC701
+1.0V
REGULATOR
1.0V
IC307
DLL+1.0V
REGULATOR
IC308
PLL+1.05V
REGULATOR
DLL1.0V
PLL_1.05V
IC803
+3.3V
REGULATOR
IC303
SATA+1.8V
REGULATOR
SATA1.8V
DAC3.3V
SW3.3
SW3.3
SW3.3
EMMA_SW3.3
11
10
FL306
FL304,305
FL303,307,308
FL201
FL101
FL400
L602
FL702
FL701
4 4 1
CN600
CN362
VBUS
CN361
1
CN801
SW5DV
PCONT2
5
1
CN905
(JIG)
UA1DTRB
J32
PS701
FL600
USB-007
BOARD
MB-124 BOARD
R
FB8001
FB8002
ETHERNET
PHY
MAIN SYSTEM CONTROL, DSP,
SATA I/F,MEMORY CONTROL,
A/V OUT,HDMI,ETHERNET I/F,
USB I/F
CLOCK
GENERATOR
POWER-3
(SEE PAGE 3-12)
POWER-1
(SEE PAGE 3-10)
POWER-1
(SEE PAGE 3-10)
05
EXT
24
CN803
SPDIF
PCONT3
SPDIF
PCONT3
Q
POWER-1
(SEE PAGE 3-10)
CN701
SW6V
SW3.3V
PCONT3
S
POWER-3
(SEE PAGE 3-12)
B7-B10
B4-B6
B25
ATX
B32
23
3-12
BDP-S5000ES
3-12. POWER BLOCK DIAGRAM (3/4)
UNSW5.8V
CN104
SW3.3V
SW1.5V
SW3.3V
SW1.5V
SW3.3V
SW3.3V
SW1.5V
SW3.3V
PCONT3 PCONT3
PCONT3
PCONT2
SW6V
SW3.3V
PCONT3
AUDIO UNSW5V
VP-062 BOARD
S
POWER-2
(SEE PAGE 3-11)
P
POWER-1
(SEE PAGE 3-10)
R
POWER-2
(SEE PAGE 3-11)
05
B7-B10
B4-B6
B25
CN802
2
1
FL101
FL102 IC102 L101 IC202
IC203
IC201
SW+1.5V
REGULATOR
SW+1.2V
REGULATOR
SW+1.2V
REGULATOR
SW+2.5V
REGULATOR
FL206
FL205
FL204
FL201
FL202
FL203
IC204
DIGITAL VIDEO FORMAT
CONVERTER
L201
IC301
DDR1
SDRAM
FL401
FL403
FL402
IC401
FPGA
IC1202
PLL
CLOCK
DRIVE
IC402
CONFIGURATION
ROM
IC403
AND
IC501
HDMI SIGNAL
I/F
FL501
FL502
IC605
IC606
IC603
IC607
UNSW5.8VD UNSW5.8VD
SW1.5V
SW3.3V
UNSW5.8VD
FL601
FL602
FL603
FL604
FL605
FL606
FL607
IC602
HDMI
TRANSMITTER
IC601
LEVEL
SHIFT
IC604
BUFFER
IC1201
COMPONENT
SIGNAL I/F
FL1202
FL1201
FL1203
FL701
IC701
IC702
IC703
VIDEO ENCODER,
D/A CONVERTER
IC706
VIDEO
AMP
PS801
VIDEO6V VIDEO6V
VIDEO6V
VIDEO6V
FL702 L701 IC704
L702 IC705
L703
PS802
VIDEO-9V
SW_V_5V+
SW_V_5V+
SW_V_5V-
L804
L803
L704 IC707
+1.8V
REGULATOR
+1.8V
REGULATOR
+3.3V
REGULATOR
+3.3V
REGULATOR
-5.0V
REGULATOR
Q702, 703
B- SWITCH
L705
Q801, 802
B- SWITCH
IC802
-5.0V
REGULATOR
IC801
+5.0V
REGULATOR
IC803
OP
AMP
IC805
OP
AMP
IC806
OP
AMP
IC807
OP
AMP
IC808
OP
AMP
IC809
OP
AMP
IC804
PROGRAMMABLE
VOLTAGE
REFERENCE
L802
L801
IC105
BUFFER
IC103
BUFFER
IC101
CLOCK
BUFFER
L1001
IC1001
+5V
REGULATOR
+1.8V
REGULATOR
SW+3.3V
REGULATOR
+1.8V
REGULATOR
+3.3V
REGULATOR
FL1001
FL1002
IC1003
CLOCK
CONDITIONER
IC1002
LVDS
DRIVER
IC1005
LVDS
RECEIVER
L201
L201
CN801
17
AUDIO UNSW-12V
PCONT2
IC810
PROGRAMMABLE
VOLTAGE
REFERENCE
3-13E
BDP-S5000ES
3-13. POWER BLOCK DIAGRAM (4/4)
FR-292 BOARD
3, 46, 7
11
Q201,202
B+ SWITCH
IC701
REMOTE
CONTROL
RECEIVER
Q204,205
IC202
D201-204
RECT
CN201CN364
CN363
CN362CN361
FR_6V
KEY 0
FR_6V
KEY 0
FC-095 BOARD
PS201
DC/DC
CONVERTER
T201
D205
F1,F2
ND201
FLUORESENT
INDICATOR
TUBE
FL DRIVER
-VF
HD AUDIO
D331
24P
D332
SBM
D333
N
POWER-1
(SEE PAGE 3-10) 19
3, 46, 7
11
FR_6V
KEY 0
FR_6V
KEY 0
IT_3.3V
FLD_PCONT
IT_3.3V
FLD_PCONT
19
4, 5
9
15
8, 9
CN331
1
S331
I/1
FL-186 BOARD
8, 9
CN202
1
FR_6V (DISC TRAY ILLUMINATION)
D351-353
CN351
4
FT-094 BOARD
FR_6V
CN301
4
4
1
FS-089 BOARD
N
D301
X
D302
FR_6V
KEY 0
IT_3.3V
FLD_PCONT
UN3.3V
1, 2
IC601
RS-232C
DRIVER/
RECEIVER
CN601
4
RS-088 BOARD
05
4-1
BDP-S5000ES
SECTION 4
SCHEMATIC DIAGRAMS
• All capacitors are in µF unless otherwise noted. pF : µµF.
50V or less are not indicated except for electrolytics and tantal-
ums.
• All resistors are in ohms, 1/4 W (Chip resistors : 1 /10 W) un-less
otherwise specified.
kΩ=1000Ω, MΩ=1000kΩ.
• % : indicates tolerance.
• Caution when replacing chip parts.
New parts must be attached after removal of chip.
Be careful not to heat the minus side of tantalum capacitor, because
it is damaged by the heat.
• Constants of resistors, capacitors, ICs and etc with XX indicate
that they are not used.
In such cases, the unused circuits may be indicated.
• All variable and adjustable resistors have characteristic curve B,
unless otherwise noted.
• : nonflammable resistor
• : fusible resistor
• : panel designation
• f : internal component.
• : adjustment for repair.
• : B+ Line
• : B– Line
• Circled numbers refer to waveforms.
• Voltages are dc between measurement point.
• Readings are taken with a color-bar signals on Blu-ray disc.
• Readings are taken with a digital multimeter (DC 10MΩ).
• Voltage variations may be noted due to normal production toler-
ances.
Note:
The components identified
by mark 0 or dotted line
with mark 0 are critical for
safety.
Replace only with part num-
ber specified.
Note:
Les composants identifiés par
une marque 0 sont critiquens
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spéci-
fié.
When indicating parts by reference number, please include the
board name.
• Abbreviation
AUS : Australian model
CND : Canadian model
HK : Hong Kong model
RUS : Russian model
TH : Thai model
4-1. THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS
4-2
BDP-S5000ES
4-2. FRAME SCHEMATIC DIAGRAM
(US)
1
2
3
4
5
6
7
8
9
CN202
9P
1
2
3
4
5
6
7
8
9
CN331
9P
1
2
3
4
4P
CN362
1
2
3
4
5
6
7
8
9
10
11
12
13
CN101
13P
1
2
3
4
5
5P
CN600
1
3
5
2
7
8
6
4
CN8001
8P
1
2
3
4
5
6
7
8
8P
CN1602
1
2
3
4
5
5P
CN302
1
2
3
4
4P
CN2001
1
2
3
3P
CN802
1
2
3
3P
CN2003
GND
FAN_DET1
FAN_OUT1
1
2
3
4
5
6
7
7P
CN700
1
2
3
4
5
6
7
7P
CN001
1
2
3
3P
CN202
AUDIO UNSW5V
AUDIO GND
AUDIO UNSW-12V
1
2
3
4
5
6
7
8
9
10
11
12
13
13P
CN203
ATA PCONT
GND
DD UNSW 12V
DD UNSW 12V
GND
GND
DD UNSW 5V
DD UNSW 5V
DD UNSW 5V
DD UNSW 5V
GND
GND
RELAY ON
1
2
3
4
4P
CN600
1
2
3
4
4P
CN201
DRIVE SW12V
GND
GND
DRIVE SW5V
1
2
3
3P
CN101
L
NC
N
1
2
3
3P
CN102
L
NC
N
1
2
3
4
4P
CN601
232C_RXD
GND
232C_TXD
UNS3.3V
1
2
CN1601
2P
1
2
3
4
5
6
6P
CN501
1
2
3
4
4P
CN351
1
2
3
4
4P
CN363
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19P
CN364
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
CN361
25P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25P
CN504
1
2
3
4
5
6
6P
CN502
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15P
CN102
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19P
CN503
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19P
CN904
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15P
CN301
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26P
CN803
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21P
CN801
A1
A2
A3
A4
A5
A6
A7
A8
B8
A9
B9
A10
B10
A11
B11
A13
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B23
B27
B24
B25
A28
B28
A29
B29
A24
A25
A26
A23
A30
B30
B26
A27
A36
B38
A32
A33
A31
B31
B39
A40
B33
B36
A38
B32
B37
A35
B40
A37
A39
B35
B22
A34
B34
A43
B42
A41
A42
B41
B44 A44
B43
A46
A45
B47 A47
B45
B46
A12
B7
B4
B3
B5
B6
B1
B2
B12
B13
A14
80P
CN7001
A1
A2
A3
A4
A5
A6
A7
A8
B8
A9
B9
A10
B10
A11
B11
A13
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B23
B27
B24
B25
A28
B28
A29
B29
A24
A25
A26
A23
A30
B30
B26
A27
A36
B38
A32
A33
A31
B31
B39
A40
B33
B36
A38
B32
B37
A35
B40
A37
A39
B35
B22
A34
B34
A43
B42
A41
A42
B41
B44 A44
B43
A46
A45
B47 A47
B45
B46
A12
B7
B4
B3
B5
B6
B1
B2
B12
B13
A14
80P
CN104
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21P
CN801
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26P
CN1001
1
2
3
4
5
6
6P
CN2002
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19P
CN201
1
2
3
4
4P
CN8002
1 1
FR_6V
LED BD LIVE
KEY 0
LED_DIM
GND
GND
LED HD AUDIO
LED_24P
FR_6V
GND
LED_DIM
LED BD LIVE
FR_6V
LED HD AUDIO
GND
KEY 0
FR_6V
LED_24P
BD-ON2
GND
BD-ON
FR_6V
FR_6V
PLAY
GND
PAUSE
FR_6V
BD-ON2
BD-ON
GND
GND
PLAY
PAUSE
FR_6V
232C_RXD
232C_TXD
GND
UNSW3.3V
GND
UNSW12V
ATAPCONT
UNSW5.8V
UNSW5.8V
GND
UNSW5.8V
GND
GND
UNSW12V
PON
UNSW5.8V
GND
DP
GND
VBUS
GND
DM
GTRL_S
GND
TXP
NC
NC
NC
RX+
RX-
TX-
NC
GND
D+
VBUS
GND
D-
N.C
GND
AC_10V
AC_10V
VIDEO6V
GND
VIDEO-9V
GND
HR+0
HR-0
GND
HT+0
HT-0
GND
CTRL-S
GND
GND
LED_DT
GND
FLD_STB
GND
LED_CK
GND
FR_6V
LED_24P
FR_6V
IT_3.3V
SIRCS
KEY0
LED_DIM
GND
LED BD LIVE
FLD_PCONT
LED HD AUDIO
IT_3.3V
KEY 3
GND
LED PAUSE
KEY 1
FR_6V
KEY 2
IT_3.3V
LED_ 24P
LED_CK
FR_6V
GND
FLD_PCONT
LED PLAY
GND
FLD_STB
SIRCS
GND
LED BD LIVE
LED_DIM
KEY 0
LED_DT
LED HD AUDIO
IT_3.3V
LED BD
GND
FR_6V
IT_3.3V
GND
GND
GND
LED_DIM
LED 4(PAUSE)
FR_6V
LED 3(HD_AUDIO)
FLD_STB
SIRCS
LED_CK
GND
KEY 1
FLD_PCONT
LED 2(BD_LIVE)
LED 0(BD)
IT_3.3V
KEY 2
LED 5(PLAY)
GND
KEY 0
LED_DT
LED 1(24P)
KEY 3
GND
GND
AU3.3VDET
FAN_OUT1
FAN_DET1
UNSW5.8V
SW1.55V
UNSW12V
GND
UNSW5.8V
GND
GND
SW3.3V
UNSW5.8V
SW1.55V
SW3.3V
GND
DCSW5V
UNSW5.8V
SW1.55V
GND
GND
PCONT2
IF_START_BIT
XIF_CS
TEMP
IF_SDO
GND
CEC
GND
HDMI_PCONT
SYSCON_REQ
GND
GND
PCONT4
GND
PCONT3
XIF_RST
IF_SCK
IF_SDI
HDMI_PCONT
PCONT4
IF_SDI
PCONT3
XIF_CS
GND
SYSCON_REQ
PCONT2
IF_SCK
TEMP
CEC
IF_START_BIT
XIF_RST
GND
GND
GND
IF_SDO
GND
GND
GND
GND
SW3.3V
GND
UNSW5.8V
GND
UNSW5.8V
SW1.55V
DCSW5V
SW1.55V
GND
UNSW5.8V
SW1.55V
UNSW12V
SW3.3V
GND
GND
AO1LRCK
AO0LRCK
EMMA_CSI0_DO
GND
GND
GND
AO0BCK
EMMA_CSI0_CKO
AO1BD
AO0BD0
AO1MCK
AO0BD2
XAMUTE
UNSW6V
SPDIF
EMMA_CSI0_DAC2_XCS
GND
AO0MCK
AO1BCK
AO0BD1
DAC_XRST
PCONT3
EMMA_CSI0_DAC8_XCS
AO0BD3
GND
IP
FORMAT0
GND
GND
HD_PR
GND
GND
SD_C
PCONT2
XVMUTE
HD_PB
SW5VD
ASPECT0
SD_Y
GND
GND
FORMAT1
ASPECT1
GND
HD_Y
GND
E3P_Y5
KYOTO_XRST
SW3.3V
GND
E3P_C9
ATX
CSI_DO
GND
PCONT3
GND
GND
ABD0
DGND
DGND
HDMI_PCON
E3P_Y7
SW6V
SW3.3V
E3P_C4
E3P_C8
ABD1
GND
AMCK
ABD2
RESERVED
GND
CSI_CK
E3P_C5
SW3.3V
GND
I2C_400k_SDA
CEC
VENC_XCS
E3P_VCK
DGND
E3P_C7
SW6V
GND
GND
DGND
E3P_C6
GLB_XRST
DGND
E3P_Y9
DGND
E3P_C3
DGND
CSI_DI
HDMI_XRST
RESERVED
E3P_Y3
ABCK
HDE1_XCS
SW3.3V
DGND
DGND
SW6V
DGND
DGND
ABD3
DGND E3P_Y4
DGND
GLUE_XCS
ALTERA_DONE
RESERVED
DGND
DGND
DGND
DGND
DGND
E3P_VD
DGND
I2CA_100k_SDA
E3P_Y8
GND
E3P_HD
HDE2_XCS
DGND
GND
ALRCK
PCONT2
GND
DGND
E3P_Y6
DGND
HDMI_XINT
E3P_Y2
I2C_100k_SCL
DGND
E3P_C2
GND
I2C_400k_SCL
E3P_C7
UNSW5.8V
DGND
E3P_Y9
GND
DGND
CSI_DO
RESERVED
PCONT2
PCONT3
GND
DGND
DGND
DGND
HDE2_XCS
E3P_C9
E3P_Y2
GND
DGND
E3P_C2
DGND
UNSW5.8V
RESERVED
GND
GND
GND
I2CA_100k_SDA
E3P_Y8
HDE1_XCS
ABCK
E3P_C5
DGND
ABD0
E3P_Y7
SW3.3V
ABD3
DGND
CSI_CK
GND
I2C_100k_SCL
SW3.3V
E3P_HD -> VS
ABD1
GND
E3P_VD -> HS
GND
ALTERA_DONE
E3P_C3
GND
VENC_XCS
UNSW5.8V
GND
DGND
DGND
GND
DGND
E3P_VCK
DGND
GND
DGND
DGND
DGND
DGND
SW3.3V
CEC
GLB_XRST
E3P_C6
DGND
CSI_DI HDMI_XINT
GLUE_XCS
E3P_Y4
I2C_400k_SCL
E3P_Y5
DGND
AMCK
DGND
DGND
E3P_Y3
HDMI_PCON
ALRCK
SW3.3V
KYOTO_XRST
HDMI_XRST
E3P_C4
E3P_Y6
ABD2
DGND
E3P_C8
GND
DGND
I2C_400k_SDA
SPDIF
RESERVED
GND
HD_PB
GND
GND
SD_C
IP
HD_PR
GND
HD_Y
FORMAT1
GND
SW5VD
GND
GND
ASPECT0
SD_Y
FORMAT0
PCONT2
XVMUTE
GND
ASPECT1
GND
AO0BCK
AO1LRCK
AO1BD
EMMA_CSI0_DAC8_XCS
EMMA_CSI0_DAC2_XCS
DAC_XRST
AO0LRCK
AO0BD3
GND
XAMUTE
AO1BCK
GND
AO1MCK
GND
SPDIF
AO0MCK
AO0BD1
AO0BD0
AO0BD2
GND
PCONT3
GND
GND
EMMA_CSI0_DO
EMMA_CSI0_CKO
FAN_OUT1
GND
AU3.3VDET
GND
FAN_DET1
UNSW5.8V
LED 24P
GND
FLD_STB
GND
IT_3.3V
FR_6V
LED_CK
KEY 0
LED BD LIVE
IT_3.3V
LED_DIM
SIRCS
FLD_PCONT
GND
FR_6V
LED HD AUDIO
LED_DT
GND
GND
GND GND
DRIVE SW12V
GND
GND
DRIVE SW5V
HR+0
GND
HT+0
GND
HR-0
GND
HT-0
TRANSFORMER
POWER
POWER
BLOCK
RS-088
BOARD
BOARD
ET-001
BOARD
USB-007
BOARD
MB-124
VP-062
BOARD
AU-260
BOARD
FAN
M2001
(BPD-200ES)
BD-DRIVE
BOARD
FS-089FT-094
BOARD
FR-292
BOARDBOARD
FC-095
AC-
INLET
FL-186
BOARD
PANEL
IFD-002
BOARD
VPS-001
HARNESS
FMA-023
FFC
FFC
FMA-024
HARNESS
SAT-002
IFR-001
HARNESS
IFM-001
HARNESS
B to B
HARNESS
BDS-001
IFP-001
HARNESS
CLAMP FILTER
(FERRITE CORE)
B to B
CLAMP FILTER
(FERRITE CORE)
T101
FFC
FMI-006
HARNESS
UV-004
HARNESS
ETH-002
HARNESS
IFE-001
FRI-001
FFC
FRT-002
FFC
FFC
FRC-002
FFC
FCL-001
HARNESS
FB-001
4-3
BDP-S5000ES
4-3. AU-260 BOARD (1/2) (D/A CONVERTER) • See page 5-2 for printed wiring board.
- Ref. No.: AU-260 board; 20,000 series -
NO MARK:PB MODE
0
3.2
0
1.6
1.6
1.2
0
0
1.6
3.3
1.7
0
0
1.2
1.7
0
1.7
3.3
0
3.3
0
1.6
3.2
1.2
1.6
0
1.7
3.2
3.2
3.3
3.3
1.8
0
1.7
3.3
1.2
1.7
3.3
3.1
0.8
1.7
3.3
1.6
0
0
1.7
3.3
1.6
0
1.2
1.7
3.3
0
2.5
5.1
2.5
0
2.5
0
0
5.1
3.3
3.3
5.1
0
0
1.7
3.3
1.6
0
1.3
1.7
3.3
0
2.5
5.1
2.5
0
2.5
0
0
5.1
3.3
3.3
5.1
3.3
3.3
1.7
3.3
1.6
0
0
1.6
3.3
0
2.5
5.1
2.5
0
2.5
0
0
5.1
3.3
3.3
5.1
3.3
3.3
1.7
3.3
1.6
0
0
1.6
3.3
0
2.5
5.1
2.5
0
2.5
0
0
5.1
3.3
3.3
5.1
3.3
3.3
1.7
3.3
1.6
0
0
1.7
3.3
0
2.5
5.1
2.5
0
2.5
0
0
5.1
3.3
3.3
5.1
3.3
3.3
3.3
3.3
3.3
0
3.3
3.3
0
3.3
3.3
3.3
0
6.9
6.9
-7.6
6.9 6.9
0.1 0
6.9
6.9
-7.6
6.9 6.9
0.1 0
6.9
6.3
6.9
0.1 0.1
0.1 3.3
6.9
6.9
-7.6
6.9 6.9
0.1 0
6.9
6.3
6.9
0.1 0.1
0.1 3.3
6.9
6.3
6.9
0.1 0.1
0.1 3.3
2.3
0.1
R1027
10k
10k
R1025
MSB709-RT1
Q1007
100
R1104
MSB709-RT1
Q1009
C1028
0.01
16V
1000
C1001
DTC124TKA-T146
Q1005
DAN202K-T-146
D1001
10k
R1029
DTC124TKA-T146
Q1003
R1031
10k
141312111098
7654321
74LVC08APW
IC1003
1A
1B
1Y
2A
2B
2Y
GND3Y
3A
3B
4Y
4A
4B
VCC
0.1
C1006
10k
R1024
MSB709-RT1
Q1006
10k
R1023
MUN2213T1
Q1001
DTC124TKA-T146
Q1002
DTC124TKA-T146
Q1004
10k
R1026
MSB709-RT1
Q1008
1000p
C1023
MUN2213T1
Q1012
MUN2213T1
Q1010
MUN2213T1
Q1011
MUN2213T1
Q1013
0
R1022
A+5V
47
R1040
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
TC74LCX541FT(EKJ)
IC1001
120
R1043
120
R1044
120
R1045
120
R1046
47
R1047
47
R1041
100
R1013
100
R1010
R1007 120
R1008 100
100
R1009
100
R1011
R1084
68
R1068
68
R1076
68
SW+10V
100
R1012
100
R1014
100
R1015
100
R1016
120
R1004
120
R1017
LS-
LS+
RS+
RS-
LB-
LB+
RB+
RB-
C-
C+
SW+
SW-
100
R1062
Q1017
MSB709-RT1
10k
R1050
0.1
C1012
XX
R1057
0.1
C1022
MUTE2L
XX
R1054
R+
MUN2213T1
Q1019
10k
R1052
16V
47
C1021
XX
R1056
0.1
C1016
L-
C1013
0.01
MUN2213T1
Q1018
MUTE2R
16V
39
C1014
DTC124TKA-T146
Q1014
10k
R1053
0.1
C1019
Q1016
MSB709-RT1
10k
R1051
0.5%10k
R1066
L+
XX
R1055
DTC124TKA-T146
Q1015
16V
47
C1018
R-
28
27
26
25
24
23
22
7
6
5
4
3
2
1
21
20
16
17
18
19
13
12
11
10
8
9
1514
PCM1796DBR
IC1004
16V
47
C1020
MUTE_B
MUTE_S
MUTE_C
MUTE_F
100
R1018
100
R1019
100
R1020
100
R1021
0.1
C1007
R1049
0
SPDIF
XX
R1058
120
R1060
120
R1059
DAC3.3V
C1011
1000p
SPDIF_GND
47
R1042
1
C1009
1
C1010
0.1
C1008
47
R1037
47
R1038
68
R1036
R1039
XX
R1002
0
PCONT3
D3.3V
R1003
0
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
TC74LCX541FT(EKJ)
IC1002
120
R1032
120
R1033
120
R1034
R1048
0
100
R1035
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26P
CN1001
D_GND
C1072
1000p
UNSW5.8V
R1109
22
R1110
XX
R1124
XX
JL1001
16V
47
C1043
28
27
26
25
24
23
22
7
6
5
4
3
2
1
21
20
16
17
18
19
13
12
11
10
8
9
1514
PCM1796DBR
IC1005
0.1
C1041
0.1
C1015
16V
47
C1042
16V
39
C1033
0.1
C1038
0.1
C1044
0.5%10k
R1005
16V
47
C1040
P_GND
FL+
FR+
FL-
FR-
R1069
68
R1100
68
R1077
68
R1085
XX
16V
39
C1035
16V
47
C1049
1000p
C1069
R1086
47
100
R1105 0.1
C1051
R1070
47
R1079
47
R1071
47
R1101
47
16V
47
C1050
16V
47
C1047
0.1
C1027
0.1
C1048
1000p
C1024
R1087
XX
R1078
47
C1030
0.01
28
27
26
25
24
23
22
7
6
5
4
3
2
1
21
20
16
17
18
19
13
12
11
10
8
9
1514
PCM1796DBR
IC1006
0.5%10k
R1006
0.1
C1045
0.1
C1058
R1089
XX
16V
47
C1057
0.1
C1052
16V
47
C1056
R1072
47
16V
47
C1054
R1080
47
1000p
C1070
0.1
C1029
R1081
47
C1032
0.01
R1088
47
0.1
C1055
R1073
47
28
27
26
25
24
23
22
7
6
5
4
3
2
1
21
20
16
17
18
19
13
12
11
10
8
9
1514
PCM1796DBR
IC1007
100
R1106
1000p
C1025
16V
39
C1036
R1102
47
0.5%10k
R1061
R1075
47
0.1
C1065
R1083
47
R1082
47
100
R1107
R1074
47
28
27
26
25
24
23
22
7
6
5
4
3
2
1
21
20
16
17
18
19
13
12
11
10
8
9
1514
PCM1796DBR
IC1008
C1034
0.01
R1091
XX
R1103
47
1000p
C1071 16V
47
C1064
1000p
C1026
R1090
47
16V
47
C1061
0.5%10k
R1063
16V
47
C1063
0.1
C1031
16V
39
C1037
0.1
C1062
0.1
C1059
R1111
100
R1112
100
R1113
100
R1114
100
R1116
100
R1115
100
R1118
100
R1117
100
109876
54321
IC1009
CS2300002-CZZR
VP
GND
CLKOUT
AUX
CLKINFP
FN
M2
M1
M0
50V
47
C1073
0.1
C1074
0.1
C1075
R1119
0
0
R1120
JL1006
R1064
0
R1125
1k
1SS355TE-17
D1002
PFail
6.3V
47
C1076
XX
R1126
XX
R1127
XX
R1128
XX
R1129
C1017
XX
C1039
XX
C1046
XX
C1053
XX
C1060
XX
C1066
XX
C1067
XX
JL1005
0.5%
330
R1130
0.5%
330
R1067
0.5%
330
R1092
0.5%
330
R1093
0.5%
330
R1094
CL10011 CL1002
1SS355TE-17
D1003
1000p
C1068
R1095
XX
R1096
0
10k
R1097
MUN2213T1
Q1020
C1005
1
10k
R1028
22k
R1131
1
C1003
1
C1004
10k
R1030
1
C1002
R1001
0
R1065
0
ADATA0
ADATA1
ADATA2
ADATA3
ALRCK
DAC_XRST
DAC_MC
DAC_MDI
DAC_XCS_2
DAC_MC
DAC_MDI
DAC_MDI
DAC_MC
DAC_XRST
DAC_XCS_8
ALRCK
MCLK0
ABCLK
DAC_MC
DAC_XCS_8
DAC_MDI
MCLK0
ABCLK
ALRCK
DAC_XRST
ALRCK
ABCLK
DAC_XCS_8
MCLK0
DAC_MC
DAC_XRST
DAC_MDI
DAC_MC
MCLK0
DAC_XCS_8
ABCLK
ALRCK
DAC_MDI
DAC_XRST
ADATA3
ADATA2
ADATA1
ADATA0
DAC_XCS_2
DAC_XCS_8
ABCLK
MCLK0
DAC_XRST
AO0MCK
XAMUTE
AO0BD1
AO1BCK
EMMA_CSI0_DAC2_XCS
GND
GND
AO0BD0
GND
DAC_XRST
AO0BCK
GND
AO0BD2
AO1MCK
AO0LRCK
AO1LRCK
EMMA_CSI0_DO
GND
GND
AO0BD3
AO1BD
EMMA_CSI0_CKO
PCONT3
SPDIF
GND
EMMA_CSI0_DAC8_XCS
IoutR-
RST
MDI
MC
ZEROR
DATA
SCK
MS
AGND3L
Vdd
IoutL-
VcomL
IoutL+
AGND3R
ZEROL
LRCK
BCK
DGND
VCC2L
IoutR+
MDO
VCC1
AGND2
VcomR
AGND1
IREF
VCC2R
MSEL
IoutR-
RST
Vdd
MDI
IoutL-
MC
VcomL
ZEROR
IoutL+
DATA
AGND3R
SCK
ZEROL
MS
LRCK
AGND3L
BCK
DGND
VCC2L
IoutR+
MDO
VCC1
AGND2
VcomR
AGND1
IREF
VCC2R
MSEL
AGND1
IoutL-
Vdd
VCC1
AGND3R
DGND
IREF
MS
AGND2
MSEL
VcomL
DATA
VCC2L
VCC2R
MC
LRCK
IoutR-
IoutL+
IoutR+
SCK
AGND3L
VcomR
RST
ZEROR
MDI
MDO
ZEROL
BCK
AGND1
VCC1
AGND3R
DGND
IREF
MS
AGND2
MSEL
VcomL
DATA
VCC2L
VCC2R
MC
LRCK
IoutR-
IoutL+
IoutR+
SCK
AGND3L
VcomR
RST
ZEROR
MDI
MDO
ZEROL
Vdd
BCK
IoutL-
MDO
AGND3L
LRCK
VcomL
DGND
ZEROL
VcomR
IoutR-
DATA
IREF
Vdd
RST
IoutL+
VCC2L
MS
AGND1
BCK
ZEROR
IoutR+
VCC2R
AGND2
VCC1
IoutL-
MDI
SCK
MC
MSEL
AGND3R
IC1005
IC1006
IC1007
IC1008
IC1004
D/A CONVERTER
IC1003
GATE
IC1002
BUFFER
IC1001
BUFFER
CLOCK SHIFT
IC1009
2118
M
D/A CONVERTER
9
D
E
11
N
10 152 5
AU-260 BOARD (1/2)
K
3
I
17
F
1612
C
1 1986
XX MARK:NO MOUNT
20
G
14
A
13
H
L
74
J
B
AU-260
(2/2)
(2/2)
AU-260
(2/2)
AU-260
(2/2)
AU-260
(2/2)
AU-260
22
O
05
P
SWITCH
MUTE DRIVE
SWITCH SWITCH
SWITCH
SWITCH
SWITCH
SWITCH
SWITCH
SWITCH
SWITCH
SWITCH
SWITCH
SWITCH
SWITCH
SWITCH
SWITCHSWITCH
SWITCH
SWITCH
D/A CONVERTER
D/A CONVERTER
D/A CONVERTER
D/A CONVERTER
BOARD
(8/11)
(SEE PAGE 4-21)
CN803
MB-124
4-4
BDP-S5000ES
4-4. AU-260 BOARD (2/2) (AUDIO OUT) • See page 5-2 for printed wiring board.
- Ref. No.: AU-260 board; 20,000 series -
NO MARK:PB MODE
7.6
-2.2
-7.7
0
0
-2.2
-1.2
7.6
0
-7.7
-1.2
-1.2
-1.2
0
7.6
-2.2
-7.7
0
0
-2.2
7.6
-2.2
-7.7
0
0
-2.2
7.6
-2.2
-7.7
0
0
-2.2
7.6
-2.2
-7.7
0
0
-2.2
7.6
-2.2
-7.7
0
0
-2.2
7.6
-2.2
-7.7
0
0
-2.2 7.6
-2.2
-7.7
0
0
-2.2 7.6
-2.2
-7.7
0
0
-2.2 7.6
-2.2
-7.7
0
0
-2.2
-1.2
7.6
0
-7.7
-1.2
-1.2
-1.2
0
-1.2
7.6
0
-7.7
-1.2
-1.2
-1.2
0
-1.2
7.6
0
-7.7
-1.2
-1.2
-1.2
0
-1.2
7.6
0
-7.7
-1.2
-1.2
-1.2
0
-7.7
0
-7.7
0
0.5
0
0.5
0
0.5
0
0.5
0
0.5
0
0.5
0
-7.8
0
-7.8
0
1.5
2.5
5
5
1.5
5
1.3 5
7.6
3.3
1.3 3.3
5.7
3.3
1.3 3.3
5.1
3.3
0
3.2 -7.6
-4.1
-7.6
-0.8
3.2
-8.4
-11.3
11.1
7.6
8.3
0
7.6
-8.5
-11.3
-7.8 8.1
11.1
7.6
10.6
7.4
7.4
5.1
11.1
8765
4321
OPA2132UA/2K5
IC2011
8765
4321
OPA2132UA/2K5
IC2006
8765
4321
OPA2132UA/2K5
IC2007
0.5%
680
R2091
0.5%
680
R2095
0.5%
680
R2092
0.5%
680
R2096
C2068
250V
470p
C2064
250V
470p
C2067
250V
470p
C2063 250V
470p
0.5%
1k
R2101
0.5%
1k
R2102
0.5%
1k
R2103
0.5%
1k
R2104
0.5%
1.2k
R2113
0.5%
1.2k
R2114
0.5%
1.2k
R2115
0.5%
1.2k
R2116
C2074
250V
1500p
C2075
250V
1500p
C2087
250V
470p
C2088
250V
470p
C2081
250V
470p
C2082
250V
470p
0.5%
1.2k
R2108
0.5%
1.2k
R2109
0.5%
1.2k
R2125
0.5%
1.2k
R2124
63V
47
C2092
63V
47
C2095
C2093
0.1
C2094
0.1
0.5%
470
R2129
0.5%
470
R2130
0.1
C2059
0.1
C2060
C2073
0.1
C2072
0.1
0.1
C2091
0.1
C2086
2SD2704K-T146
Q2013
2SD2704K-T146
Q2012
3.3k
R2141
3.3k
R2142
100
R2144
100
R2143
100k
R2136
100k
R2137
250V
C2107
220p
250V
C2108
220p
L-
L+
MUTE2L
R+
R-
MUTE2R
220p
C2054
C2043
0.1
C2040
63V
47
0.5%
47k
R2060
R2083
100
D2006
XX
0.5%
47k
R2061
LB-
4.7k
R2066
R2072
4.7k
C2042
0.1
0.5%
R2064
47k
0.5%
47k
R2062
LS+
0.5%
470
R2050
FL+
FL-
D2005
XX
D2004
XX
4.7k
R2067
Q2003
2SD2704K-T146
47
C2036
63V
C2041
0.1
100
R2081
Q2007
2SD2704K-T146
0.5%
R2055
470
0.5%
R2063
47k
220p
C2051
4.7k
R2069
0.5%
47k
R2059
D2002
XX
C-
R2074
100k
FR-
RS-
C2045
0.1
LB+
C2046
0.1
C2056
220p
RB+
C2048
0.1
R2084
100
C2039
63V
47
0.5%
470
R2054
0.5%
470
R2053
MUTE_F
C2033
63V
47
0.5%
470
R2051
220p
C2049
SW+
100
R2078
MUTE_B
47
C2038
63V
D2001
XX
Q2001
2SD2704K-T146
Q2005
2SD2704K-T146
4.7k
R2070
100
R2082
R2071
4.7k
R2076
100k
0.5%
470
R2052
Q2002
2SD2704K-T146
4.7k
R2068
0.5%
47k
R2057
R2075
100k
4.7k
R2065
Q2004
2SD2704K-T146
MUTE_S
SW-
R2073
100k
Q2006
2SD2704K-T146
D2007
XX
0.5%
R2056
470
Q2008
2SD2704K-T146
100
R2077
MUTE_C
C+
FR+
RB-
LS-
100
R2079
C2044
0.1
C2037
63V
47
220p
C2052
RS+
100
R2080
C2055
220p
C2047
0.1
C2035
63V
47
0.5%
470
R2049
D2008
XX
220p
C2050
220p
C2053
0.5%
47k
R2058
47
C2034
63V
D2003
XX
0.1
C2061
D2013
XX
VCC
IN
GND
GP1FAV51TKSF
IC2008
1
2
3
50V
10
C2065
XX
C2080
J2005
R2094
XX
SPDIF
J2001
J2002
J2003
J2004
J2006
1P
2P
2P
2P
2P
2P
RB160L-40TE25
D2009
2SA1930
Q2009
8
7
6
54
3
2
1
NJM4580MD-(TE2)
IC2010
2SC5171
Q2010
1SS355TE-17
D2014
S
2SK246GR-TPE2
Q2011
I O
COM
NJM7805FA
IC2012
1 2
3
0.1
C2057
RB160L-40TE25
D2011
RB160L-40TE25
D2010
RB160L-40TE25
D2012
C2062
35V
2200
C2069
35V
2200
C2070
35V
2200 47k
R2099
47k
R2100
25V
100
C2076
0.1
C2078
100
R2111
3.3k
R2110
0.001
C2077
3.3k
R2118
0.1
C2085
25V
100
C2083
100
R2123
25V
100
C2090
0.1
C2089
100
R2126
39k
R2127
63V
47
C2096
0.1
C2097
A+5V
5
43
2
1
TK11133CSCL-G
IC2015
0.1
C2106
0.1
C2103
DAC3.3V
1
2
3
4
4P
CN2001
D2017
XX
0.5%
47k
R2134
0.5%
47k
R2135
5
43
2
1
TK11133CSCL-G
IC2014
D3.3V
PCONT3
0.1
C2102
0
R2132
XX
C2099
XX
C2100
0
R2133
220
R2098
68
R2117
0.1
C2058
22p
C2071
5
43
2
1
IC2005
TC7SET08FU(T5RSOJF)
0
R2093
5
43
2
1
TK11150CSCL-G
IC2013
XX
C2098
0
R2131
0.1
C2104
0.1
C2101
SPDIF_GND
D2016
XX
0
R2088
0
R2087
0
R2086
0
R2085
JL2001
JL2002
16V
39
C2112
50V
10
C2111
0.1
C2109
0.1
C2110
4
3
1
2
IC2016
XX
0.1
C2113
C2114
XX
0
R2147
C2115
0.1
C2116
XX
1
2
3 4
6
L2001
450uH
R2148
10k
150
R2149
C2117
0.1
47
R2151
470pC2139
0.5%
1k
R2027
0.5%
1k
R2028
470p
C2123
0.5%
1.2k
R2105
470p
C2124
8765
4321
NJM2114M-TE2
IC2002
0.5%
680
R2017
0.5%
1.2k
R2106
0.5%
1.2k
R2041
0.5%
680
R2010
0.5%
1.2k
R2107
0.5%
1.2k
R2042
8765
4321
NJM2114M-TE2
IC2001
0.5%
1.2k
R2112
0.5%
1.2k
R2160
1500p
C2066
0.5%
1.2k
R2156
0.1
C2001
0.1
C2002
470p
C2010
470p
C2017
0.1
C2026
0.5%
680
R2018
470pC2009
0.1
C2025
0.5%
1k
R2025
470p
C2018
8765
4321
NJM2114M-TE2
IC2020
0.1
C2143
1500p
C2079
0.1
C2131
470p
C2135
0.5%
680
R2009
0.5%
1k
R2026
0.1
C2132
8765
4321
NJM2114M-TE2
IC2004
470p
C2126
0.5%
1.2k
R2043
0.5%
1.2k
R2157
0.5%
1k
R2032
0.5%
680
R2012
0.1
C2003
0.5%
1.2k
R2161
470pC2011
470p
C2136
0.5%
1.2k
R2121
0.1
C2027
0.1
C2004
0.5%
1k
R2029
470p
C2012
0.5%
680
R2011
0.5%
1.2k
R2044
1500p
C2084
470p
C2019
470p
C2020
470pC2140
0.5%
1k
R2030
0.5%
1.2k
R2119
470p
C2125
8765
4321
NJM2114M-TE2
IC2003
0.1
C2028
0.5%
680
R2019
0.5%
1.2k
R2122
8765
4321
NJM2114M-TE2
IC2021
0.5%
680
R2020
0.1
C2144
1500p
C2118
0.5%
1k
R2031
0.5%
1.2k
R2120
8765
4321
NJM2114M-TE2
IC2017
470p
C2128
0.5%
1.2k
R2138
0.5%
1.2k
R2045
8765
4321
NJM2114M-TE2
IC2022
470p
C2127
470pC2141
0.5%
1.2k
R2158
0.5%
1k
R2036
0.5%
680
R2014
0.5%
1k
R2035
0.1
C2005
0.5%
1.2k
R2140
0.5%
1.2k
R2162
0.5%
1.2k
R2128
0.5%
680
R2021
470p
C2021
470pC2013
1500p
C2120
470p
C2137
0.5%
1.2k
R2139
0.1
C2145
470p
C2022
0.1
C2029
0.1
C2030
0.1
C2006
0.5%
1k
R2033
470p
C2014
0.5%
680
R2022
0.5%
680
R2013
0.5%
1k
R2034
0.1
C2133
0.5%
1.2k
R2046
8765
4321
NJM2114M-TE2
IC2009
1500p
C2119
0.5%
680
R2024
470pC2015
0.1
C2032
0.1
C2146
470p
C2023
0.1
C2008
0.5%
1.2k
R2048
0.5%
680
R2023
0.1
C2031
1500p
C2122
0.5%
1.2k
R2152
0.5%
1.2k
R2163
0.5%
1.2k
R2155
0.1
C2007
0.5%
1k
R2039
0.5%
680
R2016
0.1
C2134
0.5%
1k
R2038
0.5%
1k
R2040
0.5%
1.2k
R2154
0.5%
1.2k
R2159
0.5%
680
R2015
470p
C2024
470p
C2016
470pC2142
470p
C2129
1500p
C2121
8765
4321
NJM2114M-TE2
IC2023
8765
4321
NJM2114M-TE2
IC2018
0.5%
1.2k
R2047
470p
C2138
0.5%
1.2k
R2153
0.5%
1k
R2037
470p
C2130
8765
4321
NJM2114M-TE2
IC2019
XX
R2164
0.1
C2105
XX
C2147
1
2
3
3P
CN2003
GND
FAN_DET1
FAN_OUT1
D_GND
UNSW5.8V
0.1
C2148
1
2
3
4
5
6
6P
CN2002
PFail
UDZSNPTE-177.5B
D2018
XX
C2150
R2165
XX
MUN2213T1
Q2014
R2167
XX
UDZSNPTE-1715B
D2019
M1FM3
D2020
M1FM3
D2021
M1FM3
D2022
M1FM3
D2023
XX
R2089
0
R2090
0
R2166
XX
R2097
R2168
10k
R2169
10k
R2170
47k
MUN2213T1
Q2016
MUN2213T1
Q2015
XX
C2152
XX
C2151
C2149
XX
SW+10V
XX
C2153
XX
C2154
XX
R2172
R2171
0
CL2001
CL2002
47k
R2173
R2174
0
0
R2175
XX
R2145
0.1
C2155
P_GND
0.1
C2156
AC_10V
N.C
GND
AC_10V
UNSW5.8V
GND
GND
FAN_OUT1
FAN_DET1
AU3.3VDET
CONT
GND
NOISE
IN
OUT
GND
IN
NOISE OUT
CONT
GND
IN
NOISE OUT
CONT
GND
Vin
Vout
DLY
V+
V-
O
-
+
+
-
O
+
-O
V+
V-
+
O
-
INB
INA
GND
Vcc
OUTY
AMP
IC2020
IC2001
AMP
IC2002
AMP
IC2003
IC2021
AMP
AMP
IC2004
AMP
IC2009
IC2022
AMP
AMP
IC2017
AMP
IC2018
IC2023
AMP
AMP
IC2019
AMP
CENTER
FRONT
POWER
TRANSFORMER
L
AMP
IC2006
IC2007
AMP
AMP
IC2011
AU-260
(1/2)
(1/2)
AU-260
AU-260
(1/2)
2118
M
AUDIO OUT
9
D
E
11
N
10 152 5
AU-260 BOARD (2/2)
K
3
I
17
05
F
1612
C
1 1986
XX MARK:NO MOUNT
20
G
14
A
13
H
L
74
J
B
A+5V REGULATOR
IC2012
IC2010
AMP
O
+5V REGULATOR
IC2013
IC2014
D+3.3V REGULATOR
IC2015
DAC+3.3V REGULATOR
AU-260
(1/2)
22 23 24 25
IC2005
GATE
IC2008
OPTICAL TRANSMITTER
O -
+
-
O
+
V-
V+
O -
+
-
O
+
V-
V+
O -
+
-
O
+
V-
V+
O -
+
-
O
+
V-
V+
O -
+
-
O
+
V-
V+
O -
+
-
O
+
V-
V+
O -
+
-
O
+
V-
V+
O -
+
-
O
+
V-
V+
O -
+
-
O
+
V-
V+
O -
+
-
O
+
V-
V+
O -
+
-
O
+
V-
V+
O -
+
-
O
+
V-
V+
O -
+
-
O
+
V-
V+
O -
+
-
O
+
V-
V+
MULTI
CHANNEL
OUTPUT
MULTI
CHANNEL
OUTPUT
MULTI
CHANNEL
OUTPUT
(L)
(R)
FRONT
(L)
SURROUND
SURROUND
(R)
(L)
(R)
SUR BACK
SUR BACK
(OPTICAL)
DIGITAL OUT
DIGITAL OUT
(COAXIAL)
AUDIO OUT
R
T101
WOOFER
SUB
MULTI
CHANNEL
OUTPUT
M
M2001
(FAN)
(3/3)
BOARD
IFD-002
(SEE PAGE 4-13)
CN502
MUTING
MUTING
MUTING
MUTING
MUTING
MUTING
MUTING
MUTING
MUTING
MUTING
B+ SWITCH
SWITCH
B- SWITCH
Q2014-Q2016
P FAIL SWITCH
4-5
BDP-S5000ES
4-5. ET-001 BOARD (ETHER, CONTROL S IN) • See page 5-4 for printed wiring board.
- Ref. No.: ET-001 board; 30,000 series -
1
2
3
4
5
6
7
8
8P
CN1602
1
2
3
4
5
6
7
8
8P
CN1603
D1601
XX
0
R1601
1k
R1603
0.1
C1601
JL1606
J1601
JL1605220
R1602
1
2
2P
CN1601
GND
GTRL_S
LAN (100)
BOARD
MB-124
CN8001
(11/11)
(SEE PAGE 4-24)
(SEE PAGE 4-13)
(3/3)
CN501
IFD-002
BOARD
CONTROL S IN/
IR IN
ETHER, CONTROL S IN
D
2 5
ET-001 BOARD
3
05
C
1
XX MARK:NO MOUNT
A
4
B
4-6
BDP-S5000ES
4-6. FC-095 BOARD (FLD, SIRCS) • See page 5-5 for printed wiring board.
- Ref. No.: FC-095 board; 20,000 series -
NO MARK:PB MODE
-19.7
-12.9
-12.9
3.3
-12.9
-17.7
-17.7
-17.7
-17.7
-17.7
-19.7
-17.5
-19.7
-12.9
-12.9
-17.7
3.3
-17.7
-17.7
-15.2
-19.7
-19.7
-10.5
-19.7
-12.9
-15.2
-19.9
-12.9
-20.1
2.6
1.8
3
0.1
3.3
3.2
4.9
5.7
5.7
3.3
0.1
0.2
5.6
5.6
0.2
0.1
C211
0.1
C213
2
3
5
6
8
7
1
10
4
9
T201
D201
1SS355TE-17
D204
1SS355TE-17
100k
R211
16V
100
C203
0.01
C214
R212 XX
D202
1SS355TE-17
C216
0.1
1
2
3
4
5
6
7
8
9
10
11
12 13 14 15 16 17 18 19 20 21 22
23
24
25
26
27
28
29
30
31
32
33
34353637383940
41424344
IC202
PT6315
LED1
LED2
LED3
LED4
OSC
DOUT
DIN
CLK
STB
K1
K2
VSS
VDD
SG1
SG2
SG3
SG4
SG5
SG6
SG7
SG8
SG9
SG10
SG11
SG12
SG13
SG14
SG15
SG16
VEE
SEG17
SEG18
NC
NC
GR8
GR7
GR6
GR5
GR4
GR3
GR2
GR1
VDD
VSS
27k
R210
3.9k
R206
C215
0.01
C207
6800p
250V
XX
C210
Q205
2SC2411K-T-146-CR
50V
22
C212
XX
R205
XX
C209
D203
1SS355TE-17
D205
MM3Z4V7ST1
Q204
2SC2411K-T-146-CR
XX
C206
47
R202
0.01
C205
2SB1197K-T-146-R
Q202
MUN2211T1
Q201
10k
R201
R203
XX
C201
0.1
470
R204
C202
XX
R208
0
C208
XX XX
R207
XX
R209
Q206
XX
16V
C204
47
Q203
XX
1
2
3
4
5
6
7
8
9
CN202
9P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19P
CN201
VCC
OUT
GND
GP1UE27XK0VF
IC201
123
4
5
JL201
JL202
JL203
JL204
JL205
JL206
JL207
JL208
JL209
JL210
JL211
JL212
JL213
JL214
JL215
JL216
JL217
JL218
JL220
JL219
JL221
JL222
JL229
JL224
JL223
JL236
JL225
JL226
JL228
JL227
JL241
JL243
JL238
JL237
JL244
JL239
JL240
JL242
JL245
JL246
JL254
JL248
JL249
JL234
JL235
JL230
JL231
JL232
JL233
JL250
JL251
100uH
L201
ND201
1 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 34 352 4
JL252
JL253
JL247
0.4A
PS201
150p
C220
150p
C217
150p
C218
SEG11
SEG4
SEG10
SEG3
SEG2
SEG1
GRD8
GRD7
GRD6
GRD5
GRD4
GRD3
GRD2
GRD1
SEG16
SEG9
SEG15
SEG8
SEG14
SEG7
SEG13
SEG6
SEG12
SEG5
GRD1
GRD2
GRD3
GRD4
GRD5
GRD6
GRD7
GRD8
SEG16
SEG15
SEG14
SEG13
SEG12
SEG11
SEG10
SEG9
SEG8
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
SEG17
SEG18
SEG18
SEG17
IT_3.3V
GND
FR_6V
FR_6V
GND
LED_DIM
FLD_PCONT
LED_DT
LED_CK
FLD_STB
LED SBM
KEY 0
SIRCS
GND
LED_DIM
GND
LED_24P
FR_6V
KEY 0
GND
LED HD AUDIO
FR_6V
LED BD LIVE
IT_3.3V
GND
GND
LED HD AUDIO
LED 24P
IC201
REMOTE CONTROL
FL DRIVER
IC202
FLUORESCENT INDICATOR TUBE
RECEIVER
BOARD
FR-292
CN364
(SEE PAGE 4-8)
CN331
FL-186
BOARD
(SEE PAGE 4-7)
Q201, Q202
FL DRIVE SWITCH -VF DC/DC CONVERTER
Q204, Q205
FLD, SIRCS
9
D
E
11102 5
FC-095 BOARD
3
05
F
12
C
1 86
XX MARK:NO MOUNT
G
A
13
H
74
B
Note:
The components identified
by mark 0 or dotted line
with mark 0 are critical for
safety.
Replace only with part num-
ber specified.
Note:
Les composants identifiés par
une marque 0 sont critiquens
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spéci-
fié.
4-7
BDP-S5000ES
4-7. FL-186 BOARD (POWER SWITCH, LED) • See page 5-6 for printed wiring board.
- Ref. No.: FL-186 board; 20,000 series -
NO MARK:PB MODE
0
0.1
3.9
0
0.1
3.7
0
0.1
4
S331
470
R331
470
R333
470
R332
RT1N140M-TP-1
Q331
RT1N140M-TP-1
Q332
RT1N140M-TP-1
Q333
1
2
3
4
5
6
7
8
9
CN331
9P
JL3310
JL332
JL333
JL334
JL335
JL336
JL337
SDPB31H3C0100
D331
SDPB31H3C0100
D332
SDPB31H3C0100
D333
LED_DIM
LED_24P
KEY 0
LED HD AUDIO
LED SBM
GND
FR_6V
GND
FR_6V
SBMHD AUDIO 24P
POWER SWITCH, LED
D
E
2 5
FL-186 BOARD
3
05
C
1
XX MARK:NO MOUNT
A
4
B
CN202
FC-095
(SEE PAGE 4-6)
BOARD
Q331-Q333
LED DRIVE
/
4-8
BDP-S5000ES
4-8. FR-292 BOARD (KEY) • See page 5-7 for printed wiring board.
- Ref. No.: FR-292 board; 30,000 series -
NO MARK:PB MODE
0.1
3.3
0.1
0.1
0.8
0.1
0.1
0.7
5
0
0.1
2.2k
R362
2.2kR361
2SD1664-T100-QR
Q362
2.2k
R363
10k
R364
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19P
CN364
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
CN361
25P
JL361
JL362
JL363
JL364
JL365
JL366
JL367
JL368
JL369
JL370
JL371
JL372
JL373
JL374
JL375
JL376
JL377
JL378
JL379
RT1N140M-TP-1
Q363
RT1N140M-TP-1
Q364
JL380
JL381
JL382
JL383
JL384
JL385
JL386
JL387
JL388
JL389
JL3601
JL3602
JL3603
JL3604
JL3605
S361 S362 S363
S364
1
2
3
4
4P
CN362
JL3606
1
2
3
4
4P
CN363
0.1
C361
JL3607
JL3608
4.7k
R365
XX
R366
2SC2411K-T-146-CR
Q361
IT_3.3V
IT_3.3V
GND
FR_6V
FR_6V
GND
LED_DIM
FLD_PCONT
LED_CK
GND
LED_DT
FLD_STB
LED_24P
GND
SIRCS
KEY0
LED HD AUDIO
LED SBM
GND
IT_3.3V
GND
FR_6V
FR_6V
GND
LED_DIM
FLD_PCONT
LED_CK
GND
LED_DT
FLD_STB
LED_ 24P
KEY 1
SIRCS
LED PAUSE
LED BD
LED HD AUDIO
LED SBM
IT_3.3V
GND
GND
KEY 2
KEY 3
KEY 0
LED PLAY
PAUSE
GND
FR_6V
PLAY
FR_6V
BD-ON
GND
BD-ON2
(3/3)
(SEE PAGE 4-13)
BOARD
IFD-002
CN504
BOARD
(SEE PAGE 4-9)
FS-089
CN301
CN351
(SEE PAGE 4-10)
FT-094
BOARD
CN201
(SEE PAGE 4-6)
FC-095
BOARD
LED DRIVE
LED DRIVE
LED DRIVE
LED DIMMER
SWITCH
KEY
9
D
E
102 5
FR-292 BOARD
3
05
C
1 86
XX MARK:NO MOUNT
A
74
B
4-9
BDP-S5000ES
4-9. FS-089 BOARD (LED) • See page 5-8 for printed wiring board.
- Ref. No.: FS-089 board; 40,000 series -
SEL5521C-TP15
D301
SEL5821A-TP15
D302
330
R301
330
R302
JL301
JL302
JL303
JL304
1
2
3
4
4P
CN301
FR_6V
GND
PAUSE
PLAY
CN362
(SEE PAGE 4-8)
BOARD
FR-292
LED
2
FS-089 BOARD
3
05
1
XX MARK:NO MOUNT
A
4
B
4-10
BDP-S5000ES
4-10. FT-094 BOARD (CENTER LED) • See page 5-9 for printed wiring board.
- Ref. No.: FT-094 board; 50,000 series -
470
R351
NSPW-310BST-A0S
D351
NSPW-310BST-A0S
D352
JL351
JL352
JL353
1
2
3
4
4P
CN351
NSPW-310BST-A0S
D353
470
R352
180
R353
BD-ON
FR_6V
GND
BD-ON2
BOARD
(SEE PAGE 4-8)
CN363
FR-292
D351-D353
(DISC TRAY ILLUMINATION)
CENTER LED
2
FT-094 BOARD
3
05
1
XX MARK:NO MOUNT
A
B
4-11
BDP-S5000ES
4-11. IFD-002 BOARD (1/3) (POWER) • See page 5-10 for printed wiring board.
- Ref. No.: IFD-002 board; 30,000 series -
NO MARK:PB MODE
0.8
3.6
3.3 12.2
3.4
1
8.3
0.8
3.6
3.3 12.2
1.5
0.9
6.3
5
3.3
5.7
1.3
5.7
5.7
3.3
0.5
2.7
5
0
5
0
2.7
1
0
5 4
321
S-1170B50UC-OUJTFG
IC104
10uH
L102
C118
XX
1k
R124
PCONT3
D102
XX
D104
XX
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15P
CN102
1
2
3
4
5
6
7
8
9
10
11
12
13
CN101
13P
22
C131
JL102
UNSW3.3V
C129
XX
0
R130
UNSW5.8V
XX
C102
D103
XX
1k
R122
4.7
C133
0.01
C124
JL113
0.5%
22k
R126
PCONT1
8765
4321
MP2303DN-LF-Z
IC103
6.8k
R123
JL112
R105
1k
4.7
C122
R116
1k
22
C132
0.01
C126
0
R125
0.01
C107
0.5%
10k
R128
XX
C120
1
C103
22
C130
1
C108
GND
0.047
C127
5 4
321
TK11133CSCL-G
IC101
22
C128
10
C121
10
C119
0
R129
UNSW12V
JL115
C134
XX
0.5%
10k
R127
JL114
JL108
330
R107
330
R109
330
R111
XX
R108
XX
R110
XX
R112
C106 XX
0.22
C105
0.022
C110
0
R102
10
C104
0.5%
4.7k
R103
0.5%
4.7k
R104
0.01
C109
1k
R101
8765
4321
MP2303DN-LF-Z
IC102
10
C101
0.5%
10k
R106
10uH
L101
C111
XX
XX
R113
XX
R114
D105
XX
1A
PS101
1A
PS102
2.5A
PS103
SW3.3V
RT1N441M-TP-1
Q102
RT1N441M-TP-1
Q103
S
RTR020P02TL
Q101
RT1N140M-TP-1
Q104
ATA_PCONT
R117
1k
XX
R118
4.7k
R115
0.5%
10k
R132
XX
R120
10k
R121
10k
R119
XX
C112
22
C113
XX
C114
47k
R131
AU3.3VDET
AU3.3VDET_OUT
R133
XX
SW3.3V
GND
GND
GND
GND
SS
GND
GND
VIN
FB
SW3.3V
IN
Vout
UNSW12V
BS
NC
SW
VOUT
GND
EN
COMP
UNSW12V
Vin
CE
GND
GND
UNSW5.8V
UNSW12V
ATAPCONT
GND
GND
VSS
ON/OFF
SW1.55V
PON
GND
DCSW5V
UNSW5.8V
NP
SW1.55V
SW1.55V
SS
SW
EN IN
BS
COMP
GNDFB
UNSW5.8V
UNSW5.8V
UNSW5.8V
UNSW5.8V
UNSW5.8V
IC103
SW +3.3V
SW +1.55V
IC102
UNSW +3.3V
IC101
IC104
DCSW +5V
POWER
9
D
E
11102 5
IFD-002 BOARD (1/3)
3
I
05
F
12
C
1 86
XX MARK:NO MOUNT
G
A
13
H
74
B
IFD-002
(3/3)
(2/3)
IFD-002
(3/3)
(2/3)
IFD-002
POWER
BLOCK
(1/2)
SWITCH
SWITCH
SWITCH
SWITCH
REGULATOR
REGULATOR
REGULATOR
REGULATOR
MB-124
CN301
(3/11)
(SEE PAGE 4-16)
BOARD
IFD-002
(2/3)
Note:
The components identified
by mark 0 or dotted line
with mark 0 are critical for
safety.
Replace only with part num-
ber specified.
Note:
Les composants identifiés par
une marque 0 sont critiquens
pour la sécurité.
Ne les remplacer que par
une pièce portant le numéro
spécifié.
4-12
BDP-S5000ES
4-12. IFD-002 BOARD (2/3) (IF CONTROLLER) • See page 5-10 for printed wiring board.
- Ref. No.: IFD-002 board; 30,000 series -
NO MARK:PB MODE
21
22
0
3.3
0
3.3
0
0
2.3
3.3
3.3
3.2
0.1
3.3
3.3
0
3.3
0
3.3
0
3.3
3.3
0
3.3
0
0.1
3.3
3.3
3
3.3
0
0.2
3.2
0
3.3
3.3
0
3.3
3.2
2.9
3
3.3
3.3
3.2
3.3
3.2
0
3.3
3.3
3.2
1.4
1.7
1.2
2.6
0.3
3.3
3.2
3.3
2.9
3.3
3.3
1.4
1.4
0
3.2
0
5.7
3.2
10MHz
X402
100
R411
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 18 19 20 21 22 29282726252423 30 31 32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49505152535455565758596061626364
R5F212A7SNA05FA
IC402
100R414
100
R412
0.1
C410
JL4011
JL402
JL403
JL404
JL405
JL417
JL419
JL421
JL423
JL425
JL427
JL431
JL433
JL452
JL451
JL450
JL447
JL446
JL445
JL444
JL443
JL442
JL428
JL415
JL411
JL409
100R419
100R426
470R430
100R432
100R423
XX
R446
0R458
470R457
0
R454
0R451
100R463
100R462
100
R461
100
R449
100
R448
100
R417
100
R415
0R431
1.2k
R429
0R422
0R420
XX
R436 10k
R440
10k
R465
10k
R466
10kR467
10k
R469
0.1
C417
0.1
C416
0.1
C415
0.1C413
0.1C414
32.768kHz
X401
18p
C404
27p
C403
0
R405
10kR428
0.1
C405
0.1
C411
0.1
C412
PCONT2
GND
PCONT4
ATA_PCONT
PCONT3
PCONT1
10kR427
UNSW3.3V
FAN_CONT2
FAN_CONT0
HDMI_PCONT
SYSCON_RST
FAN_CONT1
TEMP
FAN_DET1
IF_SCK
IF_SDI
IF_SDO
START_BIT
SYSCON_REQ
CEC
XXR421
FLD_PCONT
FLD_STB
LED_DIMMER
FLD_SCK
FLD_SDO
10k
R468
KEY3
KEY1
KEY0
0.1
C418
1
2
3
4
5
6
7
7P
CN402
100k
R470
1
2
3
4
5
CN403
XX
0.1
C409
4.7k
R409
SIRCS_IN
TH401
XX
0.5%
2.7k
R450
100kR435
100k
R471
22k
R410
220k
R472
27k
R407
R439 10k
R443 XX
220k
R408
16V
47
C406
S402
UNSW5.8V
XXC428
10k
R406
100k
R445
XX
R447
KEY2
XIF_CS
4
3
1
2
PST8228UL
IC401
100R464
100k
R455
100k
R453
100kR452
100k
R418
100k
R442
XX
R473
LED0
LED1
LED2
LED3
LED4
LED5
100k
R403
100k
R404
100kR401
100kR402
232C_IF_RXD
232C_IF_TXD
UN2113-TX
Q402
2SB709A-QRS-TX
Q403
UN2213-TX
Q404
0
R437
47k
R433
2.2k
R416
0.0047
C401
1k
R434
CTRL_S
4
3
1
2
PST8250UL
IC403
VOUT
VDD NC
GND
JL453
AU3.3VDET
JL456
10k
R474
XX
R413
SW3.3V
XXR424
XX
R425
AU3.3VDET_OUT
UN2213-TX
Q405
470k
R438
START_BIT
FAN_CONT1
TEMP
IF_SDI
FAN_CONT2
FAN_CONT1
FAN_CONT0
PCONT1
PCONT4
ATA_PCONT
HDMI_PCONT
SYSCON_REQ
FLD_STB
SYSCON_RST
SYSCON_REQ
FAN_DET1
IF_SDO
LED_DIMMER
FLD_PCONT
FLD_STB
FLD_SDO
KEY0
KEY1
KEY3
HDMI_PCONT
KEY2
XIF_CS
XIF_CS
LED0
LED1
LED2
LED3
LED4
LED5
FLD_SCK
FLD_PCONT
LED_DIMMER
ATA_PCONT
SYSCON_RST
KEY3
FAN_CONT2
LED5
LED4
KEY2
KEY1
PCONT4
FLD_SDO
FLD_SCK
FAN_CONT0
FAN_DET1
LED3
IF_SDO
PCONT1
LED0
START_BIT
IF_SCK
PCONT2
PCONT3
IF_SCK
PCONT2
LED2
LED1
PCONT3
IF_SDI
KEY0
TEMP
ATA_PCONT
KEY1
LED5
LED4
LED0
XCOUT
CLK_OUT
232C_IF
KEY2FLD_STB
NC
SYSCON_RST
AVSS
START_BIT
MODE
LED_DIMMER
TXD1
XIF_CS
PFAIL
NC RXD1
KEY3
/RESET
232C_IN
AVCC
NC
XCIN
232C_OUT
XIN
XOUT
SYSCON_REQ
AU3.3VDET
IF_SDI
LED2
CEC_IN
PCONT1
LED3
CEC_OUT
PCONT4
HDMI_
PCONT
IF_SCK
PCONT2
SIRCS_IN
LED1
IF_SDO
FLD_SDO
FAN_DET2
FAN_DET1
KEY0
VCC
VSS
FLD_SCK
DEST2
FAN_CONT2
FAN_CONT1
DEST1
TEMP
VREF
NC
FLD_PCONT
FAN_CONT0
MODE
GND
VCC
NC
IF_RXD
IF_TXD
RESET
NC
MODE
RESET
VCC
GND
NC
GND
VCC
OUT
PCONT3
NC(PCONT2)
NC(PCONT3)
IC402
SUB SYSTEM CONTROL
IFD-002
(1/3)
(3/3)
IFD-002
(1/3)
(3/3)
IFD-002
(3/3)
IFD-002
IC403
P FAIL
(3/3)
IFD-002
(1/3)
(3/3)
IFD-002
IFD-002
(1/3)
IC401
RESET
IF CONTROLLER
9
D
E
11102 5
IFD-002 BOARD (2/3)
3
05
F
12
C
1 86
XX MARK:NO MOUNT
G
A
H
74
B
H
13
IFCON
WRITTER
FLASH
(RESET)
Q402-Q405
SIRCS SWITCH
4-13
BDP-S5000ES
4-13. IFD-002 BOARD (3/3) (FAN CONTROL) • See page 5-10 for printed wiring board.
- Ref. No.: IFD-002 board; 30,000 series -
NO MARK:PB MODE
0
0
0
12.2
0
0
0
0
JL502
UNSW12V
FAN_CONT0
0.5%
6.8k
R501
Q501
MUN2213T1
1
C503
0.5%
820
R503
1
C501
Q503
MUN2213T1
FAN_DET1
FAN_CONT2
FAN_CONT1
JL503
0.5%
1.2k
R504
0.5%
2k
R502
GND
FLD_PCONT
KEY2
KEY1
SIRCS_IN
FLD_SDO
LED_DIMMER
LED1
FLD_STB
FLD_SCK
LED0
LED5
LED2
LED3
LED4
232C_IF_RXD
232C_IF_TXD
UNSW3.3V
CTRL_S
0
R516
0
R517
1k
R511
KEY3
KEY0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25P
CN504
START_BIT
PCONT3
PCONT2
IF_SDI
IF_SDO
TEMP
IF_SCK
HDMI_PCONT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19P
CN503
XIF_CS
PCONT4
SYSCON_REQ
SYSCON_RST
CEC
UNSW5.8V
1
2
3
4
5
6
6P
CN501
AU3.3VDET
1
2
3
4
5
6
6P
CN502
12345
PQ200WNA1ZPH
IC501
1A
PS501
FAN_DET1
GND
FAN_OUT1
IT_3.3V
LED_DIM
GND
GND
LED 1(24P)
FLD_PCONT
SIRCS
FR_6V
KEY 1
LED_DT
FR_6V
KEY 2
FLD_STB
LED_CK
KEY 3
GND
GND
KEY 0
GND
LED 3(HD_AUDIO)
LED 2(BD_LIVE)
LED 4(PAUSE)
LED 5(PLAY)
LED 0(BD)
IT_3.3V
UNSW3.3V
232C_TXD
GND
232C_RXD
GND
CTRL_S
XIF_CS
CEC
PCONT2
GND
GND
PCONT3
IF_START_BIT
IF_SDO
GND
HDMI_PCONT
TEMP
IF_SDI
GND
SYSCON_REQ
GND
GND
PCONT4
IF_SCK
XIF_RST
GND
AU3.3VDET
UNSW5.8V
Vin
CONT
Vout
ADJ
GND
(2/3)
IFD-002
(2/3)
IFD-002
(1/3)
IFD-002
(2/3)
FAN CONTROL
IC501
(2/3)
IFD-002
(1/3)
IFD-002
(1/3)
(2/3)
IFD-002
FAN CONTROL
9
D
E
102 5
IFD-002 BOARD (3/3)
3
05
F
C
1 86
XX MARK:NO MOUNT
A
74
B
(SEE PAGE 4-4)
(2/2)
BOARD
CN2002
AU-260
(SEE PAGE 4-25)
BOARD
RS-088
CN601
CN1601
ET-001
BOARD
(SEE PAGE 4-5)
CN361
FR-292
BOARD
(SEE PAGE 4-8)
(SEE PAGE 4-22)
MB-124
CN904
BOARD
(9/11)
Q501, Q503
FAN SPEED CONTROL
11
Note:
The components identified
by mark 0 or dotted line
with mark 0 are critical for
safety.
Replace only with part num-
ber specified.
Note:
Les composants identifiés par
une marque 0 sont critiquens
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spéci-
fié.
4-14
BDP-S5000ES
4-14. MB-124 BOARD (1/11) (DDR2-A) • See page 5-12 for printed wiring board.
- Ref. No.: MB-124 board; 10,000 series -
DDR2_1.8V
GND
1000p
C107
1000p
C108
1000p
C109
1000p
C110
1000p
C111
1000p
C112
1000p
C113
1000p
C114
1000p
C115
1000p
C116
1000p
C142
1000p
C144
1000p
C147
1000p
C149
1000p
C146
1000p
C151
1000p
C153
1000p
C155
1000p
C124
1000p
C133
1000p
C128
1000p
C137
1000p
C129
1000p
C126
1000p
C131
1000p
C135
1000p
C125
1000p
C127
1000p
C130
1000p
C132
1000p
C136
1000p
C134
1000p
C138
1000p
C143
1000p
C145
1000p
C156
1000p
C154
1000p
C150
1000p
C152
1000p
C148
0.1
C105
1
C123
0.1
C140
XX
R157
1
C141
0.1
C158
XX
R136
68R124
68R123
47R126
47R127
JL108
JL109 XX
R117
XX
R118
XX
R119
XX
R120
XX
R121
XX
R122
R116 XX
R113 XX
R114 XX
R115 XX
R111 X X
R112 XX
JL190
JL191
JL192
JL193
JL194
JL195
JL196
JL197
JL198
JL199
JL1001
JL1002
JL1003
JL1004
JL1005
JL1006
47R133
47R134
33R132
33R131
33R129
33R130
JL160
JL161
JL162
JL163
JL164
JL165
JL166
JL167
JL168
JL169
JL170
JL171
JL172
JL173
JL174
JL175
JL176
JL177
JL178
JL179
JL180
JL181
JL182
JL183
JL184
JL185
JL186
JL187
JL188
JL189
JL114
JL115
JL116
JL117
JL118
JL119
JL120
JL121
JL122
JL123
JL124
JL125
JL126
JL127
JL128
JL129
JL130
JL131
JL132
JL133
JL134
JL135
JL136
JL137
JL138
JL139
JL140
JL141
JL142
JL143
JL144
JL145
JL146
JL147
JL148
JL149
JL150
JL151
JL152
JL153
JL154
JL155
JL156
JL157
JL158
JL159
150
R178
150
R177
150
R180
150
R179
XX
R183
XX
R182
XX
R184
XX
R185
XX
R186
JL104
JL105
JL106
JL107
JL110
JL111
JL103
1k
R103
0.5%
1k
R102
0.5%
0.1
C160
1k
R138
0.5%
1k
R137
0.5%
R158
1k
0.5% R159
1k
0.5%
330R156
DLL1.0V
0.1
C161
0.1
C162
0.1
C163
R108 XX
R106 XX
47R128
R110 XX
EMMA_PLL_1.05V
R104
XX
0.1
C168
0.1
C169
10
C166
XX
C167
RB101 XX
RB102 XX
RB103 XX
RB104 XX
XXRB108
XXRB105
XXRB106
XXRB107
47
RB109
47
RB110
47
RB112
47
RB113
JL112 JL113
JL1007
JL1008
JL1009
JL1010
JL1011
JL1012
JL1013
JL1014
JL1015
JL1016 JL1026
JL1020
JL1019
JL1025
JL1018
JL1022
JL1024
JL1017
JL1023
JL1021
75
RB122
XX
RB127
75
RB123
XX
RB128
75
RB124
XX
RB129
75
RB125
XX
RB130
75
RB126
XX
RB131
75
R181
JL1030
JL1029
JL1028
JL1027
JL1031
EMI
FL101
0uH
10
C101
68R140
68R142
22R145
22R146
22R144
22R143
330R135
C102
0.1
C118
0.1
XX
R187
R188
0
DDR2_VTT0.9V
R141 XX
XX
R147
CORE_1.05V
JL1040
JL1041
JL1042
JL1043
JL1044
JL1045
JL1046
JL1047
JL1049
JL1050
JL1051
JL1052
JL1053
JL1054
JL1055
JL1056
JL1057
JL1058
JL1059
JL1060
JL1061
JL1062
JL1063
JL1064
JL1065
JL1066
JL1067
JL1068
JL1069
JL1070
JL1071
JL1032
JL1033
JL1034
JL1035
JL1048
1000p
C119
1000p
C120
XX
C181
0.01
C104
1
C121
0.01
C159
0.01
C122
1
C170
0.01
C164
0.01
C172
C173
1
XX
C174
0.01
C171
1
C175
1
C176
0.01
C180
C178
1
XX
C177
0.01
C179
XX
C182
10
C103
10
C117
10
C106
XX
C183
XX
C184
IC102
EDE1116ACSE-8E-E-TR
A0
M8
A1
M3
A2
M7
A3
N2
A4
N8
A5
N3
A6
N7
A7
P2
A8
P8
A9
P3
A10
M2
A11
P7
A12
R2
BA0
L2
BA1
L3
BA2
L1
UDM
B3
UDQS
B7
/UDQS
A8
LDM
F3
LDQS
F7
/LDQS
E8
CK
J8
/CK
K8
CKE
K2
/CS
L8
/RAS
K7
/CAS
L7
/WE
K3
ODT
K9
VSS
A3
VSS
E3
VSS
J3
VSS
N1
VSS
P9
VSSQ
A7
VSSQ
B2
VSSQ
B8
VSSQ
D2
VSSQ
D8
VSSQ
E7
VSSQ
F2
VSSQ
F8
VSSQ
H2
VSSQ
H8
DQ0 G8
DQ1 G2
DQ2 H7
DQ3 H3
DQ4 H1
DQ5 H9
DQ6 F1
DQ7 F9
DQ8 C8
DQ9 C2
DQ10 D7
DQ11D3
DQ12 D1
DQ13 D9
DQ14 B1
DQ15 B9
NC A2
NC E2
NC R3
NC R7
NC R8
VREF J2
VDDL J1
VSSDL J7
VDD A1
VDD E1
VDD J9
VDD M9
VDD R1
VDDQ A9
VDDQ C1
VDDQ C3
VDDQ C7
VDDQ C9
VDDQ E9
VDDQ G1
VDDQ G3
VDDQ G7
VDDQ G9
A0
M8
A1
M3
A2
M7
A3
N2
A4
N8
A5
N3
A6
N7
A7
P2
A8
P8
A9
P3
A10
M2
A11
P7
A12
R2
BA0
L2
BA1
L3
BA2
L1
UDM
B3
UDQS
B7
/UDQS
A8
LDM
F3
LDQS
F7
/LDQS
E8
CK
J8
/CK
K8
CKE
K2
/CS
L8
/RAS
K7
/CAS
L7
/WE
K3
ODT
K9
VSS
A3
VSS
E3
VSS
J3
VSS
N1
VSS
P9
VSSQ
A7
VSSQ
B2
VSSQ
B8
VSSQ
D2
VSSQ
D8
VSSQ
E7
VSSQ
F2
VSSQ
F8
VSSQ
H2
VSSQ
H8
DQ0 G8
DQ1 G2
DQ2 H7
DQ3 H3
DQ4 H1
DQ5 H9
DQ6 F1
DQ7 F9
DQ8 C8
DQ9 C2
DQ10 D7
DQ11D3
DQ12 D1
DQ13 D9
DQ14 B1
DQ15 B9
NC A2
NC E2
NC R3
NC R7
NC R8
VREF J2
VDDL J1
VSSDL J7
VDD A1
VDD E1
VDD J9
VDD M9
VDD R1
VDDQ A9
VDDQ C1
VDDQ C3
VDDQ C7
VDDQ C9
VDDQ E9
VDDQ G1
VDDQ G3
VDDQ G7
VDDQ G9
A0
M8
A1
M3
A2
M7
A3
N2
A4
N8
A5
N3
A6
N7
A7
P2
A8
P8
A9
P3
A10
M2
A11
P7
A12
R2
BA0
L2
BA1
L3
BA2
L1
UDM
B3
UDQS
B7
/UDQS
A8
LDM
F3
LDQS
F7
/LDQS
E8
CK
J8
/CK
K8
CKE
K2
/CS
L8
/RAS
K7
/CAS
L7
/WE
K3
ODT
K9
VSS
A3
VSS
E3
VSS
J3
VSS
N1
VSS
P9
VSSQ
A7
VSSQ
B2
VSSQ
B8
VSSQ
D2
VSSQ
D8
VSSQ
E7
VSSQ
F2
VSSQ
F8
VSSQ
H2
VSSQ
H8
DQ0
G8
DQ1
G2
DQ2
H7
DQ3
H3
DQ4
H1
DQ5
H9
DQ6
F1
DQ7
F9
DQ8
C8
DQ9
C2
DQ10
D7
DQ11
D3
DQ12
D1
DQ13
D9
DQ14
B1
DQ15
B9
NC
A2
NC
E2
NC
R3
NC
R7
NC
R8
VREF
J2
VDDL
J1
VSSDL
J7
VDD
A1
VDD
E1
VDD
J9
VDD
M9
VDD
R1
VDDQ
A9
VDDQ
C1
VDDQ
C3
VDDQ
C7
VDDQ
C9
VDDQ
E9
VDDQ
G1
VDDQ
G3
VDDQ
G7
VDDQ
G9
XX
IC104
A0
M8
A1
M3
A2
M7
A3
N2
A4
N8
A5
N3
A6
N7
A7
P2
A8
P8
A9
P3
A10
M2
A11
P7
A12
R2
BA0
L2
BA1
L3
BA2
L1
UDM
B3
UDQS
B7
/UDQS
A8
LDM
F3
LDQS
F7
/LDQS
E8
CK
J8
/CK
K8
CKE
K2
/CS
L8
/RAS
K7
/CAS
L7
/WE
K3
ODT
K9
VSS
A3
VSS
E3
VSS
J3
VSS
N1
VSS
P9
VSSQ
A7
VSSQ
B2
VSSQ
B8
VSSQ
D2
VSSQ
D8
VSSQ
E7
VSSQ
F2
VSSQ
F8
VSSQ
H2
VSSQ
H8
DQ0
G8
DQ1
G2
DQ2
H7
DQ3
H3
DQ4
H1
DQ5
H9
DQ6
F1
DQ7
F9
DQ8
C8
DQ9
C2
DQ10
D7
DQ11
D3
DQ12
D1
DQ13
D9
DQ14
B1
DQ15
B9
NC
A2
NC
E2
NC
R3
NC
R7
NC
R8
VREF
J2
VDDL
J1
VSSDL
J7
VDD
A1
VDD
E1
VDD
J9
VDD
M9
VDD
R1
VDDQ
A9
VDDQ
C1
VDDQ
C3
VDDQ
C7
VDDQ
C9
VDDQ
E9
VDDQ
G1
VDDQ
G3
VDDQ
G7
VDDQ
G9
MC-10092F1-207-RNA-A
IC101
UMVDD18
J3
UMVDD18
K6
UMVDD18
L5
UMVDD18
L7
UMVDD18
M6
UMVDD18
N5
UMVDD18
P5
UMVDD18
R6
UMVDD18
W2
UMVDD18
Y1
UMVDD18
AA3
UMVDD18
AB6
UMVDD18
AB7
UMVDD18
AC6
UMVDD18
AD5
UMVDD18
AE3
UMVDD18
AE5
UMVDD18
AF6
UMVDD18
AH3
UMVDD10
N7
UMVDD10
P7
UMVDD10
AD7
UMVDD10
AE7
GND
J2
GND
K2
GND
K5
GND
L1
GND
K4
GND
L6
GND
M2
GND
M5
GND
M7
GND
N2
GND
N6
GND
P1
GND
P4
GND
P6
GND
R2
GND
R7
GND
T2
GND
T6
GND
U1
GND
U7
GND
V4
GND
W3
GND
AA5
GND
AA7
GND
AB2
GND
AC1
GND
AC5
GND
AC7
GND
AD2
GND
AD6
GND
AE2
GND
AE6
GND
AF1
GND
AF5
GND
AF7
GND
AG2
GND
AG4
GND
AG6
GND
AH2
GND
AJ1
GND
AJ5
GND
AK2
GND
AL2
GND
AL3
UMVREF
T7
PLURVDD
AA13
PLUMVDD
AA14
PLUMGND
Y14
PLURGND
Y13
UMDQ0 R4
UMDQ1 R3
UMDQ2 P2
UMDQ3 T4
UMDQ4 T3
UMDQ5 U3
UMDQ6 U4
UMDQ7 V1
UMDQ8 L4
UMDQ9 L2
UMDQ10 K3
UMDQ11 N4
UMDQ12 L3
UMDQ13 M3
UMDQ14 M4
UMDQ15 P3
UMDM0 U2
UMDQS0 R1
UMDQSB0 T1
UMDM1 N3
UMDQS1 J1
UMDQSB1 K1
UMCK0 M1
UMCKB0 N1
UMCSB0 AA2
UMDQ16 AE4
UMDQ17 AD4
UMDQ18 AF3
UMDQ19 AF2
UMDQ20 AC4
UMDQ21 AC3
UMDQ22 AB4
UMDQ23 AC2
UMDQ24 AK3
UMDQ25 AJ4
UMDQ26 AH5
UMDQ27 AJ3
UMDQ28 AG5
UMDQ29 AF4
UMDQ30 AH4
UMDQ31 AG3
UMDM2 AD3
UMDQS2 AD1
UMDQSB2 AE1
UMDM3 AJ2
UMDQS3 AK1
UMDQSB3 AL1
UMCK1 AG1
UMCKB1 AH1
UMCKERSTB T5
UMCSB1 AA6
UMA0 Y7
UMA1 W1
UMA2 Y4
UMA3 V3
UMA4 Y5
UMA5 Y2
UMA6 Y3
UMA7 V6
UMA8 AA1
UMA9 V7
UMA10 U6
UMA11W6
UMA12 W4
UMA13 W5
UMA14 W7
UMA15 AB3
UMBA0 U5
UMBA1 V2
UMCKE V5
UMRASB AA4
UMCASB Y6
UMWEB R5
UMODT0 AB1
UMODT1 AB5
E
PT002
R192
0
E
PT001 XX
R190
0
R191
0
D0BA1
D0BA0
D0A15
D0A14
D0A12
D0A11
D0A10
D0A9
D0A8
D0A7
D0A6
D0A5
D0A4
D0A3
D0A2
D0A1
D0A0
D0A4
D0A5
D0A8
D0A15
D0BA1
D0DQSB2
D0DQS2
D0DQSB3
D0DQS3
D0DQ31
D0DQ30
D0DQ29
D0DQ28
D0DQ16
D0DQ17
D0DQ19
D0DQ20
D0DQ21
D0DQ22
D0DQ23
D0DQ24
D0DQ25
D0DQ27
D0DQ26
D0CK1
D0CKB1
D0CKE
D0RASB
D0CASB
D0WEB
D0CK0
D0CSB0
D0DM1
D0DQSB0
D0DQS0
D0DM0
D0DQ15
D0DQ2
D0DQ3
D0DQ4
D0DQ5
D0DQ7
D0DQ9
D0DQ10
D0DQ11
D0DQ14
D0MA4
D0MA5
D0MA8
D0MA15
D0MBA1
D0CK0
D0CKB0
D0CK1
D0CKB1
D0RASB D0MRAS
D0MCK0
D0MCKB0
D0MCK1
D0MCKB1
D0MCK0
D0MCKB0
D0MCK1
D0MCKB1
D0DQ6
D0DQ1
D0DQSB1
D0DQ12
D0DQ13
D0CKB0
D0DQ18
D0DQS1
D0ODT0
D0CKE D0MCKE
D0BA2
D0DQ0
D0DQ1
D0DQ2
D0DQ3
D0DQ4
D0DQ5
D0DQ6
D0DQ7
D0DQ8
D0DQ9
D0DQ10
D0DQ11
D0DQ12
D0DQ13
D0DQ14
D0DQ15
D0MA2D0A2
D0A6 D0MA6
D0MA11D0A11
D0MA1D0A1
D0MA12D0A12
D0A14 D0MA14
D0MCASD0CASB
D0MCS0D0CSB0
D0DQ16
D0DQ17
D0DQ18
D0DQ19
D0DQ20
D0DQ21
D0DQ22
D0DQ23
D0DQ24
D0DQ25
D0DQ26
D0DQ27
D0DQ28
D0DQ29
D0DQ30
D0DQ31
D0MA0
D0MA7
D0MA12
D0MA1
D0MA9
D0MA3
D0MA10
D0MBA2
D0MCAS
D0MCS0
D0MODT0
D0DM2
D0DM3
D0A7 D0MA7
D0A10 D0MA10
D0MA6
D0MA2
D0MWE
D0MWE
D0MBA0
D0MBA2
D0WEB
D0BA2
D0A0 D0MA0
D0A9 D0MA9
D0MA3D0A3
D0ODT0 D0MODT0
D0BA0 D0MBA0
D0DQ8
D0DQ15 D0DQ15
D0DQ3 D0DQ3
D0DM1 D0DM1
D0DQS0 D0DQS0
D0DQSB0 D0DQSB0
D0DQS1 D0DQS1
D0DQSB1 D0DQSB1
D0DM2 D0DM2
D0DM3 D0DM3
D0DQS2 D0DQS2
D0DQSB2 D0DQSB2
D0DQS3 D0DQS3
D0DQSB3 D0DQSB3
D0MA0
D0MA1
D0MA2
D0MA3
D0MA4
D0MA5
D0MA6
D0MA7
D0MA8
D0MA9
D0MA10
D0MA11
D0MA12
D0MBA0
D0MBA1
D0MBA2
D0DM1
D0DQS1
D0DQSB1
D0DM0
D0DQS0
D0DQSB0
D0MCKE
D0MCS0
D0MRAS
D0MCAS
D0MWE
D0MODT0
D0MA0
D0MA1
D0MA2
D0MA3
D0MA14
D0MA15
D0MA6
D0MA7
D0MA8
D0MA9
D0MA10
D0MA11
D0MA12
D0MBA0
D0MBA1
D0MBA2
D0DM3
D0DQS3
D0DQSB3
D0DM2
D0DQS2
D0DQSB2
D0MCKE
D0MCS0
D0MRAS
D0MCAS
D0MWE
D0MODT0
D0DQ0
D0DM0D0DM0
D0MA11
D0MA4
D0MA5
D0MCKE
D0MBA1
D0MRAS
D0MA8
D0MA15
D0MA14
D0DQ13D0DQ13
D0DQ10 D0DQ10
D0DQ9 D0DQ9
D0DQ12D0DQ12
D0DQ14D0DQ14
D0DQ11D0DQ11
D0DQ2D0DQ2
D0DQ0D0DQ0
D0DQ1D0DQ1
D0DQ5D0DQ5
D0DQ7D0DQ7
D0DQ6D0DQ6
D0DQ4D0DQ4
D0DQ23D0DQ23
D0DQ22D0DQ22
D0DQ20D0DQ20
D0DQ21D0DQ21
D0DQ19D0DQ19
D0DQ16D0DQ16
D0DQ17D0DQ17
D0DQ29D0DQ29
D0DQ26 D0DQ26
D0DQ28 D0DQ28
D0DQ31 D0DQ31
D0DQ18 D0DQ18
D0DQ24 D0DQ24
D0DQ27 D0DQ27
D0DQ25 D0DQ25
D0DQ30 D0DQ30
D0DQ8D0DQ8
(CHASSIS)
(CHASSIS)
(2/11)
MB-124
(3/11)
(9/11) (11/11)
(4/11) (6/11)
(2/11) (3/11)
MB-124
MB-124
(4/11)
MB-124
(2/11)
(3/11)
(1/11)IC101
MAIN SYSTEM CONTROL, DSP, SATA I/F, MEMORY CONTROL,
A/V OUT, HDMI, ETHERNET I/F, USB I/F
IC102
DDR2 SDRAM
18
M
DDR2-A
9
D
E
1110 1525
MB-124 BOARD (1/11)
K
3
I
17
05
F
1612
C
11986
XX MARK:NO MOUNT
20
G
14
A
13
H
L
74
J
B
21
IC103
EDE1116ACSE-8E-E-TR XX
IC105
IC103
DDR2 SDRAM
4-15
BDP-S5000ES
4-15. MB-124 BOARD (2/11) (DDR2-B) • See page 5-12 for printed wiring board.
- Ref. No.: MB-124 board; 10,000 series -
1000p
C207
1000p
C214
JL220
JL270
1000p
C232
JL241
DDR2_1.8V
JL1204
1k
R259
0.5%
JL215
1000p
C228
47
R234
JL265
1k
R238
0.5%
JL236
JL298
1000p
C244
JL286
JL257
JL210
JL260
1000p
C254
XX
R216
JL231
0.1C220
JL293
JL209
JL281
JL252
1000p
C227
JL226
JL276
1000p
C224
JL247
GND
JL221
XX
R217
XXR222
JL271
JL242
1000p
C245
JL1205
1000p
C212
JL216
1
C241
JL266
1000p
C235
JL237
JL299
XX
R236
JL287
JL258
1000p
C253
JL261
JL232
JL204
JL294
XX
R220
XX
R257
JL282
JL253
0.1
C205
1000p
C238
JL227
1000p
C210
JL277
JL248
1000p
C226
JL222
JL206
XX
R214
JL272
1000p
C246
JL205
JL243
JL1206
1k
R203
0.5%
JL217
1000p
C248
0.1
C240
0.1C219
JL267
JL238
JL1201
1000p
C236
JL288
1k
R202
0.5%
1000p
C208
JL259
47
R228
JL262
1000p
C237
JL233
JL295
JL283
JL254
JL207
1000p
C247
JL228
JL211
JL290
1000p
C250
JL278
0.1C217
JL249
JL223
1000p
C230
47
R227
JL273
JL244
XX
R213
47
R233
1000p
C233
JL203
JL218
1k
R258
0.5%
JL268
1000p
C242
JL239
XX
R212
JL1202
XX
R218
JL289
1000p
C256
1000p
C213
JL263
JL234
47
R226
JL296
1k
R237
0.5%
1000p
C225
JL284
JL255
JL229
1000p
C255
JL291
JL279
XX
R211
JL250
33
R229
0.1C218
XX
R221
JL224
1000p
C243
JL274
JL245
1000p
C211
1
C223
JL219
1000p
C231
JL269
JL240
0.1
C258
JL1203
1000p
C251
XX
R215
JL214
XX
R219
JL264
JL235
1000p
C215
JL297
JL285
JL256
1000p
C234
1000p
C209
JL230
JL292
1000p
C229
JL208
JL280
JL251
JL225
1000p
C249
JL275
JL246
1000p
C252
DLL1.0V
R204 XX
R206 XX
R208
150
0.5%
R209
150
0.5%
XXR210
XX
C260 10
C261
JL2029
JL2030
JL2028
JL2031
JL2027
JL2016
JL2010
JL2009
JL2015
JL2008
JL2012
JL2014
JL2007
JL2013
JL2011 JL2021
JL2023
JL2024
JL2026
JL2020
JL2018
JL2017
JL2022
JL2025
JL2019
75
RB225
XX
R283
XX
RB230
XX
RB222
150
R277
150
R280
75
R281
75
RB227
75
RB229
75
RB223
150
R279
150
R278
XX
RB228
XX
R282
XX
R284
XX
RB231
XX
RB224
XX
R285
XX
R286
75
RB226
JL212 JL213
XXRB204
XXRB201
XXRB202
XXRB203
XXRB207
XXRB206
XXRB208
XXRB205
47RB209
47RB210
47RB211
47RB213
EMI
FL201
0uH
10
C201
68
R224
68
R223
68
R241
68
R240
33
R230
33
R231
33
R232
22R244
22R243
330R235 330R256
22R245
22R246
C202
0.1
C221
0.1
XX
R251
R250
0
DDR2_VTT0.9V
XX
R249
CORE_1.05V
R248 XX
JL2040
JL2041
JL2042
JL2043
JL2044
JL2045
JL2046
JL2047
JL2048
JL2049
JL2050
JL2051
JL2052
JL2053
JL2054
JL2055
JL2056
JL2057
JL2058
JL2059
JL2060
JL2061
JL2062
JL2063
JL2064
JL2065
JL2066
JL2067
JL2068
JL2069
JL2070
JL2071
JL2032
JL2033
JL2034
JL2035
1000p
C276
1000p
C277
C272
1
XX
C274
0.01
C265
XX
C271
0.01
C204
0.01
C264
1
C269
0.01
C273
1
C216
0.01
C266
1
C270
XX
C275
0.01
C263
C267
1
1
C262
XX
C268
10
C203
10
C222
10
C259
XX
C284
XX
C283
A0
M8
A1
M3
A2
M7
A3
N2
A4
N8
A5
N3
A6
N7
A7
P2
A8
P8
A9
P3
A10
M2
A11
P7
A12
R2
BA0
L2
BA1
L3
BA2
L1
UDM
B3
UDQS
B7
/UDQS
A8
LDM
F3
LDQS
F7
/LDQS
E8
CK
J8
/CK
K8
CKE
K2
/CS
L8
/RAS
K7
/CAS
L7
/WE
K3
ODT
K9
VSS
A3
VSS
E3
VSS
J3
VSS
N1
VSS
P9
VSSQ
A7
VSSQ
B2
VSSQ
B8
VSSQ
D2
VSSQ
D8
VSSQ
E7
VSSQ
F2
VSSQ
F8
VSSQ
H2
VSSQ
H8
DQ0 G8
DQ1 G2
DQ2 H7
DQ3 H3
DQ4 H1
DQ5 H9
DQ6 F1
DQ7 F9
DQ8 C8
DQ9 C2
DQ10 D7
DQ11D3
DQ12 D1
DQ13 D9
DQ14 B1
DQ15 B9
NC A2
NC E2
NC R3
NC R7
NC R8
VREF J2
VDDL J1
VSSDL J7
VDD A1
VDD E1
VDD J9
VDD M9
VDD R1
VDDQ A9
VDDQ C1
VDDQ C3
VDDQ C7
VDDQ C9
VDDQ E9
VDDQ G1
VDDQ G3
VDDQ G7
VDDQ G9
A0
M8
A1
M3
A2
M7
A3
N2
A4
N8
A5
N3
A6
N7
A7
P2
A8
P8
A9
P3
A10
M2
A11
P7
A12
R2
BA0
L2
BA1
L3
BA2
L1
UDM
B3
UDQS
B7
/UDQS
A8
LDM
F3
LDQS
F7
/LDQS
E8
CK
J8
/CK
K8
CKE
K2
/CS
L8
/RAS
K7
/CAS
L7
/WE
K3
ODT
K9
VSS
A3
VSS
E3
VSS
J3
VSS
N1
VSS
P9
VSSQ
A7
VSSQ
B2
VSSQ
B8
VSSQ
D2
VSSQ
D8
VSSQ
E7
VSSQ
F2
VSSQ
F8
VSSQ
H2
VSSQ
H8
DQ0 G8
DQ1 G2
DQ2 H7
DQ3 H3
DQ4 H1
DQ5 H9
DQ6 F1
DQ7 F9
DQ8 C8
DQ9 C2
DQ10 D7
DQ11D3
DQ12 D1
DQ13 D9
DQ14 B1
DQ15 B9
NC A2
NC E2
NC R3
NC R7
NC R8
VREF J2
VDDL J1
VSSDL J7
VDD A1
VDD E1
VDD J9
VDD M9
VDD R1
VDDQ A9
VDDQ C1
VDDQ C3
VDDQ C7
VDDQ C9
VDDQ E9
VDDQ G1
VDDQ G3
VDDQ G7
VDDQ G9
A0
M8
A1
M3
A2
M7
A3
N2
A4
N8
A5
N3
A6
N7
A7
P2
A8
P8
A9
P3
A10
M2
A11
P7
A12
R2
BA0
L2
BA1
L3
BA2
L1
UDM
B3
UDQS
B7
/UDQS
A8
LDM
F3
LDQS
F7
/LDQS
E8
CK
J8
/CK
K8
CKE
K2
/CS
L8
/RAS
K7
/CAS
L7
/WE
K3
ODT
K9
VSS
A3
VSS
E3
VSS
J3
VSS
N1
VSS
P9
VSSQ
A7
VSSQ
B2
VSSQ
B8
VSSQ
D2
VSSQ
D8
VSSQ
E7
VSSQ
F2
VSSQ
F8
VSSQ
H2
VSSQ
H8
DQ0
G8
DQ1
G2
DQ2
H7
DQ3
H3
DQ4
H1
DQ5
H9
DQ6
F1
DQ7
F9
DQ8
C8
DQ9
C2
DQ10
D7
DQ11
D3
DQ12
D1
DQ13
D9
DQ14
B1
DQ15
B9
NC
A2
NC
E2
NC
R3
NC
R7
NC
R8
VREF
J2
VDDL
J1
VSSDL
J7
VDD
A1
VDD
E1
VDD
J9
VDD
M9
VDD
R1
VDDQ
A9
VDDQ
C1
VDDQ
C3
VDDQ
C7
VDDQ
C9
VDDQ
E9
VDDQ
G1
VDDQ
G3
VDDQ
G7
VDDQ
G9
A0
M8
A1
M3
A2
M7
A3
N2
A4
N8
A5
N3
A6
N7
A7
P2
A8
P8
A9
P3
A10
M2
A11
P7
A12
R2
BA0
L2
BA1
L3
BA2
L1
UDM
B3
UDQS
B7
/UDQS
A8
LDM
F3
LDQS
F7
/LDQS
E8
CK
J8
/CK
K8
CKE
K2
/CS
L8
/RAS
K7
/CAS
L7
/WE
K3
ODT
K9
VSS
A3
VSS
E3
VSS
J3
VSS
N1
VSS
P9
VSSQ
A7
VSSQ
B2
VSSQ
B8
VSSQ
D2
VSSQ
D8
VSSQ
E7
VSSQ
F2
VSSQ
F8
VSSQ
H2
VSSQ
H8
DQ0
G8
DQ1
G2
DQ2
H7
DQ3
H3
DQ4
H1
DQ5
H9
DQ6
F1
DQ7
F9
DQ8
C8
DQ9
C2
DQ10
D7
DQ11
D3
DQ12
D1
DQ13
D9
DQ14
B1
DQ15
B9
NC
A2
NC
E2
NC
R3
NC
R7
NC
R8
VREF
J2
VDDL
J1
VSSDL
J7
VDD
A1
VDD
E1
VDD
J9
VDD
M9
VDD
R1
VDDQ
A9
VDDQ
C1
VDDQ
C3
VDDQ
C7
VDDQ
C9
VDDQ
E9
VDDQ
G1
VDDQ
G3
VDDQ
G7
VDDQ
G9
MC-10092F1-207-RNA-A
IC101
WMVDD18
AG12
WMVDD18
AG23
WMVDD18
AH8
WMVDD18
AH11
WMVDD18
AH19
WMVDD18
AH22
WMVDD18
AH24
WMVDD18
AJ9
WMVDD18
AJ10
WMVDD18
AJ20
WMVDD18
AJ21
WMVDD18
AJ23
WMVDD18
AL6
WMVDD18
AL9
WMVDD18
AL13
WMVDD18
AL25
WMVDD18
AM15
WMVDD18
AN14
WMVDD10
AG9
WMVDD10
AG10
WMVDD10
AG20
WMVDD10
AG21
GND
AG8
GND
AG11
GND
AG13
GND
AG17
GND
AG19
GND
AG22
GND
AG24
GND
AH6
GND
AH7
GND
AH9
GND
AH10
GND
AH12
GND
AH18
GND
AH20
GND
AH21
GND
AH23
GND
AJ8
GND
AJ22
GND
AJ24
GND
AK4
GND
AK7
GND
AK16
GND
AK20
GND
AK23
GND
AL15
GND
AM2
GND
AM3
GND
AM4
GND
AM6
GND
AM7
GND
AM9
GND
AM10
GND
AM12
GND
AM18
GND
AM19
GND
AM21
GND
AM22
GND
AM24
GND
AM25
GND
AN5
GND
AN8
GND
AN11
GND
AN17
GND
AN20
GND
AN23
GND
AN26
WMVREF
AG18
WMRQ0
AJ11
WMRQ1
AJ13
WMDQ0 AK19
WMDQ1 AL19
WMDQ2 AM20
WMDQ3 AK18
WMDQ4 AL18
WMDQ5 AL17
WMDQ6 AK17
WMDQ7 AN16
WMDQ8 AK24
WMDQ9 AM23
WMDQ10 AL24
WMDQ11 AK21
WMDQ12 AL23
WMDQ13 AL22
WMDQ14 AK22
WMDQ15 AL20
WMDM0 AM17
WMDQS0 AN18
WMDQSB0 AN19
WMDM1 AL21
WMDQS1 AN24
WMDQSB1 AN25
WMCK0 AN21
WMCKB0 AN22
WMCSB0 AM13
WMDQ16 AK9
WMDQ17 AK10
WMDQ18 AL8
WMDQ19 AM8
WMDQ20 AK11
WMDQ21 AL11
WMDQ22 AK12
WMDQ23 AM11
WMDQ24 AL4
WMDQ25 AK5
WMDQ26 AJ6
WMDQ27 AL5
WMDQ28 AJ7
WMDQ29 AK8
WMDQ30 AK6
WMDQ31 AL7
WMDM2 AL10
WMDQS2 AN9
WMDQSB2 AN10
WMDM3 AM5
WMDQS3 AN3
WMDQSB3 AN4
WMCK1 AN6
WMCKB1 AN7
WMCKERSTB AJ18
WMCSB1 AH13
WMA0 AG14
WMA1 AN15
WMA2 AK14
WMA3 AL16
WMA4 AJ14
WMA5 AM14
WMA6 AL14
WMA7 AH16
WMA8 AN13
WMA9 AG16
WMA10 AH17
WMA11 AH15
WMA12 AK15
WMA13 AJ15
WMA14 AG15
WMA15 AL12
WMBA0 AJ17
WMBA1 AM16
WMCKE AJ16
WMRASB AK13
WMCASB AH14
WMWEB AJ19
WMODT0 AN12
WMODT1 AJ12
D1DQ2
D1DQ3
D1DQ31
D1DQ1
D1MCKB0
D1DM2
D1DQ0
D1DQ9
D1DQ30
D1DQ11
D1DQ15
D1A0
D1DQ8
D1DQ7
D1DM0
D1A1
D1CKE
D1A3
D1DM3
D1DQ16
D1DQ22
D1DQ23
D1DQ19
D1DM1
D1DQ17
D1A4
D1DQ18
D1DQ5
D1MCK0
D1DQ1
D1A5
D1DQ26
D1A6
D1BA1
D1A7
D1CKB1
D1DQ12
D1A8
D1A9
D1DQ13
D1DQ27
D1A10
D1DQ26
D1A11
D1DQ27
D1A12
D1DQ10
D1DQ15
D1DQ25
D1DQ14
D1MCKB1
D1A14
D1CK1
D1DQ24
D1DQ13
D1CKB0
D1A15
D1DQ24
D1DQ21
D1DQ20
D1DQ28
D1DQ23
D1MCK1
D1CK0
D1DQ12
D1BA0
D1MCK1
D1DQ22
D1DQ11
D1BA1
D1MCKB0
D1DQ21
D1DQ10
D1DQ20
D1DQ9
D1MCK0
D1DQ19
D1MCKE
D1DQ8
D1DQ14
D1DQ18
D1DQ31
D1DQ29
D1DQ2
D1DQ25
D1DQ7
D1DQ0
D1DQ17
D1DQ6
D1DQ16
D1MBA1
D1DQ4
D1DQ6
D1DQ5
D1DQ28
D1MCKB1
D1DQ4
D1DQ29
D1DQ3
D1DQ30
D1CK0
D1CKB0
D1CK1
D1CKB1
D1CKE
D1RASB
D1CASB
D1WEB
D1ODT0
D1DQS0
D1DQSB0
D1DQS1
D1DQSB1
D1DQS2
D1DQSB2
D1DQS3
D1DQSB3
D1CSB0
D1BA2
D1A0
D1A10
D1A15
D1A12
D1MA10
D1MA3
D1A1
D1MA9
D1A14
D1MA8
D1MA5
D1MA4
D1A9
D1MA15
D1MA14
D1MA1
D1A8
D1MA12
D1MA0
D1A5
D1A4
D1A3
D1ODT0
D1CSB0 D1MCS0
D1MODT0
D1CASB D1MCAS
D1MA6D1A6
D1MODT0
D1MWE
D1MBA1
D1MBA2
D1MBA0
D1MCS0
D1MCAS
D1MRAS
D1MA6
D1MA0
D1MA11
D1MBA2D1BA2
D1WEB D1MWE
D1MA7
D1MA12
D1MA1
D1MA8
D1MA10
D1MA9
D1MA3
D1A11 D1MA11
D1A7 D1MA7
D1BA0 D1MBA0
D1RASB D1MRAS
D1A2 D1MA2
D1A2
D1MA2
D1DM0 D1DM0
D1DM1 D1DM1
D1DQS0 D1DQS0
D1DQSB0 D1DQSB0
D1DQS1 D1DQS1
D1DQSB1 D1DQSB1
D1DM2 D1DM2
D1DM3 D1DM3
D1DQS2 D1DQS2
D1DQSB2 D1DQSB2
D1DQS3 D1DQS3
D1DQSB3 D1DQSB3
D1MA0
D1MA1
D1MA2
D1MA3
D1MA4
D1MA5
D1MA6
D1MA7
D1MA8
D1MA9
D1MA10
D1MA11
D1MA12
D1MBA0
D1MBA1
D1MBA2
D1DM1
D1DQS1
D1DQSB1
D1DM0
D1DQS0
D1DQSB0
D1MCS0
D1MRAS
D1MCAS
D1MWE
D1MCKE
D1MA0
D1MA1
D1MA2
D1MA3
D1MA14
D1MA15
D1MA6
D1MA7
D1MA8
D1MA9
D1MA10
D1MA11
D1MA12
D1MBA0
D1MBA1
D1MBA2
D1DM3
D1DQS3
D1DQSB3
D1MCKE
D1MCS0
D1MRAS
D1MCAS
D1MWE
D1MODT0
D1DM2
D1DQS2
D1DQSB2
D1MODT0
D1MA4
D1MA5
D1MA14
D1MA15
D1MCKE
D1DQ13 D1DQ13
D1DQ9 D1DQ9
D1DQ8 D1DQ8
D1DQ10 D1DQ10
D1DQ15 D1DQ15
D1DQ11 D1DQ11
D1DQ14 D1DQ14
D1DQ12 D1DQ12
D1DQ3D1DQ3
D1DQ1D1DQ1
D1DQ0D1DQ0
D1DQ2D1DQ2
D1DQ7 D1DQ7
D1DQ6 D1DQ6
D1DQ5 D1DQ5
D1DQ4 D1DQ4
D1DQ20 D1DQ20
D1DQ22 D1DQ22
D1DQ23 D1DQ23
D1DQ21 D1DQ21
D1DQ24 D1DQ24
D1DQ27 D1DQ27
D1DQ25 D1DQ25
D1DQ30 D1DQ30
D1DQ26 D1DQ26
D1DQ28 D1DQ28
D1DQ31 D1DQ31
D1DQ18 D1DQ18
D1DQ29 D1DQ29
D1DQ17 D1DQ17
D1DQ16 D1DQ16
D1DQ19 D1DQ19
(3/11)
(1/11)
MB-124
MB-124
(1/11) (3/11)
(4/11) (6/11)
(9/11) (11/11)
(3/11)
MB-124
(1/11)
201613
I
19115
(2/11)
DDR2-B
A/V OUT, HDMI, ETHERNET I/F, USB I/F
B
F
A
31
E
7
XX MARK:NO MOUNT
2
M
J
05
14
K
C
D
L
615 18
MAIN SYSTEM CONTROL, DSP, SATA I/F, MEMORY CONTROL,
17
G
129
H
810
MB-124 BOARD (2/11) IC101
421
IC202
EDE1116ACSE-8E-E-TR XX
IC204
IC202
DDR2 SDRAM
IC203
EDE1116ACSE-8E-E-TR XX
IC205
IC203
DDR2 SDRAM
4-16
BDP-S5000ES
4-16. MB-124 BOARD (3/11) (POWER1) • See page 5-12 for printed wiring board.
- Ref. No.: MB-124 board; 10,000 series -
NO MARK:PB MODE
5.7
5
3.3
1.3
3.3
3.3
1.8
3.2
1
0.3
1.5
1.5
3.2
1
0.3
0
0
0
0.5
1.2
1.1
0
5.3
1.9
3.8
1.1
4.8
4.9
3.2
1.1
1.1
1.1
1.1
1.1
1.1
1.1
1.1
3.8
3.8
1.1
1.1
1.1
1.9
5.7
5.7
5.7
5.7
1.8
1.8
1.8
2.4
12.3
12.3
12.3
12.3
1.8
1.8
1.8
1.84
1.8
0.9
0.9
0.9
1.2
0
6.1
2.4
1.8
4
4.8
4.9
3.3
3.3
1.8
JL330
16V
C347
68
R333
0
JL335
C346
0.022
M1FM3
D301
XX
C359
XX
R325
0.5%
22k
R344
DDR2_1.8V
XX
C348
C353
4.7
JL324
PTZ-TE25-3.9B
D304
0.5%
R321
15k
JL343
XX
R358
4.7
C349
0.047
C340
JL318
C368 4.7
1000p
C351
R336
XX
JL327
XX
C343
R335
0
XX
R328
JL333
R340
XX
0.5%
R319
150k
1
C356
D302
XX
8765
4321
S1 S2 S3 G
D1D2D3D4
RSS100N03FD5TB
Q303
JL338
1k
R322
XX
R346
R332
XX
0.5%
12k
R345
XX
R341
JL340
JL336
R349
XX
0.1
C357
JL339
0.5%
100k
R315
0.5%
R318
180k
JL329
XX
C360
XX
R348
JL325
JL344
4VC364 330
R323
XX
0.1
C358
0.5%
100k
R314
R330
XX
R317
12k
0.5%
JL319
R347 XX
PTZ-TE25-3.9B
D303
JL337
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
SN0608006PWPR
IC310
XX
R359
1000p
C352
JL320
4V
330
C362
8765
4321
S1 S2 S3 G
D1D2D3D4
RSS100N03FD5TB
Q302
JL334
0.033
C345
8765
4321
S1 S2 S3 G
D1D2D3D4
RSS100N03FD5TB
Q304
JL331
0.5%
150k
R316
R334
XX
XX
R351
XX
R350
XX
R342
C354
4.7
R327
XX
JL323
R337
XX
4.7
C355
JL341
4.7C366
R357
1k
GND
JL322
4.7
C350
0.5%
1k
R320
JL326
C344
68p
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
SN0608006PWPR
IC309
JL346
R326
XX
XX
C339
JL332
XX
R329
8765
4321
S1 S2 S3 G
D1D2D3D4
RSS100N03FD5TB
Q301
XX
R343
JL348 JL347
R352
1k
C341
XX
EMI
FL305
EMI
FL304
JL342 JL345
EMI
FL303
DLL1.0V
JL303
JL301
JL315
R302
0
JL316 JL317
R303
1k PLL_1.05V
5 4
321
TK11150CSCL-G
IC304
0.22
C316
XX
C319
0.01
C315
R301
1k
0.22
C313
XX
C311
SW5VD
5
43
2
1
MM3141JNRE
IC303
XX
C312
1
C314
XX
C320
1
C317
JL305
SATA1.8V
PCONT2
PCONT3
PCONT4
8765
4321
S1 S2 S3 G
D1D2D3D4
RSS100N03FD5TB
Q300
R360 XX
R361
6.8k
0.5%
R362
22k
0.5%
24V
3.15A
PS302
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15P
CN301
680nH
L301
22
C361
22
C367
22
C365
22
C363
EMI
FL308
EMI
FL307
CORE_1.05V
OTHER_1.05V
C371
10
C372 10
R365
XX
XX
R366
DDR2_VTT0.9V
DCSW5V
UNSW6V
SW1.55V
EMI
FL306
EMMA_SW3.3V
SW3.3V
JL302
JL306
JL307
JL308
JL304
JL309
JL314
JL321
JL328
R324
XX
XX
C342
XX
C373
8
7
6
54
3
2
1
MM1701WHBE
IC307
0.01
C303
8
7
6
54
3
2
1
MM1701WHBE
IC308
0.01
C304
10
C306
10
C302
10
C301
10
C305
R367
1k
R309
1k
EMI
FL309
EMI
FL310
10
C374
10
C375
XX
C377
XX
C308
XX
C307
XX
C309
XX
C310
XX
C318
3.3uH
L302
XX
C322
XX
C321
XX
C324
XX
C323
R310
XX
PGND
S5
V5IN
LL
VTTREF
DRVH
VDDQSET
VTTGND LL
VTTSNS
VBST
PGOOD
VDDQSNS
DRVH
CS
MODE
CS
VTT
VDDQSET
VLDOIN
DRVL
PGOOD
COMP
S3
VBST
VTTREF
S5
MODE
VDDQSNS
PGND
VLDOIN
COMP
V5IN
VTT
VTTSNS
DRVL
GND
S3
GND
VTTGND
UNSW12V
GND
UNSW5.8V
GND
SW3.3V
SW3.3V
GND
SW1.55V
GND
DCSW5V
GND
CE
GND
NP
VIN
VOUT
VDD
GND
CE
VOUT
NC
VOUT
NC
CN
GND
VIN
NC
NC
CONT
VIN
GND
NC
VOUT
NC
CN
NC
CONT
UNSW5.8V
UNSW5.8V
SW1.55V
SW1.55V
IFD-002
(1/3)
(SEE PAGE 4-11)
CN102
BOARD
IC304
+5V REGULATOR
IC303
SATA+1.8V REGULATOR
IC307
DLL+1.0V REGULATOR
IC308
PLL+1.05V REGULATOR
(8/11)
MB-124
MB-124
(7/11)
MB-124
(4/11)
MULTI REGULATOR
IC309
IC310
MULTI REGULATOR
MB-124
(1/11)
(2/11)
MB-124
(8/11)
(8/11) (9/11)
(6/11) (7/11)
MB-124
(10/11)
(6/11) (7/11)
(10/11) (11/11)
MB-124
(4/11) (5/11)
(10/11) (11/11)
(6/11) (9/11)
MB-124
(1/11)
MB-124
(2/11)
(9/11)
MB-124
(7/11) (8/11)
MB-124
(9/11) (10/11)
(7/11)
MB-124
Q300-Q302
SWITCHING
Q303, Q304
SWITCHING
MB-124
(7/11)
(9/11)
(1/11) (2/11)
(4/11) (6/11)
(9/11) (11/11)
MB-124
(1/11)
MB-124
(2/11)
L
F
21 9 17
K
XX MARK:NO MOUNT
H
I
11 14 15
POWER1
C
4
MB-124 BOARD (3/11)
3 5
B
M
G
7
J
A
E
186 12 161310
D
05
8
Note:
The components identified
by mark 0 or dotted line
with mark 0 are critical for
safety.
Replace only with part num-
ber specified.
Note:
Les composants identifiés par
une marque 0 sont critiquens
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spéci-
fié.
4-17
BDP-S5000ES
4-17. MB-124 BOARD (4/11) (CLK/POWER2) • See page 5-12 for printed wiring board.
- Ref. No.: MB-124 board; 10,000 series -
GND
CORE_1.05V
0
R402
0.1
C401
0
R404
0.1
C402
0.1
C403
0.1
C404
0.1
C405
0.1
C406
0.1
C407
R406 XX
6p
C408
6p
C409
JL401
EMMA_SW3.3V
XX
R403
JL402
EMMA_PLL_1.05V
EMI
FL400
0uH
10
C410
PLL_1.05V
X401
27MHz
JL403
0.1
C411
0.1
C420
0.1
C422
0.1
C421
0.1
C426
0.1
C424
0.1
C425
0.1
C423
0.1
C429
0.1
C430
0.1
C427
0.1
C428
0.1
C431
680
R405
C412
10
C413
10
0.1
C414
0.1
C415
XX
C416
XX
C417
IC101
MC-10092F1-207-RNA-A
VDD10
N16
VDD10
N18
VDD10
P17
VDD10
R16
VDD10
R18
VDD10
T13
VDD10
T15
VDD10
T17
VDD10
T19
VDD10
T21
VDD10
U14
VDD10
U16
VDD10
U18
VDD10
U20
VDD10
V13
VDD10
V15
VDD10
V17
VDD10
V19
VDD10
W16
VDD10
W18
VDD10
Y17
VDD10
AA16
VDD10
AA18
VDD10
AE27
VDD10
AF27
VDD10
AG27
GND
N15
GND
N17
GND
N19
GND
P15
GND
P16
GND
P18
GND
P19
GND
R13
GND
R14
GND
R15
GND
R17
GND
R19
GND
R20
GND
R21
GND
T14
GND
T16
GND
T18
GND
T20
GND
U13
GND
U15
GND
U17
GND
U19
GND
U21
GND
V14
GND
V16
GND
V18
GND
V20
GND
V21
GND
W13
GND
W14
GND
W15
GND
W17
GND
W19
GND
Y15
GND
Y16
GND
Y18
GND
Y19
GND
AA15
GND
AA17
GND
AA19
CLK27IN D1
CLK27OUT J4
GND C1
GND E1
SYSXI F1
SYSXO G1
CLKSEL H2
GND G2
GND H1
PLS0VDD N13
PLS0GND N14
PLSYVDD P13
PLSYGND P14
PLAUVDD N20
PLAUGND P20
PLA2VDD N21
PLA2GND P21
PLV2VDD W21
PLV2GND W20
PLMVVDD Y21
PLMVGND Y20
PLSVVDD AA21
PLSVGND AA20
A/V OUT, HDMI, ETHERNET I/F, USB I/F
MAIN SYSTEM CONTROL, DSP, SATA I/F, MEMORY CONTROL,
IC101 (3/11)
XX MARK:NO MOUNT
6 8
E
D
9
CLK/POWER2
B
J
4 7
H
A
G
1
C
F
05
I
3
K
MB-124 BOARD (4/11)
52 10
MB-124
(1/11)
MB-124
(3/11)
MB-124
(9/11) (11/11)
(3/11) (6/11)
(1/11) (2/11)
(6/11) (9/11)
(10/11) (11/11)
MB-124
(3/11) (5/11)
4-18
BDP-S5000ES
4-18. MB-124 BOARD (5/11) (FLASH/HOST) • See page 5-12 for printed wiring board.
- Ref. No.: MB-124 board; 10,000 series -
NO MARK:PB MODE
0
0
0
0
0
0
0
0
3.3
3.3
3.3
0
0
0
0
0
0
0
0
0
∗
∗
∗
∗
∗
∗
∗
3.3
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
3.3
∗
∗
∗
∗
∗
∗
∗
∗
3.3
∗
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
∗
:IMPOSSIBLE TO MEASURE
GND
EMMA_SW3.3V
0.1
C501
0.1
C502
0.1
C503
0.1
C504
0.1
C505
0.1
C506
0.1
C507
0.1
C508
0.1
C509
0.1
C510
0.1
C513
0.1
C511
0.1
C514
XX
C512
XX
C515
22
RB502
22
RB503
22
RB504
22
RB505
22
RB506
22
RB507
22
R503
22
R504
22
RB514
22
RB511
22
RB513
22
RB512
10k
RB508
10kR501
10kR502
10kR506
10kR508
10k
R507
RB510
10k
XXR511
10kR510
XXR509
R514 10k
XX
R513
R512 10k
S501
XX
1
2
3
4
5
6
742
43
44
45
46
47
48
41
40
39
38
37
36
35
34
3316
15
14
13
12
11
10
9
8
32
31
30
29
28
27
26
25
17
18
19
20
21
22
23
24
K9F2G08U0A-PCBOT
IC502
NC
NC
NC
NC
NC
NC
RY/BY
nRE
nCE
NC
NC
VCC
VSS
NC
NC
CLE
ALE
WE
WP
NC
NC
NC
NC
NC NC
NC
NC
NC
IO1
IO2
IO3
IO4
NC
NC
NC
VSS
VCC
NC
NC
NC
IO5
IO6
IO7
IO8
NC
NC
NC
NC
1
2
3
4
5
6
742
43
44
45
46
47
48
41
40
39
38
37
36
35
34
3316
15
14
13
12
11
10
9
8
32
31
30
29
28
27
26
25
17
18
19
20
21
22
23
24
IC503
XX
NC
NC
NC
NC
NC
NC
RY/BY
nRE
nCE
NC
NC
VCC
VSS
NC
NC
CLE
ALE
WE
WP
NC
NC
NC
NC
NC NC
NC
NC
NC
IO1
IO2
IO3
IO4
NC
NC
NC
VSS
VCC
NC
NC
NC
IO5
IO6
IO7
IO8
NC
NC
NC
NC
R518
10k
XX
R516
3.3k
R519
33
R517
10k
R515
0R520
0
RB515
0
RB516
0
RB517
0
RB518
0
RB519
0
RB520
XX
RB521
XX
RB522
NAND_WP
XX
C516
R522 10k
XXR521
A1B1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25 A25
A30
B26
A34
B30
B34
A29
A33
B29
B33
A28
A32
B28
B32
A27
A31
B27
A35
B31
B35
A26
XX
CN501
EMMA_XRST R523
100
GLB_XRST
PCIP_CLK_BAG
JL501
JL502
JL503
JL504
JL505
JL506
JL507
JL508
JL509
JL510
JL520
JL511
JL513
JL514
JL516
JL519
JL512
JL517
JL518
JL515
JL530
JL521
JL523
JL524
JL526
JL529
JL522
JL527
JL528
JL525
JL540
JL531
JL533
JL534
JL536
JL542
JL541
JL539
JL532
JL537
JL538
JL543
JL535
JL549
JL545
JL550
JL544
JL547
JL548
JL546
JL551
JL553
JL552
JL555
JL554
JL556
22
R528
22
R529
0
R530
22
R531
22
R532
22
R533
22
R535
22
R534
22
R536
22R538
22R537
22R540
22R541
0R539
XXR524
XXR525
XXR526
10k
R542
10k
R544
10k
R548
10k
R546
10k
R527
10k
R547
10k
R549
10k
R545
10k
R543
10kR550
10kR551
10kR552
10kR553
10k
R554
10kR555
1
2
3
4
5
6
742
43
44
45
46
47
48
41
40
39
38
37
36
35
34
3316
15
14
13
12
11
10
9
8
32
31
30
29
28
27
26
25
17
18
19
20
21
22
23
24
S29AL004D70TFI010-P3E01
IC501
JL557
JL558
JL559
C517
0.01
IC101
MC-10092F1-207-RNA-A
VDD3
AD27
VDD3
AF28
VDD3
AG25
VDD3
AG26
VDD3
AG28
VDD3
AG31
VDD3
AG33
VDD3
AN28
VDD3
AC27
VDD3
AG7
GND
AD28
GND
AE28
GND
AG30
GND
AG32
GND
AH25
GND
AH26
GND
AH27
GND
AH28
GND
AH29
GND
AJ28
RADD0 AN29
RADD1 AN30
RADD2 AN31
RADD3 AM29
RADD4 AM30
RADD5 AM31
RADD6 AM32
RADD7 AL29
RADD8 AL30
RADD9 AL31
RADD10 AL32
RADD11 AL33
RADD12 AK29
RADD13 AK30
RADD14 AK31
RADD15 AK32
RADD16 AK33
RADD17 AJ29
RADD18 AJ30
RADD19 AJ31
RADD20 AJ32
RADD21 AJ33
RADD22 AH30
RADD23 AH31
RADD24 AH32
RADD25 AH33
RDATA0 AG29
RDATA1 AF29
RDATA2 AF30
RDATA3 AF31
RDATA4 AF32
RDATA5 AF33
RDATA6 AE29
RDATA7 AE30
RDATA8 AE31
RDATA9 AE32
RDATA10 AE33
RDATA11 AD29
RDATA12 AD30
RDATA13 AD31
RDATA14 AD32
RDATA15 AD33
GCSB0 AM28
GCSB1 AK25
GRDYB AL28
FOEB AK26
FWEB AK28
FCSB0 AJ25
FCSB1 AK27
FCSB2 AJ26
FCSB3 AJ27
NFOEB AN27
NWEB AM26
NRBB AM27
NALE AL26
NCLE AL27
EMI_XGRDY
EMI_XNOE
EMI_XNWE
EMI_XRDY
EMI_NALE
EMI_NCLE
EMI_AD1EMI_AD2
EMI_AD3
EMI_AD5
EMI_AD6
EMI_AD7
EMI_AD8
EMI_AD9
EMI_AD10
EMI_AD11
EMI_AD12
EMI_AD13
EMI_AD14
EMI_AD15
EMI_AD16 EMI_AD17
EMI_AD18
EMI_AD19
EMI_AD4
EMI_DT0
EMI_DT2
EMI_DT3
EMI_DT4
EMI_DT1
EMI_DT5
EMI_DT6
EMI_DT7
EMI_DT8
EMI_DT9
EMI_DT10
EMI_DT11
EMI_DT12
EMI_DT13
EMI_DT14
EMI_DT15
EMI_DT0
EMI_DT1
EMI_DT2
EMI_DT3
EMI_DT4
EMI_DT5
EMI_DT6
EMI_DT7
EMI_DT8
EMI_DT9
EMI_DT10
EMI_DT11
EMI_DT12
EMI_DT13
EMI_DT14
EMI_DT15
EMI_XFCS0
EMI_XRDY
EMI_XNOE
EMI_XFCS1
EMI_NCLE
EMI_NALE
EMI_XNWE
EMI_XNOE
EMI_XFCS1
EMI_NCLE
EMI_XNWE
EMI_NALE
EMI_XOE
EMI_AD0
EMI_AD2
EMI_AD4
EMI_AD6
EMI_AD8
EMI_AD10
EMI_AD12
EMI_AD14
EMI_AD16
EMI_AD18
EMI_AD20
EMI_AD22
EMI_AD24
EMI_AD1
EMI_AD3
EMI_AD5
EMI_AD7
EMI_AD9
EMI_AD11
EMI_AD13
EMI_AD15
EMI_AD17
EMI_AD19
EMI_AD21
EMI_AD23
EMI_AD25
EMI_XWE
EMI_XFCS0
EMI_XFCS1
EMI_XFCS2
EMI_XFCS3
EMI_XWE
EMI_XOE
EMI_XGCS1
EMI_XGCS0
EMI_AD24
EMI_AD25
EMI-AD0
EMI-AD1
EMI-AD2
EMI-AD3
EMI-AD4
EMI-AD5
EMI-AD6
EMI-AD7
EMI-AD8
EMI-AD9
EMI-AD10
EMI-AD11
EMI-AD12
EMI-AD13
EMI-AD14
EMI-AD15
EMI-AD16
EMI-AD17
EMI-AD18
EMI-AD19
EMI-AD20
EMI-AD21
EMI-AD22
EMI-AD23
EMI-AD24
EMI-AD17
EMI-AD12
EMI-AD0
EMI-AD3
EMI-AD8
EMI-AD7
EMI-AD1
EMI-AD4
EMI-AD2
EMI-AD13
EMI-AD9
EMI-AD5
EMI-AD6
EMI-AD10
EMI-AD18
EMI-AD14
EMI-AD15
EMI-AD16
EMI-AD22
EMI-AD11
EMI-AD20
EMI-AD21
EMI-AD19
EMI-AD23
EMI-AD24
EMI-AD25
EMI_AD17
EMI_AD12
EMI_AD0
EMI_AD3
EMI_AD7
EMI_AD1
EMI_AD4
EMI_AD8
EMI_AD2
EMI_AD5
EMI_AD13
EMI_AD9
EMI_AD6
EMI_AD18
EMI_AD10
EMI_AD14
EMI_AD11
EMI_AD22
EMI_AD15
EMI_AD16
EMI_AD19
EMI_AD20
EMI_AD21
EMI_AD23
EMI_XWE
EMI_XGCS0
EMI_XGCS1
EMI_XFCS2
EMI_XFCS3
EMI_XRDY
EMI_XGRDY EMI_XNWE
EMI_NALE
EMI_XNOE
EMI_NCLE
EMI_XFCS1
EMI_XOE
EMI_XFCS0
EMI_DT11
EMI_DT3
EMI_DT10
EMI_DT2
EMI_DT9
EMI_DT1
EMI_DT8
EMI_DT0
EMI_DT4
EMI_DT12
EMI_DT5
EMI_DT13
EMI_DT6
EMI_DT14
EMI_DT7
EMI_DT15
EMI_DT7
EMI_DT14
EMI_DT3
EMI_DT9
EMI_DT0
EMI_DT5
EMI_DT4
EMI_DT12
EMI_DT11
EMI_DT1
EMI_DT15
EMI_DT8
EMI_DT6
EMI_DT2
EMI_DT10
EMI_DT13
EMI-AD25
GND
3.3V
SYSCLK
EMI_XOE
EMI_XFCS0
EMI_XFCS2
EMI_XNFOE
EMI_XGCS0
EMI_XGRDY
EMI_NALE
GND
EMI_AD0
EMI_AD2
EMI_AD4
EMI_AD6
EMI_AD10
EMI_AD8
EMI_AD12
EMI_AD14
EMI_AD18
EMI_AD16
EMI_AD22
EMI_AD20
EMI_AD24
GND
EMI_DT0
EMI_DT2
EMI_DT6
EMI_DT4
EMI_DT8
EMI_DT10
EMI_DT14
EMI_DT12
3.3V
GND
3.3V
GND
GND
GND
GND
3.3V
GLB_XRST
EMI_XWE
EMI_XFCS1
EMI_XFCS3
EMI_XNWE
EMI_XGCS1
EMI_NRB
EMI_NCLE
EMI_AD1
EMI_AD3
EMI_AD5
EMI_AD7
EMI_AD15
EMI_AD9
EMI_AD11
EMI_AD13
EMI_AD21
EMI_AD17
EMI_AD19EMI_AD23
EMI_AD25
EMI_DT1
EMI_DT3
EMI_DT5
EMI_DT7
EMI_DT9
EMI_DT11
EMI_DT13
EMI_DT15
DQ0
DQ11
N.C
DQ1
A14
A5
DQ15/A-1
WE
DQ12
A1
A16
OE
DQ3
DQ8
A6
DQ7
N.C
A9
DQ4
A2
DQ6
VSS
A13
DQ10
A7
N.C
VCC
A10
DQ14
A3
DQ13
A12
DQ2
A17
BYTE
RY/BY
CE
A15
N.C
A8
DQ9
A4
VSS
A11
DQ5
A0
N.C
RESET
(10/11)
MB-124
(9/11)
(6/11)
MB-124
IC502
2G NAND FLASH ROM
(6/11)
(9/11)
MB-124
(11/11)
4M NOR FLASH ROM
IC501
(9/11)
MB-124
A/V OUT, HDMI, ETHERNET I/F, USB I/F
MAIN SYSTEM CONTROL, DSP, SATA I/F, MEMORY CONTROL,
IC101 (4/11)
MB-124
(3/11) (4/11)
(10/11) (11/11)
(6/11) (9/11)
18
FLASH/HOST
9
D
E
1110 152 5
MB-124 BOARD (5/11)
K
3
I
17
05
F
1612
C
1 86
XX MARK:NO MOUNT
G
14
A
13
H
L
74
J
B
4-19
BDP-S5000ES
4-19. MB-124 BOARD (6/11) (USB) • See page 5-12 for printed wiring board.
- Ref. No.: MB-124 board; 10,000 series -
NO MARK:PB MODE
3.3
5.7
5
0
3.3
0
0
3.3
1.5
0
0
0
0
0
0
3.3
3.3
3.3
3.3
3.3
3.3
0
1.7
3.3
3.3
3.3
3.3
0
0
0.8
3.3
1.5
1.5
1.5
0
0
3.3
3.3
3.3
3.3
3.3
0
0
0
0
0
3.3
0
0
0
3.3
3.3
0.1
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
0
3.3
0
0
0
3.3
1.6
1.6
0
0
3.3
3.3
3.3
3.3
∗
∗
∗
3.3
1.5
0
0
0
0
0
0
31
32
∗
:IMPOSSIBLE TO
MEASURE
220
R642
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
919293949596979899
100101102103104105106107108109
110
111
112113114115116117118119
120
UPD720102GC-YEB-E2-A
IC602
PPON1
OCI20
VSS
PPON2
OCI30
PPON3
VDD
VCCRST0
PME0
NC
PCLK
VSS
VBBRST0
INTA0
GNT0
REQ0
AD31
VDD
AD30
AD29
VSS
AD28
AD27
AD26
AD25
AD24
VDD
CBE30
IDSEL
VDD15
VSS
AD23
AD22
AD21
AD20
AD19
VDD
AD18
VSS
AD17
AD16
CBE20
FRAME0
IRDY0
VSS
NC
TRDY0
VDD
DEVSEL0
STOP0
PERR0
SERR0
PAR
VSS
CBE10
AD15
VDD
AD14
AD13
VSS
VDD15
AD12
AD11
AD10
VDD
AD9
AD8
CBE00
NC
AD7
VSS
AD6
AD5
AD4
VDD
AD3
AD2
AD1
AD0
VSS
XT1/SCLK
NC
XT2
VDD
CRUN0
SMI0
VSS
SRCLK
SRMOD
SRDTA
CLKSEL
HSMODE
TESTEN
AVSS(R)
RREF
AVDD33
AVDD15
AVSS
VSS
VDD15
DM1
DP1
VSS
VSS
DM2
DP2
VDD
VDD
DM3
DP3
VSS
VDD
NC
VSS
VDD15OUT
VDD
VDD
TEST4
TEST3
OCI10
33
RB608
33
RB607
33
RB606
33
RB605
33
RB604
33
RB603
33
RB602
33
RB601
XX
R640
10kR641
33
RB600
33
R607
33
R608
33
R609
33
R610
33
R611
33
R612
33
R616
33
R615
33
R614
33
R613
33
R605
100R624
10kR627
10k
R628
10k
R633
XX
R638
10kR639
1.6k
R636
0.5%
10k
R637
10kR629
3.3
C606
0.1
C608
2.2
C607
2.2
C613
22R625
EMI
FL600
C603
0.01
R606 33
D601
PGB1010603NR
VDR600
XX
D602
PGB1010603NR
D600
1SS355TE-17
10V22
C604
10V
220
C610
UNSW6V
C605
XX
C625
10
0uH
L601
0uH
L602
USB_VBUS_PCONT
10V
C628
22
30MHz
X601
XX
R643
8pC626
8p
C627
XX
R630
XX
R631
0.5%750
R632
12345
IC601
TK73651
VC
VIN
GND
VOUT
SENSE
0uH
L600
XX
R604
XX
R602
16
15
14
13
12
11
10
98
7
6
5
4
3
2
1
IC600
XX
CLKIN
1Y0
1Y1
VDD
GND
2Y0
2Y1
S2 S1
2Y2
2Y3
GND
VDD
1Y2
1Y3
FBIN
0.1
C600
XX
R621
0.1
C602
XXR603
XXR618
0.1
C601
R619
XX
OE VDD
OUTGND
33MHz
X600
0
R601
PCIP_CLK_BAG
XX
R600
CORE_1.05V
EMMA_SW3.3V 33
RB609
33
RB610
33
RB611
33
RB612
33
RB613
33
RB614
33
RB615
33
RB616
33
RB619
33
RB618
33
RB617
33R644
33R645
33R646
XX
RB620
4.7k
RB621
4.7k
RB622
4.7k
R647
4.7k
R648
0.1
C629
0.1
C630
0.1
C631
0.1
C632
0.1
C633
0.1
C634
0.1
C635
0.1
C636
0.1
C637
0.1
C638
0.1
C639
C640
0.1
0.1
C641
0.1
C642
0.1
C643
10V
C623
22
10k
R650
EMMA_XRST
100R651
R617
0
R620
0
A1B1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25 A25
A30
B26
A34
B30
B34
A29
A33
B29
B33
A28
A32
B28
B32
A27
A31
B27
A35
B31
B35
A26
CN601
XX
SW3.3V
PCI_INTD
PCI_XRST
PCIREQB2
PCIREQB1
PCIGNTB1
PCI_INTA
PCI_INTC
PCI_INTB
PCIGNTB2
JL606
JL607
JL608
JL609
JL610
JL611
JL612
JL613
JL614
JL615
JL622
JL617
JL619
JL625
JL616
JL624
JL623
JL618
JL621
JL620
JL632
JL635
JL634
JL626
JL633
JL628
JL631
JL630
JL627
JL629
JL642
JL636
JL643
JL645
JL644
JL639
JL640
JL637
JL638
JL641
JL646
JL647
JL648
JL649
JL650
JL651
JL652
JL653
JL654
C611
10
R652
10k
1
2
4
3
L603
1
2
3
4
5
5P
CN600
CL601
CL602
CL603
CL604
CL605
CL606
0
R654
0R655
0R656
0R657
0R658
4.7k
R660
4.7kR659
0
R661
XX
R662
0.1C614
0.1C615
0.1C616
0.1C617
R622
0
1
C644
1
C645
CL607 CL608 CL609 CL610 CL611 18nH
R634
18nH
R635
C646
0.01
JL601
JL602
IC101
MC-10092F1-207-RNA-A
VDD3
A9
VDD3
A3
VDD3
G9
VDD3
H6
VDD3
J6
VDD10
H7
VDD10
J7
GND
A6
GND
D2
GND
D5
GND
D7
GND
F2
GND
H4
GND
K7
PCIAD0 B9
PCIAD1 C9
PCIAD2 D9
PCIAD3 E9
PCIAD4 F9
PCIAD5 A8
PCIAD6 B8
PCIAD7 C8
PCIAD8 D8
PCIAD9 E8
PCIAD10 G8
PCIAD11 A7
PCIAD12 B7
PCIAD13 F7
PCIAD14 C7
PCIAD15 G6
PCIAD16 G7
PCIAD17 A4
PCIAD18 B4
PCIAD19 C4
PCIAD20 D4
PCIAD21 B3
PCIAD22 C3
PCIAD23 B2
PCIAD24 E4
PCIAD25 D3
PCIAD26 G4
PCIAD27 C2
PCIAD28 G3
PCIAD29 E3
PCIAD30 J5
PCIAD31 G5
PCICBEB0 F8
PCICBEB1 E7
PCICBEB2 E5
PCICBEB3 F5
PCIPAR B6
PCISERRB C6
PCIPERRB D6
PCISTOPB E6
PCIDEVSELB F6
PCITRDYB A5
PCIIRDYB B5
PCIFRAMEB C5
PCIIDSEL F4
PCIREQB0 F3
PCIGNT0 E2
PCIRSTB H5
PCICLKI H3
XX
C609
0
R663
C619
4p
C618
4p
U_AD0
U_AD2
U_AD1
U_AD3
U_AD7
U_AD5
U_AD4
U_AD6
U_AD15
U_AD11
U_AD13
U_AD14
U_AD9
U_AD12
U_AD8
U_AD10
U_AD23
U_AD25
U_AD19
U_AD27
U_AD28
U_AD21
U_AD22
U_AD17
U_AD20
U_AD30
U_AD29
U_AD16
U_AD26
U_AD24
U_AD18
U_AD31
U_AD0
U_AD1
U_AD2
U_AD3
U_AD4
U_AD5
U_AD6
U_AD7
U_AD8
U_AD9
U_AD10
U_AD11
U_AD12
U_AD13
U_AD14
U_AD15
U_AD16
U_AD17
U_AD18
U_AD19
U_AD20
U_AD21
U_AD22
U_AD23
U_AD24
U_AD25
U_AD26
U_AD27
U_AD28
U_AD29
U_AD30
U_AD31
PCIP_AD31
PCIP_AD30
PCIP_AD29
PCIP_AD28
PCIP_AD27
PCIP_AD26
PCIP_AD25
PCIP_AD24
PCIP_AD23
PCIP_AD22
PCIP_AD21
PCIP_AD20
PCIP_AD19
PCIP_AD18
PCIP_AD17
PCIP_AD16
PCIP_AD15
PCIP_AD14
PCIP_AD13
PCIP_AD12
PCIP_AD11
PCIP_AD10
PCIP_AD9
PCIP_AD8
PCIP_AD7
PCIP_AD6
PCIP_AD5
PCIP_AD4
PCIP_AD3
PCIP_AD2
PCIP_AD1
PCIP_AD0
U_XCBE0
U_XCBE2
U_XFRAME
U_XIRDY
U_XTRDY
U_XDEVSEL
U_XSTOP
U_XPERR
U_XSERR
U_PAR
U_XCBE1
U_XCBE3
U_XINT
U_XGNT
U_XREQ
PCIP_XSTOP
PCIP_XDEVSEL
PCIP_XTRDY
PCIP_XPERR
PCIP_XSERR
PCIP_XFRAME
PCIP_XIRDY
PCIP_PAR U_PAR
U_XIRDY
U_XFRAME
U_XSERR
U_XPERR
U_XTRDY
U_XDEVSEL
U_XSTOP
U_XREQ
U_XINT
U_AD24
PCIP_XCBE3 U_XCBE3
PCIP_XCBE1 U_XCBE1
PCIP_XCBE2
PCIP_XCBE0 U_XCBE0
U_XCBE2
PCIP_AD31
PCIP_AD30
PCIP_AD29
PCIP_AD28
PCIP_AD27
PCIP_AD26
PCIP_AD25
PCIP_AD24
PCIP_AD23
PCIP_AD22
PCIP_AD21
PCIP_AD20
PCIP_AD19
PCIP_AD18
PCIP_AD16
PCIP_AD15
PCIP_AD14
PCIP_AD13
PCIP_AD12
PCIP_AD11
PCIP_AD10
PCIP_AD9
PCIP_AD8
PCIP_AD7
PCIP_AD6
PCIP_AD5
PCIP_AD4
PCIP_AD3
PCIP_AD2
PCIP_AD1
PCIP_AD0
PCIP_AD17
PCIP_PAR
PCIP_XSERR
PCIP_XPERR
PCIP_XSTOP
PCIP_XDEVSEL
PCIP_XTRDY
PCIP_XIRDY
PCIP_XFRAME
PCIP_XFRAME
PCIP_XIRDY
PCIP_XCBE3
PCIP_XCBE0
PCIP_XCBE1
PCIP_XCBE2
PCIP_XTRDY
PCIP_XDEVSEL
PCIP_XSTOP
PCIP_XPERR
PCIP_XSERR
PCIP_PAR
PCIP_AD3
PCIP_AD2
PCIP_AD1
PCIP_AD0
PCIP_AD31
PCIP_AD30
PCIP_AD29
PCIP_AD28
PCIP_AD27
PCIP_AD26
PCIP_AD25
PCIP_AD24
PCIP_AD23
PCIP_AD22
PCIP_AD21
PCIP_AD20
PCIP_AD19
PCIP_AD18
PCIP_AD17
PCIP_AD16
PCIP_AD15
PCIP_AD14
PCIP_AD13
PCIP_AD12
PCIP_AD11
PCIP_AD10
PCIP_AD9
PCIP_AD8
PCIP_AD7
PCIP_AD6
PCIP_AD5
PCIP_AD4
PCIP_XCBE3
PCIP_XCBE0
PCIP_XCBE1
PCIP_XCBE2
U_XGNT
AD 0
AD 1
AD 2
AD 3
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
AD 7
AD 6
AD 5
AD 4
AD 11
AD 10
AD 9
AD 8
AD 15
AD 14
AD 13
AD 12
CBE0
CBE1
PAR
SERR
PERR
STOP
DEVSEL
TRDY
INTD
PCIRST
PCIREQB
PCICLK
IRDY
FRAME
CBE2
AD16
AD17
AD19
AD18
AD22
AD21
AD20
AD23
AD27
AD24
AD25
AD26
AD30
AD29
AD28
AD31
CBE3
REQ0
GNT0
INTB
INTA
INTC
PCIGNTB
SW3.3V
DP
DM
VBUS
GND
GND
GND
GND
GND
SW3.3V
A/V OUT, HDMI, ETHERNET I/F, USB I/F
IC101
MAIN SYSTEM CONTROL, DSP, SATA I/F, MEMORY CONTROL,
(5/11)
MB-124
(9/11)
(10/11) (11/11)
MB-124
(3/11) (7/11)
(5/11) (9/11)
(10/11) (11/11)
MB-124
(3/11) (4/11)
(3/11) (4/11)
(9/11) (11/11)
MB-124
(1/11) (2/11)
MB-124
(5/11)
USB HOST
IC602
18
M
USB
9
D
E
11
N
10 152 5
MB-124 BOARD (6/11)
K
3
I
17
05
F
1612
C
1 1986
XX MARK:NO MOUNT
20
G
14
A
13
H
L
74
J
B
IC601
+5V REGULATOR
(8/11) (9/11)
(10/11)
MB-124
(3/11) (7/11)
(9/11)
MB-124
CN302
USB-007
(SEE PAGE 4-26)
BOARD
(11/11)
(5/11)
(9/11)
MB-124
4-20
BDP-S5000ES
4-20. MB-124 BOARD (7/11) (HDMI/SATA) • See page 5-12 for printed wiring board.
- Ref. No.: MB-124 board; 10,000 series -
NO MARK:PB MODE
3.3
1.4
1.4
3.3
0
1.5
1.5
3.2
1
0.2
3.3
5.73.1
1.3
33
0.01C700
0.01C704
0.01C701
0.01C705
8
7
6
54
3
2
1
IC700
CY25100ZXC-39T
100
R706
100
R703
0.01
C711
R702 1k
R701
XX
1k
R700
SW3.3V
0.1
C708
XX
C709
XX
C710
GND
2.2
C721
0.1
C712
0.1
C713
C714
0.01
C716
0.01
0.1
C715
XX
C717
C718
0.01
C720
0.01
0.1
C719
XX
C723
0.1
C722
C725
0.01
0.1
C724
C726
0.01
XX
C727
0.1
C728
C729
0.01
3.3uH
L700
OTHER_1.05V
2.2
C730
10uH
L701
SATA1.8V
2.2
C731
10uH
L702
2k
R707
2kR705
1
2
25MHz
X701
C741 XX
0.01
C732
0.01
C733
0.01
C734
0.01
C735
0.01C736
0.01C737
0.01C738
R713
XX
R708 XX
XX
R712
D1G2S2
D2 G1 S1
XX
Q701
3.3k
R714
3.3k
R715
0R709
0R710
5 4
321
TK11133CSCL-G
IC703
CONT
GND
NOISE VOUT
VIN
JL701
10
C742
10
C740
XX
R716
0.01
C745 0.22
C743
0.22
C744
XX
R718
R711
XX
15k
R719
SW1.55V
HDMI_PCONT
UNSW6V
CL701
XX
FB703
R728
XX
R727
XX
XX
FB702
R730
XX
XX
FB704
R729
XX
XX
FB705
XX
FB701
R726
XX
CEC
XX
R724
XX
R725
5
4 3
2
1
XX
IC702
A
B
GY
V
XX
C739
XXR723
XX
R722
XXR721
2.2
C746
10uH
L707
XX
C750
5 4
321
XX
IC704
CONT
GND
NOISE VOUT
VIN
XX
C749 C751
XX
XX
R731
XX
R732
XX
C752
XX
C753
EMI
FL701
6.3V
22
C754
XX
R733
EMI
FL702
6.3V
22
C755
XX
R734
0
R735
JL703
JL704
JL705
D701 XX
D702 XX
D703 XX
D704 XX
D705 XX
D706 XX
D707 XX
D708 XX
D710 XX
D711 XX
D712 XX
8765
4321
MM1701AHBE
IC701
VOUT
NC
GND
CN CONT
NC
NC
VIN
JL706
0.01
C756
JL707
XX
C748
D713 XX
D709 XX
XX
C747
R736
XX
0.1
C757
XX
C758
XX
R737
XX
C759
XX
R738
XX
C760
XX
R739
XX
R740
XX
C761
1
2
3
4
5
6
7
7P
CN700
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
XX
CN702
100R704
0.1
C762 XX
C763
1k
R741
XX
C702
PCONT2
0
R743
XX
R744
PCONT3
1 2
34
XX
L703
1 2
34
XX
L704
1 2
34
XX
L705
1 2
34
XX
L706
32V
1A
PS701
R717
0
IC101
MC-10092F1-207-RNA-A
SAGNDDIG
A24
SAGNDDIG
B24
SARXP0
A23
SARXN0
B23
SAGNDDIG
A22
SAGNDDIG
B22
SATXN0
A21
SATXP0
B21
SAGNDDIG
A20
SAGNDDIG
B20
SARXP1
A19
SARXN1
B19
SAGNDDIG
A18
SAGNDDIG
B18
SATXN1
A17
SATXP1
B17
SAGNDDIG
A16
SAGNDDIG
B16
SAGNDDIG
C14
SAGNDDIG
G18
SAGNDDIG
G19
SACREFP
B15
SACREFN
A15
SAVDDANA
B14
SAVDDANA
G17
SAGNDANA
A14
SAGNDANA
F17
SAVDDIG
C15
SAVDDIG
C21
SAVDDIG
C22
SAVDDIG
C23
SAVDDIG
D20
SAVDDIG
E19
SAVDDIG
F19
SAVDDIG
G16
SAVDDTIO
C17
SAVDDTIO
C18
SAVDDTIO
C19
SAVDDTIO
C20
SAVDDTIO
D18
SAVDDTIO
D19
SAVDDTIO
E18
SAVDDTIO
F18
MC-10092F1-207-RNA-A
IC101
AGDNH R32
AGNDH R33
TX2P T33
TX2N T32
AVCC U33
AVCC U32
TX1P V33
TX1N V32
AGNDH W33
AGNDH W32
TX0P Y33
TX0N Y32
AVCC AA33
AVCC AA32
TXCP AB33
TXCN AB32
AGDNH AC33
AGNDH AC32
EXT_SWING V31
HDSCL W31
HDSDA Y31
HHPD AA31
AGNDH T31
AGNDH U31
AGNDH AB31
AGNDH AC31
AGNDH V30
AGNDH W27
AGNDH W28
AGNDH W29
AGNDH W30
AVCC V27
AVCC V28
AVCC V29
0.01
C703
0.01
C706
0R745
0R746
XXR747
XXR748
GND
HR-0
GND
GND
HT-0
HT+0
HR+0
VDD
XOUT
XIN/CLKIN
PD#/OE
SSON#
SSCLK
REFCLK
VSS
TMDS DATA2 +
TMDSDATA2SHIELD
TMDS DATA2 -
TMDS DATA1 +
TMDSDATA1SHIELD
TMDS DATA1 -
TMDS DATA0 +
TMDSDATA0SHIELD
TMDS DATA0 -
TMDS CLOCK +
TMDSCLOCKSHIELD
TMDS CLOCK -
CEC
RESERVED
SCL
SDA
DDC/CEC GND
+5V POWER
HPD
PARTS BODY
PARTS BODY
PARTS BODY
PARTS BODY
IC700
CLOCK GENERATOR
A/V OUT, HDMI, ETHERNET I/F, USB I/F
MAIN SYSTEM CONTROL, DSP, SATA I/F, MEMORY CONTROL,
IC101 (6/11)
(7/11)IC101
MAIN SYSTEM CONTROL, DSP, SATA I/F, MEMORY CONTROL,
A/V OUT, HDMI, ETHERNET I/F, USB I/F
IC701
+1.0V REGULATOR
IC703
+3.3V REGULATOR
(9/11) (10/11)
(3/11) (8/11)
MB-124
(9/11) (10/11)
MB-124
(10/11) (11/11)
MB-124
(3/11) (6/11)
(3/11)
MB-124
(3/11) (6/11)
(8/11) (9/11)
MB-124
(10/11)
BD
DRIVE
(3/11) (9/11)
MB-124
(9/11)
MB-124
(3/11)
MB-124
HDMI/SATA
9
D
E
1110 152 5
MB-124 BOARD (7/11)
3
I
05
F
1612
C
1 86
XX MARK:NO MOUNT
G
14
A
13
H
74
J
B
Note:
The components identified
by mark 0 or dotted line
with mark 0 are critical for
safety.
Replace only with part num-
ber specified.
Note:
Les composants identifiés par
une marque 0 sont critiquens
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spéci-
fié.
4-21
BDP-S5000ES
4-21. MB-124 BOARD (8/11) (AUDIO/VIDEO) • See page 5-12 for printed wiring board.
- Ref. No.: MB-124 board; 10,000 series -
NO MARK:PB MODE
4.9
3.3
3.3
1.3
XX
R813
XXR814
XX
C802
XXR815
XX
C804
XXR816
XXR817
XXR818
0.1C805
0.1C806
0.1C807
6.3V100C808
XX
C801
XXC809
XXR819
0.1C810
0.1C811
0.1C812
0.1C813
XX
Q803
0.1C803
XX
R829
XX
R828 XX
R831
XX
R841
XX
Q805
XX
R840
XX
R843
XX
R839
XX
Q804
XX
R832
XX
R833
XX
R826
XX
Q801
XX
R823
XX
R822
XX
R847
XX
Q806
XX
R845
XX
R844
XX
R849
XX
R850
XX
R851
XX
R852
XX
R853
XX
C821
XX
C823
GND
5 4
321
TK11133CSCL-G
IC803
CTL
GND
NP VO
VI
XX
R837
XX
R838
0
R836
0
R835 1
C820
0.01
C822
1
C824
R846
XX
R848
0
PCONT3
XVMUTE
ASPECT0
ASPECT1
IP
FORMAT1
FORMAT0
22
R801
100
R802
100
R803
100
R804
100
R805
100
R806
100
R807
22
R808
100
R809
100
R811
100
R810
22
R812
VCC
IN
GND
XX
IC802
1
2
3
XX
R842
XX
C818
XX
C819
J801
D801
XX
XX
C817
XX
C816
XX
R834
XX
R830
XX
Q802
XX
R827
XX
R825
XX
R820
XX
R821 XX
C815
XX
R824
SW5VD
XAMUTE
DAC_XRST
EMMA_CSI0_DAC2_XCS
EMMA_CSI0_CKO
EMMA_CSI0_DO
10uHL802
XX
L803
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21P
CN801
PCONT2
DCSW5V
10k
R858
10kR859
EMMA_CSI0_DAC8_XCS
DAC_MUTE
10k
R860
10kR861
10kR862
10kR863
10k
R864
0
R865
JL814
R873
XX
R874 XX
R875 XX
R876 XX
R877 XX
R878 XX
R879 XX
0
R889
0
R890
0
R891
0
R892
0
R893
0
R894
0
R895
0
R896
XX
R856
XX
R854
XX
R867
XX
R866
XX
R857
XX
R855
XX
R868
XX
R869
XX
R870
0
R872
0
R871
0
R883
0
R884
0
R880
0
R881
0
R882
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26P
CN803
R897
0
R898 0
R1801 0
UNSW6V
R1802 XX
XX
R1803
R1804
XX
R899 XX
JL810
JL812
JL813
JL811
JL805
JL809
JL806
JL807
JL808
JL804
JL803
R1805 0
XXR1806
JL801
JL802
MC-10092F1-207-RNA-A
IC101
GND
L31
GND
M30
GND
M32
GND
N31
GND
N32
GND
N33
GND
P30
GND
P32
GND
H30
VAY M31
VAC M33
VAREFYC N30
VARSETYC R29
VACOMPYC N29
VAR P29
VAG P33
VAB P31
DVDDYC L32
AVDDYC N27
AVDDYC P27
AGNDYC L33
AGNDYC N28
AGNDYC P28
VACOMPRGB T29
VARSETRGB R31
VAREFRGB R30
DVDDRGB T30
AVDDRGB R27
AVDDRGB T27
AGNDRGB R28
AGNDRGB T28
AO1MCK E33
AO1BCK F32
AO1BD E32
AO1LRCK F31
AO0BCK C32
AO0BD3 D31
AO0BD0 C33
AO0BD1 E30
AO0BD2 E31
AO0LRCK D32
AO0MCK D33
ATX B32
AO0MCK
AO0LRCK
AO0BCK
AO0BD1
AO0BD2
AO0BD3
AO1MCK
AO1LRCK
AO1BD
AO0BCK
AO0MCK
AO0BD2
AO0BD0
AO0BD1
AO0BD3
AO0LRCK
AO1BCK
AO0BD0
AO1MCK
AO1BCK
AO1BD
AO1LRCK
GND
SW5VD
SD_C
GND
SD_Y
GND
HD_Y
GND
HD_PB
GND
HD_PR
GND
XVMUTE
ASPECT0
ASPECT1
IP
FORMAT1
FORMAT0
XAMUTE
GND
AO1MCK
GND
AO1BCK
AO1BD
EMMA_CSI0_DO
AO1LRCK
DAC_XRST
EMMA_CSI0_DAC2_XCS
EMMA_CSI0_CKO
GND
AO0BCK
GND
AO0BD3
AO0BD0
AO0BD1
AO0BD2
AO0LRCK
GND
AO0MCK
GND
GND
PCONT2
GND
SPDIF
PCONT3
EMMA_CSI0_DAC8_XCS
UNSW6V
(8/11)
A/V OUT, HDMI, ETHERNET I/F, USB I/F
MAIN SYSTEM CONTROL, DSP, SATA I/F, MEMORY CONTROL,
IC101
BOARD
CN801
(8/12)
(SEE PAGE 4-34)
VP-062
(9/11)
MB-124
+3.3V REGULATOR
IC803
AU-260
(SEE PAGE 4-3)
BOARD
(1/2)
CN1001
(3/11)
MB-124
XX
(9/11)
MB-124
(10/11)
MB-124
(9/11)
MB-124
(9/11)
(7/11) (9/11)
(3/11) (6/11)
(10/11)
MB-124
(3/11) (7/11)
MB-124
(9/11) (10/11)
MB-124
(3/11)
AUDIO/VIDEO
9
D
E
11102 5
MB-124 BOARD (8/11)
3
I
05
F
12
C
1 86
XX MARK:NO MOUNT
G
14
A
13
H
74
J
B
4-22
BDP-S5000ES
4-22. MB-124 BOARD (9/11) (GPIO/JTAG) • See page 5-12 for printed wiring board.
- Ref. No.: MB-124 board; 10,000 series -
NO MARK:PB MODE
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3 3.3
5.7
IP
XVMUTE
FORMAT1
ASPECT0
ASPECT1
FORMAT0
EMMA_CSI0_DO
CSI0_DI
EMMA_CSI0_CKO
GND
CORE_1.05V
OTHER_1.05V
EMMA_SW3.3V
PCI_XRST
GLB_XRST
XAMUTE
EMMA_CSI0_DAC2_XCS
DAC_XRST
NAND_WP
XXR910
XXR911
10kR913
XXR912
10kR914
10kR915
10kR916
R919 10k
R918 10k
JL900
JL901
JL902
JL903
JL904
JL905
JL906
JL907
PCI_INTB
PCI_INTA
10k
RB900
R902
10k
0.1
C902
0.1
C903
0.1
C904
0.1
C906
0.1
C905
0.1
C908
0.1
C909
0.1
C907
R900
XX
R924 0
10
R920 EMMA_I2C0_SDA
EMMA_I2C0_SCL
EMMA_I2C1_SDA
EMMA_I2C1_SCL
HDMI_XRST
DAC_MUTE
EMMA_CSI0_DAC8_XCS
EMMA_CSI0_GLUE_XCS
USB_VBUS_PCONT
KYOTO_XRST
ETHER_XRST
10
R921
10
R923
10
R922
22R949
R925 0
R926 0
R928 0
R927 0
R930 0
R929 0
R932 0
R931 0
R934 10k
R937 XX
R936 10k
R935 33
10k
RB901
10k
RB903
10k
RB902
R962
10k
R948 0
R963
10k
22R950
R951 0
R952 0
R953 0
R954 0
R955 0
R957 0
R956 0
R959 0
R958 0
R961 0
R960 0
1kR944
3.3k
R943
1kR945
1k
R947
10k
R938
10k
R939
10k
R940
R903 0
R904 10k
R906 10k
R905 0
R908 0
R907 0
CEC
1
2
3
4
5
6
CN901
XX
10k
R942
100
R964
R901 10k
XXR971
10kR972
10kR973
0R965
10k
R970
PCI_INTC
PCIGNTB2
PCI_INTD
PCIREQB2
PCIGNTB1
TH901
HDMI_PCONT
PCONT4
PCONT3
PCONT2
5 4
321
IC902
XX
8765
4321
TC7WH08FK(TE85R)
IC901
ALTERA_DONE
R967
10k
R966
10k
R968
XX
EMMA_XRST
0.1
C910 R969
100k
10
C901
10uH
L901
JL909
JL910
JL911
JL912
JL913
JL914
JL915
JL916
JL917
JL918
JL919
JL920
JL921
JL922
JL923
JL924
JL925
JL926
JL927
JL928
JL929
JL930
JL931
JL932
JL933
JL934
JL935
JL936
JL937
JL938
JL939
JL940
JL941
JL942
JL943
JL944
JL945
JL946
JL947
JL948
JL949
JL950
JL951
JL952
JL953
JL954
JL955
JL956
JL957
JL958
JL959
JL960
JL961
JL962
JL963
JL964
JL965
JL966
JL967
JL968
JL969
JL970
JL971
JL972
JL973
JL974
JL975
JL976
JL977 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
XX
CN902
JL978
JL979
0
R974
0
R975
0
R976
0
R977
0
R978
0
R979
0
R980
0
R981
0
R982
0
R983
0
R984
33R992
4.7kR993
PCIREQB1
R994 33
R995 4.7k
R996 10k
R997 10k
R998 100
R909 100
R933
10k
R941 10k
HDMI_XINT
R917 33
R9001
4.7k
R9002 4.7k
R9003 4.7k
R9004 4.7k
R946
10k R985
10k
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
CN903
XX
JL980
JL981
0
R986
XX
R987
XXC911
XXC912
XXC913
XXC914
100R990
100R991
100
R999
100
R988
EMMA_CSI0_HDE1_XCS
EMMA_CSI0_HDE2_XCS
EMMA_CSI0_VENC_XCS
0
R9006
0
R9007
0
R9005
JL982
JL983
JL984
JL985
JL986
JL987
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19P
CN904
JL988
JL989
S
2SK1828TE85L
Q901
UNSW6V
1
2
3
4
5
6
CN905
6P
R9016
XX
R9017
XX
R9009
0
R9008
0
R9015
XX
R9014
XX
R9010
0
R9011
0
R9019
XX
R9018
XX
R9013
XX
R9012
XX
CEC_VP
C915
0.01
0
R9022
100
R9021
0
R9020
0.01
C917
XX
C916
XX
C918
IC101
MC-10092F1-207-RNA-A
S0DIN
G33
S0DOUT
G30
S0CKOUT
G31
S2DIN
G32
S2DOUT
F30
S2CSB
H29
S2CKIN
G29
GPIO0
C28
GPIO1
E27
GPIO2
E26
GPIO3
D28
GPIO4
A28
GPIO5
C29
GPIO6
D27
GPIO7
F26
GPIO8
D26
GPIO9
B27
GPIO10
B28
GPIO11
G25
GPIO12
F25
GPIO13
C26
GPIO14
A27
GPIO15
E25
GPIO16
E24
GPIO17
F24
GPIO18
B25
GPIO19
B26
GPIO20
A25
GPIO21
D21
GPIO22
D24
GPIO23
E21
GPIO24
F23
GPIO25
F22
GPIO26
E23
GPIO27
F20
GPIO28
C24
GPIO29
D23
GPIO30
F21
GPIO31
E22
GPIO32
E20
GPIO33
D22
GPIO36
G20
VRVDD
F27
VRGND
G27
VDD3
F33
VDD3
C25
VDD3
C30
VDD3
D29
VDD3
G23
VDD3
G24
VDD10
G21
VDD10
G26
SDA0 M28
SCL0 L28
SDA1 M27
SCL1 L27
UA0RXDB K33
UA0TXDB L29
UA0RTSB K32
UA0CTSB K30
UA0DTRB K31
UA0DSRB K29
UA0RIB M29
UA0DCDB L30
UA1RXDB J33
UA1TXDB J30
UA1RTSB H33
UA1CTSB J31
UA1DTRB J32
UA1DSRB J29
UA1RIB H32
UA1DCDB H31
EJTDI B31
EJTCK A29
EJTDO B30
EJTMS B29
EJTRST A30
EJDINT A31
TMODE0 J27
TMODE1 H28
TMODE2 G28
TMODE3 E29
TMODE4 H27
TMODE5 F28
RSTSWB J28
TEST F29
NMI K27
GND K28
GND A26
GND C27
GND C31
GND D25
GND D30
GND E28
GND G22
EJ2DINT
EMMA_DIPSW1
EMMA_DIPSW0
EJ2TCK
EJ2TMS
EJ2DINT
EJ2TDO
EJ2TDI
EJ2TRST
EJ2TCK
EJ2TDI
EJ2TMS
EJ2TDO
EMMA_DIPSW0
EMMA_DIPSW1
EJ2TRST
3.3V
GND
RXD
TXD
DIPSW1
DIPSW0
SW3.3V
UX1RXDB
UA1TXDB
ICE1_TMS
ICE1_TCK
GND
ICE1_TDI
GND
GND
ICE1_TDO
ICE1_BKTG
ICE2_TMS
ICE2_TCK
ICE2_TDI
ICE2_TDO
ICE2_BKTG
ICE2_TRST
TMODE2
TMODE3
TMODE4
NC
INA
GND
VCC
OUTY
1A
1B
2Y
GND
VCC
1Y
2B
2A
GND
CEC
GND
IF_SCK
GND
IF_SDI
GND
IF_SDO
HDMI_PCONT
PCONT4
PCONT3
PCONT2
XIF_CS
GND
SYSCON_REQ
IF_START_BIT
XIF_RST
GND
TEMP
RESERVE
EXT_XRST
RESERVE
ICE1_TRST
EMMATXD1
EMMARXD1
IF_SDI
CEC
SYSCON_REQ
PCONT3
GND
GND
IF_START_BIT
PCONT2
IF_SDO
XIF_RST
IF_SCK
XIF_CS
HDMI_PCONT
GND
GND
GND
GND
PCONT4
TEMP
3.3V
DIPSW1
TXD
RXD
GND
DIPSW0
MB-124 (7/11) (10/11)
MB-124 (3/11)
(3/11) (7/11)
MB-124
(8/11) (10/11)
LEVEL SHIFT
(10/11)
MB-124
(7/11)
MB-124
(3/11) (6/11)
MB-124
(7/11) (8/11)
(10/11)
IFD-002
(SEE PAGE 4-13)
BOARD
(3/3)
CN503
(5/11) (6/11)
MB-124
(3/11) (4/11)
(10/11) (11/11)
BUFFER
IC901
(10/11)
MB-124
(5/11) (6/11) (11/11)
MB-124
MB-124
(1/11) (2/11)
(3/11) (4/11)
(6/11) (11/11)
(7/11)
(3/11)
MB-124
(8/11)
MB-124
(6/11)
MB-124
(8/11)
MB-124
(10/11)
(8/11)
MB-124
(10/11)
MB-124
(6/11)
MB-124
MB-124 (5/11) (10/11)
MB-124 (5/11)
A/V OUT, HDMI, ETHERNET I/F, USB I/F
MAIN SYSTEM CONTROL, DSP, SATA I/F, MEMORY CONTROL,
IC101 (9/11)
MB-124
(10/11)
MB-124
(8/11)
MB-124
(10/11)
MB-124
(6/11)
MB-124
(11/11)
18
GPIO/JTAG
9
D
E
1110 152 5
MB-124 BOARD (9/11)
K
3
I
17
05
F
1612
C
1 1986
XX MARK:NO MOUNT
G
14
A
13
H
74
J
B
(JIG)
4-23
BDP-S5000ES
4-23. MB-124 BOARD (10/11) (IPIO) • See page 5-12 for printed wiring board.
- Ref. No.: MB-124 board; 10,000 series -
GND
0
R7000
0
R7001
0
R7002
RB7003
0R7003
22
RB7002
22
RB7006
22
RB7007
22
RB7009
22
RB7008
22
R7009
22
R7008
47
R7007
XX
RB7000
XX
RB7001
XX
RB7005
XX
RB7004
XX
R7004
XX
R7005
XX
R7006
UNSW6V
EMMA_I2C1_SCL
EMMA_I2C1_SDA
EMMA_CSI0_GLUE_XCS
EMMA_CSI0_DO
EMMA_CSI0_CKO
EMMA_I2C0_SCL
EMMA_I2C0_SDA
HDMI_PCONT
HDMI_XRST
GLB_XRST
KYOTO_XRST
HDMI_XINT
XX
RB7010
XX
R7011
XX
R7012
XX
R7010
10k
RB7012
10k
RB7013
XX
RB7011
JL7001
JL7002
A1
A2
A3
A4
A5
A6
A7
A8B8
A9B9
A10B10
A11B11
A13
B14
A15B15
A16B16
A17B17
A18B18
A19B19
A20B20
A21B21
A22
B23
B27
B24
B25
A28B28
A29B29
A24
A25
A26
A23
A30B30
B26
A27
A36
B38
A32
A33
A31B31
B39
A40
B33
B36
A38
B32
B37
A35
B40
A37
A39
B35
B22
A34B34
A43
B42
A41
A42
B41
B44 A44
B43
A46
A45
B47 A47
B45
B46
A12
B7
B4
B3
B5
B6
B1
B2
B12
B13
A14
CN7001
80P
JL7003
JL7004
JL7005
JL7006
JL7007
JL7008
JL7009
JL7010
JL7011
JL7012
JL7013
JL7014
JL7016
JL7017
JL7018
JL7019
JL7020
JL7021
JL7022
JL7023
JL7026
JL7027
JL7028
JL7029
JL7030
JL7031
JL7032
JL7033
JL7034
JL7035
JL7036
JL7037
JL7038
JL7039
JL7040
SW3.3V
ALTERA_DONE
CSI0_DI
JL7041
PCONT2
EMMA_CSI0_HDE2_XCS
EMMA_CSI0_HDE1_XCS
PCONT3
EMMA_CSI0_VENC_XCS
EMMA_SW3.3V
CEC_VP
IC101
MC-10092F1-207-RNA-A
VDD3
G14
GND
A13
GND
D10
GND
G10
IPICLK C10
IPIHSB G11
IPIVSB D11
IPIDY0 B10
IPIDY1 F10
IPIDY2 C11
IPIDY3 E10
IPIDY4 B11
IPIDY5 F12
IPIDY6 A10
IPIDY7 D12
IPIDC0 F11
IPIDC1 G13
IPIDC2 E11
IPIDC3 D13
IPIDC4 E13
IPIDC5 F13
IPIDC6 E12
IPIDC7 C12
IPOCLK A11
IPOHSB E14
IPOVSB B12
IPODY0 F14
IPODY1 C13
IPODY2 G15
IPODY3 F16
IPODY4 G12
IPODY5 A12
IPODY6 D17
IPODY7 E15
IPODC0 D14
IPODC1 F15
IPODC2 B13
IPODC3 E16
IPODC4 D15
IPODC5 E17
IPODC6 D16
IPODC7 C16
E3P_C6
E3P_C7
E3P_C8
E3P_C9
E3P_ABD2
E3P_VCK
E3P_VD
E3P_HD
E3P_Y4
E3P_C2
E3P_C6
E3P_AMCK
E3P_ALRCK
E3P_ABCK
E3P_ABD0
E3P_ATX
E3P_ABD3
E3P_C5
E3P_C4
E3P_C3
E3P_C2
E3P_HD
E3P_VD
E3P_VCK
E3P_ATX
E3P_ALRCK
E3P_ABCK
E3P_AMCK
E3P_ABD0
E3P_ABD1
E3P_Y2
E3P_Y3
E3P_Y4
E3P_Y5
E3P_Y6
E3P_Y7
E3P_Y8
E3P_Y9
E3P_ABD1
E3P_ABD2
E3P_C7
E3P_C3
E3P_Y5
E3P_Y2
E3P_Y6
E3P_C4
E3P_Y8
E3P_Y9
E3P_C8
E3P_ABD3
E3P_C9
E3P_C5
E3P_Y7
E3P_Y3
I2C_400k_SCL
HDMI_XRST
KYOTO_XRST
CEC
SW6V
ABD3
GLB_XRST
DGND
E3P_VCK
E3P_VD
DGND
HDMI_XINT
E3P_HD
SW3.3V
CSI_DO
CSI_DI
CSI_CK
ALTERA_DONE
ABD2
ABD1
ABD0
ATX
ALRCK
ABCK
HDMI_PCON
GLUE_XCS
I2C_400k_SDA
I2CA_100k_SDA
I2C_100k_SCL
DGND
AMCK
E3P_Y9
E3P_C8
E3P_C9
SW6V
SW6V
SW3.3V
PCONT2
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
SW3.3V
SW3.3V
DGND
DGND
DGND
HDE2_XCS
DGND
DGND
DGND
DGND
E3P_C6
E3P_C7
E3P_C5
E3P_C4
E3P_C3
E3P_C2
E3P_Y8
E3P_Y7
E3P_Y6
E3P_Y3
E3P_Y2
E3P_Y4
E3P_Y5
PCONT3
HDE1_XCS
RESERVED
VENC_XCS
RESERVED
RESERVED
A/V OUT, HDMI, ETHERNET I/F, USB I/F
MAIN SYSTEM CONTROL, DSP, SATA I/F, MEMORY CONTROL,
IC101 (10/11)
(5/11) (6/11)
(9/11) (11/11)
(3/11) (4/11)
MB-124
(3/11) (6/11)
(7/11) (11/11)
MB-124
MB-124
(9/11)
(3/11) (7/11)
(8/11) (9/11)
MB-124
(8/11)
(9/11)
MB-124
(7/11) (8/11)
(9/11)
(3/11) (6/11)
MB-124
IPIO
9
D
E
11102 5
MB-124 BOARD (10/11)
3
05
F
12
C
1 86
XX MARK:NO MOUNT
G
A
13
H
74
B
(9/11)
MB-124
(9/11)
MB-124
(9/11)
MB-124
(5/11) (9/11)
MB-124
MB-124
(7/11) (9/11)
VP-062 BOARD (1/12)
CN104
(SEE PAGE 4-27)
4-24
BDP-S5000ES
4-24. MB-124 BOARD (11/11) (ETHERNET) • See page 5-12 for printed wiring board.
- Ref. No.: MB-124 board; 10,000 series -
NO MARK:PB MODE
3.3
0
0
0
0
3.3
3.3
3.3
3.3
3.3
3.3
1.2
3.3
0
3.3
0
0
0
0
3.3
3.3
1.8
3.3
0
0
0
0
1.6
0
0
0
34
0.01
C8012
0.01
C8011
0.1
C8014
0.01
C8007
0.01
C8006
0.01
C8009
0.01
C8016
4.7
C8010
C8017
10
10k
R8014
XX
R8023
R8008 49.9
49.9
R8004
49.9
R8007
FB8001
FB8002
GND
SW3.3V
1
3
5
2
7
8
6
4
CN8001
8P
12345678
10
11
12
13
14
15
16
17
2021222324252627
29
30
31
32
33
34
35
36
9
18
19
28
LAN8700C-AEZG
IC8001
NINT/TX_ER_TXD4
MDC
CRS
MDIO
nRST
TX_EN
VDD33
VDD_CORE
LINK
ACTIVITY
FDUPLEX
XTAL2
REFCLK
RXD3
RXD2
RXD1
RX_CLK
RX_ER
TXCLK
TXD0
TXD1
VDDIO
TXD2
TXD3
TXP
VDDA3.3
RXN
RXP
VDDA3.3
EXRES1
VDDA3.3
CRS_DV
SPEED100
RXD0
RX_DV
TXN
10k
R8024
VD8001
XX
VD8002 XX
VD8003 XX
VD8004 XX
49.9
R8006
0.01
C8008
0
R8022
0
R8018
0
R8015
XX
R8012
XX
R8016
4.7
C8013
10k
R8036
10k
R8035
10kR8034
XXR8033
XXR8032
XX
R8031
XX
R8030
0
R8026
0
R8027
10k
R8011
10k
R8009
0.5%
10k
R8005
0.5%
2.4k
R8003
10
R8002
XXC8002
XXC8003
XXC8004
XX
C8005
10k
R8019
OE VDD
OUTGND
50MHz
X8001
0
R8028
0
R8010
0R8017
0.022
C8001
0
R8025
0
R8029
0.01
C8015
0
R8013
0
R8021
0R8020
CORE_1.05V
0.1C8018
0.1
C8019
ETHER_XRST
EMMA_XRST
XX
R8037
100
R8038
R8039 0
R8040 0
1.5k
R8042
1.5k
R8041
EMMA_SW3.3V
JL8014
JL8015
JL8016
JL8017
JL8018
JL8019
JL8020
JL8021
JL8022
JL8023
D8001 XX
XXR8043
JL8024
47
R8044
47
R8045
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
CN8002
XX
JL8025
JL8026
JL8027
JL8028
JL8029
0.01
C8020
MC-10092F1-207-RNA-A
IC101
ETTXD0
AB29
ETTXD1
AB28
ETTXEN
AB30
ETMDC
Y28
ETMDIO
Y29
ETREFCLK
Y30
ETCRS
AA30
ETRXD0
AA28
ETRXD1
AA29
ETRXER
AA27
GND
Y27
GND
AB27
GND
AC28
GND
AC29
GND
AC30
GND
U28
VDD3 U29
VDD3 U30
VDD10 U27
4 1
23
90
L8001
4 1
23
90
L8002
ETTXD1
ETTXD0
ETRXER
ETRXD0
ETMDIO
ETMDC
ETTXEN
ETTXD1
ETREFCLK
ETCRS
ETRXD0
ETRXD1
ETRXER
ETTXD0
ETTXD1
ETTXEN
ETMDC
ETMDIO
ETREFCLK
ETCRS
ETRXD0
ETRXD1
ETRXER
PHY_RESET
PHY_RESET
ETTXEN
ETMDC
ETTXD0
ETCRS
PHY_RESET
ETRXD1
ETREFCLK
ETMDIO
SW3.3V
GND
ETTXD0
ETTXD1
ETTXEN
ETMDC
ETMDIO
ETREFCLK
ETCRS
ETRXD0
ETRXD1
ETRXER
PHY_RESET
SW3.3V
GND
GND
GND
GND
GND
GND
MB-124
(9/11)
(5/11)
(6/11)
MB-124
(9/11)
ETHERNET PHY
IC8001
A/V OUT, HDMI, ETHERNET I/F, USB I/F
MAIN SYSTEM CONTROL, DSP, SATA I/F, MEMORY CONTROL,
IC101 (11/11)
MB-124
(9/11) (10/11)
(3/11) (4/11)
(5/11) (6/11)
MB-124
(6/11) (9/11)
(1/11) (2/11)
(3/11) (4/11)
(3/11) (6/11)
(7/11) (10/11)
MB-124
ETHERNET
9
D
E
11102 5
MB-124 BOARD (11/11)
3
05
F
12
C
1 86
XX MARK:NO MOUNT
G
A
1374
B
ET-001
BOARD
CN1602
(SEE PAGE 4-5)
4-25
BDP-S5000ES
4-25. RS-088 BOARD (CIS) • See page 5-14 for printed wiring board.
- Ref. No.: RS-088 board; 40,000 series -
NO MARK:PB MODE
0
-5.4
0
3.3
5.4
-5.4
-5.4
3.3
3.2
3.3
0
3.3
0.1
C604 100
R606
22
R604
10
C606
0.1
C605
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
MAX3222IPWR
IC601
/EN
C1+
V+
C1-
C2+
C2-
V-
DOUT2
RIN2
ROUT2
NC
DIN2
DIN1
NC
ROUT1
RIN1
DOUT1
GND
VCC
/P.DOWN
0.1
C602
0.1
C603
100
R605
0.1
C601
22
R603
0
R602
JL601
JL602
JL603
JL604
JL610
JL608
JL609
JL611
JL612
VDR601
XX
VDR602
XX
1
2
3
4
4P
CN601
232C_RXD
GND
232C_TXD
UN3.3V
9P
CN603
1
2
3
4
5
6
7
8
9
IC601
RS-232C DRIVER/RECEIVER
RS232C
(3/3)
(SEE PAGE 4-13)
IFD-002
CN501
BOARD
CIS
D
2 5
RS-088 BOARD
3
05
C
1 6
XX MARK:NO MOUNT
A
74
B
4-26
BDP-S5000ES
4-26. USB-007 BOARD (USB CONNECTOR) • See page 5-15 for printed wiring board.
- Ref. No.: USB-007 board; 60,000 series -
JL301
JL302
JL303
1
2
3
4
5
5P
CN302
1
2
3
4
4P
CN301
VDR301
XX
GND
VBUS
D-
D+
GND
MB-124
(SEE PAGE 4-19)
CN600
(6/11)
BOARD
EXT
USB CONNECTOR
2
USB-007 BOARD
3
05
1
XX MARK:NO MOUNT
A
B
4-27
BDP-S5000ES
4-27. VP-062 BOARD (1/12) (MB-CN) • See page 5-16 for printed wiring board.
- Ref. No.: VP-062 board; 70,000 series -
NO MARK:PB MODE
1.6
0
0.8
0
0
1.6
0.8
1.6
0.8
0
1.7
0
0
0.8
3.3
1.6
1.6
∗
∗
3.3
3.3
0
3.2
3.3
3.3
3.3
0
1.5
5.7
6.2
3.6
0.8
3.3
1
LOGCN_Y0
LOGCN_Y1
LOGCN_Y2
LOGCN_Y3
LOGCN_Y4
LOGCN_Y5
LOGCN_Y6
LOGCN_Y7
LOGCN_Y8
LOGCN_Y9
LOGCN_C0
LOGCN_HS
LOGCN_VS
LOGCN_VCK
XX
R101
XX
R102
XX
R103
XX
R104
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
CN101
XX
JL101
A1
A2
A3
A4
A5
A6
A7
A8B8
A9B9
A10B10
A11B11
A13
B14
A15B15
A16B16
A17B17
A18B18
A19B19
A20B20
A21B21
A22
B23
B27
B24
B25
A28B28
A29B29
A24
A25
A26
A23
A30B30
B26
A27
A36
B38
A32
A33
A31B31
B39
A40
B33
B36
A38
B32
B37
A35
B40
A37
A39
B35
B22
A34B34
A43
B42
A41
A42
B41
B44 A44
B43
A46
A45
B47 A47
B45
B46
A12
B7
B4
B3
B5
B6
B1
B2
B12
B13
A14
80P
CN104
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
CN102
XX
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
CN103
XX
E3P_VCK
E3P_Y2
E3P_C2
E3P_C3
E3P_C4
E3P_C5
E3P_C8
E3P_C6
E3P_C7
E3P_C9
E3P_Y3
E3P_Y5
E3P_Y4
E3P_Y7
E3P_Y6
E3P_Y8
E3P_Y9
E3P_VS
E3P_HS
E3P_ABD0
E3P_ABD1
E3P_ABD2
E3P_ABD3
E3P_AMCK
E3P_ALRCK
E3P_ABCK
E3P_SPDIF
LOGCN_C1
LOGCN_C3
LOGCN_C2
LOGCN_C5
LOGCN_C4
LOGCN_C7
LOGCN_C6
LOGCN_C8
LOGCN_C9
XX
R106
XX
R105
E3P_CSI0_DO
E3P_CSI0_GLUE_XCS
KYOTO_XRST
E3P_CSI0_EDEN2_XCS
E3P_CSI0_CKO
PCONT2
E3P_CSI0_EDEN1_XCS
ALTERA_DONE
E3P_CSI0_DI
HDMI_XINT
E3P_I2C1_SCL
HDMI_PCONT
GLB_XRST
HDMI_XRST
E3P_I2C0_SCL
E3P_I2C1_SDA
CEC_VP
E3P_CSI0_VUCON_XCS
E3P_I2C0_SDA
XXR108
R107
0
R109
68
8
7
6
5 4
3
2
1
IC101
IDT2305B-1DCG
C103
XX
C102
XX
C109
XX
0.068
C108
0
R112
1k
R110
0.5%
10k
R115
XX
R116
0.5%
8.2k
R114
22
C111
1k
R111
0.1
C107
0.1
C106
D101
XX
0.5%
820
R113
0.068
C110
10
C105
10uH
L101
XX
R117
8765
4321
MP2303DN-LF-Z
IC102
10
C104
XX
R118
SW1.5V
EMI
G
OI
FL101
16V
10
C112
CL101
CL102
CL103
CL104
CL105
CL106
CL107
CL108
CL109
CL110
CL111
CL112
CL113
CL114
CL115
CL116
CL117
CL118
CL119
CL120
CL121
CL122
CL123
CL124
CL125
CL126
CL127
CL128
CL129
UNSW5.8VD
EMI
G
FL102
XX
R119
16V
10
C114
SW3.3V
GND
JL102
XX
R124
0
R125
XX
R122
XX
C115
XX
R126
0.22
C116
20
19
18
17
16
15
14
13
12
11
1
2
3
4
5
6
7
8
9
10
SN74LVC541APWR
IC103
1k
R123
5
4 3
2
1
IC104
XX
XX
C113
0
R121
XX
R120
C117
XX
PCONT3
33R127
47R128
47R130
47R129
47R134
47R132
47R131
33R133
0.22
C118
10
R135
10R136
47
R137
XX
R138
XX
R140
XX
R139
20
19
18
17
16
15
14
13
12
11
1
2
3
4
5
6
7
8
9
10
SN74LVC541APWR
IC105
33
RB101
33
RB102
33
RB103
33
RB104
0
R141
0
R142
0
R143
R144
0
R145
47
E
ET101
C101
0.01 E3P_AMCK_A
E3P_ABCK_A
E3P_ABD3_A
E3P_Y4
E3P_ALRCK_A
E3P_SPDIF_A
E3P_C6
E3P_Y9
E3P-VCK
E3P_ABD2_A
E3P_Y8
E3P_C9
E3P_HS
E3P_Y6
E3P_C8
E3P_C6
E3P_Y7
E3P_Y2
E3P_VS
E3P_Y9
E3P_Y3
E3P_Y6
E3P_Y8
E3P_C2
E3P_Y5
E3P_C7
E3P_Y5
E3P_C3
E3P_Y7
E3P_VS
E3P_Y4
E3P_C4
E3P_C8
E3P_HS
E3P_C5
E3P_Y3
E3P_C7
E3P_C9
E3P_Y2
E3P_ABD1_A
E3P_C5
E3P_C2
E3P_ABD0_A
E3P_C4
E3P_C3
E3P-VCK
E3P_AMCK_A
E3P_ALRCK_A
E3P_ABCK_A
E3P_ABD0_A
E3P_ABD1_A
E3P_ABD2_A
E3P_ABD3_A
E3P_SPDIF_A
DGND
SW3.3V
GND
E3P_Y4
ABD0
HDMI_XINT
GND
E3P_C5
DGND
GND
SPDIF
E3P_Y5
GND
CSI_DO
E3P_C4
CEC
ALRCK
DGND
E3P_HD -> VS
GND
PCONT3
GLB_XRST
GND
CSI_DI
E3P_C3
ABCK
DGND
SW3.3V
E3P_VD -> HS
HDE1_XCS
PCONT2
GND
CSI_CK
E3P_C2
E3P_Y9
HDMI_PCON
DGND
SW3.3V
RESERVED
HDMI_XRST
DGND
GND
E3P_Y8
E3P_C8
GLUE_XCS
VENC_XCS
DGND
DGND
UNSW5.8V
DGND
DGND
GND
E3P_Y7
E3P_C9 I2C_400k_SDA
RESERVED
DGND
DGND
DGND
DGND
DGND
DGND
GND
I2CA_100k_SDA
RESERVED
E3P_Y6
DGND
DGND
DGND
ALTERA_DONE
I2C_100k_SCL
DGND
GND
E3P_Y3
GND
ABD2
E3P_C6
HDE2_XCS
DGND
I2C_400k_SCL
DGND
GND
ABD3
E3P_Y2
ABD1
GND
DGND
KYOTO_XRST
E3P_C7
AMCK
E3P_VCK
1Y2
1Y3
CLKOUT
GND
1Y0
1Y1
CLKIN
UNSW5.8V
UNSW5.8V
SW3.3V
VDD
IN
FB
EN
SW
GND
COMP
BSSS
VCC
IN1
IN2OUT1
OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
OUT8
IN3
IN4
IN6
IN7
IN8
IN5
IN6
IN1
IN8
IN2OUT1
OUT4 IN5
OUT6
OUT2
OUT5
OUT7
IN3
OUT3
OUT8
IN4
VCC
IN7
(11/12)
VP-062
VP-062
(11/12) (12/12)
(4/12) (5/12)
VP-062
(2/12)
VP-062
(6/12)
VP-062
(4/12)
CLOCK BUFFER
IC101
(2/12)
VP-062
VP-062
(6/12)
(6/12) (7/12) (9/12)
VP-062
(10/12) (11/12) (12/12)
(2/12) (4/12) (5/12)
(2/12) (6/12)
(9/12) (10/12)
VP-062
(7/12) (8/12)
BUFFER
IC103
SW+1.5V REGULATOR
IC102
BUFFER
IC105
(4/12)
VP-062
(12/12)
VP-062
VP-062
(2/12) (4/12)
(7/12) (8/12)
VP-062
VP-062
(5/12)
MB-CN
9
D
E
1110 152 5
VP-062 BOARD (1/12)
K
3
I
17
05
F
1612
C
1 86
XX MARK:NO MOUNT
G
14
A
13
H
74
J
B
(12/12)
VP-026
(4/12)
(6/12) (9/12) (10/12)
VP-062
(2/12) (4/12)
(5/12) (12/12)
VP-062
(10/11)
(SEE PAGE 4-23)
CN7001
MB-124
BOARD
4-28
BDP-S5000ES
4-28. VP-062 BOARD (2/12) (DVF CONVERTER) • See page 5-16 for printed wiring board.
- Ref. No.: VP-062 board; 70,000 series -
NO MARK:PB MODE
7
0.6
2.5
3.3
3.3
0.3
1.2
1.5
3.3
0.3
1.2
1.5
3.3
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 C15 C16 C17 C18 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11
F4
F5
F6
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
F17
F18
G1
G2
G3
G4
G5
G6
G7
G8
G9
G10
G11
G12
G13
G14
G15
G16
G17
G18
H1
H2
H3
H4
H5
H6
H7
H8
H9
K4K5K6K7K8K9K10K11K12K13K14K15K16K17K18L1L2L3L4L5L6L7L8L9L10L11L12L13L14L15L16L17L18M1M2M3M4M5M6M7M8M9M10M11M12M13M14M15M16M17M18N1N2N3N4N5N6N7N8N9N10N11N12N13N14N15N16N17N18P1
P11
P2P3P4P5P6P7P8P9
P10
P12
P13
P14
P15
R8
R9
P16
P17
P18
R1
R2
R3
R4
R5
R6
R7
R10
R11
R12
R13
D12 D13 D14 D15 D18D16 D17 E3E1 E2 E6E4 E5 E9E7 E8
E12
E10
E11
F2
E13
F1
F3
H10
H11
H12
H16
H14
H15
H13
H18
H17
J1
J8
K2
J7
K1
J16
J4
J6
K3
J5
J18
J12
J11
J13
J15
J9
J17
J3
J2
J14
J10
R17
R16
R14
R15
U14
T3
T7
U13
T6
T2
T1
T12
T17
U15
T14
U6
U18
T15
U16
V1
U11
U8
V2
R18
U2
U3
T9
U10
U9
T5
U7
T10
T11
U5
T18
U1
T4
U4
V3
T13
T8
U17
U12
T16
V5
V6
V7
V10
V9
V8
V13
V12
V11
V16
V15
V14
V18
V17
V4
E14
E15
E17
E16
E18
88DE2710
IC204
8
7
6
5 4
3
2
1
MM1762FHBE
IC201
Vout
NC
NC
CNCont
NC
NC
Vin
0.01
C209
68
RB222
68
RB220
68
RB221
68
RB219
E3P_Y2
E3P_Y3
E3P_Y4
E3P_Y6
E3P_Y5
E3P_Y7
E3P_Y9
E3P_Y8
E3P_C2
E3P_C4
E3P_C3
E3P_C5
E3P_C7
E3P_C6
E3P_C8
E3P_C9
47
R242
47
R241
68
R243
E3P_HS
E3P_VS
E3P_VCK
XX
R239
1k
R201
PCONT3
XX
C207
XX
R203
SW3.3V
4.7kR215
4.7kR211
4.7kR212
4.7kR216
4.7kR217
E3P_I2C1_SCL
10k
R220
KYOTO_XRST
X201
20MHz
1M
R223
10p
C234
10p
C235
22
RB208
22
R225
22
RB209
22
RB211
22
RB210
22
R226
22
R227
22
R228
33R229
33R230
33R231
33R234
33R232
33R233
33R235
22R237
22R236
SW2.5V_K
XXR213
XXR214
VCXO_KYOTO_CK
KYOTO_VCXO_CK
47
R238
33R205
47
RB206
47
RB204
KYOTO_PRI_VS
33R204
47
RB207
47
RB203
KYOTO_AUX_VS
KYOTO_AUX_HS
33R209
47
RB201
33R208
KYOTO_PRI_VCK
47
RB205
47
RB202
33
R207
KYOTO_AUX_VCK
KYOTO_PRI_HS
22
R206
C289
0.1
6.3V
47
C216
C273
0.1
C240
0.001
C282
0.1
C288
0.001
C292
0.1
16V
47
C221
C291
0.1
C274
0.1
C270
0.1
C275
0.1
C296
0.1
C251
0.001
C258
0.1
C264
0.1
C281
0.1
C262
0.001
GND
C263
0.1
C294
0.1
C256
0.1
C295
0.1
C239
0.001
C255
0.001
C290
0.1
C254
0.001
C252
0.1
C297
0.1
C238
0.1
C272
0.1
C248
0.001
C279
0.1
C260
0.001
C286
0.1
6.3V
47
C225
C285
0.001
C253
0.1
C298
0.1
XX
C267
XX
C257
XX
C250
XX
C259
XX
C276
XX
C277
L201 0uH
R224
1k
33R210
KYOTO_AUX_FD
JL201
JL202
JL203
JL204
JL205
0
R218
0
R219
100
R221
XX
R222
GKYOTO_XRST
E3P_I2C1_SDA
XX
R202
C222
10
C217
10
6.3V
220
C223
10
C203
XX
C205
XX
C201
10
C210
XX
C212
SW1.5V
16V
10
C218
EMI
G
OI
FL202
XX
C202
10
C204
10
C211
XX
C213
XX
C206
KYOTO_PRI_Y3
KYOTO_PRI_Y5
KYOTO_PRI_C4
KYOTO_PRI_Y8
KYOTO_PRI_Y9
KYOTO_PRI_Y7
KYOTO_PRI_Y4
KYOTO_PRI_C3
KYOTO_PRI_C2
KYOTO_PRI_Y2
KYOTO_PRI_Y0
KYOTO_PRI_Y6
KYOTO_PRI_C0
KYOTO_PRI_C8
KYOTO_PRI_C9
KYOTO_PRI_C1
KYOTO_PRI_Y1
KYOTO_PRI_C7
KYOTO_PRI_C5
KYOTO_PRI_C6
EMI
G
OI
FL201
16V
10
C215
C293
0.001
C271
0.001
C287
0.1
C284
0.1
C283
0.1
C280
0.1
C265
0.1
C261
0.1
C278
0.1
C266
0.1
C249
0.1
C247
0.1
C246
0.1
C241
0.1
C242
0.1
C244
0.1
C243
0.1
C245
0.1
22
RB214
22
RB213
22
RB212
22
RB215
33
RB217
33
RB218
33
RB216
EMI
G
OI
FL203
TP001
XX
TP002
XX
TP003
XX
TP004
XX
8
7
6
5 4
3
2
1
MM1701CHBE
IC202
8
7
6
5 4
3
2
1
MM1701CHBE
IC203
C219
0.1
0.5%
4.7k
R244
C220
0.1
0.5%
4.7k
R245
C208
0.01
C214
1
XX
R246
XX
R247
XX
R248
C226
1
16V
68
C224
EMI
G
OI
FL205
EMI
G
FL204
EMI
G
OI
FL206
KYOTO_AUX_VO7
KYOTO_AUX_VO4
KYOTO_AUX_VO3
KYOTO_AUX_VO5
KYOTO_AUX_VO0
KYOTO_AUX_VO1
KYOTO_AUX_VO6
KYOTO_AUX_VO2
CL201
CL202
CL203
CL204
6.3V
47
C227
CL205
CL206
CL207
CL208
CL212
CL211
CL210
CL209
CL216
CL213
CL215
CL214
CL217
CL218
CL219
CL220
CL224
CL222
CL221
CL223
CL227
CL226
CL225
CL228
CL229
CL231
CL230
CL232
CL233
CL235
CL236
CL234
CL240
CL237
CL238
CL239
DDR_DATA0
DDR_BA0
DDR_ADD7
DDR_DATA1
DDR_DATA29
DDR_CASZ
DDR_DATA8
DDR_DATA4
DDR_ADD6
DDR_RASZ
DDR_DATA13
DDR_DATA22
DDR_DATA2
DDR_DATA18
DDR_CLK
DDR_ADD3
DDR_DATA26
DDR_DATA9
DDR_DQS1
DDR_DATA25
DDR_DATA19
DDR_ADD8
DDR_ADD5
DDR_BA1
DDR_DATA20
DDR_DATA10
DDR_ADD4
DDR_WEZ
DDR_DATA16
DDR_DQS3
DDR_DATA21
DDR_DATA27
DDR_DATA6
DDR_ADD10
DDR_CS1Z
DDR_ADD11
DDR_DATA24
DDR_DATA15
DDR_CLKZ
DDR_DQS0
DDR_ADD2
DDR_DATA7
DDR_DATA11
DDR_DATA5
DDR_DATA12
DDR_DATA30
DDR_DQS2
DDR_DATA31
DDR_CKE
DDR_ADD1
DDR_DATA14
DDR_DATA28
DDR_DATA17
DDR_DATA3
DDR_ADD9
DDR_DATA23
DDR_ADD0
CL241
CL243
CL244
CL245
CL246
CL247
CL248
CL249
CL250
CL251
CL252
CL253
CL254
CL255
CL256
CL257
CL258
CL259
CL260
CL261
1k
RB224
1k
R251
1k
R249
1k
R250
CL262
CL263
CL264
0.01
C2004
0.01
C2003
1k
RB223
XXR252
XXR253
VUCON_AUX_VS
VUCON_AUX_FD
C228
0.001
C229
0.1
0R254
1k
R255
1k
R240
CL242
RESETZ
TRST
TMS
C656VS
C656DT[1]
DT1_VS
SDA
TCK
C656DT[2]
DT1[15]
DT1_HS
DT1_CK
TEST
TDO
C656DT[3]
C656DT[4]
C656DT[6]
C656DT[7]
DT1[13]
SCL
TDI
C656DT[5]
DT1[10]
DT1[12]
DT1[14]
DT1[6]
DT1[11]
DT1[7]
DT1[4]
DT1[5]
DT1[9]
DT1[0]
DT1[1]
DT1[3]
DT1[8]
MDO[19]
MDO[18]
MDO[17]
MDO[16]
DEV_ADDR_SEL
DT1[2]
MDO[15]
MDO[12]
MDO[13]
MDO[14]
MDO[8]
MDO[10]
MDO[9]
MDO[11]
MDO[2]
MDO[6]
MDO[5]
MDO[7]
MDO[3]
MDO[1]
MDO[4]
EXT_OUT
MDO[0]
MDT[31]
MDT[8]
MDT[9]
MDT[15]
MDT[11]
MDT[17]
MDT[21]
MDT[25]
MDT[30]
CS1Z
MAD[2]
MAD[5]
NCAL
MDT[0]
MDT[2]
MDT[5]
MDT[6]
MDT[10]
MDT[13]
MDT[16]
MDT[18]
MDT[22]
MDT[24]
MDT[29]
CASZ
RASZ
MAD[0]
MAD[4]
MAD[8]
MAD[11]
MDT[1]
MDT[3]
MDT[7]
MDT[12]
MDT[14]
MDT[19]
MDT[23]
MDT[26]
MDT[28]
WEZ
BA0
BA1
MAD[10]
MAD[3]
MAD[7]
MAD[9]
MDT[4]
DQS[0]
DQS[1]
DQS[2]
MDT[20]
DQS[3]
MDT[27]
CLK
CLKZ
MAD[1]
MAD[6]
DT1_HS
DT1_VS
DT1_CK
DT1[9]
DT1[8]
DT1[7]
DT1[10]
DT1[12]
DT1[13]
DT1[14]
DT1[15]
DT1[11]
DT1[6]
DT1[5]
DT1[4]
DT1[3]
DT1[2]
DT1[1]
SCL
SDA
EXT_IN
EXT_OUT
MDT[11]
MDT[10]
MDT[0]
MDT[1]
MDT[2]
MDT[3]
MDT[5]
MDT[15]
MDT[14]
MDT[13]
MDT[12]
MDT[25]
MDT[18]
MDT[30]
MDT[19]
MDT[31]
MDT[17]
MDT[16]
MDT[26]
MDT[21]
MDT[29]
DQS[1]
DQS[2]
DQS[3]
MAD[11]
MAD[6]
MAD[1]
MAD[10]
MAD[0]
MAD[2]
MAD[4]
MAD[8]
MAD[5]
MAD[9]
MAD[7]
CS1Z
CASZ
RASZ
BA0
CKE
WEZ
BA1
CKE
CLKZ
CLK
MDO[18]
C656HS
MDO[17]
MDO[16]
MDO[15]
MDO[14]
MDO[13]
MDO[12]
MDO[11]
MDO[10]
HDMI_HS
MDO[9]
HDMI_VS
MDO[8]
HDMI_CK
MDO[7]
MDO[6]
MDO[5]
C656DT[7]
MDO[4]
C656DT[6]
MDO[3]
C656DT[5]
MDO[2]
C656DT[4]
MDO[1]
C656DT[3]
MDO[0]
C656DT[2]
C656DT[1]
C656DT[0]
C656CK
MDO[19]
C656FD
HDMI_VS
C656DT[0]
C656CK
C656HS
EXT_IN
DT2_HS
DT2_VS
DT2_CK
DT2[3]
DT2[1]
DT2[2]
DT2[0]
DT2[4]
DT2[5]
DT2[6]
DT2[7]
DT2_HS
DT2_VS
DT2_CK
DT2[0]
DT2[1]
DT2[2]
DT2[3]
DT2[4]
DT2[5]
DT2[6]
DT2[7]
DAC_VS
DAC_HS
DAC_CK
DAC_HS
DAC_VS
DAC_CK
C656FD
C656VS
TMS
TDI
TDO
TCK
TRST
TEST
NCAL
MDT[4]
MDT[6]
MDT[7]
MDT[8]
MDT[9]
MDT[20]
MDT[22]
MDT[23]
MDT[24]
MDT[27]
MDT[28]
DQS[0]
MAD[3]
HDMI_CK
DT1[0]
HDMI_HS
RESETZ
DEV_ADDR_SEL
GND
DT1[24]
DT1[25]
DT1_FD
OSD_CKI
OSD[0]
OSD[4]
OSD[5]
OSD[9]
OSD[12]
OSD_HSO
RESETZ
TRST
TMS
C656VS
C656FD
C656DT[1]
GND
DT1[20]
DT1[22]
DT1[26]
DT1_VS
YS
OSD_HSI
OSD[3]
OSD[8]
OSD[10]
OSD[13]
OSD_CKO
SDA
TCK
C656HS
C656CK
C656DT[0]
GND
C656DT[2]
DT1[15]
DT1[18]
DT1[21]
DT1_HS
DT1_CK
OSD_VSI
OSD[1]
OSD[6]
OSD[11]
OSD[15]
OSD_VSO
TEST
TDO
C656DT[3]
C656DT[6]
C656DT[4]
C656DT[7]
DAC_CK
DT1[19]
DT1[17]
DT1[13]
DT1[28]
DT1[29]
YM
OSD[7]
OSD[14]
OSD[2]
SCL
TDI
C656DT[5]
DAC_HS
HDMI_FD
DAC_FD
DAC_VS
GND
HDMI_CK
DT1[14]
DT1[10]
DT1[27]
DT1[12]
GND
IOVDD
IOVDD
IOVDD
IOVDD
IOVDD
IOVDD
IOVDD
IOVDD
GND
HDMI_VS
HDMI_HS
HDO[29]
HDO[28]
DT1[6]
DT1[11]
DT1[7]
DT1[23]
IOVDD
GND
IOVDD
GND
HDO[26]
HDO[25]
HDO[24]
DT1[4]
DT1[5]
DT1[9]
HDO[27]
DT1[16]
IOVDD
DVDD
GND
GND
GND
GND
GND
GND
DVDD
IOVDD
HDO[23]
HDO[20]
HDO[21]
IOVDD
HDO[22]
DT1[0]
DT1[1]
DT1[3]
DT1[8]
IOVDD
DVDD
GND
GND
GND
GND
GND
GND
DVDD
HDO[16]
HDO[17]
HDO[18]
HDO[19]
SYNC[2]
DEV_ADDR_SEL
SYNC[3]
DT1[2]
DVDD
GND
GND
GND
GND
GND
GND
GND
GND
IOVDD
HDO[14]
HDO[13]
HDO[12]
HDO[15]
DT2[14]
SYNC[0]
DVDD
SYNC[1]
DT2[15]
GND
GND
GND
GND
GND
GND
GND
GND
IOVDD
HDO[8]
HDO[10]
HDO[9]
HDO[11]
DT2[12]
DT2[13]
DT2[10]
DT2[11]
IOVDD
DVDD
GND
GND
GND
GND
GND
GND
PVDDD
PVSSD
HDO[2]
HDO[6]
HDO[5]
HDO[7]
DT2[6]
DT2[7]
DT2[8]
DT2[9]
IOVDD
DVDD
GND
GND
GND
GND
GND
GND
DVDD
XTVDD
XTVSS
HDO[3]
HDO[4]
HDO[1]
DT2[5]
DT2[2]
DT2[3]
DT2[4]
IOVDD
GND
DVDD
GND
GND
GND
DVDD
DVDD
GND
PVSSA
GND
ATEST1
EXT_OUT
HDO[0]
DT2[0]
DT2[1]
DT2_CK
FD_SEL
GND
MVDD
MVDD
MVDD
MVDD
MVDD
MDT[31]
MVDD
MVDD
GND
PVDDA
ATEST2
XTAL1
EXT_IN
DT2_FD
DT2_VS
DT2_HS
MDT[8]
MDT[9]
MDT[11]
MDT[15]
MDT[25]
MDT[30]
MDT[17]
MDT[21]
DDRREF
CS1Z
MAD[2]
MAD[5]
NCAL
CKE
XTAL2
MDT[10]
MDT[18]
MDT[5]
MDT[6]
MDT[13]
MDT[16]
MDT[0]
MDT[2]
MDT[29]
MDT[22]
MDT[24]
CASZ
RASZ
CS2Z
MAD[4]
MAD[8]
MAD[11]
MDT[3]
MDT[1]
GND
MAD[7]
MDT[19]
MAD[12]
MAD[14]
MDT[23]
MDT[28]
MDT[26]
MVDD
WEZ
BA0
BA1
MAD[10]
MAD[3]
MAD[9]
MAD[7]
GND
MDT[4]
DQS[0]
MVDD
DQS[1]
DQS[2]
DQS[3]
GND
MDT[20]
GND
MDT[27]
GND
CLK
CLKZ
MVDD
MAD[1]
MAD[6]
GND
DVDD
DVDD
DVDD
DVDD
DVDD
DVDD
MAD[0]
Vin
NC
NC
Cont
Vout
NC
GND
Cn
GND
Cn
NC
Vout
Cont
Vin
NC
NC
IC204
DIGITAL VIDEO FORMAT CONVERTER
(3/12)
VP-062
(1/12)
VP-062
VP-062
(4/12)
(1/12)
(4/12)
VP-062
VP-062
(1/12)
VP-062
(9/12)
VP-062
(11/12)
(4/12)
VP-062
SW+2.5V REGULATOR
IC201
SW+1.2V REGULATOR
IC202
IC203
(1/12) (4/12) (5/12)
(10/12) (11/12) (12/12)
VP-062
(6/12) (7/12) (9/12)
VP-062
(5/12) (12/12)
(1/12) (4/12)
(7/12) (8/12)
VP-062
(9/12) (10/12)
(1/12) (6/12)
(3/12)
VP-062
2118
M
DVF CONVERTER
9
D
E
11
N
10 152 5
VP-062 BOARD (2/12)
K
3
I
17
05
F
1612
C
1 1986
XX MARK:NO MOUNT
20
G
14
A
13
H
L
74
J
B
O
P
22 23
Q
SW+1.2V REGULATOR
4-29
BDP-S5000ES
4-29. VP-062 BOARD (3/12) (SDRAM) • See page 5-16 for printed wiring board.
- Ref. No.: VP-062 board; 70,000 series -
GND
SW2.5V_K
0.5%
4.7k
R307
0.5%
4.7k
R309
0.1
C303
DDR_CLK
DDR_CLKZ
DDR_CKE
DDR_CS1Z
DDR_RASZ
DDR_CASZ
DDR_WEZ
R302
100
22R304
22R305
22R306
22R308
1k
R310
22
RB301
22RB302
22RB303
22RB304
22RB306
22RB305
22RB308
22RB307
C305 0.1
C306 0.1
C308 0.1
C307 0.1
C310 0.1
C309 0.1
C316 0.1
C314 0.1
C313 0.1
C315 0.1
C312 0.1
C311 0.1
C317 0.1
C319
0.1
C304 0.1
C318 0.1
0.1
C320
C326 0.1
XX
C301
XXC321
C325 0.1
C322 0.1
C327 0.1
C324 0.1
C323 0.1
1kR301
1kR303
1k
R311
CL301
CL302
CL303
CL304
CL305
CL306
CL309
CL307
CL308
CL312
CL310
CL313
CL311
CL317
CL316
CL315
CL314
CL318
CL321
CL319
CL320
CL324
CL322
CL325
CL323
CL329
CL328
CL326
CL327
CL330
CL331
CL332
CL333
CL334
CL335
CL336
CL337
CL338
CL339
CL340
CL341
CL342
CL343
CL344
CL345
CL346
CL347
CL348
CL349
CL350
CL351
CL352
CL353
CL354
CL355
CL356
CL357
CL358
CL359
CL360
CL361
CL362
EDD1232ABBH-5C-E-TR
IC301
M11M12 N12 N2 M2 L2 L3 B2 H13 H2 B13 B3 H12 H3 B12 N4 M5 N5 N6 M6 N7 N8 M9 N9 N10 N11 M8 L6 M7 C4 C11 H4 H11 L12 L13 M3
M4
N3
L9
M10
B7
C6
B6
B5
C2
D3
D2
E2
K13
K12
J13
J12
G13
G12
F13
F12
F3
F2
G3
G2
J3
J2
K2
K3
E13
D13
D12
C13
B10
B9
C9
B8
M13D7D8E4E11L4L7L8L11C3C5C7C8C10C12E3E12F4F11G4G11J4J11K4K11N13E5E7E8E10K6K7K8K9L5L10
F6
F7
F8
F9
G6
G7
G8
G9
H6
H7
H8
H9
J6
J7
J8
J9
B4
B11
D4
D5
D6
D9
D10
D11
E6
E9
F5
F10
G5
G10
H5
H10
J5
J10
K5
K10
IC302
XX
M11M12 N12 N2 M2 L2 L3 B2 H13 H2 B13 B3 H12 H3 B12 N4 M5 N5 N6 M6 N7 N8 M9 N9 N10 N11 M8 L6 M7 C4 C11 H4 H11 L12 L13 M3
M4
N3
L9
M10
B7
C6
B6
B5
C2
D3
D2
E2
K13
K12
J13
J12
G13
G12
F13
F12
F3
F2
G3
G2
J3
J2
K2
K3
E13
D13
D12
C13
B10
B9
C9
B8
M13D7D8E4E11L4L7L8L11C3C5C7C8C10C12E3E12F4F11G4G11J4J11K4K11N13E5E7E8E10K6K7K8K9L5L10
F6
F7
F8
F9
G6
G7
G8
G9
H6
H7
H8
H9
J6
J7
J8
J9
B4
B11
D4
D5
D6
D9
D10
D11
E6
E9
F5
F10
G5
G10
H5
H10
J5
J10
K5
K10
DDR_DATA6
DDR_DATA0
DDR_DATA15
DDR_DATA25
DDR_DATA26
DDR_DATA17
DDR_DATA8
DDR_DATA12
DDR_DATA9
DDR_DATA29
DDR_DATA1
DDR_DATA7
DDR_DATA18
DDR_DATA2
DDR_DATA22
DDR_DATA13
DDR_DATA23
DDR_DATA14
DDR_DATA5
DDR_DATA19
DDR_DATA27
DDR_DATA21
DDR_DATA28
DDR_DATA3
DDR_DATA30
DDR_DATA16
DDR_DATA4
DDR_DATA31
DDR_DATA10
DDR_DATA20
DDR_DATA24
DDR_DATA11
DDR_DQS2
DDR_DQS1
DDR_DQS0
DDR_DQS3
DDR_ADD4
DDR_ADD0
DDR_ADD9
DDR_ADD3
DDR_ADD7
DDR_BA0
DDR_ADD5
DDR_BA1
DDR_ADD2
DDR_ADD1
DDR_ADD8
DDR_ADD10
DDR_ADD11
DDR_ADD6
DQ28
DQ30
DQ29
DQ27
DQ31
DDR_ADD11
DDR_ADD10
DDR_ADD9
DDR_ADD8
DDR_ADD7
DDR_ADD6
DDR_ADD5
DDR_ADD4
DDR_ADD3
DDR_ADD2
DDR_ADD1
DDR_ADD0
DDR_BA1
DDR_BA0
DQS3
DQS2
DQS1
DQS0
DDR_WEZ
DDR_CASZ
DDR_RASZ
DDR_CKE
/CK
CK
DQ26
DQ25
DQ24
DQ23
DQ22
DQ21
DQ20
DQ19
DQ18
DQ17
DQ16
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10
DQ9
DQ8
DQ7
DQ6
DQ5
DQ4
DQ2
DQ3
DQ1
DQ0
DDR_CS1Z
DQ30
DQ29
DQ28
DQ27
DQ26
DQ25
DQ24
DQ23
DQ22
DQ21
DQ20
DQ19
DQ18
DQ17
DQ16
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10
DQ9
DQ8
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0
DQ8
DQ10
DQ7
DQ27
DQ28
DQ20
DQ16
DQ18
DQ22
DQ1
DQ26
DQ9
DQ24
DQ17
DQ0
DQ29
DQ31
DQ25
DQ15
DQ5
DQ23
DQ19
DQ3
DQ14
DQ4
DQ30
DQ2
DQ11
DQ6
DQ13
DQ12
DQ21
DQ31
/WE
A3
/RAS
/CS
A2
/CAS
A10
CKE
A1
DDR_CLKZ
A11
A0
DQS3
A9
DDR_CLK
DQS2
A8(AP)
DQS1
A6
BA0
DQS0
A5
A7
BA1
A4
/WE
A9
A5
DQS1
A10
A7
/CK
A1
A0
A3
CKE
BA0
A6
A8(AP)
A2
/CAS
DQS3
/CS
DQS2
DQS0
A4
CK
/RAS
A11
BA1
CK
/CK
CKE
/CS
/RAS
/CAS
/WE
DQS0
DQS1
DQS2
DQS3
DM0
DM1
BA0
DM3
NC
DM2
BA1
A0
A1
A2
A3
A4
A5
A6
A7
A8(AP)
A9
A10
A11
NC
NC
NC
NC
NC
NC
NC
NC
RFU
RFU
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ23
DQ22
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31VSS
VSS
VSS
VSS
VSSQ
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
NC
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VREF
VSS
VSS
VSS
NC
VDD
VDD
VDDQ
VDDQ
VDDQ
VDDQ
VSS
VSS
VDD
VDD
VDDQ
VDDQ
VDDQ
VSS
VDDQ
VSS
VDD
VDD
VDDQ
VDDQ
VDDQ
VSS
VDDQ
VSS
VSS
VDD
VDD
VDDQ
VDDQ
VDDQ
VREF
VSS
VDDQ
DM0
DQS3
VSS
DQS2
VSS
DQS1
VSS
DQS0
VSS
/WE
VSS
/CAS
VSS
/RAS
VSS
/CS
VSS
CKE
VSS
/CK
VSS
CK
VSS
VSS
VSSQ
VSS
VSS
VSS
VSS DQ31
DQ30
DQ29
DQ28
DQ27
DQ26
DQ25
DQ24
DQ22
DQ23
DQ21
DQ20
DQ19
DQ18
DQ17
DQ16
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10
DQ9
VSSQ
DQ8
VSSQ
DQ7
VSSQ
DQ6
VSSQ
DQ5
VSSQ
DQ4
VSSQ
DQ3
VSSQ DQ2
VSSQ
DQ1
VSSQ
DQ0
VSSQ
RFU
VSSQ
RFU
VSSQ
NC
VSSQ
NC
VSSQ
NC
NC
VSSQ
NC
VSSQ
NC
VSSQ
NC
VSSQ
NC
VSSQ
A11
A10
A9
A8(AP)
A7
A6
A5
A4
A3
A2
A1
A0
BA1
DM2
NC
DM3
BA0
DM1
(2/12)
VP-062
SDRAM
9
D
E
1110 152 5
VP-062 BOARD (3/12)
3
I
05
F
1612
C
1 86
XX MARK:NO MOUNT
G
14
A
13
H
74
B
IC301
DDR SDRAM
4-30
BDP-S5000ES
4-30. VP-062 BOARD (4/12) (GLUE) • See page 5-16 for printed wiring board.
- Ref. No.: VP-062 board; 70,000 series -
NO MARK:PB MODE
8
3.3
3.3
3.3
3.3
3.4
3.3
3.4
3.3
3.8
3.3
3.3
3.3
3.3
3.3
0
GLB_XRST
KYOTO_AUX_VCK
D402
XX
D401
XX
R415
XX
C424
0.1
XX
R474
C413
0.1
5
43
2
1
TC7SH08FU(T5RSOYJF)
IC403
JL405
C403
1
Q401
DTC123EKA-T146
SW3.3V
C408
0.1
GND
C410
0.1
C427
0.1
XX
R472
C412
0.1
C411
2.2
C425
0.1
SW1.5V
C414
0.1
C419
0.1
C420
2.2
C421
0.1
C430
0.01
JL403
C405
0.1
C417
2.2
R477
0
R479
1k
C423
0.1
C406
0.1
C426
2.2
R476
10k
1
2
3
4
5
6
7
8
9
10
CN402
10P
R478
0
JL404
C416
0.1
C415
2.2
R471
1k
C404
0.1
Q402
DTA123EKA-T146
JL408
C422
0.1
JL407
JL406
C407
0.1
C418
0.1
8
7
6
54
3
2
1
IC402
EPCS4SI8N(15ST)-VP062
nCS
DATA
VCC
GND ASDI
DCLK
VCC
VCC
C402
1
C428
1
JL401
JL402
ALTERA_DONE
6.3V
82
C431
6.3V
82
C429
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
C12
C13
C14
C15
C16
C17
C18
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14 F15 F16 F17 F18 G1 G2 G3 G4 G5 G6 G7 G8 G9 G10 G11G12 G13 G14 G15 G16 G17 G18 H1 H2 H3 H4 H5 H6 H7 H8 H9
K4
K5
K6
K7
K8
K9
K10
K11
K12
K13
K14
K15
K16
K17
K18
L1
L2
L3
L4
L5
L6
L7
L8
L9
L10
L11
L12
L13
L14
L15
L16
L17
L18
M1
M2
M3
M4
M5
M6
M7
M8
M9
M10
M11
M12
M13
M14
M15
M16
M17
M18
N1
N2
N3
N4
N5
N6
N7
N8
N9
N10
N11
N12
N13
N14
N15
N16
N17
N18
P1
P11
P2
P3
P4
P5
P6
P7
P8
P9
P10P12P13P14P15
R8R9 P16P17P18
R1R2R3R4R5R6R7
R10
R11
R12R13
D12
D13
D14
D15
D18
D16
D17
E3
E1
E2
E6
E4
E5
E9
E7
E8
E12E10 E11 F2
E13 F1 F3 H10 H11 H12 H16H14 H15H13 H18H17 J1 J8
K2
J7
K1
J16
J4 J6
K3
J5 J18J12
J11 J13 J15
J9 J17
J3J2 J14J10
R17 R16 R14R15
U14 T3T7
U13 T6 T2 T1
T12T17
U15 T14
U6
U18 T15
U16
V1 U11 U8
V2 R18
U2U3 T9
U10 U9 T5
U7 T10
T11
U5 T18
U1 T4
U4
V3 T13 T8
U17 U12 T16
V5V6V7
V10 V9 V8
V13 V12 V11
V16 V15 V14V18 V17 V4
E14 E15 E17E16 E18
EP1C12F324C8N(300)
IC401
GND
VCCINT
GND
VCCIO2
VCCIO2
GND
VCCINT
GND
VCCINT
GND
DEV_OE
DPCLK2
DPCLK3
GND
VCCINT
GND
CRC_ERROR
INT_DONE
DEV_CLRn
GND
CLKUSR
DPCLK4
VCCIO3
DPCLK1
VCCIO1
DATA0
GND
GND
VCCINT
GND
VCCIO3
DATA0
VCCINT
VCCIO3
nCSO
nCONFIG
CLK0
CLK1
VCCA_PLL1
GNDG_PLL1
nCE
GND
VCCINT
PLL2_OUTp
PLL2_OUTn
CONF_DONE
TCK
DCLK
GND
VCCINT
GND
GND
nSTATUS
VCCIO1
VCCIO3
VCCIO1
DPCLK0
GND
VCCINT
GND
DPCLK7
VCCIO1
VCCIO2
VCCIO2
GND
GND
VCCA_PLL2
CLK2
CLK3
TDI
GNDG_
PLL2
GNDA_PLL1
nCEO
MSEL0
PLL1_OUTp
PLL1_OUTn
ASDO
MSEL1
GND
GND
VCCINT
GND
GNDA_PLL2
TDO
TMS
VCCIO4
DPCLK5
VCCIO3
DPCLK7
GND
GND
VCCINT
GND
VCCINT
GND
VCCIO4
VCCIO4
GND
VCCINT
GND
22
R451
22
R452
22
R453
33
RB412
47
RB413
33
RB414
47
RB415
47
RB416
0
RB417
0
R461
0
R462
0
R463
0
RB418
0
R467
0
RB419
0
RB420
0
R466
0
R465
0
RB421
0
RB422
0
RB423
KYOTO_AUX_VS
KYOTO_AUX_HS
KYOTO_AUX_VO0
KYOTO_AUX_VO1
KYOTO_AUX_VO2
KYOTO_AUX_VO3
KYOTO_AUX_VO4
KYOTO_AUX_VO5
KYOTO_AUX_VO7
KYOTO_AUX_VO6
KYOTO_PRI_VCK
KYOTO_PRI_VS
KYOTO_PRI_HS
KYOTO_PRI_C9
KYOTO_PRI_C8
KYOTO_PRI_C6
KYOTO_PRI_C7
KYOTO_PRI_C2
KYOTO_PRI_C3
KYOTO_PRI_C4
KYOTO_PRI_C5
KYOTO_PRI_Y9
KYOTO_PRI_C0
KYOTO_PRI_C1
KYOTO_PRI_Y8
KYOTO_PRI_Y7
KYOTO_PRI_Y6
KYOTO_PRI_Y2
KYOTO_PRI_Y5
KYOTO_PRI_Y4
KYOTO_PRI_Y3
KYOTO_PRI_Y1
KYOTO_PRI_Y0
CL409
CL410
CL411
CL412
CL413
CL414
CL415
CL416
CL417
CL418
CL419
CL421
CL422
CL423
CL424
CL425
CL426
CL427
CL428
CL429
CL430
CL431
CL432
CL433
CL434
CL435
CL436
CL437
CL438
CL439
CL440
CL441
CL442
CL443
47
R406
47
R407
68
RB401
47
R405
68
RB402
68
RB403
68
RB404
68
RB405
GLUE_EDEN1_C6
GLUE_EDEN1_C3
GLUE_EDEN1_Y1
GLUE_EDEN1_HS
GLUE_EDEN1_C5
GLUE_EDEN1_Y4
GLUE_EDEN1_Y5
GLUE_EDEN1_C0
GLUE_EDEN1_C1
GLUE_EDEN1_C7
GLUE_EDEN1_VS
GLUE_EDEN1_Y9
GLUE_EDEN1_C9
GLUE_EDEN1_Y3
GLUE_EDEN1_Y7
GLUE_EDEN1_Y6
GLUE_EDEN1_C2
GLUE_EDEN1_C8
GLUE_EDEN1_Y2
GLUE_EDEN1_C4
GLUE_EDEN1_Y8
GLUE_EDEN1_VCK
GLUE_EDEN1_Y0
22
R409
22
R408
22
R410
22
RB407
22
RB406
LOGCN_VCK
22
RB409
22
RB408
22
R412
22
R411
22
R413
22
R414
LOGCN_VS
LOGCN_HS
LOGCN_Y0
LOGCN_Y1
LOGCN_Y2
LOGCN_Y3
LOGCN_Y7
LOGCN_Y4
LOGCN_Y6
LOGCN_Y5
LOGCN_C1
LOGCN_Y9
LOGCN_C0
LOGCN_Y8
LOGCN_C2
LOGCN_C4
LOGCN_C3
LOGCN_C6
LOGCN_C7
LOGCN_C8
LOGCN_C5
LOGCN_C9
0
R432
22
R431
22
R433
GLUE_CSI0_CKO
GLUE_CSI0_DO
EDEN1_XRST
22
R446
22
R445
GLUE_CSI1_CKO
EDEN2_XRST
GLUE_CSI1_DO
0
R440
22
R441
0
R442
0
R443
E3P_CSI0_CKO
E3P_CSI0_DO
E3P_CSI0_GLUE_XCS
22
R434
22
R435
CL401 CL402 CL403 CL404
KYOTO_XRST
0
R460
22
R459
0
R402
VCXO_K_SYNC
22
R403
22
R401
0
R404
VCXO_K_LOCK
GLUE_EDEN2_Y4
GLUE_EDEN2_C3
GLUE_EDEN2_C9
GLUE_EDEN2_Y3
GLUE_EDEN2_C1
GLUE_EDEN2_Y9
GLUE_EDEN2_C7
GLUE_EDEN2_Y1
GLUE_EDEN2_HS
GLUE_EDEN2_Y6
GLUE_EDEN2_C6
GLUE_EDEN2_C5
GLUE_EDEN2_VCK
GLUE_EDEN2_Y5
GLUE_EDEN2_C4
GLUE_EDEN2_Y8
GLUE_EDEN2_Y0
GLUE_EDEN2_Y2
GLUE_EDEN2_C0
GLUE_EDEN2_Y7
GLUE_EDEN2_C8
GLUE_EDEN2_C2
GLUE_EDEN2_VS
VCXO_TX_LOCK
VCXO_TX_SYNC
GKYOTO_XRST
C409
XX
0
R464
KYOTO_AUX_FD
CL420
D412
XX
D413
XX
GLUE_CSI0_DI
E3P_CSI0_DI
R429
10k
R428
10k
0
R448
0
R447
CL405 CL406 CL408CL407
0
R449
0
R450
R456
10k
R457
10k
R458
10k
R481
10k
R482
10k
R483
10k
R484 0
R480
100
R473
10k
R475
10k
R416
XX
R418
XX
R417
XX
R421
XX
R422
XX
R420
XX
R419
XX
R424
XX
R426
XX
R423
XX
R425
XX
R427
XX
GLUE_CSI1_XCS
22
R444
GLUE_CSI0_XCS
22
R430
D407
XX
D408
XX
D409
XX
D410
XX
D411
XX
D404
XX
D406
XX
D403
XX
D405
XX
0
R455
OE VDD
OUTGND
27MHz
X401
R454
0
0.1
C401
EMI
G
OI
FL401
EMI
G
OI
FL402
EMI
G
OI
FL403
R485
0
VCXO_GION_O_CLK 0
R488
22
R489
GION_VCXO_O_CLK
0
R468
0
R469
GLUE_VDAC_VCK
68
RB411
GLUE_VDAC_VO4
22R437
68
R439
68
RB410
EDEN2_GLUE_VS
0
R487
GLUE_VDAC_VO7
22R436
GLUE_VDAC_HS
0
R486
GLUE_VDAC_VO6
GLUE_VDAC_VO3
EDEN2_GLUE_HS
GLUE_VDAC_VS
GLUE_VDAC_VO5
GLUE_VDAC_VO0
33
R438
GLUE_VDAC_VO2
GLUE_VDAC_VO1
EDEN2_GLUE_VCK
M17
M18
M16
D13
R18
R16
A12
D5
B8
B13
F16
G18
G17
D1
D2
P3
F17
D18
C16
B15
B16
G15
C17
G16
A15
C14
D17
D16
F15
A13
A7
A6
B7
B6
B4
B3
C13
C6
D6
C5
A10
B10
A9
A11
C9
D9
U14
R4
C11
B12
C12
D12
B11
D11
A4
F18
F1
L17
L16
L15
H18
H17
N15
M15
L18
N16
P16
J1
J2
L1
J7
K17
K7
K6
K3
K2
C3
C4
K13
K14
H7
K18
J17
M4
M3
M2
M1
N4
N3
N2
N1
P2
L3
L2
L12
V12
U12
R15
T10
V10
U7
U10
R9
U6
V6
T7
T6
U11
R7
V11
V8
V7
T5
U4
T4
T17
G2
R9
T9
U9
V9
F3
F4
G3
N18
P17
J1
T2
R3
R2
R1
E17
K2
B3
L12
N17
G4
H2
D17
E17
D18
F18
F17
F16
G18
G17
G16
J16
H17
H18
L15
L16
L17
M15
M16
M17
N15
N16
N17
P16
P17
R15
R17
R18
T16
F1
D1
D2
F3
F4
G1
G3
G4
H1
H3
H4
L2
M1
M2
M3
N1
N2
N3
U4
T4
U3
T7
T2
R4
T5
U8
U7
P3
V7
U5
V8
P2
R1
R3
T6
V6
U6
V10
T10
U10
U11
V11
U14
U15
U12
T12
V12
V13
A9
C9
D9
B10
B11
B15
B13
B12
T9
U9
V9
J16
R17
D14
U3
V13
T12
T16
V15
U15
R6
U5
U8
V4
H1
H3
H4
G1
E4
E3
E5
T14
T13
T11
R14
R13
R12
R11
R10
P12
P10
P9
N9
M9
E16
E16
E2
E3
E4
E5
P9
N9
M9
R10
R11
R12
P12
T13
R13
T14
R14
H7
L1
J7
K6
K13
V15
U16
P10
T11
U16
J3
J3
D8
K14
J17
B5
D7
E7
B5
D4
D4
R2
R7
R6
V4
N4
M4
L3
H2
G2
E2
D8
D6
D5
B8
A6
C6
A4
A7
E7
C5
B4
D7
B7
B6
C11
D11
A10
C12
D12
A11
C13
D13
A12
C14
D14
A13
B16
C16
A15
T17
R16
N18
M18
L18
G15
F15
D16
C17
K3
K18
J2
K7
K17
C3
C4
VCC
DCLK
ADSI
A
Gnd
GND
B
CONF_DONE
nCS
nCONFIG
Vcc
DATAOUT
GND
Y
nCE
VP-062
(9/12)
VP-062
(10/12)
VP-062
(5/12)
VP-062
(1/12)
(7/12)
VP-062
(12/12)
VP-062
VP-062
(7/12) (5/12)
VP-062
(12/12)
VP-062
(1/12)
VP-062
(12/12)
VP-062
(1/12) (10/12)
(9/12)
VP-062
(5/12)
VP-062
(1/12) (2/12) (5/12)
(10/12) (11/12) (12/12)
(6/12) (7/12) (9/12)
VP-062
(2/12)
VP-062
CONFIGURATION ROM
IC402
AND
IC403
FPGA
IC401
VP-062
(1/12)
(11/12) (12/12)
VP-062
(1/12) (5/12)
2118
M
GLUE
9
D
E
11
N
10 152 5
VP-062 BOARD (4/12)
K
3
I
17
F
1612
C
1 1986
XX MARK:NO MOUNT
20
G
14
A
13
H
L
74
J
B
242322
05
M
L
(1/12)
VP-062
(2/12)
INITIAL SWITCHINITIAL SWITCH
(JIG)
4-31
BDP-S5000ES
4-31. VP-062 BOARD (5/12) (HDMI) • See page 5-16 for printed wiring board.
- Ref. No.: VP-062 board; 70,000 series -
GLUE_EDEN1_HS
GLUE_EDEN1_Y2
GLUE_EDEN1_Y5
GLUE_EDEN1_C0
GLUE_EDEN1_C3
GLUE_EDEN1_C6
GLUE_EDEN1_VCK
GLUE_EDEN1_Y1
GLUE_EDEN1_Y4
GLUE_EDEN1_Y7
GLUE_EDEN1_C2
GLUE_EDEN1_C5
GLUE_EDEN1_VS
GLUE_EDEN1_Y0
GLUE_EDEN1_Y3
GLUE_EDEN1_Y6
GLUE_EDEN1_C1
GLUE_EDEN1_C4
GLUE_EDEN1_C7
R516
0
EDEN1_VO00
EDEN1_VO01
EDEN1_VO02
EDEN1_VO03
EDEN1_VO04
EDEN1_VO05
EDEN1_VO06
EDEN1_VO07
EDEN1_VO08
EDEN1_VO09
EDEN1_VO10
EDEN1_VO11
EDEN1_VO12
EDEN1_VO13
EDEN1_VO14
EDEN1_VO15
EDEN1_VO16
EDEN1_VO17
EDEN1_VO18
EDEN1_VO19
EDEN1_VO20
EDEN1_VO21
EDEN1_VO22
EDEN1_VO23
EDEN1_VO24
EDEN1_VO25
EDEN1_VO26
EDEN1_VO27
EDEN1_VO28
EDEN1_VO29
EDEN1_VO30
EDEN1_VO31
EDEN1_VO32
EDEN1_VO33
EDEN1_VO34
EDEN1_VO35
EDEN1_VCK
EDEN1_HS
EDEN1_VS
SW3.3V
L502
XX
L501
XX
SW1.5V
GND
JL501
JL502
JL503
JL504
JL505
JL506
R505 0
EDEN1_XRST
R503
100
R504 0
R506 0
R507 0
R508 0
E3P_CSI0_DI
E3P_CSI0_DO
E3P_CSI0_CKO
D501
XX
R517
XX
Q501
XX
E3P_CSI0_EDEN1_XCS
R509 0
0R501
0R502
C502
0.001
C505
0.001
C508
0.001
C511
0.001
C513
0.001
C515
0.001
C517
0.001
0.001
C519
0.001
C521
0.001
C523
C504
0.1
C510
0.01
C507
0.01
C501
XX
C506
0.1
C518
0.1
C516
0.1
C514
0.1
C509
0.1
C520
0.1
C512
0.1
C503
0.1
0.1
C522
0.1
C524
GLUE_EDEN1_C8
GLUE_EDEN1_C9
GLUE_EDEN1_Y9
GLUE_EDEN1_Y8
68
RB505
68
RB506
68
RB507
68
RB508
68
RB509
68
RB510
68
RB512
68
RB511
68
RB513
R510
0
R511 0
68
RB501
68RB502
R513 68
R512 68
68RB504
68RB503
R514 68
R515
68
XX
C525
EMI
G
FL501
EMI
G
FL502
JL525
R518
33
R519
33
R520 33
TP501
XX
6.3V
47
C526
16V
39
C527
0.01
C528
R521
XX
R522
0
GLB_XRST
JL526
JL527
R523
0
CXD9957GF
IC501
GND
D10
GND
D9
GND
C7
GND
D5
GND
C3
GND
B2
GND
E4
GND
E1
GND
F4
GND
M3
GND
L5
GND
L8
GND
M11
GND
L11
GND
P14
GND
K11
GND
H12
GND
G11
GND
G13
GND
D12
GND
B13
GND
C10
GND
D6
GND
A1
GND
H1
GND
N2
GND
M8
GND
N13
GND
J12
GND
F11
GND
C12
AGND P11
VDD15
D11
VDD15
D8
VDD15
D7
VDD15
D4
VDD15
D3
VDD15
G4
VDD15
H4
VDD15
L4
VDD15
L6
VDD15
L7
VDD15
L9
VDD15
L12
VDD15
K12
VDD15
J11
VDD15
H11
VDD15
E11
VDD33
C9
VDD33
C8
VDD33
B3
VDD33
A2
VDD33
P1
VDD33
M7
VDD33
M12
VDD33
G12
VDD33
E12
VDD33
A14
AVDD
P10
CXD9957GF
IC501
VICK
N10
VIHS
P9
VIVS
N9
VIDC0
P3
VIDC1
N3
VIDC2
P2
VIDC3
N1
VIDC4
M2
VIDC5
M1
VIDC6
L2
VIDC7
L1
VIDC8
K2
VIDC9
K1
VIDY0
P8
VIDY1
N8
VIDY2
P7
VIDY3
N7
VIDY4
P6
VIDY5
N6
VIDY6
P5
VIDY7
N5
VIDY8
P4
VIDY9
N4
VOCK
G14
VOHS
N14
VOVS
M13
VOD0
M14
VOD1
L13
VOD2
L14
VOD3
K13
VOD4
K14
VOD5
J13
VOD6
J14
VOD7
H13
VOD8
H14
VOD9
F13
VOD10
F14
VOD11
E13
VOD12
E14
VOD13
D13
VOD14
D14
VOD15
C13
VOD16
C14
VOD17
B14
VOD18
A13
VOD19
B12
VOD20
A12
VOD21
B11
VOD22
A11
VOD23
B10
VOD24
A10
VOD25
B9
VOD26
A9
VOD27
B8
VOD28
A8
VOD29
B7
VOD30
A7
VOD31
B6
VOD32
A6
VOD33
B5
VOD34
B4
VOD35
A3
CXD9957GF
IC501
XRST
B1
XINT
C1
BL_HSFID
C2
BL_VS
G2
TCK
P12
TRST
N12
TEN
J1
TMS
P13
TDI
F12
TMC1
M5
TMC2
M6
STEST1
N11
STEST2
L10
STEST3
K4
STEST4
J4
STEST5
J2
STEST6
G1
STEST7
C4
STEST8
C11
STEST9
F2
STEST10
H2
EDN_CKI E2
EDN_DI D2
EDN_DO D1
EDN_XCS F1
LED_TEST0 E3
LED_TEST1 F3
LED_TEST2 G3
LED_TEST3 H3
LED_TEST4 J3
LED_TEST5 K3
LED_TEST6 L3
LED_TEST7 M4
N.C E5
N.C A5
N.C A4
N.C M9
N.C M10
N.C C6
N.C C5
IC501 (3/3)
HDMI I/FHDMI I/F
(1/3)IC501
HDMI I/F
(2/3)IC501
(1/12) (2/12) (4/12)
(10/12) (11/12) (12/12)
VP-062
(6/12) (7/12) (9/12)
VP-062
(4/12) (12/12)
(1/12) (2/12)
VP-062
(11/12) (12/12)
(1/12) (4/12)
VP-062
(4/12)
VP-062
(6/12)
(4/12)
VP-062
HDMI
9
D
E
11102 5
VP-062 BOARD (5/12)
3
I
05
F
12
C
1 86
XX MARK:NO MOUNT
G
A
13
H
74
B
VP-062
(1/12)
(11/12)
VP-062
14
4-32
BDP-S5000ES
4-32. VP-062 BOARD (6/12) (HDMI-TX) • See page 5-16 for printed wiring board.
- Ref. No.: VP-062 board; 70,000 series -
NO MARK:PB MODE
0
3.3
0
0
3.3
0
0
1.8
0
0
0
0
3.3
1.6
0
1.6
0.8
1.8
0
0
1.7
0
3.3
3.3
0
0.8
3.3
0
03.3
0
0
0
0
0
0
0
0
0
0
0
0
0
3.3
0
1.8
3.3
5
0
5
1.8
0
1.8
0
3.3
1.8
0
0
0
0
5
3.3
3.3
3.3
1.8
1.8
0
1.8
0
0
0
0
0
0
3.3
0
0
0
1.6
0
0
3.3
0
0
0
0
0
1.8
0
0
3.3
1.8
2.2
3.3
1.8
2.2
5.7
3.3
2.7
5
5.7
3.3
1.3
5
5
5
5
5
5
0
3.3
0
3.3
3.3
5.7
3.3
XX
C618
XX
C622
6.3V
220
C603
6.3V
120
C615
6.3V
120
C614
0.1
C607
0.1
C621
0.1C619
0.1
C604
0.1
C624
0.1
C610 C611
0.01
0.1
C609
XX
C628
0.1
C605
0
R646
1.8k
R668
1.8k
R667
0
R622
0
R623
EMI
G
O
I
FL601
EMI
G
O
I
FL605
EMI
G
O I
FL602
EMI
G
O
I
FL606
EMI
G
O
I
FL604
VDR602
XX
D602
XX
E3P_I2C0_SDA
E3P_SPDIF
E3P_AMCK
HDMI_XRST
E3P_I2C0_SCL
HDMI_XINT
E3P_ABD3
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51525354555657585960616263646566676869707172737475
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
SII9134
IC602
DE
HSYNC
VSYNC
SPDIF
MCLK
SD3
SD2
SD1
SD0
WS
SCK
CVCC18
GND
IOVCC33
DCLK
DR0
DL0
DR1
DL1
DR2
DL2
DR3
DL3
INT
RESET#
AGND
EXT_SWG
PVCC1
AGND
TXC-
TXC+
AVCC18
TX0-
TX0+
AGND
TX1-
TX1+
AVCC18
TX2-
TX2+
AGND
PVCC2
AGND
AVCC33
DDCPWR5V
DSCL
DSDA
CSCL
CSDA
CI2CA
HPD
TMODE
IOVCC33
GND
CVCC18
D35
D34
D33
D32
D31
D30
D29
D28
CVCC18
GND
IOVCC33
D27
D26
D25
D24
D23
D22
D21
D20
D19
CVCC18
D18
D17
D16
D15
D14
D13
D12
D11
D10
D9
GND
IDCK
IOVCC33
D8
D7
D6
D5
D4
D3
D2
D1
D0
CVCC18
GND
0.1
C635
EMI
G
O I
FL607
EMI
G
O
I
FL603
0.1
C606
RB608 0
RB607 0
0
R639
0.1
C612
0.1C616
R654
XX
R645
4.7k
XX
R647
0
R626
0R628
22
R630
22R632
22
R633
22R634
22R635
22R636
22R637
22
R638
0
R620
0.1
C613
0.1
C608
6.3V
47
C620
680
R649
0.5%
XX
R612
JL601 16
15
14
13
12
11
10
98
7
6
5
4
3
2
1
IC601
XX
CLKIN
1Y0
1Y1
VDD
GND
2Y0
2Y1
S2 S1
2Y2
2Y3
GND
VDD
1Y2
1Y3
FBIN
XX
C601
XX
R601
XX
R611
XXC602
0
R602
XX
R609
GND
XX
R608
JL602
EDEN1_VCK
10k
R652
10k
R615
0
R604
0
R607
R605
XX
XX
R603
XX
R610
1 2
34
90uH
L602
1 2
34
90uH
L604
1 2
34
90uH
L601
1 2
34
90uH
L603
JL621
R670
0
R673 0
R669 0
XX
FB602
R672
0
XXFB601
XX
FB604
XXFB605
XXFB603
R671 0
VDR601
XX
D601
XX
VDR603 XX
VDR604
XX
VDR605
XX
VDR606
XX
VDR607 XX
VDR608 XX
VDR609 XX
VDR610 XX
VDR611
XX
6.3V
47
C636
6.3V
47
C617
6.3V
47
C623
EDEN1_HS
EDEN1_VS
0R617
0
R616
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23P
CN601
EDEN1_VO33
EDEN1_VO32
EDEN1_VO31
EDEN1_VO30
EDEN1_VO29
EDEN1_VO28
EDEN1_VO19
EDEN1_VO21
EDEN1_VO20
EDEN1_VO07
EDEN1_VO06
EDEN1_VO11
EDEN1_VO10
EDEN1_VO18
EDEN1_VO16
EDEN1_VO17
E3P_ABD2
E3P_ABD1
E3P_ABD0
E3P_ALRCK
E3P_ABCK
0
R624
0R650
0R651
0
R653
100
R648
0R618
5
4 3
2
1
TC7SH08FU(T5RSOYJF)
IC604
4.7k
R659
3.3k
R657
0.01
C625
5 4
321
S-1170B33UC-OTSTFG
IC603
CONT
GND
NC VIN
VOUT
5 4
321
TK11150CSCL-G
IC605
CONT
GND
NOISE VOUT
VIN
XX
R656 R658
220k
47k
R655
XX
R662
1k
R660
XX
R661
XX
C633
XX
C638
HDMI_PCONT
PCONT3
SW3.3V
XX
C627
R665
0
XX
R666
3.3k
R663
3.3k
R664
XX
R674
XX
C639
EMI
G
OI
FL608
XX
6.3V
C626
120
C629
20V
47
C631
0.22
C637
0.22
C634
0.01
R676
0
XX
C644
XX
C630
XX
R677 R678
220k
100k
R644
R681
220k
C641
20V
47
6.3V
C632
47
100k
R679
XX
C640
XX
R680
XX
C642
6.3V
C643
47
C645
20V
47
TP601
XX
TP602
XX
EDEN1_VO35
EDEN1_VO34
EDEN1_VO23
EDEN1_VO22
5 4
321
S-1170B18UC-OTDTFG
IC606
5 4
321
S-1170B18UC-OTDTFG
IC607
XX
R613
XX
C646
XX
C647
XXR619
XX
C648
XXR693
XX
C649
XXR694
CL620
0
RB609
0
RB605
0
RB610
0
RB611
EDEN1_VO04
EDEN1_VO02
EDEN1_VO05
EDEN1_VO01
EDEN1_VO03
EDEN1_VO09
EDEN1_VO08
EDEN1_VO15
EDEN1_VO13
EDEN1_VO12
EDEN1_VO14
EDEN1_VO25
EDEN1_VO26
EDEN1_VO24
EDEN1_VO27
0RB601
0
RB604
0
RB612
0
RB613
EDEN1_VO00
S
2SK1828TE85L
Q602
UNSW5.8VD
CEC_VP
0
R695
XX
R696
VCXO_TX_CK
47k
R697
XX
R675
D1
G2
S2 D2
G1
S1
UM6K1N-TN
Q601
EDEN1_HS
EDEN1_VS
EDEN1_VO18
EDEN1_VO17
EDEN1_VO07
EDEN1_VO19
EDEN1_VO33
EDEN1_VO32
EDEN1_VO31
EDEN1_VO30
EDEN1_VO29
EDEN1_VO28
EDEN1_VO21
EDEN1_VO20
EDEN1_VO19
EDEN1_VO18
EDEN1_VO17
EDEN1_VO16
EDEN1_VO11
EDEN1_VO10
EDEN1_VO07
EDEN1_VO06
EDEN1_VS
EDEN1_HS
EDEN1_VO20
EDEN1_VO21
EDEN1_VO28
EDEN1_VO31
EDEN1_VO32
EDEN1_VO33
EDEN1_VO16
EDEN1_VO34
EDEN1_VO35
EDEN1_VO22
EDEN1_VO23
EDEN1_VO29
EDEN1_VO30
EDEN1_VO11
EDEN1_VO06
EDEN1_VO34
EDEN1_VO35
EDEN1_VO23
EDEN1_VO22
EDEN1_VO24
EDEN1_VO25
EDEN1_VO26
EDEN1_VO27
EDEN1_VO05
EDEN1_VO04
EDEN1_VO03
EDEN1_VO02
EDEN1_VO01
EDEN1_VO27
EDEN1_VO26
EDEN1_VO25
EDEN1_VO24
EDEN1_VO15
EDEN1_VO14
EDEN1_VO13
EDEN1_VO12
EDEN1_VO09
EDEN1_VO08 EDEN1_VO10
EDEN1_VO00
EDEN1_VO01
EDEN1_VO02
EDEN1_VO03
EDEN1_VO04
EDEN1_VO05
EDEN1_VO08
EDEN1_VO09
EDEN1_VO12
EDEN1_VO13
EDEN1_VO14
EDEN1_VO15
EDEN1_VO00
TMDS DATA0 +
TMDS CLOCK +
RESERVED
PARTS BODY
SDA
TMDS DATA2 SHIELD
PARTS BODY
TMDS DATA1 -
TMDS CLOCK SHIELD
DDC/CEC GND
SCL
TMDS CLOCK -
TMDS DATA2 +
PARTS BODY
TMDS DATA1 SHIELD
TMDS DATA0 -
CEC
TMDS DATA1 +
TMDS DATA0 SHIELD
HPD
+5V POWER
PARTS BODY
TMDS DATA2 -
HDMI TRANSMITTER
IC602
BUFFER
IC604
1110 15 171612 1413 18
J
8
E
5
B
3
XX MARK:NO MOUNT
4
HDMI-TX
1 6
C
9
F
05
7
D
VP-062 BOARD (6/12)
H
2
A
I
G
19
IC606
+1.8V REGULATOR
IC607 IC603 IC605
HDMI OUT
VP-062
(1/12)
VP-062
(10/12)
(5/12)
VP-062
VP-062
(1/12)
(5/12) (7/12) (9/12)
VP-062
(10/12) (11/12) (12/12)
(1/12) (2/12) (4/12)
(1/12) (2/12)
(9/12) (10/12)
VP-062
(7/12) (8/12)
(1/12)
VP-062
VP-062
(1/12)
VP-062
(1/12) (9/12) (10/12)
+1.8V REGULATOR SW+3.3V REGULATOR +5V REGULATOR
LEVEL SHIFT
LEVEL SHIFT
4-33
BDP-S5000ES
4-33. VP-062 BOARD (7/12) (DAC) • See page 5-16 for printed wiring board.
- Ref. No.: VP-062 board; 70,000 series -
NO MARK:PB MODE
4
5
6
1
2
3
1.7
1.1
1.8
1.1
1.2
0.9
3
3.2
3.3
2
1.3
3.3
1.3
0
3.2
3
1.3
1.8
1.2
1.6
0.8
1.4
1.2
1.6
1.3
1
0.5
2
0.9
0.6
0.6
2
1.8
0.6
0.6
1.2
3.3
1.2
3.3
1.2
0.5
0
0
1.3
0
1.8
1
2.5
2.6
1.3
1.2
1.4
1.3
3.3
0
0
3.3
1.3 1.8
3.3
3.3
1.3 1.8
3.3
3.3
1.9 3.3
5.5
3.3
1.9 3.3
5.6
-8.2
-8.2 -8.2 -5
-7.5
3.2
3.2
0.1
3.3
0.4
-5
0
3.3
-5
-0.1
4.9
0.5
0.4
3.3
0
-5
0
3.2
3.2
-5
0.7
3.1
3.3
5
3.1
0
0.15
C728
0.22
C730
0.1
C726
0.1
C720
47
4V
C722
47
10V
C712
1
C708
0.22
C717
0.22
C711
0.22
C719
0.22
C702
0.22
C725
C715
XX
C716 XX
XX
C724
0.22
C710
470p
C729
75
0.5%
R747
300
0.5%
R760
300
0.5%
R759
300
0.5%
R756
XXR746
100R724
100
R722
XX
R737
150
R743
680
R736
R745
0
R741 220
XXR740
XX
R742
470
R739
1k
R749
0
R719
68R729
R728
XX
R726
XX
1K
RV701
1K
RV702
22uH
L701
V_UNSW6V
GND
JL701
JL708
JL707
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 18 19 20 21 22 29282726252423 30 31 32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
495051525354555657585960
61626364
IC703
ADV7344BSTZ
22R711
22R710
1C737
0
R768
I O
COM
IC707
L79M05TLL-SONY-TL-E
0.1
C751
0.1
C756
0.1
C740
5.6k
R770
XX
R775
0.1
C747
0.1
C743
XX
R758
XX
R767
0.1
C753
0.1
C742
XX
R774
6.3V
100
C745
XX
R757
10k
R769
0.1
C748
1
C738
0.1
C755
XX
R771
Q702
DTA124EUA-T106
Q703
2SC2411K-T-146-CR
XX
R762
0.1
C750
6.3V
47
C757
0.1
C744
XXC735
10k
R772
XX
R761
6.3V
100
C752
2.2k
R773
470p
C739
16V
10
C754
0.015
C718
0.15
C723
22
R735
22
R744
0.1
C721
150
R734
D701
XX
XX
C703
0.22
C731
1
C727
100uH
L702
22
RB704
22
RB708
22
RB707
22
RB701
22
RB706
22
RB705
22
RB702
3.6k
R738
AD_Y
AD_PB
AD_PR
ASPECT0
ASPECT1
ASD_SCOUT
JL709
ASD_SYOUT
ASD_CVBSOUT
10V
47
C736
16V
47
C746
V_UNSW-9V
100uH
L704
22uH
L705
XVMUTE
PCONT2
10V
47
C732
1
C704
XX
R712
0.22
C701
SW3.3V EMI
G
FL701
EMI
G
FL702
TP703
XX
TP702
XX
TP701
XX
22uH
L703
47
4V
C713
75
0.5%
R748
75
0.5%
R751
75
0.5%
R754
LM4041C12IDCKR
D702
1
2
5
4 3
XX
R766
XX
R765
XX
R763
MUN2212T1
Q701
8765
4321
MM1663DHBE
IC705
3.3k
R764
R755
1k
XXC734
8
7
6
54
3
2
1
MM1663DHBE
IC704
GLUE_VDAC_VO0
GLUE_VDAC_VO1
GLUE_VDAC_VO2
GLUE_VDAC_VO3
GLUE_VDAC_VO4
GLUE_VDAC_VO6
GLUE_VDAC_VO5
GLUE_VDAC_VO7
GLUE_VDAC_HS
GLUE_VDAC_VS
GLUE_VDAC_VCK
EDEN2_VCK
EDEN2_Y0
EDEN2_Y1
EDEN2_Y2
EDEN2_Y3
EDEN2_Y4
EDEN2_Y7
EDEN2_Y5
EDEN2_Y6
EDEN2_Y9
EDEN2_C0
EDEN2_C1
EDEN2_Y8
EDEN2_C2
EDEN2_C4
EDEN2_C3
EDEN2_C6
EDEN2_C5
EDEN2_C7
EDEN2_C8
EDEN2_VS
EDEN2_C9
EDEN2_HS
R701
XX
PCONT3
R713
XX
XX
R721
XX
R723
XXR720
XX
C733
XX
R753
C714
XX
R718
100
0.1
C706
0.1
C707
1
C709
1
C705
GLUE_CSI0_XCS
VUCON_CSI0_XCS
GLUE_CSI0_CKO
VUCON_CSI0_CKO
GLUE_CSI0_DI
VUCON_CSI0_DI
R703 XX
R702
XX
R704
XX
R705 XX
R709 XX
R706
XX
R707 XX
R708
XX
GLUE_CSI0_DO
VUCON_CSI0_DO
JL710
JL711
JL718
JL719
JL720
JL721
JL722
JL723
JL724
JL725
JL726
100
R776
22R778
22R777 TPE701
XX
0.1
C758
0.1
C759
5
43
2
1
TK11118CSCL-G
IC701
5
43
2
1
TK11118CSCL-G
IC702
CL706
XX
C760
10V
47
C761
M1FM3
D703
M1FM3
D704
6.3V
47
C762
1
C749
1
C741
32
31
30
29
28
27
1
2
3
4
5
6
26
25
24
7
8
9
23
22
21
20
10
11
12
19
18
17
13
14
15
16
NJM2564AV(TE2)
IC706
SW_V_5V+
75
0.5%
R750
75
0.5%
R752
1.5
R779
1.5
R780
XX
R714
1k
R715
PO2
PO4
PO6
PO5
PO0
PO1
PO3
PO7
PO0
PO1
PY0
PY1
PY2
PY3
PY4
PY5
PY6
PY7
PY8
PY9
PC0
PC1
PC2
PO2
PO5
PO6
PY0
PY1
PY2
PY3
PY4
PY5
PY6
PY7
PY8
PC0
PC1
PC2
PC3
PC4
PC5
PC6
PC7
PO3
PC8
PC9
PO4
PO7
POH
POV
H_HD
H_VD
H_HD
H_VD
POH
POV
PC5
PC7
PC8
PC9
PY9
PC3
PC4
PC6
S_VSYNC
P_HSYNC
P_C[5]
P_C[6]
CONT
P_BLANK
P_Y[4]
S[1]
DAC 3
S[6]
COMP1
P_Y[9]
VDD
S[3]
S[5]
P_C[2]
DAC 5
EXT_LF2
P_Y[7]
RSET1
AGND
P_Y[3]
P_C[1]
GND
P_C[8]
DAC 2
VAA
S_HSYNC
CLKIN_A
P_C[3]
S[0]
P_Y[6]
P_C[4]
DGND
S[8]
MOSI
DGND
P_C[0]
P_Y[0]
SCLK
VREF
DAC 4
CLKIN_B
P_Y[1]
VDD_IO
SCL
MISO
GND_IO
P_Y[8]
S[9]
COMP2
P_Y[2]
VIN
S[2]
VDD
P_Y[5]
EXT_LF1
DAC 1
P_C[7]
P_C[9]
S[7]
DAC 6
XSPI_SS
RSET2
P_VSYNC
S[4]
PGND
PVDD
GND4
SCIN
PS2
LPFSW
V+1
V-2
GND3
PROUT
NC
V+S
GND1
NC
YOUT
VOUT
V-1
V+4
V+3
S1
V-3
SYOUT
SDCOUT
PS1
SYIN
V+2
YIN
GND2
PBOUT
PRIN
V-4
SCOUT
S2
PBIN
VOUTCNP
NC
VOUT
CONT
GND
VIN
NC
NC
CN
CONT
NCGND
VIN
NC
CN
VOUT
NC
CONT
VOUTCNP
VIN
GND
IC702
IC701
+1.8V REGULATOR
IC703
VIDEO ENCODER,
IC704
Q702, Q703
IC707
-5V REGULATOR
VP-062
(8/12)
(1/12)
(8/12)
VP-062
(8/12)
VP-062
(4/12)
VP-062
(12/12)
VP-062
VP-062
(4/12)
VP-062
(11/12)
(5/12) (6/12) (9/12)
VP-062
(10/12) (11/12) (12/12)
(1/12) (2/12) (4/12)
(8/12)
VP-062
(6/12) (8/12)
(1/12) (2/12)
VP-062
(9/12) (10/12)
18
DAC
9
D
E
1110 152 5
VP-062 BOARD (7/12)
3
I
17
05
F
1612
C
1 1986
XX MARK:NO MOUNT
G
14
A
13
H
74
J
B
VIDEO AMP
IC706
+3.3V REGULATOR
IC705
+1.8V REGULATOR
D/A CONVERTER
+3.3V REGULATOR
B-SWITCH
MIX, LINE DRIVE
4-34
BDP-S5000ES
4-34. VP-062 BOARD (8/12) (ANALOG OUT) • See page 5-16 for printed wiring board.
- Ref. No.: VP-062 board; 70,000 series -
NO MARK:PB MODE
5
0.2
4.9
-5
0.5
0.3
0.5
5
0.2
4.9
-5
0.2
0.3
0.2
5
0.1
4.9
-5
0.1
0.2
0.1
5
0.2
4.9
-5
0.7
0.2
0.6
5
-0.1
4.9
-5
0.5
-0.1
0.5
5
0
4.9
-5
0
-0.2
0
5.6
5
1.3
3.2
1.4
-7.5
-5
-8.2
-8.2
1.5
-8.2
2.5
4.4 2.5
2.5
0
3.2
5
0
XX
R847
R865
75
0.5%
XX
R867
AD_PR
JL803
JL813
JL806
JL825
XX
R875
JL823
R874
75
0.5%
XX
R856
I O
COM
IC802
L79M05TLL-SONY-TL-E
ASD_SCOUT
JL830
47uH
L803
10k
R806
XX
R871
XX
R883
ASPECT0
JL829
R870
XX
R868
XX
XX
R876
V_UNSW-9V
22uH
L805
XX
Q805
R864
75
0.5%
6.3V
47
C824
STZ6.8N-T146
D815
JL801
JL827
JL804
XX
Q803
AD_Y
D805
XX
ASD_SYOUT
100uH
L804
10V
47
C805
XX
R852
R869
XX
D806
XX STZ6.8N-T146
D813
5.6k
R810
XX
R842
XX
R851
XVMUTE
JL820
XX
Q806
XX
R866
R863
75
0.5%
XX
R877
1k
R804
R872
75
0.5%
1k
R805
XX
R838
XX
R854
6.3V
47
C814
JL802
D808
XX
AD_PB
JL805
ASD_CVBSOUT
16V
47
C806
DTA114EUA-T106
Q801
XX
R882
V_UNSW6V
GND
XX
R853
R873
75
0.5%
0.1
C813
XX
R834
STZ6.8N-T146
D810
JL826
XX
R843
XX
R881
ASPECT1
JL824
2SC2411K-T-146-CR
Q802
XX
Q804
0.1
C809
PCONT2
XX
R880
XX
R878
XX
R879
J802
J803
J804
1P
1P
1P
3
4
1
2
G
6P
CN804
16V
10
C807
5 4
321
TK11150CSCL-G
IC801
0.22
C810
0.22
C811
XX
R802
PCONT3
R803
XX
XX
C804
1
2
3
3P
CN802
0.5%
430
R811
4.7
R807
4.7
R808
4.7
R809
100uH
L802
6.3V
220
C802
10k
R860
10k
R862
XX
R861
8
7
6
54
3
2
1
TL431ACDT
IC804
0.5%
68
R823
0.5%
3.9k
R827
0.5%
3.9k
R828
0.5%
10k
R829
100uH
L801
6.3V
220
C801
SW_V_5V+
0
R820
0
R821
0
R814
0
R815
0
R816
0
R817
0.5%
1.5k
R822
1
C812
1
C815
1
C808
0.5%
1.5k
R819
0.5%
1.5k
R818
JL807
JL808
JL809
JL810
JL811
JL812
JL814
JL815
JL816
J801
1P
8
7
6
54
3
2
1
AD8000YRDZ-REEL
IC803
1
C839
0.001
C819
1
C816
0.001
C822
1
C826
0.5%
430
R824
0.5%
51
R831 BPF FL802
0.5%
51
R835
1
C838
0.5%
430
R844
0.001
C835
1
C829
8
7
6
54
3
2
1
AD8000YRDZ-REEL
IC807
0.5%
430
R839
0.001
C832
1
C827
0.5%
430
R825
0.5%
51
R832 BPF FL803
0.001
C833
0.5%
430
R840
1
C830
0.001
C823
8
7
6
54
3
2
1
AD8000YRDZ-REEL
IC808
1
C817
0.5%
430
R845
8
7
6
54
3
2
1
AD8000YRDZ-REEL
IC805
0.5%
430
R812
0.001
C820
0.5%
51
R836
1
C840
0.001
C836
0.5%
430
R826
0.5%
51
R837
0.001
C825
0.001
C821
1
C841
BPF FL804
1
C818
0.5%
51
R833
0.001
C834
1
C828
1
C831
0.5%
430
R813
8
7
6
54
3
2
1
AD8000YRDZ-REEL
IC809
8
7
6
54
3
2
1
AD8000YRDZ-REEL
IC806
0.5%
430
R846
0.5%
430
R841
0.001
C837
0.1
C842
UMH1NTN
Q807
XX
CN803
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21P
CN801
XX
R884
XX
R885
XX
R886
6.3V
47
C843
6.3V
47
C803
JL831
8
7
6
54
3
2
1
TL431ACDT
IC810
0
R849
0
R850
1A
PS801
0.4A
PS802
0.5%
120
R848
XX
R855
XX
C844
JL832
10
C845
M1FM3
D817
M1FM3
D818
SG801 SG802 SG803
SG811
XX
SG814
XX
SG816
XX
JL899
0
R801
XVMUTE
SW5VD
ASPECT0
PCONT2
ASPECT1
IP
FORMAT1
GND
FORMAT0
GND
SD_C
GND
SD_Y
GND
GND
HD_PR
GND
GND
HD_Y
GND
HD_PB
VIDEO6V
GND
VIDEO-9V
Vin
GND
CNP
CONT
VOUT
+
-
NC
PD
+VS
-VS
+
PD
-
-VS NC
+VS
-VS NC
+VS
+
PD
-
-VS NC
+VS
+
PD
-
PD
-
-VS NC
+VS
+
PD
-
-VS NC
+VS
+
IC801
+5V REGULATOR
IC802
IC806 IC809
IC808IC805
IC807IC803
AMP
IC810
PROGRAMMABLE VOLTAGE REFERENCE
IC804
P
R
P
B
Y
VP-062
(7/12)
(9/12) (10/12)
VP-062
(1/12) (2/12)
(6/12) (7/12)
(7/12)
VP-062
VP-062
(7/12)
(7/12)
VP-062
(1/12)
ANALOG OUT
9
D
E
1110 152 5
VP-062 BOARD (8/12)
K
3
I
05
F
1612
C
1 86
XX MARK:NO MOUNT
G
14
A
13
H
74
J
B
AMP
AMP AMP
AMP
AMP
PROGRAMMABLE VOLTAGE REFERENCE
POWER
BLOCK
(2/2)
-5V REGULATOR
B- SWITCH
B- SWITCH
S-VIDEO
VIDEO
VIDEO
OUT
17 18
VIDEO OUT
COMPONENT
MUTE DRIVE
(8/11)
BOARD
(SEE PAGE 4-21)
CN801
MB-124
Note:
The components identified
by mark 0 or dotted line
with mark 0 are critical for
safety.
Replace only with part num-
ber specified.
Note:
Les composants identifiés par
une marque 0 sont critiquens
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spéci-
fié.
4-35
BDP-S5000ES
4-35. VP-062 BOARD (9/12) (PLL1) • See page 5-16 for printed wiring board.
- Ref. No.: VP-062 board; 70,000 series -
IC903
XX
1 2 3 4 5 6 7 8 9 10 11 12
13
14
15
16
17
18
19
20
21
22
23
24
252627282930313233343536
37
38
39
40
41
42
43
44
45
46
47
48
8765
4321
IC901
XX
CN
XX
C903
XX
C902
XX
L901
UNSW5.8VD
GND
PCONT3
KYOTO_VCXO_CK
XX
C914
XX
C912
XX
C908
XX
C909
XX
C910
XX
C911
XX
C924
XX
C916
XX
C923
XX
C934
XX
C933
XX
C932
XX
C935
XX
R915
XX
R917
XX
R916
XX
C925
VCXO_K_SYNC
GLUE_CSI1_DO
VUCON_CSI1_CKO
GLUE_CSI1_CKO
VUCON_CSI1_XCS
VUCON_CSI1_DO
GLUE_CSI1_XCS
XX
R905
XX
R906
XX
R908
XX
R907
XX
R909
XX
R910
VCXO_K_LOCK
EMI
G
OI
FL902
XX
XX
C939
C929
XX
C928
XX
XX
C931
XX
R918
XX
C937
XX
C940
XX
C938
VCXO_KYOTO_CK
TP901
XX
TP902
XX
XX
C926
5 4
321
IC904
XX
VDD
GND
N+ N-
OUT
8
7
6
54
3
2
1
IC902
XX
VCC
DI1
NC
GND NC
NC
DO1+
DO1-
XX
C906
XX
C905
XX
C904
EMI
G
OI
FL901
XX
XX
R903
XX
R904
SW3.3V
XX
R901
XX
R911
XX
C901
XX
R902
JL901
JL902
CL901
XX
C907
XX
C936
XX
C930
XX
L903
XX
L902
XX
C927
XX
C917
XX
C922
XX
C918
XX
C913
XX
C915
XX
R912
XX
C919
XX
C920
XX
C921
TPE901
XX
XX
C941
XX
C942
XX
R914
CLCCLK1
CLCDI1
CLCCSI1
CLCDI1
CLCCLK1
CLCCSI1
VCXO_K_SYNC
VCXO_K_LOCK
VCXO_K_SYNC
VCXO_K_LOCK
GND
Fout
Vcc1
CLKuWire
DATAuWire
LEuWire
NC
Vcc2
LDObyp1
LDObyp2
GOE
LD
Vcc3
CLKout0
CLKout0*
Vcc4
Vcc5
CLKout2
CLKout2*
Vcc6
CLKout1
CLKout1*
CLKout3
CLKout3*
GND
Vcc7
SYNC
OSCIN
OSCIN*
Vcc8
Vcc9
CPOUT
Vcc10
NC
NC
Bias
Vcc11
CLKout4
CLKout4*
Vcc13
CLKout5*
Vcc14
Vcc12
CLKout5
CLKout7*
CLKout6
CLKout6*
CLKout7
VOUT
NC
GND
CONT
NC
NC
VIN
2 10
E
D
9
PLL1
B
4 7
H
A
G
XX MARK:NO MOUNT
6 81
C
F
05
3
VP-062 BOARD (9/12)
5
(1/12) (6/12) (10/12)
VP-062
(1/12) (2/12)
(8/12) (10/12)
VP-062
(6/12) (7/12)
(10/12) (11/12) (12/12)
VP-062
(1/12) (2/12) (4/12)
(5/12) (6/12) (7/12)
(4/12)
(10/12)
VP-062
(10/12)
(11/12)
VP-062
(4/12)
VP-062
(2/12)
VP-062
VP-062
(2/12)
4-36
BDP-S5000ES
4-36. VP-062 BOARD (10/12) (PLL2) • See page 5-16 for printed wiring board.
- Ref. No.: VP-062 board; 70,000 series -
NO MARK:PB MODE
1.6
3.3
3.3
2.6
3.3
3.3
1.6
3.3
3.3
0
0
0
3.3
1.6
2.1
1.5
3.3
3.3
1.2
3.3
1.2
3.3
3.3
3.3
3.3
3.3
3.3
3.3
1.2
1.7
1.2
3.3
1.7
1.2
1.2
3.3
1.9
5.6
3.3
LMK03001ISQ
IC1003
123456789101112
13
14
15
16
17
18
19
20
21
22
23
24
252627282930313233343536
37
38
39
40
41
42
43
44
45
46
47
48
8765
4321
MM1663DHBE
IC1001
CN
470p
C1003
10V
47
C1002
22uH
L1001
UNSW5.8VD
GND
PCONT3
1
C1013
6.3V
82
C1011
0.1
C1007
100p
C1008
0.01
C1009
0.001
C1010
0.001
C1023
0.01
C1015
XX
C1022
XX
R1014
0.001
C1032
0.01
C1031
0.001
C1030
100p
C1033
10k
R1015
1k
R1017
XX
R1016
10V
10
C1024
VCXO_TX_SYNC
GLUE_CSI1_DO
VUCON_CSI1_CKO
GLUE_CSI1_CKO
VUCON_CSI1_XCS
VUCON_CSI1_DO
GLUE_CSI1_XCS
R1005
XX
XX
R1006
XX
R1008
R1007
XX
R1009
XX
XX
R1010
VCXO_TX_LOCK
EMI
G
O I
FL1002
6.3V
47
C1037
C1028
0.1
C1027
0.22
0.22
C1029
XX
R1018
XX
C1035
0.1
C1038
XX
C1036
VCXO_TX_CK
TP1001
XX
TP1002
XX
0.1
C1025
5
43
2
1
IC1004
XX
VDD
GND
N+ N-
OUT
8
7
6
54
3
2
1
DS90LV017ATMX
IC1002
VCC
DI1
NC
GND NC
NC
DO1+
DO1-
0.01
C1006
0.1
C1005
6.3V
47
C1004
EMI
G
OI
FL1001
R1003
XX
XX
R1004
SW3.3V
1k
R1001
XX
R1011
XX
C1001
XX
R1002
JL1001
JL1002
CL1001
100p
C1026
0.01
C1017
6.3V
47
C1014
0.001
C1021
22uH
L1002
0.1
C1016
6.3V
82
C1012
22uH
L1003
0.1
C1034
XX
C1020
C1018
0.1
C1019
0.1
100
R1012
TP1003
XX
100p
C1039
XX
C1040
5
43
2
1
DS90LT012ATMF
IC1005
VDD
GND
N+ N-
OUT
4.7
R1019
VCXO_GION_O_CLK
CL1002
100p
C1043
0.01
C1042
0.1
C1041
0.1
C1045
0.1
C1044
GION_VCXO_O_CLK
EMI
G
O I
FL1003
XX
XX
C1046
XX
C1047
18k
R1020
18k
R1021
39k
R1022
39k
R1023
0
R1024
0
R1025
GLUE_CSI1_CKO
GLUE_CSI1_DO
GLUE_CSI1_XCS
VCXO_TX_SYNC
VCXO_TX_LOCK
VCXO_TX_SYNC
GLUE_CSI1_CKO
GLUE_CSI1_DO
GLUE_CSI1_XCS
VCXO_TX_LOCK
GND
Fout
Vcc1
CLKuWire
DATAuWire
LEuWire
NC
Vcc2
LDObyp1
LDObyp2
GOE
LD
Vcc3
CLKout0
CLKout0∗
Vcc4
Vcc5
CLKout2
CLKout2∗
Vcc6
CLKout1
CLKout1∗
CLKout3
CLKout3∗
GND
Vcc7
SYNC
OSCIN
OSCIN∗
Vcc8
Vcc9
CPo
Vcc10
NC
NC
Bias
Vcc11
CLKout4
CLKout4∗
Vcc13
CLKout5∗
Vcc14
Vcc12
CLKout5
CLKout7∗
CLKout6
CLKout6∗
CLKout7
VOUT
NC
GND
CONT
NC
NC
VIN
IC1005
LVDS RECEIVER
IC1003
CLOCK CONDITIONER
IC1002
LVDS DRIVER
(5/12) (6/12) (7/12)
(1/12) (2/12) (4/12)
VP-062
(9/12) (11/12) (12/12)
VP-062
(1/12) (6/12) (9/12)
(6/12) (7/12)
VP-062
(8/12) (9/12)
(1/12) (2/12)
VP-062
(11/12)
(9/12)
(9/12)
VP-062
(4/12)
VP-062
(4/12)
VP-062
(4/12)
VP-062
(6/12)
PLL2
9
D
E
11102 5
VP-062 BOARD (10/12)
3
05
F
12
C
1 86
XX MARK:NO MOUNT
G
A
13
H
74
B
+3.3V REGULATOR
IC1001
4-37
BDP-S5000ES
4-37. VP-062 BOARD (11/12) (VUCON) • See page 5-16 for printed wiring board.
- Ref. No.: VP-062 board; 70,000 series -
R1106 XX
R1101
XX
R1108 XX
R1102 XX
E3P_CSI0_VUCON_XCS
R1154
XX
R1153 XX
EMI
G
XX
FL1101
1
2
3
4
5
6
7
8
CN1101
XX
GND
SW3.3V
XEXRST
DLON
NC
TXD
RXD
NC
XX
R1134
R1120 XX
XX
R1151
X1101
XX
XX
R1126
XX
R1152
XX
R1146
R1155
XX
XX
C1104
GND
R1111
XX
XX
C1103
XX
R1109
XX
R1123
XX
R1116
XX
C1101
XX
C1102
R1143
XX
XX
R1117
XX
R1124
XX
R1114
XX
R1113
C1105
XX
XX
R1115
XXR1121
XXR1122
XXR1125
XXR1127
R1131 XX
XX
R1103
XX
R1138
R1129
XX
XX
R1141
R1130
XX
XX
R1142
XX
R1139
XX
R1140
D1101 XX
D1102 XX
D1103 XX
D1104 XX
XX
R1128
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17 18 19 20 21 22 29282726252423 30 31 32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
495051525354555657585960
61626364
IC1101
XX
AVCC
AVR
PE3/INT13
PE2/INT12
PE1/INT11
PE0/INT10
P83
P82
P81
P80
P71TI0
P70/TO0
MOD
X0
X1
VSS
VDD
PG0/(Cin)
PG2/X1A
PG1/X0A
XRST
P00/INT00
P01/INT01
P02/INT02
P03/INT03
P04/INT04
P05/INT05
P06/INT06
P07/INT07
UI0/P10
UO0/P11
UCK0
/P12
ADTG
/TRG0/P13
PPG0/P14
PPG00/P20
PPG01/P21
TO00/P22
TO01/P23
EC0/P24
P50/SCL0
P51/SDA0
PPG1/P52
TRG1/P53
PPG10/P60
PPG11/P61
TO10/P62
TO11/P63
EC1/P64
P65/SCK
P66/SOT
P67/SIN
P43/AN11
P42/AN10
P41/AN09
P40/AN08
P37/AN07
P36/AN06
P35/AN05
P34/AN04
P33/AN03
P32/AN02
P31/AN01
P30/AN00
AVSS
GLB_XRST
R1104 XX
XX
R1110
VUCON_AUX_FD
XX
R1137
VUCON_CSI0_DO
VUCON_CSI0_DI
VUCON_CSI0_CKO
R1147 XX
R1148 XX
R1149 XX
R1150
XX
XX
R1136
XX
R1135
E3P_CSI0_DO
E3P_CSI0_CKO
E3P_CSI0_DI
SW3.3V
VUCON_CSI0_XCS
VUCON_AUX_VS XX
R1119
R1144 XX
VUCON_CSI1_DO
VUCON_CSI1_CKO
R1145 XX
VUCON_CSI1_XCS
R1132 XX
S1101
XX
XX
R1118
XX
R1105
XXR1160
D1105 XX
R1158 XX
R1159
XX
R1156 XX
R1157
XX
CL1101
CL1131
CL1103
CL1141
CL1123
CL1142
CL1111
CL1136
CL1143
CL1102 CL1129
CL1126
CL1134
CL1112
CL1120
CL1124
CL1119
CL1116
CL1138
CL1125
CL1140
CL1132
CL1122
CL1130
CL1106
CL1121
CL1135
CL1110
CL1133
CL1139
CL1105
CL1118
CL1137
14
13
12
11
10
9
87
1
2
3
4
5
6
IC1102
XX
R1112
XX
R1107
XX
(9/12) (10/12) (12/12)
VP-062
(1/12) (2/12) (4/12)
(5/12) (6/12) (7/12)
VP-062
(1/12) (4/12)
(5/12) (12/12)
VP-062
(1/12)
(5/12)
VP-062
(2/12)
VP-062
VP-062
(7/12)
(10/12)
VP-062
(9/12)
VUCON
9
D
E
11102 5
VP-062 BOARD (11/12)
3
05
F
C
1 86
XX MARK:NO MOUNT
G
A
H
74
B
I
4-38
BDP-S5000ES
4-38. VP-062 BOARD (12/12) (COMPONENT) • See page 5-16 for printed wiring board.
- Ref. No.: VP-062 board; 70,000 series -
NO MARK:PB MODE
1.6 1.6
3.3
GLUE_EDEN2_HS
GLUE_EDEN2_Y2
GLUE_EDEN2_Y5
GLUE_EDEN2_C0
GLUE_EDEN2_C3
GLUE_EDEN2_C6
GLUE_EDEN2_VCK
GLUE_EDEN2_Y1
GLUE_EDEN2_Y4
GLUE_EDEN2_Y7
GLUE_EDEN2_C2
GLUE_EDEN2_C5
GLUE_EDEN2_VS
GLUE_EDEN2_Y0
GLUE_EDEN2_Y3
GLUE_EDEN2_Y6
GLUE_EDEN2_C1
GLUE_EDEN2_C4
GLUE_EDEN2_C7
R1216
0
EDEN2_Y0
EDEN2_Y1
EDEN2_C0
EDEN2_C1
EDEN2_Y2
EDEN2_Y3
EDEN2_Y4
EDEN2_Y5
EDEN2_Y6
EDEN2_Y7
EDEN2_Y8
EDEN2_Y9
EDEN2_C2
EDEN2_C3
EDEN2_C4
EDEN2_C5
EDEN2_C6
EDEN2_C7
EDEN2_C8
EDEN2_C9
EDEN2_VCK
EDEN2_HS
EDEN2_VS
SW3.3V
L1202
XX
L1201
XX
SW1.5V
GND
JL1202
JL1203
JL1204
JL1205
JL1206
JL1207
R1205 0
R1203
100
R1204 0
R1206 0
R1207 0
R1208 0
E3P_CSI0_DI
E3P_CSI0_DO
E3P_CSI0_CKO
D1201
XX
R1217
XX
Q1201
XX
E3P_CSI0_EDEN2_XCS
R1209 0
0
R1201
0
R1202
C1228
0.001
C1206
0.001
C1209
0.001
C1212
0.001
C1214
0.001
C1216
0.001
C1218
0.001
0.001
C1220
0.001
C1222
0.001
C1224
C1204
0.1
C1210
0.01
C1207
0.01
C1201
XX
C1208
0.1
C1219
0.1
C1217
0.1
C1215
0.1
C1211
0.1
C1221
0.1
C1213
0.1
C1205
0.1
0.1
C1223
0.1
C1225
GLUE_EDEN2_C8
GLUE_EDEN2_C9
GLUE_EDEN2_Y9
GLUE_EDEN2_Y8
47
RB1205
47
RB1206
47
RB1207
47
RB1208
47
RB1209
JL1217
JL1218
JL1223
JL1225
JL1231
R1210
0
R1211 0
0
RB1201
0RB1202
R1213 0
R1212 0
0RB1204
0RB1203
R1214 0
R1215
0
XX
C1202
EMI
G
FL1201
EMI
G
FL1202
JL1201
JL1220
JL1219
JL1222
JL1221
JL1224
JL1226
JL1227
JL1228
JL1232
JL1233
JL1234
R1219
120
R1220
120
R1223
33
EDEN2_GLUE_VS
EDEN2_GLUE_HS
EDEN2_GLUE_VCK
R1222
33
R1226
0
R1225
0
TP1201
XX
0.01
C1226
EDEN2_XRST
GLB_XRST
R1227
XX
R1228
0
16V
39
C1203
6.3V
47
C1227
JL1237
JL1238
R1230
0
8
7
6
54
3
2
1
CDCVF2505PWR
IC1202
0.1
C1229
R1221
0
C1230
0.001
16V
39
C1231
EMI
G
FL1203
R1224
33
R1218
0
CXD9957GF
IC1201
XRST
B1
XINT
C1
BL_HSFID
C2
BL_VS
G2
TCK
P12
TRST
N12
TEN
J1
TMS
P13
TDI
F12
TMC1
M5
TMC2
M6
STEST1
N11
STEST2
L10
STEST3
K4
STEST4
J4
STEST5
J2
STEST6
G1
STEST7
C4
STEST8
C11
STEST9
F2
STEST10
H2
EDN_CKI
E2
EDN_DI
D2
EDN_DO
D1
EDN_XCS
F1
LED_TEST0
E3
LED_TEST1
F3
LED_TEST2
G3
LED_TEST3
H3
LED_TEST4
J3
LED_TEST5
K3
LED_TEST6
L3
LED_TEST7
M4
N.C
E5
N.C
A5
N.C
A4
N.C
M9
N.C
M10
N.C
C6
N.C
C5
CXD9957GF
IC1201
VICK
N10
VIHS
P9
VIVS
N9
VIDC0
P3
VIDC1
N3
VIDC2
P2
VIDC3
N1
VIDC4
M2
VIDC5
M1
VIDC6
L2
VIDC7
L1
VIDC8
K2
VIDC9
K1
VIDY0
P8
VIDY1
N8
VIDY2
P7
VIDY3
N7
VIDY4
P6
VIDY5
N6
VIDY6
P5
VIDY7
N5
VIDY8
P4
VIDY9
N4
VOCK
G14
VOHS
N14
VOVS
M13
VOD0
M14
VOD1
L13
VOD2
L14
VOD3
K13
VOD4
K14
VOD5
J13
VOD6
J14
VOD7
H13
VOD8
H14
VOD9
F13
VOD10
F14
VOD11
E13
VOD12
E14
VOD13
D13
VOD14
D14
VOD15
C13
VOD16
C14
VOD17
B14
VOD18
A13
VOD19
B12
VOD20
A12
VOD21
B11
VOD22
A11
VOD23
B10
VOD24
A10
VOD25
B9
VOD26
A9
VOD27
B8
VOD28
A8
VOD29
B7
VOD30
A7
VOD31
B6
VOD32
A6
VOD33
B5
VOD34
B4
VOD35
A3
CXD9957GF
IC1201
GND
D10
GND
D9
GND
C7
GND
D5
GND
C3
GND
B2
GND
E4
GND
E1
GND
F4
GND
M3
GND
L5
GND
L8
GND
M11
GND
L11
GND
P14
GND
K11
GND
H12
GND
G11
GND
G13
GND
D12
GND
B13
GND
C10
GND
D6
GND
A1
GND
H1
GND
N2
GND
M8
GND
N13
GND
J12
GND
F11
GND
C12
AGND
P11
VDD15
D11
VDD15
D8
VDD15
D7
VDD15
D4
VDD15
D3
VDD15
G4
VDD15
H4
VDD15
L4
VDD15
L6
VDD15
L7
VDD15
L9
VDD15
L12
VDD15
K12
VDD15
J11
VDD15
H11
VDD15
E11
VDD33
C9
VDD33
C8
VDD33
B3
VDD33
A2
VDD33
P1
VDD33
M7
VDD33
M12
VDD33
G12
VDD33
E12
VDD33
A14
AVDD
P10
1Y1
GND
1Y3
CLKIN
1Y0
VDD
CLKOUT
1Y2
(1/12)
VP-062
(1/12)
VP-062
(4/12)
(5/12) (11/12)
(4/12)
VP-062
VP-062
(1/12) (4/12)
VP-062
(4/12)
COMPONENT I/F
(1/3)
IC1201 (3/3)
IC1201
(2/3)
IC1201
PLL CLOCK DRIVER
IC1202
B
4 7
H
13
A
G
XX MARK:NO MOUNT
6 81
C
12
F
05
I
3
VP-062 BOARD (12/12)
52 10 11
E
D
9
COMPONENT
(1/12) (2/12)
(4/12) (5/12)
VP-062
(5/12) (6/12) (7/12)
(1/12) (2/12) (4/12)
VP-062
(9/12) (10/12) (11/12)
VP-062
(4/12)
VP-062
(4/12)
VP-062
(7/12)
14
COMPONENT I/F
COMPONENT I/F
4-39E
BDP-S5000ES
4-39. WAVEFORMS
2IC706 8(SYIN)
0.5 V/DIV, 20 µs/DIV
wa IC402 7(XOUT)
1.0 V/DIV, 50 ns/DIV
ea IC602 qa (PCLK)
1.0 V/DIV, 20 ns/DIV
es IC602 id (XT2)
1.0 V/DIV, 20 ns/DIV
IC401 J-3(CLKO)
1.0 V/DIV, 20 µs/DIV
3IC706 0(YIN)
0.5 V/DIV, 20 µs/DIV
4IC706 wd (YOUT)
ed IC700 2(XOUT)
1.0 V/DIV, 20 ns/DIV
8
1.0 V/DIV, 20 µs/DIV
6IC706 e; (SCOUT)
5IC706 wh (SYOUT)
ef IC8001 qf (REFCLK)
1.0 V/DIV, 10 ns/DIV
1IC706 3(SCIN)
0.5 V/DIV, 20 µs/DIV
7IC204 R-qk (XTAL2)
H
0.8 Vp-p
H
1.0 Vp-p
H
1.0 Vp-p
H
2.0 Vp-p
H
2.0 Vp-p
10 MHz
3.6 Vp-p
33 MHz
3.8 Vp-p
30 MHz
3.8 Vp-p
25 MHz
3.8 Vp-p
50 MHz
4.0 Vp-p
0.5 V/DIV, 20 µs/DIV
H
1.6 Vp-p
ws IC402 5(XCOUT)
1.0 V/DIV, 10 µs/DIV
32.768 kHz
2.5 Vp-p
1.3 Vp-p
1.0 V/DIV, 20 ns/DIV
20 MHz
3.9 Vp-p
1.0 V/DIV, 20 ns/DIV
27 MHz
VP-062 BOARD IFD-002 BOARD MB-124 BOARD
5-1
BDP-S5000ES
SECTION 5
PRINTED WIRING BOARDS
5-1. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS
2 1
3
2 1
3
2 1
3
345
21
123
654
EB
C
31
5
5
2
46
123
54
Transistor Diode
• : Uses unleaded solders.
• : Pattern from the side which enables seeing.
(The other layers’ patterns are not indicated)
• Through hole is omitted.
• There are few cases that the part printed on diagram isn’t mounted
in this model.
• : panel designation
• Chip parts.
Caution:
Pattern face side:
(SIDE B)
Parts face side:
(SIDE A)
Parts on the pattern face side seen from
the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
5-2
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-2. AU-260 BOARD (SIDE A) • See page 2-7 for circuit boards location.
- Ref. No.: AU-260 board; 20,000 series -
E
E
E
EE
E E
E
E E
EE
E
E
E
E
E
E
E
E
E
E
E
R2090
R2091
R2092
R2093
R2094
R2095 R2096
R2097
R1100
R1101
R1102
R1103
R1104
R1105
R1106
R1107
R1109
R1110
R1111
R1112
R1113
R1114
R1115
R1116
R1117
R1118
R1119
R1120
R1124
R1125
R1126
R1128
R1131
C2100
C2101
C2102
C2103
C2104
C2105
C2106
C2109
C2110
C2112
C2115
C2116
C2117
C2118
C2119 C2120
C2121 C2122
C2123
C2124
C2125
C2126
C2127
C2128
C2129
R2105
R2106 R2107
C2130
C2131
C2132
C2133
C2134
C2135
C2136
C2137
R2110
C2138
C2139
R2112
R2118
C2140
R2119
C2141
C2142
C2143
C2144
C2145
C2146
C2147
R2120
C2149
R2121
R2122
C2150
R2128
C2151
C2152
C2153 C2154
C2155
R2131
R2132
R2133
R2136
R2137
R2138 R2139
R2140
R2141
R2142
R2145
R2149
R2151
R2152
R2153 R2154
R2155
R2156
R2157
R2158
R2159 R2160
CN1001
R2161R2162
R2163
R2164
R2165
R2166
R2167
R2168
R2169
C1002 C1003
R2170
C1004
R2171
C1005
Q1001
R2172
C1006
Q1002
C1007
Q1003
R2173
C1008
Q1004
Q1005
C1009
R2175
Q1006
Q1007
Q1008 Q1009
C1010
C1011
C1012
C1013
C1014
Q1010
C1015
Q1011
C1016
Q1012
C1017
Q1013
C1018
Q1014
C1019
Q1015
Q1016
Q1017
Q1018 Q1019
C1020
C1021
C1022
C1023
C1024
Q1020
D1001
C1025
D1002
C1026
C1027
D1003
C1028
C1029
R1001
R1002
R1004
R1007
R1008
C1030
IC1001
C1031
R1009
IC1002
C1032
C1033
IC1003
IC1004
C1034
IC1005
C1035
C1036
IC1006
C1037
IC1007
R1010
IC1008
C1038
C1039
R1011
IC1009
R1012
R1013
R1014
R1015 R1016
R1017
R1018
C1040
C1041
R1019
C1042 C1043
C1044
C1045
C1047
R1020
C1048
R1021
C1049
R1022
R1023
R1024 R1025
R1026
R1027
R1028
C1050
C1051
R1029
C1052
C1054
C1055
C1056
CN2002
C1057
CN2003
R1030
C1058
C1059
R1031
R1032
R1033
R1034
R1035
R1036
R1037
R1038
R1039
C1061
C2001
C1062
C2002C2003
C1063
C2004
C1064
C1065
C2005 C2006C2007
R1040
C2008
C1068
R1041
C2009
C1069
R1042
R1043
R1044
R1045
R1046
R1047
R1048
C2010
C1070
R1049
C2011
C1071
C1072
C2012
C2013
C1073
C2014
C1074
C2015
C1075
C1076
C2016 C2017
Q2014
C2018
R1050
Q2015
C2019
R1051
Q2016
R1052
R1053
R1054
R1055
R1056
R1057
C2020
R1058
R1059
C2021 C2022
C2023 C2024 C2025 C2026
C2027
R1060
C2028
C2029
R1062
R1064
R1065
R1068
C2030
R1069
IC2001
C2031 R2009
C2032
IC2002
IC2003
IC2004
IC2005
IC2006 IC2007
R1070
R2010
R2011
R1071
IC2009
R2012
R1072
R2013
R1073
R1074
R2014
D2019
R1075
R2015
R1076
R2016
R1077
R2017
R2018
R1078
IC2010
R1079
IC2011
R2019
IC2013
IC2014
IC2015
IC2016
IC2017
R1080
R2020
IC2018
R2021
R1081
IC2019
R1082
R2022
R1083
R2023
R1084
R2024
R1085
R2025 R2026
R1086
R2027
R1087
R2028
R1088
IC2020
R2029
R1089
IC2021
IC2022
IC2023
R2030
R1090
C2058
C2059
R2031
R1091
R2032
R2033 R2034
R2035
R1095
R2036
R1096
R2037
R1097
C2060
R2038
R2039
C2061
C2066
R2040
R2041 R2042
R2043 R2044
R2045 R2046
R2047 R2048
C2072 C2073
C2077
C2079
C2084
C2086
R2065
R2066
R2067
R2068
C2091
R2069
C2098
R2070
C2099
R2071
R2072
R2073
R2074
R2075
R2076
BIA001
R2089
1-877-732- 11
C
D
E
F
G
A
12 3 4 5 6 7 8 9 10 11 12
05
B
AU-260 BOARD (SIDE A)
1 8
4 5
18
45
18
45
18
45
18
45
18
45
18
45
18
45
18
45
18
45
18
45
18
45
18
45
18
45
18
45
1
28
14
15
1
11
20
10
1
E
10
6
5
1
20
10
126
11
1
3
24
5
1
8
14
7
1
23
45
1
2
34
5
1
8
4
5
13 2
4 5
1
2
4
3
1
3
6
K A
K
A
1
1
28
14
15
1
28
14
15
1
28
14
15
1
28
14
15
AU-260 BOARD (SIDE A)
CN2001 E-1
CN2002 F-2
CN2003 E-2
D1001 F-3
D1002 G-4
D1003 F-4
D2019 F-2
IC1001 F-8
IC1002 F-11
IC1003 F-6
IC1009 G-10
IC2001 D-9
IC2002 D-9
IC2003 D-8
IC2004 D-8
IC2005 A-4
IC2006 D-10
IC2007 D-12
IC2009 D-6
IC2010 A-1
IC2011 C-11
IC2013 A-3
IC2014 F-7
IC2015 E-4
IC2017 D-7
IC2018 D-5
IC2019 D-6
IC2020 C-9
IC2021 C-8
IC2022 C-7
IC2023 C-5
Q1001 G-4
Q1002 F-4
Q1003 F-5
Q1004 G-5
Q1005 F-5
Q1006 G-4
Q1007 G-4
Q1008 G-5
Q1009 F-5
Q1010 F-5
Q1011 F-5
Q1012 F-4
Q1013 F-5
Q1014 F-4
Q1015 F-5
Q1016 F-4
Q1017 F-4
Q1018 F-4
Q1019 F-5
Q1020 F-11
Q2014 F-2
Q2015 D-4
Q2016 D-4
5-3
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-3. AU-260 BOARD (SIDE B) • See page 2-7 for circuit boards location.
- Ref. No.: AU-260 board; 20,000 series -
AU-260 BOARD (SIDE B)
D2009 F-2
D2010 E-2
D2011 F-2
D2012 E-2
D2014 A-2
D2018 A-2
D2020 E-2
D2021 C-2
D2022 B-3
D2023 C-4
IC2012 E-3
Q2001 B-9
Q2002 B-9
Q2003 B-8
Q2004 B-8
Q2005 B-7
Q2006 B-7
Q2007 B-6
Q2008 B-6
Q2009 B-3
Q2010 D-3
Q2011 A-2
Q2012 B-10
Q2013 B-11
E
E
E
E
E
E
E
E
E
E
R2098
R2099
R1127
R1129
R1130
R2100
R2101
R2102
R2103
R2104
R2108
R2109
R2111
R2113
R2114
R2115
R2116
R2117
R2123
R2124
R2125
R2126
R2127
R2129
R2130
R2134
R2135
R2143
R2144
R2147
R2148
R2174
R1003
R1005 R1006
C1046 C1053 C1060
Q2001
C1066
Q2002
C1067
Q2003
Q2004
Q2005
Q2006
Q2007
Q2008
Q2012
Q2013
D2001
D2002 D2003
D2004
R1061
D2005D2006
R1063
D2007D2008
D2009
R1066 R1067
D2010
D2011
D2012
D2013
D2014
D2016
D2017 D2018
D2020
D2021
D2022
D2023
C2049
C2050
C2051
C2052
C2053
C2054
C2055
C2056
R1092 R1093 R1094
R2049
C2071
R2050
R2051
R2052
R2053
R2054
R2055
R2056
R2057
R2058
C2080
R2059
R2060
R2061
R2062
R2063
R2064
R2077
R2078
R2079
R2080
R2081
R2082
R2083
R2084
R2085
R2086
R2087
R2088
S
D
LP2001
J2001 J2002 J2003 J2004 J2005
J2006
C2107
C2108
C2111
C2113
C2114
L2001
C2148
C2156
C1001
A2009
Q2011
C2033
C2034
C2035
C2036
C2037
A210
C2038
IC2008
C2039
A212
C2040
C2041C2042 C2043C2044 C2045C2046 C2047C2048
C2057
C2062
C2065
C2069
C2070
C2074
C2076
C2078
C2081C2082
C2083
C2085
C2087
C2088
C2089
C2090
C2092
C2093
C2094
C2075
C2095
C2096 C2097
BE
BE
Q2009
Q2010
IC2012
C2068 C2064 C2067 C2063
1-877-732- 11
C
D
E
F
G
A
1
23456789101112
05
B
AU-260 BOARD
(SIDE B)
4
1
CN2001
COAXIAL OPTICAL
DIGITAL OUTMULTI CHANNEL OUTPUT
AUDIO OUT
(L/R)
FRONT
(L/R)
SURROUND
(L/R)
SUR BACK
(L/R)
CENTER/
SUB WOOFER
2
1
3
5-4
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-4. ET-001 BOARD • See page 2-7 for circuit boards location.
- Ref. No.: ET-001 board; 30,000 series -
ET-001 BOARD (SIDE A)
CN1601 B-1
CN1601
BIA002
J1601
CN1603
2
871
C1601
D1601
R1601
R1602
R1603
CN1602
28
7
1
C
A
12
05
B
ET-001 BOARD (SIDE A)
1-877-741- 11
C
A
12
05
B
ET-001 BOARD (SIDE B)
1-877-741- 11
LAN (100)
CONTROL S IN/
IR IN
A
K
K
1 2
ET-001 BOARD (SIDE B)
CN1602 A-1
CN1603 A-1
5-5
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-5. FC-095 BOARD • See page 2-7 for circuit boards location.
- Ref. No.: FC-095 board; 20,000 series -
119
1
9
E
CN201
CN202
C201
Q202
PS201
R201
BIA002
R203
R204
33 23
34
12
22
44
11
1
E
E E
R210
R211
R212
C202
C205
C206
C208
C209
C210
C211
C213
C214
C215
C216
C217
C218
C220 D201
D202
D203
D204
D205
IC202
Q201
Q203
Q204 Q205
Q206
R202
R205
R206
R207
R208
R209
1 2 4
12 332 34 35
C203
C204
C207
C212
IC201
T201
L201
ND201
EE
FLUORESCENT INDICATOR TUBE
A
12 3 4 5 6 7
05
B
FC-095 BOARD (SIDE A)
1-877-738-
1-877-738-
11
B
12 3 4 5 6 7
05
A
FC-095 BOARD (SIDE B)
11
FC-095 BOARD (SIDE A)
CN202 A-1
Q202 B-6
FC-095 BOARD (SIDE B)
D201 A-6
D202 A-6
D203 A-6
D204 A-6
D205 A-5
IC202 B-4
Q201 A-6
Q204 B-6
Q205 B-6
5-6
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-6. FL-186 BOARD • See page 2-7 for circuit boards location.
- Ref. No.: FL-186 board; 20,000 series -
E E E
1 9
Q331Q332 Q333
R331R332 R333
CN331
BIB003
S331
D331D332 D333
A
12 3 4 5
05
B
FL-186 BOARD (SIDE A)
1-877-737- 11
A
12 3 4 5
05
B
FL-186 BOARD (SIDE B)
1-877-737- 11
24P SBM
HD AUDIO
FL-186 BOARD (SIDE A)
CN331 B-1
Q331 B-4
Q332 B-3
Q333 B-5
FL-186 BOARD (SIDE B)
D331 A-4
D332 A-3
D333 A-5
5-7
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-7. FR-292 BOARD • See page 2-7 for circuit boards location.
- Ref. No.: FR-292 board; 30,000 series -
125
119
1
4
E
E E
E
Q361 Q362
Q363 Q364
R361
R362
R363
R364
R365
R366
CN361
CN363
CN364
C361
1 3
42
CN362
S361 S362 S363S364
BIA004
A
12 3 4 5
05
B
FR-292 BOARD (SIDE A)
1-877-736- 11
1-877-736- 11
A
12 3 4 5
05
B
FR-292 BOARD (SIDE B)
"Y
9
/
FR-292 BOARD (SIDE A)
CN361 B-4
CN364 B-3
Q361 B-4
Q362 B-5
Q363 A-4
Q364 A-4
FR-292 BOARD (SIDE B)
CN362 B-4
5-8
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-8. FS-089 BOARD • See page 2-7 for circuit boards location.
- Ref. No.: FS-089 board; 40,000 series -
BIA003
2
14
3
CN301
D301
D302
R301
R302
A
12 3
05
FS-089 BOARD (SIDE A)
A
12 3
05
FS-089 BOARD (SIDE B)
1-877-739- 11
1-877-739- 11
/
9
FS-089 BOARD (SIDE B)
CN301 A-1
D301 A-2
D302 A-1
5-9
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-9. FT-094 BOARD • See page 2-7 for circuit boards location.
- Ref. No.: FT-094 board; 50,000 series -
1 4
R351
R352
R353
CN351
BIB002 D351 D352
D353
A
12 3 4
05
FT-094 BOARD (SIDE A)
1-877-740- 11
A
12 3 4
05
FT-094 BOARD (SIDE B)
1-877-740- 11
D351-D353
(DISC TRAY ILLUMINATION)
FT-094 BOARD (SIDE B)
D351 A-2
D352 A-3
D353 A-2
5-10
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-10. IFD-002 BOARD (SIDE A) • See page 2-7 for circuit boards location.
- Ref. No.: IFD-002 board; 30,000 series -
IFD-002 BOARD (SIDE A)
CN101 B-7
CN102 C-5
CN402 A-4
CN501 C-1
CN502 D-6
CN503 E-2
CN504 B-2
IC101 C-6
IC102 A-5
IC103 B-6
IC104 B-4
IC402 C-3
IC501 D-6
Q101 C-6
Q102 C-6
Q103 C-7
Q104 D-7
Q501 D-5
Q503 D-5
17
2
4
1
5
G S
E
E
E
E
E
33
32
1
21
34
64
1617
48
49
1
13
1
12
3
5
4
15
1
6
1
6
19 1
18 2
1
2
25
24
1
45
8
41
58
15
R401
R402
R405
R407
R408
R409
R410
R411
R412
R413
R414
R415
R417
R418
R419
CN402
CN403
R420
R421
R422
R424
R425
R426
R429
R430
R431
R432
R435
R439
TH401
C406
R443
R445
C409
R446
R447 R448
R449
C410 X402
C413
C414
R451
C415
R452
C416
R454
C418
R457
R458
R461
R462
S402
R463
R464
C428
R470
R471
R473
Q101
Q102
Q103
Q104
L101
L102
Q501
Q503
IC401
IC402
IC403
PS101
PS102
PS103
R101
PS501
R104
R105
R106
R107
R108
R109
R110
R111
R112
R113
R114
R115
R116
R117
R118
R501
R119
R502
R503
R504
CN101
CN102
R120
R121
R122
R123
R124
R127
R128
R129
R511
R516
R517
R130
R131
R132
R133
CN501
CN502
CN503
CN504
C101
C102
C103
C104
C105
C106
C107
C108
C110
C111
C112
C113
C114
C118
C119
C501
C503
C120
C121
C122
C124
C127
C128
C129
C130
C131
C132
C133
C134
D102
D103
D104
D105
IC101
IC102
IC103
IC104
IC501
BIA001
43
12
12
3
5
4
IFD-002 BOARD (SIDE A)
C
D
E
A
1234567
05
B
1-877-735- 11
(RESET)
5-11
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-11. IFD-002 BOARD (SIDE B) • See page 2-7 for circuit boards location.
- Ref. No.: IFD-002 board; 30,000 series -
IFD-002 BOARD (SIDE B)
Q402 D-2
Q403 D-2
Q404 D-2
Q405 D-2
E
E E
E
R403
R404
R406
R416
R423
R427
R428
R433
R434
R436
R437
R438
C401
C403
R440
C404
C405
R442
C411
C412
R450
R453
C417
R455
R465
R466
R467
R468
R469
R472
R474
R102
R103
R125
R126
C109
C126
Q402Q403
Q404
Q405
LP001
X401
IFD-002 BOARD (SIDE B)
C
D
E
A
1
234567
05
B
1-877-735- 11
5-12
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-12. MB-124 BOARD (SIDE A) • See page 2-7 for circuit boards location.
- Ref. No.: MB-124 board; 10,000 series -
R8044
RB7008
RB7009
R405
R406
R213
RB7010
R214
R215
R216
R600
R601
R219
R602
R603
R604
R605 R606
R607
R608
R220
R609
R221
R222
R610
R611
R9001
R229
R9002
R612
R613
R9003
R9004
R614
R615
R616
R617
R618
R230
R619
R231
R232
CN600
CN601
R813
R620
R814
R621
R622
R816
R817
R624
R818
PT001
R625
PT002
C202
R9016
R627
R9017
C204
R628
R9018
R629
PIA001
CN801
R9019
PT006
CN803
R243
R820
R244
R821
R245
R822
R246
R823
R630
R824
R631
R825
R632
R826
R633
R827
R634
R828
R635
R829
R636
R637
C408
R638
R639
C409
R251
C216
C600
R830
C601
R831
C602
R832
C603
R833
C604
R640
R834
C605
X401
R641
R642
R643
R644
C609
R839
C221
X600
C610
R840
C611
X601
R841
R842
C613
R843
R650
R844
C808
R845
R652
R846
R847
C618
R654
R848
C619
R655
R849
R656
R657
R658
A101
R659
R850
R851
C815
R852
C816
C623
R853
C817
R660
R854
C818
C625
R855
C819
C626
R662
R856
C627
R857
C628
C629
C820
C821
R281
C822
C823
C630
C824
C631
R861
C632
R862
R286
C633
R863
C634
R864
C635
R865
C636
R866
C637
R867
C638
R868
C639
R869
C640
R870
C641
R871
C642
R872
C643
R873
R874
C644
R875
C645
R876
R877
R878
C260
R879
C261
C262
C263
C264
X8001
R880 R881
R882 R883
R884
R889
D600
R890
D601
L301
R891
L302
D602
R892
R893
R894
R895
Q701
R896
RB502 RB503
R898
RB504
FB8001
RB505
RB506
FB8002
IC202
RB507
IC203
IC204 IC205
D801
RB123
RB125
RB126
RB510
RB128
RB511
RB512
FL303
RB513
FL304
RB514
FL305
FL307
L703
FL308
L704
RB130
FL309
L705
RB131
L706
L707
IC600
IC601
IC602
FL310
FL701
FL702
IC803
L8001
L8002
PS302
R301
PS701
R113
R114
FB701
R115
FB702
R116
FB703
FB704
FB705 R119
R503
R504
R310
R120
R509
R121
R122
R700
R701
R702
R703
R510
R704
CN301
R511
R705
R129
R512
R706
R707
R513
R514
R709
R130
SIA001
R131
R132
R710
CN7001
CN501
R907
R714
R909
R521
R715
R522
R716
R718 R719
C102
R527
C104
R528
R910
CN700
R529
R911
C106
R913
R143
R914
R144
R721
R915
R145
R722
R916
R146
R723
R917
R918
R530
R724
R919
R725
R726
R727
R534
R728
R1801
R535
R729
CN901
R1802
R536
CN902
R537
R1803
CN903
R538
R920
R1804
C308
CN904
R539
R921
CN905
R922
R923
R730
R924
C118
R731
R925
R732
R926
R733
R927
R540
R734
R928
R541
R735
R929
C311
R542
R737
C313
R738
R544
C121
R739
R545
C315
C122
C316
R547
R930
C700
R549
R931
C319
C701
C702
C703
R740
C704
R935
C705
R741
C706
R936
R937
C513
R743
R938
C708
R744
R745
R939
C709 R746
C516
R940
C710
TH901
C711
X701
R942
C712
R943
R944
R945
R947
R948
R949
S501
C911
C912
C913
R950
C914
R951
R181
R952
R953
R954
R955
R956
R186
R957
R187
R958
R959
C347
C348
R960
R961
R962
R963
C159
R965
CN8002
R969
C739
C164
C740
C741
C8001
R972
C742
C8002
C166
C743
C8003
C167
R974
C744
C8004
R975
C745
C8005
R976
C746
R977
C747
R978
C748
R979
C361
C749
C8009
C362
D303
C363
C170
D304
C364
C365
C366
C367
C368 R980
C750
C8010
R981
C751
C8011
R982
C752
C8012
R983
C753
R984
C754
C755
C8015
C8016
C756
R986
C8017
C758
C759
C374
C375
IC101
IC102
IC103
IC104
C760
C8020
IC105
C761
C762
R993
C763
RB600
RB601
R995
D8001
Q801
RB602
Q802
RB603
Q803
RB604
Q804
RB605
R999
Q805
RB606
Q806
R8002
RB607
R8003
L600
RB608
IC304
R8004
RB609
R8005
L602
R8006
RB222
L603
R8007
R8008
R8009
IC8001
RB225
RB226
D713
RB227
RB610
RB611
RB612
RB613
RB614
R8010
RB615
R8011
RB616
R8012
L802
R8013
L803
R8014
RB230
R8015
RB231
R8016
R8017
FL600
R8018
IC700
R8019
IC701
IC702
IC703
IC704
R8020
R8021
VD8001
R8022
VD8002
R8023
VD8003
R8024
VD8004
R8025
R8026
R8027
R8028
R8029
R8030
R8031
R8032
R8033
R8034
R8035
R8036
R8037
R8038
R8039
RB7000
RB7001
RB7002
RB7004
VDR600
R8040
RB7005
R8041
RB7006
R8042
RB7007
R8043
D701
D702
D703
D704
D705
D706
D707
D708
D709
D710
D711
D712
2
1
1
1
8
4
43
A
K
K
E
5
5
1
43
5
20
21
2
1
17
16
23 24
21
26 25
85
14
A1
B35
A35
B1
60
61
31
30 1
1
5
1
1
1
6
2
19
18
21
20
15
15
120
90
91
A1
B35
A35
B1
E E E E E
1
9
8
16
1
19
2
20
1
1
1
4
S2
D2
G2
G1
D1
S1
4
5
4
3
3
1
36
28
27 18
10
19
9
3
5
5
R990
R991
R747
R748
MB-124 BOARD (SIDE A)
1-876-898- 11, 21, 31, 41
C
D
E
F
G
H
I
J
A
12 3 4 5 6 7 8 9 10 11 12
05
B
MB-124 BOARD (SIDE A)
CN301 E-12
CN700 I-6
CN904 B-12
CN905 B-11
CN7001 J-5
D303 F-10
D304 B-8
D600 H-12
D601 I-11
D602 I-11
IC304 G-2
IC703 D-2
IC803 F-2
5-13
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-13. MB-124 BOARD (SIDE B) • See page 2-7 for circuit boards location.
- Ref. No.: MB-124 board; 10,000 series -
VCC
IIC802
J801
CN8001
R8045
R402
R403
R404
R210 R211
R212
RB7011
RB7012
RB7013
R217
R218
R223
R224
R801
R802
R226
R803
R227
R804
R228
R805
R806
R807
R808
R809
R9005
R9006
R9007
R9008
R9009
R233
R810
R234
R811
R235
R812
R236
R237
R238
R9010
R815
R9011
R9012
R9013
R9014
R819
C201
R9015
PT003
C203
PT004
R240
PT005
C205
R241
C207
C208
C209
R248
R9020
C401
R249
R9021
C402
R9022
C403
C404
C210
C405
C211
C406
C212
C213
C407
C214
R250
C215
C217
C218
C219
R256
R257
C410
R258
R835
C411
R259
C606
R836
C412
C607
R837
C413
C608
C414
R838
C220
R645
C415
R646
C222
C416
R647
C223
C417
R648
C224
C801
C225
C802
C226
C803
C227
C804
C228
C805
C229
C806
C807
C614
C420
C615
C809
C421
R651
C616
C422
C617
C423
C230
C424
C425
C231
C426
C232
C233
C427
C810
C428
C234
C811
C429
C235
C812
C236
C813
C237
C238
R277
C430
R278
R661
C431
R279
R663
R858
C240
R859
C241
C242
C243
R280
C244
C245
C246
R282
C247
R283
R860
R284
C248
R285
C249
C250 C251
C252
C253
C254
C255
C256
C258
C259
C646
Q300
C265
Q301
PIB001
RB101
C266
Q302
RB102
C267
Q303
RB103
C268
Q304
RB104
C269
RB105
RB106
RB107
RB108
RB109
C270
C271
C272
C273
C274
RB110
C275
C276
RB112
C277
RB113
R897R899
FL101 C283
RB508
C284
RB122
RB124
Q901
RB127
RB129
L700
L701
RB515
FL306
RB516
L702
RB517
RB518
RB900
RB901
RB519
RB902
RB903
RB520
L901
RB521
RB522
R102
R103
R104
R106
R108
R302
R303
R110
R111
R112
R309
R117
R118 R501 R502
R506 R507
R314
R508
R315
R316
R317
R123
R318
R124
R319
R126
R127
R128
R320
R321
R515
R322
R516
R323
R517
R324
R900
R518
R325
R519
R901
R326
R902
R327
R903
R133
R328
R904
R134
R329
R711
R905
R135
R712
R906
R136
R713
R137
R908
R138
R523
R717
R330
R524
R525
C101
R332
R526
R333
C103
R334
R140
R335
R141
C105
R336
R912
R142
R337
C107
C108
C109
R147
R531
C301
R532
C302
R533
C303
R340
C304
C110
R341
C305
C111
R342
C306
C112
R343
C113
C307
R344
C114
R345
C115
C309
R1805
R346
C116
R1806
R347
C117
R348
C119
R349
C501
R156
C502
C503
R157
C504
R158
C310
C505
R159
C506
C312
R736
R543
C507
C120
R350
C314
C508
R351
C509
R352
R546
C317
C123
R548
C124
C318
C125
R932
C126
R357
R933
C127
R358
R934
C510
C128
R359
C511
C129
C512
24
1
1
7
2
8
E
1
23
8
5
1
4
8
5
1
4
25
48
R7000
C320
C514
R550
R7001
C515
R551
C321
R7002
R552
C322
R7003
R553
C323
C517
R360
R7004
R554
C130
C324
R361
R7005
C901
R555
C131
R362
R7006
C902
C132
R7007
C903
C133
R7008
C904
C134
R365
R7009
R941
C905
C135
R366
C906
C136
C713
C907
R367
C137
C714
C908
C138
C715
C909
R946
C716
C717
R177
R7010
C718
R178
R7011
C719
R179
R7012
C910
C140 C141
C142
C143
C720
C144
R180
C339
C721
C145
C915
C722
C146
R182
C916
C723
C147
R183
C917
C724
C148
R184
C918
C725
C149
R185
C726
C727
C340
C728
R188
C341
C729
C342
C343
C344
C150
C345
C151
C346
C152
C153
R190
C730
C154
R191
SIB001
C349
C731
C155
R192
C732
C156
C733
R964
C158
C735
R966
R967
C350
R968
C351
C352
C353
C354
C160
C355
C161
C356
C162
C357
C163
C358
R970
C359
R971
R973
C168
C169
C8006
C8007
C360
C8008
D301
D302
C171
RB201
C172
RB202
C173
RB203
C174
RB204
C175
RB205
C176
RB206
C177
C8013
RB207
C178
C8014
RB208
C179
R985
RB209
C757
R987
R988
C371
C8019
C372
C373
C180
RB210
C181
RB211
C182
RB213
C377
C183
C184
R992 R994
R996
R997
R998
FL201
IC303
L601
IC307
RB223
IC308
RB224
IC309
FL400
RB228
IC501
RB229
IC502 IC503
IC310
RB617
RB618
RB619
RB620
RB621
RB622
IC901
IC902
R202
R203
R204
R206
RB7003
R208
R209
R708
C734
C736
C737
C738
C8018
R520
CN702
48
25
1
24
24
1
25
48
8
5
1
4
3
5
1
4
3
5
1
4
10 11
120
4
4
5
5
1
1
8
8
4
5
1
8
4
4
5
AK
1
1
8
5
8
10
11
1
20
AK
MB-124 BOARD (SIDE B)
1-876-898-
C
D
E
F
G
H
I
J
A
123456789101112
B
05
11, 21, 31, 41
MB-124 BOARD (SIDE B)
CN8001 D-1
D301 F-11
IC303 G-6
IC309 G-10
IC310 A-9
IC901 H-5
Q300 F-11
Q301 E-11
Q302 F-11
Q303 C-9
Q304 B-9
Q901 E-2
5-14
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-14. RS-088 BOARD • See page 2-7 for circuit boards location.
- Ref. No.: RS-088 board; 40,000 series -
RS-088 BOARD (SIDE A)
CN601 A-1
IC601 A-2
4
1
1
20
10
11
R602
R603
R604
R605
R606
CN601
C601
C602
C603 C604
C605
C606
IC601
BIA005
VDR601
VDR602
1
6
5
9
CN603
LP601
05
RS-088 BOARD (SIDE A)
RS-088 BOARD (SIDE B)
1-877-733-
1-877-733-
11
B
12 3
05
A
A
12 3
B
11
RS232C
RS-088 BOARD (SIDE B)
CN603 B-2
5-15
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-15. USB-007 BOARD • See page 2-7 for circuit boards location.
- Ref. No.: USB-007 board; 60,000 series -
BIA00
CN301
14
1 5
VDR301
CN302
A
1
05
B
USB-007 BOARD (SIDE A)
11
A
1
05
B
USB-007 BOARD (SIDE B)
1-877-734-1-877-734- 11
EXT
USB-007 BOARD (SIDE A)
CN302 A-1
USB-007 BOARD (SIDE B)
CN301 B-1
5-16
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-16. VP-062 BOARD (SIDE A) • See page 2-7 for circuit boards location.
- Ref. No.: VP-062 board; 70,000 series -
FB604
VDR604
PS801
VDR605
R401
FB605
PS802
VDR606
R402
R403
VDR607
VDR608
R404
R405
VDR609
R406
R407
R408
R409
VDR610
VDR611
D1101
D1102
D1103
R410
D1104
D1105
R411
R412
R1103
R413
R414
R1105
R224
R1108
R801
R225
IC1101
R226
IC1102
R229
CN402
R807
R613
R808
R809
R1111
R615
R616
R1112
R617
R230
R1114
R618
R231
R619
R232
R1116
R233
R234
R428
R1118
R235
R811
R1119
CN601
R812
R813
R238
R620
L1003
R818
R624
R430
C201
R819
R431
R1121
C202
R626
R1122
R432
C203
R433
R240
C204
R1124
R434
R628
C205
CN801
S1101
R1125
R435
CN802
C206
R436
R437
R1127
C208
R244
R1128
R438
L1201
C209
R245
R1129
R439
R246
L1202
R822
R247
R248
R824
R630
R825
C401
R826
R632
R633
C210
R1130
R634
C211
R635
R1131
C212
R1132
R636
C213
R637
C214
R444
R1134
R638
C215
R445
R1135
C216
R252
R446
R1136
R253
R1137
C218
R1138
R255
C219
R831
R1139
TP1001
R832
TP1002
R833
TP1003
C603
C604
R835
X401
C605
R836
C606
R837
C220
R1140
C221
R839
C609
R451
R1141
C222
R452
R646
R1142
C223
R1143
R453
C224
R454
R648
R1144
C225
TP1201
C801
R455
R1145
C802
R1146
C227
C803
R1147
C228
R840
R1148
C610
C805
C229
R841
TP501
R459
C611
R1149
C806
C612
C807
C613
C808
R844
C614 R845
C615
R846
C617
R1150
R460
R1151
C425
R1152
R1153
R1154
TP701
R1155
C429
C812
TP702
TP703
C813
C814
C238
R468
C620
C239
C815
RV701
C621
R469
RV702
C816
C622
R853
C817
C623
C818
C430
C819
C431
C626
C240
R1160
C241
TP901
C629
C242
TP902
C243
C244
C820
C245
C821
R669
C246
C822
C247
C823
C248
C824
C249
C825
C826
C632
R863
C827 C828
R864
R670
R865
C829
R671
R866
C636
R672
R673
R867
C250
R868
R480
C251
R869
R481
R675 C639
C252
R482
C253
C254
C830
R484
C255
C831
R485
C256
C832
R486
C257
C833
R487
C258
C834
R870
R488
C259
C641
C835
R871
R489
R872
C836
R873
C837
C643
R874
C838
R875
C645
R876
C646
R877
C647
R878
C260
C648
C261
R879
C649
C262
C263
C264
C840
C265
C841
C842
C266
RB103
C267
C843
RB104
R880 R881
R882
R883
R884
E
L101
R885
D401
R886
D402
D403
R693
C270
R694
D404
C271
D405
R695
C272
D406
C273
RB303
D407
R697
RB304
C274
D408
C275
D409
C276
RB307
C277
C278
C279
D601
D602
D410
RB501
D411
RB502
D412
RB503
D413
C280
RB504
IC201
C281
FL101
RB505
C282
FL102
IC202
RB506
IC203
C283
RB507
C284
RB508
C285
RB509
C286
C287
C288
RB701
C289
D805
RB702
D806
RB704
D808
RB510
RB705
RB511
IC401
RB706
RB512
IC402
RB707
RB513
C290
RB708
C291
L701
C292
L702
C293
C294
L704
D810
C295
C296
C297
D813
C298
D815
IC602
D817
D818
L903
IC801
FL701
FL702
IC802
IC803
IC804
IC805
IC806
IC807
IC808
IC809
C1002
C1004
FL901
C1005
FL902
C1006
IC810
C1201
X1101
C1202
C1203
C1204
E
C1011 C1205
Q1201
C1012
C1207
R107
C1014
R108
C1208
R109
C1018
R301
C1019
R303
C1210
R110
R111
R112
R113
C1213
R114
C1020
R115
R116
C1022
R117
C1024
R118
R501
R502
C1027
R503
R310
C1028
R504
R311
CN101
C1029
R506
CN102
R507
R1003
CN103
R1004
R508
R121
R509
R122
D1201
R701
IC1001
C1226
R702
IC1002
R703
C1227
IC1003
R704
R510
R705
R1201
C1229
IC1005
R511
R706
R1202
R512
R1203
R707
R513
C1037
R1204
R708
R514
C1038
R709
LP101
C1039
R515
R1206
R516
R1207
R517
R1208 C1230
R1014
R1209
IC1201
C1231
R519
IC1202
R1017
R710
TPE701
R711
C1041
R1019
R712
C1042
R713
C1043
R520
R715
R521
C1045
R522
C1046
C1047
R1020
R718
R1021
R719
R1022
R1023
R1217
R1024
R1218
C104
R1025
R1219
R141
C105
TPE901
R142
C106
C107
R143
C108
R720
R914
C109
R721
R145
R722
R723
R917
R1220
R724
R1221
C301
R1222
R726
R1223
C304 C110
R1224
R728
R1225
R729
C305
C111
TP001
C306
C112
R1226
R1227
C307
C113
C114
R1228
C308
TP004
C115
C309
C116
C117
C118
C503
C2004
C310
R1230
R734
C311
R735
C312
R736
C506
C313
R737
C314
R738
C315
R739
C316
C317
C318
C319
C701
C702
C703
R740
C704 C705
R741 R742
R743
R744
C708
C321
C709
R745
C322 C323
R747
C324
R748
C325
C326
C902
C327
C710
C904
C711
C905
TP601
C712
TP602
C906
C907
C713
C714
R750
C715
R751
C716
R752
C717
C718
R754
C719
R756
C526
C527
C528
R759
C912
C913
C720
C721
C915
C722
C723
R760
C724
R761
C725
C919
FL1001
R762
C726
FL1002
C727
FL1003
C728
C729
R767
R768
C920
R769
C921
C923
C730
C925
FL1201
C731
C732
FL1202
FL1203
C928
C929
C736
C737
R773
C738
R776
R777
R778
R779
D101
C931
C740
C741
C936
C742
C937
C743
R780
C938
C744
C939
C745
C746
C747
C748
C749
C941
C942
C750
C751
C752
C754
RB208
C755
L201
D501
C757
C758
C759
RB401
Q602
RB402
RB403
RB210
RB404
RB405
IC102
RB406
IC103
RB407
RB214
IC104
RB408
D701
IC105
C761
RB409
C762
D702
RB601
Q803
Q804
RB604
RB410
FL201
Q805
RB1205
RB411
RB605
Q806
FL202
RB1206
RB412
FL203
RB1207
Q807
RB413
RB1208
FL204
RB414
RB1209
FL205
L601
RB609
RB415
FL206
L602
RB416
L603
L604
RB610
RB611
IC501
RB612
RB613
L801
L802
L803
L804
L805
IC701
SG801
IC702
SG802
IC703
SG803
IC704
IC705
IC706
IC707
FL608
CN1101
IC901
FL802
IC902
FL803
IC903
IC904
FL804
SG811
SG814
C1102
SG816
C1103 C1104
BIA001
VDR601
FB601
FB602
VDR602
VDR603
FB603
R1205
R1210
R1211
R1212
R1213
R1214
R1215
R1216
RB1201
RB1202
RB1203
RB1204
5
4
81
5 4
2 3
1
5
4
81
4 1
8
5
1
8
4
5
1
8
4
5
1
8
45
10
1
1120
10
1
11
20
5
4
2
31
1 12
2536
13
24
48
37
22 2
1
21
9
2
1
10
22 2
1
21
1
1 7
14 8
8
18
4
5
1
16
48
49
64
3332
17
1
1
2
3
8
4
4
55
1
1
12
36
2524 13
37 48
8
4
5
1
1 23
25
K K K K K K
A A A
50
75
76
51
100
26
1
2
21
22
1
8
4
5
5
4
8
1
5
4
8
1
5
4
8
1
5
4
8
1
5
4
8
1
5
4
8
1
5
123
4
1
8
4
5
5
4
1
2
3
5
4
1
2
3
1
64
49
48 33
16 17
32
1
8
4
5
18
45
1
32
16
17
1
I
COM
O
I
COM O
8
45
A
K
A
K
E
1
1
3
3
2
4
5
1
C1
B2
E2
E1
B1
C2
C1
B2
E2
E1
B1
C2
C1
B2
E2
E1
B1
C2
C1
B2
E2
E1
B1
C2
20 2
21
HDMI OUT
C
D
E
F
G
H
A
12345678
05
B
VP-062 BOARD (SIDE A)
1-877-731- 11
9 10 11
VP-062 BOARD (SIDE A)
CN601 A-3
CN802 E-8
D702 C-7
D810 A-10
D813 A-10
D815 A-10
D817 D-10
D818 E-9
IC102 H-8
IC103 F-7
IC105 G-7
IC201 H-7
IC202 G-7
IC203 F-4
IC402 H-2
IC501 D-2
IC701 C-5
IC702 C-6
IC703 D-7
IC704 C-9
IC705 C-10
IC706 B-9
IC707 B-10
IC801 D-9
IC802 D-10
IC803 C-7
IC804 C-6
IC805 C-7
IC806 C-8
IC807 B-7
IC808 B-7
IC809 B-8
IC810 C-6
IC1001 D-4
IC1002 E-3
IC1005 E-3
IC1201 E-6
IC1202 D-7
Q602 A-3
Q807 E-10
5-17E
BDP-S5000ES
There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-17. VP-062 BOARD (SIDE B) • See page 2-7 for circuit boards location.
- Ref. No.: VP-062 board; 70,000 series -
R210
R211
R212
R213
R214
R215
R216
R217
R218
R219
R601
R602
R603
R604
R605
R1101
R1102
R607
R220
R608
R1104
R221
R415
R609
R222
R1106
R416
R223
R417
R1107
R418
R1109
R419
R802
R227
R803
R228
R804
R610
R805
R611
R806
R612
R1110
R420
R421
R422
R423
R1113
R424
R1115
R425
R426
R427
R1117
R810
R429
R236
R237
R814
R239
R815
L1001
R816
R622
L1002
R817
R623
R1120
R1123
R241
R242
R1126
R243
C207
R820
R821
R823
R249
C402
R827
C403
R828
C404
R440
X201
R829
C405
R441
C406
R442 R443
C407
R250
C408
R251
C409
R639
C217
R447
R254
R448
R449
C601 C602
R834
C410
C411
C412
C413
C607
R838
R450
R644
C414
C608
R645
C415
C416
R647
C417
C418
R649
C419
C226
R456
R457
C804
R458
R842
R843
R650
C420
C809
C421
R651
R652
C422
C616
R847
R653
C423
R848
R654
C618
C424
R849
R655
R461
C619
R656
R462
C426
R463
R657
C427
C810
C234
R658
R464
C428
C235
C811
R465
R659
R466
R1156
R1157
R467
R850
R1158
R851
R1159
R852
R854
C624
R660
R855
R661
C625
R856
R662
R663
C627
R664
C628
R471
R665
R472
R666
R667
R473
R668
R474
R475
R476
R477
R860
C630
R478
R861
FL1101
R479
C631
R862
C633
C634
C635
C637
C638
R674
R676
R677
R483
R678 R679
C640
C642
C644
R680
C839
R681
RB101
RB102
C844
C845
RB301
Q501
RB302
R696
RB305
RB306
RB308
Q701
Q702
Q703
IC204
L501
L502
IC403
L703
L705
FL501
IC601
FL502
IC603
IC604
L901
IC605
L902
IC606
IC607
C1001
C1003
C1007
C1008
C1009
R101R102
R103
C1010
R104
R105
C1206
R106
C1013
C1209
C1015 C1016 C1017
R302
R304
R305
C1211
R306
C1212
R307
C1214
R308
R309
C1215
C1021
C1216
C1217
C1023
C1218
C1219
R119
C1025 C1026
R1001
R505
R1002
CN104
C1220
R120
C1221
R1005
C1222
R1006
C1223
R123
R1007
C1224
R124
R1008
C1030
R125
C1225
R1009
C1031
R126
C1032
R127
C1033
R128
C1228
IC1004
C1034
R129
C1035
C1036
R1010
R1011
R1012
R130
R518
R131
R901
R1015
R132
R902
R1016
R133
R903
R134
C1040
R904
R1018
R135
R905
R136
R906
R137
R907
R138
R714
C1044
R908
R139
R909
R523
C101 C102
C103
R140
R910
R911
R912
R144
R915
R916
R918
C303
TP002
TP003
C501
C502
C504
C505
C507
C508
C509
C510
C511
C706
C512
C707
C513
C320
C514
C515
R746
C516
C517
C518
R749
C901
C519
C903
C908
C520
C521
C909
C522
R753
C523
C524
R755
C525
R757 R758
C910
C911
C914
C916
C917
C918
R763
R764
R765
R766
C922
C924
C926
C733
C927
C734
R770
R771
C735
R772
R774
C739
R775
C930
C932
C933
C934
C935
C940
RB201
Q401
RB202
Q402
RB203
RB204
ET101
RB205
RB206
C753
RB207
RB209
C756
Q601
IC101
RB211
RB212
RB213
C760
RB215
RB216
RB217
D703
E
RB218
D704
Q801
RB219
Q802
IC301
IC302
RB607
RB220
RB608
RB221
RB222
RB223
RB417
RB224
RB418
RB419
FL401
FL402
FL403
RB420
RB421
RB422
RB423
FL601
FL602
FL603
FL604
FL605
FL606
FL607
C1101
C1105
R201
R202
R203
R204
R205
R206
R207
R208
R209
71
62
14
13 9
8
CN803
CN804
J801 J802 J803 J804 A001
C
D
E
F
G
H
A
1
234567891011
05
B
VP-062 BOARD
(SIDE B)
1-877-731- 11
E
E
E
EE
E
E
K
A
KA
1
8
4
5
12
3
45
1
2
3
4
5
D1
G2
D2
S1
G1
S2
2
5
4
13
2
5
4
1
3
2
5
4
1
3
1
8
16 9
1 32
4
5
123
4
5
S VIDEO
VIDEO
VIDEO OUT
PRPBY
COMPONENT VIDEO OUT
VP-062 BOARD (SIDE B)
CN104 H-8
D703 C-9
D704 B-9
IC101 H-8
IC403 F-2
IC604 B-1
IC605 B-1
Q401 H-2
Q402 H-1
Q601 B-3
Q701 C-8
Q702 B-11
Q703 B-10
Q801 D-9
Q802 D-9
6-1
BDP-S5000ES
SECTION 6
IC PIN FUNCTION DESCRIPTION
6-1. MAIN SYSTEM CONTROL PIN FUNCTION (MB-124 BOARD IC101: MC-10092F1-207-RNA-A)
Pin No. Name I/O Description
A1 VOID - This pin is not ball.
A2 VOID - This pin is not ball.
A3 VDD3 - 3.3V supply (I/O buffers)
A4 PCIAD17 I/O PCI Address Data
A5 PCITRDYB I/O PCI Target Ready
A6 GND - Ground for digital and DDR2 SDRAM
A7 PCIAD11 I/O PCI Address Data
A8 PCIAD5 I/O PCI Address Data
A9 VDD3 - 3.3V supply (I/O buffers)
A10 GPIO58 I/O VODY6: Digital Video Y Data Output
A11 GPIO68 I/O VODC6: Digital Video Cb/Cr Data Output
A12 GPIO76 I/O AOHBD1: Audio Data output for External HDMI
A13 GND - Ground for digital and DDR2 SDRAM
A14 SAGNDANA - Analog Ground for Serial ATA
A15 SACREFN I SATA Clock Negative Input (0.9V)
A16 SAGNDDIG - Digital Ground for Serial ATA
A17 SATXN1 O SATA Transport negative port-1 (not used)
A18 SAGNDDIG - Digital Ground for Serial ATA
A19 SARXP1 I SATA Receiver positive port-1 (not used)
A20 SAGNDDIG - Digital Ground for Serial ATA
A21 SATXN0 O SATA Transport negative port-0
A22 SAGNDDIG - Digital Ground for Serial ATA
A23 SARXP0 I SATA Receiver positive port-0
A24 SAGNDDIG - Digital Ground for Serial ATA
A25 GPIO20 O ASPECT0 (4:3="0" 16:9, 4:3LB="1")
A26 GND - Ground for digital and DDR2 SDRAM
A27 GPIO14 O ITREQ (Communication Request for ITcon)
A28 GPIO4 I No use (Fixed at "L")
A29 EJTCK I JTAG I/F_0 Clock Input
A30 EJTRSTB I JTAG I/F_0 Reset Input
A31 EJDINT I JTAG I/F_0 debug interrupt
A32 VOID - This pin is not ball.
A33 VOID - This pin is not ball.
B1 VOID - This pin is not ball.
B2 PCIAD23 I/O PCI Address Data
B3 PCIAD21 I/O PCI Address Data
B4 PCIAD18 I/O PCI Address Data
B5 PCIIRDYB I/O PCI Initiator Ready
B6 PCIPAR I/O PCI PAR Signal
B7 PCIAD12 I/O PCI Address Data
B8 PCIAD6 I/O PCI Address Data
B9 PCIAD0 I/O PCI Address Data
B10 GPIO52 I/O VODY0: Digital Video Y Data Output
B11 GPIO56 I/O VODY4: Digital Video Y Data Output
B12 GPIO70 I/O VODC8: Digital Video Cb/Cr Data Output
B13 GPIO81 I/O Not in Use. (Pull-down)
B14 SAVDDANA - 1.8V supply (Serial ATA analog VDD)
B15 SACREFP I SATA Clock Positive Input
B16 SAGNDDIG - Digital Ground for Serial ATA
B17 SATXP1 O SATA Transport positive port-1 (not used)
B18 SAGNDDIG - Digital Ground for Serial ATA
B19 SARXN1 I SATA Receiver Negative port-1 (not used)
B20 SAGNDDIG - Digital Ground for Serial ATA
B21 SATXP0 O SATA Transport Positive port-0
B22 SAGNDDIG - Digital Ground for Serial ATA
B23 SARXN0 I SATA Receiver Negative port-0
B24 SAGNDDIG - Digital Ground for Serial ATA
B25 GPIO18 O XVMUTE (Video Mute ON="0")
B26 GPIO19 O FORMAT1 (480="0" 720,1080="1")
B27 GPIO9 O PCI_XRST (PCI bus reset)
6-2
BDP-S5000ES
Pin No. Name I/O Description
B28 GPIO10 I EMMA_DIPSW0 (Fixed at "H")
B29 EJTMS I JTAG I/F_0 Mode Set
B30 EJTDO O JTAG I/F_0 Data Output
B31 EJTDI I JTAG I/F_0 Data Input
B32 ATX O SPDIF output (Optical and coaxial terminal output signal)
B33 VOID - This pin is not ball.
C1 GND - Ground for digital and DDR2 SDRAM
C2 PCIAD27 I/O PCI Address Data
C3 PCIAD22 I/O PCI Address Data
C4 PCIAD19 I/O PCI Address Data
C5 PCIFRAMEB I/O PCI Cycle Frame
C6 PCISERRB I/O PCI System Error
C7 PCIAD14 I/O PCI Address Data
C8 PCIAD7 I/O PCI Address Data
C9 PCIAD1 I/O PCI Address Data
C10 GPIO49 I/O VOCLK: Video Pixel Clock
C11 GPIO54 I/O VODY2: Digital Video Y Data Output
C12 GPIO67 I/O VODC5: Digital Video Cb/Cr Data Output
C13 GPIO72 I/O AOHMCK: External HDMI Master Clock Output
C14 SAGNDDIG - Digital Ground for Serial ATA
C15 SAVDDDIG - 1.05V supply (Serial ATA digital VDD)
C16 GPIO86 I/O Not in Use. (Pull-down)
C17 SAVDDTIO - 1.8V supply (Serial ATA Tx I/O)
C18 SAVDDTIO - 1.8V supply (Serial ATA Tx I/O)
C19 SAVDDTIO - 1.8V supply (Serial ATA Tx I/O)
C20 SAVDDTIO - 1.8V supply (Serial ATA Tx I/O)
C21 SAVDDDIG - 1.05V supply (Serial ATA digital VDD)
C22 SAVDDDIG - 1.05V supply (Serial ATA digital VDD)
C23 SAVDDDIG - 1.05V supply (Serial ATA digital VDD)
C24 GPIO28 O Not used (Fixed at "H")
C25 VDD3 - 3.3V supply (I/O buffers)
C26 GPIO13 O NAND_WP (NAND write protect)
C27 GND - Ground for digital and DDR2 SDRAM
C28 GPIO0 O Not used
C29 GPIO5 I Not used (Fixed at "L")
C30 VDD3 - 3.3V supply (I/O buffers)
C31 GND - Ground for digital and DDR2 SDRAM
C32 AO0BCK O Bit Clock for 8ch output
C33 AO0BD0 O Data (Front L/R) for 8ch output
D1 CLK27IN I 27MHz Clock Input
D2 GND - Ground for digital and DDR2 SDRAM
D3 PCIAD25 I/O PCI Address Data
D4 PCIAD20 I/O PCI Address Data
D5 GND - Ground for digital and DDR2 SDRAM
D6 PCIPERRB I/O PCI Parity Error
D7 GND - Ground for digital and DDR2 SDRAM
D8 PCIAD8 I/O PCI Address Data
D9 PCIAD2 I/O PCI Address Data
D10 GND - Ground for digital and DDR2 SDRAM
D11 GPIO51 I/O VOVSB: Vertical Sync Signal
D12 GPIO59 I/O VODY7: Digital Video Y Data Output
D13 GPIO63 I/O VODC1: Digital Video Cb/Cr Data Output
D14 GPIO79 I/O AOHTX: IEC60958 output for External HDMI
D15 GPIO83 I/O Not in Use. (Pull-down)
D16 GPIO85 I/O Not in Use. (Pull-down)
D17 GPIO77 I/O AOHBD2: Data output for External HDMI
D18 SAVDDTIO - 1.8V supply (Serial ATA Tx I/O)
D19 SAVDDTIO - 1.8V supply (Serial ATA Tx I/O)
D20 SAVDDDIG - 1.05V supply (Serial ATA digital VDD)
D21 GPIO21 O ASPECT1 (4:3, 16:9="0" 4:3LB="1")
D22 GPIO33 I PCI INT D (PCI Interrupt: Not used)
6-3
BDP-S5000ES
Pin No. Name I/O Description
D23 GPIO29 I Not used (Fixed at "H")
D24 GPIO22 I EJ2TDI (JTAG I/F_1 Data Input)
D25 GND - Ground for digital and DDR2 SDRAM
D26 GPIO8 I Not used (Fixed at "L")
D27 GPIO6 I PCI REQ1 (Not used)
D28 GPIO3 I Not used (Fixed at "L")
D29 VDD3 - 3.3V supply (I/O buffers)
D30 GND - Ground for digital and DDR2 SDRAM
D31 AO0BD3 O Data (Surround back L/R) for 8ch output
D32 AO0LRCK O LR Clock for 8ch output
D33 AO0MCK O Master Clock for 8ch output
E1 GND - Ground for digital and DDR2 SDRAM
E2 PCIGNT0 O PCI Grant
E3 PCIAD29 I/O PCI Address Data
E4 PCIAD24 I/O PCI Address Data
E5 PCICBEB2 I/O PCI Bus Command and Byte Enable
E6 PCISTOPB I/O PCI Stop
E7 PCICBEB1 I/O PCI Bus Command and Byte Enable
E8 PCIAD9 I/O PCI Address Data
E9 PCIAD3 I/O PCI Address Data
E10 GPIO55 I/O VODY3: Digital Video Y Data Output
E11 GPIO62 I/O VODC0: Digital Video Cb/Cr Data Output
E12 GPIO66 I/O VODC4: Digital Video Cb/Cr Data Output
E13 GPIO64 I/O VODC2: Digital Video Cb/Cr Data Output
E14 GPIO69 I/O VODC7: Digital Video Cb/Cr Data Output
E15 GPIO78 I/O AOHBD3: Data output for External HDMI
E16 GPIO82 I/O Not in Use. (Pull-down)
E17 GPIO84 I/O Not in Use. (Pull-down)
E18 SAVDDTIO - 1.8V supply (Serial ATA Tx I/O)
E19 SAVDDDIG - 1.05V supply (Serial ATA digital VDD)
E20 GPIO32 I PCI INT C (PCI Interrupt: Not used)
E21 GPIO23 I EJ2TCK (JTAG I/F_1 Clock Input)
E22 GPIO31 I PCI INT B (PCI Interrupt: Not used)
E23 GPIO26 I EJ2TRST (JTAG I/F_1 Reset Input)
E24 GPIO16 O DAC XRST (Audio DAC Reset "H": Reset "L": Normal)
E25 GPIO15 O EMMA CSI0 DAC2 XCS (2ch Audio DAC CS)
E26 GPIO2 O EMMA CSI0 VENC_XCS (Not used)
E27 GPIO1 O EMMA_CSI0_HDE2_XCS (Not used)
E28 GND - Ground for digital and DDR2 SDRAM
E29 TMODE3 I Test terminal (Not used: Fixed at "L")
E30 AO0BD1 O Data (Surround L/R) for 8ch output
E31 AO0BD2 O Data (Center/SW) for 8ch output
E32 AO1BD O Data for 2ch output
E33 AO1MCK O Master Clock for 2ch output
F1 XI I Crystal Input
F2 GND - Ground for digital and DDR2 SDRAM
F3 PCIREQB0 I PCI Request
F4 PCIIDSEL I PCI Initialization Device Select
F5 PCICBEB3 I/O PCI Bus Command and Byte Enable
F6 PCIDEVSELB I/O PCI Device Select
F7 PCIAD13 I/O PCI Address Data
F8 PCICBEB0 I/O PCI Bus Command and Byte Enable
F9 PCIAD4 I/O PCI Address Data
F10 GPIO53 I/O VODY1: Digital Video Y Data Output
F11 GPIO60 I/O VODY8: Digital Video Y Data Output
F12 GPIO57 I/O VODY5: Digital Video Y Data Output
F13 GPIO65 I/O VODC3: Digital Video Cb/Cr Data Output
F14 GPIO71 I/O VODC9: Digital Video Cb/Cr Data Output
F15 GPIO80 I/O Not in Use. (Pull-down)
F16 GPIO74 I/O AOHBCK: External HDMI BCK Output
F17 SAGNDANA - Analog Ground for Serial ATA
6-4
BDP-S5000ES
Pin No. Name I/O Description
F18 SAVDDTIO - 1.8V supply (Serial ATA Tx I/O)
F19 SAVDDDIG - 1.05V supply (Serial ATA digital VDD)
F20 GPIO27 I EJ2DINT (JTAG I/F_1 debug interrupt)
F21 GPIO30 I PCI INT A (PCI Interrupt: USB)
F22 GPIO25 I EJ2TMS (JTAG I/F_1 Mode Set)
F23 GPIO24 O EJ2TDO (JTAG I/F_1 Data Out)
F24 GPIO17 O XAMUTE (Audio Mute: "H": Normal "L": Mute)
F25 GPIO12 O GLB XRST (Not used)
F26 GPIO7 O PCI GNT1 (Not used)
F27 VRVDD - 1.05V supply for VR5500 PLL
F28 TMODE5 I Test terminal (Not used: Fixed at "L")
F29 TEST I Test terminal (Not used: Fixed at "L")
F30 S2DOUT O IF SDI (IFcon Communication Data Out)
F31 AO1LRCK O LR Clock for 2ch output
F32 AO1BCK O Bit Clock for 2ch output
F33 VDD3 - 3.3V supply (I/O buffers)
G1 XO O Crystal Output
G2 GND - Ground for digital and DDR2 SDRAM
G3 PCIAD28 I/O PCI Address Data
G4 PCIAD26 I/O PCI Address Data
G5 PCIAD31 I/O PCI Address Data
G6 PCIAD15 I/O PCI Address Data
G7 PCIAD16 I/O PCI Address Data
G8 PCIAD10 I/O PCI Address Data
G9 VDD3 - 3.3V supply (I/O buffers)
G10 GND - Ground for digital and DDR2 SDRAM
G11 GPIO50 I/O VOHSB: Horizontal Sync Signal
G12 GPIO75 I/O AOHBD0: Data output for External HDMI
G13 GPIO61 I/O VODY9: Digital Video Y Data Output
G14 VDD3 - 3.3V supply (I/O buffers)
G15 GPIO73 I/O AOHLRCK: External HDMI LRCK Clock Output
G16 SAVDDDIG - 1.05V supply (Serial ATA digital VDD)
G17 SAVDDANA - 1.8V supply (Serial ATA analog VDD)
G18 SAGNDDIG - Digital Ground for Serial ATA
G19 SAGNDDIG - Digital Ground for Serial ATA
G20 GPIO36 O FORMAT0 (480, 1080="0" 720="1")
G21 VDD10 - 1.05V supply (core)
G22 GND - Ground for digital and DDR2 SDRAM
G23 VDD3 - 3.3V supply (I/O buffers)
G24 VDD3 - 3.3V supply (I/O buffers)
G25 GPIO11 I EMMA_DIPSW0 (Fixed at "H")
G26 VDD10 - 1.05V supply (core)
G27 VRGND - Ground for VR5500 PLL
G28 TMODE2 I Test terminal (Not used: Fixed at "L")
G29 S2CKIN I IF SCK (IFcon Communication Clock In)
G30 S0DOUT O EMMA CSI0 DO (CSI0 Data Out)
G31 S0CKOUT O EMMA CSI0 CKIO (CSI0 Clock Out)
G32 S2DIN I IF SDO (IFcon Communication Data In)
G33 S0DIN I CSI0 DI (CSI0 Data In)
H1 GND - Ground for digital and DDR2 SDRAM
H2 CLKSEL I OSC27/CLK27IN Select Signal
H3 PCICLKI I PCI 33MHz Clock Input
H4 GND - Ground for digital and DDR2 SDRAM
H5 PCIRSTB I PCI Hardware Reset
H6 VDD3 - 3.3V supply (I/O buffers)
H7 VDD10 - 1.05V supply (core)
H8 VOID - This pin is not ball.
H9 VOID - This pin is not ball.
H10 VOID - This pin is not ball.
H11 VOID - This pin is not ball.
H12 VOID - This pin is not ball.
6-5
BDP-S5000ES
Pin No. Name I/O Description
H13 VOID - This pin is not ball.
H14 VOID - This pin is not ball.
H15 VOID - This pin is not ball.
H16 VOID - This pin is not ball.
H17 VOID - This pin is not ball.
H18 VOID - This pin is not ball.
H19 VOID - This pin is not ball.
H20 VOID - This pin is not ball.
H21 VOID - This pin is not ball.
H22 VOID - This pin is not ball.
H23 VOID - This pin is not ball.
H24 VOID - This pin is not ball.
H25 VOID - This pin is not ball.
H26 VOID - This pin is not ball.
H27 TMODE4 I Test terminal (Not used: Fixed at "L")
H28 TMODE1 I Test terminal (Not used: Fixed at "L")
H29 S2CSB I Chip Select for CSI Ch2
H30 GND - Ground for digital and DDR2 SDRAM
H31 GPIO48 I Not used. Fixed at "H"
H32 GPIO47 I Not used (Fixed at "L")
H33 GPIO39 O Not used
J1 D0DQS1 - DDR2 Positive Data Strobe
J2 GND - Ground for digital and DDR2 SDRAM
J3 D0VDD18 - 1.8V supply (DDR2 SDRAM)
J4 CLK27OUT O 27MHz Clock output for XTAL
J5 PCIAD30 I/O PCI Address Data
J6 VDD3 - 3.3V supply (I/O buffers)
J7 VDD10 - 1.05V supply (core)
J8 VOID - This pin is not ball.
J9 VOID - This pin is not ball.
J10 VOID - This pin is not ball.
J11 VOID - This pin is not ball.
J12 VOID - This pin is not ball.
J13 VOID - This pin is not ball.
J14 VOID - This pin is not ball.
J15 VOID - This pin is not ball.
J16 VOID - This pin is not ball.
J17 VOID - This pin is not ball.
J18 VOID - This pin is not ball.
J19 VOID - This pin is not ball.
J20 VOID - This pin is not ball.
J21 VOID - This pin is not ball.
J22 VOID - This pin is not ball.
J23 VOID - This pin is not ball.
J24 VOID - This pin is not ball.
J25 VOID - This pin is not ball.
J26 VOID - This pin is not ball.
J27 TMODE0 I Test terminal (Not used: Fixed at "L")
J28 RSTSWB I Main Reset
J29 GPIO46 O Not used
J30 GPIO38 O UART Ch1 TX (Not used)
J31 GPIO40 O Not used
J32 GPIO45 O USB VBUS PCONT (Bus Power ON at "H")
J33 GPIO37 I UART Ch1 RX (Not used)
K1 D0DQS1B I/O DDR2 Negative Data Strobe
K2 GND - Ground for digital and DDR2 SDRAM
K3 D0Q10 I/O DDR2 Data Input/Output
K4 GND - Ground for digital and DDR2 SDRAM
K5 GND - Ground for digital and DDR2 SDRAM
K6 D0VDD18 - 1.8V supply (DDR2 SDRAM)
K7 GND - Ground for digital and DDR2 SDRAM
6-6
BDP-S5000ES
Pin No. Name I/O Description
K8 VOID - This pin is not ball.
K9 VOID - This pin is not ball.
K10 VOID - This pin is not ball.
K11 VOID - This pin is not ball.
K12 VOID - This pin is not ball.
K13 VOID - This pin is not ball.
K14 VOID - This pin is not ball.
K15 VOID - This pin is not ball.
K16 VOID - This pin is not ball.
K17 VOID - This pin is not ball.
K18 VOID - This pin is not ball.
K19 VOID - This pin is not ball.
K20 VOID - This pin is not ball.
K21 VOID - This pin is not ball.
K22 VOID - This pin is not ball.
K23 VOID - This pin is not ball.
K24 VOID - This pin is not ball.
K25 VOID - This pin is not ball.
K26 VOID - This pin is not ball.
K27 NMI I Non maskable interrupt (Not used: Fixed at "H")
K28 GND - Ground for digital and DDR2 SDRAM
K29 GPIO42 I IT_GPIO1 (Boot picture output control)
K30 GPIO35 O IP (Progressive="0" Interlace="1") (Not used)
K31 GPIO41 O EMMA CSI0 DAC8 XCS (8ch Audio DAC CS: Not used)
K32 GPIO34 O DAC MUTE (Audio DAC Mute "H": Mute "L": Normal)
K33 UA0RXDB I UART Ch0 RX
L1 GND - Ground for digital and DDR2 SDRAM
L2 D0Q9 I/O DDR2 Data Input/Output
L3 D0Q12 I/O DDR2 Data Input/Output
L4 D0Q8 I/O DDR2 Data Input/Output
L5 D0VDD18 - 1.8V supply (DDR2 SDRAM)
L6 GND - Ground for digital and DDR2 SDRAM
L7 D0VDD18 - 1.8V supply (DDR2 SDRAM)
L8 VOID - This pin is not ball.
L9 VOID - This pin is not ball.
L10 VOID - This pin is not ball.
L11 VOID - This pin is not ball.
L12 VOID - This pin is not ball.
L13 VOID - This pin is not ball.
L14 VOID - This pin is not ball.
L15 VOID - This pin is not ball.
L16 VOID - This pin is not ball.
L17 VOID - This pin is not ball.
L18 VOID - This pin is not ball.
L19 VOID - This pin is not ball.
L20 VOID - This pin is not ball.
L21 VOID - This pin is not ball.
L22 VOID - This pin is not ball.
L23 VOID - This pin is not ball.
L24 VOID - This pin is not ball.
L25 VOID - This pin is not ball.
L26 VOID - This pin is not ball.
L27 SCL1 I/O I2C Ch1 Serial Clock (Not used)
L28 SCL0 I/O I2C Ch0 Serial Clock (Not used)
L29 UA0TXDB O UART Ch0 TX
L30 GPIO44 I Not used (Fixed at "L")
L31 GND - Ground for digital and DDR2 SDRAM
L32 DVDDYC - 3.3V supply (DAC digital VDD)
L33 AGNDYC - Analog Ground for sub Video DACs
M1 D0CLK0 O DDR2 Positive Clock
M2 GND - Ground for digital and DDR2 SDRAM
6-7
BDP-S5000ES
Pin No. Name I/O Description
M3 D0Q13 I/O DDR2 Data Input/Output
M4 D0Q14 I/O DDR2 Data Input/Output
M5 GND - Ground for digital and DDR2 SDRAM
M6 D0VDD18 - 1.8V supply (DDR2 SDRAM)
M7 GND - Ground for digital and DDR2 SDRAM
M8 VOID - This pin is not ball.
M9 VOID - This pin is not ball.
M10 VOID - This pin is not ball.
M11 VOID - This pin is not ball.
M12 VOID - This pin is not ball.
M13 VOID - This pin is not ball.
M14 VOID - This pin is not ball.
M15 VOID - This pin is not ball.
M16 VOID - This pin is not ball.
M17 VOID - This pin is not ball.
M18 VOID - This pin is not ball.
M19 VOID - This pin is not ball.
M20 VOID - This pin is not ball.
M21 VOID - This pin is not ball.
M22 VOID - This pin is not ball.
M23 VOID - This pin is not ball.
M24 VOID - This pin is not ball.
M25 VOID - This pin is not ball.
M26 VOID - This pin is not ball.
M27 SDA1 I/O I2C Ch1 Serial Data (Not used)
M28 SDA0 I/O I2C Ch0 Serial Data (Not used)
M29 GPIO43 O Not used
M30 GND - Ground for digital and DDR2 SDRAM
M31 VAY O S-Video Y Signal Output
M32 GND - Ground for digital and DDR2 SDRAM
M33 VAC O S-Video C Signal Output
N1 D0CLK0B O DDR2 Negative Clock
N2 GND - Ground for digital and DDR2 SDRAM
N3 D0DM1 I/O DDR2 Data Mask
N4 D0Q11 I/O DDR2 Data Input/Output
N5 D0VDD18 - 1.8V supply (DDR2 SDRAM)
N6 GND - Ground for digital and DDR2 SDRAM
N7 D0VDD10 - 1.05V supply (DDR2 SDRAM DLL)
N8 VOID - This pin is not ball.
N9 VOID - This pin is not ball.
N10 VOID - This pin is not ball.
N11 VOID - This pin is not ball.
N12 VOID - This pin is not ball.
N13 PVDD - 1.05V supply for PLL
N14 PGND - Ground for PLL
N15 GND - Ground for digital and DDR2 SDRAM
N16 VDD10 - 1.05V supply (core)
N17 GND - Ground for digital and DDR2 SDRAM
N18 VDD10 - 1.05V supply (core)
N19 GND - Ground for digital and DDR2 SDRAM
N20 PVDD - 1.05V supply for PLL
N21 PVDD - 1.05V supply for PLL
N22 VOID - This pin is not ball.
N23 VOID - This pin is not ball.
N24 VOID - This pin is not ball.
N25 VOID - This pin is not ball.
N26 VOID - This pin is not ball.
N27 AVDDYC - Analog 3.3v supply for sub Video DACs
N28 AGNDYC - Analog Ground for sub Video DACs
N29 VACOMPYC - Compensation capacitance terminal (It with AVDDYC through 0.1uF)
N30 VAREFYC - Voltage Reference Input for DAC (1.32V)
6-8
BDP-S5000ES
Pin No. Name I/O Description
N31 GND - Ground for digital and DDR2 SDRAM
N32 GND - Ground for digital and DDR2 SDRAM
N33 GND - Ground for digital and DDR2 SDRAM
P1 GND - Ground for digital and DDR2 SDRAM
P2 D0Q2 I/O DDR2 Data Input/Output
P3 D0Q15 I/O DDR2 Data Input/Output
P4 GND - Ground for digital and DDR2 SDRAM
P5 D0VDD18 - 1.8V supply (DDR2 SDRAM)
P6 GND - Ground for digital and DDR2 SDRAM
P7 D0VDD10 - 1.05V supply (DDR2 SDRAM DLL)
P8 VOID - This pin is not ball.
P9 VOID - This pin is not ball.
P10 VOID - This pin is not ball.
P11 VOID - This pin is not ball.
P12 VOID - This pin is not ball.
P13 PVDD - 1.05V supply for PLL
P14 PGND - Ground for PLL
P15 GND - Ground for digital and DDR2 SDRAM
P16 GND - Ground for digital and DDR2 SDRAM
P17 VDD10 - 1.05V supply (core)
P18 GND - Ground for digital and DDR2 SDRAM
P19 GND - Ground for digital and DDR2 SDRAM
P20 PGND - Ground for PLL
P21 PGND - Ground for PLL
P22 VOID - This pin is not ball.
P23 VOID - This pin is not ball.
P24 VOID - This pin is not ball.
P25 VOID - This pin is not ball.
P26 VOID - This pin is not ball.
P27 AVDDYC - Analog 3.3v supply for sub Video DACs
P28 AGNDYC - Analog Ground for sub Video DACs
P29 VAR O Component Output either R or Pr Signal
P30 GND - Ground for digital and DDR2 SDRAM
P31 VAB O Component Output either B or Pb Signal
P32 GND - Ground for digital and DDR2 SDRAM
P33 VAG O Component Output either G or Y Signal
R1 D0DQS0 I/O DDR2 Positive Data Strobe
R2 GND - Ground for digital and DDR2 SDRAM
R3 D0Q1 I/O DDR2 Data Input/Output
R4 D0Q0 I/O DDR2 Data Input/Output
R5 D0WEB O DDR2 Command Write Enable
R6 D0VDD18 - 1.8V supply (DDR2 SDRAM)
R7 GND - Ground for digital and DDR2 SDRAM
R8 VOID - This pin is not ball.
R9 VOID - This pin is not ball.
R10 VOID - This pin is not ball.
R11 VOID - This pin is not ball.
R12 VOID - This pin is not ball.
R13 GND - Ground for digital and DDR2 SDRAM
R14 GND - Ground for digital and DDR2 SDRAM
R15 GND - Ground for digital and DDR2 SDRAM
R16 VDD10 - 1.05V supply (core)
R17 GND - Ground for digital and DDR2 SDRAM
R18 VDD10 - 1.05V supply (core)
R19 GND - Ground for digital and DDR2 SDRAM
R20 GND - Ground for digital and DDR2 SDRAM
R21 GND - Ground for digital and DDR2 SDRAM
R22 VOID - This pin is not ball.
R23 VOID - This pin is not ball.
R24 VOID - This pin is not ball.
R25 VOID - This pin is not ball.
6-9
BDP-S5000ES
Pin No. Name I/O Description
R26 VOID - This pin is not ball.
R27 AVDDRGB - Analog 3.3v supply for main Video DACs
R28 AGNDRGB - Analog Ground for main Video DACs
R29 VARSETYC - 680-ohm Resister
R30 VAREFRGB - Voltage Reference Input for DAC (1.32V)
R31 VARSETRGB - 470-ohm Resister
R32 HGNDANA - Analog Ground for HDMI
R33 HGNDANA - Analog Ground for HDMI
T1 D0DQS0B I/O DDR2 Negative Data Strobe
T2 GND - Ground for digital and DDR2 SDRAM
T3 D0Q4 I/O DDR2 Data Input/Output
T4 D0Q3 I/O DDR2 Data Input/Output
T5 D0CKERSTB I DDR2 Clock Enable External Control 1.8V or 0.0V
T6 GND - Ground for digital and DDR2 SDRAM
T7 D0VREF I DDR2 Reference Voltage
T8 VOID - This pin is not ball.
T9 VOID - This pin is not ball.
T10 VOID - This pin is not ball.
T11 VOID - This pin is not ball.
T12 VOID - This pin is not ball.
T13 VDD10 - 1.05V supply (core)
T14 GND - Ground for digital and DDR2 SDRAM
T15 VDD10 - 1.05V supply (core)
T16 GND - Ground for digital and DDR2 SDRAM
T17 VDD10 - 1.05V supply (core)
T18 GND - Ground for digital and DDR2 SDRAM
T19 VDD10 - 1.05V supply (core)
T20 GND - Ground for digital and DDR2 SDRAM
T21 VDD10 - 1.05V supply (core)
T22 VOID - This pin is not ball.
T23 VOID - This pin is not ball.
T24 VOID - This pin is not ball.
T25 VOID - This pin is not ball.
T26 VOID - This pin is not ball.
T27 AVDDRGB - Analog 3.3v supply for main Video DACs
T28 AGNDRGB - Analog Ground for main Video DACs
T29 VACOMPRGB - Compensation capacitance terminal (It with AVDDYC through 0.1uF)
T30 DVDDRGB - 3.3V supply (DAC digital VDD)
T31 HGNDANA - Analog Ground for HDMI
T32 HTXN2 O TMDS Data output 2-
T33 HTXP2 O TMDS Data output 2+
U1 GND - Ground for digital and DDR2 SDRAM
U2 D0DM0 I/O DDR2 Data Mask
U3 D0Q5 I/O DDR2 Data Input/Output
U4 D0Q6 I/O DDR2 Data Input/Output
U5 D0BA0 O DDR2 Bank Address
U6 D0ADD10 O DDR2 Address Output
U7 GND - Ground for digital and DDR2 SDRAM
U8 VOID - This pin is not ball.
U9 VOID - This pin is not ball.
U10 VOID - This pin is not ball.
U11 VOID - This pin is not ball.
U12 VOID - This pin is not ball.
U13 GND - Ground for digital and DDR2 SDRAM
U14 VDD10 - 1.05V supply (core)
U15 GND - Ground for digital and DDR2 SDRAM
U16 VDD10 - 1.05V supply (core)
U17 GND - Ground for digital and DDR2 SDRAM
U18 VDD10 - 1.05V supply (core)
U19 GND - Ground for digital and DDR2 SDRAM
U20 VDD10 - 1.05V supply (core)
6-10
BDP-S5000ES
Pin No. Name I/O Description
U21 GND - Ground for digital and DDR2 SDRAM
U22 VOID - This pin is not ball.
U23 VOID - This pin is not ball.
U24 VOID - This pin is not ball.
U25 VOID - This pin is not ball.
U26 VOID - This pin is not ball.
U27 VDD10 - 1.05V supply (core)
U28 GND - Ground for digital and DDR2 SDRAM
U29 VDD3 - 3.3V supply (I/O buffers)
U30 VDD3 - 3.3V supply (I/O buffers)
U31 HGNDANA - Analog Ground for HDMI
U32 HVDDANA - 1.0V Supply (HDMI analog VDD)
U33 HVDDANA - 1.0V Supply (HDMI analog VDD)
V1 D0Q7 I/O DDR2 Data Input/Output
V2 D0BA1 O DDR2 Bank Address
V3 D0ADD3 O DDR2 Address Output
V4 GND - Ground for digital and DDR2 SDRAM
V5 D0CKE O DDR2 Clock Enable
V6 D0ADD7 O DDR2 Address Output
V7 D0ADD9 O DDR2 Address Output
V8 VOID - This pin is not ball.
V9 VOID - This pin is not ball.
V10 VOID - This pin is not ball.
V11 VOID - This pin is not ball.
V12 VOID - This pin is not ball.
V13 VDD10 - 1.05V supply (core)
V14 GND - Ground for digital and DDR2 SDRAM
V15 VDD10 - 1.05V supply (core)
V16 GND - Ground for digital and DDR2 SDRAM
V17 VDD10 - 1.05V supply (core)
V18 GND - Ground for digital and DDR2 SDRAM
V19 VDD10 - 1.05V supply (core)
V20 GND - Ground for digital and DDR2 SDRAM
V21 GND - Ground for digital and DDR2 SDRAM
V22 VOID - This pin is not ball.
V23 VOID - This pin is not ball.
V24 VOID - This pin is not ball.
V25 VOID - This pin is not ball.
V26 VOID - This pin is not ball.
V27 HVDDANA - 1.0V Supply (HDMI analog VDD)
V28 HVDDANA - 1.0V Supply (HDMI analog VDD)
V29 HVDDANA - 1.0V Supply (HDMI analog VDD)
V30 HGNDANA - Analog Ground for HDMI
V31 HEXTSWING I Resistance Connection Terminal for Output Amplitude Control
V32 HTXN1 O TMDS Data output 1-
V33 HTXP1 O TMDS Data output 1+
W1 D0ADD1 O DDR2 Address Output
W2 D0VDD18 - 1.8V supply (DDR2 SDRAM)
W3 GND - Ground for digital and DDR2 SDRAM
W4 D0ADD12 O DDR2 Address Output
W5 D0ADD13 O DDR2 Address Output
W6 D0ADD11 O DDR2 Address Output
W7 D0ADD14 O DDR2 Address Output
W8 VOID - This pin is not ball.
W9 VOID - This pin is not ball.
W10 VOID - This pin is not ball.
W11 VOID - This pin is not ball.
W12 VOID - This pin is not ball.
W13 GND - Ground for digital and DDR2 SDRAM
W14 GND - Ground for digital and DDR2 SDRAM
W15 GND - Ground for digital and DDR2 SDRAM
6-11
BDP-S5000ES
Pin No. Name I/O Description
W16 VDD10 - 1.05V supply (core)
W17 GND - Ground for digital and DDR2 SDRAM
W18 VDD10 - 1.05V supply (core)
W19 GND - Ground for digital and DDR2 SDRAM
W20 PGND - Ground for PLL
W21 PVDD - 1.05V supply for PLL
W22 VOID - This pin is not ball.
W23 VOID - This pin is not ball.
W24 VOID - This pin is not ball.
W25 VOID - This pin is not ball.
W26 VOID - This pin is not ball.
W27 HGNDANA - Analog Ground for HDMI
W28 HGNDANA - Analog Ground for HDMI
W29 HGNDANA - Analog Ground for HDMI
W30 HGNDANA - Analog Ground for HDMI
W31 HDSCL I/O DDC Clock
W32 HGNDANA - Analog Ground for HDMI
W33 HGNDANA - Analog Ground for HDMI
Y1 D0VDD18 - 1.8V supply (DDR2 SDRAM)
Y2 D0ADD5 O DDR2 Address Output
Y3 D0ADD6 O DDR2 Address Output
Y4 D0ADD2 O DDR2 Address Output
Y5 D0ADD4 O DDR2 Address Output
Y6 D0CASB O DDR2 Column Address Strobe Signal
Y7 D0ADD0 O DDR2 Address Output
Y8 VOID - This pin is not ball.
Y9 VOID - This pin is not ball.
Y10 VOID - This pin is not ball.
Y11 VOID - This pin is not ball.
Y12 VOID - This pin is not ball.
Y13 PGND - Ground for PLL
Y14 PGND - Ground for PLL
Y15 GND - Ground for digital and DDR2 SDRAM
Y16 GND - Ground for digital and DDR2 SDRAM
Y17 VDD10 - 1.05V supply (core)
Y18 GND - Ground for digital and DDR2 SDRAM
Y19 GND - Ground for digital and DDR2 SDRAM
Y20 PGND - Ground for PLL
Y21 PVDD - 1.05V supply for PLL
Y22 VOID - This pin is not ball.
Y23 VOID - This pin is not ball.
Y24 VOID - This pin is not ball.
Y25 VOID - This pin is not ball.
Y26 VOID - This pin is not ball.
Y27 GND - Ground for digital and DDR2 SDRAM
Y28 ETMDC O Ether Management Clock Output
Y29 ETMDIO I/O Ether Management Data Input/Output
Y30 ETREFCLK I Ether Reference Clock Input
Y31 HDSDA I/O DDC Data
Y32 HTXN0 O TMDS Data output 0-
Y33 HTXP0 O TMDS Data output 0+
AA1 D0ADD8 O DDR2 Address Output
AA2 D0CS0B O DDR2 Chip Select
AA3 D0VDD18 - 1.8V supply (DDR2 SDRAM)
AA4 D0RASB O DDR2 Raw Address Strobe Signal
AA5 GND - Ground for digital and DDR2 SDRAM
AA6 D0CS1B O DDR2 Chip Select/Bank Address
AA7 GND - Ground for digital and DDR2 SDRAM
AA8 VOID - This pin is not ball.
AA9 VOID - This pin is not ball.
AA10 VOID - This pin is not ball.
6-12
BDP-S5000ES
Pin No. Name I/O Description
AA11 VOID - This pin is not ball.
AA12 VOID - This pin is not ball.
AA13 PVDD - 1.05V supply for PLL
AA14 PVDD - 1.05V supply for PLL
AA15 GND - Ground for digital and DDR2 SDRAM
AA16 VDD10 - 1.05V supply (core)
AA17 GND - Ground for digital and DDR2 SDRAM
AA18 VDD10 - 1.05V supply (core)
AA19 GND - Ground for digital and DDR2 SDRAM
AA20 PGND - Ground for PLL
AA21 PVDD - 1.05V supply for PLL
AA22 VOID - This pin is not ball.
AA23 VOID - This pin is not ball.
AA24 VOID - This pin is not ball.
AA25 VOID - This pin is not ball.
AA26 VOID - This pin is not ball.
AA27 ETRXER I Ether RX Error Detection
AA28 ETRXD0 I Ether RX Data Input
AA29 ETRXD1 I Ether RX Data Input
AA30 ETCRS I Ether RX Data Enable
AA31 HHPD I Hot Plug Detect
AA32 HVDDANA - 1.0V Supply (HDMI analog VDD)
AA33 HVDDANA - 1.0V Supply (HDMI analog VDD)
AB1 D0ODT0 O DDR2 On Die terminal control
AB2 GND - Ground for digital and DDR2 SDRAM
AB3 D0ADD15 O DDR2 Address Output
AB4 D0Q22 I/O DDR2 Data Input/Output
AB5 D0ODT1 O DDR2 On Die terminal control
AB6 D0VDD18 - 1.8V supply (DDR2 SDRAM)
AB7 D0VDD18 - 1.8V supply (DDR2 SDRAM)
AB8 VOID - This pin is not ball.
AB9 VOID - This pin is not ball.
AB10 VOID - This pin is not ball.
AB11 VOID - This pin is not ball.
AB12 VOID - This pin is not ball.
AB13 VOID - This pin is not ball.
AB14 VOID - This pin is not ball.
AB15 VOID - This pin is not ball.
AB16 VOID - This pin is not ball.
AB17 VOID - This pin is not ball.
AB18 VOID - This pin is not ball.
AB19 VOID - This pin is not ball.
AB20 VOID - This pin is not ball.
AB21 VOID - This pin is not ball.
AB22 VOID - This pin is not ball.
AB23 VOID - This pin is not ball.
AB24 VOID - This pin is not ball.
AB25 VOID - This pin is not ball.
AB26 VOID - This pin is not ball.
AB27 GND - Ground for digital and DDR2 SDRAM
AB28 ETTXD1 O Ether TX Data Output
AB29 ETTXD0 O Ether TX Data Output
AB30 ETTXEN O Ether TX Data Enable
AB31 HGNDANA - Analog Ground for HDMI
AB32 HTXCN O TMDS Clock output 0-
AB33 HTXCP O TMDS Clock output 0+
AC1 GND - Ground for digital and DDR2 SDRAM
AC2 D0Q23 I/O DDR2 Data Input/Output
AC3 D0Q21 I/O DDR2 Data Input/Output
AC4 D0Q20 I/O DDR2 Data Input/Output
AC5 GND - Ground for digital and DDR2 SDRAM
6-13
BDP-S5000ES
Pin No. Name I/O Description
AC6 D0VDD18 - 1.8V supply (DDR2 SDRAM)
AC7 GND - Ground for digital and DDR2 SDRAM
AC8 VOID - This pin is not ball.
AC9 VOID - This pin is not ball.
AC10 VOID - This pin is not ball.
AC11 VOID - This pin is not ball.
AC12 VOID - This pin is not ball.
AC13 VOID - This pin is not ball.
AC14 VOID - This pin is not ball.
AC15 VOID - This pin is not ball.
AC16 VOID - This pin is not ball.
AC17 VOID - This pin is not ball.
AC18 VOID - This pin is not ball.
AC19 VOID - This pin is not ball.
AC20 VOID - This pin is not ball.
AC21 VOID - This pin is not ball.
AC22 VOID - This pin is not ball.
AC23 VOID - This pin is not ball.
AC24 VOID - This pin is not ball.
AC25 VOID - This pin is not ball.
AC26 VOID - This pin is not ball.
AC27 VDD3 - 3.3V supply (I/O buffers)
AC28 GND - Ground for digital and DDR2 SDRAM
AC29 GND - Ground for digital and DDR2 SDRAM
AC30 GND - Ground for digital and DDR2 SDRAM
AC31 HGNDANA - Analog Ground for HDMI
AC32 HGNDANA - Analog Ground for HDMI
AC33 HGNDANA - Analog Ground for HDMI
AD1 D0DQS2 I/O DDR2 Positive Data Strobe
AD2 GND - Ground for digital and DDR2 SDRAM
AD3 D0DM2 I/O DDR2 Data Mask
AD4 D0Q17 I/O DDR2 Data Input/Output
AD5 D0VDD18 - 1.8V supply (DDR2 SDRAM)
AD6 GND - Ground for digital and DDR2 SDRAM
AD7 D0VDD10 - 1.05V supply (DDR2 SDRAM DLL)
AD8 VOID - This pin is not ball.
AD9 VOID - This pin is not ball.
AD10 VOID - This pin is not ball.
AD11 VOID - This pin is not ball.
AD12 VOID - This pin is not ball.
AD13 VOID - This pin is not ball.
AD14 VOID - This pin is not ball.
AD15 VOID - This pin is not ball.
AD16 VOID - This pin is not ball.
AD17 VOID - This pin is not ball.
AD18 VOID - This pin is not ball.
AD19 VOID - This pin is not ball.
AD20 VOID - This pin is not ball.
AD21 VOID - This pin is not ball.
AD22 VOID - This pin is not ball.
AD23 VOID - This pin is not ball.
AD24 VOID - This pin is not ball.
AD25 VOID - This pin is not ball.
AD26 VOID - This pin is not ball.
AD27 VDD3 - 3.3V supply (I/O buffers)
AD28 GND - Ground for digital and DDR2 SDRAM
AD29 RDATA11/GDATA11 I/O Data bus for external memory and peripheral
AD30 RDATA12/GDATA12 I/O Data bus for external memory and peripheral
AD31 RDATA13/GDATA13 I/O Data bus for external memory and peripheral
AD32 RDATA14/GDATA14 I/O Data bus for external memory and peripheral
AD33 RDATA15/GDATA15 I/O Data bus for external memory and peripheral
6-14
BDP-S5000ES
Pin No. Name I/O Description
AE1 D0DQS2B - DDR2 Negative Data Strobe
AE2 GND - Ground for digital and DDR2 SDRAM
AE3 D0VDD18 - 1.8V supply (DDR2 SDRAM)
AE4 D0Q16 I/O DDR2 Data Input/Output
AE5 D0VDD18 - 1.8V supply (DDR2 SDRAM)
AE6 GND - Ground for digital and DDR2 SDRAM
AE7 D0VDD10 - 1.05V supply (DDR2 SDRAM DLL)
AE8 VOID - This pin is not ball.
AE9 VOID - This pin is not ball.
AE10 VOID - This pin is not ball.
AE11 VOID - This pin is not ball.
AE12 VOID - This pin is not ball.
AE13 VOID - This pin is not ball.
AE14 VOID - This pin is not ball.
AE15 VOID - This pin is not ball.
AE16 VOID - This pin is not ball.
AE17 VOID - This pin is not ball.
AE18 VOID - This pin is not ball.
AE19 VOID - This pin is not ball.
AE20 VOID - This pin is not ball.
AE21 VOID - This pin is not ball.
AE22 VOID - This pin is not ball.
AE23 VOID - This pin is not ball.
AE24 VOID - This pin is not ball.
AE25 VOID - This pin is not ball.
AE26 VOID - This pin is not ball.
AE27 VDD10 - 1.05V supply (core)
AE28 GND - Ground for digital and DDR2 SDRAM
AE29 RDATA6/GDATA6 I/O Data bus for external memory and peripheral
AE30 RDATA7/GDATA7 I/O Data bus for external memory and peripheral
AE31 RDATA8/GDATA8 I/O Data bus for external memory and peripheral
AE32 RDATA9/GDATA9 I/O Data bus for external memory and peripheral
AE33 RDATA10/GDATA10 I/O Data bus for external memory and peripheral
AF1 GND - Ground for digital and DDR2 SDRAM
AF2 D0Q19 I/O DDR2 Data Input/Output
AF3 D0Q18 I/O DDR2 Data Input/Output
AF4 D0Q29 I/O DDR2 Data Input/Output
AF5 GND - Ground for digital and DDR2 SDRAM
AF6 D0VDD18 - 1.8V supply (DDR2 SDRAM)
AF7 GND - Ground for digital and DDR2 SDRAM
AF8 VOID - This pin is not ball.
AF9 VOID - This pin is not ball.
AF10 VOID - This pin is not ball.
AF11 VOID - This pin is not ball.
AF12 VOID - This pin is not ball.
AF13 VOID - This pin is not ball.
AF14 VOID - This pin is not ball.
AF15 VOID - This pin is not ball.
AF16 VOID - This pin is not ball.
AF17 VOID - This pin is not ball.
AF18 VOID - This pin is not ball.
AF19 VOID - This pin is not ball.
AF20 VOID - This pin is not ball.
AF21 VOID - This pin is not ball.
AF22 VOID - This pin is not ball.
AF23 VOID - This pin is not ball.
AF24 VOID - This pin is not ball.
AF25 VOID - This pin is not ball.
AF26 VOID - This pin is not ball.
AF27 VDD10 - 1.05V supply (core)
AF28 VDD3 - 3.3V supply (I/O buffers)
6-15
BDP-S5000ES
Pin No. Name I/O Description
AF29 RDATA1/GDATA1 I/O Data bus for external memory and peripheral
AF30 RDATA2/GDATA2 I/O Data bus for external memory and peripheral
AF31 RDATA3/GDATA3 I/O Data bus for external memory and peripheral
AF32 RDATA4/GDATA4 I/O Data bus for external memory and peripheral
AF33 RDATA5/GDATA5 I/O Data bus for external memory and peripheral
AG1 D0CLK1 O DDR2 Positive Clock
AG2 GND - Ground for digital and DDR2 SDRAM
AG3 D0Q31 I/O DDR2 Data Input/Output
AG4 GND - Ground for digital and DDR2 SDRAM
AG5 D0Q28 I/O DDR2 Data Input/Output
AG6 GND - Ground for digital and DDR2 SDRAM
AG7 VDD3 - 3.3V supply (I/O buffers)
AG8 GND - Ground for digital and DDR2 SDRAM
AG9 D1VDD10 - 1.05V supply (DDR2 SDRAM DLL)
AG10 D1VDD10 - 1.05V supply (DDR2 SDRAM DLL)
AG11 GND - Ground for digital and DDR2 SDRAM
AG12 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AG13 GND - Ground for digital and DDR2 SDRAM
AG14 D1ADD0 O DDR2 Address Output
AG15 D1ADD14 O DDR2 Address Output
AG16 D1ADD9 O DDR2 Address Output
AG17 GND - Ground for digital and DDR2 SDRAM
AG18 D1VREF I DDR2 Reference Voltage
AG19 GND - Ground for digital and DDR2 SDRAM
AG20 D1VDD10 - 1.05V supply (DDR2 SDRAM DLL)
AG21 D1VDD10 - 1.05V supply (DDR2 SDRAM DLL)
AG22 GND - Ground for digital and DDR2 SDRAM
AG23 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AG24 GND - Ground for digital and DDR2 SDRAM
AG25 VDD3 - 3.3V supply (I/O buffers)
AG26 VDD3 - 3.3V supply (I/O buffers)
AG27 VDD10 - 1.05V supply (core)
AG28 VDD3 - 3.3V supply (I/O buffers)
AG29 RDATA0/GDATA0 I/O Data bus for external memory and peripheral
AG30 GND - Ground for digital and DDR2 SDRAM
AG31 VDD3 - 3.3V supply (I/O buffers)
AG32 GND - Ground for digital and DDR2 SDRAM
AG33 VDD3 - 3.3V supply (I/O buffers)
AH1 D0CLK1B O DDR2 Negative Clock
AH2 GND - Ground for digital and DDR2 SDRAM
AH3 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AH4 D0Q30 I/O DDR2 Data Input/Output
AH5 D0Q26 I/O DDR2 Data Input/Output
AH6 GND - Ground for digital and DDR2 SDRAM
AH7 GND - Ground for digital and DDR2 SDRAM
AH8 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AH9 GND - Ground for digital and DDR2 SDRAM
AH10 GND - Ground for digital and DDR2 SDRAM
AH11 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AH12 GND - Ground for digital and DDR2 SDRAM
AH13 D1CS1B O DDR2 Chip Select/Bank Address
AH14 D1CASB O DDR2 Column Address Strobe Signal
AH15 D1ADD11 O DDR2 Address Output
AH16 D1ADD7 O DDR2 Address Output
AH17 D1ADD10 O DDR2 Address Output
AH18 GND - Ground for digital and DDR2 SDRAM
AH19 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AH20 GND - Ground for digital and DDR2 SDRAM
AH21 GND - Ground for digital and DDR2 SDRAM
AH22 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AH23 GND - Ground for digital and DDR2 SDRAM
6-16
BDP-S5000ES
Pin No. Name I/O Description
AH24 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AH25 GND - Ground for digital and DDR2 SDRAM
AH26 GND - Ground for digital and DDR2 SDRAM
AH27 GND - Ground for digital and DDR2 SDRAM
AH28 GND - Ground for digital and DDR2 SDRAM
AH29 GND - Ground for digital and DDR2 SDRAM
AH30 RADD22/GADD22 O Address bus for external memory and peripheral
AH31 RADD23/GADD23 O Address bus for external memory and peripheral
AH32 RADD24/GADD24 O Address bus for external memory and peripheral
AH33 RADD25/GADD25 O Address bus for external memory and peripheral
AJ1 GND - Ground for digital and DDR2 SDRAM
AJ2 D0DM3 I/O DDR2 Data Mask
AJ3 D0Q27 I/O DDR2 Data Input/Output
AJ4 D0Q25 I/O DDR2 Data Input/Output
AJ5 GND - Ground for digital and DDR2 SDRAM
AJ6 D1Q26 I/O DDR2 Data Input/Output
AJ7 D1Q28 I/O DDR2 Data Input/Output
AJ8 GND - Ground for digital and DDR2 SDRAM
AJ9 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AJ10 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AJ11 D1RQ0 O DDR2 Pull down (150 ohm) to DDR2 SDRAM GND
AJ12 D1ODT1 O DDR2 On Die terminal control
AJ13 D1RQ1 O DDR2 Pull up (150 ohm) to DDR2 SDRAM power supply
AJ14 D1ADD4 O DDR2 Address Output
AJ15 D1ADD13 O DDR2 Address Output
AJ16 D1CKE O DDR2 Clock Enable
AJ17 D1BA0 O DDR2 Bank Address
AJ18 D1CKERSTB I DDR2 Clock Enable External Control 1.8V or 0.0V
AJ19 D1WEB O DDR2 Command Write Enable
AJ20 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AJ21 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AJ22 GND - Ground for digital and DDR2 SDRAM
AJ23 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AJ24 GND - Ground for digital and DDR2 SDRAM
AJ25 FCSB0 O Chip select for NOR Flash ROM
AJ26 FCSB2 O Chip select for NOR Flash ROM
AJ27 FCSB3 O Chip select for NOR Flash ROM
AJ28 GND - Ground for digital and DDR2 SDRAM
AJ29 RADD17/GADD17 O Address bus for external memory and peripheral
AJ30 RADD18/GADD18 O Address bus for external memory and peripheral
AJ31 RADD19/GADD19 O Address bus for external memory and peripheral
AJ32 RADD20/GADD20 O Address bus for external memory and peripheral
AJ33 RADD21/GADD21 O Address bus for external memory and peripheral
AK1 D0DQS3 I/O DDR2 Positive Data Strobe
AK2 GND - Ground for digital and DDR2 SDRAM
AK3 D0Q24 I/O DDR2 Data Input/Output
AK4 GND - Ground for digital and DDR2 SDRAM
AK5 D1Q25 I/O DDR2 Data Input/Output
AK6 D1Q30 I/O DDR2 Data Input/Output
AK7 GND - Ground for digital and DDR2 SDRAM
AK8 D1Q29 I/O DDR2 Data Input/Output
AK9 D1Q16 I/O DDR2 Data Input/Output
AK10 D1Q17 I/O DDR2 Data Input/Output
AK11 D1Q20 I/O DDR2 Data Input/Output
AK12 D1Q22 I/O DDR2 Data Input/Output
AK13 D1RASB O Raw Address Strobe Signal
AK14 D1ADD2 O DDR2 Address Output
AK15 D1ADD12 O DDR2 Address Output
AK16 GND - Ground for digital and DDR2 SDRAM
AK17 D1Q6 I/O DDR2 Data Input/Output
AK18 D1Q3 I/O DDR2 Data Input/Output
6-17
BDP-S5000ES
Pin No. Name I/O Description
AK19 D1Q0 I/O DDR2 Data Input/Output
AK20 GND - Ground for digital and DDR2 SDRAM
AK21 D1Q11 I/O DDR2 Data Input/Output
AK22 D1Q14 I/O DDR2 Data Input/Output
AK23 GND - Ground for digital and DDR2 SDRAM
AK24 D1Q8 I/O DDR2 Data Input/Output
AK25 GCSB1 O Chip select for external device
AK26 FOEB O Output enable for NOR Flash ROM
AK27 FCSB1 O Chip select for NOR Flash ROM
AK28 FWEB O Write enable for NOR Flash ROM
AK29 RADD12/GADD12 O Address bus for external memory and peripheral
AK30 RADD13/GADD13 O Address bus for external memory and peripheral
AK31 RADD14/GADD14 O Address bus for external memory and peripheral
AK32 RADD15/GADD15 O Address bus for external memory and peripheral
AK33 RADD16/GADD16 O Address bus for external memory and peripheral
AL1 D0DQS3B I/O DDR2 Negative Data Strobe
AL2 GND - Ground for digital and DDR2 SDRAM
AL3 GND - Ground for digital and DDR2 SDRAM
AL4 D1Q24 I/O DDR2 Data Input/Output
AL5 D1Q27 I/O DDR2 Data Input/Output
AL6 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AL7 D1Q31 I/O DDR2 Data Input/Output
AL8 D1Q18 I/O DDR2 Data Input/Output
AL9 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AL10 D1DM2 I/O DDR2 Data Mask
AL11 D1Q21 I/O DDR2 Data Input/Output
AL12 D1ADD15 O DDR2 Address Output
AL13 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AL14 D1ADD6 O DDR2 Address Output
AL15 GND - Ground for digital and DDR2 SDRAM
AL16 D1ADD3 O DDR2 Address Output
AL17 D1Q5 I/O DDR2 Data Input/Output
AL18 D1Q4 I/O DDR2 Data Input/Output
AL19 D1Q1 I/O DDR2 Data Input/Output
AL20 D1Q15 I/O DDR2 Data Input/Output
AL21 D1DM1 I/O DDR2 Data Mask
AL22 D1Q13 I/O DDR2 Data Input/Output
AL23 D1Q12 I/O DDR2 Data Input/Output
AL24 D1Q10 I/O DDR2 Data Input/Output
AL25 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AL26 NALE O Address latch enable for NAND Flash ROM
AL27 NCLE O Command latch enable for NAND Flash ROM
AL28 GRDYB I Ready for external device
AL29 RADD7/GADD7 O Address bus for external memory and peripheral
AL30 RADD8/GADD8 O Address bus for external memory and peripheral
AL31 RADD9/GADD9 O Address bus for external memory and peripheral
AL32 RADD10/GADD10 O Address bus for external memory and peripheral
AL33 RADD11/GADD11 O Address bus for external memory and peripheral
AM1 VOID - This pin is not ball.
AM2 GND - Ground for digital and DDR2 SDRAM
AM3 GND - Ground for digital and DDR2 SDRAM
AM4 GND - Ground for digital and DDR2 SDRAM
AM5 D1DM3 I/O DDR2 Data Mask
AM6 GND - Ground for digital and DDR2 SDRAM
AM7 GND - Ground for digital and DDR2 SDRAM
AM8 D1Q19 I/O DDR2 Data Input/Output
AM9 GND - Ground for digital and DDR2 SDRAM
AM10 GND - Ground for digital and DDR2 SDRAM
AM11 D1Q23 I/O DDR2 Data Input/Output
AM12 GND - Ground for digital and DDR2 SDRAM
AM13 D1CS0B O DDR2 Chip Select
6-18E
BDP-S5000ES
Pin No. Name I/O Description
AM14 D1ADD5 O DDR2 Address Output
AM15 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AM16 D1BA1 O DDR2 Bank Address
AM17 D1DM0 I/O DDR2 Data Mask
AM18 GND - Ground for digital and DDR2 SDRAM
AM19 GND - Ground for digital and DDR2 SDRAM
AM20 D1Q2 I/O DDR2 Data Input/Output
AM21 GND - Ground for digital and DDR2 SDRAM
AM22 GND - Ground for digital and DDR2 SDRAM
AM23 D1Q9 I/O DDR2 Data Input/Output
AM24 GND - Ground for digital and DDR2 SDRAM
AM25 GND - Ground for digital and DDR2 SDRAM
AM26 NWEB O Write enable for NAND Flash ROM
AM27 NRBB I Ready/Busy for NAND Flash ROM
AM28 GCSB0 O Chip select for external device
AM29 RADD3/GADD3 O Address bus for external memory and peripheral
AM30 RADD4/GADD4 O Address bus for external memory and peripheral
AM31 RADD5/GADD5 O Output enable for NAND FLASH ROM
AM32 RADD6/GADD6 O Address bus for external memory and peripheral
AM33 VOID - This pin is not ball.
AN1 VOID - This pin is not ball.
AN2 VOID - This pin is not ball.
AN3 D1DQS3 I/O DDR2 Positive Data Strobe
AN4 D1DQS3B I/O DDR2 Negative Data Strobe
AN5 GND - Ground for digital and DDR2 SDRAM
AN6 D1CLK1 O DDR2 Positive Clock
AN7 D1CLK1B O DDR2 Negative Clock
AN8 GND - Ground for digital and DDR2 SDRAM
AN9 D1DQS2 I/O DDR2 Positive Data Strobe
AN10 D1DQS2B I/O DDR2 Negative Data Strobe
AN11 GND - Ground for digital and DDR2 SDRAM
AN12 D1ODT0 O DDR2 On Die terminal control
AN13 D1ADD8 O DDR2 Address Output
AN14 D1VDD18 - 1.8V supply (DDR2 SDRAM)
AN15 D1ADD1 O DDR2 Address Output
AN16 D1Q7 I/O DDR2 Data Input/Output
AN17 GND - Ground for digital and DDR2 SDRAM
AN18 D1DQS0 I/O DDR2 Positive Data Strobe
AN19 D1DQS0B I/O DDR2 Negative Data Strobe
AN20 GND - Ground for digital and DDR2 SDRAM
AN21 D1CLK0 O DDR2 Positive Clock
AN22 D1CLK0B O DDR2 Negative Clock
AN23 GND - Ground for digital and DDR2 SDRAM
AN24 D1DQS1 I/O DDR2 Positive Data Strobe
AN25 D1DQS1B I/O DDR2 Negative Data Strobe
AN26 GND - Ground for digital and DDR2 SDRAM
AN27 NFOEB O Output enable for NAND FLASH ROM
AN28 VDD3 - 3.3V supply (I/O buffers)
AN29 RADD0/GADD0 O Address bus for external memory and peripheral
AN30 RADD1/GADD1 O Address bus for external memory and peripheral
AN31 RADD2/GADD2 O Address bus for external memory and peripheral
AN32 VOID - This pin is not ball.
AN33 VOID - This pin is not ball.
7-1
BDP-S5000ES
SECTION 7
SERVICE MODE
Main Functions
ṲLaunching the service mode
Turn on the AC power from the off state while holding down specific keys (<PLAY> key, <STOP> key and
<OPEN/CLOSE> key) on the front panel. Release the keys when “SERVICE” appears on the front display tube.
The unit is in the service mode when the service mode screen appears on the monitor. Perform operation using
the remote control.
ṲErrorLog/CommandLog display
Displays the error log and command log. Displayed contents can also be saved in an USB memory device.
ṲDiag
Performs unit test of devices installed on the board.
ṲFactory Initialize
Restores the set to its factory settings.
ṲNetwork
Checks the network connection.
(1) “Ifconfig” displays the network settings of the set.
Executing this function will run the #ifconfig command and display the result.
(2) “Ping” checks the communication status between the network and terminal of the specified IP address.
Executing this function will run the #ping command and display the result.
ṲVersion Up (version update)
Performs version update using a disc.
ṲSystem Information
Displays the system information of the set.
Displays information such as the software version, drive information, etc.
7-2
BDP-S5000ES
Menu Tree
Service Mode Menu
[1] Diag
[2] Log
[3] Factory Initialize
[4] Network
[5] Version Up
[6] System Information
Service Mode Menu
[1] Diag
[2] Log
[3] Factory Initialize
[4] Network
[5] Version Up
[6] System Information
Version Up
ὉVersion update using DISC
Version Up
ὉVersion update using DISC
System Information
ὉDisplays system information
System Information
ὉDisplays system information
Factory Initialize
ὉRestores set to factory settings
Factory Initialize
ὉRestores set to factory settings
Log
Displays Error Log/Command Log
Log
Displays Error Log/Command Log Error Log
ὉDisplays error log
Error Log
ὉDisplays error log
Command Log
ὉDisplays command log
Command Log
ὉDisplays command log
Diag
ὉDiag (self-diagnosis tool)
Diag
ὉDiag (self-diagnosis tool)
Network
ὉNetwork diagnosis
Network
ὉNetwork diagnosis
Ping
ὉChecks communication status of network
Ping
ὉChecks communication status of network
Status
ὉChecks network settings
Status
ὉChecks network settings
Device Test
ὉUnit test of board devices
Device Test
ὉUnit test of board devices
Video Path Test
ὉVideo output test
Video Path Test
ὉVideo output test
Audio Path Test
ὉAudio output test
Audio Path Test
ὉAudio output test
7-3
BDP-S5000ES
Service Mode Menu
[1] Diag
[2] Log
[3] Factory Initialize
[4] Network
[5] Version Up
[6] System Information
HELP : [DOWN] [ENT] [(NUM)]
Service Mode Menu (Top Menu)
Description:
This is the top menu of service mode.
Each function is accessed from this screen.
Operation:
[1] Moves to Diag screen
[2] Moves to Log (Error Log/Command Log display) screen
[3] Moves to Factory Initialize (factory settings) screen
[4] Moves to Network screen
[5] Moves to Version Up (DISC version update) screen
[6] Moves to System Information (system information display) screen
[UP] [DOWN] Moves the cursor
[ENT] Moves to the screen of the item selected with the cursor
Cursor is not displayed when the menu is first displayed.
Display tube:
Test appears on the respective display tube when operating the cursor or menu keys.
“SERVICE” is selected by default.
Character strings displayed on the display tube:
DiagᾉS-DIAG
LogᾉS-LOG
Factory Initialize: S-FINIT
Network: S-NET
Version Up: S-VUP
System Information:S-INFO
HELP (currently available keys, etc.) is displayed
[1] Diag
7-4
BDP-S5000ES
Diag (Device Test (Basic/Stepup Model))
Description:
This screen is used to test devices mounted on the board.
Screen 1: Selects the test category
Operation:
[LEFT] [RIGHT] Selects the category
[DOWN] [ENT] Moves to the selected category
Screen 2: Device test
Selects the device to test after selecting Device Test in screen 1.
Operation:
[LEFT] [RIGHT] Selects the device to test
[ENT] Executes the test
[UP] Returns to selection of test category
Selects the cursor during IFCon and D terminal tests
[DOWN] Selects the cursor during IFCon and D terminal tests
>List of test categories
Device Test
Video Test
Audio Test
>Device Test: List of devices
USB Host (1) : USB Media Check, Register Read Check
D/A Converter (2) : DAC write check (non-verification)
D terminal (3) <- Check using measurement device : D terminal voltage test
Ifcon <- Check using visual inspection : IFCon relation test
1) Output of various logs can be performed for the first USB host check only. Logs cannot be
output for following checks.
2) 8 [ch] D/A Converter test is not available for the basic model.
3) JP models only
Display tube:
Category selected: Device Test : D-DEV
Video Test : D-VIDEO
Audio Test : D-AUDIO
Device selected: USB Host : D-USB
D/A Converter : D-DAC
D Terminal : D-TERM
USB Host checked: : USB CHK
All items OK : USB OK
Other than above : USB NG
D/A Converter checked: : DAC CHK
All items OK : DAC OK
Other than above : DAC NG
(Screen 1)
Diag
Category:
(Screen 2)
Diag
Category: Device Test
ޓDevice:
USB Media check ... NG
Register Read check ... OK
Register Read check ...
Checking...
HELP: [RIGHT] [UP] [ENT] [RET]
USB Host
Device Test
7-5
BDP-S5000ES
Diag (Device Test (ES Model))
Description:
This screen is used to test devices mounted on the board.
The screen, operational specification, and test category are common to Basic/Stepup models.
>Device Test: List of devices
USB Host (1)
D/A Converter
D terminal (2) <- Check using measurement device
Ifcon <- Check using visual inspection
1) Output of various logs can be performed for the first USB host check only. Logs cannot be
output for following checks.
2) JP models only
The contents of device test mentioned above and characters displayed on the display tube are
common to Basic/Stepup models.
I/P Converter (KYOTO) : Read Check (Device Revision Display)
Glue (GION) : Read Check (Device Revision Display)
: color bar and RAMP image display (3)
HD Enhancer [1,2] : Read Check (Device Revision Display)
VEnc : Read Check (Device Revision Display)
: color bar display (4)
External HDMI : Read Check (Device Revision Display)
Display tube:
Device selected: I/P Converter : D-IPCONV
Glue : D-GLUE
HD Enhancer : D-HDE
VEnc : D-VENC
External HDMI : D-HDMI
I/P Converter Read Checked: : IPC CHK
All items OK : IPC OK
Other than above : IPC NG
HD Enhancer Read Checked: : HDE CHK
HDE [1,2] OK : HDE OK
Other than above : HDE NG
External HDMI Read Checked: : HDMICHK
All items OK : HDMI OK
Other than above : HDMI NG
3) Screen 2 Output to all terminals 䇭䇭䇭䇭Press [ENT] again for reset
4) Screen 4 Output to Component and Composite (fixed to 480i)
Press [ENT] again for reset
(Screen 3)
Diag
Category: Device Test
Device:
Register Read Check ... OK
Revision: 0xad
[ENT] Test Start
(Screen 1)
Diag
Category: Device Test
Device:
Register Read Check ... OK
Revision: 0xad
[ENT] Test Start
Glue
Generate CB&RAMP
VEnc
Generate CB
[ENT]
[ENT]
[ENT]
[ENT]
(Screen 2)
(Screen 4)
7-6
BDP-S5000ES
Diag (Video/Audio Test)
Description:
This screen performs video and audio tests.
Screen 1: When video test category is selected
Operation:
[ENT] Shows/hides the color bar
[UP] [RET] Returns to the selection of test category
Screen 3: When audio test category is selected
Operation:
[ENT] Plays back/stops the tone sound
[UP] [RET] Returns to the selection of test category
>Video test
Outputs a color bar to all output terminals.
>Audio test
Outputs a tone sound to all output terminals.
Display tube:
During video test: D-VIDEO
During audio test: D-AUDIO
(Screen 1)
Diag
Category: Video Test
HELP: [UP] [ENT] [RET]
(Screen 3)
Diag
Category: Audio Test
HELP: [UP] [ENT] [RET]
[ENT] Show Color Bar
[ENT] Generate TONE Sound
(Screen 2)
[ENT]
[ENT]
7-7
BDP-S5000ES
(Screen 1)
Select Log
[2] Command Log
HELP : [DOWN][ENT][(NUM)]
Log: Error Log/Command Log (Output of each Log)
Description:
This screen displays the contents of each log.
Screen 1: Selects the type of log to display
Operation:
[1] Moves to the Error Log output screen
[2] Moves to the Command Log output screen
[UP] [DOWN] Moves the cursor
[ENT] Moves to the item selected with the cursor
[RET] Returns to the top menu of the service mode
Screen 2: Displays the Error Log
Operation:
[LEFT] Returns to the previous page
[RIGHT] Moves to the next page
[RET] Returns to the screen (screen 1) that selects the log type
[RED] Writes the log contents to an USB memory device
Screen 3: Displays the Command Log
Operation:
[LEFT] Returns to the previous page
[RIGHT] Moves to the next page
[RET] Returns to the screen (screen 1) that selects the log type
[RED] Writes the log contents to an USB memory device
Display tube:
Log type selected Error Log: S-ELOG
Command Log: S-CLOG
During log display Page display ex) 1/50
>Viewing the log display
Error Log:ẅ
001 08/01/01 00: 53: 19: [ErrCode: 080400000000]
[Number (starting from old log) ] [date] [time] [error code]
Command Log:
0001 08/01/01 00: 53: 19: 0 POWER 0
[Number (starting from old log) ] [date] [time] [count] [command name]
[Edge 0: on 1: off]
About copying log to USB memory device
Press the [RED] button in each log display screen with the USB memory device inserted into the
set
Error Log:
ẅẅẅẅẅẅẅWhen getErrLogFile.trm file exists in the USB memory device,
errlog.log file is output.
Command Log:
ẅẅẅẅẅẅẅWhen getCmdLogFile.trm file exists in the USB memory device,
cmdlog.log file is output.
This function cannot be used when performing USB Host test in the Diag screen.
Writing to an USB memory devices takes a few seconds. Wait sufficiently before removing
device.
(Screen 2)
Error Log
001 08/01/01 00: 53: 19: [ErrCode: 080400000000]
002 08/01/01 00: 53: 45: [ErrCode: 080400252100]
003 08/01/01 00: 54: 00: [ErrCode: 080400005555]
:
:
[1] Error Log
(Screen 3)
Command Log
0001 08/01/01 00: 53: 19: 0 POWER 0
0002 08/01/01 00: 53: 45: 1 POWER 1
0003 08/01/01 00: 54: 00: 79 OPEN_CLOSE 0
:
:
< Page 1/50 >
7-8
BDP-S5000ES
(Screen 1)
Factory Initialize
[ENT] Start Initialize
[RET] Return to Top Menu
Factory Initialize (Factory Settings)
Description:
This screen returns the set to the factory settings.
All changes settings will be restored to the factory settings, and all saved titles will be
deleted. Note that executing this function does not complete the initialization process.
The initialization process is completed by rebooting the set after operation is
performed.
Normal rebooting is required for the initialization to take effect. Initialization is not
complete when rebooting in special modes such as the service mode.
Screen 1
Press [ENT] in this screen when restoring the set to its factory settings.
All saved titles will also be deleted.
Operation:
[ENT] Initialize the set to its factory settings
[RET] Return to the top menu of the service mode
Screen 2
This is the screen that is displayed after performing initialization.
The initialization process is completed by rebooting the set.
Remove the AC power cord and insert the AC power cord again.
Operations in other service menus can also be performed.
Display tube:
During initialization: SETTING
When initialization is OK: INIT-OK (Screen 2)
When initialization is NG: INIT-NG
(Screen 2)
Factory Initialize
Reboot to complete.
[RET] Return to Top Menu
HELP: [RET]
7-9
BDP-S5000ES
(Screen 1)
Network
Test: Ping
Network (Network Test Diagnosis Screen: Ifconfig)
Description:
Network menu
Each network diagnosis function is accessed from this screen.
Screen 1: Ifconfig test
Operation:
[ENT] Executes the Ifconfig command (displays network settings)
[RIGHT] Moves to the Ping test
[RTN] Returns to the top menu of the service mode
Screen 2: Ping test
Screen:
[LEFT] Moves to the Ifconfig test
[RTN] Returns to the top menu of the service mode
See next page for details on Ping test
Screen 3: When executing the Ifconfig test
Displays the output result of the Ifconfig command
Operation:
[ENT] Executes the command again
[RIGHT] Moves to the Ping test
[RTN] Returns to the top menu of the service mode
Display tube:
S-NET
(Screen 2)
Network
Test: Ifconfig
ޓޓPing To :
[START]
Ping To:
Ping
Ifconfig
(Screen 3)
Network
Test: Ping
Link encap: Ethernet HWaddr 00: 16: 01: 85: 21: A3
inet addr: 43.17.110.225 Bcast: 43.17.110.255 Mask: 255.255.255.0
inet6 addr: fe80:: 216: 1ff: fe85: 21a3/64 Scope: Link
UP BROADCAST RUNNING MULTICAST MTU: 1500 Metric: 1
RX packets: 533280 errors: 0 dropped: 0 overruns: 0 frame: 0
TX packets: 219639 errors: 0 dropped: 0 overruns: 0 carrier: 0
collisions: 0 txqueuelen: 1000
RX bytes: 44569483 (42.5 MiB) TX bytes: 46206300 (44.0 MiB)
Interrupt: 217 Base address: 0x9c00
HELP: [ENT]: Re/Exe [RIGHT]
Ifconfig
May differ slightly from the actual screens
7-10
BDP-S5000ES
Network (Network Test Diagnosis Screen: Ping)
Description:
Ping test
Screen 1: Ping test
Operation:
[UP] Sets the IP address of the Ping destination
[DOWN] Prepares for execution
[RTN] Returns to the top menu of the service mode
Screen 2: Specifies the IP address of the Ping destination (IP input mode)
Ping To: Input the IP address by pressing [ENT] when highlighted
Operation:
[ENT] Ends input
[RTN] Ends input
[LEFT] Ends input, and moves to the Ifconfig test
[ (NUM) ] Inputs characters ‘0-9’
[TIME] Inputs character ‘.’
[CLEAR] Back space
Screen 3: When executing Ping test
Ping is executed when pressing [ENT] while [START] is highlighted.
Operation:
[ENT] Executes the Ping test
[UP] Sets the IP address of the Ping destination
[DOWN] Prepares for execution
[RTN] Returns to the top menu of the service mode
Display tube:
S-NET
(Screen 1)
Network
Test: Ifconfig
ޓޓPing To :
[START]
Ping To:
Ping
(Screen 2)
Network
Test: Ifconfig
ޓޓPing To :
[ENT]: Release
[RET]: Release
[LEFT] : Ifconfig Test
[(NUM)]: ‘0-9’
[TIME] : ‘.’
[CLEAR]: Backspace
Ping To: > 172.16.200.13
Ping
(Screen 3)
Network
Test: Ifconfig
ޓޓPing To: 172.16.200.13
PING 172.16.200.13 (172.16.200.13) 56 (84) bytes of data.
64 bytes from 172.16.200.13: icmp_seq=0 ttl=64 time=0.022 ms
--- 172.16.200.13 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev=0.022/0.022/0.022/0.000 ms, pipe 2
HELP: [ENT]: Start [UP] [LEFT]
Ping
May differ slightly from the actual screens
[START]
7-11
BDP-S5000ES
(Screen 1)
Version Updater
[ENT] Start Update
[RET] Return to Top Menu
HELP : [ENT][RET]
Version Up (Version Update using DISC)
Description:
This screen performs version updates using DISC.
When measuring 㰱IOP, this menu will no longer be available.
Screen 1: Screen when entering the Version Up menu
Operation:
[ENT] Starts update using DISC -> (opens tray and displays screen 2)
[RET] Returns to the top menu of the service mode
Screen 2: Insert version update DISC
Operation:
[ENT] Closes the tray and checks the DISC
[RET] Cancels operation (closes the tray and returns to screen 1)
Screen 3: During check -> OK
Operation:
Automatically reboots the set
Screen 4: During check - > NG
Operation:
Outputs [Error] (content of error) and returns to screen 2
Display tube:
When DISC is inserted V-INSCD
When DISC cannot be mounted V-NODSC
When check is NG V-CHKNG
When check is OK V-CHKOK
When rebooting REBOOT
(Screen 2)
Version Updater
Insert update DISC ...
[ENT] Tray Close and Check start
[RET] Cancel
HELP: [ENT][RET]
(Screen 3)
Version Updater
Now, mounting and checking... OK
(Screen 4)
Version Updater
Now, mounting and checking...
[Error] Can’t use DISC!
HELP: [ENT] [RET]
7-12E
BDP-S5000ES
System Information (System Information Display)
Description:
This screen displays system information.
Operation:
[ENT] Measures ᶨIOP of the drive (takes a few seconds: 1 time only)
[RET] Returns to the top menu of the service mode
When measuring ᶨIOP,
Version Up function in the Service Mode menu will no longer be available.
Displayed contents:
Model name Model
Destination Dest
IP address IP
Mac address Mac
CPU version CPU <- [FirmVersion] [GenerationVersion]
NBL version NBL
Kernel version Kernel
Host version Host <- [HostVersion] [ReleaseVersion]
Optical disc drive Drive <- [Model] [FirmRevision] [SerialNumber]
Drive usage time LDTime [Media]: [LDTime]/[ᶨIOP]
ẅẅẅẅẅ/ᶨIOP /ᶨIOP
ᶨIOP temperature measurement dIOP_TEMP
IFCon version IFCon <- B0: [Block0 version]ẅB1: [Block1 version]
IFCon Firm date FirmDate
Set temperature Temp <- [ḥ]
Display tube:
Host version displayẅ
01.0.002 displayed as 010 002
System Information
Model : BDP3G-SU
Dest : UC
IP : 172.16.102.32
Mac : 00:1a:80:d0:47:65
CPU : E0.032.0[F021]
NBL : BDP3G 3.1.0
Kernel : BDP3G-3.1.0
Host : 01.0.002
20080121D00 ...
Drive : BDP200 1.01 @BPD0000557&__40
LDTime : BD : [ 0:00] / [ 1]
/dIOP DVD : [ 0:11] / [ 5]
CD : [ 0:50] / [ 0]
dIOP_TEMP: [ 0]
Ifcon : B0: 0x03 B1: 0x01
FirmDate: 03/07 11:55
Temp : 34 [degC]
[RET] : TopMenu
8-1E
BDPS5000ES
㪜㫉㫉㫆㫉㩷㪛㫀㫊㫇㫃㪸㫐㩷㫆㫅㩷㪝㪣㩷㪫㫌㪹㪼
㪚㪸㫋㪼㪾㫆㫉㫐 㪼㫉㫉㪶㪺㫆㪻㪼
㪪㪿㫌㫋㪻㫆㫎㫅㩷㪻㫌㪼㩷㫋㫆㩷㫋㪼㫄㫇㪼㫉㪸㫋㫌㫉㪼㩷㫉㫀㫊㪼
㫆㪽㩷㫋㪿㪼㩷㫊㪼㫋 㪝㪘㪥㩷㪜㪩㪩 㪇㫏㪇㪈
㪫㪼㫄㫇㪼㫉㪸㫋㫌㫉㪼
㫀㫅㪽㫆㫉㫄㪸㫋㫀㫆㫅
㩿㪏㩷㪹㫀㫋㫊㪀
㪚㪿㪼㪺㫂㩷㫋㪿㪼㩷㪸㫄㪹㫀㪼㫅㫋㩷㫋㪼㫄㫇㪼㫉㪸㫋㫌㫉㪼㩷㫆㪽㩷㫋㪿㪼㩷㫊㪼㫋
㪝㪘㪥㩷㫀㫊㩷㪻㪼㪽㪼㪺㫋㫀㫍㪼 㪝㪘㪥㩷㪜㪩㪩 㪇㫏㪇㪉 㪩㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪽㪸㫅
㪥㪘㪥㪛㩷㪜㫉㫉㫆㫉 㪜㪎㪇㪇㪈 㪇㫏㪇㪈
㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㪃㩷㪸㫅㪻㩷㫀㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫉㪼㪺㫌㫉㫊㩷㫆㫉㩷㫀㪽㩷㫋㪿㪼㩷㫊㪼㫋㩷㫄㪸㫃㪽㫌㫅㪺㫋㫀㫆㫅㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪮㪿㪼㫅㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫇㪼㫉㫊㫀㫊㫋㫊㩷㫋㪿㫆㫌㪾㪿㩷㪥㪭㪩㪘㪤㩷㫀㫊㩷㪽㫆㫉㪺㫀㪹㫃㫐㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪃㩷㫉㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㪅㩷㪘㫃㫃㩷㫋㪿㪼
㪻㪸㫋㪸㩷㫀㫅㩷㪥㪭㪩㪘㪤㩷㫀㫅㪺㫃㫌㪻㫀㫅㪾㩷㫋㪿㪼㩷㫊㪼㫋㫋㫀㫅㪾㩷㫀㫅㪽㫆㫉㫄㪸㫋㫀㫆㫅㩷㪸㫉㪼㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪀
㪥㪘㪥㪛㩷㪜㫉㫉㫆㫉 㪜㪎㪇㪇㪉 㪇㫏㪇㪉
㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㪃㩷㪸㫅㪻㩷㫀㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫉㪼㪺㫌㫉㫊㩷㫆㫉㩷㫀㪽㩷㫋㪿㪼㩷㫊㪼㫋㩷㫄㪸㫃㪽㫌㫅㪺㫋㫀㫆㫅㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪮㪿㪼㫅㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫇㪼㫉㫊㫀㫊㫋㫊㩷㫋㪿㫆㫌㪾㪿㩷㪥㪭㪩㪘㪤㩷㫀㫊㩷㪽㫆㫉㪺㫀㪹㫃㫐㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪃㩷㫉㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㪅㩷㪘㫃㫃㩷㫋㪿㪼
㪻㪸㫋㪸㩷㫀㫅㩷㪥㪭㪩㪘㪤㩷㫀㫅㪺㫃㫌㪻㫀㫅㪾㩷㫋㪿㪼㩷㫊㪼㫋㫋㫀㫅㪾㩷㫀㫅㪽㫆㫉㫄㪸㫋㫀㫆㫅㩷㪸㫉㪼㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪀
㪥㪘㪥㪛㩷㪜㫉㫉㫆㫉 㪜㪎㪇㪇㪊 㪇㫏㪇㪊
㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㪃㩷㪸㫅㪻㩷㫀㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫉㪼㪺㫌㫉㫊㩷㫆㫉㩷㫀㪽㩷㫋㪿㪼㩷㫊㪼㫋㩷㫄㪸㫃㪽㫌㫅㪺㫋㫀㫆㫅㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪮㪿㪼㫅㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫇㪼㫉㫊㫀㫊㫋㫊㩷㫋㪿㫆㫌㪾㪿㩷㪥㪭㪩㪘㪤㩷㫀㫊㩷㪽㫆㫉㪺㫀㪹㫃㫐㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪃㩷㫉㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㪅㩷㪘㫃㫃㩷㫋㪿㪼
㪻㪸㫋㪸㩷㫀㫅㩷㪥㪭㪩㪘㪤㩷㫀㫅㪺㫃㫌㪻㫀㫅㪾㩷㫋㪿㪼㩷㫊㪼㫋㫋㫀㫅㪾㩷㫀㫅㪽㫆㫉㫄㪸㫋㫀㫆㫅㩷㪸㫉㪼㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪀
㪥㪘㪥㪛㩷㪜㫉㫉㫆㫉 㪜㪎㪇㪇㪋 㪇㫏㪇㪋
㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㪃㩷㪸㫅㪻㩷㫀㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫉㪼㪺㫌㫉㫊㩷㫆㫉㩷㫀㪽㩷㫋㪿㪼㩷㫊㪼㫋㩷㫄㪸㫃㪽㫌㫅㪺㫋㫀㫆㫅㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪮㪿㪼㫅㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫇㪼㫉㫊㫀㫊㫋㫊㩷㫋㪿㫆㫌㪾㪿㩷㪥㪭㪩㪘㪤㩷㫀㫊㩷㪽㫆㫉㪺㫀㪹㫃㫐㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪃㩷㫉㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㪅㩷㪘㫃㫃㩷㫋㪿㪼
㪻㪸㫋㪸㩷㫀㫅㩷㪥㪭㪩㪘㪤㩷㫀㫅㪺㫃㫌㪻㫀㫅㪾㩷㫋㪿㪼㩷㫊㪼㫋㫋㫀㫅㪾㩷㫀㫅㪽㫆㫉㫄㪸㫋㫀㫆㫅㩷㪸㫉㪼㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪀
㪥㪘㪥㪛㩷㪜㫉㫉㫆㫉 㪜㪎㪇㪇㪌 㪇㫏㪇㪌
㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㩷㪽㫆㫉㩷㪸㫌㫋㫆㫄㪸㫋㫀㪺㩷㫉㪼㪺㫆㫍㪼㫉㫐㪅㩷㪠㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫉㪼㪺㫌㫉㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪮㪿㪼㫅㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫇㪼㫉㫊㫀㫊㫋㫊㩷㫋㪿㫆㫌㪾㪿㩷㪥㪭㪩㪘㪤㩷㫀㫊㩷㪽㫆㫉㪺㫀㪹㫃㫐㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪃㩷㫉㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㪅㩷㪘㫃㫃㩷㫋㪿㪼
㪻㪸㫋㪸㩷㫀㫅㩷㪥㪭㪩㪘㪤㩷㫀㫅㪺㫃㫌㪻㫀㫅㪾㩷㫋㪿㪼㩷㫊㪼㫋㫋㫀㫅㪾㩷㫀㫅㪽㫆㫉㫄㪸㫋㫀㫆㫅㩷㪸㫉㪼㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪀
㪥㪘㪥㪛㩷㪜㫉㫉㫆㫉 㪜㪎㪇㪇㪍 㪇㫏㪇㪍
㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㩷㪽㫆㫉㩷㪸㫌㫋㫆㫄㪸㫋㫀㪺㩷㫉㪼㪺㫆㫍㪼㫉㫐㪅㩷㪠㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫉㪼㪺㫌㫉㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪮㪿㪼㫅㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫇㪼㫉㫊㫀㫊㫋㫊㩷㫋㪿㫆㫌㪾㪿㩷㪥㪭㪩㪘㪤㩷㫀㫊㩷㪽㫆㫉㪺㫀㪹㫃㫐㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪃㩷㫉㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㪅㩷㪘㫃㫃㩷㫋㪿㪼
㪻㪸㫋㪸㩷㫀㫅㩷㪥㪭㪩㪘㪤㩷㫀㫅㪺㫃㫌㪻㫀㫅㪾㩷㫋㪿㪼㩷㫊㪼㫋㫋㫀㫅㪾㩷㫀㫅㪽㫆㫉㫄㪸㫋㫀㫆㫅㩷㪸㫉㪼㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪀
㪥㪘㪥㪛㩷㪜㫉㫉㫆㫉 㪜㪎㪇㪇㪎 㪇㫏㪇㪎
㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㩷㪽㫆㫉㩷㪸㫌㫋㫆㫄㪸㫋㫀㪺㩷㫉㪼㪺㫆㫍㪼㫉㫐㪅㩷㪠㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫉㪼㪺㫌㫉㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪮㪿㪼㫅㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫇㪼㫉㫊㫀㫊㫋㫊㩷㫋㪿㫆㫌㪾㪿㩷㪥㪭㪩㪘㪤㩷㫀㫊㩷㪽㫆㫉㪺㫀㪹㫃㫐㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪃㩷㫉㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㪅㩷㪘㫃㫃㩷㫋㪿㪼
㪻㪸㫋㪸㩷㫀㫅㩷㪥㪭㪩㪘㪤㩷㫀㫅㪺㫃㫌㪻㫀㫅㪾㩷㫋㪿㪼㩷㫊㪼㫋㫋㫀㫅㪾㩷㫀㫅㪽㫆㫉㫄㪸㫋㫀㫆㫅㩷㪸㫉㪼㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪀
㪥㪘㪥㪛㩷㪜㫉㫉㫆㫉 㪜㪎㪇㪇㪏 㪇㫏㪇㪏
㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㩷㪽㫆㫉㩷㪸㫌㫋㫆㫄㪸㫋㫀㪺㩷㫉㪼㪺㫆㫍㪼㫉㫐㪅㩷㪠㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫉㪼㪺㫌㫉㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪮㪿㪼㫅㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫇㪼㫉㫊㫀㫊㫋㫊㩷㫋㪿㫆㫌㪾㪿㩷㪥㪭㪩㪘㪤㩷㫀㫊㩷㪽㫆㫉㪺㫀㪹㫃㫐㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪃㩷㫉㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㪅㩷㪘㫃㫃㩷㫋㪿㪼
㪻㪸㫋㪸㩷㫀㫅㩷㪥㪭㪩㪘㪤㩷㫀㫅㪺㫃㫌㪻㫀㫅㪾㩷㫋㪿㪼㩷㫊㪼㫋㫋㫀㫅㪾㩷㫀㫅㪽㫆㫉㫄㪸㫋㫀㫆㫅㩷㪸㫉㪼㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪀
㪥㪘㪥㪛㩷㪜㫉㫉㫆㫉 㪜㪎㪇㪇㪐 㪇㫏㪇㪐
㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㩷㪽㫆㫉㩷㪸㫌㫋㫆㫄㪸㫋㫀㪺㩷㫉㪼㪺㫆㫍㪼㫉㫐㪅㩷㪠㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫉㪼㪺㫌㫉㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪮㪿㪼㫅㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫇㪼㫉㫊㫀㫊㫋㫊㩷㫋㪿㫆㫌㪾㪿㩷㪥㪭㪩㪘㪤㩷㫀㫊㩷㪽㫆㫉㪺㫀㪹㫃㫐㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪃㩷㫉㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㪅㩷㪘㫃㫃㩷㫋㪿㪼
㪻㪸㫋㪸㩷㫀㫅㩷㪥㪭㪩㪘㪤㩷㫀㫅㪺㫃㫌㪻㫀㫅㪾㩷㫋㪿㪼㩷㫊㪼㫋㫋㫀㫅㪾㩷㫀㫅㪽㫆㫉㫄㪸㫋㫀㫆㫅㩷㪸㫉㪼㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪀
㪥㪘㪥㪛㩷㪜㫉㫉㫆㫉 㪜㪎㪇㪈㪇 㪇㫏㪇㪘
㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㩷㪽㫆㫉㩷㪸㫌㫋㫆㫄㪸㫋㫀㪺㩷㫉㪼㪺㫆㫍㪼㫉㫐㪅㩷㪠㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫉㪼㪺㫌㫉㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪮㪿㪼㫅㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫇㪼㫉㫊㫀㫊㫋㫊㩷㫋㪿㫆㫌㪾㪿㩷㪥㪭㪩㪘㪤㩷㫀㫊㩷㪽㫆㫉㪺㫀㪹㫃㫐㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪃㩷㫉㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㪅㩷㪘㫃㫃㩷㫋㪿㪼
㪻㪸㫋㪸㩷㫀㫅㩷㪥㪭㪩㪘㪤㩷㫀㫅㪺㫃㫌㪻㫀㫅㪾㩷㫋㪿㪼㩷㫊㪼㫋㫋㫀㫅㪾㩷㫀㫅㪽㫆㫉㫄㪸㫋㫀㫆㫅㩷㪸㫉㪼㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪀
㪥㪘㪥㪛㩷㪜㫉㫉㫆㫉 㪜㪎㪇㪈㪈 㪇㫏㪇㪙
㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㩷㪽㫆㫉㩷㪸㫌㫋㫆㫄㪸㫋㫀㪺㩷㫉㪼㪺㫆㫍㪼㫉㫐㪅㩷㪠㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫉㪼㪺㫌㫉㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪮㪿㪼㫅㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫇㪼㫉㫊㫀㫊㫋㫊㩷㫋㪿㫆㫌㪾㪿㩷㪥㪭㪩㪘㪤㩷㫀㫊㩷㪽㫆㫉㪺㫀㪹㫃㫐㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪃㩷㫉㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㪅㩷㪘㫃㫃㩷㫋㪿㪼
㪻㪸㫋㪸㩷㫀㫅㩷㪥㪭㪩㪘㪤㩷㫀㫅㪺㫃㫌㪻㫀㫅㪾㩷㫋㪿㪼㩷㫊㪼㫋㫋㫀㫅㪾㩷㫀㫅㪽㫆㫉㫄㪸㫋㫀㫆㫅㩷㪸㫉㪼㩷㫀㫅㫀㫋㫀㪸㫃㫀㫑㪼㪻㪀
㪥㪘㪥㪛㩷㩿㪪㪻㫄㪩㪼㪾㫀㫊㫋㫉㫐㪀㩷㪜㫉㫉㫆㫉 㪜㪎㪈㪇㪈 㪇㫏㪍㪌 㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㩷㪸㫅㪻㩷㫀㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫆㪺㪺㫌㫉㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪩㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㩷㪹㪼㪺㪸㫌㫊㪼㩷㫀㫋㩷㫉㪼㪸㪺㪿㪼㪻㩷㫋㪿㪼㩷㫃㫀㪽㪼㪀
㪥㪘㪥㪛㩷㩿㪪㪻㫄㪩㪼㪾㫀㫊㫋㫉㫐㪀㩷㪜㫉㫉㫆㫉 㪜㪎㪈㪇㪉 㪇㫏㪍㪍 㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㩷㪸㫅㪻㩷㫀㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫆㪺㪺㫌㫉㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪩㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㩷㪹㪼㪺㪸㫌㫊㪼㩷㫀㫋㩷㫉㪼㪸㪺㪿㪼㪻㩷㫋㪿㪼㩷㫃㫀㪽㪼㪀
㪥㪘㪥㪛㩷㩿㪪㪻㫄㪩㪼㪾㫀㫊㫋㫉㫐㪀㩷㪜㫉㫉㫆㫉 㪜㪎㪈㪇㪊 㪇㫏㪍㪎 㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㩷㪸㫅㪻㩷㫀㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫆㪺㪺㫌㫉㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪩㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㩷㪹㪼㪺㪸㫌㫊㪼㩷㫀㫋㩷㫉㪼㪸㪺㪿㪼㪻㩷㫋㪿㪼㩷㫃㫀㪽㪼㪀
㪥㪘㪥㪛㩷㩿㪪㪻㫄㪩㪼㪾㫀㫊㫋㫉㫐㪀㩷㪜㫉㫉㫆㫉 㪜㪎㪈㪇㪋 㪇㫏㪍㪏 㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㩷㪸㫅㪻㩷㫀㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫆㪺㪺㫌㫉㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪩㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㩷㪹㪼㪺㪸㫌㫊㪼㩷㫀㫋㩷㫉㪼㪸㪺㪿㪼㪻㩷㫋㪿㪼㩷㫃㫀㪽㪼㪀
㪥㪘㪥㪛㩷㩿㪪㪻㫄㪩㪼㪾㫀㫊㫋㫉㫐㪀㩷㪜㫉㫉㫆㫉 㪜㪎㪈㪇㪌 㪇㫏㪍㪐 㪩㪼㪹㫆㫆㫋㩷㫋㪿㪼㩷㫊㪼㫋㩷㪸㫅㪻㩷㫀㪽㩷㫋㪿㪼㩷㪼㫉㫉㫆㫉㩷㫆㪺㪺㫌㫉㫊㪃㩷㫇㪼㫉㪽㫆㫉㫄㩷㫋㪿㪼㩷㫊㪼㫉㫍㫀㪺㪼㪅
㩿㪩㪼㫇㫃㪸㪺㪼㩷㫋㪿㪼㩷㪥㪘㪥㪛㩷㪹㪼㪺㪸㫌㫊㪼㩷㫀㫋㩷㫉㪼㪸㪺㪿㪼㪻㩷㫋㪿㪼㩷㫃㫀㪽㪼㪀
㪚㫆㫉㫉㪼㪺㫋㫀㫍㪼㩷㪸㪺㫋㫀㫆㫅㩷㪸㫋㩷㫊㪼㫉㫍㫀㪺㪼㩷㪺㪼㫅㫋㪼㫉
㪤㪸㫁㫆㫉㩷㪺㪸㫋㪼㪾㫆㫉㫐
㪚㪸㫋㪼㪾㫆㫉㫐㩷㪺㫆㪻㪼 㪛㪼㫋㪸㫀㫃㫊㩷㫆㪽㩷㪺㪸㫌㫊㪼㩷㪸㫅㪻㩷㪼㫉㫉㫆㫉㩷㪺㫆㫅㫋㪼㫅㫋㫊 㪼㫉㫉㪶㫀㫅㪽㫆䋨㪋㪹㫐㫋㪼㩷㫃㪼㫅㪾㫋㪿㪀
㪜㫉㫉㫆㫉㩷㫀㫅㪽㫆㫉㫄㪸㫋㫀㫆㫅㩷㪻㫀㫊㫇㫃㪸㫐㪼㪻㩷㫀㫅㩷㪼㫉㫉㫆㫉㩷㫃㫆㪾
㪛㫀㫊㫇㫃㪸㫐㩷㫆㫅㩷㪝㪣㩷㫋㫌㪹㪼
㪜㪩㪩㪣㪦㪞㪶㪚㪘㪫㪜㪞㪦㪩㪰㪶㪫㪟㪜㪩㪤㪦
㪜㪩㪩㪣㪦㪞㪶㪚㪘㪫㪜㪞㪦㪩㪰㪶㪥㪭㪩㪘㪤
㪇㫏㪇㪌
㪇㫏㪇㪎
SECTION 8
ERROR LOG LIST
9-1
BDP-S5000ES
SECTION 9
TROUBLESHOOTING
Main Flow
Start (and return from each flow)
Yes
Does the WAIT display appear on the FLD
in about 10 seconds after AC IN?
No To Power (System) Flow
Yes
Does the WELCOME display clear in a few
seconds after SW on of
p
ower?
No Replace MB board
Yes
Does the WAIT display appear on the FLD
after?
No
Yes
SYS ERR display on the FLD after 20 - 30
seconds?
No Does the WELCOME display appear on the
FLD when pressing the power button on the
front panel?
No Does the WELCOME display appear on the
FLD when pressing the power button on the
remote control?
Yes
Yes To FL/FR Flow
Does XMB or SETUP screen appear on the
video out
p
ut screen?
No To VP Board Flow
Yes
Yes Icons can be selected using arror keys on
the remote control
No To FL/FR Flow
Yes
There are disks that cannot be played back No Proper sound is output when playing back
BD
,
DVD-ROM
,
etc.
No To AU Board Flow
Yes Yes
To Drive Flow Proper video appears when playing back
BD
,
DVD-ROM
,
etc.
No To VP Board Flow
Yes
Does appear on the composite video
out
p
ut screen?
No To VP Board Flow Recheck symptom of customer as CND
Yes
Is 5V/12V power supplied to the drive? No To Drive Power Flow
Yes
Symptom does not improve even when
re
p
lacin
g
SATA cable
No Replace SATA cable
Yes
Symptom does not improve even when
re
p
lacin
g
drive
No Replace drive
Yes
Replace MB board
㩸
9-2
BDP-S5000ES
Power (System) Flow
The WAIT display does not appear on the
FLD in about 10 seconds after AC IN
All flexible harnesses are connected No Correctly connect flexible harnesses
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Is each voltage to CN101 of the IFD board?
See interface diagram CN001 for voltage
values
No Replace power block
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
The IC links below are not open
IFD board: PS101,102
MB board: PS302,701
No
䊶PS101 is open 㹢To IFD Board Flow
䊶PS102 is open 㹢 Replace MB board, then
replace PS102
䊶PS302 and 701 are open 㹢 Replace MB
board
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
The IC link below is not open
IFD board: PS103 No
Remove power harnesses between IFD 㹤
MB board and IFD㹤FR board and then
check the following:
䊶Short circuit between IFD board
CN102 (pins 3 - 5) and GND
㹢To IFD Board Flow
䊶Short circuit between MB board
CN301 (pins 3 - 5) and GND
㹢Replace MB board and then replace
PS602
䊶Short circuit between FR board
CN361 (pins 1 - 2) and GND
䇭䇭䇭䇭 㹢To FL/FR Flow
䊶Short circuit between VP board
IC102 (pin 2) and GND
䇭䇭䇭䇭 㹢To VP Board Flow
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Unit does not recover even when replacing
IFD board
No To IFD Board Flow
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Unit does not recove even when replacing
MB board
No Replace MB Board
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Unit does not recover even when replacing
VP board
No To VP Board Flow
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
To FL/FR Flow
9-3
BDP-S5000ES
Drive Power Flow
5V/12V power is not supplied to the drive
Power harness is connected between the
p
ower block and drive
No Correctly connect the harness
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Is there voltage higher than Hi (2.5V) at
power block CN203 pin 1 (ATA-PCONT)
during P-ON?
No If the unit recovers after replacing IFD board,
then goto IFD Board Repair Flow
If the unit recovers after replacing MB board,
then replace MB board
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Remove the power harness between the
p
ower block and drive
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭
Are the voltages below output to power block
CN201 during P-ON?
Pin 1: 12±1V
Pin 4: 5±0.25V
No Malfunction within power block
Replace power block
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Likely to be a malfunction within the drive
Re
p
lace drive
9-4
BDP-S5000ES
IFD Board Flow
Is each voltage supplied to CN101? No Replace power block
See interface diagram_CN101 for voltage
values
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Each voltage is not supplied to CN102 during
P-ON
No Replace IC402 microcomputer
See interface diagram_CN102 for voltage
values
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
PS101, 102, 103 and 501 are not open No Remove the IFD board and check the
following for short circuits. Are there any short
circuits?
No
CN102 pin 1 㹤 GND, Pins (3-5) 㹤 GND
C119 㹤 GND
CN502 pin 5 㹤 GND
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes 䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
If C119 is short-circuited, replace IC102,103
and 501, then replace IC link. Otherwise,
reaplce IFD board.
Signals below (PCONT) are Hi (2.5V o
r
hi
g
her
)
durin
g
P-ON
No Replace IC402 microcomputer
IC101 pin 1
IC102 pin 7
IC103 pin 7
IC104 pin 1
IC501 pin 1
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭 Yes
Check the voltages below and replace IC tha
t
are NG
IC101 pin 4: 3.3V
IC102 pin 3: 3.3V
IC103 pin 3: 1.55V
IC104 pin 5: 5V
IC501 pin 1: 11.7V/ 9.0V/ 7.1V
䊶PS102 is open 㹢 MB board is faulty.
Replace it, and then replace PS102.
䊶PS103 is open 㹢 If there is a short circuit
within MB board, replace MB board, and then
replace PS103. If there is a short circuit within
VP board, go to VP Board Flow.
䊶PS501 is open 㹢To AU Board Flow
9-5
BDP-S5000ES
VP Board IP-Conv 䋨IC204: 88DE2710䋩-DDR Section Flow
Video signals are not output normally
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭
A
re video signals output normally in
SERVICE mode?
No To GLUE 䋨IC401: EP1C12F324C8N䋩 Flow
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Check input of each power No Check CN104 (BtoB), and then make a
cross check to the MB board and VP board,
and replace faulty one.
IC201-8
p
in: 3.3V
IC202-8
p
in: 1.5V
IC203-8
p
in: 1.5V
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Check output of each power No Replace IC201, IC202 and IC203.
Re
p
lace VP board if NG.
IC201-1
p
in: 2.5V
IC202-1
p
in: 1.2V
IC203-1
p
in: 1.2V
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Is there input of control signals in IC204? No Check CN104 (BtoB), and then make a
cross check to the MB board and VP board,
and replace faulty one.
CL203: SDA
CL202: SCL
CL204: XRST
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Is there input of video signals in IC204? No Check CN104 (BtoB), and then make a
cross check to the MB board and VP board,
and replace faulty one.
CL204: CLK
CL244: VSYNC
CL243: HSYNC
CL246-261: DATA
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Is there output of video signals in IC204? No Replace VP board
CL421: CLK 䋨Primar
y
䋩
CL422: VSYNC 䋨Primar
y
䋩
CL423: HSYNC 䋨Primar
y
䋩
CL424-CL443: DATA 䋨Primar
y
䋩
CL409: CLK 䋨
A
uxiliar
y
䋩
CL410: VSYNC 䋨
A
uxiliar
y
䋩
CL411: HSYNC 䋨
A
uxiliar
y
䋩
CL412-419: DATA 䋨
A
uxiliar
y
䋩
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
To GLUE 䋨IC401: EP1C12F324C8N䋩 Flow
9-6
BDP-S5000ES
GLUE 䋨IC401: EP1C12F324C8N䋩Flow
Video signals are abnormal.
Or
,
ClosedCa
p
tion is abnormal.
Enter the SERVICE mode, and select [1]
Dia
g
- Device Test - Glue menu
Execute Register Read Check, and is OK
returned?
No CN104 on VP board may be connected
loosel
y
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Confirm that Revision is latest one. 1No IC402 (EPCS4SI8N) may be faulty
Or, the version must be upgraded by Design
Dept.
1: The latest Revision is “0xad”.
9-7
BDP-S5000ES
CXD9957GF 䋨IC501, IC1201䋩Flow
Video signals are abnormal
Enter the SERVICE mode, and select [1]
Dia
g
- Device Test – HD Enhancer menu
Execute Read Check, and is OK returned? No Power check
Are 1.5V: C526/C1526 and 3V: C527/C1227
supplied?
No CN104 on VP board may be connected
loosely
Or, the power board may be faulty
Yes 㪰㪼㫊
Reset check
Check R503/R1203 if the reset is released
No CN104 on VP board may be connected
loosely
㪰㪼㫊
IC501 (CXD9957GF) may be faulty
Are respective video signals input?
IC501
Clock: R518, Vsync: R520, Hsync: R519
IC1201
Clock: R1218, Vsync: R1220, Hsync: R1219
No Check GLUE (IC401: EP1C12F324C8N) in
the pre-stage
Yes
Are respective video signals output?
IC501
Clock: R516, Vsync: R511, Hsync: R510
IC1201
Clock: R1216, Vsync: R1211, Hsync: R1210
No IC501 (CXD9957GF) may be faulty
Yes
IC501 (CXD9957GF) is OK
Check
p
ost-sta
g
e after HDMI-Tx, VideoDAC
9-8
BDP-S5000ES
HDMI-T䌸 䋨IC602: SII9134䋩 Flow
Video signals are abnormal
Enter the SERVICE mode, and select [1]
Dia
g
- Device Test – External HDMI menu
Execute Read Check, and is OK returned?
No
Power check
Check the following:
5V: IC605 pin 5 (input) and pin 4 (output)
3.3V: IC603 pin 4 (input) and pin 5 (output)
1.8V: IC607 pin 4 (input) and pin 5 (output)
1.8V: IC608 pin 4 (input) and pin 5 (output)
Are the power supplied and output?
No CN104 on VP board may be connected
loosely
Or, the power IC may be faulty
Yes Yes
Reset check
Check pin 25 of Tx if the reset is released
No CN104 on VP board may be connected
loosely
Yes
IC501 (CXD9957GF) may be faulty
Are respective video signals input?
Check respective pins of Tx if signals are
input
Clock: 88pin, Vsync: 3pin, Hsync: 2pin
No
Yes
Is TMDS signal output correctly from each
out
p
ut?
No To CXD9957GF 䋨IC501, IC1201䋩 Flow
Yes
HDMI-Tx (IC602:SII9134) is OK
Check the e
q
ui
p
ment connected
9-9
BDP-S5000ES
VP Board Analog Video Block Flow
Is video signal output correctly from HDMI
output?
No Is color bar output by setting VENC output in
SERVICE mode?
No Check connection between R430, R431,
R432, R433 of IC401 periphery and pin 19,
pin 20, pin 21, pin 48 of IC703
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes 䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Check IC1201 related parts
Check the powers supplied to IC703
IC701-4pin: 1.8V
IC702-4pin: 1.8V
IC704-1pin: 3.3V
No If pin 1 of abnormal power IC (pin 5 for
IC704) is 3.3V, the IC is faulty and replace it
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Image is not output from analog component No Video signal is not output from composite, S
terminal
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes 䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Are signals output to IC703 pins 37, 38, 39? No Is 27MHz present to IC703 pin 30? No CXD9957GF 䋨IC501, IC1201䋩 Flow
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes 䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
To Composite Buffer Check Flow
A
re data present to IC703 pins 53, 54, 55,
58
,
59
,
60
,
61
,
62?
No Check RB410, RB411, R436, and R437
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Are signals present to IC703 pins 19, 20, 21,
48 when the command of VENC output
setting is sent in SERVICE mode?
No Check the connection between R430, R431,
R432, R433 of IC401 periphery and IC703
pins 19, 20, 21, 48
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Replace IC703
Are signals output to IC703 pins 42, 43, 44? No Is 27.74MHz present to IC703 pin 63? No CXD9957GF 䋨IC501, IC1201䋩 Flow
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes 䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Check input of each power No Replace IC link
A
re data present to IC703 pins (2-9), pins
(
11-16
), p
ins
(
25-29
), p
in 22
, p
in 23?
No No Check RB (1206-1209), R1225, R1226
L804: -8V
L803: +6V
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Are signals present to IC703 pins 19, 20, 21,
48 when the command of VENC output
setting is sent in SERVICE mode?
No Check the connection between R430, R431,
R432, R433 of IC401 periphery and IC703
pins 19, 20, 21, 48
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Replace IC703
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
A
9-10
BDP-S5000ES
Check output of each power No Check the control of each power No Check control lines
IC801-4
p
in: 5V Q801 emitter: 3.3V
IC802-out: -5V IC801-1
p
in: 3.3V
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes 䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Replace device
Check the Ref power No Check the device periphery
IC804-1
p
in: 4.4V Re
p
lace IC804
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Check the Ref power No Check the device periphery
IC810-1
p
in: 2.48V Re
p
lace IC810
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Check voltage before and after each coil No Replace device
L801: +5V Re
p
lace fault
y
device
L802䋺-5V
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Is there input of video signals? No Check connection between IC703 and
IC803
,
IC805
,
IC806
Check IC803
p
in 3, IC805
p
in 3, and IC806
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Are video signals input to each IC? No Check signal lines such as each FL
Check IC807
p
in 3, IC808
p
in 3, and IC809
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Check the lines up to pin-jack
A
9-11
BDP-S5000ES
Composite (Buffer) Flow
Check the composite buffer (IC706:
NJM2564AV
)
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Check input of each power No Check CN802, PS801, and PS802
L702: 6V
L704: -9V
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Check output of each power No Check and replace faulty IC
IC705-1pin: +3.3V
IC707-Out: -5V
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Check voltage before and after each coil No Check and replace faulty coil
L703
L705
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Is there input of video signals in IC706? No Replace FFC between CN801 and MB
board. Replace R232 and 233 if NG.
Replace MB board if NG.
IC䋷06-16
p
in PS1 䋨XVMUTE +3.3V䋩
IC䋷06-15
p
in PS2 䋨XVMUTE +3.3V䋩
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
A
re signals output from respective Video
out
p
ut
p
ins of IC?
No Replace IC706. Replace VP board if NG.
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Check the soldering of resistors and jacks
from res
p
ective Video out
p
ut
p
ins of IC
9-12
BDP-S5000ES
AU Board Flow
Each power supplied to AU board? No To Power (System) Flow
CN2001-1pin: AC 10V
CN2001-4pin: AC 10V
CN2002-5pin: +6V
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Check input of each power No Power block of AU board is faulty
CL2001: -7V Re
p
lace AU board
CL2002: +7V
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Check output of each power No Replace AU board
CL1001: +3.3V Re
p
lace IC2015 if CL1001 is fault
y
CL1002: +5V Re
p
lace IC2012 if CL1002 is fault
y
IC1001-20
p
in䋬IC1002-20
p
in: +3.3V Re
p
lace IC2014 if IC1001 or 1002 is fault
y
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
A
re audio digital signals input to IC1001,
1002
,
and 2005?
No Replace FFC between CN1001 and MB
board. Re
p
lace MB board if NG.
IC1001-3
p
in: LRCK
IC1001-4
p
in: BCLK
IC1001-5
p
in: DATA
IC1001-6
p
in: DATA
IC1001-7
p
in: DATA
IC1001-8
p
in: DATA
IC1001-9
p
in: MCLK
IC1002-2
p
in: LRCK
IC1002-3
p
in: DATA
IC1002-4
p
in: BCK
IC1002-5
p
in: MCLK
IC2005-2
p
in: SPDIF
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Are control signals input to IC002 and 003? No Replace FFC between CN002 and MB
board. Re
p
lace MB board if NG.
IC1001-2
p
in: DAC8CS
IC1002-6
p
in: DAC2CS
IC1002-7
p
in: CCLK
IC1002-8
p
in: CDATA
IC1002-9
p
in: XRST
CN1001-26
p
in: XAMUTE
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
A
re signals output from respective Audio
out
p
ut
p
ins?
No Replace AU board
9-13
BDP-S5000ES
Drive Flow
BDP-S5000ES can play the BD-disc. No Check Drive Power Supply 12V/5V? No To Drive Power Flow
Yes
Check/replace the SATA cable, and check
BDP-S5000ES o
p
erates normall
y
.
No
Yes
Yes
OK
BDP-S5000ES can play the DVD/CD-disc. No
Yes
Check the drive by drive test tool.
Drive is OK?
No Replace drive
Yes
To Main Flow
BLX-104 DVD TEST DISC HLX-513
CD TEST DISC YEDS-18
9-14
BDP-S5000ES
FL/FR Flow (1/3)
Power button on the main unit does not work
Does symptom improve when replacing the
FL board?
No
Yes
The potential of pin 1 of CN331 does not
change from 3.3V to near 0V when pressing
the power button
No Does symptom improve when replacing the
FC board?
No Does symptom improve when replacing the
FR board?
No To IFD Board Flow
Yes Yes Yes
Disconnected FFC. Replace FL board. Disconnected FFC. Replace IFD board. Disconnected FFC. Replace FR board.
Ke
y
o
p
erations cannot be made on the main
Does symptom improve when replacing the
FR board?
No Does symptom improve when replacing the
IFD board?
No Replace MB board
Yes Yes
Which row of keys do not operate? Disconnected FFC. Replace FC board. Reference: Relationship of Buttons and Voltages
STOP, PAUSE buttons -> To Key1 does not
o
p
erate
OPEN/CLOSE button -> To Key2 does not
o
p
erate
PLAY button -> To Key3 does not operate
Ke
y
1 does not o
p
erate
Is there voltage of about 3.3V at pin 22 o
f
CN361 without
p
ressin
g
the ke
y
s?
No Check 3.3V line and R466 pattern of IFD
board. Re
p
lace IFD board if NG.
Yes
Check the resistance of resistors of Key1
line. Also check the surroundin
g p
attern.
Ke
y
2 does not o
p
erate
Is there voltage of about 3.3V at pin 16 o
f
CN361 without
p
ressin
g
the ke
y
s?
No Check 3.3V line and R467 pattern of IFD
board. Re
p
lace IFD board if NG.
Yes
Check the resistance of resistors of Key2
line. Also check the surroundin
g p
attern.
Ke
y
3 does not o
p
erate
Is there voltage of about 3.3V at pin 21 o
f
CN361 without
p
ressin
g
the ke
y
s?
No Check 3.3V line and R469 pattern of IFD
board. Re
p
lace IFD board if NG.
Yes
Check the resistance of resistors of Key3
line. Also check the surroundin
g p
attern.
㪫
㫐㫇
㩷㫍㫆㫃㫋㪸
㪾
㪼
㪬㫅
㫇
㫌㫊㪿㪼㪻㪬㫅
㫇
㫌㫊㪿㪼㪻㪬㫅
㫇
㫌㫊㪿㪼㪻㪬㫅
㫇
㫌㫊㪿㪼㪻
9-15
BDP-S5000ES
FL/FR Flow
(
2/3
)
FLD does not li
g
ht
Is there voltage of about 3.3V at PS201 of the
FC board?
No To FLD Switch Surrounding Check
Yes
Is there voltage of about -22V at JL250? No Check the circuits surrounging the FLD DC-
DC CONVERTER.
If NG, then replace FC board.
Yes
Is there voltage of 3.3V at pin 43 of IC702? No Check the 3.3V line of FR board.
Yes
Is pin 5 of IC702 oscillating? No Replace IC702. If no effect, replace FC
board.
Yes
Is there input of pulse to pins 7, 8 and 9 o
f
IC702?
No Replace FFC between FR and IFD. If no
effect
,
then
g
oto IFD Board Flow
Yes
Check connection of FLD of the FC board
and IC100 of the IFD board. Replace IC100 if
OK. If no effect, replace the FL board.
FLD Switch Surroundin
g
Check
Is the potential of pin 3 of Q202 of the FC
board at 5.8V?
No Check the 5.8V line of FR board.
Yes
Is the potential of the base of Q202 of the FC
board around 5V?
No Is the collector voltage of Q201 of the FC
board about 0V?
No Is the voltage of the base of Q201 of the FC
board at 3.3V?
No Is pin 7 of CN201 at 3.3V?
Yes Yes Yes Yes
Replace Q704 of the FC board Replace Q202 of the FC board Replace Q201 of the FC board Replace FR board
9-16
BDP-S5000ES
FL/FR Flow (3/3)
Remote control does not o
p
erate
Symptom improve when replacing FC board? No Is there output of about 3.3V for potential o
f
p
in 18 of CN361of the FR board?
No Check FR board pattern
Yes Yes
Are there signals to pin 17 of IFD board
CN504?
No Replace FFC
Yes
Are there signals to pin 24 of IC402? No Check IFD board pattern
Yes
To IFD Board Flow
Is there output of about 3.3V for potential o
f
p
in 1 of CN201?
No Check pattern
Yes
Disconnected flexible harness. Replace FR
board.
9-17
BDP-S5000ES
USB Device Flow
USB device is not reco
g
nized
EXT display appears on the FLD No EXT appears when turning on/off the power No EXT appears when reinserting memory and
turnin
g p
ower on/off
No To FL/FR Flow
Yes Yes
Yes Not recognized after inserting memory
(
CUE
)
Memory not completely inserted
Voltage of pin 2 of USB board CN302 is 5V No Check harness between USB board and MB
board
Yes
Perform USB test of the service mode
9-18
BDP-S5000ES
Ether Flow
Cannot connect to network. Cannot perform
network u
p
date.
Is the LAN cable correctly inserted? No Securely insert the LAN cable
Yes
Is the HUB router LED on (LINK LED)? No Is power input to the MB board? No Check fuses in respective power lines
Yes Yes
Is Ether cable connected correctly between
MB board and ET board?
Is a blue tube inserted on the MB board side?
No Connect Ether cable across the boards
correctly
Yes
Replace MB board
Are network settings in the menu correct? No Correctly set netwok settings
Yes
Replace MB board
9-19
BDP-S5000ES
CIS Flow
CIS does not function
Is the connection cable (cross serial cable)
inserted into CIS e
q
ui
p
ment correctl
y
?
No Correctly connect the cable
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Is CN601 of RS board connected correctly?
Is CN501 of IFD board connected correctl
y
?
No Connect CN601 and CN501 correctly
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Is pin 4 of CN601 of the RS board at 3.3V? No Check fuses in respective power lines
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Is pin 1 of CN601 of the RS board at 3.3V? No Replace IC601 of the RS board
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Is pin 3 of CN601 of the RS board at 3.3V? No Replace IC402 of the IFD board
䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭䇭Yes
Replace RS and IFD boards
9-20E
BDP-S5000ES
Fan Flow
FAN ERR display appears on the FLD
Enter the service mode and set FAN to ON
from the Ifcon menu
Is the voltage of pin 3 of AU board CN2003
about 10V?
No Remove the harness from the fan inserted in
CN2003 of AU board. Is the voltage about
10V?
No Is the voltage of pin 1 of IC502 of the IFD
board about 10V?
No Remove the harness from the AU board
inserted in CN502 of IFD board. Is the
voltage about 10V?
No
Yes Yes Yes Yes
Is the fan turning? No Replace fan Is the harness between AU board and IFD
board disconnected?
No Check the soldering and patterns of CN2002
and 2003 of AU board
Yes Yes
Replace harness
Is the FanState in the service mode screen
set to ON? No
Remove the harness from the fan inserted in
CN502 of the IFD board. Does FanState in
the service mode screen turn to ON when
short-circuiting pins 2 and 3?
No
Is there a disconnection between pin 2 of
CN502 of the IFD board and pin 55 of
IC402, or bridged with adjacent pins?
Yes Yes
Check to see for objects blocking the fan
blades
If none, replace fan
Replace fan
Is the voltage of pin 1 of IC501 of the IFD
board about 3.3V?
No Is there a disconnection between pin 1 of
CN501 of the IFD board and pin 58 of
IC402, or bridged with adjacent pins?
Yes
Check around the fan power (IC501)
10-1E
BDP-S5000ES
SECTION 10
ELECTRICAL ADJUSTMENT
In making adjustment, adjustment related parts arrangement.
This section describes procedures and instructions necessary for
adjusting electrical circuits in this set.
Instruments required:
1) Color monitor TV
2) Oscilloscope 1 or 2 phenomena, band width over 100 MHz,
with delay mode
3) Standard commander (RMT-B103A/B103P)
10-1. ADJUSTMENT OF VIDEO SYSTEM
1. Composite Video Level Adjustment (VP-062 BOARD)
Mode Video output test in service mode
Signal Color bars
Test point VIDEO OUT connector
（75 Ω terminated）
Instrument Oscilloscope
Adjusting ele-
ment RV701
Specification 1.00 ± 0.05 Vp-p
Adjusting method:
1) In the service mode initial menu [1] Diag → [Video Path Test]
Video output test, set so that color bars are generated.
2) Adjust the RV701 to attain 1.00 ± 0.05 Vp-p
1.00 ± 0.05 Vp-p
Figure 10-1
10-2. ADJUSTMENT RELATED PARTS ARRANGE
2. Component Video Output Y Adjustment (VP-062 BOARD)
Mode Video output test in service mode
Signal Color bars
Test point VIDEO OUT connector
（75 Ω terminated）
Instrument Oscilloscope
Adjusting ele-
ment RV702
Specification 1.00 ± 0.05 Vp-p
Adjusting method:
1) In the service mode initial menu [1] Diag → [Video Path Test]
Video output test, set so that color bars are generated.
2) Adjust the RV702 to attain 1.00 ± 0.05 Vp-p
1.00 ± 0.05 Vp-p
Figure 10-2
RV701
RV702
IC703
VP-062 BOARD (SIDE A)
VIDEO LEVEL COMP VIDEO OUT
11-1
BDP-S5000ES
SECTION 11
REPAIR PARTS LIST
11-1. EXPLODED VIEWS
11-1-1. CASE SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 X-2318-561-1 BASE ASSY, TRAY
2 3-299-724-01 INDICATOR, TRAY
3 3-299-723-01 PANEL, TRAY
4 4-942-568-41 EMBLEM (NO.5), SONY
5 3-077-331-01 +BV3 (3-CR)
6 2-580-630-01 SCREW, +BVST 4X8
7 4-227-843-03 SCREW (TP), FLAT HEAD
8 3-087-053-01 +BVTP2.6 (3CR)
9 4-220-301-35 CASE
10 2-893-229-41 PLATE (SQ)
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color
Cabinet’s Color
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories and packing materials are given in
the last of the electrical parts list.
• Abbreviation
CND : Canadian model
RUS : Russian model
The components identified by mark or dotted
line with mark are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
sont critiquens pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
4
5
10
10
5
6
6
7
8
1
2
3
not supplied
(tapping)
not supplied
not supplied
9
The components identified by mark contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifiés par la marque con-
tiennent des informations confidentielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé et
/ ou réparé.
11-2
BDP-S5000ES
11-1-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 A-1567-806-A FC-095 BOARD, COMPLETE
52 1-835-672-11 CABLE, FLEXIBLE FLAT (FCL-001)
53 3-299-717-01 PLATE, FL INDICATION
54 X-2318-330-1 PANEL ASSY, FRONT (US, CND)
54 X-2318-996-1 PANEL ASSY, FRONT (EXCEPT US, CND)
55 4-246-563-31 ESCUTCHEON (A)
56 3-325-697-21 WASHER
57 3-873-310-01 BASE (L), PANEL
58 3-873-311-01 BASE (R), PANEL
59 4-246-563-22 ESCUTCHEON (A)
60 X-4950-462-1 LENS ASSY, LED
61 A-1567-814-A FT-094 BOARD, COMPLETE
62 A-1567-810-A FL-186 BOARD, COMPLETE
63 A-1567-812-A FS-089 BOARD, COMPLETE
64 1-835-673-11 CABLE, FLEXIBLE FLAT (FRT-002)
65 A-1567-808-A FR-292 BOARD, COMPLETE
66 1-835-670-11 CABLE, FLEXIBLE FLAT (FRI-001)
67 1-835-671-11 CABLE, FLEXIBLE FLAT (FRC-002)
68 3-087-053-01 +BVTP2.6 (3CR)
69 4-951-620-61 SCREW (2.6)
#1 7-685-546-19 SCREW +BTP 3X8 TYPE2 N-S
54
55
56
61
62 69
64
65
63
56
57
58
66
69
67
68
68
68
68
68
59
60
51
52
53
not supplied
not supplied
not supplied
not supplied not supplied
#1
#1
11-3
BDP-S5000ES
11-1-3. DRIVE SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 1-474-105-11 POWER BLOCK
102 3-077-331-01 +BV3 (3-CR)
103 A-1546-230-B TRANSPORT ASSY, BPD-200ES
104 1-966-251-11 HARNESS (SAT-002)
105 3-076-563-11 +BV 3X7
106 3-703-249-22 SCREW, S TIGHT, +PTTWH (M3x8)
T101 1-445-446-12 TRANSFORMER, POWER (US, CND)
T101 1-445-446-21 TRANSFORMER, POWER (EXCEPT US, CND)
not supplied
not supplied
not supplied
not supplied
T101
not supplied
101
102
105
106
105 105
105
103
104
The components identified by mark
or dotted line with mark are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
11-4
BDP-S5000ES
11-1-4. AU SHIELD PLATE SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 3-077-331-01 +BV3 (3-CR)
152 1-835-676-11 CABLE, FLEXIBLE FLAT (FMA-024)
153 A-1567-800-A AU-260 BOARD, COMPLETE
154 3-076-563-11 +BV 3X7
155 1-469-089-11 FILTER, CLAMP (US)
M2001 1-787-794-11 FAN, D.C.
not supplied
not supplied
(fan holder)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(RS-088 board)
not supplied
(USB-007 board)
supplied with CN603
on RS-088 board
not supplied
151
151
151
151
154
155
151
152
153
M2001
151
(US) not
supplied
11-5
BDP-S5000ES
11-1-5. REAR PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 A-1616-338-A VP-062 BOARD, COMPLETE
202 1-835-675-11 CABLE, FLEXIBLE FLAT (FMA-023)
203 3-077-331-01 +BV3 (3-CR)
204 1-500-386-31 FILTER, CLAMP (FERRITE CORE)
#1 7-685-246-19 SCREW +BTP 3X8 TYPE2 N-S
#3 7-682-547-04 SCREW +B 3X6
not supplied
not supplied
not supplied
not supplied
not supplied
201
202 203
not supplied
203
203
203
204
203 203 203
203
203
not supplied
(ET-001 board)
#1
#3
11-6
BDP-S5000ES
11-1-6. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 A-1567-804-A IFD-002 BOARD, COMPLETE
252 3-077-331-01 +BV3 (3-CR)
253 1-835-674-11 CABLE, FLEXIBLE FLAT (FMI-006)
254 A-1567-836-A MB-124 BOARD, COMPLETE (US, CND)
254 A-1567-838-A MB-124 BOARD, COMPLETE (AEP, UK)
254 A-1567-842-A MB-124 BOARD, COMPLETE (RUS)
255 X-4953-883-3 FOOT ASSY
256 3-076-563-11 +BV 3X7
257 3-531-576-11 RIVET, NYLON (US, CND)
258 4-860-518-00 CUSHION
#2 7-685-885-01 SCREW +BVTT 4X16 (S)
not supplied
251
253
254
257
252
252
252
252
252
256
258
252
252
252
252
252
252
255
255
252
252
252
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied not supplied
(US, CND)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#2
#2
not supplied
not supplied
not supplied
not supplied
not supplied
252
252
11-7
BDP-S5000ES
11-1-7. ACCESSORIES
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
901 1-480-740-11 REMOTE COMMANDER (RMT-B103A) (US, CND)
901 1-480-741-11 REMOTE COMMANDER (RMT-B103P)
(EXCEPT US, CND)
902 1-834-381-21 CORD, POWER (US, CND)
902 1-835-533-11 CORD, POWER (AEP, RUS)
903 1-751-271-61 CORD, CONNECTION (AV)
904 8-869-046-18 EXTERNAL MEMORY
4-116-399-11 MANUAL, INSTRUCTION (ENGLISH) (US, CND)
4-116-399-21 MANUAL, INSTRUCTION (FRENCH) (US, CND)
4-116-400-11 MANUAL, INSTRUCTION (ENGLISH) (UK)
4-116-400-21 MANUAL, INSTRUCTION (FRENCH) (AEP)
4-116-400-31 MANUAL, INSTRUCTION (GERMAN) (AEP)
4-116-400-41 MANUAL, INSTRUCTION (ITALIAN) (AEP)
4-116-400-51 MANUAL, INSTRUCTION (DUTCH) (AEP)
4-116-400-61 MANUAL, INSTRUCTION (SPANISH) (AEP)
4-116-400-71 MANUAL, INSTRUCTION (SWEDISH) (AEP)
4-116-400-81 MANUAL, INSTRUCTION (DANISH) (AEP)
4-116-400-91 MANUAL, INSTRUCTION (FINNISH) (AEP)
4-116-401-11 MANUAL, INSTRUCTION (RUSSIAN) (RUS)
The components identified by mark
or dotted line with mark are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
901. Remote Commander (RMT-B103A/B103P)
902. AC Power Cord
903. Audio/Video Cable (Phone Plug x 3)
904. External Memory
11-8
BDP-S5000ES
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-1567-800-A AU-260 BOARD, COMPLETE
**********************
(Ref. No. 20,000 Series)
4-382-854-01 SCREW (M3X8) P, SW (+)
< CAPACITOR >
C1001 1-126-767-11 ELECT 1000uF 20% 16V
* C1002 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
* C1003 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
* C1004 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
* C1005 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C1006 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1007 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1008 1-127-956-21 FILM CHIP 0.1uF 5% 16V
* C1009 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
* C1010 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C1011 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1012 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1013 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1014 1-100-388-21 ELECT CHIP 39uF 20% 16V
C1015 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1016 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1018 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1019 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1020 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1021 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1022 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1023 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1024 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1025 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1026 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1027 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1028 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1029 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1030 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1031 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1032 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1033 1-100-388-21 ELECT CHIP 39uF 20% 16V
C1034 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C1035 1-100-388-21 ELECT CHIP 39uF 20% 16V
C1036 1-100-388-21 ELECT CHIP 39uF 20% 16V
C1037 1-100-388-21 ELECT CHIP 39uF 20% 16V
C1038 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1040 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1041 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1042 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1043 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1044 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1045 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1047 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1048 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1049 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1050 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1051 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1052 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1054 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1055 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1056 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1057 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1058 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1059 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1061 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1062 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1063 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1064 1-112-075-11 ELECT CHIP 47uF 20% 16V
C1065 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1068 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1069 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1070 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1071 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1072 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C1073 1-100-012-11 ELECT CHIP 47uF 20% 50V
C1074 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1075 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C1076 1-100-554-11 ELECT CHIP 47uF 20% 6.3V
C2001 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2002 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2003 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2004 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2005 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2006 1-127-956-21 FILM CHIP 0.1uF 5% 16V
AU-260
11-2. ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in the parts
list may be different from the parts specified in
the diagrams or the components used on the
set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Items marked “*” are not stocked since they are
seldom required for routine service.
Some delay should be anticipated when ordering
these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH
• Abbreviation
CND : Canadian model
RUS : Russian model
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiquens pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
When indicating parts by reference number,
please include the board.
The components identified by mark 9 contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifiés par la marque 9 con-
tiennent des informations confidentielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé et
/ ou réparé.
11-9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
C2007 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2008 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2009 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2010 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2011 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2012 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2013 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2014 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2015 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2016 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2017 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2018 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2019 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2020 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2021 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2022 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2023 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2024 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2025 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2026 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2027 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2028 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2029 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2030 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2031 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2032 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2033 1-109-857-11 ELECT 47uF 20% 63V
C2034 1-109-857-11 ELECT 47uF 20% 63V
C2035 1-109-857-11 ELECT 47uF 20% 63V
C2036 1-109-857-11 ELECT 47uF 20% 63V
C2037 1-109-857-11 ELECT 47uF 20% 63V
C2038 1-109-857-11 ELECT 47uF 20% 63V
C2039 1-109-857-11 ELECT 47uF 20% 63V
C2040 1-109-857-11 ELECT 47uF 20% 63V
C2041 1-136-165-00 FILM 0.1uF 5% 50V
C2042 1-136-165-00 FILM 0.1uF 5% 50V
C2043 1-136-165-00 FILM 0.1uF 5% 50V
C2044 1-136-165-00 FILM 0.1uF 5% 50V
C2045 1-136-165-00 FILM 0.1uF 5% 50V
C2046 1-136-165-00 FILM 0.1uF 5% 50V
C2047 1-136-165-00 FILM 0.1uF 5% 50V
C2048 1-136-165-00 FILM 0.1uF 5% 50V
C2049 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C2050 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C2051 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C2052 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C2053 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C2054 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C2055 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C2056 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C2057 1-136-165-00 FILM 0.1uF 5% 50V
C2058 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2059 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2060 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2061 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2062 1-115-819-11 ELECT 0.0022F 20% 35V
C2065 1-135-743-11 ELECT 10uF 50V
C2066 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V
C2069 1-115-819-11 ELECT 0.0022F 20% 35V
C2070 1-115-819-11 ELECT 0.0022F 20% 35V
C2071 1-163-235-11 CERAMIC CHIP 22PF 5% 50V
C2072 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2073 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2076 1-124-698-11 ELECT 100uF 20% 25V
C2077 1-163-025-11 CERAMIC CHIP 0.001uF 50V
C2078 1-136-165-00 FILM 0.1uF 5% 50V
C2079 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V
C2083 1-124-698-11 ELECT 100uF 20% 25V
C2084 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V
C2085 1-136-165-00 FILM 0.1uF 5% 50V
C2086 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2089 1-136-165-00 FILM 0.1uF 5% 50V
C2090 1-124-698-11 ELECT 100uF 20% 25V
C2091 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2092 1-109-857-11 ELECT 47uF 20% 63V
C2093 1-136-165-00 FILM 0.1uF 5% 50V
C2094 1-136-165-00 FILM 0.1uF 5% 50V
C2095 1-109-857-11 ELECT 47uF 20% 63V
C2096 1-109-857-11 ELECT 47uF 20% 63V
C2097 1-136-165-00 FILM 0.1uF 5% 50V
C2101 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2102 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2103 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2104 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2105 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2106 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2109 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2110 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C2111 1-135-743-11 ELECT 10uF 50V
C2112 1-100-388-21 ELECT CHIP 39uF 20% 16V
C2113 1-136-165-00 FILM 0.1uF 5% 50V
C2115 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2117 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C2118 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V
C2119 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V
C2120 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V
C2121 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V
C2122 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V
C2123 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2124 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2125 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2126 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2127 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2128 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2129 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2130 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2131 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2132 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2133 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2134 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2135 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2136 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2137 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2138 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2139 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2140 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2141 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2142 1-163-133-00 CERAMIC CHIP 470PF 5% 50V
C2143 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2144 1-127-956-21 FILM CHIP 0.1uF 5% 16V
AU-260
11-10
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
C2145 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2146 1-127-956-21 FILM CHIP 0.1uF 5% 16V
C2148 1-136-165-00 FILM 0.1uF 5% 50V
C2155 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C2156 1-136-165-00 FILM 0.1uF 5% 50V
< CONNECTOR >
* CN2001 1-564-241-11 PIN, CONNECTOR (3.96mm PITCH) 4P
CN2002 1-573-806-21 PIN, CONNECTOR (1.5mm) (SMD) 6P
CN2003 1-691-550-11 PIN, CONNECTOR (1.5mm) (SMD) 3P
< DIODE >
D1001 8-719-914-43 DIODE DAN202K
D1002 8-719-988-61 DIODE 1SS355TE-17
D1003 8-719-988-61 DIODE 1SS355TE-17
D2009 8-719-048-98 DIODE RB160L-40TE25
D2010 8-719-048-98 DIODE RB160L-40TE25
D2011 8-719-048-98 DIODE RB160L-40TE25
D2012 8-719-048-98 DIODE RB160L-40TE25
D2014 8-719-988-61 DIODE 1SS355TE-17
D2018 8-719-056-84 DIODE UDZ-TE-17-7.5B
D2019 8-719-083-83 DIODE UDZSNPTE-1715B
D2020 8-719-081-67 DIODE M1FM3
D2021 8-719-081-67 DIODE M1FM3
D2022 8-719-081-67 DIODE M1FM3
D2023 8-719-081-67 DIODE M1FM3
< IC >
IC1001 6-707-853-01 IC TC74LCX541FT (EKJ)
IC1002 6-707-853-01 IC TC74LCX541FT (EKJ)
IC1003 8-759-564-91 IC 74LVC08APW
IC1009 6-808-118-01 IC CS2300002-CZZR
IC2001 8-759-447-30 IC NJM2114M-TE2
IC2002 8-759-447-30 IC NJM2114M-TE2
IC2003 8-759-447-30 IC NJM2114M-TE2
IC2004 8-759-447-30 IC NJM2114M-TE2
IC2005 6-706-478-01 IC TC7SET08FU (T5RSOJF)
IC2006 8-759-566-39 IC OPA2132UA/2K5
IC2007 8-759-566-39 IC OPA2132UA/2K5
IC2009 8-759-447-30 IC NJM2114M-TE2
IC2010 8-759-656-83 IC NJM4580MD- (TE2)
IC2011 8-759-566-39 IC OPA2132UA/2K5
IC2012 8-759-701-75 IC NJM7805FA
IC2013 6-705-337-01 IC TK11150CSCL-G
IC2014 6-702-302-01 IC TK11133CSCL-G
IC2015 6-702-302-01 IC TK11133CSCL-G
IC2017 8-759-447-30 IC NJM2114M-TE2
IC2018 8-759-447-30 IC NJM2114M-TE2
IC2019 8-759-447-30 IC NJM2114M-TE2
IC2020 8-759-447-30 IC NJM2114M-TE2
IC2021 8-759-447-30 IC NJM2114M-TE2
IC2022 8-759-447-30 IC NJM2114M-TE2
IC2023 8-759-447-30 IC NJM2114M-TE2
< JACK >
J2005 1-818-096-11 JACK, PIN 1P (DIGITAL OUT (COAXIAL))
< COIL >
L2001 1-409-594-11 COIL (WITH CORE)
< TRANSISTOR >
Q1001 8-729-421-19 TRANSISTOR UN2213
Q1002 8-729-027-53 TRANSISTOR DTC124TKA-T146
Q1003 8-729-027-53 TRANSISTOR DTC124TKA-T146
Q1004 8-729-027-53 TRANSISTOR DTC124TKA-T146
Q1005 8-729-027-53 TRANSISTOR DTC124TKA-T146
Q1006 8-729-010-05 TRANSISTOR MSB709-RT1
Q1007 8-729-010-05 TRANSISTOR MSB709-RT1
Q1008 8-729-010-05 TRANSISTOR MSB709-RT1
Q1009 8-729-010-05 TRANSISTOR MSB709-RT1
Q1010 8-729-421-19 TRANSISTOR UN2213
Q1011 8-729-421-19 TRANSISTOR UN2213
Q1012 8-729-421-19 TRANSISTOR UN2213
Q1013 8-729-421-19 TRANSISTOR UN2213
Q1014 8-729-027-53 TRANSISTOR DTC124TKA-T146
Q1015 8-729-027-53 TRANSISTOR DTC124TKA-T146
Q1016 8-729-010-05 TRANSISTOR MSB709-RT1
Q1017 8-729-010-05 TRANSISTOR MSB709-RT1
Q1018 8-729-421-19 TRANSISTOR UN2213
Q1019 8-729-421-19 TRANSISTOR UN2213
Q1020 8-729-421-19 TRANSISTOR UN2213
Q2001 6-551-287-01 TRANSISTOR 2SD2704K-T146
Q2002 6-551-287-01 TRANSISTOR 2SD2704K-T146
Q2003 6-551-287-01 TRANSISTOR 2SD2704K-T146
Q2004 6-551-287-01 TRANSISTOR 2SD2704K-T146
Q2005 6-551-287-01 TRANSISTOR 2SD2704K-T146
Q2006 6-551-287-01 TRANSISTOR 2SD2704K-T146
Q2007 6-551-287-01 TRANSISTOR 2SD2704K-T146
Q2008 6-551-287-01 TRANSISTOR 2SD2704K-T146
Q2009 8-729-052-94 TRANSISTOR 2SA1930
Q2010 8-729-052-95 TRANSISTOR 2SC5171
Q2011 8-729-224-62 TRANSISTOR 2SK246-GR
Q2012 6-551-287-01 TRANSISTOR 2SD2704K-T146
Q2013 6-551-287-01 TRANSISTOR 2SD2704K-T146
Q2014 8-729-421-19 TRANSISTOR UN2213
Q2015 8-729-421-19 TRANSISTOR UN2213
Q2016 8-729-421-19 TRANSISTOR UN2213
< RESISTOR >
R1001 1-216-295-91 SHORT CHIP 0
R1002 1-216-864-11 SHORT CHIP 0
R1003 1-216-295-91 SHORT CHIP 0
R1004 1-216-810-11 METAL CHIP 120 5% 1/10W
R1005 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1006 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1007 1-216-810-11 METAL CHIP 120 5% 1/10W
R1008 1-216-809-11 METAL CHIP 100 5% 1/10W
R1009 1-216-809-11 METAL CHIP 100 5% 1/10W
R1010 1-216-809-11 METAL CHIP 100 5% 1/10W
R1011 1-216-809-11 METAL CHIP 100 5% 1/10W
R1012 1-216-809-11 METAL CHIP 100 5% 1/10W
R1013 1-216-809-11 METAL CHIP 100 5% 1/10W
R1014 1-216-809-11 METAL CHIP 100 5% 1/10W
R1015 1-216-809-11 METAL CHIP 100 5% 1/10W
R1016 1-216-809-11 METAL CHIP 100 5% 1/10W
R1017 1-216-810-11 METAL CHIP 120 5% 1/10W
R1018 1-216-809-11 METAL CHIP 100 5% 1/10W
R1019 1-216-809-11 METAL CHIP 100 5% 1/10W
R1020 1-216-809-11 METAL CHIP 100 5% 1/10W
AU-260
11-11
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
R1021 1-216-809-11 METAL CHIP 100 5% 1/10W
R1022 1-216-864-11 SHORT CHIP 0
R1023 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1024 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1025 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1026 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1027 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1028 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1029 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1030 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1031 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1032 1-216-810-11 METAL CHIP 120 5% 1/10W
R1033 1-216-810-11 METAL CHIP 120 5% 1/10W
R1034 1-216-810-11 METAL CHIP 120 5% 1/10W
R1035 1-216-809-11 METAL CHIP 100 5% 1/10W
R1036 1-216-807-11 METAL CHIP 68 5% 1/10W
R1037 1-216-805-11 METAL CHIP 47 5% 1/10W
R1038 1-216-805-11 METAL CHIP 47 5% 1/10W
R1040 1-216-805-11 METAL CHIP 47 5% 1/10W
R1041 1-216-805-11 METAL CHIP 47 5% 1/10W
R1042 1-216-805-11 METAL CHIP 47 5% 1/10W
R1043 1-216-810-11 METAL CHIP 120 5% 1/10W
R1044 1-216-810-11 METAL CHIP 120 5% 1/10W
R1045 1-216-810-11 METAL CHIP 120 5% 1/10W
R1046 1-216-810-11 METAL CHIP 120 5% 1/10W
R1047 1-216-805-11 METAL CHIP 47 5% 1/10W
R1048 1-216-864-11 SHORT CHIP 0
R1049 1-216-864-11 SHORT CHIP 0
R1050 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1051 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1052 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1053 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1059 1-216-810-11 METAL CHIP 120 5% 1/10W
R1060 1-216-810-11 METAL CHIP 120 5% 1/10W
R1061 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1062 1-216-809-11 METAL CHIP 100 5% 1/10W
R1063 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1064 1-216-295-91 SHORT CHIP 0
R1065 1-216-864-11 SHORT CHIP 0
R1066 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R1067 1-218-835-11 METAL CHIP 330 0.5% 1/10W
R1068 1-216-807-11 METAL CHIP 68 5% 1/10W
R1069 1-216-807-11 METAL CHIP 68 5% 1/10W
R1070 1-216-805-11 METAL CHIP 47 5% 1/10W
R1071 1-216-805-11 METAL CHIP 47 5% 1/10W
R1072 1-216-805-11 METAL CHIP 47 5% 1/10W
R1073 1-216-805-11 METAL CHIP 47 5% 1/10W
R1074 1-216-805-11 METAL CHIP 47 5% 1/10W
R1075 1-216-805-11 METAL CHIP 47 5% 1/10W
R1076 1-216-807-11 METAL CHIP 68 5% 1/10W
R1077 1-216-807-11 METAL CHIP 68 5% 1/10W
R1078 1-216-805-11 METAL CHIP 47 5% 1/10W
R1079 1-216-805-11 METAL CHIP 47 5% 1/10W
R1080 1-216-805-11 METAL CHIP 47 5% 1/10W
R1081 1-216-805-11 METAL CHIP 47 5% 1/10W
R1082 1-216-805-11 METAL CHIP 47 5% 1/10W
R1083 1-216-805-11 METAL CHIP 47 5% 1/10W
R1084 1-216-807-11 METAL CHIP 68 5% 1/10W
R1086 1-216-805-11 METAL CHIP 47 5% 1/10W
R1088 1-216-805-11 METAL CHIP 47 5% 1/10W
R1090 1-216-805-11 METAL CHIP 47 5% 1/10W
R1092 1-218-835-11 METAL CHIP 330 0.5% 1/10W
R1093 1-218-835-11 METAL CHIP 330 0.5% 1/10W
R1094 1-218-835-11 METAL CHIP 330 0.5% 1/10W
R1096 1-216-864-11 SHORT CHIP 0
R1097 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1100 1-216-807-11 METAL CHIP 68 5% 1/10W
R1101 1-216-805-11 METAL CHIP 47 5% 1/10W
R1102 1-216-805-11 METAL CHIP 47 5% 1/10W
R1103 1-216-805-11 METAL CHIP 47 5% 1/10W
R1104 1-216-809-11 METAL CHIP 100 5% 1/10W
R1105 1-216-809-11 METAL CHIP 100 5% 1/10W
R1106 1-216-809-11 METAL CHIP 100 5% 1/10W
R1107 1-216-809-11 METAL CHIP 100 5% 1/10W
R1109 1-216-801-11 METAL CHIP 22 5% 1/10W
R1111 1-216-809-11 METAL CHIP 100 5% 1/10W
R1112 1-216-809-11 METAL CHIP 100 5% 1/10W
R1113 1-216-809-11 METAL CHIP 100 5% 1/10W
R1114 1-216-809-11 METAL CHIP 100 5% 1/10W
R1115 1-216-809-11 METAL CHIP 100 5% 1/10W
R1116 1-216-809-11 METAL CHIP 100 5% 1/10W
R1117 1-216-809-11 METAL CHIP 100 5% 1/10W
R1118 1-216-809-11 METAL CHIP 100 5% 1/10W
R1119 1-216-864-11 SHORT CHIP 0
R1120 1-216-864-11 SHORT CHIP 0
R1125 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1130 1-218-835-11 METAL CHIP 330 0.5% 1/10W
R1131 1-216-837-11 METAL CHIP 22K 5% 1/10W
R2009 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2010 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2011 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2012 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2013 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2014 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2015 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2016 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2017 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2018 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2019 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2020 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2021 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2022 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2023 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2024 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2025 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2026 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2027 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2028 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2029 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2030 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2031 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2032 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2033 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2034 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2035 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2036 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2037 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2038 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2039 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2040 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
AU-260
11-12
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
R2041 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2042 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2043 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2044 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2045 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2046 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2047 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2048 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2049 1-218-839-11 METAL CHIP 470 0.5% 1/10W
R2050 1-218-839-11 METAL CHIP 470 0.5% 1/10W
R2051 1-218-839-11 METAL CHIP 470 0.5% 1/10W
R2052 1-218-839-11 METAL CHIP 470 0.5% 1/10W
R2053 1-218-839-11 METAL CHIP 470 0.5% 1/10W
R2054 1-218-839-11 METAL CHIP 470 0.5% 1/10W
R2055 1-218-839-11 METAL CHIP 470 0.5% 1/10W
R2056 1-218-839-11 METAL CHIP 470 0.5% 1/10W
R2057 1-218-732-11 METAL CHIP 47K 0.5% 1/10W
R2058 1-218-732-11 METAL CHIP 47K 0.5% 1/10W
R2059 1-218-732-11 METAL CHIP 47K 0.5% 1/10W
R2060 1-218-732-11 METAL CHIP 47K 0.5% 1/10W
R2061 1-218-732-11 METAL CHIP 47K 0.5% 1/10W
R2062 1-218-732-11 METAL CHIP 47K 0.5% 1/10W
R2063 1-218-732-11 METAL CHIP 47K 0.5% 1/10W
R2064 1-218-732-11 METAL CHIP 47K 0.5% 1/10W
R2065 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2066 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2067 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2068 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2069 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2070 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2071 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2072 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R2073 1-216-845-11 METAL CHIP 100K 5% 1/10W
R2074 1-216-845-11 METAL CHIP 100K 5% 1/10W
R2075 1-216-845-11 METAL CHIP 100K 5% 1/10W
R2076 1-216-845-11 METAL CHIP 100K 5% 1/10W
R2077 1-216-809-11 METAL CHIP 100 5% 1/10W
R2078 1-216-809-11 METAL CHIP 100 5% 1/10W
R2079 1-216-809-11 METAL CHIP 100 5% 1/10W
R2080 1-216-809-11 METAL CHIP 100 5% 1/10W
R2081 1-216-809-11 METAL CHIP 100 5% 1/10W
R2082 1-216-809-11 METAL CHIP 100 5% 1/10W
R2083 1-216-809-11 METAL CHIP 100 5% 1/10W
R2084 1-216-809-11 METAL CHIP 100 5% 1/10W
R2085 1-216-295-91 SHORT CHIP 0
R2086 1-216-295-91 SHORT CHIP 0
R2087 1-216-295-91 SHORT CHIP 0
R2088 1-216-295-91 SHORT CHIP 0
R2090 1-216-864-11 SHORT CHIP 0
R2091 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2092 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2093 1-216-864-11 SHORT CHIP 0
R2095 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2096 1-218-688-11 METAL CHIP 680 0.5% 1/10W
R2098 1-216-813-11 METAL CHIP 220 5% 1/10W
R2099 1-216-089-91 METAL CHIP 47K 5% 1/10W
R2100 1-216-089-91 METAL CHIP 47K 5% 1/10W
R2101 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2102 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2103 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2104 1-218-692-11 METAL CHIP 1K 0.5% 1/10W
R2105 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2106 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2107 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2108 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2109 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2110 1-216-061-91 METAL CHIP 3.3K 5% 1/10W
R2111 1-216-025-11 METAL CHIP 100 5% 1/10W
R2112 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2113 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2114 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2115 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2116 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2117 1-216-807-11 METAL CHIP 68 5% 1/10W
R2118 1-216-061-91 METAL CHIP 3.3K 5% 1/10W
R2119 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2120 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2121 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2122 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2123 1-216-025-11 METAL CHIP 100 5% 1/10W
R2124 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2125 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2126 1-216-025-11 METAL CHIP 100 5% 1/10W
R2127 1-216-689-11 METAL CHIP 39K 0.5% 1/10W
R2128 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2129 1-218-684-11 METAL CHIP 470 0.5% 1/10W
R2130 1-218-684-11 METAL CHIP 470 0.5% 1/10W
R2131 1-216-864-11 SHORT CHIP 0
R2132 1-216-864-11 SHORT CHIP 0
R2133 1-216-864-11 SHORT CHIP 0
R2134 1-218-732-11 METAL CHIP 47K 0.5% 1/10W
R2135 1-218-732-11 METAL CHIP 47K 0.5% 1/10W
R2136 1-216-845-11 METAL CHIP 100K 5% 1/10W
R2137 1-216-845-11 METAL CHIP 100K 5% 1/10W
R2138 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2139 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2140 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2141 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R2142 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R2143 1-216-809-11 METAL CHIP 100 5% 1/10W
R2144 1-216-809-11 METAL CHIP 100 5% 1/10W
R2147 1-216-295-91 SHORT CHIP 0
R2148 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2149 1-216-811-11 METAL CHIP 150 5% 1/10W
R2151 1-216-805-11 METAL CHIP 47 5% 1/10W
R2152 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2153 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2154 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2155 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2156 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2157 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2158 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2159 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2160 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2161 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2162 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2163 1-218-694-11 METAL CHIP 1.2K 0.5% 1/10W
R2166 1-216-864-11 SHORT CHIP 0
R2168 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2169 1-216-833-11 METAL CHIP 10K 5% 1/10W
AU-260
11-13
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
R2170 1-216-841-11 METAL CHIP 47K 5% 1/10W
R2171 1-216-864-11 SHORT CHIP 0
R2173 1-216-841-11 METAL CHIP 47K 5% 1/10W
R2174 1-216-295-91 SHORT CHIP 0
R2175 1-216-295-91 SHORT CHIP 0
ET-001 BOARD
************
(Ref. No. 30,000 Series)
< CAPACITOR >
C1601 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
< CONNECTOR >
* CN1601 1-695-320-21 PIN, CONNECTOR (1.5mm) (SMD) 2P
CN1602 1-815-920-11 JACK, MODULAR
CN1603 1-815-920-11 JACK, MODULAR (LAN (100))
< JACK >
J1601 1-764-188-31 JACK (SMALL TYPE) (DIA. 3.5)
(CONTROL S IN/IR IN)
< RESISTOR >
R1601 1-216-295-91 SHORT CHIP 0
R1602 1-216-033-00 METAL CHIP 220 5% 1/10W
R1603 1-216-821-11 METAL CHIP 1K 5% 1/10W
A-1567-806-A FC-095 BOARD, COMPLETE
**********************
(Ref. No. 20,000 Series)
< CAPACITOR >
C201 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C203 1-125-972-91 ELECT 100uF 20% 16V
C204 1-124-589-11 ELECT 47uF 20% 16V
C205 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C211 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C212 1-128-131-11 ELECT 22uF 20% 50V
C213 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C214 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C215 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C216 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V
C217 1-164-217-11 CERAMIC CHIP 150PF 5% 50V
C218 1-164-217-11 CERAMIC CHIP 150PF 5% 50V
C220 1-164-217-11 CERAMIC CHIP 150PF 5% 50V
< CONNECTOR >
CN202 1-817-199-51 CONNECTOR, FFC/FPC 9P
< DIODE >
D201 8-719-988-61 DIODE 1SS355TE-17
D202 8-719-988-61 DIODE 1SS355TE-17
D203 8-719-988-61 DIODE 1SS355TE-17
D204 8-719-988-61 DIODE 1SS355TE-17
D205 6-500-021-01 DIODE MM3Z4V7ST1
< IC >
IC202 6-701-729-01 IC PT6315
< COIL >
L201 1-408-615-31 INDUCTOR 100uH
< FLUORESCENT INDICATOR TUBE >
ND201 1-483-037-11 INDICATOR TUBE, FLUORESCENT
< IC LINK >
0 PS201 1-576-122-21 IC LINK 0.4A 72V
< TRANSISTOR >
Q201 8-729-421-22 TRANSISTOR UN2211
Q202 8-729-904-87 TRANSISTOR 2SB1197K-R
Q204 8-729-901-88 TRANSISTOR 2SC2411K-CR
Q205 8-729-901-88 TRANSISTOR 2SC2411K-CR
< RESISTOR >
R201 1-216-833-11 METAL CHIP 10K 5% 1/10W
R202 1-216-805-11 METAL CHIP 47 5% 1/10W
R204 1-216-817-11 METAL CHIP 470 5% 1/10W
R206 1-216-828-11 METAL CHIP 3.9K 5% 1/10W
R208 1-216-864-11 SHORT CHIP 0
R210 1-216-838-11 METAL CHIP 27K 5% 1/10W
R211 1-216-845-11 METAL CHIP 100K 5% 1/10W
< TRANSFORMER >
T201 1-445-457-11 TRANSFORMER D.C.-D.C.CONVERTER
A-1567-810-A FL-186 BOARD, COMPLETE
**********************
(Ref. No. 20,000 Series)
< CONNECTOR >
CN331 1-817-201-51 CONNECTOR, FFC/FPC 9P
< DIODE >
* D331 6-501-884-01 DIODE SDPB31H3C0100 (HD AUDIO)
* D332 6-501-884-01 DIODE SDPB31H3C0100 (24P)
* D333 6-501-884-01 DIODE SDPB31H3C0100 (SBM)
< TRANSISTOR >
Q331 8-729-028-97 TRANSISTOR DTC114TUA-T106
Q332 8-729-028-97 TRANSISTOR DTC114TUA-T106
Q333 8-729-028-97 TRANSISTOR DTC114TUA-T106
< RESISTOR >
R331 1-216-817-11 METAL CHIP 470 5% 1/10W
R332 1-216-817-11 METAL CHIP 470 5% 1/10W
R333 1-216-817-11 METAL CHIP 470 5% 1/10W
< SWITCH >
S331 1-762-875-21 SWITCH, KEYBOARD (l/1)
FL-186AU-260 ET-001 FC-095
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
11-14
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
A-1567-808-A FR-292 BOARD, COMPLETE
**********************
(Ref. No. 30,000 Series)
< CAPACITOR >
C361 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
< CONNECTOR >
CN361 1-794-707-51 CONNECTOR, FFC/FPC 25P
CN362 1-750-194-11 CONNECTOR, BOARD TO BOARD 4P
CN364 1-785-372-51 CONNECTOR, FFC/FPC 19P
< TRANSISTOR >
Q361 8-729-901-88 TRANSISTOR 2SC2411K-CR
Q362 8-729-920-85 TRANSISTOR 2SD1664-QR
Q363 8-729-028-97 TRANSISTOR DTC114TUA-T106
Q364 8-729-028-97 TRANSISTOR DTC114TUA-T106
< RESISTOR >
R361 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R362 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R363 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R364 1-216-833-11 METAL CHIP 10K 5% 1/10W
R365 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
< SWITCH >
S361 1-762-875-21 SWITCH, KEYBOARD (A)
S362 1-762-875-21 SWITCH, KEYBOARD (X)
S363 1-762-875-21 SWITCH, KEYBOARD (x)
S364 1-762-875-21 SWITCH, KEYBOARD (N)
A-1567-812-A FS-089 BOARD, COMPLETE
**********************
(Ref. No. 40,000 Series)
< CONNECTOR >
CN301 1-750-185-11 CONNECTOR, BOARD TO BOARD 4P
< DIODE >
D301 8-719-046-41 DIODE SEL5521C-TP15 (N)
D302 8-719-046-39 DIODE SEL5821A-TP15 (X)
< RESISTOR >
R301 1-216-815-11 METAL CHIP 330 5% 1/10W
R302 1-216-815-11 METAL CHIP 330 5% 1/10W
A-1567-814-A FT-094 BOARD, COMPLETE
**********************
(Ref. No. 50,000 Series)
< DIODE >
* D351 6-501-546-11 DIODE NSPW-310BST-A0S
(DISC TRAY ILLUMINATION)
* D352 6-501-546-11 DIODE NSPW-310BST-A0S
(DISC TRAY ILLUMINATION)
* D353 6-501-546-11 DIODE NSPW-310BST-A0S
(DISC TRAY ILLUMINATION)
< RESISTOR >
R351 1-216-817-11 METAL CHIP 470 5% 1/10W
R352 1-216-817-11 METAL CHIP 470 5% 1/10W
R353 1-216-812-11 METAL CHIP 180 5% 1/10W
A-1567-804-A IFD-002 BOARD, COMPLETE
***********************
(Ref. No. 30,000 Series)
< CAPACITOR >
C101 1-100-672-11 CERAMIC CHIP 10uF 20% 16V
C103 1-100-717-91 CERAMIC CHIP 1uF 16V
C104 1-100-672-11 CERAMIC CHIP 10uF 20% 16V
C105 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C107 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C108 1-100-717-91 CERAMIC CHIP 1uF 16V
C109 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C110 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C113 1-114-332-11 CERAMIC CHIP 22uF 10% 6.3V
C119 1-100-672-11 CERAMIC CHIP 10uF 20% 16V
C121 1-100-672-11 CERAMIC CHIP 10uF 20% 16V
C122 1-127-820-11 CERAMIC CHIP 4.7uF 10% 16V
C124 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C126 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C127 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C128 1-100-159-91 CERAMIC CHIP 22uF 10% 6.3V
C130 1-100-159-91 CERAMIC CHIP 22uF 10% 6.3V
C131 1-100-159-91 CERAMIC CHIP 22uF 10% 6.3V
C132 1-100-159-91 CERAMIC CHIP 22uF 10% 6.3V
C133 1-127-820-11 CERAMIC CHIP 4.7uF 10% 16V
C401 1-162-968-11 CERAMIC CHIP 0.0047uF 5% 50V
C403 1-162-920-11 CERAMIC CHIP 27PF 5% 50V
C404 1-162-918-11 CERAMIC CHIP 18PF 5% 50V
C405 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C406 1-137-765-21 ELECT CHIP 47uF 20% 16V
C409 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C410 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C411 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C412 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C413 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C414 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C415 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C416 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C417 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C418 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C501 1-100-591-91 CERAMIC CHIP 1uF 10% 25V
C503 1-100-591-91 CERAMIC CHIP 1uF 10% 25V
< CONNECTOR >
CN101 1-815-954-21 PIN, CONNECTOR (PC BOARD) 13P
CN102 1-816-587-21 PIN, CONNECTOR (PC BOARD) 15P
CN402 1-764-177-11 PIN, CONNECTOR (SMD) (1.5mm) 7P
CN501 1-573-806-21 PIN, CONNECTOR (1.5mm) (SMD) 6P
CN502 1-573-806-21 PIN, CONNECTOR (1.5mm) (SMD) 6P
CN503 1-820-117-51 CONNECTOR, FFC/FPC 19P
CN504 1-820-123-41 CONNECTOR, FFC/FPC 25P
< IC >
IC101 6-702-302-01 IC TK11133CSCL-G
FT-094FR-292 FS-089 IFD-002
11-15
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
IC102 6-711-586-01 IC MP2303DN-LF-Z
IC103 6-711-586-01 IC MP2303DN-LF-Z
IC104 6-711-050-01 IC S-1170B50UC-OUJTFG
IC402 6-808-335-01 IC R5F212A7SNA05FA
IC501 6-708-762-01 IC PQ200WNA1ZPH
< IC LINK >
PS101 1-576-124-11 IC LINK 1A 72V
PS102 1-576-124-11 IC LINK 1A 72V
PS103 1-576-398-21 IC LINK 2.5A 72V
PS501 1-576-124-11 IC LINK 1A 72V
< TRANSISTOR >
Q101 6-551-456-01 TRANSISTOR RTR020P02TL
Q102 8-729-029-14 TRANSISTOR DTC144EUA-T106
Q103 8-729-029-14 TRANSISTOR DTC144EUA-T106
Q104 8-729-028-97 TRANSISTOR DTC114TUA-T106
Q402 8-729-424-18 TRANSISTOR UN2113
Q403 8-729-424-02 TRANSISTOR 2SB709A-QRS-TX
Q404 8-729-421-19 TRANSISTOR UN2213
Q405 8-729-421-19 TRANSISTOR UN2213
Q501 8-729-421-19 TRANSISTOR UN2213
Q503 8-729-421-19 TRANSISTOR UN2213
< RESISTOR >
R101 1-216-821-11 METAL CHIP 1K 5% 1/10W
R102 1-216-864-11 SHORT CHIP 0
R103 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R104 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R105 1-216-821-11 METAL CHIP 1K 5% 1/10W
R106 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R107 1-216-815-11 METAL CHIP 330 5% 1/10W
R109 1-216-815-11 METAL CHIP 330 5% 1/10W
R111 1-216-815-11 METAL CHIP 330 5% 1/10W
R115 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R116 1-216-821-11 METAL CHIP 1K 5% 1/10W
R117 1-216-821-11 METAL CHIP 1K 5% 1/10W
R119 1-216-833-11 METAL CHIP 10K 5% 1/10W
R121 1-216-833-11 METAL CHIP 10K 5% 1/10W
R122 1-216-821-11 METAL CHIP 1K 5% 1/10W
R123 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R124 1-216-821-11 METAL CHIP 1K 5% 1/10W
R125 1-216-864-11 SHORT CHIP 0
R126 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R127 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R128 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R129 1-216-864-11 SHORT CHIP 0
R130 1-216-295-91 SHORT CHIP 0
R131 1-216-841-11 METAL CHIP 47K 5% 1/10W
R132 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R401 1-216-845-11 METAL CHIP 100K 5% 1/10W
R402 1-216-845-11 METAL CHIP 100K 5% 1/10W
R403 1-216-845-11 METAL CHIP 100K 5% 1/10W
R404 1-216-845-11 METAL CHIP 100K 5% 1/10W
R405 1-216-864-11 SHORT CHIP 0
R406 1-216-833-11 METAL CHIP 10K 5% 1/10W
R407 1-218-881-11 METAL CHIP 27K 0.5% 1/10W
R408 1-216-849-11 METAL CHIP 220K 5% 1/10W
R409 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R410 1-216-837-11 METAL CHIP 22K 5% 1/10W
R411 1-216-809-11 METAL CHIP 100 5% 1/10W
R412 1-216-809-11 METAL CHIP 100 5% 1/10W
R414 1-216-809-11 METAL CHIP 100 5% 1/10W
R415 1-216-809-11 METAL CHIP 100 5% 1/10W
R416 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R417 1-216-809-11 METAL CHIP 100 5% 1/10W
R418 1-216-845-11 METAL CHIP 100K 5% 1/10W
R419 1-216-809-11 METAL CHIP 100 5% 1/10W
R420 1-216-864-11 SHORT CHIP 0
R422 1-216-864-11 SHORT CHIP 0
R423 1-216-809-11 METAL CHIP 100 5% 1/10W
R426 1-216-809-11 METAL CHIP 100 5% 1/10W
R427 1-216-833-11 METAL CHIP 10K 5% 1/10W
R428 1-216-833-11 METAL CHIP 10K 5% 1/10W
R429 1-216-822-11 METAL CHIP 1.2K 5% 1/10W
R430 1-216-817-11 METAL CHIP 470 5% 1/10W
R431 1-216-864-11 SHORT CHIP 0
R432 1-216-809-11 METAL CHIP 100 5% 1/10W
R433 1-216-841-11 METAL CHIP 47K 5% 1/10W
R434 1-216-821-11 METAL CHIP 1K 5% 1/10W
R435 1-216-845-11 METAL CHIP 100K 5% 1/10W
R437 1-216-864-11 SHORT CHIP 0
R438 1-126-853-91 METAL CHIP 470K 5% 1/10W
R439 1-216-833-11 METAL CHIP 10K 5% 1/10W
R440 1-216-833-11 METAL CHIP 10K 5% 1/10W
R442 1-216-845-11 METAL CHIP 100K 5% 1/10W
R445 1-216-845-11 METAL CHIP 100K 5% 1/10W
R448 1-216-809-11 METAL CHIP 100 5% 1/10W
R449 1-216-809-11 METAL CHIP 100 5% 1/10W
R450 1-218-857-11 METAL CHIP 2.7K 0.5% 1/10W
R451 1-216-864-11 SHORT CHIP 0
R452 1-216-845-11 METAL CHIP 100K 5% 1/10W
R453 1-216-845-11 METAL CHIP 100K 5% 1/10W
R454 1-216-864-11 SHORT CHIP 0
R455 1-216-845-11 METAL CHIP 100K 5% 1/10W
R457 1-216-817-11 METAL CHIP 470 5% 1/10W
R458 1-216-864-11 SHORT CHIP 0
R461 1-216-809-11 METAL CHIP 100 5% 1/10W
R462 1-216-809-11 METAL CHIP 100 5% 1/10W
R463 1-216-809-11 METAL CHIP 100 5% 1/10W
R464 1-216-809-11 METAL CHIP 100 5% 1/10W
R465 1-216-833-11 METAL CHIP 10K 5% 1/10W
R466 1-216-833-11 METAL CHIP 10K 5% 1/10W
R467 1-216-833-11 METAL CHIP 10K 5% 1/10W
R468 1-216-833-11 METAL CHIP 10K 5% 1/10W
R469 1-216-833-11 METAL CHIP 10K 5% 1/10W
R470 1-216-845-11 METAL CHIP 100K 5% 1/10W
R471 1-216-845-11 METAL CHIP 100K 5% 1/10W
R472 1-216-849-11 METAL CHIP 220K 5% 1/10W
R474 1-216-833-11 METAL CHIP 10K 5% 1/10W
R501 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R502 1-218-854-11 METAL CHIP 2K 0.5% 1/10W
R503 1-218-845-11 METAL CHIP 820 0.5% 1/10W
R504 1-218-849-11 METAL CHIP 1.2K 0.5% 1/10W
R511 1-216-821-11 METAL CHIP 1K 5% 1/10W
The components identified by mark
or dotted line with mark are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
IFD-002
11-16
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
R516 1-216-864-11 SHORT CHIP 0
R517 1-216-864-11 SHORT CHIP 0
< SWITCH >
S402 1-786-675-11 TACTILE SWITCH (RESET)
< VIBRATOR >
X401 1-579-463-11 VIBRATOR, CRYSTAL (32.768kHz)
X402 1-795-244-11 VIBRATOR, CERAMIC (10MHz)
A-1567-836-A MB-124 BOARD, COMPLETE (US, CND)
A-1567-838-A MB-124 BOARD, COMPLETE (AEP, UK)
A-1567-842-A MB-124 BOARD, COMPLETE (RUS)
**********************
(Ref. No. 10,000 Series)
7-682-546-04 +B 3X5
< CAPACITOR >
C101 1-100-909-11 CERAMIC CHIP 10uF 10% 6.3V
C102 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C103 1-100-909-11 CERAMIC CHIP 10uF 10% 6.3V
C104 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C105 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C106 1-100-909-11 CERAMIC CHIP 10uF 10% 6.3V
C107 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C108 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C109 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C110 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C111 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C112 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C113 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C114 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C115 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C116 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C117 1-100-909-11 CERAMIC CHIP 10uF 10% 6.3V
C118 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C119 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C120 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C121 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C122 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C123 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V
C124 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C125 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C126 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C127 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C128 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C129 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C130 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C131 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C132 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C133 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C134 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C135 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C136 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C137 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C138 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C140 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C141 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V
C142 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C143 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C144 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C145 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C146 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C147 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C148 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C149 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C150 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C151 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C152 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C153 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C154 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C155 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C156 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C158 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C159 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C160 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C161 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C162 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C163 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C164 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C166 1-100-909-11 CERAMIC CHIP 10uF 10% 6.3V
C168 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C169 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C170 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C171 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C172 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C173 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C175 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C176 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C178 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C179 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C180 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C201 1-100-909-11 CERAMIC CHIP 10uF 10% 6.3V
C202 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C203 1-100-909-11 CERAMIC CHIP 10uF 10% 6.3V
C204 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C205 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C207 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C208 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C209 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C210 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C211 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C212 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C213 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C214 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C215 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C216 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C217 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C218 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C219 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C220 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C221 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C222 1-100-909-11 CERAMIC CHIP 10uF 10% 6.3V
C223 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V
C224 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C225 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C226 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C227 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C228 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
MB-124IFD-002
11-17
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
C229 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C230 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C231 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C232 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C233 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C234 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C235 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C236 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C237 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C238 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C240 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C241 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V
C242 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C243 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C244 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C245 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C246 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C247 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C248 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C249 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C250 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C251 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C252 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C253 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C254 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C255 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C256 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C258 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C259 1-100-909-11 CERAMIC CHIP 10uF 10% 6.3V
C261 1-100-909-11 CERAMIC CHIP 10uF 10% 6.3V
C262 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C263 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C264 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C265 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C266 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C267 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C269 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C270 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C272 1-112-717-91 CERAMIC CHIP 1uF 10% 6.3V
C273 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C276 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C277 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C301 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C302 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C303 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C304 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C305 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C306 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C313 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C314 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C315 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C316 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C317 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C340 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V
C344 1-164-870-11 CERAMIC CHIP 68PF 5% 50V
C345 1-127-772-81 CERAMIC CHIP 0.033uF 10% 10V
C346 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
* C347 1-112-833-11 ELECT CHIP 68uF 20% 16V
C349 1-127-738-91 CERAMIC CHIP 4.7uF 10% 25V
C350 1-127-738-91 CERAMIC CHIP 4.7uF 10% 25V
C351 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C352 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V
C353 1-127-738-91 CERAMIC CHIP 4.7uF 10% 25V
C354 1-127-738-91 CERAMIC CHIP 4.7uF 10% 25V
C355 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C356 1-127-573-11 CERAMIC CHIP 1uF 10% 16V
C357 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C358 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C361 1-100-159-91 CERAMIC CHIP 22uF 10% 6.3V
C362 1-112-786-11 ELECT CHIP 330uF 20% 4V
C363 1-100-159-91 CERAMIC CHIP 22uF 10% 6.3V
C364 1-112-786-11 ELECT CHIP 330uF 20% 4V
C365 1-100-159-91 CERAMIC CHIP 22uF 10% 6.3V
C366 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C367 1-100-159-91 CERAMIC CHIP 22uF 10% 6.3V
C368 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C371 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C372 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C374 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C375 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C401 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C402 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C403 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C404 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C405 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C406 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C407 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C408 1-164-846-11 CERAMIC CHIP 6PF 0.5PF 50V
C409 1-164-846-11 CERAMIC CHIP 6PF 0.5PF 50V
C410 1-100-909-11 CERAMIC CHIP 10uF 10% 6.3V
C411 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C412 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C413 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C414 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C415 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C420 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C421 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C422 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C423 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C424 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C425 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C426 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C427 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C428 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C429 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C430 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C431 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C501 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C502 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C503 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C504 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C505 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C506 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C507 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C508 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C509 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C510 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C511 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C513 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C514 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
MB-124
11-18
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
C517 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C600 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C601 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C602 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C603 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C604 1-128-993-21 ELECT CHIP 22uF 20% 10V
C606 1-165-646-91 CERAMIC CHIP 3.3uF 10% 10V
C607 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C608 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C610 1-128-394-11 ELECT CHIP 220uF 20% 10V
C611 1-100-966-91 CERAMIC CHIP 10uF 20% 10V
C613 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C614 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C615 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C616 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C617 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C618 1-164-844-11 CERAMIC CHIP 4PF 0.25PF 50V
C619 1-164-844-11 CERAMIC CHIP 4PF 0.25PF 50V
C623 1-128-993-21 ELECT CHIP 22uF 20% 10V
C625 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C626 1-164-848-11 CERAMIC CHIP 8PF 0.5PF 50V
C627 1-164-848-11 CERAMIC CHIP 8PF 0.5PF 50V
C628 1-128-993-21 ELECT CHIP 22uF 20% 10V
C629 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C630 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C631 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C632 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C633 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C634 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C635 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C636 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C637 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C638 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C639 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C640 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C641 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C642 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C643 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C644 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C645 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C646 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C700 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C701 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C703 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C704 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C705 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C706 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C708 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C711 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C712 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C713 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C714 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C715 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C716 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C718 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C719 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C720 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C721 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V
C722 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C724 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C725 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C726 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C728 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C729 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C730 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V
C731 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V
C732 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C733 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C734 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C735 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C736 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C737 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C738 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C740 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C742 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C743 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C744 1-165-887-91 CERAMIC CHIP 0.22uF 10% 6.3V
C745 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C746 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V
C754 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C755 1-124-778-00 ELECT CHIP 22uF 20% 6.3V
C756 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C757 1-107-820-11 CERAMIC CHIP 0.1uF 16V
C762 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C803 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C805 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C806 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C807 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C808 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C810 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C811 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C812 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C813 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C820 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C822 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C824 1-165-908-11 CERAMIC CHIP 1uF 10% 10V
C901 1-137-710-91 CERAMIC CHIP 10uF 20% 6.3V
C902 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C903 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C904 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C905 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C906 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C907 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C908 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C909 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C910 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C915 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C917 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C8001 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
C8006 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C8007 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C8008 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C8009 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C8010 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C8011 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C8012 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C8013 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V
C8014 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C8015 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C8016 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
MB-124
11-19
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
C8017 1-137-710-91 CERAMIC CHIP 10uF 20% 6.3V
C8018 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C8019 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C8020 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
< CONNECTOR >
CN301 1-816-587-21 PIN, CONNECTOR (PC BOARD) 15P
CN700 1-819-876-21 CONNECTOR, SATA SMT (7P)
CN904 1-820-117-51 CONNECTOR, FFC/FPC 19P
CN905 1-573-806-21 PIN, CONNECTOR (1.5mm) (SMD) 6P
* CN7001 1-817-717-61 CONNECTOR, BOARD TO BOARD 80P
CN8001 1-819-875-21 ETHERNET CONNECTOR (8P)
< DIODE >
D301 8-719-081-67 DIODE M1FM3
D303 6-500-294-01 DIODE PTZ-TE25-3.9B
D304 6-500-294-01 DIODE PTZ-TE25-3.9B
D600 8-719-988-61 DIODE 1SS355TE-17
D601 6-500-701-01 DIODE PGB1010603NR
D602 6-500-701-01 DIODE PGB1010603NR
< FERRITE BEAD >
FB8001 1-469-324-21 FERRITE, EMI (SMD) (2012)
FB8002 1-469-324-21 FERRITE, EMI (SMD) (2012)
< FILTER >
FL101 1-234-177-21 FILTER, CHIP EMI
FL201 1-234-177-21 FILTER, CHIP EMI
FL303 1-234-986-11 FILTER, EMI REMOVAL (1608SMD)
FL304 1-234-986-11 FILTER, EMI REMOVAL (1608SMD)
FL305 1-234-986-11 FILTER, EMI REMOVAL (1608SMD)
FL306 1-234-986-11 FILTER, EMI REMOVAL (1608SMD)
FL307 1-234-986-11 FILTER, EMI REMOVAL (1608SMD)
FL308 1-234-986-11 FILTER, EMI REMOVAL (1608SMD)
FL309 1-234-986-11 FILTER, EMI REMOVAL (1608SMD)
FL310 1-234-986-11 FILTER, EMI REMOVAL (1608SMD)
FL400 1-234-177-21 FILTER, CHIP EMI
FL600 1-234-867-11 FILTER, EMI REMOVAL (SMD)
FL701 1-400-874-11 FILTER, EMI REMOVAL (SMD)
FL702 1-400-874-11 FILTER, EMI REMOVAL (SMD)
< IC >
IC303 6-709-703-01 IC MM3141JNRE
IC304 6-705-337-01 IC TK11150CSCL-G
IC309 6-710-949-01 IC SN0608006PWPR
IC310 6-710-949-01 IC SN0608006PWPR
IC703 6-702-302-01 IC TK11133CSCL-G
IC803 6-702-302-01 IC TK11133CSCL-G
IC901 8-759-598-44 IC TC7WH08FK (TE85R)
< COIL >
L600 1-400-180-21 INDUCTOR, EMI FERRITE (1608)
L601 1-400-180-21 INDUCTOR, EMI FERRITE (1608)
L602 1-400-180-21 INDUCTOR, EMI FERRITE (1608)
* L603 1-813-308-11 COMMON MODE CHOKE
L700 1-469-552-21 INDUCTOR 3.3uH
L701 1-469-555-21 INDUCTOR 10uH
L702 1-469-555-21 INDUCTOR 10uH
L707 1-469-555-21 INDUCTOR 10uH
L802 1-469-555-21 INDUCTOR 10uH
L901 1-469-555-21 INDUCTOR 10uH
< FUSE >
PS302 1-576-603-21 FUSE 3.15A 24V
PS701 1-576-596-21 FUSE 1A 32V
< TRANSISTOR >
Q300 6-550-663-01 TRANSISTOR RSS100N03FD5TB
Q301 6-550-663-01 TRANSISTOR RSS100N03FD5TB
Q302 6-550-663-01 TRANSISTOR RSS100N03FD5TB
Q303 6-550-663-01 TRANSISTOR RSS100N03FD5TB
Q304 6-550-663-01 TRANSISTOR RSS100N03FD5TB
Q901 8-729-025-28 TRANSISTOR 2SK1828
< RESISTOR >
R102 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R103 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R123 1-218-939-11 METAL CHIP 68 5% 1/16W
R124 1-218-939-11 METAL CHIP 68 5% 1/16W
R126 1-218-937-11 METAL CHIP 47 5% 1/16W
R127 1-218-937-11 METAL CHIP 47 5% 1/16W
R128 1-218-937-11 METAL CHIP 47 5% 1/16W
R129 1-218-935-11 METAL CHIP 33 5% 1/16W
R130 1-218-935-11 METAL CHIP 33 5% 1/16W
R131 1-218-935-11 METAL CHIP 33 5% 1/16W
R132 1-218-935-11 METAL CHIP 33 5% 1/16W
R133 1-218-937-11 METAL CHIP 47 5% 1/16W
R134 1-218-937-11 METAL CHIP 47 5% 1/16W
R135 1-218-947-11 METAL CHIP 330 5% 1/16W
R137 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R138 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R140 1-218-939-11 METAL CHIP 68 5% 1/16W
R142 1-218-939-11 METAL CHIP 68 5% 1/16W
R143 1-218-933-11 METAL CHIP 22 5% 1/16W
R144 1-218-933-11 METAL CHIP 22 5% 1/16W
R145 1-218-933-11 METAL CHIP 22 5% 1/16W
R146 1-218-933-11 METAL CHIP 22 5% 1/16W
R156 1-218-947-11 METAL CHIP 330 5% 1/16W
R158 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R159 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R177 1-218-943-11 METAL CHIP 150 5% 1/16W
R178 1-218-943-11 METAL CHIP 150 5% 1/16W
R179 1-218-943-11 METAL CHIP 150 5% 1/16W
R180 1-218-943-11 METAL CHIP 150 5% 1/16W
R181 1-220-169-11 METAL CHIP 75 5% 1/16W
R188 1-216-864-11 SHORT CHIP 0
R190 1-216-864-11 SHORT CHIP 0
R191 1-216-864-11 SHORT CHIP 0
R192 1-216-864-11 SHORT CHIP 0
R202 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R203 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R208 1-208-663-11 METAL CHIP 150 0.5% 1/16W
R209 1-208-663-11 METAL CHIP 150 0.5% 1/16W
R223 1-218-939-11 METAL CHIP 68 5% 1/16W
The components identified by mark
or dotted line with mark are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
MB-124
11-20
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
R224 1-218-939-11 METAL CHIP 68 5% 1/16W
R226 1-218-937-11 METAL CHIP 47 5% 1/16W
R227 1-218-937-11 METAL CHIP 47 5% 1/16W
R228 1-218-937-11 METAL CHIP 47 5% 1/16W
R229 1-218-935-11 METAL CHIP 33 5% 1/16W
R230 1-218-935-11 METAL CHIP 33 5% 1/16W
R231 1-218-935-11 METAL CHIP 33 5% 1/16W
R232 1-218-935-11 METAL CHIP 33 5% 1/16W
R233 1-218-937-11 METAL CHIP 47 5% 1/16W
R234 1-218-937-11 METAL CHIP 47 5% 1/16W
R235 1-218-947-11 METAL CHIP 330 5% 1/16W
R237 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R238 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R240 1-218-939-11 METAL CHIP 68 5% 1/16W
R241 1-218-939-11 METAL CHIP 68 5% 1/16W
R243 1-218-933-11 METAL CHIP 22 5% 1/16W
R244 1-218-933-11 METAL CHIP 22 5% 1/16W
R245 1-218-933-11 METAL CHIP 22 5% 1/16W
R246 1-218-933-11 METAL CHIP 22 5% 1/16W
R250 1-216-864-11 SHORT CHIP 0
R256 1-218-947-11 METAL CHIP 330 5% 1/16W
R258 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R259 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R277 1-218-943-11 METAL CHIP 150 5% 1/16W
R278 1-218-943-11 METAL CHIP 150 5% 1/16W
R279 1-218-943-11 METAL CHIP 150 5% 1/16W
R280 1-218-943-11 METAL CHIP 150 5% 1/16W
R281 1-220-169-11 METAL CHIP 75 5% 1/16W
R301 1-218-953-11 METAL CHIP 1K 5% 1/16W
R302 1-216-864-11 SHORT CHIP 0
R303 1-218-953-11 METAL CHIP 1K 5% 1/16W
R309 1-218-953-11 METAL CHIP 1K 5% 1/16W
R314 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
R315 1-208-935-11 METAL CHIP 100K 0.5% 1/16W
R316 1-208-939-11 METAL CHIP 150K 0.5% 1/16W
R317 1-208-709-11 METAL CHIP 12K 0.5% 1/16W
R318 1-208-941-11 METAL CHIP 180K 0.5% 1/16W
R319 1-208-939-11 METAL CHIP 150K 0.5% 1/16W
R320 1-208-683-11 METAL CHIP 1K 0.5% 1/16W
R321 1-208-711-11 METAL CHIP 15K 0.5% 1/16W
R322 1-216-821-11 METAL CHIP 1K 5% 1/10W
R333 1-216-864-11 SHORT CHIP 0
R335 1-216-864-11 SHORT CHIP 0
R344 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R345 1-218-873-11 METAL CHIP 12K 0.5% 1/10W
R352 1-218-953-11 METAL CHIP 1K 5% 1/16W
R357 1-218-953-11 METAL CHIP 1K 5% 1/16W
R361 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W
R362 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
R367 1-218-953-11 METAL CHIP 1K 5% 1/16W
R402 1-218-990-81 SHORT CHIP 0
R404 1-218-990-81 SHORT CHIP 0
R405 1-218-951-11 METAL CHIP 680 5% 1/16W
R501 1-218-965-11 METAL CHIP 10K 5% 1/16W
R502 1-218-965-11 METAL CHIP 10K 5% 1/16W
R503 1-218-933-11 METAL CHIP 22 5% 1/16W
R504 1-218-933-11 METAL CHIP 22 5% 1/16W
R506 1-218-965-11 METAL CHIP 10K 5% 1/16W
R507 1-218-965-11 METAL CHIP 10K 5% 1/16W
R508 1-218-965-11 METAL CHIP 10K 5% 1/16W
R510 1-218-965-11 METAL CHIP 10K 5% 1/16W
R512 1-218-965-11 METAL CHIP 10K 5% 1/16W
R514 1-218-965-11 METAL CHIP 10K 5% 1/16W
R515 1-218-965-11 METAL CHIP 10K 5% 1/16W
R517 1-218-935-11 METAL CHIP 33 5% 1/16W
R518 1-218-965-11 METAL CHIP 10K 5% 1/16W
R519 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R520 1-218-990-81 SHORT CHIP 0
R522 1-218-965-11 METAL CHIP 10K 5% 1/16W
R523 1-218-941-81 METAL CHIP 100 5% 1/16W
R527 1-218-965-11 METAL CHIP 10K 5% 1/16W
R528 1-218-933-11 METAL CHIP 22 5% 1/16W
R529 1-218-933-11 METAL CHIP 22 5% 1/16W
R530 1-218-990-81 SHORT CHIP 0
R531 1-218-933-11 METAL CHIP 22 5% 1/16W
R532 1-218-933-11 METAL CHIP 22 5% 1/16W
R533 1-218-933-11 METAL CHIP 22 5% 1/16W
R534 1-218-933-11 METAL CHIP 22 5% 1/16W
R535 1-218-933-11 METAL CHIP 22 5% 1/16W
R536 1-218-933-11 METAL CHIP 22 5% 1/16W
R537 1-218-933-11 METAL CHIP 22 5% 1/16W
R538 1-218-933-11 METAL CHIP 22 5% 1/16W
R539 1-218-990-81 SHORT CHIP 0
R540 1-218-933-11 METAL CHIP 22 5% 1/16W
R541 1-218-933-11 METAL CHIP 22 5% 1/16W
R542 1-218-965-11 METAL CHIP 10K 5% 1/16W
R543 1-218-965-11 METAL CHIP 10K 5% 1/16W
R544 1-218-965-11 METAL CHIP 10K 5% 1/16W
R545 1-218-965-11 METAL CHIP 10K 5% 1/16W
R546 1-218-965-11 METAL CHIP 10K 5% 1/16W
R547 1-218-965-11 METAL CHIP 10K 5% 1/16W
R548 1-218-965-11 METAL CHIP 10K 5% 1/16W
R549 1-218-965-11 METAL CHIP 10K 5% 1/16W
R550 1-218-965-11 METAL CHIP 10K 5% 1/16W
R551 1-218-965-11 METAL CHIP 10K 5% 1/16W
R552 1-218-965-11 METAL CHIP 10K 5% 1/16W
R553 1-218-965-11 METAL CHIP 10K 5% 1/16W
R554 1-218-965-11 METAL CHIP 10K 5% 1/16W
R555 1-218-965-11 METAL CHIP 10K 5% 1/16W
R601 1-218-990-81 SHORT CHIP 0
R605 1-218-935-11 METAL CHIP 33 5% 1/16W
R606 1-218-935-11 METAL CHIP 33 5% 1/16W
R607 1-218-935-11 METAL CHIP 33 5% 1/16W
R608 1-218-935-11 METAL CHIP 33 5% 1/16W
R609 1-218-935-11 METAL CHIP 33 5% 1/16W
R610 1-218-935-11 METAL CHIP 33 5% 1/16W
R611 1-218-935-11 METAL CHIP 33 5% 1/16W
R612 1-218-935-11 METAL CHIP 33 5% 1/16W
R613 1-218-935-11 METAL CHIP 33 5% 1/16W
R614 1-218-935-11 METAL CHIP 33 5% 1/16W
R615 1-218-935-11 METAL CHIP 33 5% 1/16W
R616 1-218-935-11 METAL CHIP 33 5% 1/16W
R617 1-218-990-81 SHORT CHIP 0
R620 1-218-990-81 SHORT CHIP 0
R622 1-218-990-81 SHORT CHIP 0
R624 1-218-941-81 METAL CHIP 100 5% 1/16W
R625 1-218-933-11 METAL CHIP 22 5% 1/16W
R627 1-218-965-11 METAL CHIP 10K 5% 1/16W
R628 1-218-965-11 METAL CHIP 10K 5% 1/16W
R629 1-218-965-11 METAL CHIP 10K 5% 1/16W
MB-124
11-21
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
R632 1-208-884-81 METAL CHIP 750 0.5% 1/16W
R633 1-218-965-11 METAL CHIP 10K 5% 1/16W
R634 1-414-843-21 INDUCTOR 18nH
R635 1-414-843-21 INDUCTOR 18nH
R636 1-208-688-11 METAL CHIP 1.6K 0.5% 1/16W
R637 1-218-965-11 METAL CHIP 10K 5% 1/16W
R639 1-218-965-11 METAL CHIP 10K 5% 1/16W
R641 1-218-965-11 METAL CHIP 10K 5% 1/16W
R642 1-218-945-11 METAL CHIP 220 5% 1/16W
R644 1-218-935-11 METAL CHIP 33 5% 1/16W
R645 1-218-935-11 METAL CHIP 33 5% 1/16W
R646 1-218-935-11 METAL CHIP 33 5% 1/16W
R647 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R648 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R650 1-218-965-11 METAL CHIP 10K 5% 1/16W
R651 1-218-941-81 METAL CHIP 100 5% 1/16W
R652 1-216-073-91 METAL CHIP 10K 5% 1/10W
R654 1-218-990-81 SHORT CHIP 0
R655 1-218-990-81 SHORT CHIP 0
R656 1-218-990-81 SHORT CHIP 0
R657 1-218-990-81 SHORT CHIP 0
R658 1-218-990-81 SHORT CHIP 0
R659 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R660 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R661 1-218-990-81 SHORT CHIP 0
R663 1-216-295-91 SHORT CHIP 0
R700 1-218-953-11 METAL CHIP 1K 5% 1/16W
R702 1-218-953-11 METAL CHIP 1K 5% 1/16W
R703 1-218-941-81 METAL CHIP 100 5% 1/16W
R704 1-218-941-81 METAL CHIP 100 5% 1/16W
R705 1-208-690-11 METAL CHIP 2K 0.5% 1/16W
R706 1-218-941-81 METAL CHIP 100 5% 1/16W
R707 1-208-690-11 METAL CHIP 2K 0.5% 1/16W
R709 1-218-990-81 SHORT CHIP 0
R710 1-218-990-81 SHORT CHIP 0
R714 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R715 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R717 1-218-990-81 SHORT CHIP 0
R719 1-218-967-11 METAL CHIP 15K 5% 1/16W
R735 1-218-990-81 SHORT CHIP 0
R741 1-218-953-11 METAL CHIP 1K 5% 1/16W
R743 1-218-990-81 SHORT CHIP 0
R745 1-218-990-81 SHORT CHIP 0
R746 1-218-990-81 SHORT CHIP 0
R801 1-218-933-11 METAL CHIP 22 5% 1/16W
R802 1-218-941-81 METAL CHIP 100 5% 1/16W
R803 1-218-941-81 METAL CHIP 100 5% 1/16W
R804 1-218-941-81 METAL CHIP 100 5% 1/16W
R805 1-218-941-81 METAL CHIP 100 5% 1/16W
R806 1-218-941-81 METAL CHIP 100 5% 1/16W
R807 1-218-941-81 METAL CHIP 100 5% 1/16W
R808 1-218-933-11 METAL CHIP 22 5% 1/16W
R809 1-218-941-81 METAL CHIP 100 5% 1/16W
R810 1-218-941-81 METAL CHIP 100 5% 1/16W
R811 1-218-941-81 METAL CHIP 100 5% 1/16W
R812 1-218-933-11 METAL CHIP 22 5% 1/16W
R835 1-218-990-81 SHORT CHIP 0
R836 1-218-990-81 SHORT CHIP 0
R848 1-218-990-81 SHORT CHIP 0
R858 1-218-965-11 METAL CHIP 10K 5% 1/16W
R859 1-218-965-11 METAL CHIP 10K 5% 1/16W
R860 1-218-965-11 METAL CHIP 10K 5% 1/16W
R861 1-218-965-11 METAL CHIP 10K 5% 1/16W
R862 1-218-965-11 METAL CHIP 10K 5% 1/16W
R863 1-218-965-11 METAL CHIP 10K 5% 1/16W
R864 1-218-965-11 METAL CHIP 10K 5% 1/16W
R865 1-216-295-91 SHORT CHIP 0
R871 1-218-990-81 SHORT CHIP 0
R872 1-218-990-81 SHORT CHIP 0
R880 1-218-990-81 SHORT CHIP 0
R881 1-218-990-81 SHORT CHIP 0
R882 1-218-990-81 SHORT CHIP 0
R883 1-218-990-81 SHORT CHIP 0
R884 1-218-990-81 SHORT CHIP 0
R889 1-218-990-81 SHORT CHIP 0
R890 1-218-990-81 SHORT CHIP 0
R891 1-218-990-81 SHORT CHIP 0
R892 1-218-990-81 SHORT CHIP 0
R893 1-218-990-81 SHORT CHIP 0
R894 1-218-990-81 SHORT CHIP 0
R895 1-218-990-81 SHORT CHIP 0
R896 1-218-990-81 SHORT CHIP 0
R897 1-218-990-81 SHORT CHIP 0
R898 1-218-990-81 SHORT CHIP 0
R901 1-218-965-11 METAL CHIP 10K 5% 1/16W
R902 1-218-965-11 METAL CHIP 10K 5% 1/16W
R903 1-218-990-81 SHORT CHIP 0
R904 1-218-965-11 METAL CHIP 10K 5% 1/16W
R905 1-218-990-81 SHORT CHIP 0
R906 1-218-965-11 METAL CHIP 10K 5% 1/16W
R907 1-218-990-81 SHORT CHIP 0
R908 1-218-990-81 SHORT CHIP 0
R909 1-218-941-81 METAL CHIP 100 5% 1/16W
R913 1-218-965-11 METAL CHIP 10K 5% 1/16W
R914 1-218-965-11 METAL CHIP 10K 5% 1/16W
R915 1-218-965-11 METAL CHIP 10K 5% 1/16W
R916 1-218-965-11 METAL CHIP 10K 5% 1/16W
R917 1-218-935-11 METAL CHIP 33 5% 1/16W
R918 1-218-965-11 METAL CHIP 10K 5% 1/16W
R919 1-218-965-11 METAL CHIP 10K 5% 1/16W
R920 1-218-929-11 METAL CHIP 10 5% 1/16W
R921 1-218-929-11 METAL CHIP 10 5% 1/16W
R922 1-218-929-11 METAL CHIP 10 5% 1/16W
R923 1-218-929-11 METAL CHIP 10 5% 1/16W
R924 1-218-990-81 SHORT CHIP 0
R925 1-218-990-81 SHORT CHIP 0
R926 1-218-990-81 SHORT CHIP 0
R927 1-218-990-81 SHORT CHIP 0
R928 1-218-990-81 SHORT CHIP 0
R929 1-218-990-81 SHORT CHIP 0
R930 1-218-990-81 SHORT CHIP 0
R931 1-218-990-81 SHORT CHIP 0
R932 1-218-990-81 SHORT CHIP 0
R933 1-218-965-11 METAL CHIP 10K 5% 1/16W
R934 1-218-965-11 METAL CHIP 10K 5% 1/16W
R935 1-218-935-11 METAL CHIP 33 5% 1/16W
R936 1-218-965-11 METAL CHIP 10K 5% 1/16W
R938 1-218-965-11 METAL CHIP 10K 5% 1/16W
R939 1-218-965-11 METAL CHIP 10K 5% 1/16W
R940 1-218-965-11 METAL CHIP 10K 5% 1/16W
MB-124
11-22
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
R941 1-218-965-11 METAL CHIP 10K 5% 1/16W
R942 1-218-965-11 METAL CHIP 10K 5% 1/16W
R943 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R944 1-218-953-11 METAL CHIP 1K 5% 1/16W
R945 1-218-953-11 METAL CHIP 1K 5% 1/16W
R946 1-218-965-11 METAL CHIP 10K 5% 1/16W
R947 1-218-953-11 METAL CHIP 1K 5% 1/16W
R948 1-218-990-81 SHORT CHIP 0
R949 1-218-933-11 METAL CHIP 22 5% 1/16W
R950 1-218-933-11 METAL CHIP 22 5% 1/16W
R951 1-218-990-81 SHORT CHIP 0
R952 1-218-990-81 SHORT CHIP 0
R953 1-218-990-81 SHORT CHIP 0
R954 1-218-990-81 SHORT CHIP 0
R955 1-218-990-81 SHORT CHIP 0
R956 1-218-990-81 SHORT CHIP 0
R957 1-218-990-81 SHORT CHIP 0
R958 1-218-990-81 SHORT CHIP 0
R959 1-218-990-81 SHORT CHIP 0
R960 1-218-990-81 SHORT CHIP 0
R961 1-218-990-81 SHORT CHIP 0
R962 1-218-965-11 METAL CHIP 10K 5% 1/16W
R963 1-218-965-11 METAL CHIP 10K 5% 1/16W
R964 1-218-941-81 METAL CHIP 100 5% 1/16W
R965 1-218-990-81 SHORT CHIP 0
R966 1-218-965-11 METAL CHIP 10K 5% 1/16W
R967 1-218-965-11 METAL CHIP 10K 5% 1/16W
R969 1-218-977-11 METAL CHIP 100K 5% 1/16W
R970 1-218-965-11 METAL CHIP 10K 5% 1/16W
R972 1-218-965-11 METAL CHIP 10K 5% 1/16W
R973 1-218-965-11 METAL CHIP 10K 5% 1/16W
R974 1-218-990-81 SHORT CHIP 0
R975 1-218-990-81 SHORT CHIP 0
R976 1-218-990-81 SHORT CHIP 0
R977 1-218-990-81 SHORT CHIP 0
R978 1-218-990-81 SHORT CHIP 0
R979 1-218-990-81 SHORT CHIP 0
R980 1-218-990-81 SHORT CHIP 0
R981 1-218-990-81 SHORT CHIP 0
R982 1-218-990-81 SHORT CHIP 0
R983 1-218-990-81 SHORT CHIP 0
R984 1-218-990-81 SHORT CHIP 0
R985 1-218-965-11 METAL CHIP 10K 5% 1/16W
R986 1-218-990-81 SHORT CHIP 0
R988 1-218-941-81 METAL CHIP 100 5% 1/16W
R990 1-218-941-81 METAL CHIP 100 5% 1/16W
R991 1-218-941-81 METAL CHIP 100 5% 1/16W
R992 1-218-935-11 METAL CHIP 33 5% 1/16W
R993 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R994 1-218-935-11 METAL CHIP 33 5% 1/16W
R995 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R996 1-218-965-11 METAL CHIP 10K 5% 1/16W
R997 1-218-965-11 METAL CHIP 10K 5% 1/16W
R998 1-218-941-81 METAL CHIP 100 5% 1/16W
R999 1-218-941-81 METAL CHIP 100 5% 1/16W
R1801 1-218-990-81 SHORT CHIP 0
R1805 1-218-990-81 SHORT CHIP 0
R7000 1-218-990-81 SHORT CHIP 0
R7001 1-218-990-81 SHORT CHIP 0
R7002 1-218-990-81 SHORT CHIP 0
R7003 1-218-990-81 SHORT CHIP 0
R7007 1-218-937-11 METAL CHIP 47 5% 1/16W
R7008 1-218-933-11 METAL CHIP 22 5% 1/16W
R7009 1-218-933-11 METAL CHIP 22 5% 1/16W
R8002 1-218-929-11 METAL CHIP 10 5% 1/16W
R8003 1-208-692-11 METAL CHIP 2.4K 0.5% 1/16W
R8004 1-245-369-91 METAL CHIP 49.9 1% 1/16W
R8005 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R8006 1-245-369-91 METAL CHIP 49.9 1% 1/16W
R8007 1-245-369-91 METAL CHIP 49.9 1% 1/16W
R8008 1-245-369-91 METAL CHIP 49.9 1% 1/16W
R8009 1-218-965-11 METAL CHIP 10K 5% 1/16W
R8010 1-218-990-81 SHORT CHIP 0
R8011 1-218-965-11 METAL CHIP 10K 5% 1/16W
R8013 1-218-990-81 SHORT CHIP 0
R8014 1-218-965-11 METAL CHIP 10K 5% 1/16W
R8015 1-218-990-81 SHORT CHIP 0
R8017 1-218-990-81 SHORT CHIP 0
R8018 1-218-990-81 SHORT CHIP 0
R8019 1-218-965-11 METAL CHIP 10K 5% 1/16W
R8020 1-218-990-81 SHORT CHIP 0
R8021 1-218-990-81 SHORT CHIP 0
R8022 1-218-990-81 SHORT CHIP 0
R8024 1-218-965-11 METAL CHIP 10K 5% 1/16W
R8025 1-218-990-81 SHORT CHIP 0
R8026 1-218-990-81 SHORT CHIP 0
R8027 1-218-990-81 SHORT CHIP 0
R8028 1-218-990-81 SHORT CHIP 0
R8029 1-218-990-81 SHORT CHIP 0
R8034 1-218-965-11 METAL CHIP 10K 5% 1/16W
R8035 1-218-965-11 METAL CHIP 10K 5% 1/16W
R8036 1-218-965-11 METAL CHIP 10K 5% 1/16W
R8038 1-218-941-81 METAL CHIP 100 5% 1/16W
R8039 1-218-990-81 SHORT CHIP 0
R8040 1-218-990-81 SHORT CHIP 0
R8041 1-218-955-11 METAL CHIP 1.5K 5% 1/16W
R8042 1-218-955-11 METAL CHIP 1.5K 5% 1/16W
R8044 1-218-937-11 METAL CHIP 47 5% 1/16W
R8045 1-218-937-11 METAL CHIP 47 5% 1/16W
R9001 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R9002 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R9003 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R9004 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R9005 1-218-990-81 SHORT CHIP 0
R9006 1-218-990-81 SHORT CHIP 0
R9007 1-218-990-81 SHORT CHIP 0
R9008 1-218-990-81 SHORT CHIP 0
R9009 1-218-990-81 SHORT CHIP 0
R9010 1-218-990-81 SHORT CHIP 0
R9011 1-218-990-81 SHORT CHIP 0
R9020 1-218-990-81 SHORT CHIP 0
R9021 1-218-941-81 METAL CHIP 100 5% 1/16W
R9022 1-218-990-81 SHORT CHIP 0
< COMPOSITION CIRCUIT BLOCK >
RB109 1-234-371-21 RES, NETWORK 47 (1005X4)
RB110 1-234-371-21 RES, NETWORK 47 (1005X4)
RB112 1-234-371-21 RES, NETWORK 47 (1005X4)
RB113 1-234-371-21 RES, NETWORK 47 (1005X4)
* RB122 1-234-723-21 RES, NETWORK 75 (1005X4)
MB-124
11-23
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
* RB123 1-234-723-21 RES, NETWORK 75 (1005X4)
* RB124 1-234-723-21 RES, NETWORK 75 (1005X4)
* RB125 1-234-723-21 RES, NETWORK 75 (1005X4)
* RB126 1-234-723-21 RES, NETWORK 75 (1005X4)
RB209 1-234-371-21 RES, NETWORK 47 (1005X4)
RB210 1-234-371-21 RES, NETWORK 47 (1005X4)
RB211 1-234-371-21 RES, NETWORK 47 (1005X4)
RB213 1-234-371-21 RES, NETWORK 47 (1005X4)
* RB223 1-234-723-21 RES, NETWORK 75 (1005X4)
* RB225 1-234-723-21 RES, NETWORK 75 (1005X4)
* RB226 1-234-723-21 RES, NETWORK 75 (1005X4)
* RB227 1-234-723-21 RES, NETWORK 75 (1005X4)
* RB229 1-234-723-21 RES, NETWORK 75 (1005X4)
RB502 1-234-370-21 RES, NETWORK 22 (1005X4)
RB503 1-234-370-21 RES, NETWORK 22 (1005X4)
RB504 1-234-370-21 RES, NETWORK 22 (1005X4)
RB505 1-234-370-21 RES, NETWORK 22 (1005X4)
RB506 1-234-370-21 RES, NETWORK 22 (1005X4)
RB507 1-234-370-21 RES, NETWORK 22 (1005X4)
RB508 1-234-378-21 RES, NETWORK 10K (1005X4)
RB510 1-234-378-21 RES, NETWORK 10K (1005X4)
RB511 1-234-370-21 RES, NETWORK 22 (1005X4)
RB512 1-234-370-21 RES, NETWORK 22 (1005X4)
RB513 1-234-370-21 RES, NETWORK 22 (1005X4)
RB514 1-234-370-21 RES, NETWORK 22 (1005X4)
RB515 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB516 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB517 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB518 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB519 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB520 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB600 1-242-963-21 RES, NETWORK 33 (1005X4)
RB601 1-242-963-21 RES, NETWORK 33 (1005X4)
RB602 1-242-963-21 RES, NETWORK 33 (1005X4)
RB603 1-242-963-21 RES, NETWORK 33 (1005X4)
RB604 1-242-963-21 RES, NETWORK 33 (1005X4)
RB605 1-242-963-21 RES, NETWORK 33 (1005X4)
RB606 1-242-963-21 RES, NETWORK 33 (1005X4)
RB607 1-242-963-21 RES, NETWORK 33 (1005X4)
RB608 1-242-963-21 RES, NETWORK 33 (1005X4)
RB609 1-242-963-21 RES, NETWORK 33 (1005X4)
RB610 1-242-963-21 RES, NETWORK 33 (1005X4)
RB611 1-242-963-21 RES, NETWORK 33 (1005X4)
RB612 1-242-963-21 RES, NETWORK 33 (1005X4)
RB613 1-242-963-21 RES, NETWORK 33 (1005X4)
RB614 1-242-963-21 RES, NETWORK 33 (1005X4)
RB615 1-242-963-21 RES, NETWORK 33 (1005X4)
RB616 1-242-963-21 RES, NETWORK 33 (1005X4)
RB617 1-242-963-21 RES, NETWORK 33 (1005X4)
RB618 1-242-963-21 RES, NETWORK 33 (1005X4)
RB619 1-242-963-21 RES, NETWORK 33 (1005X4)
RB621 1-234-377-21 RES, NETWORK 4.7K (1005X4)
RB622 1-234-377-21 RES, NETWORK 4.7K (1005X4)
RB900 1-234-378-21 RES, NETWORK 10K (1005X4)
RB901 1-234-378-21 RES, NETWORK 10K (1005X4)
RB902 1-234-378-21 RES, NETWORK 10K (1005X4)
RB903 1-234-378-21 RES, NETWORK 10K (1005X4)
RB7002 1-234-370-21 RES, NETWORK 22 (1005X4)
RB7003 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB7006 1-234-370-21 RES, NETWORK 22 (1005X4)
RB7007 1-234-370-21 RES, NETWORK 22 (1005X4)
RB7008 1-234-370-21 RES, NETWORK 22 (1005X4)
RB7009 1-234-370-21 RES, NETWORK 22 (1005X4)
RB7012 1-234-378-21 RES, NETWORK 10K (1005X4)
RB7013 1-234-378-21 RES, NETWORK 10K (1005X4)
< THERMISTOR >
TH901 1-804-045-11 THERMISTOR
< VIBRATOR >
X600 1-813-263-11 OSCILLATOR, CRYSTAL (33MHz)
X601 1-813-208-11 VIBRATOR, CRYSTAL (30MHz)
X701 1-813-052-21 VIBRATOR, CRYSTAL (25MHz)
X8001 1-813-821-11 OSCILLATOR, CRYSTAL (50MHz)
RS-088 BOARD
************
(Ref. No. 40,000 Series)
< CAPACITOR >
C601 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C602 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C603 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C604 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C605 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C606 1-137-710-91 CERAMIC CHIP 10uF 20% 6.3V
< CONNECTOR >
CN601 1-573-290-21 PIN, CONNECTOR (1.5mm) (SMD) 4P
CN603 1-815-737-11 CONNECTOR, (D) SUB 9P (RS232C)
< IC >
IC601 6-705-514-01 IC MAX3222IPWR
< RESISTOR >
R602 1-216-864-11 SHORT CHIP 0
R603 1-216-801-11 METAL CHIP 22 5% 1/10W
R604 1-216-801-11 METAL CHIP 22 5% 1/10W
R605 1-216-809-11 METAL CHIP 100 5% 1/10W
R606 1-216-809-11 METAL CHIP 100 5% 1/10W
USB-007 BOARD
*************
(Ref. No. 60,000 Series)
< CONNECTOR >
CN301 1-817-109-11 CONNECTOR, USB (A) (EXT)
CN302 1-566-760-11 PIN, CONNECTOR (PC BOARD) 5P
A-1616-338-A VP-062 BOARD, COMPLETE
**********************
(Ref. No. 70,000 Series)
< CAPACITOR >
C101 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C104 1-100-672-11 CERAMIC CHIP 10uF 20% 16V
C105 1-100-672-11 CERAMIC CHIP 10uF 20% 16V
C106 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V
C107 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V
RS-088MB-124 USB-007 VP-062
11-24
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
C108 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V
C110 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V
C111 1-100-159-91 CERAMIC CHIP 22uF 10% 6.3V
C112 1-124-779-00 ELECT CHIP 10uF 20% 16V
C114 1-124-779-00 ELECT CHIP 10uF 20% 16V
C116 1-114-326-11 CERAMIC CHIP 0.22uF 10% 25V
C118 1-114-326-11 CERAMIC CHIP 0.22uF 10% 25V
C203 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C204 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C208 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C209 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C210 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C211 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C214 1-114-219-21 CERAMIC CHIP 1uF 10% 10V
C215 1-124-779-00 ELECT CHIP 10uF 20% 16V
C216 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C217 1-112-815-91 CERAMIC CHIP 10uF 20% 6.3V
C218 1-124-779-00 ELECT CHIP 10uF 20% 16V
C219 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C220 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C221 1-126-204-11 ELECT CHIP 47uF 20% 16V
C222 1-112-815-91 CERAMIC CHIP 10uF 20% 6.3V
C223 1-100-026-11 ELECT CHIP 220uF 20% 6.3V
* C224 1-112-833-11 ELECT CHIP 68uF 20% 16V
C225 1-165-872-21 ELECT CHIP 47uF 20% 6.3V
C226 1-114-219-21 CERAMIC CHIP 1uF 10% 10V
C227 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C228 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C229 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C234 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
C235 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
C238 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C239 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C240 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C241 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C242 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C243 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C244 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C245 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C246 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C247 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C248 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C249 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C251 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C252 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C253 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C254 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C255 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C256 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C258 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C260 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C261 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C262 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C263 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C264 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C265 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C266 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C270 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C271 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C272 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C273 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C274 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C275 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C278 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C279 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C280 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C281 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C282 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C283 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C284 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C285 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C286 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C287 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C288 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C289 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C290 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C291 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C292 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C293 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C294 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C295 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C296 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C297 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C298 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C303 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C304 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C305 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C306 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C307 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C308 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C309 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C310 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C311 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C312 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C313 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C314 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C315 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C316 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C317 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C318 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C319 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C320 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C322 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C323 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C324 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C325 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C326 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C327 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C401 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C402 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C403 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C404 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C405 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C406 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C407 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C408 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C410 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C411 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C412 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C413 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
VP-062
11-25
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
C414 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C415 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C416 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C417 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C418 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C419 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C420 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C421 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C422 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C423 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C424 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C425 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C426 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V
C427 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C428 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C429 1-131-998-21 ELECT CHIP 82uF 20% 6.3V
C430 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C431 1-131-998-21 ELECT CHIP 82uF 20% 6.3V
C502 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C503 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C504 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C505 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C506 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C507 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C508 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C509 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C510 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C511 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C512 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C513 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C514 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C515 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C516 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C517 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C518 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C519 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C520 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C521 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C522 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C523 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C524 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C526 1-100-554-11 ELECT CHIP 47uF 20% 6.3V
C527 1-100-387-21 ELECT CHIP 39uF 20% 16V
C528 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C603 1-100-026-11 ELECT CHIP 220uF 20% 6.3V
C604 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C605 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C606 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C607 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C608 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C609 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C610 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C611 1-164-943-81 CERAMIC CHIP 0.01uF 10% 16V
C612 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C613 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C614 1-114-527-21 ELECT CHIP 120uF 20% 6.3V
C615 1-114-527-21 ELECT CHIP 120uF 20% 6.3V
C616 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C617 1-100-554-11 ELECT CHIP 47uF 20% 6.3V
C619 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C620 1-100-554-11 ELECT CHIP 47uF 20% 6.3V
C621 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C623 1-100-554-11 ELECT CHIP 47uF 20% 6.3V
C624 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C625 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C626 1-114-527-21 ELECT CHIP 120uF 20% 6.3V
C629 1-112-727-21 ELECT CHIP 47uF 20% 20V
C631 1-112-067-11 CERAMIC CHIP 0.22uF 10% 16V
C632 1-100-554-11 ELECT CHIP 47uF 20% 6.3V
C634 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C635 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C636 1-100-554-11 ELECT CHIP 47uF 20% 6.3V
C637 1-112-067-11 CERAMIC CHIP 0.22uF 10% 16V
C641 1-112-727-21 ELECT CHIP 47uF 20% 20V
C643 1-100-554-11 ELECT CHIP 47uF 20% 6.3V
C645 1-112-727-21 ELECT CHIP 47uF 20% 20V
C701 1-114-326-11 CERAMIC CHIP 0.22uF 10% 25V
C702 1-114-326-11 CERAMIC CHIP 0.22uF 10% 25V
C704 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C705 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C706 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C707 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C708 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C709 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C710 1-114-326-11 CERAMIC CHIP 0.22uF 10% 25V
C711 1-114-326-11 CERAMIC CHIP 0.22uF 10% 25V
C712 1-128-994-21 ELECT CHIP 47uF 20% 10V
C713 1-126-208-21 ELECT CHIP 47uF 20% 4V
C717 1-114-326-11 CERAMIC CHIP 0.22uF 10% 25V
C718 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V
C719 1-114-326-11 CERAMIC CHIP 0.22uF 10% 25V
C720 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C721 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C722 1-126-208-21 ELECT CHIP 47uF 20% 4V
C723 1-131-664-91 CERAMIC CHIP 0.15uF 10% 10V
C725 1-114-326-11 CERAMIC CHIP 0.22uF 10% 25V
C726 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C727 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C728 1-131-664-91 CERAMIC CHIP 0.15uF 10% 10V
C729 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C730 1-114-326-11 CERAMIC CHIP 0.22uF 10% 25V
C731 1-114-326-11 CERAMIC CHIP 0.22uF 10% 25V
C732 1-128-994-21 ELECT CHIP 47uF 20% 10V
C736 1-128-994-21 ELECT CHIP 47uF 20% 10V
C737 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C738 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C739 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C740 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C741 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C742 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C743 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C744 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C745 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
C746 1-126-204-11 ELECT CHIP 47uF 20% 16V
C747 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V
C748 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C749 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C750 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C751 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C752 1-126-206-11 ELECT CHIP 100uF 20% 6.3V
VP-062
11-26
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
C753 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C754 1-124-779-00 ELECT CHIP 10uF 20% 16V
C755 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C756 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C757 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C758 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C759 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C761 1-128-994-21 ELECT CHIP 47uF 20% 10V
C762 1-165-872-21 ELECT CHIP 47uF 20% 6.3V
C801 1-100-026-11 ELECT CHIP 220uF 20% 6.3V
C802 1-100-026-11 ELECT CHIP 220uF 20% 6.3V
C803 1-100-554-11 ELECT CHIP 47uF 20% 6.3V
C805 1-128-994-21 ELECT CHIP 47uF 20% 10V
C806 1-126-204-11 ELECT CHIP 47uF 20% 16V
C807 1-124-779-00 ELECT CHIP 10uF 20% 16V
C808 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C809 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C810 1-114-326-11 CERAMIC CHIP 0.22uF 10% 25V
C811 1-114-326-11 CERAMIC CHIP 0.22uF 10% 25V
C812 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C813 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C814 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C815 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C816 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C817 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C818 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C819 1-107-439-11 CERAMIC CHIP 0.001uF 10% 50V
C820 1-107-439-11 CERAMIC CHIP 0.001uF 10% 50V
C821 1-107-439-11 CERAMIC CHIP 0.001uF 10% 50V
C822 1-107-439-11 CERAMIC CHIP 0.001uF 10% 50V
C823 1-107-439-11 CERAMIC CHIP 0.001uF 10% 50V
C824 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C825 1-107-439-11 CERAMIC CHIP 0.001uF 10% 50V
C826 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C827 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C828 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C829 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C830 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C831 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C832 1-107-439-11 CERAMIC CHIP 0.001uF 10% 50V
C833 1-107-439-11 CERAMIC CHIP 0.001uF 10% 50V
C834 1-107-439-11 CERAMIC CHIP 0.001uF 10% 50V
C835 1-107-439-11 CERAMIC CHIP 0.001uF 10% 50V
C836 1-107-439-11 CERAMIC CHIP 0.001uF 10% 50V
C837 1-107-439-11 CERAMIC CHIP 0.001uF 10% 50V
C838 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C839 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C840 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C841 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C842 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C843 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C845 1-100-672-11 CERAMIC CHIP 10uF 20% 16V
C1002 1-128-994-21 ELECT CHIP 47uF 20% 10V
C1003 1-114-214-81 CERAMIC CHIP 470PF 5% 50V
C1004 1-165-872-21 ELECT CHIP 47uF 20% 6.3V
C1005 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1006 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C1007 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1008 1-164-931-11 CERAMIC CHIP 100PF 10% 50V
C1009 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C1010 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1011 1-131-998-21 ELECT CHIP 82uF 20% 6.3V
C1012 1-131-998-21 ELECT CHIP 82uF 20% 6.3V
C1013 1-112-781-11 CERAMIC CHIP 1uF 10% 10V
C1014 1-165-872-21 ELECT CHIP 47uF 20% 6.3V
C1015 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C1016 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1017 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C1018 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1019 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1021 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1023 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1024 1-112-541-21 ELECT CHIP 10uF 20% 10V
C1025 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1026 1-164-931-11 CERAMIC CHIP 100PF 10% 50V
C1027 1-112-067-11 CERAMIC CHIP 0.22uF 10% 16V
C1028 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V
C1029 1-112-067-11 CERAMIC CHIP 0.22uF 10% 16V
C1030 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1031 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C1032 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1033 1-164-931-11 CERAMIC CHIP 100PF 10% 50V
C1034 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1037 1-165-872-21 ELECT CHIP 47uF 20% 6.3V
C1038 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1039 1-164-931-11 CERAMIC CHIP 100PF 10% 50V
C1041 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1042 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C1043 1-164-931-11 CERAMIC CHIP 100PF 10% 50V
C1044 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1045 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1203 1-100-387-21 ELECT CHIP 39uF 20% 16V
C1204 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1205 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1206 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1207 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C1208 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1209 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1210 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C1211 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1212 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1213 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1214 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1215 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1216 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1217 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1218 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1219 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1220 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1221 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1222 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1223 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1224 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1225 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1226 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C1227 1-100-554-11 ELECT CHIP 47uF 20% 6.3V
C1228 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1229 1-100-916-11 CERAMIC CHIP 0.1uF 10% 16V
C1230 1-100-905-11 CERAMIC CHIP 0.001uF 10% 50V
C1231 1-100-387-21 ELECT CHIP 39uF 20% 16V
VP-062
11-27
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
C2003 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
C2004 1-112-777-11 CERAMIC CHIP 0.01uF 10% 25V
< CONNECTOR >
* CN104 1-818-468-61 CONNECTOR, BOARD TO BOARD 80P
CN601 1-821-450-32 CONNECTOR, HDMI (HDMI OUT)
CN802 1-794-509-11 PIN, CONNECTOR (PC BOARD) 3P
< DIODE >
D702 6-502-224-01 DIODE LM4041C12IDCKR
D703 8-719-081-67 DIODE M1FM3
D704 8-719-081-67 DIODE M1FM3
D810 8-719-067-40 DIODE STZ6.8N-T146
D813 8-719-067-40 DIODE STZ6.8N-T146
D815 8-719-067-40 DIODE STZ6.8N-T146
D817 8-719-081-67 DIODE M1FM3
D818 8-719-081-67 DIODE M1FM3
< CONTACT TERMINAL >
ET101 1-694-802-21 CONTACT TERMINAL
< FILTER >
FL101 1-234-867-11 FILTER, EMI REMOVAL (SMD)
FL102 1-233-893-21 FILTER, CHIP EMI
FL201 1-234-867-11 FILTER, EMI REMOVAL (SMD)
FL202 1-234-867-11 FILTER, EMI REMOVAL (SMD)
FL203 1-234-867-11 FILTER, EMI REMOVAL (SMD)
FL204 1-234-986-11 FILTER, EMI REMOVAL (1608SMD)
FL205 1-234-867-11 FILTER, EMI REMOVAL (SMD)
FL206 1-234-867-11 FILTER, EMI REMOVAL (SMD)
FL401 1-234-867-11 FILTER, EMI REMOVAL (SMD)
FL402 1-234-867-11 FILTER, EMI REMOVAL (SMD)
FL403 1-234-867-11 FILTER, EMI REMOVAL (SMD)
FL501 1-234-986-11 FILTER, EMI REMOVAL (1608SMD)
FL502 1-234-986-11 FILTER, EMI REMOVAL (1608SMD)
FL601 1-400-874-11 FILTER, EMI REMOVAL (SMD)
FL602 1-400-874-11 FILTER, EMI REMOVAL (SMD)
FL603 1-400-874-11 FILTER, EMI REMOVAL (SMD)
FL604 1-400-874-11 FILTER, EMI REMOVAL (SMD)
FL605 1-400-874-11 FILTER, EMI REMOVAL (SMD)
FL606 1-400-874-11 FILTER, EMI REMOVAL (SMD)
FL607 1-400-874-11 FILTER, EMI REMOVAL (SMD)
FL701 1-233-893-21 FILTER, CHIP EMI
FL702 1-233-893-21 FILTER, CHIP EMI
FL1001 1-400-874-11 FILTER, EMI REMOVAL (SMD)
FL1002 1-400-874-11 FILTER, EMI REMOVAL (SMD)
FL1201 1-234-986-11 FILTER, EMI REMOVAL (1608SMD)
FL1202 1-234-986-11 FILTER, EMI REMOVAL (1608SMD)
FL1203 1-234-986-11 FILTER, EMI REMOVAL (1608SMD)
< IC >
IC101 6-713-633-01 IC IDT2305B-1DCG
IC102 6-711-586-01 IC MP2303DN-LF-Z
IC103 8-759-573-97 IC SN74LVC541APWR
IC105 8-759-573-97 IC SN74LVC541APWR
IC201 6-708-935-01 IC MM1762FHBE
IC202 6-712-033-01 IC MM1701CHBE
IC203 6-712-033-01 IC MM1701CHBE
IC402 6-808-308-01 IC EPCS4SI8N (15ST)-VP062
IC403 6-706-487-01 IC TC7SH08FU (T5RSOYJF)
IC501 6-713-304-01 IC CXD9957GF
IC604 6-706-487-01 IC TC7SH08FU (T5RSOYJF)
IC605 6-705-337-01 IC TK11150CSCL-G
IC701 6-702-300-01 IC TK11118CSCL-G
IC702 6-702-300-01 IC TK11118CSCL-G
IC703 6-713-186-01 IC ADV7344BSTZ
IC704 6-709-584-01 IC MM1663DHBE
IC705 6-709-584-01 IC MM1663DHBE
IC706 6-712-336-01 IC NJM2564AV (TE2)
IC707 8-759-667-17 IC L79M05TLL-SONY-TL-E
IC801 6-705-337-01 IC TK11150CSCL-G
IC802 8-759-667-17 IC L79M05TLL-SONY-TL-E
IC803 6-713-187-01 IC AD8000YRDZ-REEL
IC804 6-707-190-01 IC TL431ACDT
IC805 6-713-187-01 IC AD8000YRDZ-REEL
IC806 6-713-187-01 IC AD8000YRDZ-REEL
IC807 6-713-187-01 IC AD8000YRDZ-REEL
IC808 6-713-187-01 IC AD8000YRDZ-REEL
IC809 6-713-187-01 IC AD8000YRDZ-REEL
IC810 6-707-190-01 IC TL431ACDT
IC1001 6-709-584-01 IC MM1663DHBE
IC1002 6-701-763-11 IC DS90LV017ATMX
IC1005 6-707-415-01 IC DS90LT012ATMF
IC1201 6-713-304-01 IC CXD9957GF
IC1202 6-703-875-01 IC CDCVF2505PWR
< JACK >
J801 1-815-024-12 JACK, PIN 1P (VIDEO OUT (VIDEO))
J804 1-818-095-11 JACK, PIN 1P (COMPONENT VIDEO OUT (PR))
< COIL >
L201 1-400-180-21 INDUCTOR, EMI FERRITE (1608)
L601 1-457-374-21 COMMOM MODE CHOKE COIL
L602 1-457-374-21 COMMOM MODE CHOKE COIL
L603 1-457-374-21 COMMOM MODE CHOKE COIL
L604 1-457-374-21 COMMOM MODE CHOKE COIL
L701 1-412-060-11 INDUCTOR 22uH
L702 1-419-387-21 INDUCTOR 100uH
L703 1-412-060-11 INDUCTOR 22uH
L704 1-419-387-21 INDUCTOR 100uH
L705 1-412-060-11 INDUCTOR 22uH
L801 1-419-387-21 INDUCTOR 100uH
L802 1-419-387-21 INDUCTOR 100uH
L803 1-419-368-11 INDUCTOR 47uH
L804 1-419-387-21 INDUCTOR 100uH
L805 1-412-060-11 INDUCTOR 22uH
L1001 1-412-060-11 INDUCTOR 22uH
L1002 1-412-060-11 INDUCTOR 22uH
L1003 1-412-060-11 INDUCTOR 22uH
< IC LINK >
PS801 1-576-124-11 IC LINK 1A 72V
PS802 1-576-122-21 IC LINK 0.4A 72V
< TRANSISTOR >
Q401 8-729-027-49 TRANSISTOR DTC123EKA-T146
Q402 8-729-027-28 TRANSISTOR DTA123EKA-T146
Q601 6-550-008-01 TRANSISTOR UM6K1N-TN
Q602 8-729-025-28 TRANSISTOR 2SK1828
VP-062
11-28
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
Q701 8-729-024-88 TRANSISTOR MUN2212T1
Q702 8-729-028-83 TRANSISTOR DTA124EUA-T106
Q703 8-729-901-88 TRANSISTOR 2SC2411K-CR
Q801 8-729-028-73 TRANSISTOR DTA114EUA-T106
Q802 8-729-901-88 TRANSISTOR 2SC2411K-CR
* Q807 6-551-718-01 TRANSISTOR UMH1NTN
< RESISTOR >
R107 1-218-990-81 SHORT CHIP 0
R109 1-218-939-11 METAL CHIP 68 5% 1/16W
R110 1-216-821-11 METAL CHIP 1K 5% 1/10W
R111 1-216-821-11 METAL CHIP 1K 5% 1/10W
R112 1-216-864-11 SHORT CHIP 0
R113 1-218-845-11 METAL CHIP 820 0.5% 1/10W
R114 1-218-869-11 METAL CHIP 8.2K 0.5% 1/10W
R115 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R121 1-218-990-81 SHORT CHIP 0
R123 1-218-953-11 METAL CHIP 1K 5% 1/16W
R125 1-218-990-81 SHORT CHIP 0
R127 1-218-935-11 METAL CHIP 33 5% 1/16W
R128 1-218-937-11 METAL CHIP 47 5% 1/16W
R129 1-218-937-11 METAL CHIP 47 5% 1/16W
R130 1-218-937-11 METAL CHIP 47 5% 1/16W
R131 1-218-937-11 METAL CHIP 47 5% 1/16W
R132 1-218-937-11 METAL CHIP 47 5% 1/16W
R133 1-218-935-11 METAL CHIP 33 5% 1/16W
R134 1-218-937-11 METAL CHIP 47 5% 1/16W
R135 1-218-929-11 METAL CHIP 10 5% 1/16W
R136 1-218-929-11 METAL CHIP 10 5% 1/16W
R137 1-218-937-11 METAL CHIP 47 5% 1/16W
R141 1-218-990-81 SHORT CHIP 0
R142 1-218-990-81 SHORT CHIP 0
R143 1-218-990-81 SHORT CHIP 0
R144 1-218-990-81 SHORT CHIP 0
R145 1-218-937-11 METAL CHIP 47 5% 1/16W
R201 1-216-821-11 METAL CHIP 1K 5% 1/10W
R204 1-218-935-11 METAL CHIP 33 5% 1/16W
R205 1-218-935-11 METAL CHIP 33 5% 1/16W
R206 1-218-933-11 METAL CHIP 22 5% 1/16W
R207 1-218-935-11 METAL CHIP 33 5% 1/16W
R208 1-218-935-11 METAL CHIP 33 5% 1/16W
R209 1-218-935-11 METAL CHIP 33 5% 1/16W
R210 1-218-935-11 METAL CHIP 33 5% 1/16W
R211 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R212 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R215 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R216 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R217 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R218 1-218-990-81 SHORT CHIP 0
R219 1-218-990-81 SHORT CHIP 0
R220 1-218-965-11 METAL CHIP 10K 5% 1/16W
R221 1-218-941-81 METAL CHIP 100 5% 1/16W
R223 1-218-989-11 METAL CHIP 1M 5% 1/16W
R224 1-218-953-11 METAL CHIP 1K 5% 1/16W
R225 1-218-933-11 METAL CHIP 22 5% 1/16W
R226 1-218-933-11 METAL CHIP 22 5% 1/16W
R227 1-218-933-11 METAL CHIP 22 5% 1/16W
R228 1-218-933-11 METAL CHIP 22 5% 1/16W
R229 1-218-935-11 METAL CHIP 33 5% 1/16W
R230 1-218-935-11 METAL CHIP 33 5% 1/16W
R231 1-218-935-11 METAL CHIP 33 5% 1/16W
R232 1-218-935-11 METAL CHIP 33 5% 1/16W
R233 1-218-935-11 METAL CHIP 33 5% 1/16W
R234 1-218-935-11 METAL CHIP 33 5% 1/16W
R235 1-218-935-11 METAL CHIP 33 5% 1/16W
R236 1-218-933-11 METAL CHIP 22 5% 1/16W
R237 1-218-933-11 METAL CHIP 22 5% 1/16W
R238 1-218-937-11 METAL CHIP 47 5% 1/16W
R240 1-218-953-11 METAL CHIP 1K 5% 1/16W
R241 1-218-937-11 METAL CHIP 47 5% 1/16W
R242 1-218-937-11 METAL CHIP 47 5% 1/16W
R243 1-218-939-11 METAL CHIP 68 5% 1/16W
R244 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R245 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R249 1-218-953-11 METAL CHIP 1K 5% 1/16W
R250 1-218-953-11 METAL CHIP 1K 5% 1/16W
R251 1-218-953-11 METAL CHIP 1K 5% 1/16W
R254 1-218-990-81 SHORT CHIP 0
R255 1-218-953-11 METAL CHIP 1K 5% 1/16W
R301 1-218-953-11 METAL CHIP 1K 5% 1/16W
R302 1-218-941-81 METAL CHIP 100 5% 1/16W
R303 1-218-953-11 METAL CHIP 1K 5% 1/16W
R304 1-218-933-11 METAL CHIP 22 5% 1/16W
R305 1-218-933-11 METAL CHIP 22 5% 1/16W
R306 1-218-933-11 METAL CHIP 22 5% 1/16W
R307 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R308 1-218-933-11 METAL CHIP 22 5% 1/16W
R309 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R310 1-218-953-11 METAL CHIP 1K 5% 1/16W
R311 1-218-953-11 METAL CHIP 1K 5% 1/16W
R401 1-218-933-11 METAL CHIP 22 5% 1/16W
R402 1-218-990-81 SHORT CHIP 0
R403 1-218-933-11 METAL CHIP 22 5% 1/16W
R404 1-218-990-81 SHORT CHIP 0
R405 1-218-937-11 METAL CHIP 47 5% 1/16W
R406 1-218-937-11 METAL CHIP 47 5% 1/16W
R407 1-218-937-11 METAL CHIP 47 5% 1/16W
R408 1-218-933-11 METAL CHIP 22 5% 1/16W
R409 1-218-933-11 METAL CHIP 22 5% 1/16W
R410 1-218-933-11 METAL CHIP 22 5% 1/16W
R411 1-218-933-11 METAL CHIP 22 5% 1/16W
R412 1-218-933-11 METAL CHIP 22 5% 1/16W
R413 1-218-933-11 METAL CHIP 22 5% 1/16W
R414 1-218-933-11 METAL CHIP 22 5% 1/16W
R428 1-218-965-11 METAL CHIP 10K 5% 1/16W
R429 1-218-965-11 METAL CHIP 10K 5% 1/16W
R430 1-218-933-11 METAL CHIP 22 5% 1/16W
R431 1-218-933-11 METAL CHIP 22 5% 1/16W
R432 1-218-990-81 SHORT CHIP 0
R433 1-218-933-11 METAL CHIP 22 5% 1/16W
R434 1-218-933-11 METAL CHIP 22 5% 1/16W
R435 1-218-933-11 METAL CHIP 22 5% 1/16W
R436 1-218-933-11 METAL CHIP 22 5% 1/16W
R437 1-218-933-11 METAL CHIP 22 5% 1/16W
The components identified by mark
or dotted line with mark are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
VP-062
11-29
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
R438 1-218-935-11 METAL CHIP 33 5% 1/16W
R439 1-218-939-11 METAL CHIP 68 5% 1/16W
R440 1-218-990-81 SHORT CHIP 0
R441 1-218-933-11 METAL CHIP 22 5% 1/16W
R442 1-218-990-81 SHORT CHIP 0
R443 1-218-990-81 SHORT CHIP 0
R444 1-218-933-11 METAL CHIP 22 5% 1/16W
R445 1-218-933-11 METAL CHIP 22 5% 1/16W
R446 1-218-933-11 METAL CHIP 22 5% 1/16W
R447 1-218-990-81 SHORT CHIP 0
R448 1-218-990-81 SHORT CHIP 0
R449 1-218-990-81 SHORT CHIP 0
R450 1-218-990-81 SHORT CHIP 0
R451 1-218-933-11 METAL CHIP 22 5% 1/16W
R452 1-218-933-11 METAL CHIP 22 5% 1/16W
R453 1-218-933-11 METAL CHIP 22 5% 1/16W
R454 1-218-990-81 SHORT CHIP 0
R455 1-218-990-81 SHORT CHIP 0
R456 1-218-965-11 METAL CHIP 10K 5% 1/16W
R457 1-218-965-11 METAL CHIP 10K 5% 1/16W
R458 1-218-965-11 METAL CHIP 10K 5% 1/16W
R459 1-218-933-11 METAL CHIP 22 5% 1/16W
R460 1-218-990-81 SHORT CHIP 0
R461 1-218-990-81 SHORT CHIP 0
R462 1-218-990-81 SHORT CHIP 0
R463 1-218-990-81 SHORT CHIP 0
R464 1-218-990-81 SHORT CHIP 0
R465 1-218-990-81 SHORT CHIP 0
R466 1-218-990-81 SHORT CHIP 0
R467 1-218-990-81 SHORT CHIP 0
R468 1-218-990-81 SHORT CHIP 0
R469 1-218-990-81 SHORT CHIP 0
R471 1-218-953-11 METAL CHIP 1K 5% 1/16W
R473 1-218-965-11 METAL CHIP 10K 5% 1/16W
R475 1-218-965-11 METAL CHIP 10K 5% 1/16W
R476 1-218-965-11 METAL CHIP 10K 5% 1/16W
R477 1-218-990-81 SHORT CHIP 0
R478 1-218-990-81 SHORT CHIP 0
R479 1-218-953-11 METAL CHIP 1K 5% 1/16W
R480 1-218-941-81 METAL CHIP 100 5% 1/16W
R481 1-218-965-11 METAL CHIP 10K 5% 1/16W
R482 1-218-965-11 METAL CHIP 10K 5% 1/16W
R483 1-218-965-11 METAL CHIP 10K 5% 1/16W
R484 1-218-990-81 SHORT CHIP 0
R485 1-218-990-81 SHORT CHIP 0
R486 1-218-990-81 SHORT CHIP 0
R487 1-218-990-81 SHORT CHIP 0
R488 1-218-990-81 SHORT CHIP 0
R489 1-218-933-11 METAL CHIP 22 5% 1/16W
R501 1-218-990-81 SHORT CHIP 0
R502 1-218-990-81 SHORT CHIP 0
R503 1-218-941-81 METAL CHIP 100 5% 1/16W
R504 1-218-990-81 SHORT CHIP 0
R505 1-218-990-81 SHORT CHIP 0
R506 1-218-990-81 SHORT CHIP 0
R507 1-218-990-81 SHORT CHIP 0
R508 1-218-990-81 SHORT CHIP 0
R509 1-218-990-81 SHORT CHIP 0
R510 1-218-990-81 SHORT CHIP 0
R511 1-218-990-81 SHORT CHIP 0
R512 1-218-939-11 METAL CHIP 68 5% 1/16W
R513 1-218-939-11 METAL CHIP 68 5% 1/16W
R514 1-218-939-11 METAL CHIP 68 5% 1/16W
R515 1-218-939-11 METAL CHIP 68 5% 1/16W
R516 1-218-990-81 SHORT CHIP 0
R518 1-218-935-11 METAL CHIP 33 5% 1/16W
R519 1-218-935-11 METAL CHIP 33 5% 1/16W
R520 1-218-935-11 METAL CHIP 33 5% 1/16W
R522 1-218-990-81 SHORT CHIP 0
R523 1-218-990-81 SHORT CHIP 0
R602 1-218-990-81 SHORT CHIP 0
R604 1-218-990-81 SHORT CHIP 0
R607 1-218-990-81 SHORT CHIP 0
R615 1-218-965-11 METAL CHIP 10K 5% 1/16W
R616 1-218-990-81 SHORT CHIP 0
R617 1-218-990-81 SHORT CHIP 0
R618 1-218-990-81 SHORT CHIP 0
R620 1-218-990-81 SHORT CHIP 0
R622 1-218-990-81 SHORT CHIP 0
R623 1-218-990-81 SHORT CHIP 0
R624 1-218-990-81 SHORT CHIP 0
R626 1-218-990-81 SHORT CHIP 0
R628 1-218-990-81 SHORT CHIP 0
R630 1-218-933-11 METAL CHIP 22 5% 1/16W
R632 1-218-933-11 METAL CHIP 22 5% 1/16W
R633 1-218-933-11 METAL CHIP 22 5% 1/16W
R634 1-218-933-11 METAL CHIP 22 5% 1/16W
R635 1-218-933-11 METAL CHIP 22 5% 1/16W
R636 1-218-933-11 METAL CHIP 22 5% 1/16W
R637 1-218-933-11 METAL CHIP 22 5% 1/16W
R638 1-218-933-11 METAL CHIP 22 5% 1/16W
R639 1-218-990-81 SHORT CHIP 0
R644 1-218-977-11 METAL CHIP 100K 5% 1/16W
R645 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R646 1-218-990-81 SHORT CHIP 0
R648 1-218-941-81 METAL CHIP 100 5% 1/16W
R649 1-218-843-11 METAL CHIP 680 0.5% 1/10W
R650 1-218-990-81 SHORT CHIP 0
R651 1-218-990-81 SHORT CHIP 0
R652 1-218-965-11 METAL CHIP 10K 5% 1/16W
R653 1-216-864-11 SHORT CHIP 0
R655 1-218-973-11 METAL CHIP 47K 5% 1/16W
R657 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R658 1-218-981-91 METAL CHIP 220K 5% 1/16W
R659 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R660 1-218-953-11 METAL CHIP 1K 5% 1/16W
R663 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R664 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R665 1-218-990-81 SHORT CHIP 0
R667 1-218-956-11 METAL CHIP 1.8K 5% 1/16W
R668 1-218-956-11 METAL CHIP 1.8K 5% 1/16W
R669 1-216-864-11 SHORT CHIP 0
R670 1-216-864-11 SHORT CHIP 0
R671 1-216-864-11 SHORT CHIP 0
R672 1-216-864-11 SHORT CHIP 0
R673 1-216-864-11 SHORT CHIP 0
R676 1-218-990-81 SHORT CHIP 0
R678 1-218-981-91 METAL CHIP 220K 5% 1/16W
R679 1-218-977-11 METAL CHIP 100K 5% 1/16W
R681 1-218-981-91 METAL CHIP 220K 5% 1/16W
VP-062
11-30
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
R695 1-218-990-81 SHORT CHIP 0
R697 1-218-973-11 METAL CHIP 47K 5% 1/16W
R710 1-218-933-11 METAL CHIP 22 5% 1/16W
R711 1-218-933-11 METAL CHIP 22 5% 1/16W
R715 1-216-821-11 METAL CHIP 1K 5% 1/10W
R718 1-218-941-81 METAL CHIP 100 5% 1/16W
R719 1-218-990-81 SHORT CHIP 0
R722 1-218-941-81 METAL CHIP 100 5% 1/16W
R724 1-218-941-81 METAL CHIP 100 5% 1/16W
R729 1-218-939-11 METAL CHIP 68 5% 1/16W
R734 1-216-811-11 METAL CHIP 150 5% 1/10W
R735 1-216-801-11 METAL CHIP 22 5% 1/10W
R736 1-216-819-11 METAL CHIP 680 5% 1/10W
R738 1-220-158-11 METAL CHIP 3.6K 5% 1/10W
R739 1-216-817-11 METAL CHIP 470 5% 1/10W
R741 1-216-813-11 METAL CHIP 220 5% 1/10W
R743 1-216-811-11 METAL CHIP 150 5% 1/10W
R744 1-216-801-11 METAL CHIP 22 5% 1/10W
R745 1-216-864-11 SHORT CHIP 0
R747 1-211-990-11 METAL CHIP 75 0.5% 1/10W
R748 1-211-990-11 METAL CHIP 75 0.5% 1/10W
R749 1-216-821-11 METAL CHIP 1K 5% 1/10W
R750 1-211-990-11 METAL CHIP 75 0.5% 1/10W
R751 1-211-990-11 METAL CHIP 75 0.5% 1/10W
R752 1-211-990-11 METAL CHIP 75 0.5% 1/10W
R754 1-211-990-11 METAL CHIP 75 0.5% 1/10W
R755 1-216-821-11 METAL CHIP 1K 5% 1/10W
R756 1-218-679-11 METAL CHIP 300 0.5% 1/10W
R759 1-218-679-11 METAL CHIP 300 0.5% 1/10W
R760 1-218-679-11 METAL CHIP 300 0.5% 1/10W
R764 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R768 1-216-864-11 SHORT CHIP 0
R769 1-216-833-11 METAL CHIP 10K 5% 1/10W
R770 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R772 1-216-833-11 METAL CHIP 10K 5% 1/10W
R773 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R776 1-218-941-81 METAL CHIP 100 5% 1/16W
R777 1-218-933-11 METAL CHIP 22 5% 1/16W
R778 1-218-933-11 METAL CHIP 22 5% 1/16W
R801 1-216-295-91 SHORT CHIP 0
R804 1-216-821-11 METAL CHIP 1K 5% 1/10W
R805 1-216-821-11 METAL CHIP 1K 5% 1/10W
R806 1-216-833-11 METAL CHIP 10K 5% 1/10W
R807 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R808 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R809 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R810 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R811 1-218-683-11 METAL CHIP 430 0.5% 1/10W
R812 1-218-683-11 METAL CHIP 430 0.5% 1/10W
R813 1-218-683-11 METAL CHIP 430 0.5% 1/10W
R814 1-218-990-81 SHORT CHIP 0
R815 1-218-990-81 SHORT CHIP 0
R816 1-218-990-81 SHORT CHIP 0
R817 1-218-990-81 SHORT CHIP 0
R818 1-218-696-11 METAL CHIP 1.5K 0.5% 1/10W
R819 1-218-696-11 METAL CHIP 1.5K 0.5% 1/10W
R820 1-218-990-81 SHORT CHIP 0
R821 1-218-990-81 SHORT CHIP 0
R822 1-218-696-11 METAL CHIP 1.5K 0.5% 1/10W
R823 1-218-664-11 METAL CHIP 68 0.5% 1/10W
R824 1-218-683-11 METAL CHIP 430 0.5% 1/10W
R825 1-218-683-11 METAL CHIP 430 0.5% 1/10W
R826 1-218-683-11 METAL CHIP 430 0.5% 1/10W
R827 1-218-706-11 METAL CHIP 3.9K 0.5% 1/10W
R828 1-218-706-11 METAL CHIP 3.9K 0.5% 1/10W
R829 1-218-716-11 METAL CHIP 10K 0.5% 1/10W
R831 1-218-661-11 METAL CHIP 51 0.5% 1/10W
R832 1-218-661-11 METAL CHIP 51 0.5% 1/10W
R833 1-218-661-11 METAL CHIP 51 0.5% 1/10W
R835 1-218-661-11 METAL CHIP 51 0.5% 1/10W
R836 1-218-661-11 METAL CHIP 51 0.5% 1/10W
R837 1-218-661-11 METAL CHIP 51 0.5% 1/10W
R839 1-218-683-11 METAL CHIP 430 0.5% 1/10W
R840 1-218-683-11 METAL CHIP 430 0.5% 1/10W
R841 1-218-683-11 METAL CHIP 430 0.5% 1/10W
R844 1-218-683-11 METAL CHIP 430 0.5% 1/10W
R845 1-218-683-11 METAL CHIP 430 0.5% 1/10W
R846 1-218-683-11 METAL CHIP 430 0.5% 1/10W
R848 1-218-670-11 METAL CHIP 120 0.5% 1/10W
R849 1-218-990-81 SHORT CHIP 0
R850 1-218-990-81 SHORT CHIP 0
R860 1-218-965-11 METAL CHIP 10K 5% 1/16W
R862 1-218-965-11 METAL CHIP 10K 5% 1/16W
R863 1-243-862-91 METAL CHIP 75 0.5% 1/8W
R864 1-243-862-91 METAL CHIP 75 0.5% 1/8W
R865 1-243-862-91 METAL CHIP 75 0.5% 1/8W
R872 1-243-862-91 METAL CHIP 75 0.5% 1/8W
R873 1-243-862-91 METAL CHIP 75 0.5% 1/8W
R874 1-243-862-91 METAL CHIP 75 0.5% 1/8W
R1001 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1012 1-218-941-81 METAL CHIP 100 5% 1/16W
R1015 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1017 1-218-953-11 METAL CHIP 1K 5% 1/16W
R1019 1-220-803-81 METAL CHIP 4.7 5% 1/16W
R1020 1-218-968-11 METAL CHIP 18K 5% 1/16W
R1021 1-218-968-11 METAL CHIP 18K 5% 1/16W
R1022 1-218-972-11 METAL CHIP 39K 5% 1/16W
R1023 1-218-972-11 METAL CHIP 39K 5% 1/16W
R1024 1-218-990-81 SHORT CHIP 0
R1025 1-218-990-81 SHORT CHIP 0
R1201 1-218-990-81 SHORT CHIP 0
R1202 1-218-990-81 SHORT CHIP 0
R1203 1-218-941-81 METAL CHIP 100 5% 1/16W
R1204 1-218-990-81 SHORT CHIP 0
R1205 1-218-990-81 SHORT CHIP 0
R1206 1-218-990-81 SHORT CHIP 0
R1207 1-218-990-81 SHORT CHIP 0
R1208 1-218-990-81 SHORT CHIP 0
R1209 1-218-990-81 SHORT CHIP 0
R1210 1-218-990-81 SHORT CHIP 0
R1211 1-218-990-81 SHORT CHIP 0
R1212 1-218-990-81 SHORT CHIP 0
R1213 1-218-990-81 SHORT CHIP 0
R1214 1-218-990-81 SHORT CHIP 0
R1215 1-218-990-81 SHORT CHIP 0
R1216 1-218-990-81 SHORT CHIP 0
R1218 1-218-990-81 SHORT CHIP 0
R1219 1-218-942-11 METAL CHIP 120 5% 1/16W
R1220 1-218-942-11 METAL CHIP 120 5% 1/16W
R1221 1-218-990-81 SHORT CHIP 0
VP-062
11-31
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
R1222 1-218-935-11 METAL CHIP 33 5% 1/16W
R1223 1-218-935-11 METAL CHIP 33 5% 1/16W
R1224 1-218-935-11 METAL CHIP 33 5% 1/16W
R1225 1-218-990-81 SHORT CHIP 0
R1226 1-218-990-81 SHORT CHIP 0
R1228 1-218-990-81 SHORT CHIP 0
R1230 1-218-990-81 SHORT CHIP 0
< COMPOSITION CIRCUIT BLOCK >
RB101 1-242-963-21 RES, NETWORK 33 (1005X4)
RB102 1-242-963-21 RES, NETWORK 33 (1005X4)
RB103 1-242-963-21 RES, NETWORK 33 (1005X4)
RB104 1-242-963-21 RES, NETWORK 33 (1005X4)
RB201 1-234-371-21 RES, NETWORK 47 (1005X4)
RB202 1-234-371-21 RES, NETWORK 47 (1005X4)
RB203 1-234-371-21 RES, NETWORK 47 (1005X4)
RB204 1-234-371-21 RES, NETWORK 47 (1005X4)
RB205 1-234-371-21 RES, NETWORK 47 (1005X4)
RB206 1-234-371-21 RES, NETWORK 47 (1005X4)
RB207 1-234-371-21 RES, NETWORK 47 (1005X4)
RB208 1-234-370-21 RES, NETWORK 22 (1005X4)
RB209 1-234-370-21 RES, NETWORK 22 (1005X4)
RB210 1-234-370-21 RES, NETWORK 22 (1005X4)
RB211 1-234-370-21 RES, NETWORK 22 (1005X4)
RB212 1-234-370-21 RES, NETWORK 22 (1005X4)
RB213 1-234-370-21 RES, NETWORK 22 (1005X4)
RB214 1-234-370-21 RES, NETWORK 22 (1005X4)
RB215 1-234-370-21 RES, NETWORK 22 (1005X4)
RB216 1-242-963-21 RES, NETWORK 33 (1005X4)
RB217 1-242-963-21 RES, NETWORK 33 (1005X4)
RB218 1-242-963-21 RES, NETWORK 33 (1005X4)
RB219 1-234-702-11 RES, NETWORK 68 (1005X4)
RB220 1-234-702-11 RES, NETWORK 68 (1005X4)
RB221 1-234-702-11 RES, NETWORK 68 (1005X4)
RB222 1-234-702-11 RES, NETWORK 68 (1005X4)
RB223 1-234-375-21 RES, NETWORK 1K (1005X4)
RB224 1-234-375-21 RES, NETWORK 1K (1005X4)
RB301 1-234-370-21 RES, NETWORK 22 (1005X4)
RB302 1-234-370-21 RES, NETWORK 22 (1005X4)
RB303 1-234-370-21 RES, NETWORK 22 (1005X4)
RB304 1-234-370-21 RES, NETWORK 22 (1005X4)
RB305 1-234-370-21 RES, NETWORK 22 (1005X4)
RB306 1-234-370-21 RES, NETWORK 22 (1005X4)
RB307 1-234-370-21 RES, NETWORK 22 (1005X4)
RB308 1-234-370-21 RES, NETWORK 22 (1005X4)
RB401 1-234-702-11 RES, NETWORK 68 (1005X4)
RB402 1-234-702-11 RES, NETWORK 68 (1005X4)
RB403 1-234-702-11 RES, NETWORK 68 (1005X4)
RB404 1-234-702-11 RES, NETWORK 68 (1005X4)
RB405 1-234-702-11 RES, NETWORK 68 (1005X4)
RB406 1-234-370-21 RES, NETWORK 22 (1005X4)
RB407 1-234-370-21 RES, NETWORK 22 (1005X4)
RB408 1-234-370-21 RES, NETWORK 22 (1005X4)
RB409 1-234-370-21 RES, NETWORK 22 (1005X4)
RB410 1-234-702-11 RES, NETWORK 68 (1005X4)
RB411 1-234-702-11 RES, NETWORK 68 (1005X4)
RB412 1-242-963-21 RES, NETWORK 33 (1005X4)
RB413 1-234-371-21 RES, NETWORK 47 (1005X4)
RB414 1-242-963-21 RES, NETWORK 33 (1005X4)
RB415 1-234-371-21 RES, NETWORK 47 (1005X4)
RB416 1-234-371-21 RES, NETWORK 47 (1005X4)
RB417 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB418 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB419 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB420 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB421 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB422 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB423 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB501 1-234-702-11 RES, NETWORK 68 (1005X4)
RB502 1-234-702-11 RES, NETWORK 68 (1005X4)
RB503 1-234-702-11 RES, NETWORK 68 (1005X4)
RB504 1-234-702-11 RES, NETWORK 68 (1005X4)
RB505 1-234-702-11 RES, NETWORK 68 (1005X4)
RB506 1-234-702-11 RES, NETWORK 68 (1005X4)
RB507 1-234-702-11 RES, NETWORK 68 (1005X4)
RB508 1-234-702-11 RES, NETWORK 68 (1005X4)
RB509 1-234-702-11 RES, NETWORK 68 (1005X4)
RB510 1-234-702-11 RES, NETWORK 68 (1005X4)
RB511 1-234-702-11 RES, NETWORK 68 (1005X4)
RB512 1-234-702-11 RES, NETWORK 68 (1005X4)
RB513 1-234-702-11 RES, NETWORK 68 (1005X4)
RB601 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB604 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB605 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB607 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB608 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB609 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB610 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB611 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB612 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB613 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB701 1-234-370-21 RES, NETWORK 22 (1005X4)
RB702 1-234-370-21 RES, NETWORK 22 (1005X4)
RB704 1-234-370-21 RES, NETWORK 22 (1005X4)
RB705 1-234-370-21 RES, NETWORK 22 (1005X4)
RB706 1-234-370-21 RES, NETWORK 22 (1005X4)
RB707 1-234-370-21 RES, NETWORK 22 (1005X4)
RB708 1-234-370-21 RES, NETWORK 22 (1005X4)
RB1201 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB1202 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB1203 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB1204 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
RB1205 1-234-371-21 RES, NETWORK 47 (1005X4)
RB1206 1-234-371-21 RES, NETWORK 47 (1005X4)
RB1207 1-234-371-21 RES, NETWORK 47 (1005X4)
RB1208 1-234-371-21 RES, NETWORK 47 (1005X4)
RB1209 1-234-371-21 RES, NETWORK 47 (1005X4)
< VARIABLE RESISTOR >
RV701 1-223-583-41 RES, ADJ, CARBON (3 TYPE) 1K
RV702 1-223-583-41 RES, ADJ, CARBON (3 TYPE) 1K
< VIBRATOR >
X401 1-813-480-11 OSCILLATOR, CRYSTAL (27MHz)
MISCELLANEOUS PARTS
********************
52 1-835-672-11 CABLE, FLEXIBLE FLAT (FCL-001)
64 1-835-673-11 CABLE, FLEXIBLE FLAT (FRT-002)
VP-062
11-32E
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BDP-S5000ES
66 1-835-670-11 CABLE, FLEXIBLE FLAT (FRI-001)
67 1-835-671-11 CABLE, FLEXIBLE FLAT (FRC-002)
101 1-474-105-11 POWER BLOCK
103 A-1546-230-B TRANSPORT ASSY, BPD-200ES
104 1-966-251-11 HARNESS (SAT-002)
152 1-835-676-11 CABLE, FLEXIBLE FLAT (FMA-024)
202 1-835-675-11 CABLE, FLEXIBLE FLAT (FMA-023)
204 1-500-386-31 FILTER, CLAMP (FERRITE CORE)
253 1-835-674-11 CABLE, FLEXIBLE FLAT (FMI-006)
M2001 1-787-794-11 FAN, D.C.
T101 1-445-446-12 TRANSFORMER, POWER (US, CND)
T101 1-445-446-21 TRANSFORMER, POWER (EXCEPT US, CND)
The components identified by mark
or dotted line with mark are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
BDP-S5000ES
REVISION HISTORY
Ver. Date Description of Revision
1.0 2008.10 New

Navigation menu
