BD-SP807

SERVICE MANUAL

RC-730DV

BLU-RAY DISC PLAYER

Black model

MODEL BD-SP807(B)CDC1N

120 V AC, 60HzB CDC1N

Ref. No. 4177

022010 (CDC1N)

SAFETY-RELATED COMPONENT

WARNING!!

COMPONENTS IDENTIFIED BY MARK ON THE

SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE

CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.

REPLACE THESE COMPONENTS WITH ONKYO

PARTS WHOSE PART NUMBERS APPEAR AS SHOWN

IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE

MEASUREMENTS TO DETERMINE THAT EXPOSED

PARTS ARE ACCEPTABLY INSULATED FROM THE

SUPPLY CIRCUIT BEFORE RETURNING THE

APPLIANCE TO THE CUSTOMER.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1-1

Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1

How to Initialize the BLU-RAY Disc Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7-1

Block Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8-1

Schematic Diagrams / CBA and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12-1

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

1-1-1 E5KE0SP

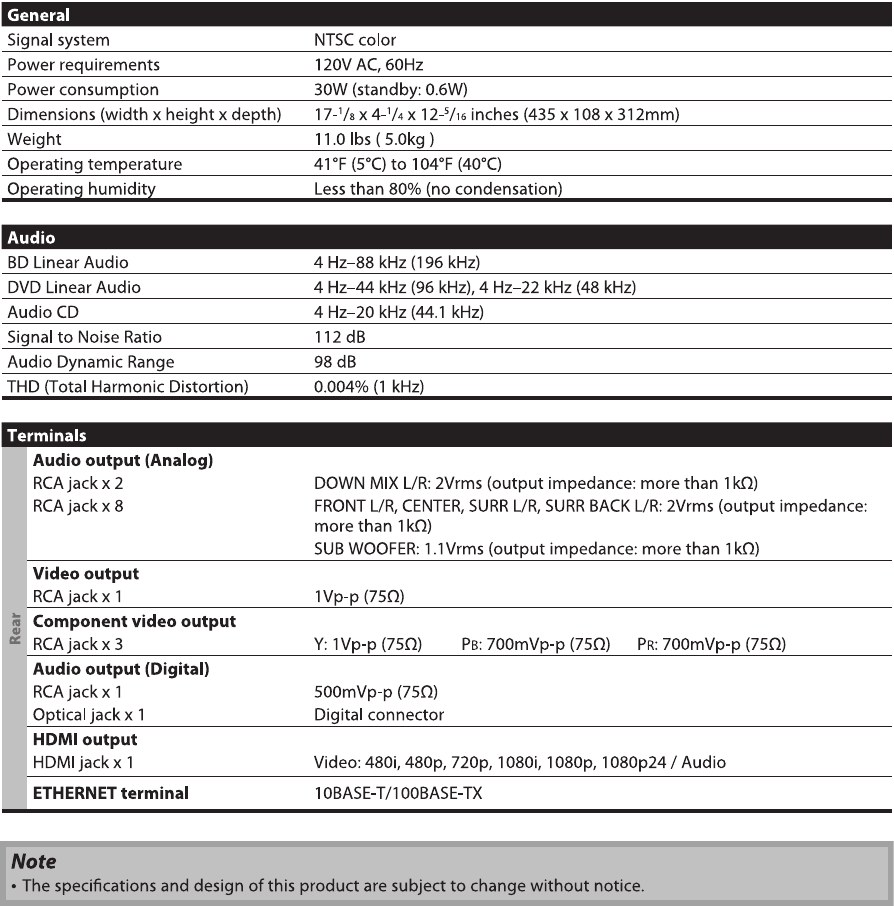

SPECIFICATIONS

1-2-1 B2NLBSP

LASER BEAM SAFETY PRECAUTIONS

This BD player uses a pickup that emits a laser beam.

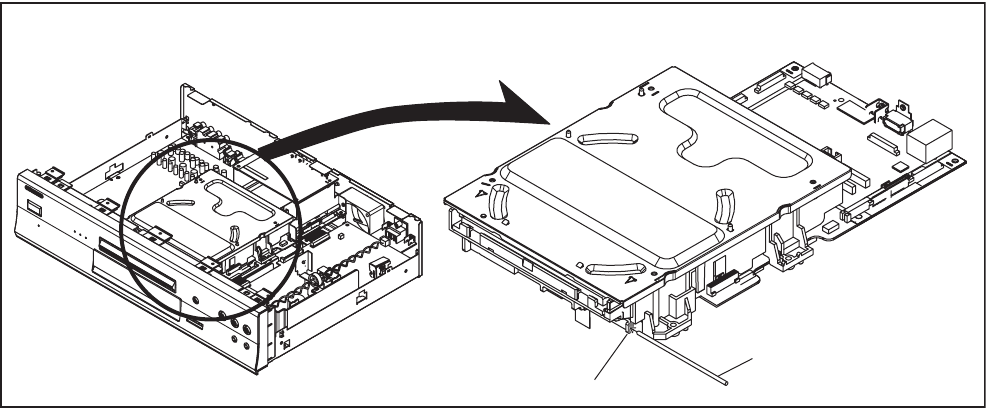

The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep

your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser

beam.

CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in

hazardous radiation exposure.

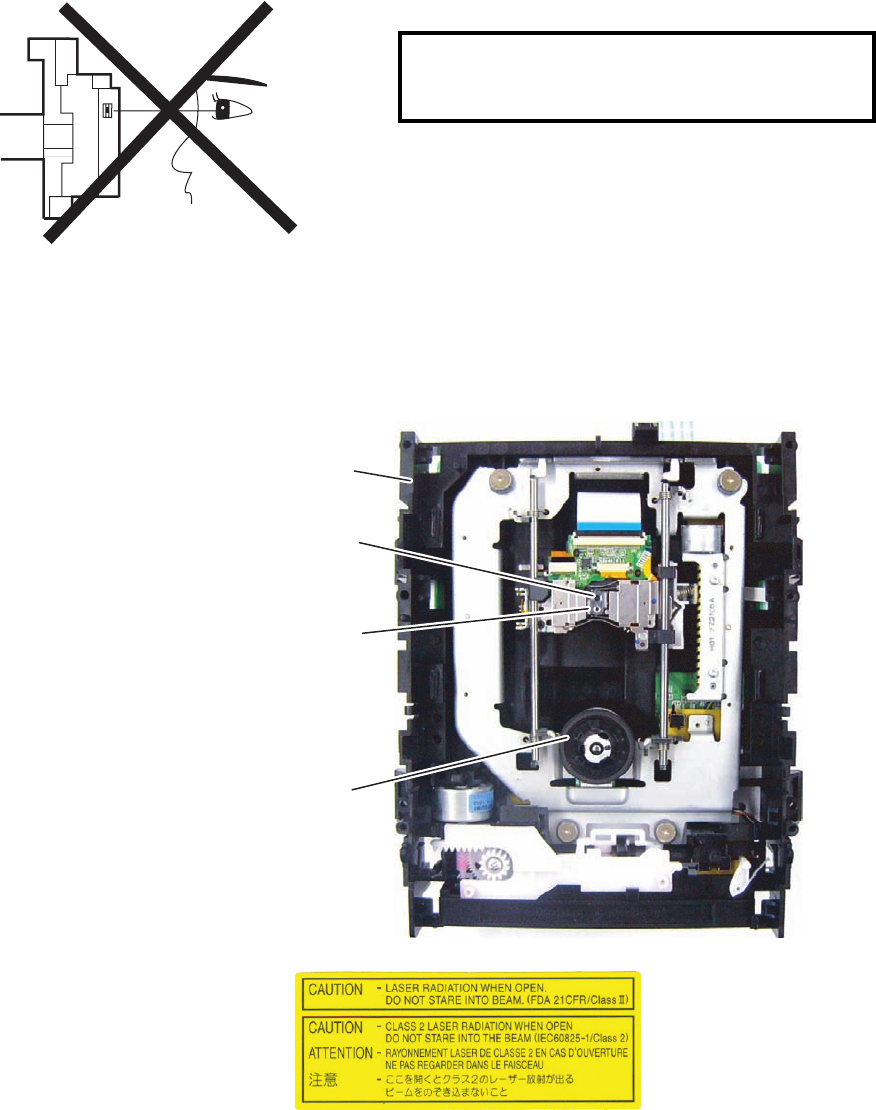

Location: Inside Top of BD mechanism.

Do not look directly at the laser beam coming

from the pickup or allow it to strike against your

skin.

Drive Mechanism Assembly

Laser Beam Radiation

Laser Pickup

Turntable

1-3-1 BDN_ISP

IMPORTANT SAFETY PRECAUTIONS

Product Safety Notice

Some electrical and mechanical parts have special

safety-related characteristics which are often not

evident from visual inspection, nor can the protection

they give necessarily be obtained by replacing them

with components rated for higher voltage, wattage,

etc. Parts that have special safety characteristics are

identified by a # on schematics and in parts lists. Use

of a substitute replacement that does not have the

same safety characteristics as the recommended

replacement part might create shock, fire, and/or other

hazards. The Product’s Safety is under review

continuously and new instructions are issued

whenever appropriate. Prior to shipment from the

factory, our products are carefully inspected to confirm

with the recognized product safety and electrical

codes of the countries in which they are to be sold.

However, in order to maintain such compliance, it is

equally important to implement the following

precautions when a set is being serviced.

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations

applying to spurious radiation. These must also be

replaced only with specified replacements.

Examples: RF converters, RF cables, noise

blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation tape

2) PVC tubing

3) Spacers

4) Insulators for transistors

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of

wires securely about the terminals before

soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film

resistors, fusible resistors, etc.).

G. Check that replaced wires do not contact sharp

edges or pointed parts.

H. When a power cord has been replaced, check that

5 - 6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.

J. Be careful that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the

AC outlet.

1-3-2 BDN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and

wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified

values to verify compliance with safety standards.

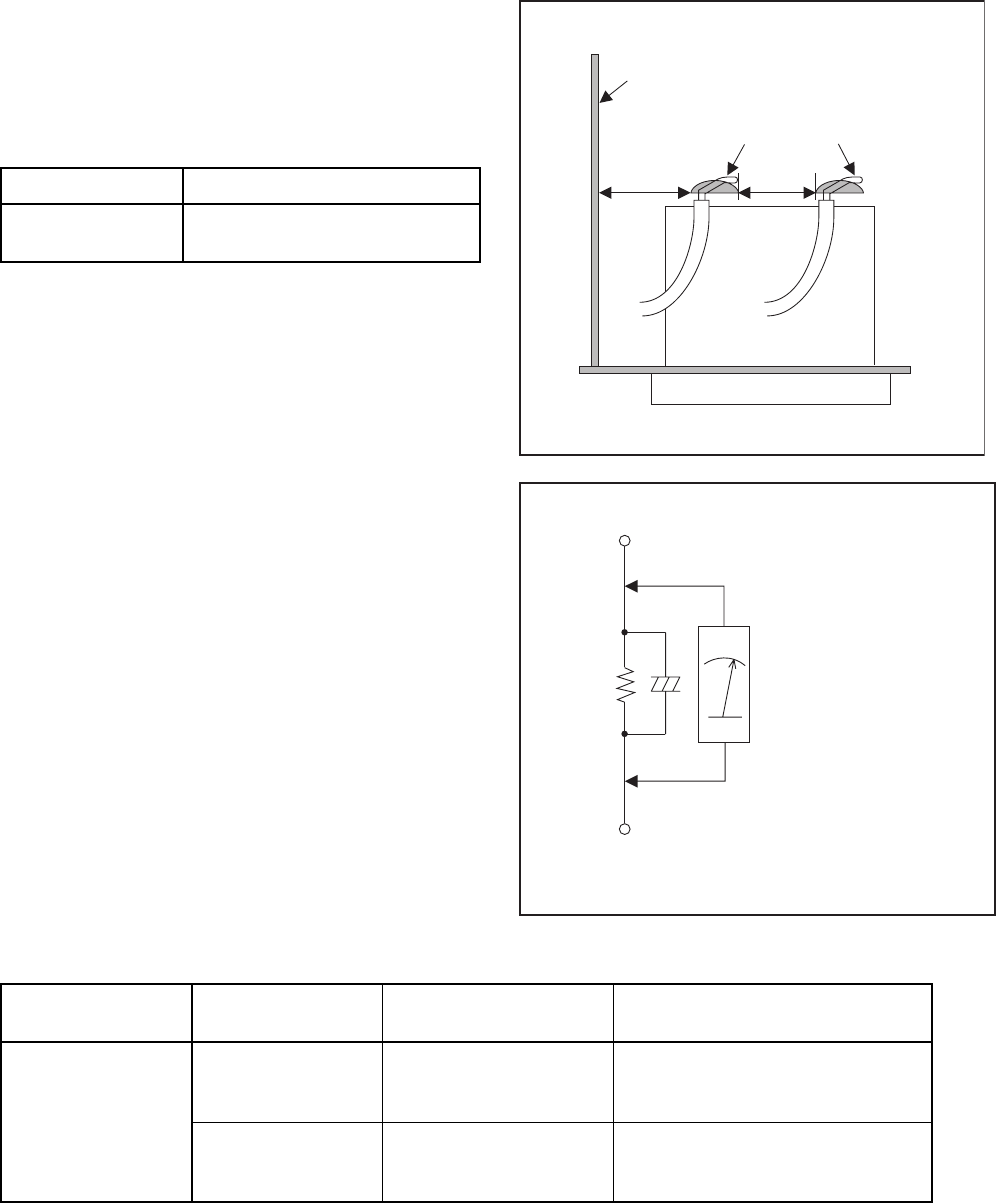

1. Clearance Distance

When replacing primary circuit components, confirm

specified clearance distance (d) and (d’) between

soldered terminals, and between terminals and

surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

2. Leakage Current Test

Confirm the specified (or lower) leakage current

between B (earth ground, power cord plug prongs) and

externally exposed accessible parts (RF terminals,

antenna terminals, video and audio input and output

terminals, microphone jacks, earphone jacks, etc.) is

lower than or equal to the specified value in the table

below.

Measuring Method (Power ON):

Insert load Z between B (earth ground, power cord plug

prongs) and exposed accessible parts. Use an AC

voltmeter to measure across the terminals of load Z.

See Fig. 2 and the following table.

Table 2: Leakage current ratings for selected areas

Note:This table is unofficial and for reference only. Be sure to confirm the precise values.

AC Line Voltage Clearance Distance (d), (d’)

120 V ≥ 3mm(d)

≥ 4mm(d’)

AC Line Voltage Load Z Leakage Current (i) One side of power cord plug

prongs (B) to:

120 V

2kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC RF or

Antenna terminals

50kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC A/V Input, Output

Chassis or Secondary Conductor

Primary Circuit

Fig. 1

d' d

Fig. 2

AC Voltmeter

(High Impedance)

Exposed Accessible Part

BOne side of

Power Cord Plug Prongs

1-4-1 BDN_SN

STANDARD NOTES FOR SERVICING

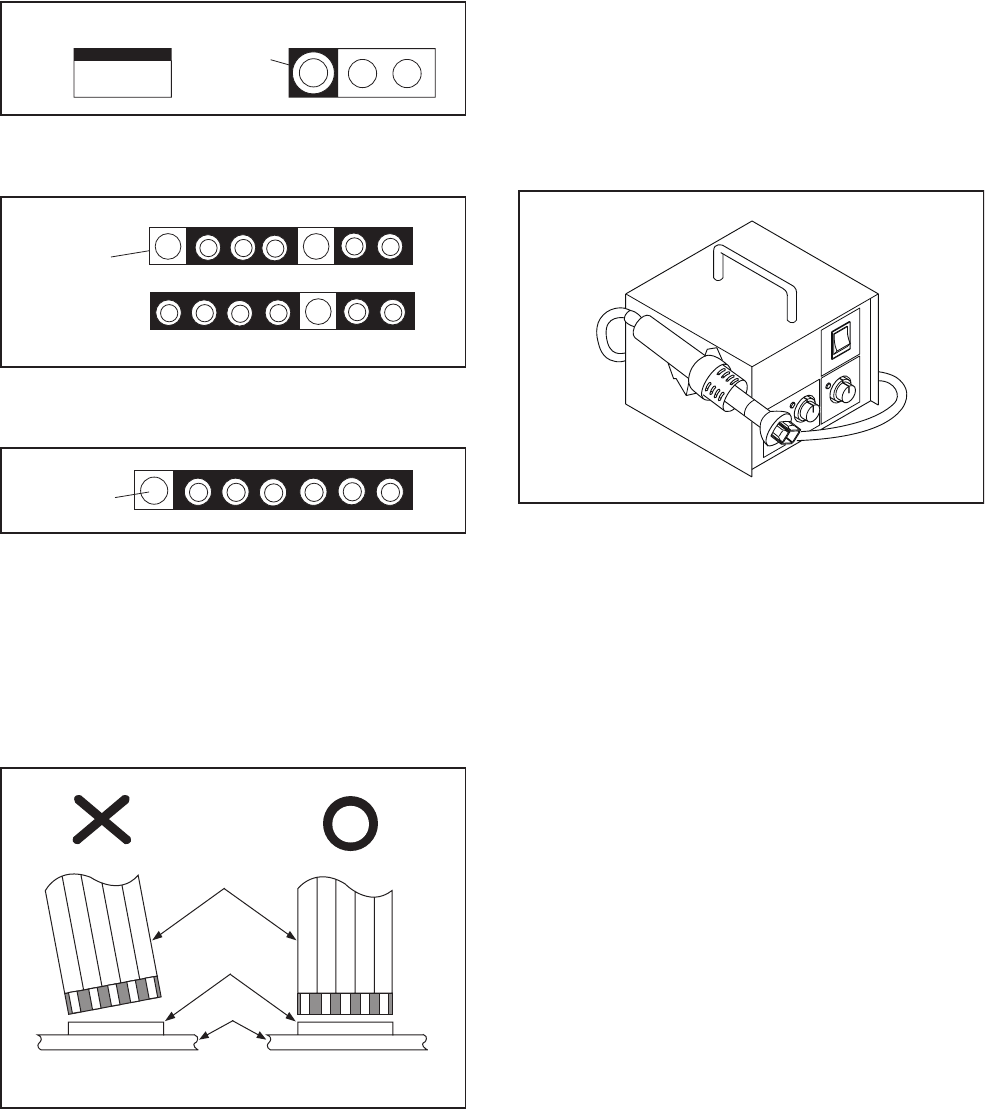

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is

indicated as shown.

2. For other ICs, pin 1 and every fifth pin are

indicated as shown.

3. The 1st pin of every male connector is indicated as

shown.

Instructions for Connectors

1. When you connect or disconnect the FFC (Flexible

Foil Connector) cable, be sure to first disconnect

the AC cord.

2. FFC (Flexible Foil Connector) cable should be

inserted parallel into the connector, not at an

angle.

Pb (Lead) Free Solder

When soldering, be sure to use the Pb free solder.

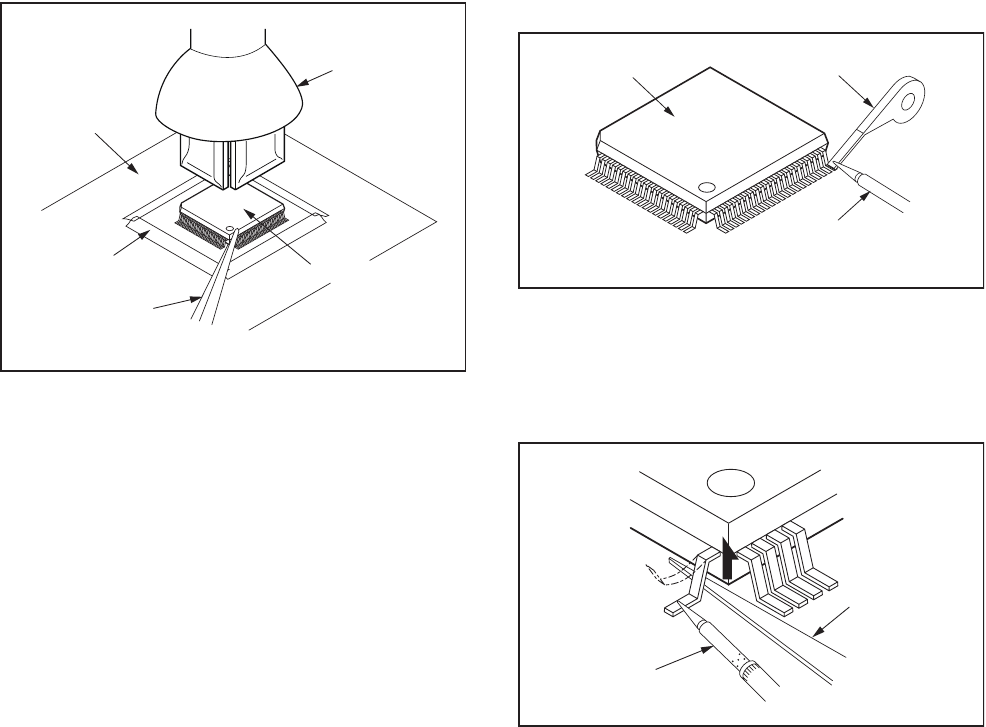

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering

machine, then apply hot air to the Flat Pack-IC

(about 5 to 6 seconds). (Fig. S-1-1)

2. Remove the flat pack-IC with tweezers while

applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply

soldering iron to center of the flat pack-IC and heat

up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using

tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use

an appropriate hot-air flat pack-IC desoldering

machine, whose shape matches that of the Flat

Pack-IC.

2. Do not supply hot air to the chip parts around the

flat pack-IC for over 6 seconds because damage

to the chip parts may occur. Put masking tape

around the flat pack-IC to protect other parts from

damage. (Fig. S-1-2)

Top View

Out In

Bottom View

Input

Pin 1

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

Fig. S-1-1

1-4-2 BDN_SN

3. The flat pack-IC on the CBA is affixed with glue, so

be careful not to break or damage the foil of each

pin or the solder lands under the IC when

removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from

all pins of the flat pack-IC. When you use solder

flux which is applied to all pins of the flat pack-IC,

you can remove it easily. (Fig. S-1-3)

2. Lift each lead of the flat pack-IC upward one by

one, using a sharp pin or wire to which solder will

not adhere (iron wire). When heating the pins, use

a fine tip soldering iron or a hot air desoldering

machine. (Fig. S-1-4)

3. Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply

soldering iron to center of the flat pack-IC and heat

up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using

tweezers. (Fig. S-1-6)

Hot-air

Flat Pack-IC

Desoldering

Machine

CBA

Flat Pack-IC

Tweezers

Masking

Tape

Fig. S-1-2

Flat Pack-IC Desoldering Braid

Soldering Iron

Fig. S-1-3

Fine Tip

Soldering Iron

Sharp

Fig. S-1-4

1-4-3 BDN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from

all pins of the flat pack-IC. When you use solder

flux which is applied to all pins of the flat pack-IC,

you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering

iron or hot air blower, pull up the wire as the solder

melts so as to lift the IC leads from the CBA

contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply

soldering iron to center of the flat pack-IC and heat

up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using

tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not

being held by glue. When the flat pack-IC is

removed from the CBA, handle it gently

because it may be damaged if force is applied.

2. Installation

1. Using desoldering braid, remove the solder from

the foil of each pin of the flat pack-IC on the CBA

so you can install a replacement flat pack-IC more

easily.

2. The “ I ” mark on the flat pack-IC indicates pin 1.

(See Fig. S-1-7.) Be sure this mark matches the

pin 1 on the PCB when positioning for installation.

Then presolder the four corners of the flat pack-IC.

(See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that

none of the pins have solder bridges.

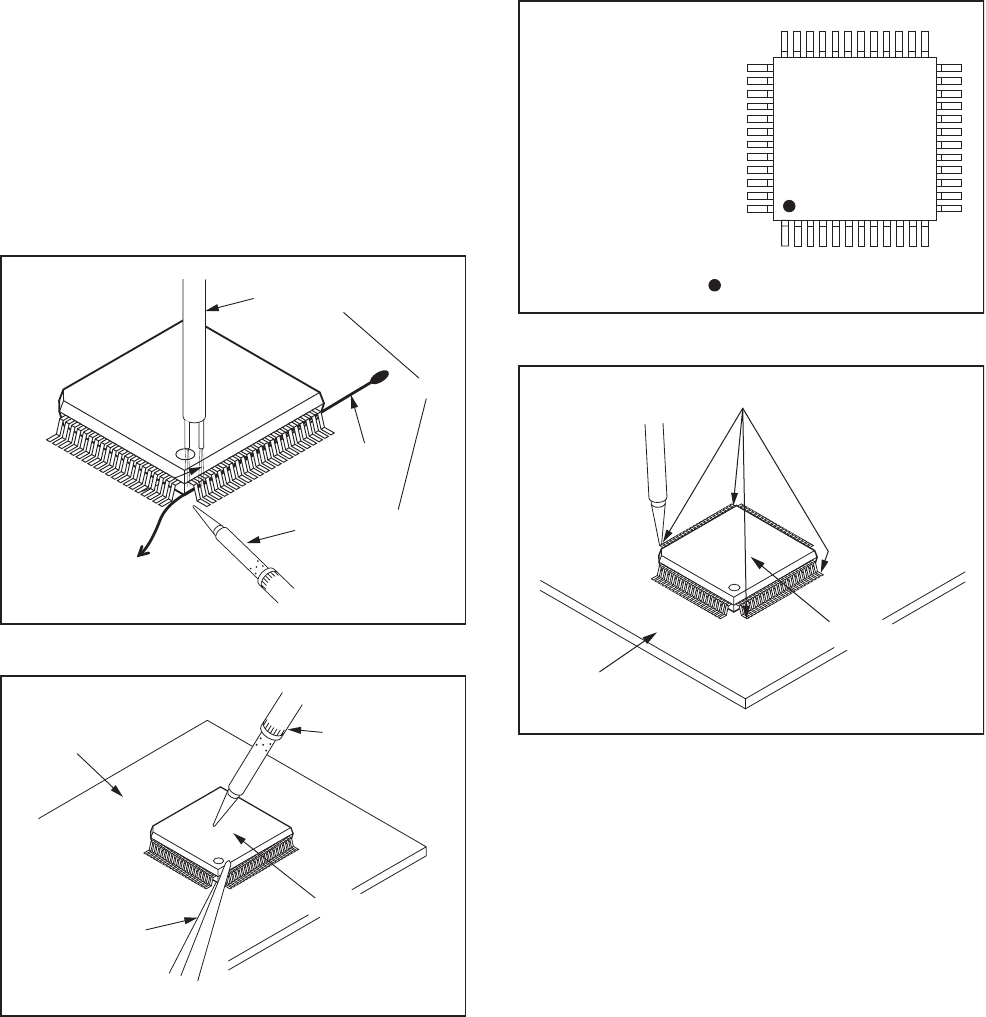

To Solid

Mounting Point

Soldering Iron

Iron Wire

Hot Air Blower

Fig. S-1-5

Fine Tip

Soldering Iron

CBA

Flat Pack-IC

Tweezers

Fig. S-1-6

Example :

Pin 1 of the Flat Pack-IC

is indicated by a " " mark. Fig. S-1-7

Presolder

CBA

Flat Pack-IC

Fig. S-1-8

1-4-4 BDN_SN

Instructions for Handling Semi-

conductors

Electrostatic breakdown of the semi-conductors may

occur due to a potential difference caused by

electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is

properly grounded to remove any static electricity that

may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate

with proper grounding (1 MΩ) on the workbench or

other surface, where the semi-conductors are to be

placed. Because the static electricity charge on

clothing will not escape through the body grounding

band, be careful to avoid contacting semi-conductors

with your clothing.

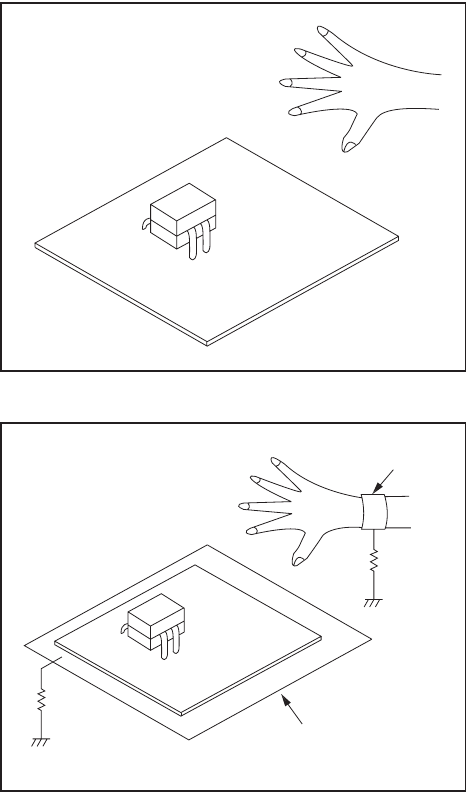

CBA

Grounding Band

Conductive Sheet or

Copper Plate

1MΩ

CBA

1-5-1 E5KE0DC

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps to gain

access to item(s) to be serviced. When reassembling,

follow the steps in reverse order. Bend, route, and

dress the cables as they were originally.

2. Disassembly Method

Note:

(1) Identification (location) No. of parts in the figures

(2) Name of the part

(3) Figure Number for reference

(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or

desoldered.

P = Spring, L = Locking Tab, S = Screw,

CN = Connector

* = Unhook, Unlock, Release, Unplug, or Desolder

e.g. 2(S-2) = two Screws (S-2),

2(L-2) = two Locking Tabs (L-2)

(5) Refer to “Reference Notes.”

ID/

Loc.

No. Part

Removal

Fig.

No.

Remove/*Unhook/

Unlock/Release/

Unplug/Desolder Note

[1] Top Cover D1 9(S-1) ---

[2] Tray Panel D2 --------------- 1

[3] Front

Assembly D2 *2(L-1), *(L-2), 5(S-2),

9(S-3), *CN2002 2

[4] Front A

CBA D2 *CN3001 ---

[5] Front B

CBA D2 --------------- ---

[6]

Front

Bracket

D3 7(S-4), (S-5) ---

[7]

SD CBA

D3 2(S-6), *CN5001 4

[8] Rear Panel D4

5(S-7), (S-8), 2(S-9),

(S-10), (S-11),

11(S-12), 2(S-13),

*CN1006

---

[9] Motor DC

Fan D4 --------------- ---

[3] Front

Assembly

[1] Top Cover

[2] Tray Panel

[8] Rear Panel

[12] Video CBA

[13] AV PCB

Bracket

[15] Loader

Bracket

[9] Motor

DC Fan [10] Inlet CBA

[6] Front Bracket

[14] BD Main CBA

& BD Mechanism

Assembly

[7] SD CBA

[17] Power

Holder

[16] Power

Supply CBA

[11] Audio CBA

[4] Front A CBA

[5] Front B CBA

[10]

Inlet CBA

D4 *CN1001 ---

[11] Audio CBA D5 6(S-14), *CN2005,

*CN2007, *CN2008 ---

[12] Video CBA D6 4(S-15), *CN7101 ---

[13] AV PCB

Bracket D6 4(S-16) ---

[14]

BD Main

CBA & BD

Mechanism

Assembly

D6 4(S-17), *CN6001,

*CN7601 3, 4

[15] Loader

Bracket D6 6(S-18) ---

[16] Power

Supply

CBA D7 2(S-19), 2(S-20) ---

[17] Power

Holder D7 3(S-21) ---

↓

(1) ↓

(2) ↓

(3) ↓

(4) ↓

(5)

ID/

Loc.

No. Part

Removal

Fig.

No.

Remove/*Unhook/

Unlock/Release/

Unplug/Desolder Note

1-5-2 E5KE0DC

Reference Note

1. How to remove tray panel

1) Connect the wall plug to an AC outlet and press

the [ A] button to open the tray.

2) To lift up, the tray panel is removed.

3) Press the [ A] button again to close the tray.

4) Press the [ON/STANDBY] button to turn the

power off.

5) Unplug an AC cord.

2. CAUTION 1: Locking Tabs (L-1) and (L-2) are

fragile. Be careful not to break them.

3. The BD Main CBA & BD Mechanism Assembly

is adjusted as a unit at factory. Therefore, do

not disassemble it. Replace the BD Main CBA

& BD Mechanism Assembly as a unit.

4. CAUTION 2: Connectors (CN1003 and CN6001,

CN5001 and CN5003, CN5004 and CN7601) are

fragile.

Make sure to hold both ends while you remove the

connector. While you remove, be careful not to

hold the other end too hard since this may result in

damage to locking tabs.

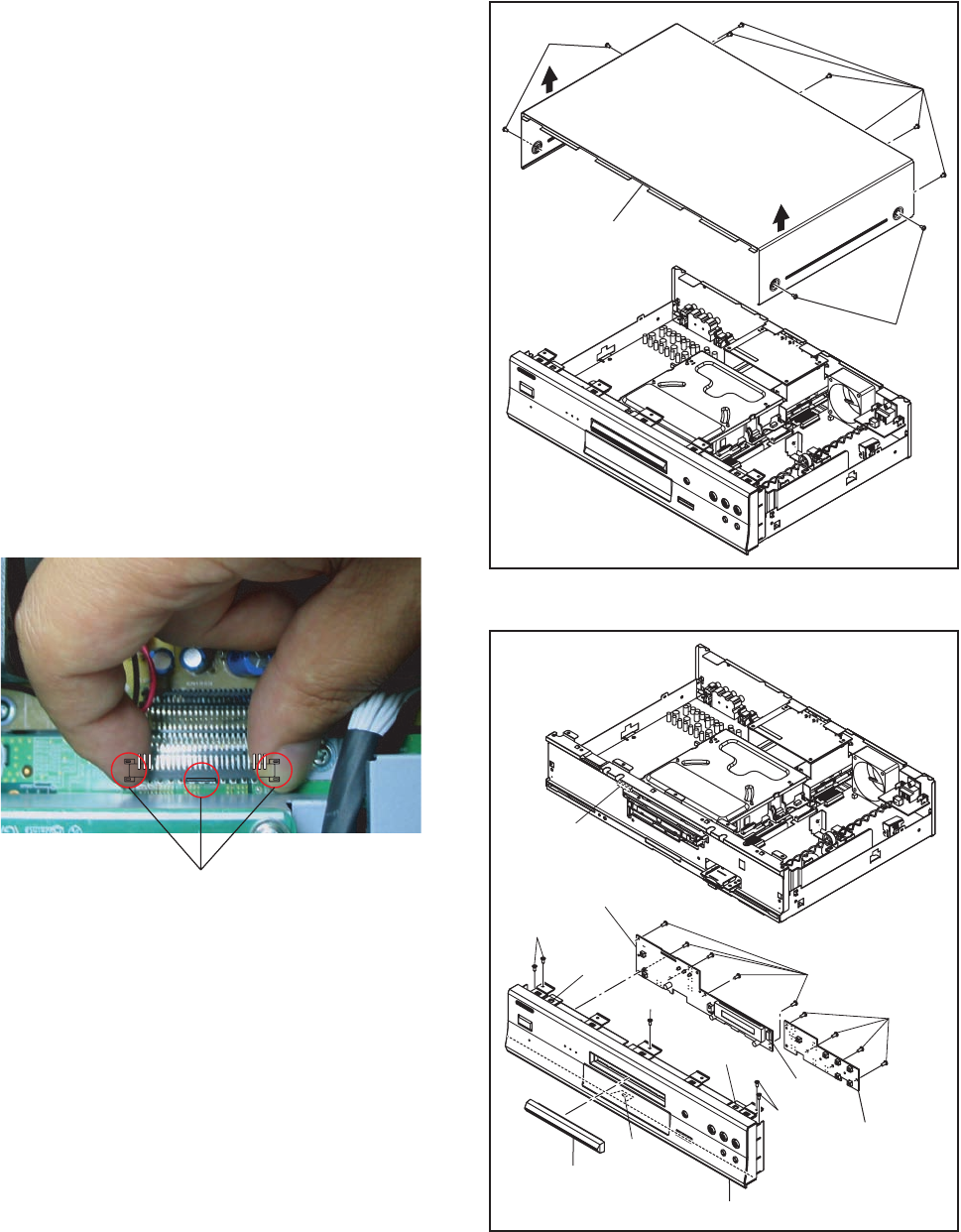

Locking tabs

[1] Top Cover

(S-1)

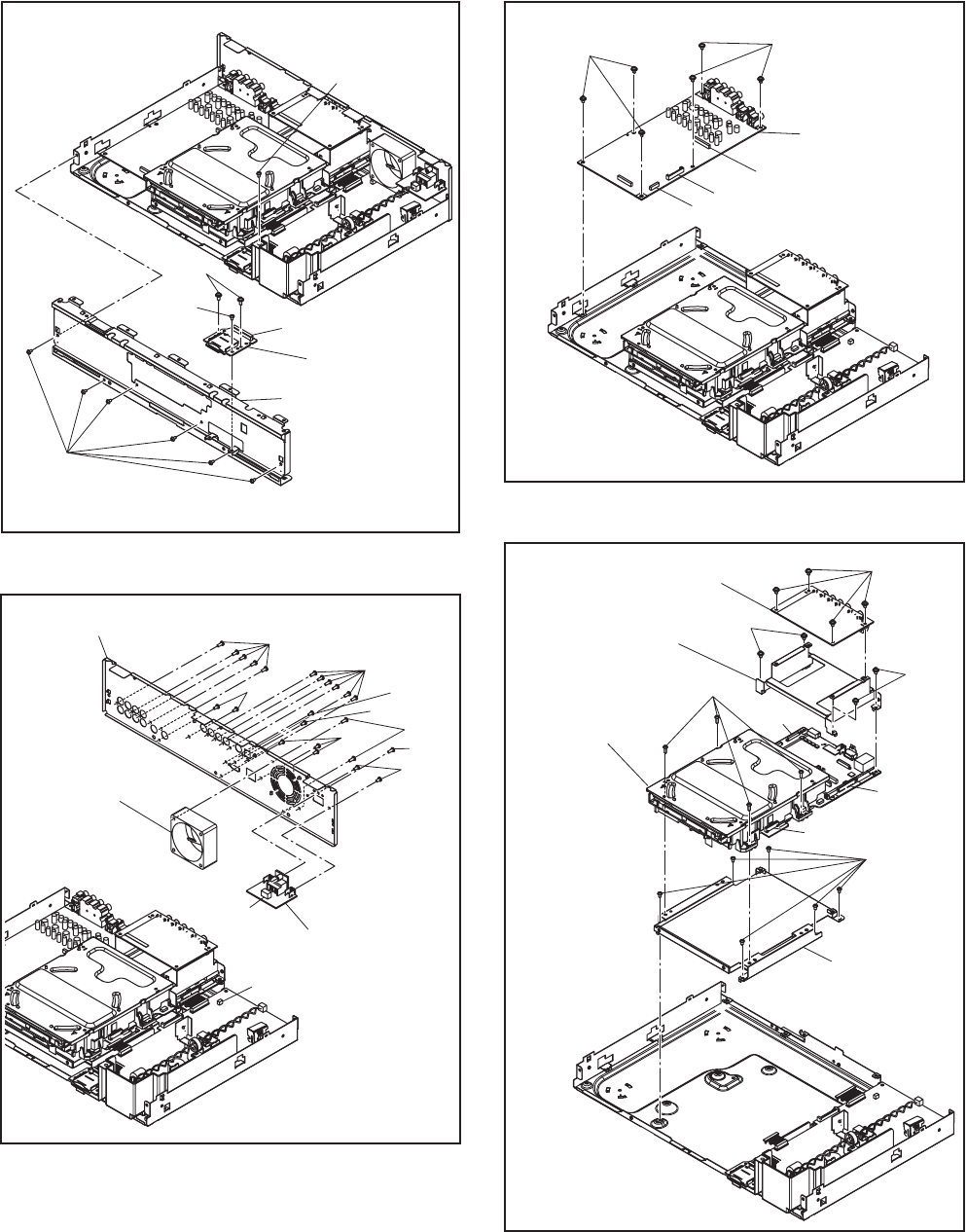

Fig. D1

[4] Front A CBA

[5] Front B

CBA

[3] Front Assembly

[2] Tray Panel

(S-3)

CN2002

(L-1)

(L-2)

(S-2)

CN3001

Fig. D2

1-5-3 E5KE0DC

[6] Front Bracket

[7] SD CBA

CN5001

(S-4)

(S-5)

(S-6)

(S-4)

Fig. D3

[8] Rear Panel

[9] Motor DC Fan

[10] Inlet CBA

CN1001

CN1006

(S-10)

(S-9)

(S-8)

(S-7)

(S-11)

(S-12)

(S-7)

(S-13)

Fig. D4

[11] Audio CBA

CN2007

CN2008

CN2005

(S-14) (S-14)

Fig. D5

[12] Video CBA

[13] AV PCB

Bracket

[14] *BD Main CBA

& BD Mechanism

Assembly

[15] Loader

Bracket

* See Reference Notes 3.

CN7101

CN6001

(S-15)

(S-16)

(S-17)

(S-18)

CN7601

Fig. D6

1-5-4 E5KE0DC

[16] Power Supply

CBA

[17] Power Holder

(S-19)

(S-21)

(S-20)

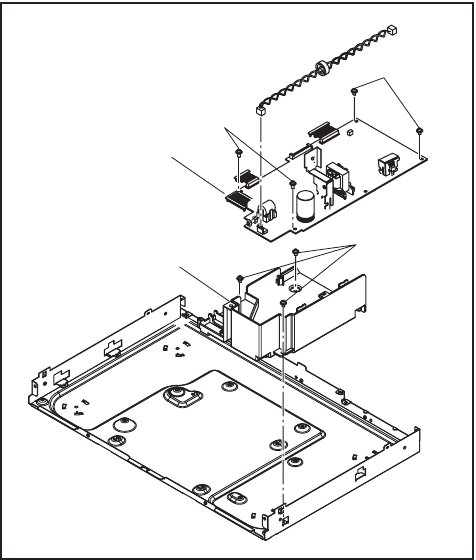

Fig. D7

1-5-5 E5KE0DC

3. How to Eject Manually

1. Remove the Top Cover.

2. Insert a screwdriver, etc. into the straightly so that the Portion A is pushed.

3. Pull the tray out manually and remove a disc.

Screwdriver,

hexagon wrench

Portion A

1-6-1 E5K50INT

HOW TO INITIALIZE THE BLU-RAY DISC PLAYER

To put the program back at the factory-default,

initialize the BD player as the following procedure.

1. Turn the power on.

2. Remove the disc on the tray and close the tray.

3. Press [1], [2], [3], [4], and [DISPLAY] buttons on

the remote control unit in that order.

Fig. a appears on the screen.

Fig. a

4. Press [ C ] button on the remote control unit.

Fig. b appears on the screen and Fig. c appears

on the VFD.

Fig. b

Fig. c

5. To exit this mode, press [ON/STANDBY] button.

"*******" differ depending on the models.

F/W Name

Version

Region

Version Info

: *******

: *.***

: *-*

EXIT <POWER>EEPROM CLEAR <STOP>

"*******" differ depending on the models.

F/W Name

Version

Region

Version Info

: *******

: *.***

: *-*

EXIT <POWER>EEPROM CLEAR <STOP>

EEPROM CLEAR : OK

1-7-1 E5K50FW

FIRMWARE RENEWAL MODE

Note: The file extension of the available firmware is

“b20”.

1. Turn the power on and remove the disc on the tray

and close the tray.

2. To put the BD player into version up mode, press

[9], [8], [7], [6], and [POP UP MENU/MENU]

buttons on the remote control unit in that order.

The tray will open automatically.

Fig. a appears on the screen and Fig. b appears

on the VFD.

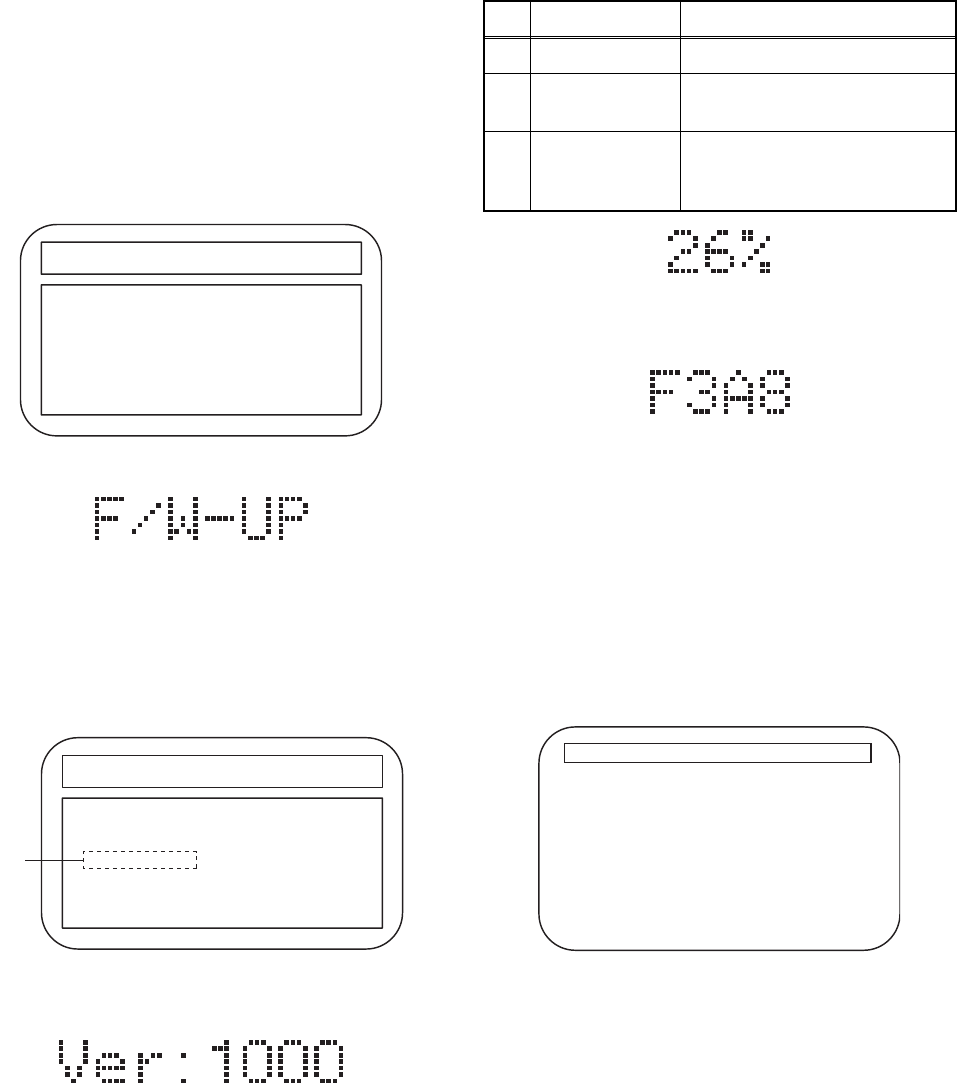

Fig. a Version Up Mode Screen

Fig. b VFD in Version Up Mode

3. Load the disc for version up.

4. The BD player enters the F/W version up mode

automatically. Fig. c appears on the screen and

Fig. d appears on the VFD. Make sure to insert the

proper F/W for the state of this model.

Fig. c Programming Mode Screen (Example)

Fig. d VFD in Programming Mode (Example)

The appearance shown in (*1) of Fig. c is

described as follows:

Fig. e VFD in Version Up Mode

5. After programming is finished, the checksum on

the VFD (Fig. f).

Fig. f

VFD upon Finishing the Programming Mode (Example)

Checksum appears on the VFD then the tray will

open automatically. Remove the disc on the tray.

At this time, no button is available.

6. Unplug the AC cord from the AC outlet. Then plug

it again.

7. Turn the power on.

8. Press [1], [2], [3], [4], and [DISPLAY] buttons on

the remote control unit in that order.

Fig. g appears on the screen.

Fig. g

F/W VERSION UP MODE F/W Name: ******* Ver. *.***

Please insert a Disc

for F/W Version Up

"*******" differs depending on the models.

1. ALL

Now Loading...

Ver. *.*** **************.b20

(*1)

"*******" differs depending on the models.

F/W VERSION UP MODE F/W Name: ******* Ver. *.***

EXIT : POWER

No. Appearance State

1 Now Loading... Loading the disc

2 Reading... Sending files into the

memory.

3 See FL Display Writing new version data,

the progress will be displayed

as shown in Fig. e.

"*******" differ depending on the models.

F/W Name

Version

Region

Version Info

: *******

: *.***

: *-*

EXIT <POWER>EEPROM CLEAR <STOP>

1-7-2 E5K50FW

9. Press [ C ] button on the remote control unit.

Fig. h appears on the screen and Fig. i appears on

the VFD.

Fig. h

Fig. i

10. To exit this mode, press [ON/STANDBY] button.

How to Verify the Firmware Version

1. Turn the power on.

2. Remove the disc on the tray and close the tray.

3. Press [1], [2], [3], [4], and [DISPLAY] buttons on

the remote control unit in that order.

Fig. j appears on the screen.

Fig. j

4. To exit this mode, press [ON/STANDBY] button.

"*******" differ depending on the models.

F/W Name

Version

Region

Version Info

: *******

: *.***

: *-*

EXIT <POWER>EEPROM CLEAR <STOP>

EEPROM CLEAR : OK

"*******" differ depending on the models.

F/W Name

Version

Region

Version Info

: *******

: *.***

: *-*

EXIT <POWER>EEPROM CLEAR <STOP>

1-8-1

BLOCK DIAGRAMS

System Control Block Diagram

E5KE0BLS

FAN-CONT1

IC2000

IC6903 (EEPROM)

IC6001

(SUB MICRO CONTROLLER)

CN2002

XRST

XTRST

CN4001 CN2005

10 10SUB-TXD

99SYS-RESET

11 11SUB-RXD

BD MAIN CBA AUDIO CBA

356

RESET

15 SUB-TXD

AE32

T34

SUB-RXD

28 CEC-IN

CEC

30 CEC-OUT

MUTE2

PWSW1

STANDBY-LED

SYS-RESET

V32

TXD1 U34

V31

W30

RXD1

SCL0

SDA0

MII-RXD3

MII-RXD2

MII-RXD1

MII-RXD0

MII-RXCLK

MII-TXD3

MII-TXD0

MII-TXCLK

MII-TXD2

MII-TXD1

SCL

SDA

FL-SDA

FL-SCL

FL-STB 50

FL-RESET

REMOTE

KEY-1

OSC2

OSC1 8MHz

X'TAL

X2000

EV+3.3V

IC2001

RESET

BUFFER

Q2619

JK7501

Q6701

Q6702

FL-SW

MUTE1

TO VIDEO

BLOCK

DIAGRAM

24 AUDIO-MUTE

AUDIO-MUTE

TO AUDIO

BLOCK

DIAGRAM

IC6401

(ETHERNET INTERFACE)

P-ON+1.8V RESET

IC6701

2 1

BUFFER

Q2618 SWITCHING

Q2620, Q2621

BUFFER

Q2002

PWSW2

32 FL-SW

15 15MUTE1

14 14MUTE2

21 MUTE1

22 MUTE2

17 17CEC

VIDEO CBA

14 14SUB-TXD

15 15SYS-RESET

13 13SUB-RXD

17 17CEC

ETHERNET

INTERFACE

RX(-)

JK6401

ETHERNET

JACK

RX(+)

TX(-)

TX(+)

MAIN MICRO

CONTROLLER

CN4000

PWSW4

FAN-LOCK

TO POWER

SUPPLY

BLOCK

DIAGRAM 25

4PWSW1

FAN-CONT1

44 PWSW2

37 PWSW4

63 FAN-LOCK

CN7101

19 20 21 22

CN3002

FL3001

VFD

20 20DVD-LED

19 19BD-LED

16 16KEY-1

12 12REMOTE

66FL-RESET

55FL-STB

44FL-SCL

33FL-SDA

21 21

STANDBY-LED

D3002

STANDBY

D3008

DVD

FRONT A CBA

RS3001

REMOTE

SENSOR

17 17CD-LED

CN3001

CN3101

KEY-1

FRONT B CBA

KEY

SWITCH

POWER

SW3003

EV+3.3V

EV+5V

D3006

D3007

DVD-LED

BD-LED

CD-LED 59

1-8-2

Digital Signal Process 1 Block Diagram

E5KE0BLD1

BD MECHANISM

BD MAIN CBA

HU(+) 5

HU(-) 6

HV(+) 7

HV(-) 8

HW(+) 9

HW(-) 10

HB(-) 11

CN603

IC6001 (MAIN MICRO CONTROLLER/DIGITAL SIGNAL PROCESS)

IC603 (MOTOR DRIVE) IC604 (OP AMP)

TRACKING

ACTUATOR

DRIVE

OEIC

(CD/DVD)

IC602 (MOTOR DRIVE)

IC603 (MOTOR DRIVE)

IC601 (MOTOR DRIVE)

IC201 (FRONT-END PROCESSOR)

DIGITAL

SIGNAL

PROCESS

STREAM

CONTROL

COPY

PROTECT

AACS

BD+

CSS

CPRM

MATRIX

GENERATOR

D22

B22

A24

E23

M32

M31

J34

J33

102-105

97-100

SLD2(+) 4

SLD2(-) 3

SLD1(+) 2

SLD1(-) 1

CN601

LOAD(+) 5

LOAD(-) 6

TRAY-OUT 2

TRAY-IN 1

INLIMIT 4

CN602

TD 3

TR 4

FD1 1

FR1 2

EXPA(+) 9

EXPA(-) 7

EXPB(+) 10

EXPB(-) 8

A-D 21-24

E-H 26-29

RF(+) 17

RF(-) 18

BDRF(+) 14

BDRF(-) 15

SDATA2 40

SDATA1

SCLK1

SDATA2

SDATA1

SCLK2

SCLK1

SCLK2 38

CN101

MOTOR DRIVE

COLLIMATE

LENS

MOTOR DRIVE

SLED

MOTOR DRIVE

SPINDLE

MOTOR

DRIVE

FOCUS 1

ACTUATOR

DRIVE

TRACKING-CONTROL

TO DIGITAL SIGNAL

PROCESS 2 BLOCK

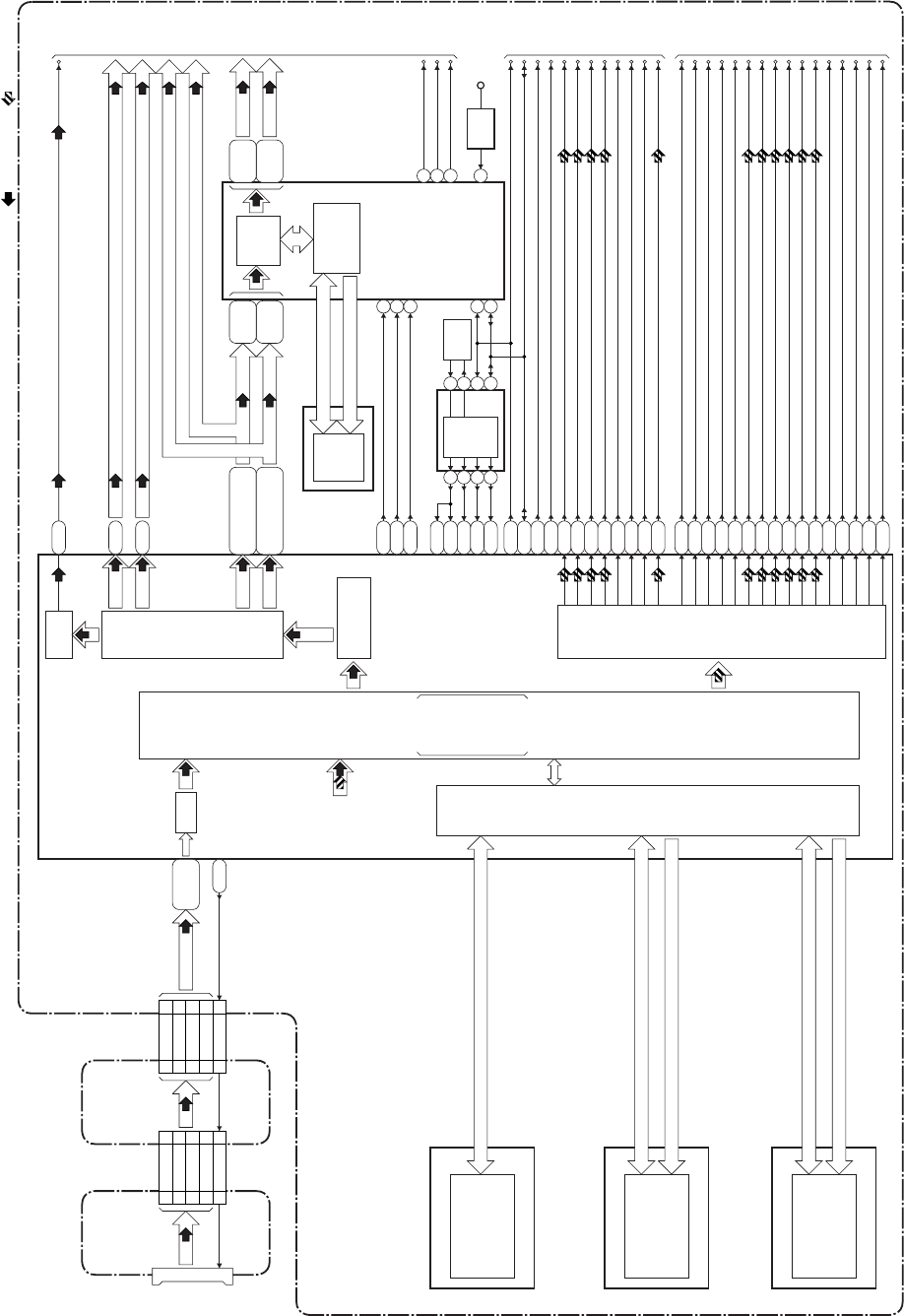

DIAGRAM

(IC6001)

FOCUS1-CONTROL

FOCUS2-CONTROL

SLED1-CONTROL

SLED2-CONTROL

TRAY-OUT

TRAY-IN

INLIMIT

SPINDLE-CONTROL

SPINDLE-FG

LOAD-CONTROL

EXPA-CONTROL

EXPB-CONTROL

83 78 79

FOCUS 2

ACTUATOR

DRIVE 12

D24

C24

C22

D21

E21

E24

B25

107-110

G34

61 WBL

H34

B28

20 SE02

ASENV

A28

18 SE01

B34

C33

EQUALIZER

WOB

/LPP

MPX

1 2

7 6

8 9

D23

OEIC

(BD)

LASER

DIODE

DRIVE

SLED

MOTOR

TRAY-OUT

TRAY-IN INNER

SPINDLE

MOTOR

FD2 6

FR2 5

MOTOR

VIDEO SIGNAL AUDIO SIGNAL

1-8-3 E5KE0BLD2

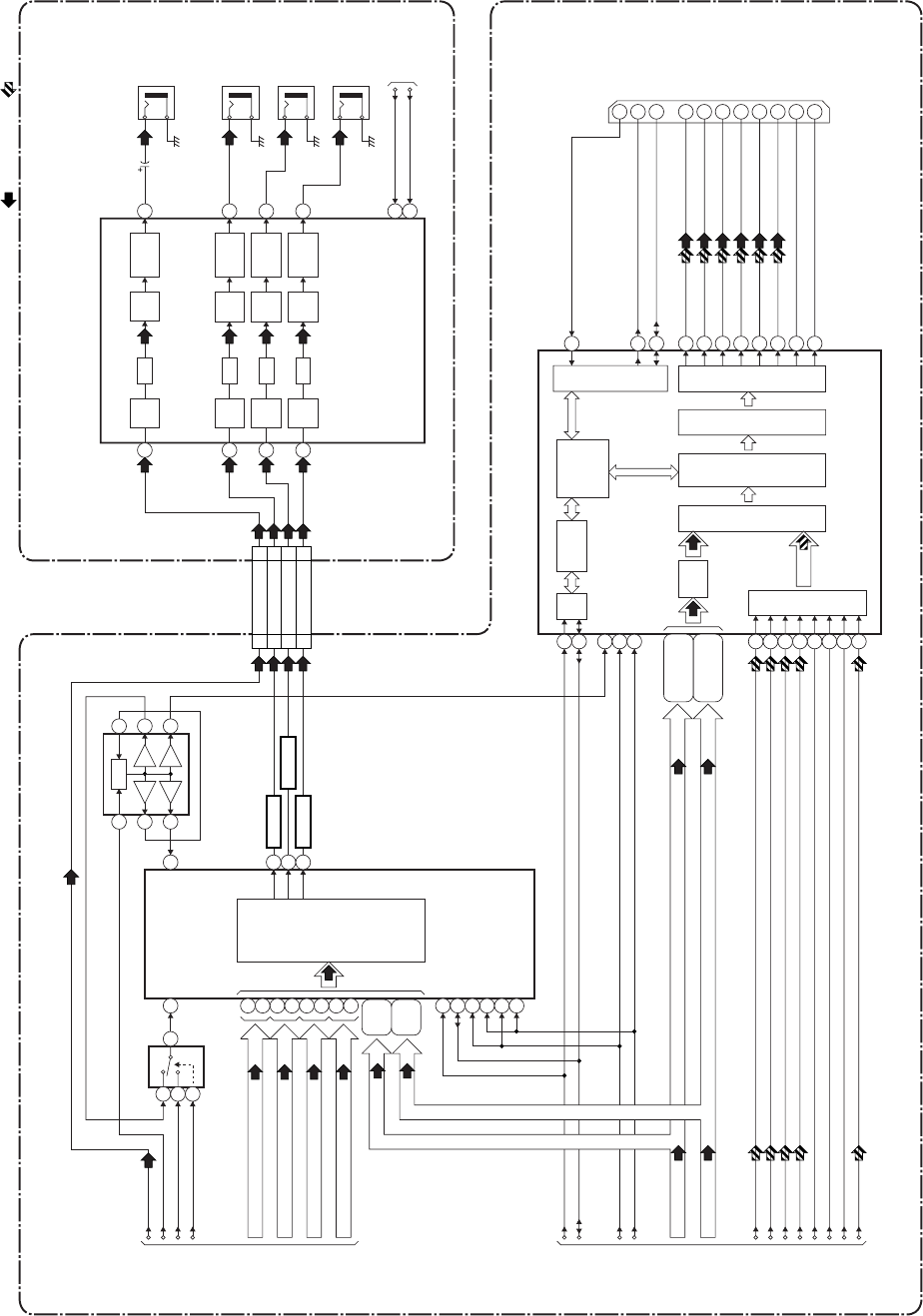

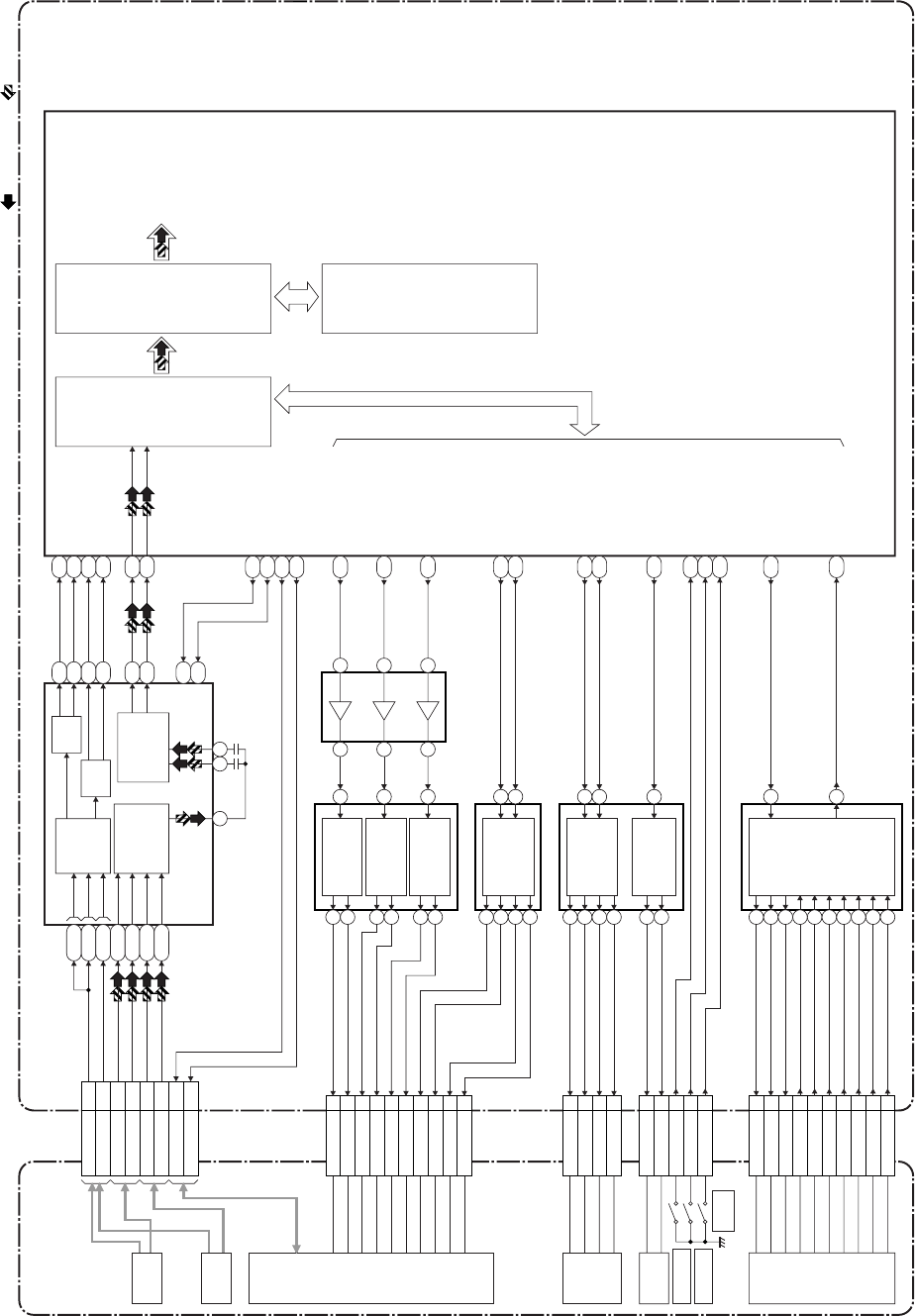

Digital Signal Process 2 Block Diagram

BD MAIN CBA

ED (0-7)

C0DQ (0-31)

C0A (0-12)

C1DQ (0-31)

C1A (0-12)

MEDIA

PROCESSOR

Java (BD-J)

MPEG-2

DiVX

VC-1

H.264

DECODER

HD (TS)

SD (PS)

DIGITAL

SIGNAL

PROCESS 1

BLOCK

DIAGRAM

(IC6001)

CN7601

MEMORY

I/F

SD I/F

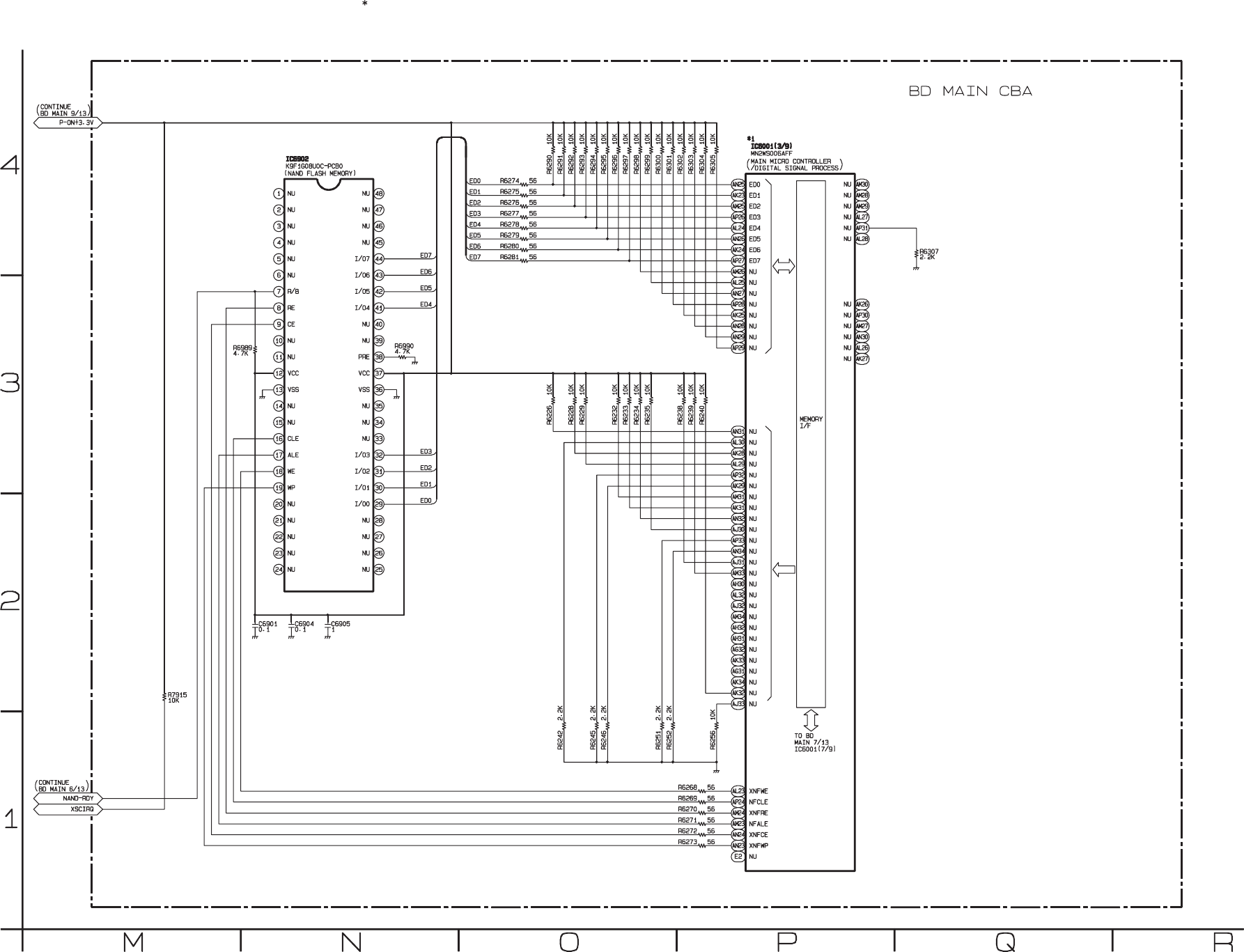

IC6001 (MAIN MICRO CONTROLLER/DIGITAL SIGNAL PROCESS)

IC6703 (CLOCK GENE.)

AH34

C15

A5,E7

B8,E9

IC6902

(NAND FLASH MEMORY)

NAND FLASH

MEMORY (64M x 8bit)

(DDR2 SDRAM)

IC6501,IC6502

DDR2 SDRAM

(1Gbit )

(DDR2 SDRAM)

IC6601,IC6602

DDR2 SDRAM

(512Mbit)

A4,A8,A9,B4,B9,C5,C9,

C11,D8,D10,E10,E11

A3,A6,A7,B7,C4,C6,C7,

C8,D6,D9,E8,E12

AF32,AG34,

AH33,AJ34

I/P CONVERTER

/SCALING

DIGITAL

VIDEO

OUT

DIGITAL

AUDIO

OUT

VIDEO

DAC

CLK

VSYNC

HSYNC

BP1-P-CLK

BP1-VSYNC

BP1-HSYNC

SDCLK

SD DATA(0-3)

VIDEO

BLOCK

DIAGRAM

VIDEO

BP1-CO(0-11)

BP1-Y(0-11)

SCL3

33M CLOCK

74M CLOCK

27M CLOCK

768K CLOCK SCL

SDA3

HDMI-DATA0

HDMI-DATA1

HDMI-DATA2

HDMI-DATA3

HDMI-MCK

HDMI-BCK

HDMI-LRCK

HDMI-SPDIF

DAC-SCK

DAC-BCK

DAC-LRCK

MS1

DATA

SPDIF

X6701

27MHz

OSC

CLOCK

GENE. SDA SCL

SDA

AUDIO

BLOCK

DIAGRAM

VIDEO SIGNAL AUDIO SIGNAL

SCL3 R33

SDA3 U31

ANA-SW-CONT B18

C14

B14

A12

D12

B13

AC31

A13

B12

VIDEO

BLOCK

DIAGRAM

E13

AL34

B10

B11

A10

A11

D11

C12

C10

MS2

AC34 MS3

AD34 MS4

AC32 MS5

AC33

DATA0

D14 DATA1

D13 DATA2

E14 DATA3

C13

ANA-SW-CONT

REC656-CLK

E20

A19

D20

AL5

CARD

SLOT

POWER

SUPPLY CBA

CN5003 CN5004

55SDDAT0

33SDDAT1

15 15SDDAT2

13 13SDDAT3

77SDCLK

SD CBA

CN5000 CN5001

19 19SDDAT0

21 21SDDAT1

99SDDAT2

11 11SDDAT3

17 17SDCLK IC7201 (SCALER)

SIGNAL

PROCESS

/SCALER

MEMORY

CONTROLLER

17-28

1-7,13-16,

176

111-114,

117-124

94-102,

108-110

ABT-CB(0-11)

ABT-Y(0-11)

IC7202 (SDRAM)

SDRAM

DQ (0-15)

A (0-11)

RESETN +3.3V

IC7206

RESET

170

173

174

REC656-CLK

107

ABT-P-CLK ABT-P-CLK

ABT-HSYNC ABT-HSYNC

ABT-VSYNC ABT-VSYNC

163

164

BP1-4-Y(0-1)

BP1-4-CR(0-1)

BP1-Y(0-1)

BP1-CO(0-1)

1-8-4

Video Block Diagram

VIDEO CBABD MAIN CBA

HDMI-DATA0

HDMI-DATA1

HDMI-DATA2

HDMI-DATA3

HDMI-MCK

HDMI-BCK

HDMI-LRCK

HDMI-SPDIF

70-73,75-78,

92,94,102,103

50,51,53-57,59,

87,88,90,91

TO DIGITAL

SIGNAL

PROCESS 2

BLOCK

DIAGRAM

2dB

AMP

LPF

6.75MHz

13.5/37MHz

13.5/37MHz 17

2dB

AMP

LPF

SCL3

SDA3

ABT-CB(0-11)

ABT-Y(0-11)

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

MUTE1

2dB

AMP

LPF

MUTE1

MUTE2

12 VIDEO-Pb/Cb

OUT

VIDEO-Y

OUT

VIDEO-Pr/Cr

OUT

JK4004

JK4005

C4018

8 20

T.M.D.S DATA2-

T.M.D.S DATA2+

T.M.D.S DATA1-

T.M.D.S DATA1+

T.M.D.S DATA0-

T.M.D.S DATA0+

T.M.D.S CLOCK+

T.M.D.S CLOCK-

JK7501

HDMI-CONNECTOR

DDC DATA

DDC CLOCK

HOT PLUG

DETECT

IC7501 (HDMI INTERFACE)

IIC

I/F

VIDEO

I/F

DDC

I/F

AUDIO

I/F

HDCP

CIPHER/

ENCRYPTOR

TMDS

ENCODER

CONTROLLER

TMDS

SERIALIZER

113

116 118

120

119

VIDEO SIGNAL AUDIO SIGNAL

CLK

CN4000CN7101

121

JK4002

JK4003

IC4000 (VIDEO DRIVER)

4dB

AMP

4dB

AMP

4dB

AMP

4dB

AMP LPF 25

2dB

AMP 75Ω

DRIVER

75Ω

DRIVER

75Ω

DRIVER

75Ω

DRIVER

MUTE2

3VIDEO OUT

(COMPOSITE)

TO DIGITAL

SIGNAL

PROCESS 2

BLOCK

DIAGRAM

55VIDEO-Y(I/P)

77VIDEO-Pb/Cb

99VIDEO-Pr/Cr

33VIDEO

BUFFER Q7103

IC7203

(VIDEO DAC)

VIDEO

DAC

44 Q7102

BUFFER

BUFFER Q7101

2-9,

12,13

14-18,

25-29

ABT-CB(2-11)

ABT-Y(2-11)

BP1-CO(0-1)

BP1-Y(0-1)

BP1-4-CR(0-1)

BP1-4-Y(0-1)

30 CLKIN-A CLKIN-B

IC7207

(SW)

ANA-SW-CONT

REC656-CLK

ABT-P-CLK

IC7205 (BUFFER)

PLL

VIDEO

P-VSYNC

SCL

SDA

S-VSYNC

P-HSYNC

S-HSYNC

ABT-HSYNC

ABT-VSYNC

AUTHENT

/CATION

KEY

EXCHANGE

E5KE0BLV

1-8-5

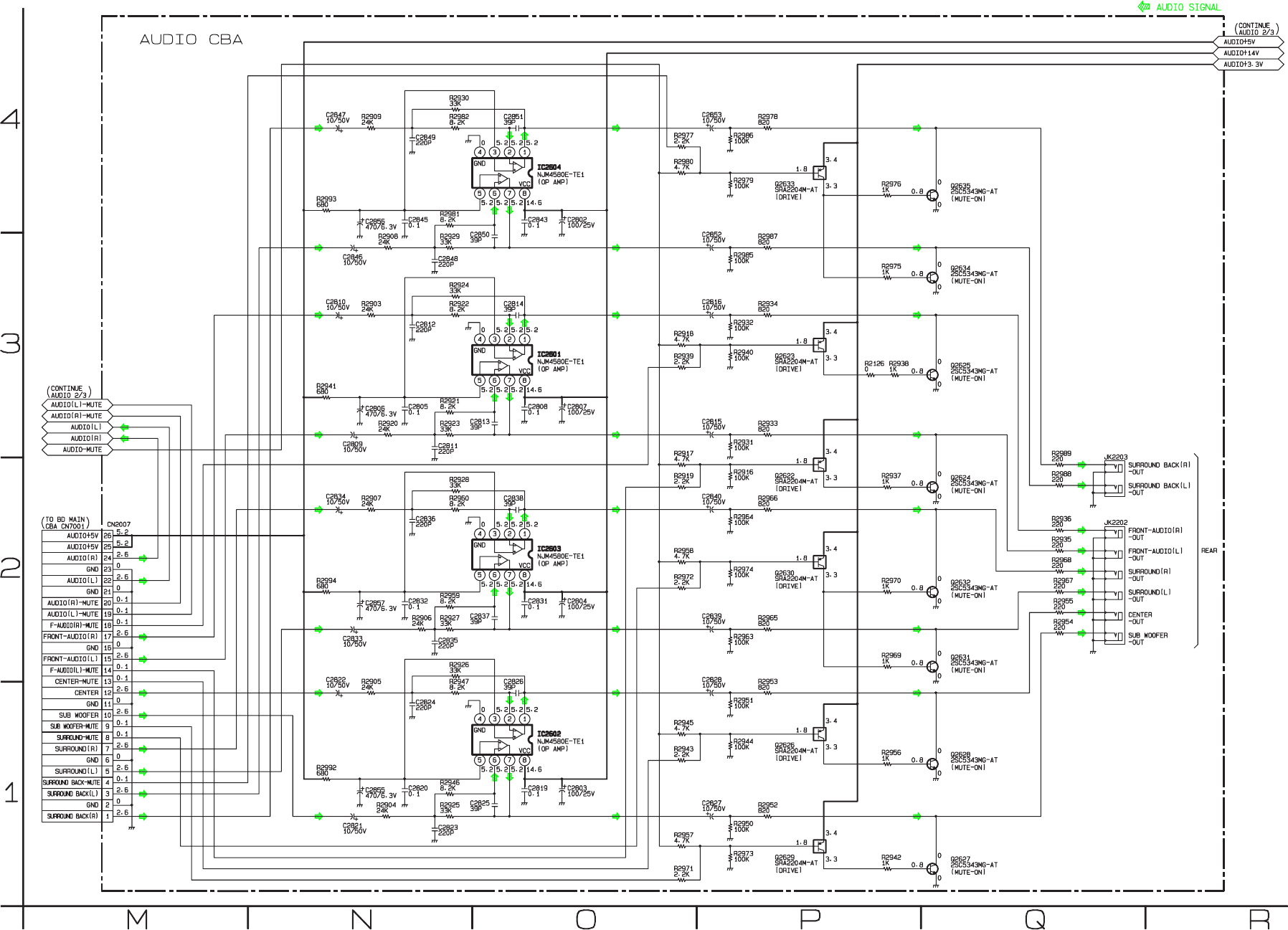

Audio Block Diagram

E5KE0BLA

AUDIO CBA

BD MAIN CBA

Q2631

MUTE-ON

Q2632

MUTE-ON

Q2630

DRIVE

Q2629

DRIVE

JK2202

(REAR)

IC7003

(AUDIO D/A CONVERTER) IC2603

(OP AMP)

AUDIO

DAC

(L-CH)

(R-CH)

MUTE

FRONT-

AUDIO(L)-

OUT

FRONT-

AUDIO(R)-

OUT

SURROUND(L)

-OUT

SURROUND(R)

-OUT

CENTER

-OUT

SUB

WOOFER

-OUT

AUDIO SIGNAL

Q2628

MUTE-ON

Q2627

MUTE-ON

Q2626

DRIVE

IC7004

(AUDIO D/A CONVERTER)

IC2602

(OP AMP)

AUDIO

DAC

(L-CH)

(R-CH)

Q2624

MUTE-ON

Q2625

MUTE-ON

Q2622

DRIVE

Q2623

DRIVE

IC7002

(AUDIO D/A CONVERTER)

IC2601

(OP AMP)

AUDIO

DAC

(L-CH)

(R-CH)

IC7001

(AUDIO D/A CONVERTER)

AUDIO

DAC

(L-CH)

(R-CH)

AUDIO(L)-

OUT

AUDIO(R)-

OUT

Q2203

MUTE-ON

Q2202

MUTE-ON

Q2200

DRIVE

Q2201

DRIVE

JK2200

(REAR)

JK2201

(REAR)

IC2200

(OP AMP)

55SURROUND(L)

77SURROUND(R)

SURROUND-MUTE

10 10SUB WOOFER

12 12CENTER

13 13

SUB WOOFER-MUTE

15 15FRONT-AUDIO(L)

17 17FRONT-AUDIO(R)

14 14

F-AUDIO(L)-MUTE

18 18

F-AUDIO(R)-MUTE

SURROUND BACK(L)

CN7001 CN2007

22 22AUDIO(L)

24 24AUDIO(R)

19 19AUDIO(L)-MUTE

20 20AUDIO(R)-MUTE

CN7001 CN2007

TO SYSTEM CONTROL

BLOCK DIAGRAM

TO DIGITAL

SIGNAL

PROCESS 2

BLOCK DIAGRAM

DAC-SCK

DAC-BCK

DAC-LRCK

MS3

DATA1

MS4

DATA2

MS2

DATA0

MS1

DATA

IC7005

(AUDIO D/A CONVERTER)

AUDIO

DAC

(L-CH)

(R-CH)

MS5

DATA3

SURROUND BACK(R)

SURROUND BACK-MUTE

SURROUND

BACK(L)-

OUT

SURROUND

BACK(R)-

OUT

Q2634

MUTE-ON

Q2635

MUTE-ON

Q2633

DRIVE

IC2604

(OP AMP)

JK2203

(REAR)

AUDIO-MUTE

CENTER-MUTE

VIDEO CBA

11 11SPDIF

CN7101 CN4000

DIGITAL

AUDIO OUT

(COAXIAL)

SPDIF

JK4000

(REAR)

JP4009 DIGITAL

AUDIO OUT

(OPTICAL)

JK4001

(REAR)

FIBER OPTIC

TRANS. MODULE

BUFFER

Q4006

1-8-6

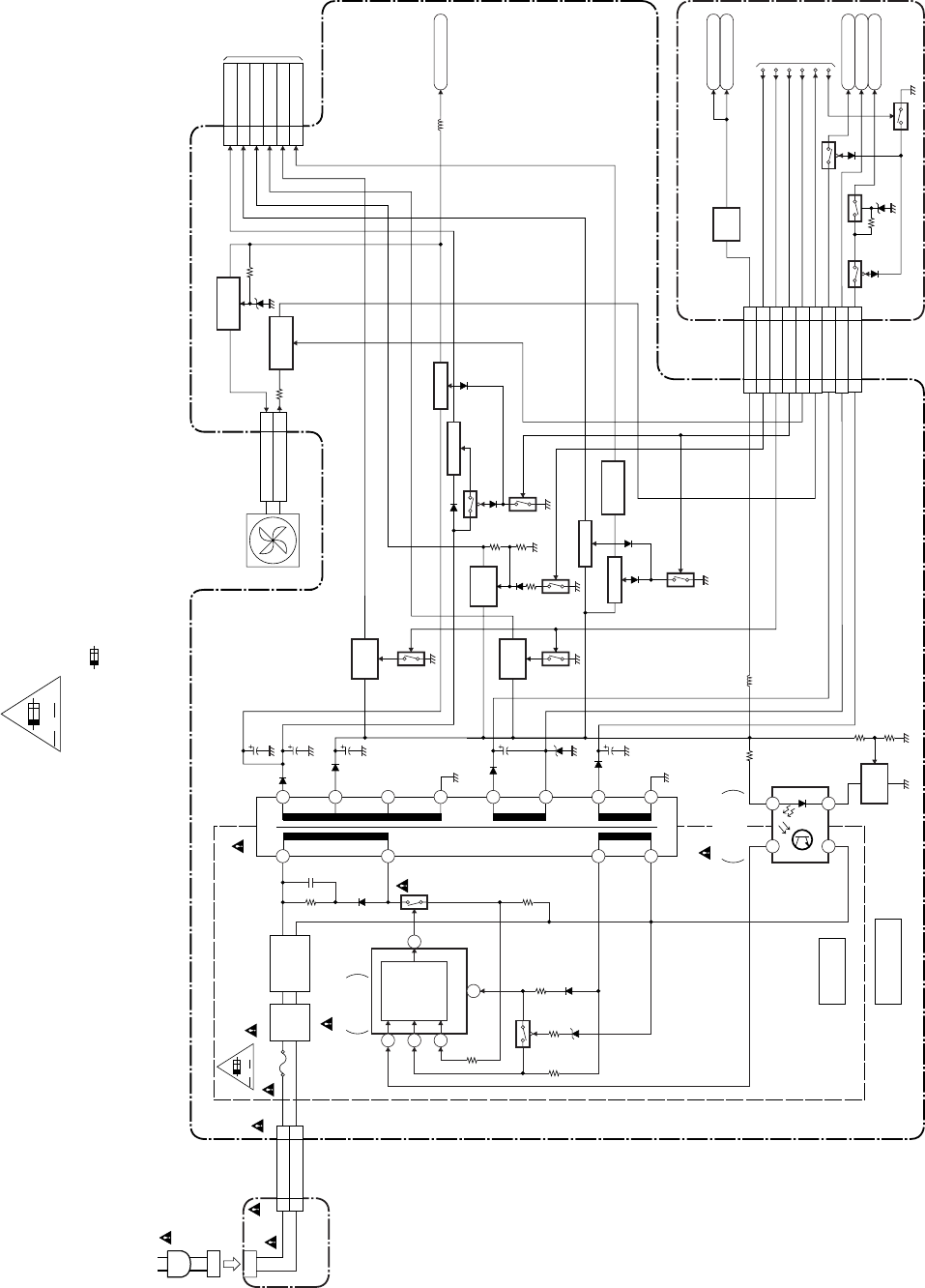

Power Supply Block Diagram

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F1001) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

"Ce symbole reprèsente un fusible à fusion rapide."

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

ATTENTION : Pour une protection continue les risqes

d'Incele n'utiliser que des fusible de même type.

Risk of fire-replace fuse as marked.

"This symbol means fast operating fuse."

A V

E5KE0BLP

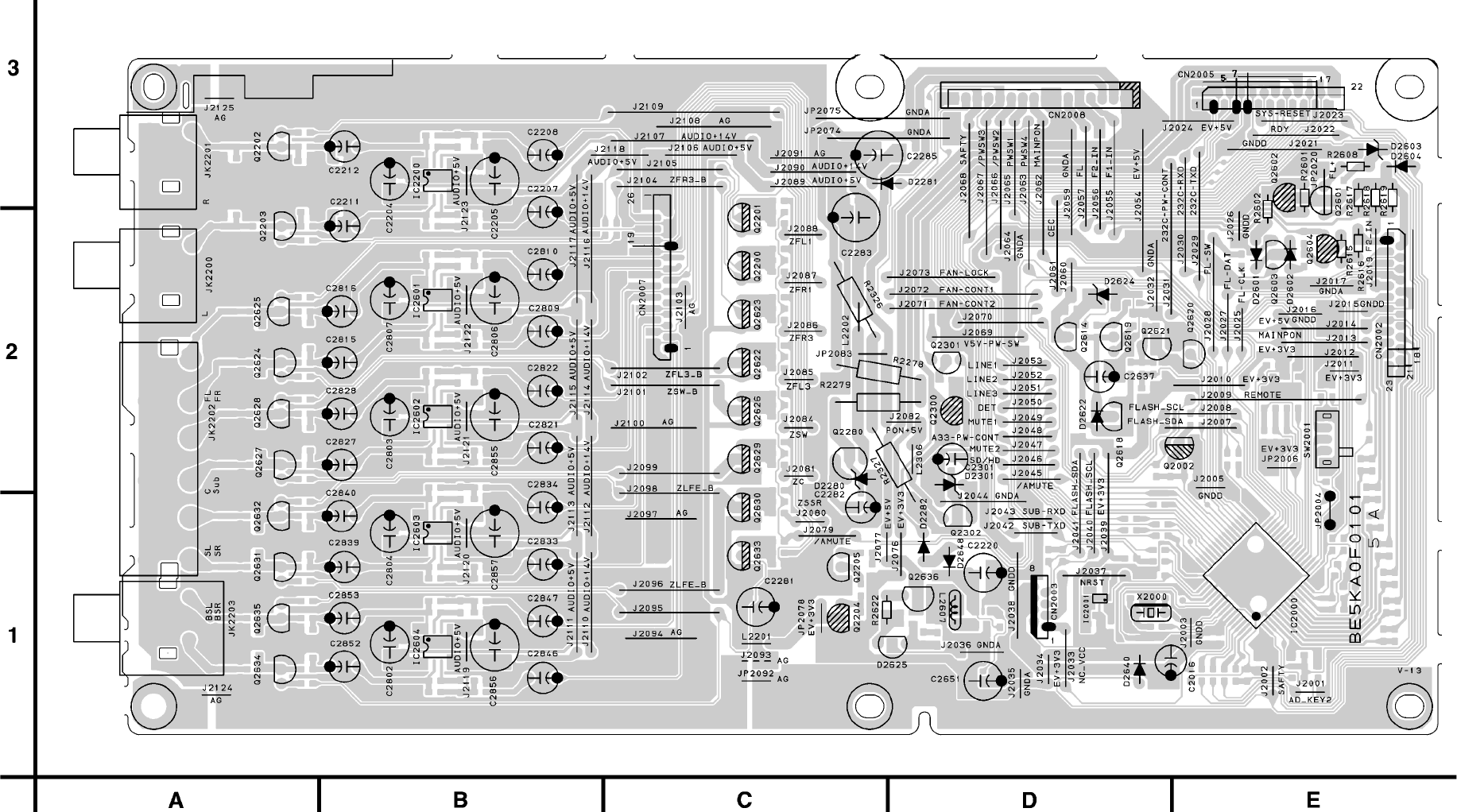

AUDIO CBA

IC1002

HOT

COLD

Q1009 Q1012, Q1014

Q1011

Q1010

Q1013

Q1006

Q1008

Q1007

Q1002

VDD

T1002

F1001

2A/250V

LINE

FILTER

L1001

A V

IC1004

ERROR

VOLTAGE DET

P-ON+14.5V

SHUNT

REG.

D1007, D1008,

D1011, D1012

BRIDGE

RECTIFIER

SWITCHING

CONTROL 5

FAN-VCC 1

2FAN-LOCK

CN1006

3,4 P-ON+10.5V

2 P-ON+5V(1)

CN1003

5,6 P-ON+3.3V

17-20

P-ON+1.2V

23 P-ON+5V(2)

9-11

P-ON+1.8V

SW+14.5V

TO BD MAIN

CBA

(CN6001)

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

FL-SW

SW+10.5V

SW+5V

SW+5V CURRENT

LIMIT

HOT CIRCUIT. BE CAREFUL.

FAN

POWER SUPPLY CBA

Q2604

Q2603

FAN

CONTROL

FAN

CONTROL

Q1019

Q1017

AC1001

CN1002

CN1001

AC120V

INLET CBA

Q1001

D1029

44F1-IN

66+FL

55F2-IN

CN2008

CN1004

10 10PWSW1

11EV+5V

11 11PWSW2

13 13PWSW4

15 15FAN-CONT1

16 16FAN-LOCK

IC1008

+3.3V

REG.

Q1005

Q2602

Q2601

IC1009

Q1015

+1.2V

REG.

IC1010

+1.8V

REG.

Q1016

FAN-CONT1

PWSW1

PWSW2

PWSW4

FAN-LOCK

Q2636, D2625

+3.3V

REG. EV+3.3V

AUDIO+3.3V

AC CORD

SWITCHING

CONTROL

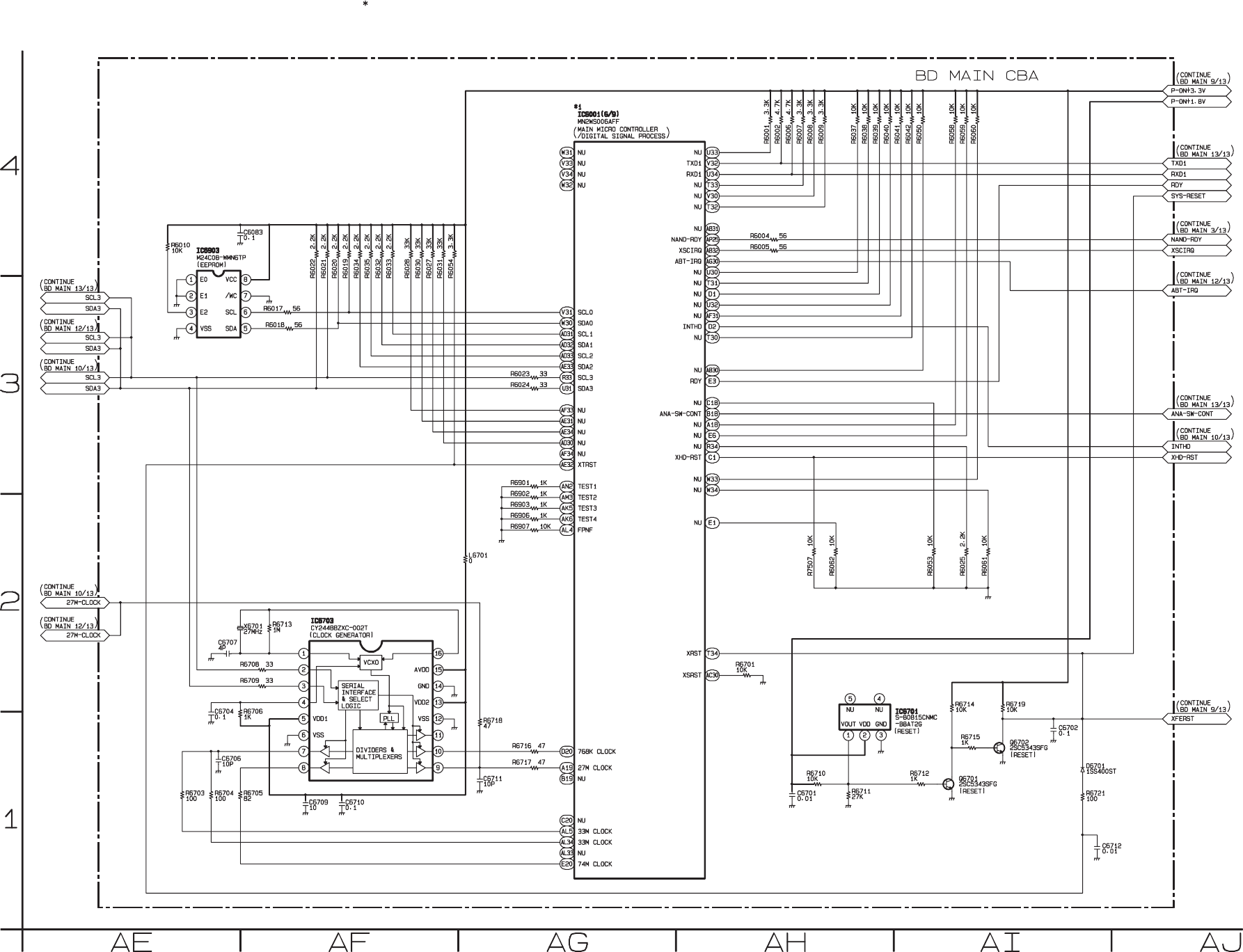

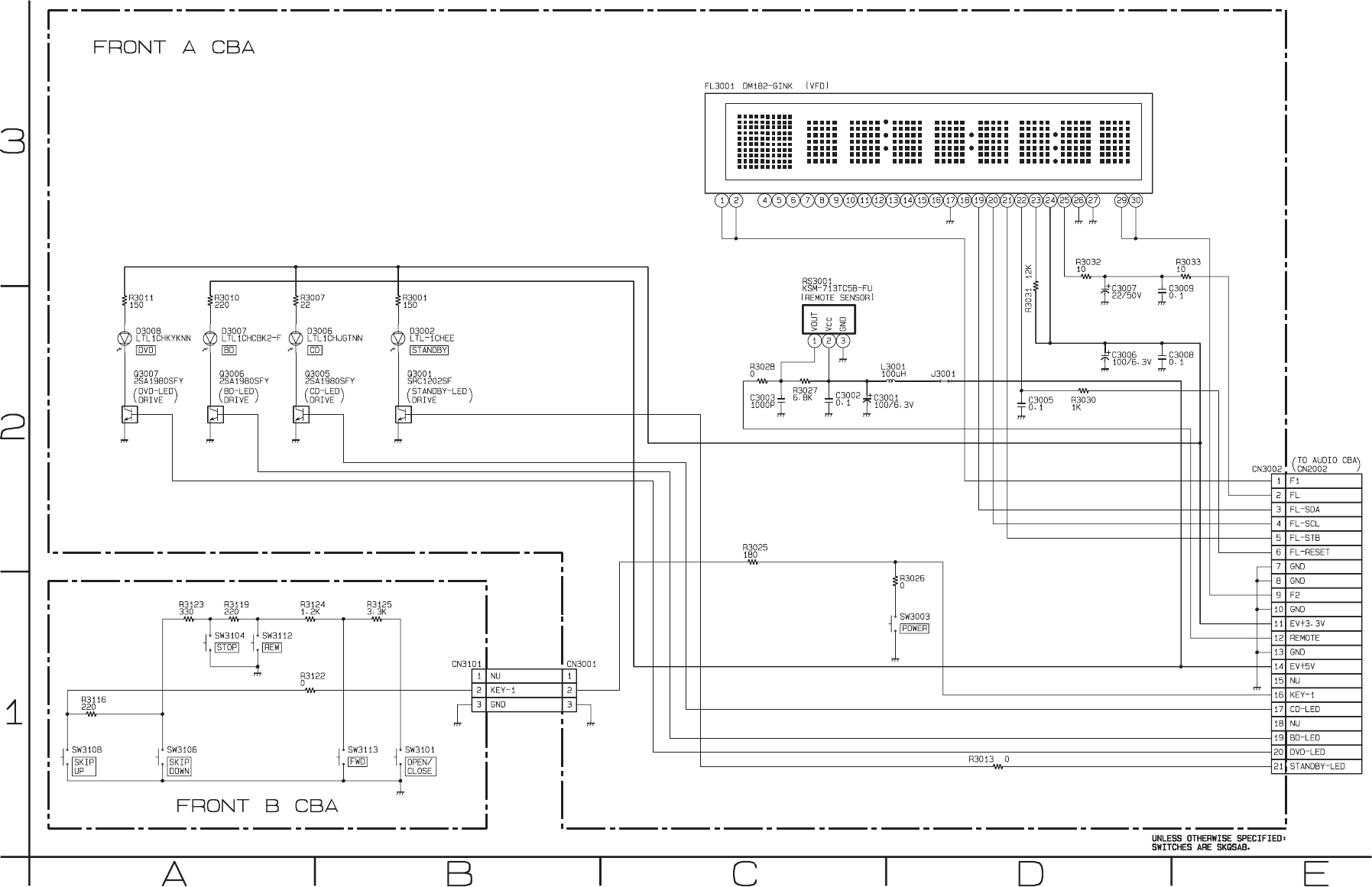

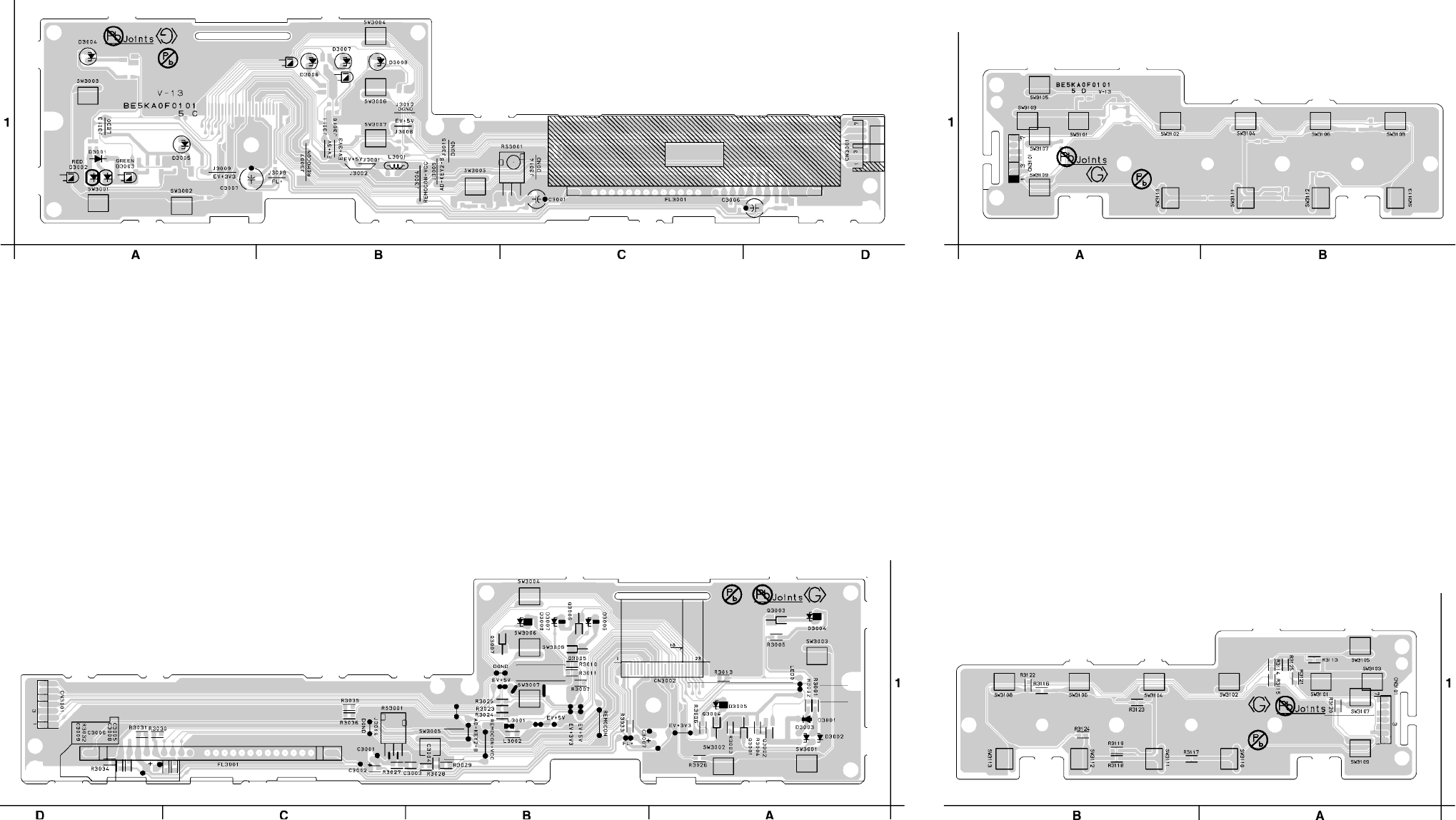

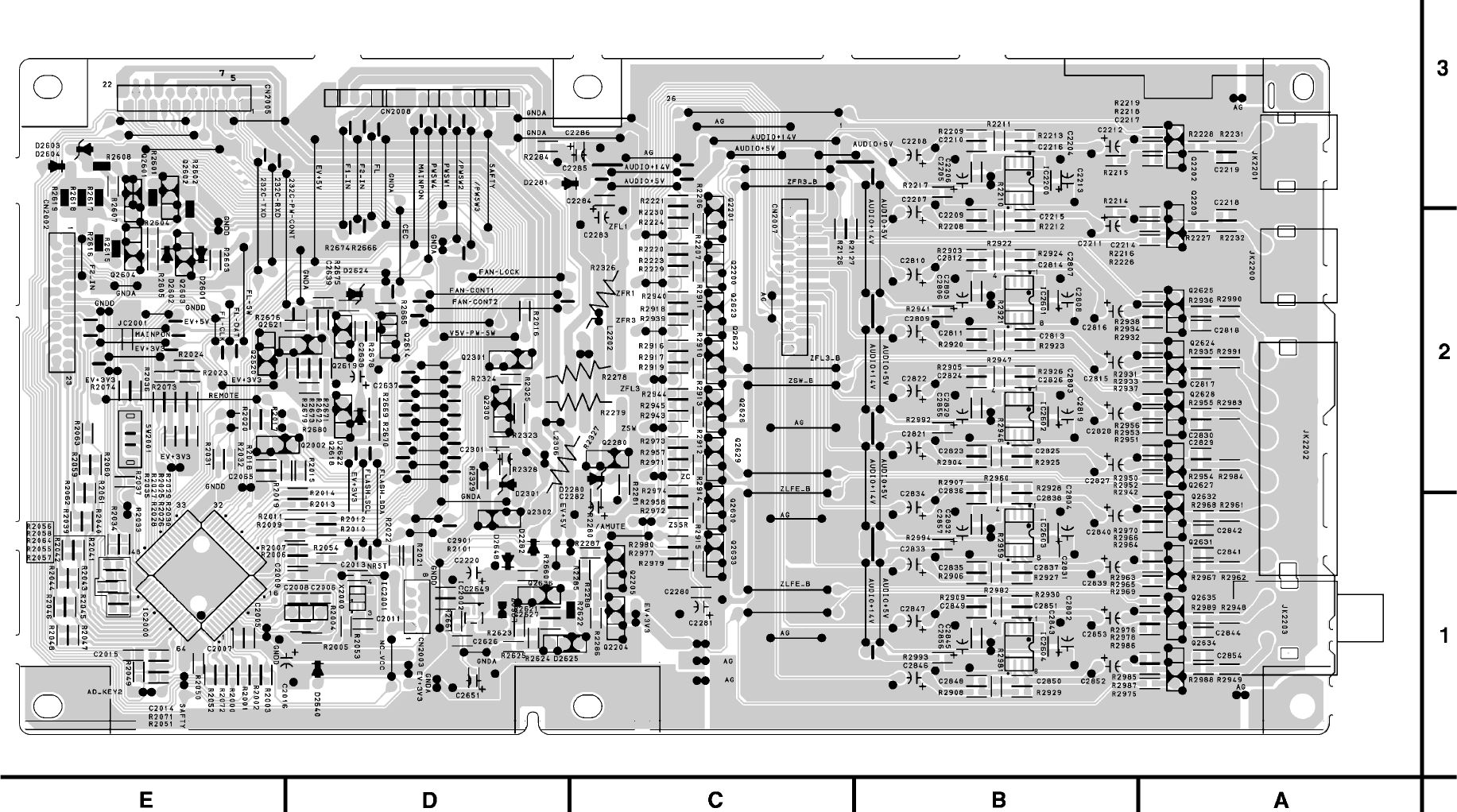

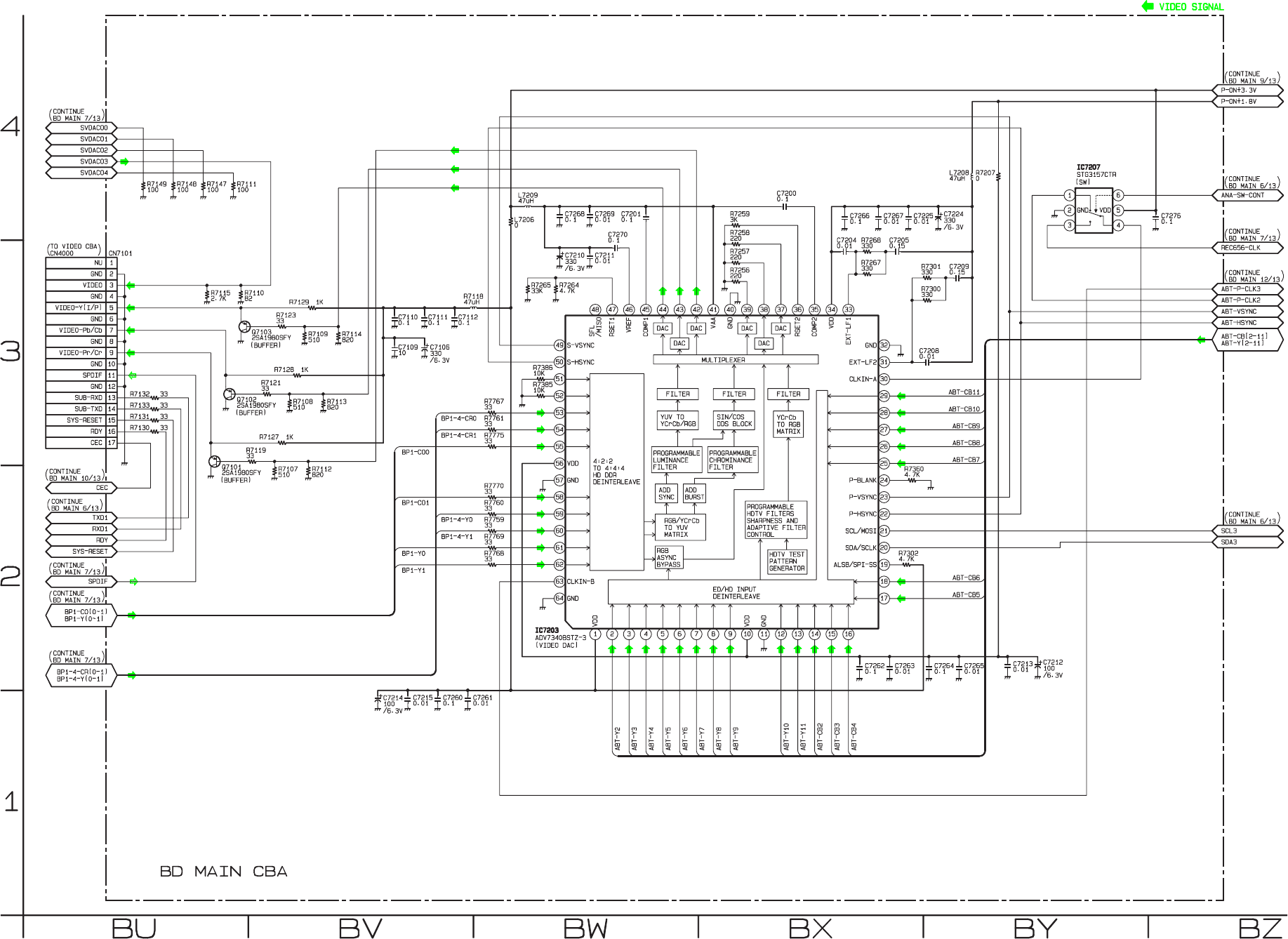

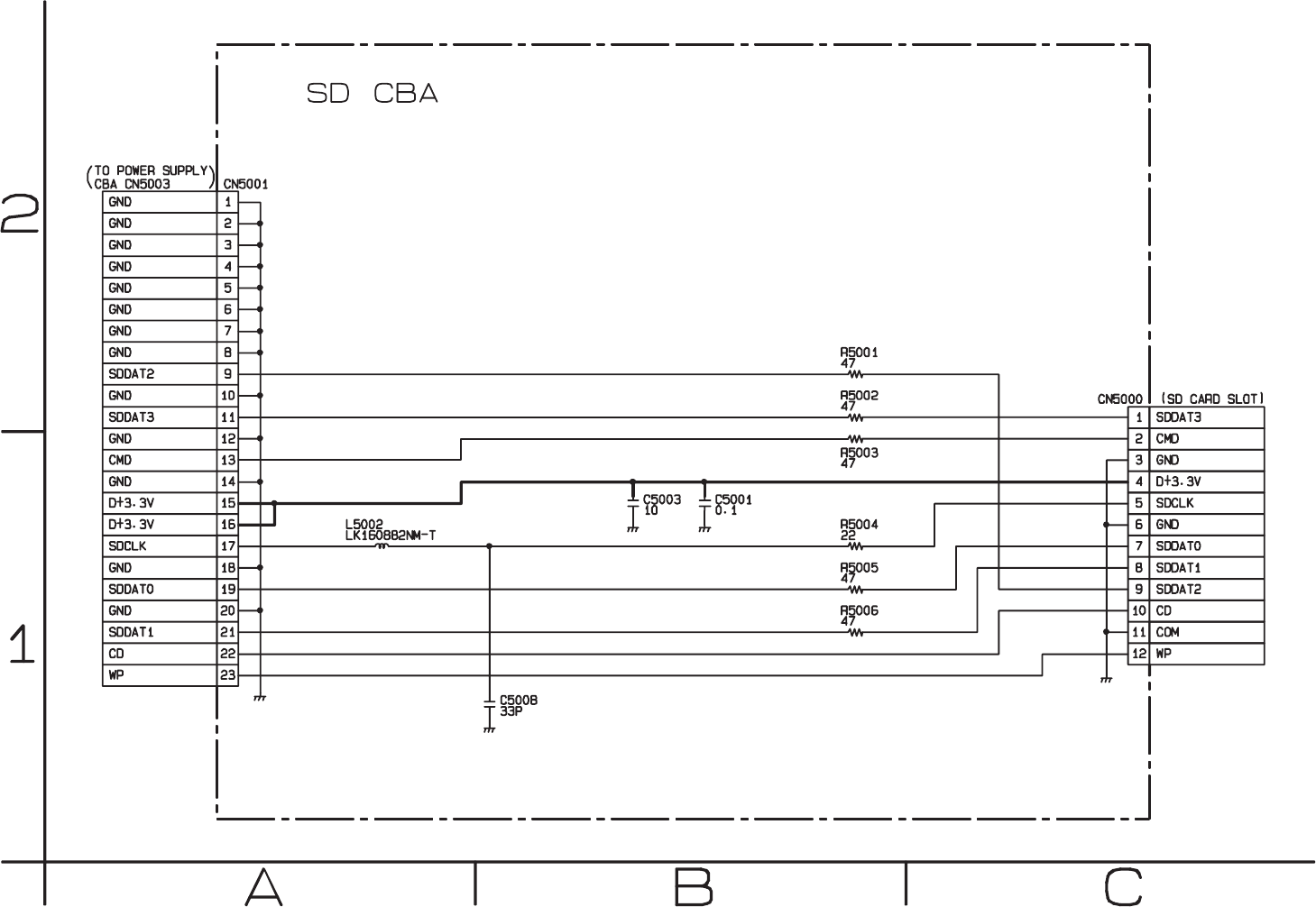

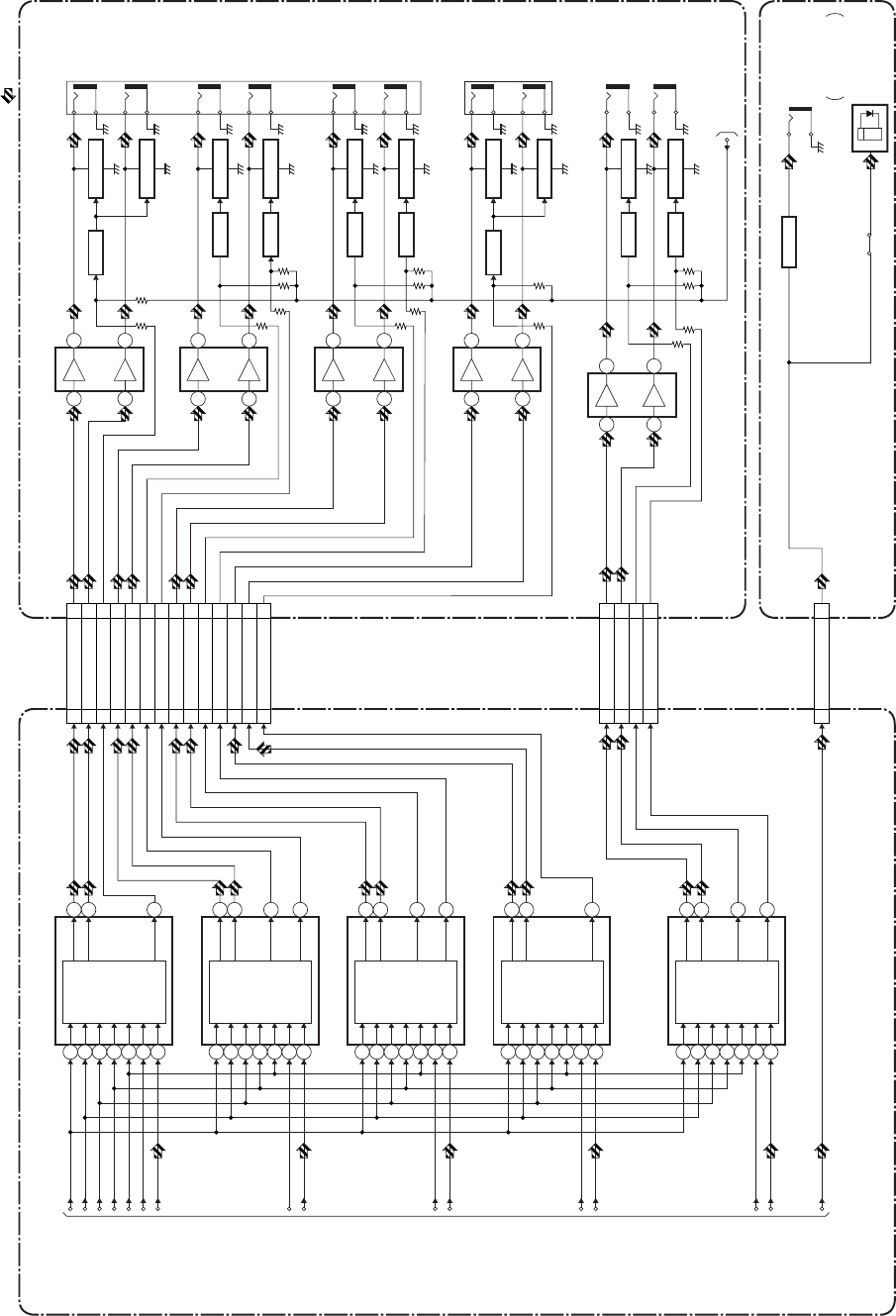

1-9-1 BDN_SC

SCHEMATIC DIAGRAMS / CBA AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis

have special characteristics. These characteristics

often pass unnoticed and the protection afforded by

them cannot necessarily be obtained by using

replacement components rated for higher voltage,

wattage, etc. Replacement parts that have these

special safety characteristics are identified in this

manual and its supplements; electrical components

having such features are identified by the mark “#” in

the schematic diagram and the parts list. Before

replacing any of these components, read the parts list

in this manual carefully. The use of substitute

replacement parts that do not have the same safety

characteristics as specified in the parts list may create

shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these

drawings for ordering. The correct part number is

shown in the parts list, and may be slightly

different or amended since these drawings were

prepared.

2. All resistance values are indicated in ohms

(K = 103, M = 106).

3. Resistor wattages are 1/4W or 1/6W unless

otherwise specified.

4. All capacitance values are indicated in µF

(P = 10-6 µF).

5. All voltages are DC voltages unless otherwise

specified.

6. Electrical parts such as capacitors, connectors,

diodes, IC’s, transistors, resistors, switches, and

fuses are identified by four digits. The first two

digits are not shown for each component. In each

block of the diagram, there is a note such as

shown below to indicate these abbreviated two

digits.

1-9-2 BDN_SC

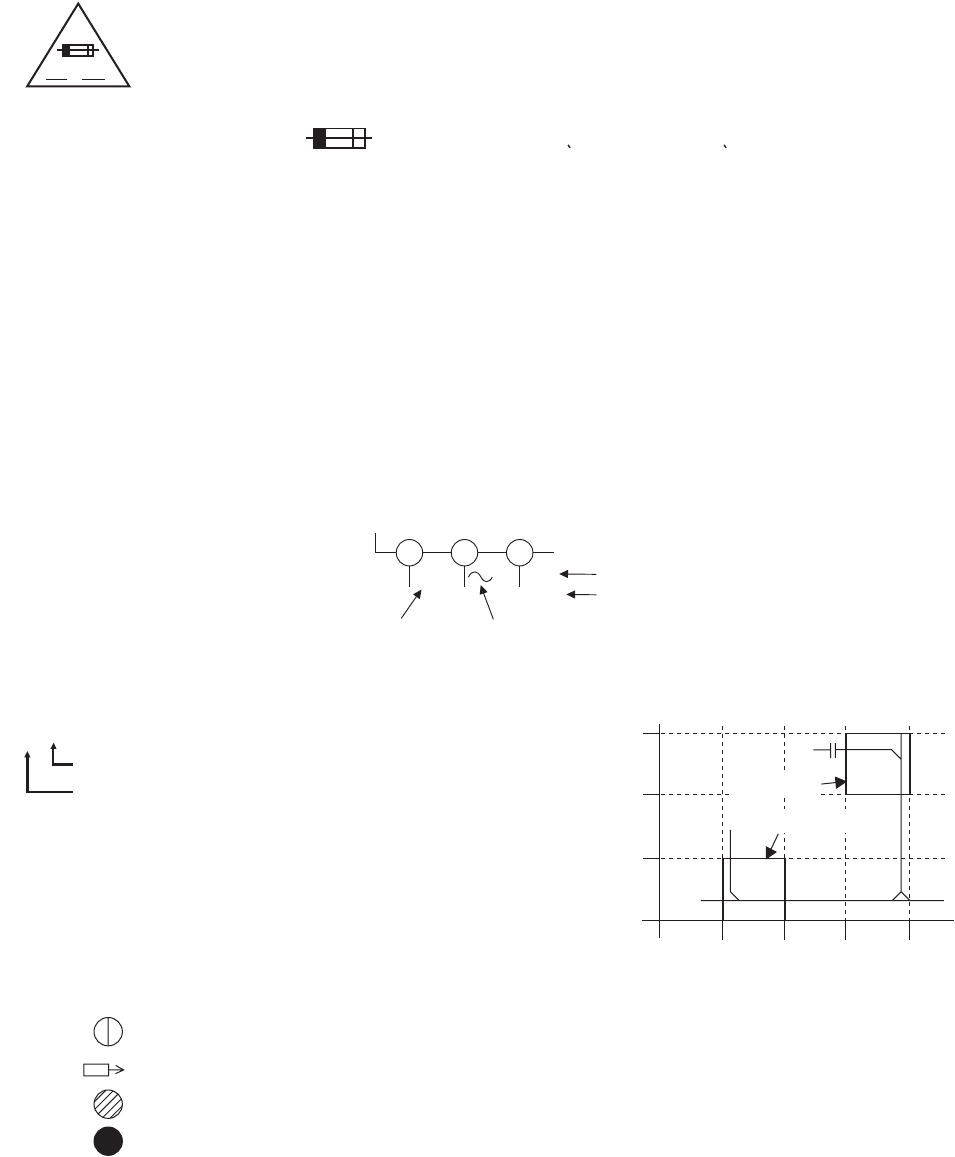

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON

THE FOLLOWING PAGES:

1. CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE

SAME TYPE FUSE.

ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER

QUE DES FUSIBLE DE MÊME TYPE.

RISK OF FIRE-REPLACE FUSE AS MARKED.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not

defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components

in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the

parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are

listed with their part numbers in the parts list section of the service manual.

4. Voltage indications for PLAY and STOP mode on the schematics are as shown below:

5. How to read converged lines

6. Test Point Information

A V

This symbol means fast operating fuse.

Ce symbole represente un fusible a fusion rapide.

1 5.0

(2.5)

5.0

The same voltage for

both PLAY & STOP modes Indicates that the voltage

is not consistent here.

PLAY mode

STOP mode

(Unit: Volt)

1-D3

Distinction Area

Line Number

(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line numbe

"1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number

"1" of the area "B1".

ABCD

1-B1

1-D3

AREA D3

AREA B1

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

1-9-3

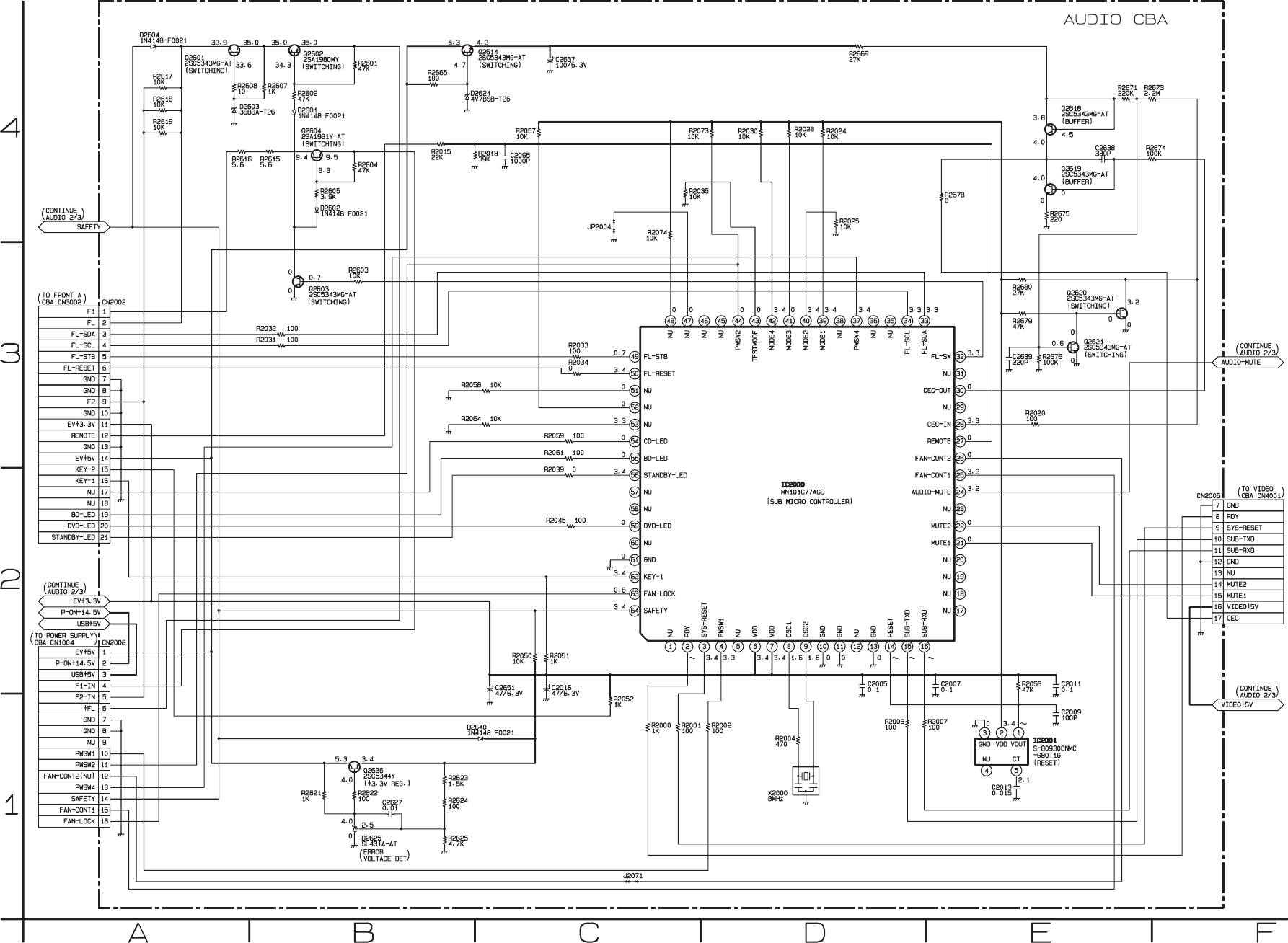

Audio 1/3 Schematic Diagram

E5KE0SCA1

1-9-4

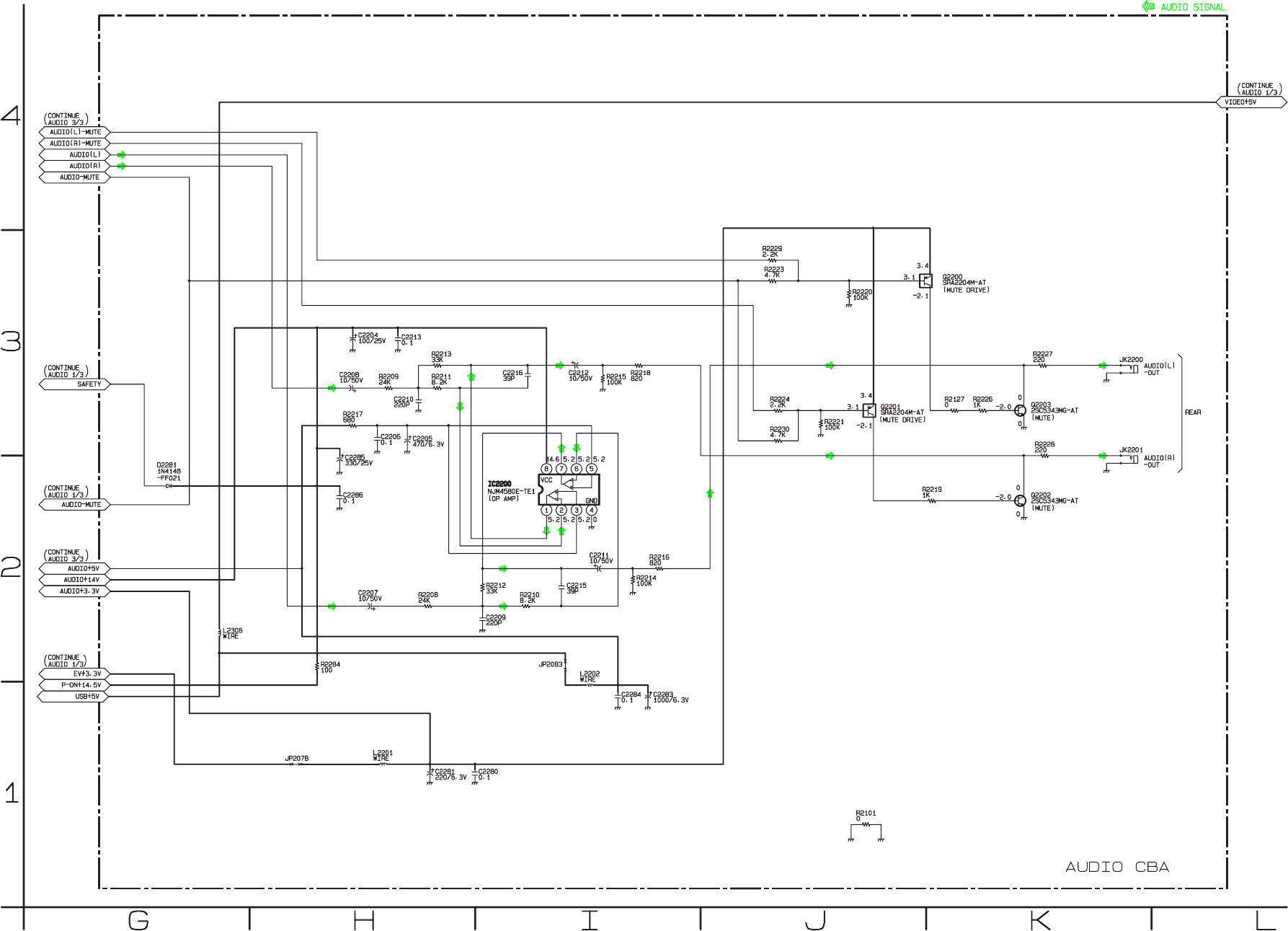

Audio 2/3 Schematic Diagram

E5KE0SCA2

1-9-5

Audio 3/3 Schematic Diagram

E5KE0SCA3

1-9-6

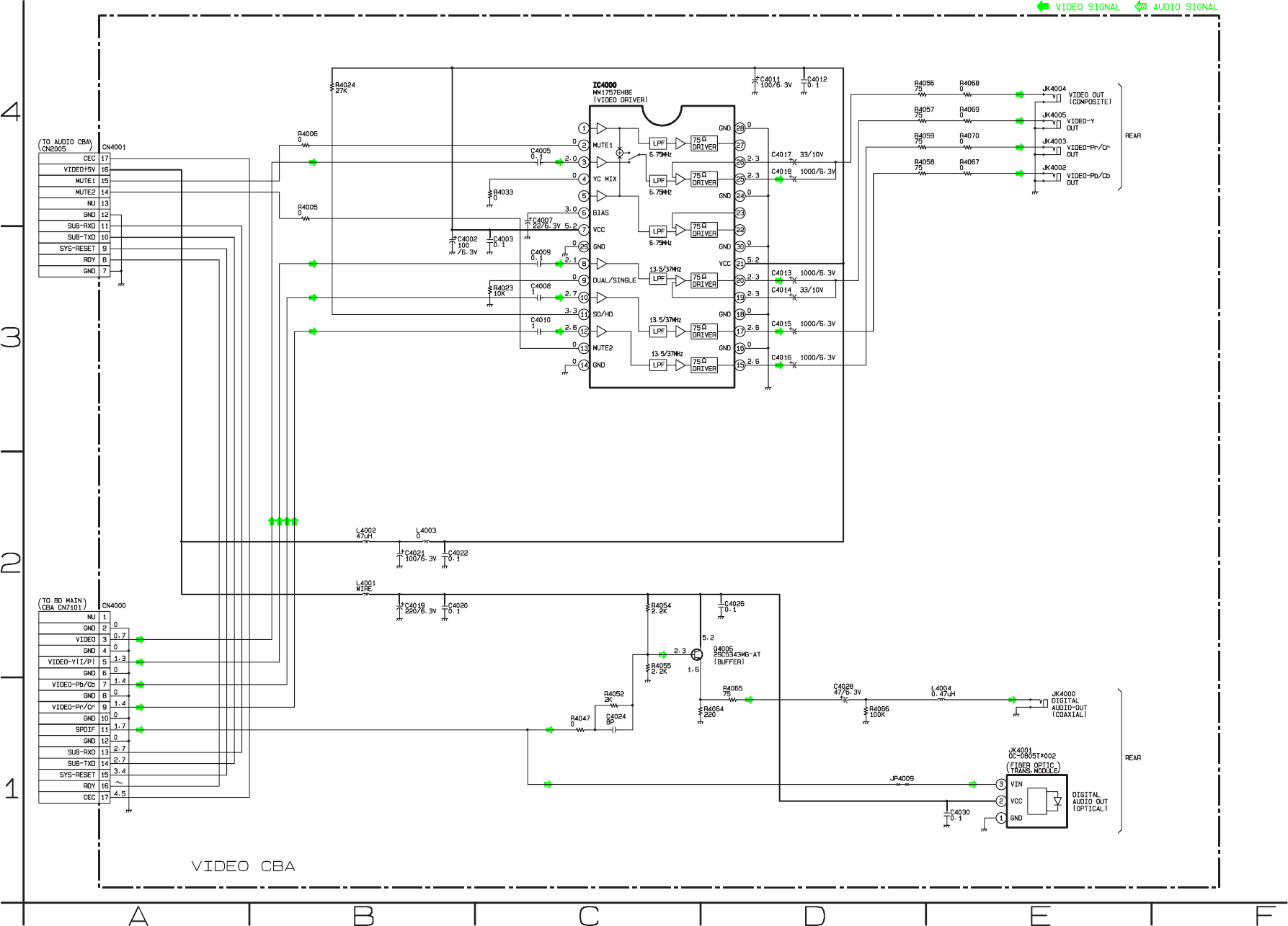

Video Schematic Diagram

E5KE0SCV

1-9-7

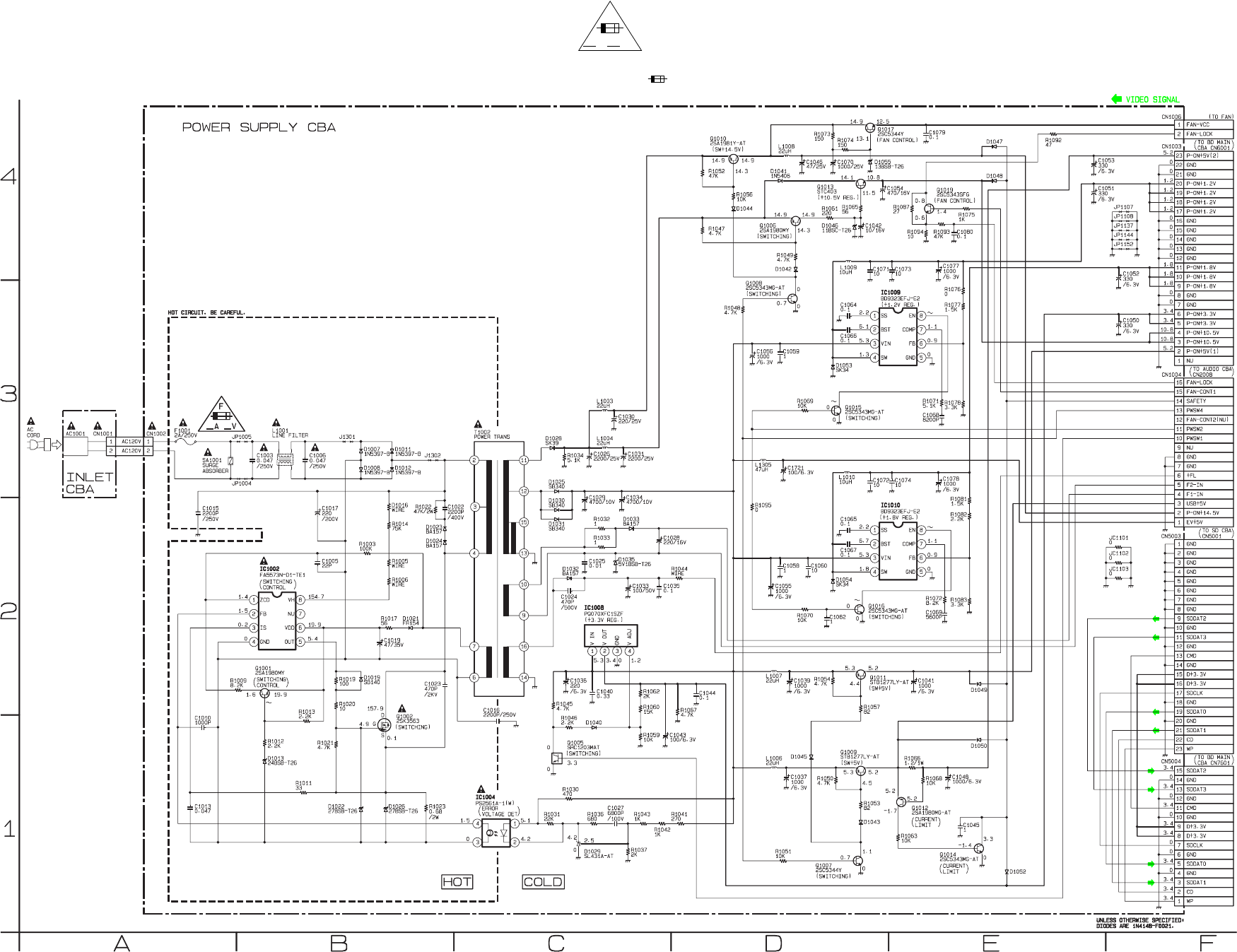

Power Supply & Inlet Schematic Diagram

E5KE0SCP

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F1001) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

"Ce symbole reprèsente un fusible à fusion rapide."

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

ATTENTION : Pour une protection continue les risqes

d'Incele n'utiliser que des fusible de même type.

Risk of fire-replace fuse as marked.

"This symbol means fast operating fuse."

A V

1-9-8

Front A & Front B Schematic Diagram

E5KE0SCF

1-9-9 E5KE0SCSD

SD Schematic Diagram

1-9-10

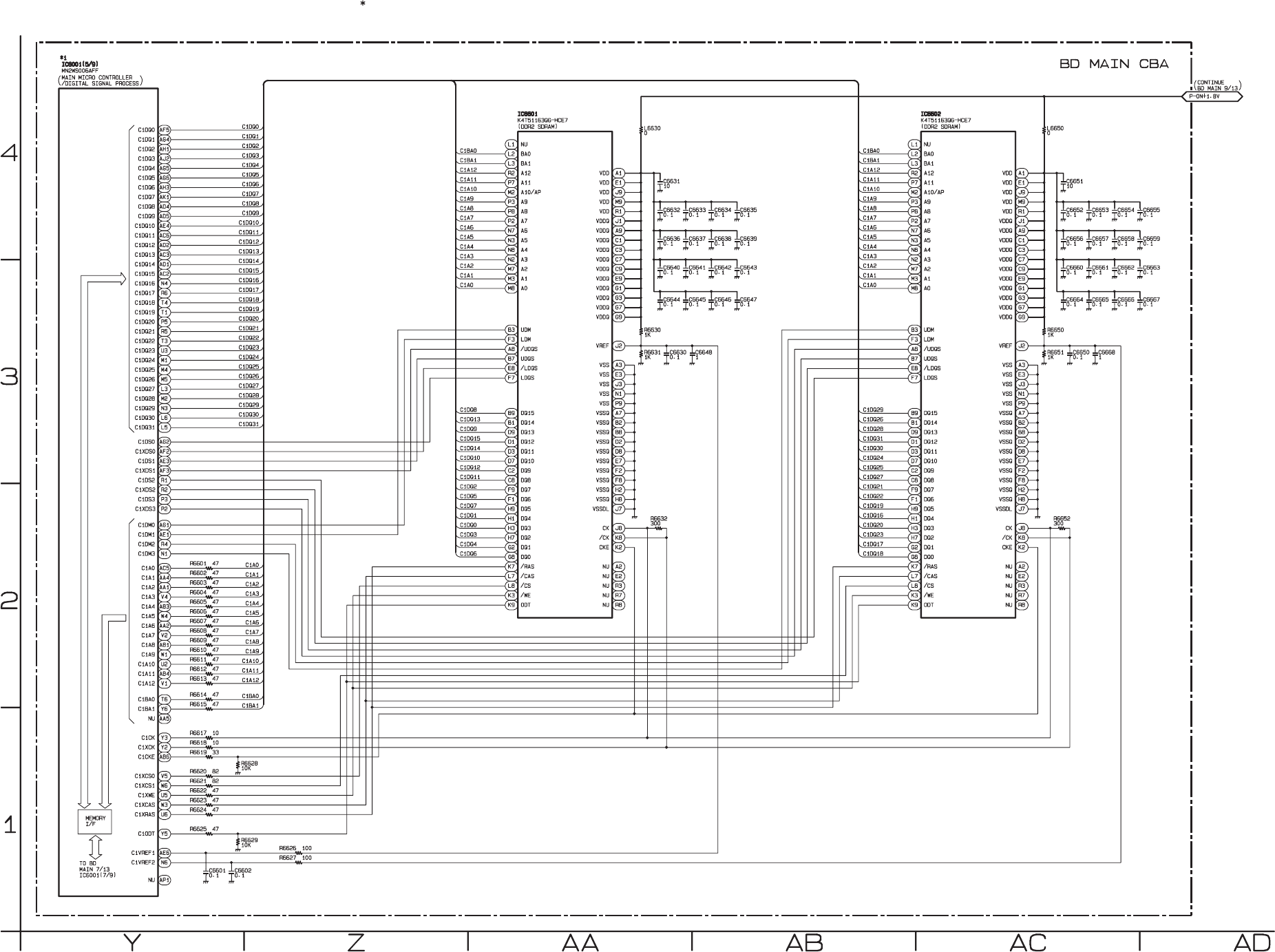

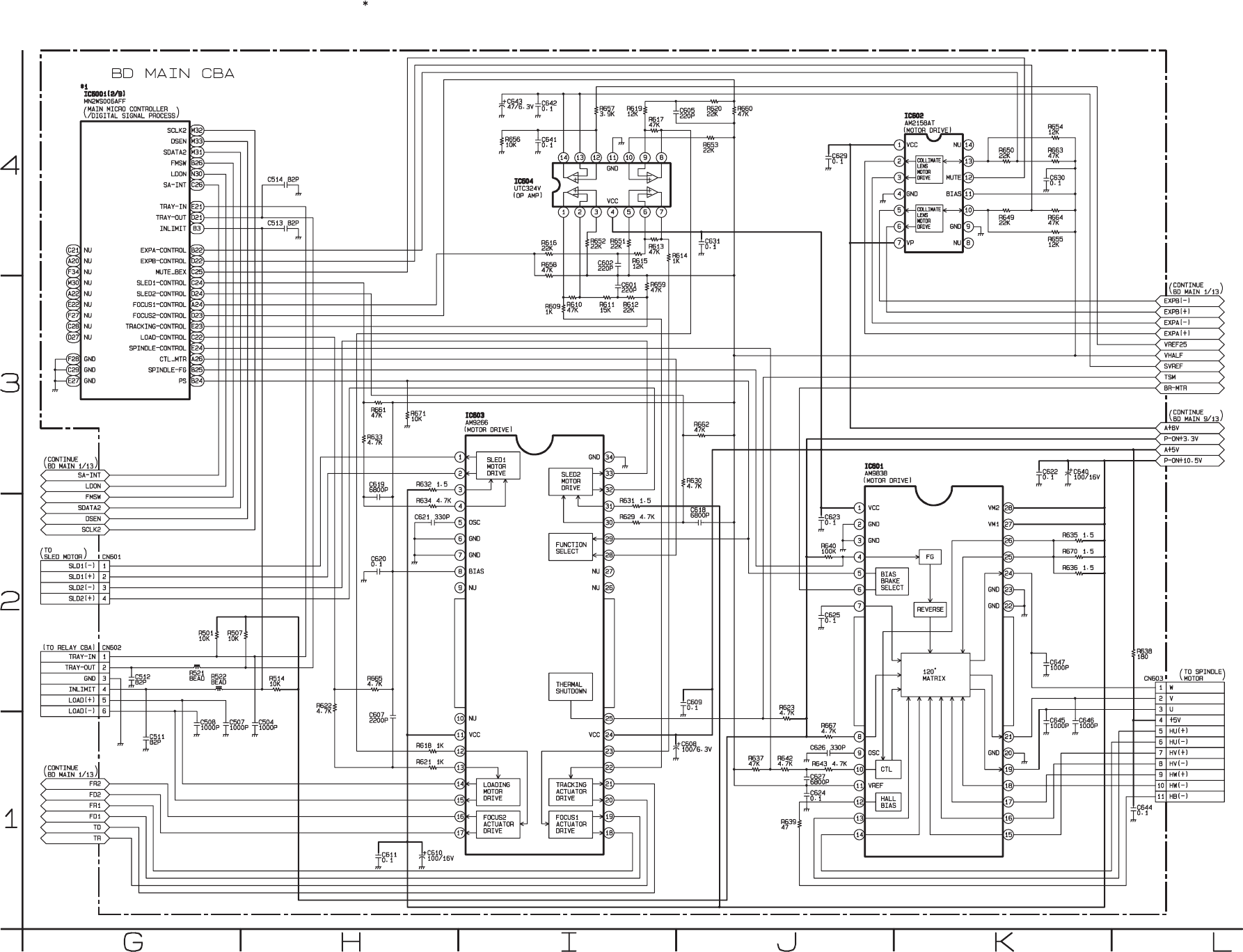

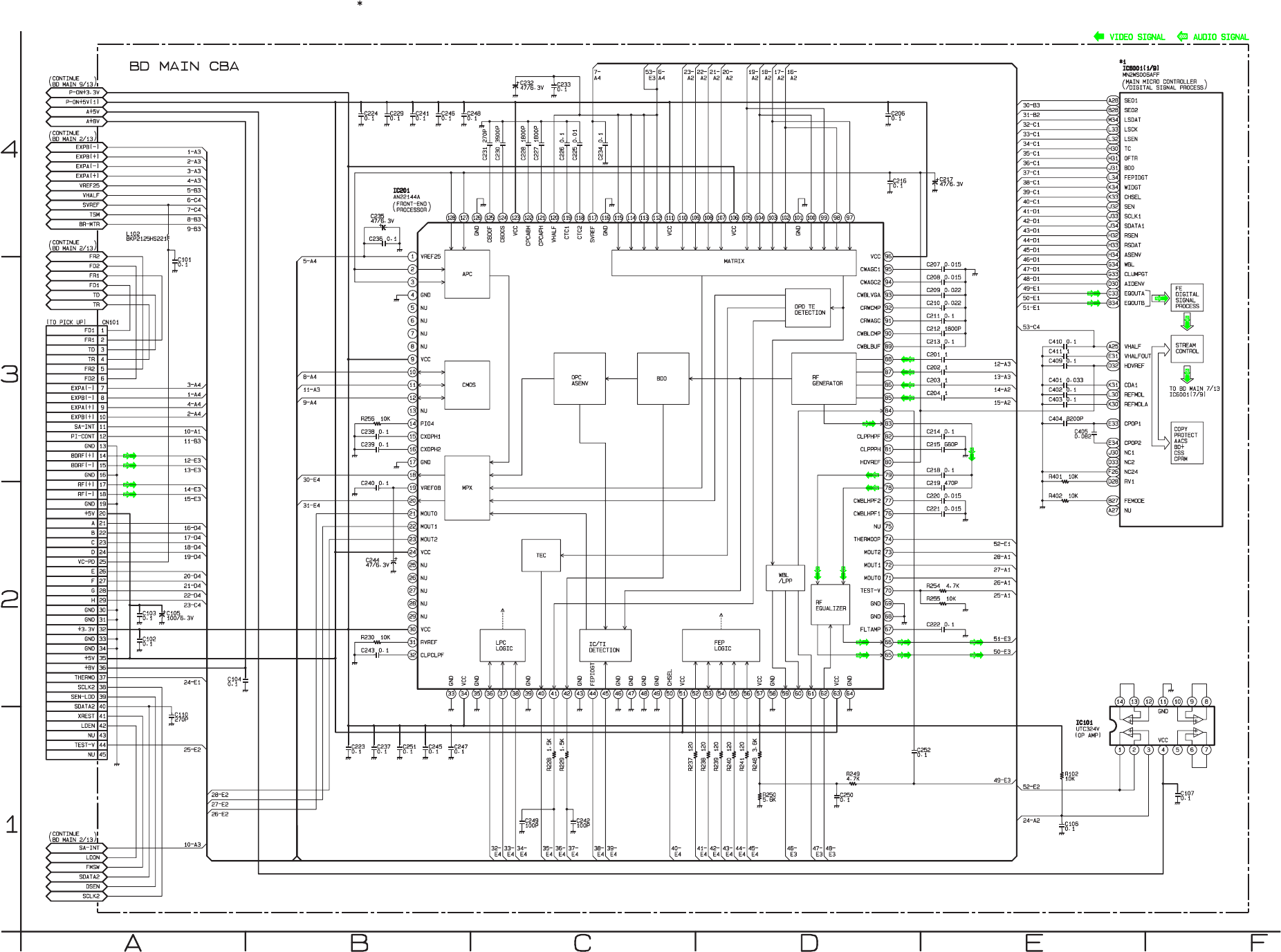

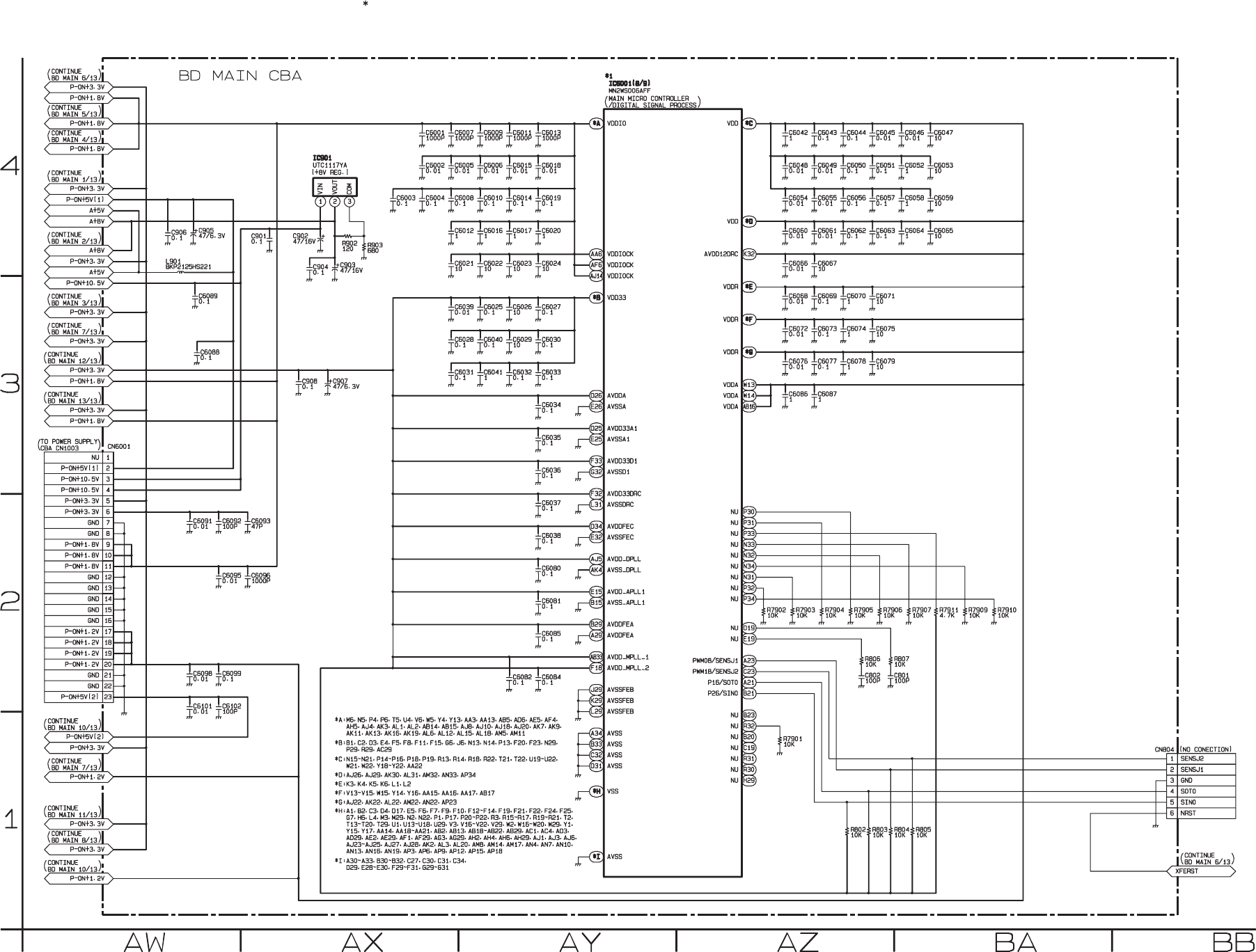

BD Main 1/13 Schematic Diagram

E5KE0SCBD1

The order of pins shown in this diagram is different from that of actual IC6001.

IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1 NOTE:

1-9-11

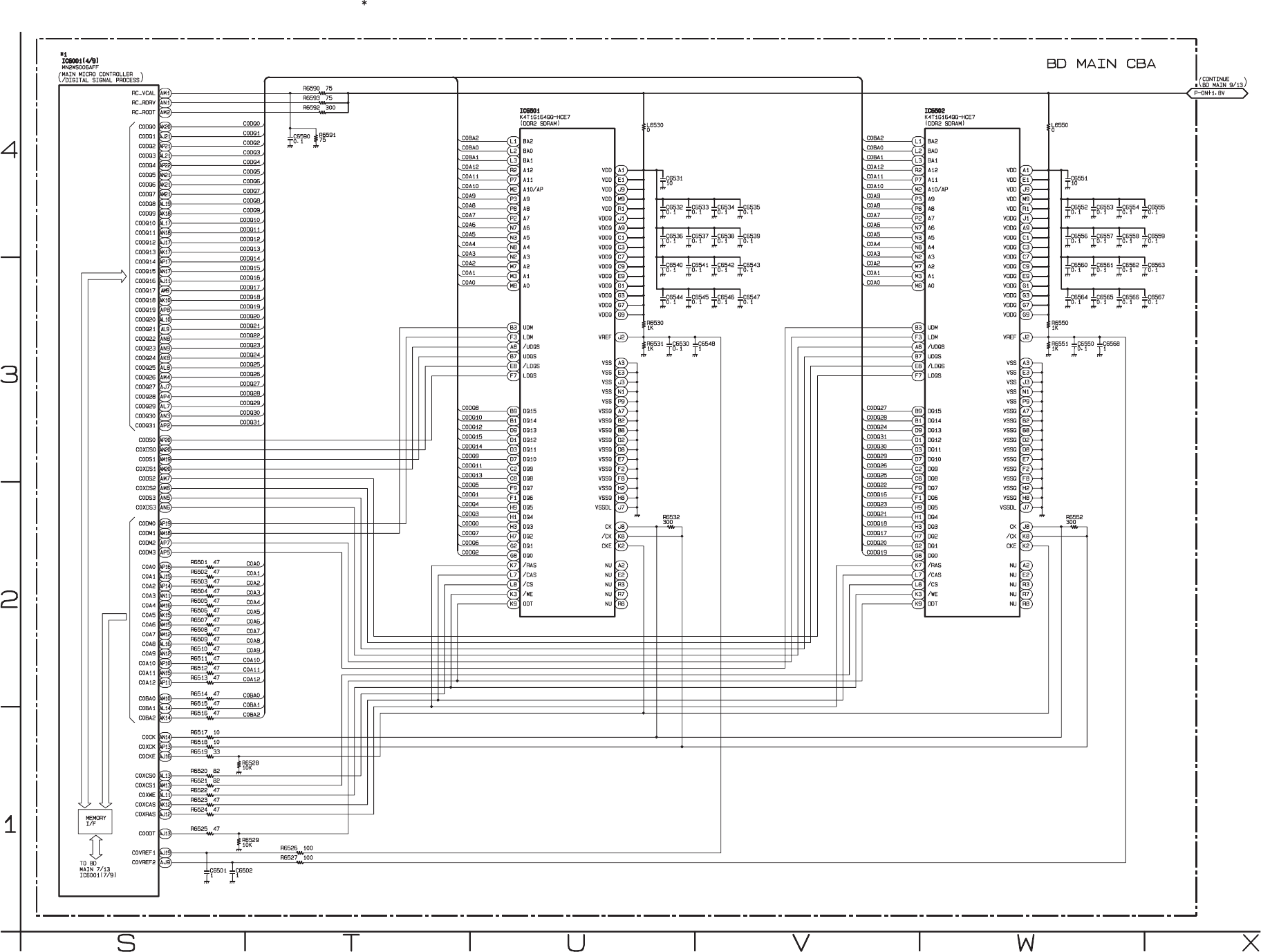

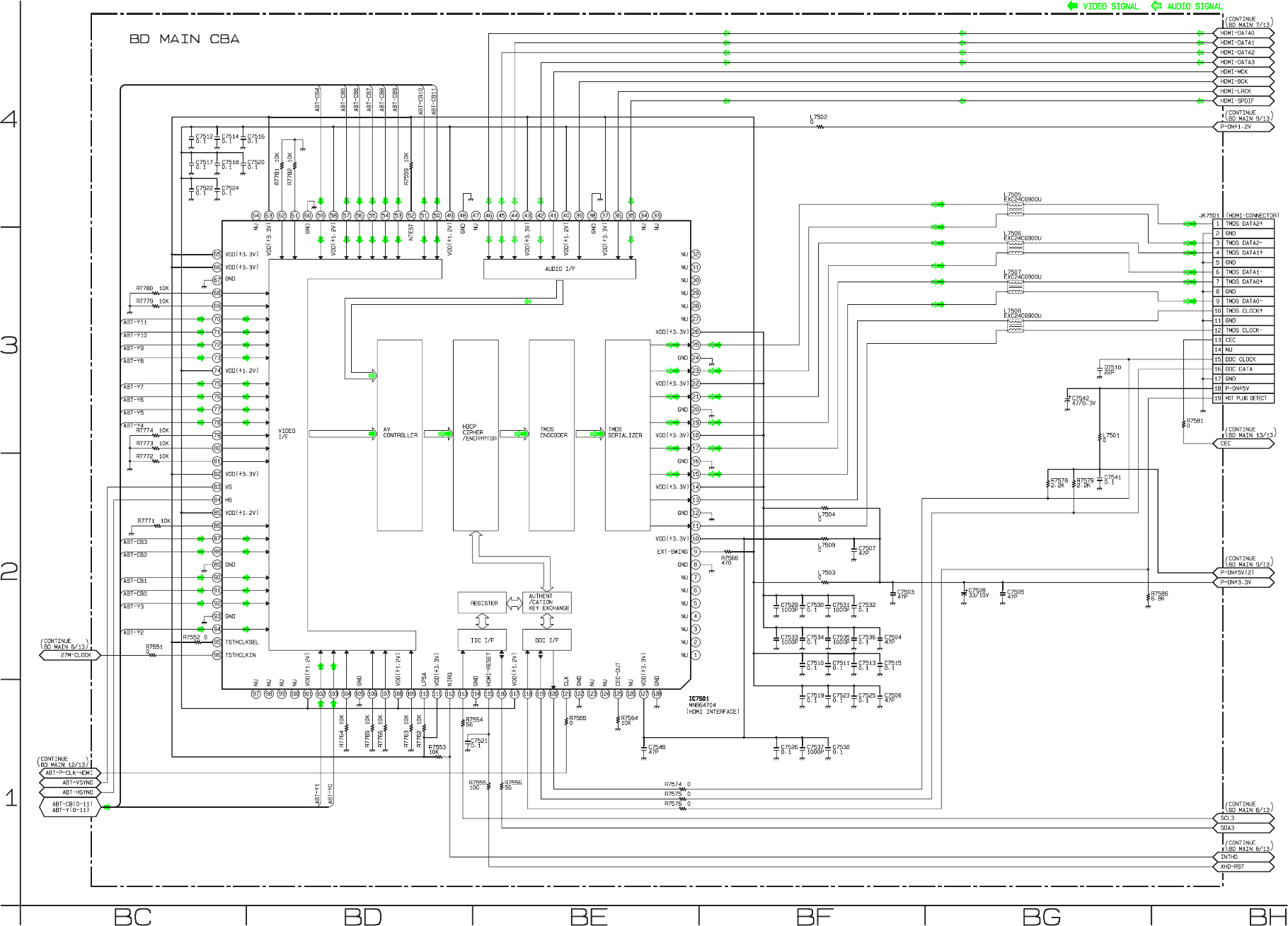

BD Main 2/13 Schematic Diagram

E5KE0SCBD2

The order of pins shown in this diagram is different from that of actual IC6001.

IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1 NOTE:

1-9-12

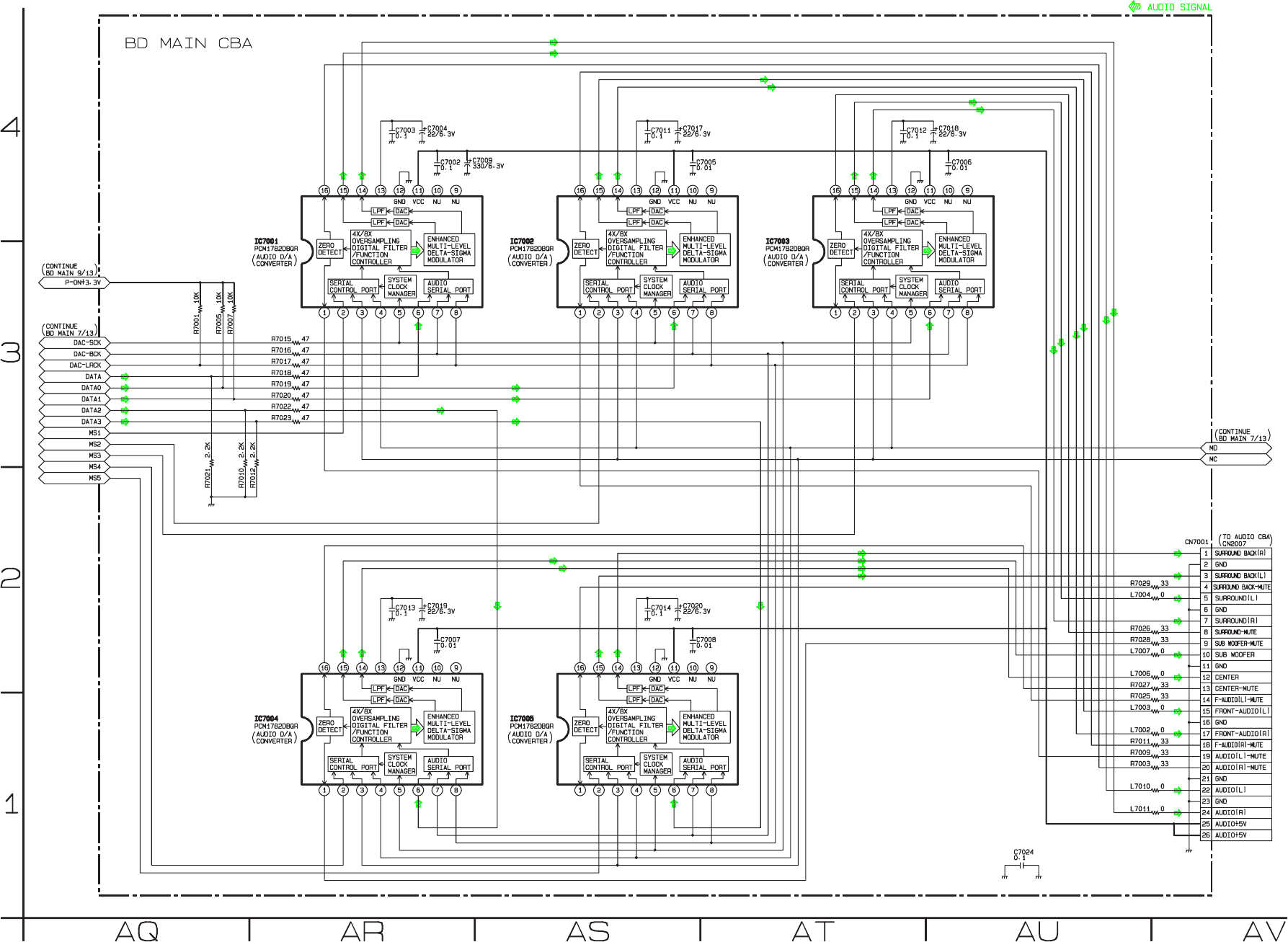

BD Main 3/13 Schematic Diagram

E5KE0SCBD3

The order of pins shown in this diagram is different from that of actual IC6001.

IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1 NOTE:

1-9-13

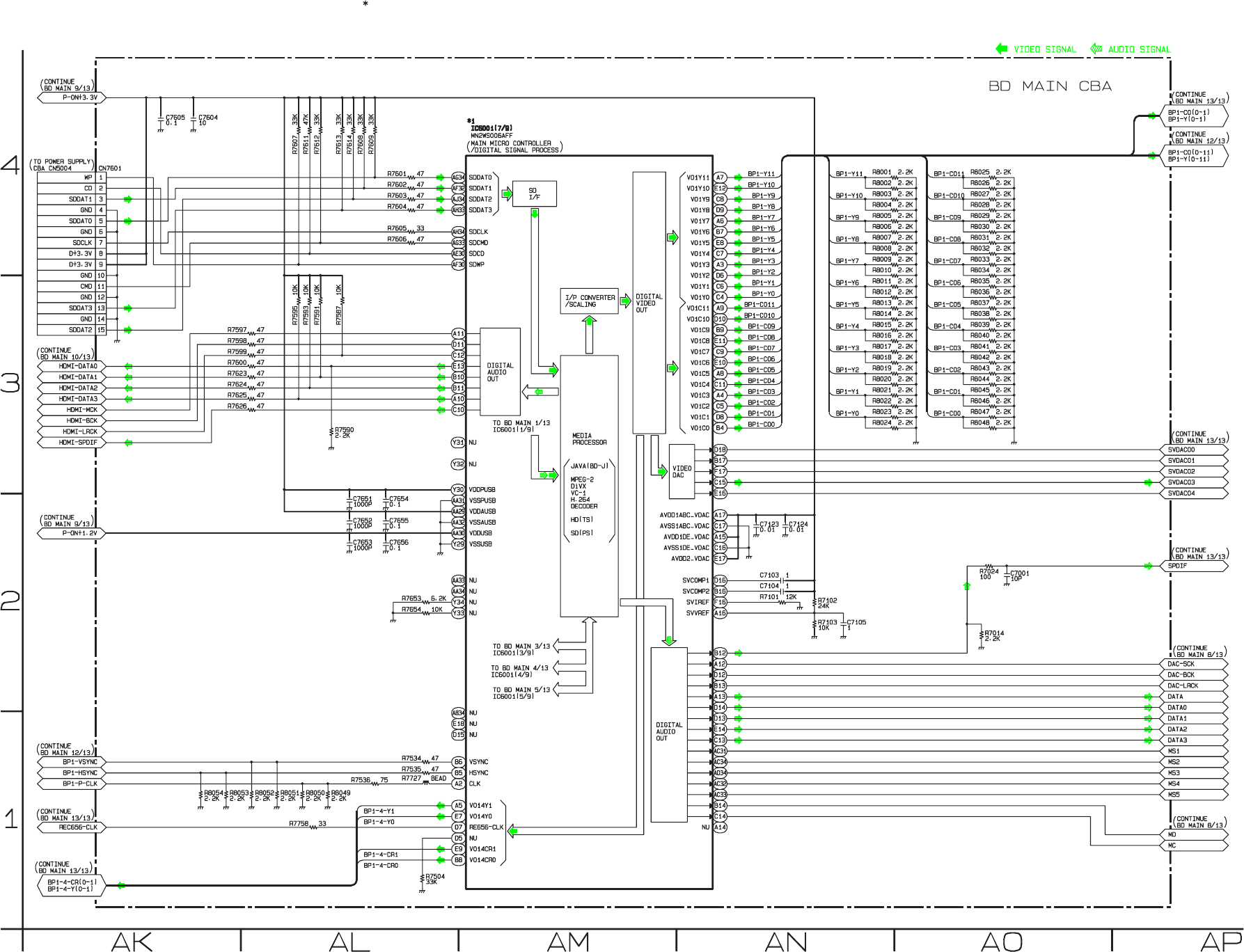

BD Main 4/13 Schematic Diagram

E5KE0SCBD4

The order of pins shown in this diagram is different from that of actual IC6001.

IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1 NOTE:

1-9-14

BD Main 5/13 Schematic Diagram

E5KE0SCBD5

The order of pins shown in this diagram is different from that of actual IC6001.

IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1 NOTE:

1-9-15

BD Main 6/13 Schematic Diagram

E5KE0SCBD6

The order of pins shown in this diagram is different from that of actual IC6001.

IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1 NOTE:

1-9-16

BD Main 7/13 Schematic Diagram

E5KE0SCBD7

The order of pins shown in this diagram is different from that of actual IC6001.

IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1 NOTE:

1-9-17

BD Main 8/13 Schematic Diagram

E5KE0SCBD8

1-9-18

BD Main 9/13 Schematic Diagram

E5KE0SCBD9

The order of pins shown in this diagram is different from that of actual IC6001.

IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1 NOTE:

1-9-19

BD Main 10/13 Schematic Diagram

E5KE0SCBD10

1-9-20

BD Main 11/13 Schematic Diagram

E5KE0SCBD11

The order of pins shown in this diagram is different from that of actual IC6001.

IC6001 is divided into nine and shown as IC6001 (1/9) ~ IC6001 (9/9) in this BD Main Schematic Diagram Section.

1 NOTE:

1-9-21

BD Main 12/13 Schematic Diagram

E5KE0SCBD12

1-9-22

BD Main 13/13 Schematic Diagram

E5KE0SCBD13

1-9-23

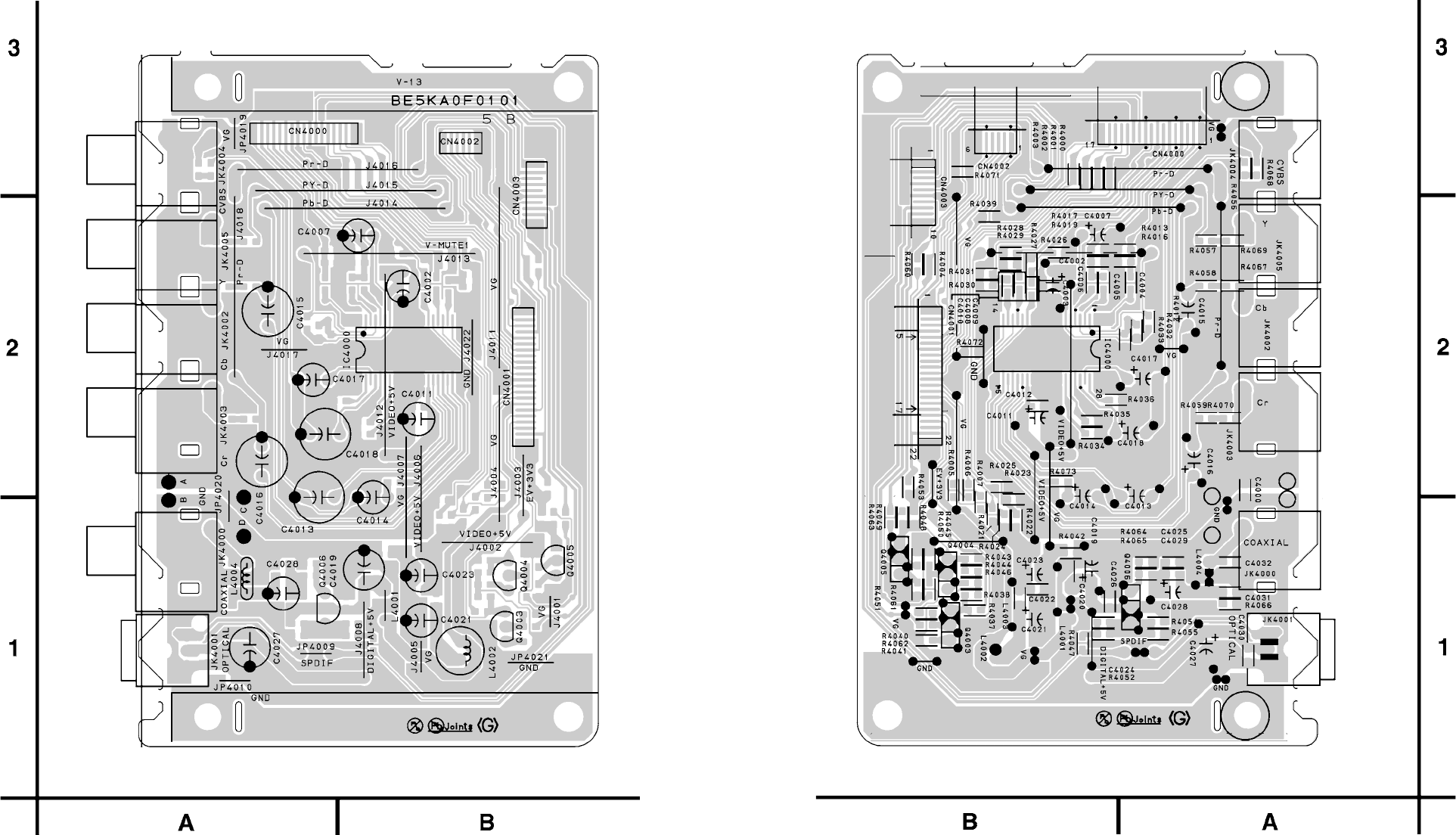

Audio CBA Top View

BE5KA0F01015A

1-9-24

Audio CBA Bottom View

BE5KA0F01015A

1-9-25

Video CBA Top View Video CBA Bottom View

BE5KA0F01015B

1-9-26

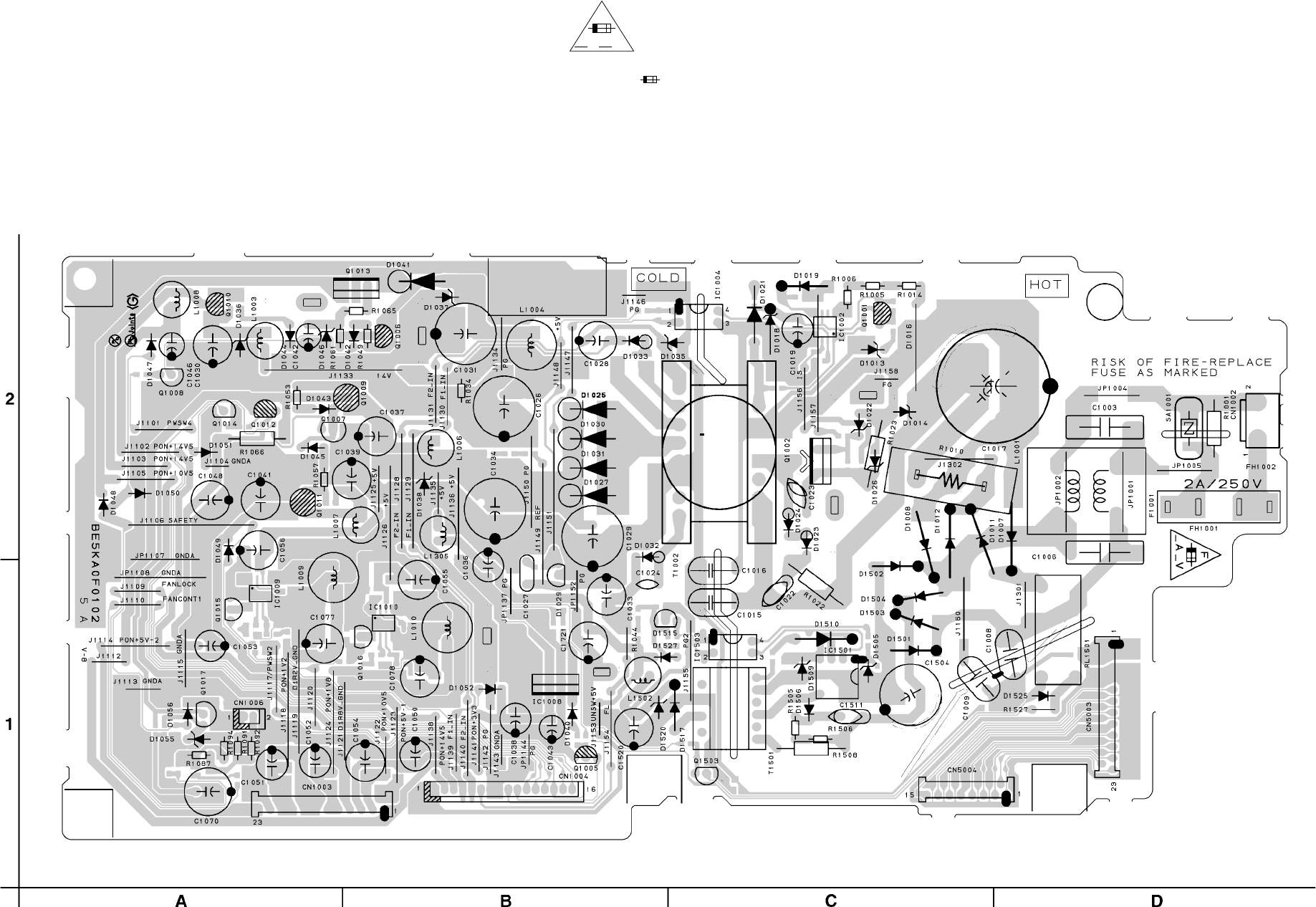

Power Supply CBA Top View

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F1001) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

"Ce symbole reprèsente un fusible à fusion rapide."

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

ATTENTION : Pour une protection continue les risqes

d'Incele n'utiliser que des fusible de même type.

Risk of fire-replace fuse as marked.

"This symbol means fast operating fuse."

A V

Because a hot chassis ground is present in the power supply

circuit, an isolation transformer must be used when repairing.

Also, in order to have the ability to increase the input slowly,

when troubleshooting this type of power supply circuit,

a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

BE5KA0F01025A

1-9-27

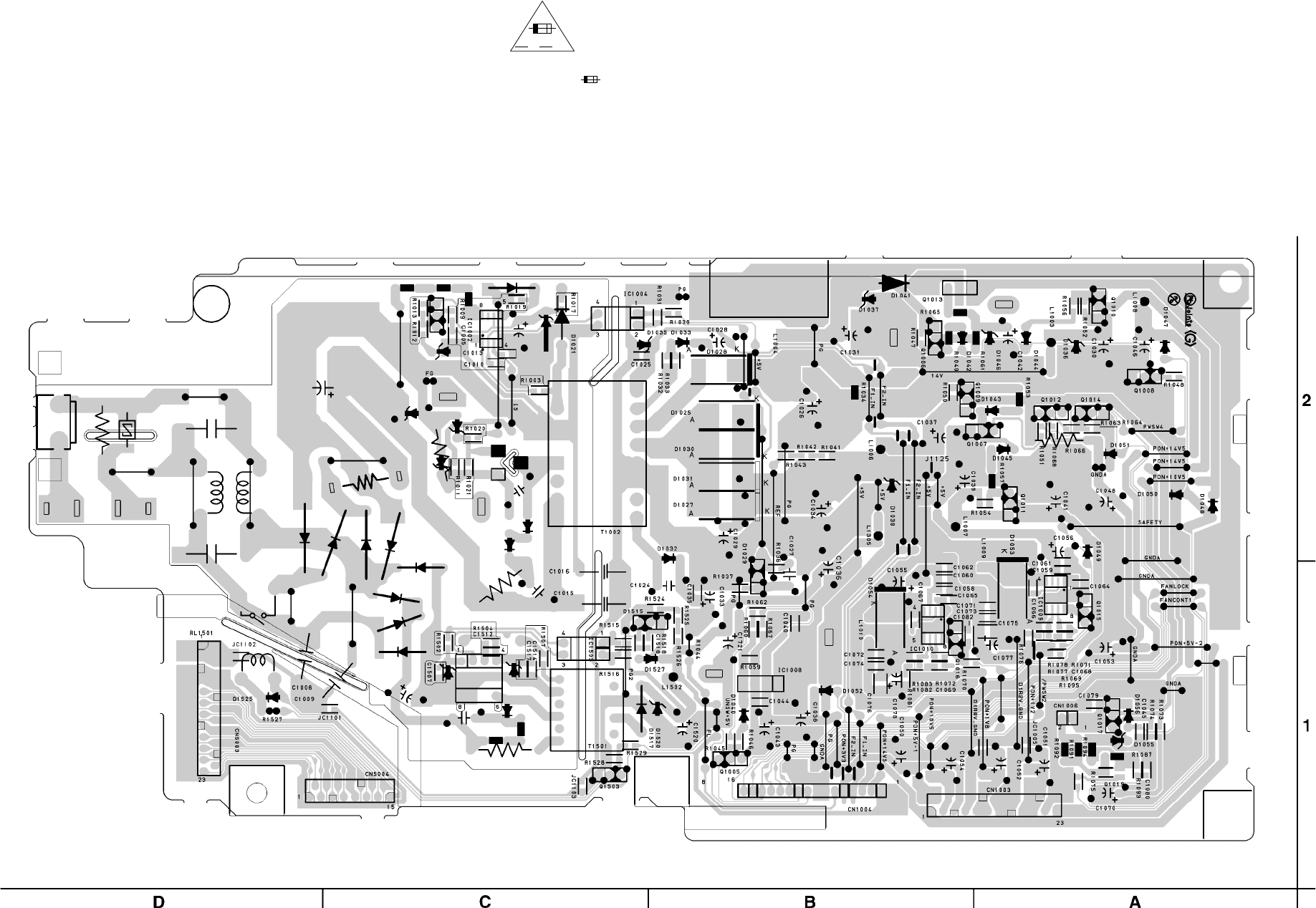

Power Supply CBA Bottom View

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F1001) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

"Ce symbole reprèsente un fusible à fusion rapide."

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

ATTENTION : Pour une protection continue les risqes

d'Incele n'utiliser que des fusible de même type.

Risk of fire-replace fuse as marked.

"This symbol means fast operating fuse."

A V

Because a hot chassis ground is present in the power supply

circuit, an isolation transformer must be used when repairing.

Also, in order to have the ability to increase the input slowly,

when troubleshooting this type of power supply circuit,

a variable isolation transformer is required.

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

BE5KA0F01025A

1-9-28

Front A CBA Top View

Front A CBA Bottom View

Front B CBA Top View

Front B CBA Bottom View

BE5KA0F01015C BE5KA0F01015D

1-9-29

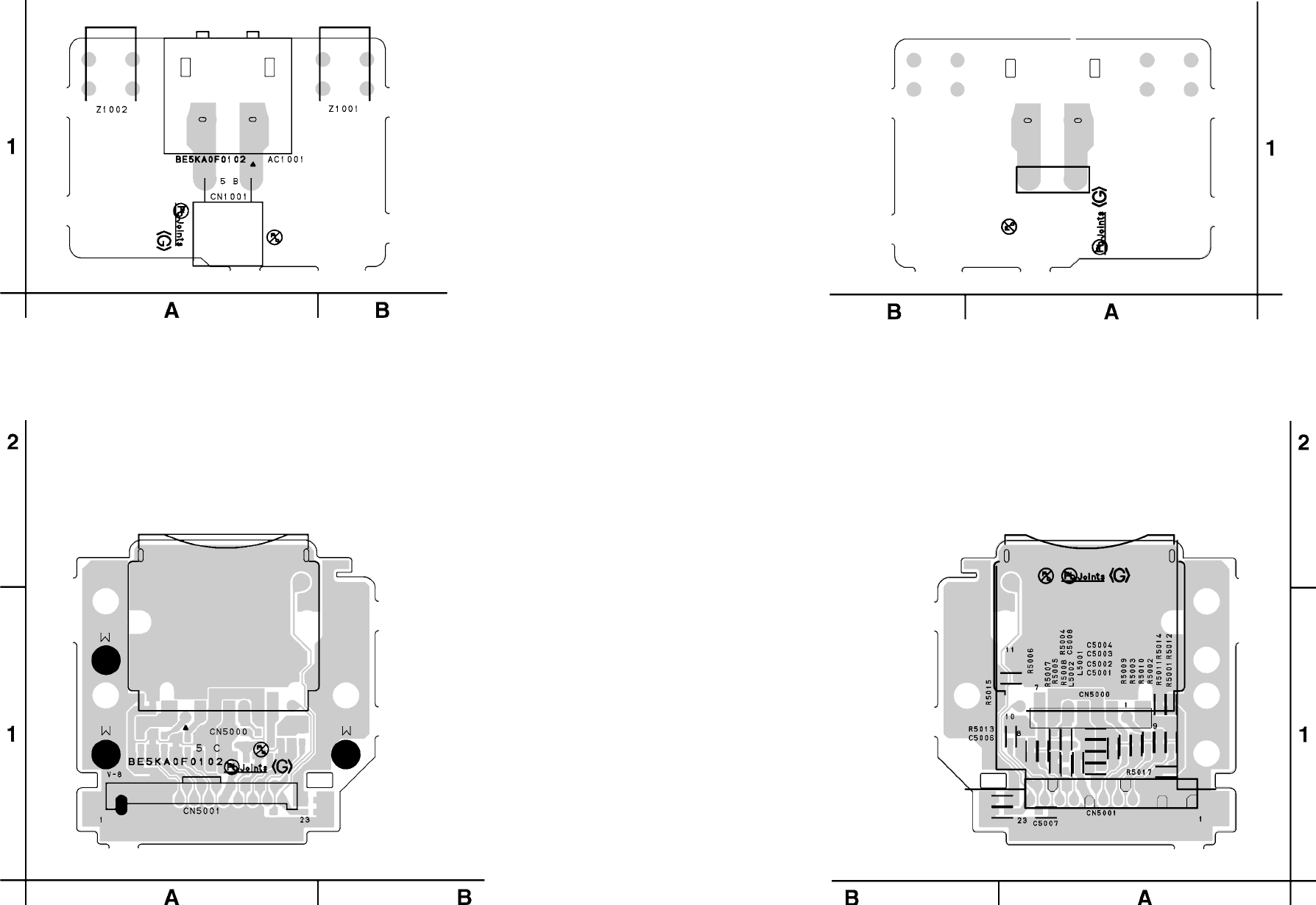

SD CBA Top View SD CBA Bottom View

INLET CBA Top View INLET CBA Bottom View

BE5KA0F01025C

BE5KA0F01025B

1-10-1 E5KE0CEX

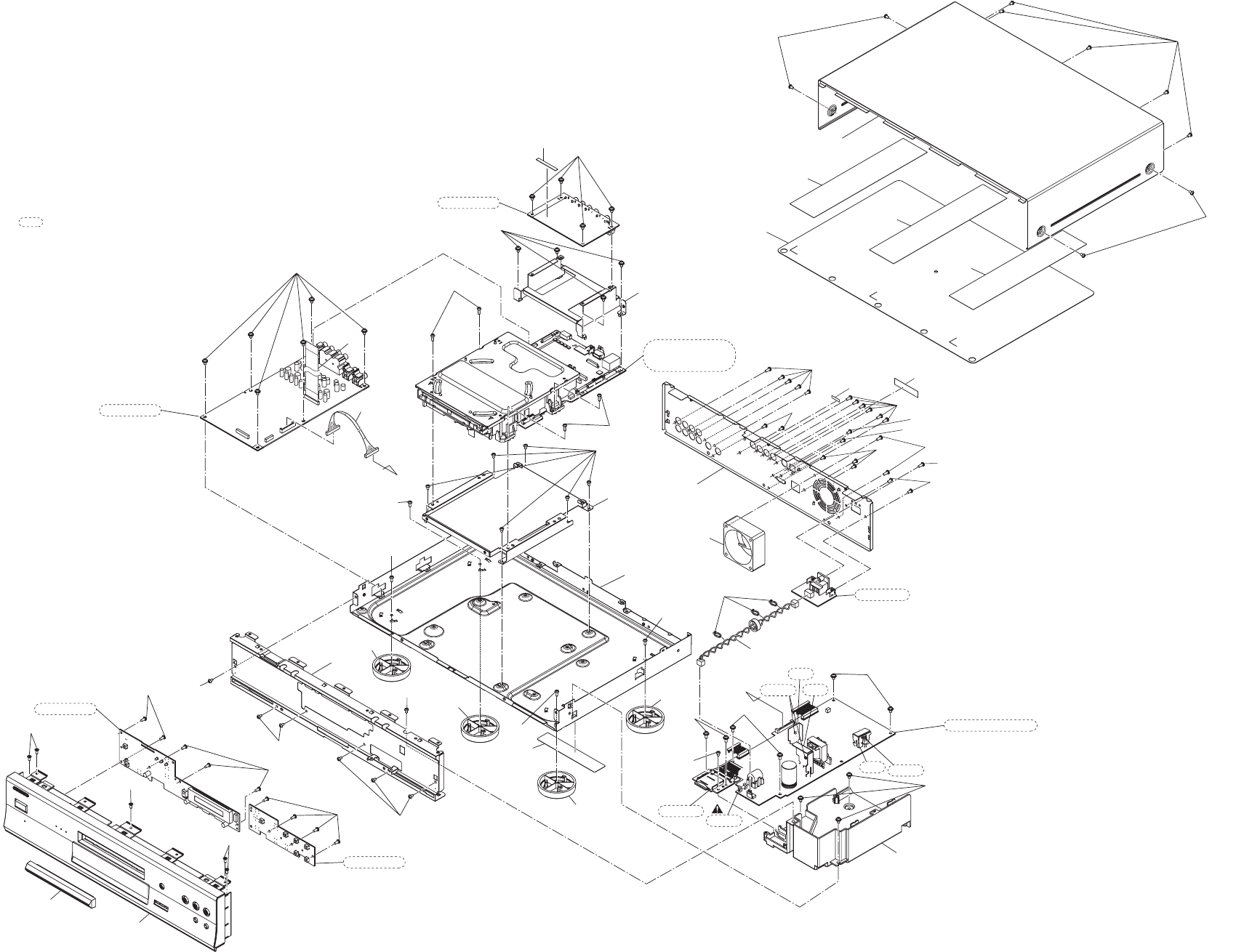

EXPLODED VIEWS

Cabinet

2L058

BD Main CBA &

BD Mechanism

Assembly

2L040

A22

W007

FM1001

A26

A14

A26

2L064

SD CBA

See Electrical Parts List

for parts with this mark.

Some Ref. Numbers are

not in sequence.

2L058

A1X

2L057

2L051

2L032

2L036

2L018

2L054

2L028

2L056

2L034

B70

B72

W009

2L027

2L015

F1001

B74

B49

B75

2L026

2L082

2L028

W006

Front A CBA

Audio CBA

Video CBA

Inlet CBA

Power Supply CBA

Front B CBA

2L082

A30 A20

2L072

2L081

2L083

2L079

2L089

2L073

2L070

B39

B73

1-10-2 E5KE0PEX

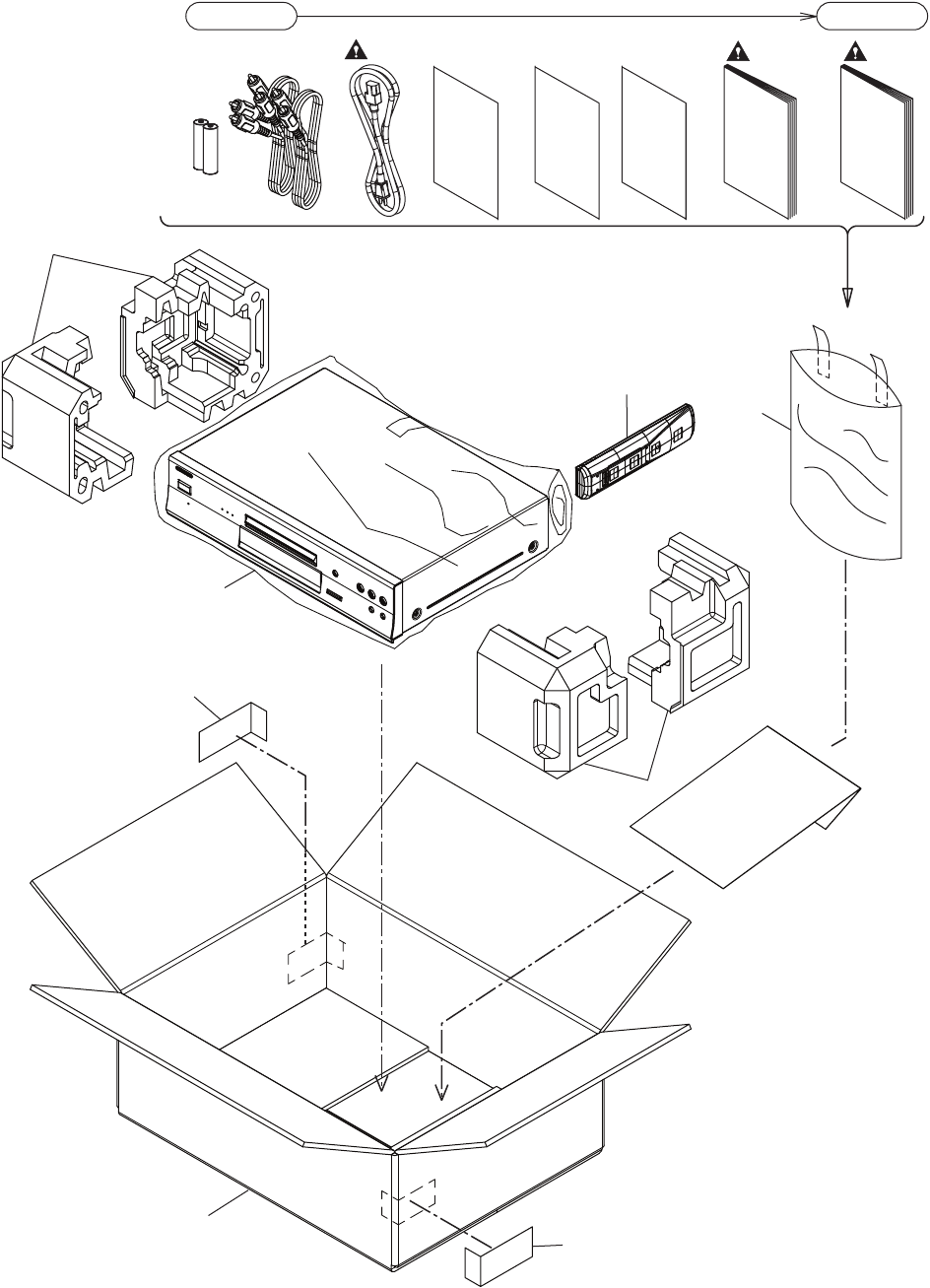

Packing

X19

X10

X40 X2-A X2-B

X14 X15X6

Lower Side Upper Side

X1-A

Some Ref. Numbers

are not in sequence.

A20

X1-B

BD-SP807(B)CDC1N(E5KE0UD)

20091110

BD-SP807(B)CDC1N(E5KE0UD)

Ref. No. Description Parts No.

MECHANICAL PARTS

A1X FRONT ASSEMBLY E5KE0UD 1VM124219

A2 CHASSIS E5KA0UD 1VM021192

A3 TOP COVER E5KA0UD 1VM021193

A4 REAR PANEL E5KE0UD 1VM229036

A6 FOOT ASSEMBLY E5KE0UD 1VM433859

A8 TRAY PANEL ASSEMBLY E5KE0UD 1VM228837

A14 TOP PLATE E5KE0UD 1VM228897

A20 BAR CODE LABEL E5KE0UD ----------

A22 LICENSE LABEL E5KE0UD ----------

A26 DOUBLE SIDE TAPE E5KA0UD 1VM329678

A30 MODEL NO. LABEL E5KE0UD ----------

2L015 SCREW TAP TIGHT WASHER+ P-TIGHT GCJP3080

2L018 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080

2L026 SCREW S-TIGHT M3X6 E5E10UD 1VM429667

2L027 SCREW S-TIGHT M3X6 E5E10UD 1VM429667

2L028 SCREW S-TIGHT M3X10 E5610UD 0VM412936A

2L032 SCREW S-TIGHT M3X6 E5E10UD 1VM429667

2L034 SCREW S-TIGHT M3X6 E5E10UD 1VM429667

2L036 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060

2L040 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080

2L051 SCREW TAP TIGHT WASHER+ P-TIGHT GCJP3080

2L054 SCREW C-TIGHT M3X6 E5610UD 0VM412937A

2L056 SCREW S-TIGHT M3X6 E5E10UD 1VM429667

2L057 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060

2L064 SCREW S-TIGHT M3X8 DISH HEAD+ GDHS3080

2L070 B-TIGHT SCREW M3X8 E5E00UD 1VM428563

2L072 B-TIGHT SCREW M3X8 E5E00UD 1VM428563

2L073 B-TIGHT SCREW M3X8 E5E00UD 1VM428563

2L079 S-TIGHT SCREW M3X6 E5E00UD 1VM428564

2L081 S-TIGHT SCREW M3X6 E5E00UD 1VM428564

2L082 S-TIGHT SCREW M3X6 E5E00UD 1VM428564

2L083 S-TIGHT SCREW M3X6 E5E00UD 1VM428564

2L089 S-TIGHT SCREW M3X6 E5E00UD 1VM428564

B2 FRONT BRACKET E5KA0UD 1VM122941J

B4 POWER HOLDER E5KA0UD 1VM122880

B39 LEAD CLAMPER 100MM 1790356

B70 HIMELON TAPE(5X40) E5KA0UD 1VM431686

B72 AV PCB BRACKET E5KA0UD 1VM226905B

B73 LOADER BRACKET E5KA0UD 1VM122901

FM1001 MOTOR DC FAN 2D65BL100190 MMEZR12XNR08

W006 WIRE ASSEMBLY FFC 26/169/1.0 WX1E5KA0-006

W007 WIRE ASSEMBLY VH 2/265/AWG20 WX1E5KA0-007

W009 WIRE ASSEMBLY PH 16/290/AWG24 WX1E5KA0-009

S1 SIDE PAD E5KE0UD 1VM124119

S2 GIFT BOX CARTON E5KE0UD 1VM332219

S3 SET BAG E5KB0UD 1VM433842

X1-A! OWNERS MANUAL(EN) E5KE0UD 1VMN28736

X1-B! OWNERS MANUAL(ES/FR) E5KE0UD 1VMN28737

X-2A QUICK GUIDE(EN) E5KE0UD 1VMN28738

X-2B QUICK GUIDE(ES/FR) E5KE0UD 1VMN28739

X6 MANGANESE DRY BATTERY R6UWC/2STA XB0M311MS003

X10 ACCESSORY BAG E5795ED 0VM416059

1 / 13 page

BD-SP807(B)CDC1N(E5KE0UD)

X14 AV CORD 1000/BLAC

WPZ0102TM018

X15! CORD W/O A GND WIRE UL/CSA/ 162/NO/BLAC

WAV0162LW001

X19 REMOTE CONTROL UNIT NB821UD NB821UD

X40 WARRANTY CARD E5H50UD 1VMN26325

ELECTRICAL PARTS

1B1 BD MAIN CBA & BD MECHANISM ASSEMBLY N77RABUN

AV ASSEMBLY 1VSA23609

Consists of the following

VIDEO CBA ----------

AUDIO CBA ----------

FRONT A CBA ----------

FRONT B CBA ----------

VIDEO CBA ----------

C4002 ELECTROLYTIC CAP. 100UF/6.3V/M CEA101ENW016

C4003 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C4005 CHIP CERAMIC CAP.(1608) B K 0.1UF/50V CHD1JK30B104

C4007 ELECTROLYTIC CAP. 22UF/6.3V/M CEA22RENW016

C4008 CHIP CERAMIC CAP.(1608) B K 1UF/10V CHD1AK30B105

C4009 CHIP CERAMIC CAP.(1608) B K 0.1UF/50V CHD1JK30B104

C4010 CHIP CERAMIC CAP.(1608) B K 1UF/10V CHD1AK30B105

C4011 ELECTROLYTIC CAP. 100UF/6.3V/M CEA101ENW016

C4012 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C4013 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016

C4014 ELECTROLYTIC CAP. 33UF/10V/M CEB33RENW016

C4015 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016

C4016 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016

C4017 ELECTROLYTIC CAP. 33UF/10V/M CEB33RENW016

C4018 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016

C4019 ELECTROLYTIC CAP. 220UF/6.3V/M CEA221ENW016

C4020 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C4021 ELECTROLYTIC CAP. 100UF/6.3V/M CEA101ENW016

C4022 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C4024 CHIP CERAMIC CAP. CH D 8PF/50V CHD1JD3CH8R0

C4026 CHIP CERAMIC CAP.(1608) B K 0.1UF/25V CHD1EK30B104

C4028 ELECTROLYTIC CAP. 47UF/6.3V/M CEA47RENW016

C4030 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

CN4000 WIRE ASSEMBLY FFC DIRECT 17/65/1.0 WX1E5KA0-005

CN4001 WIRE ASSEMBLY FFC DIRECT 11/279/1.0 WX1E5KE0-002

IC4000 IC VIDEO DRIVER MM1757EHBE QSCA0T0MM001

L4001 WIRE CP STP-S-0.60 XZ40F0REN002

L4002 RADIAL TYPE CHOKE COIL CW68-470K-841040NP LLBD00PKV023

L4003 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

L4004 INDUCTOR(0.47UH K) LAP02TAR47

LLAXKATTUR47

Q4006 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

R4005 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R4006 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R4023 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R4024 CHIP RES. 1/10W J 27K OHM RRXAJR5Z0273

R4033 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R4047 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R4052 CHIP RES. 1/10W J 2K OHM RRXAJR5Z0202

R4054 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222

R4055 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222

R4056 CHIP RES. 1/10W J 75 OHM RRXAJR5Z0750

R4057 CHIP RES. 1/10W J 75 OHM RRXAJR5Z0750

R4058 CHIP RES. 1/10W J 75 OHM RRXAJR5Z0750

2 / 13 page

BD-SP807(B)CDC1N(E5KE0UD)

R4059 CHIP RES. 1/10W J 75 OHM RRXAJR5Z0750

R4064 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221

R4065 CHIP RES. 1/10W J 75 OHM RRXAJR5Z0750

R4066 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R4067 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R4068 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R4069 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R4070 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

JK4000 RCA JACK MSP-251V-10 GILT LF JXRL010LY143

JK4001 FIBER OPTIC TRANS.MODULE 0C-0805T*002 JWHHA00JD002

JK4002 RCA JACK 1PIN(BLUE) MSP-251V-31-GILT(B11 JXRL010LY179

JK4003 RCA JACK 1PIN(RED) MSP-251V-12-GILT(B11 JXRL010LY176

JK4004 RCA JACK(YELLOW) MSD-251V-11 GILT FE JXRL010LY110

JK4005 RCA JACK 1PIN(GREEN) MSP-251V-16-GILT(B11 JXRL010LY178

JP4009 WIRE CP STP-S-0.60 XZ40F0REN002

AUDIO CBA ----------

C2005 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2007 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2009 CHIP CERAMIC CAP.(1608) CH J 100PF/50V CHD1JJ3CH101

C2011 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2013 CHIP CERAMIC CAP.(1608) B K 0.015UF/50V CHD1JK30B153

C2016 ELECTROLYTIC CAP. 47UF/6.3V/M CEA47RENW016

C2065 CHIP CERAMIC CAP.(1608) B K 1000PF/50V CHD1JK30B102

C2204 ELECTROLYTIC CAP. 100UF/25V (RFO T2) CED101ELN004

C2205 ELECTROLYTIC CAP. 470UF/6.3V (RFO T2) CEA471ELN004

C2206 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2207 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2208 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2209 CHIP CERAMIC CAP. CH J 220PF/50V CHD1JJ3CH221

C2210 CHIP CERAMIC CAP. CH J 220PF/50V CHD1JJ3CH221

C2211 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2212 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2213 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2215 CHIP CERAMIC CAP. CH J 39PF/50V CHD1JJ3CH390

C2216 CHIP CERAMIC CAP. CH J 39PF/50V CHD1JJ3CH390

C2280 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2281 ELECTROLYTIC CAP. 220UF/6.3V/M CEA221ENW016

C2283 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016

C2284 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2285 ELECTROLYTIC CAP. 330UF/25V/M CED331ENW016

C2286 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2627 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V CHD1JK30B103

C2637 ELECTROLYTIC CAP. 100UF/6.3V/M CEA101ENW016

C2638 CHIP CERAMIC CAP. CH J 330PF/50V CHD1JJ3CH331

C2639 CHIP CERAMIC CAP. CH J 220PF/50V CHD1JJ3CH221

C2651 ELECTROLYTIC CAP. 47UF/6.3V/M CEA47RENW016

C2802 ELECTROLYTIC CAP. 100UF/25V (RFO T2) CED101ELN004

C2803 ELECTROLYTIC CAP. 100UF/25V (RFO T2) CED101ELN004

C2804 ELECTROLYTIC CAP. 100UF/25V (RFO T2) CED101ELN004

C2805 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2806 ELECTROLYTIC CAP. 470UF/6.3V (RFO T2) CEA471ELN004

C2807 ELECTROLYTIC CAP. 100UF/25V (RFO T2) CED101ELN004

C2808 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2809 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2810 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2811 CHIP CERAMIC CAP. CH J 220PF/50V CHD1JJ3CH221

C2812 CHIP CERAMIC CAP. CH J 220PF/50V CHD1JJ3CH221

C2813 CHIP CERAMIC CAP. CH J 39PF/50V CHD1JJ3CH390

C2814 CHIP CERAMIC CAP. CH J 39PF/50V CHD1JJ3CH390

3 / 13 page

BD-SP807(B)CDC1N(E5KE0UD)

C2815 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2816 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2819 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2820 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2821 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2822 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2823 CHIP CERAMIC CAP. CH J 220PF/50V CHD1JJ3CH221

C2824 CHIP CERAMIC CAP. CH J 220PF/50V CHD1JJ3CH221

C2825 CHIP CERAMIC CAP. CH J 39PF/50V CHD1JJ3CH390

C2826 CHIP CERAMIC CAP. CH J 39PF/50V CHD1JJ3CH390

C2827 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2828 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2831 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2832 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2833 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2834 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2835 CHIP CERAMIC CAP. CH J 220PF/50V CHD1JJ3CH221

C2836 CHIP CERAMIC CAP. CH J 220PF/50V CHD1JJ3CH221

C2837 CHIP CERAMIC CAP. CH J 39PF/50V CHD1JJ3CH390

C2838 CHIP CERAMIC CAP. CH J 39PF/50V CHD1JJ3CH390

C2839 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2840 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2843 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2845 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C2846 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2847 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2848 CHIP CERAMIC CAP. CH J 220PF/50V CHD1JJ3CH221

C2849 CHIP CERAMIC CAP. CH J 220PF/50V CHD1JJ3CH221

C2850 CHIP CERAMIC CAP. CH J 39PF/50V CHD1JJ3CH390

C2851 CHIP CERAMIC CAP. CH J 39PF/50V CHD1JJ3CH390

C2852 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2853 ELECTROLYTIC CAP. 10UF/50V (RFO T2) CEF100ELN004

C2855 ELECTROLYTIC CAP. 470UF/6.3V (RFO T2) CEA471ELN004

C2856 ELECTROLYTIC CAP. 470UF/6.3V (RFO T2) CEA471ELN004

C2857 ELECTROLYTIC CAP. 470UF/6.3V (RFO T2) CEA471ELN004

CN2002 FFC CONNECTOR 21PIN IMSA-9615S-21A-PP-A JC96J21ER007

CN2005 FFC CONNECTOR IMSA-9615S-11A-PP-A JC96J11ER007

CN2007 FFC CONNECTOR IMSA-9615S-26A-PP-A JC96J26ER007

CN2008 CONNECTOR PRINT OSU B16B-PH-K-S(LF)(SN) J3PHC16JG029

D2281 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D2601 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D2602 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D2603 DIODE ZENER 36BSA-T26 NDTA036BST26

D2604 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D2624 DIODE ZENER 4V7BSB-T26 NDTB4R7BST26

D2625 IC SHUNT REGULATOR SL431A-AT NSZBA0TAUK01

D2640 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

IC2000 IC SUB MICON MN101C77AGD QSAA0R0MS011

IC2001 RESET IC S-80930CNMC-G80T1G QSCA0T0SK402

IC2200 IC OP AMP NJM4580E-TE1 QSCA0T0JR002

IC2601 IC OP AMP NJM4580E-TE1 QSCA0T0JR002

IC2602 IC OP AMP NJM4580E-TE1 QSCA0T0JR002

IC2603 IC OP AMP NJM4580E-TE1 QSCA0T0JR002

IC2604 IC OP AMP NJM4580E-TE1 QSCA0T0JR002

L2201 WIRE CP STP-S-0.60 XZ40F0REN002

L2202 WIRE CP STP-S-0.60 XZ40F0REN002

L2306 WIRE CP STP-S-0.60 XZ40F0REN002

Q2200 PNP TRANSISTOR RES.-IN SRA2204M-AT NQSZSRA2204M

Q2201 PNP TRANSISTOR RES.-IN SRA2204M-AT NQSZSRA2204M

Q2202 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

4 / 13 page

BD-SP807(B)CDC1N(E5KE0UD)

Q2203 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2601 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2602 PNP TRANSISTOR 2SA1980M Y NQSY2SA1980M

Q2603 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2604 PNP TRANSISTOR 2SA1981Y-AT NQSY02SA1981

Q2614 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2618 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2619 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2620 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2621 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2622 PNP TRANSISTOR RES.-IN SRA2204M-AT NQSZSRA2204M

Q2623 PNP TRANSISTOR RES.-IN SRA2204M-AT NQSZSRA2204M

Q2624 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2625 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2626 PNP TRANSISTOR RES.-IN SRA2204M-AT NQSZSRA2204M

Q2627 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2628 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2629 PNP TRANSISTOR RES.-IN SRA2204M-AT NQSZSRA2204M

Q2630 PNP TRANSISTOR RES.-IN SRA2204M-AT NQSZSRA2204M

Q2631 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2632 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2633 PNP TRANSISTOR RES.-IN SRA2204M-AT NQSZSRA2204M

Q2634 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2635 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q2636 NPN TRANSISTOR 2SC5344 Y NQSY02SC5344

R2000 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2001 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101

R2002 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101

R2004 CHIP RES. 1/10W J 470 OHM RRXAJR5Z0471

R2006 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101

R2007 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101

R2015 CHIP RES. 1/10W J 22K OHM RRXAJR5Z0223

R2018 CHIP RES. 1/10W J 39K OHM RRXAJR5Z0393

R2020 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101

R2024 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R2025 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R2028 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R2030 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R2031 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101

R2032 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101

R2033 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101

R2034 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R2035 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R2039 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R2045 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101

R2050 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R2051 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2052 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2053 CHIP RES. 1/10W J 47K OHM RRXAJR5Z0473

R2057 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R2058 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R2059 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101

R2061 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101

R2064 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R2073 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R2074 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R2101 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R2126 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R2127 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R2208 CHIP RES. 1/10W F 24K OHM RRXAFR5H2402

5 / 13 page

BD-SP807(B)CDC1N(E5KE0UD)

R2209 CHIP RES. 1/10W F 24K OHM RRXAFR5H2402

R2210 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822

R2211 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822

R2212 CHIP RES. 1/10W F 33.0K OHM RRXAFR5H3302

R2213 CHIP RES. 1/10W F 33.0K OHM RRXAFR5H3302

R2214 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2215 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2216 CHIP RES. 1/10W J 820 OHM RRXAJR5Z0821

R2217 CHIP RES. 1/10W J 680 OHM RRXAJR5Z0681

R2218 CHIP RES. 1/10W J 820 OHM RRXAJR5Z0821

R2219 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2220 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2221 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2223 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

R2224 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222

R2226 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2227 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221

R2228 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221

R2229 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222

R2230 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

R2284 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101

R2601 CARBON RES. 1/4W J 47K OHM RCX4JATZ0473

R2602 CARBON RES. 1/4W J 47K OHM RCX4JATZ0473

R2603 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R2604 CHIP RES. 1/10W J 47K OHM RRXAJR5Z0473

R2605 CHIP RES. 1/10W J 3.9K OHM RRXAJR5Z0392

R2607 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2608 CARBON RES. 1/4W J 10 OHM RCX4JATZ0100

R2615 CARBON RES. 1/4W J 5.6 OHM RCX4JATZ05R6

R2616 CARBON RES. 1/4W J 5.6 OHM RCX4JATZ05R6

R2617 CARBON RES. 1/4W J 10K OHM RCX4JATZ0103

R2618 CARBON RES. 1/4W J 10K OHM RCX4JATZ0103

R2619 CARBON RES. 1/4W J 10K OHM RCX4JATZ0103

R2621 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2622 CARBON RES. 1/4W J 100 OHM RCX4JATZ0101

R2623 CHIP RES. 1/10W F 1.5K OHM RRXAFR5H1501

R2624 CHIP RES. 1/10W F 100 OHM RRXAFR5H1000

R2625 CHIP RES. 1/10W F 4.7K OHM RRXAFR5H4701

R2665 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101

R2669 CHIP RES. 1/10W J 27K OHM RRXAJR5Z0273

R2671 CHIP RES. 1/10W J 220K OHM RRXAJR5Z0224

R2673 CHIP RES. 1/10W J 2.2M OHM RRXAJR5Z0225

R2674 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2675 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221

R2676 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2678 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R2679 CHIP RES. 1/10W J 47K OHM RRXAJR5Z0473

R2680 CHIP RES. 1/10W J 27K OHM RRXAJR5Z0273

R2903 CHIP RES. 1/10W F 24K OHM RRXAFR5H2402

R2904 CHIP RES. 1/10W F 24K OHM RRXAFR5H2402

R2905 CHIP RES. 1/10W F 24K OHM RRXAFR5H2402

R2906 CHIP RES. 1/10W F 24K OHM RRXAFR5H2402

R2907 CHIP RES. 1/10W F 24K OHM RRXAFR5H2402

R2908 CHIP RES. 1/10W F 24K OHM RRXAFR5H2402

R2909 CHIP RES. 1/10W F 24K OHM RRXAFR5H2402

R2916 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2917 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

R2918 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

R2919 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222

R2920 CHIP RES. 1/10W F 24K OHM RRXAFR5H2402

6 / 13 page

BD-SP807(B)CDC1N(E5KE0UD)

R2921 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822

R2922 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822

R2923 CHIP RES. 1/10W F 33.0K OHM RRXAFR5H3302

R2924 CHIP RES. 1/10W F 33.0K OHM RRXAFR5H3302

R2925 CHIP RES. 1/10W F 33.0K OHM RRXAFR5H3302

R2926 CHIP RES. 1/10W F 33.0K OHM RRXAFR5H3302

R2927 CHIP RES. 1/10W F 33.0K OHM RRXAFR5H3302

R2928 CHIP RES. 1/10W F 33.0K OHM RRXAFR5H3302

R2929 CHIP RES. 1/10W F 33.0K OHM RRXAFR5H3302

R2930 CHIP RES. 1/10W F 33.0K OHM RRXAFR5H3302

R2931 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2932 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2933 CHIP RES. 1/10W J 820 OHM RRXAJR5Z0821

R2934 CHIP RES. 1/10W J 820 OHM RRXAJR5Z0821

R2935 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221

R2936 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221

R2937 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2938 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2939 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222

R2940 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2941 CHIP RES. 1/10W J 680 OHM RRXAJR5Z0681

R2942 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2943 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222

R2944 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2945 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

R2946 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822

R2947 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822

R2950 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2951 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2952 CHIP RES. 1/10W J 820 OHM RRXAJR5Z0821

R2953 CHIP RES. 1/10W J 820 OHM RRXAJR5Z0821

R2954 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221

R2955 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221

R2956 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2957 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

R2958 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

R2959 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822

R2960 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822

R2963 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2964 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2965 CHIP RES. 1/10W J 820 OHM RRXAJR5Z0821

R2966 CHIP RES. 1/10W J 820 OHM RRXAJR5Z0821

R2967 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221

R2968 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221

R2969 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2970 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2971 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222

R2972 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222

R2973 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2974 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2975 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2976 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R2977 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222

R2978 CHIP RES. 1/10W J 820 OHM RRXAJR5Z0821

R2979 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2980 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

R2981 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822

R2982 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822

R2985 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

R2986 CHIP RES. 1/10W J 100K OHM RRXAJR5Z0104

7 / 13 page

BD-SP807(B)CDC1N(E5KE0UD)

R2987 CHIP RES. 1/10W J 820 OHM RRXAJR5Z0821

R2988 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221

R2989 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221

R2992 CHIP RES. 1/10W J 680 OHM RRXAJR5Z0681

R2993 CHIP RES. 1/10W J 680 OHM RRXAJR5Z0681

R2994 CHIP RES. 1/10W J 680 OHM RRXAJR5Z0681

JK2200 RCA JACK 1PIN(WHITE) MSP-251V-13-GILT(B11 JXRL010LY177

JK2201 RCA JACK 1PIN(RED) MSP-251V-12-GILT(B11 JXRL010LY176

JK2202 RCA JACK 6PIN MSD-246V-184-GILT(B1 JXRL060LY181

JK2203 RCA JACK 2PIN MSD-242V-03-GILT(B11 JXRL020LY180

JP2004 WIRE CP STP-S-0.60 XZ40F0REN002

JP2078 WIRE CP STP-S-0.60 XZ40F0REN002

JP2083 WIRE CP STP-S-0.60 XZ40F0REN002

X2000 CERAMIC RESONATOR ZTT8.00MT47 FY0805PLN004

FRONT A CBA ----------

C3001 ELECTROLYTIC CAP. 100UF/6.3V/M/H7 CEA101ENW025

C3002 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C3003 CHIP CERAMIC CAP.(1608) B K 1000PF/50V CHD1JK30B102

C3005 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C3006 ELECTROLYTIC CAP. 100UF/6.3V/M/H7 CEA101ENW025

C3007 ELECTROLYTIC CAP. 22UF/50V/M/H7 CEF22RENW025

C3008 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C3009 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

CN3001 CONNECTOR PRINT OSU S3B-PH-K-S(LF)(SN) J3PHC03JG030

CN3002 WIRE ASSEMBLY FFC DIRECT 21/150/1.0 WX1E5KE0-001

D3002 LED(RED) LTL-1CHEE NPQZLTL1CHEE

D3006 LED(GREEN) LTL1CHJGTNN NPQZ1CHJGTNN

D3007 LED(BLUE) LTL1CHCBK2-F NPQ3L1CHCBK2

D3008 LED(AMBER YELLOW) LTL1CHKYKNN NPQZ1CHKYKNN

L3001 INDUCTOR(100UH K) LAP02TA101

LLAXKATTU101

Q3001 NPN TRANSISTOR RES-IN SRC1202SF NQ1ZSRC1202S

Q3005 PNP TRANSISTOR SMD 2SA1980SFY NQ1Y2SA1980S

Q3006 PNP TRANSISTOR SMD 2SA1980SFY NQ1Y2SA1980S

Q3007 PNP TRANSISTOR SMD 2SA1980SFY NQ1Y2SA1980S

R3001 CHIP RES. 1/10W J 150 OHM RRXAJR5Z0151

R3007 CHIP RES. 1/10W J 22 OHM RRXAJR5Z0220

R3010 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221

R3011 CHIP RES. 1/10W J 150 OHM RRXAJR5Z0151

R3013 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R3025 CHIP RES. 1/10W J 180 OHM RRXAJR5Z0181

R3026 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R3027 CHIP RES. 1/10W J 6.8K OHM RRXAJR5Z0682

R3028 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R3030 CHIP RES. 1/10W J 1K OHM RRXAJR5Z0102

R3031 CHIP RES. 1/10W J 12K OHM RRXAJR5Z0123

R3032 CHIP RES. 1/10W J 10 OHM RRXAJR5Z0100

R3033 CHIP RES. 1/10W J 10 OHM RRXAJR5Z0100

SW3003 TACT SWITCH SKQSAB SST0101AL038

FL3001 FL DM182-GIN

TVFD150FT018

RS3001 SENSOR REMOTE RECEIVER KSM-713TC5B-FU USEJRS0KK007

FRONT B CBA ----------

CN3101 WIRE ASSEMBLY PH DIRECT 3/35/AWG26 WX1E5KA0-002

R3116 CHIP RES. 1/10W J 220 OHM RRXAJR5Z0221

R3119 CHIP RES. 1/10W J 560 OHM RRXAJR5Z0561

R3122 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R3123 CHIP RES. 1/10W J 330 OHM RRXAJR5Z0331

R3124 CHIP RES. 1/10W J 1.2K OHM RRXAJR5Z0122

R3125 CHIP RES. 1/10W J 3.3K OHM RRXAJR5Z0332

8 / 13 page

BD-SP807(B)CDC1N(E5KE0UD)

SW3101 TACT SWITCH SKQSAB SST0101AL038

SW3104 TACT SWITCH SKQSAB SST0101AL038

SW3106 TACT SWITCH SKQSAB SST0101AL038

SW3108 TACT SWITCH SKQSAB SST0101AL038

SW3112 TACT SWITCH SKQSAB SST0101AL038

SW3113 TACT SWITCH SKQSAB SST0101AL038

POWER ASSEMBLY 1VSA23605

Consists of the following

POWER SUPPLY CBA ----------

SD CBA ----------

INLET CBA ----------

POWER SUPPLY CBA ----------

C1003! LINE ACROSS CAP. 0.047UF/250V

CT2E473DC016

C1005 CHIP CERAMIC CAP.(1608) CH J 22PF/50V CHD1JJ3CH220

C1006! LINE ACROSS CAP. 0.047UF/250V

CT2E473DC016

C1010 CHIP CERAMIC CAP.(1608) B K 1000PF/50V CHD1JK30B102

C1013 CHIP CERAMIC CAP.(1608) B K 0.047UF/50V CHD1JK30B473

C1015 SAFETY CAP. 2200PF/250V CCG2EMA0F222

C1016 SAFETY CAP. 2200PF/250V CCG2EMA0F222

C1017 ELECTROLYTIC CAPACITOR ZR200TA221K18EB CA2D221DYG04

C1019 ELECTROLYTIC CAP. 47UF/35V/M CEE47RENW016

C1022 METALIZED FILM CAP. 0.0022UF/400V

CT2H222DT034

C1023 CAP CERAMIC 470PF/2KV/

CA3D471PAN17

C1024 CERAMIC CAP. B K 470PF/500V CCD2JKS0B471

C1025 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V CHD1JK30B103

C1026 ELECTROLYTIC CAP 2200UF/25V/M CED222ENW009

C1027 POLYESTER FILM CAP. (PB FREE) 0.0068UF/100V J CA2A682DT018

C1028 ELECTROLYTIC CAP. 220UF/16V/M CEC221ENW016

C1029 ELECTROLYTIC CAP 4700UF/10V/M CEB472ENW009

C1030 ELECTROLYTIC CAP. 220UF/25V/M CED221ENW016

C1031 ELECTROLYTIC CAP 2200UF/25V/M CED222ENW009

C1033 ELECTROLYTIC CAP. 100UF/50V/M CEF101ENW016

C1034 ELECTROLYTIC CAP 4700UF/10V/M CEB472ENW009

C1035 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C1036 ELECTROLYTIC CAP. 220UF/6.3V/M CEA221ENW016

C1037 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016

C1039 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016

C1040 CHIP CERAMIC CAP.(1608) B K 0.33UF/10V CHD1AK30B334

C1041 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016

C1042 ELECTROLYTIC CAP. 10UF/16V/M CEC10RENW016

C1043 ELECTROLYTIC CAP. 100UF/6.3V/M CEA101ENW016

C1044 CHIP CERAMIC CAP.(1608) B K 0.1UF/25V CHD1EK30B104

C1045 CHIP CERAMIC CAP.(1608) B K 1UF/10V CHD1AK30B105

C1046 ELECTROLYTIC CAP. 47UF/25V/M CED47RENW016

C1048 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016

C1050 ELECTROLYTIC CAP. 330UF/6.3V/M CEA331ENW016

C1051 ELECTROLYTIC CAP. 330UF/6.3V/M CEA331ENW016

C1052 ELECTROLYTIC CAP. 330UF/6.3V/M CEA331ENW016

C1053 ELECTROLYTIC CAP. 330UF/6.3V/M CEA331ENW016

C1054 ELECTROLYTIC CAP. 470UF/16V/M CEC471ENW016

C1055 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016

C1056 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016

C1058 CHIP CERAMIC CAP.(1608) B K 1UF/10V CHD1AK30B105

C1059 CHIP CERAMIC CAP.(1608) B K 1UF/10V CHD1AK30B105

C1060 CHIP CERAMIC CAP. B K 10UF/10V CHE1AK30B106

C1064 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C1065 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C1066 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

9 / 13 page

BD-SP807(B)CDC1N(E5KE0UD)

C1067 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V CHD1JZ30F104

C1068 CHIP CERAMIC CAP. B K 8200PF/50V CHD1JK30B822

C1069 CHIP CERAMIC CAP.(1608) B K 5600PF/50V CHD1JK30B562

C1070 ELECTROLYTIC CAP. 1000UF/25V/M CED102ENW016

C1071 CHIP CERAMIC CAP. B K 10UF/10V CHE1AK30B106

C1072 CHIP CERAMIC CAP. B K 10UF/10V CHE1AK30B106

C1073 CHIP CERAMIC CAP. B K 10UF/10V CHE1AK30B106

C1074 CHIP CERAMIC CAP. B K 10UF/10V CHE1AK30B106

C1077 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016

C1078 ELECTROLYTIC CAP. 1000UF/6.3V/M CEA102ENW016

C1079 CHIP CERAMIC CAP.(1608) B K 0.1UF/25V CHD1EK30B104

C1080 CHIP CERAMIC CAP.(1608) B K 0.1UF/25V CHD1EK30B104

C1082 CHIP CERAMIC CAP.(1608) B K 1UF/10V CHD1AK30B105

C1721 ELECTROLYTIC CAP. 100UF/6.3V/M CEA101ENW016

CN1002! CONNECTOR PRINT OSU B2P3-VH-B (LF)(SN) J3VH030JG014

CN1003 TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001

CN1004 CONNECTOR PRINT OSU B16B-PH-K-S(LF)(SN) J3PHC16JG029

CN1006 PH CONNECTOR TOP 2P B2B-PH-K-S (LF)(SN) J3PHC02JG029

CN5003 TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001

CN5004 TWG CONNECTOR 15P TWG-P15P-A1 J3TWA15TG001

D1007 DIODE 1N5397-B NDLZ001N5397

D1008 DIODE 1N5397-B NDLZ001N5397

D1011 DIODE 1N5397-B NDLZ001N5397

D1012 DIODE 1N5397-B NDLZ001N5397

D1013 DIODE ZENER 24BSB-T26 NDTB024BST26

D1016 WIRE CP STP-S-0.60 XZ40F0REN002

D1019 SCHOTTKY BARRIER DIODE SB140 NDQZ000SB140

D1021 DIODE FR154 NDLZ000FR154

D1022 DIODE ZENER 27BSB-T26 NDTB027BST26

D1023 RECTIFIER DIODE BA157 NDQZ000BA157

D1024 RECTIFIER DIODE BA157 NDQZ000BA157

D1025 SCHOTTKY BARRIER DIODE SB340 NDQZ000SB340

D1026 DIODE ZENER 27BSB-T26 NDTB027BST26

D1028 SCHOTTKY BARRIER DIODE SMD SK39 ND1Z0000SK39

D1029 IC SHUNT REGULATOR SL431A-AT NSZBA0TAUK01

D1030 SCHOTTKY BARRIER DIODE SB340 NDQZ000SB340

D1031 SCHOTTKY BARRIER DIODE SB340 NDQZ000SB340

D1032 RECTIFIER DIODE BA157 NDQZ000BA157

D1033 RECTIFIER DIODE BA157 NDQZ000BA157

D1035 DIODE ZENER 5V1BSB-T26 NDTB5R1BST26

D1040 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1041 DIODE 1N5406 NDLZ001N5406

D1042 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1043 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1044 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1045 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1046 DIODE ZENER 11BSC-T26 NDTC011BST26

D1047 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1048 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1049 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1050 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1052 DIODE SWITCHING 1N4148-F0021 NDTZ01N4148F

D1053 SCHOTTKY BARRIER DIODE SMD SK34 ND1Z0000SK34

D1054 SCHOTTKY BARRIER DIODE SMD SK34 ND1Z0000SK34

D1055 DIODE ZENER 13BSB-T26 NDTB013BST26

IC1002! IC SWITCHING FA5573N-D1-TE1 SOP8 QSCA0T0FD002

IC1004! PHOTOCOUPLER PS2561A-1(W) QPEWPS2561A1

IC1008 IC VOLTAGE REGULATOR PQ070XFC1SZF / 4PIN QSZBA0RSH083

IC1009 IC DC-DC CONVERTER BD9323EFJ-E2 QSCA0T0RM002

IC1010 IC DC-DC CONVERTER BD9323EFJ-E2 QSCA0T0RM002

10 / 13 page

BD-SP807(B)CDC1N(E5KE0UD)

L1001! COIL LINE FILTER ST0603FT20-009 0.027 LLEB0Z0Y2001

L1003 CHOKE COIL 22UH-

LLBD00PKV021

L1004 POWER INDUCTORS CWKBNP-220

LLF2200KV002

L1006 CHOKE COIL 22UH-

LLBD00PKV021

L1007 CHOKE COIL 22UH-

LLBD00PKV021

L1008 CHOKE COIL 22UH-

LLBD00PKV021

L1009 POWER INDUCTORS CWKBNP-100

LLF1000KV002

L1010 POWER INDUCTORS CWKBNP-100

LLF1000KV002

L1305 RADIAL TYPE CHOKE COIL CW68-470K-841040NP LLBD00PKV023

Q1001 PNP TRANSISTOR 2SA1980M Y NQSY2SA1980M

Q1002! FET MOS 2SK3563(Q M) QFQZSK3563QM

Q1005 NPN TRANSISTOR RES-IN SRC1203MAT NQSZSRC1203M

Q1006 PNP TRANSISTOR 2SA1980M Y NQSY2SA1980M

Q1007 NPN TRANSISTOR 2SC5344 Y NQSY02SC5344

Q1008 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q1009 PNP TRANSISTOR STB1277LY-AT NQSYSTB1277L

Q1010 PNP TRANSISTOR 2SA1981Y-AT NQSY02SA1981

Q1011 PNP TRANSISTOR STB1277LY-AT NQSYSTB1277L

Q1012 PNP TRANSISTOR 2SA1980MG-AT NQSG2SA1980M

Q1013 NPN TRANSISTOR STC403 NQEZ00STC403

Q1014 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q1015 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q1016 NPN TRANSISTOR 2SC5343MG-AT NQSG2SC5343M

Q1017 NPN TRANSISTOR 2SC5344 Y NQSY02SC5344

Q1019 NPN TRANSISTOR SMD 2SC5343SFG NQ1G2SC5343S

R1003 CHIP RES. 1/10W F 100K OHM RRXAFR5H1003

R1005 WIRE CP STP-S-0.60 XZ40F0REN002

R1006 WIRE CP STP-S-0.60 XZ40F0REN002

R1009 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822

R1011 CHIP RES. 1/10W J 33 OHM RRXAJR5Z0330

R1012 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222

R1013 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222

R1014 CARBON RES. 1/4W J 75K OHM RCX4JATZ0753

R1017 CHIP RES. 1/10W J 56 OHM RRXAJR5Z0560

R1019 CHIP RES. 1/10W J 100 OHM RRXAJR5Z0101

R1020 CHIP RES. 1/10W J 10 OHM RRXAJR5Z0100

R1021 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

R1022 METAL OXIDE FILM RES. 2W J 47K OHM RN02473ZU001

R1023 METAL OXIDE FILM RES. 2W J 0.68 OHM RN02R68ZU001

R1030 CHIP RES. 1/10W J 470 OHM RRXAJR5Z0471

R1031 CHIP RES. 1/10W J 22K OHM RRXAJR5Z0223

R1032 CHIP RES. 1/10W J 1 OHM RRXAJR5Z01R0

R1033 CHIP RES. 1/10W J 1 OHM RRXAJR5Z01R0

R1034 CARBON RES. 1/4W J 5.1K OHM RCX4JATZ0512

R1036 CHIP RES. 1/10W J 680 OHM RRXAJR5Z0681

R1037 CHIP RES. 1/10W F 2K OHM RRXAFR5H2001

R1041 CHIP RES. 1/10W F 270 OHM RRXAFR5H2700

R1042 CHIP RES. 1/10W F 1.0K OHM RRXAFR5H1001

R1043 CHIP RES. 1/10W F 1.0K OHM RRXAFR5H1001

R1044 WIRE CP STP-S-0.60 XZ40F0REN002

R1045 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

R1046 CHIP RES. 1/10W J 2.2K OHM RRXAJR5Z0222

R1047 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

R1048 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

R1049 CARBON RES. 1/4W J 4.7K OHM RCX4JATZ0472

R1050 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

R1051 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R1052 CHIP RES. 1/10W J 47K OHM RRXAJR5Z0473

R1053 CARBON RES. 1/4W J 82 OHM RCX4JATZ0820

R1054 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

11 / 13 page

BD-SP807(B)CDC1N(E5KE0UD)

R1056 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R1057 CARBON RES. 1/4W J 82 OHM RCX4JATZ0820

R1059 CHIP RES. 1/10W F 10K OHM RRXAFR5H1002

R1060 CHIP RES. 1/10W F 15K OHM RRXAFR5H1502

R1061 CARBON RES. 1/4W J 220 OHM RCX4JATZ0221

R1062 CHIP RES. 1/10W F 2K OHM RRXAFR5H2001

R1063 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R1065 CARBON RES. 1/4W J 56 OHM RCX4JATZ0560

R1066 METAL OXIDE FILM RES. 1W J 1.2 OHM RN011R2ZU001

R1067 CHIP RES. 1/10W J 4.7K OHM RRXAJR5Z0472

R1068 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R1069 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R1070 CHIP RES. 1/10W J 10K OHM RRXAJR5Z0103

R1071 CHIP RES. 1/10W J 5.1K OHM RRXAJR5Z0512

R1072 CHIP RES. 1/10W J 8.2K OHM RRXAJR5Z0822

R1073 CHIP RES. 1/10W J 150 OHM RRXAJR5Z0151

R1074 CHIP RES. 1/10W J 150 OHM RRXAJR5Z0151

R1075 CHIP RES. 1/10W F 1.0K OHM RRXAFR5H1001

R1076 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

R1077 CHIP RES. 1/10W F 1.5K OHM RRXAFR5H1501

R1078 CHIP RES. 1/10W F 3.3K OHM RRXAFR5H3301

R1081 CHIP RES. 1/10W F 1.5K OHM RRXAFR5H1501

R1082 CHIP RES. 1/10W F 2.2K OHM RRXAFR5H2201

R1083 CHIP RES. 1/10W F 3.3K OHM RRXAFR5H3301

R1087 CARBON RES. 1/4W J 27 OHM RCX4JATZ0270

R1092 CARBON RES. 1/4W J 47 OHM RCX4JATZ0470

R1093 CHIP RES. 1/10W J 47K OHM RRXAJR5Z0473

R1094 CARBON RES. 1/4W J 10 OHM RCX4JATZ0100

R1095 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

2L058 SCREW S-TIGHT M3X8 BIND HEAD+ GBJS3080

B49 POWER HEATSINK E4340UD 1VM422057E

B74 POWER HEATSINK E3BH0JD 1VM323816

B75 HEAT SINK E2A00JD 1VM424636E

F1001! FUSE TIME RAG FSL 250V 2A(EM) PDGJAB0NG202

FH1001 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

FH1002 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002

JC1101 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

JC1102 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

JC1103 CHIP RES.(1608) 1/10W 0 OHM RRXAZR5Z0000

JP1004 WIRE CP STP-S-0.60 XZ40F0REN002

JP1005 WIRE CP STP-S-0.60 XZ40F0REN002

JP1107 WIRE CP STP-S-0.60 XZ40F0REN002

JP1108 WIRE CP STP-S-0.60 XZ40F0REN002

JP1137 WIRE CP STP-S-0.60 XZ40F0REN002

JP1144 WIRE CP STP-S-0.60 XZ40F0REN002

JP1152 WIRE CP STP-S-0.60 XZ40F0REN002

SA1001! SURGE ABSORBER 470V+-10PER NVQZ10D471KB

T1002! TRANS POWER 8733 LTT2PC0KT050

SD CBA ----------

C5001 CHIP CERAMIC CAP.(1608) B K 0.1UF/16V CHD1CK30B104

C5003 CHIP CERAMIC CAP.(2125) B K 10UF/6.3V CHE0KK30B106

C5008 CHIP CERAMIC CAP.(1608) CH J 33PF/50V CHD1JJ3CH330

CN5000 CONNECTOR IC CARD MES 9PIN 1903572 JF19090AP001

CN5001 BOARD CONNECTOR 23P(PB FREE) 127301123K2 JCTWA23TG004

L5002 CHIP INDUCTOR LK160882NM-T LLACMB3TU82N

R5001 CHIP RES. 1/10W J 47 OHM RRXAJR5Z0470

R5002 CHIP RES. 1/10W J 47 OHM RRXAJR5Z0470

R5003 CHIP RES. 1/10W J 47 OHM RRXAJR5Z0470

R5004 CHIP RES. 1/10W J 22 OHM RRXAJR5Z0220

12 / 13 page

BD-SP807(B)CDC1N(E5KE0UD)

R5005 CHIP RES. 1/10W J 47 OHM RRXAJR5Z0470

R5006 CHIP RES. 1/10W J 47 OHM RRXAJR5Z0470

INLET CBA ----------

CN1001! VH CONNECTOR PRINT OSU B2P3S-VH(LF)(SN) J3VH030JG002

AC1001! TERMINAL ACPLUG RESEPTAL AC IN 0 P ST-02G-ACBP JTDC0P0SLT02

13 / 13 page

BD-SP807

ONKYO EUROPE UK Office

Suite 1, Gregories Court, Gregories Road, Beaconsfield, Buckinghamshire, HP9 1HQ

UNITED KINGDOM Tel: +44-(0)1494-681515 Fax: +44(0)-1494-680452

ONKYO U.S.A. CORPORATION

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.

Tel: 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/

ONKYO EUROPE ELECTRONICS GmbH (DUISBURG OFFICE)

Hafennr.7602, Logport Office-Center, Bliersheimerstr.80B, 47229 Duisburg, Germany

Tel: +49-2065-90198-00 Fax: +49-2065-90198-40 http://www.eu.onkyo.com/

Service Dept. Technical Support : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN

Tel: 072-831-8023 Fax: 072-831-8163

ONKYO CORPORATION

http://www.onkyo.com/

HOMEPAGE

ONKYO CHINA LIMITED

Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung,

N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039

http://www.ch.onkyo.com/

E5KE0UD BDSP807

Navigation menu

Versions of this User Manual:

Views

Navigation
