Full IP Entry System

IP360 System Overview & Functions

LIST PRICED CATALOGUE

IP360 SYSTEM

CONTENTS

INTRODUCTION

IP360 OVERVIEW 4

IP360 SYSTEM FEATURES 6

CAME BPT PANELS & MONITORS

FUTURA IP MONITOR 8

THANGRAM IP PANEL 9

IP360 SYSTEM & EXAMPLE SCHEMATICS

IP360: SYSTEM PARAMETERS 10

SINGLE-FAMILY HOME CONFIGURATION 11

SERVERLESS CONFIGURATION 12

MINI SERVER CONFIGURATION 13

MAIN SERVER CONFIGUARATION 14

CRESTRON INTEGRATION 16

IP360 PRECONFIGURED KITS 18

CAME CONNECT 20

COMPONENTS PRICELISTS

THANGRAM IP PANELS 22

FUTURA IP MONITORS 23

SYSTEM COMPONENTS 24

ACCESSORIES 25

ADDITIONAL SYSTEMS

MILESIGHT CCTV 26

CCTV PRICELIST 27

IP360 SYSTEM

THE 360 DEGREE IP

Advanced video entry system functions to match the most modern residential, business, industrial and service-sector

scenarios. Individual homes or large residential complexes: IP360 provides the perfect solution.

MAXIMUM FLEXIBILITY

CLOUD CONNECTED

CAME Connect allows you to remotely control your IP360 door entry system at the touch of a button using

any device connected to the internet. Using a standard network connection, IP360 comminicates with a main

central server allowing remote access through the CAME Connect web based platform and supporting app.

This allows users remote system access via any internet ready device allowing the freedom of control even

when you are not on site. It also enables installers to monitor CAME Connected installations, intervening

quickly and safely when necessary.

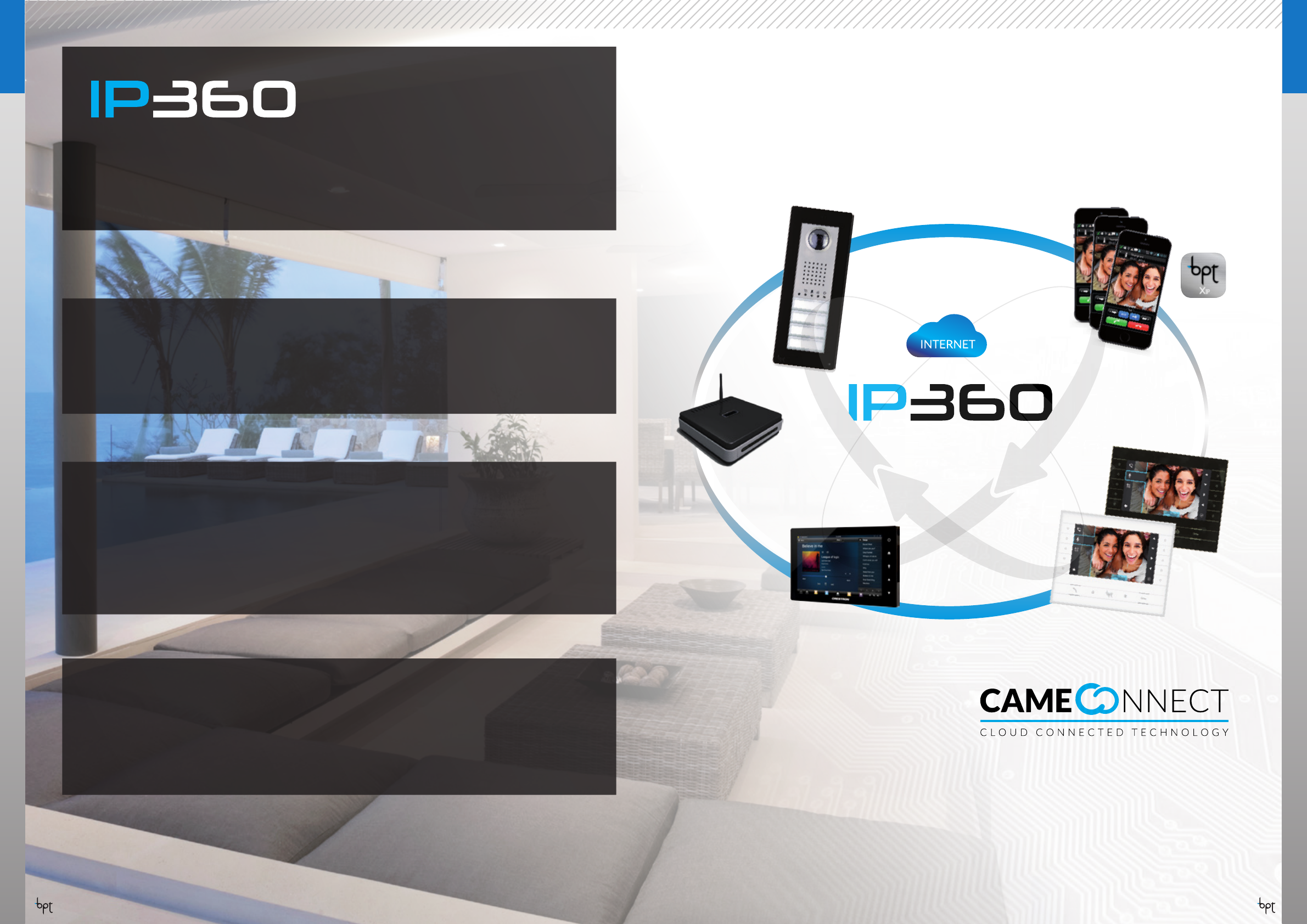

BPT IP360

THANGRAM IP

panels*

Local area

networks

BPT Futura IP

monitors

Crestron

monitors

Smartphones

and tablets

XIP Mobile

app

IP360: the video entry system that's right for all installation environments.

*PoE or local power supply.

LIMITLESS

IP360 by BPT is an exceptionally advanced, highly ﬂexible video entry system. It surpasses the limits of

traditional video entry systems. It features extensive system setup features, for example, there is no limit on

the distance between panels, intercoms and receivers.

OPEN SYSTEM

In a rapidly-changing world that constantly oers new technologies, IP360 fully meets the growing need for

simpliﬁcation and integration between dierent systems.

By using standard communication protocols, the system opens up to endless possibilities of application,

enabling the use of BPT video entry systems within multi-division systems. This allows the various devices in

the group to communicate with each other and with third-party systems using a common language.

INTEGRATION WITH LAN NETWORK

All the IP360 system devices can be connected to existing LAN networks, adding the

functionalities of the digital system without the need for any special wiring. The system

uses Ethernet distribution as its main communication structure.

The ethernet network guarantees almost inﬁnite expansion of the system.

IP360 SYSTEM

IP360 SYSTEM FEATURES

VIDEO ENTRY SYSTEMS ON PC

VIDEO ENTRY SYSTEM AT THE CLICK OF A MOUSE

The BPT video entry system can be managed and enjoyed

from your home or oce PC using the special "Soft Receiver"

software, available on USB ﬂash drive or CD. A full server

is required.

THE APPLICATION TO

INSTALL A REAL IP

RECEIVER ON YOUR PC

VIDEO ENTRY SYSTEM ON MOBILE DEVICES

VIDEO ENTRY SYSTEM ALWAYS AT YOUR FINGERTIPS

WITH SIP DEVICES

IP360 can be interfaced with

third-party devices using the SIP protocol, such as, home

automation terminals or VoIP telephone switchboards*, all

without using any special interfaces.

In this way it will be possible to receive a video entry

system call and open a gate or a door from the touch panel

without needing to have a video entry phone in the home. In

addition, the system lets you use SIP telephone interfaces

with analogue or GSM phones. This means you can always

be reached on a landline or your mobile phone.

The BPT XIP Mobile app enables you to

manage audio/video calls through the IP360

entry system directly from multiple mobile

or tablet devices. The app is free to download from the

App Store and Android™ Play.

The BPT XIP Mobile app gives you the ability to remotely

and securely open & close doors, control lighting and

view feeds from multiple sources, including CCTV

cameras. You’ll get notiﬁcations for received, missed

or rejected calls. Plus contact list management.

IP360 enables users to view images from entry

panels, both traditional and IP video cameras,

internal receivers or from a connected porter's

desk. Analogue cameras can be connected to

the system’s power supplies or directly to the

gateways using the relevant selector switches.

THE CCTV SYSTEM

IP360 oers many functions integrating multiple systems.

Video streams sent from IP video cameras can be displayed on

installed FUTURA IP terminals.

Motion detection using integrated IP video cameras can be

programmed to trigger video entry system actions such as

controlling lights or activating video calls to smartphones and

tablets.

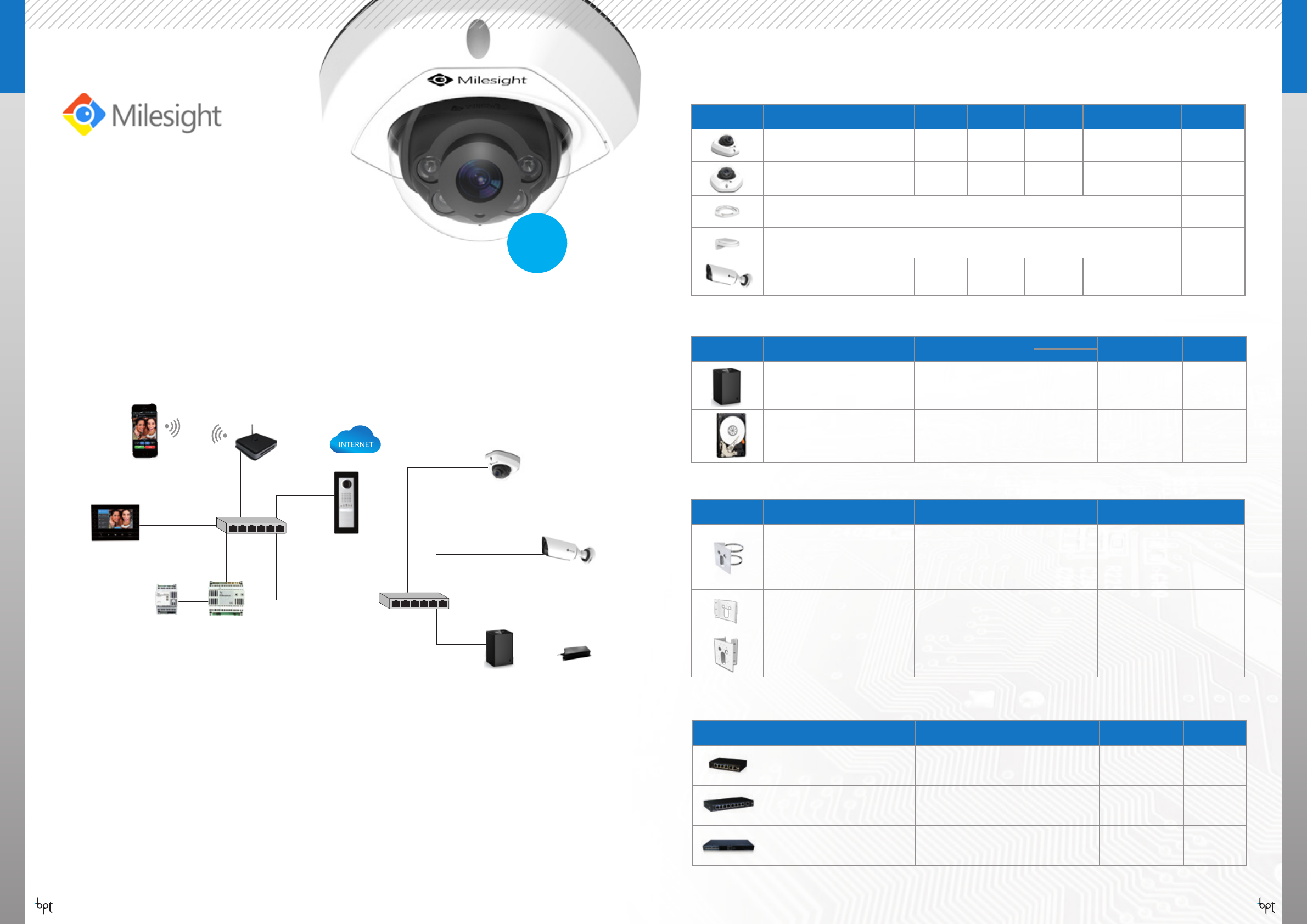

For the Milesight CCTV range of IP360 compatible devices. See page 26.

INTEGRATION WITH CAME’S HOME AUTOMATION SYSTEM

IP360 easily integrates fully with CAME's

home automation system. Integrating the two

systems, meaning installation of additional

devices can be avoided.

* For more details on supported models, please contact CAME BPT.

All the video entry system functions will be managed directly

from the home automation touch screens. IP360 and CAME's

home automation together take video entry systems to new, even

more advance levels.

IP360 SYSTEM

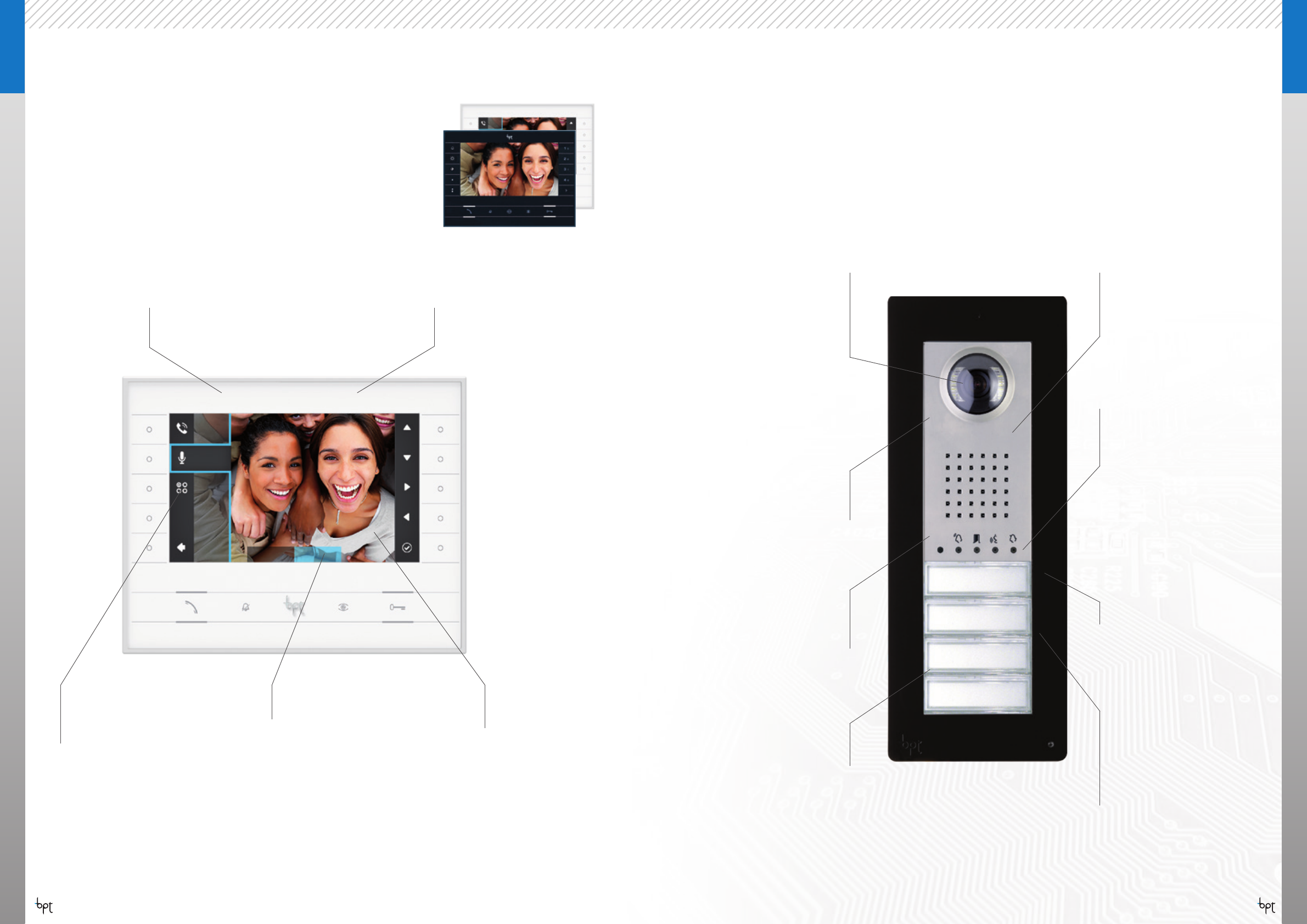

FUTURA IP

MONITOR

The video receiver with user-friendly 7" display that's perfect in any

room thanks to its simple and sophisticated design.

PoE or local

power supply.

Advanced, multilingual

user interface.

Video voicemail with option to record

calls automatically or on demand.

Unlimited intercom calls to other

FUTURA IP internal receivers,

smartphones or tablets*.

Display of IP video cameras

present in the system.

• SIP protocol.

• H.264 video codec, G.711 audio codec.

• Built-in webserver for setting up and managing via browser.

• Door status feedback.

• PoE or local power supply.

THANGRAM IP

PANEL

Perfect video quality in all

environmental conditions.

Colour video camera with VGA

resolution (640x480), angle of view

82° vertically and 100° horizontally.

Compatible with all the

existing accessories in

the THANGRAM range.

LED illuminated pictograms

for door status, active

communication, call in progress

and system busy notiﬁcations.

The incredibly robust design,

features an IP54 protection rating.

This provides excellent protection

against water and impact damage.

High-tech Heart

• SIP, H.264 video codec,

G.711 audio codec.

• Built-in webserver.

• 12V electric lock output.

• 2 in/out contacts with functions

which can be programmed

via webpage interface.

• 1 local door opener contact.

• 1 relay output.

Button plates are backlit.

Blue illumination can be

disabled or the brightness

can be adjusted.

• PoE and local power supply.

• Easy to setup via local HTML5 webpage interface.

• Standard SIP video and VoIP protocols.

• Recessed or wall-mounted installation.

• Updates ﬁrmware from the web.

• Thickness of 2 mm (recessed).

• Compatible with BPT XIP system.

• Integration with CAME's home automation system

BPT's ﬁrst fully IP entry panel that can be directly connected within

a LAN network. Combining innovative, sophisticated design and high

performance, THANGRAM IP is the next generation of entry panel.

Stylish design.

*Via the free XIP mobile app

Available in black and white versions.

Dimensions

(WxHxD) 212x161x28 mm wall mounted

(WxHxD) 212x161x10.5 mm recessed

Dimensions

(WxHxD) 99x254x26 mm wall mounted

(WxHxD) 127x201x2* mm recessed * Embedding box: depth 54.5 mm; protrusion from wall: 2 mm

10 11

IP360 SYSTEM

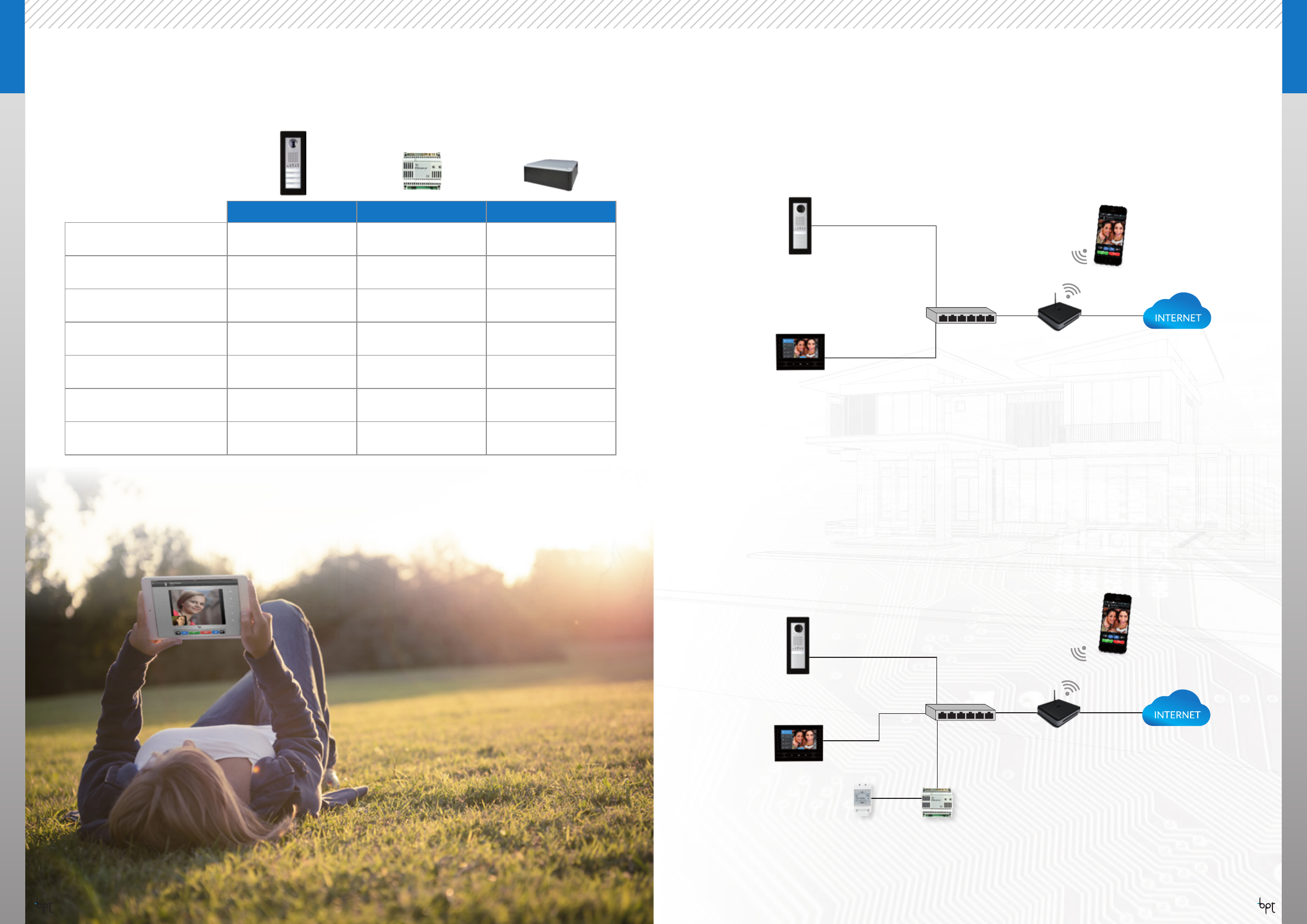

SINGLE-FAMILY HOME CONFIGURATION

WITHOUT SERVER

SINGLE-FAMILY HOME CONFIGURATION

WITH MINISERVER

IP360: 360 SYSTEM PARAMETERS

THANGRAM IP without server With miniserver* (miniSER) With full server (ETISER/XIP)

Max no of panels. Unlimited Unlimited Unlimited

Max no of individual calls. Unlimited Unlimited Unlimited

Max number of simultaneous calls. 410 20

Max number of devices ringing

simultaneously. 410 18

Inbuilt iOS/Android connections via

Cloud or Crestron integrations. 4 6 0

PoE. Yes No No

Concierge feature. No No Yes

*Requires one main miniserver and one miniserver per apartment.

(Expandable to 10)

(requires VAS 101 PSU) (PSU supplied)

(Unlimited licenses

can be added)

ETI/miniSER

server

VAS/101

power supply

THANGRAM IP

THVIP/1

video entry panel

Smartphone(s)

or tablet(s)* †

Wireless

router†

FUTURA IP monitor

PoE switch

In this conﬁguration:

FUTURA IP monitor

PoE switch

THANGRAM IP

THVIP/1

video entry panel

Smartphone(s)

or tablet(s)* †

Wireless

router†

• IP receivers.

• WiFi connectivity within the home.

• Cloud connectivity via internet connection.

• Maximum of 4 simultaneous calls from entry panels.

• Maximum of 4 simultaneous calls to IP receivers within the home.

• Unlimited entry panels.

• iOS/Android integration.

In this conﬁguration:

• IP receivers.

• WiFi connectivity within the home.

• Cloud connectivity via internet connection.

• Maximum of 10 simultaneous calls from entry panels.

• Maximum of 10 simultaneous calls to IP receivers within the home.

• Unlimited entry panels.

• iOS/Android integration.

*Via the free XIP mobile app. † Not available through CAME BPT.

Representative illustration; please contact our sales team for technical schematics.

12 13

IP360 SYSTEM

FUTURA IP

monitor

FUTURA IP

monitor

FUTURA IP

monitor

FUTURA IP

monitor

FUTURA IP

monitor

FUTURA IP

monitor

Capable of handling up-to 10 simultaneous

calls connecting through panels.

Wireless

router †

FUTURA IP monitor

ETI/miniSER

server

ETI/miniSER

server

VAS/101

power supply

VAS/101

power supply

Smartphone(s)

or tablet(s)* †

Smartphone(s)

or tablet(s)* †

3G & 4G

networks

PoE switch(es)

PoE switch

FUTURA IP monitor FUTURA IP monitor FUTURA IP monitor

FUTURA IP monitor

FUTURA IP monitor FUTURA IP monitor

Example setup for apartment / oce

capable of handling up-to 4 simultaneous

calls connecting through IP devices.

Wireless router †

Smartphone(s)

or tablet(s)* †

3G & 4G

networks

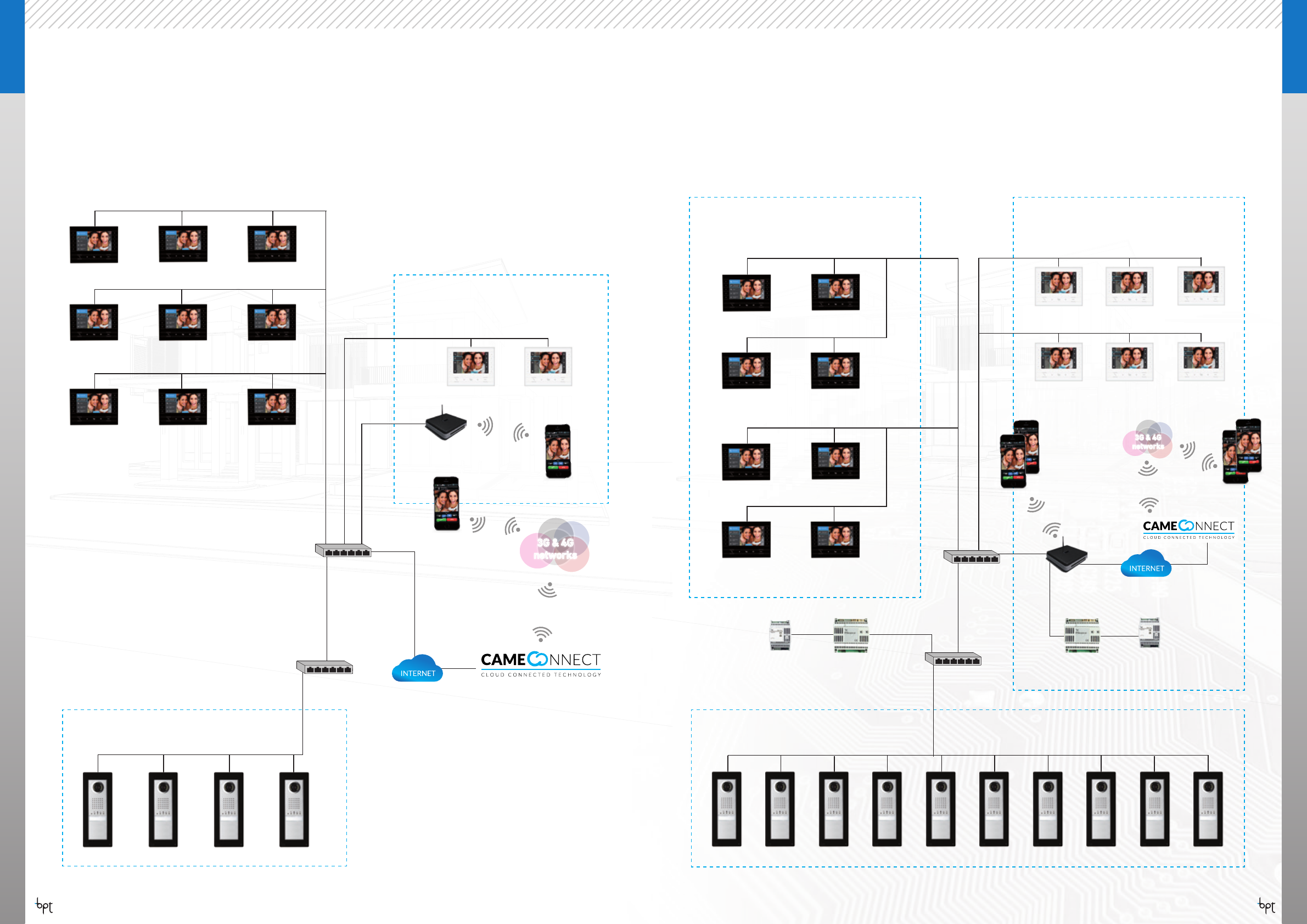

MINI SERVER CONFIGURATION FOR MULTI DWELLING UNITS

USE THE MINISERVER TO INCREASE THE CALL CAPACITY

In this conﬁguration:

• Unlimited IP receivers.

• WiFi connectivity within apartment / oce.

• Cloud connectivity via local apartment internet connection.

• Maximum of 10 simultaneous calls from entry panels.

• Maximum of 10 simultaneous calls to IP receivers

within a single apartment / oce.

• Unlimited entry panels.

SERVERLESS CONFIGURATION FOR MULTI DWELLING UNITS

SIMPLY CONNECT IP360 DEVICES TO YOUR NETWORK

In this conﬁguration:

• Unlimited iOS/Android integrations.

• Unlimited IP receivers.

• WiFi connectivity within apartment / oce.

• Cloud connectivity via landlord’s internet connection.

• Maximum of 4 simultaneous calls from entry panels.

• Maximum of 4 simultaneous calls to IP receivers

within a single apartment / oce.

• Unlimited entry panels.

Capable of handling up-to 4 simultaneous

calls connecting through panels.

Example setup for apartment / oce capable of

handling up-to 10 simultaneous calls connecting

through IP devices with 3G/4G connectivity.

Example setup for apartment / oce

capable of handling up-to 10 simultaneous

calls connecting through IP devices.

*Via the free XIP mobile app. † Not available through CAME BPT.

Representative illustration; please contact our sales team for technical schematics.

LAN

PoE

switch(es)

(Layer 3)

PoE

switch(es)

(Layer 3)

FUTURA IP

monitor

FUTURA IP

monitor

Landlord’s internet

connection

*Via the free XIP mobile app. † Not available through CAME BPT.

Representative illustration; please contact our sales team for technical schematics.

14 15

IP360 SYSTEM

Wireless

router †

Smartphone(s)

or tablet(s)* †

Smartphone(s)

or tablet(s)* †

3G & 4G

networks 3G & 4G

networks

PoE

switch(es) PoE

switch(es)

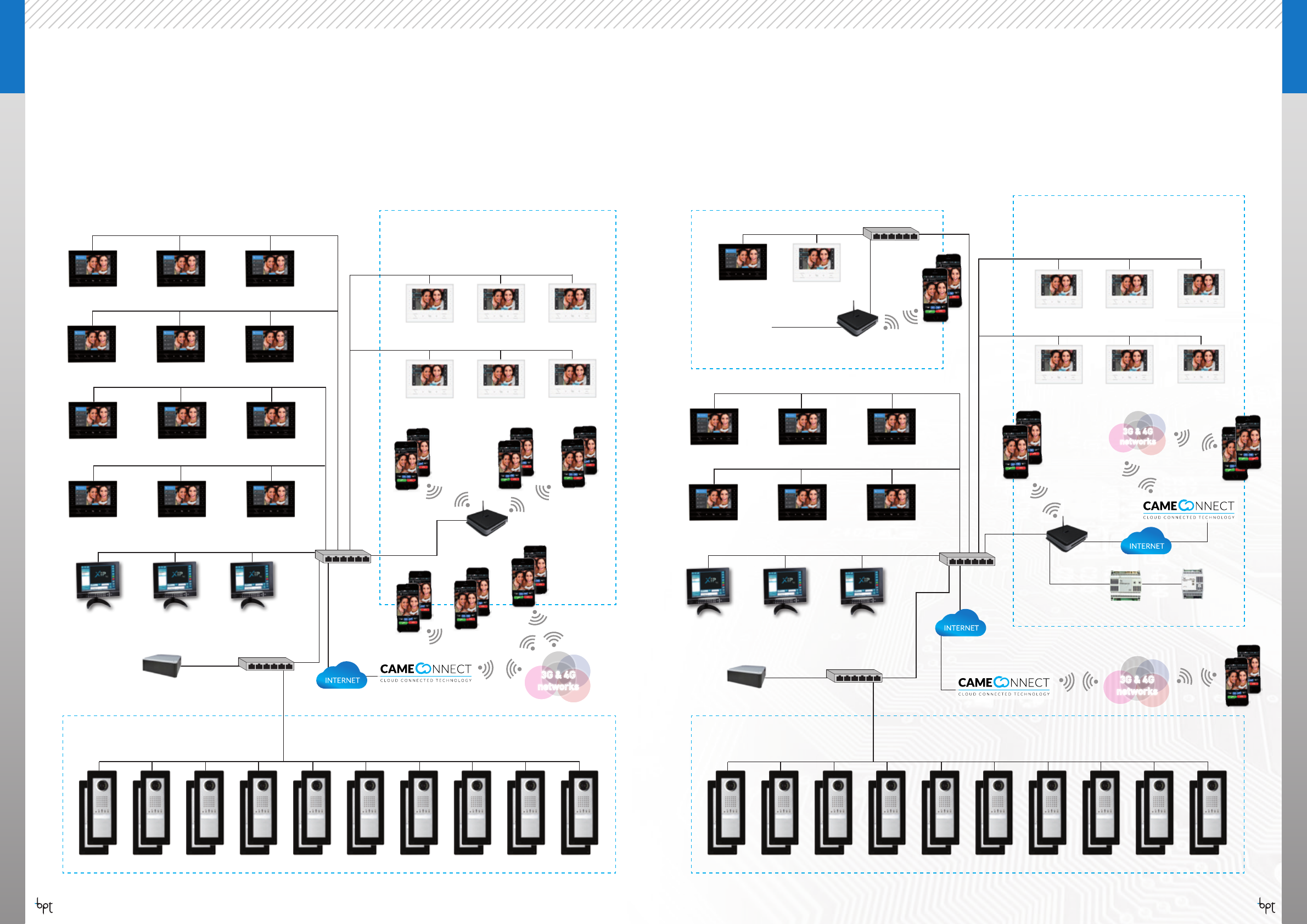

MAIN SERVER CONFIGURATION FOR MULTI DWELLING UNITS

FOR SYSTEMS REQUIRING STATE OF THE ART CONCIERGE FACILITIES

• Maximum of 20 simultaneous calls from entry panels.

• Maximum of 18 simultaneous calls to IP receivers

within a single apartment / oce.

• Unlimited entry panels.

• Unlimited iOS/Android integrations.

• Unlimited IP receivers.

• WiFi connectivity within apartment / oce.

• Cloud connectivity via landlord’s internet connection.

• Unlimited concierge PC based switchboards.

ETI/SER XIP

server ETI/SER XIP

server

FUTURA IP monitor FUTURA IP monitor FUTURA IP monitor

XIP/PORTER

switchboard

software

XIP/PORTER

switchboard

software

Example setup for apartment / oce

capable of handling up-to 18 simultaneous

calls connecting through IP devices.

PoE

switch(es)

(Layer 3)

XIP/PORTER

switchboard

software

LAN

FUTURA IP monitor FUTURA IP monitor FUTURA IP monitor

LAN

FUTURA IP monitor FUTURA IP monitor FUTURA IP monitor

LAN

Landlord’s internet

connection

Landlord’s

internet

connection

Capable of handling up-to 20 simultaneous

calls connecting through panels.

Capable of handling up-to 20 simultaneous

calls connecting through panels.

LAN LAN

FUTURA IP

monitor

FUTURA IP

monitor

FUTURA IP

monitor

FUTURA IP

monitor

FUTURA IP

monitor

FUTURA IP

monitor

FUTURA IP

monitor

FUTURA IP

monitor

FUTURA IP

monitor

FUTURA IP

monitor

FUTURA IP

monitor

FUTURA IP

monitor

Wireless

router †

Apartment’s

wireless router †

ETI/miniSER

server

VAS/101

power supply

Smartphone(s)

or tablet(s)* †

Smartphone(s)

or tablet(s)* †

3G & 4G

networks

MAIN SERVER CONFIGURATION FOR MULTI DWELLING UNITS

INCLUDING MINI SERVER - LIMITLESS POSSIBILITIES

• WiFi connectivity within apartment / oce.

• Cloud connectivity via local apartment internet connection.

• Note: a dedicated rack mount server is available, for up to 65

simultaneous calls. Please contact our sales team for details.

• Maximum of 20 simultaneous calls from entry panels.

• Maximum of 10 simultaneous calls to IP receivers

within a single apartment / oce.

• Unlimited entry panels.

• Unlimited IP receivers.

Example setup for apartment / oce

capable of handling up-to 10 simultaneous

calls connecting through IP devices.

LAN

PoE

switch(es)

(Layer 3)

PoE

switch(es)

(Layer 3)

XIP/PORTER

switchboard

software

XIP/PORTER

switchboard

software

XIP/PORTER

switchboard

software

LAN

*Via the free XIP mobile app. † Not available through CAME BPT.

Representative illustration; please contact our sales team for technical schematics.

*Via the free XIP mobile app. † Not available through CAME BPT.

Representative illustration; please contact our sales team for technical schematics.

FUTURA IP

monitor

FUTURA IP

monitor

Apartment’s

standard

internet

connection

In this conﬁguration: In this conﬁguration:

16 17

IP360 SYSTEM

SIP PHONE INTEGRATION

The IP360 system can be interfaced with

VOIP telephone switchboards via networks.

This allows systems to be created using SIP

telephones to answer calls and open doors.

MDU WITH SERVER

UNLIMITED APARTMENTS

PoE switch

THANGRAM IP

THVDIGI video

entry panel

THANGRAM IP

THAIP/1 audio

entry panel

Crestron monitors

SINGLE-FAMILY HOME

SERVERLESS

SINGLE-FAMILY HOME

MINI SERVER

THANGRAM IP

THVIP/1

video entry panel

THANGRAM IP

THVIP/1

video entry panel

Crestron monitor Crestron monitor Crestron monitor Crestron monitor

Crestron monitor

Crestron monitor Crestron monitor Crestron monitor Crestron monitor

Crestron monitor

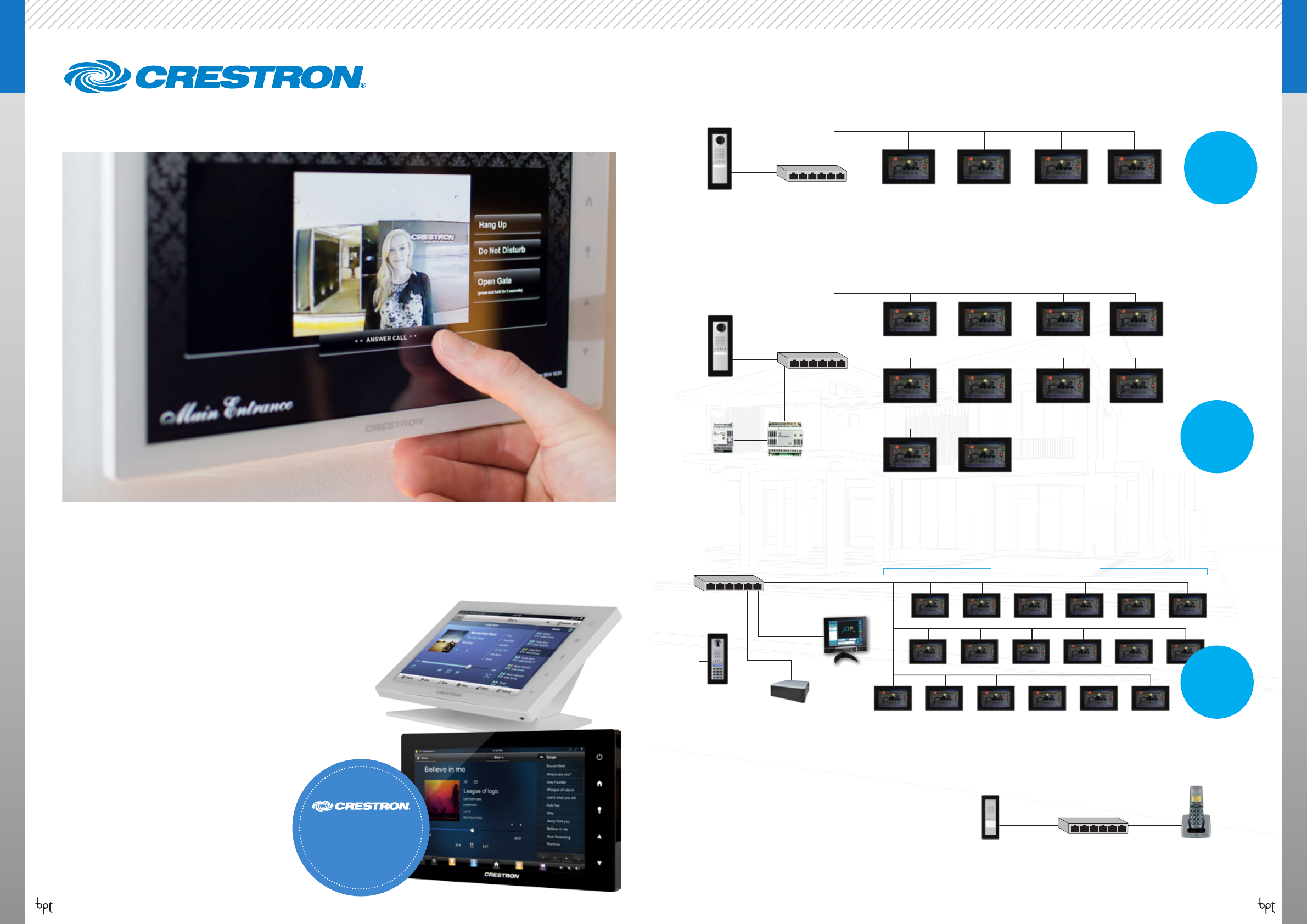

SEAMLESS INTEGRATION WITH IP360 FROM BPT

It is now possible for seamless IP integration

between Crestron monitors and BPT systems.

Since 2010 there has been extensive development and

close technical cooperation between Crestron (world

leader in AV and home automation system controls) and

BPT – UK (leader in the video door entry system market).

This has lead to truly cutting edge lifestyle control.

Crestron and BPT R&D departments have worked together

to create a system with full interoperability between the BPT

IP360 video door entry system and Crestron home control.

Without the requirement for any additional specialist units,

the BPT and Crestron systems can work in complete harmony.

Entry control can be accessed seamlessly with Crestron

touchscreen panels and remote devices. And release

the full functionality of the IP360 system, such as the

IP porter facilities, by using a shared network.

With this level of ﬂexibility from two market

leaders, the possibilities are limitless.

Many other leading brands of automation

control are supported by IP360.

For more details, contact the BPT

sales department on sales@bpt.co.uk

or 01442 230 800.

• Single or multi network architecture as required.

• Standard LAN platform.

• Central switchboard management system.

• Direct IP connection.

• Easy to install.

OUR NEW

INTEGRATION DEMO SUITE

IS NOW OPEN, CONTACT

OUR HEMEL HEMPSTEAD

BRANCH TO ARRANGE

A VISIT

XIP/PORTER

switchboard

software

UP TO

SIMULTANEOUS

CALLS

UP TO

SIMULTANEOUS

CALLS

UP TO

SIMULTANEOUS

CALLS

VOIP telephone

(SIP)

LAN

VAS/101

power supply ETI/miniSER

server

PoE switch(es)

PoE

switch(es)

PoE

switch(es)

(Layer 3)

*Via the free XIP mobile app. † Not available through CAME BPT.

Representative illustration; please contact our sales team for technical schematics.

ETI/SER XIP

server

18 19

IP360 SYSTEM

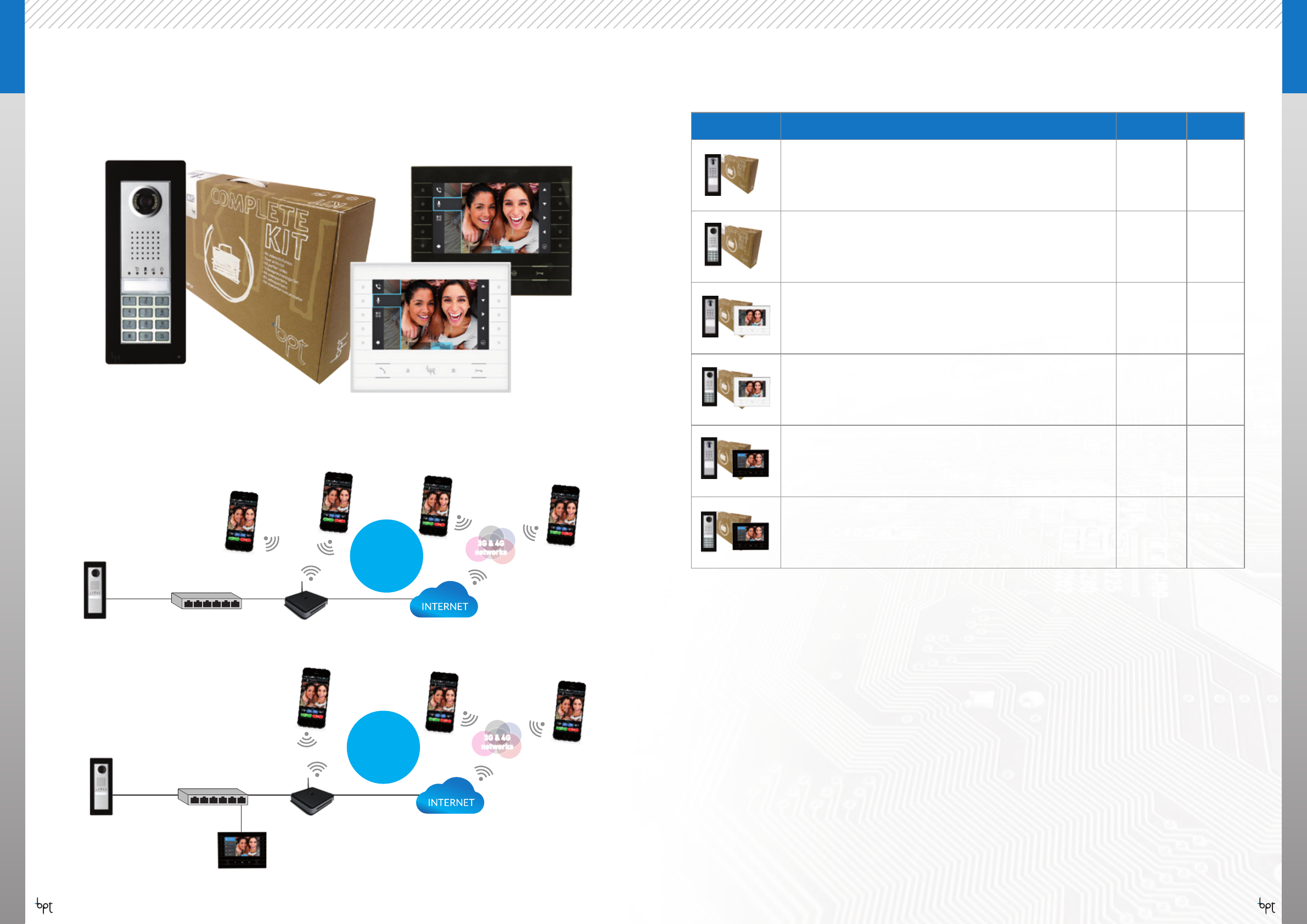

IP360 PRECONFIGURED KITS

IP360 is completed with a range of standard kits to enable easy ordering. These kits are preconﬁgured so that all you have to do is follow our

quickstart guide and add a series of simple credentials, using your mobile phone, to complete the setup.

EXAMPLE CONNECTIVITY

KIT WITHOUT MONITOR

Article Description Code Price

THANGRAM IP 1 way IP360 video kit to 4 iOS/Android devices. Single call button. IP360THV/1 £835.00

THANGRAM IP 1 way IP360 video keypad kit to 4 iOS/Android devices. Single call

button with access control keypad. IP360THKV/1 £971.25

THANGRAM IP 1 way IP360 video kit to 3 iOS/Android devices

and 1 FUTURA IP white. Single call button, includes white FUTURA IP. IP360THFW/1 £1395.00

THANGRAM IP 1 way IP360 video keypad kit to 3 iOS/Android devices

and 1 FUTURA IP white. Single call button, with access control keypad,

includes white FUTURA IP.

IP360THKFW/1 £1531.25

THANGRAM IP 1 way IP360 video kit to 3 iOS/Android devices

and 1 FUTURA IP black. Single call button, includes black FUTURA IP. IP360THFB/1 £1395.00

THANGRAM IP 1 way IP360 video keypad kit to 3 iOS/Android devices

and 1 FUTURA IP white. Single call button, with access control keypad,

includes black FUTURA IP.

IP360THKFB/1 £1531.25

IP360 KITS

Wireless router †

3G & 4G

networks

3G & 4G

networks

UP TO

SIMULTANEOUS

CALLS*

UP TO

SIMULTANEOUS

CALLS*

PoE switch

THANGRAM IP

THVIP/1

video entry panel

THANGRAM IP

THVIP/1

video entry panel

FUTURA IP monitor

KIT WITH FUTURA IP MONITOR

Smartphone(s)

or tablet(s) †

Smartphone(s)

or tablet(s) †

Smartphone

or tablet †

Smartphone(s)

or tablet(s) †

* On local network. † Not available through CAME BPT.

Representative illustration; please contact our sales team for technical schematics.

20 21

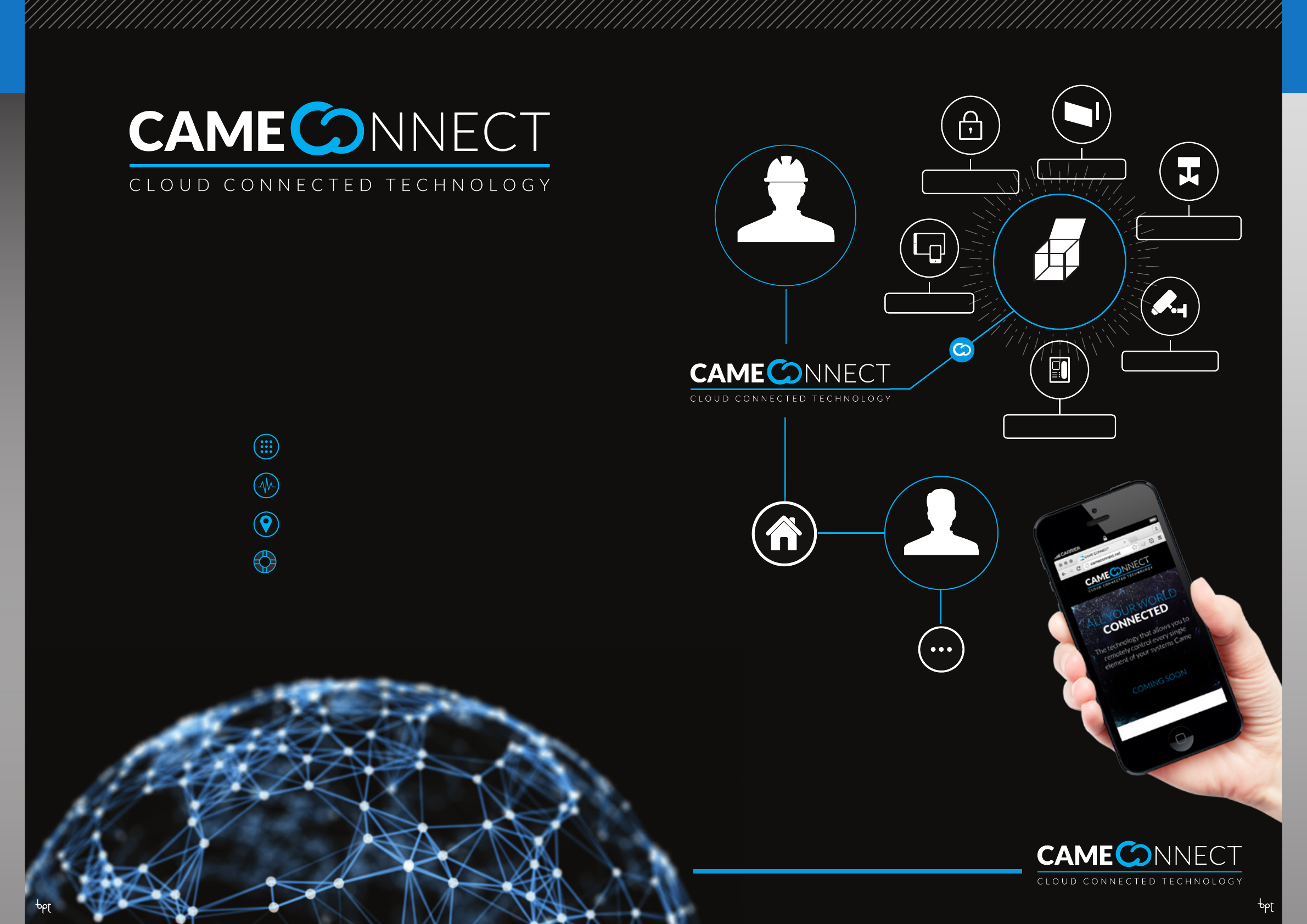

CAME Connect enables both the Installer and the end-user to monitor and

control the equipment through an easy to use cloud-based app.

For more information, visit

www.CAMEconnect.net

BE PART OF

THE FUTURE

DEVICE MANAGEMENT

REMOTE DIAGNOSTICS

DEVICES MAP

SUPPORT REQUESTS USER

INSTALLER

APP

AUTOMATION

TECHNICAL ALARMS

MONITORING

CCTV

VIDEO ENTRY SYSTEMS

PRODUCTS

GATEWAY

DEVICE

SIMPLE DEVICE

MANAGEMENT

SECURITY ALARMS

All of your installation sites at your finger tips

IP360 SYSTEM

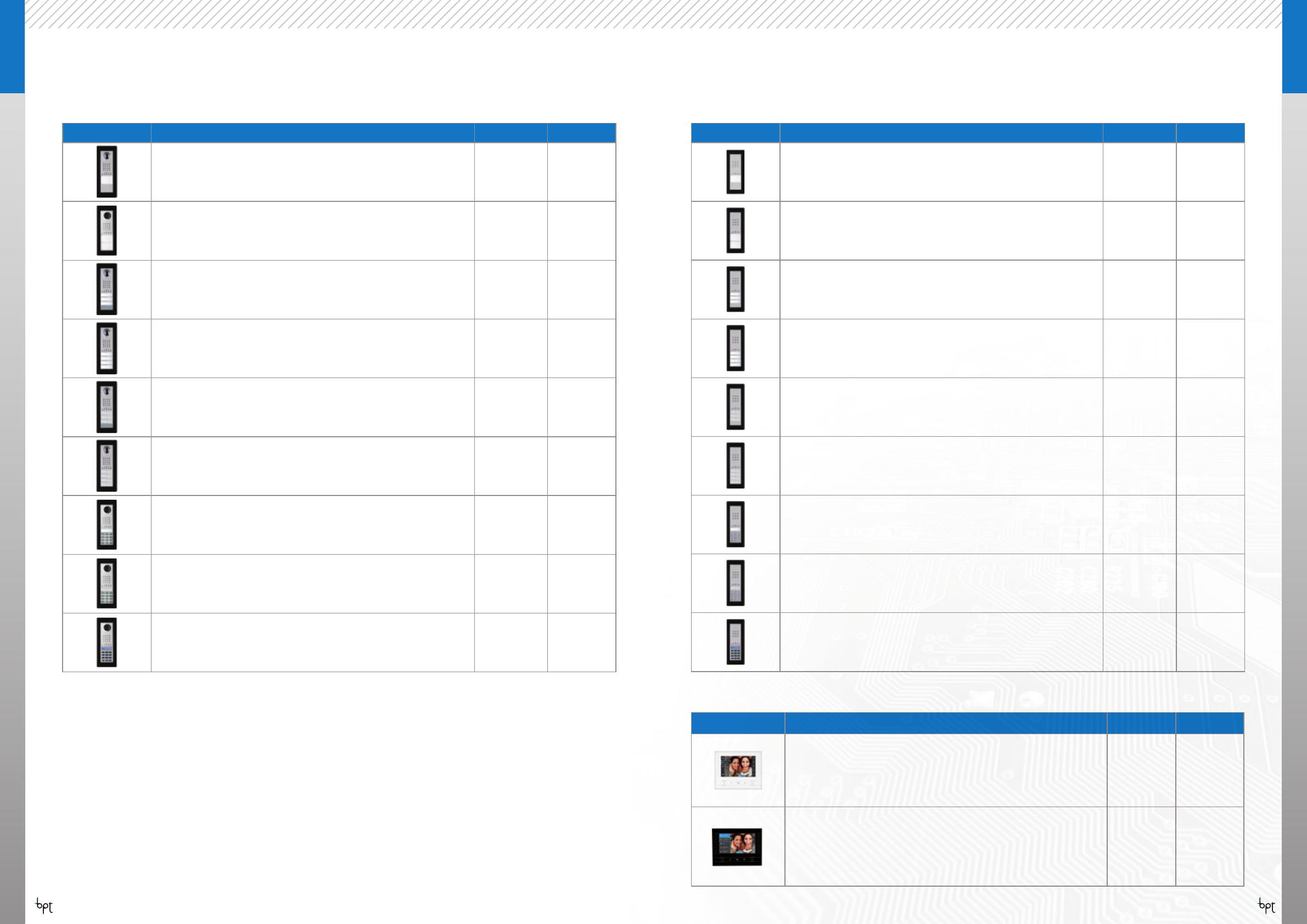

Article Description Code Price

THANGRAM IP video entry panel (PoE) 1 button. THVIP/1 £835.00

THANGRAM IP video entry panel (PoE) 2 button. THVIP/2 £837.50

THANGRAM IP video entry panel (PoE) 3 button. THVIP/3 £840.00

THANGRAM IP video entry panel (PoE) 4 button. THVIP/4 £840.00

THANGRAM IP video entry panel (PoE) 6 button. THVIP/6 £858.75

THANGRAM IP video entry panel (PoE) 8 button. THVIP/8 £865.00

THANGRAM IP video entry panel (PoE) with keypad 1 button. THKVIP/1 £971.25

THANGRAM IP video entry panel (PoE) with keypad 2 button. THKVIP/2 £977.50

THANGRAM IP video entry panel (PoE) with keypad and digital display. For fully

digital calling to multiple units. THVDIGI £1073.08

Article Description Code Price

FUTURA IP hands-free video receiver with colour 7” LCD display, equipped

with user graphics interface. Power over Ethernet (PoE) power supply, built-in

voicemail function, soft-touch buttons, white.

Dimensions (LxHxD): 212 x 161 x 28 mm wall-mounted, 212 x 161 x 10.5 mm recessed

FUTURA IP

WH £533.75

FUTURA IP hands-free video receiver with colour 7” LCD display, equipped

with user graphics interface Power over Ethernet (PoE) power supply, built-in

voicemail function, soft-touch buttons, black.

Dimensions (LxHxD): 212 x 161 x 28 mm wall-mounted, 212 x 161 x 10.5 mm recessed.

FUTURA IP

BK £533.75

FUTURA IP MONITORS

THANGRAM VIDEO PANELS THANGRAM AUDIO PANELS

COMPONENTS PRICELIST

Article Description Code Price

THANGRAM IP audio entry panel (PoE) 1 button. THAIP/1 £530.00

THANGRAM IP audio entry panel (PoE) 2 button. THAIP/2 £532.50

THANGRAM IP audio entry panel (PoE) 3 button. THAIP/3 £535.00

THANGRAM IP audio entry panel (PoE) 4 button. THAIP/4 £535.00

THANGRAM IP audio entry panel (PoE) 6 button. THAIP/6 £553.75

THANGRAM IP audio entry panel (PoE) 8 button. THAIP/8 £560.00

THANGRAM IP audio entry panel (PoE) with keypad 1 button. THKAIP/1 £666.25

THANGRAM IP audio entry panel (PoE) with keypad 2 button. THKAIP/2 £672.50

THANGRAM IP audio entry panel (PoE) with keypad and digital display.

For fully digital calling to multiple devices. THADIGI £768.08

22 23

IP360 SYSTEM

24 25

IP360 SYSTEM

Article Description Code Price

Full system server. This allows the use of porter software and centralises the access

control functions and porter services. It comes in a container measuring 150 x 150 x

51mm. IP40 protection rating. Power supply 230 V AC 600 mA.

ETI/SER XIP £1975.00

XIP system mini server. Low DIN 6-module dimensions.

Requires power supply (12 - 24 V DC, 300 mA max). ETI/miniSER £815.00

3-relay unit for auxiliary services (controlling lights, openings, ringtones etc.).

Low DIN 4-module dimensions. IP30 protection rating.

Power supply 11/18V DC 200 mA.

VLS/3 £155.00

Digital call module for multi dwelling with RFID and built-in display. Keypad can be

used for coded access. DCOMBO £253.08

Access control keypad metal colour satin chrome for coded access.

Dimensions (LxHxD): 60x60x14 mm. DNA/ME £146.25

Additional power supply for mini server.

Low DIN 4-module dimensions. IP30 protection rating.

Powered from mains 230 V AC 50/60 Hz.

VAS/101 £77.50

Additional power supply.

Low DIN 8-module dimensions. IP30 protection rating.

Powered from mains 230 V AC 50/60 Hz.

VAS/100.30 £90.00

Single button.

Dimensions (LxHxD): 20x60x14 mm. DPS £5.00

Double height button.

Dimensions (LxHxD): 40x60x14 mm. DPH 8.75

Double button.

Dimensions (LxHxD): 20x60x14 mm. DPD £11. 25

Single plastic cap covered in metal colour satin chrome.

Dimensions (LxHxD): 20x60x12 mm. DTS/ME £5.00

Single plastic cap covered in metal colour satin chrome.

Dimensions (LxHxD): 20x60x12 mm. DTH/ME £6.25

Information module for generic messages.

Do not use as a call button. DMI £5.43

Article Description Code Price

Plastic recessed box. For use with DCI or DCI/ME.

Dimensions (LxHxD): 140x294x54.5 mm. DSI £5.00

Plastic recessed frame covered in satin chrome, metal colour. Requires DSI.

Dimensions (LxHxD): 127x280x30 (1.2) mm. DCI/ME £22.50

Front plate in anodised aluminum. Opaque black colour.

Dimensions (LxHxD): 99x254x18 mm. DPF/NF £23.75

Front plate in anodised aluminum. Metal colour.

Dimensions (LxHxD): 99x254x18 mm. DPF/ME £23.75

ACCESSORIES FOR INSTALLATION

ACCESSORIES

SYSTEM COMPONENTS

COMPONENTS PRICELIST

Desk mount for FUTURA IP monitor. KT VXL £92.50

Flush mount box for FUTURA IP monitor. FUTURA BB £26.25

26 27

IP360 SYSTEM

MILESIGHT CCTV

EXAMPLE CCTV LAYOUT

WITH MINISERVER & CCTV

CCTV PRICELIST

MINI SERIES

Article Description Resolution Lens Video

compression VGA Code Price

IR mini dome camera. 2048*1536

@20fp

Fixed lens

3.6mm

H.264

H.265 üMS-C4482-PB

4.0MP £187.80

Vandal-proof mini dome camera. 2592*1520

@20fps

Fixed lens

3.6mm

H.264

H.265 üMS-C4473-PB

4.0MP £213.90

MS-A73 adapter plate.

15*122.5*10mm, 28g * ABS+PC * For side outlet. £2.60

MS-A71 wall mount.

140×215mm, 348g * Aluminum alloy * For wall or vertical structure. £20.85

Mini bullet camera. 2592*1520 Fixed lens

4mm

H.264

H.265 üMS-C4463-PB £253.03

NVR SERIES

ACCESSORIES

Article Description MP support On-board

memory

Local display Code Price

HDMI VGA

4K/H.265 Mini NVR.

1* 100M/1000M.

2*USB2.0 interfaces.

3840*2160

(4K/8MP) 1TB üN/A MS-N1009-UT £323.45

WD 1TB 2.5inch HDD. 1TB capacity SATA3Gb/s (5400-7200)rpm.

Can be added to the NVR for 2TB storage. WD10JUCT £247.80

Article Description Details Code Price

Pole mount.

170*51.5*152.6mm, 720g.

Installation environment: For strapping

cameras on poles between 102-127mm

(4.1-5 inches) in diameter.

Applicable for all Milesight network cameras.

MS-A01 £26.08

Corner bracket (internal).

170*23.2*205.3mm, 543g.

For mounting cameras on an internal corner.

Applicable for all Milesight network cameras.

MS-A02 £26.08

Corner bracket (external).

170*152.6*76.3mm, 905g.

For mounting cameras on an external corner.

Applicable for all Milesight network cameras.

MS-A03 £26.08

ETI/miniSER

server

VAS/101

power supply

FUTURA IP monitor

MS-C4463-PB

Mini bullet camera

THANGRAM IP

THVIP/1

video entry panel

PoE switch

MS-C4482-PB

IR mini dome camera

MS-N1009-UT/BH

4K/H.265 Mini NVR

PSU

Milesight oer comprehensive IP

video surveillance solutions.

Milesight will integrate seamlessly with the IP360

system and a wide variety of CAME BPT products.

Smartphone(s)

or tablet(s)* †

Wireless

router †

NETWORK SWITCHES

Article Description Details Code Price

Network switch. 4-port PoE switch + 2 uplink ports.

Power supply included. XNS04P £95.20

Network switch. 8-port PoE switch + 1 Uplink port.

Power supply included. XNS08P £190.38

Network switch.

16-port PoE managed switch

+ 4 Uplink ports (2 ethernet and 2 optical).

100-240 VAC power supply.

XNS016PF £872.65

*Via the free XIP mobile app. † Not available through CAME BPT.

Representative illustration; please contact our sales team for technical schematics.

SIP

integration

www.bpt.co.uk

CAME BPT - South - Tel: 01442 230 800 - Fax: 01442 244 729

Liberta House, Maxted Road, Maylands Industrial Estate, Hemel Hempstead HP2 7DX

CAME BPT - Midlands - Tel: 0115 921 0430 - Fax: 0115 921 0431

Unit 3, Orchard Park Industrial Estate, Town Street, Sandiacre, Nottingham NG10 5BP

CAME BPT - North - Tel: 0161 406 9800 - Fax: 0161 406 4791

Unit 14, Latham Close, Bredbury Park Industrial Estate, Bredbury Stockport, SK6 2SD

CAME BPT - IRELAND - Tel: 01 429 5660 - Fax: 01 429 5956

Unit A1, Ballymount Corporate Park, Ballymount, Dublin 12, IRELAND

For account customers, please contact your local branch for trade terms. Full IP Entry System

IP360 System Overview & Functions

BPT_THVI 2_brochures_july2017 BPT THVI 2 Brochures July2017

Navigation menu

Versions of this User Manual:

Views

Navigation
