Ideas
Product Range
for the Garden
BRILL news
Lawn mowing technology of the future:
Battery power for large lawn areas
The two battery powered lawn mowers of the BRILL LION
product range offer ultimate freedom in the garden. They
are noiseless and environmentally friendly – but without a
power cord. They are powerful and keep their charge longer
– but without the detrimental effects of CO2 emissions or
high running costs.
Lithium ion batteries have certain properties which make
them ideal for the use in lawn mowers: no memory effect,
low self-discharge and efficient DC motors with minimum
loss of heat. In practice, this means lower running costs,
longer service life of the battery, longer operating times
and thus they are ideal for large areas of lawn – up to 20 %
more than comparable models.
The BRILL LION mowers are very simple to handle: The bat-
tery can be removed easily and then connected to the sup-
plied cord for recharging. A clearly visible LED display shows
the charging status of the battery.
The two LION mowers combine the advantages of the
lithium ion technology with the convincing features of two
successful BRILL lawnmower ranges: BRILL evolution
and BRILL RazorCut.
The distinguishing features of the BRILL evolution LION 36 are
the dual channel air system for an ideal cutting performance,
the possibility of positioning it upright and the comfortable
removal of grass cuttings. Plus: Under ideal conditions the
lithium ion technology allows to cut an area of up to 400 sq m.
Strong as a lion, but gentle to the lawn!
The new RazorCut LION 38 offers the perfect symbiosis of the
cutting technology of a cylinder mower and the latest technol-
ogy in batteries. Thanks to its electrically driven blade cylinder,
this mower is suited for up 400 sq m of grass – just like the
evolution LION. The reel blade allows the mower to cut the
grass like scissors. The comfortable and elegant way to have an
English lawn!
Ideas for the Garden
Contents
The (R)evolution from BRILL Page 4
The BRILL evolution electric and
petrol mowers
Basic Page 9
Small device, big performance
Real power packs Seite 14
BRILL Steelline
Lawn scarifiers – no problem Page 20
with thatch and moss
BRILL aerators
Further information Page 30
www.brill.de
Hattrick – lawn care with fresh air cure Page 8
The multifunction machine that
can do everything
Mowing lawns without side-effects Page 10
The multi-function machine that can
do everything
Keeps you and your lawn fit Page 16
BRILL hand cylinder mowers
Handy garden tool Page 23
BRILL Gardenboy
evolutionHattrick mowersBasic mowerbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet

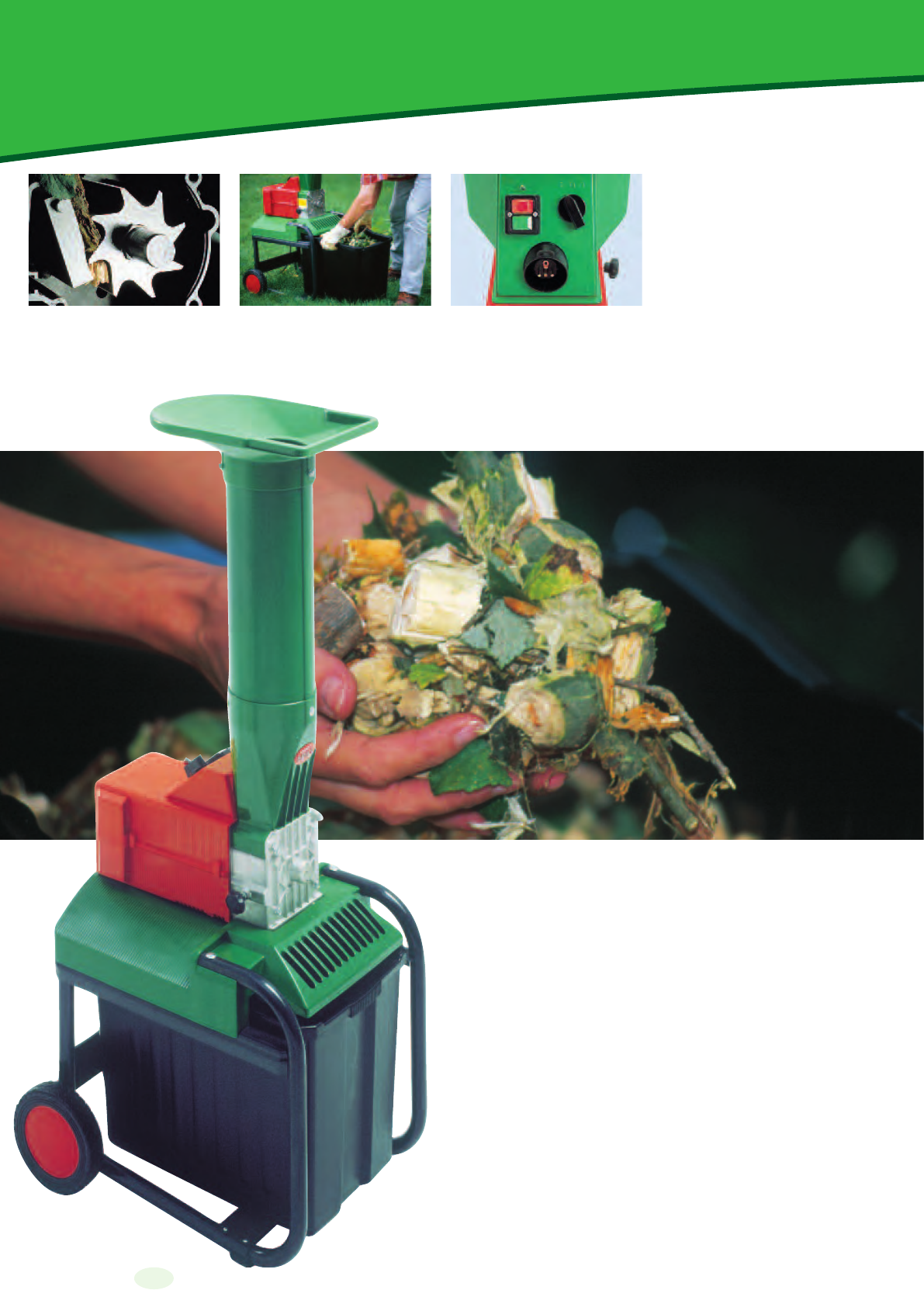

Compost with comfort Page 24
BRILL shredders
Fun to drive in the garden Page 26
BRILL lawn tractors Crossover
4
E
V
O
L
U
T
I
O
N

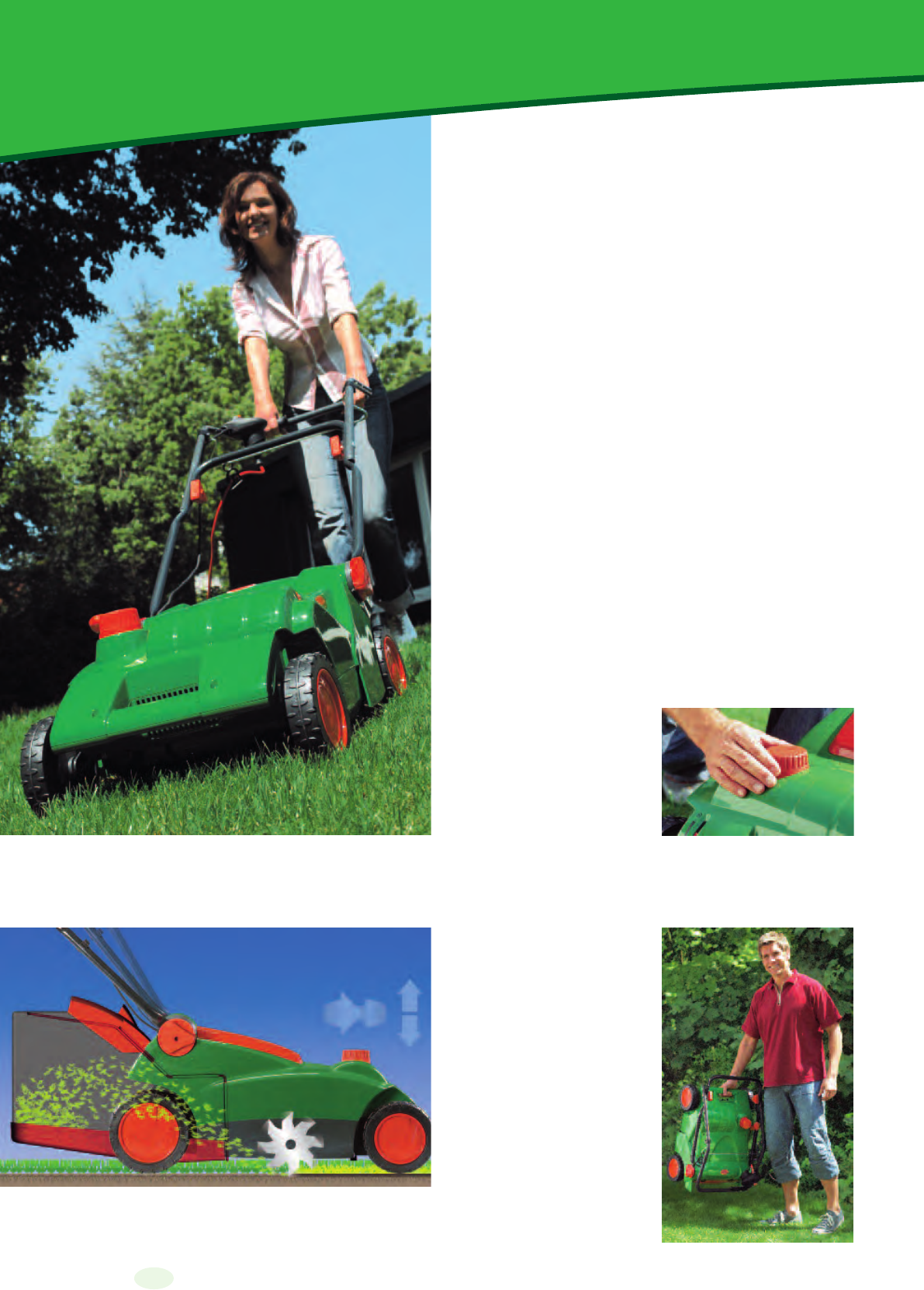

BRILL evolution – the (R)evolution from BRILL
Superior technology, convenient
handling, dynamic design
The BRILL evolution sets new standards in lawn
mower technology. Innovative technology and func-
tional design were the decisive factors in the develop-
ment of the evolution series. The revolutionary space-
saving concept is optimally tailored to today’s require-
ments. When positioned upright, the evolution finds
room in the smallest of spaces. The patented dual
channel air system guarantees a perfect cut.
The evolution petrol mower is equipped with a special
tank system, so that it can also be stored upright in a
filled state. Particularly pleasing is the low weight of
the petrol mowers. They only weigh slightly more than
comparable electrical appliances. In this way mowing
lawns becomes fun!
The BRILL evolution LION offers an outstanding
mowing performance as well as all advantages of the
successful BRILL evolution mowers: Cordless freedom,
impressive operating times, less noise, emission-free
working and low running costs. This is lawn mowing
technology of the future.
This is what it
stands for!
5
Ideas for the Garden

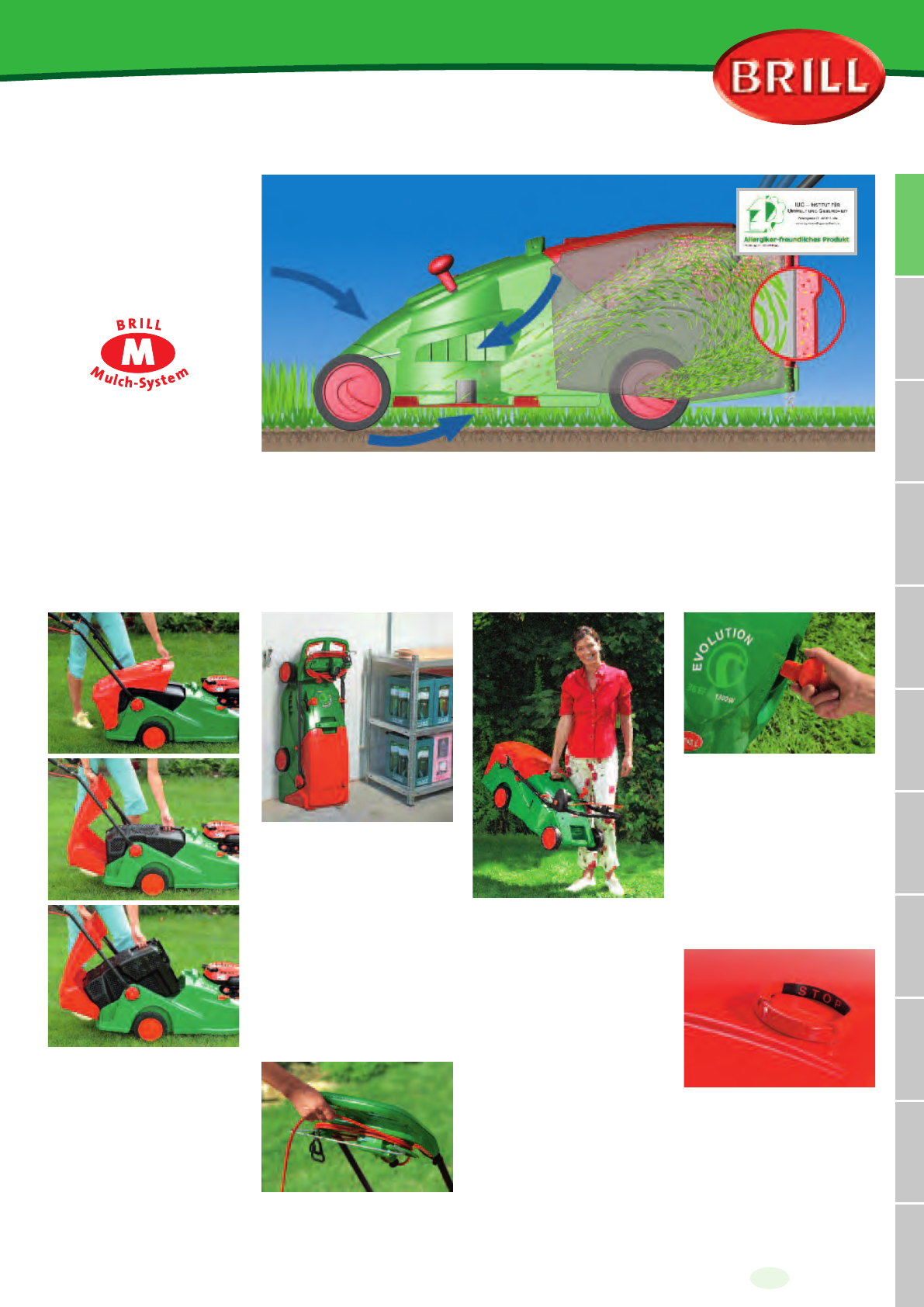

The DuoAir Management
A dual channel air system with
effective cutting technology
collects grass and sucks the lawn
cuttings in an air flow, resulting
in an ideal cutting performance
even with the closest cutting
height.
Optionally with
mulch kit
More cleaner air for people
with allergies
A closed grass box effectively
holds dust and pollen. This
means that dirt is no longer
swirled up and allergy sufferers
can breathe a new sigh of relief.
Always at the right height...
The ideal position can always
be attained thanks to the
adjustable handle bars.
The grass box which opens at
the back can also be emptied
without a change of grip.
The upright position...
A functional design makes the
BRILL evolution a real space-
saver. It is easy to carry or fit
into even the smallest car boot.
It shrinks in size if not in use.
When positioned upright, it
finds room in every corner.
Getting a grip...
The integrated ergonomical
handles are a real relief. They
can be used to lift and trans-
port the BRILL evolution easily,
in addition to placing it in the
boot.
The control centre...
Everything comes together
cleanly and clearly – at the
comfort panel with the useful
cable carrier. Mowing with ease
at long last!
Einfach praktisch
The grass cuttings in the grass
box can be easily removed
without having to change your
grip.
The closed grass box system
protects people with allergies in
the best possible way from dust
and pollen.
Well filled...
The grass box level indicator
of the BRILL evolution is a new
practical thing.
It can be easily read and you
also know when it is time to
empty the grass box.
Always close...
The BRILL evolution can
always be perfectly adapted
to the right lawn height
using the central, adjustable
7postion height settings.
The deepest cutting height of
16 mm makes mowing lawns
of golf course quality possible.
evolutionHattrick mowersBasic-MäherbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet
6
BRILL Evolution 36 EF
61051
40 09093 000788
36 cm
Electric 230 V
1,300 W
Robust PP plastic
Single blade
Ball bearing
Central, 7position height
settings from 16 –70 mm
36 l
Comfort panel, engine and
blade stop under 3sec.
89 dB(A)
19 kg
500 sq. m
BRILL Evolution 41 EF
61052
40 09093 000795
41 cm
Electric 230 V
1,600 W
Robust PP plastic
Single blade
Ball bearing
Central, 7position height
settings from 16 –70 mm
50 l
Comfort panel, engine and
blade stop under 3sec.
92 dB(A)
22 kg
700 sq. m
BRILL evolution 33 EM
61040
40 09093 000702
33 cm
Electric 230 V
1,000 W
Robust PP plastic
Single component blade
Plain bearing
Central, 7position height
settings, from 16 –70 mm
28 l
Cable release, engine and
blade stop under 3sec.
88 dB(A)
16 kg
400 sq. m
BRILL evolution 33 EF
61050
40 09093 000771
33 cm
Electric 230 V
1,000 W
Robust PP plastic
Single blade
Plain bearing
Central, 7position height
settings from 16 –70 mm
28 l
Comfort panel, engine
and blade stop under 3sec.
88 dB(A)
17 kg
400 sq. m
Not standard Standard The right to make technical amendments reserved
BRILL evolution – (R)evolution von BRILL
Practical cleaning...
Thanks to its upright position,
it can be cleaned after use
without difficulty.
There is even a storage bracket
available as an accessory,
making it possible to hang the
evolution on a wall without
difficulty.
evolution mulching function
For the 41 and 42 series mod-
els a mulch box is available as
a special accessory. This is
inserted instead of the grass
box and distributes the
mown grass directly on to the
lawn. In this way you fertilize
your lawn and protect it from
drying out.
Art no
EAN Code
Cutting width
Engine
Nominal power
Housing
Cutting technology
Handle bar adjustment
Wheels
Cutting height adjust-
ment with display
Grass box volume
Safety
Wheel drive
Moving cable guide
Noise level
Weight
Recommended
for areas up to
Packed fully assembled
Electric lawnmowers
7
Ideas for the Garden
* Maximale Leistung bei 3.600 rpm
BRILL bracket for evolution
Art no 61630
EAN code 40 09093 001075
BRILL battery for evolution LION
Art no 65083
EAN code 40 09093 185393
BRILL mulch box for evolution
Art no 78933
EAN Code 40 09093 001952
Cutting width 41 cm
Art no 78934
EAN Code 40 09093 001945
Cutting width 42 cm
BRILL evolution cutting blade
Art no 61604 61605 61606 61608
EAN Code 40 09093 001044 40 09093 001051 40 09093 001068 40 09093 001525
Cutting width 33 cm 36 cm 41 cm 42 cm
BRILL evolution 41 EM
61042
40 09093 000726
41 cm
Electric 230 V
1,500 W
Robust PP plastic
Single component blade
Ball bearing
Central, 7position height
settings, from 16 –70 mm
50 l
Flick-Flack cable guide, engine
and blade stop under 3sec.
92 dB(A)
21 kg
700 sq. m
BRILL evolution 42 BM
61053
40 09093 001440
42 cm
Briggs & Stratton Series 450
148 ccm
High impact resistant ABS-
plastic
Single component blade
Ball bearing
Central, 7position height
settings, from 16 –70 mm
50 l
Engine and blade stop under
3sec.
95 dB(A)
24 kg
800 sq. m
BRILL evolution 42 BFR
61054
40 09093 001457
42 cm
Briggs & Stratton Series 500
158 ccm
High impact resistant ABS-
plastic
Single component blade
Ball bearing
Central, 7position height
settings, from 16 –70 mm
50 l
Engine and blade stop under
3sec.
95 dB(A)
25.5kg
900 sq. m
BRILL evolution LION 36
61056
40 09093 185379
36 cm
DC Motor
2,5 V / 3,9 Ah
Robust PP plastic
Single component blade
Ball bearing
Central, 7position height
settings, from 16 –70 mm
36 l
Engine and blade stop under
3sec., Safety key
19 kg
400 sq. m
BRILL evolution 36 EM
61041
40 09093 000719
36 cm
Electric 230 V
1,200 W
Robust PP plastic
Single component blade
Plain bearing
Central, 7position height
settings, from 16 –70 mm
36 l
Cable release, engine and
blade stop under 3sec.
89 dB(A)
19 kg
500 sq. m
Accessories:
Petrol lawnmowers
Battery powered lawn mower
evolutionHattrick mowersBasic-MäherbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet
8
Hattrick®
BRILL Hattrick 36 EH
62103
40 09093 001426
36 cm
Electric – 230 V
1,500 W
Available as accessory
Robust PP plastic
Single component blade
Plain bearing
Central, infinitely variable from
30 –70 mm
38 l
Comfort panel, movable cable guide,
engine and blade stop under 3sec.
21 kg
88 dB(A)
600 sq. m
Art no
EAN Code
Cutting width
Engine
Output/power
Aerator can be switched on
Mulch-box
Housing
Cutting technology
Handle bar adjustment
Wheels
Cutting height adjustment
with indicator
Fabric grass catcher
Safety
Wheel drive
Weight
Noise level
Recommended for areas
up to
Packed fully assembled
BRILL Hattrick – lawn care with fresh air cure
The
all-rounder
Aerating, mowing, collecting – the multi-
function machine that can do everything
Spring-clean for the lawn! The Hattrick aerates,
mows and collects in one operation. The aerator
roller on the front thoroughly removes thatch
and moss from the lawn. It is equipped with
robust, durable steel tines, which aerate the lawn
as they rotate. The aerator roller is activated via
the connection button.
The dual channel air system ensures an optimum
mowing and collection performance under all
conditions, so that the removed thatch and the
grass clippings land safely in the large grass
catcher.
The comfort panel with ergonomic handle guide
and practical cable guide is clearly arranged and
particularly pleasant to operate.
Mulching with the BRILL MulchCut
When mulching the grass cuttings are finely cut
and returned directly to the lawn and serve as
a source of moisture and natural fertiliser.The
Mulch Set is available as accessory. It is simply
hooked into the collection chute in place of the
grass box.
Not standard Standard The right to make technical amendments reserved
aerating, mowing,
collecting
9
BRILL Basic 32 ED
64100
40 09093 641004
32 cm
Electric 230 V
1.000 W
Robust PP plastic
Single component blade
Plain bearing
Central, infinitely variable between
25 and 55 mm
32 l
Engine and blade stop under 3sec.
13.7kg
400 sq. m
Art no
EAN Code
Cutting width
Engine
Power
Housing
Cutting technology
Handle bar
adjustment
Wheels
Cutting height adjust-
ment with display
Grass box volume
Safety
Moving cable guide
Weight
Recommended
for areas up to
Packed fully
assembled
Ideas for the Garden
BRILL Basic 32 ED
Small device – big performance
The appeal of the Brill 32 ED lies in its compact design. Its
intelligent construction combined with a powerful electric
motor guarantee outstanding mowing results. It is therefore
the ideal mower for small lawns.
Not standard Standard
The right to make technical amendments reserved
BRILL Hattrick mulch set Art no 78983
EAN Code 40 09093 000887
Mulch set 36 cm
BRILL Hattrick aerator roller Art no 78350
EAN Code 40 09093 835007
Working width 36 cm
BRILL Hattrick cutting blade Art no 61605
EAN Code 40 09093 001051
Working width 36 cm
Cutting blade for Basic 32 ED Art no 61604
EAN Code 40 09093 001044
Working width 32 cm
Accessories:
evolutionHattrick mowersBasic-MäherbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet
10
Kind to
your back
Just
right for
people with
allergies
Friendly to
your ears
brillencio – mowing lawns without side-effects
11
brillencio
Ideas for the Garden
Brilliant Features
The brillencio from BRILL has
literally been created for a rela-
xed lawn mowing. Its design
took on fundamental require-
ments such as a noise prevention,
comfortable handling and as far
as possible, protection of those
suffering from allergies from
dust and pollen.
That is also what has emerged:
friendly to your ears, just right
for people suffering from aller-
gies and kind to your back.
Friendly to your ears as a
matter of principle
The silencer system integrated
in the housing „swallows” the
noise volume and at the same
time deflects the exhaust
gases from the engine directly
towards the ground.
Airspace – just right for people
suffering from allergies
The closed all-round retaining
system prevents the ejection of
grass, dust particles and pollen.
People suffering from allergies
can breathe a sigh of relief.
Technology which is kind to
your back
The closed multi-function box
covering the gass box at the rear
provides noise insulation and optimises
the air flow. The folding mechanism of
the handle bars enables the grass box
to be removed whilst standing in an
upright position. The folding mecha-
nism of the handle bars enables the
grass box to be removed whilst standing
in an upright position. A central and infi-
nitely variable height adjustment of 30 -
80 cm provides ideal mowing positions.
Magnesium housing –
ultra light and unbreakable
The housing of all 43 and 51 models is
of ultra light, high impact-resistant
magnesium – High-Tech is used in your
garden!
The closed silencer concept:
Emissions, dust particles and pollen are almost completely encapsulated in the multi-
function box. The low-noise blade and the silencer which is integrated in the housing reduce
the noise perception by up to 50%.
The brillencio enables
the grass box to be
removed from a stan-
ding position, thereby
being kind to the
back.
The aerodynamically optimised
blade guarantees a clean cut.
The height adjustment is central
and can be continuously adju-
sted from 30 to 80 mm.
Upon removing the grass box,
the brillencio silent-mower
becomes a powerful long grass
mower.
The complete housing of all
brillencio 43 and 51 models is
made of the ultra light and
highly impact-resistant material,
magnesium.
Housing with silencer
Low-noise blade
Removal of the grass box in
a manner which is kind to your back
Powerful long grass mower
evolutionHattrick mowersBasic-MäherbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet
12
brillencio – mowing lawns without side-effects
State-of-the-art materials
High impact resistance and extremly robust
materials characterise the brillencio. The
housing of the smaller models is made of
high-quality PA/ABS plastic.
Ready to start quickly – rapidly stored
Every brillencio is ready for work in an instant
folded away again and stored so that it
saves space. The compact design, the refined
folding mechanism and the two integrated
handles make it easy.
brillencio 48 BRX
62056
40 09093 001471
48 cm
Briggs & Stratton Series 625/650
190 ccm
2.36 kW, 2,800 rpm
High impact resistant PA/ABS plastic
Low noise single component blade
With double ball bearing mounting
Central, infinitely variable
from 30 –80 mm
65 l
Engine and blade stop under 3sec.
1-speed
1,400 sq. m
94 dB(A)
39.5kg
Not standard Standard The right to make technical amendments reserved
Art no
EAN Code
Cutting width
Engine
Nominal power
Housing
Cutting technology
Wheels
Cutting height adjustment
with display
Grass box volume
Safety
Wheel drive
Electric start
Recommended for areas up to
Noise level
Weight
Packed fully assembled
13
Ideas for the Garden
brillencio 43 B OHC
62025
40 09093 000627
43 cm
Honda GCV 135
135 ccm
2.1 kW, 2,900 rpm
Magnesium
Low noise single component blade
With double ball bearing mounting
Central, infinitely variable
from 30 –80 mm
50 l
Engine and blade stop under 3sec.
1-speed
1,000 sq. m
93 dB(A)
34 kg
brillencio 43 BR OHC
62026
40 09093 000634
43 cm
Honda GCV 135
135 ccm
2.1 kW, 2,900 rpm
Magnesium
Low noise single component blade
With double ball bearing mounting
Central, infinitely variable
from 30 –80 mm
50 l
Engine and blade stop under 3sec.
1-speed
1,200 sq. m
93 dB(A)
37.5kg
Ultra-light – extremely stable What has proved its worth
in the aerospace and aeroplane technology is used in the
brillencio. The housings made of magnesium are ultra-light,
high impact resistant and robust.
Runs very smoothly
The long wheelbase means that the brillencio glides over
the lawn pass after pass, stably and on track – attractive,
clean cutting guaranteed!
Perfect Balance
The grass box is arranged in such a way on the brillencio
that its weight is transferred to the rear axle when full.
Convenient Vario-drive
Several models save the gardener from having to push the
mower because they have driven wheels. The Vario-drive
with infinitely variable adjustable speed enables the
brillencio also to handle large areas and lawn areas on
slopes without difficulty.
Duo-cutting blade for brillencio 61600
40 09093 616002
43 cm
61602
40 09093 616026
48 cm
61603
40 09093 616033
51 cm
Art no
EAN Code
Cutting width
Art no
EAN Code
Cutting width
Art no
EAN Code
Cutting width
Accessories:
evolutionHattrick mowersBasic-MäherbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet
14
BRILL Steelline – strong on slopes
Power packs
Art no
EAN code
Engine
Nominal power
Cutting width
Cutting height
Housing made of
Blades with rear discharge
Wheels
Wheel drive
Lateral discharge
Grass box
Grass box level indicator
Mulch kit
Weight
Recommended for areas
up to
Steelline Plus 42 XL 4.0
63310
40 09093 173680
Briggs & Stratton Quattro 40
158 ccm
1.99 kW, 2,900 rpm
42 cm
central, 7position height
settings (30 –70 mm)
steel sheet
1blade
Plain bearing
65 l
28 kg
800 sq. m
Easily adjustable
The integrated spring system
enables the cutting height to
be conveniently set centrally
to seven different heights
from 30 to 70 respectively 80
millimetres.
Clean mowing
The grass box made of robust
plastic holds 65 litres and can
be removed easily.
Easy to manoeuvre
The extra large wheels with
single-speed wheel drive
ensure more grip and simple
handling.
Easily visible
The practical level indicator
shows when the grass box
has to be emptied.
No blade of grass is spared
The Steelline product range is characterised by its robust steel deck, its
powerful engines and its large cutting widths. The petrol mowers are equipped
with big rear wheels for easy manoeuverability. They show their versatility even
on uneven ground and obtain a perfect cutting performance in high grass.
The powerful petrol mowers have a Briggs & Stratton engine. Three types are
equipped with a 1-speed wheel drive of 3.5 km/h. The 52 model is supplied
with side ejection and mulch kit as a standard feature.
The electric start enables the Steelline 46 XL RE 6.0 to be switched on even
more comfortably. The battery is recharged while mowing so you do not need
an external charger in the course of the garden season.
15
BRILL Steelline cutting blade
Art no 61611
EAN Code 40 09093 182897
Working width 42 cm
Art no 61609
EAN Code 40 09093 001976
Working width 46 cm
Art no 61610
EAN Code 40 09093 001983
Working width 51 cm
BRILL Steelline mulch kit
Art no 79004
EAN Code 400 909 318 7885
Working width 46 cm
Art no 79005
EAN Code 400 909 318 7892
Working width 42 cm
Accessories:
Ideas for the Garden
Steelline Plus 42 XL 6.0
63311
40 09093 175400
Briggs & Stratton XRQ 675
ReadyStart Silver, 190 ccm
2.33 kW, 2,800 rpm
42 cm
central, 7position height
settings (30 –70 mm)
steel sheet
1blade
Plain bearing
65 l
30 kg
800 sq. m
Steelline Plus 46 XL 6.0
63312
40 09093 175417
Briggs & Stratton XRQ 675
ReadyStart Silver, 190 ccm
2.33 kW, 2,800 rpm
46 cm
central, 7position height
settings (30 –80 mm)
steel sheet
1blade
Ball bearing
65 l
32 kg
1.000 sq. m
Steelline Plus 46 XL R 6.0
63306
40 09093 001761
Briggs & Stratton XRQ 675
ReadyStart Silver, 190 ccm
2.33 kW, 2,800 rpm
46 cm
central, 7position height
settings (30 –80 mm)
steel sheet
1blade
Ball bearing
1-single-speed,
3,5km/h
65 l
33 kg
1.200 sq. m
Steelline Plus 46 XL RE 6.0
63313
40 09093 186697
Briggs & Stratton XRQ 675 ReadyStart
Silver, with electric start, 190 ccm
2.33 kW, 2,800 rpm
46 cm
central, 7position height
settings (30 –80 mm)
steel sheet
1blade
Ball bearing
1-single-speed,
3,5km/h
65 l
35 kg
1.200 sq. m
Steelline Quattro 52 XL R 6.0
63308
40 09093 001785
Briggs & Stratton XRQ 675
ReadyStart Silver, 190 ccm
2.33 kW, 2,800 rpm
51 cm
central, 7position height
settings (30 –80 mm)
steel sheet
1blade
Ball bearing
1-single-speed,
3,5km/h
65 l
35 kg
1.600 sq. m
Not standard Standard The right to make technical amendments reserved
Comfortable start
The electric start enables the
engine to be switched on
even more comfortably.




evolutionHattrick mowersBasic-MäherbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet
16
BRILL Cylinder mowers – keeps you and your lawn fit
17
Ideas for the Garden
The classic lawn mower now in a modern
design. Worthy of note is the modern
shape of the sturdy and foldable handle
bars in silver and grey with ergonomic
foam rubber handles.
The large wheels with their special pro-
file also ensure convenient working as
does too the attractive "rear spoiler"
which ejects the grass cuttings in a con-
trolled manner. Mowing with the cylinder
mower means precision cutting of each
single blade of grass. Precision sharpened
to a hundredth of a millimetre, blade
cylinder and bottom blade of special
hardened steel leave a lawn cut as if with
scissors whereby the contactfree cutting
technique – a BRILL invention – ensures
quietness.
Mowing is even easier and more comfort-
able with the battery powered cylinder
mower RazorCut LION 38.Due to its
lithium ion technology it is ideal for areas
up to 400 sq m – without cord, without
emissions and without a lot of noise.
BRILL Cylinder Mower
The razor-sharp fitness programme
evolutionHattrick mowersBasic-MäherbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet
18
Cylinder mower grass catcher 38 Art no 65041
EAN 40 09093 610628
Material
Woven nylon, reinforced
with steel frame
Cutting width 38 cm
Weight 1.5kg
Cylinder mower grass catcher 30/33 Art no 65061
EAN 40 09093 001969
Material
Woven nylon, reinforced
with steel frame
Cutting width 30 and 33 cm
Weight 1.3kg
Accessory:
Cylinder mowers
BRILL RazorCut Premium 38
78371
40 09093 001808
38 cm
blade cylinder,
5blades
maintenance-
free
because of anti-coiling device
ergonomically shaped with foam
rubber handle
infinitely variable from 14 –45 mm
with monitoring scale on both sides
up to 250 sq. m
available as accessory
7.4kg
BRILL RazorCut Premium 33
78366
40 09093 001815
33 cm
blade cylinder,
5blades
maintenance-
free
because of anti-coiling device
ergonomically shaped with foam
rubber handle
infinitely variable from 14 –45 mm
with monitoring scale on both sides
up to 200 sq. m
available as accessory
6.9kg
BRILL Classic 30
78357
40 09093 001822
30 cm
blade cylinder,
5blades
classic ladder frame design
6settings from 17 –43 mm
up to 100 sq. m
available as accessory
5.4kg
Art no
EAN Code
Nominal power
Cutting width
Cutting technology
Contact-free cutting technology
Cylinder & bottom blade: Special
steel and precision-sharpened
Blade spindle mounted
on ball bearings
Cover to protect
flowers and shrubs
Frame
Cutting height adjustment
Drive
Safety
Recommended for areas
Grass catcher
Noise level
Weight
Not standard Standard The right to make technical amendments reserved
BRILL Cylinder mowers – keeps you and your lawn fit
19
Ideas for the Garden
BRILL battery for RazorCut LION
Art no
EAN Code
65077
40 09093 185027
Battery-powered cylinder mower
BRILL RazorCut LION 38
65082
400 909 318 5386
25,2 V / 2,6 Ah
38 cm
blade cylinder with electric drive,
5blades
maintenance-
free
because of anti-coiling device
ergonomically shaped with foam
rubber handle
infinitely variable from 20 –45 mm with
monitoring scale on both sides
Li-Ion Accu
safety switch
approx. 400 sq. m
with fully charged battery
available as accessory
86 dB(A)
ca. 11 kg
The cutting height adjustment
of the RazoCut is infinitely
variable from 14 to 45 millime-
tres or from 20 to 45 millime-
tres respectively.
It is as simple as that: If you
want to change the battery,
you can remove it with one
grip.
Heat-treated cylinder blades ensure precise cut.
Two light emitting diodes
indicate the battery charge
condition. The LION battery
is also suitable as a replace-
ment for the old nickel-cad-
mium batteries just as the
previous charger can be used
for the new batteries.
evolutionHattrick mowersBasic-MäherbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet
20
The BRILL lawn scarifier –
clever technology:
a compact design with
functions easy to use
central transport and
parking position which can
be operated from above
infinitely variable height
adjustment for the blade
roller
optimised discharge chute
height-adjustable bars
permitting ergonomically
effective working
carrying handles for easy
transportation
space-saving
And your lawn takes a deep breath...
BRILL Lawn scarifiers – no problem with thatch
and moss
Your lawn breathes a sigh of
relief!
The scarifying of the lawn is
an important requirement for
the obtaining of beautiful
thick green grass.
Only a powerful lawn scari-
fier effectively removes
thatch, moss, cuttings and
dead vegetation. Nutrients,
air and water are otherwise
unable to penetrate deep
down to the roots of the grass.
You gain the best results with
the electric lawn scarifiers
from BRILL.
With working widths of 30 to
36 cm and powerful electric
motors from 1100 to 1400
watts, the BRILL electric
scarifier is even able to
remove thatch and moss
from larger areas.
The BRILL lawn scarifier is
also available as a powerful
model with a petrol engine.
With its wide working width
of 40 cm, it guarantees effi-
cient scarifying.
Height control
21
Ideas for the Garden
Scarifying and aerating:
two in one.
Ideal care
Scarifying is best carried out in the spring at
the start of the period of growth and once
again in the late autumn. The lawn aerator on
the other hand can be used more often,
because the interference is not so severe.
Comparable to a vigorous raking, the rotating
steel tines of the aerator roller scour through
the space between the individual lawn plants.
This means that excessive formation of thatch
is prevented and the lawn remains healthy
and vigorous over the entire year.
A beautiful,
thick lawn
needs air
evolutionHattrick mowersBasic-MäherbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet
22
40er
62077
40 09093 001143
36er
62071
40 09093 000863
30er
62075
40 09093 001129
BRILL Scarifier roller
Art no.
EAN Code
30 VE
62073
40 09093 001013
35 l
36 VE und 40 VB
62070
40 09093 620702
50 l
28 VE
62067
40 09093 001495
45 l
BRILL grass catcher
Art no.
EAN Code
Volume
Accessories:
62069
40 09093 001518
28 cm
Art no.
EAN Code
Working width
BRILL Aerator roller 28 VE/RL
BRILL Lawn scarifiers – no problem with thatch and
moss
Compact and space-saving
Not standard Standard The right to make technical amendments reserved
BRILL 30 VE
62063
40 09093 000733
30 cm
230 V/1,100 W
Robust PP plastic
Central, infinitely variable
up to 15 mm
14
Plain bearing
35 l (available as accessory)
600 sq. m
21 kg
BRILL 36 VE
62060
40 09093 000566
36 cm
230 Volt/1,400 W
Robust PP plastic
Central, infinitely variable
up to 20 mm
16
Plain bearing
50 l (available as accessory)
800 sq. m
26 kg
BRILL 40 VB
64014
40 09093 001587
40 cm
Briggs & Stratton Series 475
148 cm3
2.16 kW, 3,100 rpm
Robust PP plastic
Central, infinitely variable
up to 20 mm
17
Ball bearing
50 l (available as accessory)
1,000 sq. m
33 kg
BRILL 28 VE/RL
62066
40 09093 001488
28 cm
230 V/1,000 W
Robust PP plastic
Central, infinitely variable
up to 15 mm
6
Plain bearing
45 l (available as accessory)
500 sq. m
11 kg
Art no
EAN Code
Working width
Engine
Nominal power
Housing
Height adjustment
of the blade bar
Number of blades
Centrally operational
transport position
Handle bar adjustment
Cable guide
Wheels
Grass catcher
Recommended
for areas of up to
Packaged completely
pre-assembled
Weight
23
The BRILL Gardenboy is the
universal garden tool for pre-
paring and looking after your
beds.With its specially harde-
ned steel prongs it scarifies
the earth without mixing up
the layer of humus in the top
soil and the natural order of
the useful micro-organisms.
Thanks to its low weight and
back-friendly ergonomic
design the BRILL Gardenboy
makes sure that the hard
work required in looking after
a garden becomes a pleasure.
The BRILL Gardenboy – the
innovative electic soil harro-
wer for edge-trimming, scari-
fying, harrowing, loosening
and weeding.
The relaxing way
to cultivate the soil
BRILL Gardenboy 400 GB
65052
40 09093 001556
350 W
230 V
Approx. 100 mm
High impact-resistant PA/ABS plastic
2x3tines made of rolled carbon steel,
oscillating rotation of approx. 90°, 550
movements back and forth per minute
Fixed
Infinitely adjustable and rotable
Mechanic safety clutch as overload
protection
2.3kg
80 mm
Art no
EAN Code
Output/power
Engine
Working width
Housing
Technology
Handle bars
Lower handle
Safety
Weight approx.
Working depth
Ideas for the Garden
BRILL Gardenboy 400 GB
evolutionHattrick mowersBasic-MäherbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet
24
BRILL Shredder – compost with comfort
The indexing bolt guarantees safety.
It prevents the unit starting on its own
when undertaking relatively small pieces of
assembly work.
With the LH and ESK shredder, the cut material
is drawn in by the rotating cutting wheel.
The 64 l collector box protects the blade access
from below.
Crush tree cuttings...
BRILL Shredders turn hedge
trimmings and tree cuttings
into valuable shredded material
in no time at all.
The starter
As a powerful starter model,
the MH model is a real fast-runner
and works with the well proven
flat blade technology.
The power models
Innovative cutting techniques
especially make the LH and ESK
models quiet and especially easy
to use.
BRILL LH and ESK garden shredders
With the LH and ESK models,
the shredder material is broken up
by crushing and cutting, enabling
it to rot more easily. The collecting
box fulfils an important additional
function in the ESK model: it is not
only storage space for the shred-
ded materials but it also forms a
safety factor because it protects
the discharge opening from access.
Therefore, no-one can accidentally
reach into the cutting mechanism
from underneath while it is operat-
ing. If the box is removed, the unit
switches off immediately. The
long distance between the filling
hopper and the blade mechanism
forms a safety factor in the 2300
ESK.
25
Accessory:
Flat cutter for 2200 MH Art no 61607
EAN Code 40 09093 001167
BRILL ProfiCut 2800 MH
This powerful universal shredder
represents an energetic helper
in the garden. Fitted with a
2.0kW motor and a unique
cutting mechanism, it chops up
branches with a thickness of
up to 5cm without any problem.
Safety is ensured by the large
filling hopper with chips/slivers
protection system as well as
the automatic start-up safe-
guard. Its two large wheels
allow the shredder to be trans-
ported easily. Easily accessible cutting
mechanism with directly
driven flat cutter plate, crown
knife and triangular cutters
with three cutting edges.
The integrated toolbox for
spare cutter and operating
instructions is very practical.
Not standard Standard The right to make technical amendments reserved
BRILL shredder
2200 MH
74000
40 09093 000948
230 V
2,200 W
2,800 rpm
1flat blade
Up to 3.5cm Ø
21 kg
BRILL ProfiCut
2800 MH–230 V
74001
40 09093 001662
230 V
2,000 W
2,800 rpm
Crown cutter,
triangular cutter
Up to 5cm Ø
125 l collector bag
43 kg
BRILL Roller shredder
2300 LH
73983
40 09093 739831
230 V
2,300 W
40 rpm
High quality, hardened steel
Up to 4cm Ø
24 kg
BRILL safety shredder
2300 ESK
78055
40 09093 805505
230 V
2,300 W
40 rpm
High quality, hardened steel
Up to 4cm Ø
64 l collector box
35.2kg
Art no
EAN Code
Engine
Power
Rotational speed
of shredding mechanism
Shredding mechanism
Capacity
Cutting-crushing tech.
with self feed
Safety bolt
Access protection
from above
Access protection
from below
Collector box
Transport wheels
Weight
Ideas for the Garden
evolutionHattrick mowersBasic-MäherbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet
26
BRILL Lawn tractors – fun to drive in the garden
Comfortable mowing
of large areas
Optimized in respect of function and design,
BRILL's lawn tractors now offer even more
convenience and performance. The Crossover
models have powerful engines and are optio-
nal equipped with hydrostatic travel drive,
electric emptying of the grass box per rocker
switch and an electromagnetic clutch for the
cutter which enables the blade to be switched
on in a simple manner. With cutting widths of
74,92 and 102 cm the range permits even
large lawns to be mown comfortably and
rapidly. The 92 and larger models have
an asynchronous cutting mechanism with
two suction-reinforced wing blades and ball-
bearing-mounted V-belts. The powerful
Briggs & Stratton or Honda engines ensure
a high mowing performance. The extra
large tyres on the 102 series mower give
more driver comfort especially on difficult
terrains.
27
Ideas for the Garden
BRILL Crossover 74/13 H
65054
40 09093 001693
Briggs & Stratton I/C OHV 13,5
344 ccm, 1 cylinder
6.96 kW, 2,900 rpm
74 cm (1blade)
6settings, 30 –90 mm
Manual Hydrostat
Mechanical belt coupling
Front: 13 x6.0–6
Rear: 18 x6.5–8
3,500 sq. m/h
220 l
telescopic lever
2,610 x960 x1,120 mm
185 cm
203 kg
BRILL Crossover 74/13
65053
40 09093 001686
Briggs & Stratton I/C OHV 13,5
344 ccm, 1 cylinder
6.96 kW, 2,900 rpm
74 cm (1blade)
6settings, 30 –90 mm
5fwd/1reverse
Mechanical belt coupling
Front: 13 x6.0–6
Rear: 18 x6.5–8
3,500 sq. m/h
220 l
telescopic lever
2,610 x960 x1,120 mm
185 cm
202 kg
Art no
EAN Code
Engine
Nominal power
Cutting width
Height adjustment,
cutting height
Gear changing
Blade coupling
Wheel size
Capacity
Grass box
Emptying of grass box
from the driver’s seat
Dimensions (L x W x H)
Turning circle
Weight
Smooth running
Tractors with hydrostatic tra-
vel drive can be manoeuvred
without jerks and steplessly
per pedal.
Well lit
The standard fitting out with
xenon lamps means that the
ambient surroundings are well
illuminated.
Convenient to operate
The central cutting height
adjustment device is positioned
directly next to the driver's
seat.
The BRILL Mulch System
The lawn needs a great deal
of moisture in the summer
to prevent it drying out.
Mulching proves to be
extremely practical and
effective, especially on large
gardens. For the fine
grass cuttings provide the
lawn with moisture and
fertiliser at the same time,
in addition there is no need
for any waste disposal.
Not standard Standard The right to make technical amendments reserved
evolutionHattrick mowersBasic-MäherbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet
28
BRILL Crossover 92/13
65055
40 09093 001709
Briggs & Stratton I/C OHV 13,5
344
ccm, 1 cylinder
6.96 kW, 2,900 rpm
92 cm (2blades)
6settings,
30 –90 mm
5fwd/1reverse
Electromagnetic
Front: 13 x6.5–6
Rear: 18 x8.5–8
4,000 sq. m/h
300 l
Supported by pneumatic spring
2,610 x1,040 x1,120 mm
190 cm
209 kg
BRILL Crossover 92/13 H
65056
40 09093 001716
Briggs & Stratton I/C OHV 13,5
344
ccm, 1 cylinder
6.96 kW, 2,900 rpm
92 cm (2blades)
6settings,
30 –90 mm
Foot-operated Hydrostat
Electromagnetic
Front: 13 x6.5–6
Rear: 18 x8.5–8
4,000 sq. m/h
300 l
Supported by pneumatic spring
2,610 x1,040 x1,120 mm
190 cm
210 kg
Art no
EAN Code
Engine
Nominal power
Cutting width
Height adjustment,
cutting height
Gear changing
Blade coupling
Wheel size
Capacity
Grass box
Emptying of grass box
from the driver’s seat
Dimensions (L x W x H)
Turning circle
Weight
BRILL Lawn tractors – fun to drive in the garden
The BRILL Honda lawn tractors
are equipped with a very
efficient engine. They start
easily, run smoothly and quietly
and keep a clean cut even
when mowing thick lawns.
Accessory for front sweeping machine and snow-
clearing panel
78973
40 09093 897302
78977
40 09093 897708
78985
40 09093 001860
BRILL quick release coupling with drive
BRILL quick release coupling without drive
BRILL driving set for mechanic
blade coupling
Art no
EAN Code
Art no
EAN Code
Art no
EAN Code
Accessory for snow-clearing panel
Accessory for front sweeping machine
78986
40 09093 001877
BRILL driving set for electromagnetic
blade coupling
Art no
EAN Code
Accessory for front sweeping machine
BRILL universal spreader
78987
40 09093 001884
Art no
EAN Code
BRILL trailer coupling
78714
40 09093 871401
300 –360 cm
Approx. 80 kg
16˝x 4˝
Polyethylene
Trailer coupling required as accessory.
Art no
EAN Code
Spreading width
Capacity
Tyres
Hopper
Mounting frame and quick release coupling required as accessories.
78982
40 09093 100204
125 cm
Sheet steel, swivelling
operation from the driver’s
seat in 5mountings, under
edge of panel with rubber strip
42 kg
46.5x125 x42 cm
Quick release coupling system
Art no
EAN Code
Working width
Clearing panel
Weight
Dimensions (l x w x h)
Connection
BRILL snow-clearing panel TS 125
BRILL charger for tractor battery 78989
40 09093 001907
Art no
EAN Code
78943
40 09093 894318
120 cm
Weather-resistant plastic
core, nylon brushes
30 cm diameter
pneumatic tyres, infinitely variable
Sheet steel structure
High performance worm
gear, V-belt drive
48 kg
Quick release coupling system
Art no
EAN Code
Sweeping width
Sweeping brushes
Sweeping roller
Supporting wheel
Housing
Gearing
Total weight
Connection
Including debris container. Mounting frame,
quick release coupling and driving set required as accessories.
78984
40 09093 001853
Art no
EAN Code
Accessory required for front sweeping machine and
snow-clearing panel
BRILL mounting frame
BRILL front sweeping machine TK 520
BRILL mulching wedge for 92 cm mowing deck 78992
40 09093 001921
Art no
EAN Code
BRILL mulching wedge for 102 cm mowing deck 78991
40 09093 001914
Art no
EAN Code
29
Ideas for the Garden
Not standard Standard The right to make technical amendments reserved
BRILL Crossover 92/16 H OHV
65057
40 09093 001723
Honda GCV 530
530
ccm, 2 cylinder
10.3 kW, 2,900 rpm
92 cm (2blades)
6settings,
30 –90 mm
Foot-operated Hydrostat
Electromagnetic
Front: 13 x6.5–6
Rear: 18 x8.5–8
4,500 sq. m/h
300 l
Supported by pneumatic spring
2,610 x1,040 x1,120 mm
190 cm
220 kg
BRILL Crossover 102/15
65058
40 09093 001730
Briggs & Stratton I/C OHV 14,5
500
ccm, 1 cylinder
9.64 kW, 2,900 rpm
102 cm (2blades)
6settings,
30 –90 mm
5fwd/1reverse
Electromagnetic
Front: 15 x6.0–6
Rear: 18 x8.5–8
5,500 sq. m/h
300 l
Supported by pneumatic spring
2,610 x1,090 x1,120 mm
160 cm
213 kg
BRILL Crossover 102/16 H OHV
65060
40 09093 001754
Honda GCV 530
530
ccm, 2 cylinders
10.3 kW, 2,900 rpm
102 cm (2blades)
6settings,
30 –90 mm
Foot-operated Hydrostat
Electromagnetic
Front: 15 x6.0–6
Rear: 18 x8.5–8
6,000 sq. m/h
300 l
Supported by pneumatic spring
2,610 x1,090 x1,120 mm
160 cm
223 kg
BRILL Crossover 102/20 HE
65059
40 09093 001747
Briggs & Stratton V-TWIN OHV 20
656
cm3, 2 Zylinder
12,87 kW, 2.900 rpm
102 cm (2blades)
6settings,
30 –90 mm
Foot-operated Hydrostat
Electromagnetic
Front: 15 x6.0–6
Rear: 18 x8.5–8
7,000 sq. m/h
300 l
Electric
2,610 x1,090 x1,120 mm
160 cm
233 kg
evolutionHattrick mowersBasic-MäherbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet
BRILL towed trailer
BRILL deflector/swath shield 78993
40 09093 001938
Art no
EAN Code
BRILL service and exposition rack 78988
40 09093 001891
Art no
EAN Code
Trailer coupling required as accessory
65040
40 09093 610536
293 l
Steel
Steel, removable,
reinforced guide
max. 292.5kg
108 x82 x30 cm
Art no
EAN Code
Load-holding area
Pan
Loading aperture
Load weight
Dimensions
Trailer coupling required as accessory
78709
40 09093 001174
96 cm
270 l
Diameter 10 –25 cm
Central, infinitely variable
Sweeping up leaves and
cut grass from the lawn
Art no
EAN Code
Sweeping width
Collecting capacity
Sweeping brush
Height adjustment
Area of use
BRILL trailed sweeper
BRILL lawn roller
BRILL snow chains
for 74 cm model
78726
40 09093 001846
Art no
EAN Code
for 92/102 cm model
78725
40 09093 872507
Art no
EAN Code
Trailer coupling required as accessory
78712
40 09093 871203
91 cm
Approx. 18 kg
180 kg
Non-rusting, reinforced
polyethylene
Art no
EAN Code
Working width
Weight when empty
Maximum weight filled
with water
Roller material
Trailer coupling required as accessory
78713
40 09093 871302
15 pieces
102 cm
Up to 64 mm
Plastic 7˝x 1.75˝
Approx. 27 kg
Art no
EAN Code
Aerator stars
Working width
Working depth
Wheels
Weight
BRILL lawn aerator
30
www.brill.de
Already since the establishment of the company in the year
1873 the quality and efficiency of development and produc-
tion have been the primary focus of BRILL. We started under
modest working conditions in an on-site foundry in
Wuppertal-Barmen. Today we have modern manufacturing
plants as well as a highly developed logistics center at the
company’s site in Witten-Herbede.
For years our products and services and their reliability have
been documented and confirmed with various safety test
marks and awards by independent internationally recognized
institutions.
BRILL stands for
quality and tradition
To guarantee consistent pro-
duction quality, the company
has been certified under DIN
ISO 9001 since 1997.
That means that quality can
be checked in all stages of pro-
duction. That means proven
quality for you.
31
www.brill.de
You will find the complete BRILL
product range on our website
Ideas for the Garden
evolutionHattrick mowersBasic-MäherbrillencioSteellineCylinder mowersLawn scarifiersGardenboyShreddersTractorsInternet
This catalogue was handed over to you by:
Art.-No. **-*** • Protective charge 0,50 €
BRILL GLORIA
Haus- und Gartengeräte GmbH
D-58456 Witten
Därmannsbusch 7
Phone: +49 23 02 / 7 00-0
Fax: +49 23 02 / 7 00-46
www.brill.de
Sales and Marketing headquarters:
D-89231 Neu-Ulm
Edisonallee 3
Phone: +49 731 / 1 40 60 47
Fax: +49 731 / 1 40 60 43
info@brillgloria-garten.com

Navigation menu
