SFERA
AUDIO VIDEO
PUSHBUTTON
PANELS
NEW
2 WIRE
The QR Code provides direct access to multimedia
contents. The service is very easy to use, and only
requires a smartphone with the free software
needed for reading the code.
SFERA
new
WWW.BTICINO.COM
CATALOGUE 1
SFERA
Design
Flexibility
Unlimited combinations
Technology, quality, strength
Functions
Ease of configuration and maintenance
Pushbutton panels overview
Support services
Electronic modules catalogue

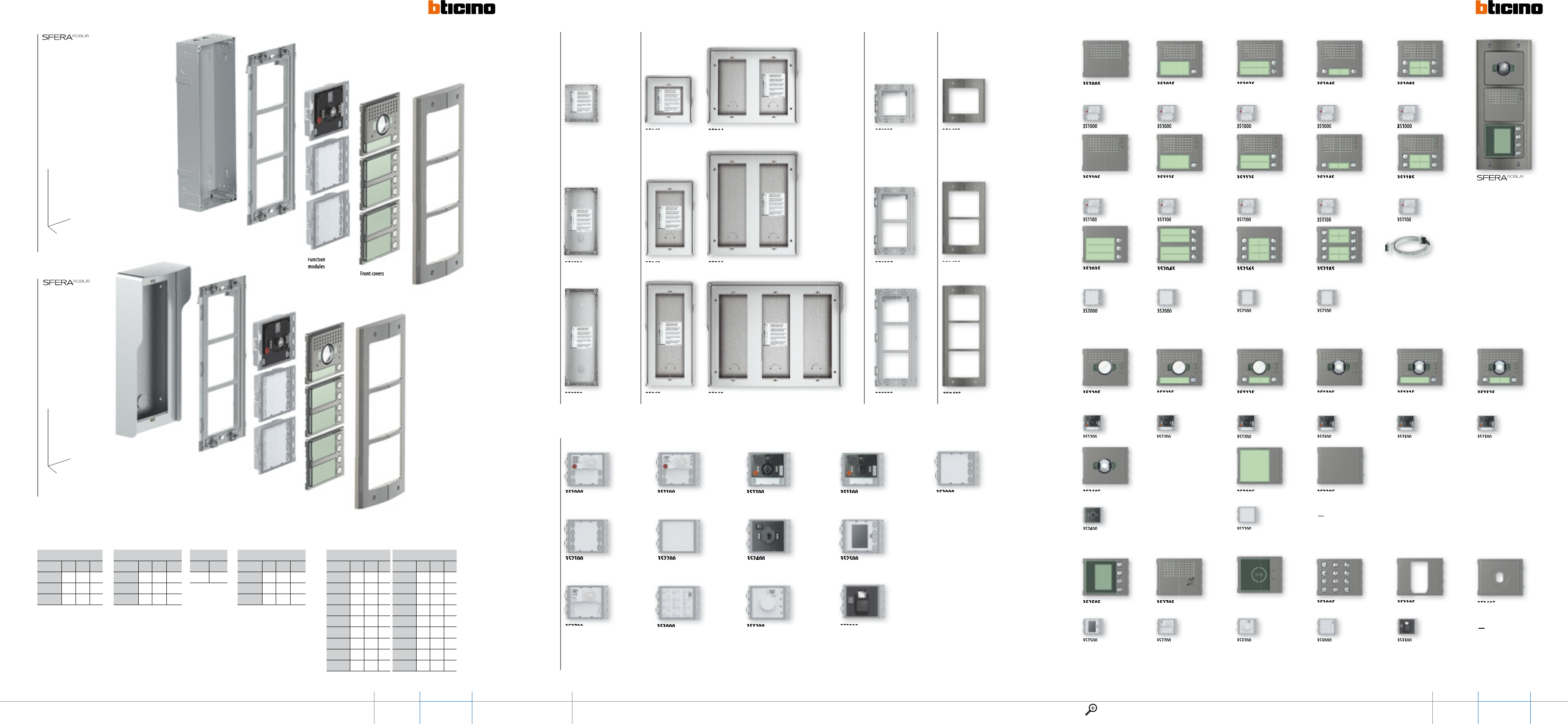

SFERA New - catalogue and dimensions
SFERA Robur - catalogue and dimensions
2
4
6
8
10
14
16
18
20
22
23

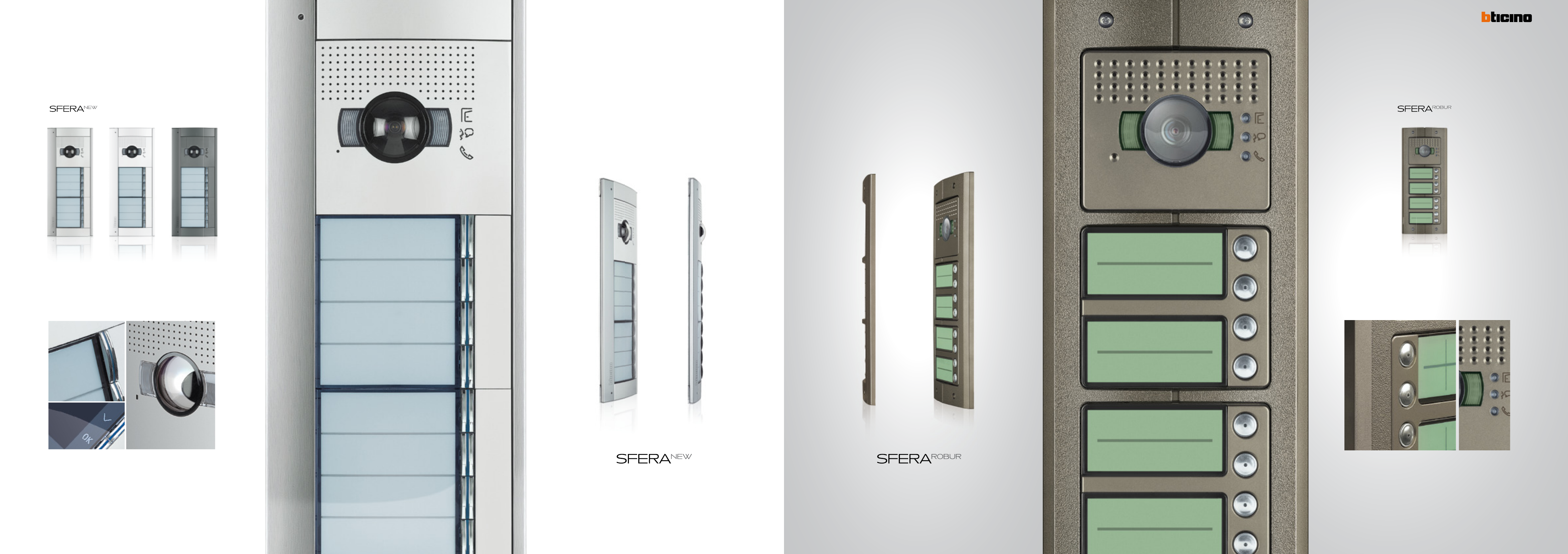

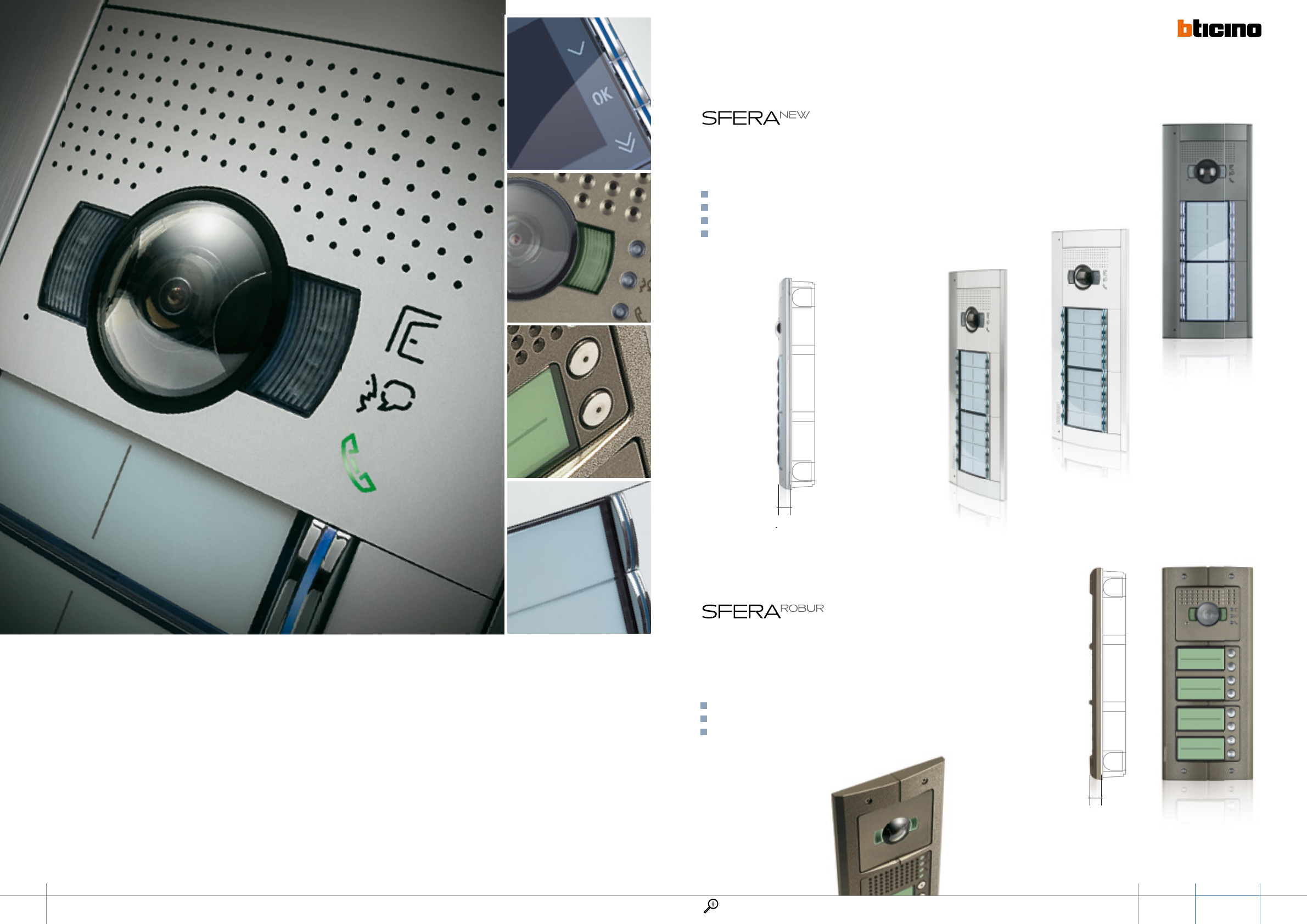

TWO PERSONALITIES
FOR ONE SINGLE
ELECTRONIC HEART
WWW.BTICINO.COM/SFERA
EXTRA
STRONG
UNMISTAKEABLE
STYLE
ALLMETAL ALLWHITE ALLSTREET
DETAILS
INNOVATIONS
IS IN THE
ONLY
NOT
Minimum protrusion from the wall
Reinforced plastic components
Compatible with SFERA New rainshields and wall mounted boxes
Modern look suitable for all types of homes.
High perception of quality and sturdiness across the whole range.
Extra strong front section and frame for
increased safety Flush mounted box (optional)
in steel, to prevent the device being pulled off.
Three different colour variations, better look impact
Perfect alignment of the modules
Same colour variations also for the rainshields
Lowered wall mounted boxes available in the same colour variations
Protrusion from the
wall 15 mm only
ALLMETAL
ALLWHITE
ALLSTREET
Protrusion from the
Protrusion from the
wall 20.5 mm only
WWW.BTICINO.COM
SFERA 32 CATALOGUE

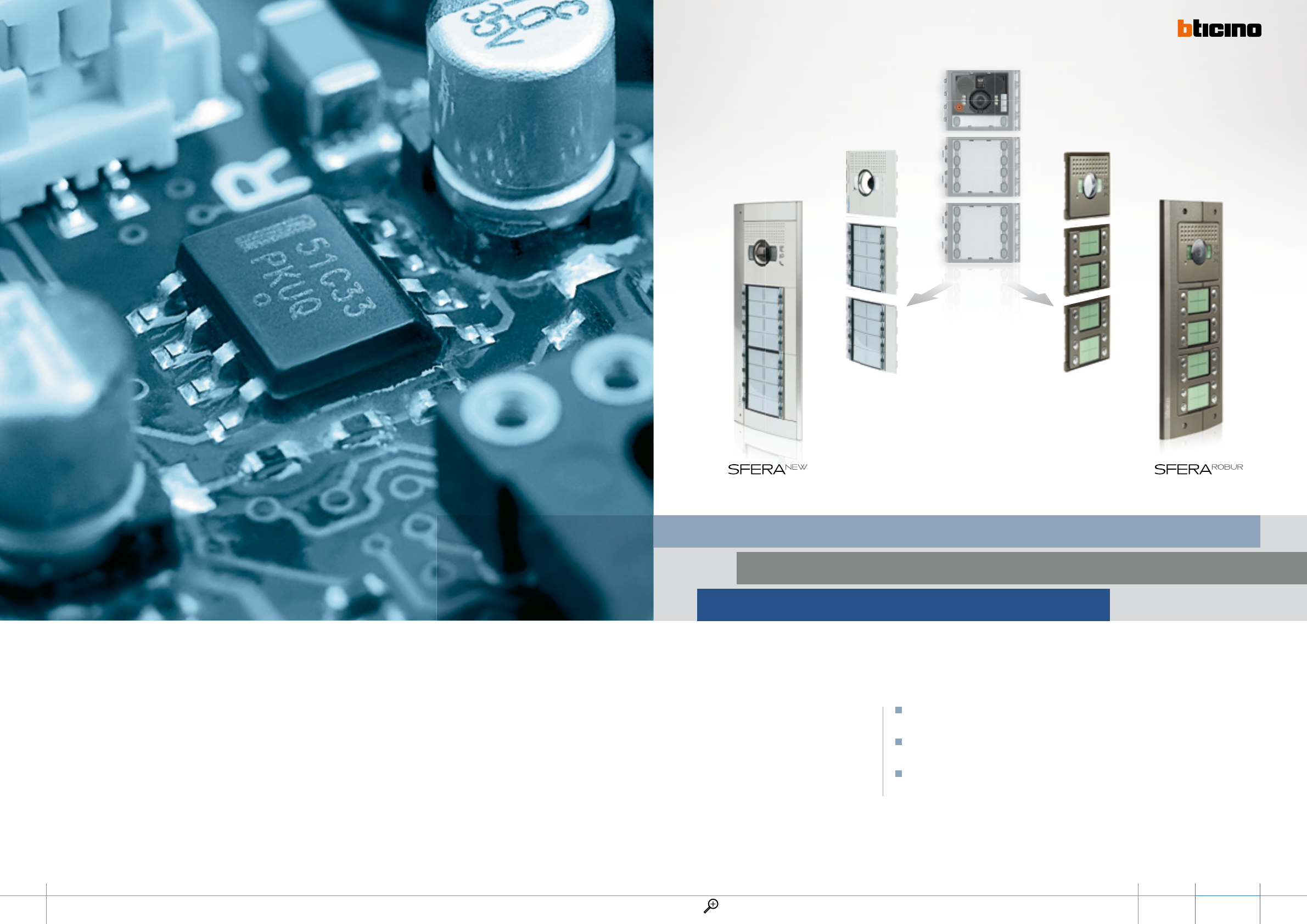

MODULAR COMPOSITION OF THE FUNCTIONS
SEPARATE COMPOSITION OF THE FINISHES
AN ADVANTAGE FOR EVERYONE
SINGLEELECTRONIC
TWO SOLUTIONS
ONE
The same electronic module may be used for
both the “New” version and the “Robur” version
Just a few codes to make warehouse storage
and the job of the installer simpler.
A wide range of audio and video functions with
only 13 electronic modules.
A fl exible
system
HEART
Front covers for
NEW version
Front covers for
ROBUR version
WWW.BTICINO.COM
SFERA 54 CATALOGUE
FUNCTIONS:
TRADITIONAL
FUNCTIONS:
DOOR LOCK
RELEASE
FUNCTIONS:
SPECIALIST
COMBINATIONS
UNLIMITED
FOR EACH INSTALLATION
REQUIREMENT

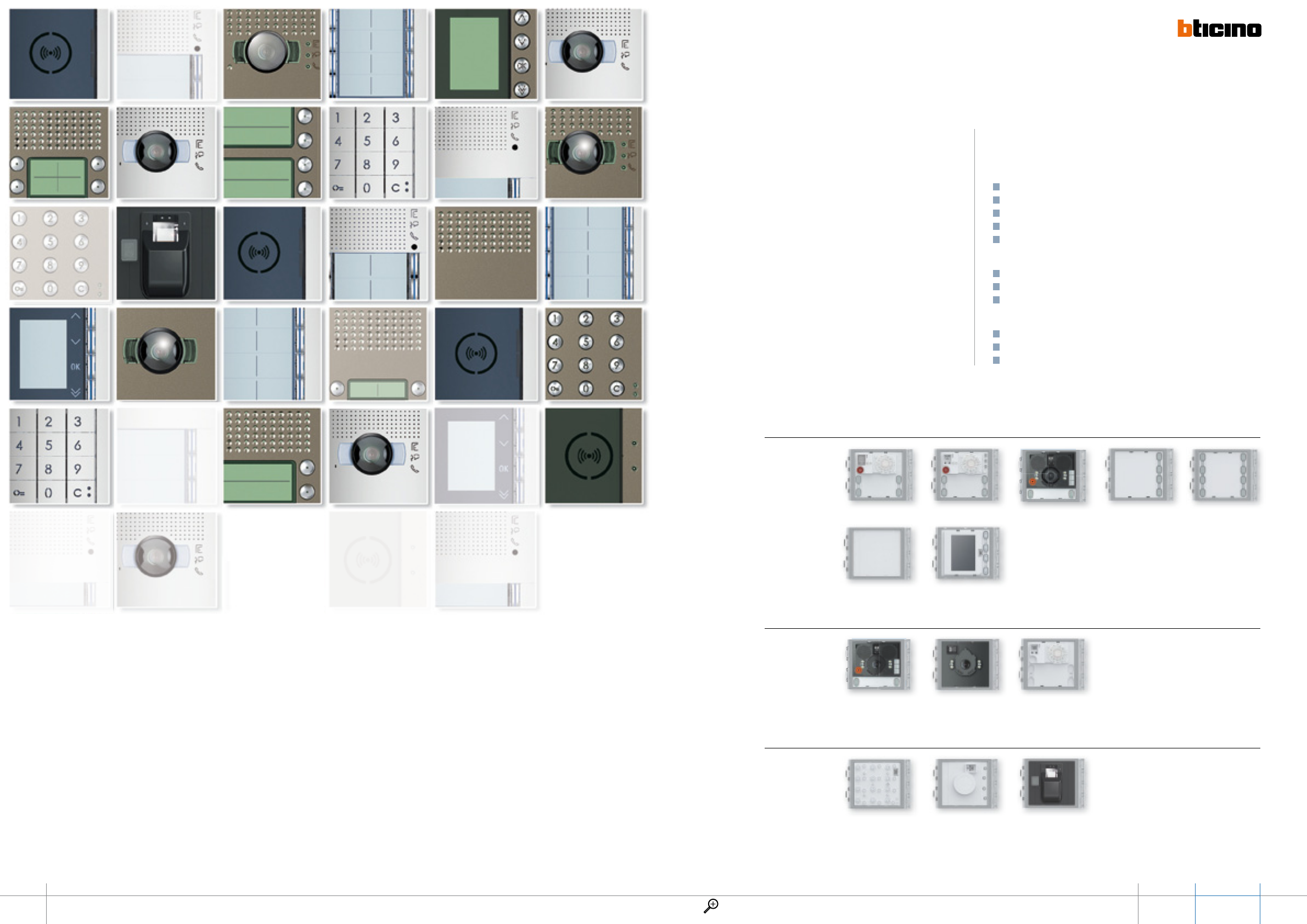

13 function modules
unlimited combinations
A COMPACT AND COMPLETE RANGE
OF ELECTRONIC MODULES
TRADITIONAL FUNCTIONS
Basic audio
Audio
Audio video
Pushbuttons
Display
SPECIALIST FUNCTIONS
Wide angle Audio video
Night & Day camera and wide angle
Inductive loop and control speech synthesis
DOOR LOCK RELEASE FUNCTIONS
Keypad
Badge reader
Fingerprint reader
8-pushbutton
module
4-pushbutton
module
Speaker module
Display moduleNameplate module
Audio video moduleBasic speaker module
A/V module with
wide angle camera
Inductive loop and
control speech synthesis module
Night & Day and wide angle
camera module
Keypad module Badge reader module Fingerprint module
WWW.BTICINO.COM
SFERA 76 CATALOGUE

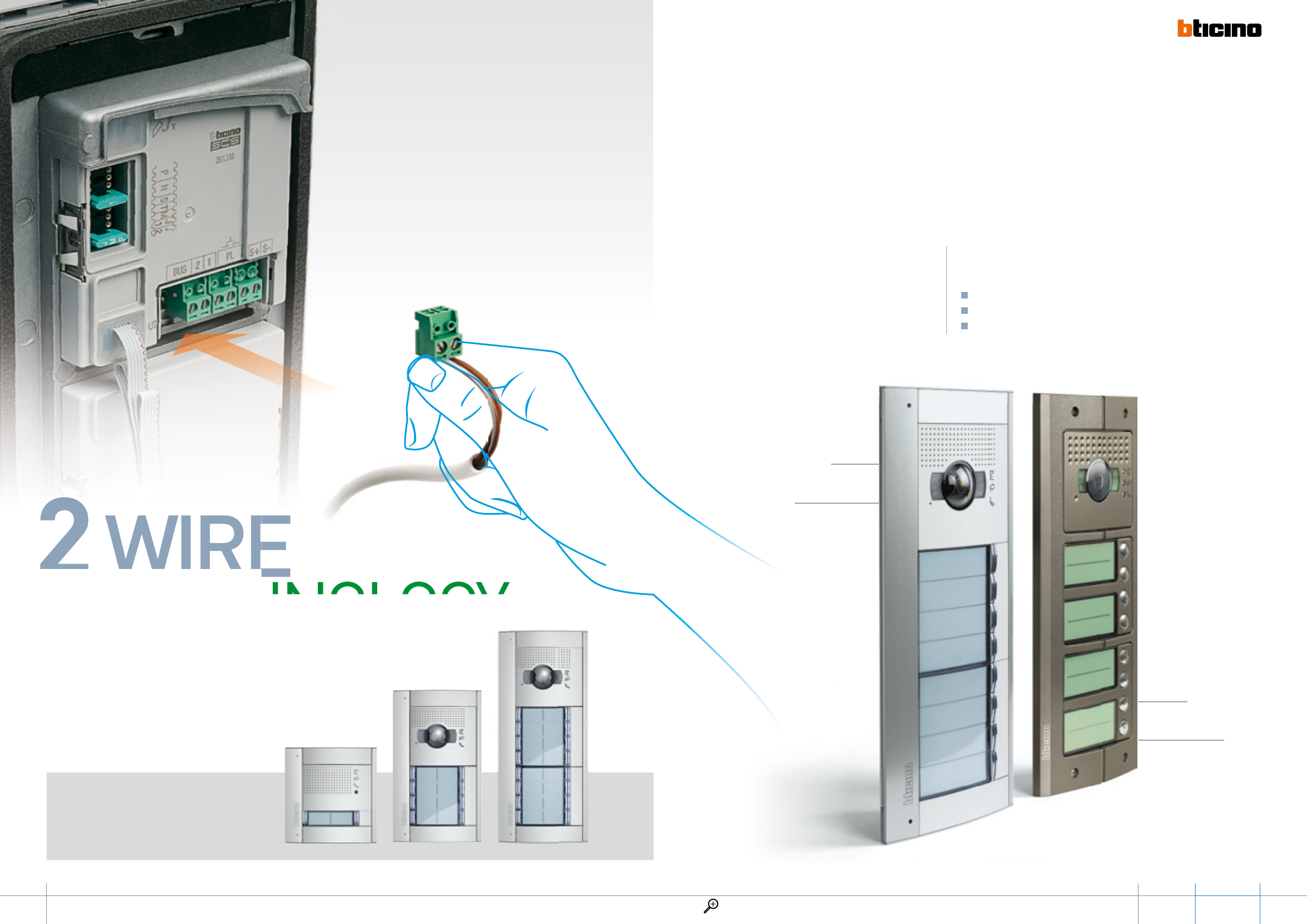

To guarantee maximum audio and
video performance, and minimize
installation and connection times,
SFERA uses the 2 WIRE technology.
The 2 wire technology gives the possibility of
turning an audio system into a colour video
system without need for modifi cations on the
system structure
2 WIRE
MAXIMUM
PERFORMANCE
TECHNOLOGY
FOR
The innovative design is the guarantee of a
product CAPABLE OF DOING EVERYTHING.
Protection index against dust and water sprays IP54
Protection index against mechanical impact up to IK10
High protection from UV rays and saline mists
STURDINESS
QUALITY
AND
WIRE
TECHNOLOGY
2
2
WIRE
IP54
IP54
up to IK08
up to IK10
WWW.BTICINO.COM
SFERA 98 CATALOGUE
CALL FORWARDED SYSTEM BUSY
Call
forwarded
Communication
active
Door lock
open

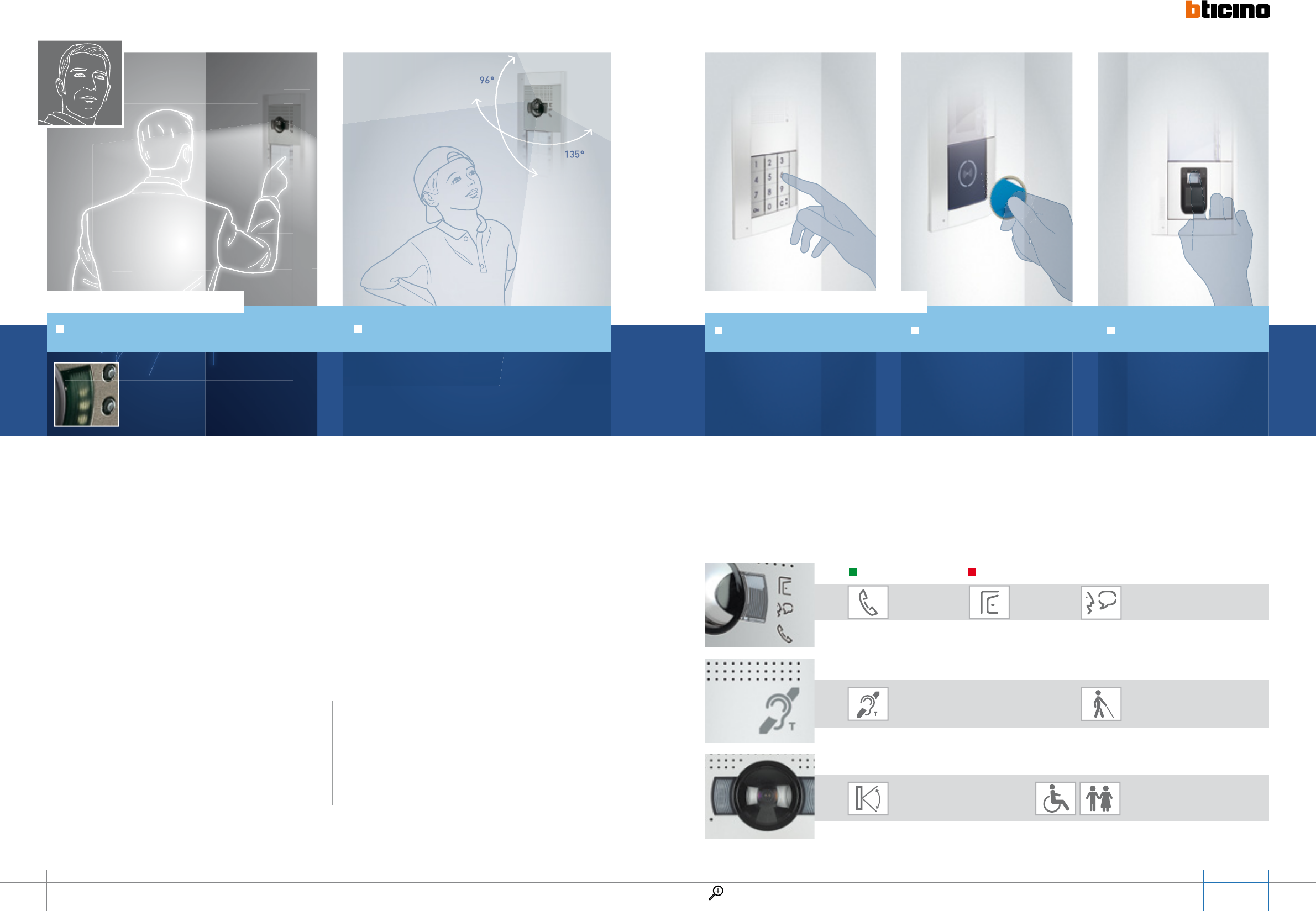

Use by blind people
thanks to the control
speech synthesis module
INDUCTIVE LOOP AND CONTROL SPEECH SYNTHESIS
Use by people wearing hearing aids,
with the selector in the T position
SFERA offers specifi c specialist
solutions that enrich the wide
offer of functions available to the
professional, and are easy to use
by the end user.
SIMPLICITY
SAFETY
AT THE SERVICE
OF THE RESIDENT
AND
ADVANCED VIDEO FUNCTIONS
Advanced devices, perfectly integrated in terms of look with the SFERA pushbutton
panels, but which can also be used in stand alone systems.
Simplifi ed management of activations, programming of residents directly on the device,
without need for removal, or to use accessory programming aids.
Wide horizontal and vertical shooting range.
Better protection against vandals and possibility of
use by children and disabled people.
Perfect and clear images also in
low light conditions thanks to the
IR LEDs and the automatically
removable IR fi lter.
NIGHT & DAY WIDE ANGLE CAMERA
96°
DOOR LOCK RELEASE FUNCTIONS
KEYPAD BADGE READER FINGERPRINT READER
WIDE ANGLE CAMERA
Wide field of view
Horizontal: 135°
Vertical: 96°
Use by children
and disabled people
MAXIMUM
ERGONOMICS
135°
135°
WWW.BTICINO.COM
SFERA 1110 CATALOGUE

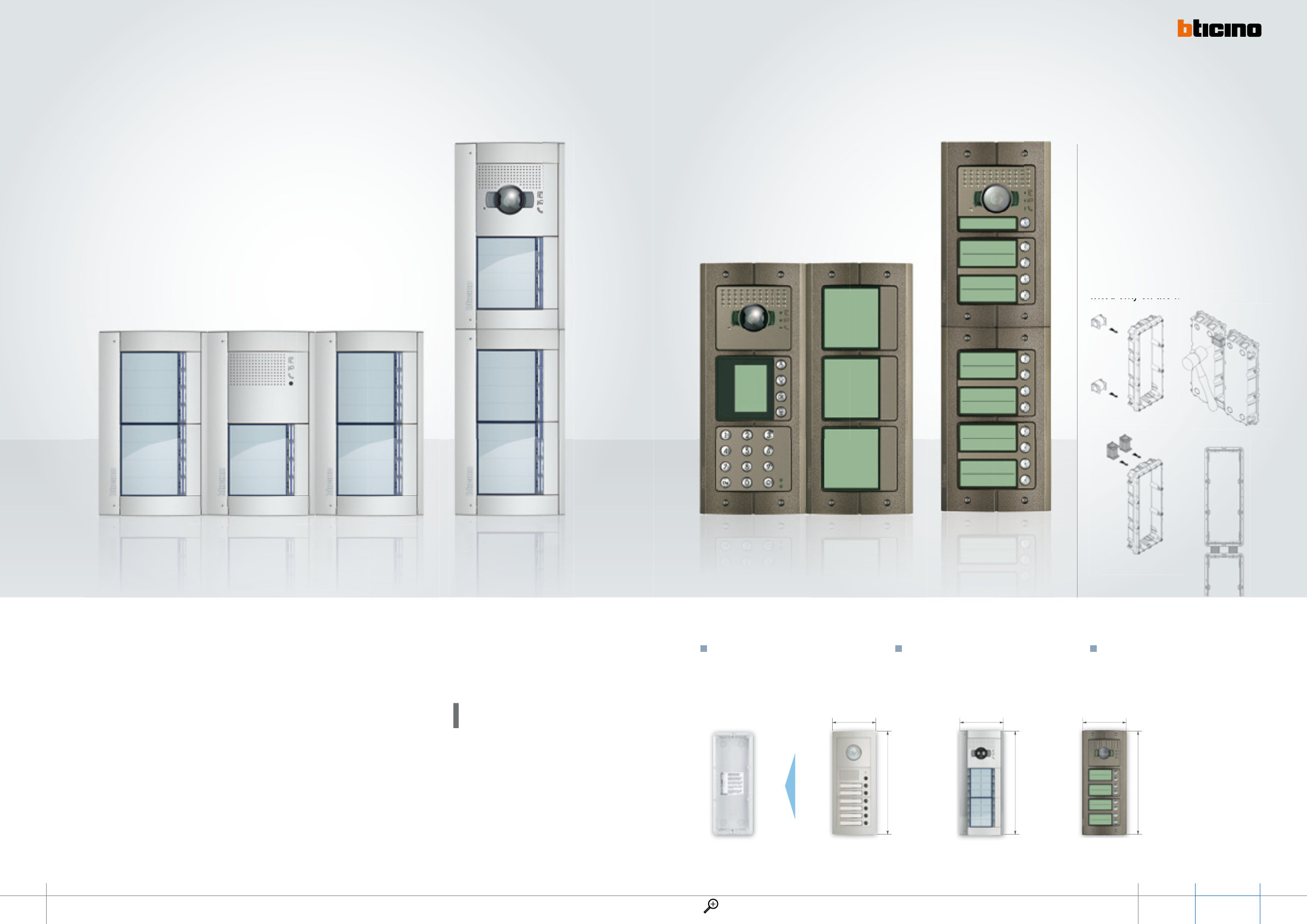

PERFECT
COMPOSITION
The modules may
be installed side by
side horizontally or
vertically.
The attention to detail during the
design ensures perfect alignment
of the modules thanks to the flush
mounted boxes spacers (supplied
with the boxes), and the screws
fitted only on the front sections.
Meeting all needs
SFERA is well suited to all
installation solutions
MAXIMUM AND
FLEXIBILITY
Horizontal confi guration
SFERA NEW
COMPOSITION
Vertical confi guration
SFERA NEW
fitted only on the front sections.
Horizontal confi guration
SFERA ROBUR
Vertical confi guration
SFERA ROBUR
WALL MOUNTED INSTALLATION
with specific lowered surface mounted
box, with minimum protrusion and in-built
rainshield.
TOTAL INSTALLATION COMPATIBILITY
WITH THE SFERA CLASSIC RANGE.
Same box, same sizes, ideal in case of
refurbishments.
FLUSH MOUNTED INSTALLATION
with standard boxes, or with specific steel
boxes with tearing protection (Robur only).
= =
FLUSH MOUNTED BOX SFERA ROBURSFERA CLASSIC
139 mm
327 mm
SFERA NEW
139 mm
327 mm
139 mm
327 mm
WWW.BTICINO.COM
SFERA 1312 CATALOGUE
MAINTENANCE
EASE
CONFIGURATION
AND
OF
SFERA New and SFERA Robur can
be confi gured traditionally, using
physical confi gurators, as far as
the basic functions are concerned.
Or the specific TISFERADESIGN
configurator may also be used
(this can be downloaded from
the following website:
www.bticino.com) which offers
extreme flexibility in:
Guiding the installer in the
selection and combination of the
modules
Configuring and customising
advanced functions
Producing and printing the
nameplates

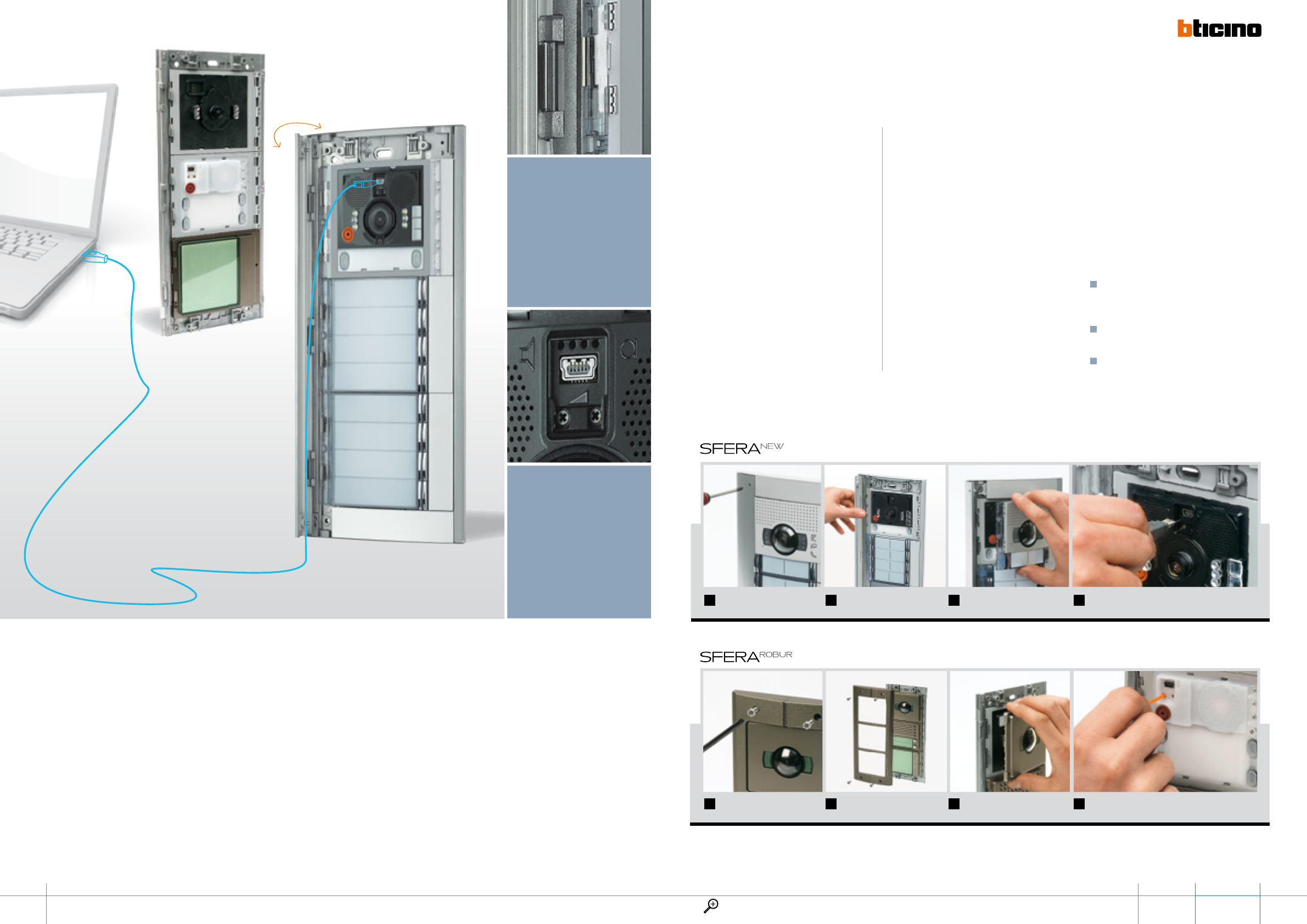

Without removing the
pushbutton panel from
the wall it is possible to:
adjust the microphone
volume, replace or
update the nameplate,
confi gure the device
using the software, and
update the device.
All the operations, with the
exception of the confi guration
performed using physical
confi gurators, are possible without
disassembling the module.
SFERA
is innovative
also in terms of
confi guration and
maintenance
operations.
WWW.BTICINO.COM
SFERA 1514 CATALOGUE
Remove the 4 screws
using the appropriate tool
Remove the surround
plate
Loosen the clips and
slip off the front plate
Access PC confi guration and
adjustment
1 2 3 4
Remove the two socket
screws
Open the door Loosen the clips and
slip off the front plate
Access PC confi guration and
adjustment
1 2 3 4
Clips for
securing the
front cover to
the electronic
module
Mini-USB
connection and
loudspeaker/
microphone
volume
adjustment

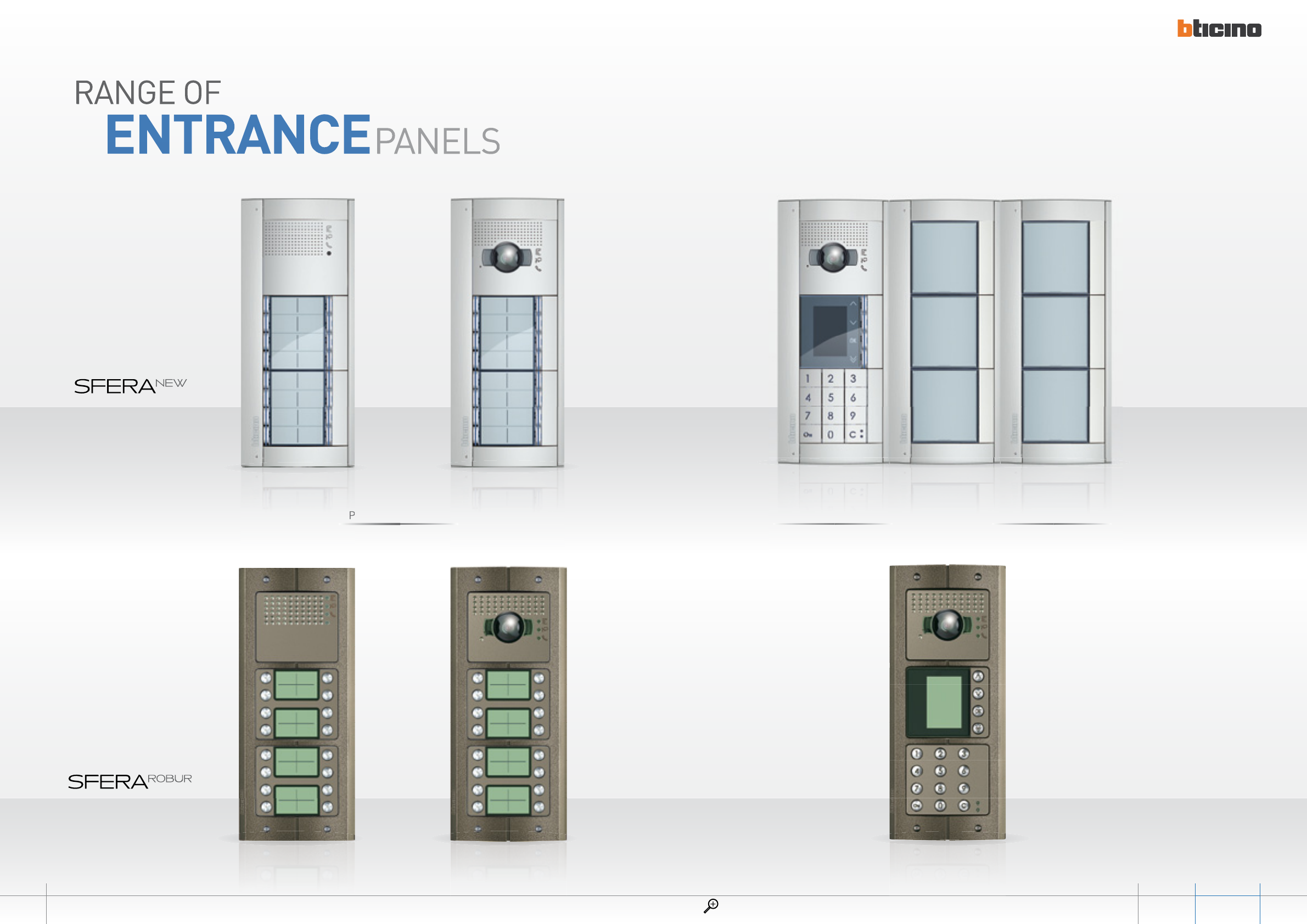

RANGE OF
PANELS
ENTRANCE
RANGE OF
PANELS
ENTRANCE
ENTRANCE
PUSHBUTTON CALL
WWW.BTICINO.COM
SFERA 1716
PUSHBUTTON CALL
CALL FROM ADDRESS BOOK DIGITAL CALL
CATALOGUE
FREE ESTIMATE SERVICE
Detailed list of items required
System block diagram and multi-wire connection
diagram for the individual devices
Confi guration of all the system devices
Current absorption checks
For the preparation of estimates of 2 WIRE audio and video door entry systems,
BTicino supports the professionals of the sector
with dedicated estimate and design tools:
Toll free number active 8.30-18.30 Monday to Friday,
and 8.30-12.30 Saturday
For detailed technical information
the user can view the available
documentation by visiting the
www.bticino.com website
You Diagram is the
BTicino software for designing
2-wire one-family and multi-family
video door entry systems.
It can be used for producing
the system diagram, selecting
/ dressing entrance panels and
cameras, for the confi guration of
the devices, and to check the
absorption levels on the system BUS.
It just a few seconds it is possible
to design audio and video door
entry systems with optional
services, using the product
solutions most suited to the
requirements.
The software may be downloaded
free of charge from the website
www.bticino.com
> technical support
> software and diagram
Utility for the
design and
confi guration of
2 WIRE audio and
video door entry
systems.
YOUDIAGRAM
SOFTWARE
BEFORE SALE
SUPPORT
SERVICE
WWW.BTICINO.COM
SFERA 1918 CATALOGUE

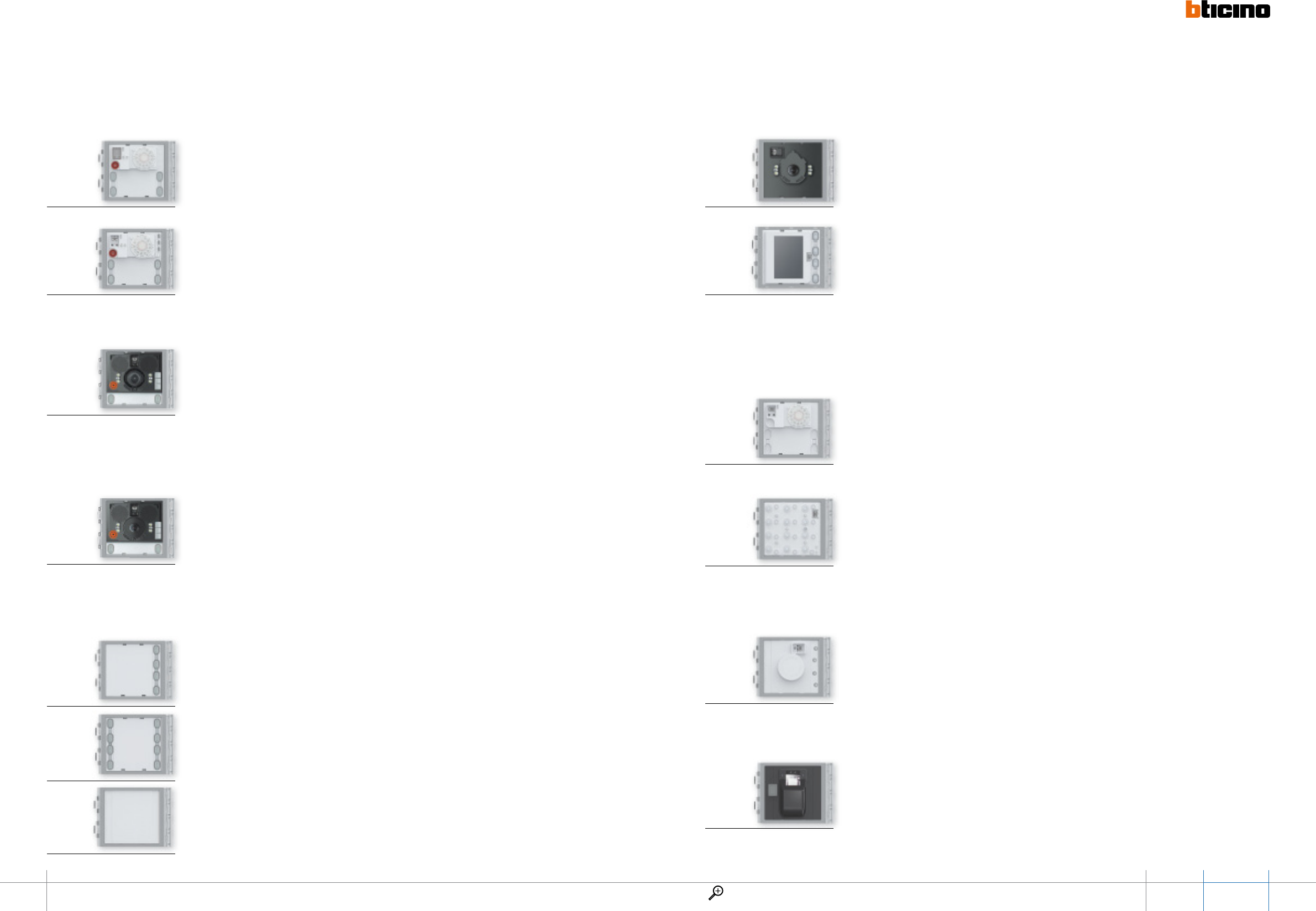

BASIC speaker module for the creation of 2 WIRE audio systems.
Fitted with loudspeaker and microphone volume adjustment. It manages up to 100 pushbutton
calls using additional double row pushbuttons. It can be used for opening an eleactrical door
lock directly connected to the S+ and S- clamps (18 V 4 A impulsive - 250 mA holding current
30 Ohm max) and the connection to a local door lock release pushbutton on the PL clamps.
To be completed with surround plate. The device must be physically confi gured.
Additional 8-pushbutton modules arranged on double column.
To be used with speaker modules 351000 – 351100 and audio/video modules 351200 - 351300.
Connection using the appropriate multicable supplied. Backlighting of nameplates controlled
by the speaker module or the audio/video module connected. To be completed with surround
plate.
Speaker module for the creation of 2 WIRE audio & video systems.
Fitted with loudspeaker and microphone volume adjustment. It can manage up to 100 pushbutton
calls when using additional double row pushbutton modules. It can be used for opening an
electrical door lock directly connected to the S+ and S- clamps (18 V 4 A impulsive - 250 mA holding
current 30 Ohm max) and the connection to a local door lock release pushbutton on the PL clamps.
Preset for additional power supply. Fitted with front LEDs for the notifi cation of the operating
status: door lock release, communication active, call put through, and system busy. Integrated
optic sensor for the switching on of the night backlighting. To be completed with surround plate.
The device can be confi gured either physically or using the PC and the TiSferaDesign software.
Nameplate module normally used for displaying the house number or other notifi cations
(e.g. Legend for calls using digital pushbutton panels, opening/closing times, etc.).
Connection using the appropriate multicable supplied. Night backlighting controlled by the
speaker module or the audio/video module connected. To be completed with surround plate.
Audio video module for the installation of 2 WIRE colour video systems.
With Colour camera with 1/3” sensor and white LEDs for the lighting of the shooting fi eld. Mist
prevention heating resistance. Loudspeaker and Microphone volume adjustments. It can manage
up to 98 pushbutton calls using the additional double row pushbutton modules. Horizontal
and vertical camera position adjustment, +/- 10° in both directions. It offers the possibility of
opening an electrical door lock directly connected to clamps S+ and S- (18 V 4 A impulsive - 250
mA holding current 30 Ohm max) and of connecting a local door lock release pushbutton on
clamps PL. Preset for additional power supply. Fitted with front LEDs for the notifi cation of the
operating status: door lock release, communication active, call put through, and system busy.
Integrated optic sensor for the switching on of the night backlighting. To be completed with
surround plate. The device must be confi gured physically or using a PC and the TiSferaDesign
software.
Night & Day and wide angle camera module for the installation of colour video
systems. Fitted with 1/3” sensor with N&D function and automatic removal of the IR fi lter.
IR LED for the lighting of the fi eld of view. Mist prevention heating resistance. Automatic
brightness adjustment. Connection to the speaker module (351100) using the multicable supplied.
To be completed with surround plate.
Wide angle audio/video module for the installation of 2 WIRE colour video systems.
With Colour camera with 1/3” sensor and white LEDs for the lighting of the shooting fi eld.
Mist prevention heating resistance. Loudspeaker and Microphone volume adjustments.
It can manage up to 98 pushbutton calls using the additional double row pushbutton modules.
It offers the possibility of opening an electrical door lock directly connected to clamps
S+ and S- (18 V 4 A impulsive - 250 mA holding current 30 Ohm max) and of connecting a local
door lock release pushbutton on clamps PL. Preset for additional power supply. Fitted with front
LEDs for the notifi cation of the operating status: door lock release, communication active, call put
through, and system busy. Integrated optic sensor for the switching on of the night backlighting.
To be completed with surround plate. The device must be confi gured physically or using a PC and
the TiSferaDesign software.
Graphic display module
to be used with speaker module 351100 or with audio/video
modules 351200 – 351300 (connection using the multicable supplied).
It can operate in
two modes: call from address book, or digital call. The call from the address book gives the
possibility of sending the call by scrolling on the display the names associated to the residents.
It is possible to store up to 4000 residents names.
Using the keypad module item 353000 it
is also possible to directly call the apartment by entering the number corresponding to the
resident. The digital call is also performed using the keypad module item 353000 by entering
the numerical code. It is recommended that one or more nameplate modules, item 352200,
are installed at the side of the pushbutton panel to display the correspondence between the
numerical codes and the names of the users.
It is possible to program the names in the
address book in two different ways:
manual inclusion using the pushbuttons of the display
module
or
inclusion using a PC with the TiSferaDesign software installed, by downloading
the file to the display module
(RECOMMENDED). System power supply cuts do NOT cause the
loss of memory data. To be completed with surround plate.
Additional 4-pushbutton modules arranged on single column.
To be used with speaker modules 351000 – 351100 and audio/video modules 351200 - 351300.
Connection using the appropriate multicable supplied. Backlighting of nameplates controlled by
the speaker module or the audio/video module connected. To be completed with surround plate.
SFERA NEW - SFERA ROBUR
ELECTRONIC MODULES CATALOGUE
351000
351100
351200
351300
352000
352100
352200
352400
352500
Keypad module for door lock release, or for the digital call of the apartment (to be used
with the display module).
It is fitted with relay with contacts (C – NC – NO) and clamps
(CP- P1 – P2) for the connection of a local door lock release pushbutton.
The numerical
code for the opening of the door lock can be programmed using the keypad itself, or using
a PC after downloading the module programming file.
It also has a programming reset
pushbutton and LEDS for the visual notification of the access status.
Night backlighting
with LEDs.
To be completed with surround plate.
It is connected to the other modules
using the appropriate multicable supplied.
The device may also be used as a stand
alone unit with independent power supply and operation
per la sola apertura serratura.
Configuration performed using physical configurators, or a PC with the TiSferaDesign
software installed.
RFID badge reader module for the release of the door lock by swiping the badge.
It manages up to 20000 badges. It’s fi tted with relay contacts (C – NO - NC) and clamps
(CP - P1 - P2) for the connection of a local door release pushbutton. The badge for the release
of the door lock can be programmed from the module itself, or using a PC after downloading
the module programming fi le. It also has a programming reset pushbutton and LEDS for
the visual notifi cation of the access status. Night backlighting a LEDs. To be completed with
surround plate. It is connected to the other modules using the appropriate multicable supplied.
The device may also be used as a stand alone unit with independent power supply and operation.
Confi guration performed using physical confi gurators, or a PC with the TiSferaDesign software
installed.
Fingerprint reader module for the release of the door lock.
It’s fi tted with relay contacts (C – NO - NC) and clamps (CP - P1 - P2) for the connection of a local
door release pushbutton. It also has a programming reset pushbutton and LEDS for the
visual notifi cation of the access status. To be completed with surround plate. It is connected
to the other modules using the appropriate multicable supplied. The device may also be used
as a stand alone unit with independent power supply and operation. Configuration performed
using physical configurators, or a PC with the TiSferaDesign software installed.
Inductive loop and control speech synthesis module to be used with the 351100
speaker module or with audio/video modules 351200 - 351300. Enable use by people wearing
hearing aids (fitted with T selector) or blind people thanks to the connection status voice
message synthesis (call active, call ended, no answer, busy, door open). It is connected to
the speaker module using the appropriate multicable supplied. To be completed with
surround plate. The device can be configured either physically or using the PC and the
TiSferaDesign software.
352700
353000
353200
353300
WWW.BTICINO.COM
SFERA 2120 CATALOGUE
DIMENSIONS
Item A B C
350641 290 255 81
350642 290 255 81
350643 290 255 81
350661 290 360 81
350662 290 360 81
350663 290 360 81
350691 430 360 81
350692 430 360 81
350693 430 360 81

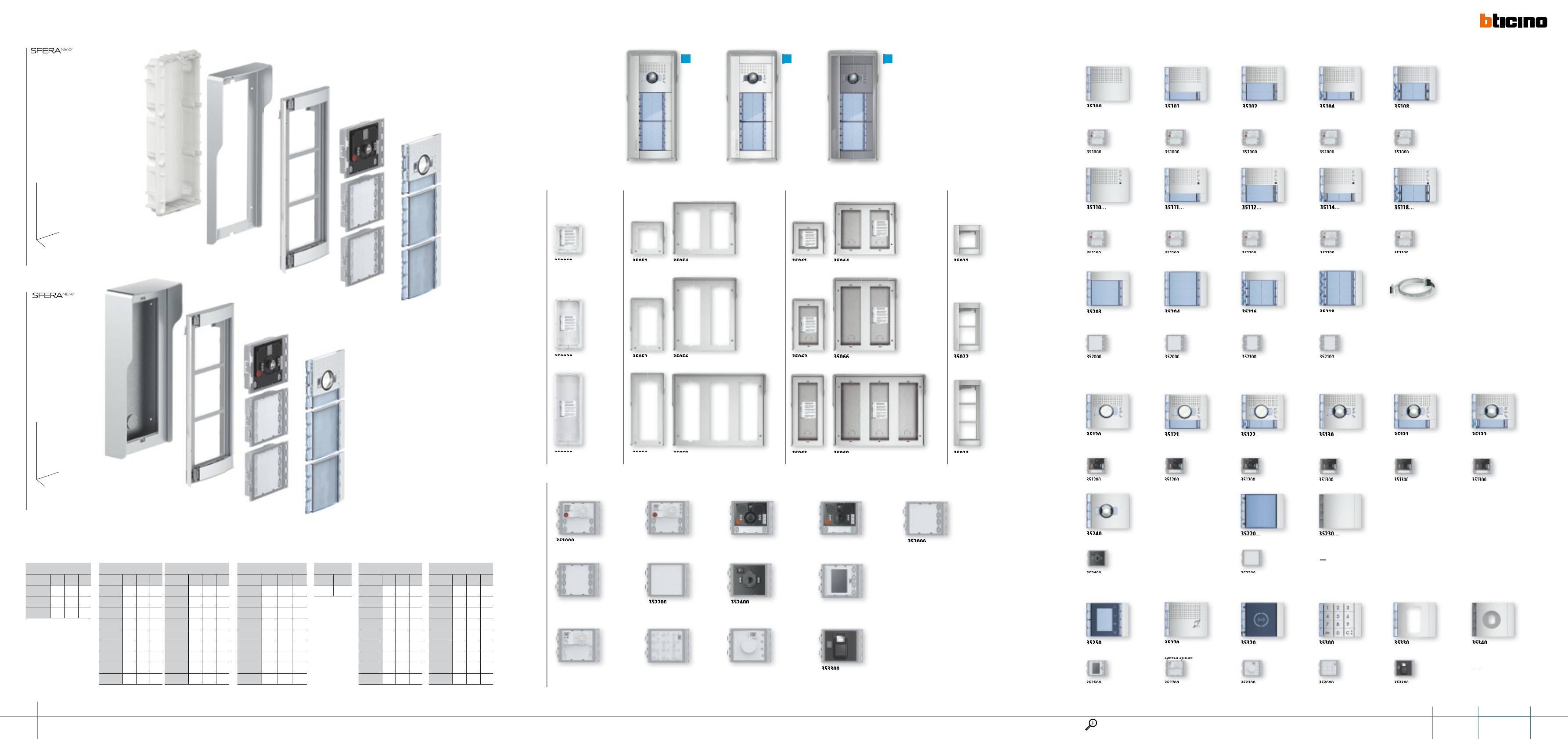

Front covers
SFERA NEW - front coversSFERA NEW - mechanics and function modules
FINISHING ELEMENTS
FLUSH MOUNTED
BOX
RAINSHIELD (optional) WALL MOUNTED BOX (optional) FRAME +
SUPPORT SURROUND PLATE
350010
1 module
35051..
1 module
35054..
4 modules
35061..
1 module
35064..
4 modules
35021..
1 module
350020
2 modules
35052..
2 modules
35056..
6 modules
35062..
2 modules
35066..
6 modules
35022..
2 modules
350030
3 modules
35053..
3 modules
35059..
9 modules
35063..
3 modules
35069..
9 modules
35023..
3 modules
Replace the dots in the
item code with the  nish
number corresponding to
the desired  nish
350030
350010
350020
35051..
35052..
35053..
35054..
35056..
35059..
35061..
35062..
35063..
35064..
35066..
35069..
35021..
35022..
35023..
Allmetal Allwhite Allstreet
1 2 3
1
ELECTRONIC MODULES
351100
speaker module
353000
keypad
352200
nameplate
352200
351200
audio video
353200
Badge reader
352400
N/D camera and
wide angle
352400
352100
8 pushbuttons on
double row
352700
Inductive loop and
control speech synthesis
351000
basic speaker module
352000
4 pushbuttons on
single row
352000
351300
audio video with
wide angle camera
352500
display
353300
Fingerprint
353300
351000
AUDIO FRONT COVERS - PUSHBUTTON CALL
35100...
basic speaker module
351000 351000 351000 351000 351000
35101...
basic speaker module
1 pushbutton
35102...
basic speaker module
2 pushbuttons
35104...
basic speaker module
2 pushbuttons on double row
35108...
basic speaker module
4 pushbuttons on double row
351000
351000
351000
351000
351000
35100...
35101...
35102...
35104...
35108...
35110...
speaker module
351100 351100 351100 351100 351100
35111...
speaker module
1 pushbutton
35112...
speaker module
2 pushbuttons
35114...
speaker module
2 pushbuttons on double row
35118...
speaker module
4 pushbuttons on double row
351100
351100
351100
351100
351100
35110...
35110...
35111...
35111...
35112...
35112...
35114...
35118...
35118...
35203...
3 pushbuttons
352000 352000 352100 352100
35204...
4 pushbuttons
35216...
6 pushbuttons
on double row
35218...
8 pushbuttons
on double row
354000
cable for the connection
of several pushbutton
modules
L=620 mm
352000
352000
352100
352100
35216...
35218...
35203...
35204...
VIDEO FRONT COVERS - NAMEPLATE - BLANKING MODULE
35120...
A/V
351200 351200 351200 351300 351300 351300
35121...
A/V
1 pushbutton
35122...
A/V
2 pushbuttons on double row
35130...
A/V wide angle
35131...
A/V grandangolare
1 pushbutton
35132...
A/V wide angle
2 pushbuttons on double row
351200
351200
351200
351300
351300
351300
35120...
35121...
35122...
35130...
35131...
35132...
35240...
N/D wide angle camera
352400 352200
35230...
blanking module
35220...
nameplate
352200
352400
35220...
35240...
35230...
DISPLAY FRONT COVERS - INDUCTIVE LOOP ANDDOOR LOCK RELEASE
35250...
display
352500 352700 353200 353000 353300
35270...
Inductive loop -
speech synthesis
35320...
Badge reader
35300...
keypad
35330...
Fingerprint
35340...
T25 VIGIK
352500
352700
speech synthesis
speech synthesis
353000
353200
353300
35250...
35270...
35300...
35300...
35320...
35330...
35340...
35340...
SFERA NEW - installation and dimensional data
FLUSH MOUNTED
INSTALLATION
Note: Compatibility with SFERA
CLASSIC  ush mounted boxes
Note: dimensions in mm
DIMENSIONS
Item A B C
350511 151 151 50
350512 151 151 50
350513 151 151 50
350521 151 242 50
350522 151 242 50
350523 151 242 50
350531 151 334 50
350532 151 334 50
350533 151 334 50
DIMENSIONS
Item A B C
350541 290 242 50
350442 290 242 50
350543 290 242 50
350661 290 334 50
350562 290 334 50
350563 290 334 50
350691 430 334 50
350592 430 334 50
350593 430 334 50
DIMENSIONS
Item A B C
350010 117 123 45
350020 117 214 45
350030 117 306 45
DIMENSIONS
Item A B C
350611 155 160 81
350612 155 160 81
350613 155 160 81
350621 155 255 81
350622 155 255 81
350623 155 255 81
350631 155 360 81
350632 155 360 81
350633 155 360 81
WALL MOUNTED
INSTALLATION
DIMENSIONS
Item A B C
350211 138 144 15
350212 138 144 15
350213 138 144 15
350221 138 235 15
350222 138 235 15
350223 138 235 15
350231 138 327 15
350232 138 327 15
350233 138 327 15
DIMENSIONS
A B
115 91
A
B
C
A
B
C
Flush mounted box
Rainshield
Frame + support
Function modules
Frame + support
Function modules
Front covers
FLUSH MOUNTED BOXES RAINSHIELD
(OPTIONAL)
FUNCTION
MODULES
FRAME + SUPPORT WALL MOUNTED BOXES WITH RAINSHIELD
Wall mounted box with
in-built rainshield
22
WWW.BTICINO.COM
CATALOGUE
SFERA
DIMENSIONS
Item A B C
350641 290 255 81
350642 290 255 81
350643 290 255 81
350661 290 360 81
350662 290 360 81
350663 290 360 81
350691 430 360 81
350692 430 360 81
350693 430 360 81
CATALOGUE
SFERA 23 24
SFERA ROBUR - installation and dimensional data SFERA ROBUR - mechanics and function modules
FLUSH MOUNTED
INSTALLATION
Note: Compatibility with SFERA
CLASSIC  ush mounted boxes
Note: Dimensions in mm
DIMENSIONS
Item A B C
350110 102 114 51
350120 102 206 51
350130 102 297 51
DIMENSIONS
Item A B C
350315 134 132 34,5
350325 134 223 34,5
350335 134 315 34,5
DIMENSIONS
Item A B C
350415 139 144 21
350425 139 235 21
350435 139 327 21
STEEL FLUSH MOUNTED BOX
WITH TEARING PROTECTION
FRAME + SUPPORT SURROUND PLATES
DIMENSIONS
Item A B C
350611 155 160 81
350612 155 160 81
350613 155 160 81
350621 155 255 81
350622 155 255 81
350623 155 255 81
350631 155 360 81
350632 155 360 81
350633 155 360 81
DIMENSIONS
Item A B C
350641 290 255 81
350642 290 255 81
350643 290 255 81
350661 290 360 81
350662 290 360 81
350663 290 360 81
350691 430 360 81
350692 430 360 81
350693 430 360 81
FUNCTION
MODULES
WALL MOUNTED BOXES WITH RAINSHIELD
DIMENSIONS
A B
115 91
A
B
C
A
B
C
WALL MOUNTED
INSTALLATION
Flush mounted box
with tearing protection
Frame + support
Function
modules
Front covers
Surround plate
Function
modules
Front covers
Surround plate
Wall mounted box with
built-in rainshield
Frame + support
Function
modules
Front covers
FLUSH MOUNTED BOX
350110
1 module
350120
2 modules
350130
3 modules
350130
350120
SUPPORT FRAME
350315
1 module
350325
2 modules
350335
3 modules
350315
350325
350335
SURROUND PLATE
FINISH
350415
1 module
350425
2 modules
350435
3 modules
350415
350425
350435
WALL MOUNTED BOX (optional)
35061..
1 module
35064..
4 modules
35062..
2 modules
35066..
6 modules
35063..
3 modules
35069..
9 modules
35063..
35069..
35066..
35062..
35064..
35061..
ELECTRONIC MODULES
352100
8 pushbuttons
on double row
352100
351300
audio video with
wide angle camera
351300
352500
display
352500
352000
4 pushbuttons
on single row
352000
352700
Inductive loop and
control speech synthesis
352700
353000
keypad
353000
351100
speaker module
351100
352200
nameplate
352200
353200
badge reader
353200
351200
audio video
351200
352400
N/D wide angle
camera
352400
353300
Fingerprint
353300
351000
basic speaker
module
351000
WWW.BTICINO.COM
CATALOGUE
SFERA
SFERA ROBUR - front covers
354000
cable for the connection
of several pushbutton
modules
L=620 mm
AUDIO FRONT COVERS - PUSHBUTTON CALL
VIDEO FRONT COVERS - NAMEPLATE - BLANKING MODULE
DISPLAY FRONT COVERS - TELELOOP AND DOOR OPENER
351005
basic speaker module
351105
speaker module
352035
3 pushbuttons
351000
351100
352000
351205
A/V
352505
display
352405
N/D camera and wide angle
351200
352500
352400
351000
351100
352000
351015
basic speaker module
1 pushbutton
351115
speaker module
1 pushbutton
352045
4 pushbuttons
351200
352700
351215
A/V
1 pushbutton
352705
Inductive loop - control speech synthesis
351000
351100
352100
351025
basic speaker module
2 pushbuttons
351125
speaker module
2 pushbuttons
352165
6 pushbuttons
on double row
351200
353200
352200
351225
A/V 2 pushbuttons
on double row
353205
badge reader
352205
nameplate
351000
351100
352100
351045
basic speaker module
2 pushbuttons on double row
351145
speaker module 2 pushbuttons
on double row
352185
8 pushbuttons
on double row
351300
353000
352305
blanking module
351305
A/V
wide angle
353005
keypad
351300
353300
351315
A/V wide angle
1 pushbutton
353305
Fingerprint
351300
351325
A/V wide angle
2 pushbuttons on double row
353405
T25 VIGIK
351000
351100
351085
basic speaker module
4 pushbuttons on double row
351185
speaker module 4 pushbuttons
on double row
351100
351100
351100
351100
351100
351000
351000
351000
351000
3
51000
352000
352000
352100
352100
351200
351200
351200
351300
351300
351300
352200
352400
352500
352700
353000
353200
353300
351005
351015
351025
351045
351045
351085
351085
351105
351115
351125
351125
351145
351145
351185
352035
352045
352165
352185
351100
352185
351205
351215
351225
351305
351305
351315
351325
352205
352305
352405
352505
352705
353005
353305
353405
BTicino SpA
Via Messina, 38
20154 Milano - Italia
www.bticino.com
BTicino SpA reserves at any time the right to modify the contents of this booklet and to communicate,
in any form and modality, the changes brought to the same. AD - EXCM12SFB/UK - Edition 04/2012

Navigation menu
