Shenzhen Balway Electronic BY8001-16P voice module manual V1.2
- Page 1-
Shenzhen Balway Electronic Technology Co., Ltd.
Shenzhen Balway Electronic BY8001-16P voice module manual V1.2
- Page 2-
BY8001-16P voice module manual
1、Overview
BY8001-16P card MP3 module is Shenzhen Electronic Technology Co., independent research and development of a
new type of high-quality compact. Using BY8001-SSOP24 MP3 main chip, support MP3, WAV format double decoding.
Module built TF deck, the card can be replaced voice content; also
U can be an external disk or USB data cable to connect the computer to replace the TF content. The built-in 3W amplifier
module can directly drive 3W speakers, easier to use.
2、Product Features
- supports MP3, WAV audio formats with high quality, beautiful sound.
- supports MP3, WAV audio formats with high quality, beautiful sound.
- 24-bit DAC output, support dynamic range 90dB, SNR support 85dB.
- Supports 15 paragraph one trigger voice playback, 3 IO port select eight kinds of hardware trigger wider application.
- support asynchronous serial UART Control: Support play, pause, and down song, volume addition and subtraction,
playing selections, advertising spots and so on.
- built-in volume, track, EQ down memory function.
- configuration TF (Micro SD) card connector, the card can replace voice content, maximum support 32G memory card.
- read U disk support, maximum support 32G; TF can also directly replace the contents inside the USB data cable.
- comes with 3W amplifier, external speakers directly to complete the play; customers can also add a single,
dual-channel amplifier.
- standard 2.54mm pin spacing DIP16 package, compact appearance.
3、Technical Specifications
Name Parameter
MP3, WAV file
format supports sample rates 8 ~ 48K, the bit rate of 8 ~ 320Kbps audio files
USB 2.0 interface
standard (Micro USB interface to connect a computer to download the voice can also be
read U disk contents)
UART interface standard serial port, 3.3V TTL level, baud rate 9600
Input voltage 3.6V-5V (recommended value 4.2V)
Quiescent
current 16MA (entire module)
Power amplifier
connected 3W / 4Ω or 2W / 8Ω speaker
Size 22mm * 21mm
Operating
temperature -40 ℃～70 ℃
Humidity 5%～95%
Shenzhen Balway Electronic BY8001-16P voice module manual V1.2
- Page 3-

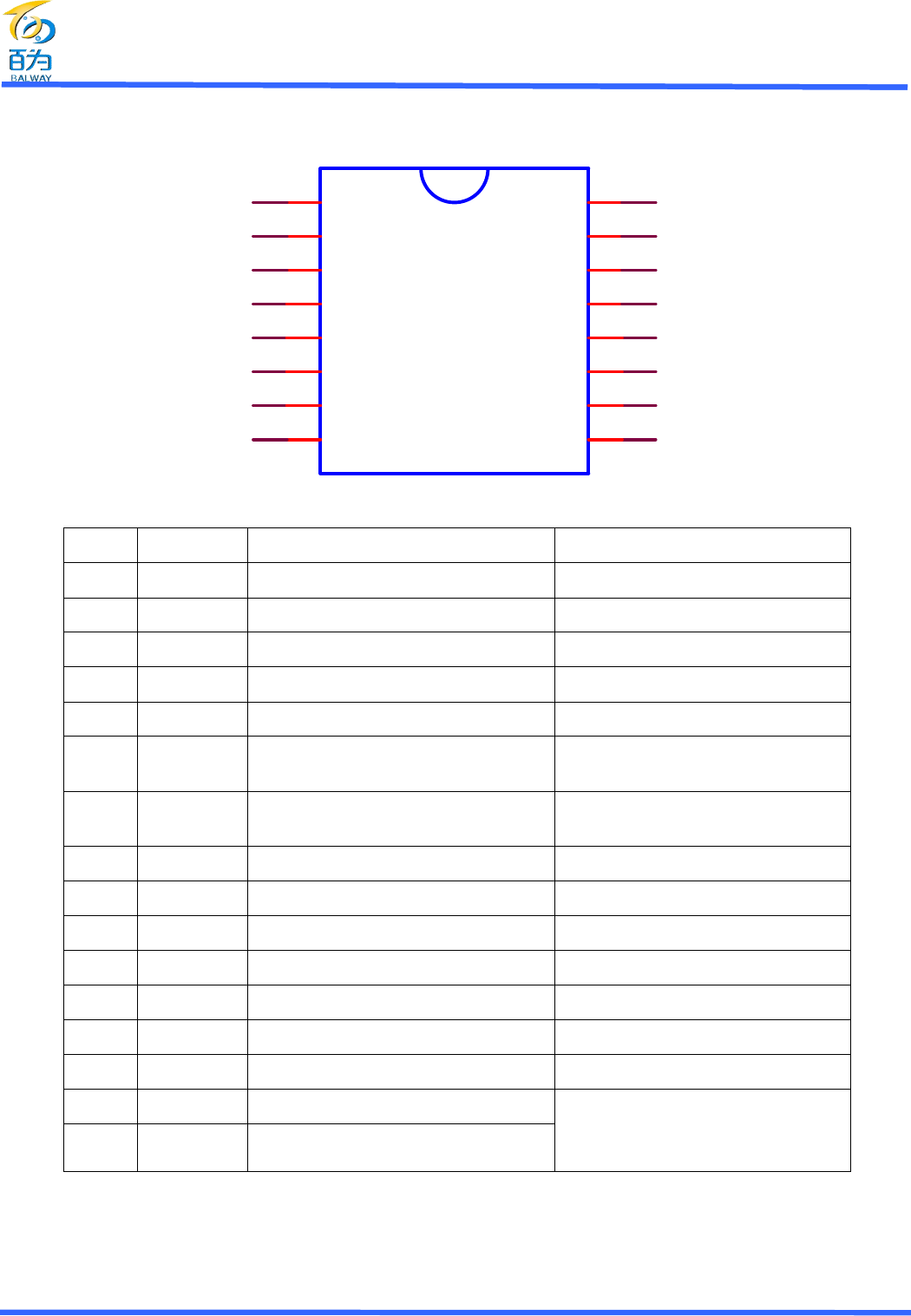

4、Module pin map
BY 8001-16P
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
BUSY
RX
TX
DACR
DACL
SPK1
SPK2
VCC IO5
IO4
IO3
IO2
IO1
GND
DP
DM
Pin No.
Pin Name Function Description Remarks
1 BUSY when playing high output, low stop busy signal
2 RX UART asynchronous serial data output
3.3V TTL level
3 TX UART asynchronous serial data input 3.3V TTL level
4 DACR DAC right channel output external amplifier, headphones
5 DACL DAC left channel output external amplifier, headphones
6 SPK1 external mono speaker then 3W / 4Ω or 2W / 8Ω, passive
speaker
7 SPK2 external mono speaker then 3W / 4Ω or 2W / 8Ω, passive
speaker
8 VCC the positive power supply 3.6-5V
9 IO5 trigger input port 5 grounding trigger
10 IO4 trigger input port 4 grounding trigger
11 IO3 trigger input port 3 grounding trigger
12 IO2 trigger input port 2 grounding trigger
13 IO1 trigger input port 1 grounding trigger
14 GND negative power systematically
15 DP USB data cable Read U disk or connected to the
computer with a USB cable to
replace the TF card contents
16 DM USB data cable
Shenzhen Balway Electronic BY8001-16P voice module manual V1.2
- Page 4-

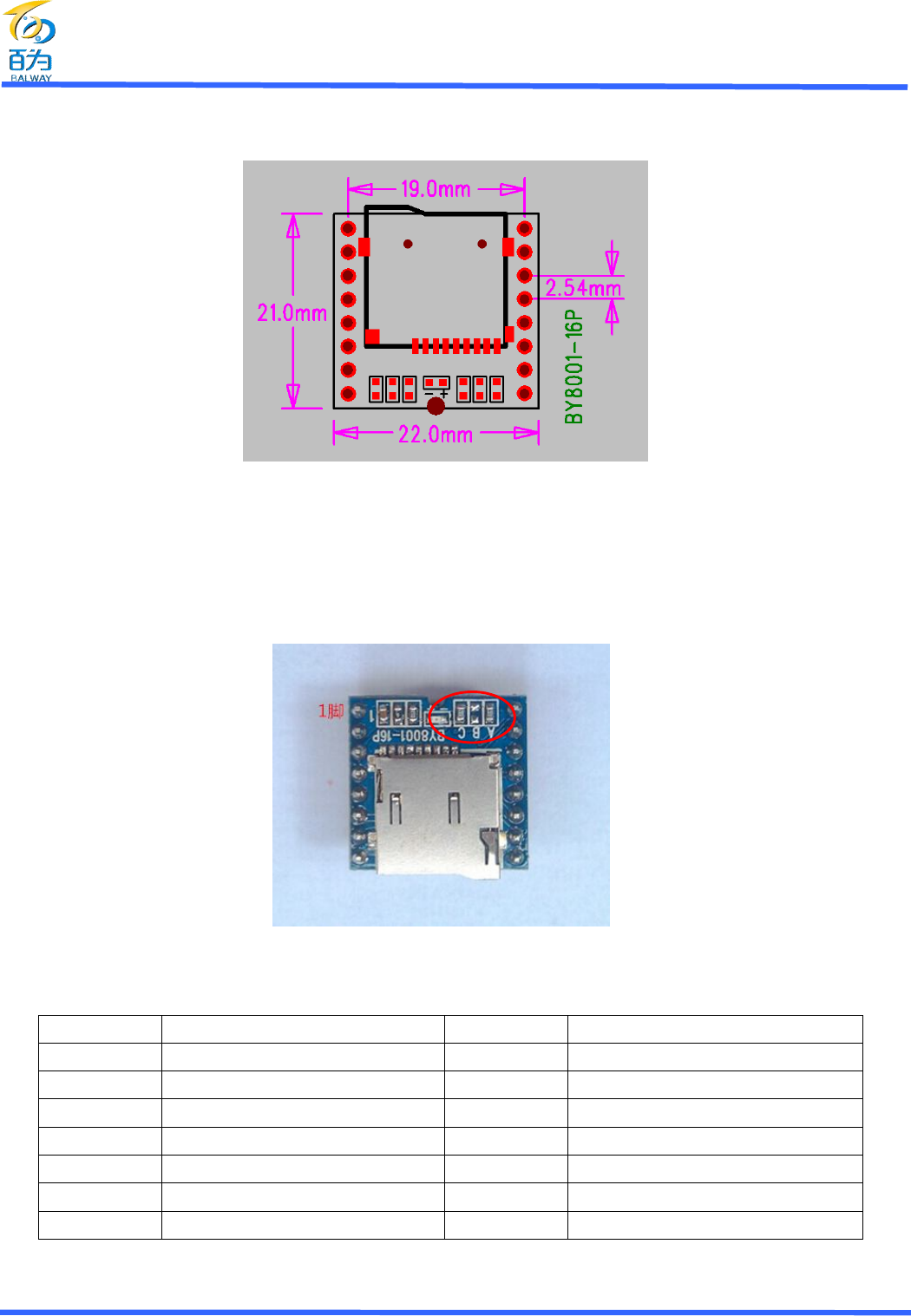

5、Module package size
6、IO port button trigger Description
This module has five trigger IO ports, supports up to 15 segments one trigger button to play. By three IO ports
through 3.3K resistor to ground or not connected to eight kinds of control mode selection for a variety of applications.
Resistor settings control mode in front of the module, marked with ABC character defaults module 010, the
customer can go back voluntarily modify:
Section 21 key one application:
IO1 One play, song 1 IO1* IO5 One play, song 9
IO2 One play, song 2 IO2* IO3 One play, song 10
IO3 One play, song 3 IO2* IO4 One play, song 11
IO4 One play, song 4 IO2* IO5 One play, song 12
IO5 One play, song 5 IO3* IO4 One play, song 13
IO1* IO2 One play, song 6 IO3* IO5 One play, song 14
IO1* IO3 One play, song 7 IO4* IO5 One play, song 15
IO1* IO4 One play, song 8
Shenzhen Balway Electronic BY8001-16P voice module manual V1.2
- Page 5-
3 IO port selection control mode application (3.3K ground zero, to float a), the default value 010:
IOA
IOB
IOC One key trigger function (the button is pressed both effective without release)
0 0 0 Key grounded, triggering stop playing again, half-way trigger is invalid; long time
exceed the current song, loop, finished playing again in the middle lift stop
0 0 1 Key grounding, ON / OFF function. Click the play, during playback, the trigger again to
stop, and then trigger the stop state is played from the beginning, once you finish
playing the current song stops
0 1 0 Ground button, click on the ring, ring in the process, the press will be interrupted,
and then re-start play, finished play once then stop
0 1 1 Ground button, click on the ring, then the process can not be interrupted in the ring
until the ring have been exhausted, then finished only effective response
1 0 0 Hold trigger level player, has been pressing the play button, the button to stop
playing immediately lift (not available in this mode for serial control)
1 0 1 Level hold loop trigger playback button has been pressing the Loop button lift to stop
playing (not available in this mode for serial control)
1 1 0 Standard MP3 mode (not available in this mode for serial control)
IO1 Play / Pause / long press 2 seconds to stop the current song
IO2 under a (short press) / Volume + (long press)
IO3 on a (short press) / Volume - (long press)
IO4 Volume +
IO5 Volume -
1 1 1 Application-specific features
IO1 Key grounded, triggering stop playing again, half-way trigger is invalid; long
time exceed the current song, loop, finished playing again in the middle lift
stop
IO2 pressed a short / long press the volume +
IO3 on a short press / long press volume -
IO4 Ground key trigger to play the current song during playback, then will
break, and then re-start play the current song finishes playing it again to
stop
IO5 Press play all the songs in the order cycle, then stops.
7、Applications
- industrial control areas: industrial control equipment;
- Intelligent Transportation Equipment: toll stations, car parks, car voice prompts;
- advertising industry: advertising language broadcast;
- access control, time and attendance: The door has been opened, such as voice prompts;
- security industry: the human body sensors prompt, safe and voice prompts, Tips;
- advanced toys: Swing machine, hit the crash, game consoles;
- Medical Electronics: Equipment voice prompts;
- Communication Education: Educational equipment, electronic communications;
Shenzhen Balway Electronic BY8001-16P voice module manual V1.2
- Page 6-
8、Serial Control Protocol
BY8301 built-in standard asynchronous serial UART interface, are 3.3V TTL level interface. Can be converted to RS232
level through the MAX3232 chip. Communication data format is: Start bit: 1; data bits: 8; Parity: None; Stop Bits: 1.

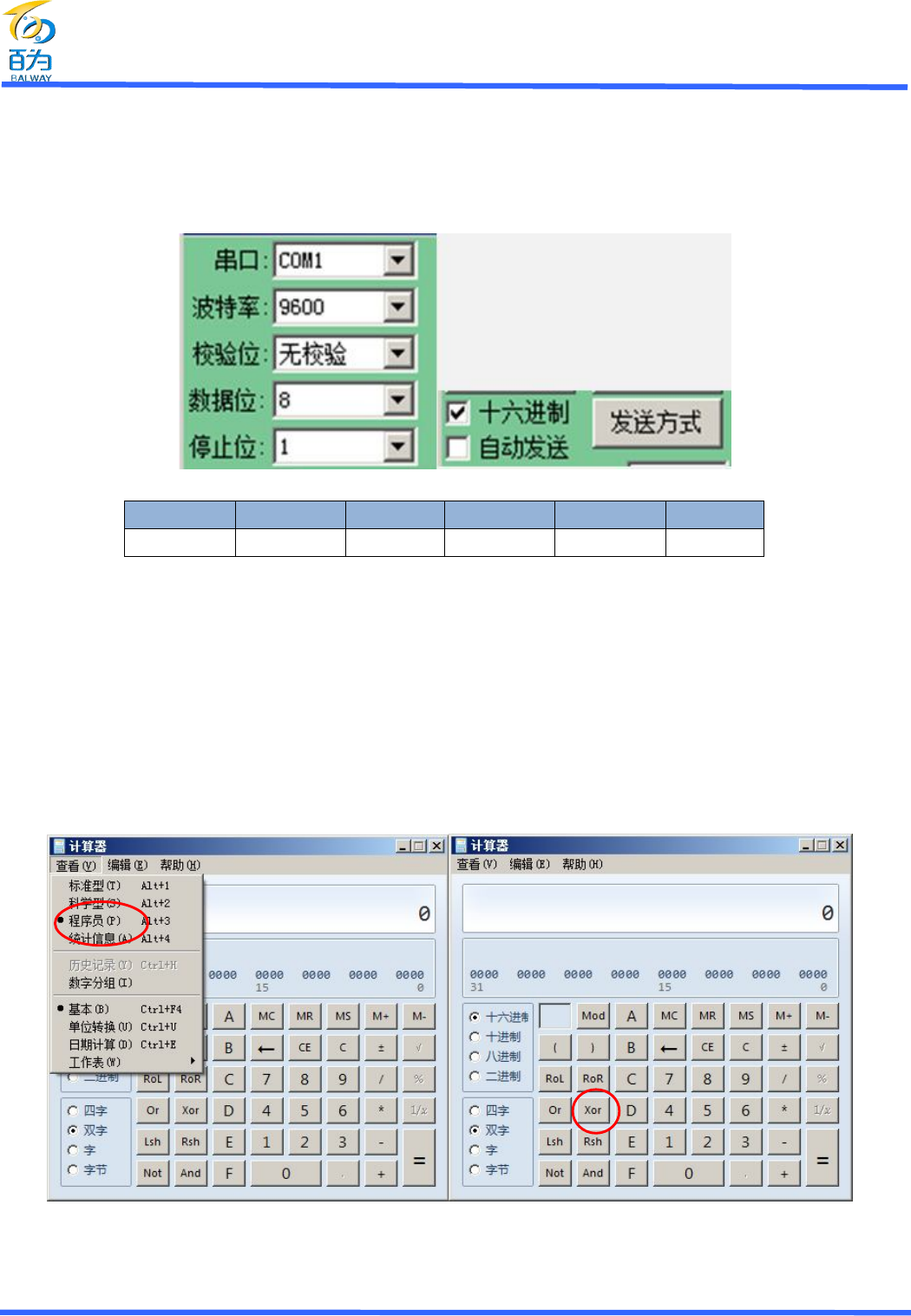

Using the computer serial debugging assistant, you need to set the correct serial port parameters, settings shown:
Protocol command format:
Start code
length opcodes parameters
check code
end code
0X7E see below see below
see below see below 0XEF
Note: all the data as a hexadecimal number."Length" refers to the length of the + operator code +
Parameter Length + checksum,"Checksum" refers to the value of the length of the operation code, parameters
negated, customers can get through checksum calculator.
For example, playing instructions for 7E 03 01 02 EF
Length 03 is thus obtained: is "03", "01", "02" 3-digit length;
checksum 02 is obtained by:
First, open the calculator programmer mode selection;
Then select the hex, double word;
Finally, click to calculate 3 Xor 1 = 2
Command sent successfully returned OK, stop the song finishes playing return STOP.
Shenzhen Balway Electronic BY8001-16P voice module manual V1.2
- Page 7-
8.1 Instruction List
Communications Control Instructions (Another company a voice module FLASH plug BY8301-16P)
Detailed CMD
Corresponding function Parameters
0x01 Play no
0x02 Pause no
0x03 Under no
0x04 On no
0x05 Volume increase no
0x06 Volume reduction no
0x07 Standby / work no, enters standby current 10MA
0x09 Reset, no no
0x0A Fast-forward, no
0x0B Rewind no
0x0E Stop no
0x31 Set the volume 0-30 adjustable (off memory)
0x32 Setting EQ 0-5 (NO\POP\ROCK\JAZZ\CLASSIC\BASS) (off memory)
0x33 Setting cycle mode 0-4 (All/Folder/single player/random/broadcast again)
0x34 Folder switching 0 (a folder), 1 (next folder)
0x35 Device switching 0（U），2（FLASH）
0x41 Choose to play tracks 1-255 first (off memory)
0x42 Specify a folder track is playing high eight for the folder number (00-99), the low eight
song name (001-255)
0x43 Spots feature 1-65536
0x44 Spots designated folder inside the
songs
high eight for the folder number (00-99), the low eight
song name (001-255)
Combination play Combination play different tracks will be sent
continuously aired stop, maximum support 10 segments
Communications query
Detailed CMD Corresponding function Parameter
0x 10 Query playing status 0 (stop) 1 (Play) 2 (Pause) 3 (fast forward) 4 (rewind)
0x 11 Query volume. 0-30 (off memory)
0x 12 Query the current EQ 0-5 (NO\POP\ROCK\JAZZ\CLASSIC\BASS) (off memory)
0x 13 Query the current play mode 0-4 (All/Folder/single player/random/broadcast again)
0x 14 Query version 1.0
0x 15 Query version 1-65535
0x 16 Query U disk total file totals 1-65535
0x 18 The total number of files query
FLASH
0（U盘），1（SD）
0x 19 Query the current playback device
1-65536
0x 1A Current track queries U disk 1-65536
0x 1C Query the currently playing song
time
Anti-back time (in seconds)
0x 1D Query the current total time Anti-back time (in seconds)
Shenzhen Balway Electronic BY8001-16P voice module manual V1.2
- Page 8-
playing songs
0x 1E Query the currently playing song
song
In return the song name
0x 1F Query the current playback folder
within the total number of
0-65536
Note: Continuous transmission interval 20MS above, the combination of playback within 6MS two commands between
the two commands.
8.2 Control instructions detailed instructions
8.2.1 Play
Startcode
Length Opcode Checksum
End code
7E 03 01 02 EF
Send the command to Play music, pause or stop state to start playback.
8.2.2 Pause
Startcode
Length Opcode Checksum
End code
7E 03 02 01 EF
Send the command to pause playback music.
8.2.3 Next song
Startcode
Length Opcode Checksum
End code
7E 03 03 00 EF
This command can trigger the next song Play music while playing the last piece of music,
send the command to trigger the first song Play music.
8.2.4 On song
Startcode
Length Opcode Checksum
End code
7E 03 04 07 EF
This command can trigger the next song Play music while playing the first song to music, send
the command can be triggered to play the last piece of music.
8.2.5 Volume +
Startcode
Length Opcode Checksum
End code
7E 03 05 06 EF
Chip has 30 adjustable volume, send a command, a volume increase.
8.2.6 Volume -
Startcode
Length Opcode Checksum
End code
7E 03 06 05 EF
Chip has 30 adjustable volume, send a command, a volume reduction.
8.2.7 Standby / normal operation
Startcode
Length Opcode Checksum
End code
7E 03 07 04 EF
Send this instruction chip into standby status at work, in the standby state needs to send commands
to wake the chip to work properly again.
8.2.8 Reset
Startcode
Length Opcode Checksum
End code
7E 03 09 0A EF
Shenzhen Balway Electronic BY8001-16P voice module manual V1.2
- Page 9-
Under normal circumstances do not need to use this command, send the command resets the chip, all parameters reply
to factory settings (Tone The largest, returns to the first, no EQ); special attention after using this function before you
need to specify the playback device Normal operation, after sending a reset command, two seconds later to send the
specified command SD card playback 7E 04 35 01 30 EF Followed by additional control command operations.
8.2.9 Fast Forward
Startcode
Length Opcode Checksum
End code
7E 03 0A 09 EF
Sends a command to fast forward the music for some time.
8.2.10 Rewind
Startcode
Length Opcode Checksum
End code
7E 03 0B 08 EF
Sends a command to rewind the music for some time.
8.2.11 Stop
Startcode
Length Opcode Checksum
End code
7E 03 0E 0D EF
Send this instruction in music playback or pause state can stop the music.
8.2.12 Set Volume
Startcode
Length Opcode Volume Level Checksum
End code
7E 04 31 19 2C EF
0-30 adjustable volume, real-time modification of the directive can adjust the volume, the volume can
be powered down memory paradigm hair Send volume level is 25.
8.2.12 Setting EQ
Startcode
Length Opcode Parameters
Checksum
End code
7E 04 32 00 36 EF
Send this instruction can change EQ.
8.2.13 Setting cycle mode
Startcode
Length Opcode Parameters
Checksum
End code
7E 04 33 02 35 EF
Send this instruction cycle mode can be set, for example to set single cycle mode.
8.2.14 Folder Switching
Startcode
Length Opcode Parameters
Checksum
End code
7E 04 34 01 31 EF
Send the command to switch folders Play, sending one to the next folder, and 0 on a folder.
Note: FALSH not have this feature.
8.2.15 Switching equipment
Startcode
Length Opcode Parameters
Checksum
End code
Shenzhen Balway Electronic BY8001-16P voice module manual V1.2
- Page 10-
7E 04 35 01 30 EF
When the system has multiple devices, you can send the command to select the device to be read,
for example select TF card player.
8.2.16 Select a track Play
Startcode
Length Opcode
Tracks high Tracks low Checksum
End code
7E 05 41 00 01 45 EF
Send this command to specify the corresponding storage track is playing, play the first example of a song.
Note: Tracks for 1-65536
8.2.17 Specify the folder track playback
Startcode
Length Opcode Tracks high
Tracks low Checksum
End code
7E 05 42 00 02 45 EF
Sowing the corresponding tracks corresponding instruction can specify a folder within a folder 8 high number, low 8 to the
song title.Examples for the specified folder 00 in the first two Play.
Note: If you want to use this feature, the folder must be named 00-99, songs must be named 001 XXX.MP3-255
XXX.MP3, No Mistakes will not be played. FALSH not have this feature.
8.2.18 Spots feature
Startcode
Length Opcode Tracks high
Tracks low Checksum
End code
7E 05 43 00 03 45 EF
When receiving the instruction of this article, we pause a track, and then to implement this directive specified Play tracks,
When finished playing, then Play the original Pause tracks.
Note: FALSH not have this feature.
8.2.19 Spots designated folder songs
Startcode
Length Opcode Tracks high
Tracks low Checksum
End code
7E 05 44 01 06 46 EF
When receiving the instruction of this article, we pause a track, and then to implement this directive specified in the
file.Corresponding track is playing, when finished playing, then Play the original Pause tracks. High eight for the folder
number, the lower 8 bitsThe song title.
Note: If you want to use this feature, the folder must be named 00-99, songs must be named 001 XXX.MP3-255
XXX.MP3, NoMistakes will not be played. FALSH not have this feature.
8.2.20 Combination Play
Continuous transmission:
7E 05 41 00 01 45 EF 7E 05 41 00 02 46 EF 7E 05 41 00 03 47 EF 7E 05 41 00 40 EF
Play 1,2,3,4 song aired stop, up to 10 continuous playback. Two commands at intervals shorter than 6MS.
8.3 Query command Description
For example: sending a query playing status command 7E 03 10 13 EF, return OK 0001, said in the playing state.
After sending the query command returns the corresponding value, not described in detail.
Shenzhen Balway Electronic BY8001-16P voice module manual V1.2
- Page 11-

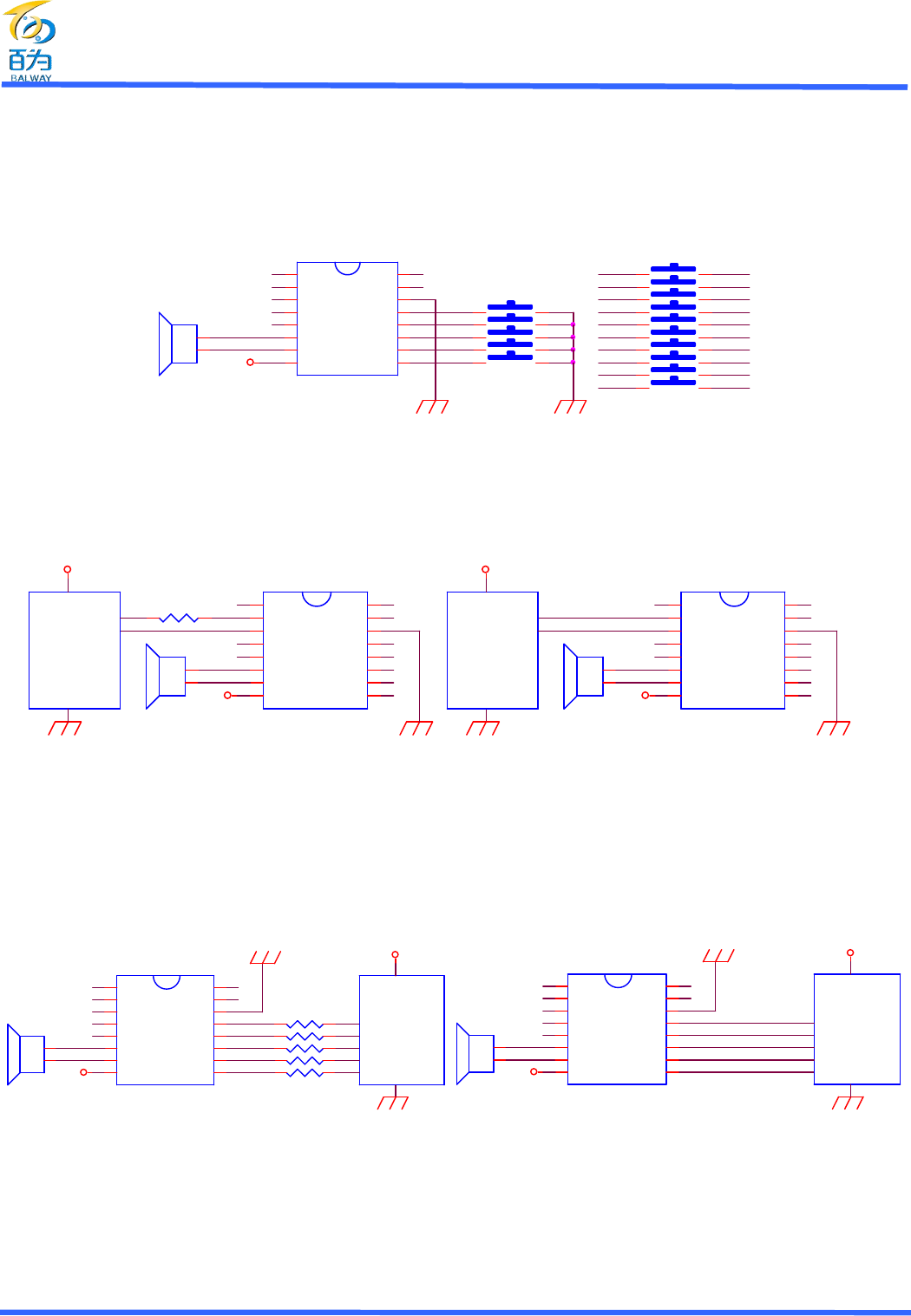

9、Application Circuit
Note that all the main chip IO port voltage is 3.3V, note that the voltage matches other microcontrollers connected!
9.1．21 Road buttons control application circuit K1-K15 corresponding voice segment 1-15
K8
1 2
IO3
K2
1 2
IO3
K10
1 2
IO4
IO3
IO4
IO5 K13
1 2
IO5
GND
IO3
BY 8001-16P
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
BUSY
RX
TX
DACR
DACL
SPK1
SPK2
VCC IO5
IO4
IO3
IO2
IO1
GND
DP
DM
IO3
K9
1 2
GND
IO4
SPK1
2W/ 8R
K5
1 2
IO4
5V
IO2
IO5
K4
1 2
IO1
IO4
IO1
IO5
K11
1 2
IO1
IO5
K6
1 2
IO1
K7
1 2
IO1
K12
1 2
IO2
K14
1 2 K15
1 2
IO2
IO2
K1
1 2
K3
1 2 IO2
15-way switch button is equivalent to the amount of control.
9.2．Microcontroller serial control application circuit
MCU
单片机
5V
供电
RX
串
1K
电阻
5V
R1 1K
GND
SPK1
2W/8R
5V
GND
BY 8001-16P
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
BUSY
RX
TX
DACR
DACL
SPK1
SPK2
VCC IO5
IO4
IO3
IO2
IO1
GND
DP
DM
BY 8001-16P
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
BUSY
RX
TX
DACR
DACL
SPK1
SPK2
VCC I O5
IO4
IO3
IO2
IO1
GND
DP
DM
MCU
SPK1
2W/ 8R
单片机
3.3V
供电
GND
5V
GND
3.3V
The above is a standard UART asynchronous serial connectivity applications, this application is quite flexible, including
play, pause, up and down the song, volume addition and subtraction, Play selections, advertising spots and so on.
Available microcontroller, computer serial port control 485 can also be controlled by TTL to RS485 adapter plate.
9.3．MCU IO port directly connected to the control application circuit
SPK1
2W/8R
R4 1K
IO3
单片机
5V
供电
IO
口串
1K
电阻
IO5
MCU
IO1
IO2
R5 1K
IO4
R2 1K
R1 1K
R3 1K
5V
GND 5V
BY 8001-16P
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
BUSY
RX
TX
DACR
DACL
SPK1
SPK2
VCC IO5
IO4
IO3
IO2
IO1
GND
DP
DM
GND
SPK1
2W/8R
GND
IO3
GND
IO5
MCU
3.3V
IO2
单片机
3.3V
供电
5V
BY 8001-16P
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
BUSY
RX
TX
DACR
DACL
SPK1
SPK2
VCC IO5
IO4
IO3
IO2
IO1
GND
DP
DM
IO4
IO1
By the microcontroller through a low pulse signal (equivalent to pressing the lift button) can trigger IO1-IO5, achieve
one Play six segments voice, and above 3IO selectable control modes.

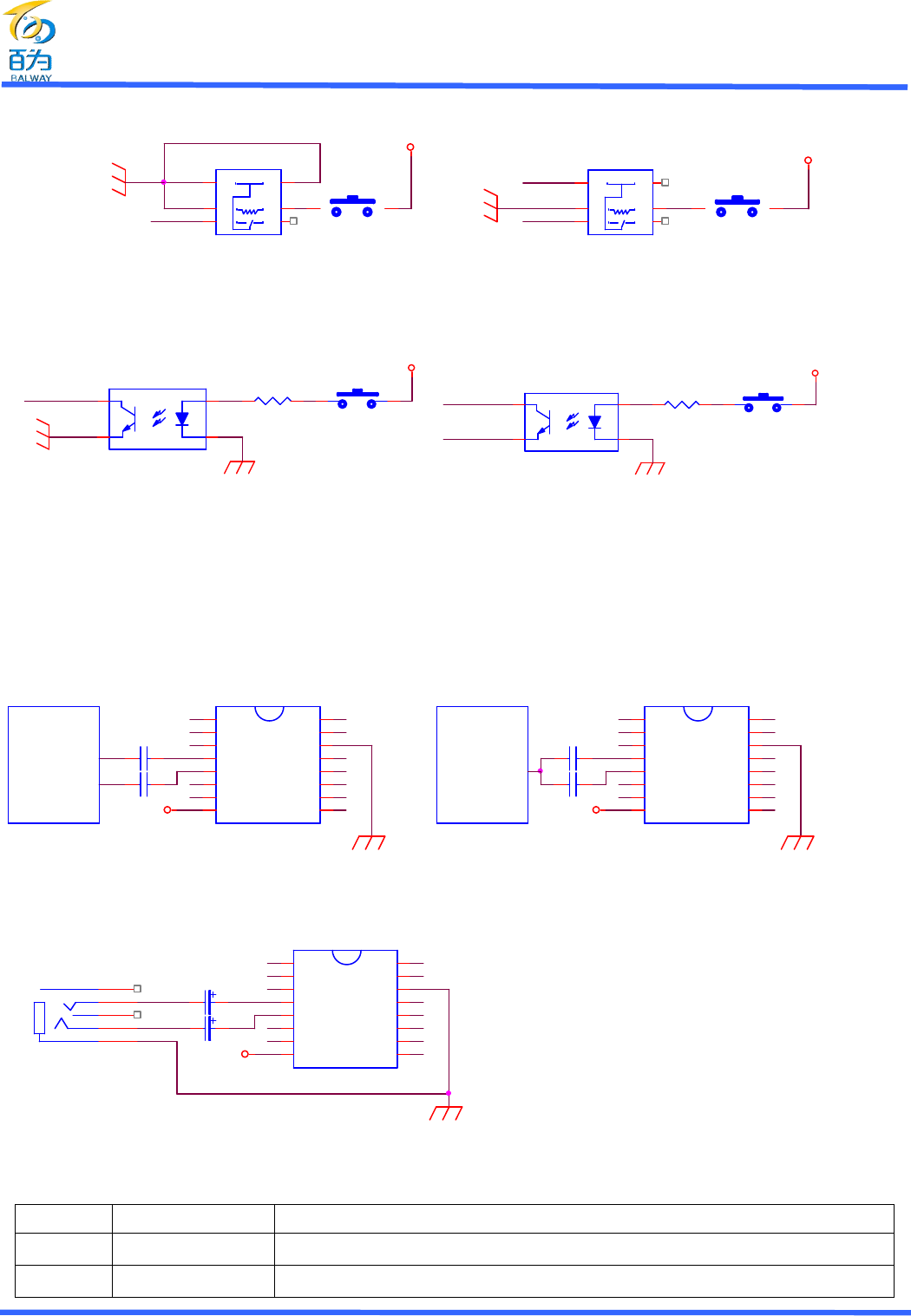

9.4．For some customers may use the trigger level to play, you can use the relay control can also be used
optocoupler control, providing connection diagram below:
Shenzhen Balway Electronic BY8001-16P voice module manual V1.2
- Page 12-
Relay
12V
GND
IO1
K1 KEY
1 2
1 2
KC1
HK4100F-DC12V
2
1
3 4
5
6
2
1
3 4
5
6
12V
GND
IO1
IO2
K1 KEY
1 2
1 2
KC1
HK4100F-DC12V
2
1
3 4
5
6
2
1
3 4
5
6
Left IO port down play, the figure for the Play in the first paragraph; right is IO combination play, the relay is
energized IO1,IO2 short-circuit Play in paragraph 6.
Optocoupler
K1 KEY
1 2
1 2
R1 1K
GND
12V
GND
U1 EL357N
1
2
4
3
IO1
IO5
IO2
K1 KEY
1 2
1 2
R1 1K
GND
12V
U2 EL357N
1
2
4
3
Left IO port down play, the figure for the Play in the first paragraph; right is IO combination play, the rules of
connections is the low number of connections IO port optocoupler 3 feet, 4 feet high number of connections, the figure
for the first 12 Play segment.
Given above is 12V trigger level can also be converted to a single-chip high-low trigger.
9.5．External amplifier application circuit
5V
C1 10UF
5V
C1 10UF
双声道功放
C2 10UF
GND
C2 10UF
单声道功放
BY 8001-16P
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
BUSY
RX
TX
DACR
DACL
SPK1
SPK2
VCC IO5
IO4
IO3
IO2
IO1
GND
DP
DM
BY 8001-16P
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
BUSY
RX
TX
DACR
DACL
SPK1
SPK2
VCC I O5
IO4
IO3
IO2
IO1
GND
DP
DM
GND
The module power is mainly the customer can own an external amplifier.
External headphone application circuit:
BY8001-16P
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
BUSY
RX
TX
DACR
DACL
SPK1
SPK2
VCC IO5
IO4
IO3
IO2
IO1
GND
DP
DM
J1
PHONOJACK
4
1
5
2
3
C1 47UF
C2 47UF
GND
5V
10、Manual version
Version Date Description
V1.0 2014-3-25 The initial version
V1.1 2014-10-8 Add some application circuit
Shenzhen Balway Electronic BY8001-16P voice module manual V1.2
- Page 13-
Shenzhen Electronic Balway Technology Co., Ltd. is a set of voice solutions, voice semi-finished speech
development, production and service in one of technology-based enterprises, the main research has been focused on
speech technology, voice chip solution, MP3 module, voice prompts board, voice finished products such as software
and hardware design, development and customization. And to undertake electronic product development and small
batch production, post-production and mature manner using OEM supplier, the business scope of automotive
electronics, security, home security, communications, home appliances, medical equipment, industrial automation and
control, education, equipment, toys and gifts consumer products and other fields.
Shenzhen Best Electronic Technology specializes in the development, design, production and sales of voice
products. The main circuit board for research and development of products BY series of voice, voice chip solution, MP3
voice module, greeting module, TF card MP3 module, USB MP3 module, 12V playback boards, high-power
multi-channel playback control panels, door voice Reminder, advertising tips, a truck speed limiter, as well as
customers with special needs to develop a voice product development programs, and implement the program, to
complete product development, testing, until the actual application of the guidance products and other services. After
years of development, the company has formed a complete system of technology development process, can quickly
develop customer demand for products, uphold the high degree of enthusiasm and sophisticated technology, has
always been to serve our customers for the purpose, committed to market strategy. For the needs of the market, in the
company's meticulous efforts of all staff, the products will be comprehensive, thorough, to meet customer demand,
improve efficiency, and cost-effective. We adhere to the people-oriented service attitude, to reach a two-way
communication with customers, providing high-quality products and excellent service of the people.
Shenzhen Electronic Technology Co., Ltd. is currently the sales and service strategy to enhance customer service
quality, to help develop the most competitive end products, we uphold a positive innovation, courage, customer
satisfaction, teamwork, the market has been gradually from China extended to all regions of the globe. The company's
competitive advantages include the following four points:
(A) professional and innovative research and development capabilities, high-quality research and
development and engineering and technical teams;
(B) the strong long-term relationship market, the price has the absolute advantage;
(C) the full range of technical support and improve the marketing system;
(D) stable product delivery and quality assurance.
Shenzhen Balway Electronic Technology Co., Ltd.
Website：www.balway.com
E-mail： balway@163.com
TEL： 0755-33142633
Rm.303, Huafujin Mansion, No.81 building,Baishilong,
New Yixiu village, Minzhi Street, Bao'an District, Shenzhen,518131
