Revised December 2013

P1673 Litho in U.S.A. (13-12)

TURF AND UTILITY EQUIPMENT

TABLE OF CONTENTS Page

Air Compressors ....................................................................................................................................................4

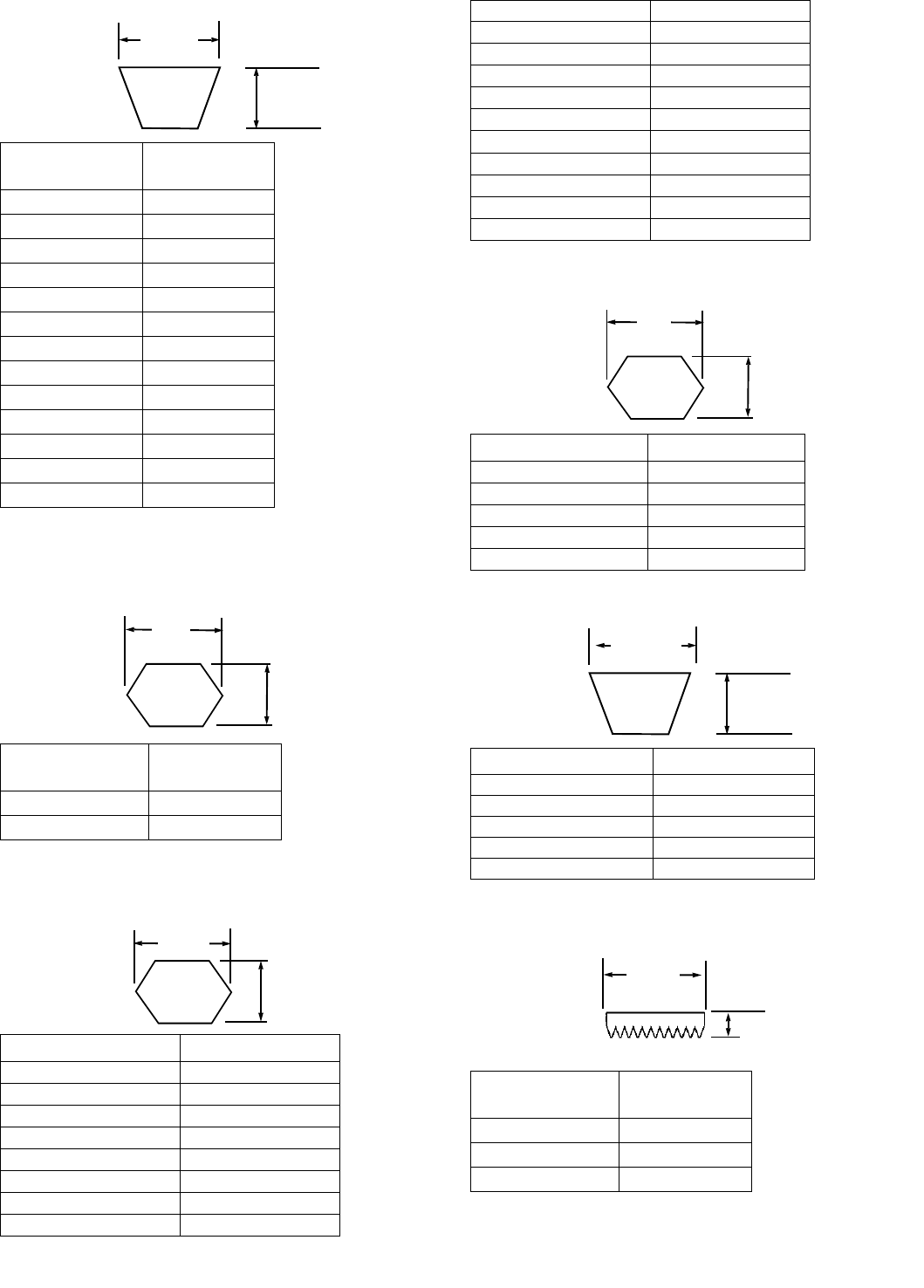

Belt Listing By Size ........................................................................................................................................ 28-33

Belt Terminology ....................................................................................................................................................1

Compact Utility Tractors ................................................................................................................................ 24-25

EZtrak™ Mowers .................................................................................................................................................14

Front Mowers ......................................................................................................................................................12

Front Mount Mowers .............................................................................................................................................8

High Pressure Washers ........................................................................................................................................4

Hydraulic Tiller .......................................................................................................................................................5

Introduction.............................................................................................................................................................2

Lawn Edgers .........................................................................................................................................................5

Lawn & Garden Tractors ............................................................................................................................... 19-22

Lawn Tractors ................................................................................................................................................ 16-19

Log Splitter ............................................................................................................................................................4

Material Collection Systems ................................................................................................................................27

Mowers ..................................................................................................................................................................7

Quik-Trak™ Mowers ..................................................................................................................................... 14-15

Riding Mowers .....................................................................................................................................................15

Rotary Tillers .........................................................................................................................................................5

Sabre Lawn and Garden Tractors and Mowers ............................................................................................. 22-23

Sabre Snow Throwers/Snow Blowers....................................................................................................................7

Sabre Walk-Behind Rotary Mowers .....................................................................................................................10

Scotts Lawn and Garden Tractors and Mowers............................................................................................. 23-24

Scotts Snow Throwers/Snow Blowers....................................................................................................................7

Scotts Walk-Behind Rotary Mowers.....................................................................................................................10

Snow Blowers ........................................................................................................................................................6

Snow Throwers .....................................................................................................................................................7

Special Cross Section .................................................................................................................................... 32-33

Sprayers ................................................................................................................................................................4

Tractor Loader Backhoe.......................................................................................................................................26

Tractor Rotary Mowers (Mid-Mount) ................................................................................................................. 8-9

Tractor Rotary Mowers (3-Point Hitch) ..................................................................................................................9

Troubleshooting V-Belt Wear ................................................................................................................................3

Utility Tractors ............................................................................................................................................... 25-26

Utility Vehicles................................................................................................................................................ 26-27

Walk-Behind Commercial Mowers ................................................................................................................ 10-11

Walk-Behind Rotary Mowers (2/4 Cycle) ............................................................................................................10

ZTrak™ Mowers............................................................................................................................................. 12-14

BELT TERMINOLOGY

TRACTION DRIVE BELTS

Primary Belt

- Engine output to variator input.

Secondary Belt

- Variator output to transmission input.

MOWER DRIVE BELTS

Primary Belt

- Engine output to mower jacksheave.

Secondary Belt

- Mower jacksheave to mower blade spindles.

INTRODUCTION

This book gives you belt product information, part numbers, and a list by size for most John Deere consumer and

commercial equipment.

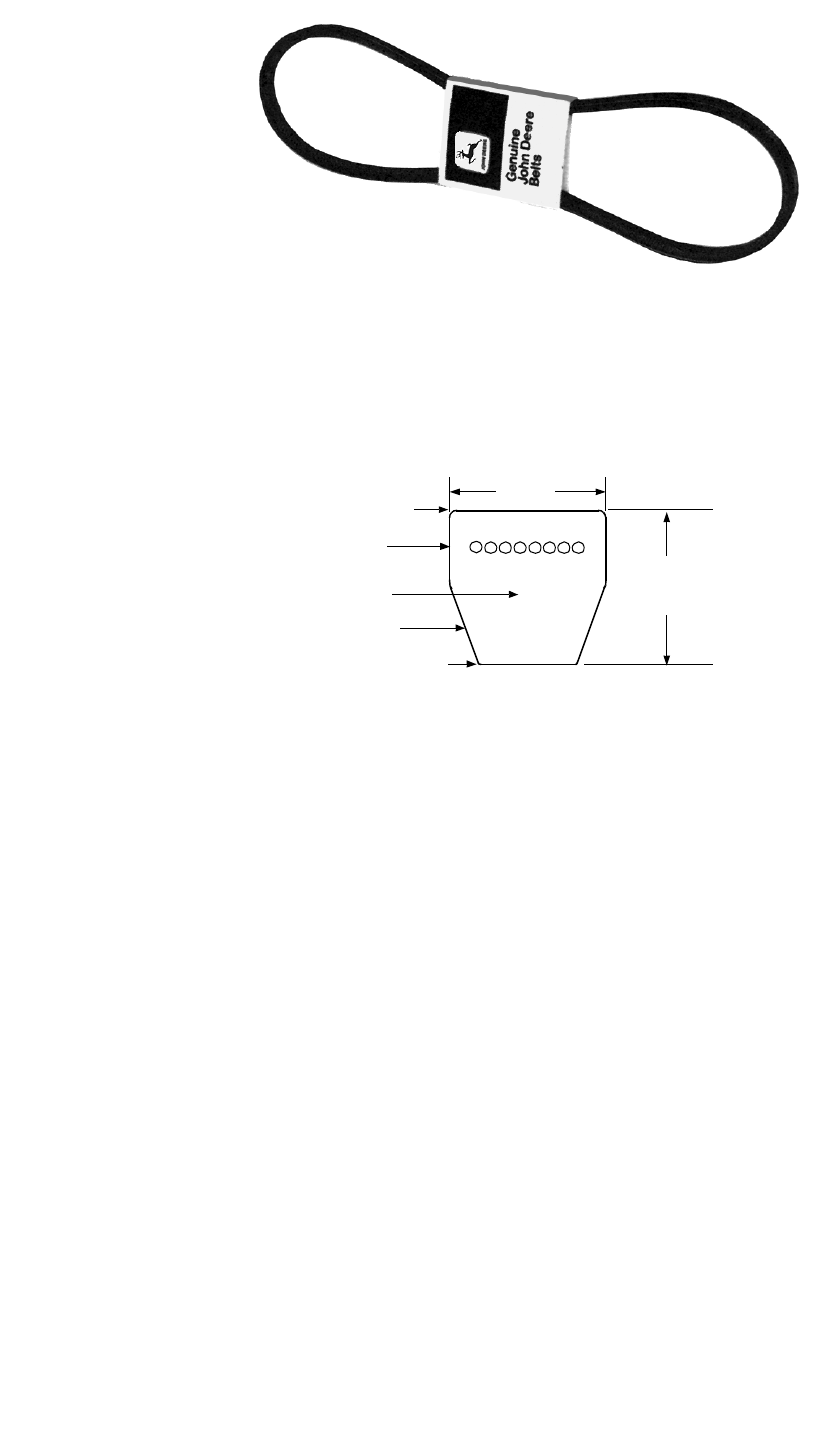

DESIGN

The illustration below shows important areas of a typical V-belt cross section. Each area plays an important role in

belt performance.

The top section of the belt is the tension section. It is rubber and stretches as the belt forms around the sheave.

The bottom section is called the compression section because it compresses when wedged into and shaped around

the sheave.

The center section of the belt is the strength section. It neither compresses nor stretches, but the cords located in this

area give the belt its tensile strength. Without these cords, a V-belt would be pulled apart.

The complete belt is covered by a tough fabric and rubber which protects the inner parts.

NOTE: Some V-belts have a corrugated underside for greater flexibility.

MAINTENANCE

TENSION—Too little tension causes slippage or slip-and-grab, causing the belt to break. If the belt does not break,

slip will cause excessive cover wear, burned spots, and overheating.

Too much tension causes belt overheating and excessive stretch as well as damage to drive components, such as

sheaves and shafts. The extra tightness will also place heavier loads on the bearings.

Remember that V-belts should ride on the sides of standard sheaves, not on the bottom of the groove.

WATCH THE TENSION ON A NEW BELT DURING THE FIRST 24 HOURS OF OPERATION—This is when the

initial seating and stretch occurs.

ALIGNMENT—Sheave alignment is important. Be sure that the shafts are parallel and the belt aligns with each

sheave.

WIDTH CORNER

CONTOUR

TENSILE

MEMBER

CUSHION

MEMBER

SIDEWALL

BOTTOM COVER

TOP COVER

DEPTH

THICKNESS

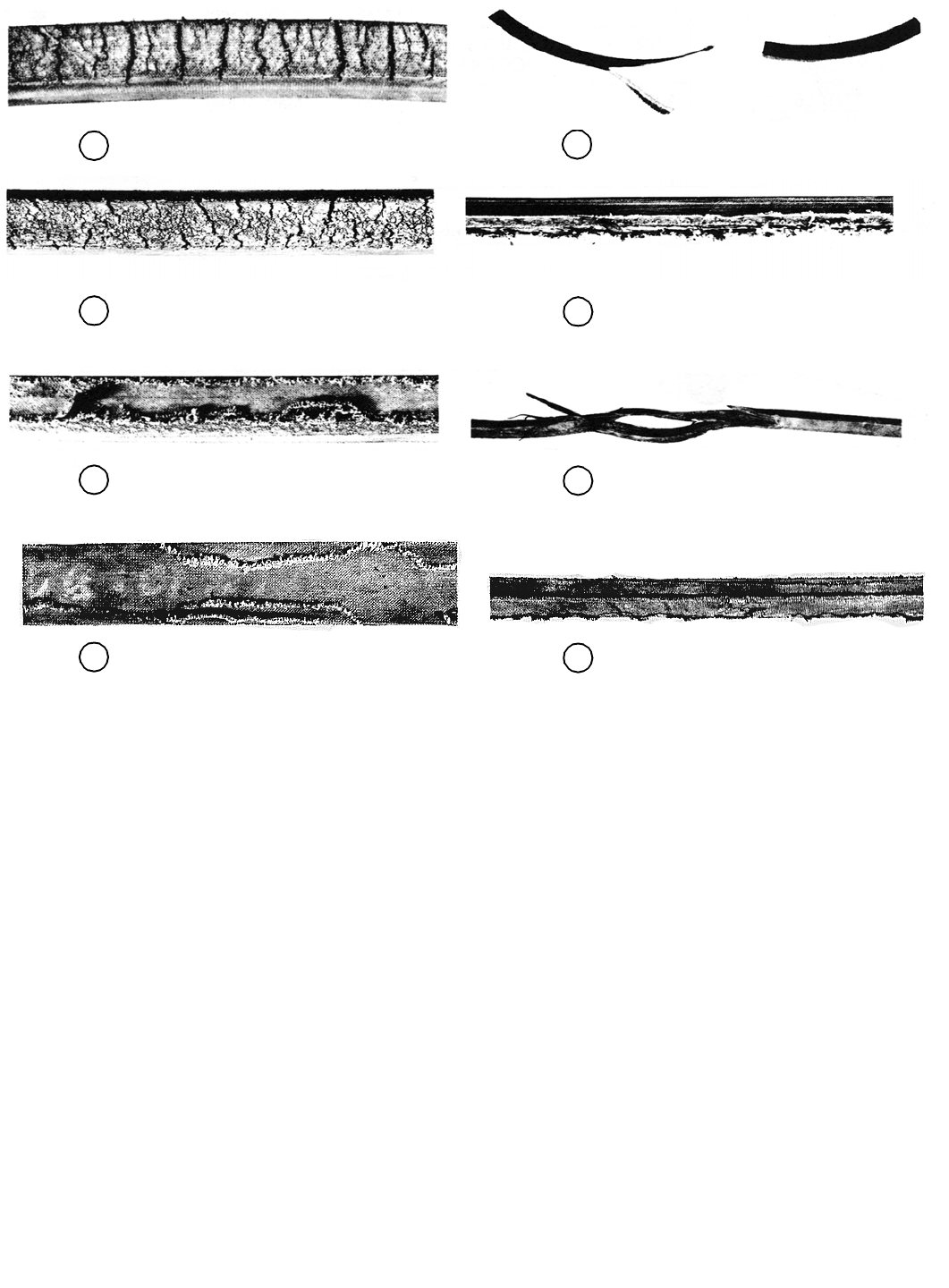

TROUBLESHOOTING V-BELT WEAR

BASE CRACKING SLIP BURN

BASE CRACKING GOUGED EDGES

FABRIC RUPTURE RUPTURED CORDS

COVER TEAR WORN SIDES

Symptom Probable Cause Solution

1. Base cracking Defective belt (little side wear). Replace belt.

2. Base cracking Damaged belt (badly worn sides). Replace belt.

3. Fabric rupture Prying belt onto sheave. Worn sheaves.

Belt too tight. Loosen belt tighteners before installing

belt. Do not tighten belt too much. Also,

replace belt.

4. Cover tear Belt coming into contact with some part on

machine. Find interference and eliminate it.

5. Slip burn Belt operated too loose. When operating

under load, grabs and snaps. Tighten belt properly. Also, replace belt.

6. Gouged edge Damaged sheave or interference from some

part on machine. Check condition of sheaves and check

for interference. Also, replace belt.

7. Ruptured cords Driven sheave locked and drive sheave

burned area of belt because belt would not

rotate with sheave.

Avoid overloading drive and lubricate

bearings to prevent bearing seizure.

Also, replace belt.

8. Worn sides Long operation without enough tension. Check and tighten belt regularly. Also,

replace belt.

AIR COMPRESSORS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

A75 LG48-370 Main, V-Belt

A100 (-SEP 80)

(OCT 80-) TY4831

PT4970 Main, V-Belt

Main, Poly-V Belt

A200 TY4831 Main, V-Belt

LOG SPLITTER

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

4PT5300 V-Belt, For 200 Tractor

4 PT5302 V-Belt, For 317 Tractor (37")

4M41592 Drive, For 317 Tractor (40.1")

HIGH PRESSURE WASHERS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

A22 TY8157 Drive (42")

A25 (-25999)

(26000-) TY8172

PT5762 V-Belt, Drive (44")

V-Belt (38")

A40 (26001-) TY7745(2) 51"

225G PT14960(2) Pump

310 Hot Water PT16433 V-Belt

320 Hot Water PT16714 V-Belt

20XE Electric PT17563(2) Drive

SPRAYERS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

5, 5A, 5B (1001-)

(1001-) M41335

M44178 Piston Pump

Gear Pump (Obsolete/No Sub -

Part Belt is 3L 29.00")

6 gal., 15 gal., 25 gal., No 7 R1561R Pump

ROTARY TILLERS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

30"

Mechanical M84223

M137547 Front (1988 200 Series) Primary

Rear (1988 200 Series) Primary

30 (-100000)

(-100000) M41140

M43489

M47770

Secondary, V-Belt

Primary, V-Belt (110 Tractor)

Primary (112 Tractor)

31 (100001-)

(100001-118000)

(118001-)

M47771

M43489

M47770

Secondary

Primary

33 AM32172 (2)

AM32636 (2) Primary (140 (-30000) Tractor)

Primary (120, 140 (30001-) 300 Tractors)

216 M81805 Drive

314F M128825 Drive

324 M81035

M81036 Reverse

Forward

518R M128979

M128980 Reverse

Forward

524, 624 M81037

M81036 Reverse

Forward

820, 820A PT7513 Drive (Rear Tine Tiller)

820R M128978

AM124075 Reverse

Forward (Set of 2)

HYDRAULIC TILLER

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

30" M82718 Drive (Optional for 316 (285001-) Tractor)

AM101711 (2) Drive (Optional for 316 (285001-) Tractor)

M82718 Drive (318) Primary

AM101711 (2) Drive (Optional for 318, 330)

M47765 Drive, Primary (46") (210, 212, 214, 216)

M47766 Drive, Primary (38") (210, 212, 214, 216)

AM101711 (2) Drive (420, 430 Tractor)

LAWN EDGERS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

2, 3, 3K M47159 Drive, V-Belt

E35 M93145 Drive

SNOW BLOWERS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

359 AM38778 Drive

520 PT11878 Auger

522 PT11877

PT11878 Traction

Auger

524 PT9738

PT9739 Traction

Auger

524D M126984

M129781 Traction

Auger/ Impeller

526, 726, 732,

826, 832, 1032 M82612 Auger Drive & Traction

826D M126989

M128890 Traction

Auger/Impeller

826T PT10867

PT10869 Traction

Auger

828D, 1032D (-190000)

(190001-) M124219

M140481

M124218

Traction

Auger/ Impeller

1026, 1028 PT10865

PT10866 Traction

Auger

924DE, 1128DE (-210000)

(210001-)

M140481

M143796

M145950

Traction Drive

Auger Drive

1128DDE (-210000)

(210001-)

M140481

M124218

M145949

Traction Drive

Auger Drive

1332DDE (-210000)

(210001-)

M143797

M143922

M145948

Traction Drive

Auger Drive

47-inch, 2 Stage M85442

M75746 (318 Tractor)

(322, 332 Tractors)

TRS21,TRS21E (-160000)

(160001-) M118007

M127732 Drive (May need to order M112225 sheave)

Drive

TRS22 (120001-) M118078

M118011 Auger

Traction

TRS24, TRX24 (-140000)

(140001-)

(-140000)

(140001-)

M110599

M122075

M94366

M110635

M118011

Auger

Traction (TRX24)

Traction (TRS24)

Traction (TRS24, TRX24)

TRS26, TRX26 (-140000)

(140001-)

(-120000)

(120001-)

M123224

M122075

M110637

M110766

M118011

Auger (Use with 3" sheave)

Auger (TRS26, TRX26)

Traction (TRX26)

Traction (TRS26)

Traction (TRS26, TRX26)

TRS27, TRS32 (-140000)

(140001-) M82612

M122421

M118011

Auger Drive & Traction

Auger

Traction

SNOW THROWERS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

32, 32A (-400000) M41668 Drive

36 M43586 Drive (110, 112 Tractors 100001-)

37 M45998 Drive

37A (110001-) M44272 Drive

38" M134268

M79204 Drive (STX30, STX38)

Drive (Front Mowers)

42" (200001-) M125661

M131766

M152791

Auger

Drive

PTO, Heavy Duty

42" (515001-750000),

(

001-200000)

M72112 Drive

42" M0325X020001- M131766

M152791

M125661

PTO

PTO, Heavy Duty

Auger

49 M42485

M82719

M91270

Traction Mounted Idler

(120, 140, 300, 312, 314, 316)

Traction Mounted Idler (317 Tractor)

(316, 318 Tractor 285001-)

Traction Mount Idler

(330, 322, 332 Tractors)

320 PT2303 Drive, Paddle

321, 338, 38" (400001-) M134268 Drive

322 PT9483 Drive, Paddle

Sabre Snowthrower/Snowblower

42" Single Stage GXH24208

GXH18926 Long

Short

42" 2-Stage GXH24522

BP65 Upper

Lower

Scotts Snowthrower/Snowblower

42" Single Stage GXH24208

GXH18926 Long

Short

42" 2-Stage GXH24522

BP65 Upper

Lower

MOWERS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

25, 25A

Flail Mower E51728

E51727 540 RPM Rotor Drive

1000 RPM Rotor Drive

350, 450 Rear Mounted

Mower-Sickle Bar E58483 540 RPM Rotor Drive

FRONT MOUNT MOWERS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

50" M87323 Drive (F910, F912, F915)

60" M120381

M117636 Drive (F910, F911, F912, F915, F925, F930, F932, F935)

Drive (F1145)

60" Side Discharge (-060000)

(060001-) TCU12497

TCU21054

TCU13401

Drive (1400 & 1500 Series)

Drive (1400 & 1500 Series) (Export)

62" Side Discharge TCU14356 Drive (1400 & 1500 Series)

60" Rear Discharge M72987

M117636 Drive (F910, F911, F912, F915, F925, F930, F932, F935)

Drive (F1145)

72" M87373

M112414 Drive (F911, F925, F930, F932, F935)

Drive (1145)

72" Side Discharge (-060000)

(060001-) TCU12440

TCU19900

TCU13402

Drive (1400 & 1500 Series)

Drive (1400 & 1500 Series) (Export)

72" Rear Discharge EPC201624 Drive (1400 & 1500 Series)

V-Flex 7-Iron TCA14778

TCU13749 Rubber Track Belt (1565, 1400, 1500)

V-Belt

76" M91365

AM102190 Drive (Set of 2) (F930, F932, F935)

Drive (Set of 2)

76" Rear Discharge M95457 Drive (F932, F935)

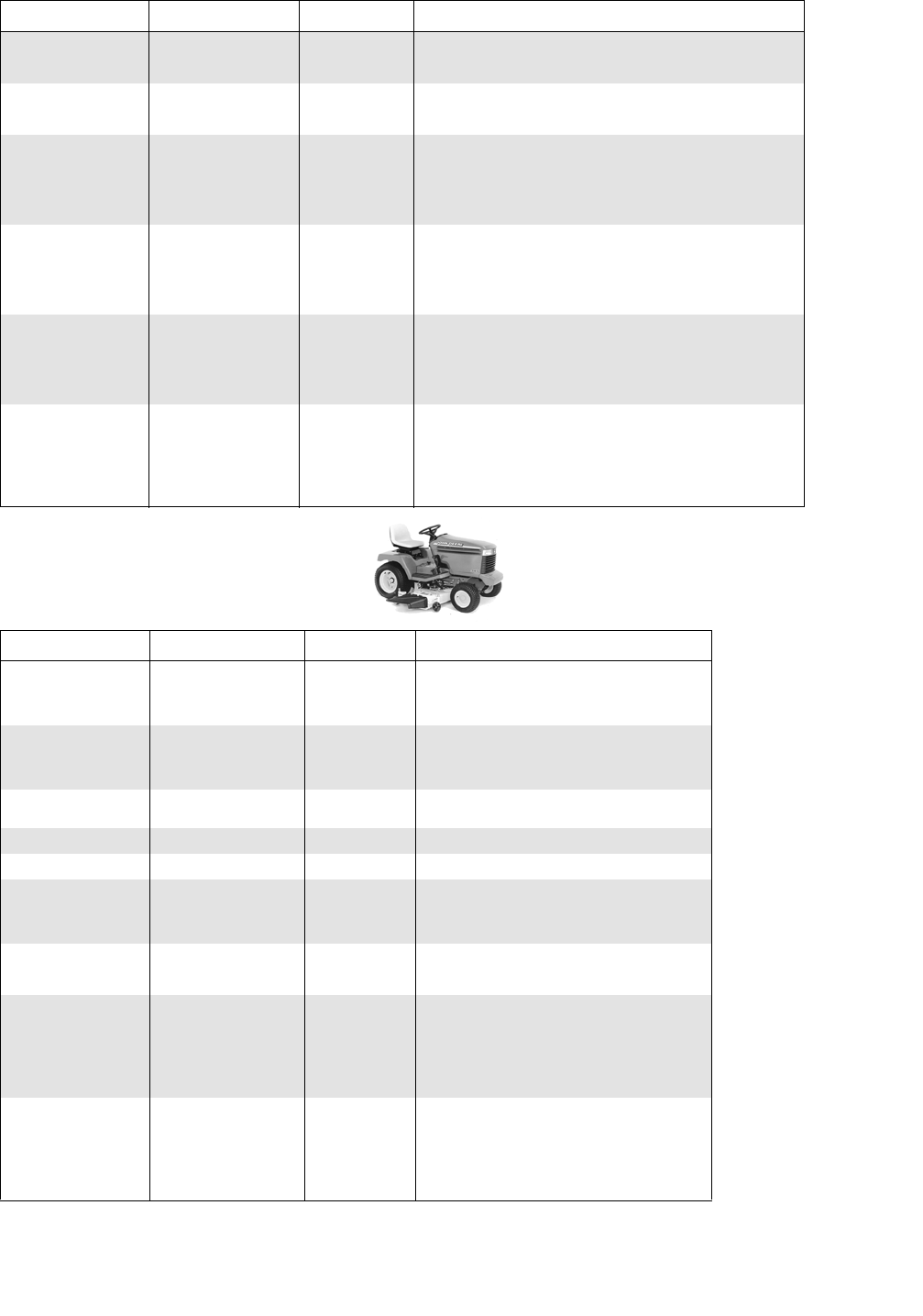

TRACTOR ROTARY MOWERS (MID-MOUNT)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

34" M41642

M43569 Secondary

Primary

(Early 110-112) M40223

M40222

M40224

M45998

Secondary

Secondary (28") (For 110, 112 Tractors)

Primary (56-3/4") (For 110,112 Tractors)

Primary (For 110,112 Tractors) (100001-)

38" (-555000) M82538

M47766

M89090

M89111

Secondary (200 Series,

316, 318, 322, 330, 332)

Primary (200 Series)

Primary (316, 318) (525001-)

Primary (330) (525001-)

38" (555001-) M82538

M47766

M71729

M71730

Secondary (200 Series, 316, 318, 322, 330, 332)

Primary (200 Series)

Primary (316, 318)

Primary (322, 330, 332)

39 (38" Cut)

(-176558)

(176559-)

(-176558)

(176559-)

M40223

M40224

M45998

M47043

M47765

M47766

Secondary

Primary (For 110, 112 Tractors) (-100000)

Primary [Used on the 110-8 HP (-271000),

110-10 HP (-284000), and 112-12 HP (-259000)]

Primary [Used on the 110-8 HP (-271000),

110-10 HP (-284000), and 112-12 HP (-259000)]

Primary [Used on the 110-8 HP (271001-),

110-10 HP (284001-), and 112-12 HP (259001-), 200 Series.]

Primary [Used on the 110-8 HP (271001-),

110-10 HP (284001-), and 112-12 HP (259001-), 200 Series.]

41 (38" Cut) M45998

M82721

M40757

Primary (120, 140, 300, 312, 314, 316 Tractors)

Primary (317 Tractor)

Deck

46 M45998

M41960

M77988

AM31159

Primary (112 Tractor) (100001-)

Secondary

Secondary (112 Tractor) (-100000)

Primary (Set of 2) (112 Tractor) (-100000)

46" M47765

M41960

M82718

M45254

M89112

M41668

Primary (200 Series)

Mower Drive (200 Series), Secondary

Primary (316 (285001-), 317,318)

Primary (314, 316 (-285000)

Primary (330, 322, 332)

Secondary (300 Series)

47 (46" Cut) (-205468)

(205469-) M45998

M47043

M47765

M41960

M77988

Primary [Used on the 110-8 HP (-271000),

110-10 HP (-284000), and 112-12 HP (-259000)]

Primary

Primary [Used on the 110-8 HP (271001-),

110-10 HP (284001-), and 112-12 HP (259001-), 200 Series.]

Secondary

Secondary (110, 112 Tractors) (-100000)

48 (46" Cut) M45254

M82718

M41668

Primary (120,140, 300, 312, 314, 316 (-95000)

Primary (317 Tractor)

Secondary

48" M112268

M119871

M119872

M82718

M118548

Deck (425, 445, 455)

Primary (330, 322, 332)

Primary (316 (285001-), 318)

Primary (316 (80001-95000), 300, 312, 314, 317, 120, 140)

Export

50" (-95000)

(-285000)

(285001-)

M45254

M82718

M89112

M41668

M134268

M90939

M90942

Primary (300, 312, 316)

Primary (314)

Primary (316, 317, 318)

Primary (322, 330, 332)

Secondary (300 Series)

Deck Drive (420, 430)

Primary (655)

Deck (655)

54" M112269

M118549

M137166

Deck (400 Tractors)

Drive (400 Tractors) (Export)

Deck (4100 CUT)

54C M141627 54C Deck, (2210 and 2305 CUTS)

54D M118548 54D Deck, (2320 CUT)

60 M48444 Drive

60" (488001-525000)

(525001-)

M140021

M48444

M140021

M120381

M140021

M76297

M111534

M136137

M117636

Deck (420 Tractor)

Deck (400 Tractor)

Deck (420, 430 Tractors)

Deck (425, 445, 455 Tractors)

Deck (755, 855, 955 Tractors)

Deck (670, 770, 790 Tractors)

Deck (2520 CUT)

Deck (3120, 3320, 3520, 3720 and 4200, 4300, 4400 CUTS)

Deck (4100 CUT)

62C M142997 62C Deck, (2210 and 2305 CUTS)

62D M138583 62D Deck, (2320 CUTS)

62D M141627 62D Deck, (2520, 2720 CUTS)

72 M81976

M81954

M88233

Deck (850 Tractor)

Deck (950, 1050 Tractors)

Deck (850TR w/long wheel base)

72" M89884

M149866

H64484

M134785

M149867

Deck (870, 970, 1070, 855, 955 Tractors)

Deck (3120, 3320, 3520, 3720 CUTS)

Deck (2520, 2720, 4200, 4300, 4400 CUTS)

Deck (4500, 4600, 4700 CUTS)

Deck (4120, 4320, 4520, 4720 CUTS)

160 M140021

AM38778 Deck (755, 855, 955)

Drive (Set of 2)

172 (-537000)

(537001-)

M89031

M81954

M89031

Drive (850)

Drive (950, 1050)

261 M84505 Deck (650, 670, 750, 755, 770, 790, 850, 855, 870, 900HC, 950, 955, 970, 990, 1050,

1070, 2305, 2320, 2520, 3120, 3320, 3520, 3720, 4120, 4320, 4520, 4720 CUTS)

272 M83556 Deck (650, 670, 750, 755, 770, 790, 850, 855, 870, 955, 900HC, 950, 970, 990, 1050,

1070, 2320, 2520, 3120, 3320, 3520, 3720, 4120, 4320, 4520, 4720 CUTS)

397 M84586

AM38945 Primary

Secondary (Set of 4)

TRACTOR ROTARY MOWERS (3-POINT HITCH)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

260 M84505 Deck (318, 420, 430 Tractors)

272 M83556 Drive (855, 955)

50" M134268 Deck (316, 318, 330, 420, 430 Tractors)

60" M84505 Drive (755, 790)

TRACTOR ROTARY MOWERS (MID-MOUNT) (Continued)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

WALK-BEHIND ROTARY MOWERS (2/4 CYCLE)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

12PB, 12PC, 12SM, 12SB, 12SE, 14SM,

14SB, 14SE,

14SMC, 14SBC,

14SEC, 14ST

(360001-450000)

(450001-010001)

(360001-450000)

PT13490

M73604

PT15260

M77167

Drive

Speed Reduction

Drive

12SB (1989-), 14PS, 14PT,

14SB, 14SC 14SE, 14SX, 14SZ (10000-) M77167 Drive

20SR7 Reel Mower M77103 Drive

JM26 GX23501 Drive

JM36, JM46 GX23549 Drive

JS20, JS30, JS40 GX22269 Drive

JS25, JS35, JS45 GX22819

GX22819 Drive

Mower (JS45)

JS26, JS28, JS48 GX23501 Drive

JS36, JS46, JS38 GX23549 Drive

JS61, JS63E GC00073 Drive

JS63, J63C GC00081 Drive

JA62, JA65, JX75, JE75, JX85 (-X200000) (-E010000)

(X200001-) (E010001-) M77167

GX21552 Drive

Drive

Sabre Walk-Behind Rotary Mowers

M10 GC00073 Drive

M21 GC00073 Drive

M23 GC00081 Drive

14SS M77167 Drive

Scotts Walk-Behind Rotary Mowers

SP6211 GC00073 Drive

SP6213 GC00081 Drive

WALK-BEHIND COMMERCIAL MOWERS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

32" (107001-) PT12668

PT8669

PT8675

PT8697

Engine to Blade (11 HP, 12.5 HP)

Blade to Blade

Wheel Drive

Variable Speed

36" (-107000)

(107000-)

(010001-)

(-750000)

PT11632

PT12668

PT8676

M96996

PT8675

PT8697

Engine to Blade (12.5 HP)

Engine to Blade

Blade to Blade

Wheel Drive

Variable Speed

36" (GS Series) M122906

M122907

M122106

M122107

Transmission (GS25, GS30, GS45, GS75)

Drive (GS25, GS30, GS45, GS75)

Primary (GS25, GS30, GS45, GS75)

Blade to Blade (GS25, GS30, GS45, GS75)

38" M119633

M113790 Transmission

Drive

48" (-112000)

(-112000)

(112001-116000)

(116001-)

(-116000)

(116001-595000)

(595001-)

(116001-)

(-116000)

PT8675

PT8716

PT15219

PT15220

M77672

M77674

PT8675

M77671

M93748

M77670

PT8697

Engine to Blade

Blade to Blade (Set of 2)

Engine to Blade

Blade to Blade (Set of 2)

Engine to Blade

Blade to Blade (Set of 2)

Gear Box to Wheel

Traction (Set of 2)

Transmission

Variable Speed

48" (GX48MCX010001-) M119633

M110798 Transmission

Blade to Blade

48" (GS Series) M122906

M122907

M122818

M115776

Transmission (GS25, GS30, GS45, GS75)

Drive (GS25, GS30, GS45, GS75)

Primary (GS25, GS30, GS45, GS75)

Blade to Blade (GS25, GS30, GS45, GS75)

519 Vertical Mower LG48-340 Drive

52" (-116000)

(-116000)

(116001-)

(-116000)

(116001-595000)

(595001-)

(116001-)

(-116000)

PT8698

PT8676

M77673

M77675

PT8675

M77671

M93748

M77670

PT8697

Engine to Blade

Blade to Blade (Set of 2)

Engine to Blade

Blade to Blade (Set of 2)

Gear Box to Wheel

Traction (Set of 2)

Transmission

Variable Speed

54" (-020000)

(020001-)

M119633

M111051

M119630

Transmission

Blade to Blade

54" (GS Series) M122906

M122907

M122818

M122821

Transmission (GS25, GS30, GS45, GS75)

Drive (GS25, GS30, GS45, GS75)

Primary (GS25, GS30, GS45, GS75)

Blade to Blade (GS25, GS30, GS45, GS75)

36" (HD45, HD75) M135762

M132873

M122107

Drive (HD45, HD75)

Primary

Blade to Blade

48" (HD45, HD75) M135762

M127176

M115776

Drive (HD45, HD75)

Primary

Blade to Blade

54" (HD45, HD75) M135762

M127176

M122821

Drive (HD45, HD75)

Primary

Blade to Blade

7H17B, 7H17E TCU17417

TCU19624

TCU18848

TCU17942

TCU19456

Transmission

Mower (7H17E)

Mower (7H17E) (Secondary)

Mower (7H17B) (SN -030000)

Mower (7H17B) (SN 030001-)

7H19 TCU17417

TCU17942

TCU17414

Transmission

48" Deck

54" Deck

7G18 (-020000)

(020001-) TCU17942

TCU19456

TCU19104

AM128033

V-Belt, Mower

Tra ct i on

Transmission

G15 M122907

M122106

M122107

M122906

Drive

Mower, Primary

Mower, Blade to Blade

Transmission

WE80 21", WE85 GX23722 Drive

WG32A, WG36A,

WG48A TCU29283

TCU29752

TCU29158

TCA20750

TCU29763

TCU29748

Engine Drive

Traction Drive

Mower Deck (WG32A)

Mower Deck (WG36A)

Mower Deck (WG48A - 51.4 in. Long )

Mower Deck (WG48A - 83 in. Long)

WH36A, WHP36A (-140000)

(040001-) TCU29186

TCU33063

TCA20591

PTO (WH36A)

PTO (WHP36A)

Mower Deck

WH48A, WHP48A TCU29186

TCU29747 PTO

Mower Deck

WH52A, WHP52A TCU29186

TCA20749 PTO

Mower Deck

WALK-BEHIND COMMERCIAL MOWERS (Continued)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

FRONT MOWERS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

F510 (-130000)

(130001-)

(-130000)

(130001-)

M95121

M118755

M95122

M120048

Mower Drive (38" & 48" Primary)

Mower Drive (38" Secondary)

F525 (-100000)

(-130000)

(130001-)

(-130000)

(130001-)

(-130000)

(130001-)

M95087

M95121

M118755

M95121

M118755

M95875

M118756

Mower Drive (46" Primary)

Mower Drive (38" & 48" Primary)

Mower Drive (48" Primary)

Mower Drive (48" Secondary)

F710, F725 M75353

AM108054

M111564

M111534

Traction

Drive (Set of 2)

Mower (48")

Mower (54")

F735 M139011

AM128033

M111564

M111534

M133184

Traction

PTO (Set of 2)

Mower (48")

Mower (54")

Mower (60")

F910, F930 AM100465 PTO (Set of 2)

F911 M97340

AM100465 Fan

PTO (Set of 2)

F912, F915 M811281

AM100465 Fan

PTO (Set of 2)

F925, F932, F935 M800347

AM100465 Fan

PTO (Set of 2)

F1145 M805441

M117491 Water Pump (37.5")

Fan

1420, 1435 (-060000)

(060001-)

M811284

M805011 (1435)

M800347 (1420)

Water Pump

1445 (-040000)

(040001-) M805441

RG60874 Water Pump

Water Pump

1545 (-020000)

(020001-) M805441

RG60874 V-Belt, Water Pump

V-Belt, Water Pump

1565 (-030000)

(030001-070000)

(070001-)

RG60467

AT211777

M811282

Water Pump

1600, 1620, 1600 Turbo ----------

M809983 (Turbo)

TCU14537

TCU14539

TCU14538

Fan, See parts catalog.

Fan

Front Mower

Left Mower

Right Mower

1600 Turbo Series II (-100006)

(100007-)

M801821

TCU14537

TCU31159

TCU14539

TCU14538

Fan

Front Mower

Left Mower

Right Mower

ZTRAK™ MOWERS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

F620, F687 M136351

M131551

M136819

M135782

Traction Drive

Mower Drive, 48" Mower

Mower Drive, 54" Mower

Mower Drive, 60" Mower

F680

(015001-)

M136351

M112268

M138583

M112269

M138692

M120381

M135782

Traction Drive

Mower Drive, 48" Mower

Mower Drive, 48" 7-Iron Mower Deck

Mower Drive, 54" Mower

Mower Drive, 54" 7-Iron Mower Deck

Mower Drive, 60" Mower

Mower Drive, 60" 7-Iron Mower Deck

M653, M655 TCU10003

TCU10002

TCU10004

PTO

Hydraulic Pump

Mower Drive, 54" Mower

M665 TCU10003

TCU10002

TCU10005

PTO

Hydraulic Pump

Mower Drive, 60" Mower

717, 727 TCU16092

TCU16093

D28125

Deck Drive (717)

Deck Drive (727)

Hydraulic Pump

717A, 727A TCU16122

TCU20002

TCU18602

TCU18603

MCS

Hydraulic Drive

V-Belt, 48" (717A)

V-Belt, 54" (727A)

717E TCU20002

TCU19609

TCU19623

Hydraulic Drive

Mower Drive

Mower Drive (Rear Discharge)

737, 757 TCU12829

TCU13195

TCU13196

TCU13198

Hydraulic Pump

PTO

V-Belt, 54"

V-Belt, 60"

777, 797 (-020000)

(020001-) TCU16841

TCU16026

TCU16495

TCU13198

TCU16036

Hydraulic Drive

Mule Drive

V-Belt, 60"

V-Belt, 72"

997 (Domestic)

(European)

-080000 (Domestic)

080001- (Domestic)

(European)

-030100

030101-

DMU210479

DMU210282

TCU16036

TCU19900

TCU16036

M809983

RG60874

Mower Drive, 60" Rear/Side Discharge

Mower Drive, 72" Side Discharge

Fan

Z510A, Z520A TCU22550

TCU26904

TCU26905

TCU26906

Traction Drive

Mower Drive, 48" Mower

Mower Drive, 54" Mower (Z520A)

Mower Drive, 60" Mower (Z520A)

Z710A (-020000)

(020001-)

(-020000)

(020001-)

(-020000)

(020001-)

TCU26349

TCU28434

TCU26290

TCU29452

TCU26291

TCU29453

Traction Drive

Mower Drive, 48" Mower

Mower Drive, 54" Mower

Z720A (-020000)

(020001-)

(-020000)

(020001-)

TCU26349

TCU28434

TCU26293

TCU29454

Traction Drive

Mower Drive, 48" Mower

Z810A, Z820A, Z830A,

Z840A, Z850A, Z860A TCU22550

TCU26162

TCU26907

TCU26908

TCU26909

TCU26910

Traction Drive (Z830A, Z850A, Z860A)

Traction Drive (Z810A, Z820A, Z840A)

Mower Drive, 48" Mower

Mower Drive, 54" Mower

Mower Drive, 60" Mower

Mower Drive, 72" Mower

Z910A, Z920A (-020000)

(020001-)

(-020000)

(020001-)

(-020000)

(020001-)

(-020000)

(020001-)

TCU26349

TCU28434

TCU26294

TCU29452

TCU26295

TCU29453

TCU26297

TCU29454

Traction Drive

Mower Drive, 48" Mower

Mower Drive, 54" Mower

Mower Drive, 60" Mower

Z925A, Z930A, Z950A,

Z960A, Z970A (SN -020000)

(SN 020001-)

(SN 020001-030000)

(SN 030001-)

(SN -020000)

(SN 020001-)

(SN -020000)

(SN 020001-)

TCU25673

TCU28433

TCU26295

TCU29453

TCU26297

TCU29454

TCU26298

TCU29455

Traction Drive

Mower Drive 54" Mower

Mower Drive 60" Mower

Mower Drive 72" Mower

Z915B, Z920M, Z920R

(SN -xxxxxx)

(SN xxxxxx-)

(SN -xxxxxx)

(SN xxxxxx-)

TCU34299

TCU30510

TCU31132

TCU30356

TCU21814

TCU20821

TCU20822

TCU21814

TCU20821

Traction Drive

Mower Drive 48" Mower

Mower Drive 54" Mower

Mower Drive 60" Mower

2-Bag MOD 48" Mower

2-Bag MCS 48" and 54" Mowers

MCS Drive, 48" Mower

3-Bag DFS MCS 48" Mower

3-Bag DFS MCS 48" and 54" Mowers

ZTRAK™ MOWERS (Continued)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

Z925M EFI,

Z925M FLEX FUEL,

Z930M

(SN -xxxxxx)

(SN xxxxxx-)

(SN -xxxxxx)

(SN xxxxxx-)

TCU34299

TCU31132

TCU30356

TCU31194

TCU21814

TCU20821

TCU20822

TCU21814

TCU20821

Traction Drive

Mower Drive 54" and 54" MOD Mower

Mower Drive 60" and 60" MOD Mower

Mower Drive 72" Mower

2-Bag MCS 54" Mower

2-Bag MCS 54" and 60" Mowers

MCS Drive, 54" Mower

3-Bag DFS MCS 54" Mower

3-Bag DFS MCS 54" and 60" Mowers

Z930M EFI

(SN -xxxxxx)

(SN xxxxxx-)

TCU34299

TCU30356

TCU20822

TCU21814

TCU20821

Traction Drive

Mower Drive 60" and 60" MOD Mowers

MCS Drive, 60" MOD Mower

3-Bag DFS MCS 60" Mower

Z930R, Z950R, Z960R

(SN -xxxxxx)

(SN xxxxxx-)

TCU34299

TCU31132

TCU30356

TCU31194

TCU20822

TCU21814

TCU20821

Traction Drive

Mower Drive 54" and 54" MOD Mowers

Mower Drive 60" and 60" MOD Mowers

Mower Drive 72" Mower

MCS Drive, 60" MOD Mower

3-Bag DFS MCS 60" Mower

Z970R TCU34299

TCU31194 Traction Drive

Mower Drive 72" Mower

EZTRAK™ MOWERS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

Z225, Z245 EZtrak (-100000)

(100000-)

(-100000)

(100001-)

M155343

M160571

M154294

M158130

M158131

Traction Drive

Mower Drive, 42" Mower (Z225)

Mower Drive, 48" Mower (Z245)

Mower Drive, 48", 54" Mower (Z245)

Z235 EZtrak M165413

M154294 Traction Drive

Mower Drive, 48" Mower

Z255 EZtrak M165413

GX21833 Traction Drive

Mower Drive, 48" Mower

Z425, Z445 EZtrak (-100000)

(100000-)

(-100000)

(100000-)

M154157

M160571

M158130

M158131

M158409

M147278

M146479

Traction Drive

Mower Drive, 48" Mower

Mower Drive, 48", 54" Mower

Mower Drive 54" High Capacity (Z445)

48" MCS

54" MCS

Z465 EZtrak (-100000)

(100001-) M154157

M160571

M156261

Traction Drive

Mower Drive, 62" Mower

Z645 M160956

M160912 Traction Drive

Mower Drive

Z655 (-130000)

(130001-) M160956

M169705

TCU19609

Traction Drive

Mower Drive

Z665 (-130000)

(130001-) M160956

M163540

M156261

Traction Drive

Mower Drive

QUIK-TRAK™ MOWERS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

647 GDU10025

M137166 Hydraulic Pump

Mower Drive

657, 667 GDU10025

TCU15178 Hydraulic Pump

Mower Drive

ZTRAK™ MOWERS (Continued)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

647A (-030000)

(030001-)

TCU17289

TCU17497

TCU19453

PTO

Mower Drive

657A (-030000)

(030001-070000)

(070001-)

TCU17289

TCU18117

TCU19456

TCU29856

PTO

Mower Drive

667A (-030000)

(030001-)

TCU17289

TCU18602

TCU14356

PTO

Mower Drive

652B, 652R, 652R EFI TCU34214

TCU34215

TCU34219

Traction Drive

Mower Drive, 52" Mower (Right)

Mower Drive, 52" Mower (Left)

648R TCU34214

TCU34217

TCU34229

Traction Drive

Mower Drive, 48" Mower (Right)

Mower Drive, 48" Mower (Left)

661R, 661R EFI TCU34214

TCU34216

TCU34218

Traction Drive

Mower Drive, 61" Mower (Right)

Mower Drive, 61" Mower (Left)

RIDING MOWERS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

55, 56 M44483

M44498 Drive, Traction

Mower

57 M44483

M45863

M45862

Drive, Traction

Mower, Primary

Mower, Secondary

65 M44483

M44498 Drive, Traction

Mower

66 (-80000) M82167

M82538 Drive, Traction

Spindle (30" Mower)

68 M82167

M49920

M82538

Drive, Traction

Deck & Mower (34" Mower)

Spindle (30" Mower)

90, 96

Electric (-10000)

(10001-) M46758

M41592 Traction

Traction

R70, R72, R92 (-360000) M86421

M91330 Drive, Traction

Mower

R70 (360001-362395)

(362396-) M86421

M91330 Deck, 63-5/8" outside belt dim.

Deck, 64-1/8" outside belt dim.

R72 (360001-365544)

(365545-) M86422

M91330 Deck, 63-5/8" outside belt dim.

Deck, 64-1/8" outside belt dim.

R92 (-360000)

(360001-377917)

(377918-)

M82538

M86422

M91330

V-Belt, Mower

Deck, 63-5/8" outside belt dim.

Deck, 64-1/8" outside belt dim.

S80, S82 M82167 Drive, Traction

S82 (360001-) M82538 V-Belt, Mower

S92 M82167

M86248 Drive, Traction

Mower

GX70, GX75, GX85,GX95 M112006

M94020 Mower, Drive (30")

Primary, Traction (GX85 also order M94023 Belt Guide)

RX63, RX73, RX75,

RX95,SX75, SX95 M93045

M91470 Primary, Traction

Secondary, Traction

RX63, RX73, RX75,

SX75, RX95, SX95 M72031

M112006

M112490

Mower, Drive (26")

Mower, Drive (30")

Mower, Drive (38")

SRX75, SX85, SRX95 M112006

M94049

M91470

M112490

Mower, Drive (30")

Traction, Primary

Traction, Secondary

Mower, Drive (38")

QUIK-TRAK™ MOWERS (Continued)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

LAWN TRACTORS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

60 (Uses 34" Mower) M43489

M41592 Belt Drive & Throw-Out Assembly

Transaxle

70, 100 (Uses 34"

Mower) M41592

M43489 Transaxle

Counter Sheave

102 GX22036

GX20072

GXH47846

M82538

M155452

M155885

PTO

Drive, 42" Mower

42" Snowblower

42" Snowblower Drive

44" Snowblower

44" Snowblower Drive

108 M83837

M82460

M82461

Drive, Traction

Mower, Primary (762 Mower)

Mower, Spindles (762 Mower)

111 M83837

M88184

M82462

Drive, Traction

Mower, Primary (970 Mower)

Mower, Secondary (970 Mower)

111H M84075

M88184

M82462

Drive, Traction

Mower, Primary (970 Mower)

Mower, Secondary (970 Mower)

112L M84075

M77988

M82462

Drive, Traction

Mower, Primary (970 Mower)

Mower, Secondary (970 Mower)

105, 115, 125, 135 GX20006

GX20072

GXH47846

M82538

M155452

M155885

PTO

Drive, 42" Mower

42" Snowblower

42" Snowblower Drive

44" Snowblower

44" Snowblower Drive

116 (-285000)

(285001-) M83837

M86996 Drive, Traction

Drive, Traction

116H M84075 Drive, Traction

116, 116H M88184

M82462

M84223

M84136

Mower, Primary (970 Mower, 38")

Mower, Secondary (970 Mower, 38")

Drive, Primary (1170 Mower, 46")

Drive, Secondary (1170 Mower, 46")

130 M86996

M90958 Drive, Traction

Mower, Drive

145, 155C GX20006

GX21833

GXH47846

M82538

M155452

M155885

PTO

Drive, 48" Mower

42" Snowblower

42" Snowblower Drive

44" Snowblower

44" Snowblower Drive

160 M83837

M77988

M82462

Drive, Traction

Mower, Primary

Mower, Secondary

165 M84075

M89832

M77988

M82462

Drive, Traction (78-1/2")

Drive, Traction (79-1/3")

Mower, Primary

Mower, Secondary

170 (420001-)

(420001-)

M86996

M77988

M82462

Drive, Traction

Mower, Primary (970 Mower, 38")

Mower, Secondary (970 Mower, 38")

175 M89832

M84075

M77988

M82462

Drive, Traction (2041 mm)

Drive, Traction (1994 mm)

Mower, Primary (970 Mower, 38")

Mower, Secondary (970 Mower, 38")

180 M86996

M77988

M82462

M91147

M84136

Drive, Traction

Mower, Primary (970 Mower, 38")

Mower, Secondary (970 Mower, 38")

Mower, Primary (1170 Mower, 46")

Mower, Secondary (1170 Mower, 46")

185 (-475000)

(-475000)

(475001-)

M89832

M84075

M73223

M77988

M82462

M91147

M84136

Drive, Traction (2014 mm) (79-1/3")

Drive, Traction (1994 mm) (78-1/2")

Drive, Traction

Mower, Primary (970 Mower, 38")

Mower, Secondary (970 Mower, 38")

Mower, Primary (1170 Mower, 46")

Mower, Secondary (1170 Mower, 46")

190C GX21986

H86061

GX21395

GXH47846

M82538

Drive, Traction

MCS

Drive, Mower (54" Deck)

42" Snowblower

42" Snowblower Drive

LX172, LX173 M110367

M77988

M82462

Drive, Traction

Mower, Primary (38")

Mower, Secondary (38")

LX176, LX178 M110978

M77988

M82462

M77988

M119696

M154958

Drive, Traction

Mower, Primary (38")

Mower, Secondary (38")

Mower, Primary (44")

Mower, Secondary (44")

Mower, Primary (48" Mower)

Mower, Secondary (48" Mower)

LX186, LX188 M110978

M110312

M154958

M119696

M115776

Drive, Traction

Mower, Primary (48")

Mower, Secondary (48")

Mower, Primary (44")

Mower, Secondary (44")

LX266 M146667

M117608

M82462

M140502

M150717

M143019

M43820

M154958

M118685

Drive, Traction

38” Primary Drive

38” Secondary

42M Mower, Primary

42M Mower, Timing

42C, 48C, and 54C Primary

42C Secondary

48C Secondary

54C Secondary

LX255, LX277, LX279,

LX288 M146667

M117608

M82462

M47765

M143019

M43820

M140502

M150717

M119696

M115776

M143019

M154958

M138974

M143019

M118685

M154960

Drive, Traction

38" Primary

38" Secondary

38" MCS

42C Primary

42C Secondary

42M Mower, Primary

42M Mower, Timing

44" Primary

44" Secondary

48" Primary

48" Secondary

48" MCS

54" and 54C, Primary (LX288)

54" Side Discharge, Secondary (LX288)

54C Secondary (LX288)

LX277AWS (-060000)

(060001-) M127524

M147044

M117608

M82462

M140502

M150717

M143019

M154958

M143019

M118685

Drive, Traction

38" Primary

38" Secondary

42M Mower, Primary

42M Mower, Timing

48" Primary

48" Secondary

54" Side Discharge, Primary

54" Side Discharge, Secondary

LX280, LX280AWS M147044

M143019

M154960

M146479

M147278

M154958

M43820

Drive, Traction

Deck, Primary

54" Deck, Secondary

54C MCS

48C MCS

48" Deck, Secondary

42" Deck, Secondary

LX289 M147044

M147278

M154958

M143019

Drive, Traction

MCS

Mower, Secondary

Mower, Primary

LT133 M126012

M126536 Drive, Traction

Mower (38")

LT150 M144044

M144570

M126536

GXH24522

M82538

Drive, Traction (Hydro)

Drive, Traction (Gear)

Mower (38")

42" Snowblower

42" Snowblower Drive

LT160 M144044

M126536

M128733

M150717

GXH24522

M82538

Drive, Traction (Hydro)

Mower Drive (38", 42C)

Mower Drive, 42M (42")

Mower, 42M Timing (42")

42" Snowblower

42" Snowblower Drive

LT170 M144044

M128733

M150717

GXH24522

M82538

Drive, Traction (Hydro)

Mower Drive, 42M (42")

Mower, 42M Timing (42")

42" Snowblower

42" Snowblower Drive

LAWN TRACTORS (Continued)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

LT180 M144044

M138974

M126536

M128733

M150717

M151649

GXH24522

M82538

Drive, Traction

MCS

Mower (38", 42C)

Mower Drive, 42M (42")

Mower, 42M Timing (42")

Mower Drive, (48" Deck)

42" Snowblower

42" Snowblower Drive

LT155, LT166 M126009

M126536

M127926

M150717

M128733

M123281

GX10063

Drive, Traction

Mower Drive (38")

Mower, 42M Timing (LT166 SN -095000) (LT155 SN -125000)

Mower, 42M Timing (LT166 SN 095001-) (LT155 SN 125001-)

Mower Drive, 42M

46" (LT166)

48C (LT166)

LTR155,

LTR166 M141562

M136298

M152630

M150718

Drive, Traction

42" Primary (LTR155)

42" Primary (LTR166)

42" Secondary

LTR180 M141562

M150718

M152630

Drive, Traction

Mower, Secondary (42")

Mower, Primary (42")

LT190 M144044

M138974

M151649

GXH24522

M82538

Drive, Traction

MCS

Mower Drive, (48" Deck)

42" Snowblower

42" Snowblower Drive

SST15 (-050000)

(050001-) M139970

M148269

M148556

M89832

Drive, Traction

42C, 42"AP Primary

42C, 42"AP Secondary

SST16 (-050000)

(050001-) M139970

M148269

M148556

M89832

M150717

M117608

M143847

Drive, Traction

42C, 42"AP Primary

42C, 42"AP Secondary

42M Timing

42M Primary Drive

42M Secondary

SST18 (-050000)

(050001-)

(-050000)

(050001-)

M139970

M148269

M148556

M146339

M154958

Drive, Traction

48" Primary

48" Secondary

STX30 M74747

M41960 Drive, Traction

Mower

STX38, STX46

(210001-)

M74747

M118760

M88184

M82462

M125218

M119539

Drive, Traction

Drive, Traction (Hydro) (Used w/38” and 46” Black Decks)

Primary

Secondary

Mower, 38" Black Deck (STX38)

Mower, 46" Black Deck (STX46)

D100, D110, D120,

D130 GX22036

GX20006

GX20072

M155452

M155885

Drive, Traction (D100)

Drive, Traction (D110, D120, D130)

Mower

44" Snowblower

44" Snowblower Drive

D105 GX24154

GX20072

M155452

M155885

Drive, Traction

Mower

44" Snowblower

44" Snowblower Drive

D125 GX20006

GX20072

M155452

M155885

Drive, Traction

Mower

44" Snowblower

44" Snowblower Drive

D140, D150, D160 GX21833

GX20006

M155452

M155885

Mower

Drive, Traction

44" Snowblower

44" Snowblower Drive

D170 GX21395

GX20006

M155452

M155885

Drive, Mower

Drive, Traction

44" Snowblower

44" Snowblower Drive

L100 GX22036

GX20072 Drive, Traction

Drive, Mower

L105, L107, L108,

L110,

L111, L118

GX20006

GX20072

GXH47846

M82538

M155452

M155885

Drive, Traction

Drive, 42" Mower

42" Snowblower

42" Snowblower Drive

44" Snowblower

44" Snowblower Drive

LAWN TRACTORS (Continued)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

L120 (-150000)

(150001-)

GX20006

GX20305

GX21833

Drive, Traction

Drive, 48" Mower

L130 (-A130000), (-B020000)

(A130001-), (B020001-)

GX20006

GX20305

GX21833

Drive, Traction

Drive, 48" Mower

LA100, LA105 GX22036

GX20072

GXH47846

M82538

M155885

M155452

Drive, Traction

Drive, 42" Mower

42" Snowblower

42" Snowblower Drive

44" Snowblower

44" Snowblower Drive

LA110, LA115, LA120,

LA125, LA135, X110,

X120,

GX20006

GX20072

GXH47846

M82538

M155885

M155452

Drive, Traction

Drive, 42" Mower

42" Snowblower

42" Snowblower Drive

44" Snowblower

44" Snowblower Drive

LA130, LA140, LA145,

LA155, LA165, X140 GX20006

GX21833

GXH47846

M82538

M155885

M155452

Drive, Traction

Drive, 48" Mower

42" Snowblower

42" Snowblower Drive

44" Snowblower

44" Snowblower Drive

LA150, LA175 GX20006

GX21395

GXH47846

M82538

M155885

M155452

H86061

Drive, Traction

Drive, 54" Mower

42" Snowblower

42" Snowblower Drive

44" Snowblower

44" Snowblower Drive

MCS Drive

LAWN & GARDEN TRACTORS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

110, 110H (-100000)

(-100000)

M41335

M82258

M44121

M41341

Motor Generator

Primary Variator

Secondary Variator

Hydraulic

112, 112H (-100000)

(-100000)

M41335

M42226

M44121

M41985

Motor Generator

Primary Variator

Secondary Variator

Hydraulic

110, 112 (100001-250000)

(100001-250000) M82258

M44121 Primary Variator

Secondary Variator

110, 112 Tecumseh (100001-250000) M43106 Drive, Pump

112 Kohler (100001-250000) M44113 Drive, 90 Degree Pump

200, 210, 212,

214, 216 M48520

M82258

M44121

M43820

Hydraulic Lift

Drive, Primary Variator

Secondary Variator

V-Belt

208 M82258

M44121

M43820

Drive, Primary Variator

Secondary Variator

V-Belt

240 M71026

M117608

M82462

M84223

M84136

M77988

M154958

Drive, Traction

Mower, Primary (38")

Mower, Secondary (38")

Mower, Primary (46")

Mower, Secondary (46")

Mower, Primary (48")

Mower, Secondary (48")

245 M117608

M82462

M71135

M77988

M154958

M84223

M74187

Mower, Primary (38")

Mower, Secondary (38")

Drive, Traction

Mower, Primary (48")

Mower, Secondary (48")

Mower, Primary (50")

Mower, Secondary (50")

LAWN TRACTORS (Continued)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

260 M71026

M117608

M84223

M84136

M77988

M154958

Drive, Traction

Mower, Primary (38")

Mower, Primary (46")

Mower, Secondary (46")

Mower, Primary (48")

Mower, Secondary (48")

265 (-012178)

(012179-)

M71135

M84223

M95861

M84136

M77988

M154958

Drive, Traction

Mower, Primary (46")

Mower, Secondary (46")

Mower, Primary (48")

Mower, Secondary (48")

285 (-010417)

(010418-)

M71135

M84223

M95861

M84136

M77988

M154958

M84223

M74187

Drive, Traction

Mower, Primary (46")

Mower, Secondary (46")

Mower, Primary (48")

Mower, Secondary (48")

Mower, Primary (50")

Mower, Secondary (50")

G100 M136927

M118685

M110312

Drive, Traction

54" Deck, Secondary

54" Deck, Primary

G110 GX21407

H86061

GX21395

GX21407

M82538

GXH47846

Idlers

MCS

Mower Drive

Traction Drive

Snowblower Drive

Snowblower

GT242, GT262, GT275

(-035000)

(035001-)

M114763

M119713

M77988

M82462

M77988

M119696

M115776

M110312

M143019

M154958

Drive, Traction (GT242, GT262)

Drive, Traction (GT275)

Mower, Primary (38" Mower)

Mower, Secondary (38" Mower)

Mower, Primary (44" Mower W/O Deck SN)

Mower, Primary (44" Mower W/Deck SN)

Mower, Secondary (44" Mower)

Mower, Primary (48" Mower)

Mower, Secondary (48" Mower)

GT225, GT235 M127523

M117608

M82462

M43820

M143019

M140502

M150717

M119696

M115776

M143019

M154958

M143019

M118685

Drive, Traction

38" Primary

38" Secondary

42C Secondary

42C Primary

42M Primary

42M Secondary

44" Primary

44" Secondary

48" Primary

48" Secondary

54" Side Discharge, Primary

54" Side Discharge, Secondary

GT235E, GT245 M127523

M143019

M154960

M146479

Traction Drive

54C, Primary Drive

54C, Secondary

54C MCS

GX255 M143019

M154960

M146479

M147278

M154958

M127523

48", 54" Primary

54" Secondary

54C MCS

48C MCS

48" Secondary

Traction

GX325, GX335,

GX345, GX355 M142499

M43820

M143019

M119696

M115776

M154958

M154960

Drive, Traction

42C Secondary

42C, 48C, 54C Primary

44" Primary

44" Secondary

48" Secondary

54C, Secondary

300, 312, 314 M43795 PTO

316 (-095000) M43795 PTO

316 (285001-) M86060 PTO

317 M82720 PTO

318 M86060 PTO

320 M71135

M77988

M154958

Drive, Traction

Mower, Primary (48")

Mower, Secondary (48")

322, 330, 332 M811281 Fan

LAWN & GARDEN TRACTORS (Continued)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

325, 335, 345, 355D M118048

M131808

M117608

M82462

M140502

M150717

M119696

M115776

M143019

M154958

M118685

Drive, Traction (-070000)

Drive, Traction (070001-)

Drive, Traction (355D)

Mower, Primary (38")

Mower, Secondary (38")

Mower, Primary (42")

Mower, Secondary (42")

Mower, Primary (44")

Mower, Secondary (44")

Mower, Primary (48" and 54")

Mower, Secondary (48")

Mower, Secondary (54")

X125 GY20006

GX20072

M155452

M155885

Traction Drive

Mower Deck

44" Snowblower (Drive)

44" Snowblower

X130R Select Series GX23798

GX23110

GX23111

Drive, Traction

Mower, LH

Mower, RH

X135R Select Series GX23798

GX24768

M155452

M155885

Drive, Traction

36" Mower, RDRC

44" Snowblower (Drive)

44" Snowblower

X145 GY20006

GX20072

M155452

M155885

Traction Drive

Mower Deck

44" Snowblower (Drive)

44" Snowblower

X155R GX23110

GX23111

GX23798

Mower, LH

Mower, RH

Traction Drive

X165 GX21833

GX20006

M155452

M155885

Mower Deck

Traction Drive

44" Snowblower (Drive)

44" Snowblower

X300 Select Series (-040000)

(040001-)

(-150000)

(150001-)

M152284

M144044

M154601

M155525

M154621

M153160

M154897

M138583

M154897

M154958

M149970

Drive, Traction

38" Deck (with deck tensioner handle)

38" Deck (without deck tensioner handle)

42C Deck

42M Deck

42M Deck (Primary)

42M Deck (Secondary)

48C Deck (Primary)

48C Deck (Secondary)

47" Snowblower

X300R Select Series M152398

M155096

M162443

Drive, Traction

42" Rear Discharge Deck

MCS

X304 Select Series

(-150000)

(150001-)

M144044

M154621

M153160

M154897

M138583

M149970

Drive, Traction

42C Deck

42M Deck

42M Deck (Primary)

42M Deck (Secondary)

44" Snowblower

X320, X324, X360

Select Series M144044

M154897

M154958

M154960

M155368

M149970

M147278

Drive, Traction

Mower, Primary (48")

Mower, Primary (54")

Mower, Secondary (48")

Mower, Secondary (54")

Mower, 48" (Single Belt models = Used on 48"

deck models with non-rotatable gage wheels)

44" Snowblower

2 and 3 Bag Power Flow, MCS, 48C

X310 M144044

M154621

M149970

Drive, Traction

42C Deck

44" Snowblower

X340 Select Series M144044

M154897

M154960

M149970

Drive, Traction

Mower, Primary (54C)

Mower, Secondary (54C)

44" Snowblower

400 AM35380 PTO (Set of 2)

415 (Euro Only) M811281 Fan

420, 430 M800313

AM35380 Fan

PTO (Set of 2)

425, 445, 455 M97340

M800347 Fan

Water Pump (455)

X475, X485, X575,

X585 M97340 Fan

LAWN & GARDEN TRACTORS (Continued)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

X495, X595 (Engine Marked

3TNV76)

(Engine Marked

3TNE74)

M800347

RG60467

Fan

X300, X400 and X500

Series, and X700

Ultimate Series (-030000)

(030001-)

M143888

M141627

M142997

M120381

M163620

M146479

M147278

M147279

TCU16122

Mower, Secondary, 48C

Mower, Secondary, 54C

Mower, Secondary, 62C

Mower, Secondary, 60D, 7-Iron (X700, X720,

X728, X740, X748 Ultimate Series)

Mower, Secondary, 60D, 7-Iron (X700, X720,

X728, X740, X748 Ultimate Series)

2 and 3 Bag Power Flow, MCS, 54C

2 and 3 Bag Power Flow, MCS, 48C

3 Bag Power Flow, MCS, 62C

MCS, 60D, 7-Iron (X700, X720, X728, X740, X748

Ultimate Series)

X500 (-030000)

(030001-)

M151276

X534 Multi-Terrain

(-030000)

(030001-)

M151276

M154897

M154960

M154958

M155368

M154897

M154960

M146479

M147278

M149970

Drive, Traction

Mower, Primary 48" (rotatable gage wheels)

Mower, Secondary 48" (rotatable gage wheels)

Mower, 48" (Single Belt models = Used on 48"

deck models with non-rotatable gage wheels)

Mower, Primary 54"

Mower, Secondary 54"

2 and 3 Bag Power Flow, MCS, 54C

2 and 3 Bag Power Flow, MCS, 48C

47" Snowblower

X500, X520, X530,

X540 Multi-Terrain M151276

M154897

M154958

M155368

M154897

M154960

M147278

M146479

M153655

M137547

M149970

Drive, Traction

Mower, Primary (48")

Mower, Secondary (48")

Mower, 48" (Single Belt models = Used on 48"

deck models with non-rotatable gage wheels)

Mower, Primary (54C)

Mower, Secondary (54C)

2 and 3 Bag Power Flow, MCS, 48"

2 and 3 Bag Power Flow, MCS, 54"

Tiller, 30", Primary

Tiller, 30", Secondary

44" Snowblower

X700, X720, X724,

X728, X729 Ultimate M153381

M97340

M147344

Alternator

Fan (X700)

Fan (X720, X724, X728, X729)

X740, X744, X748,

X749 Ultimate (-030000)

(030001-) RG60467

M805441

MIU800108

Fan (Engine Marked 3tnv76-XJLT, XJLTE)

Fan (Engine Marked 3tnm72-BJLT)

X710, X730, X734,

X738, X739 M153381

M97340

M163989

M165156

M163993

TCU16122

Alternator

Fan

Mower Drive, 48"

Mower Drive, 54HC

Mower Drive, 60HC

Mower, 60HC

X754, X758, X750 M153381

MIU800108

M147278

M146479

M163989

M165156

M163993

TCU16122

Alternator

Fan

Power Flow Drive, 48C

Power Flow Drive, 54C and 60HC

Mower Drive, 48"

Mower Drive, 54HC

Mower Drive, 60HC

Mower, 60HC

SABRE LAWN & GARDEN TRACTORS

MACHINE/MODEL SERIAL NO.

PREFIX PART NO. DESCRIPTION

1338G, 1538G, 1546G, 1646G M74747

M122674

M123281

Drive, Traction

38" Deck

46" Deck

1438G, 1438GS GX10062

GX10064 Drive, Traction

38" Deck

1438HS GX10851

GX10064 Drive, Traction

38" Deck

14.542GS GX22036

GX20072 Drive, Traction

Drive, Mower

LAWN & GARDEN TRACTORS (Continued)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

1538H, 15.538H, 1646H, 1638H GXSABRB,

GXSABRD,

GXSABAN

M118760

M122674

M123281

Drive, Traction

38" Deck

46" Deck

15.538G GXSABAS GX10062

GX10064 Drive, Traction

38" Deck

15.538G GXSABAM,

GXSABAJ M74747

M122674 Drive, Traction

38" Deck

15.538H GXSABAR GX10851

GX10064 Drive, Traction

38" Deck

1538H, 15.538H, 1646H, 1638H GXSABRE,

GXSABRG,

GXSABRK,

GXSABAH, GX1538H,

GX1638H, GX1646H

M127356

M122674

M123281

Drive, Traction

38" Deck

46" Deck

1542G, 15.542G, 1742GS GX10062

M124895 Drive, Traction

42" Deck

1542H, 15.542H, 1742HS GX10851

M124895 Drive, Traction

42" Deck

17.542HS GX20006

GX20072 Drive, Traction

Mower Drive

1642G GX10062

M124895 Drive, Traction

42" Deck

1642H, 1646H GXSABAV, GXSABAP

GXSABAU GX10851

M124895

GX10063

Drive, Traction

42" Deck

46" Deck

1642HS GX20006

GX20072 Drive, Traction

Drive, Mower

1642H V-Twin, 1646H V-Twin GX10851

GX10183

GX10176

Drive, Traction

42" Deck

46" Deck

1842GV,1848GV, 1948GV M131236

M136927

M131152

M131151

M110312

M154958

Drive, Traction (K61)

Drive, Traction (K62)

42" Deck, Primary

42" Deck, Secondary

48" Deck, Primary

48" Deck, Secondary

1948HV, 2148HV M131237

M110312

M154958

Drive, Traction

48" Deck, Primary

48" Deck, Secondary

1842HV, 1848HV M131237

M131152

M131151

M110312

M154958

Drive, Traction

42" Deck, Primary

42" Deck, Secondary

48" Deck, Primary

48" Deck, Secondary

1846HV, 1846HMS GX10851

GX10176 Drive, Traction

46" Deck

2046HS GX10644

GX10176 Drive, Traction

46" Deck

2048HV M136927

M131237

M110312

M154958

Drive, Traction (K66 Trans.)

Drive, Traction (K65 Trans.)

48" Deck, Primary

48" Deck, Secondary

2254HV, 2354, 2554HV M131237

M136927

M110312

M118685

Drive, Traction (K65 Trans.)

Drive, Traction (K66 Trans.)

54" Deck, Primary

54" Deck, Secondary

SCOTTS LAWN & GARDEN TRACTORS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

S1742 GXS1742010001- M124895

GX10062 42" Mower Deck

Drive, Traction

S1642 GXS1742010001- M124895

GX10851 42" Mower Deck

Drive, Traction

S2046 GXS2046010001- GX10176

GX10644 46" Mower Deck

Drive, Traction

SABRE LAWN & GARDEN TRACTORS (Continued)

MACHINE/MODEL SERIAL NO.

PREFIX PART NO. DESCRIPTION

S2048, S2348 M0S2048010001- M110312

M154958

M136927

48" Deck, Primary

48" Deck, Secondary

Drive, Traction

S2546 GXS2046010001- GX10176

GX10851 46" Mower Deck

Drive, Traction

S2554 M0S2554010001- M110312

M118685

M136927

54" Deck, Primary

54" Deck, Secondary

Drive, Traction

L17.542 GX20006

GX20072 Drive, Traction

Drive, Mower

L1742 GX22036

GX20072 Drive, Traction

Drive, Mower

L2048, L2548 GX20006

GY20571 Drive, Traction

Drive, Mower

COMPACT UTILITY TRACTORS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

650, 750 CH18206 Fan

655, 755, 756 M800313 Fan

670 M811284 Fan

770, 790 870, 970,

990, 1070 M808685 (Engine

Marked 3TNE84)

M801821 (Engine

Marked EJKD,

EJKS, LJNTD,

LJNYS)

Fan

850 (-016000)

(-007760)

(016001-)

(007761-)

M811678

CH14022

Fan

855, 856 M805441 Fan

950 (-020000)

(-018059)

(020001-)

(018060-)

CH10367

CH12865

Fan

900 HC CH14022 Fan

955 M805011 Fan

1500 ET10589 Drive

1023E LVU21853

LVU21854

MIU800681

54"D Mower Deck

60"D Mower Deck

Fan

1025R LVU21853

LVU21854

M805011

54"D Mower Deck

60"D Mower Deck

Fan

1026R LVU21853

Lvu21854

M805011

54"D Mower Deck

60"D Mower Deck

Fan

1050 CH12865 Fan

2210 M811285

M141627

M142997

Fan

54C Deck, Secondary

62C Deck, Secondary

2305 MIU800108 Fan

2320 M805441 Fan

2520 M801821

M111534 Fan

60" Mower Deck

2720 MIU800980

M805441 Fan

Fan (European)

SCOTTS LAWN & GARDEN TRACTORS (Continued)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

3005,

3032E,

3036E,

3038E

M801821 Fan

3203 LVU11835

LVU11661 Fan (1052.07 MM)

Fan (1064.77 MM)

3120,

3320,

3520,

3720

LVU11661

LVU11662

M136137

M149866

Fan

Fan (Export)

60" Mower Deck

72" Mower Deck

4005 MIU800817 Fan

4010 M800347 V-Belt, Fan

4100 M811284 (Engine

Marked, JK1,

EJK1E,JK2,

EJK2,

JK2E,EJK2E)

M800347 (Engine

Marked EJK1)

Fan

4110 M800347

M811284 Fan (4110H)

Fan (4110G)

4115 RG60467 Fan

4200, 4210 LVU11659 Fan

4300, 4400, 4500,

4600, 4700 M808685 Fan 40" (use w/ 110 mm pulley and 40A Alt.)

(Blue label)

4105, 4300, 4400,

4500, 4600, 4700 LVU11835 Fan, 40" (use w/ 110 mm pulley and 55A Alt.)

(Red label)

4300, 4400, 4500,

4600, 4700 LVU11661 Fan, 41" (use w/ 130 mm pulley and 40A Alt.)

(Blue label)

4300, 4400, 4500,

4600, 4700 LVU11662 Fan 41.5" (use w/ 30 mm pulley and 55A Alt.)

(Red label)

4310,4410. 4510,

4610, 4710 LVU11661

LVU11662 Fan, 41" (use w/ MIU803029 & 40A)

Fan, 41.5" (use w/ MIU803029 & 55A)

4120, 4320, 4520,

4720 R515222

R528332

M149867

Engine Fan (Engine Marked 4024TLV04, 05)

Engine Fan (Engine Marked 4024TLV09)

72" Mower Deck

UTILITY TRACTORS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

820 (-075344)

(075345-) T23505

R97758 Fan

Fan

830, 1020 R97758 Fan

1250, 1450, 1650 CH16856 Fan

1520 R97758 Fan

1530 T23505

R97758 Fan (use w/ Robert Bosch Alt.)

Fan (use w/ Motorola Alt.)

2020, 2020A M800347 (SN -011029)

T811284) (SN 011030-) Fan

Fan

2030 M800347 Fan

2030A RG60467 Fan

2040 (-349999)

(350000-) R97758

R73784 Fan

Fan

2240 (-349999)

(350000-) R97758

R73784 Fan

Fan

2150, 2350 R73784 Fan

2155 (-785962)

(785963-)

(-788872)

(788873-)

R73784

R97939

R73784

R97940

Fan (52.76")

Fan (52")

Fan (52.76")

Fan (52.36")

COMPACT UTILITY TRACTORS (Continued)

2355 N (-788872)

(788873-) R73784

R97940 Fan (52.76")

Fan (52.36")

2355 R87154

R87153 Fan (w/o Viscous Drive) (55.90")

Fan (w/ Viscous Drive) (54.72")

5103 R216949 Fan

5203, 5303 R73784 Fan

5105, 5205, 5200, 5300, 5320N 5400 R73784 Fan

5210, 5310, 5310N, 5400N

5220, 5320 R73784

R128502 Fan

A/C

5410, 5510, 5510N, 5420, 5420N, 5520,

5520N R135823

R135822

R135823

Fan (w/cab)

Fan (w/o cab)

A/C

5500, 5500N N150864

E75596

R128502

Fan (w/cab)

Fan (w/o cab)

A/C (5500N)

5225, 5325, 5325N R505810

R515218 Fan

Fan (w/cab)

5425, 5525, 5425N, 5525N R216071

R133703 Fan

Fan (w/cab)

TRACTOR LOADER BACKHOE

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

110 TLB LVU11661

LVU11835 Fan, 41" (use w/55A Alt.)

Fan, 40.5" (use w/40A Alt.)

UTILITY VEHICLES

MACHINE/MODEL SERIAL

NO. PART NO. DESCRIPTION

AMT600, 622, 626

GATOR 4x2, 6x4,

GATOR Diesel 6x4

RE28721

M125383

M800313

Drive

Water Pump

Pro Gator 2020,

Pro Gator 2030 M800347 V-Belt, Fan

CS, CX VG11783

VG10274 HD Alternator

Drive

4x4 HPX GATOR, 4x4 Trail

HPX GATOR (Gas) M155037

M149181

VG11784

Drive

V-Belt, Broom

HD Alternator

4x4 HPX GATOR (Diesel) M155037

M149181

M800313

Drive

V-Belt, Broom

V-Belt, Engine

Tra il Buck UATV C715900024

C715900023 Drive Belt, 500

Drive Belt, 650

500 Buck Auto ATV C715900024 Drive Belt

620i XUV, 625i XUV M158267

VG11784

M149181

Drive Belt

HD Alternator

Broom

825i XUV M158189

MIU12499

MIU13191

Drive Belt

Timing Belt

Belt, Alternator

825i S4 XUV M158189

MIU12499

MIU13962

Drive Belt

Timing Belt

Belt, Alternator

UTILITY TRACTORS (Continued)

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

850D XUV M158268

MIU800679

M149181

Drive Belt

Fan Belt

Broom

855D XUV, XUV855D S4 M158189

MIU800679 Drive Belt

Fan Belt

900HC CH14022 Fan Belt

RSX850i, RSX850i Sport,

RSX850i Trail M168196 Drive Belt

RX850i

4x2 TS GATOR M150046

M151651 Drive Belt

HD Alternator

TH 6x4 GATOR (Gas) M150046

VG11784 Drive Belt

HD Alternator

TH 6x4 GATOR (Diesel) M150046

MIU800681 Drive Belt

Water Pump

TX GATOR -050000

050001-

M150046

M153180

VG11784

Drive Belt

HD Alternator

TX Turf GATOR M150046

M150588 Drive Belt

Starter

XUV 550, XUV 550 S4 M161702 Drive Belt

MATERIAL COLLECTION SYSTEMS

MACHINE/MODEL SERIAL NO. PART NO. DESCRIPTION

142/152 Vacuum

Sweeper ET13137 Drive (2 Required)

Power Flow

-111699

111700-

M135236

M44272

H86061

M47765

H86060

M138974

M84075

H86061

M115407

TCU16122

RA1010264

RA1010242

TCU20822

Bagger (ZTrak)

38" Mower (100-200-300 Series, Sabre Tractors)

MCS (LA175)

38" Mower (LX, LT133, 155, 166 and STX w/ Quick-Tatch)

46" Mower (100-200-300 Series, Sabre, Scotts Tractors)

48" C Mower (LX, GT and 300 Series with Quick-Tatch)

50" Mower (300-400 Series Tractors)

48" Drive (LX200, F500, F700 Series) 54" Drive (F700 Series)

60" Mower (MC519)

MCS, 60D, 7-Iron (X700, X720, X728, X740, X748 Ultimate Series)

580H and 580L MCS, (X740 and X748 Ultimate Series, 2320, 2520, 3320,

3520, 3720 CUTS)

580H and 580L MCS, (X740 and X748 Ultimate Series, 2320, 2520, 3320,

3520, 3720 CUTS)

MCS, 48" Mower

Hydraulic Dump & Tilt

Dump M86600

M86658

M86594

Variator

Primary

Drive

600L MCS (1400 and

1500 Series Mowers) TCU16607

TCU16598

TCU27122

Outer Driveline

Inner Driveline (NLA)

Inner Driveline (Export) (SN 073097- )

UTILITY VEHICLES (Continued)

MACHINE/MODEL SERIAL

NO. PART NO. DESCRIPTION

BELT LISTING BY SIZE

HA Cross Section

*Effective length is the outside circumference under

tension.

Effective Length

(*In.) Part No.

25.25 M48520

27.66 (Set of 2) AM101711

28.10 M40222

28.40 (Set of 2) AM31159

30.51 M86594

31.49 VG11784

32.16 M81037

33.00 M81035

33.00 M81036

34.00 M811281

35.40 (Set of 2) AM32172

35.76 (Set of 2) AM32636

36.00 M135762

36.22 M46758

36.22 M82612

38.00 M801821

38.11 M119633

39.00 M82461

39.93 TCU17289

40.00 M808685

40.10 M41592

40.81 M75746

41.00 M806512

41.10 TCU19104

41.21 M43795

42.24 M154157

43.00 M86060

44.20 M85442

45.16 M82720

45.60 M42485

46.00 M122906

46.80 M91270

47.50 M45862

48.40 M44483

49.15 M94020

49.40 M82719

50.20 M43569

50.20 M143847

50.80 M82167

52.95 M86421

5/16"

1/2"

0.50

HA 0.3125

54.41 TCU20002

55.27 AM128033

56.14 M155452

56.78 M40224

57.10 M43489

57.60 M47770

58.74 M122818

59.79 M88184

60.00 M44498

60.24 M72031

61.26 M95861

62.10 M41642

62.30 M84223

62.48 M112006

63.19 M91147

63.25 M82538

63.66 M86422

64.13 M91330

64.57 M75353

65.62 M82462

65.62 M139011

66.38 M82460

66.57 M153655

68.18 M43586

68.28 TCU26349

69.25 TCU25673

70.63 M122106

71.87 TCU26162

72.00 H86060

72.52 TCU22550

73.60 M43820

74.00 D28125

74.02 M71135

76.00 H86061

77.30 M40757

78.50 M84075

79.29 M89832

79.30 M44272

79.53 M138974

79.80 M73223

81.50 M115407

84.45 M71026

85.00 M114763

86.38 M126009

86.78 M113790

87.10 M40223

87.40 GX21986

87.52 M86996

87.64 M146667

88.19 M83837

88.89 GX20006

89.60 M147044

89.61 M110367

90.24 M79204

90.95 M127524

91.91 GX22036

92.01 M131236

92.44 M151277

93.30 M152284

94.49 GX10064

94.50 M127356

95.10 M126012

95.70 GX10065

95.75 M125218

95.87 GX10851

96.46 GX10644

97.83 M118760

98.10 M41668

98.11 GX24154

98.62 M112490

99.00 M49920

100.00 TCU16122

101.30 M84136

102.30 M41960

103.50 M86248

103.74 GX20072

104.13 M137547

104.68 M131237

104.72 M74747

105.75 GX10062

106.42 M74187

108.19 M136927

108.74 M90942

109.12 GX23798

116.14 M72112

118.22 M155885

119.21 M134268

122.40 M131766

131.14 M95087

131.45 M139970

131.45 M148269

135.83 M141562

146.24 M154621

151.50 M152398

HB Cross Section

*Effective length is the outside circumference under tension.

Effective Length

(*In.) Part No.

37.40 M90939

45.58 (Set of 2) AM38778

50.49 M122907

51.35 TCU29763

55.06 TCU29186

66.04 TCU34216

67.83 TCU28434

68.89 TCU28433

78.16 M149970

80.30 TCA20750

83.20 TCU29748

84.45 M118048

85.10 TCA20591

89.72 M127523

95.75 GX10065

96.30 TCU34218

107.99 M115776

109.25 TCU18848

111.38 M154958

111.81 M95875

115.30 M47771

116.02 M122821

117.00 TCU13195

121.50 M137166

123.23 TCU17497

124.40 TCU19453

124.88 M152791

124.89 TCU29747

124.98 TCU19623

126.75 M41140

130.97 TCA20749

131.49 TCU13196

131.89 M117636

133.46 M133184

133.86 TCU17942

134.65 TCU29856

136.53 TCU18117

137.36 TCU19456

140.12 M72987

141.73 TCU13198

142.67 TCU13401

143.70 TCU12497

144.30 M48444

13/32"

21/32"

0.656

HB 0.406

145.35 M136137

146.37 TCU15178

146.89 M112414

146.89 TCU14356

148.42 TCU18602

150.19 TCU16092

150.20 M84505

150.35 TCU19609

156.29 TCU18603

156.49 TCU26294

157.28 TCU16093

157.69 TCU26290

159.02 TCU26904

161.40 GX21395

161.95 TCU26907

164.40 M156261

166.85 TCU26295

169.15 TCU26291

170.06 TCU26905

172.84 TCU26908

177.90 TCU26293

180.03 TCU26297

182.32 TCU26906

186.22 TCU22509

186.25 TCU26909

190.34 M155368

HC Cross Section

*Effective length is the outside circumference under tension.

3L Cross Section

*Effective length is the outside circumference under tension.

4L Cross Section

*Effective length is the outside circumference under tension.

5L Cross Section

*Effective length is the outside circumference under tension.

5V Cross Section

*Effective length is the outside circumference under tension.

Effective Length

(*In.) Part No.

57.80 E51728

60.25 E51727

102.36 TCU14539

109.45 TCU14538

111.25 E58483

150.00 TCU31159

150.00 TCU14537

160.83 M149866

172.99 TCU16036

173.54 TCU12440

173.76 H64484

174.96 DMU210306

175.55 TCU19900

187.00 M83556

278.31 M81976

280.51 M89031

283.03 M88233

285.00 M81954

Effective Length

(*In.) Part No.

22.36 PT7513

27.94 M128979

33.63 M124219

33.90 M77167

34.74 GC00081

36.42 M126989

36.75 M126984

37.28 PT2303

37.75 GX22819

39.09 GC00073

40.78 M153381

41.38 M128978

17/32"

0.53

7/8"

0.875

7/32"

3/8"

0.375

3L 0.219

Effective Length

(*In.) Part No.

27.00 M128980

32.00 M128825

36.75 M124218

37.88 M129781

38.80 M128890

49.00 M81805

55.83 AM108054 (2)

56.34 M45863

59.92 M155343

62.85 M165413

Effective Length

(*In.) Part No.

44.97 TCU20822

50.04 TCU20821

51.04 TCU21814

71.02 TCU34299

76.15 TCU29158

Effective Length

(*In.) Part No.

125.70 TCU16495

148.81 DMU210282

203.05 TCU26298

5/16"

1/2"

0.50

4L 0.3125

23/64"

5/8"

0.62

5L 0.36

19/32"

0.60

5V 0.59

SPB Cross Section

*Effective length is the outside circumference under tension.

HAA Cross Section

*Effective length is the outside circumference under tension.

HBB Cross Section

*Effective length is the outside circumference under tension.

HCC Cross Section

*Effective length is the outside circumference under tension.

Ribbed Cross Section

*Effective length is the outside circumference under tension.

PK Cross Section

*Effective length is the outside circumference under tension.

Effective Length

(*In.) Part No.

52.19 TCU34217

57.19 TCU34215

63.46 TCU34214

78.19 TCU34229

84.18 TCU34219

155.59 TCU29452

162.16 TCU30510

166.49 TCU29453

170.74 TCU31132

179.13 TCU29454

182.48 TCU30356

201.12 TCU31194

202.83 TCU29455

Effective Length

(*In.) Part No.

53.15 M151651

101.18 M87323

Effective Length (*In.) Part No.

108.62 M155096

111.46 M118548

111.57 M163989

112.02 M165156

112.17 M112268

113.00 M140021

115.55 M138583

118.03 M118549

9/32"

9/16"

0.551

SPB 0.276

13/32"

0.41

HAA

1/2"

0.50

21/32"

0.66

HBB 17/32"

0.53

118.66 M112269

122.44 M163993

123.50 M111564

123.50 M138692

123.62 M120381

124.80 GX24768

125.83 M76297

126.81 M131551

128.80 M111534

146.69 M149554

156.61 M153160

Effective Length (*In.) Part No.

64.07 M134785

146.06 M89884

148.19 EPC201624

155.10 M149867

156.69 M87373

Effective Length (*In.) Part No.

46.02 M158189

46.02 M158267

46.02 M158268

48.26 M155037

53.06 M150046

Effective Length

(*In.) Part No.

31.50 TCU16841

31.50 TCU16026

61.95 TCU12829

7/8"

0.88

11/16"

0.69

HCC

1/2"

1-1/32"

1.32

SPB 0.5

1/64"

0.18

1-1/8"

1.12

Special Cross Section

*Effective length is the outside circumference under tension.

Special Cross Section

Effective Length

(*In.) Part No.

43.82 M95121

45.56 M161702

54.40 M148556

54.40 M127176

59.30 M117608

59.92 M77988

60.70 M119696

63.90 M131152

64.84 M110312

67.50 M132873

79.30 M47043

80.10 M47766

83.10 M45998

84.00 M47765

84.30 M120048

86.30 M45254

87.10 M82721

87.70 M89112

90.30 M82718

91.42 M119871

93.74 M119872

97.16 M140502

98.46 M128733

107.40 M89111

108.19 M71730

110.00 M89090

110.34 M152630

110.79 M71729

112.80 M136298

115.64 GX10183

114.80 M126536

115.90 M124895

118.50 M110798

128.00 M119630

128.50 M111051

137.40 M119539

139.46 GX20305

142.90 M123281

145.08 GX10176

145.51 GX10063

M151649

9/16"

0.560

29/64"

0.450

Width

(In.) Thickness

(In.) Effective

Length (*In.) Part No.

0.350 0.382 90.27 M142499

0.380 0.325 52.53 R1561R

0.422 0.325 41.20 M44113

0.422 0.303 32.91 M97340

0.422 0.312 31.94 M41335

0.422 0.312 33.20 M41341

0.422 0.312 36.12 M41985

0.422 0.312 39.00 M43106

0.422 0.280 36.75 AM124075

0.433 0.320 36.49 M800347

1.240 0.634 43.89 M168196

0.500 0.390 55.43 M90958

0.500 0.280 33.00 M81035

0.500 0.310 87.40 M146479

0.500 0.310 89.60 M110367

0.500 0.310 90.24 M147278

0.500 0.310 90.95 M147279

0.500 0.310 91.654 M144044

0.500 0.310 97.00 M144570

0.500 0.311 31.00 VG11783

0.500 0.331 63.00 R128502

0.500 0.350 36.00 M135762

0.500 0.350 73.56 M131151

0.500 0.350 88.89 GX20006

0.500 0.350 89.50 GX21407

0.500 0.350 91.81 GX22036

0.500 0.350 92.01 M131236

0.500 0.350 94.50 GX10064

0.500 0.350 104.70 M131237

0.500 0.347 50.20 M143847

0.524 0.303 38.92 LVU11659

0.524 0.303 41.42 LVU11835

0.524 0.303 41.92 LVU11661

0.524 0.303 42.42 LVU11662

0.531 0.362 29.43 M153180

0.531 0.362 34.40 M150588

0.547 0.375 32.68 (2) AM100465

0.559 0.449 52.95 M146339

0.559 0.449 54.40 M148556

0.559 0.449 59.84 M147069

0.559 0.449 141.71 GX21833

0.559 0.449 143.41 M154601

0.559 0.539 63.39 M143019

0.560 0.150 33.70 PT9483

0.560 0.310 41.27 (2) AM35380

0.560 0.354 83.03 M95122

0.560 0.410 119.21 M134268

0.560 0.449 97.15 M140502

0.563 0.437 119.23 M154294

0.579 0.413 150.59 M158130

0.579 0.413 152.87 M158131

0.598 0.354 52.76 R73784

*Effective length is the outside circumference under tension.

Special Cross Section

(Continued)

Width

(In.) Thickness

(In.) Effective

Length (*In.) Part No.

0.598 0.354 54.72 R87153

0.598 0.354 55.91 R87154

0.598 0.551 51.97 R97939

0.598 0.551 52.36 R97940

0.600 0.591 204.07 TCU26910

0.600 0.620 150.67 DMU210479

0.610 0.421 114.25 GXH47846

0.614 0.539 137.79 M154897

0.623 0.315 70.87 M127926

0.630 0.315 78.74 M150717

0.630 0.579 111.38 M154958

0.630 0.579 97.16 M151276

0.630 0.580 111.58 M143888

0.630 0.579 120.59 M154960

0.638 0.344 43.07 M94049

0.638 0.551 43.07 M93045

0.655 0.344 35.13 M40015

0.655 0.344 35.94 M42226

0.655 0.344 40.00 M82258

0.655 0.344 46.61 M91470

0.655 0.344 67.50 M44121

0.655 0.382 45.88 M86600

0.655 0.382 51.49 M86658

0.660 0.350 119.90 M118685

0.660 0.530 119.44 M141627

0.660 0.530 128.12 M142997

0.687 0.406 55.51 E75596

0.688 0.406 42.50 MG763952

0.688 0.406 46.50 T23505

0.688 0.406 48.50 R97758

0.700 0.386 42.01 M125661

0.736 0.400 86.50 M119713

0.787 ---- 102.36 M150718

0.787 0.382 85.20 M131808

0.825 0.200 59.45 R216071

0.825 0.200 92.12 R505810

0.825 0.200 93.11 R515222

0.825 0.200 95.08 R515218

0.984 0.213 50.39 M122107

1.121 0.236 61.22 R123432

1.121 0.236 75.83 R133703

1.188 0.402 56.12 RE28721

1.189 0.433 43.23 VG10274

Revised December 2013

P1673 Litho in U.S.A. (13-12)

TURF AND UTILITY EQUIPMENT

42 Single Stage Snowthrower Belt Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
