Microcontroller
Evaluation Board
For XMC1000 Family
Board User‘s Manual
Revision 1.0, 2014-02-20
XMC 2Go Kit with XMC1100
Kit Version 1.0
Edition 2014-02-20
Published by
Infineon Technologies AG
81726 Munich, Germany
© 2014 Infineon Technologies AG
All Rights Reserved.
Legal Disclaimer
The information given in this document shall in no event be regarded as a guarantee of conditions or
characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any
information regarding the application of the device, Infineon Technologies hereby disclaims any and all
warranties and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual
property rights of any third party.
Information
For further information on technology, delivery terms and conditions and prices, please contact the nearest
Infineon Technologies Office (www.infineon.com).
Warnings
Due to technical requirements, components may contain dangerous substances. For information on the types in
question, please contact the nearest Infineon Technologies Office.
Infineon Technologies components may be used in life-support devices or systems only with the express written
approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the
failure of that life-support device or system or to affect the safety or effectiveness of that device or system. Life
support devices or systems are intended to be implanted in the human body or to support and/or maintain and
sustain and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other
persons may be endangered.
XMC 2Go
XMC 2Go Kit with XMC1100
Template: IFX_Template_2011-02-24.dot
Revision History
Page or Item
Subjects (major changes since previous revision)
Revision 1.0,
2014-02-20
Initial release
Trademarks of Infineon Technologies AG
AURIX™, C166™, CanPAK™, CIPOS™, CIPURSE™, EconoPACK™, CoolMOS™, CoolSET™,
CORECONTROL™, CROSSAVE™, DAVE™, EasyPIM™, EconoBRIDGE™, EconoDUAL™, EconoPIM™,
EiceDRIVER™, eupec™, FCOS™, HITFET™, HybridPACK™, I²RF™, ISOFACE™, IsoPACK™, MIPAQ™,
ModSTACK™, my-d™, NovalithIC™, OptiMOS™, ORIGA™, PRIMARION™, PrimePACK™, PrimeSTACK™,
PRO-SIL™, PROFET™, RASIC™, ReverSave™, SatRIC™, SIEGET™, SINDRION™, SIPMOS™,
SmartLEWIS™, SOLID FLASH™, TEMPFET™, thinQ!™, TRENCHSTOP™, TriCore™.
Other Trademarks
Advance Design System™ (ADS) of Agilent Technologies, AMBA™, ARM™, MULTI-ICE™, KEIL™,
PRIMECELL™, REALVIEW™, THUMB™, µVision™ of ARM Limited, UK. AUTOSAR™ is licensed by
AUTOSAR development partnership. Bluetooth™ of Bluetooth SIG Inc. CAT-iq™ of DECT Forum.
COLOSSUS™, FirstGPS™ of Trimble Navigation Ltd. EMV™ of EMVCo, LLC (Visa Holdings Inc.). EPCOS™
of Epcos AG. FLEXGO™ of Microsoft Corporation. FlexRay™ is licensed by FlexRay Consortium.
HYPERTERMINAL™ of Hilgraeve Incorporated. IEC™ of Commission Electrotechnique Internationale. IrDA™
of Infrared Data Association Corporation. ISO™ of INTERNATIONAL ORGANIZATION FOR
STANDARDIZATION. MATLAB™ of MathWorks, Inc. MAXIM™ of Maxim Integrated Products, Inc.
MICROTEC™, NUCLEUS™ of Mentor Graphics Corporation. Mifare™ of NXP. MIPI™ of MIPI Alliance, Inc.
MIPS™ of MIPS Technologies, Inc., USA. muRata™ of MURATA MANUFACTURING CO., MICROWAVE
OFFICE™ (MWO) of Applied Wave Research Inc., OmniVision™ of OmniVision Technologies, Inc.
Openwave™ Openwave Systems Inc. RED HAT™ Red Hat, Inc. RFMD™ RF Micro Devices, Inc. SIRIUS™ of
Sirius Satellite Radio Inc. SOLARIS™ of Sun Microsystems, Inc. SPANSION™ of Spansion LLC Ltd.
Symbian™ of Symbian Software Limited. TAIYO YUDEN™ of Taiyo Yuden Co. TEAKLITE™ of CEVA, Inc.
TEKTRONIX™ of Tektronix Inc. TOKO™ of TOKO KABUSHIKI KAISHA TA. UNIX™ of X/Open Company
Limited. VERILOG™, PALLADIUM™ of Cadence Design Systems, Inc. VLYNQ™ of Texas Instruments
Incorporated. VXWORKS™, WIND RIVER™ of WIND RIVER SYSTEMS, INC. ZETEX™ of Diodes Zetex
Limited.
Last Trademarks Update 2011-02-24
XMC 2Go
XMC 2Go Kit with XMC1100
Table of Contents
Board Users Manual 4 Revision 1.0, 2014-02-20
Table of Contents
Introduction ............................................................................................................................................................ 7
1 Overview ............................................................................................................................................. 7
1.1 Key Features ........................................................................................................................................ 7
1.2 Block Diagram ...................................................................................................................................... 8
2 Hardware Description ........................................................................................................................ 9
2.1 Power Supply ....................................................................................................................................... 9
2.2 Pin Header Connector ........................................................................................................................ 10
2.3 User LEDs .......................................................................................................................................... 10
2.4 Debugging and UART Communication .............................................................................................. 11
3 Production Data................................................................................................................................ 11
3.1 Schematics ......................................................................................................................................... 11
3.2 Components Placement and Geometry ............................................................................................. 13
3.3 List of Material .................................................................................................................................... 14
XMC 2Go
XMC 2Go Kit with XMC1100
List of Figures
Board Users Manual 5 Revision 1.0, 2014-02-20
List of Figures
Figure 1 Block Diagram of the XMC 2Go Kit ...................................................................................................... 8
Figure 2 XMC 2Go Kit with XMC1100 ................................................................................................................ 9
Figure 3 Pinning of Pin Header ........................................................................................................................ 10
Figure 4 Recommended Installation Options for the J-Link driver ................................................................... 11

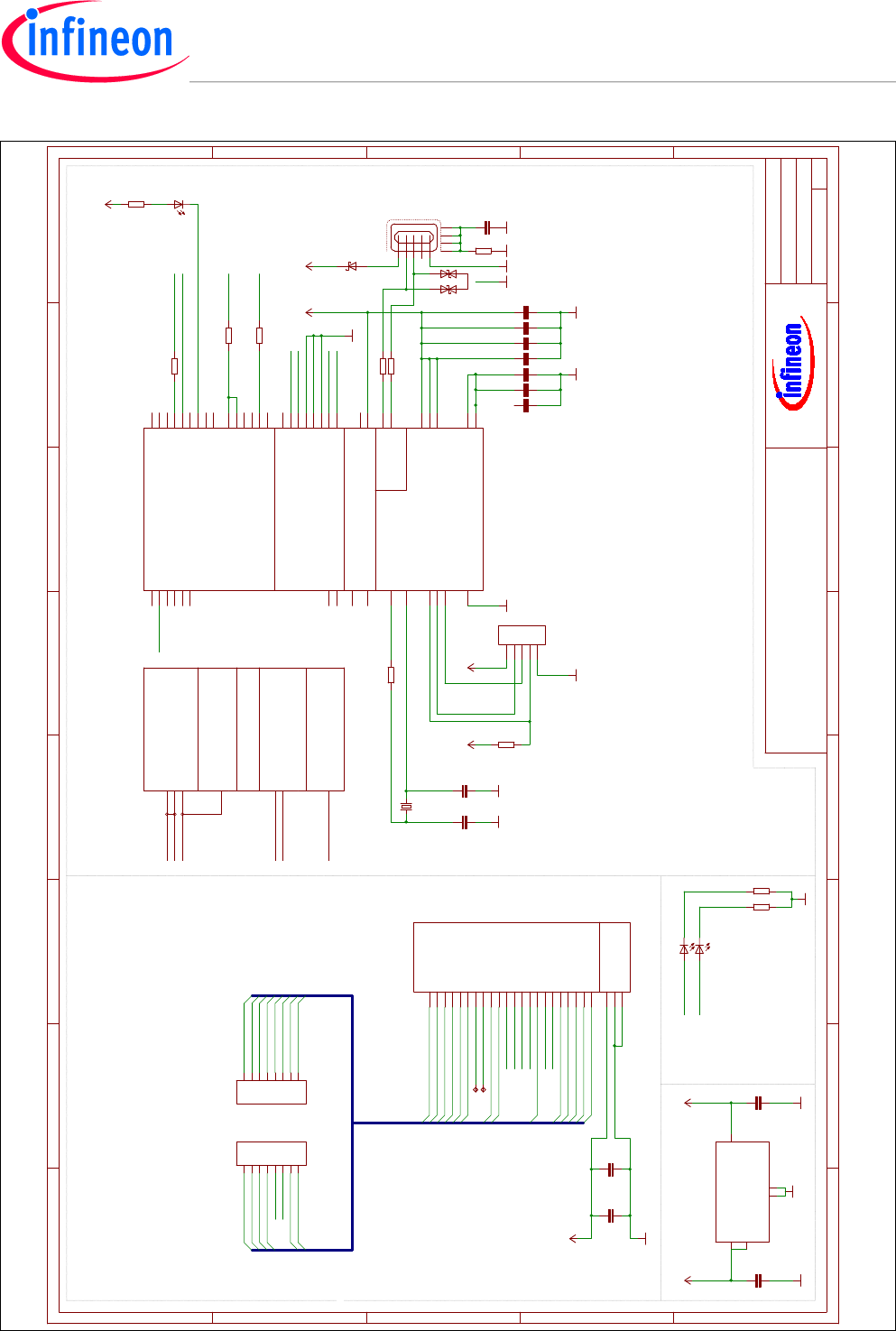

Figure 5 Schematic of the XMC 2Go Kit with XMC1100 .................................................................................. 12

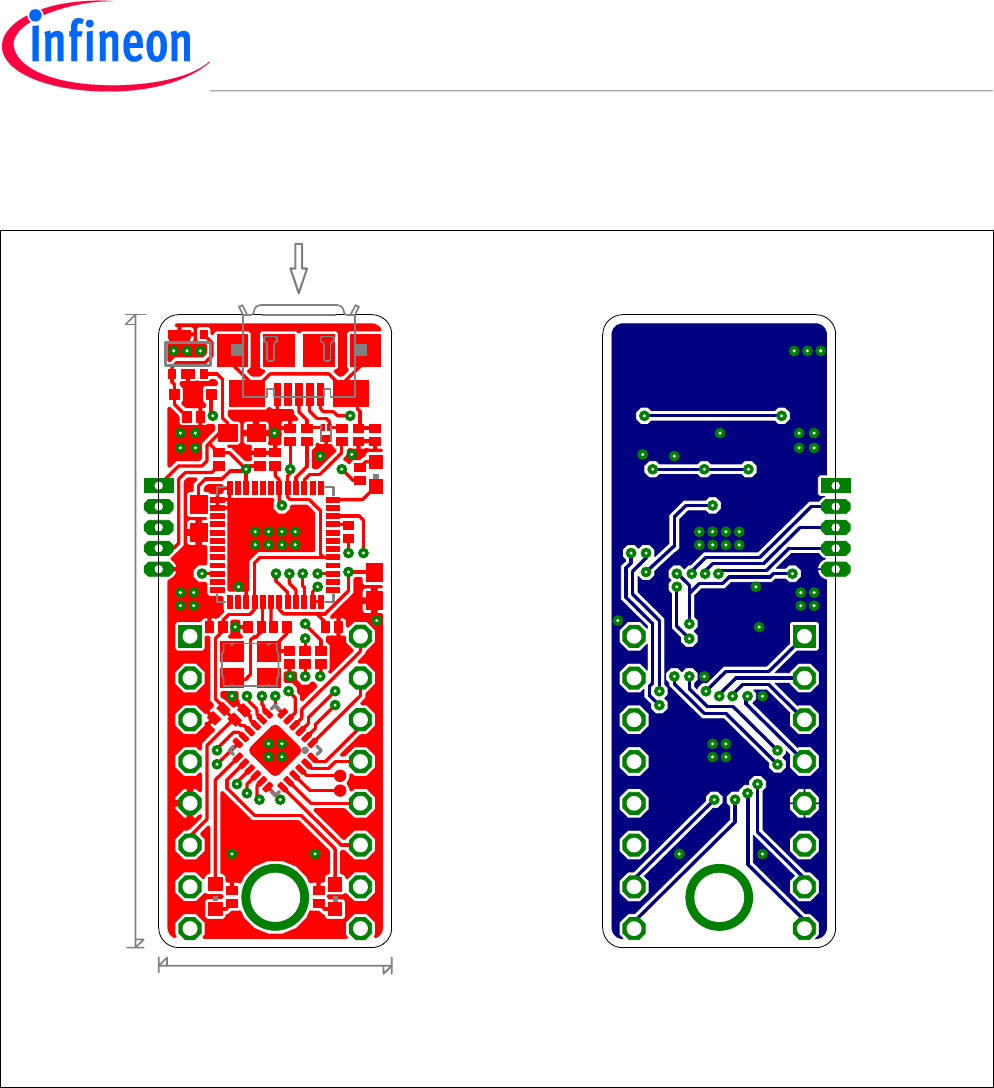

Figure 6 Components Placement and Geometry ............................................................................................. 13
XMC 2Go
XMC 2Go Kit with XMC1100
List of Tables
Board Users Manual 6 Revision 1.0, 2014-02-20
List of Tables
Table 1 Features of the XMC 2Go Kit with XMC1100 ...................................................................................... 7
Table 2 Pins used for the User LEDs .............................................................................................................. 10
Table 3 XMC1100 Pins used for Debugging and UART Communication ....................................................... 11
Table 4 List of Material .................................................................................................................................... 14
XMC 2Go
XMC 2Go Kit with XMC1100
Overview
Board Users Manual 7 Revision 1.0, 2014-02-20
Introduction
This document describes the features and hardware details of the XMC 2Go equipped with the ARM® Cortex™-
M0 based XMC1100 Microcontroller from Infineon Technologies AG.
1 Overview
The XMC 2Go is designed to evaluate the capabilities of the XMC1100 Microcontroller and the powerful, free of
charge tool chain DAVE™.
This board is not cost optimized and does not serve as a reference design.
1.1 Key Features
Table 1 summarizes the features of the XMC 2Go.
Table 1 Features of the XMC 2Go Kit with XMC1100
Features
XMC1100 microcontroller (ARM® Cortex™-M0 based) in a 4 x 4 mm VQFN-24
package
64 kB
16 kB
Internal Oscillator
32 MHz CPU clock, 64 MHz Timer clock
14.0 x 38.5 mm
from USB via Debug probe (J-Link) or
3.3V external power
Two 8-pin header (pin pitch: 2.54 mm ≙ 0.1” / between rows: 10.16 mm ≙ 0.4”)
Pin header fits to breadboard
On-Board J-Link Debugger supports
Serial Wire Debug (SWD, ARM Standard)
Single Pin Debug (SPD)
UART-to-USB bridge (virtual COM)
Mapped to pin header X1/X2:
2 Channel USIC (UART, SPI, I2C, I2S, LIN)
6 Channel Analog to Digital Converter (12-Bit resolution)
4 x 16-Bit Timer
External Interrupts (via ERU)
Others:
Real Time Clock
Random Number Generator
2 User LEDs @ P1.0 and P1.1
XMC 2Go
XMC 2Go Kit with XMC1100
Overview
Board Users Manual 8 Revision 1.0, 2014-02-20
1.2 Block Diagram
The block diagram in Figure 1 shows the main components of the XMC 2Go Kit including the power supply
concept. There are following main building blocks:
XMC1100 Microcontroller in a 4x4mm VQFN24 package
On-board USB debugger realized with a XMC4200 Microcontroller for serial wire debug (SWD) and
UART-to-USB Bridge
Two 8 pin header X1 and X2
On-board power generation for power supply of the XMC1100 Microcontroller and the debug IC
2 User LEDs

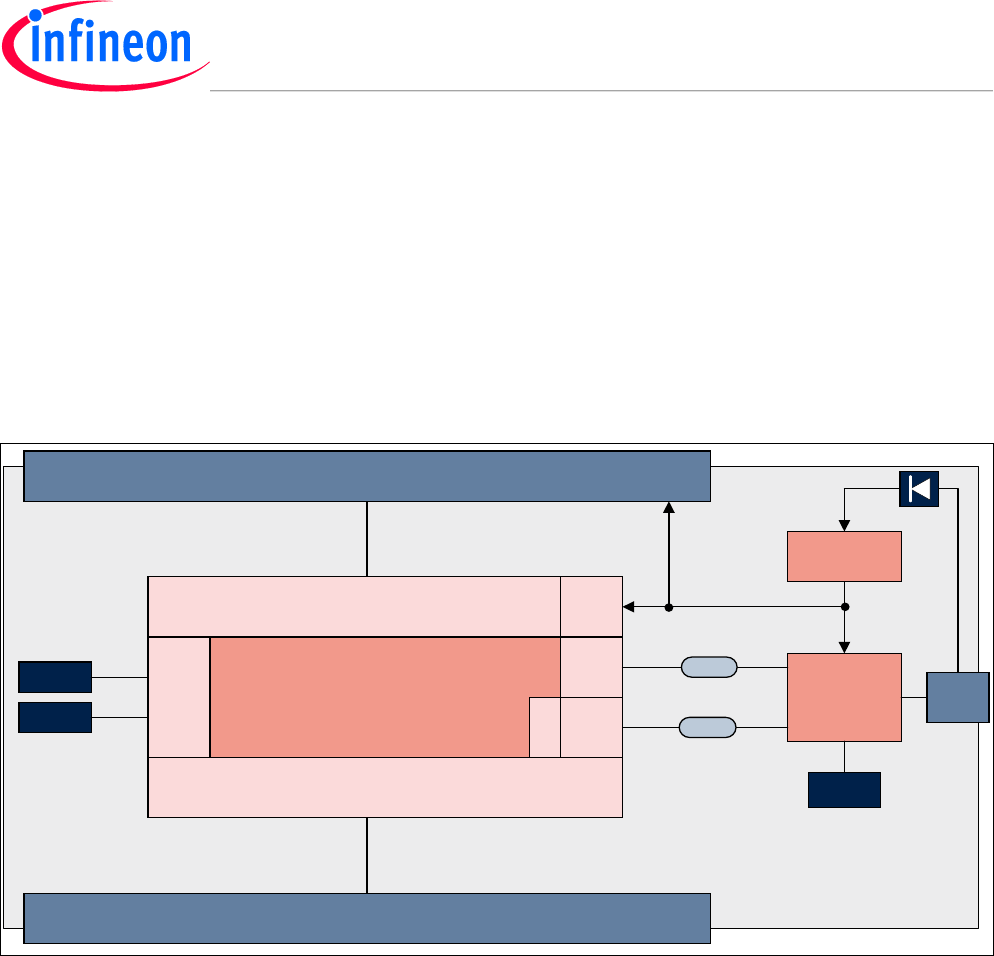

Figure 1 Block Diagram of the XMC 2Go Kit
XMC1100 VQFN24
32MHz Cortex M0
64kB Flash, 16kB RAM
4 x16-bit timer, 6 Ch 12-bit ADC
2 Ch USIC (UART, SPI, I2C, I2S, LIN)
USIC
EVR
LED2
ADC, CCU4, USIC, ERU0
ADC, CCU4, USIC, ERU0
XMC4200
Debug IC Micro
USB
Voltage
Regulator
+5V
+3.3V
BSL
8-Pin Header X1
P2.7/P2.8, P2.9, P2.10, P2.11, P0.0, P0.5
8-Pin Header X2
P0.6-P0.9, P0.14, P0.15, P2.0, P2.6
XMC 2Go-V1 Kit
XMC1100 in VQFN24
LED1
Debug
LED
Block_Diag.emf
SWD
UART
Debug,
USIC
P1.1
P1.0 GPIO
P2.1
P2.2
P1.2
P1.3
+3.3V
X1
X101
X2
XMC 2Go
XMC 2Go Kit with XMC1100
Hardware Description
Board Users Manual 9 Revision 1.0, 2014-02-20
2 Hardware Description
The following sections give a detailed description of the board hardware and how it can be used. Figure 2
shows the components of the XMC 2Go Kit with XMC1100.
Figure 2 XMC 2Go Kit with XMC1100
2.1 Power Supply
The XMC 2Go Kit must be supplied by an external 5 Volt DC power supply connected to the Micro UBS plugs
(X101). Out of the box with the pre-programmed application and the on-board debugger in operation the XMC
2Go typically draws about 75 mA. This current can be delivered via the USB plug of a PC, which is specified to
deliver up to 500 mA. The Power&Debug LED indicates the presence of the generated 3.3V supply voltage.
An on-board reverse current protection diode will ensure safe operation and protects the USB port of the
Laptop/PC in case power is provided through the pin header X1.
If the board is powered via the USB plug, it’s not recommended to apply an additional power supply to the VDD
pin of X1 (3.3V), because this power supply could drive against the on-board power supply. The VDD pin can be
used to power an external circuit. But care must be taken not to draw more current than 150 mA, which is the
maximum current the on-board voltage regulator can deliver.
After power-up the Debug LED starts blinking. In case there is a connection to a PC via the Debug USB plug
X101 and the USB Debug Device drivers are installed on this PC, the Debug LED will turn from blinking to
constant illumination.
Voltage Regulator &
Reverse Current Protection Diode
Micro USB
XMC1100
Microcontroller
User LED1
@ P1.0
User LED2
@ P1.1
Pin Header X2
Pin Header X1
Power & Debug LED
Pin Header distance fits
to Breadboard
ESD Protection
Diode
Crystal for Debug IC
XMC4200 Debug IC and
UART to USB Bridge
Components.emf
XMC 2Go
XMC 2Go Kit with XMC1100
Hardware Description
Board Users Manual 10 Revision 1.0, 2014-02-20
2.2 Pin Header Connector
The pin headers X1 and X2 can be used to extend the evaluation board or to perform measurements on the
XMC1100. The order of pins available at X1 and X2 corresponds to the pinning schema of the XMC1100
Microcontroller in the TSSOP-16 pin package. The pinning table is also printed onto the bottom side of the PCB.
Figure 3 Pinning of Pin Header
2.3 User LEDs
The port pins P1.0 and P1.2 of the XMC1100 on the XMC 2Go Kit are connected to LEDs exclusively.
Table 2 Pins used for the User LEDs
LED
Port Pin
LED1
P1.1
LED2
P1.0
P0.6
Pin_Header.emf
P0.7
P0.8
P0.9
P0.14
P0.15
P2.0
P2.6
P0.5
P0.0
3.3V
GND
P2.11
P2.10
P2.9
P2.7
X1
X2
XMC 2Go
XMC 2Go Kit with XMC1100
Production Data
Board Users Manual 11 Revision 1.0, 2014-02-20
2.4 Debugging and UART Communication
The on-board debugger supports 2-pin Serial Wire Debug (SWD), Single Pin Debug (SPD) and UART
communication. Both require the installation of Segger’s J-Link Driver which is part of the DAVE™ installation.
DAVE™ is a high-productivity development platform for the XMC microcontroller families to simplify and shorten
SW development. It can be downloaded at www.infineon.com/dave. The latest Segger J-Link Driver can be
downloaded at http://www.segger.com/jlink-software.html.
During installation of the J-Link driver you will be asked for the installation of optional components. For support
of the UART communication take care to install the CDC USB driver (Composite Device Class). Therefore
select the option “Install USB Driver for J-Link-OB with CDC” as shown in Figure 4.

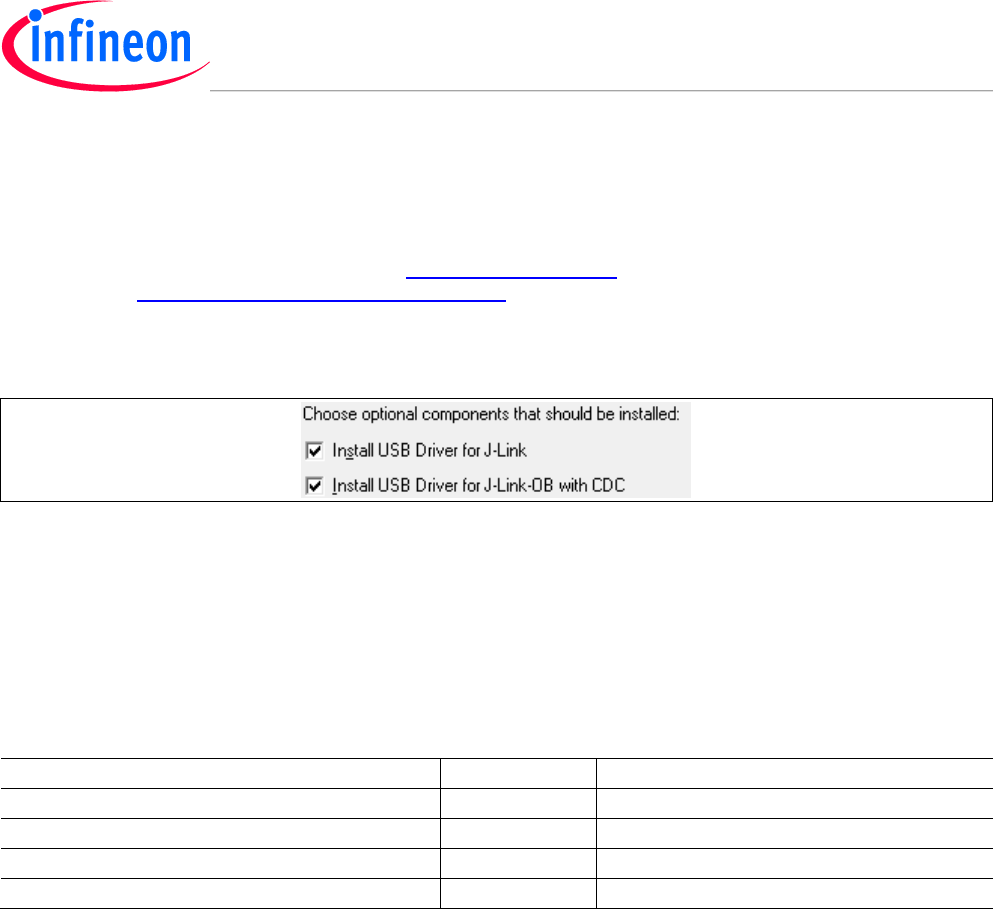

Figure 4 Recommended Installation Options for the J-Link driver
The XMC1100 on the XMC 2Go Kit is configured to SWD1 mode. Use the “BMI Get Set” tool integrated into
DAVE™ to configure the XMC1100 to e.g. SPD1 mode if required. Take care: Unintended use of the “BMI Get
Set” tool can cause the XMC 2Go Kit not to work anymore, e.g. when configuring the XMC1100 to SWD0, SPD0
mode or to productive user mode.
Note: Do not configure the XMC1100 on the XMC 2Go Kit to SWD0, SPD0 or to productive user mode.
Table 3 shows the pin assignment of the XMC1100-VQFN24 used for debugging and UART communication.
Table 3 XMC1100 Pins used for Debugging and UART Communication
Pin Function
Input / Output
Port Pin
Data pin for Debugging via SWD/SPD
I/O
P1.3
Clock pin for Debugging via SWD
O
P1.2
Transmit Pin for UART Communication
O
P2.1
Receive Pin for UART Communication
I
P2.2
3 Production Data
3.1 Schematics
The schematic of the XMC 2Go Kit can be found in Figure 5.
XMC 2Go
XMC 2Go Kit with XMC1100
Production Data
Board Users Manual 12 Revision 1.0, 2014-02-20
Figure 5 Schematic of the XMC 2Go Kit with XMC1100
Power Supply : 200-299
Debugging Device : 100-199
Target Device : 1-99
For further information and software examples please visit www.infineon.com/xmc-dev
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
TSSOP-16 Pinout
+3V3
+3V3
+3V3
+3V3
+3V3 +3V3
100nF/0402 100nF/0402
100nF/0402
100nF/0402
100nF/0402
100nF/0402
100nF/0402
100nF/0402
10uF/0603
4,7uF/0603
15pF/0402
15pF/0402
100nF/0402
10uF/0603
BAS3010A-03W
ESD8V0L2B-03L
GND
GND
GND GND
GND
GND
GND
GNDGNDGND
GNDGND GND
GNDGND GND
XMC1100_VQFN24
XMC4200_QFN48
IFX54211 MBV33
LED RT/0603
LED RT/0603
LED GN/0603
+5V
+5V
680R/0402
680R/0402
680R/0402
100R/0402
100R/0402
100R/0402
33R/0402
33R/0402
1M/0402
510R/0402
10k/0402
PINHD 1x5 0,05" TH
PINHD 8x1 0,1" TH PINHD 8x1 0,1" TH
ZX62-AB-5PA
+3V3
DBG_RESET
DBG_TCK
DBG_TMS
DEBUG_LED#
GND
P0.0
P0.0
P0.5
P0.5
P0.6
P0.6
P0.7
P0.7
P0.8
P0.8
P0.9
P0.9
P0.12
P0.13
P0.14
P0.14
P0.15
P0.15
P1.0/LED1
P1.0/LED1
P1.1/LED2
P1.1/LED2
P1.2/SWCLK
P1.2/SWCLK
P1.3/SWD
P1.3/SWD
P2.0
P2.0
P2.6
P2.6
P2.7/P2.8
P2.7/P2.8
P2.9
P2.9
P2.10
P2.10
P2.11
P2.11
RX_XMC4200
RX_XMC4200
SWCLK
SWCLK
TX_XMC4200
TX_XMC4200
C1 C2
C101
C102
C103
C104
C105
C106
C107
C108
C109
C110
C201
C202
A C
D101
1
2
3
D102
EXP
EXP
P0.0
15
P0.5
16
P0.6
17
P0.7
18
P0.8
19
P0.9
20
P0.12
21
P0.13
22
P0.14
23
P0.15
24
P1.0
14
P1.1
13
P1.2
12
P1.3
11
P2.0
1
P2.1
2
P2.2
3
P2.6
4
P2.8
5
P2.9
6
P2.10
7
P2.11
8
VDD
10
VSS
9
IC1
HIB_IO_0 7
P0.0 2
P0.1 1
P0.2 48
P0.3 47
P0.4 46
P0.5 45
P0.6 44
P0.7 43
P0.8 42
P1.0 40
P1.1 39
P1.2 38
P1.3 37
P1.4 36
P1.5 35
P2.0
26 P2.1
25 P2.2
24 P2.3
23 P2.4
22 P2.5
21
P14.0 16
P14.3 15
P14.4 14
P14.5 13
P14.6 12
P14.7 11
P14.8 20
P14.9 19
PORST#
32
RTC_XTAL_1
8
RTC_XTAL_2
9
TCK
34
TMS
33
USB_D+ 4
USB_D- 3
VAGND
17 VAREF
18
VBAT 10
VDDC 6
VDDC1 31
VDDP 5
VDDP1 28
VDDP2 41
VSS
27
XTAL1
29
XTAL2
30
IC101
EN
4
GND1
2
GND2
5
IN
1OUT 3
IC201
LED1
LED2
LED101
P1P2
Q101
R1
R2
R101
R102
R103
R104
R105
R106
R107
R108
R109
1
2
3
4
5
SV1
X1 X2
1
2
3
4
5
X101C
X101S
D1
D2
Supply
USB
Supply
Analog
Digital
Hibernate/RTC
A
B
C
D
E
12345678
A
B
C
D
E
12345678
XMC_2Go-V1
13.02.2014 15:43:12
1/1
Sheet:
Legal Disclaimer
The information given in this document shall in no event be regarded as a guarantee of conditions or
characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any
information regarding the application of the device, Infineon Technologies hereby disclaims any and all warranties
and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual property rights
of any third party.
XMC 2Go-V1 Kit
On-board Debugger including a UART to USB Bridge
Configure wiggler-P0.5 as USIC_Tx but only active while X-spy function is selected
Configure wiggler-P0.4 as USIC_Rx but only active while X-spy function is selected
SCLKOUT-P1.1
DX0B-P1.4
SPI Slave
SWD_OUT
SWCLK MOSI
CLK_OUT
MISO
CS_IN
CLK_IN
CS_OUT
SPI Master U0C0
U0C1
DOUT0-P1.5
SELO0-P1.0
DX2A-P2.3
DX1A-P2.4
RXD
TXD
UART2 (DM2)
RXD
TXD DX0A-P0.4
DOUT0-P0.5
U1C0
TXACTIVE# GPIO-P0.6
RESET# GPIO-P0.3
DEBUG_LED# DEBUG_LED# GPIO-P0.2
TX_ENABLE GPIO-P0.7
SWD DIR GPIO-P1.3
SWD_IN
ADC
AIN P14.9
PULL Select GPIO-P0.8
AUX_LED# GPIO-P0.1
UART
SPD
No RESET Pin
Level Shifter
COM LED
SWV
JTAG
Power Supply
Debug Connection Concept
LEDs
PinHeader XMC1100
Target Device (XMC1100)
XMC 2Go Kit
XMC1100 in VQFN24
XMC 2Go
XMC 2Go Kit with XMC1100
Production Data
Board Users Manual 13 Revision 1.0, 2014-02-20
3.2 Components Placement and Geometry
Figure 6 Components Placement and Geometry
14.0 mm
38.5 mm
C1
C2
C101
C102
C103
C104
C105
C106
C107
C108
C109
C110
C201 C202
D101
D102
IC1
IC101
IC201
LED1
LED2
LED101
P1
P2
Q101
R1
R2
R101
R102
R103
R104
R105
R106
R107
R108
R109
X101
XMC 2Go
XMC 2Go Kit with XMC1100
Production Data
Board Users Manual 14 Revision 1.0, 2014-02-20
3.3 List of Material
The list of material is valid for the XMC 2Go Kit with XMC1100 Version 1.
Table 4 List of Material
No.
Qty
Value
Device
Reference Designator
1
9
100nF 50V 0402 10% X5R CER
Capacitor
C1 C2 C101 C102 C103
C104 C105 C106 C201
2
2
15pF 50V 0402 10% COG CER
Capacitor
C109 C110
3
2
10uF 10V 0603 10% X5R CER
Capacitor
C107 C202
4
1
4.7uF 10V 0603 10% X7R CER
Capacitor
C108
5
1
NX3225SA 12MHZ AT-W 3.2X2.5
Crystal, NDK
Q101
6
3
100R 0402 1%
Resistor
R102 R103 R104
7
1
10k 0402 1%
Resistor
R109
8
1
1M 0402 1%
Resistor
R107
9
2
33R 0402 1%
Resistor
R105 R106
10
1
510R 0402 1%
Resistor
R108
11
3
680R 0402 1%
Resistor
R1 R2 R101
12
2
LED RT 0603 D 110mcd LSQ976-Z
LED red
LED1 LED2
13
1
LED GN 0603 D 110mcd LGQ971-Z
LED green
LED101
14
1
ZX62-AB-5PA
Connector, Micro-USB, Hirose
X101
15
1
IFX54211 MBV33 SCT595
Linear Voltage Regulator, Vout =
3.3V, Infineon
IC201
16
1
XMC1100_VQFN24
Microcontroller, XMC1100, Cortex
M0, Infineon
IC1
17
1
XMC4200_QFN48
Microcontroller, XMC4200, Cortex
M4F, Infineon
IC101
18
1
BAS3010A-03W SOD323-R
Diode, Infineon
D101
19
1
ESD8V0L2B-03L TSLP-3-1
TVS Diode, Infineon
D102
20
2
PINHD 8x1 0,1" TH
Pin Header, 8-pin, 0.1” TH
X1 X2
w w w . i n f i n e o n . c o m
Published by Infineon Technologies AG

Navigation menu
