Operation

Maintenance

Manual

S/N 526016700 & Above

S/N 526112200 & Above

EQUIPPED WITH

BOBCAT INTERLOCK

CONTROL SYSTEM (BICS™)

6904178-EN (04-05)

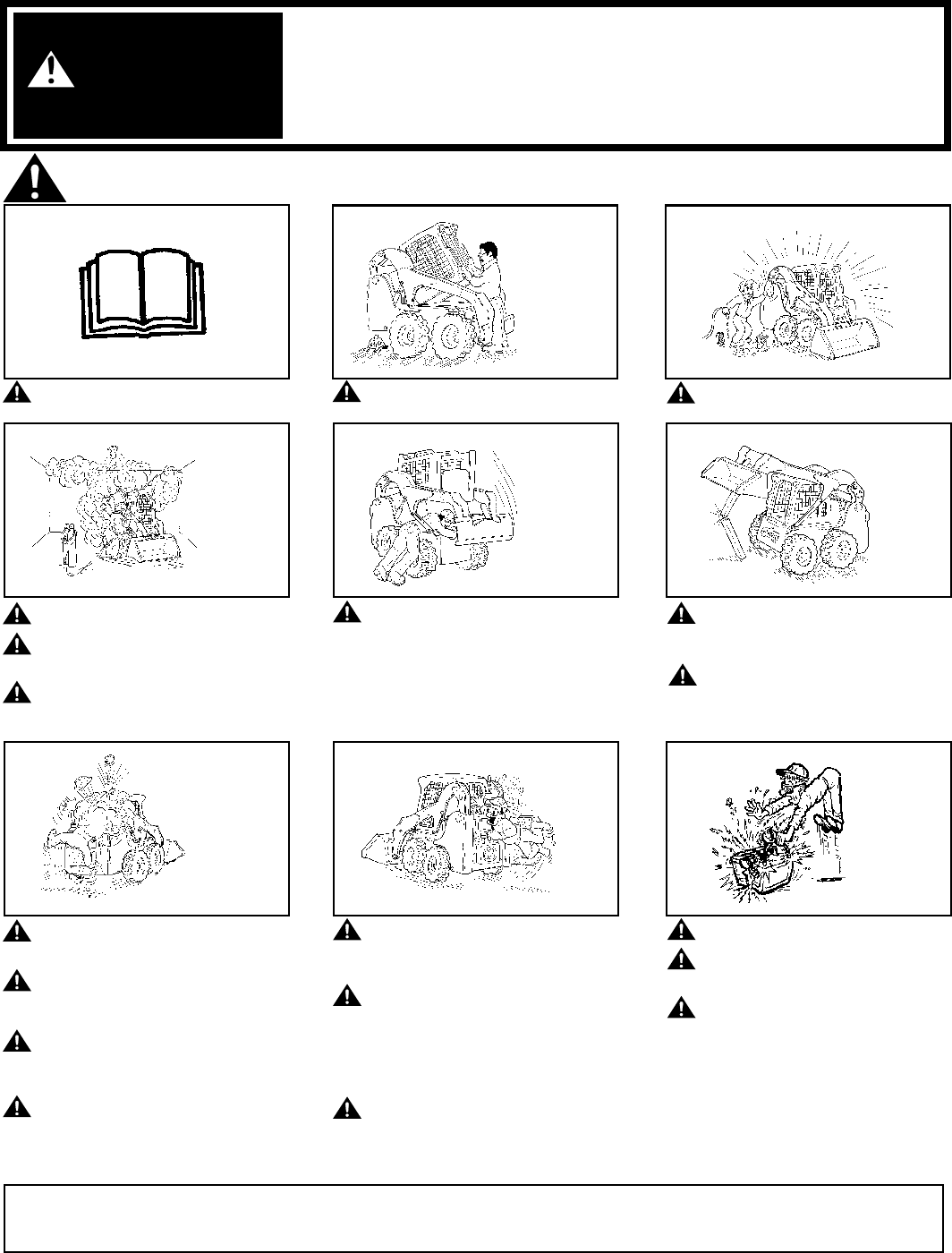

OPERATOR SAFETY WARNINGS

WARNING

Operator must have instructions

before running the machine.

Untrained operators can cause

injury or death.

W-2001-1285

Do not use loader in atmosphere

with explosive dust or gas or

where exhaust can contact

flammable material.

Never exceed rated operating

capacity.

Never leave loader with engine

running or with lift arms up.

To park, engage parking brake

and put attachment flat on the

ground.

Always carry bucket or

attachments as low as possible.

Do not travel or turn with lift

arms up.

Load, unload and turn on flat

level ground.

Never modify equipment.

Use only attachments approved

by Bobcat Company for this

model loader.

Safety Alert Symbol: This symbol with a warning statement,

means: “Warning, be alert! Your safety

is involved!” Carefully read the message

that follows.

Never use loader without operator

cab with ROPS and FOPS

approval. Fasten your seat belt.

OSW14-0903

WRONG

B-16251 B-16250

WRONG

B-16244

WRONG

B-16248B-6578

WRONG

CORRECT

B-16245

CORRECT

B-16253 B-16249

CORRECT

B-16252

WRONG

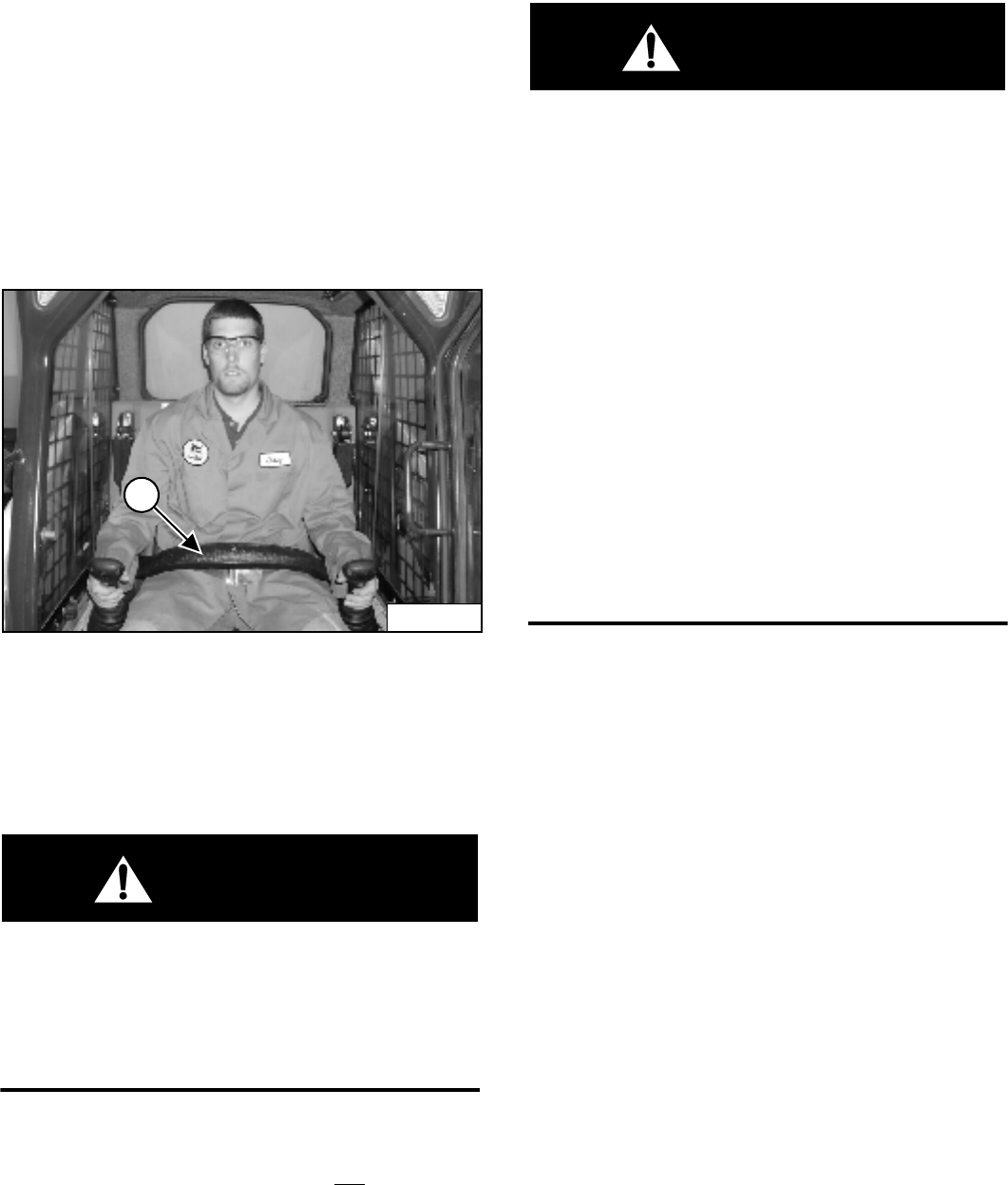

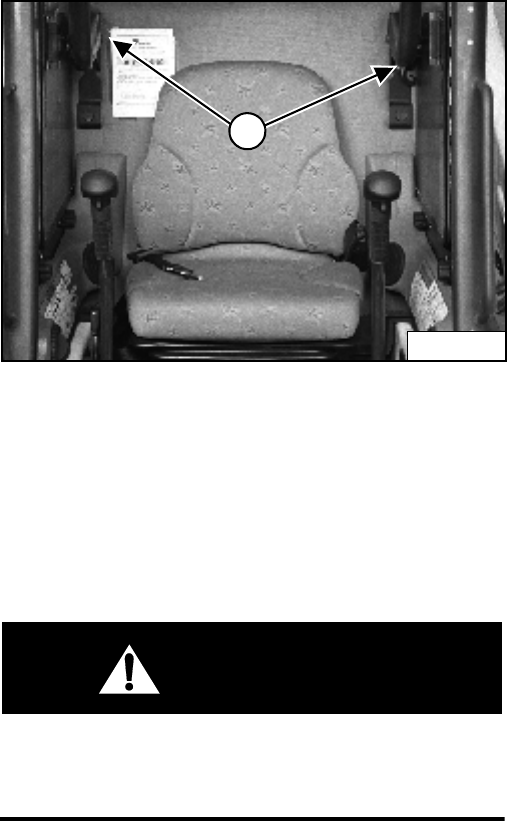

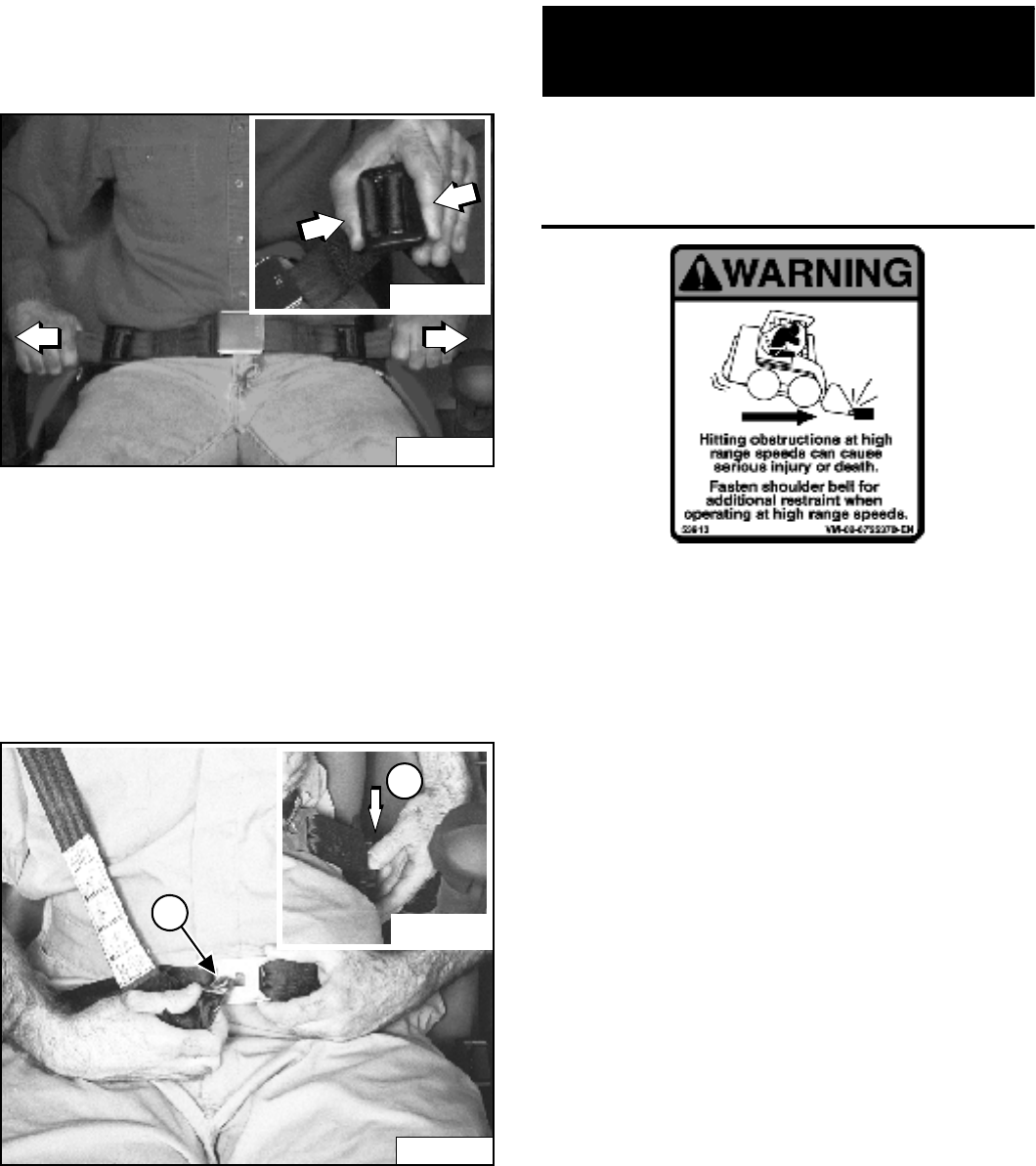

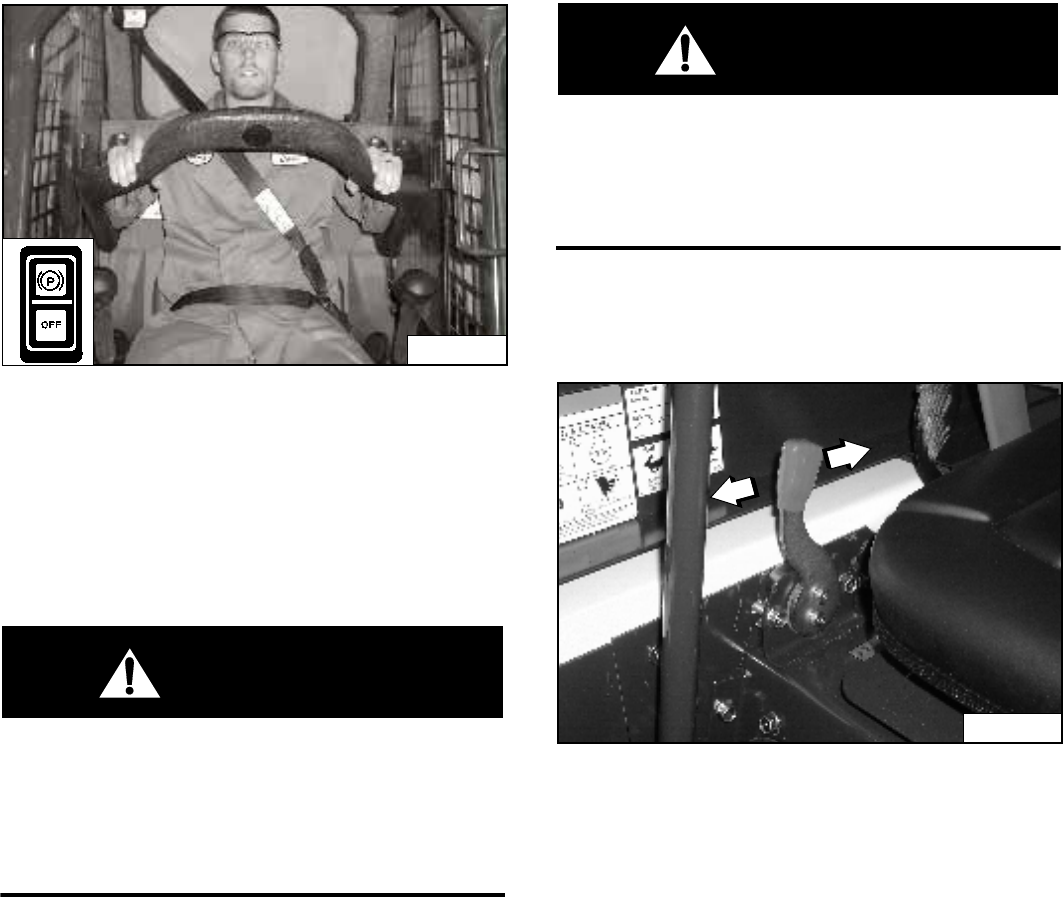

Always use the seat bar and fasten

seat belt snugly.

Always keep feet on the pedals or

foot rest when operating loader.

CORRECT

B-10731a

Never carry riders.

Keep bystanders away from work

area.

Never use loader as man lift or

elevating device for personnel.

The Bobcat loader must be equipped with safety items necessary for each job. Ask your dealer about attachments and

accessories.

SAFETY EQUIPMENT

1. SEAT BELT: Check belt fasteners and check for damaged webbing or buckle.

2. SEAT BAR: When up, it must deactivate travel and hydraulic functions.

3. OPERATOR CAB (ROPS and FOPS): It must be on the loader with all fasteners tight.

4. HANDBOOK: Must be in the cab.

5. SAFETY SIGNS (DECALS): Replace if damaged.

6. SAFETY TREADS: Replace if damaged.

7. GRAB HANDLES: Replace if damaged.

8. LIFT ARM SUPPORT DEVICE: Replace if damaged.

9. PARKING BRAKE

10. BOBCAT INTERLOCK CONTROL SYSTEM (BICS™)

Never use the loader without

instructions. See machine signs

(decals), Operation & Maintenance

Manual and Operator’s Handbook.

U.S. Publication 6904178 (3-05) (1)

S250 Bobcat Loader

I Operation & Maintenance Manual

CONTENTS

FOREWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .III

OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-1

PREVENTIVE MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-1

SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . XI

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .SPEC-1

SYSTEM SETUP & ANALYSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SA-1

REFERENCE INFORMATION

Write the correct information for YOUR Bobcat loader in the spaces below. Always use

these numbers when referring to your Bobcat loader.

Bobcat Europe

J. Huysmanslaan 59

B-1651 LOT

Belgium

Loader Serial Number

Engine Serial Number

NOTES:

YOUR BOBCAT® DEALER:

ADDRESS:

PHONE:

FOREWORD

SAFETY

OPERATING

INSTRUCTIONS

MAINTENANCE

PREVENTIVE

SPECIFICATIONS

ANALYSIS

SYSTEM SETUP &

S250 Bobcat Loader

II Operation & Maintenance Manual

S250 Bobcat Loader

III Operation & Maintenance Manual

FOREWORD

This Operation & Maintenance Manual was written to give the owner/operator instructions

on the safe operation and maintenance of the Bobcat loader. READ AND UNDERSTAND

THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR Bobcat

loader. If you have any questions, see your Bobcat dealer.

BOBCAT COMPANY IS IS0 9001:2000 CERTIFIED . . . . . . . . . . . . . . . . . V

DELIVERY REPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VI

ENGINE SERIAL NUMBER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VI

FEATURES, ACCESSORIES AND ATTACHMENTS . . . . . . . . . . . . . . . VIII

Attachments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IX

Buckets Available . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IX

Options and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VIII

Standard Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VIII

LOADER SERIAL NUMBER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VI

MACHINE IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VII

MOTOR OIL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V

REGULAR MAINTENANCE ITEMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V

SERIAL NUMBER LOCATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VI

FOREWORD

& ANALYSIS

TRANSLATION

SYSTEM SETU

S250 Bobcat Loader

IV Operation & Maintenance Manual

S250 Bobcat Loader

V Operation & Maintenance Manual

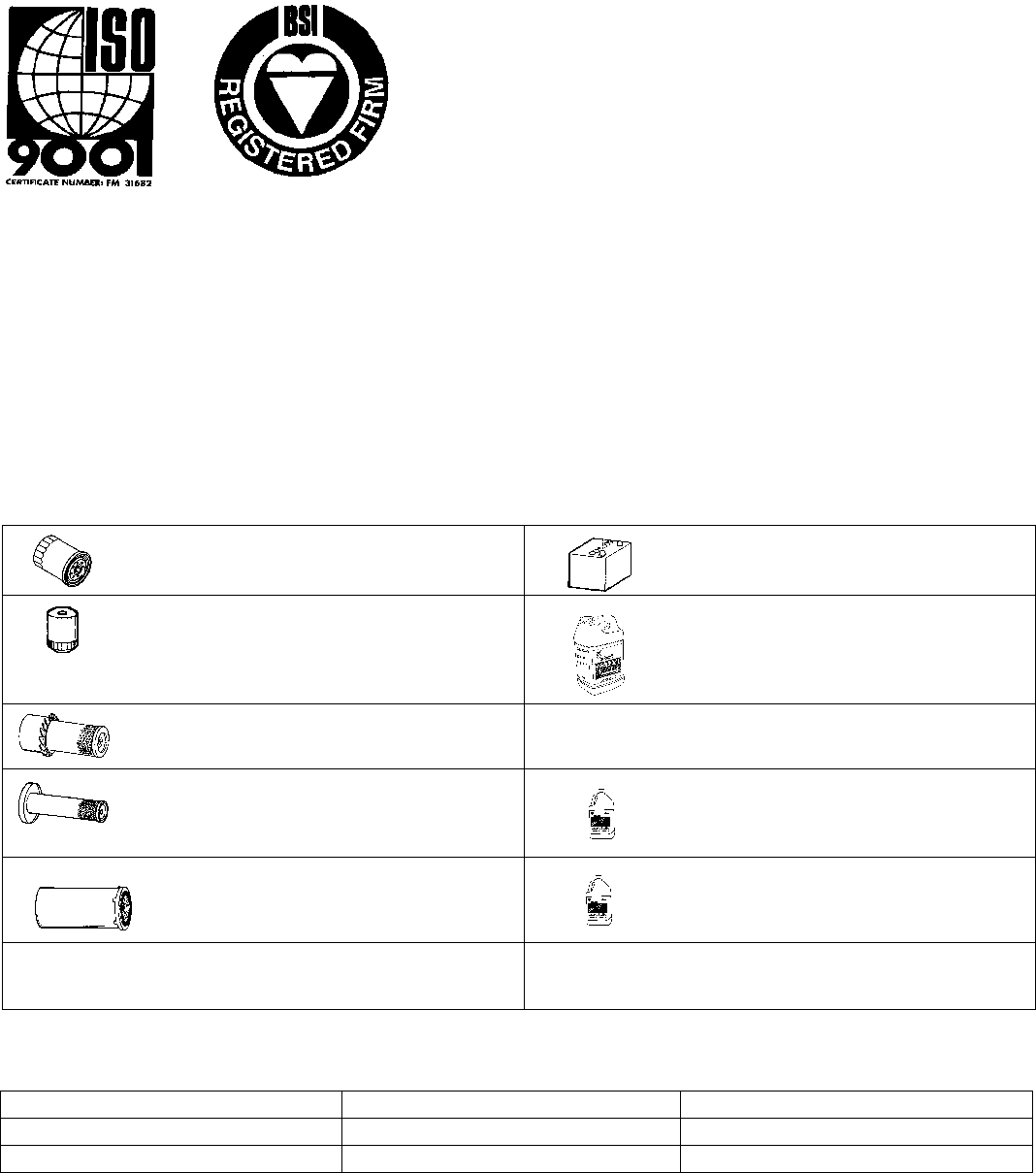

BOBCAT COMPANY IS IS0 9001:2000 CERTIFIED

ISO 9001:2000 is a set of international standards that control the processes and procedures which we use to design,

develop, manufacture, distribute, and service Bobcat products.

British Standards Institute (BSI) is the Certified Registrar Bobcat chose to assess the Company’s compliance with the

ISO 9001:2000 set of standards. The BSI registration certifies that the two Bobcat manufacturing plants and the Bobcat

corporate offices (Gwinner, Bismarck & West Fargo) in North Dakota are in compliance with ISO 9001:2000. Only certified

assessors, like BSI, can grant registrations.

ISO 9001:2000 means that as a company we say what we do and do what we say. In other words, we have established

procedures and policies, and we provide evidence that the procedures and policies are followed.

REGULAR MAINTENANCE ITEMS

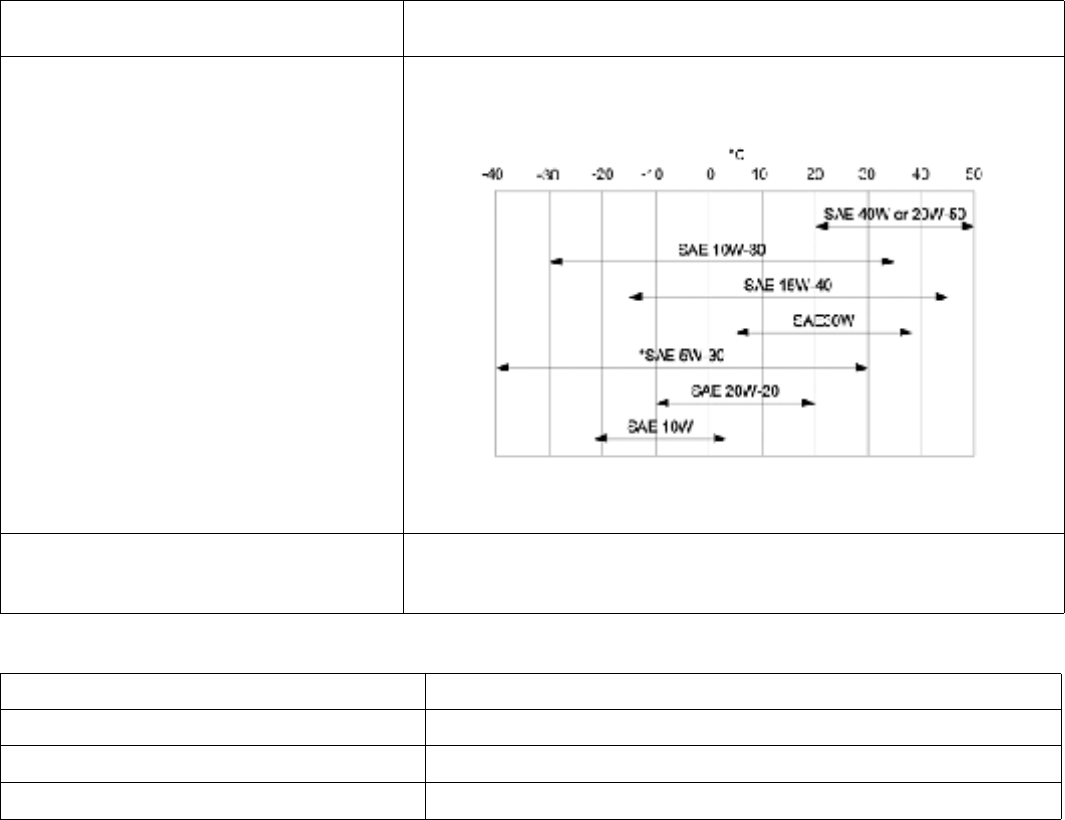

MOTOR OIL

ENGINE OIL FILTER (6 Pack)

6678233

BATTERY

6665427

FUEL FILTER

6667352

FLUID, Hydraulic/Hydrostatic

6903117 - (Two - 9,5 L containers)

6903118 - (19 L)

6903119 - (215 L)

AIR FILTER, Outer

6681475

RADIATOR CAP

6733429

AIR FILTER, Inner

6681474

PROPYLENE GLYCOL ANTI-FREEZE,

Premixed [-34°F (-37°C)]

6724094

HYDROSTATIC FILTER

6661248

PROPYLENE GLYCOL ANTI-FREEZE,

Concentrate

6724354

HYDROSTATIC FILTER, In-Line

6661022

6667299 SAE 15W40 CE/SG (12 L) 6724558 SAE 15W40 CE/SG (3,8 L) 6674294 SAE 15W40 CE/SG (9,5 L)

6657301 SAE 10W30 CE/SG (12 L) 6724557 SAE 10W30 CE/SG (3,8 L) 6674205 SAE 10W30 CE/SG (9,5 L)

6903109 SAE 30W CE/SG (12 L) 6903110 SAE 30W CE/SG (3,8 L.) 6903111 SAE 30W CE/SG (9,5 L.)

S250 Bobcat Loader

VI Operation & Maintenance Manual

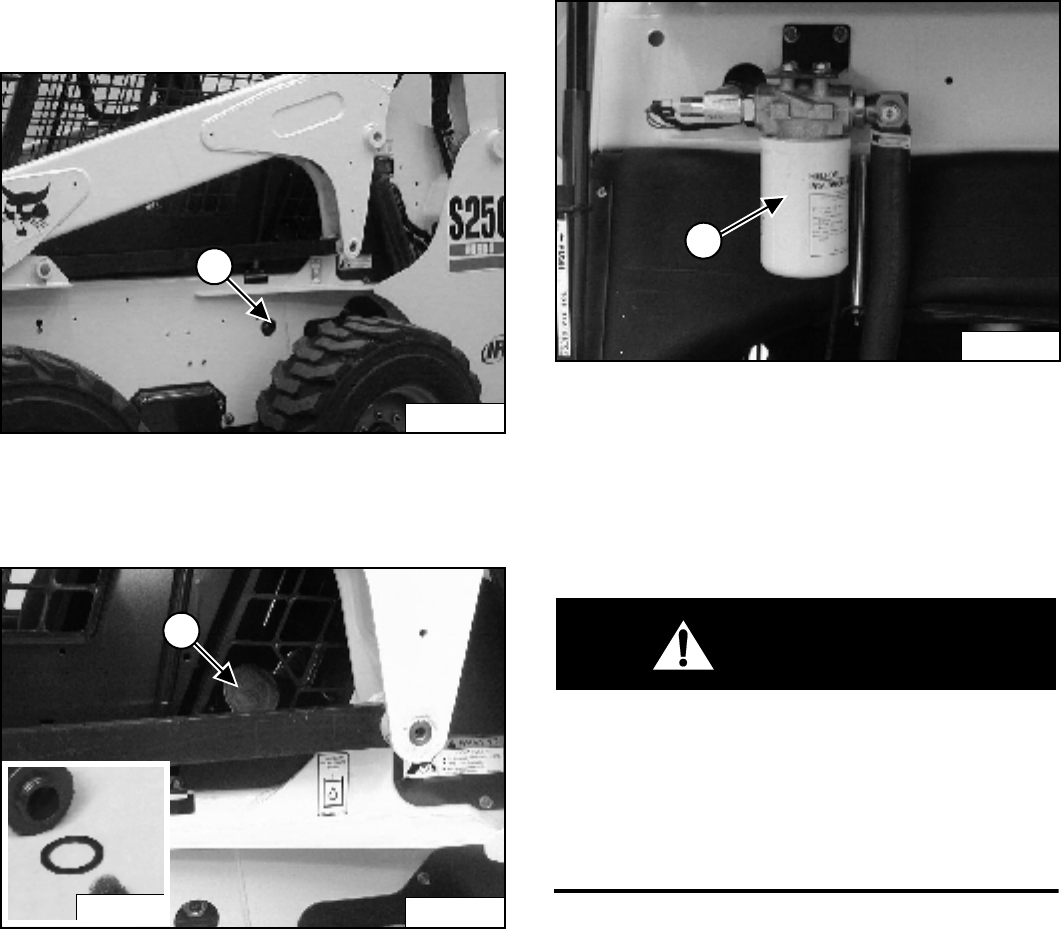

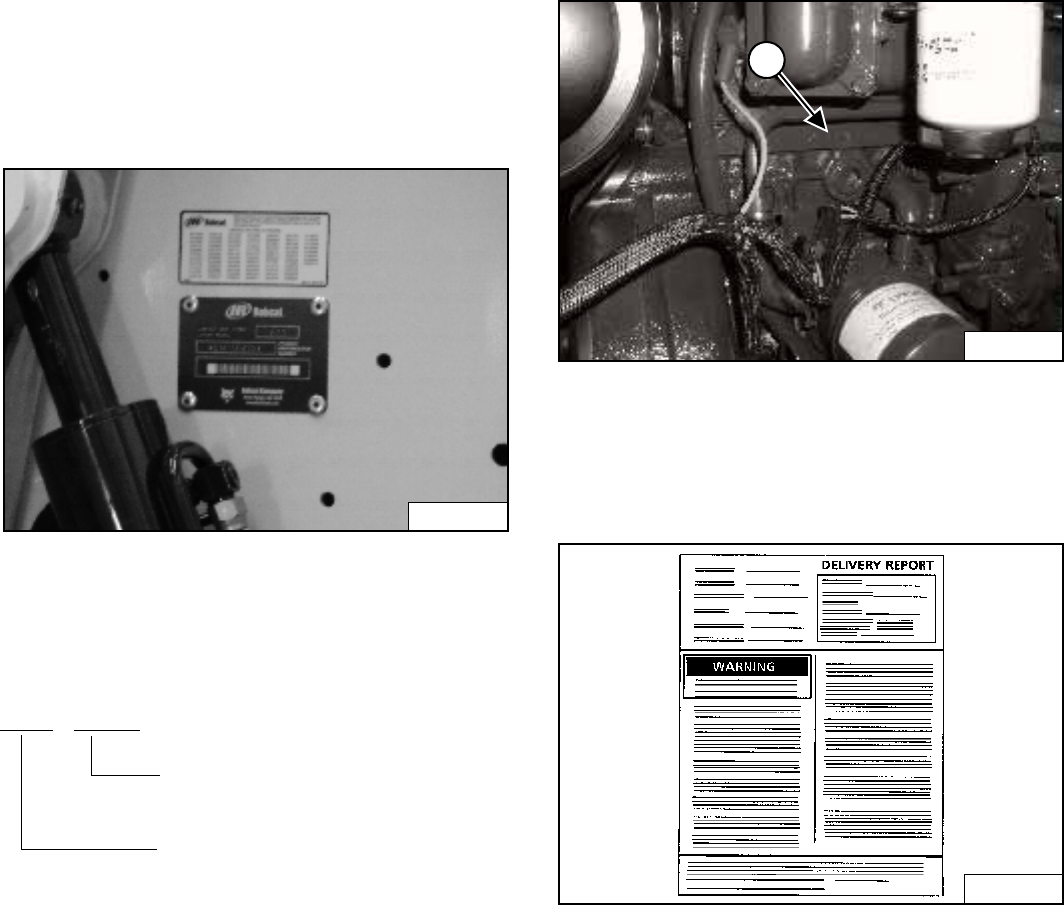

SERIAL NUMBER LOCATIONS

Always use the serial number of the loader when

requesting service information or when ordering parts.

Early or later models (identification made by serial

number) may use different parts, or it may be necessary

to use a different procedure in doing a specific service

operation.

Figure 1

LOADER SERIAL NUMBER

The loader serial number plate is located on the outside

of the loader frame [Figure 1].

Explanation of loader Serial Number:

ENGINE SERIAL NUMBER

Figure 2

The engine serial number is located on the side of the

engine (Item 1) [Figure 2] above the oil filter.

DELIVERY REPORT

Figure 3

The delivery report must be filled out by the dealer and

signed by the owner or operator when the Bobcat loader

is delivered. An explanation of the form must be given to

the owner. Make sure it is filled out completely [Figure 3].

P-31226

XXXX XXXXX

Module 2. - Production

Sequence (Series)

Module 1. - Model / Engine

Combination

1. The four digit Model/Engine Combination Module

number identifies the model number and engine

combination.

2. The five digit Production Sequence Number identifies

the order which the loader is produced.

P-48339

B-16315

S250 Bobcat Loader

VII Operation & Maintenance Manual

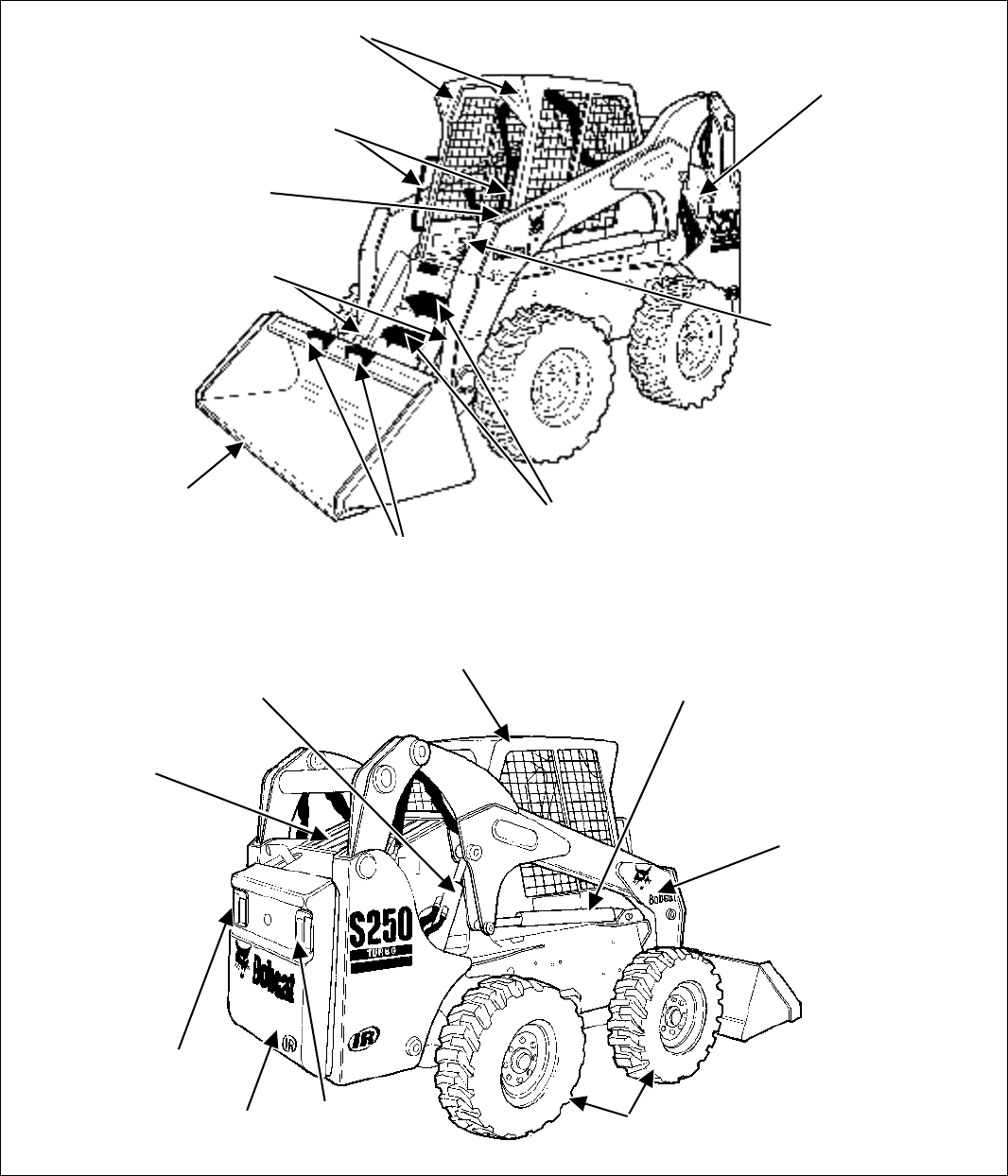

MACHINE IDENTIFICATION

GRAB

HANDLES

OPERATOR SEAT

with SEAT BELT &

SEAT BAR

TILT

CYLINDERS

†BUCKET

STEPS

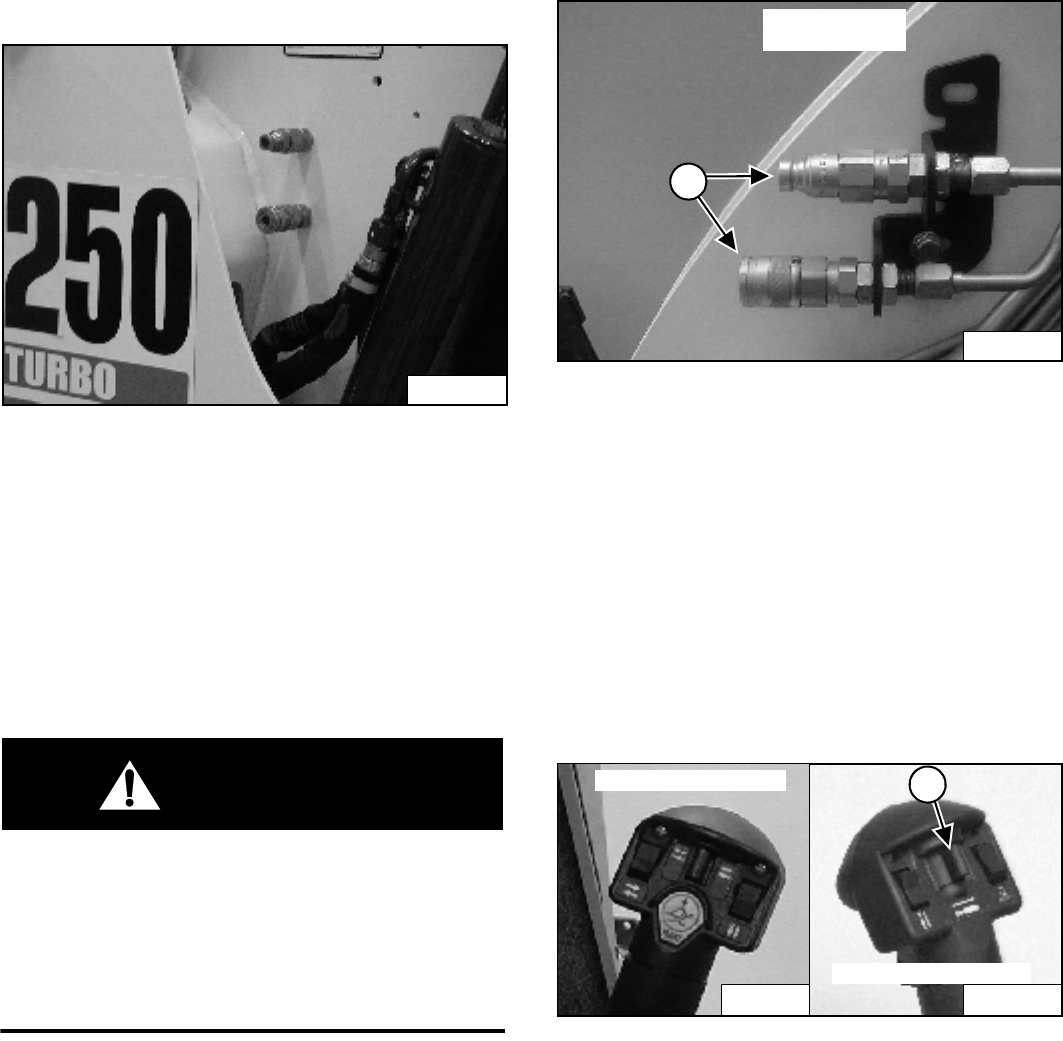

◆ REAR AUXILIARY

QUICK COUPLERS

LIFT ARM

*TIRES

REAR

GRILL

LIFT

CYLINDER

BUCKET

STEPS

FRONT AUXILIARY

QUICK COUPLERS

LIFT ARM

SUPPORT DEVICE

TAIL

LIGHT

REAR

DOOR

REAR

LIGHT

● OPERATOR CAB

(ROPS / FOPS)

◆Optional or Field Accessory (Not Standard Equipment)

✽TIRES - Tires shown may not be standard. The machine is factory equipped with standard tires. Other tires are available.

✝Bucket - Several different buckets and other attachments are available for this machine.

●ROPS, FOPS - Roll Over Protective Structure, per SAE J1040 and ISO 3471, and Falling Object Protective Structure per

SAE J1043 and ISO 3449, Level I. Level II is available.

FRONT

LIGHTS

S250 Bobcat Loader

VIII Operation & Maintenance Manual

FEATURES, ACCESSORIES AND ATTACHMENTS

Standard Items

Model S250 Bobcat loaders are equipped with the

following standard items:

• Automatically activated air intake heater

• Bobcat Interlock Control System (BICS)

• Bob-Tach™ frame

• CE certification

• Counterweights: four axle weight sets and two tailgate

plate weights

• Deluxe operator cab*

Includes interior cab foam, side, top and rear

windows, accessory wire harness, dome light, and

electrical power port

• Electrically activated proportional front auxiliary

hydraulics

• Engine/hydraulics system shutdown

• High-back cushion suspension seat

• Hydraulic bucket positioning (including ON/OFF

switch)

• Instrumentation

• Lift arm support

• Operating lights, front and rear

• Parking brake

• Seat bar

• Seat belt

• Turbo-charger with approved spark arrestor

• Tyres – 12-16.5 – 12-ply – Bobcat heavy duty

• Warranty: 12 months or 2000 hours

* Roll Over Protective Structure (ROPS) – meets

requirements of SAE-J1040 and ISO 3471

Options and Accessories

Below is a list of some equipment available from your

Bobcat Loader dealer as Dealer and/or Factory Installed

Accessories and Factory Installed Options. See your

Bobcat dealer for other available options, accessories

and attachments.

• Dealer Installed Options

• 7 and 14-pin electrical attachment control kit

(7-pin kit standard with S250H)

• Air conditioning kit

• Back up alarm kit

• Bob-Tach™ frame

• Cab enclosure kit

• Catalytic purifier kit

• Door switch sensor kit

• FOPS kit**

• Four-point lift kit

• Fresh air heater kit

• Front door kit

• Lift arm spacer – 1-inch

• Operator cab, CE, enclosure kit

• Plumbing kit for fresh air heater

• Rear auxiliary hydraulic kit

• Secondary auxiliary hydraulics kit

• Special applications kit

• Urethane track package to fit 12-16.5 tyres

• Wheel spacer kit for steel tracks – 1.5-inch

• Factory Options

• Advanced Control System (ACS)

• Advanced Hand Controls (AHC)

• Cab enclosure with heat

• Deluxe instrument panel

• Heavy duty tyres with offset rims – 12-16.5 –

12-ply

• Power Bob-Tach™

• Segmented tyres – 12-16.5

• Segmented tyres – industrial type – 8.25-15

• Selectable Joystick Controls (SJC)

• Severe duty foam-filled tyres – 12-16.5 – 12-ply

• Severe duty tyres – 12-16.5 – 12-ply

• Steel track package to fit 12-16.5 tyres

• Super float tyres – 31 x 15.5-15 – 12-ply

• Two-speed travel

** Falling Objects Protective Structure (FOPS) –

meets requirements of SAE-J1043 and ISO 3449,

Level I

Specifications subject to change without notice.

S250 Bobcat Loader

IX Operation & Maintenance Manual

FEATURES, ACCESSORIES AND ATTACHMENTS

(CONT’D)

These and other attachments are approved for use on

this model loader. Do not use unapproved attachments.

Attachments not manufactured by Bobcat may not be

approved.

The versatile Bobcat loader quickly turns into a multi-job

machine with a tight-fit attachment hook-up . . . from

bucket to grapple to pallet fork to backhoe and a variety

of other attachments.

See your Bobcat dealer for more details on these and

other attachments and field accessories.

Increase the versatility of your Bobcat loader with a

variety of bucket styles and sizes.

Buckets Available

Many bucket styles, widths and different capacities are

available for a variety of different applications. They

include Construction & Industry, Low profile, Fertilizer

and Snow, to name a few. See your Bobcat dealer for the

correct bucket for your Bobcat loader and application.

Attachments

For specific model availability, see Bobcat Product Price List.

• Angle blade

• Angle broom*†

• Auger

• Backhoe

• Box blade

• Brushcat rotary cutter

• Buckets

• Chipper*

• Combination bucket

• Concrete pump*

• Cutter crusher*

• Digger

• Dozer blade*

• Dumping hopper

• Farm grapple

• Grader*

• Hydraulic breaker**

• Industrial grapple

• Landplane

• Landscape rake

• Mixing bucket*

• Pallet fork – hydraulic

• Pallet fork – standard

•Planer*

• Rear stabiliser

•Scarifier

• Snow blower*

•Sod layer*

• Soil conditioner*

• Spreader

• Stump grinder*

• Super scraper

• Sweeper

• Three-point hitch

• Tiller

• Tilt-Tatch™

• Tracks, steel

• Tree transplanter*

• Trench compactor

• Trencher

• Utility forks

• Utility frame

• Vibratory roller

• Water kit

• Wheel saw

• Whisker broom

* Attachment control kit required.

** When operating the loader with this attachment, a Special Applications Kit, which includes a 12 mm Lexan

front door with 6 mm top and rear windows, must be used.

† Optional water kit.

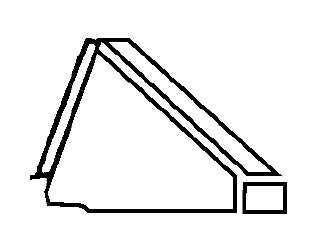

BUCKET

S250 Bobcat Loader

X Operation & Maintenance Manual

S250 Bobcat Loader

XI Operation & Maintenance Manual

SAFETY

MACHINE SIGNS (DECALS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . XVI

SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . XIII

FIRE PREVENTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .XV

Safe Operation Is The Operator’s Responsibility . . . . . . . . . . . . . . . XIII

SAFE OPERATION NEEDS A QUALIFIED OPERATOR . . . . . . . . . XIV

SAFETY

S250 Bobcat Loader

XII Operation & Maintenance Manual

S250 Bobcat Loader

XIII Operation & Maintenance Manual

SAFETY INSTRUCTIONS

Safe Operation Is The Operator’s Responsibility

Carefully follow the operating and maintenance

instructions in this manual.

The Bobcat skid-steer loader is highly maneuverable and

compact. It is rugged and useful under a wide variety of

conditions. This presents an operator with hazards

associated with off highway, rough terrain applications,

common with Bobcat loader usage.

The Bobcat loader has an internal combustion engine

with resultant heat and exhaust. All exhaust gasses can

kill or cause illness so use the loader with adequate

ventilation. The loader has a spark arrestor exhaust

system or muffler which is required for operation in

certain areas.

The dealer explains the capabilities and restrictions of the

Bobcat loader and attachments for each application. The

dealer demonstrates the safe operation according to

Bobcat instructional materials, which are also available to

operators. The dealer can also identify unsafe

modifications or use of unapproved attachments. The

attachments and buckets are designed for a Rated

Operating Capacity (some have restricted lift heights)

and secure fastening to the Bobcat loader. The user must

check with the dealer, or Bobcat literature, to determine

safe loads of materials of specified densities for the

loader-attachment combination.

The following publications and training materials provide

information on the safe use and maintenance of the

Bobcat loader and attachments:

• The Delivery Report is used to assure that complete

instructions have been given to the new owner and

that the Bobcat loader and attachment is in safe

operating condition.

• The Operation & Maintenance Manual delivered with

the Bobcat loader or attachment gives operating

information as well as routine maintenance and

service procedures. It is a part of the loader and can

be stored in a container provided inside the cab of the

loader. Replacement Operation & Maintenance

Manuals can be ordered from your Bobcat dealer.

• Machine signs (decals) instruct on the safe operation

and care of your Bobcat loader or attachment. The

signs and their locations are shown in the Operation &

Maintenance Manual. Replacement signs are

available from your Bobcat dealer.

• An Operator’s Handbook is fastened to the operator

cab of the loader. Its brief instructions are convenient

to the operator. The Handbook is available from your

dealer in an English edition or one of many other

languages. See your Bobcat dealer for more

information on translated versions.

SI01-0903

S250 Bobcat Loader

XIV Operation & Maintenance Manual

SAFETY INSTRUCTIONS (CONT’D)

Safe Operation Is The Operator’s Responsibility

(Cont’d)

WARNING

Operator must have instructions before operating the

machine. Untrained operators can cause injury or

death.

W-2001-0502

IMPORTANT

This notice identifies procedures which must be

followed to avoid damage to the machine.

I-2019-0284

WARNING

Warnings on the machine and in the manuals are for

your safety. Failure to obey warnings can cause

injury or death.

W-2044-1285

The Bobcat loader and attachment must be in good

operating condition before use.

Check all of the items on the Bobcat Service Schedule

Decal under the 8-10 hour column or as shown in the

Operation & Maintenance Manual.

SAFE OPERATION NEEDS A QUALIFIED OPERATOR

For an operator to be qualified, he must not use drugs or

alcoholic drinks which impair his alertness or

coordination while working. An operator who is taking

prescription drugs must get medical advice to determine

if he can safely operate a machine.

A qualified operator must do the following:

Understand the Written Instructions, Rules and

Regulations

• The written instructions from Bobcat company include

the Delivery Report, Operation & Maintenance

Manual, Operator’s Handbook and machine signs

(decals).

• Check the rules and regulations at your location. The

rules may include an employer’s work safety

requirements. Regulations may apply to local driving

requirements or use of a Slow Moving Vehicle (SMV)

emblem. Regulations may identify a hazard such as a

utility line.

Have Training with Actual Operation

• Operator training must consist of a demonstration and

verbal instruction. This training is given by your

Bobcat dealer before the product is delivered.

• The new operator must start in an area without

bystanders and use all the controls until he can

operate the machine and attachment safely under all

conditions of the work area. Always fasten seat belt

before operating.

Know the Work Conditions

• Know the weight of the materials being handled.

Avoid exceeding the Rated Operating Capacity of the

machine. Material which is very dense will be heavier

than the same volume of less dense material. Reduce

the size of load if handling dense material.

• The operator must know any prohibited uses or work

areas, for example, he needs to know about

excessive slopes.

• Know the location of any underground lines.

• Wear tight fitting clothing. Always wear safety glasses

when doing maintenance or service. Safety glasses,

hearing protection or special applications kit are

required for some work. See your dealer about

Bobcat Safety equipment.

SI02-0903

This symbol with a warning statement means:

“Warning, be alert! Your safety is involved!”

Carefully read the message that follows.

Safety Alert Symbol

S250 Bobcat Loader

XV Operation & Maintenance Manual

SAFETY INSTRUCTIONS (CONT’D)

FIRE PREVENTION

The machines and some attachments have components

that are at high temperatures under normal operating

conditions. The primary source of high temperatures is

the engine and exhaust system. The electrical system, if

damaged or incorrectly maintained, can be a source of

arcs or sparks.

Flammable debris (leaves, straw, etc.) must be removed

regularly. If flammable debris is allowed to accumulate, it

can cause a fire hazard. Clean often to avoid this

accumulation. Flammable debris in the engine

compartment is a potential fire hazard.

The spark arrestor exhaust system (if equipped) is

designed to control the emission of hot particles from the

engine and exhaust system, but the muffler and the

exhaust gases are still hot.

• Do not use the machine where exhaust, arcs, sparks

or hot components can contact flammable material,

explosive dust or gases.

• The operator cab, engine compartment and engine

cooling system must be inspected every day and

cleaned if necessary to prevent fire hazards and

overheating.

• Check all electrical wiring and connections for

damage. Keep the battery terminals clean and tight.

Repair or replace any damaged part.

• Check fuel and hydraulic tubes, hoses and fittings for

damage and leakage. Never use open flame or bare

skin to check for leaks. Tighten or replace any parts

that show leakage. Always clean fluid spills. Do not

use gasoline or diesel fuel for cleaning parts. Use

commercial nonflammable solvents.

• Do not use ether or starting fluids on any engine which

has glow plugs. These starting aids can cause

explosion and injure you or bystanders.

• Always clean the machine, disconnect the battery,

and disconnect the wiring from the Bobcat controllers

before welding. Cover rubber hoses, battery and all

other flammable parts. Keep a fire extinguisher near

the loader when welding. Have good ventilation when

grinding or welding painted parts. Wear dust mask

when grinding painted parts. Toxic dust or gas can be

produced.

• Stop the engine and let it cool before adding fuel.

No smoking!

• Use the procedure in the Operation & Maintenance

Manual for connecting the battery.

• Use the procedure in the Operation & Maintenance

Manual for cleaning the spark arrestor muffler

(if equipped).

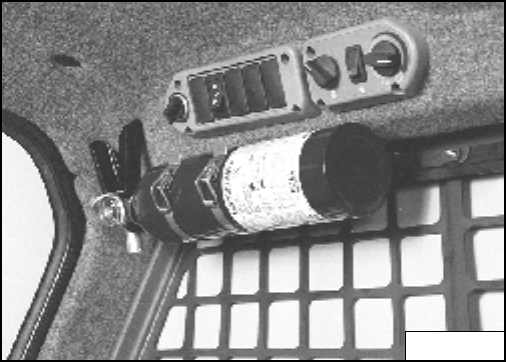

Figure 4

• Know where fire extinguishers and first aid kits are

located and how to use them. Fire extinguishers are

available from your Bobcat dealer. The fire

extinguisher can be installed in the location shown in

[Figure 4].

SI03-0301

N-21901

S250 Bobcat Loader

XVI Operation & Maintenance Manual

MACHINE SIGNS (DECALS)

Follow the instructions on all the Machine Signs (Decals) that are on the loader. Replace any damaged machine signs

and be sure they are in the correct locations. Machine signs are available from you Bobcat loader dealer.

6702301

6732696

6702302

6577754 (2)

6731757

7113512

High Flow Only

6711840

6733924

6735140

Standard and ACS - 6728539

Standard and ACS - 6727926

SJC - 6734647 and 6734646

ACS Only

6715944

SJC - 6737248

6902600

6565990

6718774

(Inside Fuse Cover)

6579528

(Behind Lift Arm Crossmember)

6561383

(Behind Bob-Tach)

S250 Bobcat Loader

XVII Operation & Maintenance Manual

MACHINE SIGNS (DECALS) (CONT’D)

Follow the instructions on all the Machine Signs (Decals) that are on the loader. Replace any damaged machine signs

and be sure they are in the correct locations. Machine signs are available from you Bobcat loader dealer.

6560573

6708929

6732774

6717343 (2)

(Under Cab)

6595014 (2)

6734534

6708941Inside Rear Door

6717679

6578368

S250 Bobcat Loader

XVIII Operation & Maintenance Manual

S250 Bobcat Loader

OI-1 Operation & Maintenance Manual

OPERATING INSTRUCTIONS

ATTACHMENTS AND BUCKETS . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-33

Choosing The Correct Bucket . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-33

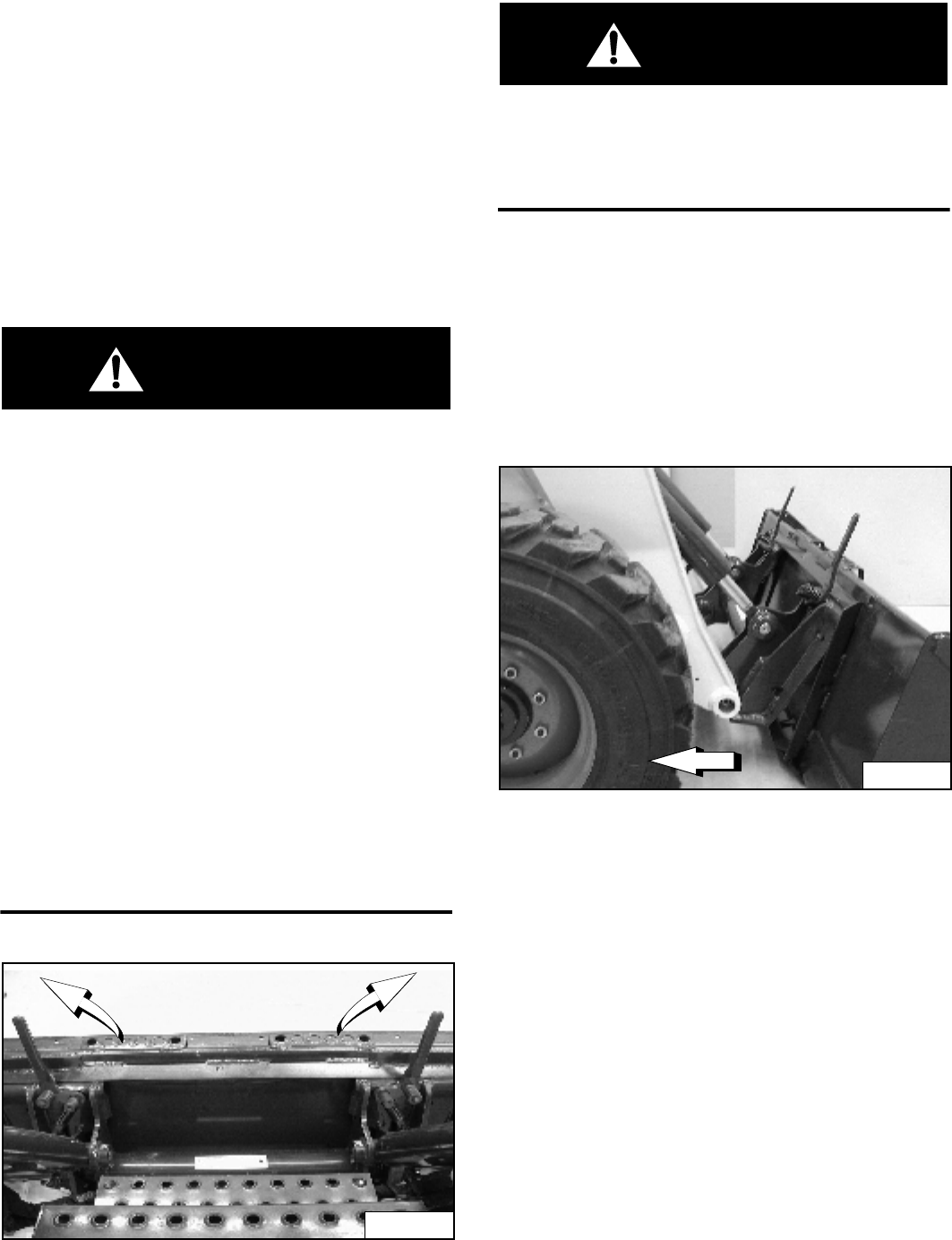

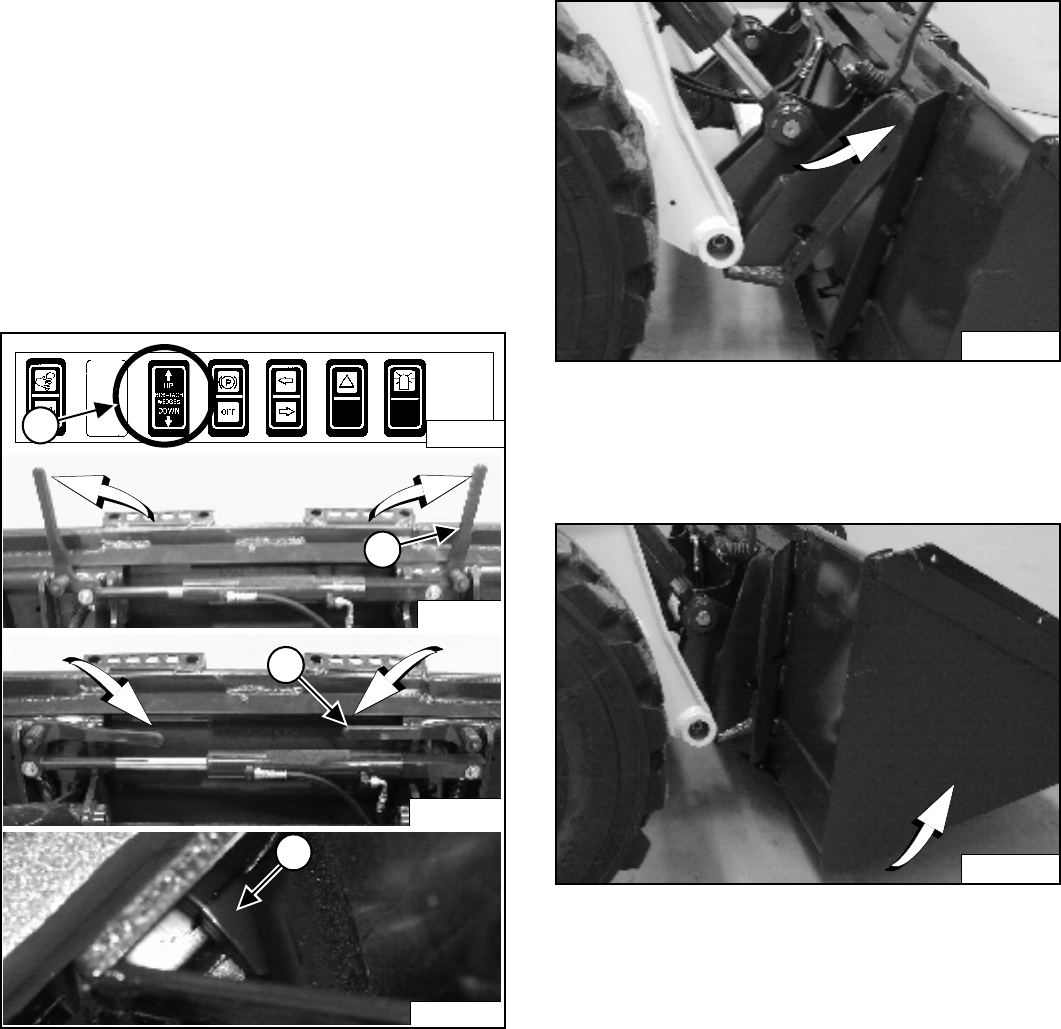

Hand Lever Bob-Tach - Installing The Bucket Or Attachment. . . . .OI-34

Hand Lever Bob-Tach - Removing The Bucket Or Attachment. . . .OI-36

Pallet Forks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-34

Power Bob-Tach - Installing The Bucket Or Attachment . . . . . . . . .OI-37

Power Bob-Tach - Removing The Bucket Or Attachment . . . . . . . .OI-38

DAILY INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-24

Daily Inspection and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . .OI-24

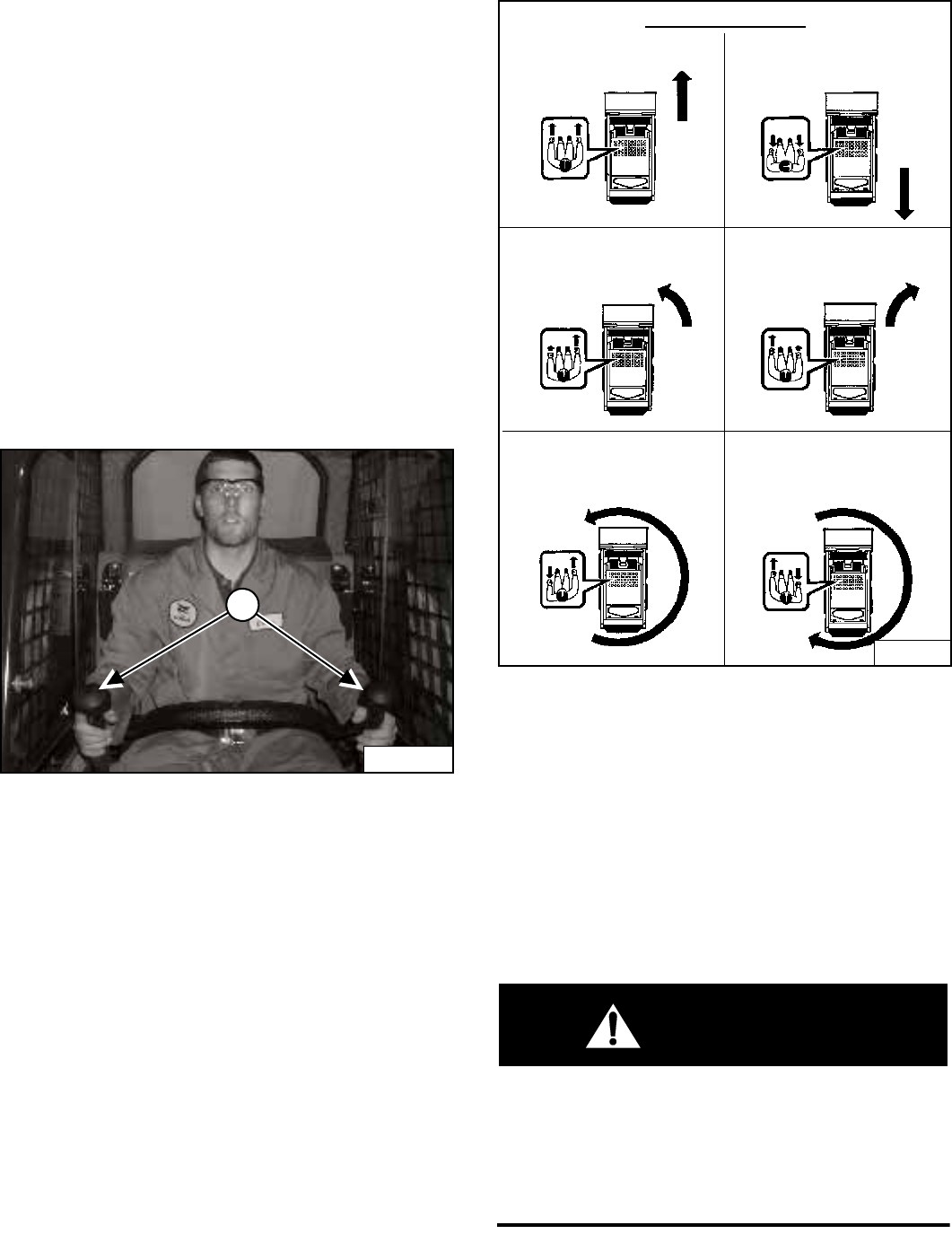

DRIVING AND STEERING THE LOADER. . . . . . . . . . . . . . . . . . . . . .OI-12

Available Controls Configurations . . . . . . . . . . . . . . . . . . . . . . . . . .OI-12

Operation (SJC in ‘H’ Control Pattern) . . . . . . . . . . . . . . . . . . . . . .OI-13

Operation (SJC in ‘ISO’ Control Pattern) . . . . . . . . . . . . . . . . . . . .OI-14

Operation (Standard and ACS) . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-12

ENGINE SPEED CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-11

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-11

HYDRAULIC CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-16

Advanced Control System (ACS) in HAND Control Mode . . . . . . .OI-17

Attachment Control Device (ACD) (If Equipped). . . . . . . . . . . . . . .OI-23

Auxiliary Hydraulics Button - DISENGAGE. . . . . . . . . . . . . . . . . . .OI-20

Auxiliary Hydraulics Button - MAXIMUM FLOW ONLY . . . . . . . . . .OI-20

Auxiliary Hydraulics Button - VARIABLE FLOW . . . . . . . . . . . . . . .OI-20

Bucket Position Valve Operation (If Equipped) . . . . . . . . . . . . . . . .OI-23

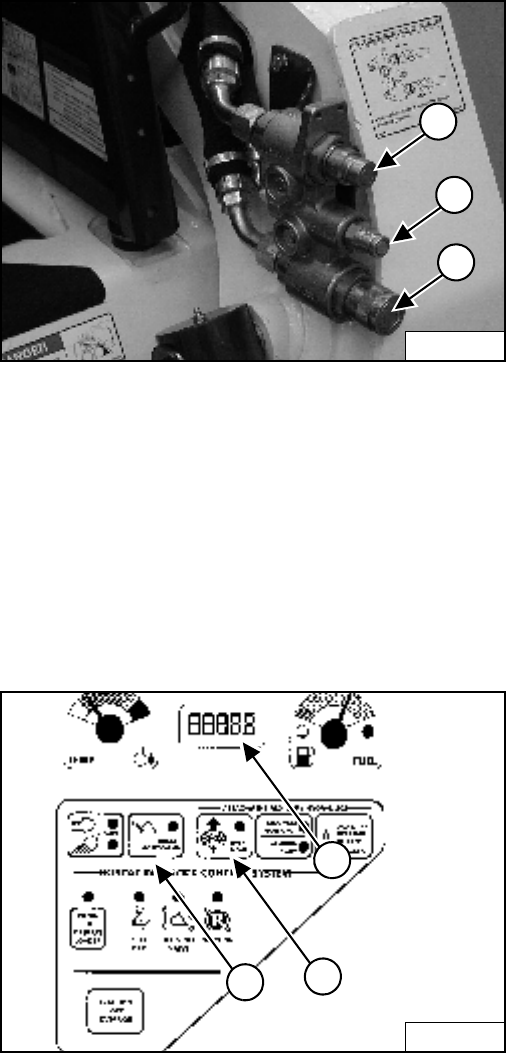

FRONT Auxiliary Hydraulics Operation - CONTINUOUS FLOW . . . OI-20

FRONT Auxiliary Hydraulics Operation - MAXIMUM FLOW. . . . . .OI-20

FRONT Auxiliary Hydraulics Operation - VARIABLE FLOW. . . . . .OI-20

High-Flow Hydraulics Operation (If Equipped) . . . . . . . . . . . . . . . .OI-22

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-16

Quick Couplers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-19

REAR Auxiliary Hydraulics Operation . . . . . . . . . . . . . . . . . . . . . . .OI-21

Releasing Hydraulic Pressure (Loader and Attachment) . . . . . . . .OI-19

Secondary Front Auxiliary Hydraulics (If Equipped) . . . . . . . . . . . .OI-21

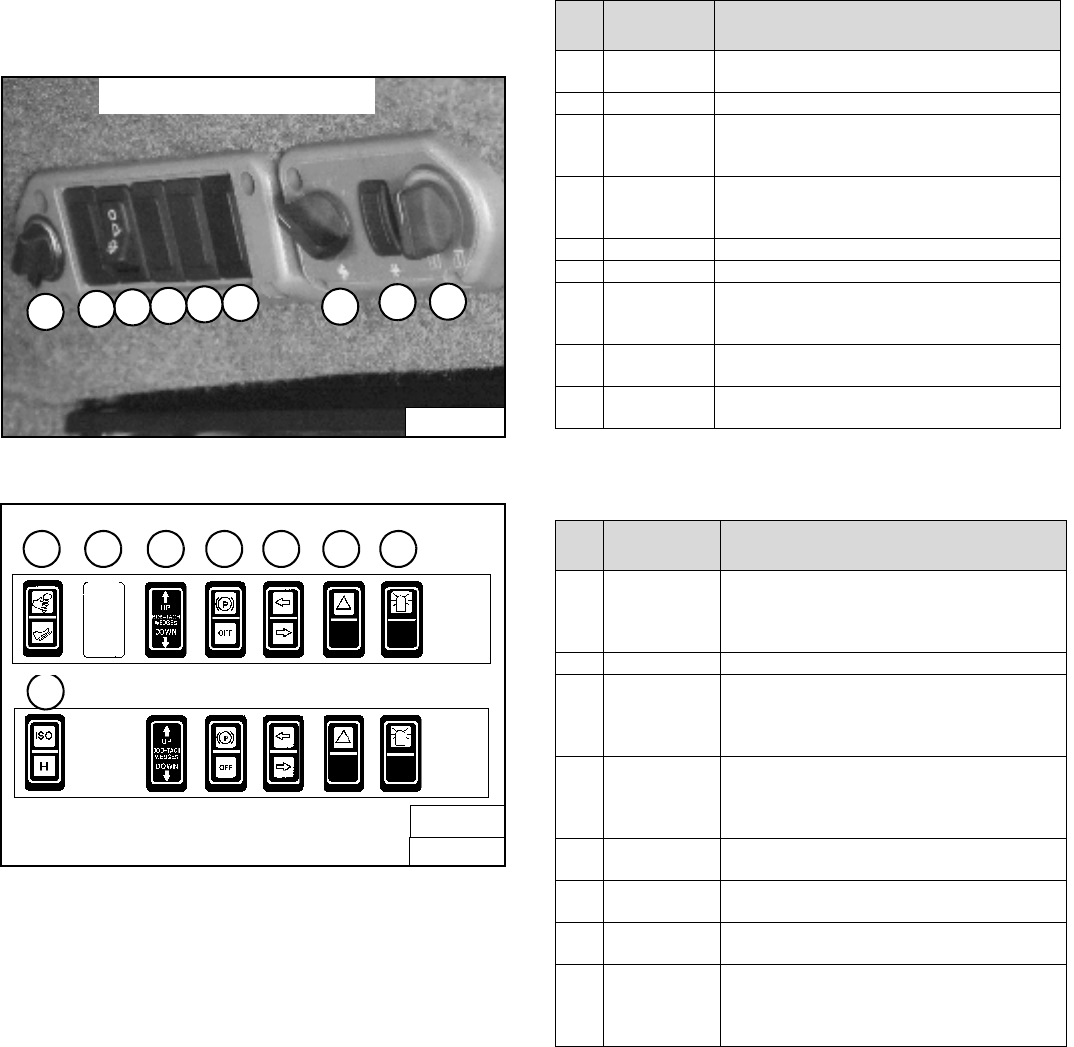

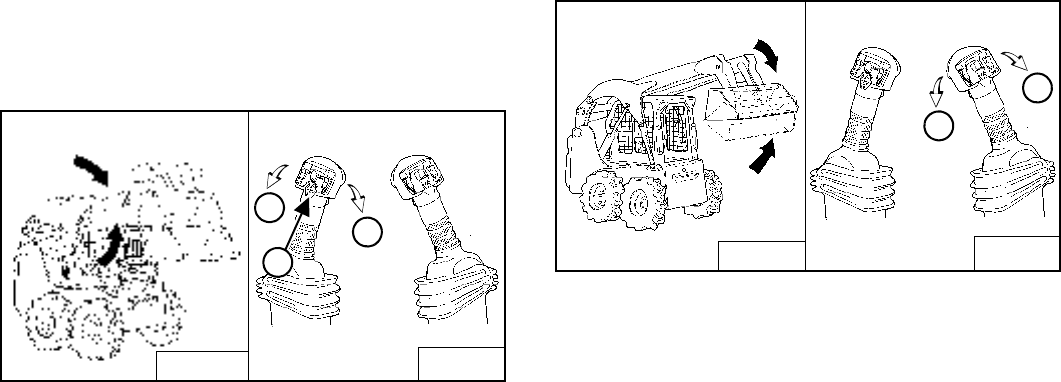

Selectable Joystick Control (SJC) - ‘H’ Control Pattern . . . . . . . . .OI-18

Selectable Joystick Control (SJC) - ‘ISO’ Control Pattern. . . . . . . .OI-18

Standard Controls (Also ACS in Foot Pedal Mode) . . . . . . . . . . . .OI-16

INCHING CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-11

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-11

INSTRUMENT PANEL IDENTIFICATION. . . . . . . . . . . . . . . . . . . . . . . .OI-5

Cab Light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-10

Left Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-5

Option And Field Accessory Panels (If Equipped) . . . . . . . . . . . . . .OI-9

Right Panel (Deluxe - With Keyless Start). . . . . . . . . . . . . . . . . . . . .OI-7

Right Panel (Standard - With Key Switch). . . . . . . . . . . . . . . . . . . . .OI-6

OPERATING

INSTRUCTIONS

S250 Bobcat Loader

OI-2 Operation & Maintenance Manual

OPERATING INSTRUCTIONS (CONT’D)

LIFT ARM BY-PASS CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-10

Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-10

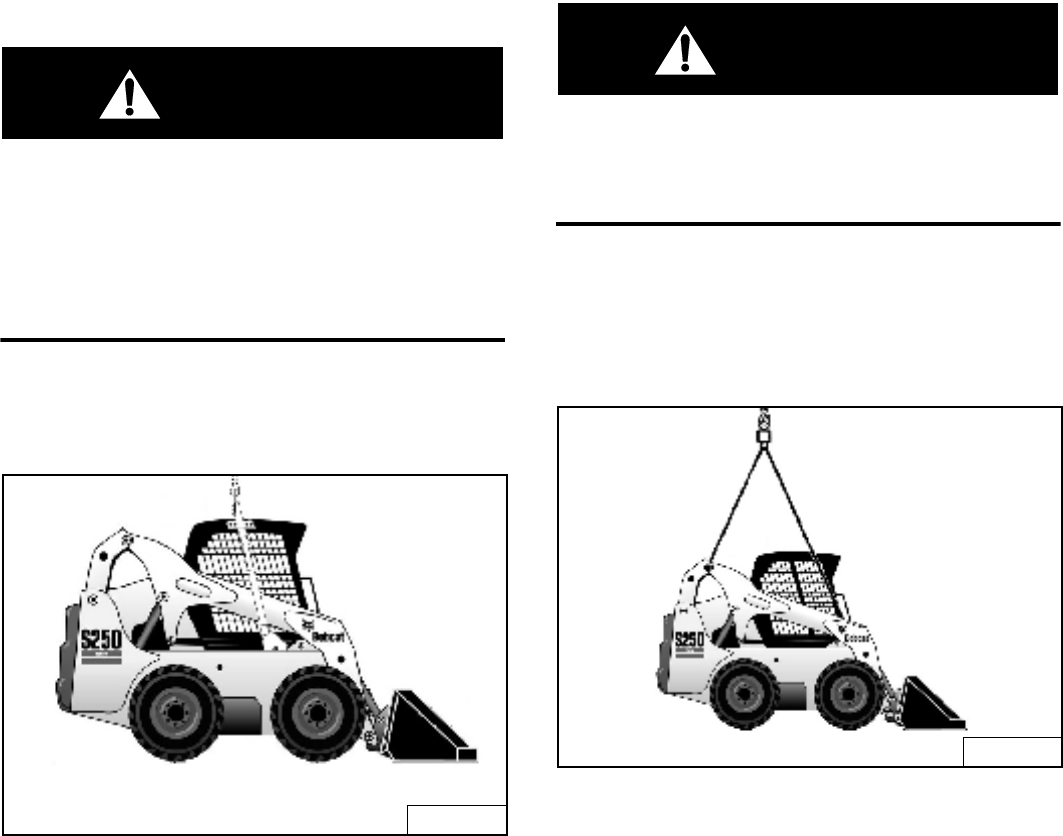

LIFTING THE LOADER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-50

Four Point Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-50

Single Point Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-50

MONITORING THE DISPLAY PANEL . . . . . . . . . . . . . . . . . . . . . . . . OI-32

Deluxe Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-32

Standard Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-32

WARNING and SHUTDOWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-32

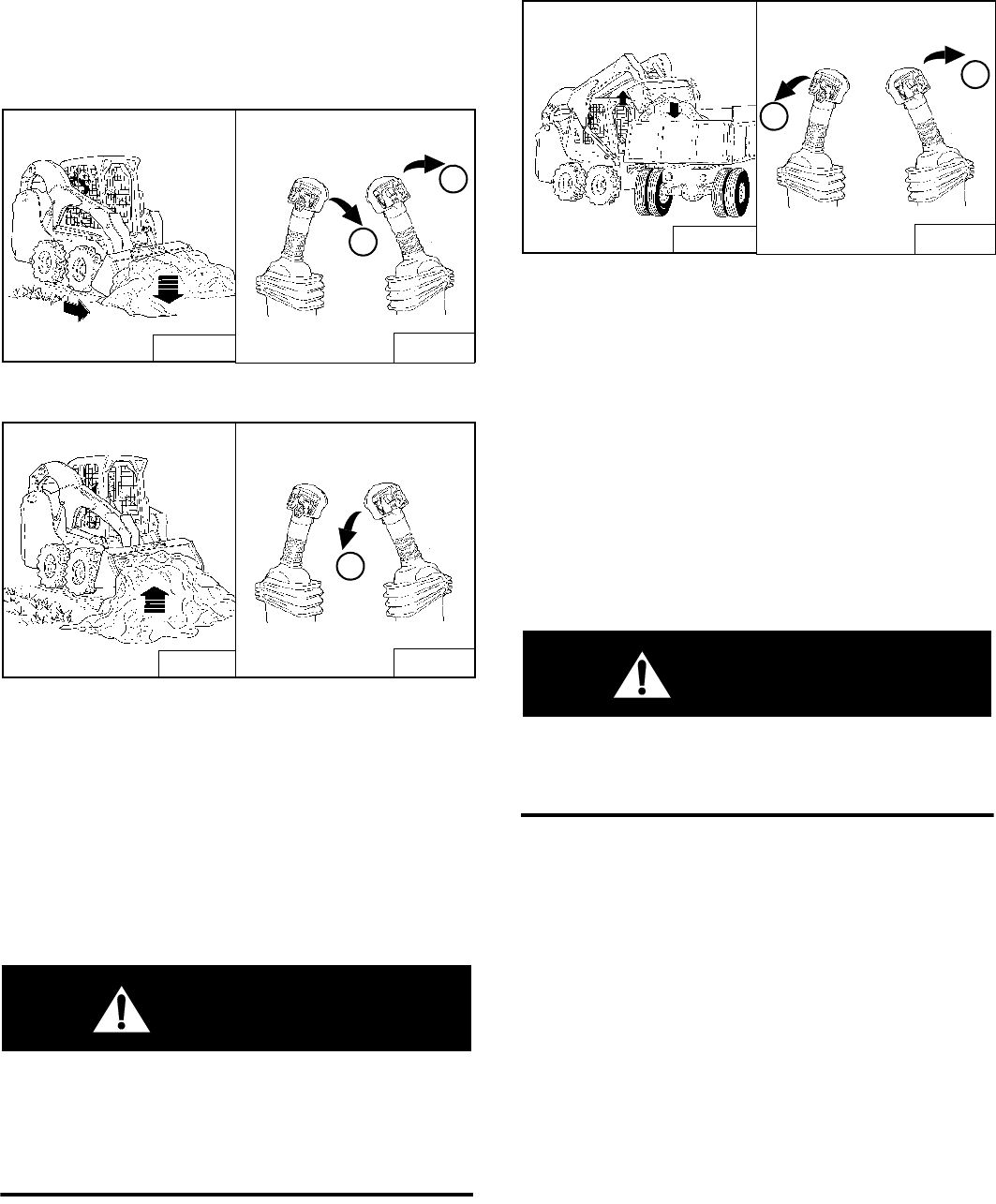

OPERATING PROCEDURE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-39

Foot Pedal Machines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-41

Hand Control Machines (Includes ACS and SJC with H-Pattern

Selected) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-43

Operating With A Full Bucket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-39

Operating With An Empty Bucket . . . . . . . . . . . . . . . . . . . . . . . . . OI-40

Selectable Joystick Control (SJC) with ‘ISO’ Pattern Selected . . . OI-45

PARKING BRAKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-23

Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-23

PARKING THE BOBCAT LOADER. . . . . . . . . . . . . . . . . . . . . . . . . . . OI-47

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-47

PRE-STARTING PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-25

Before Starting The Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-25

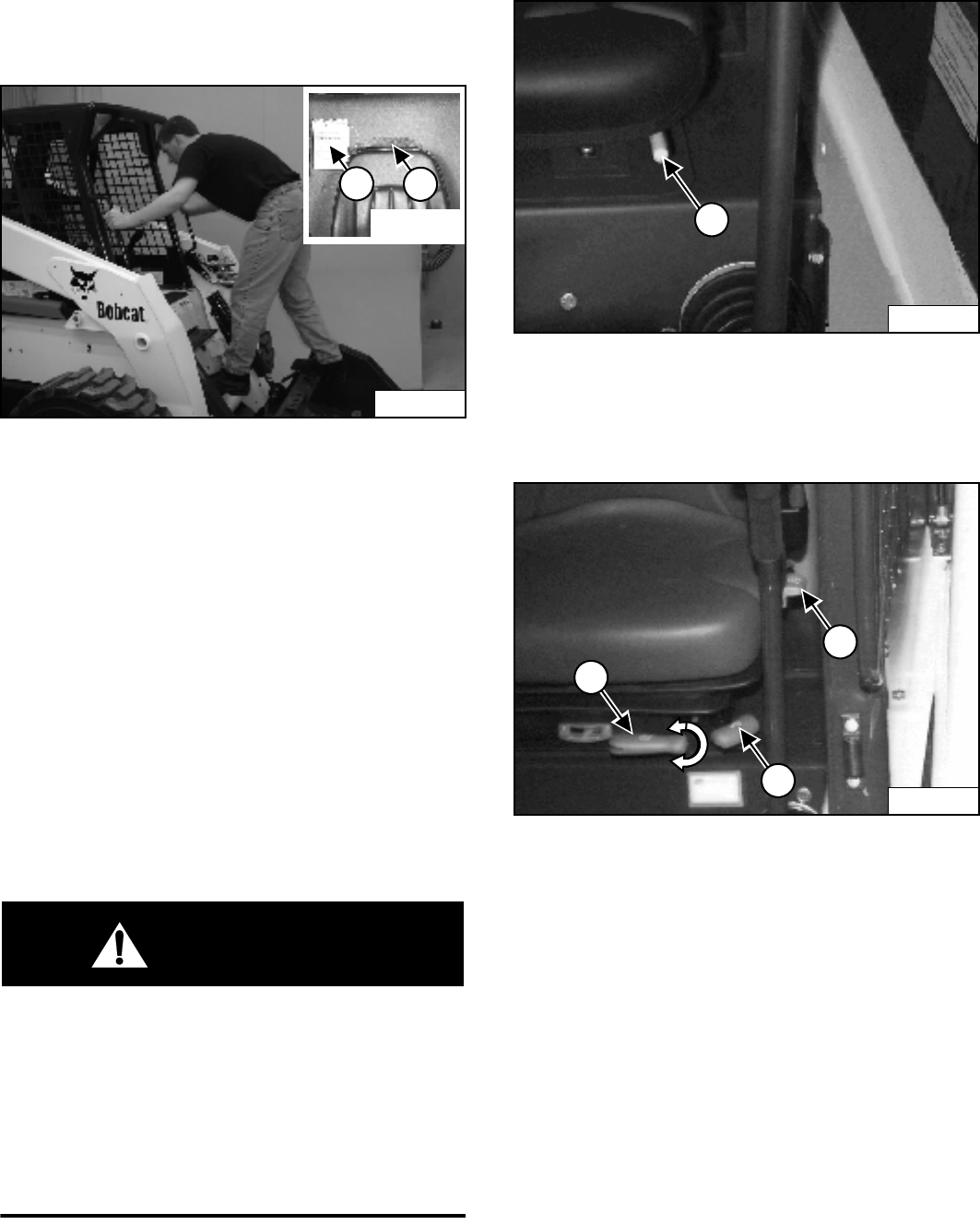

SEAT BAR RESTRAINT SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-15

Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-15

STARTING THE ENGINE (DELUXE PANEL, KEYLESS START). . . . OI-29

Cold Temperature Starting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-30

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-29

STARTING THE ENGINE (STANDARD PANEL, KEY SWITCH) . . . . OI-27

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-27

STOPPING THE BOBCAT LOADER . . . . . . . . . . . . . . . . . . . . . . . . . OI-15

Using The Steering Levers Or Joysticks . . . . . . . . . . . . . . . . . . . . OI-15

STOPPING THE ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-31

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-31

TOWING THE LOADER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-49

Towing Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-49

TRACTION LOCK OVERRIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-10

Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . OI-10

S250 Bobcat Loader

OI-3 Operation & Maintenance Manual

OPERATING INSTRUCTIONS (CONT’D)

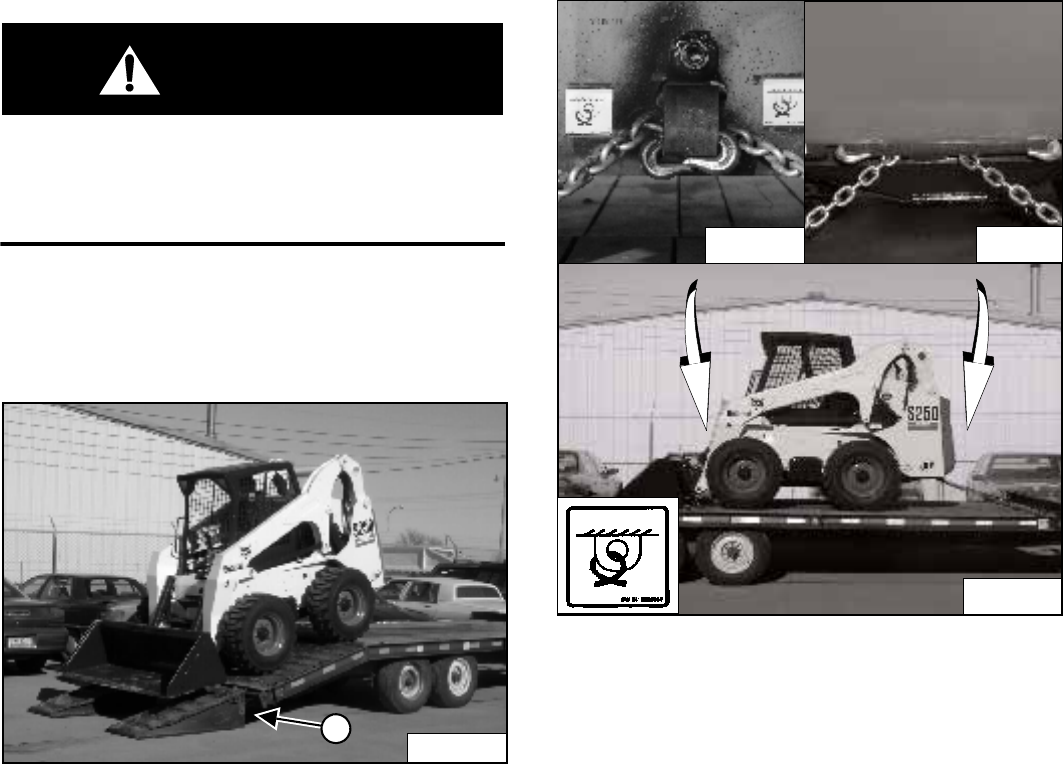

TRANSPORTING THE BOBCAT LOADER . . . . . . . . . . . . . . . . . . . . .OI-48

Fastening To Transport Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-48

Loading Onto Transport Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-48

TWO-SPEED CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-11

WARMING THE HYDRAULIC / HYDROSTATIC SYSTEM . . . . . . . . .OI-31

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .OI-31

S250 Bobcat Loader

OI-4 Operation & Maintenance Manual

S250 Bobcat Loader

OI-5 Operation & Maintenance Manual

INSTRUMENT PANEL IDENTIFICATION

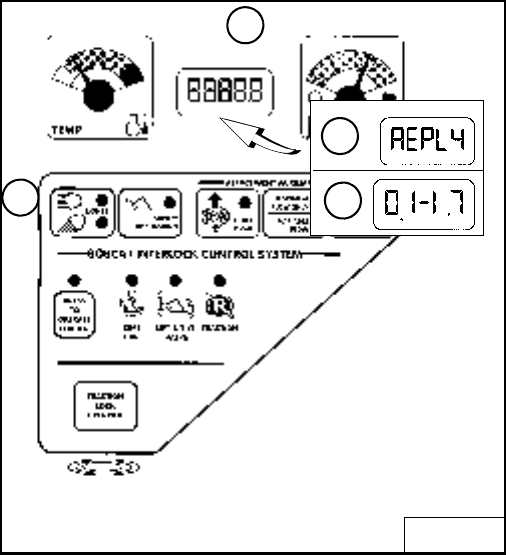

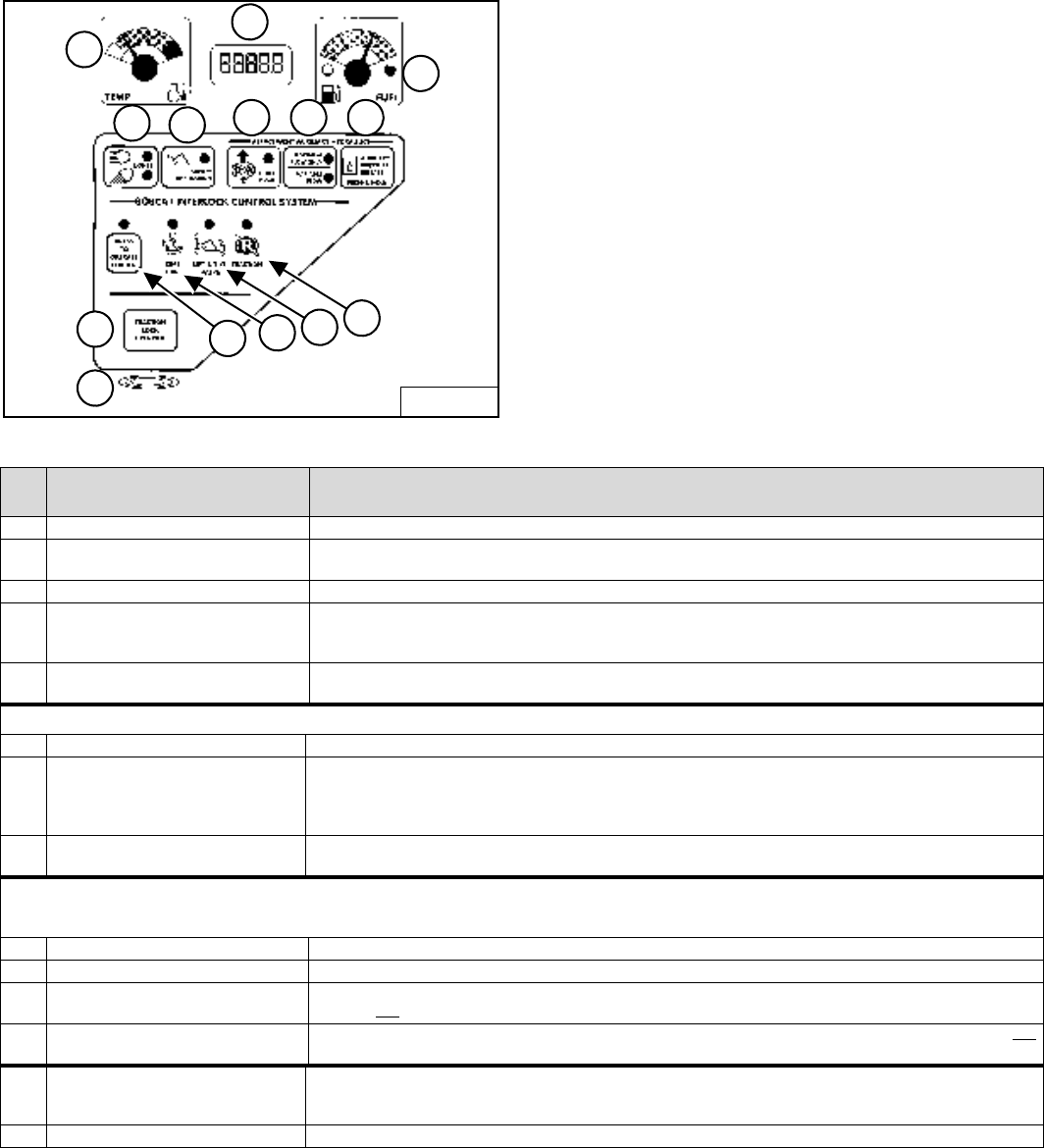

Left Panel

Figure OI-1

The left instrument panel is the same for both the

Standard and Deluxe Instrument Panels [Figure OI-1].

The table below shows the DESCRIPTION and

FUNCTION / OPERATION for each of the components of

the left panel.

Press and hold LIGHTS button (Item 4) [Figure OI-1] for

two seconds to view SERVICE CODES in the

HOURMETER / CODE DISPLAY (Item 2) [Figure OI-1].

If more than one SERVICE CODE is present, the codes

will scroll on the HOURMETER / CODE DISPLAY.

B-15551

456 7 8

13 910 11 12

* See System Setup & Analysis, Page SA-4 for further description on Service Codes.

REF.

NO DESCRIPTION FUNCTION / OPERATION

1 TEMPERATURE GAUGE Shows the engine coolant temperature.

2 HOURMETER / CODE DISPLAY /

GLOW PLUG COUNTDOWN

HOURMETER - Records operating hours of loader. CODE DISPLAY - Display numeric SERVICE CODES*

relating to the loader monitoring system. COUNTDOWN - Preheat time remaining.

3 FUEL GAUGE Shows the amount of fuel in the tank.

4 LIGHTS / HOLD FOR CODES LIGHTS - Press once for FRONT LIGHTS. Press a second time for FRONT AND REAR lights. Press a third time

to turn all lights off. HOLD FOR CODES - Press and hold two seonds for display of SERVICE CODES (Item 2).

(CODES* show only when there is an error found by loader monitoring system.)

5 BUCKET POSITIONING (Option) Press to engage the BUCKET POSITIONING function. Press again to disengage. Press and hold 2 seconds to

view SHTDN (SHUTDOWN) feature & Operational Code Number in HOURMETER / CODE DISPLAY.

ATTACHMENT AUXILIARY HYDRAULICS

6 HIGH FLOW (Option) Press to engage the HIGH FLOW auxiliary hydraulics. Press again to disengage.

7 MAXIMUM FLOW / VARIABLE FLOW Press once to engage the VARIABLE FLOW auxiliary hydraulics. Press a second time to engage MAXIMUM

FLOW. Press a third time to disengage all auxiliary hydraulics. [VARIABLE FLOW allows for slow-to-fast

movement of auxiliary functions (The farther you move the switch, the faster the movement of auxiliary functions.)

MAXIMUM FLOW allows for only fast movement.]

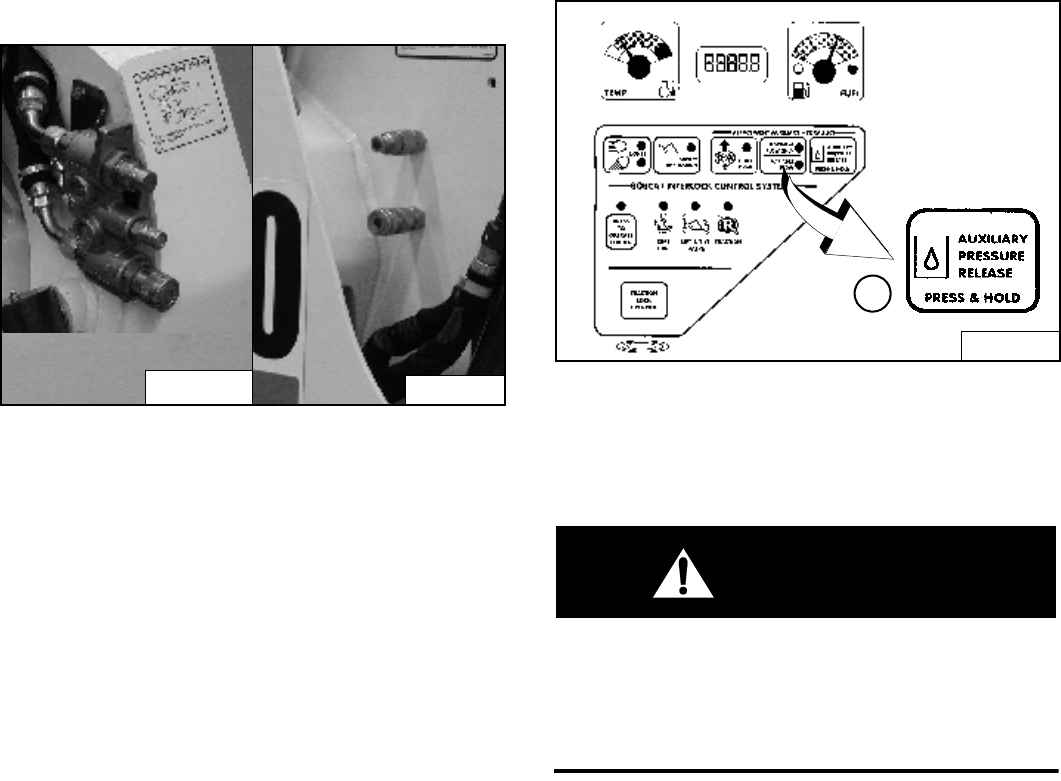

8 AUXILIARY PRESSURE RELEASE Rear Auxiliary Only - With Key ON or Engine Running, press and hold button for 5 seconds. (See Releasing

Hydraulic Pressure - Loader and Attachment Page OI-19 for front auxiliary pressure release.)

BOBCAT INTERLOCK CONTROL SYSTEM (BICS™)

9 PRESS TO OPERATE LOADER Press to activate BICS™ System when the Seat Bar is down and operator is seated in operating position.

10 SEAT BAR The light comes ON when the seat bar is down.

11 LIFT & TILT VALVE The light comes ON when the seat bar is down and the PRESS TO OPERATE Button is pressed. The lift and tilt

functions can be operated when the light is ON.

12 TRACTION The light comes ON when the seat bar is down, engine is running, and parking brake is released. The loader can

be moved forward or backward when the light is ON.

13 TRACTION LOCK OVERRIDE (Function Only When Seat Bar Is Raised And The Engine Is Running) Press to unlock the brakes. Allows you to

use the steering levers to move the loader forward or backward when using the backhoe attachment or for loader

service. (See TRACTION LOCK OVERRIDE Page OI-10). Press a second time to lock the brakes.

14 ALARM The ALARM beeps when there is an Error, WARNING or SHUTDOWN condition.

S250 Bobcat Loader

OI-6 Operation & Maintenance Manual

INSTRUMENT PANEL IDENTIFICATION (CONT’D)

Right Panel (Standard - With Key Switch)

Figure OI-2

The right instrument panel shown [Figure OI-2] is the

Standard Panel.

The table below shows the Icons and other components

of the Right Standard Panel.

B-15552B

15 17 19 21 23 25 27

16 18 20 22 24 26 28

* See SYSTEM SETUP & ANALYSIS, Page SA-4 for further description of SERVICE CODES.

REF. FUNCTION ICON/

LIGHT ALARM CODE CONDITION DESCRIPTION

Advanced Control

System (ACS)

(Opt.)

ON 3 Beeps * Error Error with Advanced Control System (ACS).

Attachment Control

Device (ACD)

(Opt.)

FLASHING

---

3 Beeps

---

Error

Electrical controlled attachment is present.

Error with Attachment Control Device (ACD).

General

Warning

FLASHING

3 Beeps

Continuous

Error

WARNING

SHUTDOWN

Error with one or more engine or hydraulic functions.

Engine speed high or in shutdown.

Engine speed very high. Engine will stop in 10 seconds.

18 NOT USED

Fuel

Level

FLASHING

3 Beeps

Error

WARNING

Fuel level sender system fault.

Fuel level low.

Glow

Plugs

FLAHSING

---

3 Beeps

---

Error

Air Intake Heater energized.

Error with Air Intake Heater

System Voltage ON 3 Beeps * WARNING Voltage low, high or very high.

Seat Belt ON --- --- --- Light stays on for 45 seconds to remind operator to fasten seat belt.

Engine

Oil Pressure

FLASHING

3 Beeps

Continuous

Error

WARNING

SHUTDOWN

Engine Oil Pressure sender out of range.

Engine oil level low.

Engine oil pressure very low. Engine will shutdown in 10 seconds.

Hydrostatic

Charge

Pressure

FLASHING

3 Beeps

Continuous

Error

WARNING

SHUTDOWN

Hydraulic oil pressure sender out of range.

Hydraulic oil pressure low.

Hydraulic charge pressure very low. Engine will stop in 10 seconds.

Engine

Coolant

Temperature

FLASHING

3 Beeps

Continuous

Error

WARNING

SHUTDOWN

Engine coolant sender out of range

Engine coolant temperature high.

Engine coolant temperature very high. Engine will stop in 10 seconds.

Hydraulic

Oil

Temperature

FLASHING

3 Beeps

Continuous

Error

WARNING

SHUTDOWN

Hydraulic oil temperature out of range.

Hydraulic oil temperature high.

Hydraulic oil temperature very high. Engine will stop in 10 seconds.

Engine

Air Filter

FLASHING

3 Beeps

Error

WARNING

Air filter with high restriction.

Air filter switch not connected.

Hydraulic

Filter

FLASHING

3 Beeps

Error

WARNING

Hydraulic filter with high restriction.

Hydraulic filter switch not connected.

29 Key Switch --- --- ---- --- Used to start and stop the engine.

S250 Bobcat Loader

OI-7 Operation & Maintenance Manual

INSTRUMENT PANEL IDENTIFICATION (CONT’D)

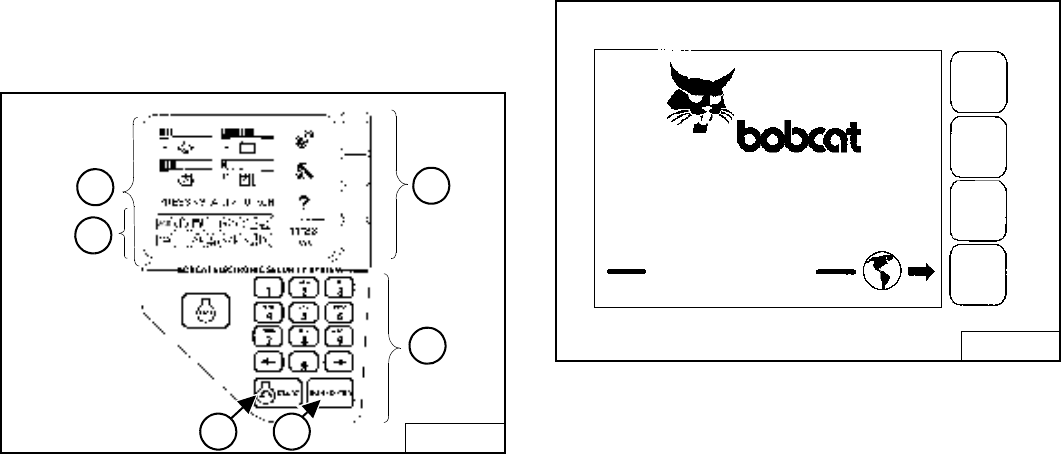

Right Panel (Deluxe - With Keyless Start)

Figure OI-3

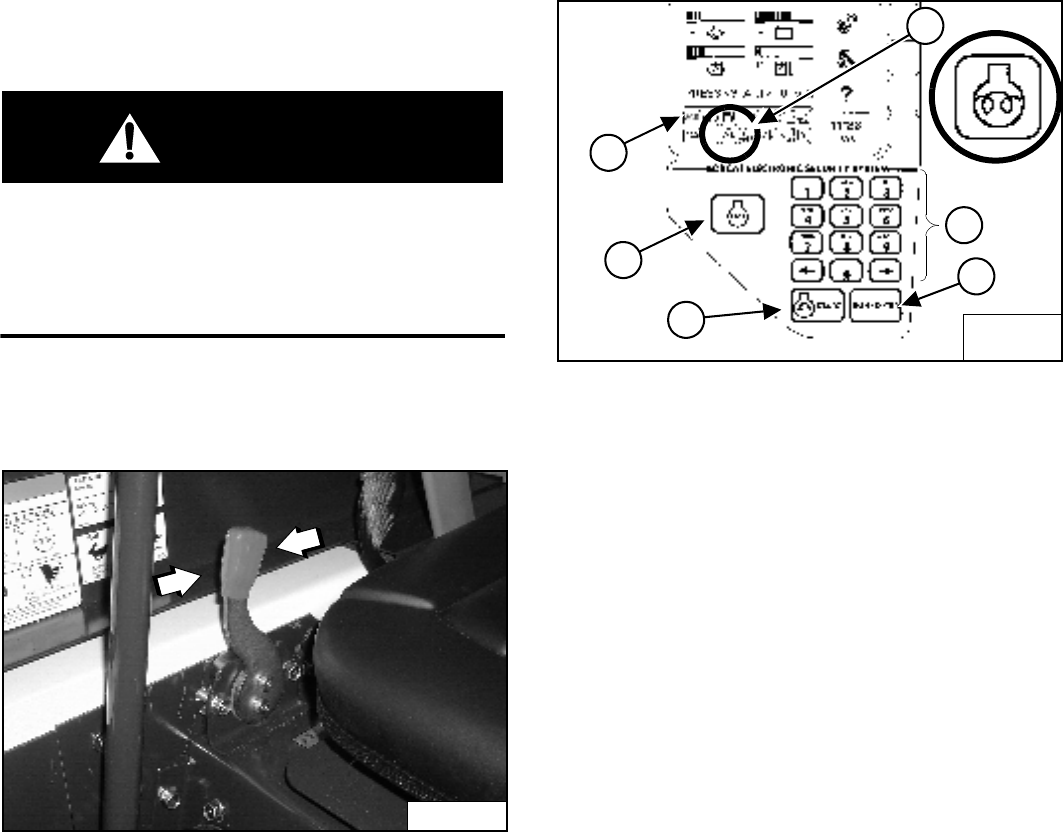

The right instrument panel shown [Figure OI-3] is the

Deluxe Panel.

1. Display Panel: The Display Panel is where all system

setup, monitoring, troubleshooting, and error

conditions are displayed.

2. Function Icons: The lower left area of the Deluxe

Panel has the same Icons as the Standard Panel.

These Icons are only visible when the monitoring

system has detected an error.

3. Selection Buttons: The four Selection Buttons allow

you to select items from the Display Panel and scroll

through screens.

4. Keypad: The numeric keypad (Item 4) [Figure OI-3]

has two functions:

To enter a number code (password) to allow starting

the engine (Keyless Start).

To enter a number as directed for further use of the

Display Panel.

Figure OI-4

The first screen you will see on your new loader will be as

shown in [Figure OI-4].

When this screen is on the display you can enter the

password and start the engine or change the Display

Panel setup features.

NOTE: Your new loader (with Deluxe Instrument

Panel) will have a Owner Password. Your

dealer will provide you with this password.

Change the password to one that you will

easily remember to prevent unauthorized use

of your loader. (See Passwords (Deluxe) on

Page SA-10). Keep your password in a safe

place for future needs.

Start Engine: Use the Keypad to enter the numbers

(letters) of your password and press the RUN / ENTER

key (Item 5) [Figure OI-3].

Press and hold the START Button (Item 6) [Figure OI-3]

until the engine starts.

Change Language: Press the Selection Button at the end

of the arrow [Figure OI-4] to go to the next screen.

B-15553B

6 5

4B-16165

LANGUAGES

ENTER PASSWORD

S250 Bobcat Loader

OI-8 Operation & Maintenance Manual

INSTRUMENT PANEL IDENTIFICATION (CONT’D)

Right Panel (Deluxe - With Keyless Start) (Cont’d)

Figure OI-5

Use the Keypad to select the number of the language

[Figure OI-5].

Press EXIT. The screen will return to [Figure OI-4]. You

can then enter the password and start the engine.

(See DELUXE INSTRUMENT PANEL SETUP on

Page SA-9) for further description of screens to setup the

system for your use.

NOTE: Pressing the EXIT key will go to the previous

screen and you can continue pressing until

you get to the initial (home) screen.

SHORTCUT: Press the “0” (zero) key to get to

the home screen immediately.

B-16160

ENGLISH / INGLES

Use keypad to select languages

1. English

2. Espanol

3. Francaia

4. Deutsch

5. Italiano

6. Nederlands EXIT

S250 Bobcat Loader

OI-9 Operation & Maintenance Manual

INSTRUMENT PANEL IDENTIFICATION (CONT’D)

Option And Field Accessory Panels (If Equipped)

Figure OI-6

Figure OI-7

NOTE: Parking Brake (Item 13) [Figure OI-7] is

Standard on all loaders.

Side Accessory Panel [Figure OI-6].

Front Accessory Panel [Figure OI-7].

P16000

SIDE ACCESSORY PANEL

2456789

B-15993B

B-15993

FRONT ACCESSORY PANEL

10 11 12 13 14 15 16

REF.

NO. DESC. FUNCTION / OPERATION

1. POWER

PLUG

Provides a 12V receptacle for accessories.

2. NOT USED ---

3. FRONT

WIPER

Press the top of the switch to start the front

wiper (press and hold for washer fluid). Press

the bottom of the switch to stop the wiper.

4. REAR WIPER Press the bottom of the switch to start the rear

wiper. Press the top of the switch to provide

washer fluid to clean the rear window.

5. NOT USED ---

6. NOT USED ---

7. FAN MOTOR Turn clockwise to increase fan speed;

counterclockwise to decrease. There are four

positions; OFF-1-2-3.

8. AIR COND.

SWITCH

Press top of switch to start; bottom to stop. Fan

Motor (Item 7) must be ON for A/C to operate.

9. TEMP.

CONTROL

Turn clockwise to increase the temperature;

counterclockwise to decrease.

REF.

NO. DESC. FUNCTION / OPERATION

10. ADVANCED

CONTROL

SYSTEM

(ACS)

Press the top to select Hand Controls; bottom to

select Foot Controls.

11. NOT USED - - -

12. POWER

BOB-TACH

Press and hold the up arrow to disengage the

the Bob-Tach wedges. Press and hold the down

arrow to engage the wedges into the mounting

frame holes.

13. PARKING

BRAKE

(Standard on

all Loaders)

Press the top to engage the PARKING BRAKE;

bottom to disengage.

14. TURN SIGNAL

INDICATORS

Indicates left or right TURN SIGNALS are ON.

15. HAZARD

LIGHTS

Press the top to turn the HAZARD LIGHTS ON;

right side bottom to turn OFF.

16. ROTATING

BEACON

Press the top to turn the ROTATING BEACON

ON; bottom to turn OFF.

17. SELECTABLE

JOYSTICK

CONTROL

(SJC)

Press the top to select ‘ISO’ Control Pattern;

bottom to select ‘H’ Control Pattern.

S250 Bobcat Loader

OI-10 Operation & Maintenance Manual

INSTRUMENT PANEL IDENTIFICATION (CONT’D)

Cab Light

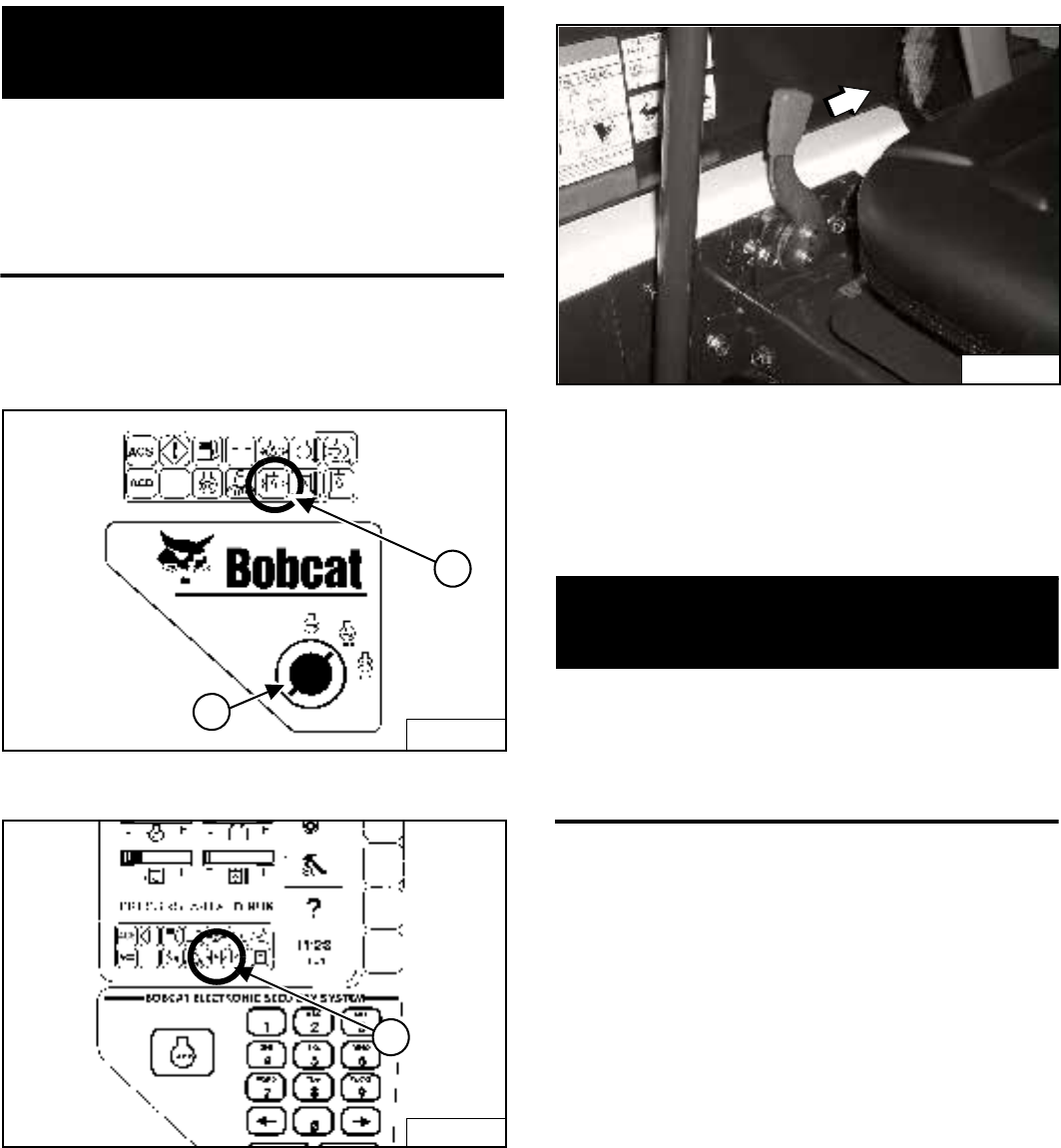

Figure OI-8

Push the button (Item 1) [Figure OI-8] to turn the light

ON. Push the button again to turn OFF.

LIFT ARM BY-PASS CONTROL

Operation

Figure OI-9

The lift arm by-pass control (Item 1) [Figure OI-9] is used

to lower the lift arms if the lift arms cannot be lowered

during normal operations.

• Sit in the operator’s seat.

• Fasten the seat belt and lower the seat bar.

• Turn the knob (Item 1) [Figure OI-9] clockwise 1/4

turn.

• Pull up and hold the knob until the lift arms slowly

lower.

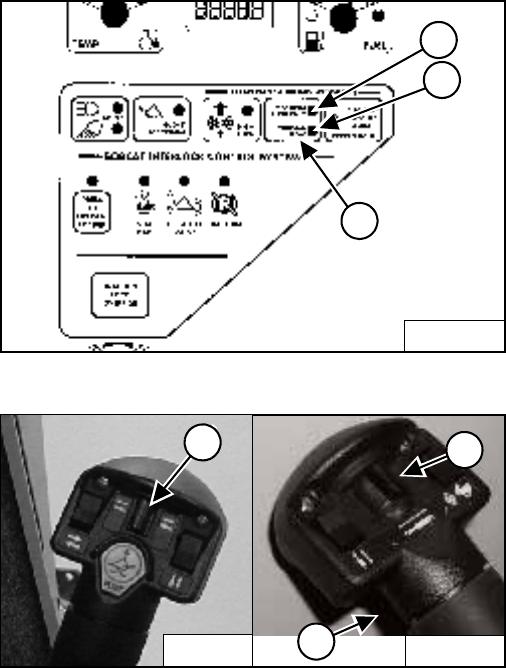

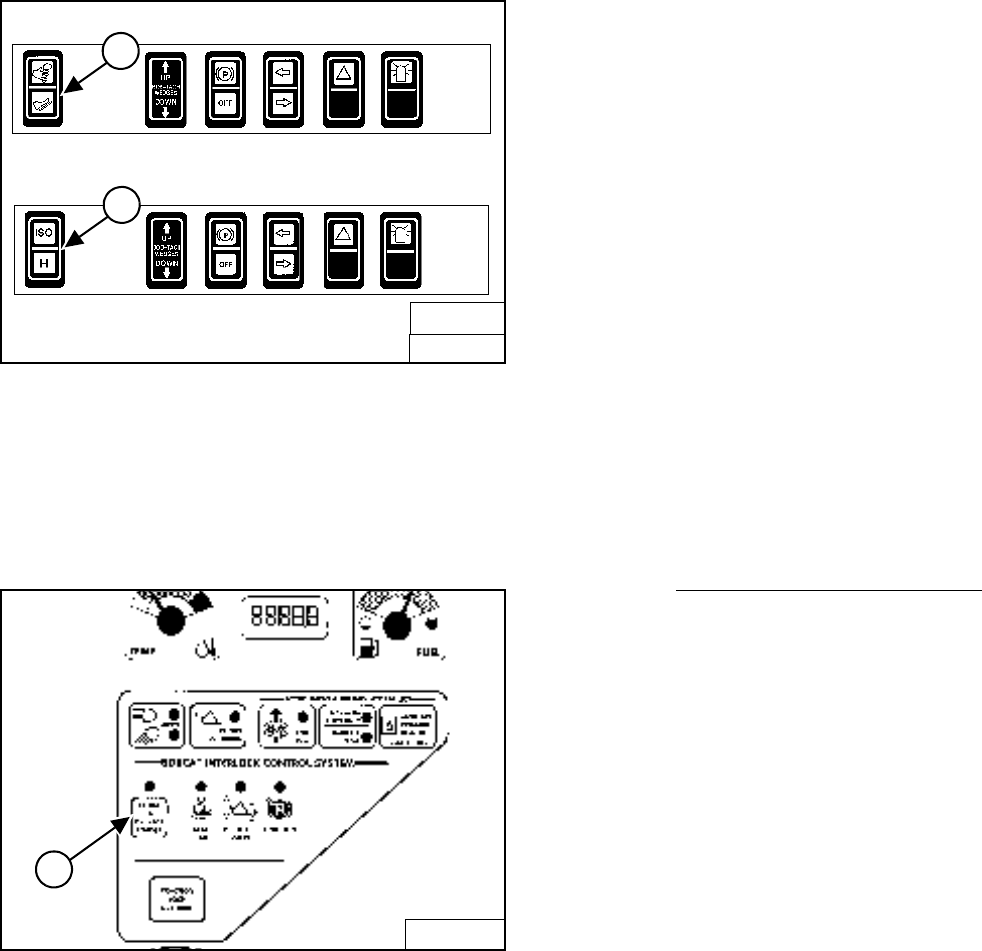

TRACTION LOCK OVERRIDE

Operation

Figure OI-10

(Functions Only When The Seat Bar Is Raised And The

Engine Is Running) There is a TRACTION LOCK

OVERRIDE Button (Item 1) [Figure OI-10] on the left

instrument panel which will allow you to use the steering

levers to move the loader forward and backward when

using the backhoe attachment or for loader service.

• Press the TRACTION LOCK OVERRIDE button once

to unlock traction lock drive. The TRACTION

light (Item 2) [Figure OI-10] will be ON.

• Press the button a second time to lock the traction

drive. The TRACTION light (Item 2) [Figure OI-10]

will be OFF.

N-22015

P-31863

B-15551

S250 Bobcat Loader

OI-11 Operation & Maintenance Manual

ENGINE SPEED CONTROL

Operation

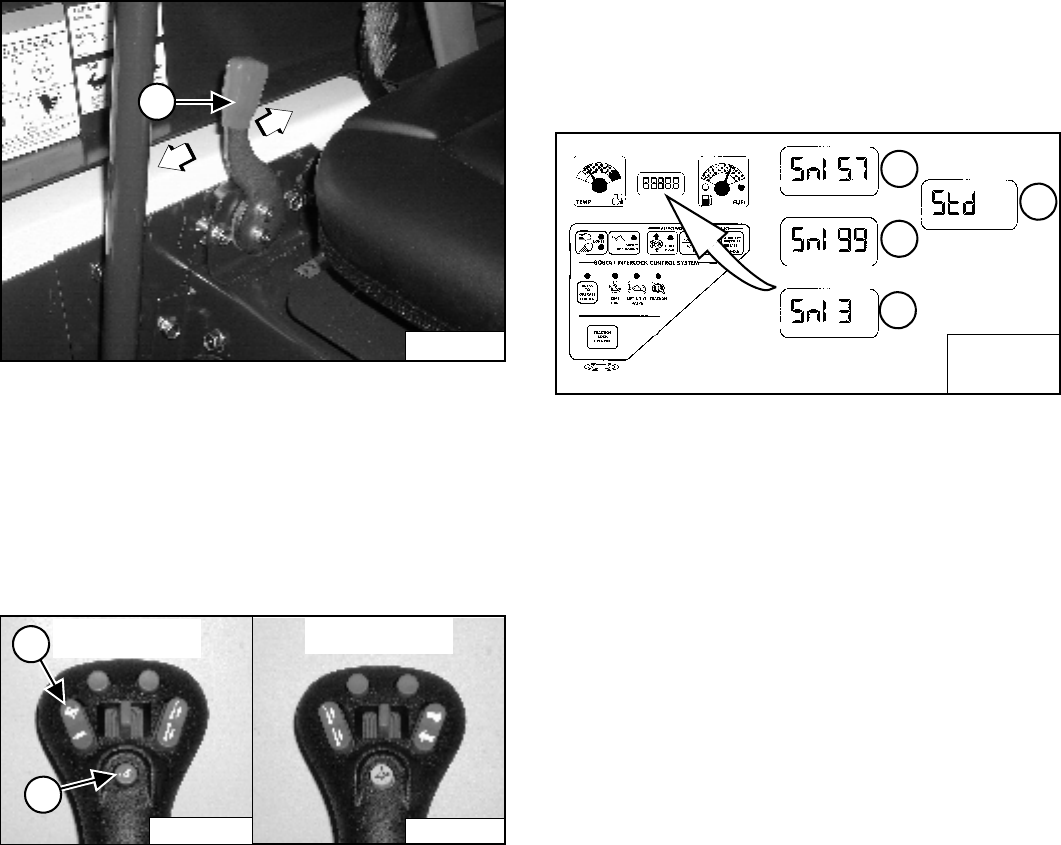

Figure OI-11

The speed control lever is at the right side of the

operator’s seat (Item 1) [Figure OI-11].

Move the lever forward to increase engine speed. Move

backward to decrease engine speed.

TWO-SPEED CONTROL

Figure OI-12

The two speed allows you to reduce cycle times when

there is a long travel distance between the dig site and

the dump site. You can also use the two speed when

traveling from one job site to another at faster speeds.

Press the top of the switch (Item 1) [Figure OI-12] of the

left joystick for high range. Fasten the shoulder belt when

operating in High Range speed.

Press the bottom of switch for low range.

When the two-speed control is in high range and AWS

Mode is selected, only the front wheels angle when

steering; the rear wheels remain straight ahead.

INCHING CONTROL

Operation

The Inching Control allows the loader to be maneuvered

at slow travel speed for installing attachments, loading or

unloading.

Press the button (Item 2) [Figure OI-12] on the left

joystick once to engage the Inching Control.

Figure OI-13

When the Inching Control is engaged, the machine will

travel at 57% of Standard travel speed and the

percentage (Snl 57) will appear in the display (Item 1)

[Figure OI-13].

While Inching Control is engaged, press the top of the

Two-Speed switch (Item 1) [Figure OI-12] to increase the

speed up to 99% (Snl 99) or the bottom of the switch to

decrease the speed down to 3% (Snl 3). The

percentages will appear in the display (Items 2 and 3)

[Figure OI-13].

Press button (Item 2) [Figure OI-12] again to disengage

Inching Control and return to Standard Travel Speed (Std

(Item 4) [Figure OI-13] will appear in display.) You must

return to Standard Travel Speed before engaging the

Two-Speed Control for High Range Speed.

The system will retain the speed percentage as long as

the key remains ON (Standard Panel) or the STOP button

has not been pressed (Deluxe Panel).

EXAMPLE: You can be using the machine at 40%

and then disengage the Inching Control to

reposition the loader, then re-engage Inching

Control. The speed percentage will still be at 40%.

If you turn the key OFF or press the STOP button,

the next time you start the engine and engage the

Inching Control, the speed will be at 57% of

Standard Travel Speed.

P-31864

P-24802

Right Joystick

P-24820

Left Joystick

B-15551-1A

B-15551-1B

B-15551-1C

B-15551

S250 Bobcat Loader

OI-12 Operation & Maintenance Manual

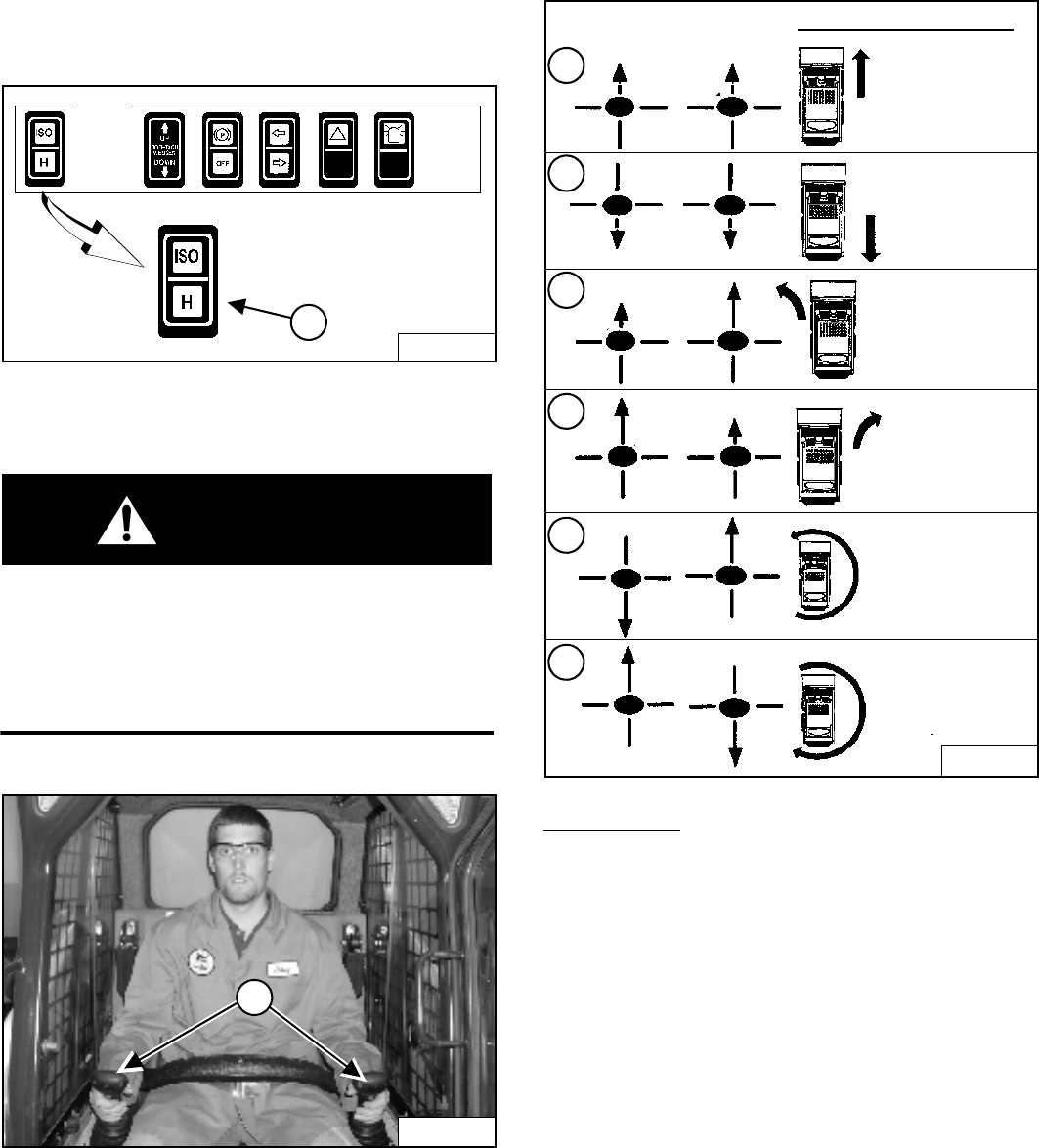

DRIVING AND STEERING THE LOADER

Available Controls Configurations

The loader has three configurations available:

•Standard Controls - Two Steering Levers control

drive and steering functions.

•Advanced Control System (ACS) (Option or Field

Accessory) - Two Steering Levers control drive and

steering functions.

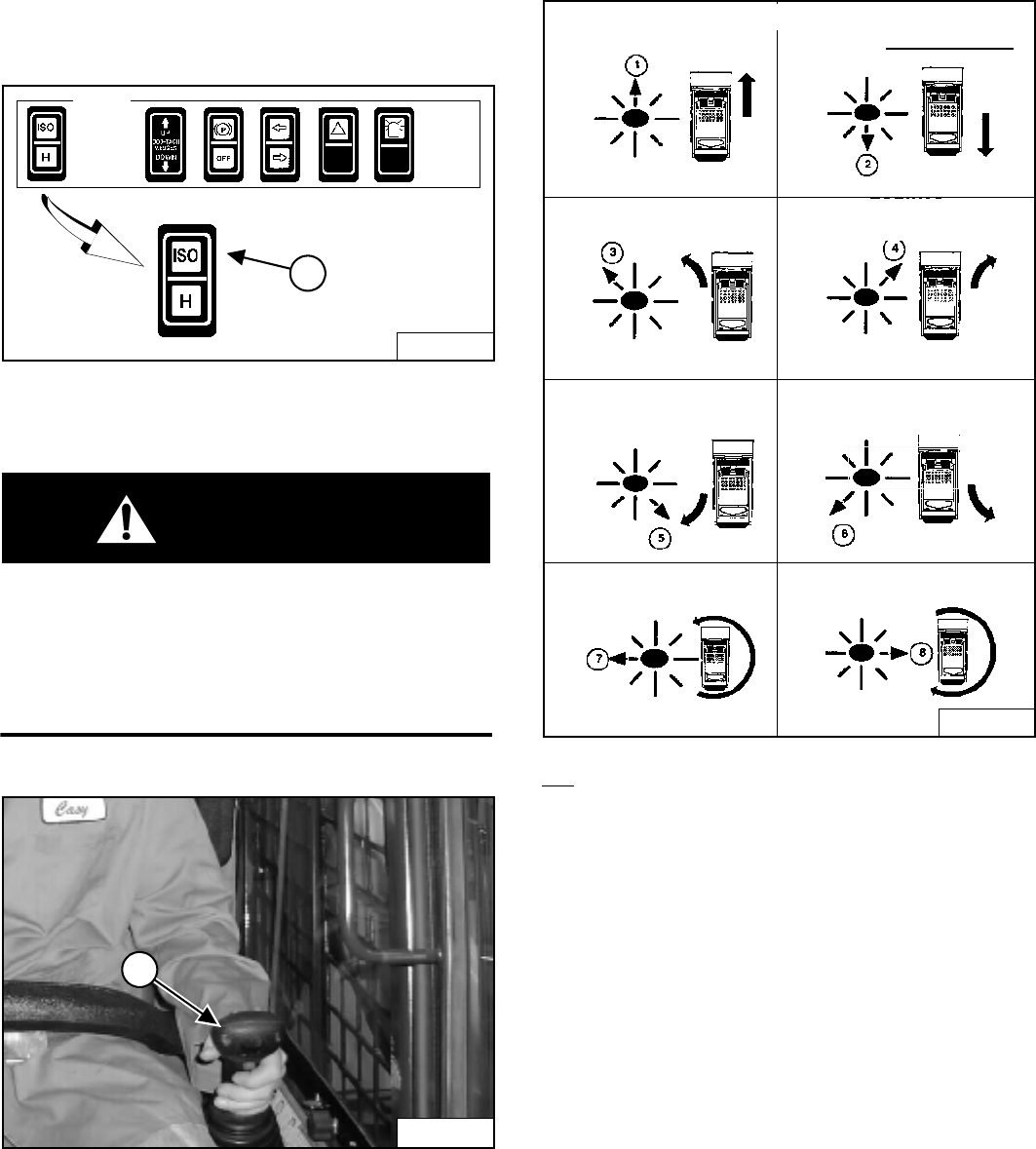

•Selectable Joystick Controls (SJC) (Option) -

(‘ISO’ Pattern) Left joystick controls the drive and

steering functions.

(‘H’ Pattern) Left and right joysticks control left and

right side drive and steering functions.

Operation (Standard and ACS)

Figure OI-14

The steering levers (Item 1) [Figure OI-14] are on the left

and right side in front of the seat.

Move the levers smoothly. Avoid sudden starting and

stopping.

Figure OI-15

The steering levers control forward and reverse travel and

turning the loader [Figure OI-15].

Forward Travel - Push both levers forward.

Reverse Travel - Pull both levers backward.

Normal Turning - Move one lever farther forward than

the other.

Fast Turning - Push one lever forward and pull the other

lever backward.

WARNING

AVOID INJURY OR DEATH

When operating the machine:

• Keep the seat belt fastened snugly.

• The seat bar must be lowered.

• Keep your feet on the pedal controls or footrests

and hands on steering levers.

W-2261-0799

P-45122

PI-1849A

Standard and ACS

REVERSEFORWARD

RIGHT TURNLEFT TURN

RIGHT

FAST TURN

LEFT

FAST TURN

S250 Bobcat Loader

OI-13 Operation & Maintenance Manual

DRIVING AND STEERING THE LOADER (CONT’D)

Operation (SJC in ‘H’ Control Pattern)

Figure OI-16

Select the ‘H’ control pattern by pressing the bottom of

the switch (Item 1) [Figure OI-16].

WARNING

AVOID INJURY OR DEATH

When operating the machine:

• Keep the seat belt fastened snugly.

• The seat bar must be lowered.

• Keep your feet on the foot rests and hands on

control levers.

W-2399-0501

Figure OI-17

Both joysticks control drive and steering and are located

on the right and left side in front of the seat (Item 1)

[Figure OI-17].

Figure OI-18

Hand Control Functions (Drive and Steering)

[Figure OI-18].

1. Forward Travel - Move both joysticks forward.

2. Backward Travel - Move both joysticks backward.

3. Forward Left Turn - Move the right joystick farther

forward than the left joystick.

4. Forward Right Turn - Move the left joystick farther

forward than the right joystick.

5. Left Fast Turn - Move the left joystick backward and

the right joystick forward.

6. Right Fast Turn - Move the left joystick forward and

the right joystick backward.

B-15993B

P-45116

B-22029

Left

Joystick

Right

Joystick SJC in’H’ Control Pattern

BACKWARD

FORWARD

RIGHT

TURN

LEFT

TURN

RIGHT

FAST

TURN

LEFT

FAST

TURN

S250 Bobcat Loader

OI-14 Operation & Maintenance Manual

DRIVING AND STEERING THE LOADER (CONT’D)

Operation (SJC in ‘ISO’ Control Pattern)

Figure OI-19

Select the ‘ISO’ control pattern by pressing the top of the

switch (Item 1) [Figure OI-19].

WARNING

AVOID INJURY OR DEATH

When operating the machine:

• Keep the seat belt fastened snugly.

• The seat bar must be lowered.

• Keep your feet on the foot rests and hands on

control levers.

W-2399-0501

Figure OI-20

The joystick which controls drive and steering is on the

left side in front of the seat (Item 1) [Figure OI-20].

Figure OI-21

Left Joystick Functions (Drive and Steering)

[Figure OI-21].

Move the joystick smoothly. Avoid sudden starting and

stopping.

1. Forward Travel - Move joystick forward.

2. Backward Travel - Move joystick backward.

3. Forward Left Turn - Move joystick forward and to the

left.

4. Forward Right Turn - Move joystick forward and to

the right.

5. Backward Left Turn - Move joystick backward and to

the right.

6. Backward Right Turn - Move joystick backward and

to the left.

7. Left Fast Turn - Move joystick to the left.

8. Right Fast Turn - Move joystick to the right.

B-15993B

P-45116

B-21970

LEFT JOYSTICK

SJC in ‘ISO’

Control Pattern

FORWARD

LEFT TURN

FORWARD

RIGHT TURN

BACKWARD

RIGHT TURN

BACKWARD

LEFT TURN

RIGHT FAST TURNLEFT FAST TURN

S250 Bobcat Loader

OI-15 Operation & Maintenance Manual

STOPPING THE BOBCAT LOADER

Using The Steering Levers Or Joysticks

When the steering levers or joysticks are moved to the

neutral position, the hydrostatic transmission will act as a

service brake to stop the loader.

SEAT BAR RESTRAINT SYSTEM

Operation

Figure OI-22

The seat bar restraint system has a pivoting seat bar with

arm rests (Item 1) [Figure OI-22].

The operator controls the use of the seat bar. The seat

bar is the down position helps to keep the operator in the

seat.

WARNING

AVOID INJURY OR DEATH

When operating the machine:

• Keep the seat belt fastened snugly.

• The seat bar must be lowered.

• Keep your feet on the pedal controls or footrests

and hands on steering levers.

W-2261-0799

When the seat bar is down, the PRESS TO OPERATE

LOADER button is activated, and the brake is released,

the lift, tilt, and traction drive functions can be operated.

(Traction drive will operate only when the engine is

running.)

When the seat bar is up, the lift, tilt and traction drive

functions are deactivated and both foot pedals

(if equipped) will be locked.

WARNING

Before you leave the operator’s seat:

• Lower the lift arms, put the attachment flat on the

ground.

• Stop the engine.

• Engage the parking brake.

• Raise seat bar.

• (Foot Pedal Controls) Move pedals until both

lock.

• (Advanced Control System - ACS) Move the

hydraulic controls to the NEUTRAL POSITION to

make sure that both lift and tilt functions are

deactivated.

The seat bar system must deactivate the lift and tilt

control functions when the seat bar is up. Service the

system if hand controls do not deactivate.

• (Selectable Joystick Control - SJC) Move the

joysticks to the NEUTRAL POSITION to make

sure that travel and hydraulic functions are

deactivated.

The seat bar system must deactivate these functions

when the seat bar is up. Service the system if

controls do not deactivate.

W-2463-0603

P-45116

S250 Bobcat Loader

OI-16 Operation & Maintenance Manual

HYDRAULIC CONTROLS

Operation

Two foot pedals (or optional hand controls) control the

hydraulic cylinders for the lift and tilt functions.

Put your feet on the pedals (or footrests) and KEEP

THEM THERE any time you operate the loader.

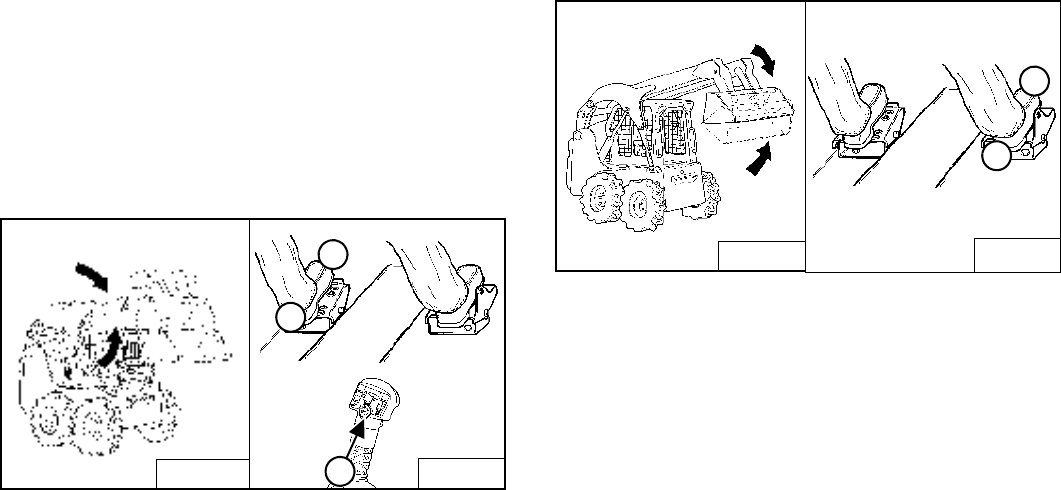

Figure OI-23

Standard Controls (Also ACS in Foot Pedal Mode)

Lift Arm Operation - (Left Pedal)

Push the heel (Item 1) [Figure OI-23] of the pedal to

raise the lift arms.

Push the toe (Item 2) [Figure OI-23] of the pedal to

lower the lift arms.

Lift Arm Float Position - (Left Pedal)

Push the toe (Item 2) [Figure OI-23] of the pedal all

the way forward until it locks into the float position.

Use the float position of the lift arms to level loose

material while driving backward.

Raise the lift arms to disengage the float position.

Lift Arm Float Position (With ACS) - (Left Pedal)

Press and hold the Float button (Item 3)

[Figure OI-23].

Push the toe (Item 2) [Figure OI-23] of the pedal

forward to lower the lift arms. Then release the float

button.

Use the float position of the lift arms to level loose

material while driving backward.

Raise the lift arms to disengage the float position.

Figure OI-24

Tilt Operation - (Right Pedal)

Push the heel (Item 1) [Figure OI-24] of the pedal to

tilt the bucket backward.

Push the toe (Item 2) [Figure OI-24] of the pedal to tilt

the bucket forward.

B-16247

B-15781

B-16246 B-15973

S250 Bobcat Loader

OI-17 Operation & Maintenance Manual

HYDRAULIC CONTROLS (CONT’D)

Advanced Control System (ACS) in HAND Control

Mode

Figure OI-25

Lift Arm Operation - (Left Hand Lever)

Move the lever outward (Item 1) [Figure OI-25] to

raise the lift arms.

Move the lever inward (Item 2) [Figure OI-25] to

lower the lift arms.

Lift Arm Float Position - (Left Hand Lever)

Press and hold the Float Button (Item 3)

[Figure OI-25] while the lever is in neutral. Move the

lever to lift arm down position (Item 2) [Figure OI-25],

then release the button.

Press Float Button again or move the lever to lift arm

up position (Item 3) [Figure OI-25].

Use the float position of the lift arms to level loose

material while driving backward.

Figure OI-26

Tilt Operation - (Right Hand Lever)

Move the lever inward (Item 1) [Figure OI-26] to tilt

the bucket backward.

Move the lever outward (Item 2) [Figure OI-26] to tilt

the bucket forward.

B-16247 B-15781

B-16246 B-15781

S250 Bobcat Loader

OI-18 Operation & Maintenance Manual

HYDRAULIC CONTROLS (CONT’D)

Selectable Joystick Control (SJC) - ‘H’ Control

Pattern

Figure OI-27

Lift Arm Operation - (Left Hand Joystick)

Move the joystick outward (Item 1) [Figure OI-27] to

raise the lift arms.

Move the joystick inward (Item 2) [Figure OI-27] to

lower the lift arms.

Lift Arm Float Position - (Left & Right Hand Joysticks)

Press and hold the Float Button (Item 3)

[Figure OI-27] while the joysticks are in neutral. Move

the left joystick to lift arm down position (Item 2)

[Figure OI-27], then release the button.

Press Float Button again or move the left joystick to lift

arm up position (Item 3) [Figure OI-27] to disengage.

Use the float position of the lift arms to level loose

material while driving backward.

Figure OI-28

Tilt Operation - (Right Hand Joystick)

Move the joystick inward (Item 1) [Figure OI-28] to tilt

the bucket backward.

Move the joystick outward (Item 2) [Figure OI-28] to

tilt the bucket forward.

Selectable Joystick Control (SJC) - ‘ISO’ Control

Pattern

Figure OI-29

Lift Arm Operation - (Right Hand Joystick)

Move the joystick backward (Item 1) [Figure OI-29] to

raise the lift arms.

Move the joystick forward (Item 2) [Figure OI-29] to

lower the lift arms.

Lift Arm Float Position - (Right Hand Joystick)

Press and hold the Float Button (Item 3)

[Figure OI-29] while the joystick is in neutral. Move

the joystick to lift arm down position (Item 2)

[Figure OI-29], then release the button.

Press Float Button again or move the joystick to lift

arm up position (Item 2) [Figure OI-29] to disengage.

Use the float position of the lift arms to level loose

material while driving backward.

Tilt Operation - (Right Hand Joystick)

Move the joystick inward (Item 4) [Figure OI-29] to tilt

the bucket backward.

Move the joystick outward (Item 5) [Figure OI-29] to

tilt the bucket forward.

B-15579 B-19873

B-19874

Right

Joystick

Left

Joystick

B-15581A B-19873

B-19874

Left

Joystick

Right

Joystick

B-15579 B-15781

Right Joystick

S250 Bobcat Loader

OI-19 Operation & Maintenance Manual

HYDRAULIC CONTROLS (CONT’D)

Quick Couplers

Figure OI-30

To Connect: Remove dirt or debris from the surface of

both the male and female couplers, and from the outside

diameter of the male coupler. Visually check the couplers

for corroding, cracking, damage or excessive wear. If any

of these conditions exist, the coupler(s) [Figure OI-30]

must be replaced.

Install the male coupler into the female coupler. Full

connection is made when the ball release sleeve slides

forward on the female coupler.

To Disconnect: Hold the male coupler. Retract the sleeve

on the female coupler until the couplers disconnect.

Releasing Hydraulic Pressure (Loader and

Attachment)

Front Auxiliary Quick Couplers

When Connecting: Push the quick couplers tightly

together and hold for five seconds; the pressure is

automatically released as the couplers are installed.

When Disconnecting: Push the quick couplers tightly

together and hold for five seconds; then retract the sleeve

until the couplers disconnect.

Rear Auxiliary Quick Couplers

Figure OI-31

Press the AUXILIARY PRESSURE RELEASE Button

(Item 1) [Figure OI-31]. Hold it for two seconds after the

engine comes to a complete stop. The pressure will be

released.

WARNING

AVOID BURNS

Hydraulic fluid, tubes, fittings and quick couplers can

get hot when running machine and attachments.

Be careful when connecting and disconnecting quick

couplers.

W-2220-0396

P-31243

P-31242

B-15551

S250 Bobcat Loader

OI-20 Operation & Maintenance Manual

HYDRAULIC CONTROLS (CONT’D)

Auxiliary Hydraulics Button - VARIABLE FLOW

Figure OI-32

Figure OI-33

NOTE: The appearance of Joysticks is different than

handles shown [Figure OI-33] but hydraulic

function is the same.

VARIABLE FLOW allows for slow-to-fast movement of

auxiliary functions. If you move the auxiliary

switch (Item 1) [Figure OI-33] half-way, the auxiliary

functions move at approximately one-half speed.

Press the auxiliary hydraulics button (Item 1)

[Figure OI-32] once.

The light (Item 2) [Figure OI-32] will be ON.

Auxiliary Hydraulics Button - MAXIMUM FLOW ONLY

MAXIMUM FLOW ONLY allows for fast movement only.

If you move the auxiliary switch (Items 1 or 3)

[Figure OI-33], the auxiliary functions move at fast

speed; release the switch to stop auxiliary functions.

Press the auxiliary hydraulics button (Item 1)

[Figure OI-32] a second time.

The light (Item 3) [Figure OI-32] will be ON.

Auxiliary Hydraulics Button - DISENGAGE

To disengage press the auxiliary hydraulics button

(Item 1) [Figure OI-32] a third time.

Both lights (Items 2 & 3) [Figure OI-32] will be OFF.

NOTE: When the operator is seated and raises the

seat bar, the Auxiliary Hydraulic System

(Front and Rear) will deactivate.

FRONT Auxiliary Hydraulics Operation - VARIABLE

FLOW

Press the auxiliary hydraulics button for VARIABLE

FLOW (See Auxiliary Hydraulics Button - VARIABLE

FLOW on Page OI-20).

Push the switch (Item 1) [Figure OI-33] to the right or left

to change the fluid flow direction of the front quick

couplers. (EXAMPLE: Open and close grapple teeth.)

FRONT Auxiliary Hydraulics Operation - MAXIMUM

FLOW

Press the auxiliary hydraulics button for MAXIMUM

FLOW (See Auxiliary Hydraulics Button - MAXIMUM

FLOW ONLY on Page OI-20).

Push the switch (Item 1) [Figure OI-33] to the right or left

to change the fluid flow direction of the front quick

couplers. (EXAMPLE: Open and close grapple teeth.)

FRONT Auxiliary Hydraulics Operation - CONTINUOUS

FLOW

After selecting VARIABLE or MAXIMUM FLOW, press

the front switch (Item 2) [Figure OI-33] to give the front

quick couplers a constant flow of fluid with the female

coupler being pressurized. (EXAMPLE: Operate a

backhoe.)

REVERSE CONTINUOUS FLOW - To set reverse flow

(male coupler pressurized), hold the auxiliary

switch (Item 1) [Figure OI-33] to the left, press

VARIABLE or MAXIMUM FLOW and then press the front

switch (Item 2) [Figure OI-33]. Reverse flow can be used

only with augers, power rakes, sweepers, tillers, and

vibratory rollers.

To release from continuous operation, press the front

switch (Item 2) [Figure OI-33] a second time.

B-15551

P-31833

P-16537

S250 Bobcat Loader

OI-21 Operation & Maintenance Manual

HYDRAULIC CONTROLS (CONT’D)

REAR Auxiliary Hydraulics Operation

Figure OI-34

The switches on the left hand lever control the rear

auxiliary hydraulics.

Press the auxiliary hydraulics button for MAXIMUM

FLOW (See Auxiliary Hydraulics Button - MAXIMUM

FLOW ONLY on Page OI-20).

Push the switch (Item 3) [Figure OI-33] to the right or left

to change the fluid flow direction to rear quick couplers

[Figure OI-34]. (EXAMPLE: Raise and lower rear

stabilizers.)

WARNING

Diesel fuel or hydraulic fluid under pressure can

penetrate skin or eyes, causing serious injury or

death. Fluid leaks under pressure may not be visible.

Use a piece of cardboard or wood to find leaks.

Do not use your bare hand. Wear safety goggles.

If fluid enters skin or eyes, get immediate medical

attention from a physician familiar with this injury.

W-2007-0497

Secondary Front Auxiliary Hydraulics (If Equipped)

Figure OI-35

The secondary front auxiliary quick couplers (Item 1)

[Figure OI-35] are available a Field Installed Accessory.

These are used when there is a need for additional

auxiliary hydraulics (EXAMPLE: Planer side shift).

Connect the attachment to the secondary auxiliary

hydraulics (Item 1) [Figure OI-35].

Set the Auxiliary Hydraulic Button for Variable Flow or

Maximum Flow Only. (See Auxiliary Hydraulics Button -

VARIABLE FLOW on Page OI-20). or (See Auxiliary

Hydraulics Button - MAXIMUM FLOW ONLY on

Page OI-20).

Figure OI-36

Push switch (Item 1) [Figure OI-36] to the right or left to

change fluid flow direction. (EXAMPLE: Side shift on the

Planer.)

NOTE: The secondary front auxiliary hydraulics and

the rear auxiliary hydraulics operate from the

same auxiliary section of the control valve. To

operate only one of these auxiliary functions,

disconnect the other.

P-31243

P16291

SECONDARY

COUPLERS

P-31833

Right Steering Lever

P-16537

Left Steering Lever

S250 Bobcat Loader

OI-22 Operation & Maintenance Manual

HYDRAULIC CONTROLS (CONT’D)

High-Flow Hydraulics Operation (If Equipped)

Figure OI-37

The High-Flow function provides additional flow to the

system to operate an attachment which requires more

hydraulic flow. (EXAMPLE: Planer.)

Connect the attachment to the quick couplers (Item 1)

[Figure OI-37].

Some attachments may have a case drain which needs

to be connected to the small quick coupler (Item 2)

[Figure OI-37].

Figure OI-38

Press the HIGH FLOW button (Item 1) [Figure OI-38].

P-31242

B-15551

S250 Bobcat Loader

OI-23 Operation & Maintenance Manual

HYDRAULIC CONTROLS (CONT’D)

Attachment Control Device (ACD) (If Equipped)

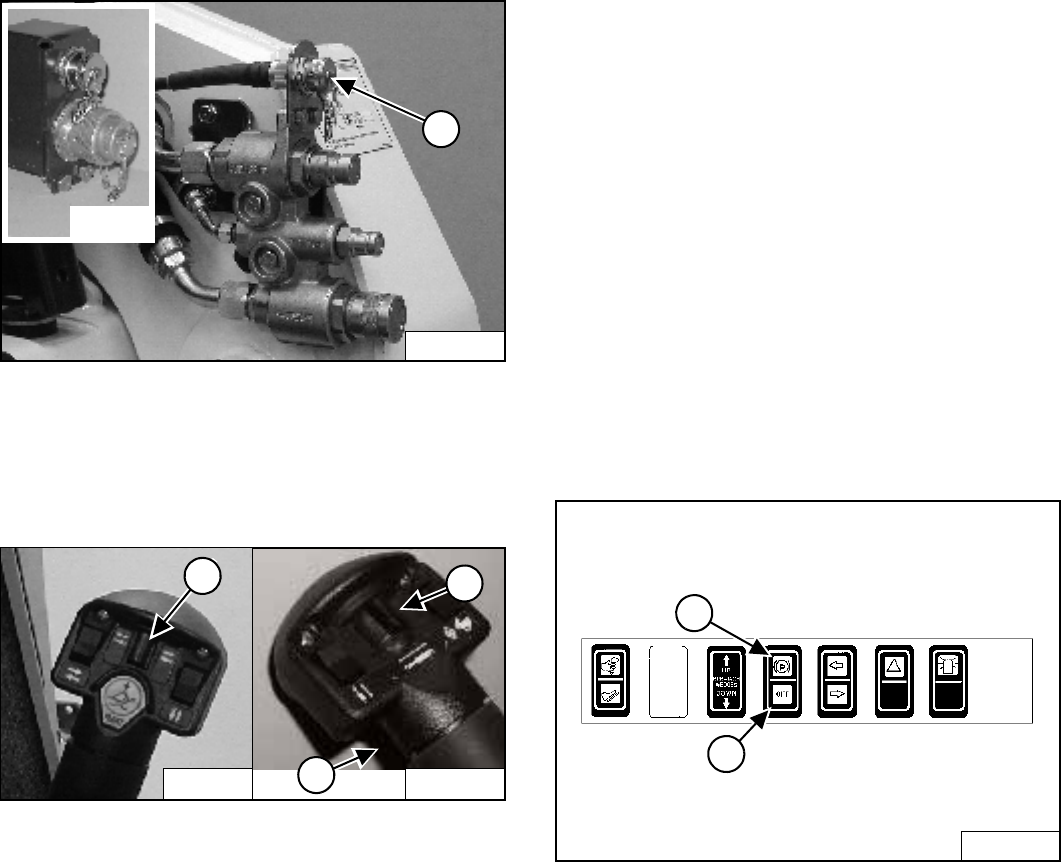

Figure OI-39

You will need the Dual-Connector (7-pin / 14-pin) kit

(Inset) [Figure OI-39] to operate early model

attachments. The 7 pin connector is shown (Item 1)

[Figure OI-39]. See your Bobcat loader dealer.

Figure OI-40

You can use additional switches (Items 1, 2, and 3)

[Figure OI-40] on the right and left control handles for

functions which control some attachments.

See the appropriate Attachment Operation &

Maintenance Manual for control details.

Bucket Position Valve Operation (If Equipped)

The function of the bucket position valve is to keep the

bucket in the same approximate position it is in before

you begin raising the lift arms.

Press BUCKET POSITIONING button (Item 2)

[Figure OI-38] to engage the bucket position function.

(The light will be on.) Press again to disengage.

Bucket Positioning functions only during upward lift cycle.

SHUTDOWN FEATURE

Press and hold the BUCKET POSITIONING button

(Item 2) [Figure OI-38] for 2 seconds. Shtdn will appear

in the HOURMETER / CODE DISPLAY (Item 3)

[Figure OI-38]. (Operational Code will also appear.)

PARKING BRAKE

Operation

Figure OI-41

Press the top of the switch (Item 1) [Figure OI-41] to

engage the parking brake. The traction drive system will

be locked.

Press the bottom of the switch (Item 2) [Figure OI-41] to

disengage the parking brake. The traction drive system

will be unlocked.

NOTE: The TRACTION light on the left instrument

panel will remain OFF until the engine is

started, the PRESS TO OPERATE LOADER

button is pressed and the parking brake is

disengaged.

P-31245

P-19820

P-31833

P-16537

B-15993

S250 Bobcat Loader

OI-24 Operation & Maintenance Manual

DAILY INSPECTION

Maintenance work must be done at regular intervals.

Failure to do so will result in excessive wear and early

failures. The Service Schedule (above) is a guide for

correct maintenance of the Bobcat loader. It is located

inside the rear door of the loader.

Daily Inspection and Maintenance

• Engine Oil Level

• Hydraulic/Hydrostatic Fluid Level

• Engine Air Filter, Check System for Damage or Leaks

• Engine Coolant System, Check System for Damage

or Leaks

• Operator Cab and Cab Mounting Hardware

• Seat Belt

• Seat Bar and Control Interlocks

• Grease Pivot Pins (Lift Arms, Bob-Tach, Cylinders,

Bob-Tach Wedges)

• Tires, Check for Wear, Damage, Correct Air Pressure

• Fuel Filter, Remove Trapped Water

• Loose or Broken Parts, Repair or Replace as

Necessary

• Lift Arm Support Device. Replace if Damaged

• Bobcat Interlock Control System (BICS)

WARNING

Operator must have instructions before running the

machine. Untrained operators can cause injury or

death.

W-2001-0596

NOTE: Fluids such as engine oil, hydraulic fluid,

coolant, etc. must be disposed of in an

environmentally safe manner. Some

regulations require that certain spills and

leaks on the ground must be cleaned in a

specific manner. See local, state and federal

regulations for correct disposal.

6734534

S250 Bobcat Loader

OI-25 Operation & Maintenance Manual

PRE-STARTING PROCEDURES

Before Starting The Engine

Figure OI-42

Use the bucket or attachment steps, grab handles and

safety treads (on the loader lift arms and frame) to get on

and off the loader [Figure OI-42]. Do not jump.

Safety treads are installed on the Bobcat loader to

provide a slip resistant surface for getting on and off the

loader.

Keep safety treads clean and replace when damaged.

Replacement treads are available from your Bobcat

dealer.

Read and understand the Operation & Maintenance

Manual and the Operator’s Handbook (Item 1)

[Figure OI-42] before operating the loader.

The Operation & Maintenance Manual and other manuals

can be kept in a container (Item 2) [Figure OI-42]

provided behind the operator seat.

WARNING

Instructions are necessary before operating or

servicing machine. Read and understand the

Operation & Maintenance Manual, Operator’s

Handbook and signs (decals) on machine. Follow

warnings and instructions in the manuals when

making repairs, adjustments or servicing. Check for

correct function after adjustments, repairs or

service. Untrained operators and failure to follow

instructions can cause injury or death.

W-2003-0903

Figure OI-43

Release the seat lever (Item 1) [Figure OI-43] and adjust

the seat position for comfortable operation of the loader

controls.

Figure OI-44

Suspension Seat - (Option & Loaders with 2-Speed)

Release the lever (Item 1) [Figure OI-44] to adjust the

seat distance from the levers and footrests.

Release the lever (Item 2) [Figure OI-44] to adjust the

angle of the seat back.

Turn the lever (Item 3) [Figure OI-44] to adjust the seat

cushion for weight of the operator.

N-20299

P-34036

N-20299

P-13907

P-16052

S250 Bobcat Loader

OI-26 Operation & Maintenance Manual

PRE-STARTING PROCEDURES (CONT’D)

Before Starting The Engine (Cont’d)

Figure OI-45

Squeeze both seat belt adjusters to release and lengthen

each half of the seat belt [Figure OI-45].

Fasten the seat belt.

Pull the ends of the belt through the belt adjusters so that

the seat belt is snug and the buckle is centered between

your hips [Figure OI-45].

Figure OI-46

3-Point Restraint - (Option & Loaders with 2-Speed)

Connect the shoulder belt to the lap belt (Item 1)

[Figure OI-46]. Pull the lap belt across to the left side of

the seat (Item 2) [Figure OI-46] and fasten.

The shoulder belt must be positioned over your right

shoulder and lap belt over your lower hips

[Figure OI-46]

IMPORTANT

Check the seat belt and shoulder belt retractors for

correct operation.

Keep retractors clean and replace as necessary.

I-2199-0400

Always fasten the shoulder belt for additional restraint

when operating in high range speed.

P-16038

P-16041

N-21773

S250 Bobcat Loader

OI-27 Operation & Maintenance Manual

PRE-STARTING PROCEDURES (CONT’D)

Before Starting The Engine (Cont’d)

Figure OI-47

Lower the seat bar and engage the parking brake

[Figure OI-47].

Put the foot pedals or hand controls in neutral position.

NOTE: Keep your hands on the steering levers and

your feet on the foot pedals (or footrests)

while operating the loader.

WARNING

AVOID INJURY OR DEATH

When operating the machine:

• Keep the seat belt fastened snugly.

• The seat bar must be lowered.

• Keep your feet on the pedal controls or footrests

and hands on steering levers.

W-2261-0799

STARTING THE ENGINE (STANDARD PANEL, KEY

SWITCH)

Procedure

WARNING

AVOID INJURY OR DEATH

• Engines can have hot parts and hot exhaust gas.

Keep flammable material away.

• Do not use machines in atmosphere containing

explosive gas.

W-2051-1086

Perform the PRE-STARTING PROCEDURE, (See

PRE-STARTING PROCEDURES on Page OI-25).

Figure OI-48

Set the engine speed control to the 1/2 speed position

[Figure OI-48].

P-45114

P-31864

S250 Bobcat Loader

OI-28 Operation & Maintenance Manual

STARTING THE ENGINE (STD. PANEL, KEY SWITCH)

(CONT’D)

Procedure (Cont’d)

Figure OI-49

Turn the key switch to RUN [Figure OI-49]. The indicator

lights on the right instrument panel [Figure OI-49] will

come ON briefly and the Instrument Panel / monitoring

system will do a self test.

If the temperature is cold, the intake air heater will

automatically cycle. The Icon light (Item 1)

[Figure OI-49] will be ON and the cycle time remaining

will show in the hour meter.

When the Icon light goes OFF, turn the key switch to

START [Figure OI-49].

NOTE: Make sure both hand controls (ACS) or

Joysticks (SJC) are in the neutral position

before starting the engine. Do not move the

levers or joysticks from the neutral position

when turning the key to RUN or START

[Figure OI-49].

If controls are moved:

a. The neutral position for the hydraulic valve

spool and hand control may not be correctly

calibrated. This can result in slight movement of

the lift or tilt hydraulic cylinders when the hand

control lever is returned to the neutral position

after start-up.

b. ACS indicator light (Item 2) [Figure OI-49] on

right instrument panel will be ON.

If either condition occurs, return key to STOP. Put

the controls in neutral position and re-start

engine.

Release the key when the engine starts. It will return to

the RUN position.

Figure OI-50

(ACS)

Select hand control or foot pedal operation (Item 1)

[Figure OI-50]

(SJC) Select ‘ISO’ or ‘H’ Control Pattern (Item 2)

[Figure OI-50].

Figure OI-51

Press the PRESS TO OPERATE LOADER Button (Item 1)

[Figure OI-51] to activate the BICS system and to

perform hydraulic and loader functions. (See Cold

Temperature Starting on Page OI-30.)

NOTE: (SJC) The pending mode will flash which will

indicate PRESS TO OPERATE LOADER is

required. The light will flash when key is ON

and continue to flash until the PRESS TO

OPERATE LOADER button is pressed and

thereafter it will light solid. If the mode (ISO/H)

is changed while driving, the active mode will

be solid and the pending mode will flash.

When operation of the machine is returned to

neutral, the active mode will then turn off and

the pending mode will continue to flash until

the PRESS TO OPERATE LOADER button is

pressed.

B-15552B

B-15993B

SJC

B-15993

FRONT ACCESSORY PANEL

ACS

B-15551

S250 Bobcat Loader

OI-29 Operation & Maintenance Manual

STARTING THE ENGINE (DELUXE PANEL, KEYLESS

START)

Procedure

WARNING

AVOID INJURY OR DEATH

• Engines can have hot parts and hot exhaust gas.

Keep flammable material away.

• Do not use machines in atmosphere containing

explosive gas.

W-2051-1086

Perform the PRE-STARTING PROCEDURE, (See

PRE-STARTING PROCEDURES on Page OI-25).

Figure OI-52

Set the engine speed control at the 1/2 speed position

[Figure OI-52].

NOTE: Loaders with Deluxe Instrument Panel have a

permanent, randomly generated Master

Password set at the factory. Your loader will

be assigned an Owner Password. Your dealer

will provide you with this password. Change

the password to one that you will easily

remember to prevent unauthorized use of

your loader. (See Passwords (Deluxe) on

Page SA-10). Keep your password in a safe

place for future needs.

Figure OI-53

Use the numeric keypad (Item 1) [Figure OI-53] to enter

the password, then press the RUN / ENTER Button

(Item 2) [Figure OI-53].

If the temperature is cold, the intake air heater will

automatically cycle and the Icon (Item 3) [Figure OI-53]

will be ON.

When the Icon light goes OFF, press the START Button

(Item 4) [Figure OI-53]. Release the button when the

engine starts.

NOTE: Make sure both hand controls (ACS) or

Joysticks (SJC) are in the neutral position

before starting the engine. Do not move the

levers or joysticks from the neutral position

when turning the key to RUN/ENTER or

START [Figure OI-53].

If controls are moved:

The neutral position for the hydraulic valve

spool and hand control may not be correctly

calibrated. This can result in slight movement of

the lift or tilt hydraulic cylinders when the hand

control lever is returned to the neutral position

after start-up.

b. ACS indicator light (Item 5) [Figure OI-53] on

right instrument panel will be ON.

If either condition occurs, return key to STOP. Put

the controls in neutral position and re-start

engine.

P-31864

B-15553B

B-22153

S250 Bobcat Loader

OI-30 Operation & Maintenance Manual

STARTING THE ENGINE (DELUXE PANEL, KEYLESS

START (CONT’D)

Procedure (Cont’d)

Figure OI-54

(ACS)

Select hand control or foot pedal operation (Item 1

)

[Figure OI-54].

(SJC) Select ‘ISO’ or ‘H’ Control Pattern (Item 2)

[Figure OI-54].

Figure OI-55

Press the PRESS TO OPERATE LOADER Button (Item 1)

[Figure OI-55] to activate the BICS system and to

perform hydraulic and loader functions. See also Cold

Temperature Starting below.

NOTE: (SJC) The pending mode will flash which will

indicate PRESS TO OPERATE LOADER is

required. The light will flash when key is ON

and continue to flash until the PRESS TO

OPERATE LOADER button is pressed and

thereafter it will light solid. If the mode (ISO/H)

is changed while driving, the active mode will

be solid and the pending mode will flash.

When operation of the machine is returned to

neutral, the active mode will then turn off and

the pending mode will continue to flash until

the PRESS TO OPERATE LOADER button is

pressed.

Cold Temperature Starting

If the temperature is below freezing, perform the following

to make starting the engine easier:

• Replace the engine oil with the correct type and

viscosity for the anticipated starting temperature.

(See ENGINE LUBRICATION SYSTEM on

Page PM-19.)

• Make sure the battery is fully charged.

• Install an engine heater, available from your Bobcat

loader dealer.

NOTE: The LCD of the Deluxe Panel may not be

immediately visible when the temperature is

below -15 degrees F (-26 degrees C). It may

take 30 seconds to several minutes for the

Display Panel to warm up. All systems remain

monitored even when the display is off.

B-15993B

SJC

B-15993

FRONT ACCESSORY PANEL

ACS

B-15551

S250 Bobcat Loader

OI-31 Operation & Maintenance Manual

WARMING THE HYDRAULIC / HYDROSTATIC SYSTEM

Procedure

IMPORTANT

When the temperature is below -30°C (-20°F),

hydrostatic oil must be warmed before starting. The

hydrostatic system will not get enough oil at low

temperatures and will be damaged. Park the machine

in an area where the temperature will be above 18°C

(0°F) if possible.

I-2007-1285

Let the engine run at least 5 minutes to warm the engine

and hydrostatic fluid before operating the loader.

Figure OI-56

Figure OI-57

If the Fluid Pressure Icon (Item 1) [Figure OI-56]

(Standard Panel) or [Figure OI-57] (Deluxe Panel)

comes ON when operating the loader (cold), more warm

up time is needed.

STOPPING THE ENGINE

Procedure

Figure OI-58

Pull the engine speed control fully backward

[Figure OI-58] to decrease the engine speed.

Let the engine run at idle speed for 5 minutes to let the

turbocharger cool before stopping the engine.

IMPORTANT

After a full load operation, allow the engine to run at

idle speed for 5 minutes before stopping the engine.

Failure to do so can result in premature failure of the

turbocharger.

I-2214-0402

Turn the key switch to the STOP position [Figure OI-56]

or press the STOP Button (Standard Panel)

[Figure OI-57] (Deluxe Panel).

B-15552B

B-15553B

P-31864

S250 Bobcat Loader

OI-32 Operation & Maintenance Manual

MONITORING THE DISPLAY PANEL

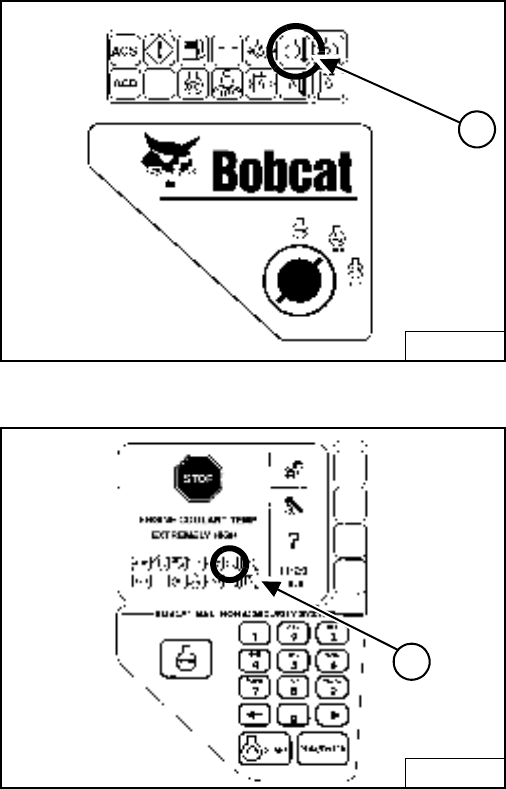

Figure OI-59

Figure OI-60

After the engine is running, frequently monitor the right

instrument panel [Figure OI-59] (Standard Panel) and

[Figure OI-60] (Deluxe Panel) for error conditions.

The associated icon will be ON if there is an error

condition.

EXAMPLE: Engine Coolant Temperature is High

Standard Panel

The Engine Temperature Icon (Item 1) [Figure OI-59]

and [Figure OI-60] will be ON.

Press and hold LIGHTS Button for 2 seconds. One of the

following SERVICE CODES will be displayed.

•08-10 Engine Coolant Temperature High

•08-11 Engine Coolant Temperature Very High

Deluxe Panel

The Engine Temperature Icon (Item 1) [Figure OI-60] will

be ON.

The SERVICE CODE will be in the hourmeter / code

display (See left instrument panel).

In addition, the Deluxe Panel display screen will describe

the extreme condition that can cause damage to the

engine or loader systems [Figure OI-60].

WARNING and SHUTDOWN

When a WARNING condition exists, the associated Icon

light will come ON and there will be 3 beeps from the

alarm. Be aware that, if this condition is allowed to

continue, there may be damage to the engine or loader

hydraulic systems.

When a SHUTDOWN condition exists, the associated

Icon light will come ON and there will be a continuous

beep from the alarm and the monitoring system will

automatically stop the engine in 10 seconds. The engine

can be restarted to move or relocate the loader.

The SHUTDOWN feature is associated with the following

Icons:

General Warning

Engine Oil Pressure

Engine Coolant Temperature

Hydraulic Oil Temperature

Hydrostatic Charge Pressure

Whenever STOP appears on the display screen, lower

the lift arms all the way, put the attachment flat on the

ground and stop the engine to prevent damage to the

engine or loader systems.

B-15552B

B-15553A

S250 Bobcat Loader

OI-33 Operation & Maintenance Manual

ATTACHMENTS AND BUCKETS

Choosing The Correct Bucket

NOTE: Warranty is void if non-approved attachments

are used on the Bobcat loader.

WARNING

Never use attachments or buckets which are not

approved by Bobcat Company. Buckets and

attachments for safe loads of specified densities are

approved for each model. Unapproved attachments

can cause injury or death.

W-2052-0500

The dealer can identify, for each model loader, the

attachments and buckets approved by Bobcat. The buckets

and attachments are approved for Rated Operating

Capacity and for secure fastening to the Bob-Tach.

The Rated Operating Capacity for this loader is shown on

a decal in the operator cab. (See Fluid Capacities on

Page SA-6).

The Rated Operating Capacity is determined by using a

standard dirt bucket, and material of normal density, such

as dirt or dry gravel. If longer buckets are used, the load

center moves forward and reduces the Rated Operating

Capacity. If very dense material is loaded, the volume

must be reduced to prevent overloading.

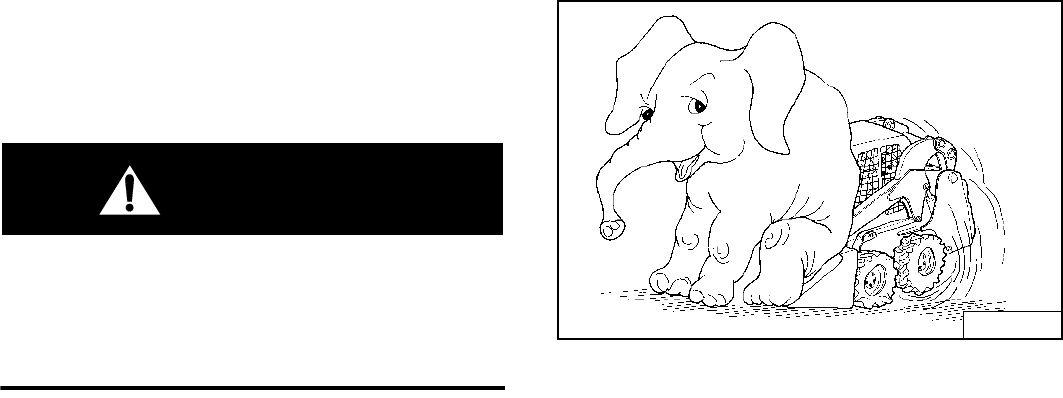

Figure OI-61

Exceeding the Rated Operating Capacity [Figure OI-61]

can cause the following problems:

• Steering the loader may be difficult.

• Tires will wear faster.

• There will be a loss of stability.

• The life of the Bobcat loader will be reduced.

B-16251

S250 Bobcat Loader

OI-34 Operation & Maintenance Manual

ATTACHMENTS AND BUCKETS (CONT’D)

Choosing The Correct Bucket (Cont’d)

Use the correct bucket size for the type and density of

material being handled. For safe handling of materials

and avoiding machine damage, the attachment

(or bucket) should handle a full load without going over

the Rated Operating Capacity for the loader. Partial loads

make steering more difficult.

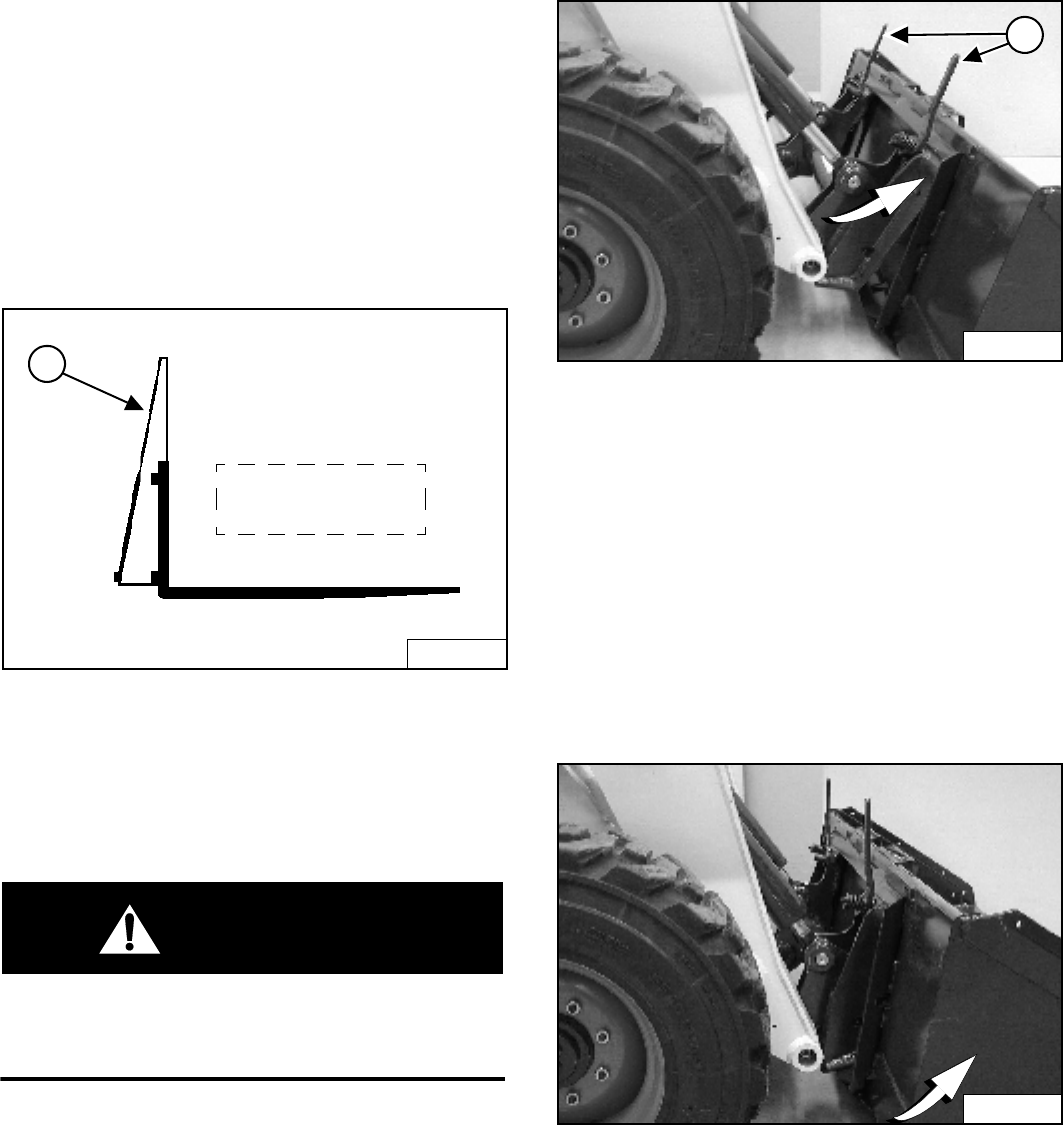

Pallet Forks

Figure OI-62

If a pallet fork attachment is used, the load center moves

forward and reduces the Rated Operating Capacity.

The maximum load to be carried when using a pallet fork

is shown on a decal located on the pallet fork

frame (Item 1) [Figure OI-62].

WARNING

AVOID INJURY OR DEATH

Do not exceed Rated Operating Capacity (ROC).

Excessive load can cause tipping or loss of control.

W-2053-0903

See your Bobcat Dealer for more information about pallet

fork inspection, maintenance and replacement. See your

Bobcat loader dealer for Rated Operating Capacity when

using a pallet fork and for other available attachments.

Hand Lever Bob-Tach - Installing The Bucket Or

Attachment

The Bob-Tach is used for fast changing of buckets and

attachments. See the appropriate Attachment Operation &

Maintenance Manual to install other attachments.

Figure OI-63

Pull the Bob-Tach levers all the way up (Item 1)

[Figure OI-63].

Enter the loader and perform the PRE-STARTING

PROCEDURE (See PRE-STARTING PROCEDURES on

Page OI-25).

Lower the lift arms and tilt the Bob-Tach forward.

Drive the loader forward until the top edge of the

Bob-Tach is completely under the top flange of the bucket

[Figure OI-63] (or other attachment). Be sure the

Bob-Tach levers do not hit the bucket.

Figure OI-64

Tilt the Bob-Tach backward until the cutting edge of the

bucket (or other attachment) is slightly off the ground

[Figure OI-64].

Stop the engine and exit the loader.

B-17255

Load varies with

model of pallet fork

being used.

P-31238

P-31239

S250 Bobcat Loader

OI-35 Operation & Maintenance Manual

ATTACHMENTS AND BUCKETS (CONT’D)

Hand Lever Bob-Tach - Installing The Bucket Or

Attachment (Cont’d)

WARNING

Before you leave the operator’s seat:

• Lower the lift arms, put the attachment flat on the

ground.

• Stop the engine.

• Engage the parking brake.

• Raise seat bar.

• (Foot Pedal Controls) Move pedals until both

lock.

• (Advanced Control System - ACS) Move the

hydraulic controls to the NEUTRAL POSITION to

make sure that both lift and tilt functions are

deactivated.

The seat bar system must deactivate the lift and tilt

control functions when the seat bar is up. Service the

system if hand controls do not deactivate.

• (Selectable Joystick Control - SJC) Move the

joysticks to the NEUTRAL POSITION to make

sure that travel and hydraulic functions are

deactivated.

The seat bar system must deactivate these functions

when the seat bar is up. Service the system if

controls do not deactivate.

W-2463-0603

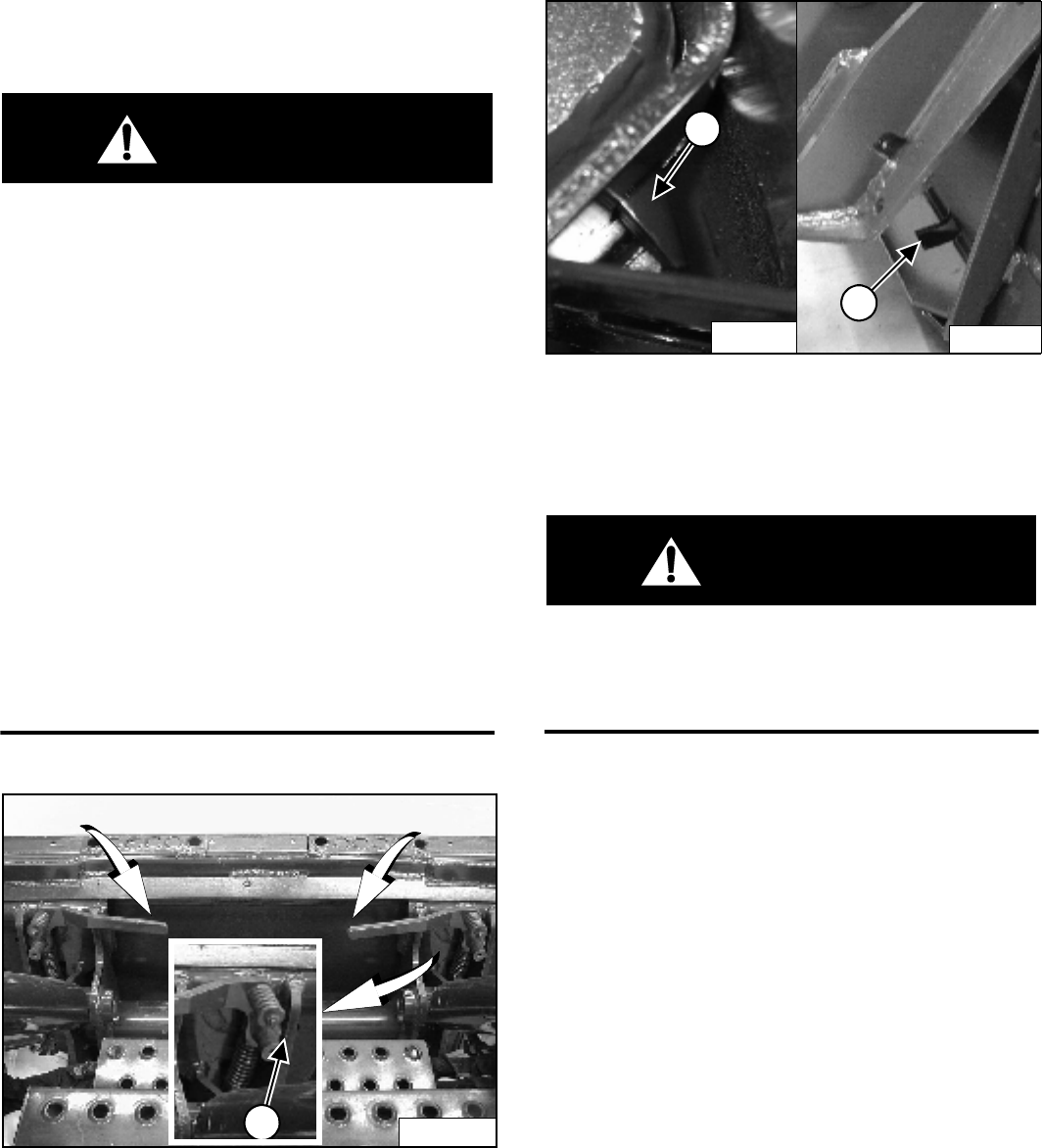

Figure OI-65

Push down on the Bob-Tach levers until they are fully

engaged in the locked position (Item 1) [Figure OI-65]

(wedges fully extended).

Figure OI-66

The wedges (Item 1) [Figure OI-66] must extend through

the holes (Item 2) [Figure OI-66] in the mounting frame

of the bucket (or other attachment), securely fastening

the bucket to the Bob-Tach.

WARNING

Bob-Tach wedges must extend through the holes in

attachment. Levers must be fully down and locked.

Failure to secure wedges can allow attachment to

come off and cause injury or death.

W-2102-0588

P-31241

P-31233

P-31237

S250 Bobcat Loader

OI-36 Operation & Maintenance Manual

ATTACHMENTS AND BUCKETS (CONT’D)

Hand Lever Bob-Tach - Removing The Bucket Or

Attachment

Lower the lift arms and put the attachment flat on the

ground.

Raise the seat bar, unfasten the seat belt, set the parking

brake and exit the loader.

If the attachment is hydraulically controlled, lower or

close the hydraulic equipment. You may need to release

hydraulic pressure before disconnecting the quick

couplers (See Releasing Hydraulic Pressure (Loader and

Attachment) on Page OI-19).

WARNING

Before you leave the operator’s seat:

• Lower the lift arms, put the attachment flat on the

ground.

• Stop the engine.

• Engage the parking brake.

• Raise seat bar.

• (Foot Pedal Controls) Move pedals until both

lock.

• (Advanced Control System - ACS) Move the

hydraulic controls to the NEUTRAL POSITION to

make sure that both lift and tilt functions are

deactivated.

The seat bar system must deactivate the lift and tilt

control functions when the seat bar is up. Service the

system if hand controls do not deactivate.

• (Selectable Joystick Control - SJC) Move the

joysticks to the NEUTRAL POSITION to make

sure that travel and hydraulic functions are

deactivated.

The seat bar system must deactivate these functions

when the seat bar is up. Service the system if

controls do not deactivate.

W-2463-0603

Figure OI-67

Pull the Bob-Tach levers [Figure OI-67] all the way up.

WARNING

Bob-Tach levers have spring tension. Hold lever

tightly and release slowly. Failure to obey warning

can cause injury.

W-2054-1285

Enter the loader.

Perform the PRE-STARTING PROCEDURE (See

PRE-STARTING PROCEDURES on Page OI-25).

Start the engine and release the parking brake.

Be sure the lift arms are all the way down. Tilt the

Bob-Tach forward.

Figure OI-68

Move the loader backward, away from the bucket or

attachment [Figure OI-68].

P-31240

P-31238

S250 Bobcat Loader

OI-37 Operation & Maintenance Manual

ATTACHMENTS AND BUCKETS (CONT’D)

Power Bob-Tach - Installing The Bucket Or

Attachment

The Bob-Tach is used for fast changing of buckets and

attachments. See the appropriate Attachment Operation

& Maintenance Manual to install other attachments.

Perform the PRE-STARTING PROCEDURE (See

PRE-STARTING PROCEDURES on Page OI-25).

Lower the lift arms and tilt the Bob-Tach forward.

Figure OI-69

Push and hold BOB-TACH “WEDGES UP” switch

(Item 1) [Figure OI-69] (Front Accessory Panel) until

levers (Item 2) are in unlocked position (wedges fully

raised).

NOTE: The Power Bob-Tach system has continuous

pressurized oil to keep the wedges in the

engaged position and prevent attachment

disengagement. Because the wedges can

slowly lower, the operator may need to

reactivate the switch (WEDGES UP) before

installing an attachment to be sure both

wedges are fully reised before installing the

attachment.

Figure OI-70

Drive the loader forward until the top edge of the

Bob-Tach is completely under the top flange of the bucket

[Figure OI-70] (or other attachment).

Figure OI-71

Tilt the Bob-Tach backward until the cutting edge of the

bucket (or other attachment) is slightly off the ground

[Figure OI-71].

Push and hold BOB-TACH “WEDGES DOWN” switch

(Front Accessory Panel) [Figure OI-69] until levers are

fully engaged in the locked position (wedges fully

engaged).

The wedges (Item 4) [Figure OI-69] must extend through

the holes in the mounting frame of the bucket (or other

attachment), securely fastening the bucket to the

Bob-Tach.

P-31236

P-31235

P-31233

B-15993

P-31231

P-31232

S250 Bobcat Loader

OI-38 Operation & Maintenance Manual

ATTACHMENTS AND BUCKETS (CONT’D)

Power Bob-Tach - Removing The Bucket Or

Attachment

WARNING

Bob-Tach wedges must extend through the holes in

attachment. Levers must be fully down and locked.

Failure to secure wedges can allow attachment to

come off and cause injury or death.

W-2102-0588

Lower the lift arms and put the attachment flat on the

ground.

If the attachment is hydraulically controlled, lower or

close the hydraulic equipment before disconnecting the

quick couplers (See Releasing Hydraulic Pressure

(Loader and Attachment) on Page OI-19).

WARNING

Before you leave the operator’s seat:

• Lower the lift arms, put the attachment flat on the

ground.

• Stop the engine.

• Engage the parking brake.

• Raise seat bar.

• (Foot Pedal Controls) Move pedals until both

lock.

• (Advanced Control System - ACS) Move the

hydraulic controls to the NEUTRAL POSITION to

make sure that both lift and tilt functions are

deactivated.

The seat bar system must deactivate the lift and tilt

control functions when the seat bar is up. Service the

system if hand controls do not deactivate.

• (Selectable Joystick Control - SJC) Move the

joysticks to the NEUTRAL POSITION to make

sure that travel and hydraulic functions are

deactivated.

The seat bar system must deactivate these functions

when the seat bar is up. Service the system if

controls do not deactivate.

W-2463-0603

Figure OI-72

Push and hold the BOB-TACH “WEDGES UP” Switch

(Front Accessory Panel) [Figure OI-72] until the wedges

are fully raised.

Tilt the Bob-Tach forward.

Figure OI-73

Move the loader backward, away from the bucket or

attachment [Figure OI-73].

NOTE: The Power Bob-Tach system has continuous

pressurized oil to keep the wedges in the

engaged position and prevent attachment

disengagement. Because the wedges can

slowly lower, the operator may need to

reactivate the switch (WEDGES UP) before

installing an attachment to be sure both

wedges are fully raised before installing the

attachment.

P-31236

B-15993

P-31231

S250 Bobcat Loader

OI-39 Operation & Maintenance Manual

OPERATING PROCEDURE

Operating With A Full Bucket

When operating on a public road or highway, always

follow local regulations.

For example: Slow Moving Vehicle Sign or direction

signals may be required.

Always warm the engine and hydrostatic system before

operating the loader.

IMPORTANT

Machines warmed up with moderate engine speed

and light load have longer life.

I-2015-0284

Operate the loader with engine at full speed for maximum

horsepower. Move the steering levers only a small

amount to operate the loader slowly.

New operators must operate the loader in an open area

without bystanders. Operate the controls until the loader

can be handled at an efficient and safe rate for all

conditions of the work area.

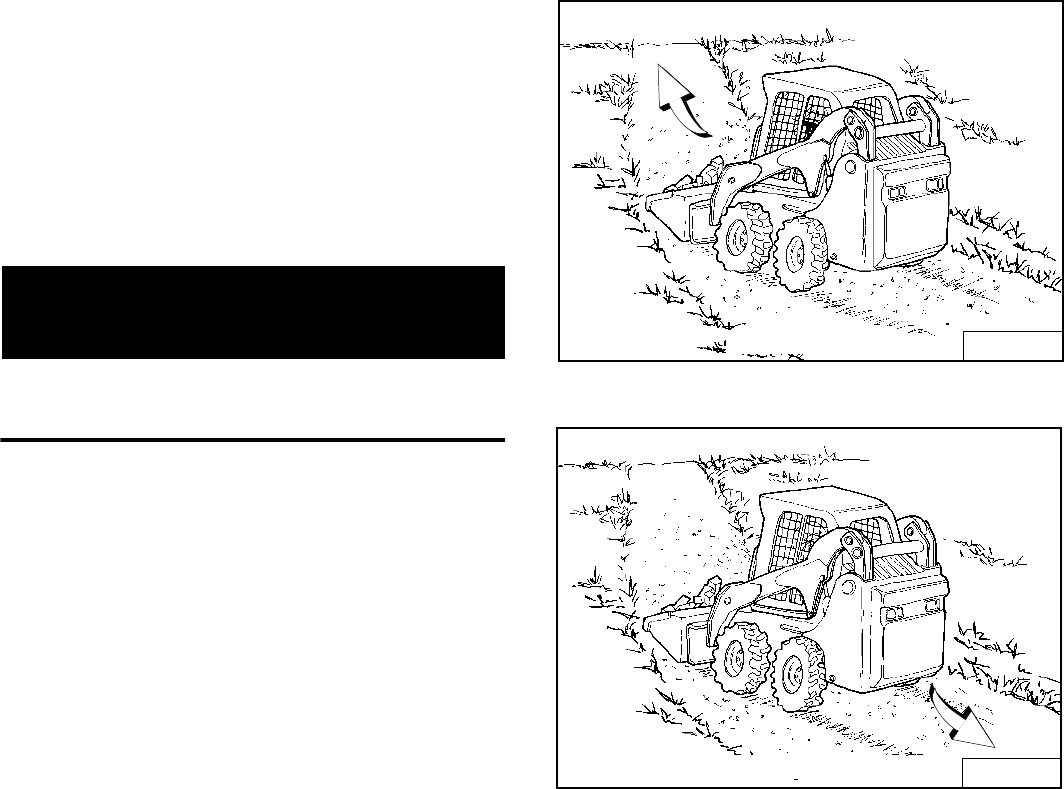

Figure OI-74

Figure OI-75

With a full bucket, go up or down the slope with the heavy

end toward the top of the slope [Figure OI-74] and

[Figure OI-75].

B-16266

WITH BUCKET FULL

Going Up Slope

B-16262

WITH BUCKET FULL

Going Down Slope

S250 Bobcat Loader

OI-40 Operation & Maintenance Manual

OPERATING PROCEDURE (CONT’D)

Operating With An Empty Bucket

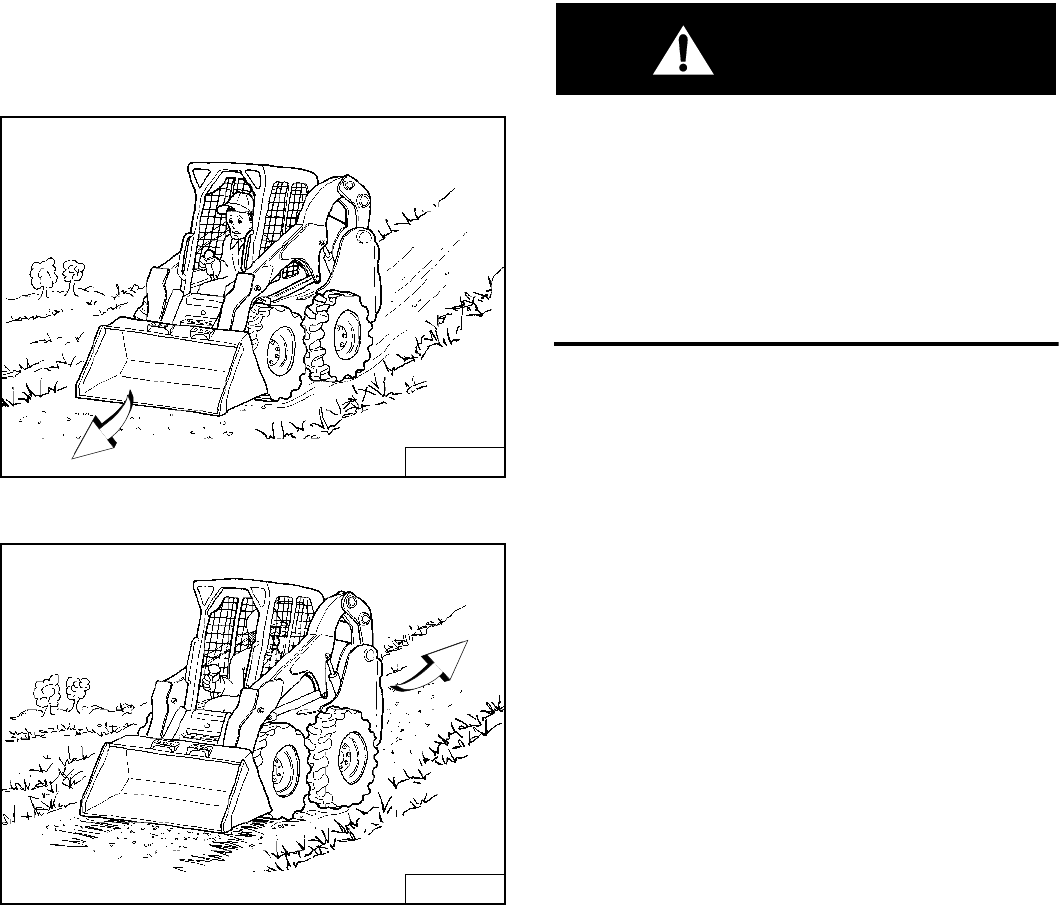

Figure OI-76

Figure OI-77

With an empty bucket, go down or up the slope with the

heavy end toward the top of the slope [Figure OI-76] and

[Figure OI-77].

WARNING

AVOID INJURY OR DEATH

• Keep the lift arms as low as possible.

• Do not travel or turn with the lift arms up.

• Turn on level ground.

• Go up and down slopes, not across them.

• Keep the heavy end of the machine uphill.

• Do not overload the machine.

Failure to obey warnings can cause the machine to

tip or roll over and cause injury or death.

W-2018-1187

Raise the bucket only high enough to avoid obstructions

on rough ground.

B-16257

WITH BUCKET EMPTY

Going Down Slope

B-16265

WITH BUCKET EMPTY

Going Up Slope

S250 Bobcat Loader

OI-41 Operation & Maintenance Manual

OPERATING PROCEDURE (CONT’D)

Foot Pedal Machines

Filling The Bucket:

Figure OI-78

Figure OI-79

Lower the lift arms all the way (Item 1) [Figure OI-78].

Tilt the bucket forward (Item 2) [Figure OI-78] until the

cutting edge of the bucket is on the ground.

Drive slowly forward into the material. Tilt the bucket

backward (Item 1) [Figure OI-79] all the way when the

bucket is full.

Drive backward away from the material.

WARNING

Load, unload and turn on flat level ground. Do not

exceed Rated Operating Capacity (ROC) shown on

sign (decal) in cab. Failure to obey warnings can

cause the machine to tip or roll over and cause injury

or death.

W-2056-0903

Emptying The Bucket:

Figure OI-80

Keep the bucket low when moving to the area where you

want to empty the bucket.

Raise the lift arms (Item 1) [Figure OI-80]. Level the

bucket (Item 2) [Figure OI-80] while raising the lift arms

to help prevent material from falling off the back of the

bucket.

Drive forward slowly until the bucket is over the top of the

truck box or bin.

Empty the bucket (Item 2) [Figure OI-80]. If all the

material is near the side of the truck or bin, use the

bucket tilt to move it to the other side.

WARNING

Never dump over an obstruction, such as a post, that

can enter the operator cab. The machine could tip

forward and cause injury or death.

W-2057-0694

B-16267 B-15973

B-16273 B-15973

B-16259 B-15973

S250 Bobcat Loader

OI-42 Operation & Maintenance Manual

OPERATING PROCEDURE (CONT’D)

Foot Pedal Machines (Cont’d)

Leveling The Ground (Using Float Position):

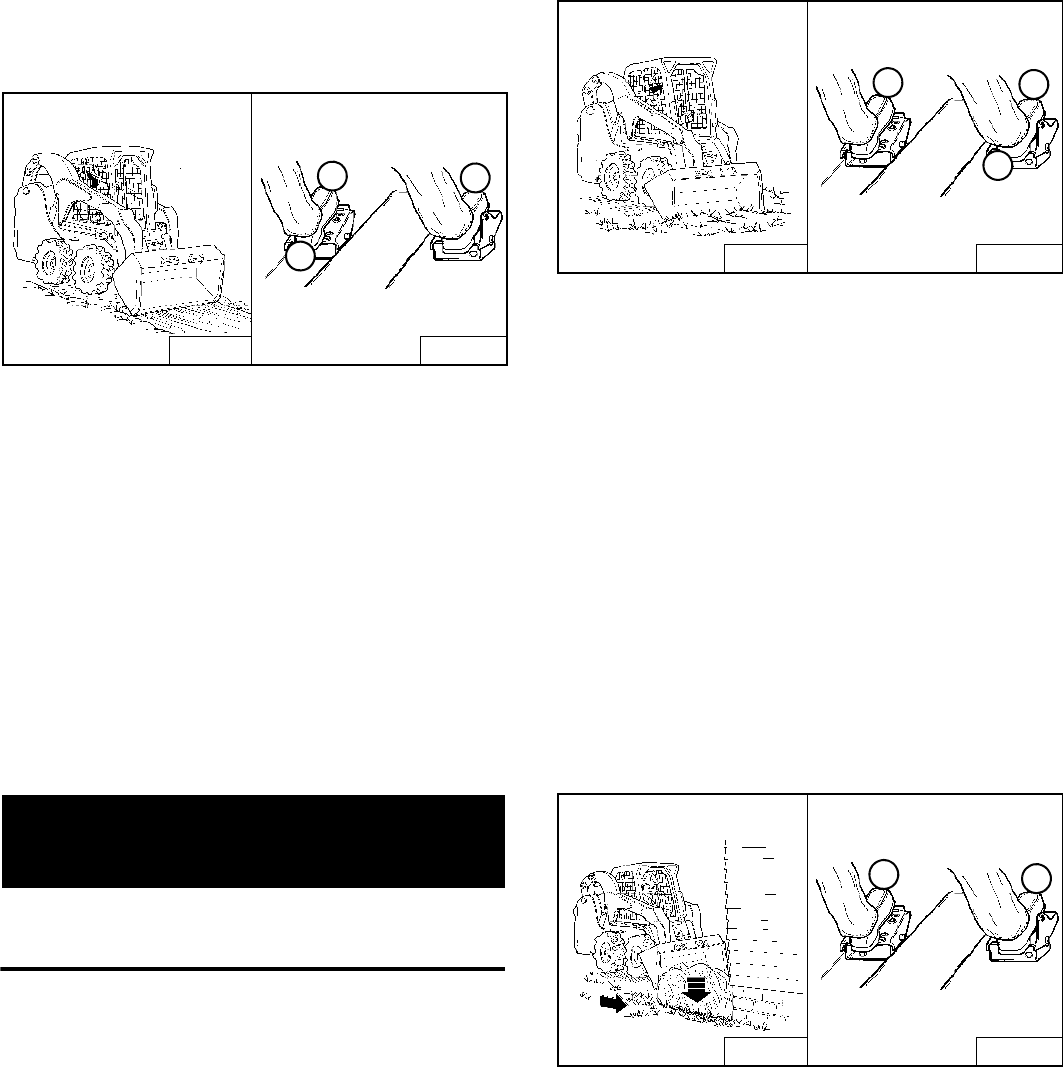

Figure OI-81

Put the lift arms in float position by pushing the pedal all

the way forward (Item 1) [Figure OI-81] until the pedal is

locked in the forward position.

Tilt the bucket forward (Item 2) [Figure OI-81] to change

the position of the cutting edge of the bucket.

With the bucket tilted farther forward, there is more force

on the cutting edge and more loose material can be

moved.

Drive backward to level loose material.

Push the bottom of the lift pedal (Item 3) [Figure OI-81]

to unlock the float position.

IMPORTANT

Never drive forward when the hydraulic control for lift

arms is in float position.

I-2005-1285

Digging A Hole

Figure OI-82

Lower the lift arms all the way (Item 1) [Figure OI-82].

Put the cutting edge of the bucket on the ground (Item 2)

[Figure OI-82].

Drive forward slowly and continue to tilt the bucket

down (Item 2) [Figure OI-82] until it enters the ground.

Raise the cutting edge a small amount (Item 3)

[Figure OI-82] to increase traction and keep an even

digging depth. Continue to drive forward until the bucket

is full. When the ground is hard, raise and lower the

cutting edge of the bucket (Items 2 & 3) [Figure OI-82]

while driving forward slowly.

Tilt the bucket backward (Item 3) [Figure OI-82] as far as

it will go when the bucket is full.

Filling The Hole

Figure OI-83

Lower the lift arms (Item 1) [Figure OI-83] and put the

cutting edge of the bucket on the ground (Item 2)

[Figure OI-83]. Drive forward to the edge of the hole to

push the material into the hole.

Tilt the bucket forward (Item 2) [Figure OI-83] as soon as

it is past the edge of the hole.

If necessary, raise the lift arms to empty the bucket.

B-16268 B-15973

B-16258 B-15973

B-16256 B-15973

S250 Bobcat Loader

OI-43 Operation & Maintenance Manual

OPERATING PROCEDURE (CONT’D)

Hand Control Machines (Includes ACS and SJC with

H-Pattern Selected)

Filling The Bucket:

Figure OI-84

Figure OI-85

Lower the lift arms all the way (Item 1) [Figure OI-84].

Tilt the bucket forward (Item 2) [Figure OI-84] until the

cutting edge of the bucket is on the ground.

Drive slowly forward into the material. Tilt the bucket

backward (Item 1) [Figure OI-85] all the way when the

bucket is full.

Drive backward away from the material.

WARNING

Load, unload and turn on flat level ground. Do not

exceed Rated Operating Capacity (ROC) shown on

sign (decal) in cab. Failure to obey warnings can

cause the machine to tip or roll over and cause injury

or death.

W-2056-0903

Emptying The Bucket:

Figure OI-86

Keep the bucket low when moving to the area where you

want to empty the bucket.

Raise the lift arms (Item 1) [Figure OI-86]. Level the

bucket (Item 2) [Figure OI-86] while raising the lift arms

to help prevent material from falling off the back of the

bucket.

Drive forward slowly until the bucket is over the top of the

truck box or bin.

Empty the bucket (Item 2) [Figure OI-86]. If all material is

near the side of the truck or bin, use the bucket tilt to

move it to the other side.

WARNING

Never dump over an obstruction, such as a post, that

can enter the operator cab. The machine could tip

forward and cause injury or death.

W-2057-0694

B-16267 B-15781

B-16273 B-15781

B-16259 B-15781

S250 Bobcat Loader

OI-44 Operation & Maintenance Manual

OPERATING PROCEDURE (CONT’D)

Hand Control Machines (Includes ACS and SJC with

H-Pattern Selected) (Cont’d)

Leveling The Ground (Using Float Position):

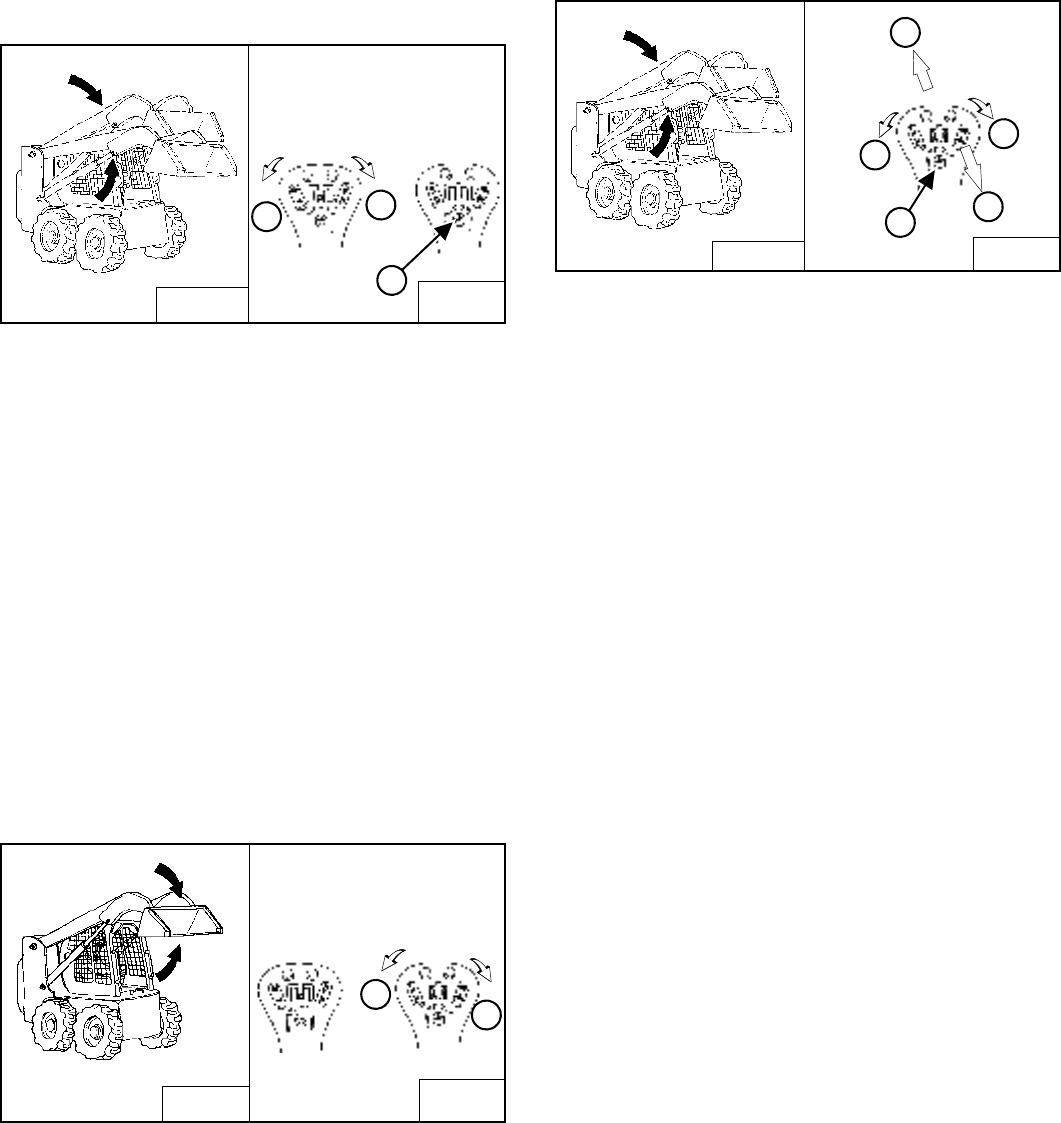

Figure OI-87

Press and hold the float button (Item 1) [Figure OI-87]

while the lever is in neutral. While lowering the lift

arms (Item 2) [Figure OI-87], release the float button.

Tilt the bucket forward (Item 3) [Figure OI-87] to change

the position of the cutting edge of the bucket.

With the bucket tilted farther forward, there is more force

on the cutting edge and more loose material can be

moved.

Drive backward to level loose material.

To disengage float, press the float button again or raise

the lift arms (Item 4) [Figure OI-87].

IMPORTANT

Never drive forward when the hydraulic control for lift

arms is in float position.

I-2005-1285

Digging A Hole

Figure OI-88

Lower the lift arms all the way (Item 1) [Figure OI-88]. Tilt

the bucket forward (Item 2) [Figure OI-88] until the

cutting edge of the bucket is on the ground.

Drive forward slowly and continue to tilt the bucket

down (Item 2) [Figure OI-88] until it enters the ground.

Tilt the bucket backward a small amount (Item 3)

[Figure OI-88] to increase traction and keep an even

digging depth. Continue to drive forward until the bucket

is full. When the ground is hard, raise and lower the

cutting edge (Items 1 & 2) [Figure OI-88] while driving

forward.

Tilt the bucket backward (Item 2) [Figure OI-88] as far as

it will go when the bucket is full.

Filling The Hole

Figure OI-89

Lower the lift arms (Item 1) [Figure OI-89] and put the

cutting edge of the bucket on the ground (Item 2)

[Figure OI-89]. Drive forward to the edge of the hole to

push the material into the hole.

Tilt the bucket forward (Item 2) [Figure OI-89] as soon as

it is past the edge of the hole.

If necessary, raise the lift arms to empty the bucket.

B-16268 B-15781

B-16258 B-15781A

B-15781B

B-16256

B-15781A

B-15781B

S250 Bobcat Loader

OI-45 Operation & Maintenance Manual

OPERATING PROCEDURE (CONT’D)

Selectable Joystick Control (SJC) with ‘ISO’ Pattern

Selected

Filling The Bucket:

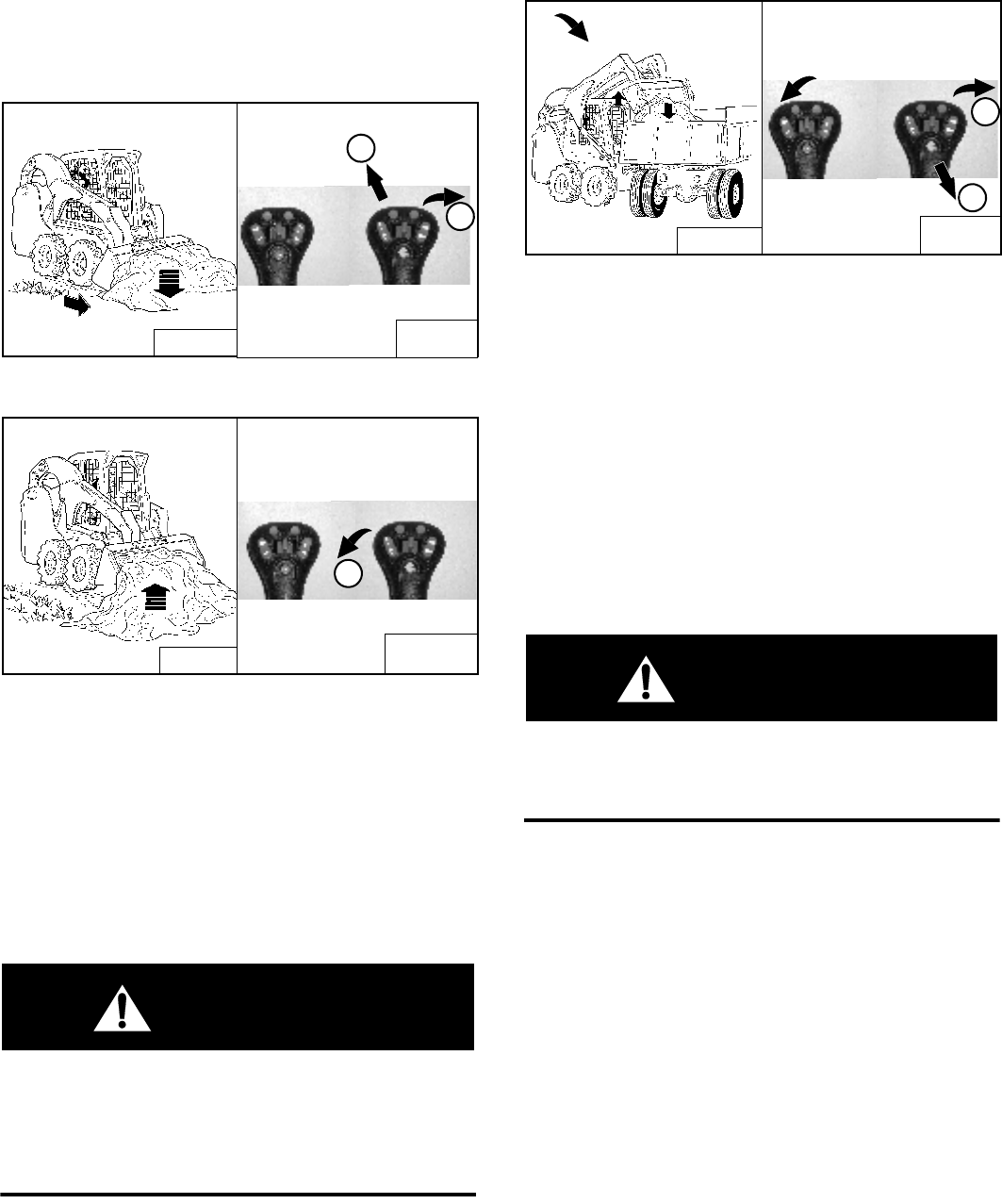

Figure OI-90

Figure OI-91

Lower the lift arms all the way (Item 1) [Figure OI-90].

Tilt the bucket forward (Item 2) [Figure OI-90] until the

cutting edge of the bucket is on the ground.

Drive slowly forward into the material. Tilt the bucket

backward (Item 1) [Figure OI-91] all the way when the

bucket is full.

Drive backward away from the material.

WARNING

Load, unload and turn on flat level ground. Do not

exceed Rated Operating Capacity (ROC) shown on

sign (decal) in cab. Failure to obey warnings can

cause the machine to tip or roll over and cause injury

or death.

W-2056-0903

Emptying The Bucket:

Figure OI-92

Keep the bucket low when moving to the area where you

want to empty the bucket.

Raise the lift arms (Item 1) [Figure OI-92]. Level the

bucket (Item 2) [Figure OI-92] while raising the lift arms

to help prevent material from falling off the back of the

bucket.

Drive forward slowly until the bucket is over the top of the

truck box or bin.

Empty the bucket (Item 2) [Figure OI-92]. If all material is

near the side of the truck or bin, use the bucket tilt to

move it to the other side.

WARNING

Never dump over an obstruction, such as a post, that

can enter the operator cab. The machine could tip

forward and cause injury or death.

W-2057-0694

B-16267 P-24820

P-24802

B-16273

P-24820

P-24802

B-16259

P-24820

P-24802

S250 Bobcat Loader

OI-46 Operation & Maintenance Manual

OPERATING PROCEDURE (CONT’D)

Selectable Joystick Control (SJC) with ‘ISO’ Pattern

Selected (Cont’d)

Leveling The Ground (Using Float Position):

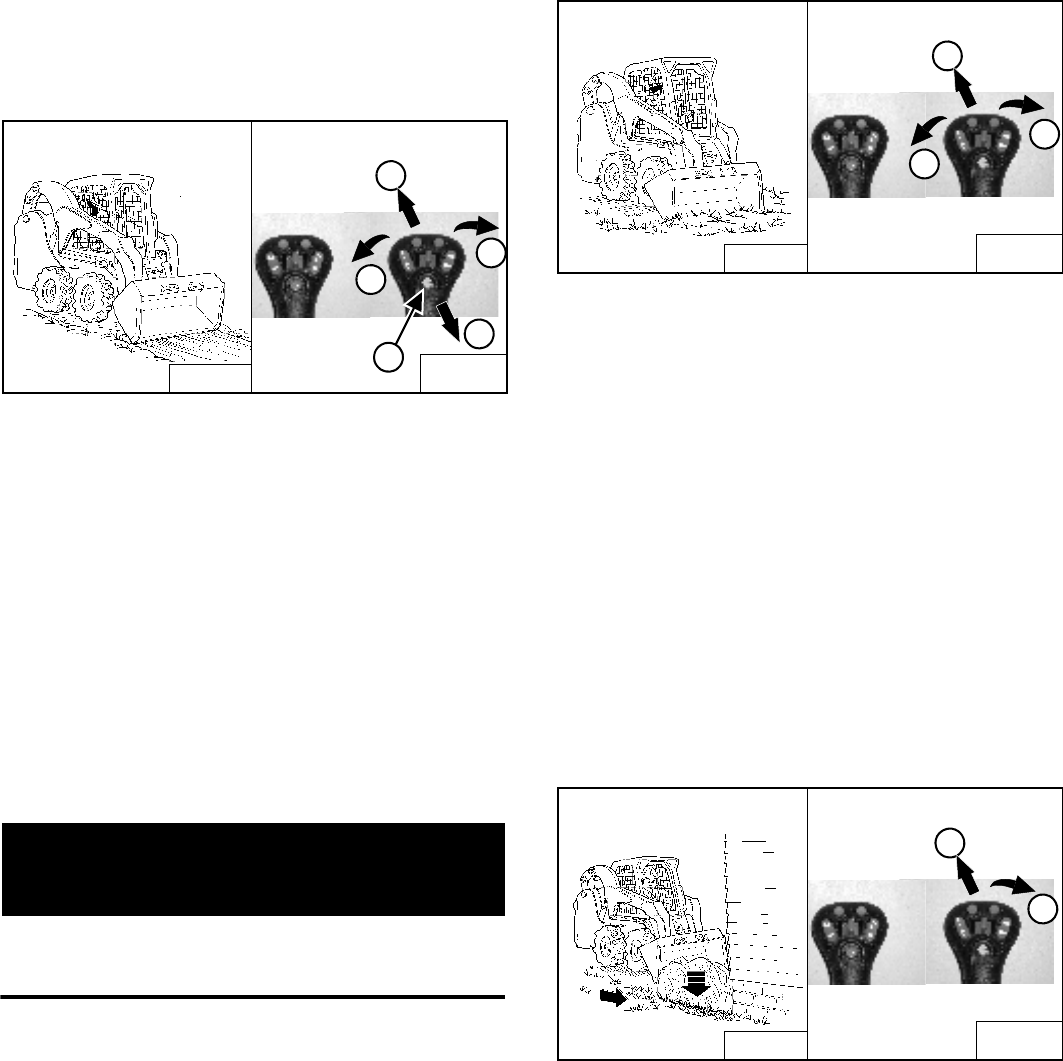

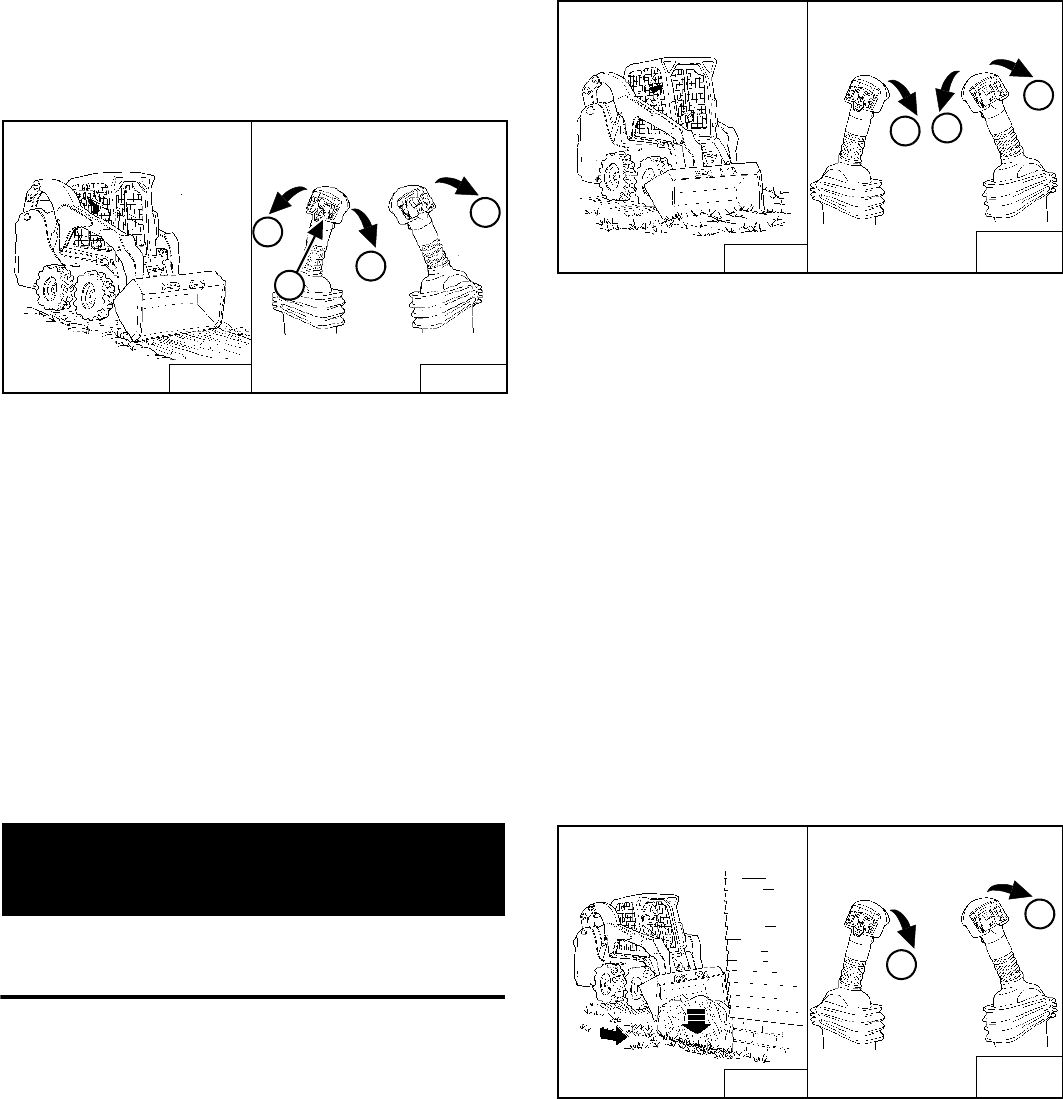

Figure OI-93

Press and hold the float button (Item 1) [Figure OI-93]

while the joystick is in neutral. While lowering the lift

arms (Item 2) [Figure OI-93], release the float button.

Tilt the bucket forward (Item 3) [Figure OI-93] to change

the position of the cutting edge of the bucket.

With the bucket tilted farther forward, there is more force

on the cutting edge and more loose material can be

moved.

Drive backward to level loose material.

To disengage, press the float button again or raise the lift

arms (Item 4) [Figure OI-93].

IMPORTANT

Never drive forward when the hydraulic control for lift

arms is in float position.

I-2005-1285

Digging A Hole

Figure OI-94

Lower the lift arms all the way (Item 1) [Figure OI-94].

Put the cutting edge of the bucket on the ground (Item 2)

[Figure OI-94].

Drive forward slowly and continue to tilt the bucket

down (Item 2) [Figure OI-94] until it enters the ground.

Raise the cutting edge a small amount (Item 3)

[Figure OI-94] to increase traction and keep an even

digging depth. Continue to drive forward until the bucket

is full. When the ground is hard, raise and lower the

cutting edge (Items 2 & 3) [Figure OI-94] while driving

forward.

Tilt the bucket backward (Item 3) [Figure OI-94] as far as

it will go when the bucket is full.

Filling The Hole

Figure OI-95

Lower the lift arms (Item 1) [Figure OI-95] and put the

cutting edge of the bucket on the ground (Item 2)

[Figure OI-95]. Drive forward to the edge of the hole to

push the material into the hole.

Tilt the bucket forward (Item 2) [Figure OI-95] as soon as

it is past the edge of the hole.

If necessary, raise the lift arms to empty the bucket.

B-16268

P-24820

P-24802

B-16258 P-24820

P-24802

B-16256

P-24820

P-24802

S250 Bobcat Loader

OI-47 Operation & Maintenance Manual

PARKING THE BOBCAT LOADER

Procedure

Stop the Bobcat loader on level ground.

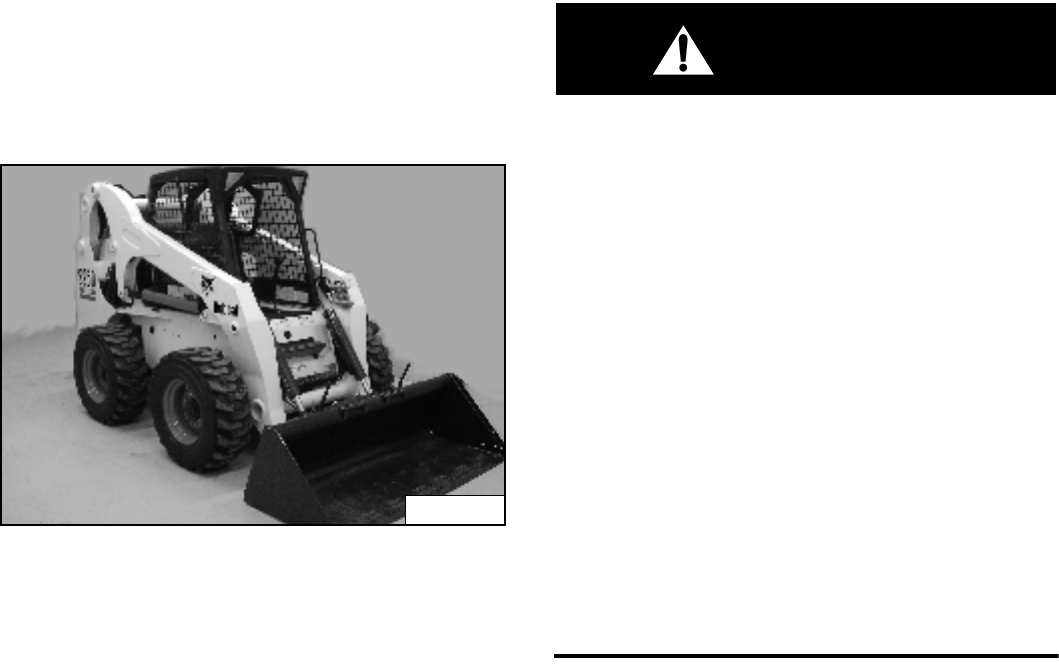

Figure OI-96

Lower the lift arms fully and put the attachment flat on the

ground [Figure OI-96].

Pull the engine speed control lever fully backward to

decrease the engine speed.

Let the engine run at idle speed for several minutes to let

the turbocharger cool before stopping the engine.

Turn the key switch to the STOP position (Standard

Panel) or press the STOP Button (Deluxe Panel).

Engage the parking brake.

Lift the seat bar and make sure the lift and tilt functions

are deactivated.

Unbuckle the seat belt.

Remove the key from the switch (Standard Panel) to

prevent operation of the loader by unauthorized

personnel.

WARNING

Before you leave the operator’s seat:

• Lower the lift arms, put the attachment flat on the

ground.

• Stop the engine.

• Engage the parking brake.

• Raise seat bar.

• (Foot Pedal Controls) Move pedals until both

lock.

• (Advanced Control System - ACS) Move the

hydraulic controls to the NEUTRAL POSITION to

make sure that both lift and tilt functions are

deactivated.

The seat bar system must deactivate the lift and tilt

control functions when the seat bar is up. Service the

system if hand controls do not deactivate.

• (Selectable Joystick Control - SJC) Move the

joysticks to the NEUTRAL POSITION to make

sure that travel and hydraulic functions are

deactivated.

The seat bar system must deactivate these functions

when the seat bar is up. Service the system if

controls do not deactivate.

W-2463-0603

P-31225

S250 Bobcat Loader

OI-48 Operation & Maintenance Manual

TRANSPORTING THE BOBCAT LOADER

Loading Onto Transport Vehicle

WARNING

Adequately designed ramps of sufficient strength are

needed to support the weight of the machine when

loading onto a transport vehicle. Wood ramps can

break and cause personal injury.

W-2058-0494

Be sure the transport and towing vehicles are of

adequate size and capacity (See Fluid Capacities on

Page SA-6), for weight of loader.

Figure OI-97

A loader with an empty bucket or no attachment must be

loaded backward onto the transport vehicle

[Figure OI-97].

The rear of the trailer must be blocked or

supported (Item 1) [Figure OI-97] when loading or

unloading the loader to prevent the front end of the trailer

from raising up.

Fastening To Transport Vehicle

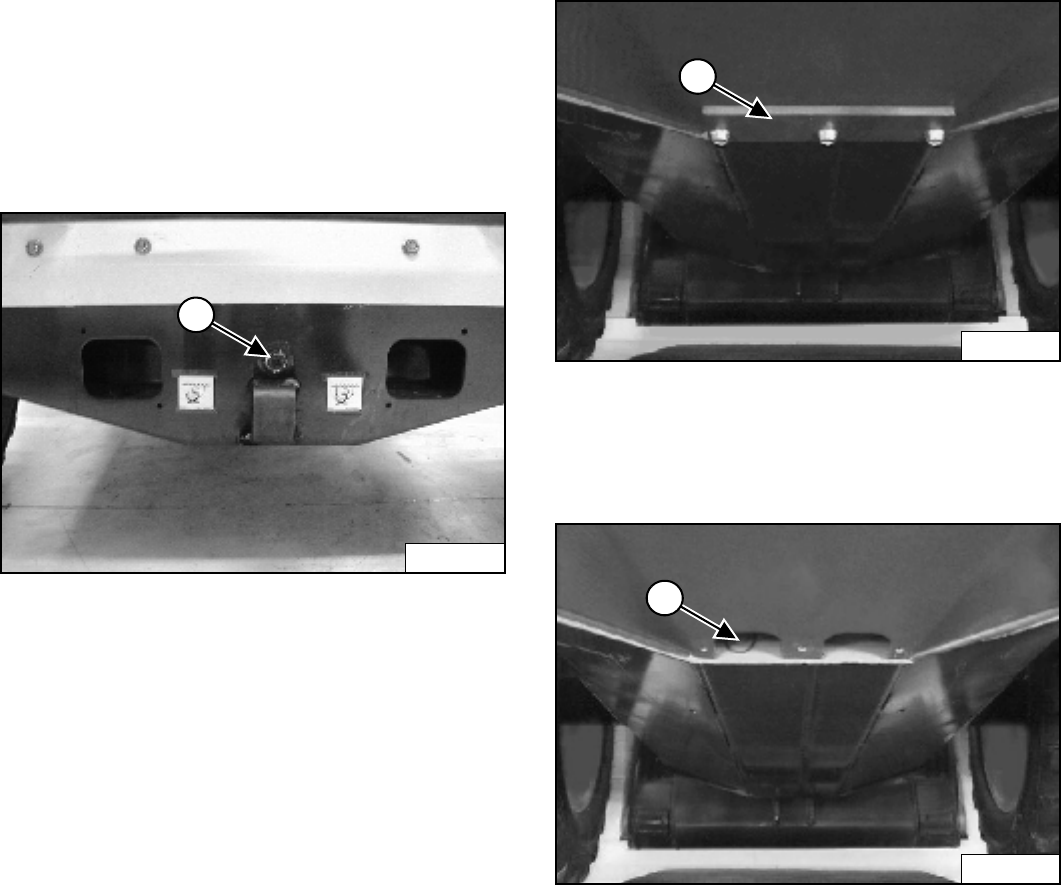

Figure OI-98

Use the following procedure to fasten the Bobcat loader

to the transport vehicle to prevent the loader from moving

during sudden stops or when going up or down slopes

[Figure OI-98].

• Lower the bucket or attachment to the floor.

• Stop the engine.

• Engage the parking brake.

• Install chains at the front and rear loader tie down

positions [Figure OI-98].

• Fasten each end of the chain to the transport vehicle.

P-31915

P-31916

P-64082

P-31228

S250 Bobcat Loader

OI-49 Operation & Maintenance Manual

TOWING THE LOADER

Towing Procedure

Because of the design of the loader, there is not a

recommended towing procedure.

• The loader can be lifted onto a transport vehicle.

• The loader can be skidded a short distance to move

for service (EXAMPLE: Move onto a transport

vehicle.) without damage to the hydrostatic system.

(The tires/tracks will not turn.) There might be slight

wear to the tires/tracks when the loader is skidded.

The towing chain (or cable) must be rated at 1 & 1/2

times the weight of the loader (See Machine Rating

on Page SPEC-4).

S250 Bobcat Loader

OI-50 Operation & Maintenance Manual

LIFTING THE LOADER

Single Point Lift

WARNING

AVOID INJURY OR DEATH

• Before lifting, check fasteners on single point lift

and operator cab.

• Assemble front cab fasteners as shown in this

manual.

• Never allow riders in the cab or bystanders within

5 meters while lifting the machine.

W-2007-0497

The loader can be lifted with the Single Point Lift which is

available as a kit from your Bobcat loader dealer.

Figure OI-99

Install the kit as explained in the Instructions with the kit

and attach lift as shown [Figure OI-99].

The Single Point Lift, supplied by Bobcat, is designed to

lift and support the Bobcat loader without affecting roll

over and falling object protection features of the operator

cab.

Four Point Lift

WARNING

AVOID INJURY OR DEATH

• Before lifting, check fasteners on four point lift.

• Never allow riders in the cab or bystanders within

5 meters while lift the machine.

W-2160-0694

The loader can be lifted with the Four Point Lift which is

available as a kit from your Bobcat loader dealer. The

backhoe mounting kit must also be installed to provide lift

points at the front of the loader.

Figure OI-100

Attach cables or chains to lift eyes [Figure OI-100].

B-16396A

B-16396B

S250 Bobcat Loader

PM-1 Operation & Maintenance Manual

PREVENTIVE MAINTENANCE

AIR CLEANER SERVICE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-16

Replacing Filter Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-16

BELT ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-31

Adjusting The Air Conditioner Belt . . . . . . . . . . . . . . . . . . . . . . . . PM-31

Adjusting The Alternator Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-31

BOBCAT INTERLOCK CONTROL SYSTEM (BICS) . . . . . . . . . . . . . PM-13

Inspecting Deactivation Of Lift And Tilt Functions (ACS and SJC) . .PM-13

Inspecting Deactivation Of The Auxiliary Hydraulics System

(Engine STOPPED - Key ON). . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-13

Inspecting The BICS Controller (Engine Stopped - Key ON) . . . . PM-13

Inspecting The Lift Arm By-Pass Control . . . . . . . . . . . . . . . . . . . PM-13

Inspecting The Seat Bar Sensor (Engine RUNNING). . . . . . . . . . PM-13

Inspecting The Traction Lock (Engine RUNNING) . . . . . . . . . . . . PM-13

BOB-TACH (HAND LEVER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-35

Inspection And Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-35

BOB-TACH (POWER) (OPTIONAL) . . . . . . . . . . . . . . . . . . . . . . . . . . PM-36

Inspection And Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-36

DRIVE BELT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-30

Adjusting The Drive Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-30

Replacing The Drive Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-30

ELECTRICAL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-21

Cleaning Battery and Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . PM-21

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-21

Fuse Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-21

Removing And Installing The Battery . . . . . . . . . . . . . . . . . . . . . . PM-24

Using A Booster Battery (Jump Starting) . . . . . . . . . . . . . . . . . . . PM-22

ENGINE COOLING SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-20

Cleaning The Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-20

ENGINE LUBRICATION SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-19

Checking Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .PM-19

Replacing The Oil And Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-19

FAN GEARBOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-30

Checking And Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-30

FINAL DRIVE TRANSMISSION (CHAINCASE) . . . . . . . . . . . . . . . . PM-29

Checking And Adding Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-29

Removing Oil From The Chaincase . . . . . . . . . . . . . . . . . . . . . . . PM-29

FUEL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-17

Filling The Fuel Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-17

Fuel Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-18

Fuel Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-17

Removing Air From The Fuel System . . . . . . . . . . . . . . . . . . . . . . PM-18

MAINTENANCE

PREVENTIVE

S250 Bobcat Loader

PM-2 Operation & Maintenance Manual

PREVENTIVE MAINTENANCE (CONT’D)

HEATING SYSTEM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-15

Cleaning And Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-15

HYDRAULIC / HYDROSTATIC SYSTEM . . . . . . . . . . . . . . . . . . . . . PM-25

Breather Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-27

Checking And Adding Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-25

Replacing Hydraulic Fluid and Case Drain Filters . . . . . . . . . . . . PM-26

Replacing Hydraulic/Hydrostatic Filter. . . . . . . . . . . . . . . . . . . . . PM-25

LIFT ARM SUPPORT DEVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-6

Installing The Lift Arm Support Device . . . . . . . . . . . . . . . . . . . . . PM-6

Removing The Lift Arm Support Device . . . . . . . . . . . . . . . . . . . . PM-7

LUBRICATING THE BOBCAT LOADER . . . . . . . . . . . . . . . . . . . . . . PM-32

Lubrication Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-32

MAINTENANCE SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-3

OPERATOR CAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-7

Cab Door Sensor (If Equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-9

Emergency Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-10

Lowering The Operator Cab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-9

Raising The Operator Cab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-7

PIVOT PINS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-34

Inspection And Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-34

REAR DOOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-14

Adjusting The Rear Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-14

Opening And Closing The Rear Door . . . . . . . . . . . . . . . . . . . . . PM-14

REAR GRILL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-15

Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-15

Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-15

SEAT BAR RESTRAINT SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . PM-12

Inspecting The Seat Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-12

Maintaining The Seat Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-12

SEAT BELT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-11

Inspection and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-11

SERVICE SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-5

Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-5

TIRE MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-28

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-28

Rotating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-28

Wheel Nuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PM-28

S250 Bobcat Loader

PM-3 Operation & Maintenance Manual

MAINTENANCE SAFETY

WARNING

Instructions are necessary before operating or servicing machine. Read and

understand the Operation & Maintenance Manual, Operator’s Handbook and signs

(decals) on machine. Follow warnings and instructions in the manuals when

making repairs, adjustments or servicing. Check for correct function after

adjustments, repairs or service. Untrained operators and failure to follow

instructions can cause injury or death.

W-2003-0903

Never service the Bobcat® Skid

Steer Loader without instructions.

Have good ventilation when

welding or grinding painted parts.

Wear dust mask when grinding

painted parts. Toxic dust and gas

can be produced.

Avoid exhaust fume leaks which

can kill without warning. Exhaust

system must be tightly sealed.

Stop, cool and clean engine of

flammable materials before

checking fluids.

Never service or adjust loader

with the engine running unless

instructed to do so in the

manual.

Avoid contact with leaking

hydraulic fluid or diesel fuel

under pressure. It can penetrate

the skin or eyes.

Never fill fuel tank with engine

running, while smoking or when

near open flame.

Maintenance procedures which are given in the Operation & Maintenance Manual can be performed by the owner/operator without any

specific technical training. Maintenance procedures which are not in the Operation & Maintenance Manual must be performed ONLY BY

QUALIFIED BOBCAT SERVICE PERSONNEL. Always use genuine Bobcat replacement parts. The Service Safety Training Course is

available from your Bobcat dealer.

Disconnecting or loosening any

hydraulic tubeline, hose, fitting,

component or a part failure can

cause lift arms to drop. Do not go

under lift arms when raised

unless supported by an

approved lift arm support device.

Replace it if damaged.

Keep body, jewelry and clothing

away from moving parts,

electrical contact, hot parts and

exhaust.

Wear eye protection to guard

from battery acid, compressed

springs, fluids under pressure

and flying debris when engines

are running or tools are used.

Use eye protection approved for

type of welding.

Keep rear door closed except for

service. Close and latch door

before operating the loader.

Never work on loader with lift

arms up unless lift arms are held

by an approved lift arm support

device. Replace if damaged.

Never modify equipment or add

attachments not approved by

Bobcat Company.

Lead-acid batteries produce

flammable and explosive gases.

Keep arcs, sparks, flames and

lighted tobacco away from

batteries.

Batteries contain acid which

burns eyes or skin on contact.

Wear protective clothing. If acid

contacts body, flush well with

water. For eye contact flush well

and get immediate medical

attention.

Safety Alert Symbol: This symbol with a warning statement, means: “Warning, be alert! Your safety is

involved!” Carefully read the message that follows.

Use the correct procedure to lift

ot lower operator cab.

Cleaning and maintenance are

required daily.

B-16261

CORRECT

B-10731a

CORRECT

B-16264

CORRECT

B-16272

WRONG WRONG

B-16260 B-16263

WRONG

B-6589

B-16270

WRONG

B-16271

MSW14-0903

WRONG

S250 Bobcat Loader

PM-4 Operation & Maintenance Manual

S250 Bobcat Loader

PM-5 Operation & Maintenance Manual

SERVICE SCHEDULE

Chart

Maintenance work must be done at regular intervals. Failure to do so will result in excessive wear and early failures. The

service schedule is a guide for correct maintenance of the Bobcat loader.

WARNING

Instructions are necessary before operating or servicing machine. Read and

understand the Operation & Maintenance Manual, Operator’s Handbook and

signs (decals) on machine. Follow warnings and instructions in the manuals

when making repairs, adjustments or servicing. Check for correct function

after adjustments, repairs or service. Untrained operators and failure to follow

instructions can cause injury or death. W-2003-0903

SERVICE SCHEDULE HOURS

ITEM SERVICE REQUIRED 8-10 50 100

■

250

■

500

■

1000

Engine Oil Check the oil level and add as needed.

Engine Air Filter and Air System Check display panel. Service only when required. Check for leaks and

damaged components.

Engine Cooling System Clean debris from oil cooler, radiator & grill.

Lift Arms, Cylinders, Bob-Tach

Pivot Pins and Wedges

Lubricate with multi-purpose lithium based grease.

Tires Check for damaged tires and correct air pressure.

Seat Bar, Control Interlocks, Seat

Belt, Seat Belt Retractors

Check the condition of seat belt. Clean or replace seat beltretractors as

needed. Check the sear bar and control interlocks for correct operation. Clean

dirt and debris from moving parts.

Bobcat Interlock Control Systems

(BICS™)

Check that four (4) BICS™ indicator lights and functions are activated. See

details in this Manual.

Safety Signs and Safety Treads Check for damaged signs (decals) and safety treads. Replace any signs or

safety treads that are damaged or worn.

Operator Cab Check the fastening bolts, washers and nuts. Check the condition of the cab.

Indicators and Lights Check for correct operation of all indicators and lights.

Fuel Filter Remove the trapped water.

Heater and A/C Filters Clean or replace filters as needed during heating/cooling season.

Hydraulic Fluid, Hoses and

Tubelines

Check fluid level and add as needed. Check for damage and leaks. Repair or

replace as needed.

Final Drive Trans. (Chaincase),

Foot Pedals or Hand Controls,

and Steering Levers

Check oil level. Check for correct operation. Repair or adjust as needed.

Wheel Nuts ❏Check for loose wheel nuts and tighten to 142-156 Nm torque.

Parking Brake Check operation.

Battery Check cables, connections and electrolyte level. Add distilled water as needed.

Engine/Hydro. Drive Belt *Check for wear or damage. Check idler arm stop.

Alternator Belt Check tension and adjust as needed.

Air Condition Belt Check belt for wear. Adjust or replace as needed.

Bobcat Interlock Control System

(BICS™)

Check the function of the lift arm by-pass control.

Fuel Filter Replace filter element.

Steering Shaft Grease fittings.

Fan Drive Gearbox Check gear lube level.

Hydraulic Reservoir Breather Cap Replace the reservoir breather cap.

Hyd./Hydro. Filter ●Replace the filter element.

Engine Oil and Filter Replace oil and filter. Use CD or better grade oil and Bobcat filter. ^ ❍

Final Drive Trans. (Chaincase) Replace the fluid.

Hydraulic Reservoir Replace the fluid.

Case Drain Filters Replace the filters.

❏Check wheel nut torque every 8 hours for the first 24 hours.

* Inspect the new belt after first 50 hours.

●Also replace hydraulic/hydrostatic filter element when the transmission warning light comes ON.

^ First oil and filter change must occur at 50 hours; 500 hours thereafter.

❍When operating under severe conditions, change oil and filter every 250 hours.

■Or every 12 months.

S250 Bobcat Loader

PM-6 Operation & Maintenance Manual

LIFT ARM SUPPORT DEVICE

Installing The Lift Arm Support Device

WARNING

Never work on a machine with the lift arms up unless

the lift arms are secured by an approved lift arm

support device. Failure to use an approved lift arm

support device can allow the lift arms or attachment

to fall and cause injury or death.

W-2059-0598

WARNING

Service lift arm support device if damaged or if parts

are missing. Using a damaged lift arm support or

with missing parts can cause lift arms to drop

causing injury or death.

W-2271-1197

Figure PM-1

Put jackstands under the rear corners of the loader frame

(Inset) [Figure PM-1].

Remove the lift arm support device (Item 1)

[Figure PM-1] from the storage position.

The operator must stay in the operator seat with the seat

belt fastened and the seat bar lowered until the lift arm

support device is installed.

Start the engine and raise the lift arms all the way up.

Figure PM-2

Have a second person install the lift arm support device

over the rod of one of the lift cylinders [Figure PM-2].

The lift arm support device must be tight against the

cylinder rod.

Figure PM-3

Lower the lift arms slowly until the lift arm support device

is held between the lift arms and the lift cylinder

[Figure PM-3]. The tabs of the lift arm support device

must go under the cylinder (Inset) [Figure PM-3].

P-31266

P-31290

P-31264

P-31265

P-10136

S250 Bobcat Loader

PM-7 Operation & Maintenance Manual

LIFT ARM SUPPORT DEVICE (CONT’D)

Removing The Lift Arm Support Device

The operator must be in the operator’s seat, with the seat

belt fastened and seat bar lowered, until the lift arm

support device is removed and the lift arms are lowered

all the way.

Start the engine and raise the lift arms all the way up.

Have a second person remove the lift arm support

device.

Lower the lift arms all the way and stop the engine.

Return the lift arm support device to the storage position

and secure with clamping knobs.

Remove the jackstands.

OPERATOR CAB

Description

The Bobcat loader has an operator cab (ROPS and

FOPS) as standard equipment to protect the operator

from rollover and falling objects. Check with your dealer if

the operator cab has been damaged. The seat belt must

be worn for rollover protection.

ROPS / FOPS - Roll Over protective Structure per

SAE J1040 and ISO 3471, and Falling Object Protective

Structure per SAE J1043 and ISO 3449, Level I. Level II

is available.

Level I - Protection from falling bricks, small concrete

blocks, and hand tools encountered in operations such as

highway maintenance, landscaping, and other

construction sites.

Level II - Protection from falling trees, rocks: for machines

involved in site clearing, overhead demolition or forestry.

Raising The Operator Cab

Always stop the engine before raising or lowering the cab.

Stop the loader on a level surface. Lower the lift arms.

If the lift arms must be up while raising the operator cab,

install the lift arm support device. (See LIFT ARM

SUPPORT DEVICE on Page PM-6.)

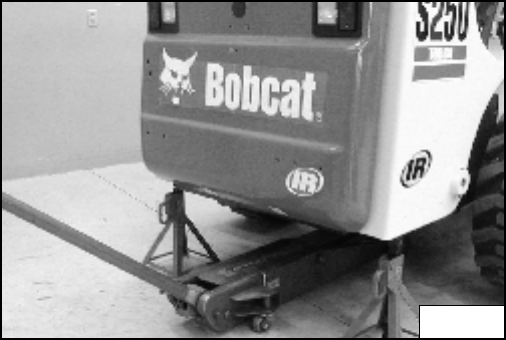

Figure PM-4

Install jackstands under the rear of the loader frame

[Figure PM-4].

P-31290

S250 Bobcat Loader

PM-8 Operation & Maintenance Manual

OPERATOR CAB (CONT’D)

Raising The Operator Cab (Cont’d)

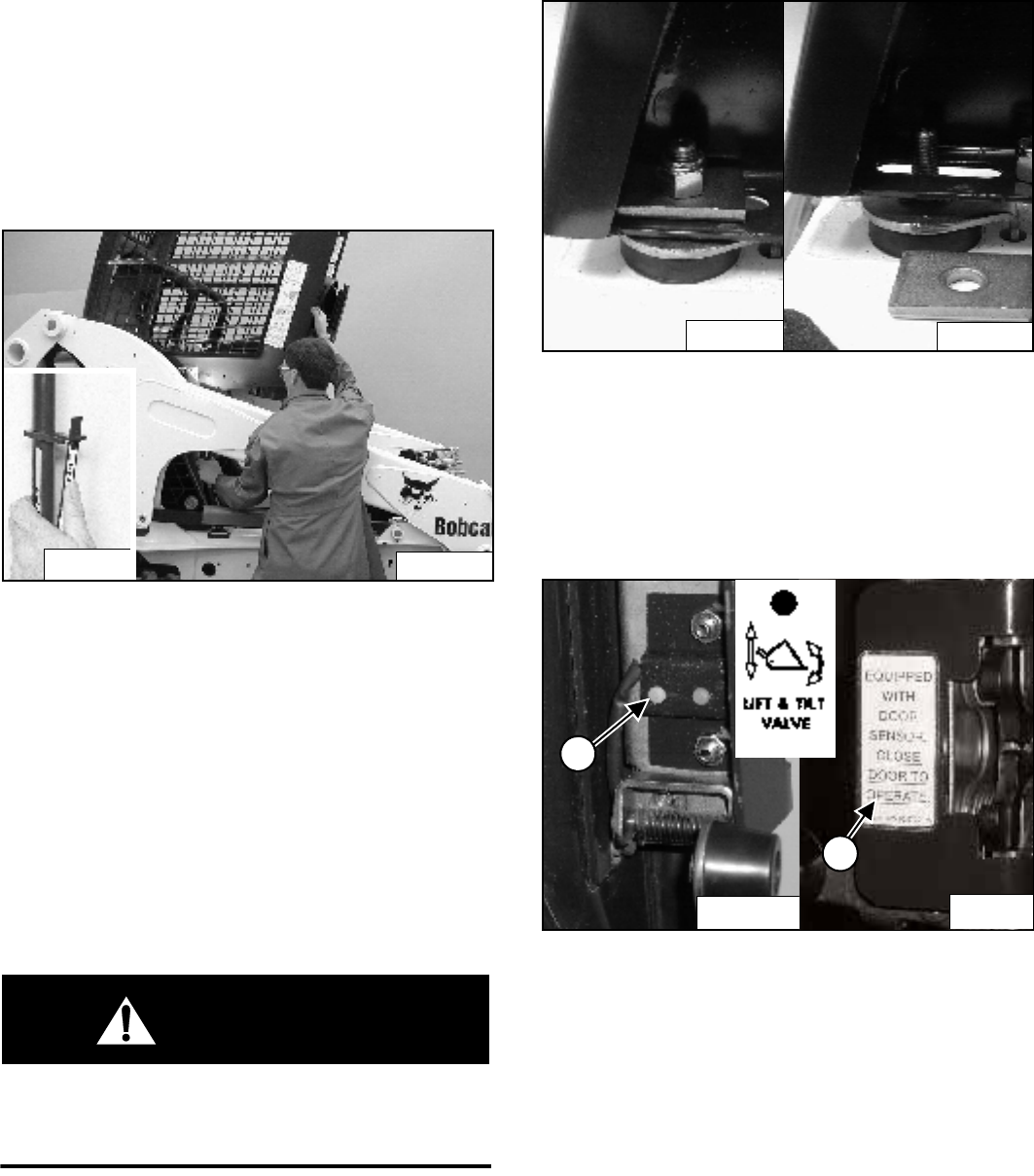

Figure PM-5

Remove the nuts and plates [Figure PM-5] (both sides)

at the front corners of the cab.

Figure PM-6

Lift on the grab handles and bottom of the operator cab

[Figure PM-6] slowly until the cab is all the way up and

the latching mechanism engages.

Advanced Control System (ACS)

WARNING

Never modify operator cab by welding, grinding,

drilling holes or adding attachments unless

instructed to do so by Bobcat. Changes to the cab

can cause loss of operator protection from rollover

and falling objects, and result in injury or death.

W-2069-1299

P-31289

P-31288

P-31267

S250 Bobcat Loader

PM-9 Operation & Maintenance Manual

OPERATOR CAB (CONT’D)

Lowering The Operator Cab

Always stop the engine before raising or lowering the cab.

NOTE: Make sure the seat bar is fully raised or

lowered when lowering the cab. Always use

the grab handles to lower the cab.

Figure PM-7

Pull down on the bottom of the operator cab until it stops

at the latching mechanism [Figure PM-7].

NOTE: The weight of the cab increases when

equipped with options and accessories such

cab door, heater, air conditioning, etc. In

these cases, the cab may need to be raised

slightly from the latch to be able to release the

latch.

Support the cab and release the latching mechanism

(Inset) [Figure PM-7]. Remove your hand from latching

mechanism when the cab is past the latch stop. Use both

hands to lower the cab all the way.

WARNING

PINCH POINT CAN CAUSE INJURY

Remove your hand from the latching mechanism

when the cab is past the latch stop.

W-2469-0803

Figure PM-8

Install the plates and nuts (both sides) [Figure PM-8].

Tighten the nuts to 54-68 Nm torque.

Cab Door Sensor (If Equipped)

Figure PM-9

Later model cab doors* have a sensor (Item 1)

[Figure PM-9] installed which edactivates the lift and tilt

valves when the door is open.

A decal is located on the latch mechanism (Item 2)

[Figure PM-9].

The LIFT & TILT VALVE light (Item 3) [Figure PM-9] will

be ON when the door is closed and the PRESS TO

OPERATE LOADER button is pressed.

* The Cab Door Sensor Kit can be installed on early

model cab doors. See your Bobcat dealer.

P-31268

N-20120

P-31289

P-31288

P-31202

P-34171

B-15551J

S250 Bobcat Loader

PM-10 Operation & Maintenance Manual

OPERATOR CAB (CONT’D)

Emergency Exit

The front opening on the operator cab and rear window

provide exits.

Rear Window (If Equipped)

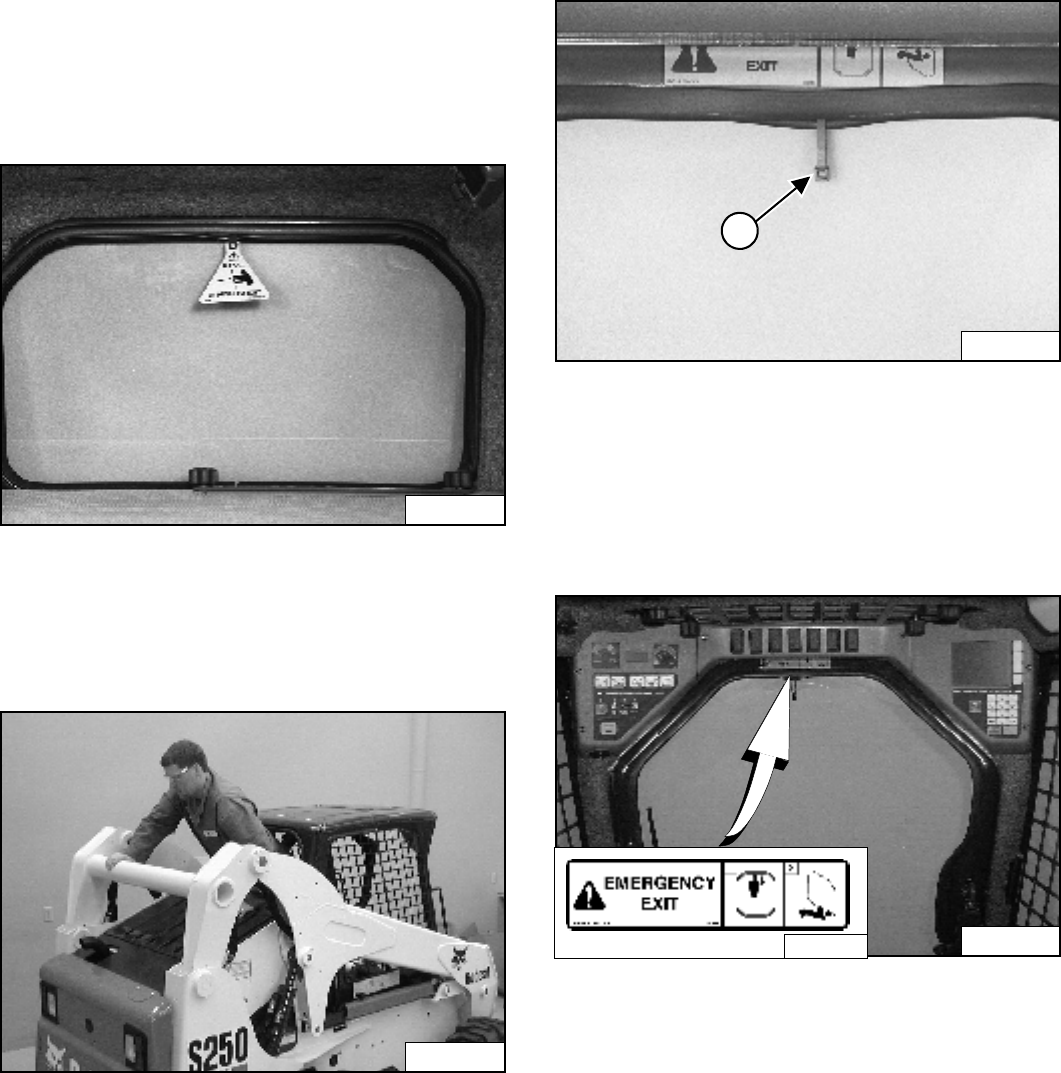

Figure PM-10

Pull on the tag [Figure PM-10] on the top of the rear

window to remove the rubber cord.

Push the rear window out of the rear of the operator cab.

Figure PM-11

Exit through the rear of the operator cab [Figure PM-11].

Front Door (If Equipped)

Figure PM-12

NOTE: When an Operator Cab Enclosure Kit is

installed, the window of the front door can be

used as an emergency exit [Figure PM-13].

Pull the plastic loop at the top of the window in the front

door to remove the rubber cord (Item 1) [Figure PM-12].

Figure PM-13

Push the window out with your foot [Figure PM-13] at

any corner (X) of the window.

Exit through the front door.

N-19386

P-31269

N-20171

P-24472

6707852

S250 Bobcat Loader

PM-11 Operation & Maintenance Manual

SEAT BELT

Inspection and Maintenance

WARNING

Failure to properly inspect and maintain seat belt can

cause serious injury or death in the event of an

accident.

The entire seat belt system must be replaced if the

machine has been involved in an accident or if any

part has been damaged.

W-2466-0703

Check the seat belt daily for correct function.

Inspect the seat belt system thoroughly at least once

each year or more often if the machine is exposed to

severe environmental conditions or applications.

Any seat belt system that shows cuts, fraying, extreme or

unusual wear, significant discolorations due to ultraviolet

(UV) exposure, dusty / dirty conditions, abrasion to the

seat belt webbing, or damage to the buckle, latch plate,

retractor (if equipped), hardware or any other obvious

problem should be replaced immediately.

1. Check the webbing. If the system is equipped with a

retractor, pull the webbing completely our and inspect

the full length of the webbing. Look for cuts, wear,

fraying, dirt and stiffness.

2. Check the buckle and latch for correct operation.

Make sure latch plate is not excessively worn,

deformed or buckle is not damaged or casing broken.

3. Check the retractor web storage device (if equipped)

by extending webbing to determine if it looks correct

and that it spools out and retracts webbing correctly.

4. Check webbing in areas exposed to ultraviolet (UV)

rays from the sun or extreme dust or dirt. If the original

color of the webbing in these areas is extremely faded

and / or the webbing is packed with dirt, the webbing

strength may have deteriorated.

See your Bobcat dealer for seat belt system replacement

parts for you machine.

Figure PM-14

B-22283

S250 Bobcat Loader

PM-12 Operation & Maintenance Manual

SEAT BAR RESTRAINT SYSTEM

The seat bar restraint system has a pivoting seat bar with

arm rests.

The operator controls the use of the seat bar. The seat

bar in the down position helps to keep the operator in the

seat.

Models with foot pedals have hydraulic valve spool

interlocks for the lift and tilt functions. The spool

interlocks require the operator to lower the seat bar in

order to operate the foot pedal controls.

When the seat bar is down, the PRESS TO OPERATE

LOADER Button is activated and the engine is running,

the lift, tilt and traction drive functions can be operated.

When the seat bar is up, the lift and tilt control pedals are

locked when returned to the NEUTRAL position.

Models with the Advanced Control System (ACS)

have mechanical interlocks for the handles and pedals.

The interlocks for the handles and pedals require the

operator to lower the seat bar in order to operate the

selected controls.

When the seat bar is down, the PRESS TO OPERATE

LOADER button is activated and the engine is running,

the lift, tilt and traction drive functions can be operated

using the selected controls (handles, or foot pedals).

When the seat bar is up, the handles and pedals are

locked when returned to the NEUTRAL position.

Models with Selectable Joystick Control (SJC) have

electrical deactivation of joystick functions. Activation of

functions require the operator to lower the seat bar.

When the seat bar is down, the PRESS TO OPERATE

LOADER button is activated and the engine is running,

the lift, tilt and traction drive functions can be operated.

When the seat bar is up, the joystick functions are

deactivated even though the joystick does not

mechanically lock.

Inspecting The Seat Bar

Sit in the seat and fasten the seat belt. Engage the

parking brake. Pull the seat bar all the way down. Start

the engine. Press the PRESS TO OPERATE LOADER

Button.

Operate the hydraulic controls to check that both the lift

and tilt functions operate correctly. Raise the lift arms

until the attachment is about 600 mm off the ground.

Raise the seat bar. Move the hydraulic controls. Pedals

and handles (if equipped) must be firmly locked in the

NEUTRAL position (except joysticks). There must be no

motion of the lift arms or tilt (attachment) when the

controls are moved.

Lower the seat bar, press the PRESS TO OPERATE

LOADER Button, lower the lift arms. Operate the lift

control. While the lift arms are going up, raise the seat

bar. The lift arms must stop.

Lower the seat bar, press the PRESS TO OPERATE

LOADER Button, lower the lift arms and put the

attachment flat on the ground. Stop the engine. Raise the

seat bar. Operate the foot pedals and handles (if

equipped) to be sure they are firmly locked in the

NEUTRAL position (except joysticks).

Maintaining The Seat Bar

(See SERVICE SCHEDULE on Page PM-5) and on the

loader for correct service interval.

Figure PM-15

Use compressed air to clean any debris or dirt from the

pivot parts (Item 1) [Figure PM-15]. Do not lubricate.

Inspect all mounting hardware. The correct bolt torque is

35 Nm.

If the seat bar system does not function correctly, replace

parts that are worn or damaged. Use only genuine

Bobcat replacement parts.

WARNING

The seat bar system must deactivate the lift and tilt

control functions when the seat bar is up. Service the

system if hydraulic controls do not deactivate.

W-2465-0703

N-19225

S250 Bobcat Loader

PM-13 Operation & Maintenance Manual

BOBCAT INTERLOCK CONTROL SYSTEM (BICS)

Inspecting The BICS Controller (Engine Stopped -

Key ON)

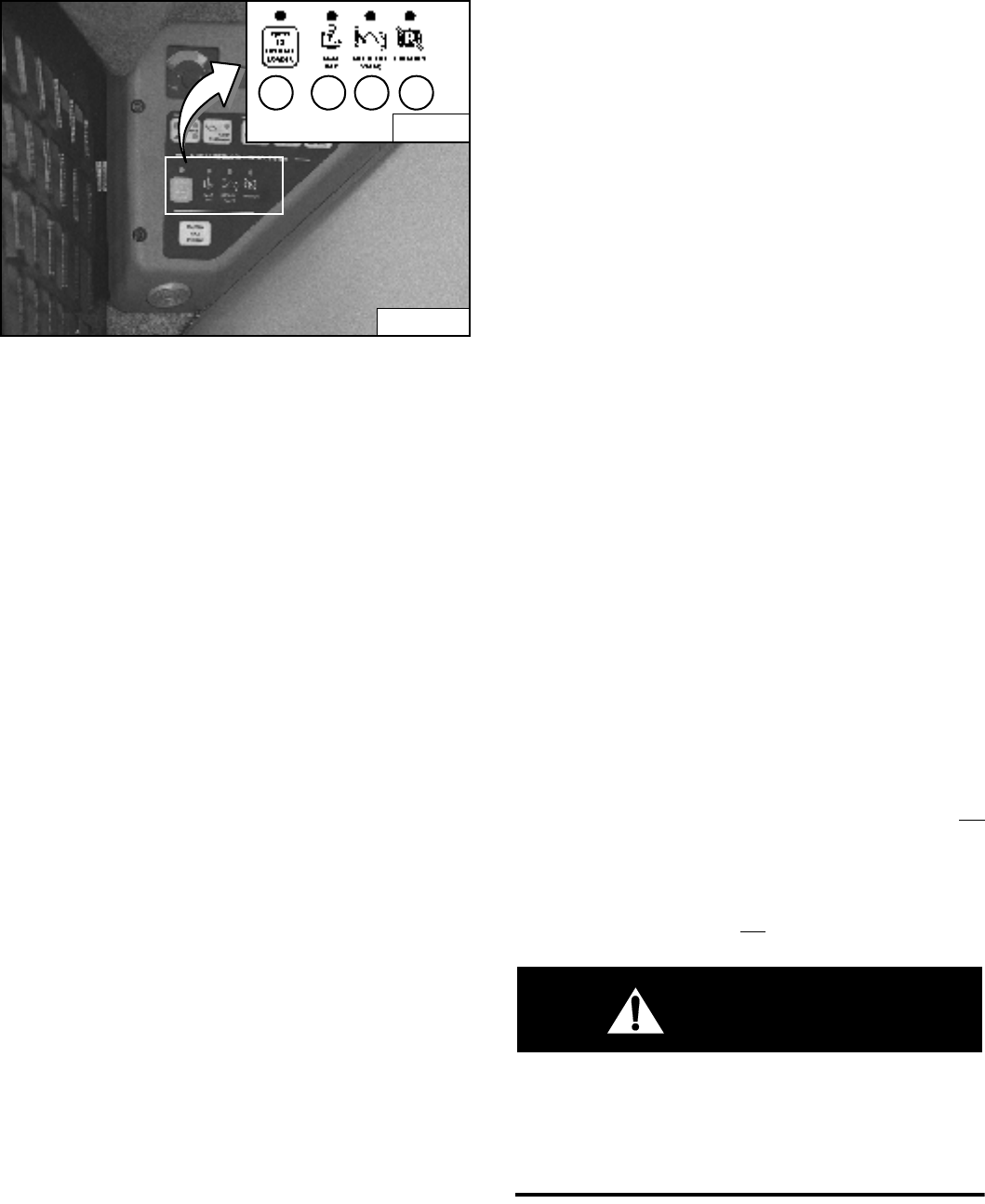

Figure PM-16

1. Sit in operator’s seat. Turn key ON. (Standard Panel),

press RUN/ENTER Button (Deluxe Panel), lower seat

bar and disengage parking brake. Press the PRESS

TO OPERATE LOADER Button. Three BICS lights

(Items 1, 2 & 3) [PRESS TO OPERATE LOADER,

SEAT BAR, AND LIFT & TILT VALVE] on left

instrument panel should be ON [Figure PM-16].

2. Raise seat bar fully. All four BICS lights (Items 1, 2, 3,

and 4) [PRESS TO OPERATE LOADER, SEAT BAR,

LIFT & TILT VALVE AND TRACTION*] on left

instrument panel should be OFF [Figure PM-16].

NOTE: Record what lights are blinking (if any) and

the number of light flashes. (See BICS™

SYSTEM on Page PM-3).

Inspecting Deactivation Of The Auxiliary Hydraulics

System (Engine STOPPED - Key ON)

3. Sit in operator’s seat, lower seat bar, and press the

PRESS TO OPERATE LOADER Button. Press the

auxiliary hydraulics FLOW Button. The auxiliary

FLOW Button light will come ON. Raise the seat bar.

The light should be OFF.

Inspecting The Seat Bar Sensor (Engine RUNNING)

4. Sit in operator’s seat, lower seat bar, engage parking

brake and fasten seat belt.

5. Start engine and operate at low idle. Press the

PRESS TO OPERATE LOADER Button. While raising

the lift arms, raise the seat bar fully. The lift arms

should stop. Repeat using the tilt function.

Inspecting The Traction Lock (Engine RUNNING)

6. Fasten seat belt, disengage parking brake, press the

PRESS TO OPERATE LOADER Button and raise

seat bar fully. Move steering levers slowly forward

and backward. The TRACTION lock should be

engaged. Lower the seat bar. Press the PRESS TO

OPERATE LOADER Button.

7. Engage parking brake and move steering levers

slowly forward and backward. The TRACTION lock

should be engaged.

NOTE: *The TRACTION light on the left instrument

panel will remain OFF until the engine is

started, the PRESS TO OPERATE LOADER

Button is pressed and the parking brake is

disengaged.

Inspecting The Lift Arm By-Pass Control

8. Raise the lift arms 2 meters off the ground. Stop

engine. Turn lift arm by-pass control knob clockwise

1/4 turn. Pull up and hold lift arm by-pass control knob

until lift arms slowly lower.

Inspecting Deactivation Of Lift And Tilt Functions

(ACS and SJC)

9. Sit in operator’s seat and fasten seat belt. Lower seat

bar, start engine and press the PRESS TO OPERATE

LOADER Button.

10. Raise lift arms about 2 meters off the ground.

11. Turn key OFF (Standard Panel), press STOP Button

(Deluxe Panel), and wait for the engine to come to a

complete stop.

12. Turn key ON (Standard Panel), press RUN/ENTER

Button (Deluxe Panel). Press the PRESS TO

OPERATE LOADER Button, move hand control or

joystick to lower the lift arms. Lift arms should not

lower.

13. Move the control (foot pedal, hand control or joystick)

to tilt the bucket (or attachment) forward. The bucket

(or attachment) should not tilt forward.

WARNING

AVOID INJURY OR DEATH

The Bobcat Interlock Control System (BICS™) must

deactivate the lift, tilt and traction drive functions. If it

does not, contact your dealer for service. DO NOT

modify the system.

W-2151-0394

N-18409

B-15551G

134

S250 Bobcat Loader

PM-14 Operation & Maintenance Manual

REAR DOOR

Opening And Closing The Rear Door

WARNING

AVOID INJURY OR DEATH

Never service or adjust the machine when the engine

is running unless instructed to do so in the manual.

W-2012-0497

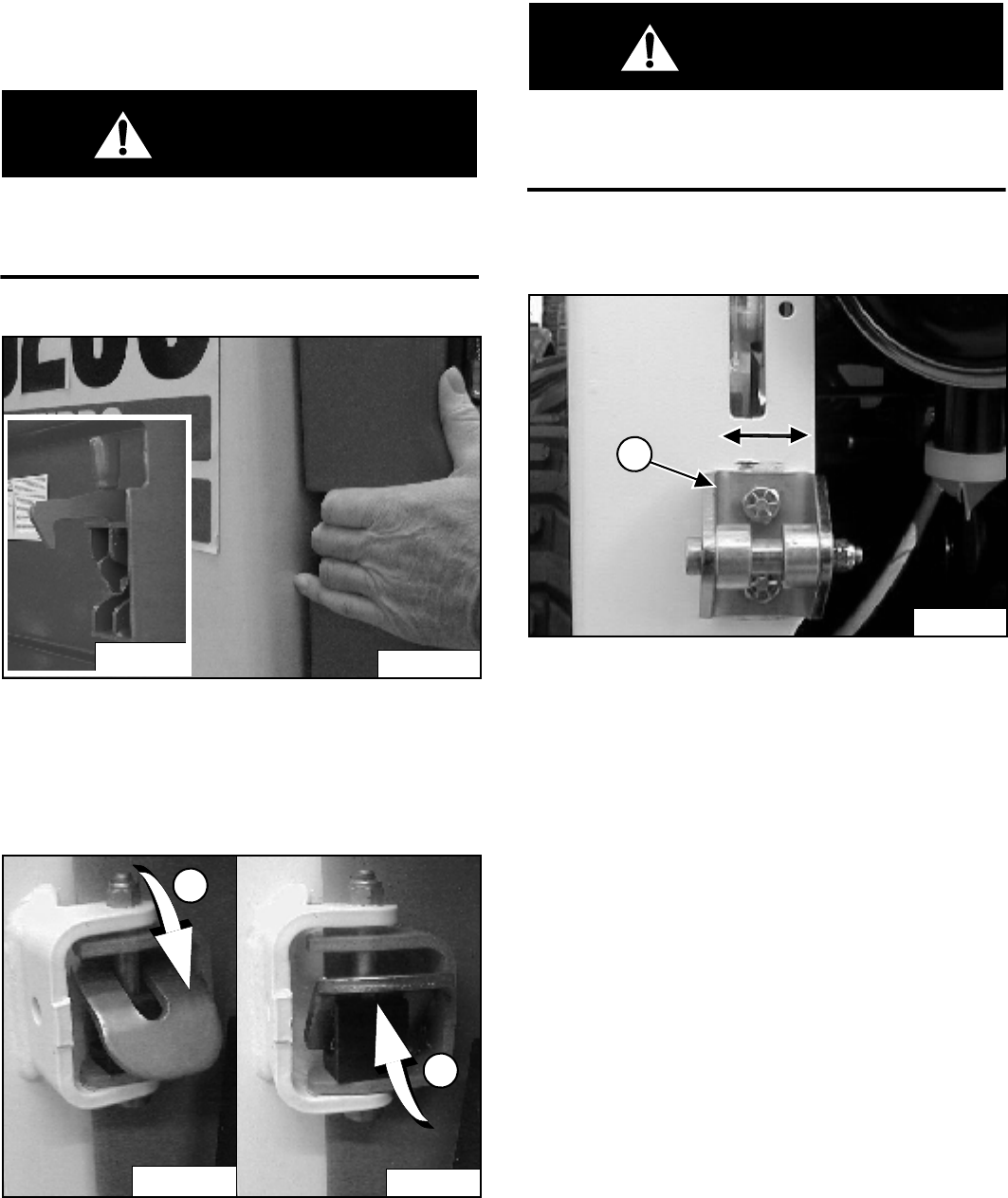

Figure PM-17

Reach into the slot in the rear door and pull the latch

handle [Figure PM-17].

Pull the rear door open.

Figure PM-18

Move the door stop into the engaged position (Item 1)

[Figure PM-18] to disengage the door stop and allow the

door to close.

Close the rear door.

WARNING

Keep the rear door closed when operating the

machine. Failure to do so could seriously injure a

bystander.

W-2020-1285

Adjusting The Rear Door

Figure PM-19

The door latch (Item 1) [Figure PM-19] can be adjusted

side to side for alignment with the door latch mechanism.

Close the rear door before operating the loader.

P-31246

P-30806

P-16367

P-16366

P-30804

S250 Bobcat Loader

PM-15 Operation & Maintenance Manual

REAR GRILL

Removing

Open the rear door.

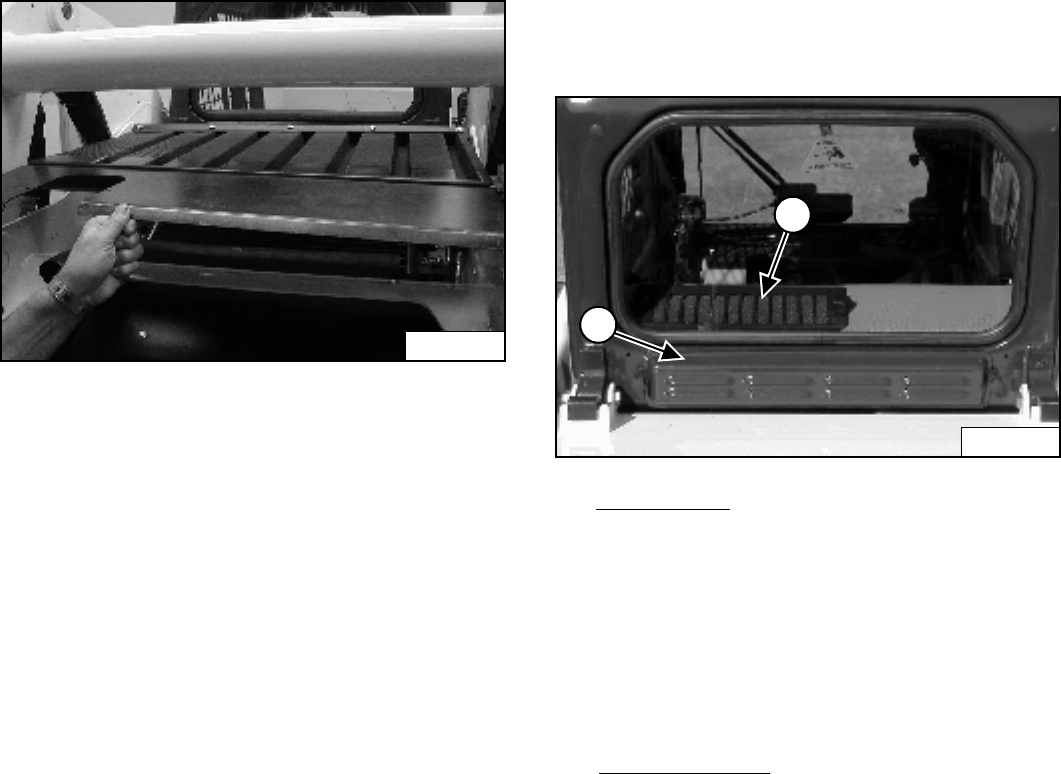

Figure PM-20

Lift and pull the rear grill and remove it from the loader

[Figure PM-20].

Installing

Insert the tabs into the slots at the front end of the grill.

Lower the grill to the frame.

Close the rear door.

HEATING SYSTEM

Cleaning And Maintenance

The heating system requires regular inspection and

maintenance. (See SERVICE SCHEDULE on

Page PM-5) for intervals.

Filters

Figure PM-21

The Fresh Air Filter is located below the rear window of

the cab (Item 1) [Figure PM-21].

Remove the knobs and remove the filter housing.

Shake the filter or use low air pressure to remove dirt.

The filter can be cleaned several times in this manner

then it must be replaced.

Reinstall the filter housing.

The Recirculation Filter is located in front of the rear

window inside the cab (Item 2) [Figure PM-21].

Remove the clamping knobs, grill and filter.

Shake the filter or use low air pressure to remove dirt.

The filter can be cleaned several times in this manner

then it must be replaced.

Troubleshooting

If the fan does not run, check the fuse (See

ELECTRICAL SYSTEM on Page PM-21).

P-31249

P-28147

S250 Bobcat Loader

PM-16 Operation & Maintenance Manual

AIR CLEANER SERVICE

Replacing Filter Elements

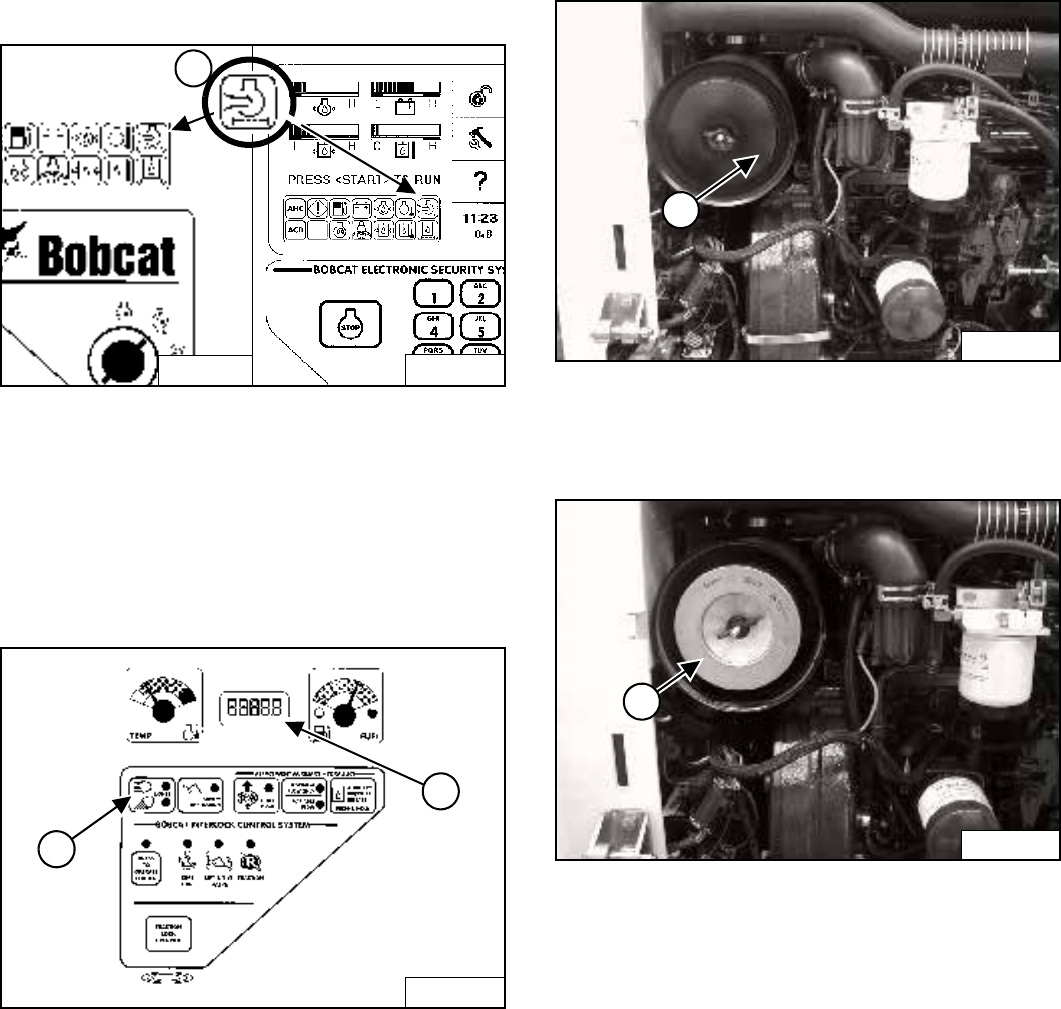

Figure PM-22

It is important to change the air filter element only when

the Air Cleaner Icon in the right panel is ON (Item 1)

[Figure PM-22] and you hear three beeps from the

alarm.

Replace the inner filter every third time the outer filter is

replaced or as indicated.

Figure PM-23

Press and hold the LIGHT Button (Item 1)

[Figure PM-23] for two seconds.

If the filter element needs replacement, the CODE [01-17]

(Air Filter Plugged) will show in the HOURMETER /

CODE DISPLAY (Item 2) [Figure PM-23].

Outer Filter

Figure PM-24

Remove the wing nut and remove the dust cover

[Figure PM-24].

Figure PM-25

Remove the wing nut and pull the outer filter

element (Item 1) [Figure PM-25] out and discard.

NOTE: Make sure all sealing surfaces are free of dirt

and debris.

Install new filter. Push all the way in until it contacts the

base of the housing. Install wing nut.

Install the dust cover and the wing nut [Figure PM-24].

B-15553

B-15552B

B-15551

P-48340

P-48341

S250 Bobcat Loader

PM-17 Operation & Maintenance Manual

AIR CLEANER SERVICE (CONT’D)

Replacing Filter Elements (Cont’d)

Inner Filter

Only replace the inner filter element under the following

conditions:

• Replace the inner filter element every third time the

outer filter is replaced.

• After the outer element has been replaced, start the

engine and run at full RPM. If the HOURMETER /

CODE DISPLAY shows [01-17] (Air Filter Plugged),

replace the inner filter element.

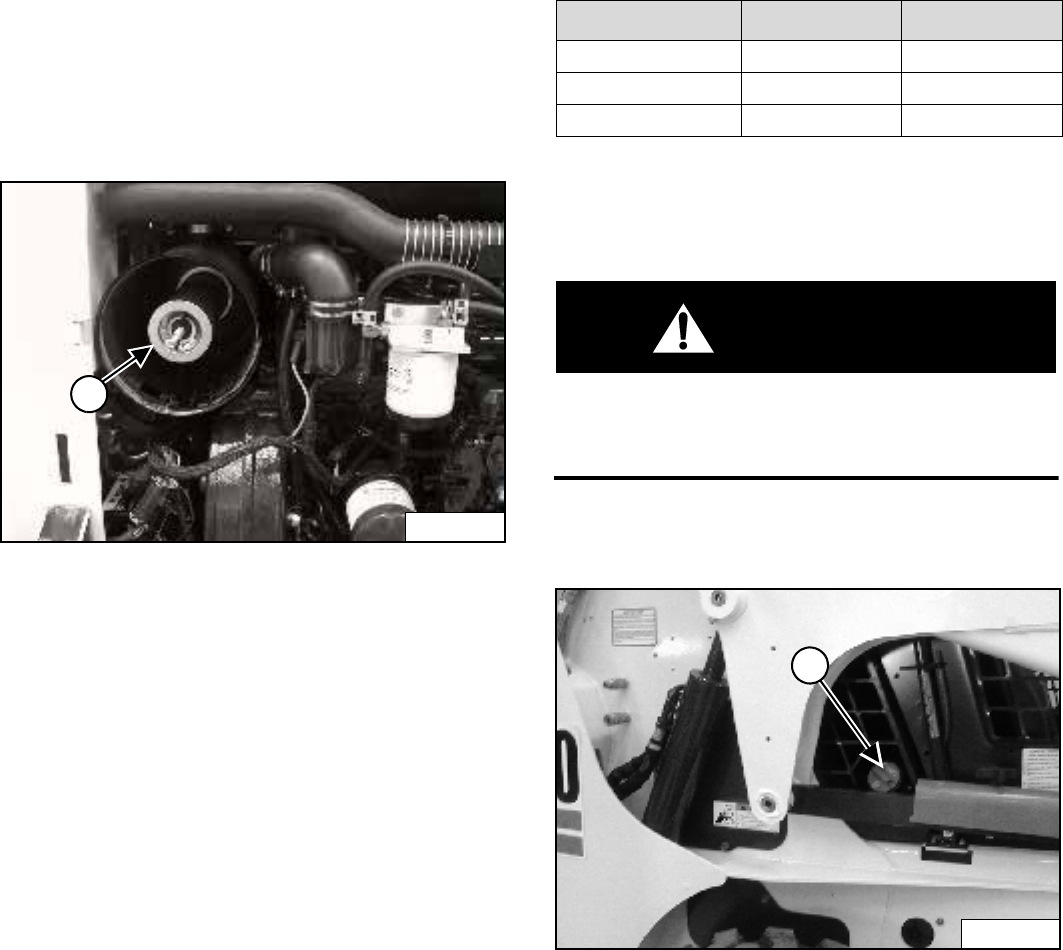

Figure PM-26

Remove the inner filter element (Item 1) [Figure PM-26].

NOTE: Make sure all sealing surfaces are free of dirt

and debris.

Install the new inner element [Figure PM-26].

Install the dust cover and the wing nut.

FUEL SYSTEM

Fuel Specifications

Use only clean, high quality diesel fuel, Grade No. 2 or

Grade No. 1.

The following is one suggested blending guideline which

should prevent fuel gelling during cold temperatures:

Contact your fuel supplier for local recommendations.

Filling The Fuel Tank

WARNING

Stop and cool the engine before adding fuel.

NO SMOKING! Failure to obey warnings can cause

an explosion or fire.

W-2063-0887

Open the rear door.

Figure PM-27

Remove the fill cap (Item 1) [Figure PM-27].

Use a clean, approved safety container to add fuel of the

correct specification. Add fuel only in an area that has

free movement of air and no open flames or sparks.

NO SMOKING.

Install and tighten the fuel cap (Item 1) [Figure PM-27].

P-48342

TEMP C (F) NO. 2 NO. 1

-9° (15°)100%0%

Down to -29° (-20°) 50% 50%

Below -29° (-20°)0% 100%

P-31254

S250 Bobcat Loader

PM-18 Operation & Maintenance Manual

FUEL SYSTEM (CONT’D)

Fuel Filter

For the service interval for removing water from, or

replacing the fuel filter (See SERVICE SCHEDULE on

Page PM-5).

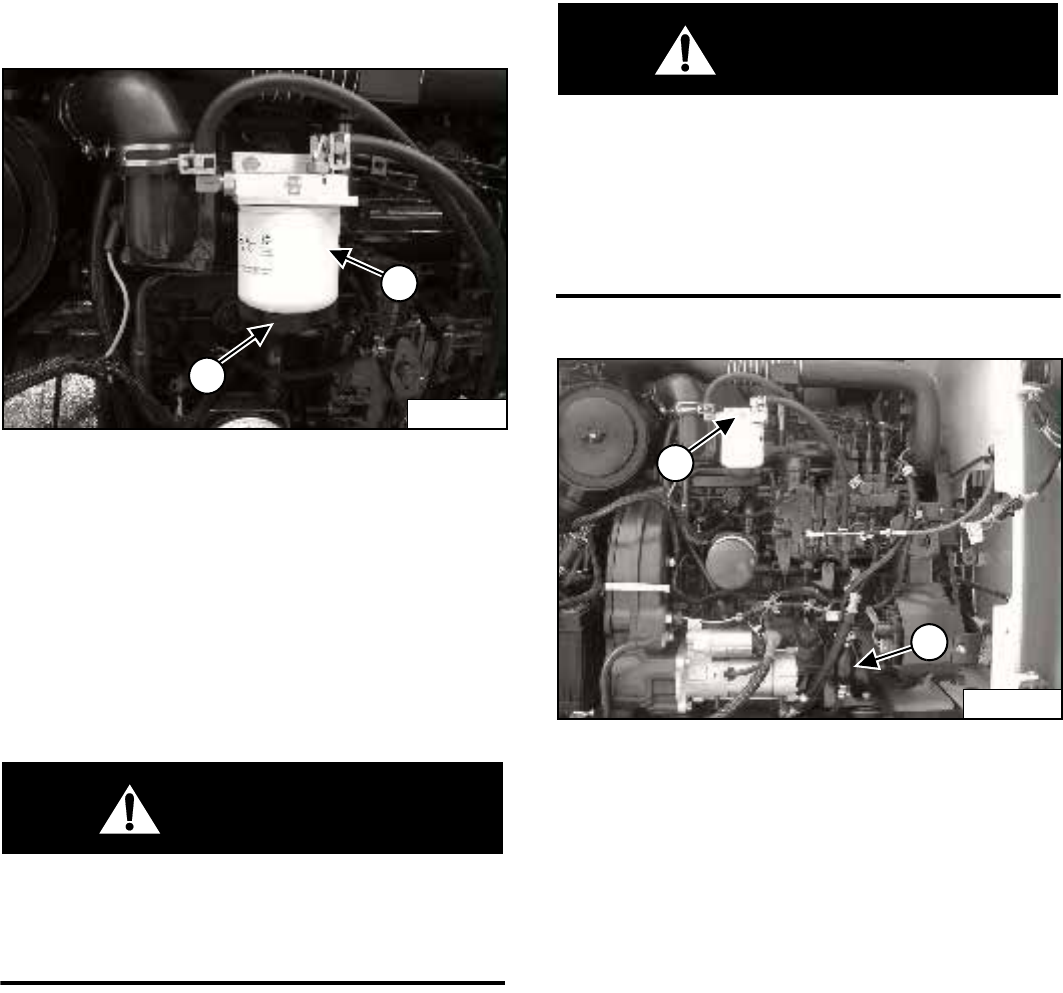

Figure PM-28

Loosen the drain (Item 1) [Figure PM-28] at the bottom

of the filter element to remove water from the filter.

Remove the filter element (Item 2) [Figure PM-28].

Clean the area around the filter housing. Put clean oil on

the seal of the new filter element. Install the fuel filter, and

hand tighten.

Remove air from the fuel system. (See Removing Air

From The Fuel System on Page PM-18.)

WARNING

Always clean up spilled fuel or oil. Keep heat, flames,

sparks or lighted tobacco away from fuel and oil.

Failure to use care around combustibles can cause

explosion or fire which can result in injury or death.

W-2103-1285

Removing Air From The Fuel System

After replacing the filter element or when the fuel tank

has run out of fuel, the air must be removed from the fuel

system before starting the engine.

WARNING

Diesel fuel or hydraulic fluid under pressure can

penetrate skin or eyes, causing serious injury or

death. Fluid leaks under pressure may not be visible.

Use a piece of cardboard or wood to find leaks. Do

not use your bare hand. Wear safety goggles. If fluid

enters skin or eyes, get immediate medical attention

from a physician familiar with this injury.

W-2072-0496

Figure PM-29

Open the vent (Item 1) [Figure PM-29] on the fuel filter

housing.

Squeeze the hand pump (priming bulb) (Item 2)

[Figure PM-29] until fuel flows from the vent with no air

bubbles.

Close the vent (Item 1) [Figure PM-29].

P-48343

P-48360

S250 Bobcat Loader

PM-19 Operation & Maintenance Manual

ENGINE LUBRICATION SYSTEM

Checking Engine Oil

Check the engine oil level every day before starting the

engine for the work shift.

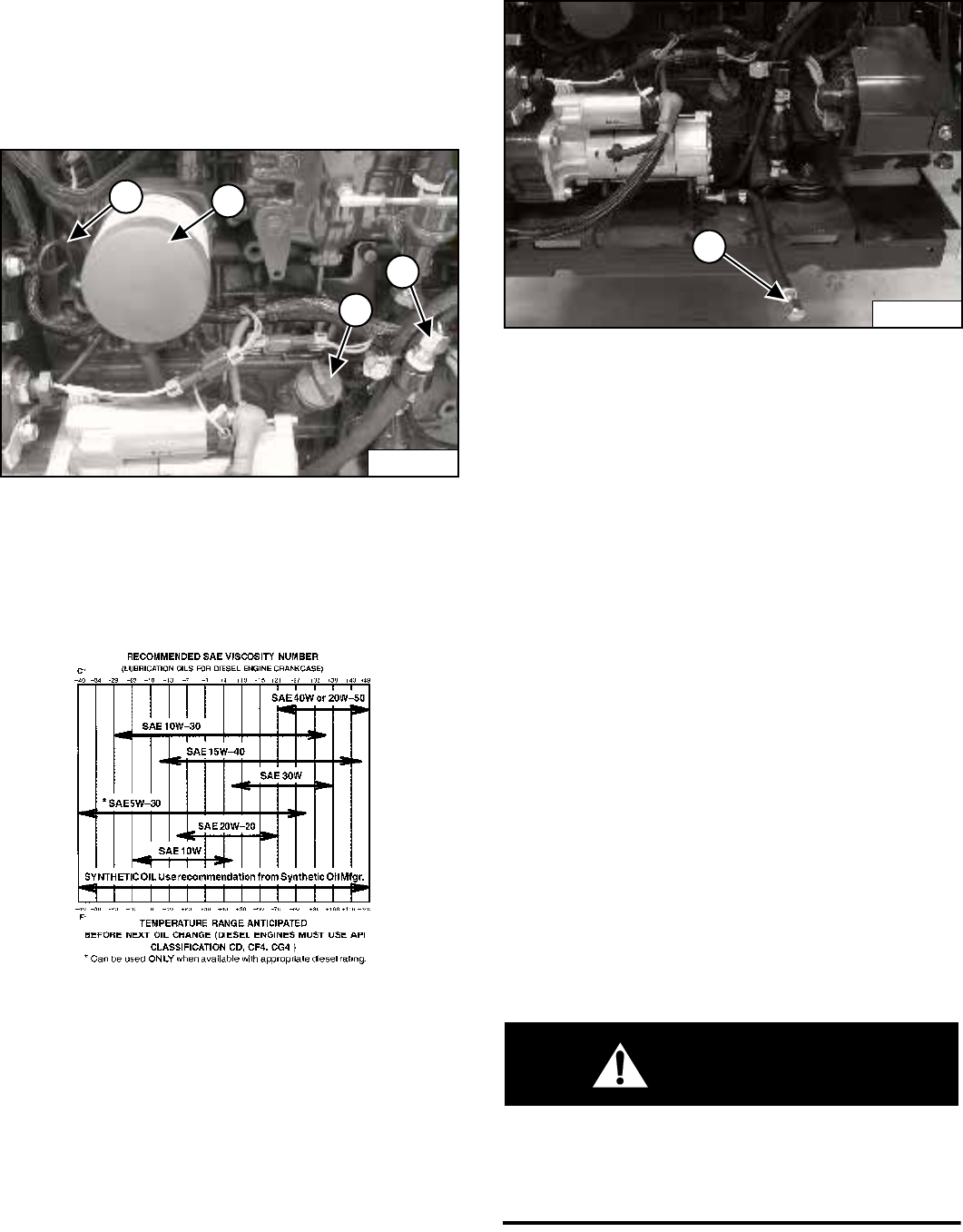

Figure PM-30

Open the rear door and remove the dipstick (Item 1)

[Figure PM-30].

Keep the oil level between the marks on the dipstick

Figure PM-31

Use good quality motor oil that meets API Service

Classification of CD or better (See Oil Chart,

[Figure PM-31]).

Replacing The Oil And Filter

For the service interval for replacing the engine oil and

filter (See SERVICE SCHEDULE on Page PM-5).

Run the engine until it is at operating temperature. Stop

the engine.

Open the rear door and remove the drain hose from its

storage position (Item 4) [Figure PM-30].

Figure PM-32

Remove the drain plug (Item 1) [Figure PM-32] and drain

the oil into a container and recycle or dispose of used oil

in an environmentally safe manner.

Reinstall the drain plug.

Remove the oil filter (Item 2) [Figure PM-30] and clean

the filter housing surface.

Use genuine Bobcat filter only.

Put oil on the new filter gasket, install the filter and hand

tighten.

Remove the fill cap (Item 3) [Figure PM-30].

Put oil in the engine (See loader specifications (S250) on

Page SPEC-3), for the correct quantity.

Start the engine and let it run for several minutes. Stop

the engine and check for leaks at the filter.

Remove the dipstick (Item 1) [Figure PM-30] and check

the oil level.

Add oil as needed if it is not at the top mark on the

dipstick.

Install the dipstick and close the rear door.

WARNING

Always clean up spilled fuel or oil. Keep heat, flames,

sparks or lighted tobacco away from fuel and oil.

Failure to use care around combustibles can cause

explosion or fire which can result in injury or death.

W-2103-1285

P-48345

P-48346

S250 Bobcat Loader

PM-20 Operation & Maintenance Manual

ENGINE COOLING SYSTEM

Cleaning The Cooling System

WARNING

Wear safety glasses to prevent eye injury when any

of the following conditions exist:

• When fluids are under pressure.

• Flying debris or loose material is present.

• Engine is running.

• Tools are being used.

W-2019-1285

Check the cooling system every day to prevent

over-heating, loss of performance or engine damage.

Remove the rear grill. (See REAR GRILL on

Page PM-15.)

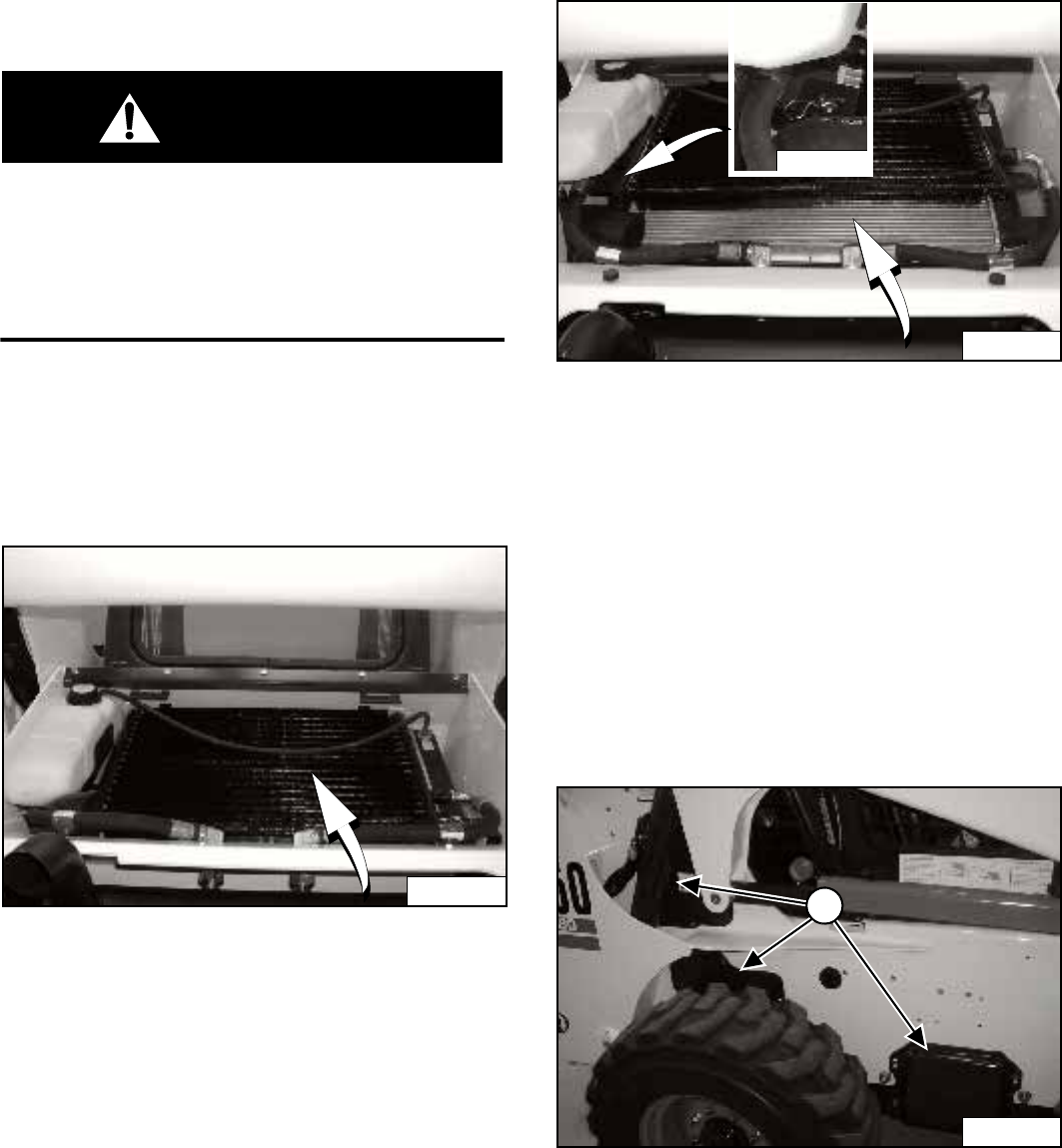

Figure PM-33

Use air pressure or water pressure to clean the top of the

oil cooler [Figure PM-33].

Figure PM-34

Raise the overflow tank slightly and remove the two

fasteners (Inset) [Figure PM-34].

NOTE: Be careful when raising and lowering the oil

cooler so that the oil cooler does not fall on

the radiator and damage the fins.

Raise the oil cooler and use air pressure or water

pressure to clean the top of the radiator [Figure PM-34].

Lower the oil cooler, install the fasteners and lower the

overflow tank.

Check the cooling system for leaks.

Figure PM-35

NOTE: All access covers (Item 1) [Figure PM-35]

(both sides) must be in place to ensure

correct air flow through the oil cooler which

will ensure cooling for engine and hydraulic

system.

P-34869

P-34867

P-34868

P-34870

S250 Bobcat Loader

PM-21 Operation & Maintenance Manual

ELECTRICAL SYSTEM

Description

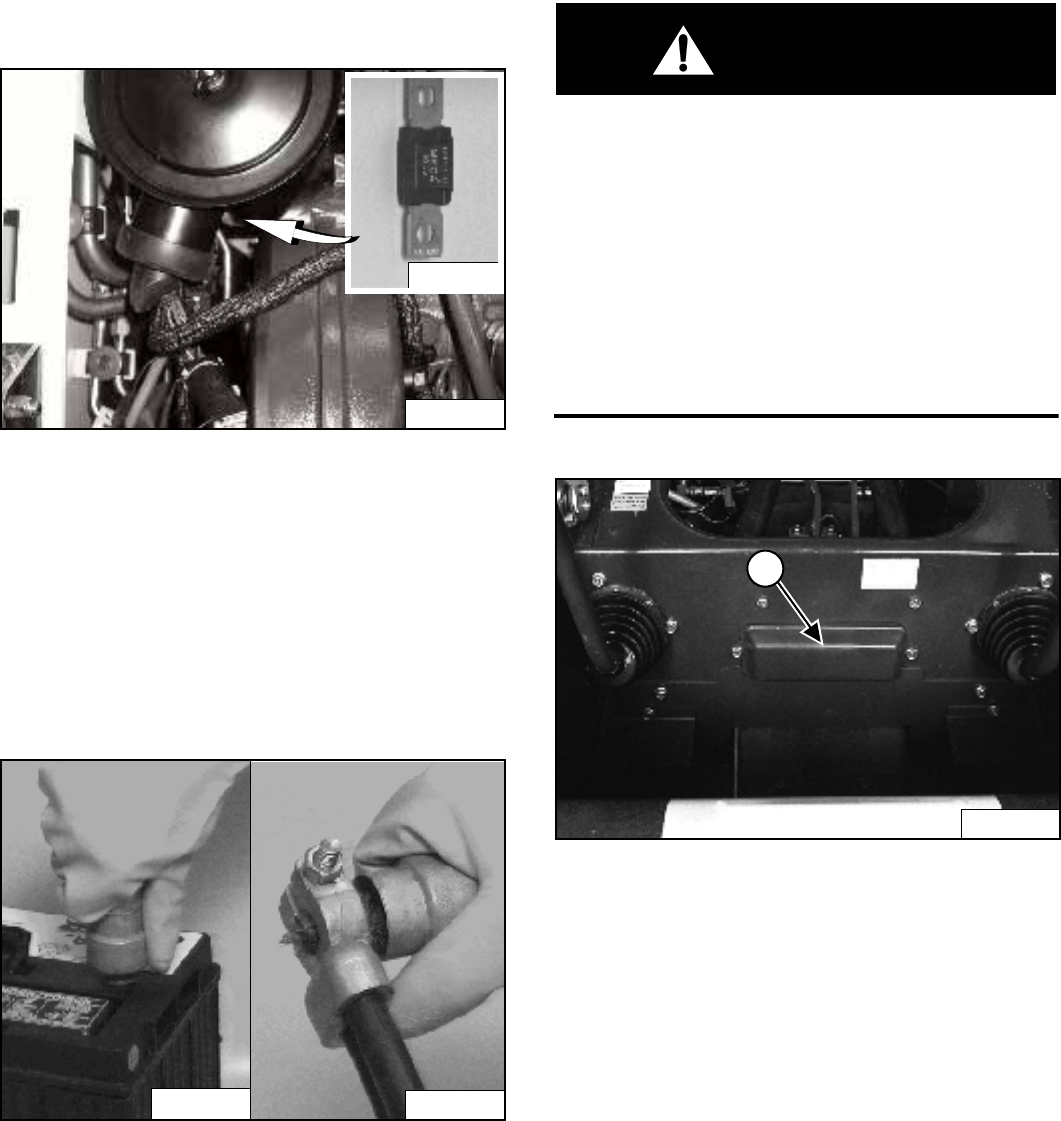

Figure PM-36

The loader has a 12 volt, negative ground alternator

charging system. The electrical system is protected by

fuses located in the cab on the steering control panel,

and a 100 amp master fuse [Figure PM-36] in the engine

compartment on the left side of the engine, under the air

cleaner. The fuses will protect the electrical system when

there is an electrical overload. The reason for the

overload must be found before staring the engine again.

Cleaning Battery and Terminals

Figure PM-37

The battery cables must be clean and tight

[Figure PM-37]. Check electrolyte level in the battery.

Add distilled water as needed. Remove acid or corrosion

from battery and cables with sodium bicarbonate (baking

soda) and water solution.

Put Battery Saver (6664458) or grease on the battery

terminals and cable ends to prevent corrosion.

Fuse Location

WARNING

Batteries contain acid which burns eyes and skin on

contact. Wear goggles, protective clothing and

rubber gloves to keep acid off body.

In case of acid contact, wash immediately with water.

In case of eye contact get prompt medical attention

and wash eye with clean, cool water for at least

15 minutes.

If electrolyte is taken internally drink large quantities

of water or milk! DO NOT induce vomiting. Get

prompt medical attention.

W-2065-1296

Figure PM-38

The electrical system is protected from overload by fuses

and relays under the fuse panel cover (Item 1)

[Figure PM-38]. A decal is inside the cover to show

location and amp ratings.

Remove the cover to check or replace the fuses.

P-34871

P-13849

P-09590

P-09589

N-19659

S250 Bobcat Loader

PM-22 Operation & Maintenance Manual

ELECTRICAL SYSTEM (CONT’D)

Fuse Location (Cont’d)

Figure PM-39

The location and sizes are shown below and in

[Figure PM-39].

R=Relay

Using A Booster Battery (Jump Starting)

If it is necessary to use a booster battery to start the

engine, BE CAREFUL! There must be one person in the

operator’s seat and one person to connect and

disconnect the battery cables.

The key switch must be OFF (Standard Panel) OR the

STOP Button must be pressed (Deluxe Panel). The

booster battery must be 12 volt.

WARNING

Batteries contain acid which burns eyes and skin on

contact. Wear goggles, protective clothing and

rubber gloves to keep acid off body.

In case of acid contact, wash immediately with water.

In case of eye contact get prompt medical attention

and wash eye with clean, cool water for at least

15 minutes.

If electrolyte is taken internally drink large quantities

of water or milk! DO NOT induce vomiting. Get

prompt medical attention.

W-2065-1296

WARNING

Keep arcs, sparks flames and lighted tobacco away

from batteries. When jumping from booster battery

make final connection (negative) at engine frame.

Do not jump start or charge a frozen or damaged

battery. Warm battery to 16°C (60°F) before

connecting to a charger. Unplug charger before

connecting or disconnecting cables to battery. Never

lean over battery while boosting, testing or charging.

Battery gas can explode and cause serious injury.

W-2066-1296

6718774

917

11 13 15

10 20

12 14 16

REF DESCRIPTION AMP REF DESCRIPTION AMP

1 Traction 30 11 Front & Marker Lights R

2 Fuel Shutoff 30 12 Fuel Shutoff R

3 Not Used - - 13 Rear Lights R

4 Not Used - - 14 Traction R

5 Heater & Air

Conditioner

25 15 Switch Power R

6 Front & Marker Lights 15 16 Starter R

7 Rear Lights 15 17 Unswitched

Attachments

8 Bobcat Controller 25 18 Switched

Attachments

9 Not Used - - 19 Alternator &

Accessories

10 Glow Plugs R 20 Accessory Plug 25

S250 Bobcat Loader

PM-23 Operation & Maintenance Manual

ELECTRICAL SYSTEM (CONT’D)

Using A Booster Battery (Jump Starting) (Cont’d)

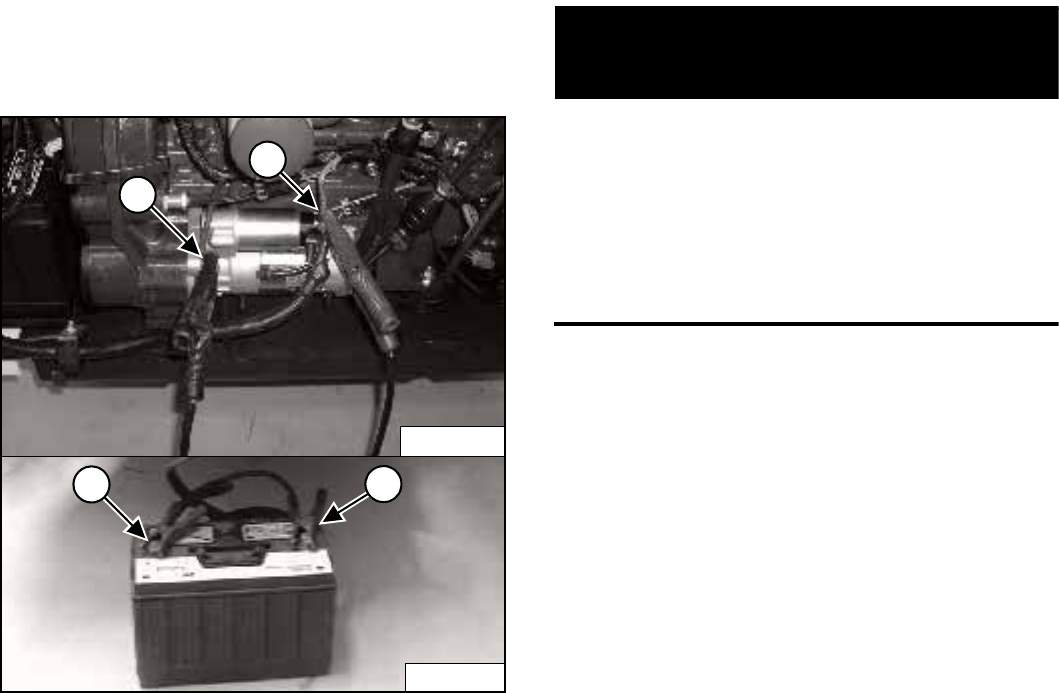

Figure PM-40

Connect the end of the first cable (Item 1)

[Figure PM-40] to the positive (+) terminal of the booster

battery. Connect the other end of the same cable (Item 2)

[Figure PM-40] to the positive terminal on the loader

starter.

Connect the end of the second cable (Item 3)

[Figure PM-40] to the negative terminal of the booster

battery. Connect the other end of the same cable (Item 4)

[Figure PM-40] to the engine.

Keep cables away from moving parts. Start the engine.

(See STARTING THE ENGINE (STANDARD PANEL,

KEY SWITCH) on Page OI-27) and (See STARTING THE

ENGINE (DELUXE PANEL, KEYLESS START) on Page

OI-29).

After the engine has started, remove the ground (-) cable

(Item 4) [Figure PM-40] first. Remove the cable from the

positive terminal (Item 2) [Figure PM-40].

IMPORTANT

Damage to the alternator can occur if:

• Engine is operated with battery cables

disconnected.

• Battery cables are connected when using a fast

charger or when welding on the loader. (Remove

both cables from the battery.)

• Extra battery cables (booster cables) are

connected wrong.

I-2023-1285

P-31292

P-34873

S250 Bobcat Loader

PM-24 Operation & Maintenance Manual

ELECTRICAL SYSTEM (CONT’D)

Removing And Installing The Battery

WARNING

Batteries contain acid which burns eyes and skin on

contact. Wear goggles, protective clothing and

rubber gloves to keep acid off body.

In case of acid contact, wash immediately with water.

In case of eye contact get prompt medical attention

and wash eye with clean, cool water for at least

15 minutes.

If electrolyte is taken internally drink large quantities

of water or milk! DO NOT induce vomiting. Get

prompt medical attention.

W-2065-1296

Open the rear door.

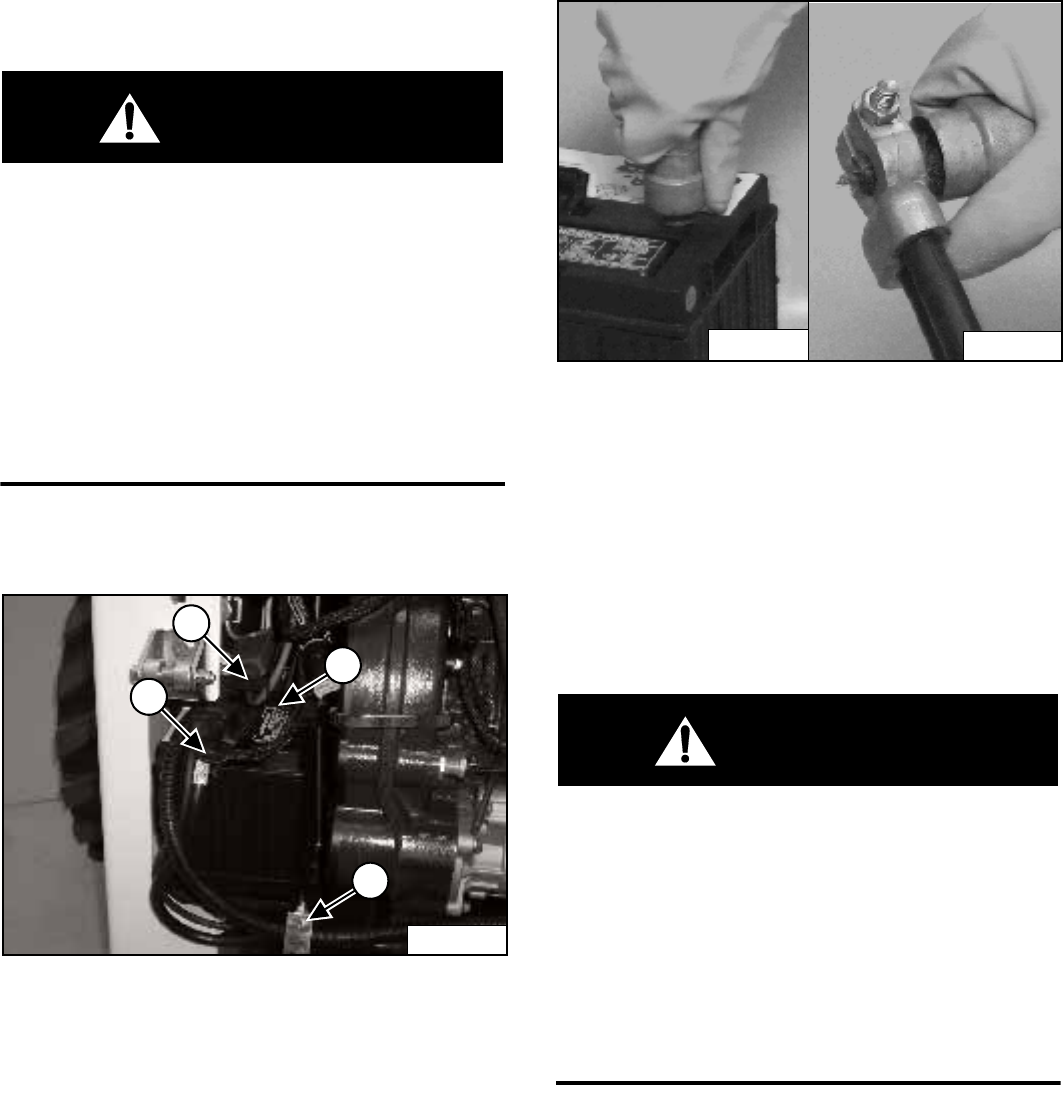

Figure PM-41

Remove the harness clamp (Item 1) [Figure PM-41].

Disconnect the negative (-) cable (Item 2)

[Figure PM-41].

Remove the battery hold down clamp (Item 3)

[Figure PM-41].

Disconnect the positive (+) cable (Item 4) [Figure PM-41]

from the battery.

Remove the battery from the loader.

Figure PM-42

Always clean the battery terminals and cable ends when

installing a new or used battery [Figure PM-42].

When installing the battery in the loader, do not touch any

metal parts with the battery terminals.

Connect the negative (-) cable last to prevent sparks.

Connect and tighten the battery cables.

Install and tighten the battery hold down.

WARNING

Keep arcs, sparks flames and lighted tobacco away

from batteries. When jumping from booster battery

make final connection (negative) at engine frame.

Do not jump start or charge a frozen or damaged

battery. Warm battery to 16°C (60°F) before

connecting to a charger. Unplug charger before

connecting or disconnecting cables to battery. Never

lean over battery while boosting, testing or charging.

Battery gas can explode and cause serious injury.

W-2066-1296

P-34874

P-09590

P-09589

S250 Bobcat Loader

PM-25 Operation & Maintenance Manual

HYDRAULIC / HYDROSTATIC SYSTEM

Checking And Adding Fluid

Use only recommended fluid in the hydraulic system.

(See Hydraulic System on Page SPEC-5).

Put the loader on a level surface, lower the lift arms and

tilt the Bob-Tach fully back.

Stop the engine.

Figure PM-43

Check the fluid level in the sight gauge (Item 1)

[Figure PM-43].

Figure PM-44

Remove the fill cap (Item 1) [Figure PM-44].

Add fluid as needed to bring the level to the center of the

sight gauge.

NOTE: Before installing the fill cap, make sure the

rubber gasket is installed on fill cap (Inset)

[Figure PM-44].

Install the fill cap [Figure PM-44].

Replacing Hydraulic/Hydrostatic Filter

For the correct service interval (See SERVICE

SCHEDULE on Page PM-5).

Raise the operator cab (See Raising The Operator Cab

on Page PM-7).

Figure PM-45

Remove the filter (Item 1) [Figure PM-45].

Clean the surface of the filter housing where the filter seal

contacts the housing.

Put clean oil on the seal of the new filter element. Install

and hand tighten the filter element.

WARNING

Diesel fuel or hydraulic fluid under pressure can

penetrate skin or eyes, causing serious injury or

death. Fluid leaks under pressure may not be visible.

Use a piece of cardboard or wood to find leaks. Do

not use your bare hand. Wear safety goggles. If fluid

enters skin or eyes, get immediate medical attention

from a physician familiar with this injury.

W-2072-0496

Lower the operator cab (See Lowering The Operator Cab

on Page PM-9).

Start the engine and operate the loader hydraulic

controls.

Stop the engine and check for leaks at the filter.

P-31283

P-31284

P-01502

P-31281

S250 Bobcat Loader

PM-26 Operation & Maintenance Manual

HYDRAULIC / HYDROSTATIC SYSTEM (CONT’D)

Replacing Hydraulic/Hydrostatic Filter (Cont’d)

Check the fluid level in the reservoir and add as needed.

WARNING

Always clean up spilled fuel or oil. Keep heat, flames,

sparks or lighted tobacco away from fuel and oil.

Failure to use care around combustibles can cause

explosion or fire which can result in injury or death.

W-2103-1285

Replacing Hydraulic Fluid and Case Drain Filters

For the correct service interval (See SERVICE

SCHEDULE on Page PM-5).

Replace the fluid if it becomes contaminated or after

major repair.

Always replace the hydraulic/hydrostatic filter (See

Replacing Hydraulic/Hydrostatic Filter on Page PM-25)

and clean the hydraulic fill screen and the case drain

filters whenever the hydraulic fluid is replaced.

Remove the fill cap and raise the operator cab (See

Raising The Operator Cab on Page PM-7).

Hydraulic Fill Screen

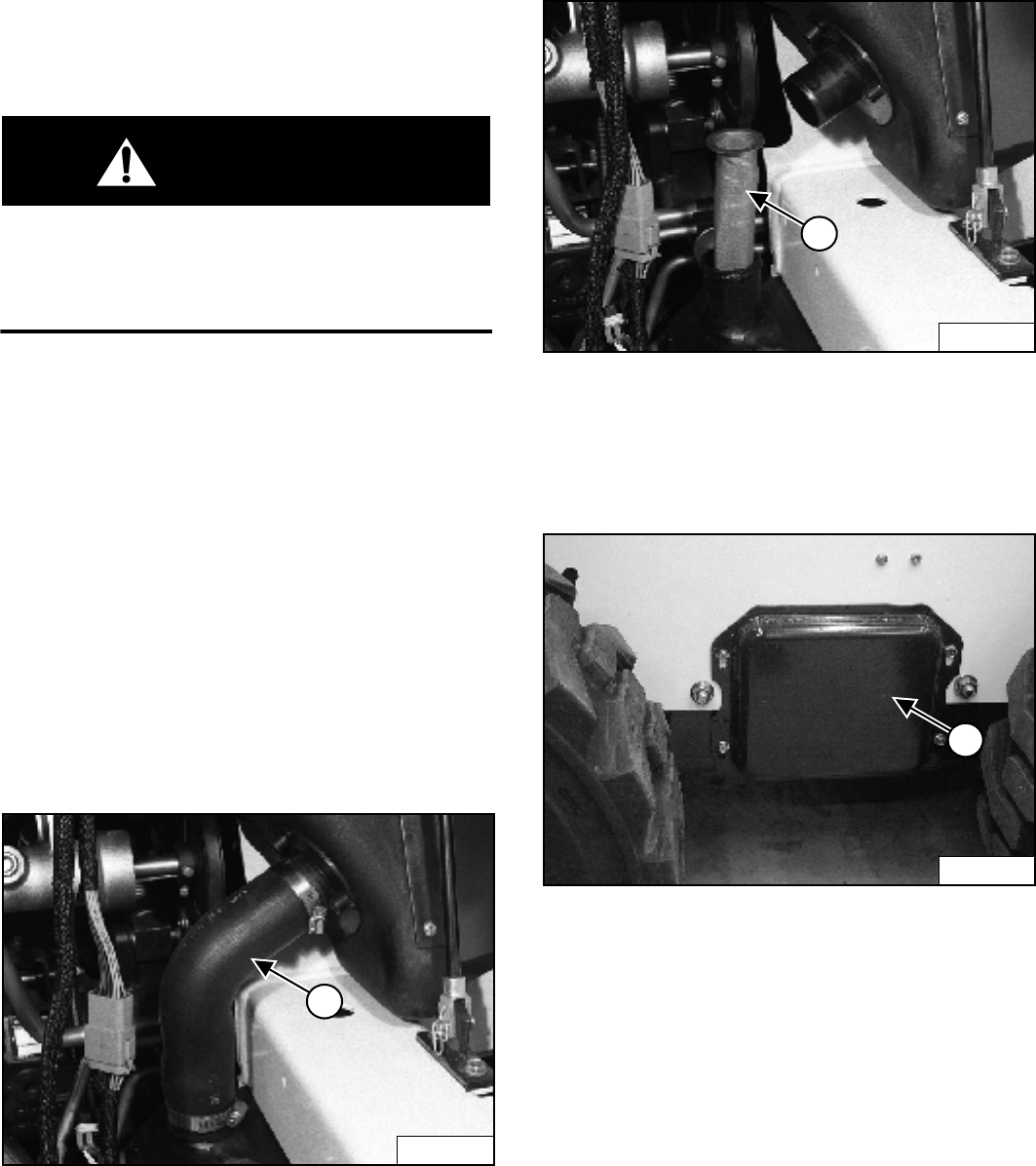

Figure PM-46

Remove the two hose clamps and remove the

hose (Item 1) [Figure PM-46].

Figure PM-47

Remove the hydraulic fill screen (Item 1) [Figure PM-47].

Use air pressure to dry the screen.

Install screen, hose and hose clamps.

Figure PM-48

Remove the hydrostatic motor cover (Item 1)

[Figure PM-48]. (Left Side)

N-19610

N-19611

P-31285

S250 Bobcat Loader

PM-27 Operation & Maintenance Manual

HYDRAULIC / HYDROSTATIC SYSTEM (CONT’D)

Replacing Hydraulic Fluid and Case Drain Filters

(Cont’d)

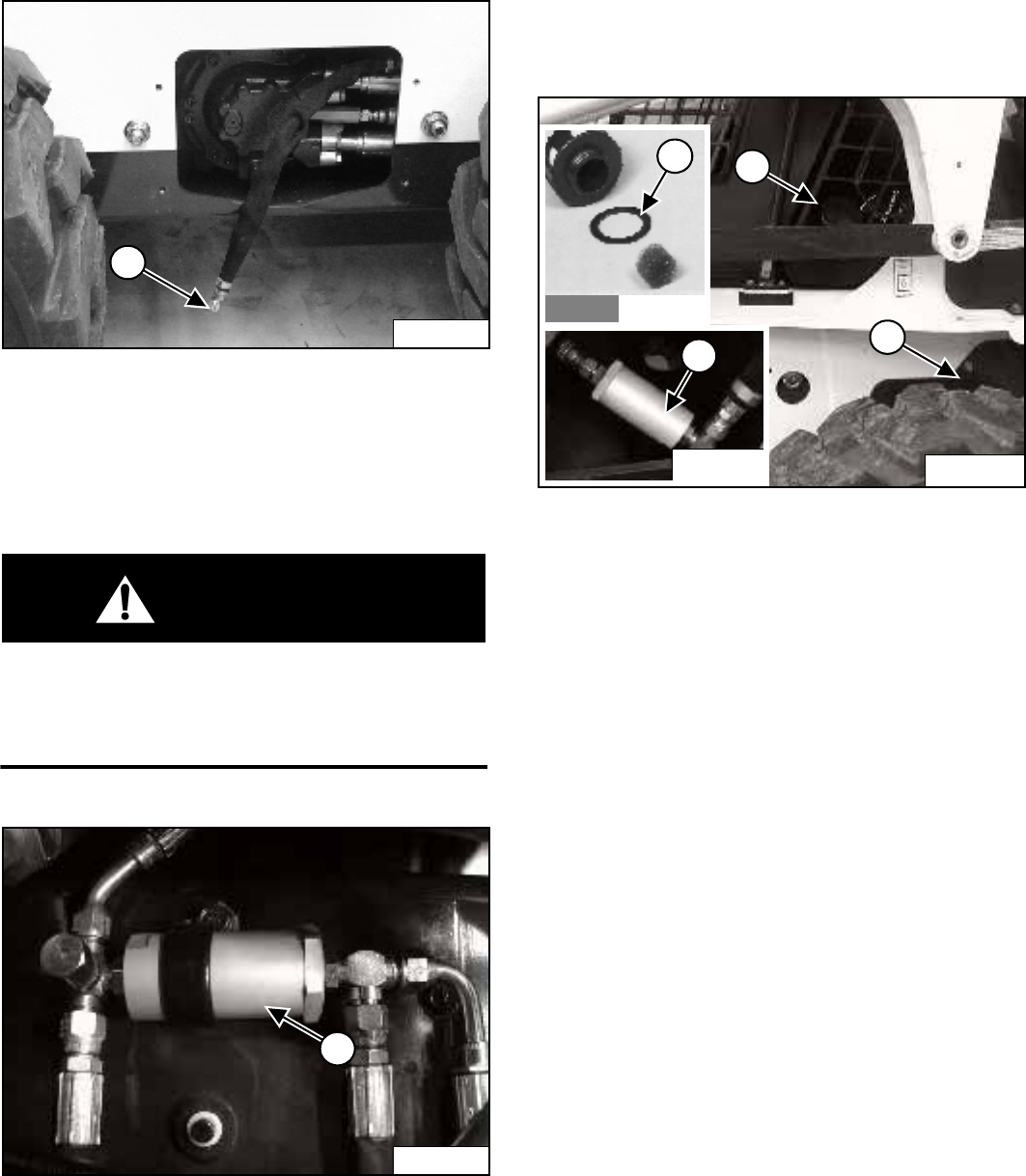

Figure PM-49

Pull the reservoir drain hose out the left motor cover hole.

Remove the plug (Item 1) [Figure PM-49] and drain the

fluid into a container.

Recycle or dispose of used fluid in an environmentally

safe manner.

WARNING

Always clean up spilled fuel or oil. Keep heat, flames,

sparks or lighted tobacco away from fuel and oil.

Failure to use care around combustibles can cause

explosion or fire which can result in injury or death.

W-2103-1285

Figure PM-50

Disconnect the hoses from the hydrostatic motor case

drain filter (Item 1) [Figure PM-50], remove the filter and

discard.

Install a new filter; connect and tighten the hoses.

Install the plug in the reservoir drain hose and tighten.

Install the motor cover.

Figure PM-51

Remove the left lower side cover (Item 1)

[Figure PM-51].

Disconnect the hoses from the attachment case drain

filter (Item 2) [Figure PM-51]. Remove and discard the

filter.

Install new filter, tighten the hose fittings and install the

cover.

Add the correct fluid to the reservoir until the fluid level is

at the center of the sight gauge. (See Checking And

Adding Fluid on Page PM-25.)

Breather Cap

The fill cap is also a breather for the hydraulic/hydrostatic

reservoir. For the correct service interval (See SERVICE

SCHEDULE on Page PM-5).

Remove the cap (Item 3) [Figure PM-51] and use clean

solvent to remove debris. Dry the cap thoroughly. Install

the fill/breather cap [Figure PM-51].

NOTE: Be sure the rubber gasket (Item 4)

[Figure PM-51] is installed on the fill cap.

P-31286

P-34905

P-31692

P-01502

P-31565

S250 Bobcat Loader

PM-28 Operation & Maintenance Manual

TIRE MAINTENANCE

Wheel Nuts

Figure PM-52

For the service interval to check the wheel nuts (See

SERVICE SCHEDULE on Page PM-5). The correct

torque is 142-156 Nm torque [Figure PM-52].

Rotating

Check the tires regularly for wear, damage and pressure.

IMPORTANT

Inflate tires to the MAXIMUM pressure shown on the

sidewall of the tire. DO NOT mix brands of tires used

on the same loader.

I-2057-0794

Figure PM-53

Rear tires usually wear faster than front tires. To keep tire

wear even, move the front tires to the rear and rear tires

to the front [Figure PM-53].

It is important to keep the same size tires on each side of

the loader. If different sizes are used, each tire will be

turning at a different rate and cause excessive wear. The

tread bars of all the tires must face the same direction.

Recommended tire pressure must be maintained to avoid

excessive tire wear and loss of stability and handling

capability. Check for correct pressure before operating

the loader.

Mounting

Tires are to be repaired only by an authorized person

using the proper procedures and safe equipment.

Tires and rims must always be checked for correct size

before mounting. Check rim and tire bead for damage.

The rim flange must be cleaned and free of rust.

The tire bead and rim flange must be lubricated with a

rubber lubricant before mounting the tire.

Avoid excessive pressure which can rupture the tire and

cause serious injury or death.

During inflation of the tire, check the tire pressure

frequently to avoid over inflation.

P-31225

B-9976

S250 Bobcat Loader

PM-29 Operation & Maintenance Manual

FINAL DRIVE TRANSMISSION (CHAINCASE)

Checking And Adding Oil

The chaincase contains the final drive sprockets and

chains and uses the same type of oil as the hydraulic/

hydrostatic system (See loader specifications (S250) on

Page SPEC-3).

Stop the loader on a level surface and stop the engine.

Figure PM-54

Remove the drain plug (Item 1) [Figure PM-54] from the

front of the chaincase housing.

If oil can be reached with the tip of your finger through the

hole, the oil level is correct.

If the level is low, add oil through the check plug hole until

the oil flows from the hole.

Install and tighten the plug.

Removing Oil From The Chaincase

Figure PM-55

Remove the cover (Item 1) [Figure PM-55] which is

installed over the drain plug at the bottom rear of the

chaincase.

Figure PM-56

Remove the drain plug (Item 1) [Figure PM-56] and drain

the oil into a container.

Dispose of the used oil in an environmentally safe

manner.

Install and tighten the plug.

Check the condition of the drain plug and replace as

necessary.

P-31287

P-1616

P-1619

S250 Bobcat Loader

PM-30 Operation & Maintenance Manual

FAN GEARBOX

For the correct service interval (See SERVICE

SCHEDULE on Page PM-5).

Checking And Maintaining

Raise the operator cab (See Raising The Operator Cab

on Page PM-7).

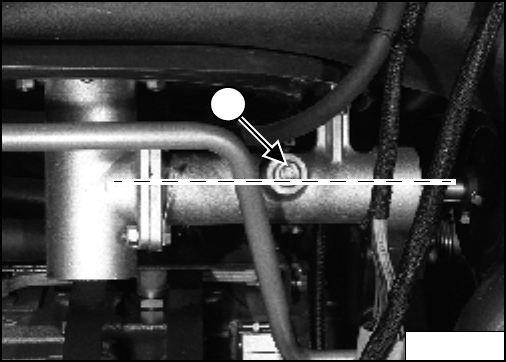

Figure PM-57

Remove the plug (Item 1) [Figure PM-57].

If the level is low, add SAE 90W gear lubricant through

the check plug hole until lubricant flows from the hole.

Install and tighten the plug.

Lower the operator cab. (See Lowering The Operator

Cab on Page PM-9.)

DRIVE BELT

Adjusting The Drive Belt

The drive belt does not need adjustment. The belt has a

spring loaded idler which is constantly adjusted.

Replacing The Drive Belt

See your Bobcat dealer for Drive Belt replacement.

N-19582

S250 Bobcat Loader

PM-31 Operation & Maintenance Manual

BELT ADJUSTMENTS

Adjusting The Alternator Belt

Stop the engine.

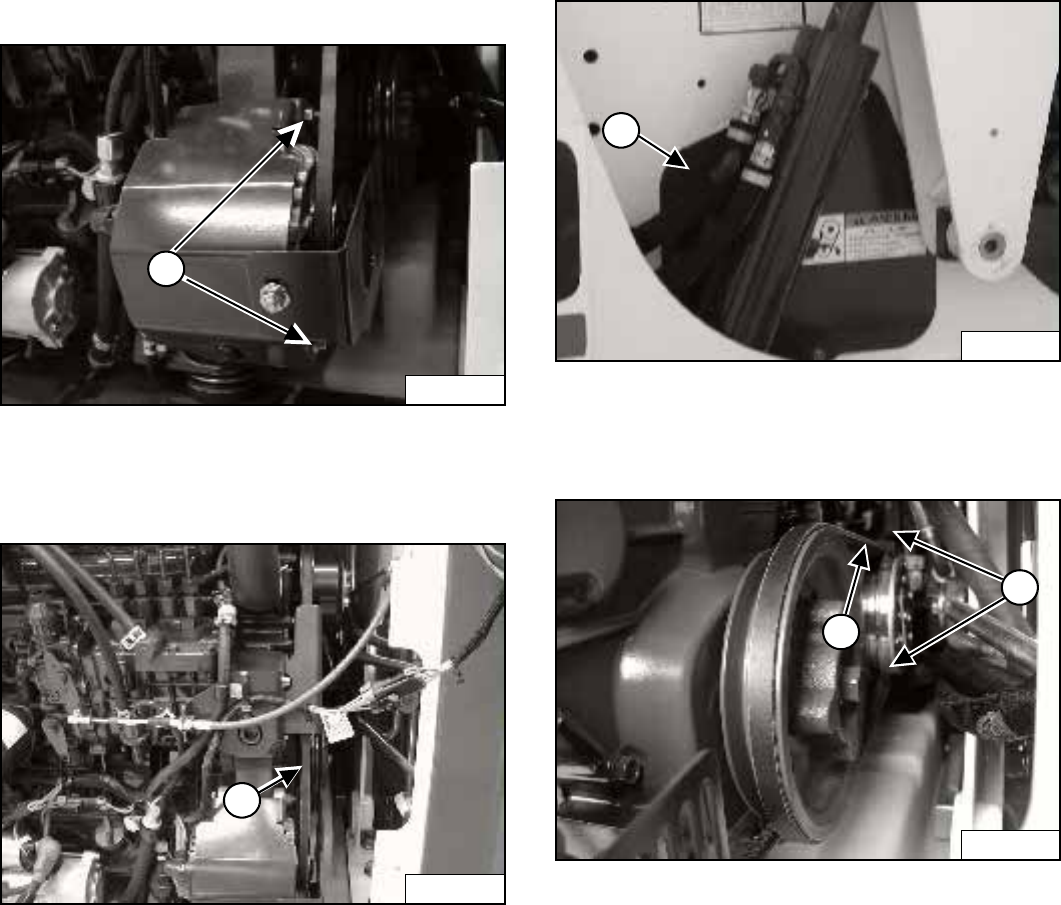

Figure PM-58

Loosen the alternator mounting and adjustment

bolts (Item 1) [Figure PM-58].

Figure PM-59

Move the alternator to tighten the belt. The tension is

correct when there is 8,0 mm movement at the middle of

the belt span (Item 1) [Figure PM-59] with 66 N of force.

Tighten the adjustment and mounting bolts (Item 1)

[Figure PM-58].

Adjusting The Air Conditioner Belt

Stop the engine.

Figure PM-60

Remove the right side access cover (Item 1)

[Figure PM-60].

Figure PM-61

Loosen the mounting and adjustment bolts (Item 1)

[Figure PM-61].

Move the air conditioner pump toward the front of

machine to tighten the belt. The tension is correct when

there is 8,0 mm movement at the middle of the belt

span (Item 2) [Figure PM-61] with 66 N of force.

P-48348

P-48349

P-34059

P-45440

S250 Bobcat Loader

PM-32 Operation & Maintenance Manual

LUBRICATING THE BOBCAT LOADER

Lubrication Locations

Lubricate the loader as specified for the best

performance of the loader (See SERVICE SCHEDULE

on Page PM-5).

Record the operating hours each time you lubricate the

Bobcat loader.

Always use a good quality lithium based multi-purpose

grease when you lubricate the loader. Apply the lubricant

until extra grease shows.

Lubricate the following:

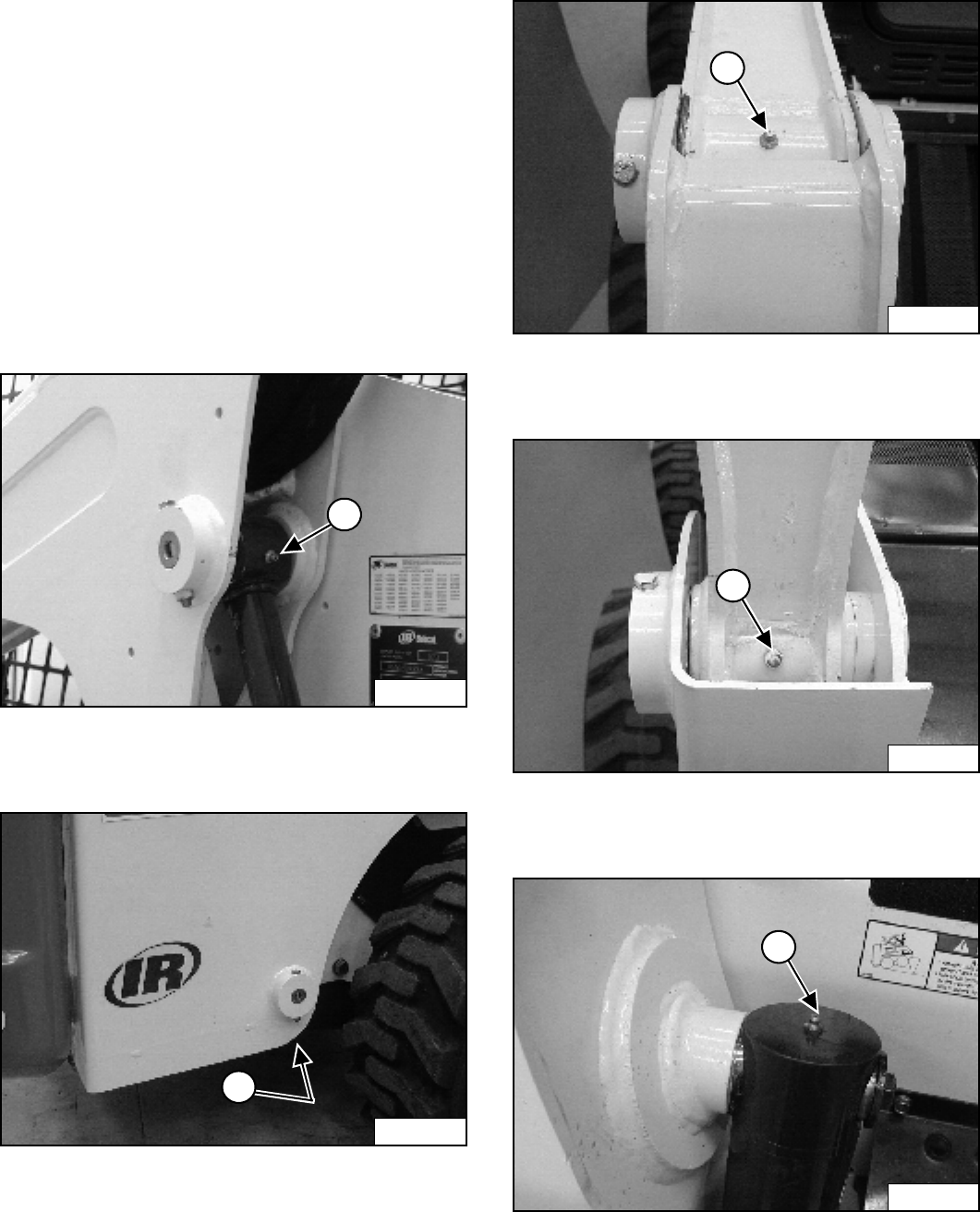

Figure PM-62

1. Rod End Lift Cylinder (Both Sides) [Figure PM-62].

Figure PM-63

2. Base End Lift Cylinder (Both Sides) [Figure PM-63].

Figure PM-64

3. Lift Arm Pivot Pin (Both Sides) [Figure PM-64].

Figure PM-65

4. Lift Arm Link Pivot (Both Sides) [Figure PM-65].

Figure PM-66

5. Base End Tilt Cylinder (Both Sides) [Figure PM-66].

P-31299

P-31300

P-31301

P-31302

P-31305

S250 Bobcat Loader

PM-33 Operation & Maintenance Manual

LUBRICATING THE BOBCAT LOADER (CONT’D)

Lubrication Locations (Cont’d)

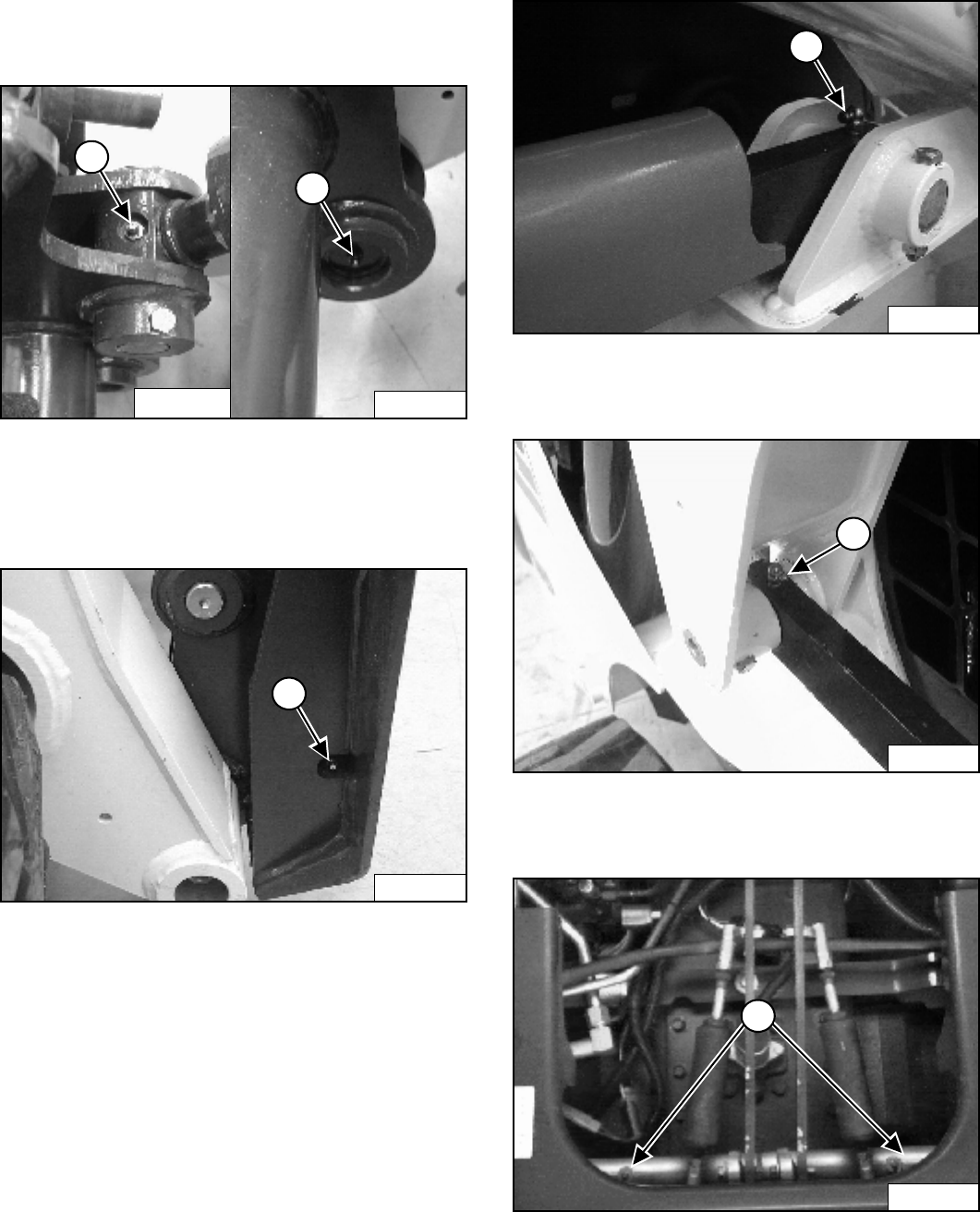

Figure PM-67

6. Rod End Tilt Cylinder (Both Sides) [Figure PM-67].

7. Bob-Tach Pivot Pin (Both Sides) [Figure PM-67].

Figure PM-68

8. Bob-Tach Wedge (Both Sides) [Figure PM-68].

Figure PM-69

9. Control Link (Both Sides) [Figure PM-69].

Figure PM-70

10. Control Link (Both Sides) [Figure PM-70].

Figure PM-71

11. 250 Hours: Steering Lever Shaft (2) [Figure PM-71].

P-31307

P-31306

P-31308

P-31304

P-31303

P-10105

S250 Bobcat Loader

PM-34 Operation & Maintenance Manual

PIVOT PINS

Inspection And Maintenance

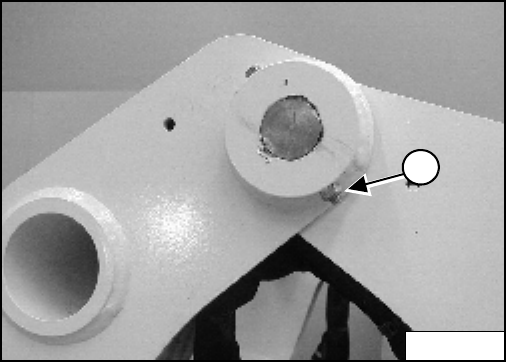

Figure PM-72

All lift arm and cylinder pivots have a large pin held in

position with a retainer bolt and lock nut (Item 1)

[Figure PM-72].

Check that the lock nuts are tightened to 24-27 Nm

torque.

P-31309

S250 Bobcat Loader

PM-35 Operation & Maintenance Manual

BOB-TACH (HAND LEVER)

Inspection And Maintenance

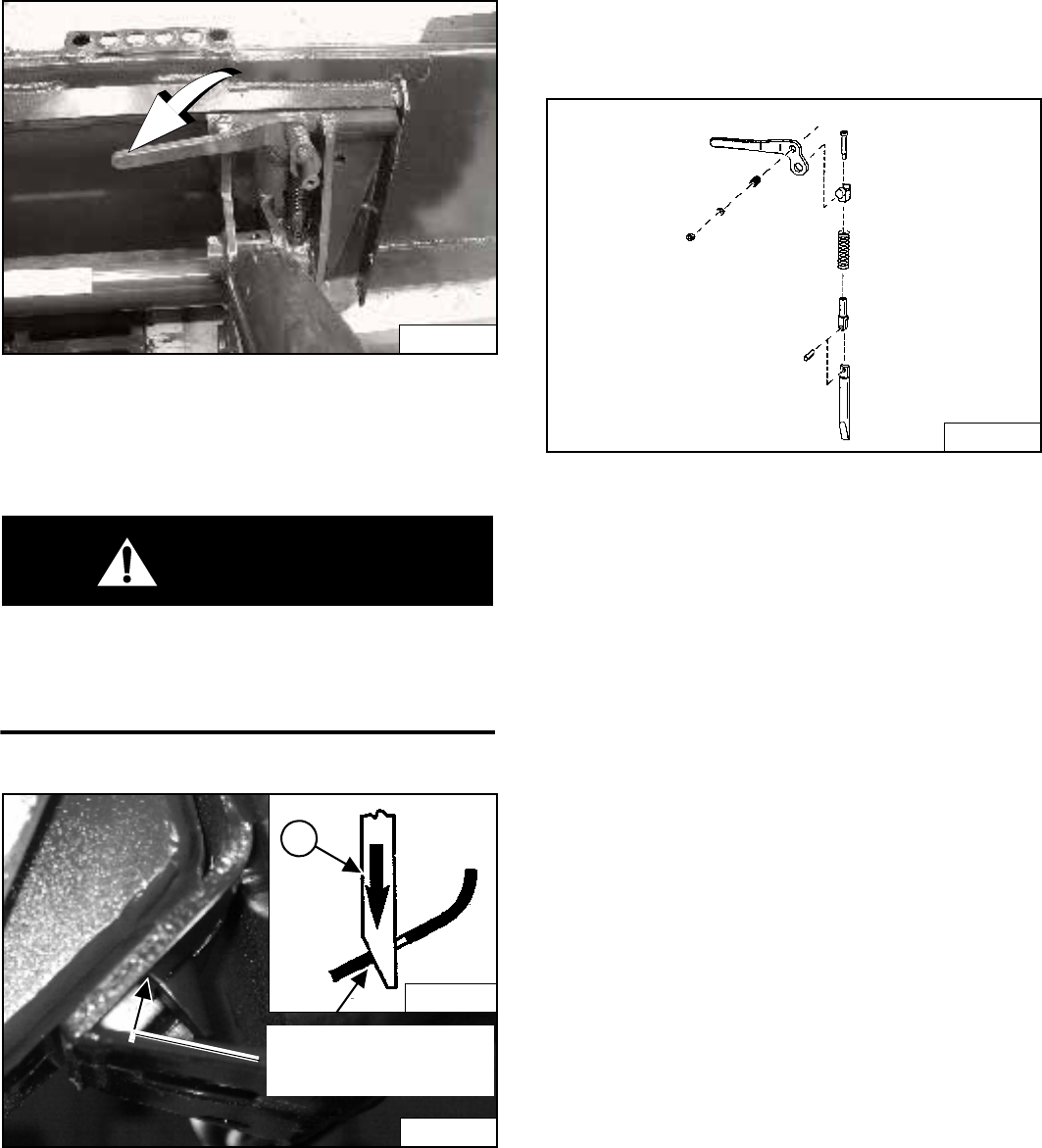

Figure PM-73

Move the Bob-Tach levers down to engage the wedges

[Figure PM-73].

The levers and wedges must move freely.

WARNING

Bob-Tach wedges must extend through the holes in

attachment. Levers must be fully down and locked.

Failure to secure wedges can allow attachment to

come off and cause injury or death.

W-2102-0588

Figure PM-74

The wedges (Item 1) [Figure PM-74] must extend

through the holes in the attachment mounting frame.

The spring loaded wedge (Item 1) [Figure PM-74] must

contact the lower edge of the hole in the

attachment (Item 2) [Figure PM-74].

If the wedge does not contact the lower edge of the hole

[Figure PM-74], the attachment will be loose and can

come off the Bob-Tach.

Figure PM-75

Inspect the mounting frame on the attachment and

Bob-Tach, linkages and wedges for excessive wear or

damage [Figure PM-75]. Replace any parts that are

damaged, bent or missing. Keep all fasteners tight.

Look for cracked welds. Contact your Bobcat dealer for

repair or replacement parts.

Lubricate the wedges (See SERVICE SCHEDULE on

Page PM-5) and (See LUBRICATING THE BOBCAT

LOADER on Page PM-32).

P-31693

P-31233

B-15177

Wedge must contact

lower edge of hole in the

attachment.

B-17460

S250 Bobcat Loader

PM-36 Operation & Maintenance Manual

BOB-TACH (POWER) (OPTIONAL)

Inspection And Maintenance

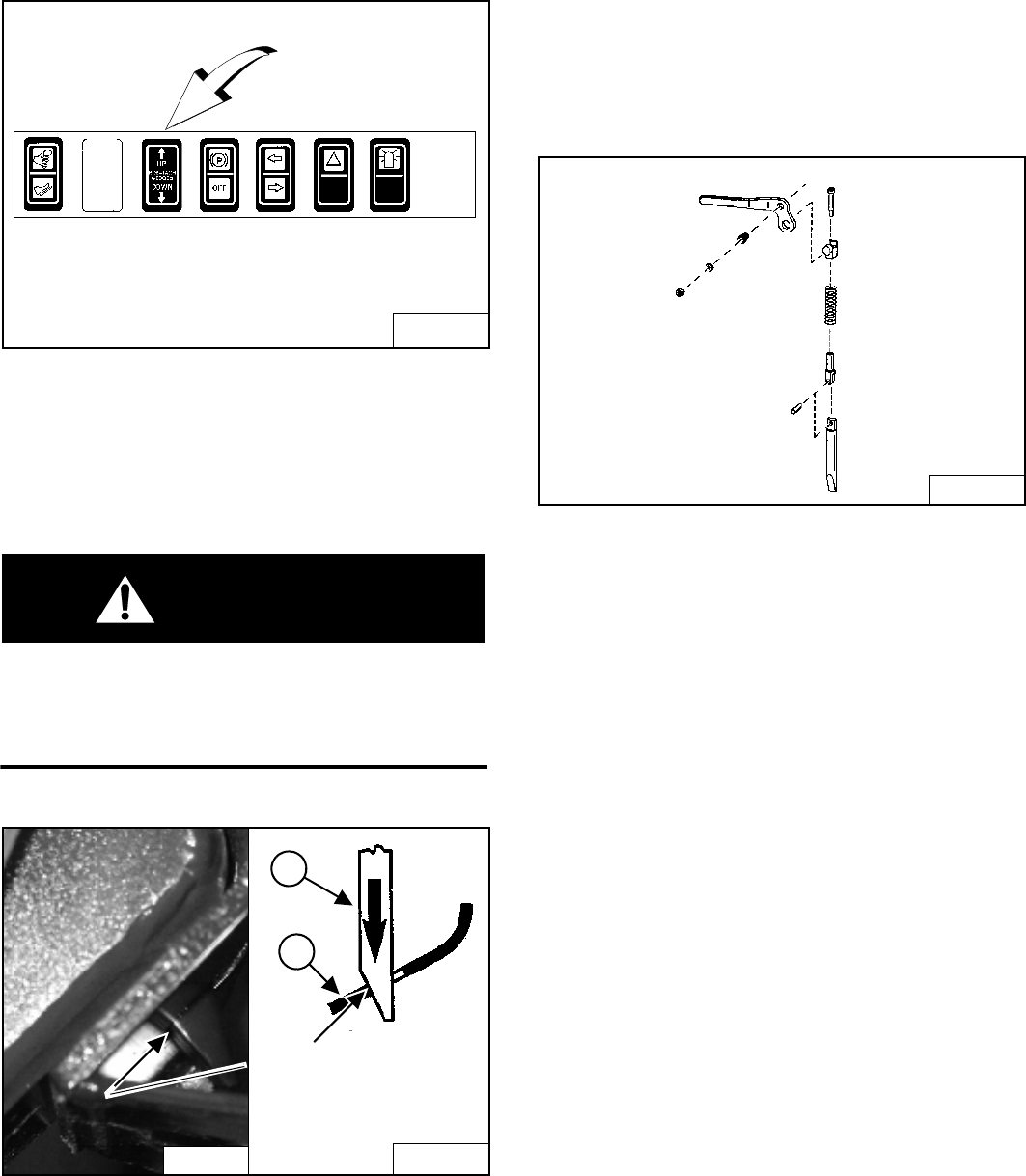

Figure PM-76

Push and hold the BOB-TACH “WEDGES UP” switch

[Figure PM-76] until wedges are fully raised. Push and

hold the BOB-TACH “WEDGES DOWN” switch

[Figure PM-76] until the wedges are fully down.

The levers and wedges must move freely.

WARNING

Bob-Tach wedges must extend through the holes in

attachment. Levers must be fully down and locked.

Failure to secure wedges can allow attachment to

come off and cause injury or death.

W-2102-0588

Figure PM-77

The wedges must extend through the holes in the

attachment mounting frame (Item 1) [Figure PM-77].

The spring loaded wedge (Item 1) [Figure PM-77] must

contact the lower edge of the hole in the

attachment (Item 2) [Figure PM-77].

If the wedge does not contact the lower edge of the hole

[Figure PM-77], the attachment will be loose and can

come off the Bob-Tach.

Figure PM-78

Inspect the mounting frame on the attachment and the

Bob-Tach, linkages and wedges for excessive wear or

damage [Figure PM-78]. Replace any parts that are

damaged, bent, or missing. Keep all fasteners tight.

Look for cracked welds. Contact your Bobcat dealer for

repair or replacement parts.

Lubricate the wedges (See SERVICE SCHEDULE on

Page PM-5) and (See LUBRICATING THE BOBCAT

LOADER on Page PM-32).

B-15891

UPDATED

P-31233 B-15177

Wedge must contact

lower edge of hole in the

attachment.

B-17460

S250 Bobcat Loader

SA-1 Operation & Maintenance Manual

SYSTEM SETUP & ANALYSIS

BICS™ SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SA-3

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SA-3

DELUXE INSTRUMENT PANEL SETUP . . . . . . . . . . . . . . . . . . . . . . . SA-9

Deluxe Panel Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SA-10

Deluxe Panel Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SA-9

Passwords (Deluxe) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SA-10

DIAGNOSTICS SERVICE CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . SA-4

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SA-4

Number Codes List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SA-5

ANALYSIS

SYSTEM SETUP &

S250 Bobcat Loader

SA-2 Operation & Maintenance Manual

S250 Bobcat Loader

SA-3 Operation & Maintenance Manual

BICS™ SYSTEM

Troubleshooting Guide

The following list shows the effects which can happen to the loader, and the probable causes when the BICS System lights

are off or flashing and associated service code. (See DIAGNOSTICS SERVICE CODES on Page SA-4.)

Indicator

Light Light ON Light OFF

Effect on

Operation of

Loader When

Light is OFF

SERVICE CODES Means System Error

(See Your Bobcat Dealer for Service)

No. of

Flashes

Service

Code Causes

PRESS TO

OPERATE

LOADER Button

is pressed.

PRESS TO

OPERATE

LOADER Button

is not pressed.

---- ---- ---- ----

Seat Bar is

down.

Seat Bar is up. Lift and tilt

functions will

not operate.

2 11-05 Seat Bar sensor circuit shorted to battery

voltage*.

3 11-06 Seat Bar sensor circuit shorted to ground.

Continuous

Flashing 03-09

03-10

System voltage low

System voltage high

Control valve can

be used.

Control valve

cannot be used.

Lift, tilt and

traction

functions will

not operate.

1 17-07 Valve output circuit is open.

2 17-05 Valve output circuit shorted to battery voltage*.

3 17-06 Valve output circuit shorted to ground.

3 17-06 Controller not grounded or intermittent ground.

Continuous

Flashing 03-09

03-10

System voltage low

System voltage high

Loader can be

moved forward &

backward.

Loader cannot

be moved

forward and

backward.

Loader cannot

be moved

forward and

backward.

1 16-07 Traction lock hold solenoid circuit is open.

2 16-05 Traction lock hold solenoid circuit shorted to

battery voltage*.

3 16-06 Traction lock hold solenoid circuit shorted to

ground.

5 15-02 Traction lock pull solenoid circuit is shorted to

battery voltage* - ERROR ON (Should be OFF).

6 15-03 Traction lock pull solenoid circuit ERROR OFF

(Should be ON).

Continuous

Flashing 03-09

03-10

System voltage low

System voltage high

* Normal BICS operating voltage is less than electrical system voltage.

S250 Bobcat Loader

SA-4 Operation & Maintenance Manual

DIAGNOSTICS SERVICE CODES

Display

Figure SA-1

Press and hold the LIGHTS Button (Item 1)

[Figure SA-1] for two seconds to view SERVICE CODES

in the HOURMETER / CODE DISPLAY (Item 2). If more

than one SERVICE CODE is present, the codes will scroll

on the HOURMETER / CODE DISPLAY.

NOTE: Corroded or loose grounds can cause

multiple service codes and/or abnormal

symptoms. All instrument panel lights

flashing, alarm sounding, headlights and

taillights flashing, could indicate a bad

ground. The same symptoms could apply if

the voltage is low, such as loose or corroded

battery cables. If you observe these

symptoms, check grounds and positive leads

first.

Service Codes may be either a word (Item 3)

[Figure SA-1] or a number (Item 4). (See the following

pages for the number codes.)

The following word errors may be displayed.

REPLY One or both instrument panel(s) not

communicating with the controller.

INPUT The controller not communicating with the left

instrument panel.

CODE The controller is asking for a password. (Deluxe

instrument panel only.)

ERROR The wrong password was entered. (Deluxe

instrument panel only.)

B-15551

S250 Bobcat Loader

SA-5 Operation & Maintenance Manual

DIAGNOSTICS SERVICE CODES (CONT’D)

Number Codes List

CODE CODE

01-16 Air filter not connected 11-05 Seat bar sensor short to battery

01-17 Air filter plugged 11-06 Seat bar sensor short to ground

02-16 Hydraulic charge filter not connected 12-21 Front auxiliary PWM switch out of range high

02-17 Hydraulic charge filter plugged 12-22 Front auxiliary PWM switch out of range low

12-23 Front auxiliary PWM switch not in neutral

03-09 Battery voltage low

03-10 Battery voltage high 13-05 Fuel shut-off hold solenoid short to battery

03-11 Battery voltage extremely high 13-06 Fuel shot-off hold solenoid short to ground

03-14 Battery voltage extremely low 13-07 Fuel shut-off solenoid open circuit

03-22 Battery voltage out of range low

14-02 Fuel shut-off pull solenoid error ON

04-09 Engine oil pressure low 14-03 Fuel shut-off pull solenoid error OFF

04-14 Engine oil pressure extremely low

04-15 Engine oil pressure shutdown level 15-02 Traction lock pull solenoid error ON

04-21 Engine oil pressure out of range high 15-03 Traction lock pull solenoid error OFF

04-22 Engine oil pressure out of range low

16-05 Traction lock hold solenoid short to battery

05-09 Hydraulic charge pressure low 16-06 Traction lock hold solenoid short to ground

05-14 Hydraulic charge pressure extremely low 16-07 Traction lock hold solenoid open circuit

05-15 Hydraulic charge pressure shutdown level

05-21 Hydraulic charge pressure out of range high 17-05 Hydraulic lock valve solenoid short to battery

05-22 Hydraulic charge pressure of range low 17-06 Hydraulic lock valve solenoid short to ground

17-07 Hydraulic lock valve solenoid open circuit

06-10 Engine speed high

06-11 Engine speed extremely high 18-05 Spool Lock Solenoid short to battery

06-13 Engine speed no signal 18-06 Spool Lock Solenoid short to ground

06-15 Engine speed shutdown level 18-07 Spool Lock Solenoid open circuit

06-18 Engine speed out of range

19-02 Bucket position solenoid error ON

07-10 Hydraulic oil temperature high 19-03 Bucket position solenoid error OFF

07-11 Hydraulic oil temperature extremely high

07-15 Hydraulic oil temperature shutdown level 20-02 Two-speed solenoid error ON

07-21 Hydraulic oil temperature out of range high 20-03 Two-speed solenoid error OFF

07-22 Hydraulic oil temperature out of range low

21-02 Glow plug error ON

08-10 Engine coolant temperature high 21-03 Glow plug error OFF

08-11 Engine coolant temperature extremely high

08-15 Engine coolant temperature shutdown level 22-02 Starter error ON

08-21 Engine coolant temperature out of range high 22-03 Starter error OFF

08-22 Engine coolant temperature out of range low

23-02 Rear base solenoid error ON

09-09 Fuel level low 23-03 Rear base solenoid error OFF

09-21 Fuel level out of range high

09-22 Fuel level out of range low 24-02 Rear rod solenoid error ON

24-03 Rear rod solenoid error OFF

S250 Bobcat Loader

SA-6 Operation & Maintenance Manual

DIAGNOSTICS SERVICE CODES (CONT’D)

Number Codes List (Cont’d)

CODE CODE

25-02 Rear auxiliary relief solenoid error ON 32-61 Handle lock short to ground

25-03 Rear auxiliary relief solenoid error OFF 32-62 Handle lock short to battery

32-63 Pedal lock short to ground

26-02 Front base solenoid error ON 32-64 Pedal lock short to battery

26-03 Front base solenoid error OFF 32-65 Sensor supply voltage out of range

32-66 Battery voltage out of range

27-02 Front rod solenoid error ON 32-67 Switch flipped while operating

27-03 Front rod solenoid error OFF 32-68 Lift handle information error

32-69 Control pattern switch flipped while operating

28-02 Diverter solenoid error ON 32-70 Right drive handle short to ground

28-03 Diverter solenoid error OFF 32-71 Right drive handle short to battery

29-02 High flow solenoid error ON 33-23 Main Controller (Bobcat Controller) not

programmed

29-03 High flow solenoid error OFF

34-04 Deluxe panel no communication to Bobcat

controller

30-28 Controller Memory failure

35-02 Two-speed fan error ON

31-28 Interrupted power failure 35-03 Two-speed fan error OFF

32-04 ACS not communicating with Bobcat Controller 36-48 ACD multiple controllers present

32-23 ACS Not calibrated

32-31 Tilt actuator fault 37-02 Two-speed secondary error ON

32-32 Tilt actuator wiring fault 37-03 Two-speed secondary error OFF

32-33 Tilt handle wiring fault

32-34 Tilt actuator not in neutral

32-35 Tilt handle/pedal not in neutral

32-36 Lift actuator fault

32-37 Lift actuator wiring fault

32-38 Lift handle wiring fault

32-39 Lift actuator not in neutral

32-40 Lift handle/pedal not in neutral

32-41 No communication

32-49 Lift actuator short to ground

32-50 Tilt actuator short to ground

32-51 Lift actuator short to battery

32-52 Tilt actuator short to battery

32-53 Lift handle/pedal short to ground

32-54 Tilt handle/pedal short to ground

32-55 Lift handle/pedal short to battery

32-56 Tilt handle/pedal short to battery

32-57 Lift actuator reduced performance

32-58 Tilt actuator reduced performance

32-59 Lift actuator wrong direction

32-60 Tilt actuator wrong direction

S250 Bobcat Loader

SA-7 Operation & Maintenance Manual

DIAGNOSTICS SERVICE CODES (CONT’D)

Number Codes List (Cont’d)

CODE CODE

38-04 No communication from joystick controller 38-53 Left forward drive solenoid error OFF

38-05 Left joystick X axis not in neutral 38-54 Left reverse drive solenoid error OFF

38-06 Right joystick X axis not in neutral 38-55 Right forward drive solenoid error OFF

38-07 Left joystick Y as not in neutral 38-56 Right reverse drive solenoid error OFF

38-08 Right joystick Y axis not in neutral 38-57 Front right extend steering solenoid error OFF

38-09 Control pattern switch - Short to Battery or

Ground

38-58 Front right retract steering solenoid error OFF

38-11 Lift actuator not in neutral 38-59 Front left extend steering solenoid error OFF

38-12 Tilt actuator not in neutral 38-60 Front left retract steering solenoid error OFF

38-13 Lift actuator fault 38-61 Rear right extend steering solenoid error OFF

38-14 Tilt actuator fault 38-62 Rear right retract steering solenoid error OFF

38-15 Right wheel speed fault 38-63 Rear left extend steering solenoid error OFF

38-16 Left wheel speed fault 38-64 Rear left retract steering solenoid error OFF

38-17 Tilt actuator reduced performance 38-65 Steering pressure solenoid error OFF

38-18 Lift actuator reduced performance 38-66 Back-up alarm error OFF

38-19 Left joystick X axis out of range high 38-67 No communication from Bobcat controller

38-20 Right joystick X axis out of range low 38-68 Wheel angles (alignment) not calibrated

38-21 Left joystick Y axis out of range high 38-69 Lift & tilt actuators not calibrated

38-22 Right joystick Y axis out of range high 38-70 Interrupted power

38-23 Front right steering sensor out of range high 38-71 Battery out of range

38-24 Front left steering sensor out of range high 38-72 Drive pump not calibrated

38-25 Rear right steering sensor out of range high 38-73 Steering mode / drive mode switch flipped while

operating

38-26 Rear left steering sensor out of range high 38-74 Uncommanded right wheel speed error ON

38-27 Lift actuator out of range high 38-75 Uncommanded left wheel speed error ON

38-28 Tilt actuator out of range high 38-76 Undercurrent steer pressure solenoid

38-29 Left joystick X axis out of range low 38-77 Undercurrent front right extend steer solenoid

38-30 Right joystick X axis out of range low 38-78 Undercurrent front right retract steer solenoid

38-31 Left joystick Y axis out of range low 38-79 Undercurrent front left extend steer solenoid

38-32 Right joystick Y axis out of range low 38-80 Undercurrent front left retract steer solenoid

38-33 Front right steering sensor out of range low 38-81 Undercurrent rear right extend steer solenoid

38-34 Front left steering sensor out of range low 38-82 Undercurrent rear right retract steer solenoid

38-35 Rear right steering sensor out of range low 38-83 Undercurrent rear left extend steer solenoid

38-36 Rear left steering sensor out of range low 38-84 Undercurrent rear left retract steer solenoid

38-37 5 volt sensor supply 1 out of range low 38-85 5 Volt sensor supply 1 out of range high

38-38 5 volt sensor supply 2 out of range low 38-86 5 Volt sensor supply 2 out of range high

38-39 Lift actuator short to ground / out of range low 38-87 Front right wheel blocked (steering mechanical failure)

38-40 Tilt actuator short to ground / out of range low 38-88 Front left wheel blocked (steering mechanical failure)

38-41 Tilt actuator wrong direction 38-89 Rear right wheel blocked (steering mechanical failure)

38-42 Lift actuator wrong direction 38-90 Rear left steering error

38-43 Left forward drive solenoid error ON 38-91 Right speed sensor missing pulses

38-44 Left reverse drive solenoid error ON 38-92 Left speed sensor missing pulses

38-45 Right forward drive solenoid error ON 38-93 Unresponsive right speed sensor

38-46 Right reverse drive solenoid error ON 38-94 Unresponsive left speed sensor

38-47 Front right steering solenoid error ON 38-98 Controller in drive calibration mode

38-48 Front left steering solenoid error ON 38-99 Controller in wheel position calibration mode.

38-49 Rear right steering solenoid error ON

38-50 Rear left steering solenoid error ON

38-51 Steering pressure solenoid error ON

38-52 Back-up alarm error ON

S250 Bobcat Loader

SA-8 Operation & Maintenance Manual

DIAGNOSTICS SERVICE CODES (CONT’D)

Number Codes List (Cont’d)

CODE CODE

39-04 Left joystick no communication to Bobcat controller 85-02 ACD output ‘F’ error ON

85-03 ACD output ‘F’ error OFF

40-04 Right joystick no communication to Bobcat

controller

86-02 ACD output ‘G’ error ON

44-02 Horn error ON 86-03 ACD output ‘G’ error OFF

44-03 Horn error OFF

87-02 ACD output ‘H’ error ON

45-02 Right blinker error ON 87-03 ACD output ‘H’ error OFF

45-03 Right blinker error OFF

90-02 Service tool output ‘C’ error ON

46-02 Left blinker error ON 90-03 Service tool output ‘C’ error OFF

46-03 Left blinker error OFF

91-02 Service tool output ‘D’ error ON

47-21 8 volt sensor supply out of range high 91-03 Service tool output ‘D’ error OFF

47-22 8 volt sensor supply out of range low

92-02 Service tool output ‘E’ error ON

48-02 Front light relay error ON 92-03 Service tool output ‘E’ error OFF

48-03 Front light relay error OFF

93-02 Service tool output ‘F’ error ON

49-02 Rear light relay error ON 93-03 Service tool output ‘F’ error OFF

49-03 Rear light relay error OFF

60-21 Rear auxiliary control out of range high

60-22 Rear auxiliary control out of range low

60-23 Rear auxiliary control not returning to neutral

64-02 Switched power relay error ON

64-03 Switched power relay error OFF

74-72 Bobcat controller in boot code

74-73 Left hand panel system RX error

80-02 ACD output ‘A’ error ON

80-03 ACD output ‘A’ error OFF

81-02 ACD output ‘B’ error ON

81-03 ACD output ‘B’ error OFF

82-02 ACD output ‘C’ error ON

82-03 ACD output ‘C’ error OFF

83-02 ACD output ‘D’ error ON

83-03 ACD output ‘D’ error OFF

84-02 ACD output ‘E’ error ON

84-03 ACD output ‘E’ error OFF

S250 Bobcat Loader

SA-9 Operation & Maintenance Manual

DELUXE INSTRUMENT PANEL SETUP

Deluxe Panel Upgrade

Icon Identification

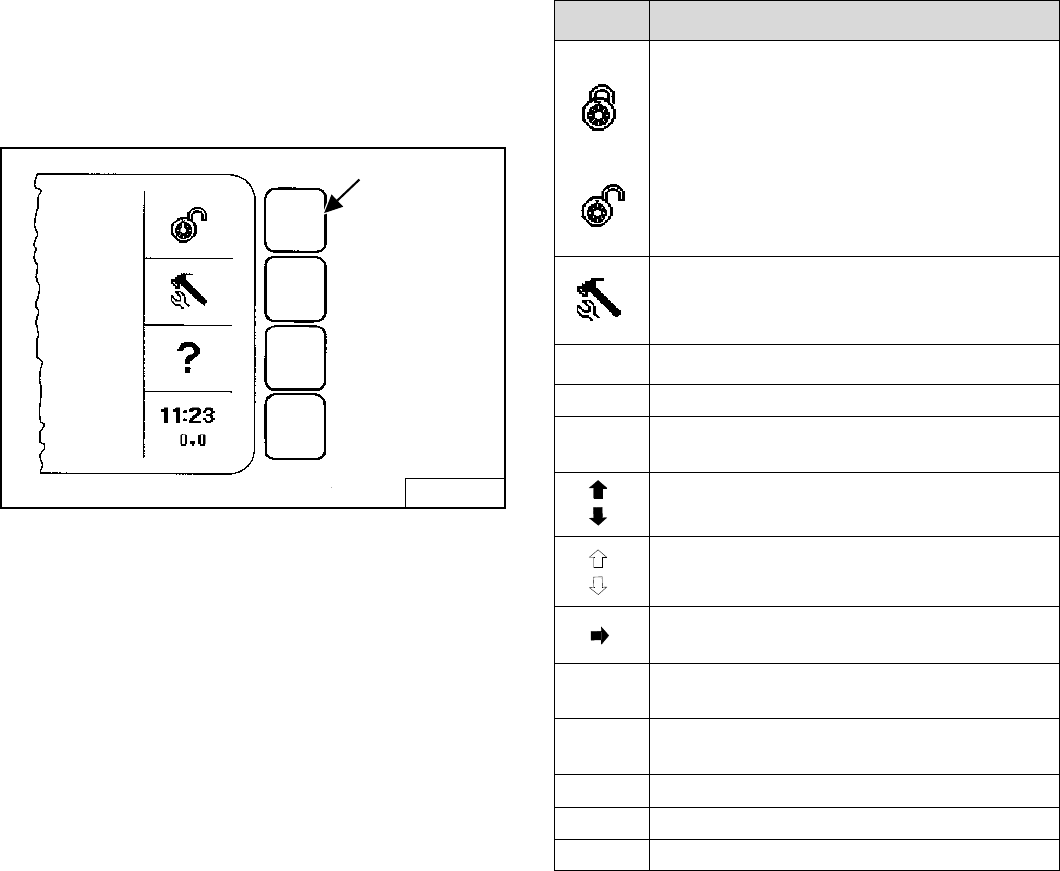

Figure SA-2

Make selection by pressing SELECTION BUTTON

opposite the Icon [Figure SA-2].

B-16162

EXAMPLE

SELECTION BUTTON

ICON DESCRIPTION

LOCK/UNLOCK: Allows machine to be

locked/unlocked. You must lock machine to

activate security system.

When system is unlocked, the user can press

RUN/ENTER then press START to begin

operation.

A valid password will need to be entered at

startup to run a locked machine.

TOOL/SETUP: Access system options.

Use to set clock, check system warnings,

select language, set passwords, etc.

?HELP: Access help on current menu item.

EXIT EXIT returns you to previous level menu.

11:23

0.0

CLOCK/JOB CLOCK: Press to clear or lock

job clock; TOOL/SETUP to set time.

UP ARROW: Goes backward one screen.

DOWN ARROW: Goes forward one screen.

OUTLINE ARROWS: No screen available

(backward/forward).

SELECTION ARROW: Use to select menu

item.

NEXT Goes to the NEXT screen in series.

EXAMPLE: the next Active Warning screen.

INFO Goes to more information about an

attachment.

YES/NO Answer yes/no to current setup question.

CLEAR Removes previously installed password.

SET Set accepts current installed password.

S250 Bobcat Loader

SA-10 Operation & Maintenance Manual

DELUXE INSTRUMENT PANEL SETUP (CONT’D)

Deluxe Panel Setup

Display Options

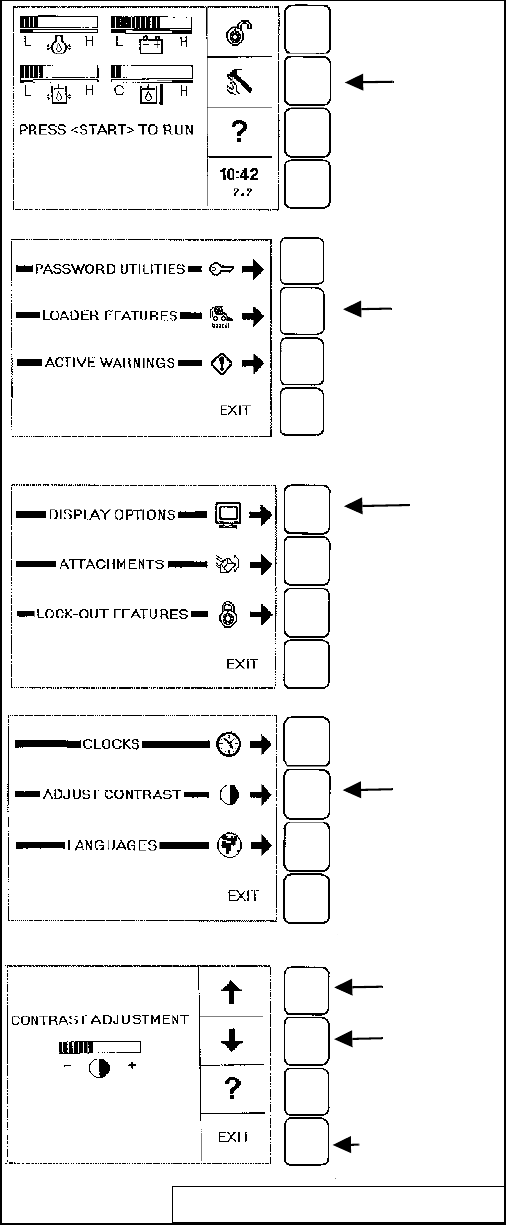

Figure SA-3

All new machines with Deluxe Instrumentation arrive at

Bobcat Dealerships with the panel in locked mode. This

means that a password must be used to start the engine

[Figure SA-3].

Passwords (Deluxe)

For security purposes, your dealer may change the

password and also set it in the locked mode. Your

dealer will provide you with the password.

Owner Password:

Allows for full use of the loader and to setup the

Deluxe Panel. Owner can select a password to allow

starting & operating the loader and modify the setup

of the Deluxe Panel. Owner should change the

password as soon as possible for security of the

loader.

User Password:

Allows starting and operating the loader; cannot

change password or any of the other setup features.

DISPLAY

TOOL/SETUP

Press

LOADER

Press

ADJUST

Press

UP OR DOWN

Press

Arrow to

change contrast.

Press EXIT to

return to

previous level

menu.

B-16163/B16164/B-16161/B-16166/B-16167

FEATURES

OPTIONS

CONTRAST

S250 Bobcat Loader

SA-11 Operation & Maintenance Manual

DELUXE INSTRUMENT PANEL SETUP (CONT’D)

Passwords (Deluxe) (Cont’d)

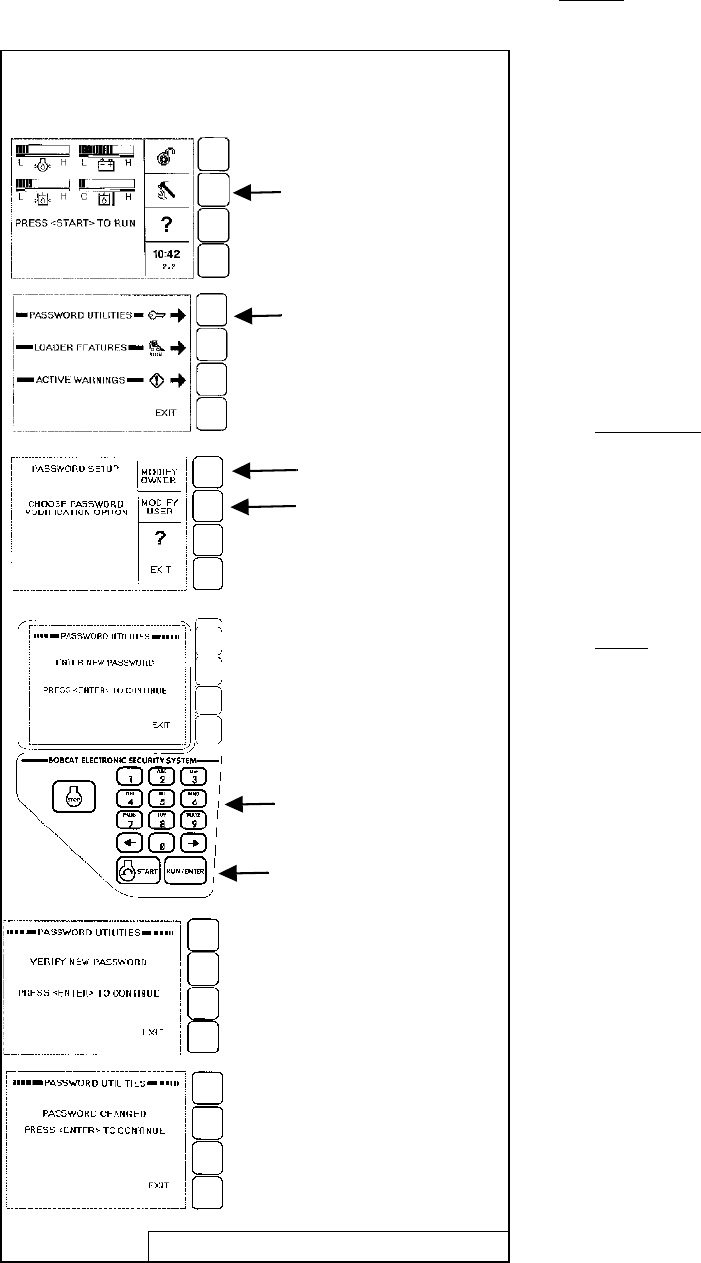

Figure SA-4

More EXAMPLES:

Clocks

TOOL/SETUP [Figure SA-4]

LOADER FEATURES.

DISPLAY OPTIONS

CLOCKS

SET CLOCK

Use the keypad to set time.

Press RUN/ENTER to set clock.

Press EXIT to return to previous level menu.

RESET JOB CLOCK (Password required)

Press CLEAR to reset job clock to zero.

Press LOCK/UNLOCK to unlock.

Enter Password and press RUN/ENTER.

Languages

TOOL/SETUP

LOADER FEATURES.

DISPLAY OPTIONS

LANGUAGES

Select the language, press RUN/ENTER.

Press EXIT to return to previous level menu.

Vitals (Monitor engine, hydraulic/hydrostatic,

electrical functions when engine is running.)

TOOL/SETUP

LOADER FEATURES.

VITALS

Press SELECTION ARROW to select METRIC or

ENGLISH (M/E) readouts

You can monitor real-tim readouts of:

Engine Oil Pressure

Engine Coolant Temperature

Hydraulic Charge Pressure

Hydraulic Ouil Temperature

System Voltage

Engine Speed

The Display Panel is easy to use. Continue to set

your own preferences for running/monitoring your

Bobcat loader.

MODIFY OWNER

TOOL/SETUP

Press

PASSWORDPress

Enter Password on

Press Enter to Continue

Re-enter new password.

B-16163/B16164/B-16171/B-16172/B-16173/B-16174

Changing the Password Right Instrument Panel

Display Screen

UTILITIES

MODIFY USER

Keypad

Press Enter to Continue

(See left.)

(One to ten digits.)

S250 Bobcat Loader

SA-12 Operation & Maintenance Manual

S250 Bobcat Loader

SPEC-1 Operation & Maintenance Manual

SPECIFICATIONS

LOADER SPECIFICATIONS (S250) . . . . . . . . . . . . . . . . . . . . . . . . SPEC-3

Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-4

Drive System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-6

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-5

Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-5

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-7

Fluid Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-6

Fluid Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-7

Function Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-4

Hydraulic Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-5

Hydraulic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-5

Instrumentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-6

Machine Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-3

Machine Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-4

Traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-6

Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SPEC-4

SPECIFICATIONS

S250 Bobcat Loader

SPEC-2 Operation & Maintenance Manual

S250 Bobcat Loader

SPEC-3 Operation & Maintenance Manual

LOADER SPECIFICATIONS (S250)

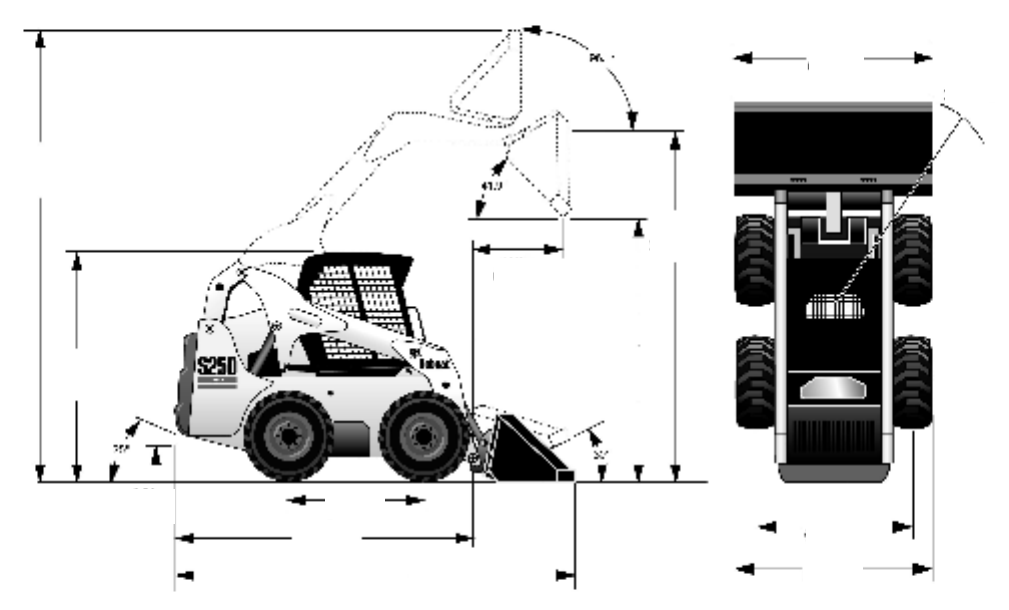

Machine Dimensions

• Dimensions are given for loader equipped with standard tires and dirt bucket and may vary with other bucket types.

All dimensions are shown in millimeters.

• Where applicable, specification conform to SAE or ISO standards and are subject to change without notice.

Changes of structure or weight distribution of the loader can cause changes in control and steering response and can cause failure of the

loader parts.

B-16396

1880 mm

2139 mm

1504 mm

1829 mm

2525 mm

3211 mm

864 mm

4077 mm

2055 mm

216 mm 1240 mm

2908 mm

3630 mm

S250 Bobcat Loader

SPEC-4 Operation & Maintenance Manual

LOADER SPECIFICATIONS (S250) (CONT’D)

Machine Rating

Function Time

Weights

Controls

Lift breakout force 23024 N

Tilt breakout force 30426 N

Rated operating capacity (ISO 5998) 1200 kg

Tipping load (ISO 8313) 2400 kg

Axle torque 8077 Nm

Raise lift arms 4,4 s

Lower lift arms 3,2 s

Bucket rollback 1,9 s

Bucket dump 2,5 s

Operating weight, S250 3503 kg

Operating weight, S250H 3523 kg

Shipping weight 3141 kg

Engine Hand lever throttle

Starting Key-type starter switch and shutdown. Intake air heater automatically

activated by Standard or Deluxe instrument panel.

Front auxiliary (standard) Electrical switch on right-hand steering lever

Rear auxiliary (optional) Electrical switch on left-hand steering lever

Loader hydraulics tilt and lift Separate foot pedals or optional Advanced Control System (ACS)

Service brake Two independent hydrostatic systems controlled by two hand-operated

steering levers

Secondary brake One of the hydrostatic transmissions

Parking brake, standard Mechanical disc, hand operated rocker-switch on dash panel

Parking brake, two-speed option Spring applied pressure release multi-disk brake activated by rocker

switch

Vehicle steering Direction and speed controlled by two hand levers

Auxiliary pressure release Pressure is relieved through the coupler block. Push in and hold for 5 s.

S250 Bobcat Loader

SPEC-5 Operation & Maintenance Manual

LOADER SPECIFICATIONS (S250) (CONT’D)

Engine

Electrical

Hydraulic System

Hydraulic Cylinders

Make / Model Kubota / V3300-DI-T turbo

Fuel Diesel

Cooling Liquid

Power at 2400 RPM 54 kW

Rated speed (EEC 80/1269, ISO9249) 2400 RPM

Torque, maximum (ISO 9249) at 1400 RPM 273 Nm

Number of cylinders 4

Displacement 3.32 l

Bore 98 mm

Stroke 110 mm

Fuel consumption 9.1 l/h (Estimated fuel consumption is based on testing by Bobcat

Company in high duty-cycle digging applications.)

Lubrication Pressure system with filter

Crankcase ventilation Open breathing

Air filter Dry replaceable cartridge with safety element

Ignition Diesel-compression

Starting aid Intake air heater

Alternator Belt driven – 90 A – open

Battery 12 V – 950 cold cranking A at -18°C – 180 min reserve capacity

Starter 12 V – gear reduction type – 3.0 kW

Pump type Engine driven, gear type

Pump capacity at high idle – S250 78,4 l/min

Pump capacity at high idle – S250H 151,4 l/min

System relief at Quick Couplers 227,5 bar

Control valve Three-spool, open-centre type with float detent on lift and electrically

controlled auxiliary spool

Hydraulic filter Full-flow replaceable – 3 µm synthetic media element

Fluid lines Value

Lift cylinder (2) Double-acting

Lift cylinder bore 76,2 mm

Lift cylinder rod 41,4 mm

Lift cylinder stroke 636,0 mm

Tilt cylinder (2) Double-acting with cushioning feature on dump and rollback

Tilt cylinder bore 76,2 mm

Tilt cylinder rod 38,1 mm

Tilt cylinder stroke 383,5 mm

S250 Bobcat Loader

SPEC-6 Operation & Maintenance Manual

LOADER SPECIFICATIONS (S250) (CONT’D)

Drive System

Traction

Instrumentation

The following loader functions are monitored by a combination of gauges and warning lights in the operator's line of sight.

The system alerts the operator of monitored loader malfunctions by way of audible alarm and visual warning lights.

Standard Instrument Panel

• Gauges

• Engine coolant temperature

• Fuel

• Hour-meter

• Indicators

• Attachment Control Device

• BICS functions

• Intake air heater

• Warning lights

• Advanced Control System (ACS)

• Engine air filter

• Engine coolant temperature

• Engine oil pressure

• Fuel level

• General warning

• Hydraulic filter

• Hydraulic oil temperature

• Hydrostatic charge temperature

• Seat belt

• System voltage

Deluxe Instrument Panel (Option)

Same gauges, warning lights and other features as

Standard Instrument Panel, plus:

• Bar-type gauges

• Engine oil pressure

• System voltage

• Hydrostatic charge pressure

• Hydraulic oil temperature

• Additional features

• Keyless start with password capability

• Digital clock

• Job clock

• Attachments information

• Digital tachometer

• High flow lockouts

• Multi-language display

• Help screens

• Diagnostic capability

• Engine/hydraulic systems shutdown function

Fluid Capacities

Transmission Infinitely variable tandem hydrostatic piston pumps, driving two fully

reversing hydrostatic motors

Final drive chains Pre-stressed #100 HSOC endless roller chain (no master link) and

sprockets in sealed chaincase with oil lubrication. (Chains do not

require periodic adjustments.) Two chains per side with no idler

sprocket.

Main drive Fully hydrostatic; four-wheel drive

Axle size 70,1 mm, heat treated

Wheel bolts Eight 9/16-inch wheel bolts fixed to axle hubs

Tyres 12-16.5 – 12-ply – Bobcat heavy duty

Travel speed – standard 11,6 km/h

Travel speed – two-speed option high range 20,1 km/h

Chaincase reservoir capacity 41.6 l

Cooling system capacity 16.3 l

Engine oil with filter capacity 13.2 l

Fuel tank capacity 94.6 l

Hydraulic reservoir capacity 17.8 l

Hydraulic / Hydrostatic system capacity 49.2 l

S250 Bobcat Loader

SPEC-7 Operation & Maintenance Manual

LOADER SPECIFICATIONS (S250) (CONT’D)

Fluid Specifications

Environmental

Engine coolant Polypropylene glycol/water mix (53% – 47%) with freeze protection to

-37°C

Engine oil Oil must meet API Service Classification of CD, CE, CF4, CG4, or better.

Recommended SAE viscosity number for anticipated temperature range.

* Can by used only when available with appropriate diesel rating.

For synthetic oil use the recommendation from the oil manufacturer.

Hydraulic fluid Bobcat Fluid (P/N 6563328). If fluid is not available use 10W-30/10W

Class SE motor oil for temperatures above -18°C or 5W-30 Class SE

motor oil for temperatures below -18°C.

Noise level LpA (EU Directive 2000/14/EC) 85 dB(A)

Noise level LWA (EU Directive 2000/14/EC) 104 dB(A)

Whole body vibration (ISO 2631–1) 1.19 ms-2

Hand-arm vibration (ISO 5349–1) 2.67 ms-2

S250 Bobcat Loader

SPEC-8 Operation & Maintenance Manual

WARRANTY

Bobcat Loaders

Bobcat Europe warrants to its authorized dealer who in turn warrants to the

original buyer (owner), that each new Bobcat loader will be free from proven

defects in material and workmanship for twelve (12) months or 2000 hours after

delivery to the owner, whichever occurs first.

During the warranty period, the authorized selling Bobcat dealer shall repair or

replace, at his option, without charge for parts, labor and travel time of mechanics,

any part of the Bobcat product which fails because of defects in material or

workmanship. The owner shall provide the authorized dealer with prompt written

notice of the defect and allow reasonable time for replacement or repair. Bobcat

Europe may, at its option, request failed parts to be returned to the factory.

Transportation of the Bobcat product to the authorized Bobcat dealer for warranty

work is the responsibility of the owner.

This warranty does not apply to tires or other trade accessories not manufactured

by Bobcat. The owner shall rely solely on the existing warranty, if any, of the

respective manufacturers thereof. This warranty does not cover replacement of

scheduled service items such as oil, filters, tune-up parts and other high-wear

items. This warranty does not cover damages resulting from abuse, accidents,

alterations, air flow obstructions, or failure to maintain or use the Bobcat product

according to the instructions applicable to it.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES (EXCEPT THOSE OF

TITLE), EXPRESSED OR IMPLIED, AND THERE ARE NO WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT

SHALL THE AUTHORIZED SELLING DEALER OR BOBCAT BE LIABLE FOR

DOWNTIME EXPENSES, LOSS OF MACHINE USE OR OTHER INCIDENTAL,

CONSEQUENTIAL OR SPECIAL DAMAGES.

4700002-EN (04-02) Printed in Europe

S250 6904178 EN Bobcat Manual

641 Bobcat-S250-Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
