Built-in

appliances

2009/2010 – 2nd Edition

“It has always been an unbearable thought to me that someone

could inspect one of my products and find it inferior in some way.

For that reason I have consistently tried to produce products which

can withstand the closest scrutiny – products which prove

themselves to be superior in every respect.”

Robert Bosch 1861-1942

Contents.

Ovens 6 – 31

Compact appliances – combination ovens, microwaves,

steam ovens, coffee maker and warming drawers 32 – 45

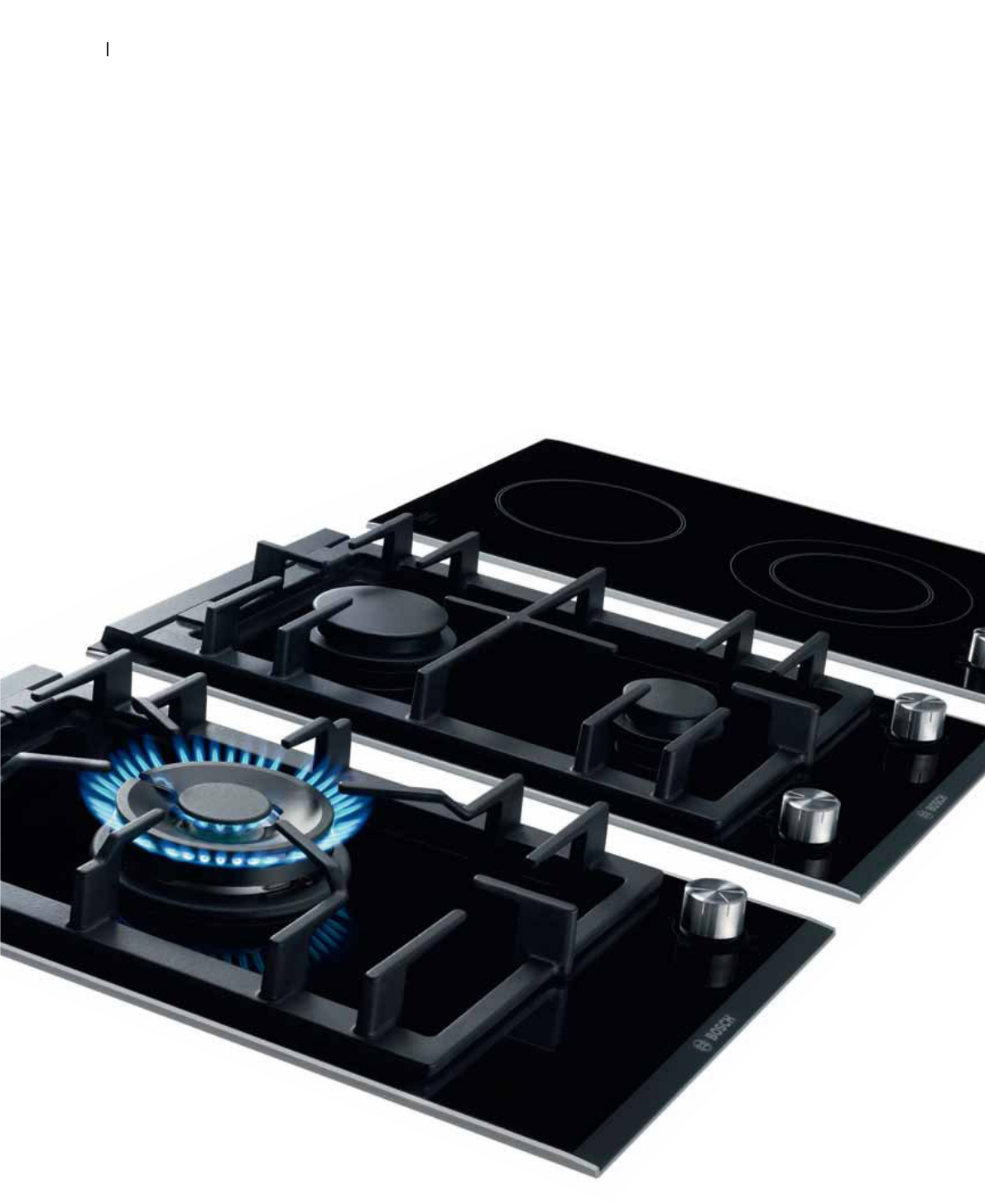

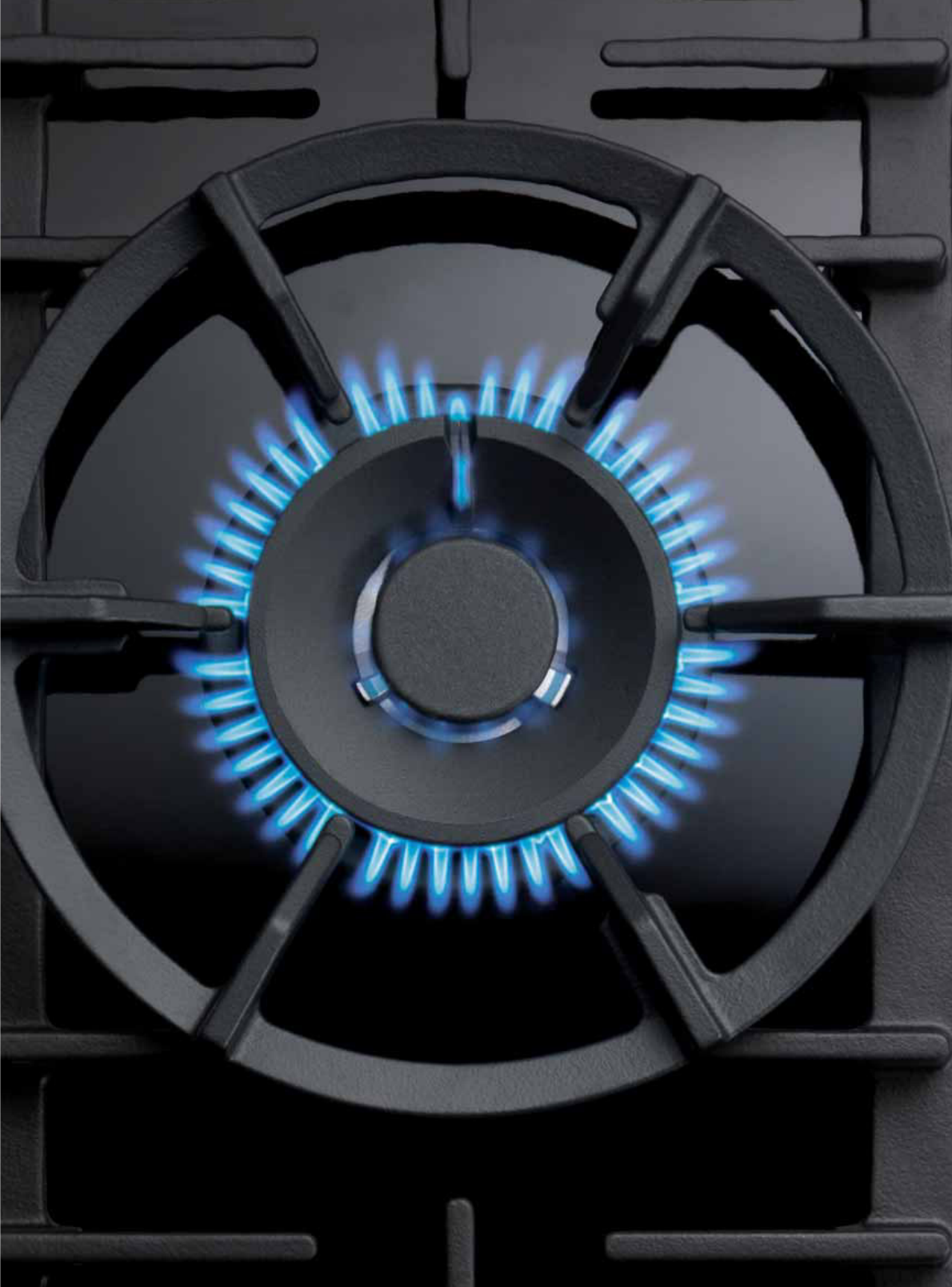

Gas hobs 46 – 55

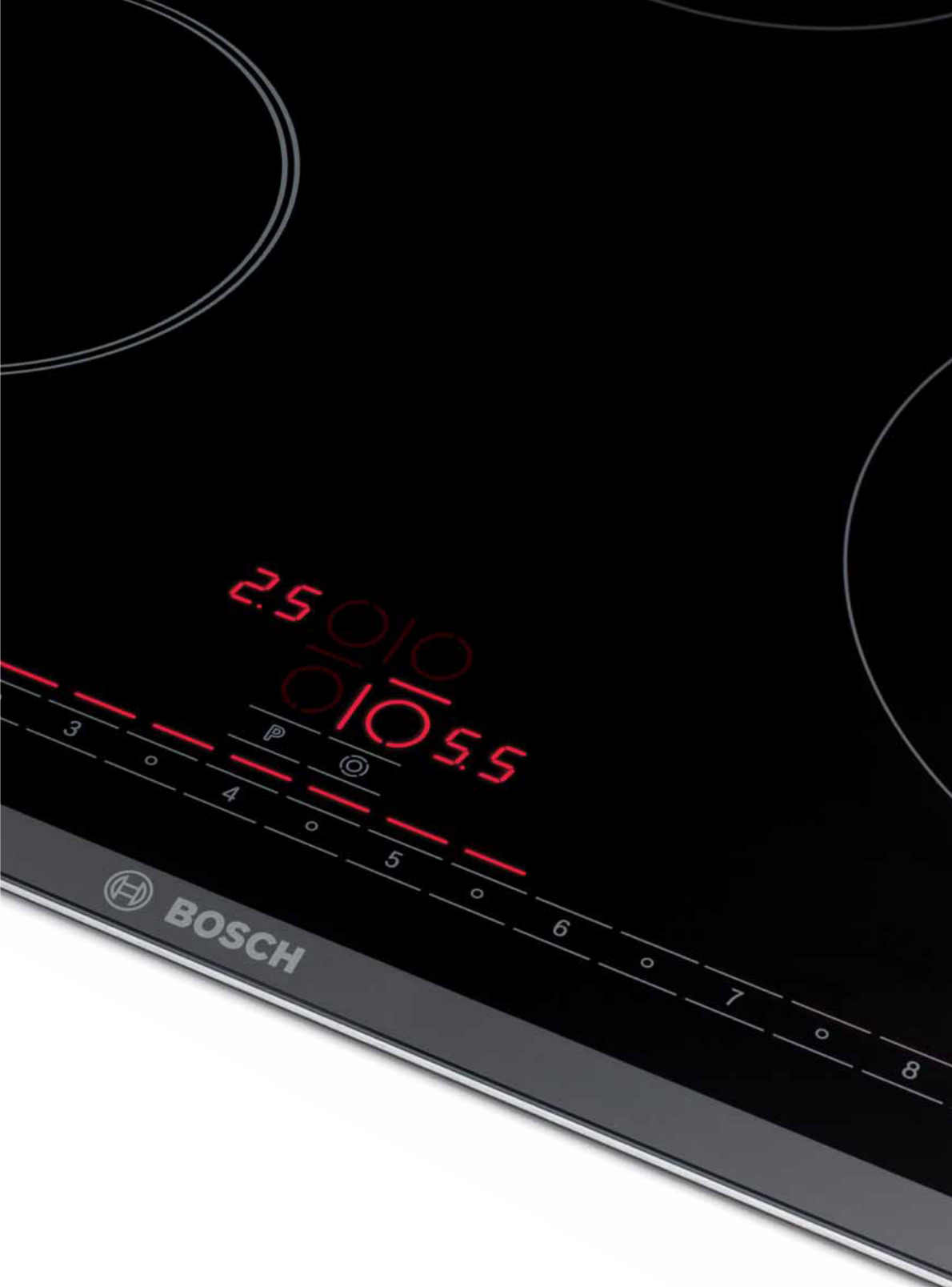

Electric hobs 56 – 69

Domino hobs 70 – 71

Hoods 72 – 87

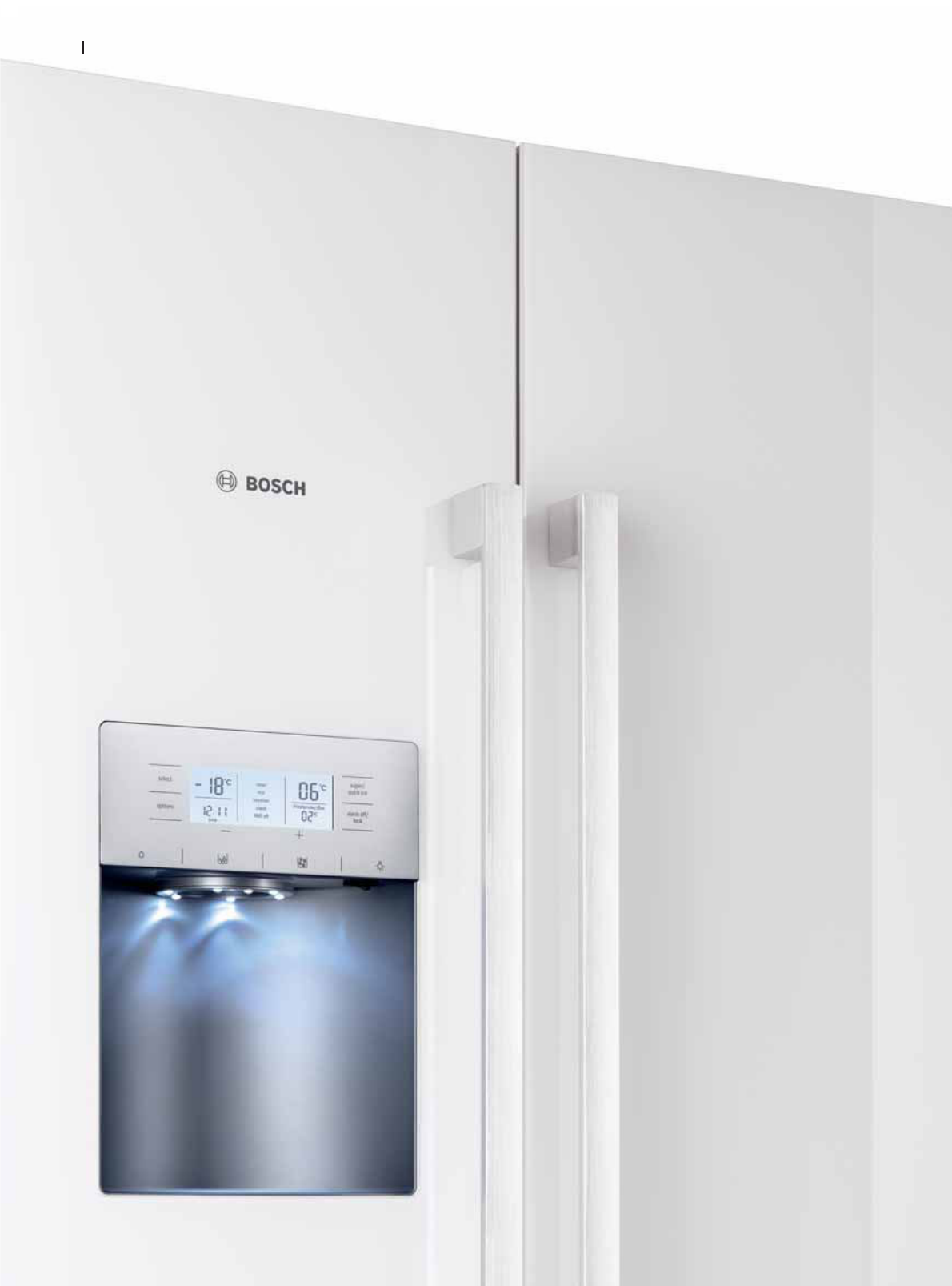

Refrigeration 88 – 105

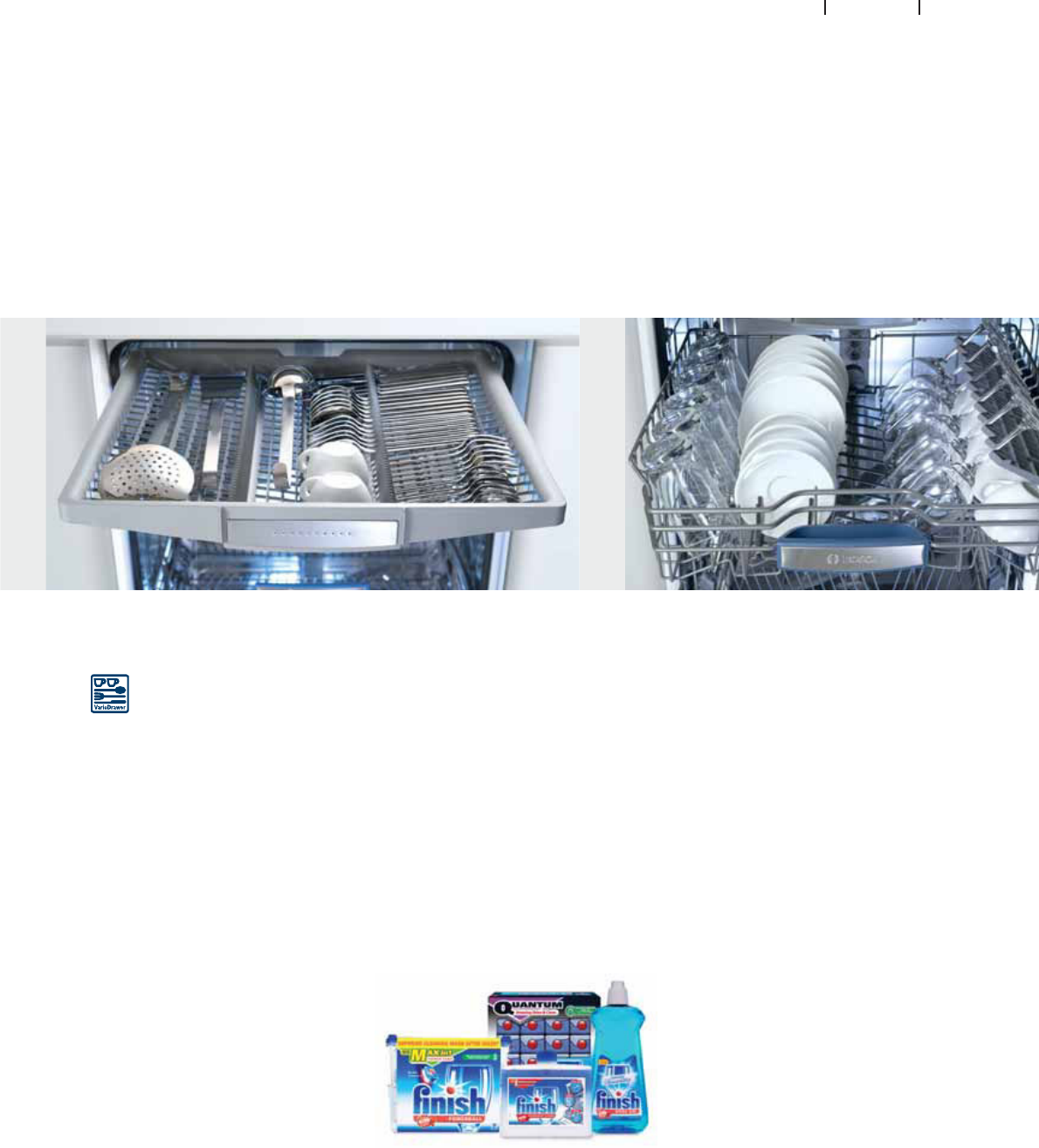

Dishwashers 106 – 121

Home laundry 122 – 127

Bosch customer service 128

Contents 1

The new collection 3

Great performance.

Perfect symmetry.

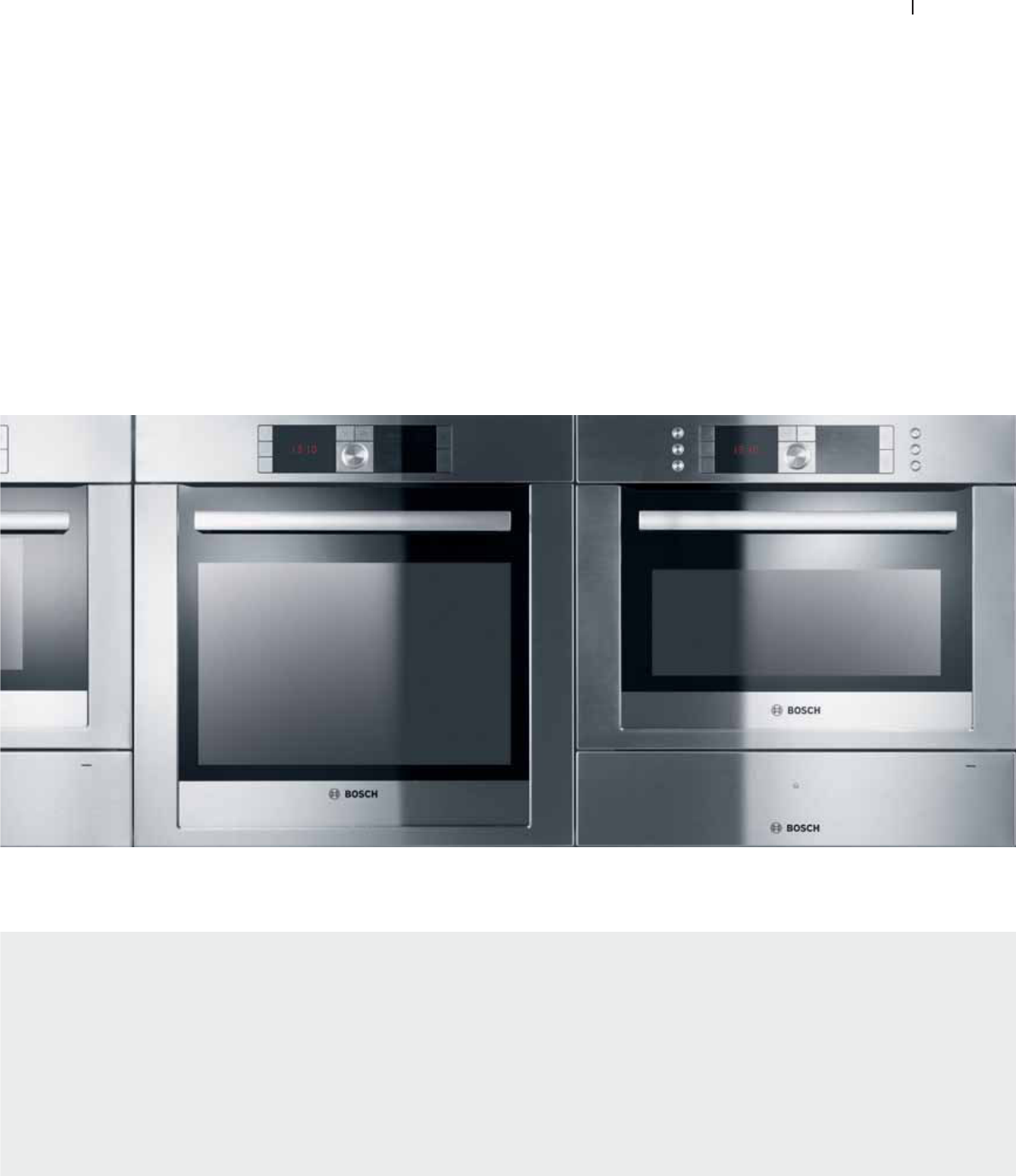

The new collection of Bosch built-in appliances has been designed

to give you perfect symmetry in your home. Matching control panels

and horizontal lines allow you to mix and match products vertically and

horizontally. Every detail has been considered from the control panels,

dials and knobs to the handles and door design.

4 To help you choose

Designed for simplicity.

To help you choose the right

Bosch appliance for your

needs we have divided our

product groups into three

distinct design lines. Control

panels, door designs, handles

and even functions are

consistent across the ranges,

allowing you to perfectly

match the look of your

appliances and making

operating them even simpler.

Logixx

Premium models with exceptional cutting-

edge features and extras. All our Logixx

machines offer electronic controls, and you

will find innovative features such as clear

text displays and metal touch controls, as

well as all-steel handles and illuminated

pop-out controls.

Exxcel

Mid-range models with a broad range of

extra features and benefits. Large easy

to use LED displays are common and

selected products offer electronic controls.

The stylish Bosch U-form door design,

glass-on-metal door construction and

metal-capped pop-out controls are also

features to look out for.

Classixx

Simple practical models offering Bosch

build quality and value for money.

The highest quality materials such as

stainless steel and cast iron are used

throughout as well as the latest

technologies and design features such as

touch controls and pop-out controls.

To help you choose 5

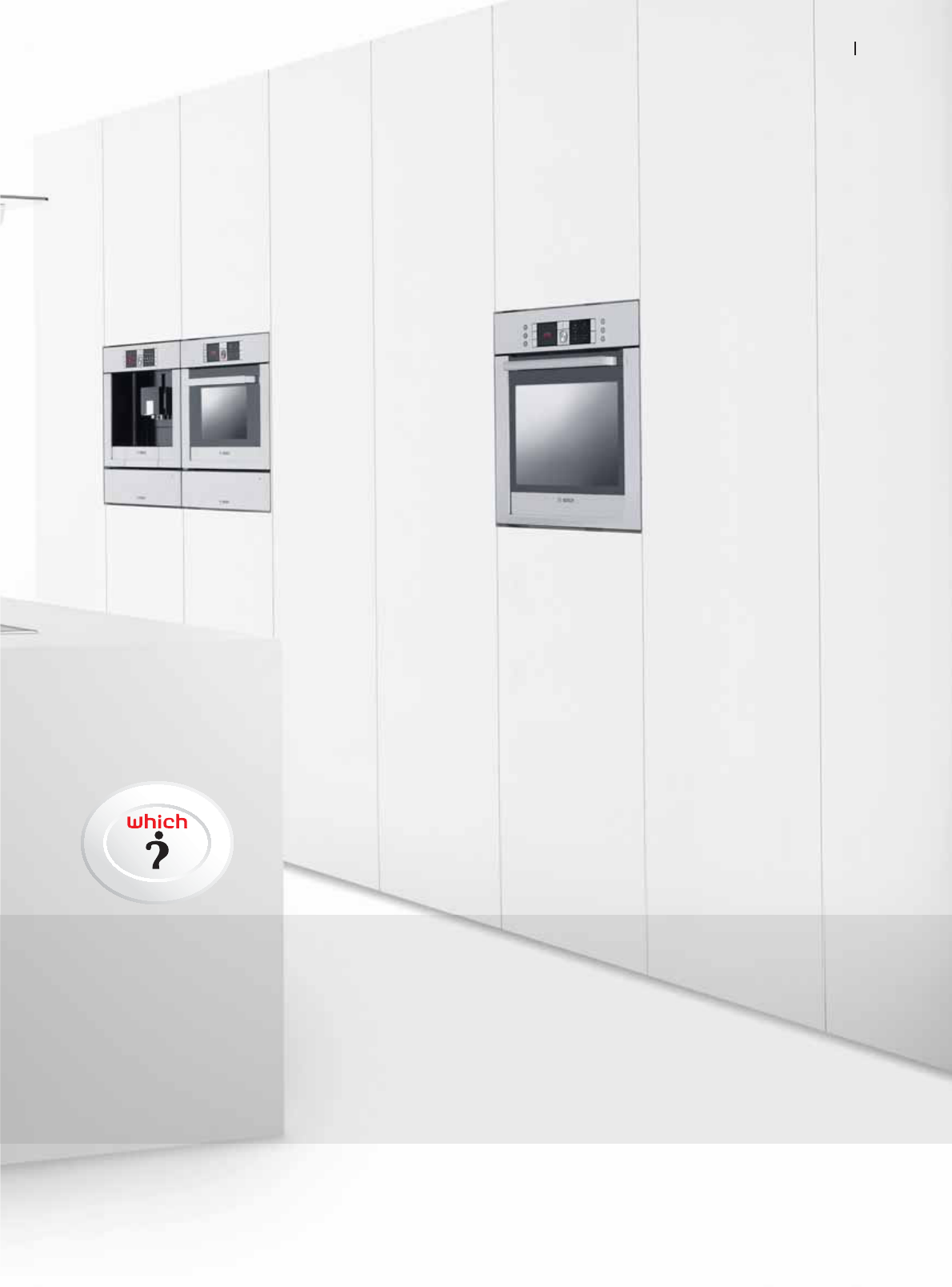

Which? the number one consumer

organisation, has awarded Bosch the

prestigious ‘Best Domestic Appliance

Brand 2009’.

Which? Experts analysed test and survey

results across the year and paid particular

attention to those companies who have

provided best value to their customers.

Bosch have been awarded 22 Which? Best

Buys so far across 7 categories including:

washing machines, tumble dryers, ovens,

dishwashers, refrigeration, vacuum

cleaners and irons.

What Which? says:

‘The Bosch range consistently represents

strong technical performance at affordable

prices.

Very good cotton wash cleaning and

rinsing, easy to use, great cleaning and

drying of dishes, oven cooked every cake

perfectly, excellent ironing results,

stunning vacuuming, brilliant at keeping

small particles in, one of the quietest

machines we’ve tested’.

So thanks to Which? you can now put an

award winner in your home.

6 Ovens

Ovens 7

Ovens.

Logixx

Premium models with exceptional

cutting-edge features and extras. The

design has been refined to give you the

ultimate in contemporary style with twin

display windows, illuminated pop-out

controls and metal touch control panels.

Also look out for advanced features such

as Auto Cook and memory function.

Exxcel

Mid-range models with a broad range of

extra features and benefits. The unique

U-form door design, glass-on-metal door

construction, all-steel handles and

metal-capped pop-out controls ensure

these ovens stand apart from the crowd.

And, with their large LED displays and

broad range of cooking functions they

are truly a pleasure to use.

Classixx

Simple practical models offering Bosch

build quality and value for money.

Cooking functions are simplified, but

you will still find easy-to-use large

display windows, touch controls and

even pyrolytic self-cleaning, the ultimate

self-cleaning system, which makes

cleaning the oven a breeze.

8 Ovens Features and benefits

Ovens

features and benefits.

Performance

EU Energy Label

To help you choose the most energy

efficient appliances, the EU has

introduced an energy-rating scheme,

whereby all ovens are required to display an

EU Energy Label. The most efficient rating

is 'A' and the least efficient is 'G', all Bosch

single ovens have been awarded an A rating

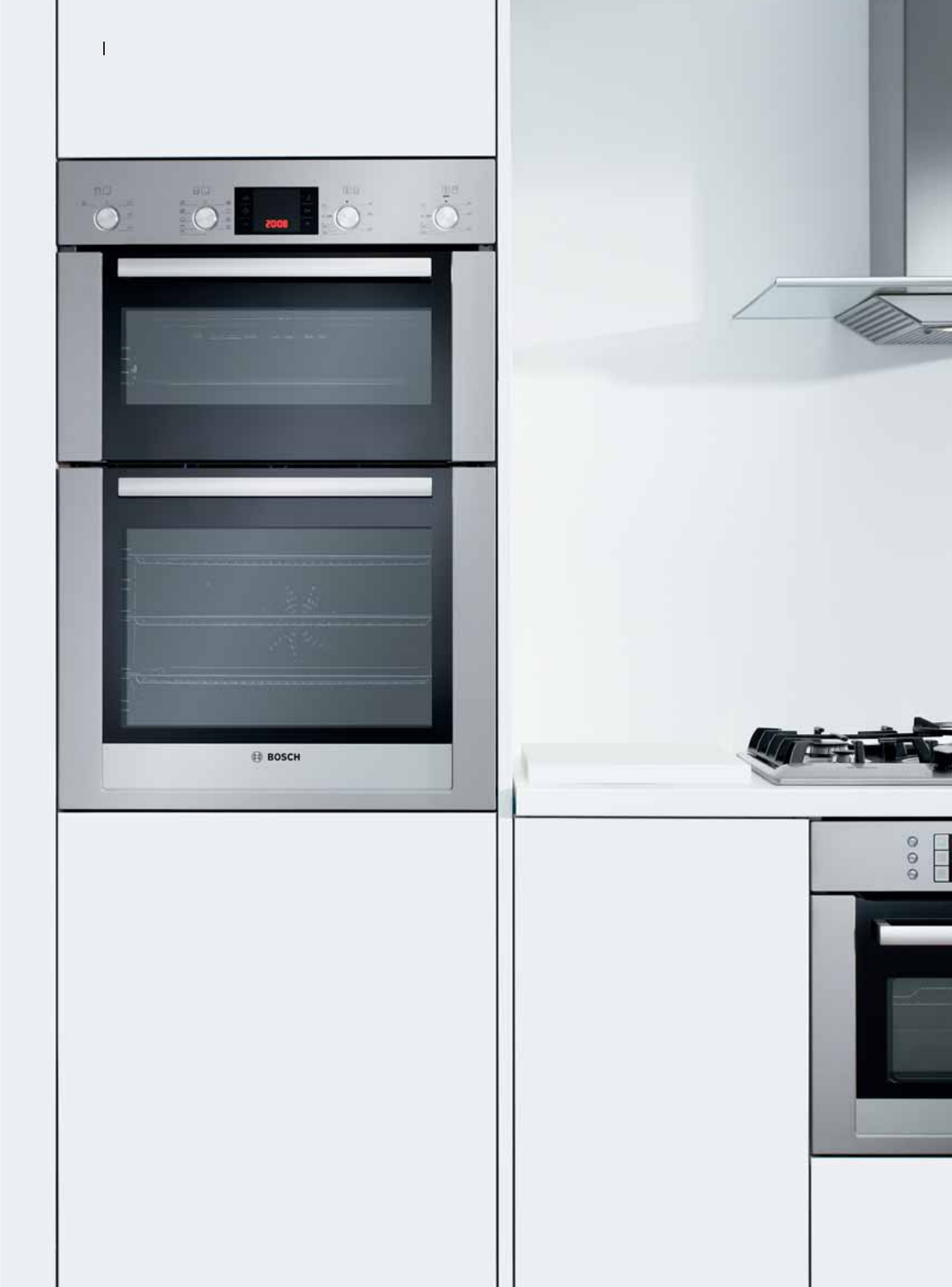

and all double ovens have an A/B rating.

Design

Metal behind glass

The new generation of Bosch ovens bring

style and elegance to the kitchen. The new

concept U-form door has a horizontal

section of steel behind the outer glass for

a unique, chic look.

Sleek new lines

Our new ovens combine the highest quality

stainless steel and glass for a sleek and

resistant finish. The ergonomically designed

all-steel straight bar handle integrates

perfectly with the door. And, matching

control panels and horizontal lines allow

you to mix and match different products

vertically and horizontally for a completely

coordinated look.

Enamel titanium coating

The grey enamel titanium interior coating

is easy to clean and the lighter colour

improves visibility of your dishes while

cooking.

3 door constructions

Our range of single ovens are available

with three different door constructions;

drop-down, pullout and side opening, so

that you can ensure the best solution for

your kitchen environment and personal

requirements.

Control panel

Fully programmable, the new twin display

control panel is intuitive and simple to use.

Selected models also feature clear text on

the display screen.

Pop-out controls

Not only make the oven easy to operate but

also they maintain a clean line when the

oven is not in use, making the oven control

panel easy to clean. Our top of the range

Logixx models also have an illuminated

red band.

Metal touch controls

Our state-of-the-art ovens now feature the

latest in touch control technology with

metal touch controls, which only require the

lightest touch to activate them.

Colour options

Bosch built-in appliances come in a number

of finishes to complement most kitchen

styles. Brushed steel offers a bold, stunning

statement, while premium black and white

models feature glass fascias, steel handles

and steel finished control dials to deliver a

modern, contemporary twist to old

favourites. Those who prefer their white and

black models in a more traditional form,

Bosch also offers models with colour

coordinated handles, controls and metal

fascias.

Features and benefits Ovens 9

Convenience

Pyrolytic self-cleaning system

The ultimate in self-cleaning power

and convenience. During the

pyrolytic self-cleaning cycle, the oven is

heated to around 480°C, at this

temperature any deposits are quickly

reduced to a thin layer of ash, which can

then be simply wiped away with a damp

cloth to leave a completely clean oven.

Memory function

Store your favourite recipe instructions

e.g. heating mode + temperature + cooking

duration then simply press the memory

button to repeat the sequence at any time.

Sabbath setting

The oven can be set to maintain a

temperature of 85°C for between 24 and

73 hours.

Safety

Safer touch doors

Bosch oven doors are either double or triple

glazed depending on the model, and ensure

that the temperature of the door is always

well within safety standards.

Safety lock

Simply press the lock key for 4

seconds to disable all functions.

Automatic switch off (electronic ovens)

For extra peace of mind, if left unattended,

the electronic oven will switch off after a

specific period of time. This additional

safety feature is only available on electronic

models. This can be over-ridden simply by

periodically adjusting the temperature.

Optional accessories

Deep pan

This extra deep large pan has a capacity of

10 litres and is ideal for grilling or roasting

on a big scale. (HEZ333000)

Fully extendable shelf rails

The height of convenience, telescopic shelf

rails allow you to pull out the oven shelves

to access an item without having to lift it

out of the oven. Ideal for basting or tasting

quickly and safely. Each set is supplied with

rails for three shelf levels. (HEZ338305)

Standard accessories

Please see the specification guide at the

back of this brochure.

Temperature Automatic switch

range off after:

Under 101°C 73 hours

101 - 140°C 24 hours

141 - 200°C 6 hours

201 - 250°C 3 hours

251°C+ 2 hours

10 Ovens Auto Cook

Auto Cook.

Imagine having a sous-chef working

for you in your kitchen everyday?

With Auto Cook you can!

Simply place the dish in the oven,

and then choose the appropriate

automatic programme from the

menu. There are 40 or 68 recipes to

choose from depending on the

model.

Specify how you want your dish

cooked. For example, if you are

cooking roast beef would you prefer

it rare, medium or well done?

Input the weight of the meat or fish

and press start. Auto Cook then takes

over and determines the cooking

mode, temperature and cooking

duration. It even switches off the

oven towards the end of the cooking

time to finish off using residual heat

thus saving energy.

Press the Auto Cook key

and select an automatic

cooking programme

Specify how you would

like it cooked i.e. rare

Input the weight

Press start

Poultry, red meat, fish or stews,

Auto Cook will cook your dish to

perfection. As Auto Cook requires the

use of ovenware with a lid your oven

will stay clean too. Cooking with

Bosch couldn’t be simpler.

12 Ovens Cooking functions

Cooking functions.

Multi-function cooking provides a solution for all your cooking

requirements. With a choice of up to 11 different cooking functions,

from traditional heating systems to more specialised functions such as

Hydrobaking and Pizza setting, a Bosch oven will provide you with the

flexibility to prepare a variety of meals for you and your family.

Cooking functions Ovens 13

3D hot air cooking

The element around the fan distributes the heat quickly

and evenly throughout the oven for same temperature

cooking on three levels. Sweet and savoury items can be cooked

at the same time. At higher temperatures (200-220°C) the effect

is to evenly grill on three levels – with no turning of the food

required. Use high temperature 3D hot air cooking, for example,

to cook an entire full English breakfast.

Conventional top and bottom heat

Employs both the upper and lower heating elements.

The heat travels to the centre of the oven by natural

convection, which is the best position to obtain the selected

temperature. Most foods can be cooked using this system, but it

is best suited to foods which require a dark crisp finish or long

slow cooking.

Bottom heat only

Only the bottom element is used to generate heat.

This method is ideal for reheating or for when a crisp

underside is required such as pizza bases and pastry cases.

It can also be used for drying herbs and bain-marie cooking.

Full width variable grill

Enables you to grill large quantities with precise

temperature control. For added efficiency grilling is

performed with the oven door closed.

Half width variable grill

On selected ovens you have the option to select just the

centre section of the grill element as an economical way

to grill smaller quantities of food.

Hot air grilling

An ideal cooking method for meat and poultry where a

rotisserie effect is desired. The grill and fan operate

alternately, which results in even crisp food and can use up to

50% less energy than traditional roasting.

Defrost

Perfect for gently defrosting meat, poultry, bread, cream

cakes and much more.

Auto Cook

Simply place the dish in the oven, and then choose the

appropriate automatic programme from the menu. Specify

how you want your dish cooked e.g. rare, medium or well done.

Input the weight of the meat or fish and press start. Auto Cook

then takes over and determines the cooking mode, temperature

and cooking duration to cook your dish to perfection. (See pages

10 & 11 for more details).

Pizza function

Designed with the pizza-lover in mind, but equally useful

for quiches and tarts, this innovative function delivers

cooking power for a perfectly crisp, browned base while keeping

the topping moist. Suitable also for frozen food, and in many

cases no preheating is required.

Hydrobaking

Retains the natural moisture emitted during the cooking

process to prevent your baking from drying out. Ideal for

bread and pastries.

Low temperature cooking

Ideally suited for keeping high quality pan-fried meat at the

desired level of rareness or otherwise for an extended period of

time without it spoiling. Juices and textures are retained whilst

you get on with preparing the rest of the dinner.

Intensive heat

This time-saver delivers immediate intense heat from

below, which is particularly effective for foods with a

crispy base such as pizza. It makes it unnecessary to preheat the

oven when baking cakes and quiches, and is also ideal for baking

with tin, glass or porcelain moulds, which tend to reflect heat or

are poor conductors of heat.

Fast heat

This time-saver preheats the oven approx. 30% faster by

using all the heating elements at once.

Keep warm

This convenient function keeps food items warm at

temperatures between 66°C and 100°C at the touch of

a button.

Plate warming

Food stays warm for longer if served up in preheated

ovenware. Plate warming allows you to preheat porcelain

ovenware to between 30°C to 65°C.

14 Single ovens

Simply place the dish in the oven, and then choose the appropriate

automatic programme from the menu. Specify how you want your dish

cooked e.g. rare, medium or well done. Input the weight of the meat or fish

and press start. Auto Cook then takes over and determines the cooking

mode, temperature and cooking duration to cook your dish to perfection.

(See pages 10 & 11 for more details).

Bosch Logixx ovens

with Auto Cook.

■Low temperature cooking

Optional accessories:

New rail system with three fully extendible telescopic levels

HEZ338305

Deep pan HEZ333000

Single ovens 15

Logixx single multifunction oven

HBA58B650B brushed steel

■Electronic control

■New concept control panel with metal touch controls and

clear text digital display

■U-shape door design with special glass on metal construction

and all metal straight bar handle

■All metal pop-out control dial with illuminated band

■Designed to coordinate with other Bosch Logixx products

within the range

■Automatic programmer

■Memory function

■Info button showing actual temperature display during

heating-up

■Automatic temperature proposal

■68 automatic programmes

■Residual heat indicator

■Plate warming

■Keep warm

■Fast heat

■Oxylytic side, roof and back panel liners

■Oxylytic cleaning programme

■Large 58 litre oven capacity with 5 shelf positions

■Safety lock

11 cooking functions:

Logixx single multifunction oven

HBA58B950B brushed steel

Same specifications as HBA58B650B but with 96mm fascia

designed to sit side-by-side with Bosch Logixx compact

appliances.

Optional accessories:

New rail system with three fully extendible telescopic levels

HEZ338305

Deep pan HEZ333000

16 Single ovens

HBA56B550B brushed steel

HBA56B560B premium black

HBA56B520B premium white

■Electronic control

■New concept control panel with touch controls and

electronic display (metal touch control on steel model)

■U-shape door design with special glass on metal construction

(steel model only) and all metal straight bar handle

■All metal pop-out control dial with illuminated band

■Designed to coordinate with other Bosch Logixx products

within the range

■Automatic programmer

■Memory function

■Info button showing actual temperature display during

heating-up

■Automatic temperature proposal

■40 automatic programmes

■Residual heat indicator

■Keep warm

■Fast heat

■Oxylytic side, roof and back panel liners

■Oxylytic cleaning programme

■Large 58 litre oven capacity with 5 shelf positions

■Safety lock

9 cooking functions:

Optional accessories:

New rail system with three fully extendible telescopic levels

HEZ338305

Deep pan HEZ333000

Logixx single multifunction oven

HBA76B650B brushed steel

■Electronic control

■New concept control panel with metal touch controls and

electronic display

■U-shape door design with special glass on metal construction

and all metal straight bar handle

■All metal pop-out control dial with illuminated band

■Designed to coordinate with other Bosch Logixx products

within the range

■Automatic programmer

■Memory function

■Info button showing actual temperature display during

heating-up

■Automatic temperature proposal

■40 automatic programmes

■Residual heat indicator

■Keep warm

■Fast heat

■Pyrolytic self-cleaning function

■Large 56 litre oven capacity with 5 shelf positions

■Safety lock

9 cooking functions:

Optional accessories:

New rail system with three fully extendible telescopic levels

HEZ338305

Logixx single multifunction oven

Single ovens 17

Exxcel single multifunction oven

HBA53B550B brushed steel

HBA53B560B premium black

HBA53B520B premium white

■Control panel with pop-out rotary dials and touch controls

■U-shape door design with special glass on metal construction

(steel model only) and all metal straight bar handle

■Designed to coordinate with other Bosch Exxcel products in

the range

■Fully automatic programmer

■Fast heat

■Catalytic side, roof and back panel liners

■Large 58 litre oven capacity with 5 shelf positions

■Safety lock

8 cooking functions:

Optional accessories:

New rail system with three fully extendible telescopic levels

HEZ338305

Deep pan HEZ333000

HBA73B550B brushed steel

■Control panel with pop-out rotary dials and touch controls

■U-shape door design with special glass on metal construction

and all metal straight bar handle

■Designed to coordinate with other Bosch Exxcel products in

the range

■Fully automatic programmer

■Fast heat

■Pyrolytic self-cleaning function

■Large 56 litre oven capacity with 5 shelf positions

■Safety lock

8 cooking functions:

Optional accessories:

New rail system with three fully extendible telescopic levels

HEZ338305

Exxcel single multifunction oven

18 Single ovens

The ultimate in self-cleaning power and

convenience. In a Pyrolytic self-cleaning

cycle, the oven is heated to around 480°C.

At that temperature any deposits are

quickly reduced to a thin layer of ash, which

can then be simply wiped away with a damp

cloth to leave a completely clean oven.

No need for detergents or back strain –

nothing could be easier.

Pyrolytic cleaning is available on selected

Logixx, Exxcel and Classixx models:

HBA76B650B, HBA73B550B,

HBA63A250B, HBA63A260B.

Pyrolytic self-cleaning function.

Single ovens 19

HBA63A250B brushed steel

HBA63A260B black

■Electronic control

■Control panel with pop-out rotary dials and touch controls

■Side-strip door design with straight bar handle

■Fully automatic programmer

■Fast heat

■Pyrolytic self-cleaning function

■Large 60 litre oven capacity with 5 shelf positions

■Safety lock

5 cooking functions:

Classixx single multifunction oven

HBB43D250B brushed steel

■Control panel with pop-out rotary dials and touch controls

■Side-strip door design with straight bar handle

■Fully automatic programmer

■Fast heat

■Pull-out carriage door design

■Catalytic side, roof and back panel liners

■Extra large 65 litre oven capacity with 5 shelf positions

■Safety lock

5 cooking functions:

Classixx single multifunction oven

Pull-out carriage door design

Ideally suited for built-under installation, you no longer have to

bend down to see or access the contents of the oven.

20 Single ovens

HBR43B250B brushed steel

■Control panel with pop-out rotary dials and touch controls

■Side-strip door design with straight bar handle

■Fully automatic programmer

■Fast heat

■Side-opening door design (left hinged)

■Catalytic side, roof and back panel liners

■Large 58 litre oven capacity with 5 shelf positions

■Safety lock

5 cooking functions:

Optional accessories:

New rail system with three fully extendible telescopic levels

HEZ338305

Deep pan HEZ333000

Classixx single multifunction oven

HBL43B250B brushed steel

Same specifications as HBL43B250B except right hinged.

Classixx single multifunction oven

Single ovens 21

HBA43B250B brushed steel

HBA43B260B black

■Control panel with pop-out rotary dials and touch controls

■Side-strip door design with straight bar handle

■Fully automatic programmer

■Fast heat

■Catalytic side, roof and back panel liners

■Large 58 litre oven capacity with 5 shelf positions

■Safety lock

5 cooking functions:

Optional accessories:

New rail system with three fully extendible telescopic levels

HEZ338305

Deep pan HEZ333000

Classixx single hot-air oven

HBB13D250B brushed steel

■Control panel with pop-out rotary dials and touch controls

■Side-strip door design with straight bar handle

■Fully automatic programmer

■Fast heat

■Pull-out carriage door design

■Catalytic roof and back panel liners

■Extra large 65 litre oven capacity with 5 shelf positions

■Safety lock

4 cooking functions:

Classixx single multifunction oven

Pull-out carriage door design

Ideally suited for built-under installation, you no longer have to

bend down to see or access the contents of the oven.

22 Single ovens

HBA13B251B brushed steel

HBA13B261B black

HBA13B221B white

■Control panel with pop-out rotary dials and touch controls

■Side-strip door design with straight bar handle

■Fully automatic programmer

■Catalytic roof and back panel liners

■Large 58 litre oven capacity with 5 shelf positions

■Safety lock

4 cooking functions:

Optional accessories:

New rail system with three fully extendible telescopic levels

HEZ338305

Deep pan HEZ333000

Classixx single hot-air oven

HBA13B250B brushed steel

■Control panel with rotary dials and touch controls

■Side-strip door design with straight bar handle

■53 litre oven capacity with 5 shelf positions

■Safety lock

4 cooking functions:

Classixx single hot-air oven

Single ovens 23

HBN531E0B brushed steel

■LED clock and push button controls

■Horizontal-strip door design with straight bar handle

■Fixed control dials

■Fully automatic programmer

■Catalytic roof and back panel liners

■52 litre oven capacity with 4 shelf positions

■Safety lock

5 cooking functions:

Single hot-air oven

HBN331E0B brushed steel

HBN331S0B black

HBN331W0B white

■LED clock and push button controls

■Horizontal-strip door design with straight bar handle

■Fixed control dials

■Fully automatic programmer

■52 litre oven capacity with 4 shelf positions

■Safety lock

4 cooking functions:

Single multifunction oven

24 Double ovens

Double ovens.

Welcome to the new range of

Bosch double ovens. Whether you

are looking for a built-in or built-under

model, multi-function or hot-air,

electronic or manual we have the

solution…

Double ovens 25

HBM56B550B brushed steel

■Electronic main oven control

■New concept control panel with metal touch controls and

electronic display

■U-shape door design with special glass on metal construction

and all metal straight bar handle

■All metal pop-out control dials with illuminated band around

the central control

■Designed to coordinate with other Bosch Logixx products

within the range

■Fully automatic main oven programmer

■Info button for main oven showing actual temperature display

during heating-up

■Automatic main oven temperature proposal

■Oxylytic side, roof and back panel liners in both ovens

■Oxylytic cleaning programmes

Main lower oven – 8 cooking functions:

Exxcel built-in double multifunction oven

HBM53B550B brushed steel

■Control panel with pop-out rotary dials and touch controls

■U-shape door design with special glass on metal construction

and all metal straight bar handle

■Fully automatic main oven programmer

■Catalytic side, roof and back panel liners on both ovens

■Designed to coordinate with other Bosch Exxcel products in

the range

Logixx built-in double multifunction oven

■58 litre oven capacity with 5 shelf positions

■Safety lock

■Fast heat

■Residual heat indicator

■Keep warm

■40 automatic programmes

■30 litre oven capacity with 2 shelf positions

Top oven – 4 cooking functions:

Main lower oven – 8 cooking functions:

■58 litre oven capacity with 5 shelf positions

■Safety lock

■Fast heat

■30 litre oven capacity with 2 shelf positions

Top oven – 3 cooking functions:

26 Double ovens

HBM43B250B brushed steel

HBM43B260B black

■Control panel with pop-out rotary dials and touch controls

■Side-strip door design with straight bar handle

■Fully automatic main oven programmer

■Catalytic side, roof and back panel liners on both ovens

Classixx built-in double hot-air oven

HBM13B251B brushed steel

HBM13B261B black

HBM13B221B white

■Control panel with pop-out rotary dials and touch controls

■Side-strip door design with straight bar handle

■Fully automatic main oven programmer

Classixx built-in double multifunction oven

Main lower oven – 5 cooking functions:

■58 litre oven capacity with 5 shelf positions

■Safety lock

■Fast heat

■30 litre oven capacity with 2 shelf positions

Top oven – 3 cooking functions:

Main lower oven – 2 cooking functions:

■58 litre oven capacity with 5 shelf positions

■Catalytic back panel liner

■Safety lock

■30 litre oven capacity with 2 shelf positions

■Catalytic roof and back panel liners

Top oven – 2 cooking functions:

Double ovens 27

HBM13B150B brushed steel

HBM13B160B black

HBM13B120B white

■Control panel with fixed control dials and touch controls

■Horizontal-strip door design with straight bar handles

■Fully automatic main oven programmer

Built-in double hot-air oven

Main lower oven – 2 cooking functions:

■58 litre oven capacity with 5 shelf positions

■Safety lock

■30 litre oven capacity with 2 shelf positions

Top oven – 2 cooking functions:

28 Double ovens

HBN53B550B brushed steel

■Control panel with pop-out rotary dials and touch controls

■U-shape door design with special glass on metal construction

and all metal straight bar handle

■Fully automatic main oven programmer

■Catalytic side, roof and back panel liners on both ovens

Exxcel built-under double multifunction oven

Main lower oven – 8 cooking functions:

■45 litre oven capacity with 3 shelf positions

■Safety lock

■Fast heat

■30 litre oven capacity with 2 shelf positions

Top oven – 3 cooking functions:

Double ovens 29

HBN43B250B brushed steel

HBN43B260B black

■Control panel with pop-out rotary dials and touch controls

■Side-strip door design with straight bar handle

■Fully automatic main oven programmer

■Catalytic side, roof and back panel liners on both ovens

Classixx built-under double hot-air oven

HBN13B251B brushed steel

HBN13B261B black

HBN13B221B white

■Control panel with pop-out rotary dials and touch controls

■Side-strip door design with straight bar handle

■Fully automatic main oven programmer

Classixx built-under double multifunction oven

Main lower oven – 5 cooking functions:

■45 litre oven capacity with 3 shelf positions

■Safety lock

■Fast heat

■30 litre oven capacity with 2 shelf positions

Top oven – 3 cooking functions:

Main lower oven – 2 cooking functions:

■45 litre oven capacity with 3 shelf positions

■Catalytic back panel liner

■Safety lock

■30 litre oven capacity with 2 shelf positions

■Catalytic roof and back panel liners

Top oven – 2 cooking functions:

Our beautiful state-of-the-art range

cookers will provide a focal point for

any kitchen, whether slot in or stand-alone.

Range cookers.

Range cookers 31

HSB745A55E brushed steel

■Double electric oven, 83 litre total capacity, with 5 burner

gas hob

■LED clock and automatic timer

■U-shape door design with angular bar handle

■Fixed controls

■Integral cooling fans

■Triple glazed drop down doors

■Storage compartment

5 burner gas hob

- 1 high speed wok burner

- 1 high speed burner

- 2 standard burners

- 1 economy burner

■3 piece cast iron pan supports

■Flame failure safety device

■LPG jets included

Main oven – 7 cooking functions:

■52 litre capacity

■5 shelf positions

■Interior light

Secondary oven – 4 cooking functions:

■31 litre capacity

■5 shelf positions

■Interior light

Standard accessories:

- Full width enamelled baking tray in each oven

- Small pan trivet support

Optional accessories:

Brushed steel back panel HEZ745100

Multifunction double range cooker

HSB745055E brushed steel

■Extra large cavity 81 litre electric oven with 5 burner gas hob

■LED clock and automatic timer

■U-shape door design with angular bar handle

■Fixed controls

■Integral cooling fan

■Triple glazed drop down door

■Storage compartment

■Interior light

5 burner gas hob

- 1 high speed wok burner

- 1 high speed burner

- 2 standard burners

- 1 economy burner

■3 piece cast iron pan supports

■Flame failure safety device

■LPG jets included

Oven – 7 cooking functions:

Standard accessories:

- Full width enamelled baking tray

- Small pan trivet support

Optional accessories:

Brushed steel back panel HEZ745090

Multifunction range cooker

Compact appliances.

Logixx

Premium models with exceptional cutting-

edge features and extras. Matching twin

display windows, illuminated pop-out

controls and metal touch control panels

mean that you can mix and match our Logixx

compact appliances with either a Bosch

Logixx single or double oven for a completely

coordinated look.* They all feature electronic

controls and operating functions are also

harmonised to make your life simpler.

Exxcel

Mid-range models with a broad range of

extra features and benefits. Once again

the signature design style and operating

features of our compact appliances

perfectly complement our range of

Exxcel ovens. The new U-form door with

metal-on-glass door construction, metal-

capped pop-out controls, touch controls

and large LED displays will bring style

and elegance to any kitchen.

Compact appliances 33

*For side by side installations with single ovens, use only HBA58B590B single oven

34 Steam ovens

HBC36D753B brushed steel

■New concept control panel with metal touch controls and

clear text digital display

■Control panel 96mm – allows for perfect vertical coordination

with other Bosch Logixx compact appliances and full size

Bosch Logixx ovens and horizontal coordination with other

Bosch Logixx compact appliances and Bosch Logixx oven

HBA58B590B

■U-shape door design with special glass on metal construction

and all metal straight bar handle

■All metal pop-out control dial with illuminated band

■Digital display with; clear text for auto programmes, actual

temperature, automatic temperature proposal, function

symbols, heating-up indicator, clock and timer

■Internal steam generator

■Steam cooking range 35–100°C

■Hot air cooking range 30–230°C

■70 automatic programmes

■Memory function

■Residual heat indicator

■Plate warming

■Keep warm

■Cleaning and descaling programmes

■32 litre oven capacity with 4 shelf positions

■Safety lock

■1.3 litre water tank

Logixx steam combination oven

7 cooking functions:

■Dough proving

■Low temperature cooking

■Reheating

Optional accessories:

Decor strips HEZ860050

Steam ovens.

Steam cooking is accepted as the

most gentle and healthy heating

method available.

Better for you

Steaming helps to retain the vitamins and minerals in

foods, which dissolve when immersed in water. In fact,

compared with boiling, steam cooking retains almost

50% more of the vitamin and mineral content.

Better-looking and tastier food

The gentle heat action of steaming not only preserves

the flavour, colour and aroma of the food but also

maintains the form and texture. As the food retains it

natural juices and does not dry out.

Large 1.3 litre water tank

Direct connection to a water pipe is not necessary as

our ovens feature a removable water tank, which is

simple and easy to refill.

Steam ovens 35

HBC26D553B brushed steel

■New concept control panel with metal touch controls and

clear text digital display

■Control panel 96mm – allows for perfect vertical coordination

with other Bosch Logixx compact appliances and full size

Bosch Logixx ovens and horizontal coordination with other

Bosch Logixx compact appliances and Bosch Logixx oven

HBA58B590B

■U-shape door design with special glass on metal construction

and all metal straight bar handle

■All metal pop-out control dial with illuminated band

■Digital display with; clear text for auto programmes, actual

temperature, automatic temperature proposal, function

symbols, heating-up indicator, clock and timer

■Internal steam generator

■Steam cooking range 35–100°C

■40 automatic programmes

■Memory function

■Residual heat indicator

■Cleaning and descaling programmes

■35 litre oven capacity with 4 shelf positions

■Safety lock

■1.3 litre water tank

Logixx steamer

4 cooking functions:

■Dough proving

■Reheating

Optional accessories:

Decor strips HEZ860050

HBC24D553B brushed steel

■LED control panel with touch controls

■Control panel 96mm – allows for perfect vertical coordination

with other Bosch Exxcel compact appliances and full size

Bosch Exxcel ovens and horizontal coordination with other

Bosch Exxcel compact appliances

■U-shape door design with special glass on metal construction

and all metal straight bar handle

■Pop-out control

■Digital clock and timer

■Internal steam generator

■Steam cooking range 35–100°C

■20 automatic programmes

■Descaling programme

■35 litre oven capacity with 4 shelf positions

■Safety lock

■1.3 litre water tank

Exxcel steamer

2 cooking functions:

Optional accessories:

Decor strips HEZ860050

36 Compact ovens and microwaves Features and benefits

Compact ovens and microwaves

features and benefits.

Performance

EU Energy Label

To help you choose the most energy

efficient appliances, the EU has

introduced an energy-rating scheme,

selected compact appliances are required

to display an EU Energy Label. The most

efficient rating is 'A' and the least efficient

is 'G', all relevant Bosch compact

appliances have been awarded an A rating.

Design

Metal behind glass

The new generation of Bosch compact

ovens bring style and elegance to the

kitchen. The new concept U-form door has a

horizontal section of steel behind the outer

glass for a unique chic look.

Sleek new lines

Our new compact ovens combine the

highest quality stainless steel and glass

for a sleek and resistant finish. The

ergonomically designed all-steel straight

bar handle integrates perfectly with the

door. And, coordinating control panels and

horizontal lines allow you to mix and

match vertically with different products

and horizontally with compact models

and HBA58B950B for a completely

coordinated look.

Control panel

Fully programmable, the new control panels

are intuitive and simple to use. Selected

models also feature clear text on the

display screen.

Pop-out controls

They not only make the oven easy to

operate, but also maintain a clean line when

the oven is not in use, making the oven

control panel easy to clean. Our top of the

range Logixx models also have an

illuminated red band.

Metal touch controls

Our state-of-the-art compact ovens now

feature the latest in touch control

technology with metal touch controls,

which only require the lightest touch to

activate them.

Features and benefits Compact ovens and microwaves 37

Convenience

Pyrolytic self-cleaning system

The ultimate in self-cleaning power

and convenience. During the

pyrolytic self-cleaning cycle, the oven is

heated to around 480°C, at this

temperature any deposits are quickly

reduced to a thin layer of ash, which can

then be simply wiped away with a damp

cloth to leave a completely clean oven.

Automatic weight programmes

Simply select the appropriate

programme, enter the weight and

press start. The automatic programme then

takes over to cook your dish to perfection.

Memory function

Store your favourite recipe instructions e.g.

heating mode + temperature + cooking

duration then simply press the memory

button to repeat the sequence at any time.

3-stage programming

Allows you to programme the microwave to

automatically run up to three power levels

and cooking times consecutively.

Safety

Safer touch doors

Bosch compact oven doors are either

double or triple-glazed depending on the

model, ensuring that the temperature of the

door is always well within safety standards.

Safety lock

Simply press the lock key for 4

seconds to disable all functions.

Optional accessories

Decor strips

Designed for the facing edge of furniture

shelves positioned between separate

compact appliances, microwaves and

warming drawers.

HEZ860050 brushed steel

HEZ860060 black

Size H22mm x W594mm

38 Compact ovens with integrated microwave

HBC86P753B brushed steel

■New concept control panel with metal touch controls and

clear text digital display

■Control panel 96mm – allows for perfect vertical coordination

with other Bosch Logixx compact appliances and full size

Bosch Logixx ovens and horizontal coordination with other

Bosch Logixx compact appliances and Bosch Logixx oven

HBA58B590B

■U-shape door design with special glass on metal construction

and all metal straight bar handle

■All metal pop-out control dial with illuminated band

■Digital display with; clear text for auto programmes, actual

temperature, automatic temperature proposal, function

symbols, heating-up indicator, clock and timer

■12 automatic cooking programmes

■14 automatic defrost programmes

■44 automatic combination programmes

■Microwave available independently or in combination with

other cooking functions

■Maximum microwave power level: 1000 watts

■Memory function

■Residual heat indicator

■Plate warming

■Keep warm

■Fast heat

■Pyrolytic self-cleaning function

■42 litre oven capacity with 3 shelf positions

■Safety lock

10 cooking functions:

■Low temperature cooking

Optional accessories:

Brushed steel decor strip HEZ860050

Logixx compact oven with integrated microwave

HBC86K753B brushed steel

HBC86K763B premium black

HBC86K723B premium white

■New concept control panel with metal touch controls and

clear text digital display

■Control panel 96mm – allows for perfect vertical coordination

with other Bosch Logixx compact appliances and full size

Bosch Logixx ovens and horizontal coordination with other

Bosch Logixx compact appliances and Bosch Logixx oven

HBA58B590B

■U-shape door design with special glass on metal construction

and all metal straight bar handle

■All metal pop-out control dial with illuminated band

■Digital display with; clear text for auto programmes, actual

temperature, automatic temperature proposal, function

symbols, heating-up indicator, clock and timer

■12 automatic cooking programmes

■14 automatic defrost programmes

■44 automatic combination programmes

■Microwave available independently or in combination with

other cooking functions

■Maximum microwave power level: 900 watts

■Memory function

■Residual heat indicator

■Plate warming

■Keep warm

■Fast heat

■Oxylytic roof liner and rear wall

■42 litre oven capacity with 3 shelf positions

■Safety lock

10 cooking functions:

■Low temperature cooking

Optional accessories:

Brushed steel decor strip HEZ860050

Black decor strip HEZ860060

Logixx compact oven with integrated microwave

Compact microwave oven and microwave 39

HBC84E653B brushed steel

HBC84E663B* premium black

HBC84E623B* premium white

■For installation in tall housing or in base unit under

work surface

■LED control panel with touch controls

■Control panel 96mm – allows for perfect vertical coordination

with other Bosch Exxcel compact appliances and full size

Bosch ovens and horizontal coordination with other Exxcel

compact appliances

■U-shape door design with special glass on metal construction

and all metal straight bar handle

■Pop-out controls

■Digital clock and timer

■4 automatic defrost programmes

■11 automatic combination programmes

■Microwave available independently or in combination with

other cooking functions

■Maximum microwave power level: 1000 watts

■Fast heat

■Catalytic back panel liner

■36 litre oven capacity with 4 shelf positions

■Safety lock

5 cooking functions:

*Available Autumn 2009

Optional accessories:

Brushed steel decor strip HEZ860050

Black decor strip HEZ860060

Optional accessories:

Brushed steel decor strip HEZ860050

Exxcel compact microwave combination oven

HMT35M653B brushed steel

■For installation in tall housing or in base unit under

work surface

■LED control panel with touch controls

■Control panel 96mm – allows for perfect vertical coordination

with other Bosch Exxcel compact appliances and full size

Bosch ovens and horizontal coordination with other Exxcel

compact appliances

■U-shape door design with special glass on metal construction

and all metal straight bar handle

■Pop-out control

■Automatic programmer and timer

■5 weight automatic cooking programmes

■4 weight automatic defrost programmes

■3 stage programming

■2 recipe memory setting

■Maximum microwave power level: 1000 watts

■36 litre capacity

Exxcel compact microwave

40 Microwaves

HMT85GL53B brushed steel

■For installation into a 60cm wide wall unit

■LED control panel with touch controls

■Pop-out control

■Automatic programmer and timer

■Grill available independently or in combination with

microwave

■4 weight automatic cooking programmes

■3 weight automatic defrost programmes

■3 weight automatic combination programmes

■3 stage programming

■2 recipe memory setting

■Maximum microwave power level: 900 watts

■21 litre capacity

Exxcel compact microwave oven

HMT85ML53B brushed steel

HMT85ML63B premium black

■For installation into a 60cm wide wall unit

■LED control panel with touch controls

■Pop-out control

■Automatic programmer and timer

■4 weight automatic cooking programmes

■3 weight automatic defrost programmes

■3 stage programming

■2 recipe memory setting

■Maximum microwave power level: 900 watts

■21 litre capacity

Exxcel compact microwave oven with grill

Microwaves 41

Compact microwave with grill

HMT84G651B brushed steel

■For installation in tall housing

■Ventless trim kit comes as standard

■LED display for microwave power level, cooking duration and

24 hour clock

■Pop-out control

■Automatic programmer and timer

■Grill available independently or in combination with

microwave

■3 weight automatic cooking programmes

■4 weight automatic defrost programmes

■1 weight automatic combination programme

■1 recipe memory setting

■Maximum microwave power level: 900 watts

■25 litre capacity

HMT84M651B brushed steel

HMT84M661B black

HMT84M621B white

■For installation in tall housing

■Ventless trim kit comes as standard

■LED display for microwave power level, cooking duration and

24 hour clock

■Pop-out control

■Automatic programmer and timer

■3 weight automatic cooking programmes

■4 weight automatic defrost programmes

■1 recipe memory setting

■Maximum microwave power level: 900 watts

■25 litre capacity

Compact microwave

42 Microwaves

HMT75G651B brushed steel

■For installation in a 60cm wide wall unit

■Ventless trim kit comes as standard

■LED display for microwave power level, cooking duration and

24 hour clock

■Pop-out control

■Automatic programmer and timer

■Grill available independently or in combination with

microwave

■3 weight automatic cooking programmes

■4 weight automatic defrost programmes

■1 weight automatic combination programme

■1 recipe memory setting

■Maximum microwave power level: 800 watts

■17 litre capacity

Compact microwave

HMT75M651B brushed steel

HMT75M661B black

HMT75M621B white

■For installation in a 60cm wide wall unit

■Ventless trim kit comes as standard

■LED display for microwave power level, cooking duration and

24 hour clock

■Pop-out control

■Automatic programmer and timer

■3 weight automatic cooking programmes

■4 weight automatic defrost programmes

■1 recipe memory setting

■Maximum microwave power level: 800 watts

■17 litre capacity

Compact microwave with grill

HMT75M551B brushed steel

■For installation into a 50cm wide wall unit or installation in

tall housing unit

■Ventless trim kit comes as standard

■LED display for microwave power level, cooking duration and

24 hour clock

■Pop-out control

■Automatic programmer and timer

■3 weight automatic cooking programmes

■4 weight automatic defrost programmes

■1 recipe memory setting

■Maximum microwave power level: 800 watts

■17 litre capacity

Compact microwave

Coffee maker 43

TCC78K750B brushed steel

■New concept control panel with metal touch controls and

clear text digital display

■Control panel 96mm – allows for perfect vertical coordination

with other Bosch Logixx compact appliances and full size

Bosch Logixx ovens and horizontal coordination with other

Bosch Logixx compact appliances and Bosch Logixx oven

HBA58B590B

■All metal pop-out control dial with illuminated band

■Fully programmable functions; grinding grade, drink type,

cup size, strength, temperature

■SensoFlow system

■Aroma pressure system for optimum flavour extraction

■Ceramic coffee grinders – extremely durable and quiet

■4 grinding grades

■Brita water filter

■Cream centre

■One touch function for milk drinks

■Frothing nozzle for cappuccino

■Steam and hot water function

■Fully automatic rinse programme

■Container empty / filter / cleaning / descaling warning

indicators

■Automatic cleaning and descaling programmes

■Height adjustable dispenser

■1000g coffee bean container

■Ground coffee container

■0.7 litre removable milk container

■2.5 litre removable water tank

Optional accessories:

Brushed steel decor strip HEZ860050

Logixx compact coffee maker

SensoFlow heating system

Provides fast water heating and precise temperature

control for improved taste and energy efficiency.

Aroma pressure system

Ensures optimum compression and extraction of ground

coffee for a perfect tasting cup of coffee.

Fully automatic rinse programme

Each cup of coffee is freshly brewed every time. Pipes

are automatically rinsed after use and any residual water

is pumped away. Fresh water guarantees fresh coffee

flavour and aroma every time.

Cream centre

An external insulated milk container supplies milk into

the cream centre only when it is needed, so that the

milk keeps fresher for longer. Giving you perfect milk

froth and making it easier to clean.

One touch function for milk drinks

Allows you to store the settings for your favourite milk

drink e.g. cappuccino, latte, white coffee so that you

only have to press one button for your regular drink.

Coffee maker.

44 Warming drawers

HSC290652B brushed steel

■29cm high warming drawer

■Designed to be installed independently, below a single oven

or in combination with a 45cm high compact appliance

■All metal straight bar handle

■Can accommodate up to:

- 40 plates

- 120 espresso cups

■25kg max capacity

■Easy to clean toughened glass heating plate

4 functions:

■Dough proving

Warming drawer

Warming drawers.

Plate warming

Food stays warm for longer if served up in preheated

ovenware. Bosch warming drawers allow you to preheat

porcelain ovenware to between 30°C to 65°C.

Keep warm

Not only can you heat-up your crockery with a Bosch

warming drawer but you can also keep food hot for up

to an hour.

Defrost

Perfect for gently defrosting meat, poultry, bread, cream

cakes and much more. Also ideal for defrosting

nonsensitive foods.

Dough proving

The gentle heat of the warming drawer is the perfect

environment for proving dough.

Warming drawers 45

Warming drawer

HSC140652B brushed steel

■14cm high warming drawer

■Designed to be installed independently, below a single oven

or in combination with a 45cm high compact appliance

■All metal straight bar handle

■Can accommodate up to:

- 12 plates

- 80 espresso cups

■25kg max capacity

■Easy to clean toughened glass heating plate

4 functions:

■Dough proving

4 functions:

■Dough proving

HSC140P51B brushed steel

HSC140P61B black

HSC140P21B white

■14cm high warming drawer

■Designed to be installed independently, below a single oven

or in combination with a 45cm high compact appliance

■Push-pull opening mechanism

■Can accommodate up to:

- 12 plates

- 80 espresso cups

■25kg max capacity

Storage drawer

HSC140A51 brushed steel

■14cm high storage drawer

■Designed to be installed independently, below a single oven

or in combination with a 45cm high compact appliance

■Push-pull opening mechanism

■15kg max capacity

Warming drawer

Gas hobs.

Logixx

Premium models with exceptional

cutting-edge features and extras.

Finished with a brushed steel trim they

can be built-in independently or

coordinated with other Logixx hobs

such as a Domino induction hob. These

stunning gas on glass models also

feature one-piece low profile burners.

Exxcel

Mid-range models with a broad range of

extra features and benefits. Tempered

glass or steel base, several models also

offer a dedicated wok burner for high

intensity cooking up to 5.0kW. As an

added safety feature the ‘Quick stop’

main switch acts as both the safety lock

and quick stop.

Classixx

Simple practical models offering Bosch

build quality and value for money.

Excellent four and five-burner hobs

including features such as electronic

ignition, wok-style burners up to 4.0kW

and flame failure device. Choice of

tempered glass, steel or enamel base

with cast iron pan supports.

Gas hobs 47

48 Gas hobs Features and benefits

Gas hobs

features and benefits.

Design

Slim metal profile

Finished in black ceramic glass with

a brushed steel trim, Bosch Logixx

gas hobs can be built-in independently or

coordinated with other Logixx hobs such

as a Domino hob. The slim metal profile

can be combined profile-to-profile without

visible links.

New control dials

Dials match the design of our new range of

ovens so that you can perfectly coordinate

your kitchen.

Cast iron supports

Cast iron pan supports are both stylish and

highly durable, providing solid and robust

support for your cooking pans whilst adding

a strong contemporary look to your kitchen.

Performance

High-power wok-style burner

Selected gas hob models feature a powerful

wok-style burner, which provides an intense

heat to the pan up to 6.0kW.

Flexible burners

All our gas hobs feature different burner

combinations for greater flexibility. With

high speed, normal and economy burners

you can cook more efficiently with the

correct sized burner for the size of pan.

Convenience

One hand ignition

Push and turn the ergonomically designed

control knobs and the gas ignites

automatically. As well as offering the

convenience of only using one hand there is

also no separate ignition button to clean.

Safety

Quick stop main switch

For added safety some of our gas hobs

feature a main switch, which acts as both a

safety lock and quick stop. By cutting off

the gas supply to the burners the hob

cannot be inadvertently activated. It also

allows all four burners to be turned off

quickly should the phone ring, for example.

Flame failure device

If the burner is accidentally extinguished

the thermostat reacts and shuts off the gas

supply to the burner.

Gas hobs 49

PPQ726M90E premium black with

brushed steel front trim

■Tempered black hard glass base with brushed steel front trim

■5 gas burners:

- 1 high speed central wok burner – 3.6kW

- 1 high speed burner – 3.0kW

- 2 standard burners – 1.7kW

- 1 economy burner – 1.0kW

■Flame failure safety device

■Easy to use front mounted controls with brushed steel caps

■Ignition via control knobs

■Cast iron pan supports

■Quick stop main switch

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

Exxcel 5 burner gas hob with wok style central burner

PRP626M90E brushed steel trim

■Ceramic glass base with brushed steel trim

■Four gas burners:

- 1 high speed burner – 2.8kW

- 2 standard burners – 1.9kW

- 1 economy burner – 1.1kW

■Flame failure safety device

■Easy to use front mounted brushed steel controls

■Ignition via control knobs

■Cast iron pan supports

■Quick stop main switch

■Low profile single piece burners

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

■Can be installed with a Bosch domino hob (see page 71)

Logixx 4 burner gas hob with hard glass base

50 Gas hobs

PPP626M90E premium black

PPP622M90E premium white

■Tempered hard glass base with brushed steel trim

■4 gas burners:

- 1 high speed burner – 3.0kW

- 2 standard burners – 1.7kW

- 1 economy burner – 1.0kW

■Flame failure safety device

■Easy to use front mounted brushed steel controls

■Ignition via control knobs

■Cast iron pan supports

■Quick stop main switch

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

Exxcel 4 burner gas hob with hard glass base

PCR715M90E brushed steel

■Five gas burners:

- 1 high speed dual control wok burner – 5.0kW

- 1 high speed burner – 3.0kW

- 2 standard burners – 1.7kW

- 1 economy burner – 1.0kW

■Flame failure safety device

■Easy to use front mounted brushed steel controls

■Ignition via control knobs

■Cast iron pan supports

■Quick stop main switch

■Two piece burners

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

Exxcel 5 burner gas hob with wok style central burner

Gas hobs 51

PCH615M90E brushed steel

■Four gas burners:

- 1 high speed burner – 3.3kW

- 1 high speed burner – 3.0kW

- 1 standard burner – 1.7kW

- 1 economy burner – 1.0kW

■Flame failure safety device

■Easy to use front mounted brushed steel controls

■Ignition via control knobs

■Cast iron pan supports

■Quick stop main switch

■Two piece burners

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

Exxcel 4 burner gas hob with wok style burner

PPQ716B90E frameless

■Tempered black hard glass base

■5 gas burners:

- 1 high speed central wok burner – 3.6kW

- 1 high speed burner – 3.0kW

- 2 standard burners – 1.7kW

- 1 economy burner – 1.0kW

■Flame failure safety device

■Easy to use front mounted controls

■Ignition via control knobs

■Cast iron pan supports

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

Classixx

5 burner gas hob with wok style central burner

52 Gas hobs

PPP616B90E frameless

■Tempered black hard glass base

■4 gas burners:

- 1 high speed burner – 3.0kW

- 2 standard burners – 1.7kW

- 1 economy burner – 1.0kW

■Flame failure safety device

■Easy to use front mounted controls

■Ignition via control knobs

■Cast iron pan supports

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

Classixx 4 burner gas hob with hard glass base

PCR915B90E brushed steel

■Five gas burners:

- 1 high speed wok burner – 4.5kW

- 1 high speed burner – 3.2kW

- 2 standard burners – 1.75kW

- 1 economy burner – 1.0kW

■Flame failure safety device

■Easy to use front mounted controls

■Ignition via control knobs

■Cast iron pan supports

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

Classixx

5 burner gas hob with wok style central burner

Gas hobs 53

PCQ715B90E brushed steel

■Five gas burners:

- 1 high speed wok burner – 4.0kW

- 1 high speed burner – 3.0kW

- 2 standard burners – 1.7kW

- 1 economy burner – 1.0kW

■Flame failure safety device

■Easy to use front mounted brushed steel controls

■Ignition via control knobs

■Cast iron pan supports

■Two piece burners

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

Classixx

5 burner gas hob with wok style central burner

PCP615B90B brushed steel

PCP616B90E black

PCP612B90E white

■Four gas burners:

- 1 high speed burner – 3.0kW

- 2 standard burners – 1.7kW

- 1 economy burner – 1.0kW

■Flame failure safety device

■Easy to use front mounted controls

■Ignition via control knobs

■Cast iron pan supports

■Two piece burners

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

Classixx 4 burner gas hob

54 Gas hobs

PCD615FEU brushed steel

PCD616FEU black

■4 gas burners

- 1 high speed burner – 3.0kW

- 2 standard burners – 1.7kW

- 1 economy burner – 1.0kW

■Flame failure safety device

■Easy to use side mounted controls

■Control knobs for each burner

■Ignition via control knobs

■Cast iron pan supports

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

Classixx 4 burner gas hob

PCD625DEU brushed steel

PCD616DEU black

PCD612DEU white

■4 gas burners:

- 1 high speed burner – 3.0kW

- 2 standard burners – 1.7kW

- 1 economy burner – 1.0kW

■Flame failure safety device

■Easy to use side mounted controls

■Ignition via control knobs

■Standard black enamelled pan supports

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

Classixx 4 burner gas hob

PCH615FEU brushed steel

■4 burner gas hob with wok style burner

■4 gas burners:

- 1 high speed wok burner – 3.6kW

- 2 standard burners – 1.7kW

- 1 economy burner – 1.0kW

■Flame failure safety device

■Easy to use side mounted controls

■Ignition via control knobs

■Cast iron pan supports

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

Classixx 4 burner gas hob with wok style burner

Gas hobs 55

PHL106CEU frameless

■Tempered black hard glass base

■5 gas burners:

- 1 high speed central wok burner – 3.6kW

- 1 high speed burner – 3.0kW

- 2 standard burners – 1.7kW

- 1 economy burner – 1.0kW

■Easy to use front mounted controls

■Ignition via control knobs

■Standard black enamelled pan supports

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

5 burner gas hob with wok style central burner

PHG106CEU frameless

■Tempered black hard glass base

■4 gas burners:

- 1 high speed burner – 3.0kW

- 2 standard burners – 1.7kW

- 1 economy burner – 1.0kW

■Easy to use front mounted controls

■Ignition via control knobs

■Standard black enamelled pan supports

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

4 burner gas hob with hard glass base

PCD625CEU brushed steel

PCD616CEU black

PCD612CEU white

■4 gas burners:

- 1 high speed burner – 3.0kW

- 2 standard burners – 1.7kW

- 1 economy burner – 1.0kW

■Easy to use side mounted controls

■Ignition via control knobs

■Standard black enamelled pan supports

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

4 burner gas hob

Electric hobs.

Logixx

Premium models with exceptional

cutting-edge features and extras. The

slim brushed steel profile allows them

to be built-in independently or

coordinated with other Logixx hobs,

such as a Domino wok burner, without

any visible joining strips. Advanced

features include DirectSelect, Freeze

function and timer.

Exxcel

Mid-range induction models with a

broad range of extra features and

benefits. Induction cooking is now

widely recognised as one of the

quickest, safest and most efficient

methods of cooking available.

Classixx

Simple practical ceramic models

offering Bosch build quality and value

for money. Straight-forward and easy to

use, with 17 cooking power levels to

choose from and even such technically

advanced features as touch controls and

2-stage residual heat indicators.

Electric hobs 57

58 Electric hobs Features and benefits

Electric hobs

features and benefits.

Design

Slim metal profile

Our Logixx ceramic and induction

hobs can be built-in independently

or coordinated with other Logixx hobs, such

as Domino wok burner. The slim brushed

steel profile can be combined profile-to-

profile without visible links.

Performance

Ceramic hob

With their electronic touch controls and

flexible cooking zones, our ceramic hobs

combine great looks with smart function

and design. The smooth ceramic glass hob

surface is tough and durable as well as

being practical and easy to clean.

Induction hob

Induction technology is now widely

recognised as one of the quickest,

safest and most efficient methods of

cooking available. It uses an

electromagnetic field to instantly generate

heat, giving you the control and

responsiveness of gas, but with far more

energy efficiency. Heat is only generated

when the pan is placed on the hob – it

stops as soon as the pan is removed – and

while an induction hob cooks almost twice

as quickly as a standard ceramic hob, and

40% quicker than gas, the ceramic glass of

an induction hob does not get as hot as that

of standard ceramic hobs, which makes for

a safe and easy-to-clean cooking surface.

The hob will only operate with pans with a

ferrous (or magnetic) base.

Boost function

Increases the power output of the selected

cooking zone by approximately 50% by

‘borrowing’ power from another zone. Note

that when boost is selected for a particular

zone, the partner zone contributing the

power cannot be used.

Automatic pan recognition

The hob recognises the size of the pan and

only heats up the base of the pan and not

the whole zone, saving time and energy.

Automatic boil start

The cooking zone may be set to operate at

full power for a period of time before

reverting back to a pre-set power level.

Anti-overflow protection

If liquid accidently overflows onto the

control panel, the hob will automatically

switch off allowing you the opportunity to

clean up.

Small utensil detection

If you leave a serving spoon on the

induction zone when it is turned on, the

hob will not recognise it as being suitable

cookware. As an added safety mechanism,

the hob will automatically switch off giving

you peace of mind.

Features and benefits Electric hobs 59

Keep warm function

The cooking zone may be set to operate at

minimum power in order to keep food warm

on the hob or even as a convenient way to

melt butter or chocolate.

Energy saving

Induction hobs are far more energy efficient

than any other hob. This is because around

three quarters of all the energy consumed is

used to heat the pan. As a comparison, gas

cooking actually only uses about 50% of the

energy consumed to heat the pan. The

cooking zone also automatically detects the

size of the pan base so that heat is only

generated through the area in direct

contact with the pan. Whilst giving you the

flexibility to use smaller sized pans on

larger zones this also results in greater

energy efficiency – the smaller the pan, the

lower the energy consumption.

Time saving

Being almost twice as fast as a standard

ceramic hob and up to 40% faster than gas,

the Bosch induction hob is ideal for those

with busy lifestyles. With the added benefit

of a boost setting, your chosen front or

back cooking zone can be given an extra

injection of power – ideal for high speed

cooking.

Convenience

DirectSelect

Simply selecting the required power

level from those on offer (keys laid

out on the hob) instead of having to press

+/– keys repeatedly.

Freeze function

"Freezes" the control panel at its current

settings to allow the surface to be wiped

down (if something spills). Saves the user

having to switch off the hob to clean it or

risk disturbing the settings. Reverts back at

the touch of the key or after approximately

20 seconds.

Dual zones

Available on selected hobs, this energy-

saving feature allows you to select a smaller

cook zone for small pans, and a larger zone

for larger pans.

Extendable zone

The cooking zone can be extended giving

you a much larger area to accommodate big

saucepans, fish kettles and other special

cooking dishes.

Timer

99-minute timer with acoustic tone,

which automatically switches off

the zone once the cooking time has come

to an end.

Safety

2-stage residual heat display

Provides clear indication of when a

zone is still hot after is has been

turned off. There are two levels: ‘H’ –

residual heat sufficient to finish off cooking

or to keep items warm. ‘h’ – residual heat

insufficient to cook, but zone is still hot

enough for caution.

Safety lock

Featured as standard on all touch

control models, it prevents the hob

from being inadvertently operated.

Emergency stop

Allows you to switch all cook zones off at

the touch of a single button – ideal if the

doorbell rings.

Automatic safety shut off

If the hob is left unattended for an

extended period of time, the safety shut

off facility ensures the hob turns itself off.

60 Induction hobs

PIE975N14E brushed steel trim

■4 induction zone hob with black ceramic glass base and

brushed steel trim

■Electronic front touch controls

■Main on/off control

■Electronic power level display

■Boost setting for all zones

■Automatic pan recognition

■Timer with automatic shut off for all zones

■Anti overflow protection

■Small utensil detection

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■DirectSelect function

■Freeze function

■Automatic safety switch-off

■Safety lock

Logixx 4 zone ceramic induction hob

PIL875N14E brushed steel trim

■4 induction zone hob with black ceramic glass base and

brushed steel trim

■28cm diameter zone

■Electronic front touch controls

■Main on/off control

■Electronic power level display

■Boost setting for all zones

■Automatic pan recognition

■Timer with automatic shut off for all zones

■Anti overflow protection

■Small utensil detection

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■DirectSelect function

■Freeze function

■Automatic safety switch-off

■Safety lock

■Can be installed with a Bosch domino hob (see page 71)

Logixx 4 zone ceramic induction hob

Induction hobs 61

PIE675N14E brushed steel trim

■4 induction zone hob with black ceramic glass and brushed

steel trim

■Electronic front touch controls

■Main on/off control

■Electronic power level display

■Boost setting for all zones

■Automatic pan recognition

■Timer with automatic shut off for all zones

■Anti overflow protection

■Small utensil detection

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■DirectSelect function

■Freeze function

■Automatic safety switch-off

■Safety lock

■Can be installed with a Bosch domino hob (see page 71)

Logixx 4 zone ceramic induction hob

PIL845T14E brushed steel frame

■4 induction zone hob with black ceramic glass base and

brushed steel frame

■28cm diameter zone

■Electronic front touch controls

■Electronic power level display

■Boost setting for all zones

■Automatic pan recognition

■Timer with automatic shut off for all zones

■Anti-overflow protection

■Small utensil detection

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■Automatic safety switch-off

■Safety lock

Exxcel 4 zone ceramic induction hob

62 Induction hobs

PIE651T14E frameless with facetted edges

■4 induction zone hob with black ceramic glass base

■Machine finished facetted front and sides

■Electronic front touch controls

■Main on/off control

■Electronic power level display

■Boost setting for all zones

■Automatic pan recognition

■Timer with automatic shut-off for all zones

■Anti-overflow protection

■Small utensil detection

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■Automatic safety switch-off

■Safety lock

Exxcel 4 zone ceramic induction hob

PIE645T14E brushed steel frame

■4 induction zone hob with black ceramic glass base and

brushed steel trim

■Electronic front touch controls

■Electronic power level display

■Boost setting for all zones

■Automatic pan recognition

■Timer with automatic shut off for all zones

■Anti-overflow protection

■Small utensil detection

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■Automatic safety switch-off

■Safety lock

Exxcel 4 zone ceramic induction hob

Induction hobs 63

PIL811T14E frameless

■4 induction zone with black ceramic glass base

■28cm diameter zone

■Electronic front touch controls

■Electronic power level display

■Boost setting for all zones

■Automatic pan recognition

■Anti-overflow protection

■Small utensil detection

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■Automatic safety switch-off

■Safety lock

Exxcel 4 zone ceramic induction hob

PIE611T14E frameless

■4 induction zone hob with black ceramic glass base

■Electronic front touch controls

■Main on/off control

■Electronic power level display

■Boost setting for all zones

■Automatic pan recognition

■Anti-overflow protection

■Small utensil detection

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■Automatic safety switch-off

■Safety lock

Exxcel 4 zone ceramic induction hob

64 Quick-Therm ceramic hobs

PKG975N14E brushed steel trim

■4 zone Quick-Therm hob with black ceramic glass and

brushed steel trim

■2 dual circuit zones to save energy if using a smaller pan

■Electronic front touch controls

■Main on/off control

■Electronic power level display

■Timer with automatic shut-off for all zones

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■DirectSelect function

■Freeze function

■Automatic safety switch-off

■Safety lock

Logixx 4 zone Quick-Therm ceramic hob

Quick-Therm ceramic hobs 65

PKF675N14E brushed steel trim

■4 zone Quick-Therm hob with black ceramic glass base and

brushed steel trim

■1 dual circuit zone to save energy if using a smaller pan

■Electronic front touch controls

■Main on/off control

■Electronic power level display

■Timer with automatic shut-off for all zones

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■DirectSelect function

■Freeze function

■Automatic safety switch-off

■Safety lock

■Can be installed with a Bosch domino hob (see page 71)

Logixx 4 zone Quick-Therm ceramic hob

PKC875N14D brushed steel trim

■4 zone Quick-Therm hob with black ceramic glass and

brushed steel trim

■3 dual circuit zones to save energy if using a smaller pan

■1 extendable zone to accommodate a large pan, fish kettle or

special cooking vessel

■Electronic front touch controls

■Main on/off control

■Electronic power level display

■Timer with automatic shut-off for all zones

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■DirectSelect function

■Freeze function

■Automatic safety switch-off

■Safety lock

■Can be installed with a Bosch domino hob (see page 71)

Logixx 4 zone Quick-Therm ceramic hob

66 Quick-Therm electric hobs

PKC845T14D brushed steel frame

■4 zone Quick-Therm hob with black ceramic glass base and

brushed steel frame

■3 dual circuit zones saving energy if using smaller pans

■1 extendable zone to accommodate a larger pan, fish kettle

or special cooking vessel

■Electronic front touch controls

■Electronic power level display

■Main on/off control

■Timer with automatic shut off for all zones

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■Automatic safety switch-off

■Safety lock

Classixx 4 zone Quick-Therm ceramic hob

PKF645T14E brushed steel

■4 zone Quick-Therm hob with black ceramic glass base and

brushed steel frame

■1 dual circuit zone to save energy if using a small pan

■Electronic front touch controls

■Electronic power level display

■Main on/off control

■Timer with automatic shut off for all zones

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■Automatic safety switch-off

■Safety lock

Classixx 4 zone Quick-Therm ceramic hob

Quick-Therm ceramic hobs 67

PKN811E14E frameless

■4 zone Quick-Therm hob with black ceramic glass base

■1 dual circuit zone saving energy if using a small pan

■1 extendable zone to accommodate a larger pan, fish kettle

or special cooking vessel

■Electronic front touch controls

■Electronic power level display

■Main on/off control

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■Automatic safety switch-off

■Safety lock

Classixx 4 zone Quick-Therm ceramic hob

PKE611E14E frameless

■4 zone Quick-Therm hob with black ceramic glass base

■Electronic front touch controls

■Electronic power level display

■2 stage Hh residual heat indicator for each zone

■Variable 17-stage power settings for each zone

■Automatic safety switch-off

■Safety lock

Classixx 4 zone Quick-Therm ceramic hob

68 Quick-Therm ceramic hobs

PKE645C14D brushed steel frame

■4 zone Quick-Therm hob with black ceramic glass base and

brushed steel frame

■Side mounted brushed steel capped controls

■Variable 9-stage power settings for each zone

■Residual heat indicator for each zone

4 zone Quick-Therm ceramic hob

PKF659V14E frameless premium white

■4 zone Quick-Therm hob with white ceramic glass

■1 dual circuit zone to save energy if using a smaller pan

■Front mounted brushed steel capped controls

■Variable 9-stage power settings for each zone

■Residual heat indicator for each zone

4 zone Quick-Therm ceramic hob

Quick-Therm ceramic and sealed plate hobs 69

PKE611C14D frameless

■4 zone Quick-Therm hob with black ceramic glass base

■Easy to use side-mounted controls

■4 Quick Therm zones

■Variable 9-stage power settings for each zone

■Residual heat indicator for each zone

4 zone Quick-Therm ceramic hob

NCT615C01 brushed steel

NCT616C01 black

NCT612C01 white

■4 super fast sealed cooking plates

■Easy to use side-mounted controls

■9-stage power settings for each plate

4 zone sealed plate electric hob

70 Domino hobs

Domino hobs.

Allow you to tailor your hob to your exact requirements combining a gas

and induction hob, for example. The slim metal profile allows them to sit

profile-to profile without any visible links. Many of our standard gas and

electric hobs also feature the same metal design trim allowing you to mix

and match them with our range of Domino hobs.

Domino hobs 71

PIE375C14E brushed steel trim

■2 induction zone hob with black ceramic glass base and

brushed steel trim

■Electronic control

■Brushed steel controls

■Electronic power level display

■Boost setting for all zones

■Automatic pan recognition

■2 stage Hh residual heat indicator for each zone

■Variable 9-stage power settings for each zone

■Automatic safety switch-off

■Can be installed with other Bosch Logixx hobs

Logixx 2 zone ceramic induction hob

PKF 375V14E brushed steel trim

■2 zone Quick-Therm hob with black ceramic glass base and

brushed steel trim

■1 dual circuit zone to save energy if using a smaller pan

■Brushed steel controls

■2 stage Hh residual heat indicator for each zone

■Variable 9-stage power settings for each zone

■Can be installed with other Bosch Logixx hobs

Logixx 2 zone Quick-Therm ceramic hob

PRA326B90E brushed steel trim

■Ceramic glass base with brushed steel trim

■1 high speed wok burner – 6.0kW

■Flame failure device

■Easy to use front mounted brushed steel control

■Ignition via control knob

■Cast iron pan support

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

■Can be installed with other Bosch Logixx hobs

Logixx wok style domino gas hob with ceramic base

PRB326B90E brushed steel trim

■Ceramic glass base with brushed steel trim

■Two gas burners:

- 1 high speed burner – 2.8kW

- 1 standard burner – 1.9kW

■Flame failure device

■Easy to use front mounted brushed steel controls

■Ignition via control knobs

■Cast iron pan support

■Low profile single piece burners

■Factory set for connection to mains gas

■LPG jets included

■Connection to 28-30/37 mbar bottled gas

■Can be installed with other Bosch Logixx hobs

Logixx 2 burner domino gas hob with ceramic base

Hoods.

Logixx

Premium models with exceptional

cutting-edge features and extras.

Beautifully functional, perfect inform,

they are designed to be the focal point

of your kitchen. Auto after running makes

sure that any remaining vapours and

odours are whisked away, whilst the

saturation indicators warn you when it is

time to clean or change the filters. With a

maximum extraction rate from 590m3/h.

Exxcel

Mid-range models with a broad range of

extra features and benefits. Stylish and

practical yet quiet – maximum noise

level 58 dB re 1 pW. All models are

electronically controlled and feature

electronic displays with soft-touch

control keys. The intensive setting is

ideal for intensive cooking such as

stir-fries. With a maximum extraction

rate from 550m3/h.

Classixx

Simple practical models offering Bosch

build quality and value for money.

Integrated lights not only create an

additional source of light but also act as

a design feature, spotlighting your hob

for visual impact. Controlled with neat

rocker switches or push buttons, and

with a maximum extraction rate from

410m3/h.

Hoods 73

74 Hoods Features and benefits

Hoods

features and benefits.

Design

Worktop lighting

Integral ‘day light’ halogen lighting ensures

that the cooking area is clearly illuminated.

They last twice as long and are more energy

efficient than standard lights. Some models

also feature a dimmer function.

Performance

Ducted extraction

Ducting out is the most effective method of

extraction if the hood can be sited on

an outside wall, or an outside wall can be

reached via ducting.

Recirculating extraction

If an outside wall cannot be reached the

extractor can be set up for recirculating.

Air is drawn into the appliance through the

filters to neutralise odours and remove

grease particles. The cleaned air is then

returned to the kitchen. A carbon filter or

recirculating kit is necessary for

recirculation (optional accessory).

Recirculating kit

Contains a carbon filter and any other

necessary components to ensure that odour

free air is returned into the kitchen. To

ensure that the hood performance is

maintained, the carbon filter should be

replaced on a regular basis.

Metal filter

A metal filter provides the ultimate in

filtering efficiency. The dishwasher-proof

metal mesh requires periodic cleaning but

can be used over and over again.

Paper grease filter

The print and stripe markings darken

considerably when the disposable paper

filter is saturated to indicate that it needs

replacing.

Features and benefits Hoods 75

Convenience

Variable power settings

All Bosch hoods feature multiple power

settings, which can be set to effectively

remove odours, smoke and moisture caused

by cooking in the kitchen area. Many hood

models also feature an intensive extraction

setting, which gives an extra boost to the

performance of the hood when required.

After running

The hood automatically continues to run on,

for approx ten minutes, after normal

operation to ensure that any remaining

vapours and odours are effectively

whisked away. The hood then automatically

switches off.

Automatic switch back

When the intensive setting is selected it

may be set to automatically revert back to a

pre-defined normal level after a short

period of time.

76 Chimney hoods

DIA096751B brushed steel

■90cm wide island chimney extractor hood

■Brushed steel chimney section with glass canopy

■Designed for ceiling mounted installation

■Suitable for ducted or recirculating operation

■Electronic control

■Electronic power level display

■3 speed + intensive operation via soft touch controls

■4 x 20W halogen lights

■2 removable metal grease filters

■Automatic after running

■Automatically switches back from intensive to normal setting

■Filter saturation indicator

■Extractor hose 150mm or 120mm

■Maximum extraction rate 780m3/h (intensive)

■61 dB re 1 pW at max. power

Logixx island chimney hood with glass canopy

Optional accessories:

Recirculating kit DHZ5125

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

DIB096850B brushed steel

■90cm wide chimney extractor hood

■Brushed steel canopy and chimney section

■Designed for ceiling mounted installation

■Suitable for ducted or recirculating operation

■Electronic control

■Electronic power level display

■3 speed + intensive operation via soft touch controls

■4 x 20W halogen lights with softlight dimmer function

■3 removable metal grease filters

■Filter saturation indicators

■Automatic after-running

■Automatically switches back from intensive to normal setting

■Extractor hose 150 or 120mm

■Maximum extraction rate 820m3/h (intensive)

■59 dB re 1 pW at max. power

Logixx island chimney hood

Optional accessories:

Recirculating kit DHZ5285

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

Chimney hoods 77

DWK096751B brushed steel

■90cm wide chimney extractor hood

■Brushed steel canopy and chimney section

■Designed for wall mounted installation

■Suitable for ducted or recirculating operation

■Electronic control

■Electronic power level display

■4 speed + intensive operation via soft touch control buttons

■3 x 20W halogen lights

■2 removable metal grease filters

■Filter saturation indicators

■Automatic after-running

■Automatically switches back from intensive to normal setting

■Extractor hose 150 or 120mm

■Maximum extraction rate 740m3/h (intensive)

■65 dB re 1 pW at max. power

Logixx angled chimney hood

DWK096650B brushed steel

■90cm wide chimney extractor hood

■Brushed steel chimney section with glass canopy

■Designed for wall-mounted installation

■Suitable for ducted extraction only

■Electronic power level display

■3 speed + intensive operation via soft touch control buttons

■3 x 20W halogen lights with softlight dimmer function

■Filter saturation indicator

■Dual filter system

■1 removable metal grease filter

■Automatic after-running

■Automatically switches back from intensive to normal setting

■Extractor hose 150 or 120mm

■Maximum extraction rate 620m3/h (intensive)

■54 dB re 1 pW at max. power

Logixx chimney extractor hood with glass canopy

Optional accessories:

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

Optional accessories:

Recirculating kit DHZ5475

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

78 Chimney hoods

DWB099751B brushed steel

■90cm wide chimney extractor hood

■Brushed steel canopy and chimney section

■Designed for wall mounted installation

■Suitable for ducted or recirculating operation

■Electronic control

■3 speed + intensive operation via Direct Select metal

touch controls

■3 x 20W halogen lights with softlight dimmer function

■3 removable metal grease filters

■Filter saturation indicators

■Automatic after-running

■Automatically switches back from intensive to normal setting

■Extractor hose 150 or 120mm

■Maximum extraction rate 770m3/h (intensive)

■65 dB re 1 pW at max. power

Logixx box chimney hood

Optional accessories:

Recirculating kit DHZ5225

Brushed steel back panel DHZ9550

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

DWA096550B brushed steel

■90cm wide chimney extractor hood

■Brushed steel chimney section with glass canopy

■Designed for wall-mounted installation

■Suitable for ducted or recirculating operation

■Electronic power level display

■3 speed + intensive operation via soft touch control buttons

■2 x 20W halogen lights with softlight dimmer function

■Filter saturation indicator

■1 removable metal grease filter box with multi-zone extraction

■Automatic after-running

■Automatically switches back from intensive to normal setting

■Extractor hose 120 or 150mm

■Maximum extraction rate 590m3/h (intensive)

■62 dB re 1 pW at max. power

Logixx chimney extractor hood with glass canopy

Optional accessories:

Recirculating kit DHZ5185

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

■90cm wide chimney extractor hood

■Brushed steel chimney section with glass canopy and brushed

steel front trim

■Designed for wall mounted installation

■Suitable for ducted or recirculating operation

■Electronic control

■Electronic power level display

■3 speed + intensive operation via soft touch control buttons

■2 x 20W halogen lights

■1 removable metal grease filter box with multi-zone extraction

■Filter saturation indicator

■Automatically switches back from intensive to normal setting

■Extractor hose 150 or 120mm

■Maximum extraction rate 550m3/h (intensive)

■58 dB re 1 pW at max. power

DWA075550B brushed steel

As DWA095550B except:

■70cm wide chimney extractor hood

DWA065550B brushed steel

As DWA095550B except:

■60cm wide chimney extractor hood

Chimney hoods 79

DWA095550B brushed steel

Exxcel chimney hood with glass canopy

Optional accessories:

Recirculating kit DHZ5185

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

DWK096651B brushed steel

■90cm wide chimney extractor hood

■Brushed steel canopy and chimney section

■Designed for wall mounted installation

■Suitable for ducted or recirculating operation

■Electronic control

■Electronic power level display

■4 speed + intensive operation via soft touch control buttons

■3 x 20W halogen lights

■4 removable metal grease filters

■Filter saturation indicators

■Automatic after-running

■Automatically switches back from intensive to normal setting

■Extractor hose 150 or 120mm

■Maximum extraction rate 690m3/h (intensive)

■66 dB re 1 pW at max. power

Exxcel angled chimney hood

Optional accessories:

Recirculating kit DHZ5455

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

80 Chimney hoods

DWC041650B brushed steel

■40cm wide chimney extractor hood

■Cylinder brushed steel chimney section

■Designed for wall-mounted installation

■Suitable for ducted or recirculating operation

■3 speed via push button controls

■2 x 20W halogen lights

■1 removable metal grease filter

■Extractor hose 120 or 150mm

■Maximum extraction rate 620m3/h

■71 dB re 1 pW at max. power

Classixx cylinder chimney hood

Optional accessories:

Recirculating kit DHZ5425

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

DWA073551B brushed steel

■70cm wide chimney extractor hood

■Brushed steel chimney section with glass canopy

■Designed for wall mounted installation

■Suitable for ducted or recirculating operation

■3 speed + intensive operation via push button controls

■2 x 28W halogen lights

■1 removable metal grease filter box

■Extractor hose 150 or 120mm

■Maximum extraction rate 620m3/h (intensive)

■59 dB re 1 pW at max. power

Classixx chimney hood with glass canopy

Optional accessories:

Recirculating kit DHZ5225

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

Chimney hoods 81

DWA092550B clear glass

DWA092560B black glass

DWA092520B white glass

■90cm wide chimney extractor hood

■Brushed steel chimney section with coloured glass canopy

■Designed for wall mounted installation

■Suitable for ducted or recirculating operation

■3 speed operation via rocker switch controls

■2 x 20W halogen lights

■1 removable metal grease filter box

■Extractor hose 150 or 120mm

■Maximum extraction rate 620m3/h

■65 dB re 1 pW at max. power

Classixx chimney hood with glass canopy

Optional accessories:

Recirculating kit DHZ5225

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

DWA062550B clear glass

DWA062560B black glass

DWA062520B white glass

As DWA0925.0B except:

■60cm wide chimney extractor hood

DWA092450B brushed steel

■90cm wide chimney extractor hood

■Brushed steel chimney section with glass canopy

■Designed for wall mounted installation

■Suitable for ducted or recirculating operation

■3 speed operation via rocker switches

■2 x 28W halogen lights

■1 removable metal grease filter box

■Extractor hose 150 or 120mm

■Maximum extraction rate 410m3/h

■65 dB re 1 pW at max. power

DWA072450B brushed steel

As DWA092450B except:

■70cm wide chimney extractor hood

DWA062450B brushed steel

As DWA092450B except:

■60cm wide chimney extractor hood

Classixx chimney hood with glass canopy

Optional accessories:

Recirculating kit DHZ5225

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

82 Chimney hoods

DWB093450B brushed steel

■90cm wide chimney extractor hood

■Brushed steel canopy and chimney section

■Designed for wall mounted installation

■Suitable for ducted or recirculating operation

■3 speed operation via push button controls

■2 x 20W halogen lights

■2 removable metal grease filters

■Extractor hose 150 or 120mm

■Maximum extraction rate 460m3/h

■65 dB re 1 pW at max. power

DWB073450B brushed steel

As DWB093450B except:

■70cm wide chimney extractor hood

DWB063450B brushed steel

As DWB093450B except:

■60cm wide chimney extractor hood

Classixx box chimney hood

Optional accessories:

Recirculating kit DHZ5225

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

Brushed steel back panel DHZ9550 (90cm) DHZ6550 (60cm)

DWW093450B brushed steel

■90cm wide chimney extractor hood

■Brushed steel canopy and chimney section

■Designed for wall mounted installation

■Suitable for ducted or recirculating operation

■3 speed operation via push button controls

■2 x 20W halogen lights

■2 removable metal grease filters

■Extractor hose 150 or 120mm

■Maximum extraction rate 460m3/h

■65 dB re 1 pW at max. power

DWW063450B brushed steel

As DWW093450B except:

■60cm wide chimney extractor hood

Classixx chimney hood

Optional accessories:

Recirculating kit DHZ5225

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

Brushed steel back panel DHZ9550 (90cm) DHZ6550 (60cm)

Chimney hoods 83

DWW091350B brushed steel

■90cm wide chimney extractor hood

■Brushed steel canopy and chimney section

■Designed for wall-mounted installation

■Suitable for ducted or recirculating operation

■2 speed operation via sliding switch

■2 x 40W lights

■3 removable metal grease filters

■Extractor hose 120mm

■Maximum extraction rate 320m3/h

■66 dB re 1 pW at max. power

DWW061350B brushed steel

As DWW091350B except:

■60cm wide chimney extractor hood

■1 removable metal grease filters

Chimney hood

Optional accessories:

Recirculating kit DHZ5415

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

Brushed steel back panel DHZ9550 (90cm)/DHZ 6550 (60cm)

DWW112450B brushed steel

■100cm wide chimney extractor hood

■Brushed steel canopy and chimney section

■Designed for wall-mounted installation

■Suitable for ducted or recirculating operation

■3 speed operation via rocker switch controls

■2 x 40W lights

■Extractor hose 120mm

■3 removable metal grease filters

■Maximum extraction rate 400m3/h

■67 dB re 1 pW at max. power

DWW092450B brushed steel

DWW092460B black

As DWW112450B except:

■90cm wide chimney extractor hood

DWW072450B brushed steel

As DWW112450B except:

■70cm wide chimney extractor hood

■2 removable metal grease filters

DWW062450B brushed steel

DWW062460B black

As DWW112450B except:

■60cm wide chimney extractor hood

■2 removable metal grease filters

Chimney extractor hood

Optional accessories:

Recirculating kit DHZ5145

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

Brushed steel back panel DHZ9550 (90cm), DHZ6550 (60cm)

84 Telescopic hoods

DHI965VGB silver metallic lacquer

■90cm wide telescopic hood

■Variable control position

■Suitable for ducted or recirculating extraction

■Designed for installation in or between wall cupboards

■Electronic control

■Electronic power level display

■3 speed + intensive operation via push button controls

■Interval operation

■3 x 20W halogen lights with softlight dimmer function

■2 removable metal grease filters

■Filter saturation indicators

■Automatic after-running

■Automatically switches back from intensive to normal setting

■Extractor hose 150 or 120mm

■Will accept light pelmet to match kitchen furniture (not

supplied)

■Maximum extraction rate 700m3/h (intensive)

■59 dB re 1 pW at max. power

DHI665VGB silver metallic lacquer

As DHI965VGB except:

■60cm wide telescopic hood

■2 x 20W halogen lights with softlight dimmer function

Telescopic hood

DHI635HGB silver metallic lacquer

■60cm wide telescopic hood

■Suitable for ducted or recirculating extraction

■Designed for installation in or between wall cupboards

■Double filter system

■3 speed operation via rocker switch controls

■2 x 40W lights

■2 removable metal grease filters

■Supplied with neutral handle/profile

■Will accept light pelmet to match kitchen furniture

(not supplied)

■Maximum extraction rate 400m3/h

■64 dB re 1 pW at max. power

Telescopic hood

Optional accessories:

Recirculating kit DHZ4505

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

Steel finish profile handle DHZ4950 (90cm), DHZ4650 (60cm)

Steel finish profile/handle with control opening DHZ4955 (90cm),

DHZ4655 (60cm)

Optional accessories:

Recirculating kit DHZ3405

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

Canopy hoods 85

DHL545SGB silver metallic lacquer

■For installation into the base of a wall cupboard

■Suitable for ducted or recirculating extraction

■3 speed + intensive operation via slider control

■2 x 20W halogen lights

■2 removable metal grease filters

■Maximum extraction rate 500m3/h (intensive)

■62 dB re 1 pW at max. power

Canopy hood

DHL535BGB silver metallic lacquer

■For installation into the base of a wall cupboard

■Suitable for ducted or recirculating extraction

■2 speed + intensive operation via rocker switch controls

■2 x 40W light

■Maximum extraction rate 280m3/h (intensive)

■60 dB re 1 pW at max. power

Canopy hood

Optional accessories:

Recirculating kit DHZ 7305

Short ducting kit DHZ 5623 GB

Long ducting kit DHZ 5624 GB

Optional accessories:

Paper grease filter DHZ2100

Recirculating kit DHZ 7304

Short ducting kit DHZ 5623 GB

Long ducting kit DHZ 5624 GB

86 Integrated extractors

DHE645MGB silver metallic lacquer

■Accepts furniture door (not supplied)

■Designed to be installed between two standard wall units

■Suitable for ducted or recirculating extraction

■3 speed operation via rocker switches

■2 x 40W lights

■2 removable metal grease filters

■Maximum extraction rate 360m3/h

■64 dB re 1 pW at max. power

Integrated extractor

DHE635BGB silver metallic lacquer

■Accepts furniture door (not supplied)

■Designed to be installed between two standard wall units

■Suitable for ducted or recirculating extraction

■3 speed operation via rocker switches

■1 x 40W light

■Maximum extraction rate 280m3/h

■66 dB re 1 pW at max. power

Integrated extractor

Optional accessories:

Recirculating kit DSZ11AF

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

Optional accessories:

Paper grease filter DHZ2100

Recirculating kit DSZ11AF

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

Conventional extractors 87

DHU625MGB brushed steel

■Slimline conventional hood

■Suitable for ducted or recirculating extraction

■Designed for wall mounted installation or suspended beneath

a reduced height wall cupboard

■3 speed via push button controls

■2 x 20W halogen lights

■2 removable metal grease filters

■Extractor hose 120mm

■Maximum extraction rate 280m3/h

■70 dB re 1 pW at max. power

Conventional extractor

DHU635PGB brushed steel

DHU636PGB black

DHU632PGB white

■Slimline conventional hood

■Suitable for ducted or recirculating extraction

■Designed for wall mounted installation or suspended beneath

a reduced height wall cupboard

■3 speed operation via rocker switch controls

■1 x 40W light

■Glass visor

■Extractor hose 120mm

■Maximum extraction rate 190m3/h

Conventional extractor

Optional accessories:

Charcoal filter DHZ2400

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

Optional accessories:

Paper grease filter DHZ2100

Recirculating kit DHZ1100

Short ducting kit DHZ5623GB

Long ducting kit DHZ5624GB

88 Refrigeration

Refrigeration.

Logixx

Our premium range, with exceptional

cutting-edge features and extras. A

beautiful combination of high convenience

technology and intelligent design, from the

American-style fridge-freezers with indoor

ice and water dispenser to our built-in

fridge-freezer with Active Cooling. And all

with Auto Defrost and Frost-free systems

that mean you never have to worry about

defrosting the fridge or freezer again.

Exxcel

Mid-range models with a broad range of

extra features and benefits. Stylishly

finished with aluminium trim, state-of-

the-art features include Superfreeze and

Supercool functions for maximum food

protection when re-stocking the fridge

or freezer and precise electronic

temperature control.

Classixx

Simple, practical models offering Bosch

build quality and value for money. All

Classixx fridges and fridge-freezers

feature Auto Defrost systems and many

models are so efficient that they have

been awarded A+ by the EC Energy

Efficiency rating scheme.

Refrigeration 89

90 Refrigeration Features and benefits

Refrigeration

features and benefits.

Performance

Saving a further 25% of

energy with A+

Unlike your washing machine

or dishwasher, your fridge or freezer is on

24 hours a day, so it is especially important

that the appliance does not waste energy.

Our cooling products are among the most

energy-efficient performers in the industry,

minimising environmental damage and

saving you money. Every model in our range

has at least an A rating in the EC Energy

Efficiency rating scheme and many of our

models have an A+ energy rating, meaning

that it uses up to 25% less energy than

equivalent A-rated products.

Active cooling

The temperature within a conventional

fridge can be uneven, since warmer air

rises. Bosch Active Cooling solves this

problem by blowing cold air into all areas

of the fridge by fan or rear wall venting.

Sensor electronics maintain a constant

temperature throughout the compartment

to +/-1°C. Your food is protected against

bacterial growth, and is kept fresher for

longer.

Supercool

Putting new food into your fridge causes

the internal temperature to increase; the

more you add, the greater the effect. Your

fridge has to work harder to cool down,

and the food already stored in there can

get warmer. So for maximum preservation,

Supercool will prepare your fridge by

rapidly reducing the temperature, keeping

the contents cool, and quickly lowering

the temperature of the new groceries

down to 2°C.

Superfreeze

Adding new food to the freezer raises the

internal temperature, and the freezer has to

work harder to avoid food already in there

from warming-up, and possibly even part

defrosting. The Superfreeze function rapidly

lowers the temperature in the freezer,

ensuring that the fresh food is frozen food

quickly, while surrounding frozen food stays

frozen. So even when the door is open for

longer periods, the contents are protected.

Individual freezing elements

All standard (non Frost-free) Bosch freezer

drawers feature individual freezing

elements which ensures an even

temperature throughout the freezer as well

as efficient freezing down in every drawer.

Pull-out fridge tray

The pull-out fridge tray is suitable for the

storage of cold meat, cheese and other

small items and can be positioned at

any level.

Airstream shelving

Air vents at the back of the shelf allow an

increased level of air circulation within the

fridge. This improved circulation leads to

food staying fresher for longer due to a

more even temperature within the fridge.

Humidity control

Allows adjustment of both temperature and

humidity levels to maximise the shelf life of

fruits and vegetables. Lettuce, for example

should be stored at high air humidity

compared to other fruit and vegetables.

Vegetable/Salad drawer with rippled base

Food will stay fresher for longer, as the

ripple base technology leads to a reduction

in humidity levels and improved air

circulation.

Features and benefits Refrigeration 91

Design

Flat hinge design

To facilitate the quick and easy fitting of

secondary furniture doors, without the

need for extra drilling. Easy to fit, this

design takes up to 45kg of weight on the

door, offers an increased opening angle of

115° and features automatic door closing at

an angle of less than 20°.

Sliding hinges

Are attached to a slide connector pre-fitted

at the factory, which offers a simple low

cost route to adding door furniture. It offers

adjustment in depth and height for precise

fitting.

Convenience

Frost free

Available on selected fridge-freezers,

this innovative system eliminates the

formation of ice on food and the freezer

interior, meaning you never have to worry

about defrosting again. Intelligent

electronics ensure that the defrost

operation is only initiated when the

appliance actually needs it.

Auto-defrost

Automatically defrosts the fridge at regular

intervals without the need to switch off the

appliance or remove the food stored.

Electronic temperature control

Accurate temperature control is

essential to maximise the freshness

of your food. Our premium fridge-freezers

feature accurate electronic control and

temperature display for both fridge and

freezer sections.

Easy to clean

All our fridges have smooth, easy-to-clean

interior walls, and most of the interior

fittings can be washed occasionally in a

dishwasher for an extra thorough clean.

The magnetic door seals on all of our

refrigeration range are removable, making

them easy to clean and/or replace if

necessary sometime in the future.

Safety

freezer compartment

Bosch freezer compartments allow food to

be stored below -18°C so that it can be

stored for longer. As it is a 4 star

compartment, you can freeze fresh food.

Anti-bacterial protection

Most of our fridge and fridge-freezer

models have natural silver elements

within the lining of the fridge section which

gives lifetime protection against bacteria,

micro organism and algae growth, providing

the safest possible storage environment for

your food.

Safety glass shelves

Our superb safety glass shelves

have an anti-spill trim, and can hold

up to a pint of liquid in case of accidents.

They also have a scratch-resistant, non-slip

surface, and are very easy to clean. All

shelves are height adjustable allowing you

to maximise the interior storage space.

Door open and optical alarm

With this feature, if you inadvertently leave

your freezer door ajar an alarm will sound

so that you can prevent food spoilage. Then

for extra peace of mind, there is a warning

light that will illuminate to let you know

immediately should the freezer reach a

dangerously high temperature.

92 Refrigeration American-style fridge-freezers

High capacity with stylish design

Choose either the classic steel look, with fingerprint

resistant finish; sleek, chic gloss black, or the stunning

high-gloss glass front white model.

Saving a further 25% of energy with A+

The new Bosch CoolSpace models set

the standard in high-performance

refrigeration technology combined with outstanding

environmental-friendliness. All models have at least an

A energy efficiency rating, while the top-of-the-range

model, with an A+ energy efficiency rating, is up to 25%

more economical than energy efficiency class A.

In-door electronic controls

All CoolSpace models feature fully electronic

controls set conveniently into the door exterior,

giving you precise fingertip control of the temperature

of both the fridge and freezer compartments.

In-door ice and chilled water dispenser

The in-door ice and chilled water dispenser gives you

the choice of chilled, filtered water, crushed ice and ice

cubes – up to 140 every 24 hours.

American-style fridge-freezers.

Brilliant masterpieces in XXL format, the new Bosch CoolSpace

fridge-freezers will easily cope with the demands of a large family, and

make a bold design statement too.

Fresh Protect Box

Our top-of-the-range model features a separate

compartment with independent temperature control.

Conveniently accessible on smooth-running telescopic

rails, the multi-purpose Fresh Protect Box keeps food

items fresher for longer. With 3 temperature settings:

4°C, 2°C and 0°C, it can be used to store different foods

like fish, meat, vegetables, fruit or dairy products, at the

most appropriate temperature for the food type.

EasyLift safety glass shelf

The EasyLift safety glass shelf on our top of the range

model can be raised or lowered without emptying it first

– convenient, flexible, easy.

Dazzling design

The interiors of our CoolSpace fridge-freezers shine with

exceptionally bright lighting for optimum viewing.

Separate cooling systems

CoolSpace fridge-freezers feature a separate

evaporator for the fridge and freezer sections,

which not only prevents the transfer of flavours, but

also allows the fridge and freezer temperatures to be

controlled separately.

American-style fridge-freezers Refrigeration 93

CoolSpace American-style fridge-freezer

KAD62S20 premium white

■Stylish design with high-gloss white glass-fronted doors

■In-door water and ice dispenser – choice of chilled filtered

water, crushed ice or ice cubes

■External in-door LCD electronic controls

■Separate cooling systems in the fridge and freezer sections –

prevents transfer of odours

Fridge section

■Multi airflow cooling system

■Supercool function

■Auto-defrost

■Anti-bacterial protection

■4 safety glass shelves, including 1 extendable and 2 height-

adjustable, 1 of which is an EasyLift glass shelf

■1 EasyLift glass shelf for smooth and easy height adjustment,

even when the shelf is full of food

■4 door trays

■1 full width salad container, with humidity filter, on

telescopic rails

■19 litre capacity Fresh Protect Box, on telescopic rails, with

3 temperature settings: 4°C, 2°C and 0°C

■1 deli drawer for cheese and sliced meats

■Bright interior lighting

■Air-fresh filter

Freezer section

■freezer

■Frost-free system

■Superfreeze function

■3 safety glass shelves, 2 of which are adjustable

■2 transparent freezer drawers, including a Big Box drawer

■Big Box drawer for large items e.g. turkeys

■4 removable door trays, 3 of which tiltable

■Bright interior lighting

■Optical and acoustic high temperature, door open and

malfunction warning systems

■Safety lock setting on electronic controls

■Water plumbed in (filter and 3 meter hose supplied)

Gross capacity 657 litres / 23.2 cu.ft.

Fridge net capacity 355 litres / 12.5 cu.ft.

Freezer compartment net capacity 178 litres / 6.3 cu.ft.

Electricity consumption 467 kWh per year

Approximate annual running cost £56.04*

H 176 x W91x D 76 cm

* Based on an average figure of 12p per kWh including VAT

Coolspace American-style fridge-freezer

KAN62V40GB steel look

■Stylish design with steel-look doors and sides

■External in-door LED electronic controls

■Separate cooling systems in the fridge and freezer sections –

prevents transfer of odours

Fridge section

■Multi airflow cooling system

■Supercool function

■Auto-defrost

■Anti-bacterial protection

■4 safety glass shelves, 3 of which are height-adjustable

■4 door trays

■2 full width salad containers

■Bright interior lighting

Freezer section

■freezer

■Frost-free system

■Superfreeze function

■Twist ice dispenser

■3 safety glass shelves, 2 of which are height-adjustable

■2 transparent freezer drawers, including a Big Box drawer

■Big Box drawer for large items e.g. turkeys

■5 tiltable door trays

■Bright interior lighting

■Acoustic warning system

**Please check with your Bosch dealer prior to purchase

for availability

Gross capacity 673 litres / 23.8 cu.ft.

Fridge net capacity 387 litres / 13.7 cu.ft.

Freezer compartment net capacity 219 litres / 7.7 cu.ft.

Electricity consumption 529 kWh per year

Approximate annual running cost £63.48*

H 176 xW 91 xD 76 cm

* Based on an average figure of 12p per kWh including VAT

Coolspace American-style fridge-freezer

KAD62V40GB steel look

KAD62V50GB high-gloss black**

■Stylish design in high-gloss black, or with steel-look doors

and sides

■In-door water and ice dispenser – choice of chilled filtered

water, crushed ice or ice cubes

■External in-door LED electronic controls

■Separate cooling systems in the fridge and freezer sections –

prevents transfer of odours

Fridge section

■Multi airflow cooling system

■Supercool function

■Auto-defrost

■Anti-bacterial protection

■4 safety glass shelves, 3 of which are height-adjustable

■4 door trays

■2 full width salad containers, 1 with humidity control

■1 deli drawer for cheese and sliced meats

■Bright interior lighting

Freezer section

■freezer

■Frost-free system

■Superfreeze function

■3 safety glass shelves, 2 of which are height-adjustable

■2 transparent freezer drawers, including a Big Box drawer

■Big Box drawer for large items e.g. turkeys

■3 tiltable door trays

■Bright interior lighting

■Acoustic warning system

■Water plumbed in (filter and 3 metre hose supplied)

Gross capacity 655 litres / 23.1 cu.ft.

Fridge net capacity 378 litres / 13.4 cu.ft.

Freezer compartment net capacity 178 litres / 6.3 cu.ft.

Electricity consumption 557 kWh per year

Approximate annual running cost £66.84*

H 176 xW 91 xD 76 cm

* Based on an average figure of 12p per kWh including VAT

94 Refrigeration American-style fridge-freezers

Refrigeration 95

Logixx built-in fridge-freezer

KIN32A42GB white

Features

■Flat hinge design, reversible

■Electronic control

■Independent fridge and freezer temperature control

Fridge section

■LED temperature display

■Auto defrost

■Anti-bacterial protection

■Active cooling for improved air circulation

■3 height adjustable, anti-spill safety glass shelves

■25W interior light

■Pull-out fridge tray

■Door bottle gripper

■Humidity control

■2 salad containers with aluminium trim and glass shelf above

■Foamed in evaporator with smooth easy to clean walls

■2 egg racks

■Removable door trays with aluminium trim

Freezer section

■freezer

■Frost free

■Superfast freezing system

■Acoustic and optical high temperature and door open

alarm system

■4 transparent freezer drawers

■Individual freezing elements

■2 ice packs and 1 ice cube tray

Gross capacity 262 litres / 9.3 cu.ft.

Fridge net capacity 147 litres / 5.2 cu.ft.

Freezer net capacity 86 litres / 3.0 cu.ft.

Freezing capacity 8kg in 24 hours

Max. storage time in power failure 22 hours

Electricity consumption 336 kWh per year

Approx. annual running cost £40.32*

EU Efficiency Rating A

* Based on an average figure of 12p per kWh including VAT

96 Refrigeration

Exxcel built-in fridge-freezer

KIV32A50GB white

Gross capacity 276 litres / 9.7 cu.ft.

Fridge net capacity 168 litres / 5.9 cu.ft.

Freezer net capacity 94 litres / 3.1 cu.ft.

Freezing capacity 6kg in 24 hours

Max. storage time in power failure 24 hours

Electricity consumption 286 kWh per year

Approx. annual running cost £34.32*

EU Efficiency Rating A+

* Based on an average figure of 12p per kWh including VAT

Features

■Flat hinge design, reversible

■Electronic control

Fridge section

■Precise LED temperature display

■Auto defrost

■Anti-bacterial protection

■Interior light

■Air stream shelf vents for improved air circulation

■3 height adjustable, anti-spill safety glass shelves

■Pull-out fridge tray

■1 ripple based salad container with aluminium trim and

glass shelf above

■2 egg racks for up to 14 eggs

■Removable door trays with aluminium trim

■Smooth interior walls for easy cleaning

Freezer section

■freezer

■Superfast freezing system

■4 transparent freezer drawers

■Individual freezing elements

■2 ice packs and 1 ice cube tray

Refrigeration 97

Exxcel built-in fridge-freezer

KIV38A51GB white

Gross capacity 296 litres / 10.4 cu.ft.

Fridge net capacity 222 litres / 7.8 cu.ft.

Freezer net capacity 59 litres / 2.1 cu.ft.

Freezing capacity 6kg in 24 hours

Max. storage time in power failure 22 hours

Electricity consumption 277 kWh per year

Approx. annual running cost £33.24*

EU Efficiency Rating A+

* Based on an average figure of 12p per kWh including VAT

Features

■Flat hinge design, reversible

■Electronic control

Fridge section

■Precise LED temperature display

■Auto defrost

■Anti-bacterial protection

■Interior light

■Air stream shelf vents for improved air circulation

■4 height adjustable, anti-spill safety glass shelves

■Pull-out fridge tray

■Full width ripple based salad container with aluminium trim

and glass shelf above

■2 egg racks for up to 14 eggs

■Removable door trays with aluminium trim

■Smooth interior walls for easy cleaning

Freezer section

■freezer

■Superfast freezing system

■3 transparent freezer drawers

■Individual freezing elements

■2 ice packs and 1 ice cube tray

98 Refrigeration

Classixx built-in fridge-freezer

KIV38V20GB white

Gross capacity 294 litres / 10.4 cu.ft.

Fridge net capacity 219 litres / 7.7 cu.ft.

Freezer net capacity 60 litres / 2.1 cu.ft.

Freezing capacity 3kg in 24 hours

Max. storage time in power failure 13 hours

Electricity consumption 276 kWh per year

Approx. annual running cost £33.12*

EU Efficiency Rating A+

* Based on an average figure of 12p per kWh including VAT

Features

■Sliding hinge design, reversible

Fridge section

■Auto defrost

■Anti-bacterial protection

■Interior light

■Air stream shelf vents for improved air circulation

■4 height adjustable, anti-spill safety glass shelves

■Full width salad container with rippled base and

glass shelf above

■Butter dish

■Removable door trays

■Smooth interior walls for easy cleaning

Freezer section

■freezer

■3 transparent freezer drawers

■Individual freezing elements

Refrigeration 99

Classixx built-in fridge-freezer

KIV32V01GB white

Gross capacity 274 litres / 9.7 cu.ft.

Fridge net capacity 167 litres / 5.9 cu.ft.

Freezer net capacity 95 litres / 3.3 cu.ft.

Freezing capacity 4.5kg in 24 hours

Max. storage time in power failure 13 hours

Electricity consumption 323 kWh per year

Approx. annual running cost £38.76*

EU Efficiency Rating A

* Based on an average figure of 12p per kWh including VAT

Features

■Sliding hinge design, reversible

Fridge section

■Auto defrost

■Anti-bacterial protection

■Interior light

■Air stream shelf vents for improved air circulation

■2 height adjustable, anti-spill safety glass shelves

■Full width salad container with rippled base and

glass shelf above

■Removable door trays

■Smooth interior walls for easy cleaning

Freezer section

■freezer

■4 transparent freezer drawers

■Individual freezing elements

100 Refrigeration

Classixx built-in fridge-freezer

KIV38V01GB white

Gross capacity 294 litres / 10.3 cu.ft.

Fridge net capacity 219 litres / 7.7 cu.ft.

Freezer net capacity 60 litres / 2.1 cu.ft.

Freezing capacity 3kg in 24 hours

Max. storage time in power failure 13 hours

Electricity consumption 314 kWh per year

Approx. annual running cost £37.68*

EU Efficiency Rating A

* Based on an average figure of 12p per kWh including VAT

Features

■Sliding hinge design, reversible

Fridge section

■Auto defrost

■Anti-bacterial protection

■Interior light

■Air stream shelf vents for improved air circulation

■3 height adjustable, anti-spill safety glass shelves

■Full width salad container with rippled base and

glass shelf above

■Removable door trays

■Smooth interior walls for easy cleaning

Freezer section

■freezer

■3 transparent freezer drawers

■Individual freezing elements

Refrigeration 101

Logixx built-in fridge

KIR18A51GB white

■Flat hinge design, reversible

■Electronic control

■Supercool function

■Auto defrost

■Anti-bacterial protection

■Air stream shelf vents for improved air circulation

■Interior light

■3 height adjustable, anti-spill safety glass shelves

■Humidity control

■Pull-out fridge tray

■Full width ripple based salad container with aluminium trim

and glass shelf above

■1 egg rack for up to 7 eggs

■Door bottle gripper

■Removable door trays with aluminium trim

■Can be combined with GID18A50GB

Gross capacity 155 litres / 5.5 cu.ft.

Fridge net capacity 153 litres / 5.4 cu.ft.

Electricity consumption 122 kWh per year

Approx. annual running cost £14.64*

EU Efficiency Rating A+

* Based on an average figure of 12p per kWh including VAT

Logixx built-in freezer

GID18A50GB white

■Flat hinge design, reversible

■freezer

■Individual freezing elements

■4 transparent freezers drawers with aluminium trim

■Superfast freezing system

■Acoustic and optical high temperature and door open

alarm system

■2 freezer blocks for emergency/outdoor use

■Ice cube tray

■Automatic door closing

■Drawer stops to avoid accidental tipping of contents

■Can be combined with KIR18A51GB

Gross capacity 106 litres / 3.7 cu.ft.

Freezer net capacity 98 litres / 3.5 cu.ft.

Freezing capacity 12 kg in 24 hours

Max. storage time in power failure 25 hours

Electricity consumption 194 kWh per year

Approx. annual running cost £23.28*

EU Efficiency Rating: A+

* Based on an average figure of 12p per kWh including VAT

102 Refrigeration

Exxcel built-in freezer

GID18A20GB white

■Sliding hinge design, reversible

■freezer

■4 transparent freezer drawers with aluminium trim

■Individual freezing elements

■Superfast freezing system

■Acoustic and optical high temperature and door open

alarm system

■Drawer stops to accidental tipping of contents

■Can be combined with KIR18V00GB

Gross capacity 106 litres / 3.7 cu.ft.

Freezer net capacity 98 litres / 3.5 cu.ft.

Freezing capacity 12 kg in 24 hours

Max. storage time in power failure 25 hours

Electricity consumption 194 kWh per year

Approx. annual running cost £23.28*

EU Efficiency Rating: A+

* Based on an average figure of 12p per kWh including VAT

Exxcel built-in fridge

KIR18V00GB white

■Sliding hinge design, reversible

■Auto defrost

■Anti-bacterial protection

■Air stream shelf vents for improved air circulation

■Interior light

■3 height-adjustable safety glass shelves

■Removable door trays

■Full width ripple based salad container with glass shelf above

■Can be combined with GID18A20GB

Gross capacity 154 litres / 5.4 cu.ft.

Fridge net capacity 151 litres / 5.3 cu.ft.

Electricity consumption 153 kWh per year

Approx. annual running cost £18.36*

EU Efficiency Rating: A

* Based on an average figure of 12p per kWh including VAT

Refrigeration 103

■Flat hinge design, reversible

■Electronic control

■Supercool function

■Auto defrost

■Anti-bacterial protection

■Air stream shelf vents for improved air circulation

■Interior light

■4 height adjustable, anti-spill safety glass shelves

■Pull-out fridge tray

■2 full width salad containers with glass shelf above

■2 egg racks for up to 12 eggs

■Butter dish

■Removable door trays with aluminium trim

■freezer compartment with 2 sections

■1 ice cube tray

Gross capacity 289 litres / 10.2 cu.ft.

Fridge net capacity 246 litres / 8.7 cu.ft.

Freezer net capacity 36 litres / 1.3 cu.ft.

Freezing capacity 3kg in 24 hours

Max. storage time in power failure 18 hours

Electricity consumption 259 kWh per year

Approx. annual running cost £31.08*

EU Efficiency Rating A+

* Based on an average figure of 12p per kWh including VAT

Exxcel built-in fridge with ice-box

KIL38A50GB white

Exxcel built-in fridge with ice-box

KIL24A50GB white

■Flat hinge design, reversible

■Electronic control

■Supercool function

■Auto defrost

■Anti-bacterial protection

■Air stream shelf vents for improved air circulation

■Interior light

■4 height adjustable, anti-spill safety glass shelves

■Pull-out fridge tray

■1 full width salad container with aluminium trim and glass

shelf above

■1 egg rack for up to 7 eggs

■Removable door trays with aluminium trim

■freezer compartment

Gross capacity 211 litres / 7.5 cu.ft.

Fridge net capacity 189 litres / 6.7 cu.ft.

Freezer net capacity 17 litres / 0.6 cu.ft.

Freezing capacity 2kg in 24 hours

Max. storage time in power failure 12 hours

Electricity consumption 224 kWh per year

Approx. annual running cost £26.88*

EU Efficiency Rating A+

* Based on an average figure of 12p per kWh including VAT

104 Refrigeration

Classixx built-in fridge

KIR38A50GB white

■Flat hinge design, reversible

■Electronic control

■Supercool function

■Auto defrost

■Anti-bacterial protection

■Air stream shelf vents for improved air circulation

■Interior light

■6 height adjustable, anti-spill safety glass shelves

■Pull-out fridge tray

■2 full width salad containers with glass shelf above

■2 egg racks for up to 12 eggs

■Removable door trays

Gross capacity 312 litres / 11.0 cu.ft.

Fridge net capacity 308 litres / 10.9 cu.ft.

Electricity consumption 142 kWh per year

Approx. annual running cost £17.04*

EU Efficiency Rating A+

* Based on an average figure of 12p per kWh including VAT

■Flat hinge design, reversible

■Electronic control

■Supercool function

■Auto defrost

■Anti-bacterial protection

■Air stream shelf vents for improved air circulation

■Interior light

■5 height adjustable, anti-spill safety glass shelves

■Pull-out fridge tray

■1 full width salad container with aluminium trim and glass

shelf above

■1 egg rack for up to 7 eggs

■Removable door trays

Gross capacity 228 litres / 8.0 cu.ft.

Fridge net capacity 226 litres / 7.9 cu.ft.

Electricity consumption 131 kWh per year

Approx. annual running cost £15.72*

EU Efficiency Rating A+

* Based on an average figure of 12p per kWh including VAT

Classixx built-in fridge

KIR24A50GB white

Refrigeration 105

Classixx built-under larder fridge

KUR15A40GB white

■Flat hinge design, reversible

■Anti-bacterial protection ■Auto-defrost

■Interior light ■Internal thermostat control

■3 height-adjustable, anti-spill safety glass shelves, one with

slide-under half-shelf facility

■1 salad container with sliding glass shelf above

■1 dairy compartment ■Egg rack for up to 8 eggs

■Removable door trays

■Smooth interior walls for easy cleaning

■Can be combined with GUD15A40GB

Gross capacity 142 litres / 5.0 cu.ft.

Fridge net capacity 141 litres / 5 cu.ft.

Electricity consumption 146 kWh per year

Approx. annual running cost £17.52*

EU Efficiency Rating: A

* Based on an average figure of 12p per kWh including VAT

Classixx built-under freezer

GUD15A40GB white

■freezer ■Flat hinge design, reversible

■3 transparent freezer drawers with individual freezing

elements ■Superfast freezing system

■Precise LED temperature control

■Visual and acoustic alarm system

■2 freezer blocks and ice-cube tray

■Can be combined with KUR15A40GB

Gross capacity 114 litres / 4.0 cu.ft.

Freezer net capacity 98 litres / 3.5 cu.ft.

Electricity consumption 211 kWh per year

Approx. annual running cost £25.32*

EU Efficiency Rating: A

* Based on an average figure of 12p per kWh including VAT

Classixx built-under fridge

KUL15A40GB white

■Flat hinge design, reversible

■Anti-bacterial protection ■Auto-defrost

■Interior light ■Internal thermostat control

■2 height-adjustable, anti-spill safety glass shelves, one with

slide-under half-shelf facility

■1 salad container with sliding glass shelf above

■1 dairy compartment ■Egg rack for up to 8 eggs

■icebox

■Removable door accessories for easy cleaning

■Smooth interior walls for easy cleaning

Gross capacity 131 litres / 4.6 cu.ft.

Fridge net capacity 110 litres / 3.9 cu.ft.

Icebox net capacity 15 litres / 0.5 cu.ft.

Electricity consumption 203 kWh per year

Approx. annual running cost £24.36*

EU Efficiency Rating: A

* Based on an average figure of 12p per kWh including VAT

Dishwashers.

Logixx

Our premium range, with exceptional

cutting-edge features and extras.

Featuring ActiveWater technology, heat

exchanger drying, automatic wash

programmes, and a wealth of other

cutting edge features, the Bosch Logixx

models are not only the world’s most

powerful dishwashers, but also the

world’s most economical*.

Exxcel

Mid-range models with a broad range of

extra features and benefits. They offer

greater capacity, use less water, are

quieter, and boast more features than

the basic models. Like the automatic

daily programme, or the powerful

IntensiveZone function and the

amazingly flexible Vario and VarioFlex

basket systems with RackmaticTM.

Classixx

Simple, practical models offering Bosch

build quality and value for money. But

they still feature the triple-A rated

performance that comes with all our

dishwashers, and a host of useful

features, including the large item spray

head, the convenient half load option,

and the 29-minute quick-wash

programme.

Dishwashers 107

* As of January 2008. Combined water and electricity consumption for a standard programme on a Bosch Logixx dishwasher.

108 Dishwashers ActiveWater

The world’s most economical

dishwasher is also the world’s

most powerful dishwasher*

Maximum performance meets minimum consumption

ActiveWater from Bosch – Nothing less than the invention of a

revolutionary new dishwashing system that uses every single drop

of water to the maximum, and makes these dishwashers the most

efficient ever to leave the production line.

ActiveWater Dishwashers 109

Technology serves economy

This incredible increase in efficiency

of the ActiveWater dishwasher

models has been achieved through

the development of a new

dishwasher system that maximises

water efficiency during rinse cycles:

faster heating, optimised filter

system, targeted water distribution

and improved pump performance.

For the new ActiveWater dishwasher

this spells: less water, less energy,

more performance.

* As of January 2008. Combined water and electricity consumption for a standard programme on a Bosch Logixx dishwasher.

110 Dishwashers Features and benefits

Dishwashers

features and benefits.

Performance

AAA performance

At Bosch we are aware of the importance

of energy efficient and environmentally

friendly appliances. We are so confident of

the quality and efficiency of our

dishwashers that we offer AAA rated

appliances in all our full size and slimline

models – making our models the most

efficient in the world.

5 spray levels

The uniquely designed curved spray arms

distribute water precisely and effectively,

ensuring perfect results every time. The

water is sprayed on five different levels for

maximum performance, including a

downward spray to ensure that the filter

area is kept permanently flushed clean.

Hydrosensor III

Checks the degree of soiling in the

prerinse water and decides whether

it is clean enough to be used for the main

wash cycle. If the water contains only a

small amount of soiling, the water is reused.

Around 20%, or 4 litres, of water can be

saved using the HydroSensor.

Heat exchanger

The unique heat recycling reservoir

maximises performance by using

heat that is generated in the main wash to

pre-heat cold water used for the rinse

cycles before it enters the dishwasher.

Pre-heating the water minimises the risk of

thermal shock which can occur when cold

water strikes warm delicate items which

can cause cracking or breakages. As an

additional benefit this system is also an

extremely energy efficient method of

heating the water.

Detergent aware

No matter which detergent you use – 5in1,

4in1, 3in1, 2in1 tablets or separate

components – all our dishwashers will

adjust the cycle to ensure that you always

get the best possible results – every time.

(Note that to ensure these results

dishwasher salt should always be used).

DosageAssist

Maximises the effectiveness of detergent

tablets. The detergent dispenser is

conveniently located in the centre of the

top of the door, where it is protected from

food remnants that drip whilst loading the

dirty dishes. At the beginning of the wash

cycle, the tab drops into a special tray in

the top basket where its dissolving is

controlled to assure outstanding results.

This prevents tabs dropping down between

plates or cutlery, or not dissolving

completely, resulting in a less-than-perfect

cleaning performance.

Features and benefits Dishwashers 111

IntensiveZone

To save you the chore of scrubbing

heavily soiled pots and pans, the

entire bottom basket can be transformed

into a power cleaning zone with increased

spray pressure and a higher cleaning

temperature, while in the top basket

delicate glasses and dishes are rinsed

gently and protectively.

AquaMix

Bosch AquaMix allows you to wash your

delicate glasses with complete confidence.

By regulating the level of water hardness in

the machine and topping up with water

directly from the mains it produces the best

water hardness level for glass, ensuring a

sparkling finish every time.

Advanced filter system

Our easy to remove and clean filter system

now has 50% more surface area. This

allows for up to 15% more water to be

circulated through the system, so that even

more cleaning power can be squeezed from

every drop of water.

Hygiene Exxtra

Select the new Hygiene Exxtra

option for a hotter final rinse –

perfect for cooking utensils, glass jars,

chopping boards and baby bottles.

Safety

AquaStop 24-hr flood protection

All Bosch dishwashers have flood

protection systems, but for added

peace of mind, most models feature

‘AquaStop’, a device that cuts off the water

supply in the case of leaks, and a safety

water valve to guard against siphoning, even

when the machine is switched off.

Safety lock

The control panel or door can be

locked to stop little fingers from

interfering when the machine is running.

112 Dishwashers Features and benefits

Dishwashers

features and benefits.

Convenience

VarioSpeed

Optionally reduces programme

times by up to 50%, but without

compromising on quality. So you still get

hygienically clean and dry dishes, but in as

little as half the time – ideal for busy

households and when entertaining.

Large item spray head

Makes light work of baking trays or oven

shelves, without the need for pre-soaking.

Simply remove the upper basket, attach the

large item spray head, and get powerful

cleaning where you need it. The large item

spray head comes as standard with all

Bosch dishwashers – and on Exxcel and

Logixx models, it’s now even larger.

Half load

If you don’t have enough for a full

load and can’t wait, simply load the

crockery, plates, pots and pans anywhere in

your dishwasher, select the programme

temperature and press the half load button.

The programme time is reduced and up to

30% less water is used.

14 place settings

There is enough space for 14 full

place settings in the Logixx

ActiveWater dishwashers with VarioDrawer.

Or, put into figures: 14 dinner, soup and

dessert plates, 14 cups and saucers, 14

glasses and 14 cutlery settings – knife, fork,

soup, tea and dessert spoons, plus 1 oval

serving plate, 2 serving bowls, 2 serving

spoons, 1 serving fork and 1 sauce spoon.

Vario, Varioflex or VarioFlexPlus baskets

with RackmaticTM

With the enlarged loading area, the Bosch

basket systems featured in the Exxcel and

Logixx models offer more capacity, up to

14 place settings, and greater flexibility.

With up to six foldable racks the system can

be adapted to any load, and all items are

assured a firm, secure place in the

protective racks. The new 3-stage

RackmaticTM system makes it a simple

matter to adjust the height of the upper

basket, even when it is fully loaded –

normally a cumbersome task. With three

different loading heights a large variety of

plates, glasses and other dishes can easily

be accommodated.

Features and benefits Dishwashers 113

The VarioDrawer

A unique feature of our new top-of-

the-range Logixx dishwasher interior

is a third loading level – the VarioDrawer.

It replaces the cutlery basket, freeing even

more space in the bottom basket. The

VarioDrawer is easily removable to allow

loading and unloading of cutlery, and there

is even room for espresso cups and kitchen

utensils. And what’s more, even with the

drawer in place you can still load long-stem

wine glasses in the upper basket.

Logical control

All our machines feature water supply, salt

and rinse-aid indicators, as well as

displaying remaining programme time and

start time delay.

Bosch recommends Finish

Use Finish to get amazing results every

time you open your Bosch dishwasher.

Finish have a complete range of products

to suit your dishwashing needs, including

new Finish Quantum which combines the

power of three separate ingredients in one

single product to give you amazing shine

and clean.

A range of enhancers are also available such

as Finish Intensive Clean & Care Dishwasher

Cleaner which removes grease and

limescale to maintain your machine’s

performance and give you perfect results

in every cycle.

114 Dishwashers

SMI69T05GB brushed steel

Exxcel semi-integrated 5-programme dishwasher

SMI53M05GB brushed steel

Logixx semi-integrated 6-programme dishwasher

■New concept control panel with metal touch controls,

designed to complement the Bosch oven range

■14 place settings

■Uses only 10 litres of water

■6 programmes: Prerinse, Quick Wash 45°C, Economy 50°C,

Auto Delicate 35°C-45°C, Auto Daily 45°C-65°C,

Auto Intensive 65°C-75°C

■Half load

■Hygiene Exxtra

■IntensiveZone

■VarioSpeed – cuts programme times by up to 50%

■HydroSensor III – saves up to 4 litres of water

■Time delay (1 – 24 hours)

■VarioFlex Plus basket system with VarioDrawer for ultimate

space and flexibility

■3-step RackmaticTM height adjustable upper basket

■Foldable plate racks: 6 in upper basket and 6 in lower basket

■Large item spray head

■DosageAssist system

■Detergent aware

■50% larger filter

■Energy efficient heat exchanger for hygienic condenser drying

■Stainless steel interior

■Safety lock

■Aquastop – 24 hr antiflood protection

Capacity 14 place settings

Consumption rates (Eco 50°C)

Energy 0.98 kWh

Water 10 litres

Time 140 mins

■New concept control panel with metal touch controls,

designed to complement the Bosch oven range

■13 place settings

■Uses only 12 litres of water

■5 programmes: Prerinse, Quick Wash 45°C, Economy 50°C,

Auto Daily 45°C-65°C, Intensive 70°C

■Half load

■Hygiene Exxtra

■IntensiveZone

■VarioSpeed – cuts programme times by up to 50%

■HydroSensor III – saves up to 4 litres of water

■Time delay (1 – 24 hours)

■VarioFlex basket system for more space and flexibility

■3-step RackmaticTM height adjustable upper basket

■Foldable plate racks: 2 in upper basket and 4 in lower basket

■Large item spray head

■DosageAssist system

■Detergent aware

■50% larger filter

■Residual heat drying

■Stainless steel interior

■Safety lock

■Aquastop – 24 hr antiflood protection

Capacity 13 place settings

Consumption rates (Eco 50°C)

Energy 1.05 kWh

Water 12 litres

Time 140 mins

Dishwashers 115

SMI50M05GB brushed steel

SMI50M06GB black

SMI50M02GB white

Classixx semi-integrated 4-programme dishwasher

SGI45E15UK brushed steel

SGI45E16UK black

SGI45E12UK white

Exxcel semi-integrated 5-programme dishwasher

■LED control, designed to complement the Bosch oven range

■13 place settings

■Uses only 12 litres of water

■5 programmes: Prerinse, Quick Wash 45°C, Economy 50°C,

Auto Daily 45°C-65°C, Intensive 70°C

■Half load

■VarioSpeed – cuts programme times by up to 50%

■HydroSensor III – saves up to 4 litres of water

■Time delay (1 – 24 hours)

■Vario basket system

■3-step RackmaticTM height adjustable upper basket

■Foldable plate racks: 2 in upper basket and 2 in lower basket

■Large item spray head

■DosageAssist system

■Detergent aware

■50% larger filter

■Residual heat drying

■Stainless steel interior

■Safety lock

■Aquastop – 24 hr antiflood protection

Capacity 13 place settings

Consumption rates (Eco 50°C)

Energy 1.05 kWh

Water 12 litres

Time 140 mins

■12 place settings

■4 programmes: Prerinse, Quick Wash 45°C, Economy 50°C,

Normal 65°C

■Half load

■LED time remaining indicator

■LED salt and rinse aid indicators

■LED water fault indicator

■Pop-out control

■Time delay (1 – 19 hours)

■Light grey baskets with height adjustable upper basket

■Foldable plate racks: 2 in lower basket

■Large item spray head

■Upper knife rack

■Residual heat drying

■Polinox and stainless steel interior

Capacity 12 place settings

Consumption rates (Eco 50°C)

Energy 1.05 kWh

Water 13 litres

Time 140 mins

116 Dishwashers

SMV69T10GB

Logixx fully integrated 6-programme dishwasher

■Black glass control panel with touch controls

■14 place settings

■Uses only 10 litres of water

■6 programmes: Prerinse, Quick Wash 45°C, Economy 50°C,

Auto Delicate 35°C-45°C, Auto Daily 45°C-65°C,

Auto Intensive 65°C-75°C

■Half load

■Hygiene Exxtra

■IntensiveZone

■VarioSpeed – cuts programme times by up to 50%

■HydroSensor III – saves up to 4 litres of water

■Info light to indicate that the dishwasher is in use

■Time delay (1 – 24 hours)

■VarioFlex Plus basket system with VarioDrawer for ultimate

space and flexibility

■3-step RackmaticTM height adjustable upper basket

■Foldable plate racks: 6 in upper basket and 6 in lower basket

■Large item spray head

■DosageAssist system

■Detergent aware

■50% larger filter

■Energy efficient heat exchanger for hygienic condenser drying

■Stainless steel interior

■Safety lock

■Aquastop – 24 hr antiflood protection

Capacity 14 place settings

Consumption rates (Eco 50°C)

Energy 0.98 kWh

Water 10 litres

Time 140 mins

Dishwashers 117

Logixx fully integrated 6-programme dishwasher

SBV69M10GB

Larger interior for added convenience

An additional benefit of the SBV69M10GB dishwasher is that it

has an extra 5 cm of interior space. This means that even larger

than normal items can be washed comfortably. For example if

the top basket is adjusted, plates as large as 33cm can be

accommodated in the lower basket. With its height adjustable

feet the SBV69M10GB is suitable for niche heights from

865mm – 925mm.

■Extra tall interior height for accommodating plates up to 33cm

■Brushed steel control panel with buttons

■14 place settings

■Uses only 12 litres of water

■6 programmes: Prerinse, Quick Wash 45°C, Economy 50°C,

Delicate 40°C, Auto Daily 45°C-65°C, Intensive 70°C

■Half load

■Hygiene Exxtra

■IntensiveZone

■VarioSpeed – cuts programme times by up to 50%

■HydroSensor III – saves up to 4 litres of water

■Info light to indicate that the dishwasher is in use

■Time delay (1 – 24 hours)

■VarioFlex Plus basket system with VarioDrawer for ultimate

space and flexibility

■3-step RackmaticTM height adjustable upper basket

■Foldable plate racks: 2 in upper basket and 4 in lower basket

■Large item spray head

■DosageAssist system

■Detergent aware

■50% larger filter

■Energy efficient heat exchanger for hygienic condenser drying

■Stainless steel interior

■Safety lock

■Aquastop – 24 hr antiflood protection

Capacity 14 place settings

Consumption rates (Eco 50°C)

Energy 1.05 kWh

Water 12 litres

Time 140 mins

86.5cm model compared with a standard dishwasher

SMV63M00GB brushed steel

118 Dishwashers

Exxcel fully integrated 5-programme dishwasher

SMV53M00GB brushed steel

Exxcel fully integrated 6-programme dishwasher

■Brushed steel control panel with buttons

■13 place settings

■Uses only 12 litres of water

■6 programmes: Prerinse, Quick Wash 45°C, Economy 50°C,

Delicate 40°C, Auto Daily 45°C-65°C, Intensive 70°C

■IntensiveZone

■VarioSpeed – cuts programme times by up to 50%

■HydroSensor III – saves up to 4 litres of water

■Info light to indicate that the dishwasher is in use

■Time delay (1 – 24 hours)

■VarioFlex basket system for more space and flexibility

■3-step RackmaticTM height adjustable upper basket

■Foldable plate racks: 2 in upper basket and 4 in lower basket

■Large item spray head

■DosageAssist system

■Detergent aware

■50% larger filter

■Energy efficient heat exchanger for hygienic condenser drying

■Perfect for glassware

■Stainless steel interior

■Safety lock

■Aquastop – 24 hr antiflood protection

Capacity 13 place settings

Consumption rates (Eco 50°C)

Energy 1.05 kWh

Water 12 litres

Time 140 mins

■Brushed steel control panel with buttons

■13 place settings

■Uses only 12 litres of water

■5 programmes: Prerinse, Quick Wash 45°C, Economy 50°C,

Auto Daily 45°C-65°C, Intensive 70°C

■Half load

■VarioSpeed – cuts programme times by up to 50%

■HydroSensor III – saves up to 4 litres of water

■Info light to indicate that the dishwasher is in use

■Time delay (1 – 24 hours)

■VarioFlex basket system for more space and flexibility

■3-step RackmaticTM height adjustable upper basket

■Foldable plate racks: 2 in upper basket and 4 in lower basket

■Large item spray head

■DosageAssist system

■Detergent aware

■50% larger filter

■Residual heat drying

■Stainless steel interior

■Safety lock

■Aquastop – 24 hr antiflood protection

Capacity 13 place settings

Consumption rates (Eco 50°C)

Energy 1.05 kWh

Water 12 litres

Time 140 mins

Dishwashers 119

SBV50E10GB black

Exxcel fully integrated 5-programme dishwasher

■Extra tall interior height for accommodating plates up to 33cm

■13 place settings

■Uses only 12 litres of water

■5 programmes: Prerinse, Quick Wash 45°C, Economy 50°C,

Auto Daily 45°C-65°C, Intensive 70°C

■Half load

■HydroSensor III – saves up to 4 litres of water

■Time delay (3, 6 or 9 hours)

■Vario basket system

■3-step RackmaticTM height adjustable upper basket

■Foldable plate racks: 2 in lower basket

■Large item spray head

■DosageAssist system

■Detergent aware

■50% larger filter

■Residual heat drying

■Stainless steel interior

■Safety lock

■Aquastop – 24 hr antiflood protection

Capacity 13 place settings

Consumption rates (Eco 50°C)

Energy 1.05 kWh

Water 12 litres

Time 140 mins

Larger interior for added convenience

An additional benefit of the SBV50E10GB dishwasher is that it

has an extra 5 cm of interior space. This means that even larger

than normal items can be washed comfortably. For example if

the top basket is adjusted, plates as large as 33cm can be

accommodated in the lower basket. With its height adjustable

feet the SBV50E10GB is suitable for niche heights from

865mm – 925mm.

86.5cm model compared with a standard dishwasher

120 Dishwashers

SMV50E00GB black

Exxcel fully integrated 5-programme dishwasher

SGV46M03GB brushed steel

Classixx fully integrated 4-programme dishwasher

■13 place settings

■Uses only 12 litres of water

■5 programmes: Prerinse, Quick Wash 45°C, Economy 50°C,

Normal 65°C, Intensive 70°C

■Half load

■Time delay (3, 6 or 9 hours)

■Vario basket system

■3-step RackmaticTM height adjustable upper basket

■Foldable plate racks: 2 in upper basket and 2 in lower basket

■Large item spray head

■DosageAssist system

■Detergent aware

■50% larger filter

■Residual heat drying

■Stainless steel interior

■Safety lock

■Aquastop – 24 hr antiflood protection

Capacity 13 place settings

Consumption rates (Eco 50°C)

Energy 1.05 kWh

Water 12 litres

Time 140 mins

■4 programmes: Prerinse, Quick Wash 45°C, Economy 50°C,

Auto 55°C-65°C

■Half load

■LED salt and rinse aid indicators

■Silver baskets

■2-step RackmaticTM height adjustable upper basket

■Foldable plate racks: 2 in upper basket and 2 in lower basket

■Residual heat drying

■Aquastop – 24 hr antiflood protection

■Polinox and stainless steel interior

Capacity 12 place settings

Consumption rates (Eco 50°C)

Energy 1.05 kWh

Water 13 litres

Time 140 mins

Dishwashers 121

SRV43M03GB black

Optional accessories:

Extension pipes for Aquastop installation SGZ 1010

Compact dishwasher

SKS40E11GB white (4 programme)

SKS50E16EU black (5 programme)

SKS50E01EU red (5 programme)

SKS50E11EU yellow (5 programme)

SKS50E18EU silver innox (5 programme)

Exxcel fully integrated 4-programme dishwasher

■4 programmes: Prerinse, Quick Wash 35°C, Economy 50°C,

Normal 65°C

■LED salt and rinse aid indicators

■Silver baskets

■2-step RackmaticTM height adjustable upper basket

■Foldable plate racks: 2 lower basket

■Large item spray head

■Heat exchanger

■Stainless steel interior

■Antiflood protection

Capacity 9 place settings

Consumption rates (Eco 50°C)

Energy 0.80 kWh

Water 13 litres

Time 155 mins

■5 programmes:

Quick 29 min

Delicate 40°C (not on 4 programme model)

Economy 50°C

Normal 65°C

Intensive 70°C

■6 place settings

■Silver baskets

■Cup rack

■Programme status indicator

■Salt and rinse aid indicators

■Detergent aware

■Residual heat drying

■Adjustable water softener

■Quiet operation 52dB (re 1 pW)

■Stainless steel concealed heating element

■Cold fill recommended

■Extra dry function (only on 5 programme model)

Capacity 6 place settings

Consumption rates (Normal 65°C)

Energy 0.63 kWh

Water 8 litres

Time 140 mins

122 Home laundry

Home laundry.

Logixx

Our premium range, with exceptional

cutting-edge features and extras. A 1400rpm

washing machine, with LED display clearly

showing you the wash progress. Offering a

wide range of programme options designed

for today’s lifestyle, like the Dark and Sports

Wash programmes, and the blisteringly fast

Super Quick 15-minute programme for light

loads – one of the shortest complete

washing programmes of any machine on

the market.

Exxcel

Mid-range models with a broad range of

extra features and benefits. Including a

large capacity 7kg washing machine with

unique Soft Surge drum system and space

saving washer dryer. Both feature

dedicated handwash wool programmes to

take care of your most delicate woollens.

Home laundry 123

124 Home laundry Features and benefits

Home laundry

features and benefits.

Programmes

Dark wash

Designed specifically for dark clothes, and

available across a range of temperatures,

this programme reduces fading, and

ensures no flecks of washing powder

remain on your clothes at the end of the

wash.

Delicates silk

An especially caring programme with a

gentle wash action. Intermediate spinning

in the rinse cycle is omitted, and a gentle

final spin at 600 rpm completes this

delicate programme.

Handwash wool

An exceptionally gentle woollens

handwash programme, which runs

at only 27 rpm (usual speed 50 rpm) with a

soft wash action and special spin phase

that ensures that everything stays in good

shape.

Mixed load

A fast wash that allows mixed fabrics and

colour loads to be safely washed together.

Originally designed with school uniforms in

mind, it is capable of handling up to 3kg of

washing, and is ideal for quick washes that

might be required before a full load of

laundry has been collected.

Power wash 60

The Power Wash 60 programme for medium

loads (up to 5kg) gives an A-class

performance wash within 60 minutes.

Sensitive

By prolonging the maximum wash

temperature, increasing the water level, and

adding an extra rinse, this programme

reduces exposure to allergens that irritate

sensitive skin.

Sports wash

A programme for modern sports clothes

with Sportswear microfibre technology like

those used for gym, cycling or jogging.

SuperQuick 15

A short programme of approximately

15 minutes for 2kg of lightly soiled

washing – that’s roughly equivalent to one

outfit or 10 men’s shirts. Packing in a wash,

two rinse cycles and improved rinse

spinning, this is one of the shortest

complete washing programmes of any

machine on the market.

Freshen up

This handy feature gives clothing the

lightest of washes without using any

detergent – particularly useful for

freshening up stored clothes or eliminating

the smell of cigarette smoke on lightly worn

clothes. It cuts down on wear and tear of

clothes, takes only 20 minutes and reduces

energy use.

Pre-wash option

For especially dirty clothes, a pre-wash will

loosen dirt and remove it from the clothes

prior to the main wash.

Reduced ironing option

The laundry is tumbled gently periodically

during the normal programme spin cycle,

and then at the end of the spin phase,

keeping laundry fluffy and tangle free. The

result is reduced creasing, and therefore

easier ironing.

Features and benefits Home laundry 125

Performance

Better than A-rated energy efficiency

All our washing machines deliver an A rated

wash performance, while using as much as

10% less energy than required for A rated

energy efficiency.

Aqua plus

With Aqua Plus, a higher water level is used

throughout the wash and rinse cycles of the

chosen wash programme – for best rinsing

results.

Wash plus system

The Wash Plus system extends a wash

programme to give a more intensive wash,

and brings the equivalent of an A-class

wash performance to a wider range of

temperatures than ever before. Unlike most

washing machines on the market, Bosch

machines now deliver the equivalent of an

A-class performance not only at 60°C, but

at 40°C and 90°C as well.

3D AquaSpa wash system

A wash and shower system for

optimum washing results. Water

enters the drum from three sides for quick

and effective distribution. During the cycle

specially designed paddles scoop up the

water gently bathing the wash load,

ensuring gentle washing and optimum

usage of the water in the drum.

Unique SoftSurgeTM drum system

Gives better cleaning results, as well as

providing greater protection for your

washing. The asymmetric paddles and

‘rain-drop’ drum surface design provides

power for those heavy-duty jobs, while

being gentle on your clothes. The advanced

Water Flow System more efficiently

distributes the water and detergents

through the wash, and reduces soaking

time. Add to this new moulding of the

window glass that guides your laundry

towards the centre of the drum, and so

avoids snagging of small items between the

glass and the door seal, and you have the

new state-of-the art SoftSurgeTM drum

system; efficient, gentle and time saving.

Convenience

Time delay

This option allows you to

programme your washing machine

to start between 1 and 24 hours after you

set it. So you can time your washing to be

ready for when you get home, or take

advantage of cheaper late-night electricity

rates.

Digital display

Our Logixx washing machine features a

large display that clearly shows the wash

progress, time remaining, spin speed and

temperature selected.

Safety

MultiSafe

All Bosch washing machines are

designed with safety in mind, from

the highly pressure-resistant water supply

hose and overflow prevention systems, to

the electronic lock that prevents the

porthole from being opened unintentionally

mid-cycle.

126 Home laundry

Logixx washing machine

WIS28440GB white

■New display with programme status via symbols, remaining

time, spin speed

■Large capacity 7kg

■Express Wash system with up to 40% faster programme times

■Wash Plus system for A wash performance

■Freshen Up programme

■Mixed Load programme

■Variable spin speed selector through display in 200 rpm steps

■Maximum spin speed 1400 rpm

■15 ‘Clothes Care’ programmes

■Reduced ironing option

■Aqua Plus option

■Power Wash 60

■Handwash Wool and Delicates

■Selectable prewash

■Time delay 1 – 24 hours

■SoftSurge drum

■3D AquaSpa wash system with cascade for faster water

penetration

■SuperQuick 15

■Dark Wash

■Sensitive Wash

■Sports Wash

■The large porthole with 130° opening door makes loading and

unloading exceptionally easy

■Clear text and symbols on the fascia to ensure ease of use

■Easy-to-use programme / temperature selector

■Gentle drum action for woollens

■Safeguard monitoring system adjusts load distribution and

programme settings to protect clothes

■Very quiet noise level

■Cold fill

■AquaStop anti flood device

Exxcel washing machine

WIS24140GB white

■Large capacity 7kg

■Express Wash system with up to 40% faster programme times

■Wash Plus system for A wash performance

■Mixed Load programme

■Handwash Wool and Delicates

■Maximum spin speed 1200 rpm

■15 ‘Clothes Care’ programmes

■Aqua Plus option

■Spin speed selector with rinse hold option

■Selectable prewash

■Reduced ironing option

■SoftSurge drum

■3D AquaSpa wash system with cascade for faster water

penetration

■LED programme status indicator

■The large porthole with 130° opening door makes loading and

unloading exceptionally easy

■Clear text and symbols on the fascia to ensure ease of use

■Easy-to-use programme / temperature selector

■Gentle drum action for woollens

■Safeguard monitoring system adjusts load distribution and

programme settings to protect clothes

■Very quiet noise level

■Cold fill

■AquaStop anti flood device

Home laundry 127

Exxcel washer dryer

WVTi2842GB white

■15 ‘ClothesCare’ Programmes

■Reduced time option – reducing wash times by up to 40%

■LED programme status indicators for washing and drying

■Display for setting spin speed and drying time

■Remaining time indicator for drying cycle

■Time Delay 1 – 24 hours

■Handwash Wool

■Rinse Hold Option on all programmes

■Variable spin speed selector via display

■Selectable Prewash

■Two drying levels – normal and delicate

■Manual timer 20-120 minutes

■Cold fill

Exxcel washer dryer

WKD28350GB white

■15 ‘ClothesCare’ Programmes

■Flexi time option – reducing wash times by up to 30% in two

steps

■LED programme status indicators for washing and drying

■Display for setting spin speed and drying time

■Maximum spin speed 1400 rpm

■Remaining time indicator for drying cycle

■Time Delay 1 – 19 hours

■Handwash Wool

■Rinse Hold Option on all programmes

■Large 30cm porthole door with 95° opening

■Variable spin speed selector via display

■Selectable Prewash

■Two drying levels – normal and delicate

■Reduced ironing

■Aqua Plus – higher water level and additional rinse

■Manual timer 20-150 minutes

■Fluff removal cycle

■Cold fill

128 Bosch customer service

The quality of our appliances is superb.

However we realise that components do occasionally fail which is why

we set great store by the quality of our customer service.

Bosch customer service.

All Bosch appliances come with a full two years’ warranty

(to take advantage of the second year the appliance guarantee

card must be returned to us). This warranty can be extended

for a further three years (total 5 years) with a Breakdown

Protection Plan which covers parts, labour and call out

charges for an unlimited number of breakdown repairs and

also extends your warranty to include accidental damage.

Bosch customer service run one of the most efficiently run

computer-controlled nationwide networks in the UK, who can

normally send a Bosch service engineer to you within two days

of your call. Service vans hold a large stock of replacement

spare parts on board and over 97% of all functional parts are

immediately available from stock. In the rare event that a part

is not in stock, a computer link to the German spares

operation in Munich ensures that it will be ordered without

delay. If an appliance is discontinued, we guarantee that the

major components will still be available for at least 10 years.

For any queries about your Bosch appliance, please call our

product advice department at Bosch Customer Service on

0844 892 8925.

For queries relating to cover please call our 24 hour helpline

on 08706 000535. We will be more than happy to help you.

Bosch Customer Service have been awarded Domestic & General’s

TEQ (Total Excellence & Quality) Award 2009. In a comprehensive

Bosch Customer Service survey carried out by D & G, one of the UK’s

largest insurance companies specialising in domestic repairs, Bosch

Customer Service came out top, against other leading manufacturers.

Getting in contact with Bosch

Product Advice Line

0844 892 8925

Replacement Spare Parts

and Accessories

0844 892 8921

To arrange an engineer visit

0844 892 8979

Brochure Line

0844 892 9023

Bosch

Grand Union House

Old Wolverton Road

Wolverton

Milton Keynes MK12 5PT

£2000

worth of

Bosch Products

bosch-pt.co.uk/professional

£2000

worth of Bosch Products

Visit www.bosch.co.uk

foryourchancetowin

every month

I want

to win

Terms and conditons apply

000

ms an

ns app

ndit

www.bosch-home.co.uk

Spring 2009

Small appliances

and vacuum cleaners

Freestanding

appliances

2009/2010 – 2nd Edition

UK Calls provided by a UK BT Landline will be charged at up to 3 pence per minute. A Call Set-Up Fee of up to 6 pence per call applies to calls from residential

lines. Mobile and other providers’ costs may vary.

See www.bt.com/pricing for details.

This brochure is current as from the publication date and supersedes all previous brochures for these products. Every effort has been made to ensure the information

in it is correct at the time of going to press. Due to a policy of continuous development, Bosch reserves the right to modify technical data without notice. All rights

reserved. No part of this publication may be reproduced in any form or by any means without the prior written permission of BSH Home Appliances Ltd. All colour

variations are due to the limitations of the printing process. This brochure is printed on environment-friendly chlorine-free bleached paper. 9/2009.

Bosch Built In Brochure 2nd Edi LOGIXX 9 Appliances

Navigation menu

Versions of this User Manual:

Views

Navigation
