Page Count: 17

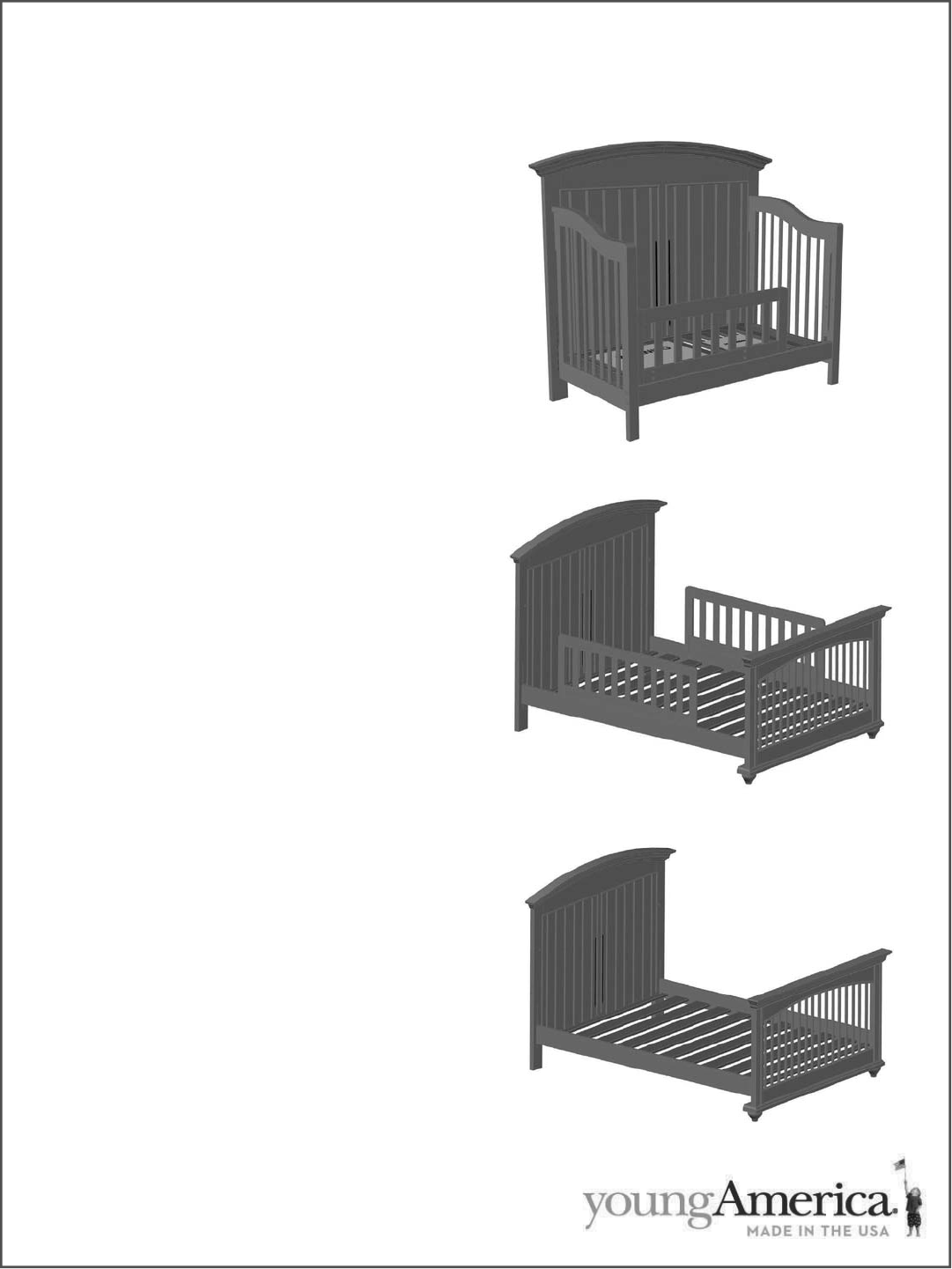

Models:

BTG 2600 - Built to Grow Laurels Crib

BTG 2800 - Built to Grow Gala Crib

Thank you for purchasing a Young America Crib. Proper assembly will ensure

every effort has been made to design this crib with your baby's safety in mind. It is

certified to meet all safety guidelines established by ASTM International and the

CPSC-Consumer Product Safety Commission.

Built to Grow Crib Assembly Instructions

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY

2

! 9#40+0): (#+.74'61(1..196*'5'9#40+0)5#0&6*'

#55'/$.;+05647%6+105%17.&4'57.6+05'4+175+0,74;14&'#6*

x 9JGPEJKNFKUCDNGVQRWNNVQCUVCPFKPIRQUKVKQPUGVVJGOCVVTGUUVQVJGNQYGUV

RQUKVKQPCPFTGOQXGDWORGTRCFUNCTIGVQ[UCPFQVJGTQDLGEVUVJCVEQWNFUGTXG

CUUVGRUHQTENKODKPIQWV

x 9JGPCEJKNFKUCDNGVQENKODQWVQTTGCEJGUVJGJGKIJVQHKPEOVJGETKD

UJCNNPQNQPIGTDGWUGF

x &1016RNCEGCETKDPGCTCYKPFQYYJGTGEQTFUHTQODNKPFUQTFTCRGUOC[

UVTCPINGCEJKNF

x 6QTGFWEGVJGTKUMQH5+&5RGFKCVTKEKCPUTGEQOOGPFJGCNVJ[KPHCPVUDGRNCEGFQP

VJGKTDCEMUVQUNGGRWPNGUUQVJGTYKUGCFXKUGFD[[QWTRJ[UKEKCP

x 6QJGNRRTGXGPVUVTCPIWNCVKQPVKIJVGPCNNHCUVGPGTU#EJKNFECPVTCRRCTVUQHVJG

DQF[QTENQVJKPIQPNQQUGHCUVGPGTU

x 5VTKPIUECPECWUGUVTCPIWNCVKQP&QPQVRNCEGKVGOUYKVJCUVTKPICTQWPFC

EJKNFUPGEMUWEJCUJQQFUVTKPIUQTRCEKHKGTEQTFU&QPQVUWURGPFUVTKPIUQXGT

CETKDQTCVVCEJUVTKPIUVQVQ[U

x $GHQTGGCEJWUCIGQTCUUGODN[KPURGEVETKDHQTFCOCIGFJCTFYCTGNQQUGLQKPVU

OKUUKPIRCTVUQTUJCTRGFIGU&1016WUGETKDKHCP[RCTVUCTGOKUUKPIQTDTQMGP

%QPVCEV[QWTFGCNGTQTYTKVGVQ5VCPNG[(WTPKVWTG0QTVJ*COKNVQP5V0Q

*KIJ2QKPV0%HQTTGRNCEGOGPVRCTVUCPFKPUVTWEVKQPCNNKVGTCVWTGKHPGGFGF

x &1016UWDUVKVWVGRCTVU7UGQPN[DQNVUQTRCTVUUWRRNKGFD[OCPWHCEVWTGTQT

RCTVUQHEQORCTCDNGSWCNKV[CPFGSWCNFKOGPUKQPU&QPQVCNNQYGPFUQHDQNVUQT

UJCTRGFIGUVQDGGZRQUGF

x (QNNQYYCTPKPIUQPCNNRTQFWEVUKPCETKD

x +HTGHKPKUJKPIWUGCPQPÄVQZKEHKPKUJURGEKHKGFHQTEJKNFTGPURTQFWEVU

x +PHCPVUECPUWHHQECVGQPUQHVDGFFKPI0GXGTCFFCRKNNQYEQOHQTVGTQTRCFFKPI

0GXGTRNCEGCFFKVKQPCNRCFFKPIWPFGTCPKPHCPV

x +PHCPVUECPUWHHQECVGKPICRUDGVYGGPETKDUKFGUCPFCOCVVTGUUVJCVKUVQQUOCNN

x 0GXGTWUGRNCUVKEUJKRRKPIDCIUQTQVJGTRNCUVKEHKNOCUOCVVTGUUEQXGTUDGECWUG

VJG[ECPECWUGUWHHQECVKQP

x &QPQVCNNQYEJKNFVQETCYNQTRNC[WPFGTPGCVJETKD

x 7UGECWVKQPYJGPCXCRQTK\GTKUKPWUG#NYC[UCKOVJGXCRQTUVGCOCYC[HTQO

VJGETKDCUYGNNCUCYC[HTQOCP[QVJGTYQQFHWTPKVWTGKVGO

x 6JGETKDOWUVDGHWNN[CUUGODNGFRTKQTVQWUG

x 4GCFCNNKPUVTWEVKQPUDGHQTGCUUGODNKPIETKD-''2+05647%6+105(14

(7674'75'

x %#76+10#P[OCVVTGUUWUGFKPVJKUETKDOWUVDGCVNGCUVÄ´

D[Ä´ YKVJCVJKEMPGUUQHPQNGUUVJCPKPEJGUCPFPQVGZEGGFKPIKPEJGU

9JGP%QPXGTVKPIVQC6QFFNGT$GF

x 0'8'4WUGDGFYKVJEJKNFTGPWPFGTOQPVJUQHCIG

x 6JGOCZKOWOYGKIJVQHVJGKPVGPFGFWUGTUJCNNPQVDGITGCVGTVJCPNDMI

3

The crib illustrations in these instructions are generic in nature. The crib you have purchased

may not look like the ones illustrated; however, they all assemble in the same manner.

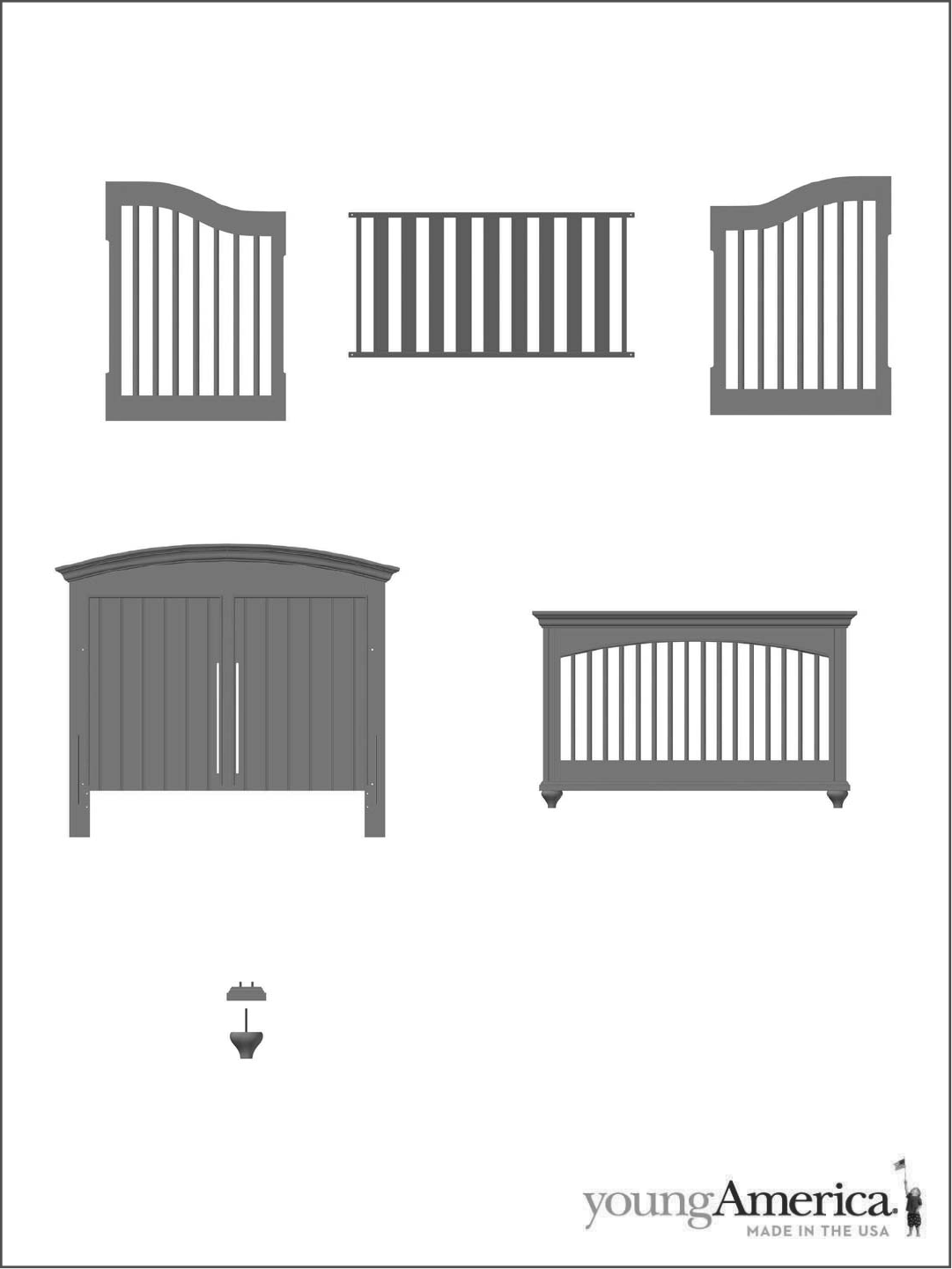

Identifying the Parts

Left Crib End

Mattress Platform

Right Crib End

Headboard Footboard

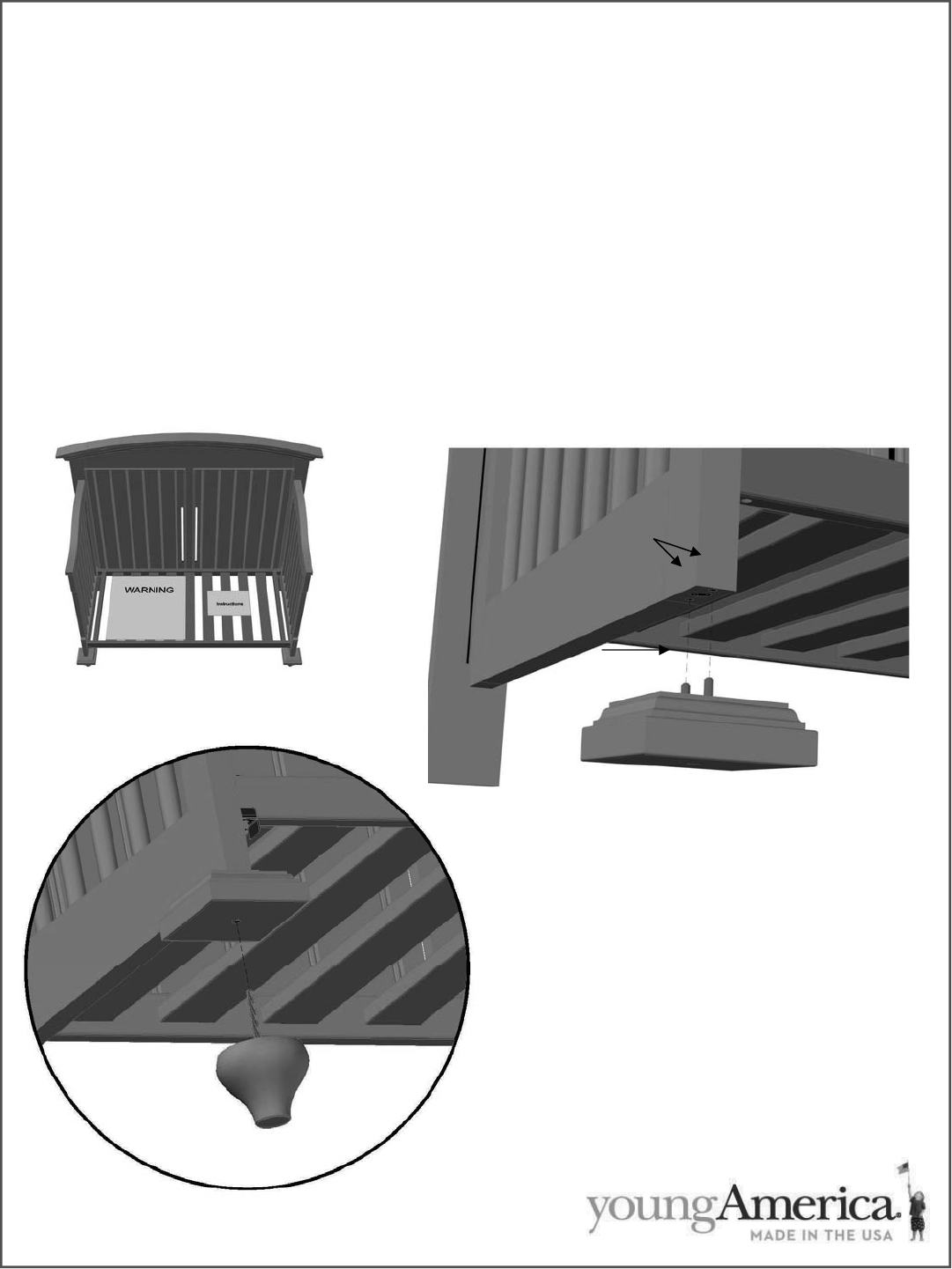

Alternate Foot and Block (BTG-2600 ONLY):

To be used when converting Crib to a Daybed

4

8 Connector Bolts

2 3/8” (1/4” x 20 thread)

4 Headboard Bolts

2” (1/4 x 20 thread)

2 Metal Locator Pins

3/8” diameter x 1 1/2” long

2 Allen Wrenches

2 Hole Bolts (1” x 1/4” x 20 thread (For Headboard Only)

4 Hole Bolts (3/4” x 1/4” x 20 thread (For Footboard Only)

2 Caps (3/4” x 1/4” x 20 thread)

This hardware is for use when converting to a day bed and a full size bed.

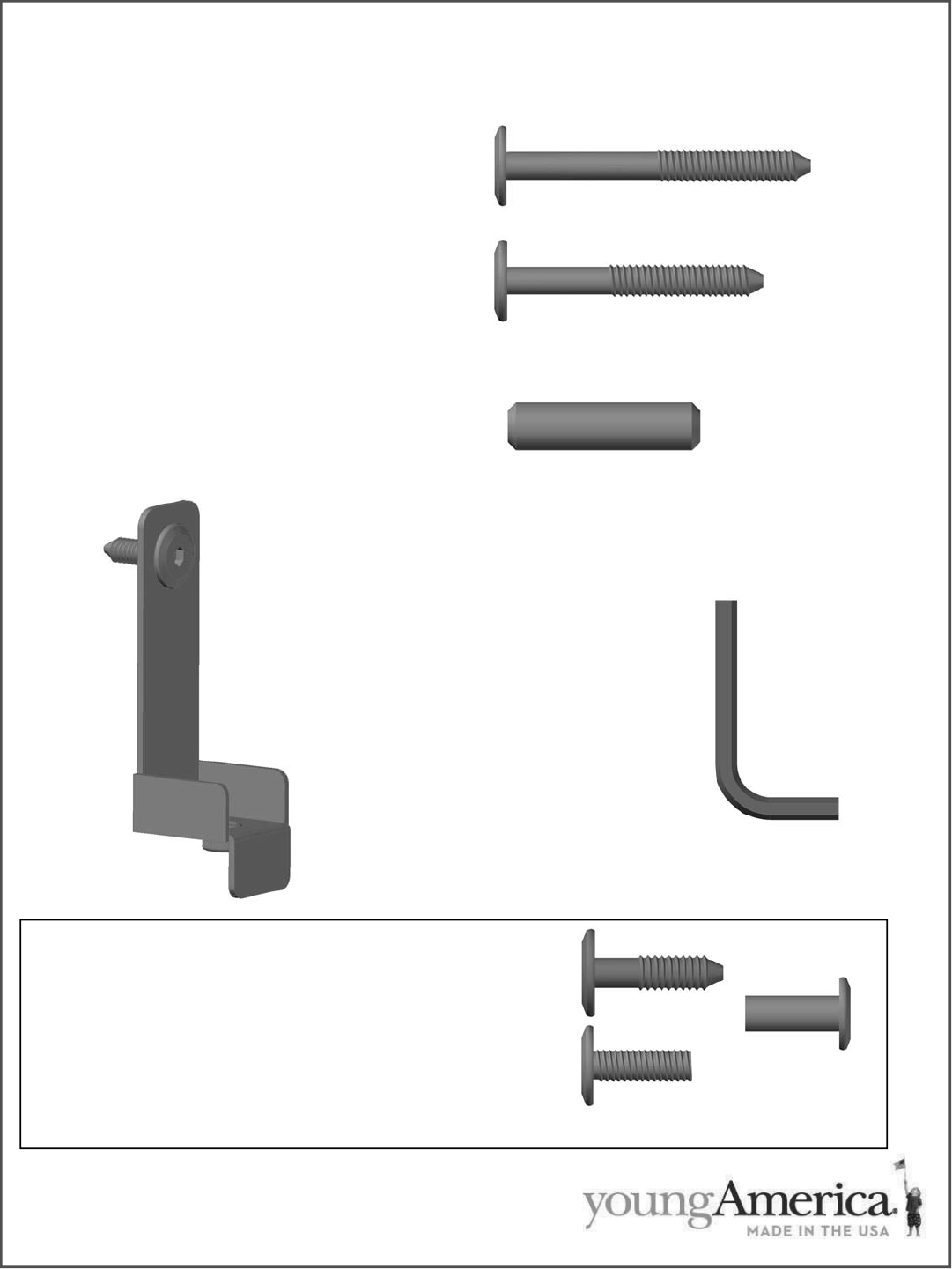

Identifying the Hardware

Identify the hardware included using the illustrations below

4 Mattress Brackets

with Bolts

5

Crib Assembly

NOTE: Read all instructions before assembling crib. KEEP INSTRUCTIONS FOR

FUTURE REFERENCE.

Attached to the mattress platform is a sleeve to store the instruction booklet.

After assembly is complete, return this instruction booklet to the sleeve for future

reference.

This crib conforms to the ASTM International and the CPSC-Consumer Product Safety

Commission guidelines for product safety. Please adhere to the guidelines in this book-

let for assembly, use and maintenance.

Note the recommendations below:

x Power tools are not recommended for assembly.

x Give yourself plenty of room to work.

x Due to the size of this bed, it must be assembled in the space it will occupy.

x The assembly will take two people to complete.

x Layout all the hardware and make sure that the proper length bolts are used in the

designated areas.

x Do not substitute hardware. If an item is missing or damaged contact Stanley

Furniture Company immediately for replacement. Inspect all component parts and

hardware prior to beginning the assembly process.

x Make sure all fasteners are tight.

x Above all, take your time and read the instructions carefully.

Tools required for Assembly:

x Allen Wrenches (provided)

This Crib is equipped with these additional features:

Bolt Retainer Sleeve—The Retainer Sleeves are located where Connector Bolts are used

to assemble the crib. It is designed to prevent loss of the Connector Bolts after crib is

disassembled. The Bolt Retainer Sleeves are permanently installed at the factory.

6

See

Figure 2.

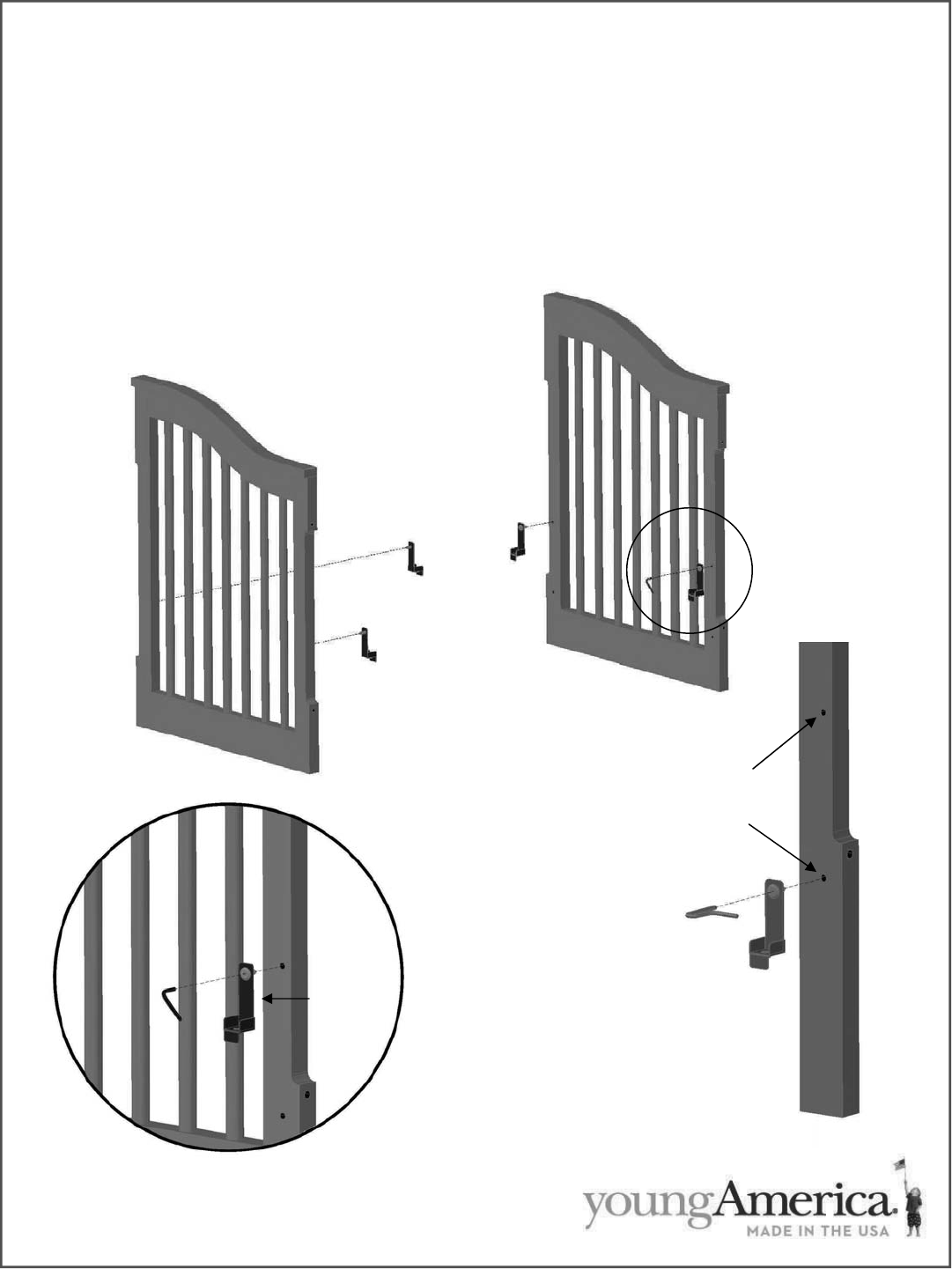

Attaching the Mattress Platform Brackets

Figure 2.

Enlarged

View

Wrench Mattress

Bracket

Figure 1. Left and Right

End Assemblies

x Make sure the brackets are straight and

perpendicular to the crib uprights.

x When child is able to pull to a standing

position, set the mattress platform to the

lowest position and remove bumper pads,

large toys and other objects that could

serve as steps for climbing out.

Step 1:

x Locate the (4) Mattress Platform Brackets with

attached assembly bolts as shown in Fig. 1. De-

termine the high or low position of the mattress

foundation (Fig. 3) and attach the brackets on

both the left and right end section in the same

height location. (This is very important to keep

the foundation level and your child safe).

x Attach the (4) brackets and tighten bolts using

the wrench provided. See Figure 2.

Higher location

Lower location

Figure 3.

7

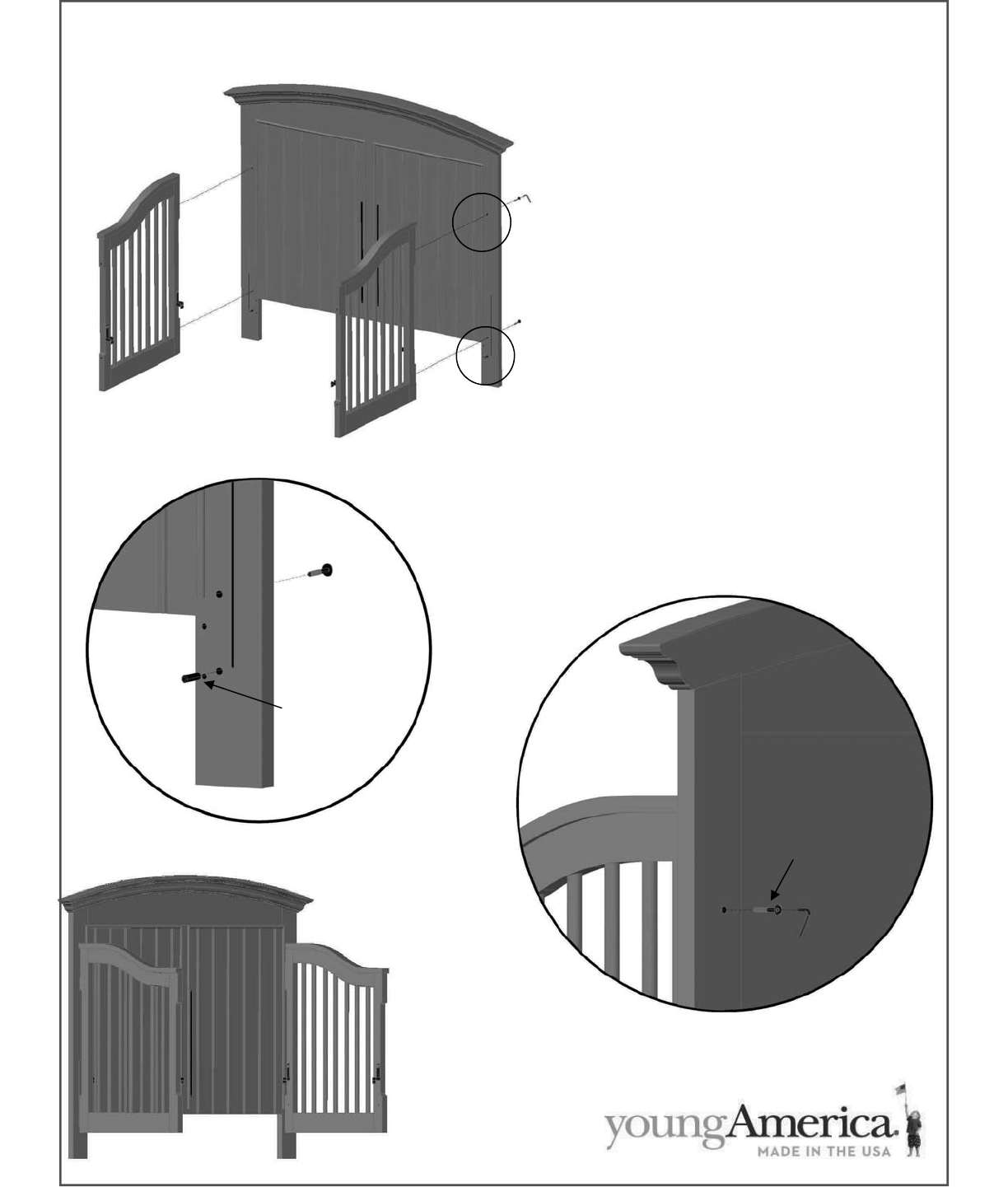

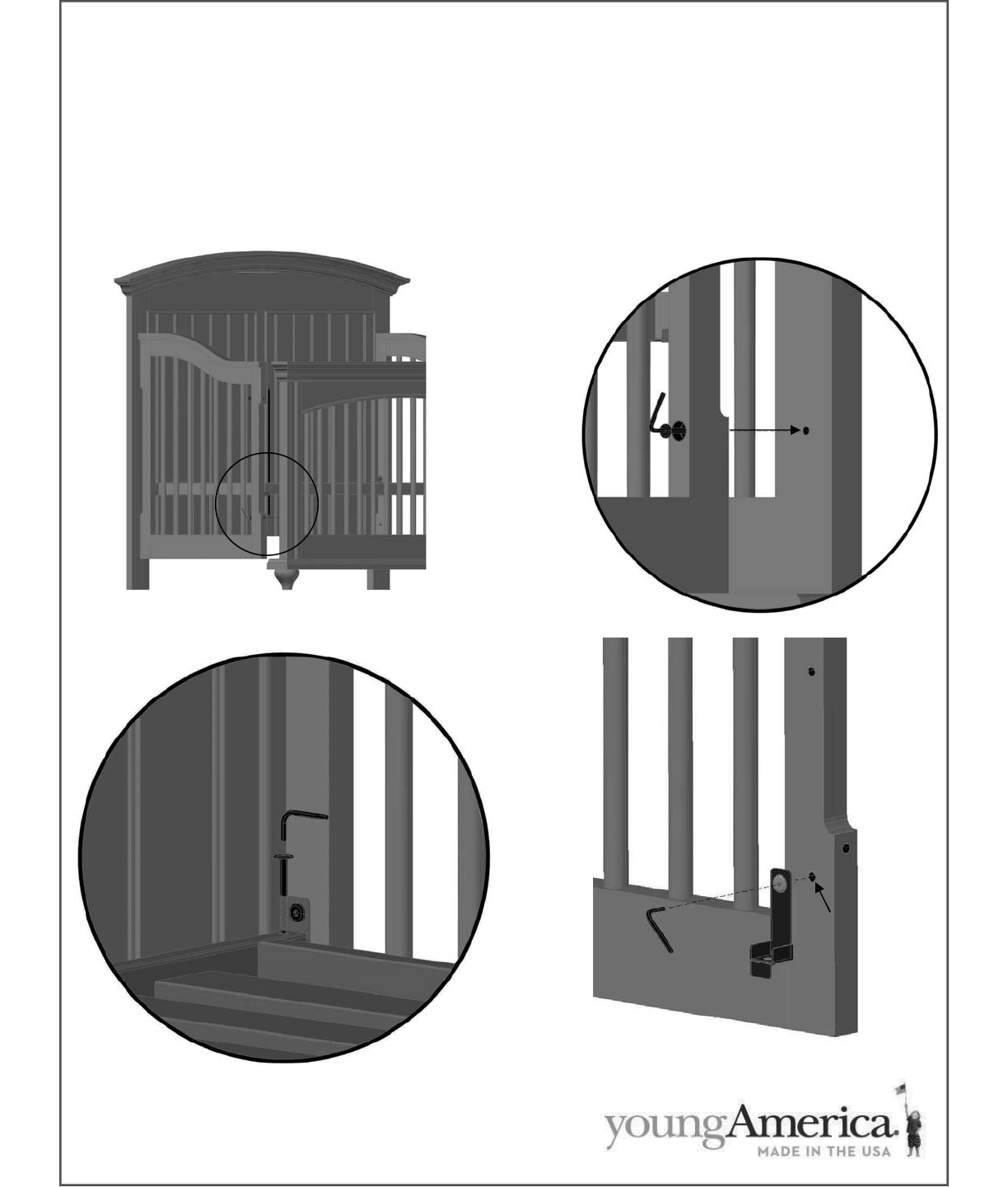

Attaching the End Sections

See Figure 4.

Insert the locator pins

See Figure 5.

Insert bolts and

tighten from back

of headboard

Figure 4a

Enlarged view

Figure 5.

Enlarged view

Figure 6.

Assembled ends

to headboard

Step 2:

x Insert the (2) metal locator

pins in the lower hole of the

head board post as shown in

Fig 4a.

x Support the headboard and

attach one end section to the

headboard by aligning the

metal locator pin in the head-

board with the bottom hole in

the end section. (make sure

the mattress platform brack-

ets are to the inside of the

crib). See Fig 6.

x Using (2) 2” headboard bolts

in the hardware pack, attach

the bolts from the back of the

headboard and tighten with

the provided wrench. See

Fig 5.

x Repeat the process for the

remaining end section.

Wrench

2” Bolt

Locator Pin

Back Side of

Headboard

End

Section

8

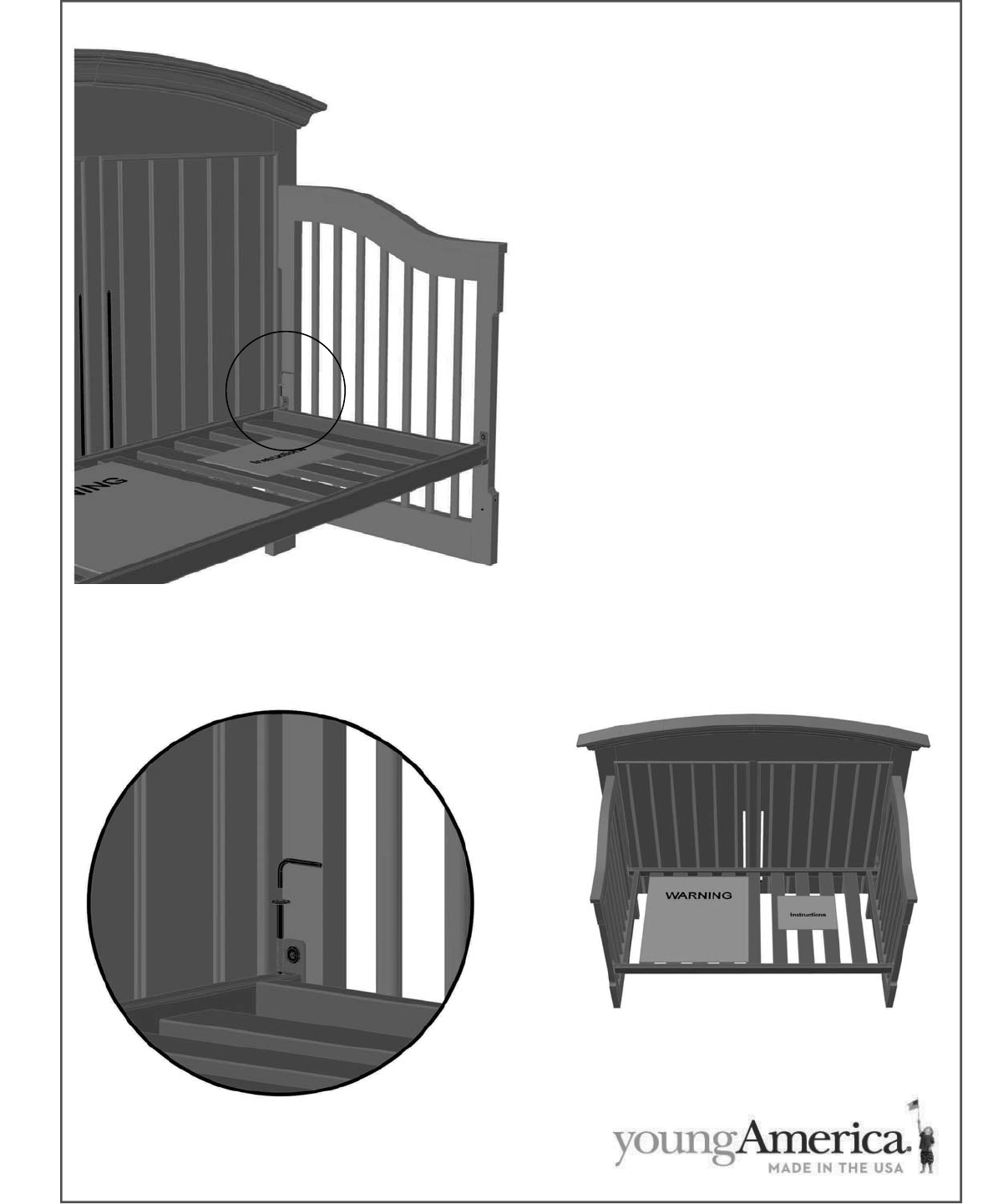

Attaching the Mattress Platform

Step 3:

x Place the mattress platform into the support

brackets. (Before inserting bolts, make

sure the instruction holder and the warning

label are facing up and readable as shown

in Fig 8.

x After the mattress platform is in place, use

the (4) 2 3/8” connector bolts to attach the

mattress platform to the support brackets.

Insert each bolt in place and loosely start

the bolt into the bracket threads.

See Fig 7.

x After all bolts have been set, securely

tighten each bolt with the provided wrench

to complete the mattress platform assem-

bly.

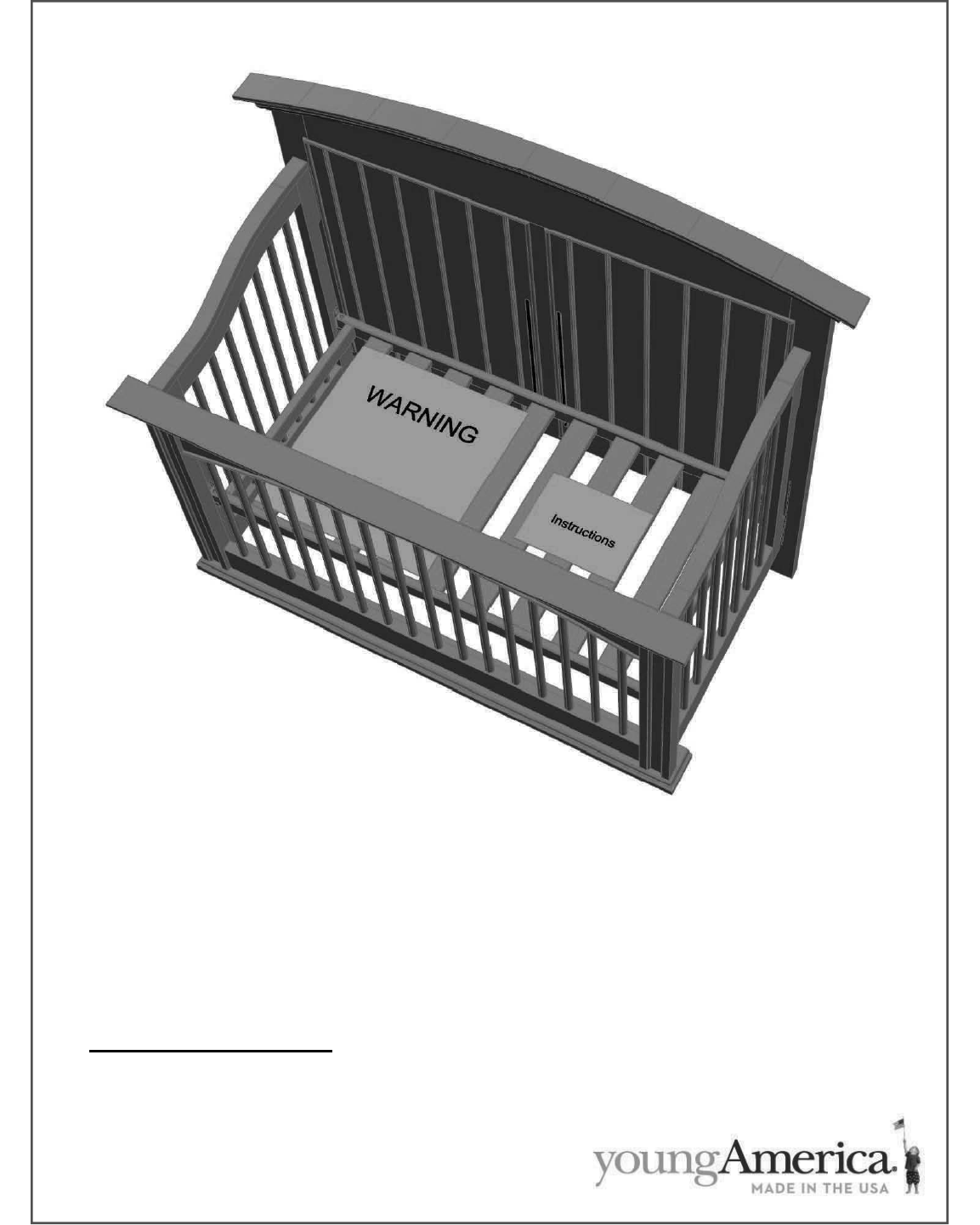

x Fig 8. is how your crib should look with

Warning labels facing the front of the crib.

Figure 8.

Assembled with mattress platform

Figure 7.

Enlarged view of bolt attachment

See Figure 7.

9

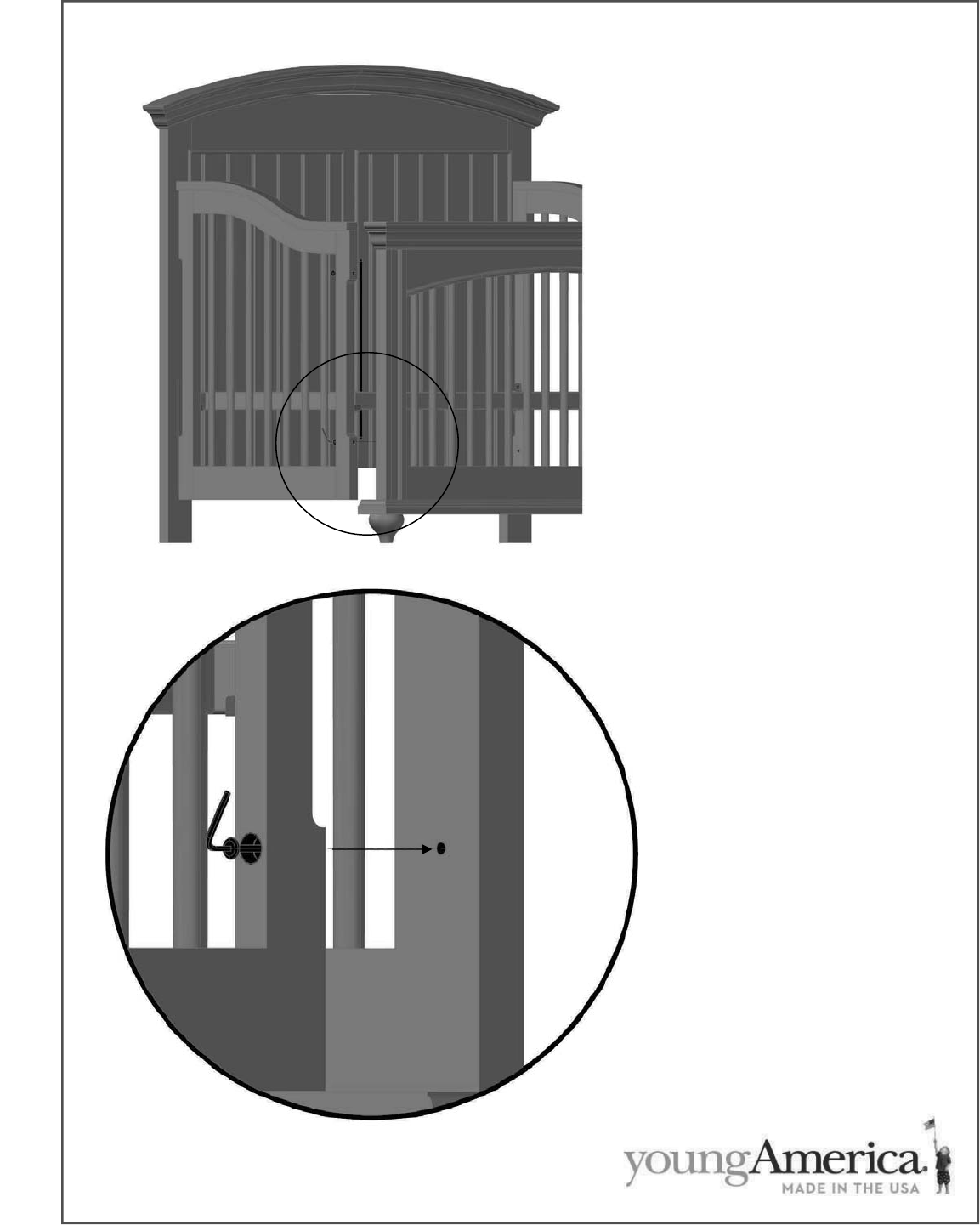

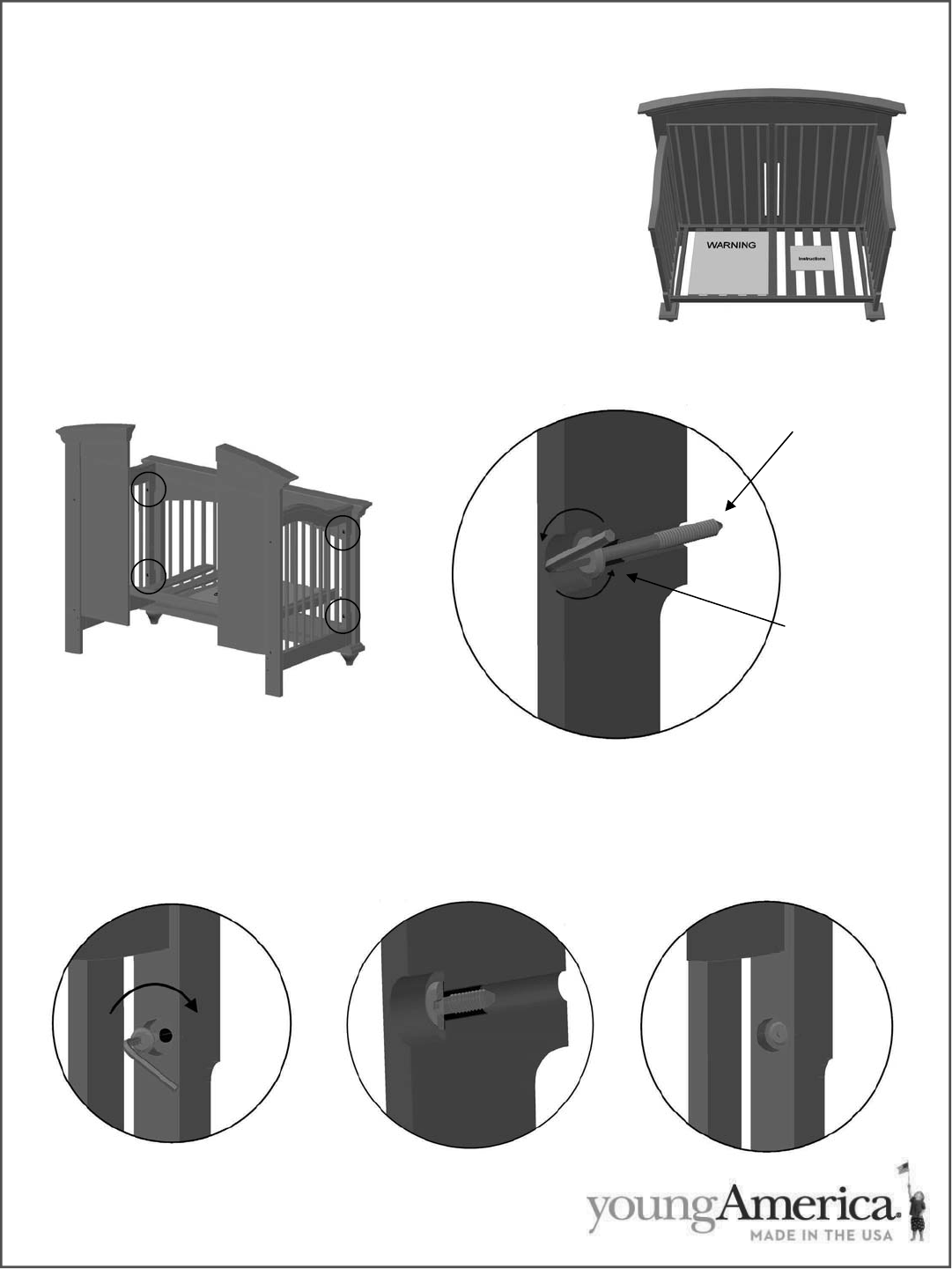

Attaching the Footboard

Step 4:

x Align the footboard with the

end sections.

x Using (4) 2 3/8” connector

bolts, loosely attach the foot-

board as indicated in Fig 9.

x After the bolts have been at-

tached, use the wrench pro-

vided to tighten each of the

bolts to secure the footboard.

See Figure 9.

Attach the foot-

board

Figure 9.

Enlarged view of

bolt attachment

Footboard

10

Final Step in Crib Assembly

Step 5: (The final and most important) Checklist.

x Inspect the crib once again to assure that all bolts are tight and that no hardware is missing. (if you

have missing hardware, contact Stanley Furniture immediately for replacement and do not use the

crib until the new hardware arrives).

x Do not place the crib near a window where the child may have access to window coverings, cords or

draperies as these articles pose a strangulation hazard.

x Replace the instructions in the holder provided. KEEP THE INSTRUCTIONS WITH THE CRIB.

x Install the crib mattress.

x Follow all the warnings on the use of this crib and all products in the crib.

x CAUTION: Any mattress used in this crib must be at least 27-1/4” by 51-5/8”

with a thickness of no less than 4 inches and not exceeding 6 inches.

11

Cleaning:

Mix together a mild solution of gentle dishwashing liquid and water, apply to the crib sur-

face using a soft clean cloth lightly dampened in the solution. Rinse with clear water, us-

ing a lightly dampened, soft clean cloth, then dry all surfaces thoroughly with a dry cloth.

NO ABRASIVE CLEANERS, SCOURING PADS, STEEL WOOL OR COURSE RAGS

SHOULD BE USED TO CLEAN THIS FINE FURNITURE.

Storage:

A permanent storage pouch is attached to the mattress platform for the storage of the as-

sembly instructions. After completing the assembly process, you are advised to read and

be aware of all WARNINGS, CAUTIONS, CLEANING, STORAGE, USE AND MAIN-

TENANCE notices contained in these instructions. Do not place excess hardware in the

storage pouch as it could present a danger to a child if retrieved and could also damage

the mattress. When storing the crib, use CAUTION as temperature changes and hu-

midity could be harmful to the crib. It is recommended that the crib be stored in a tem-

perature controlled environment.

Periodic Maintenance:

1. Periodically check to make sure all bolts and connections are fastened securely.

2. If you are missing a part or need a replacement part, do not substitute parts. Ask your

dealer for replacement parts or contact Customer Service at (800) 659-7297.

3. The crib allows for 2 mattress heights. Move to the low position when the child can

pull up to a standing position. When the child reaches a height of 35” or can climb out

of the crib you should place the child in a youth or regular bed.

4. Save these instructions, in the sleeve attached to the mattress platform, in the event you

disassemble the crib and need to reassemble it. These instructions will also be useful

in identifying replacement parts if needed at a future date.

12

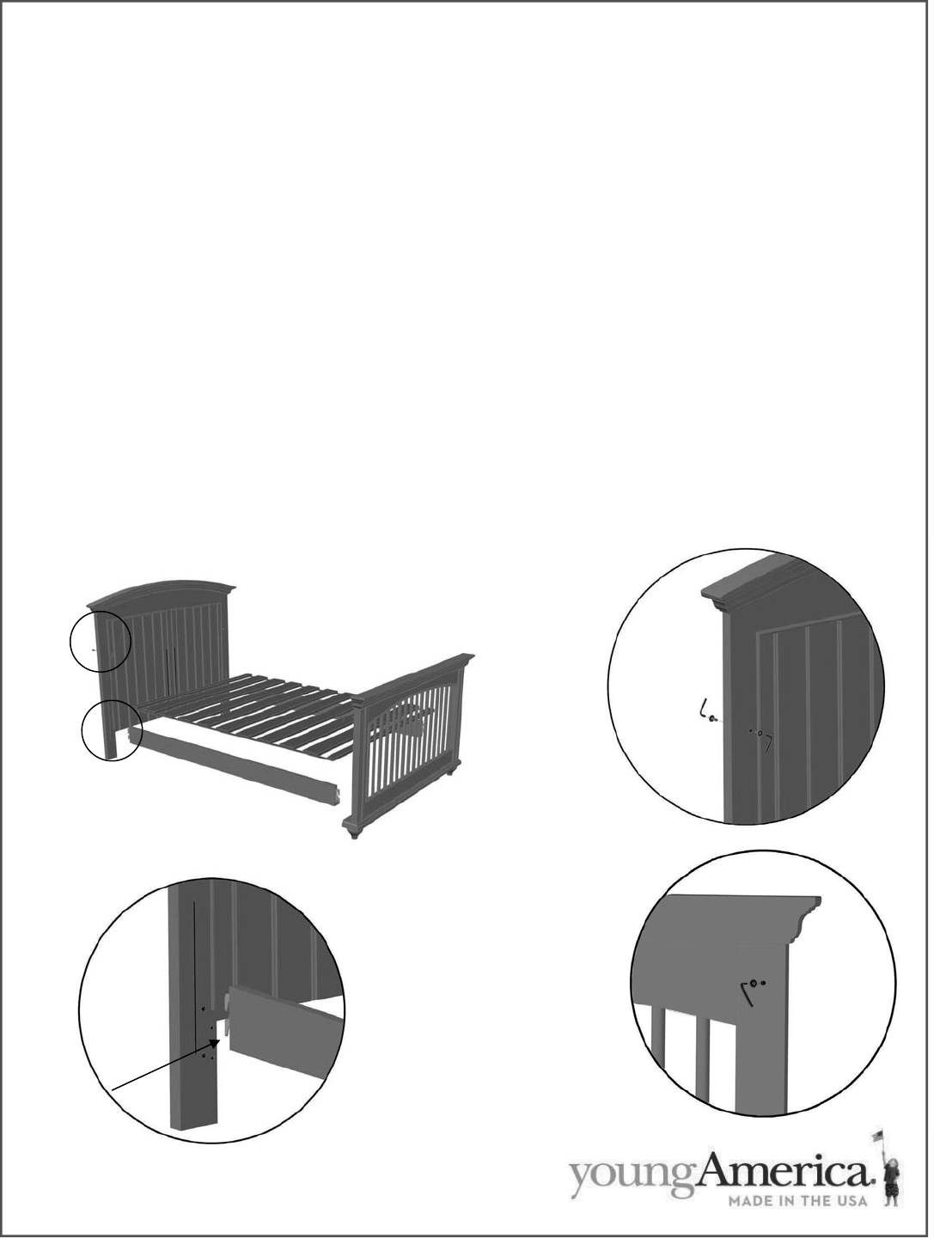

Lowering the Mattress Platform

Higher location

Lower location

Figure 12.

Enlarged view

of Footboard

removal

Footboard

Figure 13.

Figure 14.

Wrench

Mattress bracket

See Figure 12.

Steps to lower the mattress:

x Remove the mattress from the crib

x Loosen the (4) bolts attaching the footboard and remove the footboard. See Figure 12.

x Loosen the (4) bolts attaching the Mattress Platform and remove the platform from the crib. Note the

bolts will stay with the Mattress Platform. See Figure 13.

x Remove the platform brackets and place in the lower position. See Figure 14.

x Follow Steps 3, 4 and 5 on Pages 8, 9, and 10 to reassemble the crib.

13

Converting Your Crib to a Daybed

Steps to Convert Crib to a Daybed:

Step A:

x When converting to a Daybed the mattress must be in the lower position.

x Follow the instructions on page 12 for lowering the Mattress Platform. Do not reattach the footboard.

x(On the BTG-2800 - Gala Crib Model ONLY) The Feet and the Blocks from the Footboard must

be used as the Feet on the Crib Ends. Unscrew counter clock-wise and completely remove each Foot

from the Footboard. Gently grasp and pull each Foot Block to remove.

x Once the footboard has been removed and the Mattress Platform lowered the Alternate Foot and

Block must be attached to the Crib Ends. See Figure 15.

x Align the 1/4” Dowels in the Alternate Block with the holes in the bottom front of the Crib Ends.

See Figure 16.

x Attach the Alternate Feet by inserting the threaded bolt into the hole in the Alternate Block and

tighten securely to the Crib Ends. See Figure 17.

Fig. 15 Daybed

Conversion with

Alternate Blocks

and Feet

Fig. 16 Attaching Alternate Block

Alt. Block

1/4”

Dowels

Holes in Bottom

Front of Crib Ends

Alt. Foot

Alt. Block

Fig. 16

Attaching

Alternate Foot

14

Converting Your Crib to a Daybed

Steps to Convert Crib to a Daybed:

Step B:

x Remove the (4) Bolts located in the End Frames: Locate the (4)

2 3/8” Inch Bolts using the illustration below. For each bolt,

gently apply pressure to the exposed threaded end of Bolt. This

will engage the threads of the Bolt with the Retainer Sleeve.

With pressure being applied, insert the provided Allen Wrench

into the opposite end and turn counter-clockwise.

Fully assembled Daybed

View from back of Daybed

Push to Gently

Apply pressure to

this end of Bolt.

Insert Allen

Wrench and

rotate counter-

clockwise.

Installing Bolt Bolt properly seated Installed Bolt

Step C:

x Install (4) 3/4” Inch Bolts into the countersink holes where the 2 3/8” Inch Bolts were removed in Step

B. Insert the 3/4” Inch Bolts into the countersink holes. Using the provided Allen Wrench while gently

applying pressure, turn the Bolt in a clockwise motion. As the Bolt threads engage into the Bolt Retainer

sleeve, gently tighten until the Bolt seats with the Retainer Sleeve (See illustrations below). Note: Do

not apply excessive force as the Bolt seats.

15

Toddler Bed Conversion Kit item BTK-3230

is available as an option to convert the Built to

Grow Crib to a toddler or day bed. Contact your

Young America retailer, our Customer Service

Center, or website to purchase this item.

Conversion to a Full Size Bed Kit BTF-3235 is

available. Instructions to convert the Built to Grow

crib are on the following page. Contact your Young

America retailer, our Customer Service Center, or

website to purchase this item.

Safety Rails for a Full Size Bed item PSR-3268

are available for added safety when the bed is con-

verted to a full size bed. Contact your Young

America retailer, our Customer Service Center, or

website to purchase this item.

Accessories and Options

16

Converting to a Full Size Bed

Step 1: Disassemble the crib or toddler/day bed.

x Using the wrench provided remove the components in the following order:

x Remove the footboard

x Remove the mattress platform

x Remove the crib ends from the crib headboard

x Keep and store all the hardware for future assembly of the crib. Store the crib components in a safe

dry place to prevent damage.

Step 2: Attach the side rails and slat roll.

x The side rails can be installed in two positions. The lower position, along with the purchase of

Safety Rails, is recommended for transition from the crib to a child’s first full size bed. The bed

side rails can be moved to the upper position after your child adapts to the transition. Under

bed storage options can be used with the bed rails positioned in the upper location. Contact your

Young America retailer or our Customer Service Center for further information.

x Install the rails into the headboard and foot board as shown and press down to lock into position.

x Remove (4) bolts from headboard. Note: The factory-installed Bolt Retainer Sleeve in the posts may

give resistance. The bolts require unthreading from back side of headboard.

x Insert (2) 1” connector bolts and 3/4” caps in the headboard and (4) 3/4” connector bolts in the foot-

board to cover the crib assembly holes. Tighten with the wrench provided. See Figure 15.

x Install the slat roll using the instructions provided with the slat roll for proper installation.

Footboard

Headboard

Figure 15.

Figure 15.

See Figure 16.

Figure 16.

Slot in

Headboard

Hook

See Figure15.

18

Stanley

Furniture

<RXQJ$PHULFD

Stanley Furniture Company

200 N HamiltonStUHHW

High Point, NC 27260

For TXHVWLRQVDQGparts, contact your ORFDO<RXQJ$PHULFDUHWDLOHURURXU

Customer Service &HQWHU 800659-7297Mon.-Fri. 8am-5pm6DWDPSP E67

ZZZ\RXQJDPHULFDFRP
