VIDEO DOOR ENTRY AND

HOME VIDEO SURVEILLANCE SYSTEM

BTicino SpA reserves at any time the right to modify the contents of this booklet and to communicate,

in any form and modality, the changes brought to the same.

CATALOGUE 2011

CONTENTS

2 WIRE SYSTEM

General features 4

Entrance panel range 6

Handset range 8

Catalogue (entrance panels) 11

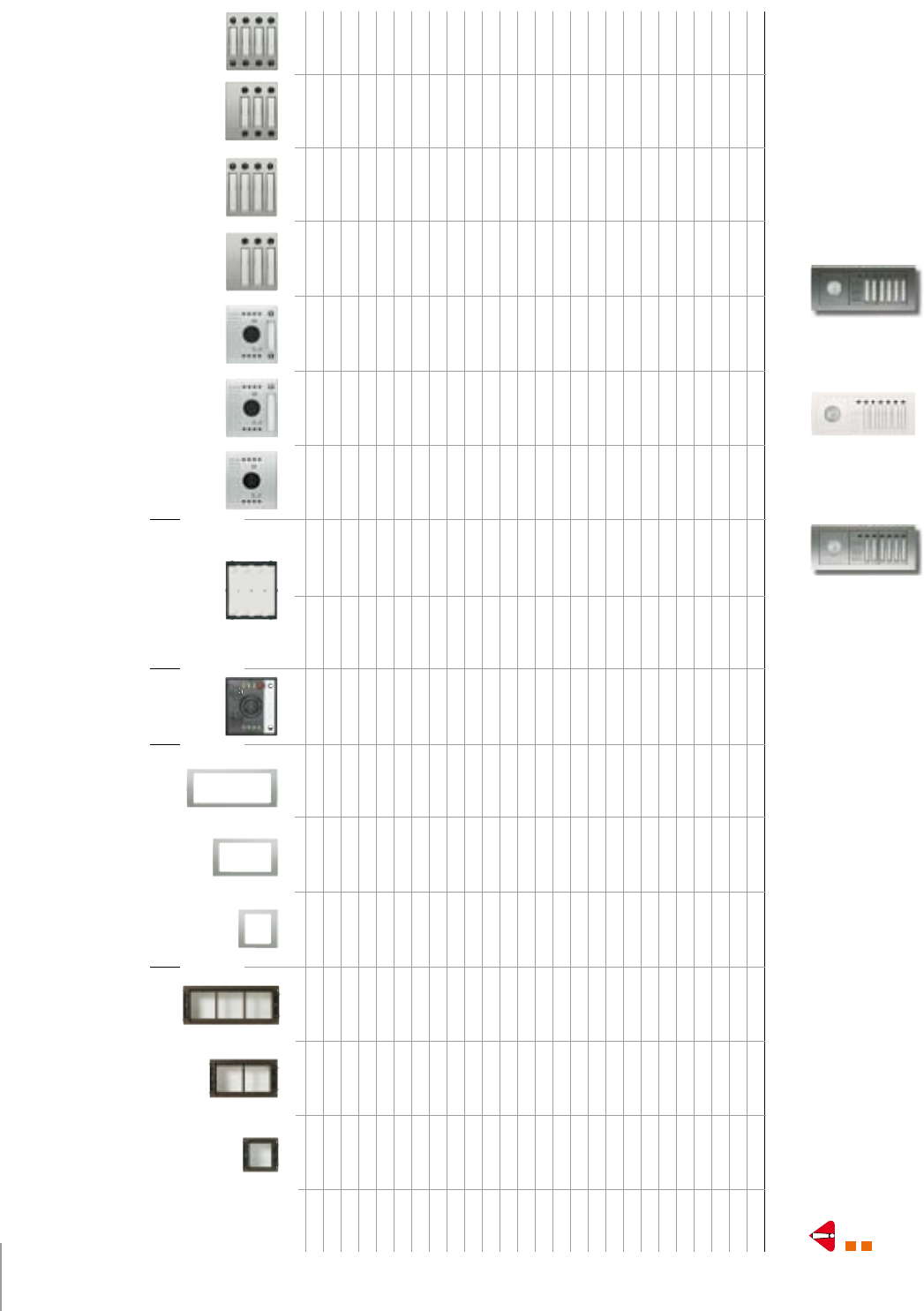

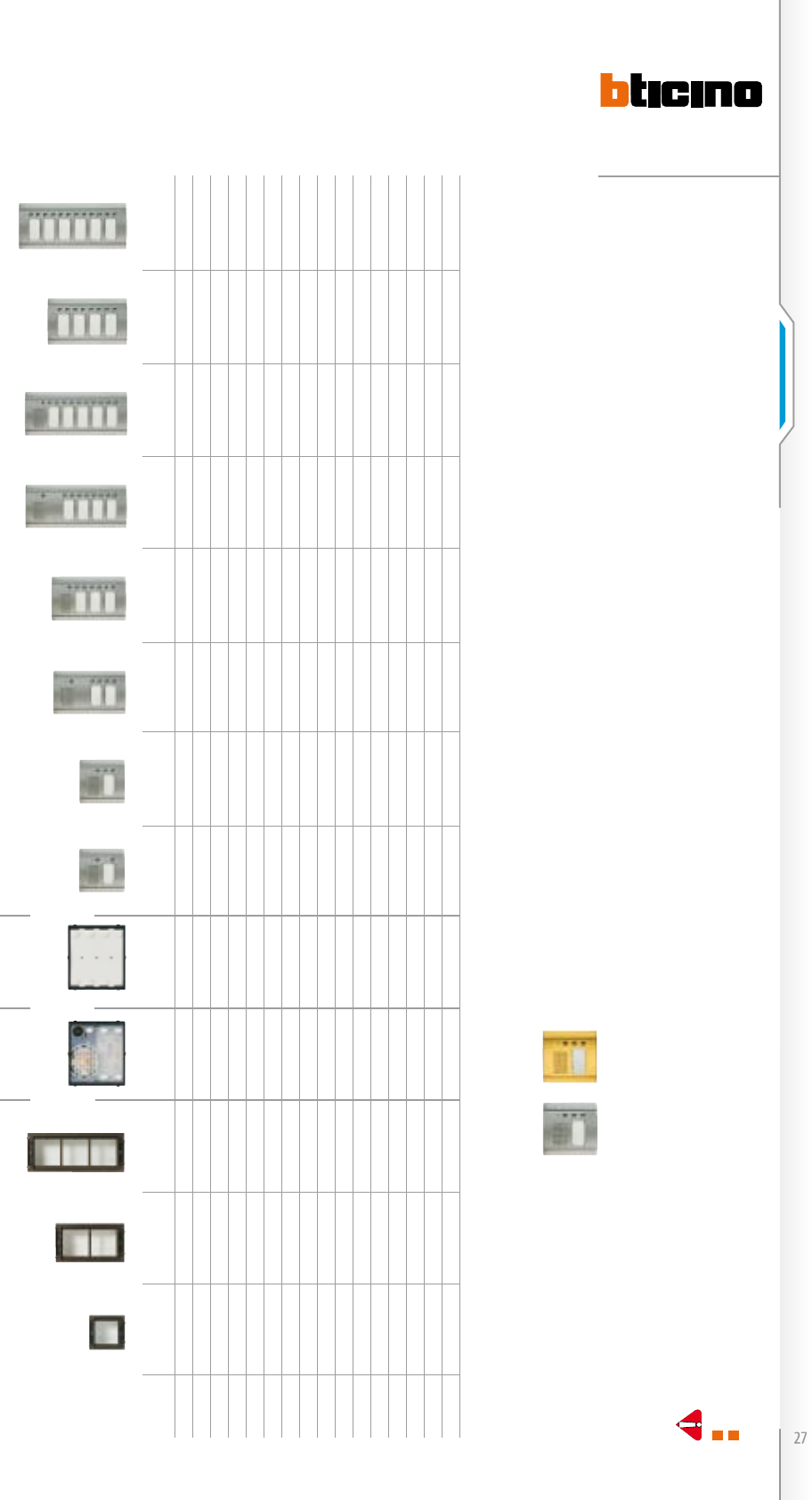

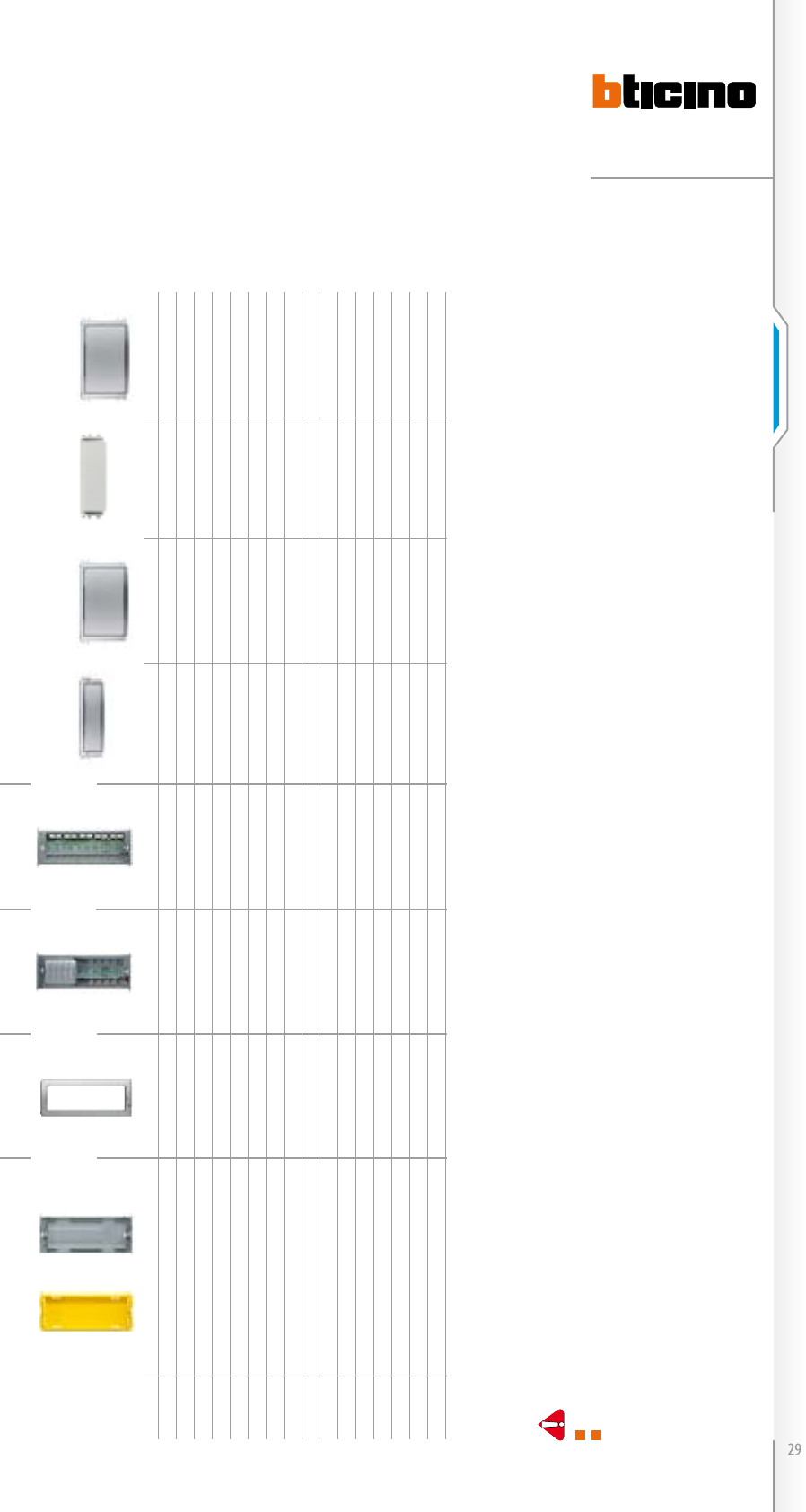

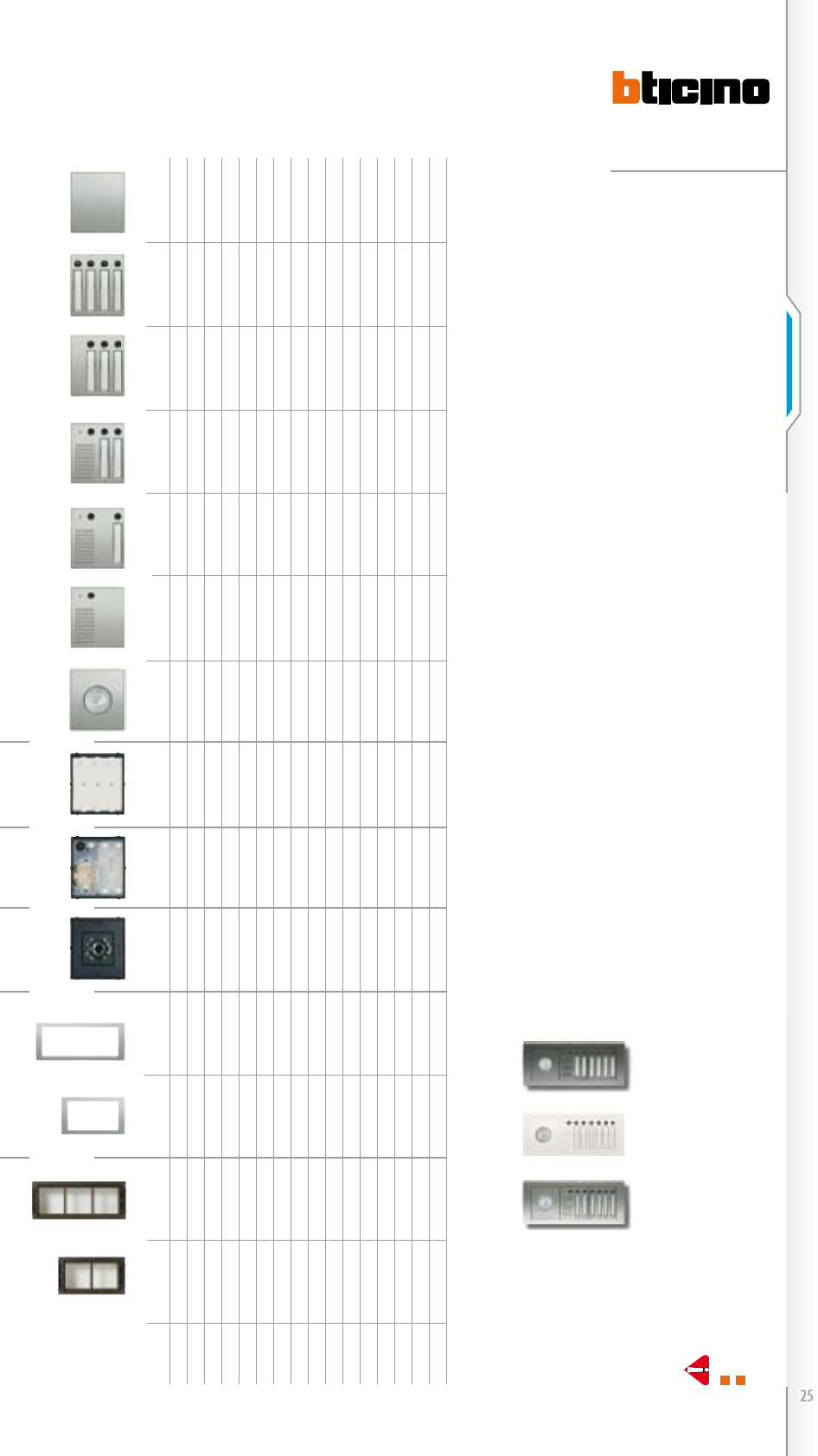

Composition tables (entrance panels) 24

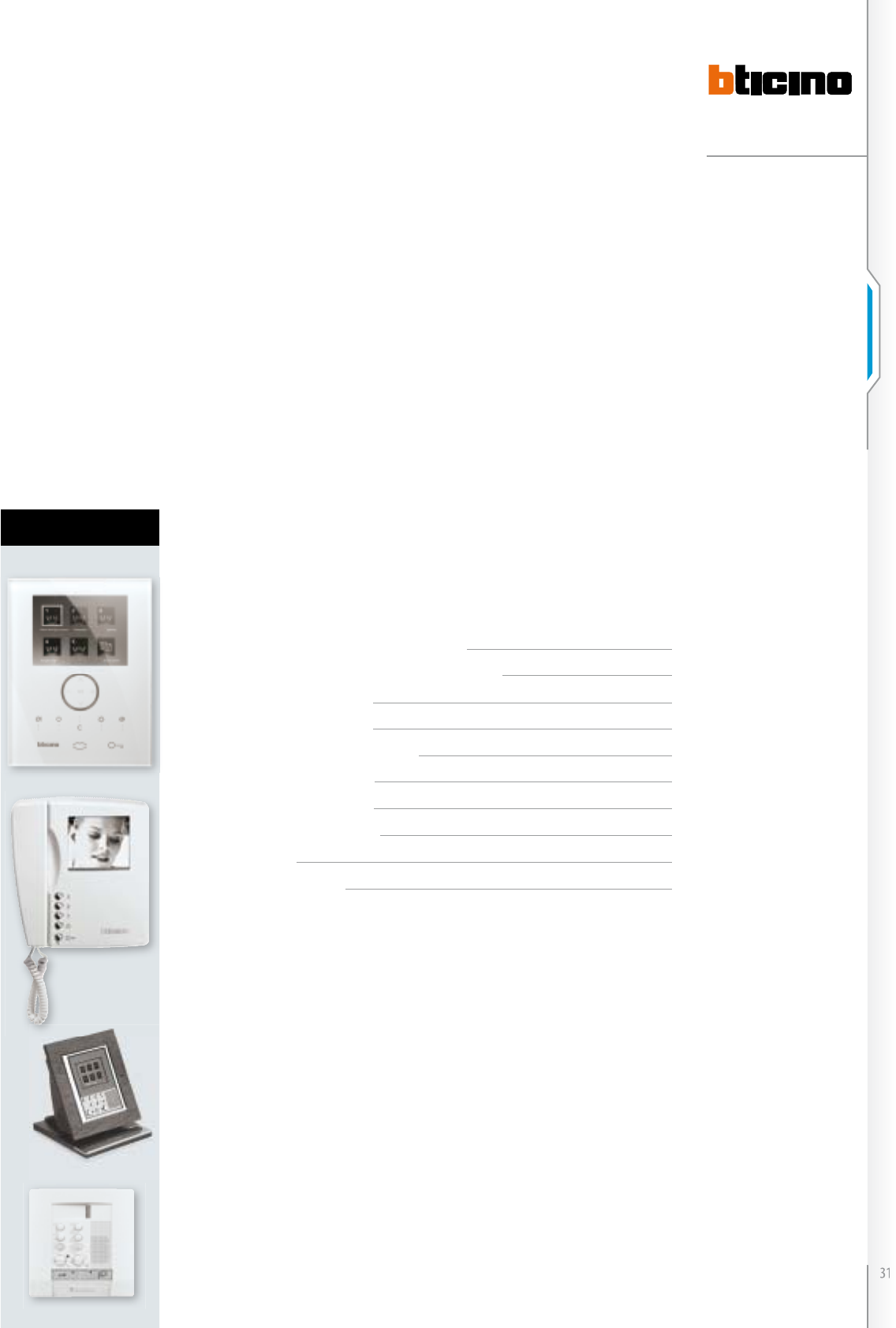

Catalogue (handsets) 31

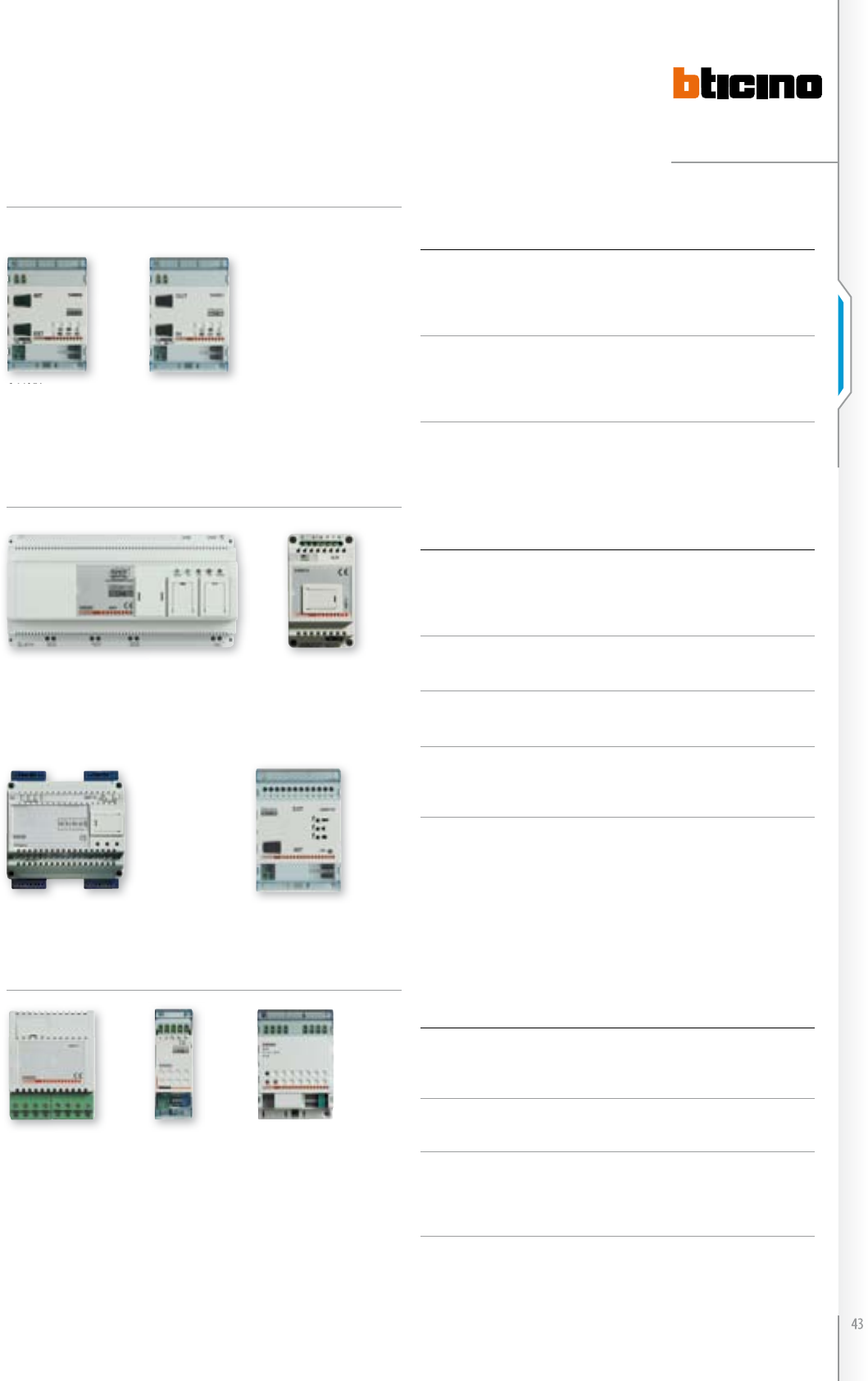

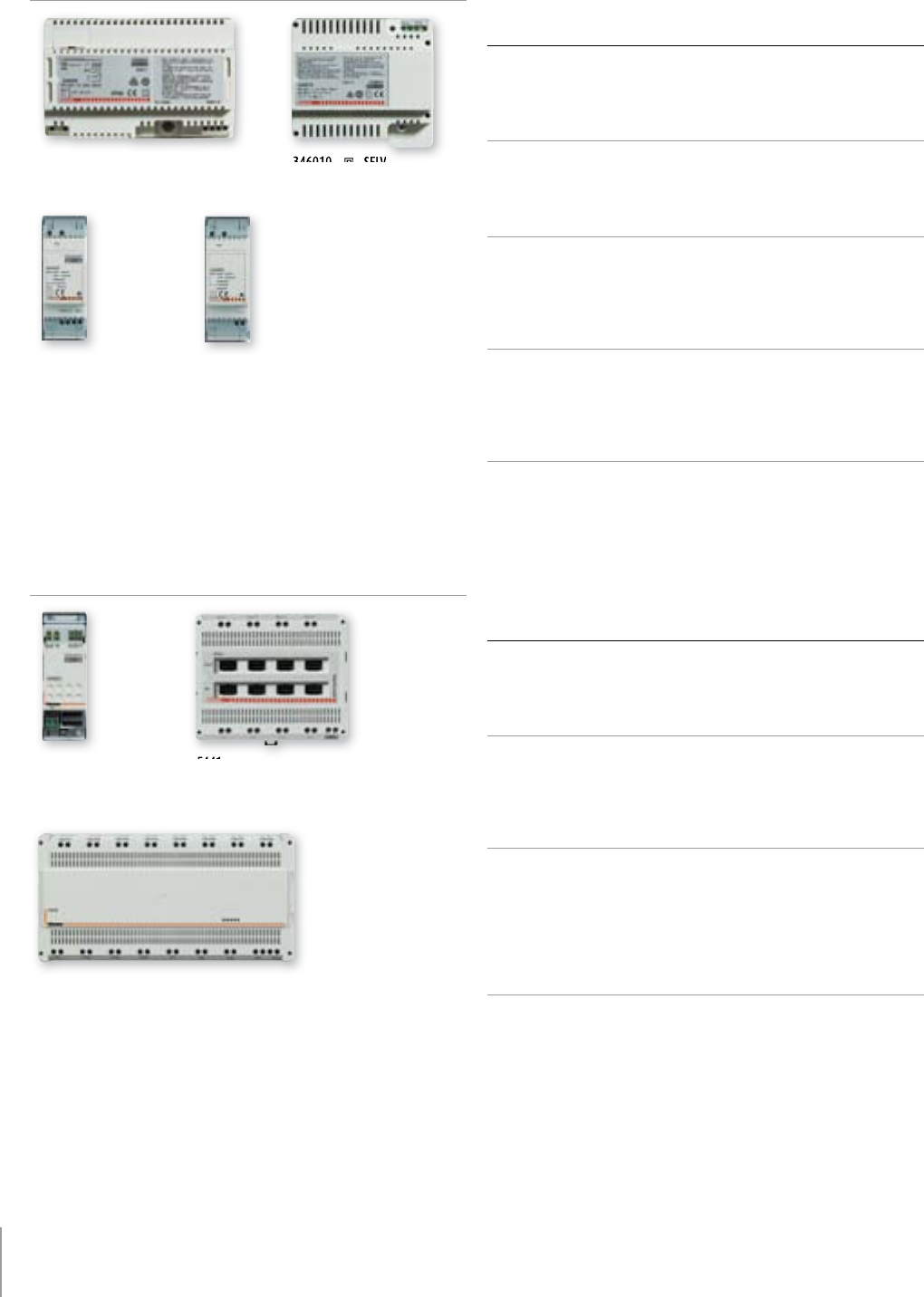

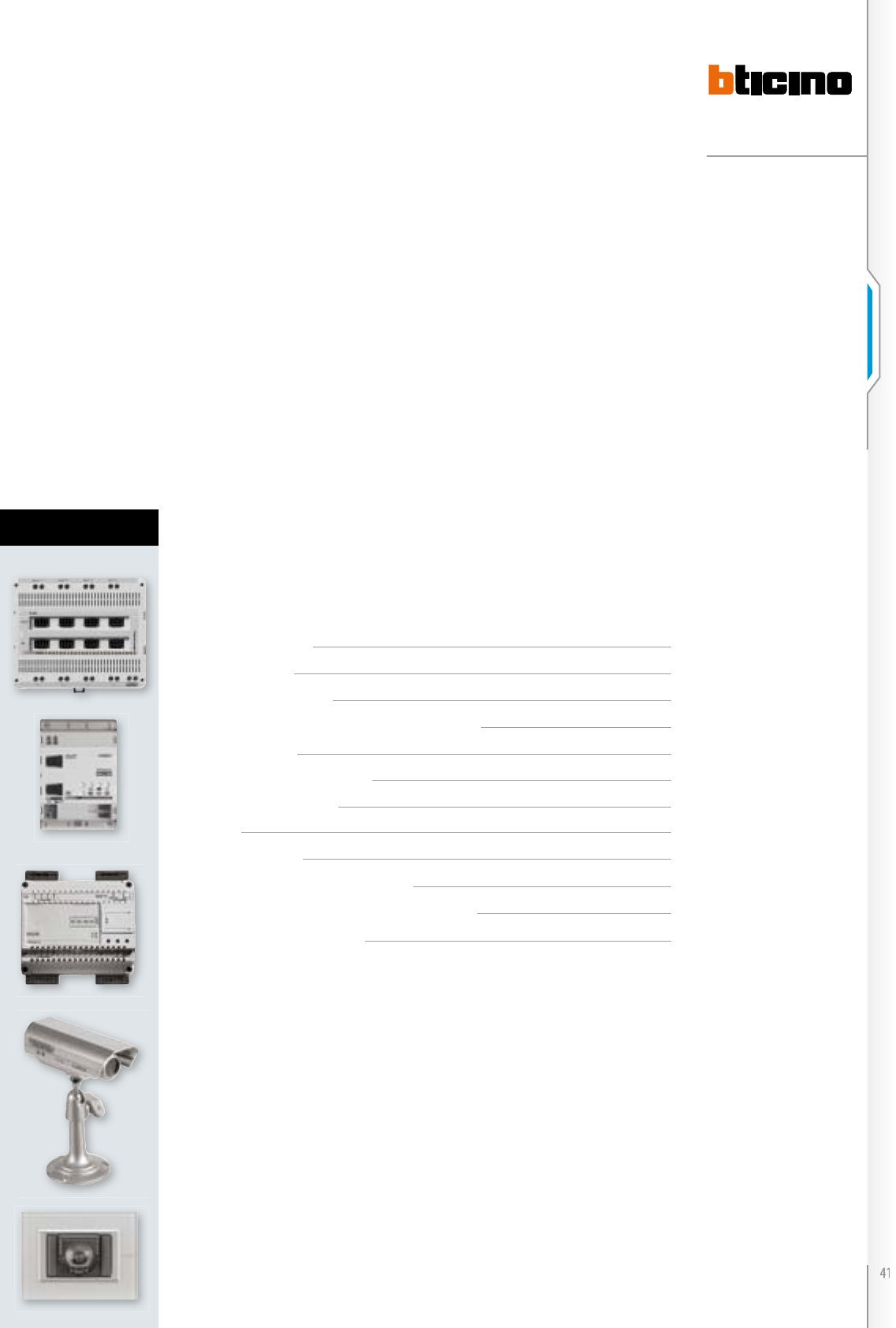

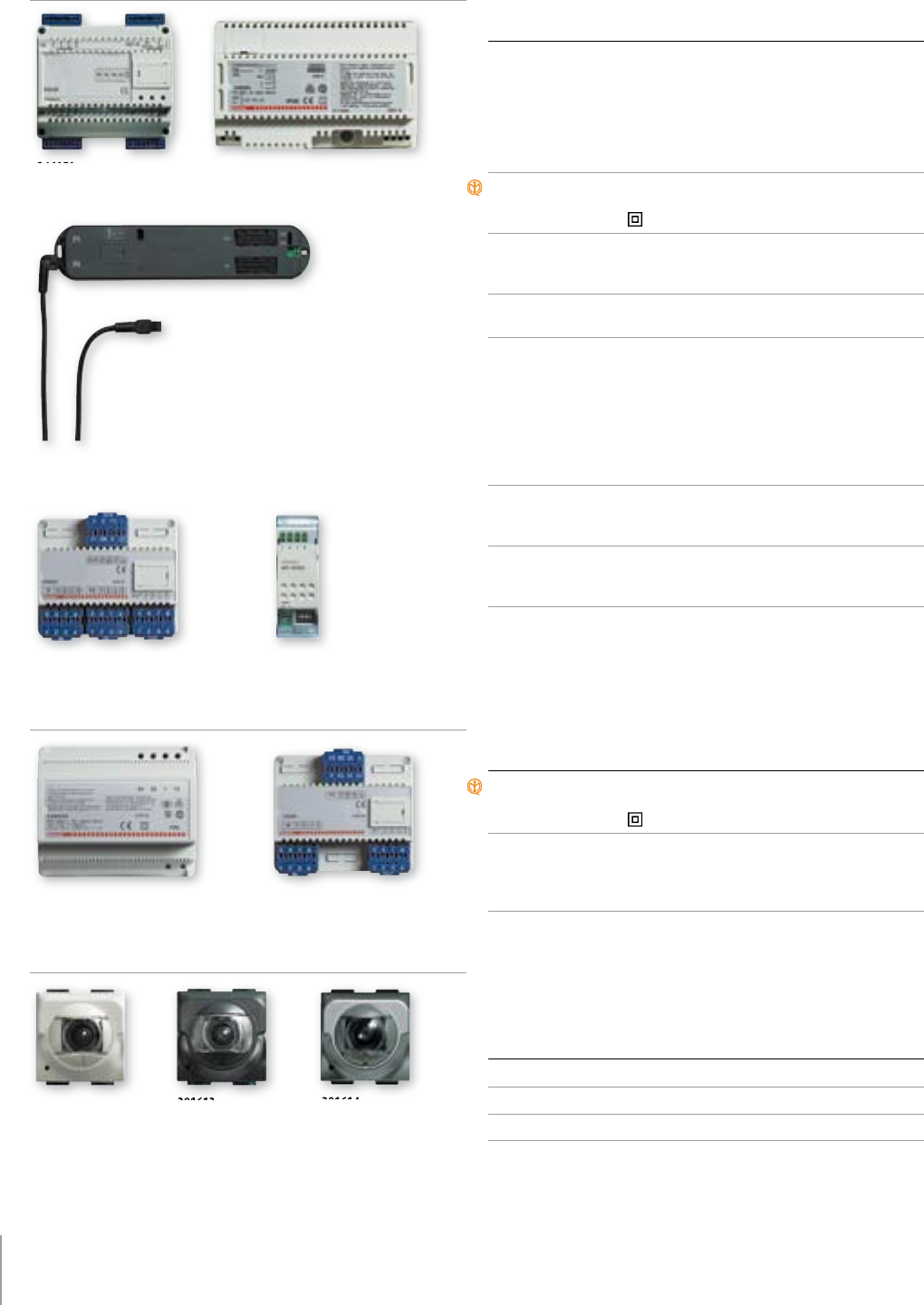

Catalogue (system accessories) 41

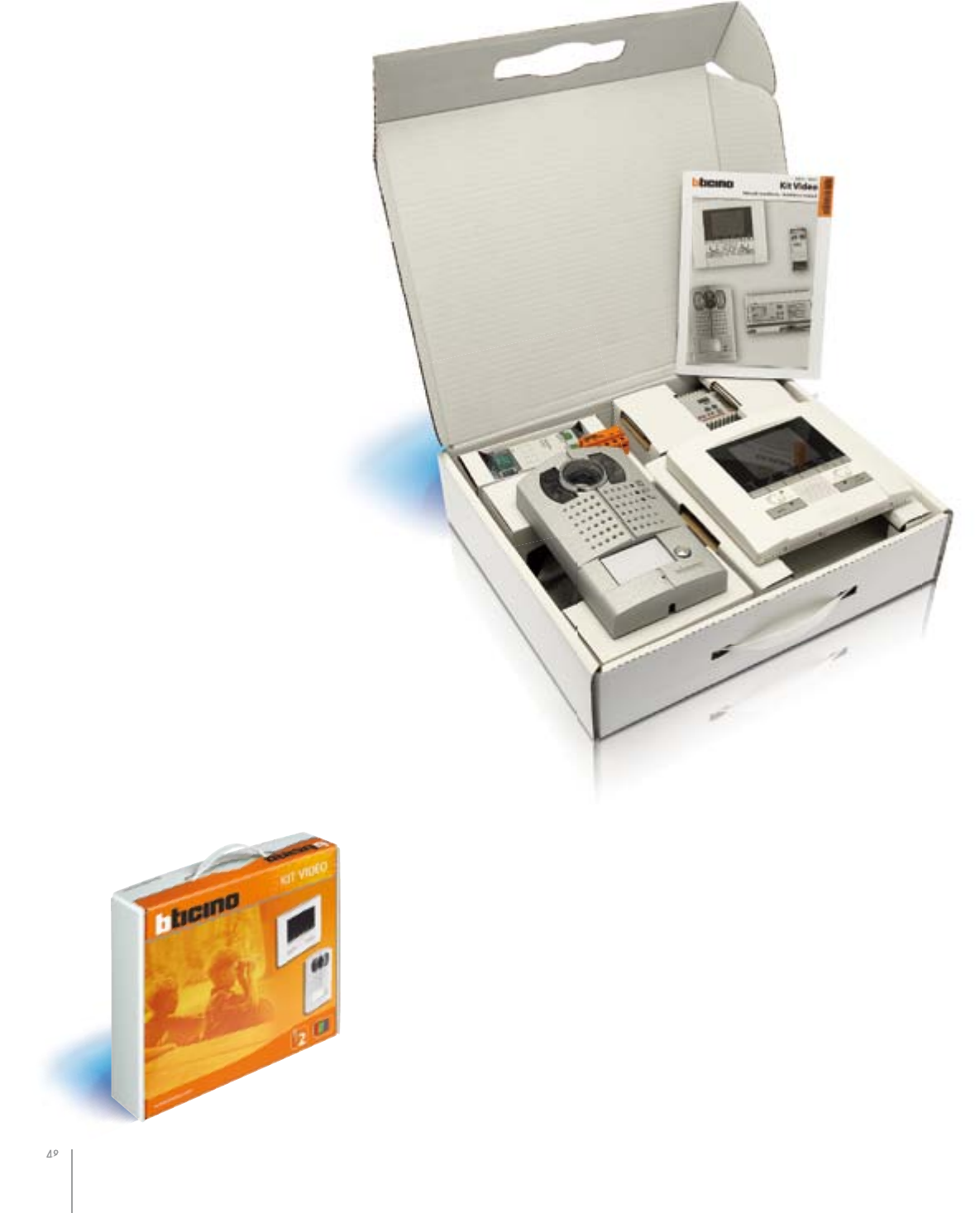

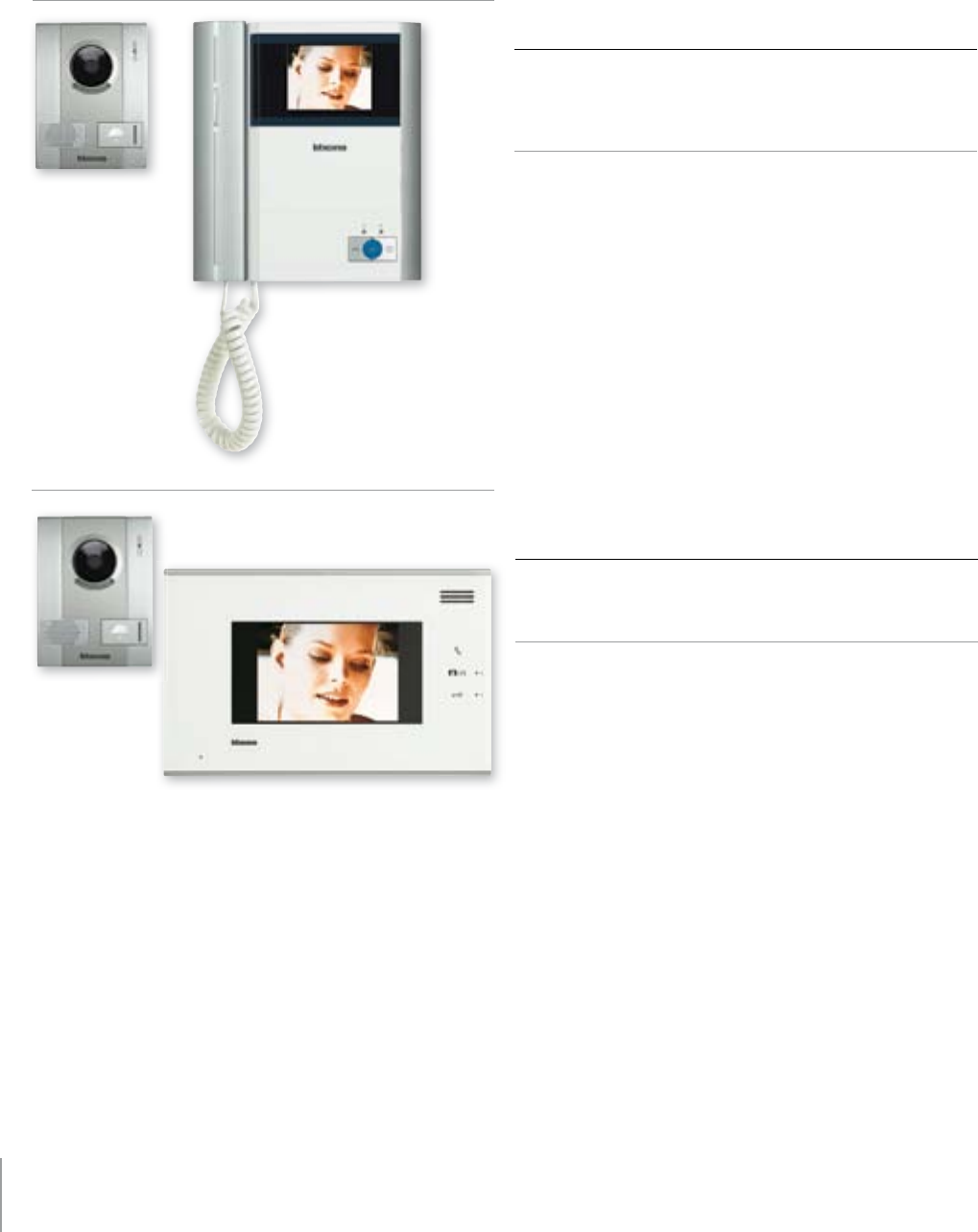

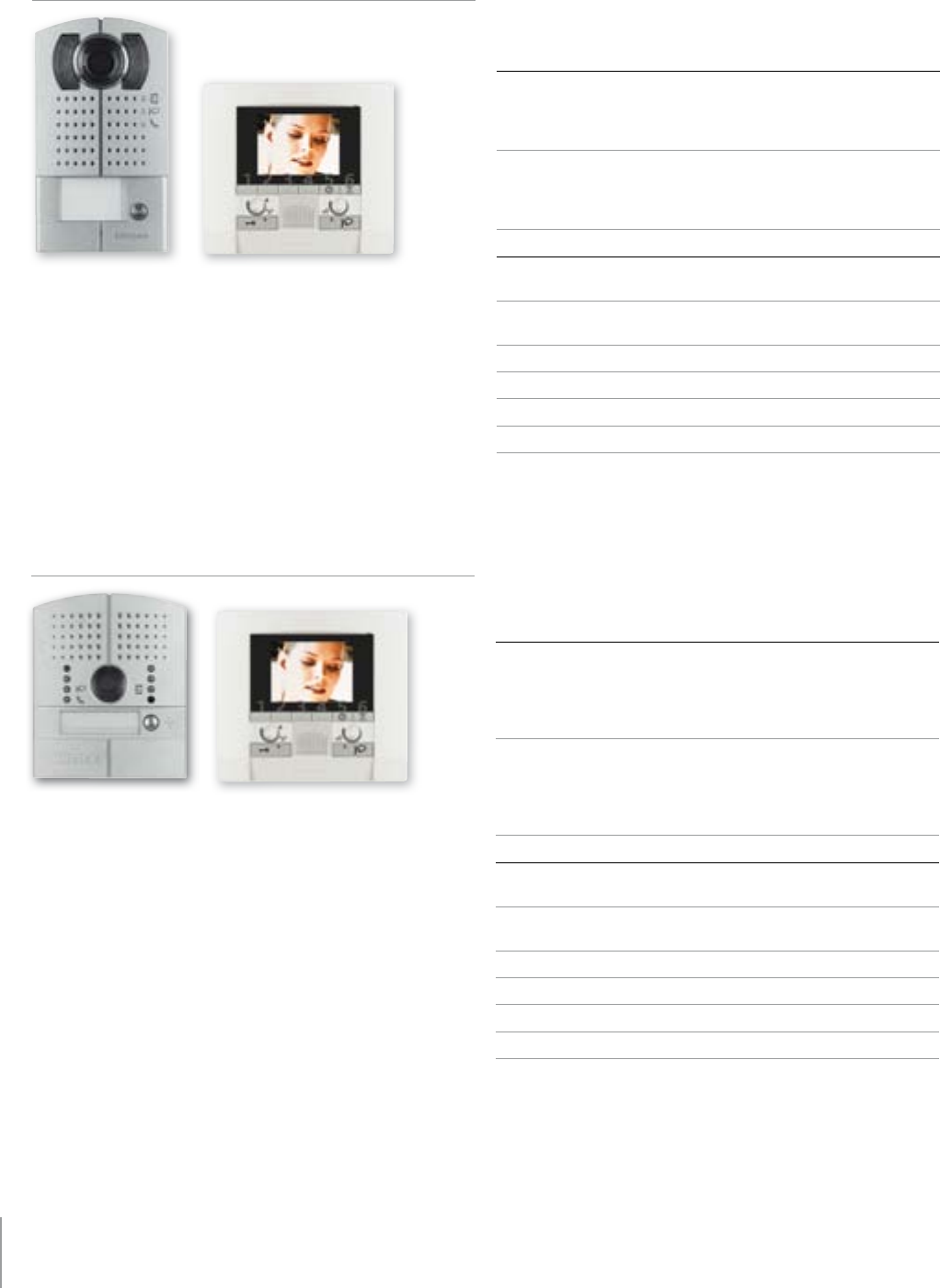

AUDIO AND VIDEO KIT 48

OTHER SYSTEMS

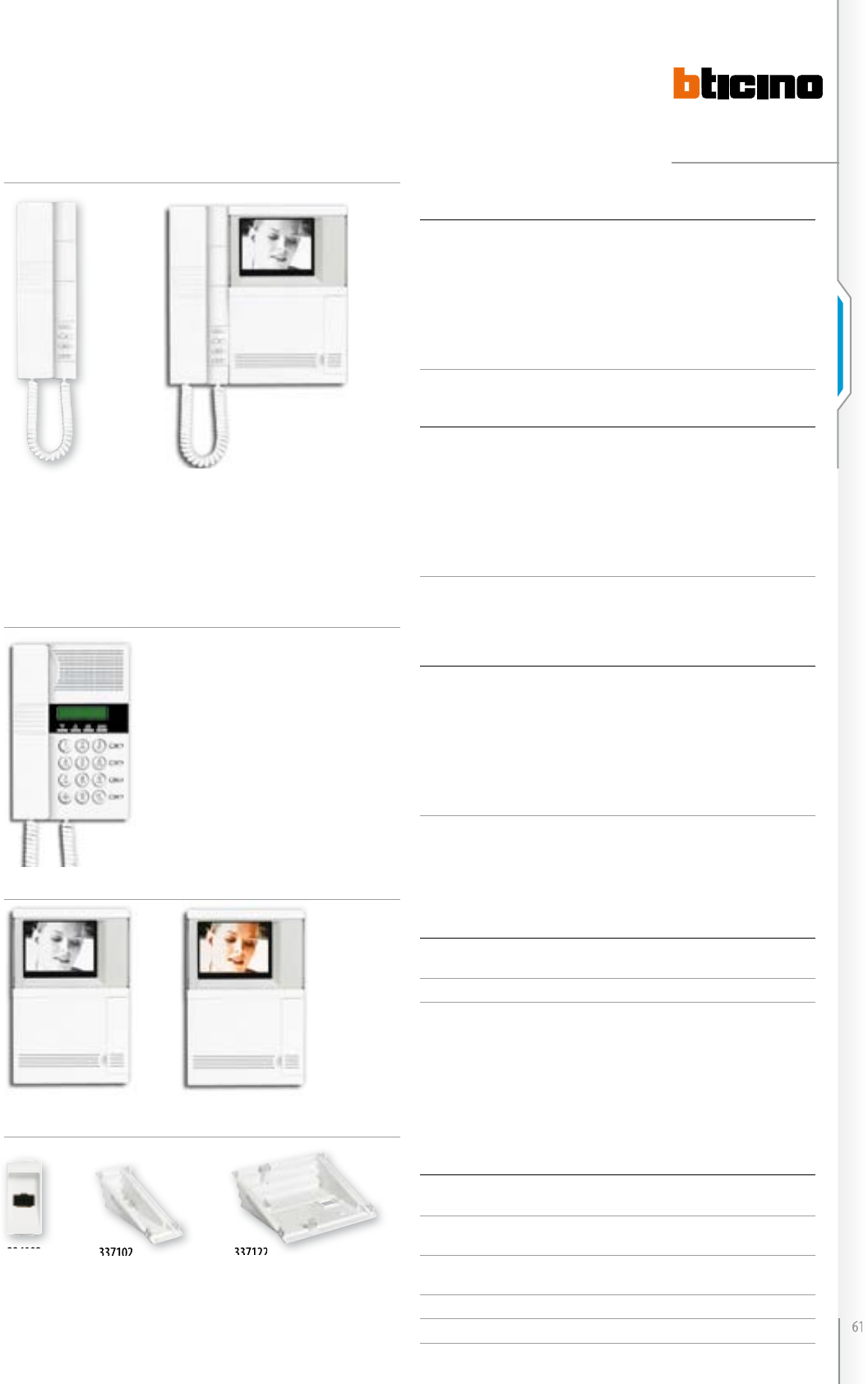

DIGITAL SYSTEM - Catalogue 58

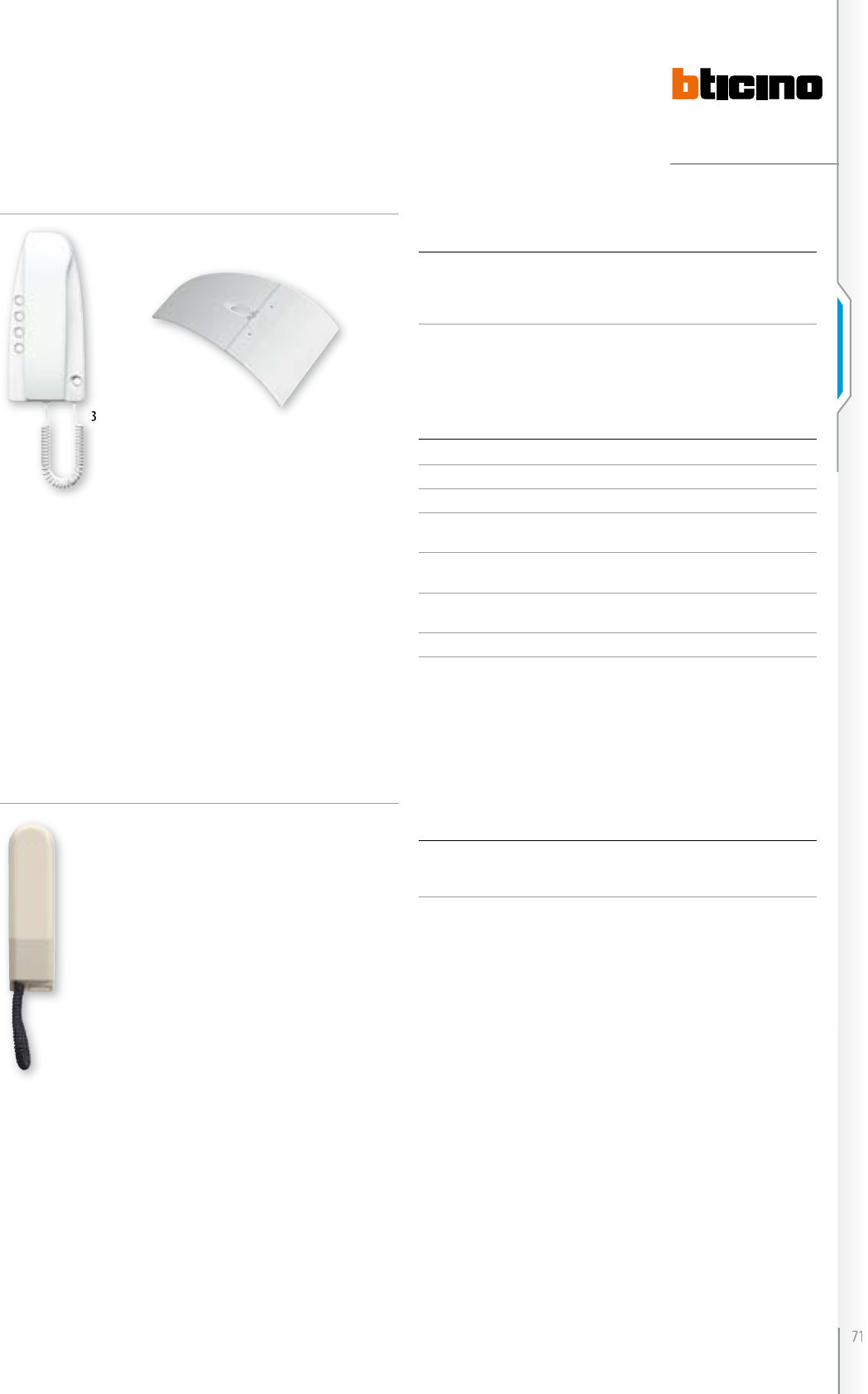

ANALOGUE SYSTEM - Catalogue 67

TERSYSTEM - Catalogue 75

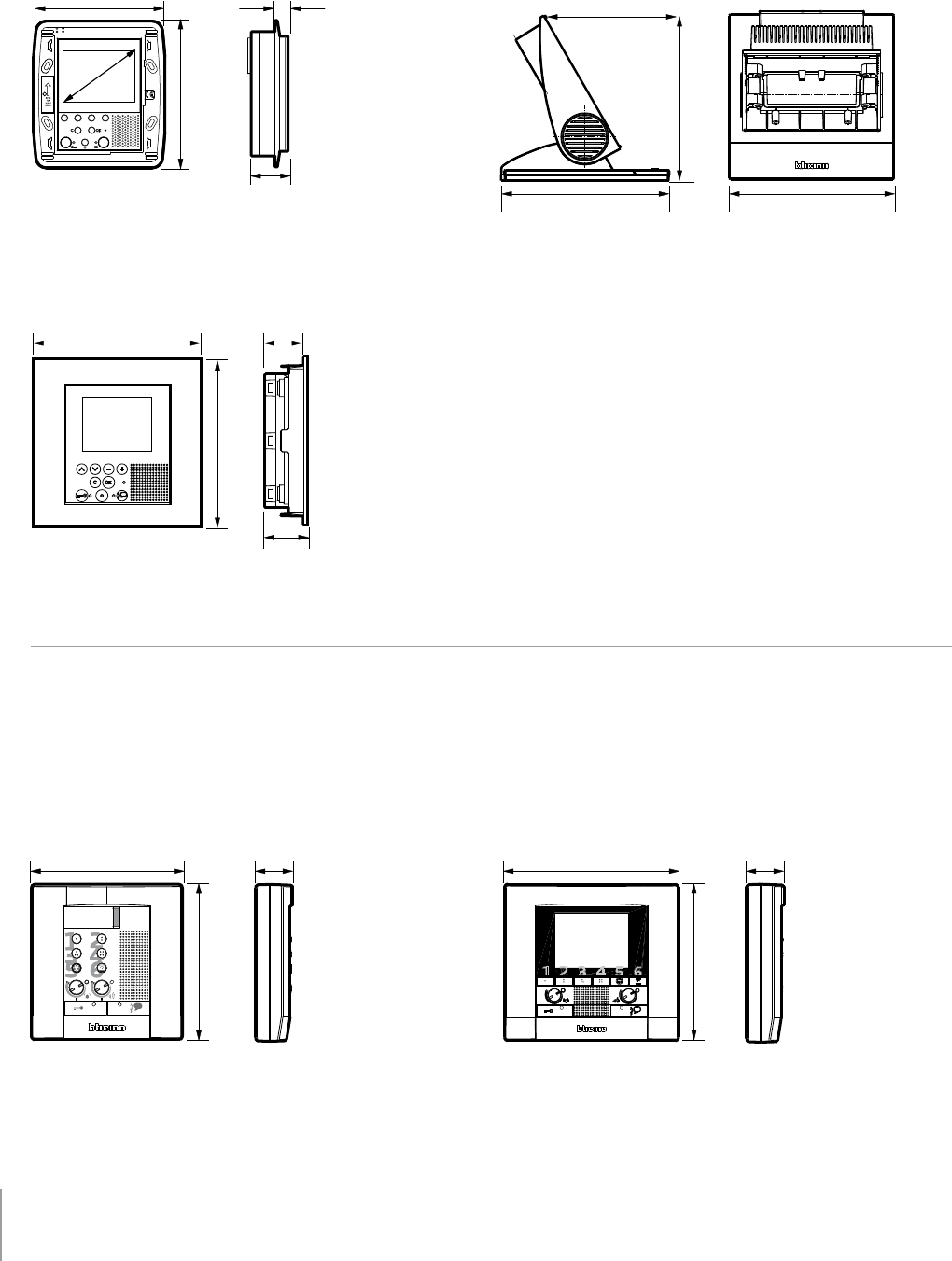

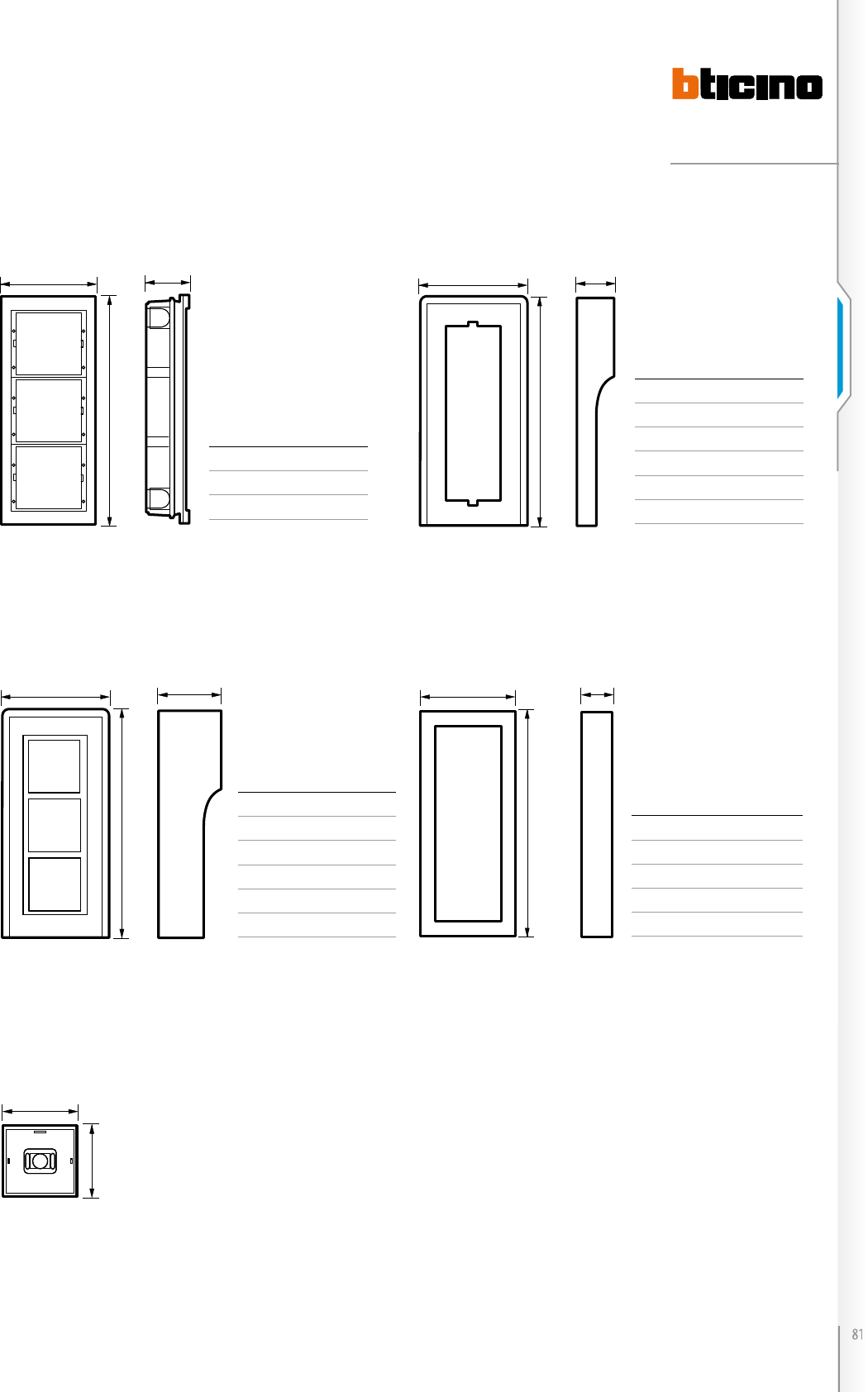

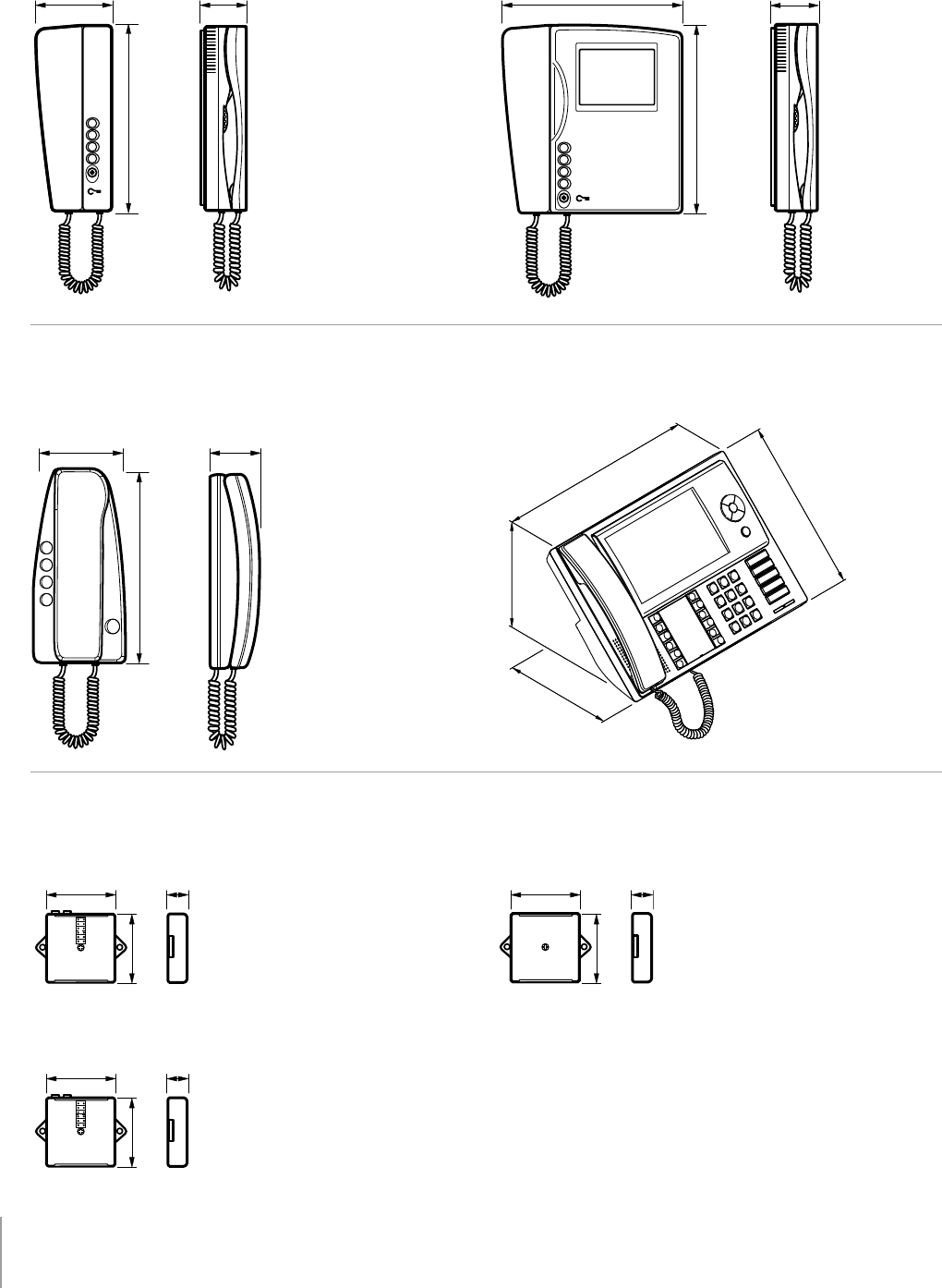

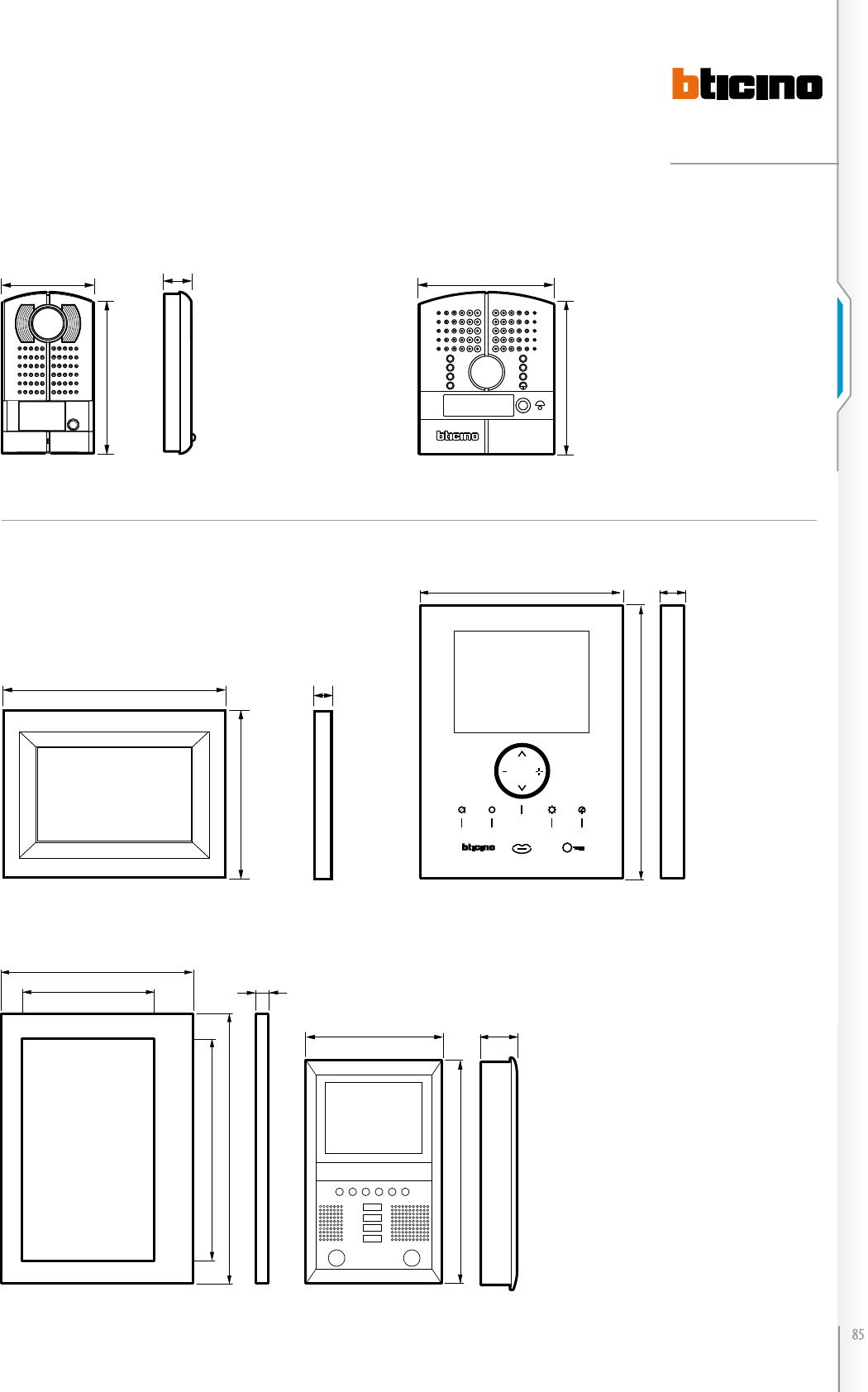

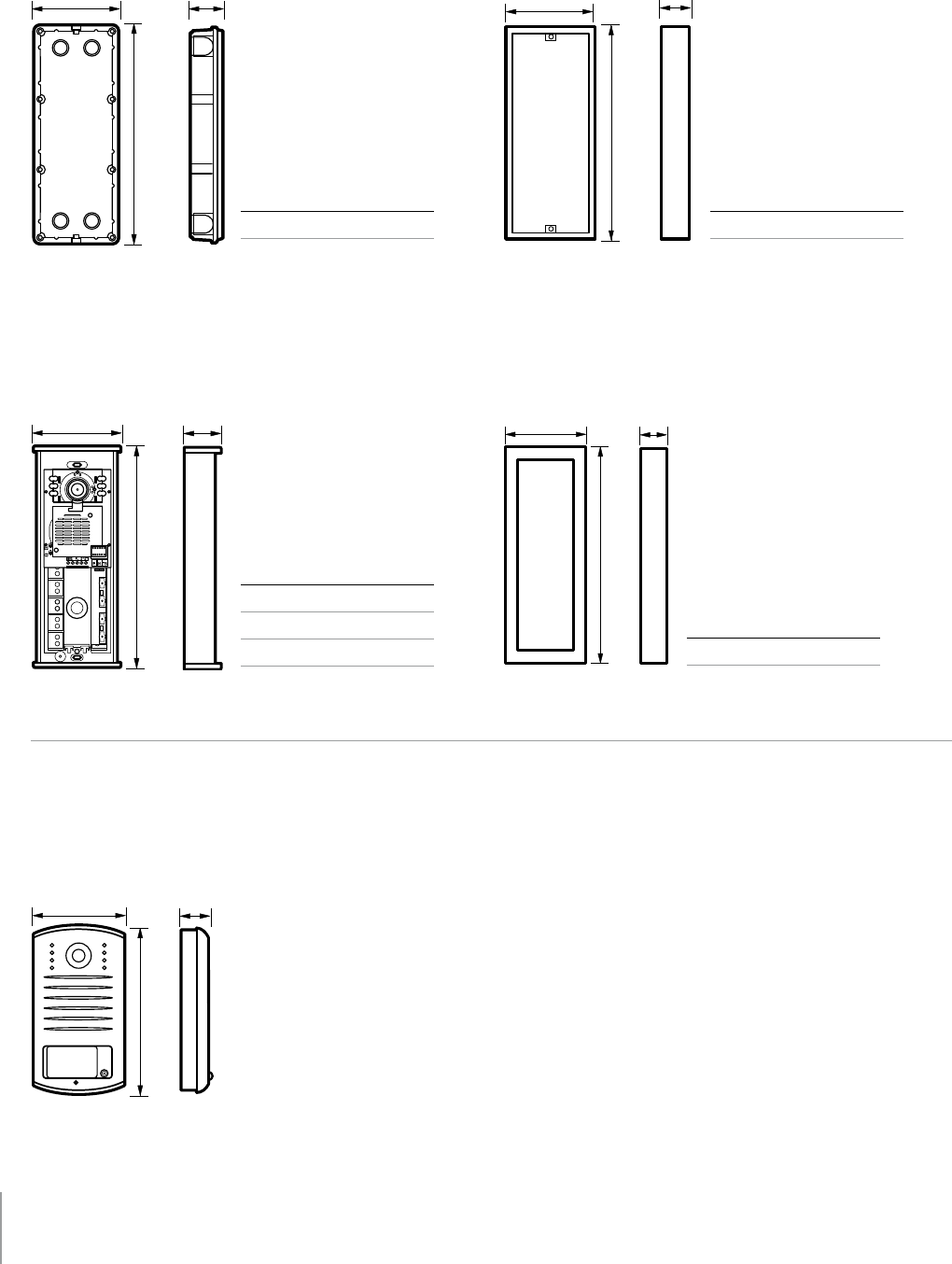

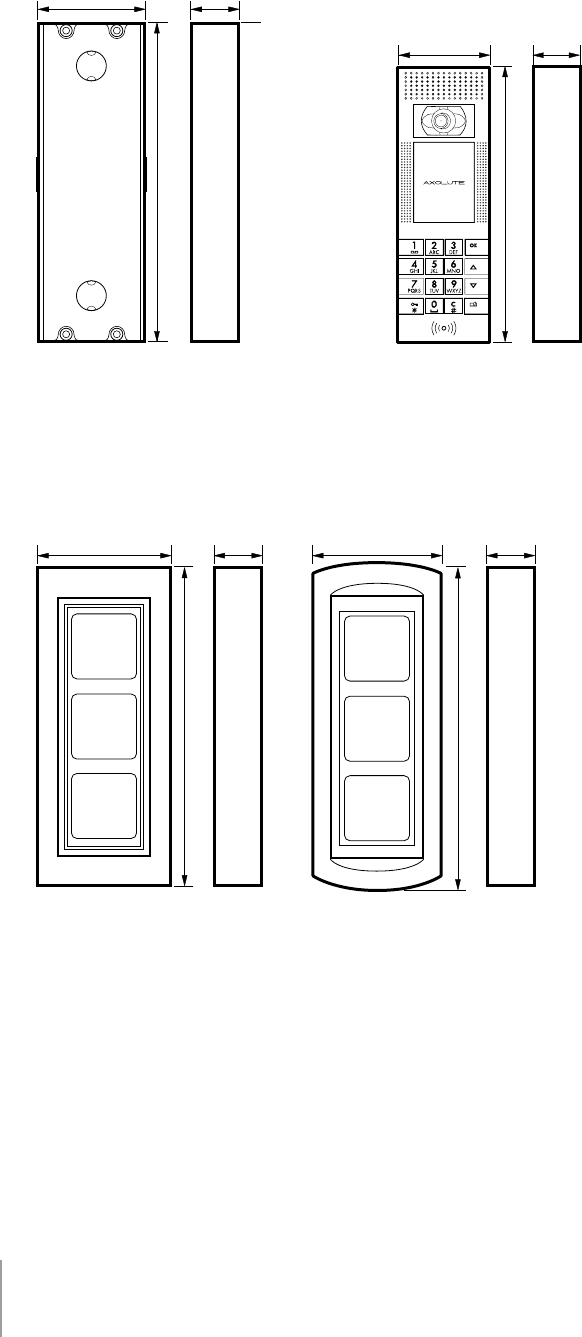

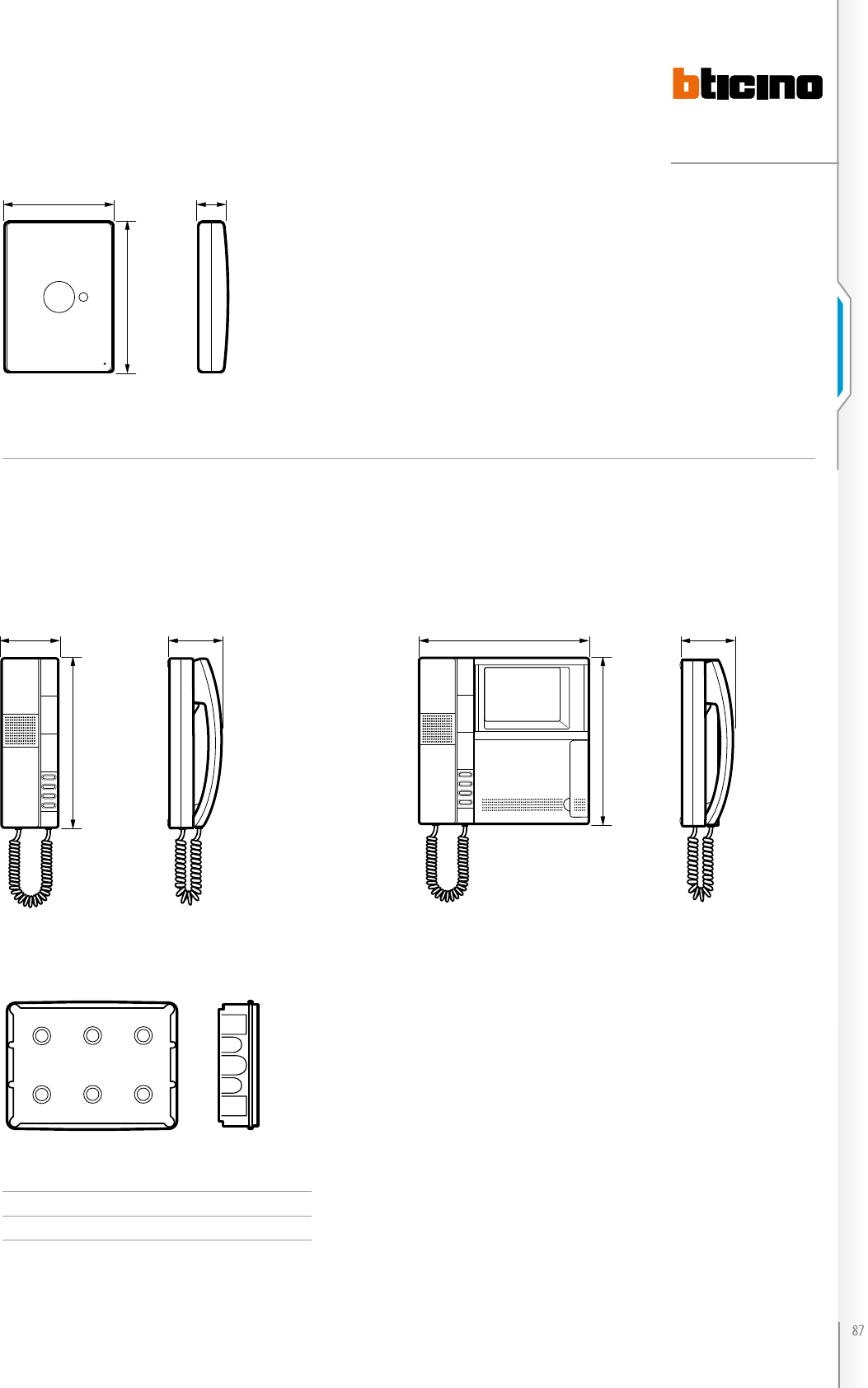

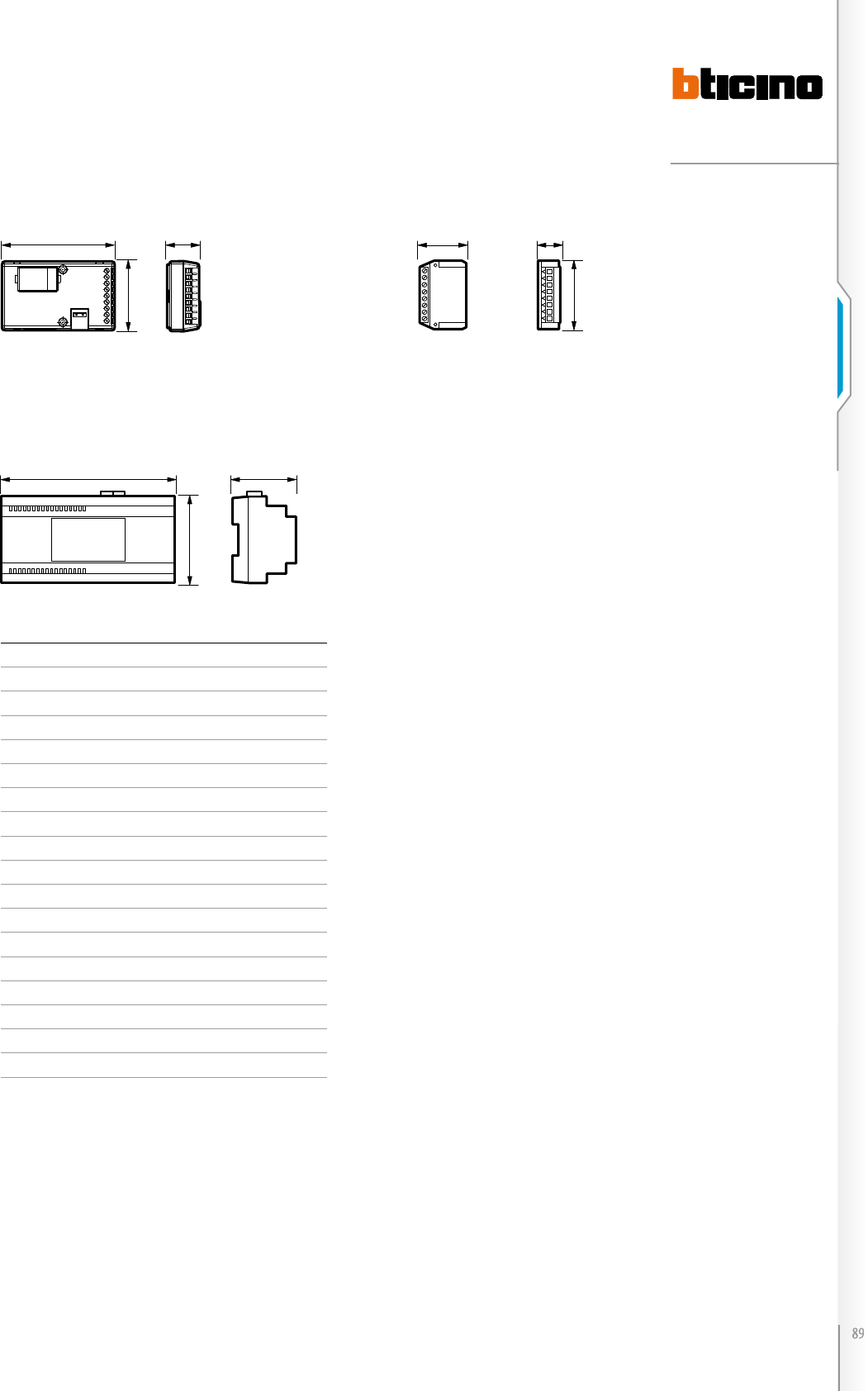

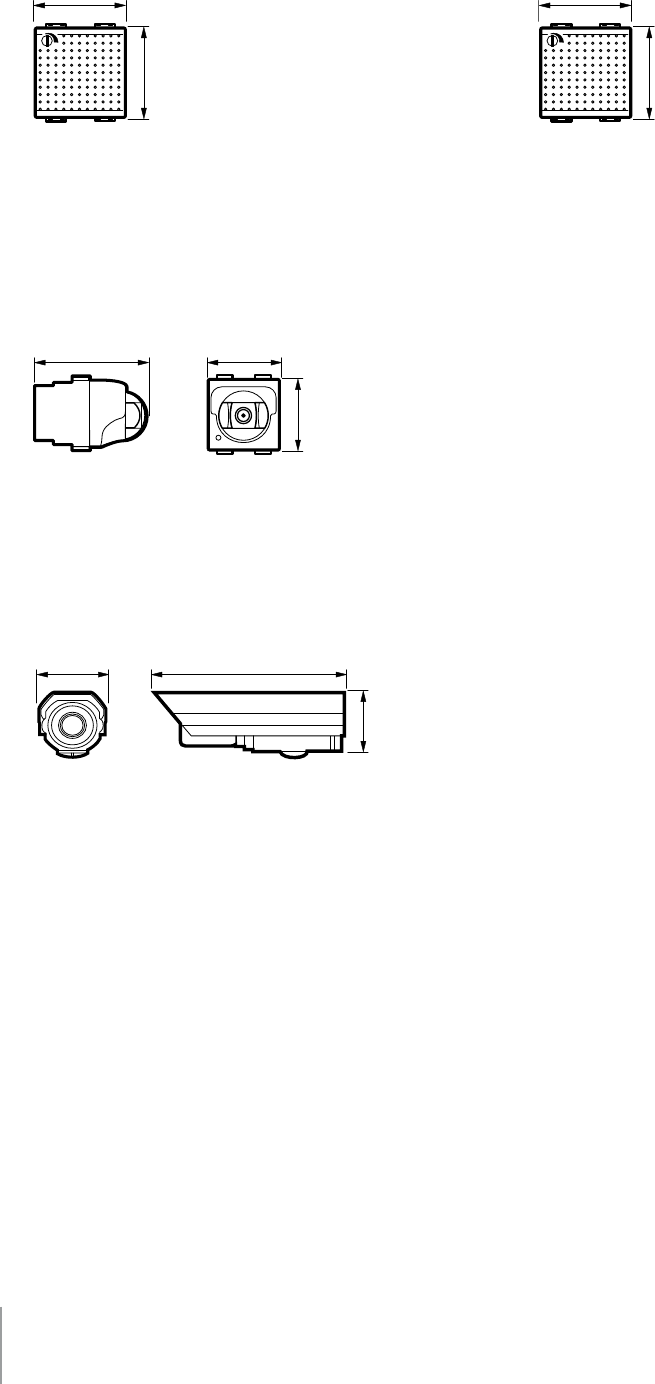

DIMENSIONAL DATA 79

NUMERIC INDEX 91

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CONTENTS

2 WIRE SYSTEM

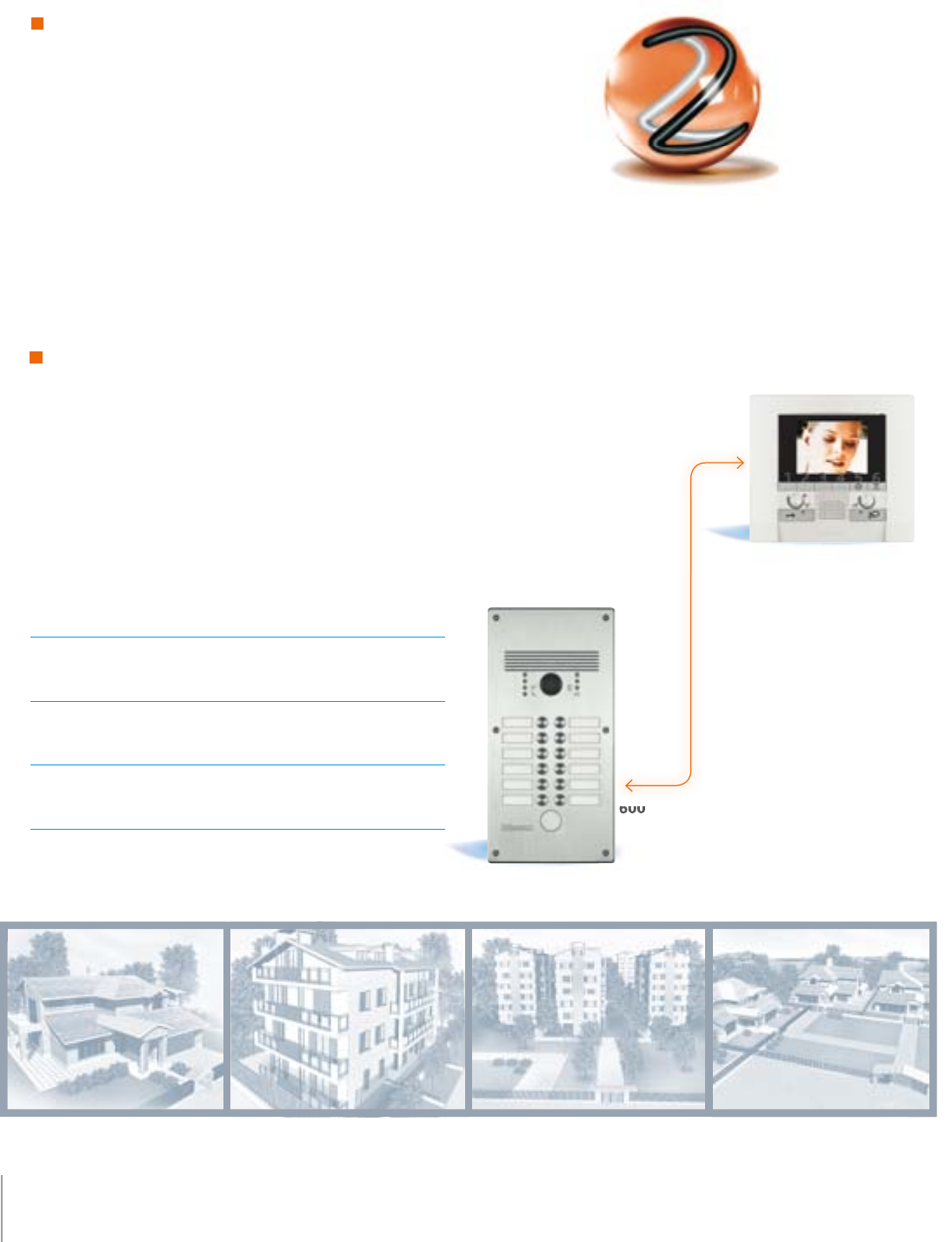

General features

YOUR JOB IS EASIER

The 2-WIRE system is easy to use. Thanks to the NON

POLARIZED 2-wire wiring used in each part of the

system, connection is simple, quick, and error-proof.

There will be no more mistakes, and therefore no need

to waste time in subsequent adjustments.

HIGH PERFORMANCES

Thanks to the 2-WIRE technology, it is possible to install

with the same ease any type of systems, from those in

single villas, to those for whole groups of apartment

blocks. Also, thanks to the possibility of using the

existing cables, it represents the ideal solution when

refurbishment existing systems.

The villa The apartment The group of apartment blocks The group of houses

600 metres

Entrance panel

Farthest handset

600 metres

3900 Apartments 3900 Apartment video

entrance panels

5Handsets

per apartment 39 Risers with indepedent

sound mode

96 Video entrance

panels

THE SYSTEM MAY INCLUDE:

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  GENERAL FEATURES

MAXIMUM VERSATILITY

The 2-WIRE system has been

conceived to ensure a high level of

versatility, to meet the needs of each

and every customer.

The 2-WIRE technology enables

installing a door entry system

already preset for future conversion

into a video system, and is ideal

when a mixed audio/video system

is required, to meet the needs of

individual residents. The system

also o ers a wide range of entrance

panels and handsets, to meet all

the needs of the customer: from the

basic door entry system functions,

to the more advanced ones, to the

integration with MY HOME home

automation applications, or look

integration with BTicino residential

series.

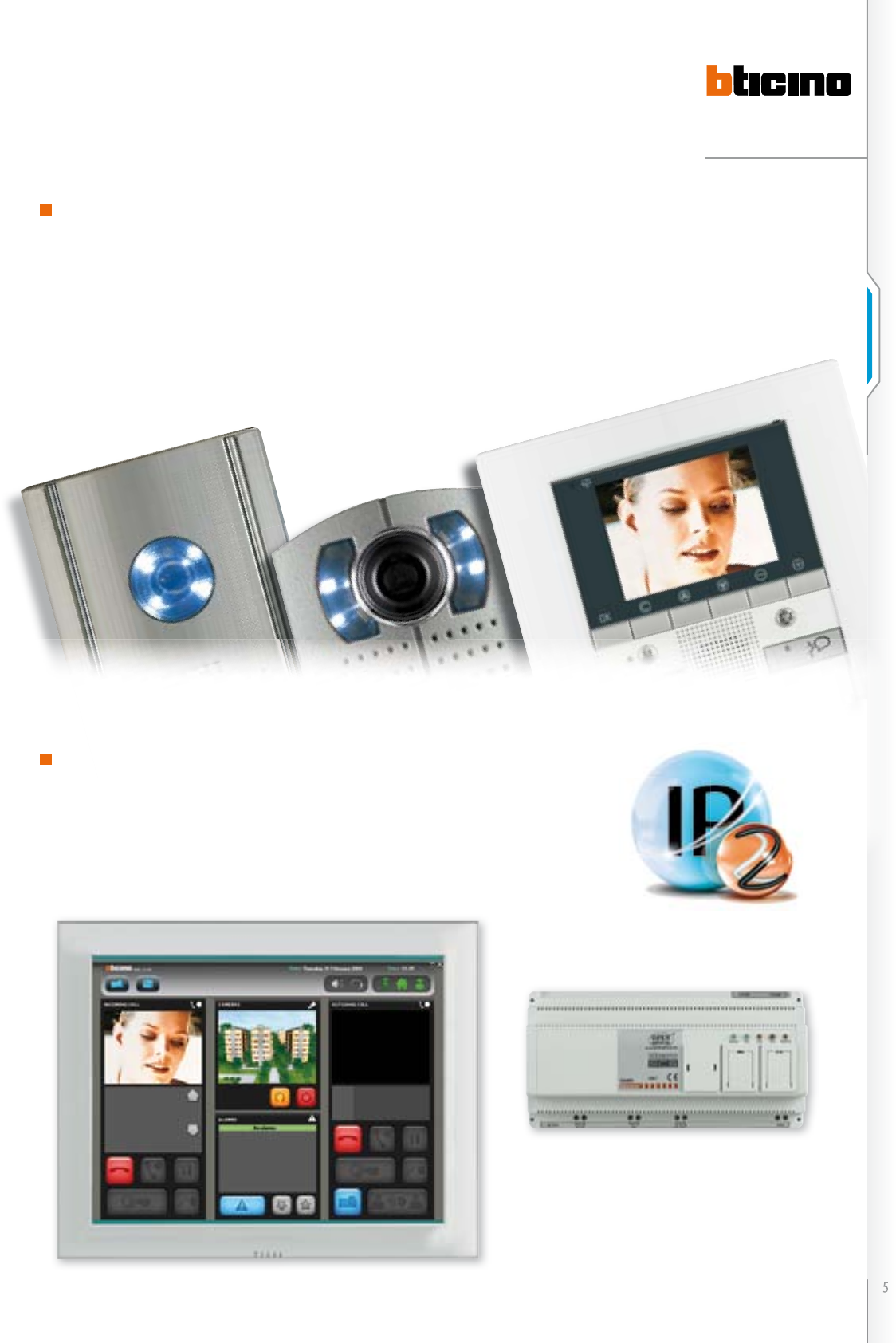

INTEGRATION WITH IP TECHNOLOGY

IP and 2-WIRE technologies may be

integrated, for the realisation of large

projects. Thanks to the dedicated LAN

network, IP technology o ers high

system performances: long distances,

multichannel operation, switchboard

software and centralised alarm

noti cation.

IP to 2 WIRE interface

Switchboard software

Entrance panel range

2 WIRE SYSTEM

VERSATILITY

STRENGTH

SFERA MODULAR

The solution for every installation

need: from the single villa, to the

large residential complex.

VANDALRESISTANT MONOBLOC

Minimalist design enhanced by the

aluminium or stainless steel finish, it’s

the solution with call pushbuttons for

where a high degree of protection

against mechanical impact is

required.

SFERA VANDALRESISTANT

It’s the entrance panel with a rigorous

shape, emphasized by the vandal-

resistant stainless steel front cover.

Equipped with digital call, it’s ideal

for large groups of apartment blocks.

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  GENERAL FEATURES

EXCLUSIVITY AND LUXURY

AXOLUTE OUTDOOR

The luxury and refinement of AXOLUTE,

also outside the building. It’s the ideal

solution for large prestigious complexes.

SFERA MONOBLOC

The versatility of SFERA combined with the

steel or brass monolithic front cover, for

prestigious small and medium size solutions.

THE SOLUTION FOR THE VILLA

THE SOLUTION FOR SMALL SPACES

LINEA 2000 METAL

Elegant and strong, enhanced by the zamak

finish, it’s the ideal solution for the villa.

MINISFERA

The compact solution for small buildings, ideal in

refurbishments and in those cases where space is

limited.

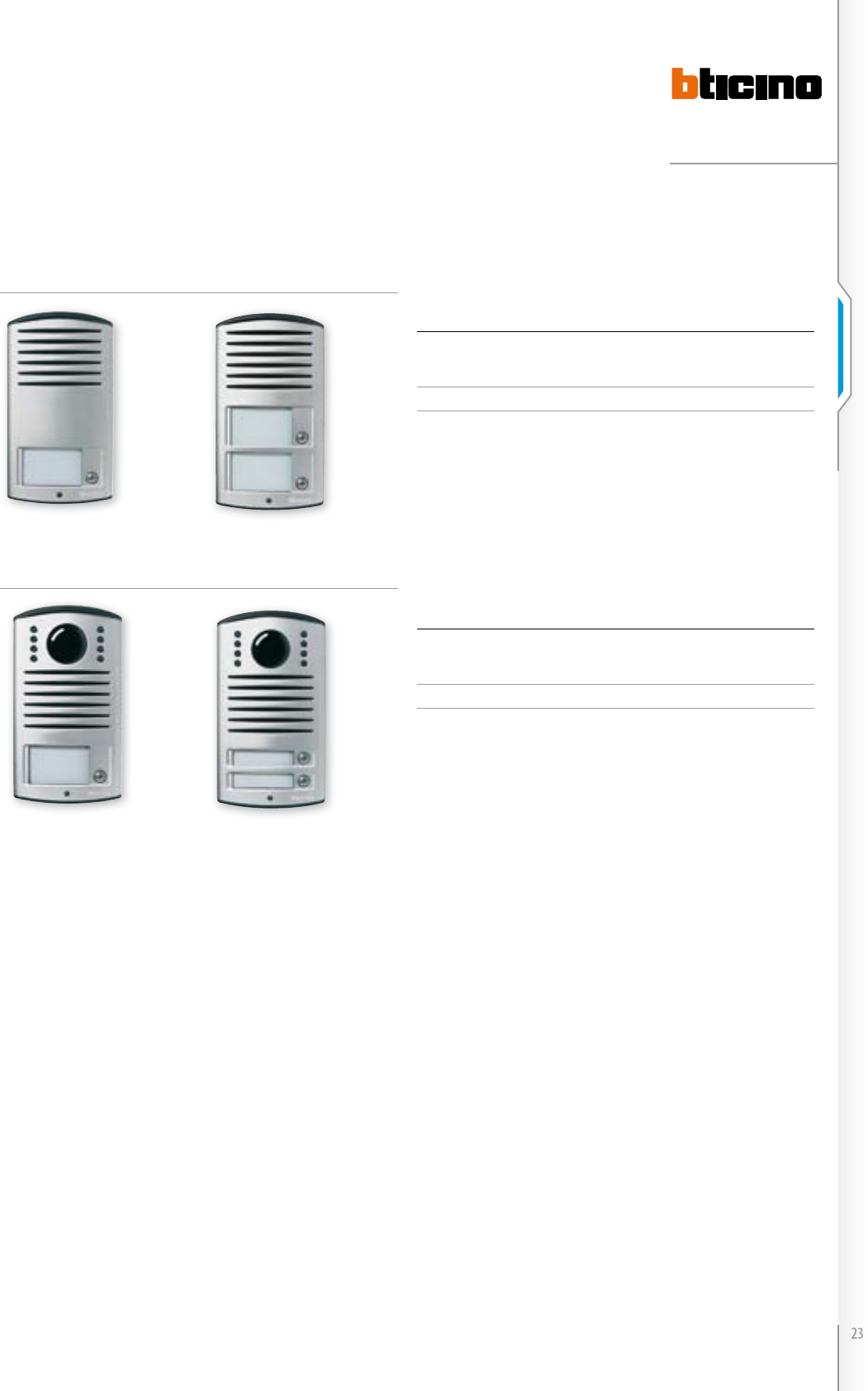

LINEA 2000

The basic solution in a smaller size, for

one-family or two-family homes.

Handset range

2 WIRE SYSTEM

TECHNOLOGY AND INTEGRATION

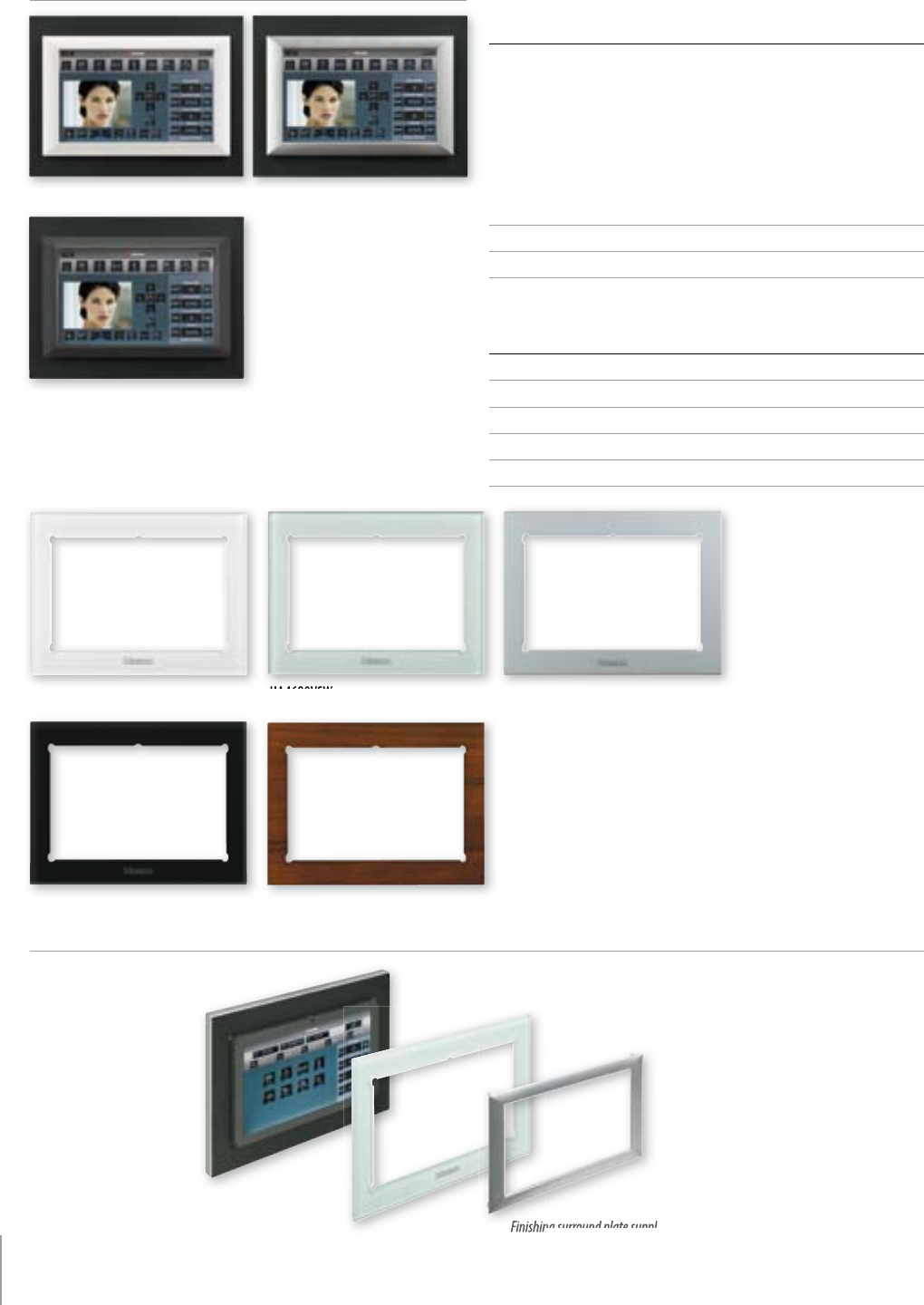

AXOLUTE MULTIMEDIA TOUCH SCREEN

Large 10” touch display for control and

display of video door entry system and

MY HOME functions.

PERFECT INTEGRATION WITH RESIDENTIAL LINES AND THE MY HOME FUNCTIONS

The video handset has been conceived as an integral part of the residential series and home control terminal.

Available in two versions: VIDEO DISPLAY and VIDEO STATION.

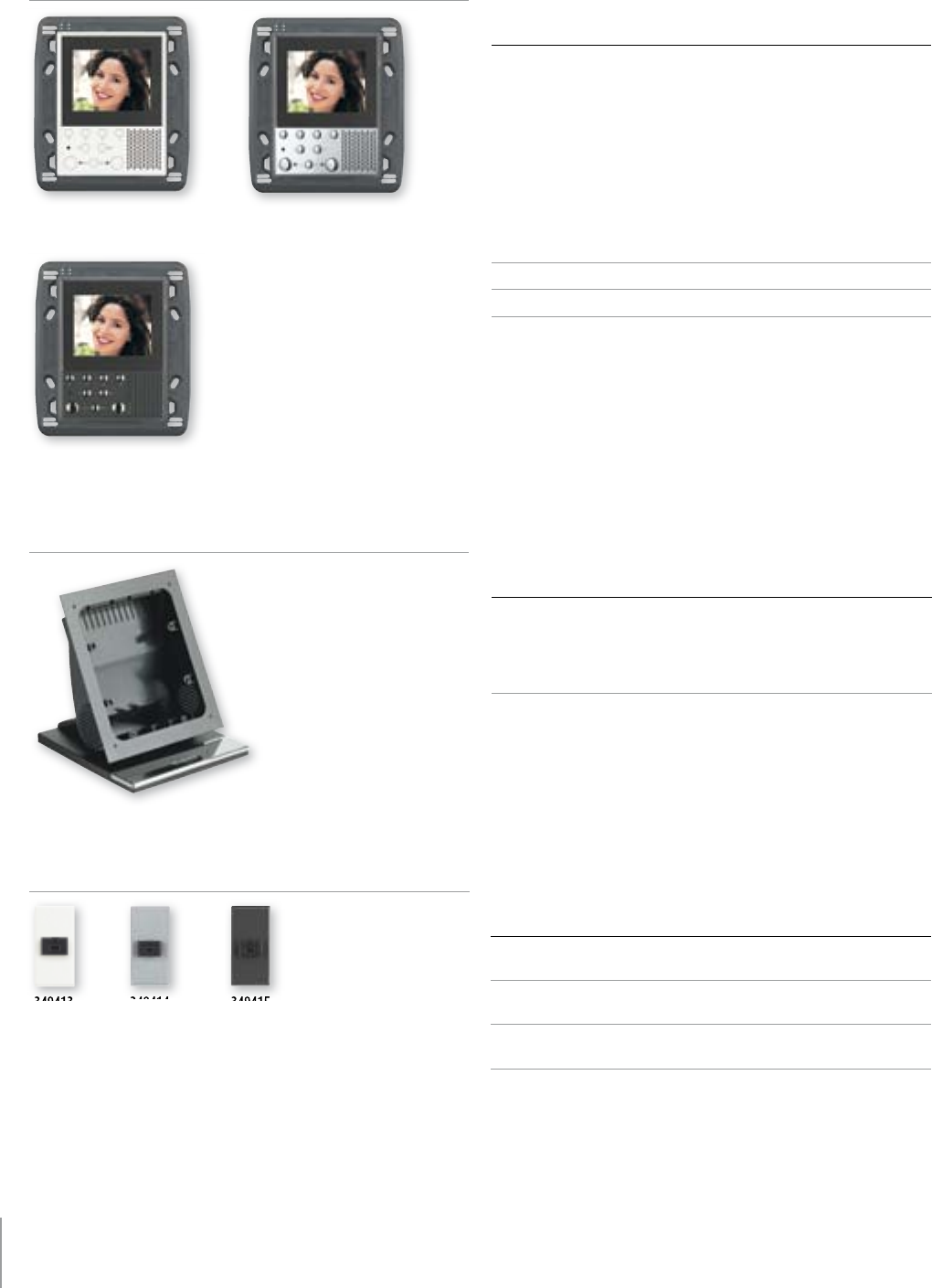

VIDEO DISPLAY

The VIDEO DISPLAY terminal is

characterised by its compact size.

With handsfree technology, it’s

flush mounted using the same

procedure used for a light point.

Available in the AXOLUTE and

AXOLUTE ETERIS versions.

VIDEO STATION

The wall mounted handsfree solution

featuring a large display. Available in

two versions.

VIDEO STATION Nighter & Whice

feature an exclusive and elegant

design, where glass is the main

element.

AXOLUTE VIDEO STATION has instead

been conceived for integration with

the AXOLUTE residential series.

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  GENERAL FEATURES

TECHNOLOGY AND COMFORT

TRADITION

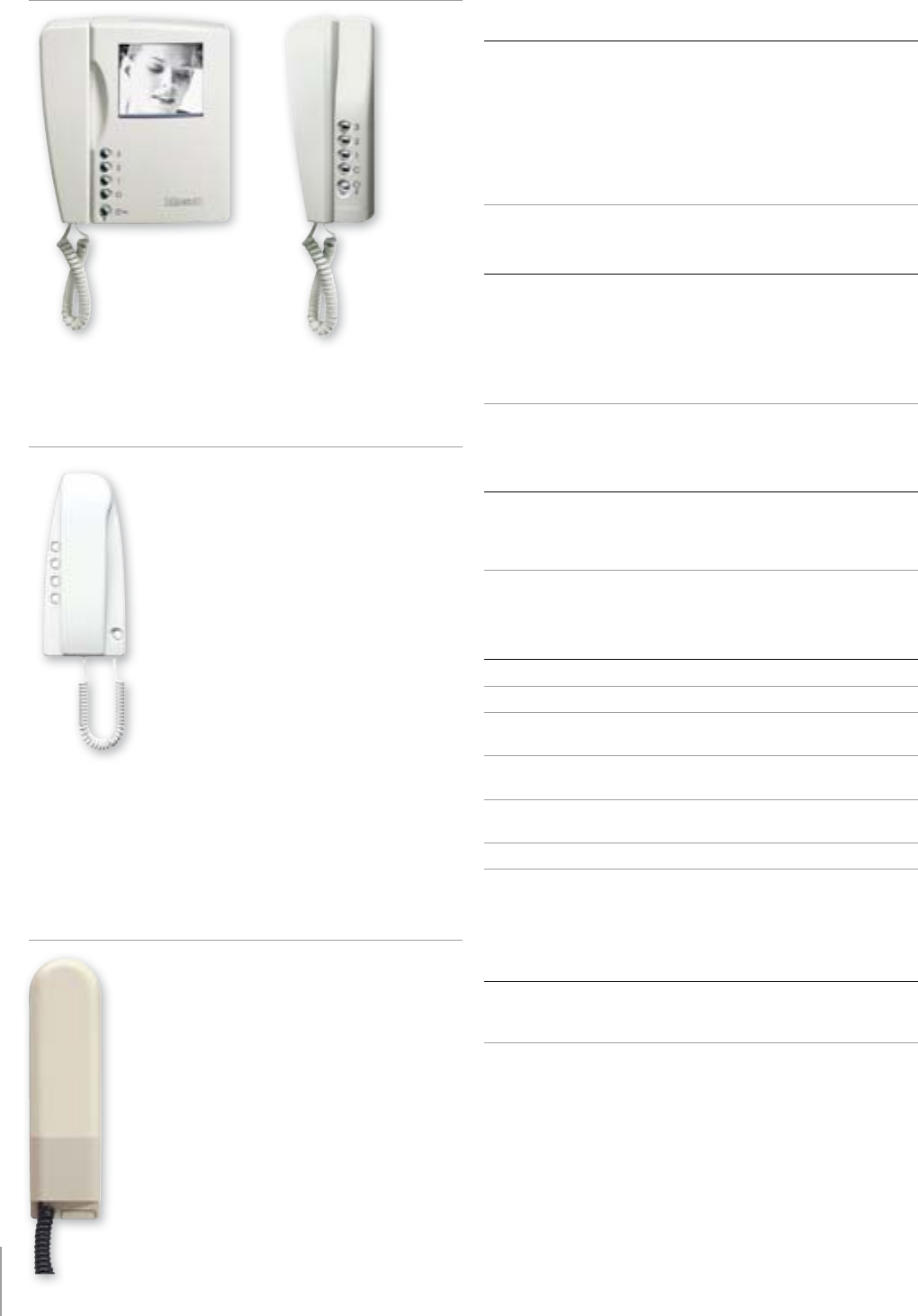

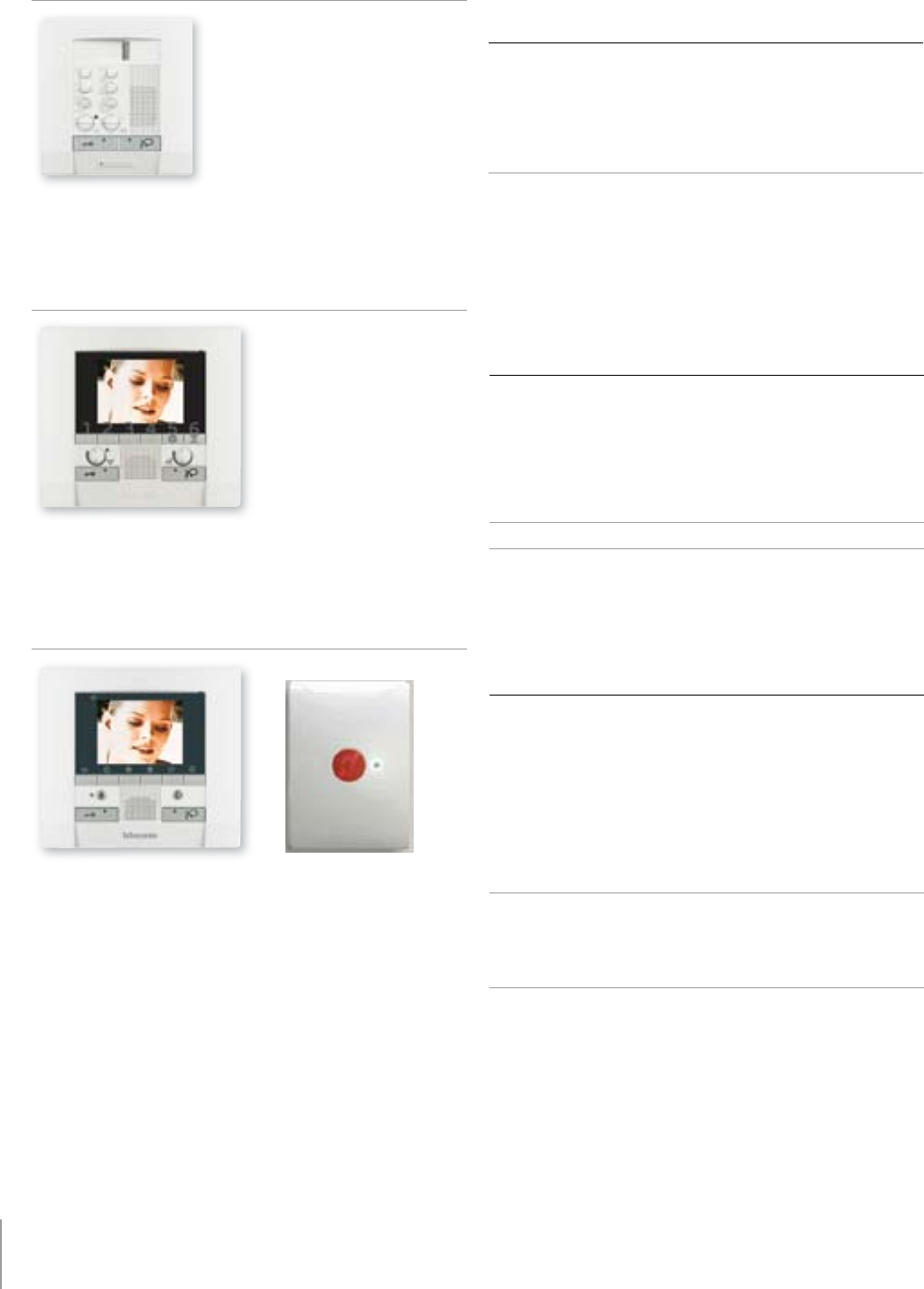

POLYX RANGE

Handsfree range with a modern

and minimalist design, well

suited to every style of home:

the range extends from the basic

audio and video versions to the

advanced version, which offers the

management of video door entry

system memory and of the MY HOME

functions.

POLYX is the first video door entry

system range designed following

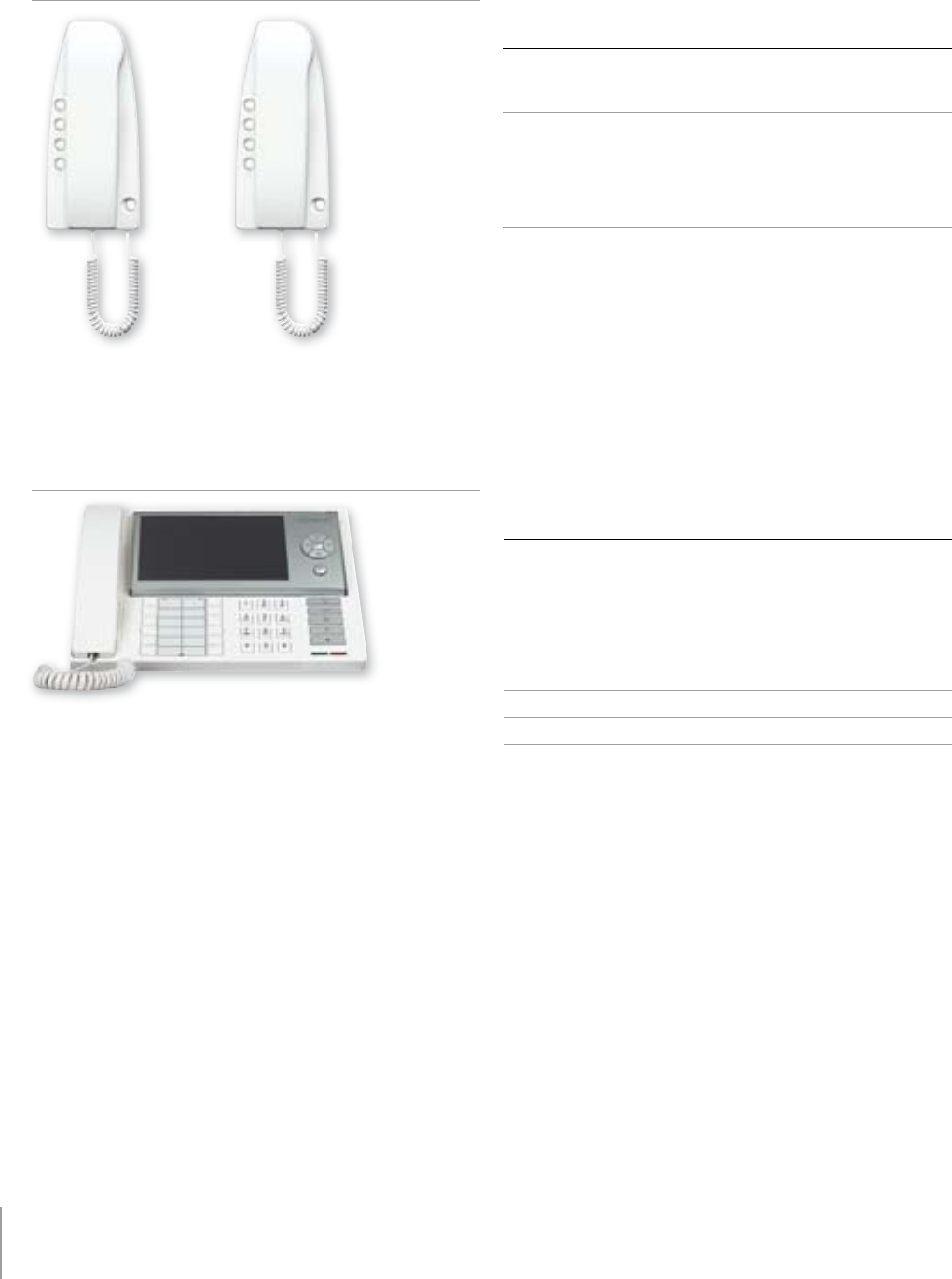

PIVOT

The traditional range with a receiver

for every installation requirement:

wall mounted, flush mounted, and

table-top versions.

SWING

A range characterised by a classic

and elegant design. The B/W basic

video version has been conceived

as the perfect standard specification

solution.

The range is completed by the audio

and colour video version.

SPRINT AUDIO

The audio receiver

meeting the standard

specifications.

the “for all” design criteria:

multi-sensor notifications and

accurate ergonomic design are the

distinguishing traits of POLYX.

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

CONTENTS

2 WIRE CATALOGUE  ENTRANCE PANELS

AXOLUTE Outdoor 12

SFERA 13

Monobloc vandal-resistant pushbutton panels 20

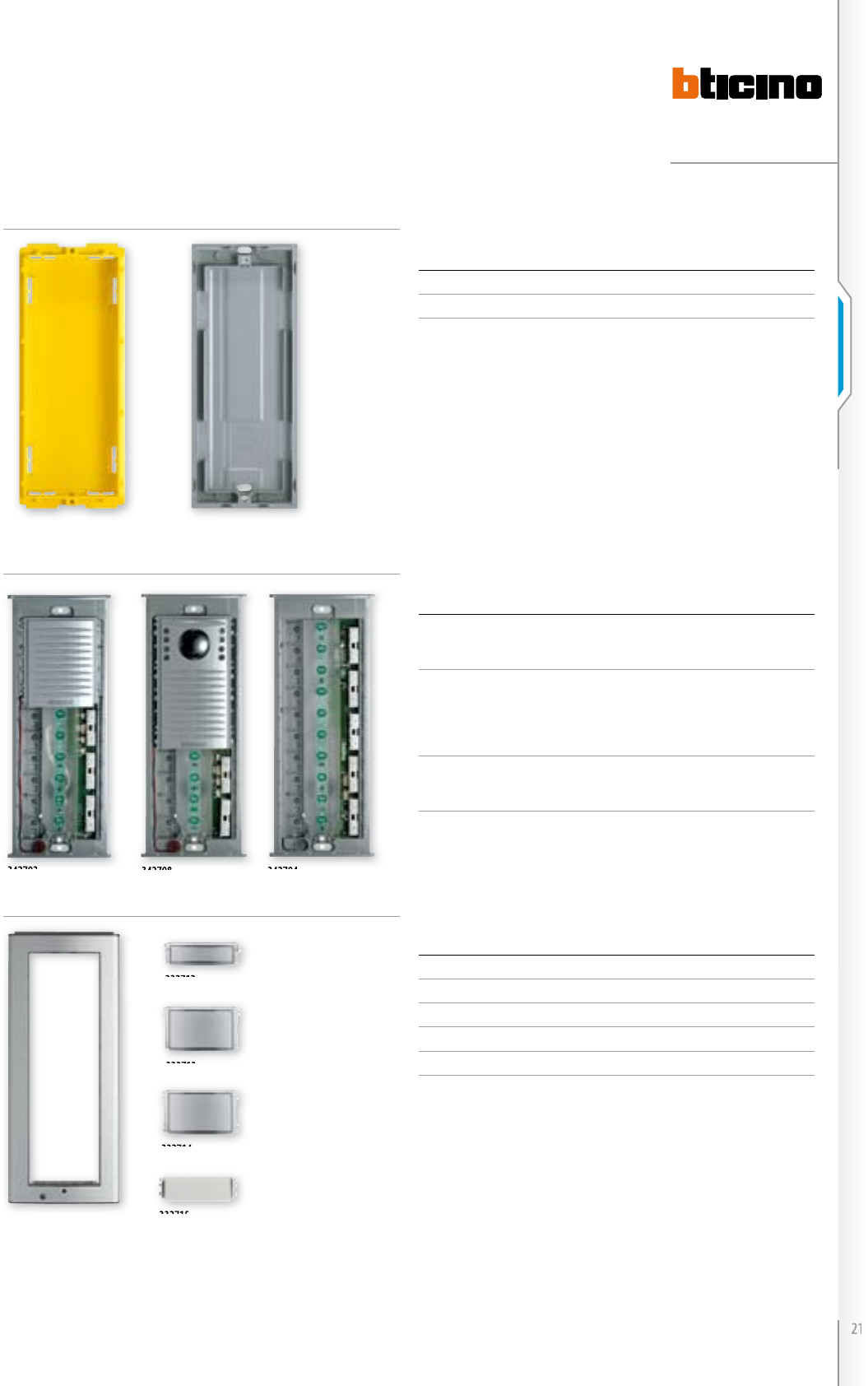

MINISFERA 21

LINEA 2000 METAL 22

LINEA 2000 23

339313

349140

339313

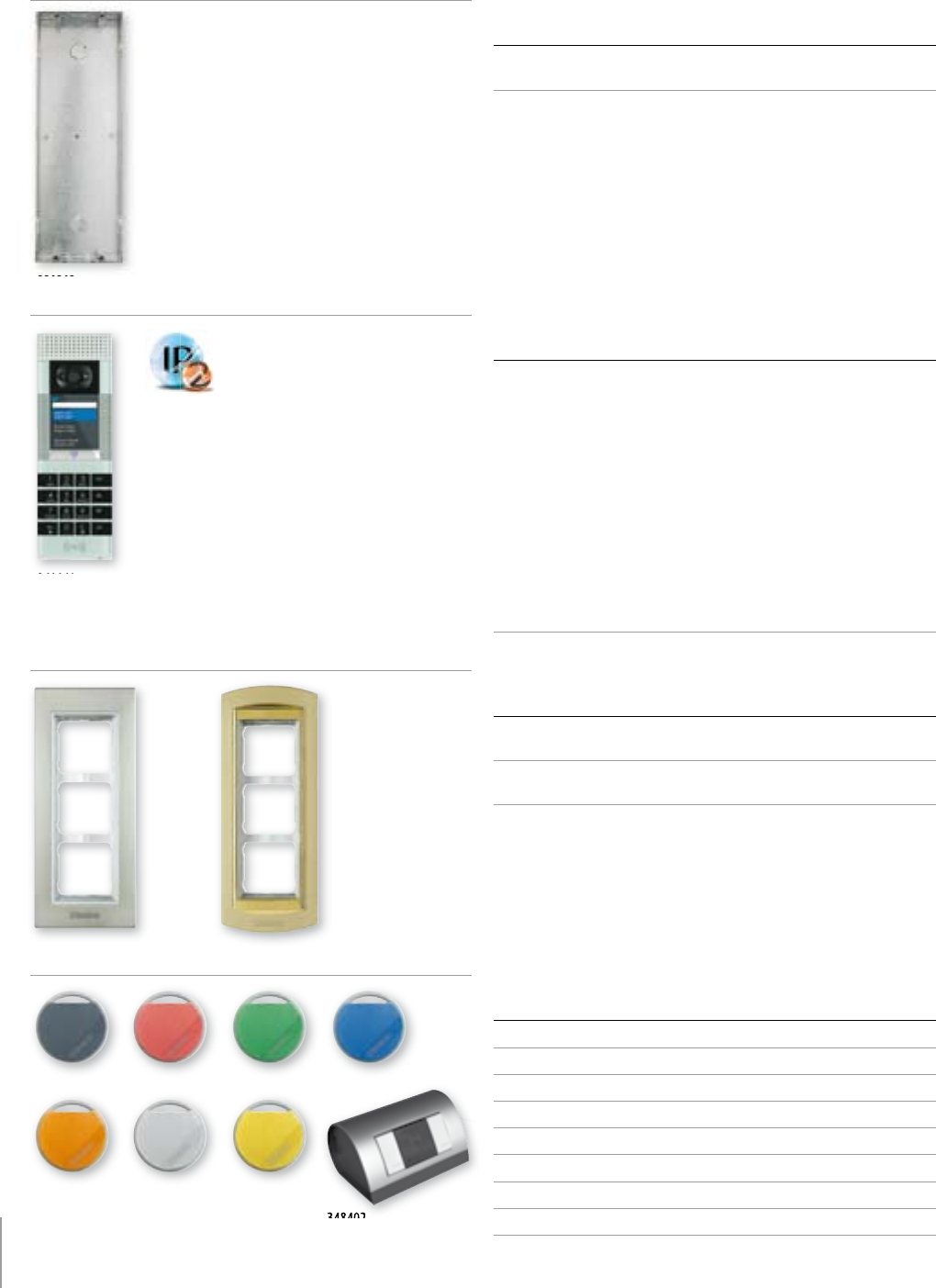

FLUSH MOUNTED BOX WITH TEARING PROTECTION

ELECTRONIC MODULE

SURROUND PLATE + FRAME

TRANSPONDER KEYS AND PROGRAMMER

Item Description

339313

3 module ﬂ ush mounted steel box with tearing protection. The SFERA 3

module ﬂ ush mounted box, item 331130, may also be used in alternative

Item Description

349140 outdoor AXOLUTE electronic module. Device also suitable for use in IP

systems. It’s ﬁ tted with capacitive soft touch control backlit keypad,

motorised colour camera (which swivelling operation can be controlled

from the preset handsets), colour display with home page that can

be fully customised by the installer, and transponder reader for the

release of the door lock, which may also be activated using a numeric

code for residents. Module to be ﬁ nished with ﬂ ush mounted box, item

339313, and surround plate, item 339213 (steel), or 339223 (brass).

TiAxoluteOutdoor and TiContacts programming software, residents’

address book creation, and conﬁ guration supplied. By locally installing

a permanent cable with RJ45 socket (T568B type cross connection), it

is possible to update the residents address book and the conﬁ guration,

without removing the pushbutton panel. The device meets the

following characteristics: Protection index IP54, protection index

against mechanical impact IK07

Item Description

339213 3-module surround plate + frame in steel ﬁ nish. Anti-tamper assembly/

disassembly safety key supplied

339223 brass ﬁ nish 3 module plate+frame. Anti-tamper assembly/disassembly

safety key supplied

Item Description

348200 black transponder key

348201 red transponder key

348202 green transponder key

348203 blue transponder key

348204 orange transponder key

348205 grey transponder key

348206 yellow transponder key

348402 table-top transponder key programmer

339213 339223

348402

348200

348204

348201

348205

348202

348206

348203

2 WIRE SYSTEM

AXOLUTE Outdoor entrance panels

Flush mounted digital call video entrance panel available in STEEL

and BRASS  nish. Protection index: IP54. Protection index against

mechanical impact: IK07

349140

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

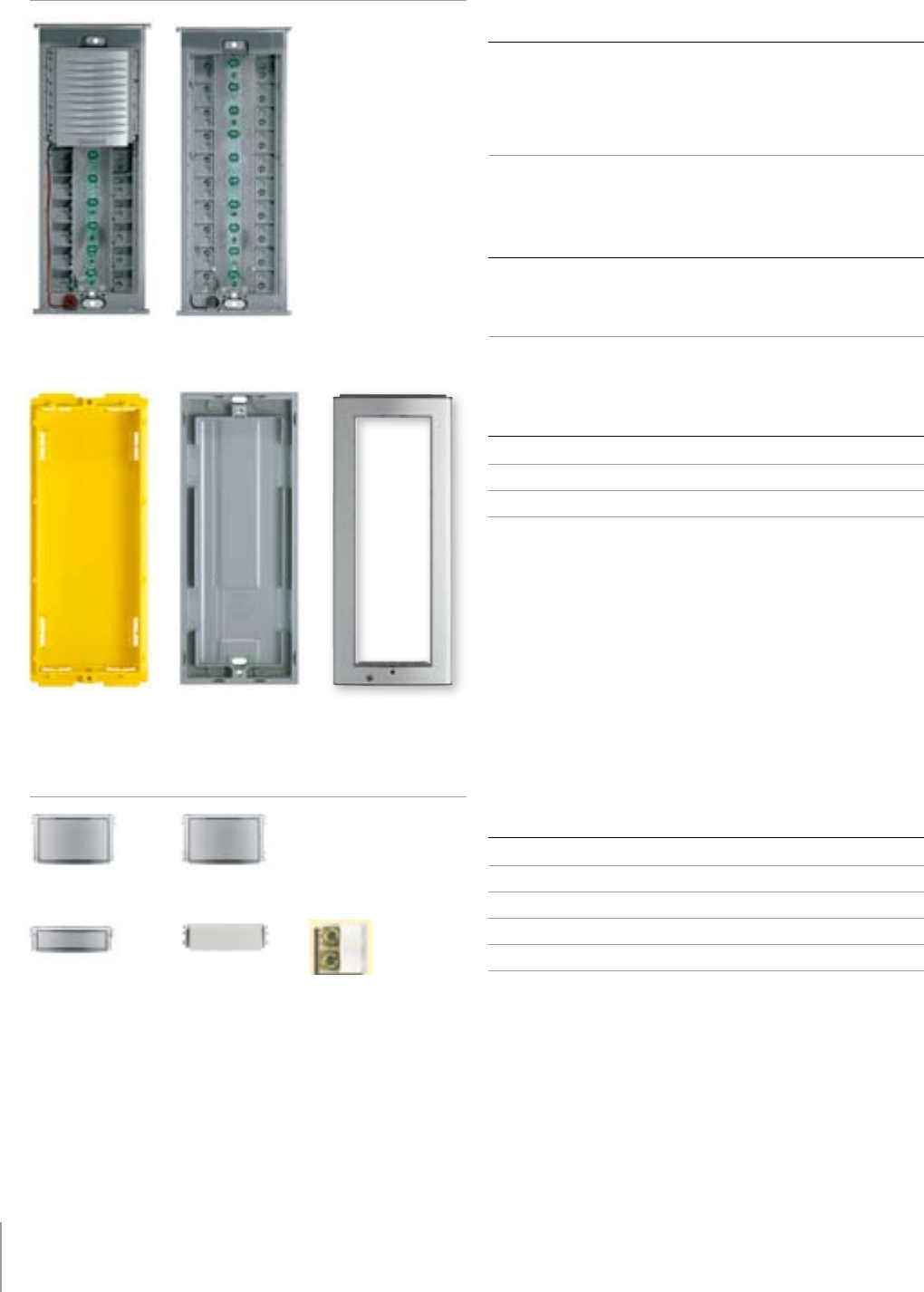

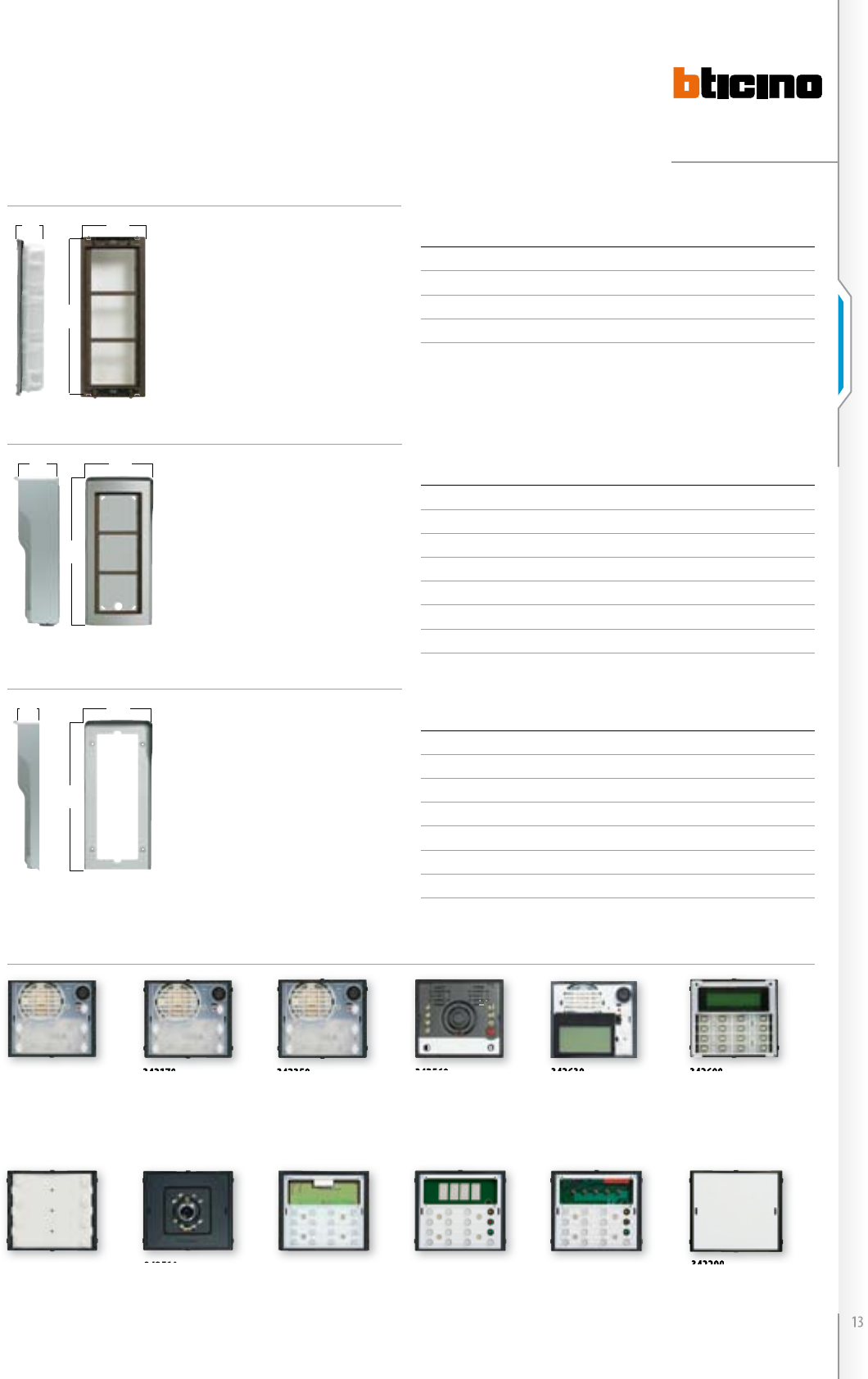

SFERA entrance panels - mechanics and function modules

331130

331431

331331

FLUSH MOUNTED BOX + FRAME

Dimensions (mm)

Item Modules A B C

331110 1 117 123 45

331120 2 117 214 45

331130 3 117 306 45

WALL MOUNTED ENCLOSURE WITH RAINSHIELD

Dimensions (mm)

Item Modules No. of columns A B C

331311 1 1 155 160 92

331321 2 1 155 255 92

331331 3 1 155 360 92

331341 4 2 290 255 92

331361 6 2 290 360 92

331391 9 3 430 360 92

RAINSHIELD OPTIONAL

Dimensions (mm)

Item Modules No. of columns A B C

331411 1 1 151 151 50

331421 2 1 151 242 50

331431 3 1 151 334 50

331441 4 2 290 242 50

331461 6 2 290 334 50

331491 9 3 430 334 50

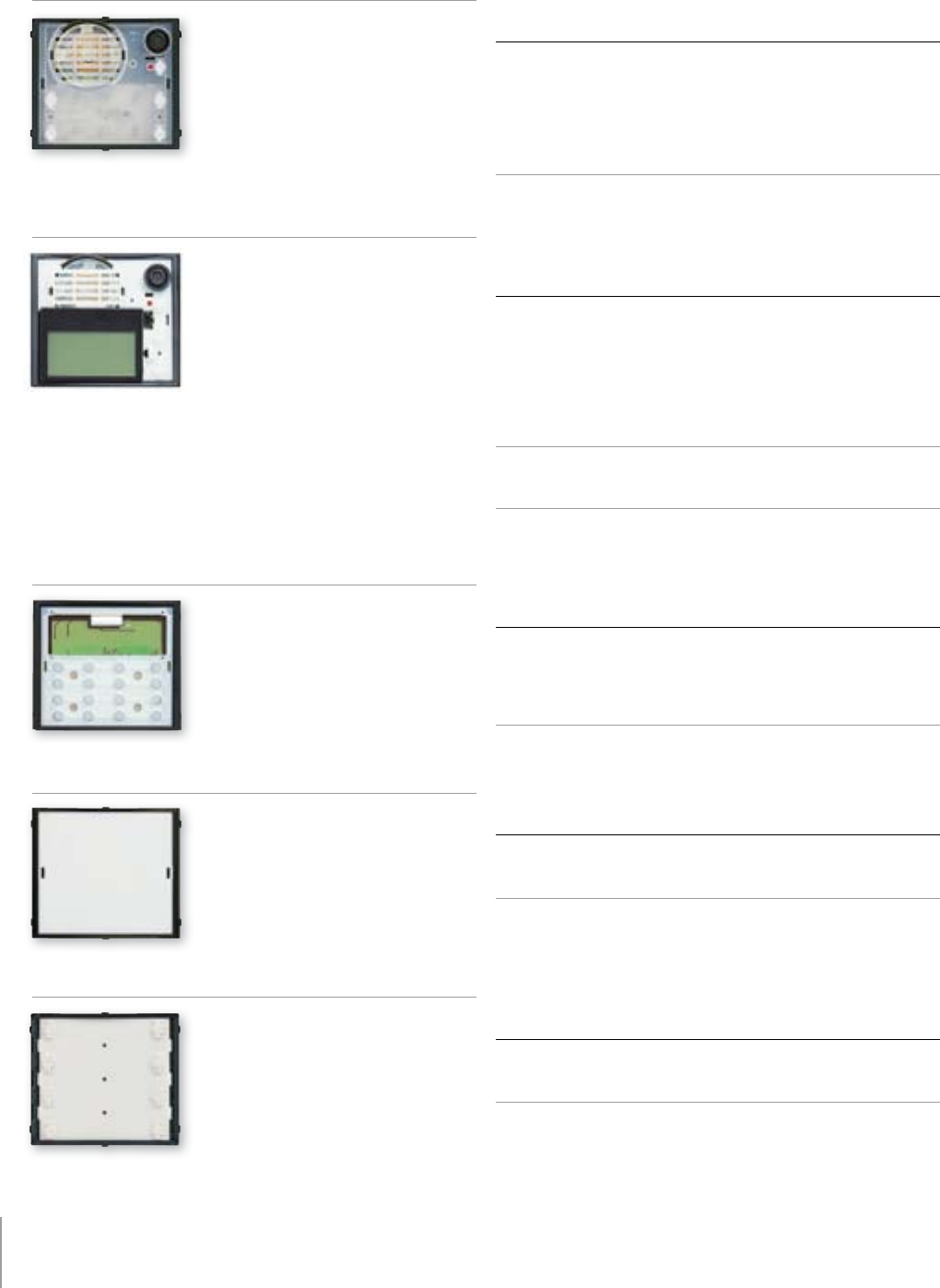

342510

B/W camera module

342550

colour camera module

342630

speaker module with

graﬁ c display for

A/V systems

342600

alphanumeric call

module

342510

342150

speaker module + 2 keys

for audio systems

(max. 26 handsets)

342240

4 key module

342480

8 key module

342170

speaker module + 2 keys

for audio/video systems

342350

speaker module + 4 keys

for audio/video systems

342560

speaker module + 2 keys

with colour camera for

A/V system

342170

342350

342610

numeric keypad module

for direct call

342640

additional alphanumeric

keypad module for speaker

module 342630

342200

nameplate module

342200

332650

code lock module

(it controls 2 relays with

numeric code)

342560

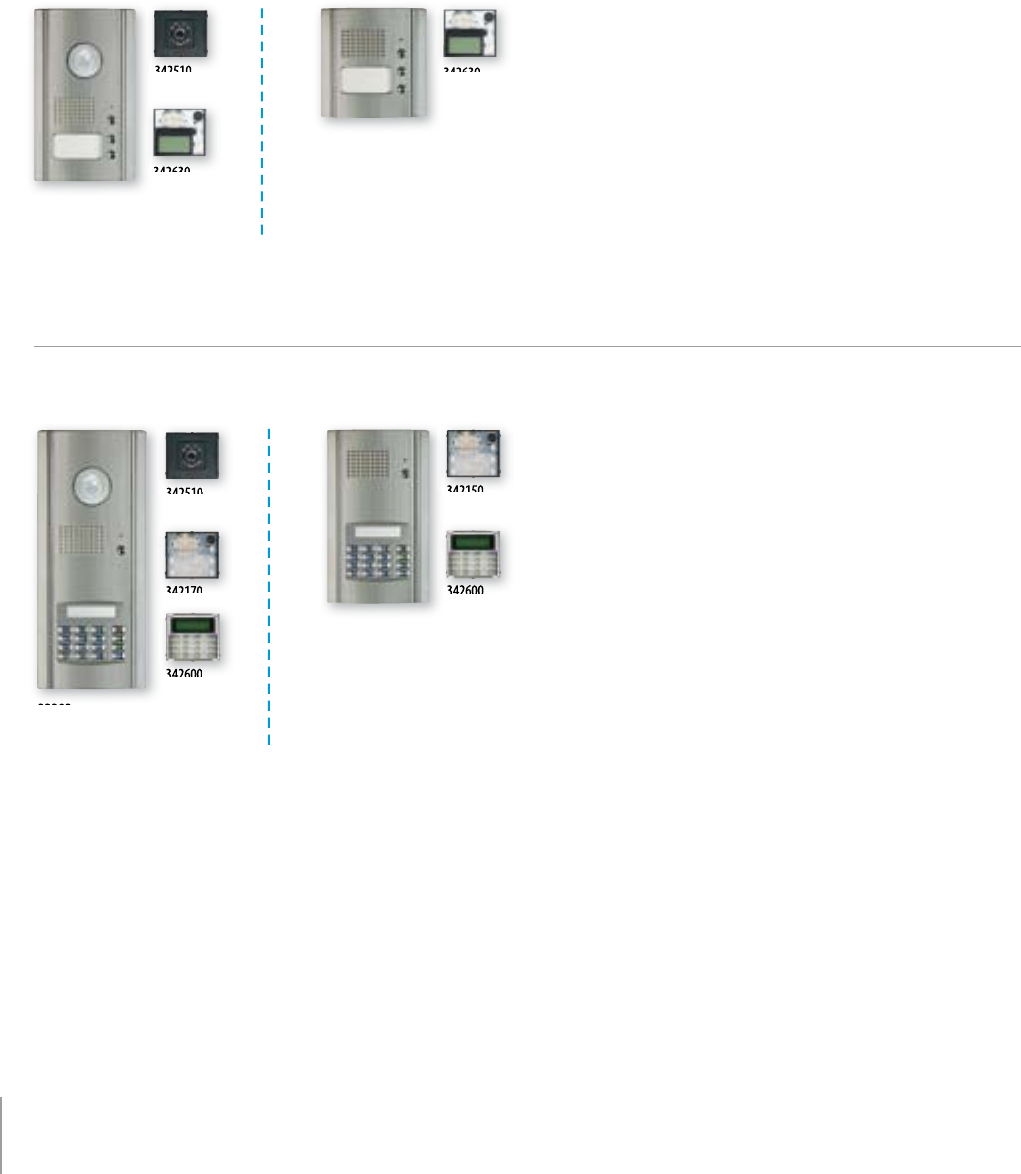

Digital call or pushbutton audio and video entrance panels, for

 ush mounted or wall mounted installation, available in zamak

monobloc and modular version. Guaranteed protection from

rain and water sprays

342600

342630

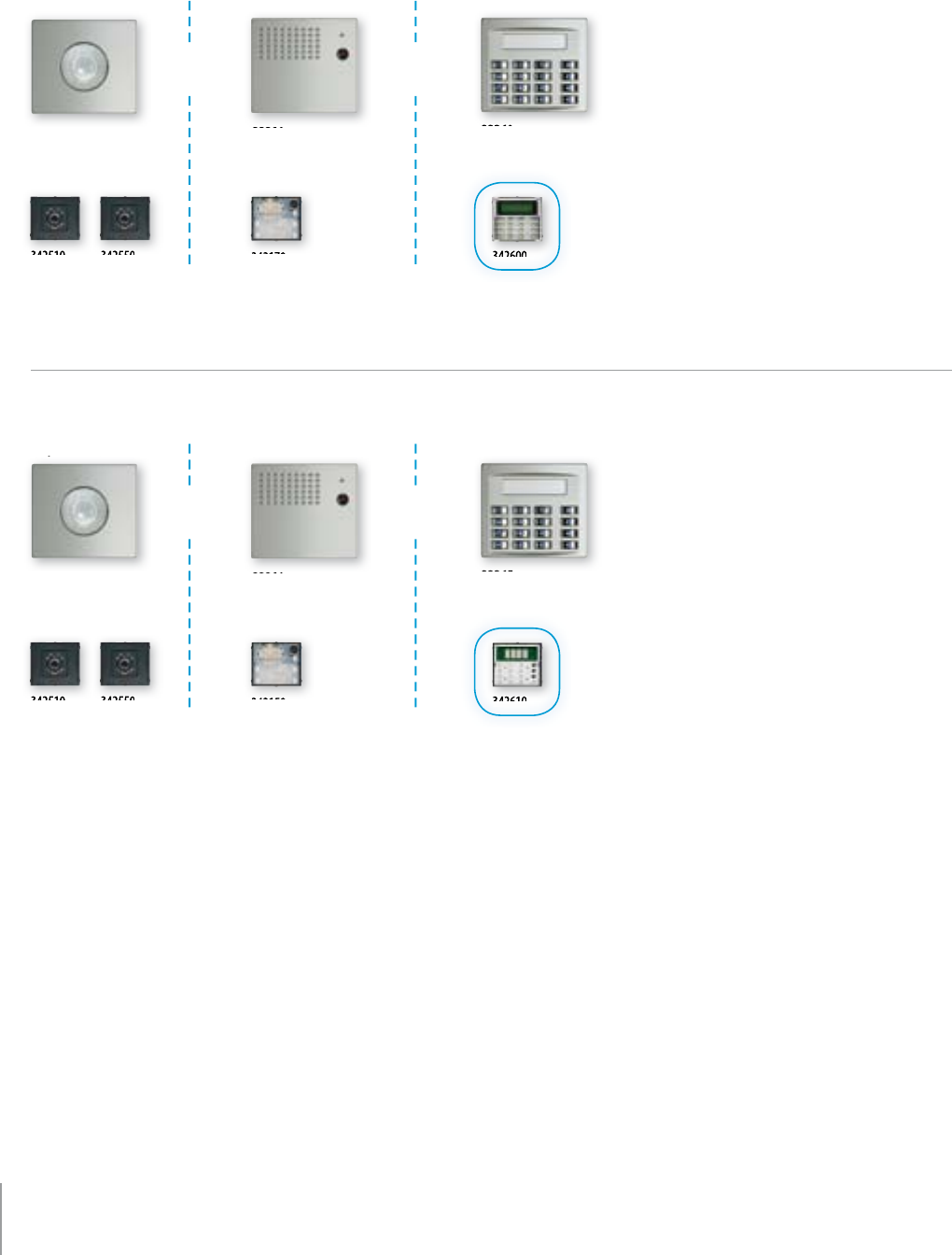

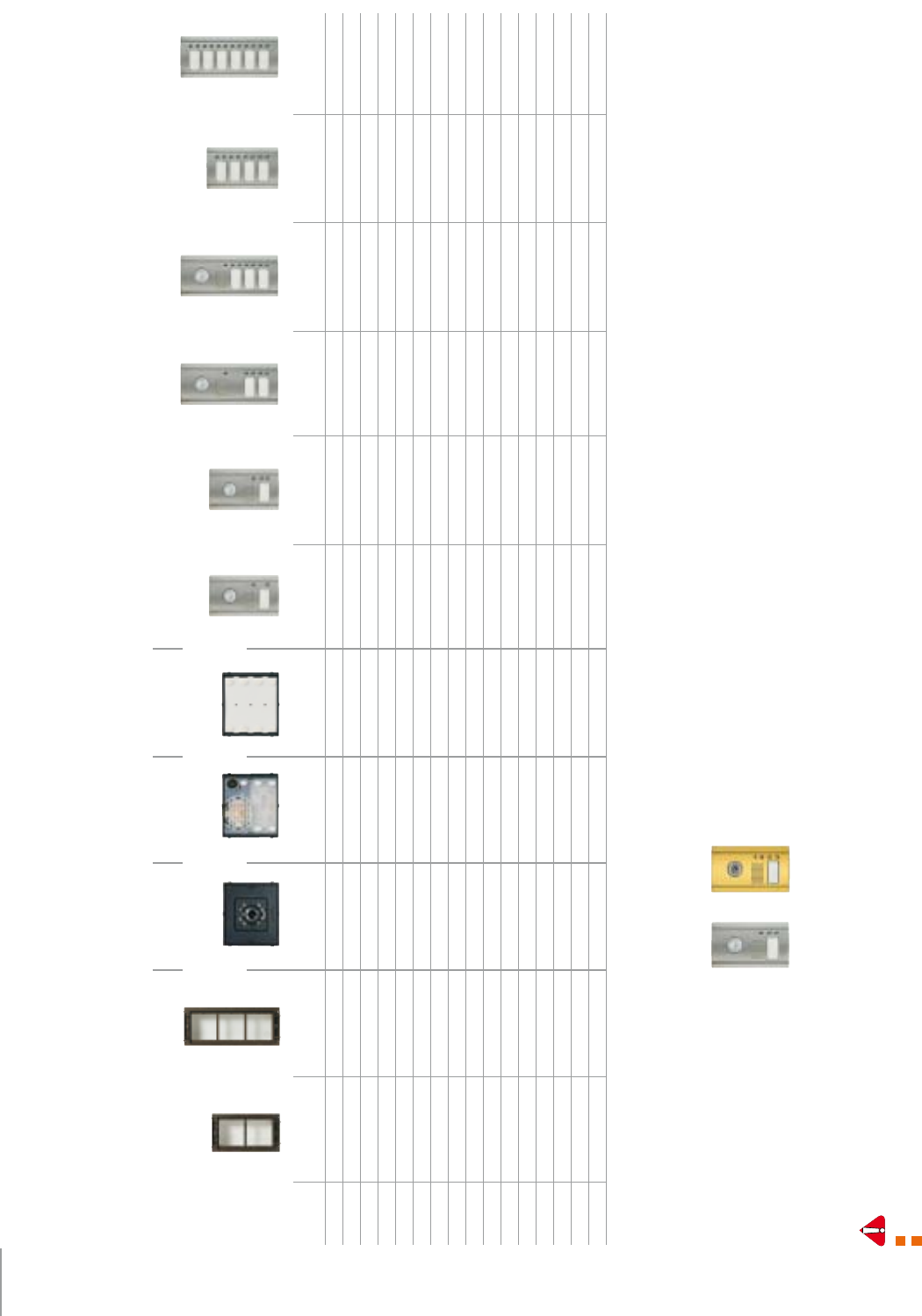

SFERA entrance panels - Modular front covers and surround plates - pushbutton call

PUSHBUTTON CALL

34246..

speaker module with

A/V camera

33248..

8 keys

33265..

alphanumeric call

34247..

speaker module with

A/V camera + 1 key

33220..

nameplate

34248..

speaker module with

A/V camera + 2 keys

33220..

34246..

34247..

34248..

33265..

33210...

speaker module

342150

342240 342240

332650

342280 342280 342200 342510 342550

342150 342150

342170 342170 342170 342560 342560 342560

33212...

speaker module + 2 keys

33223...

3 keys

33224...

4 keys

33246...

6 keys

33211...

speaker module +

1 key

33210...

33211...

33212...

33223...

33224...

33295...

blank

to cover unused

electronic modules

33291...

blanking module for

covering holes (presetting)

33251...

camera

33123...

3 modules (vertical)

33123...

1 Allmetal 2 White 3 Alugray

Replace the dots in the code with the corresponding ﬁ nish number

AVAILABLE FINISHES MODULAR SURROUND PLATES

342170

342150

342170

342150

342170

342150

342170

342560

342240

342280

342200

342510

342550

332650

2 WIRE SYSTEM

Modular surround plates and audio and video front covers, available in ALLMETAL, WHITE and ALUGRAY  nish

33121...

1 module

33122...

2 modules (vertical)

Code lock

To open the entrance door

by entering previously saved

numeric codes.

33234...

speaker module + 4 keys

342350

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

SFERA entrance panels - digital call

342510

342550

33251...

camera

33251...

camera

342510

342550

In case of high number of apartments (normally more than 20-

30 apartments) the traditional entrance panel may pose space

problems.

In this case, it will be possible to replace the traditional

pushbutton call system with a digital call system operating in

two di erent ways:

- with a direct code: the apartment is called by simply entering

the number of the desired resident on a numeric keypad.

- using an address book: the visitor calls the apartment by

selecting the resident’s name from an address book displayed,

as for mobile phones

The SFERA modular range is equipped with modules allowing

one or both types of digital calls.

It can be used to make

the call by selecting the

resident’s name from the

address book.

The direct code call function is possible by

combining the speaker module item 342630

with the additional alphanumeric keypad,

item 342640.

It is recommended that the module is installed

side by side with one or more nameplate

modules (342200+33220.) to obtain the

correspondence between the numbers and

the names of the residents.

SPEAKER MODULE WITH GRAPHIC DISPLAY  342630

SPEAKER MODULE WITH GRAPHIC DISPLAY AND ADDITIONAL KEYPAD 342630 + 342640

342630

33266...

speaker module with graﬁ c display

33266...

speaker module with

graﬁ c display

33266...

(Optional)

+ +

speaker module with graﬁ c display

342630

graﬁ c display

342630

33267..

additionl

alphanumeric call

33267..

342640

342630

SFERA entrance panels - Modular front covers and surround plates - digital call

2 WIRE SYSTEM

342510

342550

33251...

camera

33251...

camera

342510

342550

It can be used to call from the address book,

using a direct code. It enables the user to

release the door lock (entrance) using a

code. It is recommended that the module

is installed side by side with one or more

nameplate modules (342200+3322..) to

obtain the correspondence between the

numbers and the names of the residents.

It can be used to call by using a direct code.

It enables the user to release the door lock

(entrance) using a code.

ALPHANUMERIC CALL MODULE  342600

NUMERIC CALL MODULE  342610

(Optional)

33210...

speaker module

33210...

speaker module

342170

342150

33210...

342170

342150

33260..

alphanumeric call

33265..

numeric call

33260..

33265..

342600

342610

342600

(Optional)

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

Monobloc front covers - pushbutton call

Code lock

33312...

2 keys speaker module

or speaker module with

graﬁ c display

33361...

code lock

33311...

1 key speaker module

33310...

speaker module+10 keys

33361.. 332650

33318...

speaker module+ 8 keys 33384...

speaker module+ camera +

4 keys

33320...

12 keys

33316...

speaker module +

6 keys

33314...

speaker module +

4 keys

33382...

speaker module +

camera + 2 keys

33381...

speaker module +

camera + 1 key

33328...

8 keys

4 Allsteel 5 Allbrass

Replace the dots in the code with

the corresponding  nish number

342150

342170

342150

342170

342150

342170

342240

342150

342170

342150

332650

342240 342240 342240

342240

342510

342550

342170

342240

342510

342170

342510

342550

342510

342550

342170342170

342510

342170

342150 342150

342150

342240 342240 342240

342240

Monobloc zamak audio and video front covers available in ALLSTEEL and ALLBRASS  nish

To open the entrance door by entering

previously saved numeric codes.

ALPHANUMERIC CALL

332650

33386...

speaker module+ camera +

6 keys

342510

342550

342170

342240

342510

342170

33361..

332650

SFERA entrance panels - Monobloc front covers - digital call

2 WIRE SYSTEM

In case of high number of apartments (normally more than 20-

30 apartments) the traditional entrance panel may pose space

problems.

Also SFERA monobloc can be used to make digital calls, in

alternative to the traditional pushbutton calls.

Using the speaker module with display, it is

possible to make calls by selecting the name

of the desired resident from the address book

displayed.

It enables making the call by selecting the

desired resident from an address book that

can be displayed on the display, and/or by

entering the direct code. It enables the user to

release the door lock (entrance) using a code.

SPEAKER MODULE WITH GRAFIC DISPLAY  342630

ALPHANUMERIC CALL MODULE  342600

33393...

fonico + camera +

alphanumeric keypad

33393...

342510

342550

342170

342600

342510

342170

33372...

speaker module +

numeric / alphanumeric call

342150

342170

342150

342600

33382...

speaker module+ camera+2 keys

342510

342550

342510

342630

33312...

342600

342630

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

SFERA vandal-resistant

333714 333914

342630 speaker module

with graﬁ c display

342510 B/W camera

342550 colour camera

NOTE: the vandal-resistant front covers must only be used with the

following modules :

EXAMPLE OF MODULARITY

vandal-resistant front cover

(video)

display glass

speaker module

with graﬁ c display

module-holder

frame

steel ﬂ ush mounted box

camera

module

call forward key

address book scroll key (up)

address book scroll key (down)

speaker module

with graﬁ c display

module-holder

frame

steel ﬂ ush mounted box

camera

module

vandal-resistant front cover

(video)

display glass

address book scroll key (down)

address book scroll key (up)

call forward key

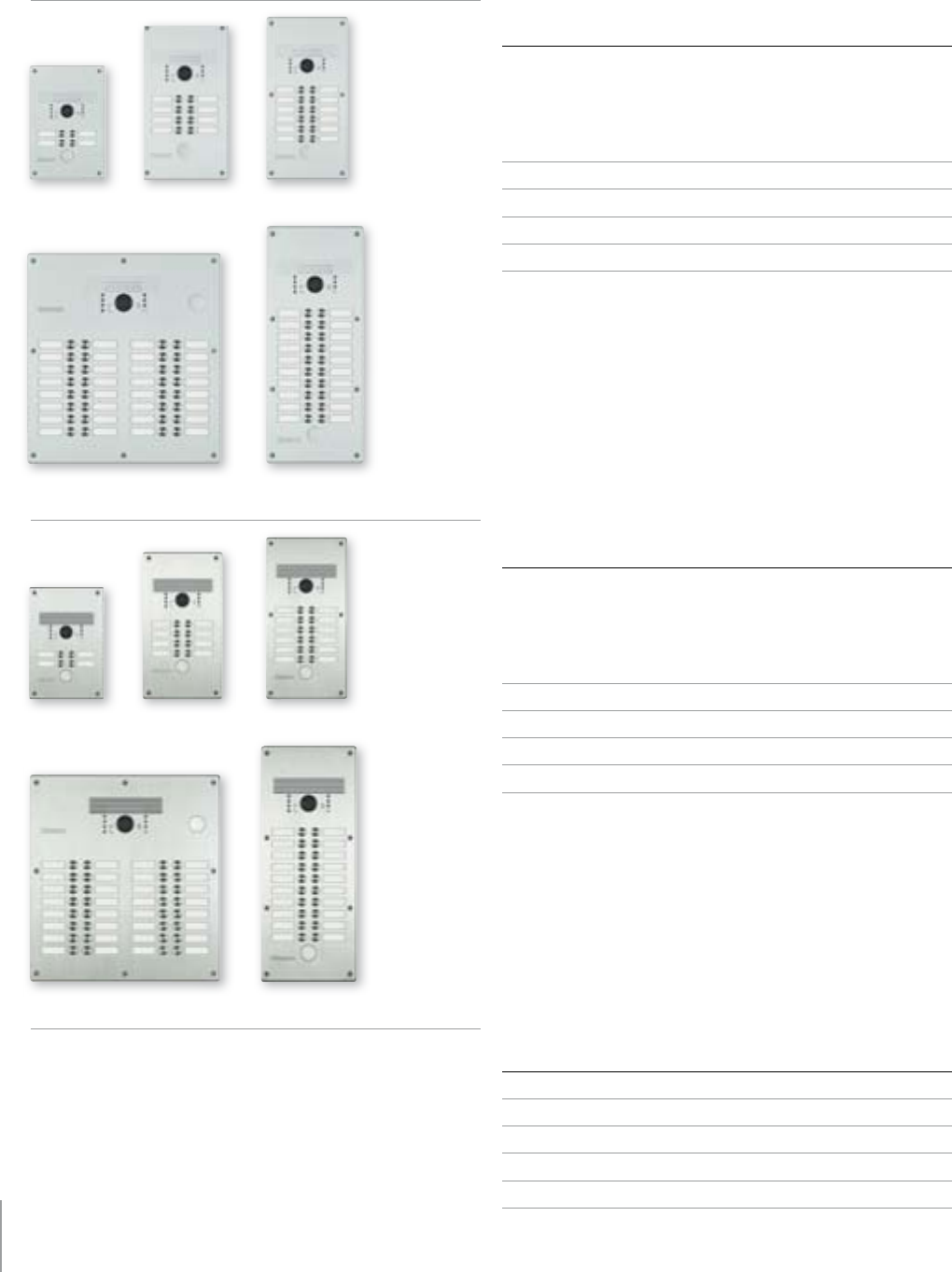

Vandal-resistant entrance panel consisting of a vandal-

resistant stainless steel front cover and  ush mounted box

with tearing protection.

308001

ALUMINIUM FINISH PUSHBUTTON PANEL

Item Description

308001 Monobloc vandal-resistant 2-WIRE video pushbutton panel for 2 and 4

calls with aluminium ﬁ nish. The item code includes: ﬂ ush mounted box,

frame, colour video and audio electronic module, prewired pushbutton

module/s. Presetting for the mounting of transponder reader or

key switch. Backlit call keys. Visual and sound notiﬁ cations of the

communication status for: call active, system busy, door lock status

308002 same as item 308001 but for up to 8 calls

308003 same as item 308001 but for up to 12 calls

308004 same as item 308001 but for up to 20 calls

308005 same as item 308001 but for up to 32 calls

308002 308003

308004308005

STAINLESS STEEL FINISH PUSHBUTTON PANEL

Item Description

308011 Monobloc vandal-resistant 2-WIRE video pushbutton panel for 2 and 4

calls with stainless steel ﬁ nish. The item code includes: ﬂ ush mounted

box, frame, colour video and audio electronic module, prewired

pushbutton module/s. Presetting for the mounting of transponder

reader or key switch. Backlit call keys. Visual and sound notiﬁ cations of

the communication status for: call active, system busy, door lock status

308012 same as item 308011 but for up to 8 calls

308013 same as item 308011 but for up to 12 calls

308014 same as item 308011 but for up to 20 calls

308015 same as item 308011 but for up to 32 calls

WALL MOUNTED BOXES

Item Description

308021 Wall mounted box for pushbutton panels 308001-308011

308022 Wall mounted box for pushbutton panels 308002-308012

308023 Wall mounted box for pushbutton panels 308003-308013

308024 Wall mounted box for pushbutton panels 308004-308014

308025 Wall mounted box for pushbutton panels 308005-308015

308011 308012 308013

308015 308014

Monobloc vandal-resistant pushbutton panels

2 WIRE SYSTEM

Video pushbutton entrance panels for  ush mounted or wall

mounted installation, available in ALUMINIUM and STAINLESS

STEEL  nish. Protection index: IP44.

Protection index against mechanical impact: IK07.

Compatibility with SFERA 2 and 3 modules  ush mounted box

331120 and 331130 in case of building renovation.

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

FLUSH MOUNTED AND WALL MOUNTED BOXES

Item Description

332710 plastic box for ﬂ ush mounted installation

332711 plastic box for wall mounted installation

ELECTRONIC MODULES

Item Description

342702 speaker module with six call keys, microphone sensitivity and speaker

volume adjustment. The system is directly connected to the speaker

module terminal board. The nameplates are lit by 6 green LEDs

342708 video speaker module with black and white camera and four call keys,

IR LED for night viewing included. The viewing angle may be adjusted

by +/-15° both horizontally and vertically. The system is directly

connected to the speaker module terminal board. the nameplates are lit

by 4 green LEDs

342704 pushbutton module with ten call pushbuttons. The connections to the

speaker module are performed using the multicable supplied. The

nameplates are lit by ten green LEDs

SURROUND PLATE AND KEYS

Item Description

332721 aluminium surround plate

332712 narrow key 1 module with name label

332713 wide key 2 modules with name label

332714 2 modules nameplate with label

332715 blanking key (1 module) - blank

342704

332721 332715

332712

332713

332714

342708

342702

332711332710

MINISFERA entrance panels

342704

342708

342702

332713

332714

332715

332712

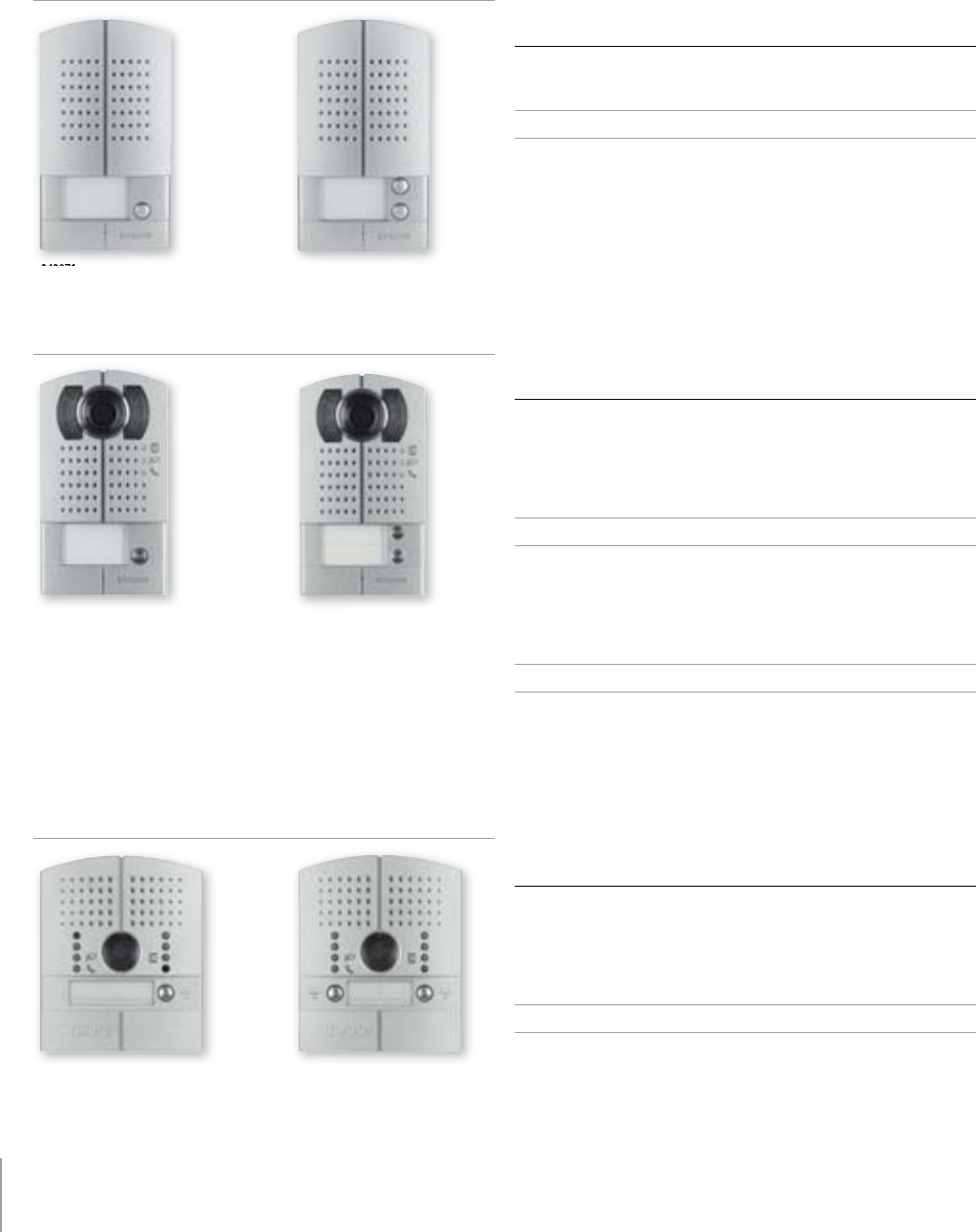

WALL MOUNTED VIDEO ENTRANCE PANELS

Item Description

342981 2-WIRE video pushbutton panel with black and white camera and one

call pushbutton. With white LEDs for illumination of the viewing ﬁ eld in

low light conditions. Communication status audible - light signals for:

call active, system busy, door lock release. Wall mounted installation.

Zamak front cover. Nameplate lit by blue LED. Protection index against

mechanical impact: IK07

342982 same as item 342981, but with 2 call pushbuttons

342991 2-WIRE video pushbutton panel with colour camera and one call

pushbutton. With white LEDs for illumination of the viewing ﬁ eld in low

light conditions. Communication status audible - light signals for: call

active, system busy, door lock release. Wall mounted installation. Zamak

front cover. Nameplate lit by blue LED.

Protection index against mechanical impact: IK07

342992 same as item 342991, but with 2 call pushbuttons

2 WIRE SYSTEM

LINEA 2000 METAL entrance panels

Audio and video entrance panels for one-family and two

family systems for wall mounted, gate post, or  ush mounted

installation.

Protection index against mechanical impact: IK10 (audio EP) –

IK07 (video EP)

342971

342972

WALL MOUNTED AUDIO ENTRANCE PANELS

Item Description

342971 2-WIRE audio pushbutton panel with one call pushbutton for wall

mounted installation. Zamak front cover. Nameplate lit by blue LED.

Protection index against mechanical impact: IK10

342972 same as item 342971, but with 2 call pushbuttons

FLUSH MOUNTED VIDEO ENTRANCE PANELS

Item Description

343001 2-WIRE video pushbutton panel with colour camera and one call

pushbutton. With white LEDs for illumination of the viewing ﬁ eld in low

light conditions. Communication status audible - light signals for: call

active, system busy, door lock release. Wall mounted installation. Zamak

front cover. Nameplate lit by blue LED. Flush mounted box, frame, and

speaker module supplied.

343002 same as item 343001, but with 2 call pushbuttons

343001 343002

342981 342982

342991 342992

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

LINEA 2000 entrance panels

342911

Audio and video entrance panels for one-family and two family

systems for wall mounted or gate post installation.

LINEA 2000 AUDIO ENTRANCE PANELS

Item Description

342911 2-WIRE audio pushbutton panel with one call pushbutton for wall

mounted installation. Aluminium front cover. Nameplate lit by green

LED

342921 same as item 342911, but with 2 call pushbuttons

342921

342951

LINEA 2000 VIDEO ENTRANCE PANELS

Item Description

342951 2-WIRE video pushbutton panel with black and white camera and one

call pushbutton. Wall mounted installation. Aluminium front cover.

Nameplate lit by green LED

342961 same as item 342951, but with 2 call pushbuttons

342961

1. Allmetal 2. White

KEYPAD COLOUR

RANGE

Replace the dots in the

code with the number

corresponding to the

desired colour

3. Alugray

WARNING

Add to the system composition any configurators needed

For pushbutton panels with more than 26 calls see the “2-WIRE TECHNICAL GUIDE”

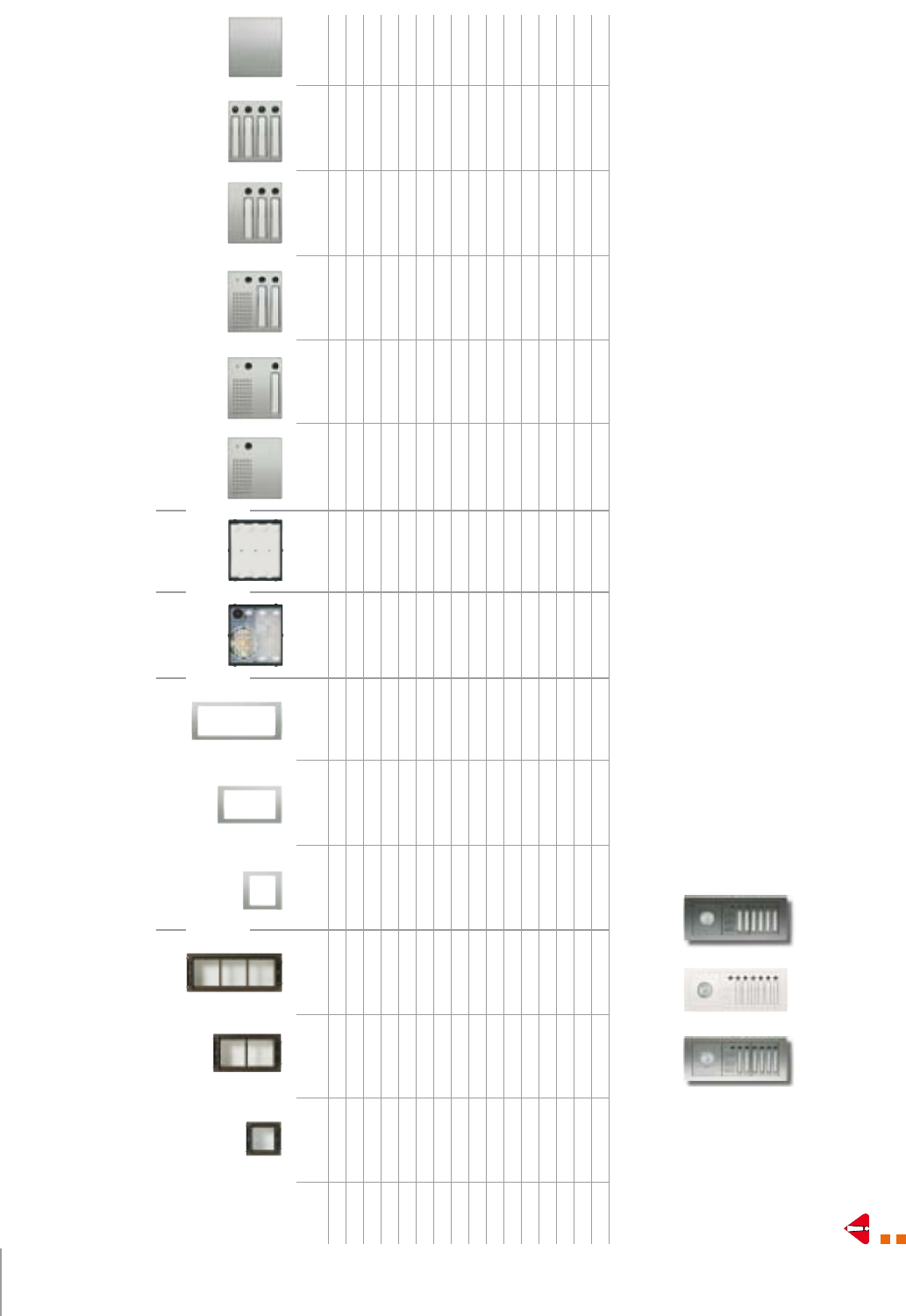

2 WIRE ENTRANCE PANELS  AUDIO SFERA MODULAR

Composition table with speaker module 342170 or 342150

No. of calls 331110 331120 331130 33121. 33122. 33123.

342170

(p. supp. 346000)

342240 33210. 33211. 33212. 33223. 33224. 33291.

342150

(p. supp. 346010)

1 1 1 1 1

2 1 1 1 1

3 1 1 1 1 1 1

4 1 1 1 1 1 1

5 1 1 1 1 1 1

6 1 1 1 1 1 1

7 1 1 1 2 1 1 1

8 1 1 1 2 1 2

9 1 1 1 2 1 2

10 1 1 1 2 1 2

11 2* 2 1 3 1 1 2

12 2* 2 1 3 1 2

13 2* 2 1 3 1 1 2

14 2* 2 1 3 1 1 2

15 2* 2 1 4 1 1 3 1

16 2* 2 1 4 1 4 1

BOX + FRAME SURROUND PLATES SPEAKER

MODULE

MODULAR FRONT COVERS

PUSHBUTTON

MODULE

* Allow for item 346902 for the connection of the modules in different frames.

2 WIRE SYSTEM

System composition table

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

No. of calls 331120 331130 33122. 33123. 342550 (colori) 342170 342240 33251. 33210. 33211. 33212. 33223. 33224. 33291.

342510 (b/n)

1 1 1 1 1 1 1

2 1 1 1 1 1 1

3 1 1 1 1 1 1 1 1

4 1 1 1 1 1 1 1 1

5 1 1 1 1 1 1 1 1

6 1 1 1 1 1 1 1 1

7 2* 2 1 1 2 1 1 1 1

8 2* 2 1 1 2 1 1 2

9 2* 2 1 1 2 1 1 2

10 2* 2 1 1 2 1 1 2

11 2* 2 1 1 3 1 1 1 2 1

12 2* 2 1 1 3 1 1 3 1

13 2* 2 1 1 3 1 1 3 1

14 2* 2 1 1 3 1 1 3 1

15 2* 3 1 1 4 1 1 1 3

16 2* 3 1 1 4 1 1 4

BOX + FRAME SURROUND PLATES SPEAKER

MODULE

VIDEO

MODULE

MODULAR FRONT COVERSKEYPAD

MODULE

2 WIRE ENTRANCE PANELS  VIDEO SFERA MODULAR

Composition table with speaker module 342170 and camera module 342550 colour or 342510 B/W

* Allow for item 346902 for the connection of the modules in different frames.

Replace the dots in the

code with the number

corresponding to the

desired colour

WARNING

Add to the system composition any configurators needed

For pushbutton panels with more than 26 calls see the “2-WIRE TECHNICAL GUIDE”

1. Allmetal 2. White

KEYPAD COLOUR

RANGE

3. Alugray

2 WIRE ENTRANCE PANELS  VIDEO SFERA MODULAR

Composition table with audio/video module 342560

No. of calls 331110 331120 331130 33121. 33122. 33123. 342560 342240 342480 34246. 34247. 34248. 33223. 33224. 33246. 33248.

1 1 1 1 1 1

2 1 1 1 1

3 1 1 1 1 1 1

4 1 1 1 1 1 1

5 1 1 1 1 1 1

6 1 1 1 1 1 1

7 1 1 1 1 1 1

8 1 1 1 1 1 1

9 1 1 1 1 1 1

10 1 1 1 1 1 1

11 1 1 1 2 1 1 1

12 1 1 1 2 1 1 1

13 1 1 1 2 1 1 1

14 1 1 1 2 1 1 1

15 1 1 1 2 1 2

16 1 1 1 2 1 2

17 1 1 1 2 1 2

18 1 1 1 2 1 2

19 2 2 1 3 1 1 2

20 2 2 1 3 1 1 2

21 2 2 1 3 1 1 2

22 2 2 1 3 1 1 2

23 2 2 1 3 1 3

24 2 2 1 3 1 3

25 2 2 1 3 1 3

26 2 2 1 3 1 3

BOX + FRAME

WARNING

Add to the system composition any configurators needed

For pushbutton panels with more than 26 calls see the “2-WIRE TECHNICAL GUIDE”

SURROUND PLATES

1. Allmetal 2. White

KEYPAD COLOUR RANGE

Replace the dots in the code with

the number corresponding to the

desired colour

KEYS MODULEAUDIO/

VIDEO

MODULE

MODULAR FRONT COVERS

3. Alugray

2 WIRE SYSTEM

System composition table

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

WARNING

Add to the system composition any configurators needed

For pushbutton panels with more than 26 calls see the “2-WIRE TECHNICAL GUIDE”

4. Allsteel 5. Allbrass

KEYPAD COLOUR RANGE

Replace the dots in the code with

the number corresponding to

the desired colour

2 WIRE ENTRANCE PANELS  AUDIO SFERA MONOBLOC

Composition table with speaker module 342170 or 342150

No. of calls 331110 331120 331130

342170

(supply 346000)

342240 33311. 33312. 33314. 33316. 33318. 33310. 33328. 33320.

342150

(supply 346010)

1 1 1 1

2 1 1 1

3 1 1 1 1

4 1 1 1 1

5 1 1 1 1

6 1 1 1 1

7 1 1 2 1

8 1 1 2 1

9 1 1 2 1

10 1 1 2 1

11 2* 1 3 1 1

12 2* 1 3 1 1

13 2* 1 3 1 1

14 2* 1 3 1 1

15 2* 1 5 1 1

16 2* 1 5 1 1

BOX + FRAME SPEAKER

MODULE

MONOBLOC FRONT COVERS

PUSHBUTTON

MODULE

* Allow for item 346902 for the connection of the modules in different frames.

2 WIRE ENTRANCE PANELS  VIDEO SFERA MONOBLOC

Composition table with speaker module 342170 and camera module 342550 colour or 342510 B/W

No. of calls 331120 331130 342550 (colour) 342170 342240 33381. 33382. 33384. 33386. 33328. 33320.

342510 (b/w)

1 1 1 1 1

2 1 1 1 1

3 1 1 1 1 1

4 1 1 1 1 1

5 1 1 1 1 1

6 1 1 1 1 1

7 2* 1 1 2 1 1

8 2* 1 1 2 1 1

9 2* 1 1 2 1 1

10 2* 1 1 2 1 1

11 2* 1 1 4 1 1

12 2* 1 1 4 1 1

13 2* 1 1 4 1 1

14 2* 1 1 4 1 1

15 2* 1 1 4 1 1

16 2* 1 1 4 1 1

BOX + FRAME CAMERA

MODULE

PUSHBUTTON

MODULE

SPEAKER

MODULE

MONOBLOC FRONT COVERS

* Allow for item 346902 for the connection of the modules in different frames.

WARNING

Add to the system composition any configurators needed

For pushbutton panels with more than 26 calls see the “2-WIRE TECHNICAL GUIDE”

4. Allsteel 5. Allbrass

KEYPAD COLOUR RANGE

Replace the dots in the code with the number

corresponding to the desired colour

2 WIRE SYSTEM

System composition table

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

WARNING

Add to the system composition any conﬁ gurators needed

For pushbutton panels with more than 16 calls see the “2-WIRE TECHNICAL GUIDE”

* 2-module nameplate with label to be used instead of 2 items 332715

2 WIRE ENTRANCE PANELS  AUDIO MINISFERA

Composition table

FLUSH MOUNTED

OR SURFACE MOUNTED BOX

SURROUND PLATE EXPANSION

MODULE

SPEAKER

MODULE

KEYS

No. of calls 332710 or 332711 332721 342702 342704 332712 332713 332715 332714*

1 1 1 1 1 4 2

2 1 1 1 2 2 1

3 1 1 1 3

4 1 1 1 4 2 1

5 1 1 1 5 1

6 1 1 1 6

7 2 2 1 1 7 2 1

8 2 2 1 1 8

9 2 2 1 1 4 5 2 1

10 2 2 1 1 5 5 1

11 2 2 1 1 6 5

12 2 2 1 1 12 4 2

13 2 2 1 1 13 3 1

14 2 2 1 1 14 2 1

15 2 2 1 1 15 1

16 2 2 1 1 16

2 WIRE ENTRANCE PANELS  VIDEO MINISFERA

Composition table

FLUSH MOUNTEDBOX

OR SURFACE MOUNTED BOX

SURROUND PLATE EXPANSION

MODULE

SPEAKER

MODULE

KEYS

No. of calls 332710 o 332711 332721 342708 342704 332712 332713 332715 332714*

1 1 1 1 1 2 1

2 1 1 1 2

3 1 1 1 3 1

4 1 1 1 4

5 2 2 1 1 5 4 2

6 2 2 1 1 6 2 1

7 2 2 1 1 7

8 2 2 1 1 2 6

9 2 2 1 1 4 5

10 2 2 1 1 10 4 2

11 2 2 1 1 11 3 1

12 2 2 1 1 12 2 1

13 2 2 1 1 13 1

14 2 2 1 1 14

WARNING

Add to the system composition any conﬁ gurators needed

For pushbutton panels with more than 14 calls see the “2-WIRE TECHNICAL GUIDE”

* 2 module nameplate with label to be used instead of 2 items 332715

2 WIRE SYSTEM

System composition table

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

CONTENTS

2 WIRE CATALOGUE  HANDSETS

AXOLUTE Multimedia Touch Screen 32

AXOLUTE Nighter & Whice Video Station 33

AXOLUTE Video Station 33

AXOLUTE Video Display 34

AXOLUTE Etèris Video Display 35

POLYX audio and video 36

PIVOT audio and video 37

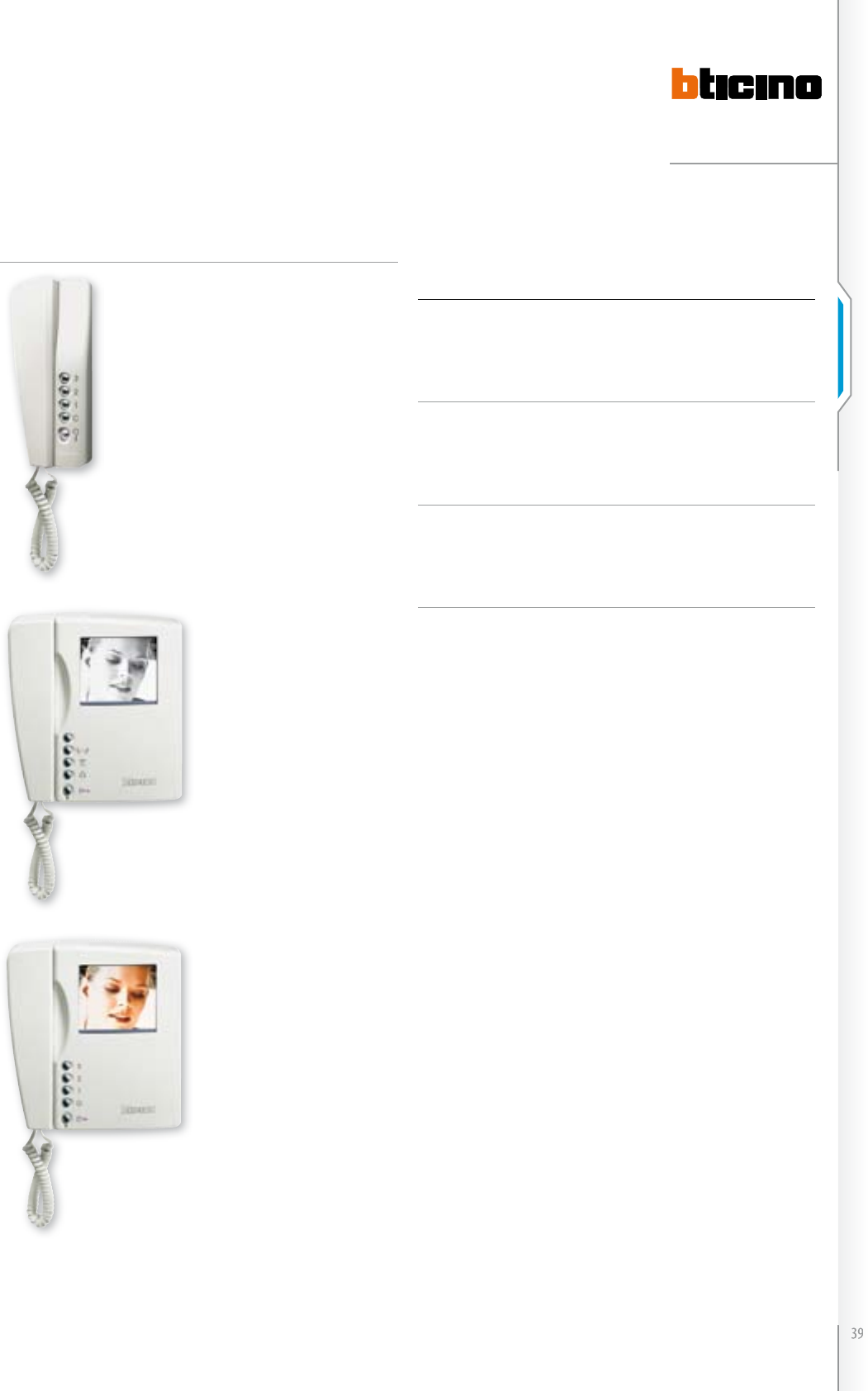

SWING audio and video 39

SPRINT audio 40

Video Switchboard 40

Item Description

HD4690

advanced touch screen handset with 10” 16/9 LCD display for wall

mounted installation. Axolute white ﬁ nish. In addition to the video door

entry system and video monitoring systems functions, it also becomes

- when integrated with a MY HOME home automation system - the

actual control terminal for the whole house. Thanks to the OSD icon

menu, customisable using the PC, it is possible to control and monitor

all the MY HOME home automation functions. It gives the possibility

of displaying videos and photos through the USB ports and SD CARD

included. When connected to a LAN network, it provides access to RSS

services. To be completed with the appropriate surround plate

HC4690 same as item HD4690 - Tech AXOLUTE

HS4690 same as item HD4690 - Anthracite AXOLUTE

Item Description

HA4690XC surround plate in satin-ﬁ nished aluminium

HA4690VBB white surround plate

HA4690LTK Teak surround plate

HA4690VNB Nighter surround plate

HA4690VSW Whice surround plate

MULTIMEDIA TOUCH SCREEN

SURROUND PLATES FOR MULTIMEDIA TOUCH SCREEN

Multimedia

Touch Screen Finishing surround plate supplied

with Touch Screen

HS4690

Multimedia

Touch Screen

assembly

Surround plate

HA4690VSW

HA4690LTK

HA4690XC

HA4690VNB

HD4690 HC4690

HA4690VBB

SURROUND PLATE RANGE

Finishing surround plate supplied

2 WIRE SYSTEM

AXOLUTE Multimedia Touch Screen handset

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

AXOLUTE VIDEO STATION handsets

349320

349321

NIGHTER AND WHICE AXOLUTE VIDEO STATION

Item Description

349320

2-WIRE handsfree video handset for wall mounted installation in Nighter

ﬁ nish. With 8” colour LCD display, backlit capacitive keypad with soft

touch controls and PC customisable OSD navigation icon menu for the

management of the following MY HOME applications: video door entry

system, temperature control, sound system, automation (scenarios) and

anti-intrusion and multimediality. In systems integrated with the sound

system, the VIDEO STATION behaves as an ampliﬁ er, enabling playback

of all audio/video sources connected to the system. Keys available:

navigation, auto-switch on, door lock release, staircase lights, mute,

handsfree/pager connection, and call exclusion.

LED signalling for: call exclusion, door status, and connection.

Firmware update/programming USB port.

It can be integrated with MY HOME, also in combination with the

Multimedia interface, item 3465 - (in this case, allow for a local

video door entry system power supply). Suitable for wall mounted

installation using the special bracket (supplied as standard). It can be

conﬁ gured using physical conﬁ gurators or the TiNighterandWhiceStation

programming and conﬁ guration software (supplied as standard)

349321

same as item 349320 - white

349310

349210

349211

349212

VIDEO STATION

Item Description

349310

2-WIRE handsfree video handset for wall mounted installation.

With 5.6” colour LCD display with PC customisable OSD navigation icon

menu for the management of the following MY HOME applications:

video door entry system, temperature control, sound system,

automation (scenarios) and anti-intrusion. In systems integrated with

the sound system, the VIDEO STATION behaves as an ampliﬁ er, enabling

playback of all audio/video sources connected to the system. Keys

included: navigation, auto-switch on, door lock release, mute function,

handsfree/pager connection, and call exclusion. LED signalling for: call

exclusion, door status, and connection. Firmware update/programming

USB port. Suitable for wall mounted installation using the special

bracket (supplied as standard). It can be conﬁ gured using physical

conﬁ gurators or the TiAxoluteStation programming and conﬁ guration

software (supplied as standard).

To be completed with surround plate

349210 surround plate in satin-ﬁ nished aluminium

349211 Kristall glass surround plate

349212 Teak surround plate

2 WIRE SYSTEM

AXOLUTE VIDEO DISPLAY handsets

349311349313

349312

VIDEO DISPLAY

Item Description

349313 2-WIRE handsfree video handset for ﬂ ush mounted installation - white

Axolute. With 2.5” colour LCD display with PC customisable OSD

navigation icon menu for the management of the following MY HOME

applications: video door entry system, temperature control, sound

system, automation (scenarios) and anti-intrusion. Keys included:

navigation, auto-switch on, door lock release, handsfree connection.

LED signalling for: call exclusion, door status, and connection. Firmware

update/programming USB port. Suitable for ﬂ ush mounted installation

using item 506 boxes. To be completed with ﬁ nishing plate (all those

suitable for item 506E of the AXOLUTE series). It can be conﬁ gured

using physical conﬁ gurators or the TiAxoluteDisplay programming and

conﬁ guration software (supplied as standard).

349311 same as item 349313 - Tech AXOLUTE

349312 same as item 349313 - Anthracite AXOLUTE

349319

349414349413 349415

349414

349413

349415

Item Description

349319 AXOLUTE VIDEO DISPLAY video handset table-top base. It can be

connected to the system using the cable item 336813 and an 8 pole

socket (item 349413, item 349414, item 349415). To be completed with

the rectangular front cover plates for item 506E of the AXOLUTE civil

series

VIDEO DISPLAY TABLETOP BASE

Item Description

349413 Axolute 8 pole plug for table-top connection of the AXOLUTE VIDEO

DISPLAY video handsets. White

349414 Axolute 8 pole plug for table-top connection of the AXOLUTE VIDEO

DISPLAY video handsets. Tech

349415 Axolute 8 pole plug for table-top connection of the AXOLUTE VIDEO

DISPLAY video handsets. Anthracite

TABLETOP INSTALLATION 8 POLE PLUG

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

AXOLUTE ETÈRIS VIDEO DISPLAY handsets

349340

349243 349241

INSTALLATION DIAGRAM

349242

349340

HW4826HC

HW4826HS

HW4826HD

HW4826HC

HW4826HS

PB528W

(116.5x116.5x58 mm)

528W

(128.5x128.5x58 mm)

349243

349241

349242

VIDEO DISPLAY ETÈRIS

Item Description

349340

2-WIRE handsfree video handset for ﬂ ush mounted installation. With

2.5” colour LCD display with PC customisable OSD navigation icon menu

for the management of the following MY HOME applications: video

door entry system, temperature control, sound system, automation

(scenarios) and anti-intrusion. Keys included: navigation, auto-switch

on, door lock release, handsfree connection. LED signalling for: call

exclusion, bells, door status, and connection. Firmware update/

programming USB port. Flush mounted installation using the speciﬁ c

boxes, item 528W (masonry) and item PB528W (plasterboard). To be

completed using the front covers and the ﬁ nishing cover plates, items

HW4826HC, HW4826HS, HW4826HD. It can be conﬁ gured using physical

conﬁ gurators or the TiAxoluteDisplay programming and conﬁ guration

software (supplied as standard)

349243 white ﬁ nish front cover plate

349241 Tech ﬁ nish front cover plate

349242 Anthracite ﬁ nish front cover plate

Flush mounted box (wall)

Plasterboard box

Electronic module

Front cover plate

Surround plate

2 WIRE SYSTEM

POLYX audio and video handsets

344082

POLYX AUDIO

Item Description

344082

wall mounted 2-WIRE handsfree audio handset. Performs all the

traditional door entry system functions. Keys available: entrance

panel/cycling activation, door lock release, staircase light switching

on, and 4 programmable keys, which operation is deﬁ ned during the

conﬁ guration procedure. Conﬁ guration through physical connection

of the conﬁ gurators. Wall ﬁ xing bracket supplied. Speciﬁ c audible and

visual signals mean that it is also suitable for use by disabled people

POLYX VIDEO

Item Description

344192

wall mounted 2-WIRE handsfree video handset with 3.5” colour LCD

display. Performs all the traditional video door entry system functions.

Keys available: entrance panel/cycling activation, door lock release,

staircase light switching on, and 4 programmable keys, which operation

is deﬁ ned during the conﬁ guration procedure. Conﬁ guration through

physical connection of the conﬁ gurators. Wall ﬁ xing bracket supplied.

Speciﬁ c audible and visual signals mean that it is also suitable for use by

disabled people

344182

same as item 344192 but with integrated inductive teleloop module

344192

344182

344163

POLYX MEMORY DISPLAY AND TELELOOP MODULE

Item Description

344163 wall mounted installation 2-WIRE handsfree video handset with audio

and video memory. With 3.5” colour LCD display with PC customisable

OSD navigation icon menu for the management of the following MY

HOME applications: video door entry system, temperature control,

sound system, scenarios and anti-intrusion. With video door entry

system answering machine with call memory function. LED signalling

for: call exclusion, door status, connection with entrance panel, and

answering machine status. Suitable for wall mounted installation using

the special bracket (supplied as standard). Conﬁ guration using the

physical conﬁ gurators or the TiPolyxMemoryDisplay software supplied

as standard with the product

344165 2-WIRE inductive TELELOOP module to be used with the Polyx Memory

Display video handset, to enable use by people wearing hearing aids

(ﬁ tted with T selector). The module must be conﬁ gured using the

same address (N) of the associated handset. Wall mounted installation

without the need of accessories

344165

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

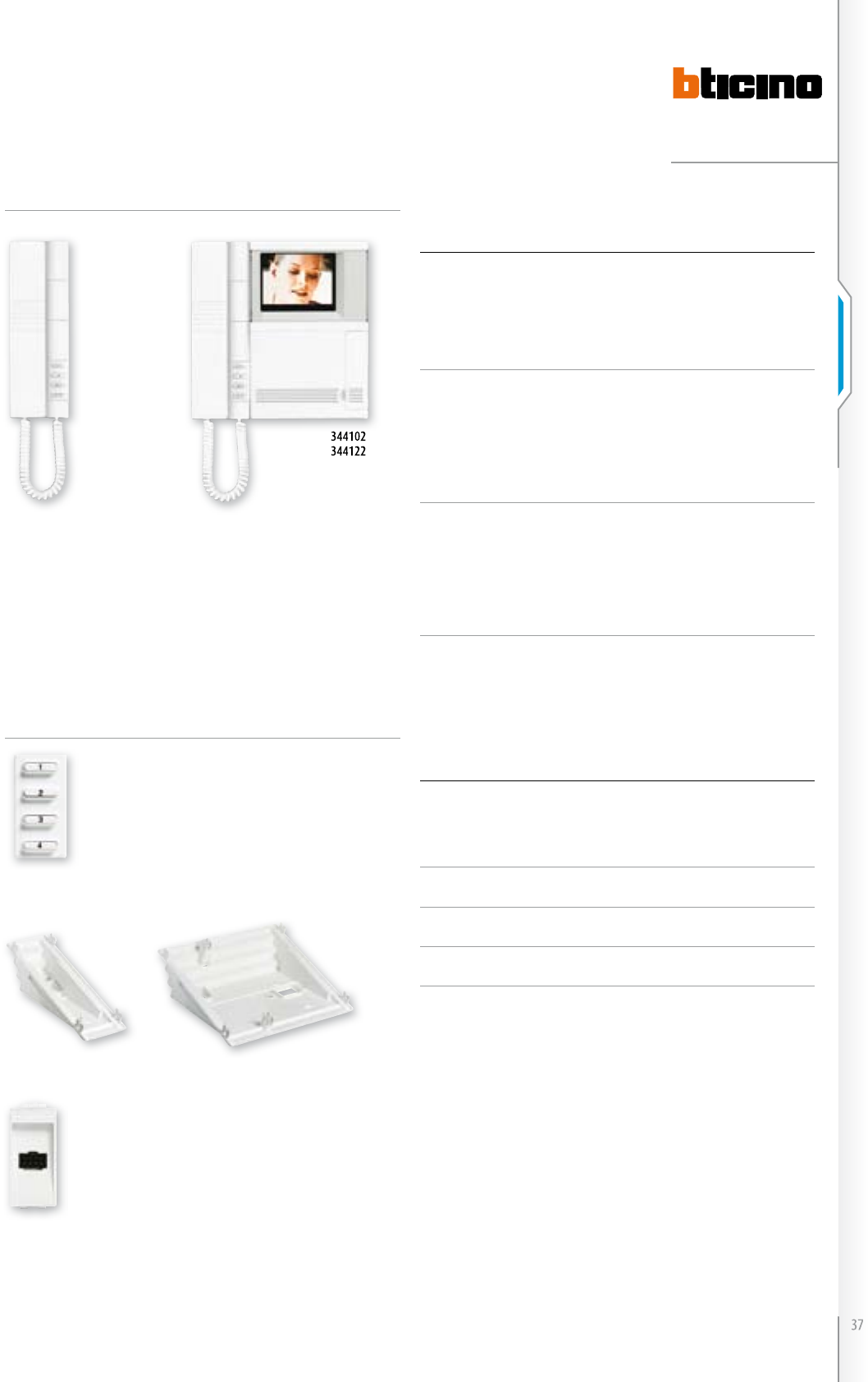

PIVOT audio and video handsets

PIVOT AUDIO AND VIDEO HANDSET

Item Description

344032 2-WIRE audio handset for wall, table-top and ﬂ ush mounted

installation (using the appropriate MULTIBOX accessories). Keys

available: door lock release, staircase light switching on, and generic

actuation. Bell volume adjustable on 3 levels: high, medium and

disabled (this condition is signalled by a ﬂ ashing red LED). With

conversation secrecy function. White. Wall ﬁ xing bracket supplied. It can

be ﬁ tted with a 4 key module, item 346812

344102 2-WIRE video handset with black and white 4” ﬂ at monitor. Wall, table-

top, and ﬂ ush mounted installation (using the appropriate MULTIBOX

accessories). Keys available: entrance panel/cycling activation, door lock

release, staircase light switching on, and generic actuation. Bell volume

adjustable on 3 levels: high, medium and disabled (this condition is

signalled by a ﬂ ashing red LED). With conversation secrecy function.

White. Wall ﬁ xing bracket supplied. It can be ﬁ tted with a 4 key module,

item 346812

344122 2-WIRE video handset with colour 4” TFT monitor. all, table-top,

and ﬂ ush mounted installation (using the appropriate MULTIBOX

accessories). Keys available: entrance panel/cycling activation, door lock

release, staircase light switching on, and generic actuation. Bell volume

adjustable on 3 levels: high, medium and disabled (this condition is

signalled by a ﬂ ashing red LED). With conversation secrecy function.

White. Wall ﬁ xing bracket supplied. It can be ﬁ tted with a 4 key module,

item 346812

344032 344102

344122

PIVOT HANDSET ACCESSORIES

Item Description

346812 additional 4 key module (optional) for PIVOT audio and video handsets.

It gives the possibility of controlling and performing additional

functions, such as: activation of lights, door locks, and scenarios,

intercom calls, direct activation of the entrance panels. It requires

conﬁ guration using physical conﬁ gurators. White

337102 PIVOT handset table-top installation support. It can also be used for

tilted wall mounted installation. White

337122 PIVOT video handset table-top installation support. It can also be used

for tilted wall mounted installation. White

336982 LIGHT series 8-pole socket for table-top installation of PIVOT handsets.

White

337102 337122

346812

336982

344102

344122

2 WIRE SYSTEM

MULTIBOX accessories for PIVOT handsets

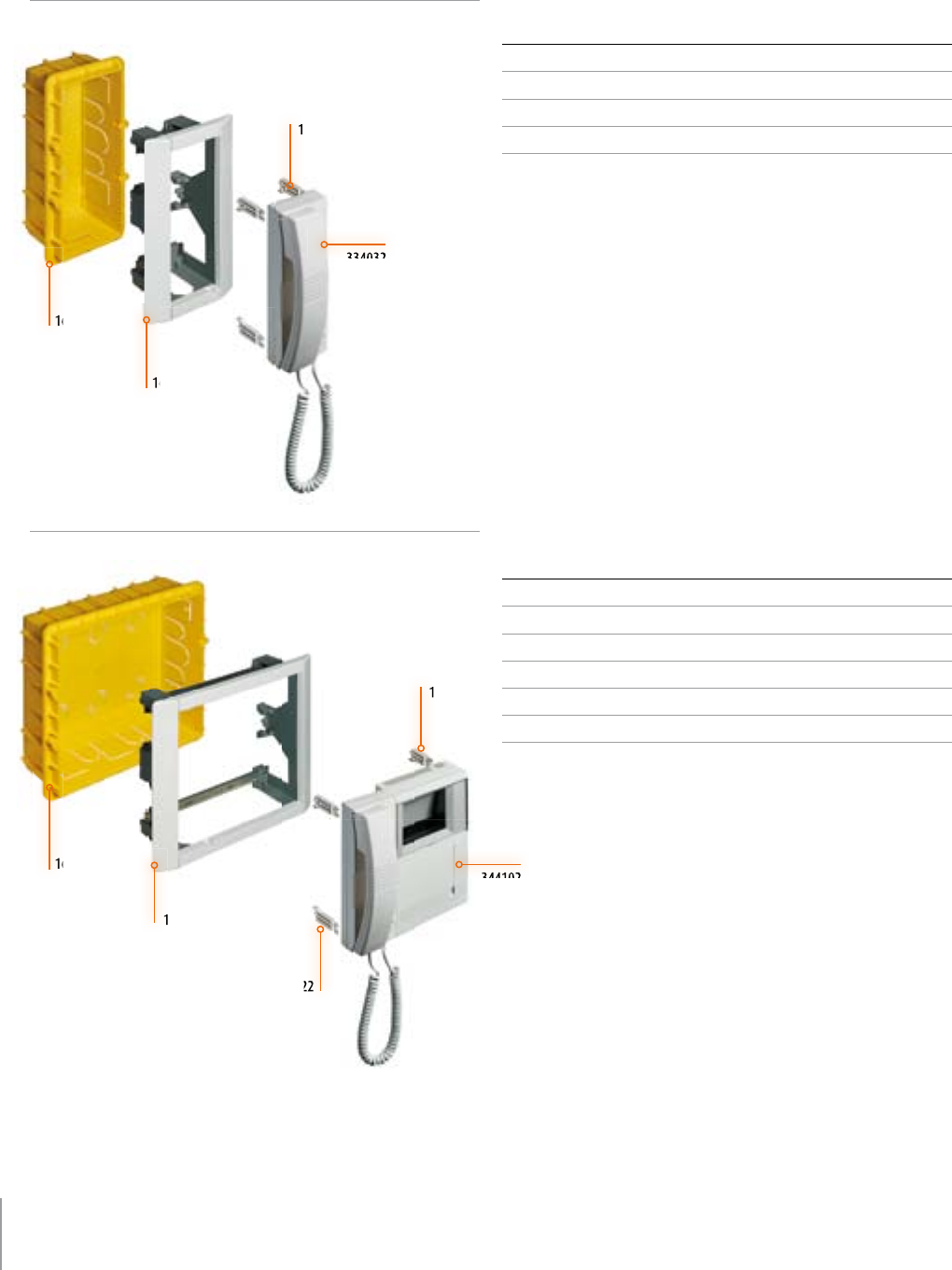

MULTIBOX INSTALLATION OF THE AUDIO HANDSET

Item Description

16101

ﬂ ush mounted box

16101LT installation kit with white lateral surround plates

16122 no. 4 white ﬁ xing supports

344032 PIVOT audio handset

MULTIBOX INSTALLATION OF THE VIDEO HANDSET

Item Description

16103

ﬂ ush mounted box

16103LT installation kit with white lateral surround plates

16121 no. 4 white ﬁ xing supports

16122 no. 4 white ﬁ xing supports

344102 b/w PIVOT video handset

344122 colour PIVOT video handset

16101

16101LT

16122

334032

Audio handset

Video handset

16101

16101LT

16122

334032

16103

16103LT

16121

16122

344102

344122

344102

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

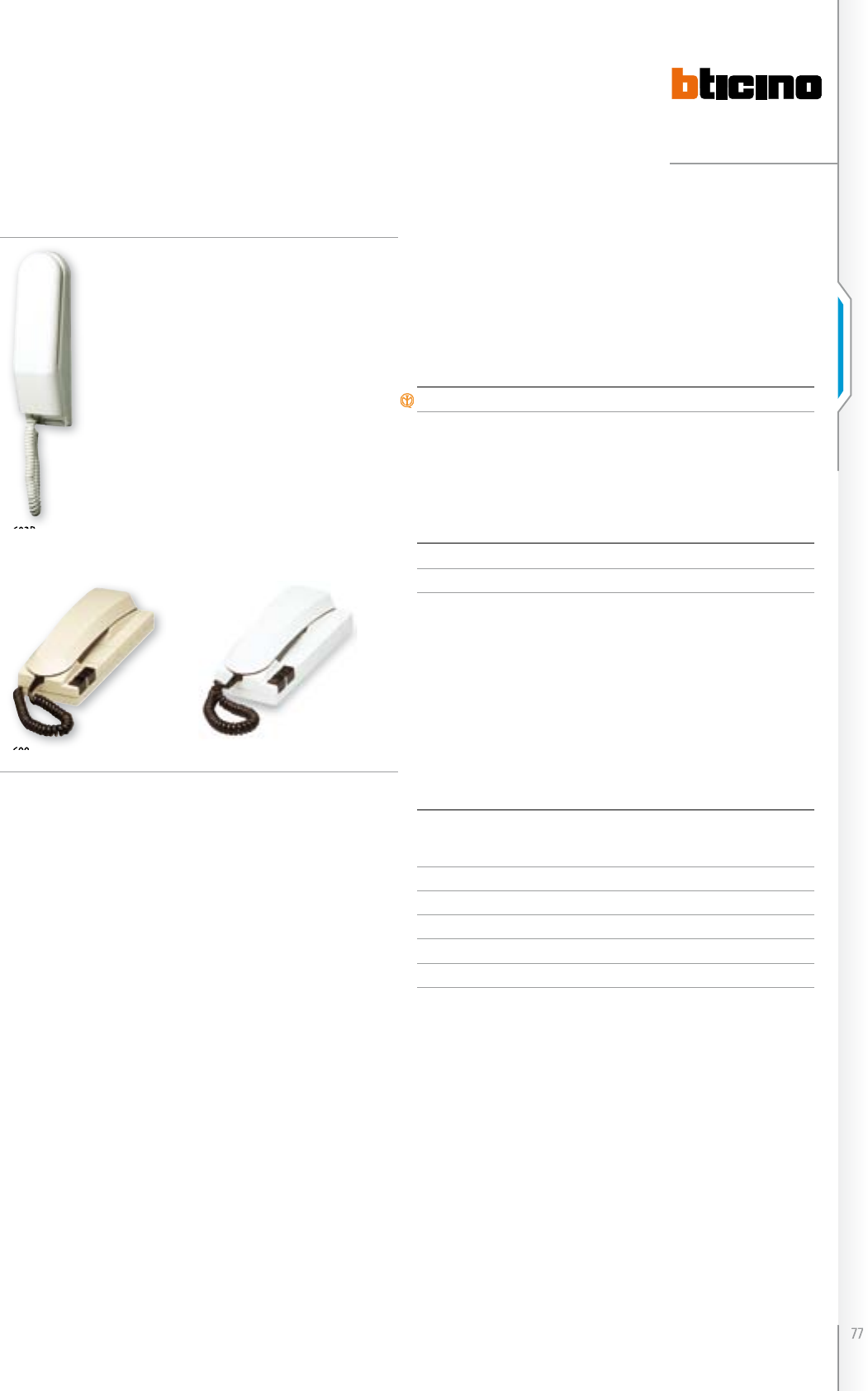

SWING audio and video handsets

SWING AUDIO AND VIDEO HANDSETS

Item Description

344704 2-WIRE audio handset for wall mounted installation. With door lock

release key and 4 programmable keys (0-1-2-3), which operating mode

is set through appropriate conﬁ guration procedure. The volume of the

bell can be adjusted, or the bell may be disabled. Conversation secrecy

function, oﬃ ce function, and door lock release (signalling through

appropriate LED). White. Wall ﬁ xing bracket supplied

344832 2-WIRE basic video handset with black and white 4” monitor. Wall

mounted installation. With the following keys for the video door entry

system functions: door lock release, entrance panel/ camera cycling

activation, staircase light switching on, and intercom. The volume of the

bell can be adjusted, or the bell may be disabled. Call secrecy function

and door status function also available. Wall ﬁ xing bracket supplied

344824 2-WIRE video handset with colour 4” TFT monitor. With door lock release

key and 4 programmable keys (0-1-2-3), which operating mode is set

through appropriate conﬁ guration procedure. The volume of the bell

can be adjusted, or the bell may be disabled. Conversation secrecy

function, oﬃ ce function, and door lock release (signalling through

appropriate LED). White. Wall ﬁ xing bracket supplied

344832

(BASIC B/W monitor)

344824

(colour monitor)

344704

2 WIRE SYSTEM

SPRINT audio handsets

SPRINT HANDSETS

Item Description

344202 2-WIRE audio handset (WITHOUT the possibility of ﬁ tting with

accessories) for audio systems. Wall mounted installation. With door

lock release key. White

344212 2-WIRE audio handset (WITH the possibility of ﬁ tting with accessories)

for audio systems and mixed audio/video systems. Wall mounted or

table-top installation (using the 337242 support). With door lock

release key and auxiliary functions key. Preset for call to the ﬂ oor

function. It can be accessorised with additional keys and call exclusion

card 346800. Bell volume adjustable on 3 levels. White

344202 344212

Item Description

346310 switchboard for 2-WIRE audio and video systems. Access to various

services (video door entry system functions, door lock and/or stair light

management, and monitoring of apartment alarms) directly from the

keyboard, or using the intuitive menu icons. The switchboard is supplied

with built-in table top support and has a 7” colour LCD display, receiver

and handsfree, dedicated keys for the main functions, and conﬁ gurable

keys. Programming can be performed directly from the device, or using

a PC with the software (supplied as standard)

336982 8-way socket for switchboard table top installation – LIGHT ﬁ nish

336813 AMP – RJ cable for switchboard table top installation

SWITCHBOARD

346310

Colour video switchboard

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

CONTENTS

2 WIRE CATALOGUE  SYSTEM ACCESSORIES

Power supplies 42

Video mixers 42

System interfaces 43

Interfaces with other BTicino systems 43

DIN actuators 43

BASIC housing devices 44

Wiring accessories 44

Cable 45

Con gurators 45

Melodic bells and extra bells 46

2-WIRE outdoor and indoor cameras 46

Software switchboard 47

2 WIRE SYSTEM

DIN auxiliary devices

346000 ¬

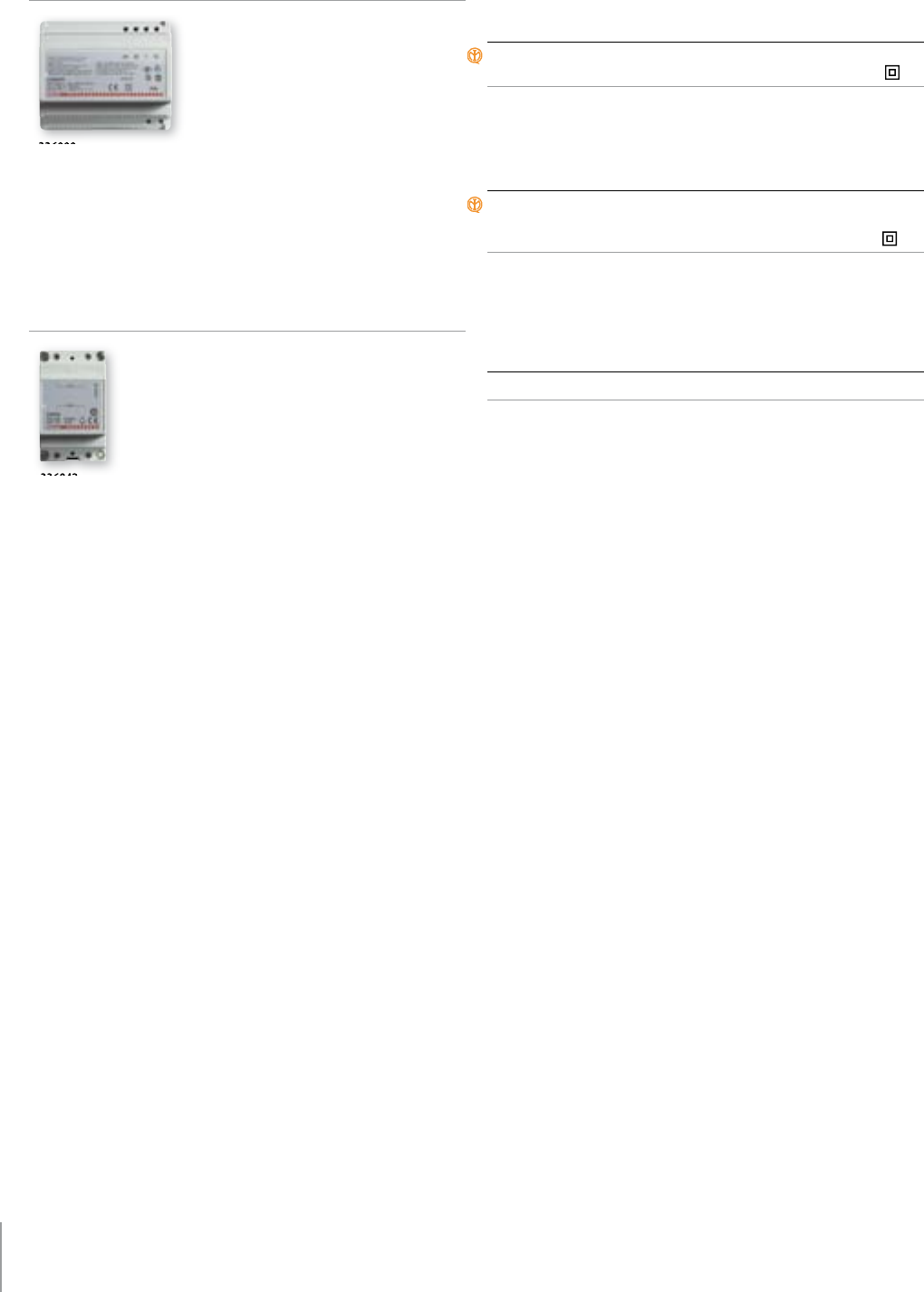

POWER SUPPLIES

Item Description

346000 2-WIRE audio and video system power supply with 8 DIN modular

housing. Power supply 230 Vac @ 50-60 Hz. On the output it supplies

27 Vdc continuous low voltage, with a maximum current of 1.2 A.

It’s electronically protected (without fuses) against short circuit and

overload. It’s a SELV double insulation safety device

346010 2-WIRE audio system power supply with 6 DIN modular housing.

Power supply 230 Vac @ 50-60 Hz. On the output it supplies 27 Vdc

continuous low voltage, with a maximum current of 250 mA. It’s

electronically protected (without fuses) against short circuit and

overload. It’s a SELV double insulation safety device

346030 mini power supply with integrated video adapter for small 2-WIRE

video systems (intercom). 2 DIN modular housing. Power supply

230 Vac @ 50-60 Hz. On the output it supplies 27 Vdc continuous low

voltage, with a maximum current of 600 mA. It’s protected on the PRI

side (with fuses) against short circuit and overload. It’s a SELV double

insulation safety device

346020 additional power supply used for the local power supply of preset

handsets and entrance panels. 2 DIN modular housing. Power supply

230 Vac @ 50-60 Hz. On the output it supplies 27 Vdc continuous low

voltage, with a maximum current of 600 mA. It’s protected on the PRI

side (with fuses) against short circuit and overload. It’s a SELV double

insulation safety device

SELV 346010 ¬SELV

346030 ¬SELV 346020 ¬SELV

F441

F441M

F441

346830

VIDEO MIXERS

Item Description

346830 video adapter with 2 DIN modular housing. For connecting 3 BUS to the

system. It is therefore possible to install systems with 2 video entrance

panels and 1 riser, as well as systems with one video entrance panel

and 2 risers. The device must be used with system power supply, item

346000

F441 audio/video node with 2 DIN modular housing preset with 4 input

clamps and 4 output clamps. It can be used for connecting up to 4

source device posts (entrance panels or cameras) on the input and up

to 4 2-wire video risers on the output. The device must be used with

system power supply item 346000. It must be used in alternative to the

audio/video adapter, item 346830

F441M multichannel matrix with 10 DIN modular housing. Preset for the

connection of video door entry system entrance panels, cameras and

sound system sources on the input, and entrance panels and ampliﬁ ers

on the output. Four inputs are for entrance panels/cameras, and 4 for

sound system sources. It enables to create multichannel sound system.

The device must be used with system power supply item 346000. Within

the systems, it replaces the video adapter, item 346830, and the audio/

video node, item F441

346010

SELV

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

346850

346851

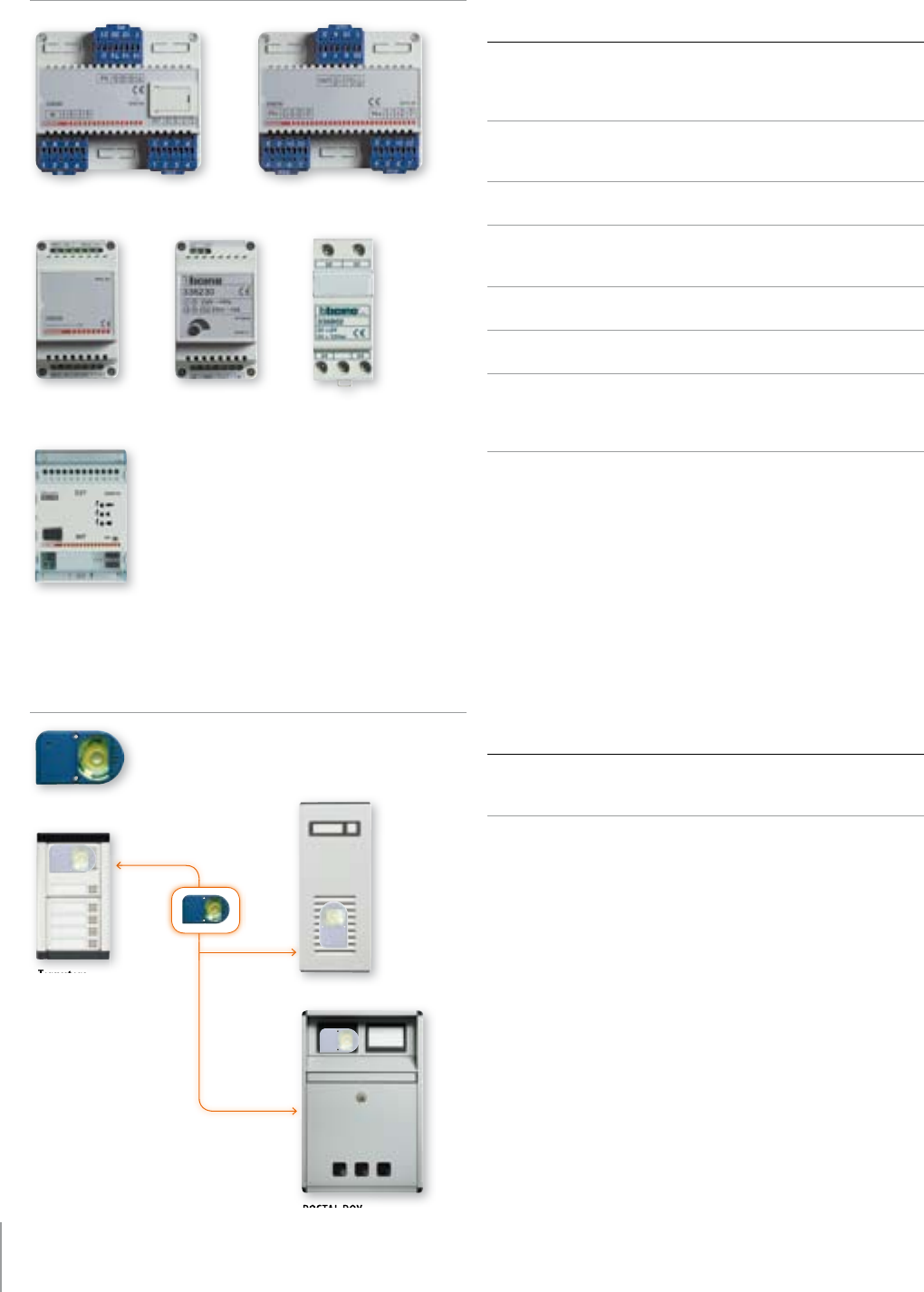

SYSTEM INTERFACES

Item Description

346850 apartment interface in 4 DIN modular housing. It can be used to

interface to a 2-wire riser a dedicated apartment video door entry

system with local video monitoring system, sound system, and

MYHOME applications control. The device must be conﬁ gured using

physical conﬁ gurators

346851 system expansion interface with modular 4 DIN housing. It enables

doubling of the length of the entrance panel - handset line, to create

independent audio risers, and to expand the range or functions of

the apartment system. The device must be conﬁ gured using physical

conﬁ gurators

INTERFACES WITH OTHER BTICINO SYSTEMS

Item Description

346890 2-WIRE - IP interface with 10 DIN modular housing. Thanks to the

creation of an IP backbone with 2-wire risers, it gives the possibility of

installing very large mixed 2-wire/IP systems with a high number of

devices. The device must be conﬁ gured using physical conﬁ gurators, or

the software supplied

346810 2-WIRE - PABX interface with 3 DIN modular housing. For interfacing

the 2-wire audio system with PABX 335818 and 335828 telephone

switchboards

346150 8/2-WIRE interface with 6 DIN modular housing. For installing mixed

video door entry systems (digital 8-wire backbone/2-WIRE risers). The

device must be conﬁ gured using physical conﬁ gurators

349410 analogue/2-WIRE interface with 4 DIN modular housing. For interfacing

an analogue riser, 8-wire digital, audio TERSYSTEM, VIDEOPORTER 2000

to a dedicated apartment 2-wire video door entry system, with cameras

and MY HOME applications control

346890 346810

346150 349410

346200 346230 346260

DIN ACTUATORS

Item Description

346200 relay actuator with 4 DIN modular housing. it can be used for switching

the lights on, opening the gates, repeating calls on bells (MOD=SLA), or

for controlling other devices using the video handsets. The device must

be conﬁ gured using physical conﬁ gurators

346230 door lock relay actuator with 2 DIN modular housing. For the power

supply and activation of an electrical door lock. The device must be

conﬁ gured using physical conﬁ gurators

346260 timed door lock relay actuator with 4 DIN modular housing. It can

be used for switching the lights on, opening gates, or manage

electromagnetic door locks, timed door opening, and door lock status

(with NC contact). The device must be conﬁ gured using physical

conﬁ gurators

2 WIRE SYSTEM

System accessories

346841

347400

346833

BASIC HOUSING DEVICES

Item Description

346841 4-output ﬂ oor shunt. For installing 2-wire video door entry systems

with star wiring distribution. The device automatically adapts the video

signal. Thanks to its compact sizes, it can also be ﬁ tted inside a ﬂ ush

mounted box

346833 call to the ﬂ oor interface. By connecting traditional pushbuttons, the

following functions will be possible: general call to the ﬂ oor, addressed

call to the ﬂ oor, staircase lights on, and door lock release (speciﬁ c

actuator needed), and association of the video image to the call to the

ﬂ oor. The device must be conﬁ gured using physical conﬁ gurators

347400 interface for the conversion of the coaxial signal into a 2-WIRE BUS

signal. It can be used to connect to the BUS of the 2-wire video door

entry system a camera with coaxial video output powered at 12 Vdc,

with maximum absorption 150 mA and 1 Vpp video output (75 Ω). The

device must be conﬁ gured using physical conﬁ gurators

346870

346903

WIRING ACCESSORIES

Item Description

346870 2-WIRE video ampliﬁ er. In video systems wired using non-twisted

wires, where the distance between the entrance panels and the handset

exceeds 50 metres, it enables increasing such distance to up to 100

metres

346903 accessory for the connection of SFERA pushbutton panels with more

than 26 calls. To be ﬁ tted on the back of the SFERA speaker module, in

the appropriate socket

346902 cable for the connection of SFERA pushbutton modules arranged on

several columns

346250 gate opening relay module to be used with LINEA 2000, LINEA 2000

METAL, MINISFERA AND SFERA pushbutton panels (only audio/video

module 342560). It can be used to release door locks (NOT managed

through the BUS) from the entrance panel

346907 adaptor cable for AUDIO/VIDEO SFERA module, length 40 cm

336813 cable (RJ45/8 poles) for table top connection of video handsets

F442 TV SCS modulator with 6 DIN modular housing. For displaying on the

home television set the images from the 2-WIRE video door entry

system. 22 selectable S band channels

3499 line terminator. To be used to terminate the riser or apartment line,

when the last installed device is not ﬁ tted with line closing micro switch

346902 346250

3499

F442

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

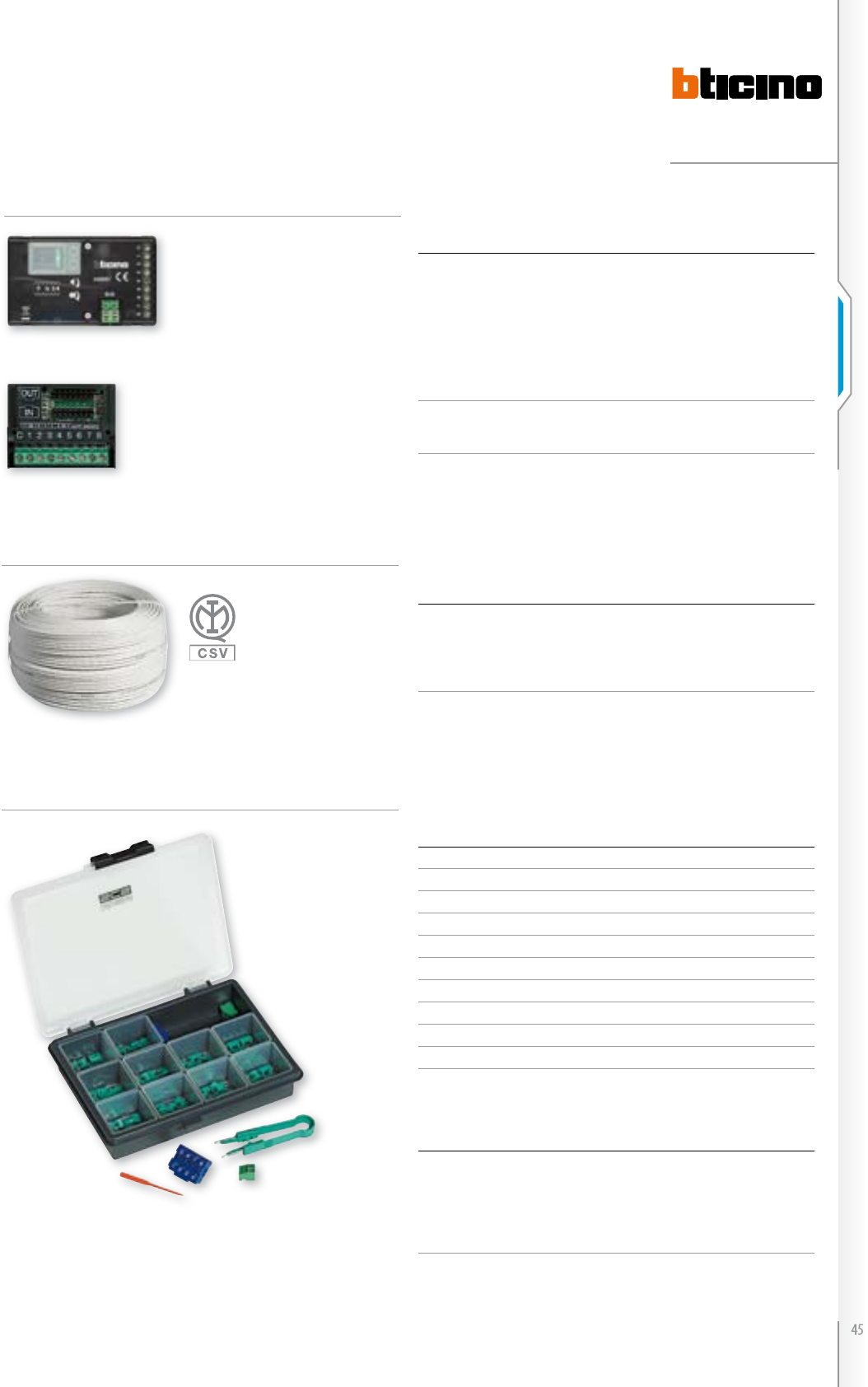

Item Description

346991 The universal speaker unit can be used to install the 2-WIRE audio

system in new or refurbished systems, where pushbutton panels of

other manufacturers are present or required (mail boxes, patterned

brass, compact sheet metal units, etc.), preset for a traditional speaker

module (e.g. 2659N). The universal speaker unit has a contact base for

the connection of 8 call keys; for systems with a higher number of keys

(up to 56 when using the 346000 power supply and up to 24 when

using the 346010 power supply) one or more key expansion modules

must be used (1 every 8 keys)

346992 expansion module for connecting more than 8 call keys to item 346991

- max. 6 modules (56 calls max.) with power supply 346000. Max 2

modules (24 calls max.) with power supply 346010

346991

346992

UNIVERSAL SPEAKER UNIT AND EXPANSION MODULE

336904

3501K

SYSTEM CABLE

Item Description

336904 speciﬁ c cable for video door system applications with 2 twisted

conductors. It can be installed in underground piping, in accordance

with CEI 20-13 and CEI 20-14 standards. It ensures the best performance

in video systems (higher distance between EP and Handset when

compared with other cables). 200 m coil

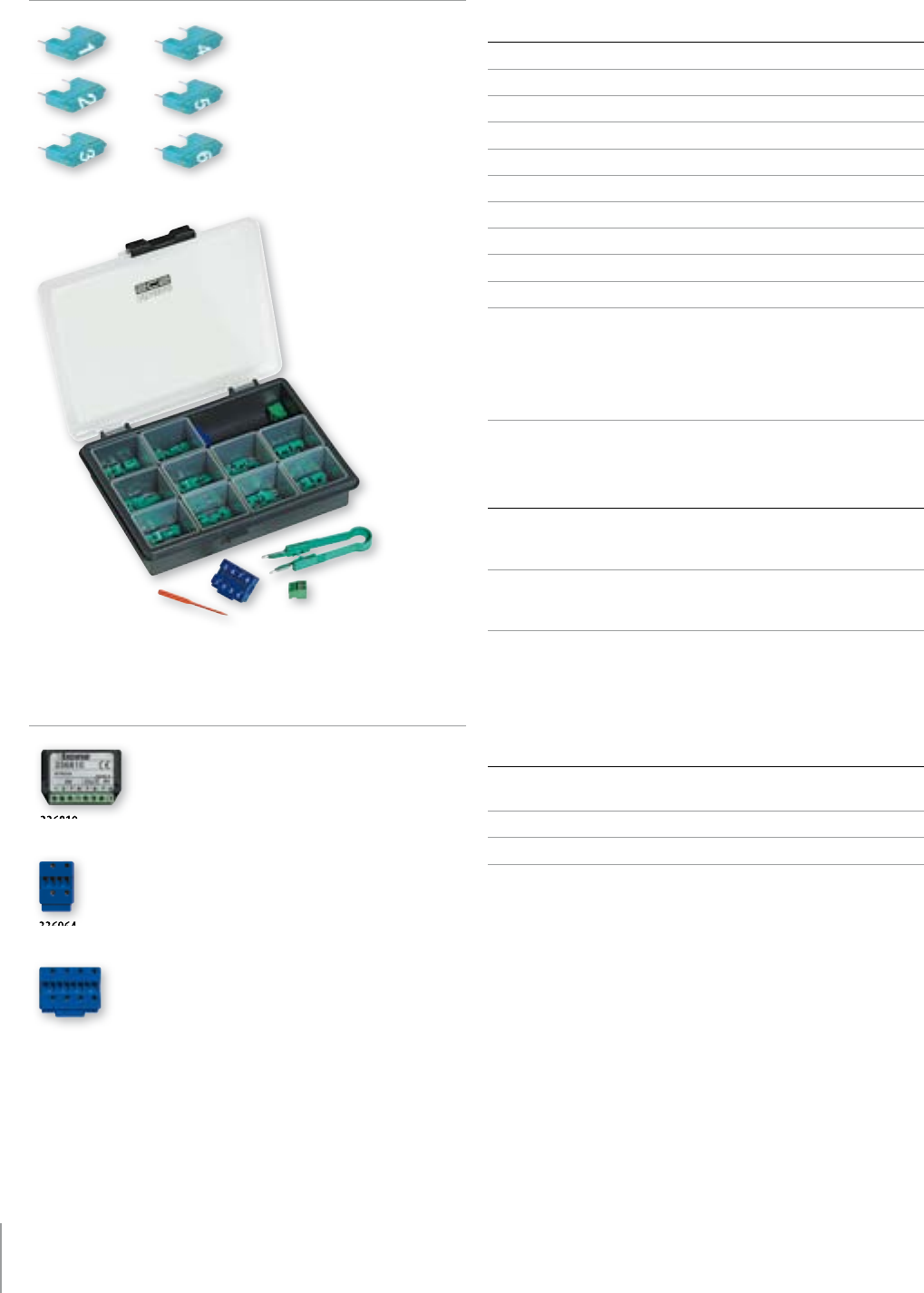

CONFIGURATORS 10 PIECE PACK

Item Description

3501/0 conﬁ gurator 0

3501/1 conﬁ gurator 1

3501/2 conﬁ gurator 2

3501/3 conﬁ gurator 3

3501/4 conﬁ gurator 4

3501/5 conﬁ gurator 5

3501/6 conﬁ gurator 6

3501/7 conﬁ gurator 7

3501/8 conﬁ gurator 8

3501/9 conﬁ gurator 9

CONFIGURATOR KIT

Item Description

3501K conﬁ gurator kit consisting of:

- 10 pieces for each type of conﬁ gurator from 0 to 9

- 2 blue removable 8-clamp connectors

- 2 green removable 2-clamp connectors

- 1 conﬁ gurator connection tool

- 1 plastic screwdriver

336993

2 WIRE SYSTEM

System accessories

346982

336910

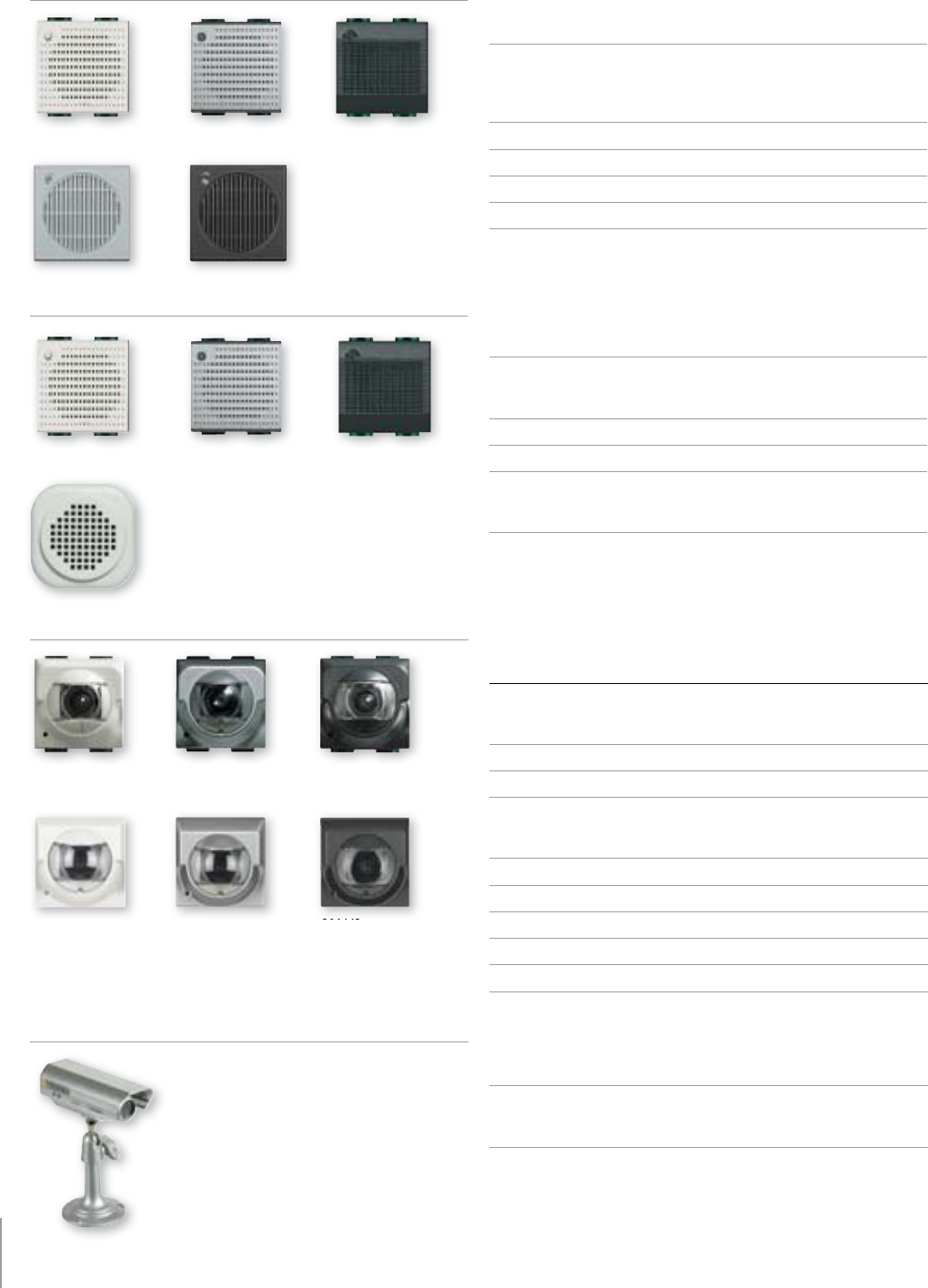

MELODIC BELLS

EXTRA BELLS

Item Description

346982 2-WIRE melodic bell with LIGHT look (white). It’s used to repeat the

video door entry system call in several rooms. Wall mounted installation

using the accessories and front cover plates of the LIGHT residential

series

346983 same as item 346982 - LIVING

346984 same as item 346982 - LIGHT TECH

349412 same as item 346982 - tech AXOLUTE

349413 same as item 346982 - anthracite AXOLUTE

Item Description

336992 LIGHT extra bell (white). It’s used to repeat the video door entry system

call in several rooms. Wall mounted installation using the accessories

and front cover plates of the LIGHT residential series

336993 same as item 336992 - LIVING

336994 same as item 336992 - LIGHT TECH

336910 extra bell with neutral look. It’s used to repeat the video door entry

system call in several rooms. Wall mounted installation or installation

inside round box (with ﬁ xing clips)

349413

349412

346984

346983

336992 336994

391659

391669

391658

391668

391657

391667

391661391663 391662

391662

391670

2 WIRE INDOOR CAMERAS

Item Description

391658 ﬂ ush mounted colour camera in LIGHT ﬁ nish. 3.7 mm ﬁ xed optics,

1/3” CCD, 380 horizontal lines resolution. With microphone.

The device must be conﬁ gured using physical conﬁ gurators

391659 same as item 391658 - LIGHT TECH

391657 same as item 391658 - LIVING

391668 ﬂ ush mounted b/w camera in LIGHT ﬁ nish. 3.7 mm ﬁ xed optics,

1/3” CCD, 380 horizontal lines resolution. With microphone. The device

must be conﬁ gured using physical conﬁ gurators

391669 same as item 391668 - LIGHT TECH

391667 same as item 391668 - LIVING

391663 same as item 391658 - White AXOLUTE

391661 same as item 391658 - AXOLUTE TECH

391662 same as item 391658 - Anthracite AXOLUTE

2 WIRE OUTDOOR CAMERA

Item Description

391670 compact colour camera with IP 65 housing, ﬁ xed 6 mm optics,

1/3” CMOS, 330 horizontal lines resolution. The device must be

conﬁ gured using physical conﬁ gurators

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

SOFTWARE SWITCHBOARD

Item Description

346300 switchboard software for the management of audio and video

door entry system calls. The software (Windows operating system

compatible) can be installed on any desktop or laptop PC, and gives the

possibility of receiving, managing and transferring the calls from the

entrance panel and the handset. It implements home video monitoring,

with cyclical display of the cameras, night and day functions, and the

possibility of displaying the alarms in the various apartments.

- Supported operating systems:

Microsoft Windows XP Service Pack 2 and Windows Vista.

- Software required:

NET Framework 2.0 or higher

Software switchboard

346300

2 WIRE SYSTEM

Audio and video kit

The kit is the most economical

and practical solution for creating

one-family and two-family 2-wire or

analog audio and video door entry

systems for the residential and small

service sector.

With a single reference code, the kit

includes all the items required for the

creation of a system: power supply,

entrance panel, handset, and any

wiring accessories.

The kit includes a manual with all the

technical information required for

the installation, the connection, the

putting into operation of the system,

as well as an explanation of all the

system features, and expansion

possibilities.

The combinations between entrance

panels and handsets and the type

of installation (surface or  ush

mounted), meet all installation

requirements.

The 2-WIRE kits are fully expandable

and are suitable for all installation

requirements. They are fully

compatible with the 2-WIRE range of

devices (outdoor pushbutton panels,

audio handsets, video handsets,

system accessories, and indoor or

outdoor cameras), ensuring the

possibility of expansion without

limitations.

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

CONTENTS

2 WIRE CATALOGUE  AUDIO AND VIDEO KIT

SWING audio kit - LINEA 2000 METAL 50

SWING audio kit - modular SFERA 50

SWING BASE B/W video kit - LINEA 2000 51

SWING colour video kit - LINEA 2000 METAL 51

POLYX VIDEO handsfree colour video kit - LINEA 2000 METAL 52

POLYX MEMORY DISPLAY handsfree colour video kit

with memory - LINEA 2000 METAL 53

SWING BASE - SFERA A/V system basic B/W video kit 54

SWING - SFERA system basic colour video kit 54

ANALOGUE KIT

Audio and b/w video kits 55

Colour video kits 56

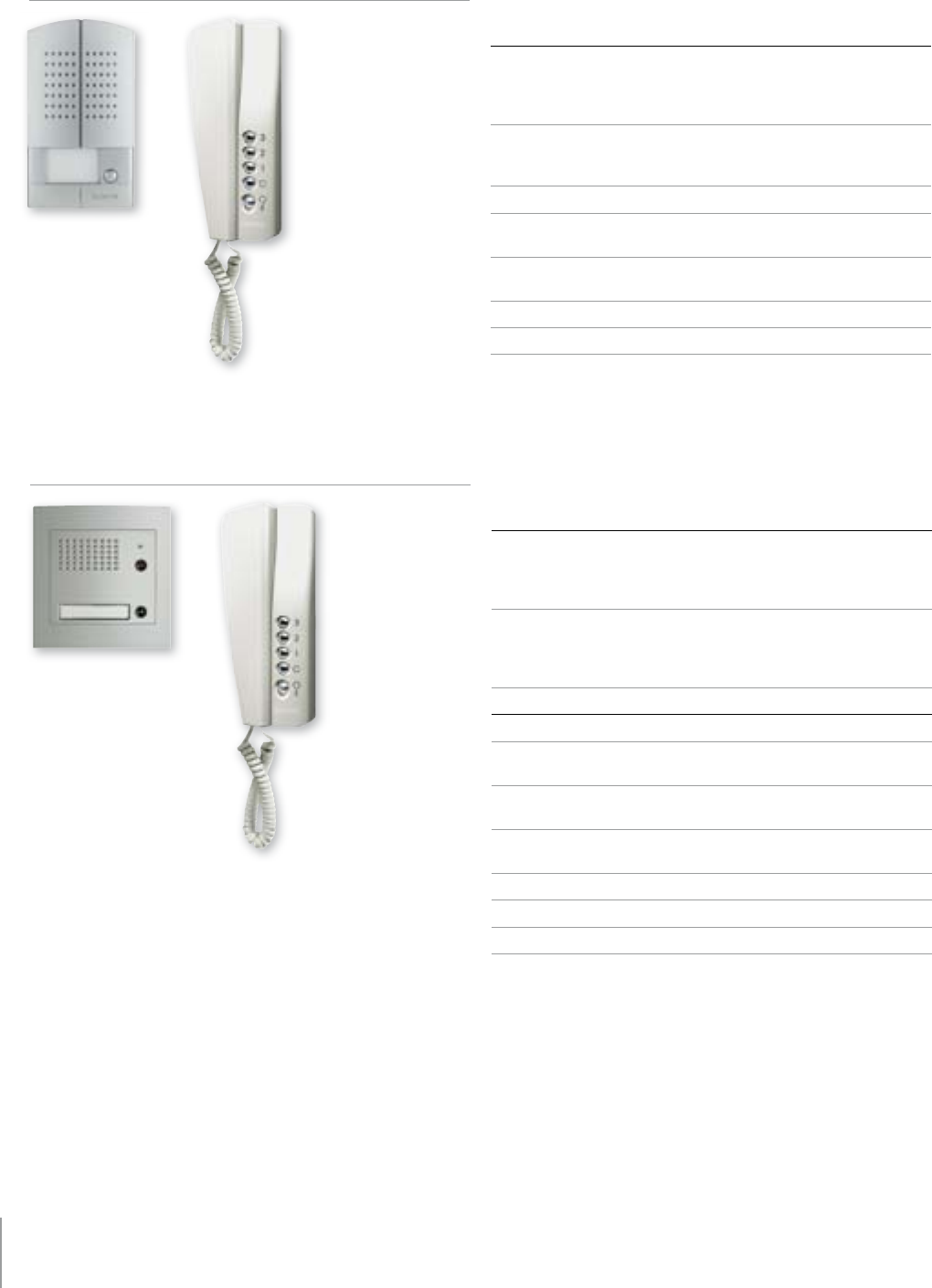

Audio kit

SWING AUDIO KIT  LINEA 2000 METAL

Item Description

368111 one-family kit with SWING handset and LINEA 2000 METAL pushbutton

panel. 2-WIRE technology. Devices suitable for wall mounted

installation. The pushbutton panel has an IK10 protection index against

mechanical impact

368121 two-family kit with SWING handsets and LINEA 2000 METAL pushbutton

panel. 2-WIRE technology. The pushbutton panel has an IK10 protection

index against mechanical impact

Composition Item 368111 368121

LINEA 2000 METAL pushbutton panel 342971 1 -

1 call pushbutton

LINEA 2000 METAL pushbutton panel 342972 - 1

2 call pushbuttons

SWING handset 344704 1 2

Power supply 346000

1 1

2 WIRE SYSTEM

SWING AUDIO KIT  MODULAR SFERA

Item Description

367211 one-family kit with SWING handset and SFERA modular pushbutton

panel in Allmetal ﬁ nish. 2-WIRE technology. Handset suitable for wall

mounted installation. Pushbutton panel suitable for ﬂ ush mounted

installation

367221 two-family kit with SWING handsets and SFERA modular pushbutton

panel in Allmetal ﬁ nish. 2-WIRE technology. Handsets suitable for wall

mounted installation. Pushbutton panel suitable for ﬂ ush mounted

installation

Composition Item 367211 367221

Box + frame, 1 module 331110 1 1

speaker module front cover 332111 1 -

1 Allmetal pushbutton

speaker module front cover 332121 - 1

2 Allmetal pushbuttons

Surround plate 331211 1 1

1 Allmetal module

2-WIRE speaker module 342170

1 1

SWING handset 344704 1 2

Power supply 346000 1 1

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

SWING BASE VIDEO KIT  LINEA 2000

Item Description

365411 one-family video (black & white) kit with SWING BASE video handset

and LINEA 2000 pushbutton panel. 2-WIRE technology. Devices suitable

for wall mounted installation.

365421 two-family video (black & white) kit with SWING BASE video handsets

and LINEA 2000 pushbutton panel. 2-WIRE technology. Devices suitable

for wall mounted installation.

Composition Item 365411 365421

LINEA 2000 pushbutton panel 342951 1 -

1 call pushbutton

LINEA 2000 pushbutton panel 342961 - 1

2 call pushbuttons

BASE SWING video handset 344832 1 2

Power supply 346000 1 1

Video adapter 346830 1 1

Door lock relay accessory 346250 1 1

B/W and colour video kit

SWING VIDEO KIT  LINEA 2000 METAL

Item Description

367511 one-family video (colour) kit with SWING BASE video handset and LINEA

2000 pushbutton panel. 2-WIRE technology. Devices suitable for wall

mounted installation. The pushbutton panel has an IK10 protection

index against mechanical impact

367521 two-family video (colour) kit with SWING BASE video handsets and

LINEA 2000 pushbutton panel. 2-WIRE technology. Devices suitable for

wall mounted installation. The pushbutton panel has an IK10 protection

index against mechanical impact

Composition Item 367511 367521

LINEA 2000 METAL pushbutton panel 342991 1 -

1 call pushbutton

LINEA 2000 METAL pushbutton panel 342992 - 1

2 call pushbuttons

SWING colour video handset 344824 1 2

Power supply 346000 1 1

Video adapter 346830 1 1

Door lock relay accessory 346250 1 1

(4” B/W display)

(4” colour display)

Handsfree colour video kit

POLYX VIDEO HANDSFREE KIT  LINEA 2000 METAL WALL

MOUNTED INSTALLATION

Item Description

368911 one-family handsfree video (colour) kit with POLYX VIDEO handset and

LINEA 2000 pushbutton panel. 2-WIRE technology. Devices suitable for

wall mounted installation. The pushbutton panel has an IK10 protection

index against mechanical impact

368921 two-family handsfree video (colour) kit with POLYX VIDEO handsets

and LINEA 2000 METAL pushbutton panel. 2-WIRE technology. Devices

suitable for wall mounted installation. The pushbutton panel has an

IK10 protection index against mechanical impact

Composition Item 368911 368921

LINEA 2000 METAL pushbutton panel 342991 1 -

1 call pushbutton

LINEA 2000 METAL pushbutton panel 342992 - 1

2 call pushbuttons

POLYX VIDEO video handset 344192 1 2

Power supply 346000 1 1

Video adapter 346830 1 1

Door lock relay accessory 346250 1 1

2 WIRE SYSTEM

POLYX VIDEO HANDSFREE KIT  LINEA 2000 METAL FLUSH

MOUNTED INSTALLATION

Item Description

368811 one-family handsfree video (colour) kit with POLYX VIDEO handset and

LINEA 2000 pushbutton panel for ﬂ ush mounted installation. 2-WIRE

technology. Handset suitable for wall mounted installation. Pushbutton

panel suitable for ﬂ ush mounted installation. The pushbutton panel has

an IK10 protection index against mechanical impact

368821 two-family handsfree video (colour) kit with POLYX VIDEO handsets and

LINEA 2000 pushbutton panel for ﬂ ush mounted installation. 2-WIRE

technology. Handset suitable for wall mounted installation. Pushbutton

panel suitable for ﬂ ush mounted installation. The pushbutton panel has

an IK10 protection index against mechanical impact

Composition Item 368811 368821

LINEA 2000 METAL pushbutton panel 343001 1 -

1 call pushbutton

LINEA 2000 METAL pushbutton panel 343002 - 1

2 call pushbuttons

POLYX VIDEO video handset 344192 1 2

Power supply 346000 1 1

Video adapter 346830 1 1

Door lock relay accessory 346250 1 1

(3.5” colour display)

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

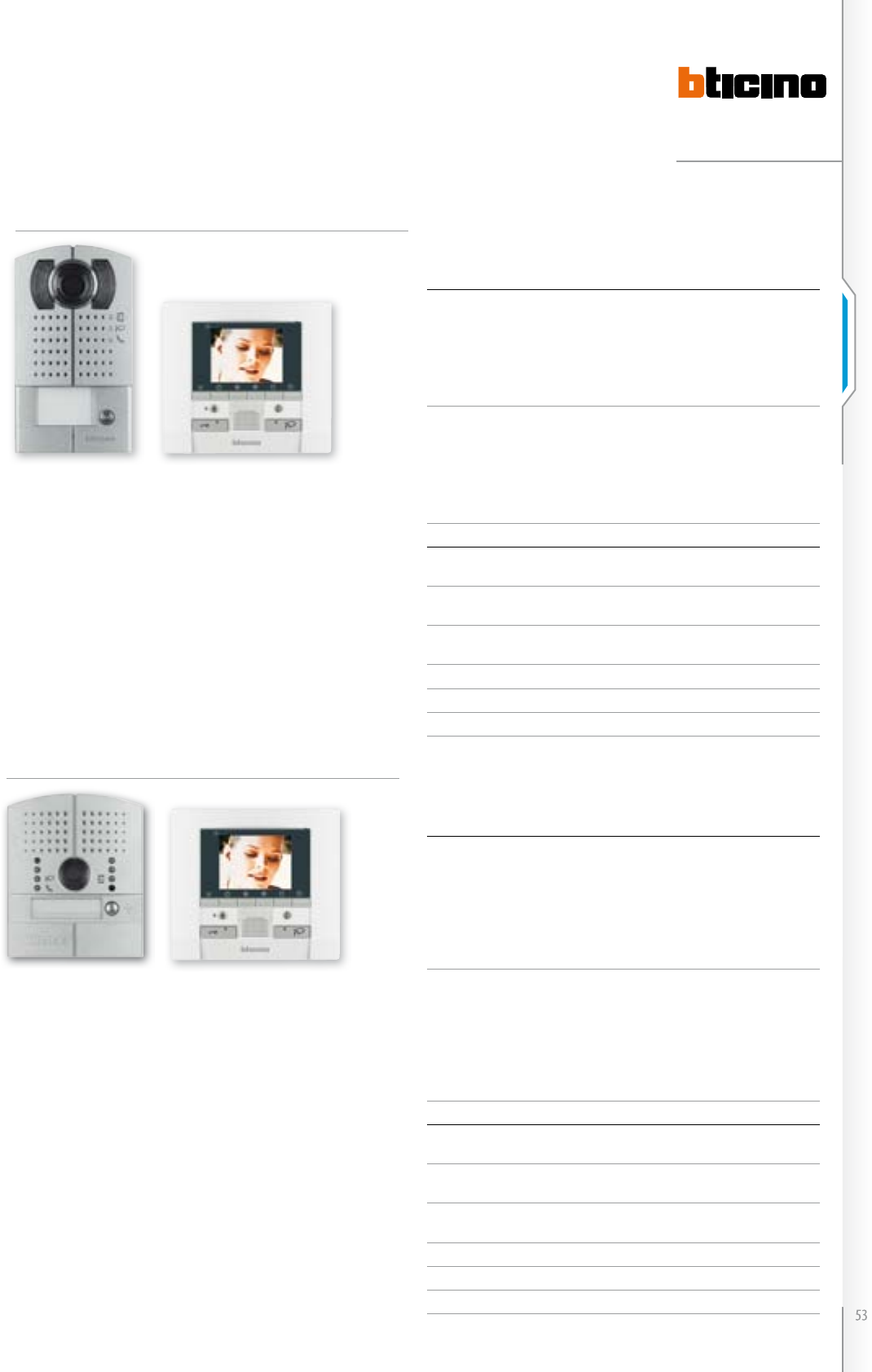

Handsfree colour video kit with memory

POLYX MEMORY DISPLAY HANDSFREE KIT WITH MEMORY 

LINEA 2000 METAL WALL MOUNTED INSTALLATION

Item Description

369411 one-family handsfree kit with call memory and colour video display

consisting of POLYX MEMORY DISPLAY video handset and LINEA 2000

METAL pushbutton panel. The video handset has an icon menu for

the control of video door entry functions and MY HOME automation

functions. 2-WIRE technology. Devices suitable for wall mounted

installation. The pushbutton panel has an IK10 protection index against

mechanical impact

369421 Two-family handsfree kit with call memory and colour video display

consisting of POLYX MEMORY DISPLAY video handset and LINEA 2000

METAL pushbutton panel. The video handsets have icon menus for

the control of video door entry functions and MY HOME automation

functions. 2-WIRE technology. Devices suitable for wall mounted

installation. The pushbutton panel has an IK10 protection index against

mechanical impact

Composition Item 369411 369421

LINEA 2000 METAL pushbutton panel 342991 1 -

1 call pushbutton

LINEA 2000 METAL pushbutton panel 342992 - 1

2 call pushbuttons

POLYX MEMORY DISPLAY 344163 1 2

video handset

Power supply 346000 1 1

Video adapter 346830 1 1

Door lock relay accessory 346250 1 1

POLYX MEMORY DISPLAY HANDSFREE KIT WITH MEMORY



LINEA 2000 METAL FLUSH MOUNTED INSTALLATION

Item Description

369511 one-family handsfree kit with call memory and colour video display

consisting of POLYX MEMORY DISPLAY video handset and LINEA 2000

METAL pushbutton panel for ﬂ ush mounted installation. The video

handset has an icon menu for the control of video door entry functions

and MY HOME automation functions. 2-WIRE technology. Devices

suitable for wall mounted installation. Pushbutton panel suitable

for ﬂ ush mounted installation. The pushbutton panel has an IK10

protection index against mechanical impact

369521 two-family handsfree kit with call memory and colour video display

consisting of POLYX MEMORY DISPLAY video handset and LINEA 2000

METAL pushbutton panel for ﬂ ush mounted installation. The video

handsets have icon menus for the control of video door entry functions

and MY HOME automation functions. 2-WIRE technology. Devices

suitable for wall mounted installation. Pushbutton panel suitable

for ﬂ ush mounted installation. The pushbutton panel has an IK10

protection index against mechanical impact

Composition Item 369511 369521

LINEA 2000 METAL pushbutton panel 343001 1 -

1 call pushbutton

LINEA 2000 METAL pushbutton panel 343002 - 1

2 call pushbuttons

POLYX MEMORY DISPLAY 344163 1 2

video handset

Power supply 346000 1 1

Video adapter 346830 1 1

Door lock relay accessory 346250 1 1

(3.5” colour display)

The 2-WIRE BASE SYSTEM video kits are the basis for the

creation of black&white or colour video systems in small

residential units.

The kit contains all the necessary materials for the

installation which can then be easily expanded using the

products in the 2-WIRE BTicino range (entrance panels,

handsets, video handsets, and system accessories).

SWING BASE  SFERA AUDIO/VIDEO EXPANDABLE VIDEO

KIT

Item Description

366311 expandable video kit with SWING BASE video handset and SFERA A/V

pushbutton panel. The video handset is suitable for wall mounted

installation. The pushbutton panel is suitable for ﬂ ush mounted

installation. 2-WIRE technology

Composition Item Quantity

SFERA ﬂ ush mounted box, 1 module 331110 1

SFERA audio/video module with 342560 1

colour camera

Allmetal front cover, 1 key 342471 1

Allmetal SFERA surround plate 331211 1

SWING BASE video handset with 344832 1

b/w monitor

Video adapter 346830 1

Power supply 346000 1

SWING  SFERA MODULAR EXPANDABLE VIDEO KIT

Item Description

369111 one-family expandable video kit with SWING colour video handset

and SFERA A/V pushbutton panel. The video handset is suitable for

wall mounted installation. The pushbutton panel is suitable for ﬂ ush

mounted installation. 2-WIRE technology

369121 two-family expandable video kit with SWING colour video handsets

and SFERA A/V pushbutton panel. The video handsets are suitable for

wall mounted installation. The pushbutton panel is suitable for ﬂ ush

mounted installation. 2-WIRE technology

Composition Item 369111 369121

SFERA ﬂ ush mounted box , 2 modules 331120 1 1

SFERA speaker module 342170 1 1

Colour SFERA camera module 342550 1 1

Allmetal speaker module front cover, 1 pb. 332111 1 -

Allmetal speaker module front cover, 2 pb. 332121 - 1

Allmetal camera front cover 332511 1 1

Allmetal 2 modules surround plate 331221 1 1

SWING colour video handset 344824 1 2

Power supply 346000 1 1

Video adapter 346830 1 1

BASE SYSTEM video kit

2 WIRE SYSTEM

(4” B/W display)

(4” colour display)

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

Audio and b/w video kits

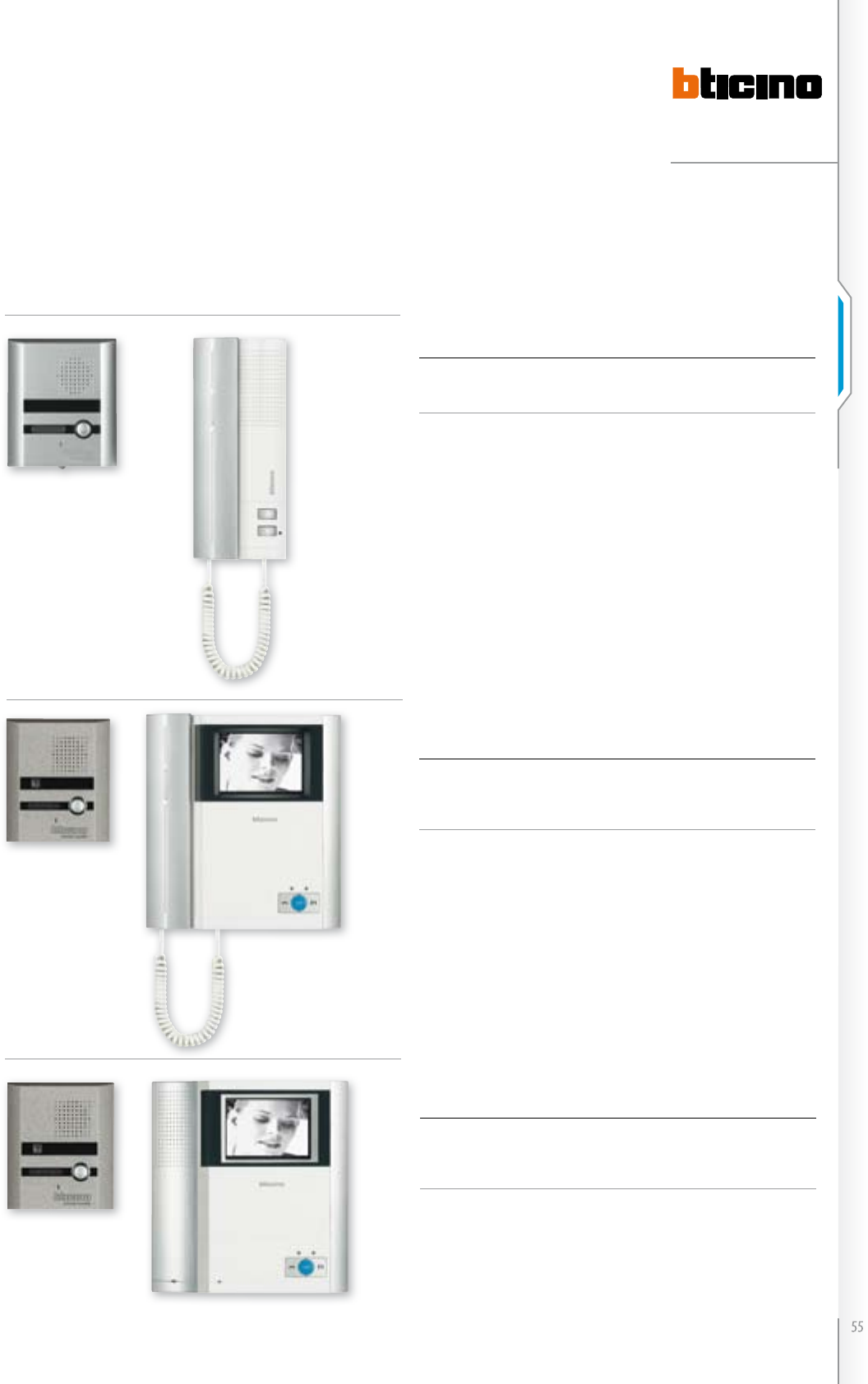

ANALOGUE ONE FAMILY AUDIO KIT

Item Description

316113 one-family analogue audio kit with wall mounted dedicated entrance

panel and handset. PLUG IN system power supply included. It can be

expanded with up to 3 dedicated handsets.

ANALOGUE SYSTEM KIT

The analogue audio and video kits can be installed very easily. The

audio and video handsets have a power supply socket (Standard

Euro Plug - EEC 7/16), or a PLUG IN (15 Vdc) power supply unit.

They have a door lock release key, and INTERCOM function

(expansion to up to a maximum of 3 handsets).

ANALOGUE B/W ONE FAMILY VIDEO KIT

Item Description

316213 one-family analogue B/W video kit with wall mounted dedicated

entrance panel and handset. Entrance panel with pin-hole camera.

Video handset with 4” B/W monitor. It can be expanded with up to 3

video handsets

ANALOGUE B/W HANDSFREE ONE FAMILY VIDEO KIT

Item Description

316313 one-family analogue B/W video handsfree kit with wall mounted

dedicated entrance panel and video handset. Entrance panel with pin-

hole camera. Handset with 4” B/W monitor. It can be expanded with up

to 3 video handsets

(4” B/W display)

ANALOGUE COLOUR ONE FAMILY VIDEO KIT

Item Description

316413 one-family analogue colour video handsfree kit with wall mounted

dedicated entrance panel and video handset. Metal entrance panel

with colour camera and LED for the illumination of the ﬁ eld of view.

Handset with 3.5” colour monitor. It can be expanded with up to 3 video

handsets

ANALOGUE COLOUR HANDSFREE ONE FAMILY VIDEO KIT

Item Description

316513 one-family analogue colour video handsfree kit with wall mounted

dedicated entrance panel and video handset. Metal entrance panel with

colour camera and LED for the illumination of the ﬁ eld of view. Handset

with 7” colour monitor. It can be expanded with up to 3 video handsets

Colour video kits

ANALOGUE SYSTEM KIT

(3.5” colour display)

(7” colour display)

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  OTHER SYSTEMS

OTHER SYSTEMS

General considerations

The 2-WIRE SYSTEM is for BTicino the

state of the art system, due to the

complete range of functions, and

installation  exibility.

This section shows the other systems

that complete the o er range,

recommended for the maintenance

of existing systems.

For the installation of new systems,

refer to the 2-WIRE SYSTEM section.

B/w and colour video door entry systems

6 audio wires or 8 video wires with no need

to use coaxial cable

by integrating it with the 2 WIRE system, it

allows to realize large and very extended

combined systems

4 audio wires +n return calls

DIGITAL

SYSTEM

AUDIO

ANALOGUE SYSTEM

AUDIO TERSYSTEM

audio

and video

audio

and video

DIGITAL

SYSTEM

AUDIO

ANALOGUE SYSTEM

AUDIO TERSYSTEM

OTHER SYSTEMS

DIGITAL SYSTEM

SFERA function modules

342640

342200

342240 WARNING: assembly note: flush mounted boxes, wall mounted enclosures, rainshield,

front cover, and surround plates are the same as for 2-WIRE SFERA entrance panels

(refer to the specific section in the catalogue)

Item Description

342160 digital speaker module with two call pushbuttons and a pushbutton to

control the staircase light relay actuator. The connections to the system

are made by wiring the removable clamp supplied; also the nameplates

are lit up by 8 green LED. A closing card is supplied to be inserted in

the last pushbutton module. This item, used in combination with

ﬂ oor distribution block Item 346190, makes the home CCTV functions

available

Item Description

342620 digital alphanumeric call + speaker module. Can send the call to an

handset by scrolling the residents’ names or codes on a display using the

dedicated keys. Combines the functions of digital speaker module and

alphanumeric keypad in one single device. The module can save up to

2000 residents’ names and surnames associating them to the apartment

SCS address. 500 names can be saved when the option of coupling a

message with them is selected. If only the residents’ codes are saved,

the capacity extends to 5000 codes

NOTE: for the programming use a PC with TICALL software installed (can be

downloaded free from the www.bticino.it site) and the interfaces item 335919

(RS-232) – item 3559 (USB), or the infrared remote control item 392123

Item Description

342640 extra alphanumeric keypad to be used together with module Item

342630. It can call the resident directly (by typing the programmed

code) and access the door lock release function (by typing the secret

code). It is supplied with multi-cable and connector for connection to

the speaker module

Item Description

342200 digital nameplate module which can be used to enter the street number

or any other information. Can be used to enter a caption in entrance

panels with numeric call module item 342610

Item Description

342240 digital pushbutton module with 4 call pushbuttons. The connections

to the system are made using the multi-cable supplied; also the

nameplates are illuminated by 12 green LED

SPEAKER MODULE

DIGITAL CALL SPEAKER MODULE WITH GRAPHIC DISPLAY

ADDITIONAL ALPHANUMERIC KEYPAD MODULE

NAMEPLATE MODULE

PUSHBUTTON MODULE

342160

342620

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  OTHER SYSTEMS

Item Description

342610 the numeric call module can make calls from the entrance panel to

handsets by just keying in the number corresponding to the handset

required. In practice it works like making a telephone call on a normal

telephone. The correspondence between the numbers and the user

names is found from a phone book by the side of the module and made

up of nameplate modules Item 342200. From one to four numbers

may be keyed in to make the call, as programmed by the installer. The

module can also activate the electric door lock by means of a secret code

number. The module is supplied with a multicable for the connection to

the speaker module

Item Description

342600 module which can send the call choosing the name of the audio

handset in a list which is shown on a display. It can also release the door

locks by typing a code. The module is supplied with a multicable for the

connection to the phone module

Item Description

332650 code-lock module that can be used both in analogue and digital

systems. This module opens and closes two relays by keying in two code

numbers

Item Description

346220 accessory which can be installed in the camera module when there are

several video entrance panels in series

Item Description

332540 optoinsulated separate camera module. It allows to position the camera

of the video door entry system in a diﬀ erent place from the speaker

module, and can thus view the entrance at an angle set by the user.

The product has a relay which can be used to drive a spotlight for the

camera ﬁ eld of view. The product has a relay which can be used to drive

a spotlight for the camera ﬁ eld of view

Item Description

332510 camera module with IR lighting for night views. The lens viewing angle

can be adjusted horizontally and vertically by ±20° in the installation

phase

Item Description

332550 camera module with lighting with white LED for night views. The lens

viewing angle can be adjusted horizontally (± 20°) and vertically

(±15°) during installation

NUMERIC DIGITAL CALL MODULE

ALPHANUMERIC DIGITAL CALL MODULE

CODELOCK MODULE

ACCESSORY FOR CAMERA MODULES

SEPARATE CAMERA MODULE

SWIVEL B/W CAMERA MODULE

SWIVEL COLOUR CAMERA MODULE

332650

342600

332540

332510

346220

342610

332550

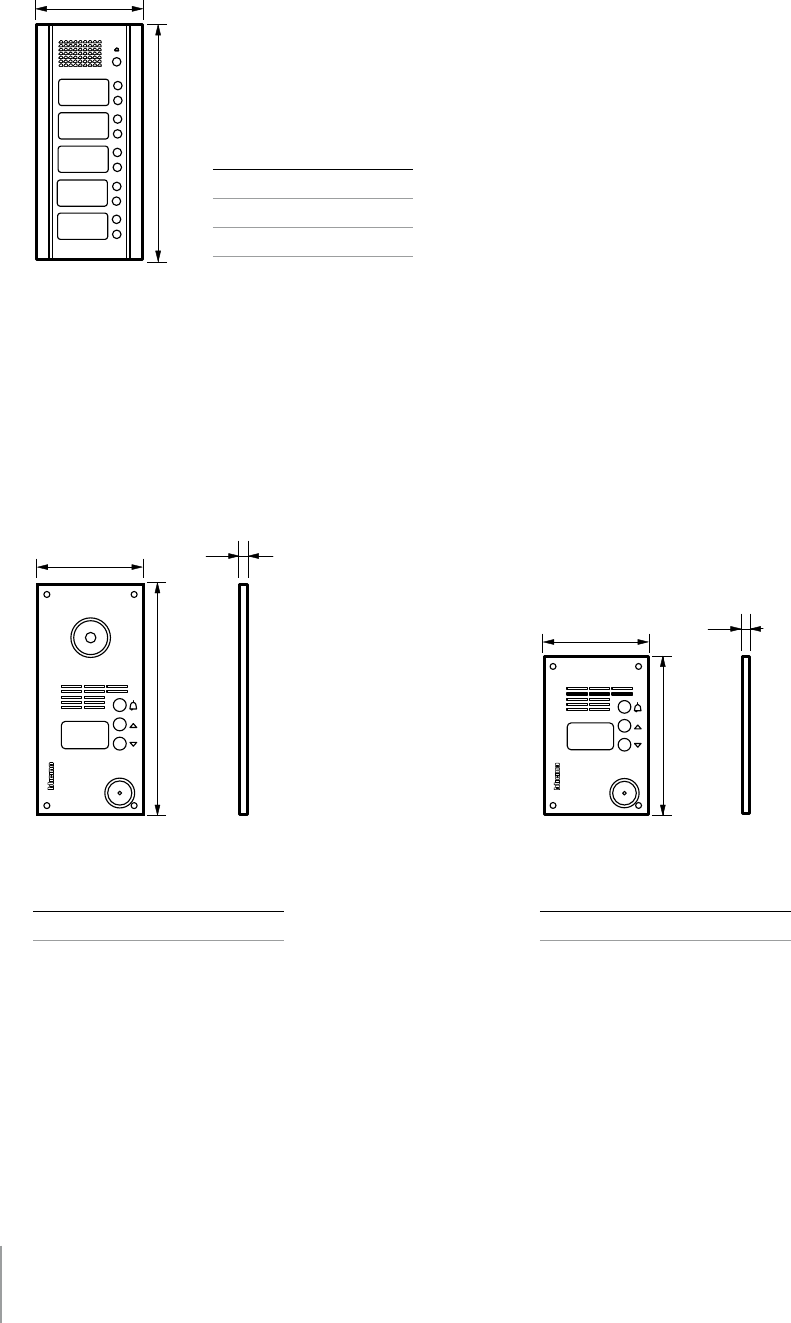

Item Description

333714 pushbutton panel consisting of galvanized sheet metal ﬂ ush mounted

box, module holder, and front cover in 316L stainless steel with bright

ﬁ nish. It must be ﬁ tted with digital call speaker module with graphic

display, item 342620 .

The display screen is made of scratch-resistant polycarbonate glass

(5 mm thick) The three pushbuttons (diam. 16 mm) are made of 316L

stainless steel

Item Description

333914 pushbutton panel consisting of galvanized sheet metal ﬂ ush mounted

box, module holder, and front cover in 316L stainless steel with bright

ﬁ nish. It must be ﬁ tted with digital call speaker module with graphic

display + camera module, (items 342620 + 332510/332550).

The display screen is made of scratch-resistant polycarbonate glass

(5 mm thick) The three pushbuttons (diam. 16 mm) are made of 316L

stainless steel

AUDIO PUSHBUTTON PANEL

VIDEO PUSHBUTTON PANEL

333714

333914

EXAMPLE OF VIDEO MODULARITY  SFERA VANDALRESISTANT

vandal-resistant front cover

(video)

display glass

digital call module

with graphic display

module-holder

frame

metal  ush

mounted box

camera

module

call forward key

address book scroll key (up)

address book scroll key (down)

342620

332510 b/w

332550 colour

342620

vandal-resistant front cover

display glass

digital call module

with graphic display

module-holder

frame

metal  ush

mounted box

camera

module

address book scroll key (down)

address book scroll key (up)

call forward key

DIGITAL SYSTEM

SFERA vandal-resistant front covers

342620

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  OTHER SYSTEMS

334002

334102

PIVOT handsets

Item Description

334002 white PIVOT handset which can be installed in analogue and digital

systems.

It has a door lock release pushbutton, staircase light control and

self-switching on key to monitor the entrance panel or any cameras

(or call to the switchboard). The call volume can be set on three levels.

It also has a call secrecy function. It is connected to the system using

the removable clamp supplied. Suitable for wall mounted installation,

using the bracket supplied, table-top installation, or ﬂ ush mounted

installation, with the right accessories

Item Description

334102 PIVOT video handset which can be installed in analogue systems.

It has a door lock release pushbutton, staircase light control and

self-switching on key to monitor the entrance panel or any cameras

(or call to the switchboard). The call volume can be set on three

levels. It also has a call secrecy function. It is connected to the system

using the removable clamp supplied. Black and white 4 inch monitor

with brightness and contrast adjustment. Suitable for wall mounted

installation, using the bracket supplied, table-top installation, or ﬂ ush

mounted installation, with the right accessories

Item Description

344002 switchboard for audio and video digital systems. For video systems

the speciﬁ c video section b/w item 334402 or colour item 335122 can

be ﬁ tted by the side. Access to the various services from keypad or via

programmable phone books. Calls can be received from the entrance

panel or sent to an extension, calls can be received and sent from the

handsets and a call queue can be created in which they are saved. The

device comes with an slanting base for table-top installation with

cable and a cord for use in the wall mounted installation or with the

MULTIBOX boxes

Item Description

334402 video section to be ﬁ tted by the side of the switchboard. Black and

white 4 inch monitor with brightness and contrast adjustment

335122 as above but with colour ﬂ at LCD 4” monitor in TFT technology

Item Description

337102 support for table for handset. It can be used also for slanting wall

mounted installation. White

337122 support for table for video handset. It can be used also for slanting wall

mounted installation. White

336982 LIGHT 8-way socket for table-top installation of PIVOT audio and

video handset

337140 wall metal bracket for handset

337160 wall metal bracket for video handset

PIVOT HANDSET

PIVOT BLACK AND WHITE VIDEO HANDSET

SWITCHBOARD

VIDEO SECTION FOR SWITCHBOARD

ACCESSORIES FOR AUDIO AND VIDEO HANDSETS

344002

334402

337102 337122

336982

337102

337122

336982

335122

Item Description

334804 white SWING handset which can be installed in digital systems.

It has a door lock release pushbutton, activation of the entrance panel

or any cameras and three pushbuttons for auxiliary functions referred to

three clean contacts (NO-max. output 24 Vac/dc – 1A). The ring volume

can be adjusted or the ring muted. It also has a conversation secrecy

function. It is connected to the system using the removable clamps

supplied. Black and white 4 inch monitor with brightness and contrast

adjustment.

Suitable for wall mounted installation using the special

bracket (supplied as standard)

Item Description

336982 LIGHT 8-way socket for table-top installation of SPRINT handset

337242 support for table-top with 2 m cable and plug for handset

337400 call exclusion changeover switch and signal LED; can exclude the call

from the entrance panel, signalled by a red LED lighting up

337411 intercom card for handset; must have pushbuttons item 337430 to send

the calls to the other handsets

337430 extra pushbutton to be used for various commands or for intercom

together with card item 337411

337440 signalling LED

Item Description

334704 ash-coloured SWING audio handset which can be installed in analogue

and digital systems. It has a door lock release pushbutton, activation

of the entrance panel and three pushbuttons for auxiliary functions

referred to three clean contacts (NO-output max. 24 Vac/dc -1A). The

ring volume can be adjusted and excluded. It also has a call secrecy

function. It is connected to the system using the removable clamps

supplied.

Suitable for wall mounted installation

Item Description

334202 SPRINT handset which can be installed in analogue and digital systems.

It has a door lock release pushbutton. The call volume can be set on

three levels. It does not need any accessory for wall installation. The

cord can be extended with RJ plugs. Conversation secrecy not available

Item Description

334602 BASIC handset which can be installed in analogue and digital systems.

(6 wires). It has a door lock release pushbutton. It does not need any

accessory for wall installation. It can not be ﬁ tted with accessories.

SWING VIDEO HANDSET

ACCESSORIES FOR SPRINT HANDSET

SWING HANDSET

SPRINT HANDSET

BASIC HANDSET

334202

334602

334704

334804

DIGITAL SYSTEM

SWING - SPRINT and BASIC handsets

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  OTHER SYSTEMS

Installation accessories

Item Description

336010 power supply for digital audio-video and analogue video systems,

with removable clamps. Power supply: 230 Vac @ 50/60 Hz - 10 DIN

modules. SELV device

Item Description

346100 video riser distribution block for digital systems with an input and two

outputs (generated riser columns). Several riser distribution blocks can

be connected in cascade. 6 DIN modules

346120 audio ﬂ oor distribution block with 4 outputs to be connected to the

audio handsets. 6 DIN modules

346190 video ﬂ oor distribution block with 4 outputs to be connected to the

audio or video handsets. If used with speaker unit Item 342160, this

accessory provides the home CCTV functions from the handsets. 6 DIN

modules

346140 audio riser distribution block for digital systems with an input and 5

outputs (generated riser columns). Several riser distribution blocks

can be connected in cascade. This device can also be used as mixer for

several star-cabled entrance panels. 6 DIN modules

346180 repeater distribution block for very large installations with more than

40 risers or for risers with more than 100 apartments. As well as the

functions available with Item 346980, it allows independence of the

speaker system and guarantees total independence of the riser from the

main stretch even if there is a fault. 6 DIN modules

346960 video mixer for several digital entrance panels connected with star

wiring. 6 DIN modules

346860 video device for digital systems with two-directional video input and

output - allows video communication between switchboard – main

EP and secondary EP and the audio and video activation from the

telephone switchboard of all the main and secondary EP. 6 DIN modules

346980 audio and video riser distribution block for digital systems. This device

can insulate the riser from the system when a conversation is in progress

between the riser entrance panel and an handset. This allows another

conversation on other sections of the system. 6 DIN modules

346200 relay actuator for digital systems which can switch on lights, open gates

or command any device using the handset pushbuttons. 4 DIN modules

346230 door lock relay actuator for digital systems. Can control an electric door

lock using the dedicated handset pushbuttons. 2 DIN modules

349410 it enables to establish an interface between an analogue, 8 wire digital,

Tersystem and Videoporter 2000 riser, a 2 wire dedicated apartment

video door entry system with local CCTV, sound system and control of

MY HOME applications - 4 DIN modules

AUDIO AND VIDEO POWER SUPPLY

INSTALLATION ACCESSORIES

336010

346100 346120

346200

346960

346190 346140

346980

346180

346230

349410

Item Description

346150 interface used to realize combined video door entry systems (digital

backbone/2 wire risers). Ideal for very large systems due to the fact that

all the performance advantages of the digital system (switchboard,

CCTV, independent risers) can be combined with the installation

advantages of the 2 wire system (simple wiring, intercommunication,

no need for local power supply of monitors). The device must be used

together with the power supply item 346000

346000 power supply to be used with interface item 346150. With removable

clamps - 8 DIN modules. Power supply: 230 Vac @ 50/60 Hz.

SELV device

336820 video distribution block for intercom systems or with telephone

switchboard. All the connections are made with the removable clamps

supplied - 6 DIN modules

336850 video distribution block for the simultaneous switching on of several

video handsets in the same apartment

391469 interface which displays the pictures from the video door entry system

on the television following a call from the entrance panel. It connects

to the system like a normal video handset and to the TV by means of a

common Scart socket. Diﬀ erent modes of connection means that the

TV can be used as an extra monitor for a ﬁ xed or cordless telephone (in

systems with PABX switchboard and video distribution block), or CCTV

systems can automatically switch between the monitoring cameras.

The device has a potentiometer to adjust the video signal amplitude

346820 interface to connect a camera (internal or external) on the digital riser.

The images of the camera connected to this interface will be visible

from all the system handsets - 6 DIN modules

337320 optoinsulated video signal converter for indoor/outdoor and minidome

cameras. It converts the video signal from coaxial into balanced

- 2 DIN modules

Item Description

336000 power supply to be installed in each home in multi-family intercom

systems - 6 DIN modules. Power supply: 230 Vac @ 50/60 Hz.

SELV device

336200 relay to be installed inside the home to give the intercom service.

In multi-family installations it must be supplied locally. All the

connections are made with the removable clamps supplied - 6 DIN

modules

With video signal output in balanced

Item Description

391612 b/w camera - LIGHT

391613 b/w camera - LIVING INTERNATIONAL

391614 b/w camera - LIGHT TECH

INSTALLATION ACCESSORIES

POWER SUPPLY AND RELAY FOR INTERCOM SYSTEMS

B/W INDOOR CAMERAS TO BE USED WITH THE BTICINO

HOME SERIES

346150

346000

391469

336000 336200

346820 337320

391612 391613 391614

391613

391614

DIGITAL SYSTEM

Installation accessories

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  OTHER SYSTEMS

336910

336950

336992

336993

336994

Item Description

336910 extra bell to broadcast the electronic call in several rooms; it can be

installed on the wall or on a round box with clips

Item Description

391468 camera switcher with 2 inputs to connect indoor or outdoor cameras or

SFERA entrance panels. The images of the cameras connected or of the

entrance panels, will only be visible from the video handset the camera

switcher is connected to - 6 DIN modules

391470 white 4-pushbutton block for PIVOT video handsets. This accessory

enables to individually switch on the 4 cameras of the system, or to

control 4 actuators, item 346200

Item Description

336950 tester to check the wiring of analogue and digital systems. It is made up

of three units: a transmitter, a receiver and a distributor. The tester gives

information on: broken connections, inverted connections and short

circuits

Item Description

336992 extra bell to broadcast the electronic call in several rooms. There is a

potentiometer on the front to adjust the volume. It can be installed

ﬂ ush mounted using a 2-module box with chassis and LIGHT surround

plates

336993 extra bell as above - LIVING

336994 extra bell as above - LIGHT TECH

EXTRA BELL

VIDEO MONITORING ACCESSORIES

WIRING TESTER

LIVING, LIGHT AND LIGHT TECH EXTRA BELLS

Item Description

3501/0 conﬁ gurator 0

3501/1 conﬁ gurator 1

3501/2 conﬁ gurator 2

3501/3 conﬁ gurator 3

3501/4 conﬁ gurator 4

3501/5 conﬁ gurator 5

3501/6 conﬁ gurator 6

3501/7 conﬁ gurator 7

3501/8 conﬁ gurator 8

3501/9 conﬁ gurator 9

3501K conﬁ gurator kit consisting of:

- 10 pieces for each type of conﬁ gurator from 0 to 9

- 2 blue removable 8-clamp connectors

- 2 green removable 2-clamp connectors

- 1 conﬁ gurator connection tool

- 1 plastic screwdriver

Item Description

336810 video signal distribution block for box Ø 60 mm. It has an output for the

video handset and another pass-through

336964 removable connector, 4 clamps not numbered

336968 removable connector, 8 clamps not numbered

Item Description

336900 non-ﬁ re propagating 8-conductor cable which can be buried in piping,

conforms to standards (CEI 20-22 II), (CEI 20-13) and (CEI 20-14) –

100-metre skein

336903 non-ﬁ re propagating 8-conductor cable which can be buried in piping,

conforms to standards (CEI 20-22 II), (CEI 20-13) and (CEI 20-14) –

500-metre skein

CONFIGURATORS 10 PIECE PACK

INSTALLATION ACCESSORIES

WIRING ACCESSORIES

336810

336968

336964

3501K

336810

336964

DIGITAL SYSTEM

Installation accessories

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  OTHER SYSTEMS

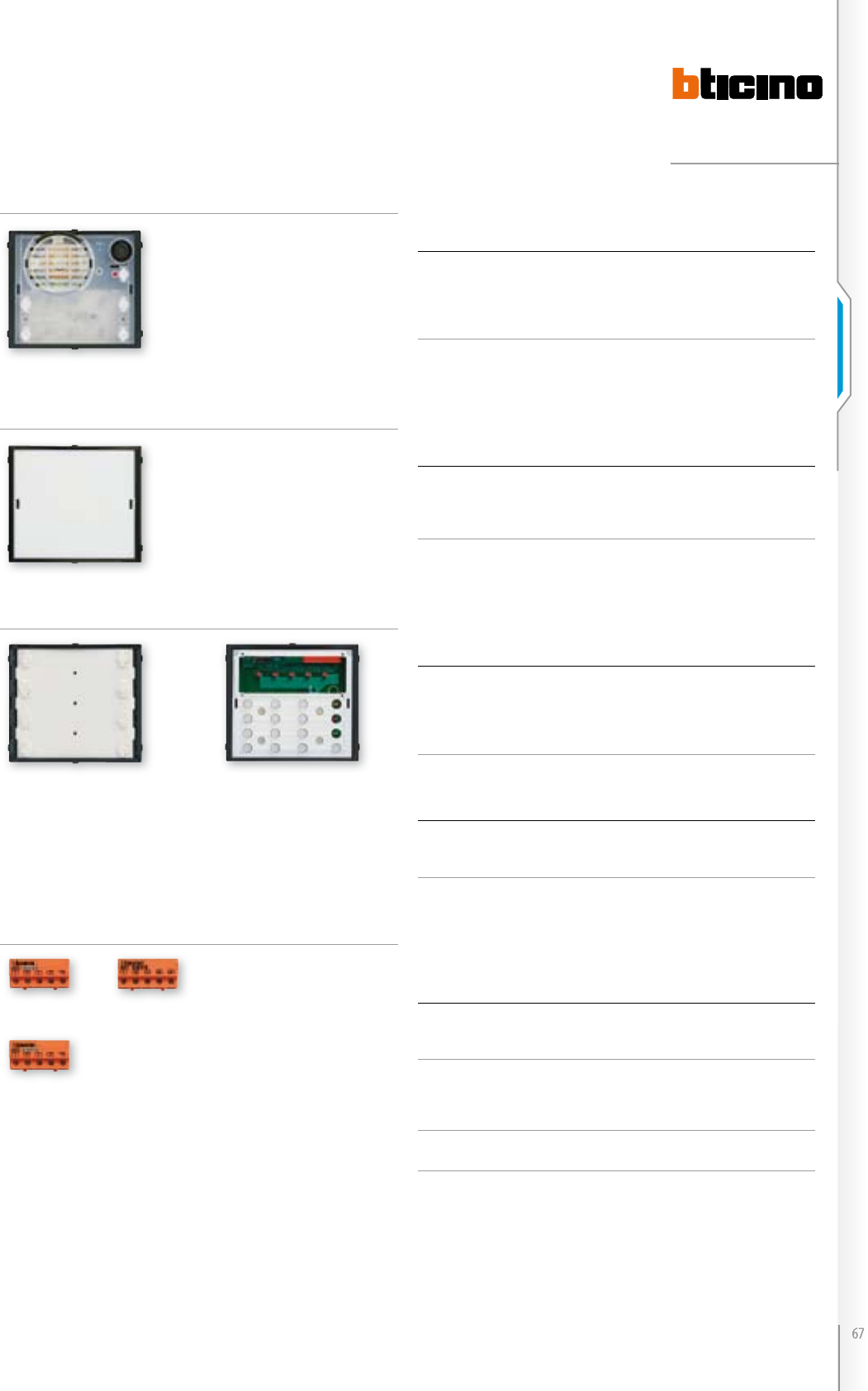

ANALOGUE SYSTEM

SFERA function modules

Item Description

332120 analogue speaker module with two call pushbuttons and a pushbutton

to control the staircase light relay actuator. The connections to the

system are made by wiring the removable clamp supplied; also the

nameplates are lit up by a lamp ﬁ tted on a removable drawer. The

module is supplied with all the connection wires

Item Description

332200 analogue nameplate module which can be used to enter the street

number or any other information. It can be used for the “wait” signal,

in systems with 2 entrance panels. The module is supplied with all the

connection wires

Item Description

332240 analogue pushbutton module with 4 call pushbuttons. The connections

to the system are made by cabling the removable clamp supplied; also

the nameplates are lit up by a lamp ﬁ tted on a removable drawer. The

module is supplied with all the necessary wires for connection to other

modules

Can be installed in the analogue speaker module

Item Description

336300 card to be installed on the analogue speaker module to have the

conversation secrecy in all the system. The handsets must be PIVOT or

SWING (only item 334702/03/04)

336310 card to be installed on the analogue speaker module, to have the

control relay of the electric door lock nearby the door lock itself. This

solution enables a consistent reduction of the conductor sections in the

line between the entrance panel and the power supply.

332930 diﬀ erentiated note generator to be installed on the analogue speaker

module to diversify the call note in systems with 2 entrance panels

Item Description

332650 code-lock module that can be used both in analogue and digital

systems. This module opens and closes two relays by keying in two code

numbers

SPEAKER MODULE

NAMEPLATE MODULE

PUSHBUTTON MODULE

ACCESSORIES

CODELOCK MODULE

332120

332200

332240 332650

336300

332930

336310

WARNING: assembly note: flush mounted boxes, wall mounted enclosures, rainshield,

front cover, and surround plates are the same as for 2-WIRE SFERA entrance panels

(refer to the specific section in the catalogue)

Item Description

332700 analogue speaker module preset for max. 6 calls. It must be ﬁ tted

with contact small block item 332718, surround plate item 332721

and keys item 332712, item 332713, item 332714, item 332715. With

microphone sensitivity and loudspeaker volume adjustment. The

connections to the system are made directly on the speaker module

terminal board. The nameplates are illuminated by 6 green LEDs

Item Description

332712 narrow key 1 module with name label

332713 wide key 2 modules with name label

332714 2 modules nameplate with label

332715 1 module false key - standard grey

332718 pushbutton contact to be associated to the call keys

Item Description

332704 analogue pushbutton module preset for max. 10 calls. It must be ﬁ tted

with contact small block item 332718, surround plate item 332721

and keys item 332712, item 332713, item 332714, item 332715. The

nameplates are illuminated by 10 green LEDs

Item Description

332710 ﬂ ush mounted box

332711 surface mounted box

332721 aluminium surround plate

SPEAKER MODULE

COMMON ACCESSORIES

EXPANSION MODULE

COMMON ACCESSORIES

332700 332704

332711

332710 332721

332715

332712

332713 332714

332718

ANALOGUE SYSTEM

MINISFERA pushbutton panels

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  OTHER SYSTEMS

MINISFERA BASIC pushbutton panel

332801

332715332712

332713 332714

332718

Item Description

332801 analogue speaker module preset for max. 4 calls. It must be ﬁ tted with

contact block item 332718 and keys item 332712, item 332713, item

332714, item 332715. With microphone sensitivity and loudspeaker

volume adjustment. The connections to the system are made directly on

the speaker module terminal board. The nameplates are illuminated by

4 green LEDs

Item Description

332712 narrow key 1 module with name label

332713 wide key 2 modules with name label

332714 2 module nameplate with label

332715 1 module false key - standard grey

332718 pushbutton contact to be associated to the call keys

SPEAKER MODULE  BASIC

ACCESSORIES FOR BASIC MINISFERA

332801

SWING handset

Item Description

334002 Pivot handset which can be installed in analogue and digital systems.

It has a door lock release pushbutton, staircase light control and self-

switching on key to monitor the entrance panel or any cameras (or call

to the switchboard). The call volume can be set on three levels. It also

has a call secrecy function

used with item 336300.

It is connected to the

system using the removable clamp supplied. Suitable for wall mounted

installation, using the bracket supplied, table-top installation, or ﬂ ush

mounted using the correct accessories. White

Item Description

334704 white SWING audio handset which can be installed in analogue and

digital systems. It has a door lock release pushbutton, activation of the

entrance panel and three pushbuttons for auxiliary functions referred

to three clean contacts (NO-output max. 24 Vac/dc 1A). The ring volume

can be adjusted and excluded. It also has a call secrecy function. It is

connected to the system using the removable clamps supplied. Suitable

for wall mounted installation

Item Description

337102 support for table for handset. It can be used also for slanting surface

mounted installation. White

336982 LIGHT 8-way socket for table-top installation of PIVOT audio and video

handset

PIVOT AUDIO HANDSET

SWING HANDSET

ACCESSORIES FOR PIVOT HANDSETS

334002

337102 336982

336982

334704

ANALOGUE SYSTEM

PIVOT handset

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  OTHER SYSTEMS

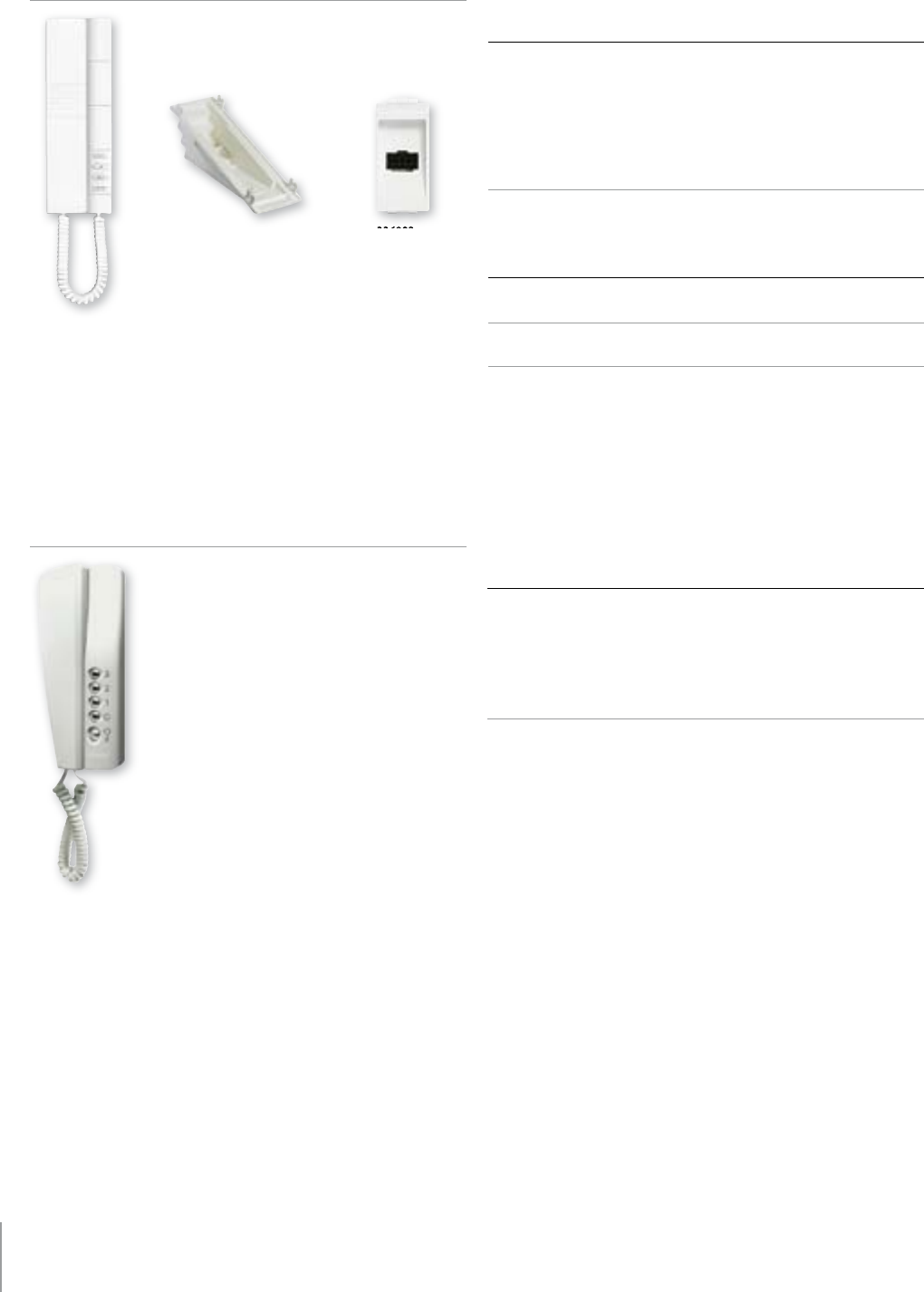

SPRINT handset and accessories

Item Description

334202 SPRINT handset which can be installed in analogue and digital systems.

It has a door lock release pushbutton. The call volume can be set on

three levels. It does not need any accessory for wall installation. The

cord can be extended with RJ plugs. Conversation secrecy not available

Item Description

334602 BASIC handset which can be installed in analogue and digital systems.

It has a door lock release pushbutton. It does not need any accessory for

wall installation

Item Description

336803 black cable with plug, length 2 m

336982 LIGHT 8-way socket for table-top installation of SPRINT handset

337242 support for table with 2 m cable and plug for handset

337400 call exclusion changeover switch and signal LED; can exclude the call

from the entrance panel, signalled by a red LED lighting up

337411 intercom card for handset; must have pushbuttons item 337430 to send

the calls to the other handsets

337430 extra pushbutton to be used for various commands or for intercom

together with card item 337411

337440 signalling LED

SPRINT HANDSET

BASIC HANDSET

ACCESSORIES FOR SPRINT HANDSET

334202

337242

334602

BASIC handset

Item Description

336200 relay to be installed inside the home to give the intercom service.

In multi-family installations it must be supplied locally. All the

connections are made with the removable clamps supplied - 6 DIN

modules

336210 switching relay to be installed on systems with 2 entrance panels. All

the connections are made with the removable clamps supplied -

6 DIN modules

336220 auxiliary relay for the control of an extra bell or any other device.

Contacts 5A 230 Vac - 3 DIN modules

336230 staircase lights timer relay (from 15 seconds to 10 minutes) It can be

controlled either from the 230 V mains or from the 12 - 30 Vac-dc door

entry system. Contacts 10 A 230 Vac - 3 DIN modules

336802 noise reduction ﬁ lter, to be used with systems installed in electrically

noisy environments - 2 DIN modules

336860 audio ﬂ oor distribution block for 4 handsets. All the connections are

made with the removable clamps supplied - 6 DIN modules

349410 it enables to establish an interface between an analogue riser, 8 wire

digital, Tersystem and Videoporter 2000, a 2 wire dedicated apartment

video handset with local video surveillance, sound system and

MY HOME application control - 4 DIN modules

Item Description

336920 universal speaker unit to be installed in the Tersystem and Postal box

pushbutton panels, in order to use them also with the new analogue

system

INSTALLATION ACCESSORIES

UNIVERSAL SPEAKER UNIT

336200 336210

336220 336230 336802

336920

Tersystem

POSTAL BOX

Tersystem

POSTAL BOX

T500

349410

ANALOGUE SYSTEM

Installation accessories

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  OTHER SYSTEMS

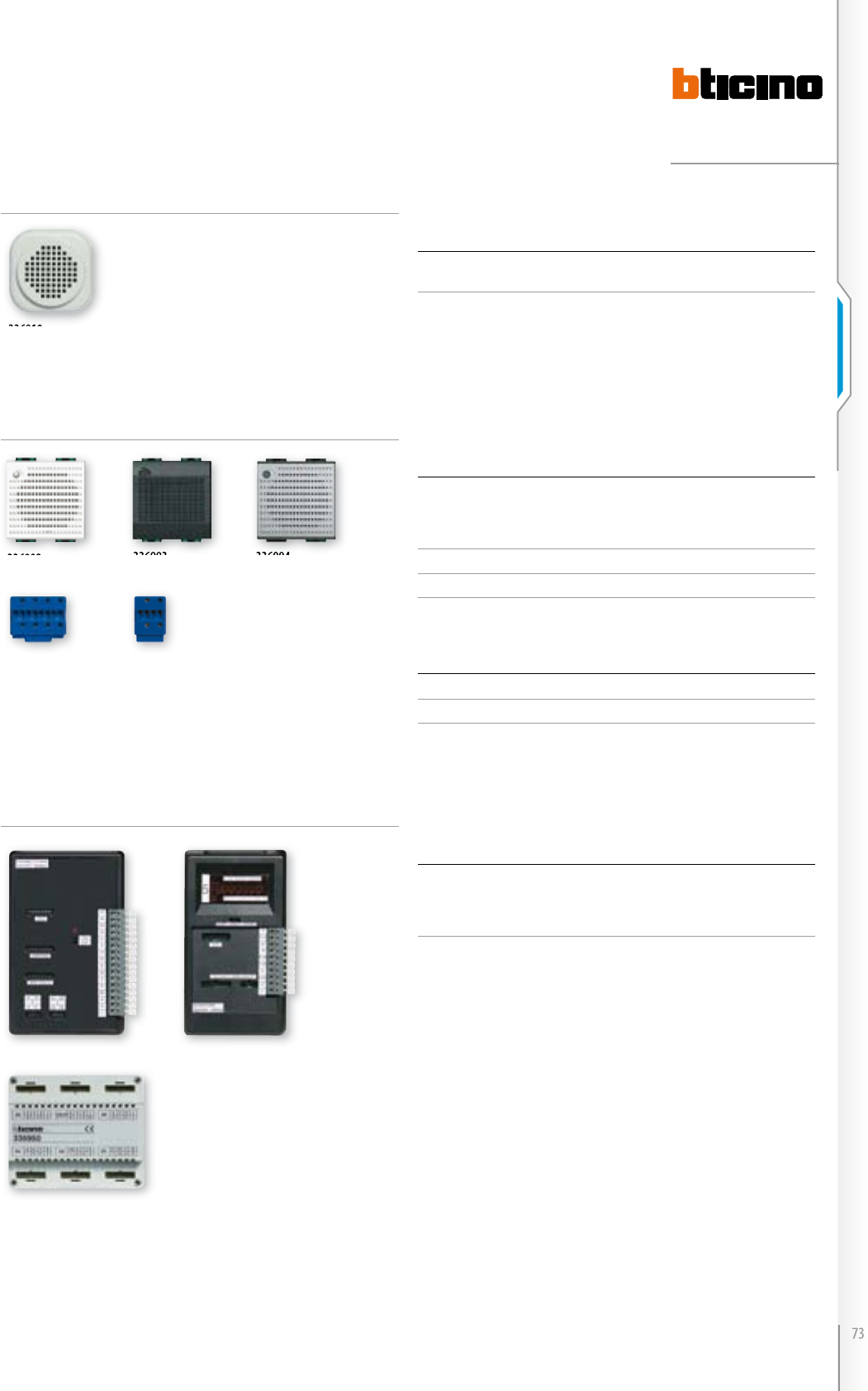

336910

336950

336992 336993 336994

336968 336964

Item Description

336910 extra bell to broadcast the electronic call in several rooms; it can be

installed on the wall or on a round box with clips

Item Description

336950 tester to check the wiring of analogue and digital systems. It is made up

of three units: a transmitter, a receiver and a distributor. The tester gives

information on: broken connections, inverted connections and short

circuits

Item Description

336964 removable connector, 4 clamps not numbered

336968 removable connector, 8 clamps not numbered

Item Description

336992 extra bell to broadcast the electronic call in several rooms. There is a

potentiometer on the front to adjust the volume. Suitable for ﬂ ush

mounted installation using a 2-module box with chassis and LIGHT

surround plates

336993 extra bell as above - LIVING

336994 extra bell as above - LIGHT TECH

EXTRA BELL

WIRING TESTER

ACCESSORIES AND CONNECTORS

LIVING, LIGHT AND LIGHT TECH EXTRA BELLS

336910

336992

336993

336994

Item Description

336000 power supply for audio analogue systems.

Power supply: 230 Vac @ 50/60 Hz - 6 DIN modules. SELV device

Item Description

336020 power supply for audio analogue systems, with removable clamps,

preset for back-up battery (not supplied).

Power supply: 230 Vac @ 50/60 Hz - 8 DIN modules. SELV device

Item Description

336842 transformer 230 V – 12 V, 18 VA - 3 DIN modules

AUDIO POWER SUPPLY

AUDIO POWER SUPPLY FOR BACKUP BATTERY

TRANSFORMER

336000

336842

336000

336842

ANALOGUE SYSTEM

Power supplies and transformer

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  OTHER SYSTEMS

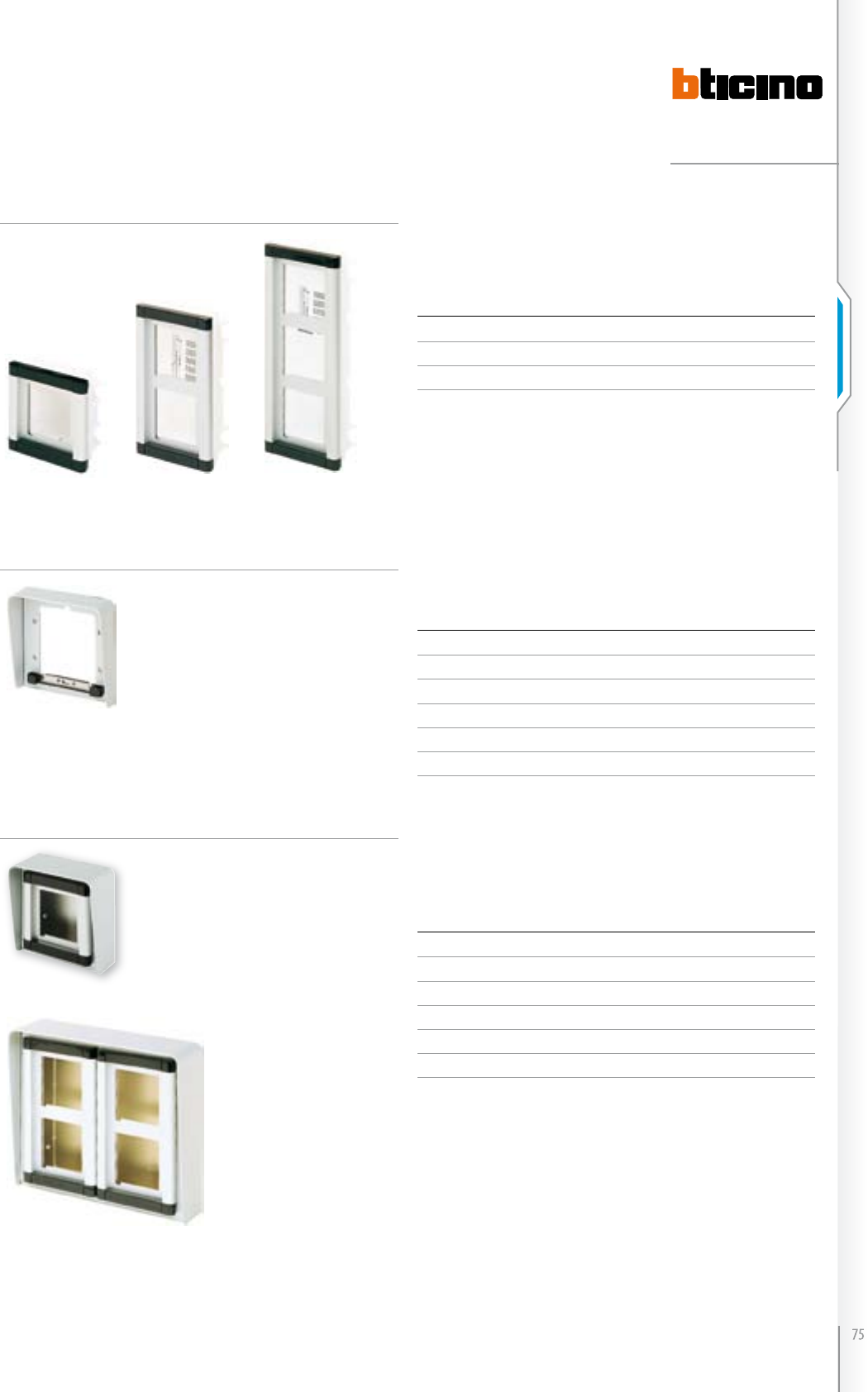

TERSYSTEM

Mechanics

Supplied with  ush mounted box – colour aluminium. With

opening hinge to make wiring easier, and accessories for

coupling several boxes together. Flush mounting depth 45 mm

Item Modules

2251 1

2252 2

2253 3

For  ush mounted module-holder cover plates - colour aluminium

Item Modules

2701 1

2702 2

2703 3

2704 4

2706 6

2709 9

For wall mounted installation – colour aluminium.

With opening hinge to make wiring easier, and rain protection.

Maximum protrusion 78 mm

Item Modules

2301 1

2302 2

2303 3

2304 4

2306 6

2309 9

MODULEHOLDER COVER PLATES

RAINSHIELDS

MODULEHOLDER COVER PLATES

2251 2252 2253

2701

2301

2304

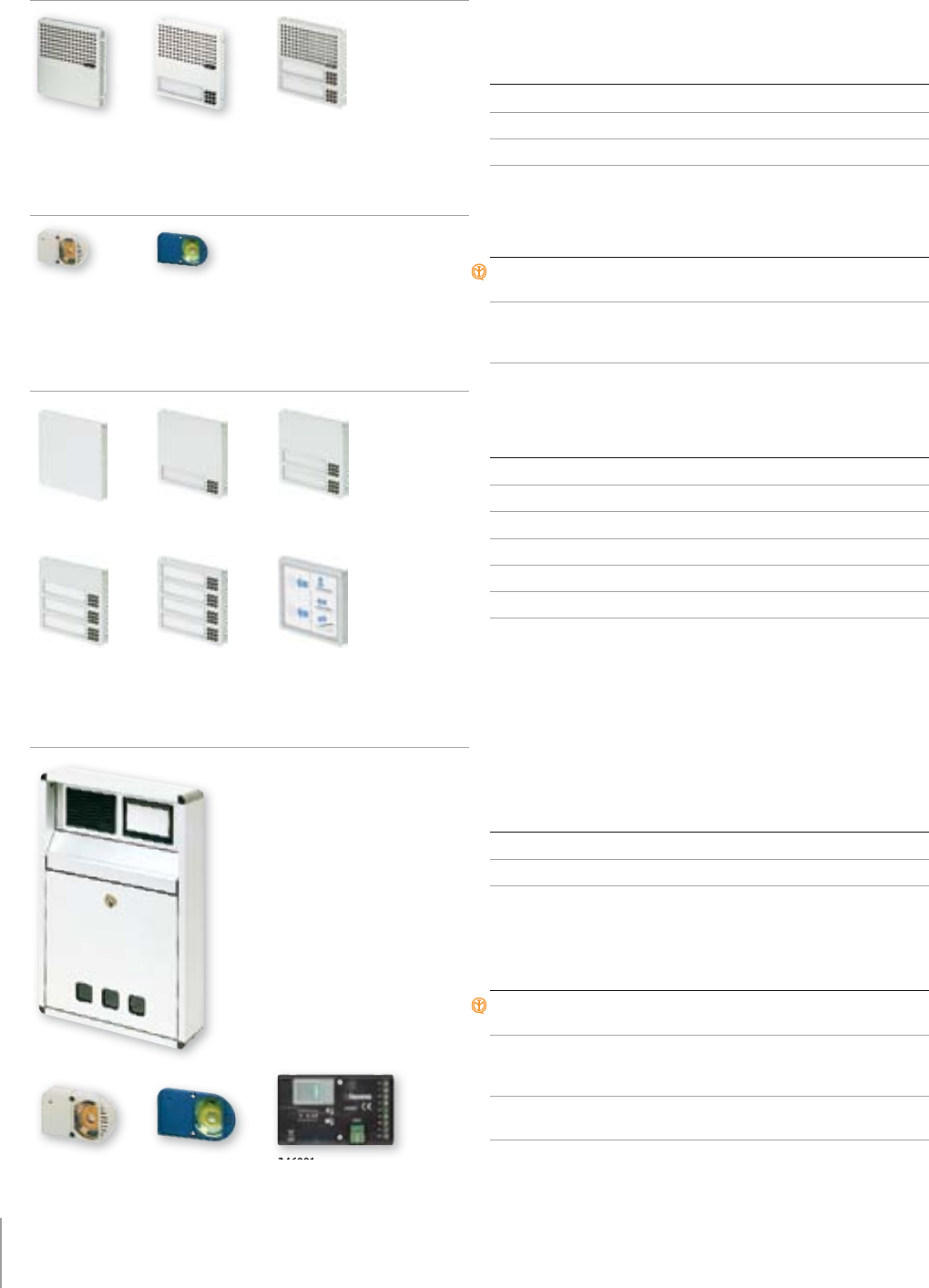

For the installation of the “Porter” 2659N speaker module, with

backlit call pushbuttons and staircase light key

Item Call pushbuttons

2130 none

2131 1

2132 2

Supplied with lighting

Item Call pushbuttons

2140 none

2141 1

2142 2

2143 3

2144 4

2149 signalling module

Fully made of anodized aluminium, they can be installed on the

wall or the gate. The mailbox door is  tted with door lock

Item Description

40.71 with pushbutton and speaker module grid - front opening

40.72 with 2 pushbuttons and speaker module grid - front opening

Item Description

2659N universal speaker unit to be installed in the Tersystem and Postalbox

pushbutton panels, in order to use them with the 4 wire system + n

336920 universal analogue speaker unit to be installed in the Tersystem and

Postal box pushbutton panels, in order to use them with the analogue

system

Item Description

2659N universal speaker unit to be installed in the Tersystem and Postalbox

pushbutton panels, in order to use them with the 4 wire system + n

336920 universal analogue speaker unit to be installed in the Tersystem and

Postalbox pushbutton panels, in order to use them with the analogue

system

346991 universal speaker unit to be installed in the Tersystem and Postalbox

pushbutton panels, in order to use them with the 2 wire system

MODULES FOR SPEAKER UNIT  ALUMINIUM

CALL MODULES AND SIGNALLING  ALUMINIUM

MAIL BOXES FOR VIDEO DOOR ENTRY SYSTEMS

UNIVERSAL SPEAKER UNITS

2659N

2140 2141 2142

2143 2144 2149

336920

40.71

2659N 336920

2130 2131 2132

346991

TERSYSTEM

Speaker units and front covers

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  CATALOGUE

Handsets and accessories

600

600WS

603R

The 603 and 600 series handsets with power supply 672 and

switching groups 607 and 608N can be connected to the

pushbutton stations, Tersystem and Postalbox

Item Description

603R white, with pushbutton for opening door lock

With these models it is possible to expand the range of

functions by adding pushbuttons (up to six maximum)

Item Description

600 beige, with 2 pushbuttons

600WS white, with 2 pushbuttons

Item Description

UE611 electronic unit to be ﬁ tted inside the handset for conversation secrecy

function, and for auto-exclusion, if the receiver is oﬀ for more than 1

second

600ETE additional pushbutton for the creation of intercommunicating systems

600D red LED diode for luminous signalling

600S call exclusion switch

600G1A extra monotone bell; for installation inside the handsets

602UZ kit for 600 handset used in parallel with video handsets

HANDSETS, POWER SUPPLIES AND ACCESSORIES

SERIES 603 HANDSET

SERIES 600 HANDSET

ACCESSORIES AND SPARE PARTS FOR SERIES 600 HANDSET

Item Description

336920 universal analogue speaker unit to be installed in the Tersystem and

Postalbox pushbutton panels, in order to use them with the analogue

system

Item Description

672 modular housing, 6 DIN modules; power supply 230 Vac

Item Description

607 for intercommunicating systems. Modular housing, 3 DIN modules

608N for systems with 2, 3 or 4 entrance panels. Modular housing, 10 DIN

modules

Item Description

349410 it enables to establish an interface between an analogue riser, 8 wire

digital, Tersystem and Videoporter 2000, a 2 wire dedicated apartment

video handset with local video surveillance, sound system and

MY HOME application control - 4 DIN modules

UNIVERSAL ANALOGUE SPEAKER UNIT

POWER SUPPLY

SWITCHING UNITS

ANALOGUE/2 WIRE COMMUNICATION INTERFACE

336920

672

607

608N

349410

TERSYSTEM

Installation accessories

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  DIMENSIONAL DATA

CONTENTS

2 WIRE CATALOGUE  DIMENSIONAL DATA

Entrance panels 80

Handsets 85

Video Switchboard 88

Accessory devices in BASIC housing 88

Accessory devices in DIN housing 89

Melodic and extra bells 90

Indoor cameras ( ush mounted) 90

Outdoor camera 90

139 27.5 139 30

339213

Steel surround plate.

Protrusion from the wall: 11 mm

NOTE: dimensions in mm

339223

Brass surround plate.

Protrusion from the wall: 13.5 mm

104

300

253

35.5

339313 349140

AXOLUTE OUTDOOR entrance panels

DIMENSIONAL DATA

FLUSH MOUNTED BOX

SURROUND PLATES + FRAME

ELECTRONIC MODULE

330

355

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  DIMENSIONAL DATA

NOTE: dimensions in mm

SFERA entrance panels

FLUSH MOUNTED BOXES

MODULAR SFERA WALL MOUNTED ENCLOSURES

SFERA ALL FUNCTION MODULES

SFERA MODULAR RAINSHIELDS

SFERA MODULAR SURROUND PLATES

DIMENSIONS IN mm

Item A B C

331110 117 123 45

331120 117 214 45

331130 117 306 45

DIMENSIONS IN mm

Item A B C

331411 151 151 50

331421 151 242 50

331431 151 334 50

331441 290 242 50

331461 290 334 50

331491 430 334 50

A AC C

C C

DIMENSIONS IN mm

Item A B C

331311 150 154 92

331321 150 245 92

331331 150 337 92

331341 289 245 92

331361 289 337 92

331391 428 337 92

DIMENSIONS IN mm

Item A B

331211 140 142

331221 140 233

331231 140 325

331821 125 233

331831 125 325

100

SFERA entrance panels

DIMENSIONAL DATA

MONOBLOC SFERA FRONT COVERS

VANDALRESISTANT SFERA

DIMENSIONS IN mm

No. of modules A B

1 140 142

2 140 233

3 140 325

DIMENSIONS IN mm

Item A B C

333914 150 284 4

DIMENSIONS IN mm

Item A B C

333714 150 198 4

Video pushbutton panels Audio pushbutton panels

NOTE: dimensions in mm

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  DIMENSIONAL DATA

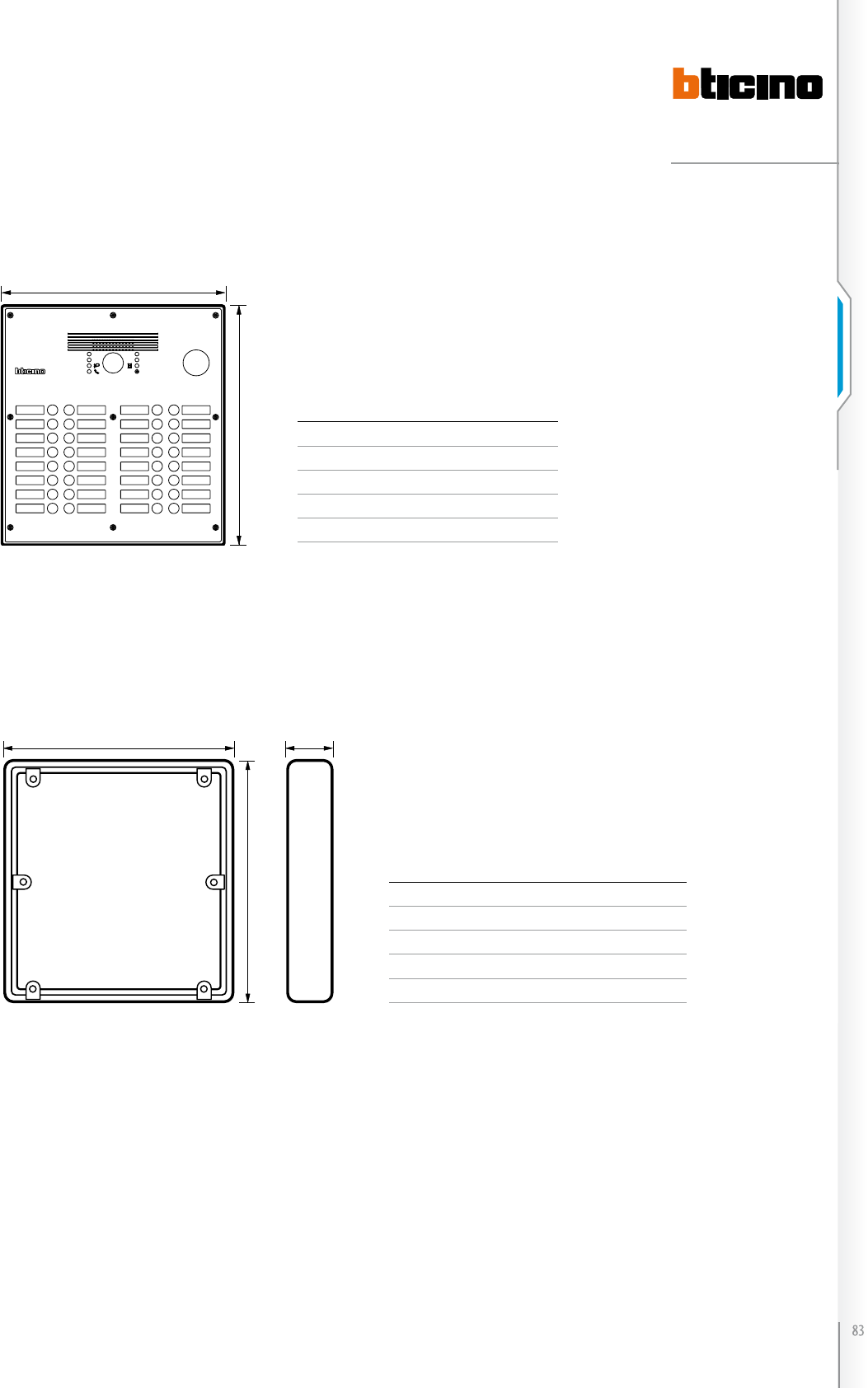

Monobloc vandal-resistant entrance panels

MONOBLOC PUSHBUTTON PANELS

WALL MOUNTED BOXES FOR MONOBLOC PUSHBUTTON PANELS

NOTE: dimensions in mm

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

26 28

29 30

31 32

A C

DIMENSIONS IN mm

Item A B

308001 - 308011 180 270

308002 - 308012 180 330

308003 - 308013 180 360

308004 - 308014 180 440

308005 - 308015 340 370

DIMENSIONS IN mm

Item A B C

308021 178 267 40

308022 178 327 40

308023 178 357 40

308024 178 437 40

308025 338 367 40

MINISFERA entrance panels

LINEA 2000 entrance panels

DIMENSIONAL DATA

MINISFERA FLUSH MOUNTED BOX MINISFERA WALL MOUNTED BOX

MINISFERA SURROUND PLATEMINISFERA FUNCTION MODULES

AUDIO AND VIDEO PUSHBUTTON PANELS

176

C C

DIMENSIONS IN mm

Item A B C

332710 95 235 45

DIMENSIONS IN mm

Item A B C

342702 100 245 21

342704 100 245 21

342708 100 245 21

DIMENSIONS IN mm

Item A B C

332711 99 245 16

DIMENSIONS IN mm

Item A B C

332721 100 237 18

342951

342961

342911

342921

NOTE: dimensions in mm

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  DIMENSIONAL DATA

LINEA 2000 METAL entrance panels

AXOLUTE handsets

WALL AUDIO AND VIDEO PUSHBUTTON PANELS

MULTIMEDIA TOUCH SCREEN

VIDEO STATION

NIGHTER AND WHICE VIDEO STATION

FLUSH MOUNTED VIDEO PUSHBUTTON PANELS

106 13635

185

163

349210 - 349211 - 349212 349310

349320

349321

HD4690 - HC4690 - HS4690

342991

342992

342981

342982

342971

342972

343001

343002

154

251

226

305

161

256

305

230

NOTE: dimensions in mm

305 17

228

AXOLUTE handsets

POLYX handsets

DIMENSIONAL DATA

AXOLUTE VIDEO DISPLAY

AXOLUTE ETÉRIS VIDEO DISPLAY

TABLETOP BASE

POLYX AUDIO POLYX VIDEO  POLYX MEMORY DISPLAY

For AXOLUTE VIDEO DISPLAY

2,5”

10.5

128 29

118

127

127130

9.5

30.2

349311

349312

349313 349319

124.5 168

128

151

30 30

NOTE: dimensions in mm

349340

344082 344192

344163

344182

128

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  DIMENSIONAL DATA

TELELOOP inductive module

PIVOT handsets

PIVOT AUDIO AND VIDEO HANDSET

MULTIBOX FLUSH MOUNTED BOXES

NOTE: dimensions in mm

88 24.5

122

70 68,5 68.5210

210

Item Internal External

dimensions (mm) dimensions (mm)

16101 84x218x69 110x243x70

16103 224x218x69 250x243x70

344165

334002

344032

344102 / 334102

344122 / 334122

SWING handsets

SPRINT handsets

Devices in BASIC housing

DIMENSIONAL DATA

SWING AUDIO AND VIDEO HANDSETS

SPRINT AUDIO HANDSETS

COAX INTERFACE  2 WIRES

FLOOR CALL INTERFACE

VIDEO SHUNT  2 WIRES

101 56

210

215

56 56

216

P ZNP ZN

P ZN

4018

4040

334704

344704

347400

346833

346841

334804

344832

344824

334202

344212

NOTE: dimensions in mm

Switchboard

COLOUR VIDEO SWITCHBOARD

290

170

210

346310

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  DIMENSIONAL DATA

UNIVERSAL SPEAKER MODULE LINE AMPLIFIER

B C

35 1526

Item Dimensions (mm) No. of DIN modules

A B C

346000 90 140 61 8

346010 90 105 61 6

346020 105 35 30 2

346030 105 35 30 2

346150 90 105 61 6

346200 90 72 61 4

346230 105 35 30 2

346260 105 70 30 4

346810 90 52.5 37 3

346830 105 35 30 2

346850 90 72 30 4

346851 90 72 30 4

346890 90 175 60 10

349410 90 105 37 6

F441 90 105 30 6

F441M 90 175 30 10

F442 90 105 30 6

DIN RAIL DEVICES

NOTE: dimensions in mm

346991 346870

Bells and cameras

DIMENSIONAL DATA

MELODIC BELLS EXTRA BELLS

38 100

346982

346983

346984

391657

391658

391659

391670

391667

391668

391669

391661

391662

391663

336992

336993

336994

349412

349413

FLUSH MOUNTED INDOOR CAMERAS

OUTDOOR CAMERA

LIVING, LIGHT, LIGHT TECH and AXOLUTE cameras

NOTE: dimensions in mm

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  NUMERIC INDEX

NUMERIC INDEX

Item Catalogue page Dimensional data page

600 77 -

607 78 -

672 78 -

2130 76 -

2131 76 -

2132 76 -

2140 76 -

2141 76 -

2142 76 -

2143 76 -

2144 76 -

2149 76 -

2251 75 -

2252 75 -

2253 77 -

2301 75 -

2302 75 -

2303 75 -

2304 75 -

2306 75 -

2309 75 -

2701 75 -

2702 75 -

2703 75 -

2704 75 -

2706 75 -

2709 75 -

3499 44 -

16101 38 87

16103 38 87

16121 38 -

16122 38 -

308001 20 83

308002 20 83

308003 20 83

308004 20 83

308005 20 83

308011 20 83

308012 20 83

308013 20 83

308014 20 83

308015 20 83

308021 20 83

308022 20 83

308023 20 83

308024 20 83

308025 20 83

316113 55 -

316213 55 -

316313 55 -

316413 56 -

316513 56 -

331110 13 81

331120 13 81

331130 13 81

331311 13 81

331321 13 81

331331 13 81

331341 13 81

331361 13 81

331391 13 81

331411 13 81

331421 13 81

331431 13 81

331441 13 81

331461 13 81

331491 13 81

332120 67 81

332200 67 81

332240 67 81

332510 59 81

332540 59 81

332550 59 81

332650 13-59-67 81

332700 68 81

332704 68 81

332710 21-68 84

332711 21-68 84

332712 21-68-69 -

332713 21-68-69 -

332714 21-68-69 -

332715 21-68-69 -

Item Catalogue page Dimensional data page

NUMERIC INDEX

332718 68-69 -

332721 21-68 84

332801 69 -

332930 67 -

333714 19-60 82

333914 19-60 82

334002 61-70 87

334102 61 87

334202 62-71 88

334402 61 -

334602 62-71 -

334704 62-70 88

334804 62 88

335122 61 -

336000 64-74 -

336010 63 -

336200 64-72 -

336210 72 -

336220 72 -

336230 72 -

336300 67 -

336310 67 -

336802 72 -

336810 66 -

336820 64 -

336842 74 -

336850 64 -

336900 66 -

336903 66 -

336904 45 -

336910 46-65-73 -

336920 71-72-77 -

336950 64-72 -

336964 65 -

336968 65 -

336982 37-40-60 -

336992 46-65 90

336993 46-65 90

336994 46-65 90

337102 37-61-70 -

337122 37-61 -

337242 40-71 -

337320 64 -

337400 71 -

337411 71 -

337430 71 -

337440 71 -

339213 12 80

339223 12 80

339313 12 80

342150 13 -

342160 58 81

342170 13 81

342200 13-58 81

342240 13-58 81

342350 13 81

342480 13 81

342510 13 81

342550 13 81

342560 13 81

342600 13-59 81

342610 13-59 81

342620 58 81

342630 13 81

342640 13-58 81

342702 21 84

342704 21 84

342708 21 84

342911 23 84

342921 23 84

342951 23 84

342961 23 84

342971 22 85

342972 22 85

342981 22 85

342982 22 85

342991 22 85

342992 22 85

343001 22 85

343002 22 85

344002 61 -

344032 37 87

VIDEO DOOR ENTRY AND HOME VIDEO SURVEILLANCE SYSTEM  NUMERIC INDEX

Item Catalogue page Dimensional data page

344082 36 86

344102 37 87

344122 37 87

344163 36 86

344165 36 87

344182 36 86

344192 36 86

344202 40 88

344212 40 88

344704 39 88

344824 39 88

344832 39 88

346000 42 89

346010 42 89

346020 42 89

346030 42 89

346100 63 -

346120 63 -

346140 63 -

346150 43-64 89

346180 63 -

346190 63 -

346200 43-63 89

346220 59 -

346230 43-63 89

346250 44 -

346260 43 89

346300 47 -

346310 40 88

346810 43 89

346812 37 -

346820 64 -

346830 42 89

346833 44 88

346841 44 88

346850 43 89

346851 43 89

346860 63 -

346870 44 88

346890 43 89

346902 44 -

346903 44 -

346907 44 -

346960 64 -

346980 64 -

346982 46 90

346983 46 90

346984 46 90

346991 45 89

346992 45 89

347400 44 88

348200 12 -

348201 12 -

348202 12 -

348203 12 -

348204 12 -

348205 12 -

348206 12 -

348402 12 -

349140 12 80

349210 33 85

349211 33 85

349212 33 85

349241 35 -

349242 35 -

349243 35 -

349310 33 85

349311 34 86

349312 34 86

349313 34 86

349319 34 86

349320 33 85

349321 33 85

349340 35 86

349410 43-63-72 89

349412 46 90

349413 46 90

349414 34 -

349415 34 -

365411 51 -

365421 51 -

366311 54 -

NUMERIC INDEX

Item Catalogue page Dimensional data page

367211 50 -

367221 50 -

367511 51 -

367521 51 -

368111 50 -

368121 50 -

368811 52 -

368821 52 -

368911 52 -

368921 52 -

369111 54 -

369411 53 -

369421 53 -

369511 53 -

369521 53 -

391469 64 -

391612 64 -

391613 64 -

391614 64 -

391657 46 90

391658 46 90

391659 46 90

391661 46 90

391662 46 90

391663 46 90

391667 46 90

391668 46 90

391669 46 90

391670 46 90

16101LT 38 -

16103LT 38 -

2659N 76 -

3501/0 45-66 -

3501/1 45-66 -

3501/2 45-66 -

3501/3 45-66 -

3501/4 45-66 -

3501/5 45-66 -

3501/6 45-66 -

3501/7 45-66 -

3501/8 45-66 -

3501/9 45-66 -

3501K 45-66 -

40.71 76 -

40.72 76 -

40.91 78 -

40.92 78 -

600D 77 -

600ETE 77 -

600G1A 77 -

600S 77 -

600WS 77 -

602UZ 77 -

603R 77 -

608N 78 -

F441 42 89

F441M 42 89

F442 44 89

HA4690LTK 32 -

HA4690VBB 32 -

HA4690VNB 32 -

HA4690VSW 32 -

HA4690XC 32 -

HC4690 32 85

HD4690 32 85

HS4690 32 85

UE611 76 -

AD-EXCM11C/UK- Version 03/2011

BTicino SpA reserves at any time the right to modify the contents of this booklet and to communicate,

in any form and modality, the changes brought to the same.

BTicino SpA

Via Messina, 38

20154 Milano - Italy

www.bticino.com

Bticino 2011 Catalogue

Navigation menu

Versions of this User Manual:

Views

Navigation
