Classe 100
2
Versatility, essential and
refined design, ensure maximum
freedom of use
3
WWW.BTICINO.COM
CLASSE 100
DOOR ENTRY SYSTEM
CLASSE 100
For any
situation
4
GLASS EFFECT
FINISH
The range of video and audio internal
units, both handsfree and with
handset, is suitable for different
installation solutions:
wall mounted, flush mounted, with
adjustable device and table-top
installation.
CLASSE 100
STAIRCASE LIGHT
SWITCHING ON
DOOR LOCK
RELEASE
HANDSFREE
COMMUNICATION
ENTRANCE PANEL
ACTIVATION
5
WWW.BTICINO.COM
CLASSE 100
DOOR ENTRY SYSTEM
EASILY
RECOGNIZABLE KEYS
MINIMALIST, DISCRETE
AND ELEGANT DESIGN
REDUCED
THICKNESS

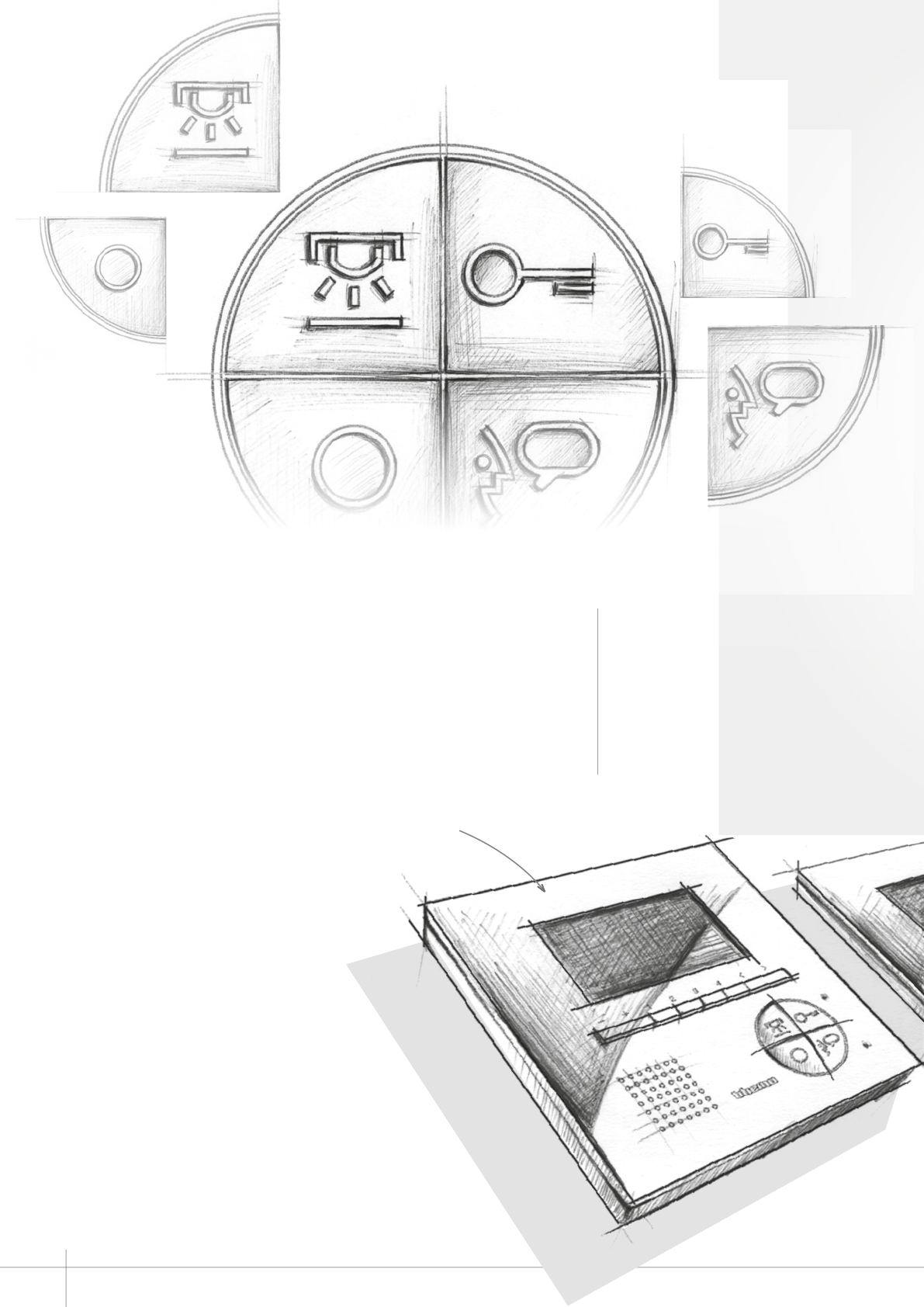

CLASSE 100 features a minimalist,
discrete, and elegant design,
enhanced by the white glass effect
finish, for perfect integration in all
types of decors. With the CLASSE 100
range, answering calls, and opening
entrance door locks, becomes
much more simple and intuitive.
The easily recognised main function
keys are grouped in an easy to identify
circular section, which also becomes
the distinguishing element of the
whole range.
CLASSE 100A12C Audio internal unit
CLASSE 100A12M Audio internal unit
CLASSE 100A12B Audio internal unit
CLASSE 100V12E Video internal unit
CLASSE 100V12B Video internal unit
6
CLASSE 100
The solution
that ensures
maximum installation
and functional
flexibility
Classe 100
V12E
7
WWW.BTICINO.COM
CLASSE 100
DOOR ENTRY SYSTEM
The audio solution
with handsfree advantages
The ideal solution for specifications:
simple, compact, essential
The audio solution with handset
Classe 100
V12B
Classe 100
A12B
Classe 100
A12C
Classe 100
A12M
8
Classe 100
V12E
The solution that ensures
maximum installation
and functional flexibility

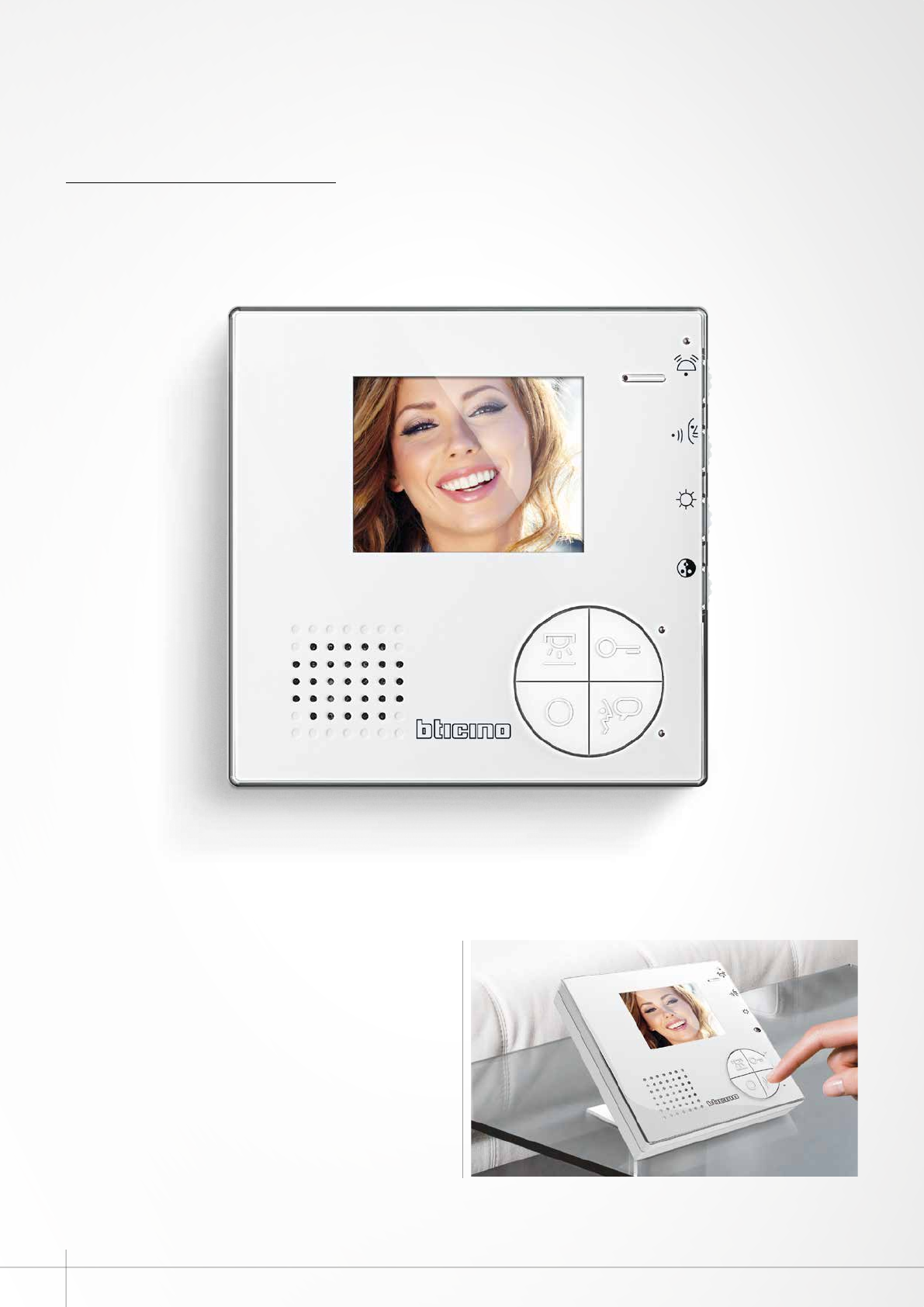

CLASSE 100V12E Video internal unit
The basic function keys,
and the 4 programmable keys,
guarantee together flexibility and
functional versatility.
9
WWW.BTICINO.COM
CLASSE 100
DOOR ENTRY SYSTEM
THE DEDICATED MECHANICAL ACCESSORIES
PROVIDE MAXIMUM INSTALLATION FLEXIBILITY.
The solution that ensures
maximum installation
and functional flexibility
The standard
installation
already
supplied.
The installation
for the thinnest
profile: only 9 mm
WALL MOUNTED FLUSH MOUNTED WITH TILTING DISPLAY
Wall mounted or flush mounted
installation for the optimisation
of the viewing angle of the display
in any installation situation.
WITH HANDSET
The type of installation
for those who want a
traditional solution,
and for those situations
when the confidetiality
of the communication
is a requirement.
TABLE-TOP INSTALLATION (Desktop)
The type of installation
for those situations
when a table-top
solution is required.
10
Classe 100
V12B
CLASSE 100V12B Video internal unit
Simple,
compact, essential:
the ideal solution
for specifications
Equipped with basic
functions only, for wall mounted
and table-top installation.
11
WWW.BTICINO.COM
CLASSE 100
DOOR ENTRY SYSTEM
Classe 100
A12B
The audio solution
with handsfree
advantages
For wall mounted or
table top installation.

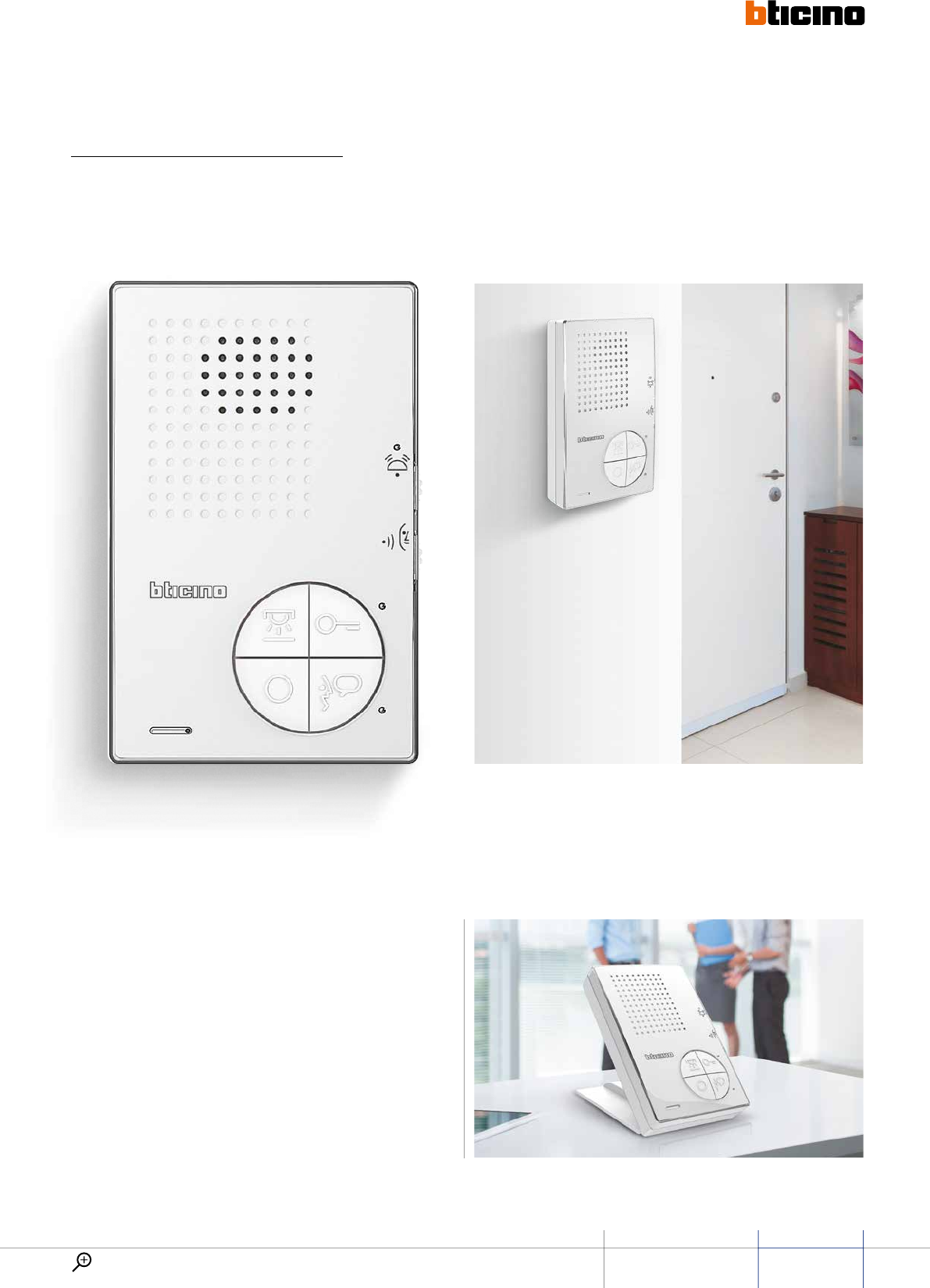

CLASSE 100A12B Audio internal unit
12
Classe 100
A12C
Maximum
simplicity
Dedicated to the basic functions.
For wall mounted or
table top installation.
CLASSE 100A12C Audio internal unit
13
WWW.BTICINO.COM
CLASSE 100
DOOR ENTRY SYSTEM
Classe 100
A12M
CLASSE 100A12M Audio internal unit
The traditional
solution
With basic audio functions
and additional functions,
thanks to programmable keys
For wall mounted or
table top installation.
