C5BA03 Metal Oxide Varistor 10mm HIGH SURGE UE 4000
User Manual: UE 4000
Open the PDF directly: View PDF
.
Page Count: 3
HOW TO SELECT METAL OXIDE VARISTORS
• What is the range of ACrms or DC Voltage in the application?
• How will the varistor be connected in the circuit?
• Calculate the required varistor voltage at 10% to 25% above the system RMS or DC Voltage.
• Calculate the varistor energy rating needed based on energy in transient voltage.
• Calculate the surge current wave form from the surge voltage and surge impedance.
• Check to make sure the withstanding surge current of the varistor is sufficient.
• Check whether the maximum energy and surge life of the varistor is enough.
• Check the relation: Maximum withstanding voltage of the protected device > Maximum clamping voltage of the varistor >
The real clamping voltage > Breakdown voltage of the varistor >Operating voltage of the protected device.
RFE International • Tel:(949) 833-1988 • Fax:(949) 833-1788 • E-Mail Sales@rfeinc.com

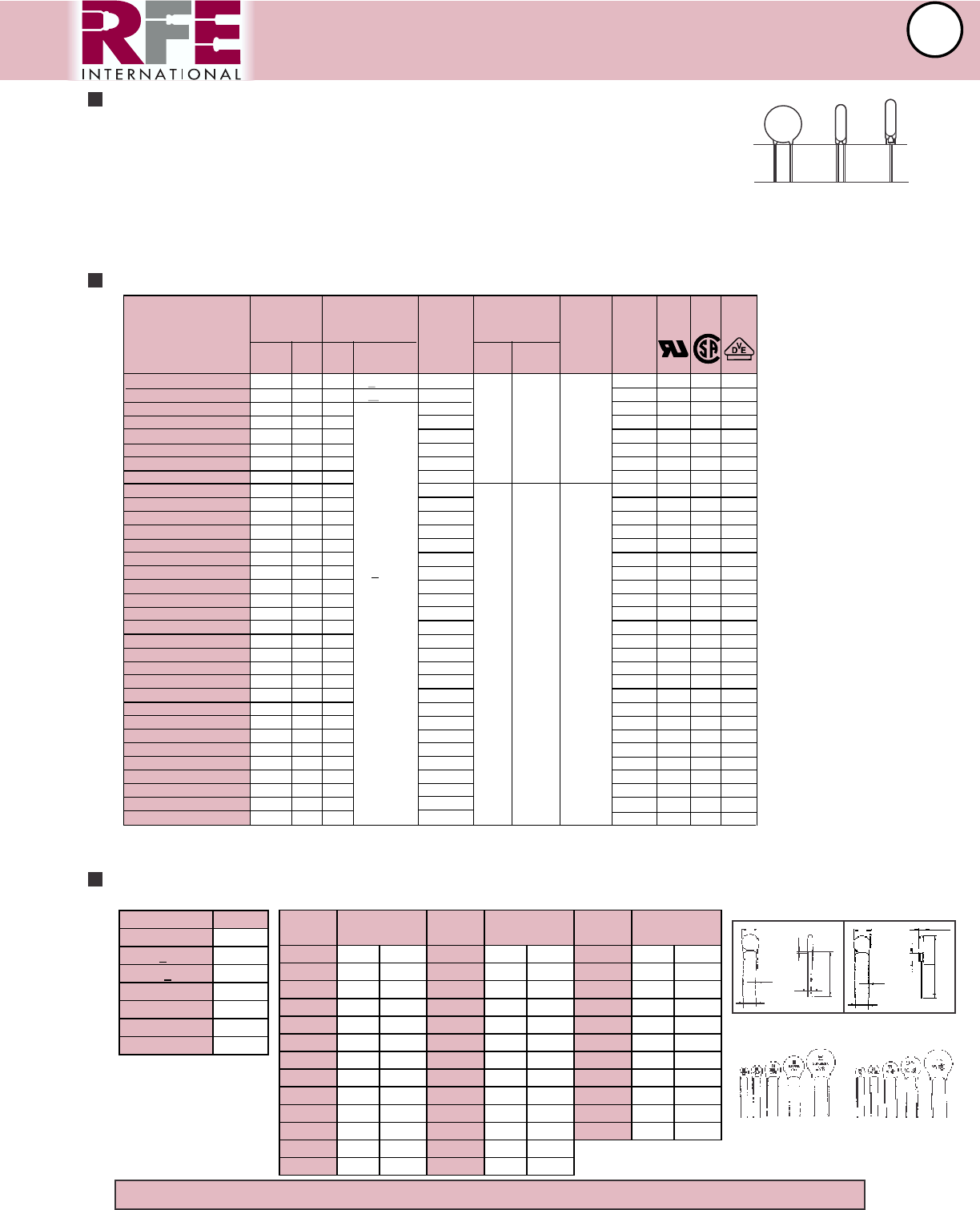

Y Type
(most popular)
P Type
1) The clamping voltage from 180M to 680K are tested with current 5A. £ : Lead Style rr : Lead Length /
For application required ratings not shown, contact RFE application engineering. Y: vertical kink (standard) Packing Method
* For Halogen Free use prefix code JVH P: straight leads
DIMENSION OF COMPONENT
Table of T Max, & a
P Form Y Form
D Max
Φd
F
P1
a
L
D Max
Φd
F
L
H1
H
T Max
METAL OXIDE VARISTOR
Disc HIGH SURGEMOV - 10mm
RoHS
ü
C5BA03
2013.12.04
Diameter
( )Φ
Diameter
( )Φ
Diameter
( )Φ
Code T Max a + 0.8 Code T Max a + 0.8 Code T Max a + 0.8
180M 4.9 0.8 181K 4.5 1.0 561K 7.3 3.4
220M/L 4.9 0.9 201K 4.6 1.0 621K 7.6 4.0
270M/K 5.1 0.9 221K 4.7 1.1 681K 8.0 4.4
330M/K 5.1 1.0 241K 4.8 1.3 751K 8.4 4.4
390L/K 5.1 1.2 271K 5.0 1.4 781K 8.6 4.6
470L/K 5.5 1.2 301K 5.2 1.6 821K 8.8 4.6
560L/K 5.5 1.4 331K 5.3 1.6 911K 9.4 5.4
680L/K 6.0 1.7 361K 5.5 1.9 102K 9.9 5.4
820K 4.3 0.8 391K 5.7 2.2 112K 10.5 5.7
101K 4.4 0.8 431K 6.5 2.5 182K 12.6 9.8
121K 4.5 0.9 471K 6.8 2.6
151K 4.9 1.2 511K 7.0 3.1
Dimension Dimension Dimension
Dimension Table unit: mm
φ
Diameter 10
D max 12.5
d (+0.5) 0.6 / 0.8
F (+1) 5.0 / 7.5
H Max 18 / *19
H1 Max 5.0
L Min (Y Type) 24.0
L Min (P Type) 25.0
*Just for 182K
Part
Number
JVR10S180M87
JVR10S220L 87£rr
JVR10S270K87£rr
JVR10S330K87£rr
JVR10S390K87£rr
JVR10S470K87£rr
JVR10S560K87£rr
JVR10S680K87£rr
JVR10S820K87£rr
JVR10S101K87£rr
JVR10S121K87£rr
JVR10S151K87£rr
JVR10S181K87£rr
JVR10S201K87£rr
JVR10S221K87£rr
JVR10S241K87£rr
JVR10S271K87£rr
JVR10S301K87£rr
JVR10S331K87£rr
JVR10S361K87£rr
JVR10S391K87£rr
JVR10S431K87£rr
JVR10S471K87£rr
JVR10S511K87£rr
JVR10S561K87£rr
JVR10S621K87£rr
JVR10S681K87£rr
JVR10S751K87£rr
JVR10S781K87£rr
JVR10S821K87£rr
JVR10S911K87£rr
JVR10S102K87£rr
JVR10S112K87£rr
£rr
-
Varistor
Voltage
V@0.1mA
(V)
Tolerance
Range
18
22
27
33
39
47
56
68
82
100
120
150
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
780
820
910
1000
1100
+ 20%
+ 15%
+10%
Maximum
Allowable
Voltage
ACrms
(V)
DC
(V)
11
14
17
20
25
30
35
40
50
60
75
95
115
130
140
150
175
195
210
230
250
275
300
320
350
385
420
460
485
510
550
625
680
14
18
22
26
31
38
45
56
65
85
100
125
150
170
180
200
225
250
275
300
320
350
385
418
460
505
560
615
640
670
745
825
895
Withstanding
Surge
Current
1Time
(A)
2 Times
(A)
1000
3500
500
2500
Rated
Wattage
(W)
0.05
0.4
Maximum
Clamping
Voltage
V@ 5A
(V)
36
43
53
65
77
93
110
135
135
165
200
250
300
340
360
395
455
505
550
595
650
710
775
842
920
1025
1120
1240
1290
1355
1500
1650
1815
l1)
l
l
l
l
l
l
l
Energy
10/1000
µs
(J)
2.6
3.2
3.9
4.8
5.6
6.8
8.1
9.8
14.0
18.0
22.0
25.0
32.0
35.0
39.0
42.0
49.0
52.0
58.0
65.0
70.0
80.0
85.0
92.0
102.0
107.0
112.0
115.0
116.0
118.0
127.0
140.0
155.0
UL
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
CSA
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
VDE
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
ü
10 Φ JVR VARISTOR
RFE International • Tel:(949) 833-1988 • Fax:(949) 833-1788 • E-Mail Sales@rfeinc.com

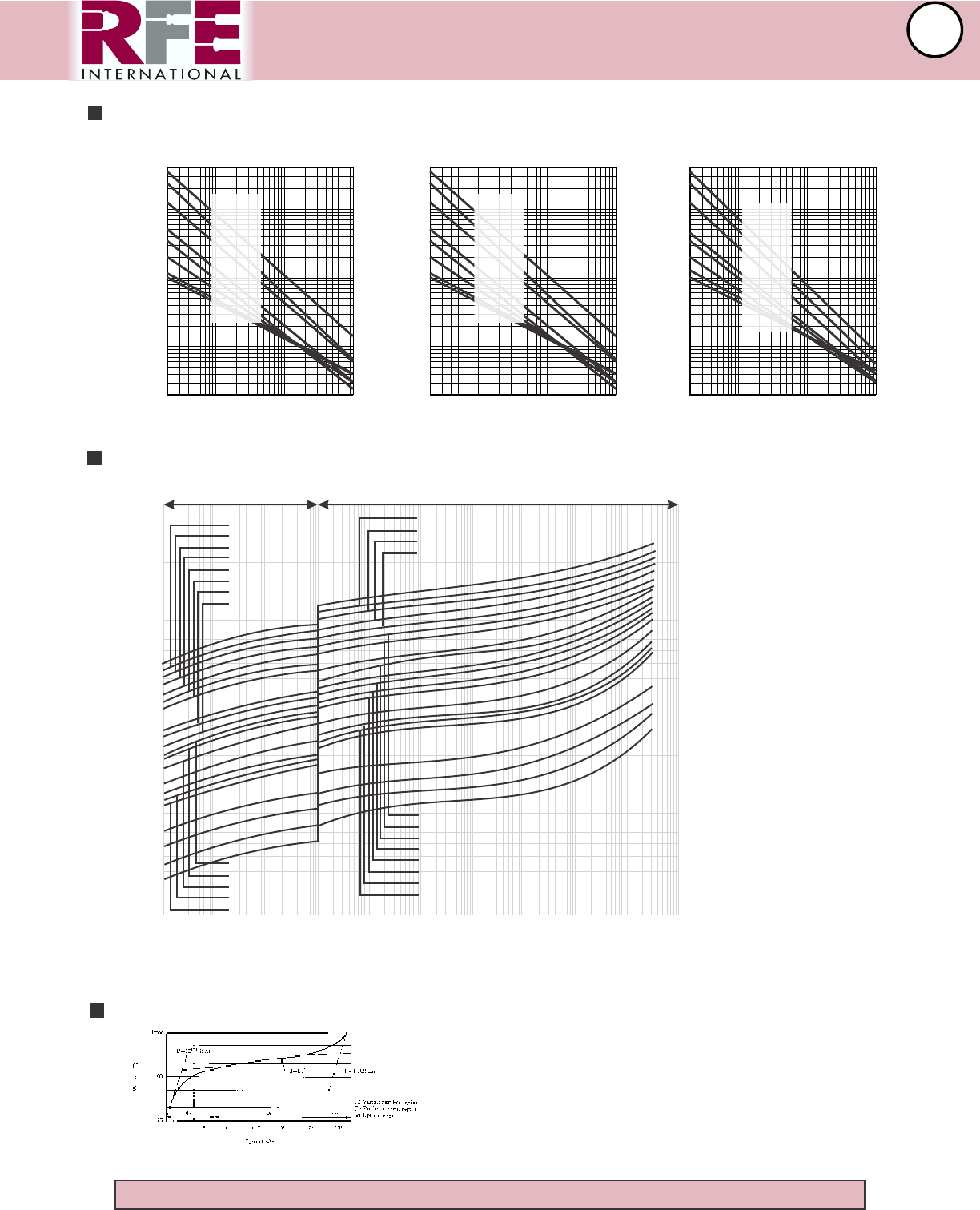

10mm V-I CHARACTERISTIC CURVE
•Operating & Storage Temperature Range: -40 to +125°C
•Temp. Coefficient of voltage: 0 ~ 0.05% / °C max
CURENT - VOLTAGE CHARACTERISTICS
PULSE RATING CURVES
METAL OXIDE VARISTOR
Disc HIGH SURGEMOV - 10mm
RoHS
ü
4,000
1,000
100
10
2
20 200 2,000
Rectangular Wave (µsec)
JVR-10S820K ~ JVR-10S471K
Imax. (A)
Pulse
1
2
10
100
1,000
10,000
100,000
1,000,000
4,000
1,000
100
10
2
20 200 2,000
Rectangular Wave (µsec)
JVR-10S561K ~ JVR-10S112K
Imax. (A)
Pulse
1
2
10
100
1,000
10,000
100,000
1,000,000
4,000
1,000
100
10
2
20 200 2,000
Rectangular Wave (µsec)
JVR-10S180M ~ JVR-10S680K
Imax. (A)
Pulse
1
2
10
100
1,000
10,000
100,000
1,000,000
4000
3000
2000
1000
900
800
700
600
500
400
300
200
100
90
80
70
60
50
40
30
.000001 .00001 .0001 .001 .01 .1 1 10 100 1000 10000
Voltage (V)
Current (A)
Max Leakage Current Max Clamping Voltage
Test current waveform
-6 -3
10 to 10 A: Direct Current
-1 3
10 to 10 A:8/20µs
JVR-10S820K
JVR-10S101K
JVR-10S121K
JVR-10S151K
JVR-10S201K
JVR-10S221K
JVR-10S241K
JVR-10S271K
JVR-10S331K
JVR-10S361K
JVR-10S391K
JVR-10S431K
JVR-10S471K
JVR-10S511K
JVR-10S621K
JVR-10S681K
JVR-10S751K
JVR-10S821K
JVR-10S911K
JVR-10S102K
JVR-10S112K
JVR-10S820K
JVR-10S101K
JVR-10S121K
JVR-10S151K
JVR-10S201K
JVR-10S221K
JVR-10S241K
JVR-10S271K
JVR-10S331K
JVR-10S361K
JVR-10S391K
JVR-10S431K
JVR-10S471K
JVR-10S511K
JVR-10S621K
JVR-10S681K
JVR-10S751K
JVR-10S821K
JVR-10S911K
JVR-10S102K
JVR-10S112K
C5BA03
2013.12.04

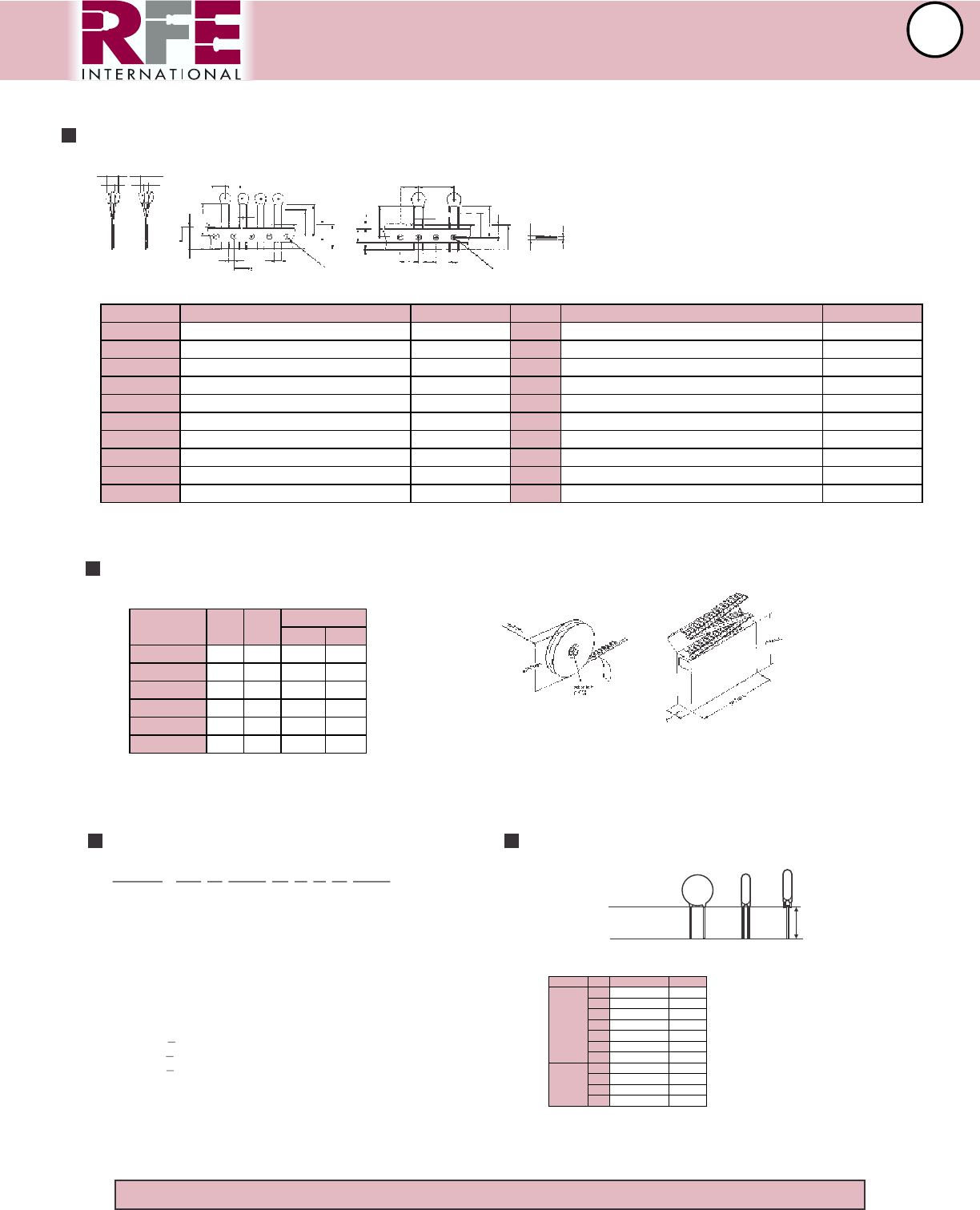

PART NUMBER EXAMPLE
JVR - 10 S 180 K 6 5 Y RW
(1) (2) (3) (4) (5)(6)(7)(8) (9)
RFE International • Tel:(949) 833-1988 • Fax:(949) 833-1788 • E-Mail Sales@rfeinc.com
1- Series (JVR) Metal Oxide Varistor
2- Disc Diameter or size
3- S for High Surge
4- Varistor Voltage
5- Tolerance:
K= + 10%
L = + 15%
M =+ 20%
6- Lead Diameter
6: 0.6 ± 0.05mm
8: 0.8 ± 0.05mm
7- Lead Spacing
5: 5.0mm
7: 7.5mm
8 - Y or P Type Lead Configurations
9 - Lead Length / Packaging
* See “Dimensions & Tolerances” pages, for dimension illustration.
L - From seating plane to end of lead.
HO - From seating plane to center of sprocket feed hole.
Lead Type Code Packaging
50 L= 5±0.5mm Bulk
U4 L= 24mm min. Bulk
AW HO= 16mm Ammo
Y Type
Leads RW HO= 16mm Reel
AX HO= 18mm Ammo
RX HO= 18mm Reel
AZ HO= 20mm Ammo
50 L= 5±0.5mm Bulk
P Type
Leads U5 L= 25mm min. Bulk
AY HO= 20mm Ammo
RY HO=20mm Reel
Dimension*
See “Dimensions & Tolerances” pages for bulk and taping specifications
Y Type
(most popular)
P Type
Seating Plane
Lead End (Bulk)
Center of Sprocket Hole (Taped)
L (Bulk)
HO (Taped)
STANDARD LEAD CONFIGURATIONS
TAPING SPECIFICATIONS
l
H (Y type)
H0 (Y type)
H0 (P type)
∆h
W
W0
W1
W2
F
P
P0
P1
P2
D0
d
T
t1
t2
l
H (Y type)
H0 (Y type)
H0 (P type)
∆h
W
W0
W1
W2
F
P
P0 P1
P2
D0
d
T
P Type Y Type
REEL & AMMO SPECIFICATIONS
F=7.5 F=5.0
180 ~ 331 2500 1000 500 1000
361 2500 1000 500 1000
391 2500 1000 500 1000
431 ~ 471 2000 750 500 750
511 ~ 751 1500 500 500 500
781 ~ 112 1500 500 500 500
Ammo
Bulk
(Box Reel
Voltage
Code
METAL OXIDE VARISTOR
Disc HIGH SURGEMOV - 10mm
RoHS
ü
l
Symbol Item Dimensions Symbol Item Dimensions
Cut out length 1.1 max P Pitch of component 12.7 + 0.3
H (Y Type) Height of component from hole center 21.5 max P0 Sprocket hole pitch 12.7 + 0.3
H0 (Y Type) Height to seating plane 16.0 + 0.5 P1 Lead length from hole center to lead 3.85 + 0.7
H0 (P Type) Height of component from hole center 16.0 ~ 21.0 P2 Lead length from hole center to disk center 6.35 + 1.3
rhFront to back deveation 0 + 2.0 D0 Procket hole diameter 4.0 + 0.2
W Carrier tape width 18.0 + 1 - .05 D0 Lead wire diameter 0.6 + 0.05
W0 Hold down tape width 12 T Disk Thickness See T mak table
W1 Sprocket hole position 9.0 0.75 - 0.5 t1 Total thickness tape 0.7 + 0.05
W2 Adhesive tape position 3.0 max t2 Total thickness tape with tape 1.6 max
F Component lead spacing 7.5 + 0.8 - 0.2
