Pin Connection Guidelines
HPS Pin Connection Guidelines
Cyclone V GX
Cyclone V GT
Cyclone V E
Cyclone V SX
Cyclone V ST
Cyclone V SE
Rev History

PCG-01014-1.5

Disclaimer Page 1 of 35

Cyclone® V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

other words and logos that are identified as trademarks and/or service marks are, unless noted otherwise, the trademarks and service marks of Altera

Corporation in the U.S. and other countries. All other product or service names are the property of their respective holders. Altera products are protected under

numerous U.S. and foreign patents and pending applications, maskwork rights, and copyrights. Altera warrants performance of its semiconductor products to

current specifications in accordance with Altera’s standard warranty, but reserves the right to make changes to any products and services at any time without

notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as

expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published

information and before placing orders for products or services.

The pin connection guidelines are considered preliminary. These pin connection guidelines should only be used as a recommendation, not as a specification.

The use of the pin connection guidelines for any particular design should be verified for device operation, with the datasheet and Altera.

PLEASE REVIEW THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THE PIN CONNECTION GUIDELINES("GUIDELINES")

PROVIDED TO YOU. BY USING THESE GUIDELINES, YOU INDICATE YOUR ACCEPTANCE OF SUCH TERMS AND CONDITIONS, WHICH CONSTITUTE

THE LICENSE AGREEMENT ("AGREEMENT") BETWEEN YOU AND ALTERA CORPORATION ("ALTERA"). IF YOU DO NOT AGREE WITH ANY OF

THESE TERMS AND CONDITIONS, DO NOT DOWNLOAD, COPY, INSTALL, OR USE OF THESE GUIDELINES.

1. Subject to the terms and conditions of this Agreement, Altera grants to you the use of this pin connection guideline to determine the pin connections of an

Altera® programmable logic device-based design. You may not use this pin connection guideline for any other purpose.

2. Altera does not guarantee or imply the reliability, or serviceability, of the pin connection guidelines or other items provided as part of these guidelines. The

files contained herein are provided 'AS IS'. ALTERA DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

3. In no event shall the aggregate liability of Altera relating to this Agreement or the subject matter hereof under any legal theory (whether in tort, contract, or

otherwise), exceed One US Dollar (US$1.00). In no event shall Altera be liable for any lost revenue, lost profits, or other consequential, indirect, or special

damages caused by your use of these guidelines even if advised of the possibility of such damages.

4. This Agreement shall be governed by the laws of the State of California, without regard to conflict of law or choice of law principles. You agree to submit to

the exclusive jurisdiction of the courts in the County of Santa Clara, State of California for the resolution of any dispute or claim arising out of or relating to this

Agreement. The parties hereby agree that the party who is not the substantially prevailing party with respect to a dispute, claim, or controversy relating to this

Agreement shall pay the costs actually incurred by the substantially prevailing party in relation to such dispute, claim, or controversy, including attorneys' fees.

BY DOWNLOADING OR USING THESE GUIDELINES, YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT, AND

AGREE TO BE BOUND BY ITS TERMS AND CONDITIONS. YOU AND ALTERA FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE

STATEMENT OF THE AGREEMENT BETWEEN YOU AND ALTERA, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT, ORAL OR

WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN YOU AND ALTERA RELATING TO THE SUBJECT MATTER OF THIS AGREEMENT.

PCG-01014-1.5

Pin Connection Guidelines Page 2 of 35

Cyclone V Pin Name Pin Type (1st and

2nd Function) Pin Description Connection Guidelines

CLK[0:11][p:n] I/O, Clock

Dedicated positive and negative clock input pins that can also be

used for data inputs or outputs.

When used as differential inputs, these pins support OCT Rd.

When used as single-ended inputs, these pins support OCT Rt.

When used as single-ended outputs, these pins support OCT Rs.

When you use the single-ended I/O standard, only the CLK[0:11]p

pins serve as the dedicated input pins to the PLL.

The programmable weak pull-up resistor is available for single-ended

I/O usage.

When you do not use these pins, Altera recommends tying them to GND or leaving them unconnected. If these

pins are unconnected, use the Quartus II software programmable options to internally bias these pins.

These pins can be reserved as inputs tri-state with the weak pull-up resistor enabled, or as outputs driving

GND.

Some CLK input pins share dual-purpose functionality with FPLL_[BL,BR,TL,TR]_FB pins. For more

information, refer to the specific device pinout file.

Not all pins are available in each device density and package combination. For details, refer to the specific

device pinout file.

FPLL_[BL,BR,TL,TR]_CLKOUT0,

FPLL_[BL,BR,TL,TR]_CLKOUTp,

FPLL_[BL,BR,TL,TR]_FB

I/O, Clock

Dual-purpose I/O pins that can be used as two single-ended clock

output pins, one differential clock output pair, or one single-ended

feedback input pin.

When you do not use these pins, Altera recommends tying them to GND or leaving them unconnected. If these

pins are unconnected, use the Quartus II software programmable options to internally bias these pins.

These pins can be reserved as inputs tri-state with the weak pull-up resistor enabled, or as outputs driving

GND.

FPLL_[BL,BR,TL,TR]_CLKOUT1,

FPLL_[BL,BR,TL,TR]_CLKOUTn

I/O, Clock

Dual-purpose I/O pins that can be used as two single-ended clock

output pins or one differential clock output pair.

When you do not use these pins, Altera recommends tying them to GND or leaving them unconnected. If these

pins are unconnected, use the Quartus II software programmable options to internally bias these pins.

These pins can be reserved as inputs tri-state with the weak pull-up resistor enabled, or as outputs driving

GND.

MSEL[0:4] Input

Use these pins to set the configuration scheme and POR delay.

These pins have an internal 25-kΩ pull-down that are always active.

When you use these pins, tie these pins directly to VCCPGM or GND to get the combination for the

configuration scheme as specified in the "Configuration, Design Security, and Remote System Upgrades in

Cyclone V Devices" chapter in the Cyclone V Device Handbook.

These pins are not used in the JTAG configuration scheme. Tie the MSEL pins to GND if your device is using

the JTAG configuration scheme.

AS_DATA0/ ASDO/ DATA0 Bidirectional

In a passive serial (PS) or fast passive parallel (FPP) configuration

scheme, DATA0 is a dedicated input data pin.

In an active serial (AS) x1 and AS x4 configuration schemes,

AS_DATA0 and ASDO are dedicated bidirectional data pins.

When you do not use this pin, Altera recommends leaving the pins unconnected.

AS_DATA[1:3 ]/ DATA[1:3] Bidirectional

In an AS configuration scheme, AS_DATA[1:3] pins are used.

In an FPP x8 or FPP x16 configuration scheme, the DATA[1:3] pins

are used.

When you do not use this pin, Altera recommends leaving the pins unconnected.

nCSO/ DATA4 Output

In an AS configuration scheme, the nCSO pin is used. nCSO drives

the control signal from the Cyclone V device to the EPCS or EPCQ

device in the AS configuration scheme.

In an FPP configuration scheme, the DATA4 pin is used.

When you are not programming the device in the AS configuration scheme, the nCSO pin is not used. When

you do not use this pin as an output pin, Altera recommends leaving the pin unconnected.

nCE Input

nCE is an active-low chip enable pin. When nCE is low, the device is

enabled. When nCE is high, the device is disabled.

In a multi-device configuration, the nCE pin of the first device is tied low while its nCEO pin drives the nCE pin

of the next device in the chain. In a single-device configuration and JTAG programming, connect the nCE pin to

GND.

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Altera recommends that you create a Quartus®

II design, enter your device I/O assignments, and compile the design. The Quartus II software will check your pin connections according to I/O assignment and placement rules. The

rules differ from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

Dedicated Configuration/JTAG Pins

Clock and PLL Pins

PCG-01014-1.5

Pin Connection Guidelines Page 3 of 35

Cyclone V Pin Name Pin Type (1st and

2nd Function) Pin Description Connection Guidelines

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Altera recommends that you create a Quartus®

II design, enter your device I/O assignments, and compile the design. The Quartus II software will check your pin connections according to I/O assignment and placement rules. The

rules differ from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

nCONFIG Input

Pulling this pin low during configuration and user mode causes the

Cyclone V device to lose its configuration data, enter a reset state,

and tri-states all the I/O pins.

A high-to-low logic initiates a reconfiguration.

When you use the nCONFIG pin in a passive configuration scheme, connect the pin directly to the configuration

controller.

When you use the nCONFIG pin in an AS configuration scheme, connect the pin through a 10-kΩ resistor tied

to VCCPGM.

When you do not use the nCONFIG pin, connect the pin directly or through a 10-kΩ resistor to VCCPGM.

During JTAG programming, the nCONFIG status is ignored.

CONF_DONE

Bidirectional

(open-drain)

As a status output, the CONF_DONE pin drives low before and

during configuration. After all configuration data is received without

error and the initialization cycle starts, the CONF_DONE pin is

released.

As a status input, the CONF_DONE pin goes high after all data is

received. Then the device initializes and enters user mode.

This pin is not available as a user I/O pin.

Connect an external 10-kΩ pull-up resistor to VCCPGM. VCCPGM must be high enough to meet the VIH

specification of the I/O on the device and the external host.

nCEO

I/O, Output

(open-drain)

Dual-purpose open-drain output pin. This pin drives low when device

configuration completes.

During multi-device configuration, this pin feeds the nCE pin of the next device in the chain. If this pin is not

feeding the nCE pin of the next device, you can use this pin as a regular I/O pin.

In a single-device configuration, use this pin as a regular I/O pin. During single-device configuration, you may

leave this pin floating.

Connect this pin through an external 10-kΩ pull-up resistor to VCCPGM.

nSTATUS

Bidirectional

(open-drain)

The Cyclone V device drives the nSTATUS pin low immediately after

power-up and releases it after the Cyclone V device exits

power-on reset (POR).

As a status output, the nSTATUS pin is pulled low to indicate an error

during configuration.

As a status input, the device enters an error state when the nSTATUS

pin is driven low by an external source during configuration or

initialization.

This pin is not available as a user I/O pin.

Connect an external 10-kΩ pull-up resistor to VCCPGM. VCCPGM must be high enough to meet the VIH

specification of the I/O on the device and the external host.

TCK Input

JTAG test clock input pin that

clock input to the boundary-scan testing (BST) circuitry. Some

operations occur at the rising edge, while others occur at the falling

edge.

It is expected that the clock input waveform have a nominal 50% duty

cycle.

This pin has an internal 25-kΩ pull-down that is always active.

Connect this pin through a 1-kΩ pull-down resistor to GND.

TMS Input

JTAG test mode select input pin that provides the control signal to

determine the transitions of the test access port (TAP) controller state

machine.

The TMS pin is evaluated on the rising edge of the TCK pin.

Therefore, you must set up the TMS pin before the rising edge of the

TCK pin.

Transitions in the state machine occur on the falling edge of the TCK

after the signal is applied to the TMS pin.

This pin has an internal 25-kΩ pull-up that is always active.

Connect this pin through a 1-kΩ - 10-kΩ pull-up resistor to the VCCPD in the dedicated I/O bank which the

JTAG pin resides.

To disable the JTAG circuitry, connect the TMS pin to VCCPD using a 1-kΩ resistor.

TDI Input

JTAG test data input pin for instructions as well as test and

programming data. Data is shifted in on the rising edge of the TCK

pin.

This pin has an internal 25-kΩ pull-up that is always active.

Connect this pin through a 1-kΩ - 10-kΩ pull-up resistor to VCCPD in the dedicated I/O bank which the JTAG

pin resides.

To disable the JTAG circuitry, connect the TDI pin to VCCPD using a 1-kΩ resistor.

TDO Output

JTAG test data output pin for instructions as well as test and

programming data. Data is shifted out on the falling edge of the TCK

pin. This pin is tri-stated if the data is not being shifted out of the

device.

To disable the JTAG circuitry, leave the TDO pin unconnected.

In cases where the TDO pin uses VCCPD = 2.5 V to drive a 3.3 V JTAG interface, there may be leakage current

in the TDI input buffer of the interfacing devices. An external pull-up resistor tied to 3.3 V on the TDI pin may be

used to eliminate the leakage current if needed.

PCG-01014-1.5

Pin Connection Guidelines Page 4 of 35

Cyclone V Pin Name Pin Type (1st and

2nd Function) Pin Description Connection Guidelines

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Altera recommends that you create a Quartus®

II design, enter your device I/O assignments, and compile the design. The Quartus II software will check your pin connections according to I/O assignment and placement rules. The

rules differ from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

DCLK

Input (PS, FPP)

Output (AS)

Dedicated bidirectional clock pin.

In the PS and FPP configuration schemes, the DCLK pin is the clock

input used to clock configuration data from an external source into the

Cyclone V device.

In the AS configuration scheme, the DCLK pin is an output clock to

clock the EPCS or EPCQ device.

Do not leave this pin floating. Drive this pin either high or low.

CRC_ERROR

I/O, Output

(open-drain)

Optional output pin. This pin is an open-drain output pin by default

and requires a 10-kΩ pull-up resistor. Active high signal indicates that

the error detection circuitry has detected errors in the configuration

SRAM bits. This pin is optional and is used when the CRC error

detection circuitry is enabled.

When you use the dedicated CRC_ERROR pin configured as an open-drain output, connect this pin through an

external 10-kΩ pull-up resistor to VCCPGM.

When you do not use the dedicated CRC_ERROR pin configured as an open-drain output and when this pin is

not used as an I/O pin, connect this pin as defined in the Quartus II software.

The I/O buffer type is reported in the fitter report.

DEV_CLRn I/O, Input

Optional input pin that allows you to override all clears on all the

device registers. When this pin is driven low, all the registers are

cleared. When this pin is driven high (VCCPGM), all registers behave

as programmed.

When you do not use the dedicated input DEV_CLRn pin and when this pin is not used as an I/O pin, Altera

recommends connecting this pin to GND.

DEV_OE I/O, Input

Optional input pin that allows you to override all tri-states on the

device. When this pin is driven low, all the I/O pins are tri-stated.

When this pin is driven high (VCCPGM), all the I/O pins behave as

programmed.

When you do not use the dedicated input DEV_OE pin and when this pin is not used as an I/O pin, Altera

recommends connecting this pin to GND.

DATA[5:15] I/O, Input

Dual-purpose data input pins. These pins are required for the FPP

configuration scheme. Use DATA [5:7] pins for FPP x8, DATA [5:15]

pins for FPP x16.

You can use the pins that are not required for configuration as regular

I/O pins.

When you do not use the DATA[5:15] input pins and when these pins are not used as an I/O pin, Altera

recommends leaving these pins unconnected.

INIT_DONE

I/O, Output

(open-drain)

This is a dual-purpose pin and can be used as an I/O pin when not

enabled as an INIT_DONE pin in the Quartus II software.

When this pin is enabled, a transition from low to high on the pin

indicates that the device has entered user mode. If the INIT_DONE

output pin option is enabled in the Quartus II software, the

INIT_DONE pin cannot be used as a user I/O pin after configuration.

When you use the dedicated INIT_DONE pin configured as an open-drain output pin, connect this pin through

an external 10-kΩ pull-up resistor to VCCPGM.

In Active Serial (AS) multi-device configuration mode, Altera recommends that the INIT_DONE output pin

option is enabled in the Quartus II software for devices in the configuration chain. Do not tie INIT_DONE pins

together between master and slave devices. Monitor the INIT_DONE status for each of the device to ensure

successful transition into user-mode.

When you do not use the dedicated INIT_DONE pin configured as an open-drain output pin and when this pin is

not used as an I/O pin, Altera recommends connecting this pin as defined in the Quartus II software.

CLKUSR I/O, Input

Optional user-supplied clock input. Synchronizes the initialization of

one or more devices. If this pin is not enabled for use as a user-

supplied configuration clock, it can be used as a user I/O pin.

When you do not use the CLKUSR pin as a configuration clock input pin and when the pin is not used as an I/O

pin, Altera recommends connecting this pin to GND.

CvP_CONFDONE

I/O, Output

(open-drain)

The CvP_CONFDONE pin is driven low during configuration. When

Configuration via Protocol (CvP) is complete, this signal is released

and is pulled high by an external pull-up resistor. Status of this pin is

only valid if the CONF_DONE pin is high.

When you use the dedicated CvP_CONFDONE pin configured as an open-drain output pin, connect this pin

through an external 10-kΩ pull-up resistor to VCCPGM.

When you do not use the dedicated CvP_CONFDONE configured as an open-drain output pin and when this

pin is not used as an I/O pin, Altera recommends connecting this pin as defined in the Quartus II software.

nPERST[L0,L1] I/O, Input

Dedicated fundamental reset pins. These pins are only available

when you use them together with the PCI Express® (PCIe®) hard IP.

When these pins are low, the transceivers are in reset.

When these pins are high, the transceivers are out of reset.

When these pins are not used as the fundamental reset pins, these

pins may be used as user I/O pins.

Connect these pins as defined in the Quartus II software.

This nPERSTL1 signal is required for the CvP configuration scheme. There are two nPERST pins in all Cyclone

V devices, even if the device has fewer than two instances of hard IP for PCIe. The nPERSTL0 pin is located in

the top left hard IP and CvP blocks while the nPERSTL1 pin is located in the bottom left hard IP.

For maximum compatibility, Altera recommends using the bottom left PCIe hard IP first as this is the only

location that supports the CvP configuration scheme.

PR_REQUEST I/O, Input

Partial reconfiguration request pin. Drive this pin high to start partial

reconfiguration. Drive this pin low to end reconfiguration.

This pin can only be used in partial reconfiguration using external host

mode in the FPP x16 configuration scheme.

When you do not use the dedicated input PR_REQUEST pin and when this pin is not used as an I/O pin, Altera

recommends connecting this pin to GND.

Optional/Dual-Purpose Configuration Pins

Partial Reconfiguration Pins

PCG-01014-1.5

Pin Connection Guidelines Page 5 of 35

Cyclone V Pin Name Pin Type (1st and

2nd Function) Pin Description Connection Guidelines

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Altera recommends that you create a Quartus®

II design, enter your device I/O assignments, and compile the design. The Quartus II software will check your pin connections according to I/O assignment and placement rules. The

rules differ from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

PR_READY

I/O, Output or Output

(open-drain)

The partial reconfiguration ready pin is driven low until the device is

ready to begin partial reconfiguration.

When the device is ready to start reconfiguration, this signal is

released and is pulled high by an external pull-up resistor.

When you use the dedicated PR_READY pin configured as an open-drain output pin, connect this pin to an

external 10-kΩ pull-up resistor to VCCPGM.

When you do not use the dedicated PR_READY pin configured as an open-drain output pin and when this pin is

not used as an I/O pin, Altera recommends connecting this pin as defined in the Quartus II software.

PR_ERROR

I/O, Output, or Output

(open-drain)

The partial reconfiguration error pin is driven low during partial

reconfiguration unless the device detects an error. If an error is

detected, this signal is released and pulled high by an external pull-up

resistor.

When you use the dedicated PR_ERROR pin configured as an open-drain output pin, connect this pin through

an external 10-kΩ pull-up resistor to VCCPGM.

When you do not use the dedicated PR_ERROR pin configured as an open-drain output pin and when this pin

is not used as an I/O pin, Altera recommends connecting this pin as defined in the Quartus II software.

PR_DONE

I/O, Output or Output

(open-drain)

The partial reconfiguration done pin is driven low until the partial

reconfiguration is complete. When the reconfiguration is complete,

this signal is released and is pulled high by an external pull-up

resistor.

When you use the dedicated PR_DONE pin configured as an open-drain output pin, connect this pin through an

external 10-kΩ pull-up resistor to VCCPGM.

When you do not use the dedicated PR_DONE configured as an open-drain output pin and when this pin is not

used as an I/O pin, Altera recommends connecting this pin as defined in the Quartus II software.

DIFFIO_RX_[B,T,R][#:#]p,

DIFFIO_RX_[B,T,R][#:#]n

I/O, RX channel

These are true LVDS receiver channels on row and column I/O

banks. Pins with a "p" suffix carry the positive signal for the

differential channel. Pins with an "n" suffix carry the negative signal

for the differential channel. If not used for differential signaling, these

pins are available as user I/O pins. OCT Rd is supported on all the

DIFFIO_RX pins.

Connect unused pins as defined in the Quartus II software.

DIFFIO_TX_[B,T,R][#:#]p,

DIFFIO_TX_[B,T,R][#:#]n

I/O, TX channel

These are true LVDS transmitter channels on row and column I/O

banks. Pins with a "p" suffix carry the positive signal for the

differential channel. Pins with an "n" suffix carry the negative signal

for the differential channel. If not used for differential signaling, these

pins are available as user I/O pins.

Connect unused pins as defined in the Quartus II software.

DIFFOUT_[B,T,R][#:#]p,

DIFFOUT_[B,T,R][#:#]n

I/O, TX channel

These are emulated LVDS output channels. All the user I/Os,

including I/Os with true LVDS input buffers, can be configured as

emulated LVDS output buffers. External resistor network is needed

for emulated LVDS output buffers.

Pins with a "p" suffix carry the positive signal for the differential

channel. Pins with an "n" suffix carry the negative signal for the

differential channel. If not used for differential signaling, these pins

are available as user I/O pins.

Connect unused pins as defined in the Quartus II software.

DQS[#][B,R,T] I/O, bidirectional

Optional data strobe signal for use in external memory interfacing.

These pins drive to dedicated DQS phase shift circuitry. The shifted

DQS signal can also drive to internal logic.

Connect unused pins as defined in the Quartus II software.

DQSn[#][B,R,T] I/O, bidirectional

Optional complementary data strobe signal for use in external

memory interfacing. These pins drive to dedicated DQS phase shift

circuitry.

Connect unused pins as defined in the Quartus II software.

DQ[#][B,R,T] I/O, bidirectional

Optional data signal for use in external memory interfacing. The order

of the DQ bits within a designated DQ bus is not important; however,

use caution when making pin assignments if you plan on migrating to

a different memory interface that has a different DQ bus width.

Analyze the available DQ pins across all pertinent DQS columns in

the pin list.

Connect unused pins as defined in the Quartus II software.

[B,T]_DQS_[#] I/O, bidirectional

Optional data strobe signal for use in external memory interfacing.

These pins drive to dedicated DQS phase shift circuitry. The shifted

DQS signal can also drive to internal logic.

If hard memory PHY is used, connection to memory device DQS pin must start from [B,T]_DQS_0 pin. For

details, refer to the specific device pinout file.

Connect unused pins as defined in the Quartus II software.

[B,T]_DQS#_[#] I/O, bidirectional

Optional complementary data strobe signal for use in external

memory interfacing. These pins drive to dedicated DQS phase shift

circuitry.

If hard memory PHY is used, connection to memory device DQSn pin must start from [B,T]_DQS#_0 pin. For

details, refer to the specific device pinout file.

Connect unused pins as defined in the Quartus II software.

Differential I/O Pins

External Memory Interface Pins

Hard Memory PHY Pins

PCG-01014-1.5

Pin Connection Guidelines Page 6 of 35

Cyclone V Pin Name Pin Type (1st and

2nd Function) Pin Description Connection Guidelines

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Altera recommends that you create a Quartus®

II design, enter your device I/O assignments, and compile the design. The Quartus II software will check your pin connections according to I/O assignment and placement rules. The

rules differ from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

[B,T]_DQ_[#] I/O, bidirectional

Optional data signal for use in external memory interfacing. Use

caution when making pin assignments if you plan on migrating to a

different memory interface that has a different DQ bus width. Analyze

the available DQ pins across all pertinent DQS columns in the pin list.

If hard memory PHY is used, connection to memory device DQ pin must start from [B,T]_DQ_0 pin. For details,

refer to the specific device pinout file.

Connect unused pins as defined in the Quartus II software.

[B,T]_DM_[#] I/O, Output Optional write data mask, edge-aligned to DQ during write. Connect unused pins as defined in the Quartus II software.

[B,T]_WE# I/O, Output

Write enable. Write-enable input for DDR2, DDR3 SDRAM, and

RLDRAM II.

Connect unused pins as defined in the Quartus II software.

[B,T]_CAS# I/O, Output Column address strobe for DDR2 and DDR3 SDRAM. Connect unused pins as defined in the Quartus II software.

[B,T]_RAS# I/O, Output Row address strobe for DDR2 and DDR3 SDRAM. Connect unused pins as defined in the Quartus II software.

REF#_[#] TBD TBD Connect unused pins as defined in the Quartus II software.

[B,T]_RESET# IO, Output

Active low reset signal. Connect unused pins as defined in the Quartus II software.

[B,T]_CK IO, Output Output clock for external memory devices. Connect unused pins as defined in the Quartus II software.

[B,T]_CK# IO, Output

Output clock for external memory devices, inverted CK. Connect unused pins as defined in the Quartus II software.

[B,T]_CKE_[#] IO, Output

Active high clock enable. Connect unused pins as defined in the Quartus II software.

[B,T]_BA_[#] IO, Output

Bank address input for DDR2, DDR3 SDRAM, and RLDRAM II. Connect unused pins as defined in the Quartus II software.

[B,T]_A_[#] IO, Output

Address input for DDR2, DDR3 SDRAM, and RLDRAM II. Connect unused pins as defined in the Quartus II software.

[B,T]_CS#_[#] IO, Output Active low chip select.

Connect unused pins as defined in the Quartus II software.

[B,T]_CA_[#] IO, Output

Command and address inputs for LPDDR and LPDDR2 SDRAM. Connect unused pins as defined in the Quartus II software.

[B,T]_ODT_[#] IO, Output

On-die termination signal enables and disables termination resistance

internal to the external memory.

Connect unused pins as defined in the Quartus II software.

RREF_TL Input Reference resistor for PLL, specific to the left (L) side of the device.

If any PLL pin, REFCLK pin, or transceiver channel is used, you must connect each RREF pin on that side of

the device through its own individual 2.0-kΩ +/- 1% resistor to GND. Otherwise, you may connect each RREF

pin on that side of the device directly to GND. In the PCB layout, the trace from this pin to the resistor needs to

be routed so that it avoids any aggressor signals.

RZQ_[0,1,2] I/O, Input

Reference pins for I/O banks. The RZQ pins share the same VCCIO

with the I/O bank where they are located. The external precision

resistor must be connected to the designated pin within the bank. If

not required, these pins are regular I/O pins.

When the Cyclone V device does not use these dedicated input pins for the external precision resistor or as I/O

pins, Altera recommends connecting these pins to GND.

When these pins are used for the OCT calibration, the RZQ pins are connected to GND through an external 100-

or 240- reference resistor depending on the desired OCT impedance. For the OCT impedance options for the

desired OCT scheme, refer to the Cyclone V device handbook, I/O Features in Cyclone V Devices Chapter.

DNU Do Not Use Do Not Use (DNU). Do not connect to power, GND, or any other signal. These pins must be left floating.

NC No Connect Do not drive signals into these pins.

When designing for device migration, these pins may be connected to power, GND, or a signal trace depending

on the pin assignment of the devices selected for migration. However, if device migration is not a concern,

leave these pins floating.

VCC Power

VCC supplies power to the core, periphery, PCIe hard IP, and

physical coding sublayer (PCS).

Connect all VCC pins to a 1.1V low noise switching regulator. VCCE_GXBL and VCCL_GXBL pins may be

sourced from the same regulator as VCC with a proper isolation filter. Use the Cyclone V Early Power Estimator

to determine the current requirements for VCC and other power supplies.

Decoupling for these pins depends on the design decoupling requirements of the specific board. See Notes 2,

3, 4, and 6.

VCCA_FPLL Power PLL analog power.

Connect these pins to a 2.5V low noise switching power supply through a proper isolation filter. This power rail

may be shared with VCC_AUX and VCCH_GXBL pins. With a proper isolation filter, these pins may be sourced

from the same regulator as VCCIO, VCCPD, and VCCPGM when each of these power supplies require 2.5V.

Decoupling for these pins depends on the design decoupling requirements of the specific board. See Notes 2,

3, 4, and 7.

Supply Pins (See Notes 4 through 7)

Reference Pins

PCG-01014-1.5

Pin Connection Guidelines Page 7 of 35

Cyclone V Pin Name Pin Type (1st and

2nd Function) Pin Description Connection Guidelines

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Altera recommends that you create a Quartus®

II design, enter your device I/O assignments, and compile the design. The Quartus II software will check your pin connections according to I/O assignment and placement rules. The

rules differ from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

VCC_AUX Power Auxiliary supply.

Connect all VCC_AUX pins to a 2.5V low noise switching power supply through a proper isolation filter. This

power rail may be shared with VCCH_GXBL and VCCA_FPLL pins. With a proper isolation filter, these pins

may be sourced from the same regulator as VCCIO, VCCPD, and VCCPGM when each of these power

supplies require 2.5V.

Decoupling for these pins depends on the design decoupling requirements of the specific board. See Notes 2,

3, 4, and 7.

VCCIO[#] Power

These are I/O supply voltage pins for I/O banks. Each bank can

support a different voltage level from 1.2V to 3.3V. Supported I/O

standards are LVTTL/ LVCMOS (3.3, 3.0, 2.5, 1.8, 1.5, 1.2V),

SSTL(135,125,18,15, 2 Class-I/II), HSTL(18,15,12 Class-I/II),

HSUL12, LVDS, LVPECL, and PCI/PCI-X.

Connect these pins to a 1.2V, 1.25V, 1.35V, 1.5V, 1.8V, 2.5V, 3.0V, or 3.3V power supply, depending on the I/O

standard required by the specified bank. When these pins have the same voltage requirements as VCCPD and

VCCPGM, they maybe tied to the same regulator.

Decoupling for these pins depends on the design decoupling requirements of the specific board. See Notes 2,

3, 4, and 8.

VCCPGM Power Configuration pins power supply which support 1.8, 2.5, 3.0, and

3.3V.

Connect these pins to either a 1.8V, 2.5V, 3.0V, or 3.3V power supply. When these pins have the same voltage

requirements as VCCIO and VCCPD, they maybe tied to the same regulator.

Decoupling for these pins depends on the design decoupling requirements of the specific board. See Notes 2,

3, and 4.

VCCPD[#] Power Dedicated power pins.

The VCCPD pins require 2.5V, 3.0V or 3.3V. When these pins have the same voltage requirements as

VCCPGM and VCCIO, they maybe tied to the same regulator. The voltage on VCCPD is dependent on the

VCCIO voltage.

When VCCIO is 3.3V, VCCPD must be 3.3V.

When VCCIO is 3.0V, VCCPD must be 3.0V.

When VCCIO is 2.5V or less, VCCPD must be 2.5V.

Decoupling for these pins depends on the design decoupling requirements of the specific board. See Notes 2,

3, 4, and 8.

VCCBAT Power Battery back-up power supply for design security volatile key register.

Connect this pin to a non-volatile battery power source in the range of 1.2V - 3.0V when using design security

volatile key. In this case, do not connect this pin to a volatile power source on the board. 3.0V is the typical

battery power selected for this supply. When you do not use the volatile key, connect this pin to a 1.5V, 2.5V, or

3.0V power supply.

Cyclone V devices will not exit POR if VCCBAT stays at logic low.

GND Ground Device ground pins. All GND pins must be connected to the board ground plane.

VREF[#]N0 Power

Input reference voltage for each I/O bank. If a bank uses a voltage

referenced I/O standard for input operation, then these pins are used

as the voltage-reference pins for the bank.

If the VREF pins are not used, you should connect them to either the VCCIO in the bank in which the pin resides

or GND.

VCCE_GXBL Power

Transmitter and receiver power, specific to the left (L) side of the

device.

For Cyclone V GX FPGA, connect VCCE_GXBL pins to a 1.1V low noise switching regulator.

For Cyclone V GT FPGA, connect VCCE_GXBL pins to a 1.1V or 1.2V linear regulator. Altera recommends

increasing VCCE_GXBL from 1.1V to 1.2V for systems which require full compliance to the CPRI 4.9G and

PCI Express Gen 2 transmit jitter specification. For more information, refer to the Transceivers chapters in the

device handbook.

For all Cyclone V transceiver-based device variants, this power rail can be shared with the VCCL_GXBL pins.

For details, refer to the respective Cyclone V GX and Cyclone V GT power supply sharing guidelines.

Decoupling for these pins depends on the design decoupling requirements of the specific board design. See

Notes 2, 3, 7, and 10.

Transceiver Pins (See Notes 4 through 10)

PCG-01014-1.5

Pin Connection Guidelines Page 8 of 35

Cyclone V Pin Name Pin Type (1st and

2nd Function) Pin Description Connection Guidelines

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Altera recommends that you create a Quartus®

II design, enter your device I/O assignments, and compile the design. The Quartus II software will check your pin connections according to I/O assignment and placement rules. The

rules differ from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

VCCL_GXBL Power Clock network power, specific to the left (L) side of the device.

For Cyclone V GX FPGA , connect VCCL_GXBL pins to a 1.1V low noise switching regulator.

For Cyclone V GT FPGA, connect VCCL_GXBL pins to a 1.1V or 1.2V linear regulator. Altera recommends

increasing VCCL_GXBL from 1.1V to 1.2V for systems which require full compliance to the CPRI 4.9G and PCI

Express Gen 2 transmit jitter specification. For more information, refer to the Transceivers chapters in the

device handbook.

For all Cyclone V transceiver-based device variants, this power rail can be shared with the VCCE_GXBL pins.

For details, refer to the respective Cyclone V GX and Cyclone V GT power supply sharing guidelines.

Decoupling for these pins depends on the design decoupling requirements of the specific board. See Notes 2,

3, 7, and 10.

VCCH_GXBL Power

Transceiver high voltage power, specific to the left (L) side of the

device.

Connect VCCH_GXBL to a 2.5V low noise switching regulator. This power rail may be shared with VCCA_FPLL

and VCC_AUX pins. With a proper isolation filter these pins may be sourced from the same regulator as

VCCIO, VCCPD, and VCCPGM if any of these power supplies require 2.5V. VCCH_GXBL and VCCA_FPLL

must always be powered up for the PLL operation.

Decoupling depends on the design decoupling requirements of the specific board design. See Notes 2, 3, 4,

and 7.

GXB_RX_L[0:11][p,n],

GXB_REFCLK_L[0:11][p,n]

Input

High speed positive (p) or negative (n) differential receiver channels.

High speed positive (p) or negative (n) differential reference clock

specific to the left (L) side of the device.

These pins are AC-coupled when used. Connect all unused GXB_RX and GXB_REFCLK pins directly to GND.

See Note 9.

GXB_TX_L[0:11][p,n] Output

High speed positive (p) or negative (n) differential transmitter

channels. Specific to the left (L) side of the device.

Leave all unused GXB_TX pins floating.

REFCLK[0:3]L_[p,n] Input

High speed positive (p) and negative (n) differential reference clock,

specific to the left (L) side of the device.

These pins may be AC-coupled or DC-coupled when used. For the HCSL I/O standard, it only supports DC

coupling. Connect all unused REFCLK pins directly to GND. See Note 9.

Altera provides these guidelines only as recommendations. It is the responsibility of the designer to apply simulation results to the design to verify proper device functionality.

1) These pin connection guidelines are based on the Cyclone V GX, GT, and E device variants.

3) Use the Cyclone V Early Power Estimator to determine the current requirements for VCC and other power supplies.

4) These supplies may share power planes across multiple Cyclone V devices.

6) Power pins should not share breakout vias from the BGA. Each ball on the BGA needs to have its own dedicated breakout via. VCC must not share breakout vias.

8) The number of modular I/O banks on Cyclone V devices depends on the device density. For the indexes available for a specific device, please refer to the I/O Bank section in the Cyclone V device handbook.

11) For item [#] Please refer to the device pin table for the pin-out mapping.

10) If none of the transceivers are used on one side of the device, then the transceiver power pins on that side may be tied to GND except for the VCCH_GXBL power pin. The VCCH_GXBL pin must always be powered.

Power Delivery Network (PDN) Tool for Cyclone V Devices.

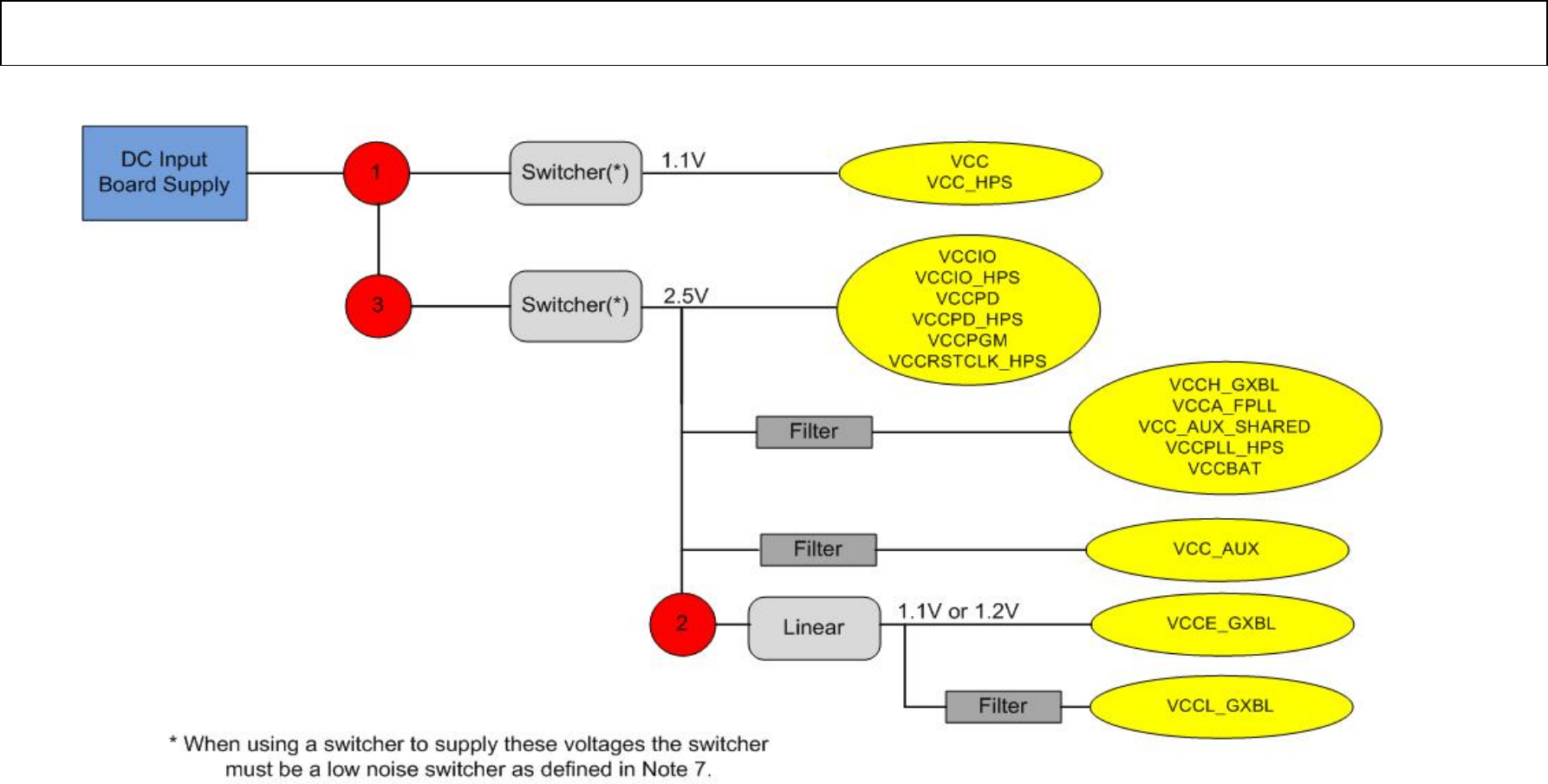

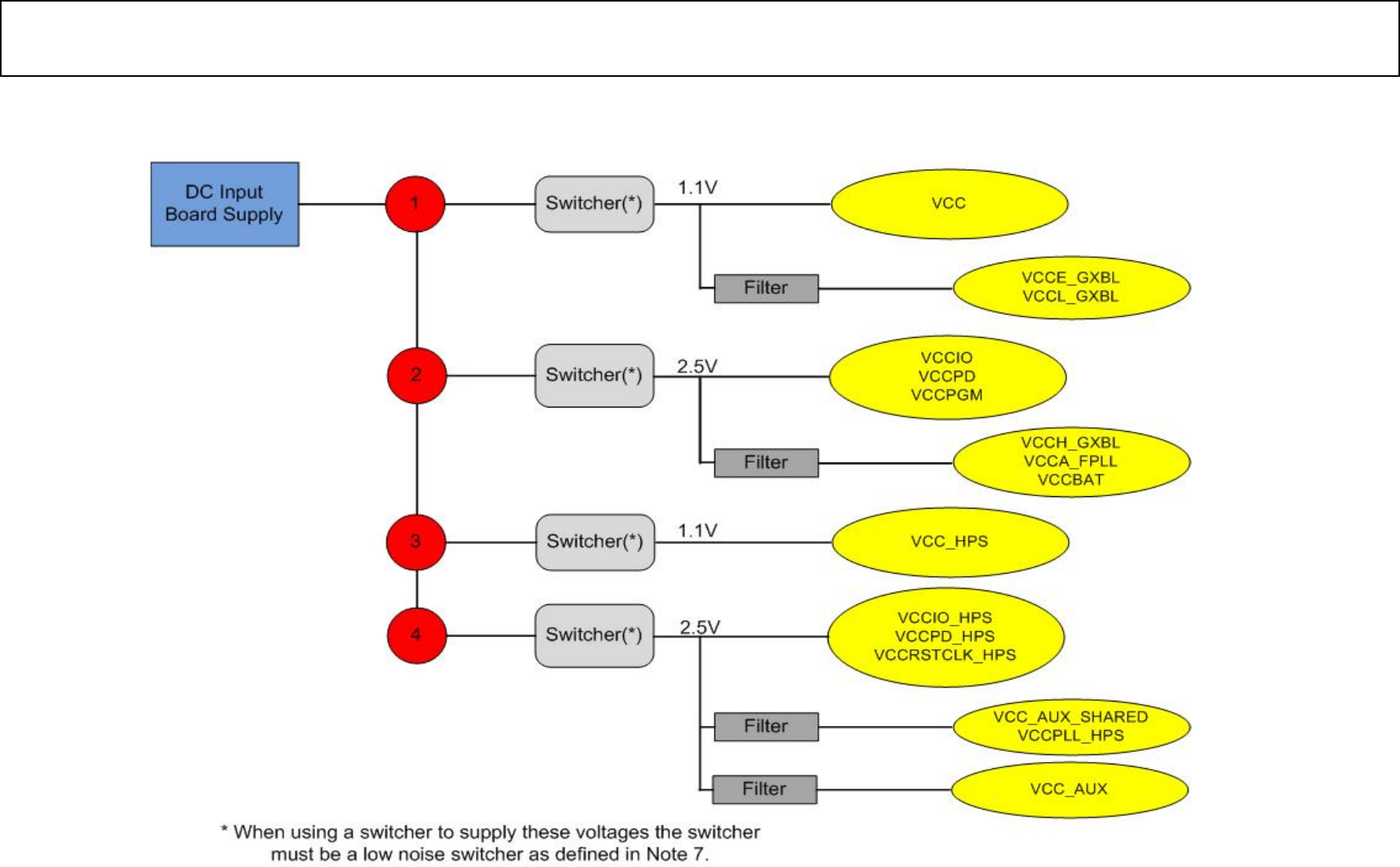

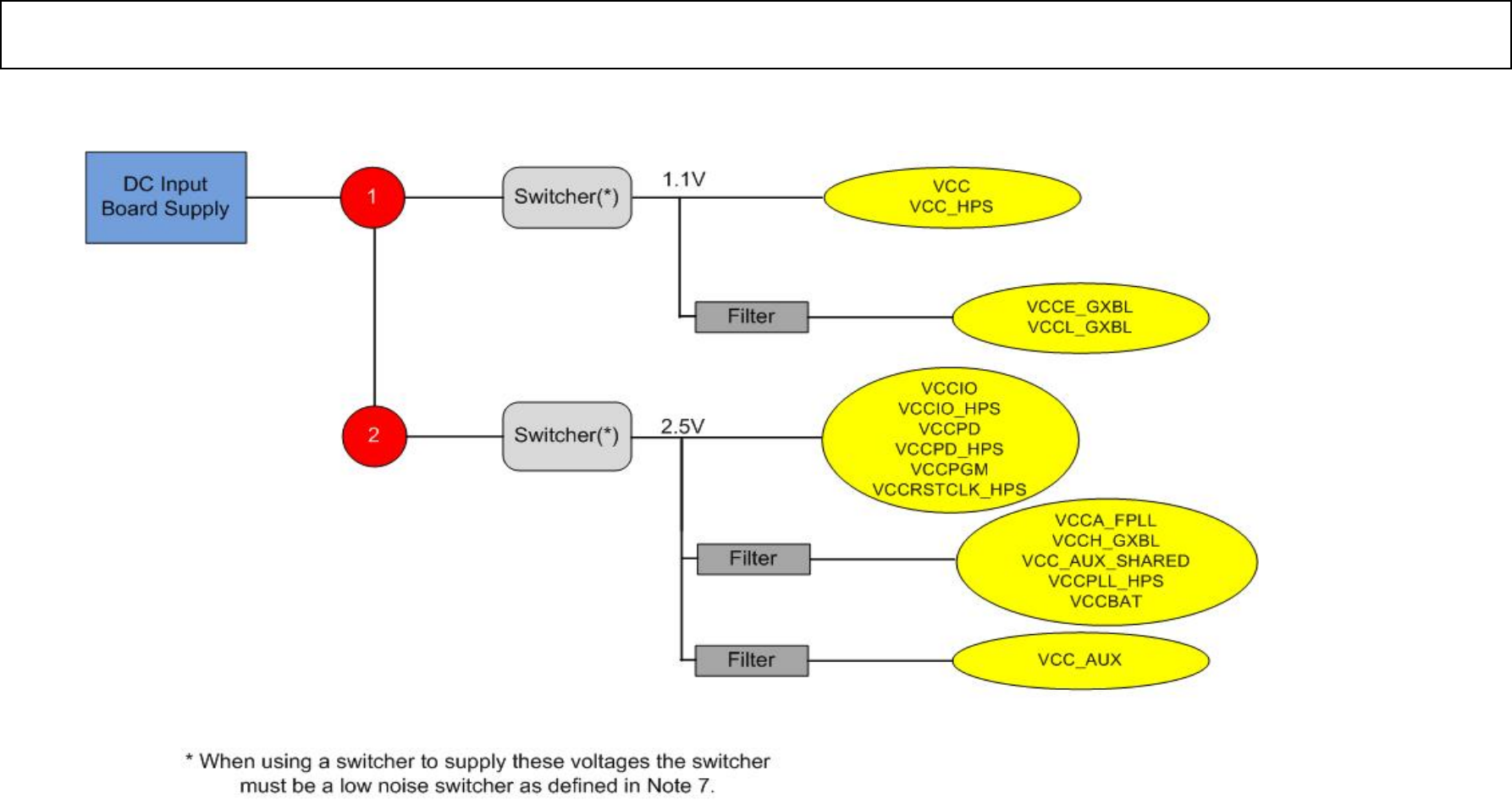

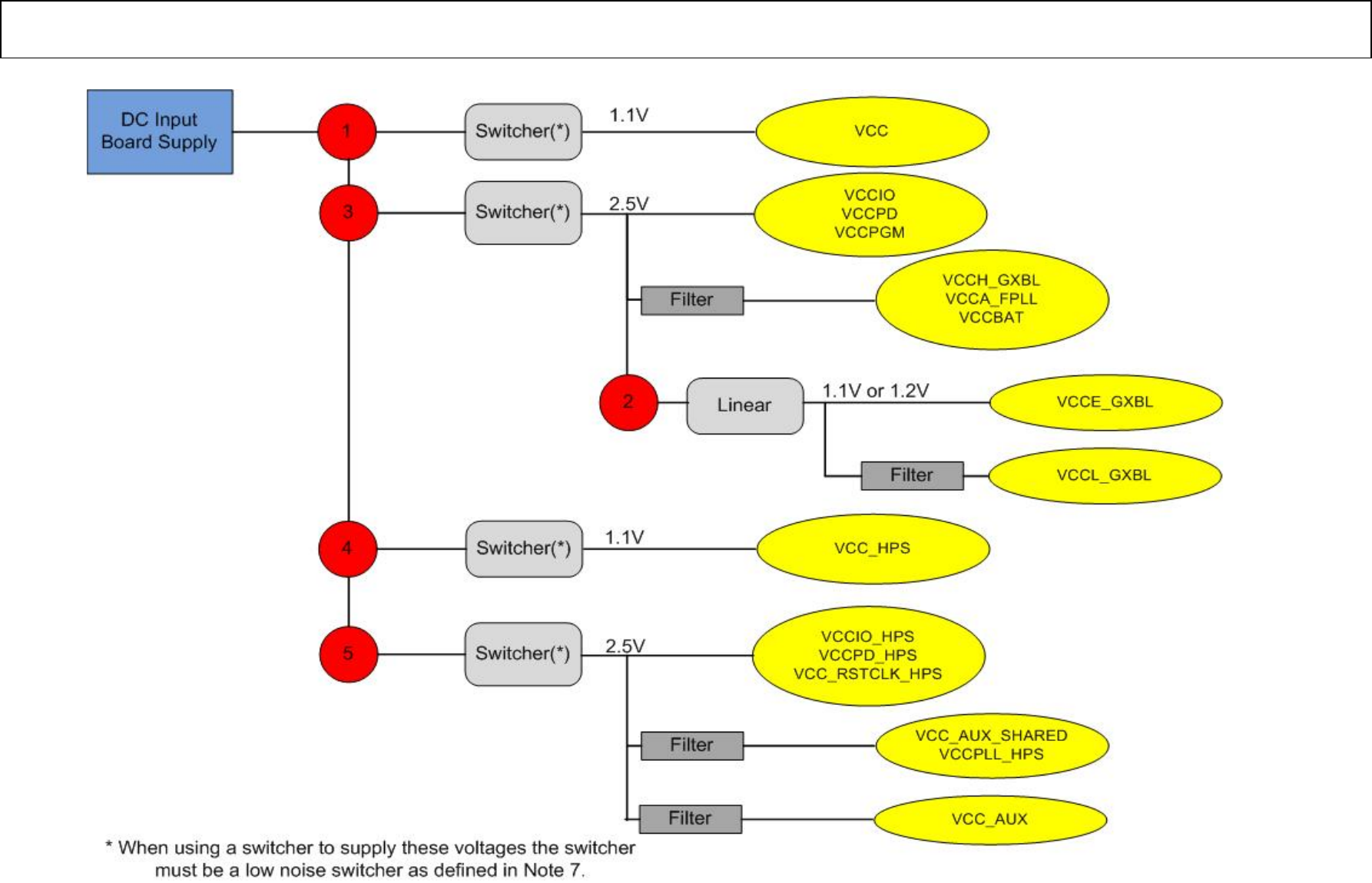

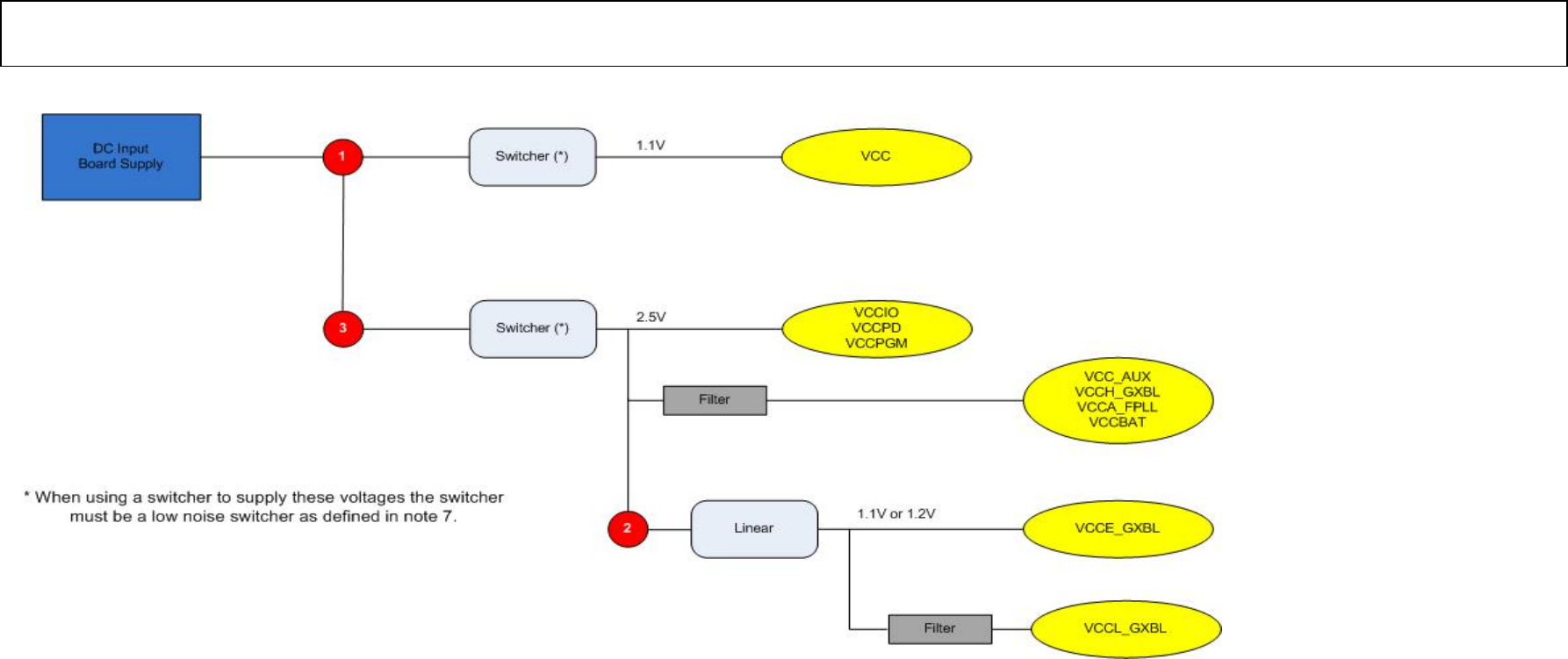

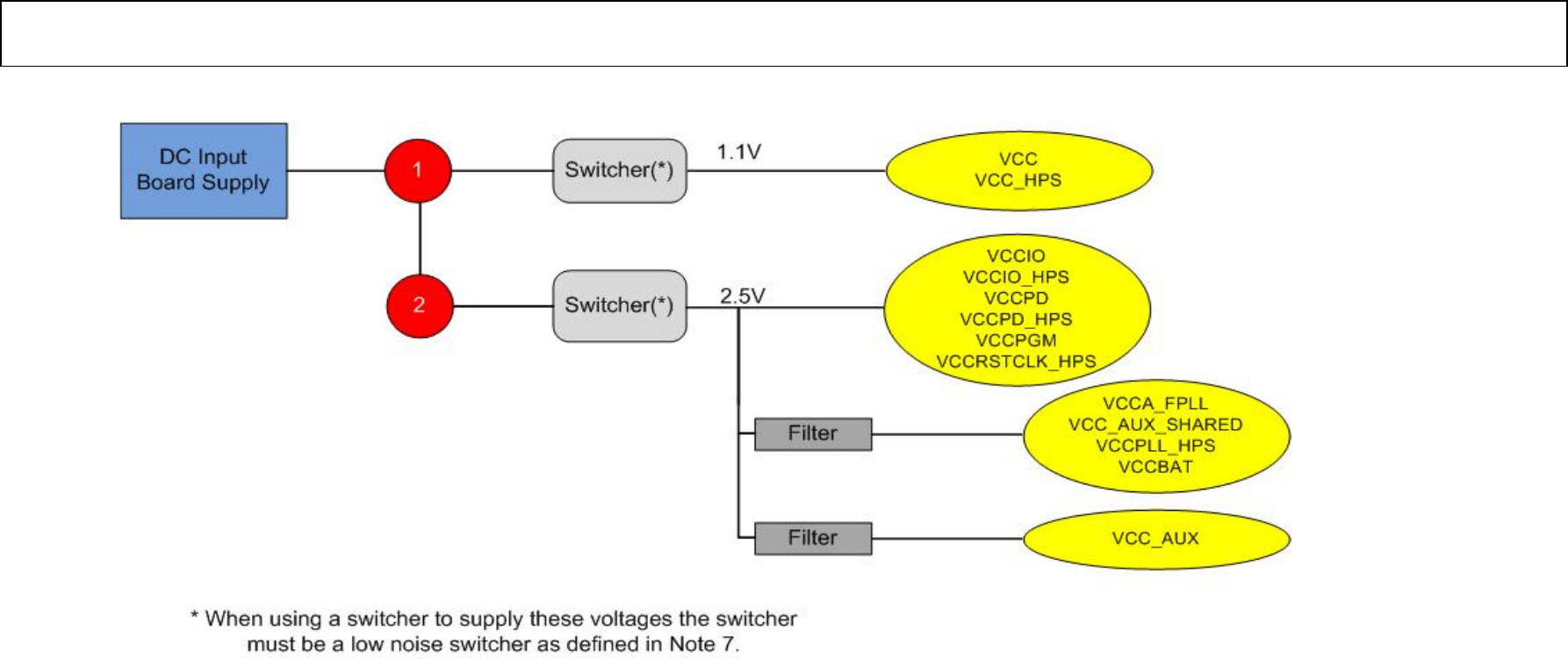

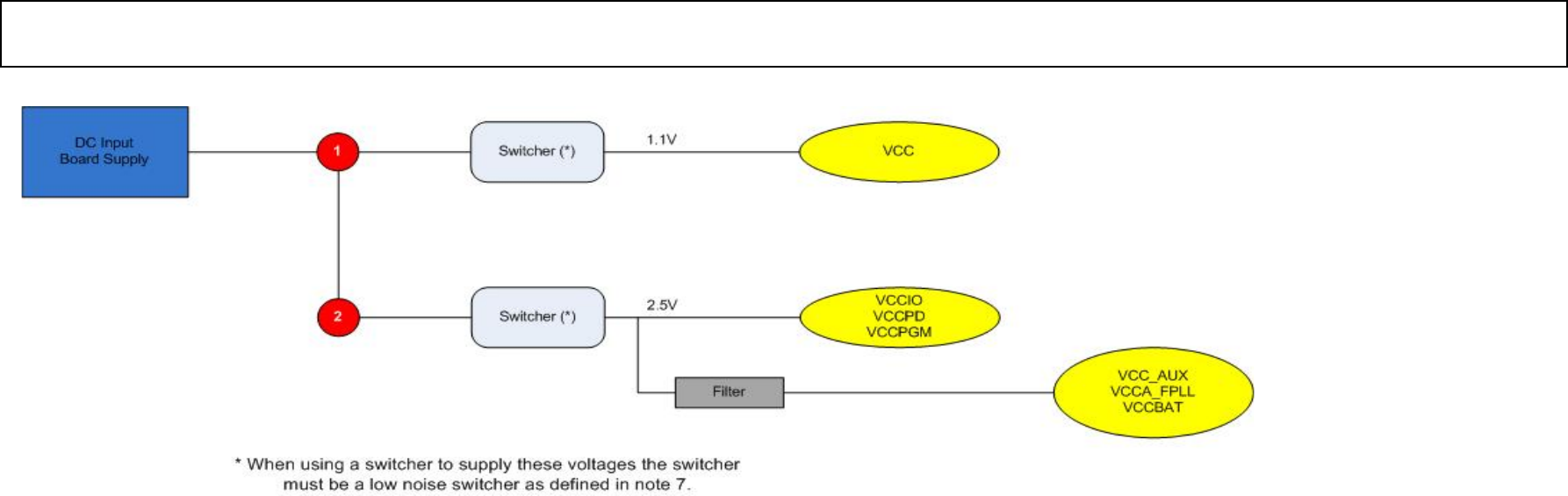

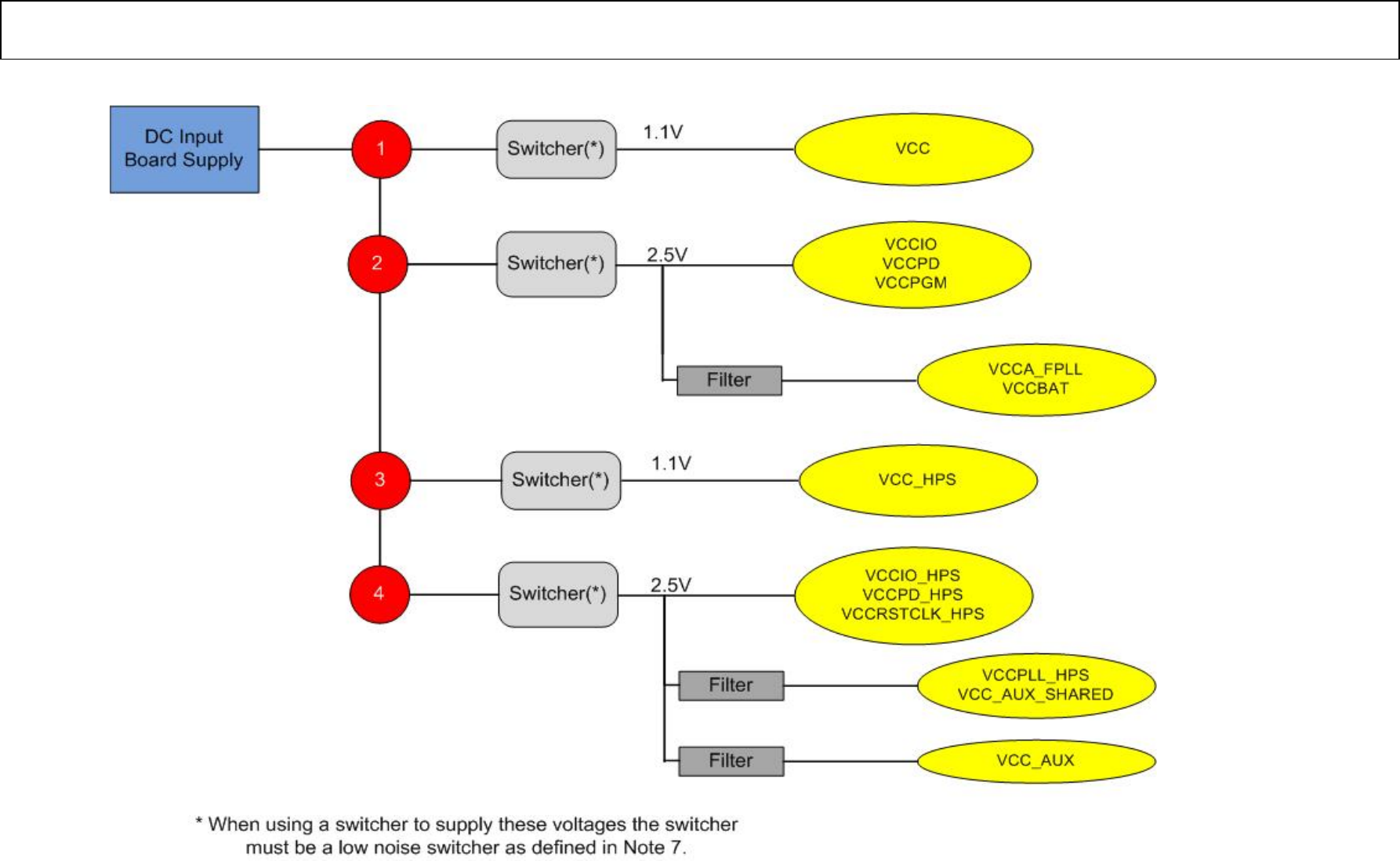

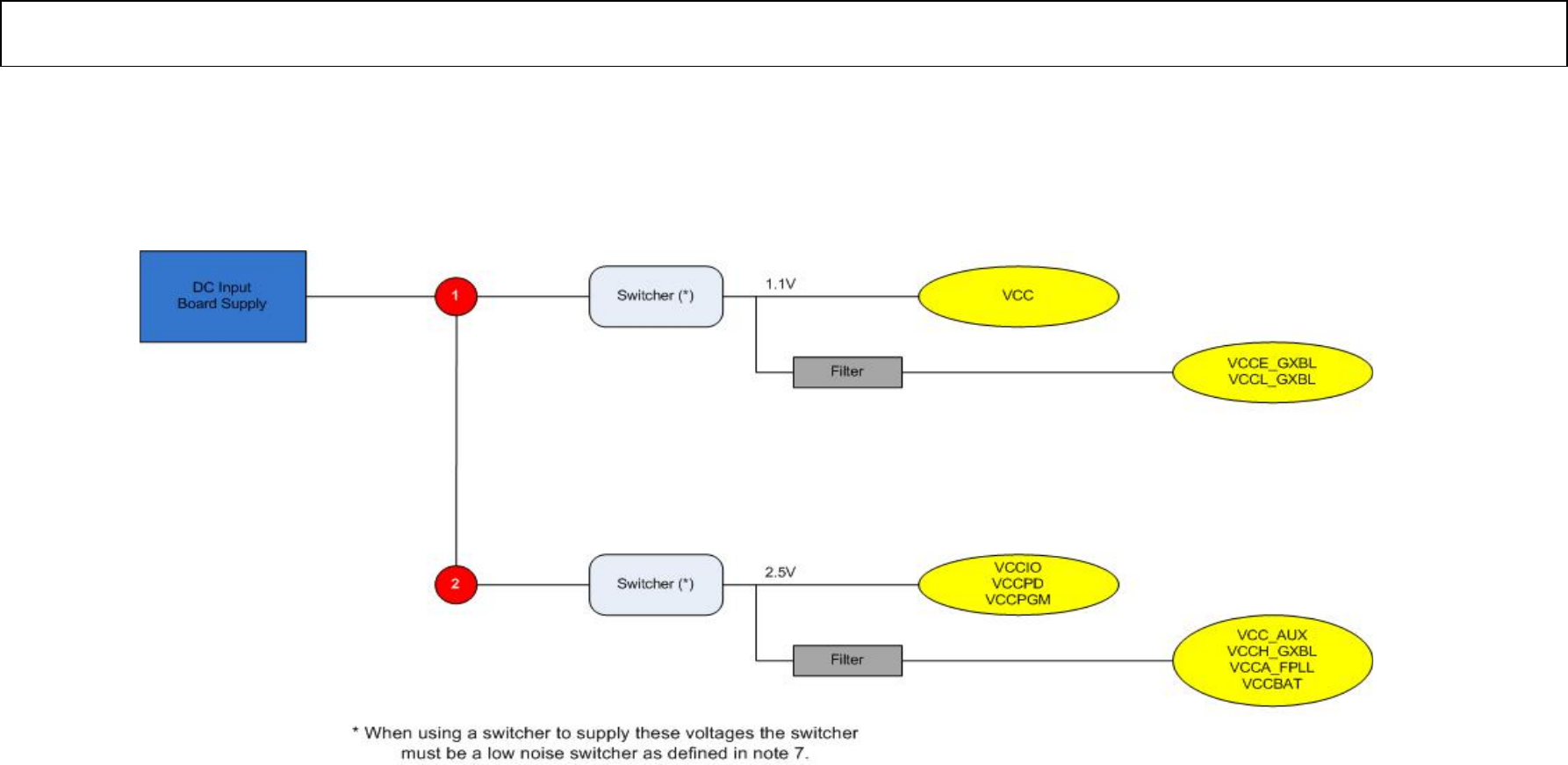

5) Example 1 and Figure 1 illustrate power supply sharing guidelines for the Cyclone V GX device. Example 2 and Figure 2 illustrate power supply sharing guidelines for the Cyclone V GT device. Example 3 and Figure 3 illustrate

power supply sharing guidelines for the Cyclone V E device.

7) Low Noise Switching Regulator - defined as a switching regulator circuit encapsulated in a thin surface mount package containing the switch controller, power FETs, inductor, and other support components. The switching

frequency is usually between 800kHz and 1MHz and has fast transient response. The switching frequency range is not an Altera requirement. However, Altera does require the Line Regulation and Load Regulation meet the

following specifications:

Line Regulation < 0.4%

Load Regulation < 1.2%

9) For AC-coupled links, the AC-coupling capacitor can be placed anywhere along the channel. PCIe protocol requires the AC-coupling capacitor to be placed on the transmitter side of the interface that permits adapters to be

plugged and unplugged.

2) Capacitance values for the power supply should be selected after considering the amount of power they need to supply over the frequency of operation of the particular circuit being decoupled. A target impedance for the power

plane should be calculated based on current draw and voltage droop requirements of the device/supply. The power plane should then be decoupled using the appropriate number of capacitors. On-board capacitors do not

decouple higher than 100 MHz because “Equivalent Series Inductance” of the mounting of the packages. Proper board design techniques such as interplane capacitance with low inductance should be considered for higher

frequency decoupling. The Power Delivery Network (PDN) tool serves as an excellent decoupling analysis tool. For more details, refer to the

PCG-01014-1.5

HPS Pin Connection Guidelines Page 9 of 35

Cyclone V HPS

Pin Name

Pin Type (1st

and 2nd

Function) Connection Guidelines

HPS_TDI Input

Connect this pin through a 1-kΩ - 10-kΩ pull-up resistor to

VCCPD_HPS in the dedicated I/O bank which the JTAG pin resides.

To disable the JTAG circuitry, connect the TDI pin to VCCPD_HPS

using a 1-kΩ resistor.

HPS_TMS Input

Connect this pin through a 1-kΩ - 10-kΩ - pull-up resistor to the

VCCPD_HPS in the dedicated I/O bank which the JTAG pin resides.

To disable the JTAG circuitry, connect the TMS pin to VCCPD_HPS

using a 1-kΩ resistor.

HPS_TRST Input

Connect this pin through a 1-kΩ - 10-kΩ pull-up resistor to the

VCCPD_HPS in the dedicated I/O bank which the JTAG pin resides.

HPS_TCK Input

Connect this pin through a 1-kΩ - 10-kΩ pull-down resistor to GND.

HPS_TDO Output

To disable the JTAG circuitry, leave the HPS_TDO pin unconnected.

In cases where the HPS_TDO pin uses VCCPD_HPS = 2.5 V to drive

a 3.3 V JTAG interface, there may be leakage current in the HPS_TDI

input buffer of the interfacing devices. An external pull-up resistor tied

to 3.3 V on the HPS_TDI pin may be used to eliminate the leakage

current if needed.

HPS_nRST

I/O, bidirectional

Connect this pin through a 1-kΩ - 10-kΩ pull-up resistor to

VCCRSTCLK_HPS.

HPS_nPOR I/O, Input

Connect this pin through a 1-kΩ - 10-kΩ pull-up resistor to

VCCRSTCLK_HPS.

HPS_PORSEL I/O, Input

Connect this pin directly to VCCRSTCLK_HPS or GND.

HPS_CLK1 Input, Clock

Connect a single-ended clock source to this pin. The I/O standard of

the clock source must be compatible with VCCRSTCLK_HPS.

Refer to

the valid frequency range of the clock source in Cyclone V Device

Datasheet. The input clock must be present at this pin for HPS

operation.

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Altera recommends that you create a Quartus® II design, enter your device I/O assignments, and compile the design. The Quartus II software will check your pin connections according to I/O assignment and placement rules. The rules differ

from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

Pin Description

Dedicated Configuration/JTAG Pins

JTAG test Data input pin for instructions as well as test and programming Data. Data is shifted in on the rising edge of the TCK pin.

This pin has an internal 25-kΩ pull-up resistor that is always active.

JTAG test mode Select input pin that provides the control signal to determine the transitions of the test access port (TAP) controller state

machine.

The TMS pin is evaluated on the rising edge of the TCK pin. Therefore, you must set up the TMS pin before the rising edge of the TCK pin.

Transitions in the state machine occur on the falling edge of the TCK after the signal is applied to the TMS pin.

This pin has an internal 25-kΩ pull-up resistor that is always active.

Active-low input to asynchronously reset the boundary-scan circuit. This pin has an internal 25-kΩ pull-up that is always active.

JTAG test clock input pin that clock input to the boundary-scan testing (BST) circuitry. Some operations occur at the rising edge, while others

occur at the falling edge.

It is expected that the clock input waveform have a nominal 50% duty cycle.

This pin has an internal 25-kΩ pull-down that is always active.

JTAG test Data output pin for instructions as well as test and programming Data. Data is shifted out on the falling edge of the TCK pin. This pin is

tri-stated if the Data is not being shifted out of the device.

Warm reset to the HPS block. Active low input affects the system reset domains which allows debugging to operate. This pin has an internal 25-

kΩ pull-up resistor that is always active.

Cold reset to the HPS block. Active low input that will reset all HPS logics that can be reset. Places the HPS in a default state sufficient for

software to boot. This pin has an internal 25-kΩ pull-up resistor that is always active.

Dedicated input that selects between a standard POR or a fast POR delay for HPS block. A logic low selects a standard POR delay setting and a

logic high selects a fast POR delay setting. This pin has an internal 25-kΩ pull-down resistor that is always active.

Clock Pins

Dedicated clock input pin that drives the main PLL. This provides clocks to the MPU, L3/L4 sub-systems, debug sub-system and the Flash

controllers. It can also be programmed to drive the peripheral and SDRAM PLLs.

PCG-01014-1.5

HPS Pin Connection Guidelines Page 10 of 35

Cyclone V HPS

Pin Name

Pin Type (1st

and 2nd

Function) Connection Guidelines

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

Pin Description

HPS_CLK2 Input, Clock

Connect a single-ended clock source to this pin. The I/O standard of

the clock source must be compatible with

VCCRSTCLK_HPS. Refer to

the valid frequency range of the clock source in Cyclone V Device

Datasheet. This is an optional HPS clock input pin. When you do not

use this pin, Altera recommends tying it to GND or leaving it

unconnected. If this pin is unconnected, use the Quartus II software

programmable options to internally bias this pin.This pin can be

reserved as an input tri-state with the weak pull-up resistor enabled, or

as an output driving GND.

VCC_HPS Power

Connect all VCC_HPS pins to a 1.1V low noise switching regulator. If

powering down of the FPGA fabric is not required, VCC_HPS pins

may be sourced from the same regulator as VCC.

Use the Cyclone V Early Power Estimator to determine the current

requirements for VCC_HPS and other power supplies.

Decoupling for these pins depends on the design decoupling

requirements of the specific board. See Notes 2, 3, 4, and 6.

VCCIO[#]_HPS Power

Connect these pins to a 1.2V, 1.25V, 1.35V, 1.5V, 1.8V, 2.5V, 3.0V, or

3.3V power supply, depending on the I/O standard required by the

specified bank. When these pins have the same voltage requirements

as VCCPD_HPS and VCCRSTCLK_HPS, they may be tied to the

same regulator. If powering down of the FPGA fabric is not required

and if these pins have the same voltage requirement as VCCIO,

VCCIO_HPS pins may be sourced from the same regulator as VCCIO.

Decoupling for these pins depends on the design decoupling

requirements of the specific board. See Notes 2, 3, 4, and 8.

VCCPLL_HPS Power

Connect these pins to a 2.5V low noise switching power supply

through a proper isolation filter. This power rail may be shared with the

VCC_AUX_SHARED pin. With a proper isolation filter, these pins may

be sourced from the same regulator as VCCIO_HPS, VCCPD_HPS,

and VCCRSTCLK_HPS when each of these power supplies require

2.5V.

Decoupling for these pins depends on the design decoupling

requirements of the specific board. See Notes 2, 3, 4, and 7.

VCCRSTCLK_HPS Power

Connect these pins to either a 1.8V, 2.5V, 3.0V, or 3.3V power supply.

When these pins have the same voltage requirements as

VCCIO_HPS and VCCPD_HPS, they may be tied to the same

regulator. If powering down of the FPGA fabric is not required and if

these pins have the same voltage requirement as VCCIO and

VCCPD, they may be tied to the same regulator.

Decoupling for these pins depends on the design decoupling

requirements of the specific board. See Notes 2, 3, and 4.

Dedicated clock input pin that can be programmed to drive the peripheral and SDRAM PLLs.

Supply Pins (See Notes 4 through 7)

VCC_HPS supplies power to the HPS core.

These are I/O supply voltage pins for I/O banks. Each bank can support a different voltage level from 1.2V to 3.3V. Supported I/O standards are

LVTTL/ LVCMOS (3.3, 3.0, 2.5, 1.8, 1.5, 1.2V), SSTL(135,125,18,15, 2 Class-I/II), HSTL(18,15,12 Class-I/II), HSUL12, LVDS, LVPECL, and

PCI/PCI-X.

VCCPLL_HPS supplies power to the HPS core PLLs.

VCCRSTCLK_HPS supplies power to HPS clock and reset pins.

PCG-01014-1.5

HPS Pin Connection Guidelines Page 11 of 35

Cyclone V HPS

Pin Name

Pin Type (1st

and 2nd

Function) Connection Guidelines

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

Pin Description

VCC_AUX_SHARED Power

VCC_AUX_SHARED must always be powered up at 2.5V for the HPS

operation.

If powering down of the FPGA fabric is not required, connect this pin to

VCC_AUX through a proper isolation filter. See Notes 2,3,4, and 7.

VCCPD[#]_HPS Power

The VCCPD_HPS pins require 2.5V, 3.0V or 3.3V. When these pins

have the same voltage requirements as VCCRSTCLK_HPS and

VCCIO_HPS, they may be tied to the same regulator. The voltage on

VCCPD_HPS is dependent on the VCCIO_HPS voltage. If powering

down of the FPGA fabric is not required and if these pins have the

same voltage requirement as VCCPD, they may be tied to the same

regulator.

When VCCIO_HPS is 3.3V, VCCPD_HPS must be 3.3V.

When VCCIO_HPS is 3.0V, VCCPD_HPS must be 3.0V.

When VCCIO_HPS is 2.5V or less, VCCPD_HPS must be 2.5V.

Decoupling for these pins depends on the design decoupling

requirements of the specific board. See Notes 2, 3, 4, and 8.

VREFB[#]N0_HPS Power

If the VREF pins are not used, you should connect them to either the

VCCIO in the bank in which the pin resides or GND.

HPS_DQ[#]

I/O, bidirectional

If hard memory PHY is used, connection to memory device DQ pin

must start from [B,T]_DQ_0 pin. For details, refer to the specific device

pinout file.

Connect unused pins as defined in the Quartus II software.

HPS_DQS_[#]

I/O, bidirectional

If hard memory PHY is used, connection to memory device DQS pin

must start from [B,T]_DQS_0 pin. For details, refer to the specific

device pinout file.

Connect unused pins as defined in the Quartus II software.

HPS_DQS#_[#]

I/O, bidirectional

If hard memory PHY is used, connection to memory device DQSn pin

must start from [B,T]_DQS#_0 pin. For details, refer to the specific

device pinout file.

Connect unused pins as defined in the Quartus II software.

HPS_DM_[#] I/O, Output

Connect unused pins as defined in the Quartus II software.

HPS_WE# I/O, Output

Connect unused pins as defined in the Quartus II software.

HPS_CAS# I/O, Output

Connect unused pins as defined in the Quartus II software.

HPS_RAS# I/O, Output

Connect unused pins as defined in the Quartus II software.

HPS_RESET# I/O, Output

Connect unused pins as defined in the Quartus II software.

HPS_CK I/O, Output

Connect unused pins as defined in the Quartus II software.

HPS_CK# I/O, Output

Connect unused pins as defined in the Quartus II software.

HPS_CKE_[#] I/O, Output

Connect unused pins as defined in the Quartus II software.

HPS_BA_[#] I/O, Output

Connect unused pins as defined in the Quartus II software.

HPS_A_[#] I/O, Output

Connect unused pins as defined in the Quartus II software.

HPS_CA_[#] I/O, Output

Connect unused pins as defined in the Quartus II software.

HPS_CS#_[#] I/O, Output

Connect unused pins as defined in the Quartus II software.

HPS_ODT_[#] I/O, Output

Connect unused pins as defined in the Quartus II software.

Auxiliary supply.

Dedicated power pins.

Hard Memory PHY Pins

Optional data signal for use in external memory interfacing. Use caution when making pin assignments if you plan on migrating to a different

memory interface that has a different HPS_DQ bus width. Analyze the available HPS_DQ pins across all pertinent HPS_DQS columns in the pin

list.

Input reference voltage for each I/O bank. If a bank uses a voltage referenced I/O standard for input operation, then these pins are used as the

voltage-reference pins for the bank.

Optional data strobe signal for use in external memory interfacing. These pins drive to dedicated HPS_DQS phase shift circuitry. The shifted DQS

signal can also drive to internal logic.

Optional complementary data strobe signal for use in external memory interfacing. These pins drive to dedicated HPS_DQS phase shift circuitry.

Optional write data mask, edge-aligned to HPS_DQ during write.

Write-Enable input for DDR2 andDDR3 SDRAM.

Column address strobe for DDR2 and DDR3 SDRAM.

Row address strobe for DDR2 and DDR3 SDRAM.

Active low reset signal.

Output clock for external memory devices.

Output clock for external memory devices, inverted CK.

Active high clock Enable.

Bank address input for DDR2 and DDR3 SDRAM.

Address input for DDR2 and DDR3 SDRAM.

Command and address inputs for LPDDR and LPDDR2 SDRAM.

Active low chip Select.

On-die termination signal enables and disables termination resistance internal to the external memory.

PCG-01014-1.5

HPS Pin Connection Guidelines Page 12 of 35

Cyclone V HPS

Pin Name

Pin Type (1st

and 2nd

Function) Connection Guidelines

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

Pin Description

HPS_RZQ_0 I/O, Input

When the Cyclone V SoC device does not use these dedicated input

pins for the external precision resistor or as I/O pins, Altera

recommends connecting these pins to GND.

When these pins are used for the OCT calibration, the HPS_RZQ_0

pin is connected to GND through an external 100-Ω or 240-Ω

reference resistor depending on the desired OCT impedance. For the

OCT impedance options for the desired OCT scheme, refer to the

Cyclone V device handbook, I/O Features in Cyclone V Devices

Chapter.

HPS_GPI# Input

These pins use the same VCCIO_HPS as the other HPS SDRAM

pins. Connect unused pins as defined in the Quartus II software.

Power-up Function 3 Function 2 Function 1 Function 0

RGMII0_TX_CLK I/O

RGMII0 Transmit clock General Purpose IO Bit 0 If unused, program it in Quartus as an input with a weak pull-up.

RGMII0_TXD0 I/O

RGMII0 Transmit Data Bit 0 USB1 Data Bit 0 General Purpose IO Bit 1 If unused, program it in Quartus as an input with a weak pull-up.

RGMII0_TXD1 I/O

RGMII0 Transmit Data Bit 1 USB1 Data Bit 1 General Purpose IO Bit 2 If unused, program it in Quartus as an input with a weak pull-up.

RGMII0_TXD2 I/O

RGMII0 Transmit Data Bit 2 USB1 Data Bit 2 General Purpose IO Bit 3 If unused, program it in Quartus as an input with a weak pull-up.

RGMII0_TXD3 I/O

RGMII0 Transmit Data Bit 3 USB1 Data Bit 3 General Purpose IO Bit 4 If unused, program it in Quartus as an input with a weak pull-up.

RGMII0_RXD0 I/O

RGMII0 Receive Data Bit 0 USB1 Data Bit 4 General Purpose IO Bit 5 If unused, program it in Quartus as an input with a weak pull-up.

RGMII0_MDIO I/O

RGMII0 Management Data IO USB1 Data Bit 5 I2C2 Serial Data General Purpose IO Bit 6 If unused, program it in Quartus as an input with a weak pull-up.

RGMII0_MDC I/O

RGMII0 Management Data Clock USB1 Data Bit 6 I2C2 Serial Clock General Purpose IO Bit 7 If unused, program it in Quartus as an input with a weak pull-up.

RGMII0_RX_CTL I/O

RGMII0 Receive Control USB1 Data Bit 7 General Purpose IO Bit 8 If unused, program it in Quartus as an input with a weak pull-up.

RGMII0_TX_CTL I/O

RGMII0 Transmit Control General Purpose IO Bit 9 If unused, program it in Quartus as an input with a weak pull-up.

RGMII0_RX_CLK I/O

RGMII0 Receive Clock USB1 Clock General Purpose IO Bit 10 If unused, program it in Quartus as an input with a weak pull-up.

RGMII0_RXD1 I/O

RGMII0 Receive Data Bit 1 USB1 Stop Data General Purpose IO Bit 11 If unused, program it in Quartus as an input with a weak pull-up.

RGMII0_RXD2 I/O

RGMII0 Receive Data Bit 2 USB1 Direction General Purpose IO Bit 12 If unused, program it in Quartus as an input with a weak pull-up.

RGMII0_RXD3 I/O

RGMII0 Receive Data Bit 3 USB1 Next Data General Purpose IO Bit 13 If unused, program it in Quartus as an input with a weak pull-up.

NAND_ALE I/O

NAND Address Latch Enable RGMII1 Transmit clock QSPI Slave Select 3 General Purpose IO Bit 14 If unused, program it in Quartus as an input with a weak pull-up.

NAND_CE I/O

NAND Chip Enable RGMII1 Transmit Data Bit 0 USB1 Data Bit 0 General Purpose IO Bit 15 If unused, program it in Quartus as an input with a weak pull-up.

NAND_CLE I/O

NAND Command Latch Enable RGMII1 Transmit Data Bit 1 USB1 Data Bit 1 General Purpose IO Bit 16 If unused, program it in Quartus as an input with a weak pull-up.

NAND_RE I/O

NAND Read Enable RGMII1 Transmit Data Bit 2 USB1 Data Bit 2 General Purpose IO Bit 17 If unused, program it in Quartus as an input with a weak pull-up.

Reference Pins

Reference pins for I/O banks. The HPS_RZQ_0 pins shares the same HPS_VCCIO with the I/O bank where it is located. The external precision

resistor must be connected to the designated pin within the bank. If not required, these pins are regular I/O pins.

General Purpose Input Pins

General purpose inputs signals in the SDRAM bank

Peripheral Pins (See Note 12)

PCG-01014-1.5

HPS Pin Connection Guidelines Page 13 of 35

Cyclone V HPS

Pin Name

Pin Type (1st

and 2nd

Function) Connection Guidelines

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

Pin Description

NAND_RB I/O

NAND Ready/Busy RGMII1 Transmit Data Bit 3 USB1 Data Bit 3 General Purpose IO Bit 18

If used as the NAND Ready/Busy input, connect this pin through a 1-

kΩ - 10-kΩ pull-up resistor to VCCPD_HPS in the dedicated I/O bank

which the NAND_RB pin resides. If unused, program it in Quartus as

an input with a weak pull-up.

NAND_DQ0 I/O

NAND Data Bit 0 RGMII1 Receive Data Bit 0 General Purpose IO Bit 19 If unused, program it in Quartus as an input with a weak pull-up.

NAND_DQ1 I/O

NAND Data Bit 1 RGMII1 Management Data IO I2C3 Serial Data General Purpose IO Bit 20 If unused, program it in Quartus as an input with a weak pull-up.

NAND_DQ2 I/O

NAND Data Bit 2 RGMII1 Management Data clock I2C3 Serial clock General Purpose IO Bit 21 If unused, program it in Quartus as an input with a weak pull-up.

NAND_DQ3 I/O

NAND Data Bit 3 RGMII1 Receive control USB1 Data Bit 4 General Purpose IO Bit 22 If unused, program it in Quartus as an input with a weak pull-up.

NAND_DQ4 I/O

NAND Data Bit 4 RGMII1 Transmit control USB1 Data Bit 5 General Purpose IO Bit 23 If unused, program it in Quartus as an input with a weak pull-up.

NAND_DQ5 I/O

NAND Data Bit 5 RGMII1 Receive clock USB1 Data Bit 6 General Purpose IO Bit 24 If unused, program it in Quartus as an input with a weak pull-up.

NAND_DQ6 I/O

NAND Data Bit 6 RGMII1 Receive Data Bit 1 USB1 Data Bit 7 General Purpose IO Bit 25 If unused, program it in Quartus as an input with a weak pull-up.

NAND_DQ7 I/O

NAND Data Bit 7 RGMII1 Receive Data Bit 2 General Purpose IO Bit 26 If unused, program it in Quartus as an input with a weak pull-up.

NAND_WP I/O

NAND Write Protect RGMII1 Receive Data Bit 3 QSPI Slave Select 2 General Purpose IO Bit 27 If unused, program it in Quartus as an input with a weak pull-up.

NAND_WE I/O

BOOTSEL2

During a cold

reset this

signal is

sampled as a

boot select

input.

NAND Write Enable QSPI Slave Select 1 General Purpose IO Bit 28

Connect a pull-up or pull-down resistor such as 4.7-kΩ - 10-kΩ to

select the desired boot select values. Refer to the Booting and

Configuration appendix in the Cyclone V Device Handbook for Boot

Select values. This resistor will not interfere with the slow speed

interface signals that could share this pin.

QSPI_IO0 I/O

QSPI Data IO Bit 0 USB 1 Clock General Purpose IO Bit 29 If unused, program it in Quartus as an input with a weak pull-up.

QSPI_IO1 I/O

QSPI Data IO Bit 1 USB1 Stop Data General Purpose IO Bit 30 If unused, program it in Quartus as an input with a weak pull-up.

QSPI_IO2 I/O

QSPI Data IO Bit 2 USB1 Direction General Purpose IO Bit 31 If unused, program it in Quartus as an input with a weak pull-up.

QSPI_IO3 I/O

QSPI Data IO Bit 3 USB1 Next Data General Purpose IO Bit 32 If unused, program it in Quartus as an input with a weak pull-up.

QSPI_SS0 I/O

BOOTSEL1

During a cold

reset this

signal is

sampled as a

boot select

input.

QSPI Slave Select 0 General Purpose IO Bit 33

Connect a pull-up or pull-down resistor such as 4.7-kΩ - 10-kΩ to

select the desired boot select values. Refer to the Booting and

Configuration appendix in the Cyclone V Device Handbook for Boot

Select values. This resistor will not interfere with the slow speed

interface signals that could share this pin.

QSPI_CLK I/O

QSPI Clock General Purpose IO Bit 34

When configured as the QSPI Clock and if single memory topology is

used, connect a 50 Ω series termination resistor near this Cyclone V

SoC FPGA device pin.

For other topologies use a 25 Ω resistor.

If unused, program it in Quartus as an input with a weak pull-up.

QSPI_SS1 I/O

QSPI Slave Select 1 General Purpose IO Bit 35 If unused, program it in Quartus as an input with a weak pull-up.

PCG-01014-1.5

HPS Pin Connection Guidelines Page 14 of 35

Cyclone V HPS

Pin Name

Pin Type (1st

and 2nd

Function) Connection Guidelines

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

Pin Description

SDMMC_CMD I/O

SDMMC Command Line USB0 Data Bit 0 General Purpose IO Bit 36 If unused, program it in Quartus as an input with a weak pull-up.

SDMMC_PWREN I/O

SDMMC Power Enable USB0 Data Bit 1 General Purpose IO Bit 37 If unused, program it in Quartus as an input with a weak pull-up.

SDMMC_D0 I/O

SDMMC Data Bit 0 USB0 Data Bit 2 General Purpose IO Bit 38 If unused, program it in Quartus as an input with a weak pull-up.

SDMMC_D1 I/O

SDMMC Data Bit 1 USB0 Data Bit 3 General Purpose IO Bit 39 If unused, program it in Quartus as an input with a weak pull-up.

SDMMC_D4 I/O

SDMMC Data Bit 4 USB0 Data Bit 4 General Purpose IO Bit 40 If unused, program it in Quartus as an input with a weak pull-up.

SDMMC_D5 I/O

SDMMC Data Bit 5 USB0 Data Bit 5 General Purpose IO Bit 41 If unused, program it in Quartus as an input with a weak pull-up.

SDMMC_D6 I/O

SDMMC Data Bit 6 USB0 Data Bit 6 General Purpose IO Bit 42 If unused, program it in Quartus as an input with a weak pull-up.

SDMMC_D7 I/O

SDMMC Data Bit 7 USB0 Data Bit 7 General Purpose IO Bit 43 If unused, program it in Quartus as an input with a weak pull-up.

SDMMC_FB_CLK_IN I/O

SDMMC Clock in USB0 Clock General Purpose IO Bit 44 If unused, program it in Quartus as an input with a weak pull-up.

SDMMC_CCLK_OUT I/O

SDMMC Clock out USB0 Stop Data General Purpose IO Bit 45 If unused, program it in Quartus as an input with a weak pull-up.

SDMMC_D2 I/O

SDMMC Data Bit 2 USB0 Direction General Purpose IO Bit 46 If unused, program it in Quartus as an input with a weak pull-up.

SDMMC_D3 I/O

SDMMC Data Bit 3 USB0 Next Data General Purpose IO Bit 47 If unused, program it in Quartus as an input with a weak pull-up.

TRACE_CLK I/O

Trace Clock General Purpose IO Bit 48 If unused, program it in Quartus as an input with a weak pull-up.

TRACE_D0 I/O

Trace Data Bit 0 SPIS0 Clock UART0 Receive Data General Purpose IO Bit 49 If unused, program it in Quartus as an input with a weak pull-up.

TRACE_D1 I/O

Trace Data Bit 1 SPIS0 Master Out Slave In UART0 Transmit General Purpose IO Bit 50 If unused, program it in Quartus as an input with a weak pull-up.

TRACE_D2 I/O

Trace Data Bit 2 SPIS0 Master In Slave Out I2C1 Serial Data General Purpose IO Bit 51 If unused, program it in Quartus as an input with a weak pull-up.

TRACE_D3 I/O

Trace Data Bit 3 SPIS0 Slave Select 0 I2C1 Serial clock General Purpose IO Bit 52 If unused, program it in Quartus as an input with a weak pull-up.

TRACE_D4 I/O

Trace Data Bit 4 SPIS1 Clock CAN1 Receive General Purpose IO Bit 53 If unused, program it in Quartus as an input with a weak pull-up.

TRACE_D5 I/O

Trace Data Bit 5 SPIS1 Master Out Slave In CAN1 Transmit General Purpose IO Bit 54 If unused, program it in Quartus as an input with a weak pull-up.

TRACE_D6 I/O

Trace Data Bit 6 SPIS1 Slave Select Input I2C0 Serial Data General Purpose IO Bit 55 If unused, program it in Quartus as an input with a weak pull-up.

TRACE_D7 I/O

Trace Data Bit 7 SPIS1 Master In Slave Out I2C0 Serial clock General Purpose IO Bit 56 If unused, program it in Quartus as an input with a weak pull-up.

SPIM0_CLK I/O

SPIM0 Clock I2C1 Serial Data UART 0 Clear to Send General Purpose IO Bit 57 If unused, program it in Quartus as an input with a weak pull-up.

SPIM0_MOSI I/O

SPIM0 Master Out Slave In I2C1 Serial clock UART0 Request to Send General Purpose IO Bit 58 If unused, program it in Quartus as an input with a weak pull-up.

SPIM0_MISO I/O

SPIM0 Master In Slave Out CAN1 Receive UART1 Clear to Send General Purpose IO Bit 59 If unused, program it in Quartus as an input with a weak pull-up.

SPIM0_SS0 I/O

BOOTSEL0

During a cold

reset this

signal is

sampled as a

boot select

input.

SPIM0 Slave Select 0 CAN1 Transmit UART1 Request to Send General Purpose IO Bit 60

Connect a pull-up or pull-down resistor such as 4.7-kΩ - 10-kΩ to

select the desired boot select values. Refer to the Booting and

Configuration appendix in the Cyclone V Device Handbook for Boot

Select values. This resistor will not interfere with the slow speed

interface signals that could share this pin.

PCG-01014-1.5

HPS Pin Connection Guidelines Page 15 of 35

Cyclone V HPS

Pin Name

Pin Type (1st

and 2nd

Function) Connection Guidelines

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

Pin Description

UART0_RX I/O

UART0 Receive CAN0 Receive SPIM0 Slave Select 1 General Purpose IO Bit 61 If unused, program it in Quartus as an input with a weak pull-up.

UART0_TX I/O

CLOCKSEL1

During a cold

reset this

signal is

sampled as a

clock select

input.

UART0 Transmit CAN0 Transmit SPIM1 Slave Select 1 General Purpose IO Bit 62

Connect a pull-up or pull-down resistor such as 4.7-kΩ - 10-kΩ to

select the desired clock select values. Refer to the Booting and

Configuration appendix in the Cyclone V Device Handbook for Clock

Select values. This resistor will not interfere with the slow speed

interface signals that could share this pin.

I2C0_SDA I/O

I2C0 Serial Data UART1 Receive SPIM1 Clock General Purpose IO Bit 63 If unused, program it in Quartus as an input with a weak pull-up.

I2C0_SCL I/O

I2C0 Serial Clock UART1 Transmit SPIM1 Master Out Slave In General Purpose IO Bit 64 If unused, program it in Quartus as an input with a weak pull-up.

CAN0_RX I/O

CAN0 Receive UART0 Receive SPIM1 Master In Slave Out General Purpose IO Bit 65 If unused, program it in Quartus as an input with a weak pull-up.

PCG-01014-1.5

HPS Pin Connection Guidelines Page 16 of 35

Cyclone V HPS

Pin Name

Pin Type (1st

and 2nd

Function) Connection Guidelines

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

from one device to another based on device density, package, I/O assignments, voltage assignments, and other factors that are not fully described in this document or the device handbook.

Pin Description

CAN0_TX I/O

CLOCKSEL0

During a cold

reset this

signal is

sampled as a

clock select

input.

CAN0 Transmit UART0 Transmit SPIM1 Slave Select 0 General Purpose IO Bit 66

Connect a pull-up or pull-down resistor such as 4.7-kΩ - 10-kΩ to

select the desired clock select values. Refer to the Booting and

Configuration appendix in the Cyclone V Device Handbook for Clock

Select values. This resistor will not interfere with the slow speed

interface signals that could share this pin.

1) These pin connection guidelines are based on the Cyclone V SX, ST, and SE device variants.

3) Use the Cyclone V Early Power Estimator to determine the current requirements for VCC and other power supplies.

4) These supplies may share power planes across multiple Cyclone V devices.

6) Power pins should not share breakout vias from the BGA. Each ball on the BGA needs to have its own dedicated breakout via. VCC must not share breakout vias.

11) For item [#] Please refer to the device pin table for the pin-out mapping.

12) The peripheral pins are programmable through pin multiplexors. Each pin may have up to four functions. Configuraton of each pin is done during HPS configuration.

should be calculated based on current draw and voltage droop requirements of the device/supply. The power plane should then be decoupled using the appropriate number of capacitors. On-board capacitors do not decouple higher than

100 MHz because “Equivalent Series Inductance” of the mounting of the packages. Proper board design techniques such as interplane capacitance with low inductance should be considered for higher frequency decoupling. The Power

Delivery Network (PDN) tool serves as an excellent decoupling analysis tool. For more details, refer to the

5) Example 4, Figure 4, Example 5, and Figure 5 illustrate power supply sharing guidelines for the Cyclone V SX device. Example 6, Figure 6, Example 7, and Figure 7 illustrate power supply sharing guidelines for the Cyclone V ST device.

Example 8, Figure 8, Example 9, and Figure 9 illustrate power supply sharing guidelines for the Cyclone V SE device.

usually between 800kHz and 1MHz and has fast transient response. The switching frequency range is not an Altera requirement. However, Altera does require the Line Regulation and Load Regulation meet the following specifications:

Line Regulation < 0.4%

Load Regulation < 1.2%

unplugged.

Power Delivery Network (PDN) Tool for Cyclone V Devices.

Altera provides these guidelines only as recommendations. It is the responsibility of the designer to apply simulation results to the design to verify proper device functionality.

PCG-01014-1.5

Cyclone V GX Page 17 of 35

Example 1. Cyclone V GX Power Supply Sharing Guidelines

Power

Pin Name

Regulator

Count

Voltage

Level (V)

Supply

Tolerance

Power

Source

Regulator

Sharing

Notes

VCC Share

VCCL_GXBL

VCCE_GXBL

VCCIO

VCCPD

VCCPGM

VCC_AUX

VCCA_FPLL

VCCH_GXBL

VCCBAT

Varies

Isolate

2± 5%

VCCH_GXBL and VCCA_FPLL must always be powered up for the PLL operation. May be able to

share VCC_AUX, VCCH_GXBL, VCCBAT, and VCCA_FPLL with the same regulator as VCCIO,

VCCPD, and VCCPGM when all power rails require 2.5V, but only with a proper isolation filter.

Depending on the regulator capabilities this supply may be shared with multiple Cyclone V devices. If

you use the design security feature, VCCBAT should be powered by battery with voltage range as

listed in the device datasheet.

Varies Share

if 2.5V

Each board design requires its own power analysis to determine the required power regulators needed to satisfy the specific board design requirements. An example block diagram using the Cyclone V

GX device is provided in Figure 1.

* When using a switcher to supply these voltages the switcher must be a low noise switcher as defined in note 7.

2.5

Use the EPE (Early Power Estimation) tool to assist in determining the power required for your specific design.

Switcher (*)

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Example Requiring 2 Power Regulators

11.1 ± 30mV

If all of these supplies require the same voltage level, and when the regulator selected satisfies the

power specifications then these supplies may all be tied in common. However, for any other voltage

level, you will require many regulators as there are variations of supplies in your specific design.

Use the EPE tool to assist in determining the power required for your specific design.

Switcher (*)

May be able to share VCCL_GXBL and VCCE_GXBL with VCC with proper isolation filters. VCC,

VCCL_GXBL, and VCCE_GXBL should be placed at power layers nearest to the Cyclone V device.

PCG-01014-1.5

Cyclone V GX Page 18 of 35

Figure 1. Example Cyclone V GX Power Supply Block Diagram

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

PCG-01014-1.5

Cyclone V GT Page 19 of 35

Example 2. Cyclone V GT Power Supply Sharing Guidelines

Power

Pin Name

Regulator

Count

Voltage

Level (V)

Supply

Tolerance

Power

Source

Regulator

Sharing

Notes

VCC

11.1 ± 30mV Switcher (*) Isolate

VCC should be placed at power layers nearest to the Cyclone V device.

VCCE_GXBL

VCCL_GXBL

Isolate

VCCIO

VCCPD

VCCPGM

VCC_AUX

VCCA_FPLL

VCCH_GXBL

VCCBAT

Varies

* When using a switcher to supply these voltages the switcher must be a low noise switcher as defined in note 7.

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Example Requiring 3 Power Regulators

If all of these supplies require the same voltage level, and when the regulator selected satisfies the

power specifications then these supplies may all be tied in common. However, for any other voltage

level, you will require many regulators as there are variations of supplies in your specific design.

Use the EPE tool to assist in determining the power required for your specific design.

Use the EPE (Early Power Estimation) tool to assist in determining the power required for your specific design.

Each board design requires its own power analysis to determine the required power regulators needed to satisfy the specific board design requirements. An example block diagram using the Cyclone V

GT device is provided in Figure 2.

21.1 or 1.2 ± 30mV Linear

Altera recommends increasing VCCE_GXBL and VCCL_GXBL from 1.1V to 1.2V for systems which

require full compliance to the CPRI 4.9G and PCI Express Gen 2 transmit jitter specification.

May be able to share VCCL_GXBL with VCCE_GXBL with proper isolation filters.

VCCE_GXBL and VCCL_GXBL should be placed at power layers nearest to the Cyclone V device.

2.5

Isolate

Varies

± 5% Switcher (*)

if 2.5V

VCCH_GXBL and VCCA_FPLL must always be powered up for the PLL operation. May be able to

share VCC_AUX, VCCH_GXBL, VCCBAT, and VCCA_FPLL with the same regulator as VCCIO,

VCCPD, and VCCPGM when all power rails require 2.5V, but only with a proper isolation filter.

Depending on the regulator capabilities this supply may be shared with multiple Cyclone V devices. If

you use the design security feature, VCCBAT should be powered by battery with voltage range as

listed in the device datasheet.

PCG-01014-1.5

Cyclone V GT Page 20 of 35

Figure 2. Example Cyclone V GT Power Supply Block Diagram

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

PCG-01014-1.5

Cyclone V E Page 21 of 35

Example 3. Cyclone V E Power Supply Sharing Guidelines

Power

Pin Name

Regulator

Count

Voltage

Level (V)

Supply

Tolerance

Power

Source

Regulator

Sharing

Notes

VCC 11.1 ± 30mV Switcher (*) Share VCC should be placed at power layers nearest to the Cyclone V device.

VCCIO

VCCPD

VCCPGM

VCC_AUX

VCCBAT

Varies

if 2.5V

If all of these supplies require the same voltage level, and when the regulator selected satisfies the

power specifications then these supplies may all be tied in common. However, for any other voltage

level, you will require many regulators as there are variations of supplies in your specific design.

Use the EPE tool to assist in determining the power required for your specific design.

2.5

Isolate

May be able to share VCC_AUX, VCCBAT, and VCCA_FPLL with the same regulator as VCCIO,

VCCPD, and VCCPGM when all power rails require 2.5V, but only with a proper isolation filter.

Depending on the regulator capabilities this supply may be shared with multiple Cyclone V devices. If

you use the design security feature, VCCBAT should be powered by battery with voltage range as

listed in the device datasheet.

VCCA_FPLL

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Example Requiring 2 Power Regulators

* When using a switcher to supply these voltages the switcher must be a low noise switcher as defined in note 7.

Use the EPE (Early Power Estimation) tool to assist in determining the power required for your specific design.

Each board design requires its own power analysis to determine the required power regulators needed to satisfy the specific board design requirements. An example block diagram using the Cyclone V

E device is provided in Figure 3.

Varies

± 5% Switcher (*)

PCG-01014-1.5

Cyclone V E Page 22 of 35

Figure 3. Example Cyclone V E Power Supply Block Diagram

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

PCG-01014-1.5

Cyclone V SX Page 23 of 35

Example 4. Cyclone V SX Power Supply Sharing Guidelines

Power

Pin Name

Regulator

Count

Voltage

Level (V)

Supply

Tolerance

Power

Source

Regulator

Sharing

Notes

VCC

VCC_HPS

VCCE_GXBL

VCCL_GXBL

VCCIO

VCCIO_HPS

VCCPD

VCCPD_HPS

VCCPGM

VCCRSTCLK_HPS

VCC_AUX_SHARED

VCCA_FPLL

VCCH_GXBL

VCCPLL_HPS

VCCBAT

Varies

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Example Requiring 2 Power Regulators (FPGA & HPS share power)

11.1 ± 30mV Switcher (*)

May be able to share VCCL_GXBL and VCCE_GXBL with VCC and VCC_HPS with proper isolation

filters. VCC, VCC_HPS, VCCL_GXBL, and VCCE_GXBL should be placed at power layers nearest to

the Cyclone V device.

Isolate

VCC_AUX

2.5 Isolate

VCC_AUX must always be powered up for the PLL operation. May be able to share VCC_AUX with the

same regulator as VCCIO, VCCIO_HPS, VCCPD, VCCPD_HPS, VCCPGM and VCCRSTCLK_HPS

when all power rails require 2.5V, but only with a proper isolation filter. Depending on the regulator

capabilities this supply may be shared with multiple Cyclone V devices.

if 2.5V

2.5

Isolate

VCC_AUX_SHARED must always be powered up for the HPS operation. VCCA_FPLL, VCCH_GXBL

and VCCPLL_HPS must always be powered up for the PLL operation. May be able to share

VCC_AUX_SHARED, VCCA_FPLL, VCCH_GXBL, VCCPLL_HPS and VCCBAT with the same

regulator as VCCIO, VCCIO_HPS, VCCPD, VCCPD_HPS, VCCPGM and VCCRSTCLK_HPS when all

power rails require 2.5V, but only with proper isolation filters. Depending on the regulator capabilities

this supply may be shared with multiple Cyclone V devices. If you use the design security feature,

VCCBAT should be powered by battery with voltage range as listed in the device datasheet.

* When using a switcher to supply these voltages the switcher must be a low noise switcher as defined in note 7.

Varies

± 5% Switcher (*)

Use the EPE (Early Power Estimation) tool to assist in determining the power required for your specific design.

If all of these supplies require the same voltage level, and when the regulator selected satisfies the

power specifications, then these supplies may all be tied in common. However, for any other voltage

level, you will require many regulators as there are variations of supplies in your specific design.

Use the EPE tool to assist in determining the power required for your specific design.

Each board design requires its own power analysis to determine the required power regulators needed to satisfy the specific board design requirements. An example block diagram using the Cyclone V

SX device is provided in Figure 4.

PCG-01014-1.5

Cyclone V SX Page 24 of 35

Figure 4. Example Cyclone V SX Power Supply Block Diagram (FPGA & HPS share power)

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

PCG-01014-1.5

Cyclone V SX Page 25 of 35

Example 5. Cyclone V SX Power Supply Sharing Guidelines

Power

Pin Name

Regulator

Count

Voltage

Level (V)

Supply

Tolerance

Power

Source

Regulator

Sharing

Notes

VCC Share

VCCE_GXBL

VCCL_GXBL

VCCIO

VCCPD

VCCPGM

VCCH_GXBL

VCCA_FPLL

VCCBAT

Varies

VCC_HPS 31.1 ± 30mV Switcher (*) Isolate

Separate regulator allows the FPGA to be powered off while the HPS is powered on. VCC_HPS should

be placed at power layers nearest to the Cyclone V device.

VCCIO_HPS

VCCPD_HPS

VCCPLL_HPS

VCC_AUX_SHARED

VCC_AUX

Isolate

VCC_AUX must always be powered up for the PLL operation. May be able to share the same regulator

as VCCIO_HPS, VCCPD_HPS, and VCCRSTCLK_HPS when all power rails require 2.5V, but only with

a proper isolation filter.

Switcher (*)

May be able to share VCCL_GXBL and VCCE_GXBL with VCC with proper isolation filters. VCC,

VCCL_GXBL, and VCCE_GXBL should be placed at power layers nearest to the Cyclone V device.

Isolate

2.5 Isolate

VCCH_GXBL and VCCA_FPLL must always be powered up for the PLL operation. May be able to

share VCCH_GXBL, VCCA_FPLL and VCCBAT with the same regulator as VCCIO, VCCPD, and

VCCPGM when all power rails require 2.5V, but only with a proper isolation filter. Depending on the

regulator capabilities this supply may be shared with multiple Cyclone V devices. If you use the design

security feature, VCCBAT should be powered by battery with voltage range as listed in the device

datasheet.

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Example Requiring 4 Power Regulators (FPGA & HPS do not share power)

11.1 ± 30mV

± 5% Switcher (*)

Share if 2.5V

If all of these supplies require the same voltage level, and when the regulator selected satisfies the

power specifications then these supplies may all be tied in common. However, for any other voltage

level, you will require many regulators as there are variations of supplies in your specific design.

Use the EPE tool to assist in determining the power required for your specific design.

Varies

± 5% Switcher (*)

if 2.5V

If all of these supplies require the same voltage level, and when the regulator selected satisfies the

power specifications then these supplies may all be tied in common. However, for any other voltage

level, you will require many regulators as there are variations of supplies in your specific design.

Use the EPE tool to assist in determining the power required for your specific design.

Each board design requires its own power analysis to determine the required power regulators needed to satisfy the specific board design requirements. An example block diagram using the Cyclone V

SX device is provided in Figure 5.

VCCRSTCLK_HPS

2.5

Isolate

VCC_AUX_SHARED must always be powered up for the HPS operation. VCCPLL_HPS must always

be powered up for the PLL operation. May be able to share VCCPLL_HPS and VCC_AUX_SHARED

with the same regulator as VCCIO_HPS, VCCPD_HPS, and VCCRSTCLK_HPS when all power rails

require 2.5V, but only with a proper isolation filter.

* When using a switcher to supply these voltages the switcher must be a low noise switcher as defined in note 7.

Use the EPE (Early Power Estimation) tool to assist in determining the power required for your specific design.

Varies

PCG-01014-1.5

Cyclone V SX Page 26 of 35

Figure 5. Example Cyclone V SX Power Supply Block Diagram (FPGA & HPS do not share power)

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

PCG-01014-1.5

Cyclone V ST Page 27 of 35

Example 6. Cyclone V ST Power Supply Sharing Guidelines

Power

Pin Name

Regulator

Count

Voltage

Level (V)

Supply

Tolerance

Power

Source

Regulator

Sharing

Notes

VCC

VCC_HPS

VCCE_GXBL

VCCL_GXBL

Isolate

VCCIO

VCCIO_HPS

VCCPD

VCCPD_HPS

VCCPGM

VCCRSTCLK_HPS

VCCH_GXBL

VCCA_FPLL

VCCPLL_HPS

VCCBAT

Varies

VCC_AUX

2.5 Isolate

VCC_AUX must always be powered up for the PLL operation. May be able to share VCC_AUX with the

same regulator as VCCIO, VCCIO_HPS, VCCPD, VCCPD_HPS, VCCPGM and VCCRSTCLK_HPS

when all power rails require 2.5V, but only with a proper isolation filter. Depending on the regulator

capabilities this supply may be shared with multiple Cyclone V devices.

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Example Requiring 3 Power Regulators (FPGA & HPS share power)

11.1 ± 30mV Switcher (*) Share

VCC and VCC_HPS should be placed at power layers nearest to the Cyclone V device.

21.1 or 1.2 ± 30mV Linear

Altera recommends increasing VCCE_GXBL and VCCL_GXBL from 1.1V to 1.2V for systems which

require full compliance to the CPRI 4.9G and PCI Express Gen 2 transmit jitter specification.

May be able to share VCCL_GXBL with VCCE_GXBL with proper isolation filters.

VCCE_GXBL and VCCL_GXBL should be placed at power layers nearest to the Cyclone V device.

Varies

± 5% Switcher (*)

if 2.5V

If all of these supplies require the same voltage level, and when the regulator selected satisfies the

power specifications then these supplies may all be tied in common. However, for any other voltage

level, you will require many regulators as there are variations of supplies in your specific design.

Use the EPE tool to assist in determining the power required for your specific design.

VCC_AUX_SHARED

2.5

Isolate

VCC_AUX_SHARED must always be powered up for the HPS operation. VCCA_FPLL, VCCH_GXBL

and VCCPLL_HPS must always be powered up for the PLL operation. May be able to share

VCC_AUX_SHARED, VCCH_GXBL, VCCA_FPLL, VCCPLL_HPS and VCCBAT with the same

regulator as VCCIO, VCCIO_HPS, VCCPD, VCCPD_HPS, VCCPGM and VCCRSTCLK_HPS when all

power rails require 2.5V, but only with a proper isolation filter. Depending on the regulator capabilities

this supply may be shared with multiple Cyclone V devices. If you use the design security feature,

VCCBAT should be powered by battery with voltage range as listed in the device datasheet.

* When using a switcher to supply these voltages the switcher must be a low noise switcher as defined in note 7.

Use the EPE (Early Power Estimation) tool to assist in determining the power required for your specific design.

Each board design requires its own power analysis to determine the required power regulators needed to satisfy the specific board design requirements. An example block diagram using the Cyclone V

ST device is provided in Figure 6.

PCG-01014-1.5

Cyclone V ST Page 28 of 35

Figure 6. Example Cyclone V ST Power Supply Block Diagram (FPGA & HPS share power)

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

PCG-01014-1.5

Cyclone V ST Page 29 of 35

Example 7. Cyclone V ST Power Supply Sharing Guidelines

Power

Pin Name

Regulator

Count

Voltage

Level (V)

Supply

Tolerance

Power

Source

Regulator

Sharing

Notes

VCC 11.1 ± 30mV Switcher (*) Isolate VCC should be placed at power layers nearest to the Cyclone V device.

VCCE_GXBL

VCCL_GXBL

Isolate

VCCIO

VCCPD

VCCPGM

VCCH_GXBL

VCCA_FPLL

VCCBAT

Varies

VCC_HPS 41.1 ± 30mV Switcher (*) Isolate

Separate regulator allows the FPGA to be powered off while the HPS is powered on. VCC_HPS should

be placed at power layers nearest to the Cyclone V device.

VCCIO_HPS

VCCPD_HPS

VCCRSTCLK_HPS

VCC_AUX_SHARED

VCCPLL_HPS

VCC_AUX

Isolate

VCC_AUX must always be powered up for the PLL operation. May be able to share VCC_AUX with the

same regulator as VCCIO_HPS, VCCPD_HPS, and VCCRSTCLK_HPS when all power rails require

2.5V, but only with a proper isolation filter. Depending on the regulator capabilities this supply may be

shared with multiple Cyclone V devices.

Linear

Altera recommends increasing VCCE_GXBL and VCCL_GXBL from 1.1V to 1.2V for systems which

require full compliance to the CPRI 4.9G and PCI Express Gen 2 transmit jitter specification.

May be able to share VCCL_GXBL with VCCE_GXBL with proper isolation filters.

VCCE_GXBL and VCCL_GXBL should be placed at power layers nearest to the Cyclone V device.

Isolate

VCCH_GXBL and VCCA_FPLL must always be powered up for PLL operation. May be able to share

VCCH_GXBL, VCCA_FPLL and VCCBAT with the same regulator as VCCIO, VCCPD, and VCCPGM

when all power rails require 2.5V, but only with a proper isolation filter. Depending on the regulator

capabilities this supply may be shared with multiple Cyclone V devices. If you use the design security

feature, VCCBAT should be powered by battery with voltage range as listed in the device datasheet.

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Example Requiring 5 Power Regulators (FPGA & HPS do not share power)

21.1 or 1.2 ± 30mV

2.5

Isolate

VCC_AUX_SHARED must always be powered up for the HPS operation. VCCPLL_HPS must always

be powered up for the PLL operation. May be able to share VCC_AUX_SHARED and VCCPLL_HPS

with the same regulator as VCCIO_HPS, VCCPD_HPS, and VCCRSTCLK_HPS when all power rails

require 2.5V, but only with a proper isolation filter.

Varies

± 5% Switcher (*)

if 2.5V

If all of these supplies require the same voltage level, and when the regulator selected satisfies the

power specifications then these supplies may all be tied in common. However, for any other voltage

level, you will require many regulators as there are variations of supplies in your specific design.

Use the EPE tool to assist in determining the power required for your specific design.

2.5

* When using a switcher to supply these voltages the switcher must be a low noise switcher as defined in note 7.

Use the EPE (Early Power Estimation) tool to assist in determining the power required for your specific design.

Each board design requires its own power analysis to determine the required power regulators needed to satisfy the specific board design requirements. An example block diagram using the Cyclone V

ST device is provided in Figure 7.

Varies

± 5% Switcher (*)

Share if 2.5V

If all of these supplies require the same voltage level, and when the regulator selected satisfies the

power specifications then these supplies may all be tied in common. However, for any other voltage

level, you will require many regulators as there are variations of supplies in your specific design.

Use the EPE tool to assist in determining the power required for your specific design.

PCG-01014-1.5

Cyclone V ST Page 30 of 35

Figure 7. Example Cyclone V ST Power Supply Block Diagram (FPGA & HPS do not share power)

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

PCG-01014-1.5

Cyclone V SE Page 31 of 35

Example 8. Cyclone V SE Power Supply Sharing Guidelines

Power

Pin Name

Regulator

Count

Voltage

Level (V)

Supply

Tolerance

Power

Source

Regulator

Sharing

Notes

VCC

VCC_HPS

VCCIO

VCCIO_HPS

VCCPD

VCCPD_HPS

VCCPGM

VCCRSTCLK_HPS

VCC_AUX_SHARED

VCCA_FPLL

VCCPLL_HPS

VCCBAT

Varies

VCC_AUX

VCC_AUX must always be powered up for the PLL operation. May be able to share VCC_AUX with the

same regulator as VCCIO, VCCIO_HPS, VCCPD, VCCPD_HPS, VCCPGM and VCCRSTCLK_HPS

when all power rails require 2.5V, but only with a proper isolation filter. Depending on the regulator

capabilities this supply may be shared with multiple Cyclone V devices.

Isolate

Switcher (*)± 5%

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Example Requiring 2 Power Regulators (FPGA & HPS share power)

11.1 ± 30mV

Varies

Switcher (*) Share

VCC and VCC_HPS should be placed at power layers nearest to the Cyclone V device.

Use the EPE (Early Power Estimation) tool to assist in determining the power required for your specific design.

VCC_AUX_SHARED must always be powered up for the HPS operation. May be able to share

VCC_AUX_SHARED, VCCA_FPLL, VCCPLL_HPS and VCCBAT with the same regulator as VCCIO,

VCCIO_HPS, VCCPD, VCCPD_HPS, VCCPGM and VCCRSTCLK_HPS when all power rails require

2.5V, but only with proper isolation filters. Depending on the regulator capabilities this supply may be

shared with multiple Cyclone V devices. If you use the design security feature, VCCBAT should be

2.5

* When using a switcher to supply these voltages the switcher must be a low noise switcher as defined in note 7.

if 2.5V

If all of these supplies require the same voltage level, and when the regulator selected satisfies the

power specifications then these supplies may all be tied in common. However, for any other voltage

level, you will require many regulators as there are variations of supplies in your specific design.

Use the EPE tool to assist in determining the power required for your specific design.

2.5

Isolate

Each board design requires its own power analysis to determine the required power regulators needed to satisfy the specific board design requirements. An example block diagram using the Cyclone V

SE device is provided in Figure 8.

PCG-01014-1.5

Cyclone V SE Page 32 of 35

Figure 8. Example Cyclone V SE Power Supply Block Diagram (FPGA & HPS share power)

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

PCG-01014-1.5

Cyclone V SE Page 33 of 35

Example 9. Cyclone V SE Power Supply Sharing Guidelines

Power

Pin Name

Regulator

Count

Voltage

Level (V)

Supply

Tolerance

Power

Source

Regulator

Sharing

Notes

VCC 11.1 ± 30mV Switcher (*) Share VCC should be placed at power layers nearest to the Cyclone V device.

VCCIO

VCCPD

VCCPGM

VCCA_FPLL

2.5

VCCBAT

Varies

VCC_HPS 31.1 ± 30mV Switcher (*) Isolate

Separate regulator allows the FPGA to be powered off while the HPS is powered on. VCC_HPS should

be placed at power layers nearest to the Cyclone V device.

VCCIO_HPS

VCCPD_HPS

VCCPLL_HPS

VCC_AUX_SHARED

VCC_AUX

Isolate

VCC_AUX must always be powered up for the PLL operation. May be able to share the same regulator

as VCCIO_HPS, VCCPD_HPS, and VCCRSTCLK_HPS when all power rails require 2.5V, but only with

a proper isolation filter.

VCCRSTCLK_HPS

Share if 2.5V

Isolate

VCCA_FPLL must always be powered up for PLL operation May be able to share VCCA_FPLL and

VCCBAT with the same regulator as VCCIO, VCCPD, and VCCPGM when all power rails require 2.5V,

but only with a proper isolation filter. Depending on the regulator capabilities this supply may be shared

with multiple Cyclone V devices. If you use the design security feature, VCCBAT should be powered by

battery with voltage range as listed in the device datasheet.

VCC_AUX_SHARED must always be powered up for the HPS operation. VCCPLL_HPS must always

be powered up for the PLL operation. May be able to share VCCPLL_HPS and VCC_AUX_SHARED

with the same regulator as VCCIO_HPS, VCCPD_HPS, and VCCRSTCLK_HPS when all power rails

require 2.5V, but only with a proper isolation filter.

2.5

± 5% Switcher (*)

Each board design requires its own power analysis to determine the required power regulators needed to satisfy the specific board design requirements. An example block diagram using the Cyclone V

SE device is provided in Figure 9.

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Example Requiring 4 Power Regulators (FPGA & HPS do not share power)

Varies Share

if 2.5V

If all of these supplies require the same voltage level, and when the regulator selected satisfies the

power specifications then these supplies may all be tied in common. However, for any other voltage

level, you will require many regulators as there are variations of supplies in your specific design.

Use the EPE tool to assist in determining the power required for your specific design.

2± 5% Switcher (*)

Varies

If all of these supplies require the same voltage level, and when the regulator selected satisfies the

power specifications then these supplies may all be tied in common. However, for any other voltage

level, you will require many regulators as there are variations of supplies in your specific design.

Use the EPE tool to assist in determining the power required for your specific design.

* When using a switcher to supply these voltages the switcher must be a low noise switcher as defined in note 7.

Use the EPE (Early Power Estimation) tool to assist in determining the power required for your specific design.

PCG-01014-1.5

Cyclone V SE Page 34 of 35

Figure 9. Example Cyclone V SE Power Supply Block Diagram (FPGA & HPS do not share power)

Cyclone

V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

PCG-01014-1.5

Rev History Page 35 of 35

Revision Description of Changes Date

1.0

Initial Release. 11/25/2011

1.1

Updated VCCA_FPLL and VCCH_GXBL power-up requirements. 3/29/2012

1.2 Added power supply sharing guidelines for Cyclone V GT and E devices, updated the pull-down requirement for

unused transceiver receivers and REFCLK pins, and updated the INIT_DONE pin connection guidelines. 6/13/2012

1.3

Updated the power sharing guidelines for Cyclone V GT devices and updated the VCCE_GXBL, VCCL_GXBL,

and nPERST[L0,L1] connection guidelines.

10/16/2012

1.4

1. Added HPS Pin Connection Guidelines.

2. Added power supply sharing guidelines for Cyclone V SX, ST, and SE devices.

3. Added [B,T]_DQS_[#], [B,T]_DQS#_[#], and [B,T]_DQ_[#] pins.

4. Updated pin description and connection guidelines for the VREF pin.

5. Updated connection guidelines for the RREF pin.

6. Updated pin description for the DIFFIO_TX pin.

11/19/2012

1.5

1. Updated Connection Guidelines for HPS_CLK1 and HPS_CLK2 with 'VCCRSTCLK_HPS'.

2. Updated Pin Description for DIFFIO_TX_[B,T,R][#:#]p, DIFFIO_TX_[B,T,R][#:#]n with 'transmitter'.

3. Updated Connection Guidelines where 'If powering down the FPGA fabric is required, tie this pin to 2.5V' is

removed and "See Notes 2,3,4, and 7." is added

4. Updated Pin Description for NAND_DQ0, NAND_DQ3 and NAND_DQ5 with 'Receive'.

5. Updated Pin Description for TRACE_D3 with 'Slave'.

6. Updated Note 7) with 'The switching frequency range is not an Altera requirement. However, Altera does

require the Line Regulation and Load Regulation meet the following specifications:'

7. Added VREFB[#]N0_HPS pin.

1/22/2013

Revision History

Cyclone ® V Device Family Pin Connection Guidelines

Preliminary PCG-01014-1.5

Cyclone V Device Family Pin Connection Guidelines C5 Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
