C.A 1886
C.A 1888
I.R. thermography camera
User’s manual
ENGLISH
English
2 C.A1886 –C.A1888
Thank you for buying a RayCAm I.R. thermography camera.
For best results from your device:
• read this user manual attentively,
• observe the precautions for its use

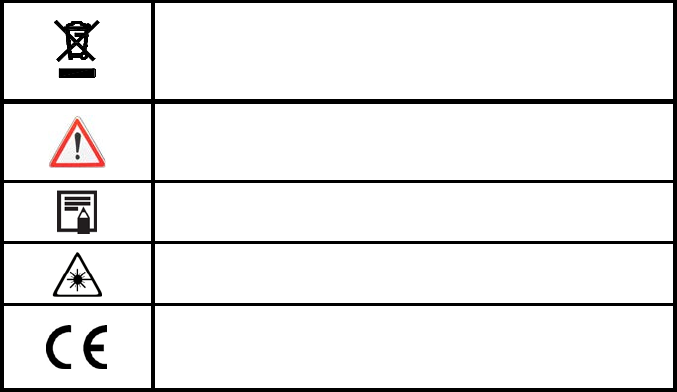

MEANING OF THE SYMBOLS USED
Selective sorting of wastes for the recycling of electrical
and electronic equipment within the European Union.
In conformity with directive DEEE 2002/96/EC: this
equipment must not be treated as household waste.
Risk of danger. See explanations in this user manual
Problems that may affect the operation of the I.R.
camera.
Notes completing the essential operating procedures.
Laser radiation, do not look directly into the LASER
beam.
This marking certifies compliance with the European
"Low Voltage" and "Electromagnetic Compatibility"
directives (2006/95/CE and 2004/108/CE).
English
C.A1886 – C.A1888 3
WARNING
LASER RADIATION
DO NOT LOOK DIRECTLY INTO THE
BEAM
CLASS 2 LASER DEVICE
English
4 C.A1886 –C.A1888
CONTENTS
1. PRECAUTIONS OF USE ............................................................................................. 6
2. DESCRIPTION ............................................................................................................. 7
2.1 FRONT PANEL ........................................................................................................ 7
2.2 KEYPAD ................................................................................................................... 8
2.3 VIEW OF BACK AND BOTTOM ........................................................................... 8
3. STARTING UP .............................................................................................................. 9
3.1 CHARGING THE BATTERY .................................................................................. 9
3.2 INSTALLING THE BATTERY .............................................................................. 10
3.3 SWITCHING ON AND OFF .................................................................................. 11
3.4 CHECKING THE INFORMATION ON THE LCD SCREEN ............................... 12
3.5 SETTING THE DATE AND TIME ........................................................................ 13
3.6 LOCAL SETTINGS ................................................................................................ 13
4. BASIC FUNCTIONS................................................................................................... 15
4.1 USING THE LCD SCREEN ................................................................................... 15
4.2 SELECTION OF MENUS AND PARAMETERS .................................................. 15
4.3 RESTORING THE DEFAULT SETTINGS ........................................................... 16
5. TAKING SHOTS ......................................................................................................... 16
5.1 ADJUSTING THE CAMERA ................................................................................. 16
5.1.1 Manual focusing ........................................................................................ 16
5.1.2 I.R., Real, and Real + Mix Display. ........................................................... 16
5.2 PARALLAX ADJUSTMENT ................................................................................. 17
5.3 ADJUSTING THE IMAGE ..................................................................................... 18
5.3.1 Automatic adjustment ................................................................................. 18
5.3.2 Manual adjustment..................................................................................... 18
5.3.3 Adjusting the image.................................................................................... 19
5.4 MEASUREMENT RANGE .................................................................................... 21
5.4.1 Precautions for « High-temperature » cameras (option) ........................... 21

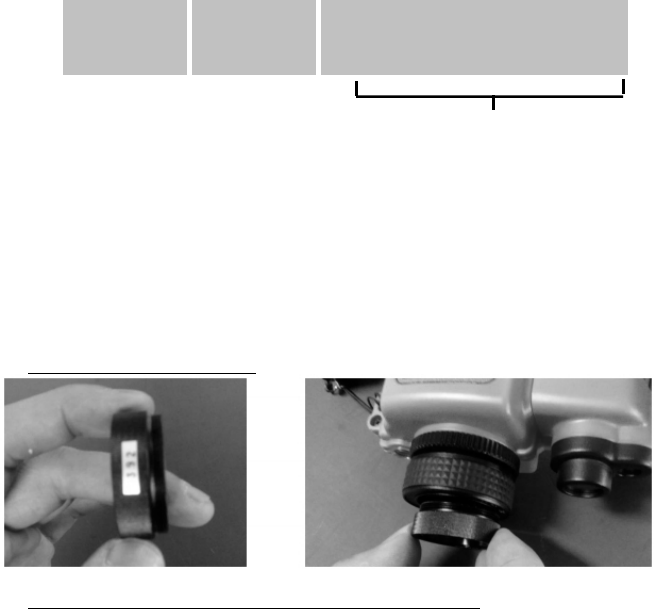

5.4.2 Using additional lenses (option) ................................................................ 22
5.5 FREEZE/ACTIVATE AN IMAGE ......................................................................... 22
6. ANALYSIS FUNCTION ............................................................................................. 23
6.1 ADJUSTMENT OF THE ANALYSIS PARAMETERS ......................................... 23
6.2 ADJUSTMENT OF THE ANALYSIS PARAMETERS ......................................... 25
6.3 PARAMETERIZING THE ANALYSIS TOOLS ................................................... 27
6.3.1 Analysis by point ........................................................................................ 27
6.3.2 Isothermal analysis .................................................................................... 27
6.3.3 Profile analysis .......................................................................................... 28
6.3.4 Area analysis.............................................................................................. 28
English
C.A1886 – C.A1888 5
6.4 DESACTIVATING THE ANALYSIS TOOLS ...................................................... 30
6.4.1 Deactivation of the analysis tools .............................................................. 30
6.5 RECORDING THE IMAGE ................................................................................... 30
6.6 ASSOCIATING VOICE REMARKS WITH THE IMAGES (OPTION) ............... 31
6.6.1 Voice recording .......................................................................................... 31
6.7 ADJUSTMENT OF THE TRIGGER ...................................................................... 31
6.7.1 Adjustment of the release ........................................................................... 31
7. READING AND ERASING ........................................................................................ 33
7.1 OPENING THE IMAGES ....................................................................................... 33
7.2 PLAYING THE REMARKS (OPTION) ................................................................. 34
7.3 ERASING THE IMAGES ....................................................................................... 35
8. TRANSFERRING IMAGES ...................................................................................... 36
8.1 TRANSFER BY SD CARD .................................................................................... 36
9. CONNECTIONS AND DOWNLOADING ............................................................... 37
9.1 CONNECTION TO A MONITOR .......................................................................... 37

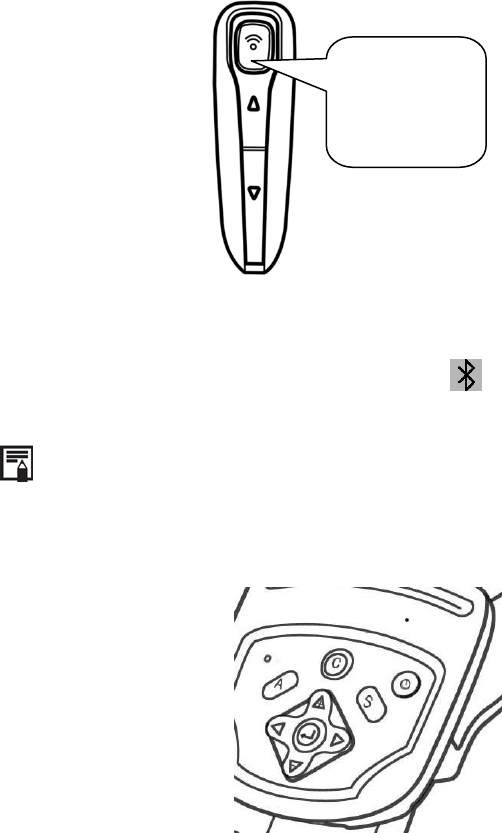

9.2 USING THE BLUETOOTH HEADSET (OPTION) .............................................. 37
10. TROUBLESHOOTING ............................................................................................ 39
11. MAINTENANCE ....................................................................................................... 40
11.1 CLEANING AND MAINTAINING THE CAMERA ........................................... 40
Housing of the device ................................................................................................. 40
Lens ................................................................................................................... 40
LCD screen ................................................................................................................ 40
11.2 METROLOGICAL CHECK ................................................................................. 40
11.3 REPAIR ................................................................................................................. 40
12. WARRANTY ............................................................................................................. 41
13. APPENDIX ................................................................................................................ 42
13.1 TABLE OF EMISSIVITIES .................................................................................. 42
14. TECHNICAL CHARACTERISTICS ...................................................................... 44
15. DELIVERY CONDITION ........................................................................................ 46
English
6 C.A1886 –C.A1888
1. PRECAUTIONS OF USE
Before using the camera, make sure that you have read and understood the
safety precautions described below. Make sure that the camera is used correctly.
Please refer to this manual each time you encounter a hazard symbol. To avoid
exposure to laser radiation, injury, or damage to the device, and be sure that you
use the camera in a risk-free way, observe the safety recommendations given
below:
Do not look directly into the laser beam. Do not point the laser beam at
people.
Do not use the instrument other than for its intended purpose; keep it out
of reach of children and make sure that it is never treated as a toy.
Do not aim the device towards the sun or other source of intense heat.
Use only the recommended batteries and accessories. Do not leave the
device connected to mains when not necessary.
Avoid problems due to condensation.
Moving the I.R. camera rapidly from a cold to a warm place can cause
condensation (droplets of water) to form on its outside and inside surfaces.
You can avoid this problem by placing the camera in the plastic case and letting it
warm slowly to the ambient temperature before withdrawing it from the case.
• When you switch on the camera, wait 10 to 15 minutes before recording
your first thermograms, to be certain that the camera's temperature has
stabilized and that your measurements are correct.
• Focus the objective correctly according to the distance to the target to be
inspected.
• Device that may, but only under special conditions, be sensitive to
electrostatic discharges (ESD).
English
C.A1886 – C.A1888 7
2. DESCRIPTION

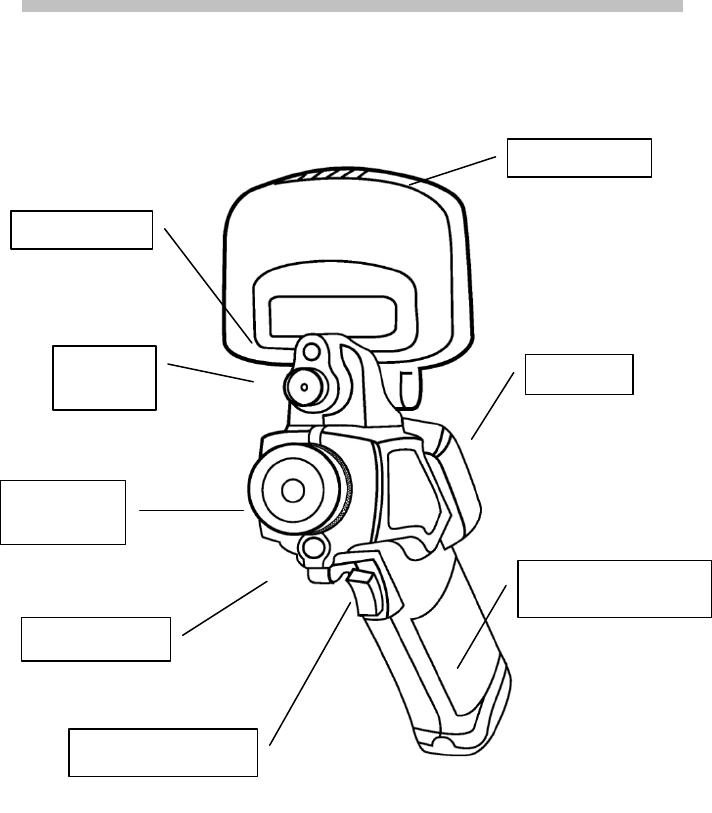

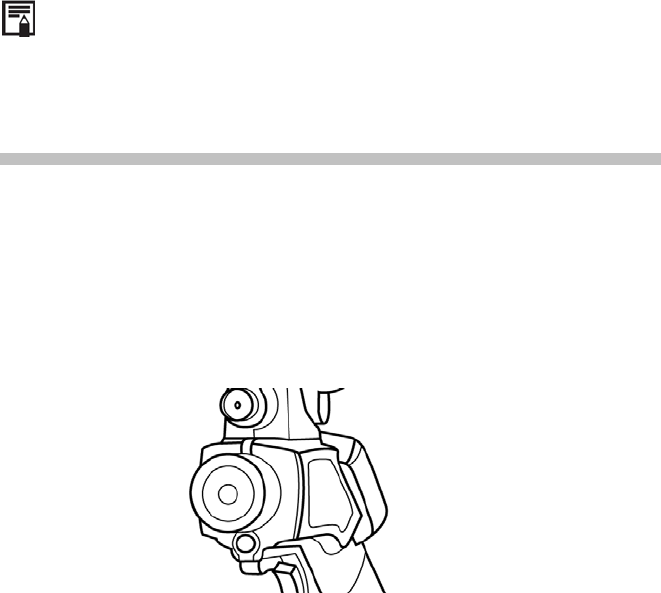

2.1 FRONT PANEL
LCD screen
Visual
objective
IR objective
Laser pointer
Configurable trigger
Battery
compartment cover
Keypad
Torch
English
8 C.A1886 –C.A1888

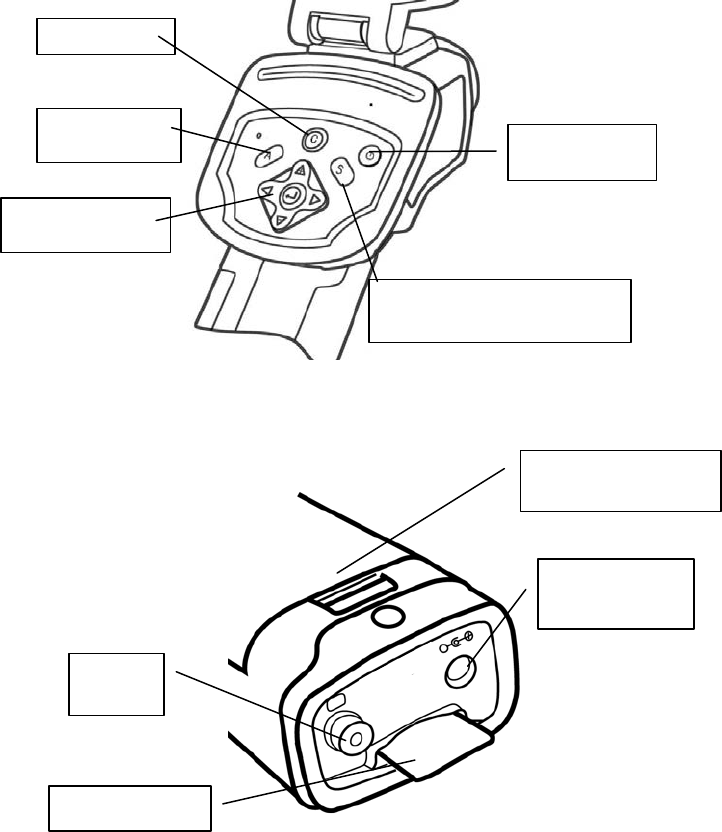

2.2 KEYPAD

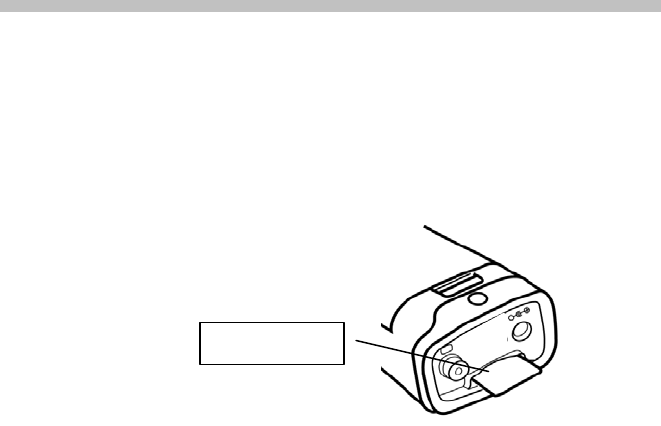

2.3 VIEW OF BACK AND BOTTOM
Cancellation
Menu/Validation
key
Freeze/Activate image
Record image
On/Off button
Automatic
adjustment
Battery compartment
cover clip
Video
output
External power
supply
SD card
English
C.A1886 – C.A1888 9
3. STARTING UP

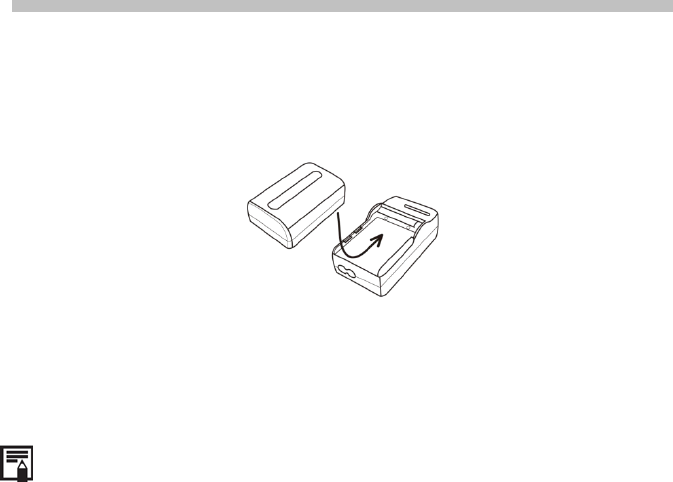

3.1 CHARGING THE BATTERY
1. Align the edge of the charger on the line marked on the battery and
push the battery in until it locks.
2. Connect the power cord to the charger and plug into a power outlet.
• The charging indicator lights red during recharging and green when
charging is over.
• After recharging, disconnect the charger and withdraw the battery
• It is a lithium ion battery. It does not have to be fully discharged before
recharging (no memory effect). The number of complete
charging/discharging cycles is approximately 500; beyond this number,
the battery loses its capacity and has to be recharged more often.
• The charging time varies with the ambient temperature and the initial
charge condition.
English
10 C.A1886 –C.A1888
3.2 INSTALLING THE BATTERY
• The battery must be fully charged before it is used for the first time (the
battery reaches its full capacity only after 5 complete
charging/discharging cycles).
1. Switch off the camera. Push the clip of the battery compartment cover
toward the front, then lift the cover.
2. Install the battery in its compartment, then push it in until it locks.
3. Close the battery compartment cover.
Withdraw the battery when you expect to leave the camera unused for an
extended period (in order to avoid discharging too deeply): even when the camera
is off, there is some consumption (C.A 1886: 8 mA; C.A 1888: 6,6 mA).

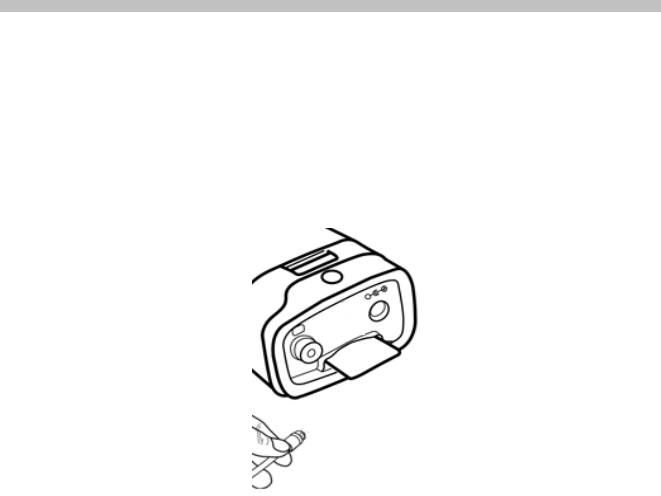

The SD card must be formatted to FAT16 or FAT32, since otherwise the camera
may fail to recognize it.
English
C.A1886 – C.A1888 11
Symbols representing the battery charge condition
Battery adequately charged
Battery low
Battery needs to be replaced or recharged
3.3 SWITCHING ON AND OFF
The power check light remains on for as long as the camera is on.
4. Place your thumb above the keypad and your index finger in front of the
configurable trigger.
5. Press the On/Off button and hold it down for three seconds.
The power check light lights green.
6. After a few seconds, the start-up screen is displayed.
7. Power down
Press the On/Off button for three seconds.
The power supply indicator goes off.
Index
Thumb
On/Off button
English
12 C.A1886 –C.A1888
Status of the
camera
Battery condition
Time
Colour scale
Lower limit of colour
scale
Dynamic /
Frozen
mode
Emissivity in
progress
Upper limit of colour
scale

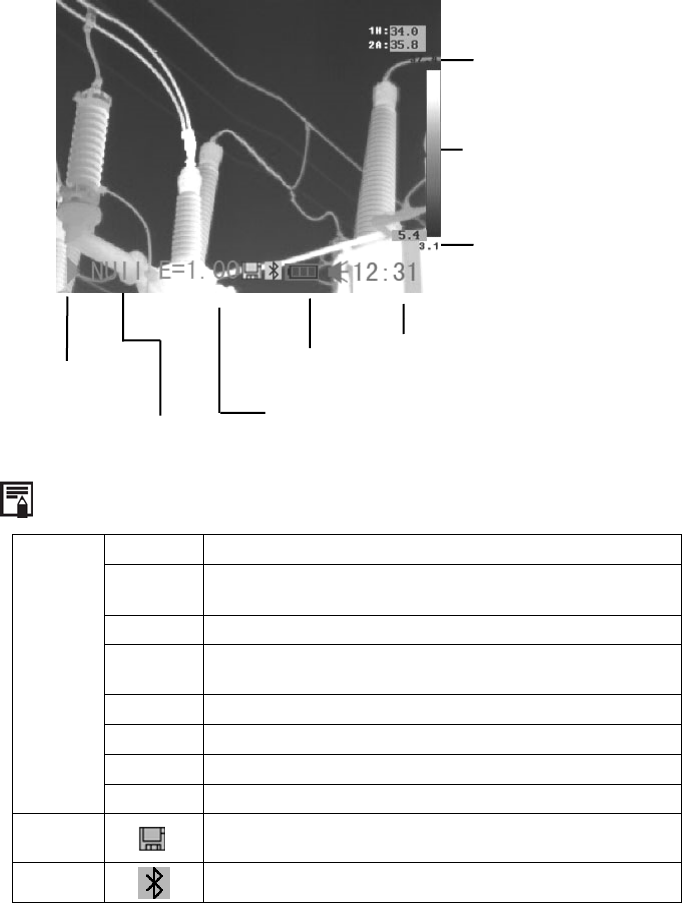

3.4 CHECKING THE INFORMATION ON THE LCD SCREEN
The LCD screen provides a field of view corresponding to 100% of the actual shot
• About the status of the camera
Status
of the
camera
Menu The device is in Menu mode
Null The device is not in Menu mode and no analysis tool has
been selected.
1 … 3 The analysis tool selected is cursor 1, 2, or 3.
Cap The analysis tool selected is the auto Max/Min detection
cursor.
Isot. The analysis tool selected is isothermal analysis
PRO. The analysis tool selected is the profile of temperature
AR1…5 The analysis tool selected is area 1 or area 2… or area 5.
E Emissivity in progress.
A SD card has been inserted
The Bluetooth headset has been installed
English
C.A1886 – C.A1888 13
3.5 SETTING THE DATE AND TIME
You must set the date and time when you switch the camera on for the first time.
1. Check that the camera is in Null mode.
2. Press the MENU key and select the [System Setup] menu.
3. Select the [Date & Time] sub-menu.
4. Set the date and time
• Press the UP or DOWN arrow to select the field to be modified.
• Press the LEFT or RIGHT arrow to define the values.
5. After completing the parameterizing, press the MENU/VALIDATION key
to close the window and save the modifications, or the C key to exit
without saving.
3.6 LOCAL SETTINGS
This menu is used to display the local parameters of your geographical zone.
1. Check that the camera is in Null mode.
2. Press the MENU/VALIDATION key, then the UP or DOWN arrow to select
the [System Setup] menu.
Analysis ►
File ►
IR / Visible
Manual Adj.
Object Param.
System Setup►
Analysis setup
Local setup
Date & Time
Camera setup
System info
Analysis ►
File ►
IR / Visible
Manual Adj.
Object Param.
System Setup►
Analysis setup
Local setup
Date & Time
Camera setup
System info
English
14 C.A1886 –C.A1888
3. Press the UP or DOWN arrow to select [Local setup], then press the
MENU/VALIDATION key.
4. Local parameters
• Press the UP or DOWN arrow to select the field to be modified.
• Press the LEFT or RIGHT arrow to define the values.
5. After completing the settings, press the Menu/Validation key to close
the window and save the modifications, or the C key to exit without
saving.
• About the local settings
Language
Selects the language of the menus and messages.
Temp unit
Selects the temperature format of the camera: °C or °F.
Distance unit
Selects the unit of distance of the camera: Metres or Feet.
Video output
Selects the video output format of the camera: PAL or NTSC.
Language : French
Video output : PAL
Temp. unit : °C
Dist. unit : Meter
English
C.A1886 – C.A1888 15
4. BASIC FUNCTIONS
4.1 USING THE LCD SCREEN
1. Open the LCD screen in the direction
2. Aim the I.R. camera at the target.
• For a better temperature measurement, frame the subject in the centre of
the LCD screen.
• The screen is switched to standby when you close it.

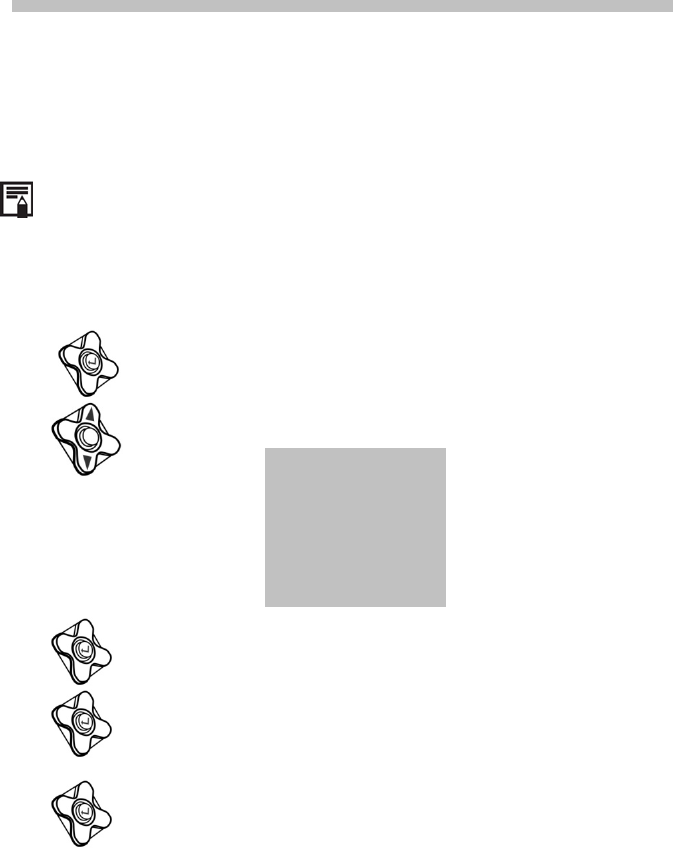

4.2 SELECTION OF MENUS AND PARAMETERS
1. Press the MENU/VALIDATION key to view the menus.
2. Select the desired menu using the UP and DOWN arrows.
3. Enter the menu by pressing the MENU/VALIDATION key.
4. Modify the desired values/modes using the up, down, right,
and left arrows.
5. Validate the modifications using the MENU/VALIDATION key or
exit without saving by pressing the C key.
Analysis ►
File ►
IR / Visible
Manual Adj.
Object Param.
System Setup►
English
16 C.A1886 –C.A1888
4.3 RESTORING THE DEFAULT SETTINGS
1. Switch the I.R. camera off.
2. Press the On/Off and C buttons simultaneously.
Hold them down a few seconds.
The camera reboots with the default parameters.
• The stored data are not deleted when you reset the camera.
5. TAKING SHOTS
5.1 ADJUSTING THE CAMERA
5.1.1 Manual focusing
1. Check that the camera is in Null mode.
2. Aim the I.R. camera towards the target
3. Turn the focusing ring to focus on the target.
4. Continue turning until the image is sharp
5.1.2 I.R., Real, and Real + Mix Display.
This I.R. camera records visual images with its built-in digital device. This lets you
record a real image and compare it to the thermal image.
English
C.A1886 – C.A1888 17
1. Press the "Menu/Validation" key to display the menu, then select
"I.R./Visible".
2. Press the "left" or "right" arrow to select the percentage of infrared
(possible only in "MixVision”).
This percentage is the percentage of thermal image in the display (100%
means pure I.R. image, 0% means real image only).
The various modes available:
I.R.
In this mode, only the I.R. image is displayed on screen.
All of the analysis tools are available in this mode.
6 sorts of palettes can be selected.
Vision
In this mode, only the visual image is displayed on screen.
The analysis tools are not all available in this mode.
MixVision
In this mode, the visual image appears in the background and the central window
is the fusion zone. You can apply all of the analysis tools to this zone. You can
also set the proportions of visual and thermal image using the "Percentage I.R."
option.
5.2 PARALLAX ADJUSTMENT
Since the infrared and visual objectives are offset, the two images may be
misaligned in the "MixVision" mode.
Analysis ►
File ►
IR / Visible
Manual Adj.
Object Param.
System Setup►
English
18 C.A1886 –C.A1888
To align the two images:
1. Make sure that you are in NULL mode
2. Hold the C key down and press; the left arrow to shift the image to the
left; the right arrow to shift the image to the right; the up arrow to shift
the image upward; the down arrow to shift the image downward.
5.3 ADJUSTING THE IMAGE
You can set the brightness (Level) and contrast (Span) of the image captured by
the I.R. camera manually or automatically.
5.3.1 Automatic adjustment
The I.R. camera adjusts the brightness and/or the contrast automatically when
you press the A key.
5.3.2 Manual adjustment
You can adjust the image brightness and contrast in the menu or by pressing the
arrows in NULL mode: press the UP or DOWN arrow to modify the contrast, the
LEFT or RIGHT arrow to modify the brightness.
Manual adjustment in the menu:
1. Press the MENU/VALIDATION key
2. Press the UP or DOWN arrow to select the [Manual Adj.] menu. Validate
by pressing the MENU/VALIDATION key.
3. Adjusting the brightness and contrast
• Press the LEFT or RIGHT arrow to select the field to be modified.
• Press the UP or DOWN arrow to define the values.
Analysis ►
File ►
IR / Visible
Manual Adj.
Object Param.
System Setup►
English
C.A1886 – C.A1888 19
4. After this operation, press the MENU/VALIDATION key to save the
modifications or the C key to close the menu window without saving.
• To activate manual adjustment, make sure that continuous adjustment
(Menu => Camera setup) is desactivated.
5.3.3 Adjusting the image
1. Press the MENU/VALIDATION key.
2. Press the UP or DOWN arrow to select the [System Setup] menu, then
press the MENU/VALIDATION key.
3. Press the UP or DOWN arrow to select [Camera setup], then press the
MENU/VALIDATION key.
4. Define the adjustments of the image.
• Press the UP or DOWN arrow to select the field to be modified.
• Press the LEFT or RIGHT arrow to define the values.
5. After this operation, press the MENU/VALIDATION key to save the
modifications or the C key to close the menu window without saving.
Analysis ►
File ►
IR / Visible
Manual Adj.
Object Param.
System Setup►
Analysis setup
Local setup
Date & Time
Camera setup
System info
Palette : Metal
Auto. Adjust : Level and span
Continuous adj. : Level and span
Shutter period : Never
Shut down : Never
Trigger button : Laser on
Laser adjust. : Off
Menu style : Normal
English
20 C.A1886 –C.A1888
• About the adjustments of the image
Palette
Assigns the pseudo-colours of the thermal image. 6
palettes are provided: Metal, Reversed metal, Rainbow,
Natural, Grey, and Reversed grey.
Auto Adjust.
Assigns the function of the A key. You may choose
among three options: Level and contrast, level, or
contrast.
Level and
span
The device automatically
adjusts the brightness and
contrast of the image to their
optimum levels.
Level
The device automatically
adjusts the brightness of the
image.
Span
The device automatically
adjusts the contrast of the
image.
Continuous
Adjust.
Determines whether the brightness and contrast of the
image displayed on screen are adjusted automatically
or not, continuously with no press.
Level and
span
Automatic adjustment of the
brightness and contrast.
Level
Automatic adjustment of the
brightness.
None
No automatic adjustment of the
brightness or contrast.
Shutter period
Sets the period of auto-adjusting.
Shut Down
Set the period of shutting down the camera.
Trigger button
Set the control switch of the trigger button
Laser Adjust
Adjusts the Laser point in the LCD displayer.
Menu Style
Sets the menu style.
English
C.A1886 – C.A1888 21
5.4 MEASUREMENT RANGE
You can switch from one temperature range to another, depending on the model
of camera you have.
1. Press the MENU/VALIDATION key.
2. Press the UP or DOWN arrow to select [Adjust Manual], then press the
MENU/VALIDATION key.
3. Adjustment of measurement range.
• Press the LEFT or RIGHT arrow to select the range.
• Press the UP or DOWN arrow to define the measurement range.
• This option is not available when the image is frozen.
4. When you have finished, press the MENU/VALIDATION key to close the
menu window.
5.4.1 Precautions for « High-temperature » cameras (option)
For measurements on targets of which the temperature exceeds 1000°C, the
high-temperature filter must be fitted, since without it the detector of the camera
may be damaged.
The high-temperature measurement is made in two steps:
1. Installation of the filter :
2. Choice of the appropriate temperature range, cf 5.4
Range
Level
30°C
Span
10°C
Temp. Range
-20 -250
Filter
Off
English
22 C.A1886 –C.A1888
5.4.2 Using additional lenses (option)
If a wide-angle or telephoto lens is used, the type of lens used must be selected.
1. Press the MENU/VALIDATION key
2. Press the UP or DOWN arrow to select the [Manual Adjust] menu.
Confirm by pressing the MENU/VALIDATION key.
3. Press the LEFT or RIGHT arrow to select the range.
Press the UP or DOWN arrow to define the measurement range.
Press the UP and DOWN arrows simultaneously to define the type of
lens used:
"A" indicates use of the telephoto lens (6° or 12° depending on the
camera)
"B" indicates use of the wide-angle lens (38° or 48° depending on the
camera)
When the standard lens is used, no letter is displayed.
5.5 FREEZE/ACTIVATE AN IMAGE
You can activate/freeze a thermal image by pressing the S key of the selector.
1. Check that the camera is in NULL mode.
2. Press the S key to freeze the image.
3. Press the S key again to activate the image and return to continuous
measurements.
Analysis ►
File ►
IR / Visible
Manual Adj.
Object Param.
System Setup►
English
C.A1886 – C.A1888 23
6. ANALYSIS FUNCTION
6.1 ADJUSTMENT OF THE ANALYSIS PARAMETERS
1. Press the MENU/VALIDATION key.
2. Press the UP or DOWN arrow to select [Object Param.], then the
MENU/VALIDATION key.
3. Press the UP or DOWN arrow to select the field to be modified.
Press the LEFT or RIGHT arrow to define the values.
4. When you have finished, press the MENU/VALIDATION key to save the
modifications or the C key to close the menu window without saving.
Object Setup
Object : All
Emiss. : 0,95
Distance : 5m
Global Setup
Env. Temp. : 24,4°C
Humidity : 50%
Comp Obj 1 : Spot1
Comp Obj 2 : Spot2
Ref. Temp : 25 °C
English
24 C.A1886 –C.A1888
• About the analysis parameters
Object
Selects the object of which you want to set the
parameters.
Emiss
Different objects have different emissivities;
use different emissivities to measure different
objects.
Distance
The distance between an object and the I.R.
camera is not a constant. Set this value
according to the distance to the target.
Env. Temp
Entry of the environment temperature.
Humidity
Entry of the ambient relative humidity.
Comp. Obj.
Comp Obj1 can be set as any spot and area;
Comp Obj2 can be set as ref. temp. and any spot
and area. Differential of their temperature will be
showed at the right bottom corner of the screen.
For example, Comp Obj1 is Spot 1(35.4°C) and
Comp Obj2 is Ref Temp(30°C)， then the final
reading will be 5.4°C.
Ref Temp
Sets a reference temperature to compare with
the spot/area/profile tool.
English
C.A1886 – C.A1888 25
6.2 ADJUSTMENT OF THE ANALYSIS PARAMETERS
1. Press the MENU/VALIDATION key.
2. Press the UP or DOWN arrow to select the [System Setup] menu, then
press the MENU/VALIDATION key.
3. Press the UP or DOWN arrow to select [Analysis], then the
MENU/VALIDATION key.
4. Adjustment of an analysis parameter.
• Press the UP or DOWN arrow to select the field to be modified.
• Press the LEFT or RIGHT arrow to define the values.
5. When you have finished, press the MENU/VALIDATION key to save the
modifications or the C key to close the window without saving.
Alert : On
Alert temp. : 100°C
Correct. Temp : 0° C
Saturation : On
Isotherm width : 0.7° C
Isotherm color : Green
Isoth. type : Interval
Isoth. alert : 100
SpotTemp color : White
Analysis setup
Local setup
Date & Time
Camera setup
System info
Analysis ►
File ►
IR / Visible
Manual Adj.
Object Param.
System Setup►
English
26 C.A1886 –C.A1888
• About the analysis adjustments.
Alert
Activates or desactivates the temperature alert. When the
parameter is set to "On":
- if the [Capture Spot] parameter is "Maximum" in the
analysis tools, the alert is triggered as soon as the
threshold set is exceeded.
- If the [Capture Spot] parameter is "Minimum", the alert is
triggered as soon as there are temperatures below the
threshold set.
Temp Alert
To set the temperature alert threshold.
Correct
Temp
Corrects temperature measured by the camera so as to
ensure the accuracy of the measurement in the event of drift
of the camera.
Saturation
Color
When it’s on, Green will take place of the color that stands
for the highest temperature.
Isotherm
width
Assigns the width of the interval. This width can be as little
as 0.1°C.
Isotherm
colour
Assigns the colour of the interval. The colours available are
Transparent, Green, Black, and White.
Isotherm
Type
Sets the isothermal analysis mode. Five modes are available:
Interval, below, above, dual below and dual above.
Interval
Display the isothermal interval in one color and all
the other parts are displayed in the normal pseudo
color mode
Below
Display the isothermal interval and the parts with
the lower temperature than the lower limit of the
isothermal interval in the same color.
Above
Display the isothermal interval and the parts with
the higher temperature than the upper limit of the
isothermal interval in the same color.
Dual
Below
Display the isothermal interval in a color and the
parts with the lower temperatures than the lower
limit of the isothermal interval in a different color.
Dual
above
Display the isothermal interval in a color and the
parts with the higher temperatures than the upper
limit of the isothermal interval in a different color.
Isotherm
Alert Assigns the isotherm alert temperature.
SpotTemp
color Set the color of the spot
English
C.A1886 – C.A1888 27
6.3 PARAMETERIZING THE ANALYSIS TOOLS
This item describes how to adjust the thermal image analysis tools.
6.3.1 Analysis by point
1. Press the MENU/VALIDATION key.
2. Press the UP or DOWN arrow to select the [Analysis] menu, then
validate.
3. Adjustment of the point to be analyzed
• Press the UP or DOWN arrow to select a point (cursor 1 to 3), then the
MENU/VALIDATE key. One or more reticles appear on screen.
• Max Sp automatically tracks the hottest or coldest point on the screen.
4. Moving the analysis point.
• Once the cursor has been selected (SP1 to SP3 is displayed in the
bottom left corner), press the UP, DOWN, LEFT, and RIGHT arrows to
move the active point.
• The temperature of the active point is displayed in the top right corner.
6.3.2 Isothermal analysis
1. Press the MENU/VALIDATION key.
2. Press the UP or DOWN arrow to select the [Analysis] menu.
3. Press the UP or DOWN key to select [Isotherm], then press the
MENU/VALIDATION key. Zones where the temperature is between IL
and IH (the max and min values of the isotherm) are displayed in the
same colour on screen.
4. Adjustment of the isothermal page
• Activate the isotherm (ISO is displayed in the bottom left corner).
• Press the UP or DOWN arrow to shift the whole range of the isotherm.
• Press the right or left arrow to diminish/expand the isothermal range.
Analysis ►
File ►
IR / Visible
Manual Adj.
Object Param.
System Setup►
Spot1
Spot2
Spot3
< Maximum >
Isotherm
Profile
Area
< Removeall >
English
28 C.A1886 –C.A1888
• To change the type of isotherm, its width, its alert, and its colour, refer to
the previous section.
6.3.3 Profile analysis
5. Press the MENU / VALIDATION key.
6. Press the UP or DOWN arrow to select [Analysis] menu.
7. Press the UP or DOWN arrow to select [Profile], then press the
MENU/VALIDATION key
8. Press the UP or DOWN key to move the profile.
6.3.4 Area analysis
1. Press the MENU / VALIDATION key.
2. Press the UP or DOWN arrow to select [Analysis] menu.
3. Press the UP or DOWN arrow to select [Area], then press the
MENU/VALIDATION key.
Temperature
distribution
Analysis ►
File ►
IR / Visible
Manual Adj.
Object Param.
System Setup►
Spot1
Spot2
Spot3
< Maximum >
Isotherm
Profile
Area
< Removeall >
English
C.A1886 – C.A1888 29
4. Setting the analysis area.
• Press the UP or DOWN to select an area.
• Press LEFT or RIGHT to select the Maximum or Minimum or Average
temperature of the area.
• A reading will appear at the top right corner. It is the reading of the
highest/lowest/average temperature of the current area. H is short for
highest temperature, L for lowest temperature, and A for average
temperature.
• To change the shape of the analysis area, the following shortcuts apply
UPPER and LEFT arrow
UPPER and RIGHT arrow
< Area1 Min.>
< Area2 Min.>
< Area3 Max.>
< Area4 Max.>
Surface5
Area NO
Reading
English
30 C.A1886 –C.A1888
LOWER and LEFT arrow
LOWER and RIGHT arrow
6.4 DESACTIVATING THE ANALYSIS TOOLS
This section describes how to remove the analysis tools used from the screen.
6.4.1 Deactivation of the analysis tools
1. Press the MENU/VALIDATION key
2. Press the UP or DOWN arrow to select the [Analysis] menu.
3. Select the analysis tool you want to remove.
4. Press the C key to remove it.
5. To remove all of the analysis tools:
• Press the UP or DOWN key to select [Remove All], then the
MENU/VALIDATION key.
• All of the analysis tools are removed.
6.5 RECORDING THE IMAGE
You can record an image after freezing it or record it directly by holding the S key
down for 3 seconds with the device in NULL mode.
1. Press the MENU/VALIDATION key.
2. Press the UP or DOWN arrow to select the [File] menu.
3. Press the UP or DOWN arrow to select [Save], then the
MENU/VALIDATION key to record the image.
4. The name of the image recorded is displayed on screen.
Analysis ►
File ►
IR / Visible
Manual Adj.
Object Param.
System Setup►
English
C.A1886 – C.A1888 31
• The image is recorded in the active directory. To change directories, go
to "File setup" => Name of folder".
6.6 ASSOCIATING VOICE REMARKS WITH THE IMAGES (OPTION)
6.6.1 Voice recording
You can associate up to 30 seconds of voice remarks with an image.
1. Install the Bluetooth headset (provided as an option).
2. Freeze an image and press the MENU/VALIDATION key.
3. Press the UP or DOWN arrow to select the [File] menu.
4. Press the UP or DOWN arrow to select [Voice REC], then press the
MENU/VALIDATION key.
• The message [Voice Recording] is displayed on the LCD screen.
5. Speak into the microphone of the headset. To stop recording, press the
C key.
6. Recording the image.
6.7 ADJUSTMENT OF THE TRIGGER
6.7.1 Adjustment of the release
1. Press the MENU/VALIDATION key, then the UP or DOWN arrow to select
the [System Setup] menu, then the MENU/VALIDATION key again.
Analysis ►
File ►
IR / Visible
Manual Adj.
Object Param.
System Setup►
Analysis setup
Local setup
Date & Time
Camera setup
System info
English
32 C.A1886 –C.A1888
2. Press the UP or DOWN arrow to select the [Camera setup] menu, then
press the MENU/VALIDATION key.
3. Press the UP or DOWN arrow to select the [Trigger Button] menu, then
the LEFT or RIGHT arrow to select the desired function.
• About the configurable release function:
None
The function is inactive.
Save
Makes it possible to record the image by keeping the
release pressed for 3 seconds
Auto Adjust.
Function identical to that of the A key.
Laser on
Used to activate the Laser pointer.
Do not aim the laser beam towards
anyone's eyes, because a laser beam
can damage eyesight.
Torch on
Used to activate the luminous torch.
The luminous torch can be used to obtain sharp real
images in darkness.
Freeze / Live
Used to activate/freeze a thermal image
Palette : Metal
Auto. Adjust : Level and span
Continuous adj. : Level and span
Shutter period : Never
Shut down : Never
Trigger button : Laser on
Laser adjust. : Off
Menu style : Normal
English
C.A1886 – C.A1888 33
7. READING AND ERASING
7.1 OPENING THE IMAGES
You can display recorded images and analyze them on the LCD screen.
1. Press the MENU/ENTER key.
2. Press the UP or DOWN arrow to select the [File] menu.
3. Press the UP or DOWN arrow to select [Open], then press the
MENU/VALIDATION key.
4. Select an image and press the MENU/VALIDATION key to open it.
• When you open an image, you can analyze it and associate a voice
remark with it.
• Selecting an image
1. When the [Open] or [Delete] option is selected in the [File] menu, the
following message is displayed in the bottom left corner of the screen.
Analysis ►
File ►
IR / Visible
Manual Adj.
Object Param.
System Setup►
Open
Save
Delete
File setup ►
Voice rec.
Voice Play
Name of the current
folder
00001/00003/002/003
<DIR> RAYCA001
Ouvrir CA00001.SAT
File name
Number of
current file
File amount of
current folder
Number of current
folder
Folder amount
English
34 C.A1886 –C.A1888
2. Press the C key, then the S key, to return to image analysis.
• Select the directory name.
1. Press the MENU/VALIDATION key.
2. Press the UP or DOWN arrow to select the [File] menu, then press the
MENU/VALIDATION key.
3. Press the UP or DOWN arrow to select the [File setup] menu, then press
the MENU/VALIDATION key.
4. Press the UP or DOWN key to select the [Directory Name] menu, then
press the LEFT or RIGHT key to select the desired directory.
• You can press the A, C, and S keys simultaneously to reset the directory
name to RAYCA000.
7.2 PLAYING THE REMARKS (OPTION)
If a voice remark is associated with an image, you can listen to it on the camera.
1. Install the Bluetooth headset (optional).
2. Open an image.
3. Press the MENU/Validation key, then the UP or DOWN arrow to select
the [File] menu.
4. Press the UP or DOWN key to select [Voice Play], then press the
MENU/VALIDATION key.
• The message [Playing Record] is displayed on the LCD screen.
5. You can stop playing the voice remark by pressing the C key.
English
C.A1886 – C.A1888 35
7.3 ERASING THE IMAGES
Note that images once erased cannot be recovered.
So be very careful before erasing an image.
1. Press the MENU/VALIDATION key, then the UP or DOWN arrow to select
the [File] menu.
2. Press the UP or DOWN arrow to select [Delete], then press the
MENU/VALIDATION key.
3. Select an image, then press the MENU/VALIDATION key to delete it.
4. Press the C key to exit.
Open
Save
Delete
File setup ►
Voice rec.
Voice Play
English
36 C.A1886 –C.A1888
8. TRANSFERRING IMAGES
8.1 TRANSFER BY SD CARD
You can withdraw the SD card from the device and load the images into your
computer using the SD card reader provided.
1. Open the flap on the SD card slot.
2. Press lightly on the card, then let it exit. It ejects automatically.
3. You can load the IR images directly from the SD card or via a card
reader.
SD card
English
C.A1886 – C.A1888 37
9. CONNECTIONS AND DOWNLOADING
9.1 CONNECTION TO A MONITOR
It is possible to use a video screen connected by a video cable (provided) to
display and analyze the images you have taken.
1. Switch the I.R camera off.
2. Connect the video cable to the video output jack on the bottom of the
device.
3. Connect the other end of the video cable to the video input jack of the
screen.
4. Switch on the screen and the I.R. camera.
9.2 USING THE BLUETOOTH HEADSET (OPTION)
The device has a module that lets you use the Bluetooth headset (optional) to
record voice remarks. To install the headset the first time, proceed as follows:
1. Switch off the camera and the Bluetooth headset.
2. Start by powering up the Bluetooth headset. Press the On/Off button
and hold it down for approximately 10 seconds. You will then see the
power indicator start to flash, first red, then blue. The headset is in the
coupling mode at the end of 120 seconds.
English
38 C.A1886 –C.A1888
3. Switch on the camera. The power indicator of the camera lights green
while flashing blue. In this mode, the camera is getting ready to search
for the Bluetooth headset.
4. Hold the On/Off button of the headset down for approximately 2
seconds to couple the headset and the camera. When the coupling has
been performed, the power indicator of the headset flashes blue and
that of the camera lights in green. You then see at bottom centre on
the screen.
• Switch off the camera and the Bluetooth headset after completing step 4.
5. After this first coupling between the camera and the headset, you can
simply power up the headset (the power indicator flashes blue), then
the camera, and the coupling takes place.
On/Off button
and power
supply indicator
English
C.A1886 – C.A1888 39
• Press the C and Enter keys simultaneously to clear the Bluetooth
headset.
6. When you are wearing the headset, you can record voice remarks or
listen to those already recorded.
10. TROUBLESHOOTING
Problem
Cause
Solution
The camera fails
to operate
The device is off
• Switch the camera on. See
"Switching On and Off"
Battery voltage too low
• Fully charge the battery.
Poor contact between the
camera and the terminals of
the battery
• Wipe the terminals with a
clean, dry cloth.
The camera fails
to record
Internal memory full
• If necessary, load the images
into a computer and erase them
in the camera to make room.
Internal memory incorrectly
formatted
• Format the internal memory to
FAT16 format.
The battery unit
discharges rapidly
Battery capacity reduced
because left unused for a
year or more after its last full
charge.
• Replace the battery unit with a
new one.
Battery has reached end of
life
• Replace the battery unit with a
new one.
The battery fails to
charge
Poor contact between the
camera and the terminals
of the battery
• Wipe the terminals with a clean
cloth.
• Connect the power cord to the
battery charger and insert the
other end firmly into a power
outlet.
Battery has reached end of
life
• Replace the battery unit with a
new one.
English
40 C.A1886 –C.A1888
11. MAINTENANCE
For maintenance, use only the spare parts specified. The manufacturer cannot be
held liable for any accident following a repair not done by its own customer
service department or an approved repairer.
11.1 CLEANING AND MAINTAINING THE CAMERA
Proceed as follows to clean the housing of the camera, the lens, the LCD screen,
and the other parts.
Housing of the device
Wipe with a soft cloth or a lens cleaning cloth
Lens
Eliminate dust and dirt using a blow brush, then eliminate any remaining dirt by
wiping the lens gently with a soft cloth.
• Never use synthetic cleansers on the housing or on the lens.
LCD screen
Use a blow brush to eliminate dust and dirt. If necessary, wipe the screen gently
with a soft cloth or a lens cleaning cloth to remove any adherent dirt.
• Never rub the LCD screen and never press firmly on its surface. These
actions could damage it or cause other problems.
Never use thinners, benzene, synthetic cleansers, or water to clean the camera.
These products could damage the equipment or alter its performance.
11.2 METROLOGICAL CHECK
Like all measuring or testing devices, the instrument must be checked
regularly.
We recommend checking this instrument yearly. For checks and calibrations,
contact one of our accredited metrology laboratories (information and contact
details available on request), at our Chauvin Arnoux subsidiary or the branch in
your country.
11.3 REPAIR
For all repairs before or after expiry of warranty, please return the device to your
distributor.
English
C.A1886 – C.A1888 41
12. WARRANTY
Except as otherwise stated, our warranty is valid for twelve months
starting from the date on which the equipment was sold. Extract from our
General Conditions of Sale provided on request.
The warranty does not apply in the following cases:
- Inappropriate use of the equipment or use with incompatible
equipment,
- Modifications made to the equipment without the explicit permission of
the manufacturer’s technical staff,
- Work done on the device by a person not approved by the
manufacturer,
- Adaptation to a particular application not anticipated in the definition of
the equipment or not indicated in the user’s manual,
- Damage caused by shocks, falls, or floods.
English
42 C.A1886 –C.A1888
13. APPENDIX
13.1 TABLE OF EMISSIVITIES
Material
Temperature (°C)
Approximate emissivity
Metals
Aluminium
Polished aluminium
100
0.09
Commercial aluminium
sheet
100 0.09
Oxidized chrome-
anodised aluminium
25～600 0.55
Slightly oxidized
aluminium
25～600 0.10～0.20
Highly oxidized
aluminium
25～600 0.30～0.40
Brass
Shiny brass (extreme
polishing)
28 0.03
Oxidized brass
200
～
600
0.61
～
0.59
Chromium
Polished chromium
40
～
1090
0.08
～
0.36
Copper
Shiny copper
100
0.05
Highly oxidized copper
25
0.078
Copper oxide
800
～
1100
0.66
～
0.54
Molten copper
1080
～
1280
0.16
～
0.13
Gold
Shiny gold
230
～
630
0.02
Lead
Pure lead (no oxidation)
125
～
225
0.06
～
0.08
Slightly oxidized
25
～
300
0.20
～
0.45
Magnesium
Magnesia
275
～
825
0.55
～
0.20
Magnesia
900
～
1670
0.20
Mercury
0
～
100
0.09
～
0.12
Nickel
Polished by anodising
25
0.05
Electrolysed
20
0.01
English
C.A1886 – C.A1888 43
Unpolished
Nickel wire
185
～
1010
0.09
～
0.19
Nickel sheet (oxidized)
198
～
600
0.37
～
0.48
Nickel oxide
650
～
1255
0.59
～
0.86
Nickel alloy
Nickel-chromium alloy
wire (shiny) (refractory)
50～1000 0.65～0.79
Nickel-chromium alloy
50
～
1040
0.64
～
0.76
Refractory nickel-
chromium
50～500 0.95～0.98
Nickel-silver alloy
100
0.14
Stainless steel
18-8
25
0.16
304(8Cr, 18Ni)
215
～
490
0.44
～
0.36
310(25Cr, 20Ni)
215
～
520
0.90
～
0.97
Tin
Commercial tinplate
100
0.07
Highly oxidized
0
～
200
0.60
Zinc
Oxidation at 400°C
400
0.01
Shiny galvanized iron
plate
28 0.23
Oxidized zinc powder
25
0.28
Non-metallic materials
Brick
1100
0.75
Refractory brick
1100
0.75
Graphite (carbon black)
96
～
225
0.95
Enamel (white)
18
0.90
Asphalt
0
～
200
0.85
Glass (surface)
23
0.94
Refractory glass
200
～
540
0.85
～
0.95
Calcimine
20
0.90
Oak
20
0.90
English
44 C.A1886 –C.A1888
14. TECHNICAL CHARACTERISTICS
Description Characteristic C.A 1886 C.A 1888
Detecter
Type
UFPA microbolometer
Spectral band
8 ~14µm
Resolution
160x120
384x288
Imaging
performance
NETD
0.08oC@ 30oC
0.05oC@ 30oC
Frequency
50 Hz
(9Hz outside the UE area, Models
P01651260E or P01651270E)
Objective/focusing
20°x15°
24°x18°
IFOV (spatial
resolution)
2.2mrad 1.1mrad
Min. focal distance
0.1m
0.1m
Visual image
Digital video
640x480 pixels, "full colour"
Illuminator Produces sharp, high-quality visual
images in dark areas
Min. focal distance
0.1m
Presentation of
the images
Display of image
Infrared image, real image, or "Mix
vision" function with adjustment of
percentage of fusion of I.R. image
Video output
PAL/NTSC
LCD screen
3.5 inches
Display of images
Pseudo-colours, multiple palettes
Functions
Image freeze
Image moving or frozen
Storage of files
Removable SD card, up to 2 GB.
Measurement Temperature range
-20oC ~600oC (standard)
Up to 1500°C optional.
Precision
±2oC or ±2%
English
C.A1886 – C.A1888 45
Description Characteristic C.A 1886 C.A 1888
Analysis functions
Points of analysis
4 points: 3 that can be positioned
anywhere on the screen and 1 for
automatic detection of Max or Min
temp, profile, area analysis, isotherm,
difference of temperature.
Tracking of
temperature Automatic tracking of the hottest or
coldest point in the whole image
Temperature alarm If a temperature alarm threshold is
predefined, the camera beeps if it is
exceeded.
Adjustment Automatic or manual adjustment of
brightness and contrast.
Correction Emissivity, Distance, Ambient
temperature, Relative humidity
Display of isotherms
Mono-colour display of a user-
adjustable temperature interval.
Voice remarks By Bluetooth (option).
Software
Analysis software
Report generation software
Laser pointer
Type
Class 2, < 1mW, Wavelength 635nm
Battery system
Type
Rechargeable lithium battery
Life between
charges
at least 3 hours
Conformity
Electromagnetic
compatibility
EN-61236-1:2006
Safety
EN-61010-1-Ed.2
Environmental
specification
Operating
temperature range
-15°C to 50°C (-4°F to 122°F)
Storage
temperature range
-40°C to 70°C (-40°F to 158°F)
Humidity
10% to 95%
Impact resistance
25G
Vibration resistance
2G
Protection
IP 54
Physical
characteristics
Weight
650g (with battery)
Dimension
211x80x195mm
English
46 C.A1886 –C.A1888
15. DELIVERY CONDITION
C.A 1886 I.R. thermography camera ............................................. P01651260
C.A 1886 I.R. thermography camera (9Hz) ................................... P01651260E
C.A 1888 I.R. thermography camera ............................................. P01651270
C.A 1888 I.R. thermography camera (9Hz) .................................... P01651270E
Delivered with:
• 1 battery charger
• 2 batteries
• 1 2GB SD card
• 1 card reader
• 1 video cable
• RayCAm standard report on CD ROM
• 1 user manual on CD ROM, in 5 languages
• 1 test report
• 1 Carrying case
ACCESSORIES & SPARES
Battery............................................................................................... P01296041
Sun guard ......................................................................................... P01651531
Adapter for photographic tripod ......................................................... P01651526
Mains power unit ............................................................................... P01651527
Lens cap ........................................................................................... P01651522
USB cable ......................................................................................... P01295274
Cigar lighter adapter ......................................................................... HX0061
Introduction to thermography ......................................................... Contact us
04 - 2016
Code 693056A02 - Ed. 6
http://www.chauvin-arnoux.com
190, rue Championnet - 75876 PARIS Cedex 18 - FRANCE
Tél.: +33 1 44 85 44 85 - Fax: +33 1 46 27 73 89 - info@chauvin-arnoux.fr
Export: Tél.: +33 1 44 85 44 86 - Fax: +33 1 46 27 95 59 - export@chauvin-arnoux.fr
DEUTSCHLAND - Chauvin Arnoux GmbH
Ohmstraße 1
- 77694 Kehl / Rhein
Tel: (07851) 99 26
-0 - Fax: (07851) 99 26-60
SCHWEIZ - Chauvin Arnoux AG
Moosacherstrasse 15
– 8804 AU / ZH
Tel: 044 727 75 55
- Fax: 044 727 75 56
ESPAÑA - Chauvin Arnoux Ibérica S.A.
C/ Roger de Flor N° 293, Planta 1
- 08025 Barcelona
Tel: 902 20 22 26
- Fax: 934 59 14 43
UNITED KINGDOM - Chauvin Arnoux Ltd
Unit 1 Nelson Court
– Flagship Square-Shaw Cross Business Park
DEWSBURY
– West Yorkshire – WF12 7TH
T
el : 01924 460 494 – Fax : 01924 455 328
ITALIA - Amra SpA
Via Sant’Ambrogio, 23/25
- 20846 Macherio (MB)
Tel: 039 245 75 45
- Fax: 039 481 561
MIDDLE EAST - Chauvin Arnoux Middle East
P.O. BOX 60
-154 - 1241 2020 JAL EL DIB (Beirut) - LEBANON
Tel: (01) 89
04 25 - Fax: (01) 89 04 24
ÖSTERREICH - Chauvin Arnoux Ges.m.b.H
Slamastrasse 29/2/4
- 1230 Wien
Tel: 01 61 61 961
-0 - Fax: 01 61 61 961-61
CHINA - Shanghai Pu-Jiang - Enerdis Instruments Co. Ltd
3 F, 3 rd Building 1
- N° 381 Xiang De Road - 200081 SHANGHAI
Tel: +86 21 65 21 51 96
- Fax: +86 21 65 21 61 07
SCANDINAVIA - CA Mätsystem AB
Sjöflygvägen 35
- SE 18304 TÄBY
Tel: +46 8 50 52 68 00
- Fax: +46 8 50 52 68 10
USA - Chauvin Arnoux Inc - d.b.a AEMC Instruments
200 Foxborough Blvd.
- Foxborough - MA 02035
Tel: (508) 698
-2115 - Fax: (508) 698-2118

Navigation menu
