Barrier Gate
Operators
www.came-americas.com
Barrier gates are one of the most eective types of automation for controlling the vehicle trac in
parking lots, private entrances and reserved apartment complex areas. CAME’s range is complete
with 24V D.C. models in galvanized and painted steel with a stainless steel option. Any type of
passageway can be controlled: from small, narrow areas with quick barriers, to very wide passages
of up to 40 ft. A large range of dedicated accessories are also available, designed to complement
the gates, even with special features, such as articulated gate arms and break-away devices. The
table below showcases the complete range of barrier gates in accordance to the width of the
passageway, the limitations of use and the residential or commercial application setting.
The Models
came-americas.com
Compliant with UL 325 STD
and CSA STD C22.2 No. 247
for both the US & Canada
Use RESIDENTIAL APARTMENT COMPLEX INDUSTRIAL INTENSIVE USE
Series Model Max. width of passage clearance (ft.)
Gard4 001G4140ZU 12 12 12 YES
Gard8 001G2180ZU 25 25 25 YES
Gard12 001G12010 40 40 40 YES
Gard 001G4000UL 13 13 13 YES
Gard 001G6000UL 22 22 22 YES
24V D.C.
came-americas.com
Compliant with UL 325 STD
and CSA STD C22.2 No. 247
for both the US & Canada

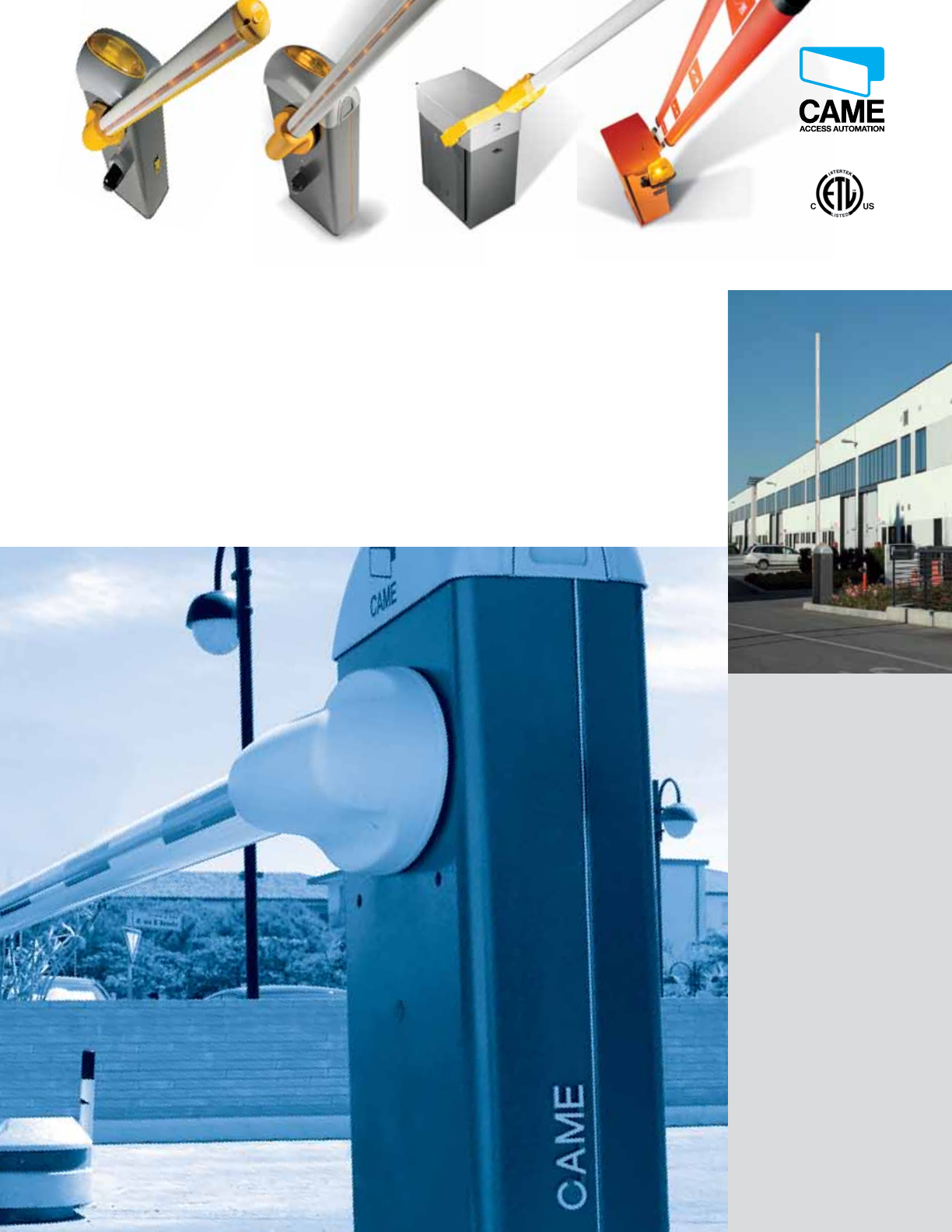

Gard4 Gard8 Gard12
There is no “single solution” for all installations. This is the philosophy that has led us to
constantly increase our technological solutions and produce a complete range of automation
systems and accessories.
For nearly forty years, CAME has built its reputation as an ecient solution provider, ready to
give a prompt and personalized answer to our customers’ requests.
CAME is versatile
Gard
A new concept in barrier gates.
Recent innovations in the design and features
of the Gard barrier gate series provide a new
standard in safety. The soft contours and rounded
corners create an aerodynamic shape that osets
the “sail eect” in windy areas as well as creating a
contemporary, aesthetic design that blends well
in any setting.
Designed for a range of large openings of up to 12 ft. The
Gard4 barriers are the ideal solution to control roadways
and parking areas for commercial and public use.
Automatic Barrier Gates
Gard4
Maximum safety.
Next-generation electronics
automatically interrupt the power
supply as soon as the service
door is opened.
Accessible and well
protected electronics.
The die-cast aluminum housing
provides a secure, yet accessible
casing for the electronics.
Luminous bar.
Superior visibility of the arm and
durability of the light xtures.
Round tubular bar.
Maximum reduction of the “sail
eect,” ensuring correct operation
in areas subject to high winds.
Differentiated sensitivity spring.
For exceptional balancing of the bar.
The Gard4 offers many innovative
features, including:
Design, materials, technology.
The exclusive built-in ashing
light with an illuminated LED
diuser needs no special
maintenance and ensures
complete visibility of the warning
light when the barrier arm is
moving.
The safety guard on the bar is
a standard feature.
It protects the user from possible
risks when the arm is in motion.
Perfect barrier gate integration.
The safety photocells integrate
harmoniously and aesthetically
with the system.
came-americas.com
Compliant with UL 325 STD
and CSA STD C22.2 No. 247
for both the US & Canada
Global entry control.
The Gard4 series
automatic barrier system
can be connected to
many of the CAME
access control systems
that allow identication,
memorization, entry and
exit only to authorized
personnel. The equipment
can also be integrated
with a global access
control system.
Available to work
independently and in a
synchronized action mode.
Thanks to the additional
RSE card, the barriers can
be installed facing each
other or synchronized at the
same access point.
*Barrier operators with
batteries will only operate as
long as the batteries have a
charge.
State-of-the-Art Technology
The Gard4 series barriers are constructed with the latest in electronic innovation, guaranteeing total control of
the automatic system while improving overall safety and the control functions, such as:
· Autotest all the safety devices
An electronic “checklist” prior to activating the motor.
· Anti-crushing function
Electronic control of the movement of the bar with obstacle detection.
· Stationary safety function
All control commands will override if an obstacle is detected.
24V D.C. operated barrier gates complete with control panel
001G4140ZU
001G4140IZU
Galvanized and painted steel barrier complete with control
panel andtted to take additional accessories.
AISI 304 stainless steel with satin nish bar complete with
control panel and tted to take additional accessories.
Automatic Barrier Gates
Gard4 clearance of up to 12 ft.
The Advantages of 24V D.C. Barriers
· No more blackouts
The Gard4 24V D.C. electronics system automatically recognizes a power outage and activates
the emergency back-up batteries (not included), to ensure the gate will always perform its
function.
· Keep speed in check
The 24V D.C. electronics enable the operating speed to be based on installation/location
requirements.
· Intensive traffic
The low 24V D.C. gear motor ensures reliable operation of the barrier during heavy/high trac
conditions.
· Opening time
With the low-voltage consumption technology, the barrier opening time can be adjusted between
2-6 seconds.
came-americas.com
Compliant with UL 325 STD
and CSA STD C22.2 No. 247
for both the US & Canada
Kits & Technical Features
Gard4
24V D.C. gear motor powered
directly from the control panel.
New
Technical features
Type
001G4140ZU 001G4140IZU
Protection rating
IP54
IP54
Power supply (V) (50/60Hz)
120V A.C.
120V A.C.
Motor power supply (V)
24V D.C.
24V D.C.
Current draw (A)
15 Max
15 Max
Power (HP)
1/2
1/2
Duty cycle (%)
Intensive use
Intensive use
Torque (Nm)
400 400
Opening time 90° (s)
2 - 6 2 - 6
Motor’s thermo-protection (°F)
- -
Operating temperature (°F) -4°F up to 131°F -4°F up to 131°F
24V D.C.
came-americas.com
Compliant with UL 325 STD
and CSA STD C22.2 No. 247
for both the US & Canada
Product Code
Operator Model
Max. Leaf (ft.)
Control Board
001G3750 13 ft.
Arm with Yellow
Bumper
001G06080 Red
Counter-Balance
Spring
001G02804 Light
Strip Adapter
001G02801
Dome Light
001DIR10 Photocells
Battery Back-up Card
002LB38
KT-BG-GA/S-B0414-1 001G4140ZU 12 • • • •
KT-BG-GA/S-P0414-1 001G4140ZU 12 • • • • • •
KT-BG-GA/S-E0414-1 001G4140ZU 12 • • • • • • • • •
Basic
Professional
Expert
001G02809
Warning stickers
001G02803
(32 ft.) of light strip
Please refer to the accessory and installation table to specify the balancing spring.
Accessories
Gard4
Accessories and installation
Depending on the conguration of the accessories required for mounting the boom, dierent kinds of
springs are available to provide the best possible balance of movement. The table shows the
possible combinations of the various accessories and the maximum length of the moving boom.
Standard issue booms come with transparent proles and head cap.
G02040 balancing springs - ø / 1.57 in. | G04060 balancing springs - ø / 1.96 in. | G06080 balancing springs - ø / 2.16 in.
Composition of the bar
Bar with shock-resistant profile
G02803 bar with shock-resistant profile and luminous cord
Bar with G0465 rack
Bar with G02803 luminous cord and G0465 rack
Bar with shock-resistant profile and G02808 mobile support
Bar with shock-resistant profile, G02803 luminous cord and G02808 mobile support
Bar with G0465 rack and G02808 mobile support
Bar with G02803 luminous cord, G0465 rack and G02808 mobile support
5 5.7 6.6 7.4 8.2 99.8 10.7 11.5 12
Max. width of passage clearance (ft.)
Color:
Cabinet - grey textured
Code 053 0837
Cover RAL9006
Max width
Passage clearance
13.38"
8.54"
3.35'
3.84'
13.07"
2.9'
Dimensions
12'
came-americas.com
Compliant with UL 325 STD
and CSA STD C22.2 No. 247
for both the US & Canada
Accessories for barrier gates with 24V D.C. operator
002LB38
Card for connecting (3) 12V-7Amp emergency
batteries
001G03751
Emergency battery rack
001G02808
Mobile support for bars
001G02040
Balancing spring ø / 1.57 in.
001G04060
Balancing spring ø / 1.96 in.
001G06080
Balancing spring ø / 2.16 in.
001G02801
Dome-shaped ashing light
001G02802
Support for series DIR photocells.
Do not use with barriers with G0465 rack
and/or G02808 mobile support
001G03750
White painted semi-oval aluminium bar with slot
cover and impact-resistant proles
L = 13.12 ft.
001G03752
White painted oval aluminium bar with slot
cover prole L = 13.12 ft.
001G03753
Securing ange for G03752 oval bar
001G02803
Luminous cord for bar
001G02804
Luminous cord cable
001G0465
Rack for painted aluminium bar
(6.56 ft. modules)
001G02807
Fixed support for bar
001G02809
Red adhesive refracting strips for bars
(20-pieces per package)
001G03755DX
Joint for G03750 semi-elliptic
tubular bar for right-hand barrier
001G03755SX
Joint for G03750 semi-elliptic
tubular bar for left-hand barrier
A new concept of automatic
barrier gates.
The recent innovation in the design features of
the Gard barrier series provide a new standard
in safety. The soft contours and rounded
corners create an aerodynamic shape that
osets the “sail eect” in windy areas as well
as creating a contemporary, aesthetic design
that blends well in any setting.
Designed for a range of large openings of up to 25 ft. The
Gard8 barriers are the ideal solution to control roadways
and parking areas for commercial and public use.
Automatic Barrier Gates
Gard8
Maximum safety.
Next-generation electronics
automatically interrupt the power
supply as soon as the service
door is opened.
Accessible and well
protected electronics.
The die-cast aluminum housing
provides a secure, yet accessible
casing for the electronics.
Luminous bar.
Superior visibility of the arm and
durability of the light xtures.
Round tubular bar.
Maximum reduction of the “sail
eect,” ensuring correct operation
in areas subject to high winds.
Differentiated sensitivity spring.
For exceptional balancing of the bar.
The Gard8 offers the same
innovative features as the
Gard4, including:
Design, materials, technology.
The exclusive built-in ashing
light with an illuminated LED
diuser needs no special
maintenance and ensures
complete visibility of the warning
light when the bar is moving.
The safety guard on the bar is
a standard feature.
It protects the user from possible
risks when the arm is in motion.
Perfect barrier gate integration.
The safety photocells integrate
harmoniously and aesthetically
with the system.
came-americas.com
Compliant with UL 325 STD
and CSA STD C22.2 No. 247
for both the US & Canada
The Advantages of 24V D.C. Barriers
· No more blackouts
The Gard8 24V D.C. electronics system automatically recognizes a power outage and activates
the emergency back-up batteries (not included), to ensure the gate will always perform its
function.
· Keep speed in check
The 24V D.C. electronics enable the operating speed to be based on installation/location
requirements.
· Intensive traffic
The low 24V D.C.gear motor ensures reliable operation of the barrier during heavy/high trac
conditions.
· Opening time
With the low-voltage consumption technology, the barrier opening time can be adjusted between
4-8 seconds.
Global entry control.
The Gard8 series
automatic barrier system
can be connected to
many of the CAME
access control systems
that allow identication,
memorization, entry and
exit only to authorized
personnel. The equipment
can also be integrated
with a global access
control system.
Available to work
independently and in a
synchronized action mode.
Thanks to the additional
RSE card, the barriers can
be installed facing each
other or synchronized at the
same access point.
*Barrier operators with
batteries will only operate as
long as the batteries have a
charge.
State-of-the-Art Technology
The Gard8 series barriers are constructed with next-generation electronics that guarantee total control of the
automatic system while improving safety and the control functions, such as:
· Autotest all the safety devices
An electronic “checklist” prior to activating the motor.
· Anti-crushing function
Electronic control of the movement of the bar with obstacle detection.
· Stationary safety function
All control commands will override if an obstacle is detected.
24V D.C. operated barrier gates complete with control panel
001G2180ZU
001G2180IZU
Galvanized and painted steel barrier complete with control
panel andtted to take additional accessories
AISI 304 stainless steel with satin nish bar complete with
control panel and tted to take additional accessories
Automatic Barrier Gates
Gard8 clearance of up to 25 ft.
came-americas.com
Compliant with UL 325 STD
and CSA STD C22.2 No. 247
for both the US & Canada
Kits & Technical Features
Gard8
24V D.C. Gear motor powered
directly from the control panel.
New
Technical features
Type
001G2180ZU
001G2180IZU
Protection rating
IP54
IP54
Power supply (V) (50/60Hz)
120V A.C.
120V A.C.
Motor power supply (V)
24V D.C
24V D.C.
Current draw (A)
15 Max
15 Max
Power (HP)
1/2
1/2
Duty cycle (%)
Intensive use
Intensive use
Torque (Nm)
600 600
Opening time 90° (s)
4 - 8 4 - 8
Motor’s thermo-protection (°F)
- -
Operating temperature (°F) -4°F up to 131°F -4°F up to 131°F
24V D.C.
came-americas.com
Compliant with UL 325 STD
and CSA STD C22.2 No. 247
for both the US & Canada
Product Code
Operator Model
Max. Leaf (ft.)
Control Board
001G06000 19.7 ft.
Arm with Yellow
Bumper
001G04060 Red
Counter-Balance
Spring
001G02804 Light
Strip Adapter
001G02801
Dome Light
001DIR10 Photocells
Battery Back-up Card
002LB38
KT-BG-GA/S-B0814-1 001G2180ZU 25 • • • •
KT-BG-GA/S-P0814-1 001G2180ZU 25 • • • • • •
KT-BG-GA/S-E0814-1 001G2180ZU 25 • • • • • • • • •
Basic
Professional
Expert
001G02809
Warning stickers
001G02803
(64 ft.) of light strip
Please refer to the accessory and installation table to specify the balancing spring.
Accessories
Gard8
Accessories and installation
Depending on the conguration of the accessories required for mounting the boom, dierent kinds of
springs are available to provide the best possible balance of movement. The table shows the possible
combinations of the various accessories and the maximum length of the moving boom. Standard issue
booms come with transparent proles and head cap.
G02040 balancing springs - ø / 1.57 in. | G04060 balancing springs - ø / 1.96 in. | G06080 balancing springs - ø / 2.16 in.
Composition of the bar
Simple bar
Simple bar and G02808 mobile support
Simple bar and G02803 luminous cord
Bar with G02808 mobile support and G02803 luminous cord
Simple bar and G0465 rack
Simple bar, G0465 rack and G02803 luminous cord
Max. width of passage clearance (ft.)6.6 8.2 9.8 11.5 13.1 14.8 16.4 18 21.3 23 25 Color:
Cabinet - grey textured
Code 053 0837
Cover RAL9006
Max. width
Passage clearance
15.94"
9.56"
4.28'
4.44'
19.40"
2.9'
Dimensions
25'
came-americas.com
Compliant with UL 325 STD
and CSA STD C22.2 No. 247
for both the US & Canada
Accessories for barrier gates with 24V D.C. operator
002LB38
Card for connecting (3) 12V-7Amp emergency
batteries
001G02805
Emergency battery rack
001G02040
Balancing spring ø / 1.57 in.
001G04060
Balancing spring ø / 1.96 in.
001G06080
Balancing spring ø / 2.16 in.
001G02801
Dome-shaped ashing light
001G02802
Support for series DIR photocells
(Do not use with barriers with G0465 rack
and/or G02808 mobile support)
001G02000
White painted aluminum tubular bar 3.93 in.
complete with slot cover prole L = 6.56 ft.
001G04000
White painted aluminum tubular bar 3.93 in.
complete with slot cover prole L = 13.12 ft.
001G06000
White painted aluminum tubular bar 3.93 in.
complete with slot cover prole L = 19.68 ft.
001G06803
Joint for bar complete with additional insert to
attach bar
001G02803
Luminous cord for bar
001G02804
Luminous cord cable
001G0465
Rack for painted aluminium bar
(6.56 ft. modules)
001G02807
Fixed support for bar
001G02808
Mobile support for bars
001G02809
Warning sticker
001G028011
Break-away tting for bar
The barrier for large
clearance passageways.
Gard12 is a truly unique automation system.
A special motor operates a bar up to 40 ft.
long to manage special passageways such as
in industrial loading docks, materials receiving
and highways.
Gard12 is specifically engineered to operate large industrial
passageways. A tubular bar allows for a 40 ft. road area to
open and close in just 10 seconds.
Automatic Barrier Gates
Gard12
Modular tubular bar.
The rounded section, with its
dierentiated diameters allows
for easy carrying and reduced
wind resistance.
Maximum safety.
Next-generation electronics
automatically interrupt the power
supply as soon as the service
door is opened.
Accessible and well
protected electronics.
It is located in an easy-to-reach
position to aid scheduled
maintenance operation and it is
protected from environmental agents.
Balanced by counterweights.
Adjustable by way of steel modules
that can be added or removed
depending on the length of the bar.
The Gard12 offers many
innovative features, including:
Double motor, twice the
lasting power.
Gard12 is equipped with 2
motors, which are installed
along the same axis and
provide remarkable torque.
Counterweighted balancing.
This ensures safe and reliable
motion of the bar, even when
used frequently.
Integration and modularity.
A special automation system
perfectly integrates with all
the CAME command and safety
accessories.
came-americas.com
Global access control.
Every CAME automatic
barrier, can be connected
to a series of dierent
access control systems
which enable to identify,
memorize and clear the
entry or exit of authorized
personnel only. The
system can be integrated
with an extensive access
control system.
State-of-the-Art Technology
The Gard12 new generation electronics provide for total control of the system, improving the usual
command and safety functions, such as:
· Obstacle detection
A special electronic circuit constantly analyzes the proper functioning of the barrier, and will either
stop or invert the mode, if it comes into contact with any obstacles.
· Delayed motion during opening or closing
For sefety purposes, the electronics featured in 001G12010 allow decelerated movement of the bar
nearing its end range of motion in the nal stages of gate opening or closing.
· No more blackouts
The 24V D.C. Gard12 automatically detects any interruption in the power source and immediately
activates the emergency mode through the auxiliary batteries. (optional)
came-americas.com
9.25"
2.49'
1.90'2.83'40' max
ø 4.72"ø 3.93"
3.28'
4.03'
Color:
Cabinet - grey textured
Code 053 0837
Cover RAL9006
Automatic Barrier Gates
Gard12 clearance of up to 40 ft.
24V D.C. operated barrier gate complete with control panel
001G12010 Galvanized steel barrier complete with control panel
Accesories & Technical Features
Gard12
24V D.C. gear motor powered
directly from the control panel.
New
Technical features
Type
001G12010
Protection rating
IP54
Power supply (V) (50/60Hz)
120V A.C.
Motor power supply (V)
24V D.C.
Current draw (A)
15 Max
Power (HP)
1/2
Maneuver speed 90° (s) 10
Duty cycle (%)
50
Torque (Nm)
600
Operating temperature (°F) -4°F up to 131°F
24V D.C.
Accessories for road barriers with 24V D.C. operator
001G0121
White painted tubular bar composed of:
· 1 xed support
· 1 tubular bar L = 244 in = ø 4.72 in.
· 1 tubular bar L = 236 in = ø 4.72 in.
· 1 accessory kit for bar extension.
001G0461
Red adhesive refracting strips for bars (24-pieces per package)
002LB38
Card for connecting (3) 12V-7Amp emergency batteries
001DIR20
Pair of photocells. Range: 65 ft.
came-americas.com
The G4000UL and G6000UL
barrier gates are ideal for
controlling street access
points.
Gard barriers are the ideal solution for
controlling access points in residential and
commercial areas, even in high trac areas.
The G4000UL and G6000UL barriers are
easy to install.
Suited for clearances of up to 22 ft. Gard barriers come in
different models depending on the passage.
The G4000UL was designed for clearance of up to 13ft.,
and the G6000UL for clearances of up to 22ft. Both models
are fitted with a 24V D.C. operator and suited for intensive
and frequent use.
Automatic Barrier Gates
Gard
Arm with rubber bumper.
Made of proled aluminium, the
bumpers come with rectangular or
circular sections, which decrease
wind resistance.
Protected, integrated, intermittent
warning lights.
The warning lights improve bar
visibility and durability of the
illuminating elements.
The Gard Series offers many
innovative features, including:
Warning flashing light.
The entire series of CAME Kiaro
ashing lights can be directly
installed on the Gard series
cabinet.
Also comes in INOX steel for
those special uses.
The G4001 and 6001 models
come with AISI 301 stainless
steel cabinet for those critical
installations such as at toll
booths or in areas with high
salinity content in the air.
came-americas.com
Compliant with UL 325 STD
and CSA STD C22.2 No. 247
for both the US & Canada
Global entry control.
The Gard series automatic
barrier system can be
connected to many of the
CAME access control
systems that allow
identication, memorization,
entry and exit only to
authorized personnel. The
equipment can also be
integrated with a global
access control system.
Perfectly synchronized.
Through an opposite plug
on the control panel, the
G4000UL and G6000UL
models can be synchronized
to control the actions of two
barriers.
24V D.C. barrier gates complete with control panel
001G4000UL
001G6000UL
Galvanized and painted steel barrier complete with control
panel and tted to take additional accessories, 13 ft.
Galvanized and painted steel barrier complete with control
panel and tted to take additional accessories, 22 ft.
Automatic Barrier Gates
Gard clearance of up to 22 ft.
State-of-the-Art Technology
The model’s electronics provide optimal control of the bar’s movement, providing desired speed of
opening and closing.
· Just 2 seconds to clear the passage effectively
Even during high-frequency use.
· Auto-memorizes the radio code
From the transmitter to the receiver.
· Can work in maintained action mode
As required by current standards.
The Advantages of 24V D.C. Barriers
· Frequent blackouts
The 24V D.C. electronics system automatically recognizes a power loss and activates emergency
operation with special auxiliary batteries.
· Keep speed in check
For total service, the 24V D.C. electronics enables the operating speed to be adjusted depending
on whether the situation requires faster or slower openings and closings.
· Intensive use
The low-voltage motor ensures operation of the barrier for intensive trac conditions, such
as streets, parking areas and other settings entailing constant, intensive operation.
· Obstacle detection
A special electronic circuit constantly analyzes the proper functioning of the bar, allowing for them
to completely stop or invert the motion if obstacles are detected.
came-americas.com
Compliant with UL 325 STD
and CSA STD C22.2 No. 247
for both the US & Canada
Kits & Technical Features
Gard
24V D.C. Gear motor powered
directly from the control panel.
New
NEED PHOTO
Technical features
Type
G4000UL
G6000UL
Protection rating
IP54
IP54
Power supply (V) (50/60Hz)
120V A.C
120V A.C
Motor power supply (V)
24V D.C.
24V D.C.
Current draw (A)
15 Max
15 Max
Power (HP)
1/2
1/2
Duty cycle (%)
Intensive use
Intensive use
Torque (Nm)
200 600
Opening time 90° (s)
2 - 6 2 - 6
Motor’s thermo-protection (°F)
- 302 °F
Operating temperature (°F) -4°F up to 131°F -4°F up to 131°F
24V D.C.
came-americas.com
Compliant with UL 325 STD
and CSA STD C22.2 No. 247
for both the US & Canada
Product Code
Operator Model
Max. Leaf (ft.)
Control Board
001G0401
13 ft. Arm
001G0461
Warning Stickers
001KIARO24N with
001G04601 Adapter
Battery Back-up
Card 002LB38
KT-BG-G4/S-B0414-1 001G4000UL 13 • • •
KT-BG-G4/S-P0414-1 001G4000UL 13 • • • •
KT-BG-G4/S-E0414-1 001G4000UL 13 • • • • • • •
Basic
Professional
Expert
001G0403 Rubber
Bumper
Photocells
001DOC-E with
001G0468 Support
Product Code
Operator Model
Max. Leaf (ft.)
Control Board
001G0601
22 ft. Arm
001G0461
Warning Stickers
001KIARO24N with
001G04601 Adapter
Battery Back-up
Card 002LB38
KT-BG-G6/S-B0614-1 001G6000UL 22 • • •
KT-BG-G6/S-P0614-1 001G6000UL 22 • • • •
KT-BG-G6/S-E0614-1 001G6000UL 22 • • • • • • •
Basic
Professional
Expert
001G0603 Rubber
Bumper
Photocells
001DOC-E with
001G0468 Support
Gard 6000UL Kits
Gard 4000UL Kits
Accessories
Gard
10.23"
2.90'
3.30'
10.62"
G4000UL
3.53'
2.99'
1.47' 11.61"
G6000UL
Max. width
Passage clearance
Color:
Cabinet - orange textured
Code 053 0837
Cover RAL9006
Limits to use
Model 001G4000UL 001G6000UL
Composition of the bar Max. width of passage clearance (ft.)
Simple bar 13 22
Bar with G0403 rubber and G0460 lamps 11 20
Bar with G0463 mobile support 11 20
Bar with G0403 rubber, G0460 lamps
and G0465 rack or G0463 mobile support 8.2 20
Bar with G0465 rack and G0463 mobile support 6.5
Bar with G0403 rubber, G0460 lamps 18
G0465 rack and G0463 mobile support -
24V D.C.
22'
came-americas.com
Compliant with UL 325 STD
and CSA STD C22.2 No. 247
for both the US & Canada
Accessories for barrier gates with 24V D.C. operators
002LB38
Card for connecting (3) 12V-7Ah emergency
batteries for: G4000UL and G6000UL barriers
001G0401
White painted aluminum bar for G4000UL
barriers. Section: 2.36 x 1.57 x 165.35 in.
001G0402
White painted aluminum bar for G4000UL
barriers. Section: 2.36 x 165.35 in. (for areas
subject to strong wind)
001G0461
Red adhesive refracting strips for bars
(24 pieces per package)
001G0405
Fitting for G0402 bar
001G0403
Impact-resistant red protective rubber
001G0460
Package of (6) 24V signalling lamps for G0401
bars
001G0465
Rack for painted aluminum bar for G4000UL
and G6000UL barriers (6.56 ft modules)
001G0467
Joint for bars. For G4000UL and G6000UL
barriers
001G0462
Fixed support for bar. For G4000UL and
G6000UL barriers
001G0463
Mobile support for bar. For G4000UL and
G6000UL barriers
001G0468
Support for applying Doc series photocells on
the cabinet. For G4000UL and G6000UL barriers
001DOC-E
Photocells with 001G0468 support
001G0601
Rectangular-section aluminum bar
1.57 x 3.94 x 270 in. for G6000UL barriers
001G0602
Tubular aluminum bar 3.94 x 270 in. for
G6000UL barriers (special accessory for areas
subject to strong winds)
001G0605
Fitting for G0602 tubular bar
001G0603
Impact-resistant red protective rubber
001G04601
Adapter for application of the Kiaro ashing
lights (complements the Kiaros support)
001KIARO24N
Warningashing light with 001G04601 adapter
The information indicated in this brochure should be considered subject to change at any time without forewarning by CAME Americas Automation.
www.came-americas.com
CAME Americas Automation
11345 NW 122nd St.
Medley, FL 33178 USA
P: 305-433-3307
F: 305-396.3331
info@came-americas.com
www.came-americas.com

Navigation menu
