FEATURESDESCRIPTION

910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com

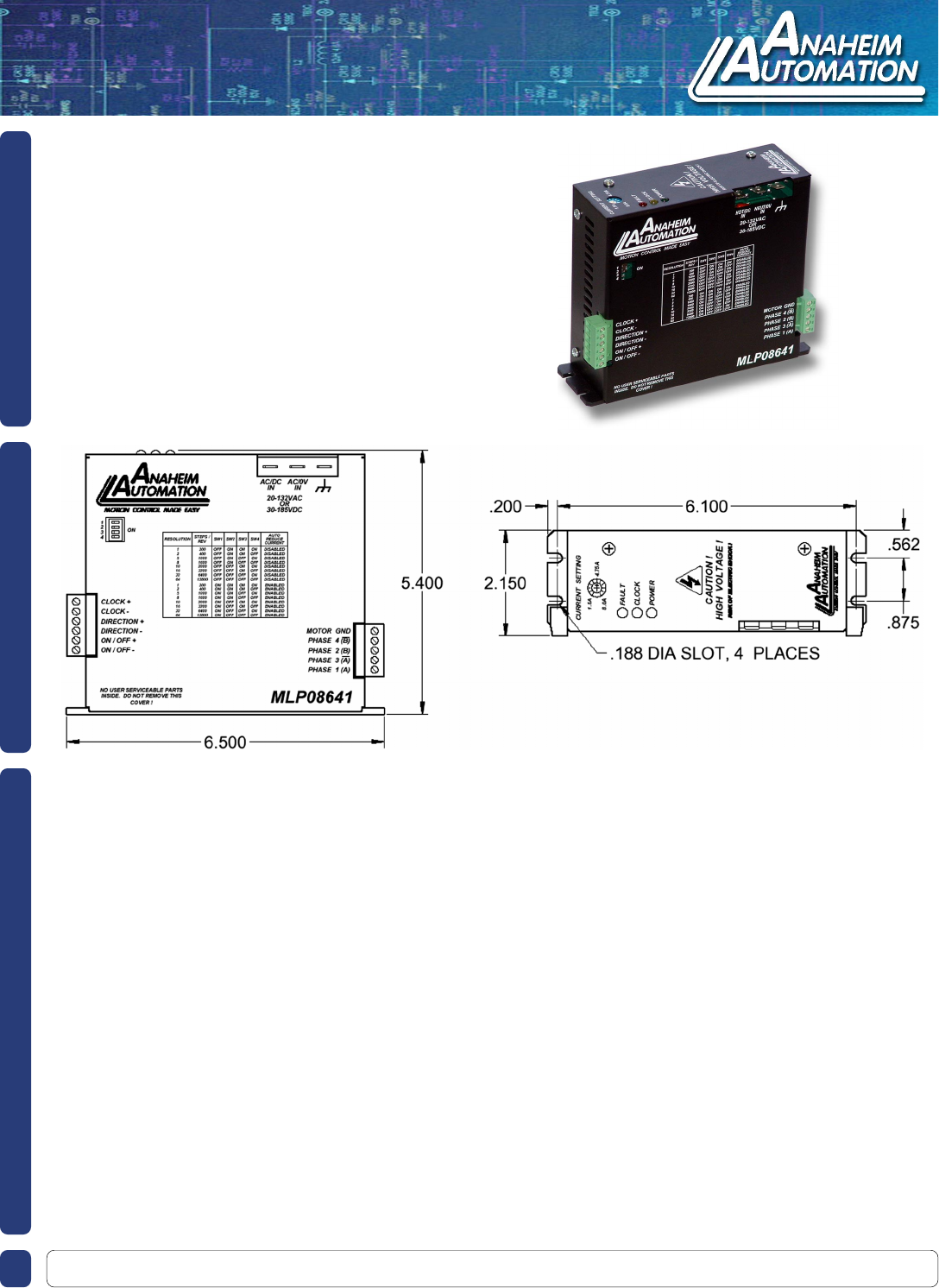

DIMENSIONS

•

Designed for OEM Applications

•

Cost Effective Line Powered Driver

•

No Power Supply Needed

•

Outstanding Servo-Like Performance

•

Smooth Microstepping Resolution

•

Compact and Rugged Construction

•

Compatible with NEMA 23, 34, and 42

Step Motors

MLP08641 - Line Powered Driver

MLP08641 - Line Powered Driver

Would you like your step

motor to ramp quicker and move

faster without increasing your bud-

get? Anaheim Automation has de-

signed the best step motor driver

solution in the industry. The

MLP08641 driver will provide your

motion control systems outstand-

ing performance without having to

pay for any “extra’s”.

Don’t be oversold on fea-

tures that increase your budget.

Take control of your driver needs

by relying on Anaheim

Automation’s expertise; helping

you regain control of your project

budget without compromising qual-

ity.

The MLP08641 will gener-

ate 50% more torque and 50%

more power at speeds greater than

10RPS. The driver is able to ac-

celerate the motor faster due to the

higher bus voltage that will improve

or shorten any systems cycle time.

This performance increase will im-

prove your productivity rate, mo-

tor output torque and reaction time,

improving your systems overall

performance.

The MLP08641 Line Pow-

ered Step Motor Driver will oper-

ate off 90VAC - 132VAC line volt-

ages which provides outstanding

high speed and high output torque,

smooth positioning, and an opti-

mized design at a cost effective

price.

Ideal Applications:

CNC Machines, Packaging Ma-

chinery, Labeling Machinery, Web

Processing, Inspection Machines,

Agriculture, Food & Beverage, Pa-

per Feeders, Tamper Evident,

Materials Handling, Textile Ma-

chinery, Gantry Automation, Gen-

eral Robotics and many more.

910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com

#ledoM rebmuN

sixAfo

tnerruC

egnaR

)A(

noitpircseD

tupnI

egatloV

)CAV(

rewoP

)ttaW(

14680PLM10.8-5.1revirDralopiBgnippetsorciMderewoPeniL231-09005

106PLMPD 1 0.8-5.1 elbammargorPahtiwdegakcaPrevirD14680PLM

.noituloser5ybediviD,dexiF.rellortnoC 231-09 005

10580PLM10.8-5.1 petshtiwtub,revirD14680PLMehtotralimiS

.05dna,52,01,5,2,1fosrosivid 231-09005

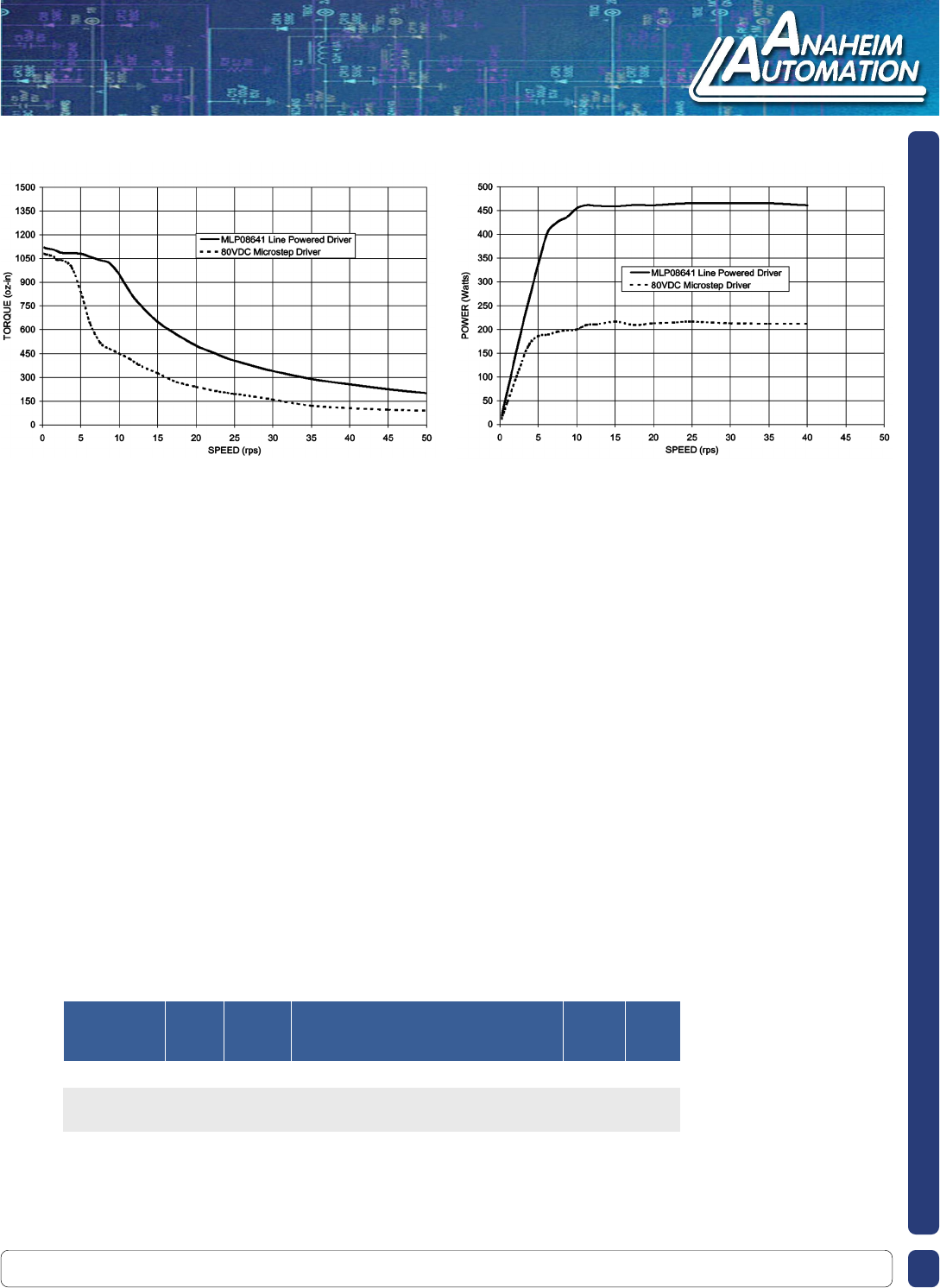

Comparision Curves: MLP08641 vs. 80VDC Microstep Driver

ADDITIONAL INFORMATION

Ordering Information

These curves compare the

performance of the MLP08641 to

an 80VDC microstep driver to help

illustrate the additional torque and

power output capabilities of the line

powered MLP08641. As you can

see, the MLP08641 easily outper-

forms the 80VDC microstep driver

without the need for an additional

power supply.

The MLP08641 is a line-

powered, high performing

microstep driver, with an output

current capability of 1.5 Amps mini-

mum and 8.0 Amps maximum. The

MLP08641 operates with either an

AC voltage of 20-135 VAC, or a

DC voltage of 30-185 VDC. The in-

puts are optically isolated, with a

minimum sourcing of 7.0 mA per

input (+5VDC minimum to

+24VDC maximum). The clock in-

put is set to receive either positive

or negative edge clocks with a

maximum frequency of 400KHz.

This line-powered driver offers di-

rection control and motor current

ON/OFF capabilities.

The Reduce Current En-

abled feature automatically re-

duces the motor current to 50% of

the set value after the last step is

made (1 sec. delay). The driver has

built-in features including a green

LED to indicate Power On, a yel-

low LED to indicate clocks being

received, and a red LED to indi-

cate fault conditions. Protection

devices featured in the driver are

phase to phase short-circuit, mo-

tor miswire, and over-temperature

and over-voltage conditions.

The MLP08641 also fea-

tures various step motor resolu-

tions, that can be selected by an

onboard DIP switch. These divi-

sors range from 200 to 12,800

steps per revolution: 1, 2, 5, 8, 10,

16, 32, and 64. The MLP08641

bipolar drive is compatible with 4,

6 and 8 lead step motors.
