THE FASCINATION OF

FLASH PHOTOGRAPHY –

Metz mecablitz – Flash units for

analog and digital cameras

METZ MECABLITZ

COMPLETE PHOTO ELECTRONICS CATALOGUE 2008

Into the future with tradition

Photo Gallery

Product Families

System Flash Units

Metz mecablitz 58 AF-1 digital

Metz mecablitz 48 AF-1 digital

Metz mecablitz 36 AF-4 digital

SCA Flash Units

Metz mecablitz 76 MZ-5 digital

Metz mecablitz 45 CL-4 digital

Metz mecablitz 54 MZ-4i digital

Metz mecablitz 44 MZ-2 digital

CONTENTS

Automatic Flash Units

Metz mecablitz 45 CL-1

Metz mecablitz 36 C-2 + Metz mecablitz 20 C-2

Slave Flash Units

Metz mecablitz 28 CS-2 digital

Quick Search

Technical Data

Accessories

Technical Dictionary

Into the future with tradition

Photo Gallery

Product Families

System Flash Units

Metz mecablitz 58 AF-1 digital

Metz mecablitz 48 AF-1 digital

Metz mecablitz 36 AF-4 digital

SCA Flash Units

Metz mecablitz 76 MZ-5 digital

Metz mecablitz 45 CL-4 digital

Metz mecablitz 54 MZ-4i digital

Metz mecablitz 44 MZ-2 digital

Into the future with tradition

For decades, Metz has played a leading role in professional ﬂash

photography. It’s no wonder, because the company’s product range

is very diverse. Ranging from handy and compact up to powerful

handheld ﬂashguns, there is just the right light for any need. The

highly-developed SCA adapter system is another Metz strength.

It makes it possible for Metz SCA ﬂash units to be used on many

cameras. Metz thus successfully manufactures products that stand out

due to their versatility, long service life, and quality.

Excellent

quality

Metz ﬂash units operated convincingly

in many tests. This is the case for light

performance as well as reliability and

handling. In order to maintain this

quality, the Metz plants in Zirndorf

near Nuremberg consistently rely on

development and production in its

German location. Highly-qualiﬁed

personnel and our own training

system, as well as the know-how from

decades of development work, combined with demanding quality

management (ISO 9001) in all corporate divisions guarantee that

the highest demands are met: Metz – always ﬁrst class.

Technical

perfection

Decades of development experi-

ence and production in Germany

ensure the high technical standard

of Metz devices. The use of high-

quality components in connection

with the most modern high-tech

SMD assembly machines ensure

that you can rely on Metz prod-

ucts. Convincing evidence for this

is the worldwide marketing of

high-quality products, both in the

ﬂash sector as well as in ultramod-

ern TV production.

Metz – Ideas

have a future

Through an entire series of

technical pioneer work, the

Metz plants have established

an excellent reputation over

many decades. This is the result

of core competences in the

areas of electronics and plastics

engineering. An entire series of

innovations, such as the world’s

ﬁrst integrated USB port in the

mecablitz 58 AF-1 digital and

mecablitz 48 AF-1 digital, or the

self-learning Slave Mode in the

mecablitz 28 CS-2 digital, are

typical examples of this.

More fun – better pictures

ﬂash photographer has to spend time

on f-stop calculations or use various

formulas. Intelligent units have now

taken over most of the work. With the

help of various special functions, one

can concentrate on the essentials,

i.e. the picture composition. That

way, using a ﬂash is really fun!

PHOTO GALLERY

Using a ﬂash pays off: Anyone using additional light when taking a photograph obtains better results, because in

post-processing, it isn’t possible to obtain missing colors or brilliance from the picture:

The methods:

Using a ﬂash doesn‘t only mean

ﬂooding a dark subject with light;

rather it also means handling this

light in a target manner as well as

creatively. There are very different

methods available to achieve this. It

starts with a direct ﬂash of the subject

with a ﬂash unit fastened to the

camera, and continues with a bounce

ﬂash, which is made possible by

turning and tilting the reﬂector head.

This way, the light can be redirected

either with a special bounce diffuser

or with an extendable, integrated

reﬂector card. In addition, there are

other ﬂash methods that can be

achieved through an “off-camera”

use of the units. Adjusting the ﬂash

exposure plays a major role in the

effect of a subject. In many Metz

ﬂash devices, the amount of light can

be controlled variably, and thus

balanced entirely according to need.

In this way, a lighting mood is never

lost. There is even considerable

advantage in using a Metz ﬂash in

daylight. Shadowed areas or back-

light can be brightened optimally in

this way, and it enables pictures with

undreamed-of sharpness and bril-

liance. In contrast to bygone eras,

ﬂashes and cameras themselves

already contribute a great deal to

successful exposure. These days, no

With System ﬂash units, using a ﬂash is a great deal of

fun. Thanks to their being highly-developed and fully

automatic, you only have to attach the ﬂash, and away

you go. System ﬂash units are available in different

versions. In this way, they provide a speciﬁc connection

for a speciﬁc brand of camera, with which it works

together perfectly. The best examples of this are the Metz

mecablitz 58 AF-1 digital, which was singled out as the

“Best Flash Unit in Europe 2007/2008”*, or the Metz

mecablitz 48 AF-1 digital.

The ﬂexibility of Metz mecablitz units can be seen in the different ﬂash families. They have the respective functional

equipment to go along with the different requirements proﬁles. In principle, there are the following groups:

Cameras can change, but not Metz! The unique special

feature of Metz SCA ﬂash units is that one and the same

ﬂash unit can be used with different cameras – it doesn’t

matter whether they are digital or analog. By simply

replacing the adapter, system cameras of different manu-

facturers can be used. Flash units with SCA adapters are

particularly good for reﬂex cameras, because they offer

the richest array of special functions. Of course, the

SCA modules are also suitable for cameras from many

other manufacturers, because of the adapters available.

SYSTEM FLASH UNITS SCA FLASH UNITS

With Metz mecablitz digital into the future

PRODUCT FAMILIES

* EISA Award 2007/2008

Automatic ﬂash units are connected to the camera via

a hot-shoe contact or a sync cord connection and have

their own automatic ﬂash control. This means that it isn’t

the camera that controls the ﬂash, rather the ﬂash itself

responds intelligently and meters the light as precisely

as required by the subject. There are automatic ﬂash

units ranging from professional handheld ﬂash guns to

small, handy compact ﬂashes.

For compact digital cameras (with ﬂash connectors),

there is the particularly handy mecablitz 20 C-2 in this

category, which offers a vertically-tilting reﬂector, despite

its minimal size.

The group of slave ﬂash units is intended to be used for

particularly varied and interesting directed lighting. This is

because they can be used as so-called “off-camera” ﬂashes,

because they can be positioned anywhere in the room.

Because they don‘t need a direct contact to the camera,

they are especially interesting for owners of compact digital

cameras that don‘t have a ﬂash connection option.

With the SCA 3083 digital Slave Adapter (Metz Remote

System), any current model of SCA ﬂash unit is given addi-

tional slave qualities and in this way becomes a member

of the family. Even the mecablitz 58 AF-1 digital or the

48 AF-1 digital can be used as a “slave”, even though they

are not directly assigned to this category. In this mode of

operation, they also support the ﬂash modes of the respective

camera manufacturer.

AUTOMATIC FLASH UNITS SLAVE FLASH UNITS

Using a ﬂash is more fun than ever before. It’s no wonder, because

with Metz system ﬂash units, absolute operating comfort is available.

Clearly-arranged displays, some of them even illuminated, give

information, for example, about what values the respective ﬂash pro-

gram completely automatically sets. Sophisticated ﬂash techniques

are therefore child‘s play to use. There is also the guaranteed future

factor for units with an integrated USB port. It’s not for nothing that

the mecablitz 58 AF-1 digital was given the prize for the “Best Flash

Unit in Europe 2007/2008”*.

SYSTEM FLASH UNITS FLASH TIP

Spanning large distances:

The choice of ﬂash mode decisively affects the

mood in photography. The pictures compared

on this page show an effectively brightened

subject that was at a great distance. In this con-

nection, it was wise to use a powerful ﬂash unit

such as the Metz mecablitz 58 AF-1 digital. It

can also brighten parts of pictures distant from

one another both effectively and extremely

accurately. There are special camera-speciﬁc

functions available for this purpose, depending

on the version.

* EISA Award 2007/2008

SCA FLASH UNITS SYSTEM FLASH UNITSAUTOMATIC FLASH UNITSSLAVE FLASH UNITS

FLASH TIP

Obtaining the lighting mood:

Thanks to modern ﬂash controllers such as, for

example, E-TTL, i-TTL, P-TTL, and ADI, the light

output of Metz system ﬂash units can be control-

led by the camera. If the existing lighting mood

is to be retained, it is therefore important to use

a shutter time that is longer than the ﬂash synch

time. For portraits, however, an exposure time

of 1/60 second should not be exceeded.

MECABLITZ 58 AF-1 DIGITAL

Flash output

•highmax.GNof58forISO100/21°

and 105 mm

Basic conﬁguration

•secondaryreectorwith3lightoutput 

ratios

•vertical(-7/+90°)andhorizontal(270°)

swivel reﬂector

•easyoperatingconcept

•illuminabledotmatrixLCdisplay

•motorzoomfor24-105mmillumination

•integratedwide-anglediffuserfor

18 mm illumination

•reectorcardthatcanbeippedopenfor

soft ﬂash illumination

•modelinglight(permanentlightfor

checking the photo)

•integratedautofocusmulti-zone

measuring ﬂash

•ashreadinessandexposurecontrol

indicators on the unit and camera

•ashrangeindicator

•automaticunitswitch-offand

manual key lock

Standard ﬂash modes

•TTLashmode

•automaticashmodewith12automatic

apertures

•manualashmodewith25partial

lighting levels

•stroboscopemode

•HSS–highspeedsynchronization

•1stand2ndshuttercurtainsynchronization

•manualashexposurecorrectionforTTL

or automatic ﬂash mode

•automaticll-inash

•ashbracketing

For the ambitious

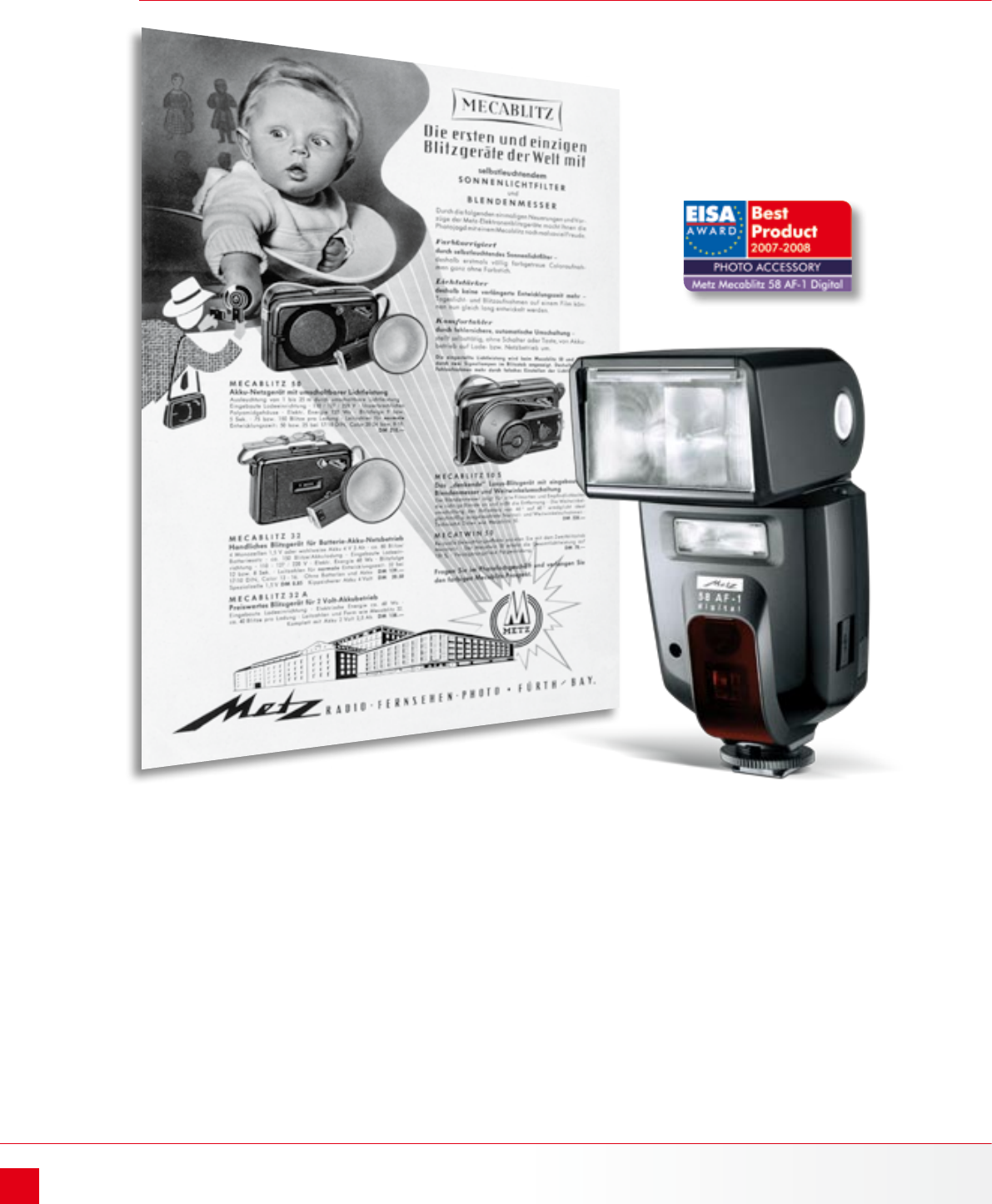

Best ﬂash unit in Europe

2007/2008*

Experts from 50 different trade

journals from 18 European countries

awarded this coveted prize to the

Metz mecablitz 58 AF-1 digital in

the Photo Accessories category. The

innovative high-performance unit was

the ﬁrst ﬂash equipped with a USB

port. It can be used to conveniently

update the speciﬁc ﬁrmware of each

variation of the model via the compu-

ter and Internet. It looks sleek, adjusts

the ﬂash exposure with every trick

in the book, is intuitive to use and

tremendously powerful. Equipped

with innovative developments, the

Metz mecablitz 58 AF-1 digital

provides state-of-the-art secondary

reﬂector technology, high-perform-

ance power management, multi-zone

AF measuring ﬂash, and a fully

swiveling reﬂector system. The new

top Metz model transmits all camera-

speciﬁc system ﬂash modes from

Canon, Nikon, Pentax/Samsung,

Olympus/Panasonic or Sony Alpha

cameras (as of 03/2008), including

the respective wireless TTL mode. Due

to its high guide number, the 58 AF-1

digital is not only especially powerful,

but is also outstanding for bounce

ﬂash use. For its vertical as well as

horizontal rotating and swiveling re-

ﬂector, Metz integrated an extendible

reﬂector card for the ﬁrst time. Addi-

tional brilliance can be obtained for

the close-up range via the integrated,

system-controlled, secondary reﬂector

for bounce ﬂash.

Extendible

reflector card

Secondary reflector

with 3 partial lighting

levels

USB portEasy to operateTilt reflector

GNof58atISO100/21°(105mm)

GNof42atISO100/21°(50mm)

In detaIl

CANON

NIKON

FUJIFIlm

OlYmPUS

PANASONIC

PENTAX

SAmSUNG

SONY (D-SlR)

Camera-speciﬁc

system ﬂash modes

•E-TTL-/E-TTL-IIashmode

•E-TTLremotemode

(master and slave operation)

•i-TTL/D-TTL/3Dashmode

•i-TTLremotemode

(master and slave operation)

•FourThirdsTTLashmode

•FourThirdsTTLremotemode

(master and slave operation)

•P-TTLashmode

•P-TTLremotemode

(master and slave operation)

•ADIashmode

•ADIremotemode(slaveoperation)

Guaranteed in the future

•FirmwareupdateviaintegratedUSBport

Power supply

•4xAAalkaline-magnesium

or lithium batteries

•4xAANCorNiMH

rechargeable batteries

•powerfulMetzNiMHPowerPackP76

with V 58-50 cable

Included in delivery

•beltcase

•slavemountingfoot

CANON VERSION

NIKON / FUJIFIlm VERSION

OlYmPUS / PANASONIC / lEICA VERSION

PENTAX / SAmSUNG VERSION

SONY AlPhA VERSION

Power Pack P 76 Set

(V58-50 cable

required

Bounce diffuser 54-23

for bounce flash

Mecabounce 58-90

for softer illumination

accessorIes

SCA FLASH UNITS SYSTEM FLASH UNITSAUTOMATIC FLASH UNITSSLAVE FLASH UNITS 13

MECABLITZ 48 AF-1 DIGITAL

Flash output

•highmax.GNof48forISO100/21°

and 105 mm

Basic conﬁguration

•vertical(-7/+90°)andhorizontal(270°)

swivel reﬂector

•illuminableLCDdisplay

•easyoperatingconcept

•motorzoomfor24-105mmillumination

•integratedwide-anglediffuserfor

18 mm illumination

•extendiblereectorcardfor

soft ﬂash illumination

•modelinglight(permanentlightfor

checking the photo)

•integratedautofocusmeasuringash

•ashreadinessandexposurecontrol

indicators on the unit and camera

•ashrangeindicatorintheLCDdisplay

•automaticunitswitch-offand

manual key lock

Standard ﬂash modes

•TTLashmode

•manualashmodewith8partial

lighting levels

•HSS–highspeedsynchronization

•1stand2ndshuttercurtainsynchronization

•manualashexposurecorrection

for TTL ﬂash mode

•automaticll-inash

•ashbracketing

In detaIl

Extendible

reflector card

USB portTilt reflector

GNof48atISO100/21°(105mm)

GNof35atISO100/21°(50mm)

Innovative and ﬂash-ready

Presenting the new Metz mecablitz

48 AF-1 digital – stylish and technically

state-of-the art. Equipped with a USB

port for ﬁrmware updates via Internet,

it has shown itself to be just as innova-

tive as its big brother the 58 AF-1

digital, which has just been singled

out as “Europe’s Flash Unit of the Year

2007/2008”*. Perfectly matched

to digital cameras from leading manu-

facturers in each case, it is available

in ﬁve different versions (Canon,

Nikon, Olympus/Panasonic, Pentax/

Samsung or Sony Alpha) – each indi-

vidual one is ﬂash-ready, due to its fully

For committed amateur photographers

automatic ﬂash modes. They facilitate

precision light output, tailor-made for

each individual subject. Numerous

manual intervention options comple-

ment the photographic creative ﬂexi-

bility. Supported by a fully swiveling

reﬂector system, which also has an

extendible reﬂector card and a

diffuser, almost unlimited possibilities

open up for creative directed lighting.

Thanks to the slave function, the

48 AF-1 digital can even be used

detached from the camera. In the

respective camera-speciﬁc wireless

TTL mode, it can thus be used as a

slave unit. It is an outstanding ﬂash unit

for committed amateur photographers.

* EISA Award 2007/2008

CANON

NIKON

FUJIFIlm

OlYmPUS

PANASONIC

PENTAX

SAmSUNG

SONY (D-SlR)

Camera-speciﬁc

system ﬂash modes

•E-TTL-/E-TTL-IIashmode

•E-TTLremotemode(slaveoperation)

•i-TTL/D-TTL/3Dashmode

•i-TTLremotemode(slaveoperation)

•FourThirdsTTLashmode

•FourThirdsTTLremotemode

(slave operation)

•P-TTLashmode

•P-TTLremotemode(slaveoperation)

•ADIashmode

•ADIremotemode(slaveoperation)

Guaranteed in the future

•FirmwareupdateviaintegratedUSBport

Power sources

•4xAAalkaline-magnesiumor

lithium batteries

•4xAANCorNiMH

rechargeable batteries

CANON VERSION

NIKON/FUJIFIlm VERSION

OlYmPUS/PANASONIC/lEICA VERSION

PENTAX/SAmSUNG VERSION

SONY AlPhA VERSION

accessorIes

Bounce diffuser 54-23

for bounce flash

Mecabounce 58-90

for softer

illumination

SCA FLASH UNITS SYSTEM FLASH UNITSAUTOMATIC FLASH UNITSSLAVE FLASH UNITS 15

MECABLITZ 36 AF-4 DIGITAL

In detaIl

Spotlight for AF

measurement flash

Tilt reflector

(only vertical)

Zoom reflector

(28-85 mm)

Flash output

•max.GNof36forISO100/21°

and 85 mm

Basic conﬁguration

•verticallytiltingreector+90°

•LEDdisplays

•manualzoomreectorfor28-85mm

illumination

•integratedautofocusmeasurementash

•ashreadinessandexposurecontrol

indicators on the unit and camera

Standard ﬂash modes

•TTLashmode

•1stand2ndshuttercurtainsynchronization

•manualashexposurecorrectionforTTL

ﬂash mode (if it can be set on the camera)

•automaticll-inash

GNof36atISO100/21°(85mm)

GNof30atISO100/21°(50mm)

The compact class

Presenting the Metz mecablitz

36 AF-4C digital for Canon, or

alternatively the 36 AF-4N digital for

Nikon, in the advantageous Cobra

design. With these two sophisticated

entry-level models Metz has the right

ﬂash answer ready for groups of users

of Canon or Nikon digital cameras.

The mecablitz 36 AF-4C digital pro-

vides E-TTL ﬂash mode; the 36 AF-4N

for Nikon has i-TTL ﬂash mode. In

addition, they are impressive because

of their likeably easy operation. Even

bounce ﬂash becomes child’s play,

due to the vertically-tilting reﬂector.

The manually-adjustable zoom

reﬂector has other advantages.

By adjusting the reﬂector to different

focal lengths, the illumination angle

of the 36 AF-4 digital can be

optimally utilized.

For demanding beginners

CANON

NIKON

FUJIFIlm

Camera-speciﬁc

system ﬂash modes

•E-TTLashmode

•i-TTLashmode

Guaranteed in the future

•firmwareupdatepossiblevia

Metz Service

Power sources

•4xAAalkaline-magnesiumbatteries

•4xAANCorNiMH

rechargeable batteries

CANON VERSION

NIKON/FUJIFIlm VERSION

SCA FLASH UNITS SYSTEM FLASH UNITSAUTOMATIC FLASH UNITSSLAVE FLASH UNITS 17

FLASH TIP

A second look

Many wedding photographs are exclusively

standard poses. Anyone who comes up with

additional ideas here can score bonus points.

Why not photograph the bridal couple or wed-

ding guests during small talk? With some ﬂash,

the subject is given additional sharpness and

brilliance. For this purpose, there are different

partial light output levels to choose from with

Metz handheld ﬂash guns.

The unique special feature of Metz SCA ﬂash units is that one and

the same ﬂash unit can be used with different cameras – it doesn’t

matter whether they are digital or analog. By simply replacing the

adapter, system cameras from different manufacturers can be used,

because they offer the richest array of special functions.

Flash units with SCA adapters are just as suitable for system camera

owners as for medium-format camera owners. All members of the

SCA family meet this criterion, whether it is a handheld ﬂash gun or

a compact ﬂash.

SCA FLASH UNITS

FLASH TIP

Perfectly-equipped

Tough professional use requires the maximum

ﬂash power. The new, practical, high-power

Power Pack P 76, which attaches to your belt,

provides even more energy. This increases ﬂash

output, while simultaneously reducing the ﬂash

recycle time. This is a dramatic improvement,

which makes it possible to fall back on maximum

ﬂash power when taking a battery-draining

series of shots.

SCA FLASH UNITS SYSTEM FLASH UNITSAUTOMATIC FLASH UNITSSLAVE FLASH UNITS 19

MECABLITZ 76 MZ-5 DIGITAL

Flash output

•highmax.GNof76forISO100/21°

and 105 mm

Basic conﬁguration

•SCAadaptersystem(universalashunit

useable with different cameras)

•secondaryreectorwith3light

lighting levels

•vertical(+90°)andhorizontal(270°)

tilt reﬂector

•controlunitwithilluminateddot

matrix display

•easyoperatingconcept

•motorzoomfor24-105mmillumination

•accompanyingwide-anglediffuserfor

20 mm illumination

•modelinglight(permanentlightfor

checking the illumination)

•integratedauto-focusmeasurementash

in the control section

•ashreadinessandexposurecontrol

indicators on the unit and camera

•ashrangeindicatorinLCD

•manualkeylock

Standard ﬂash modes

•TTLashmode

•automaticashmodewith

12 automatic apertures

•manualashmodewith25partial

lighting levels

•stroboscopemode

•1stand2ndshuttercurtainsynchronization

•manualashexposurecorrectionforTTL

or automatic ﬂash mode

•automaticll-inash

•ashbracketing

GNof76atISO100/21°(105mm)

GNof54atISO100/21°(50mm)

Powerful handheld ﬂash guns

Worldwide, professional photogra-

phers put their trust in the powerful

76 MZ-5 digital from Metz. Above

all at weddings and fashion shows,

its ability to take fast series of shots

pays off. Its secondary reﬂector –

which makes it possible to set perfect

highlights in the eye – is worth its

weight in gold. It goes without saying

that the camera-speciﬁc system ﬂash

modes of the various manufacturers

can also be used perfectly with this

professional ﬂash, through different

SCA adapters.All menu navigation

settings can be activated from the

device itself, and a locking function

means you won’t accidentally change

ﬁxed values. Of course, the 76 MZ-5

Light power for pros

digital keeps up with the times and

provides outstanding ﬂash conven-

ience with a great deal of creative

ﬂexibility in setting up shots. Discrimi-

nating photographers will appreciate

the lasting ﬂash performance ensured

by the NiMH rechargeable battery

and the Metz charger. It offers consid-

erably more power than the previous

NiCad rechargeable battery. The

control unit of the 76 MZ-5 digital is

specially equipped with a large,

illuminated dot matrix display. Plus,

the reﬂector of the zoom ﬂash unit

automatically adapts to a focal length

range of 24 - 105 mm depending on

the type of camera. A wide-angle

diffusing disk, included with the ﬂash,

enables expansion to 20 mm.

In detaIl

Swivel reflector Mounting

bracket 50-25

Control unit with

LCD display and

integrated AF

measurement flash

Illuminable dot

matrix display

Secondary reflector

with 3 selectable

light lighting levels

SCA 3002 adapter

CANON

NIKON

FUJIFIlm

hASSElBlAD

lEICA

mAmIYA

OlYmPUS

PANASONIC

PENTAX

ROllEI

SAmSUNG

SONY

Camera-speciﬁc system ﬂash

modes with SCA adapters

•E-TTL-/E-TTL-IIashmode

•i-TTL/D-TTL/3Dashmode

•FourThirdsTTLashmode

•P-TTLashmode

•ADIashmode

•ADIremotemode(slaveoperation)

Guaranteed in the future

•firmwareupdatepossible

via Metz Service

Power sources

•MetzNiMHrechargeablebattery76-56

(included with ﬂash)

•powerfulMetzNiMHPowerPackP76

with V 76 cable

Included in delivery

•standardfoot

•camerabracket

•NiMHrechargeablebatteries

•charger

•wide-anglediffuser(20mm)

CANON

NIKON/FUJIFIlm

OlYmPUS/PANASONIC/lEICA

PENTAX/SAmSUNG

SONY AlPhA

Bounce diffuser 76-23

for bounce flash

Mecabounce 50-90

for softer illumination

Color filter set

50-32

NiMH charger

set B 47

Power Pack P 76 set

+ V 76 cable

accessorIes

SCA 3002 adapter

SCA FLASH UNITS SYSTEM FLASH UNITSAUTOMATIC FLASH UNITSSLAVE FLASH UNITS 21

MECABLITZ 45 CL-4 DIGITAL

Great performance:

The Metz mecablitz 45 CL-4 digital is

a powerful handheld ﬂashgun that is

very convincing, due to its GN of 45

forISO100/21°and35mmfocal

length, as well as the most modern

charging method available. It is an

ideal ﬂash unit for photographers who

put higher priority on high light output

and rapid recycling times, as well

as extensive optional features. It is

equipped with a secondary reﬂector

in order to be able to create perfect

highlights in portraits. It goes without

saying that the camera-speciﬁc system

ﬂash modes of the various manufactur-

ers can also be used perfectly with

this professional ﬂash, through various

SCA adapters.

Flash output

•highmax.GNof45forISO100/21°

and 35 mm

Basic conﬁguration

•SCAadaptersystem(ashunituseable

with different cameras)

•socketforSCA3045digitalcable

(to connect to SCA adapter on

camera shoe)

•secondaryreectorwith3light

lighting levels

•vertical(+90°)andhorizontal(360°)

tilt reﬂector

•LEDdisplays

•standard35mmillumination

•accompanyingwide-anglediffuserfor

28 mm illumination

•integratedauto-focusmeasurementash

(in separate SCA 3045 connection cable)

•ashreadinessandexposurecontrol

indicators on the unit and camera

•ashrangeindicatorinLED

(for manual settings)

Standard ﬂash modes

•TTLashmode

•automaticashmodewith

12 automatic apertures

•manualashmodewith5partial

lighting levels

•HSS–highspeedsynchronization

•1stand2ndshuttercurtainsynchronization

•manualashexposurecorrection

for TTL ﬂash mode (if it can be set on

the camera)

•automaticll-inash

The TTL mode and the automatic

functions can be just as easily set as

manual partial lighting, via the practi-

cal dial on the top of the 45 CL-4

digital. This ﬂash unit, specially

designed for digital cameras, also

offers all the important special func-

tions listed above for the 76 MZ-5

digital, including high-speed synchro-

nization (HSS). The reﬂector‘s vertical

and horizontal tilt and swivel abilities

can also be used for indirect ﬂash

lighting, just like on the 76 MZ-5

digital. The Power Pack P 76 is

available for particularly intensive

professional use, which can increase

the ﬂash output and further reduce

the ﬂash recycle time.

Leitzahl45beiISO100/21°(35mm)

In detaIl

Swivel reflector SCA 3002 adapter

with SCA 3045 cable

SCA 300 adapter

with SCA 300A cable

Secondary reflector

For pros

CANON

NIKON

FUJIFIlm

hASSElBlAD

lEICA

mAmIYA

OlYmPUS

PANASONIC

PENTAX

ROllEI

SAmSUNG

SONY

Camera-speciﬁc system ﬂash

modes with SCA adapters

•E-TTL-/E-TTL-IIashmode

•i-TTL/D-TTL/3Dashmode

•FourThirdsTTLashmode

•P-TTLashmode

•ADIashmode

•ADIremotemode(slavefunction)

Guaranteed in the future

•firmwareupdatepossiblevia

Metz Service

Power sources

•MetzNiMHrechargeablebattery45-56

(included with ﬂash)

•powerfulMetzNiMHPowerPackP76

with V 76 cable

•alkaline-magnesiumbatteries(battery

basket 45-39 required separately)

Included in delivery

•Wide-anglediffuser

•Synccable

•Camerabracket

•NiMHrechargeablebattery

and charger

CANON

NIKON/FUJIFIlm

OlYmPUS/PANASONIC/lEICA

PENTAX/SAmSUNG

SONY AlPhA

Bounce diffuser 76-23

for bounce flash

Battery basket 45-39 NiMH charger

set B46

Power Pack P 76 Set

(V76 cable required)

accessorIes

SCA 3002 adapter

with SCA 3045 cable

SCA FLASH UNITS SYSTEM FLASH UNITSAUTOMATIC FLASH UNITSSLAVE FLASH UNITS 23

MECABLITZ 54 MZ-4i DIGITAL

Flash output

•highmax.GNof54forISO100/21°

and 105 mm

Basic conﬁguration

•SCAadaptersystem(ashunituseable

with different cameras)

•secondaryreector

•vertical(-7/+90°)andhorizontal(270°)

tilt reﬂector

•illuminableLCDdisplay

•easyoperatingconcept

•motorzoomfor24-105mmillumination

•integratedwide-anglediffuserfor

20 mm illumination

•modelinglight(permanentlightfor

checking the photo)

•integratedautofocusmeasurementash

•ashreadinessandexposurecontrol

indicators on the unit and camera

•ashrangeindicatorinLCD

•automaticunitswitch-offandmanual

key lock

Standard Flash Modes

•TTLashmode

•automaticashmodewith

12 automatic apertures

•manualashmodewith25partial

lighting levels

•stroboscopemode

•HSS–highspeedsynchronization

(Canon, Sony, Nikon analog, Leica)

•1stand2ndshuttercurtainsynchronization

•manualashexposurecorrectionforTTL

or automatic ﬂash mode

•automaticll-inash

•ashbracketing

For semi-professionals

Especially versatile:

Presenting the simple and highly

functional ﬂagship of the Metz SCA

compact ﬂash units.

It is convincing due to the:

•Highlightoutput:GNof54at

 ISO100/21°and105mm

focal length.

•Largelightangle:illuminationofa

focal length range of 24-105 mm.

•switch-controlledsecondary

reﬂector, with light output that can

be reduced by using a grey ﬁlter.

•Easeofuse:alargedisplay

ensures you always have a good

overview. Only two function

keys and a control dial facilitate

good handling.

In detaIl

Swivel reflector SCA 3002 adapter2 function keys,

1 control dial

Secondary reflector

with attachable

reduction filter

•Greatexibility:Tobeginwith,the

Metz 54 MZ-4i digital is available

with a standard foot. Furthermore,

due to the SCA system, there are

many adapters available for almost

any camera.

•Diversity:Viavariousadapters,

there are also a great deal of

interesting special functions such as

E-TTL and E-TTL II ﬂash mode from

Canon, i-TTL from Nikon, or

ADI ﬂash control from Sony Alpha,

and many more, which increase the

creative ﬂexibility.

GNof54atISO100/21°(105mm)

GNof40atISO100/21°(50mm)

CANON

NIKON

FUJIFIlm

hASSElBlAD

lEICA

mAmIYA

OlYmPUS

PANASONIC

PENTAX

ROllEI

SAmSUNG

SONY

Camera-speciﬁc system ﬂash

modes with SCA adapters

•E-TTL-/E-TTL-IIashmode

•i-TTL/D-TTL/3Dashmode

•FourThirdsTTLashmode

•P-TTLashmode

•ADIashmode

•ADIremotemode(slavefunction)

Power sources

•4xAAalkaline-magnesiumor

lithium batteries

•4xAANCorNiMH

rechargeable batteries

•powerfulMetzNiMHPowerPackP76

with V 54-50 cable

Included in delivery

•Lightreductionlter

•Bag

•Standardfoot

CANON

NIKON/FUJIFIlm

OlYmPUS/PANASONIC/lEICA

PENTAX/SAmSUNG

SONY AlPhA

Bounce diffuser 54-23

for bounce flash

Mecabounce 44-90

for softer illumination

Power Pack P 76

(V 54-50 connection

cable required)

SCA 3083 digital

slave adapter

Connecting cable

SCA 3008A with

SCA 3002 adapters

and camera

bracket 40-36

accessorIes

SCA FLASH UNITS SYSTEM FLASH UNITSAUTOMATIC FLASH UNITSSLAVE FLASH UNITS 25

MECABLITZ 44 MZ-2 DIGITAL

Flash output

•max.GNof44forISO100/21°and

105 mm

Basic conﬁguration

•SCAadaptersystem(ashunituseable

with different cameras)

•vertical(-7/+90°)tiltreector

•illuminableLCDdisplay

•motorzoomfor28-105mmillumination

•integratedautofocusmeasurementash

•ashreadinessandexposurecontrol

indicators on the unit and camera

•ashrangeindicatorinLCD

•automaticunitswitch-off

Standard ﬂash modes

•TTLashmode

•automaticashmodewith

12 automatic apertures

•manualashmodewith8partial

lighting levels

•1stand2ndshuttercurtainsynchronization

•manualashexposurecorrectionforTTLor

automatic ﬂash mode

•automaticll-inash

For committed amateur photographers

Variable entry-level model:

In conjunction with the respective

SCA adapter, the mecablitz 44 MZ-2

digital can be used with almost any

analog SLR camera as well as with

digital cameras from Nikon and

Olympus/Panasonic (Four Thirds

standard). The powerful motor zoom

compact ﬂash model (GN 44) with

the large light angle of 28-105 mm

can be used either in TTL, automatic,

or manual ﬂash mode and is distin-

guished by the interesting special

functions. For example, its strengths

include the Nikon i-TTL ﬂash mode,

which makes ﬁll-in ﬂash possible in

daylight to effectively brighten far

too dark shadowy areas, second

curtain synchronization (important to

enable more natural blurring effects)

and much more. In addition, the

44 MZ-2 digital supports the special

ﬂash functions for cameras from

Hasselblad, Mamiya, Rollei, and Leica.

GNof44atISO100/21°(105mm)

GNof34atISO100/21°(50mm)

In detaIl

Easy to operateTilt reflector Spotlight for AF

measurement flash

NIKON

FUJIFIlm

hASSElBlAD

lEICA

mAmIYA

OlYmPUS

PANASONIC

ROllEI

Camera-speciﬁc system ﬂash

modes with SCA adapters

•i-TTLashmode

•FourThirdsTTLashmode

Guaranteed in the future

•Firmwareupdatepossiblevia

Metz Service (ﬂash unit and SCA adapter)

Power sources

•4xAAalkaline-magnesiumor

lithium batteries

•4xAANCorNiMH

rechargeable batteries

Included with delivery

• Standard foot

NIKON/FUJIFIlm

OlYmPUS/PANASONIC/lEICA

Bounce diffuser 54-23

for bounce flash

Mecabounce 44-90

for softer illumination

SCA 3083 digital

slave adapter

SCA 3008A

connecting cable

with SCA 3002

adapters and

camera bracket 40-36

SCA 300 or

3002 adapter

accessorIes

SCA FLASH UNITS SYSTEM FLASH UNITSAUTOMATIC FLASH UNITSSLAVE FLASH UNITS 27

The ﬂash units in this family don’t have TTL ﬂash mode; instead, they

have the so-called automatic ﬂash mode, in addition to manual ﬂash

mode. Numerous photographers still make use of this simple but

extremely effective form of ﬂash measurement. With automatic ﬂash

mode, it isn’t the camera that controls the ﬂash, but instead, the

photocell integrated in the ﬂash measures the light reﬂected from

the object. It is a really nice thing!

AUTOMATIC FLASH UNITS FLASH TIP

Fill-in ﬂash

Backlighting makes interesting light effects

possible, if you know how to use it correctly. A

ﬂash should be used in any case. With the ﬂash

output reduced by 1 or 2 f-stops, it is possible

to retain the character of the existing light.

The higher the guide number, the greater the

range of the ﬂash unit. However, when compa-

ring, it is important to make sure that the same

focal length and the same ISO speciﬁcation

are used.

FLASH TIP

Long exposure times

It is worth experimenting with exposure times

that are longer than the ﬂash sync speed.

For moving objects, interesting blurring effects

and a corresponding brightening of the fore-

ground can be obtained in a range of approx.

1 second. By the way, the easiest way to ex-

tend the range of a ﬂash unit is to increase the

ISO setting on the camera. If you use ISO 1600

instead of ISO 100, then the sensitivity of the

photo chip increases is quadrupled.

SCA FLASH UNITS SYSTEM FLASH UNITSAUTOMATIC FLASH UNITSSLAVE FLASH UNITS 29

MECABLITZ 45 CL-1

Flash output

•highmax.GNof45forISO100/21°

and 35 mm

Basic conﬁguration

•connectiontocameraviasynccable

(included with delivery)

•vertical(+90°)andhorizontal(360°)

swivel reﬂector

•LEDdisplays

•standard35mmillumination

•accompanyingwide-anglediffuserfor

28 mm illumination

•ashreadinessandexposurecontrol

indicator on the unit

•ashrangeindicatorinaperturecalculator

(for manual settings)

Standard ﬂash modes

•automaticashmodewith5automatic 

apertures

•manualashmode

Power sources

•MetzNiMHrechargeablebattery45-56

(included with ﬂash)

•powerfulMetzNiMHPowerPackP76 

with V 45 cable

•alkaline-magnesiumbatteries(battery

basket 45-39 required separately)

Included in delivery

•wide-anglediffuser

•synccable

•camerabracket

•NiMHrechargeablebatteryandcharger

Simply a powerful light:

The powerful Metz handheld ﬂashgun

family begins with the robust Metz

mecablitz 45 CL-1. It offers a fully

swiveling and tilting reﬂector, high

light output with easy handling and

is reduced down to the essentials.

There is a choice of 5 automatic

apertures. Mainly intended for the

owners of analog cameras, even

professional photographers with

modern DSLR cameras swear by the

automatic ﬂash mode of the 45 CL-1.

Thanks to the included modern NiMH

rechargeable battery, it is possible to

have a high number of ﬂashes with

low recycling times.

In order to be able to fall back on

maximum ﬂash power when taking a

series of shots, the practical, high-

power Power Pack P 76, which

attaches to your belt, can be used in

connection with the optionally

available V 45 cable.

For purists

GNof45atISO100/21°(35mm)

In detaIl

Swivel reflector

CANON

NIKON

FUJIFIlm

hASSElBlAD

lEICA

mAmIYA

OlYmPUS

PANASONIC

PENTAX

ROllEI

SAmSUNG

SONY

Bounce diffuser 76-23

for bounce flash

Battery basket 45-39 NiMH charger set B46Power Pack P 76 Set

(V 45 cable required)

accessorIes

SCA FLASH UNITS SYSTEM FLASH UNITSAUTOMATIC FLASH UNITSSLAVE FLASH UNITS 31

METZ MECABLITZ 36 C-2

CANON

NIKON

FUJIFIlm

hASSElBlAD

lEICA

mAmIYA

OlYmPUS

PANASONIC

PENTAX

ROllEI

SAmSUNG

SONY

Flash output

•max.GNof36forISO100/21°

and 85 mm

Basic conﬁguration

•connectiontocameraviahot-shoecontact

(x-synchronization) or via sync cable

(included in delivery)

•verticallytiltingreector+90°

•LEDdisplays

•manualzoomreectorfor28–85mm

illumination

•ashreadinessandexposurecontrol

indicator on the unit

Standard ﬂash modes

•automaticashmodewith3automatic 

apertures

•manualashmode

Power sources

•4xAAalkaline-magnesiumbatteries

•4xAANCorNiMH

rechargeable batteries

Included in delivery

•standardsynccable

For beginners

Reliable:

Those who are looking for a precise

automatic ﬂash with a tilting reﬂector

unit will be well-served by the

mecablitz 36 C-2. Three different

automatic apertures (8, 4, 2, at

ISO100/21°)aswellasamanually-

adjustable zoom reﬂector, are

available with it, with which the light

output can be optimized within the

focal length of 28-85 mm. LED

displays on the back of the unit give

information about the ﬂash readiness

and correct exposure.

GNof36atISO100/21°(85mm)

GNof30atISO100/21°(50mm)

In detaIl

Zoom reflector

(28-85mm) Spiral sync cable 36-52

Camera bracket 40-36 Sync extension

cable 60-54

Standard sync

cable 36-50

accessorIes

MECABLITZ 20 C-2

CANON

NIKON

FUJIFIlm

hASSElBlAD

lEICA

mAmIYA

OlYmPUS

PANASONIC

PENTAX

ROllEI

SAmSUNG

SONY

Flash output

•max.GNof20forISO100/21°

and 35 mm

•highnumberofashes(e.g.150full

ﬂashes with alkaline-magnesium batteries)

•ashrecycletime0.3–10sec.

(depending on the energy source and

ﬂash output)

Basic conﬁguration

•connectiontocameraviahot-shoecontact

(x-synchronization) or via sync cable

(included in delivery)

•verticallytiltingreector+90°

•LEDdisplays

•ashreadinessandexposurecontrol

indicator on the unit

Standard ﬂash modes

•automaticashmodewith

2 automatic apertures

•manualashmode

Power sources

•2xAAalkaline-magnesiumbatteries

•2xAANCorNiMH

rechargeable batteries

Included in delivery

•standardsynccable

For price-conscious beginners

Small, but look out:

This is an ideal complement for every-

one who loves compactness and

doesn’t want to go without good

ﬂash photos. The currently smallest

compact ﬂash unit from Metz is

clearly more effective than the ﬂash

integrated into the camera. The

mecablitz 20 C-2 with GN 20 at

ISO100/21°and35mmfocal

length is intended for all those who

prefer a ﬂash which will also ﬁt into

your jacket pocket. This small, chic

model offers two automatic apertures.

And the special key feature is the

swivel reﬂector! LED displays on the

back of the unit provide information

about the ﬂash readiness and also the

correct exposure.

GNof20atISO100/21°(35mm)

Standard sync

cable 36-50

Practical tilt reflector

accessorIesIn detaIl

Camera bracket 40-36

SCA FLASH UNITS SYSTEM FLASH UNITSAUTOMATIC FLASH UNITSSLAVE FLASH UNITS 33

Slave mode (light controlled):

With the mecablitz 28 CS-2

digital, you have a pure slave

ﬂash unit at your disposal that only

ﬂashes when you want it to – with

any camera. This is made possible

by its learning function, which

recognizes the pre-ﬂash of your camera and

only responds to its main ﬂash. With this

model, the picture results can be controlled

very easily via the plus/minus buttons.

Metz slave mode

(wireless Metz remote system):

This clever Metz system facilitates targeted

light control for two Metz ﬂash units. Here,

one is attached directly to the camera as a

so-called master ﬂash. In contrast, the other

slave ﬂash unit can be positioned anywhere

in the room. For this type of slave mode,

a current Metz SCA ﬂash unit is equipped

with an SCA slave adapter (SCA-3083)

instead of the SCA camera adapter, which

is used for a conventional ﬂash.

This slave adapter makes

additional slave qualities possible.

By using a mecalux 11 as a

server ﬂash trigger, a ﬂash unit

can also be activated. However,

all settings must be made on the

ﬂash unit itself here.

Slave mode for the respective camera

manufacture:

Another way of using slave mode is opened

up by the two system ﬂash units mecablitz

58 AF-1 digital and mecablitz 48 AF-1

digital. Both models are not directly

assigned to the slave category, but they

still can be used as intelligent slave variants

as well. Here, they support the ﬂash modes

of the respective camera manufacturer. In

addition, the mecablitz 58 AF-1 digital has

a master function that you can

always use if the integrated ﬂash

of the camera doesn’t provide a

master mode.

Side lighting

The slave ﬂash mode is interesting in order to

obtain especially varied directed lighting. Com-

pletely without a cable (wireless), this method

can be used to place and trigger an external

ﬂash at any place in the room. In this way, inter-

esting additional lighting can be set, whether in

the form of a light accent or a side light, for

example. Naturally, multiple slaves can be used

at the same time. It is particularly exciting to use

this to obtain separate lighting for the subject

and the background of the picture.

FLASH TIP

SLAVE FLASH UNITS

CANON

NIKON

FUJIFIlm

hASSElBlAD

lEICA

OlYmPUS

PANASONIC

PENTAX

SAmSUNG

SONY

MECABLITZ 28 CS-2 DIGITAL

In detaIl

Easy control with

the +/- buttons

Perfect for mounting on

the integrated, extendible

telescopic bracket

Clearly laid out

display

GNof28atISO100/21°(85mm)

GNof22atISO100/21°(35mm)

Flash output

•max.GNof28forISO100/21°

and 85 mm

Basic conﬁguration

•Slavemode:ashunittriggeredbythe

integrated camera ﬂash or by another

external ﬂash unit

•LCDdisplay

•ashreadinessandexposurecontrol

indicator on the unit

•ashrangeindicatorintheLCD

•illuminationfrom24mm(wide-angle

diffuser) up to 85 mm (telephoto

attachment)

•automaticunitswitch-off

Standard ﬂash modes

•automaticashmodewith

8 automatic apertures

•manualashmodewith4partial

lighting levels

•EasyMode:manualexposurecorrection

with +/- buttons

Special feature

•Learningmode:optimumadaptationofthe

ﬂash unit to the camera-speciﬁc pre-ﬂash

only once at the beginning

•Metz-specicTTLremotemode

(slave mode) with other Metz ﬂash units as

the master

Guaranteed in the future

•rmwareupdatepossibleviaMetzService

Power sources

•2xAAAalkaline-magnesiumbatteries

•2xAAANCorNiMH

rechargeable batteries

Included in delivery

•wide-anglediffuser(24mm)

•telephotoattachment85mm

•extendible,integratedtelescopicbracket

to be fastened to the tripod socket of

the camera

rate from the camera once in a

while? Then Metz has the perfect

solution for you! Let the curtain rise

for the Metz mecablitz 28 CS-2

digital, with technology and a size

that have been optimally matched to

compact digital cameras. The fun

factor comes from the self-learning

slave mode and the clever EASY

mode. For the ﬁrst time, ﬂash results

can be affected directly by means of

the immediate correct buttons (+/-).

This means you only have to take the

shot – check the results on the cam-

era’s monitor – and readjust using the

buttons if necessary. With this slave

model, you increase the ﬂash power

absolutely without any undesired side

effects. This is because it draws its

energy either from alkaline micro

batteries, which are available every-

where, or from equally economical

rechargeable Micro batteries.

Flash with a fun factor:

Have you ever been upset due to

photographs that are too dark,

because the integrated ﬂash in your

camera was once again inadequate?

Wouldn’t you like to have a handy

ﬂash unit that can also be used sepa-

For the imaginative

SCA FLASH UNITS SYSTEM FLASH UNITSAUTOMATIC FLASH UNITSSLAVE FLASH UNITS 35

QUICK SEARCH

76 MZ-5 DIGITAL

45 CL-4 DIGITAL

45 CL-1

58 AF-1 DIGITAL

54 MZ-4i DIGITAL

48 AF-1 DIGITAL

44 MZ-2

36 AF-4/36C-2

20 C-2

CANON

Analog EOS cameras (except EOS 300X) SCA 3102 SCA 3102 + SCA 3045 58 AF-1C SCA 3102 48 AF-1C SCA 3102 36 AF-4C

Analog Non AF-SLR SCA 311 SCA 311 + SCA 300 A SCA 311 SCA 311

Digital cameras D-SLR SCA 3102 SCA 3102 + SCA 3045 58 AF-1C SCA 3102 48 AF-1C 36 AF-4C

Power Shot G6, G7, G9, S5 IS SCA 3102 SCA 3102 + SCA 3045 58 AF-1C SCA 3102 48 AF-1C 36 AF-4C

NIKON

Analog AF-SLR cameras (except F6) SCA 3402 SCA 3402 + SCA 3045 58 AF-1N SCA 3402 48 AF-1N SCA 3402 36 AF-4N

F6 SCA 3402 SCA 3402 + SCA 3045 58 AF-1N SCA 3402 48 AF-1N SCA 3402

Analog Non AF-SLR (except F3) SCA 343 SCA 343 + SCA 300 A SCA 343 SCA 343 36 AF-4N

F3 SCA 344 + SCA 300 E + 50-35 SCA 344 SCA 344 + SCA 300 E + 40-36 SCA 344 + SCA 300 E + 40-36

Digital cameras DSLR (exceptD100, D1x, D2x, D2h) SCA 3402 SCA 3402 + SCA 3045 58 AF-1N SCA 3402 48 AF-1N SCA 3402 36 AF-4N

D100, D1x, D2x, D2h SCA 3402 SCA 3402 + SCA 3045 58 AF-1N SCA 3402 48 AF-1N

Coolpix 8400, 8800, P5000, P5100 SCA 3402 SCA 3402 + SCA 3045 58 AF-1N SCA 3402 48 AF-1N SCA 3402 36 AF-4N

FUJIFILM

S7000, S9500, S9600 301 45-54 45-54 301 301 36 C-2 20 C-2

S1 Pro, S2 Pro, S5 Pro SCA 3402 SCA 3402 + SCA 3045 58 AF-1N SCA 3402 48 AF-1N SCA 3402 36 AF-4N

S3 Pro SCA 3402 SCA 3402 + SCA 3045 58 AF-1N SCA 3402 48 AF-1N

HASSELBLAD

6x6 SCA 390 SCA 390 + SCA 300 A SCA 390 + 40-36 SCA 390 + 40-36

H1, H2, H3 SCA 3902 SCA 3902 + SCA 3045 SCA 3902 SCA 3902

LEICA

R4, R4s, R5, R6, R6.2, R7, RE SCA 351 SCA 351 + SCA 300 A SCA 351 SCA 351

R8, R9, M6 TTL, M7, M8, Digilux 2, CM SCA 3502 SCA 3502 + SCA 3045 SCA 3502 SCA 3502

Digilux 1 301 45-54 45-54 301 301 36 C-2 20 C-2

Digilux 3, V-Lux 1 SCA 3202 SCA 3202 + SCA 3045 58 AF-1O SCA 3202 48 AF-1O SCA 3202

MAMIYA

645 Pro TL SCA 396 + SCA 300 E + 50-35 SCA 396 SCA 396 + SCA 300 E + 40-36 SCA 396 + SCA 300 E + 40-36

645 AF, ZD SCA 3952 SCA 3952 + SCA 3045 SCA 3952 SCA 3952

OLYMPUS

C-770, C-8080, SP-350, E-Series SCA 3202 SCA 3202 + SCA 3045 58 AF-1O SCA 3202 48 AF-1O SCA 3202

PANASONIC

DMC-FZ20, DMC-FZ30 301 45-54 45-54 301 301 36 C-2 20 C-2

DMC-LC 1 SCA 3502 SCA 3502 M5 + SCA 3045 SCA 3502 SCA 3502

DMC-FZ50, DMC-L1 SCA 3202 SCA 3202 + SCA 3045 58 AF-1O SCA 3202 48 AF-1O SCA 3202

PENTAX

DSLR SCA 3702 SCA 3702 + SCA 3045 58 AF-1P SCA 3702 48 AF-1P

ROLLEI

2,8GX, 6008 SCA 356 + SCA 300 D SCA 356 + SCA 300 A SCA 356 + SCA 300 D SCA 356 + SCA 300 D

6008 AF, Hy6 SCA 3562 SCA 3562 + SCA 3045 SCA 3562 SCA 3562

SAMSUNG

GX-1S, GX-1L, GX-10 SCA 3702 SCA 3702 + SCA 3045 58 AF-1P SCA 3702 48 AF-1P

SONY

Alpha A100, A 700 SCA 3302 SCA 3302 + SCA 3045 SCA 3302 48 AF-1S

28 CS-2 DIGITAL is suitable for compact cameras of all brands with an integrated ﬂash

Regarding your type of camera, also take note the SCA packaging imprint and the M version of the adapter.

For current versions of the ﬂash units or alternatively the adapters, see www.metz.de.

76 MZ-5 DIGITAL

45 CL-4 DIGITAL

45 CL-1

58 AF-1 DIGITAL

54 MZ-4i DIGITAL

48 AF-1 DIGITAL

44 MZ-2

36 AF-4/36C-2

20 C-2

CANON

Analog EOS cameras (except EOS 300X) SCA 3102 SCA 3102 + SCA 3045 58 AF-1C SCA 3102 48 AF-1C SCA 3102 36 AF-4C

Analog Non AF-SLR SCA 311 SCA 311 + SCA 300 A SCA 311 SCA 311

Digital cameras D-SLR SCA 3102 SCA 3102 + SCA 3045 58 AF-1C SCA 3102 48 AF-1C 36 AF-4C

Power Shot G6, G7, G9, S5 IS SCA 3102 SCA 3102 + SCA 3045 58 AF-1C SCA 3102 48 AF-1C 36 AF-4C

NIKON

Analog AF-SLR cameras (except F6) SCA 3402 SCA 3402 + SCA 3045 58 AF-1N SCA 3402 48 AF-1N SCA 3402 36 AF-4N

F6 SCA 3402 SCA 3402 + SCA 3045 58 AF-1N SCA 3402 48 AF-1N SCA 3402

Analog Non AF-SLR (except F3) SCA 343 SCA 343 + SCA 300 A SCA 343 SCA 343 36 AF-4N

F3 SCA 344 + SCA 300 E + 50-35 SCA 344 SCA 344 + SCA 300 E + 40-36 SCA 344 + SCA 300 E + 40-36

Digital cameras DSLR (exceptD100, D1x, D2x, D2h) SCA 3402 SCA 3402 + SCA 3045 58 AF-1N SCA 3402 48 AF-1N SCA 3402 36 AF-4N

D100, D1x, D2x, D2h SCA 3402 SCA 3402 + SCA 3045 58 AF-1N SCA 3402 48 AF-1N

Coolpix 8400, 8800, P5000, P5100 SCA 3402 SCA 3402 + SCA 3045 58 AF-1N SCA 3402 48 AF-1N SCA 3402 36 AF-4N

FUJIFILM

S7000, S9500, S9600 301 45-54 45-54 301 301 36 C-2 20 C-2

S1 Pro, S2 Pro, S5 Pro SCA 3402 SCA 3402 + SCA 3045 58 AF-1N SCA 3402 48 AF-1N SCA 3402 36 AF-4N

S3 Pro SCA 3402 SCA 3402 + SCA 3045 58 AF-1N SCA 3402 48 AF-1N

HASSELBLAD

6x6 SCA 390 SCA 390 + SCA 300 A SCA 390 + 40-36 SCA 390 + 40-36

H1, H2, H3 SCA 3902 SCA 3902 + SCA 3045 SCA 3902 SCA 3902

LEICA

R4, R4s, R5, R6, R6.2, R7, RE SCA 351 SCA 351 + SCA 300 A SCA 351 SCA 351

R8, R9, M6 TTL, M7, M8, Digilux 2, CM SCA 3502 SCA 3502 + SCA 3045 SCA 3502 SCA 3502

Digilux 1 301 45-54 45-54 301 301 36 C-2 20 C-2

Digilux 3, V-Lux 1 SCA 3202 SCA 3202 + SCA 3045 58 AF-1O SCA 3202 48 AF-1O SCA 3202

MAMIYA

645 Pro TL SCA 396 + SCA 300 E + 50-35 SCA 396 SCA 396 + SCA 300 E + 40-36 SCA 396 + SCA 300 E + 40-36

645 AF, ZD SCA 3952 SCA 3952 + SCA 3045 SCA 3952 SCA 3952

OLYMPUS

C-770, C-8080, SP-350, E-Series SCA 3202 SCA 3202 + SCA 3045 58 AF-1O SCA 3202 48 AF-1O SCA 3202

PANASONIC

DMC-FZ20, DMC-FZ30 301 45-54 45-54 301 301 36 C-2 20 C-2

DMC-LC 1 SCA 3502 SCA 3502 M5 + SCA 3045 SCA 3502 SCA 3502

DMC-FZ50, DMC-L1 SCA 3202 SCA 3202 + SCA 3045 58 AF-1O SCA 3202 48 AF-1O SCA 3202

PENTAX

DSLR SCA 3702 SCA 3702 + SCA 3045 58 AF-1P SCA 3702 48 AF-1P

ROLLEI

2,8GX, 6008 SCA 356 + SCA 300 D SCA 356 + SCA 300 A SCA 356 + SCA 300 D SCA 356 + SCA 300 D

6008 AF, Hy6 SCA 3562 SCA 3562 + SCA 3045 SCA 3562 SCA 3562

SAMSUNG

GX-1S, GX-1L, GX-10 SCA 3702 SCA 3702 + SCA 3045 58 AF-1P SCA 3702 48 AF-1P

SONY

Alpha A100, A 700 SCA 3302 SCA 3302 + SCA 3045 SCA 3302 48 AF-1S

28 CS-2 DIGITAL is suitable for compact cameras of all brands with an integrated ﬂash

TECHNICAL DATA

Conﬁguration features:

76 MZ-5 DIGITAL

45 CL-4 DIGITAL

45 CL-1

58 AF-1 DIGITAL

54 MZ-4i DIGITAL

48 AF-1 DIGITAL

44 MZ-2 DIGITAL

36 AF-4 DIGITAL

36 C-2

28 CS-2 DIGITAL

20 C-2

Flash output

GN for ISO 100 and 35 mm or 50 mm 54 45 45 42 40 35 34 30 30 22 20

GN for ISO 100 and max. zoom 76 45 45 58 54 48 44 36 36 28 20

Basic configuration

Adapter system SCA 300 • • • •

Adapter system SCA 3002 • • • •

Illumination from .. mm (KB format) 20 28 28 18 20 18 28 28 28 24 35

Motor zoom main reflector • ••••

Manual zoom main reflector • •

Extended zoom mode for main reflector • ••••

Main reflector can be tilted and rotated •/• •/• •/• •/• •/• •/• •/– •/– •/– •/–

Verticaltiltingrangein° +90 +90 +90 –7...+90 –7...+90 –7... +90 –7...+90 +90 +90 +90

Horizontalswivelingrangein° 270 360 360 270 270 270

Integrated wide-angle diffuser for illumination in mm (KB format) 18 20 18

Attachable wide-angle / telephoto lens cover •/– •/– •/– •/•

Integrated reflector card for main reflector • •

Secondary reflector / partial lighting levels (manually adjustable) •/2 •/2 •/2 •/–

Secondary reflector support for system flash functions • • •

Dot matrix display / illuminated •/• •/•

LCD display / illuminated •/• •/• •/• •/–

LED displays • • • • •

Range display • • • • • •

Flash readiness indicator / exposure control indicator on the flash unit •/• •/• •/• •/• •/• •/• •/• •/• •/• •/• •/•

Acoustic status messages (beep) • • •

Modelling light function • • • •

Manual key lock (KEYLOCK) • • • •

Automatic unit switch-off (auto off) ••••• •

Wake-up function by the camera ••••

Automatic AF measurement flash / multi-zone AF measurement flash •/– 1) / – •/• •/– •/– •/– •/–

Metz remote flash mode (master/slave) • •

Master flash mode (Metz remote) • •

Slave flash mode (Metz remote) •2) 4) 4) •

Standard flash modes

TTL flash mode (without pre-flash) •• •••••

Automatic flash mode 12 12 5 12 12 12 3 8 2

EASY Mode flash mode •

f-stops for automatic flash mode 12 6 5 12 12 12 3 8 2

Manual flash mode ••••••• •••

Partial lighting levels 25 5 25 25 8 8 4

Stroboscope flash mode • • •

System flash functions

Automatic fill-in flash •• •••••

Flash-ready indication in camera viewfinder •• •••••

Exposure control indication in camera viewfinder •• ••••

1st and 2nd shutter curtain synchronization • ••••

High-speed synchronization (HSS or FP) • • • •

Manual flash exposure correction • ••••

Manual flash bracketing • • • •

Pre-flash function against the “red eye effect” •• ••••

System flash modes

Cannon E-TTL- / E-TTL-II flash mode •/• •/• •/• •/• •/• •/–

Canon FE flash exposure memory for E-TTL and E-TTL-II flash mode • • • • • •

Canon E-TTL remote flash system as master/controller/slave •/•/• –/–/•

Leica group number control (GNC) • • • •

Conﬁguration features:

76 MZ-5 DIGITAL

45 CL-4 DIGITAL

45 CL-1

58 AF-1 DIGITAL

54 MZ-4I

48 AF-1 DIGITAL

44 MZ-2

36 AF-4 DIGITAL

36 C-2

28 CS-2 DIGITAL

20 C-2

System flash modes

Nikon 3D multi-sensor fill-in flash mode •• •••

Nikon D-TTL / 3D flash mode •/• •/• •/• •/• •/•

Nikon FV flash exposure memory for i-TTL and i-TTL-BL flash mode •• •••••

Nikon i-TTL / i-TTL-BL flash mode •/• •/• •/• •/• •/• •/• •/–

Nikon matrix controlled fill-in flash mode •• ••••

Nikon underexposure warning in EV (f-stops) • ••••

Nikon i-TTL remote flash system as master/controller/slave •/•/• –/–/•

Olympus TTL flash mode with measurement pre-flash technique •• ••••

Olympus/Panasonic/Leica Four Thirds System (TTL compatible) •• ••••

Olympus Four Thirds system TTL remote flash system as master/controller/slave •/•/• –/–/•

Pentax contrast control •• ••••

Pentax P-TTL flash mode •• •••

Pentax Spot-beam mode •• ••••

Pentax P-TTL remote flash system as master/controller/slave •/•/• –/–/•

Sony DSLR-ADI flash control •• •••

Sony DSLR multi-zone flash measurement (TTL pre-flash measurement) •• •••

Sony DSLR remote flash system as master/controller/slave –/–/• –/–/•

Guaranteed in the future

Firmware update via Metz Service • • • • • • •

Firmware update via USB port • •

Power supply

Runs on alkaline-magnesium batteries (1.5 V) 3) 3) ••••••••

Runs on NiCad rechargeable batteries or NiMH rechargeable batteries (1.2 V) ••••••••

Runs on lithium batteries (1.5 V) ••••

Runs on Metz NiMH rechargeable battery pack •••

External energy supply with Metz Power Pack P 76 •••••

Number of flashes (at full light output)

Running on alkaline-magnesium batteries (1.5 V) 170 100 180 180 210 240 450 450 100 5) 150

Running on NiCd rechargeable batteries (1.2 V/600 mAh) 70 60 90 85 160 160 35 5) 75

Running on NiMH rechargeable batteries (1.2 V/1600 mAh) 180 180 250 205 320 320 100 5) 150

Running on lithium batteries (1.5 V) 320 240 460 370

Running on Metz NiMH rechargeable battery pack (1600 mAh) 160 200 130

External energy supply with Metz Power Pack P 76 350 400 430 430

Flash cycle time in sec. (min./max.)

Running on alkaline-magnesium batteries (1.5 V) 0,1/4 0,3/11 0,1/5 0,1/6 0,1/4 0,2/5 0,3/5 0,3/5 0,3/8 0,3/10

Running on NiCd rechargeable batteries or NiMH rechargeable batteries (1.2 V) 0,1/5 0,1/5 0,1/4 0,2/4 0,3/5 0,3/5 0,3/6 0,3/8

Running on lithium batteries (1.5 V) 0,1/6 0,1/10 0,1/4 0,2/6 0,3/5 0,3/5 0,3/6 0,3/8

Running on Metz NiMH rechargeable battery pack 0,1/4 0,1/4 0,3/7

External energy supply with Metz Power Pack P 76 0,3/2,5 0,1/3 0,1/2,5 0,1/2,5

Size and weight

Weight without power source in g (approx.) Lamp pole 880

138 680 570 355 480 340 325 205 205 140 120

Control section

Approx. dimensions in mm (W x H x D)

WLamp pole 103

67 92 92 71 75 71 75 71 73 75,5 65

Control section

HLamp pole 244

35 247 147 148 125 137 125 115 110 83 98

Control section

DLamp pole 118

89 102 102 99 108 99 108 95 87 32,5 54

Control section

1) With connecting cable SCA 3045

2) With slave adapter SCA 3083 digital and connecting cable SCA 3045

3) With battery case 45-39

4) With slave adapter SCA 3083 digital

5) Running on micro-cells (AAA): NiCd (250 mAh), NiMH (700 mAh)

ACCESSORIES

76 MZ-5 DIGITAL

45 CL-4 DIGITAL

45 CL-1

58 AF-1 DIGITAL

54 MZ-4I DIGITAL

48 AF-1 DIGITAL

44 MZ-2

36 AF-3/36 AF-4

36 C-2

28 CS-2 DIGITAL

20 C-2

Rechargeable batteries and battery case

NiMH rechargeable batteries 45-56 • •

NiMH rechargeable batteries 76-56 •

Battery basket without batteries 45-39 • •

Charging sets and chargers

NiMH charger set B 46 • •

NiMH charger set B 47 •

Power packs and accessories

Power Pack P 76 Set (incl. charger) •••••

Connecting cable V 76 (for P 50 / P 76) • •

Connecting cable V 58-50 (for P 50 / P 76) •

Connecting cable V 54-50 (for P 50 / P 76) •

Connecting cable V 50 (for P 50 / P 76) • •

Connecting cable V 45 (for P 50 / P 76) •

Colour Filter Sets

Colour ﬁlter set 50 - 32 •

Colour ﬁlter set 45 - 32 • •

mecabounce

mecabounce 44-90 • •

mecabounce 50-90 •

mecabounce 45-90 • •

mecabounce 58-90 • •

Sync cables

Spiral sync cable 36-52 1) 1) 1) • •

Spiral sync cable 45-49 • •

Spiral sync cable 45-54 for hot-shoe contact • •

Standard sync cable 36-50 (25 cm) 1) 1) 1) • •

Standard sync cable 45-47 (40cm) • •

Standard sync cable 45-48 (100cm) • •

Sync extension cable 60-54 (500 cm) ••• • • • •

Camera brackets and accessories

Camera bracket 40-36 • • • •

Camera bracket 32-38 •••

Bracket adapter 60-28 • •

Mounting bracket for control unit 50-35 •

Bracket plate for medium format 70-35 •••

76 MZ-5 DIGITAL

45 CL-4 DIGITAL

45 CL-1

58 AF-1 DIGITAL

54 MZ-4I DIGITAL

48 AF-1 DIGITAL

44 MZ-2

36 AF-3/36 AF-4

36 C-2

28 CS-2 DIGITAL

20 C-2

Bounce diffusers

Bounce diffuser 54-23 (or 58-23) ••••

Bounce diffuser 76-23 •••

mecalux

mecalux 11 ••• • •

Camera straps

Camera straps 50-31 •••

Wrist strap

Wrist strap 45-27 •• •

Connecting cable

SCA 3008 A for SCA 3002 adapter • •

SCA 307 A for SCA 300 adapter • •

SCA 3045 for SCA 300/3002 adapter •

SCA 300 A for SCA 300 adapter •

Adapters

SCA 311 for Canon •5) • •

SCA 343 for Nikon •5) • •

SCA 344 for Nikon F3 • • •

SCA 351 for Leica •5) • •

SCA 356 for Rollei 4) 3) 5) 3) •

SCA 390 for Hasselblad 4) •5) • •

SCA 3102 for Canon •2) • •

SCA 3202 for Olympus / Panasonic / Leica •2) • •

SCA 3302 for Konica Minolta / Sony •2) • •

SCA 3402 for Nikon •2) • •

SCA 3502 for Leica •2) • •

SCA 3562 for Rollei4) •2) • •

SCA 3702 for Pentax / Samsung •2) • •

SCA 3902 for Hasselblad4) •2) • •

SCA 3952 for Mamiya4) •2) • •

SCA 3083 digital slave adapter •2) • •

SCA 300 E • • •

Standard foot 301 •5) • •

1) = Standard foot 301 required

2) = SCA 3045 required

3) = SCA 300 D required

4) – Can be obtained from the reseller partners of the camera manufacturer

5) = SCA 300 A or SCA 3045 required

76 MZ-5 DIGITAL

45 CL-4 DIGITAL

45 CL-1

58 AF-1 DIGITAL

54 MZ-4I DIGITAL

48 AF-1 DIGITAL

44 MZ-2

36 AF-3/36 AF-4

36 C-2

28 CS-2 DIGITAL

20 C-2

Rechargeable batteries and battery case

NiMH rechargeable batteries 45-56 • •

NiMH rechargeable batteries 76-56 •

Battery basket without batteries 45-39 • •

Charging sets and chargers

NiMH charger set B 46 • •

NiMH charger set B 47 •

Power packs and accessories

Power Pack P 76 Set (incl. charger) •••••

Connecting cable V 76 (for P 50 / P 76) • •

Connecting cable V 58-50 (for P 50 / P 76) •

Connecting cable V 54-50 (for P 50 / P 76) •

Connecting cable V 50 (for P 50 / P 76) • •

Connecting cable V 45 (for P 50 / P 76) •

Colour Filter Sets

Colour ﬁlter set 50 - 32 •

Colour ﬁlter set 45 - 32 • •

mecabounce

mecabounce 44-90 • •

mecabounce 50-90 •

mecabounce 45-90 • •

mecabounce 58-90 • •

Sync cables

Spiral sync cable 36-52 1) 1) 1) • •

Spiral sync cable 45-49 • •

Spiral sync cable 45-54 for hot-shoe contact • •

Standard sync cable 36-50 (25 cm) 1) 1) 1) • •

Standard sync cable 45-47 (40cm) • •

Standard sync cable 45-48 (100cm) • •

Sync extension cable 60-54 (500 cm) ••• • • • •

Camera brackets and accessories

Camera bracket 40-36 • • • •

Camera bracket 32-38 •••

Bracket adapter 60-28 • •

Mounting bracket for control unit 50-35 •

Bracket plate for medium format 70-35 •••

TECHNICAL GLOSSARY

Flash readiness indication

The ﬂash readiness indication

illuminates when there is enough

energy in the ﬂash capacitor of the ﬂash unit.

Guide number (GN)

The guide number is the code

number for the light output of a

ﬂash unit. It is dependent on the set light sen-

sitivity ISO and (for zoom reﬂectors) on the

reﬂector position, as well as on any reﬂector

attachments that may be in use (e.g. wide-

angle or telephoto lens cover). For high speed

synchronization (HSS), the guide number is

dependent on the shutter speed as well.

HSS – high speed synchronization

In high speed synchronization

(HSS), you can ﬂash with expo-

sure times that are shorter than the ﬂash

sync time of the camera. As a result, ﬂash

photos with wide aperture openings are

possible for high ambient light levels, for

example to limit the depth of ﬁeld in portrait

shots.

i-TTL

Modern further development of

the TTL ﬂash control with measure-

ment pre-ﬂash technique for Nikon and

Fujiﬁlm cameras.

i-TTL-BL

For the i-TTL BL ﬂash control, ad-

ditional data such as the dis-

tance to the subject, for example, is taken

into consideration in the ﬂash exposure.

Key function

Locking of the operating ele-

ments. Protects against uninten-

tional changes.

LCD / LED display

Provides information on the flash

modes and settings being used.

(>>> Dot matrix display)

ADI

Modern further development of

the TTL ﬂash control for Sony

Alpha and Konica-Minolta cameras in

which, for example, the data for distance

to the subject must be put into the ﬂash

exposure in addition.

AF measurement flash

An autofocus auxiliary light

(AF measurement ﬂash) integrated

in the ﬂash unit automatically supports

the central autofocus sensor of the camera

in the event of low ambient light. For a

multi-zone AF measurement ﬂash, the

decentralized AF sensors are supported in

the process.

Automatic unit switch-off

During extended breaks from

photographing, the flash unit

is switched automatically to an energy-

saving standby state to prevent the power

source from discharging (Auto-Off).

Through the wake-up function, the flash

unit is reactivated, for example when the

shutter release is actuated.

Automatic flash mode

A photo sensor integrated in the

flash unit measures the subject

during photographing, and automatically

terminates the light output as soon as the

subject is correctly exposed.

Buzzer

Additional acoustic status mes-

sages can be activated for flash

readiness, flash exposure control as well

as warning tones.

Correct exposure indication

The correct exposure indication

OK is shown on the ﬂash unit after

the photograph if the subject in automatic or

TTL ﬂash mode was correctly exposed.

D-TTL

Modern further development

of the TTL flash control with

measurement pre-flash technique for Nikon

and Fujifilm cameras.

3D and D-TTL-3D

For the 3D-TTL (Nikon) and

D-TTL-3D ﬂash control, additional

data such as the distance to the subject,

for example, is taken into consideration in

the flash exposure.

Dot matrix display with soft keys

Individual adaptation of the

display on the camera system

and the operating state for optimum and

self-explanatory operation of the flash unit

via soft keys.

E-TTL

Modern further development

of the TTL flash control with

measurement pre-flash technique for

Canon EOS and PowerShot cameras.

E-TTL II

For E-TTL-II, additional data is

taken into consideration during

flash exposure such as the distance to the

subject and the guide number of the flash

unit, for example.

Extended zoom

With Motor Zoom mode, the main

reﬂector illuminates the subject

more than necessary by one reﬂector position.

As a result, the additional dispersed light

provides softer illumination of the subject.

Flash bracketing

Flash bracketing series with

three photos of different ﬂash ex-

posure: minus correction value, no correc-

tion value, and plus correction value.

Manual flash mode

Flash mode with unregulated

light output. The ﬂash unit delivers

the full light output, if no partial light output

is set.

Manual zoom

The zoom position of the

main reflector and thus the illu-

mination of the flash unit can be adjusted

manually to the lens focal length.

Modeling light

Modeling light is a stroboscope

light with a high ﬂash frequency

lasting a few seconds. With this “quasi per-

manent light”, the light dispersion and

shadow formation at the subject can be

checked before taking the photograph.

Motor zoom

The zoom position of the main

reflector and hence the illumina-

tion of the flash unit can be adjusted auto-

matically to the lens focal length.

Partial light mode

Manual ﬂash mode with unregu-

lated light output. By setting par-

tial light mode on the ﬂash unit, the light

output or illumination duration of the ﬂash

unit can be adapted speciﬁcally to the pho-

tographic situation.

P-TTL

Modern further development

of the TTL flash control with

measurement pre-flash technique for

Pentax and Samsung cameras.

REAR

Synchronisation to the 2nd shutter

curtain for more natural blurring

effects for longer exposure times.

Remote operation

A remote system consists of a

master or controller ﬂash unit on

the camera and one or more slave ﬂash

units. The slave ﬂash unit is remotely con-

trolled wirelessly by the master or controller

ﬂash unit. With a master ﬂash unit, the ﬂash

light contributes to the exposure, in contrast

to a controller ﬂash unit.

SCA 3002 adapter system

For system cameras with digital

or analog data transmission be-

tween the camera and flash unit. By using

an SCA adapter from the SCA 3002 sys-

tem, there are numerous additional system

flash functions available with flash units

from the SCA 3002 system, depending on

the type of camera. The firmware of an

SCA adapter from the SCA 3002 system

is updateable via Metz service for future

cameras.

SCA 300 adapter system

For system cameras for adapta-

tion to flash units of the SCA

3002 or SCA 300 system. Depending on

the type of camera, not all system flash

functions are supported by the SCA 300

system.

Secondary reflector

To brighten shadows cast in the

close-up ranges which appear

when using an indirect flash.

Slave mode

An integrated sensor makes this

wireless slave flash mode pos-

sible in combination with a master or con-

troller flash unit. (>>> Remote operation)

Stroboscope mode

Manual ﬂash mode for ﬂash

sequences with a selectable

intensity, frequency, and number of ﬂashes,

e.g. for special effect photos and motion

studies.

Swivel reflector

Can be tilted horizontally and

vertically for indirect flash.

Can be tilted vertically for indi-

rect flash.

TTL flash control

While taking the photograph,

the flash light is measured

through the lens (TTL = through the lens) by

a sensor in the camera. The light output of

the flash unit is terminated as soon as the

subject is correctly exposed.

TTL fill-in flash control

Reduces too high subject contrast

(e.g. to brighten dark shadowy

areas in bright sunshine).

USB

Interface for firmware updates

via the Internet.

Wake-up

The flash unit can be reactivat-

ed by actuating the shutter re-

lease if the flash is in energy-saving stand-

by mode after an extended break from

taking photographs.

(>>> Automatic unit switch-off)

Wide-angle attachment

Increases the light angle of the

flash unit. Depending on the

type of flash unit, the wide-angle attach-

ment is either integrated or attachable as

an accessory.

Zoom size

Automatic adaptation of the dis-

play of the reflector position of

the flash unit to the picture-taking chips for

digital cameras.

Metz – immer erstklassig

Your authorised Metz dealer

Metz – Quality made in Germany

Core competencies in the ﬁelds of

consumer electronics, photo electronics,

and plastics engineering form the

basis of the excellent worldwide

reputation of Metz-Werke.

Metz-Werke GmbH & Co KG

P. O. Box 1267

D-90506 Zirndorf/Germany

Fon: +49 (0) 911 - 97060

Fax: +49 (0) 911 - 9706340

Service Hotline: 0900 - 1100945*

www.metz.de

info@metz.de

Subject to delivery options and

changes.

P105-GB Printed in Germany

1/2008

* 24ct./Min.

Metz – always ﬁrst class

36 AF 4 S CAT Metz Photo Electronics

Navigation menu

Versions of this User Manual:

Views

Navigation
