- Code Composer Studio™ IDE v8.x for MSP430™ MCUs
- 1 Read This First
- 2 Get Started Now!
- 3 Development Flow
- 4 EnergyTrace™ Technology
- 5 MSP430 FRAM Memory Protection Mechanisms
- 6 Frequently Asked Questions
- 7 Migration of C Code from IAR 2.x, 3.x, or 4.x to CCS
- 8 Migration of Assembler Code from IAR 2.x, 3.x, or 4.x to CCS
- 8.1 Sharing C/C++ Header Files With Assembly Source
- 8.2 Segment Control
- 8.3 Translating A430 Assembler Directives to Asm430 Directives
- 8.3.1 Introduction
- 8.3.2 Character Strings
- 8.3.3 Section Control Directives
- 8.3.4 Constant Initialization Directives
- 8.3.5 Listing Control Directives
- 8.3.6 File Reference Directives
- 8.3.7 Conditional Assembly Directives
- 8.3.8 Symbol Control Directives
- 8.3.9 Macro Directives
- 8.3.10 Miscellaneous Directives
- 8.3.11 Alphabetical Listing and Cross Reference of Asm430 Directives
- 8.3.12 Unsupported A430 Directives (IAR)
- 9 Writing Portable C Code for CCS and MSP430-GCC for MSP430
- 10 FET-Specific Menus
- 10.1 Menus
- 10.1.1 Debug View: Run → Free Run
- 10.1.2 Run → Connect Target
- 10.1.3 Run → Advanced → Make Device Secure
- 10.1.4 Project → Properties → Debug → MSP430 Properties → Clock Control
- 10.1.5 Window → Show View → Breakpoints
- 10.1.6 Window → Show View → Other... Debug → Trace Control
- 10.1.7 Project → Properties → Debug → MSP430 Properties → Target Voltage
- 10.1 Menus
- 11 Device-Specific Menus
- Revision History
- Important Notice
![](asset-1.png)
1
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
User's Guide
SLAU157AR–May 2005–Revised May 2018
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
This manual describes the use of TI Code Composer Studio™ IDE v8.x (CCS v8.x) with the MSP430™
ultra-low-power microcontrollers. This document applies only for the Windows version of the Code
Composer Studio IDE. The Linux®version is similar and, therefore, is not described separately.
Contents
1 Read This First............................................................................................................... 3
1.1 How to Use This Manual........................................................................................... 3
1.2 Information About Cautions and Warnings ...................................................................... 3
1.3 Related Documentation From Texas Instruments.............................................................. 4
1.4 If You Need Assistance ............................................................................................ 4
2 Get Started Now! ............................................................................................................ 5
2.1 Software Installation ................................................................................................ 5
2.2 Flashing the LED ................................................................................................... 5
2.3 Important MSP430™ Documents................................................................................. 6
3 Development Flow........................................................................................................... 7
3.1 Using Code Composer Studio™ IDE (CCS) .................................................................... 7
3.2 Using the Integrated Debugger ................................................................................... 9
4 EnergyTrace™ Technology............................................................................................... 16
4.1 Introduction......................................................................................................... 16
4.2 Energy Measurement ............................................................................................. 16
4.3 Code Composer Studio™ Integration .......................................................................... 16
4.4 EnergyTrace Technology FAQs................................................................................. 31
5 MSP430 FRAM Memory Protection Mechanisms...................................................................... 34
5.1 Memory Protection Unit (MPU).................................................................................. 34
5.2 Intellectual Property Encapsulation (IPE) ...................................................................... 35
5.3 FRAM Write Protection (FRWP)................................................................................. 37
6 Frequently Asked Questions.............................................................................................. 38
6.1 Hardware ........................................................................................................... 38
6.2 Program Development (Assembler, C-Compiler, Linker, IDE) .............................................. 38
6.3 Debugging.......................................................................................................... 39
7 Migration of C Code from IAR 2.x, 3.x, or 4.x to CCS................................................................. 42
7.1 Interrupt Vector Definition ........................................................................................ 42
7.2 Intrinsic Functions ................................................................................................. 42
7.3 Data and Function Placement ................................................................................... 42
7.4 Data Placement Into Named Segments........................................................................ 43
7.5 Function Placement Into Named Segments ................................................................... 43
7.6 C Calling Conventions ............................................................................................ 44
7.7 Other Differences.................................................................................................. 44
8 Migration of Assembler Code from IAR 2.x, 3.x, or 4.x to CCS...................................................... 47
8.1 Sharing C/C++ Header Files With Assembly Source......................................................... 47
8.2 Segment Control .................................................................................................. 47
8.3 Translating A430 Assembler Directives to Asm430 Directives.............................................. 48
9 Writing Portable C Code for CCS and MSP430-GCC for MSP430 ................................................. 55
9.1 Interrupt Vector Definition ........................................................................................ 55
10 FET-Specific Menus ....................................................................................................... 56
10.1 Menus............................................................................................................... 56
11 Device-Specific Menus .................................................................................................... 58
![](asset-2.png)
www.ti.com
2SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
11.1 MSP430L092 ...................................................................................................... 58
11.2 MSP430F5xx and MSP430F6xx BSL Support ................................................................ 62
11.3 MSP430FR5xx and MSP430FR6xx Password Protection................................................... 63
11.4 MSP430 Ultra-Low-Power LPMx.5 Mode ...................................................................... 64
List of Figures

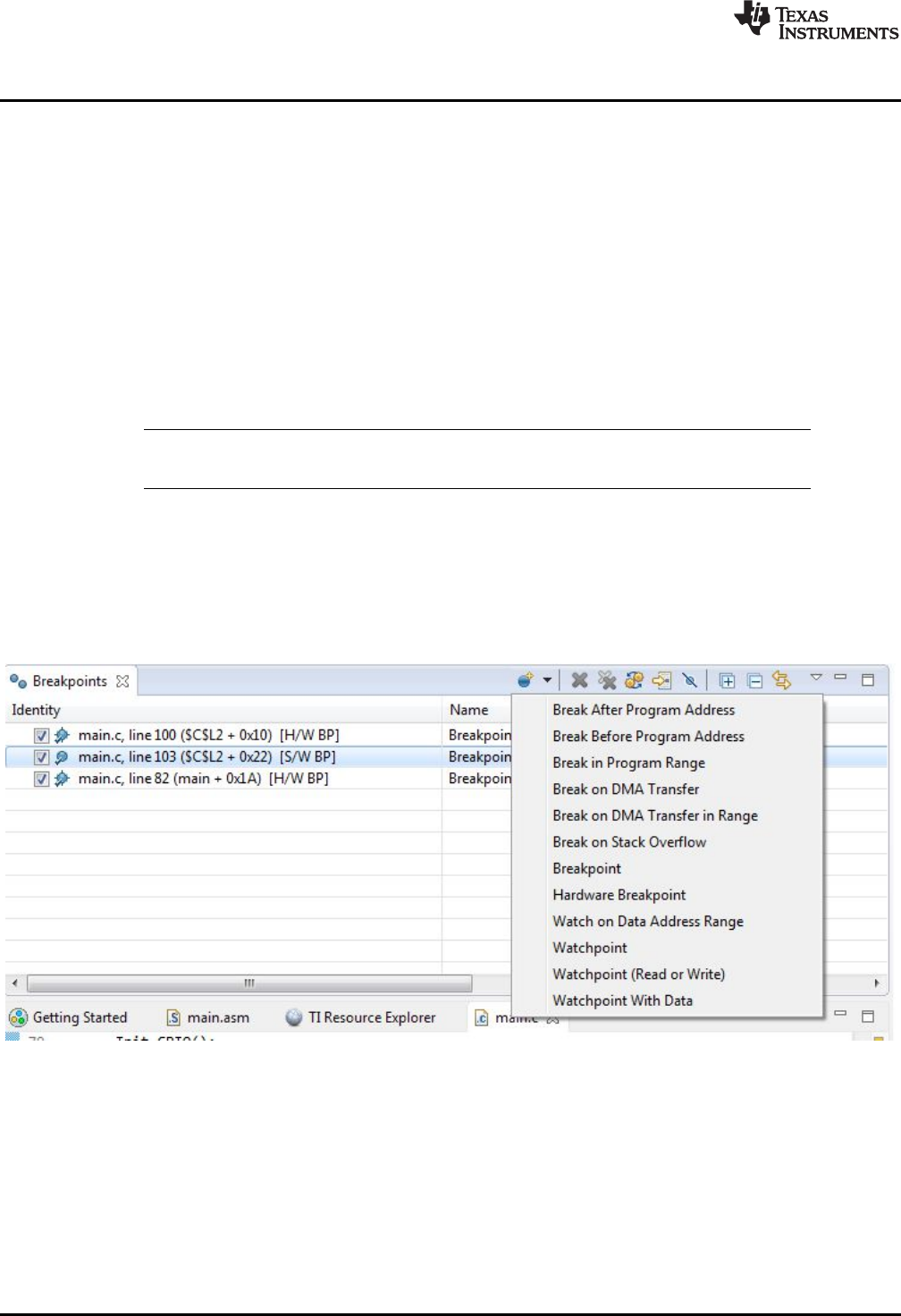

1 Breakpoints.................................................................................................................. 12

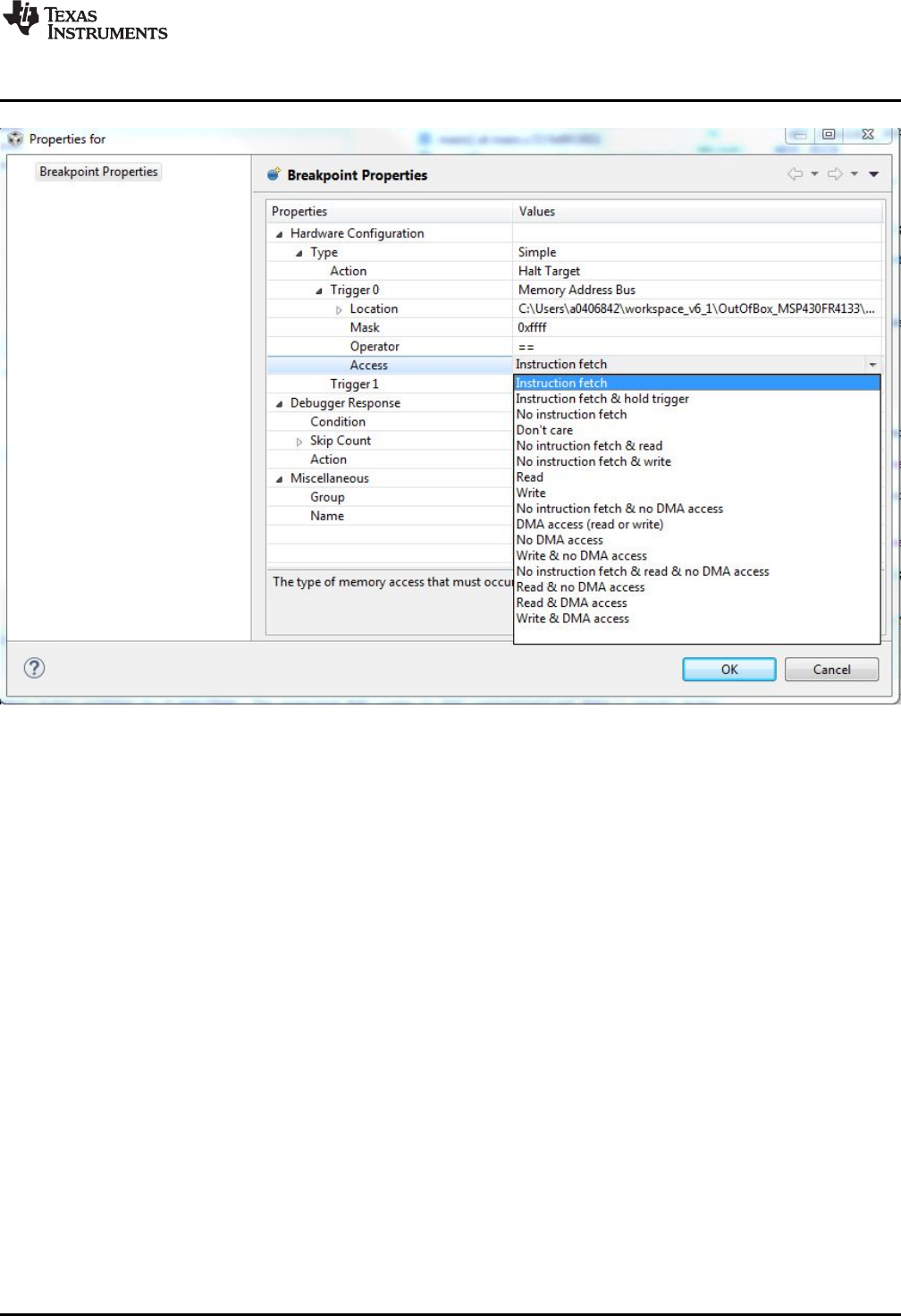

2 Breakpoint Properties...................................................................................................... 13

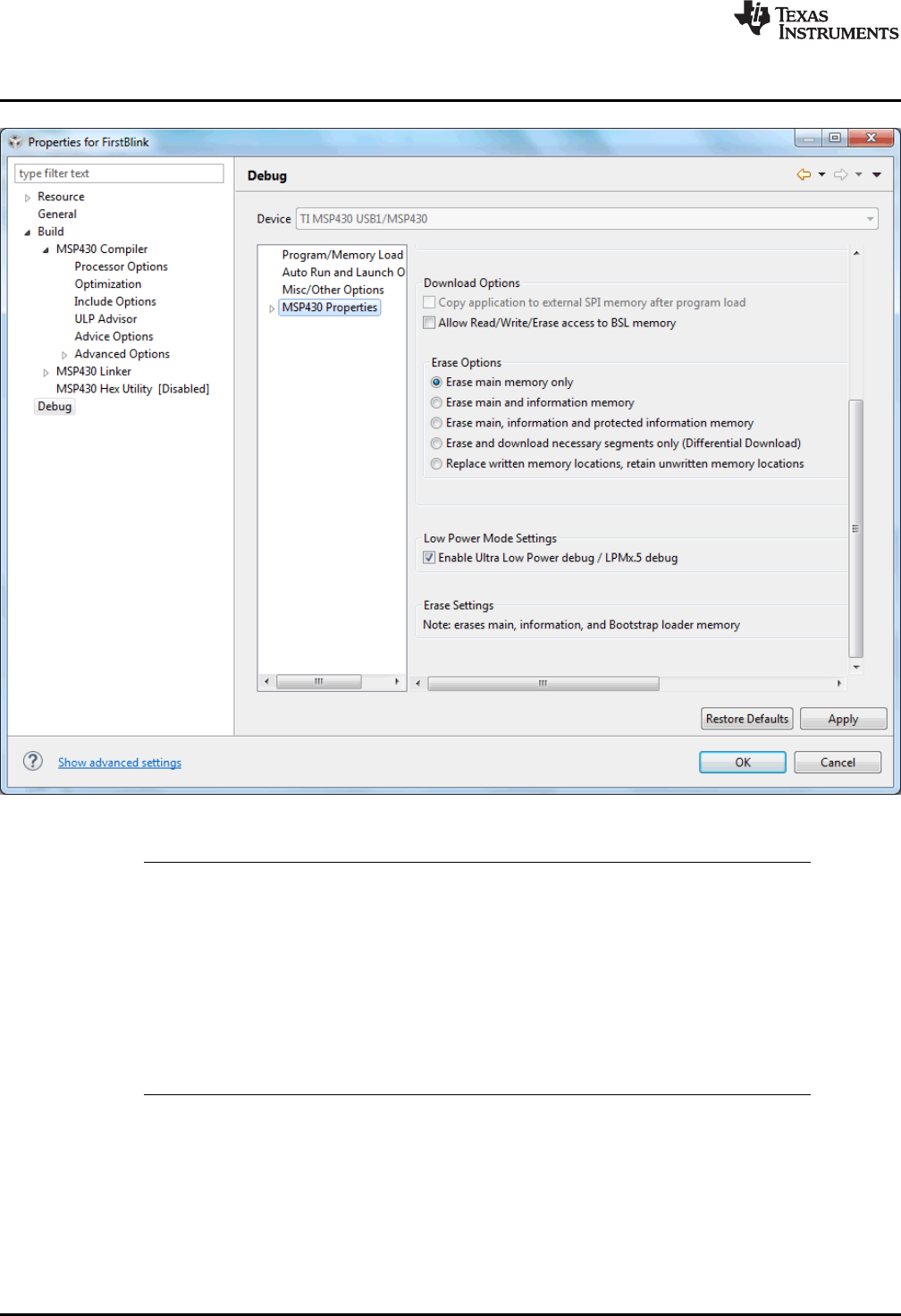

3 Download Options.......................................................................................................... 15

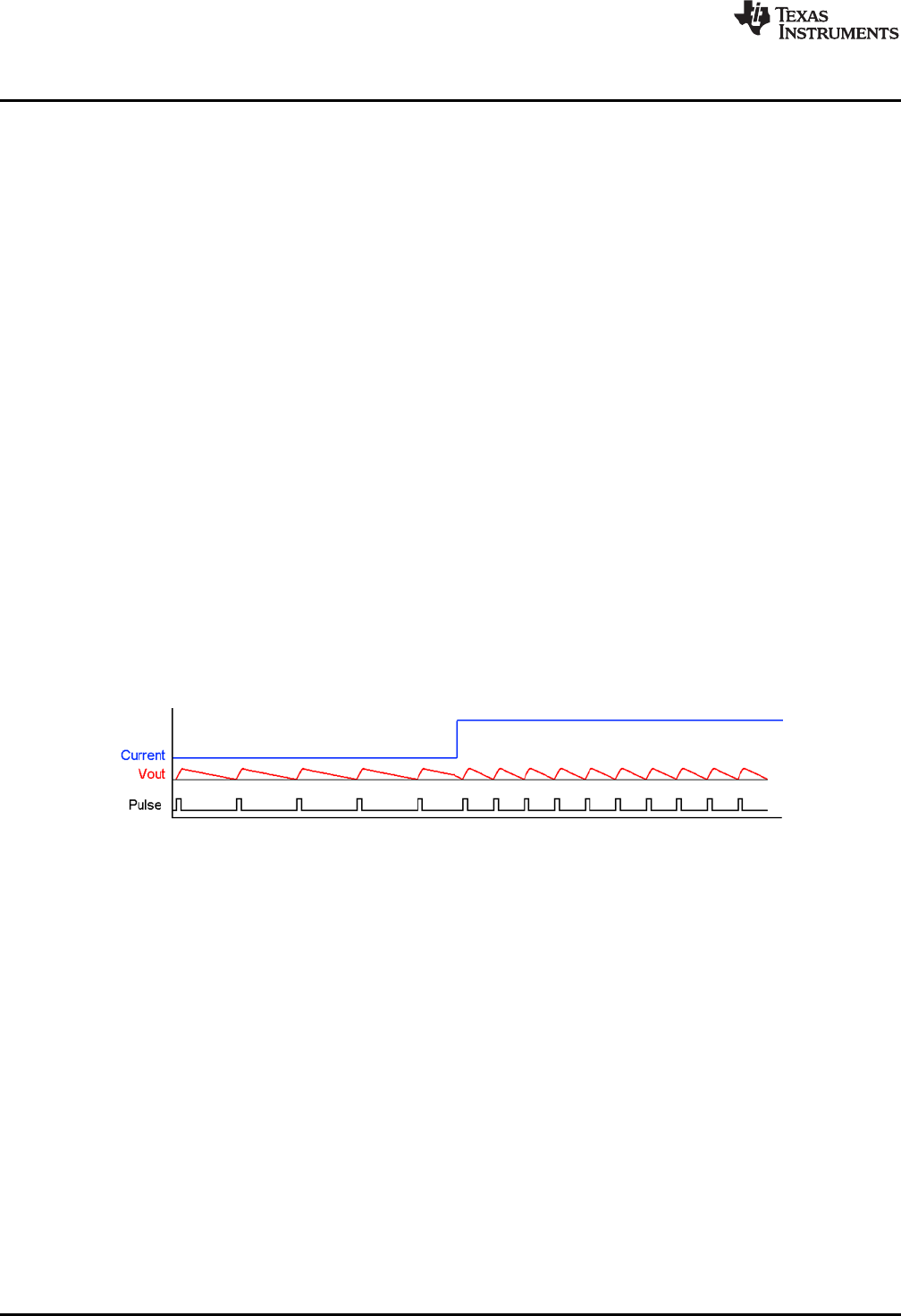

4 Pulse Density and Current Flow.......................................................................................... 16

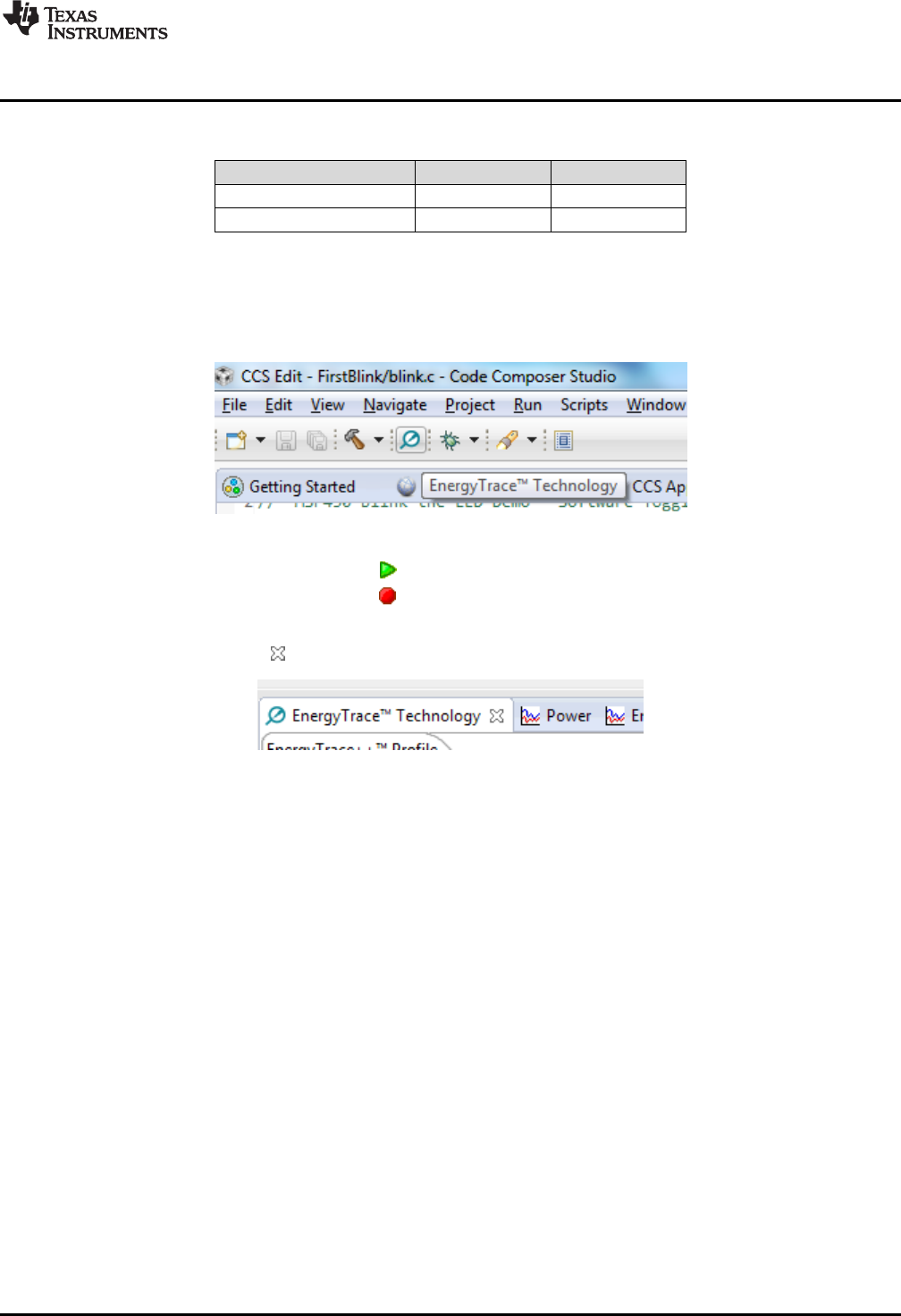

5 EnergyTrace Button in the Toolbar Menu............................................................................... 17
6 Exit EnergyTrace Mode ................................................................................................... 17
7 EnergyTrace™ Technology Preferences ............................................................................... 18
8 Project Properties .......................................................................................................... 19
9 Debug Properties........................................................................................................... 20

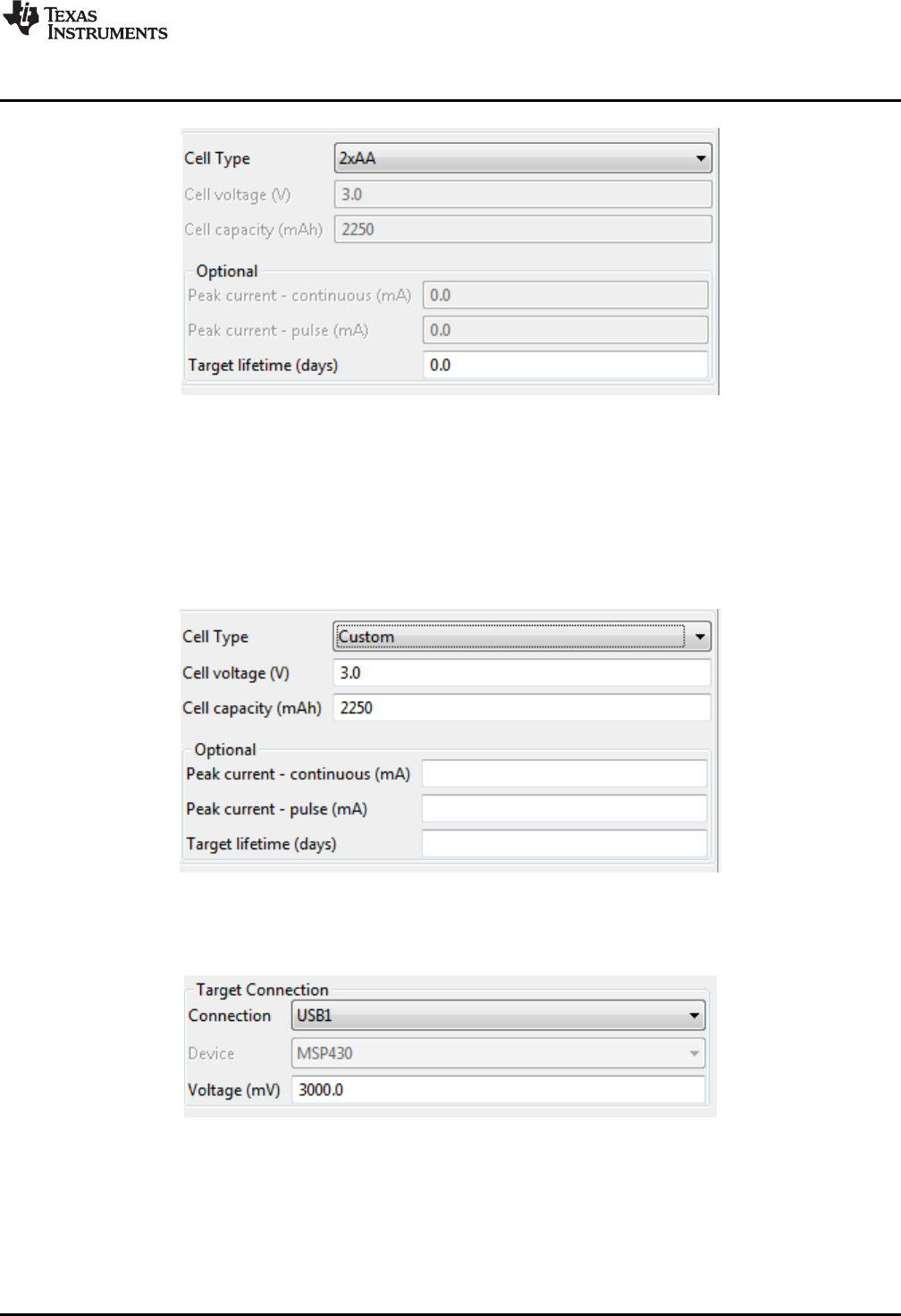

10 Battery Selection ........................................................................................................... 21
11 Custom Battery Type ...................................................................................................... 21
12 Target Connection ......................................................................................................... 21

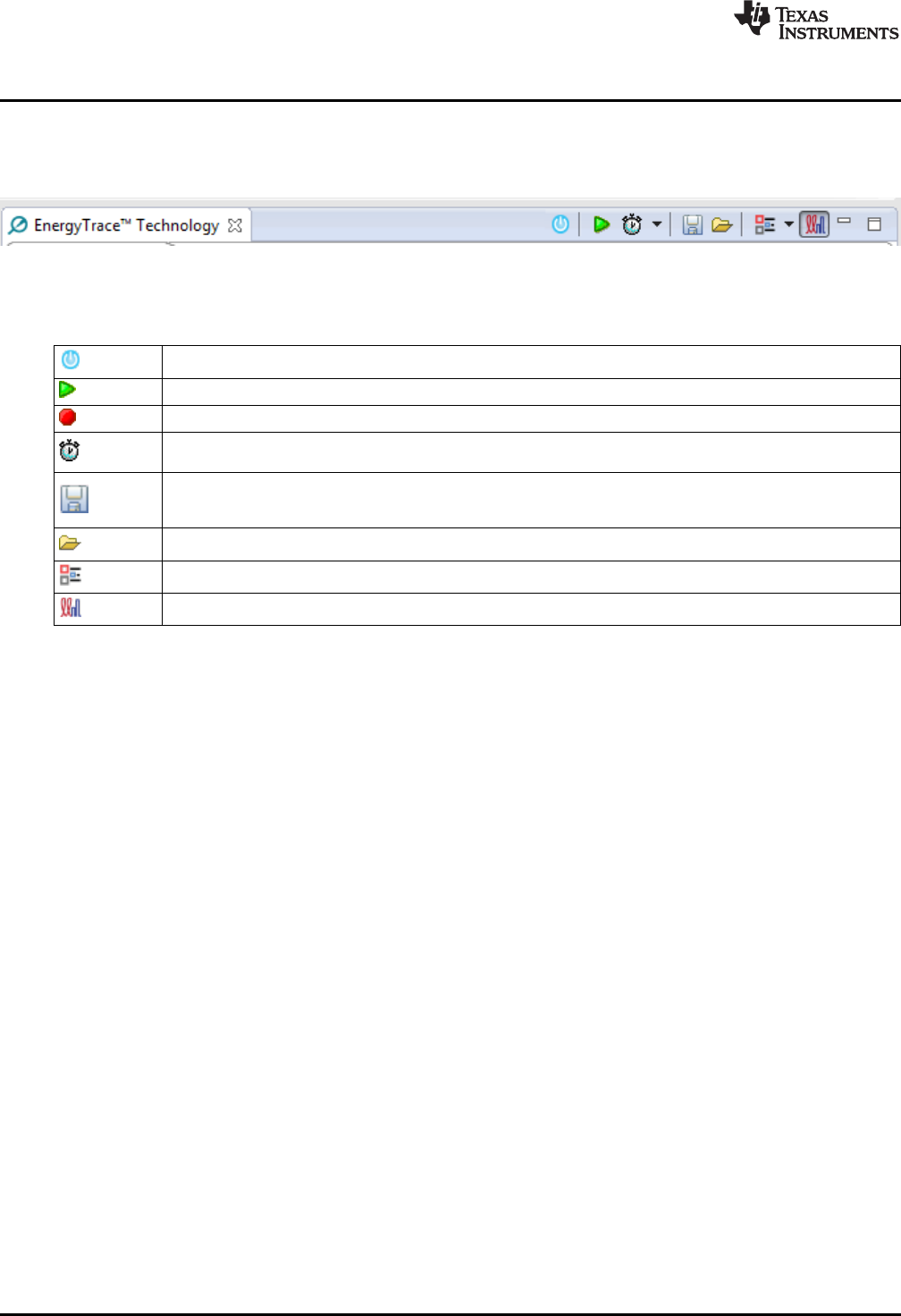

13 EnergyTrace™ Technology Control Bar ................................................................................ 22

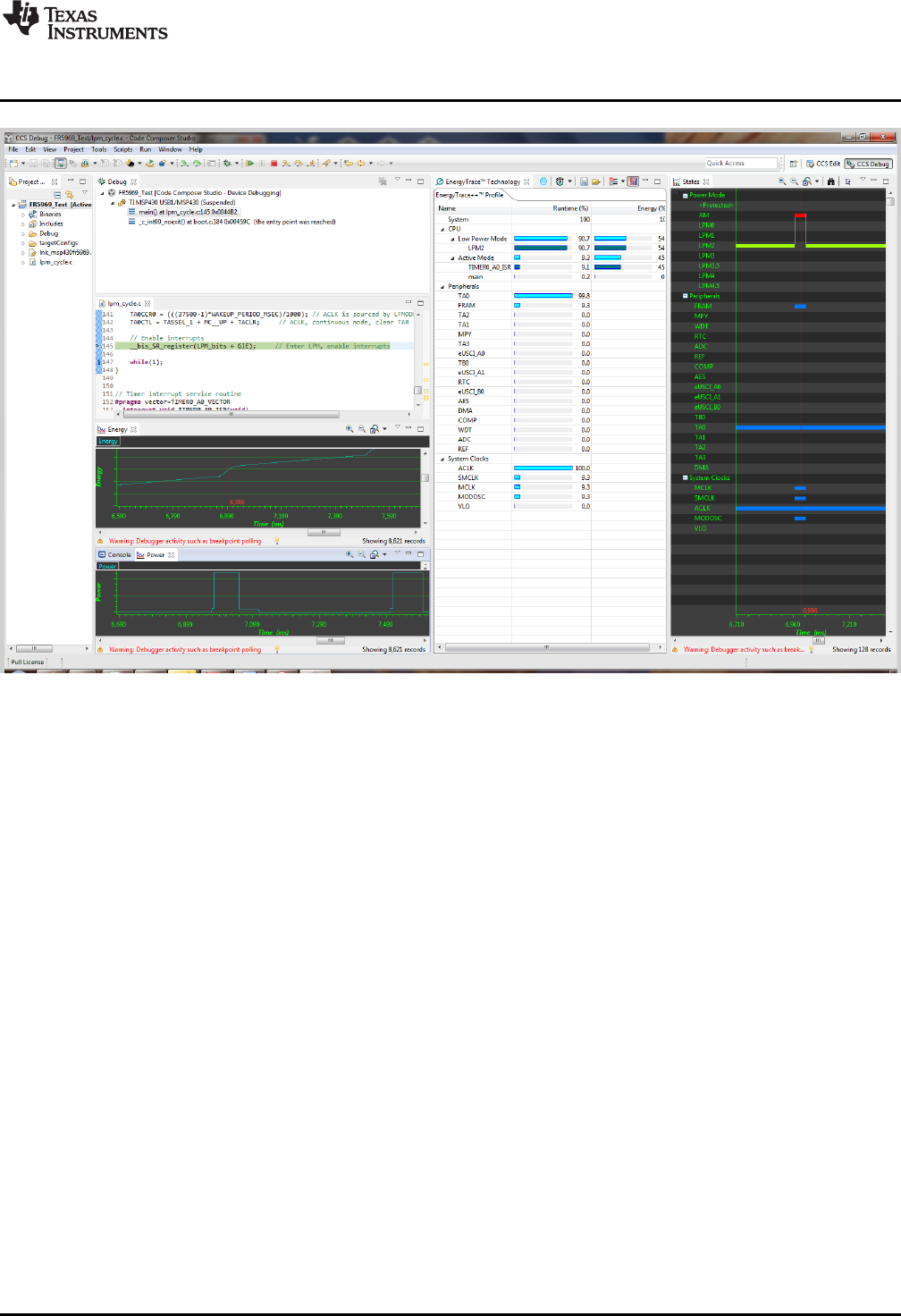

14 Debug Session With EnergyTrace++ Graphs .......................................................................... 23
15 Profile Window.............................................................................................................. 24

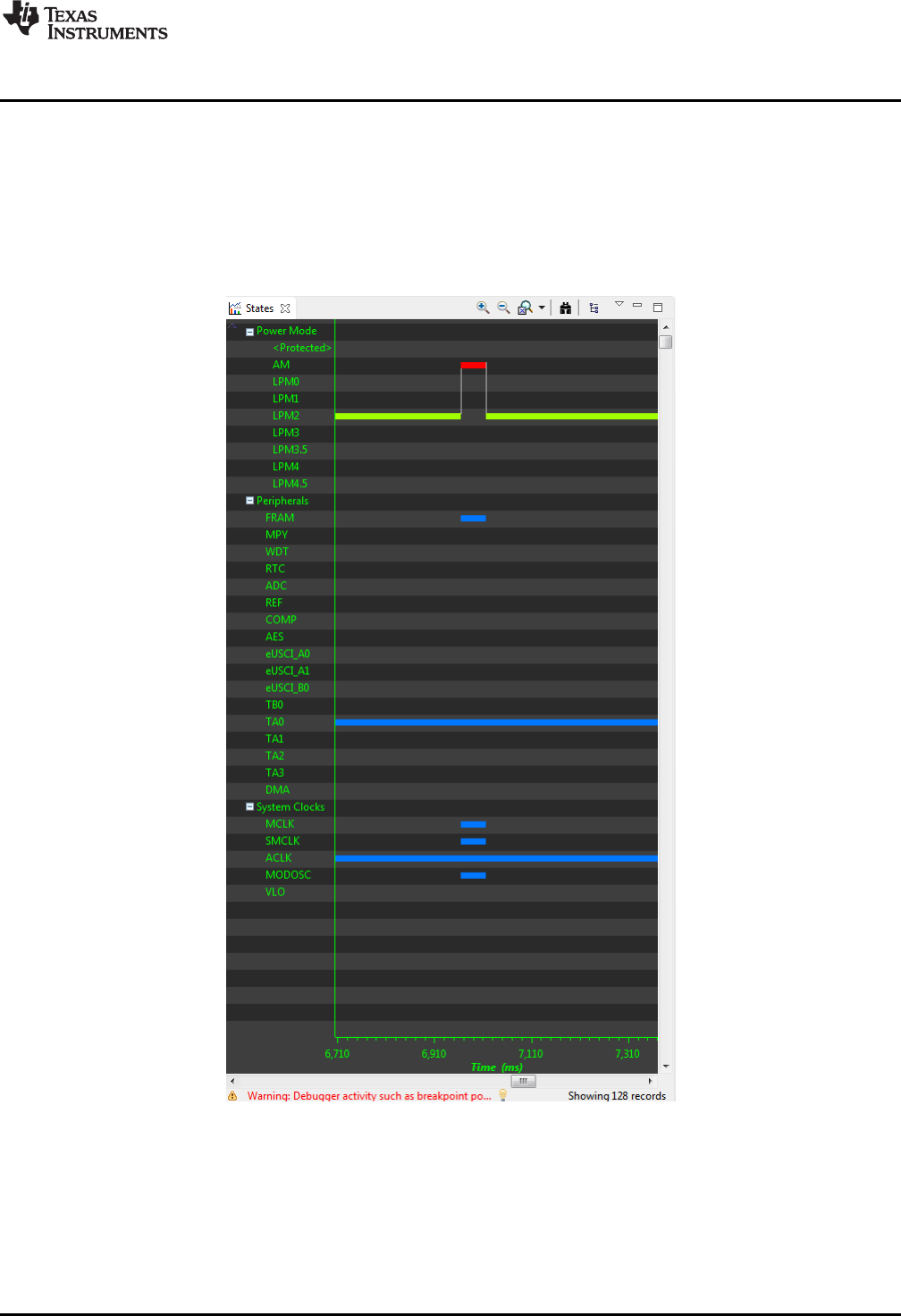

16 States Window.............................................................................................................. 25
17 Power Window.............................................................................................................. 26
18 Energy Window............................................................................................................. 26

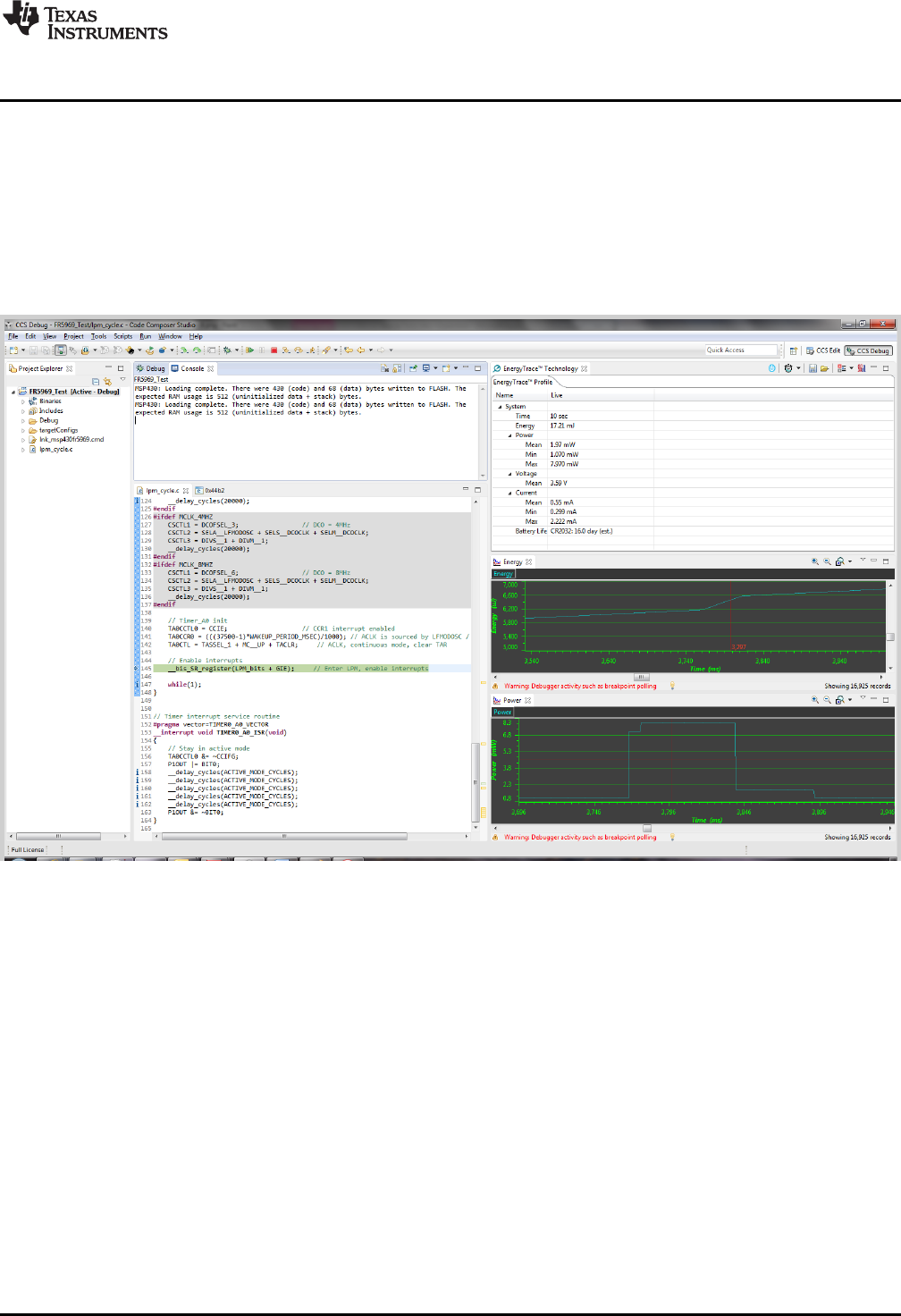

19 Debug Session With EnergyTrace Graphs ............................................................................. 27

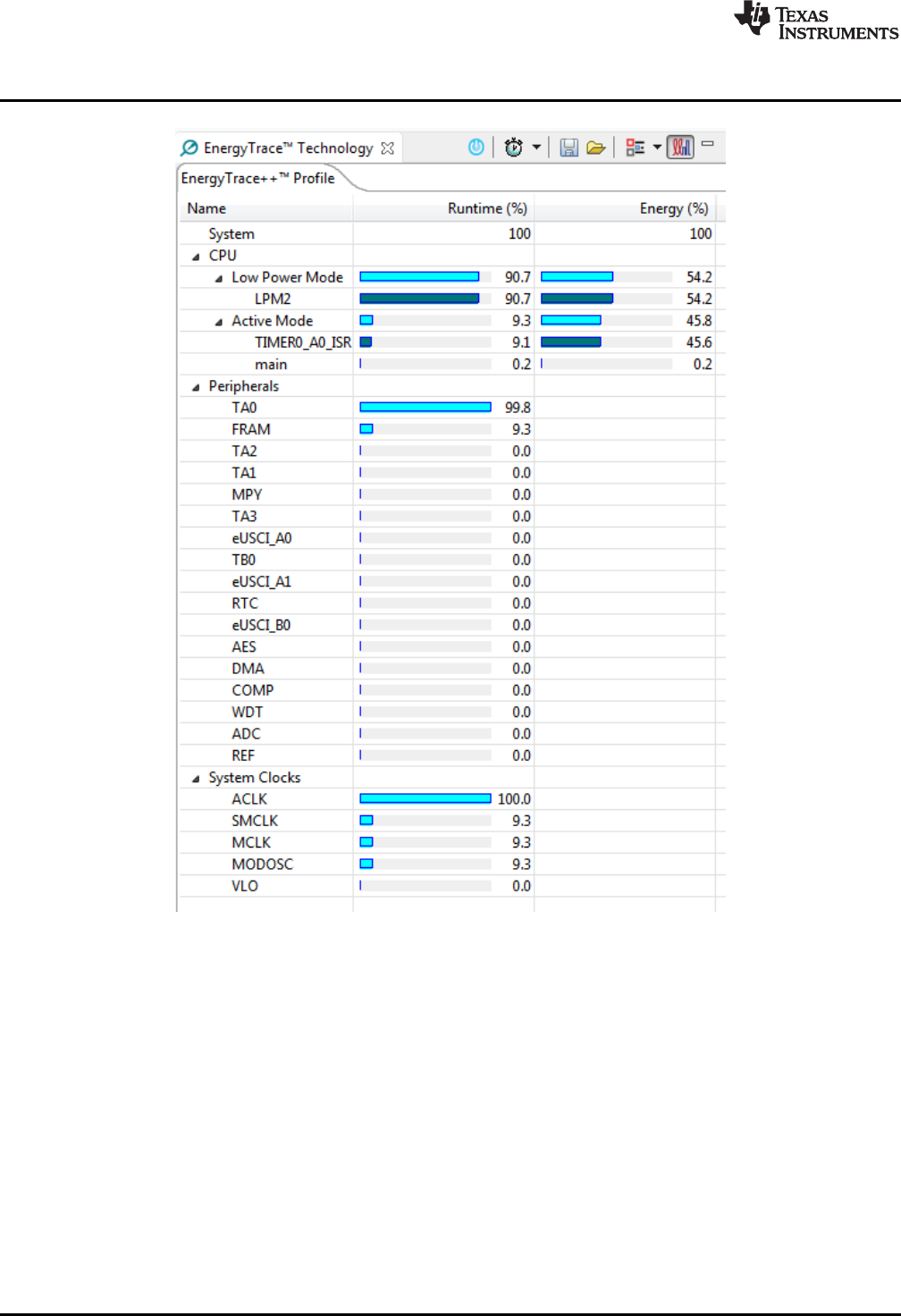

20 EnergyTrace Profile Window ............................................................................................. 28

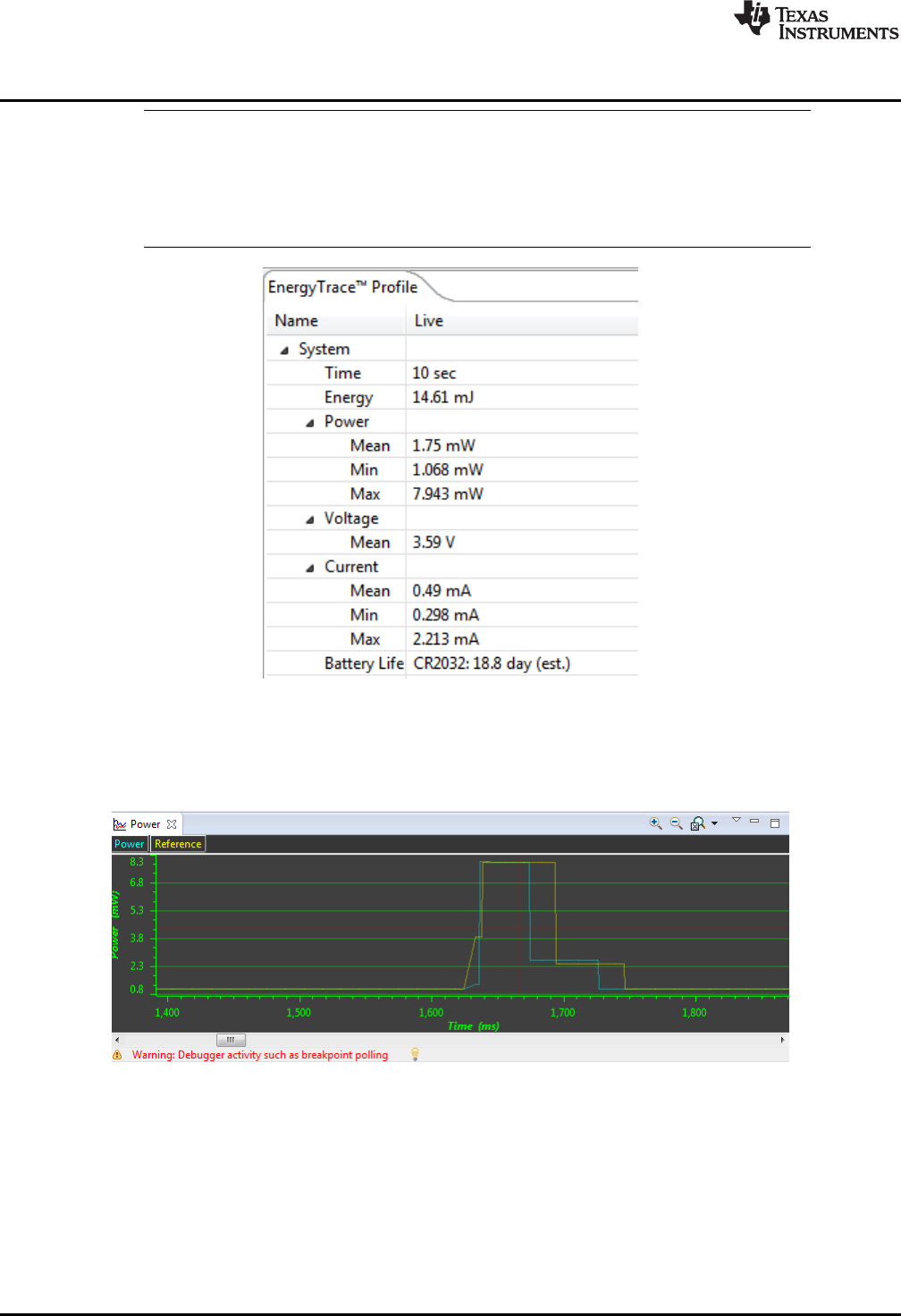

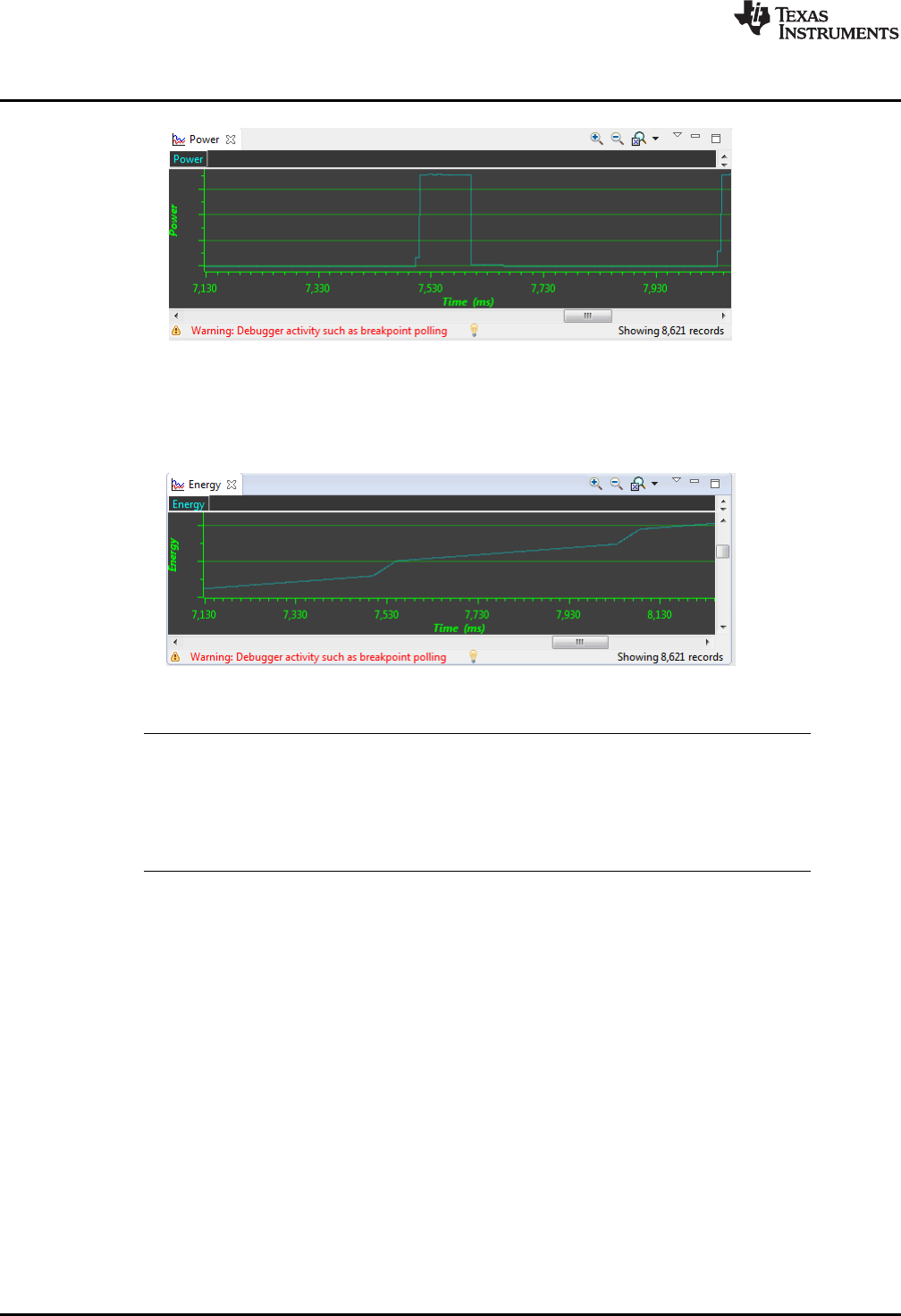

21 Zoom Into Power Window................................................................................................. 28

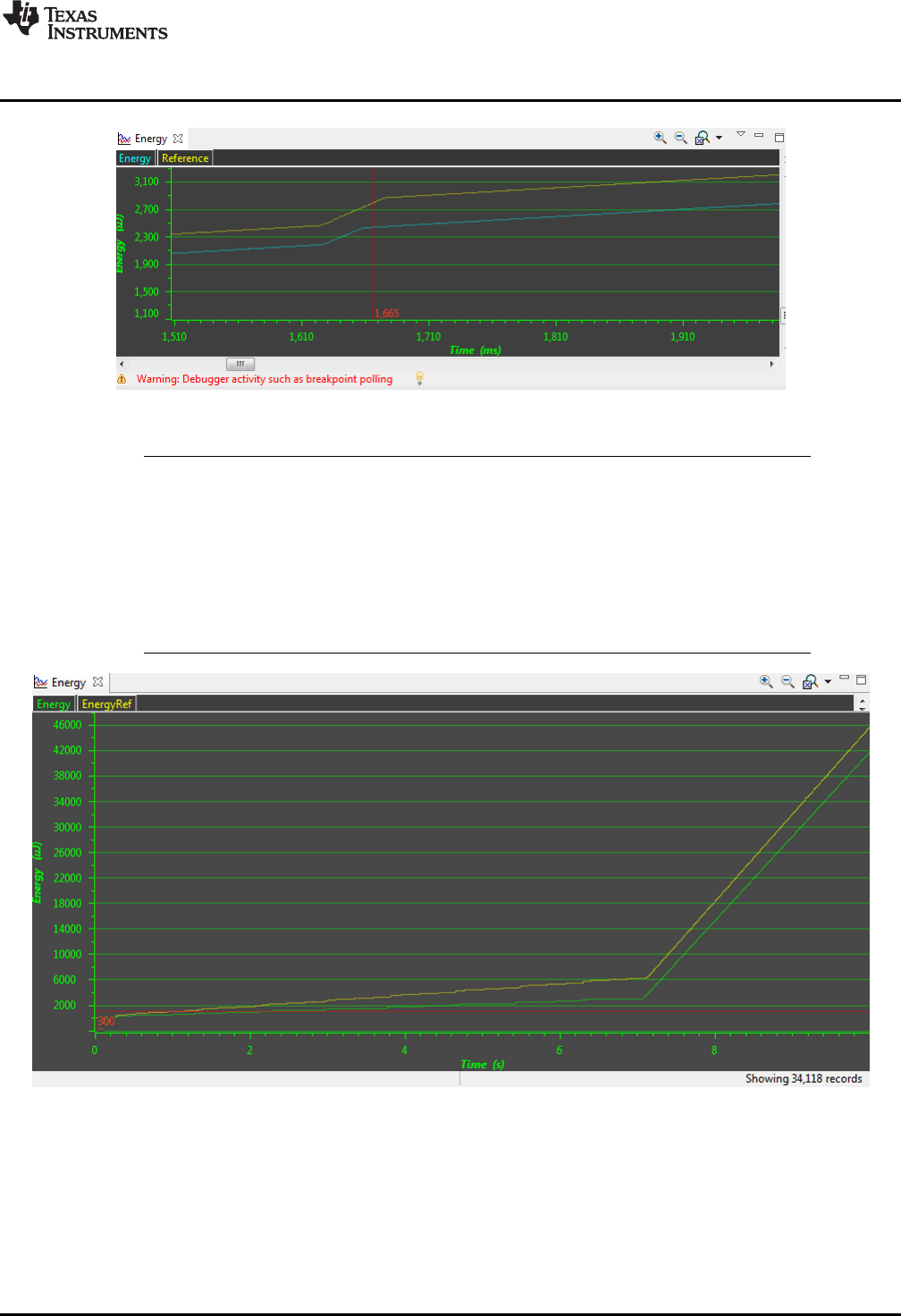

22 Zoom Into Energy Window................................................................................................ 29
23 Energy Profile of the Same Program in Resume (Yellow Line) and Free Run (Green Line) .................... 29

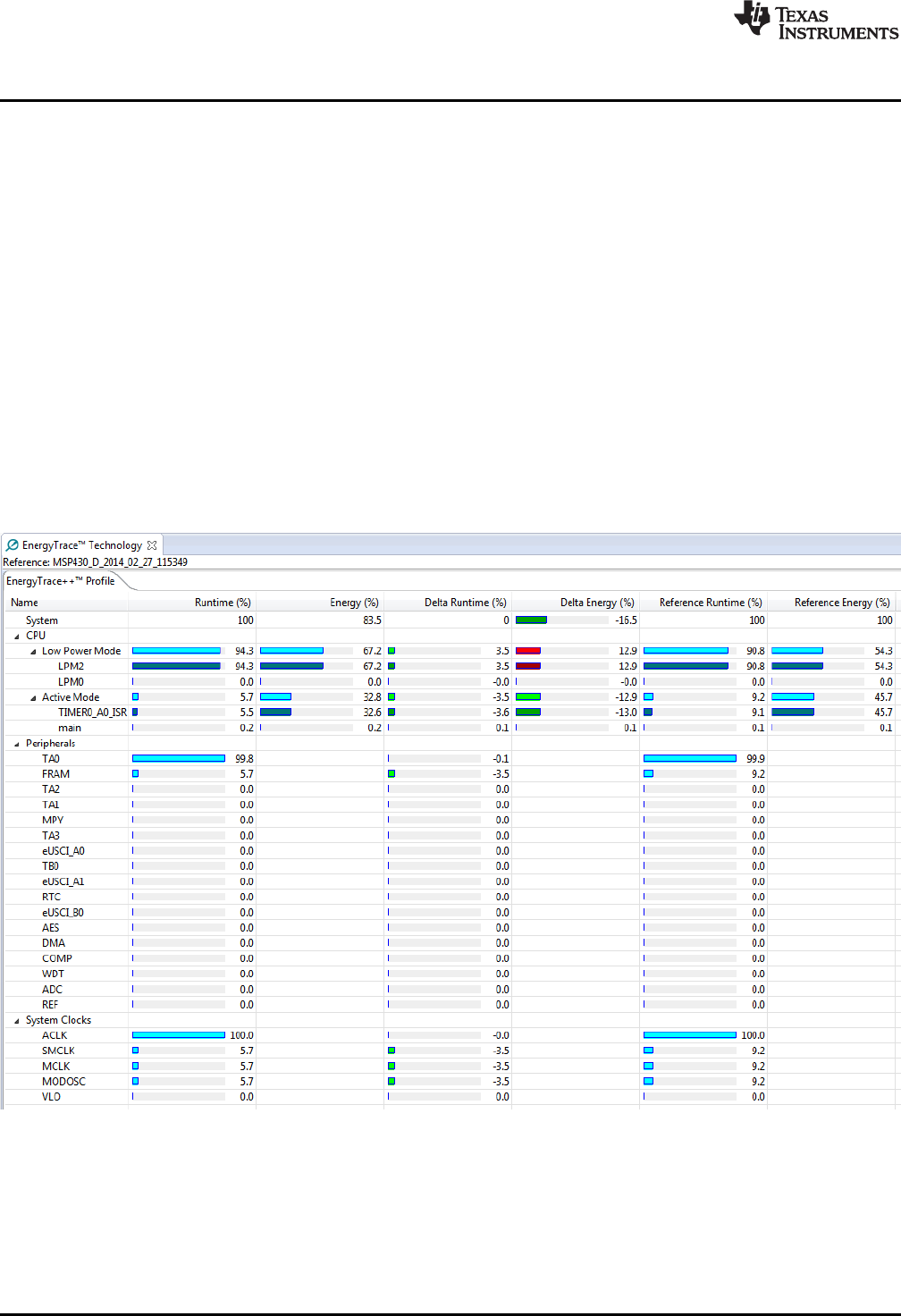

24 Comparing Profiles in EnergyTrace++ Mode........................................................................... 30

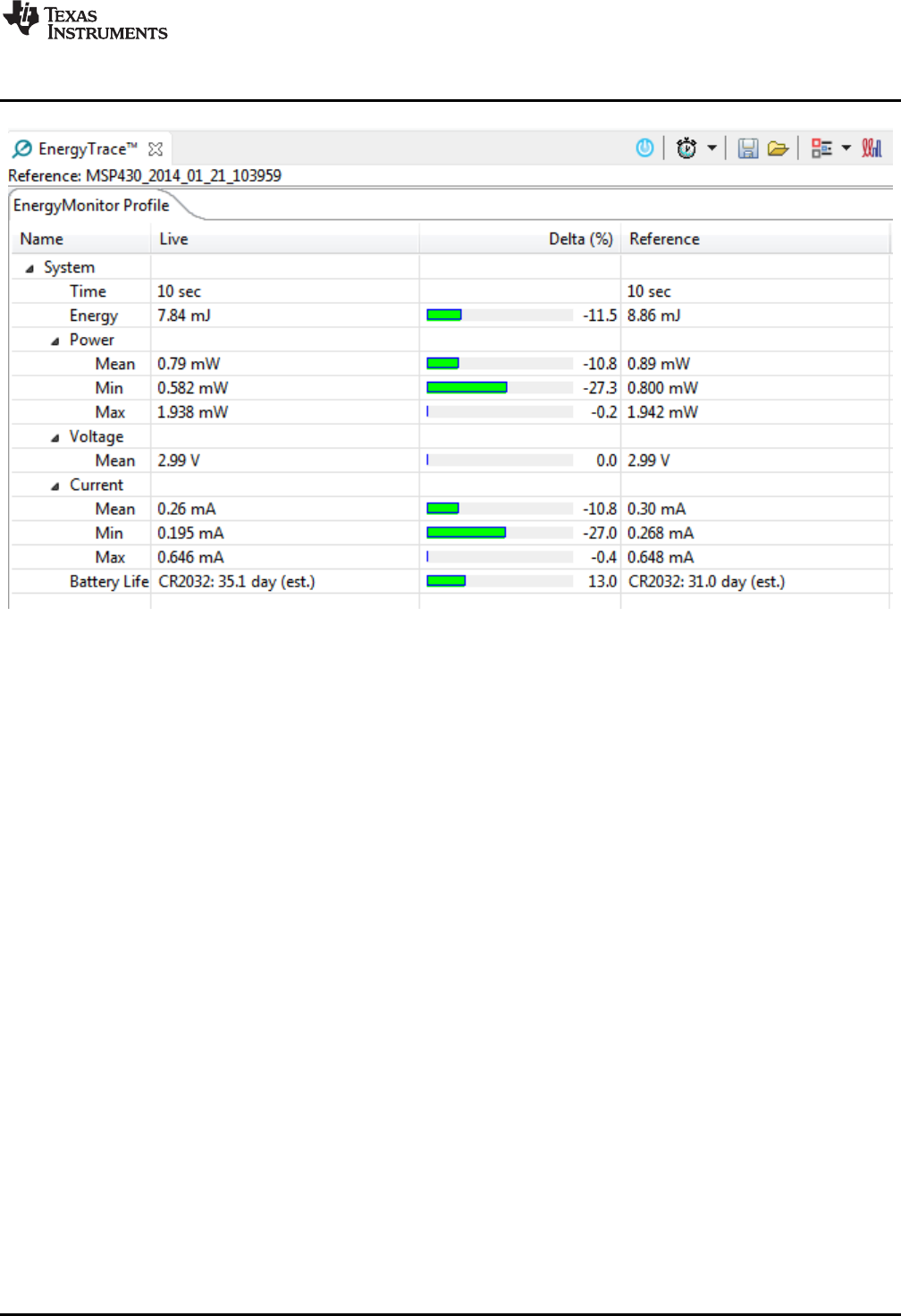

25 Comparing Profiles in EnergyTrace Mode .............................................................................. 31

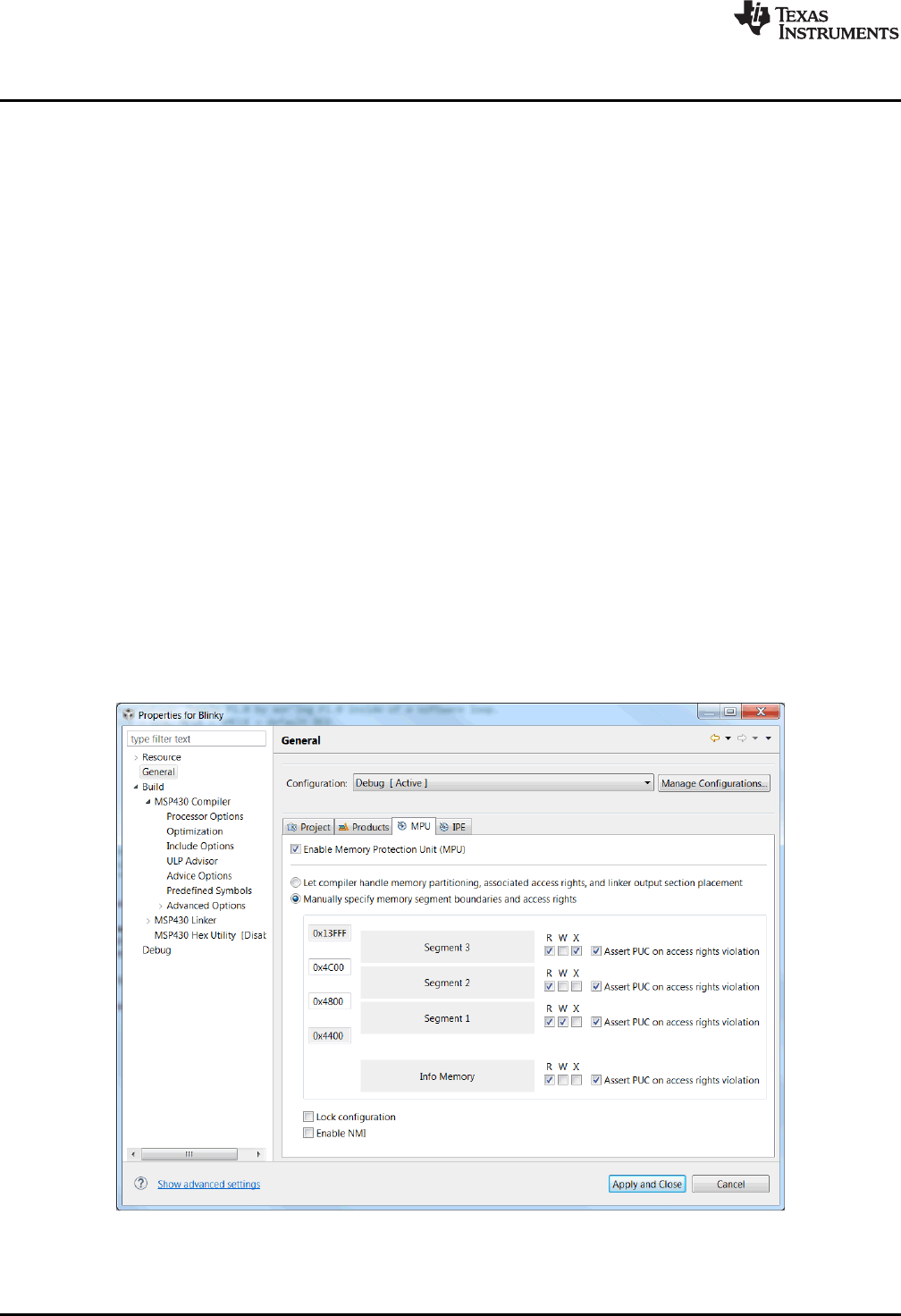

26 MPU Configuration Dialog ................................................................................................ 34

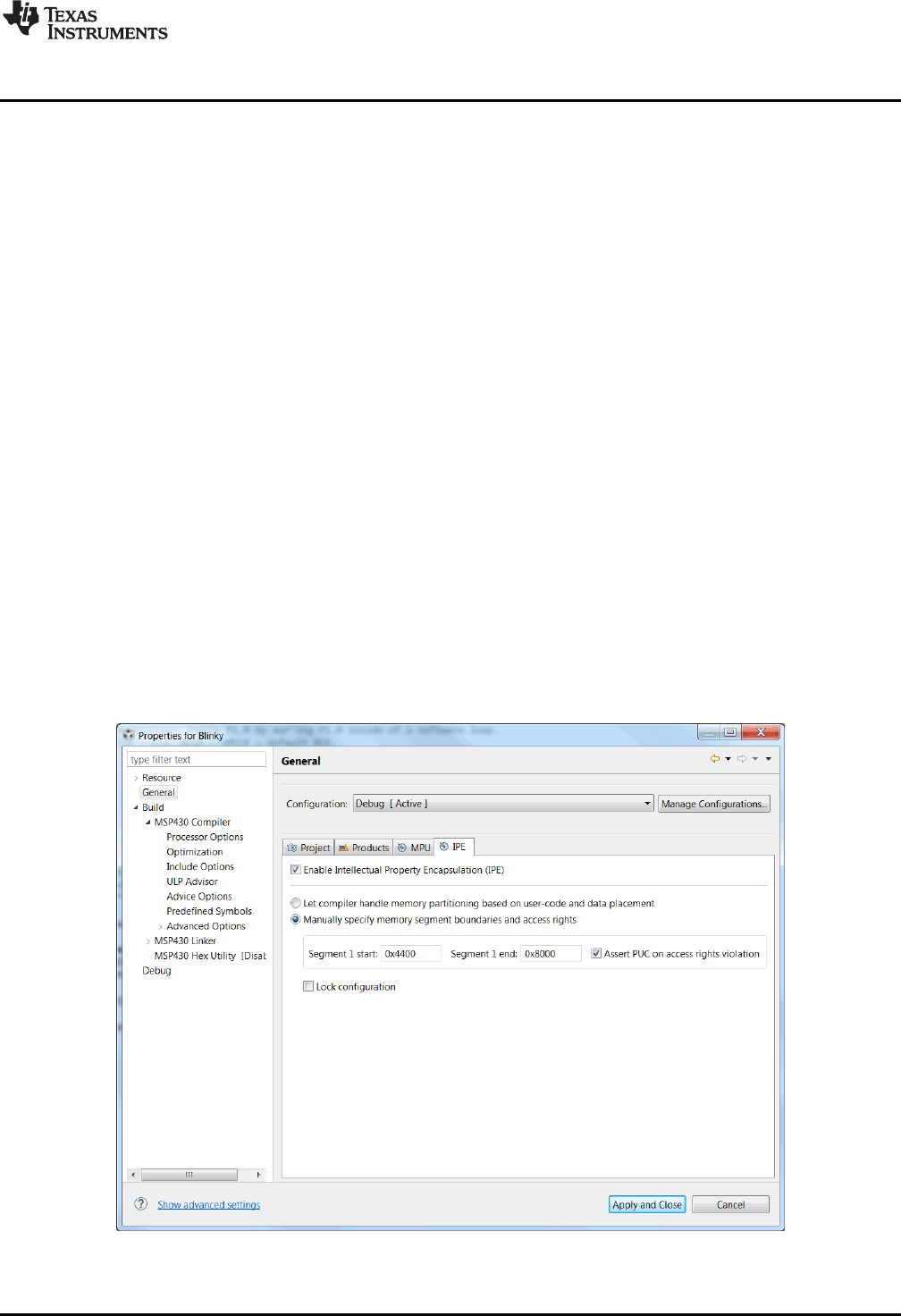

27 IPE Configuration Dialog .................................................................................................. 35
28 IPE Debug Settings ........................................................................................................ 36

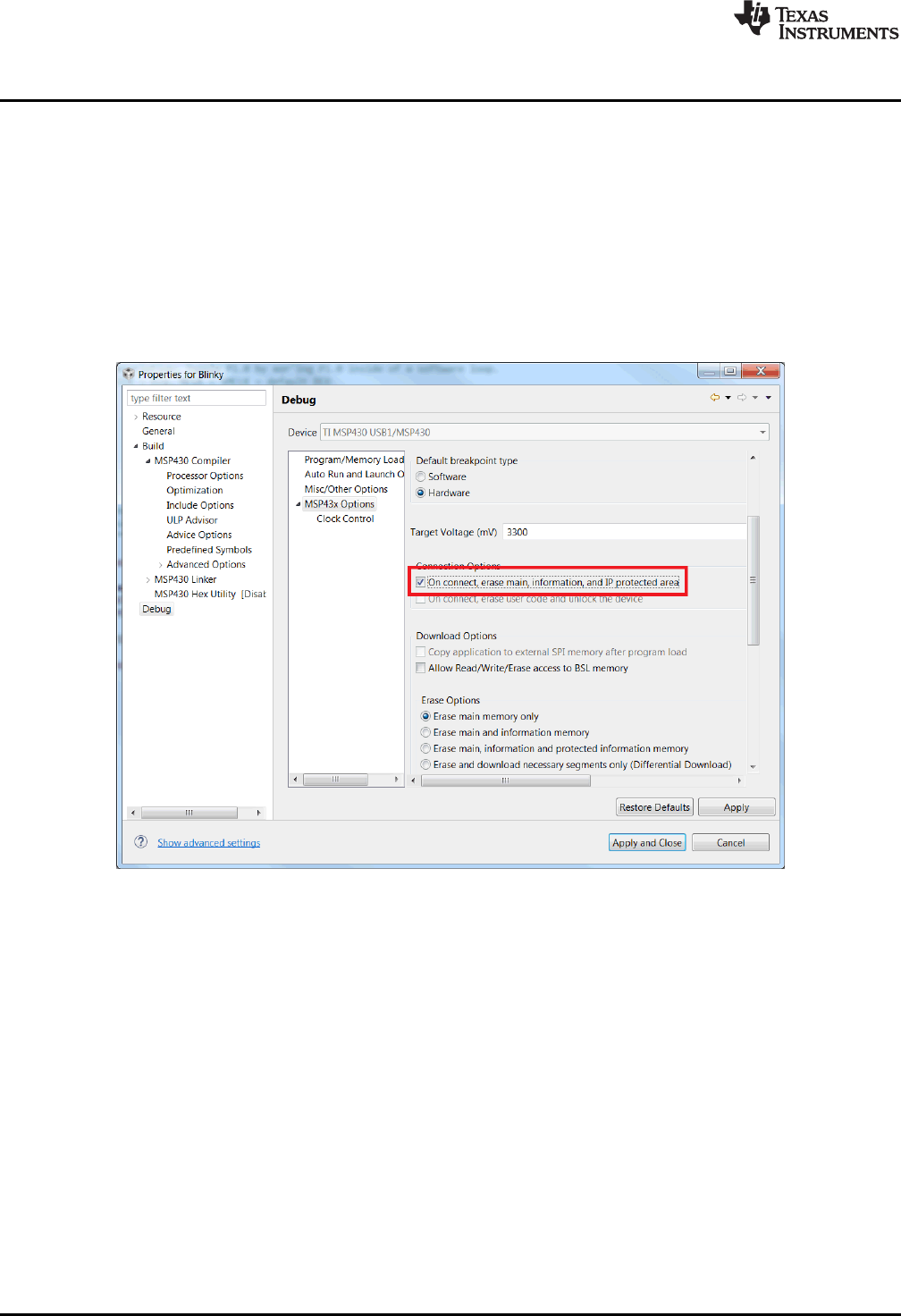

29 FRWP Configuration Dialog .............................................................................................. 37
30 MSP430L092 Modes ...................................................................................................... 59

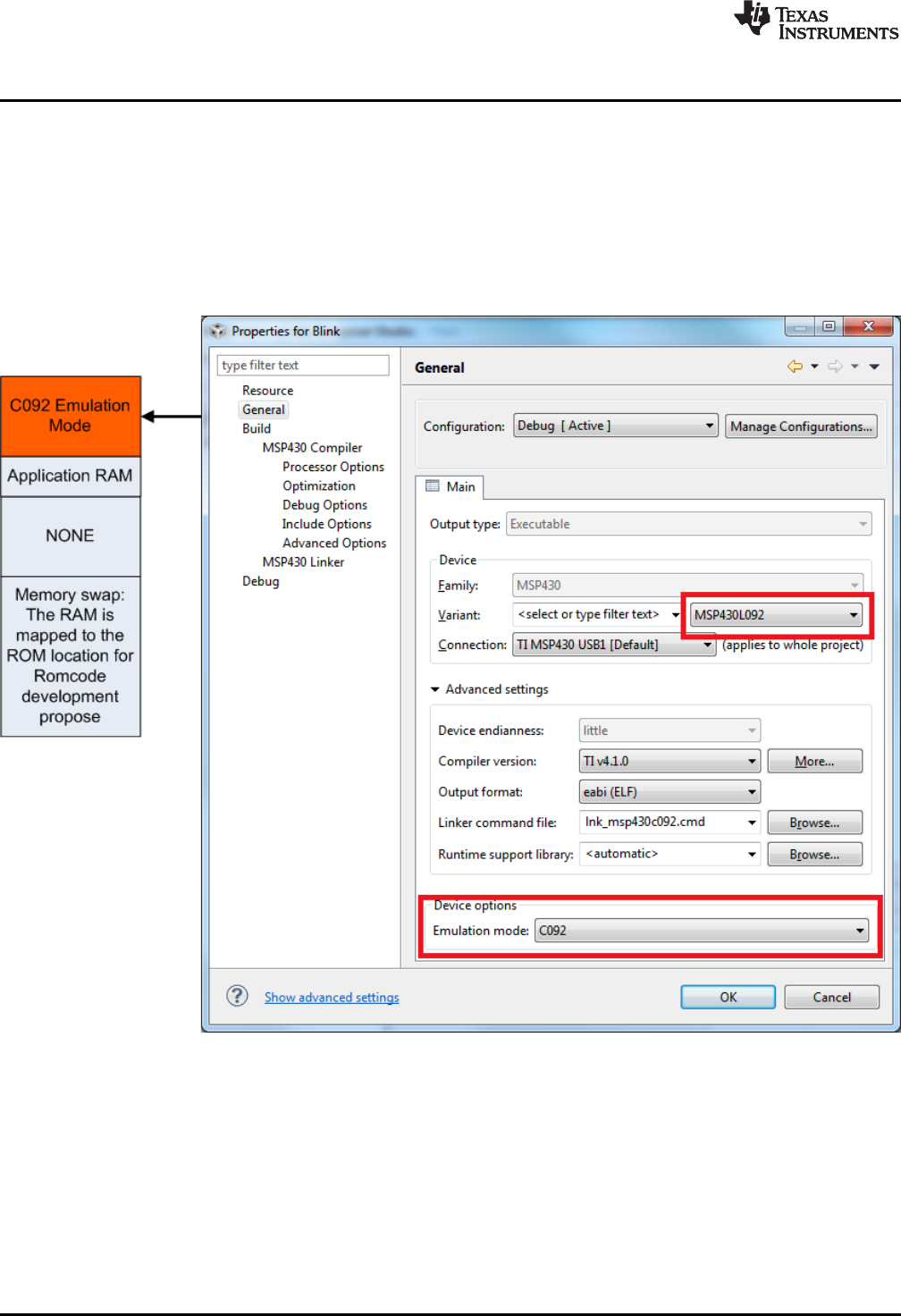

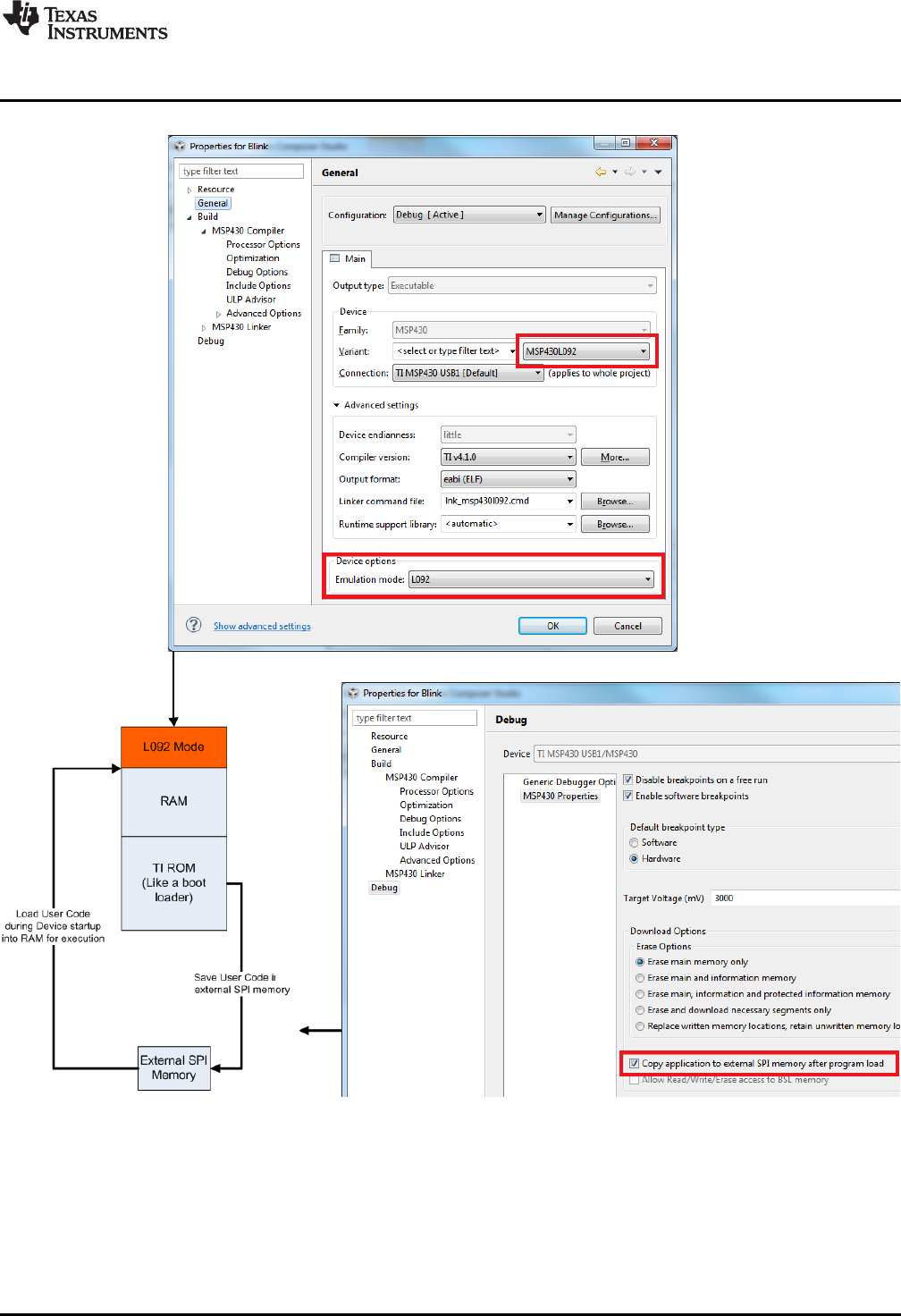

31 MSP430L092 in C092 Emulation Mode................................................................................. 60

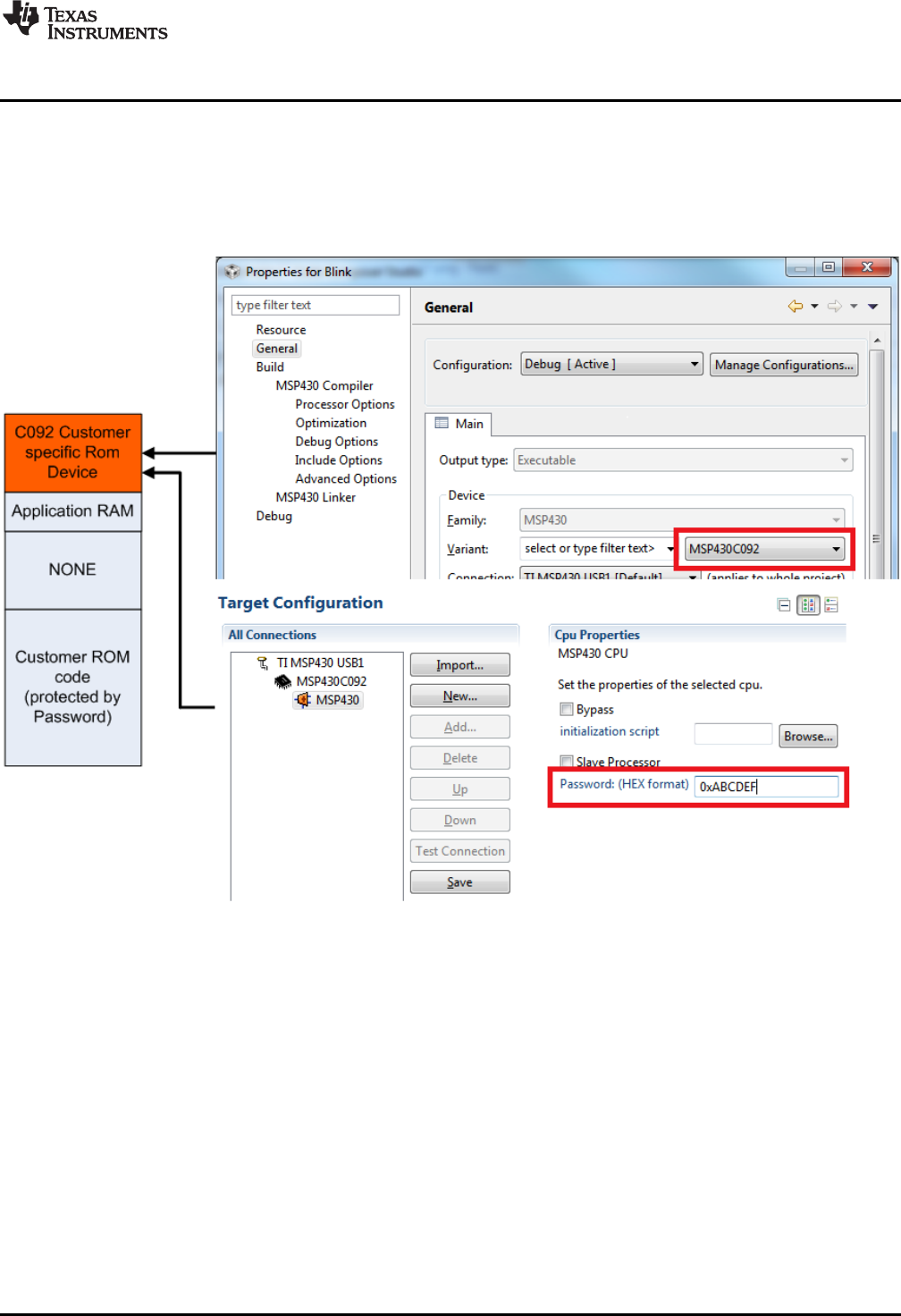

32 MSP430C092 Password Access......................................................................................... 61

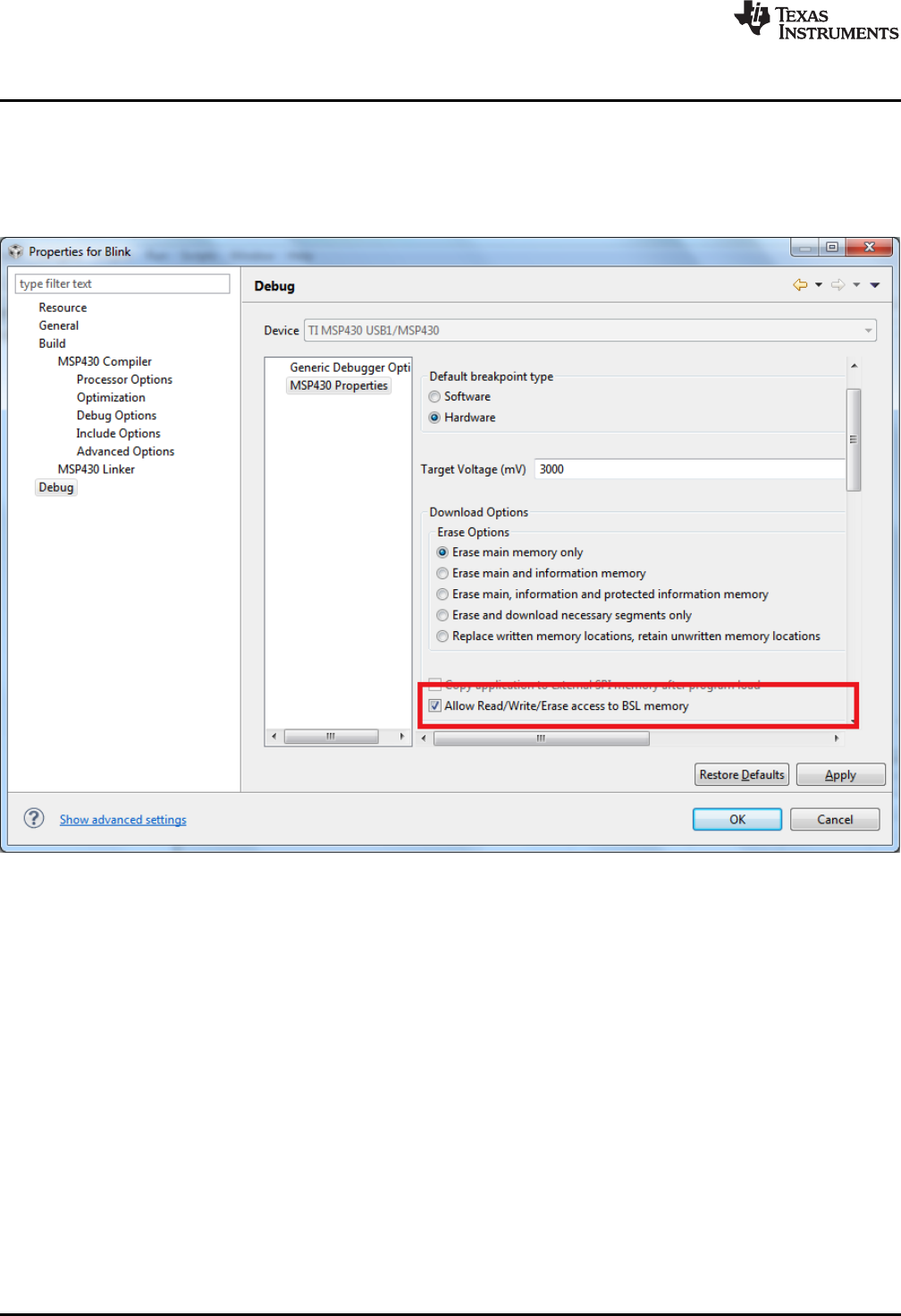

33 Allow Access to BSL....................................................................................................... 62

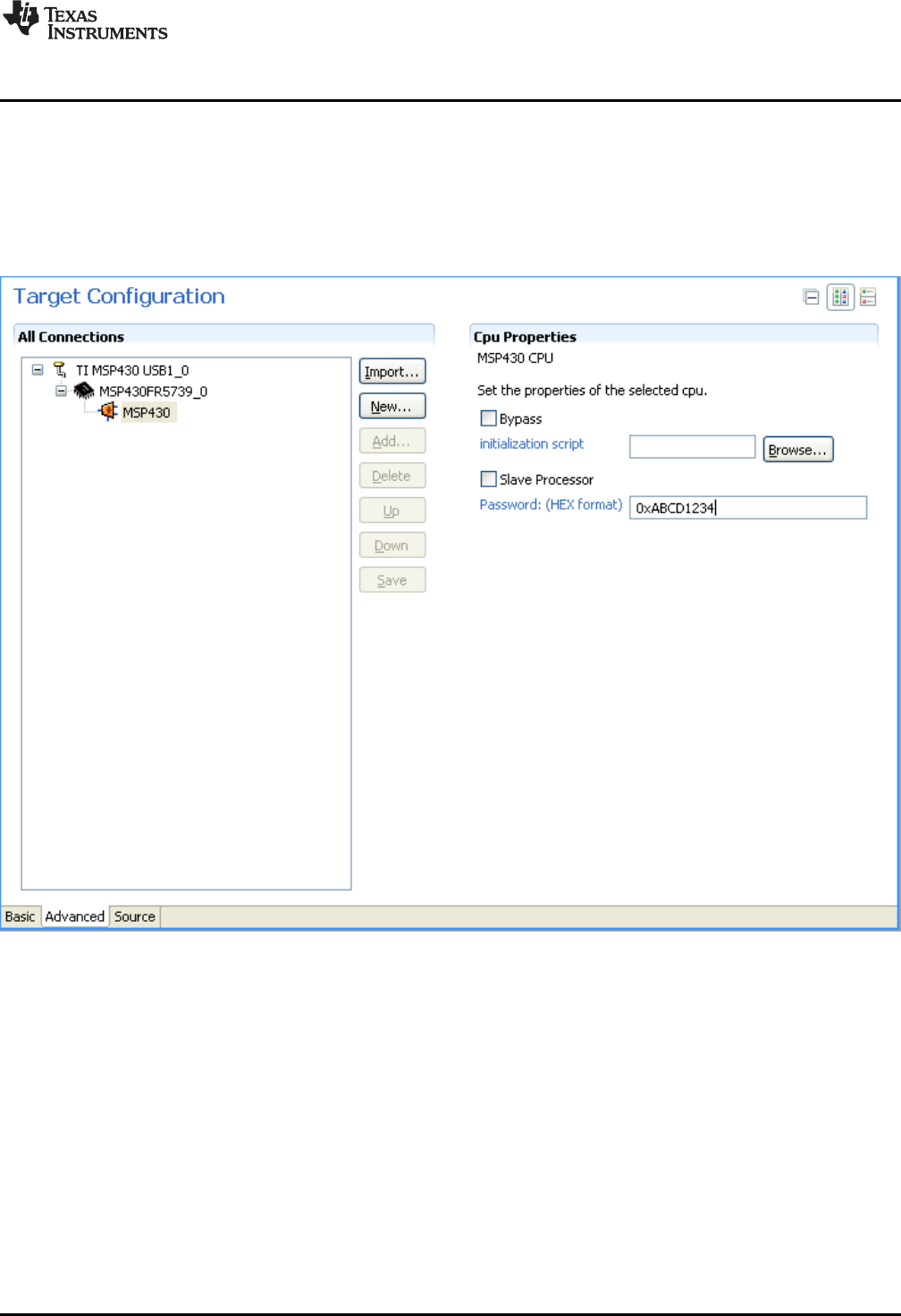

34 MSP430 Password Access ............................................................................................... 63

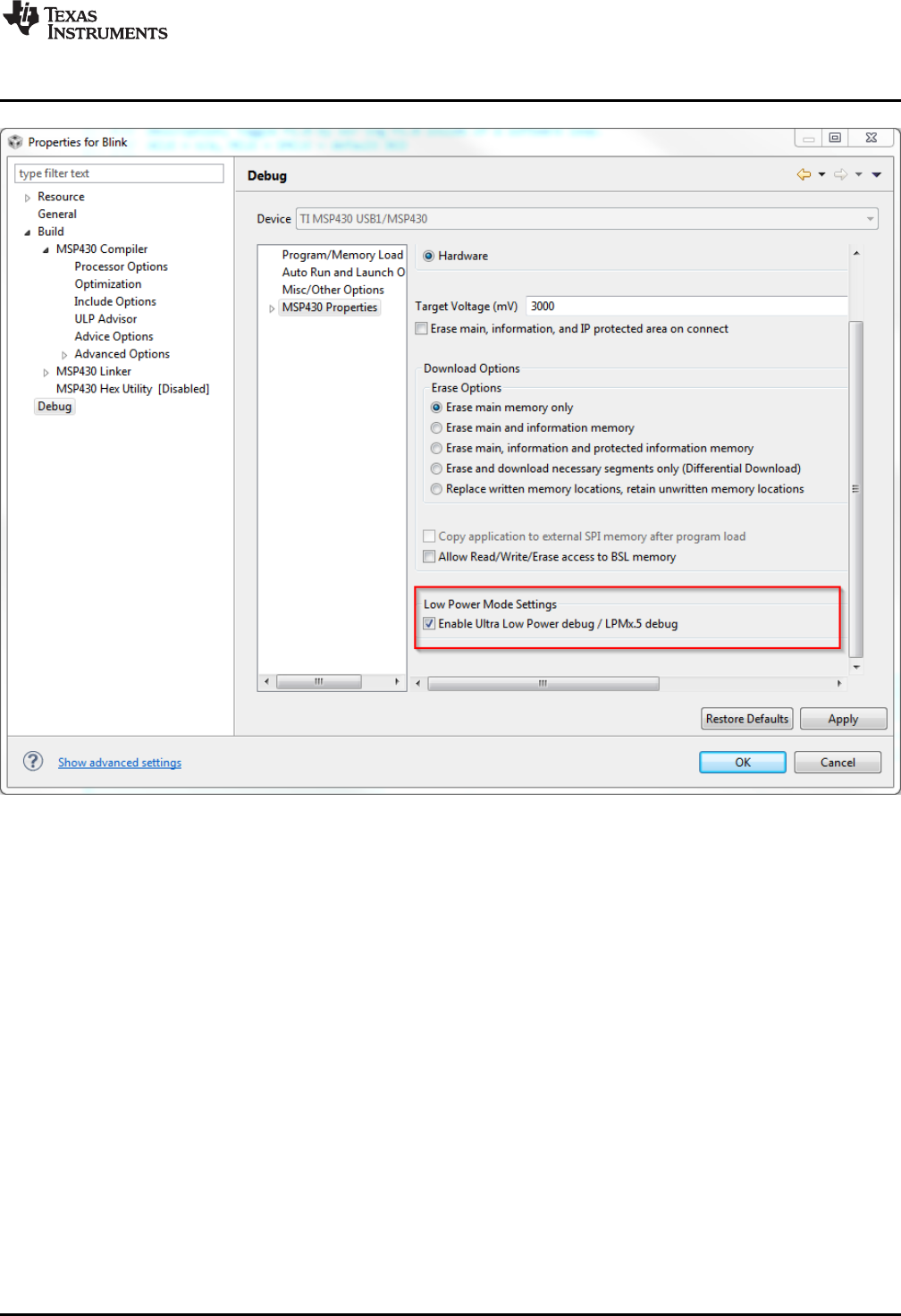

35 Enable Ultra-Low-Power Debug Mode .................................................................................. 65
List of Tables
1 System Requirements....................................................................................................... 5
2 Device Architecture, Breakpoints, and Other Emulation Features .................................................... 9
3 Availability of EnergyTrace and EnergyTrace++ Modes .............................................................. 17
4 EnergyTrace™ Technology Control Bar Icons ......................................................................... 22
![](asset-3.png)
www.ti.com
Read This First
3
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Trademarks
Code Composer Studio, MSP430, E2E, EnergyTrace are trademarks of Texas Instruments.
IAR Embedded Workbench is a registered trademark of IAR Systems.
ThinkPad is a registered trademark of Lenovo.
Linux is a registered trademark of Linus Torvalds.
Windows is a registered trademark of Microsoft Corporation.
1 Read This First
1.1 How to Use This Manual
Read and follow the instructions in Section 2. This section includes instructions on installing the software
and describes how to run the demonstration programs. After you see how quick and easy it is to use the
development tools, TI recommends that you read all of this manual.
This manual describes only the setup and basic operation of the software development environment but
does not fully describe the MSP430 microcontrollers or the complete development software and hardware
systems. For details on these items, see the appropriate TI documents listed in Section 2.3,Important
MSP430 Documents on the Web, and in Section 1.3.
This manual applies to the use of CCS with the TI MSP-FET, MSP-FET430UIF, eZ-FET, and eZ430
development tools series.
These tools contain the most up-to-date materials available at the time of packaging. For the latest
materials (including data sheets, user's guides, software, and application information), visit the TI MSP430
website at www.ti.com/msp430 or contact your local TI sales office.
1.2 Information About Cautions and Warnings
This document may contain cautions and warnings.
CAUTION
This is an example of a caution statement.
A caution statement describes a situation that could potentially damage your
software or equipment.
WARNING
This is an example of a warning statement.
A warning statement describes a situation that could potentially
cause harm to you.
The information in a caution or a warning is provided for your protection. Read each caution and warning
carefully.
![](asset-4.png)
Read This First
www.ti.com
4SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
1.3 Related Documentation From Texas Instruments
CCS documentation
MSP430™ Assembly Language Tools User's Guide
MSP430™ Optimizing C/C++ Compiler User's Guide
MSP430 development tools documentation
MSP Debuggers User's Guide
MSP430™ Hardware Tools User's Guide
eZ430-F2013 Development Tool User's Guide
eZ430-RF2480 User's Guide
eZ430-RF2500 Development Tool User's Guide
eZ430-RF2500-SEH Development Tool User's Guide
eZ430-Chronos™ Development Tool User's Guide
MSP-EXP430G2 LaunchPad™ Experimenter Board User's Guide
Advanced Debugging Using the Enhanced Emulation Module (EEM) With Code Composer Studio
Version 6
MSP430 device family user's guides
MSP430F1xx Family User's Guide
MSP430F2xx Family User's Guide
MSP430F3xx Family User's Guide
MSP430F4xx Family User's Guide
MSP430F5xx and MSP430x6xx Family User's Guide
MSP430FR4xx and MSP430FR2xx Family User's Guide
MSP430FR57xx Family User's Guide
MSP430FR58xx, MSP430FR59xx, MSP430FR68xx, and MSP430FR69xx Family User's Guide
CC430 device family user's guide
CC430 Family User's Guide
1.4 If You Need Assistance
Support for the MSP430 microcontrollers and the FET development tools is provided by the TI Product
Information Center (PIC). Contact information for the PIC can be found on the TI website at
www.ti.com/support. A Code Composer Studio specific Wiki page (FAQ) is available, and the TI E2E™
Community support forums for the MSP430 microcontrollers and the Code Composer Studio IDE provide
open interaction with peer engineers, TI engineers, and other experts. Additional device-specific
information can be found on the MSP430 website.
![](asset-5.png)
www.ti.com
Get Started Now!
5
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
2 Get Started Now!
This section provides instructions on installing the software, and shows how to run the demonstration
programs.
2.1 Software Installation
To install Code Composer Studio™ IDE (CCS), download the corresponding CCS package to the HostOS
platform, and extract the full zip archive before running ccs_setup_x.x.x.x. The user can select to use the
offline or online installer (TI recommends the offline installer for slow and unreliable connections). Follow
the instructions shown on the screen. The hardware drivers for the USB JTAG emulators (MSP-FET,
MSPFET430UIF, eZ-FET, and eZ430 series) are installed automatically when installing CCS. The parallel-
port FET (MSP-FET430PIF) legacy debug interface is no longer supported in this version of CCS.
NOTE: The legacy MSP-FET430PIF (parallel port emulator) is not supported by this version of CCS.
NOTE: Fully extract the zip archive (CCSx.x.x.x_y.zip) before running ccs_setup_x.x.x.x.
NOTE: If the MSP-FET or eZ-FET debugger driver install fails:
Under certain conditions (depending on the hardware and operating system that is used), the
MSP-FET or eZ-FET driver install may fail on the first attempt. This can lead to unresponsive
behavior on IDEs. To resolve this issue, disconnect the MSP-FET or eZ-FET and then plug it
again, or plug it in to a different USB port, and restart the IDE.
Table 1. System Requirements
Recommended System Requirements Minimum System Requirements
Processor Dual Core x86 compatible processor 1.0-GHz x86 compatible processor
RAM 6GB 2GB
Free Disk Space 2GB average (1 or 2 device families); 3.5GB all
features 900MB (depends on features selected during
installation)
Operating System
• Windows®: Windows 7 (SP1 or later), Windows 8.x and Windows 10
• Linux: Details on the Linux distributions supported is available here: http://software-
dl.ti.com/ccs/esd/documents/ccsv8_linux_host_support.html
• Mac: The most current and the previous versions are supported at the time of CCS release.
2.2 Flashing the LED
This section demonstrates on the FET the equivalent of the C-language "Hello world!" introductory
program. CCS includes C code template files that allow flashing the LED in no time. To get started:
1. Start Code Composer Studio by clicking Start →All Programs →Texas Instruments →Code
Composer Studio →Code Composer Studio.
2. Create a new Project by clicking File →New →CCS Project.
3. Enter a project name.
4. Set the Device Family to MSP430 and select the Device Variant to use (for example, MSP430F2274).
5. Select "Blink The LED" in the "Project templates and example" section.
6. Click Finish.
NOTE: The predefined examples work with most MSP430 boards. Specific examples are
automatically selected for MSP430G221x, MSP430L092, and MSP430FR59xx devices.
Certain MSP430F4xx boards use Port P5.0 for the LED connection, which must be changed
manually in the code.
![](asset-6.png)
Get Started Now!
www.ti.com
6SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
7. To compile the code and download the application to the target device, click Run →Debug (F11).
CAUTION
Never disconnect the JTAG or emulator USB cable during an active debug
session. Always terminate a running debug session properly (by clicking on the
"Terminate" icon) before disconnecting the target device.
8. To start the application, click Run →Resume (F8) or click the Play button on the toolbar.
See FAQ Debugging #1 if the CCS debugger is unable to communicate with the device.
Congratulations, you have just built and tested an MSP430 application!
2.3 Important MSP430™ Documents
The primary sources of MSP430 and CCS information are the device-specific data sheets and user's
guides. The MSP430 website (www.ti.com/msp430) contains the latest version of these documents.
Documents describing the Code Composer Studio tools (Code Composer Studio IDE, assembler, C
compiler, linker, and librarian) can be found at www.ti.com/tool/ccstudio. A Code Composer Studio specific
Wiki page (FAQ) is available at processors.wiki.ti.com/index.php/Category:CCS, and the TI E2E
Community support forums at e2e.ti.com provide additional help. Documentation for third party tools, such
as IAR Embedded Workbench for MSP430, can usually be found on the respective third-party website.
![](asset-7.png)
www.ti.com
Development Flow
7
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
3 Development Flow
This section describes how to use Code Composer Studio IDE (CCS) to develop application software and
how to debug that software.
3.1 Using Code Composer Studio™ IDE (CCS)
The following sections are an overview of how to use CCS. For a full description of the software
development flow with CCS in assembly or C, see the MSP430 Assembly Language Tools User's Guide
and the MSP430 Optimizing C/C++ Compiler User's Guide.
3.1.1 Creating a Project From Scratch
This section presents step-by-step instructions to create an assembly or C project from scratch and to
download and run an application on the MSP430 (see Section 3.1.2). Also, the MSP430 Code Composer
Studio Help presents a more comprehensive overview of the process.
1. Start CCS (Start →All Programs →Texas Instruments →Code Composer Studio →Code
Composer Studio).
2. Create new project (File →New →CCS Project). Enter the name for the project, click next and set
Device Family to MSP430.
3. Select the appropriate device variant. For assembly only projects, select Empty Assembly-only
Project in the Project template and examples section.
4. If using a USB Flash Emulation Tool such as the MSP-FET, MSP-FET430UIF, eZ-FET, or the eZ430
Development Tool, they should be already configured by default.
5. For C projects the setup is complete now, main.c is shown, and code can be entered. For Assembly
only projects the main.asm is shown. If, instead, you want to use an existing source file for your
project, click Project →Add Files... and browse to the file of interest. Single click on the file and click
Open or double-click on the file name to complete the addition of it into the project folder.
6. Click Finish.
7. Enter the program text into the file.
NOTE: Use MSP430 headers (*.h files) to simplify code development.
CCS is supplied with files for each device that define the device registers and the bit names.
TI recommends using these files, which and can greatly simplify the task of developing a
program. To include the .h file corresponding to the target device, add the line #include
<msp430xyyy.h> for C and .cdecls C,LIST,"msp430xyyy.h" for assembly code, where
xyyy specifies the MSP430 part number.
8. Build the project (Project →Build Project).
9. Debug the application (Run →Debug (F11)). This starts the debugger, which gains control of the
target, erases the target memory, programs the target memory with the application, and resets the
target.
See FAQ Debugging #1 if the debugger is unable to communicate with the device.
10. Click Run →Resume (F8) to start the application.
11. Click Run →Terminate to stop the application and to exit the debugger. CCS returns to the C/C++
view (code editor) automatically.
CAUTION
Never disconnect the JTAG or emulator USB cable during an active debug
session. Always terminate a running debug session properly (by clicking on the
"Terminate" icon) before disconnecting the target device.
12. Click File →Exit to exit CCS.
![](asset-8.png)
Development Flow
www.ti.com
8SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
3.1.2 Project Settings
The settings required to configure the CCS are numerous and detailed. Most projects can be compiled
and debugged with default factory settings. The project settings are accessed by clicking Project →
Properties for the active project. The following project settings are recommended or required:
• Specify the target device for debug session (Project →Properties →General →Device →Variant).
The corresponding Linker Command File and Runtime Support Library are selected automatically.
• To more easily debug a C project, disable optimization (Project →Properties →Build →MSP430
Compiler →Optimization →Optimization level).
• Specify the search path for the C preprocessor (Project →Properties →Build →MSP430 Compiler
→Include Options).
• Specify the search path for any libraries being used (Project →Properties →Build →MSP430
Compiler →File Search Path).
• Specify the debugger interface (Project →Properties →General →Device →Connection). Select
TI MSP430 LPTx for the parallel FET interface or TI MSP430 USBx for the USB interface.
• Enable the erasure of the Main and Information memories before object code download (Project →
Properties →Debug →MSP430 Properties →Download Options →Erase Main and Information
Memory).
• To ensure proper stand-alone operation, select Hardware Breakpoints (Project →Properties →
Debug →MSP430 Properties). If Software Breakpoints are enabled (Project →Properties →
Debug →Misc/Other Options →Allow software breakpoints to be used), ensure proper
termination of each debug session while the target is connected; otherwise, the target may not be
operational stand-alone as the application on the device still contains the software breakpoint
instructions.
3.1.3 Using Math Library for MSP430 (MSPMathlib) in CCS v5.5 and Newer
TI's MSPMathlib is part of CCSv5.5 and newer releases. This optimized library provides up to 26x better
performance in applications that use floating point scalar math. For details, see the MSPMathlib web page
(www.ti.com/tool/mspmathlib).
MSPMathlib is active by default in CCSv5.5+ for all new projects on all supported devices. For imported
projects, it is used only if the project already uses MSPMathlib or if it has been manually enabled.
To disable MSPMathlib: Remove libmath.a under Project →Properties →Build →MSP430 Linker →
File Search Path in the "Include library file or command file as input (--library, -l)" field.
To enable MSPMathlib: Add libmath.a under Project →Properties →Build →MSP430 Linker →File
Search Path in the "Include library file or command file as input (--library, -l)" field. Important: Put
libmath.a before other libraries that may be listed here.
3.1.4 Using an Existing CCE v2, CCE v3, CCE v3.1, CCS v4.x, or CCS v5.x Project
CCS v8.x supports the conversion of workspaces and projects created in version CCE v2, v3, v3.1 and
CCS v4.x, CCS v5.x to the CCS v6.1 format (File →Import →General →Existing Projects into
Workspace →Next). Browse to legacy CCE or CCS workspace that contains the project to be imported.
The Import Wizard lists all of the projects in the given workspace. Specific Projects can then be selected
and converted. CCEv2 and CCEv3 projects may require manual changes to the target configuration file
(*.ccxml) after import.
CCS may return a warning that an imported project was built with another version of Code Generation
Tools (CGT) depending on the previous CGT version.
While the support for assembly projects has not changed, the header files for C code have been modified
slightly to improve compatibility with the IAR Embedded Workbench®IDE (interrupt vector definitions). The
definitions used in CCE 2.x are still given but have been commented out in all header files. To support
CCE 2.x C code, remove the "//" in front of the #define statements that are located at the end of each .h
file in the section "Interrupt Vectors".
![](asset-9.png)
www.ti.com
Development Flow
9
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs

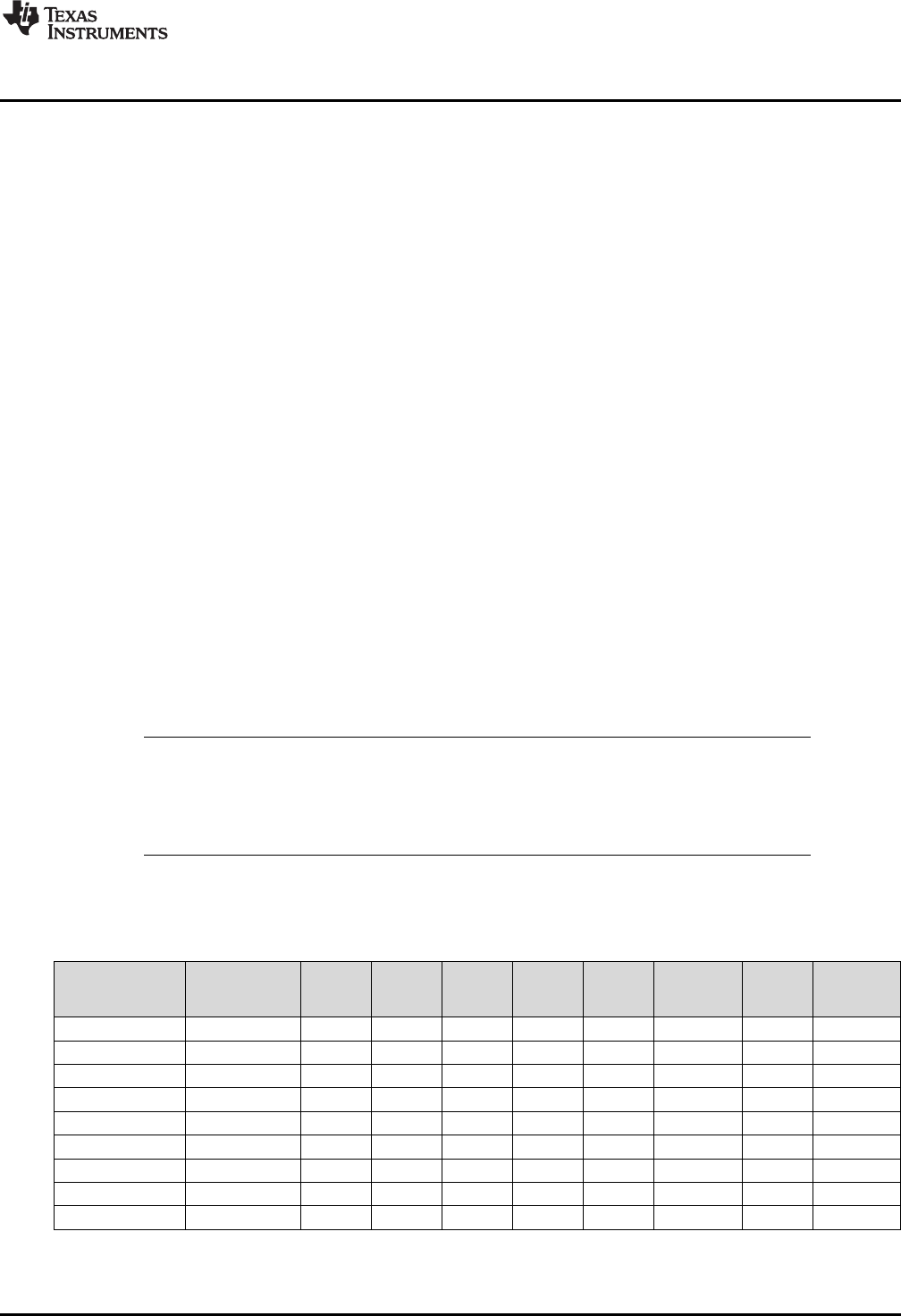

3.1.5 Stack Management
The reserved stack size can be configured through the project options (Project →Properties →Build →
MSP430 Linker →Basic Options →Set C System Stack Size). Stack size is defined to extend from the
last location of RAM for 50 to 80 bytes (that is, the stack extends downwards through RAM for 50 to 80
bytes, depending on the RAM size of the selected device).
The stack can overflow due to small size or application errors. See Section 3.2.2.1 for a method of
tracking the stack size.
3.1.6 How to Generate Binary Format Files (TI-TXT and INTEL-HEX)
The CCS installation includes the hex430.exe conversion tool. It can be configured to generate output
objects in TI-TXT format for use with the MSP-GANG430 and MSP-PRGS430 programmers, as well as
INTEL-HEX format files for TI factory device programming. The tool can be used either stand-alone in a
command line (located in <Installation Root>\ccsv6\tools\compiler\ti-cgt-
msp430_x.x.x\bin) or directly within CCS. To generate the file automatically after every build, use the
MSP430 Hex Utility menu (Project →Properties →Build →MSP430 Hex Utility) and select the options
there for generating the binary files. The generated file is stored in the <Workspace>\<Project>\Debug\
directory.
3.2 Using the Integrated Debugger
See Section 10 for a description of FET-specific menus within CCS.
3.2.1 Breakpoint Types
The debugger breakpoint mechanism uses a limited number of on-chip debugging resources (specifically,
N breakpoint registers, see Table 2). When N or fewer breakpoints are set, the application runs at full
device speed (or "realtime"). When greater than N breakpoints are set and Use Software Breakpoints is
enabled (Project →Properties →Debug →Misc/Other Options →Allow software breakpoints to be
used), an unlimited number of software breakpoints can be set while still meeting realtime constraints.
NOTE: A software breakpoint replaces the instruction at the breakpoint address with a call to
interrupt the code execution. Therefore, there is a small delay when setting a software
breakpoint. In addition, the use of software breakpoints always requires proper termination of
each debug session; otherwise, the application may not be operational stand-alone, because
the application on the device would still contain the software breakpoint instructions.
Both address (code) and data (value) breakpoints are supported. Data breakpoints and range breakpoints
each require two MSP430 hardware breakpoints.
(1) The 2-wire JTAG debug interface is also referred to as Spy-Bi-Wire (SBW) interface. This interface is supported only by the USB
emulators (eZ430-xxxx, eZ-FET, and MSP-FET430UIF USB JTAG emulator) and the MSP-GANG430 production programming
tool.
Table 2. Device Architecture, Breakpoints, and Other Emulation Features
Device MSP430
Architecture 4-Wire
JTAG 2-Wire
JTAG(1)
Break-
points
(N)
Range
Break-
points
Clock
Control State
Sequencer Trace
Buffer
LPMx.5
Debugging
Support
CC430F512x MSP430Xv2 X X 3 X X
CC430F513x MSP430Xv2 X X 3 X X
CC430F514x MSP430Xv2 X X 3 X X
CC430F612x MSP430Xv2 X X 3 X X
CC430F613x MSP430Xv2 X X 3 X X
CC430F614x MSP430Xv2 X X 3 X X
MSP430AFE2xx MSP430 X X 2 X
MSP430BT5190 MSP430Xv2 X X 8 X X X X
MSP430F11x1 MSP430 X 2
![](asset-a.png)
Development Flow
www.ti.com
10 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Table 2. Device Architecture, Breakpoints, and Other Emulation Features (continued)
Device MSP430
Architecture 4-Wire
JTAG 2-Wire
JTAG(1)
Break-
points
(N)
Range
Break-
points
Clock
Control State
Sequencer Trace
Buffer
LPMx.5
Debugging
Support
MSP430F11x2 MSP430 X 2
MSP430F12x MSP430 X 2
MSP430F12x2 MSP430 X 2
MSP430F13x MSP430 X 3 X
MSP430F14x MSP430 X 3 X
MSP430F15x MSP430 X 8 X X X X
MSP430F161x MSP430 X 8 X X X X
MSP430F16x MSP430 X 8 X X X X
MSP430F20xx MSP430 X X 2 X
MSP430F21x1 MSP430 X 2 X
MSP430F21x2 MSP430 X X 2 X
MSP430F22x2 MSP430 X X 2 X
MSP430F22x4 MSP430 X X 2 X
MSP430F23x MSP430 X 3 X X
MSP430F23x0 MSP430 X 2 X
MSP430F2410 MSP430 X 3 X X
MSP430F241x MSP430X X 8 X X X X
MSP430F24x MSP430 X 3 X X
MSP430F261x MSP430X X 8 X X X X
MSP430F41x MSP430 X 2 X
MSP430F41x2 MSP430 X X 2 X
MSP430F42x MSP430 X 2 X
MSP430F42x0 MSP430 X 2 X
MSP430F43x MSP430 X 8 X X X X
MSP430F43x1 MSP430 X 2 X
MSP430F44x MSP430 X 8 X X X X
MSP430F44x1 MSP430 X 8 X X X X
MSP430F461x MSP430X X 8 X X X X
MSP430F461x1 MSP430X X 8 X X X X
MSP430F471xx MSP430X X 8 X X X X
MSP430F47x MSP430 X 2 X
MSP430F47x3 MSP430 X 2 X
MSP430F47x4 MSP430 X 2 X
MSP430F51x1 MSP430Xv2 X X 3 X X
MSP430F51x2 MSP430Xv2 X X 3 X X
MSP430F52xx MSP430Xv2 X X 3 X X
MSP430F530x MSP430Xv2 X X 3 X X
MSP430F5310 MSP430Xv2 X X 3 X X
MSP430F532x MSP430Xv2 X X 8 X X X X
MSP430F533x MSP430Xv2 X X 8 X X X X
MSP430F534x MSP430Xv2 X X 8 X X X X
MSP430F535x MSP430Xv2 X X 8 X X X X
MSP430F54xx MSP430Xv2 X X 8 X X X X
MSP430F54xxA MSP430Xv2 X X 8 X X X X
MSP430F550x MSP430Xv2 X X 3 X X
MSP430F5510 MSP430Xv2 X X 3 X X
![](asset-b.png)
www.ti.com
Development Flow
11
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Table 2. Device Architecture, Breakpoints, and Other Emulation Features (continued)
Device MSP430
Architecture 4-Wire
JTAG 2-Wire
JTAG(1)
Break-
points
(N)
Range
Break-
points
Clock
Control State
Sequencer Trace
Buffer
LPMx.5
Debugging
Support
MSP430F552x MSP430Xv2 X X 8 X X X X
MSP430F563x MSP430Xv2 X X 8 X X X X
MSP430F565x MSP430Xv2 X X 8 X X X X
MSP430F643x MSP430Xv2 X X 8 X X X X
MSP430F645x MSP430Xv2 X X 8 X X X X
MSP430F663x MSP430Xv2 X X 8 X X X X
MSP430F665x MSP430Xv2 X X 8 X X X X
MSP430F67xx MSP430Xv2 X X 3 X X
MSP430F67xx1 MSP430Xv2 X X 3 X X
MSP430F67xx1A MSP430Xv2 X X 3 X X
MSP430F67xxA MSP430Xv2 X X 3 X X
MSP430FE42x MSP430 X 2 X
MSP430FE42x2 MSP430 X 2 X
MSP430FG42x0 MSP430 X 2 X
MSP430FG43x MSP430 X 2 X
MSP430FG461x MSP430X X 8 X X X X
MSP430FG47x MSP430 X 2 X
MSP430FG642x MSP430Xv2 X X 8 X X X X
MSP430FG662x MSP430Xv2 X X 8 X X X X
MSP430FR20xx MSP430Xv2 X X 3 X X
MSP430FR21xx MSP430Xv2 X X 3 X X
MSP430FR23xx MSP430Xv2 X X 3 X X
MSP430FR24xx MSP430Xv2 X X 3 X X
MSP430FR25xx MSP430Xv2 X X 3 X X
MSP430FR26xx MSP430Xv2 X X 3 X X
MSP430FR41xx MSP430Xv2 X X 3 X X
MSP430FR57xx MSP430Xv2 X X 3 X X
MSP430FR58xx MSP430Xv2 X X 3 X X X
MSP430FR59xx MSP430Xv2 X X 3 X X X
MSP430FR60xx MSP430Xv2 X X 3 X X X
MSP430FR68xx MSP430Xv2 X X 3 X X X
MSP430FR69xx MSP430Xv2 X X 3 X X X
MSP430FW42x MSP430 X 2 X
MSP430G2xxx MSP430 X X 2 X
MSP430i20xx MSP430 X X 2 X
MSP430L092 MSP430Xv2 X 2 X
MSP430SL54xxA MSP430Xv2 X X 8 X X X X
MSP430TCH5E MSP430 X X 2 X
RF430FRL15xH MSP430Xv2 X X 2 X
![](asset-c.png)
Development Flow
www.ti.com
12 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
3.2.2 Using Breakpoints
If the debugger is started with greater than N breakpoints set and software breakpoints are disabled
(Project →Properties →Debug →Misc/Other Options →Allow software breakpoints to be used
option is unchecked), a message is shown that informs the user that not all breakpoints can be enabled.
CCS permits any number of breakpoints to be set, regardless of the Use Software Breakpoints setting of
CCS. If software breakpoints are disabled, a maximum of N breakpoints can be set within the debugger.
Resetting a program requires a breakpoint, which is set on the address defined in Project →Properties
→Debug →Auto Run and Launch Options →Auto Run Options →Run to symbol.
The Run To Cursor operation temporarily requires a breakpoint.
Console I/O (CIO) functions, such as printf, require the use of a breakpoint. If these functions are compiled
in, but you do not wish to use a breakpoint, disable CIO functionality by changing the option in Project →
Properties →Debug →Program/Memory Load Options →Program/Memory Load Options →
Enable CIO function use (requires setting a breakpoint).
NOTE: Do not set a breakpoint on a RETI instruction if the previous instruction modifies the stack
pointer. Program execution will not work properly after reaching the break point.
3.2.2.1 Breakpoints in CCS
CCS supports a number of predefined breakpoint types that can be selected by opening a menu found
next to the Breakpoints icon in the Breakpoint window (Window →Show View →Breakpoints). In
addition to traditional breakpoints, CCS allows setting watchpoints to break on a data address access
instead of an address access. The properties of breakpoints and watchpoints can be changed in the
debugger by right clicking on the breakpoint and selecting Properties (see Figure 1 and Figure 2).
Figure 1. Breakpoints
![](asset-d.png)
www.ti.com
Development Flow
13
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Figure 2. Breakpoint Properties
•Break after program address
Stops code execution when the program attempts to execute code after a specific address.
•Break before program address
Stops code execution when the program attempts to execute code before a specific address.
•Break in program range
Stops code execution when the program attempts to execute code in a specific range.
•Break on DMA transfer
•Break on DMA transfer in range
Breaks when a DMA access within a specified address range occurs.
•Break on stack overflow
It is possible to debug the applications that caused the stack overflow. Set Break on Stack Overflow
(right click in Breakpoints window and then select "Break on Stack Overflow" in the context menu). The
program execution stops on the instruction that caused the stack overflow. The size of the stack can
be adjusted in Project →Properties →C/C++ Build →MSP430 Linker →Basic Options.
•Breakpoint
Sets a breakpoint.
•Hardware breakpoint
Forces a hardware breakpoint if software breakpoints are not disabled.
•Watch on data address range
Stops code execution when data access to an address in a specific range occurs.
![](asset-e.png)
Development Flow
www.ti.com
14 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
•Watchpoint
Stops code execution if a specific data access to a specific address is made.
•Watchpoint (Read or Write)
Stops code execution if a read or write data access to a specific address is made.
•Watchpoint with data
Stops code execution if a specific data access to a specific address is made with a specific value.
Restriction 1: Watchpoints are applicable to global variables and non-register local variables. In the
latter case, set a breakpoint (BP) to halt execution in the function where observation of the variable is
desired (set code breakpoint there). Then set the watchpoint and delete (or disable) the code
breakpoint in the function and run or restart the application.
Restriction 2: Watchpoints are applicable to variables 8 bits and 16 bits wide.
NOTE: Not all options are available on every MSP430 derivative (see Table 2). Therefore, the
number of predefined breakpoint types in the breakpoint menu varies depending on the
selected device.
For more information on advanced debugging with CCS, see Advanced Debugging Using the Enhanced
Emulation Module (EEM) With CCS Version 4.
3.2.3 Download Options for MSP430 Devices
By default, CCS Debugger downloads the application to RAM or flash when a debug session starts. The
Download options (see Figure 3) let you modify the behavior of the download.
•Copy application to external SPI memory after program load
Saves user code to external SPI memory.
•Allow Read/Write/Erase access to BSL memory
Enables erase and write access to BSL flash memory.
•Erase main memory only
Erases only the main flash memory before download. The Information memory is not erased.
•Erase main and Information memory
Erases the main and Information flash memories before download.
•Erase main, information and protected information memory
Erases the main and Information flash memories, including the IP protected area, before download.
•Erase and download necessary segments only (Differential Download)
Keeps track of changes in the program image and only writes the portions that have changed between
program loads. Theoretically, this should improve load performance for small changes. It can make
performance worse for larger changes. It relies on the compiler and linker to radically change the
binary image for a small source code change.
•Replace written memory locations, retain unwritten memory locations
Writes only the flash segments that are being written to. This does not track differences in the loaded
image and always writes a segment included in the loaded image.
•By Address Range (specify below)
Erases only the flash memory specified segments before download.
![](asset-10.png)
EnergyTrace™ Technology
www.ti.com
16 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
4 EnergyTrace™ Technology
4.1 Introduction
EnergyTrace™ Technology is an energy-based code analysis tool that measures and displays the
application’s energy profile and helps to optimize it for ultra-low power consumption.
MSP430 devices with built-in EnergyTrace+[CPU State]+[Peripheral States] (or in short
EnergyTrace++™) technology allow real-time monitoring of many internal device states while user
program code executes. EnergyTrace++ technology is supported on selected MSP430 devices and
debuggers.
EnergyTrace mode (without the "++") is the base of EnergyTrace Technology and enables analog
energy measurement to determine the energy consumption of an application but does not correlate it to
internal device information. The EnergyTrace mode is available for all MSP430 devices with selected
debuggers, including CCS.
4.2 Energy Measurement
Debuggers with EnergyTrace Technology support include a new and unique way of continuously
measuring the energy supplied to a target microcontroller that differs considerably from the well-known
method of amplifying and sampling the voltage drop over a shunt resistor at discrete times. A software-
controlled dc-dc converter is used to generate the target power supply. The time density of the dc-dc
converter charge pulses equals the energy consumption of the target microcontroller. A built-in on-the-fly
calibration circuit defines the energy equivalent of a single dc-dc charge pulse.
Figure 4 shows the energy measurement principle. Periods with a small number of charge pulses per time
unit indicate low energy consumption and thus low current flow. Periods with a high number of charge
pulses per time unit indicate high energy consumption and also a high current consumption. Each charge
pulse leads to a rise of the output voltage VOUT, which results in an unavoidable voltage ripple common to
all dc-dc converters.
Figure 4. Pulse Density and Current Flow
The benefit of sampling continuously is evident: even the shortest device activity that consumes energy
contributes to the overall recorded energy. No shunt-based measurement system can achieve this.
4.3 Code Composer Studio™ Integration
EnergyTrace Technology is available as part of Texas Instrument's Code Composer Studio IDE for
MSP430 microcontrollers. Additional controls and windows are available if the hardware supports
EnergyTrace Technology.
EnergyTrace can be used while debugging an application (debug session) or only to measure the current
consumption of standalone running application (without a debug session). Using EnergyTrace without a
debug session measures the current consumption of the running application without changing the code
content or the CPU states.
During a debugging session, the EnergyTrace and EnergyTrace++ modes are available, depending on the
supported hardware features on the target device. Only EnergyTrace mode is available with stand-alone
running applications (see Table 3).
![](asset-11.png)
www.ti.com
EnergyTrace™ Technology
17
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Table 3. Availability of EnergyTrace and
EnergyTrace++ Modes
EnergyTrace EnergyTrace++
Debugging session x x
Stand-alone application x
To use EnergyTrace Technology without debugging session
1. Connect your target board embedding the firmware
2. Press the EnergyTrace Technology button in the toolbar menu (see Figure 5). You don't need to build
or start debug session.
Figure 5. EnergyTrace Button in the Toolbar Menu
3. Click the start trace collection button ( ) to start the EnergyTrace Technology measurement.
4. Click the stop trace collection button ( ) to stop the EnergyTrace Technology measurement.
5. Refer to Section 4.3.4 for more details.
To exit this mode, click the in the EnergyTrace™ Technology window (see Figure 6).
Figure 6. Exit EnergyTrace Mode
To use EnergyTrace mode or EnergyTrace++ mode in a debugging session
1. Connect your target board.
2. Select and build your project
3. Start the debug session.
4. The EnergyTrace window is displayed if it has been already selected. If not, click the EnergyTrace
button in the toolbar menu.
5. Refer to Section 4.3.3 and Section 4.3.4 for more details.
4.3.1 EnergyTrace Technology Settings
EnergyTrace settings are available in the Code Composer Studio Preferences. Go to Window →
Preferences →Code Composer Studio →Advanced Tools →EnergyTrace™ Technology (see
Figure 7).
![](asset-12.png)
EnergyTrace™ Technology
www.ti.com
18 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Figure 7. EnergyTrace™ Technology Preferences
•Enable Auto-Launch on target connect: check this box to enable the EnergyTrace modes when
entering a debug session.
•Two capture modes are supported:
– The full-featured EnergyTrace+[CPU State]+[Peripheral States] mode that delivers real-time
device state information together with energy measurement data
– The EnergyTrace mode that delivers only energy measurement data
![](asset-13.png)
www.ti.com
EnergyTrace™ Technology
19
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
– Use the radio button to select the mode to enable when a debug session is launched. If an
MSP430 device does not support device state capturing, the selection is ignored and Code
Composer Studio starts in the EnergyTrace mode.
While a debug session is active, click the icon in the Profile window to switch between the modes.
To use the EnergyTrace+[CPU State]+[Peripheral States] mode to capture real-time device state
information while an application is executing, the default Debug Properties of the project must also be

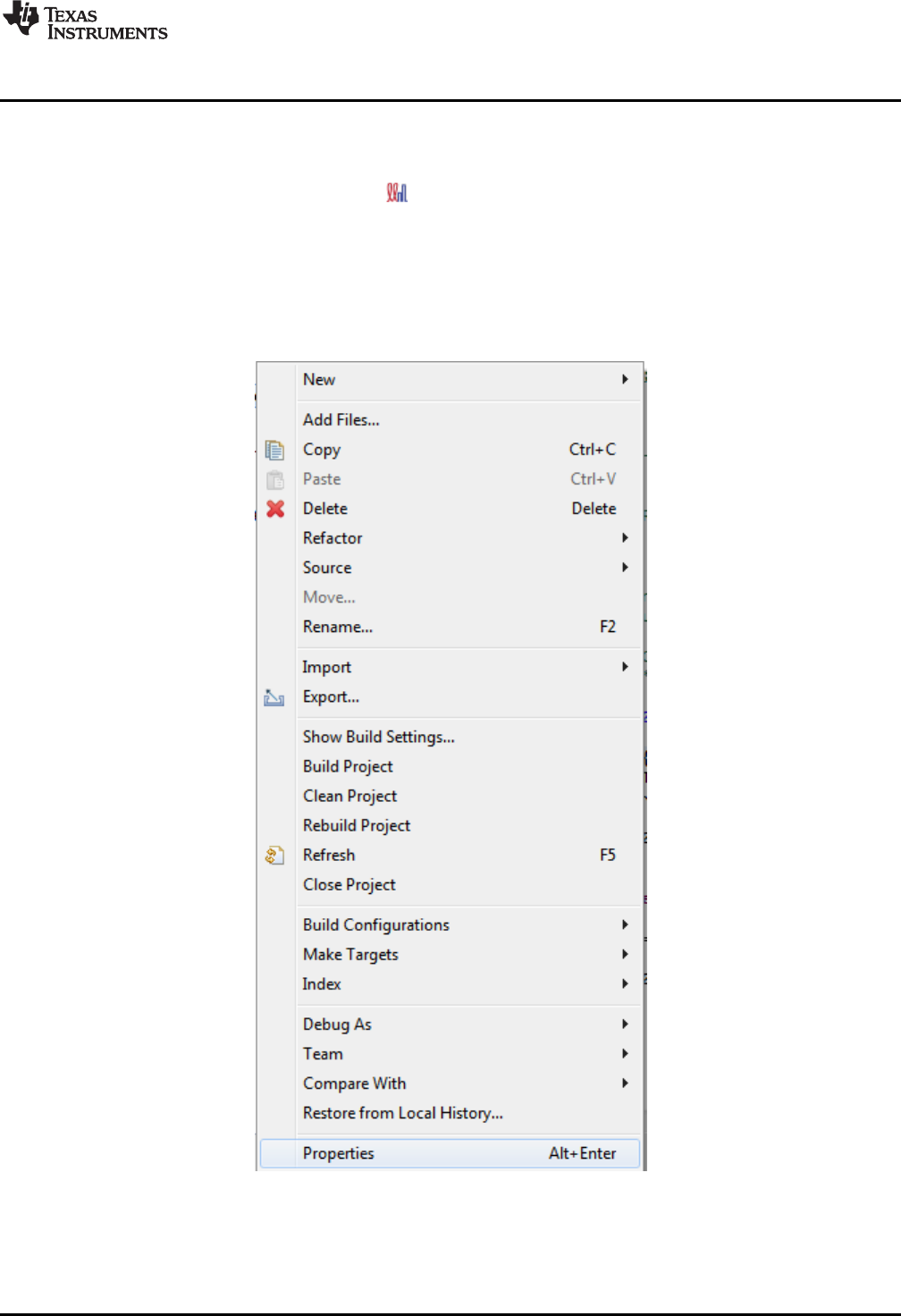

modified. Right click on the active project in the Project Explorer and click on Properties (see Figure 8).
In the Debug section, enable the Enable Ultra Low Power debug / Debug LPMx.5 option in the Low
Power Mode Settings (see Figure 9). If this option is not enabled, the EnergyTrace+[CPU
State]+[Peripheral States] mode cannot capture data from the device.
Figure 8. Project Properties
![](asset-14.png)
EnergyTrace™ Technology
www.ti.com
20 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Figure 9. Debug Properties
NOTE: If the EnergyTrace Technology windows are not opened when a debug session starts, verify
the following items:
• Does the hardware (debugger and device) support EnergyTrace Technology? To
determine if your selected device supports EnergyTrace technology, refer to the device-
specific data sheet, the MSP430 Hardware Tools User’s Guide, or the user guide that
came with the evaluation board.
• Is EnergyTrace Technology globally enabled in Window →Preferences →Code
Composer Studio →Advanced Tools →EnergyTrace™ Technology?
• Is the "Enable Ultra Low Power debug / Debug LPMx.5" option enabled in Project →
Properties →Debug →Low Power Mode Settings (required only when selecting
EnergyTrace mode)?
•Battery Selection (see Figure 10): The window is used to select one of the available standard
batteries or define a customized battery. The EnergyTrace will use the battery characteristics to
calculate the estimated selected battery lifetime for the current application depending on the measured
current consumption. Available standard batteries are CR2032, 2xAAA or 2xAA.
![](asset-15.png)
www.ti.com
EnergyTrace™ Technology
21
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Figure 10. Battery Selection
A custom battery can also be selected, and its characteristics can be entered (see Figure 11).
– Cell voltage (V)
– Cell capacity (mAh)
– Peak current - continuous (mA)
– Peak current - pulse (mA)
– Target lifetime (days)
Figure 11. Custom Battery Type
•Target Connection (see Figure 12): The menu is used to select which debug probe is used for
EnergyTrace measurement. The voltage can be also adjusted.
Figure 12. Target Connection
![](asset-16.png)
EnergyTrace™ Technology
www.ti.com
22 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
4.3.2 Controlling EnergyTrace Technology
EnergyTrace Technology can be controlled using the control bar icons in the Profile window (see
Figure 13). Table 4 describes the function of each of these buttons.
Figure 13. EnergyTrace™ Technology Control Bar
Table 4. EnergyTrace™ Technology Control Bar Icons
Enable or disable EnergyTrace Technology. When disabled, icon turns gray.
Starts trace collection.
Stops trace collection.
Set capture period: 5 sec, 10 sec, 30 sec, 1 min, or 5 min. Data collection stops after time has elapsed. However,
the program continues to execute until the Pause button in the debug control window is clicked.
Save profile to project directory. When saving an EnergyTrace++ profile, the default filename will start with
"MSP430_D" followed by a timestamp. When saving an EnergyTrace profile, the default filename will start with
"MSP430" followed by a timestamp.
Load previously saved profile for comparison.
Restore graphs or open Preferences window.
Switch between EnergyTrace++ mode and EnergyTrace mode
4.3.3 EnergyTrace++ Mode
When debugging devices with built-in EnergyTrace++ support, the EnergyTrace++ mode gives
information about both energy consumption and the internal state of the target microcontroller. The
following windows are opened during the start-up of a debug session (also see Figure 14):
• Profile
• States
• Power
• Energy
![](asset-17.png)
www.ti.com
EnergyTrace™ Technology
23
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Figure 14. Debug Session With EnergyTrace++ Graphs
The Profile window (see Figure 15) is the control interface for EnergyTrace++. It can be used to set the
capturing time or to save the captured data for later reference. The Profile window also displays a
compressed view of the captured data and allows comparison with previous data.
![](asset-18.png)
EnergyTrace™ Technology
www.ti.com
24 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Figure 15. Profile Window
The Profile window enables a quick overview of the resource use of the profiled application. The
resources are split into three categories:
• CPU: Shows information about program execution
– Low Power Mode: Shows a summary of low-power mode use. Valid low-power modes are LPM0,
LPM1, LPM2, LPM3, LPM4, LPM3.5, and LPM4.5. If the low-power mode cannot be properly
determined, a line labeled as <Undetermined> is displayed to indicate the time spent in that mode.
– Active Mode: Shows which functions have been executed during active mode. Functions in the run-
time library are listed separately under the _RTS_ subcategory. If the device supports IP
Encapsulation, a line labeled as <Protected> is displayed to indicate the time executing out of IP
encapsulated memory.
• Peripherals: Shows relative on time of the device peripherals
• System Clocks: Shows relative on time of the system clocks
![](asset-19.png)
www.ti.com
EnergyTrace™ Technology
25
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
The States window (see Figure 16) shows the real-time trace of the target microcontroller's internal states
during the captured session. State information includes the Power Modes, on and off state of peripheral
modules and the state of the system clocks.
Figure 16 shows a device wakeup from low-power mode LPM2 to Active Mode, with the FRAM memory
enabled during the active period. It can be clearly seen that the device high-speed clocks MCLK and
SMCLK, as well as the MODOSC, are only active while the device is in active mode. The States window
allows a direct verification of whether or not the application exhibits the expected behavior; for example,
that a peripheral is disabled after a certain activity.
Figure 16. States Window
The Power window (see Figure 17) shows the dynamic power consumption of the target over time. The
current profile is plotted in light blue color, while a previously recorded profile that has been reloaded for
comparison is plotted in yellow color.
![](asset-1a.png)
EnergyTrace™ Technology
www.ti.com
26 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Figure 17. Power Window
The Energy window (see Figure 18) shows the accumulated energy consumption of the target over time.
The current profile is plotted in light blue color, while a previously recorded profile that has been reloaded
for comparison is plotted in yellow color.
Figure 18. Energy Window
NOTE: During the capture of the internal states, the target microcontroller is constantly accessed by
the JTAG or Spy-Bi-Wire debug logic. These debug accesses consume energy; therefore, no
absolute power numbers are shown on the Power and Energy graph vertical axis. To see
absolute power numbers of the application, TI recommends using the EnergyTrace mode in
combination with the Free Run option. In this mode, the debug logic of the target
microcontroller is not accessed while measuring energy consumption.
![](asset-1b.png)
www.ti.com
EnergyTrace™ Technology
27
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
4.3.4 EnergyTrace Mode
This mode allows a stand-alone use of the energy measurement feature with MSP430 microcontrollers
that do not have built-in EnergyTrace++ support. It can also be used to verify the energy consumption of
the application without debugger activity. If the EnergyTrace mode is selected in the Preferences window,
the following windows open when a debug session starts (also see Figure 19):
• Profile
• Power
• Energy
Figure 19. Debug Session With EnergyTrace Graphs
In the EnergyTrace mode, the Profile window shows statistical data about the application that has been
profiled (see Figure 20). The following parameters are shown:
• Captured time
• Total energy consumed by the application (in mJ)
• Minimum, mean, and maximum power (in mW)
• Mean voltage (in V)
• Minimum, mean, and maximum current (in mA)
• Estimated life time of the selected battery (in days) for the captured energy profile
![](asset-1c.png)
EnergyTrace™ Technology
www.ti.com
28 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
NOTE: The formula to calculate the battery life time assumes an ideal 3-V battery and does not
account for temperature, aging, peak current, and other factors that could negatively affect
battery capacity. It should also be noted that changing the target voltage (for example, from
3.6 V to 3 V) might cause the analog circuitry to behave differently and operate in a more or
less efficient state, hence reducing or increasing energy consumption. The value shown in
the Profile window cannot substitute measurements on real hardware.
Figure 20. EnergyTrace Profile Window
The Power window (see Figure 21) shows the dynamic power consumption of the target over time. The
current profile is plotted in light blue color, while a previously recorded profile that has been reloaded for
comparison is plotted in yellow color.
Figure 21. Zoom Into Power Window
The Energy window (see Figure 22) shows the accumulated energy consumption of the target over time.
The current profile is plotted in light blue color, while a previously recorded profile that has been reloaded
for comparison is plotted in yellow color.
![](asset-1d.png)
www.ti.com
EnergyTrace™ Technology
29
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Figure 22. Zoom Into Energy Window
NOTE: During program execution through the debugger's view Resume button, the target
microcontroller is constantly accessed by the JTAG or Spy-Bi-Wire protocol to detect when a
breakpoint has been hit. Inevitably, these debug accesses consume energy in the target
domain and change the result shown in both Energy and Power graphs. To see the absolute
power consumption of an application, TI recommends using the Free Run mode. In Free
Run mode, the debug logic of the target microcontroller is not accessed. See Figure 23 for
an example of the effect of energy consumption coming from debug accesses. The yellow
profile was recorded in Resume mode, and the green profile was recorded in Free Run
mode.
Figure 23. Energy Profile of the Same Program in Resume (Yellow Line) and Free Run (Green Line)
![](asset-1e.png)
EnergyTrace™ Technology
www.ti.com
30 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
4.3.5 Comparing Captured Data With Reference Data
The EnergyTrace Technology can be used in various ways. One is to check the device's internal states
over time against the expected behavior and correct any misbehavior; for example, due to a peripheral not
being disabled after periodic usage. Another way is to compare the captured data against previously
captured data. The previously captured data is called the reference data in the following discussion.
After the reference data has been loaded, a yellow reference graph is plotted in the Power and Energy
windows. The Power window shows the power profiles of both data sets over time and is useful to
determine any changes in static power consumption; for example, due to use of a deeper low-power mode
or disabling of unused peripherals. It also shows how the dynamic power consumption has changed from
one measurement to the other; for example, due to ULP Advisor hints being implemented. The Energy
window shows the accumulated energy consumption over time and gives an indication which profile is
more energy efficient.
In the EnergyTrace++ mode, the condensed view of both captured and reference data is displayed in the
Profile window (see Figure 24). You can quickly see how the overall energy consumption and use of
power modes, peripherals, and clocks changed between both capture sessions. In general, parameters
that have become better are shown with a green bar, and parameters that have become worse are shown
with a red bar. For example, time spent in Active Mode is generally seen as negative. Hence, if a code
change makes the application spend less time in active mode, the negative delta is shown as a green bar,
and the additional time spent in a low-power mode is shown as a green bar.
Figure 24. Comparing Profiles in EnergyTrace++ Mode
In the EnergyTrace mode, no States information is available to generate an exhaustive report. However,
the overall energy consumed during the measurement is compared and, with it, the Min, Mean, and Max
values of power and current. Parameters that have become better are shown with a green bar, and
parameters that have become worse are shown with a red bar (see Figure 25).
![](asset-1f.png)
www.ti.com
EnergyTrace™ Technology
31
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Figure 25. Comparing Profiles in EnergyTrace Mode
The delta bars are drawn linearly from 0% to 50%. Deltas larger than 50% do not result in a larger delta
bar.
4.4 EnergyTrace Technology FAQs
Q: What is the sampling frequency of EnergyTrace++ technology?
A: The sampling frequency depends on the debugger and the selected debug protocol and its speed
setting. It typically ranges from 1 kHz (for example, when using the Spy-Bi-Wire interface set to SLOW) up
to 3.2 kHz (for example, when using the JTAG interface set to FAST). The debugger polls the state
information of EnergyTrace++ from the device status information. Depending on the sampling frequency, a
short or fast duty cycle active peripheral state may not be captured on the State graph. In addition, the
higher sampling frequency affects the device energy consumption under EnergyTrace.
Q: What is the sampling frequency of EnergyTrace technology?
A: The sampling frequency to measure the energy consumption is the same independent of which debug
protocol or speed and is approximately 4.2 kHz in Free Run mode.
Q: My Power graph seems to include noise. Is my board defective?
A: The power values shown in the Power graph are derived (that is, calculated) from the accumulated
energy counted by the measurement system. When the target is consuming little energy, a small number
of energy packets over time are supplied to the target, and the software needs to accumulate the dc-dc
charge pulses over time before a new current value can be calculated. For currents under 1 µA, this can
take up to one second, while for currents in the milliamp range, a current can be calculated every
millisecond. Additional filtering is not applied so that detail information is not lost. Another factor that
affects the energy (and with it, the current) that is consumed by the target is periodic background debug
access during normal code execution, either through capturing of States information or through breakpoint
polling. Try recording in Free Run mode to see a much smoother Power graph.
![](asset-20.png)
EnergyTrace™ Technology
www.ti.com
32 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Q: I have a code that repeatedly calls functions that have the same size. I would expect the
function profile to show an equal distribution of the run time. In reality, I see some functions
having slightly more run time than expected, and some functions slightly less.
A: During program counter trace, various factors affect the number of times a function is detected by the
profiler over time. The microcontroller code could benefit from the internal cache, thus executing some
functions faster than others. Another influencing factor is memory wait states and CPU pipeline stalls,
which add time variance to the code execution. An outside factor is the sampling frequency of the
debugger itself, which normally runs asynchronous to the microcontroller's code execution speed, but in
some cases shows overlapping behavior, which also results in an unequal function run time distribution.
Q: My power mode profile sometimes shows short periods of power modes that I haven't used
anywhere in my code. For example, I'm expecting a transition from active mode to LPM3, but I see
a LPM2 during the transition.
A: When capturing in EnergyTrace++ mode, digital information is continuously collected from the target
device. One piece of this information is the power mode control signals. Activation of low-power modes
requires stepping through a number of intermediate states. Usually this happens too quickly to be
captured by the trace function, but sometimes intermediate states can be captured and are displayed for a
short period of time as valid low-power modes.
Q: My profile sometimes includes an <Undetermined> low-power mode, and there are gaps in the
States graph Power Mode section. Where does the <Undetermined> low-power mode originate
from?
A: During transitions from active mode to low-power mode, internal device clocks are switched off, and
occasionally the state information is not updated completely. This state is displayed as <Undetermined> in
the Profile window, and the States graph shows a gap during the time that the <Undetermined> low-power
mode persists. The <Undetermined> state is an indication that your application has entered a low-power
mode, but which mode cannot be accurately determined. If your application is frequently entering low-
power modes, the <Undetermined> state will probably be shown more often than if your application only
rarely uses low-power modes.
Q: When capturing in EnergyTrace mode, the min and max values for power and current show
deviation, even though my program is the same. I would expect absolutely the same values.
A: The energy measurement method used on the hardware counts dc-dc charge pulses over time. Energy
and power are calculated from the energy over time. Due to statistical sampling effects and charge and
discharge effects of the output voltage buffer capacitors, it is possible that minimum and maximum values
of currents vary by some percent, even though the program is identical. The captured energy, however,
should be almost equal (in the given accuracy range).
Q: What are the influencing factors for the accuracy of the energy measurement?
A: The energy measurement circuit is directly supplied from the USB bus voltage, and thus it is sensitive
to USB bus voltage variations. During calibration, the energy equivalent of a single dc-dc charge pulse is
defined, and this energy equivalent depends on the USB voltage level. To ensure a good repeatability and
accuracy, power the debugger directly from an active USB port, and avoid using bus-powered hubs and
long USB cables that can lead to voltage drops, especially when other consumers are connected to the
USB hub. Furthermore the LDO and resistors used for reference voltage generation and those in the
calibration circuit come with a certain tolerance and ppm rate over temperature, which also influences
accuracy of the energy measurement.
Q: I am trying to capture in EnergyTrace++ mode or EnergyTrace mode with a MSP430 device that
is externally powered, but there is no data shown in the Profile, Energy, Power and States window.
A: Both EnergyTrace++ mode and EnergyTrace mode require the target to be supplied from the
debugger. No data can be captured when the target microcontroller is externally powered.
![](asset-21.png)
www.ti.com
EnergyTrace™ Technology
33
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Q: I cannot measure LPM currents when I am capturing in EnergyTrace++ mode. I am expecting a
few microamps but measure more than 150 µA.
A: Reading digital data from the target microcontroller consumes energy in the JTAG domain of the
microcontroller. Hence, an average current of approximately 150 µA is measured when connecting an
ampere meter to the device power supply pins. If you want to eliminate energy consumption through
debug communication, switch to EnergyTrace mode, and let the target microcontroller execute in Free
Run mode.
Q: My LPM currents seem to be wrong. I am expecting a few microamps, but measure more, even
in Free Run mode or when letting the device execute without debug control from an independent
power supply.
A: The most likely cause of this extra current is improper GPIO termination, as floating pins can lead to
extra current flow. Also check the JTAG pins again, especially when the debugger is still connected (but
idle), as the debugger output signal levels in idle state might not match how the JTAG pins have been
configured by the application code. This could also lead to extra current flow.
Q: When I start the EnergyTrace++ windows through View →Other →MSP430-EnergyTrace before
launching the debug session, data capture sometimes does not start.
A: Enable EnergyTrace through Window →Preferences →Code Composer Studio →Advanced
Tools →EnergyTrace™ Technology. When launching a debug session, the EnergyTrace++ windows
automatically open, and data capture starts when the device executes. If you accidentally close all
EnergyTrace++ windows during a debug session, you can reopen them through View →Other →
MSP430-EnergyTrace.
![](asset-22.png)
MSP430 FRAM Memory Protection Mechanisms
www.ti.com
34 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
5 MSP430 FRAM Memory Protection Mechanisms
The available memory of an FRAM-based microcontroller can be seen as unified memory, which means
the memory can be arbitrarily divided between code and data sections. As a consequence, a single
FRAM-based microcontroller can be customized for a wide range of application use cases. MSP430
devices support two memory protection methods:
• Memory Protection Unit (MPU) and Intellectual Property Encapsulation (IPE)
• FRAM Memory Write Protection (FRWP). The protection granularity (1k) can be configured on some
devices.
See the device-specific data sheet to determine which method a particular device supports. For
instructions on the efficient use of this technology, see MSP430™ FRAM Technology – How To and Best
Practices.
5.1 Memory Protection Unit (MPU)
To prevent accidental overwrites of the program by application data or other forms of data corruption, the
Memory Protection Unit allows partitioning of the available memory and defining access rights for each of
the partitions. Thus it is possible to prevent accidental writes to memory sections that contain application
code or prevent the microcontroller from executing instructions that are located in the data section of the
application.
Figure 26 shows the MPU configuration dialog, which is available for FRAM devices that have the MPU
feature. To access this dialog, select the menu Project →Properties →General →MPU. This dialog
lets you enable or disable the MPU and choose between an automatic and manual configuration mode.
For the automatic configuration, the compiler tool chain generates two memory segments (read-write
memory and executable memory). The segment borders of these two segments and their respective
access bits are placed into the according control registers during device start-up. The automatic mode
also sets the bit for read access of the MPU Info Memory segment. The MPUSEGxVS bit, which selects if
a PUC must be executed on illegal access to a segment, is also set by default for each of the segments.
Figure 26. MPU Configuration Dialog
![](asset-23.png)
www.ti.com
MSP430 FRAM Memory Protection Mechanisms
35
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
As shown in Figure 26, the MPU dialog also allows for a complete manual configuration of the Memory
Protected Area. As the beginning of Segment 1 is fixed to the start address of FRAM memory and the end
of Segment 3 is fixed to the end address of FRAM memory, only the start and end addresses of
Segment 2 need to be adjusted. As these addresses are equal to the end address and start addresses of
Segment 1 and Segment 3 respectively, these are adjusted automatically by the GUI. The memory and its
associated access rights can be configured completely independently in the manual configuration. It is
therefore the user's responsibility to place code and data segments into the correct memory locations.
Additional configuration of the linking process might be necessary to achieve the correct placement of
code and data in the desired memory locations.
5.2 Intellectual Property Encapsulation (IPE)
The memory of many microcontroller applications contains information that should not be accessible by
the public. This may include both the application code itself as well as configuration settings for certain
peripherals. The IPE module allows the protection of memory that contains this kind of sensitive
information. The IPE ensures that only program code that is itself placed in the IPE protected area has
access to this memory segment. The access rights are evaluated with each code access, and even JTAG
or DMA transfers cannot access the IPE segment. The IPE module is initialized by the boot code before
the start of the application code to ensure that the encapsulation is active before any user-controlled
access to the memory can be performed.
Figure 27 shows the dialog for configuration of IPE memory, which is accessible through the menu
Project →Properties →General →IPE. The IPE dialog also provides selections for manual and
automatic configuration. In the automatic mode, a memory segment ".ipe" is generated by the compiler
tool chain and placed in the output file. Placing a variable into this section can be performed directly from
the source code:
#pragma DATA_SECTION(primeNumbers, ".ipe")
const unsigned int primeNumbers[5] = {2, 3, 5, 7, 11};
For a more detailed description on how to allocate space for certain code or data symbols inside sections,
see the MSP430™ Optimizing C/C++ Compiler User's Guide.
Figure 27. IPE Configuration Dialog
![](asset-24.png)
MSP430 FRAM Memory Protection Mechanisms
www.ti.com
36 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
The Manual IPE mode lets you configure the IPE segment borders and the control settings. Consequently,
additional configuration of the compiler or linker stage may also necessary to achieve the correct
placement of code and data in memory. To prevent the IPE from being modified, place the section
".ipestruct" inside the IP encapsulated memory area. This section contains the section borders and control
settings that are used to initialize the IPE related registers during device start-up.
5.2.1 IPE Debug Settings
Because it is possible to lock out the debugger from accessing certain memory regions (including
downloading new software to the device), it is advisable to enable the option for erasing the IP protected
area while the target is under debugger control. The corresponding option can be found under Project
Properties →Debug →MSP430 Properties (see Figure 28).
Figure 28. IPE Debug Settings
![](asset-25.png)
www.ti.com
MSP430 FRAM Memory Protection Mechanisms
37
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
5.3 FRAM Write Protection (FRWP)
The FRWP prevents unintended programming of the FRAM code section. For MSP430FR2xx and
MSP430FR4xx MCUs, the FRAM memory is protected by setting the bits control in SYSCFG0 register.
Some MSP430 devices can protect and unprotect the whole memory at once, and some devices such as
MSP430FR2355, MSP430FR2353, MSP430FR2155 and MSP430FR2153 can unprotect some region and
protect the rest of the memory.
CCS 8.1 and newer versions provide a GUI to configure the FRAM write protection. By default, a new
CCS project has the Enable FRAM Write Protection (FRWP) option selected.
When the Enable FRAM Write Protection (FRWP) option is selected, you can protect or unprotect the
information memory. When the application code uses persistent data type, the size of persistent data is
automatically calculated and aligned with 1kB size. These data are then placed in the unprotected
program main memory section. The code is placed after the unprotected program main memory.
Figure 29 shows the FRWP configuration dialog, which is available for FRAM devices that have the
feature. To access this dialog, select the menu Project →Properties →General →FRWP.
Figure 29. FRWP Configuration Dialog
![](asset-26.png)
Frequently Asked Questions
www.ti.com
38 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
6 Frequently Asked Questions
This appendix presents solutions to frequently asked questions regarding hardware, program development
and debugging tools.
6.1 Hardware
For a complete list of hardware related FAQs, see the MSP430 Hardware Tools User's Guide.
6.2 Program Development (Assembler, C-Compiler, Linker, IDE)
NOTE: Consider the CCS Release Notes
For the case of unexpected behavior, see the CCS Release Notes document for known bugs
and limitations of the current CCS version. This information can be accessed through the
menu item Start →All Programs →Texas Instruments →Code Composer Studio →
Release Notes.
1. A common MSP430 "mistake" is to fail to disable the watchdog mechanism. The watchdog is
enabled by default, and it resets the device if not disabled or properly managed by the application. Use
WDTCL = WDTPW + WDTHOLD; to explicitly disable the Watchdog. This statement is best placed in the
_system_pre_init() function that is executed prior to main(). If the Watchdog timer is not disabled, and
the Watchdog triggers and resets the device during CSTARTUP, the source screen goes blank, as
the debugger is not able to locate the source code for CSTARTUP. Be aware that CSTARTUP can
take a significant amount of time to execute if a large number of initialized global variables are used.
int _system_pre_init(void)
{
/* Insert your low-level initializations here */
WDTCTL = WDTPW + WDTHOLD; // Stop Watchdog timer
/*==================================*/
/* Choose if segment initialization */
/* should be done or not. */
/* Return: 0 to omit initialization */
/* 1 to run initialization */
/*==================================*/
return (1);
}
2. Within the C libraries, GIE (Global Interrupt Enable) is disabled before (and restored after) the
hardware multiplier is used.
3. It is possible to mix assembly and C programs within CCS. See the "Interfacing C/C++ With
Assembly Language" chapter of the MSP430 Optimizing C/C++ Compiler User's Guide.
4. Constant definitions (#define) used within the .h files are effectively reserved and include, for
example, C, Z, N, and V. Do not create program variables with these names.
5. Compiler optimization can remove unused variables and statements that have no effect and can
affect debugging. To prevent this, these variables can be declared volatile; for example:
volatile int i;.
NOTE: The Tools Insider blog gives useful tips and tricks about the TI MSP430 compiler and linker.
For details, visit the Tools Insider blog and read the From the Experts series.
Some useful posts:
From the Experts: Executing code from RAM using TI compilers
From the Experts: Accessing files and libraries from a linker command file (LCF)
![](asset-27.png)
www.ti.com
Frequently Asked Questions
39
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
6.3 Debugging
The debugger is part of CCS and can be used as a stand-alone application. This section is applicable
when using the debugger both stand-alone and from the CCS IDE.
NOTE: Consider the CCS release notes
In case of unexpected behavior, see the CCS Release Notes document for known bugs and
limitations of the current CCS version. To access this information, click Start →All
Programs →Texas Instruments →Code Composer Studio →Release Notes.
1. The debugger reports that it cannot communicate with the device. Possible solutions to this
problem include:
• Make sure that the correct debug interface and corresponding port number have been selected in
Project →Properties →General →Device →Connection.
• Make sure that the jumper settings are configured correctly on the target hardware.
• Make sure that no other software application (for example, a printer driver) has reserved or taken
control of the COM or parallel port, which would prevent the debug server from communicating
with the device.
• Open the Device Manager and determine if the driver for the FET tool has been correctly installed
and if the COM or parallel port is successfully recognized by the Windows OS. Check the PC BIOS
for the parallel port settings (see FAQ Debugging #5). For users of IBM or Lenovo ThinkPad®
computers, try port setting LPT2 and LPT3, even if operating system reports that the parallel port is
located at LPT1.
• Restart the computer.
Make sure that the MSP430 device is securely seated in the socket (so that the "fingers" of the socket
completely engage the pins of the device), and that its pin 1 (indicated with a circular indentation on
the top surface) aligns with the "1" mark on the PCB.
CAUTION
Possible Damage To Device
Always handle MSP430 devices with a vacuum pick-up tool only; do not use
your fingers, as you can easily bend the device pins and render the device
useless. Also, always observe and follow proper ESD precautions.
2. The debugger can debug applications that use interrupts and low-power modes. See FAQ
Debugging #17).
3. The debugger cannot access the device registers and memory while the device is running. The
user must stop the device to access device registers and memory.
![](asset-28.png)
Frequently Asked Questions
www.ti.com
40 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
4. The debugger reports that the device JTAG security fuse is blown. With current MSP430-
FET430UIF JTAG interface tools, there is a weakness when adapting target boards that are powered
externally. This leads to an accidental fuse check in the MSP430 and results in the JTAG security fuse
being recognized as blown although it is not.
Workarounds:
• Connect the device RST/NMI pin to JTAG header (pin 11), MSP-FET430UIF interface tools are
able to pull the RST line, this also resets the device internal fuse logic.
• Do not connect both VCC Tool (pin 2) and VCC Target (pin 4) of the JTAG header. Specify a value for
VCC in the debugger that is equal to the external supply voltage.
NOTE: When the VCC voltage is not high enough when trying to erase or write flash memory, the
following message displays in the console: "Target device supply voltage is too low for Flash
erase/programming." If this occurs, try to change your supply voltage.
5. The parallel port designators (LPTx) have the following physical addresses: LPT1 = 378h,
LPT2 = 278h, LPT3 = 3BCh. The configuration of the parallel port (ECP, Compatible, Bidirectional,
Normal) is not significant; ECP seems to work well. See FAQ Debugging #1 for additional hints on
solving communication problems between the debugger and the device.
6. The debugger asserts RST/NMI to reset the device when the debugger is started and when the
device is programmed. The device is also reset by the debugger Reset button, and when the device is
manually reprogrammed (using Reload), and when the JTAG is resynchronized (using Resynchronize
JTAG). When RST/NMI is not asserted (low), the debugger sets the logic driving RST/NMI to high
impedance, and RST/NMI is pulled high through a resistor on the PCB.
The RST/NMI signal is asserted and negated after power is applied when the debugger is started.
RST/NMI is then asserted and negated a second time after device initialization is complete.
7. The debugger can debug a device whose program reconfigures the function of the RST/NMI pin
to NMI.
8. The level of the XOUT/TCLK pin is undefined when the debugger resets the device. The logic
driving XOUT/TCLK is set to high impedance at all other times.
9. When making current measurements of the device, ensure that the JTAG control signals are
released, otherwise the device is powered by the signals on the JTAG pins and the measurements are
erroneous. See FAQ Debugging #10.
10. When the debugger has control of the device, the CPU is on (that is, it is not in low-power mode)
regardless of the settings of the low-power mode bits in the status register. Any low-power mode
condition is restored prior to STEP or GO. Consequently, do not measure the power consumed by the
device while the debugger has control of the device. Instead, run the application using Release JTAG
on run.
11. The MEMORY window correctly displays the contents of memory where it is present. However, the
MEMORY window incorrectly displays the contents of memory where there is none present.
Memory should be used only in the address ranges as specified by the device data sheet.
12. The debugger uses the system clock to control the device during debugging. Therefore, device
counters and other components that are clocked by the Main System Clock (MCLK) are affected
when the debugger has control of the device. Special precautions are taken to minimize the effect
upon the watchdog timer. The CPU core registers are preserved. All other clock sources (SMCLK and
ACLK) and peripherals continue to operate normally during emulation. In other words, the Flash
Emulation Tool is a partially intrusive tool.
Devices that support clock control can further minimize these effects by stopping the clock(s) during
debugging (Project →Properties →CCS Debug Settings →Target →Clock Control).
![](asset-29.png)
www.ti.com
Frequently Asked Questions
41
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
13. When programming the flash, do not set a breakpoint on the instruction immediately following
the write to flash operation. A simple work-around to this limitation is to follow the write to flash
operation with a NOP and to set a breakpoint on the instruction following the NOP.
14. Multiple internal machine cycles are required to clear and program the flash memory. When single
stepping over instructions that manipulate the flash, control is given back to the debugger before
these operations are complete. Consequently, the debugger updates its memory window with
erroneous information. A workaround for this behavior is to follow the flash access instruction with a
NOP and then step past the NOP before reviewing the effects of the flash access instruction.
15. Bits that are cleared when read during normal program execution (that is, interrupt flags) are
cleared when read while being debugged (that is, memory dump, peripheral registers).
Using certain MSP430 devices with enhanced emulation logic such as MSP430F43x and MSP430F44x
devices, bits do not behave this way (that is, the bits are not cleared by the debugger read operations).
16. The debugger cannot be used to debug programs that execute in the RAM of F12x and F41x
devices. A workaround for this limitation is to debug programs in flash.
17. While single stepping with active and enabled interrupts, it can appear that only the interrupt
service routine (ISR) is active (that is, the non-ISR code never appears to execute, and the single
step operation stops on the first line of the ISR). However, this behavior is correct because the device
processes an active and enabled interrupt before processing non-ISR (that is, mainline) code. A
workaround for this behavior is, while within the ISR, to disable the GIE bit on the stack, so that
interrupts are disabled after exiting the ISR. This permits the non-ISR code to be debugged (but
without interrupts). Interrupts can later be re-enabled by setting GIE in the status register in the
Register window.
On devices with Clock Control, it may be possible to suspend a clock between single steps and delay
an interrupt request (Project →Properties →CCS Debug Settings →Target →Clock Control).
18. On devices equipped with a Data Transfer Controller (DTC), the completion of a data transfer cycle
preempts a single step of a low-power mode instruction. The device advances beyond the low-
power mode instruction only after an interrupt is processed. Until an interrupt is processed, it appears
that the single step has no effect. A workaround to this situation is to set a breakpoint on the instruction
following the low-power mode instruction, and then execute (Run) to this breakpoint.
19. The transfer of data by the Data Transfer Controller (DTC) may not stop precisely when the
DTC is stopped in response to a single step or a breakpoint. When the DTC is enabled and a
single step is performed, one or more bytes of data can be transferred. When the DTC is enabled and
configured for two-block transfer mode, the DTC may not stop precisely on a block boundary when
stopped in response to a single step or a breakpoint.
20. Breakpoints. CCS supports a number of predefined breakpoint and watchpoint types. See
Section 3.2.2 for a detailed overview.
NOTE: Linux and OS X do not support the MSP-FET430UIF if it has an old firmware image (MSP
Debug Stack v2) on it.
Customers who buy a new MSP-FET430UIF will encounter this issue on OS X or Linux,
because the MSP Debug Stack v2 is programmed on the debugger during production. To
resolve this problem, connect the debugger to a Windows PC and use IAR, CCS, or the
MSP430 Flasher to update the firmware on the debugger to the latest version (v3 or newer).
NOTE: Do not connect through a USB hub when performing a firmware update on the MSP-FET,
the MSP-FET430UIF, or a LaunchPad™ development kit.
![](asset-2a.png)
Migration of C Code from IAR 2.x, 3.x, or 4.x to CCS
www.ti.com
42 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
7 Migration of C Code from IAR 2.x, 3.x, or 4.x to CCS
Source code for the TI CCS C compiler and source code for the IAR Embedded Workbench C compiler
are not fully compatible. Standard ANSI/ISO C code is portable between these tools, but implementation-
specific extensions differ and must be ported. This appendix describes the major differences between the
two compilers.
7.1 Interrupt Vector Definition
IAR ISR declarations (using the #pragma vector = ) are now fully supported in CCS. However, this is not
the case for all other IAR pragma directives.
7.2 Intrinsic Functions
CCS and IAR tools use the same instructions for MSP430 processor-specific intrinsic functions.
7.3 Data and Function Placement
7.3.1 Data Placement at an Absolute Location
The scheme implemented in the IAR compiler using either the @ operator or the #pragma location
directive is not supported with the CCS compiler:
/* IAR C Code */
__no_init char alpha @ 0x0200; /* Place 'alpha' at address 0x200 */
#pragma location = 0x0202
const int beta;
If absolute data placement is needed, this can be achieved with entries into the linker command file, and
then declaring the variables as extern in the C code:
/* CCS Linker Command File Entry */
alpha = 0x200;
beta = 0x202;
/* CCS C Code */
extern char alpha;
extern int beta;
The absolute RAM locations must be excluded from the RAM segment; otherwise, their content may be
overwritten as the linker dynamically allocates addresses. The start address and length of the RAM block
must be modified within the linker command file. For the previous example, the RAM start address must
be shifted 4 bytes from 0x0200 to 0x0204, which reduces the length from 0x0080 to 0x007C (for an
MSP430 device with 128 bytes of RAM):
/* CCS Linker Command File Entry */
/****************************************************************************/
/* SPECIFY THE SYSTEM MEMORY MAP */
/****************************************************************************/
MEMORY /* assuming a device with 128 bytes of RAM */
{
...
RAM :origin = 0x0204, length = 0x007C /* was: origin = 0x200, length = 0x0080 */
...
}
The definitions of the peripheral register map in the linker command files (lnk_msp430xxxx.cmd) and the
device-specific header files (msp430xxxx.h) that are supplied with CCS are an example of placing data at
absolute locations.
![](asset-2b.png)
www.ti.com
Migration of C Code from IAR 2.x, 3.x, or 4.x to CCS
43
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
NOTE: When a project is created, CCS copies the linker command file corresponding to the
selected MSP430 derivative from the include directory
(<Installation Root>\ccsv5\ccs_base\tools\compiler\MSP430\include) into the project
directory. Therefore, ensure that all linker command file changes are done in the project
directory. This allows the use of project-specific linker command files for different projects
using the same device.
7.4 Data Placement Into Named Segments
In IAR, it is possible to place variables into named segments using either the @ operator or a #pragma
directive:
/* IAR C Code */
__no_init int alpha @ "MYSEGMENT"; /* Place 'alpha' into 'MYSEGMENT' */
#pragma location="MYSEGMENT" /* Place 'beta' into 'MYSEGMENT' */
const int beta;
With the CCS compiler, the #pragma DATA_SECTION() directive must be used:
/* CCS C Code */
#pragma DATA_SECTION(alpha, "MYSEGMENT")
int alpha;
#pragma DATA_SECTION(beta, "MYSEGMENT")
int beta;
See Section 7.7.3 for information on how to translate memory segment names between IAR and CCS.
7.5 Function Placement Into Named Segments
With the IAR compiler, functions can be placed into a named segment using the @ operator or the
#pragma location directive:
/* IAR C Code */
void g(void) @ "MYSEGMENT"
{
}
#pragma location="MYSEGMENT"
void h(void)
{
}
With the CCS compiler, the following scheme with the #pragma CODE_SECTION() directive must be
used:
/* CCS C Code */
#pragma CODE_SECTION(g, "MYSEGMENT")
void g(void)
{
}
See Section 7.7.3 for information on how to translate memory segment names between IAR and CCS.
![](asset-2c.png)
Migration of C Code from IAR 2.x, 3.x, or 4.x to CCS
www.ti.com
44 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
7.6 C Calling Conventions
The CCS and IAR C-compilers use different calling conventions for passing parameters to functions.
When porting a mixed C and assembly project to the TI CCS code generation tools, the assembly
functions need to be modified to reflect these changes. For detailed information about the calling
conventions, see the TI MSP430 Optimizing C/C++ Compiler User's Guide and the IAR MSP430 C/C++
Compiler Reference Guide.
The following example is a function that writes the 32-bit word Data to a given memory location in big-
endian byte order. It can be seen that the parameter Data is passed using different CPU registers.
IAR Version:
;----------------------------------------------------------------------------
; void WriteDWBE(unsigned char *Add, unsigned long Data)
;
; Writes a DWORD to the given memory location in big-endian format. The
; memory address MUST be word-aligned.
;
; IN: R12 Address (Add)
; R14 Lower Word (Data)
; R15 Upper Word (Data)
;----------------------------------------------------------------------------
WriteDWBE
swpb R14 ; Swap bytes in lower word
swpb R15 ; Swap bytes in upper word
mov.w R15,0(R12) ; Write 1st word to memory
mov.w R14,2(R12) ; Write 2nd word to memory
ret
CCS Version:
;----------------------------------------------------------------------------
; void WriteDWBE(unsigned char *Add, unsigned long Data)
;
; Writes a DWORD to the given memory location in big-endian format. The
; memory address MUST be word-aligned.
;
; IN: R12 Address (Add)
; R13 Lower Word (Data)
; R14 Upper Word (Data)
;----------------------------------------------------------------------------
WriteDWBE
swpb R13 ; Swap bytes in lower word
swpb R14 ; Swap bytes in upper word
mov.w R14,0(R12) ; Write 1st word to memory
mov.w R13,2(R12) ; Write 2nd word to memory
ret
7.7 Other Differences
7.7.1 Initializing Static and Global Variables
The ANSI/ISO C standard specifies that static and global (extern) variables without explicit initializations
must be pre-initialized to 0 (before the program begins running). This task is typically performed when the
program is loaded and is implemented in the IAR compiler:
/* IAR, global variable, initialized to 0 upon program start */
int Counter;
However, the TI CCS compiler does not pre-initialize these variables; therefore, it is up to the application
to fulfill this requirement:
/* CCS, global variable, manually zero-initialized */
int Counter = 0;
![](asset-2d.png)
www.ti.com
Migration of C Code from IAR 2.x, 3.x, or 4.x to CCS
45
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
7.7.2 Custom Boot Routine
With the IAR compiler, the C start-up function can be customized, giving the application a chance to
perform early initializations such as configuring peripherals, or omit data segment initialization. This is
achieved by providing a customized __low_level_init() function:
/* IAR C Code */
int __low_level_init(void)
{ =
/* Insert your low-level initializations here */
/*================================== */
/* Choose if segment initialization */
/* should be done or not. */
/* Return: 0 to omit initialization */
/* 1 to run initialization */
/*================================== */
return (1);
}
The return value controls whether or not data segments are initialized by the C start-up code. With the
CCS C compiler, the custom boot routine name is _system_pre_init(). It is used the same way as in the
IAR compiler.
/* CCS C Code */
int _system_pre_init(void)
{
/* Insert your low-level initializations here */
/*================================== */
/* Choose if segment initialization */
/* should be done or not. */
/* Return: 0 to omit initialization */
/* 1 to run initialization */
/*================================== */
return (1);
}
Omitting segment initialization with both compilers omits both explicit and nonexplicit initialization. The
user must ensure that important variables are initialized at run time before they are used.
7.7.3 Predefined Memory Segment Names
Memory segment names for data and function placement are controlled by device-specific linker
command files in both CCS and IAR tools. However, different segment names are used. See the linker
command files for more detailed information. The following table shows how to convert the most
commonly used segment names.
Description CCS Segment Name IAR Segment Name
RAM .bss DATA16_N
DATA16_I
DATA16_Z
Stack (RAM) .stack CSTACK
Main memory (flash or ROM) .text CODE
Information memory (flash or ROM) .infoA
.infoB
INFOA
INFOB
INFO
Interrupt vectors (flash or ROM)
.int00
.int01
…
.int14
INTVEC
Reset vector (flash or ROM) .reset RESET
![](asset-2e.png)
Migration of C Code from IAR 2.x, 3.x, or 4.x to CCS
www.ti.com
46 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs

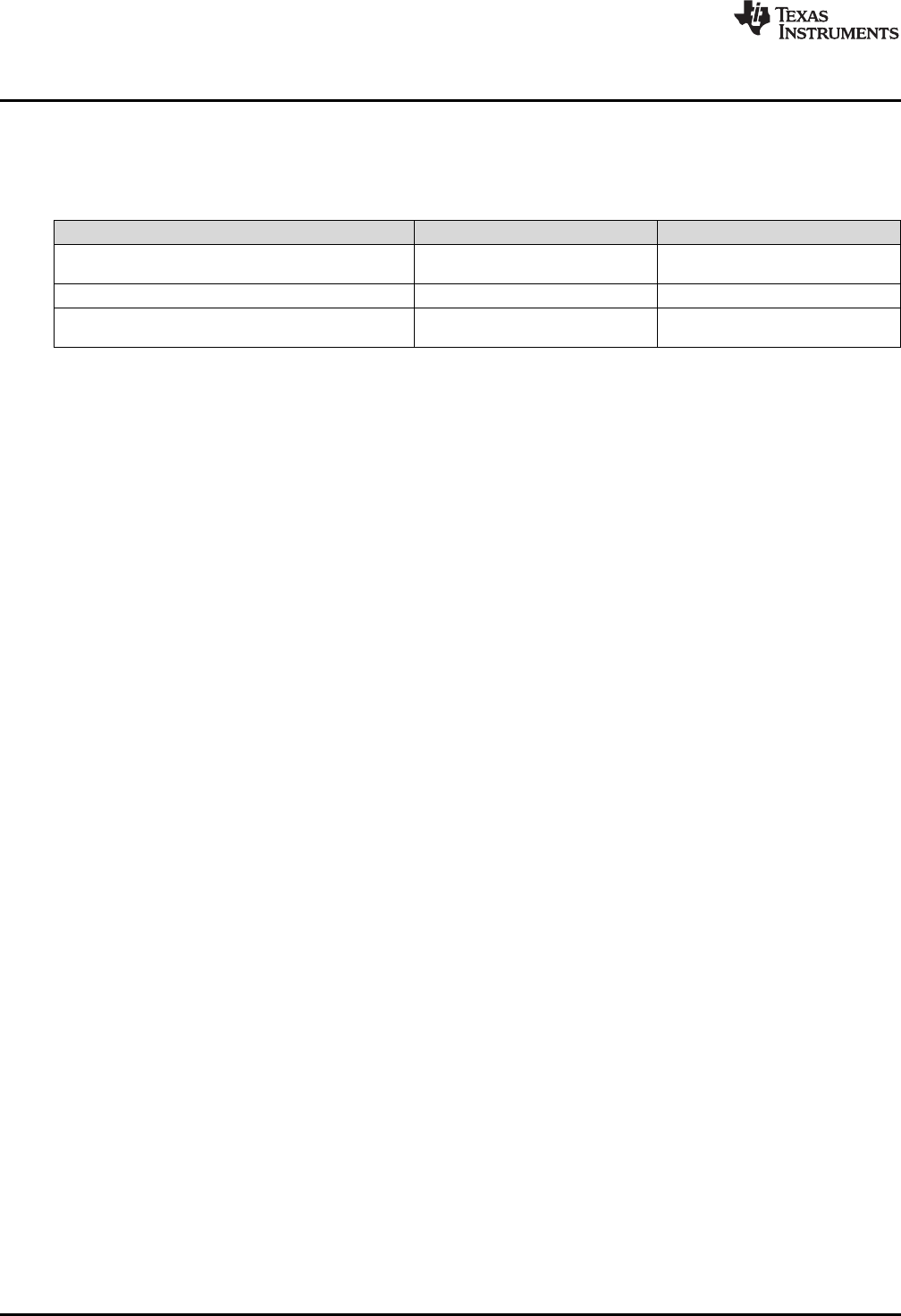

7.7.4 Predefined Macro Names
Both IAR and CCS compilers support a few non ANSI/ISO standard predefined macro names, which help
creating code that can be compiled and used on different compiler platforms. Check if a macro name is
defined using the #ifdef directive.
Description CCS Macro Name IAR Macro Name
Is MSP430 the target and is a particular compiler
platform used? __MSP430__ __ICC430__
Is a particular compiler platform used? __TI_COMPILER_VERSION__ __IAR_SYSTEMS_ICC__
Is a C header file included from within assembly
source code? __ASM_HEADER__ __ IAR_SYSTEMS_ASM__
![](asset-2f.png)
www.ti.com
Migration of Assembler Code from IAR 2.x, 3.x, or 4.x to CCS
47
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
8 Migration of Assembler Code from IAR 2.x, 3.x, or 4.x to CCS
Source for the TI CCS assembler and source code for the IAR assembler are not 100% compatible. The
instruction mnemonics are identical, but the assembler directives are somewhat different. This appendix
describes the differences between the CCS assembler directives and the IAR assembler directives.
8.1 Sharing C/C++ Header Files With Assembly Source
The IAR A430 assembler supports certain C/C++ preprocessor directives directly and, thereby, allows
direct including of C/C++ header files such as the MSP430 device-specific header files (msp430xxxx.h)
into the assembly code:
#include "msp430x14x.h" // Include device header file
With the CCS Asm430 assembler, a different scheme that uses the .cdecls directive must be used. This
directive allows programmers in mixed assembly and C/C++ environments to share C/C++ headers
containing declarations and prototypes between the C/C++ and assembly code:
.cdecls C,LIST,"msp430x14x.h" ; Include device header file
More information on the .cdecls directive can be found in the MSP430 Assembly Language Tools User's
Guide.
8.2 Segment Control
The CCS Asm430 assembler does not support any of the IAR A430 segment control directives such as
ORG, ASEG, RSEG, and COMMON.
Description Asm430 Directive (CCS)
Reserve space in the .bss uninitialized section .bss
Reserve space in a named uninitialized section .usect
Allocate program into the default program section (initialized) .text
Allocate data into a named initialized section .sect
To allocate code and data sections to specific addresses with the CCS assembler, it is necessary to
create and use memory sections defined in the linker command files. The following example demonstrates
interrupt vector assignment in both IAR and CCS assembly to highlight the differences.
;--------------------------------------------------------------------------
; Interrupt Vectors Used MSP430x11x1 and 12x(2) - IAR Assembler
;--------------------------------------------------------------------------
ORG 0FFFEh ; MSP430 RESET Vector
DW RESET ;
ORG 0FFF2h ; Timer_A0 Vector
DW TA0_ISR ;
;-------------------------------------------------------------------------- ;
Interrupt Vectors Used MSP430x11x1 and 12x(2) - CCS Assembler
;--------------------------------------------------------------------------
.sect ".reset" ; MSP430 RESET Vector
.short RESET ;
.sect ".int09" ; Timer_A0 Vector
.short TA0_ISR ;
Both examples assume that the standard device support files (header files, linker command files) are
used. The linker command files are different between IAR and CCS and cannot be reused. See
Section 7.7.3 for information on how to translate memory segment names between IAR and CCS.
![](asset-30.png)
Migration of Assembler Code from IAR 2.x, 3.x, or 4.x to CCS
www.ti.com
48 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
8.3 Translating A430 Assembler Directives to Asm430 Directives
8.3.1 Introduction
The following sections describe, in general, how to convert assembler directives for the IAR A430
assembler (A430) to TI CCS Asm430 assembler (Asm430) directives. These sections are intended only as
a guide for translation. For detailed descriptions of each directive, see either the MSP430 Assembly
Language Tools User's Guide from TI or the MSP430 IAR Assembler Reference Guide from IAR.
NOTE: Only the assembler directives require conversion
Only the assembler directives require conversion, not the assembler instructions. Both
assemblers use the same instruction mnemonics, operands, operators, and special symbols
such as the section program counter ($) and the comment delimiter (;).
The A430 assembler is not case sensitive by default. These sections show the A430 directives written in
uppercase to distinguish them from the Asm430 directives, which are shown in lower case.
8.3.2 Character Strings
In addition to using different directives, each assembler uses different syntax for character strings. A430
uses C syntax for character strings: A quote is represented using the backslash character as an escape
character together with quote (\") and the backslash itself is represented by two consecutive backslashes
(\\). In Asm430 syntax, a quote is represented by two consecutive quotes (""); see examples:
Character String Asm430 Syntax (CCS) A430 Syntax (IAR)
PLAN "C" "PLAN ""C""" "PLAN \"C\""
\dos\command.com "\dos\command.com" "\\dos\\command.com"
Concatenated string (for example, Error 41) - "Error " "41"
![](asset-31.png)
www.ti.com
Migration of Assembler Code from IAR 2.x, 3.x, or 4.x to CCS
49
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs

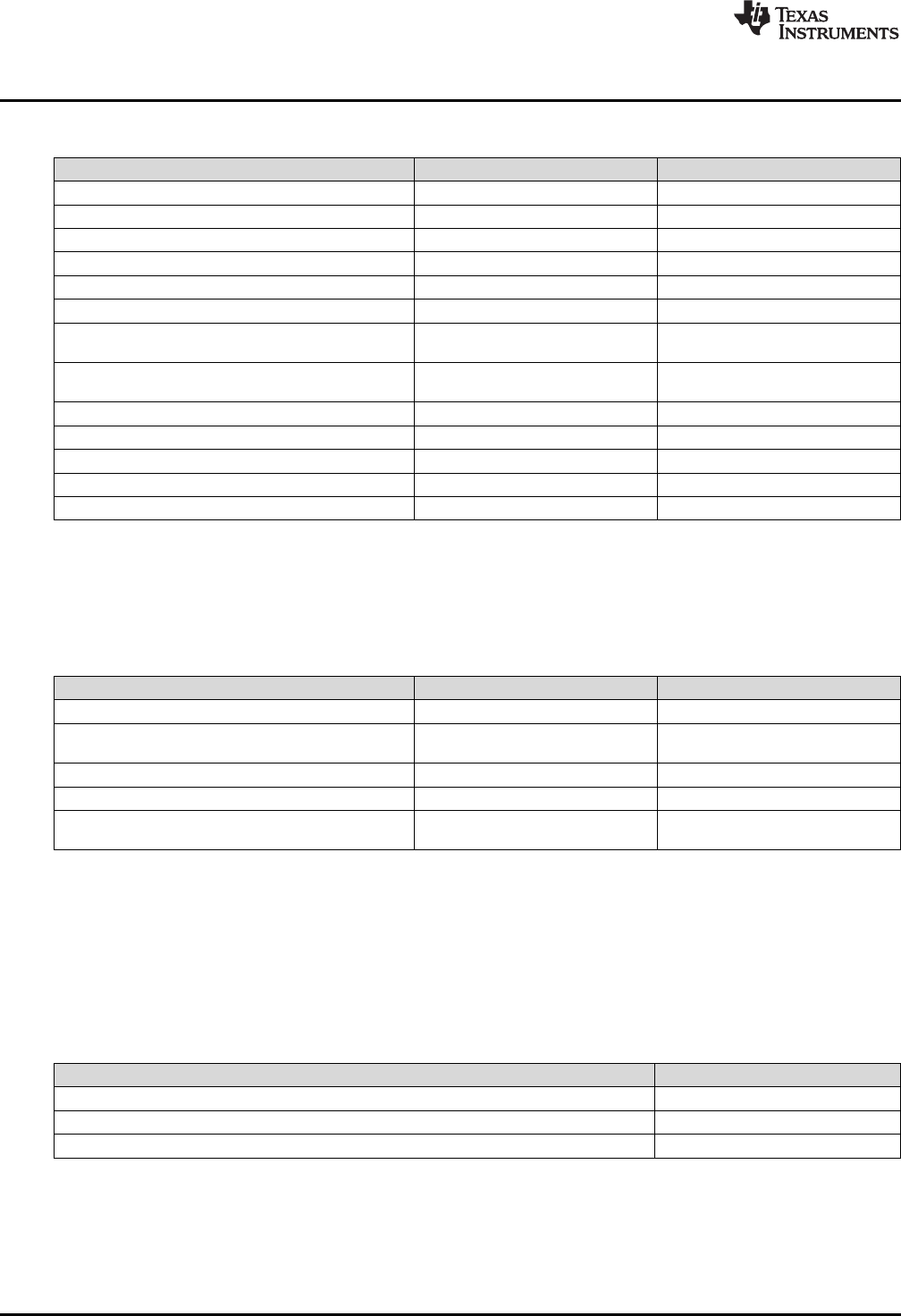

8.3.3 Section Control Directives
Asm430 has three predefined sections into which various parts of a program are assembled. Uninitialized
data is assembled into the .bss section, initialized data into the .data section, and executable code into the
.text section.
A430 also uses sections or segments, but there are no predefined segment names. Often, it is convenient
to adhere to the names used by the C compiler: DATA16_Z for uninitialized data, CONST for constant
(initialized) data, and CODE for executable code. The following table uses these names.
A pair of segments can be used to make initialized, modifiable data PROM-able. The ROM segment would
contain the initializers and would be copied to RAM segment by a start-up routine. In this case, the
segments must be exactly the same size and layout.
(1) .bss and .usect do not require switching back and forth between the original and the uninitialized section. For example:
; IAR Assembler Example
RSEG DATA16_N ; Switch to DATA segment
EVEN ; Ensure proper alignment
ADCResult: DS 2 ; Allocate 1 word in RAM
Flags: DS 1 ; Allocate 1 byte in RAM
RSEG CODE ; Switch back to CODE segment
; CCS Assembler Example #1
ADCResult .usect ".bss",2,2 ; Allocate 1 word in RAM
Flags .usect ".bss",1 ; Allocate 1 byte in RAM
; CCS Assembler Example #2
.bss ADCResult,2,2 ; Allocate 1 word in RAM
.bss Flags,1 ; Allocate 1 byte in RAM
(2) Space is reserved in an uninitialized segment by first switching to that segment, then defining the appropriate memory block, and
then switching back to the original segment. For example:
RSEG DATA16_Z
LABEL: DS 16 ; Reserve 16 byte
RSEG CODE
(3) Initialization of bit-field constants (.field) is not supported, therefore, the section counter is always byte-aligned.
Description Asm430 Directive (CCS) A430 Directive (IAR)
Reserve size bytes in the .bss (uninitialized data)
section .bss(1) (2)
Assemble into the .data (initialized data) section .data RSEG const
Assemble into a named (initialized) section .sect RSEG
Assemble into the .text (executable code) section .text RSEG code
Reserve space in a named (uninitialized) section .usect(1) (2)
Alignment on byte boundary .align 1 (3)
Alignment on word boundary .align 2 EVEN
8.3.4 Constant Initialization Directives
(1) Initialization of bit-field constants (.field) is not supported. Constants must be combined into complete words using DW.
; Asm430 code ; A430 code
.field 5,3 \
.field 12,4 | -> DW (30<<(4+3))|(12<<3)|5 ; equals 3941
.field 30,8 /
Description Asm430 Directive (CCS) A430 Directive (IAR)
Initialize one or more successive bytes or text strings .byte or .string DB
Initialize a 32-bit IEEE floating-point constant .double or .float DF
Initialize a variable-length field .field (1)
Reserve size bytes in the current section .space DS
Initialize one or more text strings Initialize one or more text strings DB
Initialize one or more 16-bit integers .word DW
Initialize one or more 32-bit integers .long DL
![](asset-32.png)
Migration of Assembler Code from IAR 2.x, 3.x, or 4.x to CCS
www.ti.com
50 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
8.3.5 Listing Control Directives
(1) No A430 directive directly corresponds to .option. The individual listing control directives (above) or the command-line option -c
(with suboptions) should be used to replace the .option directive.
(2) There is no directive that directly corresponds to .sslist and .ssnolist.
(3) The title in the listing page header is the source file name.
Description Asm430 Directive (CCS) A430 Directive (IAR)
Allow false conditional code block listing .fclist LSTCND-
Inhibit false conditional code block listing .fcnolist LSTCND+
Set the page length of the source listing .length PAGSIZ
Set the page width of the source listing .width COL
Restart the source listing .list LSTOUT+
Stop the source listing .nolist LSTOUT-
Allow macro listings and loop blocks .mlist LSTEXP+ (macro)
LSTREP+ (loop blocks)
Inhibit macro listings and loop blocks .mnolist LSTEXP- (macro)
LSTREP- (loop blocks)
Select output listing options .option (1)
Eject a page in the source listing .page PAGE
Allow expanded substitution symbol listing .sslist (2)
Inhibit expanded substitution symbol listing .ssnolist (2)
Print a title in the listing page header .title (3)
8.3.6 File Reference Directives
(1) The directive .global functions as either .def if the symbol is defined in the current module, or .ref otherwise. PUBLIC or EXTERN
must be used as applicable with the A430 assembler to replace the .global directive.
(2) The concept of macro libraries is not supported. Include files with macro definitions must be used for this functionality.
Description Asm430 Directive (CCS) A430 Directive (IAR)
Include source statements from another file .copy or .include #include or $
Identify one or more symbols that are defined in the
current module and used in other modules .def PUBLIC or EXPORT
Identify one or more global (external) symbols .global (1)
Define a macro library .mlib (2)
Identify one or more symbols that are used in the
current module but defined in another module .ref EXTERN or IMPORT
Modules may be used with the Asm430 assembler to create individually linkable routines. A file may
contain multiple modules or routines. All symbols except those created by DEFINE, #define (IAR
preprocessor directive) or MACRO are "undefined" at module end. Library modules are, furthermore,
linked conditionally. This means that a library module is included in the linked executable only if a public
symbol in the module is referenced externally. The following directives are used to mark the beginning and
end of modules in the A430 assembler.
Additional A430 Directives (IAR) A430 Directive (IAR)
Start a program module NAME or PROGRAM
Start a library module MODULE or LIBRARY
Terminate the current program or library module ENDMOD
![](asset-33.png)
www.ti.com

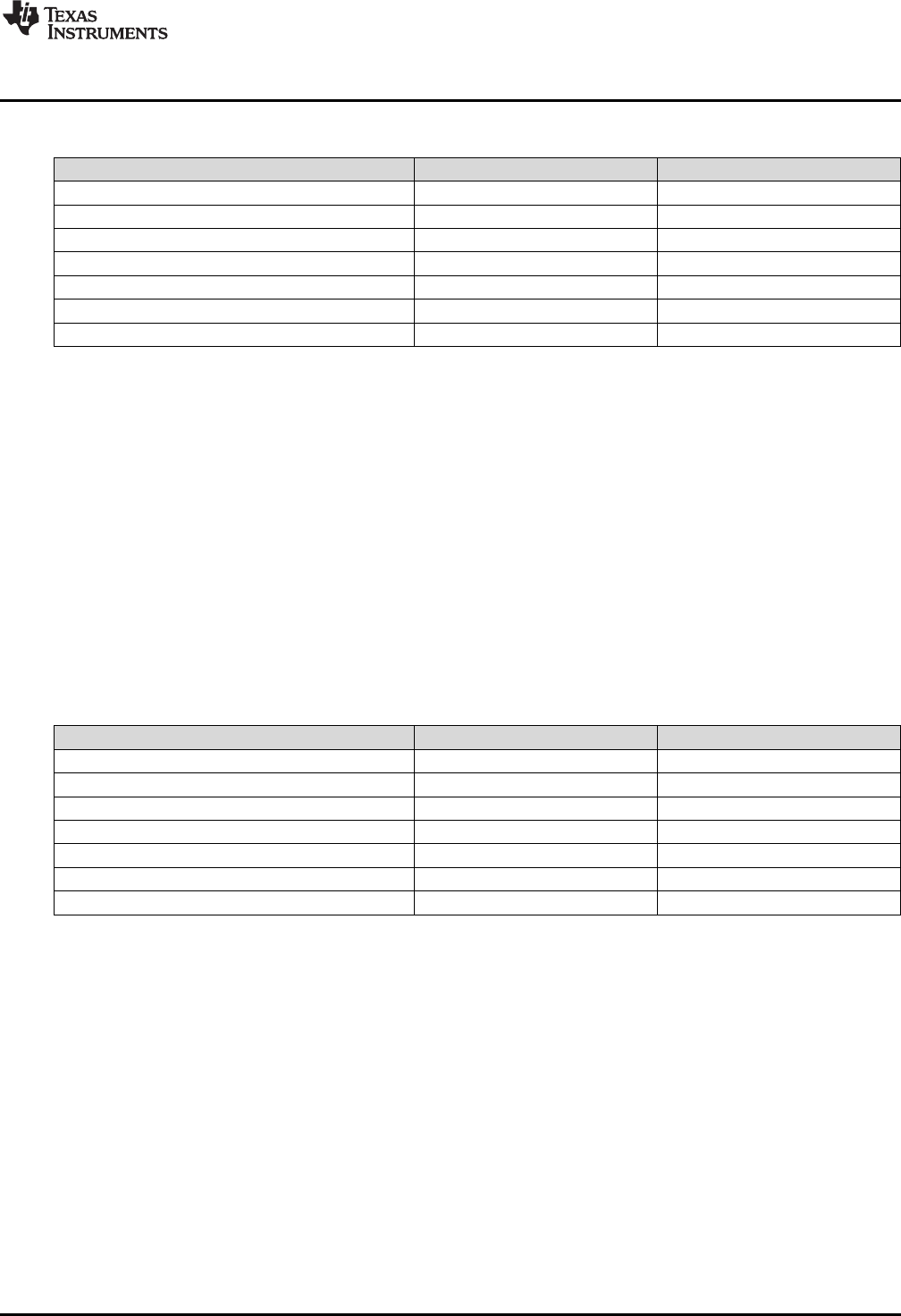

Migration of Assembler Code from IAR 2.x, 3.x, or 4.x to CCS
51
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
8.3.7 Conditional Assembly Directives
(1) There is no directive that directly corresponds to .break. However, the EXITM directive can be used with other conditionals if
repeatable block assembly is used in a macro, as shown:
SEQ MACRO FROM,TO ; Initialize a sequence of byte constants
LOCAL X
X SET FROM
REPT TO-FROM+1 ; Repeat from FROM to TO
IF X>255 ; Break if X exceeds 255
EXITM
ENDIF
DB X ; Initialize bytes to FROM...TO
X SET X+1 ; Increment counter
ENDR
ENDM
Description Asm430 Directive (CCS) A430 Directive (IAR)
Optional repeatable block assembly .break (1)
Begin conditional assembly .if IF
Optional conditional assembly .else ELSE
Optional conditional assembly .elseif ELSEIF
End conditional assembly .endif ENDIF
End repeatable block assembly .endloop ENDR
Begin repeatable block assembly .loop REPT
8.3.8 Symbol Control Directives
The scope of assembly-time symbols differs in the two assemblers. In Asm430, definitions can be global
to a file or local to a module or macro. Local symbols can be undefined with the .newblock directive. In
A430, symbols are either local to a macro (LOCAL), local to a module (EQU), or global to a file (DEFINE).
In addition, the preprocessor directive #define also can be used to define local symbols.
(1) No A430 directive directly corresponds to .newblock. However, #undef may be used to reset a symbol that was defined with the
#define directive. Also, macros or modules may be used to achieve the .newblock functionality because local symbols are
implicitly undefined at the end of a macro or module.
(2) Definition of structure types is not supported. Similar functionality is achieved by using macros to allocate aggregate data and
base address plus symbolic offset, as shown:
MYSTRUCT: MACRO
DS 4
ENDM
LO DEFINE 0
HI DEFINE 2
RSEG DATA16_Z
X MYSTRUCT
RSEG CODE
MOV X+LO,R4
...
Description Asm430 Directive (CCS) A430 Directive (IAR)
Assign a character string to a substitution symbol .asg SET or VAR or ASSIGN
Undefine local symbols .newblock (1)
Equate a value with a symbol .equ or .set EQU or =
Perform arithmetic on numeric substitution symbols .eval SET or VAR or ASSIGN
End structure definition .endstruct (2)
Begin a structure definition .struct (2)
Assign structure attributes to a label .tag (2)
![](asset-34.png)
Migration of Assembler Code from IAR 2.x, 3.x, or 4.x to CCS
www.ti.com
52 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
8.3.9 Macro Directives
Description Asm430 Directive (CCS) A430 Directive (IAR)
Define a macro .macro MACRO
Exit prematurely from a macro .mexit EXITM
End macro definition .endm ENDM
8.3.10 Miscellaneous Directives
(1) The syntax of the #message directive is: #message "<string>"
This causes '#message <string>' to be output to the project build window during assemble and compile time.
(2) Warning messages cannot be user-defined. #message may be used, but the warning counter is not incremented.
(3) The concept of load-time addresses is not supported. Run-time and load-time addresses are assumed to be the same. To
achieve the same effect, labels can be given absolute (run-time) addresses by the EQU directives.
; Asm430 code ; A430 code
.label load_start load_start:
Run_start: <code>
<code> load_end:
Run_end: run_start: EQU 240H
.label load_end run_end: EQU run_start+load_end-load_start
(4) Although not produced by the absolute lister, ASEG defines absolute segments and EQU can be used to define absolute
symbols.
MYFLAG EQU 23EH ; MYFLAG is located at 23E
ASEG 240H ; Absolute segment at 240
MAIN: MOV #23CH, SP ; MAIN is located at 240
...
Description Asm430 Directive (CCS) A430 Directive (IAR)
Send user-defined error messages to the output
device .emsg #error
Send user-defined messages to the output device .mmsg #message(1)
Send user-defined warning messages to the
output device .wmsg (2)
Define a load address label .label (3)
Directive produced by absolute lister .setsect ASEG(4)
Directive produced by absolute lister .setsym EQU or =(4)
Program end .end END
![](asset-35.png)
www.ti.com
Migration of Assembler Code from IAR 2.x, 3.x, or 4.x to CCS
53
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
8.3.11 Alphabetical Listing and Cross Reference of Asm430 Directives
Asm430 Directive
(CCS) A430 Directive (IAR) Asm430 Directive
(CCS) A430 Directive (IAR)
.align ALIGN .loop REPT
.asg SET or VAR or ASSIGN .macro MACRO
.break See Conditional Assembly Directives .mexit EXITM
.bss See Symbol Control Directives .mlib See File Referencing Directives
.byte or .string DB .mlist LSTEXP+ (macro)
.cdecls C pre-processor declarations are
inherently supported. LSTREP+ (loop blocks)
.copy or .include #include or $ .mmsg #message (XXXXXX)
.data RSEG .mnolist LSTEXP- (macro)
.def PUBLIC or EXPORT LSTREP- (loop blocks)
.double Not supported .newblock See Symbol Control Directives
.else ELSE .nolist LSTOUT-
.elseif ELSEIF .option See Listing Control Directives
.emsg #error .page PAGE
.end END .ref EXTERN or IMPORT
.endif ENDIF .sect RSEG
.endloop ENDR .setsect See Miscellaneous Directives
.endm ENDM .setsym See Miscellaneous Directives
.endstruct See Symbol Control Directives .space DS
.equ or .set EQU or = .sslist Not supported
.eval SET or VAR or ASSIGN .ssnolist Not supported
.even EVEN .string DB
.fclist LSTCND- .struct See Symbol Control Directives
.fcnolist LSTCND+ .tag See Symbol Control Directives
.field See Constant Initialization Directives .text RSEG
.float See Constant Initialization Directives .title See Listing Control Directives
.global See File Referencing Directives .usect See Symbol Control Directives
.if IF .width COL
.label See Miscellaneous Directives .wmsg See Miscellaneous Directives
.length PAGSIZ .word DW
.list LSTOUT+
![](asset-36.png)
Migration of Assembler Code from IAR 2.x, 3.x, or 4.x to CCS
www.ti.com
54 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
8.3.12 Unsupported A430 Directives (IAR)
The following IAR assembler directives are not supported in the CCS Asm430 assembler:
(1) There is no direct support for IAR REPTC and REPTI directives in CCS. However, equivalent functionality can be achieved using
the CCS .macro directive:
; IAR Assembler Example
REPTI zero,"R4","R5","R6"
MOV #0,zero
ENDR
; CCS Assembler Example
zero_regs .macro list
.var item
.loop
.break ($ismember(item, list) = 0)
MOV #0,item
.endloop
.endm
Code that is generated by calling "zero_regs R4,R5,R6":
MOV #0,R4
MOV #0,R5
MOV #0,R6
(2) In CCS, local labels are defined by using $n (with n=0…9) or with NAME?. Examples are $4, $7, or Test?.
(3) The use of C-style preprocessor directives is supported indirectly through the use of .cdecls. More information on the .cdecls
directive can be found in the MSP430 Assembly Language Tools User's Guide.
Conditional Assembly Directives Macro Directives
REPTC(1) LOCAL(2)
REPTI
File Referencing Directives Miscellaneous Directives Symbol Control Directives
NAME or PROGRAM RADIX DEFINE
MODULE or LIBRARY CASEON SFRB
ENDMOD CASEOFF SFRW
Listing Control Directives C-Style Preprocessor Directives(3) Symbol Control Directives
LSTMAC (±) #define ASEG
LSTCOD (±) #undef RSEG
LSTPAG (±) #if, #else, #elif COMMON
LSTXREF (±) #ifdef, #ifndef STACK
#endif ORG
#include
#error
![](asset-37.png)
www.ti.com
Writing Portable C Code for CCS and MSP430-GCC for MSP430
55
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
9 Writing Portable C Code for CCS and MSP430-GCC for MSP430
Source code for the TI CCS C compiler and source code for the GCC for MSP430 compiler are not fully
compatible. Standard ANSI/ISO C code is portable between these tools, but implementation-specific
extensions differ and must be ported. This appendix describes the major differences between the two
compilers.
9.1 Interrupt Vector Definition
The syntax for ISR declarations used by the CCS C compiler (using the #pragma vector = ) is not
supported by GCC for MSP430. It is, however, possible to write correct C code for both compilers by
wrapping the different declarations in a preprocessor directive:
#if defined(__TI_COMPILER_VERSION__) || defined(__IAR_SYSTEMS_ICC__)
#pragma vector=PORT1_VECTOR
__interrupt void Port1_ISR(void)
#elif defined(__GNUC__)
void __attribute__ ((interrupt(PORT1_VECTOR))) Port1_ISR (void)
#else
#error Compiler not supported!
#endif
Further information on the use of the GCC compiler can be found in the document Using the GNU
Compiler Collection.
![](asset-38.png)
FET-Specific Menus
www.ti.com
56 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
10 FET-Specific Menus
This appendix describes the CCS menus that are specific to the FET.
10.1 Menus
10.1.1 Debug View: Run →Free Run
The debugger uses the device JTAG signals to debug the device. On some MSP430 devices, these JTAG
signals are shared with the device port pins. Normally, the debugger maintains the pins in JTAG mode so
that the device can be debugged. During this time, the port functionality of the shared pins is not available.
However, when Free Run is selected (by opening a pulldown menu next to the Run icon on top of the
Debug View), the JTAG drivers are set to 3-state, and the device is released from JTAG control (TEST pin
is set to GND) when GO is activated. Any active on-chip breakpoints are retained, and the shared JTAG
port pins revert to their port functions.
At this time, the debugger has no access to the device and cannot determine if an active breakpoint (if
any) has been reached. The debugger must be manually commanded to stop the device, at which time
the state of the device is determined (that is, was a breakpoint reached?).
See FAQ Debugging #9.
10.1.2 Run →Connect Target
Regains control of the device when ticked.
10.1.3 Run →Advanced →Make Device Secure
Blows the JTAG fuse on the target device. After the fuse is blown, no further communication through
JTAG with the device is possible.
10.1.4 Project →Properties →Debug →MSP430 Properties →Clock Control
Disables the specified system clock while the debugger has control of the device (following a STOP or
breakpoint). All system clocks are enabled following a GO or a single step (STEP or STEP INTO). Can
only be changed when the debugger is inactive. See FAQ Debugging #12.
10.1.5 Window →Show View →Breakpoints
Opens the MSP430 Breakpoints View window. This window can be used to set basic and advanced
breakpoints. Advanced settings such as Conditional Triggers and Register Triggers can be selected
individually for each breakpoint by accessing the properties (right click on corresponding breakpoint). Pre-
defined breakpoints such as Break on Stack Overflow can be selected by opening the Breakpoint
pulldown menu, which is located next to the Breakpoint icon at the top of the window. Breakpoints may be
combined by dragging and dropping within the Breakpoint View window. A combined breakpoint is
triggered when all breakpoint conditions are met.
10.1.6 Window →Show View →Other... Debug →Trace Control
The Trace View enables the use of the state storage module. The state storage module is present only in
devices that contain the full version of the Enhanced Emulation Module (EEM) (see Table 2). After a
breakpoint is defined, the State Storage View displays the trace information as configured. Various trace
modes can be selected when clicking the Configuration Properties icon at the top right corner of the
window. Details on the EEM are available in the application report Advanced Debugging Using the
Enhanced Emulation Module (EEM) With CCS Version 4.
![](asset-39.png)
www.ti.com
FET-Specific Menus
57
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
10.1.7 Project →Properties →Debug →MSP430 Properties →Target Voltage
The target voltage of the MSP-FET430UIF can be adjusted between 1.8 V and 3.6 V. This voltage is
available on pin 2 of the 14-pin target connector to supply the target from the USB FET. If the target is
supplied externally, the external supply voltage should be connected to pin 4 of the target connector, so
the USB FET can set the level of the output signals accordingly. Can only be changed when the debugger
is inactive.
![](asset-3a.png)
Device-Specific Menus
www.ti.com
58 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
11 Device-Specific Menus
11.1 MSP430L092
11.1.1 Emulation Modes
The MSP430L092 can operate in two different modes: the L092 mode and C092 emulation mode. The
purpose of the C092 emulation mode is to mimic a C092 with up to 1920 bytes of code at its final
destination for mask generation by using an L092. The operation mode must be set in CCS before
launching the debugger. The selection happens in the project properties under Device Options at the
bottom, after selecting MSP430L092 as Device Variant as shown in Figure 30.Figure 31 shows how to
select the C092 mode.
![](asset-3c.png)
Device-Specific Menus
www.ti.com
60 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
11.1.2 Loader Code
The Loader Code in the MSP430L092 is a ROM-code from TI that provides a series of services. It enables
customers to build autonomous applications without needing to develop a ROM mask. Such an application
consists of an MSP430 device containing the loader (for example, MSP430L092) and an SPI memory
device (for example, '95512 or '25640). Those and similar devices are available from various
manufacturers. The majority of use cases for an application with a loader device and external SPI memory
for native 0.9-V supply voltage are late development, prototyping, and small series production. The
external code download may be set in the CCS Project Properties →Debug →MSP430 Properties →
Download Options →Copy application to external SPI memory after program load (see Figure 30).
Figure 31. MSP430L092 in C092 Emulation Mode
![](asset-3d.png)
www.ti.com
Device-Specific Menus
61
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
11.1.3 C092 Password Protection
The MSP430C092 is a customer-specific ROM device, which is protected by a password. To start a debug
session, the password must be provided to CCS. Open the MSP430C092.CCXML file in your project, click
Target Configurations in the Advanced Setup section, Advanced Target Configuration. The CPU
Properties become visible after MSP430 is selected. Figure 32 shows how to provide a HEX password in
CCS v6.1 target configuration.
Figure 32. MSP430C092 Password Access
![](asset-3e.png)
Device-Specific Menus
www.ti.com
62 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
11.2 MSP430F5xx and MSP430F6xx BSL Support
Most of the MSP430F5xx and MSP430F6xx devices support a custom BSL that is protected by default. To
program the custom BSL, this protection must be disabled in CCS Project Properties →Debug →
MSP430 Properties →Download Options →Allow Read/Write/Erase access to BSL memory (see
Figure 33).
Figure 33. Allow Access to BSL
![](asset-3f.png)
www.ti.com
Device-Specific Menus
63
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
11.3 MSP430FR5xx and MSP430FR6xx Password Protection
Selected MSP430FR5xx and MSP430FR6xx devices provide JTAG protection by a user password. When
debugging these MSP430 derivatives, the hexadecimal JTAG password must be provided to start a debug
session. Open the MSP430Fxxxx.CCXML file in your project, click Target Configurations in the Advanced
Setup section, Advanced Target Configuration. The CPU Properties become visible after MSP430 is
selected (see Figure 34). Details regarding the password protection of MSP430FR5xx and MSP430FR6xx
devices may be found in the device user's guides.
Figure 34. MSP430 Password Access
![](asset-40.png)
Device-Specific Menus
www.ti.com
64 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
11.4 MSP430 Ultra-Low-Power LPMx.5 Mode
11.4.1 What is LPMx.5
LPMx.5 is an ultra-low power mode in which the entry and exit are handled differently than in the other
low-power modes.
LPMx.5 gives the lowest power consumption available on a device. To achieve this, entry to LPMx.5
disables the LDO of the PMM module, which removes the supply voltage from the core and the JTAG
module of the device. Because the supply voltage is removed from the core, all register contents and
SRAM contents are lost. Exit from LPMx.5 causes a BOR event, which forces a complete reset of the
system.
NOTE: See the corresponding MSP430 device family user's guide for additional LPMx.5 and ultra-
low-power debug mode details.
11.4.2 Debugging LPMx.5 Mode on MSP430 Devices That Support the Ultra-Low-Power Debug Mode
To enable the ultra-low power debug mode feature the "Enable Ultra Low Power debug / LPMx.5 debug"
checkbox must be enabled by clicking Project Properties -> Debug -> MSP430 Properties -> Enable Ultra
Low Power debug / LPMx.5 debug (see Figure 35).
When the ultra-low power debug mode is enabled a notification is displayed in the Debugger log every
time the target device enters and leaves LPMx.5 mode.
Press the Halt or Reset button CCS to wake up the target device from LPMx.5. Execution of the code is
halted at the start of the program. All breakpoints that had been active before LPMx.5 are restored and
reactivated automatically.
![](asset-41.png)
www.ti.com
Device-Specific Menus
65
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
Figure 35. Enable Ultra-Low-Power Debug Mode
11.4.2.1 Limitations
When a target device is in LPMx.5 mode, it is not possible to set or remove advanced conditional or
software breakpoints. It is, however, possible to set hardware breakpoints. In addition, only hardware
breakpoints that were set during LPMx.5 can be removed in the LPMx.5 mode. Attach to running target is
not possible in combination with LPMx.5 mode debugging, as this results in a device reset.
When using the "Free Run" option in combination with LPMx.5 mode, the target device does not resume
code execution after LPMx.5 wakeup. In this case, suspend the debug session by clicking the "Suspend"
button, and then resume the session by clicking the "Resume" button.
![](asset-42.png)
Device-Specific Menus
www.ti.com
66 SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback
Copyright © 2005–2018, Texas Instruments Incorporated
Code Composer Studio™ IDE v8.x for MSP430™ MCUs
11.4.3 Debugging LPMx.5 Mode on MSP430 Devices That Do Not Support the Ultra-Low-Power Debug
Mode
On MSP430 devices that do not support the ultra-low-power mode, the LPMx.5 low-power mode can be
debugged using the "Free Run" option. This configuration provides the absolute current and energy
consumption of MSP430 LPMx.5 low-power mode.
11.4.3.1 Limitations
Using this configuration presents some limitations:
1. Breakpoint
1. Setting or erasing any kind of breakpoint is not possible when the device is in LPMx.5.
2. Device State
1. There are no notifications about the current device state. From the perspective of the IDE, the
device is running.
3. Pause
1. The pause button might not work reliably when the device is in LPMx.5 mode. The device might
not leave LPMx.5 mode when the pause button is pressed. In this case, the debug session must
be restarted. During debugging, an option is to trap the device in active mode after wake-up from
LPMx.5, so that the device can be paused/suspend reliably when it is in a known power mode
other than LPMx.5.
4. Debugger connection
1. To make sure that the debugger can always connect and synchronize to the MSP430 device.
1. Do not enter LPMx.5 directly after code start. A 500-ms delay is required between code start
and LPMx.5 entry to ensure reliable debugger synchronization.
2. If 4-wire JTAG shows connection and synchronization errors, use 2-wire SBW instead of the 4-
wire JTAG protocol.
3. Make sure that the code removes the lock I/O setting for all MSP430 port pins.
![](asset-43.png)
www.ti.com
Revision History
67
SLAU157AR–May 2005–Revised May 2018
Submit Documentation Feedback Copyright © 2005–2018, Texas Instruments Incorporated
Revision History
Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from March 13, 2018 to May 11, 2018 ............................................................................................................... Page
• Updated document layout, including section, figure, and table numbering........................................................ 1
• Added Section 3.2.3,Download Options for MSP430 Devices.................................................................... 14
• Updated all contents in Section 5,MSP430 FRAM Memory Protection Mechanisms.......................................... 34
![](asset-44.png)
IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES
Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to,
reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are
developing applications that incorporate TI products; by downloading, accessing or using any particular TI Resource in any way, you
(individually or, if you are acting on behalf of a company, your company) agree to use it solely for this purpose and subject to the terms of
this Notice.
TI’s provision of TI Resources does not expand or otherwise alter TI’s applicable published warranties or warranty disclaimers for TI
products, and no additional obligations or liabilities arise from TI providing such TI Resources. TI reserves the right to make corrections,
enhancements, improvements and other changes to its TI Resources.
You understand and agree that you remain responsible for using your independent analysis, evaluation and judgment in designing your
applications and that you have full and exclusive responsibility to assure the safety of your applications and compliance of your applications
(and of all TI products used in or for your applications) with all applicable regulations, laws and other applicable requirements. You
represent that, with respect to your applications, you have all the necessary expertise to create and implement safeguards that (1)
anticipate dangerous consequences of failures, (2) monitor failures and their consequences, and (3) lessen the likelihood of failures that
might cause harm and take appropriate actions. You agree that prior to using or distributing any applications that include TI products, you
will thoroughly test such applications and the functionality of such TI products as used in such applications. TI has not conducted any
testing other than that specifically described in the published documentation for a particular TI Resource.
You are authorized to use, copy and modify any individual TI Resource only in connection with the development of applications that include
