CAMERA CONTROL UNIT
CCU-TX50
CCU-TX50P
SERVICE MANUAL
Volume 2 1st Edition
CCU-TX50/V2

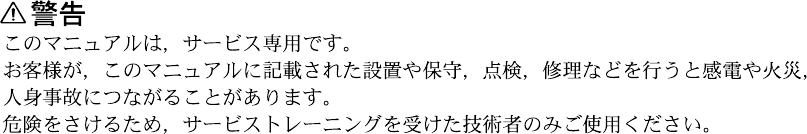

! WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
! WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
! AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
1
CCU-TX50/V2

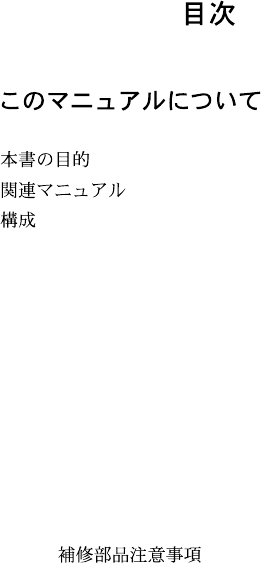

/ Table of Contents
............................................................................................................ 3 (J)
..................................................................................................... 3 (J)
................................................................................................................... 3 (J)
Manual Structure
Purpose of this manual ........................................................................................ 3 (E)
Relative manuals ................................................................................................. 3 (E)
Contents ............................................................................................................... 3 (E)
1. Spare Parts
1-1. ........................................................................................ 1-1
1-1. Notes on Repair Parts .................................................................................. 1-1
1-2. Exploded Views .......................................................................................... 1-2
1-3. Electrical Parts List ..................................................................................... 1-8
1-4. Supplied Accessories ................................................................................ 1-75
1-5. Optional Fixtures ....................................................................................... 1-75
2. Semiconductor Pin Assignments
3. Block Diagrams
Overall ......................................................................................................... 3-2
DM-140 ....................................................................................................... 3-3
TR-133A ..................................................................................................... 3-4
AU-300 ........................................................................................................ 3-5
IV-57 ........................................................................................................... 3-7
EN-156A ..................................................................................................... 3-8
AT-155 ...................................................................................................... 3-10
2CCU-TX50/V2
4. Schematic Diagrams
DM-140 ....................................................................................................... 4-2
TR-133A ..................................................................................................... 4-8
AU-300 ...................................................................................................... 4-14
IV-57A ...................................................................................................... 4-19
EN-156A ................................................................................................... 4-25
AT-155 ...................................................................................................... 4-33
SW-1257 ................................................................................................... 4-43
VDA-62A .................................................................................................. 4-46
CN-2474A ................................................................................................. 4-48
CN-2647 .................................................................................................... 4-49
CN-2653 .................................................................................................... 4-51
MB-1062 ................................................................................................... 4-52
Frame Wiring ............................................................................................ 4-54
5. Board Layouts

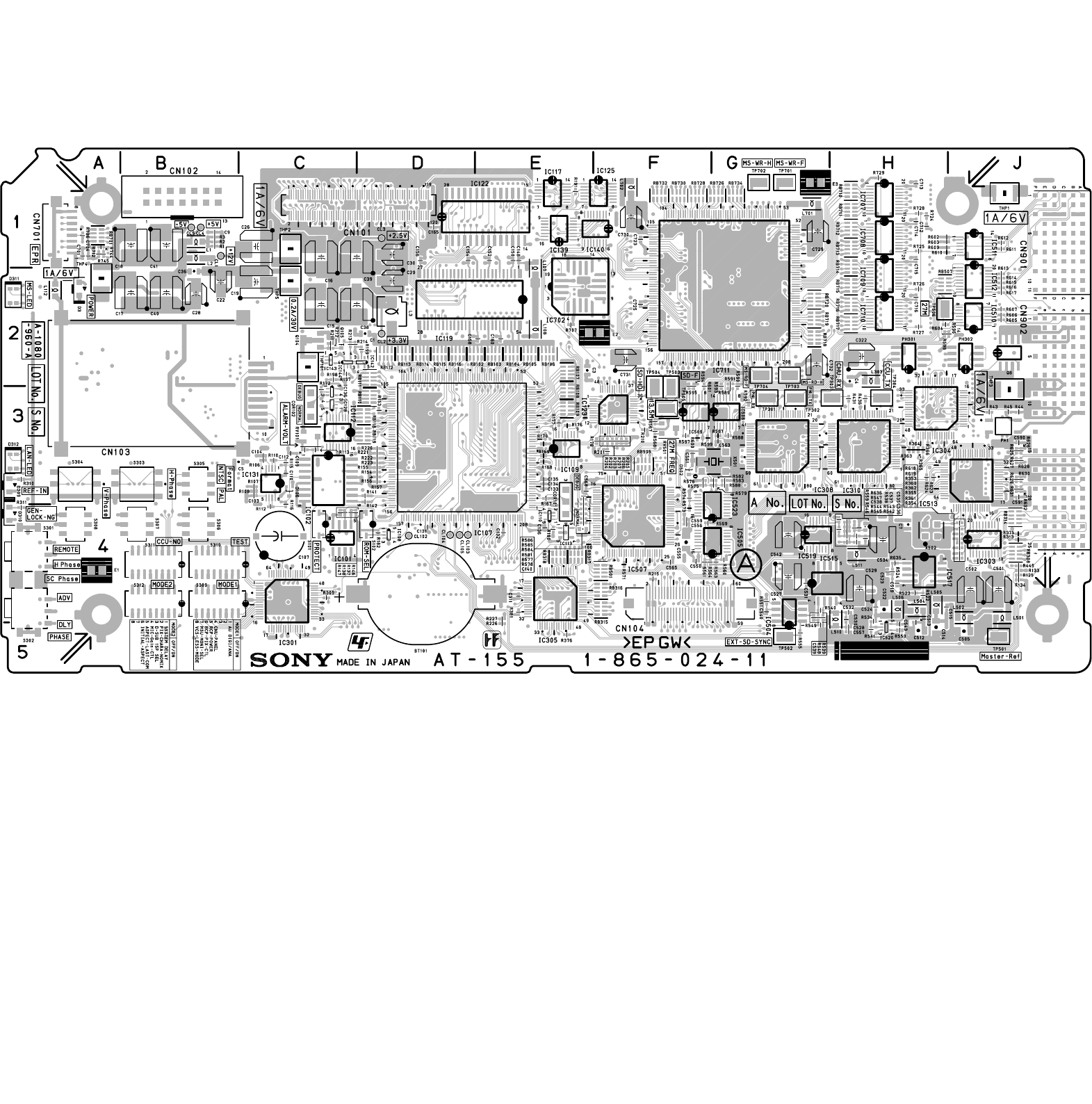

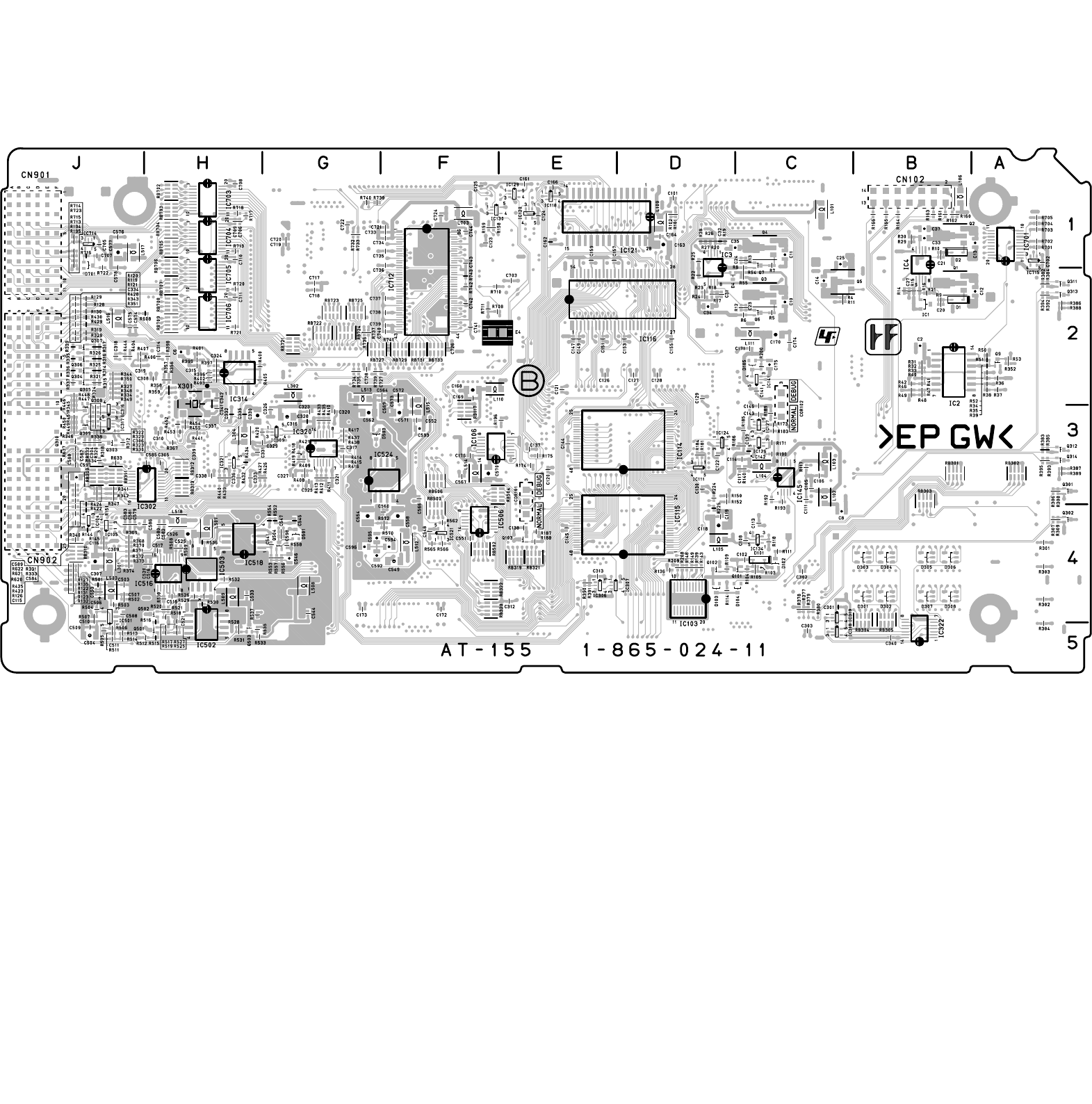

AT-155 ........................................................................................................ 5-3

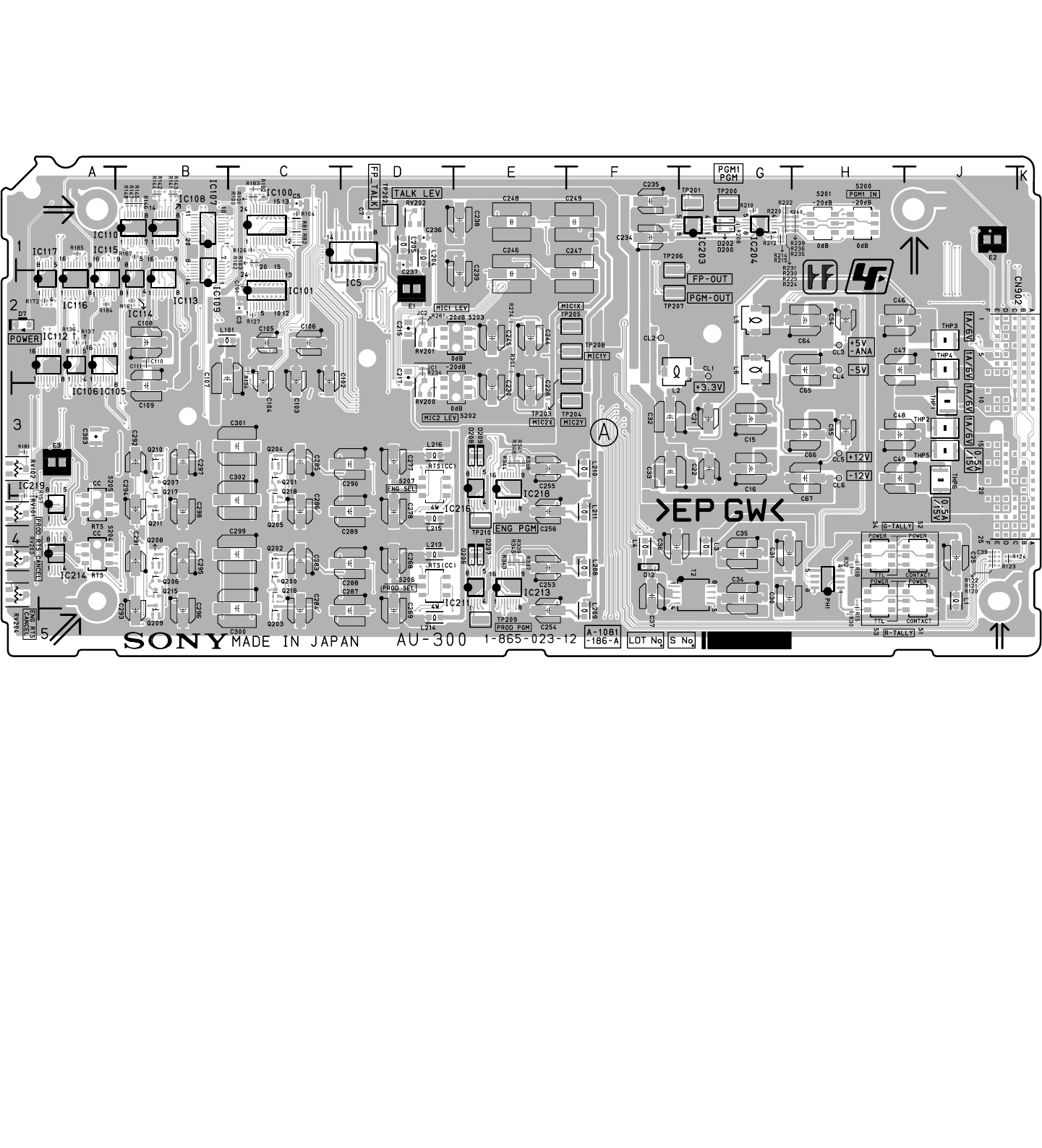

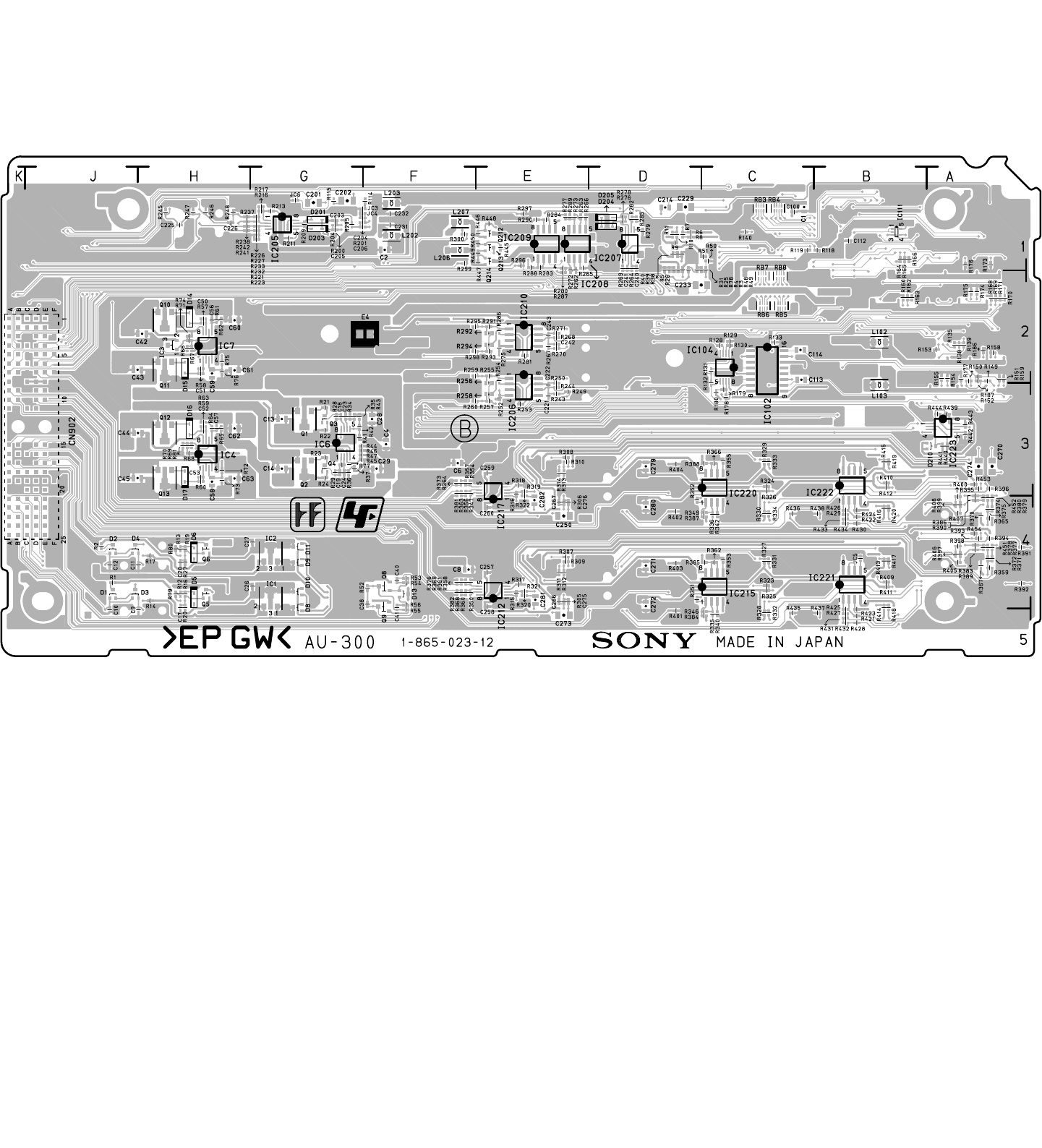

AU-300 ........................................................................................................ 5-6

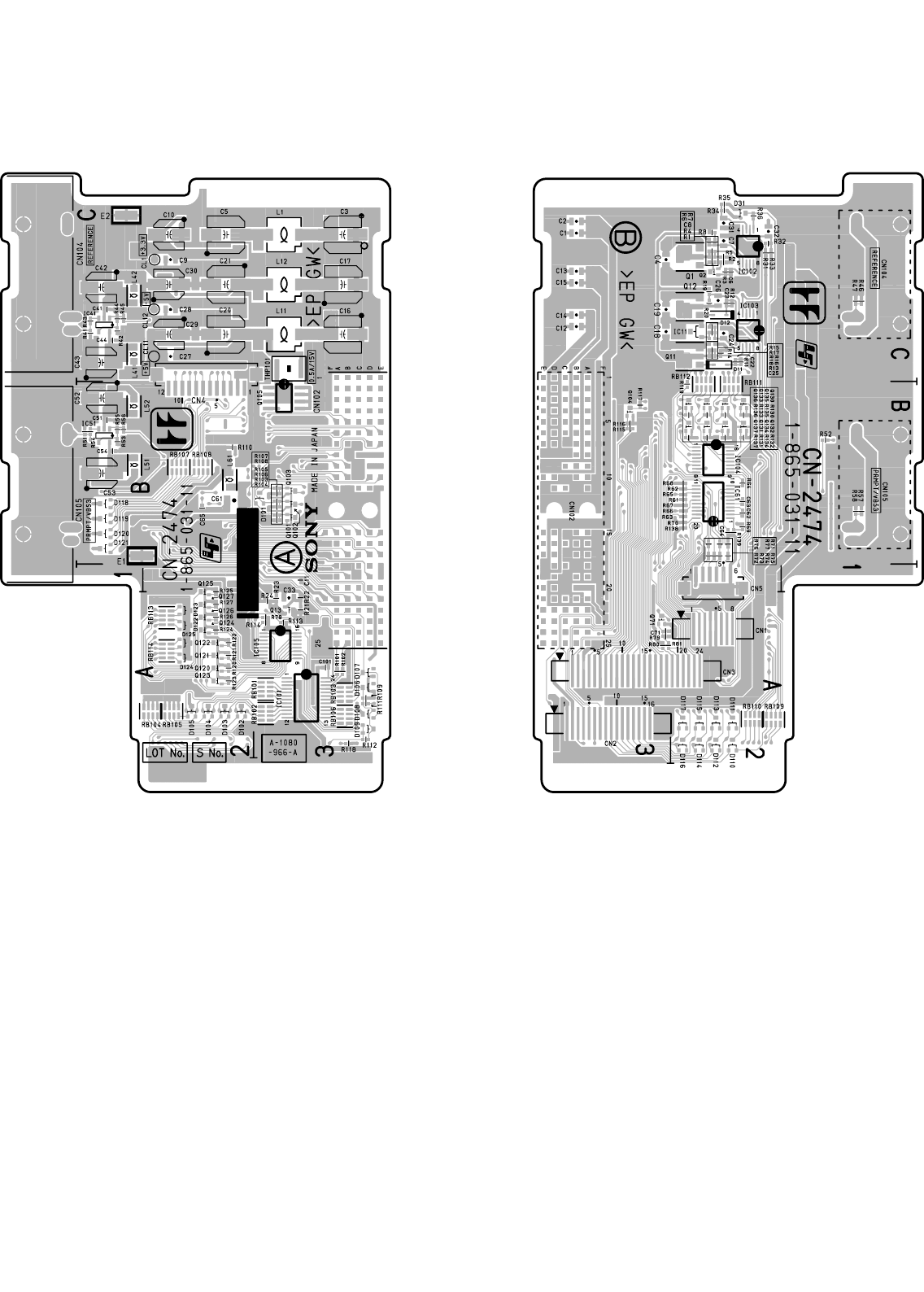

CN-2474 ...................................................................................................... 5-8
CN-2516 ...................................................................................................... 5-9

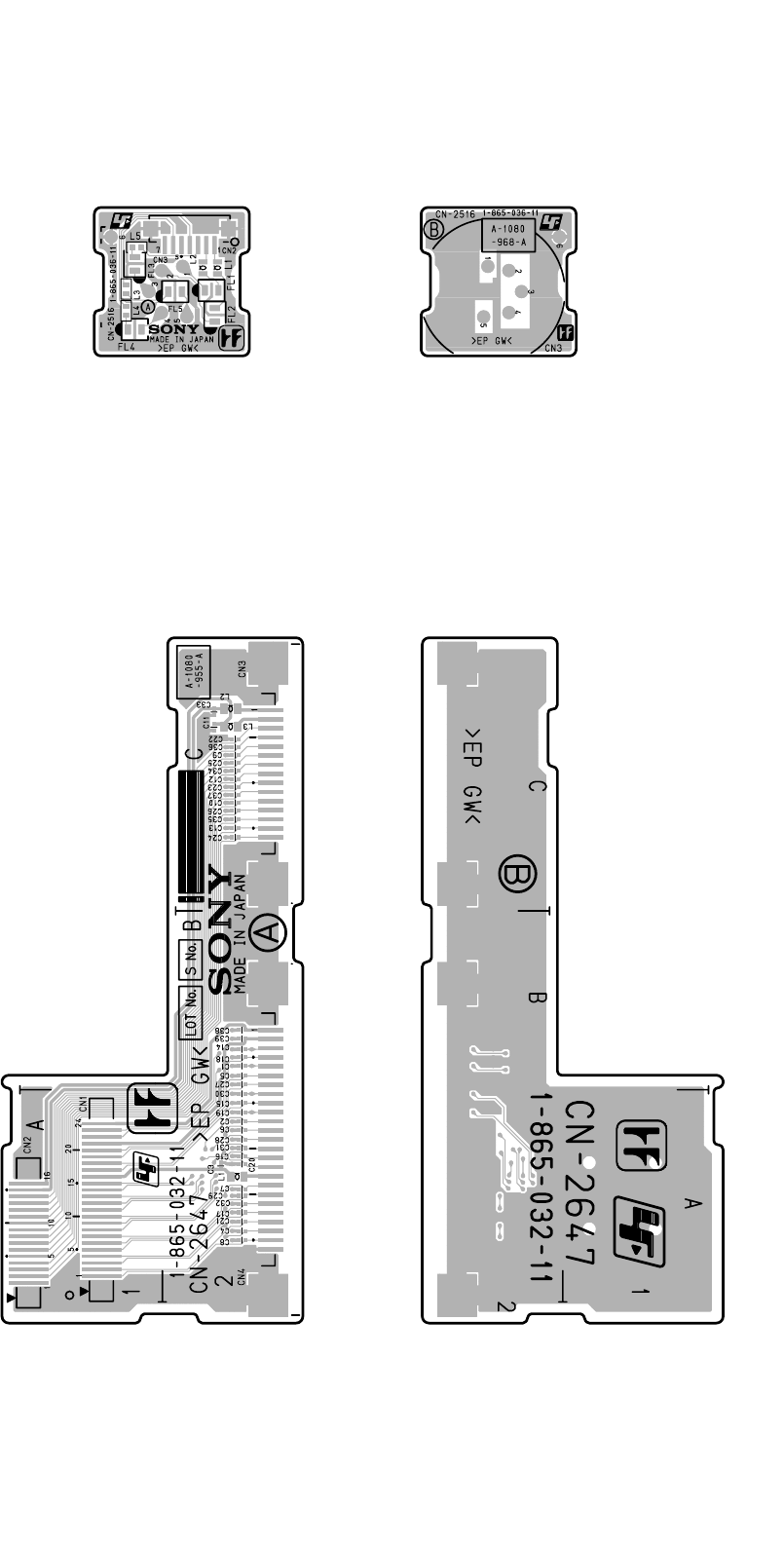

CN-2647 ...................................................................................................... 5-9

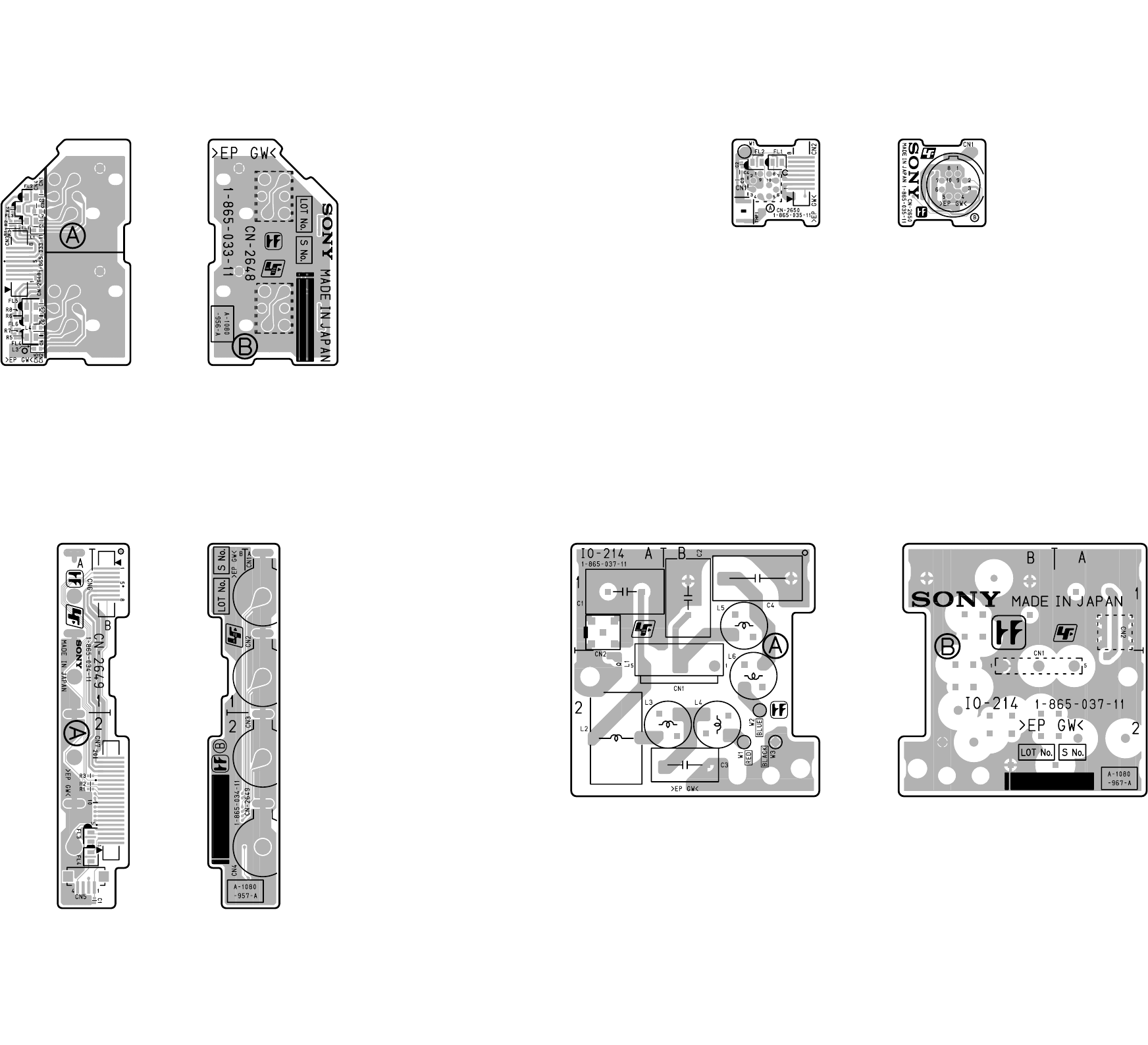

CN-2648 .................................................................................................... 5-10
CN-2649 .................................................................................................... 5-10
CN-2650 .................................................................................................... 5-10
IO-214 ....................................................................................................... 5-10

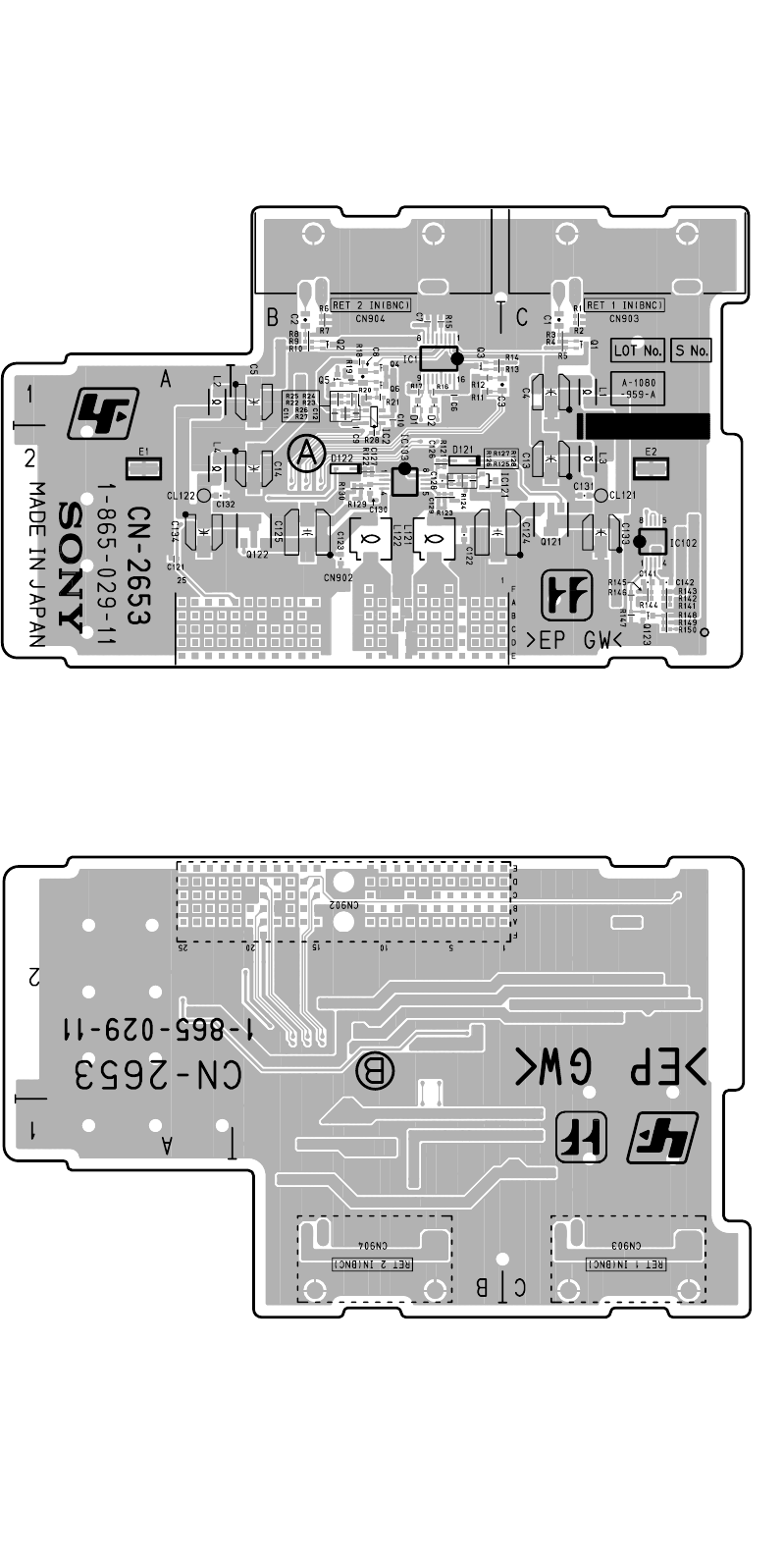

CN-2653 .................................................................................................... 5-11

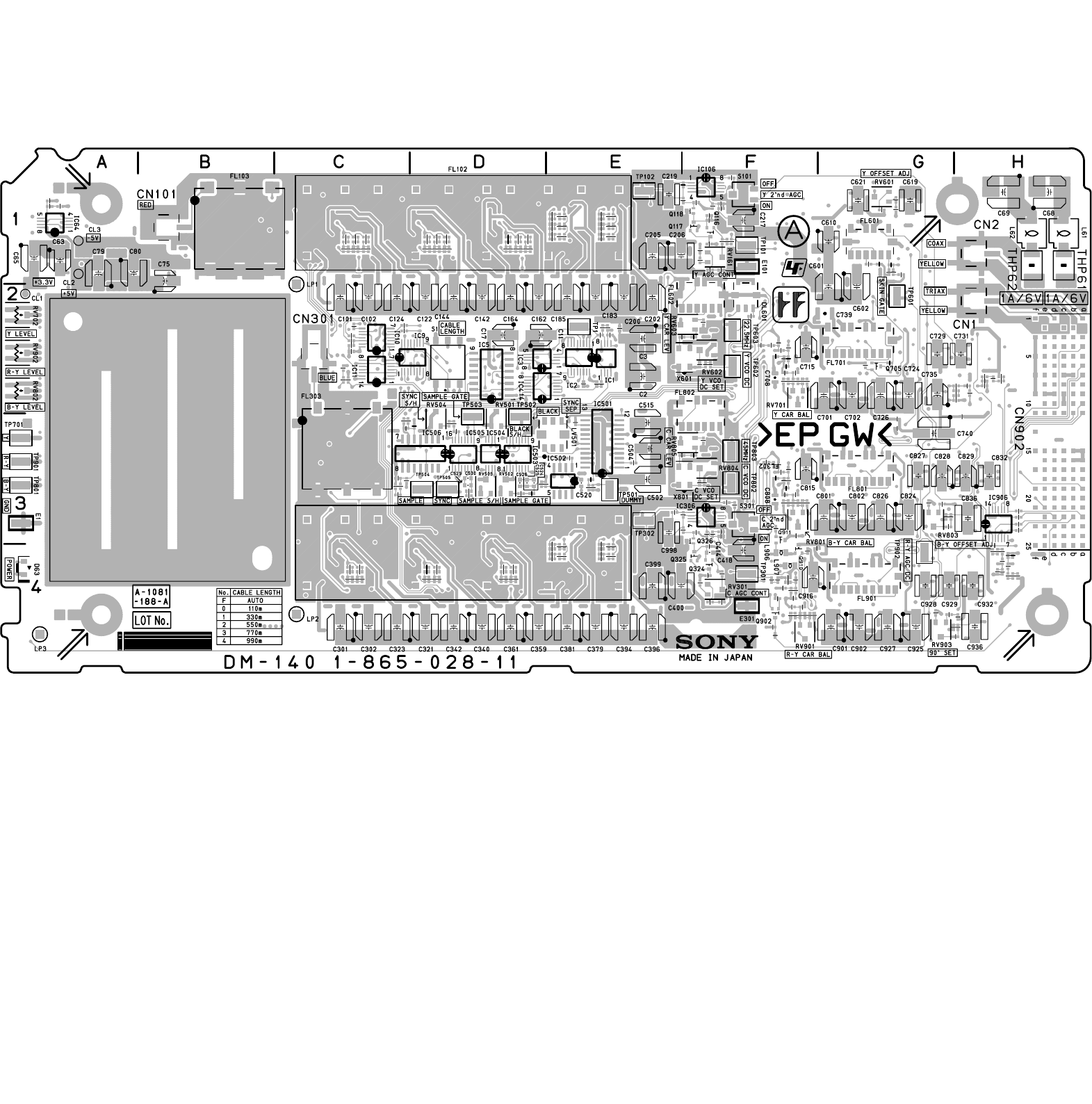

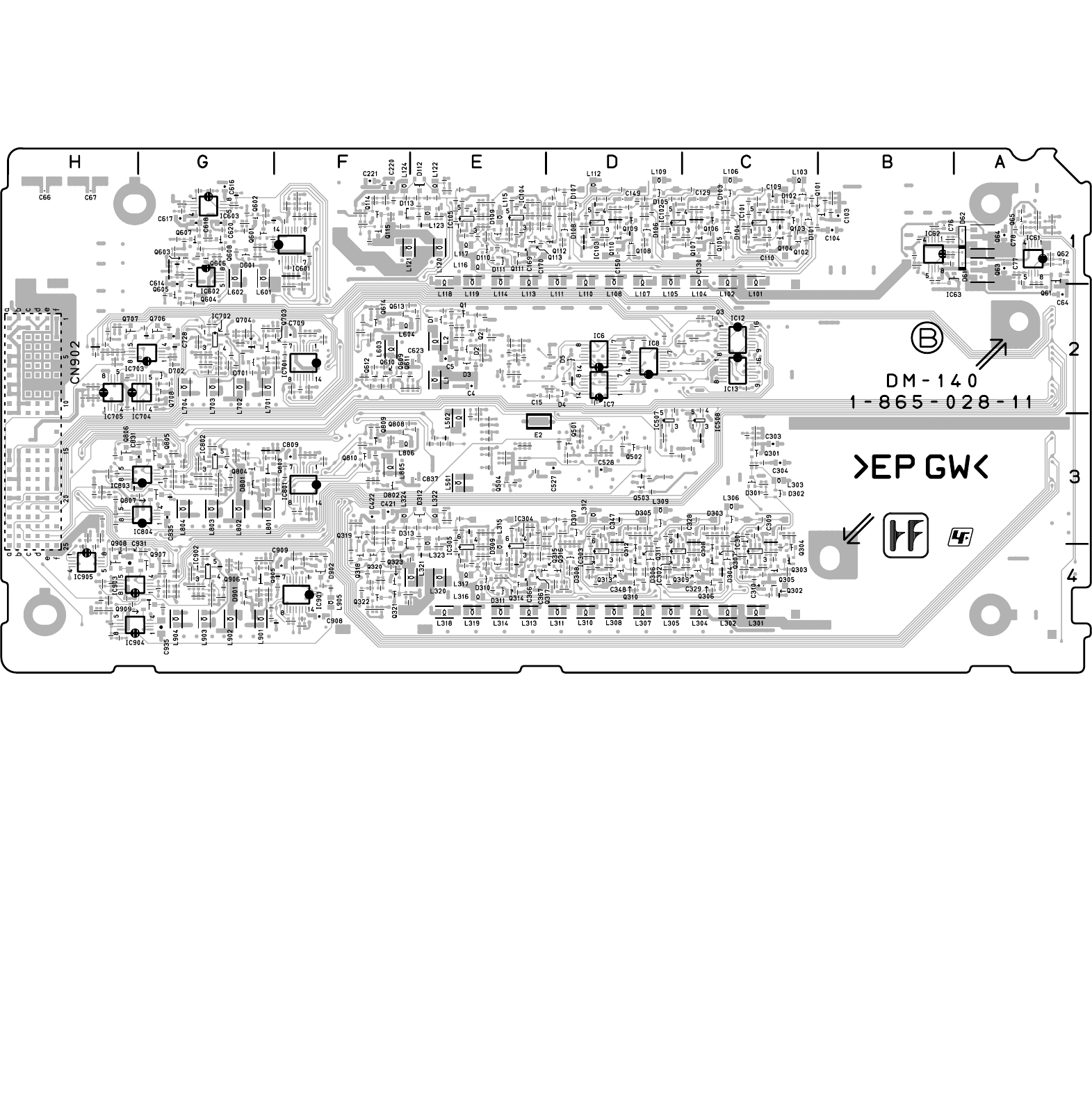

DM-140 ..................................................................................................... 5-13

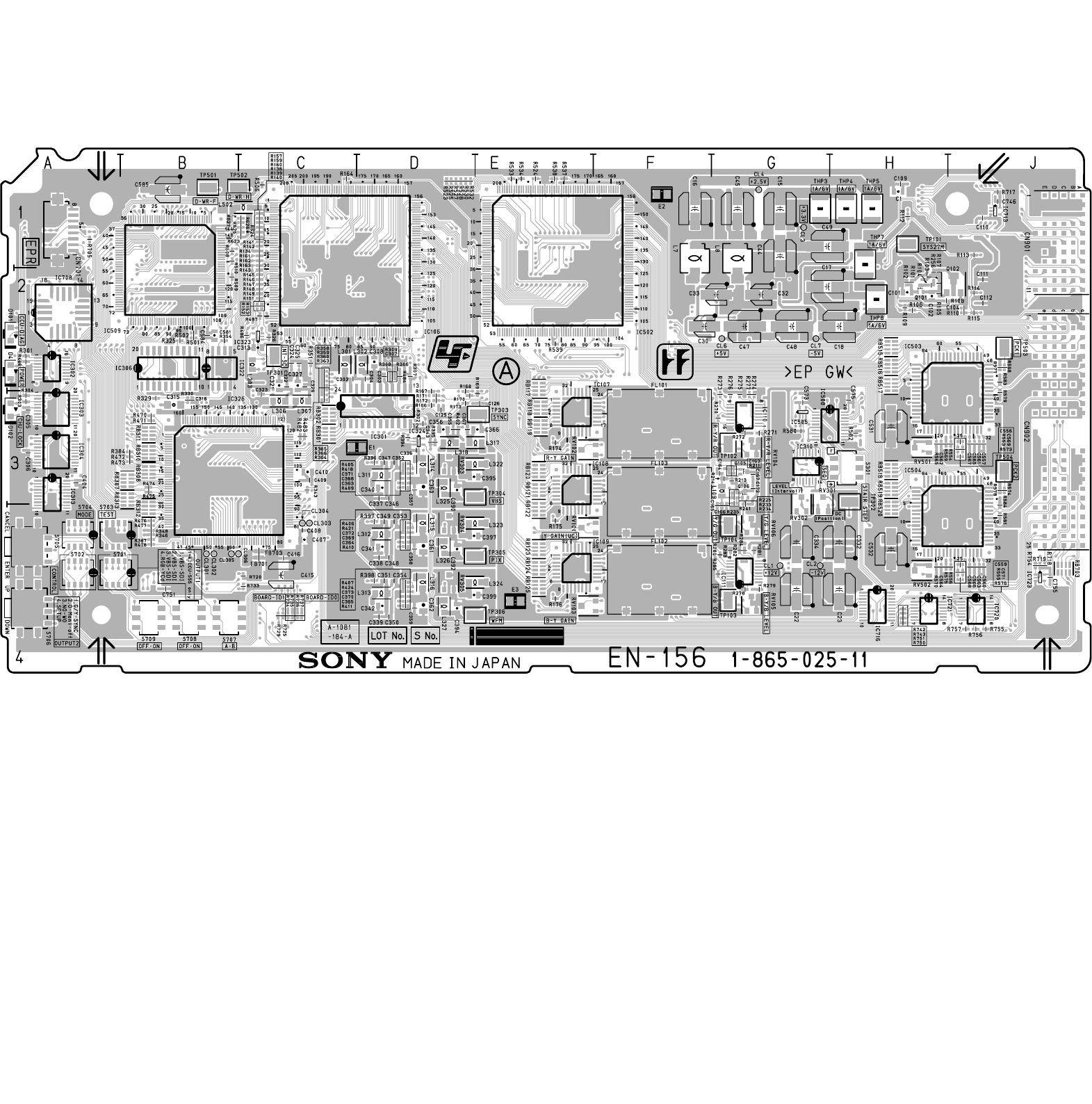

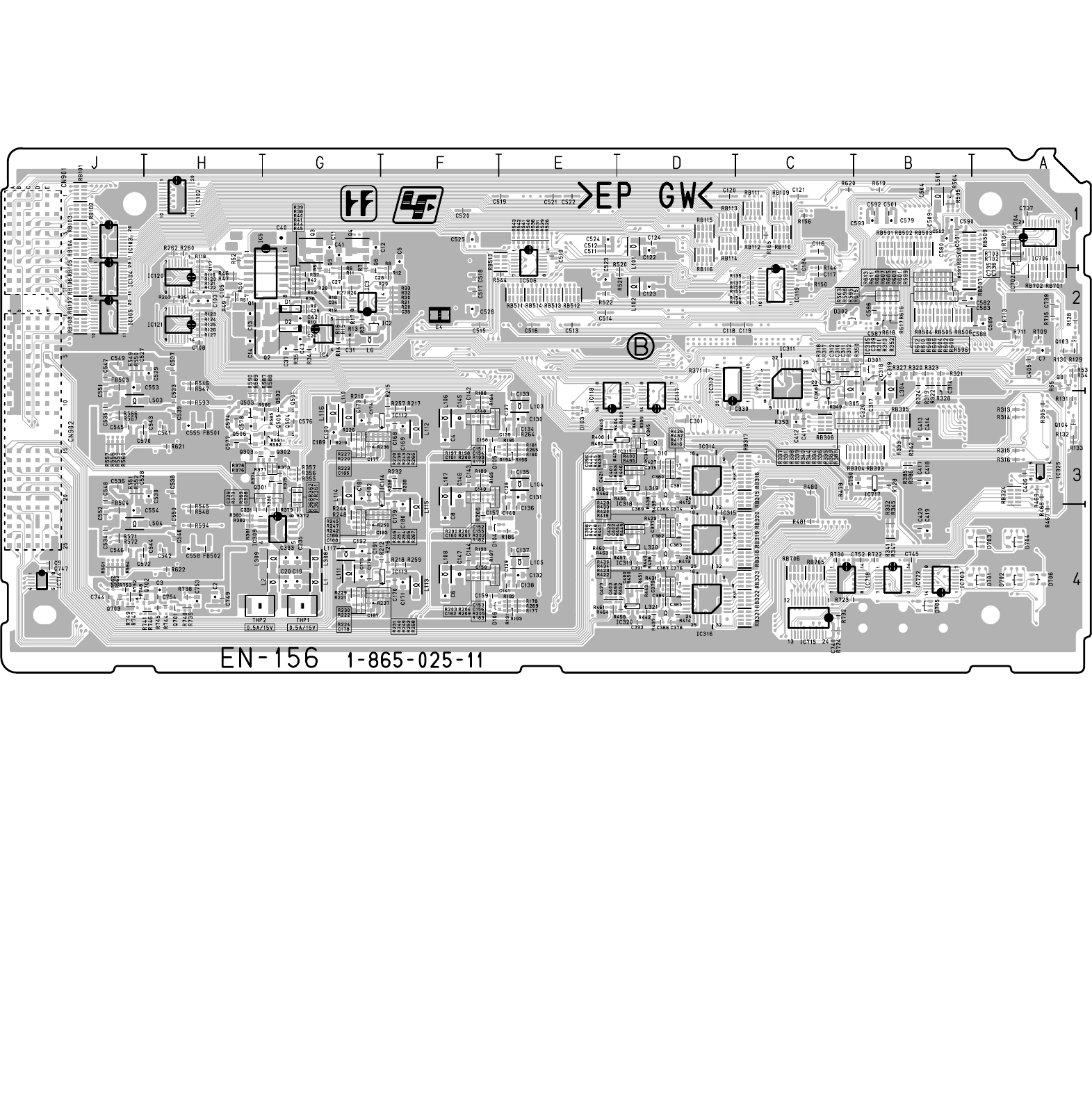

EN-156 ...................................................................................................... 5-17

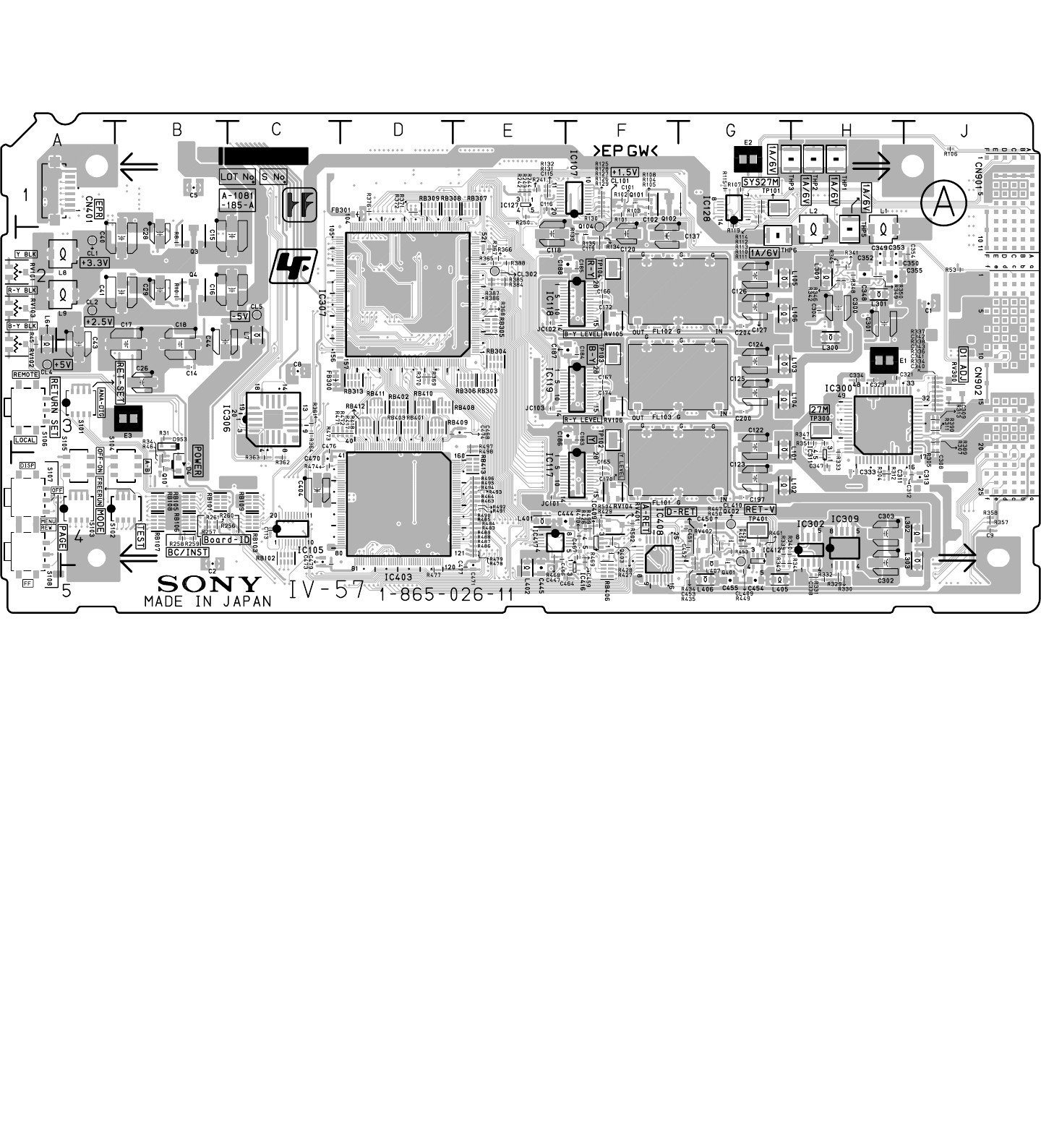

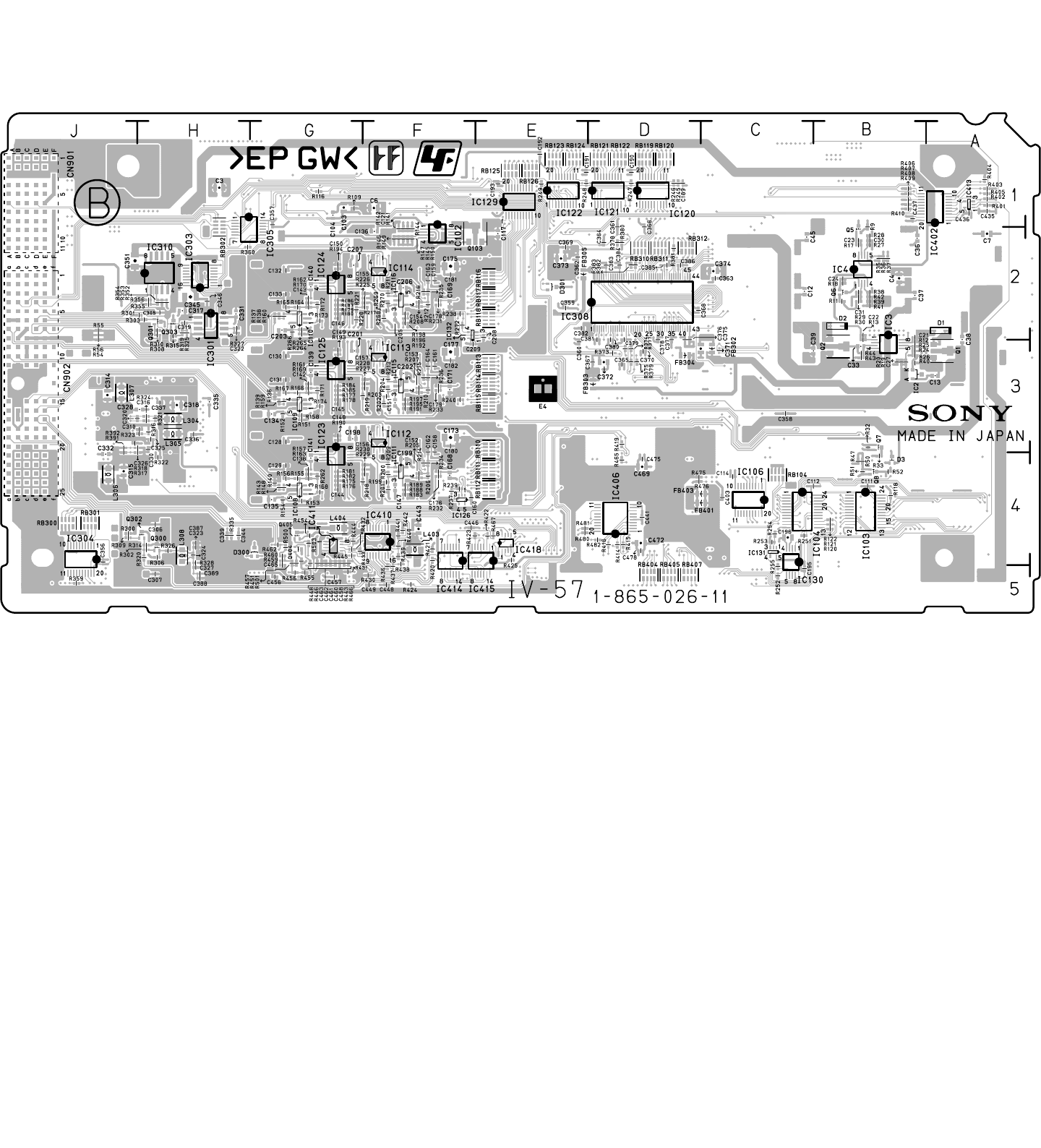

IV-57 ......................................................................................................... 5-20

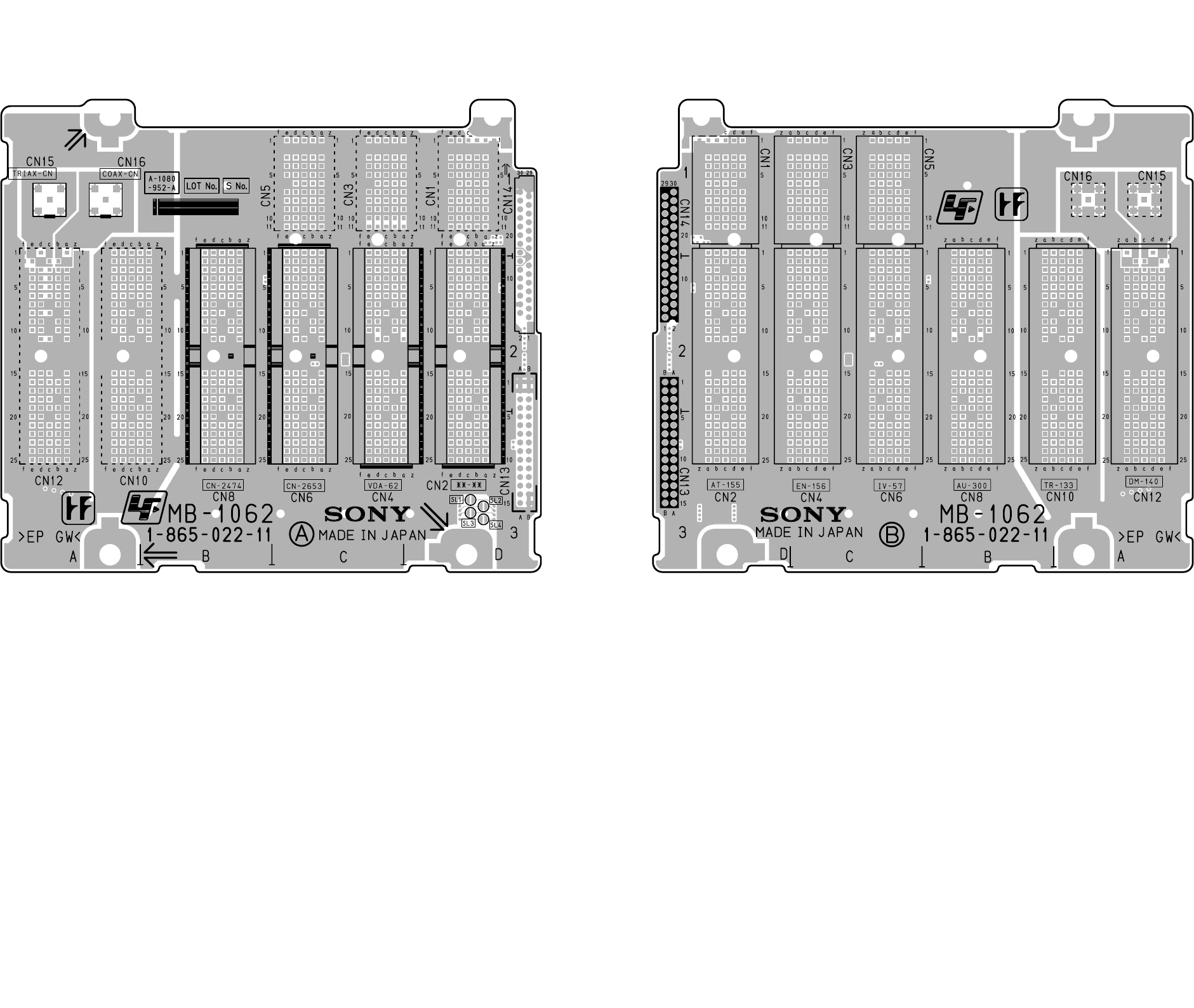

MB-1062 ................................................................................................... 5-23

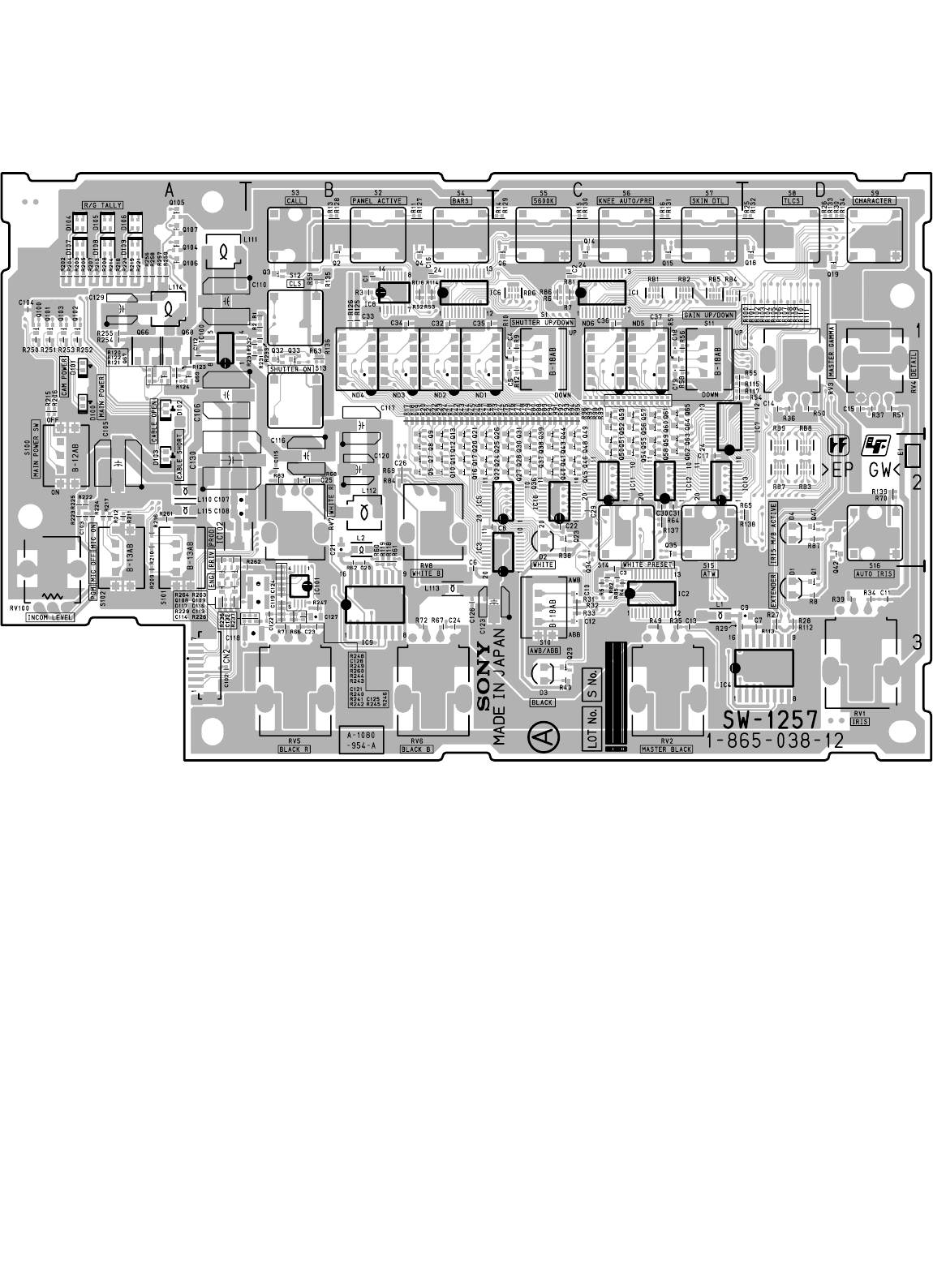

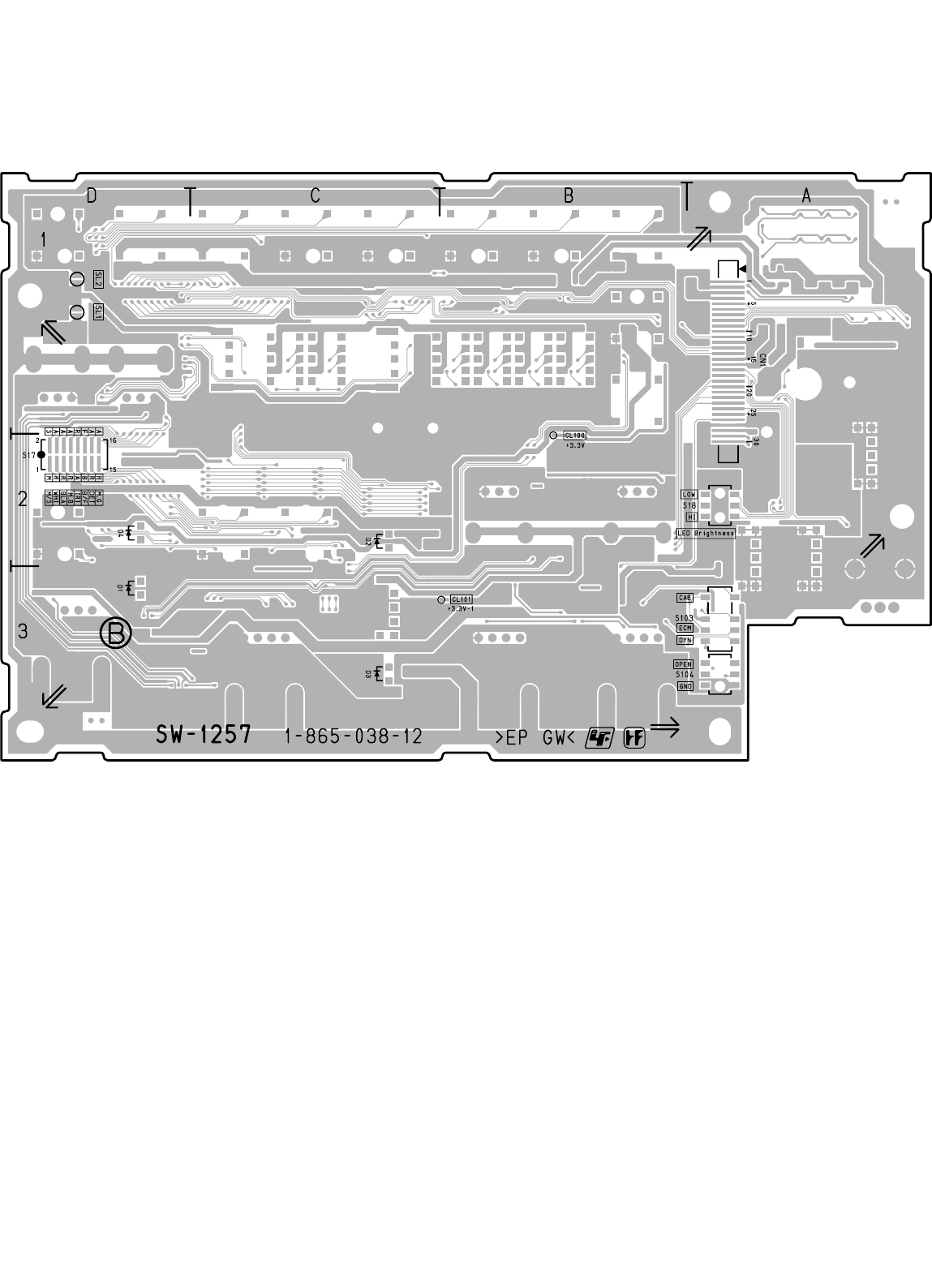

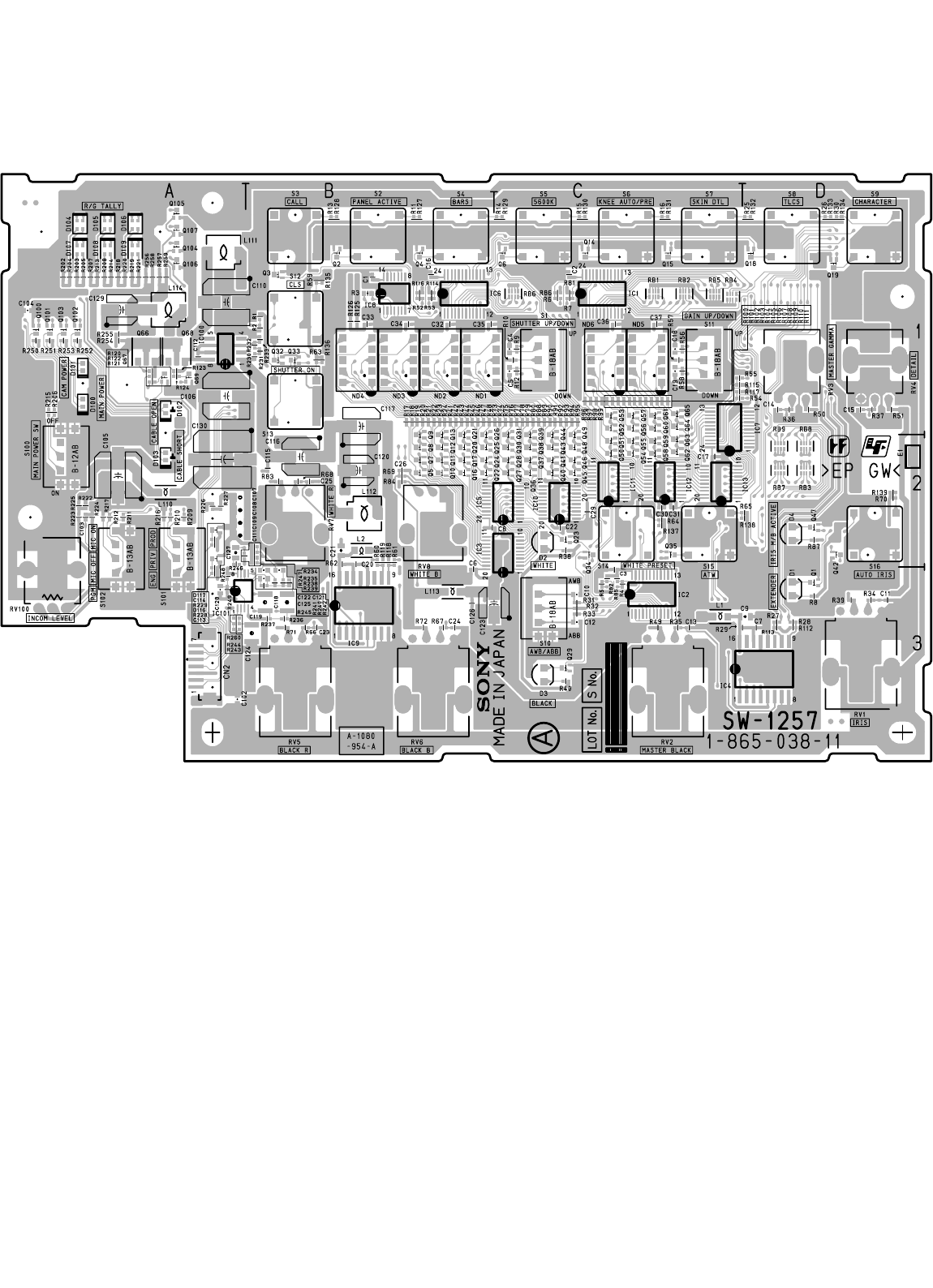

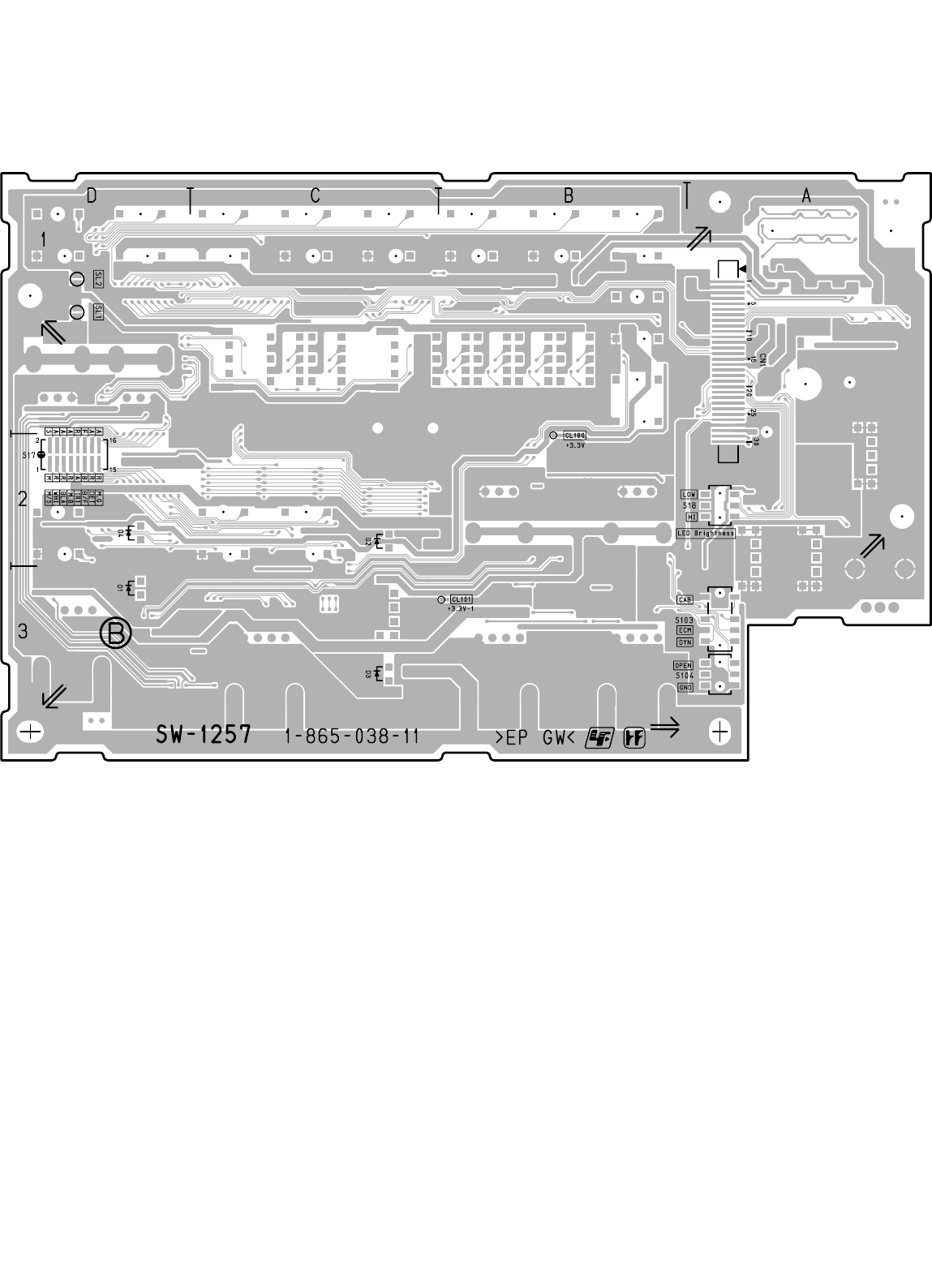

SW-1257 ................................................................................................... 5-24

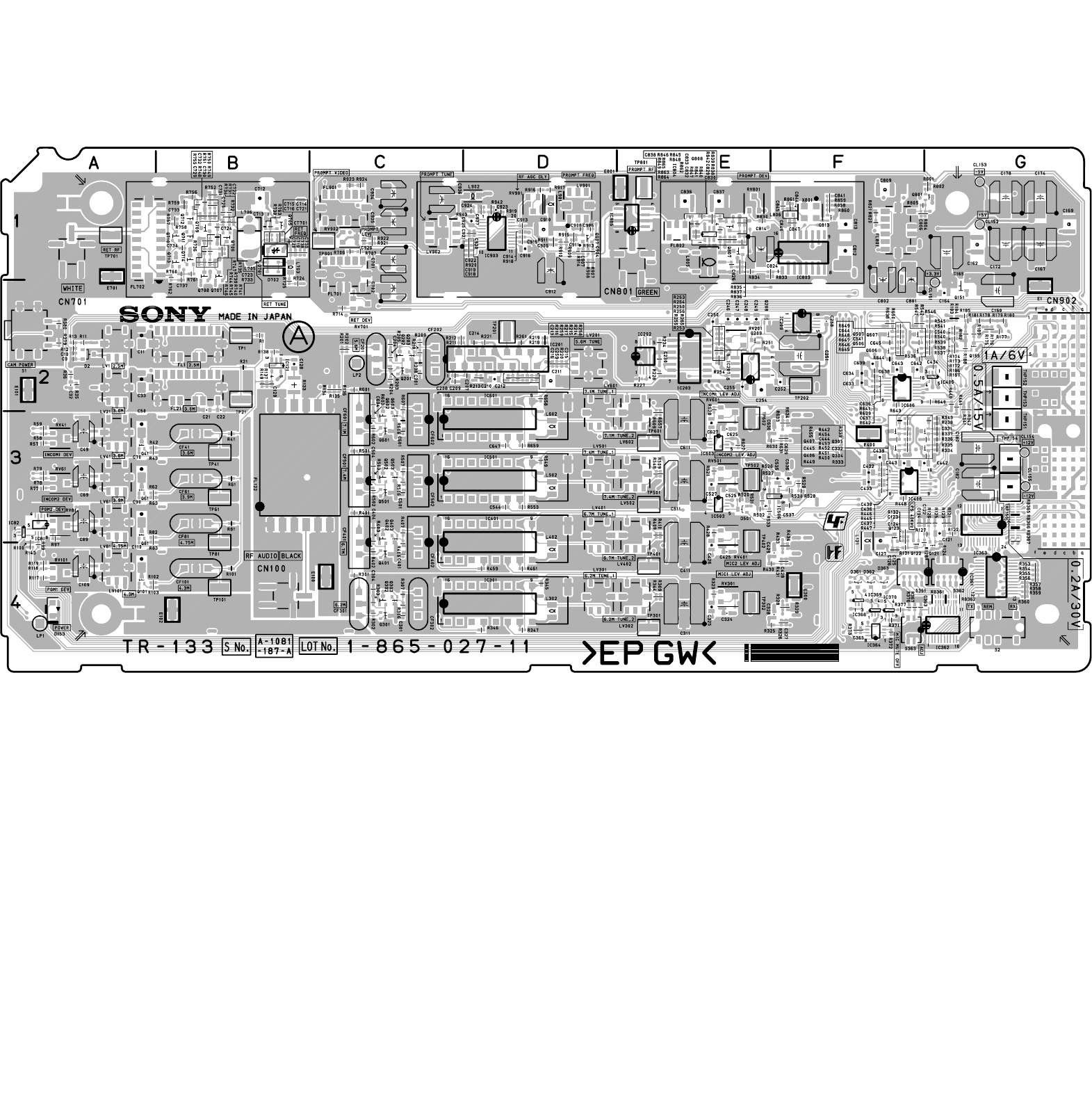

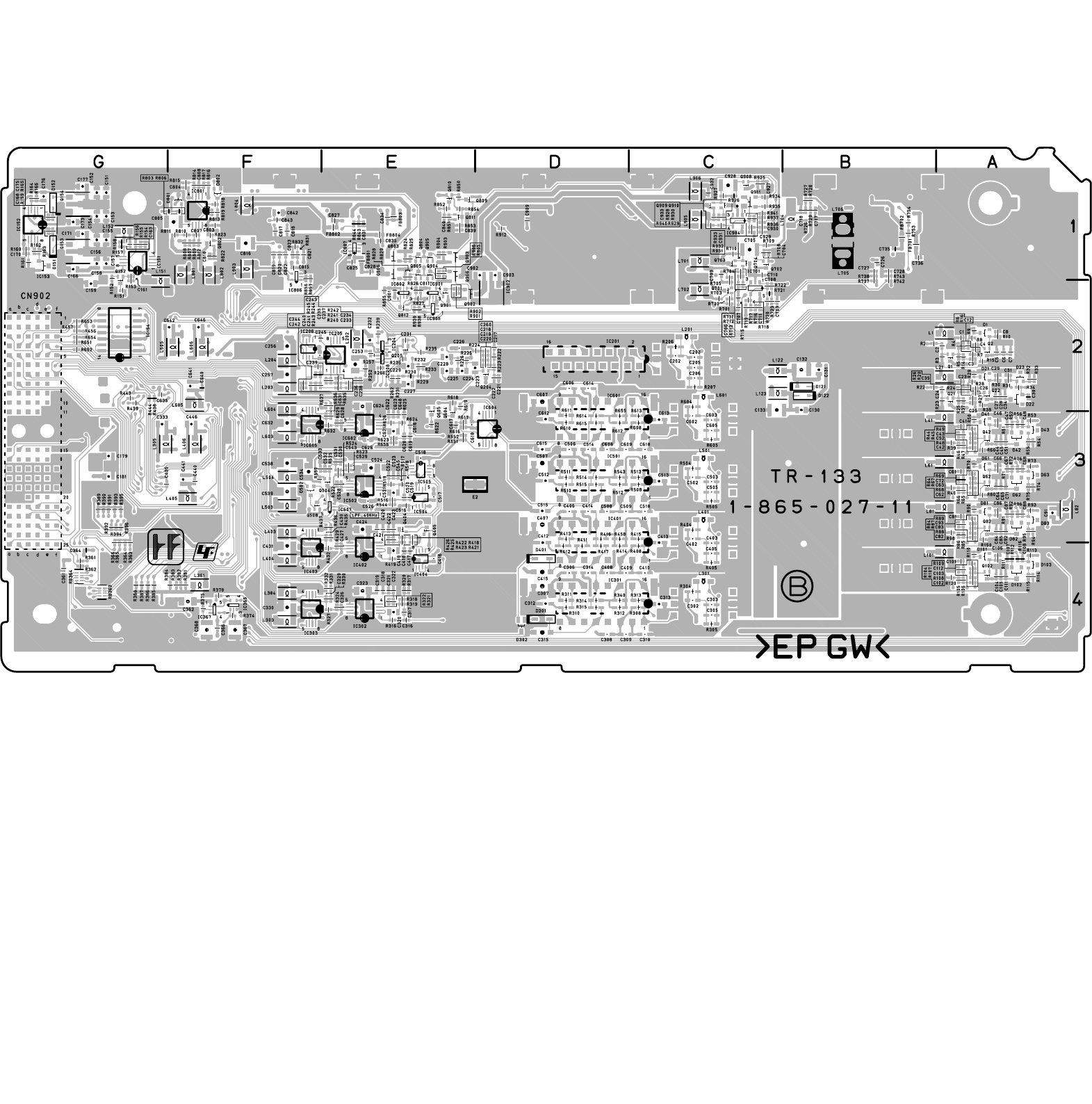

TR-133 ...................................................................................................... 5-27

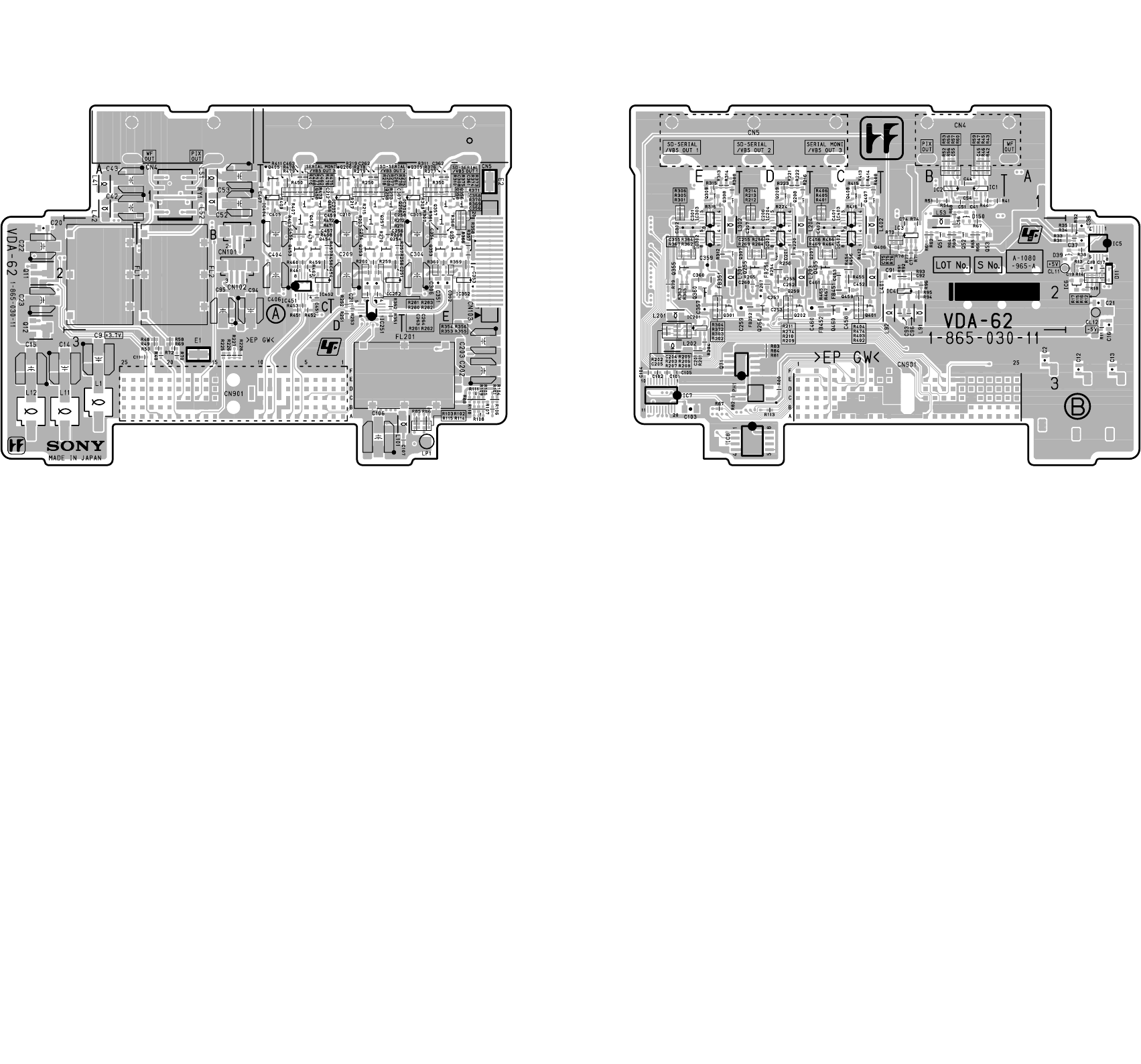

VDA-62 ..................................................................................................... 5-30
CCU-TX50/V2 3 (J)
CCU-TX50/V2 3 (E)

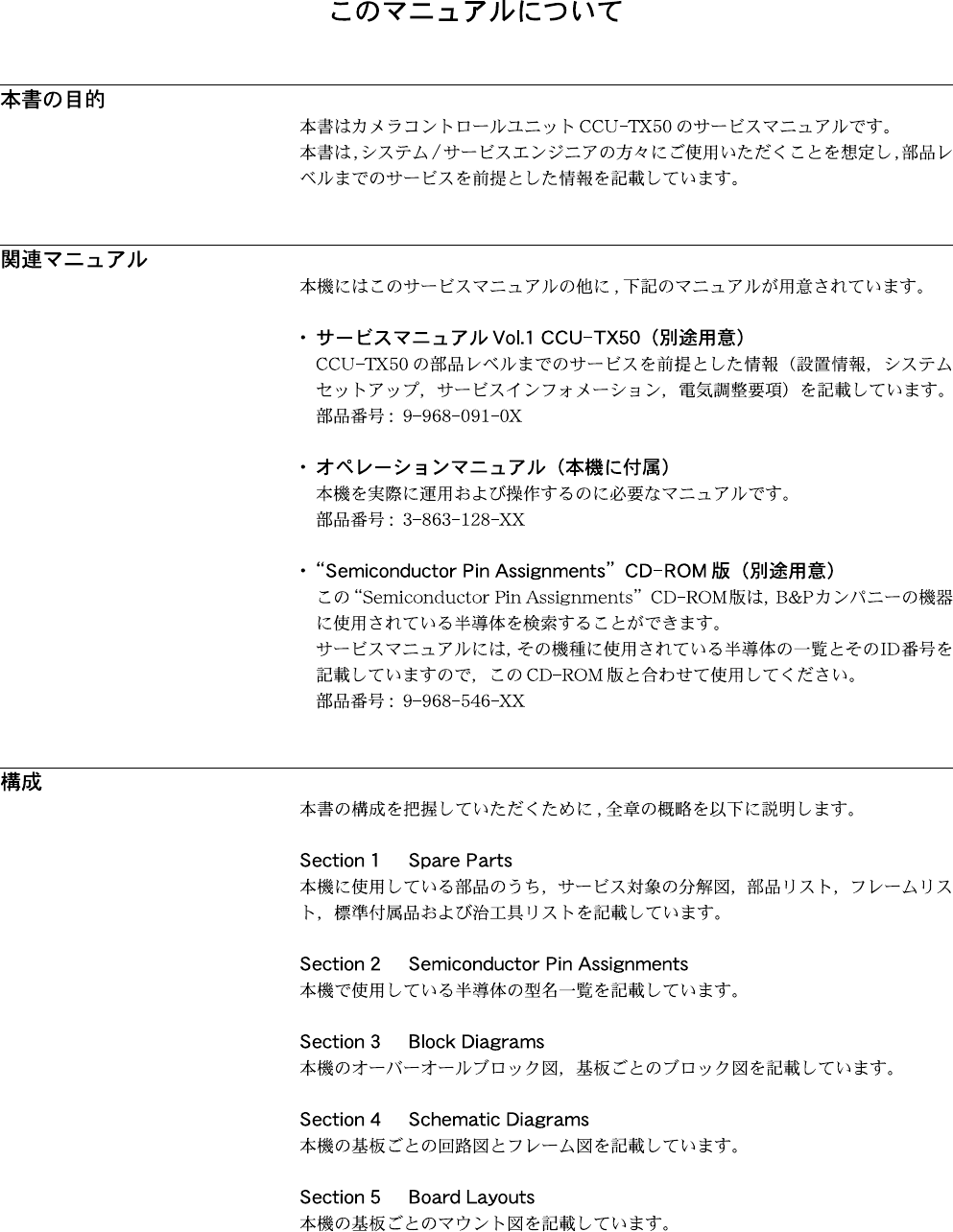

Purpose of this manual
This manual is the service manual for Camera Control Unit CCU-TX50/TX50P.
This manual describes the information on the premise of component level service,
assuming use of system and service engineers.
Relative manuals
Besides this “service manual”, the following manuals are available for this unit.
..
..
.Service Manual Vol.1 CCU-TX50/TX50P (Available on request)
Contains the information on the premise of component level service (installation,
system setup, service overview and electrical alignment) of the CCU-TX50/
TX50P.
Part number: 9-968-091-0X
..
..
.Operation Manual (Supplied with this unit)
This manual is necessary for application and operation of this unit.
Part number: 3-863-128-XX
..
..
.“Semiconductor Pin Assignments” CD-ROM (Available on request)
This “Semiconductor Pin Assignments” CD-ROM allows you to search for
semiconductors used in B&P Company equipment.
The service manual contains a list of semiconductors and their ID Nos., and thus
should be used together with the CD-ROM.
Part number: 9-968-546-XX
Contents
The following are summaries of all the sections for understanding the contents of
this manual.
Section 1 Spare Parts
Contains parts list, exploded views, frame list, supplied accessories and fixtures list
used in the unit.
Section 2 Semiconductor Pin Assignments
Contains information on semiconductors used for the unit.
Section 3 Block Diagrams
Contains the block diagrams of overall and each circuit board.
Section 4 Schematic Diagrams
Contains schematic diagrams for every circuit board and frame wiring.
Section 5 Board Layouts
Contains board layouts for every circuit board.
Manual Structure
1-1
CCU-TX50/V2

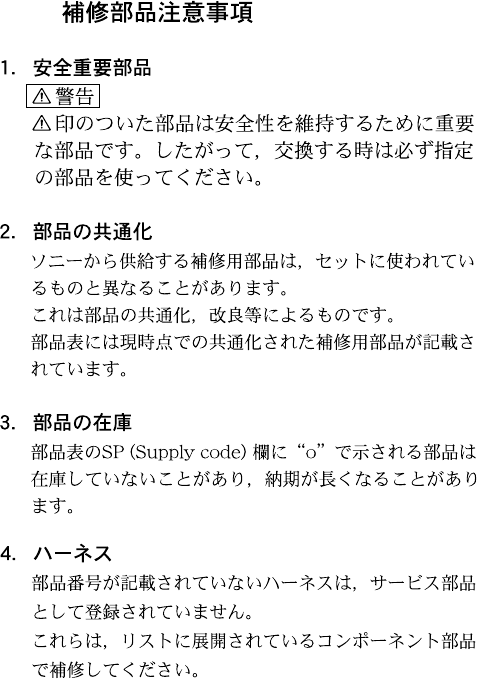

1-1. Notes on Repair Parts
1. Safety Related Components Warning
w
Components marked ! are critical to safe operation.
Therefore, specified parts should be used in the case
of replacement.
2. Standardization of Parts
Some repair parts supplied by Sony differ from those
used for the unit. These are because of parts com-
monality and improvement.
Parts list has the present standardized repair parts.
3. Stock of Parts
Parts marked with “o” at SP (Supply Code) column
of the spare parts list may not be stocked. Therefore,
the delivery date will be delayed.
4. Harness
Harnesses with no part number are not registered as
spare parts.
In need of repair, get components shown in the list
and repair using them.
Section 1
Spare Parts
1-1.
1-2 CCU-TX50/V2
Cabinet Block
1-2. Exploded Views
B3 x 6
B3 x 6
B3 x 6
P4 x 12
(EP-FE/ZNBK/CM2)
P4 x 12
(EP-FE/ZNBK/CM2)
B2.6 x 5
B3 x 6
1
4
2
3
No. Part No. SP Description
1 1-468-769-11 s REGULATOR, SWITCHING
2 3-701-439-11 s WASHER PLASTIC (3.1X0.25)
3 3-857-362-01 s HANDLE
4 4-965-822-01 s FOOT (RBR)
7-621-770-87 s SCREW +B2.6X5
7-682-163-09 s SCREW +P4X12(EP-FE/ZNBK/CM2)
7-682-547-04 s SCREW +B3X6
1-3
CCU-TX50/V2
Front Panel Block
No. Part No. SP Description
101 A-1080-954-A s MOUNTED CIRCUIT BOARD, SW-1257
102 A-1080-968-A s MOUNTED CIRCUIT BOARD, CN-2516
103 X-3679-298-1 s KNOB,VOLUME ASSY
104 X-3679-302-2 s KNOB,VOLUME ASSY
105 1-695-213-11 o HOUSING, CONNECTOR 7P
106 2-118-268-01 s NUT (M9), HEXAGON (ZDC)
107 2-139-192-01 s FRAME, INDICATOR WINDOW
108 2-139-193-02 s WINDOW INDICATOR
109 2-249-353-00 s COVER,LAMP
110 3-603-523-01 o SWITCH GUARD
PTP2 x 6
(EP-FE/ZNBK/CM2)
+BTP2.6 x 6
(EP-FE/ZNBK/CM2)
PSW 3 x 6
PSW 3 x 6
101 103
103
103
106
106
104
113
110
113
110
111
105
102
114
107
108
109
112
106
No. Part No. SP Description
111 3-627-773-01 s MARKER(R) (PETP+PAPER+PSA)
112 3-627-774-01 s MARKER(B) (PETP+PAPER+PSA)
113 3-697-760-11 s SCREW,COIN
114 3-717-380-01 o GUARD, REC
7-682-947-01 s SCREW +PSW 3X6
7-685-104-19 s SCREW +PTP2X6(EP-FE/ZNBK/CM2)
7-685-533-19 s SCREW,+BTP2.6X6(EP-FE/ZNBK/CM2)
1-4 CCU-TX50/V2
abcdef
b
a
c
f
e
d
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
201
204
205
206
202
203
207
Plug-in Board
1-5
CCU-TX50/V2
No. Part No. SP Description
201 A-1081-183-A s MOUNTED CIRCUIT BOARD, AT-155
202 A-1081-184-A s MOUNTED CIRCUIT BOARD, EN-156A
203 A-1081-185-A s MOUNTED CIRCUIT BOARD, IV-57A
204 A-1081-186-A s MOUNTED CIRCUIT BOARD, AU-300
205 A-1081-187-A s MOUNTED CIRCUIT BOARD, TR-133
206 A-1081-188-A s MOUNTED CIRCUIT BOARD, DM-140 (S)
207 1-528-174-11 s BATTERY, LITHIUM (CR2032 TYPE)
7-682-947-01 s SCREW +PSW 3X6
Plug-in Board
1-6 CCU-TX50/V2
Rear Panel Block
B3 x 6
B3 x 6
B3 x 6
B3 x 6
B3 x 6
B3 x 6
B3 x 6
B3 x 6
B3 x 6
BVTP 3 x 8
BVTP 3 x 8
BVTT 2.6 x 6
(EP-FE/ZNBK/C)
BVTP 3 x 8
B3 x 6
B3 x 6
PSW 3 x 6
a
b
c
P2.6 x 5
B3 x 4
B3 x 4
a
c
b
PSW 3 x 6
PSW 3 x 6
301
305
304
313
310
307
308
318
306
309
312
311
317
319
316
303
302
315
314
320
1-7
CCU-TX50/V2
No. Part No. SP Description
301 A-1080-952-A s MOUNTED CIRCUIT BOARD, MB-1062
302 A-1080-955-A s MOUNTED CIRCUIT BOARD, CN-2647
303 A-1080-956-A s MOUNTED CIRCUIT BOARD, CN-2648
304 A-1080-957-A s MOUNTED CIRCUIT BOARD, CN-2649
305 A-1080-958-A s MOUNTED CIRCUIT BOARD, CN-2650
306 A-1080-959-A s MOUNTED CIRCUIT BOARD, CN-2653
307 A-1080-965-A s MOUNTED CIRCUIT BOARD, VDA-62A
308 A-1080-966-A s MOUNTED CIRCUIT BOARD, CN-2474A
309 A-1080-967-A s MOUNTED CIRCUIT BOARD, IO-214
310 1-561-376-00 s CONNECTOR,4P
311 1-562-286-11 o HOUSING, CONNECTOR 5P
312
!
1-565-796-11 s CONNECTOR,DOUBLE COAXIAL (For UC MODEL)
!
1-565-798-12 s CONNECTOR,DOUBLE COAXIAL (For J MODEL)
!
1-560-744-11 s CONNECTOR,DOUBLE COAXIAL (For CE MODEL)
313 1-764-194-11 o HOUSING, CONNECTOR 4P
314 1-774-157-11 s CONVERTER, COAXIAL CONNECTOR
315 1-775-781-11 s CABLE ASSY, COAXIAL
316 1-829-877-11 s CABLE, FLEXIBLE FLAT (8 CORE)
317 1-829-878-11 s CABLE, FLEXIBLE FLAT (16 CORE)
318 1-829-879-11 s CABLE, FLEXIBLE FLAT (20 CORE)
319 1-829-880-11 s CABLE, FLEXIBLE FLAT (24 CORE)
320 1-829-881-11 s CABLE, FLEXIBLE FLAT (30 CORE)
7-621-561-19 s SCREW +K 2.6X6
7-627-556-58 s SCREW,PRECISION +P2.6X5
7-682-547-04 s SCREW +B3X6
7-682-947-01 s SCREW +PSW 3X6
7-685-646-79 s SCREW +BVTP 3X8
7-685-862-09 s SCREW,+BVTT 2.6X6(EP-FE/ZNBK/C9)
Rear Panel Block
1-8 CCU-TX50/V2
1-3. Electrical Parts List
------------
AT-155 BOARD
------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1081-183-A s MOUNTED CIRCUIT BOARD, AT-155
4pcs 7-682-947-01 s SCREW +PSW 3X6
BT101 1-756-076-21 s HOLDER, LITHIUM BATTERY
C1 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C2 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C3 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C4 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C5 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C6 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C7 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C8 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C9 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C10 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C11 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C12 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C13 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C14 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C15 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C16 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C17 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C18 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C19 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C20 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C21 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C22 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C23 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C24 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C25 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C26 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C27 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C28 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C29 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C30 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C31 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C32 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C33 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C34 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C35 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C36 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C37 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C38 1-131-661-11 s CAPACITOR,ELECT 100MF/10V CHIP
C39 1-131-661-11 s CAPACITOR,ELECT 100MF/10V CHIP
C40 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C41 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C101 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C102 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C103 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C104 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C105 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C106 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C107 1-104-905-11 s CAPACITOR DOUBLE LAYERS 0.22F
C108 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C109 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C110 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C111 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C112 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C113 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C114 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
C115 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C116 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C117 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C118 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C119 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C120 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C121 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C122 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C123 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C124 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C125 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C126 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C127 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C128 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C129 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C130 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C131 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C132 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C133 1-164-935-11 s CAPACITOR,CHIP CERAMIC 470PF
C134 1-164-935-11 s CAPACITOR,CHIP CERAMIC 470PF
C135 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C136 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C137 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C138 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C139 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C140 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C141 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C142 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C143 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C144 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C145 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C146 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C147 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C148 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C149 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C150 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C151 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C152 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C153 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C154 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C155 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C156 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C157 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C158 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C159 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C160 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C161 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C162 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C163 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C164 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C165 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C166 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C168 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C169 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C170 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C171 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C172 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C173 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C174 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
1-9
CCU-TX50/V2
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
C175 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C176 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C301 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C302 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C303 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C304 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C305 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C306 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C307 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C308 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C309 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C310 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C311 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C312 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C313 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C314 1-164-862-11 s CAPACITOR,CHIP CERAMIC 33PF/50
C315 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C316 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C317 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C318 1-164-862-11 s CAPACITOR,CHIP CERAMIC 33PF/50
C319 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C320 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C321 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C322 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C323 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C324 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C325 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C326 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C327 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C328 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C329 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C330 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C331 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C332 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C333 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C334 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C335 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C336 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C337 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C338 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C339 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C340 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C341 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C342 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C501 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C502 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C503 1-164-862-11 s CAPACITOR,CHIP CERAMIC 33PF/50
C504 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C505 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C506 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C507 1-164-862-11 s CAPACITOR,CHIP CERAMIC 33PF/50
C508 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C509 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C510 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C512 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C513 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C514 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C515 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C516 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
C517 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C518 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C519 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C520 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C521 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C522 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C523 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C524 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C525 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C526 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C527 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C528 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C529 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C530 1-164-933-11 s CAP CHIP CERAMIC 220PF/16V(B)
C531 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C532 1-164-933-11 s CAP CHIP CERAMIC 220PF/16V(B)
C533 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C534 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C535 1-125-891-11 s CAPACITOR CERAMIC 0.47MF/10V
C536 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C537 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C538 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C539 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C540 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C541 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C542 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C543 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C544 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C545 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C546 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C547 1-164-878-11 s CAPACITOR, CHIP CERAMIC 150PF
C548 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C549 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C550 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C551 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C552 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C553 1-164-845-11 s CAPACITOR,CERAMIC 5PF/16V(1005
C554 1-127-956-11 s CAPACITOR,CHIP FILM 0.1MF
C555 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C556 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C557 1-164-845-11 s CAPACITOR,CERAMIC 5PF/16V(1005
C558 1-127-956-11 s CAPACITOR,CHIP FILM 0.1MF
C559 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C560 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C561 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C562 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C563 1-164-862-11 s CAPACITOR,CHIP CERAMIC 33PF/50
C564 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C565 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C566 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C567 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C568 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C569 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C570 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C571 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C572 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C573 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C574 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C575 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
1-10 CCU-TX50/V2
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
C576 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C577 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C578 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C579 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C580 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C581 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C582 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C583 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C584 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C585 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C586 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C587 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C588 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C589 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C590 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C591 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C592 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C593 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C594 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C595 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C596 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C597 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C598 1-164-862-11 s CAPACITOR,CHIP CERAMIC 33PF/50
C701 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C702 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C704 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
CN103 1-794-917-11 s CONNECTOR, MEMORY STICK
CN104 1-793-093-11 o CONNECTOR, BOARD TO BOARD 60P
CN701 1-764-093-21 o PIN, CONNECTOR (PC BOARD) 8P
D1 8-719-017-03 s DIODE 02DZ4.7-TPH3
D2 8-719-017-03 s DIODE 02DZ4.7-TPH3
D3 8-719-058-14 s LED CL-220PG-C-TS
D4 8-719-421-69 s DIODE MA133
D101 8-719-016-87 s DIODE 02DZ2.2-TPH3
D102 8-719-820-41 s DIODE 1SS302
D103 8-719-070-20 s DIODE RB706F-40
D104 8-719-820-41 s DIODE 1SS302
D105 8-719-820-41 s DIODE 1SS302
D106 8-719-820-41 s DIODE 1SS302
D301 8-719-947-01 s DIODE FMP1
D302 8-719-947-01 s DIODE FMP1
D303 8-719-947-01 s DIODE FMP1
D304 8-719-947-01 s DIODE FMP1
D305 8-719-947-01 s DIODE FMP1
D306 8-719-947-01 s DIODE FMP1
D307 8-719-947-01 s DIODE FMP1
D308 8-719-947-01 s DIODE FMP1
D309 8-719-058-14 s LED CL-220PG-C-TS
D310 8-719-052-72 s LED CL-220HR-C
D311 8-719-027-84 s LED CL-155UR/G-D
D312 8-719-027-84 s LED CL-155UR/G-D
D501 8-719-820-41 s DIODE 1SS302
D502 8-719-820-41 s DIODE 1SS302
D503 8-719-820-41 s DIODE 1SS302
E1 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E2 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E3 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E4 1-535-877-22 s CHIP,CHECKER (TEST POINT)
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
IC1 8-759-185-42 s IC LM4040AIM3-2.5
IC2 8-759-085-67 s IC LM339NS
IC3 8-759-327-01 s IC NJM062V-TE2
IC4 8-759-327-01 s IC NJM062V-TE2
IC101 8-759-678-06 s IC CAT24WC02JI-TE13
IC102 8-759-669-71 s IC PCF8591T
IC103 8-759-648-04 s IC RTC4574JE-TP
IC104 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC105 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC106 8-759-669-44 s IC SN74LVC74APWR-12
IC107 6-705-527-11 s IC HD6417616SFV
IC108 6-706-488-01 s IC TC7SH14FU(T5RSOYJF)
IC109 6-703-461-11 s IC CY2309ZC-1HT
IC110 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC111 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC112 8-759-669-68 s IC SN74CBT3253PWR-12
IC113 8-759-344-91 s IC RN5VD23AA-TL
IC114 8-759-681-67 s IC MBM29LV160BE-90TN
IC115 8-759-681-67 s IC MBM29LV160BE-90TN
IC116 6-705-721-01 s IC MT48LC8M16A2P-75-Y15WTR
IC117 8-759-669-44 s IC SN74LVC74APWR-12
IC118 8-759-557-85 s IC NC7SZ32P5X
IC119 6-705-721-01 s IC MT48LC8M16A2P-75-Y15WTR
IC120 8-759-557-85 s IC NC7SZ32P5X
IC121 6-704-988-01 s IC FM18L08-70-STR
IC122 6-704-988-01 s IC FM18L08-70-STR
IC123 8-759-584-32 s IC MB86189PFV-G-BND-ER
IC124 8-759-599-93 s IC NC7SZ08P5
IC125 8-759-669-44 s IC SN74LVC74APWR-12
IC126 8-759-557-84 s IC NC7SZ04P5X
IC127 8-759-557-84 s IC NC7SZ04P5X
IC128 8-759-599-93 s IC NC7SZ08P5
IC129 8-759-557-85 s IC NC7SZ32P5X
IC130 8-759-557-85 s IC NC7SZ32P5X
IC131 8-759-327-01 s IC NJM062V-TE2
IC134 6-706-488-01 s IC TC7SH14FU(T5RSOYJF)
IC136 6-706-488-01 s IC TC7SH14FU(T5RSOYJF)
IC139 8-759-524-07 s IC TC74VHC138FT(EL)
IC140 8-759-524-07 s IC TC74VHC138FT(EL)
IC141 6-706-484-01 s IC TC7SH04FU(T5RSOYJF)
IC142 6-706-484-01 s IC TC7SH04FU(T5RSOYJF)
IC143 6-706-488-01 s IC TC7SH14FU(T5RSOYJF)
IC144 6-706-483-01 s IC TC7SH02FU(T5RSOYJF)
IC145 8-759-669-66 s IC TLC272CPWR
IC301 8-752-392-03 s IC CXD1095BR
IC302 8-759-472-43 s IC 74VHC245MTCX
IC303 8-759-685-33 s IC BU2500FV-E2
IC304 8-752-392-03 s IC CXD1095BR
IC305 8-752-392-03 s IC CXD1095BR
IC306 6-706-484-01 s IC TC7SH04FU(T5RSOYJF)
IC307 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC308 8-759-594-17 o IC CXD9093R
IC309 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC310 8-759-594-17 o IC CXD9093R
IC314 8-759-092-81 s IC SN75158PS
IC316 6-706-476-01 s IC TC7SET04FU(T5RSOJF)
IC317 6-706-476-01 s IC TC7SET04FU(T5RSOJF)
IC318 6-706-484-01 s IC TC7SH04FU(T5RSOYJF)
IC319 6-706-484-01 s IC TC7SH04FU(T5RSOYJF)
1-11
CCU-TX50/V2
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
IC320 8-759-491-46 s IC TC74VHCT04AFT (EL)
IC321 6-706-484-01 s IC TC7SH04FU(T5RSOYJF)
IC322 8-759-523-81 s IC TC74VHC08FT(EL)
IC501 8-759-561-46 s IC AD8014ART-REEL7
IC502 8-759-980-44 s IC TL712CPS
IC503 8-759-980-44 s IC TL712CPS
IC504 8-759-344-12 s IC GS4981CTA
IC505 8-759-485-24 s IC MC74HC4046ADT (R2)
IC506 8-759-662-38 s IC 74VHCT08AMTCX
IC508 8-759-491-46 s IC TC74VHCT04AFT (EL)
IC509 8-759-669-44 s IC SN74LVC74APWR-12
IC510 8-759-386-27 s IC 74LCX04MTCX
IC511 8-759-386-27 s IC 74LCX04MTCX
IC512 6-700-804-01 s IC SN74LVC574APWR
IC513 6-702-691-01 s IC BCM5221A4KPT
IC515 8-759-970-59 s IC TLC272CPS
IC516 8-759-663-35 s IC 74VHC4053MTCX
IC517 8-759-970-59 s IC TLC272CPS
IC518 8-759-970-59 s IC TLC272CPS
IC519 8-759-523-04 s IC TC74HC4538AFT
IC520 6-706-476-01 s IC TC7SET04FU(T5RSOJF)
IC521 6-706-476-01 s IC TC7SET04FU(T5RSOJF)
IC523 8-759-663-35 s IC 74VHC4053MTCX
IC524 8-759-970-59 s IC TLC272CPS
IC701 8-759-472-43 s IC 74VHC245MTCX
IC715 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
L1 1-414-398-11 s INDUCTOR (SMD) 10UH
L2 1-414-398-11 s INDUCTOR (SMD) 10UH
L3 1-416-344-11 s COIL, CHOKE 10UH
L101 1-414-398-11 s INDUCTOR (SMD) 10UH
L102 1-414-398-11 s INDUCTOR (SMD) 10UH
L103 1-414-398-11 s INDUCTOR (SMD) 10UH
L104 1-414-398-11 s INDUCTOR (SMD) 10UH
L105 1-414-398-11 s INDUCTOR (SMD) 10UH
L107 1-414-398-11 s INDUCTOR (SMD) 10UH
L108 1-414-398-11 s INDUCTOR (SMD) 10UH
L109 1-414-398-11 s INDUCTOR (SMD) 10UH
L110 1-414-398-11 s INDUCTOR (SMD) 10UH
L111 1-414-398-11 s INDUCTOR (SMD) 10UH
L112 1-414-398-11 s INDUCTOR (SMD) 10UH
L301 1-414-398-11 s INDUCTOR (SMD) 10UH
L302 1-414-398-11 s INDUCTOR (SMD) 10UH
L303 1-414-398-11 s INDUCTOR (SMD) 10UH
L304 1-414-398-11 s INDUCTOR (SMD) 10UH
L501 1-414-398-11 s INDUCTOR (SMD) 10UH
L502 1-414-398-11 s INDUCTOR (SMD) 10UH
L503 1-412-056-11 s INDUCTOR 4.7UH (3225)
L504 1-414-398-11 s INDUCTOR (SMD) 10UH
L505 1-414-398-11 s INDUCTOR (SMD) 10UH
L506 1-414-398-11 s INDUCTOR (SMD) 10UH
L507 1-414-398-11 s INDUCTOR (SMD) 10UH
L508 1-414-398-11 s INDUCTOR (SMD) 10UH
L509 1-414-398-11 s INDUCTOR (SMD) 10UH
L510 1-414-398-11 s INDUCTOR (SMD) 10UH
L511 1-414-398-11 s INDUCTOR (SMD) 10UH
L512 1-414-398-11 s INDUCTOR (SMD) 10UH
L513 1-412-056-11 s INDUCTOR 4.7UH (3225)
L514 1-412-056-11 s INDUCTOR 4.7UH (3225)
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
L515 1-412-056-11 s INDUCTOR 4.7UH (3225)
L516 1-412-056-11 s INDUCTOR 4.7UH (3225)
L517 1-412-056-11 s INDUCTOR 4.7UH (3225)
L518 1-412-056-11 s INDUCTOR 4.7UH (3225)
PH1 8-749-011-37 s PHOTO COUPLER TLP181 (BC-TPR)
PH301 8-749-014-35 s IC HCPL-0630-500
PH302 8-749-014-35 s IC HCPL-0630-500
Q1 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q2 8-729-807-51 s TRANSISTOR 2SD1623-S
Q3 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q4 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q5 8-729-807-51 s TRANSISTOR 2SD1623-S
Q6 8-729-927-99 s TRANSISTOR 2SC4617R
Q7 8-729-927-99 s TRANSISTOR 2SC4617R
Q8 8-729-047-32 s TRANSISTOR SI4425DY-T1
Q9 8-729-927-99 s TRANSISTOR 2SC4617R
Q101 8-729-927-99 s TRANSISTOR 2SC4617R
Q102 8-729-928-19 s TRANSISTOR 2SA1774R
Q103 8-729-927-99 s TRANSISTOR 2SC4617R
Q104 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q105 8-729-927-99 s TRANSISTOR 2SC4617R
Q301 8-729-927-99 s TRANSISTOR 2SC4617R
Q302 8-729-927-99 s TRANSISTOR 2SC4617R
Q303 8-729-927-99 s TRANSISTOR 2SC4617R
Q304 8-729-928-19 s TRANSISTOR 2SA1774R
Q305 8-729-928-19 s TRANSISTOR 2SA1774R
Q306 8-729-928-19 s TRANSISTOR 2SA1774R
Q307 8-729-928-19 s TRANSISTOR 2SA1774R
Q308 8-729-928-19 s TRANSISTOR 2SA1774R
Q309 8-729-928-19 s TRANSISTOR 2SA1774R
Q310 8-729-927-99 s TRANSISTOR 2SC4617R
Q311 8-729-927-99 s TRANSISTOR 2SC4617R
Q312 8-729-927-99 s TRANSISTOR 2SC4617R
Q313 8-729-927-99 s TRANSISTOR 2SC4617R
Q314 8-729-927-99 s TRANSISTOR 2SC4617R
Q501 8-729-928-19 s TRANSISTOR 2SA1774R
Q502 8-729-928-19 s TRANSISTOR 2SA1774R
Q503 8-729-928-19 s TRANSISTOR 2SA1774R
Q504 8-729-928-19 s TRANSISTOR 2SA1774R
R1 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R2 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R3 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R4 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R5 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R6 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R7 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R8 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R9 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R10 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R11 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R12 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R13 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R14 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R15 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R16 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R17 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R18 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R19 1-208-923-11 s RESISTOR, CHIP 33K (1005)
1-12 CCU-TX50/V2
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R20 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R21 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R22 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R23 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R24 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R25 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R26 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R27 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R28 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R29 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R30 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R31 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R32 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R33 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R34 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R35 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R36 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R37 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R38 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R39 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R40 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R41 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R42 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R43 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R44 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R45 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R46 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R47 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R48 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R49 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R50 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R51 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R52 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R53 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R54 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R55 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R101 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R102 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R103 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R104 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R105 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R106 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R107 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R109 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R110 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R111 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R112 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R113 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R114 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R115 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R116 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R117 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R118 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R119 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R120 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R121 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R122 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R123 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R125 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R126 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R127 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R128 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R129 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R130 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R131 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R132 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R133 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R134 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R135 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R136 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R137 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R138 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R139 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R140 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R141 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R142 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R143 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R144 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R145 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R146 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R147 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R148 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R149 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R150 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R151 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R152 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R153 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R154 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R155 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R156 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R157 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R160 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R161 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R162 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R163 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R164 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R165 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R166 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R167 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R168 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R169 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R170 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R171 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R172 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R173 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R174 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R175 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R176 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R177 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R178 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R180 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R181 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R182 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R183 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R184 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R185 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R187 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R188 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
1-13
CCU-TX50/V2
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R189 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R190 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R191 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R192 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R193 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R194 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R195 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R196 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R197 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R198 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R199 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R200 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R201 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R202 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R203 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R204 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R205 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R206 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R207 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R208 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R209 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R211 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R212 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R213 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R214 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R215 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R220 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R221 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R222 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R223 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R224 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R225 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R226 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R227 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R301 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R302 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R303 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R304 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R305 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R306 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R307 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R308 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R309 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R310 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R311 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R312 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R313 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R314 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R315 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R316 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R317 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R318 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R319 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R320 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R321 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R322 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R323 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R324 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R325 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R326 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R327 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R328 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R329 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R330 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R331 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R332 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R333 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R334 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R335 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R336 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R337 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R339 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R340 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R341 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R342 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R343 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R344 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R345 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R346 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R348 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R349 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R350 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R351 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R352 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R353 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R354 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R355 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R356 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R357 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R358 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R359 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R360 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R361 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R362 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R365 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R366 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R367 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R368 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R369 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R370 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R371 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R375 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R376 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R378 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R380 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R381 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R382 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R383 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R384 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R385 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R386 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R387 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R388 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R389 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R390 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R391 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R392 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R393 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
1-14 CCU-TX50/V2
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R394 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R395 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R396 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R397 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R398 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R399 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R400 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R401 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R402 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R403 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R404 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R405 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R406 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R407 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R408 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R409 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R410 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R411 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R412 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R413 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R414 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R415 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R416 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R417 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R418 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R419 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R420 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R421 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R423 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R424 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R426 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R427 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R428 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R429 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R430 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R431 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R432 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R433 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R434 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R435 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R436 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R437 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R438 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R439 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R440 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R441 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R444 1-208-647-11 s RESISTOR CHIP 33 1/16W (1005)
R445 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R446 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R447 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R448 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R449 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R450 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R451 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R452 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R454 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R501 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R502 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R503 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R504 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R506 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R507 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R508 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R509 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R510 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R511 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R512 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R513 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R514 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R515 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R516 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R517 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R518 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R519 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R520 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R521 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R522 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R523 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R524 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R525 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R526 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R527 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R528 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R529 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R530 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R531 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R532 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R533 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R534 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R535 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R536 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R537 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R538 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R539 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R540 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R541 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R542 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R543 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R544 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R545 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R546 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R547 1-208-955-11 s RESISTOR CHIP 680K
R548 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R549 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R550 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R551 1-208-955-11 s RESISTOR CHIP 680K
R552 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R553 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R554 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R555 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R556 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R557 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R558 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R559 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R560 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R561 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R562 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R563 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
1-15
CCU-TX50/V2
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R564 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R565 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R566 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R567 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R568 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R569 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R570 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R572 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R573 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R574 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R575 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R576 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R577 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R579 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R580 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R582 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R583 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R585 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R586 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R587 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R588 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R589 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R590 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R592 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R593 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R594 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R595 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R596 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R597 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R598 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R599 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R601 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R602 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R603 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R604 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R605 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R606 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R607 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R608 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R609 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R610 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R611 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R612 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R613 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R614 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R615 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R616 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R617 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R618 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R619 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R620 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R621 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R622 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R623 1-208-647-11 s RESISTOR CHIP 33 1/16W (1005)
R624 1-208-647-11 s RESISTOR CHIP 33 1/16W (1005)
R625 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R626 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R627 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R628 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R629 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R630 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R631 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R632 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R633 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R634 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R635 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R636 1-208-955-11 s RESISTOR CHIP 680K
R637 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R701 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R702 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R703 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R704 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R706 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R711 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R745 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
RB102 1-233-810-21 s RES, NETWORK 100K (3216)
RB103 1-233-810-21 s RES, NETWORK 100K (3216)
RB104 1-233-810-21 s RES, NETWORK 100K (3216)
RB105 1-233-810-21 s RES, NETWORK 100K (3216)
RB106 1-233-810-21 s RES, NETWORK 100K (3216)
RB107 1-233-810-21 s RES, NETWORK 100K (3216)
RB108 1-233-810-21 s RES, NETWORK 100K (3216)
RB109 1-233-810-21 s RES, NETWORK 100K (3216)
RB110 1-233-810-21 s RES, NETWORK 100K (3216)
RB111 1-233-810-21 s RES, NETWORK 100K (3216)
RB112 1-233-810-21 s RES, NETWORK 100K (3216)
RB113 1-233-810-21 s RES, NETWORK 100K (3216)
RB114 1-233-810-21 s RES, NETWORK 100K (3216)
RB115 1-233-810-21 s RES, NETWORK 100K (3216)
RB116 1-233-810-21 s RES, NETWORK 100K (3216)
RB117 1-233-810-21 s RES, NETWORK 100K (3216)
RB118 1-233-810-21 s RES, NETWORK 100K (3216)
RB119 1-233-810-21 s RES, NETWORK 100K (3216)
RB301 1-233-810-21 s RES, NETWORK 100K (3216)
RB302 1-233-810-21 s RES, NETWORK 100K (3216)
RB303 1-233-810-21 s RES, NETWORK 100K (3216)
RB304 1-233-810-21 s RES, NETWORK 100K (3216)
RB305 1-233-810-21 s RES, NETWORK 100K (3216)
RB308 1-233-412-11 s RESISTOR,CHIP NETWORK 1K
RB309 1-233-810-21 s RES, NETWORK 100K (3216)
RB310 1-233-810-21 s RES, NETWORK 100K (3216)
RB311 1-233-412-11 s RESISTOR,CHIP NETWORK 1K
RB312 1-233-412-11 s RESISTOR,CHIP NETWORK 1K
RB313 1-233-412-11 s RESISTOR,CHIP NETWORK 1K
RB314 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB315 1-233-412-11 s RESISTOR,CHIP NETWORK 1K
RB316 1-233-412-11 s RESISTOR,CHIP NETWORK 1K
RB317 1-233-412-11 s RESISTOR,CHIP NETWORK 1K
RB318 1-233-412-11 s RESISTOR,CHIP NETWORK 1K
RB319 1-233-810-21 s RES, NETWORK 100K (3216)
RB320 1-233-810-21 s RES, NETWORK 100K (3216)
RB321 1-233-810-21 s RES, NETWORK 100K (3216)
RB322 1-233-810-21 s RES, NETWORK 100K (3216)
RB501 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB502 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB503 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB504 1-233-576-11 s RESISTOR,CHIP NETWORK 100
1-16 CCU-TX50/V2
(AT-155 BOARD)
Ref. No.
or Q'ty Part No. SP Description
RB505 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB506 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB507 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RV101 1-225-792-21 s RES, ADJ, CERMET 10K
RV501 1-225-791-21 s RES, ADJ, CERMET 5K
S101 1-771-709-31 s SWITCH, SLIDE
S102 1-771-709-31 s SWITCH, SLIDE
S301 1-762-118-21 s SWITCH, TOGGLE
S302 1-762-120-11 s SWITCH, TOGGLE
S303 1-572-658-21 s SWITCH,ROTARY
S304 1-572-658-21 s SWITCH,ROTARY
S305 1-570-711-11 s SWITCH,SLIDE
S306 1-570-711-11 s SWITCH,SLIDE
S307 1-570-711-11 s SWITCH,SLIDE
S308 1-570-711-11 s SWITCH,SLIDE
S309 1-692-271-31 s SWITCH, SLIDE
S310 1-692-271-31 s SWITCH, SLIDE
S311 1-692-271-31 s SWITCH, SLIDE
S312 1-692-271-31 s SWITCH, SLIDE
THP1
!
1-533-817-21 s THERMISTOR
THP2
!
1-533-817-21 s THERMISTOR
THP3
!
1-533-817-21 s THERMISTOR
THP4
!
1-533-817-21 s THERMISTOR
THP5
!
1-771-845-11 s THERMISTOR, POSITIVE
THP101
!
1-803-353-21 s THERMISTOR, POSITIVE
TP301 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP302 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP303 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP304 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP501 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP502 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP503 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP504 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP505 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP506 1-535-877-22 s CHIP,CHECKER (TEST POINT)
X301 1-813-212-11 s OSCILLATOR, CRYSTAL
X501 1-813-212-11 s OSCILLATOR, CRYSTAL
X502 1-813-007-21 s OSCILLATOR, CRYSTAL (SMD)
------------
AU-300 BOARD
------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1081-186-A s MOUNTED CIRCUIT BOARD, AU-300
4pcs 7-682-947-01 s SCREW +PSW 3X6
C1 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C2 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C3 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C4 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C5 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C6 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C7 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C8 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C9 1-107-819-11 s CAP,CERAMIC 22000PF/16V(1005)
C10 1-107-819-11 s CAP,CERAMIC 22000PF/16V(1005)
C11 1-107-819-11 s CAP,CERAMIC 22000PF/16V(1005)
C12 1-107-819-11 s CAP,CERAMIC 22000PF/16V(1005)
C13 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C15 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C17 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C18 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C20 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C21 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C23 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C25 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C26 1-100-581-81 s CHIP CERAMIC0.0047MF B1005
C27 1-100-581-81 s CHIP CERAMIC0.0047MF B1005
C28 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C30 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C31 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C32 1-131-661-11 s CAPACITOR,ELECT 100MF/10V CHIP
C34 1-126-400-11 s CAPACITOR ELECT 22MF/35V(CHIP)
C35 1-126-400-11 s CAPACITOR ELECT 22MF/35V(CHIP)
C36 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C37 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C38 1-100-581-81 s CHIP CERAMIC0.0047MF B1005
C39 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C40 1-164-940-11 s CAPACITOR,CHIP CERAMIC 3300/16
C41 1-164-940-11 s CAPACITOR,CHIP CERAMIC 3300/16
C42 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C43 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C44 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C45 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C46 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C47 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C48 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C49 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C50 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C51 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C52 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C53 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C54 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C55 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C56 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C57 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C58 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C59 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C60 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C61 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C62 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C63 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
1-17
CCU-TX50/V2
(AU-300 BOARD)
Ref. No.
or Q'ty Part No. SP Description
C64 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C65 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C66 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C67 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C100 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C102 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C103 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C104 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C105 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C106 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C107 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C108 1-131-661-11 s CAPACITOR,ELECT 100MF/10V CHIP
C109 1-131-661-11 s CAPACITOR,ELECT 100MF/10V CHIP
C110 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C111 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C112 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C113 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C114 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C201 1-127-820-11 s CAPACITOR, SQUARE CHIP 4.7MF
C203 1-164-935-11 s CAPACITOR,CHIP CERAMIC 470PF
C205 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C214 1-127-760-11 s CAPACITOR,CERAMIC 4.7MF/6.3V
C215 1-127-820-11 s CAPACITOR, SQUARE CHIP 4.7MF
C217 1-127-820-11 s CAPACITOR, SQUARE CHIP 4.7MF
C221 1-164-880-11 s CAPACITOR,CHIP CERAMIC 180PF
C222 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C225 1-100-581-81 s CHIP CERAMIC0.0047MF B1005
C228 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C229 1-127-820-11 s CAPACITOR, SQUARE CHIP 4.7MF
C230 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C231 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C232 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C233 1-127-820-11 s CAPACITOR, SQUARE CHIP 4.7MF
C234 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C235 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C236 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C237 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C238 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C239 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C240 1-164-935-11 s CAPACITOR,CHIP CERAMIC 470PF
C241 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C242 1-164-880-11 s CAPACITOR,CHIP CERAMIC 180PF
C243 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C244 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C245 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C246 1-107-781-11 s CAPACITOR,ELECT 47MF/16V(BP)
C248 1-107-781-11 s CAPACITOR,ELECT 47MF/16V(BP)
C250 1-127-820-11 s CAPACITOR, SQUARE CHIP 4.7MF
C253 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C254 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C255 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C256 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C257 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C258 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C259 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C260 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C266 1-164-935-11 s CAPACITOR,CHIP CERAMIC 470PF
C267 1-164-935-11 s CAPACITOR,CHIP CERAMIC 470PF
C268 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
(AU-300 BOARD)
Ref. No.
or Q'ty Part No. SP Description
C269 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C270 1-127-820-11 s CAPACITOR, SQUARE CHIP 4.7MF
C271 1-115-339-11 s CAPACITOR,CERAMIC 0.1MF/50V
C272 1-115-339-11 s CAPACITOR,CERAMIC 0.1MF/50V
C273 1-127-820-11 s CAPACITOR, SQUARE CHIP 4.7MF
C274 1-127-820-11 s CAPACITOR, SQUARE CHIP 4.7MF
C275 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C276 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C277 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C278 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C279 1-115-339-11 s CAPACITOR,CERAMIC 0.1MF/50V
C280 1-115-339-11 s CAPACITOR,CERAMIC 0.1MF/50V
C281 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C282 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C283 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C284 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C285 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C286 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C287 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C288 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C289 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C290 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C291 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C292 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C293 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C294 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C295 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C296 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C297 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C298 1-126-395-11 s CAPACITOR,ELECT 22MF/16V(CHIP)
C299 1-165-467-21 s CAPACITOR ELECT 47MF 63V
C300 1-165-467-21 s CAPACITOR ELECT 47MF 63V
C301 1-165-467-21 s CAPACITOR ELECT 47MF 63V
C302 1-165-467-21 s CAPACITOR ELECT 47MF 63V
C303 1-165-947-91 s CAP, CHIP CERAMIC 2.2MF (3225)
D1 8-719-024-81 s DIODE 1SS300-TE85L
D2 8-719-024-81 s DIODE 1SS300-TE85L
D3 8-719-801-78 s DIODE 1SS184
D4 8-719-801-78 s DIODE 1SS184
D5 8-719-420-90 s DIODE MA8051-M
D6 8-719-420-90 s DIODE MA8051-M
D7 8-719-058-14 s LED CL-220PG-C-TS
D8 8-719-801-78 s DIODE 1SS184
D9 8-719-801-78 s DIODE 1SS184
D10 8-719-024-81 s DIODE 1SS300-TE85L
D11 8-719-024-81 s DIODE 1SS300-TE85L
D12 8-719-016-84 s DIODE 02DZ2.0-TPH3
D13 8-719-024-81 s DIODE 1SS300-TE85L
D14 8-719-017-03 s DIODE 02DZ4.7-TPH3
D15 8-719-017-03 s DIODE 02DZ4.7-TPH3
D16 8-719-017-03 s DIODE 02DZ4.7-TPH3
D17 8-719-017-03 s DIODE 02DZ4.7-TPH3
D200 8-719-016-84 s DIODE 02DZ2.0-TPH3
D202 8-719-016-84 s DIODE 02DZ2.0-TPH3
D204 8-719-016-84 s DIODE 02DZ2.0-TPH3
D205 8-719-016-84 s DIODE 02DZ2.0-TPH3
D206 8-719-016-84 s DIODE 02DZ2.0-TPH3
D207 8-719-016-84 s DIODE 02DZ2.0-TPH3
D208 8-719-016-84 s DIODE 02DZ2.0-TPH3
1-18 CCU-TX50/V2
(AU-300 BOARD)
Ref. No.
or Q'ty Part No. SP Description
D209 8-719-016-84 s DIODE 02DZ2.0-TPH3
D210 8-719-024-81 s DIODE 1SS300-TE85L
E1 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E2 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E3 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E4 1-535-877-22 s CHIP,CHECKER (TEST POINT)
IC1 8-759-711-59 s IC NJM78L05UA-TE1
IC2 8-759-711-59 s IC NJM78L05UA-TE1
IC4 8-759-327-01 s IC NJM062V-TE2
IC5 8-759-085-67 s IC LM339NS
IC6 8-759-327-01 s IC NJM062V-TE2
IC7 8-759-327-01 s IC NJM062V-TE2
IC100 6-702-481-01 s IC PCA9555DB-118
IC102 8-759-085-04 s IC M51132FP
IC104 8-759-337-40 s IC NJM2904V(TE2)
IC105 8-759-441-31 s IC MC14053BDTR2
IC106 8-759-327-01 s IC NJM062V-TE2
IC107 8-759-683-83 s IC 74VHCT541AMTCX
IC108 8-759-471-96 s IC 74VHC08MTCX
IC109 8-759-491-46 s IC TC74VHCT04AFT (EL)
IC111 8-759-592-43 s IC TC7SZ02FU(TE85R)
IC112 8-759-441-31 s IC MC14053BDTR2
IC113 8-759-441-31 s IC MC14053BDTR2
IC114 8-759-327-01 s IC NJM062V-TE2
IC115 8-759-441-31 s IC MC14053BDTR2
IC116 8-759-441-31 s IC MC14053BDTR2
IC117 8-759-327-01 s IC NJM062V-TE2
IC203 8-759-278-58 s IC NJM4558V (TE2)
IC204 8-759-278-58 s IC NJM4558V (TE2)
IC206 8-759-745-64 s IC NJM4560M
IC207 8-759-278-58 s IC NJM4558V (TE2)
IC208 8-759-745-64 s IC NJM4560M
IC210 8-759-745-64 s IC NJM4560M
IC211 8-759-278-58 s IC NJM4558V (TE2)
IC212 8-759-278-58 s IC NJM4558V (TE2)
IC213 8-759-441-31 s IC MC14053BDTR2
IC214 8-759-278-58 s IC NJM4558V (TE2)
IC215 8-759-745-64 s IC NJM4560M
IC216 8-759-278-58 s IC NJM4558V (TE2)
IC217 8-759-278-58 s IC NJM4558V (TE2)
IC218 8-759-441-31 s IC MC14053BDTR2
IC219 8-759-278-58 s IC NJM4558V (TE2)
IC220 8-759-745-64 s IC NJM4560M
IC221 8-759-745-64 s IC NJM4560M
IC222 8-759-745-64 s IC NJM4560M
IC223 8-759-338-95 s IC NJM2903V (TE2)
JC1 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
JC2 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
JC4 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
JC5 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
JC6 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
L1 1-414-400-11 s INDUCTOR, 22UH
L2 1-416-344-11 s COIL, CHOKE 10UH
L3 1-414-400-11 s INDUCTOR, 22UH
L4 1-414-400-11 s INDUCTOR, 22UH
L5 1-416-344-11 s COIL, CHOKE 10UH
L6 1-416-344-11 s COIL, CHOKE 10UH
L101 1-414-398-11 s INDUCTOR (SMD) 10UH
(AU-300 BOARD)
Ref. No.
or Q'ty Part No. SP Description
L102 1-414-398-11 s INDUCTOR (SMD) 10UH
L103 1-414-398-11 s INDUCTOR (SMD) 10UH
L202 1-414-400-11 s INDUCTOR, 22UH
L203 1-414-400-11 s INDUCTOR, 22UH
L204 1-414-398-11 s INDUCTOR (SMD) 10UH
L205 1-414-398-11 s INDUCTOR (SMD) 10UH
L206 1-414-398-11 s INDUCTOR (SMD) 10UH
L207 1-414-398-11 s INDUCTOR (SMD) 10UH
L208 1-414-400-11 s INDUCTOR, 22UH
L209 1-414-400-11 s INDUCTOR, 22UH
L210 1-414-400-11 s INDUCTOR, 22UH
L211 1-414-400-11 s INDUCTOR, 22UH
L213 1-414-400-11 s INDUCTOR, 22UH
L214 1-414-400-11 s INDUCTOR, 22UH
L215 1-414-400-11 s INDUCTOR, 22UH
L216 1-414-400-11 s INDUCTOR, 22UH
PH1 8-749-014-35 s IC HCPL-0630-500
Q1 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q3 8-729-927-99 s TRANSISTOR 2SC4617R
Q5 8-729-117-32 s TRANSISTOR 2SC4177
Q6 8-729-117-32 s TRANSISTOR 2SC4177
Q8 8-729-141-75 s TRANSISTOR 2SD596DV345
Q9 8-729-141-75 s TRANSISTOR 2SD596DV345
Q10 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q11 8-729-807-51 s TRANSISTOR 2SD1623-S
Q12 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q13 8-729-807-51 s TRANSISTOR 2SD1623-S
Q200 8-729-117-32 s TRANSISTOR 2SC4177
Q201 8-729-117-32 s TRANSISTOR 2SC4177
Q202 8-729-140-63 s TRANSISTOR 2SA1611-M5M6
Q203 8-729-117-32 s TRANSISTOR 2SC4177
Q204 8-729-140-63 s TRANSISTOR 2SA1611-M5M6
Q205 8-729-117-32 s TRANSISTOR 2SC4177
Q206 8-729-117-32 s TRANSISTOR 2SC4177
Q207 8-729-117-32 s TRANSISTOR 2SC4177
Q208 8-729-140-63 s TRANSISTOR 2SA1611-M5M6
Q209 8-729-117-32 s TRANSISTOR 2SC4177
Q210 8-729-140-63 s TRANSISTOR 2SA1611-M5M6
Q211 8-729-117-32 s TRANSISTOR 2SC4177
Q212 8-729-140-63 s TRANSISTOR 2SA1611-M5M6
Q213 8-729-117-32 s TRANSISTOR 2SC4177
Q214 8-729-117-32 s TRANSISTOR 2SC4177
Q215 8-729-928-81 s TRANSISTOR DTC144EE
Q216 8-729-928-81 s TRANSISTOR DTC144EE
Q217 8-729-928-81 s TRANSISTOR DTC144EE
Q218 8-729-928-81 s TRANSISTOR DTC144EE
R1 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R2 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R3 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R4 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R5 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R6 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R7 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R8 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R9 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R10 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R11 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
1-19
CCU-TX50/V2
(AU-300 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R12 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R13 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R14 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R15 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R16 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R17 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R18 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R19 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R20 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R21 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R22 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R26 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R27 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R28 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R30 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R31 1-208-943-11 s RESISTOR CHIP 220K
R32 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R34 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R35 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R38 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R39 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R40 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R41 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R42 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R43 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R44 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R45 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R48 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R49 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R50 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R52 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R53 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R54 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R55 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R56 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R57 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R58 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R59 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R60 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R61 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R62 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R63 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R64 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R65 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R66 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R67 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R68 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R69 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R70 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R72 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R73 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R75 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R76 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R77 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R78 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R79 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R80 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R81 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R100 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
(AU-300 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R101 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R104 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R118 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R119 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R120 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R121 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R122 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R128 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R129 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R130 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R131 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R132 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R133 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R134 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R135 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R136 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R137 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R138 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R139 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R141 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R142 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R143 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R144 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R145 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R146 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R147 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R148 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R149 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R150 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R151 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R153 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R154 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R155 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R157 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R158 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R159 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R160 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R161 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R162 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R163 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R164 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R165 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R166 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R167 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R168 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R169 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R170 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R171 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R172 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R173 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R174 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R175 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R176 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R177 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R178 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R179 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R180 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R181 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R184 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
1-20 CCU-TX50/V2
(AU-300 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R185 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R186 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R187 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R200 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R204 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R208 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R210 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R212 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R214 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R215 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R220 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R222 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R224 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R225 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R230 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R231 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R234 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R235 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R236 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R239 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R240 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R243 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R244 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R245 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R247 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R249 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R250 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R251 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R252 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R253 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R254 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R255 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R257 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R259 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R260 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R261 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R262 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R263 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R264 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R265 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R266 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R267 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R268 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R269 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R270 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R271 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R272 1-208-947-11 s RESISTOR CHIP 330K 1/16W(1005)
R273 1-208-947-11 s RESISTOR CHIP 330K 1/16W(1005)
R274 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R275 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R276 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R278 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R279 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R281 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R282 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R285 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R286 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R287 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R289 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
(AU-300 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R291 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R293 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R295 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R296 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R297 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R298 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R305 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R306 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R307 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R308 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R309 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R310 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R311 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R312 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R313 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R314 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R315 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R316 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R317 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R318 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R319 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R320 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R321 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R322 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R323 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R324 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R325 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R326 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R327 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R328 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R329 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R330 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R331 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R332 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R333 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R334 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R335 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R336 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R337 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R338 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R339 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R340 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R341 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R342 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R343 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R344 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R345 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R346 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R347 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R348 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R349 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R350 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R351 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R352 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R353 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R354 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R355 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R356 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R357 1-208-935-11 s RESISTOR, CHIP 100K (1005)
1-21
CCU-TX50/V2
(AU-300 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R358 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R359 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R360 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R361 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R362 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R363 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R364 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R365 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R366 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R367 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R368 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R369 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R370 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R371 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R372 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R373 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R374 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R375 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R376 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R377 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R378 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R379 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R380 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R381 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R382 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R383 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R384 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R385 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R386 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R387 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R388 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R389 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R390 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R391 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R392 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R393 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R394 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R395 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R396 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R397 1-208-709-11 s RESISTOR CHIP 12K 1/16W (1005)
R398 1-208-709-11 s RESISTOR CHIP 12K 1/16W (1005)
R399 1-208-709-11 s RESISTOR CHIP 12K 1/16W (1005)
R400 1-208-709-11 s RESISTOR CHIP 12K 1/16W (1005)
R401 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R402 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R403 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R404 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R405 1-208-709-11 s RESISTOR CHIP 12K 1/16W (1005)
R406 1-208-709-11 s RESISTOR CHIP 12K 1/16W (1005)
R407 1-208-709-11 s RESISTOR CHIP 12K 1/16W (1005)
R408 1-208-709-11 s RESISTOR CHIP 12K 1/16W (1005)
R409 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R410 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R411 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R412 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R413 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R414 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R415 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R416 1-208-911-11 s RESISTOR, CHIP 10K (1005)
(AU-300 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R417 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R418 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R419 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R420 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R421 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R422 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R423 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R424 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R425 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R426 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R427 1-208-861-81 s RESISTOR,CHIP 82 (1005)
R428 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R429 1-208-861-81 s RESISTOR,CHIP 82 (1005)
R430 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R431 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R432 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R433 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R434 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R435 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R436 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R437 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R438 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R439 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R440 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R441 1-208-943-11 s RESISTOR CHIP 220K
R442 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R443 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R444 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R445 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R446 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R447 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R448 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R449 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R450 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R451 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R452 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R453 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R454 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
RB1 1-234-381-21 s RES, NETWORK 100KX4 (1005)
RB2 1-234-381-21 s RES, NETWORK 100KX4 (1005)
RB3 1-234-381-21 s RES, NETWORK 100KX4 (1005)
RB4 1-234-381-21 s RES, NETWORK 100KX4 (1005)
RV101 1-241-270-41 s RESISTOR, ADJ, CERMET 1M
RV102 1-241-264-11 s RESISTOR ADJ 10K (CERMET)
RV200 1-225-793-11 s RES, ADJ, CERMET 20K
RV201 1-225-793-11 s RES, ADJ, CERMET 20K
RV202 1-225-793-11 s RES, ADJ, CERMET 20K
RV203 1-241-264-11 s RESISTOR ADJ 10K (CERMET)
RV204 1-241-264-11 s RESISTOR ADJ 10K (CERMET)
S1 1-570-711-11 s SWITCH,SLIDE
S2 1-570-711-11 s SWITCH,SLIDE
S3 1-570-711-11 s SWITCH,SLIDE
S4 1-570-711-11 s SWITCH,SLIDE
S200 1-570-711-11 s SWITCH,SLIDE
S202 1-570-711-11 s SWITCH,SLIDE
S203 1-570-711-11 s SWITCH,SLIDE
S204 1-570-711-11 s SWITCH,SLIDE
S205 1-570-711-11 s SWITCH,SLIDE
1-22 CCU-TX50/V2
(AU-300 BOARD)
Ref. No.
or Q'ty Part No. SP Description
S206 1-570-711-11 s SWITCH,SLIDE
S207 1-570-711-11 s SWITCH,SLIDE
T2 1-443-158-11 s TRANSFORMER, DC-DC CONVERTER
THP1
!
1-533-817-21 s THERMISTOR
THP3
!
1-533-817-21 s THERMISTOR
THP4
!
1-533-817-21 s THERMISTOR
THP5
!
1-803-615-11 s THERMISTOR, POSITIVE
THP6
!
1-803-615-11 s THERMISTOR, POSITIVE
TP200 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP202 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP203 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP204 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP205 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP206 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP207 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP208 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP209 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP210 1-535-877-22 s CHIP,CHECKER (TEST POINT)
-------------
CN-2474 BOARD
-------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1080-966-A s MOUNTED CIRCUIT BOARD, CN-2474
C1 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C2 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C4 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C5 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C6 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C7 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C8 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C9 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C10 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C11 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C12 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C13 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C14 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C15 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C16 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C17 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C18 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C19 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C20 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C21 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C22 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C23 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C24 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C25 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C26 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C27 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C28 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C29 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C30 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C31 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C32 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C33 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C41 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C42 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C43 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C44 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C51 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C52 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C53 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C54 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C61 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C62 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C63 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C64 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C65 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C101 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
CN1 1-766-210-21 s HOUSING, CONNECTOR 8P
CN2 1-778-386-11 o HOUSING, CONNECTOR 16P
CN3 1-764-782-11 o HOUSING, CONNECTOR 24P
CN4 1-695-890-11 o PIN, CONNECTOR (PC BOARD) 12P
CN104 1-794-872-11 o CONNECTOR, BNC 2P
CN105 1-794-872-11 o CONNECTOR, BNC 2P
D11 8-719-017-03 s DIODE 02DZ4.7-TPH3
D12 8-719-017-03 s DIODE 02DZ4.7-TPH3
D31 8-719-820-41 s DIODE 1SS302
D101 8-719-801-78 s DIODE 1SS184
1-23
CCU-TX50/V2
(CN-2474 BOARD)
Ref. No.
or Q'ty Part No. SP Description
D102 8-719-024-81 s DIODE 1SS300-TE85L
D103 8-719-024-81 s DIODE 1SS300-TE85L
D104 8-719-024-81 s DIODE 1SS300-TE85L
D105 8-719-024-81 s DIODE 1SS300-TE85L
D106 8-719-024-81 s DIODE 1SS300-TE85L
D107 8-719-024-81 s DIODE 1SS300-TE85L
D108 8-719-024-81 s DIODE 1SS300-TE85L
D109 8-719-024-81 s DIODE 1SS300-TE85L
D110 8-719-024-81 s DIODE 1SS300-TE85L
D111 8-719-024-81 s DIODE 1SS300-TE85L
D112 8-719-024-81 s DIODE 1SS300-TE85L
D113 8-719-024-81 s DIODE 1SS300-TE85L
D114 8-719-024-81 s DIODE 1SS300-TE85L
D115 8-719-024-81 s DIODE 1SS300-TE85L
D116 8-719-024-81 s DIODE 1SS300-TE85L
D117 8-719-024-81 s DIODE 1SS300-TE85L
D118 8-719-024-81 s DIODE 1SS300-TE85L
D119 8-719-024-81 s DIODE 1SS300-TE85L
D120 8-719-024-81 s DIODE 1SS300-TE85L
D121 8-719-024-81 s DIODE 1SS300-TE85L
D122 8-719-024-81 s DIODE 1SS300-TE85L
D123 8-719-024-81 s DIODE 1SS300-TE85L
D124 8-719-024-81 s DIODE 1SS300-TE85L
D125 8-719-024-81 s DIODE 1SS300-TE85L
E1 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E2 1-535-877-22 s CHIP,CHECKER (TEST POINT)
IC41 8-759-561-46 s IC AD8014ART-REEL7
IC51 8-759-561-46 s IC AD8014ART-REEL7
IC61 8-759-694-15 s IC SP3222ECY
IC101 6-702-481-01 s IC PCA9555DB-118
IC102 8-759-327-01 s IC NJM062V-TE2
IC103 8-759-327-01 s IC NJM062V-TE2
IC104 6-702-418-01 s IC 74VHC4051MTCX
IC105 6-702-418-01 s IC 74VHC4051MTCX
L1 1-416-344-11 s COIL, CHOKE 10UH
L11 1-416-344-11 s COIL, CHOKE 10UH
L12 1-416-344-11 s COIL, CHOKE 10UH
L41 1-414-398-11 s INDUCTOR (SMD) 10UH
L42 1-414-398-11 s INDUCTOR (SMD) 10UH
L51 1-414-398-11 s INDUCTOR (SMD) 10UH
L52 1-414-398-11 s INDUCTOR (SMD) 10UH
L61 1-414-398-11 s INDUCTOR (SMD) 10UH
Q1 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q2 8-729-927-99 s TRANSISTOR 2SC4617R
Q11 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q12 8-729-807-51 s TRANSISTOR 2SD1623-S
Q13 8-729-927-99 s TRANSISTOR 2SC4617R
Q101 8-729-927-99 s TRANSISTOR 2SC4617R
Q102 8-729-927-99 s TRANSISTOR 2SC4617R
Q103 8-729-927-99 s TRANSISTOR 2SC4617R
Q104 8-729-927-99 s TRANSISTOR 2SC4617R
Q105 8-729-047-32 s TRANSISTOR SI4425DY-T1
Q120 8-729-927-99 s TRANSISTOR 2SC4617R
Q121 8-729-927-99 s TRANSISTOR 2SC4617R
Q122 8-729-927-99 s TRANSISTOR 2SC4617R
Q123 8-729-927-99 s TRANSISTOR 2SC4617R
Q124 8-729-927-99 s TRANSISTOR 2SC4617R
(CN-2474 BOARD)
Ref. No.
or Q'ty Part No. SP Description
Q125 8-729-927-99 s TRANSISTOR 2SC4617R
Q126 8-729-927-99 s TRANSISTOR 2SC4617R
Q127 8-729-927-99 s TRANSISTOR 2SC4617R
Q130 8-729-927-99 s TRANSISTOR 2SC4617R
Q131 8-729-927-99 s TRANSISTOR 2SC4617R
Q132 8-729-927-99 s TRANSISTOR 2SC4617R
Q133 8-729-927-99 s TRANSISTOR 2SC4617R
Q134 8-729-927-99 s TRANSISTOR 2SC4617R
Q135 8-729-927-99 s TRANSISTOR 2SC4617R
Q136 8-729-927-99 s TRANSISTOR 2SC4617R
Q137 8-729-927-99 s TRANSISTOR 2SC4617R
R1 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R2 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R3 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R4 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R5 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R6 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R7 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R8 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R11 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R12 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R13 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R14 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R15 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R16 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R19 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R20 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R21 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R23 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R24 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R31 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R32 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R33 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R34 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R35 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R36 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R41 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R42 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R43 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R44 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R45 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R46 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R47 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R51 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R52 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R53 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R54 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R55 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R56 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R57 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R58 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R65 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R66 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R67 1-208-943-11 s RESISTOR CHIP 220K
R68 1-208-943-11 s RESISTOR CHIP 220K
R69 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R70 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R71 1-208-935-11 s RESISTOR, CHIP 100K (1005)
1-24 CCU-TX50/V2
(CN-2474 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R76 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R77 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R101 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R102 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R103 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R104 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R105 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R106 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R107 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R108 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R109 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R110 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R112 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R113 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R114 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R115 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R116 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R117 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R118 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R119 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R120 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R121 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R122 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R123 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R124 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R125 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R126 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R127 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R130 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R131 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R132 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R133 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R134 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R135 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R136 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R137 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R138 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R139 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
RB101 1-233-577-11 s RESISTOR, CHIP NETWORK 470
RB102 1-233-577-11 s RESISTOR, CHIP NETWORK 470
RB103 1-233-577-11 s RESISTOR, CHIP NETWORK 470
RB104 1-233-578-11 s RESISTOR,CHIP NETWORK 47K
RB105 1-233-578-11 s RESISTOR,CHIP NETWORK 47K
RB106 1-233-577-11 s RESISTOR, CHIP NETWORK 470
RB107 1-233-578-11 s RESISTOR,CHIP NETWORK 47K
RB108 1-233-578-11 s RESISTOR,CHIP NETWORK 47K
RB109 1-233-577-11 s RESISTOR, CHIP NETWORK 470
RB110 1-233-577-11 s RESISTOR, CHIP NETWORK 470
RB111 1-233-577-11 s RESISTOR, CHIP NETWORK 470
RB112 1-233-577-11 s RESISTOR, CHIP NETWORK 470
RB113 1-233-578-11 s RESISTOR,CHIP NETWORK 47K
RB114 1-233-578-11 s RESISTOR,CHIP NETWORK 47K
THP101 1-803-615-11 s THERMISTOR, POSITIVE
-------------
CN-2516 BOARD
-------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1080-968-A s MOUNTED CIRCUIT BOARD, CN-2516
CN2 1-695-208-21 o PIN, CONNECTOR (PC BOARD) 7P
CN3 1-817-940-11 s CONNECTOR, ROUND TYPE 5P
FL1 1-239-897-12 s FILTER, EMI (SMD)
FL2 1-239-897-12 s FILTER, EMI (SMD)
FL3 1-239-897-12 s FILTER, EMI (SMD)
FL4 1-239-897-12 s FILTER, EMI (SMD)
FL5 1-239-897-12 s FILTER, EMI (SMD)
L1 1-414-170-41 s INDUCTOR, CHIP 100UH (2012)
L2 1-414-170-41 s INDUCTOR, CHIP 100UH (2012)
L3 1-412-979-21 s INDUCTOR (SMALL TYPE)
L4 1-412-979-21 s INDUCTOR (SMALL TYPE)
L5 1-412-979-21 s INDUCTOR (SMALL TYPE)
1-25
CCU-TX50/V2
-------------
CN-2647 BOARD
-------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1080-955-A s MOUNTED CIRCUIT BOARD, CN-2647
4pcs 7-682-545-04 s SCREW +B3X4
C1 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C2 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C3 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C4 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C5 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C6 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C7 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C8 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C9 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C10 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C11 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C12 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C13 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C14 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C15 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C16 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C17 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C18 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C19 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C20 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C21 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C22 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C23 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C24 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C25 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C26 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C27 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C28 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C29 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C30 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C31 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C32 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C33 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C34 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C35 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C36 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C37 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C38 1-164-935-11 s CAPACITOR,CHIP CERAMIC 470PF
C39 1-164-935-11 s CAPACITOR,CHIP CERAMIC 470PF
CN1 1-764-782-11 o HOUSING, CONNECTOR 24P
CN2 1-778-386-11 o HOUSING, CONNECTOR 16P
CN3 1-794-399-11 s CONNECTOR, D SUB (SMD) 15P
CN4 1-794-400-11 s CONNECTOR, D SUB (SMD) 25P
L1 1-412-939-11 s INDUCTOR 1.0UH (2520)
L2 1-412-939-11 s INDUCTOR 1.0UH (2520)
L3 1-412-939-11 s INDUCTOR 1.0UH (2520)
-------------
CN-2648 BOARD
-------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1080-956-A s MOUNTED CIRCUIT BOARD, CN-2648
C1 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C2 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C3 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C4 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C5 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C6 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
CN1 1-794-097-11 s CONNECTOR, ROUND TYPE
CN2 1-794-097-11 s CONNECTOR, ROUND TYPE
CN3 1-766-210-21 s HOUSING, CONNECTOR 8P
FL1 1-239-897-12 s FILTER, EMI (SMD)
FL2 1-239-897-12 s FILTER, EMI (SMD)
FL3 1-239-897-12 s FILTER, EMI (SMD)
FL4 1-239-897-12 s FILTER, EMI (SMD)
FL5 1-239-897-12 s FILTER, EMI (SMD)
FL6 1-239-897-12 s FILTER, EMI (SMD)
L1 1-412-979-21 s INDUCTOR (SMALL TYPE)
L2 1-412-979-21 s INDUCTOR (SMALL TYPE)
L3 1-412-979-21 s INDUCTOR (SMALL TYPE)
L4 1-412-979-21 s INDUCTOR (SMALL TYPE)
R1 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R4 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R5 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R8 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
-------------
CN-2649 BOARD
-------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1080-957-A s MOUNTED CIRCUIT BOARD, CN-2649
C1 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
CN1 1-561-336-00 s CONNECTOR,COAXIAL
CN2 1-561-336-00 s CONNECTOR,COAXIAL
CN3 1-561-336-00 s CONNECTOR,COAXIAL
CN4 1-561-336-00 s CONNECTOR,COAXIAL
CN5 1-764-079-21 s PIN, CONNECTOR (PC BOARD) 4P
CN6 1-766-210-21 s HOUSING, CONNECTOR 8P
CN7 1-774-869-11 o HOUSING, CONNECTOR
FL3 1-239-896-12 s FILTER, EMI (SMD)
FL4 1-239-896-12 s FILTER, EMI (SMD)
R2 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R3 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
1-26 CCU-TX50/V2
-------------
CN-2650 BOARD
-------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1080-958-A s MOUNTED CIRCUIT BOARD, CN-2650
C2 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C3 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C4 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
CN1 1-565-443-11 o RECEPTACLE,CONNECTOR 10P
CN2 1-766-210-21 s HOUSING, CONNECTOR 8P
FL1 1-239-896-12 s FILTER, EMI (SMD)
FL2 1-239-896-12 s FILTER, EMI (SMD)
THP1
!
1-803-615-11 s THERMISTOR, POSITIVE
-------------
CN-2653 BOARD
-------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1080-959-A s MOUNTED CIRCUIT BOARD, CN-2653
C1 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C2 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C3 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C4 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C5 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C6 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C7 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C8 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C9 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C10 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C13 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C14 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C121 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C122 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C123 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C124 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C125 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C126 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C127 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C128 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C129 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C130 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C131 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C132 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C133 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C134 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C141 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C142 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
CN903 1-794-872-11 o CONNECTOR, BNC 2P
CN904 1-794-872-11 o CONNECTOR, BNC 2P
D1 8-719-024-71 s DIODE 1SS362-TE85L
D2 8-719-024-71 s DIODE 1SS362-TE85L
D121 8-719-017-03 s DIODE 02DZ4.7-TPH3
D122 8-719-017-03 s DIODE 02DZ4.7-TPH3
E1 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E2 1-535-877-22 s CHIP,CHECKER (TEST POINT)
IC1 8-759-833-99 s IC MC74HC4052ADTR2
IC2 8-759-561-46 s IC AD8014ART-REEL7
IC102 8-759-327-01 s IC NJM062V-TE2
IC103 8-759-327-01 s IC NJM062V-TE2
L1 1-414-398-11 s INDUCTOR (SMD) 10UH
L2 1-414-398-11 s INDUCTOR (SMD) 10UH
L3 1-414-398-11 s INDUCTOR (SMD) 10UH
L4 1-414-398-11 s INDUCTOR (SMD) 10UH
L121 1-416-344-11 s COIL, CHOKE 10UH
L122 1-416-344-11 s COIL, CHOKE 10UH
Q1 8-729-927-99 s TRANSISTOR 2SC4617R
Q2 8-729-927-99 s TRANSISTOR 2SC4617R
Q3 8-729-927-99 s TRANSISTOR 2SC4617R
Q4 8-729-928-19 s TRANSISTOR 2SA1774R
Q5 8-729-927-99 s TRANSISTOR 2SC4617R
Q6 8-729-928-19 s TRANSISTOR 2SA1774R
Q121 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q122 8-729-807-51 s TRANSISTOR 2SD1623-S
Q123 8-729-927-99 s TRANSISTOR 2SC4617R
1-27
CCU-TX50/V2
(CN-2653 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R1 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R2 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R3 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R4 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R5 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R6 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R7 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R8 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R9 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R10 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R11 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R12 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R13 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R14 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R15 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R16 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R17 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R18 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R19 1-208-943-11 s RESISTOR CHIP 220K
R20 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R21 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R22 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R23 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R24 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R25 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R26 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R27 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R28 1-218-947-11 s RESISTOR, CHIP 330 1/16W
R121 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R122 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R123 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R124 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R125 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R126 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R129 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R130 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R141 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R142 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R143 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R144 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R145 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R146 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R147 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R148 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R149 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R150 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
------------
DM-140 BOARD
------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1081-188-A s MOUNTED CIRCUIT BOARD, DM-140
4pcs 7-682-947-01 s SCREW +PSW 3X6
C1 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C2 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C3 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C4 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C5 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C6 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C7 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C8 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C9 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C10 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C11 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C12 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C13 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C14 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C15 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C16 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C17 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C18 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C19 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C61 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C62 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C63 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C64 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C65 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C66 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C67 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C68 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C69 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C70 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C71 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C72 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C73 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C74 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C75 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C76 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C77 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C78 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C79 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C80 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C81 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C101 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C102 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C103 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C104 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C105 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C106 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C107 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C108 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C109 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C110 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C112 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C115 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C117 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C119 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C120 1-164-842-11 s CAPACITOR CERAMIC 2PF/16V 1005
C121 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
1-28 CCU-TX50/V2
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
C122 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C123 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C124 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C125 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C126 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C127 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C128 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C129 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C130 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C132 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C135 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C137 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C139 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C140 1-164-842-11 s CAPACITOR CERAMIC 2PF/16V 1005
C141 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C142 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C143 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C144 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C145 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C146 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C147 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C148 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C149 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C150 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C152 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C155 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C157 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C159 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C160 1-164-844-11 s CAPACITOR,CHIP CERAMIC 4PF/50V
C161 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C162 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C163 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C164 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C165 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C166 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C167 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C168 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C169 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C170 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C171 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C173 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C176 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C178 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C180 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C181 1-164-843-11 s CAPACITOR,CHIP CERAMIC 3PF/50V
C182 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C183 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C184 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C185 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C186 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C187 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C188 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C189 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C204 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C205 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C206 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C207 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C208 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C209 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
C210 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C211 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C212 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C213 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C214 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C215 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C216 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C217 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C218 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C219 1-117-145-11 s CAPACITOR, ELECT 1MF/50V (BP)
C220 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C221 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C301 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C302 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C303 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C304 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C305 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C306 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C307 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C308 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C309 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C310 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C311 1-164-839-11 s CAPACITOR CERAMIC 0.5MF/16V
C312 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C314 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C316 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C318 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C320 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C321 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C322 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C323 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C324 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C325 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C326 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C327 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C328 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C329 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C330 1-164-839-11 s CAPACITOR CERAMIC 0.5MF/16V
C331 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C333 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C335 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C337 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C339 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C340 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C341 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C342 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C343 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C344 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C345 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C346 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C347 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C348 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C349 1-164-839-11 s CAPACITOR CERAMIC 0.5MF/16V
C350 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C352 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C354 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C356 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C358 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C359 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
1-29
CCU-TX50/V2
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
C360 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C361 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C362 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C363 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C364 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C365 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C366 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C367 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C368 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C370 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C372 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C374 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C376 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C378 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C379 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C380 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C381 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C382 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C383 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C384 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C385 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C398 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C399 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C400 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C401 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C402 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C403 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C404 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C405 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C406 1-164-839-11 s CAPACITOR CERAMIC 0.5MF/16V
C408 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C409 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C410 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C411 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C412 1-164-840-11 s CAPACITOR,CHIP CERAMIC 1.5PF
C413 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C414 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C415 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C416 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C418 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C419 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C421 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C422 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C423 1-164-839-11 s CAPACITOR CERAMIC 0.5MF/16V
C450 1-164-840-11 s CAPACITOR,CHIP CERAMIC 1.5PF
C451 1-164-840-11 s CAPACITOR,CHIP CERAMIC 1.5PF
C452 1-164-840-11 s CAPACITOR,CHIP CERAMIC 1.5PF
C453 1-164-840-11 s CAPACITOR,CHIP CERAMIC 1.5PF
C501 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C502 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C503 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C504 1-126-402-11 s CAPACITOR, ELECT 2.2MF/50V
C505 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C506 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C507 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C508 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C509 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C510 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C511 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
C513 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C514 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C515 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C516 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C517 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C518 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C519 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C520 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C521 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C522 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C523 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C524 1-115-416-11 s CAPACITOR,CERAMIC 1000PF/25V
C525 1-115-416-11 s CAPACITOR,CERAMIC 1000PF/25V
C526 1-115-416-11 s CAPACITOR,CERAMIC 1000PF/25V
C527 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C528 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C529 1-115-416-11 s CAPACITOR,CERAMIC 1000PF/25V
C530 1-115-416-11 s CAPACITOR,CERAMIC 1000PF/25V
C531 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C532 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C533 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C534 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C535 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C536 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C571 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C572 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C573 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C601 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C602 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C603 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C604 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C605 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C606 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C607 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C608 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C609 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C610 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C612 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C613 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C614 1-127-950-11 s CAPACITOR,CHIP FILM 0.01MF
C615 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C616 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C617 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C618 1-127-950-11 s CAPACITOR,CHIP FILM 0.01MF
C619 1-117-145-11 s CAPACITOR, ELECT 1MF/50V (BP)
C620 1-127-950-11 s CAPACITOR,CHIP FILM 0.01MF
C621 1-117-145-11 s CAPACITOR, ELECT 1MF/50V (BP)
C622 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C623 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C624 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C625 1-164-842-11 s CAPACITOR CERAMIC 2PF/16V 1005
C626 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C627 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C628 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C701 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C702 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C703 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C704 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C705 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
1-30 CCU-TX50/V2
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
C706 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C708 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C709 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C710 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C711 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C712 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C713 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C714 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C715 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C719 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C720 1-164-842-11 s CAPACITOR CERAMIC 2PF/16V 1005
C721 1-164-843-11 s CAPACITOR,CHIP CERAMIC 3PF/50V
C722 1-164-844-11 s CAPACITOR,CHIP CERAMIC 4PF/50V
C723 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C724 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C725 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C726 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C727 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C728 1-127-950-11 s CAPACITOR,CHIP FILM 0.01MF
C729 1-115-153-11 s CAPACITOR,ELECT 4.7MF/16V(BP)
C730 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C731 1-115-153-11 s CAPACITOR,ELECT 4.7MF/16V(BP)
C732 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C733 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C734 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C735 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C736 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C737 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C738 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C740 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C801 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C802 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C803 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C804 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C805 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C806 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C808 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C809 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C810 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C811 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C812 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C813 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C814 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C815 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C818 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C819 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C820 1-164-842-11 s CAPACITOR CERAMIC 2PF/16V 1005
C821 1-164-843-11 s CAPACITOR,CHIP CERAMIC 3PF/50V
C822 1-164-845-11 s CAPACITOR,CERAMIC 5PF/16V(1005
C823 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C824 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C825 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C826 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C827 1-115-153-11 s CAPACITOR,ELECT 4.7MF/16V(BP)
C828 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C829 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C830 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C831 1-127-950-11 s CAPACITOR,CHIP FILM 0.01MF
C832 1-117-145-11 s CAPACITOR, ELECT 1MF/50V (BP)
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
C833 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C834 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C835 1-127-950-11 s CAPACITOR,CHIP FILM 0.01MF
C836 1-115-154-11 s CAPACITOR ELECT 10MF/16V(BP)
C837 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C838 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C840 1-164-842-11 s CAPACITOR CERAMIC 2PF/16V 1005
C841 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C842 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C843 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C901 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C902 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C903 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C904 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C905 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C906 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C908 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C909 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C911 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C912 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C913 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C914 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C915 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C916 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C919 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C920 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C921 1-164-842-11 s CAPACITOR CERAMIC 2PF/16V 1005
C923 1-164-847-11 s CAPACITOR,CHIP CERAMIC 7PF/16V
C924 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C925 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C926 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C927 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C928 1-115-153-11 s CAPACITOR,ELECT 4.7MF/16V(BP)
C929 1-117-144-21 s CAP, ELECT 0.47MF
C930 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C931 1-127-954-11 s CAPACITOR,CHIP FILM 0.047MF
C932 1-117-145-11 s CAPACITOR, ELECT 1MF/50V (BP)
C933 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C934 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C935 1-127-954-11 s CAPACITOR,CHIP FILM 0.047MF
C936 1-115-154-11 s CAPACITOR ELECT 10MF/16V(BP)
C937 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C938 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C939 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C941 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C942 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C943 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C998 1-117-145-11 s CAPACITOR, ELECT 1MF/50V (BP)
CN1 1-766-703-11 s CONNECTOR, COAXIAL
CN2 1-766-703-11 s CONNECTOR, COAXIAL
CN101 1-766-703-11 s CONNECTOR, COAXIAL
CN301 1-766-703-11 s CONNECTOR, COAXIAL
D1 8-719-820-41 s DIODE 1SS302
D2 8-719-069-99 s DIODE 1SS375-TL
D3 8-719-069-99 s DIODE 1SS375-TL
D4 8-719-820-41 s DIODE 1SS302
D5 8-719-820-41 s DIODE 1SS302
D61 8-719-017-03 s DIODE 02DZ4.7-TPH3
1-31
CCU-TX50/V2
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
D62 8-719-017-03 s DIODE 02DZ4.7-TPH3
D63 8-719-058-14 s LED CL-220PG-C-TS
D101 8-719-038-31 s DIODE 1SS313-TE85L
D102 8-719-038-31 s DIODE 1SS313-TE85L
D103 8-719-038-31 s DIODE 1SS313-TE85L
D104 8-719-038-31 s DIODE 1SS313-TE85L
D105 8-719-038-31 s DIODE 1SS313-TE85L
D106 8-719-038-31 s DIODE 1SS313-TE85L
D107 8-719-038-31 s DIODE 1SS313-TE85L
D108 8-719-038-31 s DIODE 1SS313-TE85L
D109 8-719-038-31 s DIODE 1SS313-TE85L
D110 8-719-038-31 s DIODE 1SS313-TE85L
D111 8-719-038-31 s DIODE 1SS313-TE85L
D112 8-719-030-22 s DIODE 1SV172
D113 8-719-030-22 s DIODE 1SV172
D301 8-719-038-31 s DIODE 1SS313-TE85L
D302 8-719-038-31 s DIODE 1SS313-TE85L
D303 8-719-038-31 s DIODE 1SS313-TE85L
D304 8-719-038-31 s DIODE 1SS313-TE85L
D305 8-719-038-31 s DIODE 1SS313-TE85L
D306 8-719-038-31 s DIODE 1SS313-TE85L
D307 8-719-038-31 s DIODE 1SS313-TE85L
D308 8-719-038-31 s DIODE 1SS313-TE85L
D309 8-719-038-31 s DIODE 1SS313-TE85L
D310 8-719-038-31 s DIODE 1SS313-TE85L
D311 8-719-038-31 s DIODE 1SS313-TE85L
D312 8-719-030-22 s DIODE 1SV172
D313 8-719-030-22 s DIODE 1SV172
D601 8-719-820-41 s DIODE 1SS302
D701 8-719-820-41 s DIODE 1SS302
D702 8-719-059-59 s DIODE MA3J74200LSO
D801 8-719-820-41 s DIODE 1SS302
D802 8-719-059-59 s DIODE MA3J74200LSO
D901 8-719-820-41 s DIODE 1SS302
D902 8-719-030-22 s DIODE 1SV172
DL601 1-409-821-11 s PHASE SHIFTER
E1 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E2 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E101 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E301 1-535-877-22 s CHIP,CHECKER (TEST POINT)
FL102 1-234-911-11 s FILTER (CABLE EQ-Y)
FL103 1-813-439-11 s FILTER (PHASE EQ-Y)
FL302 1-234-912-11 s FILTER (CABLE EQ-C)
FL303 1-813-440-11 s FILTER (PHASE EQ-C)
FL601 1-239-948-11 s FILTER, LOW PASS (VIDEO)
FL602 1-239-944-11 s FILTER, LOW PASS
FL701 1-813-444-11 s FILTER, LOW PASS (FOR VIDEO)
FL801 1-813-444-11 s FILTER, LOW PASS (FOR VIDEO)
FL802 1-239-946-11 s FILTER, LOW PASS
FL901 1-813-444-11 s FILTER, LOW PASS (FOR VIDEO)
IC1 8-759-327-01 s IC NJM062V-TE2
IC2 8-759-523-02 s IC TC74HC4053AFT(EL)
IC3 8-759-338-95 s IC NJM2903V (TE2)
IC4 8-759-471-89 s IC 74VHC02MTCX
IC5 8-759-009-41 s IC MC14520BF
IC6 8-759-471-89 s IC 74VHC02MTCX
IC7 8-759-471-85 s IC 74VHC00MTCX
IC8 8-759-471-89 s IC 74VHC02MTCX
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
IC9 8-759-523-02 s IC TC74HC4053AFT(EL)
IC11 8-759-471-89 s IC 74VHC02MTCX
IC12 8-759-523-02 s IC TC74HC4053AFT(EL)
IC13 8-759-523-02 s IC TC74HC4053AFT(EL)
IC61 8-759-327-01 s IC NJM062V-TE2
IC62 8-759-327-01 s IC NJM062V-TE2
IC63 8-759-185-42 s IC LM4040AIM3-2.5
IC64 8-759-338-95 s IC NJM2903V (TE2)
IC101 8-759-561-46 s IC AD8014ART-REEL7
IC102 8-759-561-46 s IC AD8014ART-REEL7
IC103 8-759-561-46 s IC AD8014ART-REEL7
IC104 8-759-561-46 s IC AD8014ART-REEL7
IC106 8-759-327-01 s IC NJM062V-TE2
IC301 6-706-863-01 s IC LMH6732MFX/NOPB
IC302 6-706-863-01 s IC LMH6732MFX/NOPB
IC303 6-706-863-01 s IC LMH6732MFX/NOPB
IC304 6-706-863-01 s IC LMH6732MFX/NOPB
IC306 8-759-327-01 s IC NJM062V-TE2
IC501 6-707-052-01 s IC TA1272AFG(EL)
IC502 6-704-406-01 s IC LM1881MX/NOPB
IC503 8-759-472-35 s IC 74VHC221AMTCX
IC504 8-759-338-95 s IC NJM2903V (TE2)
IC505 8-759-472-35 s IC 74VHC221AMTCX
IC506 8-759-421-87 s IC UPC319G2-E2
IC507 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC508 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC601 8-759-271-18 s IC NJM1496V
IC602 8-759-327-01 s IC NJM062V-TE2
IC603 8-759-327-01 s IC NJM062V-TE2
IC701 8-759-271-18 s IC NJM1496V
IC702 8-759-561-46 s IC AD8014ART-REEL7
IC703 8-759-669-66 s IC TLC272CPWR
IC704 8-759-338-95 s IC NJM2903V (TE2)
IC705 8-759-338-95 s IC NJM2903V (TE2)
IC801 8-759-271-18 s IC NJM1496V
IC802 8-759-561-46 s IC AD8014ART-REEL7
IC803 8-759-669-66 s IC TLC272CPWR
IC804 8-759-669-66 s IC TLC272CPWR
IC901 8-759-271-18 s IC NJM1496V
IC902 8-759-561-46 s IC AD8014ART-REEL7
IC903 8-759-669-66 s IC TLC272CPWR
IC904 8-759-669-66 s IC TLC272CPWR
IC905 8-759-338-95 s IC NJM2903V (TE2)
L1 1-414-398-11 s INDUCTOR (SMD) 10UH
L2 1-414-398-11 s INDUCTOR (SMD) 10UH
L61 1-416-510-21 s COIL, CHOKE 100UH
L62 1-416-510-21 s COIL, CHOKE 100UH
L101 1-414-398-11 s INDUCTOR (SMD) 10UH
L102 1-414-398-11 s INDUCTOR (SMD) 10UH
L103 1-412-951-11 s INDUCTOR 10UH (2520)
L104 1-414-398-11 s INDUCTOR (SMD) 10UH
L105 1-414-398-11 s INDUCTOR (SMD) 10UH
L106 1-412-951-11 s INDUCTOR 10UH (2520)
L107 1-414-398-11 s INDUCTOR (SMD) 10UH
L108 1-414-398-11 s INDUCTOR (SMD) 10UH
L109 1-412-951-11 s INDUCTOR 10UH (2520)
L110 1-414-398-11 s INDUCTOR (SMD) 10UH
L111 1-414-398-11 s INDUCTOR (SMD) 10UH
1-32 CCU-TX50/V2
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
L112 1-412-951-11 s INDUCTOR 10UH (2520)
L113 1-414-398-11 s INDUCTOR (SMD) 10UH
L114 1-414-398-11 s INDUCTOR (SMD) 10UH
L115 1-412-951-11 s INDUCTOR 10UH (2520)
L116 1-412-951-11 s INDUCTOR 10UH (2520)
L117 1-412-951-11 s INDUCTOR 10UH (2520)
L120 1-414-398-11 s INDUCTOR (SMD) 10UH
L121 1-414-398-11 s INDUCTOR (SMD) 10UH
L122 1-412-951-11 s INDUCTOR 10UH (2520)
L123 1-412-951-11 s INDUCTOR 10UH (2520)
L124 1-412-951-11 s INDUCTOR 10UH (2520)
L301 1-414-398-11 s INDUCTOR (SMD) 10UH
L302 1-414-398-11 s INDUCTOR (SMD) 10UH
L303 1-412-951-11 s INDUCTOR 10UH (2520)
L304 1-414-398-11 s INDUCTOR (SMD) 10UH
L305 1-414-398-11 s INDUCTOR (SMD) 10UH
L306 1-412-951-11 s INDUCTOR 10UH (2520)
L307 1-414-398-11 s INDUCTOR (SMD) 10UH
L308 1-414-398-11 s INDUCTOR (SMD) 10UH
L309 1-412-951-11 s INDUCTOR 10UH (2520)
L310 1-414-398-11 s INDUCTOR (SMD) 10UH
L311 1-414-398-11 s INDUCTOR (SMD) 10UH
L312 1-412-951-11 s INDUCTOR 10UH (2520)
L313 1-414-398-11 s INDUCTOR (SMD) 10UH
L314 1-414-398-11 s INDUCTOR (SMD) 10UH
L315 1-412-951-11 s INDUCTOR 10UH (2520)
L316 1-412-951-11 s INDUCTOR 10UH (2520)
L317 1-412-951-11 s INDUCTOR 10UH (2520)
L320 1-414-398-11 s INDUCTOR (SMD) 10UH
L321 1-414-398-11 s INDUCTOR (SMD) 10UH
L322 1-412-951-11 s INDUCTOR 10UH (2520)
L323 1-412-951-11 s INDUCTOR 10UH (2520)
L324 1-412-951-11 s INDUCTOR 10UH (2520)
L501 1-414-398-11 s INDUCTOR (SMD) 10UH
L502 1-414-398-11 s INDUCTOR (SMD) 10UH
L601 1-414-398-11 s INDUCTOR (SMD) 10UH
L602 1-414-398-11 s INDUCTOR (SMD) 10UH
L603 1-414-398-11 s INDUCTOR (SMD) 10UH
L604 1-412-939-11 s INDUCTOR 1.0UH (2520)
L701 1-414-398-11 s INDUCTOR (SMD) 10UH
L702 1-414-398-11 s INDUCTOR (SMD) 10UH
L703 1-414-398-11 s INDUCTOR (SMD) 10UH
L704 1-414-398-11 s INDUCTOR (SMD) 10UH
L801 1-414-398-11 s INDUCTOR (SMD) 10UH
L802 1-414-398-11 s INDUCTOR (SMD) 10UH
L803 1-414-398-11 s INDUCTOR (SMD) 10UH
L804 1-414-398-11 s INDUCTOR (SMD) 10UH
L805 1-414-398-11 s INDUCTOR (SMD) 10UH
L806 1-412-939-11 s INDUCTOR 1.0UH (2520)
L901 1-414-398-11 s INDUCTOR (SMD) 10UH
L902 1-414-398-11 s INDUCTOR (SMD) 10UH
L903 1-414-398-11 s INDUCTOR (SMD) 10UH
L904 1-414-398-11 s INDUCTOR (SMD) 10UH
L905 1-412-951-11 s INDUCTOR 10UH (2520)
L906 1-412-939-11 s INDUCTOR 1.0UH (2520)
L907 1-412-951-11 s INDUCTOR 10UH (2520)
LV501 1-411-920-21 s COIL, VARIABLE
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
Q1 8-729-024-59 s TRANSISTOR 2SA1688-5-TL
Q2 8-729-230-38 s TRANSISTOR 2SC4215Y
Q3 8-729-928-19 s TRANSISTOR 2SA1774R
Q61 8-729-162-45 s TRANSISTOR 2SB624-BV5
Q62 8-729-927-99 s TRANSISTOR 2SC4617R
Q63 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q64 8-729-807-51 s TRANSISTOR 2SD1623-S
Q65 8-729-927-99 s TRANSISTOR 2SC4617R
Q101 8-729-230-38 s TRANSISTOR 2SC4215Y
Q102 8-729-928-19 s TRANSISTOR 2SA1774R
Q103 8-729-923-31 s TRANSISTOR 2SC4083-P
Q104 8-729-230-38 s TRANSISTOR 2SC4215Y
Q105 8-729-928-19 s TRANSISTOR 2SA1774R
Q106 8-729-923-31 s TRANSISTOR 2SC4083-P
Q107 8-729-230-38 s TRANSISTOR 2SC4215Y
Q108 8-729-928-19 s TRANSISTOR 2SA1774R
Q109 8-729-923-31 s TRANSISTOR 2SC4083-P
Q110 8-729-230-38 s TRANSISTOR 2SC4215Y
Q111 8-729-928-19 s TRANSISTOR 2SA1774R
Q112 8-729-923-31 s TRANSISTOR 2SC4083-P
Q113 8-729-230-38 s TRANSISTOR 2SC4215Y
Q114 8-729-923-31 s TRANSISTOR 2SC4083-P
Q115 8-729-230-38 s TRANSISTOR 2SC4215Y
Q116 8-729-923-31 s TRANSISTOR 2SC4083-P
Q117 8-729-024-59 s TRANSISTOR 2SA1688-5-TL
Q118 8-729-928-19 s TRANSISTOR 2SA1774R
Q301 8-729-230-38 s TRANSISTOR 2SC4215Y
Q302 8-729-928-19 s TRANSISTOR 2SA1774R
Q303 8-729-923-31 s TRANSISTOR 2SC4083-P
Q304 8-729-923-31 s TRANSISTOR 2SC4083-P
Q305 8-729-230-38 s TRANSISTOR 2SC4215Y
Q306 8-729-928-19 s TRANSISTOR 2SA1774R
Q307 8-729-923-31 s TRANSISTOR 2SC4083-P
Q308 8-729-923-31 s TRANSISTOR 2SC4083-P
Q309 8-729-230-38 s TRANSISTOR 2SC4215Y
Q310 8-729-928-19 s TRANSISTOR 2SA1774R
Q311 8-729-923-31 s TRANSISTOR 2SC4083-P
Q312 8-729-923-31 s TRANSISTOR 2SC4083-P
Q313 8-729-230-38 s TRANSISTOR 2SC4215Y
Q314 8-729-928-19 s TRANSISTOR 2SA1774R
Q315 8-729-923-31 s TRANSISTOR 2SC4083-P
Q316 8-729-923-31 s TRANSISTOR 2SC4083-P
Q317 8-729-230-38 s TRANSISTOR 2SC4215Y
Q318 8-729-923-31 s TRANSISTOR 2SC4083-P
Q319 8-729-923-31 s TRANSISTOR 2SC4083-P
Q320 8-729-230-38 s TRANSISTOR 2SC4215Y
Q321 8-729-923-31 s TRANSISTOR 2SC4083-P
Q322 8-729-923-31 s TRANSISTOR 2SC4083-P
Q323 8-729-230-38 s TRANSISTOR 2SC4215Y
Q324 8-729-923-31 s TRANSISTOR 2SC4083-P
Q326 8-729-928-19 s TRANSISTOR 2SA1774R
Q501 8-729-143-07 s TRANSISTOR 2SA1610-Y33
Q502 8-729-143-07 s TRANSISTOR 2SA1610-Y33
Q503 8-729-143-07 s TRANSISTOR 2SA1610-Y33
Q504 8-729-928-19 s TRANSISTOR 2SA1774R
Q601 8-729-143-07 s TRANSISTOR 2SA1610-Y33
Q602 8-729-927-99 s TRANSISTOR 2SC4617R
Q603 8-729-927-99 s TRANSISTOR 2SC4617R
Q604 8-729-927-99 s TRANSISTOR 2SC4617R
1-33
CCU-TX50/V2
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
Q605 8-729-053-44 s TRANSISTOR 2SK880-Y-TE85R
Q606 8-729-927-99 s TRANSISTOR 2SC4617R
Q607 8-729-053-44 s TRANSISTOR 2SK880-Y-TE85R
Q608 8-729-053-44 s TRANSISTOR 2SK880-Y-TE85R
Q609 8-729-927-99 s TRANSISTOR 2SC4617R
Q610 8-729-928-19 s TRANSISTOR 2SA1774R
Q611 8-729-927-99 s TRANSISTOR 2SC4617R
Q612 8-729-928-19 s TRANSISTOR 2SA1774R
Q613 8-729-927-99 s TRANSISTOR 2SC4617R
Q614 8-729-143-13 s TRANSISTOR 2SC4176-B34
Q703 8-729-122-63 s TRANSISTOR 2SA1226-E4
Q704 8-729-230-38 s TRANSISTOR 2SC4215Y
Q705 8-729-143-07 s TRANSISTOR 2SA1610-Y33
Q706 6-550-361-01 s TRANSISTOR 2SK2539-6/7/8-TB
Q707 6-550-361-01 s TRANSISTOR 2SK2539-6/7/8-TB
Q708 8-729-927-99 s TRANSISTOR 2SC4617R
Q803 8-729-122-63 s TRANSISTOR 2SA1226-E4
Q804 8-729-230-38 s TRANSISTOR 2SC4215Y
Q805 6-550-361-01 s TRANSISTOR 2SK2539-6/7/8-TB
Q806 6-550-361-01 s TRANSISTOR 2SK2539-6/7/8-TB
Q807 6-550-361-01 s TRANSISTOR 2SK2539-6/7/8-TB
Q808 8-729-927-99 s TRANSISTOR 2SC4617R
Q809 8-729-143-13 s TRANSISTOR 2SC4176-B34
Q810 8-729-143-07 s TRANSISTOR 2SA1610-Y33
Q902 8-729-053-44 s TRANSISTOR 2SK880-Y-TE85R
Q905 8-729-122-63 s TRANSISTOR 2SA1226-E4
Q906 8-729-230-38 s TRANSISTOR 2SC4215Y
Q907 6-550-361-01 s TRANSISTOR 2SK2539-6/7/8-TB
Q908 6-550-361-01 s TRANSISTOR 2SK2539-6/7/8-TB
Q909 6-550-361-01 s TRANSISTOR 2SK2539-6/7/8-TB
Q910 8-729-143-07 s TRANSISTOR 2SA1610-Y33
Q911 8-729-143-13 s TRANSISTOR 2SC4176-B34
R1 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R2 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R3 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R4 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R5 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R6 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R7 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R8 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R9 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R10 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R11 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R12 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R13 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R14 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R15 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R16 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R17 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R18 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R19 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R20 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R21 1-218-939-11 s RESISTOR, CHIP 68 1/16W (1005)
R22 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R23 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R24 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R25 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R26 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R27 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R28 1-208-647-11 s RESISTOR CHIP 33 1/16W (1005)
R29 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R30 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R31 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R32 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R33 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R34 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R35 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R36 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R37 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R38 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R39 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R40 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R42 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R43 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R44 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R45 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R46 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R47 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R48 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R49 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R50 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R51 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R52 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R53 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R54 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R55 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R56 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R57 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R58 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R59 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R60 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R61 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R62 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R63 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R64 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R65 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R66 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R67 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R68 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R69 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R70 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R71 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R72 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R73 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R74 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R75 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R76 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R77 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R78 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R79 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R80 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R81 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R82 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R83 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R84 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R85 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R86 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
1-34 CCU-TX50/V2
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R87 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R88 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R89 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R90 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R91 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R92 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R101 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R102 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R103 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R104 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R105 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R106 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R107 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R108 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R109 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R110 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R111 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R112 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R113 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R114 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R115 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R116 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R117 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R119 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R121 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R123 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R124 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R125 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R126 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R127 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R128 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R129 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R130 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R132 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R133 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R134 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R135 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R136 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R137 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R138 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R139 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R140 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R141 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R142 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R143 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R144 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R145 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R146 1-208-647-11 s RESISTOR CHIP 33 1/16W (1005)
R147 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R148 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R150 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R152 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R154 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R155 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R156 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R157 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R158 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R159 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R160 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R161 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R163 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R164 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R165 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R166 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R167 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R168 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R169 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R170 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R171 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R172 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R173 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R174 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R175 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R176 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R177 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R178 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R179 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R181 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R183 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R185 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R186 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R187 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R188 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R189 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R190 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R191 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R192 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R194 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R195 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R196 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R197 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R198 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R199 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R200 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R201 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R203 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R204 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R205 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R206 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R207 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R208 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R209 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R210 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R211 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R213 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R215 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R217 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R218 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R219 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R220 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R221 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R222 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R223 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R224 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R225 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R226 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R227 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R228 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
1-35
CCU-TX50/V2
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R229 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R245 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R246 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R247 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R248 1-208-647-11 s RESISTOR CHIP 33 1/16W (1005)
R249 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R250 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R251 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R252 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R253 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R254 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R255 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R256 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R257 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R258 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R259 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R260 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R261 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R262 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R263 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R264 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R265 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R266 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R267 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R268 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R269 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R270 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R271 1-218-985-11 s RESISTOR CHIP 470K 1/16W(1005)
R272 1-202-974-11 s RESISTOR CHIP 3.3M 1/16W(1005)
R273 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R274 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R275 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R276 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R277 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R278 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R290 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R301 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R302 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R303 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R304 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R305 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R306 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R307 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R308 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R309 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R310 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R311 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R312 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R313 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R314 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R315 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R316 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R317 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R318 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R319 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R320 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R321 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R323 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R325 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R326 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R327 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R329 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R330 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R331 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R332 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R334 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R335 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R336 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R337 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R338 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R339 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R340 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R341 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R342 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R343 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R344 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R345 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R346 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R347 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R348 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R349 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R350 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R351 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R352 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R353 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R355 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R357 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R358 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R359 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R361 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R362 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R363 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R364 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R366 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R367 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R368 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R369 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R370 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R371 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R372 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R373 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R374 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R375 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R376 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R377 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R378 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R379 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R380 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R381 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R382 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R383 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R384 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R385 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R387 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R389 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R390 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R391 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R393 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
1-36 CCU-TX50/V2
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R394 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R395 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R396 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R398 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R399 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R400 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R401 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R402 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R403 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R404 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R405 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R406 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R408 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R409 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R410 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R411 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R412 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R413 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R414 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R415 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R416 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R417 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R418 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R419 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R421 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R423 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R424 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R425 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R427 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R428 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R429 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R430 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R431 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R432 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R433 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R434 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R435 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R449 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R450 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R451 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R452 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R453 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R454 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R455 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R456 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R457 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R458 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R459 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R460 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R461 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R462 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R463 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R464 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R465 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R466 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R467 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R468 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R469 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R471 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R472 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R473 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R474 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R475 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R476 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R477 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R478 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R479 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R480 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R481 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R482 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R483 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R484 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R485 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R486 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R487 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R488 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R489 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R490 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R491 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R492 1-218-985-11 s RESISTOR CHIP 470K 1/16W(1005)
R493 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R494 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R495 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R496 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R497 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R498 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R499 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R501 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R502 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R503 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R504 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R505 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R506 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R507 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R508 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R509 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R510 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R511 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R512 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R513 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R514 1-208-955-11 s RESISTOR CHIP 680K
R515 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R516 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R517 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R518 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R519 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R520 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R521 1-208-943-11 s RESISTOR CHIP 220K
R522 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R523 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R524 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R525 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R526 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R527 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R528 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R529 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R530 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R531 1-208-911-11 s RESISTOR, CHIP 10K (1005)
1-37
CCU-TX50/V2
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R532 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R533 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R534 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R535 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R536 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R537 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R538 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R539 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R540 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R541 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R542 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R543 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R544 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R545 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R546 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R547 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R548 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R549 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R550 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R551 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R552 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R553 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R571 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R572 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R573 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R574 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R575 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R576 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R577 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R578 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R579 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R580 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R581 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R582 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R583 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R584 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R585 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R586 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R587 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R588 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R589 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R590 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R601 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R602 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R603 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R604 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R605 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R606 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R607 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R608 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R609 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R610 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R611 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R612 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R613 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R614 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R615 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R616 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R617 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R618 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R619 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R620 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R621 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R622 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R623 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R624 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R625 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R628 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R629 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R630 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R631 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R633 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R635 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R636 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R637 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R638 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R639 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R640 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R641 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R642 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R643 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R644 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R645 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R646 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R647 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R648 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R649 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R650 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R651 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R653 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R654 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R655 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R656 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R657 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R658 1-202-974-11 s RESISTOR CHIP 3.3M 1/16W(1005)
R659 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R660 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R661 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R662 1-208-943-11 s RESISTOR CHIP 220K
R663 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R664 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R665 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R666 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R667 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R668 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R669 1-202-974-11 s RESISTOR CHIP 3.3M 1/16W(1005)
R670 1-208-943-11 s RESISTOR CHIP 220K
R671 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R672 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R673 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R674 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R675 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R676 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R677 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R678 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R679 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R680 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R681 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
1-38 CCU-TX50/V2
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R682 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R683 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R684 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R685 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R686 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R687 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R688 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R689 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R690 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R691 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R692 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R693 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R694 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R695 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R701 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R702 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R703 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R704 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R705 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R706 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R707 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R708 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R709 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R710 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R711 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R712 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R713 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R714 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R715 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R716 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R717 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R718 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R719 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R720 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R721 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R723 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R724 1-208-647-11 s RESISTOR CHIP 33 1/16W (1005)
R725 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R726 1-208-647-11 s RESISTOR CHIP 33 1/16W (1005)
R727 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R728 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R729 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R730 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R731 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R732 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R733 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R734 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R736 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R737 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R740 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R742 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R743 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R744 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R745 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R747 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R748 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R749 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R750 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R751 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R752 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R754 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R755 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R756 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R757 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R758 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R760 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R761 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R762 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R763 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R764 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R765 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R766 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R767 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R768 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R769 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R770 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R772 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R773 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R774 1-208-955-11 s RESISTOR CHIP 680K
R775 1-208-947-11 s RESISTOR CHIP 330K 1/16W(1005)
R776 1-208-939-11 s RESISTOR, CHIP 150K (1005)
R777 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R778 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R779 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R780 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R781 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R782 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R783 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R784 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R785 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R786 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R787 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R788 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R789 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R790 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R791 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R792 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R793 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R794 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R795 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R796 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R797 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R798 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R799 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R801 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R802 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R803 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R804 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R805 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R806 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R807 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R808 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R809 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R810 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R811 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R812 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R813 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R814 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
1-39
CCU-TX50/V2
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R815 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R816 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R817 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R818 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R819 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R820 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R821 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R822 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R823 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R824 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R825 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R826 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R827 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R828 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R829 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R830 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R831 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R832 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R833 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R835 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R838 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R841 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R842 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R843 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R844 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R845 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R846 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R847 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R848 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R849 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R850 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R851 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R853 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R854 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R855 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R856 1-208-939-11 s RESISTOR, CHIP 150K (1005)
R857 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R858 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R859 1-208-947-11 s RESISTOR CHIP 330K 1/16W(1005)
R860 1-208-947-11 s RESISTOR CHIP 330K 1/16W(1005)
R861 1-208-939-11 s RESISTOR, CHIP 150K (1005)
R863 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R864 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R865 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R866 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R867 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R868 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R869 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R870 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R871 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R872 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R874 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R875 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R876 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R877 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R878 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R879 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R880 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R881 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R882 1-208-943-11 s RESISTOR CHIP 220K
R883 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R884 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R885 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R886 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R887 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R888 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R889 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R890 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R891 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R892 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R893 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R894 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R895 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R896 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R897 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R898 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R899 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R900 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R901 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R902 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R903 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R904 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R905 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R906 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R907 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R908 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R909 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R910 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R911 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R912 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R913 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R914 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R915 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R916 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R917 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R918 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R919 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R920 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R921 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R922 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R923 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R924 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R925 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R926 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R927 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R928 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R929 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R930 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R931 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R932 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R933 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R934 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R935 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R937 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R940 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R943 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R944 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R945 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
1-40 CCU-TX50/V2
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R946 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R947 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R948 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R949 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R950 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R951 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R952 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R953 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R955 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R956 1-208-939-11 s RESISTOR, CHIP 150K (1005)
R957 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R958 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R959 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R960 1-208-947-11 s RESISTOR CHIP 330K 1/16W(1005)
R961 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R962 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R964 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R965 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R966 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R967 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R968 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R969 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R970 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R971 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R972 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R973 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R975 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R976 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R977 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R978 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R979 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R980 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R981 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R982 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R983 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R984 1-208-943-11 s RESISTOR CHIP 220K
R985 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R986 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R987 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R988 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R989 1-218-939-11 s RESISTOR, CHIP 68 1/16W (1005)
R990 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R991 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R992 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R993 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R994 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R995 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R996 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R1001 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R1002 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R1710 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R1712 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R1713 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
RV161 1-225-787-21 s RES, ADJ, CERMET 500
RV301 1-225-789-21 s RES, ADJ, CERMET 2K
RV501 1-225-789-21 s RES, ADJ, CERMET 2K
RV502 1-225-795-11 s RESISTOR,ADJ CERMET 50K
RV503 1-225-791-21 s RES, ADJ, CERMET 5K
(DM-140 BOARD)
Ref. No.
or Q'ty Part No. SP Description
RV504 1-225-789-21 s RES, ADJ, CERMET 2K
RV601 1-225-791-21 s RES, ADJ, CERMET 5K
RV602 1-225-793-11 s RES, ADJ, CERMET 20K
RV603 1-225-788-21 s RES, ADJ, CERMET 1K
RV701 1-225-789-21 s RES, ADJ, CERMET 2K
RV702 1-241-262-11 s RESISTOR ADJ 2K (CERMET)
RV801 1-225-789-21 s RES, ADJ, CERMET 2K
RV802 1-241-261-41 s RESISTOR, ADJ, CERMET 1K
RV803 1-225-791-21 s RES, ADJ, CERMET 5K
RV804 1-225-793-11 s RES, ADJ, CERMET 20K
RV805 1-225-789-21 s RES, ADJ, CERMET 2K
RV901 1-225-789-21 s RES, ADJ, CERMET 2K
RV902 1-241-261-41 s RESISTOR, ADJ, CERMET 1K
RV903 1-225-791-21 s RES, ADJ, CERMET 5K
S1 1-572-658-21 s SWITCH,ROTARY
S101 1-571-304-11 s SWITCH, CHIP
S301 1-571-304-11 s SWITCH, CHIP
THP61
!
1-533-817-21 s THERMISTOR
THP62
!
1-533-817-21 s THERMISTOR
TP1 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP101 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP102 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP301 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP302 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP501 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP502 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP503 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP504 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP505 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP601 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP602 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP603 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP701 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP801 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP802 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP803 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP901 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP902 1-535-877-22 s CHIP,CHECKER (TEST POINT)
X601 1-813-406-11 s OSCILLATOR, CRYSTAL
X801 1-795-709-11 s OSCILLATOR, CRYSTAL (VCXO)
1-41
CCU-TX50/V2
-------------
EN-156A BOARD
-------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1081-184-A s MOUNTED CIRCUIT BOARD, EN-156A
4pcs 7-682-947-01 s SCREW +PSW 3X6
C1 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C2 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C3 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C4 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C5 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C6 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C7 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C8 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C9 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C11 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C12 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C13 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C14 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C15 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C16 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C17 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C18 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C19 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C20 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C22 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C23 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C25 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C26 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C27 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C28 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C30 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C31 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C32 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C33 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C34 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C35 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C37 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C40 1-100-055-21 s CAP, CHIP CERAMIC 22MF B 3225
C41 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C42 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C43 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C44 1-131-661-11 s CAPACITOR,ELECT 100MF/10V CHIP
C45 1-131-661-11 s CAPACITOR,ELECT 100MF/10V CHIP
C47 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C48 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C49 1-131-661-11 s CAPACITOR,ELECT 100MF/10V CHIP
C101 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C102 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C103 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C104 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C105 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C108 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C109 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C110 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C111 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C112 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C116 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C117 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C118 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C119 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C120 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C121 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C122 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C123 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C124 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C125 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C126 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C127 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C128 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C129 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C130 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C131 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C132 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C133 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C134 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C135 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C136 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C137 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C138 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C139 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C140 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C141 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C142 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C143 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C144 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C145 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C146 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C147 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C148 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C149 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C150 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C151 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C152 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C153 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C154 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C155 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C156 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C157 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C158 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C159 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C160 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C161 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C162 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C163 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C164 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C165 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C166 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C167 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C168 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C169 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C170 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C171 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C172 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C173 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C174 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C175 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C176 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C177 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C178 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C179 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
1-42 CCU-TX50/V2
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C180 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C181 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C182 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C183 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C184 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C185 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C186 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C187 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C188 1-164-845-11 s CAPACITOR,CERAMIC 5PF/16V(1005
C189 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C190 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C191 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C192 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C301 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C302 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C303 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C304 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C305 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C306 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C307 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C308 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C309 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C310 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C311 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C312 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C313 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C314 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C315 1-127-954-11 s CAPACITOR,CHIP FILM 0.047MF
C316 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C317 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C318 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C319 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C320 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C321 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C322 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C323 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C324 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C325 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C326 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C327 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C328 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C329 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C330 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C331 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C332 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C333 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C334 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C335 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C336 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C337 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C338 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C339 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C340 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C341 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C342 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C343 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C344 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C345 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C346 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C347 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C348 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C349 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C350 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C351 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C352 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C353 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C354 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C355 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C356 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C357 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C358 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C359 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C360 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C361 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C362 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C363 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C364 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C365 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C366 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C367 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C368 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C369 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C370 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C371 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C372 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C373 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C374 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C375 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C376 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C377 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C378 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C379 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C380 1-164-845-11 s CAPACITOR,CERAMIC 5PF/16V(1005
C381 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C382 1-164-845-11 s CAPACITOR,CERAMIC 5PF/16V(1005
C383 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C384 1-164-845-11 s CAPACITOR,CERAMIC 5PF/16V(1005
C385 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C386 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C387 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C388 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C389 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C390 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C391 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C392 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C393 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C394 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C395 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C396 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C397 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C398 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C399 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C400 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C401 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C402 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C403 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C404 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C405 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
1-43
CCU-TX50/V2
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C406 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C407 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C408 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C409 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C410 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C411 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C412 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C413 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C414 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C415 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C416 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C417 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C418 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C419 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C420 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C421 1-164-848-11 s CAPACITOR,CHIP CERAMIC 8PF/50V
C422 1-164-848-11 s CAPACITOR,CHIP CERAMIC 8PF/50V
C423 1-164-848-11 s CAPACITOR,CHIP CERAMIC 8PF/50V
C501 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C502 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C504 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C509 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C510 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C511 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C512 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C513 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C514 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C515 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C516 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C517 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C518 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C519 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C520 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C521 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C522 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C523 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C524 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C525 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C526 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C527 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C528 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C529 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C530 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C531 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C532 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C533 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C534 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C535 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C536 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C537 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C538 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C539 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C540 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C541 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C542 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C543 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C544 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C545 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C546 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C547 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C548 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C549 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C550 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C551 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C552 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C553 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C554 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C555 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C556 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C557 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C558 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C559 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C560 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C561 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C562 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C563 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C564 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C565 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C566 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C567 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C568 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C569 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C570 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C571 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C572 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C573 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C574 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C575 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C576 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C577 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C578 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C579 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C580 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C581 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C582 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C583 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C584 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C585 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C586 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C587 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C588 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C589 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C590 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C591 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C592 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C593 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C735 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C736 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C737 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C739 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C744 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C745 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C746 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C747 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C748 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C749 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C750 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C751 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
1-44 CCU-TX50/V2
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C752 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C753 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C754 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C755 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
CN701 1-764-093-21 o PIN, CONNECTOR (PC BOARD) 8P
D1 8-719-017-03 s DIODE 02DZ4.7-TPH3
D2 8-719-017-03 s DIODE 02DZ4.7-TPH3
D4 8-719-058-14 s LED CL-220PG-C-TS
D101 8-719-058-14 s LED CL-220PG-C-TS
D102 8-719-058-14 s LED CL-220PG-C-TS
D103 8-719-801-78 s DIODE 1SS184
D104 8-719-820-41 s DIODE 1SS302
D105 8-719-820-41 s DIODE 1SS302
D106 8-719-820-41 s DIODE 1SS302
D301 8-719-820-41 s DIODE 1SS302
D302 8-719-801-78 s DIODE 1SS184
D701 8-719-947-01 s DIODE FMP1
D702 8-719-947-01 s DIODE FMP1
D703 8-719-947-01 s DIODE FMP1
D704 8-719-947-01 s DIODE FMP1
D705 8-719-947-01 s DIODE FMP1
D706 8-719-947-01 s DIODE FMP1
E1 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E2 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E3 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E4 1-535-877-22 s CHIP,CHECKER (TEST POINT)
FB501 1-469-094-11 s FERRITE, EMI (SMD)
FB502 1-469-094-11 s FERRITE, EMI (SMD)
FB503 1-469-094-11 s FERRITE, EMI (SMD)
FB504 1-469-094-11 s FERRITE, EMI (SMD)
FB701 1-469-094-11 s FERRITE, EMI (SMD)
FB703 1-469-094-11 s FERRITE, EMI (SMD)
FL101 1-813-437-11 s FILTER, LOW PASS (10MHZ)
FL102 1-813-437-11 s FILTER, LOW PASS (10MHZ)
FL103 1-813-437-11 s FILTER, LOW PASS (10MHZ)
IC2 8-759-185-42 s IC LM4040AIM3-2.5
IC3 8-759-327-01 s IC NJM062V-TE2
IC4 8-759-327-01 s IC NJM062V-TE2
IC5 8-759-085-67 s IC LM339NS
IC102 6-700-804-01 s IC SN74LVC574APWR
IC103 6-700-804-01 s IC SN74LVC574APWR
IC104 6-700-804-01 s IC SN74LVC574APWR
IC105 6-700-804-01 s IC SN74LVC574APWR
IC106 8-759-712-68 s IC EP1K50QC208-3
IC107 8-752-391-99 s IC CXD2315Q-T4
IC108 8-752-391-99 s IC CXD2315Q-T4
IC109 8-752-391-99 s IC CXD2315Q-T4
IC110 8-759-523-02 s IC TC74HC4053AFT(EL)
IC111 8-759-523-02 s IC TC74HC4053AFT(EL)
IC112 8-759-561-46 s IC AD8014ART-REEL7
IC113 8-759-561-46 s IC AD8014ART-REEL7
IC114 8-759-561-46 s IC AD8014ART-REEL7
IC117 8-759-662-38 s IC 74VHCT08AMTCX
IC118 8-759-662-37 s IC 74VHCT00AMTCX
IC119 8-759-679-53 s IC SN74LVC244APWR
IC120 6-701-995-01 s IC SN74LVCU04APWR
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
IC121 6-701-995-01 s IC SN74LVCU04APWR
IC301 8-752-334-64 s IC CXD1171M
IC302 8-759-524-07 s IC TC74VHC138FT(EL)
IC303 8-759-533-95 s IC UPD6466GS-515
IC304 8-759-533-95 s IC UPD6466GS-515
IC305 6-706-484-01 s IC TC7SH04FU(T5RSOYJF)
IC306 8-752-335-47 s IC CXD1216M
IC308 6-706-484-01 s IC TC7SH04FU(T5RSOYJF)
IC309 8-759-745-64 s IC NJM4560M
IC310 8-759-662-38 s IC 74VHCT08AMTCX
IC311 8-752-337-04 s IC CXD1176Q
IC312 6-700-804-01 s IC SN74LVC574APWR
IC313 8-759-679-53 s IC SN74LVC244APWR
IC314 8-752-391-99 s IC CXD2315Q-T4
IC315 8-752-391-99 s IC CXD2315Q-T4
IC316 8-752-391-99 s IC CXD2315Q-T4
IC317 8-759-561-46 s IC AD8014ART-REEL7
IC318 8-759-561-46 s IC AD8014ART-REEL7
IC319 8-759-561-46 s IC AD8014ART-REEL7
IC320 8-759-561-46 s IC AD8014ART-REEL7
IC322 8-759-970-59 s IC TLC272CPS
IC323 6-706-491-01 s IC TC7SH86FU(T5RSOYJF)
IC324 6-706-478-01 s IC TC7SET08FU(T5RSOJF)
IC325 8-759-531-92 s IC TC7WH04FU(TE12R)
IC326 6-707-556-01 s IC CXD9184R
IC502 8-759-712-68 s IC EP1K50QC208-3
IC503 8-752-078-32 s IC CXB1341R
IC504 8-752-078-32 s IC CXB1341R
IC505 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC506 8-759-471-96 s IC 74VHC08MTCX
IC508 8-759-585-54 s IC SN74LVC240APWR
IC509 6-707-557-01 s IC CXD9186R
IC702 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC703 8-759-471-96 s IC 74VHC08MTCX
IC706 8-759-679-53 s IC SN74LVC244APWR
IC708 6-700-387-01 s IC EPC2LC20-TP
IC713 6-706-488-01 s IC TC7SH14FU(T5RSOYJF)
IC714 8-759-544-17 s IC LM75CIMMX-3
IC715 6-702-481-01 s IC PCA9555DB-118
IC716 8-759-685-33 s IC BU2500FV-E2
IC717 8-759-363-26 s IC RN5VD28AA-TL
IC718 8-759-471-96 s IC 74VHC08MTCX
IC720 8-759-662-38 s IC 74VHCT08AMTCX
IC721 8-759-472-04 s IC 74VHC74MTCX
IC722 8-759-471-91 s IC 74VHC04MTCX
IC723 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
L1 1-414-398-11 s INDUCTOR (SMD) 10UH
L2 1-414-398-11 s INDUCTOR (SMD) 10UH
L6 1-414-398-11 s INDUCTOR (SMD) 10UH
L7 1-416-344-11 s COIL, CHOKE 10UH
L8 1-416-344-11 s COIL, CHOKE 10UH
L101 1-414-398-11 s INDUCTOR (SMD) 10UH
L102 1-414-398-11 s INDUCTOR (SMD) 10UH
L103 1-414-398-11 s INDUCTOR (SMD) 10UH
L104 1-414-398-11 s INDUCTOR (SMD) 10UH
L105 1-414-398-11 s INDUCTOR (SMD) 10UH
L106 1-414-398-11 s INDUCTOR (SMD) 10UH
L107 1-414-398-11 s INDUCTOR (SMD) 10UH
1-45
CCU-TX50/V2
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
L108 1-414-398-11 s INDUCTOR (SMD) 10UH
L109 1-412-955-11 s INDUCTOR 22UH (2520)
L110 1-414-398-11 s INDUCTOR (SMD) 10UH
L111 1-414-398-11 s INDUCTOR (SMD) 10UH
L112 1-414-398-11 s INDUCTOR (SMD) 10UH
L113 1-414-398-11 s INDUCTOR (SMD) 10UH
L114 1-414-398-11 s INDUCTOR (SMD) 10UH
L115 1-414-398-11 s INDUCTOR (SMD) 10UH
L116 1-414-398-11 s INDUCTOR (SMD) 10UH
L117 1-414-398-11 s INDUCTOR (SMD) 10UH
L301 1-414-398-11 s INDUCTOR (SMD) 10UH
L302 1-414-398-11 s INDUCTOR (SMD) 10UH
L303 1-412-947-11 s INDUCTOR 4.7UH (2520)
L304 1-414-398-11 s INDUCTOR (SMD) 10UH
L305 1-414-398-11 s INDUCTOR (SMD) 10UH
L306 1-414-398-11 s INDUCTOR (SMD) 10UH
L307 1-414-398-11 s INDUCTOR (SMD) 10UH
L308 1-414-398-11 s INDUCTOR (SMD) 10UH
L309 1-414-398-11 s INDUCTOR (SMD) 10UH
L310 1-412-955-11 s INDUCTOR 22UH (2520)
L311 1-414-398-11 s INDUCTOR (SMD) 10UH
L312 1-414-398-11 s INDUCTOR (SMD) 10UH
L313 1-414-398-11 s INDUCTOR (SMD) 10UH
L314 1-414-398-11 s INDUCTOR (SMD) 10UH
L315 1-414-398-11 s INDUCTOR (SMD) 10UH
L316 1-414-398-11 s INDUCTOR (SMD) 10UH
L317 1-414-398-11 s INDUCTOR (SMD) 10UH
L318 1-414-398-11 s INDUCTOR (SMD) 10UH
L319 1-412-947-11 s INDUCTOR 4.7UH (2520)
L320 1-412-947-11 s INDUCTOR 4.7UH (2520)
L321 1-412-947-11 s INDUCTOR 4.7UH (2520)
L322 1-414-398-11 s INDUCTOR (SMD) 10UH
L323 1-414-398-11 s INDUCTOR (SMD) 10UH
L324 1-414-398-11 s INDUCTOR (SMD) 10UH
L325 1-414-398-11 s INDUCTOR (SMD) 10UH
L326 1-414-398-11 s INDUCTOR (SMD) 10UH
L327 1-414-398-11 s INDUCTOR (SMD) 10UH
L501 1-414-398-11 s INDUCTOR (SMD) 10UH
L502 1-414-398-11 s INDUCTOR (SMD) 10UH
L503 1-414-398-11 s INDUCTOR (SMD) 10UH
L504 1-414-398-11 s INDUCTOR (SMD) 10UH
Q1 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q2 8-729-807-51 s TRANSISTOR 2SD1623-S
Q3 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q4 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q5 8-729-927-99 s TRANSISTOR 2SC4617R
Q6 8-729-927-99 s TRANSISTOR 2SC4617R
Q8 8-729-927-99 s TRANSISTOR 2SC4617R
Q101 8-729-928-19 s TRANSISTOR 2SA1774R
Q102 8-729-807-51 s TRANSISTOR 2SD1623-S
Q103 8-729-927-99 s TRANSISTOR 2SC4617R
Q104 8-729-927-99 s TRANSISTOR 2SC4617R
Q105 8-729-927-99 s TRANSISTOR 2SC4617R
Q106 8-729-928-19 s TRANSISTOR 2SA1774R
Q301 8-729-928-19 s TRANSISTOR 2SA1774R
Q302 8-729-927-99 s TRANSISTOR 2SC4617R
Q303 8-729-928-19 s TRANSISTOR 2SA1774R
Q501 8-729-928-27 s TRANSISTOR DTA144EE
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
Q502 8-729-928-81 s TRANSISTOR DTC144EE
Q503 8-729-041-23 s TRANSISTOR NDS356AP
Q504 8-729-928-27 s TRANSISTOR DTA144EE
Q505 8-729-928-81 s TRANSISTOR DTC144EE
Q506 8-729-041-23 s TRANSISTOR NDS356AP
Q701 8-729-928-19 s TRANSISTOR 2SA1774R
Q702 8-729-928-19 s TRANSISTOR 2SA1774R
Q703 8-729-927-99 s TRANSISTOR 2SC4617R
R5 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R6 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R7 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R8 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R9 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R10 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R11 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R12 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R13 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R14 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R17 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R18 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R19 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R20 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R21 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R26 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R27 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R28 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R29 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R30 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R31 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R32 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R33 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R34 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R35 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R36 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R37 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R38 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R39 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R40 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R41 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R42 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R43 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R44 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R45 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R46 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R47 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R49 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R50 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R51 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R52 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R53 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R54 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R55 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R101 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R102 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R103 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R104 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R105 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R106 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
1-46 CCU-TX50/V2
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R107 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R108 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R109 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
R110 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R112 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R113 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R114 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R115 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R117 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R118 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R119 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R120 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R121 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R122 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R123 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R124 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R125 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R126 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R127 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R128 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R129 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R130 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R131 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R132 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R133 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R134 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R135 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R136 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R137 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R138 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R139 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R140 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R141 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R142 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R143 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R144 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R145 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R146 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R147 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R148 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R149 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R150 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R151 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R152 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R153 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R154 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R155 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R156 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R157 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R158 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R161 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R162 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R163 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R164 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R165 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R166 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R167 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R168 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R169 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R170 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R171 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R172 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R173 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R174 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R175 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R176 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R177 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R178 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R179 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R180 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R181 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R182 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R183 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R184 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R185 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R186 1-208-939-11 s RESISTOR, CHIP 150K (1005)
R187 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R188 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R189 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R190 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R191 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R192 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R193 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R194 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R195 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R196 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R197 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R198 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R199 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R200 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R201 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R202 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R203 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R204 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R205 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R206 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R207 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R208 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R209 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R210 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R211 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R212 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R213 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R214 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R215 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R216 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R217 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R218 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R219 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R220 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R221 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R222 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R223 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R224 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R225 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R226 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R227 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R228 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
1-47
CCU-TX50/V2
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R229 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R230 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R231 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R232 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R233 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R234 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R235 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R236 1-218-939-11 s RESISTOR, CHIP 68 1/16W (1005)
R237 1-218-939-11 s RESISTOR, CHIP 68 1/16W (1005)
R238 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R239 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R240 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R241 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R242 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R243 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R244 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R245 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R246 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R247 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R248 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R249 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R250 1-218-939-11 s RESISTOR, CHIP 68 1/16W (1005)
R251 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R252 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R253 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R254 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R255 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R256 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R257 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R258 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R259 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R260 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R261 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R262 1-218-957-11 s RESISTOR,CHIP 2.2K 1/16W(1005)
R263 1-218-957-11 s RESISTOR,CHIP 2.2K 1/16W(1005)
R264 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R265 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R266 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R267 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R268 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R269 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R270 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R271 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R272 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R273 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R274 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R275 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R276 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R277 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R278 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R279 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R280 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R281 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R282 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R283 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R284 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R285 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R301 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R302 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R303 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R304 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R305 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R306 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R308 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R309 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R310 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R311 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R312 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R313 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R314 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R315 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R316 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R317 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R318 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R319 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R320 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R321 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R322 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R323 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R324 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R325 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R326 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R327 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R328 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R329 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R330 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R332 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R333 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R334 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R335 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R336 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R337 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R338 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R339 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R340 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R343 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R344 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R345 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R346 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R349 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R350 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R351 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R352 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R353 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R354 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R355 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R356 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R357 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R358 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R359 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R360 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R361 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R362 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R363 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R364 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R365 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R366 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R367 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
1-48 CCU-TX50/V2
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R368 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R369 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R370 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R371 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R372 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R373 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R374 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R375 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R376 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R377 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R378 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R379 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R380 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R381 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R382 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R383 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R384 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R385 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R386 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R387 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R388 1-218-953-11 s RESISTOR, CHIP 1K 1/16W
R389 1-218-953-11 s RESISTOR, CHIP 1K 1/16W
R394 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R395 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R396 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R397 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R398 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R399 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R400 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R401 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R402 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R403 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R404 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R405 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R406 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R407 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R408 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R409 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R410 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R411 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R412 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R413 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R414 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R415 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R416 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R417 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R418 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R419 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R420 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R421 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R422 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R423 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R424 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R425 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R426 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R427 1-208-943-11 s RESISTOR CHIP 220K
R428 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R429 1-208-943-11 s RESISTOR CHIP 220K
R430 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R431 1-208-943-11 s RESISTOR CHIP 220K
R432 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R433 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R434 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R435 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R436 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R437 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R438 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R439 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R440 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R441 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R442 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R443 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R444 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R445 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R446 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R447 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R448 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R449 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R450 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R451 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R452 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R453 1-218-939-11 s RESISTOR, CHIP 68 1/16W (1005)
R454 1-218-939-11 s RESISTOR, CHIP 68 1/16W (1005)
R455 1-218-939-11 s RESISTOR, CHIP 68 1/16W (1005)
R456 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R457 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R458 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R459 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R460 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R461 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R462 1-220-874-11 s RES, CHIP 15 (1005)
R463 1-220-874-11 s RES, CHIP 15 (1005)
R464 1-220-874-11 s RES, CHIP 15 (1005)
R465 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R466 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R467 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R468 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R469 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R470 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R471 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R472 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R473 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R474 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R475 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R476 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R477 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R478 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R482 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R483 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R484 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R485 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R486 1-218-953-11 s RESISTOR, CHIP 1K 1/16W
R487 1-218-953-11 s RESISTOR, CHIP 1K 1/16W
R501 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R502 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R503 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R504 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R505 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
1-49
CCU-TX50/V2
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R506 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R508 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R509 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R510 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R522 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R524 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R526 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R529 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R531 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R536 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R537 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R538 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R539 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R540 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R541 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R542 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R543 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R544 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R545 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R546 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R549 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R550 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R551 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R552 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R553 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R554 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R555 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R556 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R557 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R558 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R559 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R560 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R561 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R562 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R563 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R564 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R566 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R567 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R568 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R569 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R571 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R572 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R573 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R574 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R575 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R576 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R577 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R578 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R579 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R580 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R581 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R582 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R583 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R584 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R585 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R586 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R587 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R588 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R589 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R590 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R591 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R592 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R593 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R594 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R595 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R596 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R597 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R598 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R603 1-218-965-11 s RESISTOR, CHIP 10K 1/16W
R605 1-218-965-11 s RESISTOR, CHIP 10K 1/16W
R607 1-218-965-11 s RESISTOR, CHIP 10K 1/16W
R608 1-218-965-11 s RESISTOR, CHIP 10K 1/16W
R611 1-218-965-11 s RESISTOR, CHIP 10K 1/16W
R612 1-218-965-11 s RESISTOR, CHIP 10K 1/16W
R615 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R616 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R617 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R618 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R619 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R620 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R621 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R622 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R623 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R624 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R625 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R626 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R627 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R701 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R702 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R703 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R704 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R705 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R709 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R711 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R713 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R715 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R717 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R720 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R722 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R723 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R724 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R725 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R728 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R729 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R730 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R732 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R733 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R735 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R737 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R738 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R739 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R740 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R741 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R742 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R743 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R744 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R745 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R746 1-208-935-11 s RESISTOR, CHIP 100K (1005)
1-50 CCU-TX50/V2
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R747 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R748 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R749 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R750 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R752 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R753 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R754 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R755 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R756 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R757 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
RB101 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB102 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB103 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB104 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB105 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB106 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB107 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB108 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB109 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB110 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB111 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB112 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB113 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB114 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB115 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB116 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB117 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB118 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB119 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB120 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB121 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB122 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB123 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB124 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB125 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB301 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB302 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB303 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB304 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB305 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB306 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB307 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB308 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB310 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB311 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB312 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB313 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB315 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB316 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB317 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB318 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB319 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB320 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB321 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB322 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB323 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB324 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB501 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB502 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
RB503 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB504 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB505 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB506 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB507 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB508 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB509 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB510 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB511 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB512 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB513 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB514 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB515 1-233-577-11 s RESISTOR, CHIP NETWORK 470
RB516 1-233-577-11 s RESISTOR, CHIP NETWORK 470
RB517 1-233-577-11 s RESISTOR, CHIP NETWORK 470
RB518 1-233-577-11 s RESISTOR, CHIP NETWORK 470
RB519 1-233-577-11 s RESISTOR, CHIP NETWORK 470
RB520 1-233-577-11 s RESISTOR, CHIP NETWORK 470
RB703 1-233-576-11 s RESISTOR,CHIP NETWORK 100
RB705 1-236-908-11 s RESISTOR,NETWORK 10K (3216)
RB706 1-236-908-11 s RESISTOR,NETWORK 10K (3216)
RV101 1-225-792-21 s RES, ADJ, CERMET 10K
RV102 1-225-791-21 s RES, ADJ, CERMET 5K
RV103 1-225-791-21 s RES, ADJ, CERMET 5K
RV104 1-225-787-21 s RES, ADJ, CERMET 500
RV105 1-225-787-21 s RES, ADJ, CERMET 500
RV106 1-225-787-21 s RES, ADJ, CERMET 500
RV301 1-225-793-11 s RES, ADJ, CERMET 20K
RV302 1-225-792-21 s RES, ADJ, CERMET 10K
RV303 1-225-787-21 s RES, ADJ, CERMET 500
RV304 1-225-787-21 s RES, ADJ, CERMET 500
RV305 1-225-787-21 s RES, ADJ, CERMET 500
RV501 1-225-788-21 s RES, ADJ, CERMET 1K
RV502 1-225-788-21 s RES, ADJ, CERMET 1K
S301 1-570-711-11 s SWITCH,SLIDE
S701 1-692-270-41 s SWITCH, SLIDE
S702 1-692-270-41 s SWITCH, SLIDE
S703 1-692-270-41 s SWITCH, SLIDE
S704 1-692-270-41 s SWITCH, SLIDE
S705 1-762-120-11 s SWITCH, TOGGLE
S706 1-762-120-11 s SWITCH, TOGGLE
S707 1-570-711-11 s SWITCH,SLIDE
S708 1-570-711-11 s SWITCH,SLIDE
S709 1-570-711-11 s SWITCH,SLIDE
THP1
!
1-803-615-11 s THERMISTOR, POSITIVE
THP2
!
1-803-615-11 s THERMISTOR, POSITIVE
THP3 1-533-817-21 s THERMISTOR
THP4 1-533-817-21 s THERMISTOR
THP5 1-533-817-21 s THERMISTOR
THP7 1-533-817-21 s THERMISTOR
THP8 1-533-817-21 s THERMISTOR
TP101 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP102 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP103 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP104 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP301 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP302 1-535-877-22 s CHIP,CHECKER (TEST POINT)
1-51
CCU-TX50/V2
(EN-156A BOARD)
Ref. No.
or Q'ty Part No. SP Description
TP303 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP304 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP305 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP306 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP501 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP502 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP503 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP504 1-535-877-22 s CHIP,CHECKER (TEST POINT)
------------
IO-214 BOARD
------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1080-967-A s MOUNTED CIRCUIT BOARD, IO-214
3pcs 1-562-210-11 s CONTACT,CONNECTOR
1pc 1-562-286-11 o HOUSING, CONNECTOR 5P
C1
!
1-113-925-11 s CAPACITOR,CERAMIC 10000PF/250V
C2
!
1-113-925-11 s CAPACITOR,CERAMIC 10000PF/250V
C3
!
1-136-206-11 s CAPACITOR,FILM 0.033MF/630V
C4
!
1-136-202-11 s CAPACITOR,FILM 0.33MF/400V
CN1 1-691-291-11 o PIN,CONNECTOR(PC BOARD)5P
CN2 1-750-880-11 s RECEPTACLE, COAXIAL CONNECTOR
L1 1-412-961-11 s INDUCTOR (SMALL TYPE)68UH
L2 1-411-968-11 s COIL, CHOKE 33UH
L3 1-416-831-11 s COIL, CHOKE
L4 1-416-831-11 s COIL, CHOKE
L5 1-416-831-11 s COIL, CHOKE
L6 1-416-831-11 s COIL, CHOKE
------------
IV-57A BOARD
------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1081-185-A s MOUNTED CIRCUIT BOARD, IV-57A
4pcs 7-682-947-01 s SCREW +PSW 3X6
C1 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C2 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C3 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C4 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C5 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C6 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C7 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C8 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C9 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C12 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C13 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C14 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C15 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C16 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C17 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C18 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C21 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C22 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C23 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C24 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C26 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C27 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C28 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C29 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C30 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C31 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C33 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C36 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C37 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C38 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C39 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C40 1-131-661-11 s CAPACITOR,ELECT 100MF/10V CHIP
C41 1-131-661-11 s CAPACITOR,ELECT 100MF/10V CHIP
C43 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C44 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C45 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C101 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C102 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C103 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C104 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C111 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C112 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C113 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C114 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C115 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C116 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C117 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C118 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C120 1-126-394-11 s CAPACITOR,ELECT 10MF/16V(CHIP)
C121 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C122 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C123 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C124 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C125 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C126 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C127 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
1-52 CCU-TX50/V2
(IV-57A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C128 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C129 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C130 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C131 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C132 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C133 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C134 1-165-884-91 s CAPACITOR, CERAMIC 2.2MF(1608)
C135 1-165-884-91 s CAPACITOR, CERAMIC 2.2MF(1608)
C136 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C137 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C139 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C140 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C141 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C144 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C145 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C146 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C147 1-165-884-91 s CAPACITOR, CERAMIC 2.2MF(1608)
C148 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C149 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C150 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C151 1-165-884-91 s CAPACITOR, CERAMIC 2.2MF(1608)
C155 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C156 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C157 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C158 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C159 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C160 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C161 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C162 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C163 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C164 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C165 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C166 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C167 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C168 1-165-884-91 s CAPACITOR, CERAMIC 2.2MF(1608)
C169 1-165-884-91 s CAPACITOR, CERAMIC 2.2MF(1608)
C170 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C171 1-165-884-91 s CAPACITOR, CERAMIC 2.2MF(1608)
C172 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C173 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C174 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C175 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C176 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C177 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C178 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C179 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C180 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C181 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C182 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C183 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C184 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C185 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C186 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C187 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C188 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C190 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C191 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C192 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C193 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
(IV-57A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C195 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C196 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C197 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C198 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C199 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C200 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C201 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C202 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C203 1-165-884-91 s CAPACITOR, CERAMIC 2.2MF(1608)
C204 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C205 1-165-884-91 s CAPACITOR, CERAMIC 2.2MF(1608)
C206 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C207 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C209 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C300 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C301 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C302 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C303 1-126-391-11 s CAPACITOR ELECT 47MF/6.3V(105)
C304 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C305 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C306 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C307 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C317 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C319 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C322 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C323 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C324 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C327 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C331 1-100-352-91 s CAP, CHIP CERAMIC 1MF B (1608)
C338 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C339 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C344 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C345 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C346 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C348 1-127-956-11 s CAPACITOR,CHIP FILM 0.1MF
C349 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C350 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C351 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C352 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C353 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C354 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C355 1-127-956-11 s CAPACITOR,CHIP FILM 0.1MF
C356 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C357 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C358 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C359 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C360 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C361 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C362 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C363 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C364 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C365 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C366 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C367 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C368 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C369 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C370 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C371 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C372 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
1-53
CCU-TX50/V2
(IV-57A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C373 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C374 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C375 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C376 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C377 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C378 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C379 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C380 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C381 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C382 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C383 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C384 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C385 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C386 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C387 1-164-845-11 s CAPACITOR,CERAMIC 5PF/16V(1005
C388 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C389 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C435 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C436 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C437 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C444 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C445 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C446 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C447 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
CN401 1-764-093-21 o PIN, CONNECTOR (PC BOARD) 8P
D1 8-719-017-03 s DIODE 02DZ4.7-TPH3
D2 8-719-017-03 s DIODE 02DZ4.7-TPH3
D3 8-719-991-00 s DIODE DAP222
D4 8-719-058-14 s LED CL-220PG-C-TS
D300 8-719-801-78 s DIODE 1SS184
D301 8-719-801-78 s DIODE 1SS184
D953 8-719-036-94 s DIODE RD5.6SB-T1
E1 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E2 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E3 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E4 1-535-877-22 s CHIP,CHECKER (TEST POINT)
FB300 1-412-363-11 s FERRITE, EMI (SMD)
FB301 1-412-363-11 s FERRITE, EMI (SMD)
FB302 1-412-363-11 s FERRITE, EMI (SMD)
FB303 1-412-363-11 s FERRITE, EMI (SMD)
FB304 1-412-363-11 s FERRITE, EMI (SMD)
FB305 1-412-363-11 s FERRITE, EMI (SMD)
FL101 1-813-437-11 s FILTER, LOW PASS (10MHZ)
FL102 1-813-437-11 s FILTER, LOW PASS (10MHZ)
FL103 1-813-437-11 s FILTER, LOW PASS (10MHZ)
IC3 8-759-327-01 s IC NJM062V-TE2
IC4 8-759-327-01 s IC NJM062V-TE2
IC102 8-759-327-01 s IC NJM062V-TE2
IC103 6-702-481-01 s IC PCA9555DB-118
IC104 6-702-481-01 s IC PCA9555DB-118
IC105 8-759-491-51 s IC TC74VHCT245AFT(EL)
IC106 8-759-685-33 s IC BU2500FV-E2
IC107 6-700-804-01 s IC SN74LVC574APWR
IC108 8-759-561-46 s IC AD8014ART-REEL7
IC109 8-759-561-46 s IC AD8014ART-REEL7
IC110 8-759-561-46 s IC AD8014ART-REEL7
(IV-57A BOARD)
Ref. No.
or Q'ty Part No. SP Description
IC111 8-759-561-46 s IC AD8014ART-REEL7
IC112 8-759-082-61 s IC TC4W53FU
IC113 8-759-082-61 s IC TC4W53FU
IC114 8-759-082-61 s IC TC4W53FU
IC115 8-759-561-46 s IC AD8014ART-REEL7
IC116 8-759-561-46 s IC AD8014ART-REEL7
IC117 8-759-686-89 s IC AD9203ARU-RL7
IC118 8-759-686-89 s IC AD9203ARU-RL7
IC119 8-759-686-89 s IC AD9203ARU-RL7
IC120 6-700-804-01 s IC SN74LVC574APWR
IC121 6-700-804-01 s IC SN74LVC574APWR
IC122 6-700-804-01 s IC SN74LVC574APWR
IC123 8-759-327-01 s IC NJM062V-TE2
IC124 8-759-327-01 s IC NJM062V-TE2
IC125 8-759-327-01 s IC NJM062V-TE2
IC127 6-706-489-01 s IC TC7SH32FU(T5RSOYJF)
IC128 6-701-995-01 s IC SN74LVCU04APWR
IC129 6-700-804-01 s IC SN74LVC574APWR
IC130 8-759-669-69 s IC TLC7733IPWR-12
IC131 6-706-484-01 s IC TC7SH04FU(T5RSOYJF)
IC132 8-759-592-47 s IC TC7SZ08FU(TE85R)
IC301 8-759-344-12 s IC GS4981CTA
IC302 8-759-344-12 s IC GS4981CTA
IC303 8-759-485-24 s IC MC74HC4046ADT (R2)
IC304 8-759-472-43 s IC 74VHC245MTCX
IC305 8-759-471-96 s IC 74VHC08MTCX
IC306 6-700-387-01 s IC EPC2LC20-TP
IC307 8-759-712-68 s IC EP1K50QC208-3
IC308 6-705-983-01 s IC IS42S32200B-6TL-TR
IC309 8-759-970-59 s IC TLC272CPS
IC310 8-759-970-59 s IC TLC272CPS
IC402 8-759-472-43 s IC 74VHC245MTCX
IC409 8-759-561-46 s IC AD8014ART-REEL7
IC413 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
L1 1-416-344-11 s COIL, CHOKE 10UH
L2 1-416-344-11 s COIL, CHOKE 10UH
L6 1-414-398-11 s INDUCTOR (SMD) 10UH
L7 1-414-398-11 s INDUCTOR (SMD) 10UH
L8 1-416-344-11 s COIL, CHOKE 10UH
L9 1-416-344-11 s COIL, CHOKE 10UH
L101 1-414-398-11 s INDUCTOR (SMD) 10UH
L102 1-414-398-11 s INDUCTOR (SMD) 10UH
L103 1-414-398-11 s INDUCTOR (SMD) 10UH
L104 1-414-398-11 s INDUCTOR (SMD) 10UH
L105 1-414-398-11 s INDUCTOR (SMD) 10UH
L106 1-414-398-11 s INDUCTOR (SMD) 10UH
L300 1-414-398-11 s INDUCTOR (SMD) 10UH
L301 1-414-398-11 s INDUCTOR (SMD) 10UH
L302 1-414-398-11 s INDUCTOR (SMD) 10UH
L303 1-414-398-11 s INDUCTOR (SMD) 10UH
L308 1-414-398-11 s INDUCTOR (SMD) 10UH
L309 1-414-398-11 s INDUCTOR (SMD) 10UH
L401 1-414-398-11 s INDUCTOR (SMD) 10UH
L402 1-414-398-11 s INDUCTOR (SMD) 10UH
Q1 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q2 8-729-807-51 s TRANSISTOR 2SD1623-S
Q3 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q4 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q5 8-729-927-99 s TRANSISTOR 2SC4617R
1-54 CCU-TX50/V2
(IV-57A BOARD)
Ref. No.
or Q'ty Part No. SP Description
Q6 8-729-927-99 s TRANSISTOR 2SC4617R
Q7 8-729-928-19 s TRANSISTOR 2SA1774R
Q8 8-729-927-99 s TRANSISTOR 2SC4617R
Q10 8-729-927-99 s TRANSISTOR 2SC4617R
Q101 8-729-928-19 s TRANSISTOR 2SA1774R
Q102 8-729-807-51 s TRANSISTOR 2SD1623-S
Q103 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q104 8-729-927-99 s TRANSISTOR 2SC4617R
Q300 8-729-927-99 s TRANSISTOR 2SC4617R
Q301 8-729-927-99 s TRANSISTOR 2SC4617R
Q302 8-729-928-19 s TRANSISTOR 2SA1774R
Q303 8-729-928-19 s TRANSISTOR 2SA1774R
Q403 8-729-927-99 s TRANSISTOR 2SC4617R
R8 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R9 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R10 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R11 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R12 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R13 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R17 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R18 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R19 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R20 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R24 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R25 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R27 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R28 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R29 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R30 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R31 1-218-965-11 s RESISTOR, CHIP 10K 1/16W
R32 1-218-973-11 s RESISTOR,CHIP 47K 1/16W (1005)
R33 1-218-973-11 s RESISTOR,CHIP 47K 1/16W (1005)
R34 1-218-969-11 s RESISTOR,CHIP 22K 1/16W (1005)
R35 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R36 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R37 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R38 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R39 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R41 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R42 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R43 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R44 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R45 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R46 1-218-969-11 s RESISTOR,CHIP 22K 1/16W (1005)
R47 1-218-957-11 s RESISTOR,CHIP 2.2K 1/16W(1005)
R50 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R51 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R52 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R53 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R54 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R55 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R56 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R101 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R102 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R103 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R104 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R105 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R106 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
(IV-57A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R107 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R108 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R109 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R110 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R111 1-218-957-11 s RESISTOR,CHIP 2.2K 1/16W(1005)
R112 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R113 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R114 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R115 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R116 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R118 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R119 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R120 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R121 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R122 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R125 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R126 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R127 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R128 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R129 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R130 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R131 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R132 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R133 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R134 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R135 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R136 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R137 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R138 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R139 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R140 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R141 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R142 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R143 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R144 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R145 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R146 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R147 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R148 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R149 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R150 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R152 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R153 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R154 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R155 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R156 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R157 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R158 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R159 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R160 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R161 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R162 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R163 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R164 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R165 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R166 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R167 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R168 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R169 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
1-55
CCU-TX50/V2
(IV-57A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R170 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R171 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R172 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R173 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R174 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R175 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R176 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R177 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R178 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R179 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R180 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R181 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R182 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R184 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R185 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R186 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R187 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R188 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R189 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R190 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R193 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R194 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R195 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R196 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R197 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R198 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R199 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R200 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R202 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R203 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R204 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R205 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R206 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R207 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R208 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R209 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R210 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R211 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R212 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R213 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R214 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R215 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R216 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R217 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R218 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R219 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R220 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R221 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R225 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R226 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R227 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R228 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R229 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R230 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R231 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R232 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R233 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R234 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R235 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
(IV-57A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R236 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R238 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R239 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R240 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R241 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R242 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R243 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R244 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R246 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R247 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R248 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R249 1-218-941-81 s RESISTOR,CHIP 100,1/16W (1005)
R250 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R251 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R252 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R253 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R254 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R258 1-218-953-11 s RESISTOR, CHIP 1K 1/16W
R260 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R261 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R262 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R265 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R266 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R268 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R269 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R270 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R272 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R300 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R301 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R302 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R303 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R306 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R308 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R309 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R310 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R314 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R315 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R319 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R320 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R325 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R326 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R327 1-208-955-11 s RESISTOR CHIP 680K
R328 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R329 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R330 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R331 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R332 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R335 1-208-955-11 s RESISTOR CHIP 680K
R339 1-218-953-11 s RESISTOR, CHIP 1K 1/16W
R340 1-218-953-11 s RESISTOR, CHIP 1K 1/16W
R341 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R342 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R343 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R344 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R345 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R346 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R348 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R349 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R350 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
1-56 CCU-TX50/V2
(IV-57A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R352 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R353 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R354 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R355 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R356 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R357 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R358 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R359 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R360 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R361 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R362 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R363 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R364 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R365 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R366 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R367 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R368 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R369 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R370 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R371 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R372 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R373 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R374 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R376 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R377 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R378 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R379 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R380 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R381 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R382 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R383 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R384 1-218-953-11 s RESISTOR, CHIP 1K 1/16W
R385 1-218-953-11 s RESISTOR, CHIP 1K 1/16W
R386 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R387 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R388 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R401 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R402 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R403 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R404 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R405 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R420 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R421 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R426 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R427 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R429 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R499 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R502 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
RB101 1-233-575-11 s RES, CHIP NETWORK 22
RB102 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB103 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB104 1-233-810-21 s RES, NETWORK 100K (3216)
RB105 1-233-810-21 s RES, NETWORK 100K (3216)
RB106 1-233-810-21 s RES, NETWORK 100K (3216)
RB107 1-233-810-21 s RES, NETWORK 100K (3216)
RB108 1-233-810-21 s RES, NETWORK 100K (3216)
RB109 1-233-810-21 s RES, NETWORK 100K (3216)
RB110 1-239-409-11 s RESISTOR NETWORK 47 (1608)
(IV-57A BOARD)
Ref. No.
or Q'ty Part No. SP Description
RB111 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB112 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB113 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB114 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB115 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB116 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB117 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB118 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB119 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB120 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB121 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB122 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB123 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB124 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB125 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB126 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB300 1-233-810-21 s RES, NETWORK 100K (3216)
RB301 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB302 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB305 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB307 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB308 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB309 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RB310 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB311 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB312 1-233-411-11 s RESISTOR,CHIP NETWORK 220/3216
RB313 1-239-409-11 s RESISTOR NETWORK 47 (1608)
RV101 1-241-266-11 s RESISTOR ADJ 50K (CERMET)
RV102 1-241-266-11 s RESISTOR ADJ 50K (CERMET)
RV103 1-241-266-11 s RESISTOR ADJ 50K (CERMET)
RV104 1-225-795-11 s RESISTOR,ADJ CERMET 50K
RV105 1-225-795-11 s RESISTOR,ADJ CERMET 50K
RV106 1-225-795-11 s RESISTOR,ADJ CERMET 50K
RV401 1-225-787-21 s RES, ADJ, CERMET 500
S101 1-692-270-41 s SWITCH, SLIDE
S102 1-692-270-41 s SWITCH, SLIDE
S103 1-692-270-41 s SWITCH, SLIDE
S104 1-570-711-11 s SWITCH,SLIDE
S105 1-570-711-11 s SWITCH,SLIDE
S107 1-762-118-21 s SWITCH, TOGGLE
S108 1-762-120-11 s SWITCH, TOGGLE
THP1
!
1-533-817-21 s THERMISTOR
THP2
!
1-533-817-21 s THERMISTOR
THP3
!
1-533-817-21 s THERMISTOR
THP5
!
1-533-817-21 s THERMISTOR
THP6
!
1-533-817-21 s THERMISTOR
TP101 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP102 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP103 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP104 1-535-877-22 s CHIP,CHECKER (TEST POINT)
1-57
CCU-TX50/V2
-------------
MB-1062 BOARD
-------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1080-952-A s MOUNTED CIRCUIT BOARD, MB-1062
CN13 1-580-544-11 s PIN, CONNECTOR (PC BOARD) 30P
CN14 1-794-677-11 o CONNECTOR, FPC (DIP TYPE) 30P
CN15 1-750-880-11 s RECEPTACLE, COAXIAL CONNECTOR
CN16 1-750-880-11 s RECEPTACLE, COAXIAL CONNECTOR
-------------
SW-1257 BOARD
-------------
*1: [Board No. suffix 11]
*2: [Board No. suffix 12-]
Ref. No.
or Q'ty Part No. SP Description
1pc A-1080-954-A s MOUNTED CIRCUIT BOARD, SW-1257
1pc 3-708-895-01 s CAP (PC)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
1pc 1-819-024-11 s RECEPTACLE(5P)
C1 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C2 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C3 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C4 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C5 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C6 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C7 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C8 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C9 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C10 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C11 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C12 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C13 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C14 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C15 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C16 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C17 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C18 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
1-58 CCU-TX50/V2
(SW-1257 BOARD)
Ref. No.
or Q'ty Part No. SP Description
C19 1-162-970-11 s CAPACITOR CERAMIC 0.01MF/25V B
C20 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C21 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C22 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C23 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C24 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C25 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C26 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C29 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C30 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C31 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C32 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C33 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C34 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C35 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C36 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C37 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C103 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C104 *2 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
*1 1-107-826-11 s CAPACITOR CERAMIC 0.1MF/16V
C105 1-128-416-11 s CAPACITOR ELECT 100MF/16V(105C
C106 1-128-416-11 s CAPACITOR ELECT 100MF/16V(105C
C107 1-127-820-11 s CAPACITOR, SQUARE CHIP 4.7MF
C108 1-127-820-11 s CAPACITOR, SQUARE CHIP 4.7MF
C110 1-128-414-11 s CAPACITOR ELECT 220MF/6.3V
C112 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C115 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C116 1-165-870-21 s CAPACITOR, ELECT 100MF(6.3X6)
C118 1-165-947-91 s CAP, CHIP CERAMIC 2.2MF (3225)
C119 1-165-947-91 s CAP, CHIP CERAMIC 2.2MF (3225)
C120 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C121 *2 1-107-819-11 s CAP,CERAMIC 22000PF/16V(1005)
*1 1-164-227-11 s CAP,CERAMIC 22000PF/25V
C122 *2 1-107-819-11 s CAP,CERAMIC 22000PF/16V(1005)
*1 1-164-227-11 s CAP,CERAMIC 22000PF/25V
C123 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C125 *2 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50V
*1 1-162-923-11 s CAPACITOR,CHIP CERAMIC 47PF/50V
C126 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C127 1-107-823-11 s CAPACITOR,CERAMIC 0.47MF/16V
C128 *2 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
*1 1-107-826-91 s CAPACITOR CERAMIC 0.1MF/16V
C129 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C130 1-107-778-11 s CAPACITOR,ELECT 470MF/16V CHIP
C131 *1 1-128-528-11 s CAPACITOR,LECT 470MF/16V
C132 *2 1-164-935-11 s CAPACITOR,CHIP CERAMIC 470PF
CN1 1-766-431-21 o HOUSING, CONNECTOR 30P
CN2 1-695-208-21 o PIN, CONNECTOR (PC BOARD) 7P
D1 6-500-226-01 s DIODE SLR-332YY3F
D2 8-719-053-78 s LED SLR-332VC3F
D3 8-719-053-78 s LED SLR-332VC3F
D4 8-719-060-68 s LED SLR-332MG3F
D100 6-500-276-01 s DIODE CL-191G1-C-T
D101 6-500-276-01 s DIODE CL-191G1-C-T
D102 8-719-071-10 s DIODE CL-191HR-CD-T
D103 8-719-071-10 s DIODE CL-191HR-CD-T
D104 6-500-759-01 s DIODE FRDG1211C-TR
D105 6-500-759-01 s DIODE FRDG1211C-TR
(SW-1257 BOARD)
Ref. No.
or Q'ty Part No. SP Description
D106 6-500-759-01 s DIODE FRDG1211C-TR
D107 6-500-759-01 s DIODE FRDG1211C-TR
D108 6-500-759-01 s DIODE FRDG1211C-TR
D109 6-500-759-01 s DIODE FRDG1211C-TR
D116 8-719-989-00 s DIODE DA221
D117 8-719-989-00 s DIODE DA221
E1 1-535-757-11 s CHIP, CHECKER (CONNECTOR)
IC1 6-702-481-01 s IC PCA9555DB-118
IC2 6-702-481-01 s IC PCA9555DB-118
IC3 8-759-472-61 s IC 74VHC573MTCX
IC4 8-759-669-71 s IC PCF8591T
IC5 8-759-472-61 s IC 74VHC573MTCX
IC6 6-702-481-01 s IC PCA9555DB-118
IC7 6-702-481-01 s IC PCA9555DB-118
IC8 8-759-471-96 s IC 74VHC08MTCX
IC9 8-759-669-71 s IC PCF8591T
IC10 8-759-472-61 s IC 74VHC573MTCX
IC11 8-759-472-61 s IC 74VHC573MTCX
IC12 8-759-472-61 s IC 74VHC573MTCX
IC13 8-759-472-61 s IC 74VHC573MTCX
IC100 6-700-655-01 s IC LT1963ES8#TR
IC101 8-759-278-58 s IC NJM4558V (TE2)
IC102 *2 8-759-245-45 s IC TA78L09F
L1 1-414-398-11 s INDUCTOR (SMD) 10UH
L2 1-414-398-11 s INDUCTOR (SMD) 10UH
L110 1-414-404-11 s INDUCTOR (SMD) 100UH
L111 1-416-344-11 s COIL, CHOKE 10UH
L112 1-416-344-11 s COIL, CHOKE 10UH
L113 1-414-398-11 s INDUCTOR (SMD) 10UH
L114 1-416-344-11 s COIL, CHOKE 10UH
ND1 8-719-987-28 s LED ARRAY LA301MB
ND2 8-719-987-28 s LED ARRAY LA301MB
ND3 8-719-987-28 s LED ARRAY LA301MB
ND4 8-719-987-28 s LED ARRAY LA301MB
ND5 8-719-987-28 s LED ARRAY LA301MB
ND6 8-719-987-28 s LED ARRAY LA301MB
Q1 8-729-929-08 s TRANSISTOR DTC123JE
Q2 8-729-929-08 s TRANSISTOR DTC123JE
Q3 8-729-929-08 s TRANSISTOR DTC123JE
Q4 8-729-929-08 s TRANSISTOR DTC123JE
Q5 8-729-929-08 s TRANSISTOR DTC123JE
Q6 8-729-929-08 s TRANSISTOR DTC123JE
Q7 8-729-929-08 s TRANSISTOR DTC123JE
Q8 8-729-929-08 s TRANSISTOR DTC123JE
Q9 8-729-929-08 s TRANSISTOR DTC123JE
Q10 8-729-929-08 s TRANSISTOR DTC123JE
Q11 8-729-929-08 s TRANSISTOR DTC123JE
Q12 8-729-929-08 s TRANSISTOR DTC123JE
Q13 8-729-929-08 s TRANSISTOR DTC123JE
Q14 8-729-929-08 s TRANSISTOR DTC123JE
Q15 8-729-929-08 s TRANSISTOR DTC123JE
Q16 8-729-929-08 s TRANSISTOR DTC123JE
Q17 8-729-929-08 s TRANSISTOR DTC123JE
Q18 8-729-929-08 s TRANSISTOR DTC123JE
Q19 8-729-929-08 s TRANSISTOR DTC123JE
Q20 8-729-929-08 s TRANSISTOR DTC123JE
1-59
CCU-TX50/V2
(SW-1257 BOARD)
Ref. No.
or Q'ty Part No. SP Description
Q21 8-729-929-08 s TRANSISTOR DTC123JE
Q22 8-729-929-08 s TRANSISTOR DTC123JE
Q23 8-729-929-08 s TRANSISTOR DTC123JE
Q24 8-729-929-08 s TRANSISTOR DTC123JE
Q25 8-729-929-08 s TRANSISTOR DTC123JE
Q26 8-729-929-08 s TRANSISTOR DTC123JE
Q27 8-729-929-08 s TRANSISTOR DTC123JE
Q28 8-729-929-08 s TRANSISTOR DTC123JE
Q29 8-729-929-08 s TRANSISTOR DTC123JE
Q30 8-729-929-08 s TRANSISTOR DTC123JE
Q31 8-729-929-08 s TRANSISTOR DTC123JE
Q32 8-729-929-08 s TRANSISTOR DTC123JE
Q33 8-729-929-08 s TRANSISTOR DTC123JE
Q34 8-729-929-08 s TRANSISTOR DTC123JE
Q35 8-729-929-08 s TRANSISTOR DTC123JE
Q36 8-729-929-08 s TRANSISTOR DTC123JE
Q37 8-729-929-08 s TRANSISTOR DTC123JE
Q38 8-729-929-08 s TRANSISTOR DTC123JE
Q39 8-729-929-08 s TRANSISTOR DTC123JE
Q40 8-729-929-08 s TRANSISTOR DTC123JE
Q41 8-729-929-08 s TRANSISTOR DTC123JE
Q42 8-729-929-08 s TRANSISTOR DTC123JE
Q43 8-729-929-08 s TRANSISTOR DTC123JE
Q44 8-729-929-08 s TRANSISTOR DTC123JE
Q45 8-729-929-08 s TRANSISTOR DTC123JE
Q46 8-729-929-08 s TRANSISTOR DTC123JE
Q47 8-729-929-08 s TRANSISTOR DTC123JE
Q48 8-729-929-08 s TRANSISTOR DTC123JE
Q49 8-729-929-08 s TRANSISTOR DTC123JE
Q50 8-729-929-08 s TRANSISTOR DTC123JE
Q51 8-729-929-08 s TRANSISTOR DTC123JE
Q52 8-729-929-08 s TRANSISTOR DTC123JE
Q53 8-729-929-08 s TRANSISTOR DTC123JE
Q54 8-729-929-08 s TRANSISTOR DTC123JE
Q55 8-729-929-08 s TRANSISTOR DTC123JE
Q56 8-729-929-08 s TRANSISTOR DTC123JE
Q57 8-729-929-08 s TRANSISTOR DTC123JE
Q58 8-729-929-08 s TRANSISTOR DTC123JE
Q59 8-729-929-08 s TRANSISTOR DTC123JE
Q60 8-729-929-08 s TRANSISTOR DTC123JE
Q61 8-729-929-08 s TRANSISTOR DTC123JE
Q62 8-729-929-08 s TRANSISTOR DTC123JE
Q63 8-729-929-08 s TRANSISTOR DTC123JE
Q64 8-729-929-08 s TRANSISTOR DTC123JE
Q65 8-729-929-08 s TRANSISTOR DTC123JE
Q66 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q67 8-729-929-08 s TRANSISTOR DTC123JE
Q68 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q69 8-729-929-08 s TRANSISTOR DTC123JE
Q100 8-729-929-08 s TRANSISTOR DTC123JE
Q101 8-729-929-08 s TRANSISTOR DTC123JE
Q102 8-729-929-08 s TRANSISTOR DTC123JE
Q103 8-729-929-08 s TRANSISTOR DTC123JE
Q104 8-729-929-08 s TRANSISTOR DTC123JE
Q105 8-729-929-08 s TRANSISTOR DTC123JE
Q106 8-729-929-08 s TRANSISTOR DTC123JE
Q107 8-729-929-08 s TRANSISTOR DTC123JE
Q108 *2 8-729-928-27 s TRANSISTOR DTA144EE
Q109 *2 8-729-928-27 s TRANSISTOR DTA144EE
(SW-1257 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R4 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R5 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R6 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R7 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R8 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R9 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R10 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R11 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R12 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R13 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R14 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R15 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R16 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R17 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R18 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R19 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R20 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R21 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R22 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R23 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R24 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R25 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R26 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R27 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R28 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R29 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R30 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R31 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R32 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R33 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R34 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R35 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R36 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R37 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R38 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R39 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R40 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R41 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R42 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R43 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R44 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R45 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R46 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R47 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R48 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R49 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R50 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R51 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R52 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R53 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R54 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R55 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R56 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R57 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R58 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R59 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R60 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R61 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
1-60 CCU-TX50/V2
(SW-1257 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R62 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R63 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R64 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R65 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R66 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R67 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R68 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R69 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R70 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R71 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R72 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R73 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R74 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R75 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R76 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R77 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R78 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R79 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R80 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R83 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R84 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R87 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R88 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R89 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R90 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R91 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R92 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R93 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R94 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R95 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R96 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R97 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R98 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R99 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R100 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R101 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R102 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R103 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R104 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R105 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R106 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R107 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R108 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R109 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R110 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R111 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R114 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R116 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R120 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R121 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R122 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R123 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R124 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R126 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R127 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R128 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R129 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R130 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R131 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
(SW-1257 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R132 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R133 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R134 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R135 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R136 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R137 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R138 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R139 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R202 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R203 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R204 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R205 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R206 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R207 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R208 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R209 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R210 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R211 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R212 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R213 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R214 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R215 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R216 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R217 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R218 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R219 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R220 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R221 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R222 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R223 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R224 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R225 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R226 *1 1-218-941-11 s RESISTOR CHIP 100 1/16W
R227 *1 1-218-941-11 s RESISTOR CHIP 100 1/16W
R228 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R229 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R230 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R231 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R232 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R233 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R234 *1 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W
R235 *1 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W
R236 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R237 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R238 *1 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W
R239 *1 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W
R240 1-208-943-11 s RESISTOR CHIP 220K
R241 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R242 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R243 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R244 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R245 1-208-943-11 s RESISTOR CHIP 220K
R246 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R247 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R248 1-208-943-11 s RESISTOR CHIP 220K
R249 1-208-943-11 s RESISTOR CHIP 220K
R250 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R251 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R252 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
1-61
CCU-TX50/V2
(SW-1257 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R253 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R255 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R257 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R259 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R260 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R261 *2 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R262 *2 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R263 *2 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R264 *2 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
RB1 1-234-381-21 s RES, NETWORK 100KX4 (1005)
RB2 1-234-381-21 s RES, NETWORK 100KX4 (1005)
RB3 1-234-375-21 s RES, NETWORK 1KX4 (1005)
RB4 1-234-381-21 s RES, NETWORK 100KX4 (1005)
RB5 1-234-381-21 s RES, NETWORK 100KX4 (1005)
RB6 1-234-381-21 s RES, NETWORK 100KX4 (1005)
RB7 1-234-375-21 s RES, NETWORK 1KX4 (1005)
RB8 1-234-381-21 s RES, NETWORK 100KX4 (1005)
RB9 1-234-381-21 s RES, NETWORK 100KX4 (1005)
RV1 1-225-488-11 s RESISTOR,VAR,CARBON 10K
RV2 1-225-488-11 s RESISTOR,VAR,CARBON 10K
RV3 1-227-477-11 s RESISTOR, VAR, CARBON 10K
RV4 1-227-477-11 s RESISTOR, VAR, CARBON 10K
RV5 1-225-488-11 s RESISTOR,VAR,CARBON 10K
RV6 1-225-488-11 s RESISTOR,VAR,CARBON 10K
RV7 1-225-557-11 s RESISTOR, VAR
RV8 1-225-557-11 s RESISTOR, VAR
RV100 1-238-255-21 s RESISTOR,VAR,CARBON 10K
S1 1-762-531-11 s SWITCH, TOGGLE
S2 1-762-138-11 s SWITCH, TACTILE (ILLUMINATED)
S3 1-762-137-11 s SWITCH, TACTILE (ILLUMINATED)
S4 1-762-042-11 s SWITCH, TACTILE (ILLUMINATED)
S5 1-762-139-11 s SWITCH, TACTILE (ILLUMINATED)
S6 1-762-042-11 s SWITCH, TACTILE (ILLUMINATED)
S7 1-762-042-11 s SWITCH, TACTILE (ILLUMINATED)
S8 1-762-042-11 s SWITCH, TACTILE (ILLUMINATED)
S9 1-762-042-11 s SWITCH, TACTILE (ILLUMINATED)
S10 1-762-531-11 s SWITCH, TOGGLE
S11 1-762-531-11 s SWITCH, TOGGLE
S12 1-762-042-11 s SWITCH, TACTILE (ILLUMINATED)
S13 1-762-042-11 s SWITCH, TACTILE (ILLUMINATED)
S14 1-762-042-11 s SWITCH, TACTILE (ILLUMINATED)
S15 1-762-042-11 s SWITCH, TACTILE (ILLUMINATED)
S16 1-762-042-11 s SWITCH, TACTILE (ILLUMINATED)
S17 1-692-271-31 s SWITCH, SLIDE
S18 1-570-711-11 s SWITCH,SLIDE
S100 1-762-122-11 s SWITCH, TOGGLE
S101 1-762-123-11 s SWITCH, TOGGLE
S102 1-762-123-11 s SWITCH, TOGGLE
S103 1-762-217-31 s SWITCH, SLIDE
S104 1-570-711-11 s SWITCH,SLIDE
-------------
TR-133A BOARD
-------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1081-187-A s MOUNTED CIRCUIT BOARD, TR-133A
2pcs 7-682-947-01 s SCREW +PSW 3X6
C1 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C2 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C3 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C4 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C5 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C6 1-164-870-11 s CAPACITOR,CHIP CERAMIC 68PF/50
C7 1-164-870-11 s CAPACITOR,CHIP CERAMIC 68PF/50
C8 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C9 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C10 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C11 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C12 1-164-878-11 s CAPACITOR, CHIP CERAMIC 150PF
C21 1-115-416-11 s CAPACITOR,CERAMIC 1000PF/25V
C22 1-115-416-11 s CAPACITOR,CERAMIC 1000PF/25V
C23 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C24 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C25 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C26 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C27 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C28 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C29 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C30 1-164-870-11 s CAPACITOR,CHIP CERAMIC 68PF/50
C31 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C32 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C33 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C34 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C35 1-164-878-11 s CAPACITOR, CHIP CERAMIC 150PF
C41 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C42 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C43 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C44 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C46 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C47 1-164-870-11 s CAPACITOR,CHIP CERAMIC 68PF/50
C48 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C49 1-126-402-11 s CAPACITOR, ELECT 2.2MF/50V
C50 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C52 1-164-878-11 s CAPACITOR, CHIP CERAMIC 150PF
C101 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C102 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C103 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C104 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C105 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C106 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C107 1-164-870-11 s CAPACITOR,CHIP CERAMIC 68PF/50
C108 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C109 1-126-402-11 s CAPACITOR, ELECT 2.2MF/50V
C110 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C112 1-164-878-11 s CAPACITOR, CHIP CERAMIC 150PF
C128 1-115-339-11 s CAPACITOR,CERAMIC 0.1MF/50V
C129 1-164-845-11 s CAPACITOR,CERAMIC 5PF/16V(1005
C130 1-115-339-11 s CAPACITOR,CERAMIC 0.1MF/50V
C131 1-115-339-11 s CAPACITOR,CERAMIC 0.1MF/50V
C132 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225)
C133 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225)
C151 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C152 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
1-62 CCU-TX50/V2
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C153 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C154 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C155 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C156 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C157 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C158 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C159 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C160 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C161 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C162 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225)
C163 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C164 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C165 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C166 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C167 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C168 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C169 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225)
C170 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C171 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C172 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C173 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C174 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C175 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C176 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C177 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C178 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C179 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C180 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C181 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C182 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C201 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C202 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C203 1-162-923-11 s CAPACITOR,CERAMIC 47PF/50V CH
C204 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C205 1-162-919-11 s CAPACITOR,CERAMIC 22PF/50V CH
C206 1-162-915-11 s CAPACITOR,CERAMIC 10PF/50V CH
C207 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C208 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C209 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C210 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C211 1-100-620-91 s CAPACITOR, CHIP 47MF(3225)
C212 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C213 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C214 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C215 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C216 1-164-854-11 s CAPACITOR,CHIP CERAMIC 15PF/50
C217 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C218 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C219 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C220 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C221 1-164-854-11 s CAPACITOR,CHIP CERAMIC 15PF/50
C222 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C223 1-164-690-11 s CAPACITOR ,CERAMIC 2200PF CH
C224 1-164-690-11 s CAPACITOR ,CERAMIC 2200PF CH
C225 1-164-690-11 s CAPACITOR ,CERAMIC 2200PF CH
C226 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C227 1-165-989-11 s CAPACITOR, CERAMIC 10MF (2012)
C228 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C229 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C230 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C231 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C232 1-127-760-11 s CAPACITOR,CERAMIC 4.7MF/6.3V
C233 1-100-581-81 s CHIP CERAMIC0.0047MF B1005
C234 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C235 1-119-923-11 s CAPACITOR,CHIP CERAMIC 0.047MF
C236 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C237 1-100-581-81 s CHIP CERAMIC0.0047MF B1005
C238 1-164-866-11 s CAPACITOR,CHIP CERAMIC 47PF/50
C239 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C240 1-100-581-81 s CHIP CERAMIC0.0047MF B1005
C241 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C242 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C243 1-119-923-11 s CAPACITOR,CHIP CERAMIC 0.047MF
C244 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C245 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C246 1-115-419-11 s CAPACITOR,CHIP CERAMIC3300PF
C247 1-115-419-11 s CAPACITOR,CHIP CERAMIC3300PF
C248 1-115-419-11 s CAPACITOR,CHIP CERAMIC3300PF
C249 1-115-419-11 s CAPACITOR,CHIP CERAMIC3300PF
C250 1-115-419-11 s CAPACITOR,CHIP CERAMIC3300PF
C251 1-128-414-11 s CAPACITOR ELECT 220MF/6.3V
C252 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C253 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C254 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225)
C255 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C256 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C257 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C258 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C259 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C260 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C301 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C302 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C303 1-162-923-11 s CAPACITOR,CERAMIC 47PF/50V CH
C304 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C305 1-162-919-11 s CAPACITOR,CERAMIC 22PF/50V CH
C306 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C307 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C308 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C309 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C310 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C311 1-128-414-11 s CAPACITOR ELECT 220MF/6.3V
C312 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C313 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C314 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C315 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C316 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C317 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C318 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C319 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C320 1-164-690-11 s CAPACITOR ,CERAMIC 2200PF CH
C321 1-164-878-11 s CAPACITOR, CHIP CERAMIC 150PF
C322 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C323 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C324 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C325 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C326 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C327 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C328 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
1-63
CCU-TX50/V2
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C329 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C330 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C361 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C362 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C363 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C364 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C365 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C366 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C367 1-100-620-91 s CAPACITOR, CHIP 47MF(3225)
C368 1-100-620-91 s CAPACITOR, CHIP 47MF(3225)
C401 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C402 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C403 1-162-923-11 s CAPACITOR,CERAMIC 47PF/50V CH
C404 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C405 1-162-914-11 s CAPACITOR,CERAMIC 9PF/50V 1608
C406 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C407 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C408 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C409 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C410 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C411 1-128-414-11 s CAPACITOR ELECT 220MF/6.3V
C412 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C413 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C414 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C415 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C416 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C417 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C418 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C419 1-164-690-11 s CAPACITOR ,CERAMIC 2200PF CH
C420 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C421 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C422 1-164-878-11 s CAPACITOR, CHIP CERAMIC 150PF
C423 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C424 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C425 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C426 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C427 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C428 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C429 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C430 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C431 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C538 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C601 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C602 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C603 1-162-923-11 s CAPACITOR,CERAMIC 47PF/50V CH
C604 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C605 1-162-909-11 s CAPACITOR,CERAMIC 4PF/50V CH
C606 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C607 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C608 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C609 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C610 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C611 1-128-414-11 s CAPACITOR ELECT 220MF/6.3V
C612 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C613 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C614 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C615 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C616 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C617 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C618 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C619 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C620 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C621 1-164-690-11 s CAPACITOR ,CERAMIC 2200PF CH
C622 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C623 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C624 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C625 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C626 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C627 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C628 1-164-882-11 s CAPACITOR,CERAMIC 220PF/16V CH
C629 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C630 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF
C631 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C632 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C647 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C648 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C701 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C702 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C704 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C705 1-100-620-91 s CAPACITOR, CHIP 47MF(3225)
C709 1-164-848-11 s CAPACITOR,CHIP CERAMIC 8PF/50V
C710 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C711 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C712 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225)
C713 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C714 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C715 1-164-854-11 s CAPACITOR,CHIP CERAMIC 15PF/50
C716 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C717 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C718 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C719 1-164-878-11 s CAPACITOR, CHIP CERAMIC 150PF
C720 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C721 1-164-848-11 s CAPACITOR,CHIP CERAMIC 8PF/50V
C722 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C723 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C724 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C725 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C726 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C727 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C728 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C729 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C730 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C731 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C732 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C733 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C734 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C735 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C736 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C737 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C738 1-164-846-11 s CAPACITOR,CHIP CERAMIC 6PF/50V
C739 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C801 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C802 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C803 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C804 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C805 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225)
C807 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C808 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
1-64 CCU-TX50/V2
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C809 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225)
C810 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C811 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C812 1-100-620-91 s CAPACITOR, CHIP 47MF(3225)
C813 1-100-620-91 s CAPACITOR, CHIP 47MF(3225)
C814 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C815 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C816 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225)
C817 1-164-842-11 s CAPACITOR CERAMIC 2PF/16V 1005
C818 1-164-842-11 s CAPACITOR CERAMIC 2PF/16V 1005
C819 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C820 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C821 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C822 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C823 1-164-843-11 s CAPACITOR,CHIP CERAMIC 3PF/50V
C824 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C825 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C826 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C827 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C828 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C829 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C830 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C831 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C832 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C834 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C835 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C836 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225)
C837 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225)
C838 1-164-939-11 s CAPACITOR,CHIP CERAMIC 2200PF
C839 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C840 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C841 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C842 1-127-760-11 s CAPACITOR,CERAMIC 4.7MF/6.3V
C843 1-164-937-11 s CAPACITOR,CHIP CERAMIC 1000PF
C844 1-164-854-11 s CAPACITOR,CHIP CERAMIC 15PF/50
C845 1-164-844-11 s CAPACITOR,CHIP CERAMIC 4PF/50V
C846 1-164-844-11 s CAPACITOR,CHIP CERAMIC 4PF/50V
C847 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C901 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C902 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C903 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C904 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C905 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C906 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C907 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C908 1-164-854-11 s CAPACITOR,CHIP CERAMIC 15PF/50
C909 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C910 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225)
C911 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C912 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C913 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C914 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005
C915 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C916 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C918 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C919 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C920 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C921 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
C922 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C923 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C924 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C925 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C927 1-164-858-11 s CAPACITOR,CERAMIC 22PF/50V
C928 1-100-620-91 s CAPACITOR, CHIP 47MF(3225)
C929 1-164-854-11 s CAPACITOR,CHIP CERAMIC 15PF/50
C932 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C933 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C934 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C935 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C936 1-165-872-21 s CAPACITOR,SOLID ELECT 47MF
C937 1-164-850-11 s CAPACITOR,CHIP CERAMIC 10PF/50
CF41 1-760-443-11 s FILTER, CERAMIC
CF101 1-760-445-11 s FILTER CERAMIC (4.40MHZ)
CF201 1-760-446-11 s FILTER, CERAMIC
CF202 1-760-446-11 s FILTER, CERAMIC
CF301 1-760-447-12 s FILTER CERAMIC (6.20MHZ)
CF302 1-760-447-12 s FILTER CERAMIC (6.20MHZ)
CF401 1-578-067-11 s FILTER,CERAMIC (6.7MHZ)
CF402 1-578-067-11 s FILTER,CERAMIC (6.7MHZ)
CF601 1-578-068-12 s FILTER, CERAMIC
CF602 1-578-068-12 s FILTER, CERAMIC
CN100 1-766-703-11 s CONNECTOR, COAXIAL
CN701 1-766-703-11 s CONNECTOR, COAXIAL
CN801 1-766-703-11 s CONNECTOR, COAXIAL
CT701 1-141-621-21 s CAP, ADJ
D1 8-719-820-41 s DIODE 1SS302
D2 8-719-041-39 s DIODE KV1470 (5MA)
D21 8-719-820-41 s DIODE 1SS302
D22 8-719-041-39 s DIODE KV1470 (5MA)
D23 8-719-820-41 s DIODE 1SS302
D41 8-719-820-41 s DIODE 1SS302
D42 8-719-041-39 s DIODE KV1470 (5MA)
D43 8-719-820-41 s DIODE 1SS302
D101 8-719-820-41 s DIODE 1SS302
D102 8-719-041-39 s DIODE KV1470 (5MA)
D103 8-719-820-41 s DIODE 1SS302
D121 8-719-404-50 s DIODE MA111-TX
D122 8-719-404-50 s DIODE MA111-TX
D151 8-719-017-03 s DIODE 02DZ4.7-TPH3
D152 8-719-017-03 s DIODE 02DZ4.7-TPH3
D153 8-719-058-14 s LED CL-220PG-C-TS
D301 8-719-017-03 s DIODE 02DZ4.7-TPH3
D302 8-719-024-81 s DIODE 1SS300-TE85L
D361 8-719-801-78 s DIODE 1SS184
D362 8-719-801-78 s DIODE 1SS184
D363 8-719-801-78 s DIODE 1SS184
D401 8-719-017-03 s DIODE 02DZ4.7-TPH3
D701 8-719-083-90 s DIODE HVU363ATRU
D702 8-719-083-90 s DIODE HVU363ATRU
D801 8-719-059-59 s DIODE MA3J74200LSO
D802 8-719-820-41 s DIODE 1SS302
E1 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E2 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E100 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E101 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E102 1-535-877-22 s CHIP,CHECKER (TEST POINT)
1-65
CCU-TX50/V2
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
E300 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E701 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E801 1-535-877-22 s CHIP,CHECKER (TEST POINT)
FB701 1-469-094-11 s FERRITE, EMI (SMD)
FB702 1-469-094-11 s FERRITE, EMI (SMD)
FB801 1-469-094-11 s FERRITE, EMI (SMD)
FB802 1-469-094-11 s FERRITE, EMI (SMD)
FB803 1-469-094-11 s FERRITE, EMI (SMD)
FB804 1-469-094-11 s FERRITE, EMI (SMD)
FL1 1-239-940-11 s FILTER, BAND PASS
FL21 1-239-941-11 s FILTER, BAND PASS
FL122 1-813-441-11 s FILTER (SEPARATOR)
FL701 1-239-948-11 s FILTER, LOW PASS (VIDEO)
FL702 1-233-274-11 s FILTER, BAND PASS
FL801 1-239-948-11 s FILTER, LOW PASS (VIDEO)
FL802 1-239-015-21 s ENCAPSULATED COMPONENT (BPF)
FL901 1-239-948-11 s FILTER, LOW PASS (VIDEO)
IC121 8-759-561-46 s IC AD8014ART-REEL7
IC151 8-759-327-01 s IC NJM062V-TE2
IC152 8-759-327-01 s IC NJM062V-TE2
IC153 8-759-185-42 s IC LM4040AIM3-2.5
IC154 8-759-085-67 s IC LM339NS
IC201 8-759-271-14 s IC TA8129Z
IC202 8-759-327-01 s IC NJM062V-TE2
IC203 8-759-085-67 s IC LM339NS
IC204 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC205 8-759-327-01 s IC NJM062V-TE2
IC206 8-759-564-49 s IC TC7W53FU-TE12R
IC207 8-759-710-52 s IC NJM567M
IC208 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC209 8-759-327-01 s IC NJM062V-TE2
IC301 8-759-812-35 s IC LA1235
IC302 8-759-327-01 s IC NJM062V-TE2
IC303 8-759-327-01 s IC NJM062V-TE2
IC361 6-702-481-01 s IC PCA9555DB-118
IC362 8-759-490-41 s IC TC74VHCT541AFT(EL)
IC363 6-702-481-01 s IC PCA9555DB-118
IC364 8-759-586-19 s IC TC7WH123FU(TE12R)
IC365 6-706-491-01 s IC TC7SH86FU(T5RSOYJF)
IC367 6-706-491-01 s IC TC7SH86FU(T5RSOYJF)
IC368 6-706-482-01 s IC TC7SH00FU(T5RSOYJF)
IC369 6-706-482-01 s IC TC7SH00FU(T5RSOYJF)
IC370 6-706-483-01 s IC TC7SH02FU(T5RSOYJF)
IC401 8-759-812-35 s IC LA1235
IC402 8-759-327-01 s IC NJM062V-TE2
IC403 8-759-327-01 s IC NJM062V-TE2
IC404 8-759-564-49 s IC TC7W53FU-TE12R
IC601 8-759-812-35 s IC LA1235
IC602 8-759-327-01 s IC NJM062V-TE2
IC603 8-759-564-49 s IC TC7W53FU-TE12R
IC604 8-759-338-95 s IC NJM2903V (TE2)
IC605 8-759-327-01 s IC NJM062V-TE2
IC701 8-759-561-46 s IC AD8014ART-REEL7
IC801 8-759-327-01 s IC NJM062V-TE2
IC802 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC803 8-752-065-15 s IC CXA1122AM-1
IC804 6-706-863-01 s IC LMH6732MFX/NOPB
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
IC805 6-702-578-01 s IC MSW-2-20-TR
IC806 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC807 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC901 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
IC902 8-759-245-45 s IC TA78L09F
IC903 6-707-003-01 s IC NJM2542V(TE2)
IC904 8-759-561-46 s IC AD8014ART-REEL7
IC905 6-706-487-01 s IC TC7SH08FU(T5RSOYJF)
L1 1-414-398-11 s INDUCTOR (SMD) 10UH
L21 1-414-398-11 s INDUCTOR (SMD) 10UH
L41 1-414-398-11 s INDUCTOR (SMD) 10UH
L101 1-414-398-11 s INDUCTOR (SMD) 10UH
L122 1-414-398-11 s INDUCTOR (SMD) 10UH
L123 1-414-398-11 s INDUCTOR (SMD) 10UH
L151 1-414-398-11 s INDUCTOR (SMD) 10UH
L152 1-414-398-11 s INDUCTOR (SMD) 10UH
L201 1-414-754-11 s INDUCTOR 10.0UH
L202 1-414-398-11 s INDUCTOR (SMD) 10UH
L203 1-414-398-11 s INDUCTOR (SMD) 10UH
L204 1-414-398-11 s INDUCTOR (SMD) 10UH
L301 1-414-754-11 s INDUCTOR 10.0UH
L302 1-400-530-11 s INDUCTOR 33UH
L303 1-414-398-11 s INDUCTOR (SMD) 10UH
L304 1-414-398-11 s INDUCTOR (SMD) 10UH
L361 1-414-398-11 s INDUCTOR (SMD) 10UH
L401 1-414-754-11 s INDUCTOR 10.0UH
L402 1-400-530-11 s INDUCTOR 33UH
L403 1-414-398-11 s INDUCTOR (SMD) 10UH
L404 1-414-398-11 s INDUCTOR (SMD) 10UH
L504 1-414-398-11 s INDUCTOR (SMD) 10UH
L601 1-414-754-11 s INDUCTOR 10.0UH
L602 1-400-530-11 s INDUCTOR 33UH
L603 1-414-398-11 s INDUCTOR (SMD) 10UH
L604 1-414-398-11 s INDUCTOR (SMD) 10UH
L701 1-414-398-11 s INDUCTOR (SMD) 10UH
L702 1-414-398-11 s INDUCTOR (SMD) 10UH
L703 1-412-939-11 s INDUCTOR 1.0UH (2520)
L704 1-400-518-11 s INDUCTOR 3.3UH
L705 1-422-595-12 s COIL,AIR-CORE
L706 1-422-594-11 s COIL, AIR CORE
L801 1-414-398-11 s INDUCTOR (SMD) 10UH
L802 1-414-398-11 s INDUCTOR (SMD) 10UH
L803 1-414-398-11 s INDUCTOR (SMD) 10UH
L804 1-414-398-11 s INDUCTOR (SMD) 10UH
L805 1-409-840-11 s COIL, BALUN
L806 1-412-979-21 s INDUCTOR (SMALL TYPE)
L901 1-414-392-31 s INDUCTOR (SMD) 1.0UH
L902 1-414-398-11 s INDUCTOR (SMD) 10UH
L905 1-414-398-11 s INDUCTOR (SMD) 10UH
L906 1-414-398-11 s INDUCTOR (SMD) 10UH
LV1 1-456-885-11 s COIL, VARIABLE (15UH)
LV21 1-456-885-11 s COIL, VARIABLE (15UH)
LV41 1-456-885-11 s COIL, VARIABLE (15UH)
LV101 1-456-884-11 s COIL, VARIABLE (10UH)
LV201 1-456-885-11 s COIL, VARIABLE (15UH)
LV301 1-456-876-11 s COIL, TUNING (6.2MHZ)
LV302 1-456-875-11 s COIL, VARIABLE (6.2MHZ)
LV401 1-456-878-11 s COIL, TUNING (6.7MHZ)
1-66 CCU-TX50/V2
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
LV402 1-456-877-11 s COIL, TUNING (6.7MHZ)
LV601 1-456-880-11 s COIL, TUNING (7.1MHZ)
LV602 1-456-879-11 s COIL, TUNING (7.1MHZ)
LV901 1-409-820-21 s COIL, VARIABLE
LV902 1-409-820-21 s COIL, VARIABLE
Q1 8-729-927-99 s TRANSISTOR 2SC4617R
Q2 8-729-927-99 s TRANSISTOR 2SC4617R
Q21 8-729-927-99 s TRANSISTOR 2SC4617R
Q22 8-729-927-99 s TRANSISTOR 2SC4617R
Q41 8-729-927-99 s TRANSISTOR 2SC4617R
Q42 8-729-927-99 s TRANSISTOR 2SC4617R
Q101 8-729-927-99 s TRANSISTOR 2SC4617R
Q102 8-729-927-99 s TRANSISTOR 2SC4617R
Q151 8-729-162-45 s TRANSISTOR 2SB624-BV5
Q152 8-729-927-99 s TRANSISTOR 2SC4617R
Q153 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q154 8-729-807-51 s TRANSISTOR 2SD1623-S
Q155 8-729-927-99 s TRANSISTOR 2SC4617R
Q201 8-729-143-13 s TRANSISTOR 2SC4176-B34
Q202 8-729-143-13 s TRANSISTOR 2SC4176-B34
Q203 8-729-927-99 s TRANSISTOR 2SC4617R
Q204 8-729-927-99 s TRANSISTOR 2SC4617R
Q205 8-729-927-99 s TRANSISTOR 2SC4617R
Q208 8-729-928-81 s TRANSISTOR DTC144EE
Q209 8-729-928-27 s TRANSISTOR DTA144EE
Q301 8-729-143-13 s TRANSISTOR 2SC4176-B34
Q302 8-729-143-13 s TRANSISTOR 2SC4176-B34
Q303 8-729-927-99 s TRANSISTOR 2SC4617R
Q401 8-729-143-13 s TRANSISTOR 2SC4176-B34
Q402 8-729-143-13 s TRANSISTOR 2SC4176-B34
Q403 8-729-927-99 s TRANSISTOR 2SC4617R
Q404 8-729-928-81 s TRANSISTOR DTC144EE
Q405 8-729-928-27 s TRANSISTOR DTA144EE
Q601 8-729-143-13 s TRANSISTOR 2SC4176-B34
Q602 8-729-143-13 s TRANSISTOR 2SC4176-B34
Q603 8-729-927-99 s TRANSISTOR 2SC4617R
Q604 8-729-928-19 s TRANSISTOR 2SA1774R
Q605 8-729-928-81 s TRANSISTOR DTC144EE
Q701 8-729-927-99 s TRANSISTOR 2SC4617R
Q702 8-729-928-19 s TRANSISTOR 2SA1774R
Q703 8-729-927-99 s TRANSISTOR 2SC4617R
Q704 8-729-928-19 s TRANSISTOR 2SA1774R
Q705 8-729-230-38 s TRANSISTOR 2SC4215Y
Q706 8-729-230-38 s TRANSISTOR 2SC4215Y
Q707 8-729-230-38 s TRANSISTOR 2SC4215Y
Q708 8-729-230-38 s TRANSISTOR 2SC4215Y
Q709 8-729-230-38 s TRANSISTOR 2SC4215Y
Q710 8-729-230-38 s TRANSISTOR 2SC4215Y
Q711 8-729-143-07 s TRANSISTOR 2SA1610-Y33
Q712 8-729-230-38 s TRANSISTOR 2SC4215Y
Q713 8-729-230-38 s TRANSISTOR 2SC4215Y
Q714 8-729-143-07 s TRANSISTOR 2SA1610-Y33
Q801 8-729-927-99 s TRANSISTOR 2SC4617R
Q802 8-729-928-19 s TRANSISTOR 2SA1774R
Q803 8-729-159-65 s TRANSISTOR 2SD596-DV5
Q804 8-729-928-27 s TRANSISTOR DTA144EE
Q805 8-729-928-81 s TRANSISTOR DTC144EE
Q806 8-729-162-45 s TRANSISTOR 2SB624-BV5
Q807 8-729-923-31 s TRANSISTOR 2SC4083-P
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
Q808 8-729-923-31 s TRANSISTOR 2SC4083-P
Q809 8-729-928-27 s TRANSISTOR DTA144EE
Q810 8-729-928-81 s TRANSISTOR DTC144EE
Q811 8-729-928-27 s TRANSISTOR DTA144EE
Q812 8-729-928-81 s TRANSISTOR DTC144EE
Q813 8-729-927-99 s TRANSISTOR 2SC4617R
Q901 8-729-928-81 s TRANSISTOR DTC144EE
Q902 8-729-162-45 s TRANSISTOR 2SB624-BV5
Q903 8-729-159-65 s TRANSISTOR 2SD596-DV5
Q904 8-729-928-81 s TRANSISTOR DTC144EE
Q905 8-729-928-27 s TRANSISTOR DTA144EE
Q906 8-729-162-45 s TRANSISTOR 2SB624-BV5
Q907 6-550-217-01 s TRANSISTOR 3SK299-T1-U73
Q908 8-729-927-99 s TRANSISTOR 2SC4617R
Q909 8-729-927-99 s TRANSISTOR 2SC4617R
Q910 8-729-928-19 s TRANSISTOR 2SA1774R
Q911 9-910-999-31 s SUPPLY END
R1 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R2 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R3 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R4 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R5 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R6 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R7 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R8 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R9 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R10 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R11 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R12 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R13 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R15 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R16 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R20 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R21 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R22 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R23 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R24 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R25 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R26 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R27 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R28 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R29 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R30 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R31 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R32 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R33 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R34 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R35 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R36 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R39 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R41 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R42 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R43 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R44 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R45 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R46 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R48 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R49 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
1-67
CCU-TX50/V2
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R50 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R51 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R52 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R53 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R54 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R55 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R56 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R57 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R58 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R59 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R60 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R101 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R102 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R103 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R104 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R105 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R107 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R108 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R109 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R110 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R111 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R112 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R113 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R114 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R115 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R116 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R117 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R118 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R119 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R120 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R133 1-220-256-11 s RESISTOR CHIP 75 1/4W (3225)
R134 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R135 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R136 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R137 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R138 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R149 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R151 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R152 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R153 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R154 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R155 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R156 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R157 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R158 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R159 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R160 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R161 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R162 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R163 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R164 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R165 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R166 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R172 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R173 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R174 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R175 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R176 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R177 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R178 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R179 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R180 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R181 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R182 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R183 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R184 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R185 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R186 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R187 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R188 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R189 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R201 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R202 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R203 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R204 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R205 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R206 1-218-859-11 s RESISTOR,CHIP 3.3K 1/10W(1608)
R207 1-218-863-11 s RESISTOR,CHIP 4.7K 1/10W(1608)
R208 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R209 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R210 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R211 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R212 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R213 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R214 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R215 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R216 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R217 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R218 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R219 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R221 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R222 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R223 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R224 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R225 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R226 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R227 1-208-943-11 s RESISTOR CHIP 220K
R228 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R229 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R230 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R231 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R232 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R233 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R234 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R235 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R236 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R239 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R240 1-208-939-11 s RESISTOR, CHIP 150K (1005)
R241 1-208-939-11 s RESISTOR, CHIP 150K (1005)
R242 1-208-939-11 s RESISTOR, CHIP 150K (1005)
R243 1-208-939-11 s RESISTOR, CHIP 150K (1005)
R244 1-208-939-11 s RESISTOR, CHIP 150K (1005)
R245 1-208-939-11 s RESISTOR, CHIP 150K (1005)
R250 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R251 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R252 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R253 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R254 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
1-68 CCU-TX50/V2
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R255 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R256 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R257 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R258 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R259 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R260 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R261 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R262 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R263 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R264 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R265 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R301 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R302 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R303 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R304 1-218-859-11 s RESISTOR,CHIP 3.3K 1/10W(1608)
R305 1-218-863-11 s RESISTOR,CHIP 4.7K 1/10W(1608)
R306 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R307 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R308 1-218-839-11 s RESISTOR,CHIP 470 1/10W (1608)
R309 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R310 1-218-859-11 s RESISTOR,CHIP 3.3K 1/10W(1608)
R311 1-218-891-11 s RESISTOR,CHIP 68K 1/10W (1608)
R312 1-218-883-11 s RESISTOR,CHIP 33K 1/10W (1608)
R313 1-218-863-11 s RESISTOR,CHIP 4.7K 1/10W(1608)
R314 1-218-891-11 s RESISTOR,CHIP 68K 1/10W (1608)
R315 1-218-871-11 s RESISTOR,CHIP 10K 1/10W (1608)
R316 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R317 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R318 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R319 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R320 1-208-943-11 s RESISTOR CHIP 220K
R321 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R322 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R323 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R324 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R325 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R326 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R327 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R329 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R330 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R331 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R332 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R340 1-218-899-11 s RESISTOR,CHIP 150K 1/10W(1608)
R341 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R342 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R344 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R346 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R347 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R361 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R362 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R367 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R371 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R372 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R373 1-208-943-11 s RESISTOR CHIP 220K
R374 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R375 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R376 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R377 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R378 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R380 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R381 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R382 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R383 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R384 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R385 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R386 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R387 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R388 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R401 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R402 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R403 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R404 1-218-859-11 s RESISTOR,CHIP 3.3K 1/10W(1608)
R405 1-218-863-11 s RESISTOR,CHIP 4.7K 1/10W(1608)
R406 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R407 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R408 1-218-839-11 s RESISTOR,CHIP 470 1/10W (1608)
R409 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R410 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R411 1-218-859-11 s RESISTOR,CHIP 3.3K 1/10W(1608)
R412 1-218-875-11 s RESISTOR,CHIP 15K 1/10W (1608)
R414 1-218-883-11 s RESISTOR,CHIP 33K 1/10W (1608)
R415 1-218-863-11 s RESISTOR,CHIP 4.7K 1/10W(1608)
R416 1-218-891-11 s RESISTOR,CHIP 68K 1/10W (1608)
R417 1-218-871-11 s RESISTOR,CHIP 10K 1/10W (1608)
R418 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R419 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R421 1-208-943-11 s RESISTOR CHIP 220K
R422 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R423 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R425 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R426 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R428 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R429 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R430 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R431 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R432 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R434 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R435 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R436 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R437 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R440 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R441 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R457 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R458 1-218-899-11 s RESISTOR,CHIP 150K 1/10W(1608)
R459 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R461 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R514 1-218-891-11 s RESISTOR,CHIP 68K 1/10W (1608)
R545 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R546 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R601 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R602 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R603 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R604 1-218-859-11 s RESISTOR,CHIP 3.3K 1/10W(1608)
R605 1-218-863-11 s RESISTOR,CHIP 4.7K 1/10W(1608)
R606 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R607 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R608 1-218-839-11 s RESISTOR,CHIP 470 1/10W (1608)
R609 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
1-69
CCU-TX50/V2
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R610 1-218-859-11 s RESISTOR,CHIP 3.3K 1/10W(1608)
R611 1-218-871-11 s RESISTOR,CHIP 10K 1/10W (1608)
R612 1-218-883-11 s RESISTOR,CHIP 33K 1/10W (1608)
R613 1-218-867-11 s RESISTOR,CHIP 6.8K 1/10W(1608)
R614 1-218-891-11 s RESISTOR,CHIP 68K 1/10W (1608)
R615 1-218-871-11 s RESISTOR,CHIP 10K 1/10W (1608)
R616 1-208-943-11 s RESISTOR CHIP 220K
R617 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R618 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R619 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R622 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R623 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R624 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R625 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R626 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R627 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R628 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R629 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R630 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R631 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R632 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R634 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R635 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R636 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R637 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R651 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R652 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R653 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R655 1-218-899-11 s RESISTOR,CHIP 150K 1/10W(1608)
R656 1-208-939-11 s RESISTOR, CHIP 150K (1005)
R657 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R659 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R701 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R702 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R703 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R705 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R706 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R707 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R708 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R709 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R710 1-208-943-11 s RESISTOR CHIP 220K
R711 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R712 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R713 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R714 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R715 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R716 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R717 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R720 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R721 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R722 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R723 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R724 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R725 1-208-647-11 s RESISTOR CHIP 33 1/16W (1005)
R726 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R727 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R728 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R729 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R730 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R731 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R732 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R733 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R734 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R735 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R736 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R737 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R738 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R739 1-218-939-11 s RESISTOR, CHIP 68 1/16W (1005)
R740 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R741 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R742 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R743 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R744 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R745 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R746 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R747 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R748 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R749 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R750 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R751 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R752 1-208-647-11 s RESISTOR CHIP 33 1/16W (1005)
R753 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R754 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R755 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R756 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R757 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R758 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R759 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R760 1-220-803-81 s RESISTOR,CHIP4.7 1/16W (1005)
R761 1-220-803-81 s RESISTOR,CHIP4.7 1/16W (1005)
R762 1-218-939-11 s RESISTOR, CHIP 68 1/16W (1005)
R763 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R801 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R802 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R803 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R805 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R806 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R807 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R808 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R809 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R810 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R811 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R812 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R813 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R814 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R815 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R816 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R817 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R818 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R819 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R820 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R821 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R822 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R823 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R824 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R825 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R826 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R827 1-208-923-11 s RESISTOR, CHIP 33K (1005)
1-70 CCU-TX50/V2
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R828 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R829 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R830 1-208-935-11 s RESISTOR, CHIP 100K (1005)
R831 1-208-943-11 s RESISTOR CHIP 220K
R832 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R833 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R834 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R836 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R837 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R838 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R839 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R840 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R841 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R842 1-218-989-11 s RESISTOR,CHIP 1M 1/16W (1005)
R843 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R844 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R845 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R846 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R847 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R848 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R849 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R850 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R851 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R852 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R853 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R854 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R855 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R856 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R857 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R859 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R860 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R861 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R862 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R863 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R864 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R865 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R901 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R902 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R903 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R904 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R905 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R906 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R907 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R908 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R909 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R910 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R911 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R912 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R913 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R914 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R915 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R916 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R917 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R918 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R919 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R920 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R922 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R923 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R924 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R925 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R926 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R927 1-208-943-11 s RESISTOR CHIP 220K
R928 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R929 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R930 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R931 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R932 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R933 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R934 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R935 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R936 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R937 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R938 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R939 1-208-711-11 s RESISTOR CHIP 15K 1/16W (1005)
R940 1-208-715-11 s RESISTOR,CHIP 22K 1/16W (1005)
R941 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R942 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R943 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
RB361 1-234-373-21 s RES, NETWORK 220X4 (1005)
RB362 1-234-373-21 s RES, NETWORK 220X4 (1005)
RB363 1-234-373-21 s RES, NETWORK 220X4 (1005)
RB364 1-234-373-21 s RES, NETWORK 220X4 (1005)
RB365 1-234-373-21 s RES, NETWORK 220X4 (1005)
RB366 1-234-373-21 s RES, NETWORK 220X4 (1005)
RB367 1-234-373-21 s RES, NETWORK 220X4 (1005)
RV41 1-225-792-21 s RES, ADJ, CERMET 10K
RV101 1-225-792-21 s RES, ADJ, CERMET 10K
RV201 1-225-797-11 s RESISTOR,ADJ,CERMET 200K
RV301 1-225-793-11 s RES, ADJ, CERMET 20K
RV401 1-225-793-11 s RES, ADJ, CERMET 20K
RV601 1-225-793-11 s RES, ADJ, CERMET 20K
RV701 1-225-789-21 s RES, ADJ, CERMET 2K
RV801 1-225-798-21 s RESISTOR, ADJ, CERMET 500K
RV901 1-225-793-11 s RES, ADJ, CERMET 20K
RV902 1-225-789-21 s RES, ADJ, CERMET 2K
S1 1-762-775-11 s SWITCH, TOGGLE
S2 1-762-217-31 s SWITCH, SLIDE
S363 1-692-881-41 s SWITCH, SLIDE
THP151 1-803-615-11 s THERMISTOR, POSITIVE
THP152
!
1-533-817-21 s THERMISTOR
THP153 1-803-615-11 s THERMISTOR, POSITIVE
THP154
!
1-771-845-11 s THERMISTOR, POSITIVE
THP155
!
1-771-845-11 s THERMISTOR, POSITIVE
TP1 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP21 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP41 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP101 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP201 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP202 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP301 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP302 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP401 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP402 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP601 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP602 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP701 1-535-877-22 s CHIP,CHECKER (TEST POINT)
TP801 1-535-877-22 s CHIP,CHECKER (TEST POINT)
1-71
CCU-TX50/V2
(TR-133A BOARD)
Ref. No.
or Q'ty Part No. SP Description
TP901 1-535-877-22 s CHIP,CHECKER (TEST POINT)
X801 1-813-405-21 s OSCILLATOR, CRYSTAL (97.24MHZ)
-------------
VDA-62A BOARD
-------------
Ref. No.
or Q'ty Part No. SP Description
1pc A-1080-965-A s MOUNTED CIRCUIT BOARD, VDA-62A
C2 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C9 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C11 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C12 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C13 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C14 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C15 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C16 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C17 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C18 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C19 1-164-874-11 s CAPACITOR,CHIP CERAMIC 100PF
C20 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C21 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C22 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C23 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C36 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C37 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C41 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C42 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C43 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C44 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C51 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C52 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C53 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C54 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C56 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C71 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C74 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C75 1-164-854-11 s CAPACITOR,CHIP CERAMIC 15PF/50
C91 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C92 1-164-854-11 s CAPACITOR,CHIP CERAMIC 15PF/50
C93 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C94 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C95 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C96 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C101 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C102 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C103 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C104 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C105 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C106 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP)
C107 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C201 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C202 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C203 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C204 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C206 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C207 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C209 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C210 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C211 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C212 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C251 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C252 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C253 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C254 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C255 1-164-845-11 s CAPACITOR,CERAMIC 5PF/16V(1005
1-72 CCU-TX50/V2
(VDA-62A BOARD)
Ref. No.
or Q'ty Part No. SP Description
C256 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C257 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C258 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C259 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C260 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C261 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C263 1-107-823-11 s CAPACITOR,CERAMIC 0.47MF/16V
C264 1-107-823-11 s CAPACITOR,CERAMIC 0.47MF/16V
C301 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C302 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C304 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C305 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C306 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C307 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C351 1-127-760-11 s CAPACITOR,CERAMIC 4.7MF/6.3V
C352 1-127-760-11 s CAPACITOR,CERAMIC 4.7MF/6.3V
C353 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C354 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C355 1-164-845-11 s CAPACITOR,CERAMIC 5PF/16V(1005
C356 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C357 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C358 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C359 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C360 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C361 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C401 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C402 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C404 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C405 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C406 1-128-589-11 s CAPACITOR ELECT 47MF/6.3V(105C
C407 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C451 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C452 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C453 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C454 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C455 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C456 1-164-845-11 s CAPACITOR,CERAMIC 5PF/16V(1005
C457 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C458 1-127-573-11 s CAPACITOR,CERAMIC 1MFB(2012)
C459 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C460 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216
C461 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
C462 1-125-777-11 s CAPACITOR CERAMIC 0.1MF/10V
CN4 1-794-873-11 o CONNECTOR, BNC 2P
CN5 1-794-817-11 o CONNECTOR, COAXIAL (BNC TYPE)
CN101 1-695-480-21 o PIN, CONNECTOR (PC BOARD) 2P
CN102 1-764-078-11 s PIN, CONNECTOR (PC BOARD) 3P
CN103 1-774-869-11 o HOUSING, CONNECTOR
D11 8-719-017-03 s DIODE 02DZ4.7-TPH3
D39 8-719-820-41 s DIODE 1SS302
D150 8-719-801-78 s DIODE 1SS184
D201 8-719-801-78 s DIODE 1SS184
E1 1-535-877-22 s CHIP,CHECKER (TEST POINT)
E2 1-535-877-22 s CHIP,CHECKER (TEST POINT)
FB251 1-469-094-11 s FERRITE, EMI (SMD)
FB252 1-469-094-11 s FERRITE, EMI (SMD)
FB351 1-469-094-11 s FERRITE, EMI (SMD)
FB451 1-469-094-11 s FERRITE, EMI (SMD)
(VDA-62A BOARD)
Ref. No.
or Q'ty Part No. SP Description
FB452 1-469-094-11 s FERRITE, EMI (SMD)
FL1 1-813-437-11 s FILTER, LOW PASS (10MHZ)
FL2 1-813-437-11 s FILTER, LOW PASS (10MHZ)
FL201 1-813-437-11 s FILTER, LOW PASS (10MHZ)
IC1 8-759-561-46 s IC AD8014ART-REEL7
IC2 8-759-561-46 s IC AD8014ART-REEL7
IC3 8-759-561-46 s IC AD8014ART-REEL7
IC4 8-759-561-46 s IC AD8014ART-REEL7
IC5 8-759-327-01 s IC NJM062V-TE2
IC7 8-759-694-15 s IC SP3222ECY
IC8 8-759-092-81 s IC SN75158PS
IC201 8-759-561-46 s IC AD8014ART-REEL7
IC203 8-759-564-49 s IC TC7W53FU-TE12R
IC204 8-759-564-49 s IC TC7W53FU-TE12R
IC205 8-759-561-46 s IC AD8014ART-REEL7
IC251 6-702-535-01 s IC MC100LVEL11DTR2
IC252 8-759-488-34 s IC TLV2221CDBV2
IC302 8-759-564-49 s IC TC7W53FU-TE12R
IC303 8-759-564-49 s IC TC7W53FU-TE12R
IC304 8-759-561-46 s IC AD8014ART-REEL7
IC352 8-759-488-34 s IC TLV2221CDBV2
IC402 8-759-564-49 s IC TC7W53FU-TE12R
IC403 8-759-564-49 s IC TC7W53FU-TE12R
IC404 8-759-561-46 s IC AD8014ART-REEL7
IC451 6-702-536-01 s IC MC100LVEL16DTR2
IC452 8-759-488-34 s IC TLV2221CDBV2
L1 1-416-344-11 s COIL, CHOKE 10UH
L11 1-416-344-11 s COIL, CHOKE 10UH
L12 1-416-344-11 s COIL, CHOKE 10UH
L41 1-414-398-11 s INDUCTOR (SMD) 10UH
L42 1-414-398-11 s INDUCTOR (SMD) 10UH
L51 1-414-398-11 s INDUCTOR (SMD) 10UH
L52 1-414-398-11 s INDUCTOR (SMD) 10UH
L53 1-414-398-11 s INDUCTOR (SMD) 10UH
L91 1-414-398-11 s INDUCTOR (SMD) 10UH
L92 1-414-398-11 s INDUCTOR (SMD) 10UH
L101 1-414-398-11 s INDUCTOR (SMD) 10UH
L201 1-414-398-11 s INDUCTOR (SMD) 10UH
L202 1-414-398-11 s INDUCTOR (SMD) 10UH
L203 1-414-398-11 s INDUCTOR (SMD) 10UH
L204 1-414-398-11 s INDUCTOR (SMD) 10UH
L301 1-414-398-11 s INDUCTOR (SMD) 10UH
L302 1-414-398-11 s INDUCTOR (SMD) 10UH
L401 1-414-398-11 s INDUCTOR (SMD) 10UH
L402 1-414-398-11 s INDUCTOR (SMD) 10UH
Q11 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q12 8-729-230-27 s TRANSISTOR 2SA1213Y-TE12L
Q51 8-729-927-99 s TRANSISTOR 2SC4617R
Q52 8-729-928-19 s TRANSISTOR 2SA1774R
Q53 8-729-927-99 s TRANSISTOR 2SC4617R
Q202 8-729-026-53 s TRANSISTOR 2SA1576A-T106-QR
Q206 9-910-999-31 s SUPPLY END
Q207 8-729-928-19 s TRANSISTOR 2SA1774R
Q208 8-729-927-99 s TRANSISTOR 2SC4617R
Q209 8-729-927-99 s TRANSISTOR 2SC4617R
Q253 8-729-105-68 s TRANSISTOR 2SC3356-K
Q254 8-729-105-68 s TRANSISTOR 2SC3356-K
1-73
CCU-TX50/V2
(VDA-62A BOARD)
Ref. No.
or Q'ty Part No. SP Description
Q255 8-729-041-24 s TRANSISTOR NDS355AN
Q256 8-729-117-73 s TRANSISTOR 2SC4178-F14
Q257 8-729-105-68 s TRANSISTOR 2SC3356-K
Q258 8-729-117-73 s TRANSISTOR 2SC4178-F14
Q259 8-729-927-99 s TRANSISTOR 2SC4617R
Q260 8-729-041-23 s TRANSISTOR NDS356AP
Q301 8-729-026-53 s TRANSISTOR 2SA1576A-T106-QR
Q305 9-910-999-31 s SUPPLY END
Q307 8-729-928-19 s TRANSISTOR 2SA1774R
Q308 8-729-927-99 s TRANSISTOR 2SC4617R
Q309 8-729-927-99 s TRANSISTOR 2SC4617R
Q353 8-729-105-68 s TRANSISTOR 2SC3356-K
Q354 8-729-105-68 s TRANSISTOR 2SC3356-K
Q355 8-729-041-24 s TRANSISTOR NDS355AN
Q356 8-729-117-73 s TRANSISTOR 2SC4178-F14
Q357 8-729-105-68 s TRANSISTOR 2SC3356-K
Q358 8-729-117-73 s TRANSISTOR 2SC4178-F14
Q360 8-729-041-23 s TRANSISTOR NDS356AP
Q401 8-729-026-53 s TRANSISTOR 2SA1576A-T106-QR
Q405 9-910-999-31 s SUPPLY END
Q406 8-729-928-19 s TRANSISTOR 2SA1774R
Q407 8-729-927-99 s TRANSISTOR 2SC4617R
Q408 8-729-927-99 s TRANSISTOR 2SC4617R
Q453 8-729-105-68 s TRANSISTOR 2SC3356-K
Q454 8-729-105-68 s TRANSISTOR 2SC3356-K
Q455 8-729-041-24 s TRANSISTOR NDS355AN
Q456 8-729-117-73 s TRANSISTOR 2SC4178-F14
Q457 8-729-105-68 s TRANSISTOR 2SC3356-K
Q458 8-729-117-73 s TRANSISTOR 2SC4178-F14
Q459 8-729-927-99 s TRANSISTOR 2SC4617R
Q460 8-729-041-23 s TRANSISTOR NDS356AP
R11 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R12 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R13 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R14 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R15 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R16 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R31 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R32 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R33 1-208-931-11 s RESISTOR, CHIP 68K (1005)
R34 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R35 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R38 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R40 1-220-874-11 s RES, CHIP 15 (1005)
R41 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R42 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R43 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R44 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R45 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R47 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R48 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R50 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R51 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R52 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R53 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R54 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R55 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R57 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
(VDA-62A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R58 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R59 1-208-860-11 s RESISTOR CHIP 75 1/16W (1005)
R60 1-208-860-11 s RESISTOR CHIP 75 1/16W (1005)
R61 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R62 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R63 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R64 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R65 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R66 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R67 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R68 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R70 1-220-874-11 s RES, CHIP 15 (1005)
R71 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R72 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R73 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R74 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R75 1-208-687-11 s RESISTOR CHIP 1.5K 1/16W (1005
R76 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R77 1-208-860-11 s RESISTOR CHIP 75 1/16W (1005)
R78 1-208-860-11 s RESISTOR CHIP 75 1/16W (1005)
R79 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R83 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R84 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R91 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R92 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R93 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R94 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R95 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R96 1-208-860-11 s RESISTOR CHIP 75 1/16W (1005)
R101 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R102 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R103 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R104 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R105 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R106 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R107 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R108 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R109 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R110 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R111 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R114 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R115 1-208-635-11 s RESISTOR CHIP 10 1/16W (1005)
R201 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R202 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R203 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R204 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R205 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R206 1-208-675-11 s RESISTOR CHIP 470 1/16W (1005)
R208 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R209 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R210 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R211 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R212 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R213 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R214 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R215 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R216 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R217 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R218 1-208-647-11 s RESISTOR CHIP 33 1/16W (1005)
1-74 CCU-TX50/V2
(VDA-62A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R219 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R220 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R221 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R222 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R223 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R224 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R225 1-220-874-11 s RES, CHIP 15 (1005)
R226 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R227 1-218-945-11 s RESISTOR,CHIP 220 1/16W(1005)
R251 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R252 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R253 1-208-661-11 s RESISTOR CHIP 120 1/16W (1005)
R254 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R255 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R256 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R257 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R258 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R259 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R260 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R261 1-208-873-11 s RESISTOR,CHIP 270 1/16W (1005)
R262 1-208-873-11 s RESISTOR,CHIP 270 1/16W (1005)
R263 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R264 1-220-884-11 s RESISTOR CHIP 39 1/16W (1005)
R265 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R266 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R267 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R268 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R269 1-220-884-11 s RESISTOR CHIP 39 1/16W (1005)
R270 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R271 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R272 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R273 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R274 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R275 1-218-939-11 s RESISTOR, CHIP 68 1/16W (1005)
R278 1-208-860-11 s RESISTOR CHIP 75 1/16W (1005)
R279 1-208-860-11 s RESISTOR CHIP 75 1/16W (1005)
R280 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R281 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R282 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R283 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R301 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R302 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R303 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R304 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R305 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R306 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R307 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R308 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R309 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R310 1-208-647-11 s RESISTOR CHIP 33 1/16W (1005)
R311 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R312 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R313 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R314 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R315 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R316 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R351 1-208-873-11 s RESISTOR,CHIP 270 1/16W (1005)
R352 1-208-873-11 s RESISTOR,CHIP 270 1/16W (1005)
R353 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
(VDA-62A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R354 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R355 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R356 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R357 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R358 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R359 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R360 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R361 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R362 1-220-884-11 s RESISTOR CHIP 39 1/16W (1005)
R363 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R364 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R365 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R366 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R367 1-220-884-11 s RESISTOR CHIP 39 1/16W (1005)
R368 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R369 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
R370 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R371 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R372 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R373 1-218-939-11 s RESISTOR, CHIP 68 1/16W (1005)
R376 1-208-860-11 s RESISTOR CHIP 75 1/16W (1005)
R377 1-208-860-11 s RESISTOR CHIP 75 1/16W (1005)
R401 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R402 1-218-990-11 s RESISTOR,CHIP 0 1/16W (1005)
R403 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R404 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R405 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R406 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R407 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R408 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R409 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R410 1-208-647-11 s RESISTOR CHIP 33 1/16W (1005)
R411 1-208-683-11 s RESISTOR CHIP 1K 1/16W (1005)
R412 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R413 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R414 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R415 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R416 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R451 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R452 1-208-671-11 s RESISTOR CHIP 330 1/16W (1005)
R453 1-208-661-11 s RESISTOR CHIP 120 1/16W (1005)
R454 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R455 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R456 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R457 1-208-923-11 s RESISTOR, CHIP 33K (1005)
R458 1-208-703-11 s RESISTOR,CHIP 6.8K 1/16W(1005)
R459 1-208-699-11 s RESISTOR,CHIP 4.7K 1/16W(1005)
R460 1-208-663-11 s RESISTOR CHIP 150 1/16W (1005)
R461 1-208-873-11 s RESISTOR,CHIP 270 1/16W (1005)
R462 1-208-873-11 s RESISTOR,CHIP 270 1/16W (1005)
R463 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R464 1-220-884-11 s RESISTOR CHIP 39 1/16W (1005)
R465 1-208-911-11 s RESISTOR, CHIP 10K (1005)
R466 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R467 1-208-643-11 s RESISTOR CHIP 22 1/16W (1005)
R468 1-218-941-11 s RESISTOR,CHIP 100 1/16W (1005)
R469 1-220-884-11 s RESISTOR CHIP 39 1/16W (1005)
R470 1-208-855-81 s RESISTOR,CHIP 47 1/16W (1005)
R471 1-208-695-11 s RESISTOR CHIP 3.3K 1/16W(1005)
1-75
CCU-TX50/V2
(VDA-62A BOARD)
Ref. No.
or Q'ty Part No. SP Description
R472 1-208-679-11 s RESISTOR CHIP 680 1/16W (1005)
R473 1-208-691-11 s RESISTOR CHIP 2.2K 1/16W(1005)
R474 1-208-927-11 s RESISTOR, CHIP 47K 1/16W(1005)
R475 1-218-939-11 s RESISTOR, CHIP 68 1/16W (1005)
R478 1-208-860-11 s RESISTOR CHIP 75 1/16W (1005)
R479 1-208-860-11 s RESISTOR CHIP 75 1/16W (1005)
RY1 1-755-380-21 s RELAY
-----
FRAME
-----
Q'ty Part No. SP Description
1pc
!
1-565-796-11 s CONNECTOR,DOUBLE COAXIAL
(For UC MODEL)
1pc
!
1-565-798-12 s CONNECTOR,DOUBLE COAXIAL
(For J MODEL)
1pc
!
1-560-744-11 s CONNECTOR,DOUBLE COAXIAL
(For CE MODEL)
1pc 1-774-157-11 s CONVERTER, COAXIAL CONNECTOR
1pc 1-813-442-21 s FILTER (MPX)
1pc
!
1-468-769-11 s REGULATOR, SWITCHING
HN001 1-775-781-11 s CABLE ASSY, COAXIAL
HN002 1-829-881-11 s CABLE, FLEXIBLE FLAT (30 CORE)
HN003 1-829-877-11 s CABLE, FLEXIBLE FLAT (8 CORE)
HN004 1-829-878-11 s CABLE, FLEXIBLE FLAT (16 CORE)
HN005 1-829-880-11 s CABLE, FLEXIBLE FLAT (24 CORE)
HN006 1-829-879-11 s CABLE, FLEXIBLE FLAT (20 CORE)
HN007 1-829-877-11 s CABLE, FLEXIBLE FLAT (8 CORE)
1-4. Supplied Accessories
Q'ty Part No. SP Description
1pc A-8278-054-A s REMOTE INDICATOR ASSY
1pc 1-551-812-11 s CORD, POWER (For UC MODEL)
1pc 1-791-041-12 s CORD SET, POWER (For J MODEL)
1pc 1-793-461-11 s PLUG, CONVERSION (3P-2P)
(For J MODEL)
1pc 1-782-929-12 s CORD, POWER SUPPLY (BS 3P)
(For CE MODEL)
1pc 2-990-242-01 s HOLDER (B),PLUG (For UC, J MODEL)
1pc 3-613-640-01 o PLUG, HOLDER C (For CE MODEL)
1pc 3-863-128-xx s OPERATING INSTRUCTIONS
1pc 3-863-421-01 s PACK,CD-ROM (For UC, CE MODEL)
4pcs 7-682-561-04 s SCREW +B4X8
1-5. Optional Fixtures
Part No. SP Description
1-830-369-11 o CABLE RF SIGNAL EXTENSION
A-8344-228-A o EXTENSION BOARD (EX-854)
2-1
CCU-TX50/V2
Section 2
Semiconductor Pin Assignments
The following describes the semiconductor types used in
this unit.
For semiconductors marked with page numbers in the
index, refer to the corresponding pages in this section.
However, in some cases incompatible types are also listed,
therefore, when a part is to be replaced, also refer to the
Spare Parts section.
In addition, for semiconductors with ID Nos., refer to the
separate CD-ROM titled “Semiconductor Pin Assignments”
(Sony Part No. 9-968-546-xx) that allows searching for
parts by semiconductor type or ID No.
The semiconductors in the manual or on the CD-ROM are
listed by equivalent types. Thus the external view or the
index mark indication may differ from the actual type.
Pin assignments and block diagrams are based on the IC
manufacturer’s data book.
Index
DIODE Page or ID No.
02DZ2.0-TPH3 ................................................................. DC008-04
02DZ2.2-TPH3 ................................................................. DC008-04
02DZ4.7-TPH3 ................................................................. DC008-04
02DZ5.1-TPH3 ................................................................. DC008-04
1SS184 ............................................................................ DC001-03
1SS300-TE85L ................................................................ DC001-02
1SS301-TE85L ................................................................ DC001-03
1SS302 ............................................................................ DC001-01
1SS302-TE85L ................................................................ DC001-01
1SS313-TE85L ................................................................ DC001-02
1SS362-TE85L ................................................................ DC001-01
1SS375-TL ....................................................................... DC001-01
1SV172 ............................................................................ DC001-01
1SV172-TE85L ................................................................ DC001-01
DA221 .............................................................................. DC001-01
DAP222 ............................................................................ DC001-02
DAP222-TL ...................................................................... DC001-02
FMP1 ............................................................................... DC014-01
HVU363ATRU .................................................................. DC008-02
KV1470TL00 .................................................................... DC001-13
MA133 .............................................................................. DC001-01
MA3J74200LSO ............................................................... DC001-01
MA8051-M ....................................................................... DC008-04
RB706F-40 ....................................................................... DC001-01
RD5.6SB-T1 ..................................................................... DC008-04
LED Page or ID No.
CL-155UR/G-D ................................................................ LC009-03
CL-191HR-CD-T .............................................................. LC004-02
CL-220HR-C-TS .............................................................. LC008-04
CL-220PG-C-TS .............................................................. LC008-01
FRDG1211C-TR .............................................................. LC009-05
LA301MB ......................................................................... LR072-02
SLR-332MG3F ................................................................. LR001-01
SLR-332VC3F .................................................................. LR001-01
TRANSISTOR Page or ID No.
2SA1213Y-TE12L ............................................................ TC002-01
2SA1226-E4 ..................................................................... TC001-01
2SA1576A-T106-QR ........................................................ TC001-01
2SA1610-T1Y34 .............................................................. TC001-01
2SA1610-Y33 ................................................................... TC001-01
2SA1611-M5M6 ............................................................... TC001-01
2SA1611T1-M5M6 ........................................................... TC001-01
2SA1688-5-TL .................................................................. TC001-01
2SA1774R ........................................................................ TC001-01
2SB624-BV5 .................................................................... TC001-01
2SB624-T1BV5 ................................................................ TC001-01
2SC3356-K ...................................................................... TC001-02
2SC3356-T1K .................................................................. TC001-02
2SC4176-B34 .................................................................. TC001-02
2SC4176T1B33B34B35 ................................................... TC001-02
2SC4177 .......................................................................... TC001-02
2-2 CCU-TX50/V2
IC Page or ID No.
CXD9093R ..................................................................... CXD9093R
CY2309ZC-1HT ..................................................... CY2309ZC-1HT
EP1K50QC208-3 ................................................. EP1K50QC208-3
EPC2LC20-TP ............................................................... EPC2LC20
EPC2LC20N-TP ............................................................. EPC2LC20
FM18L08-70-STR ................................................. FM1808-70-STR
GS4981CTA ................................................................. GS4981CTA
IS42S32200B-6TL-TR .................................. IS42S32200B-6TL-TR
LA1235 ................................................................................. LA1235
LM1881MX/NOPB ............................................................ LM1881N
LM339NS .............................................................................. LM339
LM4040AIM3-2.5 ........................................................ LM4040BIM3
M51132FP ...................................................................... M51132FP
MB86189PFV-G-BND-ER ....................... MB86189PFV-G-BND-ER
MBM29LV160BE-90TN ........................... MBM29LV160B-90PTFN
MC100LVEL11DTR2 .............................................. MC10EL11DR2
MC100LVEL16DTR2 .............................................. MC10EL16DR2
MC14053BDTR2 ..................................................... MC74HC4053F
MC14520BF .............................................................. MC14520BCP
MC74HC4046ADTR2 .................................................... CD4046BE
MC74HC4052ADTR2 ............................................. MC74HC4052N
MSW-2-20-TR ........................................................... MSW-2-20-TR
MT48LC8M16A2P-75-Y15WTR ....................... HY57V281620AT-P
NC7SZ04P5X ................................................................... TC7S04F
NC7SZ08P5 ...................................................................... TC7S08F
NC7SZ08P5 ...................................................................... TC7S08F
NC7SZ32P5X ................................................................... TC7S32F
NJM062V(TE2) ................................................................... RC4558
NJM062V(TE2) ................................................................... RC4558
NJM062V-TE2 .................................................................... RC4558
NJM1496V ....................................................................... MC1496P
NJM1496V-TE2 ............................................................... MC1496P
NJM2903V(TE2) .............................................................. UA393DC
NJM2904V(TE2) ................................................................. RC4558
NJM4558V-TE2 .................................................................. RC4558
NJM4560M .......................................................................... RC4558
NJM567M ......................................................................... NJM567M
NJM78L05UA-TE1 ..................................................... NJM78L12UA
PCA9555DB-118 .................................................. PCA9555DB-118
PCF8591T ....................................................................... PCF8591T
RN5VD23AA-TL ......................................... S-80928ANMP-DDR-T2
RN5VD28AA-TL ......................................... S-80928ANMP-DDR-T2
RTC4574JE-TP ....................................................... RTC4574JE-TP
SN74CBT3253PWR-12 .............................. SN74CBT3253PW-E20
SN74LVC240APWR .................................................. TC74HC240P
SN74LVC244APWR .................................................. TC74HC244P
SN74LVC574APWR .................................................. TC74HC574P
SN74LVC74APWR-12 ................................................. TC74HC74P
SN75158PS .................................................................... SN75158P
Index
TRANSISTOR Page or ID No.
2SC4178-F14 ................................................................... TC001-02
2SC4215Y ........................................................................ TC001-02
2SC4617R ....................................................................... TC001-02
2SD1623-S ...................................................................... TC002-02
2SD596-DV5 .................................................................... TC001-02
2SD596DV345 ................................................................. TC001-02
2SK2539-6/7/8-TB ........................................................... TC001-05
2SK880GR-TE85L ........................................................... TC001-05
3SK299-T1-U73 ............................................................... TC003-02
DTA144EE ....................................................................... TC001-04
DTA144EE-TL .................................................................. TC001-04
DTC123JE ....................................................................... TC001-03
DTC123JE-TL .................................................................. TC001-03
DTC144EE ....................................................................... TC001-03
DTC144EE-TL ................................................................. TC001-03
NDS355AN ...................................................................... TC001-07
NDS356AP ....................................................................... TC001-20
SI4425DY-T1 ................................................................... TC012-04
IC Page or ID No.
74LCX04MTCX ............................................................ TC74HC04P
74VHC00MTCX ........................................................... TC74HC00P
74VHC02MTCX ........................................................... TC74HC02P
74VHC04MTCX ........................................................... TC74HC04P
74VHC08MTCX ........................................................... TC74HC08P
74VHC221AMTCX ..................................................... TC74HC221P
74VHC245MTCX ....................................................... TC74HC245P
74VHC32MTCX ........................................................... TC74HC32P
74VHC4051MTCX .................................................. MC74HC4051N
74VHC4053MTCX .................................................. MC74HC4053F
74VHC573MTCX ....................................................... TC74HC573F
74VHC74MTCX ........................................................... TC74HC74P
74VHCT00AMTCX ....................................................... TC74HC00P
74VHCT08AMTCX ....................................................... TC74HC08P
74VHCT541AMTCX .................................................. MC74HC541N
AD8014ART-REEL7 ....................................... AD8055ART-REEL7
AD9203ARU-RL7 ................................................. AD9203ARU-RL7
BCM5221A4KPT ................................................... BCM5221A4KPT
BU2500FV-E2 ................................................................... M62352P
CAT24WC02JI-TE13 ................................................... X24C02S-30
CXA1122AM-1 ............................................................ CXA1122AM
CXB1341R ..................................................................... CXB1341R
CXD1095BR ................................................................ CXD1095AR
CXD1171M .................................................................... CXD1171M
CXD1176Q ..................................................................... CXD1176Q
CXD1176Q-T4 ............................................................... CXD1176Q
CXD1216M .................................................................... CXD1216M
CXD1216M-TH .............................................................. CXD1216M
CXD2315Q-T4 ............................................................... CXD2306Q
2-3
CCU-TX50/V2
IC Page or ID No.
SP3222ECY .............................................................. MAX3222CAP
TA78L09F .................................................................. NJM78L12UA
TA78L09F-TE12L ...................................................... NJM78L12UA
TA8129Z ........................................................................... TA8129Z
TC4W53FU(TE12R) ..................................................... TC4W53FU
TC4W53FU ................................................................... TC4W53FU
TC74HC4052AFT(EL) ............................................ MC74HC4052N
TC74HC4053AFT(EL) ............................................ MC74HC4053F
TC74HC4538AFT(EL) ............................................ MC74HC4538N
TC74HC4538AFT ................................................... MC74HC4538N
TC74VHC04FT(EL) ..................................................... TC74HC04P
TC74VHC08FT(EL) ..................................................... TC74HC08P
TC74VHC138FT(EL) ................................................. TC74HC138P
TC74VHCT245AFT(EL) ............................................. TC74HC245P
TC74VHCT541AFT(EL) ............................................ MC74HC541N
TC7SZ02FU(TE85R) ........................................................ TC4S01F
TC7SZ08FU(TE85R) ........................................................ TC7S08F
TC7W53FU(TE12R) ..................................................... TC4W53FU
TC7W53FU-TE12R ....................................................... TC4W53FU
TC7WH04FU(TE12R) ...................................................... TC7W04F
TC7WH123FU(TE12R) ............................... TC7WH123FU_TE12R
TL712CPS ........................................................................ TL712CP
TLC272CPS ........................................................................ RC4558
TLC272CPWR .................................................................... RC4558
TLC272CPWR-12 ............................................................... RC4558
TLC7733IPWR-12 .................................................... TLC7733IPWR
TLV2221CDBV ............................................................... TA75S01F
TLV2221CDBV2 ............................................................. TA75S01F
UPC319G2-E2 ................................................................. UPC319C
UPD6466GS-515 ............................................ UPD6466GS-502-E2
OTHERS Page or ID No.
HCPL-0630-500 ............................................................... MA009-01
Index
3-1 3-1
CCU-TX50/V2
IndexIndex
Section 3
Block Diagrams
Block Diagrams Index
Page
A. AT-155 ................................................................ 3-10
AU-300 ............................................................... 3-5
C. CN-2474 ............................................................. 3-2
CN-2647 ............................................................. 3-2
CN-2648 ............................................................. 3-2
CN-2649 ............................................................. 3-2
CN-2650 ............................................................. 3-2
CN-2653 ............................................................. 3-2
D. DM-140............................................................... 3-3
E. EN-156A ............................................................. 3-8
I. IO-214 ................................................................. 3-2
IV-57 ................................................................... 3-7
O. Overall ................................................................ 3-2
S. SW-1257 ............................................................. 3-2
T. TR-133A ............................................................. 3-4
V. VDA-62A ........................................................... 3-2
3-23-2 CCU-TX50/V2
OverallOverall
Overall
SEL
AMP
VIDEO RET
MOD AMP DRIVER
TR-133
CAMERA
(TRIAX)
COAX
RET-1
RET-2
RET-3
VIDEO
AMP DEMOD
RF AMP
AMP
MOD
RET
RET
RF
RF
PROMPT
FILTER
MPX
AMP
RF
LPF
HPF
DATA/TONE
DEMOD FORMER
PULSE
TONE
DETECT
TONE DET H
CCU DATA OUT
MOD
CHU H PLL
CCU DATA
MOD
MOD
PGM
INCOM1
MOD
CCU DATA IN
INCOM1
DEMOD AMP
AMP
DEMOD
MIC2
AMP
DEMOD
MIC1
AMP
AMP
AU-300
AMP
AMP
AMP
SEL SEL
AMP
AMP
SEL
SEL
AMP
AMP
PANEL INCOM-T
AMP
CD
YD AMP
R-Y
DEMOD
VIDEO
AMP
R-Y
B-Y
AMP
VIDEO
DEMOD
B-Y
SKIN GATE
DEMOD GATE
SEP
Y
AMP
VIDEO
DEMOD
Y
SYNC
SEP
SYNC
SKIN
CHU
DM-140
AMP
R-Y ADC
IV
PLD
10
R-Y
B-Y
10
ADC
B-Y
AMP
AMP
YADC 10
Y
SKIN TONE GATE
AMP SYNC
SEP
PLL
V
H
COMP H
MAIN
H
V
SEP
SYNC
AMP
AMP
Y
10
AT-155
TX/FX
I/O
CPU &
10/100 BASE- EXPANDER
TRANSCEIVER
PHY ETXD
4
4
PHY ERXD
IIC SDA3
32
CHARA GEN DATA
IIC SDA2
IIC SDA1
SIGNALS
VARIOUS
MEMORY
FLASH NOVRAM SDRAM
SERIAL
I/0
8
I/0
SERIAL
MEMORY
I/F
STICK
8
16
32
DATA BUS
27M CLK PLL GEN
PULSE AMP
SEL
SYNC
SEP
AMP
PLD
SIGNALS
VARIOUS
AMP
RCP
TX/RX I/F
BUS
STICK
DRIVER
MEMORY
AMP
REFERENCE
SYNC
OUT
4
COLOR
MONO-
CB-GEN
&
R/R-Y
10
R
B
10 B/B-Y
G
10 G/Y
CHARA
BAR-
PIX-
CHARA
D-ENC
TX
SERIAL DRIVER
10
D1OUTA
2
2
D1OUTB
10
SERIAL
TX DRIVER
DRIVER
AMP
VARIOUS
DAC AMP
10
VBS
PIX
10 AMPDAC LPF PIX
WFMLPFDAC AMP
10
WFM
VIDEO
OUT
GENLOCK
DRIVER
DAC
ADC
DATA
8
ENCSC
ENCSC
8
DATA SYNC OUT
10
B-Y
R-Y
10 Y
10
WFM SEQ ON/OFF
WFM STAIR STEP
EN-156
IV-57
VBS/SDI-2
VBS/SDI-3
VBS/SDI-1
POWER
UNIT
+3.7V
+5.5V
-5.5V
+12.5V
-12.5V
~AC IN
REMOTE
WF MODE
SIGNALS
REMOTE
VARIOUS
MIC
INTERCAM/
TALLY/
AUDIO OUT
CH-1
CH-2
INCOM
PANEL INCOM-R
PANEL PGM
PROD(INCOM1)-R
PGM1
PGM
PROD(INCOM1)-T
ENG(INCOM2)-T
PROMPTER
RF AUDIO
IO-214
DC180V
AMP
AMP
CN-2653
CN-2474(1/5)
CN-2474(2/5)CN-2647(1/2)
CN-2648 CN-2474(3/5)
SW-1257(2/2)
CN-2647(2/2) CN-2474(4/5)
DEMOD
DUMMY
PLUSE
GEN
I/O
EXPANDER
VARIOUS
SIGNALS
IIC SDA3
ADC
SW-1257(1/2)
MIXDAC
DAC AMP
AMPDAC
SYNC
DRIVER
DRIVER
DRIVER
CN-2649(1/3)
CN-2649(2/3)
CN-2474(5/5)
CN-2650
VDA-62(2/2)
CN-2649
(3/3)
POWER CONTROL
DC180V
VDA-62(1/2)
PLUG-IN SELECT
3-3 3-3
CCU-TX50/V2
TR-133,902-e21
CN16
CN15
Q501
IC503(1/2)
BLACK S/H
SYNC CLAMP
SYNC
SYNC S/H
Q503
IC505(1/2)
SYNC S/H
RV504
4
PULSE GEN
TP505
14
BLACK S/H
1
RV501
PULSE GEN
TP502
BLACK CLAMP BLACK
Q303-305
IC703(1/2)
IC702
BLACK
Q907
D108
Q63 IC645
+5V
CN902
IC62(1/2)
REG
TRANS-HIRA-PIN9
PWR-OK/NG
e22
d9
e9
d8
c8
e8
-5.5V
+5.5V
Q65
REG
-5V
1,7
2
LEVEL
DIAG
3,6
SUPPLY
Q103,104
REG
Q61,62
RF
PHASE
YD
a1 COAX-SIGNAL(X)-IN
CN902
d1 TRIAX-SIGNAL(X)-IN
IC62(2/2)
CN2
EQ
CN1
IC101
AMP
d21
Q101
FL103
Q102
POWER
RFRF
FL102
(2/5)
+3.3V
POWER
D63
(1/5)
EQ
FL102
IC102
Q106,107
AMP AMP
IC103
Q109,110
EQ
(3/5)
FL102
EQ
C
D104
SUPPLY
POWER
Q105
D
S1
POWER
Q108
SUPPLY
D106
IC6,7
B
IC2
Y CAR LEV
RV161
Y AGC
CONT
S301
C 2nd AGC
TP501
LV501
SYNC SEP
6
IC501
23 BUFF
Q504
SEP
SYNC
IC502
Y LEVEL
23
AMP
RV702
4RF
LPF
Q704
FL701
Q703
Y CAR BAL
RV701
DEMOD
Y4VIDEO
AMP
Q705
BUFF
1DC
AMP
DC SET
S301
C 2nd AGC
Q114,115
Q116-118
HOLD
PEAK
DIODERF
(4/5)
AMP
FL102
IC104
Q112,113
EQ
2
(5/5)
FL102
EQ
TP102
AMP
DC
1IC106
ATT
SUPPLY
POWER
Q111 D110
A
D112,113
SKINRF
LPF
Q613,614
FL602
TP603
DL601
AMP
SHIFT
DEMOD LPF
RV603 Y VCO
RV602
VCO
X601
DC
AMP
IC602
1
MIX
3
Q605
S/H
AMP
Q602
FL601
B-Y LEVEL
TP101
B-Y
DEMOD
AMP
Q603
RV802
Q604
LPF
IC803(1/2)
1DC 3
AMP
41
VIDEO
D308
Q303-305
Q302
SUPPLY
IC12,13
DECORDER
b21
c21
a21
PIN4-OVER
TRANS-HIRA-
CN902
CN902
e21
LEVEL
SHIFT
LEVEL
IC10
SHIFT
4
3
5
IC6,10,Q3
BUFF
IC12,13
POWER
FL303
EQ
PHASE RF
AMP
IC301
33
3
LENGTH
CABLE
SELECT
MANU/AUTO
COMPARATOR
IC7-9
CONT
CLEAR
COUNTER
REF
4,14
COMPARATOR
1,7
IC204
C
(2/5)
FL302
D
POWER
SUPPLY
EQ
D304
FL302
(1/5)
RF
Q306
AMP
Q307-309
IC302
POWER
SUPPLY
B
AMP
RF
Q311-313
IC303
D306
EQ
Q310
EQ
FL302
(3/5) Q318-320
PEAK
HOLD
C AGC
RV301
CONT
Q321-3262
2,5 7
AMP
DC 5
TP1 IC1(1/2)
AMP
RF
Q1,2
P-P
HOLD
D2,3
SUPPLY
POWER
D314
A
Q315-317
EQ
(4/5)
FL302
RF
D310
AMP
IC304
TP302
AMP
DC
1IC306
EQ
(5/5)
FL302
DIODE
ATT
D312,313
Q911 IC904(2/2)
Q804
FL801
Q803
IC801
B-Y
CAR BAL
RV801
EQ
IC306
BUFF
TP803
RV804
C VCO DC SET
AMP
IC802
IC803(2/2)
7DC 5
C CAR LEV
LPF
Q808,809
FL802
RV805
VCO 7
X801 TP802
Q906
FL901
D902
Q910
90
SHIFT
R-Y
RV901
CARBAL
RF
AMP
TP301
R-Y
DEMOD
Q905
IC901
CONT
76
5
AMP
DC S/H
IC903
IC902
4
LPF 1
VIDEO
AMP
Q908
SYNC S/H
Q902
CONT
GAIN 1
TP902 IC903
3
AMP
DC
SYNC
SAMPLE
RV503
SAMPLE S/H
IC505
Q502
SAMPLE S/H
PULSE GEN
RV502
SAMPLE GATE
SAMPLE GATE
Q303-305
912
PULSE GEN
TP503 10
1
1
TP504
SAMPLE CLAMP
DIAG
Y
(2/2)
57
SHIFT
(3/4)
9,10 LEVEL 8
IC504
BLACKS/H
S/HSAMPLE
Q707
1
3
SLICER
SAMPLE
Q706
3
AT-155,902-a23
TR-133,902-a22
TRANS-HIRA-PIN5
D/A-ANA-
LEVEL0-IN-Y
Y DIAG
a23
a22
IV-57,902-a10
CHU Y(X)-OUT a17
CN902
IC603(2/2)
VOLTAGE
CONT
IC603(1/2)
VCO
7
TP602 6
5S/H
BLACK
Q608
RV601
Y OFFSET
1
FOLLOWER
SKIN GATE
BUFF
Q606
S/H SEP
3
Q607 IC508
IC506(2/2)
SEP
IC507
SYNC
(2/2)
IC704,705
Q708
DIAG
TP601 DIAG
SKIN
S/H
5B-Y
Q805
SHIFT
LEVEL
SHIFT
(4/4)
12,13 11
IC906
IC506(1/2)
LEVEL
(1/4)
71,2 3
IV-57,902-e6
IV-57,902-d10
SKIN-TONE-
GATE-OUT a19
CHU-SYNC-OUT a4
TR-133,902-c22
AT-155,902-c23
IV-57,902-a7
TR-133,902-d22
PIN7 B-Y DIAG
TRANS-HIRA-PIN8
SKIN DIAG
LEVEL2-IN B-Y
D/A-ANA-
d22
c23
CHU B-Y(X)-OUT
TRANS-HIRA-
CN902
c22
a7
CN902
IC804
Q807
(1/2)
SYNC
1
BLACK
Q806
S/H
3
S/H
FOLLOWER
VOLTAGE
CONT
VCO 6
(2/2)
SAMPLE
B-Y OFFSET
TP801
ADJ
RV803
IC904(1/2)
VOLTAGE
FOLLOWER S/H
Q909
DIAG
R-Y
IC204
214,5 LEVEL
SHIFT
RV903
6
CN902
AT-155,902-e22
AT-155,902-d23
D/A-ANA-LEVEL2-
IN B-Y
D/A-ANA-LEVEL3-
IN R-VDS
a6
d23
IV-57,902-d7
TR-133,902-b22
CHU R-Y(X)-OUT
R-Y DIAG
TRANS-HIRA-PIN6
a10
b22
(2/4)(1/2)
R-Y
LEVEL
RV902
AT-155,902-b23
D/A-ANA-
LEVEL1-IN R-Y b23
CN902
IC905 IC906
MPX
FILTER
IC601
Q601
31
IC804
SAMPLE
IC906IC905
Q610-612
IC701
IC906IC705
TR-133,902-a21
TR-133,902-b21
TR-133,902-c21
TR-133,902-d21
TR-133,902-e22
PIN0-CABLE0
TRANS-HIRA-
PIN1-CABLE1
TRANS-HIRA-
PIN2-CABLE2
TRANS-HIRA-
PIN3-AUTO
TRANS-HIRA-
CD
IC1(2/2)
IC4,5
FILTER
MPX
IC61
Q64
BLACK
TP701
Q301
BUFF
Q301CN301
Q101
BUFF
D101
D102 D103 D105 D107 D109
MPX
FILTER
TR-133,CN100
RF_AUDIO
RF_RET
TR-133,CN701 RF_PROMPTER
TR-133,CN801
CN101
CN301
RF-Y
RF-C
DUMMY
DEMOD
PLUG IN SELECT
CN101
90
90 SET
90
DM-140DM-140
DM-140
3-43-4 CCU-TX50/V2
CN-2474,102-d19 a19 PROMPTER(X)-IN/OUT
IV-57,902-e17 RET-SIGNAL-
CN902
a16 VBS(X)-IN
Q701
BUFF
RET RF ATT1
LPF
FL701 Q702-704
CLAMP VIDEO
AMP
IC701
RET DEV
RV701
Q705
MOD
RET
CT701
RET FREQ
AMP
Q706 Q707,Q708
ATT
RET RF ATT2
Q709
AMP
Q710-714
DRIVER BPF
FL702 TP701 RET RF
CN701
BUFF
Q801
IC904
AMP
VIDEO
RV902
PROMPT LEV
PROMPT
TX/RX
Q911
TP901
31
DETECT
PROMPT
PRM DET
IC801
CLAMP
Q908-910
FL801
LPF
Q802
RF
MOD
110
PROMPT DEV
RV801
LPF REG
Q813
ATT
IC803
97,24MHz
X801
PROM+5V
PROMPT
ATT
Q807,808
IC807
PROMPT ON
PROM+5V
IC806
1
24
AMP
IC804
31
BPF
IC802
1
TP801
FL901
LPF DEMOD
171RF
IC903
PROMPT TUNE
LV902
LV41
3.6M
Q907
AMP
PROMPT FREQ
LV901
3
6
FREQ
TX/RX
Q809-811
4,5
IC805
CN801
PROMPT RF
TX/RX
PROMPT
AU-300,902-b3 INCOM1 INb3
Q42 Q41
BUFF BPF
3.6MHz
CF41 TP41 IC121
RF
AMP LPF HPF
FL122
RF AUDIO
CN100
INCOM1 DEV
RV41
41
MOD
INCOM1
PGM
MOD
RV101
PGM1 DEV
TP101
CF101
4.3MHz
BPF
BUFF
Q101Q102
e3 PGM1 INAU-300,902-e3
4.3M
LV101
LV1
2.5M
IV-57,902-e5
Q2 Q1
BUFF BPF
2.5MHz
FL1
MOD
CHU H PLL
TP1
CONT-IN
a7 CHU-H-PLL-
CCU DATA
MOD
FL21
3.0MHz
BPF
BUFF
Q21Q22
AT-155,902-d3
3.0M
LV21
TP21
CCU-DATA-INa1
e18
e19 +3.7V
+5.5Vd8
c8
d9
e9 -5.5V
+12.5V
b20
a20
d20
e20 +12.5V
e8 REG
Q153
IC152(2/2) +5V
IC151
Q151,152
REG
REG
Q152
IC152(1/2)
+12V
-12V
+3.3V
CHECK
LEVEL
-5V
IC154
65109
Q806
Q804,805
CONT
POWER
Q803
PRCM+5V
PROM-5V
DMD-5V
DMD+5V
Q903
POWER
CONT
Q904,905
Q906
Q902
REG
IC902
DMD+9V
21
Q901
DEMOD ON
PROMPT
2PRM DET
IC802
NO VIDEO
PROMPT
Q812
IC901
IC905
BUFF
4 1,2 PRCMPT
TX/RX
Q155
Q155
PWR OK/NG
1
1
CF201,202
BPF
5.6MHz
IC201
DEMOD
DATA/TONE
5.6M TUNE
LV201
TP201 Q204
LPF LPF
550Hz
IC205(1/2)
Q201-203
IC206
6
7
1
IC205
550Hz
LPF
HPF
1500Hz
IC202
PULSE
FORMER
IC203,Q205
IC207,209
TONE
DETECT
Q208
13210
75
13
Q209
TONE 512/102 SEL
RV201
TONE ADJ
IC203(3/4)
COMPARATOR
10 13 LEVEL
SHIFT
1,2 4 COM-HIRA-PIN8 d23
CN902
b1CHU-DATA-OUT
41,2
SHIFT
LEVEL
IC204
Q301-303
6.2MHz
BPF
CF301,302
DEMOD
MIC 1 LPF
IC302(1/2)
TP301
61
5
137
IC302(2/2)
AMP
621
TP302 IC303
BUFF MIC1 OUT e4
RV301
MIC LEV ADJ
DATA
HOLD
2
1
4
+5V
MIC MUTE OFF SW
MUTE CTL
LV301
6.2M TUNE1 6.2M TUNE2
LV302
IC301
IC370
2
5
IC364
CF401,402
BPF
6.7MHz
Q401-403
16
MIC 2
DEMOD
6.7M TUNE26.7M TUNE1
LV401 LV402
5 IC401 TP402 IC402(1/2)
LPF
Q404,405
IC404
AUX SEL MIC2
LPF
IC402(1/2)
31 AMP
67
IC402(2/2)
RV401
MIC2 LEV ADJ
BUFF
IC403
TP402
12 d4
MIC2 OUT
Q601-603
7.1MHz
BPF
CF601,602
6
INCOM1
DEMOD
1
LV602
7.1M TUNE27.1M TUNE1
LV601
8
IC602(1/2)
LPF 1
Q604,605
BUFF 31
IC604
DIAG
DEMOD
TP601
CONT
MUTE
61
+5V
IC367-369
IC365
INCOM MUTE
21
TP602 IC605
BUFF
IC602(2/2)
76 AMP INCOM1 OUT b4
IC603
AT-155,902-d22
AT-155,902-e3
AU-300,902-e4
AU-300,902-d4
AU-300,902-b4
I/O
EXPANDER
IC361
13
14
15
16
17
CHU DATA HOLD
INCOM1 DEMOD DIAG
PROMPT NO VIDEO
TONE DET
PWR OK/NG
IC362
6
5
4
3
2
7
4
6
7
8
9
5
11 9 11
17
13
14
15
16
18
TONE 512/102HzSEL
INCOM MUTE
PROMPT ATT
RET RF ATT1
RET RF ATTO
AUX SEL MIC2
PROMPT TX/RX
a25 IIC-SDA1
CN902
a21 TRANS-HIRA-PIN0
TRANS-HIRA-PIN1b21
TRANS-HIRA-PIN2c21
EN-156,902-a25
IV-57,902-a25
CN2474,902-a25
DM-140,902-a21
DM-140,902-b21
DM-140,902-c21
b25 IIC-SCL1
AT-155,902-a25
AT-155,902-b25
CN-2474,902-b25
IV-57,902-b25
EN-156,902-b25
TRANS-HIRA-PIN3d21
TRANS-HIRA-PIN5
a22
CABLE-OVER
e21
TRANS-HIRA-PIN6
b22
TRANS-HIRA-PIN7
c22
TRANS-HIRA-PIN8
d22
TRANS-HIRA-PIN9
e22
DM-140,902-a22
DM-140,902-e21
DM-140,902-d21
DM-140,902-d22
DM-140,902-c22
DM-140,902-b22
DM-140,902-e22
EXPANDER
I/O
8
7
6
5
4
9
10
11
13
14
23 22
2223
IC362
16
15
PROMPT DEMOD ON
PROMPT ON
+5V
1,19
S363(2/2)
ADJ
RV901
RF AGC DLY
4
1
2
4
18
19
20
S2
REM
RX
TX
CAM POWER
S1
IC208
TR-133ATR-133A
TR-133A
3-5 3-5
CCU-TX50/V2
CN-2474,102-a6
CN-2474,102-b6
a6 ANA-PGM1(X)-IN
ANA-PGM1(Y)-INb6
CN902
CN-2474,102-e10
CN-2474,102-d10
PROD(INCOM1)-
e10
PROD(INCOM1)-
CN902
d10 T(X)-IN
T(Y)-IN
DIFF
AMP
2
3
IC204
3BUFF
71
IC203 TP200
PGM1 IN
S200
0dB 20dB
DIFF
5AMP
67
IC212(1/2) IC213(1/2)
34 LIMITER
IC212(1/2)TP209
9
PROD 4W B+
IC105(3/3)
9
54
2
10
15
PRD ON IC116
(1/2)
FP PRD ON
CN-2474,102-d7
CN-2474,102-e7
TP210
ENG 4W B+
6d7
T(Y)-IN
T(X)-IN
ENG(INCOM2)-
e7
57
AMP
DIFF
ENG(INCOM2)-
CN902
IC217(1/2) IC218(2/2)
9
3 4
ENG ON
LIMITER
IC217(2/2) IC105(2/3)
11
IC116
4
(2/2)
5
9
12
FP ENG ON
14
SW-1257,1-26 T(X)-IN
c18 PANEL-INCOM-
CN902
TALK REV
RV202
6
IC207
LIMITER
TP202
IC112(1/2)
12
11
14
FP TALK ON
15
1
10
2
15
10
PROD RTS
+B
RV101
SIDE TONE
IC113(2/3)
11
13 7
10
1
15
PRIVATE ON
AMP
(1/2)
76
IC106
IC117
BUFF
21
SIDE TONE
RV101
IC102(2/2)
E-VOL
11 10
IC208(2/2)
AMP
67
IC104(2/2)
AMP
1375
IC104(1/2)
E-VOL
15 16
5(1/2)
IC102
35
4
9PANEL-PGM-
ON/OFF-IN c16
CN902
SW-1257,1-25
SW-1257,1-17
FRONT-INCOM-
VR-IN a22
CN902
SW-1257,1-20PANEL-PGM(X)-OUT a7
CN902
TP207
TR-133,902-e3PGM OUT(X) e3
BUFF
1
2 IC106(2/2)
IC208(1/2)
AMP
21SW-1257,1-23
PANEL-INCOM-
R(X)-OUT a16
CN902
TP206
TR-133,902-b3CCU INCOM OUT(X)
CN902
b3
IC204
BUFF
2 7
IC113(1/3)
2
10
14
15
FP PRD ON
11
12
14
PRD ON
15
ENG ON
2
10
IC115(3/3)
9
4
TALK ON
5
CA ICOM IN(X)b4
CN902
TR-133,902-b4
FP ENG ON
54
9
IC113(3/3)
1AMP 5
CANCEL
RV203
PROD RTS
S204
CC RTS
AMP
27
IC204
DEFF
DRIVE
IC204
27
7CN-2474,102-b10
R(Y)OUT
PROD(INCOM1) b10
CN902
CN-2474,102-a10
R(X)OUT
PROD(INCOM1) a10
4W
RTS
(CC)
PROD SEL
S206(1/2)
TR-133,902-e4 TR MIC1 IN(X)
CN902
e4
TR-133,902-d4 TR MIC2 IN(X)
CN902
d4
CN-2474-102-b17 RED-TALLY(X)-IN
CN902
a17
CN-2474,102-e17 GREEN-TALLY(Y)-IN
CN902
e17
MICI LEV
RV201
IC210 1
7
6DIFF
DRIVE
CN-2474,102-a15MIC1(X)-OUT
MIC1(Y)-OUT
a15
b15 CN-2474,102-b15
TP205TP208
0dB 20dB
MICI LEV
S203
RV200
MIC2 LEV
CN2474,
e15MIC2(Y)-OUT
MICI LEV
0dB
DRIVE
DIFF
20dB
S202
7MIC2(X)-OUT d15
TP203
IC210
TP204
1
ENG RTS B+
IC114(2/2)
CC
AMP
2
CANCEL
ENG RTS
RV204
BUFF CN-2474,102-b9
CN-2474,102-a9
AMP
RTS
S205 ENG SEL
S207(1/2)
DIFF
12
1
IC219
2
IC222
DRIVE
RTS
(CC)
1
4W
IC220 7b9
R(Y)OUT
R(X)OUT
ENG(INCOM2) a9
ENG(INCOM2)
RED-TALLY(Y)-IN
CN902
b17CN-2474,102b17
RECT
D1,3
D5
POWER
S3
POWER
CONTACT
S1
PH1(1/2)
27 21
IC1
21
5V
REG
COUPLER
LEVEL
SHIFT
RECT
D8,10
Q5 IC109(1/6)
T2
OSC
D9,11
RECT
REG
12
IC2
5V
Q8,9
Q6
CONTACT
POWER LEVEL
SHIFT
D6S2
3
COUPLER
IC109(2/6)
264
RECT
D2,4
CN-2474,102-d17 GREEN-TALLY(X)-IN
CN902
d17
POWER
S4
4
PH1(2/2)
9,10 BUFF
IC108(3/4)
8
12,13
IC108(4/4)
11
BUFF
CN-2474,
R-TALLY-OUT(1K)
CN902
a8 102-a8
102-a11
CN-2474,
G-TALLY-OUT(1K) a11
CN902
e20
d20
CN902
-12.5V
CN902
CN902
CN902
102-e15
CN-2474,
102-d15
2MUTE
CONT 7
IC223 1
+12V
CONT
POWER
+12V
PGM+B
Q212
Q213
Q214
PGM-B
-12V
Q209
-12V
PROD RTS -B
CONT
POWER
Q208
Q206,215
+12V
PROD RTS +B
Q211
-12V
ENG RTS -B
CONT
POWER
Q210
+12V
ENG RTS +B
-12V
Q203
PROD 4W -B
-12V
Q205
ENG 4W -B
+12V
POWER
CONT
Q200,216
Q202
PROD 4W +B
+12V
POWER
CONT
Q204
ENG 4W +B
+12V
4W
S206(2/2)
RTS(CC)
PROD SEL
+12V
ENG SEL
4W
RTS(CC)
S207(2/2)
REG
IC4(2/2),Q13
CHECK
6
IC5(1/3)
LEVEL 1
-12V
IC4(1/2),Q12
REG
+12V
IC7(1/2),Q10
REG
+5V
a20
b20 +12.5V
C8
d8 +5.5V
a21 REFERENCE +5V
REG
e9
d9 -5.5V
Q11
IC7(1/2)
-5V-2
IC5(3/3)
10
CHECK
LEVEL 13
9LEVEL
CHECK
IC5(2/3)
14
+3.3V
REG
Q1,3,IC6
e18
e19 +3.7V
POWER
D7
b22 IIC SDA3
CN902
c25 IIC SCL3
b21 ENG INT ON
PRD INT ONc21
CA INCOM MIC OFFd21
CN902
SW-1257,1-13
AT-155,902-b22
EN-156,902-b22
AU-300,902-b22
AT-155,902-c25
EN-156,902-c25
SW-1257,1-14
AU-300,902-c25
AT-155,902-b21
AT-155,902-c21
AT-155,902-d21
7
13 218 FP TALK ON
15
314
FP PRD ON
14
515
FP ENG ON
13
617
PRD ON
12
718
ENG ON
11
819
TALK ON
920
9
10
11
22 23 IC100
SCL SDA
I10
EXPENDER
6
5
LEVEL
SHIFT
IC107
17
4
IC111
1,2 6
IC110
IC108,109
FP PRIVATE ON
PRIVATE ON
1
IC211
IC216
7
IC218(2/2)
IC115
(2/3)
IC105
(1/3)
IC214
IC115
(1/3)
Q207,217
Q201,218
e8
PWE OR/ING
IC112(2/2)
DCDC
AMP
AU-300AU-300
AU-300
3-7 3-7
CCU-TX50/V2
DM-140,902-a10 CHU-R-Y(X)a7
CN902
R-Y
4
AMP
IC110
11 LPF
FL102 IC116
AMP
4 1
1
IC124(1/2)
AMP
DC 2
R-Y-DC
R-Y BLK
IC119
16
TP104
25
IC118
A/D
10-BIT
REF
57
V
IC124(1/2)
27M-CLK-P2B
SATURATION
10
R-Y 0-9
RV103
R-Y LEVEL
RV105
a7
TP103
B-Y-DC
CHU-B-Y(X)
B-Y BLK
AMP
RV102
FL103
LPF
IC125(2/2)
12
DC
IC109
AMP
4B-Y 1
16
IC113
41
AMP
IC115
SATURATION
10-BIT
A/D
IC119
RV106
B-Y LEVEL
IC125(1/2)
REF
5V
25 B-Y 0-9
27M-CLK-P2B
10
DM-140,902-a7
TDI3
VCC
CN401
1
BUFF
IC402
3
9
7
2MASTER RST 2
14
IC413
2
5
TRST
TMS
TCK6
17
18
13
11
4TDO
CONFIG.
EPRDM
3191912
4
8
9
Da0-31
32
13
AD7-12
DQM
CAS18
RAS19
CS20
WE17
CLK68
CKE67
SDRAM
64M-BIT
IC308
10
10
a10DM-140,902-a17
IC123(2/2)
Y-DC
Y BLK
RV101
1
AMP
DC 21 6
CHU-Y(X) AMP
FL101
Y
4
AMP
1
IC108
AMP
41
IC111
IC123(1/2)
Y LEVEL
RV104 V
REF
727M-CLK-P2B
10-BIT
TP102
25
A/D
IC117
MAIN Y IN
10
86
159
158
157
164
83
85
MAIN C CLAMP 40
MAIN Y CLAMP 41
153
51
50
1
4
156
155
52
2
105
IC307
DATA
NSTATUS
DCLK
TDI2
IC306
+3.3V
IC1314
b25
CN902
a25
IIC-SCL1
IIC-SDA1
C-2474,102-a25
EN-156,902-a25
TR-133,902-a25
AT-155,902-a25
CN-2474,102-b25
E-156,902-b25
TR-133,902-b25
AT-153,902-b25
d16
e16
d15
SDI-RET-SELO
RET-SEL-VBS1
DIF-NG/OK
CN902
RET-SDI-CTL-OFF/ON
RET-SEL-VBS0
e15
c15
SDI-RET-SEL1
a6
CN-2653,902-d16
CN-2653,902-d16
DM-160,902-a10
I/O
EXPANDER
S102 TEST
S101 RET SET
S103 MODE
DIP SW
S108 PAGE
PWR-OK/NG
S104 A/B
S105 ON/OFF
11
REW
FF
RESET
IC130
2 5
CONF-DONE
NCONFIG
IC103,104
IV PLD
10
16
71
D-FF
IC127
10
2
1
4
27M-CLK-P2C
IC302
SYNC
3
2
VIDEO
SEP
198 A RET-V
199 A RET-H 7 AMP
Q302
IC129
IC120-122
10
10 A11-E11
A10-E10
CN901
R-Y0 TO R-Y9 EN-156,901-A10 TO E10
B-Y0 TO B-Y9 A9-E9
A8-E8 EN-156,901-A8 TO E8
A5-E5
A4-E4
Y0 TO Y9 EN-156,901-A4 TO E4
F
SKIN-GATE
E7
C7
EN-156,901-A7
EN-156,901-C7
OE2(PULL DOWN) A6
OE1(PLL DOWN) D6
CN-2653,902-a19
RET-VBS(X)-SEL a19
CN902
IC409,Q403
AMP
RET-SIGNAL-VBS(X)
TR-133,902-a16e17
IC309,Q300
LPF
A-RET
RV401
CHU-SYNC
Q301,303
AMP DM-140,902-a4e6
36
37
H SYNC
V SYNC
7
VIDEO
IC301
3
SEP
SYNC 2
14 13
IC303 3
AMP
DC
3 1
PLL TR-133,902-a7CHU-M-PULL-CONT e5
IC310
RET-DPGM-1/2DATA
RET-DPGM-LRCK
RET-DPGM-BCK b4
d4
c4
BUFF
IC305
98
3 1
6 4
186
184
94
187
D-FF
IC107
16 5
17 478
73 DM-140,902-a19SKIN-TONE-GATE d10
AT-155,901-A1MST-SD-F E1
CN901
27M-CLK-P2A
193
192
IIC-SCL2
IIC-SDA2
e25
d25
CN902
AT-155,902-d25
EN-156,902-d25
EN-156,902-e25
AT-155,902-e25
18
17
16
2
3
BUFF
4
54
55
182
SERIAL-COM-CST
SERIAL-COM-CSO
MASTER-RST
e24
d24
e23
A-155,902-e24
EN-156,902-e24
AT-155,902-e23
EN-156,902-e23
EN-156,902-d24
EN-156,902-d24
AT-155,901-D1A1
CN901
MST-27M-CLK
BUTION
CLOCK
DISTRI-
IC128 1
27M-CLK
CN901
A7 EN-156,901-E7
12
LEVEL
SHIFT
IC132
4
27M-CLK-P2B 61
8
4
TP101
27M-CLK-P2C
27M-CLK-P2A
CHECK
CPU
POWER
Q101,102
+5V
c8,d8
e8 +5.5V
CN902
REFERENCE 15Va2
-5.5V
e9
d9
MAIN +3.7V
A3-E3
REG
IC3(1/2),G1 +5V
IC3(2/2),Q2
REG
-5V +1.5V
IC4(1/2),Q4,6
AMP
IC102,Q103,104
REG
IC4(2/2),Q3,5
REG
+3.3V
+2.5V
LEVEL
Q8
PWR-OK/NG
POWER
D4
c24 SERIAL-LOAD
SERIAL-CLOCK
SERIAL-DATA
b24
a24
AT-155,902-b24
EV-156,902-b24
AT-155,902-a24
EN-156,902-a24
EN-156,902-c24
AT-155,902-c24
BUFF
IC105
2
3
4
18
17
16
4
BUFF 5
IC106 3
16
15
17
6
Y-DC
B-Y-DC
R-Y-DC
SATURATION
CHECK
Q7,10
CN902
2
MAIN-Y-OUT
79 10
MASTER RST IC304
MAIN COMPH
VCC
A11 TO E11
A9 TO E9
A5 TO E5
CN901
MEN A
CN902
CN902
CN902
CN902
CN902
CN902
CN902
CN902
CN401
CN401
NC
AT-155,901-D6
NC
AU-300,902-b2
AU-300,902-a2
IV-57IV-57
IV-57
3-83-8 CCU-TX50/V2
B-Y0 TO B-Y9
A8-E8
A9-E9
A5-E5
A4-E4 Y0 TO Y9
c7 SKIN-GATE
CN901
CN902
ENC-TG-Fe1
D-FF
IC102-105 CI106(1/2)
MONO-COLOR
10 10
1010
R-Y0 TO R-Y9
A11-E11
A10-E10
10 10
186
187
27M-CLK-P2A
AT-155,902-e2
IV-57,901-c7
IV-57,901-
A4 TO E5
A8 TO E9
IV-57,901-
A10 TO E11
IV-57,901-
COMPONENT-R
10
10
COMPONENT-G
10
COMPONENT-B
HALF
IC509
BAND
FILTER
112
31
113
120
99
111
32
D-EN WRF
D-EN WRH 34
MASTER-RESET
27M-CLK-P4A
SLOT-ID
SCL
SDA
2
REF-F,H
29HB-FILTER-
204
205
Y
10
10
R-Y
10
B-Y
&
CB-GEN
a24 SERIAL DATA
IV-57,902-a24
AT-155,902-a24
SERIAL CLOCKb24
18 VBS-GAIN
19 WFM-GAIN
2PIX-GAIN
R-GAIN
3
16
11
8
IC716
15
16
179
12
4
IC720
5B-GAIN
G-GAIN
4
BUFF 12-CH
8-BIT
DAC
AT-155,902-b24
IV-57,902-b24
IV-57,902-e24
AT-155,902-e24
17
8
e24 SERIAL LOAD1
AT-155,902-d24
IV-57,902-d24
SERIAL LOAD0d24
IC313(2/2)
SEL
LOAD
3WIRE LOAD PULSE
B1 CHARA-GEN-DATA
CHARA-GEN-CLKA1
BAR-
CHARA
IC303
3
1
A6 CHARA-GEN-CS1
CHARA-GEN-CS0c1
3,12
IC325
SLOT-ID
71
CHIP
SELECT
IC302
1
2
16
18
IC313(1/2)
BUFF
b21 VIDEO-HIRA-PIN0
VIDEO-HIRA-PIN1c21
VIDEO-HIRA-PIN2d21 14
CN902
4
2
SLOT-ID
16
13
BAR CHR
4MASTER RESET
IC304
CHARA
PIX-
3
1
CHAR-CK
13
PIX CHR16
MASTER RESET
4
d1 EXTERNAL REF SC
EXTERNAL REF SYNCc1 17
4
IC306
DRIVER
GENLOCK
5,6 PAL/NTSC
1
24
IC323
IC305
42
TP301
SC
FILTER DAC
8-BIT
27MHz
IC301
8
13
IC322 IC311
8-BIT
ADC
21
IC312
D-FF
8
D0-7
DATA 0-7
ENC SC
20
11
12
IC308
REF-INT/EXT
13.5M-SC-CLK
27M-CLK-P3B
24
30 12
AT-155,902-d4
AT-155,902-e4
AT-155,902-c4
AT-155,901-A6
AT-155,902-a1
AT-155,902-a2
10
HBF-422
10
10
10
B-Y
R-Y
Y
D-ENC
IC502(1/2)
36130
131 37
132 38
133 39
2 8 19 20
18
11114
19
LALT-NORM/INV REF-LALT-RES
IC107
10-BIT
DAC
CN901
CN902
CN901
CN902
CN902
13
BAR BLK
CHAR-VR
PIX BLK
CHAR-HR
128
A-ENC
SC CONT
DATA 0-7
8
129
127
FL101
AMP
IC112
LPF
10M
TP102
R-Y GAIN
RV102
27M-CLK-P2C
R-GAIN
LEVEL2
MODE
LEVEL1 +5V
RV104
R-Y/R
LEVEL
YCD/RGB
MODE
+3.3V
24 3 1
IC110
IC110
1324
SETUPC-OFF/ON
G/Y-SYNC-OFF/ON
LEVEL1
LEVEL2
G-GAIN
27M-CLK-P2C
RV106
Y-G LEVEL
TP104
10M
LPF
IC114
MIX
FL103
DAC
10-BIT
IC108
IC109
10-BIT
DAC
FL102
AMP
IC113
LPF
10M
TP103
B-Y GAIN
RV103
27M-CLK-P2C
B-GAIN
LEVEL2
MODE
LEVEL1 +5V
RV105
B-Y/B
LEVEL
YDC/RGB
MODE
+3.3V
24 3 1
IC111
RV101
Y GAIN
(UC) MIX
SYNC
13
12 11
IC117
PAL/NTSC
RGB/YCD
LEVEL2
COMP-BLKG
ADV-SYNC
IC118
11
1
12
NTSC/PAL
LEVEL1
MODE
Q105,106
IC117,118
10
D1 OUTA
4
BUFF
IC324
24
DAC
10-BIT
IC314
1
PAL/NTSC
VBS GAIN PIX GAIN
IC315
10-BIT
DAC
24
24
DAC
10-BIT
IC316
WFM GAIN
WFM 0-9
10
PIX 0-9
10
10
VBS 0-9
D1 OUTB
10
IC326(1/2)
VDA-62,901-a15ANA-R/R-Y a15
CN902
41
TX
SERIAL
IC503
c15ANA-G-Y VDA-62,901-c15
e15ANA-B/B-Y VDA-62,901-e15
a7SD-MAIN-SDI(Y) VDA-62,901-a7
VDA-62,901-a6a6
INV
IC508(1/2)
18
16 4
2
IC505
4
1
2
Q501-503
POWER
CONT
OUTPUT1-SDI/VBS
+3.3V-2 +3.3V-3
S703
(1/4)
27M-CLK-P4C
10
611
OUTPUT2-SDI/VBS
43 SD-MAIN-SDI(X)
SD-MONI-SDI(X)
43
11
10
27M-CLK-P4D
(2/4)
S703
+3.3V-4+3.3V-2
OUTPUT3-SDI/VBS
CONT
POWER
Q501-503
17
137
3
IC508(2/2)
INV
a9 VDA-62,901-a9
VDA-62,901-a10SD-MONI-SDI(Y) a10
IC504
SERIAL
TX
41 CN902
13
IC318
AMP
10MHz
LPF VDA-62,901-a17VBS(X) a17
TP304
RV303
RV304
TP305
c19PIX(X) VDA-62,901-c19
LPF
10MHz AMP
IC319
31
13
IC320
AMP
10MHz
LPF
VDA-62,901-a19WFM(X) a19
TP306
RV305
27M-CLK-P3C
LPF
IC317
31 e17SYN-OUT(X) VDA-62,901-e17
114
TP303
CN902
1
201982
IV-57,902-b21
IV-57,902-c21
IV-57,902-d21
EN-156A (1/2)EN-156A (1/2)
EN-156A (1/2)
3-9 3-9
CCU-TX50/V2
AU-300,902-c1
AU-300,902-b1
AU-300,902-a1
NC
SEQ-SYNC-IN
AU-300,902-c22
IV-57,902-c22
AT-155,902-c22
22
NSTATUS
DCLK
DATA0
CHECK
LEVEL
IC4(2/2),IC2 Q4,6
IC3(2/2)
Q2
d20
e20 -12.5V
b20
6
10
IC5
10
9
5
-12V
+12V
a20 +12.5V
CN902 IC4(1/2) -5V
REG
+5V
Q1
REG
d9,e9 -5.5V
CN902
e8
c8,d8 +5.5V
MAIN +3.7V REG
Q3,5
IC3(1/2)
REG
+2.5V
Q8
PWR-OK/NG
POWER
D4
CN901
A3-B3
+3.3V
10
8
9
VDA-62,901-e5
(KEY-IN MATRIX)
23
12
PLD-RE-CONF
15
+3.3V IC717
DC
CHECK
IC718
IC722
65
19
PWR-OK/NG
EP1K-CONF-DONE 20
SLOT-ID 3
VDA-62,901-d16
IV-57,902-b25
IV-57,902-a25
EN-SW0-7
8
SEL0,1
18 CN902
d16VDA-NG/OK
IC703,722
S701-708
IC715
EXPANDER
I/O
SLOT-ID 5
AT-155,902-b25
TR-133,902-b25
CN-2474,102-b25
CN-2474,102-a25
TR-133,902-a25
AT-155,902-a25
CN902
IIC-SCL1 b25
a25IIC-SDA1
TEMPERATURE
SENSOR
IC714
9
4
STAIR1
STAIR0
(INTERVAL)
LEVEL
1
(1/2)
IC309
RV302
IC309
TP302
WFM-STAIR-STEP e2
CN902
2
RV301
DC
(POSITION)
76
(1/2)IC310
CONT
LEVEL
13.5M-SC-CLK
61
44 LALT-NORM/INV
39 YCD/RGB
38 RGB/YCD
37 NTSC/PAL
36 PAL/NTSC
31 G/Y-SYNC-OFF/ON
30 SETUP-OFF/ON
19 COMP-BLKG
2EP1K-CONF-DONE
11755 SEQ-SYNC-FROM-ENC
ENC-SKIN-GATE
ENC-REF-F SDA
141
SCL
140
MASTER RESET
12
27M-CLK-P3A
13
REF-LALT-RES
39
REF-INT/EXT
95
ADV-SYNC
115
NTSC/PAL
135
SETUP-OFF/ON
136
138 SLOT-ID
IC326(2/2)
8 SKIN GATE(Y LEVEL) 124
11656 ENC-SEQ-SYNC-RST
12357
60 37
ENC-REF-H58 36
43
137
53
28
EXT-COLOR-FRAME
COLOR BAR-OFF/ON
A-ENC
TRST
TCK1
TMS1
TDI1
NCE
D-EN SKIN-GATE
TDI2
D-EN Y LEVEL GATE
EP1K-CONF-DONE
1
9
+3.3V
4TDO
1VCC
CN701
3TDI
5
TRST 2
6
TMS
TCK
MASTER RESET
IC702
4
12
TDI3
1911 3
52
155
156
8
4
2
4
153
50
1
51
16 4
14 6
713
82
BUFF
IC706
50
1
4
51
153
52
IC708
EPROM
CONFIG
156
155
EMBEDED-MIC1/2-DATA
EMBEDED-MIC-LRCK
e2
c5
AE5/EBU(Y)
d2
EMBEDED-MIC-BCK c2
CN902
176
IC506
BUFF
1113
98
46
23
192
SLOT-ID
183
27M-CLK-P4B
SCL
SDA
189
190
MASTER RESET 180
PLD-RE-CONF
154
200
7
105
3
D-ENC
179
18440
199
105
IC502(2/2)
182
11
SEQ-RST-LATCH
15
18
SEQ-SYNC-RST
207
208
AT-155,902-d1
VDA-62,901-d6
AT-155,902-e23
IV-57,902-e23
Q102
+5V-4
CURRENT
CHECK
Q101
+5V
BUTION
TP101
27M-CLK-P2A
27M-CLK-P4B
27M-CLK-P2B
27M-CLK-P4A
27M-CLK-P3B
27M-CLK-P3A
27M-CLK-P3C
27M-CLK-P2C
27M-CLK-P4C
27M-CLK-P4D
IC120,121
CLOCK
DISTRI-
CN902
EMC-27M-CLKa1
183
27M-CLK-P2B
41
REF-INT/EXT
REF-LALT-RES 40
1113
MASTER RESET
180
BUFF
IC718
e23 MASTER-RST
CN902
25
IC713
24 SLOT-ID
CN901
SLOT-ID(PULL UP)B6
S301
SEQ
+
-2913
BUFF
IC310(2/2)
Q301-303
CONT
SEQ-ON
d6 WFM-SEQ-ON/OFF
CN902
COM-HIRA-PIN1b22
IC721,Q701
D-FF
Q702,703
BUFF 16
c22 COM-HIRA-PIN2
CN902
CHU LOCK
CCU DIAG
D101,102 Q103,104
LED
DRIVE
SCL
27
e25 IIC-SCL2
CN902
BUFF
IC723
26
SDA
OUTPUT1-SDI/VBS
OUTPUT2-SDI/VBS
OUTPUT3-SDI/VBS
MONO-COLOR
&
CB-GEN
18 2 45
911 46
614 9
317 12
16 4 13
14
IC106(2/2)
15
BUFF
IC119
5
IIC-SDA2d25
VDA-62,901-c17
VDA-62,901-a3
VDA-62,901-b3
MONITOR-RELAY-OFF/ONc17
RCP-POW-OFF/ONd7
COLOR FRAME(FROM AT)c6
OUTPUT1-SDI/VBSa3
OUTPUT2-SDI/VBSb3
IV-57,902-e25
AT-155,902-d25
AT-155,902-d25
IV-57,902-d25
CN902
c3 OUTPUT3-SDI/VBSVDA-62,901-c3
EN-156A (2/2)EN-156A (2/2)
EN-156A (2/2)
3-103-10 CCU-TX50/V2
XINT-700P-RM
XINT-700P-RCP
XINT-700P-CHU
XINT-232C
INTR(MS)
DACK(MS)
DREQ(MS)
MODE3
MODE4
XWAIT
ROM SEL
BUSY/READY
IC107(1/2)
1
2
3
161
4
144
142
14
13
115
160
165
32-BIT
RISC CPU
EEPROM
MAC
ADDR
IC101
5
6
SDA-MAC
SCL-MAC
158
159
7PR TCT
-OFF/ON
DELAY
2
CPU-CLK
SRI-CLK 3
SR2-CLK 14
MS-CLK 10
23
153 UP DATA
PIO-XDIS
154 SHCKE
127 XSHRAS
117 XSHCAS
118 WR/RD
133 XRD
128
4XSHWE0-3
XCS0-4
5
D0-31
32
25
A0-24
CHIP
SELECT
A20-24
5
4XCS4
128M-BIT
SDRAM
XCS3 19
16
17
18
37
15,39
4
WR/RD
XSHCAS
XSHRAS
SHCKE
XSHWE0-3
IC116,119
IC139
38
2SR-1,2 CLK
14
A2-15
D0-31
32
TIMING
CONT
15
14
CS(MS)
CPU CLK
XCPU RST
CS(NOV)
IC117,118 256K-BIT
NOVRAM
16
D0-15
A1-15
15
20
22
27
2
XRD
XSHWE0,1
IC121,122
16M-BIT
FLASH
MEMORY
RY/BY
DET
IC114,115
32
D0-31
A2-20
19
26
15
2
1,2
IC111
4BUSY/READY
9
42
ROM SEL
ROM SEL
S102
28
12
11
XRD
RST
XSHWE1,3 2
SC-PHS/REM
H-PHS/REM
61
60
S301 REMOTE
PHASES302
58
59
PHS-ADV
PHS-DLY
IC301
I/O
EXPANDER
HPHASE
0-3
4
SEL
SW
H-PHASE
S303
S304
V-PHASE SW
SEL
4
0-3
VPHASE
S305 NT/PAL SW
DLY SW
S306
(SPEAR2)
S307
(SPEAR3)
S308
62
1
2
3
DIP SW
SELECT
IC318,319,322
18,19
DIP SW-SEL0,1
BUFF
XRD 1
IC124
4XRD-2
D0-7
8
3
A0-2
41 XSHWED
XRD-2
42
PIO-1
43
PIOXDIS
39
LED
DRIVE
48
47
21
20
LAN-R-OFF/ON
LAN-G-OFF/ON
GEN-LOCK-NG
REF-IN
Q301,302
312,314 D309,310,312
+3.3V
26
42
PROTECT
S101
PRTCT-OFF/ON
CCU-TEST 0-7
8
DIP SW
MODE1
S309
S310 TEST
S311 CCUNO
S312 MODE2
IC123
MEMORY
STICK
IF
CONTROL
D0-15
16
3
A1-3
35
11
30
29
INTR(MS)
DACK(MS)
DREQ(MS)
13,28
12
32
33,34
2
MS-CLK
MS-IC-RESET
RD
XSHWE0,1
D311
Q311,313
MS-LED-GREEN-ON/OFF
MS-LED-RED-ON/OFF
26
27
DRIVE
LED
MS-LED
2
8
4
BS
SCLK
DIO
CN103
16
17
15
3,9
6
VCC
INSDELAY
POWER
CONT
20
IC141,143
24
IC142,144 +3.3V
Q104,105
CHIP
SELECT
15
14
13
12
11
10
9
CS(700R)
CS(700F)
CS(CHU)
CS(232C)
PIO-1
PIO-2
PIO-3
IC140
A20-24
5
4
XCS2
50-35D0-D15
5-8
53-56
+3V
+5V
CN104
+3.3V +5V
A1-A20 29-11
16
D0-15
A1-20
20
51
34
33
32
31
AUTO UP DATE
WRL
WRH
RD
CSO(JIG)
CHIP
SELECT
MODE3
XCS0,1
IC112,128
XRD-2
XSHWE1
XSHWE0
UPDAE
52JIG DETMODE4
MODE3
IC127 IC126
4224
MEMORY
STICK
IC108
XCSO(FLASH)
IC109
1
25MHz
49
AU-300,902-c21
AU-300,902-b21
TR-133,902-a1
VDA-62,901-b4
VDA-62,901-a4
DM-140,902-e23
DM-140,902-d23
DM-140,902-c23
DM-140,902-b23
DM-140,902-a23
EN-156,902-c22
TR-133,902-d23
EN-156,902-e24
IV-57,902-e24
EN-156,902-d24
IV-57,902-d24
IV-57,902-b24
EN-156,902-b24
EN-156,902-a24
IV-57,902-a24
IV-57,902-C24
EN-156,902-C24
SW-1257,1-30
SW-1257,1-29
POWER UNIT
SW-1257,1-10
SW-1257,1-9
SW-1257,1-8
SW-1257,1-7
CONNECT-CHU
XINT-700P-CHU
XINT-232C
CN902
56
49
29
55
54
34
CS(232C)
CS(CHU)
XSHWED
XRD-2
74
73
13
15
12
10
4
IC320
IC320
IC321
13
11
2
43
65
66
A0-3
4
8
D0-7
IC309
XWAIT
2
1
CMD-IC-RESET
CPU RESET
27MHz
X301
17697019
69 177019
SERIAL
I/O
7
56
IC314(2/2)
IC314(1/2)
2
29 3
TP302
TX
PANEL
TX
RCP
54
53
34
33
TP301
PH301
PH302
RX
PANEL
RX
RCP
CS(700F)
CS(700R)
XSHWE0
XRD-2
74
73
13
15
A0-3
4
8
D0-7
CONNECT-R
CONNECT-F
XINT-700P-RCP
XINT-700P-RM
8
6
4
2
9
5
3
1
43
63
65
66
IC308 IC320
I/O
SERIAL
SD-H-PHASE
LD
SCL
SDA
15
16
17
18
19
20
9
13
12
8
7
IC303
D/A
12CH
8-BIT
22
21
4
PWR ON/NG
DELAY SEL
NTSC/PAL
PIO XDIS
PIO-2
XRD-2
XSHWE0
39
43
42
41
3
A0-2
D0-7
8
3
8
A0-2
D0-7
IC304 Q304-307
50
51
9
10
11
12
13
14
IC317
24
Q309
Q308
+5V
42
IC316
15
16
Q303,310
CONT
POWER
62
1
2
3
5
6
7
52
53
54
57
58
59
60
61
12
13
14
15
16
17
18
DRIVE
LED
RS-232CO TXD
RS-232C1 RTS
b21
c21
CCU DATA OUT d3
b6
a6
PANEL-COM-TR(Y)
PANEL-COM-TR(X)
CN902
RCP-COM-TR(X)
RCP-COM-TR(Y)
a5
b5
e22
d23
c23
b23
a23
D/A-ANA-LEVEL4
D/A-ANA-LEVEL3
D/A-ANA-LEVEL2
D/A-ANA-LEVEL1
D/A-ANA-LEVEL0
SERIAL-DATA
SERIAL-CLOCK
SERIAL-LOAD
SERIAL-COM-CSD
SERIAL-COM-CSI
COM-HIRA-PIN3
COM-HIRA-PIN2
a24
b24
c24
d24
e24
d24
c22
b10GREEN-TALLY-PANEL
a10RED-TALLY-PANEL
CAM-POWER-ON/OFF e15
CN902
MAIN-POWER-LED
CAM-POWER-LED
CABLE-OPEN-LED
CABLE-SHORT-LED
a7
b7
d7
e7
EXPANDER
I/O
IC302
8
7
6
5
4
3
2
SHIFT
LEVEL
TR-133,902-b1
AU-300,902-d21
VDA-62,901-e4
VDA-62,901-d4
SW-1257,1-24
SW-1257,1-21
SW-1257,1-18
SW-1257,1-11
POWER UNIT
POWER UNIT
POWER UNIT
POWER UNIT
POWER UNIT
POWER UNIT
e3 CHU DATA IN
CN902
RS-232C2 RXD
RS-232C3 CTS
d21
e21
e6
d6
PANEL-COM-RC(Y)
PANEL-COM-RC(X)
CN902
RCP-COM-RC(X)
RCP-COM-RC(Y)
d5
e5
INCOM-PRIV/PROD
INCOM-PRIV/ENG
MIC-CTL-ON/OFF
CCU-ID(777/555)
a9
b9
a8
a3
CN902
CABLE-OPEN-STATUS
CABLE-SHORT-STATUS
CAM-POWER-STATUS
FAN-ALARM-STATUS
RCP-POWER-NG-STATUS
POW-UNIT-DC/AC
FRONT-PANEL-ID
c16
d16
e16
d17
e17
c15
b3
AT-155 (1/2)AT-155 (1/2)
AT-155 (1/2)
3-11 3-11
CCU-TX50/V2
a19
a18
ETHER-COM-RC(Y)
ETHER-COM-RC(X)
CN902
5
6
3
1
TMS
TCK
TDI
VCC
CN701
4 TDO
c6 COLOR FRAME PULSE
CN901
CN902
EXTERNAL RET SYNCa1
d19 EXT-REF(X)
CN902
CN902
EXTERNAL-REF-SCa2
e1
d1
c1
ENC-27M-2-CLK
ENC-27M-1-CLK
AUDIO-27M-CLK
CN902
CN901
A/D-27M-2-CLK
A/D-27M-1-CLK
E1
D1
A1
B1
MST-SD-F
(13.5M)
CN901
CN902
ENC-TG-F
(ENC-TG-13.5M)
e2
d2
10/100BASE-
TX/FX
TRANSCEIVER
IC513
26
25
CN902
ETHER-COM-TR(X)
ETHER-COM-TR(Y)
a15
a16
b25
a25
IIC-SCL1
IIC-SDA1
31
30
I/O
EXPANDER
IC305
51
50
48
47
19
21 MS-IC-RESET
CMD-IC-RESET
PHY-COL-LED
PHY-ACT-LED
PHY-XMT-LED
PHY-RCV-LED
8
3
D0-7
A0-2
42
41
43
39
XSHWE0
XRD-2
PIO-3 IC507
PLD
HV-V-PHASE
8
8
PLD CTRL
PLD VERSION
4
PLD PHS0-3
4
27 30
BB-NO/EXIST
22
25
26
CONNECT-F
CONNECT-R
CONNECT-CHU
+3.3V
LEVEL
SHIFT
IC701
4
8
6
16
12
14
2
24
52
74
IC521
58
8
97
98
99
100
TEMP SYNC
TEMP-H
TEMP-BP
TEMP-V
VIDEO
SYNC
SEP.
1
7
5
3
TP502
IC504
LPF 2
IC515
Q503
TP501
AMP
IC501
42
3
4
5
6
LEVEL
SHIFT
IC506
3
6
8
11
BUFF
BUFF
Q502
Q501
LPF
1
10
IC516
(1/2)
DIFF.
AMP
IC502
24
IC520
15
7
IC517
(1/2)
53
1
4
9
3
LPF
IC516
(2/2)
IC517
(2/2)
AMP
DIFF. PULSE
GEN
3
26
4
SD-PEDE-CLIP
SD-SYNC-CLIP
SD-REF-GATE
IC503
IC518,519
Q504
SD-H-PHASE
PLL
14
IC5053
BURST-GATE
13
13
12BB NO/
EXIST
RV501
27M FREQ
DC
AMP
143
IC524
IC523
X501
27MHz
CLK
DISTRI-
BUTION
2
4
6
1
3
5
IC510
IC511
D-F/F
15
17
12
14
12
10
2F/2
13
11
1
6
8
IC509
6
4
9
7
CIN
59
44
43
89
28
11
12
34
33
CPU RESET 9
PHY-TX-EN
PHY-TX-ER
PHY-TX-CLK
IC107(2/2)
RISC CPU
32-BIT
PHY-ETXD0-3
4
PHY-ERXD0-3
4
56
52
53
51
49
50
62
61
PHY-RX-ER
PHY-RX-DV
PHY-RX-CLK
PHY-CRS
PHY-COL
PHY-MDIO
PHY-MDC
PHY-SPD-ST
PHY-LINK-ST
PHY-XFDX-LED
41
42
36
35
10
203
208
201
187
188
192
190
189
198
199
186
184
170
F/2
43
X502
25MHz
IC106
EXTAL
12.5MHz
519
d25IIC-SDA2
IIC-SCL2 e25
IIC-SDA3
IIC-SCL3
b22
c25
IC302
911
e23MASTER-RSTDELAY
IC104
4
180
182
171
172
176
156
178
IC105
DELAY 4CPU RESET
XCPU-RST
CHARA-GEN-DATA d4
c4CHARA-GEN-CS
CHARA-GEN-CLK e4
CN902
164
163
162
185
CHARA-GEN-CSI A6
VOLTAGE
CHECK
IC110,113,Q103
RES
REAL
TIME
CHECK
+3.3V
CN901
IC103
8
175
174
173
8
3
6
7
H RTC CS
RTC CLK
RTC SIO
POWER
CONT
Q101,102
IC145
VDD
+3.3V
BT101
ADC
IC145
31
152
151
SDA-AD
SCL-AD
910
1
3
RV101
ALARM-VOLT
7
5
IC131
(2/2)
168XINT-CPU-VD
CN902
c17(UNREG-VOLT-SENSE)
REFERENCE+5V a21
c8,d8
+5.5V e8
e9
d9
-5.5V
E3
MAIN +3.7V A3,B3
C3,D3
13
IC131(1/2)
REG
REG
LEVEL
CHECK
REG
IC4(1/2),Q2
IC3(2/2),Q3,6
REG
+3.7V
IC3(1/2),Q4,7
+3.3V
-5V
IC4(2/2)
Q1
+5V
a20
+12.5V b20
d18+12V-FRONT-AU
REG
+12V
IC2
Q5
CN901
CN902
11 10 9 5 7
D3
POWER
OK/NG
Q9
EN-156,901-C6
EN-156,902-C1
CN-2474,102-b19
EN-156,902-d1
EN-156,902-a1
IV-57,901-a1
IV-57,901-d1
IV-57,901-e1
EN-156,902-e1
TR-133,902-b25
CN-2474,102-b25
IV-57,902-b25
EN-156,902-b25
EN-156,902-a25
IV-57,902-a25
CN-2474,102-a25
TR-133,902-a25
IV-57,902-d25
EN-156,902-d25
EN-156,902-e25
IV-57,902-e25
SW-1257,1-18
EN-156,902-b22
AU-300,902-b22
AU-300,902-c25
EN-156,902-c25
SW-1257,1-17
IV-57,902-e23
EN-156,902-e23
EN-156,901-b1
EN-156,901-c1
EN-156,901-a1
EN-156,901-a6
POWER UNIT
IC512
95
TG13.5MHz
IC508
1
11
DELAY SEL
NTSC/PAL
84
85
4
2
+2.5V
PIO-XDIS
SD-PLL-VOLT
2
AT-155 (1/2)AT-155 (2/2)
AT-155 (2/2)
4-1 4-1
CCU-TX50/V2
IndexIndex
Section 4
Schematic Diagrams
Schematic Diagrams Index
Page
A. AT-155 ................................................................ 4-33
AU-300 ............................................................... 4-14
C. CN-2474A........................................................... 4-48
CN-2516 ............................................................. 4-54
CN-2647 ............................................................. 4-49
CN-2648 ............................................................. 4-54
CN-2649 ............................................................. 4-55
CN-2650 ............................................................. 4-55
CN-2653 ............................................................. 4-51
D. DM-140............................................................... 4-2
E. EN-156A ............................................................. 4-25
F. Frame Wiring ...................................................... 4-54
I. IO-214 ................................................................. 4-54
IV-57 ................................................................... 4-19
M. MB-1062 ............................................................. 4-52
S. SW-1257 ............................................................. 4-43
T. TR-133A ............................................................. 4-8
V. VDA-62A ........................................................... 4-46
4-24-2
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
DM-140 (1/3)DM-140 (1/3)
0
R359
0
R156
10uH
L307
680
R345
R118
NM
10
R107
1.5k
R12
0
R126
0
R134
33k
R304
C334
NM
2.2k
R1
1k
R340
10uH
L108
33k
R310
10uH
L301
C315
NM
470
R348
4.7k
R15
74VHC00MTCX
IC7
(4/5)
12
13
11
10uH
L306
0
R154
74VHC02MTCX
IC4
(2/5)
5
64
6.3V
47uF
C301
2.2k
R145
1SS302-TE85L
D5
1
2
3
10k
R16
2.2k
R329
2SC4215Y-TE85L
Q101
220
R311
1SS313-TE85L
D103
12
3
NJM2903V(TE2)
IC3
(2/2)
+IN
5
-IN
6
7
1k
R127
0.1uF
C8
0.1uF
C125
10pF
C139
1k
R117
2.2k
R114
0
R22
1SS302-TE85L
D4
1
2
3
10uH
L308
0.1uF
C107
150
R363
GND
0
R115
0
R123
2.2k
R7
2.2k
R18
0.1uF
C127
0.1uF
C313
NM
0
R360
NM
2SA1774TL-QR
Q302
680
R26
0.1uF
C307
6.3V
47uF
C342
6.3V
47uF
C3
C131
NM
1k
R138
10uH
L305
33k
R38
0
R328
NM
470
R30
0.1uF
C105
10uH
L2
220
R314
C116
NM
10pF
C316
47
R141
10000pF
C10
74VHC02MTCX
IC6
(2/5)
5
64
150
R331
470
R319
1SS313-TE85L
D304
1
23
1k
R158
2SC4215Y-TE85L
Q2
10k
R31
6.8k
R352
3.3k
R106
R354
NM
C134
NM
1M
R36
1k
R155
0.1uF
C333
100
R353
2SC4083-T106P
Q308
74VHC32MTCX
IC10
(4/5)
12
13 11
0
R125
10uH
L102
0.1uF
C121
CN2
1
2345
0
R336
C138
NM
47k
R109
0
R121
0
R13
0.1uF
C327
2.2k
R347
680
R313
NJM062V(TE2)
IC1
(2/2)
+
3
-
2
4
1
8
1k
R312
3.3k
R143
0.1uF
C343
2SC4083-T106P
Q106
0
R157
7
GND
14
VCC
R322
NM
74VHC02MTCX
IC4
(3/5)
8
9
10
150
R101
10uH
L304
0.1uF
C18
TP1
4.7k
R2
1.5k
R105
0.1uF
C306
0.1uF
C339
220
R110
0.1uF
NM
C113
2pF
C120
150
R129
+5V
2SC4215Y-TE85L
Q104
10pF
C119
10k
R40
0
R327
C111
NM
1SS375-TL
D2
1
2
3
100
R4
1k
R19
C136
NM
0.1uF
C14
4.7k
R23
1SS313-TE85L
D101
1
2
3
0.1uF
C332
NM
150
R130
0.1uF
C308
2.2k
R315
6.3V
47uF
C321
6.3V
47uF
C302
150
R27
0.1uF
C1
0
R325
150
R302
10k
R309
47k
R139
1SS313-TE85L
D302
12
3
4.7k
R335
6.8k
R320
0.1uF
C312
0.1uF
C143
220
R140
680
R349
+5V
74VHC02MTCX
IC6
(3/5)
8
9
10
10uH
L107
6.8k
R334
10pF
C115
0.1uF
C7
6.3V
47uF
C323
10pF
C335
22k
R33
0.1uF
C326
2.2k
R350
10k
R108
1M
R9
10pF
C337
+
-
AD8014ARTZ-REEL7
IC102
3
4
2
1
5
22k
R32
10uH
L104
220
R346
16V
10uF
C11
0
R338
R120
NM
2pF
C140
100
R39
+5V
1SS302-TE85L
D1
1
2
3
68k
R10
74VHC00MTCX
IC7
(2/5)
4
5
6
0.1uF
C108
47
R343
2SC4215Y-TE85L
Q309
6.3V
47uF
C102
0.1uF
C123
10pF
C137
0.5pF
C311
1SS313-TE85L
D301
1
2
3
2SC4215Y-TE85L
Q305
1k
R148
0
R42
0.1uF
C145
C319
NM
0.1uF
C322
R149
NM
33k
R104
2.2k
R20
74VHC02MTCX
IC4
(4/5)
11
12 13
150
R102
2.2k
R112
470
R3
6.8k
R132
100k
R43
2SC4215Y-TE85L
Q301
GND
6.3V
47uF
C340
1k
R326
10k
R116
1k
R124
MC14520BFEL
IC5
CA
1
EA
2
Q0A
3
Q1A
4
Q2A
5
Q3A
6
RA
7
VSS
8
VDD
16
RB
15
Q3B
14
Q2B
13
Q1B
12
Q0B
11
EB
10 CB
9
CN101
1
2345
0.5pF
C330
100
R321
220
R6
100pF
C16
0.1uF
C128
3.3k
R24
C118
NM
0.1uF
NM
C133
10
R307
1SS375-TL
D3
1
2
3
0.1uF
C112
0.1uF
C12
680
R344
33
R28
0
R323
10uH
L302
0.1uF
C305
10
R137
470
R308
NJM2903V(TE2)
IC3
(1/2)
+IN
3
-IN
2
4
1
8
10pF
C135
10k
R337
1SS313-TE85L
D102
1
23
0.1uF
C341
1SS313-TE85L
D303
12
3
-5V
330
R317
2SC4083-T106P
Q303
6.3V
47uF
C142
150
R332
150
R301
74VHC02MTCX
IC6
(4/5)
11
12 13
+
-
AD8014ARTZ-REEL7
IC101
3
4
2
1
5
R153
NM
0.1uF
C331
150
R160
10uH
L105
10k
R34
2SA1774TL-QR
Q102
C114
NM
74VHC02MTCX
IC4
(1/5)
2
31
0
R357
0.1uF
C6
R356
NM
NJM062V(TE2)
IC1
(1/2)
+
5
-
6
7
-5V
1k
R358
0.1uF
C325
4.7k
R11
0
R119
10pF
C318
C338
NM
220
R342
0
R135
6.3V
47uF
C2
2.2k
R361
74VHC00MTCX
IC7
(3/5)
9
10
8
10uH
L1
1k
R14
0.1uF
C132
0
R152
2SC4215Y-TE85L
Q107
2SA1774TL-QR
Q306
10uH
L303
R41
NM
1k
R305
6.3V
47uF
C124
6.3V
47uF
C144
10k
R147
16V
10uF
C17
CN1
1
2345
6.3V
47uF
C101
10uH
L101
0.1uF
C314
10k
R103
R324
NM
100k
R8
0.1uF
C106
68
R21
10uH
L106
74VHC02MTCX
IC4
(5/5)
7
GND
14
VCC
2SC4083-T106P
Q103
1k
R5
1k
R111
3.3k
R17
1SS313-TE85L
D104
1
23
R122
NM
2SC4083-T106P
Q307
2SC4083-T106P
Q304
150
R25
2.2k
R306
0.1uF
C320
0
R355
0.1uF
C9
10k
R136
10pF
C117
C317
NM
0.1uF
C126
2SA1774TL-QR
Q105
R151
NM
10k
R303
2.2k
R29 22k
R37
74VHC02MTCX
IC6
(1/5)
2
31
0.1uF
C324
470
R316
0.1uF
C13
CN301
1
2345
GND
10
R339
2.2k
R318
47k
R341
6.3V
47uF
C122
0.1uF
C141
-5V
0
R150
10uH
L103
C336
NM
74VHC02MTCX
IC6
(5/5)
7
GND
14
VCC
10k
R35
470
R351
33
R131
NM
33
R333
NM
TC74HC4053AFT(EL)
IC2
(2/3)
5
34
9
INH
VSS VEE
VDD
TC74HC4053AFT(EL)
IC2
(1/3)
12
13 14
11
16
6
87
TC74HC4053AFT(EL)
IC2
(3/3)
2
1
15
10
100k
R330 100k
R362
1k
R113
4.7k
R133
330
R144
LP1 LP2 LP3
GND
47k
R91 47k
R92
2SA1774TL-QR
Q3
CN902
c1
(3/135)
Triax-GND
CN902
e1
(5/135)
Triax-GND
CN902
a1
(1/135)
Coax-Signal(X)-in
CN902
d1
(4/135)
Triax-Signal(X)-in
CN902
a2
(7/135)
Coax-GND
CN902
d2
(10/135)
Triax-GND
CN902
b1
(2/135)
Co-ax-GND
47
R290
33
R146
1k
R142
6.3V
10uF
C104
6.3V
10uF
C4
6.3V
10uF
C5
6.3V
10uF
C304
6.3V
10uF
C103
6.3V
10uF
C303
16V
1uF
C309
16V
1uF
C328
16V
1uF
C109
16V
1uF
C130
16V
1uF
C129
16V
1uF
C310
16V
1uF
C329
16V
1uF
C110
16V
1uF
C15
47
R1002
1pF
C450
1pF
C451
2SA1688-5-TL
Q1
EQ-Y
FL103
1
IN
3
GND1
4
GND2
5
GND3
6
GND4
2
OUT
EQ-C
FL303
1
IN
3
GND1
4
GND2
5
GND3
6
GND4
2
OUT
Y-220
(1/5)
FL102
IN
1
OUT
2
GND
11
C-220
(1/5)
FL302
1
IN
2
OUT
11
GND
+
-
LMH6732MFX/NOPB
IC301
3
4
25
1
6
+
-
LMH6732MFX/NOPB
IC302
3
4
25
1
6
1k
R1003
NM
Q2
1
44
7
7
D4
3
D5
2
D2
3
10
1
D3
5
IC4
Q1
26
2
6
IC6 IC7
7
6
6
D1
4
4
TRIAX
COAX
RED
BLUE
YELLOW
YELLOW
Q101
Q102
Q103
Q104
D102
D101
101
D103
D104
Q105
Q106
Q107
102
Q301
Q302
Q303
Q304
Q305
301 302
Q307
Q306
Q308
Q309
D302
D301
D303
D304
Q3
4-3 4-3
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
DM-140 (1/3)
BOARD NO. 1-865-028-11
CCU-TX50_DM-140_11P_1
DM-140 (1/3)DM-140 (1/3)
0.1uF
C364
10uH
L315
100
R56
6.3V
47uF
C361
2SA1774TL-QR
Q111
47k
R201
0.1uF
C351
NM
74VHC02MTCX
(3/5)
IC8
8
9
10
+
-
AD8014ARTZ-REEL7
IC104
3
4
2
1
5
2SC4215Y-TE85L
Q313
C151
NM
680
R173
47k
R170
0.1uF
C350
10k
R178
0
R219
220
R378
0.1uF
C362
680
R205
0.1uF
C182
10uH
L314
0.1uF
C173
2.2k
R379
10pF
C176
680
R377
0.1uF
C168
3.3k
R398
Y_RF
002
680
R411
10uH
L113
2SC4083-T106P
Q112
10uH
L309
C375
NM
2.2k
R382
0.1uF
C171
74VHC02MTCX
IC11
(2/5)
5
64
100k
R60
1.5k
R226
2SA1774TL-QR
Q310
1SS313-TE85L
D110
1
23
0
R181
10
R199
10pF
C354
TC74HC4053AFT(EL)
IC12
0X
12
1X
13
0Y
2
1Y
1
0Z
5
1Z
3
A
11
B
10
C
9
INH
6
GND
8
VEE
7
Z-COM
4
Y-COM
15
X-COM
14
VCC
16
150
R161
33k
R50
2SC4215Y-TE85L
Q110
220
R408
C_RF
003
R420
NM
1SS313-TE85L
D309
12
3
47k
R406
220
R171
220
R196
1k
R169
0
R229
1SS313-TE85L
D310
1
23
0
R185
R212
NM
100
R419 C377
NM
0.1uF
C368
470
R414
0.1uF
C163
74VHC00MTCX
IC7
(1/5)
1
2
3
10pF
C356
0
R426
NM
220
R434
47
R177
0.1uF
C397
NM
150
R192
10pF
C155
+3.3V
47
R375
220
R400
100
R55
1SS313-TE85L
D109
12
3
6.3V
47uF
C183
1SS313-TE85L
D308
1
23
C177
NM
0
R166
74VHC02MTCX
(4/5)
IC8
11
12 13
1SS313-TE85L
D106
1
23
1SS313-TE85L
D105
12
3
1k
R390
74VHC00MTCX
IC7
(5/5)
47
R172
4.7k
R197
R388
NM
6.3V
47uF
C359
0
R187
0.1uF
C346
1k
R221
10uH
L310
0.1uF
C365
0.1uF
C380
2.2k
R413
1k
R218
10
R371
0
R213
0.1uF
C370
1SS313-TE85L
D108
1
23
R214
NM
R180
NM
0.1uF
C345
2.2k
R208
100k
R44
1k
R372
0.1uF
C189
1SS313-TE85L
D107
12
3
150
R227
470
R380
74VHC02MTCX
IC11
(3/5)
8
9
10
10pF
C159
0.1uF
C188
68k
R58
22k
R51
10uH
L111
0.1uF
C186
33k
R52
C373
NM
150
R415
74VHC32MTCX
IC10
(1/5)
1
23
0
R423
0.1uF
C372
R182
NM
C156
NM
0.1uF
C360
0.1uF
C148
0
R198
0.1uF
C384
1SS313-TE85L
D307
12
3
0.1uF
C161
6.3V
47uF
C185
1SS313-TE85L
D111
1
2
3
10pF
C374
1k
R432
0.1uF
C363
0
R435
3.3k
R402
10
R168
4.7k
R366
TC74HC4053AFT(EL)
IC9
0X
12
1X
13
0Y
2
1Y
1
0Z
5
1Z
3
A
11
B
10
C
9
INH
6
GND
8
VEE
7
Z-COM
4
Y-COM
15
X-COM
14
VCC
16
10uH
L316
2.2k
R367
2.2k
R176
150
R191
10uH
L312
0.1uF
C352
74VHC32MTCX
IC10
(5/5)
7
GND
14
VCC
0.1uF
C378
3.3k
R164
0
R165
1.5k
R399
6.8k
R210
1SS313-TE85L
D306
1
23
2SC4215Y-TE85L
Q113
74VHC02MTCX
(5/5)
IC8
7
GND
14
VCC
6.3V
47uF
C162
470
R383
R184
NM
220
R203
2SC4083-T106P
Q109
0
R369
0
R389
3pF
C181
150
R396
C357
NM
0
R217
0.1uF
C184
1k
R376
0
R220
10uH
L311
R216
NM
0.1uF
C147
2.2k
R416 6.8k
R418
3.3k
R194
10pF
C180
2SC4083-T106P
Q311
1SS313-TE85L
D305
12
3
22k
R49
2SC4083-T106P
Q315
R386
NM
2.2k
R225
4pF
C160
10pF
C178
0.1uF
C344
C172
NM
10uH
L115
22k
R53
74VHC02MTCX
IC11
(4/5)
11
12 13
0.1uF
C385
4.7k
R59
33k
R54
2SC4215Y-TE85L
Q317
2SC4083-T106P
Q316
0.1uF
C146
0
R188
0
R224
0
R421
10uH
L313
0.1uF
C383
10uH
L116
2.2k
R427
C154
NM
10uH
L317
220
R429
0.1uF
C382
0
R183
74VHC32MTCX
IC10
(2/5)
4
56
10
R404
100
R385
0
R425
10uH
L109
220
R412
150
R364
0.1uF
NM
C174
0.1uF
C166
R422
NM
100
R57
74VHC02MTCX
(2/5)
IC8
5
64
0.1uF
NM
C153
6.3V
47uF
C381
0
R392
NM
6.3V
47uF
C379
74VHC02MTCX
(1/5)
IC8
2
31
6.8k
R384
3.3k
R174
1k
R189
10uH
L112
C175
NM
22
R381
2SC4083-T106P
Q312
6.8k
R167
C353
NM
0.1uF
C152
0.1uF
C371
NM
0.1uF
C358
0
R215
47
R204
+
-
AD8014ARTZ-REEL7
IC103
3
4
2
1
5
0
R387
10uH
L114
1k
R211
47
R409
S1
C2
6
12
23
44
85
C1
1
2SA1774TL-QR
Q314
C179
NM
47k
R373
220
R209
0.5pF
C349
74VHC02MTCX
IC11
(1/5)
2
31
6.3V
47uF
C164
150
R395
470
R391
6.8k
R370
0.1uF
C187
330
R207
220
R223
C158
NM
220
R200
0
R368
74VHC02MTCX
IC11
(5/5)
7
GND
14
VCC
4.7k
R163
0.1uF
C167
TC74HC4053AFT(EL)
IC13
0X
12
1X
13
0Y
2
1Y
1
0Z
5
1Z
3
A
11
B
10
C
9
INH
6
GND
8
VEE
7
Z-COM
4
Y-COM
15
X-COM
14
VCC
16
10pF
C376
220
R401
0
R403 1.5k
R431
220
R228
470
R417
220
R433
1k
R179
10uH
L117
470
R405
2SA1774TL-QR
Q108
2.2k
R393
0.1uF
C19
0
R430
1k
R424
0.1uF
C165
10pF
C157
C355
NM
10uH
L110
C369
NM
220
R374
1k
R410
1SS313-TE85L
D311
1
2
3
74VHC32MTCX
IC10
(3/5)
9
10
8
1k
R186
33
R202
NM
33
R193
NM
33
R162
NM
33
R407
NM
33
R397
NM
33
R365
NM
10uH
L118
NM
R234
NM
0.1uF
C201
NM
6.3V
47uF
C202
NM
C197
NM
R236
NM
0
R240
NM
0.1uF
C199
NM
1k
R241
NM
6.3V
47uF
C200
NM
0
R233
NM
NM
C192
NM
C194
0
R235
NM
NM
C196
+
-
AD8014ARTZ-REEL7
IC105
NM
3
4
2
1
5
0
R239
NM
R232
NM
1k
R238
NM
C195
NM
10uH
L119
NM
220
R230
NM
C193
NM
NM
C198
0
R237
NM
220
R243
NM
47
R244
NM
0.1uF
C190
NM
68
R231
NM
R438
NM
NM
C390
6.3V
47uF
C396
NM
0.1uF
NM
C387
0
R444
NM
C391
NM
10uH
L318
NM
10uH
L319
NM
0.1uF
C395
NM
220
R436
NM
6.3V
47uF
C394
NM
0.1uF
C393
NM
1k
R442
NM
0
R439
NM
C389
NM
1k
R445
NM
0.1uF
C386
NM
NM
C388
0
R441
NM
NM
C392
R440
NM
0
R443
NM
0.1uF
NM
C191
220
R447
NM
47
R448
NM
68
R437
NM
0.1uF
C203
NM
0.1uF
C204
0.1uF
C398
3.3k
R206
100k
R394 100k
R428 100k
R446
NM
100
R175
2.2k
R195
100k
R45
100k
R46
100k
R47 100
R48
150
R499
CN902
b21
(107/135)
Trans-HIRA-PIN1_CABLE1
CN902
c21
(108/135)
Trans-HIRA-PIN2_CABLE2
CN902
d21
(109/135)
Trans-HIRA-PIN3_AUTO
CN902
e21
(110/135)
Trans-HIRA-PIN4_OVER
CN902
a21
(106/135)
Trans-HIRA-PIN0_CABLE0
1.5k
R1001
16V
1uF
C169
16V
1uF
C348
16V
1uF
C367
16V
1uF
C347
16V
1uF
C150
16V
1uF
C366
16V
1uF
C149
16V
1uF
C170
1pF
C452
1pF
C453
Y-110
(5/5)
FL102
9
IN 10
OUT
15
GND
Y-220
(4/5)
FL102
IN
7
OUT
8
GND
14
Y-220
(3/5)
FL102
IN
5
OUT
6
GND
13
Y-220
(2/5)
FL102
IN
3
OUT
4
GND
12
C-220
(2/5)
FL302
3
IN
4
OUT
12
GND
C-220
(3/5)
FL302
5
IN
6
OUT
13
GND
C-220
(4/5)
FL302
7
IN
8
OUT
14
GND
C-110
(5/5)
FL302
9
IN 10
OUT
15
GND
+
-
LMH6732MFX/NOPB
IC303
3
4
25
1
6
+
-
LMH6732MFX/NOPB
IC304
3
4
25
1
6
+
-
LMH6732MFX/NOPB
IC305
NM
3
4
25
1
6
9
11
11
11
11
IC11
7
IC8
12
8
13
88
No.
CABLE LENGTH
F
0
1
3
4
10
2
10
S1
AUTO
110m
330m
550m
10
770m
IC10
990m
8
103 104
Q108
Q109
Q110
Q111
Q112
Q113
303 304
Q310
Q311
Q312
Q313
Q314
Q315
Q316
Q317
D105
D106
D107
D108
D109
D110
D111
D305
D306
D307
D308
D309
D310
D311
105
305
4-44-4
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
NJM062V(TE2)
(1/2)
IC602
+
3
-
2
4
1
8
2.2k
R538
2SA1774TL-QR
Q612
10k
R657
0.1uF
C613
100
R611
10uH
L702
10uH
L123
+5V
-5V
10k
R731
220
R501
50V
2.2uF
C504
1M
R278
47
R254
1.5k
R703
5pF
C718
NM
16V
10uF
C715
0.1uF
C714
330
R754
0.01uF
C620
10k
R766
0.1uF
C608
10000pF
C705
NJM1496V-TE2
IC601
IN+
1
OUT+
6
OUT-
12
V-
14
GAN1
2
IN-
4
GAN2
3
CIN+
8
CIN-
10
BIAS
5
3.3k
R260
1k
R751
10k
R660
470
R770
22k
R783
330
R716
1k
R666
+
-
AD8014ARTZ-REEL7
IC702
3
4
2
1
5
10000pF
C505
1k
R692
0.1uF
C723
0.001uF
C214
16V
10uF
C217
NJM2903V(TE2)
IC704
(1/2)
+IN
3
-IN
2
4
1
8
6.8k
R687
22k
R522
0.1uF
C211
100
R553
GND
10uH
L502
NJM2903V(TE2)
IC705
(2/2)
+IN
5
-IN
6
7
330
R625
0.001uF
C530
100k
R773
47
R256
100
R709
2.2k
R629
TP603
2k
RV701
1
2
3
10uH
L121
470
R723
TLC272CPWR-12
IC703
(2/2)
+
5
-
6
7
6.8k
R788
47pF
C518
0.1uF
C509
1k
R742
0.1uF
C711
10k
R518
20k
RV602
1
2
3
1SV172-TE85L
D113
1
2
3
NJM062V(TE2)
IC106
(1/2)
+
3
-
2
4
1
8
0.1uF
C218
330
R689
4.7k
R541
1.5k
R523
10uH
L601
TP502
0.1uF
C611
NM
10uH
L704
22k
R671
1k
R602
10k
R547
100
R647
100
R778
6.8k
R528
15k
R792
22pF
C513
2SK880GR-TE85L
Q607
S
15k
R630
0.1uF
C519
1k
R606
2SC4083-T106P
Q116
3.3M
R272
2.2k
R551
1k
R756
0.1uF
C604
0
R753
NM
220k
R662
3pF
C721
0.01uF
C728
4.7k
R675
1k
R638
LPF
FL601
12 IN
13
G1
10
GND1
9
GND2
3
O1
14
G2
6
OUT
4
I2
1
O2
2SK2539-6/7/8-TB
Q707
S
100
R526
3.3k
R680
2SC4617TL-QR
Q609
470
R530
2k
RV501
1
2
3
220
R245
0
R642
33k
R763
22k
R617
10k
R684
0.1uF
C215
3.3k
R544
470
R740
22k
R715
10k
R536
220pF
C531
3.3k
R619
TP504
4.7k
R507
-5V
3.3k
R727
100
R654
2.2k
R641
Y_RF
001
4pF
C722
TP505
1uH
L604
3.3M
R658
100
R616
2SC4215Y-TE85L
Q115
2.2k
R732
330
R502
MA3J74200LSO
D702
1
2
3
S101
12
3
220
R255
1k
R713
10uH
L122
22pF
C522
+5V
1.5k
R767
6.3V
47uF
C601
220k
R746
NM
470
R690
10k
R270
470
R261
1k
R667
3.3k
R782
470
R695
2SC4176T1B33B34B35
Q614
10k
R665
6.3V
47uF
C702
+5V
2SA1610-T1Y34
Q601
LM1881MX/NOPB
IC502
VIN
2
VCC
8
GND
4
CSYNC
1
VSYNC
3
B/B
5
O/E
7
RSET
6
10000pF
C703
0.1uF
C503
0
R505
1SS302-TE85L
D701
1
2
3
220
R249
+3.3V
2SC4617TL-QR
Q613
0
R623
3.3k
R512
16V
10uF
C610
0.1uF
C710
0.1uF
C725
680k
R774
4.7k
R708
0.001uF
C526
2SC4215Y-TE85L
Q704
220k
R521
470k
R271
0.1uF
C212
0.1uF
C532
6.8k
R257
1M
R650
100k
R785
0.001uF
C529
470
R725
2SC4617TL-QR
Q604
2.2k
R789
2SA1610-T1Y34
Q501
GND
-5V
10uH
L602
+5V
0.1uF
C536
10000pF
C210
220
R693
100
R542
330
R524
TP501
470
R701
0.1uF
C510
220k
R670
0.1uF
C712
0.01uF
C614
1k
R603
0.1uF
C609
680
R548
0.1uF
C734
1M
R757
TP503
10k
R793
3.3k
R631
74VHC221AMTCX
IC503 (3/3)
8
GND
16
VCC
1k
R607
10uH
L120
6.3V
47uF
C502
100k
R273
NJM2903V(TE2)
IC704
(2/2)
+IN
5
-IN
6
7
2.2k
R266
6.8k
R672
1k
R635
10k
R533
6.8k
R738
NM
15pF
C512
NM
TP601
0
R632
NM
0.1uF
C517
470
R707
NJM2903V(TE2)
IC504
(1/2)
+IN
3
-IN
2
4
1
8
22pF
C612
0.1uF
C737
6.3V
47uF
C726
3.3k
R681
GND
22k
R645
100
R612
100
R761
0.1uF
C207
0.1uF
C733
2SA1774TL-QR
Q610
100k
R764
1k
R615
330
R685
2SK880GR-TE85L
Q608
S
1.5k
R696
NM
10k
R531
470
R743
2SA1610-T1Y34
Q503
0.1uF
C704
100
R621
100
R655
220
R728
1M
R275
0
R508
22k
R644
10pF
C626
0.01uF
C618
0.1uF
C606
4.7k
R516
22k
R733
22
R503
3.3k
R534
10uH
L124
1k
R259
1k
RV603
1
2
3
0.1uF
C209
100
R710
TP701
10k
R745
4.7k
R768
22k
R276
6.3V
47uF
C205
100k
R779
1.5k
R688
1k
R747
47k
R668
TP101
10000pF
C730
3.3k
R268
3.3k
R781
0.1uF
C628
220
R717
470
R264
UPC319G2-E2
IC506 (2/2)
+
9
-
10
8
7
0.1uF
C627
0
R511
1k
R622
47k
R729
1.5k
R736
470
R513
220pF
C523
220
R253
LPF
FL602
1
IN1
10
IN2
13
G1
12
GND1
9
GND2
7
GND3
14
G2
6
OUT
4
I1
3
O1
1k
R755
100
R711
220
R504
3.3k
R552
330k
R775
0.1uF
C507
2.2k
R706
6.3V
47uF
C602
0.1uF
C615
2SA1610-T1Y34
Q705
2SA1774TL-QR
Q118
22k
R786
1k
R663
74VHC221AMTCX
IC505
(2/3)
9
10
RD
11
Q
12
Q5
CR
7
C
6
33
R248
1k
NM
R627
680
R601
33
R726
6.8k
R790
100
R265
10uH
L501
10k
R539
4.7k
R646
1SS302-TE85L
D601
1
2
3
4.7k
R519
0.1uF
C533
+3.3V
5k
RV503
1
2
3
2.2k
R543
470
R737
0.001uF
C525
22k
R525
0.001uF
C622
0.1uF
C707
NM
330
R246
4.7k
R604
220
R549
2.2k
R758
10k
R796
0.1uF
C535
2.2k
R633
2.2k
R608
10k
R648
74VHC221AMTCX
IC505 (3/3)
8
GND
16
VCC
0.1uF
C511
1.5k
R258
0.1uF
C713
2SC4617TL-QR
Q708
470
R674
10k
R274
4.7k
R636
0
R535
1.5k
R739
NM
470
R267
10k
R678
10k
R676
0
R735
NM
0.1uF
C706
1M
R777
3.3k
R682
NJM062V(TE2)
(2/2)
IC602
+
5
-
6
7
100
R613
NJM2903V(TE2)
IC705
(1/2)
+IN
3
-IN
2
4
1
8
100
R762
1k
R791
2k
RV702
1
2
3
10000pF
C605
10uH
L603
4.7k
R515
1k
R510
4.7k
R532
TLC272CPWR-12
IC703
(1/2)
+
3
-2
4
1
8
6.3V
47uF
C515
2SC4617TL-QR
Q603
10000pF
C501
470
R618
1k
R752
22pF
C717
NM
2SC4617TL-QR
Q611
100
R651
150
R252
0.1uF
C732
47k
R656
0
R730
10k
R537
0.1uF
C607
22k
R643
2.2k
R509
6.3V
47uF
C724
NJM062V(TE2)
IC106
(2/2)
+
5
-
6
7
47
R250
50k
RV502
1
2
3
10uH
L701
74VHC221AMTCX
IC505
(1/3)
1
2
RD
3
Q4
Q
13
CR
15
C
14
2.2k
R712
2.2k
R734
10000pF
C506
3.3M
R669
1k
R704
1k
R262
2.2k
R614
0
R750
47k
R659
3.3k
R769
22k
R784
2pF
C625
0
R720
33k
R277
470
R691
10k
R664
0
R749
1SV172-TE85L
D112
1
2
3
680
R269
47k
R780
3.3k
R263
680
R686
2.2k
R545
3.3k
R624
100k
R772
DL
DL601
1
IN
4
GND1
3
OUT
2
NC
6
GND2
7
FG1
8
FG2
100pF
C516
680
R251
1k
NM
R626
6.3V
47uF
C206
1k
R705
0.1uF
C508
470
R694
-5V
NJM2903V(TE2)
(2/2)
IC504
+IN
5
-IN
6
7
100
R714
150k
R776
10k
R787
100
R719
5k
RV601
1
2
3
+5V
0
R517
4.7k
R744
10000pF
C603
33
R724
0.1uF
C208
LV501
0.1uF
C736
1k
R634
NM
2SK880GR-TE85L
Q605
S
4.7k
R540
2.2k
R649
0.1uF
C213
2.2k
R520
10k
R546
10000pF
C719
2pF
C720
2SC4617TL-QR
Q606
6.8k
R527
680k
R514
10k
R628
2SK2539-6/7/8-TB
Q706
S
0.1uF
C727
1.5k
R605
10uH
L703
15k
R795
TP102
0.1uF
C534
2SC4617TL-QR
Q602
100
R550
100
NM
R652
470
R609
UPC319G2-E2
IC506 (1/2)
+
4
-
5
6
3
12
11
0.001uF
C524
TP602
GND
22k
R661
-5V
0.1uF
C216
10k
R673
1k
R637
2k
RV504
1
2
3
2SC4083-T106P
Q114
15k
R529
7pF
C716
NM
500
RV161
1
2
3
330
R679
3.3k
R677
330
R640
0.1uF
C514
0.1uF
C624
4.7k
R610
2SA1226-T1E4
Q703
3.3k
R683
16V
10uF
C735
47k
R760
1k
R794
2SA1610-T1Y34
Q502
15k
R506
4.7k
R702
680
R247
470
R620
47pF
C521
4.7k
R639
1k
R748
4.7k
R653
74VHC221AMTCX
IC503
(2/3)
9
10
RD
11
Q
12
Q5
CR
7
C
6
74VHC221AMTCX
IC503
(1/3)
1
2
RD
3
Q4
Q
13
CR
15
C
14
NJM062V(TE2)
IC603
(1/2)
+
5
-
6
7
NJM062V(TE2)
IC603
(2/2)
+
3
-
2
4
1
8
+3.3V
50V
1uF
C219
50V
1uF
C621
50V
1uF
C619
16V
4.7uF
C729
16V
4.7uF
C731
10k
R765
NJM1496V-TE2
IC701
IN+
1
OUT+
6
OUT-
12
V-
14
GAN1
2
IN-
4
GAN2
3
CIN+
8
CIN-
10
BIAS
5
2.2k
R718
680
R721
0.1uF
C738
2SA1774TL-QR
Q504
4.7k
R797
220
R798
680
R799
CN902
a23
(118/135)
D/A-ANA-LEVEL0-in_Y
E101
2.2k
R1707
NM
2.2k
R1708
NM
GND
16V
1uF
C520
16V
1uF
C623
6.3V
10uF
C709
6.3V
10uF
C220
6.3V
10uF
C527
6.3V
10uF
C221
6.3V
10uF
C617
6.3V
10uF
C616
6.3V
10uF
C528
6.3V
10uF
C708
0
R1710
2SA1688-5-TL
Q117
22.5MHz
X601
CONT
1
GND
2
OUT
3
VDD
4
TA1272AFG(EL)
IC501
AGC1
1
AGC2
2
RF_AGC_OUT
3
RF_AGC_DLY
4
PIF_VCC
5
PIF_IN1
6
PIF_IN2
7
PIF_GND
8
SIF_IN
9
SIF_VCC
10
NC
11
VIDEO_ADJ
12
VIDEO_OUT2
24
VIDEO_OUT1
23
SYNC_IN
22
AFT_COIL
21
VIDEO_COIL2
20
VIDEO_COIL1
19
SYNC_OUT
18
AUDIO_OUT
17
LIM_OUT
16
FM_DET_IN
15
AFT_OUT
14
SIF_GND
13
TC7SH08FU(T5RSOYJF)
(1/2)IC507
2
1
4
TC7SH08FU(T5RSOYJF)
(1/2)IC508
2
1
4
TC7SH08FU(T5RSOYJF)
IC507 (2/2)
3
GND
5
VCC
TC7SH08FU(T5RSOYJF)
IC508 (2/2)
3
GND
5
VCC
LPF
FL701
1
IN
19
FG1
12
GND1
13
GND2
16
GND3
18
GND4
20
FG2
10
OUT
9
I2
6
O2
4
I1
2
O1
15
LC3
5
NC1
3
LC1
8
NC2
7
LC2
6.3V
47uF
C701 22uF
C739
NM
+5V
-5V
22
R1711
NM
22
R1712
22
R1713
16V
47uF
C740
508
SYNC
D112
D113
601
701
Q601
BLACK
D601
Y
Q703
Q606
Q607
Q704
Q608
Q116
D701
SYNC S/H
Q117
Q705
702
(PANEL)
SAMPLE S/H
(PANEL)
Y AGC CONT
SAMPLE GATE
BLACK
503
503
Q503
603
506
603
Y VCO DC
506
Q609
Q610
BLACK
SYNC
Y OFFSET ADJ
Q605
106
505
602
Y LEVEL
502
Q501
602
Q502
SKIN GATE
703
703
704
704
ON
705
IC508
DUMMY
Q114
SYNC SEP
Q115
BLACK S/H
Q602
Q603
Q604
Q118
106
Y 2'nd AGC
SAMPLE GATE
504
Y VCO DC SET
504
Y CAR LEV
SAMPLE
BLACK
Q706
OFF
Q611
Q707
Q612
Q708
Y CAR BAL
Q613
SAMPLE
D702
IC503
Q614
22.5MHz
IC505
705
505
507
B
B
B
B
B
IC507
Q504
DM-140 (2/3)DM-140 (2/3)
4-5 4-5
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
R74
2.2k
47k
R73
R76
68k
+3.3V
100
R62
47uF
16V
C69
47uF
6.3V
C65
GND
NJM062V(TE2)
IC62
(2/2)
+
5
-6
7
33k
R77
47uF
6.3V
C80
CL-220PG-C-TS
D63
NJM2903V(TE2)
IC64
(2/2)
+IN
3
-IN
2
4
1
8
10k
R89
15k
R85
GND
+5V
100
R61
10k
R83
R70
220
47uF
6.3V
C79
10k
R87
2SA1213Y-TE12L
Q63
GND
2.2k
R82
NJM062V(TE2)
(1/2)
IC61
+
3
-2
4
1
8
CL3
33k
R65
GND
R71
33k
2.2k
R84
100pF
C74
BLACK_CLAMP
003
SYNC_CLAMP
003
100pF
C62
C75
10uF
16V
2SC4617TL-QR
Q62
+3.3V
10uF
16V
C63
22k
R88
CL1
2SC4617TL-QR
Q65
15k
R79
33k
R68
R72
33k
+5.5V
100pF
C61
33k
R64
-5V
220
R63
68k
R66
C70
100pF
R75
68k
D61
02DZ4.7-TPH3
15k
R80
NJM2903V(TE2)
IC64
(1/2)
+IN
5
-IN
6
7
C68
47uF
16V
LM4040AIM3-2.5
IC63
-
2
+
1
NC
3
CL2
02DZ4.7-TPH3
D62
22k
R81
2.2k
R78
2SB624-T1BV5
Q61
SAMPLE_CLAMP
003
NJM062V(TE2)
IC62
(1/2)
+
3
-2
4
1
8
0.1uF
C81
GND
+5V
2SC2873Y-TE12L
Q64
470
R67
+5V
2.2k
R86
+3.3V
NJM062V(TE2)
(2/2)
IC61
+
5
-6
7
R69
220
-5.5V
C71
100pF
-5V
100uH
L61
100uH
L62
100
R90
0.1uF
C73
0.1uF
C72
SKIN_DIAG
003
Y_DIAG
003
CN902
e8
(47/135)
+5.5V
CN902
b3
(14/135)
CN902
e23
(122/135)
MASTER-RST
CN902
f17
(87/135)
SHIELD
CN902
b4
(20/135)
SYNC-Guard-GND
CN902
c18
(90/135)
CN902
c2
(9/135)
Front-GND
CN902
e3
(17/135)
CN902
c20
(102/135)
MB-GND
CN902
d9
(52/135)
-5.5V
CN902
f20
(105/135)
CN902
f8
(48/135)
CN902
e9
(53/135)
-5.5V
CN902
f13
(68/135)
SHIELD
CN902
b2
(8/135)
Front-GND
CN902
a3
(13/135)
Front-GND
CN902
f12
(67/135)
CN902
e11
(65/135)
MB-GND
CN902
f3
(18/135)
SHIELD
CN902
d10
(58/135)
CN902
c19
(96/135)
CN902
f2
(12/135)
CN902
f22
(117/135)
CN902
b25
(131/135)
CN902
e16
(80/135)
CN902
a17
(82/135)
CHU Y(X)-out
CN902
c4
(21/135)
CN902
d17
(85/135)
CN902
d20
(103/135)
-12.5V
CN902
e10
(59/135)
CN902
b24
(125/135)
CN902
f1
(6/135)
SHIELD
CN902
f10
(60/135)
CN902
b15
(71/135)
MB-GND
CN902
a20
(100/135)
+12.5V
CN902
a8
(43/135)
Front-GND
CN902
b16
(77/135)
Front-GND
CN902
d6
(34/135)
CN902
c5
(27/135)
CN902
a24
(124/135)
CN902
d15
(73/135)
CN902
e7
(41/135)
CN902
d7
(40/135)
CN902
c11
(63/135)
(NC)
CN902
f4
(24/135)
CN902
b20
(101/135)
+12.5V
CN902
b8
(44/135)
MB-GND
CN902
b18
(89/135)
MB-GND
CN902
e2
(11/135)
CN902
f9
(54/135)
SHIELD
CN902
f18
(93/135)
CN902
e4
(23/135)
CN902
a16
(76/135)
CHU Y(G)-out
E2
CN902
e15
(74/135)
CN902
f19
(99/135)
SHIELD
CN902
c6
(33/135)
(NC)
CN902
b11
(62/135)
MB-GND
CN902
e25
(134/135)
CN902
c9
(51/135)
MB-GND
CN902
c8
(45/135)
+5.5V
CN902
d25
(133/135)
CN902
b5
(26/135)
Front-GND
CN902
b17
(83/135)
Front-GND
CN902
f15
(75/135)
SHIELD
CN902
c10
(57/135)
MB-GND
CN902
a11
(61/135)
Front-GND
CN902
d18
(91/135)
E1
CN902
f14
(69/135)
CN902
b10
(56/135)
Front-GND
CN902
a25
(130/135)
CN902
f6
(36/135)
CN902
b9
(50/135)
Front-GND
CN902
d3
(16/135)
CN902
d8
(46/135)
+5.5V
CN902
f25
(135/135)
SHIELD
CN902
c25
(132/135)
CN902
c15
(72/135)
CN902
b19
(95/135)
Guard-GND
CN902
a19
(94/135)
Skin-Tone-Gate-out
CN902
b6
(32/135)
Front-GND
CN902
d11
(64/135)
(NC)
CN902
e22
(116/135)
Trans-HIRA-PIN9_PWR-OK/NG
CN902
d5
(28/135)
CN902
e17
(86/135)
CN902
e5
(29/135)
CN902
f11
(66/135)
SHIELD
CN902
d24
(127/135)
CN902
e19
(98/135)
+3.7V
CN902
e20
(104/135)
-12.5V
CN902
c24
(126/135)
CN902
a4
(19/135)
CHU-SYNC-out
CN902
c17
(84/135)
CN902
f7
(42/135)
SHIELD
CN902
f16
(81/135)
CN902
f5
(30/135)
SHIELD
CN902
a5
(25/135)
Front-GND
CN902
e18
(92/135)
+3.7V
CN902
a18
(88/135)
Front-GND
CN902
f23
(123/135)
SHIELD
CN902
d19
(97/135)
CN902
d4
(22/135)
CN902
c3
(15/135)
CN902
e6
(35/135)
CN902
f21
(111/135)
SHIELD
CN902
c16
(78/135)
(NC)
CN902
d16
(79/135)
CN902
a15
(70/135)
Front-GND
CN902
b7
(38/135)
Front-GND
CN902
f24
(129/135)
CN902
c7
(39/135)
MB-GND
16V
1uF
C76
16V
1uF
C67
16V
1uF
C66
6.3V
10uF
C64
6.3V
10uF
C77
6.3V
10uF
C78
THP61
THP62
+5V
1A/6V
1A/6V
+3.3V
(1.18V) (1.82V)
(15)
(Back)
-5V
(1.65)
(120)
(1.49V)
POWER
IC63
61
61
62
62
64
64
Q61
Q62
Q63
Q64
D61
D62
D63
Q65
(PANEL)
DM-140 (2/3)
BOARD NO. 1-865-028-11
CCU-TX50_DM-140_11P_2
DM-140 (2/3)DM-140 (2/3)
4-64-6
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
1k
R945
6.3V
47uF
C802
0.1uF
C911
6.3V
47uF
C400
GND
1k
R951
2k
RV901
1
2
3
0.1uF
C419
330
R815
1k
R455
4.7k
R480
330
R952
TP901
22k
R494
-5V
2SC4215Y-TE85L
Q906
0
R837
NM
0.1uF
C405
10000pF
C404
1k
R479
470
R918
6.3V
47uF
C901
470
R906
4.7k
R901
2SC4083-T106P
Q318
0.1uF
C904
7pF
C923
0.1uF
C812
100
R819
1SV172-TE85L
D312
1
2
3
0
R834
NM
0
R463
0
R925
2k
RV801
1
2
3
1k
R903
+
-
AD8014ARTZ-REEL7
IC802
3
4
2
1
5
100
R808
5pF
C816
NM
1k
R950
10uH
L802
+5V
100
R809
0.1uF
C914
10uH
L321
150
R454
TP302
10000pF
C805
TP801
100
R910
TP301
10000pF
C413
2SC4083-T106P
Q322
0.1uF
C813
470k
R492
16V
10uF
C418
150
R452
10uH
L804
+5V
470
R818
0
R948
0
R823
1k
R466
2.2k
R911
16V
10uF
C916
1k
R476
0
R949
4.7k
R833
100
R908
330
R850
10k
R487
10k
R491
10000pF
C410
1k
R849
0.1uF
C915
1k
R469
680
R924
+5V
0
R449
0.1uF
C819
150
R460
10uH
L803
3.3k
R461
10000pF
C903
100
R919
1k
R912
GND
22k
R832
470
R465
0.1uF
C811
0
R927
BLACK_CLAMP
002
4.7k
R801
1.5k
R902
0.1uF
C825
6.3V
47uF
C902
4.7k
R929
0.1uF
C416
1pF
C412
4.7k
R907
GND
2.2k
R805
470
R472
10uH
L323
1SS302-TE85L
D801
1
2
3
680
R822
0
R825
1k
R904
0.1uF
C823
5pF
C822
0
R456
330
R478
NJM062V(TE2)
IC306
(2/2)
+
5
-
6
7
470
R940
1k
R848
22k
R495
0.1uF
C924
10uH
L904
C910
NM
4.7k
R477
1k
R803
1pF
NM
C907
470
R943
1pF
NM
C922
1k
R468
S301
12
3
330
R816
1k
R473
1k
R845
2SC4215Y-TE85L
Q804
100
R931
10000pF
C403
1k
R851
10000pF
C401
4.7k
R467
-5V
1M
R489
4.7k
R826
C407
NM
22k
R934
0.1uF
C920
470
R806
3pF
C821
10k
R485
SAMPLE_CLAMP
002
0.1uF
C913
100
R813
1k
R947
10k
R938
NM
1k
R843
6.3V
47uF
C801
150
R457
2SC4083-T106P
Q319
0.1uF
C810
10k
R915
100
R909
6.3V
47uF
C399
1k
R812
2.2k
R474
6.3V
47uF
C925
1k
R451
680
R498
680
R824
2.2k
R933
0.1uF
C814
4.7k
R807
1SV172-TE85L
D313
1
2
3
10000pF
C905
10k
R484
100
R810
0.1uF
C804
2.2k
R905
220
R475
0
R939
NM
100
R913
0.1uF
C926
0
R847
100k
R493
SYNC_CLAMP
002
2SA1774TL-QR
Q326
-5V
2pF
C820
10uH
L903
1SS302-TE85L
D901
1
2
3
2SC4083-T106P
Q324
3.3k
R471
470
R838
150
R459
4.7k
R935
0
R483
10k
R944
6.8k
R932
10000pF
C803
0
R462
330
R916
NJM062V(TE2)
IC306
(1/2)
+
3
-
2
4
1
8
2SC4215Y-TE85L
Q320
10k
R842
22pF
C918
NM
8pF
C917
NM
680
R844
1k
R953
2SA1226-T1E4
Q905
2.2k
R811
10uH
L324
0.1uF
C807
NM
6.8k
R830
150
R450
0.1uF
C408
10k
R836
NM
0.1uF
C415
3.3k
R817
10uH
L801
150
R453
2SC4215Y-TE85L
Q323
22k
R914
1k
R804
+5V
4.7k
R482
4.7k
R827
4.7k
R496
2.2k
R831
0.1uF
C411
1.5k
R828
470
R841
0.1uF
C912
1k
R481
0
R936
NM
6.3V
47uF
C826
0.1uF
C409
22pF
C817
NM
6.3V
47uF
C927
6.3V
47uF
C824
+5V
R470
NM
100k
R490
3.3k
R917
22k
R814
3.3k
R835
1M
R497
1.5k
R802
10uH
L901
1k
R486
16V
10uF
C815
-5V
2pF
C921
E301
C_RF
001
-5V
3.3k
R937
680
R946
150
R458
10000pF
C919
0.1uF
C906
0.5pF
C406
1.5k
R930
2SA1226-T1E4
Q803
10uH
L320
3.3k
R464
100
R829
2SC4083-T106P
Q321
4.7k
R928
0
R488
680
R926
10uH
L322
0
R846
0.1uF
C806
10000pF
C818
10uH
L902
10000pF
C402
2k
RV301
1
2
3
+
-
AD8014ARTZ-REEL7
IC902
3
4
2
1
5
50V
1uF
C998
SKIN_DIAG
002
Y_DIAG
002
NJM1496V-TE2
IC801
IN+
1
OUT+
6
OUT-
12
V-
14
GAN1
2
IN-
4
GAN2
3
CIN+
8
CIN-
10
BIAS
5
NJM1496V-TE2
IC901
IN+
1
OUT+
6
OUT-
12
V-
14
GAN1
2
IN-
4
GAN2
3
CIN+
8
CIN-
10
BIAS
5
4.7k
R995
4.7k
R996
CN902
d23
(121/135)
D/A-ANA-LEVEL3-in_R-Ydst
CN902
e24
(128/135)
D/A-ANA-LEVEL4-in_B-Ydst
CN902
c23
(120/135)
D/A-ANA-LEVEL2-in_B-Y
CN902
b23
(119/135)
D/A-ANA-LEVEL1-in_R-Y
0.5pF
C423
16V
1uF
C414
6.3V
10uF
C809
6.3V
10uF
C421
6.3V
10uF
C422
6.3V
10uF
C908
6.3V
10uF
C808
6.3V
10uF
C909
2SK880GR-TE85L
Q902
S
GND
2.2k
R1807
NM
2.2k
R1808
NM
GND
2.2k
R1907
NM
2.2k
R1908
NM
2SA1688-5-TL
Q325
NM
LPF
FL801
1
IN
19
FG1
12
GND1
13
GND2
16
GND3
18
GND4
20
FG2
10
OUT
9
I2
6
O2
4
I1
2
O1
15
LC3
5
NC1
3
LC1
8
NC2
7
LC2
LPF
FL901
1
IN
19
FG1
12
GND1
13
GND2
16
GND3
18
GND4
20
FG2
10
OUT
9
I2
6
O2
4
I1
2
O1
15
LC3
5
NC1
3
LC1
8
NC2
7
LC2
306
901
306
R-Y
(PANEL)
Q902
D801
ON
B-Y CAR BAL
C AGC CONT
D312
B-Y
801
802
Q804
Q320
C 2'nd AGC
Q321
Q803
Q322
OFF
(PANEL)
Q905
D313
Q318
Q906
Q319
Q323
R-Y CAR BAL
Q324
D901
Q325
Q326
902
B
DM-140 (3/3)DM-140 (3/3)
4-7 4-7
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
4.7k
R981
10k
R586
470
R959
45MHz
X801
VC
1
GND
2
OUT
3
VDD
4
4.7k
R896
10k
R977
150k
R856
22k
R572
220k
R882
4.7k
R872
+3.3V
0
R962
10k
R883
1k
R582
1M
R954
NM
1M
R854
10k
R876
0.1uF
C834
10k
R877
2SK2539-6/7/8-TB
Q806
S
1M
R972
10k
R585
100
R975
4.7k
R890
0.5pF
C839
NM
220k
R984
0.1uF
C941
100
R992
10uH
L805
74VHC32MTCX
(2/5)IC906
4
56
2.2k
R864
2.2k
R891
68
R989
NJM2903V(TE2)
IC905
(2/2)
+IN
5
-IN
6
7
680
R986
1.5k
R575
3.3k
R578
100
R587
2.2k
R968
1k
RV802
1
2
3
TP802
22k
R863
10uH
L907
0.1uF
C571
10k
R976
10k
R979
16V
10uF
C829
100k
R957
74VHC32MTCX
(4/5)
IC906
12
13 11
330k
R960
2SA1610-T1Y34
Q810
LPF
FL802
1
IN1
10
IN2
13
G1
12
GND1
9
GND2
7
GND3
14
G2
6
OUT
4
I1
3
O1
5k
RV803
1
2
3
1k
R870
0.047uF
C931
10k
R869
1.5k
R922
2SK2539-6/7/8-TB
Q807
S
6.8k
R885
TP803
10k
R921
1M
NM
R852
15k
R577
47k
R955
2pF
C840
10pF
C938
16V
10uF
C828
2SC4617TL-QR
Q808
1k
R982
1SV172-TE85L
D902
1
23
4.7k
R820
2.2k
R990
0.1uF
C572
0.1uF
C933
74VHC32MTCX
(1/5)
IC906
1
23
2.2k
R978
TLC272CPWR-12
(1/2)
IC803
+
3
-2
1
15k
R573
10k
R875
100
R958
20k
RV804
1
2
3
1k
R581
330k
R859
100
R588
2SK2539-6/7/8-TB
Q907
S
100
R874
4.7k
R973
2SK2539-6/7/8-TB
Q908
S
0.01uF
C831
Q809
2SC4176T1B33B34B35
0.1uF
C830
100
R868
0
R884
470
R893
0
R985
470
R858
1uH
L906
6.8k
R987
NJM2903V(TE2)
IC905
(1/2)
+IN
3
-IN
2
4
1
8
3.3k
R965
2.2k
R579
2SA1610-T1Y34
Q910
TLC272CPWR-12
(1/2)
IC804
+
3
-
2
1
470
R892
15k
R584
0.047uF
C935
22k
R980
150k
R956
680
R867
74VHC32MTCX
(3/5)
IC906
9
10
8
6.8k
R961
3.3k
R571
100
R895
0.1uF
C833
10k
R879
1.5k
R889
0.1uF
C842
47k
R920
1k
R880
150k
R861
1k
R970
15k
R583
47k
R853
100
R969
10uH
L905
1.5k
R991
4.7k
R887
680
R923
5k
RV903
1
2
3
1k
RV902
1
2
3
680
R988
TLC272CPWR-12
(2/2)
IC803
+
5
-6
4
7
8
6.8k
R574
0.01uF
C835
8pF
C940
22k
R576
2.2k
R967
0.1uF
C942
TP902
47k
R878
100
R855
0.1uF
C573
0.1uF
C930
TLC272CPWR-12
(2/2)
IC804
+
5
-
6
4
7
8
330k
R860
2SK2539-6/7/8-TB
Q909
S
2SK2539-6/7/8-TB
Q805
S
74VHC32MTCX
IC906 (5/5)
7
GND
14
VCC
3.3k
R866
10000pF
C838
1k
R983
10k
R888
0.1uF
C841
2.2k
R894
1.5k
R821
4.7k
R881
10k
R971
100k
R857
1M
R871
10000pF
C939
3.3k
R580
10000pF
C937
680
R964
C934
0.1uF
1uH
L806
2SC4176T1B33B34B35
Q911
2.2k
R886
TLC272CPWR-12
(2/2)
IC903
+
5
-6
4
7
8
TLC272CPWR-12
(1/2)
IC903
+
3
-2
1
TLC272CPWR-12
(2/2)
IC904
+
5
-
6
4
7
8
TLC272CPWR-12
(1/2)
IC904
+
3
-
2
1
MA3J74200LSO
D802
1
2
3
+3.3V
16V
4.7uF
C827
50V
1uF
C832
16V
10uF
C836
16V
4.7uF
C928
50V
0.47uF
C929
50V
1uF
C932
16V
10uF
C936
100
R589
100
R590
2.2k
R865
22k
R966
47k
R897
2.2k
R899
220
R900
10k
R898
0.1uF
C843
4.7k
R993
1.5k
R994
0.1uF
C943
CN902
d22
(115/135)
Trans-HIRA-PIN8_SKIN_DIAG
CN902
b22
(113/135)
Trans-HIRA-PIN6_R-Y_DIAG
CN902
c22
(114/135)
Trans-HIRA-PIN7_B-Y_DIAG
CN902
a9
(49/135)
CHU R-Y(G)-out
CN902
a7
(37/135)
CHU B-Y(X)-out
CN902
a6
(31/135)
CHU B-Y(G)-out
CN902
a10
(55/135)
CHU R-Y(X)-out
CN902
a22
(112/135)
Trans-HIRA-PIN5_Y_DIAG
16V
1uF
C837
2k
RV805
1
2
3
Q809
R-Y LEVEL
90' SET
Q807
Q810
SAMPLE
B-Y LEVEL
BLACK
Q910
Q908 Q911
Q909
45MHz
904
C VCO DC
904
(PANEL)
SYNC
903
903
803
Q907
803
804
D902
B-Y OFFSET ADJ
905
C VCO DC SET
905
804
906
Q805 Q806
(PANEL)
906
906
906
Q808
IC906
R-Y AGC DC
C CAR LEV
SYNC
SAMPLE
D802
B
B
B
B
BB
B
BLACK
DM-140 (3/3)
BOARD NO. 1-865-028-11
CCU-TX50_DM-140_11P_3
DM-140 (3/3)DM-140 (3/3)
4-84-8
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
TR-133A (1/3)TR-133A (1/3)
GND
10k
R189
33k
R172
15k
R180
15k
R175
+5V
R166
68k
2SC4617TL-QR
Q155
-5V
22k
R188
47k
R184
33k
R183
-5V
D151
02DZ4.7-TPH3
NJM062V(TE2)
IC152
(1/2)
+
3
-2
4
1
8
R164
68k
C168
100pF
R160
33k
GND
2.2k
R179
1uF
C177
NJM062V(TE2)
IC152
(2/2)
+
5
-6
7
+5.5V
68k
R185
2SC2873Y-TE12L
Q154
2.2k
R186
22k
R176
+3.3V
+3.3V
GND
R165
220
R161
33k
+5V
CL-220PG-C-TS
D153
15k
R174
1uF
C171
R163
2.2k
10k
R187
2.2k
R177
GND
2.2k
R173
R159
220
GND
C175
100pF
02DZ4.7-TPH3
D152
10k
R178
2SA1213Y-TE12L
Q153
LM4040AIM3-2.5
IC153
-
2
+
1
NC
3
47k
R162
1uF
C166
1uF
C173
CL152
CL153
100pF
C161
NJM062V(TE2)
(1/2)
IC151
+
3
-2
4
1
8
33k
R158
CL151
33k
R154
1uF
C159
68k
R156
NJM062V(TE2)
(2/2)
IC151
+
5
-6
7
33k
R155
+5.5V
220
R153
-5.5V
-5.5V
2SC4617TL-QR
Q152
100
R152
100
R151
1uF
C164
10uH
L152
+5V-5
+5V-5
470
R157
16V
1uF
C179
CL155
16V
1uF
C181
CL154
+12V
-12V
GND
6.3V
10uF
C151
6.3V
10uF
C152
6.3V
10uF
C153
6.3V
10uF
C154
6.3V
10uF
C156
6.3V
10uF
C155
6.3V
10uF
C157
GND
6.3V
10uF
C158
+5V
15k
R182
100k
R181
-12V
+5.5V
100pF
C163
100pF
C170
1uF
C176
+3.3V
-5V
CN902
e11
(65/135)
MB-GND
CN902
c20
(102/135)
MB-GND
CN902
f16
(81/135)
96
CN902
f20
(105/135)
120
CN902
b15
(71/135)
MB-GND
CN902
f2
(12/135)
12
CN902
f8
(48/135)
48
CN902
e19
(98/135)
+3.7V
CN902
f10
(60/135)
60
CN902
f12
(67/135)
72
CN902
b18
(89/135)
MB-GND
CN902
e9
(53/135)
-5.5V
CN902
f19
(99/135)
SHIELD
CN902
f21
(111/135)
SHIELD
E1
CN902
f23
(123/135)
SHIELD
CN902
c10
(57/135)
MB-GND
47uF
16V
C180
E2
CN902
b11
(62/135)
MB-GND
CN902
e8
(47/135)
+5.5V
CN902
f3
(18/135)
SHIELD
CN902
b8
(44/135)
MB-GND
47uF
16V
C182
CN902
f6
(36/135)
36
CN902
f22
(117/135)
132
CN902
f25
(135/135)
SHIELD
CN902
f14
(69/135)
84
47uF
16V
C174
CN902
d20
(103/135)
-12.5V
CN902
f1
(6/135)
SHIELD
CN902
f15
(75/135)
SHIELD
CN902
e18
(92/135)
+3.7V
CN902
b20
(101/135)
+12.5V
CN902
d8
(46/135)
+5.5V
CN902
c7
(39/135)
MB-GND
CN902
c8
(45/135)
+5.5V
CN902
f5
(30/135)
SHIELD
47uF
16V
C172
47uF
16V
C160
CN902
f9
(54/135)
SHIELD
CN902
f7
(42/135)
SHIELD
CN902
a20
(100/135)
+12.5V
CN902
f13
(68/135)
SHIELD
C167
47uF
16V
CN902
e20
(104/135)
-12.5V
CN902
d9
(52/135)
-5.5V
CN902
f11
(66/135)
SHIELD
CN902
f24
(129/135)
144
47uF
16V
C178
CN902
f4
(24/135)
24
CN902
c9
(51/135)
MB-GND
CN902
f18
(93/135)
108
CN902
f17
(87/135)
SHIELD
THP152
LM339NS-E20
IC154
(1/4)
+
7
-
6
1
LM339NS-E20
IC154
(2/4)
+
9
-
8
14
LM339NS-E20
IC154
(3/4)
+
11
-
10
13
LM339NS-E20
IC154
(4/4)
+
5
-
4
12
2
3
10uH
L151
PWR_OK/NG
001
2SB624-T1BV5
Q151
+12V
THP153
THP151
THP154
THP155
47uF
16V
C165
10uF
25V
C162
C169
10uF
25V
+3.3V
for AU,TR,DM & Rear
-5V
0.5A/15V
1A/6V
(1.18V)
+5V
(1.21V)
(1.82V)
(120)
(1.49V)
POWER
(15)
(1.65)
-12V
+12V
(1.81V)
(B-side)
(15)
0.5A/15V
0.2A/30V
0.2A/30V
4-9 4-9
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
TR-133A (1/3)TR-133A (1/3)
TR-133A (1/3)
BOARD NO. 1-865-027-11
CCU-TX50_TR-133_11P_1
CN902
b7
(38/135)
CN902
d15
(73/135)
CN902
a23
(118/135)
COM-HIRA-PIN 5
CN902
b25
(131/135)
IIC-SCL1
CN902
d1
(4/135)
CN902
a25
(130/135)
IIC-SDA1
CN902
c18
(90/135)
CN902
b17
(83/135)
Front-GND
CN902
a2
(7/135)
Front-GND
CN902
e17
(86/135)
CN902
c11
(63/135)
(NC)
CN902
a21
(106/135)
Trans-HIRA-PIN 0
CN902
a15
(70/135)
Front-GND
CN902
e24
(128/135)
Serial-com-CS1
CN902
a4
(19/135)
AUDIO-RX-BCK-out
CN902
a6
(31/135)
CN902
e21
(110/135)
cable-over
CN902
b2
(8/135)
Front-GND
CN902
d6
(34/135)
CN902
d10
(58/135)
CN902
b23
(119/135)
COM-HIRA-PIN 6
CN902
e23
(122/135)
MASTER-RST
CN902
e1
(5/135)
Front-GND
CN902
c1
(3/135)
Front-GND
CN902
c5
(27/135)
(ANA-Audio-AUX)
CN902
a22
(112/135)
Trans-HIRA-PIN 5
CN902
d21
(109/135)
Trans-HIRA-PIN 3
CN902
d17
(85/135)
CN902
d22
(115/135)
Trans-HIRA-PIN 8
CN902
b9
(50/135)
CN902
b6
(32/135)
CN902
c21
(108/135)
Trans-HIRA-PIN 2
CN902
b22
(113/135)
Trans-HIRA-PIN 6
CN902
e10
(59/135)
CN902
d25
(133/135)
IIC-SDA2
CN902
e15
(74/135)
CN902
e22
(116/135)
Trans-HIRA-PIN 9
CN902
b24
(125/135)
Serial-Clock
CN902
b16
(77/135)
Front-GND
CN902
c25
(132/135)
IIC-CS
CN902
d19
(97/135)
CN902
d18
(91/135)
CN902
e25
(134/135)
IIC-SCL2
CN902
a24
(124/135)
Serial-Data
CN902
a8
(43/135)
CN902
d16
(79/135)
CN902
c23
(120/135)
COM-HIRA-PIN 7
CN902
a18
(88/135)
Front-GND
CN902
e16
(80/135)
CN902
a9
(49/135)
CN902
c19
(96/135)
CN902
c15
(72/135)
CN902
c6
(33/135)
(NC)
CN902
a10
(55/135)
CN902
c16
(78/135)
(NC)
CN902
c2
(9/135)
(ANA-Audio-AUX)
CN902
d24
(127/135)
Serial-com-CS0
CN902
c17
(84/135)
CN902
b21
(107/135)
Trans-HIRA-PIN 1
CN902
c22
(114/135)
Trans-HIRA-PIN 7
CN902
d7
(40/135)
CN902
d11
(64/135)
(NC)
CN902
b10
(56/135)
CN902
c24
(126/135)
Serial-Load
CN902
e7
(41/135)
CN902
e6
(35/135)
CN902
a11
(61/135)
22
R362
PCA9555DB-118
IC361
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
GND
0.1uF
C361
GND
+3.3V
22
R361
GND
+3.3V
GND
0.1uF
C364
PCA9555DB-118
IC363
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
TC74VHCT541AFT(EL)
IC362
A1
2
A2
3
A3
4
A4
5
A5
6
A6
7
A7
8
G2
19 G1
1
A8
9
GND
10
Y8 11
Y7 12
Y6 13
Y5 14
Y4
15
Y3 16
Y2 17
Y1 18
Vcc
20
1SS301-TE85L
D361
1
2
3
1SS301-TE85L
D362
1
2
3
1SS301-TE85L
D363
1
2
3
22uF
C362
10uH
L361
+5V
0.1uF
C363
GND
GND
GND
RET_RF_ATT_0
003
RET_RF_ATT_1
003
PROMPT_ATT
003
AUX_SEL_MIC2
002
AUX_SEL_INCOM2
002
PROMPT_TX/RX
003
PROMPT_NOVIDEO
003
TONE_DET
002
PWR_OK/NG
001
CHU_DATA
002
100k
R372
220k
R373
100k
R374
100k
R375
10
R378
0.1uF
C366
GND
22k
R377
33k
R376
GND
INCOM1_MUTE
002
INCOM2_MUTE
002
MIC_MUTE
002
220
RB363
12
34
56
78
220
RB365
12
34
56
78
220
RB366
12
34
56
78
220
RB367
12
34
56
78
S361
NM
12
34
56
78
S362
NM
12
34
56
78
GND
10k
R371
220
RB364
12
34
56
78
INCOM1_DEMOD_DIAG
002
TONE_512/102Hz_SEL
002
0
R379
NM
0
R380
GND
S2
3
1
2
4
7
5
6
8
GND
TC7WH123FU(TE12R)
IC364
RX/CX
7
Q5
CLR
3
GND
4
VCC
8
CX
6
A
1
B
2
47k
R363
NM
47k
R364
NM
47k
R365
NM
47k
R366
NM
S1
12
3
G1
4567
S363
12
34
10k
R367
47uF
C367
47uF
C368
GND
PROMPT_ON
PROMPT_DEMOD_ON
220
RB361
12
34
56
78
220
RB362
12
34
56
78
47k
R381
47k
R382
47k
R383
47k
R384
47k
R385
47k
R386
47k
R387
47k
R388
47k
R396
NM
47k
R393
NM
47k
R394
NM
47k
R392
NM
47k
R395
NM
47k
R390
NM
47k
R391
NM
47k
R389
NM
10000pF
C365
47k
R353
NM
47k
R356
NM
47k
R355
NM
47k
R358
NM
47k
R354
NM
47k
R357
NM
47k
R359
NM
47k
R360
NM
TC7SH00FU(T5RSOYJF)
IC368 (1/2)
2
1
4
TC7SH00FU(T5RSOYJF)
IC369 (1/2)
2
1
4
TC7SH00FU(T5RSOYJF)
IC368 (2/2)
3
GND
5
VCC
TC7SH00FU(T5RSOYJF)
IC369 (2/2)
3
GND
5
VCC
TC7SH02FU(T5RSOYJF)
IC370 (1/2)
2
14
TC7SH02FU(T5RSOYJF)
IC370 (2/2)
3
GND
5
VCC
TC7SH86FU(T5RSOYJF)
IC365 (1/2)
2
14
TC7SH86FU(T5RSOYJF)
IC367 (1/2)
2
14
TC7SH86FU(T5RSOYJF)
IC365 (2/2)
3
GND
5
VCC
TC7SH86FU(T5RSOYJF)
IC367 (2/2)
3
GND
5
VCC
CHU_DATA_HOLD_IN
INCOM_MUTE
RX/REM
TX/REM
TX/REM
MIC_MUTE_OFF
FRONT-CONNECTOR
from DM-140 Board
(Address:101 I/O_0:OUTPUT,I/O_1:INPUT)
(Address:111 I/O_0:INPUT,I/O_1:INPUT)
CAM POWER
ON
OFF
TX
RX
REM
ADJ
ON:Hi
ON:Hi
MIC_MUTE_OFF
4-104-10
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
E100
GND
+5V
-5V
1/4W
75
R133
10uH
L122
10uH
L123
5pF
C129
100
R138
330
R134
2.2k
R137
TP1
1k
R1
BPF
FL1
2
IN
19
G1
18
GND1
16
O1
15
I1
13
O2
12
I2
10
GND2
20
G2
8
OUT
0.1uF
C1
0.1uF
C2
0.1uF
C3
1k
R2
2.2k
R3
6.8k
R4
22k
R6
6.8k
R5
1k
R7
22k
R10
10k
R8
22k
R9
KV1470TL00
D2
2
3
1
+5V
10uH
L1
68pF
C6
68pF
C7
220pF
C4
0.1uF
C8
100pF
C9
6.3V
22uF
C11
47k
R12
15k
R13
47k
R11
22k
R26
6.8k
R24
TP21
100pF
C28
0.1uF
C23
6.8k
R28 22k
R29
2.2k
R25
1k
R22
220pF
C26
1k
R27
100k
R34
0.1uF
C24
68pF
C30
2.2k
R23
0.1uF
C29
+5V
10uH
L21
KV1470TL00
D22
2
3
1
15k
R32
0.1uF
C25
1k
R21
22k
R30
6.3V
22uF
C33
47pF
C27 10k
R31
22k
R45
6.8k
R44
TP41
0.1uF
C41
3.3k
R46
1k
R42
2.2k
R43
0.1uF
C42
1k
R41
TP61
NM
1k
R61
NM
TP81
NM
1k
R81
NM
TP101
BPF
FL21
2
IN
19
G1
18
GND1
16
O1
15
I1
13
O2
12
I2
10
GND2
20
G2
8
OUT
E101
3.3k
R35
47k
R36
CH
0.001uF
C21
CH
0.001uF
C22
0.1uF
C31
CF41
1
2
3
10k
R53
68pF
C47
22k
R50
22k
R51
0.1uF
C46
100pF
C44
100k
R56
10uH
L41
1k
R48
0.1uF
C48
15k
R54
220pF
C43
+5V
KV1470TL00
D42
2
3
1
6.8k
R49
6.3V
22uF
C50
10k
R52
4.7k
R57
10k
RV41
1
2
3
INCOM1_IN
002
10k
R72
NM
4.7k
R77
NM
KV1470TL00
D62
NM
2
3
1
CF61
NM
1
2
3
0.1uF
C68
NM
100pF
C64
NM
68pF
C67
NM
1k
R62
NM
10k
RV61
NM
1
2
3
220pF
C63
NM
0.1uF
C61
NM
15k
R74
NM
+5V
0.1uF
C62
NM
100k
R76
NM
22k
R70
NM
6.8k
R64
NM
2.2k
R63
NM
22k
R67
NM
10uH
L61
NM
22k
R71
NM
10k
R73
NM
6.8k
R69
NM
2.2k
R65
NM
1k
R68
NM
0.1uF
C66
NM
2.2k
R83
NM
22k
R90
NM
3.3k
R85
NM
0.1uF
C86
NM
1k
R82
NM
6.8k
R84
NM
15k
R94
NM
68pF
C87
NM
1k
R88
NM
0.1uF
C88
NM
10uH
L81
NM
6.8k
R89
NM
6.3V
22uF
C90
NM
4.7k
R97
NM
220pF
C83
NM
KV1470TL00
D82
NM
2
3
1
100k
R96
NM
47pF
C84
NM
22k
R91
NM
+5V
0.1uF
C82
NM
22k
R87
NM
10k
RV81
NM
1
2
3
0.1uF
C81
NM
10k
R92
NM
10k
R93
NM
22pF
C65
NM
6.3V
22uF
C70
NM
22pF
C85
NM
INH
GNDVEE
VCC
TC7W53FU(TE12R)
IC81
NM
7
6
1
5
8
2
43
AUX_SEL_MIC2
001
AUX_SEL_INCOM2
001
10uH
L101
6.3V
22uF
C110
15k
R114
22k
R107
100pF
C104
0.1uF
C106
220pF
C103
1k
R108 68pF
C107
10k
RV101
1
2
3
6.8k
R104
1k
R102
22k
R110
10pF
C105
CF101
1
2
3
2.2k
R103
0.1uF
C101
KV1470TL00
D102
2
3
1
0.1uF
C102
22k
R111
+5V
10k
R112
100k
R116
0.1uF
C108
6.8k
R109
1k
R101
1k
R105
10k
R113
4.7k
R117
PGM1_IN
002
3.3k
R122
NM
220
R123
NM
+5V
10k
R127
NM
10k
R128
NM
10k
R131
NM
3.3k
R132
NM
2SC4617TL-QR
Q123
NM
10uH
L121
NM
22uF
C127
NM
220pF
C122
NM
22pF
C123
NM
100pF
C124
NM
47pF
C126
NM
680
R201
680
R203
CF201
1
2
3
3.3k
R206
4.7k
R207
6.8k
R205
3.3k
R208
CF202
1
2
3
TA8129Z
IC201
GND
8
IFIN
2
VCC
12
IFOUT
16
BIAS
3
DET2
15
BYPAS
1
DET1
14
SDS
5
AFOUT
10
F
9
METER
6
MUTE
11
SDOUT
7
IFGND
4
REG
13
680
R212
0.1uF
C208
0.1uF
C207
0.1uF
C209
0.1uF
C204
0.1uF
C202
47pF
C203
0.1uF
C201
4.7k
R213
10000pF
C210
0.1uF
C213
15k
R216
2.2k
R214
10k
R215
2.2k
R217
10k
R221
10000pF
C214
15pF
C216
22pF
C215
6.8k
R219
R220
NM
CF301
1
2
3
0.1uF
C301
3.3k
R304
470
R307
4.7k
R305
0.1uF
C304
3.3k
R306
6.8k
R303
470
R301
0.1uF
C302
CF302
1
2
3
470
R302
47pF
C303
0.1uF
C402
47pF
C403
470
R401
CF402
1
2
3
0.1uF
C404
470
R402 6.8k
R403
4.7k
R405
3.3k
R406
470
R407
CF401
1
2
3
0.1uF
C401
3.3k
R404
470
R502
NM
470
R507
NM
0.1uF
C501
NM
6.8k
R503
NM
470
R501
NM
CF501
NM
1
2
3
CF502
NM
1
2
3
0.1uF
C504
NM
0.1uF
C502
NM
3.3k
R506
NM
4.7k
R505
NM
3.3k
R504
NM
47pF
C503
NM
470
R601
0.1uF
C604
4.7k
R605
CF602
1
2
3
470
R602
CF601
1
2
3
3.3k
R604
3.3k
R606
470
R607
0.1uF
C602
0.1uF
C601
6.8k
R603
47pF
C603
22pF
C516
NM
TP501
NM
4pF
C605
+
-
AD8014ARTZ-REEL7
IC121
3
4
2
1
5
MA111-TX
D121
MA111-TX
D122
CN902
a7
(37/135)
CHU-H-PLL-CONT-in
CN902
a1
(1/135)
CCU-Data-in
CN902
a5
(25/135)
TRUNK-IN-in
INCOM2_IN
002
PGM2_IN
002
1k
R58
0
R143
NM
4.7k
R99
NM
1k
R118
10pF
C125
NM
2SC4617TL-QR
Q121
NM
22k
R124
NM
68k
R125
NM
4.7k
R126
NM
0
R121
NM
LA1235
IC301
IFIN
1
GND2
14
BIAS
3
BYPASS
2
MUTEIN
5
IFOUT
8
VCC
11
QUADIN
9
VREF
10
AFOUT
6
15 15
AFCOUT
7
GND1
4
S-METER
13
MUTED
12
16 16
470
R308
6.3V
22uF
C307
0.1uF
C306
0.1uF
C308
0.1uF
C309
0.1uF
C310
68k
R311
1.5k
R309
4.7k
R313
33k
R312
68k
R314
0.1uF
C314
10k
R315
6.3V
22uF
C315
3.3k
R310
TP301
0.1uF
C408
33k
R414
6.8k
R413
NM
1.5k
R410
10k
R417
TP401
0.1uF
C406
68k
R416
LA1235
IC401
IFIN
1
GND2
14
BIAS
3
BYPASS
2
MUTEIN
5
IFOUT
8
VCC
11
QUADIN
9
VREF
10
AFOUT
6
15 15
AFCOUT
7
GND1
4
S-METER
13
MUTED
12
16 16
470
R408
6.3V
22uF
C407
6.3V
22uF
C415
0.1uF
C414
0.1uF
C410
0.1uF
C409
3.3k
R411
0.1uF
C508
NM
33k
R512
NM
10k
R511
NM
1k
R509
NM
10k
R515
NM
0.1uF
C506
NM
68k
R514
NM
LA1235
IC501
NM
IFIN
1
GND2
14
BIAS
3
BYPASS
2
MUTEIN
5
IFOUT
8
VCC
11
QUADIN
9
VREF
10
AFOUT
6
15 15
AFCOUT
7
GND1
4
S-METER
13
MUTED
12
16 16
470
R508
NM
6.3V
22uF
C507
NM
0.1uF
C514
NM
6.8k
R513
NM
0.1uF
C510
NM
0.1uF
C509
NM
3.3k
R510
NM
470
R608
6.3V
22uF
C607
0.1uF
C609
LA1235
IC601
IFIN
1
GND2
14
BIAS
3
BYPASS
2
MUTEIN
5
IFOUT
8
VCC
11
QUADIN
9
VREF
10
AFOUT
6
15 15
AFCOUT
7
GND1
4
S-METER
13
MUTED
12
16 16
0.1uF
C614
10k
R611
33k
R612
4.7k
R609
0.1uF
C608
TP601
0.1uF
C610
6.8k
R613
3.3k
R610
68k
R614
10k
R615
0.1uF
C606
PGM2(G)
002
PGM1(G)
002
2SC4617TL-QR
Q503
NM
2SC4617TL-QR
Q603
2SC4617TL-QR
Q61
NM
2SC4617TL-QR
Q203
2SC4617TL-QR
Q41
2SC4617TL-QR
Q81
NM
2SC4617TL-QR
Q303
2SC4617TL-QR
Q62
NM
2SC4617TL-QR
Q101
2SC4617TL-QR
Q82
NM
2SC4617TL-QR
Q102
2SC4617TL-QR
Q2
2SC4617TL-QR
Q21
2SC4617TL-QR
Q1
2SC4617TL-QR
Q403
2SC4617TL-QR
Q42
2SC4617TL-QR
Q22
2SC4176T1B33B34B35
Q202
2SC4176T1B33B34B35
Q402
2SC4176T1B33B34B35
Q401
2SC4176T1B33B34B35
Q601
2SC4176T1B33B34B35
Q301
2SC4176T1B33B34B35
Q502
NM
2SC4176T1B33B34B35
Q501
NM
2SC4176T1B33B34B35
Q602
2SC4176T1B33B34B35
Q201
2SC4176T1B33B34B35
Q302
1SS302-TE85L
D1
1
2
3
1SS302-TE85L
D21
1
2
3
1SS302-TE85L
D23
1
2
3
1SS302-TE85L
D41
1
2
3
1SS302-TE85L
D43
1
2
3
1SS302-TE85L
D61
NM
1
2
3
1SS302-TE85L
D63
NM
1
2
3
1SS302-TE85L
D83
NM
1
2
3
1SS302-TE85L
D81
NM
1
2
3
1SS302-TE85L
D103
1
2
3
1SS302-TE85L
D101
1
2
3
50V
2.2uF
C69
NM
50V
2.2uF
C49
50V
2.2uF
C89
NM
50V
2.2uF
C109
4.7uF
C91
NM
10uH
L82
NM
-5V
CN100
1
2345
4.7k
R202
4.7k
R204
22pF
C205
10pF
C206
10uH
L201
10uH
L301
10uH
L401
10uH
L501
NM
10uH
L601
22pF
C305
9pF
C405
680
R209
4.7k
R210
4.7k
R211
1SS300-TE85L
D302
1
23
330
R135
330
R136
50V
0.1uF
C130
50V
0.1uF
C128
50V
0.1uF
C131
33k
R47
NM
15k
R86
NM
22k
NM
R106
100k
NM
R66
15k
R33
15k
R55
15k
R75
NM
15k
R95
NM
15k
R115
100pF
C5
22pF
C10
100pF
C45
NM
6.8k
R409
15k
R412
10pF
C505
NM
02DZ4.7-TPH3
D301
02DZ4.7-TPH3
D401
1.5k
R218
6.3V
220uF
C311
6.3V
220uF
C411
6.3V
220uF
C511
NM
6.3V
220uF
C611
1uF
C121
NM
1uF
C312
1uF
C513
NM
16V
1uF
C212
1uF
C413
1uF
C512
NM
1uF
C515
NM
1uF
C612
1uF
C613
1uF
C313
1uF
C412
1uF
C615
E102
10k
R258
10k
R259
22k
R149
25V
10uF
C132
25V
10uF
C133
150k
R340
150k
R458
150k
R543
NM
150k
R655
0
R59
INCOM1(G)
002
INCOM2(G)
002
0
R79
NM
100k
R100
NM
0
R119
1k
R78
NM
47uF
C211
100k
R14
NM
100k
R15
100k
R37
NM
100k
R38
NM
10pF
C34
33k
R60
100k
R80
NM
22k
R150
NM
10pF
C51
NM
10pF
C71
NM
10pF
C92
NM
10pF
C111
NM
22k
R344
100k
R345
NM
100k
R549
NM
22k
R548
NM
100k
R658
NM
1.5k
R657
10pF
C134
NM
33uH
L602
33uH
L502
NM
33uH
L402
33uH
L302
NJM2903V(TE2)
IC604
(1/2)
NM
+IN
5
-IN
6
7
100k
R551
NM
100k
R552
NM
100k
R16
100k
R20
100k
R39
100k
R40
NM
100k
R98
NM
100k
R120
150pF
C12
150pF
C35
150pF
C52
150pF
C72
NM
150pF
C93
NM
150pF
C112
DTC144EE-TL
Q122
NM
22pF
C259
1k
R346
1k
R459
4.7k
R415
22pF
C616
10pF
C647
15k
R347
15k
R461
15k
R553
NM
15k
R659
0.1uF
C32
LP1 LP2
GND
NC1
NC2
LV81
NM
1
2
3
78
4
6
NC1
NC2
LV101
1
2
3
78
4
6
NC1
NC2
LV1
1
2
3
78
4
6
NC1
NC2
LV21
1
2
3
78
4
6
NC1
NC2
LV41
1
2
3
78
4
6
NC1
NC2
LV201
1
2
3
78
4
6
CF81
NM
1
2
3
NC
LV302
1
34
6
78
2
NC1 NC2
LV301
1
4
3
78
26
NC
LV402
1
34
6
78
2
NC1 NC2
LV401
1
4
3
78
26
NC
LV602
1
34
6
78
2
NC1 NC2
LV601
1
4
3
78
26
NC
LV502
NM
1
34
6
78
2
NC1 NC2
LV501
NM
1
4
3
78
26
TC7SH08FU(T5RSOYJF)
IC82
NM
2
14
5
3
NC1
NC2
LV61
1
2
3
78
4
6
FL122
1
RF
8
GND5
9
GND6
10
GND7
3
LPF
11
GND8
12
GND9
7
GND4
6
GND3
5
GND2
4
GND1
2
HPF
AUX_SEL_INCOM2
AUX_SEL_INCOM2
AUX_SEL_MIC2
AUX_SEL_MIC2
2.5M
3.0M
3.6M
3.9M
4.75M
4.3M
LV1: 2.5M
LV21: 3.0M
LV41: 3.6M
LV61: 3.9M
RV41: INCOM1 DEV
RV61: INCOM2 DEV
RV81: PGM2 DEV
RV101: PGM1 DEV
5.6M
6.2M
6.7M
7.4M
7.1M
LV201: 5.6M TUNE
LV301:TONEADJ DIST.ADJ
LV302: 6.2M TUNE_2
LV402: 6.7M TUNE_2
LV401:TONEADJ DIST.ADJ
LV501:TONEADJ DIST.ADJ
LV601:TONEADJ DIST.ADJ
LV502: 7.4M TUNE_2
LV602: 7.1M TUNE_2
RF_AU(X)_IN
RF_AU(G)_IN
RF_AUDIO
LV301: 6.2M TUNE_1
LV401: 6.7M TUNE_1
LV501: 7.4M TUNE_1
LV601: 7.1M TUNE_1
LV81: 4.75M
LV101: 4.3M
LPF_40KHz
Coating lead pin
INST:N.M.
INST:N.M.
INST:N.M.
TR-133A (2/3)TR-133A (2/3)
4-11 4-11
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
TP201
4.7k
R222 4.7k
R223
10k
R224
220pF
C217 22pF
C220
47pF
C222
0.0022uF
C223
0.0022uF
C225
0.0022uF
C224
NJM062V(TE2)
IC202
(2/2)
+
5
-
6
7
15k
R226
220k
R227
33k
R225
47k
R228
1k
R229
10k
R232
10k
R233
1k
R230
47k
R231
6.3V
10uF
C227
0.1uF
C231
NJM062V(TE2)
IC202
(1/2)
+
3
-
2
4
1
8
10k
R235
47k
R234
150k
R240 150k
R241
150k
R242
NJM062V(TE2)
IC205
(1/2)
+
3
-
2
4
1
8
0.047uF
C235
4700pF
C233
0.001uF
C234
TONE_512/102Hz_SEL
001
0.1uF
C245
100
R236
1M
R250
TP202
100k
R252
22k
R253
TONE_DET
001
22k
R254
10k
R256
1M
R255
10
R251
6.3V
22uF
C257
6.3V
22uF
C256
10uH
L203
10uH
L204
+5V
-5V
10uH
L304
-5V
10uH
L303
+5V
MIC_MUTE
001
NJM062V(TE2)
IC302
(1/2)
+
3
-
2
4
1
8
NJM062V(TE2)
IC302
(2/2)
+
5
-
6
7
0.0022uF
C320
0.1uF
C319
220pF
C322
47k
R316
15k
R319
15k
R322
22uF
C323
10k
R323
220pF
C326
TP302
22uF
C330
GND
-5V
0.1uF
C421
TP402
0.0022uF
C419
220pF
C423
220pF
C427
22uF
C431
10uH
L403
GND
47k
R419
+5V
22uF
C424
NJM062V(TE2)
(2/2)
IC402
+
5
-
6
7
10k
R428
NJM062V(TE2)
(1/2)
IC402
+
3
-
2
4
1
8
15k
R426
15k
R423
10uH
L404
0.1uF
C417
220k
R320
220k
R421
0.1uF
C519
NM
0.1uF
C520
NM
22k
R517
NM
33k
R516
NM
68k
R518
NM
0.0022uF
C521
NM
220pF
C523
NM
22uF
C524
NM
INH
GND VEE
VCC
TC7W53FU(TE12R)
IC503
NM
7
61
5
8
2
43
NJM062V(TE2)
IC502
(1/2)
NM
+
3
-
2
4
1
8
NJM062V(TE2)
IC502
(2/2)
NM
+
5
-
6
7
22k
R519
NM
10k
R521
NM
220pF
C528
NM
22k
R522
NM
TP502
NM
10k
R524
NM
22pF
C530
NM
10k
R523
NM
100pF
C531
NM
22uF
C534
NM
10k
R525
NM
10pF
C533
NM
220pF
C529
NM
2SC4617TL-QR
Q504
NM
22k
R526
NM
22k
R527
NM
TA75S393F-TE85R
IC506
NM
+
3
-
1
2
4
5
22k
R528
NM
1k
R529
NM
10k
R531
NM
22k
R532
NM
GND
22uF
C539
NM
-5V
10uH
L504
NM
+5V
10uH
L503
NM
TP602
33k
R623
INH
GND VEE
VCC
TC7W53FU(TE12R)
IC603
7
61
5
8
2
43
22k
R626
0.1uF
C619
0.1uF
C620
22k
R624
220pF
C628
22k
R629
0.0022uF
C621
220pF
C623
22uF
C624
10k
R628
68k
R625
10uH
L604
-5V
+5V
22uF C538
NM
NJM062V(TE2)
(2/2)
IC602
+
5
-
6
7
NJM062V(TE2)
(1/2)
IC602
+
3
-
2
4
1
8
47k
R630
100
R633
NM
22k
R632
10uH
L603
100
R636
0.1uF
C629
0
R634
22k
R635
NJM567M
IC207
IN
3
OUT
8
GND
7
VS
4
T_R
5
OUTFIL
1
T_CR
6
LPFIL
2
CN902
e5
(29/135)
MIC1(Y)_OUT
CN902
a3
(13/135)
AUDIO-TX-BCK-in
CN902
d5
(28/135)
MIC2(Y)_OUT
CN902
e3
(17/135)
(AUDIO-TX-256FS-in)
CN902
c3
(15/135)
AUDIO-TX-PGM-in
CN902
d2
(10/135)
(ANA-Audio-AUX)
CN902
b5
(26/135)
TRUNK-OUT-out
CN902
e2
(11/135)
(ANA-Audio-AUX)
CN902
b3
(14/135)
AUDIO-TX-LRCK-in
CN902
d3
(16/135)
AUDIO-TX-Incom-in
CN902
b1
(2/135)
CHU-Data-out
CN902
d23
(121/135)
COM-HIRA-PIN 8
100
R257
100
R331
0
R332
47pF
C532
NM
22k
R530
NM
1k
R533
NM
47
R446
NM
10uH
L405
NM
47k
R448
NM
AK4550VT-E2
IC406
NM
AINR
2
AINL
3
SDTI
9
SCLK
12
LRCK
10
DEM0
6
DEM1
7
MCLK
11
PWAD
13
PWDA
14
VSS
4
VCOM
1
SDTO
8
AOUTL
15
AOUTR
16
VDD
5
4.7uF
C439
NM
0.0022uF
C436
NM
4.7uF
C443
NM
10pF
C435
NM
4.7uF
C442
NM
+3.3V
4.7uF
C433
NM
0.1uF
C438
NM
4.7uF
C432
NM
47
R445
NM
0.0022uF
C437
NM
0.1uF
C440
NM
GND
0
R447
NM
b3
002
c3
002
e2
002
b3
002
c3
002
d3
002
e3
002
e2
002
0
R444
NM
d4
AUDIO-RX-Incom-out
CN902
c4
(21/135)
AUDIO-RX-MIC-out
0
R456
NM
+3.3V
1k
R443
NM
10pF
C434
NM
10uF
C441
NM
10uH
L305
NM
+5V
10uF
C333
NM
GND
10k
R333
NM
33k
R334
NM
3.3k
R335
NM
15k
R336
NM
15k
R337
NM
3.3k
R338
NM
0
R339
NM
2SC4617TL-QR
Q304
NM
2SC4617TL-QR
Q305
NM
0.001uF
C331
NM
470pF
C332
NM
PGM1_IN
002
2SC4617TL-QR
Q407
NM
3.3k
R454
NM
3.3k
R451
NM
2SC4617TL-QR
Q406
NM
PGM2_IN
002
33k
R450
NM
15k
R453
NM
10uH
L406
NM
0
R455
NM
GND
0.001uF
C444
NM
10k
R449
NM
15k
R452
NM
10uF
C446
NM
470pF
C445
NM
+5V
4.7uF
C642
NM
10uH
L605
NM
2SC4617TL-QR
Q506
NM
10uF
C641
NM
0.0022uF
C637
NM
3.3k
R538
NM
3.3k
R649
NM
10uF
C646
NM
10uH
L606
NM
4.7uF
C639
NM
0
R654
NM
47k
R643
NM
+3.3V
2SC4617TL-QR
Q507
NM
10uH
L505
NM
4.7uF
C633
NM
15k
R539
NM
0
R650
NM
3.3k
R646
NM
0.1uF
C640
NM
470pF
C645
NM
0.0022uF
C636
NM
AK4550VT-E2
IC606
NM
AINR
2
AINL
3
SDTI
9
SCLK
12
LRCK
10
DEM0
6
DEM1
7
MCLK
11
PWAD
13
PWDA
14
VSS
4
VCOM
1
SDTO
8
AOUTL
15
AOUTR
16
VDD
5
+5V
0.001uF
C540
NM
GND
15k
R540
NM
2SC4617TL-QR
Q606
NM
0.1uF
C638
NM
GND
+5V
0.001uF
C644
NM
0
R642
NM
4.7uF
C643
NM
470pF
C541
NM
0
R640
NM
3.3k
R541
NM
GND
INCOM2_IN
002
4.7uF
C634
NM
10k
R536
NM
10k
R644
NM
33k
R645
NM
10pF
C635
NM
INCOM1_IN
002
470
R641
NM
0
R542
NM
33k
R537
NM
2SC4617TL-QR
Q607
NM
470
R639
NM
15k
R647
NM
15k
R648
NM
10uF
C542
NM
2SC4617TL-QR
Q204
2SC4617TL-QR
Q205
0.1uF
C316
0.1uF
C317
0.1uF
C418
16V
1uF
C228
+3.3V
10uH
L202
4.7uF
C232
GND
4700pF
C237
22pF
C236 47pF
C238
200k
RV201
1
2
3
INH
GND VEE
VCC
TC7W53FU(TE12R)
IC206
7
61
5
8
2
43
150k
R243
0.047uF
C243
150k
R245
4700pF
C240
10000pF
C241
150k
R244
100pF
C242
0.001uF
C244
3300pF
C246
3300pF
C247
3300pF
C248
3300pF
C249
3300pF
C250
220pF
C218
100pF
C219
15pF
C221
22pF
C318
150pF
C321
150pF
C422
22pF
C420
15k
R318
15k
R321
15k
R422
15k
R425
100pF
C522
NM
100pF
C622
e4
(AUDIO-RX-256FS-out)
R652
0
R651
0
MIC1(X)_OUT
002
MIC2(X)_OUT
002
1M
R317
1M
R418
22k
R429
22k
R324
100k
R520
NM
100k
R627
1SS300-TE85L
D501
NM
1
23
INCOM2_MUTE
001
INCOM1_MUTE
001
INH
GNDVEE
VCC
TC7W53FU(TE12R)
IC404
7
6
1
5
8
2
43
INH
GNDVEE
VCC
TC7W53FU(TE12R)
IC504
NM
7
6
1
5
8
2
43
INH
GND VEE
VCC
TC7W53FU(TE12R)
IC505
NM
7
61
5
8
2
43
NJM062V(TE2)
IC605
(1/2)
+
5
-
6
7
NJM062V(TE2)
IC605
(2/2)
+
3
-
2
4
1
8
47k
R631
10pF
C631
22uF
C632
INCOM1(X)_OUT
002
INCOM1(G)_OUT
002
0
R637
100
NM
R328
22k
R330
NJM062V(TE2)
(2/2)
IC303
+
3
-
2
4
1
8
47k
R325
0.1uF
C327
0
R329
NJM062V(TE2)
(1/2)
IC303
+
5
-
6
7
47k
R326
22k
R327
10pF
C329
GND
GND
NJM062V(TE2)
(2/2)
IC403
+
3
-
2
4
1
8
0.1uF
C428
22k
R432
0
R434
100
NM
R433
NJM062V(TE2)
(1/2)
IC403
+
5
-
6
7
47k
R430
100
R436
22k
R435
10pF
C430
0
R437
47k
R431
0
R438
NM
0
R457
INCOM1(G)_OUT
002
0
R638
NM
R653
0
b4
AUDIO-RX-LRCK-out
16V
0.1uF
C226
GND
0.1uF
C230
GND
0.1uF
C537
NM
16V
0.1uF
C239
16V
0.1uF
C324
16V
0.1uF
C328
16V
0.1uF
C429
16V
0.1uF
C630
16V
0.1uF
C626
16V
0.1uF
C625
16V
0.1uF
C525
NM
16V
0.1uF
C526
NM
16V
0.1uF
C425
16V
0.1uF
C416
16V
0.1uF
C518
NM
16V
0.1uF
C517
NM
1k
R239
CHU_DATA
001
6.3V
220uF
C251
220k
R616
100k
R617
100k
R619
47k
R618
100
R622
2SA1774TL-QR
Q604
0.1uF
C617
16V
0.1uF
C618
INCOM1_DEMOD_DIAG
001
1uF
C527
NM
1uF
C229
1uF
C627
1uF
C426
1uF
C536
NM
1uF
C535
NM
1uF
C325
E300
E400
NM
LM339NS-E20
IC203
(1/4)
+
7
-
6
1
LM339NS-E20
IC203
(2/4)
+
9
-
8
14
LM339NS-E20
IC203
(3/4)
+
11
-
10
13
LM339NS-E20
IC203
(4/4)
-
4
+
5
12
2
3
100
R260
100k
R261
100k
R262
150k
R544
NM
150k
R656
e3
002
d3
002
INCOM1(G)
002
INCOM2(G)
002
PGM2(G)
002
PGM1(G)
002
0
R439
NM
0
R440
0
R441
0
R442
NM
0
R342
0
R343
NM
0
R341
0
R546
0
R547
NM
0
R545
10k
R550
NM
NJM062V(TE2)
IC205
(2/2)
+
5
-
6
7
NJM062V(TE2)
IC209
(1/2)
+
5
-
6
7
NJM062V(TE2)
IC209
(2/2)
+
3
-
2
4
1
8
16V
0.1uF
C258
GND
47k
R263
DTA144EE-TL
Q209
DTA144EE-TL
Q405
10pF
C543
NM
DTA144EE-TL
Q508
NM
1SS300-TE85L
D502
NM
1
2
3
NJM2903V(TE2)
IC604
(2/2)
NM
+IN
3
-IN
2
4
1
8
25V
10uF
C254
6.3V
22uF
C253
DTC144EE-TL
Q404
DTC144EE-TL
Q208
1M
R264
1M
R265
10pF
C260
10pF
C544
NM
22pF
C545
NM
22pF
C648
DTC144EE-TL
Q605
16V
1uF
C252
16V
1uF
C255
20k
RV301
1
2
3
20k
RV401
1
2
3
20k
RV501
NM
1
2
3
20k
RV601
1
2
3
TC7SH00FU(T5RSOYJF)
IC507
NM
2
14
5
3
TC7SH08FU(T5RSOYJF)
IC204
2
14
5
3
TC7SH08FU(T5RSOYJF)
IC208
2
14
5
3
TC7SH08FU(T5RSOYJF)
IC405
2
14
5
3
MIC1 LEV ADJ
MIC2 LEV ADJ
INCOM2 LEV ADJ
INCOM1 LEV ADJ
RV201:TONE ADJ.
PGM2
L
PGM1
R
MIC1MIC2
INCOM2
LR
INCOM1
INCOM2 INCOM1
LPF(550Hz) LPF(110Hz)
102/512Hz
200mVpp at 0dB
200mVpp at 0dB
200mVpp at 0dB
Hi:NG
L :OK
LPF(15KHz)
LPF(15KHz)
TONE_DET.: Hi
LPF_40KHz
H.PF(1.5KHz)
Analog_OUT
Analog_OUT
Analog_OUT
INST:N.M.
INST:N.M.
INST:N.M.
MIC2(X)_OUT
MIC1(X)_OUT
INCOM1(X)_OUT
002
002
002
CN902
(20/135)
CN902
(23/135)
CN902
(22/135)
TR-133A (2/3)TR-133A (2/3)
TR-133A (2/3)
BOARD NO. 1-865-027-11
CCU-TX50_TR-133_11P_2
4-13 4-13
2
3
4
5
1
ABCDEFGH
CCU-TX50/V2
TR-133A (3/3)TR-133A (3/3)
TR-133A (3/3)
BOARD NO. 1-865-027-11
CCU-TX50_TR-133_11P_3
10k
R818
LPF
FL701
12 IN
13
G1
10
GND1
9
GND2
3
O1
14
G2
6
OUT
4
I2
1
O2
GND
+12V
22k
R826
0.1uF
C737
10uH
L906
TP701
1k
R837
470
R735
10uH
L802
1k
R705
GND
0.1uF
C831
0.1uF
C811
68
R762
GND
470
R729
8pF
C721
10k
R742
-12V
1M
R746
680
R733
47k
R850
0.1uF
C932
22pF
C716
HVU363ATRU
D702
4.7k
R836
1M
R741
150
R839
47k
R905
22k
R816
1k
R925
1k
R730
0.1uF
C825
0.0022uF
C832
0
R723
PROMPT_ATT
001
2pF
C818
47
R731
0.0022uF
C830
4.7
R760
10k
R814
R724
0
0.1uF
C827
10k
R743
+5V
2.2k
R833
L706
CN902
a19
(94/135)
Prompter(X)-in/out
22k
R832
BPF
FL702
1
IN1
15
IN2
19
G1
2
GND1
8
GND2
20
G2
13
OUT
9
I1
LPF
FL801
12 IN
13
G1
10
GND1
9
GND2
3
O1
14
G2
6
OUT
4
I2
1
O2
0.1uF
C815
-5V
15k
R902
GND
TA78L09F-TE12L
IC902
IN
1
C/FIN
3
OUT
2
0.1uF
C835
GND
1k
R721
1k
R821
-5V
22k
R929
22k
R852
100
R813
0.1uF
C822
3pF
C823
1uF
C902
22pF
C810
6pF
C929
15k
R812
1k
R822
DTA144EE-TL
Q905
0.1uF
C819
PROMPT_NOVIDEO
001
FB802
CN801
1
2345
150
R937
10uH
L905
NM
R718
E801
FB804
0.0022uF
C838
2SA1774TL-QR
Q802
47
R756
CN701
1
2345
47k
R828
2SB624-T1BV5
Q806
1.5k
R711
CN902
b19
(95/135)
Prompter(G)
GND
C703
NM
2SB624-T1BV5
Q906
15k
R811
GND
10uH
L803
NM
R804
0.1uF
C730
FB701
0.1uF
C710
2SA1610-T1Y34
Q711
NM
R719
0.1uF
C840
220k
R710
150
R751
0.1uF
C731
0.1uF
C733
33
R752
2SC4617TL-QR
Q703
NM
C707
2SC4617TL-QR
Q801
NM
C706
MSW-2-20-TR
IC805
RFOUT1
6
RFIN
1
CONT1
5
GND1
2
RFOUT2
3
CONT2
4
GND2
7
GND3
8
1k
R808
1uH
L703
10k
R934
DTA144EE-TL
Q804
0.1uF
C804
2SA1774TL-QR
Q910
470
R757
4.7k
R928
DTA144EE-TL
Q811
680
R748
1.5k
R931
0
R932
0.1uF
C724
1k
R708
CN902
a16
(76/135)
RET-Signal-VBS(X)-in
150
R846
220k
R927
220
R714
0
R745
330
R701
2SC4617TL-QR
Q909
DTC144EE-TL
Q904
220
R713
0.1uF
C725
C931
NM
470
R755
100k
R806
100
R936
10pF
C833
NM
10uH
L701
2SB624-T1BV5
Q902
BPF
FL802
1
IN
3
GND
5
NC2
2
OUT
4
NC1
10uH
L801
1SS302-TE85L
D802
1
2
3
0.1uF
C713
E701
+5V
33k
R827
47
R747
0.0022uF
C826
0.1uF
C717
22pF
C720
1k
R736
DTA144EE-TL
Q809
0.1uF
C736
+5V
10k
R737
10k
R726
CT701
47k
R854
0.1uF
C735
0.1uF
C901
+5V
1.5k
R734
47k
R901
22k
R843
0
R841
15k
R817
0.1uF
C728
100
R930
GND
0.1uF
C714
8pF
C709
NJM062V(TE2)
IC801
(2/2)
+
3
-
2
4
1
8
0.1uF
C727
HVU363ATRU
D701
+5V
1M
R842
L705
1
2
3
0.1uF
C808
0.1uF
C718
10k
R727
4.7
R761
330
R732
10k
R738
R835
NM
0.1uF
C722
0.0022uF
C829
0.1uF
C828
220
R834
10k
R801
0.0022uF
C824
15k
R904
220
R840
680
R838
47k
R853
1k
R722
0.1uF
C821
1k
R707
2.2k
R815
0.1uF
C933
0.1uF
C834
GND
R704
NM
-5V
1k
R805 22pF
C807
TP901
2.2k
R906
100
R758
2.2k
R720
47k
R824
0.1uF
C820
NM
C806
8pF
C930
1uF
C903
1k
R848
FB702
220k
R831
DTC144EE-TL
Q901
100k
R830
-5V
RET_RF_ATT_0
001
2SD596-T1DV5
Q903
4.7k
R823
CXA1122AM-1-T4
IC803
V_IN
10
CH_SW
11
A_IN
7
REG_OUT
4
C_OFF_SW
6
SAW_OUT1
12
SAW_OUT2
13
SAW_IN
14
GND1
8
GND2
15
P/S_ADJ
3
A_SW_DRV
9
4.5MHZTANK
5
MOD_ADJ
16
RF_OUT
1
VCC
2
CN902
a17
(82/135)
RET-Signal-VBS(G)-in
4.7k
R820
150
R849
22k
R809
2SD596-T1DV5
Q803
1.5k
R717
220
R754
2SA1774TL-QR
Q704
4.7k
R706
0.1uF
C729
0.1uF
C711
0.1uF
C839
68k
R810
GND
10uH
L804
0.1uF
C732
10uH
L702
100
R702
15k
R825
+
-
AD8014ARTZ-REEL7
IC701
3
4
2
1
5
2SA1610-T1Y34
Q714
GND
0.1uF
C734
2.2k
R803
0.1uF
C803
15k
R716
1.5k
R749
2k
RV701
1
2
3
FB801
33
R725
FB803
100
R802
0
R750
DTC144EE-TL
Q805
22pF
C704
2.2k
R709
0
R715
TP801
0
R712
4.7k
R807
2.2k
R703
10k
R935
2SC4617TL-QR
Q908
2.2k
R829
0.1uF
C723
100
R759
GND
MA3J74200LSO
D801
1
2
3
0.1uF
C726
+
-
AD8014ARTZ-REEL7
IC904
3
4
2
1
5
PROMPT_TX/RX
001
DTC144EE-TL
Q810
GND
4.7k
R933
RET_RF_ATT_1
001
68
R739
220
R845
10k
R819
NJM062V(TE2)
IC801
(1/2)
+
5
-
6
7
0
R740
47k
R851
4.7k
R926
15pF
C715
1k
R753
L805
1
2
3
22k
R728
150pF
C719
4.7k
R847
10
R744
47k
R903
2.2k
R844
4.7k
R923
1k
R922
NM
C926
22pF
C927
NM
R921
LPF
FL901
12 IN
13
G1
10
GND1
9
GND2
3
O1
14
G2
6
OUT
4
I2
1
O2
1k
R924
NM
C708
47uF
C705
47uF
C928
6.3V
47uF
C812
6.3V
47uF
C813
6pF
C738
2SC4215Y-TE85L
Q705
2SC4215Y-TE85L
Q706
2SC4215Y-TE85L
Q707
2SC4215Y-TE85L
Q708
2SC4215Y-TE85L
Q709
2SC4215Y-TE85L
Q710
2SC4215Y-TE85L
Q712
2SC4215Y-TE85L
Q713
2SC4083-T106P
Q807
2SC4083-T106P
Q808
PROMPT_ON
001
10k
R855
DTC144EE-TL
Q812
47k
R856
15k
R857
2pF
C817
10k
R858
NM
6.8k
R859
1.5k
R860
680
R861
0.1uF
C841
6.3V
4.7uF
C842
0.001uF
C843
15pF
C844
4pF
C845
4pF
C846
10000pF
C847
1uH
L806
2SC4617TL-QR
Q813
10
R862
33k
R863
6.8k
R864
150
R865
PROMPT_DEMOD_ON
001
47k
R938
15k
R939
150
R941
22k
R940
2k
RV902
1
2
3
0.1uF
C905
10000pF
C907
150
R908
0.1uF
C909
15pF
C908
47
R942
GND
10000pF
C904
10uH
L902
GND
33k
R909
0.1uF
C915
10000pF
C911
0.1uF
C906
470
R920
0
R917
10k
R918
1uH
L901
10k
R916
0.1uF
C918
1k
R943
0.1uF
C923
0.1uF
C919
3SK299-T1-U73
Q907
1
2
3
4
47k
R912
22pF
C924
10pF
C921
LV902
1
78
2
150
R907
1uF
C925
220
R919
10000pF
C914
1uF
C916
1k
R915
10pF
C920
0
R911
1k
R913
20k
RV901
1
2
3
680
R914
0.1uF
C922
10k
R910
LV901
1
7
8
2
0.1uF
C913
6.3V
47uF
C701
6.3V
47uF
C702
6.3V
47uF
C802
6.3V
47uF
C801
6.3V
47uF
C814
6.3V
47uF
C936
6.3V
47uF
C912 6.3V
47uF
C935
6.3V
47uF
C934
25V
10uF
C805
25V
10uF
C816
25V
10uF
C836
25V
10uF
C837
25V
10uF
C910
S
3SK195(TE85L)
Q911
2
3
1
4
3.3uH
L704
4.7k
R763 10pF
C739
2SC4617TL-QR
Q701
2SA1774TL-QR
Q702
25V
10uF
C712
25V
10uF
C809
10pF
C937
97.24MHz
X801
1
CONT
2
GND
3
OUT
4
VDD
+
-
LMH6732MFX/NOPB
IC804
3
4
25
1
6
NJM2542V(TE2)
IC903
EQOUT
1
APCFLT
2
EQIN
3
V+
4
VCOL1
5
VCOL2
6
VREF
7
VDETOUT
8
AGCFLT2
9
LIMIN
10
EQ
20
AFTOUT
19
RFAGC_ADJ
18
IFIN2
17
IFIN1
16
GND
15
RFAGC_OUT
14
AGCFLT1
13
AFNFB
12
AFOUT
11
TC7SH08FU(T5RSOYJF)
IC802
2
14
5
3
TC7SH08FU(T5RSOYJF)
IC806
2
14
5
3
TC7SH08FU(T5RSOYJF)
IC807
2
14
5
3
TC7SH08FU(T5RSOYJF)
IC901
2
14
5
3
TC7SH08FU(T5RSOYJF)
IC905
2
14
5
3
500k
RV801
1
2
3
Q708
Q706
804
Q714
WHITE
PROMPT VIDEO
GREEN
Q701
Q902
Q710
902
Q713
Q905
RET RF
Q904
PROMPT LEV
Q810
Q811
Q910
802
Q804
Q911
Q806
Q702
Q903
Q703
Q803
Q906
D701
Q805
Q709
901
Q901
Q711
D702
RET DEV
Q909
801
Q908
801
D801
RET FREQ
D802
Q704
701
Q809
904
Q705
Q802
Q807
PROMPT RF
PROMPT DEV
Q801
Q808
Q707
803
Q712
Q813
807
905
Q907
PROMPT TUNE
RF AGC DLY
PROMPT FREQ
903
4-144-14
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
AU-300 (1/3)AU-300 (1/3)
GND
10k
R51
NM
33k
R3
R66
33k
GND
15k
R11
15k
R6
+5V-2
R76
68k
-5V-2
22k
R50
100k
R39
33k
R38
-5V-2
D14
02DZ4.7-TPH3
R75
68k
C50
100pF
+2.5V
R61
33k
GND
2.2k
R10
1uF
C61
LM339NS-E20
IC5
(3/4)
+
11
-
10
13
LM339NS-E20
IC5
(2/4)
+
9
-
8
14
THP1
15k
R40
2SC2873Y-TE12L
Q11
2.2k
R48
22k
R7
THP2
NM
+3.3V
+3.3V
GND
R58
220
R62
33k
+5V
CL-220PG-C-TS
D7
15k
R5
+3.3V
1uF
C60
R74
2.2k
NM
10k
R49
LM339NS-E20
IC5
(1/4)
+
7
-
6
1
2.2k
R8
THP3
GND
2.2k
R4
R57
220
GND
+3.3V
C51
100pF
02DZ4.7-TPH3
D15
10k
R9
LM339NS-E20
IC5
(4/4)
+
5
-
4
12
2
3
2SA1213Y-TE12L
Q10
THP4
LM4040AIM3-2.5
IC3
NM
-
2
+
1
NC
3
33k
R67
47k
R71
NM
0.1uF
C39
GND
1uF
C42
1uF
C43
CL3
CL4
100pF
C18
33k
R43
CL1
33k
R34
2SA1213Y-TE12L
Q1
1uF
C13
68k
R41
33k
R35
+5.5V
1uF
C14
NM
220
R28
-5.5V
-5.5V
2SC4617TL-QR
Q3
100
R22
100
R21
1uF
C28
1uF
C29
NM
10uH
L2
100
R23
NM
100
R24
NM
2SA1213Y-TE12L
Q2
NM
2SC4617TL-QR
Q4
NM
100pF
C19
NM
220
R29
NM
33k
R44
33k
R37
NM
33k
R36
NM
33k
R45
+5V-2
+5V-2
33k
R46
NM
33k
R47
NM
470
R42
2SC2873Y-TE12L
Q13
16V
1uF
C62
100k
R73
33k
R70
470
R60
CL6
02DZ4.7-TPH3
D16
16V
1uF
C44
02DZ4.7-TPH3
D17
100pF
C52
100k
R72
33k
R68
470
R59
16V
1uF
C63
CL5
16V
1uF
C45
2SA1213Y-TE12L
Q12
100pF
C53
33k
R65
100k
R64
THP5
THP6
+12V
-12V
+5V-2
33k
R63
3.3k
R69
GND
6.3V
10uF
C1
6.3V
10uF
C3
6.3V
10uF
C5
6.3V
10uF
C7
6.3V
10uF
C4
6.3V
10uF
C2
6.3V
10uF
C6
GND
6.3V
10uF
C8
+5V-2
47k
R26
15k
R25
NM
+2.5V
-12V
+5.5V
100pF
C23
100pF
C24
NM
100pF
C57
100pF
C56
1uF
C58
1uF
C59
R16
47k
R32
1k
IC1
NJM78L05UA-TE1
1
IN
3
G/FIN
2
OUT
1SS300-TE85L
D10
1
2
3
D1
1SS300-TE85L
12
3
C17
0.1uF
C11
0.022uF
16V
4700pF
C26
C12
0.022uF
16V
D5
02DZ5.1-TPH3
GND
+5V
D4
1SS301-TE85L
3
1
2
R12
15k
R53
33k
D12
02DZ2.0-TPH3
1SS300-TE85L
D11
1
2
3
22uH
L3
Q9
2SD596T1-DV345
R18
2.2k
1/16W
C41
0.0033uF
R19
47k
R56
1k
Q8
2SD596T1-DV345
R13
15k
R14
1k
C20
0.1uF
1SS301-TE85L
D8
31
2
1SS301-TE85L
D9
31
2
1SS300-TE85L
D13
12
3
R20
15k
C40
0.0033uF
C10
0.022uF
16V
R15
2.2k
R1
1k
22uH
L1
R52
47
22uH
L4
Q5
2SC4177-T1L5L6
Q6
2SC4177-T1L5L6
R27
15k
R54
1k
D6
02DZ5.1-TPH3
+5V
C38
4700pF
R17
1k
R2
1k
C9
0.022uF
16V
R55
33k
D3
1SS301-TE85L
3
1
2
4700pF
C27
R30
1k
NJM78L05UA-TE1
IC2
1
IN
3
G/FIN
2
OUT
D2
1SS300-TE85L
12
3
NJM062V(TE2)
IC6
(2/2)
+
3
-2
4
1
8
NJM062V(TE2)
IC6
(1/2)
+
5
-6
7
NJM062V(TE2)
IC7
(1/2)
+
5
-6
7
NJM062V(TE2)
IC7
(2/2)
+
3
-2
4
1
8
+5.5V
+5.5V
-5.5V
10uH
L6
10uH
L5
+5V
NJM062V(TE2)
IC4
(1/2)
+
5
-6
7
NJM062V(TE2)
IC4
(2/2)
+
3
-2
4
1
8
CN902
c7
(39/135)
MB-GND
CN902
e8
(47/135)
+5.5V
CN902
c9
(51/135)
MB-GND
100uF
10V
C33
NM
CN902
b17
(83/135)
RED-Tally(Y)-in
CN902
d20
(103/135)
-12.5V
CN902
f19
(99/135)
SHIELD
S3
12
3
45
6
CN902
c10
(57/135)
MB-GND
C34
22uF
35V
CN902
d17
(85/135)
GREEN-Tally(X)-in
CL2
NM
CN902
e22
(116/135)
(VR-LEVEL-Sel)
CN902
e21
(110/135) RS-232C 3
CN902
a23
(118/135)
COM-HIRA-PIN 5
CN902
e9
(53/135)
-5.5V
CN902
f1
(6/135)
SHIELD
CN902
f6
(36/135)
47uF
6.3V
C31
CN902
c19
(96/135)
(Prompter(G)-if)
CN902
c11
(63/135)
(NC)
S2
1
2
3
4
5
6
47uF
16V
C49
CN902
f12
(67/135)
CN902
f22
(117/135)
47uF
16V
C48
CN902
f7
(42/135)
SHIELD
22uF
35V
C35
10uF
16V
C22
NM
CN902
a18
(88/135)
(VBS-RET3(X)-IN-if)
CN902
b8
(44/135)
MB-GND
CN902
a17
(82/135)
RED-Tally(X)-in
CN902
f14
(69/135)
CN902
a20
(100/135)
+12.5V
CN902
b20
(101/135)
+12.5V
CN902
e18
(92/135)
+3.7V
47uF
16V
C16
NM
S1
1
2
3
4
5
6
CN902
f23
(123/135)
SHIELD
CN902
c20
(102/135)
MB-GND
CN902
e19
(98/135)
+3.7V
R_TALLY_IN
002
CN902
d8
(46/135)
+5.5V
E4
C46
47uF
16V
CN902
f20
(105/135)
CN902
e20
(104/135)
-12.5V
CN902
f21
(111/135)
SHIELD
G_TALLY_IN
002
PWR_OK/NG
002
CN902
f2
(12/135)
10uF
16V
C55
C36
47uF
6.3V
C37
47uF
6.3V
CN902
c23
(120/135)
COM-HIRA-PIN 7
CN902
f11
(66/135)
SHIELD
CN902
f10
(60/135)
47uF
6.3V
C25
CN902
d9
(52/135)
-5.5V
10uF
16V
C21
CN902
f3
(18/135)
SHIELD
47uF
16V
C65
CN902
b19
(95/135)
(EXT-REF(X)-if)
C30
47uF
6.3V
CN902
b18
(89/135)
MB-GND
CN902
d23
(121/135)
COM-HIRA-PIN 8
CN902
c8
(45/135)
+5.5V
CN902
d22
(115/135)
COM-HIRA-PIN 3(TONE)
E3
CN902
f17
(87/135)
SHIELD
CN902
e16
(80/135)
CAM-POWER-Status-in
47uF
16V
C66
CN902
d18
(91/135)
C54
10uF
16V
CN902
c22
(114/135)
COM-HIRA-PIN 2
CN902
f15
(75/135)
SHIELD
CN902
a19
(94/135)
(EXT-REF(G)-if)
47uF
16V
C47
CN902
f8
(48/135)
CN902
f18
(93/135)
CN902
f9
(54/135)
SHIELD
S4
12
3
45
6
CN902
a21
(106/135)
Reference +5V
47uF
16V
C15
CN902
f5
(30/135)
SHIELD
CN902
d19
(97/135)
(Prompter(X)-if)
47uF
16V
C67
CN902
f25
(135/135)
SHIELD
CN902
f13
(68/135)
SHIELD
CN902
d11
(64/135)
(NC)
E1
100uF
10V
C32
CN902
f4
(24/135)
CN902
c17
(84/135)
Tally-GND
47uF
16V
C64
CN902
b23
(119/135)
COM-HIRA-PIN 6
CN902
e17
(86/135)
GREEN-Tally(Y)-in
CN902
f16
(81/135)
E2
CN902
b11
(62/135)
MB-GND
CN902
f24
(129/135)
HCPL-0630-500
PH1
17
2
VCC
8
GND
5
6
4
3
T2
5
8
2
4
1
3
6
7
100
R77
100
R78
220k
R31
3.3k
R79
3.3k
R80
15k
R81
+3.3V
for AU,TR,DM & Rear
-5V
1A/6V
1A/6V
1A/6V
(1.18V)
1A/6V
(1.21V)
+2.5V
(1.82V)
(120)
(1.49V)
POWER
(15)
(1.65)
0.5A/15V
0.5A/15V
(**)
-12V
+12V
(**)
(2.40)
FRONT-CONNECTOR
(Back)
TTL
CONTACT
TTL
POWER
R-TALLY
CONTACT
POWER
CONTACT
POWER
POWER
G-TALLY
POWER
POWER
TTL
POWER
CONTACT
TTL
POWER
+5V-ANA
(1.25)
(1.8V)
AU-300 (1/3)
BOARD NO. 1-865-023-12
CCU-TX50_AU-300_12P_1
4-15 4-15
2
3
4
5
1
ABCDEFGH
CCU-TX50/V2
GND
GND
PCA9555DB-118
IC100
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
GND
+3.3V
0.1uF
C100
220
R100
220
R101
GND
CN902
c16
(78/135)
Panel-PGM-ON/OFF-in
CN902
e4
(23/135)
(TR_MIC1_IN(X)
CN902
c2
(9/135)
RET-DPGM1/2-Data-in
CN902
e24
(128/135)
Serial-com-CS1
CN902
a2
(7/135)
RET-DPGM-BCK-out
CN902
d5
(28/135)
MIC2(GND)
CN902
c24
(126/135)
Serial-Load
CN902
e23
(122/135)
MASTER-RST
CN902
e2
(11/135)
PGM_OUT(G)
CN902
c4
(21/135)
AUDIO-RX-MIC-in
CN902
a1
(1/135)
Embeded-MIC-256FS-out
CN902
d3
(16/135)
PGM2_OUT(X)
CN902
c6
(33/135)
(NC)
CN902
a3
(13/135)
AUDIO-TX-BCK-out
CN902
e3
(17/135)
PGM_OUT(X)
CN902
d24
(127/135)
Serial-com-CS0
CN902
b5
(26/135)
(TRUNC-IN-if)
CN902
a24
(124/135)
Serial-Data
CN902
d4
(22/135)
TR_MIC2_IN(X)
CN902
c25
(132/135)
IIC_SCL3
CN902
d25
(133/135)
IIC-SDA2
CN902
e25
(134/135)
IIC-SCL2
CN902
a25
(130/135)
IIC-SDA1
CN902
a8
(43/135)
R-Tally-out (1k)
CN902
b1
(2/135)
Embeded-MIC-LRCK-out
CN902
c5
(27/135)
FR-GND
CN902
c3
(15/135)
INCOM_GND(IN/OUT)
CN902
b3
(14/135)
CCU_INCOM_OUT(X)
CN902
d16
(79/135)
Cable-OPEN-Status-in
CN902
a11
(61/135)
G-Tally-out (1k)
CN902
a22
(112/135)
Front-Incom-VR-in
CN902
a5
(25/135)
(TRUNC-IN-if)
CN902
b24
(125/135)
Serial-Clock
CN902
a4
(19/135)
(AUDIO-RX-BCK-in)
CN902
d2
(10/135)
PGM2(GND)
CN902
e1
(5/135)
Audio-27M-CLK-in
CN902
d1
(4/135)
Embeded-MIC-OE-in
(Pull-Down)
CN902
e5
(29/135)
MIC1(GND)
CN902
b25
(131/135)
IIC-SCL1
CN902
b2
(8/135)
RET-DPGM-LRCK-out
CN902
c1
(3/135)
Embeded-MIC1/2-Data-out
CN902
b4
(20/135)
CA_INCOM_IN(X)
FP_TALK_IN200mV
003
FP_Receive_OUT200mV
003
FP_PGM_OUT200mV
003
PGM1_-20dB(X)
003
PGM1_-20dB(G)
003
PGM2_-20dB(G)
003
PGM2_-20dB(X)
003
TR_MIC1_IN(X)
003
TR_MIC1_IN(G)
003
TR_MIC2_IN(G)
003
TR_MIC2_IN(X)
003
INCOM1_PRD_IN
003
PRD_OUT(X)
003
INCOM2_ENG_IN
003
ENG_OUT(X)
003
R_TALLY_IN
001
G_TALLY_IN
001
PCA9555DB-118
IC101
NM
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
220
R102
NM
220
R103
NM
GND
+3.3V
220
R104
M51132FP-E1
IC102
(1/2)
IN1
15
4
1
16
14
2
5
M51132FP-E1
IC102
(2/2)
IN2
11
8
10
6
9
7
100k
RB1
12
34
56
78
100k
RB2
12
34
56
78
100k
RB3
12
34
56
78
100k
RB4
12
34
56
78
PWR_OK/NG
001
0.1uF
C101
NM
CN902
b22
(113/135)
IIC_SDA3
100k
R119
100k
R118
1k
R120
1k
R121
1k
R122
1k
R123
NM
1k
R124
NM
100k
RB5
NM
12
34
56
78
100k
RB6
NM
12
34
56
78
100k
RB7
NM
12
34
56
78
100k
RB8
NM
12
34
56
78
220
R126
NM
220
R127
NM
NJM2904V(TE2)
IC104
(1/2)
+
5
-
6
7
NJM2904V(TE2)
IC104
(2/2)
+
3
-
2
4
1
8
+12V
1k
R128
33k
R129
22k
R130
16V
10uF
C102
16V
10uF
C103
16V
10uF
C104
16V
10uF
C105
16V
22uF
C106
22k
R131
10k
R132
100k
R133
100k
R134
10uH
L101
16V
47uF
C107
CN902
c21
(108/135)
PRD_INT_ON
CN902
d21
(109/135)
CA_INCOM_MIC_OFF
CN902
b21
(107/135)
ENG_INT_ON
+5V-2
-5V-2
MC14053BDTR2
IC105 (1/4)
16
VDD
8
VSS
7
VEE
MC14053BDTR2
IC105 (4/4)
4
5
3
9
INH
6
MC14053BDTR2
IC105 (2/4)
2
1
10
15
MC14053BDTR2
IC105 (3/4)
12
13
11
14
10uH
L102
10uH
L103
10V
100uF
C108
10V
100uF
C109
0.1uF
C110
0.1uF
C111
NJM062V(TE2)
IC106
(1/2)
+
5
-
6
7
NJM062V(TE2)
IC106
(2/2)
+
3
-
2
4
1
8
10k
R135
10k
R136
10k
R137
10k
R138
10k
R139
74VHCT541AMTCX
IC107
I0
2
I1
3
I2
4
I3
5
I4
6
I5
7
I6
8
OE2
19
OE1
1
I7
9
GND
10
O7 11
O6 12
O5 13
O4 14
O3 15
O2 16
O1 17
O0 18
VCC
20
+5V
GND
0.1uF
C112
1k
R140
NM
GND
74VHC08MTCX
IC108
1A
1
1B
2
GND
7
4Y 11
3Y
8
2Y
6
1Y
3
VCC
14
2A
4
2B
5
3A
9
3B
10
4A
12
4B
13
TC74VHC04FT(EL)
IC109
1A
1
2A
3
3A
5
4A
9
5A
11
6A
13
GND
7
6Y 12
5Y 10
4Y
8
3Y
6
2Y
4
1Y
2
VCC
14
74VHC32MTCX
IC110
1A
1
1B
2
GND
7
4Y 11
3Y
8
2Y
6
1Y
3
VCC
14
2A
4
2B
5
3A
9
3B
10
4A
12
4B
13
TC7SZ02FU(TE85R)
IC111
A
2
GND
3
Y4
VCC
5
B
1
47k
R141
47k
R142
100k
R143
100k
R144
1k
R145
1k
R146
1k
R147
1k
R148
22k
R149
22k
R150
10k
R151
22k
R152
NM
1k
R153
1k
R154
1k
R155
22k
R157
1M
RV101
1
2
3
MC14053BDTR2
IC112 (1/4)
16
VDD
8
VSS
7
VEE
MC14053BDTR2
IC112 (2/4)
2
1
10
15
MC14053BDTR2
IC112 (3/4)
12
13
11
14
MC14053BDTR2
IC112 (4/4)
4
5
3
9
INH
6
1k
R158
1k
R159
MC14053BDTR2
IC113 (1/4)
16
VDD
8
VSS
7
VEE
MC14053BDTR2
IC113 (2/4)
2
1
10
15
MC14053BDTR2
IC113 (3/4)
12
13
11
14
MC14053BDTR2
IC113
(4/4)
4
5
3
9
INH
6
+5V-3
+5V-3
-5V-3
-5V-3
GND
NJM062V(TE2)
IC114
(1/2)
+
5
-
6
7
NJM062V(TE2)
IC114
(2/2)
+
3
-
2
4
1
8
10k
R160
22k
R161
22k
R162
22k
R163
10k
R164
22k
R165
22k
R166
22k
R167
MC14053BDTR2
IC115 (1/4)
16
VDD
8
VSS
7
VEE
MC14053BDTR2
IC115 (2/4)
2
1
10
15
MC14053BDTR2
IC115 (3/4)
12
13
11
14
MC14053BDTR2
IC115 (4/4)
4
5
3
9
INH
6
MC14053BDTR2
IC116 (1/4)
16
VDD
8
VSS
7
VEE
MC14053BDTR2
IC116 (2/4)
2
1
10
15
MC14053BDTR2
IC116 (3/4)
12
13
11
14
MC14053BDTR2
IC116 (4/4)
4
5
3
9
INH
6
NJM062V(TE2)
IC117
(1/2)
+
5
-
6
7
NJM062V(TE2)
IC117
(2/2)
+
3
-
2
4
1
8
10k
R168
22k
R169
22k
R170
22k
R171
22k
R172
1k
R173
1k
R174
1k
R175
1k
R176
1k
R177
22k
R178
10k
RV102
1
2
3
22k
R179
22k
R180
2.2k
R181
47k
R182
NM
47k
R183
NM
100
R184
1k
R185
100k
R186
16V
1uF
C113
1uF
C114
100
R187
+5V
GNDGND
1k
R114
NM
1k
R115
NM
FP_ENG_ON
FP_PRD_ON
FP_PRIVATE_ON
FP_TALK_ON
PRD_ON
ENG_ON
TALK_ON
FP_PRD_ON
PRD_ON
FP_ENG_ON
ENG_ON
FP_PRIVATE_ON
PRIVATE_ON
FP_ENG_ON
FP_PRD_ON
PRIVATE_ON
TALK_ON
ENG_ON
PRD_ON
PRD_ON
FP_PRD_ON
FP_ENG_ON
PRIVATE_ON
FP_TALK_ON
ENG_ON
PGM_MIX_ON
PGM_MIX_ON
INTT_ID L
R_TALLY_ON
G_TALLY_ON
POWER_OK/NG
ENG_ON
CA_INCOM_ON
ENG_INT_ON
PRD_INT_ON
CA_MIC_OFF
FP_TALK_ON
FP_PRIVATE_ON
FP_PGM_MIX_ON
FP_INCOM_VR
FP_PGM_VR
FP_ENG_ON
FP_PRD_ON
PRD_ON
LLL
FP_PGM_MIX
ENGPRD
CA_INCOM
SIDE TONE
From Rear pannel
TO D-sub
L=ON
L=ON
L=ON
L=ON
L=ON
L=ON
L=ON
L=ON
L=ON
L=ON
L=ON
3.3V
5V
Contact control
H=ON
FP_TALK_ON/OFF
ENG_OUT
PRD_OUT
PGM LVL
LL L
AU-300 (2/3)AU-300 (2/3)
AU-300 (2/3)
BOARD NO. 1-865-023-12
CCU-TX50_AU-300_12P_2
4-164-16
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
10uH
L205
R238
1k NM
C203
470pF
+5V-2
D205
02DZ2.0-TPH3
R267
10k
100k
R297
R258
3.3M
NM
R244
100k
10uH
L204
10k
R262
R249
3.3k
C205
0.001uF
R278
10k
R215
100k
R209
22k
NM
D203
02DZ2.0-TPH3
NM
10uH
L206
R260
100k
-5V-2
R269
15k
22k
R277
NM
R248
10k
NM
D202
02DZ2.0-TPH3
+12V
D200
02DZ2.0-TPH3
R246
10k
NM
R213
22k
NM
+5V-2
22uH
L203
R239
1k
R204
10k
22k
R283
NM
R208
22k
R212
22k
R298
100k
R255
100
D201
02DZ2.0-TPH3
NM
-12V
C241
0.001uF
10uH
L207
R225
10k
R241
1k
NM
R264
15k
R257
100
100k
R299
NM
R268
100k
100k
R296
R224
100k
R211
100
NM
R252
10
R250
22k
C225
4700pF
R286
22k
10
R288
NM
C242
180pF
R294
3.3M
NM
R221
100k
NM
R231
100k
330k
R273
100
R265
R233
100k
NM
R276
10k
R240
0
C232
0.1uF
R222
10k
R205
10k
NM
22uH
L202
R223
10k
NM
R247
10k
R270
3.3k
GND
10
R287
10k
R263
R242
0
NM
R256
3.3M
NM
GND
R281
22k
R230
10k
GND
R235
0
R261
10k
D204
02DZ2.0-TPH3
R292
3.3M
NM
10
R289
R216
10k
NM
R226
100k
NM
GND
R217
100k
NM
R254
22k
C226
4700pF
NM
GND
100
R266
R234
10k
R232
10k
NM
R214
10k
GND
+12V
GND
R237
0
NM
C222
22pF
R295
100k
C221
180pF
C206
0.001uF
NM
R291
100
-12V
R245
10k
R271
22k
22k
R284
NM
R220
100k
-5V-2
C204
470pF
NM
R210
100
R282
10k
330k
R272
R201
10k
NM
-12V
R243
10k
22k
R280
NM
R236
1k
R279
100
R274
10
R293
100
+12V
C231
0.1uF
R227
10k
NM
100k
R300
NM
R253
22k
R251
10
10
R290
NM
R259
100k
C243
22pF
R275
10
C240
470pF
R200
10k
R285
2.2k
NJM4558V-TE2
IC203
(2/2)
+
3
-2
4
1
8
NJM4558V-TE2
IC203
(1/2)
+
5
-6
7
NJM4558V-TE2
IC204
(1/2)
+
5
-6
7
NJM4558V-TE2
IC204
(2/2)
+
3
-2
4
1
8
NJM4558V-TE2
IC205
(2/2)
NM
+
3
-2
4
1
8
NJM4558V-TE2
IC205
(1/2)
NM
+
5
-6
7
NJM4560M-TE2
IC206
(1/2)
+
5
-
6
4
7
8
NJM4560M-TE2
IC206
(2/2)
+
3
-
2
1
NJM4558V-TE2
IC207
(1/2)
+
5
-6
7
NJM4558V-TE2
IC207
(2/2)
+
3
-2
4
1
8
NJM4560M-TE2
IC208
(1/2)
+
5
-
6
4
7
8
NJM4560M-TE2
IC208
(2/2)
+
3
-
2
1
NJM4560M-TE2
IC209
(2/2)
NM
+
3
-
2
1
NJM4560M-TE2
IC209
(1/2)
NM
+
5
-
6
4
7
8
NJM4560M-TE2
IC210
(1/2)
+
5
-
6
4
7
8
NJM4560M-TE2
IC210
(2/2)
+
3
-
2
1
4.7uF
C214
6.3V
47uF
C234
6.3V
47uF
C235
10uF
C236
10uF
C237
47uF
C246
47uF
C248
47uF
C247
NM
47uF
C249
NM
20k
RV200
1
2
3
20k
RV201
1
2
3
20k
RV202
1
2
3
TP200
TP206
S203
12
3
45
6
CN902
d6
(34/135)
ANA-PGM2(X)-in
CN902
c18
(90/135)
Panel-Incom-T(X)-in
CN902
a15
(70/135)
MIC1(X)-out
CN902
a7
(37/135)
Panel-PGM(X)-out
CN902
a6
(31/135)
ANA-PGM1(X)-in
CN902
b15
(71/135)
MIC1(Y)-out
TP207
CN902
b7
(38/135)
Panel-PGM(Y)-out
TP205
S201
NM
12
3
45
6
TP204
TP201
NM
C238
22uF
16V
CN902
c15
(72/135)
MIC-IN-GND
CN902
e6
(35/135)
ANA-PGM2(Y)-in
CN902
b16
(77/135)
Panel-Incom-R(Y)-out
TP202
C230
22uF
16V
CN902
d15
(73/135)
MIC2(X)-out
TP208
CN902
e15
(74/135)
MIC2(Y)-out
CN902
a16
(76/135)
Panel-Incom-R(X)-out
TP203
S202
12
3
45
6
S200
12
3
45
6
CN902
e11
(65/135)
MB-GND
C228
22uF
16V
C245
22uF
16V
C239
22uF
16V
C244
22uF
16V
CN902
b6
(32/135)
ANA-PGM1(Y)-in
TR_MIC1_IN(X)
002
TR_MIC2_IN(X)
002
PGM1_-20dB(X)
002
FP_TALK_IN200mV
002
FP_Receive_OUT200mV
002
FP_PGM_OUT200mV
002
TR_MIC1_IN(G)
002
TR_MIC2_IN(G)
002
PGM2_-20dB(G)
002
PGM1_-20dB(G)
002
PGM2_-20dB(X)
002
0
JC1
0
JC2
0
JC3
NM
xMUTE_ON
003
2SA1611T1-M5M6
Q212
2SC4177-T1L5L6
Q213
2SC4177-T1L5L6
Q214
22k
R445
22k
R446
22k
R447
22k
R448
22k
R449
22k
R450
0
JC4
4.7uF
C201
4.7uF
C202
NM
4.7uF
C217
4.7uF
C215
4.7uF
C233
4.7uF
C229
0
JC6
PGM2
PGM-OUT
FP_TALK
(15kH)
S18: MIC1 LEV
FP-OUT
PGM1_AD
MIC1X
PGM1
MIC1Y
TALK LEV
MIC2Y
(22kH)
(200mV)
(200mV)
(22kH)
-20dB
IN
PGM2_AD
0dB
MIC2X
MIC1 LEV
S19: MIC2 LEV
0dB
0dB
-20dB
0dB
-20dB
MIC2 LEV
-20dB
IN
AU-300 (3/3)AU-300 (3/3)
4-17 4-17
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
R411
22k
R426
22k
R423
22k
Q200
2SC4177-T1L5L6
R360
100k
16V
47uF
C288
22uH
L208
R393
10k
+5V-2
R387
100
R361
100k
R412
22k
R438
100k
R386
0
R390
68k
R340
100
0.1uF
C260
R318
100
-5V-2
R421
22k
R358
10k
22uH
L214
16V
47uF
C289
R317
100
R357
100k
R368
10k
22uH
L215
R372
10k
R364
10k
R347
10k
R310
22k
R398
12k
R413
10k
R367
100
R406
12k
R416
10k
R434
10
R415
10k
R431
10
C275
0.001uF
22uH
L210
R365
10k
R397
12k
R388
100
C266
470pF
Q201
2SC4177-T1L5L6
R369
10k
R435
100k
R345
22k
R436
100k
GND
R414
10k
+5V-2
22uH
L209
0.1uF
C257
22uH
L211
R326
22k
R429
82
R319
22k
R437
100k
R370
100
Q209
2SC4177-T1L5L6
R433
10
R356
100k
R324
47k
R402
10k
R350
10k
R403
10k
R329
10k
16V
47uF
C290
R399
12k
R311
100
R392
1.5k
R378
10k
R395
10k
R307
15k
02DZ2.0-TPH3
D206
R325
22k
R330
10k
R309
22k
R349
100k
R363
10k
NJM4558V-TE2
IC216
(2/2)
+
3
-2
4
1
8
R336
15k
R405
12k
R408
12k
-5V-2
16V
47uF
C287
R327
10k
R322
22k
R385
100
R396
4.7k
R379
10k
R430
22k
R351
22k
R384
100
Q210
2SA1611T1-M5M6
R374
10k
R382
47k
R381
47k
R323
47k
-12V
R333
4.7k
+12V
R404
10k
R344
33k
22uH
L213
02DZ2.0-TPH3
D207
R353
100
R407
12k
Q211
2SC4177-T1L5L6
R424
22k
02DZ2.0-TPH3
D208
R334
4.7k
R355
100
R332
4.7k
R335
15k
Q208
2SA1611T1-M5M6
R348
22k
R394
4.7k
R375
10k
R328
10k
R391
1.5k
R432
10
+12V
Q206
2SC4177-T1L5L6
R417
4.7k
-12V
R383
0
R308
15k
R312
22k
Q207
2SC4177-T1L5L6
R422
22k
0.1uF
C258
R380
10k
R306
15k
R418
4.7k
R354
10k
R389
68k
Q204
2SA1611T1-M5M6
R425
22k
R314
100
R342
100
R337
33k
R352
22k
R376
47k
R428
22k
R316
22k
R321
22k
22uH
L216
R419
4.7k
R362
22k
Q205
2SC4177-T1L5L6
02DZ2.0-TPH3
D209
R339
22k
R410
47k
R401
10k
R366
22k
R371
10k
R338
33k
R315
22k
R305
15k
R331
4.7k
R320
22k
R346
100k
R377
10k
R359
10k
R343
33k
R373
47k
R400
12k
C267
470pF
R427
82
GND
R420
4.7k
Q202
2SA1611T1-M5M6
R409
47k
C276
0.001uF
R313
22k
0.1uF
C259
Q203
2SC4177-T1L5L6
R341
22k
NJM4558V-TE2
IC211
(1/2)
+
5
-6
7
NJM4558V-TE2
IC211
(2/2)
+
3
-2
4
1
8
NJM4558V-TE2
IC212
(2/2)
+
3
-2
4
1
8
NJM4558V-TE2
IC212
(1/2)
+
5
-6
7
MC14053BDTR2
IC213 (1/4)
16
VDD
8
VSS
7
VEE
MC14053BDTR2
IC213 (2/4)
2
1
10
15
MC14053BDTR2
IC213 (4/4)
45
3
9
INH
6
MC14053BDTR2
IC213 (3/4)
12
13
11
14
NJM4558V-TE2
IC214
(1/2)
+
5
-
6
7
NJM4558V-TE2
IC214
(2/2)
+
3
-2
4
1
8
NJM4560M-TE2
IC215
(2/2)
+
3
-
2
4
1
8
NJM4560M-TE2
IC215
(1/2)
+
5
-
6
7
NJM4558V-TE2
IC216
(1/2)
+
5
-6
7
NJM4558V-TE2
IC217
(1/2)
+
5
-6
7
NJM4558V-TE2
IC217
(2/2)
+
3
-2
4
1
8
MC14053BDTR2
IC218(1/4)
16
VDD
8
VSS
7
VEE
MC14053BDTR2
IC218 (2/4)
2
1
10
15
MC14053BDTR2
IC218 (3/4)
12
13
11
14
MC14053BDTR2
IC218 (4/4)
45
3
9
INH
6
NJM4558V-TE2
IC219
(1/2)
+
5
-
6
7
NJM4558V-TE2
IC219
(2/2)
+
3
-2
4
1
8
NJM4560M-TE2
IC220
(2/2)
+
3
-
2
4
1
8
NJM4560M-TE2
IC220
(1/2)
+
5
-
6
7
NJM4560M-TE2
IC221
(1/2)
+
5
-
6
7
NJM4560M-TE2
IC221
(2/2)
+
3
-
2
4
1
8
NJM4560M-TE2
IC222
(2/2)
+
3
-
2
4
1
8
NJM4560M-TE2
IC222
(1/2)
+
5
-
6
7
1uF
C281
1uF
C282
0.1uF
C271
0.1uF
C272
0.1uF
C279
0.1uF
C280
TP210
C277
22uF
16V
CN902
d7
(40/135)
ENG(INCOM2)-T(X)-in
CN902
b10
(56/135)
PROD(INCOM1)-R(Y)-out
C295
22uF
16V
C255
47uF
6.3V
C296
22uF
16V
C300
47uF
50V
S207
1
2
3
4
5
6
C269
22uF
16V
CN902
a9
(49/135)
ENG(INCOM2)-R(X)-out
C278
22uF
16V
C292
10uF
16V
S205
12
3
45
6
C301
47uF
50V
C268
22uF
16V
CN902
a10
(55/135)
PROD(INCOM1)-R(X)-out
CN902
d10
(58/135)
PROD(INCOM1)-T(X)-in
S204
12
3
45
6
C302
47uF
50V
RV204
10k
1
2
3
C285
22uF
16V
RV203
10k
1
2
3
C299
47uF
50V
C253
47uF
6.3V
S206
1
2
3
4
5
6
C291
10uF
16V
TP209
CN902
e10
(59/135)
PROD(INCOM1)-T(Y)-in
C283
22uF
16V
C297
22uF
16V
CN902
b9
(50/135)
ENG(INCOM2)R(Y)-out
C284
22uF
16V
C293
10uF
16V
CN902
e7
(41/135)
ENG(INCOM2)-T(Y)-in
C298
22uF
16V
C256
47uF
6.3V
C254
47uF
6.3V
C286
22uF
16V
PRD_OUT(X)
002
ENG_OUT(X)
002
INCOM2_ENG_IN
002
INCOM1_PRD_IN
002
NJM2903V(TE2)
IC223
(2/2)
+IN
3
-IN
2
4
1
8
NJM2903V(TE2)
IC223
(1/2)
+IN
5
-IN
6
7
22k
R439
47k
R440
220k
R441
47k
R442
2.2uF
C303
10k
R443
47k
R444
xMUTE_ON
003
DTC144EE-TL
Q215
DTC144EE-TL
Q216
DTC144EE-TL
Q217
DTC144EE-TL
Q218
15k
R451
15k
R452
3.3k
R453
3.3k
R454
4.7uF
C270
4.7uF
C273
4.7uF
C250
4.7uF
C274
0
JC5
1SS300-TE85L
D210
12
3
10uF
16V
C294
4.7u->10u
ENG AD
PROD-OUT
12V
(15kH)
4W-X
4W
(200mV)
CC
4W-Y
ENG SEL
PROD-IN
cancel
RTS
* cancel up
12V
PROD SEL
4.7u -> 10u
4W
12V
12V
4W-X
RV11:
RTS/CC IO
4W-Y
12V
ENG-OUT
RTS
off
off
PROD-OUT
CC
PROD RTS CANCEL
PROD-OUT
12V
ENG RTS CANCEL
ENG-OUT(1.1)
RTS(CC)
PROD-IN
PROD-IN(4W)
RTS(CC)
(RTS)
RV11:
RTS/CC IO
PROD AD
PROD-OUT
(15kH)
(*5.5)
(200mV)
ENG-OUT(0.2)
L=MUTE_ON
H=MUTE_ON
0.5S Delay
AU-300 (3/3)AU-300 (3/3)
AU-300 (3/3)
BOARD NO. 1-865-023-12
CCU-TX50_AU-300_12P_3
4-19 4-19
2
3
4
5
1
ABCDEFGH
CCU-TX50/V2
IV-57A (1/4)IV-57A (1/4)
IV-57A (1/4)
BOARD NO. 1-865-026-11
CCU-TX50_IV-57_010_1
GND
10k
R52
R24
33k
GND
+5V
R44
68k
2SC4617TL-QR
Q8
-5V
22k
R51
-5V-2
D1
02DZ4.7-TPH3
R43
68k
C21
100pF
+2.5V
R19
33k
GND
+5.5V
2SC2873Y-TE12L
Q2
+3.3V-2
+3.3V
+3.3V
R13
220
R20
33k
+5V
CL-220PG-C-TS
D4
+3.3V-2
R40
2.2k
NM
10k
R50
GND
R12
220
GND
+3.3V
C22
100pF
02DZ4.7-TPH3
D2
2SA1213Y-TE12L
Q1
LM4040AIM3-2.5
IC2
NM
-
2
+
1
NC
3
33k
R25
47k
R26
NM
0.1uF
C9
GND
CL4
CL5
100pF
C23
NJM062V(TE2)
(1/2)
IC4
+
3
-2
4
1
8
33k
R37
CL1
33k
R27
2SA1213Y-TE12L
Q3
68k
R35
NJM062V(TE2)
(2/2)
IC4
+
5
-6
7
33k
R28
+5.5V
220
R17
-5.5V
-5.5V
2SC4617TL-QR
Q5
100
R9
100
R8
10uH
L8
10uH
L9
100
R10
100
R11
2SA1213Y-TE12L
Q4
2SC4617TL-QR
Q6
100pF
C24
220
R18
33k
R38
33k
R30
33k
R29
33k
R39
10uH
L6
+5V-2
+5V
+5V
33k
R41
33k
R42
470
R36
GND
GND
6.3V
10uF
C1
6.3V
10uF
C3
6.3V
10uF
C5
6.3V
10uF
C7
6.3V
10uF
C4
6.3V
10uF
C2
6.3V
10uF
C6
GND
6.3V
10uF
C8
+5V
+2.5V
+5.5V
100pF
C30
100pF
C31
100pF
C27 220
R45
+5V-4
+3.3V
100k
R53
NJM062V(TE2)
IC3
(1/2)
+
5
-6
7
NJM062V(TE2)
IC3
(2/2)
+
3
-2
4
1
8
10uH
L7
-5V
GND
GND
GND
GND
GND
10uH
L2
10uH
L1
CN902
f18
(93/135)
CN902
c6
(33/135)
(NC)
CN902
c20
(102/135)
MB-GND
47uF
16V
C18
C17
47uF
16V
CN901
(36/66)
F6
CN902
b23
(119/135)
COM-HIRA-PIN 6
CN902
a22
(112/135)
(Front-Incom-VR)
CN901
(66/66)
F11
SHIELD
CN902
c3
(15/135)
(ADV-4:2:2 7)
CN901
(12/66)
F2
CN902
f13
(68/135)
SHIELD
CN901
(33/66)
C6
HIRA-PIN 2
CN902
c8
(45/135)
+5.5V
CN902
a4
(19/135)
CN902
e2
(11/135)
(ADV-4:2:2 4)
CN902
f21
(111/135)
SHIELD
CN902
c19
(96/135)
RET3-VBS(G)-if (Rear)
CN902
c22
(114/135)
COM-HIRA-PIN 2
CN902
f25
(135/135)
SHIELD
CN902
f11
(66/135)
SHIELD
47uF
6.3V
C44
CN902
e11
(65/135)
MB-GND
CN902
f4
(24/135)
CN902
e20
(104/135)
-12.5V
CN902
b22
(113/135)
COM-HIRA-PIN 1
CN901
(48/66)
F8
CN902
a9
(49/135)
CN901
(42/66)
F7
SHIELD
CN902
c10
(57/135)
MB-GND
CN901
(14/66)
B3
MAIN +3.7V
10uF
16V
C29
E4
CN902
f9
(54/135)
SHIELD
PWR-OK/NG
002
CN902
c9
(51/135)
MB-GND
CN901
(60/66)
F10
CN902
a5
(25/135)
CN902
d22
(115/135)
COM-HIRA-PIN 3
C26
10uF
16V
CN902
c7
(39/135)
MB-GND
CN902
c5
(27/135)
CN902
e4
(23/135)
FR-GND
CN902
d3
(16/135)
(ADV-4:2:2 8)
47uF
16V
C15
CN902
c18
(90/135)
CN902
b18
(89/135)
MB-GND
CN902
b2
(8/135)
(ADV-4:2:2 1)
CN902
d20
(103/135)
-12.5V
CN901
(10/66)
D2
POW-GND
CN902
d2
(10/135)
(ADV-4:2:2 3)
CN902
f2
(12/135)
CN901
(8/66)
B2
POW-GND
CN902
f22
(117/135)
CN901
(7/66)
A2
POW-GND
CN902
f16
(81/135)
CN901
(24/66)
F4
CN902
a2
(7/135)
(ADV-4:2:2 0-out)
CN902
c11
(63/135)
(NC)
CN902
a21
(106/135)
Reference +5V
CN902
f24
(129/135)
CN902
e9
(53/135)
-5.5V
CN902
d11
(64/135)
(NC)
CN902
a11
(61/135)
CN902
b15
(71/135)
MB-GND
CN902
a6
(31/135)
Front-GND
CL2
CN902
e18
(92/135)
+3.7V
CN902
e1
(5/135)
(ADV-F-out)
CN902
b20
(101/135)
+12.5V
E2
CN901
(16/66)
D3
MAIN +3.7V
CN902
f12
(67/135)
CN902
d23
(121/135)
COM-HIRA-PIN 8
CN901
(9/66)
C2
POW-GND
CN901
(17/66)
E3
MAIN +3.7V
CN902
a8
(43/135)
CN901
(18/66)
F3
SHIELD
CN902
e3
(17/135)
(ADV-4:2:2 9)
CN902
f6
(36/135)
CN902
b11
(62/135)
MB-GND
CN902
e21
(110/135)
Video-HIRA-PIN 3
CN902
b3
(14/135)
(ADV-4:2:2 6)
100uF
10V
C40
47uF
6.3V
C43
47uF
16V
C16
CN902
d1
(4/135)
(ADV-H-out)
CN902
c1
(3/135)
OE-in (normaly High)
CN902
f23
(123/135)
SHIELD
CN902
b9
(50/135)
CN902
d9
(52/135)
-5.5V
CN902
f5
(30/135)
SHIELD
CN902
f19
(99/135)
SHIELD
CN902
a20
(100/135)
+12.5V
CN901
(35/66)
E6
MB-GND
E1
CN902
a3
(13/135)
(ADV-4:2:2 5-out)
CN902
b6
(32/135)
Front-GND
CN901
(11/66)
E2
POW-GND
CN901
(54/66)
F9
SHIELD
CN902
c16
(78/135)
(NC)
CN901
(15/66)
C3
MAIN +3.7V
CN902
f7
(42/135)
SHIELD
CN902
c2
(9/135)
(ADV-4:2:2 2)
CN902
e22
(116/135)
(VR-LEVEL-Sel)
CN902
f14
(69/135)
CN902
b8
(44/135)
MB-GND
100uF
10V
C41
10uF
16V
C28
CN902
e8
(47/135)
+5.5V
CN902
d8
(46/135)
+5.5V
E3
CN902
f3
(18/135)
SHIELD
CN902
f15
(75/135)
SHIELD
CN902
f8
(48/135)
CN902
a23
(118/135)
COM-HIRA-PIN 5
CN902
b5
(26/135)
CN901
(13/66)
A3
MAIN +3.7V
CN902
a1
(1/135)
(ADV-27M-CLK-out)
CN901
(32/66)
B6
(NC)
CN902
d18
(91/135)
CN901
(6/66)
F1
SHIELD
CN902
e19
(98/135)
+3.7V
CN901
(30/66)
F5
SHIELD
CN902
f20
(105/135)
CN902
f10
(60/135)
CN902
b1
(2/135)
(CLK-Guard)
CN902
d19
(97/135)
RET3-VBS(X)-if (Rear)
CN902
c23
(120/135)
COM-HIRA-PIN 7
CN902
f17
(87/135)
SHIELD
CN902
f1
(6/135)
SHIELD
CN902
d5
(28/135)
Front-GND
THP1
THP2
THP3
THP5
THP6
DAP222-TL
D3
1
2
3
47k
R32
10k
R31
22k
R46
R47
2.2k
2SC4617TL-QR
Q10
22k
R34
47k
R33
RD5.6SB-T1
D953
2SA1774TL-QR
Q7
1uF
C45
1uF
C36
1uF
C12
1uF
C37
1uF
C13
1uF
C14 1uF
C33
1uF
C38
1uF
C39
0
R54
0
R55
0
R56
GND-A
+3.3V
for AU,TR,DM & Rear
-5V
1A/6V
1A/6V
1A/6V
+5V
1A/6V
+2.5V
1A/6V
(120)
(15)
(1.65)
FRONT-CONNECTOR
(Back)
ANALOG
DIGITAL
POWER
4-204-20
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
+5V
GND
+3.3V
2SA1774TL-QR
Q101
SN74LVC574APWR
IC107
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
2SC2873Y-TE12L
Q102
10k
R109
0.1uF
C116
2.2k
R131
GND
10
R106
2.2k
R107
22
R113
22
R114
22
R115
22
R116
22
R119
100
R105
10
R108
1k
R103
1k
R104
10
R132
+5V-4
4.7k
R102
2.2k
R101
100
R112
220pF
C115
GND
27M-CLK-P2B
002
27M-CLK-P2C
002
27M-CLK-P2A
002
27M-CLK-P2D
003
27M-CLK-P2A
002
PCA9555DB-118
IC103
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
M62352AGP-D60Q
IC106
DI
17
GND
20
VCC
11
AO1
18
DO
14
VDD
10
VSS
1
CLK
16
AO2
19
AO3
2
AO4
3
AO5
4
AO6
5
AO7
6
AO8
7
AO9
8
AO10
9
AO11
12
AO12
13
LD
15
TC74VHCT245AFT(EL)
IC105
A1
2
A2
3
A3
4
A4
5
A5
6
A6
7
A7
8
A8
9
G
19
DIR
1
GND
10
B8 11
B7 12
B6 13
B5 14
B4 15
B3 16
B2 17
B1 18
VCC
20
220
RB102
12
34
56
78
100k
RB106
12
34
56
78
+5V
GND
GND
+5V
0.1uF
C113
0.1uF
C114
0.1uF
C111
GND GND
Y-DC
002
B-Y-DC
002
R-Y-DC
002
SATURATION
002
22
RB101
12
34
56
78
+3.3V
GND
GND
MST-SD-F
003
SKIN-GATE
003
GND
GND
+3.3V
0.1uF
C112
PCA9555DB-118
IC104
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
S101
12
34
56
78
S102
12
34
56
78
S103
12
34
56
78
S104
12
3
45
6
S105
12
3
45
6
S106
NM
12
3
G1
4567
S107
5
4
6
G1
789
10
S108
5
MT1
4
MT2
6
G1
789
10
100k
RB107
12
34
56
78
100k
RB108
12
34
56
78
100k
RB109
12
34
56
78
100k
RB105
12
34
56
78
GND
+3.3V
100
R120
100
R121
100
R122
+3.3V
100k
RB104
12
34
56
78
220
RB103
12
34
56
78
GND
PWR-OK/NG
001
100
R118
CONF-DONE-2
003
220
R128
220
R129
220
R130
220
R127
100k
R125
100k
R126
GND GND
10uF
C103
FREERUN
003
100
R251
100
R255
NM
10uF
C196
TLC7733IPWR-12
IC130
RESET
6
VDD
8
GND
4
RESET
5
SENSE
7
RESIN
2
CONTROL
1
CT
3
+3.3V
100
R252
0.1uF
C195
47k
R253
0
R254
+3.3V
nCONFIG
003
100k
R256
NM
100k
R257
NM
1k
R258
1k
R259
NM
1k
R260
1k
R261
+3.3V
+3.3V
GND
CN902
d10
(58/135)
Skin-Tone-Gate-in
CN902
c15
(72/135)
RET-SEL-VBS 0-out
CN902
b25
(131/135)
IIC-SCL1
CN902
c25
(132/135)
IIC-CS
CN902
d15
(73/135)
RET-SEL-VBS 1-out
CN902
b24
(125/135)
Serial-Clock
CN902
a24
(124/135)
Serial-Data
CN902
e10
(59/135)
Guard-GND
CN901
(5/66)
E1
MST-SD-F-in
CN902
a25
(130/135)
IIC-SDA1
CN902
e15
(74/135)
RET-SDI-CTL-OFF/ON-out
CN901
(1/66)
A1
MST-27M-CLK-in
TP101
CN901
(3/66)
C1
CN902
c24
(126/135)
Serial-Load
CN902
c17
(84/135)
SDI-RET-SEL1-out
CN901
(37/66)
A7
(27M-CLK-out)
CN902
e16
(80/135)
SDI-RET-SEL0-out
CN901
(4/66)
D1
(13.5M-in)
CN901
(38/66)
B7
Guard-GND
CN901
(2/66)
B1
CLK-Guard-GND
CN902
d16
(79/135)
DIF-NG/OK-in
SN74LVCU04APWR
IC128 (3/7)
56
SN74LVCU04APWR
IC128 (4/7)
98
SN74LVCU04APWR
IC128 (5/7)
11 10
SN74LVCU04APWR
IC128 (6/7)
13 12
SN74LVCU04APWR
IC128
(7/7)
7
GND
14
VCC
SN74LVCU04APWR
IC128
(1/7)
12
2.2k
R111
22
R110
SN74LVCU04APWR
IC128 (2/7)
34
1uF
C101
1uF
C102
1uF
C104
TC7SH04FU(T5RSOYJF)
IC131 (1/2)
24
TC7SH04FU(T5RSOYJF)
IC131 (2/2)
3
GND
5
VCC
SYS27M
INPUT
Ref-Vol
RET SET
TEST
MODE
A/B
ON/OFF
LOCAL
REMOTE
RETURN SET
DISP
MENU
OFF
REW
FF
PAGE
Reconfig
Board-ID
BC
/INST
IV-57A (2/4)IV-57A (2/4)
4-21 4-21
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
0.1uF
C191
+3.3V
+3.3V
+3.3V
0.1uF
C192
0.1uF
C193
SN74LVC574APWR
IC121
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
47
RB120
12
34
56
78
+3.3V
47
RB125
12
34
56
78
2.2k
R245
NM
47
RB119
12
34
56
78
47
RB122
12
34
56
78
SN74LVC574APWR
IC120
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
SN74LVC574APWR
IC122
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
47
RB123
12
34
56
78
47
RB124
12
34
56
78
SN74LVC574APWR
IC129
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
0.1uF
C190
47
RB121
12
34
56
78
47
RB126
12
34
56
78
100
R246
100
R247
100
R248
100
R249
220pF
C189
NM
27M-CLK-P2C
002
100k
R241 100k
R242
100
R250
1k
R160
GND
GND-A
470
R168
R182
68k
0.1uF
C149
1pF
NM
C143
10pF
C164
R200
3.3k
0.1uF
C181
GND
6.3V
22uF
C187
0
R189
AD9203ARUZRL7
IC118
DRVSS
1
DRVDD
2
D0
3
D1
4
D2
5
D3
6
D4
7
D5
8
D6
9
D7 10
D8 11
D9 12
OTR
13
DFS
14
AVDD
28
AVSS
27
AINN
26
AINP
25
REFBF
24
VREF
23
REFTF
22
PWRCON
21
CLAMPIN
20
CLAMP
19
REFSENSE
18
STBY
17
3_STATE
16
CLK
15
0.1uF
C178
10pF
C163
0.1uF
C179
100
R234
22
R172
3.3k
R157
0.1uF
C180
2.2k
R163
2.2k
R169
AD9203ARUZRL7
IC119
DRVSS
1
DRVDD
2
D0
3
D1
4
D2
5
D3
6
D4
7
D5
8
D6
9
D7 10
D8 11
D9 12
OTR
13
DFS
14
AVDD
28
AVSS
27
AINN
26
AINP
25
REFBF
24
VREF
23
REFTF
22
PWRCON
21
CLAMPIN
20
CLAMP
19
REFSENSE
18
STBY
17
3_STATE
16
CLK
15
GND
1pF
NM
C153
+3.3V
6.3V
22uF
C175
GND
0.1uF
C170
0
R203
0.1uF
C182
47
R213
4.7k
R156
2.2k
R199
0.1uF
C128
1k
R159
22
R171
0.1uF
C176
10pF
C162
10k
R193
15k
R155
6.8k
R226
47
R209
0.1uF
C172
+3.3V
1pF
NM
C142
0.1uF
C183
0.1uF
C165
R207
330
6.3V
22uF
C177
3.3k
R162
0.1uF
C184
3.3k
R204
470
R173
1k
R191
NM
0.1uF
C174
4.7k
R165
R208
330
15k
R201
NM
1k
R148
470
R174
1k
R192
NM
1pF
NM
C152
6.3V
22uF
C173
470
R196
+3.3V-2
0.1uF
C185
22k
R166
10k
R194
AD9203ARUZRL7
IC117
DRVSS
1
DRVDD
2
D0
3
D1
4
D2
5
D3
6
D4
7
D5
8
D6
9
D7 10
D8 11
D9 12
OTR
13
DFS
14
AVDD
28
AVSS
27
AINN
26
AINP
25
REFBF
24
VREF
23
REFTF
22
PWRCON
21
CLAMPIN
20
CLAMP
19
REFSENSE
18
STBY
17
3_STATE
16
CLK
15
GND
10k
R225
1k
R183
NM
GND
47
R211
C138
1pF
NM
1k
R202
2.2k
R170
6.3V
22uF
C188
R195
470
10k
R190
100
R143
R205
330
6.8k
R153
3.3k
R161
4.7k
R167
100
R236
0.1uF
C150
0.1uF
C167
1pF
NM
C154
0
R198
22k
R164
0.1uF
C159
100
R235
0.1uF
C166
0.1uF
C161
6.3V
22uF
C186
0.1uF
C158
+3.3V-2
1k
R154
33k
R145
2SA1213Y-TE12L
Q103
-5.5V
33k
R149
33k
R142
220
R135
100
R134
100pF
C121
100pF
C119
NM
+5.5V
33k
R141
100
R133
33k
R147
33k
R146
2SC4617TL-QR
Q104
NJM062V(TE2)
IC123
(2/2)
+
3
-2
4
1
8
+3.3V-2
33k
R150
33k
R144
+1.5V
+1.5V
+1.5V
+1.5V
+1.5V
+1.5V
+1.5V
MAIN-Y-IN
003
MAIN-Y-OUT
003
MAIN-C-CLAMP
003
NJM062V(TE2)
IC124
(2/2)
+
3
-2
4
1
8
NJM062V(TE2)
IC125
(2/2)
+
3
-2
4
1
8
220
R232
220
R233
220
R231
6.8k
R228
10k
R227
6.8k
R230
NJM062V(TE2)
IC123
(1/2)
+
5
-
6
7
10k
R229
+1.5V
+1.5V
+1.5V
+1.5V
R176
10k
R175
6.8k
1k
R177
1k
R179
33k
R178
33k
R180
22k
R186
33k
R185
Y-DC
002
B-Y-DC
002
R-Y-DC
002
27M-CLK-P2B
002
NC7SZ04P5X
IC126 (1/2)
NM
2
4
NC7SZ04P5X
IC126 (2/2)
NM
3
GND
5
VCC
100
R237
NM
100
R239
100
R240
100
R238
+3.3V
GND
0.1uF
C160
47
RB110
12
34
56
78
47
RB111
12
34
56
78
47
RB112
12
34
56
78
47
RB113
12
34
56
78
47
RB114
12
34
56
78
47
RB115
12
34
56
78
47
RB116
12
34
56
78
47
RB117
12
34
56
78
47
RB118
12
34
56
78
0.1uF
C148
MAIN-Y-CLAMP
003
SKIN-GATE-OUT
003
MAIN-F-OUT
003
GND-A
+
-
AD8014ARTZ-REEL7
IC109
3
4
2
1
5
+
-
AD8014ARTZ-REEL7
IC108
3
4
2
1
5+
-
AD8014ARTZ-REEL7
IC111
3
4
2
1
5
+
-
AD8014ARTZ-REEL7
IC115
3
4
2
1
5
+
-
AD8014ARTZ-REEL7
IC110
3
4
2
1
5+
-
AD8014ARTZ-REEL7
IC116
3
4
2
1
5
10uH
L101
10uH
L102
+3.3V-2
-5V-2
0.1uF
C129
10uH
L104
0.1uF
C131
-5V-2
10uH
L103
+3.3V-2
GND-A
0.1uF
C130
0.1uF
C132
+3.3V-2
GND-A
10uH
L105
0.1uF
C133
10uH
L106
-5V-2
NJM062V(TE2)
IC125
(1/2)
+
5
-
6
7
NJM062V(TE2)
IC124
(1/2)
+
5
-
6
7
+3.3V
TP104
TP102
TP103
100
R214
100
R215
100
R216
330
R152
6.8k
R158
100k
R151
NM
+1.5V
50k
RV104
1
2
3
50k
RV106
1
2
3
50k
RV105
1
2
3
10k
R219
0.1uF
C157
10k
R217
0.1uF
C155
SATURATION
002
47k
R220
47k
R221
0.1uF
C156
10k
R218
R181
22k
0.1uF
C144
22k
R184
0.1uF
C145
33k
R187
0.1uF
C146
+3.3V-2
+3.3V
NJM062V(TE2)
IC102
(2/2)
+
3
-2
4
1
8
NJM062V(TE2)
IC102
(1/2)
+
5
-
6
7
0
R197
R206
470
470
R210
470
R212
+5V
470
R188
0
JC101
NM
0
JC103
NM
0
JC102
NM
100
R243
100
R244
TC7SH32FU(T5RSOYJF)
IC127 (1/2)
2
14
TC7SH32FU(T5RSOYJF)
IC127 (2/2)
3
GND
5
VCC
INH
VSSVEE
VDD
TC4W53FU(TE12R)
IC112
7
6
1
5
8
2
43
INH
VSSVEE
VDD
TC4W53FU(TE12R)
IC113
7
6
1
5
8
2
43
INH
VSSVEE
VDD
TC4W53FU(TE12R)
IC114
7
6
1
5
8
2
43
470
R140
470
R136
470
R137
100
R139
100
R138
CN901
(53/66)
E9
B-Y 9
CN901
(29/66)
E5
Y 9
CN902
d7
(40/135)
CHU-R-Y(X)-in
C122
6.3V
47uF
CN901
(55/66)
A10
R-Y 0-out
CN901
(57/66)
C10
R-Y 2
47uF
6.3V
C118
CN901
(50/66)
B9
B-Y 6
CN901
(56/66)
B10
R-Y 1
CN901
(43/66)
A8
B-Y 0-out
CN901
(21/66)
C4
Y 2
C126
6.3V
47uF
CN901
(63/66)
C11
R-Y 7
CN901
(58/66)
D10
R-Y 3
CN901
(44/66)
B8
B-Y 1
CN901
(62/66)
B11
R-Y 6
CN901
(64/66)
D11
R-Y 8
CN901
(28/66)
D5
Y 8
C124
6.3V
47uF
CN901
(49/66)
A9
B-Y 5-out
C127
6.3V
47uF
CN901
(19/66)
A4
Y 0-out
CN901
(41/66)
E7
F-out
CN901
(45/66)
C8
B-Y 2
CN901
(20/66)
B4
Y 1
CN901
(61/66)
A11
R-Y 5-out
CN901
(40/66)
D7
H-out
CN902
e7
(41/135)
CHU-R-Y(G)-in
CN902
a10
(55/135)
CHU-Y(X)-in
CN901
(22/66)
D4
Y 3
CN901
(23/66)
E4
Y 4
CN901
(25/66)
A5
Y 5-out
CN901
(27/66)
C5
Y 7
CN901
(51/66)
C9
B-Y 7
10uF
16V
C120
CN902
b10
(56/135)
CHU-Y(G)-in
CN901
(59/66)
E10
R-Y 4
CL101
CN901
(31/66)
A6
OE2-in (Pull-down)
CN901
(52/66)
D9
B-Y 8
CN901
(39/66)
C7
SKIN-Gate-out
CN901
(26/66)
B5
Y 6
CN901
(34/66)
D6
OE1-in (Pull-down)
CN901
(65/66)
E11
R-Y 9
C125
6.3V
47uF
CN902
a7
(37/135)
CHU-B-Y(X)-in
C123
6.3V
47uF
CN901
(46/66)
D8
B-Y 3
CN902
b7
(38/135)
CHU-B-Y(G)-in
CN901
(47/66)
E8
B-Y 4
22
R262
1uF
C117
1uF
C136
1uF
C139
1uF
C140
1uF
C141
2.2uF
C135
2.2uF
C147
2.2uF
C134
2.2uF
C151
2.2uF
C168
2.2uF
C171
2.2uF
C169
LPF
FL101
1
IN
2
OUT
3
GND
456
LPF
FL102
1
IN
2
OUT
3
GND
456
LPF
FL103
1
IN
2
OUT
3
GND
456
0.1uF
C197
0.1uF
C198
0.1uF
C199
0.1uF
C200
0.1uF
C201
0.1uF
C202
100k
R264
NM
6.8k
R265
330
R266
2.2uF
C203
0.1uF
C204
1k
R268
0
R269
3.3k
R270
2.2uF
C205
0.1uF
C206
0.1uF
C207
6.3V
47uF
C137
+1.5V
TC7SZ08FU(TE85R)
IC132 (1/2)
2
1
4
TC7SZ08FU(TE85R)
IC132 (2/2)
3
GND
5
VCC
10pF
C208
NM
GND
GND
+3.3V
0.1uF
C209
22
R272
50k
RV101
1
2
3
50k
RV102
1
2
3
50k
RV103
1
2
3
B-Y-9
R-Y-3
B-Y-2
R-Y-5
B-Y-1
R-Y-2
R-Y-4
R-Y-7
B-Y-8
R-Y-8
B-Y-7
R-Y-9
B-Y-6
R-Y-1
B-Y-5
R-Y-6
B-Y-4
B-Y-3 R-Y-0
R-Y-1
R-Y-0
R-Y-2
R-Y-3
R-Y-4
R-Y-5
R-Y-6
R-Y-7
R-Y-8
R-Y-9
Y-0
Y-1
Y-2
Y-3
Y-4
Y-5
Y-6
Y-7
Y-8
Y-9
B-Y-0
B-Y-1
B-Y-2
B-Y-3
B-Y-4
B-Y-5
B-Y-6
B-Y-7
B-Y-8
B-Y-9
B-Y-0
YIN-0
YIN-1
YIN-2
YIN-3
YIN-4
YIN-5
YIN-6
YIN-7
YIN-8
YIN-9
OUTPUT
+1.5V
to PLD
from PLD
Y
B-Y
R-Y
R-Y BLK
B-Y BLK
Y BLK
Y LEVEL
B-Y LEVEL
R-Y LEVEL
IV-57A (2/4)IV-57A (2/4)
IV-57A (2/4)
BOARD NO. 1-865-026-11
CCU-TX50_IV-57_010_2
4-224-22
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
IV-57A (3/4)IV-57A (3/4)
47
R324
NM
150
R317
NM
150
R318
NM
1.5k
R338
NM
100
R305
NM
22uH
L306
NM
0.1uF
C316
NM
0.1uF
C326
NM
0.1uF
C336
NM
100
R307
NM
22uH
L305
NM
10pF
C320
NM
GND
0.1uF
C337
NM
2.2k
R336
NM
6.8k
R316
NM
0.1uF
C312
NM
2.2kR334
NM
10
R333
NM
GND
0.1uF
C321
NM
0
R322
NM
0.1uF
C334
NM
0.1uF
C329
NM
GND
0.1uF
C347
NM
GND
680
R323
NM
0.1uF
C343
NM
0.1uF
C330
NM
0.1uF
C342
NM
100
R351
NM
GND
22uH
L304
NM
GND
220
R321
NM
22uH
L307
NM
0.1uF
C309
NM
GND
100
R311
NM
0.1uF
C310
NM
0.1uF
C340
NM
100
R313
NM
CXB1342R
IC300
NM
VCCL2
23
VEEL1
5
THRU
46
SYNC
2
VCCL3
28
VCCL1
11
VCCL4
44
VCCQ1
12
VCCQ2
19
VCC21
1
VCC22
47
VCC23
49
VCC24
59
VCCS
42
TEST
6
SCKX
7
SCKY
8
DIX
21
DIY
22
ADS
9
AIX
13
AIY
14
AGCR
15
AGCL
16
MON0
17
MON1
18
RESET
10
ICP
24
CPX
26
CPY
27
BCAP
36
VEEL2
40
VEEQ
20
VEEP1
25
VEEP2
33
VEE2
64
VEE2A
39
VEED1
48
VEED2
62
PCK
63
D9 50
D8 51
D7 52
D6 53
D5 55
D4 56
D3 57
D2 58
D1 60
D0 61
EVR
54
SX 41
SY 43
DPR
38
LST
37
MDS
45
MOD1
35
MOD0
34
FSR3
32
FSR2
31
FSR1
30
FSR0
29
2.2kR337
NM
0.1uF
C325
NM
0.1uF
C341
NM
0.1uF
C308
NM
GND
3.3k
R315
4.7k
R308
0.1uF
C319
1k
R319
100
R303
100
R310
GND
0.1uF
C322
2SA1774TL-QR
Q303
2SC4617TL-QR
Q301
GS4981CTA
IC301
VIN
2
VCC
8
GND
4
C_SYNC
1
H_SYNC
7
BP
5
V_SYNC
3
RSET
6
680k
R327
1k
R325
ANA-RET
004
TLC272CPSR
IC309
(1/2)
+
5
-
6
7
1k
R326
0.1uF
C338
4.7k
R329
680k
R335
10uH
L308
0.1uF
C344
TLC272CPSR
IC309
(2/2)
+
3
-
2
4
1
8
4.7k
R330
470
R331
470
R332
0.1uF
C339
0.1uF
C307 22pF
C323
4.7k
R328
10pF
C324
0.1uF
C306
GS4981CTA
IC302
VIN
2
VCC
8
GND
4
C_SYNC
1
H_SYNC
7
BP
5
V_SYNC
3
RSET
6
100pF
C327
GND
100
R342
22k
R349
10uH
L309
TLC272CPSR
(2/2)
IC310
+
3
-
2
4
1
8
10uF
C353
100
R341
GND
10uF
C352
10uF
C350
GND
+5V-2
0.1uF
C354
GND
10uF
C349
1k
R348
47k
R353
47k
R352
4.7k
R345
0.1uF
C355
10
R350
1k
R356
4.7k
R346
0.1uF
C346
0.1uF
C348
1k
R354
22uF
C351
22uF
C345
MC74HC4046ADTR2
IC303
PC3O
15
DEMO
10
VCOIN
9
PC2O
13
PC1O
2
PCPO
1
VCC
16
3
CIN
4
VCOUT
14
SIN
6
C1A
GND
8
7
C1B
5
INH
R1
11
R2
12
4.7k
R355
GND
+3.3V
0.1uF
C357
74VHC08MTCX
IC305
1A
1
1B
2
GND
7
4Y 11
3Y
8
2Y
6
1Y
3
VCC
14
2A
4
2B
5
3A
9
3B
10
4A
12
4B
13
GND
MAIN_COMP_H
003
74VHC245MTCX
IC304
A0
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9
OE
19
T/R
1
GND
10
B7 11
B6 12
B5 13
B4 14
B3 15
B2 16
B1 17
B0 18
VCC
20
0.1uF
C356
+3.3V
100
R343
100
R344
100
R360
22
R357
22
R358
10uH
L302
10uH
L303
+5V-2
-5V-2
-5V-2
10uH
L300
0.1uF
C305
0.1uF
C304
+5V-2
10uH
L301
GND
PGM12-OUT
003
NC7SZ04P5X
IC311 (1/2)
NM
24
NC7SZ04P5X
IC311
NM
(2/2)
3
GND
5
VCC
0
R347
NM
GND
+3.3V
+3.3V
XRST
004
TLC272CPSR
IC310
(1/2)
+
5
-
6
7
100
R359
10uF
C318
NM
10uF
C315
NM
10uF
C314
NM
10uFC313
NM
1k
R301
100
R309
2SA1774TL-QR
Q302
4.7k
R306
100
R302
2SC4617TL-QR
Q300
3.3k
R314
100
R320
10k
R312
NM
1k
R304
NM
GND
FREERUN
002
330
R300
1k
R339
R340
1k
1SS301-TE85L
D300
3
1
2
+3.3V
SDA2
004
SCL2
004
GND
CN902
a16
(76/135)
RET-SDI(Y)-in
CN902
a17
(82/135)
RET-SDI(X)-in
CN902
b16
(77/135)
FR-GND
47uF
6.3V
C302
220
RB302
12
34
56
78
CN902
a18
(88/135)
FR-GND
CN902
e23
(122/135)
MASTER-RST
47uF
6.3V
C303
CN902
d6
(34/135)
Guard-GND
47uF
6.3V
C300
CN902
a15
(70/135)
FR-GND
CN902
c4
(21/135)
RET-DPGM-LRCK-in
CN902
e6
(35/135)
CHU-SYNC-in
CN902
d4
(22/135)
RET-DPGM1/2-Data-out
100k
RB300
12
34
56
78
CN902
a19
(94/135)
RET-VBS(X)-Sel-in
47uF
6.3V
C301
CN902
d24
(127/135)
Serial-com-CS0
CN902
b19
(95/135)
RET-VBS(G)-Sel-in
CN902
b4
(20/135)
RET-DPGM-BCK-in
CN902
e24
(128/135)
Serial-com-CS1
1k
RV300
NM
1
2
3
TP300
NM
CN902
d25
(133/135)
IIC-SDA2
CN902
e25
(134/135)
IIC-SCL2
CN902
e5
(29/135)
CHU-H-PLL-CONT-out
CN902
b17
(83/135)
FR-GND
220
RB301
12
34
56
78
5pF
C387 47pF
C388
22pF
C389
100
R389
NM
100
R390
NM
150
R391
NM
150
R392
NM
1k
R409
NM
1k
R403
1k
R402
CN401
1
Vcc
2
TRST
3
TDI
4
TDO
5
TMS
6
TCK
9
10
7
8
GND
1k
R407
NM
0.1uF
C436
74VHC245MTCX
IC402
A0
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9
OE
19
T/R
1
GND
10
B7 11
B6 12
B5 13
B4 14
B3 15
B2 16
B1 17
B0 18
VCC
20
1k
R401
0.1uF
C437
1k
R404
1k
R410
NM
1k
R408
NM
+3.3V
+3.3V
0.1uF
C435
1k
R406
NM
10
R405
+3.3V
1uF
C311
NM
1uF
C317
1uF
C328
NM
1uF
C331
1uF
C333
NM
1uF
C332
NM
1uF
C335
NM
TC7SH08FU(T5RSOYJF)
IC413 (1/2)
2
14
TC7SH08FU(T5RSOYJF)
IC413 (2/2)
3
GND
5
VCC
SD-RET1
SD-RET0
CS0
CS1
ARET-H
ARET-V
SDA2
SCL2
SD-RET9
SD-RET8
SD-RET7
SD-RET6
SD-RET5
SD-RET4
SD-RET3
SD-RET2
TMS2
TDI1
TRST
TDO2
TCK2
MASTER-RST
SDA2
SCL2
SD-SDI INPUT
D1 ADJ
27M
SD
(MODE)
E_000_000_xx_01
EPR
4-23 4-23
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
IV-57A (3/4)IV-57A (3/4)
IV-57A (3/4)
BOARD NO. 1-865-026-11
CCU-TX50_IV-57_010_3
0.1uF
C366
0.1uF
C379
0.1uF
C376
0.1uF
C363
GND
220
R379
0.1uF
C359
10
R382
0.1uF
C386
0.1uF
C382
GND
GND
0.1uF
C360
0.1uF
C377
3.3k
R383
EP1K50QC208-3
IC307
TCK
1
CONF_DONE
2
nCEO
3
TDO
4
VCCIO1
5
GNDINT1
6
IO0
7
IO1
8
IO2
9
IO3/CLKUSR
10
IO4
11
IO5
12
IO6
13
IO7
14
IO8
15
IO9/RDY/nBUSY
16
IO10
17
IO11
18
IO12/INIT_DONE
19
GNDINT2
20
VCCINT1
21
VCCIO2
22
GNDINT3
23
IO13
24
IO14
25
IO15
26
IO16
27
IO17
28
IO18
29
IO19
30
IO20
31
GNDINT4
32
VCCINT2
33
VCCIO3
34
GNDINT5
35
IO21
36
IO22
37
IO23
38
IO24
39
IO25
40
IO26
41
VCCIO4
42
GNDINT6
43
IO27
44
IO28
45
IO29
46
IO30
47
VCCINT3
48
GNDINT7
49
TMS
50
TRST
51
nSTATUS
52
IO31
53
IO32
54
IO33
55
IO34
56
IO35
57
IO36
58
GNDINT8
59
IO37
60
IO38
61
IO39/LOCK
62
IO40
63
IO41
64
IO42
65
VCCIO5
66
IO43
67
IO44
68
IO45
69
IO46
70
IO47
71
VCCINT4
72
IO48
73
IO49
74
IO50
75
GNDINT9
76
VCC_CKLK
77
INPUT1
78
GCLK1
79
INPUT2
80
GND_CKLK
81
GNDINT10
82
IO51
83
VCCIO6
84
IO52
85
IO53
86
IO54
87
IO55
88
IO56
89
IO57
90
VCCINT5
91
IO58
92
IO59
93
IO60
94
IO61
95
IO62
96
IO63
97
VCCIO7
98
IO64
99
IO65
100
IO66
101
IO67
102
IO68
103
IO69
104
nCONFIG
105
VCCINT6
106
MSEL1
107
MSEL0
108
GNDINT11
109
VCCIO8
110
IO70
111
IO71
112
IO72
113
IO73
114
IO74
115
IO75
116
GNDINT12
117
VCCIO9
118
IO76
119
IO77
120
IO78
121
IO79
122
GNDINT13
123
VCCINT7
124
IO80
125
IO81
126
IO82
127
IO83
128
GNDINT14
129
VCCINT8
130
IO84
131
IO85
132
IO86
133
IO87
134
IO88
135
IO89
136
GNDINT15
137
VCCIO10
138
IO90
139
IO91
140
IO92
141
IO93
142
IO94
143
IO95
144
GNDINT16
145
VCCIO11
146
IO96
147
IO97
148
IO98
149
IO99
150
GNDINT17
151
VCCINT9
152
TDI 153
nCE 154
DCLK
155
DATA0
156
IO100/DATA1
157
IO101/DATA2
158
IO102/DATA3
159
IO103
160
IO104/DATA4
161
IO105/DATA5
162
IO106
163
IO107/DATA6
164
VCCIO12
165
IO108/DATA7
166
IO109
167
IO110
168
IO111
169
IO112
170
GNDINT18
171
IO113
172
IO114
173
IO115
174
IO116
175
IO117
176
IO118
177
VCCIO13
178
IO119
179
IO120/DEV_CLRn
180
GNDINT19
181
INPUT3
182
CLK 183
INPUT4
184
VCCINT10
185
IO121/DEV_OE
186
IO122
187
GNDINT20
188
IO123
189
IO124
190
IO125
191
IO126
192
IO127
193
VCCIO14
194
IO128
195
IO129
196
IO130
197
IO131
198
IO132
199
IO133
200
VCCINT11
201
IO134
202
IO135
203
IO136/nRS
204
IO137
205
IO138/nWS
206
IO139/CS
207
IO140/nCS
208
0.1uF
C364
0.1uF
C361
0.1uF
C370
220
R374
GND
0.1uF
C381
0.1uF
C368
0.1uF
C378
0.1uF
C369
nCONFIG
002
3.3k
R377
+2.5V
GND
0.1uF
C362
0.1uF
C365
GND
0.1uF
C385
0.1uF
C384
220
R373
0.1uF
C383
0.1uF
C380
10
R375
NM
+3.3V
0.1uF
C367
+3.3V
GND
100
R368
GND
0.1uF
C375
MAIN-C-CLAMP
002
MAIN-Y-CLAMP
002
100
R365
100
R366
MAIN_COMP_H
003
100
R367
100
R381
MAIN-Y-IN
002
MAIN-Y-OUT
002
DRET-OUT
004
MST-SD-F
002
100
R376
27M-CLK-P2D
002
10
R378
2.2k
R380
GND
SKIN-GATE
002
SKIN-GATE-OUT
002
100
R372
100
R371
MAIN-F-OUT
002
RET-F-OUT
004
RET-H-OUT
004
RET-CK27-OUT
004
1k
R361
1k
R362
1k
R363
+3.3V
GND
EPC2LC20N-TP
IC306
DCLK
4
OE
8
nCS
9
VCCSEL
5
VPPSEL
14
TDI
11
TDO
1
TMS
19
TCK
3
GND
10
VPP
18
VCC
20
nCASC
12
DATA
2
nINIT_CONF
13
+3.3V
0.1uF
C358
GND
CONF-DONE-2
002
ARET-LEV
004
100k
R369
100k
R370
GND
MIX-CONT
004
PGM12-OUT
003
10uF
C372
10uF
C371
10uF
C374
10uF
C373
220
RB304
NM
12
34
56
78
220
RB303
NM
12
34
56
78
220
RB306
NM
12
34
56
78
FB303
FB305
FB304
220
RB312
12
34
56
78
220
RB310
12
34
56
78
220
RB311
12
34
56
78
FB300 FB301
FB302
0
R364
100
R386
100
R387
ANA-RET-CLP
004
100
R388
220
RB305
12
34
56
78
47
RB313
12
34
56
78
47
RB307
12
34
56
78
CL302
47
RB309
12
34
56
78
47
RB308
12
34
56
78
1SS301-TE85L
D301
3
1
2
1k
R384
1k
R385
IS42S32200B-6TL-TR
IC308
VDD1
1
DQ0
2
VDDQ1
3
DQ1
4
DQ2
5
VSSQ1
6
DQ3
7
DQ4
8
VDDQ2
9
DQ5
10
DQ6
11
VSSQ2
12
DQ7
13
NC1
14
VDD2
15
DQM0
16
WE
17
CAS
18
RAS
19
CS
20
NC2
21
BA0
22
BA1
23
A10/AP
24
A0
25 A1
26 A2
27
DQM2
28
VDD3
29
NC3
30
DQ16
31
VSSQ3
32
DQ17
33
DQ18
34
VDDQ3
35
DQ19
36
DQ20
37
VSSQ4
38
DQ21
39
DQ22
40
VDDQ4
41
DQ23
42
VDD4
43
VSS4
86
DQ15
85
VSSQ8
84
DQ14
83
DQ13
82
VDDQ8
81
DQ12
80
DQ11
79
VSSQ7
78
DQ10
77
DQ9
76
VDDQ7
75
DQ8
74
NC7
73
VSS3
72
DQM1
71
NC6
70
NC5
69
CLK
68
CKE
67
A9
66
A8
65
A7
64
A6
63
A5
62
A4
61
A3
60
DQM3
59
VSS2
58
NC4
57
DQ31
56
VDDQ6
55
DQ30
54
DQ29
53
VSSQ6
52
DQ28
51
DQ27
50
VDDQ5
49
DQ26
48
DQ25
47
VSSQ5
46
DQ24
45
VSS1
44
DQ25
DQ9
DQM
DQ27
DQ17
DQ28
CKE
DQ10
DQ8
DQ19
DQ23
DCLK
DQ13
CS
DQ14
DQ20
DQ3
DQ11
DQ1
DQ4
DATA
DQ0
DQ30
DQ26
RAS
DQ24
CONF-DONE
DQ21
DQ18
CAS
DQ15
DQ2
DQ12
DQ7
DQ5
DQ6
WE
DQ22
nSTATUS
DQ16
DQ31
DQ29
WE
CAS
RAS
CS
DQM
CKE
AD12
AD11
AD10
AD9
AD8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
YIN-9
YIN-8
Y-9
Y-8
Y-7
Y-6
Y-5
Y-4
Y-3
Y-2
Y-1
Y-0
DRET-0
DRET-1
DRET-4
DRET-5
DRET-6
DRET-7
DRET-8
DRET-9
DRET-2
DRET-3
DATA
DCLK
nSTATUS
CONF-DONE
CS0
CS1
ARET-H
ARET-V
SCL2
SDA2
LEV3
LEV2
LEV1
MASTER-RST
YIN-0
YIN-1
YIN-2
YIN-3
YIN-4
YIN-5
YIN-6
YIN-7
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
LEV0
MIX-SEL
AD-RET-SEL
SD-RET0
SD-RET1
SD-RET2
SD-RET3
SD-RET4
SD-RET6
SD-RET7
SD-RET8
SD-RET9
SD-RET5
TDI1
TDI2
TDO2
TMS2
TCK2
TCK2
TDI2
TMS2
TRST
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
(GND)
DRET_CK27_IN
MAIN_CK27_IN
MEM_CLK_OUT
(MB81F643242C-10FN)
MEM A
MAIN_Y_IN
DRET_D_IN
MAIN_Y_OUT
MAIN_F_OUT
SKIN_G_OUT
MST_SD_F
ADRS_OUT
DATA_I/O
SKIN_G_IN
CS
RAS
CAS
WE
RET_CK27_OUT
RET_H_OUT
RET_F_OUT
RET_D_OUT
RESET
BCK
LRCK
PGM12_OUT
ID1
ID0
SDA
SCL
ARET_F_IN
ARET_H_IN
ARET_CLAMP_OUT
CKE
DQM
IV PLD
ROM1
MIX_SEL
AD_RET_SEL
RET_MIX_LEV
4-244-24
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
RET-H-OUT
003
2SC4617TL-QR
Q401
NM
100
R448
NM
TC7W53FU(TE12R)
IC411
NM
CH1
6
CH0
7
COM
1
VCC
8
VEE
3
A
5
INH
2
GND
4
TP401
NM
10uH
L402
47pF
C458
NM
+
-
AD8014ARTZ-REEL7
IC409
3
4
2
1
5
GND
220
RB403
NM
12
34
56
78
22pF
C461
NM
GND
1k
R459
NM
IC415
(4/5)
NM
11
12 13
47pF
C462
NM
R439
150
NM
150
R440
NM
150
R438
NM
-5V-2
150
R436
NM
100
R422
NM
IC415
(2/5)
NM
5
64
RET-CK27-OUT
003
500
RV402
NM
1
2
3
R462
330
NM
74VHCT00AMTCX
IC414 (5/5)
NM
7
GND
14
VCC
0.1uF
C441
NM
IC414
(1/5)
NM
1
2
3
0.1uF
C452
NM
10uH
L401
IC414
(3/5)
NM
9
10
8
1k
R427
0.1uF
C453
NM
680
R460
NM
+5V-2
2.2k
R453
NM
33
R432
NM
0.5pF
NM
C465
22k
R456
NM
+5V-2
0.1uF
C403
NM
1k
R429
1.5k
R452
NM
ANA-RET
003
0.1uF
C448
NM
+
-
AD8014ARTZ-REEL7
IC412
NM
3
4
2
1
5
MIX-CONT
003
2.2k
R434
NM
0.1uF
C446
10uH
L403
NM
+5V-2
2SA1774TL-QR
Q402
NM
1.5k
R435
NM
1.5k
R428
NM
100
R461
NM
74VHC4051MTCX
IC410
NM
Y4
1
Y6
2
OUT/IN
3
Y7
4
Y5
5
INH
6
VEE
7
GND
8
VCC
16
Y2
15 Y1
14 Y0
13
Y3
12
A
11
B
10
C
9
C457
0.1uF
NM
ARET-LEV
003
2.2k
R449
NM
22pF
C463
NM
1k
R451
NM
4.7uH
L407
NM
DRET-OUT
003
1.5k
R447
NM
+3.3V
CXD2315Q-T4
IC408
NM
D3
1
D4
2
D5
3
D6
4
D7
5
D8
6
D9
7
NC1
8
CLK
9
BLK
10
CE
11
NC2
12
DVDD1
13
VB
14
DVSS1
15
NC3
16
IREF
17
SREF
18
VREF
19
AVDD1
20
AVDD2
21
VG 22
IO 23
IO 24
AVSS
25
NC4
26
DVSS2
27
DVDD2
28
NC5
29
D0 30
D1 31
D2 32
74VHC02MTCX
IC415 (5/5)
NM
7
GND
14
VCC
7pF
C460
NM
100
R423
NM
IC415
(1/5)
NM
2
3
1
FB401
NM
150
R441
NM
150
R442
NM
IC415
(3/5)
NM
8
9
10
150
R437
NM
33
R433
NM
-5V-2
220
RB401
NM
12
34
56
78
330
R446
NM
1k
R455
NM
IC414
(4/5)
NM
12
13
11
+3.3V
UPD6466GS-515-E2
IC406
NM
CLK
1
CS
2
DATA
3
PCL
4
VDD
5
CMDCT
6
OSCOUT
7
OSCIN
8
TEST
9
GND
10
HSYNC
20
VSYNC
19
VB 18
VG 17
VR 16
VBLK/BBLK
15
VC2/GBLK
14
BLK2/RBLK
13
VC1
12
BLK1
11
2.2k
R454
NM
220
RB405
NM
12
34
56
78
220
RB402
NM
12
34
56
78
2.2k
R450
NM
1.5k
R457
NM
IC414
(2/5)
NM
4
5
6
47
R424
NM
10uH
L404
NM
100k
R425
NM
10uH
L406
NM
0.1uF
C451
NM
100
R445
NM
+5V-2
RET-F-OUT
003
500
RV401
1
2
3
GND
1.5k
R426
10uH
L405
NM
C456
0.1uF
NM
+3.3V
220
RB406
NM
12
34
56
78
2.2k
R431
NM
2.2k
R444
NM
+3.3V
0.1uF
C447
220
RB404
NM
12
34
56
78
0.1uF
C449
NM
FB403
NM
10uF
C443
NM
10uF
C450
NM
22uF
C454
NM
22uF
C455
NM
22uF
C444
22uF
C445
100
R416
NM
100
R415
NM
100
R414
NM
47
R419
NM
100
R417
NM
100
R418
NM
0
R430
NM
0.1uF
C464
NM
0.1uF
C459
NM
100k
R463
NM
100k
R464
NM
SDA2
003
SCL2
003
XRST
003
100
R465
NM
330
R466
NM
0
R443
NM
0
R458
NM
NJM062V(TE2)
IC417
(1/2)
NM
+
5
-6
7
NJM062V(TE2)
IC417
(2/2)
NM
+
3
-2
4
1
8
TC7W53FU(TE12R)
IC418
NM
CH1
6
CH0
7
COM
1
VCC
8
VEE
3
A5
INH
2
GND
4
100
R467
NM
100
R468
NM
100
R469
NM
0.1uF
C466
NM
1uF
C467
NM
10k
R470
NM
ANA-RET-CLP
003
CN902
b21
(107/135)
Video-HIRA-PIN 0
CN902
c21
(108/135)
Video-HIRA-PIN 1
CL410
NM
CL409
NM
CN902
d21
(109/135)
Video-HIRA-PIN 2
CN902
e17
(86/135)
RET-Signal-VBS(X)-out
CN902
d17
(85/135)
RET-Signal-VBS(G)-out
CXD9184
IC403
NM
VDD1
1
R_IN0
2
R_IN1
3
R_IN2
4
R_IN3
5
R_IN4
6
R_IN5
7
R_IN6
8
R_IN7
9
R_IN8
10
R_IN9
11
RESET
12
CK27M
13
G_IN0
14
G_IN1
15
G_IN2
16
G_IN3
17
G_IN4
18
G_IN5
19
VDD2
20
GND1
21
G_IN6
22
G_IN7
23
G_IN8
24
G_IN9
25
B_IN0
26
B_IN1
27
B_IN2
28
B_IN3
29
B_IN4
30
B_IN5
31
B_IN6
32
B_IN7
33
B_IN8
34
B_IN9
35
HD_IN
36
FD_IN
37
EXT_LALT_EN
38
LALT_IN
39
VDD3
40
GND2
41
GND3
42
EXT_CF_IN
43
SMC
44
SIN
45
SOUT
46
SCK
47
AMC
48
WFM_OE
49
PIX_OE
50
gnd4
51
VBS0
52
VBS1
53
VBS2
54
VBS3
55
VBS4
56
VBS5
57
VBS6
58
VBS7
59
VBS8
60
VBS9
61
VBS10
62
VBS11
63
gnd5
64
CK27M_O1
65
WFM0
66
WFM1
67
WFM2
68
WFM3
69
WFM4
70
WFM5
71
WFM6
72
WFM7
73
WFM8
74
WFM9
75
WFM10
76
WFM11
77
CK27M_O2
78
GND6
79
GND7
80
VDD4
81
PIX0
82
PIX1
83
PIX2
84
PIX3
85
PIX4
86
PIX5
87
PIX6
88
PIX7
89
PIX8
90
PIX9
91
PIX10
92
PIX11
93
gnd8
94
EXT_REF_EN
95
SC_FCNT0
96
SC_FCNT1
97
SC_FCNT2
98
SC_FCNT3
99
VDD5
100
GND9
101
SC_FCNT4
102
SC_FCNT5
103
SC_FCNT6
104
SC_FCNT7
105
SC_WAVE0
106
SC_WAVE1
107
SC_WAVE2
108
SC_WAVE3
109
SC_WAVE4
110
SC_WAVE5
111
SC_WAVE6
112
SC_WAVE7
113
SYNC_OUT
114
ADV_SYNC_OUT
115
S_SYNC_IN
116
S_SYNC_OUT
117
STAIR0
118
STAIR1
119
VDD6
120
GND10
121
GND11
122
ZGATE_IN1
123
ZGATE_IN2
124
ASPE_MK
125
ASPE_FLAG
126
CHAR_CK
127
CHAR_H
128
CHAR_V
129
BAR_CHR
130
BAR_BLK
131
PIX_CHR
132
PIX_BLK
133
EXT_MODE
134
NP_SEL
135
SETUP_ON
136
BAR_ON
137
ID_A0
138
ID_A1
139
SCL 140
SDA 141
IN_P0
142
IN_P1
143
OUT_P0
144
OUT_P1
145
OUT_P2
146
OUT_P3
147
NC1 148
TEB 149
TIN 150
TOUT
151
HD_OUT
152
FD_OUT
153
NC2 154
BURST_TG_IN
155
BLKG_TG_IN
156
SYNC_TG_IN
157
EXT_TG_EN
158
GND12
159
GND13
160
220
RB407
NM
12
34
56
78
220
RB408
NM
12
34
56
78
220
RB409
NM
12
34
56
78
220
RB410
NM
12
34
56
78
220
RB411
NM
12
34
56
78
220
RB412
NM
12
34
56
78
220
R471
NM
220
R472
NM
220
R473
NM
220
R474
NM
220
R475
NM
220
R476
NM
10k
R477
NM
10k
R478
NM
10k
R479
NM
22
R480
NM
22
R481
NM
22
R482
NM
10k
R483
NM
10k
R484
NM
10k
R485
NM
100
R486
NM
100
R487
NM
100
R488
NM
100
R489
NM
100
R490
NM
100
R491
NM
100
R492
NM
22
R493
NM
22
R494
NM
10k
R495
NM
10k
R496
NM
100
R497
NM
100
R498
NM
220
RB413
NM
12
34
56
78
10uF
C468
NM
10uF
C469
NM
10uF
C470
NM
10uF
C471
NM
10uF
C472
NM
10uF
C473
NM
0.1uF
C474
NM
0.1uF
C475
NM
0.1uF
C476
NM
0.1uF
C477
NM
0.1uF
C478
NM
0.1uF
C479
NM
4.7k
R421
100
R420
2SC4617TL-QR
Q403
220
R499
150
R500
NM
6.3V
47uF
C404
NM
2SA1774TL-QR
Q404
NM
2.2k
R501
NM
2SC4617TL-QR
Q405
NM
330
R502
100
R503
NM
220
R504
NM
TC7SH04FU(T5RSOYJF)
IC416 (1/2)
NM
24
TC7SH04FU(T5RSOYJF)
IC416 (2/2)
NM
3
GND
5
VCC
LEV0
LEV3
LEV2
LEV1
AD-RET-SEL
MIX-SEL
DRET-0
DRET-1
DRET-2
DRET-3
DRET-4
DRET-5
DRET-6
DRET-7
DRET-8
DRET-9
RET0
RET1
RET2
RET3
RET4
RET5
RET6
RET7
RET8
RET9
RET3
RET4
RET5
RET6
RET7
RET8
RET2
RET1
RET0
RET9
CHAR-CK
CHAR-HR
CHAR-VR
CHAR-HR
CHAR-VR
CHAR-CK
PIX-CHARA
13.5MHz-Trap-Fil
for Return-D/A
non-MIX/MIX
(non-MIX:Low)
Analog/Digital
(Digital:High)
Analog-RET
Analog-MIX
Digital-RET
(MIX-Y)
D-RET
A-RET
RET-V
IC416
IV-57A (4/4)IV-57A (4/4)
IV-57A (4/4)
BOARD NO. 1-865-026-11
CCU-TX50_IV-57_010_4
4-25 4-25
2
3
4
5
1
ABCDEFGH
CCU-TX50/V2
10k
R55
33k
R37
R15
33k
NM
15k
R45
15k
R40
+5V
R35
68k
2SC4617TL-QR
Q8
-5V
22k
R54
-5V
D1
02DZ4.7-TPH3
NJM062V(TE2)
IC4
(1/2)
+
3
-2
4
1
8
R34
68k
C25
100pF
+2.5V
R13
33k
2.2k
R44
1uF
C43
LM339NS-E20
IC5
(3/4)
+
11
-
10
13
NJM062V(TE2)
IC4
(2/2)
+
5
-6
7
+5.5V
LM339NS-E20
IC5
(2/4)
+
9
-
8
14
2SC2873Y-TE12L
Q2
2.2k
R52
22k
R41
+3.3V
+3.3V
R10
220
R14
33k
+5V
CL-220PG-C-TS
D4
15k
R39
+3.3V-2
1uF
C42
R31
2.2k
10k
R53
LM339NS-E20
IC5
(1/4)
+
7
-
6
1
2.2k
R42
2.2k
R38
R9
220
+3.3V
C26
100pF
02DZ4.7-TPH3
D2
10k
R43
LM339NS-E20
IC5
(4/4)
+
5
-
4
12
2
3
2SA1213Y-TE12L
Q1
LM4040AIM3-2.5
IC2
-
2
+
1
NC
3
33k
R16
NM
10k
R17
0.1uF
C9
1uF
C13
1uF
C14
100pF
C27
NJM062V(TE2)
(1/2)
IC3
+
3
-2
4
1
8
33k
R28
33k
R18
2SA1213Y-TE12L
Q3
1uF
C11
68k
R26
NJM062V(TE2)
(2/2)
IC3
+
5
-6
7
33k
R19
+5.5V
1uF
C12
220
R11
-5.5V
-5.5V
2SC4617TL-QR
Q5
100
R6
100
R5
22uF
C40
1uF
C41
10uH
L7
100
R7
100
R8
2SA1213Y-TE12L
Q4
2SC4617TL-QR
Q6
100pF
C28
220
R12
33k
R29
33k
R21
33k
R20
33k
R30
10uH
L6
+5V-5
+5V-5
+5V-5
33k
R32
33k
R33
470
R27
6.3V
10uF
C1
6.3V
10uF
C3
6.3V
10uF
C5
6.3V
10uF
C7
6.3V
10uF
C4
6.3V
10uF
C2
6.3V
10uF
C6
6.3V
10uF
C8
+5V
33k
R47
15k
R46
+2.5V
+5.5V
100pF
C34
100pF
C35
100pF
C31
1uF
C37
+5V-4
220
R36
16V
1uF
C20
+12V
-12V
16V
1uF
C19
-12V
68k
R51
47k
R50
33k
R49
10uH
L1
10uH
L2
+3.3V-2
10uH
L8
0.8
CL3
0.8
CL4
0.8
CL6
0.8
CL7
0.8
CL2
0.8
CL1
THP1
THP2
THP3
THP4
THP5
THP7
THP8
CN902
e9
(53/135)
-5.5V
CN902
e20
(104/135)
-12.5V
CN902
e16
(80/135)
Front-GND
CN902
b15
(71/135)
MB-GND
E3
CN902
c18
(90/135)
(PIX-Relay-through/ON)
CN902
d9
(52/135)
-5.5V
CN902
f19
(99/135)
SHIELD
CN902
e11
(65/135)
MB-GND
CN901
(35/66)
E6
MB-GND
CN902
f2
(12/135)
47uF
16V
C22
CN902
c16
(78/135)
(NC)
CN901
(9/66)
C2
POW-GND
CN902
f16
(81/135)
CN901
(18/66)
F3
SHIELD
CN901
(54/66)
F9
SHIELD
CN902
f6
(36/135)
CN902
d22
(115/135)
COM-HIRA-PIN 3
CN902
a21
(106/135)
Reference +5V
CN902
f14
(69/135)
CN902
f17
(87/135)
SHIELD
CN902
d11
(64/135)
+30V (for RCP)
100uF
10V
C44
CN902
f23
(123/135)
SHIELD
CN902
f15
(75/135)
SHIELD
CN902
f8
(48/135)
CN902
d23
(121/135)
COM-HIRA-PIN 8
CN902
b5
(26/135)
Front-GND
CN901
(13/66)
A3
MAIN +3.7V
CN902
b4
(20/135)
(RCP-COM-TR(Y)-if)
CN901
(11/66)
E2
POW-GND
CN902
e3
(17/135)
(Output-CTL-AUX2-out)
CN901
(15/66)
C3
MAIN +3.7V
E2
CN901
(6/66)
F1
SHIELD
CN902
b20
(101/135)
+12.5V
47uF
16V
C16
CN902
d19
(97/135)
Front-GND
CN902
b11
(62/135)
MB-GND
CN902
c23
(120/135)
COM-HIRA-PIN 7
CN902
c4
(21/135)
CN902
e8
(47/135)
+5.5V
CN902
f3
(18/135)
SHIELD
100uF
10V
C45
CN902
b18
(89/135)
MB-GND
47uF
16V
C18
CN902
c6
(33/135)
(NC)
CN901
(36/66)
F6
CN902
b23
(119/135)
COM-HIRA-PIN 6
CN901
(34/66)
D6
(NC)
CN902
d18
(91/135)
(NC)
CN901
(12/66)
F2
CN901
(30/66)
F5
SHIELD
CN902
e19
(98/135)
+3.7V
CN902
b16
(77/135)
FR-GND
CN901
(4/66)
D1
CN902
f10
(60/135)
CN902
f24
(129/135)
CN902
e22
(116/135)
(VR-LEVEL-Sel)
10uF
16V
C32
CN902
d3
(16/135)
(Output-CTL-AUX1-out)
CN902
d10
(58/135)
NC (GND for RCP)
CN902
f1
(6/135)
SHIELD
47uF
16V
C23
CN902
f18
(93/135)
CN902
f5
(30/135)
SHIELD
CN902
f4
(24/135)
PWR-OK/NG
005
CN901
(48/66)
F8
CN902
f12
(67/135)
CN901
(66/66)
F11
SHIELD
CN902
f13
(68/135)
SHIELD
CN901
(14/66)
B3
MAIN +3.7V
C17
47uF
16V
E1
CN901
(5/66)
E1
CN902
f7
(42/135)
SHIELD
10uF
16V
C33
CN902
d4
(22/135)
(RCP-COM-RC(X)-if)
CN902
c7
(39/135)
MB-GND
C30
10uF
16V
CN902
e21
(110/135)
Video-HIRA-PIN 3
CN902
a18
(88/135)
Front-GND
CN902
d20
(103/135)
-12.5V
CN902
c11
(63/135)
+30V (for RCP)
CN902
f25
(135/135)
SHIELD
CN902
a20
(100/135)
+12.5V
CN902
a23
(118/135)
COM-HIRA-PIN 5
CN902
b2
(8/135)
(NC)
CN901
(10/66)
D2
POW-GND
CN902
c10
(57/135)
MB-GND
CN902
c20
(102/135)
MB-GND
CN901
(42/66)
F7
SHIELD
CN901
(7/66)
A2
POW-GND
CN901
(60/66)
F10
CN902
c9
(51/135)
MB-GND
E4
CN902
f20
(105/135)
CN902
e10
(59/135)
NC (GND for RCP)
CN902
a16
(76/135)
Front-GND
CN902
b8
(44/135)
MB-GND
CN902
f21
(111/135)
SHIELD
CN902
e7
(41/135)
(AUX)
CN902
e4
(23/135)
(RCP-COM-RC(Y)-if)
CN902
f11
(66/135)
SHIELD
47uF
16V
C48
CN902
e18
(92/135)
+3.7V
47uF
16V
C15
CN902
d8
(46/135)
+5.5V
CN902
a22
(112/135)
(Front-Incom-VR)
CN901
(16/66)
D3
MAIN +3.7V
100uF
10V
C49
CN902
f22
(117/135)
CN902
f9
(54/135)
SHIELD
CN901
(8/66)
B2
POW-GND
CN901
(24/66)
F4
CN901
(17/66)
E3
MAIN +3.7V
CN902
a2
(7/135)
Front-GND
47uF
16V
C47
CN902
a4
(19/135)
(RCP-COM-TR(X)-if)
CN902
c8
(45/135)
+5.5V
+3.3V
for AU,TR,DM & Rear
-5V
1A/6V
1A/6V
1A/6V
(1.18V)
+5V
1A/6V
+2.5V
(1.82V)
1A/6V
(120)
(1.49V)
POWER
(15)
(1.65)
FRONT-CONNECTOR
(Back)
(1.21V)
(**)
-12V
+12V
(**)
0.5A/15V
0.5A/15V
(TONE BYPASS LINE)
(1.8V)
EN-156A (1/5)EN-156A (1/5)
EN-156A (1/5)
BOARD NO. 1-865-025-11
CCU-TX50_EN-156_11P_1
4-264-26
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
+5V
220
RB102
12
34
56
78
+3.3V
220
RB103
12
34
56
78
220
RB104
12
34
56
78
2SA1774TL-QR
Q101
SN74LVC574APWR
IC103
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
SN74LVC574APWR
IC102
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
2SC2873Y-TE12L
Q102
10k
R108
+3.3V
220
RB101
12
34
56
78
0.1uF
C109
0.1uF
C110
0.1uF
C112
+3.3V
+3.3V
SN74LVC574APWR
IC105
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
220
RB106
12
34
56
78
220
RB105
12
34
56
78
220
RB108
12
34
56
78
SN74LVC574APWR
IC104
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
0.1uF
C111
220
RB107
12
34
56
78
2.2k
R110
1uF
C105
22
R106
2.2k
R109
22
R118
22
R120
22
R121
22
R122
22
R123
22
R124
22
R125
22
R127
22
R126
100
R105
10
R107
1uF
C102
1k
R103
1k
R104
1uF
C101
10
R112
10
R113
10
R114
10
R115
+5V-4
4.7k
R102
2.2k
R101
100
R117
220pF
C104
22
R119
27M-CLK-P2A
002
27M-CLK-P2B
002
27M-CLK-P2C
002
27M-CLK-P3A
003
27M-CLK-P3B
003
27M-CLK-P3C
003
27M-CLK-P4B
004
27M-CLK-P4A
004
27M-CLK-P4C
004
27M-CLK-P2A
002
47
R164
100
R152
RB109
220
12
34
56
78
REF-INT/EXT
003
27M-CLK-P2B
002
100
R147
RB110
220
12
34
56
78
MASTER-RESET
003,004,005
10uH
L102
47
R165
+2.5V
NTSC/PAL
002,003
0.1uF
C119
0.1uF
C121
0.1uF
C124
RB111
220
12
34
56
78
10uH
L101
+3.3V
RGB/YCD
002
REF-LALT-RES
003
100
R148
100
R151
C120
0.1uF
C118
0.1uF
100
R149
0.1uF
C117
0.1uF
C116
220
RB112
12
34
56
78
220
RB113
12
34
56
78
220
RB115
12
34
56
78
220
RB114
12
34
56
78
220
RB116
12
34
56
78
EP1K50QC208-3
IC106
TCK
1
CONF_DONE
2
nCEO
3
TDO
4
VCCIO1
5
GNDINT1
6
IO0
7
IO1
8
IO2
9
IO3/CLKUSR
10
IO4
11
IO5
12
IO6
13
IO7
14
IO8
15
IO9/RDY/nBUSY
16
IO10
17
IO11
18
IO12/INIT_DONE
19
GNDINT2
20
VCCINT1
21
VCCIO2
22
GNDINT3
23
IO13
24
IO14
25
IO15
26
IO16
27
IO17
28
IO18
29
IO19
30
IO20
31
GNDINT4
32
VCCINT2
33
VCCIO3
34
GNDINT5
35
IO21
36
IO22
37
IO23
38
IO24
39
IO25
40
IO26
41
VCCIO4
42
GNDINT6
43
IO27
44
IO28
45
IO29
46
IO30
47
VCCINT3
48
GNDINT7
49
TMS
50
TRST
51
nSTATUS
52
IO31
53
IO32
54
IO33
55
IO34
56
IO35
57
IO36
58
GNDINT8
59
IO37
60
IO38
61
IO39/LOCK
62
IO40
63
IO41
64
IO42
65
VCCIO5
66
IO43
67
IO44
68
IO45
69
IO46
70
IO47
71
VCCINT4
72
IO48
73
IO49
74
IO50
75
GNDINT9
76
VCC_CKLK
77
INPUT1
78
GCLK1
79
INPUT2
80
GND_CKLK
81
GNDINT10
82
IO51
83
VCCIO6
84
IO52
85
IO53
86
IO54
87
IO55
88
IO56
89
IO57
90
VCCINT5
91
IO58
92
IO59
93
IO60
94
IO61
95
IO62
96
IO63
97
VCCIO7
98
IO64
99
IO65
100
IO66
101
IO67
102
IO68
103
IO69
104
nCONFIG
105
VCCINT6
106
MSEL1
107
MSEL0
108
GNDINT11
109
VCCIO8
110
IO70
111
IO71
112
IO72
113
IO73
114
IO74
115
IO75
116
GNDINT12
117
VCCIO9
118
IO76
119
IO77
120
IO78
121
IO79
122
GNDINT13
123
VCCINT7
124
IO80
125
IO81
126
IO82
127
IO83
128
GNDINT14
129
VCCINT8
130
IO84
131
IO85
132
IO86
133
IO87
134
IO88
135
IO89
136
GNDINT15
137
VCCIO10
138
IO90
139
IO91
140
IO92
141
IO93
142
IO94
143
IO95
144
GNDINT16
145
VCCIO11
146
IO96
147
IO97
148
IO98
149
IO99
150
GNDINT17
151
VCCINT9
152
TDI 153
nCE 154
DCLK
155
DATA0
156
IO100/DATA1
157
IO101/DATA2
158
IO102/DATA3
159
IO103
160
IO104/DATA4
161
IO105/DATA5
162
IO106
163
IO107/DATA6
164
VCCIO12
165
IO108/DATA7
166
IO109
167
IO110
168
IO111
169
IO112
170
GNDINT18
171
IO113
172
IO114
173
IO115
174
IO116
175
IO117
176
IO118
177
VCCIO13
178
IO119
179
IO120/DEV_CLRn
180
GNDINT19
181
INPUT3
182
CLK 183
INPUT4
184
VCCINT10
185
IO121/DEV_OE
186
IO122
187
GNDINT20
188
IO123
189
IO124
190
IO125
191
IO126
192
IO127
193
VCCIO14
194
IO128
195
IO129
196
IO130
197
IO131
198
IO132
199
IO133
200
VCCINT11
201
IO134
202
IO135
203
IO136/nRS
204
IO137
205
IO138/nWS
206
IO139/CS
207
IO140/nCS
208
10uF
C122
10uF
C123
10uF
C103
nCE 004
EP1K-CONF-DONE
004,005
27M-CLK-P4D
004
10
R162
220
R163
0
R134
13.5M-SC-CLK
003
Skin-Gate-in
002
ENC-TG-F-in
002
Skin-Gate-in
002
ENC-TG-F-in
002
PLD-RE-CONF
004,005
ENC-SKIN-GATE
003
COMP-BLKG
002
D-EN_WR_H
004
D-EN_WR_F
004
D-EN-SKIN-GATE
004
ENC-REF-F
003
ENC-REF-H
003
HB-Filter-REF-H
004
HB-Filter-REF-F
004
HB-Filter-Blanking
004
100
R158
10 NM
R160
10 NM
R159
100
R157
100
R156
SLOT-ID-IN
003,004,005
47
R161
G/Y-SYNC-OFF/ON
002
47k
R130
CL-220PG-C-TS
D102
12
+3.3V
47k
R133
+3.3V
D101
CL-220PG-C-TS
12
SETUP-OFF/ON
002,003
1k
R131
2SC4617TL-QR
Q103
22k
R129
ColorBar-OFF/ON
003
WFM_SEQ_ON
003
22k
R132
2SC4617TL-QR
Q104
1k
R128
PAL/NTSC
002,003
100
R150
YCD/RGB
002
100
R145
100
R146
100
R144
100
R143
100
R155
100
R154
100
R153
100
R141
100
R140
100
R142
100
R139
SEQ-SYNC
005
CPU-S-SYNC-RST
005
SEQ-SYNC-RST
005
SEQ-RST-Latch
005
100
R138
100
R137
100
R136
100
R135
ENC-SEQ-SYNC-RST
003
SEQ-SYNC-from-ENC
003
Output1-SDI/VBS
004
Output2-SDI/VBS
004
Output3-SDI/VBS
004
LALT-NORM/INV
003
10
R256
D-EN_Y_LEVEL_GATE
004
SN74LVC244APWR
IC119(1/9)
2
1
18
SN74LVC244APWR
IC119 (2/9)
11
19
9
SN74LVC244APWR
IC119 (3/9)
17
3
SN74LVC244APWR
IC119 (4/9)
4
16
SN74LVC244APWR
IC119 (5/9)
15
5
SN74LVC244APWR
IC119 (6/9)
6
14
SN74LVC244APWR
IC119 (7/9)
13
7
SN74LVC244APWR
IC119 (8/9)
8
12
SN74LVC244APWR
IC119(9/9)
10
GND
20
VCC
0.1uF
C184
+3.3V
EXT-Color-Frame
003
CN901
(20/66)
B4
Y 1
CN902
d7
(40/135)
RCP-POW-OFF/ON-out
CONPONENT-R
002
CN901
(33/66)
C6
ColorFrame(from AT)
CN901
(61/66)
A11
R-Y 5-in
CN901
(57/66)
C10
R-Y 2
CN901
(65/66)
E11
R-Y 9
CN901
(49/66)
A9
B-Y 5-in
TP101
R-Y-in
003,004
ISP-BUS
004,005
CN902
c17
(84/135)
Monitor-Relay-OFF/ON
CN901
(46/66)
D8
B-Y 3
CN901
(44/66)
B8
B-Y 1
CN901
(39/66)
C7
SKIN-GATE-in
CN901
(62/66)
B11
R-Y 6
CN901
(21/66)
C4
Y 2
CN902
c3
(15/135)
Output3-SDI/VBS-out
CN901
(56/66)
B10
R-Y 1
CN901
(22/66)
D4
Y 3
CN901
(64/66)
D11
R-Y 8
CN901
(53/66)
E9
B-Y 9
CN901
(28/66)
D5
Y 8
CN901
(25/66)
A5
Y 5-in
CN901
(45/66)
C8
B-Y 2
CONFIG-BUS
004,005
CN901
(52/66)
D9
B-Y 8
CN901
(37/66)
A7
(F-in)
CN902
e1
(5/135)
ENC-TG-F-in
CN901
(43/66)
A8
B-Y 0-in
CN901
(38/66)
B7
(H-in)
IIC2-BUS
003,004,005
CN902
a3
(13/135)
Output1-SDI/VBS-out
CN901
(47/66)
E8
B-Y 4
B-Y-in
003,004
CN901
(59/66)
E10
R-Y 4
CONPONENT-G
002
CN901
(58/66)
D10
R-Y 3
CN902
a1
(1/135)
EMC-27M-CLK-in
Y-in
003,004
CONPONENT-B
002
CN901
(27/66)
C5
Y 7
CN901
(29/66)
E5
Y 9
CN901
(63/66)
C11
R-Y 7
CN901
(41/66)
E7
(27M-CLK-in)
CN901
(50/66)
B9
B-Y 6
CN901
(40/66)
D7
Guard-GND
CN901
(51/66)
C9
B-Y 7
CN902
b1
(2/135)
CLK-Guard-GND
CN901
(55/66)
A10
R-Y 0-in
CN901
(23/66)
E4
Y 4
CN901
(26/66)
B5
Y 6
CN901
(19/66)
A4
Y 0-in
CN902
b3
(14/135)
Output2-SDI/VBS-out
SN74LVCU04APWR
IC120
(1/7)
12
SN74LVCU04APWR
IC120 (2/7)
34
SN74LVCU04APWR
IC120 (3/7)
56
SN74LVCU04APWR
IC120 (4/7)
98
SN74LVCU04APWR
IC120 (5/7)
11 10
SN74LVCU04APWR
IC120 (6/7)
13 12
SN74LVCU04APWR
IC120
(7/7)
7
GND
14
VCC
SN74LVCU04APWR
IC121 (1/7)
12
SN74LVCU04APWR
IC121 (2/7)
34
SN74LVCU04APWR
IC121 (3/7)
56
SN74LVCU04APWR
IC121 (4/7)
98
SN74LVCU04APWR
IC121 (5/7)
11 10
SN74LVCU04APWR
IC121 (6/7)
13 12
SN74LVCU04APWR
IC121
(7/7)
7
GND
14
VCC
22
R260
22
R261
2.2k
R262
2.2k
R263
0.1uF
C108
SKIN_GATE(Y_LEVEL)
003
Y8-in
Y1-in
BY1-in
BY3-in
Y2-in
Y5-in
Y0-in
Y7-in
Y9-in
Y3-in
BY2-in
Y6-in
Y4-in
BY0-in
RY2-in
BY5-in
BY7-in
RY4-in
RY3-in
RY6-in
RY5-in
RY1-in
BY8-in
RY0-in
RY9-in
BY4-in
RY7-in
BY9-in
BY6-in
RY8-in
Y7-in
Y2-in
Y9-in
Y3-in
Y4-in
Y9
Y5-in
Y8
Y7
Y6-in
Y6
Y8-in
Y5
Y4
Y3
Y2
R/CR-9
Y1
R/CR-8
Y0
R/CR-7
R/CR-6
R/CR-5
R/CR-4
R/CR-3
R/CR-2
R/CR-1
R/CR-0
Y0-in
Y1-in
BY0-in
BY1-in
BY2-in
BY3-in
BY4-in
BY5-in
BY6-in
BY7-in
BY8-in
BY9-in
RY0-in
RY1-in
RY2-in
RY3-in
RY4-in
RY5-in
RY6-in
RY7-in
RY8-in
RY9-in
G/Y-2
G/Y-3
G/Y-4
G/Y-5
G/Y-6
G/Y-7
G/Y-8
G/Y-9
G/Y-1
G/Y-0
B/CB-0
B/CB-1
B/CB-2
B/CB-3
B/CB-4
B/CB-5
B/CB-6
B/CB-7
B/CB-8
B/CB-9
R-Y9
R-Y8
R-Y7
R-Y6
R-Y5
R-Y4
R-Y3
R-Y2
R-Y1
R-Y0
B-Y9
B-Y8
B-Y7
B-Y6
B-Y5
B-Y4
B-Y3
B-Y2
B-Y1
B-Y0
TDI1
EP1K-DCLK
EP1K-DATA0
TCK1
TDI2
TMS1
TRST
EP1K-nSTATUS
SDA
SCL
SYS27M
Ref-Vol
RESET
CB-GEN & MONO-COLOR
Y_OUT
Y_IN
CONPONENT_R_OUT
B-Y_IN
CK27M (SD:27MHz)
PLD2
R-Y_IN
MATRIX & DELAY
(F-in)
SKIN-GATE-IN
CONPONENT_G_OUTCONPONENT_B_OUT
R-Y_OUTB-Y_OUT
from D_ENC_PLD
IIC ID1
IIC ID0
IIC SDA
IIC SCL
1100 0LxX
1'st slot => LOW
2'nd slot => HIGH
DIAG CHU-
LOCK
CCU-
VD-Latch-Output
PLD
RESERVE
EN-156A (2/5)EN-156A (2/5)
4-27 4-27
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
4.7k
R192
1SS302-TE85L
D106
12
3
100
R173
D105
1SS302-TE85L
12
3
RGB/YCD
002
+5V
1SS301-TE85L
D103
1
2
3
R206
10k
33k
R193
100
R171
R181
0
R194
1k
1k
R191
33k
R196
NTSC/PAL
002,003
100
R172
R195 4.7k
PAL/NTSC
002,003
0
R178
R186
150k
D104
1SS302-TE85L
12
3
+5V
47k
R210
3.3k
R219
3.3k
R220
10pF
C164
1k
R214
0.1uF
C167
22
R233
2SA1774TL-QR
Q106
4.7k
R225
1.5k
R211
3.3k
R241
2SC4617TL-QR
Q105
47pF
C166 1.5k
R234
3.3k
R213
22uH
L109
0.1uF
C172
YCD/RGB
002
0.1uF
C143
22uF
C145
10uH
L106
+5V
3.3k
R182
220
R243
68
R236
680
R228
220
RB125
12
34
56
78
0.1uF
C134
1k
R197
10uF
C169
+
-
AD8014ARTZ-REEL7
IC112
3
4
2
1
5
47
R175
1.5k
R223
0.1uF
C151
0.1uF
C155
47
R174
330
R189
10uF
C130
10k
R226
150
R252
330
R190
0.1uF
C139
47k
R227
0.1uF
C148
220
R184
330
R188
1k
R203
0.1uF
C168
220
RB124
12
34
56
78
0.1uF
C149
220
RB122
12
34
56
78
0.1uF
C152
22uF
C146
150
R217
2.2k
R202
0.1uF
C162
220
R187
0.1uF
C129
220
R185
2.2k
R205
+5V
27M-CLK-P2C
002
0.1uF
C153
220
RB119
12
34
56
78
10uH
L108
0.1uF
C128
0.1uF
C154
0.1uF
C150
0.1uF
C144
3.3k
R179
3.3k
R201
0.1uF
C140
15k
R207
10uH
L103
220
RB121
12
34
56
78
15k
R208
0.1uF
C127
220
R215
10uH
L110
22uF
C147
CXD2315Q-T4
IC109
D3
1
D4
2
D5
3
D6
4
D7
5
D8
6
D9
7
NC1
8
CLK
9
BLK
10
CE
11
NC2
12
DVDD1
13
VB
14
DVSS1
15
NC3
16
IREF
17
SREF
18
VREF
19
AVDD1
20
AVDD2
21
VG 22
IO 23
IO 24
AVSS
25
NC4
26
DVSS2
27
DVDD2
28
NC5
29
D0 30
D1 31
D2 32
10uH
L105
-5V
15k
R209
CXD2315Q-T4
IC108
D3
1
D4
2
D5
3
D6
4
D7
5
D8
6
D9
7
NC1
8
CLK
9
BLK
10
CE
11
NC2
12
DVDD1
13
VB
14
DVSS1
15
NC3
16
IREF
17
SREF
18
VREF
19
AVDD1
20
AVDD2
21
VG 22
IO 23
IO 24
AVSS
25
NC4
26
DVSS2
27
DVDD2
28
NC5
29
D0 30
D1 31
D2 32
0.1uF
C138
3.3k
R183
47
R176
0.1uF
C160
10uH
L107
0.1uF
C136
0.1uF
C137
10uF
C132
0.1uF
C142
CXD2315Q-T4
IC107
D3
1
D4
2
D5
3
D6
4
D7
5
D8
6
D9
7
NC1
8
CLK
9
BLK
10
CE
11
NC2
12
DVDD1
13
VB
14
DVSS1
15
NC3
16
IREF
17
SREF
18
VREF
19
AVDD1
20
AVDD2
21
VG 22
IO 23
IO 24
AVSS
25
NC4
26
DVSS2
27
DVDD2
28
NC5
29
D0 30
D1 31
D2 32
1k
R200
+5V
500
RV104
1
2
3
0.1uF
C161
10uH
L104
10pF
C177
0.1uF
C133
3.3k
R198
0.1uF
C174
2.2k
R199
0.1uF
C135
+5V
10uF
C173
220
RB118
12
34
56
78
0.1uF
C141
0.1uF
C156
10uF
C131
3.3k
R204
10uH
L112
680
R238
22pF
C165
220
R254
10uF
C181
10pF
C183
0.1uF
C179
0.1uF
C182
220
R239
15k
R244
22k
R245
470
R246
680
R251
68
R250
150
R232
1.5k
R242
330
R248
10uF
C180
+
-
AD8014ARTZ-REEL7
IC114
3
4
2
1
5
10uH
L115
500
RV106
1
2
3
1.5k
R247
150
R255
+5V
10uH
L114
-5V
220
R249
10uF
C175
10pF
C178
0.1uF
C170
0.1uF
C176
100
R218
10k
R229
47k
R230
47k
R212
680
R231
680
R240
68
R237
220
R216
1.5k
R224
3.3k
R221
10uF
C171
+
-
AD8014ARTZ-REEL7
IC113
3
4
2
1
5
10uH
L113
500
RV105
1
2
3
3.3k
R222
150
R253
+5V
10uH
L111
-5V
YCD/RGB
002
0.1uF
C158
0.1uF
C157
0.1uF
C159
G-GAIN
005
R-GAIN
005
B-GAIN
005
PAL/NTSC
002,003
RGB/YCD
002
ADV-SYNC
003
COMP-BLKG
002
SETUP-OFF/ON
002,003
G/Y-SYNC-OFF/ON
002
47pF
C163
100
R166
100
R167
2.2k
R169
10k
R170
3.3k
R168
0.1uF
C125
0.1uF
C126
220
RB117
12
34
56
78
220
RB120
12
34
56
78
220
RB123
12
34
56
78
74VHCT08AMTCX
IC117 (1/5)
1
2
3
74VHCT08AMTCX
IC117 (2/5)
4
5
6
74VHCT08AMTCX
IC117 (3/5)
9
10
8
74VHCT08AMTCX
IC117 (4/5)
12
13
11
74VHCT08AMTCX
IC117 (5/5)
7
GND
14
VCC
74VHCT00AMTCX
IC118 (1/5)
1
2
3
74VHCT00AMTCX
IC118 (2/5)
4
5
6
74VHCT00AMTCX
IC118 (3/5)
9
10
8
74VHCT00AMTCX
IC118 (4/5)
12
13
11
74VHCT00AMTCX
IC118 (5/5)
7
GND
14
VCC
220
R180
100
R257
10pF
C185
100
R258
0
R235
10pF
C186
220
R177
150
R259
10pF
C187
CN902
d15
(73/135)
Front-GND
CN902
e15
(74/135)
ANA-B/B-Y-out
CN902
a15
(70/135)
ANA-R/R-Y-out
TP104
RV101
10k
1
2
3
RV102
5k
1
2
3
CN902
c15
(72/135)
ANA-G/Y-out
CONPONENT-R
002
TP103
CONPONENT-G
002
CONPONENT-B
002
5k
RV103
1
2
3
TP102
680
R264
680
R265
150
R266
5pF
C188
150
R267
150
R268
680
R269
INH
VSS VEE
VDD
TC74HC4053AFT(EL)
IC110
(1/3)
12
13 14
11
16
6
87
TC74HC4053AFT(EL)
IC110
(2/3)
2
1
15
10
TC74HC4053AFT(EL)
IC110
(3/3)
5
34
9
0
R270
100
R271
100
R272
100
R273
100
R274
100
R275
100
R276
100
R277
INH
VSS VEE
VDD
TC74HC4053AFT(EL)
IC111
(1/3)
12
13 14
11
16
6
87
TC74HC4053AFT(EL)
IC111
(2/3)
2
1
15
10
TC74HC4053AFT(EL)
IC111
(3/3)
5
34
9
100
R278
100
R279
100
R280
100
R281
100
R282
100
R283
100
R284
0
R285
LPF
FL101
1
IN
2
OUT
3
GND
456
LPF
FL103
1
IN
2
OUT
3
GND
456
LPF
FL102
1
IN
2
OUT
3
GND
456
+3.3V
10uH
L116
10uF
C190
0.1uF
C189
10uH
L117
10uF
C192
+3.3V
0.1uF
C191
G/Y-4
B/CB-8
G/Y-3
B/CB-7
G/Y-2
B/CB-6
B/CB-5
R/CR-9
R/CR-8
R/CR-7
R/CR-6
R/CR-5
R/CR-4
R/CR-3
R/CR-2
B/CB-4
B/CB-3
B/CB-2
G/Y-9
G/Y-8
G/Y-7
G/Y-6
G/Y-5
B/CB-9
R/CR-0
R/CR-1
G/Y-0
G/Y-1
B/CB-0
B/CB-1
X2
R-Y GAIN
Y GAIN(UC)
B-Y GAIN
R-Y/R LEVEL
R-Y/R OUT
Y/G OUT
10M
Y/G LEVEL
B-Y/B OUT
B-Y/B LEVEL
1.69V
1.69V
1.69V
X2
10M
X2
10M
0.286*2=0.572V
NEED:3V->5V Level Shift
NEED:3V->5V Level Shift
EN-156A (2/5)EN-156A (2/5)
EN-156A (2/5)
BOARD NO. 1-865-025-11
CCU-TX50_EN-156_11P_2
4-284-28
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
EN-156A (3/5)EN-156A (3/5)
UPD6466GS-515-E2
IC303
CLK
1
CS
2
DATA
3
PCL
4
VDD
5
CMDCT
6
OSCOUT
7
OSCIN
8
TEST
9
GND
10
HSYNC
20
VSYNC
19
VB 18
VG 17
VR 16
VBLK/BBLK
15
VC2/GBLK
14
BLK2/RBLK
13
VC1
12
BLK1
11
+3.3V
0.1uF
C305
+3.3V
0.1uF
C306
UPD6466GS-515-E2
IC304
CLK
1
CS
2
DATA
3
PCL
4
VDD
5
CMDCT
6
OSCOUT
7
OSCIN
8
TEST
9
GND
10
HSYNC
20
VSYNC
19
VB 18
VG 17
VR 16
VBLK/BBLK
15
VC2/GBLK
14
BLK2/RBLK
13
VC1
12
BLK1
11
R323
47
1SS302-TE85L
D301
1
2
3
100
R351
100k
R360
10uH
L307
47
R371
0.1uF
C307
220
R318
R322
47
R320
10k
CXD1216M-TH
IC306
TGC
20
HR
7
VSS
16
SYNCIN
17
HDIN
15
ISCIN
18
ESCIN
4
HCOMIN
10
LALTIN
12
MODE1
5
MODE2
6
CLOCK
14
VDD
2
HCOMOUT
9
LALTR
19
INT/EXT
11
VR
8
SCCOMOUT
1
NC1
3
NC2
13
CXD1176Q-T4
IC311
18
VRT
8
D7
11
DVDD2
31
DVSS2
28
DVSS1
23
AVSS2
22
AVSS1
17
VRTS
21
VIN
25
VRBS
24
VRB
26
VREF
27
CCP
15 PW
14
SYNC
13
SEL
29
CLE
12
CLK
30 OE
7
D6
6
D5
5
D4
4
D3
3
D2
2
D1
1
D0
10
DVDD1
20
AVDD3
19
AVDD2
16
AVDD1
CXD1171M-TH
IC301
24
DVDD2
8
D7
23
DVDD1
22
AVDD3
21
I0
19
AVDD2
20
IO
18
AVDD1
16
VREF
17
VG
15
IREF
14
AVSS
13
DVSS2
7
D6
6
D5
5
D4
4
D3
3
D2
2
D1
1
D0
9
BLK
10
DVSS1
11 VB
12
CLK
0.1uF
C324
47
R325
100
R326
13.5M-SC-CLK
002
4.7uH
L303
0.1uF
C318
10
R307
NM
33k
R308
10uH
L305
22k
R309
TLC272CPSR
(1/2)
IC322
+
3
-
2
4
1
8
10uH
L301
100k
R366
0.1uF
C302
100k
R363
+5V
10k
R354
10k
R327
+5V
27M-CLK-P3B
002
470
R312
47
R321
0.1uF
C326
2.2k
R306
47
R302
-5V
0.1uF
C325
10uH
L304
470
R311
1.5k
R330
10pF
C310
0.1uF
C304
100k
R359
0.1uF
C323
0.1uF
C303
10k
R328
100k
R358 100k
R365
100
R352
100
R349
100k
R317
+5V
TLC272CPSR
IC322
(2/2)
+
5
-
6
7
10uH
L306
47
R353
10uH
L302
0.1uF
C330
22pF
C311
0.001uF
C316
+5V
LALT-NORM/INV
002
0.1uF
C322
PAL/NTSC
002,003
REF-INT/EXT
002,003
0.1uF
C301
R319
10k
22k
R350
47pF
C309
0.001uF
C312
100
R324
0.1uF
C319
0.1uF
C314
0.047uF
C315
100k
R364
330
R329
1k
R310
220
RB302
12
34
56
78
220
RB301
12
34
56
78
100
R303
100
R304
100
R301
MASTER-RESET
002,003,004,005
100
R305
WFM_SEQ_ON
002
4.7k
R379
10k
R375
74VHCT08AMTCX
IC310 (1/4)
1
2
3
14
7
0.1uF
C329
+5V
Q302
2SC4617TL-QR
10k
R368
100
R355
22k
R376
-5V
NJM4560M-TE2
IC309
(1/2)
+
3
-
2
4
1
8
100
R356
10k
R382
NJM4560M-TE2
IC309
(2/2)
+
5
-
6
7
-12V
0.1uF
C331
47k
R374
10uH
L309
+5V
RV302
10k
74VHCT08AMTCX
IC310 (4/4)
12
13
11
10k
R378
0.1uF
C328
-5V
10k
R362
22k
R377
Q301
2SA1774TL-QR
74VHCT08AMTCX
IC310 (3/4)
9
10
8
10k
R361
10
R370
10uH
L308
Q303
2SA1774TL-QR
74VHCT08AMTCX
IC310 (2/4)
4
5
6
100
R383
10k
R372
+12V
4.7k
R380
100
R357
33k
R373
RV301
20k
4.7k
R381
10
R369
0
R367
10uF
C308 10uF
C313
10uF
C317
10uF
C321
10uF
C327
10uF
C320
PIX_CHARA
004
100
R313
100
R314
100
R316
100
R315
PIX_CHARA_BG
004
BAR_CHARA
004
BAR_CHARA_BG
004
+3.3V
SN74LVC574APWR
IC312
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
1uF
C335
1uF
C333
TC74VHC138FT(EL)
IC302
A
1
B
2
C
3
G1
6
G2A
4
G2B
5
GND
8
Y7
7
Y6
9
Y5 10
Y4 11
Y3 12
Y2 13
Y1 14
Y0 15
VCC
16
+3.3V
0.1uF
C405
SN74LVC244APWR
IC313
1A1
2
1A2
4
1A3
6
1A4
8
2A1
11
2A2
13
2A3
15
2A4
17
1G
1
2G 19
GND
10
2Y4
3
2Y3
5
2Y2
7
2Y1
9
1Y4
12
1Y3
14
1Y2
16
1Y1
18
VCC
20
+3.3V
0.1uF
C404
SLOT-ID-IN
002,003,004,005
+3.3V
100
RB324
12
34
56
78
100
R466
TC7WH04FU(TE12R)
IC325(1/4)
1
7
TC7WH04FU(TE12R)
IC325 (2/4)
62
TC7WH04FU(TE12R)
IC325 (3/4)
35
TC7WH04FU(TE12R)
IC325 (4/4)
4
GND
8
VCC
0.1uF
C406
100
R467
100
R468
100
R469
3WIRE-LOAD-PULSE
005
CN901
(3/66)
C1
Chara-Gen-CS0-in
CN902
e5
(29/135)
WFM-STAIR-STEP-out
CN902
d1
(4/135)
External-Ref-SC-in
CN902
b21
(107/135)
Video-HIRA-PIN 0
CN901
(1/66)
A1
Chara-Gen-Clk-in
CN902
e6
(35/135)
WFM-CTL-GND
TP302
REF-LALT-RES
002,003
C332
47uF
16V
CN902
d6
(34/135)
WFM-SEQ-ON/OFF-out
CN902
d24
(127/135)
Serial-Load0
TP301
CN902
e24
(128/135)
Serial-Load1
CN902
c1
(3/135)
External-Ref-SYNC-in
C334
47uF
16V
CN902
c21
(108/135)
Video-HIRA-PIN 1
CN901
(2/66)
B1
Chara-Gen-Data-in
S301
1
2
3
4
5
6
CN902
d21
(109/135)
Video-HIRA-PIN 2
CN901
(31/66)
A6
Chara-Gen-CS1-in
470
R484
+3.3V
1SS301-TE85L
D302
3
1
2
1k
R486
1k
R487
TC7SH04FU(T5RSOYJF)
IC305 (1/2)
24
TC7SH04FU(T5RSOYJF)
IC305 (2/2)
3
GND
5
VCC
TC7SH04FU(T5RSOYJF)
(1/2)IC308
24
TC7SH04FU(T5RSOYJF)
(2/2)IC308
3
GND
5
VCC
TC7SH86FU(T5RSOYJF)
IC323 (1/2)
2
14
TC7SH86FU(T5RSOYJF)
IC323 (2/2)
3
GND
5
VCC
CHAR-VR
CHAR-CK
CHAR-HR
CHAR-CK
CHAR-HR
CHAR-VR
ENC-SC-DATA4
ENC-SC-DATA3
ENC-SC-DATA2
ENC-SC-DATA1
ENC-SC-DATA0
ENC-SC-DATA7
ENC-SC-DATA6
ENC-SC-DATA5
SC-CONT-DATA7
SC-CONT-DATA6
SC-CONT-DATA5
SC-CONT-DATA4
SC-CONT-DATA3
SC-CONT-DATA2
SC-CONT-DATA1
SC-CONT-DATA0
BAR_CHR
BAR_BLK
PIX_CHR
PIX_BLK
BAR-CHARA
PIX-CHARA
INT-SC
FILM
27MHz-SC-Fil
for SC-D/A
+
SEQ
DC(Position)
5Vpp
STAIR STEP
-
LEVEL(Interval)
1'st slot => LOW
2'nd slot => HIGH
+:PNP
-:NPN
-:NPN
+:PNP
323
4-29 4-29
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
EN-156A (3/5)EN-156A (3/5)
EN-156A (3/5)
BOARD NO. 1-865-025-11
CCU-TX50_EN-156_11P_3
220
RB307
12
34
56
78
220
RB308
12
34
56
78
220
RB316
12
34
56
78
+5V
100
R394
15k
R432
0.1uF
C352
220
RB317
12
34
56
78
PAL/NTSC
002,003
CXD2315Q-T4
IC314
D3
1
D4
2
D5
3
D6
4
D7
5
D8
6
D9
7
NC1
8
CLK
9
BLK
10
CE
11
NC2
12
DVDD1
13
VB
14
DVSS1
15
NC3
16
IREF
17
SREF
18
VREF
19
AVDD1
20
AVDD2
21
VG 22
IO 23
IO 24
AVSS
25
NC4
26
DVSS2
27
DVDD2
28
NC5
29
D0 30
D1 31
D2 32
47
R396
0.1uF
C363
2.2k
R418
3.3k
R405
0.1uF
C368
220
R409
330
R412
0.1uF
C371
0.1uF
C347
0.1uF
C346
0.1uF
C357
0.1uF
C337
10uH
L311 10uH
L314
+5V
500
RV303
1
2
3
22uF
C360
10uF
C340
220
RB319
12
34
56
78
220
RB320
12
34
56
78
220
RB322
12
34
56
78
220
RB323
12
34
56
78
220
R459
-5V
10uF
C395
100
R438
68
R453
680
R446
10uF
C390
+
-
AD8014ARTZ-REEL7
IC318
3
4
2
1
5
0.1uF
C396
10uH
L325
10uH
L322
10pF
C401
0.1uF
C389
5pF
C380
330
R435
4.7uH
L319
47pF
C374
47pF
C386
10pF
C381
1.5k
R439
15
R462
+5V
10k
R445
470
R444
1k
R416
3.3k
R417
10uH
L315
0.1uF
C338
3.3k
R420
0.1uF
C353
220
R410
CXD2315Q-T4
IC315
D3
1
D4
2
D5
3
D6
4
D7
5
D8
6
D9
7
NC1
8
CLK
9
BLK
10
CE
11
NC2
12
DVDD1
13
VB
14
DVSS1
15
NC3
16
IREF
17
SREF
18
VREF
19
AVDD1
20
AVDD2
21
VG 22
IO 23
IO 24
AVSS
25
NC4
26
DVSS2
27
DVDD2
28
NC5
29
D0 30
D1 31
D2 32
47pF
C387
4.7uH
L320
47
R397
10pF
C383
+5V
0.1uF
C358
10uH
L312
10uF
C341
330
R413
5pF
C382
0.1uF
C348
0.1uF
C349
22uF
C361
0.1uF
C364
47pF
C376
3.3k
R406
0.1uF
C369
1k
R419
10pF
C385
22uF
C362
220
R411
47
R398
47pF
C378
3.3k
R407
4.7uH
L321
3.3k
R423
47pF
C388
330
R414
10uH
L313
0.1uF
C339
1k
R422
10uF
C342
0.1uF
C359
0.1uF
C350
+5V
5pF
C384
10uH
L316
0.1uF
C354
0.1uF
C351
CXD2315Q-T4
IC316
D3
1
D4
2
D5
3
D6
4
D7
5
D8
6
D9
7
NC1
8
CLK
9
BLK
10
CE
11
NC2
12
DVDD1
13
VB
14
DVSS1
15
NC3
16
IREF
17
SREF
18
VREF
19
AVDD1
20
AVDD2
21
VG 22
IO 23
IO 24
AVSS
25
NC4
26
DVSS2
27
DVDD2
28
NC5
29
D0 30
D1 31
D2 32
0.1uF
C370
0.1uF
C365
47k
R426
0.1uF
C375
0.1uF
C372
15k
R433
2.2k
R421
47k
R428
47k
R430
15k
R434
0.1uF
C373
2.2k
R424
220k
R431
220k
R429
220k
R427
0.1uF
C377
0.1uF
C379
680
R456
0.1uF
C391
10pF
C402
10uH
L326
330
R436
220
R460
15
R463
0.1uF
C398
680
R449
68
R454
500
RV304
1
2
3
680
R457
470
R447
10uH
L323
10k
R448
+5V
-5V
10uF
C397
10uF
C392
+
-
AD8014ARTZ-REEL7
IC319
3
4
2
1
5
1.5k
R441
100
R440
10uF
C394
220
R461
10uH
L327
10uF
C399
500
RV305
1
2
3
-5V
+5V
680
R458
0.1uF
C393
+
-
AD8014ARTZ-REEL7
IC320
3
4
2
1
5
680
R452
15
R464
10uH
L324
1.5k
R443
10pF
C403
330
R437
68
R455
100
R442
0.1uF
C400
10k
R451
470
R450
22pF
C344
1k
R395 22uH
L310
47pF
C345
10pF
C343
-5V
+
-
AD8014ARTZ-REEL7
IC317
3
4
2
1
5
1.5k
R403
10uH
L318
0.1uF
C355
1.5k
R400
10uF
C366
10uH
L317
10uF
C356
220
R415
680
R404
0.1uF
C367
+5V
150
R425
150
R408
2.2k
R399
1.5k
R402
47
R401
220
R343
220
RB304
12
34
56
78
220
R387
MASTER-RESET
002,003,004,005
10
R384
27M-CLK-P3A
002
2.2k
R386
ENC-SKIN-GATE
002
0
R334
10
R335
220
R336
ADV-SYNC
002
VBS-GAIN
005
PIX-GAIN
005
WFM-GAIN
005
NTSC/PAL
002
SETUP-OFF/ON
002
ColorBar-OFF/ON
002
0.1uF
C336
REF-INT/EXT
002,003
220
R338
220
R339
220
R340
220
RB315
12
34
56
78
220
RB318
12
34
56
78
220
RB321
12
34
56
78
SLOT-ID-IN
002,003,004,005
47
R344
0
NM
R331
10k
R337
10k
R341
NM
0
R332
10k
R347
NM
0
R345
0
R333
10k
NM
R348
0
R346
10k
R342
NM
220
RB305
12
34
56
78
220
RB310
12
34
56
78
220
RB311
12
34
56
78
220
RB312
12
34
56
78
220
RB313
12
34
56
78
220
RB306
12
34
56
78
680
R465
EXT-Color-Frame
002
0.8
CL301
0.8
CL302
0.8
CL303
0.8
CL304
0.8
CL306
0.8
CL305
CN902
e17
(86/135)
SYNC-OUT(X)-out
REF-LALT-RES
002,003
ENC-REF-F
002
B-Y-in
002,004
IIC2-BUS
002,004,005
ENC-REF-H
002
Y-in
002,004
CN902
a19
(94/135)
WFM(X)-out
R-Y-in
002,004
CN902
b17
(83/135)
FR-GND
TP306
TP303
CN902
d17
(85/135)
SYNC-OUT(G)
CN902
b19
(95/135)
PIX(G),WFM(G)-GND-out
TP304
TP305
CN902
c19
(96/135)
PIX(X)-out
27M-CLK-P3C
002
CN902
a17
(82/135)
VBS(X)-out
220
RB303
12
34
56
78
220
R470
220
R471
220
R472
220
R473
220
R474
220
R475
220
R476
220
R477
10
R385
220
R478
22
R479
NM
22
R480
NM
22
R481
NM
22
R482
22
R483
ENC-SEQ-SYNC-RST
002
SEQ-SYNC-from-ENC
002
FB703
FB701
+3.3V
0.1uF
C416
10uF
C418
10uF
C412
10uF
C410
10uF
C407
10uF
C419
10uF
C414
0.1uF
C413
0.1uF
C417
0.1uF
C420
0.1uF
C411
0.1uF
C409
0.1uF
C408
6.3V
47uF
C415
8pF
C421
8pF
C422
8pF
C423
150
R485
SKIN_GATE(Y_LEVEL)
002
1k
R388
1k
R389
TC7SET08FU(T5RSOJF)
IC324 (1/2)
2
1
4
TC7SET08FU(T5RSOJF)
IC324 (2/2)
3
GND
5
VCC
CXD9184R
IC326
VDD1
1
R_IN0
2
R_IN1
3
R_IN2
4
R_IN3
5
R_IN4
6
R_IN5
7
R_IN6
8
R_IN7
9
R_IN8
10
R_IN9
11
RESET
12
CK27M
13
G_IN0
14
G_IN1
15
G_IN2
16
G_IN3
17
G_IN4
18
G_IN5
19
VDD2
20
GND1
21
G_IN6
22
G_IN7
23
G_IN8
24
G_IN9
25
B_IN0
26
B_IN1
27
B_IN2
28
B_IN3
29
B_IN4
30
B_IN5
31
B_IN6
32
B_IN7
33
B_IN8
34
B_IN9
35
HD_IN
36
FD_IN
37
EXT_LALT_EN
38
LALT_IN
39
VDD3
40
GND2
41
GND3
42
EXT_CF_IN
43
SMC
44
SIN
45
SOT
46
SCK
47
AMC
48
WFM_OE
49
PIX_OE
50
GND4
51
VBS0
52
VBS1
53
VBS2
54
VBS3
55
VBS4
56
VBS5
57
VBS6
58
VBS7
59
VBS8
60
VBS9
61
VBS10
62
VBS11
63
GND5
64
CK27M_O1
65
WFM0
66
WFM1
67
WFM2
68
WFM3
69
WFM4
70
WFM5
71
WFM6
72
WFM7
73
WFM8
74
WFM9
75
WFM10
76
WFM11
77
CK27M_O2
78
GND6
79
GND7
80
VDD4
81
PIX0
82
PIX1
83
PIX2
84
PIX3
85
PIX4
86
PIX5
87
PIX6
88
PIX7
89
PIX8
90
PIX9
91
PIX10
92
PIX11
93
GND8
94
EXT_REF_EN
95
SC_FCNT0
96
SC_FCNT1
97
SC_FCNT2
98
SC_FCNT3
99
VDD5
100
GND9
101
SC_FCNT4
102
SC_FCNT5
103
SC_FCNT6
104
SC_FCNT7
105
SC_WAVE0
106
SC_WAVE1
107
SC_WAVE2
108
SC_WAVE3
109
SC_WAVE4
110
SC_WAVE5
111
SC_WAVE6
112
SC_WAVE7
113
SYNC_OUT
114
ADV_SYNC_OUT
115
S_SYNC_IN
116
S_SYNC_OUT
117
STAIR0
118
STAIR1
119
VDD6
120
GND10
121
GND11
122
ZGATE_IN1
123
ZGATE_IN2
124
ASPE_MK
125
ASPE_FLAG
126
CHAR_CK
127
CHAR_H
128
CHAR_V
129
BAR_CHR
130
BAR_BLK
131
PIX_CHR
132
PIX_BLK
133
EXT_MODE
134
NP_SEL
135
SETUP_ON
136
BAR_ON
137
ID_A0
138
ID_A1
139 SCL
140 SDA
141
IN_P0
142
IN_P1
143
OUT_P0
144
OUT_P1
145
OUT_P2
146
OUT_P3
147
VDD7
148 TEB
149
DC_TEST_EN
150
TOUT
151
HD_OUT
152
FD_OUT
153
VDD8
154
BURST_TG_IN
155
BLKG_TG_IN
156
SYNC_TG_IN
157
EXT_TG_EN
158
GND12
159
GND13
160
VBS9
VBS8
WFM9
WFM8
VBS3
WFM3
WFM5
WFM4
WFM2
VBS7
WFM7
VBS4
VBS5
WFM6
VBS6
PIX2
PIX3
PIX4
PIX5
PIX6
PIX7
PIX8
PIX9
VBS0
VBS1
PIX1
PIX0
WFM0
WFM1
VBS2
SC-CONT-DATA0
SC-CONT-DATA1
SC-CONT-DATA2
SC-CONT-DATA3
SC-CONT-DATA7
SC-CONT-DATA6
SC-CONT-DATA5
SC-CONT-DATA4
ENC-SC-DATA0
ENC-SC-DATA1
ENC-SC-DATA2
ENC-SC-DATA3
ENC-SC-DATA4
ENC-SC-DATA5
ENC-SC-DATA6
ENC-SC-DATA7
VBS9
VBS8
VBS7
VBS6
VBS5
VBS4
VBS3
VBS2
VBS1
VBS0
WFM0
WFM1
WFM2
WFM3
WFM4
WFM5
WFM6
WFM7
WFM8
WFM9
PIX0
PIX1
PIX2
PIX3
PIX4
PIX5
PIX6
PIX7
PIX8
PIX9
Y2
Y3
Y4
Y5
Y6
Y7
Y8
Y9
Y0
Y1
R-Y2
R-Y3
R-Y4
R-Y5
R-Y6
R-Y7
R-Y8
R-Y9
R-Y0
R-Y1
B-Y2
B-Y3
B-Y4
B-Y5
B-Y6
B-Y7
B-Y8
B-Y9
B-Y0
B-Y1
SDA
SCL
PIX_BLK
PIX_CHR
BAR_BLK
BAR_CHR
CHAR-VR
CHAR-HR
CHAR-CK
10MHz-LP-Fil
for Video out
X2
VBS
1.69V
1.69V
1.69V
X2
PIX
WFM
X2
(33p)
(33p)
SYNC
X2
100nSec-Slope
for SYNC out
1'st slot => LOW
2'nd slot => HIGH
SYNC
BLKG
BURST
4-304-30
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
2.2k
R539
0.1uF
C518
27M-CLK-P4B
002
0.1uF
C521
0.1uF
C511
0.1uF
C517
0.1uF
C512
0.1uF
C522
10
R537
100
R541
EP1K50QC208-3
IC502
TCK
1
CONF_DONE
2
nCEO
3
TDO
4
VCCIO1
5
GNDINT1
6
IO0
7
IO1
8
IO2
9
IO3/CLKUSR
10
IO4
11
IO5
12
IO6
13
IO7
14
IO8
15
IO9/RDY/nBUSY
16
IO10
17
IO11
18
IO12/INIT_DONE
19
GNDINT2
20
VCCINT1
21
VCCIO2
22
GNDINT3
23
IO13
24
IO14
25
IO15
26
IO16
27
IO17
28
IO18
29
IO19
30
IO20
31
GNDINT4
32
VCCINT2
33
VCCIO3
34
GNDINT5
35
IO21
36
IO22
37
IO23
38
IO24
39
IO25
40
IO26
41
VCCIO4
42
GNDINT6
43
IO27
44
IO28
45
IO29
46
IO30
47
VCCINT3
48
GNDINT7
49
TMS
50
TRST
51
nSTATUS
52
IO31
53
IO32
54
IO33
55
IO34
56
IO35
57
IO36
58
GNDINT8
59
IO37
60
IO38
61
IO39/LOCK
62
IO40
63
IO41
64
IO42
65
VCCIO5
66
IO43
67
IO44
68
IO45
69
IO46
70
IO47
71
VCCINT4
72
IO48
73
IO49
74
IO50
75
GNDINT9
76
VCC_CKLK
77
INPUT1
78
GCLK1
79
INPUT2
80
GND_CKLK
81
GNDINT10
82
IO51
83
VCCIO6
84
IO52
85
IO53
86
IO54
87
IO55
88
IO56
89
IO57
90
VCCINT5
91
IO58
92
IO59
93
IO60
94
IO61
95
IO62
96
IO63
97
VCCIO7
98
IO64
99
IO65
100
IO66
101
IO67
102
IO68
103
IO69
104
nCONFIG
105
VCCINT6
106
MSEL1
107
MSEL0
108
GNDINT11
109
VCCIO8
110
IO70
111
IO71
112
IO72
113
IO73
114
IO74
115
IO75
116
GNDINT12
117
VCCIO9
118
IO76
119
IO77
120
IO78
121
IO79
122
GNDINT13
123
VCCINT7
124
IO80
125
IO81
126
IO82
127
IO83
128
GNDINT14
129
VCCINT8
130
IO84
131
IO85
132
IO86
133
IO87
134
IO88
135
IO89
136
GNDINT15
137
VCCIO10
138
IO90
139
IO91
140
IO92
141
IO93
142
IO94
143
IO95
144
GNDINT16
145
VCCIO11
146
IO96
147
IO97
148
IO98
149
IO99
150
GNDINT17
151
VCCINT9
152
TDI 153
nCE 154
DCLK
155
DATA0
156
IO100/DATA1
157
IO101/DATA2
158
IO102/DATA3
159
IO103
160
IO104/DATA4
161
IO105/DATA5
162
IO106
163
IO107/DATA6
164
VCCIO12
165
IO108/DATA7
166
IO109
167
IO110
168
IO111
169
IO112
170
GNDINT18
171
IO113
172
IO114
173
IO115
174
IO116
175
IO117
176
IO118
177
VCCIO13
178
IO119
179
IO120/DEV_CLRn
180
GNDINT19
181
INPUT3
182
CLK 183
INPUT4
184
VCCINT10
185
IO121/DEV_OE
186
IO122
187
GNDINT20
188
IO123
189
IO124
190
IO125
191
IO126
192
IO127
193
VCCIO14
194
IO128
195
IO129
196
IO130
197
IO131
198
IO132
199
IO133
200
VCCINT11
201
IO134
202
IO135
203
IO136/nRS
204
IO137
205
IO138/nWS
206
IO139/CS
207
IO140/nCS
208
0.1uF
C514
0.1uF
C516
+2.5V
+3.3V 0.1uF
C513
0.1uF
C519
3.3k
R538
0.1uF
C515
0.1uF
C520
GND
MASTER-RESET
002,003,004,005
220
R543
220
R536
220
R540
220
R542
+3.3V
0.1uF
C510
BAR_CHARA
003
BAR_CHARA_BG
003
PIX_CHARA_BG
003
PIX_CHARA
003
D-EN-SKIN-GATE
002
10
R533
NM
10
R532
NM
10
R527
NM 10
R534
NM
10
R525
NM
10
R530
NM
10
R528
NM
10
R523
NM
C502
0.1uF
0.1uF
C501
C504
0.1uF
10uH
L501
0.1uF
C509
+3.3V
100
R522
47
R501
2.2k
R502
100
R503
MASTER-RESET
002,003,004,005
10uF
C523 10uF
C525
10uF
C526
10uF
C524
nCE
002
EP1K-CONF-DONE
002,005
74VHC08MTCX
IC506 (1/5)
1
2
3
74VHC08MTCX
IC506(2/5)
4
5
6
74VHC08MTCX
IC506(3/5)
9
10
8
74VHC08MTCX
IC506 (4/5)
12
13
11
74VHC08MTCX
IC506(5/5)
7
GND
14
VCC
+3.3V
100
R544
+3.3V
10
R509
220
R510
0
R524
220
R531
10
R529
PLD-RE-CONF
002,005
D-EN_WR_F
002
D-EN_WR_H
002 100
R521
NM
100
R520
NM
HB-Filter-REF-H
002
HB-Filter-REF-F
002
HB-Filter-Blanking
002
100
R504
100
R505
100
R506
SLOT-ID-IN
002,003,004,005
47
R508
SLOT-ID-IN
002,003,004,005
47
R526
D-EN_Y_LEVEL_GATE
002
220
RB508
12
34
56
78
B-Y-in
002,003
220
RB509
12
34
56
78
220
RB502
12
34
56
78
CN902
e2
(11/135)
Embeded-MIC1/2-DATA-in
CN902
c2
(9/135)
Embeded-MIC-BCK-in
220
RB511
12
34
56
78
CN902
d5
(28/135)
AES/EBU(Y)-out
27M-CLK-P4A
002
220
RB503
12
34
56
78
HBF-422-OUT
004
220
RB501
12
34
56
78
CN902
c5
(27/135)
AES/EBU(X)-out
220
RB512
12
34
56
78
220
RB510
12
34
56
78
220
RB513
12
34
56
78
220
RB506
12
34
56
78
CONFIG-BUS
002,005
220
RB505
12
34
56
78
TP502
TP501
220
RB507
12
34
56
78
IIC2-BUS
002,003,004,005
IIC2-BUS
002,003,004,005
HBF-422-OUT
004
CN902
d2
(10/135)
Embeded-MIC-LRCK-in
220
RB504
12
34
56
78
ISP-BUS002,005
R-Y-in
002,003
220
RB514
12
34
56
78
Y-in
002,003
22
R595
22
R596
22
R597
22
R598
22
R599
NM
10k
R602
NM
10k
R603
10k
R604
NM
10k
R605
10k
R606
NM
10k
R607
10k
R608
10k
R609
NM
10k
R610
NM
10k
R611
10k
R612
10k
R601
NM
10k
R600
NM
10k
R613
NM
22
R615
22
R616
22
R617
22
R618
10uF
C579
10uF
C580
100
R619
100
R620
10uF
C581
10uF
C582
0.1uF
C583
0.1uF
C584
6.3V
47uF
C585
100
R623
100
R624
100
R625
100
R626
100
R627
10uF
C587
0.1uF
C586
10uF
C589
0.1uF
C588
10uF
C590
0.1uF
C591
0.1uF
C592
10uF
C593
10uH
L502
+2.5V
CXD9186R
IC509
VDD1
1
VDD2
2
I_A0
3
I_A1
4
I_A2
5
I_A3
6
I_A4
7
I_A5
8
I_A6
9
I_A7
10
I_A8
11
I_A9
12
O_A0
13
O_A1
14
O_A2
15
O_A3
16
O_A4
17
O_A5
18
O_A6
19
O_A7
20
O_A8
21
O_A9
22
NC1
23
NC2
24
NC3
25
NC4
26
NC5
27
NC6
28
I_F
29
I_V
30
I_H
31
O_F
32
O_V
33
O_H
34
VDD3
35
VDD4
36
GND1
37
GND2
38
I_B0
39
I_B1
40
I_B2
41
I_B3
42
I_B4
43
I_B5
44
I_B6
45
I_B7
46
I_B8
47
I_B9
48
O_B0
49
O_B1
50
O_B2
51
O_B3
52
O_B4
53
O_B5
54
O_B6
55
O_B7
56
O_B8
57
O_B9
58
NC7
59
NC8
60
NC9
61
NC10
62
NC11
63
NC12
64
NC13
65
NC14
66
NC15
67
I_OC_A
68
I_OC_B
69
I_OC_C
70
GND3
71
GND4
72
VDD5
73
VDD6
74
I_C0
75
I_C1
76
I_C2
77
I_C3
78
I_C4
79
I_C5
80
I_C6
81
I_C7
82
I_C8
83
I_C9
84
O_C0
85
O_C1
86
O_C2
87
O_C3
88
O_C4
89
O_C5
90
O_C6
91
O_C7
92
O_C8
93
O_C9
94
NC16
95
NC17
96
NC18
97
GND5
98
RCLK
99
TCK0
100
TCK1
101
TMD0
102
TMD1
103
TMD2
104
TSMI
105
TOUT
106
VDD7
107
VDD8
108
GND6
109
GND7
110
I_RSTL
111
IO_SDA
112
I_SCL
113
I_PCL
114
I_PAD0
115
I_PAD1
116
I_PCS
117
I_PRD
118
I_PWR
119
IO_PDA0
120
IO_PDA1
121
IO_PDA2
122
IO_PDA3
123
IO_PDA4
124
IO_PDA5
125
IO_PDA6
126
IO_PDA7
127
NC19
128
NC20
129
NC21
130
NC22
131
NC23
132
NC24
133
NC25
134
NC26
135
TRST
136
TDI 137
TMS 138
TDO 139
TCK 140
NC27
141
NC28
142
GND8
143
GND9
144
TMS1
TDI2
TDI3
EP1K-DATA0
TCK1
TRST
EP1K-DCLK
EP1K-nSTATUS
D1_A_D9
D1_A_D8
D1_A_D7
D1_A_D6
D1_A_D5
D1_A_D4
D1_A_D3
D1_A_D2
D1_A_D1
D1_A_D0
D1_B_D9
D1_B_D8
D1_B_D7
D1_B_D6
D1_B_D5
D1_B_D4
D1_B_D3
D1_B_D2
D1_B_D1
D1_B_D0
422-9
422-8
422-7
422-6
422-5
422-4
422-3
422-2
422-1
422-0
SCL
SDA
SCL
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
Y9
R-Y0
R-Y1
R-Y2
R-Y3
R-Y4
R-Y5
R-Y6
R-Y7
R-Y8
R-Y9
B-Y0
B-Y1
B-Y2
B-Y3
B-Y4
B-Y5
B-Y6
B-Y7
B-Y8
B-Y9
422-0
422-1
422-2
422-3
422-4
422-5
422-6
422-7
422-8
422-9
SDA
CK27M
4:2:2_IN
CK27M (SD:27MHz)
RESET
D-EN
D1-OUT-A outD1-OUT-B out
D-WR-H
HALF-BAND FILTER
(8:8:8->4:2:2)
to CB-GEN-PLD
BCK -> 256FS change Please !
IIC SCL
IIC SDA
IIC ID1
IIC ID0
D-WR-F
1'st slot => LOW
2'nd slot => HIGH
1'st slot => LOW
2'nd slot => HIGH
TRI-STATETRI-STATE
1100 10xX
PLD RESERVE
EN-156A (4/5)EN-156A (4/5)
4-31 4-31
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
2.2kR559
FB501
0.1uF
C545
0.1uF
C541
1k
R577
0.1uF
C569
100
R567
0.1uF
C549
0.1uF
C567
0.1uF
C565
100
R566
0.1uF
C543
0.1uF
C539
100
NM
R565
15k
R550
2.2kR560
1k
R573
10pF
C556
0.1uF
C547
680
R569
2.2k
R583
1.5k
R558
0.1uF
C533
CXB1341R
IC503
VCCT1
12
VEET1
14
THRU
38
VCCT2
49
VCCL6
44
VCC2
36
VCCS
42
TEST
10
D9X
47
D9Y
48
VEET2
64
VEEL1
15
VEEL2
40
VEEP1
25
VEEP2
33
VEE2
39
PCK
46
SX 41
SY 43
LST
37
MDS
20
MOD1
35
MOD0
34
FSR0
29
RESET
11
ICP
24
CPX
26
CPY
27
BCAP
22
ETS
45
D8X
50
D7X
52
D6X
54
D5X
56
D4X
58
D3X
60
D2X
62
D1X
2
D8Y
51
D7Y
53
D6Y
55
D5Y
57
D4Y
59
D3Y
61
D2Y
63
D1Y
3
D0X
4
D0Y
5
PCX
6
PCY
7
SCKX
8
SCKY
9
FSR1
30
FSR2
31
FSR3
32
VCCL5
28
VCCL4
23
VCCL3
19
VCCL2
13
VCCL1
1
0.1uF
C562
0.1uF
C535
2.2k
R579
0.1uF
C551
15k
R549
0.1uF
C537
0.1uF
C557
2.2kR554
0.1uF
C561
2.2k
R557
27M-CLK-P4C
002
470
R546
3.3k
R547
NM
27M-CLK-P4D
002
3.3k
R548
NM
470
R545
10uH
L503
+3.3V-3
0.1uF
C527
+3.3V-3
FB503
0.1uF
C570
0
R553
0.1uF
C571
10pF
C559
2.2k
R584
0.1uF
C534
CXB1341R
IC504
VCCT1
12
VEET1
14
THRU
38
VCCT2
49
VCCL6
44
VCC2
36
VCCS
42
TEST
10
D9X
47
D9Y
48
VEET2
64
VEEL1
15
VEEL2
40
VEEP1
25
VEEP2
33
VEE2
39
PCK
46
SX 41
SY 43
LST
37
MDS
20
MOD1
35
MOD0
34
FSR0
29
RESET
11
ICP
24
CPX
26
CPY
27
BCAP
22
ETS
45
D8X
50
D7X
52
D6X
54
D5X
56
D4X
58
D3X
60
D2X
62
D1X
2
D8Y
51
D7Y
53
D6Y
55
D5Y
57
D4Y
59
D3Y
61
D2Y
63
D1Y
3
D0X
4
D0Y
5
PCX
6
PCY
7
SCKX
8
SCKY
9
FSR1
30
FSR2
31
FSR3
32
VCCL5
28
VCCL4
23
VCCL3
19
VCCL2
13
VCCL1
1
+3.3V-4
0.1uF
C572
0.1uF
C536
0.1uF
C566
0.1uF
C563
0.1uF
C542
0.1uF
C544
+3.3V-4
2.2kR563
2.2kR564
0.1uF
C564
680
R575
100
R572
1.5k
R562
0.1uF
C568
0.1uF
C528
0.1uF
C560
2.2kR556
0
R555
15k
R551
0.1uF
C538
1k
R578
100
R571
15k
R552
0.1uF
C548
10uH
L504
1k
R576
2.2k
R561
0.1uF
C546
FB502
0.1uF
C552
0.1uF
C540
FB504
0.1uF
C550
2.2k
R581
100
NM
R570
47
R568
47
R574
FREERUN1-ON/OFF
005
10uF
C553 10uF
C555
10uF
C529
10uF
C55410uF
C558
10uF
C530
FREERUN2-ON/OFF
005
10k
R580
10k
R582
+3.3V-2
NDS356AP
Q503
S
+3.3V-3
10k
R585
0.1uF
C574
100k
R586
DTC144EE-TL
Q502
-5V
DTA144EE-TL
Q501
Output1-SDI/VBS
002
47
R587
3.3k
R588
Output2-SDI/VBS
002
0.1uF
C573
+3.3V
0.1uF
C575
+3.3V-4
DTC144EE-TL
Q505
+3.3V-2
Output3-SDI/VBS
002
100k
R591
0.1uF
C577
NDS356AP
Q506
S
DTA144EE-TL
Q504
0.1uF
C576
10k
R592
-5V
3.3k
R590
47
R589
SN74LVC240APWR
IC508 (1/9)
2
1
18
SN74LVC240APWR
IC508 (2/9)
17
19
3
SN74LVC240APWR
IC508 (3/9)
4
16
SN74LVC240APWR
IC508 (4/9)
15
5
SN74LVC240APWR
IC508 (5/9)
6
14
SN74LVC240APWR
IC508 (6/9)
13
7
SN74LVC240APWR
IC508 (7/9)
8
12
SN74LVC240APWR
IC508 (8/9)
11
9
SN74LVC240APWR
IC508 (9/9)
10
GND
20
VCC
+3.3V
+3.3V
1uF
C578
1k
R593
1k
R594
470
RB516
12
34
56
78
CN902
a6
(31/135)
SD-MAIN-SDI(X)-out
CN902
b6
(32/135)
FR-GND
470
RB519
12
34
56
78
CN902
a8
(43/135)
FR-GND
1k
RV501
1
2
3
470
RB517
12
34
56
78
16V
47uF
C531
CN902
a7
(37/135)
SD-MAIN-SDI(Y)-out
CN902
a10
(55/135)
SD-MONI-SDI(Y)-out
16V
47uF
C532
470
RB518
12
34
56
78
1k
RV502
1
2
3
CN902
b7
(38/135)
FR-GND
CN902
a11
(61/135)
FR-GND
TP503
470
RB520
12
34
56
78
CN902
a9
(49/135)
SD-MONI-SDI(X)-out
CN902
b9
(50/135)
FR-GND
470
RB515
12
34
56
78
TP504
CN902
a5
(25/135)
FR-GND
CN902
b10
(56/135)
FR-GND
220
R621
220
R622
TC7SH08FU(T5RSOYJF)
IC505 (1/2)
2
14
TC7SH08FU(T5RSOYJF)
IC505 (2/2)
3
GND
5
VCC
OUT_A_D9
OUT_A_D8
OUT_A_D7
OUT_A_D6
OUT_A_D5
OUT_A_D4
OUT_A_D3
OUT_A_D2
OUT_A_D1
OUT_A_D0
OUT_A_D9
OUT_A_D8
OUT_A_D7
OUT_A_D6
OUT_A_D5
OUT_A_D4
OUT_A_D3
OUT_A_D2
OUT_B_D2
OUT_B_D3
OUT_B_D5
OUT_B_D6
OUT_B_D7
OUT_B_D9
OUT_B_D8
OUT_B_D4
OUT_B_D9
OUT_B_D8
OUT_B_D7
OUT_B_D6
OUT_B_D5
OUT_B_D4
OUT_B_D3
OUT_B_D2
OUT_B_D1
OUT_B_D0
D1_A_D9
D1_A_D8
D1_A_D7
D1_A_D6
D1_A_D5
D1_A_D4
D1_A_D3
D1_A_D2
D1_A_D1
D1_A_D0
OUT_A_D1
OUT_A_D0
D1_B_D9
D1_B_D8
D1_B_D7
D1_B_D6
D1_B_D5
D1_B_D4
D1_B_D3
D1_B_D2
D1_B_D1
D1_B_D0
OUT_B_D1
OUT_B_D0
PCK1
PCK2
EN-156A (4/5)EN-156A (4/5)
EN-156A (4/5)
BOARD NO. 1-865-025-11
CCU-TX50_EN-156_11P_4
4-324-32
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
EN-156A (5/5)EN-156A (5/5)
EN-156A (5/5)
BOARD NO. 1-865-025-11
CCU-TX50_EN-156_11P_5
+3.3V +3.3V
+3.3V
10
R705
0.1uF
C737
1k
R704
0.1uF
C736
1k
R701
MASTER-RESET
002,003,004,005
1k
R703
0.1uF
C735
1k
R702
100
R724
+5V
G-GAIN
002
S701
12
34
56
78
100
R730
0.1uF
C748
PCA9555DB-118
IC715
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
+5V
GND
WFM-GAIN
003
FREERUN1-ON/OFF
004
+3.3V
0.1uF
C749
EP1K-CONF-DONE
002,004,005
R-GAIN
002
0.1uF
C744
VBS-GAIN
003
GND
S703
12
34
56
78
B-GAIN
002
PIX-GAIN
003
100
R733
M62352AGP-D60Q
IC716
DI
17
GND
20
VCC
11
AO1
18
DO
14
VDD
10
VSS
1
CLK
16
AO2
19
AO3
2
AO4
3
AO5
4
AO6
5
AO7
6
AO8
7
AO9
8
AO10
9
AO11
12
AO12
13
LD
15
PWR-OK/NG
001
+3.3V
0.1uF
C752
100
R722
MASTER-RESET
002,003,004,005
D705
FMP1-T-148
14
2
3
5
D706
FMP1-T-148
1
4
2
3
5
FMP1-T-148
D704
1
4
2
3
5
0.1uF
C751
FMP1-T-148
D702
14
2
3
5
FMP1-T-148
D703
1
4
2
3
5
+3.3V
FMP1-T-148
D701
14
2
3
5
S702
12
34
56
78
S704
12
34
56
78
S707
1
2
3
4
5
6
S708
1
2
3
4
5
6
S709
1
2
3
4
5
6
S705
5
MT1
4
MT2
6
G1
789
10
S706
5
MT1
4
MT2
6
G1
789
10
100k
R732
+3.3V
100
R725
3WIRE-LOAD-PULSE
003
LM75CIMMX-3
IC714
A2
5
GND
4
O.S.
3
+VS
8
A1
6
A0
7
SDA
1
SCL
2
+3.3V
0.1uF
C747
74VHC74MTCX
IC721 (2/3)
D
12
CP
11
CD
13
Q8
Q
9
SD
10
+3.3V
1k
R743
+3.3V
GND
100k
R746
100
R753
100k
R741
R739
100k
2SA1774TL-QR
Q701
+3.3V
1k NM
R751
74VHC74MTCX
IC721 (3/3)
7
GND
14
VCC
2SC4617TL-QR
Q703
100k
R748
SEQ-SYNC
002
GND
1k
R752
1k
R738
SEQ-SYNC-RST
002
1k
R742
SEQ-RST-Latch
002
1uF
C753
1k
R750
CPU-S-SYNC-RST
002
10k
R747
2SA1774TL-QR
Q702
+3.3V
100k
R749
74VHC74MTCX
IC721 (1/3)
D
2
CP
3
CD
1
Q6
Q
5
SD
4
+3.3V
+3.3V
100k
R740
1k
R745
100k
R718
NM
100k
R719
NM
+3.3V
0.1uF
C739
1k
R711
CONFIG-BUS
002,004
+3.3V
1k
R715
1k
R713
+3.3V
EPC2LC20N-TP
IC708
DCLK
4
OE
8
nCS
9
VCCSEL
5
VPPSEL
14
TDI
11
TDO
1
TMS
19
TCK
3
GND
10
VPP
18
VCC
20
nCASC
12
DATA
2
nINIT_CONF
13
1k
R709
EP1K-CONF-DONE
002,004,005
10k
R744
FREERUN2-ON/OFF
004
0
R734
NM
0
R736
NM
0
R735
0
R737
+3.3V
74VHCT08AMTCX
IC720 (1/5)
1
2
3
74VHCT08AMTCX
IC720 (2/5)
4
5
6
74VHCT08AMTCX
IC720 (3/5)
9
10
8
74VHCT08AMTCX
IC720 (4/5)
12
13
11
74VHCT08AMTCX
IC720(5/5)
7
GND
14
VCC
+3.3V
RN5VD28AA-TL-FA
IC717
CD
5
GND
3
VDD
2
OUT
1
PLD-RE-CONF
002,004
100
R729
74VHC08MTCX
IC718 (1/5)
1
2
3
74VHC08MTCX
IC718(2/5)
4
5
6
74VHC08MTCX
IC718 (3/5)
9
10
8
74VHC08MTCX
IC718 (4/5)
12
13
11
74VHC08MTCX
IC718(5/5)
7
GND
14
VCC
+3.3V
+3.3V
1uF
C750
+3.3V
100k
R728
100k
R723
74VHC04MTCX
IC722 (1/7)
12
74VHC04MTCX
IC722 (2/7)
34
74VHC04MTCX
IC722(3/7)
56
74VHC04MTCX
IC722 (4/7)
98
74VHC04MTCX
IC722
(5/7)
11 10
74VHC04MTCX
IC722 (6/7)
13 12
74VHC04MTCX
IC722 (7/7)
7
GND
14
VCC
+3.3V
74VHC08MTCX
IC703 (1/5)
1
2
3
74VHC08MTCX
IC703 (2/5)
4
5
6
74VHC08MTCX
IC703(3/5)
9
10
8
74VHC08MTCX
IC703 (4/5)
12
13
11
74VHC08MTCX
IC703(5/5)
7
GND
14
VCC
100k
R717
+3.3V
SLOT-ID-IN
002,003,004,005
SN74LVC244APWR
IC706
1A1
2
1A2
4
1A3
6
1A4
8
2A1
11
2A2
13
2A3
15
2A4
17
1G
1
2G
19
GND
10
2Y4
3
2Y3
5
2Y2
7
2Y1
9
1Y4
12
1Y3
14
1Y2
16
1Y1
18
VCC
20
SLOT-ID-IN
002,003,004,005
+3.3V
0.1uF
C746
100k
R720
0.1uF
C745
0.1uF
C754
100
R756
100
R755
100
R757
GND
220
R754
+3.3V
+3.3V
SLOT-ID-IN
002,003,004,005
1k
NM
RB702
12
34
56
78
CN902
c24
(126/135)
Serial-Load
10k
RB706
12
34
56
78
CN902
c22
(114/135)
COM-HIRA-PIN 2
CN902
b25
(131/135)
IIC-SCL1
CN902
d16
(79/135)
VDA-NG/OK-in
CN901
(32/66)
B6
SLOT-ID-in (Pull-Up)
CN902
b22
(113/135)
COM-HIRA-PIN 1
CN902
a25
(130/135)
IIC-SDA1
CN902
e23
(122/135)
MASTER-RST
10k
RB705
12
34
56
78
CN701
1
Vcc
2
TRST
3
TDI
4
TDO
5
TMS
6
TCK
9
10
7
8
GND
100
RB703
12
34
56
78
1k
RB701
NM
12
34
56
78
CN902
d25
(133/135)
IIC-SDA2
CN902
c25
(132/135)
IIC-CS
ISP-BUS 002,004
CN902
e25
(134/135)
IIC-SCL2
CN902
b24
(125/135)
Serial-Clock
IIC2-BUS
002,003,004
CN902
a24
(124/135)
Serial-Data
TC7SH08FU(T5RSONYJF)
IC702 (1/2)
2
14
TC7SH08FU(T5RSONYJF)
IC702 (2/2)
3
GND
5
VCC
TC7SH08FU(T5RSONYJF)
IC723 (1/2)
2
1
4
TC7SH08FU(T5RSONYJF)
IC723 (2/2)
3
GND
5
VCC
0.1uF
C755
TC7SH14FU(T5RSONYJF)
IC713 (1/2)
24
TC7SH14FU(T5RSONYJF)
IC713 (2/2)
3
GND
5
VCC
TRST
EN-SW1
EN-SW6
EN-SW7
EN-SW6
EN-SW5
EN-SW2
EN-SW4
EN-SW1
EN-SW3
EN-SW2
EN-SW2
EN-SW7
EN-SW1
EN-SW3
EN-SW6
EN-SW0
EN-SW5
EN-SW4
EN-SW0
EN-SW4
EN-SW3
EN-SW6
EN-SW1
EN-SW0
EN-SW5
EN-SW5
EN-SW4
EN-SW0
EN-SW7
EN-SW0
EN-SW1
EN-SW2
EN-SW3
EN-SW4
EN-SW5
EN-SW6
EN-SW7
TDI1
TMS1
TCK1
EP1K-DCLK
EP1K-nSTATUS
EP1K-DATA0
TDI3
TMS1
TCK1
SCL
SDA
E_000_000_xx_01
EPR
(MODE)
OUTPUT1
TEST
11
A-B
10
01
00
SEL1
SEL0
OUTPUT2
MODE
OFF-ON
OFF-ON
ENTER
CANCEL
UP
DOWN
1001x01X
0100000X
BOARD-ID0
BOARD-ID1
1'st slot => LOW
2'nd slot => HIGH
2'nd slot => HIGH
1'st slot => LOW
0100100X
1'st slot => OPEN
2'nd slot => GND
SEQ-SYNC-IN
SEQ-SYNC-OUT
1'st slot => LOW
2'nd slot => HIGH
4-33 4-33
2
3
4
5
1
ABCDEFGH
CCU-TX50/V2
100k
R45
47k
R44
GND
1k
R43
FRONT-PNL-PWR-OFF/ON
003
TLP181(BL-TPR)
PH1
1
3
6
4
+5V
68k
R47
+5.5V
R21
2.2k
GND
+2.5V
220
R1
C21
100pF
10k
R16
+5V-2
33k
R20
GND
100pF
C24
1uF
C33
100
R5
LM339NS-E20
IC2
(2/4)
+
9
-
8
14
2SA1213Y-TE12L
Q1
R9
220
C20
100pF
02DZ4.7-TPH3
D2
D1
02DZ4.7-TPH3
33k
R28
68k
R22
NJM062V(TE2)
IC4
(2/2)
+
5
-6
7
2SA1213Y-TE12L
Q3
LM339NS-E20
IC2
(4/4)
+
5
-
4
12
2
3
CL-220PG-C-TS
D3
100
R8
1uF
C11
+3.3V
+5.5V
R10
220
100pF
C32
33k
R26
+5V-2
1uF
C13
10uH
L3
6.3V
10uF
C5
LM339NS-E20
IC2
(3/4)
+
11
-
10
13
6.3V
10uF
C2
GND
15k
R39 22k
R52
CL2
1uF
C36
2SC2873Y-TE12L
Q5
GND
220
R2
15k
R40
+3.3V
CL5
CL1
1uF
C37
1uF
C35
+5V-2
R15
33k
10uH
L2
GND
NJM062V(TE2)
(1/2)
IC3
+
3
-2
4
1
8
2SC4617TL-QR
Q7
33k
R18
100
R6
-5.5V
33k
R25
2.2k
R32
+5V
+12V
-5V
10uH
L1
2SC2873Y-TE12L
Q2
15k
R33
R29
68k
100
R7
GND
33k
R27
15k
R34
33k
R17
1uF
C12
2.2k
R36
100pF
C31
10k
R51
220
R3
6.3V
10uF
C3
6.3V
10uF
C4
-5.5V
GND
33k
R19
33k
R31
6.8k
R42
33k
R46
16V
1uF
C14
10k
R37
2SC4617TL-QR
Q9
0.1uF
C9
GND
1uF
C34
220
R13
470
R23
NJM062V(TE2)
(2/2)
IC3
+
5
-6
7
2.2k
R38
33k
R24
220
R4
100pF
C23
+2.5V
2SA1213Y-TE12L
Q4
2SC4617TL-QR
Q6
NJM062V(TE2)
IC4
(1/2)
+
3
-2
4
1
8
6.3V
10uF
C8
GND
2.2k
R50
1uF
C10
3.3k
R49
100pF
C27
LM339NS-E20
IC2
(1/4)
+
7
-
6
1
100k
R11
220
R12
R30
68k
+12V
+3.3V
+5.5V
CL3
22k
R35
6.3V
10uF
C1
+5V
6.3V
10uF
C7
R14
33k
GND
6.3V
10uF
C6
CL4
-5V
10k
R53
16V
1uF
C25
LM4040AIM3-2.5
IC1
-
2
+
1
NC
3
+3.3V
SI4425DY-T1
Q8
4
12
8765
3
33k
R41
15k
R48
+3.7V
15k
R54
33k
R55
MA133-TX
D4
1
2
3
CN902
f10
(60/135)
CN902
c10
(57/135)
MB-GND
CN901
(24/66)
F4
CN902
c6
(33/135)
(NC)
CN902
c11
(63/135)
+30V (for RCP)-out
CN901
(54/66)
F9
SHIELD
CN902
c7
(39/135)
MB-GND
CN901
(7/66)
A2
POW-GND
CN902
a20
(100/135)
+12.5V
E2
10uF
16V
C30
47uF
16V
C19
100uF
10V
C38
CN902
e9
(53/135)
-5.5V
CN901
(11/66)
E2
POW-GND
CN902
d18
(91/135)
+12V-Front-AU
CN902
f18
(93/135)
CN901
(17/66)
E3
MAIN +3.7V
E1
CN902
b8
(44/135)
MB-GND
CN901
(48/66)
F8
CN902
c9
(51/135)
MB-GND
CN902
b11
(62/135)
GND (for RCP+30V)
CN901
(14/66)
B3
MAIN +3.7V
CN902
f19
(99/135)
SHIELD
CN902
b2
(8/135)
PANEL +30V from AT
C28
10uF
16V
CN902
d10
(58/135)
CN902
c2
(9/135)
PANEL +30V from AT
CN902
e11
(65/135)
MB-GND
CN901
(15/66)
C3
MAIN +3.7V
CN901
(9/66)
C2
POW-GND
CN902
f4
(24/135)
CN901
(10/66)
D2
POW-GND
47uF
16V
C41
CN902
d9
(52/135)
-5.5V
CN902
f1
(6/135)
SHIELD
CN902
e18
(92/135)
+3.7V
CN902
b15
(71/135)
MB-GND
47uF
16V
C40
CN901
(6/66)
F1
SHIELD
CN901
(60/66)
F10
CN902
f2
(12/135)
CN902
f9
(54/135)
SHIELD
CN901
(18/66)
F3
SHIELD
CN902
e8
(47/135)
+5.5V
CN902
f3
(18/135)
SHIELD
10uF
16V
C22
CN902
f7
(42/135)
SHIELD
CN902
d8
(46/135)
+5.5V
CN902
c20
(102/135)
MB-GND
CN902
f14
(69/135)
CN902
f6
(36/135)
CN902
d11
(64/135)
+30V (for RCP)-out
CN901
(35/66)
E6
MB-GND
CN902
f25
(135/135)
SHIELD
CN902
a4
(19/135)
100uF
10V
C39
CN902
c8
(45/135)
+5.5V
CN902
f20
(105/135)
CN902
a21
(106/135)
Reference +5V-out
C17
47uF
16V
CN902
f13
(68/135)
SHIELD
47uF
16V
C18
CN902
f15
(75/135)
SHIELD
CN902
f11
(66/135)
SHIELD
CN902
d20
(103/135)
-12.5V
47uF
16V
C26
CN901
(16/66)
D3
MAIN +3.7V
CN902
f23
(123/135)
SHIELD
CN902
e19
(98/135)
+3.7V
CN902
f5
(30/135)
SHIELD
CN902
a11
(61/135)
GND (for RCP+30V)
CN901
(12/66)
F2
CN901
(36/66)
F6
CN902
f21
(111/135)
SHIELD
CN901
(13/66)
A3
MAIN +3.7V
CN902
f17
(87/135)
SHIELD
CN902
f16
(81/135)
CN901
(8/66)
B2
POW-GND
CN901
(42/66)
F7
SHIELD
CN902
f12
(67/135)
CN902
f24
(129/135)
PWR-OK/NG
003
47uF
16V
C16
CN902
e10
(59/135)
CN902
e20
(104/135)
-12.5V
CN902
b4
(20/135)
47uF
16V
C15
CN902
f22
(117/135)
E3 E4
CN902
f8
(48/135)
CN901
(30/66)
F5
SHIELD
CN902
b20
(101/135)
+12.5V
CN901
(66/66)
F11
SHIELD
CN902
b18
(89/135)
MB-GND
10uF
16V
C29
THP4
THP1
THP2
THP3
THP5
(Floating)
(1.82V)
+2.5V
1A/6V
+3.3V
for AU,TR,DM & Rear
POWER
(15)
(120)
(1.49V)
(**)
(1.49V)
1A/6V
(Back)
-5V
(1.82V)
+5V
(1.65)
1A/6V
1A/6V
0.2A/30V
(1.18V)
+12V
(1.8V)
(2.54V)
AT-155 (1/5)AT-155 (1/5)
AT-155 (1/5)
BOARD NO. 1-865-024-11
CCU-TX50_AT-155_010_1
4-344-34
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
R106
10k
C104
0.1uF
R115
10k
C123
0.1uF
R108
4.7k
NM
C105
0.1uF
C103
0.1uF
R107
1k
R117
15k
0.1uF
C135
R168
47
0.1uF
C122
100
R126
R144
100k
0.1uF
C119
0.1uF
C120
0.1uF
C121
0.1uF
C126
0.1uF
C127
0.1uF
C128
0.1uF
C129
0.1uF
C130
0.1uF
C131
0.1uF
C132
100k
R153
100
R125
10k
R180
0.1uF
C138
CL105
1k
R113
10uH
L105
22uF
C118
NC7SZ08P5X
(2/2)
IC124
3
GND
5
VCC
NC7SZ08P5X
(1/2)IC124
1
2
4
470pF
C133
100
R121
100
R119 100k
R128
100k
R130
10k
R116
2.2k
R133
2.2k
R134
10k
R151
470pF
C134
PHY-XFDX-LED
004
XINT-CPU-VD
004
XINT-700P-CHU
003
XINT-700P-RM
003
XINT-700P-RCP
003
10k
R167
10k
R157
10k
R156
10k
R154
22
R170
+3.3V
22
R161
22
R163
22
R164
22
R165
10k
R160
+3.3V
10k
R139
0.1uF
C102
CL104
100
R123
2.2k
R131
100
R122
2.2k
R132
2.2k
R135
100
R127
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
PCF8591T
IC102
AIN0
1
AGND
13
OSC
11
SDA
9
SCL
10
VREF
14
AOUT
15
VDD
16
VSS
8
AIN1
2
AIN2
3
AIN3
4
A0
5
A1
6
A2
7
EXT
12
+3.3V
100k
R129
100
R120
SD-PLL-VOLT
004
10uH
L102
0
R110
10k
R208
100k
R209
+3.3V
+3.3V
+3.3V
0.1uF
C114
100k
R145
+3.3V
CPU-RESET
003,004,005
CN101
NM
1
Target-Vcc1
2
Target-Vcc1
3
/BS
4
Reserve
5
A3
6
A2
7
A5
8
A4
9
GND
10
GND
11 A7
12 A6
13 A9
14 A8
15
A11
16
A10
17
A13
18
A12
19
GND
20
GND
21
A15
22
A14
23
A17
24
A16
25
A19
26
A18
27
A21
28
A20
29
GND
30
GND
31
A23
32
A22
33
Reserve
34
A24
35
Reserve
36
Reserve
37
/CS4
38
/CS1
39
GND
40
GND
41
Reserve
42
/CS0
43A1
44 A0
45D1
46D0
47D3
48D2
49
GND
50
GND
51 D5
52 D4
53 D7
54 D6
55 D9
56 D8
57
D11
58
D10
59
Target-Vcc2
60
Target-Vcc2
61
Target-Vcc2
62
Target-Vcc2
63
D13
64
D12
65
D15
66
D14
67
D17
68
D16
69
D19
70
D18
71
GND
72
GND
73
D21
74
D20
75
D23
76
D22
77
D25
78
D24
79
D27
80
D26
81
GND
82
GND
83
D29
84
D28
85
D31
86
D30
87
/RD
88
RD/WR
89
/WE1
90
/WE0
91
GND
92
GND
93
/WE3
94
/WE2
95
/CAS1
96
/CAS0
97
/CAS3
98
/CAS2
99
/CAS
100
/RAS
101 GND
102 GND
103
Reserve
104
Reserve
105
/CS3
106
/CS2
107
NMIIN
108
/ROMCS1
109
NMIOUT
110
/RSTOUT
111 GND
112 GND
113
CKIO
114
Reserve
115
/ROMCS3
116
Reserve
117
/ROMCS4
118
/ROMCS2
119
Target-Vcc3
120
Target-Vcc3
47
R169
+3.3V
0.1uF
C137
47
R174
47
R175
47
R177
47
R176
+3.3V
10uH
L101
+3.3V
0.1uF
C136
TADP-RSTOUT
002
TADP-RSTOUT
002
10k
R102
+3.3V
10
R101
100pF
C101
COR101
$
NM
1
2
3
10k
R155
CN102
NM
1
TCK
2
GND
3
TRST
4
GND
5
TDO
6
GND
7
N.C.
8
N.C.
9
TMS
10
GND
11
TDI
12
GND
13
RESET
14
GND
22
R162
22
R166
10uH
L106
NM
CAT24WC02JI-TE13
IC101
VSS
4
VCC
8
SDA
5
A2
3
A1
2
A0
1
SCL
6
WP
7
+3.3V
0.1uF
C113
100
R137
10k
R146
100
R138
+3.3V
10k
R147
100k
R118
+3.3V
+3.3V
0.1uF
C108
HD6417616SFV
IC107
IRL3
1
IRL2
2
IRL1
3
IRL0
4
NMI
5
ASEMODE
6
GND
7
RES
8
PLLVSS
9
CAP2
10
CAP1
11
PLLVCC
12
MD4
13
MD3
14
MD2
15
MD1
16
MD0
17
VCC1
18
EXTAL
19
VSS1
20
XTAL
21
VCC2
22
CKIO
23
CKPREQ/CKM
24
CKPACK
25
VSS2
26
IVECF
27
TDO
28
TDI
29
TCK
30
TMS
31
TRST
32
VCC3
33
D0
34
VSS3
35
D1
36
D2
37
D3
38
D4
39
D5
40
D6
41
VCC4
42
D7
43
D8
44
VSS4
45
D9
46
D10
47
D11
48
D12
49
VCC5
50
D13
51
VSS5
52
D14
53
D15
54
D16
55
D17
56
D18
57
VCC6
58
D19
59
VSS6
60
VSS7
61
D20
62
D21
63
D22
64
D23
65
VCC7
66
VCC8
67
D24
68
VSS8
69
D25
70
D26
71
D27
72
D28
73
D29
74
D30
75
VCC9
76
D31
77
VSS9
78
VSS10
79
A0
80
VCC10
81
A1
82
A2
83
A3
84
A4
85
A5
86
A6
87
A7
88
VCC11
89
A8
90
VSS11
91
A9
92
A10
93
A11
94
A12
95
A13
96
A14
97
A15
98
VCC12
99
A16
100
VSS12
101
A17
102
A18
103
A19
104
A20 105
A21 106
A22 107
A23 108
VCC13
109
VCC14
110
A24 111
VSS13
112
VSS14
113
VSS15
114
WAIT
115
VCC15
116
RAS 117
CAS/OE
118
DQMUU/WE3
119
DQMUL/WE2
120
DQMLU/WE1
121
DQMLL/WE0
122
CAS3
123
CAS2
124
CAS1
125
CAS0
126
CKE 127
RD
128
REFOUT
129
VSS16
130
BS
131
VCC16
132
RD/WR
133
CS0 134
CS1 135
CS2 136
CS3 137
CS4 138
BUSHIZ
139
BH
140
DREQ1
141
DREQ0
142
DACK1
143
DACK0
144
BRLS
145
VCC17
146
VCC18
147
BGR 148
VSS17
149
VSS18
150
PB15/SCK1
151
PB14/RXD1
152
PB13/TXD1
153
PB12/SRCK2/RTS/STATS1
154
PVCC1
155
PB11/SRS2/CTS/STATS0
156
PVSS1
157
PB10/SRXD2/TIOCA1
158
PB9/STCK2/TIOCB1/TCLKC
159
PB8/STS2/TIOCA2
160
PB7/STXD2/TIOCB2/TCLKD
161
PB6/SRCK1/SCK2
162
PB5/SRS1/RXD2
163
PB4/SRXD1/TXD2
164
PB3/STCK1/TIOCA0
165
PB2/STS1/TIOCB0
166
PVCC2
167
PB1/STXD1/TIOCC0/TCLKA
168
PVSS2
169
PB0/TIOCD0/TCLKB/WOL
170
PA13/SRCK0
171
PA12/SRS0
172
PA11/SRXD0
173
PA10/STCK0
174
PA9/STS0
175
PA8/STXD0
176
PA7/WDTOVF
177
PA6/FTCI
178
PVCC3
179
PA5/FTI
180
PVSS3
181
PA4/FTOA
182
CKPO/FTOB
183
PA2/LNKSTA
184
PA1/EXOUT
185
PA0/CAMSEN
186
RXER
187
RXDV
188
COL 189
CRS 190
PVSS4
191
RXCLK
192
PVCC4
193
ERXD0
194
ERXD1
195
ERXD2
196
ERXD3
197
MDIO
198
MDC 199
PVCC5
200
TXCLK
201
PVSS5
202
TXEN
203
ETXD0
204
ETXD1
205
ETXD2
206
ETXD3
207
TXER
208
CY2309ZC-1HT
IC109
S1
9
GND1
5
VDD1
4
CLKA1
2
CLKA2
3
CLKA3
14
CLKA4
15
VDD2
13
S2
8
REF
1
GND2
12
CLKB4
11
CLKB3
10
CLKB2
7
CLKB1
6
CLKOUT
16
47
R178
NJM062V(TE2)
IC131
(1/2)
+
5
-
6
7
NJM062V(TE2)
IC131
(2/2)
+
3
-
2
4
1
8
10uH
L103
0.1uF
C106
-5V
+5V
10uH
L104
+3.3V
0
R112
0.1uF
C117
100
R140
100
R141
10k
R152
+3.3V
100
R142
10k
R150
0.1uF
C110
0.1uF
C109
0.1uF
C112
0.1uF
C111
RTC-4574JE
IC103
VDD
1
FOUT
2
CE0
3
AIRQ
4
TIRQ
5
CLK
6
DATA
7
CE1
8
FCON
9
GND
10
NC10
20
NC9
19
NC8
18
NC7
17
NC6
16
NC5
15
NC4
14
NC3
13
NC2
12
NC1
11
+3.3V
100
R143
100
R149
100
R148
10k
R136
+3.3V
BT101
2SA1774TL-QR
Q102
+3.3V
10k
R109
02DZ2.2-TPH3
D101
470
R103
2SC4617TL-QR
Q101
2.2k
R104
47k
R105
1SS302-TE85L
D102
1
23
+3.3V
1k
R111
5.5V
0.22F
C107
1k
R114
RB706F-40
D103
1
23
1SS302-TE85L
D104
12
3
0.47uF
C140
+3.3V
2SC4617TL-QR
Q103
47k
R188
2.2k
R187
PWR-ON-RESET
003
TC74VHC138FT(EL)
IC140
A
1
B
2
C
3
G1
6
G2A
4
G2B
5
GND
8
Y7
7
Y6
9
Y5 10
Y4 11
Y3 12
Y2 13
Y1 14
Y0 15
VCC
16
10k
R220
10k
R221
10k
R222
10k
R223
10k
R224
10k
R225
CL103
XINT-232C
003
+3.3V
0.1uF
C176
SN74LVC74APWR-12
IC106
1PRE
4
1D
2
GND
7
1Q
5
VCC
14
1CLK
3
1CLR
1
2PRE
10
2D
12
2CLK
11
2CLR
13
1Q
6
2Q
9
2Q
8
CL102
RN5VD23AA-TL-FA
IC113
CD
5
GND
3
OUT
1
VDD
2
NC
4
TLC272CPWR-12
IC145
(1/2)
+
5
-
6
4
7
8
TLC272CPWR-12
IC145
(2/2)
+
3
-
2
1
10k
R192
0
R193
100
R194
+3.3V
100k
R195
25MHz-CLK
004
100
R226
2.2k
R227
CN902
b25
(131/135)
IIC-SCL1
CN902
d4
(22/135)
Chara-Gen-Data-out
CN902
a22
(112/135)
(Front-Incom-VR)
S101
PHY 004
CN901
(31/66)
A6
CharaGen-CS1
CN902
e23
(122/135)
MASTER-RST
CONTROL
002,003,005
CN902
e4
(23/135)
Chara-Gen-Clk-out
ADDRESS
002,003,005
CN902
c25
(132/135)
IIC-SCL3
CONFIG-BUS
005
CN902
a25
(130/135)
IIC-SDA1
CN902
d25
(133/135)
IIC-SDA2
H-UDI
002
H-UDI
002
DATA
002,003,005
CN902
c4
(21/135)
Chara-Gen-CS-out
CN902
c17
(84/135)
(Unreg-Volt-SENSE-in)
CN902
b22
(113/135)
IIC-SDA3
10k
RV101
1
2
3
1SS302-TE85L
D106
1
2
3
+3.3V
GND
TC7SH08FU(T5RSOYJF)
IC110 (1/2)
2
14
IC110
(2/2)
3
GND
5
VCC
TC7SH08FU(T5RSOYJF)
IC104 (1/2)
2
1
4
0.1uF
C115
TC7SH08FU(T5RSOYJF)
(1/2)IC105
2
1
4
IC104
(2/2)
3
GND
5
VCC
(2/2)
IC105
3
GND
5
VCC
0.1uF
C116
TC7SH14FU(T5RSOYJF)
(1/2)IC134
24
(2/2)IC134
TC7SH14FU(T5RSOYJF)
3
GND
5
VCC
A20
A21
A22
XCS2
XRD-2
XRD
A0
A1
A2
A3
A4
A5
A6
A9
A10
A11
A12
A15
A16
A17
A18
A19
D31
D30
D29
D28
D27
D26
D25
D23
D22
D21
D20
D19
D18
D16
D15
D14
PHY-TX-ER
PHY-ETXD3
PHY-ETXD2
PHY-ETXD1
PHY-ETXD0
PHY-TX-EN
PHY-TX-CLK
PHY-MDC
PHY-MDIO
PHY-ERXD3
PHY-ERXD2
PHY-ERXD1
PHY-ERXD0
PHY-RX-CLK
PHY-CRS
PHY-COL
PHY-RX-DV
PHY-RX-ER
PHY-SPD-ST
PHY-LINK-ST
XCPU-RST
SH-TCK
SH-XTRST
SH-TMS
SH-TDI
H:RTC-CS
RTC-CLK
RTC-SIO
SCL1
SDA1
SDA2
SCL2
SDA2
SDA1
SCL1
IIC3-SCL
DACK(MS)
PIO-1
PIO-2
PIO-3
XCPU-RST
A3
A2
A5
A4
A7
A6
A9
A8
A11
A10
A13
A12
A15
A14
A17
A16
A19
A18
A21
A20
A23
A22
A24
A1
A0
D1
D0
D3
D2
D5
D4
D7
D6
D9
D8
D11
D10
D13
D12
D15
D14
D17
D16
D19
D18
D21
D20
D23
D22
D25
D24
D27
D26
D29
D28
D31
D30
WR/RD
XRD
XSHWE1
XSHWE0
XSHWE3
XSHWE2
XSHCAS
XSHRAS
XCS3
XCS2
XCS0
TADP-CLK
XCS4
XCS1
XCS0
IIC3-SDA
BUSY/READY
/BS
XCS4
SH-TDO
ASEMODE
SDA-MAC
SCL-MAC
SCL-AD
SDA-AD
H:RTC-CS
H-UDI-RST
XCS0
XCS1
XCS2
XCS3
SDA-AD
TADP-NMI-OUT
SCL-AD
ASEMODE
MODE4
MODE3
DREQ(MS)
XCS4
XCS2
XCS3
XCS1
XCS0
CPU-CLK
SR1-CLK
SR2-CLK
TADP-CLK
WR/RD
/BS
SH-TDO
SH-TDI
SH-TCK
SH-TMS
SH-XTRST
XRD
SHCKE
XSHWE0
XSHWE1
XSHWE2
XSHWE3
XSHCAS
XSHRAS
XWAITXWAIT
A24
A23
A22
A21
A20
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D17
D24
A7
A8
A13
A14
SDA-MAC
SCL-MAC
BUSY/READY
CONF-DONE
UPDATE
PIO-XDIS
IIC3-SCL
A24
A23
CS(700R)
CS(700F)
CS(CHU)
CS(232C)
TADP-NMI-OUT
RTC-CLK
RTC-SIO
H-UDI-RST
INTR(MS)
SCL2
PRTCT-OFF/ON
MS-CLK
IIC3-SDA
XTAL OPEN
CLOCK
MODE
=MODE0
CS0 BUS
WIDTH
=32bit
PLL Control Level
DC Alarm Threshold
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
ALARM-VOLT
UNREG(10.5V-18V)X(10/33), 1k dashi
H-UDI CN
(OPEN)
25MHz
OPEN
NORMAL
DEBUG
IIC ADDRESS:EEPROM
1 0 1 0 L L L W/R
MAC Address
ON:Write Protect
PROTECT
OFF:MAC Write enable
H :Config-Done
12.5MHz
12.5MHz
25MHz
AT-155 (2/5)AT-155 (2/5)
4-35 4-35
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
0.1uF
C161
0.1uF
C144
10
R191
0.1uF
C172
0.1uF
C145
10uH
L109
22uF
C163
RB106
100k
12
34
56
78
RB107
100k
12
34
56
78
RB108
100k
12
34
56
78
RB109
100k
12
34
56
78
100k
RB102
12
34
56
78
100k
RB103
12
34
56
78
100k
RB104
12
34
56
78
100k
RB105
12
34
56
78
0
R215
0.1uF
C164
0.1uF
C165
0.1uF
C162
0.1uF
C166
0.1uF
C146
+5V
0.1uF
C173
100k
RB110
12
34
56
78
100k
RB111
12
34
56
78
100k
RB112
12
34
56
78
100k
RB113
12
34
56
78
100k
RB114
12
34
56
78
100k
RB115
12
34
56
78
100k
RB116
12
34
56
78
0.1uF
C147
0.1uF
C149
0.1uF
C151
0.1uF
C153
0.1uF
C155
0.1uF
C157
0.1uF
C159
0.1uF
C160
0.1uF
C154
0.1uF
C148
0.1uF
C156
0.1uF
C150
0.1uF
C158
0.1uF
C152
+3.3V
+3.3V
+3.3V
10k
R184
10k
R181
+3.3V
+3.3V
+3.3V
SN74CBT3253PWR-12
IC112
1B1
6
1B2
5
1B3
4
1B4
3
2B1
10
2B2
11
2B3
12
2B4
13
S0
14
S1
2
OE1
1
OE2
15
GND
8
2A
9
1A
7
VCC
16
+3.3V
10k
R190
+3.3V
10k
R189
NC7SZ04P5X
IC126(1/2)
24
NC7SZ04P5X
IC126(2/2)
3
GND
5
VCC
NC7SZ04P5X
IC127
(1/2)
24
NC7SZ04P5X
IC127
(2/2)
3
GND
5
VCC
10k
R171
+3.3V
NC7SZ08P5X
IC128 (1/2)
1
24
NC7SZ08P5X
IC128
(2/2)
3
GND
5
VCC
+5V
0
R186
NM
+3.3V
0.1uF
C139
0
R173
0
R183
100k
R196
2SC4617TL-QR
Q105
+3.3V
10uH
L110
22k
R211
6.3V
22uF
C170
+3.3V
0.1uF
C171
100k
R210
NM
100k
R201
47k
R213
100k
RB117
12
34
56
78
MB86189PFV-G-BND-ER-E1
IC123
D15
40
D14
41
D13
44
D12
45
D11
46
D10
47
D9
48
D8
1
D7
2
D6
3
D5
4
D4
5
D3
7
D2
8
D1
9
D0
10
A3
36
A2
37
A1
38
HCKI
28
XRS
12
XCS
35
XRD/RDWRX
32
XWRH/XBE0
33
XWRL/XBE1
34
XINT
11
XDAK/XAS
30
XDRQ/XRDY
29
VSS1
6
VSS2
18
VSS3
31
VSS4
42
SEL
39
SDIR
14
BS 15
SCKO
17
SCKI
13
SDIO
16
PO0
24
PO1
25
PO2
26
PO3
27
PI0
20
PI1
21
PI2
22
PI3
23
VDD2
43
VDD1
19
GND
100k
R207
6.3V
22uF
C168
100k
R206
47k
R214
+3.3V
100k
R205
10uH
L111
1k
R197
3.3k
R212
GND
100
R204
0.1uF
C169
+3.3V
2SA1213Y-TE12L
Q104
10k
R200
100
R202
100
R203
100k
R199
GND
+3.3V+3.3V
0.1uF
C143
0.1uF
C142
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
10uH
L108
10uH
L107
+3.3V
+3.3V
100k
R172
+3.3V
+3.3V
100k
R182
COR102
$
NM
1
2
3
+3.3V
+3.3V
0.1uF
C141
+3.3V
FM18L08-70-STR
IC121
A12
2
A11
23
A10
21
A9
24
A8
25
A7
3
A6
4
A5
5
A4
6
A3
7
A2
8
A1
9
A0
10
WE
27
VSS
14
DQ0
11
DQ1
12
DQ2
13
DQ3
15
VDD
28
OE
22
A14
1
A13
26
DQ7
19
DQ6
18
DQ5
17
DQ4
16
CE
20
FM18L08-70-STR
IC122
A12
2
A11
23
A10
21
A9
24
A8
25
A7
3
A6
4
A5
5
A4
6
A3
7
A2
8
A1
9
A0
10
WE
27
VSS
14
DQ0
11
DQ1
12
DQ2
13
DQ3
15
VDD
28
OE
22
A14
1
A13
26
DQ7
19
DQ6
18
DQ5
17
DQ4
16
CE
20
TC74VHC138FT(EL)
IC139
A
1
B
2
C
3
G1
6
G2A
4
G2B
5
GND
8
Y7
7
Y6
9
Y5 10
Y4 11
Y3 12
Y2 13
Y1 14
Y0 15
VCC
16
100k
RB118
12
34
56
78
100k
RB119
12
34
56
78
+3.3V
0
R185
10uH
L112
0.1uF
C174
1SS302-TE85L
D105
12
3
1uF
C175
NC7SZ32P5X
IC118(1/2)
1
2
4
NC7SZ32P5X
IC118(2/2)
3
GND
5
VCC
0
R158
NM
0
R159
NM
SN74LVC74APWR-12
IC117
1PRE
4
1D
2
GND
7
1Q
5
VCC
14
1CLK
3
1CLR
1
2PRE
10
2D
12
2CLK
11
2CLR
13
1Q
6
2Q
9
2Q
8
MBM29LV160BE-90TN
IC114
A18
16
VSS2
46
VCC
37
A19
9
VSS1
27
DQ14
43
A17
17
A16
48
A15
1
A14
2
A13
3
A12
4
A11
5
A10
6
A9
7
A8
8
A7
18
A6
19
A5
20
A4
21
A3
22
A2
23
A1
24
A0
25
DQ15/A-1
45
RY/BY
15
DQ13
41
DQ12
39
DQ11
36
DQ10
34
DQ9
32
DQ8
30
DQ7
44
DQ6
42
DQ5
40
DQ4
38
DQ3
35
DQ2
33
DQ1
31
DQ0
29
CE
26
OE
28
WE
11
RESET
12
BYTE
47
NC3
14
NC2
13
NC1
10
MBM29LV160BE-90TN
IC115
A18
16
VSS2
46
VCC
37
A19
9
VSS1
27
DQ14
43
A17
17
A16
48
A15
1
A14
2
A13
3
A12
4
A11
5
A10
6
A9
7
A8
8
A7
18
A6
19
A5
20
A4
21
A3
22
A2
23
A1
24
A0
25
DQ15/A-1
45
RY/BY
15
DQ13
41
DQ12
39
DQ11
36
DQ10
34
DQ9
32
DQ8
30
DQ7
44
DQ6
42
DQ5
40
DQ4
38
DQ3
35
DQ2
33
DQ1
31
DQ0
29
CE
26
OE
28
WE
11
RESET
12
BYTE
47
NC3
14
NC2
13
NC1
10
NC7SZ32P5X
(1/2)
IC120
1
2
4
0.1uF
C124
NC7SZ32P5X
(2/2)
IC120
3
GND
5
VCC
+3.3V
SN74LVC74APWR-12
IC125
1PRE
4
1D
2
GND
7
1Q
5
VCC
14
1CLK
3
1CLR
1
2PRE
10
2D
12
2CLK
11
2CLR
13
1Q
6
2Q
9
2Q
8
+3.3V
0.1uF
C125
NC7SZ32P5X
(1/2)
IC130
1
2
4
NC7SZ32P5X
(2/2)
IC129
3
GND
5
VCC
+3.3V
+3.3V
NC7SZ32P5X
(1/2)
IC129
1
2
4
NC7SZ32P5X
(2/2)
IC130
3
GND
5
VCC
MS-LED-RED-OFF/ON
003
MS-LED-GREEN-OFF/ON
003
MT48LC8M16A2P-75-Y15WTR
IC116
VDD1
1
DQ0
2
VDDQ1
3
DQ1
4
DQ2
5
VSSQ1
6
DQ3
7
DQ4
8
VDDQ2
9
DQ5
10
DQ6
11
VSSQ2
12
DQ7
13
VDD2
14
DQML
15
WE
16
CAS
17
RAS
18
CS
19
BA0
20
BA1
21
A10
22
A0
23 A1
24 A2
25 A3
26
VDD3
27
VSS3
54
DQ15
53
VSSQ4
52
DQ14
51
DQ13
50
VDDQ4
49
DQ12
48
DQ11
47
VSSQ3
46
DQ10
45
DQ9
44
VDDQ3
43
DQ8
42
VSS2
41
NC2
40
DQMH
39
CLK
38
CKE
37
NC1
36
A11
35
A9
34
A8
33
A7
32
A6
31
A5
30
A4
29
VSS1
28
MT48LC8M16A2P-75-Y15WTR
IC119
VDD1
1
DQ0
2
VDDQ1
3
DQ1
4
DQ2
5
VSSQ1
6
DQ3
7
DQ4
8
VDDQ2
9
DQ5
10
DQ6
11
VSSQ2
12
DQ7
13
VDD2
14
DQML
15
WE
16
CAS
17
RAS
18
CS
19
BA0
20
BA1
21
A10
22
A0
23 A1
24 A2
25 A3
26
VDD3
27
VSS3
54
DQ15
53
VSSQ4
52
DQ14
51
DQ13
50
VDDQ4
49
DQ12
48
DQ11
47
VSSQ3
46
DQ10
45
DQ9
44
VDDQ3
43
DQ8
42
VSS2
41
NC2
40
DQMH
39
CLK
38
CKE
37
NC1
36
A11
35
A9
34
A8
33
A7
32
A6
31
A5
30
A4
29
VSS1
28
MS-IC-RESET
003
CN104
1
GND
2
GND
3
GND
4
GND
5
+3V
6
+3V
7
+3V
8
+3V
9
(A22)
10
(A21)
11
A20
12
A19
13
A18
14
A17
15
A16
16
A15
17
A14
18
A13
19
A12
20
A11
21
A10
22A9
23A8
24A7
25A6
26A5
27A4
28A3
29A2
30A1
31
CSO(JIG)
32RD
33
WRH
34
WRL
35
D15
36
D14
37
D13
38
D12
39
D11
40
D10
41D9
42D8
43D7
44D6
45D5
46D4
47D3
48D2
49D1
50D0
51
Auto Update
52
JIG DET
53
+5V
54
+5V
55
+5V
56
+5V
57
GND
58
GND
59
GND
60
GND
ADDRESS
002,003,005
CONTROL
002,003,005
S102
DATA
002,003,005
THP101
TC7SH14FU(T5RSOYJF)
IC108 (2/2)
3
GND
5
VCC
TC7SH14FU(T5RSOYJF)
IC108 (1/2)
24
TC7SH14FU(T5RSOYJF)
(1/2)IC136
24
TC7SH14FU(T5RSOYJF)
(2/2)IC136
3
GND
5
VCC
IC143
(1/2)
2
4
TC7SH14FU(T5RSOYJF)
IC143 (2/2)
3
GND
5
VCC
TC7SH08FU(T5RSOYJF)
(1/2)IC111
2
1
4
(2/2)
IC111
3
GND
5
VCC
IC144
(1/2)
2
1
4
TC7SH02FU(T5RSOYJF)
IC144 (2/2)
3
GND
5
VCC
IC141
(1/2)
2
4
TC7SH04FU(T5RSOYJF)
IC141 (2/2)
3
GND
5
VCC
TC7SH04FU(T5RSOYJF)
(2/2)IC142
3
GND
5
VCC
(1/2)
IC142
24
100k
R198
CN103
1
VSS
2
BS
3
VCC
4
DIO
5
(Reserve)
6
INS
7
(Reserve)
8
SCLK
9
VCC
10
VSS
11121314
DATA
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
D15
D14
D13
D12
D11
D10
D9
D8
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
D7
D6
D5
D4
D3
D2
D1
D0
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
XSHWE1
XRD
XSHWE0
XRD
A8
A7
A6
A5
A4
A3
A2
A1
A0
A16
A17
A18
A19
A20
A21
A22
A15
A23
A14
A13
A12
A11
A24
A10
A9
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
XCS3
WR/RD
XSHCAS
XSHRAS
XSHWE3
XSHWE2
SHCKE
XCS3
WR/RD
XSHCAS
XSHRAS
XSHWE1
XSHWE0
SHCKE
SR1-CLK
SR2-CLK
XCS0(FLASH)
XCS0(JIG)
JIG-DET
JIG-DET
UPDATE
MODE3
MODE4
DREQ(MS)
POWER(MS)
D7
D4
D5
A3
POWER(MS)
CK(MS)
D11
CK(MS)
D3
D0
BS(MS)
BS(MS)
D2
D9
D1
DREQ(MS)
D15
D10
D6
D14
INTR(MS)
A2
D8
DIO(MS)
D12
INTR(MS)
A1
SENSE(MS)
DACK(MS)
D13
DIO(MS)
XCS4
A20
A21
A22
MS-ENC-CS
CPU-CLK
XSHRAS
XSHCAS
XRD
WR/RD
XSHWE3
XSHWE2
XSHWE1
XSHWE0
XCS0
XCS1
A24
A23
SENSE(MS)
DACK(MS)
XCS0(JIG)
XRD-2
XSHWE1
XSHWE0
A21
A22
XCPU-RST
A20
A19
A18
A17
A16
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
XCS0(FLASH)
XRD
XSHWE3
A20
A19
A18
A17
A16
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
XCS0(FLASH)
XRD
XSHWE1
CPU-CLKCPU-CLK
XCPU-RST
XSHWE0
XSHWE1
XRD
XSHWE1
XSHWE0
MS-CLK
MEMORY STICK CN
DEBUG
NORMAL
ON:Upper area
OFF:Lower area
ROM-SEL
AT-155 (2/5)AT-155 (2/5)
AT-155 (2/5)
BOARD NO. 1-865-024-11
CCU-TX50_AT-155_010_2
4-364-36
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
1k
R341
+5V
0.1uF
C305
74VHC245MTCX
IC302
A0
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9
OE
19
T/R
1
GND
10
B7 11
B6 12
B5 13
B4 14
B3 15
B2 16
B1 17
B0 18
VCC
20
100k
R331
FMP1-T-148
D302
14
2
3
5
FMP1-T-148
D304
1
4
2
3
5
FMP1-T-148
D301
14
2
3
5
FMP1-T-148
D303
1
4
2
3
5
0.1uF
C301
D308
FMP1-T-148
1
4
2
3
5
D306
FMP1-T-148
14
2
3
5
D305
FMP1-T-148
14
2
3
5
D307
FMP1-T-148
1
4
2
3
5
NTSC/PAL
004
R368
10k
+5V-2
GND
C309
0.1uF
330
R336
R332
22k
Q310
2SC4617TL-QR
R312
47k
+5V
100
R353
100
R354
100
R355
47k
R360
47k
R361
47k
R362
330
R337
220
R335
1k
R350
100k
R327
100k
R334
1k
R349
100k
R344
1k
R348
DELAY-SEL
004
100k
R301
100k
R303
+3.3V
+3.3V +3.3V
+3.3V
100k
R304
100k
R302
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
100
R338
NM
10uH
L301
6.3V
22uF
C307
10000pF
C304
2SC4617TL-QR
Q303
47k
R318
+3.3V
1k
R352
2SA1774TL-QR
Q306
2SA1774TL-QR
Q304
2SA1774TL-QR
Q305
10k
R316
10k
R314
10k
R315
4.7k
R325
4.7k
R321
4.7k
R324
10k
R317
4.7k
R326
220
R339
2SA1774TL-QR
Q307
FRONT-PNL-PWR-OFF/ON
001 100
R356
CXD1095BR
IC301
VDD1
24
VSS1
8
PA7
61 D7 37
VDD2
56
VSS2
23
VSS3
40
VSS4
55
D6 36
D5 35
D4 34
D3 33
D2 30
D1 29
D0 28
PA6
60
PA5
59
PA4
58
PA3
57
PA2
54
PA1
53
PA0
52
PB7
7
PB6
6
PB5
5
PB4
4
PB3
3
PB2
2
PB1
1
PB0
62
PC7
16
PC6
15
PC5
14
PC4
13
PC3
12
PC2
11
PC1
10
PC0
9
PE3
51
PE2
50
PE1
48
PE0
47
A2 46
A1 45
A0 44
XDIS
39
XWR
41
XRD
42
XCS
43
XCLR
38
PD7
27
PD6
26
PD5
25
PD4
22
PD3
21
PD2
20
PD1
19
PD0
18
0.1uF
C303
+3.3V
0.1uF
C302
+3.3V
47
R305
+3.3V
+3.3V
47
R367
0.1uF
C310
+3.3V
0.1uF
C308
CXD1095BR
IC304
VDD1
24
VSS1
8
PA7
61 D7 37
VDD2
56
VSS2
23
VSS3
40
VSS4
55
D6 36
D5 35
D4 34
D3 33
D2 30
D1 29
D0 28
PA6
60
PA5
59
PA4
58
PA3
57
PA2
54
PA1
53
PA0
52
PB7
7
PB6
6
PB5
5
PB4
4
PB3
3
PB2
2
PB1
1
PB0
62
PC7
16
PC6
15
PC5
14
PC4
13
PC3
12
PC2
11
PC1
10
PC0
9
PE3
51
PE2
50
PE1
48
PE0
47
A2 46
A1 45
A0 44
XDIS
39
XWR
41
XRD
42
XCS
43
XCLR
38
PD7
27
PD6
26
PD5
25
PD4
22
PD3
21
PD2
20
PD1
19
PD0
18
2.2k
R386
2SC4617TL-QR
Q302
22k
R309
22k
R311
22k
R308
47k
R306
1k
R310
D309
CL-220PG-C-TS
12
D310
CL-220HR-C-TS
12
47k
R382
2SC4617TL-QR
Q311
+3.7V
+3.7V
+3.7V
2SC4617TL-QR
Q301
47k
R307
22k
R384
100k
R333
1k
R342
+3.3V
100k
R328
1k
R351
1k
R381
100
R320
100
R358
100
R359
0.1uF
C311
CXD1095BR
IC305
VDD1
24
VSS1
8
PA7
61
D7
37
VDD2
56
VSS2
23
VSS3
40
VSS4
55
D6
36
D5
35
D4
34
D3
33
D2
30
D1
29
D0
28
PA6
60
PA5
59
PA4
58
PA3
57
PA2
54
PA1
53
PA0
52
PB7
7
PB6
6
PB5
5
PB4
4
PB3
3
PB2
2
PB1
1
PB0
62
PC7
16
PC6
15
PC5
14
PC4
13
PC3
12
PC2
11
PC1
10
PC0
9
PE3
51
PE2
50
PE1
48
PE0
47
A2
46
A1
45
A0
44
XDIS
39
XWR
41
XRD
42
XCS
43
XCLR
38
PD7
27
PD6
26
PD5
25
PD4
22
PD3
21
PD2
20
PD1
19
PD0
18
0.1uF
C312
+3.3V
+3.3V
47
R376
R
G
CL-155UR/G-DT
D311
12
34
47k
R394
2SC4617TL-QR
Q313
22k
R392
+3.7V
2.2k
R388
2SA1774TL-QR
Q308
10k
R322
4.7k
R329
4.7k
R330
2.2k
R323
2SA1774TL-QR
Q309
+5V
+5V
+5V
0.1uF
C306
100k
R319
1k
R343
+3.3V
100k
R340
1k
R313
1k
R363
NM
1k
R364
NM
1k
R365
1k
R366
100
R357
IV-OE-CTRL
005
0
R380
0
R378
+3.3V +3.3V
100k
R377
NM
100k
R379
NM
47k
R383
+3.7V
22k
R385
2.2k
R387
47k
R395
2SC4617TL-QR
Q312
22k
R393
2SC4617TL-QR
Q314
R
G
CL-155UR/G-DT
D312
12
34
2.2k
R389
+3.7V
M62352AGP-D60Q
IC303
DI
17
GND
20
VCC
11
AO1
18
DO
14
VDD
10
VSS
1
CLK
16
AO2
19
AO3
2
AO4
3
AO5
4
AO6
5
AO7
6
AO8
7
AO9
8
AO10
9
AO11
12
AO12
13
LD
15
10k
R369
10k
R370
10k
R371
10k
NM
R372
10k
NM
R373
100
R375
10k
NM
R374
TC74VHC08FT(EL)
IC322 (1/5)
1
2
3
TC74VHC08FT(EL)
IC322 (2/5)
4
5
6
TC74VHC08FT(EL)
IC322 (3/5)
9
10
8
TC74VHC08FT(EL)
IC322 (4/5)
12
13
11
TC74VHC08FT(EL)
IC322
(5/5)
7
GND
14
VCC
0.1uF
C340
+3.3V
MS-LED-GREEN-OFF/ON
002
MS-LED-RED-OFF/ON
002
+3.3V
+3.3V
+3.3V
+3.3V
100k
R347
NM
100
R445
CN902
d15
(73/135)
(Power-Unit-NC-out)
1k
RB308
12
34
56
78
S302
54
MT1
6
MT2
G1
789
10
CMD-IC-RESET
003
CONNECT-CHU
003
100k
RB303
12
34
56
78
CN902
b23
(119/135)
D/A-ANA-LEVEL1-out
CONNECT-R
003
CN902
e25
(134/135)
IIC-SCL2
1k
RB312
12
34
56
78
CN902
a10
(55/135)
RED-TALLY-PANEL-out
PLD-PHS0
004
CN902
a9
(49/135)
INCOM-PRIV/PROD-in
CN902
d7
(40/135)
CABLE-OPEN-LED-out
ADDRESS
002,005
CN902
d17
(85/135)
FAN-ALARM-Status-in
S301
54
6
G1
789
10
CONNECT-F
003
CN902
a3
(13/135)
CCU-ID-in (777/555)
CN902
b7
(38/135)
CAM-POWER-LED-out
CN902
a23
(118/135)
D/A-ANA-LEVEL0-out
CN902
c15
(72/135)
POW-Unit-DC/AC-in
PLD-PHS2
004
CN902
c23
(120/135)
D/A-ANA-LEVEL2-out
CONTROL
002,005
CN902
b24
(125/135)
Serial-Clock
CN902
c22
(114/135)
COM-HIRA-PIN 2
PLD-Version
004
CN902
e24
(128/135)
Serial-com-CS1
CN902
c16
(78/135)
Cable-OPEN-Status-in
CN902
c3
(15/135)
Front-PANEL-GND
CN902
e17
(86/135)
RCP-POWER-NG-Status-in
100k
RB310
12
34
56
78
S304
C2
6
12
23
44
85
C1
1
CN902
e16
(80/135)
CAM-POWER-Status-in
100k
RB302
12
34
56
78
1k
RB313
12
34
56
78
100k
RB309
12
34
56
78
S306
12
3
45
6
CN902
e15
(74/135)
CAM-POWER-ON/OFF-out
CN902
d24
(127/135)
Serial-com-CS0
PWR-OK/NG
001
100k
RB305
12
34
56
78
S311
12
34
56
78
9
10
11 12
13 14
15 16
CN902
d16
(79/135)
Cable-SHORT-Status-in
S312
12
34
56
78
9
10
11 12
13 14
15 16
S307
12
3
45
6
S305
12
3
45
6
CN902
d23
(121/135)
D/A-ANA-LEVEL3-out
CN902
a8
(43/135)
MIC-CTL-ON/OFF-in
PLD-PHS1
004
100k
RB301
12
34
56
78
S310
12
34
56
78
9
10
11 12
13 14
15 16
CN902
b3
(14/135)
Front-PANEL-ID
100
RB314
12
34
56
78
CN902
b9
(50/135)
INCOM-PRIV/ENG-in
100k
RB304
12
34
56
78
PHY-XMT-LED
004
PHY-RCV-LED
004
CN902
e7
(41/135)
CABLE-SHORT-LED-out
PHY-ACT-LED
004
CN902
c24
(126/135)
Serial-Load
CN902
e22
(116/135)
D/A-ANA-LEVEL4-out
BB-NO/EXIST
004
1k
RB311
12
34
56
78
PLD-PHS3
004
SD-H-PHASE
004
CN902
a7
(37/135)
MAIN-POWER-LED-out
CN902
d22
(115/135)
COM-HIRA-PIN 3
DATA
002,005
S309
12
34
56
78
9
10
11 12
13 14
15 16
CN902
b10
(56/135)
GREEN-TALLY-PANEL-out
PHY-COL-LED
004
CN902
a24
(124/135)
Serial-Data
MS-IC-RESET
002
S308
12
3
45
6
S303
C2
6
12
23
44
85
C1
1
TC7SH04FU(T5RSOYJF)
IC318 (1/2)
2
4
TC7SH04FU(T5RSOYJF)
IC319 (1/2)
2
4
TC7SH04FU(T5RSOYJF)
IC318 (2/2)
3
GND
5
VCC
TC7SH04FU(T5RSOYJF)
IC319 (2/2)
3
GND
5
VCC
TC7SET04FU(T5RSOJF)
IC316 (1/2)
24
TC7SET04FU(T5RSOJF)
IC316 (2/2)
3
GND
5
VCC
TC7SET04FU(T5RSOJF)
(1/2)IC317
24
TC7SET04FU(T5RSOJF)
(2/2)IC317
3
GND
5
VCC
100
R345
100
R346
100
R446
100
R447
100
R448
100
R449
100
R450
100
R451
H_PHASE0
H_PHASE1
H_PHASE2
H_PHASE3
V_PHASE0
V_PHASE1
V_PHASE2
V_PHASE3
CCU-TEST7
CCU-TEST5
CCU-TEST0
CCU-TEST6
CCU-TEST3
CCU-TEST4
CCU-TEST0
CCU-TEST5
CCU-TEST3
CCU-TEST6
CCU-TEST7
CCU-TEST2
CCU-TEST1
CCU-TEST1
CCU-TEST2
CCU-TEST4
CCU-TEST3
CCU-TEST1
CCU-TEST6
CCU-TEST4
CCU-TEST0
CCU-TEST4
CCU-TEST7
CCU-TEST3
CCU-TEST7
CCU-TEST5
CCU-TEST6
CCU-TEST2
CCU-TEST0
CCU-TEST1
CCU-TEST5
CCU-TEST2
DA_SCL
DA_LD
DA_SDA
PRIV/PROD
PRIV/ENG
MIC-ON/OFF
SC-PHS/REM
H-PHS/REM
PHS-DLY
PHS-ADV
D7
D6
D5
D4
D3
D2
D1
D0
A2
A1
A0
XSHWE0
XRD-2
PIO-1
PIO-XDIS
SC-PHS/REM
H-PHS/REM
PHS-DLY
PHS-ADV
H_PHASE3
H_PHASE2
H_PHASE1
H_PHASE0
V_PHASE3
V_PHASE2
V_PHASE1
V_PHASE0
(spare3)
(spare2)
DLY-SW
NT/PAL-SW
DIPSW-SEL1
DIPSW-SEL0
CCU-TEST7
CCU-TEST6
CCU-TEST5
CCU-TEST4
CCU-TEST3
CCU-TEST2
CCU-TEST1
CCU-TEST0
CCU-TEST0
CCU-TEST1
CCU-TEST2
CCU-TEST3
CCU-TEST4
CCU-TEST5
CCU-TEST6
CCU-TEST7
D4
PRIV/PROD
MIC-ON/OFF
A2
CHU-PWR-LED-ON/OFF
SHORT-LED-ON/OFF
D2
D1
OPEN-LED-ON/OFF
POWER_SHORT
777/555
D6
PWR-DC/AC
XRD-2
FAN_ALARM
PRIV/ENG
A1
A0
XSHWE0
D7
CHU-PWR-ON/OFF
PIO-XDIS
CABLE_SHORT
MAIN-PWR-LED-ON/OFF
CABLE_OPEN
D5
POWER-OK/NG
D0
CHU_PWR_OFF
D3
PIO-2
NT/PAL-SW
DLY-SW
(spare2)
(spare3)
POWER-OK/NG
777/555
MAIN-PWR-LED-ON/OFF
CHU-PWR-LED-ON/OFF
OPEN-LED-ON/OFF
SHORT-LED-ON/OFF
CHU-PWR-ON/OFF
D7
D6
D5
D4
D3
D2
D1
D0
A2
A1
A0
XSHWE0
PIO-3
PIO-XDIS
XRD-2
PO-PHS7
PO-PHS6
PO-PHS5
PO-PHS4
PO-PHS3
PO-PHS2
PO-PHS1
PO-PHS0
PO-PLD7
PO-PLD6
PO-PLD5
PO-PLD4
PO-PLD3
PO-PLD2
PO-PLD1
PO-PLD0
PLD-VER3
PLD-VER2
PLD-VER1
PLD-VER0
R-TALLY-OFF/ON
G-TALLY-OFF/ON
F-PNL-EXIST/NONE
BOARD-ID1
BOARD-ID0
CABLE_OPEN
CABLE_SHORT
CHU_PWR_OFF
FAN_ALARM
POWER_SHORT
PWR-DC/AC
F-PNL-EXIST/NONE
SERIAL-DATA
SERIAL-CLOCK
SERIAL-LOAD
SERIAL-CS0
SERIAL-CS1
SERIAL-DATA
SERIAL-CLOCK
SERIAL-LOAD
SERIAL-CS0
SERIAL-CS1
R-TALLY-OFF/ON
G-TALLY-OFF/ON
DA_SDA
DA_SCL
DA_LD
PWR-UNIT-NC-OUT
PWR-UNIT-NC-OUT
DIPSW-SEL1
DIPSW-SEL0
LAN-R-OFF/ON
LAN-G-OFF/ON
LAN-R-OFF/ON
LAN-G-OFF/ON
BOARD-ID0
BOARD-ID1
PRTCT-OFF/ON
SCL2
DATA BUS
CONTROL BUS
ADDRESS BUS
V-Phase
H-Phase
CCU-NO
MODE2
MODE1
TEST
H Phase
REMOTE
SC Phase
PHASE
DLY
ADV
IN
IN
IN
IN
IN
IN
OUT
IN
OUT
OUT
OUT
OUT
NTSC
PAL
IN
IN
OUT
OUT
OUT
OUT
IN
OUT
MS-LED
IN
GEN-
LOCK
-NG
REF-
OUT
OUT
OUT
OUT
OUT
IN
IN
OUT
IN
IN
IN/OUT
IN/OUT
IN/OUT
IN/OUT
LAN-LED
11
10
01
00
IN
IN
DELAY-SEL
AT-155 (3/5)AT-155 (3/5)
4-37 4-37
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
+3.3V
+3.3V
0.1uF
C335
+5V
10uH
L303
220
R430
6.3V
22uF
C330
CXD9093R
IC310
VSS9
60
VSS1
1
VDD2
21
D0
2
D1
3
D2
4
D3
5
VSS2
6
D4
7
D5
8
D6
9
D7 10
VSS3
11
VDD1
12
VSS5
20
XWR
13
NC 14
XRD
15
TEST
16
XWAIT
17
VSS4
18
CLK
19
TVDA
29
NTVDA
30
VSS6
31
VDD3
32
XRVDA
33
RVDA
34
TCLKA
38
BCLKA
39
VDD4
40
TOUT0
22
TOUT1
23
TOUT2
24
TOUT3
25
TEB
26
TIN
27
BTVDA
28
XCTSA
35
XRTSA
36
BRVDA
37
BCLKB
59
TCLKB
58
BRVDB
57
XRTSB
56
XCTSB
55
RVDB
54
XRVDB
53
VDD5
52
VSS8
51
NTVDB
50
TVDB
49
VSS7
41
BREAKA
42
CABLEA
43
PACKETA
44
TDI
45
TMS
46
TCK
47
BTVDB
48
XRESET
70
RESET
69
TDO
68
TRST
67
INTB
66
INTA
65
PACKETB
64
CABLEB
63
BREAKB
62
VDD6
61
VSS10
71
VDD7
72
XCSA
73
XCSB
74
VSS11
75
A0
76
A1
77
A2
78
A3
79
VDD8
80
+3.3V
0.1uF
C327
+3.3V
10k
R440
100
R397
10uH
L304
10k
R441
33pF
C314
10k
R411
HCPL-0630-500
PH302
17
2
VCC
8
GND
5
6
4
3
0.1uF
C329
10k
R418
0.1uF
C328
R407
6.8k
+5V
+5V
10k
R419
R402
10
+5V
1k
R428
HCPL-0630-500
PH301
17
2
VCC
8
GND
5
6
4
3
1k
R417
SN75158PSR
IC314(3/3)
4
GND
8
VCC
220
R422
NM
0.1uF
C331
0.1uF
C326
0.1uF
C336
R405
10k
10k
R412
C324
0.1uF
1k
R415
220
R423
220
R424
10k
R413
SN75158PSR
IC314 (1/3)
3
2
1
10k
R409
220
R425
NM
10k
R420
10
R408
0.1uF
C320
1k
R416
220
R398
1k
R437
10k
R435
+3.3V
10k
R426
10k
R410
R406
6.8k
0.1uF
C323
+3.3V
10k
R400
10k
R427
1k
R414
0.1uF
C315
100
R396
2.2k
R421
6.3V
22uF
C316
0.1uF
C333
0.001uF
C334
100
R436
6.8k
R401
6.8k
R399
0.1uF
C317
0.1uF
C325
10k
R433
R403
10
1k
R438
0.1uF
C338
GND
100
R431
CXD9093R
IC308
VSS9
60
VSS1
1
VDD2
21
D0
2
D1
3
D2
4
D3
5
VSS2
6
D4
7
D5
8
D6
9
D7 10
VSS3
11
VDD1
12
VSS5
20
XWR
13
NC 14
XRD
15
TEST
16
XWAIT
17
VSS4
18
CLK
19
TVDA
29
NTVDA
30
VSS6
31
VDD3
32
XRVDA
33
RVDA
34
TCLKA
38
BCLKA
39
VDD4
40
TOUT0
22
TOUT1
23
TOUT2
24
TOUT3
25
TEB
26
TIN
27
BTVDA
28
XCTSA
35
XRTSA
36
BRVDA
37
BCLKB
59
TCLKB
58
BRVDB
57
XRTSB
56
XCTSB
55
RVDB
54
XRVDB
53
VDD5
52
VSS8
51
NTVDB
50
TVDB
49
VSS7
41
BREAKA
42
CABLEA
43
PACKETA
44
TDI
45
TMS
46
TCK
47
BTVDB
48
XRESET
70
RESET
69
TDO
68
TRST
67
INTB
66
INTA
65
PACKETB
64
CABLEB
63
BREAKB
62
VDD6
61
VSS10
71
VDD7
72
XCSA
73
XCSB
74
VSS11
75
A0
76
A1
77
A2
78
A3
79
VDD8
80
10uH
L302
10k
R439
0.1uF
C332
0.1uF
C339
SN75158PSR
IC314 (2/3)
5
6
7
0.1uF
C337
0.1uF
C321
47k
R429
+3.3V
+5V
0.1uF
C319
100
R404
33pF
C318
+3.3V
0
R390
47k
R391
+3.3V
0.1uF
C313
nCONFIG
005
PWR-ON-RESET
002
33
R444
TC74VHC04FT(EL)
IC320 (1/7)
12
TC74VHC04FT(EL)
IC320 (2/7)
34
TC74VHC04FT(EL)
IC320 (3/7)
56
TC74VHC04FT(EL)
IC320 (4/7)
98
TC74VHC04FT(EL)
IC320 (5/7)
11 10
TC74VHC04FT(EL)
IC320 (6/7)
13 12
TC74VHC04FT(EL)
IC320 (7/7)
7
GND
14
VCC
1k
R434
+3.3V
10k
R432
CN902
e3
(17/135)
CHU-Data-in
27MHz-CMD-CLK
003,004
CN902
b21
(107/135) RS-232C 0
TP303
CN902
b6
(32/135)
PANEL-COM-TR(Y)-out
1k
RB317
12
34
56
78
CN902
d3
(16/135)
CCU-Data-out
CN902
d21
(109/135) RS-232C 2
XINT-700P-RM
002
100k
RB319
12
34
56
78
1k
RB316
12
34
56
78
TP301
100k
RB320
12
34
56
78
CN902
c5
(27/135)
Front-GND
TP304
100k
RB322
12
34
56
78
CONNECT-R
003
CONNECT-F
003
XINT-700P-CHU
002
TP302
CN902
a6
(31/135)
PANEL-COM-TR(X)-out
CN902
e6
(35/135)
PANEL-COM-RC(Y)-in
CN902
d6
(34/135)
PANEL-COM-RC(X)-in
HV-V-PHASE
004
CN902
c21
(108/135) RS-232C 1
CMD-IC-RESET
003
CN902
b5
(26/135)
RCP-COM-TR(Y)-out
100k
RB321
12
34
56
78
PLD_CTRL
004
1k
RB315
12
34
56
78
XINT-700P-RCP
002
27MHz-CMD-CLK
003,004
1k
RB318
12
34
56
78
CN902
a5
(25/135)
RCP-COM-TR(X)-out
CPU-RESET
002,004,005
CN902
e21
(110/135) RS-232C 3
XINT-232C
002
CN902
d5
(28/135)
RCP-COM-RC(X)-in
CN902
e5
(29/135)
RCP-COM-RC(Y)-in
C322
47uF
6.3V
CONNECT-CHU
003
TC7SH04FU(T5RSOYJF)
IC321 (1/2)
24
TC7SH04FU(T5RSOYJF)
IC321 (2/2)
3
GND
5
VCC
TC7SH04FU(T5RSOYJF)
IC306 (1/2)
24
TC7SH04FU(T5RSOYJF)
IC306 (2/2)
3
GND
5
VCC
TC7SH08FU(T5RSOYJF)
IC307 (1/2)
2
14
TC7SH08FU(T5RSOYJF)
IC307 (2/2)
3
GND
5
VCC
TC7SH08FU(T5RSOYJF)
(2/2)IC309
3
GND
5
VCC
TC7SH08FU(T5RSOYJF)
(1/2)IC309
2
14
27MHz
X301
VC
1
GND
2
OUT
3
VDD
4
C342
0.1uF
0.001uF
C341
0
R452
0
R453
NM
0
R454
0
R455
NM
PO-PHS2
PO-PHS5
PO-PHS6
PO-PHS7
PO-PHS3
PO-PHS0
PO-PHS1
PO-PHS4
HV-V-PHASE
PO-PLD0
PO-PLD1
PO-PLD2
PO-PLD3
PO-PLD4
PO-PLD5
PO-PLD6
PO-PLD7
PLD_CTRL
V-PHS3
V-PHS2
V-PHS1
V-PHS0
V-PHS7
V-PHS6
V-PHS5
V-PHS4
PLD0
PLD1
PLD2
PLD3
PLD4
PLD5
PLD6
PLD7
D3
A0
CS(700R)
D3
D1
A3
D6
XWAIT-CHU
D5
D7
CS(700F)
CS(CHU)
CS(700R)
CS(232C)
CS(232C)
CS(700F)
A1
D2
XSHWE0
A2
CS(CHU)
D6
A2
D0
D5
D4
D0
A0
XSHWE0
D7
A1
D4
D1
D2
A3
XWAIT-CHU
XWAIT
XRD-2 XRD-2
TXD
CTS
RTS
RXD
CONTROL BUS
DATA BUS
ADDRESS BUS
:Re-CONFIG
PNL_RX
PNL_TX
CHU_RX CCU_TX
AT-155 (3/5)AT-155 (3/5)
AT-155 (3/5)
BOARD NO. 1-865-024-11
CCU-TX50_AT-155_010_3
4-384-38
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
+5V-2
-5V
1.5k
R504
0.1uF
C525
5pF
C511
NM
470
R502
TL712CPSR
IC503
VCC
8
IN+
3
OUT-
7
OUT+
6
GND
5
IN-
2
OE
4
3.3k
R506
0.001uF
C517
10k
R536
GND
100
R510
100
R511
10
R526
100
R503
2SA1774TL-QR
Q503
0.1uF
C509
0.1uF
C508
GND
0.1uF
C510
GND
GND
GS4981CTA
IC504
VIN
2
VCC
8
GND
4
C_SYNC
1
H_SYNC
7
BP
5
V_SYNC
3
RSET
6
100
R531
3.3k
R533
10uH
L510
22pF
C528
220pF
C532
220pF
C530
0.1uF
C533
+5V-2
0.1uF
C531
GND
GND
TLC272CPSR
IC515
(1/2)
+
5
-
6
7
4.7k
R539
4.7k
R540
470
R535
TLC272CPSR
IC515
(2/2)
+
3
-
2
4
1
8
470
R548
0.1uF
C539
470
R549
680k
R551
0.1uF
C540
0.1uF
C544
GND
GND
GND
TLC272CPSR
(1/2)
IC517
+
5
-
6
7
TLC272CPSR
(2/2)
IC517
+
3
-
2
4
1
8
220
R524
330
R523
100pF
C523 4.7k
R529
GND
100
R554
10k
R556
0.1uF
C538
10k
R553
100
R557
22k
R538
22k
R546
1SS302-TE85L
D501
12
3
0.1uF
C537
SD-H-PHASE
003
TLC272CPSR
(2/2)
IC518
+
5
-
6
7
2.2k
R542
10k
R543
4.7k
R558
22k
R544
15k
R545
680k
R547
0.1uF
C541
TLC272CPSR
(1/2)
IC518
+
3
-
2
4
1
8
2.2k
R559
150pF
C547
-5V
+5V-2
GND
(1/3)
IC519
5
4
CD
3
Q
7
Q6
T2
2
T1
1
TC74HC4538AFT(EL)
(3/3)IC519
8
GND
16
VCC
(2/3)
IC519
11
12
CD
13
Q
9
Q
10
T2
14
T1
15
47
R513
47k
R507
SD-REF-GATE
004
SD-SYNC-CLIP
004
SD-PEDE-CLIP
004
GND
0.001uF
C518
GND
GND
10uH
L508
10uH
L509
10uH
L501
10uH
L502
-5V
-5V
0.1uF
C513
+5V-2
2.2k
R512
100
R515
GND
10uH
L505
0.1uF
C515
GND
10uH
L504
100
R516
2.2k
R518
4.7k
R537
100
R522
10uH
L511
GND
+5V-2
0.1uF
C536
0.1uF
C545
GND
10k
R552
-5V
GND
+5V-2
0.1uF
C516
GND
0.1uF
C520
GND
0.1uF
C519
GND
47
R550
10k
R541
+5V-2
0.1uF
C543
GND
+5V-2
GND
TL712CPSR
IC502
VCC
8
IN+
3
OUT-
7
OUT+
6
GND
5
IN-
2
OE
4
100pF
C521
10uH
L506
10k
R534
0.1uF
C524
GND
10
R525
4.7k
R527
+5V-2
10uH
L507
10
R519
10
R521
10
R520
0.47uF
C535
22uF
C504
22uF
C505
22uF
C512
22uF
C514
22uF
C522
22uF
C526
GND
IC516 (2/3)
1
10
2
COM
15
SEL
10
IC516 (3/3)
1
30
5
COM
4
SEL
9
74VHC4053MTCX
IC516
(1/3)
0
12
1
13
SEL
11
INH
6
GND
8
COM
14
VCC
16
VEE
7
470
R501
3.3k
R505
NM
33pF
C507
33pF
C503
22pF
C506
4.7uH
L503
+
-
AD8014ARTZ-REEL7
IC501
3
4
2
1
5
100
R508
100
R509
47
R514
2SA1774TL-QR
Q501
2SA1774TL-QR
Q502
2.2k
R517
2.2k
R528
+5V-2
BURST-GATE
004
100
R532
100
R530
10uF
C546
2SA1774TL-QR
Q504
47
R635
680k
R636
100
R555
47uF
6.3V
C501
47uF
6.3V
C502 47uF
6.3V
C529
TP502
CN902
a2
(7/135)
External-Ref-SC-out
47uF
6.3V
C527
47uF
6.3V
C534
TP501
47uF
6.3V
C542
CN902
c19
(96/135)
EXT-REF(G)-in
CN902
d19
(97/135)
EXT-REF(X)-in
5pF
C553
5pF
C557
33pF
C598
TC7SET04FU(T5RSOJF)
IC520 (1/2)
24
TC7SET04FU(T5RSOJF)
IC520 (2/2)
3
GND
5
VCC
Master-Ref
SD-REF
SD-TEMP-REF
SYNC CLPPEDE CLP
OE GATE
BURST GATE
EXT-SD-SYNC
AT-155 (4/5)AT-155 (4/5)
4-39 4-39
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
47k
R575
0.1uF
C550
GND
22k
R570
0.1uF
C561
MC74HC4046ADTR2
IC505
PC3O
15
DEMO
10
VCOIN
9
PC2O
13
PC1O
2
PCPO
1
VCC
16
3
CIN
4
VCOUT
14
SIN
6
C1A
GND
8
7
C1B
5
INH
R1
11
R2
12
47k
R576
0.1uF
C554
10000pF
C569
TLC272CPSR
(1/2)
IC524
+
3
-
2
4
1
8
0.1uF
C556
2.2k
R595
TLC272CPSR
(2/2)
IC524
+
5
-
6
7
0.001uF
C560
GND
33pF
C563
0.1uF
C558
33k
R567
GND
22k
R587
10
R572
10k
R582
0.1uF
C552
4.7k
R580
10k
R583
1SS302-TE85L
D503
1
2
3
15k
R568
GND
1k
R579
GND
GND
GND
0.1uF
C559
100
R561
100
R560
1k
R569
TC74VHC04FT(EL)
IC508
1A
1
2A
3
3A
5
4A
9
5A
11
6A
13
GND
7
6Y 12
5Y 10
4Y
8
3Y
6
2Y
4
1Y
2
VCC
14
GND
10
R592
100
R597
GND
SD-PEDE-CLIP
004
SD-SYNC-CLIP
004
SD-REF-GATE
004
BB-NO/EXIST
003
10
R594
100
R604
2.2k
R603
10
R588
10
R589
NTSC/PAL
003
220
R585
10
R591
NM
10
R593
GND
PLD-PHS0
003
PLD-PHS1
003
PLD-PHS2
003
PLD-PHS3
003
10uH
L512
+5V-2
100
R566
10k
R565
4.7uH
L515
10000pF
C572
SN74LVC74APWR-12
IC509
1PRE
4
1D
2
GND
7
1Q
5
VCC
14
1CLK
3
1CLR
1
2PRE
10
2D
12
2CLK
11
2CLR
13
1Q
6
2Q
9
2Q
8
10000pF
C573
GND
GND
4.7uH
L517
10000pF
C578
74LCX04MTCX
IC511
1A
1
2A
3
3A
5
4A
9
5A
11
6A
13
GND
7
6Y 12
5Y 10
4Y
8
3Y
6
2Y
4
1Y
2
VCC
14
GND
10
R612
10
R601
4.7k
R563 4.7k
R564
GND
1M
R571
NM
+5V-2
GND
GND
74VHCT08AMTCX
IC506
1A
1
1B
2
GND
7
4Y
11
3Y
8
2Y
6
1Y
3
VCC
14
2A
4
2B
5
3A
9
3B 10
4A 12
4B 13
0.1uF
C551
47
R562
GND
+5V-2
GND
0.1uF
C548
4.7uH
L513
GND
10000pF
C564
10
R600
NM
+3.3V
+3.3V
+3.3V
DELAY-SEL
003
22uF
C562
22uF
C571
22uF
C577
22uF
C549
22uF
C555
74VHC4053MTCX
IC523
(1/3)
0
12
1
13
SEL
11
INH
6
GND
8
COM
14
VCC
16
VEE
7
IC523 (2/3)
1
10
2
COM
15
SEL
10
SN74LVC574APWR
IC512
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
GND
10
R611
+3.3V
470
R620
0.1uF
C581
0.001uF
C586
470
R621
0
R622
0.1uF
C579
0.1uF
C585
4.7k
R619
33
R623
0.1uF
C582
22
R618
+3.3V
0.1uF
C583
33
R624
0.1uF
C587
1.5k
R633
0.001uF
C584
4.7k
R634
10000pF
C588
+3.3V
BCM5221A4KPT
IC513
OVDD1
1
DVDD1
2
REGDVDD
3
REF_CLK
4
XTALO
5
XTALI
6
XTALGND
7
OVDD2/NC
8
RESET#
9
PHYAD0/FDX_LED#
10
PHYAD1/COL_LED#
11
PHYAD2/ACT_LED#
12
PHYAD3/PAUSE
13
PHYAD4
14
TESTEN
15
LOW_PWR
16
ENERGY_DET
17
MII_EN
18
SD-
19
REGAVDD
20
SD+
21
BIASVDD
22
RDAC
23
BIASGND
24
RD-
25
RD+
26
AVDD1
27
AVDD2
28
AGND1
29
TD-
30
TD+
31
AGND2
32
RCVLED#/ACTLED#/MDIX_DIS/TDO
33
XMTLED#/INTR#/FDXLED#
34
LNKLED#/MEDIA_CONV#/TDI
35
SPDLED#/ADV_PAUSE#/TMS
36
F100/TCK
37
ANEN/TRST#
38
FDX
39
DGND1
40
MDIO
41
MDC
42
RXD3
43
RXD2
44
DGND2
45
OVDD3
46
RXD1
47
RXD0
48
RXDV
49
RXC
50
RXER
51
TXER
52
TXC
53
DGND3
54
DVDD2
55
TXEN
56
TXD0
57
TXD1
58
TXD2
59
TXD3
60
COL
61
CRS/CRS_DV
62
DGND4
63
JTAG_EN
64
IC523 (3/3)
13
05
COM
4
SEL
9
1SS302-TE85L
D502
1
2
3
+3.3V
100
R625
100
R626
100
R627
100
R628
0.001uF
C590
100
R629
0.001uF
C591
100
R632
100
R630
100
R631
XINT-CPU-VD
002
LC4128V-75TN100C
IC507
GND1
1
TDI
2
IO0/B0
3
IO1/B2
4
IO2/B4
5
IO3/B6
6
GND0_1
7
IO4/B8
8
IO5/B10
9
IO6/B12
10
IO7/B13
11
I1
12
VCCO0_1
13
IO8/C14
14
IO9/C12
15
IO10/C10
16
IO11/C8
17
GND0_2
18
IO12/C6
19
IO13/C5
20
IO14/C4
21
IO15/C2
22
I2
23
TCK
24
VCC1
25
GND2
26
I3
27
IO16/D13
28
IO17/D12
29
IO18/D10
30
IO19/D8
31
GND0_3
32
VCCO0_2
33
IO20/D6
34
IO21/D4
35
IO22/D2
36
IO23/D0
37
CLK1/I4
38
CLK2/I5
39
VCC2
40
IO24/E0
41
IO25/E2
42
IO26/E4
43
IO27/E6
44
VCCO1_1
45
GND1_1
46
IO28/E8
47
IO29/E10
48
IO30/E12
49
IO31/E14
50
GND3
51
TMS
52
IO32/F0
53
IO33/F2
54
IO34/F4
55
IO35/F6
56
GND1_2
57
IO36/F8
58
IO37/F10
59
IO38/F12
60
IO39/F13
61
I6 62
VCCO1_2
63
IO40/G14
64
IO41/G12
65
IO42/G10
66
IO43/G8
67
GND1_3
68
IO44/G6
69
IO45/G5
70
IO46/G4
71
IO47/G2
72
I7 73
TDO
74
VCC3
75
GND4
76
I8 77
IO48/H13
78
IO49/H12
79
IO50/H10
80
IO51/H8
81
GND1_4
82
VCCO1_3
83
IO52/H6
84
IO53/H4
85
IO54/H2
86
IO55/H0/GOE1
87
CLK3/I9
88
CLK0/I10
89
VCC4
90
IO56/A0/GOE0
91
IO57/A2
92
IO58/A4
93
IO59/A6
94
VCCO0_3
95
GND0_4
96
IO60/A8
97
IO61/A10
98
IO62/A12
99
IO63/A14
100
0.1uF
C567
22uF
C570
0.1uF
C566
4.7uH
L514
0.1uF
C565
0.1uF
C568
1M
R581
NM
10
R577
100
R586
100
R573
47
R616
47
R613
47
R615
47
R614
47
R617
10
R606
10
R607
GND
2.2k
R598
10
R605
MS-EN-WR-F
005
MS-EN-RD-F
005
10k
R574
10
R599
74LCX04MTCX
IC510
1A
1
2A
3
3A
5
4A
9
5A
11
6A
13
GND
7
6Y 12
5Y 10
4Y
8
3Y
6
2Y
4
1Y
2
VCC
14
10
R590
+3.3V
4.7uH
L516
C574
0.1uF
10000pF
C575
GND
0.1uF
C576
GND
10
R608
10
R602
10
R596
+3.3V
10
R610
10
R609
GND
+5V-2
BURST-GATE
004
1M NM
R578
1M NM
R584
4.7uH
L518
10uF
C592
10uF
C593
10uF
C594
10uF
C595
10uF
C596
10uF
C589
0.001uF
C580
27MHz
X501
VC
1
GND
2
OUT
3
VDD
4
+3.3V
47
R637
0.1uF
C597
100
RB502
12
34
56
78
27CK-PLD-MS-EN
005
100
RB503
12
34
56
78
PHY-RCV-LED
003
PHY-XMT-LED
003
CN902
d2
(10/135)
(ENC-TG-13.5M-out)
PHY-COL-LED
003
CN901
(1/66)
A1
MST-SD-F-out
CN902
a18
(88/135)
Ether-COM-RC(X)-in
MST-SD-H
004
13.5MHz-CLK-OUT
004
JTAG-ISP
005
CN902
a15
(70/135)
Ether-COM-TR(X)-out
100
RB501
12
34
56
78
CN902
e1
(5/135)
ENC-27M-2-CLK-out
5k
RV501
1
2
3
PHY-XFDX-LED
002
MS-EN-WR-H
005
27CK-VIDEO-OUTPUT
005
27CK-VIDEO-INPUT
005
27MHz-CMD-CLK
003
CN901
(4/66)
D1
A/D-27M-1-CLK-out
TP503
PHY
002
PHY-ACT-LED
003
CN902
a19
(94/135)
Ether-COM-RC(Y)-in
MS-EN-RD-H
005
CN902
c18
(90/135)
+3.3V(fr-AT,to-Ether)
CN902
a17
(82/135)
FR-GND(A-GND)
CN902
b16
(77/135)
FR-GND
CN901
(33/66)
C6
ColorFramePulse
TG-13.5MHz
004
HV-V-PHASE
003
CN902
b19
(95/135)
FR-GND
TG-13.5MHz
004
100
RB506
12
34
56
78
CN902
b17
(83/135)
FR-GND
MST-SD-F
004
TP505
47
RB507
12
34
56
78
PLD-Version
003
13.5MHz-CLK-OUT
004
SD-PLL-VOLT
002
MST-SD-H
004
CN902
d1
(4/135)
ENC-27M-1-CLK-out
PLD_CTRL
003
MST-SD-F
004
TP504
ENC-TG-F
004
100
RB505
12
34
56
78
CPU-RESET
002,003,005
CN901
(3/66)
C1
CLK-Guard-GND
CN902
e2
(11/135)
ENC-TG-F-out
ENC-TG-F
004
CN902
c1
(3/135)
Audio-27M-CLK-out
100
RB504
12
34
56
78
CN902
b1
(2/135)
CLK-Guard-GND
25MHz-CLK
002
CN902
a16
(76/135)
Ether-COM-TR(Y)-out
CN901
(2/66)
B1
(13.5M-out)
TP506
CN901
(5/66)
E1
A/D-27M-2-CLK-out
CN902
a1
(1/135)
Externa-Ref-SYNC-out
25MHz
X502
1
COUT
2
GND
3
OUT
4
VDD
TC7SET04FU(T5RSOJF)
IC521(1/2)
2
4
TC7SET04FU(T5RSOJF)
IC521 (2/2)
3
GND
5
VCC
HV-V-PHASE
PLD-VER3
PLD-VER2
PLD-VER1
PLD-VER0
PHY-ETXD2
PHY-ETXD3
PHY-COL
PHY-CRS
PHY-MDIO
PHY-LINK-ST
PHY-SPD-ST
PHY-MDIO
PHY-MDC
PHY-ERXD3
PHY-ERXD2
PHY-ERXD1
PHY-ERXD0
PHY-RX-CLK
PHY-TX-CLK
PHY-RX-DV
PHY-RX-ER
PHY-TX-ER
PHY-TX-EN
PHY-ETXD0
PHY-ETXD1
TDI3
TCK1 TMS1
PLD7
PLD6
PLD5
PLD4
PLD3
PLD2
PLD1
PLD0
V-PHS0
V-PHS1
V-PHS2
V-PHS3
V-PHS4
V-PHS5
V-PHS6
V-PHS7
TDI4
27M
27M FREQ
13.5M
27M
SD-HD SD-F
FRAME-Freq0
FRAME-Freq1
(FRAME-Freq2)
H-PHASE0
H-PHASE1
V-PHASE2
V-PHASE0
H-PHASE3
V-PHASE1
H-PHASE2
HD-SD-DLY0
HD-SD-DLY1
HD-SD-DLY2
HD-SD-DLY3
TEMP-SYNC
TEMP-H
TEMP-BP
TEMP-V
(MST-SD-H-OUT)
3-DGND
PHY
AGND
REGDVDD Cap
Pin and Cap Connect List
20-DGND
OVDD Cap
REGAVDD Cap
1,46-DGND
27M
FILM
FILM
AT-155 (4/5)AT-155 (4/5)
AT-155 (4/5)
BOARD NO. 1-865-024-11
CCU-TX50_AT-155_010_4
4-404-40
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
AT-155 (5/5)AT-155 (5/5)
10
R706
+3.3V
74VHC245MTCX
IC701
A0
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9
OE
19
T/R
1
GND
10
B7 11
B6 12
B5 13
B4 14
B3 15
B2 16
B1 17
B0 18
VCC
20
0.1uF
C702
CPU-RESET
002,003,004,005
0.1uF
C701
1k
R704
+3.3V
EPC2LC20N-TP
IC702
NM
DCLK
4
OE
8
nCS
9
VCCSEL
5
VPPSEL
14
TDI
11
TDO
1
TMS
19
TCK
3
GND
10
VPP
18
VCC
20
nCASC
12
DATA
2
nINIT_CONF
13
10k
R712
NM
1k
R701
+3.3V
1k
R702
+3.3V
1k
R705
NM
GND
1k
R708
NM
0.1uF
C704
0.1uF
C703
NM
1k
R703
1k
R707
NM
1k
R711
+3.3V
10
R710
NM
+3.3V
SN74LVC574APWR
IC703
NM
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
100
RB706
NM
12
34
56
78
10
R718
NM
100
RB708
NM
12
34
56
78
0.1uF
C709
NM
+3.3V
100
RB707
NM
12
34
56
78
+3.3V
100
RB705
NM
12
34
56
78
100
RB704
NM
12
34
56
78
SN74LVC574APWR
IC706
NM
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
220pF
C706
NM
10
R719
NM
100
RB709
NM
12
34
56
78
0.1uF
C711
NM
2.2k
R717
NM
10
R720
NM
0.1uF
C708
NM
0.1uF
C710
NM
100
RB703
NM
12
34
56
78
+3.3V
10
R721
NM
SN74LVC574APWR
IC705
NM
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
100
RB702
NM
12
34
56
78
SN74LVC574APWR
IC704
NM
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
+3.3V
100
R723
NM
10k
R714
NM
10
R713
NM
100k
R715
NM
27CK-VIDEO-INPUT
004
0.001uF
C707
NM
220
R716
NM
+3.3V
0.1uF
C705
NM
1SS302-TE85L
D701
NM
12
3
100
R722
NM
CN901
(61/66)
A11
R-Y 5-in/out
CN901
(51/66)
C9
B-Y 7
CN901
(55/66)
A10
R-Y 0-in/out
10k
RB701
NM
12
34
56
78
CN901
(37/66)
A7
(F-in/out)
CN901
(40/66)
D7
Guard-GND
CN901
(38/66)
B7
(H-in/out)
CN901
(39/66)
C7
SKIN-Gate-in/out
JTAG-ISP
004,005
CN901
(22/66)
D4
Y 3
CN901
(28/66)
D5
Y 8
CN901
(32/66)
B6
(NC)
IV-OE-CTRL
003
CN901
(47/66)
E8
B-Y 4
CN901
(59/66)
E10
R-Y 4
CN901
(26/66)
B5
Y 6
CN901
(62/66)
B11
R-Y 6
CN901
(27/66)
C5
Y 7
CN901
(25/66)
A5
Y 5-in/out
CN901
(57/66)
C10
R-Y 2
CN901
(46/66)
D8
B-Y 3
CN901
(64/66)
D11
R-Y 8
CN901
(45/66)
C8
B-Y 2
CN901
(21/66)
C4
Y 2
CN901
(43/66)
A8
B-Y 0-in/out
CN901
(56/66)
B10
R-Y 1
CN901
(65/66)
E11
R-Y 9
CN901
(63/66)
C11
R-Y 7
CN901
(50/66)
B9
B-Y 6
CN901
(41/66)
E7
(27M-CLK-in/out)
CN901
(34/66)
D6
OE-out (normaly Low)
CN901
(53/66)
E9
B-Y 9
CN701
1
Vcc
2
TRST
3
TDI
4
TDO
5
TMS
6
TCK
9
10
7
8
GND
CN901
(19/66)
A4
Y 0-in/out
JTAG-ISP
004,005
CN901
(20/66)
B4
Y 1
CN901
(23/66)
E4
Y 4
CONFIG-BUS
002,005
CN901
(52/66)
D9
B-Y 8
CN901
(44/66)
B8
B-Y 1
CN901
(58/66)
D10
R-Y 3
AT-OE-CTRL
005
CN901
(29/66)
E5
Y 9
CN901
(49/66)
A9
B-Y 5-in/out
0
R744
NM
0
R745
TC7SH04FU(T5RSONYJF)
IC714 (1/2)
24
TC7SH04FU(T5RSONYJF)
IC714 (2/2)
3
GND
5
VCC
TC7SH08FU(T5RSONYJF)
IC715 (1/2)
2
14
TC7SH08FU(T5RSONYJF)
IC715 (2/2)
3
GND
5
VCC
TMS1
TRST1
DATA
TDI2
TDI3
TMS2
TCK2
TMS2
nSTATUSnSTATUS
DCLKDCLK
CONF-DONECONF-DONE
TCK1
TCK2
Y9-in
Y8-in
Y7-in
Y6-in
Y5-in
Y4-in
Y3-in
Y2-in
Y1-in
Y0-in
B9-in
B8-in
B7-in
B6-in
B5-in
B4-in
B3-in
B2-in
B1-in
B0-in
R9-in
R8-in
R7-in
R6-in
F-in
R0-in
R1-in
R2-in
R3-in
R4-in
R5-in
Y9-in/out
Y8-in/out
Y7-in/out
Y6-in/out
Y5-in/out
Y4-in/out
Y3-in/out
Y2-in/out
Y1-in/out
Y0-in/out
B9-in/out
B8-in/out
B7-in/out
B6-in/out
B5-in/out
B4-in/out
B3-in/out
B2-in/out
B1-in/out
B0-in/out
R9-in/out
R8-in/out
R7-in/out
R6-in/out
R5-in/out
R4-in/out
R3-in/out
R2-in/out
R1-in/out
R0-in/out
F-in/out
H-in
H-in/out
TDI4
TDI1
TDI3
(MODE)
EPR
INPUT
4-41 4-41
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
AT-155 (5/5)AT-155 (5/5)
AT-155 (5/5)
BOARD NO. 1-865-024-11
CCU-TX50_AT-155_010_5
2.2k
R740
NM
0.1uF
C735
NM
100
R733
NM
0.1uF
C744
NM
0.1uF
C720
NM
0.1uF
C722
NM
0.1uF
C725
NM
0.1uF
C737
NM
100
R732
NM
+2.5V
0.1uF
C719
NM
0.1uF
C726
NM
10
R736
NM
0.1uF
C721
NM
4.7k
R743
NM
10
R742
NM
0.1uF
C740
NM
100
R735
NM
+3.3V
CPU-RESET
002,003,004,005
10
R738
NM
EP1K50QC208-3
IC711
NM
TCK
1
CONF_DONE
2
nCEO
3
TDO
4
VCCIO1
5
GNDINT1
6
IO0
7
IO1
8
IO2
9
IO3/CLKUSR
10
IO4
11
IO5
12
IO6
13
IO7
14
IO8
15
IO9/RDY/nBUSY
16
IO10
17
IO11
18
IO12/INIT_DONE
19
GNDINT2
20
VCCINT1
21
VCCIO2
22
GNDINT3
23
IO13
24
IO14
25
IO15
26
IO16
27
IO17
28
IO18
29
IO19
30
IO20
31
GNDINT4
32
VCCINT2
33
VCCIO3
34
GNDINT5
35
IO21
36
IO22
37
IO23
38
IO24
39
IO25
40
IO26
41
VCCIO4
42
GNDINT6
43
IO27
44
IO28
45
IO29
46
IO30
47
VCCINT3
48
GNDINT7
49
TMS
50
TRST
51
nSTATUS
52
IO31
53
IO32
54
IO33
55
IO34
56
IO35
57
IO36
58
GNDINT8
59
IO37
60
IO38
61
IO39/LOCK
62
IO40
63
IO41
64
IO42
65
VCCIO5
66
IO43
67
IO44
68
IO45
69
IO46
70
IO47
71
VCCINT4
72
IO48
73
IO49
74
IO50
75
GNDINT9
76
VCC_CKLK
77
INPUT1
78
GCLK1
79
INPUT2
80
GND_CKLK
81
GNDINT10
82
IO51
83
VCCIO6
84
IO52
85
IO53
86
IO54
87
IO55
88
IO56
89
IO57
90
VCCINT5
91
IO58
92
IO59
93
IO60
94
IO61
95
IO62
96
IO63
97
VCCIO7
98
IO64
99
IO65
100
IO66
101
IO67
102
IO68
103
IO69
104
nCONFIG
105
VCCINT6
106
MSEL1
107
MSEL0
108
GNDINT11
109
VCCIO8
110
IO70
111
IO71
112
IO72
113
IO73
114
IO74
115
IO75
116
GNDINT12
117
VCCIO9
118
IO76
119
IO77
120
IO78
121
IO79
122
GNDINT13
123
VCCINT7
124
IO80
125
IO81
126
IO82
127
IO83
128
GNDINT14
129
VCCINT8
130
IO84
131
IO85
132
IO86
133
IO87
134
IO88
135
IO89
136
GNDINT15
137
VCCIO10
138
IO90
139
IO91
140
IO92
141
IO93
142
IO94
143
IO95
144
GNDINT16
145
VCCIO11
146
IO96
147
IO97
148
IO98
149
IO99
150
GNDINT17
151
VCCINT9
152
TDI 153
nCE 154
DCLK
155
DATA0
156
IO100/DATA1
157
IO101/DATA2
158
IO102/DATA3
159
IO103
160
IO104/DATA4
161
IO105/DATA5
162
IO106
163
IO107/DATA6
164
VCCIO12
165
IO108/DATA7
166
IO109
167
IO110
168
IO111
169
IO112
170
GNDINT18
171
IO113
172
IO114
173
IO115
174
IO116
175
IO117
176
IO118
177
VCCIO13
178
IO119
179
IO120/DEV_CLRn
180
GNDINT19
181
INPUT3
182
CLK 183
INPUT4
184
VCCINT10
185
IO121/DEV_OE
186
IO122
187
GNDINT20
188
IO123
189
IO124
190
IO125
191
IO126
192
IO127
193
VCCIO14
194
IO128
195
IO129
196
IO130
197
IO131
198
IO132
199
IO133
200
VCCINT11
201
IO134
202
IO135
203
IO136/nRS
204
IO137
205
IO138/nWS
206
IO139/CS
207
IO140/nCS
208
0.1uF
C723
NM
0.1uF
C727
NM
100
R734
NM
27CK-PLD-MS-EN
004
0.1uF
C733
NM
0.1uF
C728
NM
4.7k
R737
NM
0.1uF
C741
NM
100
R741
NM
+3.3V
0.1uF
C743
NM
0.1uF
C739
NM
0.1uF
C724
NM
0.1uF
C738
NM
0.1uF
C717
NM
0.1uF
C718
NM
0.1uF
C736
NM
100
R739
NM
0.1uF
C742
NM
0.1uF
C734
NM
+3.3V
0.1uF
C715
NM
10
R728
NM
SN74LVC574APWR
IC707
NM
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
SN74LVC574APWR
IC710
NM
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
220pF
C712
NM
10
R725
NM
+3.3V
+3.3V
0.1uF
C716
NM
10
R726
NM
+3.3V
0.1uF
C714
NM
2.2k
R724
NM
SN74LVC574APWR
IC709
NM
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
10
R727
NM
SN74LVC574APWR
IC708
NM
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OE
1
CLK
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4 16
Q3 17
Q2 18
Q1 19
VCC
20
0.1uF
C713
NM
220
RB711
NM
12
34
56
78
220
RB710
NM
12
34
56
78
220
RB713
NM
12
34
56
78
220
RB712
NM
12
34
56
78
220
RB714
NM
12
34
56
78
220
RB715
NM
12
34
56
78
220
RB716
NM
12
34
56
78
220
RB717
NM
12
34
56
78
27CK-VIDEO-OUTPUT
004
10k
R729
NM
47
RB732
NM
12
34
56
78
47
RB730
NM
12
34
56
78
47
RB726
NM
12
34
56
78
47
RB728
NM
12
34
56
78
47
RB734
NM
12
34
56
78
10uH
L701
NM
10uH
L702
NM
10uH
L703
NM
IS42S32200B-6TL-TR
IC712
NM
VDD1
1
DQ0
2
VDDQ1
3
DQ1
4
DQ2
5
VSSQ1
6
DQ3
7
DQ4
8
VDDQ2
9
DQ5
10
DQ6
11
VSSQ2
12
DQ7
13
NC1
14
VDD2
15
DQM0
16
WE
17
CAS
18
RAS
19
CS
20
NC2
21
BA0
22
BA1
23
A10/AP
24
A0
25 A1
26 A2
27
DQM2
28
VDD3
29
NC3
30
DQ16
31
VSSQ3
32
DQ17
33
DQ18
34
VDDQ3
35
DQ19
36
DQ20
37
VSSQ4
38
DQ21
39
DQ22
40
VDDQ4
41
DQ23
42
VDD4
43
VSS4
86
DQ15
85
VSSQ8
84
DQ14
83
DQ13
82
VDDQ8
81
DQ12
80
DQ11
79
VSSQ7
78
DQ10
77
DQ9
76
VDDQ7
75
DQ8
74
NC7
73
VSS3
72
DQM1
71
NC6
70
NC5
69
CLK
68
CKE
67
A9
66
A8
65
A7
64
A6
63
A5
62
A4
61
A3
60
DQM3
59
VSS2
58
NC4
57
DQ31
56
VDDQ6
55
DQ30
54
DQ29
53
VSSQ6
52
DQ28
51
DQ27
50
VDDQ5
49
DQ26
48
DQ25
47
VSSQ5
46
DQ24
45
VSS1
44
JTAG-ISP
004,005
nCONFIG
003
220
RB725
NM
12
34
56
78
100
RB733
NM
12
34
56
78
TP703
NM
CONFIG-BUS
002,005
220
RB722
NM
12
34
56
78
MS-EN-RD-F
004
47
RB727
NM
12
34
56
78
DATA
002,003
ADDRESS002,003
MS-EN-RD-H
004
16V
10uF
C732
NM
TP701
NM
AT-OE-CTRL
005
CONTROL002,003
16V
10uF
C731
NM
TP704
NM
16V
10uF
C729
NM
MS-EN-WR-F
004
220
RB719
NM
12
34
56
78
220
RB723
NM
12
34
56
78
100
RB731
NM
12
34
56
78
220
RB718
NM
12
34
56
78
220
RB724
NM
12
34
56
78
16V
10uF
C730
NM
100
RB729
NM
12
34
56
78
MS-EN-WR-H
004
220
RB720
NM
12
34
56
78
220
RB721
NM
12
34
56
78
TP702
NM
MS-EN-WE
MS-EN-DQ23
B4-out
TRST1
MS-EN-DQ19
MS-EN-A7
MS-EN-RAS
Y7-in
MS-EN-DQ12
MS-EN-DQ11
Y9-out
MS-EN-DQ11
MS-ENC-CS
TDI1
XSHWE1
DATA
B7-out
Y8-out
TDI2
MS-EN-DQ27
B6-out
Y7-out
Y1-in
B5-out
Y6-out
MS-EN-A11
Y0-in
MS-EN-DQ9
MS-EN-DQ12
Y5-out
MS-EN-DQ16
MS-EN-A4
Y4-out
MS-EN-A10
MS-EN-A5
MS-EN-A0
MS-EN-DQ9
MS-EN-DQ5
MS-EN-CAS
MS-EN-RAS
MS-EN-DQ23
MS-EN-DQ24
TCK1
TMS1
MS-EN-DQ0
MS-EN-A3
MS-EN-A2
MS-EN-DQ18
MS-EN-DQ13
MS-EN-DQ22
MS-EN-DQ6
MS-EN-DQ15
MS-EN-A2
MS-EN-DQ24
MS-EN-A8
MS-EN-DQ18
MS-EN-DQ10
MS-EN-DQ29
DCLK
MS-EN-DQ8
MS-EN-A7
MS-EN-DQ29
MS-EN-CKE
MS-EN-DQ2
MS-EN-DQ3
MS-EN-DQ10
MS-EN-DQ21
MS-EN-DQ1
MS-EN-A9
MS-EN-A5
MS-EN-A10
MS-EN-DQ3
MS-EN-DQ15
MS-EN-DQ25
MS-EN-DQ1
MS-EN-CAS
MS-EN-A3
MS-EN-A1
nSTATUS
MS-EN-CKE
MS-EN-DQ28
MS-EN-DQ25
MS-EN-DQ30
MS-EN-DQ8
MS-EN-CS
MS-EN-DQ13
MS-EN-DQ14
MS-EN-DQ20
Y6-in
MS-EN-A11
MS-EN-DQ30
MS-EN-A4
MS-EN-A8
MS-EN-DQ6
MS-EN-DQ26
Y5-in
MS-EN-DQ4
MS-EN-DQ31
MS-EN-DQ2
MS-EN-DQ0
MS-EN-DQ4
Y4-in
MS-EN-CS
MS-EN-DQ17
MS-EN-DQ31
MS-EN-A9
MS-EN-WE
MS-EN-DQ17
MS-EN-A6
MS-EN-A12
Y3-in
MS-EN-DQ22
MS-EN-DQ7
MS-EN-DQ21
Y2-in
MS-EN-DQ27
MS-EN-DQ19
MS-EN-DQ14
MS-EN-A12
MS-EN-DQM10
MS-EN-A1
MS-EN-DQ16
MS-EN-DQ26
MS-EN-A6
Y9-in
MS-EN-DQ7
MS-EN-DQ28
MS-EN-A0
XRD-2
MS-EN-DQ20
MS-EN-DQ5
Y8-in
CONF-DONE
Y9-in/out
Y8-in/out
Y7-in/out
Y6-in/out
Y5-in/out
Y4-in/out
Y3-in/out
Y2-in/out
Y1-in/out
Y0-in/out
B9-in/out
B8-in/out
B7-in/out
B6-in/out
B5-in/out
B4-in/out
B3-in/out
B2-in/out
B1-in/out
B0-in/out
R9-in/out
R8-in/out
R7-in/out
R6-in/out
R5-in/out
R4-in/out
R3-in/out
R2-in/out
R1-in/out
R0-in/out
F-in/out
Y9-out
Y8-out
Y7-out
Y6-out
Y5-out
Y4-out
Y3-out
Y2-out
Y1-out
Y0-out
B9-out
B8-out
B7-out
B6-out
B5-out
B4-out
B3-out
B2-out
B1-out
B0-out
R9-out
R8-out
R7-out
R6-out
R5-out
R4-out
R3-out
R2-out
R1-out
R0-out
F-out
F-out
R9-out
R8-out
R7-out
R6-out
R5-out
R4-out
R3-out
R2-out
R1-out
R0-out
B9-out
B8-out
Y0-out
Y1-out
Y2-out
Y3-out
R1-in
R2-in
R3-in
R4-in
R6-in
R7-in
R8-in
R9-in
B0-in
B1-in
R0-in
R5-in
B2-in
B3-in
B4-in
B5-in
B6-in
B7-in
B8-in
B9-in
F-in
H-out
H-in/out
H-in
H-out
CPU-CLK
D0
D1
D2
D3
D15
D5
D12
D7
D6
D13
D4
D14
D11
D10
D9
D8
B0-out
B1-out
B2-out
B3-out
A1
A2
A3
A4
MS-EN-DQM32
MS-EN-DQM10
MS-EN-DQM32
MS-WR-H
B-Y IN
WR_H
MEM ADDRESS
R-Y out
Y IN
MEM CONTROL
B-Y out
MS-RD-H
MS-EN
MEM
CK13.5M (SD:13.5MHz)
WR_F
RESET
MS-RD-F
MEM DATA
CPU I/F
MS-WR-F
CK27M (SD:27MHz)
OUTPUT
Y out
R-Y IN
4-43 (b) 4-43 (b)
2
3
4
5
1
ABCDEFGH
CCU-TX50/V2
SW-1257 (1/2)
SUFFIX: -12
SW-1257 (1/2)
SUFFIX: -12
SW-1257 (1/2)
BOARD NO. 1-865-038-12
CCU-TX50_SW-1257_012_1
100k
R228
0.001uF
C114
NM
0.022uF
C121
330
R221
CL-191HR-CD-T
D102
220k
R248
0.022uF
C122
0
R224
DA221-TL
D116
1
2
3
47pF
C125
470
R219
0.1uF
C128
100k
R247
10k
R222
22k
R223
1k
R209
DA221-TL
D117
1
2
3
1k
R211
22
R206
330
R214
100
R246
NJM4558V-TE2
(1/2)
IC101
+
5
-
6
7
1k
R210
22
R243
22
R215
470
R208
16V
0.47uF
C127
1k
R212
0.001uF
C103
CL-191G1-C-T
D100
CL-191G1-C-T
D101
GND
2.2k
R244
1k
R216
330
R205
S104
12
3
45
6
2.2k
R242
2.2uF
C118
2.2uF
NM
C124
1k
R217
330
R220
2.2uF
C119
470
R203
S103
3
1
2
4
7
5
6
8
NJM4558V-TE2
(2/2)
IC101
+
3
-
2
4
1
8
220k
R245
100k
R237
470
R207
16V
100uF
C105
220k
R240
0.1uF
C104
330
R213
10k
R236
100uH
L110
330
R204
16V
4.7uF
C107
0.001uF
C113
NM
CN2
1
2
3
4
5
6
8
7
9
CL-191HR-CD-T
D103
16V
4.7uF
C108
470
R202
100k
R229
0.1uF
C102
NM
22k
R225
220k
R249
22k
R241
RM_PANEL_ID
002
IIC_SDA3
002
IIC_SCL3
002
10uH
L111
+3.7V
0.1uF
C112
10uH
L112
GND
+3.3V-1
+3.3V
+3.3V
2.2k
R230
0.1uF
C126
10uH
L113
2.2k
R233
GND
1.5k
R231
100
R232
0.1uF
C115
LT1963ES8#TR
IC100
SHDN
5
IN
8
NC
4
OUT
1
GND1
3
GND2
6
GND3
7
ADJ
2
CL100
0.8 0.8
CL101
CN1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
F-GND
F-GND
F-GND
F-GND
F-GND
F-GND
16V
100uF
C106
6.3V
220uF
C110
S101
2
1
3
G1
4567
6.3V
47uF
C120
10k
RV100
1
2
3
45
6.3V
100uF
NM
C117
6.3V
100uF
C116
S100
12
3
G1
4567
S102
2
1
3
G1
4567
6.3V
47uF
C123
+5.5V
6.3V
47uF
C129
1k
R250
1k
R251
470
R252
470
R253
0
R254
NM
0
R255
+5.5V
470
R218
R
G
FRDG1211C-TR
D104
12
34
0
R256
NM
+5.5V
0
R257
R
G
FRDG1211C-TR
D105
12
34
R
G
FRDG1211C-TR
D106
12
34
R
G
FRDG1211C-TR
D109
12
34
R
G
FRDG1211C-TR
D107
12
34
+5.5V
0
R259
R
G
FRDG1211C-TR
D108
12
34
0
R258
NM
10uH
L114
VCC-1
VCC-1
VCC-1
DTC123JE-TL
Q100
DTC123JE-TL
Q103
DTC123JE-TL
Q106
DTC123JE-TL
Q102
DTC123JE-TL
Q107
DTC123JE-TL
Q101
DTC123JE-TL
Q105
DTC123JE-TL
Q104
10
R260
16V
470uF
C130
100uH
L115
NM
0
R261
TA78L09F-TE12L
IC102
IN
1
C/FIN
3
OUT
2
DTA144EE-TL
Q108
DTA144EE-TL
Q109
22k
R262
1k
R263
1k
R264
470pF
C132
(0-3.1V)
IIC_SCL3
24
R
O
(D2904,30P,AN,Lower)
0
FP-INCOM-R(Y)-if
CAM POWER
5
25
*INCOM-PRIV/PROD-in
P
N
CAM-POWER-LED-out
0
FP-INCOM-R(X)-if
AT
26
PROD
I
0
1
AVP
27
ENG
FP-PGM-(X)-if
G
1
RM-PANEL-ID
ECM
28
FP-PGM-(Y)-if
0
E
PRIV
29
16
*PGM-CTL-ON/OFF-in
O
MIC OFF
30
OPEN
RED---TALLY-PANEL-if
18
*MIC-CTL-ON/OFF-in
MB
GND
10
MAIN POWER SW
3
CABLE-SHORT-LED-out
AT
5
FP-INCOM-T(X)-if
GREEN-TALLY-PANEL-if
CABLE-OPEN-LED-out
17
AT
4
FP-INCOM-T(Y)-if
CARBON
XLR5
FP-INCOM-R(X)-if
R/G TALLY
7
15
DYNAMIC
1
2
PANEL-GND
20
13
3
CCU-MAIN-POWER-SW(H)
*INCOM-PRIV/ENG-in
1
1
PANEL_+3.7V
6
MIC ON
4
From/To MB
FP-PGM-(X)-if
11
1
2
PGM
Front-Panel Incom
FP-INCOM-R(Y)-if
9
14
GND
N
FP-INCOM-T(X)-if
INCOM LEVEL
12
MAIN-POWER-LED-out
CABLE OPEN
19
G
P
RV1:
FP-INCOM-LEVEL-VR
CABLE SHORT
8
(Hirose-7P,ST,Surface)
V
F
FP-PGM-(Y)-if
21
ON
R
11
22
OFF
P
M
1
+12V-AU
PANEL-GND
(6.875)
23
D
1
F
GND
MAIN POWER
CCU-MAIN-POWER-SW(C)
PANEL_+3.7V
PANEL-GND
+5.5V
+5.5V
IIC_SDA3
+3.3V
4-44 (b)4-44 (b)
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
SW-1257 (2/2)
SUFFIX: -12
SW-1257 (2/2)
SUFFIX: -12
DTC123JE-TL
Q21
470
R17
0.1uF
C22
330
R25
470
R79
F-GND
0.1uF
C33
470
R18
2.2k
R113
NM
2.2k
R85
NM
GND
1k
R56
330
R129
DTC123JE-TL
Q1
DTC123JE-TL
Q47
GND
2.2k
R86
NM
S9
12
34
1k
R121
PCF8591T
IC4
AIN0
1
AGND
13
OSC
11
SDA
9
SCL
10
VREF
14
AOUT
15
VDD
16
VSS
8
AIN1
2
AIN2
3
AIN3
4
A0
5
A1
6
A2
7
EXT
12
PCA9555DB-118
IC2
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
470
R42
10uF
C9
100
R5
DTC123JE-TL
Q17
470
R24
DTC123JE-TL
Q22
VCC-2
DTC123JE-TL
Q28
+3.3V-1
1k
R57
DTC123JE-TL
Q15
470
R44
330
R30
GND
470
R43
VCC-1
DTC123JE-TL
Q8
S3
12
34
330
R127
GND
S1
2
MT1
1
MT2
3
G1
4567
VCC-1
DTC123JE-TL
Q10
330
R15
+3.3V
10k
R123
GND
DTC123JE-TL
Q36
SC
SL2
VCC-1
+5.5V
SLR-332YY3F
D1
$493733622
DTC123JE-TL
Q25
DTC123JE-TL
Q2
100
R6
DTC123JE-TL
Q4
330
R132
+3.3V-1
DTC123JE-TL
Q13
GND
330
R11
1k
R122
+3.3V-1
F-GND
74VHC08MTCX
IC8
(4/5)
12
13
11
330
R13
+3.3V
GND
74VHC573MTCX
IC10
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OC
1C
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4
16
Q3 17
Q2 18
Q1 19
VCC
20
DTC123JE-TL
Q18
0.01uF
C19
74VHC573MTCX
IC5
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OC
1C
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4
16
Q3 17
Q2 18
Q1 19
VCC
20
IIC_SCL3
001
10uH
L1
330
R134
DTC123JE-TL
Q3
0
R126
DTC123JE-TL
Q20
10k
R120
S11
2
MT1
1
MT2
3
G1
4567
470
R47
470
R19
+3.7V
GND
+3.3V-1
0
NM R3
DTC123JE-TL
Q39
GND
S6
12
34
GND
1k
R12
DTC123JE-TL
Q11
2.2k
R112
NM
2.2k
R82
NM
470
R22
0.01uF
C18
DTC123JE-TL
Q26
0
NM
R125
470
R48
b
c
f
d
a
g
e
ND4
a
1
f
2
g
3
e
4
d
5
DPK
6
DPA
7
c
8
COMA
9
b
10
VCC-1
330
R131
74VHC08MTCX
IC8
(2/5)
4
5
6
PCA9555DB-118
IC1
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
0.01uF
C5
GND
470
R21 470
R78
470
R75
GND
GND
GND
DTC123JE-TL
Q38
GND
74VHC08MTCX
IC8
(3/5)
9
10
8
DTC123JE-TL
Q7
b
c
f
d
a
g
e
ND3
a
1
f
2
g
3
e
4
d
5
DPK
6
DPA
7
c
8
COMA
9
b
10
S8
12
34
0.1uF
C34
100
R27
470
R45
330
R14
100
R29
100k
R1
NM
GND
IIC_SDA3
001
VCC-2
0.1uF
C7
74VHC08MTCX
IC8
(5/5)
7
GND
14
VCC
330
R16
470
R128
SLR-332MG3F
$493733622
D4
b
c
f
d
a
g
e
ND2
a
1
f
2
g
3
e
4
d
5
DPK
6
DPA
7
c
8
COMA
9
b
10
470
R46
GND
DTC123JE-TL
Q12
100
R28
100
R7
0.1uF
C6
470
R74
0.1uF
C1
2.2k
R81
NM
DTC123JE-TL
Q6
0.1uF
C3
74VHC573MTCX
IC3
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OC
1C
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4
16
Q3 17
Q2 18
Q1 19
VCC
20
2SA1213Y-TE12L
Q68
1k
R9
0.1uF
C8
470
R41
GND
470
R23
VCC-2
+3.3V-1
0.1uF
C2
DTC123JE-TL
Q19
330
R130
DTC123JE-TL
Q14
S7
12
34
DTC123JE-TL
Q9
470
R76
DTC123JE-TL
Q31
1k
R58
+3.3V-1
100
R4
S2
12
34
+5.5V
S4
12
34
470
R77
GND
470
R20
DTC123JE-TL
Q27
DTC123JE-TL
Q16
220
R8
DTC123JE-TL
Q69
GND
DTC123JE-TL
Q24
0.1uF
C32
0.01uF
C4
R2
100k
NM
1k
R124
GND
330
R26
RM_PANEL_ID
001
470
R73
74VHC08MTCX
IC8
(1/5)
1
2
3
DTC123JE-TL
Q37
470
R80
150
R87
S5
12
34
DTC123JE-TL
Q5
2SA1213Y-TE12L
Q66
S18
12
3
45
6
330
R133
1k
R10
DTC123JE-TL
Q30
DTC123JE-TL
Q67
WHITE_PRE_LED
DP
L3
L3
5600K_SW
SKIN_DTL_LED
CHARACTER_SW
FLARE/BLACK_SW
SEG_A
L4
SEG_B
IRISM/BACTIVE_LED
GAIN_DOWN_SW
SEG_A
SEG_C
CHARACTER_LED
SEG_B
GAIN_UP_SW
SEG_D
SKIN_DTL_LED
SEG_E
GAIN_UP_SW
IRIS_AUTO_SW
5600K_LED
SEG_F
IRIS_A/R_SW
CALL_SW
SEG_G
TLCS_LED
5600K_SW
SEG_G
M.BLACK_A/R_SW
BARS_LED
DP
M.GAMMA_A/R_SW
SHUTTER_UP_SW
KNEE_AUTO_SW
DETAIL_A/R_SW
KNEE_AUTO_LED
SHUTTER_DOWN_SW
SEG_A
DP
MASTER/SLAVE_SW
GAIN_DOWN_SW
CALL_LED
SEG_D
KNEE_AUTO_SW
SEG_F
PANEL_SW
SKIN_DETAIL_SW
SEG_B
CHARACTER_SW
PANEL_LED
SHUTTER_UP_SW
BARS_SW
TLCS_SW
SEG_G
SEG_E
SEG_C
ATW_SW
IRISM/BACTIVE_LED
SEG_F
SEG_E
EXTENDER_LED
SHUTTER_DOWN_SW
ABB_LED
SEG_D
AWB_LED
WHITE_PRE_SW
SEG_C
CALL_SW
SHUTTER_LED
BARS_SW
CLS_LED
L2
L2
PANEL_SW
SKIN_DETAIL_SW
BLACK_A/R_SW
L H L
CHARACTER
KNEE AUTO/PRE
Green cap
5600K
PANEL ACTIVE
EXTENDER
Orenge
White
CALL
White
SUTTER UP/DOWN
H H L
White
TLCS
HI
IIC ADR.
White
A2 A1 A0
IRIS M/B ACTIVE
GAIN UP/DOWN
LED Brightness
DOWN
BLACK
White
SKIN DTL
BARS
IIC ADR.
Red
UP UP
Yellow
H L L
A2 A1 A0
IIC ADR.
A2 A1 A0
Green
Red cap
LOW
Green
DOWN
4-45 (b) 4-45 (b)
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
SW-1257 (2/2)
SUFFIX: -12
SW-1257 (2/2)
SUFFIX: -12
SW-1257 (2/2)
BOARD NO. 1-865-038-12
CCU-TX50_SW-1257_012_2
470
R109
+3.3V-1
0.1uF
C15
DTC123JE-TL
Q64
330
R64
10k
RV4
1
2
3
45
0.1uF
C29
330
R63
10k
R67
0.1uF
C35
0.01uF
C10
S17
12
34
56
78
9
10
11 12
13 14
15 16
470
R90
DTC123JE-TL
Q32
0.1uF
C37
0.01uF
C12
0.1uF
C17
DTC123JE-TL
Q62
DTC123JE-TL
Q60
SC
SL1
74VHC573MTCX
IC12
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OC
1C
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4
16
Q3 17
Q2 18
Q1 19
VCC
20
470
R108
10k
RV6
1
2
3
45
10k
RV7
1
2
3
45
2.2k
R117
NM
DTC123JE-TL
Q45
0.1uF
C30
GND
0.1uF
C11
DTC123JE-TL
Q46
100
R53
100
R50
470
R96
470
R88
330
R59
0.1uF
C25
470
R105
+3.3V-1
470
R89
220
R38
DTC123JE-TL
Q48
470
R102
0.1uF
C36
VCC-1
+3.3V-1
100
R52
DTC123JE-TL
Q61
DTC123JE-TL
Q59
0.1uF
C24
1k
R32
+3.3V-1
S16
12
34
GND
S12
12
34
2.2k
R116
330
R137
VCC-2
DTC123JE-TL
Q41
GND
330
R70
GND
470
R99
10k
R36
DTC123JE-TL
Q35
470
R91
0.1uF
C26
10k
R34
SLR-332VC3F
$493733622
D3
100
R84
10uF
C21
100
R83
100
R60
100k
RB8
12
34
56
78
SLR-332VC3F
$493733622
D2
100
R39
470
R93
0.1uF
C16
10k
R68
DTC123JE-TL
Q52
VCC-2
74VHC573MTCX
IC13
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OC
1C
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4
16
Q3 17
Q2 18
Q1 19
VCC
20
10k
R37
100
R61
74VHC573MTCX
IC11
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OC
1C
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4
16
Q3 17
Q2 18
Q1 19
VCC
20
100
R51
470
R98
PCA9555DB-118
IC6
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
470
R106
S15
12
34
DTC123JE-TL
Q34
F-GND
GND
100
R72
GND
DTC123JE-TL
Q65
10uH
L2
b
c
f
d
a
g
e
ND6
a
1
f
2
g
3
e
4
d
5
DPK
6
DPA
7
c
8
COMA
9
b
10
100
R54
b
c
f
d
a
g
e
ND5
a
1
f
2
g
3
e
4
d
5
DPK
6
DPA
7
c
8
COMA
9
b
10
DTC123JE-TL
Q33
S14
12
34
470
R97
S10
2
MT1
1
MT2
3
G1
4567
DTC123JE-TL
Q29
10k
RV1
1
2
3
45
GND
VCC-2
DTC123JE-TL
Q42
F-GND
GND
DTC123JE-TL
Q55
470
R94
RV3
10k
1
2
3
45
F-GND
+3.3V
GND
100k
RB5
12
34
56
78
GND
2.2k
R114
E1
470
R107
10k
R66
+3.3V-1
2.2k
R118
NM
10k
RV2
1
2
3
45
DTC123JE-TL
Q44
100k
RB6
12
34
56
78
DTC123JE-TL
Q43
GND
GND
DTC123JE-TL
Q49
GND
470
R95
DTC123JE-TL
Q40
330
R139
0.1uF
C23
DTC123JE-TL
Q57
0.1uF
C14
470
R92
DTC123JE-TL
Q50
DTC123JE-TL
Q56
DTC123JE-TL
Q51
470
R110
DTC123JE-TL
Q58
330
R138
1k
R33
220
R40
GND
470
R103
470
R101
330
R65
10k
RV5
1
2
3
45
0.1uF
C20
DTC123JE-TL
Q23
1k
R31
1k
RB3
12
34
56
78
GND
2.2k
R115
NM
b
c
f
d
a
g
e
ND1
a
1
f
2
g
3
e
4
d
5
DPK
6
DPA
7
c
8
COMA
9
b
10
+3.3V-1
2.2k
R119
NM
PCF8591T
IC9
AIN0
1
AGND
13
OSC
11
SDA
9
SCL
10
VREF
14
AOUT
15
VDD
16
VSS
8
AIN1
2
AIN2
3
AIN3
4
A0
5
A1
6
A2
7
EXT
12
330
R136
470
R100
100k
RB2
12
34
56
78
+3.3V-1
100
R49
0.1uF
C31
100
R55
DTC123JE-TL
Q54
GND
330
R135
0.1uF
C13
GND
100k
RB1
12
34
56
78
S13
12
34
DTC123JE-TL
Q53
GND
100k
RB4
12
34
56
78
GND
470
R111
F-GND
1k
RB7
12
34
56
78
GND
10k
R69
100
R71
10k
RV8
1
2
3
45
PCA9555DB-118
IC7
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
DTC123JE-TL
Q63
100
R62
10k
R35
100k
RB9
12
34
56
78
+3.3V-1
470
R104
ABB_SW
DETAIL_A/R_SW
DETAIL_A/R_SW
WHITE_PRE_LED
SEG_A
SEG_E
SHUTTER_LED
AWB_SW
M.GAMMA_A/R_SW
M.GAMMA_A/R_SW
DP
TLCS_LED
PANEL_LED
CLS_LED
L6
SEG_F
SEG_B
EXTENDER_LED
L5
DP
SEG_F
L4
L3
WHITE_PRE_SW
SEG_C
ABB_SW
L2
SEG_A
SKIN_DETAIL_SW
CALL_LED
CLS_SW
L1
CHARACTER_LED
KNEE_AUTO_SW
SHUTTER_ON_SW
SEG_A
SEG_D
SHUTTER_ON_SW
SEG_G
L6
L6
IRIS_AUTO_SW
ABB_SW
SEG_E
BARS_SW
AWB_SW
L5
L5
DP
WHITE_PRE_SW
5600K_LED
SEG_F
GAIN_UP_SW
SEG_G SEG_G
CLS_SW
TLCS_SW
GAIN_DOWN_SW
SEG_E
IRIS_AUTO_LED
MASTER/SLAVE_SW
MASTER/SLAVE_SW
SEG_D
SEG_G
ATW_LED
SEG_C
SEG_E
ATW_LED
SEG_F
CLS_SW
WHITE_A/R_SW
WHITE_A/R_SW
SEG_B
SEG_A
ATW_SW
DP
TLCS_SW
BLACK_A/R_SW
BLACK_A/R_SW
CHARACTER_SW
ABB_LED
IRIS_AUTO_SW
SEG_C
ATW_SW
SEG_B
AWB_LED
M.BLACK_A/R_SW
M.BLACK_A/R_SW
5600K_SW
KNEE_AUTO_LED
SHUTTER_UP_SW
SHUTTER_ON_SW
SEG_C
SEG_B
IRIS_AUTO_LED
IRIS_A/R_SW
IRIS_A/R_SW
SHUTTER_DOWN_SW
SEG_D
BARS_LED
CALL_SW
L1
L1
FLARE/BLACK_SW
FLARE/BLACK_SW
PANEL_SW
SEG_D
WHITE_A/R_SW
AWB_SW
White
H L H
BLACK
WHITE PRESET
MASTER BLACK
ATW
:Metal/With Center detent
A2 A1 A0
H H H
IRIS
A2 A1 A0
:Insulet/Without Center detent
White
:Insulet/Without Center detent
WHITE B
White
IIC ADR.
DETAIL
IRIS
SHUTTER ON
BLACK B
BLACK B
IIC ADR.
:Insulet/Without Center detent
WHITE R
:Insulated knob/With Center detent
WHIITE
WHAITE
:Insulet/Without Center detent
:Insulated knob/With Center detent
DIP SW
White
MASTER GAMMA
Red
AUTO IRIS
MASTER BLACK
White
:Metal/With Center detent
WHITE B
MASTER GAMMA
BLACK R
DETAIL
WHITE R
AWB/ABB
IIC ADR.
BLACK R
A2 A1 A0
CLS
L H H
Red
4-43 (a) 4-43 (a)
2
3
4
5
1
ABCDEFGH
CCU-TX50/V2
SW-1257 (1/2)
SUFFIX: -11
SW-1257 (1/2)
SUFFIX: -11
SW-1257 (1/2)
BOARD NO. 1-865-038-11
CCU-TX50_SW-1257_010_1
100k
R228
0.001uF
C114
0.022uF
C121
330
R221
CL-191HR-CD-T
D102
22
R226
220k
R248
0.022uF
C122
1.5k
R239
0
R224
DA221-TL
D116
1
2
3
47pF
C125
470
R219
0.1uF
C128
100k
R247
10k
R222
22k
R223
1k
R209
DA221-TL
D117
1
2
3
1k
R211
22
R206
330
R214
100
R246
NJM4558V-TE2
(1/2)
IC101
+
5
-
6
7
1k
R210
22
R243
22
R215
470
R208
16V
0.47uF
C127
1k
R212
0.001uF
C103
CL-191G1-C-T
D100
CL-191G1-C-T
D101
GND
2.2k
R244
1k
R216
330
R205
S104
12
3
45
6
2.2k
R242
2.2uF
C118
2.2uF
NM
C124
1k
R217
330
R220
2.2uF
C119
470
R203
S103
3
1
2
4
7
5
6
8
NJM4558V-TE2
(2/2)
IC101
+
3
-
2
4
1
8
220k
R245
100k
R237
470
R207
16V
100uF
C105
220k
R240
0.1uF
C104
330
R213
10k
R236
100uH
L110
1.5k
R235
330
R204
2.2k
R234
16V
4.7uF
C107
0.001uF
C113
CN2
1
2
3
4
5
6
8
7
9
16V
4.7uF
C111
CL-191HR-CD-T
D103
16V
4.7uF
C109
16V
4.7uF
C108
470
R202
100k
R229
0.1uF
C102
22k
R225
22
R227
220k
R249
2.2k
R238
22k
R241
RM_PANEL_ID
002
IIC_SDA3
002
IIC_SCL3
002
10uH
L111
+3.7V
0.1uF
C112
10uH
L112
GND
+3.3V-1
+3.3V
+3.3V
2.2k
R230
0.1uF
C126
10uH
L113
2.2k
R233
GND
1.5k
R231
100
R232
0.1uF
C115
LT1963ES8#TR
IC100
SHDN
5
IN
8
NC
4
OUT
1
GND1
3
GND2
6
GND3
7
ADJ
2
CL100
0.8 0.8
CL101
CN1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
F-GND
F-GND
F-GND
F-GND
F-GND
F-GND
16V
100uF
C106
6.3V
220uF
C110
S101
2
1
3
G1
4567
6.3V
47uF
C120
10k
RV100
1
2
3
45
6.3V
100uF
NM
C117
6.3V
100uF
C116
S100
12
3
G1
4567
S102
2
1
3
G1
4567
6.3V
47uF
C123
+5.5V
6.3V
47uF
C129
1k
R250
1k
R251
470
R252
470
R253
0
R254
NM
0
R255
+5.5V
470
R218
R
G
FRDG1211C-TR
D104
12
34
0
R256
NM
+5.5V
0
R257
R
G
FRDG1211C-TR
D105
12
34
R
G
FRDG1211C-TR
D106
12
34
R
G
FRDG1211C-TR
D109
12
34
R
G
FRDG1211C-TR
D107
12
34
+5.5V
0
R259
R
G
FRDG1211C-TR
D108
12
34
0
R258
NM
10uH
L114
VCC-1
VCC-1
VCC-1
DTC123JE-TL
Q100
DTC123JE-TL
Q103
DTC123JE-TL
Q106
DTC123JE-TL
Q102
DTC123JE-TL
Q107
DTC123JE-TL
Q101
DTC123JE-TL
Q105
DTC123JE-TL
Q104
10
R260
16V
470uF
C130
(0-3.1V)
IIC_SCL3
24
R
O
(D2904,30P,AN,Lower)
0
FP-INCOM-R(Y)-if
CAM POWER
5
25
*INCOM-PRIV/PROD-in
P
N
CAM-POWER-LED-out
0
FP-INCOM-R(X)-if
AT
26
PROD
I
0
1
AVP
27
ENG
FP-PGM-(X)-if
G
1
RM-PANEL-ID
ECM
28
FP-PGM-(Y)-if
0
E
PRIV
29
16
*PGM-CTL-ON/OFF-in
O
MIC OFF
30
OPEN
RED---TALLY-PANEL-if
18
*MIC-CTL-ON/OFF-in
MB
GND
10
MAIN POWER SW
3
CABLE-SHORT-LED-out
AT
5
FP-INCOM-T(X)-if
GREEN-TALLY-PANEL-if
CABLE-OPEN-LED-out
17
AT
4
FP-INCOM-T(Y)-if
CARBON
XLR5
FP-INCOM-R(X)-if
R/G TALLY
7
15
DYNAMIC
1
2
PANEL-GND
20
13
3
CCU-MAIN-POWER-SW(H)
*INCOM-PRIV/ENG-in
1
1
PANEL_+3.7V
6
MIC ON
4
From/To MB
FP-PGM-(X)-if
11
1
2
PGM
Front-Panel Incom
FP-INCOM-R(Y)-if
9
14
GND
N
FP-INCOM-T(X)-if
INCOM LEVEL
12
MAIN-POWER-LED-out
CABLE OPEN
19
G
P
RV1:
FP-INCOM-LEVEL-VR
CABLE SHORT
8
(Hirose-7P,ST,Surface)
V
F
FP-PGM-(Y)-if
21
ON
R
11
22
OFF
P
M
1
+12V-AU
PANEL-GND
(6.875)
23
D
1
F
GND
MAIN POWER
CCU-MAIN-POWER-SW(C)
PANEL_+3.7V
PANEL-GND
+5.5V
+5.5V
IIC_SDA3
+3.3V
4-44 (a)4-44 (a)
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
SW-1257 (2/2)
SUFFIX: -11
SW-1257 (2/2)
SUFFIX: -11
S4
12
34
10k
R36
100
R50
SLR-332YY3F
D1
$493733622
S5
12
34
S9
12
34
GND
PCA9555DB-118
IC1
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
330
R26
10uF
C9
S3
12
34
0.1uF
C13
GND
74VHC08MTCX
IC8
(1/5)
1
2
3
100
R5
S7
12
34
100
R39
GND
PCA9555DB-118
IC2
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
10uH
L1
100 R27
+3.3V-1
GND
74VHC08MTCX
IC8
(4/5)
12
13
11
0.1uF
C15
74VHC08MTCX
IC8
(2/5)
4
5
6
220
R8
100
R6
330
R30
1k
R31
GND
+3.3V-1
+3.3V
10k
R37
100
R51
+3.3V
RV3
10k
1
2
3
45
S2
12
34
GND
PCF8591T
IC4
AIN0
1
AGND
13
OSC
11
SDA
9
SCL
10
VREF
14
AOUT
15
VDD
16
VSS
8
AIN1
2
AIN2
3
AIN3
4
A0
5
A1
6
A2
7
EXT
12
S8
12
34
0.01uF
C12
S6
12
34
330
R15
F-GND
10k
R35
100
R4
330
R11
100
R49
+3.3V-1
0.1uF
C3
330
R14
GND
330
R25
100 R28
0.1uF
C2
SC
SL1
330
R13
10k
R34
0.1uF
C1
74VHC08MTCX
IC8
(5/5)
7
GND
14
VCC
0.1uF
C11
0
NM R3
100
R29
100
R7
330
R16
S10
2
MT1
1
MT2
3
G1
4567
GND
0.1uF
C14
74VHC08MTCX
IC8
(3/5)
9
10
8
10k
RV4
1
2
3
45
GND
R2
100k
NM
0.1uF
C7
100k
R1
NM
0.01uF
C10
1k
R33
E1
GND
1k
R32
RM_PANEL_ID
001
IIC_SCL3
001
IIC_SDA3
001
F-GND
220
R40
220
R38
F-GND
0.01uF
C5
1k
R9
1k
R10
S1
2
MT1
1
MT2
3
G1
4567
0.01uF
C4
1k
R12
1k
R57
S11
2
MT1
1
MT2
3
G1
4567
0.01uF
C19
F-GND
0.01uF
C18
1k
R58
1k
R56
GND
SLR-332VC3F
$493733622
D2
SLR-332VC3F
$493733622
D3
10k
RV2
1
2
3
45
10k
RV1
1
2
3
45
150
R87
GND
SLR-332MG3F
$493733622
D4
b
c
f
d
a
g
e
ND4
a
1
f
2
g
3
e
4
d
5
DPK
6
DPA
7
c
8
COMA
9
b
10
470
R24
470
R23
470
R22
470
R21
470
R20
470
R19
470
R17
470
R18
GND
74VHC573MTCX
IC3
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OC
1C
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4
16
Q3 17
Q2 18
Q1 19
VCC
20
0.1uF
C6
+3.3V-1
GND
470
R42
470
R47
470
R43
470
R41
GND
470
R46
74VHC573MTCX
IC5
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OC
1C
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4
16
Q3 17
Q2 18
Q1 19
VCC
20
470
R44
GND
470
R48
0.1uF
C8
+3.3V-1
b
c
f
d
a
g
e
ND3
a
1
f
2
g
3
e
4
d
5
DPK
6
DPA
7
c
8
COMA
9
b
10
470
R45 470
R78
b
c
f
d
a
g
e
ND2
a
1
f
2
g
3
e
4
d
5
DPK
6
DPA
7
c
8
COMA
9
b
10
470
R75
470
R73
+3.3V-1
470
R80
GND
470
R76
470
R77
470
R74
74VHC573MTCX
IC10
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OC
1C
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4
16
Q3 17
Q2 18
Q1 19
VCC
20
0.1uF
C22
GND
470
R79
GND
0.1uF
C32
GND
0.1uF
C34
GND
0.1uF
C33
SC
SL2
2.2k
R85
2.2k
R82
2.2k
R86
2.2k
R81
2.2k
R113
2.2k
R112
S18
12
3
45
6
+3.7V
+5.5V
2SA1213Y-TE12L
Q66
10k
R120
1k
R121
VCC-1
1k
R122
2SA1213Y-TE12L
Q68
1k
R124
10k
R123
GND
GND
VCC-1
VCC-1
+5.5V
0
R126
0
NM
R125
VCC-1 VCC-2 VCC-2 VCC-2
330
R127
470
R128
330
R129
330
R130
330
R131
330
R132
330
R133
330
R134
F-GND
DTC123JE-TL
Q20
DTC123JE-TL
Q24
DTC123JE-TL
Q1
DTC123JE-TL
Q21
DTC123JE-TL
Q15
DTC123JE-TL
Q13
DTC123JE-TL
Q47
DTC123JE-TL
Q28
DTC123JE-TL
Q7
DTC123JE-TL
Q67
DTC123JE-TL
Q18
DTC123JE-TL
Q29
DTC123JE-TL
Q12
DTC123JE-TL
Q17
DTC123JE-TL
Q38
DTC123JE-TL
Q26
DTC123JE-TL
Q5
DTC123JE-TL
Q3
DTC123JE-TL
Q69
DTC123JE-TL
Q4
DTC123JE-TL
Q9
DTC123JE-TL
Q11
DTC123JE-TL
Q31
DTC123JE-TL
Q36
DTC123JE-TL
Q27
DTC123JE-TL
Q25
DTC123JE-TL
Q14
DTC123JE-TL
Q6
DTC123JE-TL
Q8
DTC123JE-TL
Q22
DTC123JE-TL
Q39
DTC123JE-TL
Q37
DTC123JE-TL
Q16
DTC123JE-TL
Q2
DTC123JE-TL
Q19
DTC123JE-TL
Q10
DTC123JE-TL
Q23
DTC123JE-TL
Q30
PANEL_SW
BARS_SW
PANEL_SW
WHITE_PRE_SW
GAIN_DOWN_SW
GAIN_UP_SW
SKIN_DETAIL_SW
KNEE_AUTO_SW
5600K_SW
IRIS_AUTO_SW
CHARACTER_SW
ATW_SW
TLCS_SW
CHARACTER_SW
5600K_SW
CALL_SW
SHUTTER_DOWN_SW
SHUTTER_UP_SW
CALL_SW
CALL_LED
KNEE_AUTO_LED
TLCS_LED
CHARACTER_LED
ABB_SW
AWB_SW
BARS_SW
BARS_LED
5600K_LED
SKIN_DTL_LED
AWB_LED
ABB_LED
SHUTTER_DOWN_SW
SHUTTER_UP_SW
GAIN_UP_SW
GAIN_DOWN_SW
SKIN_DETAIL_SW
KNEE_AUTO_SW
SKIN_DTL_LED
WHITE_PRE_LED
CLS_LED
SHUTTER_LED
AWB_LED
ABB_LED
EXTENDER_LED
IRISM/BACTIVE_LED
DP
SEG_G
SEG_F
SEG_E
SEG_D
SEG_C
SEG_B
SEG_A
DP
SEG_C
SEG_D
SEG_F
SEG_E
SEG_B
SEG_A
SEG_G
PANEL_LED
SEG_D
SEG_B
SEG_E
SEG_C
SEG_G
SEG_F
DP
SEG_A
L4 L3
L3
L2
L2
MASTER/SLAVE_SW
DETAIL_A/R_SW
M.GAMMA_A/R_SW
M.BLACK_A/R_SW
IRIS_A/R_SW
IRISM/BACTIVE_LED
FLARE/BLACK_SW
BLACK_A/R_SW
A2 A1 A0
IRIS
H H L
MASTER BLACK
IIC ADR.
MASTER GAMMA
DETAIL
:Insulet/Without Center detent
EXTENDER
BARS
_A
5600K
_A
SKIN DTL
CALL
CHARACTER
PANEL ACTIVE
MASTER GAMMA
IRIS
:Insulated knob/With Center detent
:Insulated knob/With Center detent
MASTER BLACK
Red cap
DETAIL
Yellow
H L L
IIC ADR.
A2 A1 A0
AWB/ABB
IIC ADR.
A2 A1 A0
L H L
TLCS
Green cap
Green
Red
KNEE AUTO/PRE
WHIITE
BLACK
Red Red
SUTTER UP/DOWN
GAIN UP/DOWN
:Insulet/Without Center detent
BLACK
WHAITE
DOWN
UP UP
DOWN
IRIS M/B ACTIVE
Green
Orenge
White White White White White
HI
LOW
LED Brightness
4-45 (a) 4-45 (a)
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
SW-1257 (2/2)
SUFFIX: -11
SW-1257 (2/2)
SUFFIX: -11
SW-1257 (2/2)
BOARD NO. 1-865-038-11
CCU-TX50_SW-1257_010_2
100
R52
0.1uF
C20
0.1uF
C16
100 R61
0.1uF
C25
GND
100
R72
100
R54
GND
10uH
L2
PCF8591T
IC9
AIN0
1
AGND
13
OSC
11
SDA
9
SCL
10
VREF
14
AOUT
15
VDD
16
VSS
8
AIN1
2
AIN2
3
AIN3
4
A0
5
A1
6
A2
7
EXT
12
10k
R69
GND
100
R53
+3.3V-1
GND
PCA9555DB-118
IC7
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
100
R62
GND
GND
+3.3V
+3.3V-1
0.1uF
C23
GND
10k
R67
GND
100
R71
0.1uF
C24
10k
R66
0.1uF
C17
10uF
C21
0.1uF
C26
100
R83
PCA9555DB-118
IC6
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
+3.3V-1
10k
R68
100
R55
100 R60
100
R84
+3.3V-1
330
R59
S12
12
34
S13
12
34
330
R63
330
R64
S14
12
34
330
R65
S15
12
34
330
R70
S16
12
34
10k
RV6
1
2
3
45
10k
RV5
1
2
3
45
100k
RB4
12
34
56
78
100k
RB5
12
34
56
78
100k
RB6
12
34
56
78
100k
RB2
12
34
56
78
100k
RB1
12
34
56
78
10k
RV8
1
2
3
45
10k
RV7
1
2
3
45
470
R94
GND
0.1uF
C29
74VHC573MTCX
IC11
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OC
1C
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4
16
Q3 17
Q2 18
Q1 19
VCC
20
470
R89
470
R92
470
R91
GND
470
R95
+3.3V-1
470
R88
470
R90
b
c
f
d
a
g
e
ND1
a
1
f
2
g
3
e
4
d
5
DPK
6
DPA
7
c
8
COMA
9
b
10
470
R93
470
R111
74VHC573MTCX
IC12
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OC
1C
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4
16
Q3 17
Q2 18
Q1 19
VCC
20
470
R100
470
R106
470
R109
470
R98
470
R104
470
R97
+3.3V-1
470
R108
b
c
f
d
a
g
e
ND5
a
1
f
2
g
3
e
4
d
5
DPK
6
DPA
7
c
8
COMA
9
b
10
470
R105
470
R96
470
R103
b
c
f
d
a
g
e
ND6
a
1
f
2
g
3
e
4
d
5
DPK
6
DPA
7
c
8
COMA
9
b
10
470
R102
GND GND
470
R110
74VHC573MTCX
IC13
D1
2
D2
3
D3
4
D4
5
D5
6
D6
7
D7
8
OC
1C
11 D8
9
GND
10
Q8 12
Q7 13
Q6 14
Q5 15
Q4
16
Q3 17
Q2 18
Q1 19
VCC
20
+3.3V-1
0.1uF
C30
470
R101
GND
470
R107
470
R99
0.1uF
C31
GND
GND
0.1uF
C35
GND
0.1uF
C36
0.1uF
C37
GND
S17
12
34
56
78
9
10
11 12
13 14
15 16
1k
RB3
12
34
56
78
1k
RB7
12
34
56
78
GND
100k
RB9
12
34
56
78
+3.3V-1
100k
RB8
12
34
56
78
2.2k
R115
2.2k
R117
2.2k
R118
2.2k
R119
2.2k
R116
2.2k
R114
VCC-1
VCC-2 VCC-2 VCC-2
330
R135
330
R136
330
R137
330
R138
330
R139
F-GND
DTC123JE-TL
Q58
DTC123JE-TL
Q42
DTC123JE-TL
Q40
DTC123JE-TL
Q54
DTC123JE-TL
Q45
DTC123JE-TL
Q44
DTC123JE-TL
Q61
DTC123JE-TL
Q56
DTC123JE-TL
Q33
DTC123JE-TL
Q41
DTC123JE-TL
Q48
DTC123JE-TL
Q57
DTC123JE-TL
Q32
DTC123JE-TL
Q63
DTC123JE-TL
Q65
DTC123JE-TL
Q53
DTC123JE-TL
Q52
DTC123JE-TL
Q35
DTC123JE-TL
Q50
DTC123JE-TL
Q43
DTC123JE-TL
Q62
DTC123JE-TL
Q64
DTC123JE-TL
Q34
DTC123JE-TL
Q59
DTC123JE-TL
Q51
DTC123JE-TL
Q46
DTC123JE-TL
Q49
DTC123JE-TL
Q60
DTC123JE-TL
Q55
CHARACTER_LED
TLCS_LED
ATW_LED
TLCS_SW
5600K_LED
CALL_LED
PANEL_LED
SHUTTER_ON_SW
CLS_SW
ABB_SW
AWB_SW
CLS_SW
SHUTTER_ON_SW
WHITE_PRE_SW
BARS_LED
IRIS_AUTO_LED
KNEE_AUTO_LED
SEG_A
SEG_B
SEG_C
SEG_D
SEG_E
SEG_F
DP
SEG_G
CLS_LED
SHUTTER_LED
WHITE_PRE_LED
IRIS_AUTO_SW
ATW_SW
ATW_LED
IRIS_AUTO_LED
BARS_SW
IRIS_AUTO_SW
KNEE_AUTO_SW
SKIN_DETAIL_SW
GAIN_DOWN_SW
GAIN_UP_SW
WHITE_PRE_SW
AWB_SW
ABB_SW
SHUTTER_ON_SW
CLS_SW
PANEL_SW
CALL_SW
SHUTTER_DOWN_SW
SHUTTER_UP_SW
5600K_SW
ATW_SW
CHARACTER_SW
TLCS_SW
SEG_E
SEG_B
SEG_G
SEG_A
SEG_C
DP
SEG_F
SEG_D
SEG_E
SEG_A
SEG_B
SEG_E
SEG_G
SEG_A
SEG_C
DP
SEG_F
SEG_G
SEG_D
SEG_F
SEG_B
DP
SEG_D
SEG_C
L5
L5
L6
L6
L1
L2
L3
L4
L5
L6
L1
L1
WHITE_A/R_SW
M.GAMMA_A/R_SW
M.GAMMA_A/R_SW
DETAIL_A/R_SW
DETAIL_A/R_SW
FLARE/BLACK_SW
FLARE/BLACK_SW
IRIS_A/R_SW
IRIS_A/R_SW
M.BLACK_A/R_SW
M.BLACK_A/R_SW
BLACK_A/R_SW
BLACK_A/R_SW
WHITE_A/R_SW
WHITE_A/R_SW
MASTER/SLAVE_SW
MASTER/SLAVE_SW
EXTENDER_LED
SHUTTER ON
BLACK B WHITE B
_A
WHITE R
_A
BLACK R
CLS
AUTO IRIS
L H H
IIC ADR.
WHITE PRESET
A2 A1 A0
ATW
IIC ADR.
H L H
A2 A1 A0
A2 A1 A0
H H H
IIC ADR.
DIP SW
White White White White White
4-464-46
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
VDA-62A (1/2)VDA-62A (1/2)
VDA-62A (1/2)
BOARD NO. 1-865-030-11
CCU-TX50_VDA-62_010_1
R15
68k
GND
+5V
-5V
D11
02DZ4.7-TPH3
C17
100pF
R13
33k
GND
1uF
C21
+5.5V
GND
R11
220
R14
33k 1uF
C20
R18
2.2k
NM
GND
R12
220
2SA1213Y-TE12L
Q11
LM4040AIM3-2.5
IC6
NM
-
2
+
1
NC
3
68k
R16
47k
R17
NM
0.1uF
C11
GND
1uF
C12
1uF
C13
1uF
C2
-5.5V
10uH
L11
GND
+5.5V
10uH
L12
10uH
L1
1uF
C18
100pF
C19
100k
R82
NM
47k
R81
NM
GND
TLP181(BL-TPR)
PH1
NM
1
3
6
4
1k
R80
NM
0
NM
R113
1k
R94
2.2k
R91
15pF
C92
100
R93
1k
R95
1k
R92
GND
75
R96
+
-
AD8014ARTZ-REEL7
IC4
3
4
2
1
5
22
R68
47k
R61
47k
R62
2SC4617TL-QR
Q53
+5.5V
22
R67
0.1uF
C56
10uH
L42
100
R44
+5V
1k
R43
1.5k
R46
NM
470
R41
10uH
L41
470
R45
15pF
C45
NM
0.1uF
C44
75
R59
-5V
75
R77
+
-
AD8014ARTZ-REEL7
IC1
3
4
2
1
5
680
R47
75
R60
10uH
L91
0.1uF
C96
+5V
10uH
L92
0.1uF
C93
-5V
75
R78
0.1uF
C71
100
R71
470
R73
0.1uF
C74
+
-
AD8014ARTZ-REEL7
IC3
3
4
2
1
5
1k
R74
1.5k
R75
15pF
C75
680
R76
0
R79
0
R42
1.5k
NM
R56
470
R55
15pF
NM
C55
0.1uF
C54
680
R57
0
R52
-5V
10uH
L52
1k
R53
+
-
AD8014ARTZ-REEL7
IC2
3
4
2
1
5
100
R54
+5V
0.1uF
C51
10uH
L51
470
R51
0.1uF
C41
1uF
C91
33k
R34
1SS302-TE85L
D39
1
2
3
+3.7V
68k
R33
-5.5V
+5.5V
0
R32
NJM062V(TE2)
(1/2)
IC5
+
3
-
2
4
1
8
16V
1uF
C37
-5V
16V
1uF
C36
+5V
10k
R38
33k
R35
33k
R31
+3.7V
NJM062V(TE2)
(2/2)
IC5
+
5
-6
7
1uF
C16
2SA1213Y-TE12L
Q12
10uH
L53
1SS301-TE85L
D150
1
2
3
2SC4617TL-QR
Q51
47k
R64
47k
R63
2SA1774TL-QR
Q52
47k
R66
3.3k
R65
+5V
OP+5V
001
OP-5V
001
OP-5V
001
OP+5V
001
16V
47uF
C9
16V
47uF
C14
16V
47uF
C15
6.3V
47uF
C22
6.3V
47uF
C23
6.3V
47uF
C43
6.3V
47uF
C42
6.3V
47uF
C95
6.3V
47uF
C94
6.3V
47uF
C53
6.3V
47uF
C52
a25
CN901
(1/135)
IIC-SDA1
b16
CN901
(56/135)
FR-GND
e15
CN901
(65/135)
ANA- B/B-y -in
e23
CN901
(17/135)
MASTER-RST
d7
CN901
(97/135)
RCP-POWER-OFF/ON-in
c17
CN901
(51/135)
Monitor-Relay-OFF/ON
b22
CN901
(20/135)
COM-HIRA-PIN 1
CN901
f12
(69/135)
e19
CN901
(41/135)
+3.7V
f9
CN901
(87/135)
SHIELD
d1
CN901
(133/135)
a21
CN901
(25/135)
Reference +5V
e6
CN901
(104/135)
WFM-CTL-GND
e5
CN901
(110/135)
WFM-STAIR-CASE-in
d24
CN901
(10/135)
Serial-com-CS0
e25
CN901
(5/135)
IIC-SCL2
b5
CN901
(107/135)
(Front-GND)
f13
CN901
(68/135)
SHIELD
d9
CN901
(85/135)
-5.5V
b1
CN901
(131/135)
c5
CN901
(108/135)
AES/EBU(X)-in
c20
CN901
(33/135)
MB-GND
c24
CN901
(9/135)
Serial-Load
e20
CN901
(35/135)
-12.5V
d10
CN901
(79/135)
GND (for RCP)
CN901
f20
(36/135)
c16
CN901
(57/135)
(NC)
e4
CN901
(116/135)
RCP-COM-RC(Y)-out
a15
CN901
(61/135)
ANA- R/R-Y -in
b4
CN901
(113/135)
RCP-COM-TR(Y)-in
b21
CN901
(26/135)
Video-HIRA-PIN 0
CN101
1
PIX-OUT
2
GND
34
d6
CN901
(103/135)
WFM-SEQ-ON/OFF-in
a1
CN901
(130/135)
c10
CN901
(78/135)
MB-GND
d11
CN901
(73/135)
+12V_(for_RCP)
e2
CN901
(128/135)
c6
CN901
(102/135)
(NC)
e10
CN901
(80/135)
GND (for RCP)
f3
CN901
(123/135)
SHIELD
b25
CN901
(2/135)
IIC-SCL1
f15
CN901
(66/135)
SHIELD
f7
CN901
(99/135)
SHIELD
a24
CN901
(7/135)
Serial-Data
f1
CN901
(135/135)
SHIELD
c15
CN901
(63/135)
ANA- G/Y -in
d2
CN901
(127/135)
b15
CN901
(62/135)
MB-GND
e8
CN901
(92/135)
+5.5V
d25
CN901
(4/135)
IIC-SDA2
CN901
f24
(12/135)
E1
c21
CN901
(27/135)
RS-232C 1
f19
CN901
(42/135)
SHIELD
b20
CN901
(32/135)
+12.5V
a4
CN901
(112/135)
RCP-COM-TR(X)-in
d18
CN901
(46/135)
(NC)
e21
CN901
(29/135)
RS-232C 3
a20
CN901
(31/135)
+12.5V
c9
CN901
(84/135)
MB-GND
d15
CN901
(64/135)
(Front-GND)
f25
CN901
(6/135)
SHIELD
e7
CN901
(98/135)
(AUX)
e16
CN901
(59/135)
(Front-GND)
a19
CN901
(37/135)
WFM(X)-in
b8
CN901
(89/135)
MB-GND
CN901
f14
(67/135)
a22
CN901
(19/135)
(Front-Inocom-VR-if)
RY1
+
1 4257
63
-
8
c19
CN901
(39/135)
PIX(X)-in
CN901
f18
(48/135)
e9
CN901
(86/135)
-5.5V
a23
CN901
(13/135)
COM-HIRA-PIN 5
d22
CN901
(22/135)
COM-HIRA-PIN 3
f11
CN901
(75/135)
SHIELD
c18
CN901
(45/135)
(PIX-Relay-through/ON)
d21
CN901
(28/135)
Video-HIRA-PIN 2
CN901
f6
(105/135)
c23
CN901
(15/135)
(D/A-ANA-LEVEL2-out)
d5
CN901
(109/135)
AES/EBU(Y)-in
d20
CN901
(34/135)
-12.5V
d23
CN901
(16/135)
COM-HIRA-PIN 8
CN901
f10
(81/135)
c1
CN901
(132/135)
f21
CN901
(30/135)
SHIELD
d16
CN901
(58/135)
VDA-NG/OK-out
c4
CN901
(114/135)
a2
CN901
(124/135)
f5
CN901
(111/135)
SHIELD
b19
CN901
(38/135)
FR-GND
d8
CN901
(91/135)
+5.5V
CN901
f16
(60/135)
b11
CN901
(71/135)
MB-GND
e22
CN901
(23/135)
(VR-LEVEL-Sel)
b23
CN901
(14/135)
COM-HIRA-PIN 6
d19
CN901
(40/135)
(Front-GND)
c8
CN901
(90/135)
+5.5V
CN901
f22
(24/135)
e17
CN901
(53/135)
SYNC-OUT(X)-in
e1
CN901
(134/135)
c2
CN901
(126/135)
c11
CN901
(72/135)
+12V_(for_RCP)
CN901
f8
(93/135)
c25
CN901
(3/135)
IIC-CS
d17
CN901
(52/135)
SYNC-OUT(G)
a18
CN901
(43/135)
(Front-GND)
c7
CN901
(96/135)
MB-GND
b18
CN901
(44/135)
MB-GND
e11
CN901
(74/135)
MB-GND
a16
CN901
(55/135)
(Front-GND)
d4
CN901
(115/135)
RCP-COM-RC(X)-out
f17
CN901
(54/135)
SHIELD
CN901
f2
(129/135)
b2
CN901
(125/135)
(NC)
b24
CN901
(8/135)
Serial-Clock
CN102
1
AES/EBU(X) OUT
2
AES/EBU(Y) OUT
3
GND
45
e24
CN901
(11/135)
Serial-com-CS1
CN901
f4
(117/135)
e18
CN901
(47/135)
+3.7V
c22
CN901
(21/135)
COM-HIRA-PIN 2
f23
CN901
(18/135)
SHIELD
1.5
CL11
1.5
CL12
CN4
1
2
3
4
220
R48
360
R49
NM
360
R69
NM
220
R58
CN103
1
(PIX(X)-out)
2
UNREG-GND
3
UNREG-OUT
4
(GND)
5
RX-RCP-DATA(Y)
6
RX-RCP-DATA(X)
7
TX-RCP-DATA(Y)
8
TX-RCP-DATA(X)
9
(AUX)
10
G/Y -out
11
GND
12
R/R-Y -out
13
GND
14
B/B-Y -out
15
GND
16
SYNC-OUT(X)-out
17
SYNC-OUT(G)
18
WFM-SEQ-ON/OFF-out
19
STAIR-CASE(X)-out
20
STAIR-CASE(G)-OUT
0
R83
0
R84
0
R85
NM
0
R86
NM
0
R87
NM
0
R88
NM
SP3222ECY/TR
IC7
T1IN
13
GND
18
T1OUT
17
VCC
19
SHDN
20
EN
1
T2IN
12
R1OUT
15
R2OUT
10
C1+
2
C1-
4
C2+
5
C2-
6
T2OUT
8
R1IN
16
R2IN
9
V+
3
V-
7
0
R101
0
R102
0
R103
10k
R104
10k
R105
10
R106
10
R107
220
R108
0
R109
0
R111
220
R110
SN75158PSR
IC8
(1/3)
3
2
1
SN75158PSR
IC8
(2/3)
56
7
SN75158PSR
IC8
(3/3)
4
GND
8
VCC
+3.7V
0.1uF
C101
GND
GND
16V
47uF
C106
0.1uF
C102
6.3V
22uF
C103
0.1uF
C104
0.1uF
C105
0.1uF
C107
+5V
10uH
L101
10
R114
10
R115
LPF
FL1
1
IN
2
OUT
3
GND
456
LPF
FL2
1
IN
2
OUT
3
GND
456
15
R40
220
R50
220
R72
15
R70
SI4425DY-T1
Q71
NM
4
12
8765
3
for Rear
-5V
+5V
6
11
9
12
10
15
13
16
2
14
17
18
L:ON
(1mm-FLAT(T)D6893,20P,straight)
20
19
3
BNC,WFM,RCP
1
4
7
5
8
(D2134=HIROSE,2P,AN)
(D2134=HIROSE,3P,AN)
AES/EBU OUT
PIX OUT (to PANEL)
10M
10M
+3.7V
2.07V
2.5V
4-47 4-47
2
3
4
5
1
ABCDEFGH
CCU-TX50/V2
1.5k
NM
R207
10uH
L201
470
R206
15pF
NM
C205
0
R202
0.1uF
C204
+5V
470
R201
1k
R203
100
R204
10uH
L202
100
R208
+
-
AD8014ARTZ-REEL7
IC201
3
4
2
1
5
C252
0.1uF
0.1uF
C258
+5V
2SC3356-T1K
Q257
100
R266
10k
R216
4.7k
R256
47k
R223
1k
R217
10k
R221
2.2k
R273
2SC3356-T1K
Q254
3.3k
R271
100
R263
47k
R274
33k
R255
1uF
C257
2SC3356-T1K
Q253
2SC4617TL-QR
Q208
3pF
NM
C208
0.1uF
C253
1k
R219
150
R260
68
R275
75
R279
47
R270
10uH
L203
10k
R224
22
R267
INH
GND VEE
VCC
TC7W53FU(TE12R)
IC203
7
61
5
8
2
43
5pF
C255
2SA1774TL-QR
Q207
10k
R222
1uF
C207
33k
R257
100
R268
39
R269
1uF
C206
1pF
C262
NM
+5V
2SC4617TL-QR
Q209
0.1uF
C212
-5V
6.8k
R258
NDS355AN
Q255
S
680
R272
TLV2221CDBV
IC252
+
1
-
3
2
4
5
INH
GND VEE
VCC
TC7W53FU(TE12R)
IC204
7
61
5
8
2
43
NDS356AP
Q260
S
10uH
L204
220k
R277
NM
39
R264
75
R278
0.1uF
C251
+3.7V 0.1uF
C261
4.7k
R259
2SC4178-F13F14-T1
Q258
330k
R276
NM
47k
R220
2SC4178-F13F14-T1
Q256
10k
R265
FB252
100
R215
FB251
0.1uF
C256
33
R218
0.1uF
C260
100
R254
2SC4617TL-QR
Q259
0.1uF
C254
-5V
VBS3-out
002
0
R209
47k
R211
47k
R210
0.1uF
C201
CN5
1
2
3
4
5
6
0.1uF
C210
47k
R372
10uH
L301
+5V
0.1uF
C307
33
R310
2SC4178-F13F14-T1
Q358
3.3k
R369
+5V
47k
R315
6.8k
R358
2SC4617TL-QR
Q308
100
R366
INH
GND VEE
VCC
TC7W53FU(TE12R)
IC302
7
61
5
8
2
43
68
R373
1k
R311
10k
R363
NDS356AP
Q360
S
33k
R357
75
R376
2SA1774TL-QR
Q307
1pF
C362
NM
10k
R313
5pF
C355
10k
R316
2SC3356-T1K
Q354
0.1uF
C356
220k
R375
NM
0.1uF
C354
680
R370
1k
R309
INH
GND VEE
VCC
TC7W53FU(TE12R)
IC303
7
61
5
8
2
43
2SC3356-T1K
Q357
1uF
C302
2SC4617TL-QR
Q309
0.1uF
C360
1uF
C301
4.7k
R359
FB351
150
R360
75
R377
47
R368
22
R365
2SC3356-T1K
Q353
0.1uF
C353
47k
R312
-5V
NDS355AN
Q355
S
47k
R304
100
R364
2SC4178-F13F14-T1
Q356
39
R367
0.1uF
C305
330k
R374
NM
10k
R308
47k
R303
TLV2221CDBV
IC352
+
1
-
3
2
4
5
10k
R314
1uF
C357
39
R362
0.1uF
C358
0.1uF
C361
0
R302
2.2k
R371
10uH
L302
100
R361
100
R307
33k
R455
22
R467
47
R470
-5V
1k
R411
0.1uF
C454
TLV2221CDBV
IC452
+
1
-
3
2
4
5
2SA1774TL-QR
Q406
47k
R404
39
R469
+5V
39
R464
10k
R414
2.2k
R473
10uH
L401
INH
GND VEE
VCC
TC7W53FU(TE12R)
IC402
7
61
5
8
2
43
10k
R416
1uF
C401
680
R472
220k
R477
NM
1uF
C402
0.1uF
C462
75
R479
0.1uF
C407
33k
R457
100
R466
4.7k
R456
47k
R474
1uF
C458
10k
R413
2SC3356-T1K
Q457
NDS356AP
Q460
S
2SC3356-T1K
Q454
0.1uF
C457
0.1uF
C453
+3.7V
6.8k
R458
+5V
NDS355AN
Q455
S
10uH
L402
FB452
2SC4178-F13F14-T1
Q456
2SC3356-T1K
Q453
1k
R409
330k
R476
NM
4.7k
R459
0.1uF
C455
270
R462
120
R453
330
R451
5pF
C456
150
R460
C452
0.1uF
1pF
C463
NM
33
R410
75
R478
0.1uF
C405
10k
R465
10k
R408
100
R468
68
R475
3.3k
R471
47k
R412
FB451
2.2k
R454
330
R452
2SC4617TL-QR
Q459
2SC4617TL-QR
Q407
270
R461
47k
R415
0
R402
100
R407
0.1uF
C459
100
R463
INH
GND VEE
VCC
TC7W53FU(TE12R)
IC403
7
61
5
8
2
43
2SC4617TL-QR
Q408
47k
R403
0.1uF
C461
2SC4178-F13F14-T1
Q458
VBS1-out
002
VBS3-out
002
GND
MC100LVEL16DTR2
IC451
D
3D
2
VBB
4
VEE
5
Q7
Q6
VCC
8
NC
1
0.1uF
C451
22uF
C259
22uF
C359
22uF
C460
VBS1-out
002
150
R401
150
R301
150
R212
+
-
AD8014ARTZ-REEL7
IC205
3
4
2
1
5
+
-
AD8014ARTZ-REEL7
IC304
3
4
2
1
5
+
-
AD8014ARTZ-REEL7
IC404
3
4
2
1
5
120
R253
GND
330
R251
330
R252
0
R205
150
R213
150
R214
150
R406
150
R405
150
R306
150
R305
1k
R250
NM
3pF
NM
C308
1k
NM
R350
3pF
NM
C408
1k
NM
R450
GND
2.2k
R354
4.7uF
C352
4.7uF
C351
2.2k
R356
3.3k
R353 3.3k
R355
270
R351
270
R352
MC100LVEL11DTR2
IC251
D
6D
7
VEE
5
Q0
1
Q0
2
VCC
8
Q1
3
Q1
4
270
R261
270
R262
6.3V
47uF
C203
6.3V
47uF
C202
6.3V
47uF
C211
6.3V
47uF
C306
6.3V
47uF
C406
6.3V
47uF
C209
6.3V
47uF
C304
6.3V
47uF
C404
b17
CN901
(50/135)
FR-GND
a11
CN901
(70/135)
FR-GND
a9
CN901
(82/135)
SD-MONI-SDI(X)-in
a10
CN901
(76/135)
SD-MONI-SDI(Y)-in
a6
CN901
(100/135)
SD-MAIN-SDI(X)-in
a5
CN901
(106/135)
FR-GND
a3
CN901
(118/135)
Output1-SDI/VBS-in
a7
CN901
(94/135)
SD-MAIN-SDI(Y)-in
c3
CN901
(120/135)
Output3-SDI/VBS-in
a8
CN901
(88/135)
FR-GND
b9
CN901
(83/135)
FR-GND
E2
b3
CN901
(119/135)
Output2-SDI/VBS-in
b10
CN901
(77/135)
FR-GND
b6
CN901
(101/135)
FR-GND
a17
CN901
(49/135)
VBS(X)-in
b7
CN901
(95/135)
FR-GND
2SA1576A-T106-QR
Q202
2SA1576A-T106-QR
Q301
2SA1576A-T106-QR
Q401
S
3SK195(TE85L)
Q305
2
3
1
4
S
3SK195(TE85L)
Q405
2
3
1
4
S
3SK195(TE85L)
Q206
2
3
1
4
1SS301-TE85L
D201
31
2
3.3k
R280 3.3k
R282
2.2k
R281 2.2k
R283
0.47uF
C263
0.47uF
C264
LPF
FL201
1
IN
2
OUT
3
GND
456
220
R226
15
R225
220
R227
360
R228
NM
436931701
LP1
GND
10M
Q256
Q253 Q254
Q258
Q255
Q257
Q202
IC203
IC204
IC205
Q206
Q354
Q305
IC302
Q355
Q357
IC303
Q358
Q301
Q356
Q353
IC304
Q454
IC402
Q455
Q405
Q457
IC403
Q458
Q401
Q456
Q453
IC404
Q207
Q307
Q406
Q259
VDA-62A (2/2)VDA-62A (2/2)
VDA-62A (2/2)
BOARD NO. 1-865-030-11
CCU-TX50_VDA-62_010_2
4-484-48
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
CN-2474ACN-2474A
CN-2474A
BOARD NO. 1-865-031-11
CCU-TX50_CN-2474_010_1
R15
68k
+5V
R20
68k
-5V
D11
02DZ4.7-TPH3
NJM062V(TE2)
IC103
(1/2)
+
3
-2
4
1
8
R19
68k
C22
100pF
R13
33k
1uF
C28
NJM062V(TE2)
IC103
(2/2)
+
5
-6
7
+5.5V
2SC2873Y-TE12L
Q12
+3.3V
GND
R12
220
R14
33k 1uF
C27
R18
2.2k
NM
R11
220
C23
100pF
02DZ4.7-TPH3
D12
2SA1213Y-TE12L
Q11
LM4040AIM3-2.5
IC11
NM
-
2
+
1
NC
3
68k
R16
47k
R17
NM
0.1uF
C11
100pF
C6
33k
R8
33k
R4
2SA1213Y-TE12L
Q1
16V
1uF
C4
68k
R6
NJM062V(TE2)
(2/2)
IC102
+
5
-6
7
33k
R5
220
R3
-5.5V
2SC4617TL-QR
Q2
100
R2
100
R1
1uF
C9
10uH
L11
+5V
470
R7
+5.5V
10uH
L12
10uH
L1
1uF
C7
1uF
C24
1uF
C26
100pF
C8
100pF
C25
SP3222ECY/TR
IC61
T1IN
13
GND
18
T1OUT
17
VCC
19
SHDN
20
EN
1
T2IN
12
R1OUT
15
R2OUT
10
C1+
2
C1-
4
C2+
5
C2-
6
T2OUT
8
R1IN
16
R2IN
9
V+
3
V-
7
47k
R69 47k
R70
0.1uF
C62
0.1uF
C63
0.1uF
C65
0.1uF
C64
10uH
L61
GND
100k
R71
220k
R68
220k
R67
+3.3V
0.1uF
C101
PCA9555DB-118
IC101
INT
1
A1
2
A2
3
I/O0.0
4
I/O0.1
5
I/O0.2
6
I/O0.3
7
I/O0.4
8
I/O0.5
9
I/O0.6
10
I/O0.7
11
VSS
12
VDD
24
SDA
23
SCL
22
A0
21
I/O1.7
20
I/O1.6
19
I/O1.5
18
I/O1.4
17
I/O1.3
16
I/O1.2
15
I/O1.1
14
I/O1.0
13
+3.3V
47k
R117
1k
R112
1k
R119
74VHC4051MTCX
IC105
Y4
1
Y6
2
OUT/IN
3
Y7
4
Y5
5
INH
6
VEE
7
GND
8
VCC
16
Y2 15
Y1 14
Y0 13
Y3 12
A
11
B
10
C9
74VHC4051MTCX
IC104
Y4
1
Y6
2
OUT/IN
3
Y7
4
Y5
5
INH
6
VEE
7
GND
8
VCC
16
Y2 15
Y1 14
Y0 13
Y3 12
A
11
B
10
C9
+5.5V
10k
R114
10k
R110
R107
4.7k
R103
4.7k
R106
10k
Q103
2SC4617TL-QR
R105
4.7k
Q101
2SC4617TL-QR
0
R118
1SS301-TE85L
D101
3
12
R108
10k
R104
10k
Q102
2SC4617TL-QR
2SC4617TL-QR
Q104
10k
R116
10k
R115
-5V
-5V
10uH
L41
0.1uF
C41
0.1uF
C44
100
R43 330
R45
-5V
1.5k
R42
10uH
L42
1.5k
R44
+5V
+
-
AD8014ARTZ-REEL7
IC41
3
4
2
1
5
0.1uF
C54
+5V
330
R56
10uH
L52
1.5k
R53
-5V
+
-
AD8014ARTZ-REEL7
IC51
3
4
2
1
5
0.1uF
C51
100
R54
1.5k
R55
10uH
L51
33k
R34
NJM062V(TE2)
(1/2)
IC102
+
3
-
2
4
1
8
33k
R31
+5.5V
68k
R33
68k
R35
-5.5V
220
R72
NM
220
R73
NM
220
R74
NM
220
R75
NM
220
R76
220
R77
47k
R79
NM
10k
R81
NM
2SC4617TL-QR
NM
10k
R80
NM
10k
R78
NM
+3.3V
UMBER-Tally
001
UMBER-Tally
001
100pF
C71
NM
100k
R41
100k
R51
0
R52
+3.3V
+3.3V
16V
1uF
C31
-5V
16V
1uF
C32
0
R32
+3.3V
10k
R36
CN-NG/OK
001
CN-NG/OK
001
CN2
1
+5.5V-GND
2
+5.5V-OUT
3
TALLY-GND
4
TALLY-OUT
5
G-TALLY-OUT
6
AUX1
7
R-TALLY-OUT
8
ASPECT-Cont-ON/OFF-IN
9
MIC-Cont2-IN
10
ASPECT-Cont1-IN
11
MIC-Cont1-IN
12
ASPECT-Cont2-IN
13
MIC-Cont0-IN
14
MIC2-Cont-ON/OFF-IN
15
MIC1-Cont-ON/OFF-IN
16
100
R111
NM
16V
1uF
C18
16V
1uF
C19
16V
1uF
C1
16V
1uF
C13
16V
1uF
C12
16V
1uF
C15
16V
1uF
C2
16V
1uF
C14
1SS302-TE85L
D31
1
2
3
100
R63
NM
100
R62
NM
100
R64
NM
100
R61
NM
100
R66
100
R65
D111
1
2
3
D113
1
2
3
D115
1
2
3
1SS300-TE85L
D117
1
2
3
D110
12
3
D112
12
3
D114
12
3
1SS300-TE85L
D116
12
3
1SS300-TE85L
D102
12
3
D103
12
3
D104
12
3
D105
12
3
1SS300-TE85L
D122
1
2
3
1SS300-TE85L
D108
1
2
3
1SS300-TE85L
D106
1
2
3
1SS300-TE85L
D107
1
2
3
1SS300-TE85L
D109
1
2
3
22k
R109
Q120
Q121
Q122
Q123
Q124
Q125
Q126
2SC4617TL-QR
Q127
1SS300-TE85L
D123
1
2
3
1SS300-TE85L
D124
1
2
3
1SS300-TE85L
D125
1
2
3
10k
R120
10k
R121
10k
R122
10k
R123
10k
R124
10k
R125
10k
R126
10k
R127
+5V
+3.3V
+3.3V
Q131
10k
R136
Q132
10k
R135
Q134
Q133
Q130
10k
R130
Q135
2SC4617TL-QR
Q137
10k
R134
Q136
10k
R137
10k
R132
10k
R131
10k
R133
D118
1
2
3
D120
1
2
3
D119
1
2
3
1SS300-TE85L
D121
1
2
3
+5V
10k
R113
+3.3V
22
R101
22
R102
220
R21
2SC4617TL-QR
Q13
100k
R23
10k
R22
NM
16V
1uF
C33
1.5k
R24
12V_DC
001
12V_DC
001
470
RB109
12
34
56
78
47k
RB113
12
34
56
78
CN102
f25
(135/135)
SHIELD
CN102
d15
(71/135)
MIC2(X)-in
CN102
d21
(107/135)
RS-232C 2 (RXD) -out
CN102
f15
(75/135)
SHIELD
CN102
a6
(35/135)
PGM1(X)-out
CN3
1
ENG(R-X) OUT
2
ENG(R-Y) OUT
3
ENG(G)
4
PROD(R-X) OUT
5
PROD(R-Y) OUT
6
PROD(G)
7
ENG(T-X) IN
8
ENG(T-Y) IN
9
GND
10
PROD(T-X) IN
11
PROD(T-Y) IN
12
PGM1(G)
13
PGM1(X) IN
14
PGM1(Y) IN
15
PGM2(G)
16
PGM2(X) IN
17
PGM2(Y) IN
18
AUX 3
19
AUX 4(U-Tally-X)
20
AUX 5(U-Tally-Y)
21
R-TALLY(X) IN
22
R-TALLY(Y) IN
23
G-TALLY(X) IN
24
G-TALLY(Y) IN
CN102
c10
(57/135)
MB-GND
CN102
c9
(51/135)
MB-GND
CN102
b8
(46/135)
MB-GND
CN102
f9
(54/135)
SHIELD
47uF
16V
C3
NM
CN4
1
2
3
4
5
6
13
7
14
8
9
10
11
12
CN102
e21
(106/135)
RS-232C 3 (CTS) -out
CN102
c17
(84/135)
Tally-GND
CN102
a21
(110/135)
Reference +5V
47k
RB105
12
34
56
78
E1
470
RB111
12
34
56
78
CN102
f1
(6/135)
SHIELD
47uF
16V
C21
CN102
e11
(61/135)
MB-GND
CN102
f23
(123/135)
SHIELD
CN102
e17
(82/135)
Green-Tally(Y)-IN-out
CN102
d7
(38/135)
ENG(INCOM2)-T(X)-out
CN102
e8
(43/135)
+5.5V
CN102
b6
(34/135)
PGM1(Y)-out
CN102
b17
(85/135)
Red-Tally(Y)-IN-out
47uF
16V
C16
CN102
e18
(88/135)
+3.7V
CN102
a9
(53/135)
ENG(INCOM2)-R(X)-in
470
RB102
12
34
56
78
CN102
b5
(28/135)
TRUNK-OUT-in
CN102
d8
(44/135)
+5.5V
47k
RB108
12
34
56
78
CN102
d17
(83/135)
Green-Tally(X)-IN-out
CN102
e20
(100/135)
-12.5V
47k
RB114
12
34
56
78
CN5
NM
1
DTR-OUT
2
EXT-CMD0-TXD
3
EXT-CMD1-RTS
4
EXT-CMD0-RXD
5
EXT-CMD1-CTS
6
GND
78
CN102
f3
(18/135)
SHIELD
CN102
e9
(49/135)
-5.58V
CN102
b25
(133/135)
IIC-SCL1
CN102
f19
(99/135)
SHIELD
CN102
a19
(98/135)
EXT-REF(G)-out
47uF
6.3V
C10
CN102
d20
(101/135)
-12.5V
47uF
6.3V
C43
CN102
f7
(42/135)
SHIELD
CN102
f21
(111/135)
SHIELD
47k
RB104
12
34
56
78
CN102
b21
(109/135)
RS-232C 0 (TXD) -in
CN102
a11
(65/135)
G-Tally-in (1k)
CN102
a20
(104/135)
+12.5V
CN102
c21
(108/135)
RS-232C 1 (RTS) -in
CN102
f11
(66/135)
SHIELD
470
RB112
12
34
56
78
CN102
a25
(134/135)
IIC-SDA1
47uF
6.3V
C30
CN102
d6
(32/135)
PGM2(X)-out
CN102
c20
(102/135)
MB-GND
CN1
1
2
MIC2(Y) OUT
3
MIC2(X) OUT
4
MIC2(G) OUT
5
MIC1(G) OUT
6
MIC1(X) OUT
7
MIC1(Y) OUT
8
CN102
a10
(59/135)
PROD(INCOM1)-R(X)-in
CN102
e7
(37/135)
ENG(INCOM2)-T(Y)-out
47uF
6.3V
C42
CN102
d10
(56/135)
PROD(INCOM1)-T(X)-out
47uF
16V
C5
CN102
b11
(64/135)
MB-GND
47k
RB107
12
34
56
78
CN102
b20
(103/135)
+12.5V
470
RB110
12
34
56
78
CN102
a15
(74/135)
MIC1(X)-in
CN102
f17
(87/135)
SHIELD
CN102
e6
(31/135)
PGM2(Y)-out
CN102
a18
(92/135)
VBS-RET3(X)-IN-out
470
RB103
12
34
56
78
CN102
e10
(55/135)
PROD(INCOM1)-T(Y)-out
CN102
b18
(91/135)
MB-GND
CN102
e15
(70/135)
MIC2(Y)-in
E2
CN102
c8
(45/135)
+5.5V
CN102
e19
(94/135)
+3.7V
CN102
b19
(97/135)
EXT-REF(X)-out
47uF
6.3V
C53
CN102
a5
(29/135)
TRUNK-IN-out
CN102
b10
(58/135)
PROD(INCOM1)-R(Y)-in
CN102
c19
(96/135)
Prompter(G)
CN102
f5
(30/135)
SHIELD
CN102
d9
(50/135)
-5.5V
CN102
b9
(52/135)
ENG(INCOM2)-R(Y)-in
470
RB106
12
34
56
78
C20
47uF
16V
CN102
a17
(86/135)
Red-Tally(X)-IN-out
CN102
f13
(68/135)
SHIELD
CN102
d19
(95/135)
Prompter(X)-in/out
47uF
16V
C17
47uF
6.3V
C29
CN102
b15
(73/135)
MIC1(Y)-in
CN102
c7
(39/135)
MB-GND
CN102
c15
(72/135)
MIC-GND
47uF
6.3V
C52
470
RB101
12
34
56
78
CN102
a8
(47/135)
R-Tally-in (1k)
CN104
2
1
4
5
3
150
R46
150
R47
150
R58
150
R57
CN105
2
1
4
5
3
THP101
1.5
CL1
1.5
CL11
1.5
CL12
0
R138
6.3V
22uF
C61
0
R139
SI4425DY-T1
Q105
4
12
8765
3
CN102
f2
(12/135)
CN102
a1
(5/135)
CN102
f8
(48/135)
CN102
d4
(20/135)
CN102
a2
(11/135)
CN102
c24
(126/135)
Serial-Load
CN102
e22
(112/135)
(VR-LEVEL-Sel)
CN102
d1
(2/135)
CN102
c18
(90/135)
(PANEL-INCOM-T(X)-if)
CN102
e2
(7/135)
CN102
c4
(21/135)
CN102
a3
(17/135)
CN102
f6
(36/135)
CN102
b23
(121/135)
COM-HIRA-PIN 6
CN102
c2
(9/135)
CN102
f12
(67/135)
CN102
b24
(127/135)
Serial-Clock
CN102
d11
(62/135)
(NC)
CN102
f18
(93/135)
CN102
e4
(19/135)
CN102
e3
(13/135)
CN102
c22
(114/135)
COM-HIRA-PIN 2
CN102
d23
(119/135)
COM-HIRA-PIN 8
CN102
d16
(77/135)
(Cable-OPEN-Status-if)
CN102
f14
(69/135)
CN102
b7
(40/135)
(PANEL-PGM(Y)-if)
CN102
b3
(16/135)
CN102
d18
(89/135)
(NC)
CN102
e5
(25/135)
CN102
a23
(122/135)
COM-HIRA-PIN 5
CN102
e1
(1/135)
CN102
e23
(118/135)
MASTER-RST
CN102
d3
(14/135)
CN102
d24
(125/135)
Serial-com-CS0
CN102
b22
(115/135)
COM-HIRA-PIN 1
CN102
f24
(129/135)
CN102
a24
(128/135)
Serial-Data
CN102
e25
(130/135)
IIC-SCL2
CN102
b1
(4/135)
CN102
f4
(24/135)
CN102
d5
(26/135)
CN102
c1
(3/135)
CN102
f22
(117/135)
CN102
b4
(22/135)
CN102
f10
(60/135)
CN102
c3
(15/135)
CN102
a16
(80/135)
(PANEL-INCOM-R(X)-if)
CN102
c23
(120/135)
COM-HIRA-PIN 7
CN102
b16
(79/135)
(PANEL-INCOM-R(Y)-if)
CN102
d22
(113/135)
COM-HIRA-PIN 3
CN102
e16
(76/135)
(CAM-Power-Status-if)
CN102
d2
(8/135)
CN102
a4
(23/135)
CN102
e24
(124/135)
Serial-com-CS1
CN102
f16
(81/135)
CN102
c16
(78/135)
(PANEL-PGM-ON/OFF-if)
CN102
b2
(10/135)
CN102
f20
(105/135)
CN102
c6
(33/135)
(NC)
CN102
d25
(131/135)
IIC-SDA2
CN102
a22
(116/135)
(Front-Incom-VR-if)
CN102
c5
(27/135)
CN102
a7
(41/135)
(PANEL-PGM(X)-if)
CN102
c11
(63/135)
(NC)
CN102
c25
(132/135)
IIC-CS
+3.3V
for Rear
-5V
+5V
(1.65)
D-SUB 25P(FEMALE)
(INCOM/TALLY/PGM)
1.INCOM ENG R(X) out
2. ENG R(Y) out
3. ENG (G)
4. ENG T(X) in
5. ENG T(Y) in
6. PGM1(X) in
7. PGM1(Y) in
8. PGM1(G)
9. AUX-GND
10. (AUX3)
11. R-TALLY(X) in
12. R-TALLY(Y) in
13. CHASSIS GND
14.INCOM PROD R(X) out
15. PROD R(Y) out
16. PROD (G)
17. PROD T(X) in
18. PROD T(Y) in
19. PGM2(X) in
20. PGM2(Y) in
21. PGM2(G)
22. (AUX4)
/U-TALLY(X) /Trunk-S-out
23. (AUX5)
/U-TALLY(Y) /Trunk-R-in
24. G-TALLY(X) in
25. G-TALLY(Y) in
D-SUB 15P(FEMALE)
(MIC/WFM REMOTE)
1.+5.5V out / (NC)
2.TALLY GND / (NC)
3.G-TALLY out / (NC)
4.R-TALLY out / (NC)
5.MIC-GAIN CTL2 / RECALL2(G)
6. CTL1 / RECALL3(B)
7. CTL0 / RECALL1(R)
8.MIC1-CT ON/OFF / RECALL4(SEQ)
9.GND (+5.5V) / GND
10.COM-TALLY out / (NC)
11. (NC) / (NC)
12.ASPC-CT ON/OFF / RECALL5(ENC)
13.ASPC-SET CTL1 / RECALL6(R+B)
14. CTL2 / RECALL7(R+G)
15.MIC2-CT ON/OFF / RECALL8(G+B)
XLR-3Px2 (MIC1/2)
1-1. MIC1(G)
1-2. MIC1(X) out
1-3. MIC1(Y) out
2-1. MIC2(G)
2-2. MIC2(X) out
2-3. MIC2(Y) out
1. (NC)
2. (NC)
3. (NC)
4. (NC)
5. RECALL2(G)
6. RECALL3(B)
7. RECALL1(R)
8. RECALL4(SEQ)
9. GND
10. (NC)
11. (NC)
12. RECALL5(ENC)
13. RECALL6(R+B)
14. RECALL7(R+G)
15. RECALL8(G+B)
D-SUB 15P(FEMALE)
(WFM REMOTE)
1. (NC) / DCD-IN (carrier detect)
2.CMD0 in / RXD-IN (recieve DATA)
3.CMD0 out / TXD-OUT(send DATA)
4.+12V,15k / DTR-OUT(data terminal ready)
5. GND / SIGNAL GND
6. (NC) / DSR-IN (data set ready)
7.CMD1 out / RTS-OUT(request send?)
8.CMD1 in / CTS-IN (chip select?)
9. (NC) / (nc)
D-SUB 9P(FEMALE)
(TRUNK LINE)
(D2134=HIROSE,6P,straight)
MIC1-(X)-out
GREEN-Tally-(X)-in
to AT
RED-Tally-(X)-in
ENG -T(Y)-in
GREEN-Tally-(Y)-in
PGM2-(X)-in
MIC1-(Y)-out
RED-Tally-(Y)-in
PROD-T(Y)-in
to TR
MIC-IN-GND
PGM1-(Y)-in
TRUNK(EXT-CMD)
CONTACT
(ST)
MIC1,2
ENG -R(Y)-out
PGM2-(Y)-in
MIC2-(Y)-out
ENG -R(X)-out
INCOM/TALLY/PGM
ENG -T(X)-in
PROD-R(Y)-out
MIC2-(X)-out PROD-T(X)-in
PGM1-(X)-in
PROD-R(X)-out
9
FFC:Type-F
11
MIC REMOTE
MIC-GAIN-CTL2-out
G Tally-if (30mA)
COMM-Tally-if (30mA)
MIC-GAIN-CTL0-out
3
1
MIC2-GAIN-CTL ON/OFF
7
0.5A/15V
ASPECT-CTL ON/OFF
MIC1-GAIN-CTL ON/OFF
14
2
MIC-GAIN-CTL1-out
12
16
(MIC-Cont-AUX)
5
4
6
8
ASPECT-CTL1-out
13
Pin-No CROSS!
10
CN-2474
1
D-SUB15P MIC/WFM-out
R Tally-if (30mA)
ASPECT-CTL0-out
(+5.5V OUT 250mA)
15
GND
WF-Recall-6(R+B)
WFM REMOTE
WF-Recall-2(G)
WF-Recall-3(B)
WF-Recall-1(R)
WF-Recall-4(SEQ)
WF-Recall-5(ENC)
(D2134=HIROSE,12p,straight)
WF-Recall-7(R+G)
WF-Recall-8(G+B)
(G+B)
(G)
(ENC)
(B)
(R)
(SEQ)
(R+G)
(R+B)
(G+B)
(ENC)
(SEQ)
(B)
(R)
(G)
(R+B)
(R+G)
7
6
13
12
14
15
5
8
(WF-Recall-AUX)
WFM/MIC-Remote-D-SUB
WFM-CONT-0 (R)
WFM-CONT-1 (G)
WFM-CONT-2 (B)
(1mm-FLAT(T),D6893,24p,straight)
(1mm-FLAT(T),D6893,16p,straight)
(1mm-FLAT(T),D6893,8p,straight)
2.07V
2.22V
x8
x8
x4
10
14
15
1
8
5
2
9
4
7
13
12
11
6
3
17
16
18
19
20
21
23
22
25
24
16 1
24 1
CN-2474
24
FFC:Type-F
1
Pin-No CROSS!
(ST)
(ST)
(ST)
CONTACT
CN-2507
CN-2507
4-49 4-49
2
3
4
5
1
ABCDEFGH
CCU-TX50/V2
CN-2647CN-2647
CN-2647
BOARD NO. 1-865-032-11
CCU-TX50_CN-2647_010_1
0.0022uF
C12
0.0022uF
C36
0.0022uF
C37
0.0022uF
C35
0.0022uF
C25
0.0022uF
C34
0.0022uF
C23
0.0022uF
C13
0.0022uF
C26
0.0022uF
C24
0.0022uF
C9
0.0022uF
C33
GND
0.0022uF
C11
0.0022uF
C22
0.0022uF
C10
0.0022uF
C1
0.0022uF
C3
0.0022uF
C20
0.0022uF
C29
0.0022uF
C28
0.0022uF
C18
0.0022uF
C8
0.0022uF
C2
0.0022uF
C32
0.0022uF
C16
0.0022uF
C5
0.0022uF
C27
0.0022uF
C30
0.0022uF
C19
0.0022uF
C6
0.0022uF
C15
0.0022uF
C17
0.0022uF
C21
0.0022uF
C7
GND
0.0022uF
C4
0.0022uF
C14
GND
0.0022uF
C31
470pF
C38
470pF
C39
CN2
1
2
MIC-Gain-Cont1-IN
3
MIC-Gain-Cont2-IN
4
MIC-Cont0-IN
5
ASPECT-Cont2
6
MIC-Cont1-IN
7
ASPECT-Cont1
8
MIC-Cont2-IN
9
ASPECT-RM-IN
10
R-TALLY-OUT
11
AUX 1
12
G-TALLY-OUT
13
TALLY-OUT
14
TALLY-GND
15
+5.5V-OUT
16
+5.5V-GND
CN4
1
ENG(R)(X)OUT
2
ENG(R)(Y)OUT
3
ENG(G)IN/OUT
4
ENG(T)(X)IN
5
ENG(T)(Y)IN
6
PGM1(X)IN
7
PGM1(Y)IN
8
PGM1(G)IN
9
GND
10
AUX3
26
12
R_TALLY(Y)IN
13
CHASSIS_GND
14
PROD(R)(X)OUT
15
PROD(R)(Y)OUT
16
PROD(G)IN/OUT
17
PROD(T)(X)IN
18
PROD(T)(Y)IN
19
PGM2(X)IN
27
11
R_TALLY(X)IN
20
PGM2(Y)IN
21
PGM2(G)IN
22
AUX4
23
AUX5
24
G_TALLY(X)IN
25
G_TALLY(Y)IN
CN1
1
G-TALLY(Y) IN
2
G-TALLY(X) IN
3
R-TALLY(Y) IN
4
R-TALLY(X) IN
5
AUX 5(U-Tally-Y)
6
AUX 4(U-Tally-X)
7
AUX 3
8
PGM2(Y) IN
9
PGM2(X) IN
10
PGM2(G)
11
PGM1(Y) IN
12
PGM1(X) IN
13
PGM1(G)
14
PROD(T-Y) IN
15
PROD(T-X) IN
16
GND
17
ENG(T-Y) IN
18
ENG(T-X) IN
19
PROD(G)
20
PROD(R-Y) OUT
21
PROD(R-X) OUT
22
ENG(G)
23
ENG(R-Y) OUT
24
ENG(R-X) OUT
CN3
1
+5.5V_OUT
2
TALLY_GND
3
G_TALLY_OUT
4
R_TALLY_OUT
5
MIC_CONT2_IN
6
MIC_CONT1_IN
7
MIC_CONT0_IN
8
MIC_GAIN_CONT1_IN
9
GND(+5.5V)
10
TALLY_OUT
11
AUX1
12
ASPECT_RM_IN
13
ASPECT_CONT1
14
ASPECT_CONT2
16 17
15
MIC_GAIN_CONT2_IN
1uH
L1
1uH
L2
1uH
L3
Dsub25
MIC REMOTE (WF-RMT)
(Dsub-15P)
INCOM/TALLY/PGM
(Dsub-25P)
MIC REMOTE
INCOM/TALLY/PGM
(D6893-16P-ST)
(D6893-24P-ST)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
15
16
6
1
3
2
10
11
14
5
9
7
4
12
8
13
for 2W
for 2W
2W i/o
2W i/o
2W i/o
2W i/o
18
9
15
25
13
1
14
(Back-side-view)
Dsub15
(Back-side-view)
4-51 4-51
2
3
4
5
1
ABCDEFGH
CCU-TX50/V2
R125
68k
GND
+5V
R130
68k
-5V
D121
02DZ4.7-TPH3
NJM062V(TE2)
IC103
(1/2)
+
3
-2
4
1
8
R129
68k
C126
100pF
R123
33k
NJM062V(TE2)
IC103
(2/2)
+
5
-6
7
+5.5V
2SC2873Y-TE12L
Q122
GND
R122
220
R124
33k
R128
2.2k
NM
GND
R121
220
C127
100pF
02DZ4.7-TPH3
D122
2SA1213Y-TE12L
Q121
LM4040AIM3-2.5
IC121
NM
-
2
+
1
NC
3
68k
R126
47k
R127
NM
0.1uF
C121
GND
-5.5V
10uH
L121
+5.5V
10uH
L122
100pF
C129
68k
R143
33k
R144
33k
R145
0
R142
+5.5V
-5.5V
-5V
NJM062V(TE2)
(2/2)
IC102
+
3
-
2
4
1
8
33k
R141
33k
R146
CN902
a17
(86/135)
RET-SDI(X)-out
CN902
d15
(71/135)
RET-SEL1-in
CN902
b17
(85/135)
FR-GND
CN902
b19
(97/135)
VBS-SEL-RET-(G)-out
CN902
e15
(70/135)
RET-SDI-CTL-OFF/ON-in
CN902
a15
(74/135)
FR-GND
CN902
a19
(98/135)
VBS-SEL-RET-(X)-out
CN902
c15
(72/135)
RET-SEL0-in
CN902
a16
(80/135)
RET-SDI(Y)-out
CN902
c19
(96/135)
VBS-RET3-Guard
CN902
e16
(76/135)
SDI-RET-SEL0-in
CN902
b16
(79/135)
FR-GND
CN902
a18
(92/135)
FR-GND
CN902
d19
(95/135)
VBS-RET3(X)-IN-in
CN902
c10
(57/135)
MB-GND
CN902
d9
(50/135)
-5.5V
CN902
e11
(61/135)
MB-GND
CN902
c9
(51/135)
MB-GND
CN902
e8
(43/135)
+5.5V
47uF
16V
C125
E1
CN902
c20
(102/135)
MB-GND
CN902
d20
(101/135)
-12.5V
CN902
c8
(45/135)
+5.5V
CN902
d16
(77/135)
DIF-NG/OK-out
CN902
b8
(46/135)
MB-GND
CN902
a21
(110/135)
Reference +5V
CN902
c7
(39/135)
MB-GND
CN902
d8
(44/135)
+5.5V
E2
CN902
c17
(84/135)
SDI-RET-SEL1-in
CN902
e9
(49/135)
-5.5V
CN902
b20
(103/135)
+12.5V
CN902
e20
(100/135)
-12.5V
C124
47uF
16V
CN902
a20
(104/135)
+12.5V
1.5
CL121
1.5
CL122
6.3V
47uF
C13
10uF
C1
10k
R3
100
R4
4.7k
R5
6.3V
47uF
C4
2SC4617TL-QR
Q1
10uH
L1
+5V
GND
GND
10uH
L2
-5V
GND
10uF
C2
100
R9
2SC4617TL-QR
Q2
10k
R8
4.7k
R10
10uF
C3
330
R11
10k
R12
100
R13
2SC4617TL-QR
Q3
4.7k
R14
GND
GND
150
R1
150
R2
0.1uF
C6
GND
GND
0
R15
0.1uF
C7
1SS362-TE85L
D1
1
23
1SS362-TE85L
D2
1
23
100k
R16
100k
R17
CN903
2
1
4
5
3
CN904
2
1
4
5
3
GND
150
R7
150
R6
10uH
L3
+5V
10uH
L4
-5V
2SC4617TL-QR
Q5
10uF
C8
6.3V
47uF
C14
GND
330
R28
0.1uF
C10
0.1uF
C9
GND
3.3k
R18
220k
R19
4.7k
R20
100
R21
10k
R22
0
R23
0
R25
2.2k
R24
1.5k
R26 330
R27
1pF
C11
NM
3pF
C12
NM
2SA1774TL-QR
Q4
2SA1774TL-QR
Q6
+
-
AD8014ARTZ-REEL7
IC2
3
4
2
1
5
CN902
d18
(89/135)
(NC)
CN902
e23
(118/135)
MASTER-RST
CN902
d2
(8/135)
CN902
f12
(67/135)
CN902
b2
(10/135)
CN902
b10
(58/135)
CN902
e4
(19/135)
CN902
c18
(90/135)
CN902
a10
(59/135)
CN902
f22
(117/135)
CN902
d21
(107/135)
Video-HIRA-PIN 2
CN902
d6
(32/135)
CN902
e7
(37/135)
CN902
b9
(52/135)
CN902
b3
(16/135)
CN902
c5
(27/135)
CN902
a11
(65/135)
CN902
f16
(81/135)
CN902
d1
(2/135)
CN902
f10
(60/135)
CN902
d17
(83/135)
(RET-Signal-VBS(G))
CN902
b1
(4/135)
CN902
a25
(134/135)
IIC-SDA1
CN902
f8
(48/135)
CN902
e17
(82/135)
(RET-Signal-VBS(X))
CN902
e25
(130/135)
IIC-SCL2
CN902
e5
(25/135)
CN902
f18
(93/135)
CN902
c6
(33/135)
CN902
e6
(31/135)
CN902
f4
(24/135)
CN902
a22
(116/135)
(Front-Incom-VR-if)
CN902
a4
(23/135)
CN902
f14
(69/135)
CN902
c16
(78/135)
(NC)
CN902
f2
(12/135)
CN902
f6
(36/135)
CN902
b7
(40/135)
CN902
b6
(34/135)
CN902
c3
(15/135)
CN902
d22
(113/135)
COM-HIRA-PIN 3
CN902
e3
(13/135)
CN902
a1
(5/135)
CN902
b5
(28/135)
CN902
d24
(125/135)
Serial-com-CS0
CN902
a7
(41/135)
CN902
f11
(66/135)
SHIELD
CN902
d25
(131/135)
IIC-SDA2
CN902
b22
(115/135)
COM-HIRA-PIN 1
CN902
c23
(120/135)
COM-HIRA-PIN 7
CN902
c25
(132/135)
IIC-CS
CN902
c11
(63/135)
CN902
f25
(135/135)
SHIELD
CN902
e24
(124/135)
Serial-com-CS1
CN902
a3
(17/135)
CN902
d7
(38/135)
CN902
f24
(129/135)
CN902
c2
(9/135)
CN902
f7
(42/135)
SHIELD
CN902
b4
(22/135)
CN902
e2
(7/135)
CN902
a9
(53/135)
CN902
f5
(30/135)
SHIELD
CN902
b25
(133/135)
IIC-SCL1
CN902
d3
(14/135)
CN902
c1
(3/135)
CN902
e21
(106/135) RS-232C 3
CN902
f9
(54/135)
SHIELD
CN902
f20
(105/135)
CN902
d23
(119/135)
COM-HIRA-PIN 8
CN902
f19
(99/135)
SHIELD
CN902
c22
(114/135)
COM-HIRA-PIN 2
CN902
f23
(123/135)
SHIELD
CN902
b21
(109/135)
Video-HIRA-PIN 0
CN902
d5
(26/135)
CN902
e22
(112/135)
(VR-LEVEL-Sel)
CN902
a24
(128/135)
Serial-Data
CN902
d4
(20/135)
CN902
e1
(1/135)
CN902
a6
(35/135)
CN902
a5
(29/135)
CN902
a2
(11/135)
CN902
f1
(6/135)
SHIELD
CN902
a23
(122/135)
COM-HIRA-PIN 5
CN902
a8
(47/135)
CN902
b23
(121/135)
COM-HIRA-PIN 6
CN902
f17
(87/135)
SHIELD
CN902
e10
(55/135)
CN902
f13
(68/135)
SHIELD
CN902
d10
(56/135)
CN902
d11
(62/135)
CN902
b11
(64/135)
CN902
b24
(127/135)
Serial-Clock
CN902
c24
(126/135)
Serial-Load
CN902
f15
(75/135)
SHIELD
GND
CN902
c4
(21/135)
CN902
c21
(108/135) RS-232C 1
CN902
f3
(18/135)
SHIELD
CN902
f21
(111/135)
SHIELD
16V
1uF
C141
16V
1uF
C142
1uF
C132
1uF
C131
1uF
C122
1uF
C128
1uF
C123
1uF
C130
6.3V
47uF
C5
TC74HC4052AFT(EL)
IC1
0X
12
1X
14
2X
15
3X
11
0Y
1
1Y
5
2Y
2
3Y
4
A
10
B
9
INH
6
GND
8
VEE
7
Y-COM
3
X-COM
13
VCC
16
GND
GND
6.3V
47uF
C133
6.3V
47uF
C134
CN902
b18
(91/135)
MB-GND
CN902
b15
(73/135)
MB-GND
GND
CN902
e18
(88/135)
+3.7V
CN902
e19
(94/135)
+3.7V
+5V
NJM062V(TE2)
IC102
(1/2)
+
5
-
6
7
GND
33k
R147
22k
R148
33k
R149
100
R150
2SC4617TL-QR
Q123
GND GNDGND
-5V
+5V
2.07V
2.5V
RET_SEL
10
00
01
10
11
RET_Video
Select
RET_1
RET_2
RET_3
---
for Rear
RET_1_IN(BNC)
RET_2_IN(BNC)
RET3 IN From CN-2474
CN-2653CN-2653
CN-2653
BOARD NO. 1-865-029-11
CCU-TX50_CN-2653_010_1
4-524-52
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
GND
GND
GND
GNDGND
GND
GNDGNDGND
-12.5V
GND
+12.5V
-5.5V
+5.5V
+12.5V
+5.5V
-12.5V
GND
-5.5V
+3.7V+3.7V
CN15
1
2345
CN16
1
2345
4f
CN12
25C
20f
CN10
5z
CN6
5E
CN2
5f
19D
GND
16f CN8
4B
7f
CN6
3f
CN4
5z
CN4
22C
Trans-HIRA-PIN 7
22E
Trans-HIRA-PIN 9
11z
CN10
23z
CN12
20E
-12.5V
17z
CN10
23D
TONE-DET-High-out
5f
CN8
22B
Trans-HIRA-PIN 6
20f CN8
10f CN5
2C
GND
1z
CN6
CN2
2f
23A
COM-HIRA-PIN 5
25z CN4
16z
CN12
8z
CN10
11E GND
4f
CN5
CN2
24z
18B GND
CN1
9f
18z CN8
19B
CN2
21z
CN2
15z
CN1
9z
7f
CN4
+5.5V
3f
CN3
CN2
18z
10A
9z
CN12
2z
CN10
17f CN6
9f
CN5
22z CN8
2f
CN6
17C
7D
6f
CN8
9f
CN3
18D
6f
CN3
16z CN6
GND
25A
22z
CN12
CN2
9z
20z
CN10
17z
CN12
8z
CN6
15z
CN12
CN1
3z
10E
CN1
3f
7C
GND
4f
CN8
2z
CN3
21C
Trans-HIRA-PIN 2
4z
CN3
2z
CN5
4f
CN4
20z
CN12
7z
CN10
22D
Trans-HIRA-PIN 8
19E
+5.5V
3z
CN6
CN2
6z
4D
11z CN8
9z
CN4
1B
CN12
1z
CN3
5f
CN5
1z
CN4
4z
CN10
7f
CN12
21B
Trans-HIRA-PIN 1
5z
CN10
15C
16f
CN10
21E
Trans-HIRA-PIN 4
23f CN8
17A
11f CN5
21C
Trans-HIRA-PIN 2
11z CN4
22D
Trans-HIRA-PIN 8
24f CN6
+12.5V
CN2
3z
19z
CN12
24A
Serial-Data
18f
CN10
3E
4f
CN6
CN1
10f
CN2
24f
4z
CN8
10D
10B
CN1
10z
20z CN4
6z
CN3
CN2
21f
16A
CN2
15f
18z
CN12
21f
CN10
CN2
18f
10f CN6
23z CN8
5f
CN6
16D
CN10
9z
CN8
10C GND
20z CN8
GND
9f
CN4
20D
-12.5V
9z
CN3
1f
CN5
10z
CN12
21A
Trans-HIRA-PIN 0
25z
CN10
CN10
2z
CN12
CN2
9f
11z CN5
10f
CN12
6A
CN1
4f
7z
CN8
16C
CN1
4z
25f CN4
16z CN4
24z CN6
21E
Trans-HIRA-PIN 4
8z
CN4
1z
CN12
17f
CN10
9C
GND
4z
CN6
23D
D/A-ANA-LEVEL3-in
1D
CN2
6f
17z CN8
1f
CN4
5B
17f CN4
4z
CN5
5f
CN3
24f
CN10
25f
CN12
9f
CN10
2A
22A
Trans-HIRA-PIN 5
8z
CN8
9f
CN6
CN10
GND
4C
22C
Trans-HIRA-PIN 7
11f CN4
15z CN6
CN2
3f
25A
IIC-SDA1
17f
CN12
6z
CN10
1E
24D
Serial-CS0
21D
Trans-HIRA-PIN 3
3f
CN6
CN1
11f
17D
19z CN8
11B GND
CN1
11z
1f
CN3
CN2
25z
5f
CN4
22z
CN10
+12.5V
11A
23f
CN12
3z
CN10
CN2
22z
6z
CN8
21f CN6
CN2
16z
25z CN8
8f
CN5
CN2
19z
16E
17f CN8
16f CN4
19f CN4
15B
CN12
GND
3f
CN5
11z
CN12
19z
CN10
3f
CN12
6z
CN6
CN2
10z
8f
CN12
24A
Serial-Data
20C GND
CN1
5f
1z
CN8
8E
+5.5V
CN1
5z5z
CN3
24f CN4
15f CN6
22z CN4
15f
CN12
24z
CN10
24B
6E
5D
25z CN6
25f CN8
7f
CN3
8D
+5.5V
GND
CN2
7z
15z CN4
22E
Trans-HIRA-PIN 9
2z
CN6
8z
CN3
6f
CN10
18f
CN12
1z
CN10
1A
CN12
16z CN8
1C
24C
3z
CN5
8f
CN3
4z
CN12
2f
CN5
CN2
4z
25B
IIC-SCL1
16z
CN10
-12.5V
GND
4E
23E
MST-RST
9z
CN6
24B
Serial-Clock
22f CN8
3D
CN2
1z
25E
IIC-SCL2
3B
7z
CN4
15f CN4
8C
+5.5V
15f
CN10
24f
CN12
CN2
25f
21z
CN10
21z CN8
9f
CN8
CN2
22f
7f
CN5
19C
19f CN6 CN2
19f
CN2
16f
10f CN3
7z
CN6
2f
CN12
9D
-5.5V
10f
CN10
7z
CN12
5z
CN12
CN2
10f
CN1
6f
24E
D/A-ANA-LEVEL4-in
11f CN8
7A
CN1
6z
19A
18z CN4
22f CN4
8f
CN4
22z CN6
25z
CN12
2f
CN10
22f CN6
18f CN8
25E
17E
9B
21f CN8
11f CN3
10z CN6
6B
CN2
7f
11z CN3
17z CN4
9z
CN5
24D
23f
CN10
5f
CN12
8f
CN10
4A
CN1
1z
15z CN8
9A
1f
CN6
22B
Trans-HIRA-PIN 6
6z
CN4
GND
16f CN6
6z
CN12
4f
CN10
20A
+12.5V
CN2
4f
24E
Serial-CS1
GND
24C
Serial-Load
8f
CN6
11D
24z CN8
2B
22A
Trans-HIRA-PIN 5
4f
CN3
21A
Trans-HIRA-PIN 0
20f CN4
19f
CN10
-5.5V
21z
CN12
9E
-5.5V
18z
CN10
19f CN8
11f CN6
7f
CN8
CN2
1f
11C
CN2
23z
6z
CN5
6f
CN4
9f
CN12
6f
CN6
CN2
20z
22f
CN10
11f
CN12
CN2
17z
8B
GND
CN1
7f
CN2
11z
15f CN8
15A
CN12
21f CN4
CN1
7z
18E
10f CN4
23E
MST-RST
-12.5V
4z
CN4
24z
CN12
1f
CN10
23f CN6
25f CN6
10z CN5
3z
CN8
18A
6D
23A
D/A-ANA-LEVEL0-in
CN1
1f
5z
CN8
2f
CN3
15D
17z CN6
18f CN4
CN2
8z
3z
CN3
11z CN6
3z
CN12
25f
CN10
8z
CN12
21D
Trans-HIRA-PIN 3
9z
CN10
5A
CN10
2z
CN8
5C
21z CN6
2f
CN4
25D
22f
CN12
15z
CN10
23z CN6
CN2
5z
8A
2D
21B
Trans-HIRA-PIN 1
1f
CN8
16B
20f CN6
25C
IIC-SCL3
7z
CN3
+5.5V
10z CN4
25D
IIC-SDA2
11f
CN10
19f
CN12
23z
CN10
3A
23C
COM-HIRA-PIN 7
2f
CN8
18f CN6
10z CN8
-5.5V
23B
COM-HIRA-PIN 6
3C
CN2
2z
6f
CN5
23z CN4
CN2
23f
21f
CN12
5f
CN10
18z CN6
6f
CN12
20B
+12.5V
CN2
20f
CN1
8f
CN2
17f
CN2
11f
3f
CN8
2E
CN1
8z
19z CN4
2z
CN4
15E
16f
CN12
23C
D/A-ANA-LEVEL2-in
3f
CN10
20z CN6
5z
CN5
8z
CN5
8f
CN8
17B
7E
24f CN8
24z CN4
7B
3z
CN4
25B
CN1
2z
7z
CN5
10z CN3
CN1
2f
CN2
8f
20f
CN12
19z CN6
10z
CN10
1f
CN12
7f
CN10
18C
23B
D/A-ANA-LEVEL1-in
10f CN8
6C
23f CN4
21z CN4
1z
CN5
CCU-Data
CHU-Data
ANA-LEV1
ANA-LEV2
ANA-LEV3
ANA-LEV0
ANA-LEV4
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
nc
ncnc nc
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
10A
7D
4E
9B
5E
20B
11E
6D
18D
16B
17C
1B
2B
7C
10C
4D
7B
11C
7E
3C
1E
6C
20C
15E
16D
9E
1C
5D
18E
1A
3D
7A
19E
10E
20D
1D
17A
2E
5A
18A
16E
11B
19B
8B
9A
8A
17E
4B
8C
20A
6A
2D
4C
4A
16C
6E
10D
5C
11D
11A
15A
19A
18C
3B
8D
10B
19D
18B
20E
3E
16A
8E
5B
2C
9C
17D
15D
19C
3A
6B
17B
15C
2A
9D
15B
Front-GND
Front-GND
CHU-Data-out
CCU-Data-in
+3.7V
+3.7V
TR-133
TR-133
TR-133DM-140
DM-140
DM-140
Front-GND
Front-GND
+3.7V
+3.7V
AUDIO-TX-PGM-in
AUDIO-RX-BCK-out
AUDIO-TX-Incom-in
AUDIO-TX-LRCK-in
(AUDIO-RX-256FS-out)
(AUDIO-TX-256FS-in)
AUDIO-TX-BCK-in
AUDIO-RX-Incom-out
AUDIO-RX-MIC-out
AUDIO-RX-LRCK-out
CHU-H-PLL-CONT-in
RET-Signal-VBS(G)-in
RET-Signal-VBS(X)-in
Front-GND
Front-GND
Front-GND
Front-GND
Prompter(X)-in/out
Prompter(G)
Front-GND
Front-GND
Front-GND
Front-GND
Front-GND
Front-GND
Front-GND
Front-GND
Front-GND
Front-GND
Front-GND
Front-GND
Front-GND
Front-GND
Front-GND
Triax-Signal(X)
Coax-Signal(X)
Triax-GND
Triax-GND
Coax-GND
Coax-GND
Triax-GND
CHU-SYNC-out
CHU-Y(X)-out
CHU-B-Y(X)-out
CHU-R-Y(X)-out
CHU-B-Y(G)-out
CHU-R-Y(G)-out
CHU-Y(G)-out
(nc)
Guard-GND
Guard-GND
Skin-Tone-Gate-out
TRIAX-CN
COAX-CN
TRUNC-IN-in
TRUNC-OUT-out
nc nc
AD/DA-RESET-in
GND GND
MB-1062MB-1062
4-53 4-53
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
+3.7V
GND
+12.5V
GND
-5.5V
-12.5V
+3.7V
+5.5V
GND GND
+3.7V
GND
-5.5V
-12.5V
+5.5V
+12.5V
GND
-5.5V
-12.5V
+5.5V
+12.5V
+3.7V +3.7V +3.7V
-5.5V
+3.7V
-5.5V
GND
+12.5V
+3.7V
GND
+5.5V
+12.5V
-12.5V
GND
-12.5V
+5.5V
GND
+5.5V
A11
(11/30)
A5
(5/30)
23D
TONE-DET-High
-12.5V
GND
2B
GND
CN5
21D
RS-232C 2
GND
11D
21E
RS-232C 3
B2
(17/30)
24C
Serial-Load
CN6
10E
CN8
23A
D/A-ANA-LEVEL0-out
22E
24E
Serial-CS1
GND
B13
(28/30)
24C
Serial-Load
23D
(TONE-DET-High)
8A
25E
SCL2
A6
(6/30)
22E
2A
3C
25C
IIC-SCL3
24C
Serial-Load
7B
GND
19B
10E
6C
GND
7E
5D
11E
GND
20C
GND
2A
GND
4E
+12.5V
CN1
1B
24A
Serial-Data
A2
(2/30)
22B
IIC-SDA3
-5.5V
18A
7A
18D
16B 16C
CN2
15A
21E
RS-232C 3
GND
4B
+3.7V
23A
COM-HIRA-PIN 5
23B
COM-HIRA-PIN 6
-5.5V
20A
+12.5V
GND
-5.5V
11E
21B
RS-232C 0
CN2
1B
8E
+5.5V
CN4
21B
Video-Hira-Pin 0
16A
24E
Serial-CS1
9A
22C
COM-HIRA-PIN 2
19A
CN4
GND
8B
21C
Video-Hira-Pin 1
21C
Video-Hira-Pin 1
5B
21C
RS-232C 1
22D
COM-HIRA-PIN 3
-5.5V
-12.5V
25E
IIC-SCL2
24B
Serial-Clock
25B
SCL1
A3
(3/30)
7C
21A
Ref +5.0V
CN8
6D
A9
(9/30)
GND
5E
24D
Serial-CS0
22A
3A
+3.7V
2B
GND
1C
2E
11B
10D
B15
(30/30)
18C
-12.5V
25A
IIC-SDA1
A4
(4/30)
B11
(26/30)
5A
3E
GND
20B
+12.5V
22E
D/A-ANA-LEVEL4-out
+3.7V
+12.5V
GND
25E
IIC-SCL2
+5.5V
24D
Serial-CS0
GND
GND
11C
21D
RS-232C 2
7C
GND
A15
(15/30)
B6
(21/30)
24A
Serial-Data
10A
+5.5V
23E
MST-RST
2D
9B
23A
COM-HIRA-PIN 5
-12.5V
10A
8C
23E
MST-RST
+3.7V
4A
6E
23C
COM-HIRA-PIN 7
+5.5V
7D
22A
23B
COM-HIRA-PIN 6
9C
GND
GND
CN3
24A
Serial-Data
24E
Serial-CS1
6E
GND
2C
GND
-12.5V
CN4
B4
(19/30)
CN8
7B
4E
2C
GND
3B
+3.7V
9B
4A
1D
5C
24B
Serial-Clock
GND
9D
-5.5V
CN13
A1
(1/30)
24C
Serial-Load
A8
(8/30)
GND
21D
Video-Hira-Pin 2
8C
+5.5V
CN4
1E
+5.5V
21A
Ref +5.0V out
22C
COM-HIRA-PIN 2
CN6
GND
22D
COM-HIRA-PIN 3
22B
IIC-SDA3
11A
17E
CN2
15B
GND
23C
COM-HIRA-PIN 7
10B
A10
(10/30)
21A
Ref +5.0V
9C
GND
8D
+5.5V
16E
8D
22B
IIC-SDA3
1C
23A
COM-HIRA-PIN 5
GND
+3.7V
25E
SCL2
21D
Video-Hira-Pin 2
25B
SCL
7E
24E
Serial-CS1
+12.5V
18B
GND
17A
21E
Video-Hira-Pin 3
4C
20D
-12.5V
23C
COM-HIRA-PIN 7
+12.5V
GND
16D
5A
B14
(29/30)
B12
(27/30)
2D
GND
4B
10B
1E
3C
+3.7V
GND
19C
23B
D/A-ANA-LEVEL1-out
B5
(20/30)
23C
D/A-ANA-LEVEL2-out
+3.7V
9A
+12.5V
22C
COM-HIRA-PIN 2
24B
Serial-Clock
GND
3A
3D
15E
GND
17B
CN6
-12.5V
GND
+3.7V
25B
IIC-SCL1
22A
F-Incom-LEVEL-VR-in
GND
11B
20E
-12.5V
CN8
6A
24B
Serial-Clock
25C
IIC-SCL3
10C
GND
4D
24D
Serial-CS0
GND
9D
21B
RS-232C 0
22B
IIC-SDA3
CN5
11D
CN3
8E
24D
Serial-CS0
+3.7V
24A
Serial-Data
22D
COM-HIRA-PIN 3
25D
IIC-SDA2
25C
IIC-SCL3
-5.5V
3B
25D
SDA2
25D
SDA2
A14
(14/30)
GND
A13
(13/30)
6A
5B
22E
25A
IIC-SDA1
B10
(25/30)
18E
4C
2E
GND
25B
IIC-SCL1
3D
+3.7V
GND
7D
8B
GND
25C
IIC-SCL3
15D
6C
GND 11A
9E
-5.5V
5D
GND
19D
21A
(Ref +5.0V)
GND
B8
(23/30)
+12.5V
+3.7V
+5.5V +5.5V
GND
21E
Video-Hira-Pin 3
6B
11C
23E
MST-RST
23E
MST-RST
10D
6D
21C
RS-232C 1
9E
22A
17C
19E
B3
(18/30)
21B
Video-Hira-Pin 0
23D
TONE-DET-High
-5.5V
25A
SDA
8A
B9
(24/30)
22C
COM-HIRA-PIN 2
25A
SDA1
23B
COM-HIRA-PIN 6
7A
17D
+3.7V
6B
CN14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
+5.5V
5C
CN2
1A
A7
(7/30)
4D
1D
25D
IIC-SDA2
GND
3E
+3.7V
CN1
1A
+3.7V
15C
+5.5V
5E
B1
(16/30)
A12
(12/30)
B7
(22/30)
CN6
10C
GND
GND
22D
TONE-DET-High-in
23D
D/A-ANA-LEVEL3-out
SC
SL1
SC
SL3
SC
SL2
SC
SL4
+3.7V
+12.5V
+12.5V
+5.5V
%Guard-GND
%13.5M
%MST-F
%13.5M
%Guard-GND
%MST-27M-1-CLK
MST-TG
%MST-F
%MST-27M-1-CLK
%INCOM-R(X)
%INCOM-R(Y)
%PGM-ON/OFF
%INCOM-T(X)
RCP-TR(X)
RCP-RC(Y)
RCP-TR(Y)
RCP-RC(X)
EMB-MIC-BCK
EMB-MIC-LRCK
EMB-MIC12
EMB-OE
EMB-OE
EMB-MIC-BCK
EMB-MIC-LRCK
EMB-MIC12
%12V-AU
%G-TALLY
%R-TALLY
%ENG
%PROD
%ENG
%MIC
%INCOM-T(X)
%PGM-ON/OFF
%G-TALLY
%INCOM-R(X)
CHU-Data
%R-TALLY
CCU-Data
RCP-TR(X)
%INCOM-R(Y)
RCP-TR(Y)
RCP-RC(X)
RCP-RC(Y)
%MIC
%12V-AU
%PROD
%LEVEL
%LEVEL
%CLK
%CS
%DATA
%CS
%DATA
%CLK
EXT-REF(G)
EXT-REF(X) EXT-REF(G)
EXT-REF(X)
ANA-LEV1
ANA-LEV2
ANA-LEV3
RS232C0
RS232C1
RS232C2
RS232C3
ANA-LEV0
ANA-LEV4
RS232C2
RS232C0
RS232C1
RS232C3
MST-SD-F-out
CLK-Guard-GND
CAM-POWER-Status-in
SYNC-OUT(X)
SYNC-OUT(G)
WFM-SEQ-ON/OFF-out
WFM-CTL-GNG
8.MIC1-GAIN-CTL ON/OFF
1.+5.5V OUT 250mA
15.]MIC2-GAIN-CTL ON/OFF
12.ASPECT-CTL ON/OFF
5.MIC-GAIN-CTL0-out
6.MIC-GAIN-CTL1-out
7MIC-GAIN-CTL2-out
13.ASPECT-CTL0-out
14.ASPECT-CTL1-out
9.REMOTE-GND
WF-Recall-2(G)
WF-Recall-1(R)
WF-Recall-4(SEQ)
WF-Recall-5(ENC)
WF-Recall-7(R+G)
WF-Recall-6(R+B)
(nc)
MST-SD-F-in
(13.5M-in)
MST-27M-1-CLK-in
CLK-Guard-GND
(27M-CLK-out)
B-Y 1
B-Y 0-out
H-out F-out
Guard-GND
OE-in (Pull-Down)
TRUNC-IN-if
TRUNC-OUT-if
Front-GND
FR-GND
PANEL-PGM-(Y)-out
PANEL-PGM(X)-out
PANEL-INCOM-R(Y)-out PANEL-INCOM-R(X)-out
PANEL-PGM-ON/OFF-in
PANEL-INCOM-T(X)-in
WFM-STAIR-CASE-out
Tally GND
R Tally-out (out 1k)
G Tally-out (out 1k)
nc
nc
nc nc nc
ncnc
15A
16A
17A
18A
19A
20A
16B
17B
18B
19B
20B
15B 15C
16C
17C
18C
19C
20C
16D
17D
18D
19D
20D
15D
16E
17E
18E
19E
20E
15E
11A
2D
6D
10D
4D
2A
7C
5E
3B
6C
2C
10C
5B
3E
6E
1C
3A
8E
5D
7D
9A
6B
2B
1B
9D
10B
5C
11C
4A
11D
1A
10A
11B
4C
6A
3D
7A
1E
8D
4B
9C
11E
9E
8B
3C
8A
9B
2E
7E
5A
4E
8C
10E
7B
1D
11A
2D
6D
10D
4D
2A
7C
5E
3B
6C
2C
10C
5B
3E
6E
1C
3A
8E
5D
7D
9A
6B
2B
1B
9D
10B
5C
11C
4A
11D
1A
10A
11B
4C
6A
3D
7A
1E
8D
4B
9C
11E
9E
8B
3C
8A
9B
2E
7E
5A
4E
8C
10E
7B
1D
11A
1E
2D
9E
17B
9D
6D
1D
5A
8A
10D
4D
2A
3B
7C
5E
19D
16A
5B
3B
10A
6C
8D
2C
18B
3E
10C
7D
4E
9B
5B
3E
6E
20D
17A
1C
16E
11B
3A
4B
8E
4A
6E
5D
19B
9A
8C
2D
16C
7D
10D
11A
9A
6B
15D
19C
18A
2B
17E
6A
4C
1B
9D
11D
10B
5C
19A
20B
6D
17C
11C
4D
4A
11D
6C
20C
16D
1A
1C
18E
3D
10A
15C
11B
4C
1A
19E
6A
3D
20A
18C
10B
7A
1E
8D
2C
9C
17D
15A
4B
3A
2A
15B
7A
10E
2E
8B
9C
11E
9E
20E
8E
8B
3C
6B
5C
8A
9B
2E
11E
18D
16B
1B
7E
7C
7B
7E
3C
5A
4E
8C
15E
5D 5E
10E
7B
2B
10C
11C
1D
19B
9A
8C
2D
16C
10D
11A
15A
3A
17B
15C
2A
9D
15B
1A
7A
19E
10E
1D
2E
5A
8B 8A
20A
18C
10B
20E
8E
2C
9C
17D
15D
19C
6B
18A
17E
6A
4C
11D
19A
3B
8D
19D
18B
3E
16A
5B
10A
7D
4E
9B
5E
20B
6D
17C
2B
10C
4D
11C
6C
20C
16D
1C
18E
3D
20D
17A
16E
11B
4B 4A
6E
5C
11E
18D
16B
1B
7C
7B
7E
3C
1E
15E
9E
5D
AUDIO-TX-Incom-out
AUDIO-TX-LRCK-out
(AUDIO-RX-256FS-in)
(AUDIO-TX-256FS-out)
AUDIO-TX-BCK-out
AUDIO-RX-Incom-in
AUDIO-RX-MIC-in
AUDIO-RX-LRCK-in
Embed-MIC12-in
Embed-MIC-LRCK-in
Embed-MIC-BCK-in
PIX(X)-out
WFM(X)-out
PIX(G),WFM(G)-out
nc
FR-GND
FR-GND
FR-GND
FR-GND
FR-GND
SD-MAIN-SDI-(Y)-out
SD-MAIN-SDI-(X)-out
FR-GND
RET-SDI(X)-in
RET-SDI(Y)-in
MIC1-(X)-out
MIC1-(Y)-out
MIC2-(X)-out MIC2-(Y)-out
MIC-IN-GND
RED-Tally-(X)-in
RED-Tally-(Y)-in
GREEN-Tally-(X)-in GREEN-Tally-(Y)-in
Front-GND
RET-SEL0-out
RET-SEL1-out
RET-SDI-CTL-OFF/ON-out
PGM1-(X)-in
PGM1-(Y)-in
PGM2-(Y)-in
PGM2-(X)-in
ENG(INCOM2)-T(X)-in ENG(INCOM2)-T(Y)-in
PROD(INCOM1)-T(Y)-in
PROD(INCOM1)-T(X)-in
ENG(INCOM2)-R(Y)-out ENG(INCOM2)-R(X)-out
PROD(INCOM1)-R(Y)-out PROD(INCOM1)-R(X)-out
Cable-OPEN-Status-in
Prompter(G)-Rear
Prompter(X)-Rear
VBS-SEL-RET-(X)-in
+3.7V
+3.7V
+3.7V
+3.7V
SDI-RET-SEL0-out
AT-155EN-156
EN-156(VDA-62)
EN-156(VDA-62)IV-57(DIF-148)
IV-57(CN-2653)
IV-57
AU-300
AU-300(CN-2474)
AU-295(CN-2474)
SKIN-Gate
ANA-R/R-Y-out
ANA-G/Y-out
ANA-B/B-Y-out
VBS(X)-out
VBS-SEL-RET-(G)-in
RET-Signal-VBS(X)-out
Guard-GND
Skin-Tone-Gate-in
+3.7V
+3.7V
AES/EBU-(Y)-out AES/EBU-(X)-out
(PIX-Relay-through/ON)
B-Y 2
B-Y 3 B-Y 4
B-Y 9
B-Y 6
B-Y 5-out
B-Y 7
B-Y 8
R-Y 6
R-Y 4
R-Y 9
R-Y 1
R-Y 0-out
R-Y 8
R-Y 2
R-Y 5-out
R-Y 7
R-Y 3
B-Y 8
B-Y 1
(H-in)
R-Y 6
R-Y 1
R-Y 8
B-Y 6
R-Y 3
B-Y 3
Guard-GND
(27M-CLK-in)
B-Y 0-in
(F-in)
SKIN-Gate
B-Y 2
B-Y 4
B-Y 9
B-Y 5-in
B-Y 7
R-Y 4
R-Y 9
R-Y 0-in
R-Y 2
R-Y 5-in
R-Y 7
Y 6
Y 4
Y 9
Y 1
Y 0-out
Y 8
Y 2
Y 5-out
Y 7
Y 3
Y 5-in
Y 2
Y 1
Y 4
Y 9
Y 7
Y 8
Y 6
Y 0-in
Y 3
OE-in (Pull-Down)
nc
nc
(13.5M-out)
A/D-27M-2-CLK-out
A/D-27M-1-CLK-out
(27M-CLK-in/out)
B-Y 0-in/out
(F-in/out)
SKIN-Gate
B-Y 2
B-Y 4
B-Y 9
B-Y 5-in/out
B-Y 7
R-Y 4
R-Y 9
R-Y 0-in/out
R-Y 2
R-Y 5-in/out
R-Y 7
nc
B-Y 8
B-Y 1
(H-in/out)
R-Y 1
R-Y 6
R-Y 8
B-Y 6
R-Y 3
B-Y 3
Guard-GND
OE-out (normaly-Low)
SLOT-ID-in (Pull-Up)
Y 9
Y 0-in/out
Y 3
Y 7
Y 6
Y 2
Y 5-in/out
Y 4
Y 8
Y 1
Chara_Gen-CS1
COLOR_Frame_out
OE-in (Pull-Down)
OE-in (normaly-High)
CAUTION
CAUTION
4.R Tally-out (30mA)
3.G Tally-out (30mA)
10.COMM-Tally-out (30mA)
2.Tally-GND
RCP-COM-TR(X)-if
RCP-COM-RC(Y)-if
RCP-COM-TR(Y)-if
RCP-COM-RC(X)-if
SD-MONI-SDI-(Y)-out
SD-MONI-SDI-(X)-out
FR-GND
FR-GND
FR-GND
FR-GND
FR-GND
FR-GND
FR-GND
Front-GND
VDA-NG/OK-in
Front-GND
VBS(G)-out
Front-GND
Front-GND
External-Ref-SC-in
External-Ref-SYNC-in
CLK-Guard-GND
ENC-27M-1-CLK-in
ENC-TG-F-in
nc
Front-GND
ADV-27M-CLK
CLK-Guard
(ADV-H-out)
ADV-F-out
ADV-4:2:2-0-out
ADV-4:2:2-1
ADV-4:2:2-3
ADV-4:2:2-8
ADV-4:2:2-6
ADV-4:2:2-4
ADV-4:2:2-2
ADV-4:2:2-5
ADV-4:2:2-7
ADV-4:2:2-9
RET-DPGM-LRCK-out
RET-DPGM-BCK-out
RET-DPGM1/2-out
Front-GND
CHU-H-PLL-CONT-out
CHU-SYNC-in
Front-GND Front-GND
CHU-Y(X)-in
CHU-B-Y(X)-in
CHU-R-Y(X)-in
CHU-B-Y(G)-in
CHU-R-Y(G)-in
CHU-Y(G)-in
nc
RET-Signal-VBS(G)-out
Audio-27M-CLK-in
Embed-MIC1/2-out
Embed-MIC-LRCK-out
Embed-MIC-BCK-out
RET-DPGM-BCK-in
RET-DPGM1/2-in
RET-DPGM-LRCK-in
AUDIO-TX-PGM-out
AUDIO-RX-BCK-in
Guard-GND
VBS-RET3(X)-IN-if
(WF-Recall-AUX)
VBS-RET3(X)-IN-if
VBS-RET3-Guard
RCP-GND
(ENC-TG-13.5M-out)
Ether-COM-RC(Y)-in
POW-UNIT DC/AC-in
RCP-COM-RC(X)-in
+12V-AU
PANEL-GND
CCU-MAIN-POWER-SW(H)
(Power-Unit-nc)
RCP-30V
Ether-COM-TR(Y)-out
INCOM-PRIV/ENG-in
INCOM-PRIV/PROD-in
CCU-MAIN-POWER-SW(C)
RCP-30V
Ether-COM-RC(X)-in
EXT-REF(X)-in
FRONT-PANEL-ID
AT-155
FRONT-PANEL-ID
+3.7V
FAN-ALARM-Status
+12V-AU
Audio-27M-CLK-out
AT-155
IIC-SDA3
+3.7V
EXT-REF(G)-in
Cable-SHORT-Status
External-Ref-SC-out
PANEL-PGM-(X)-if
+3.7V
Cable-OPEN-Status
777/555
RCP-POWER-NG-Status
+3.7V
CAM-POWER-ON/OFF-out
PANEL-PGM(Y)-if
CABLE-SHORT-LED-out
(AUX)
(UNREG-Volt-Sense)
+5.5V
PANEL-INCOM-R(X)-if
CAM-POWER-Status
CCU-MAIN-POWER-SW(H)
+3.7V
+5.5V
ENC-27M-1-CLK-out
PANEL-INCOM-R(Y)-if
External-Ref-SYNC-out
+3.7V
CCU-MAIN-POWER-SW(C)
-5.5V
Panel-LEVEL-VR
ENC-27M-2-CLK-out
PANEL-INCOM-T(X)-if
CHU-Data-in
Cable-SHORT-Status
POW-UNIT-DC-GND(DC/AC)
MAIN-POWER-LED-out
RED-TALLY-PANEL-out
+12.5V
MIC-CTL-ON/OFF-in
GND
CCU-Data-out
CLK-Guard-GND
PANEL-PGM-ON/OFF-if
GREEN-TALLY-PANEL-out
PANEL +30V from AT
CAM-POWER-LED-out
-12.5V
GND
INCOM-PRIV/ENG-in
RCP-COM-TR(X)-out
INCOM-PRIV/PROD-if
CAM-POWER-ON/OFF-in
CABLE-OPEN-LED-out
GND
CAM-POWER-LED-out
PANEL-GND
RCP-COM-RC(Y)-in
CABLE-OPEN-LED-out
GND
RCP-COM-TR(Y)-out
+12.5V
CABLE-SHORT-LED-out
CAM-POWER-Status
+12.5V
nc
GND
GND
GND
RED-TALLY-PANEL-if
Cable-OPEN-Status
LY-CN-30P
GND
PANEL +30V from AT
CCU-ID-in (Pull-Up)
GND
GREEN-TALLY-PANEL-if
(UNREG-Volt-Sense)
Ether-COM-TR(X)-out
MAIN-POWER-LED-out
RCP-GND
ENC-TG-F-out
FAN-ALARM-Status
MIC-CTL-ON/OFF-in
RCP-POWER-NG-Status
(Open)
(F-INCOM-LEVEL-VR)
Chara-Gen-CS-out
Chara-Gen-Data-out
Chara-Gen-clk-out
Chara-Gen-CS-in
Chara-Gen-Data-in
Chara-Gen-clk-in
EXT-REF(X)-if EXT-REF(G)-if
(VR-LEVEL-SEL)(VR-LEVEL-SEL)(VR-SEL-LEVEL)
FR-GND
FR-GND
FR-GND
Ether-GND
(F-INCOM-LEVEL-VR)(F-INCOM-LEVEL-VR)
Monitor-Relay-OFF/ON
+12.5V
+12.5V
GND
GND
ncncnc
(Output-CTL-AUX1-out)
Output3-SDI/VBS-out
Output2-SDI/VBS-out Output1-SDI/VBS-out
(Output-CTL-AUX2-out)
DIF-NG/OK-in
REMOTE-GND
WF-Recall-1(B)
WF-Recall-7(G+B)
12. (NC)
RCP-POW-OFF/ON-out
(AUX)
SDI-RET-SEL1-out
Ether-Ref3.3V-out
AD/DA-RESET-out
+3.7V
+3.7V
GND
GND
IIC-SCL3
nc
nc
+5.5V
+5.5V
nc
nc
** **
COLOR_Frame_outCOLOR_Frame_out
Chara_Gen-CS1
MB-1062MB-1062
MB-1062
BOARD NO. 1-865-022-11
CCU-TX50_MB-1062_010_1
4-544-54
2
3
4
5
ABCDEFGH
1
CCU-TX50/V2
Frame WiringFrame Wiring
W3
AWG-22
W2
AWG-22
W1
AWG-22
5432
1
CN2
43
21
L4
100uH
NC2NC1
43
21
L6
100uH
NC2NC1
C2
0.01uF
C4
0.33uF
43
21
L5
100uH
NC2NC1
43
21
L3
100uH
NC2NC1
GND
TRIAX(H)_IN/OUT
5
TRIAX(C)_IN/OUT
3
TRIAX(G)_IN/OUT
1
CN1
GND
C1
0.01uF
L1
68uH
L2
33uH
C3
0.033uF
BLACK
BLUE
RED
DC180V(C)IN
DC180V(G)IN
DC180V(H)IN
2
6
0
1
9
0
CAMERA
(TRIAX)
TRIAX-CCU(F)(FOR CE)
TRIAX-CCU(K)(FOR UC,J)
HARNESS
BOARD No.1-865-037-11
IO-214
DC180V(H)OUT
DC180V(C)OUT
DC180V(G)OUT
B15
A15
B14
A14
B13
A13
B12
A12
B11
A11
B10
A10
B9
A9
B8
A8
B7
A7
B6
A6
B5
A5
B4
A4
B3
A3
B2
A2
B1
A1
GND
-12.5V
GND
+12.5V
RCP GND
RCP GND
RCP 30V
RCP 30V
(UNREG-VOLT-SENSE)
-5.5V
+5.5V
+5.5V
CCU-MAIN-POWER-SW(C)
CCU-MAIN-POWER-SW(H)
RCP-POWER-NC-Status
FAN-ALARM-Status
CAM-POWER-Status
Cable-OPEN-Status
Cable-SHORT-Status
CAM-POWER-ON/OFFin
(AUX)
POW-UNIT-DC-GND
+3.7V
+3.7V
+3.7V
+3.7V
GND
GND
GND
GND
POWER UNIT
B7
A12
B1
A7
B9
B3
B8
B10
A13
A14
B5
B12
B14
A10
A8
A1
CN13
B4
B6
A15
B11
A4
B15
A9
A3
A2
A6
B13
B2
A5
A11
ALL
TRIAX-CN
COAX-CN
CN16
CN15
COAX
COAXIAL
CABLE ASSEMBLY
COAXIAL
CABLE ASSEMBLY
MB-POWER
HARNESS
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
CN14
RCP-POWER-NG-Status
RCP-GND
(UNREG-Volt-Sense)
GND
Cable-OPEN-Status
GND
CAM-POWER-Status
GND
GND
CAM-POWER-ON/OFF-in
GND
-12.5V
GND
+12.5V
POW-UNIT-DC-GND(DC/AC)
-5.5V
+5.5V
+5.5V
(AUX)
+3.7V
+3.7V
Cable-SHORT-Status
+3.7V
FAN-ALARM-Status
+3.7V
RCP-30V
CCU-MAIN-POWER-SW(C)
RCP-30V
CCU-MAIN-POWER-SW(H)
RCP-GND
+5.5V
+5.5V
IIC-SCL3
GND
GND
+3.7V
+3.7V
MIC-CTL-ON/OFF-in
GREEN-TALLY-PANEL-if
RED-TALLY-PANEL-if
GND
CABLE-SHORT-LED-out
CABLE-OPEN-LED-out
INCOM-PRIV/PROD-if
CAM-POWER-LED-out
PANEL-PGM-ON/OFF-if
MAIN-POWER-LED-out
PANEL-INCOM-T(X)-if
Panel-LEVEL-VR
CCU-MAIN-POWER-SW(C)
PANEL-INCOM-R(Y)-if
CCU-MAIN-POWER-SW(H)
PANEL-INCOM-R(X)-if
PANEL-PGM(Y)-if
PANEL-PGM-(X)-if
IIC-SDA3
FRONT-PANEL-ID
INCOM-PRIV/ENG-in
PANEL-GND
+12V-AU
FLEXIBLE
FLAT WIRE
(30CORE)
CN1
9
7
8
6
5
4
3
2
1
GND
GND
FP-INCOM-T(Y)-if
FP-INCOM-T(X)-if
FP-PGM-(Y)-if
FP-PGM-(X)-if
FP-INCOM-R(X)-if
FP-INCOM-R(Y)-if
CN2
SW-1257
L5
1uH
L4
1uH
L3
1uH
L2
100uH
L1
100uH
9
7
8
6
5
4
3
2
1
GND
3
OUT
2
IN
1
FL4
EMI
GND
3
OUT
2
IN
1
FL5
EMI
GND
3
OUT
2
IN
1
FL2
EMI
GND
3
OUT
2
IN
1
FL3
EMI
GND
3
OUT
2
IN
1
FL1
EMI
63
15
24
CN3
GND
GND
GND
GND
GND
GND
GND
BOARD No.1-865-036-11
9
9
9
9
9
9
9
INCOM
HARNESS
CN-2516
8
MIC1(Y) OUT
7
MIC1(X) OUT
6
MIC1(G) OUT
5
MIC2(G) OUT
4
MIC2(X) OUT
3
MIC2(Y) OUT
2
1
CN1
MIC1,2
0
R8
GND
0
R5
0
R1
0.0022uF
C4
GND
0
R4
0
R7
NM
0.0022uF
C1
0
R3
NM
GND
0.0022uF
C6
GND
GND
GND
GND
0.0022uF
C5
GND
GND
0
R2
NM
GND
0.0022uF
C2
GND
GND
GND
GND
0.0022uF
C3
0
R6
NM
CN1
21
3
G
CN2
21
3
G
CN4
NM
21
3
CN5
NM
21
3
EMI
FL3
1
IN
2
OUT
3
GND
EMI
FL6
1
IN
2
OUT
3
GND
EMI
FL4
1
IN
2
OUT
3
GND
1
2
MIC1(Y) OUT
3
MIC1(X) OUT
4
MIC1(G) OUT
5
MIC2(G) OUT
6
MIC2(X) OUT
7
MIC2(Y) OUT
8
EMI
FL1
1
IN
2
OUT
3
GND
EMI
FL5
1
IN
2
OUT
3
GND
EMI
FL2
1
IN
2
OUT
3
GND
1uH
L1
1uH
L2
1uH
L3
1uH
L4
AUDIO OUTPUT CH-2
AUDIO OUTPUT CH-1
CN3
MIC1,2
BOARD No.1-865-033-11
CN-2648
(8CORE)
FLAT WIRE
FLEXIBLE
CN-2474A
CN12 CN902
DM-140
TR-133A
CN902CN10
MB-1062
PGM(Y)
Receive(Y)
2:Talk-X
3:GND
1:Talk-Y
5:PGM(X)
4:Receive(X)
IIC_SCL3
*INCOM-PRIV/PROD-in
CAM-POWER-LED-out
RM-PANEL-ID
*PGM-CTL-ON/OFF-in
RED---TALLY-PANEL-if
*MIC-CTL-ON/OFF-in
CABLE-SHORT-LED-out
GREEN-TALLY-PANEL-if
CABLE-OPEN-LED-out
FP-INCOM-R(X)-if
PANEL-GND
CCU-MAIN-POWER-SW(H)
*INCOM-PRIV/ENG-in
PANEL_+3.7V
FP-PGM-(X)-if
FP-INCOM-R(Y)-if
GND
FP-INCOM-T(X)-if
MAIN-POWER-LED-out
FP-INCOM-LEVEL-VR
FP-PGM-(Y)-if
+12V-AU
PANEL-GND
CCU-MAIN-POWER-SW(C)
PANEL_+3.7V
PANEL-GND
+5.5V
+5.5V
IIC_SDA3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
HARNESS
TRIAX-POWER
CN2
INCOM
MIC2(G)OUT
MIC2(Y)OUT
MIC2(X)OUT
MIC1(G)OUT
MIC1(Y)OUT
MIC1(X)OUT
8
FRONT PANEL
POWER SW
RET3/PROMPTERREFERENCE
G
N
L
AC INLET
G
AC(N)
AC(L)
GND
NL
REAR PANEL
L
N
1
9
54
HN001
HN002
HN003
4-55 4-55
2
3
4
5
1
IJKLMNOP
CCU-TX50/V2
Frame WiringFrame Wiring
Frame Wiring
HN007
HN006
HN005
HN004
WF OUT
PIX OUT
VBS3 OUT
VBS2 OUT
VBS1 OUT
CN2
CN1
WFM
INTERCOM/TALLY/PGM
MIC REMOTE
CN-2474A
MB-1062
FLEXIBLE
FLAT WIRE
(20CORE)
CN1 CN901
AT-155
CN2 CN902
CN4CN901 CN902CN4
EN-156A
CN901CN3
CN-2650
BOARD No.1-865-035-11
REMOTE
RCP/CNU
To CN-2649
RCP/CNU
THP1
W1
AWG-24
GND
3
OUT
2
IN
1
FL2
EMI
GND
3
OUT
2
IN
1
FL1
EMI
UNREG-OUT
10
UNREG-GND
9
8
RX-RCP-DATA(X)
7
6
5
TX-RCP-DATA(X)
4
TX-GND
3
RCP-PIX-out
2
1
TX-RCP-DATA(X)
8
N.C.
7
RX-RCP-DATA(X)
6
N.C.
5
(GND)
4
UNREG-OUT
3
UNREG-GND
2
RCP-PIX-in
1
GND
GND
GND
C2
0.0022uF
C4
0.0022uF
C3
0.0022uF
(GND)
GND
STAIR-CASE(X)-out
UNREG-GND
SYNC-OUT(G)
(AUX)
TX-RCP-DATA(Y)
B/B-Y -out
R/R-Y -out
RX-RCP-DATA(Y)
G/Y -out
UNREG-OUT
SYNC-OUT(X)-out
(PIX(X)-OUT)
WFM-SEQ-ON/OFF-out
TX-RCP-DATA(X)
GND
RX-RCP-DATA(X)
GND
STAIR-CASE(G)-OUT
8
13
1
9
17
2
14
12
16
7
4
10
11
19
18
20
3
15
5
6
FLEXIBLE
FLAT WIRE
(8CORE)
CN-2649
BOARD No.1-865-034-11
RCP/CNU
WFM CTL
CN6
CN5
0.0022uF
C1
0
R1 NM
GND
GND
GND
GND
GND
GND
CN1
1
2
CN2
1
2
CN3
1
2
CN4
1
2
EMI
FL4
1
IN
2
OUT
3
GND
EMI
FL3
1
IN
2
OUT
3
GND
1
SEQ_CONT(G)_OUT
2
SEQ_CONT(X)_OUT
3
STAIR_CASE(G)_OUT
4
STAIR_CASE(X)_OUT
CN7
1
TX-RCP-DATA(X)
2
N.C.
3
RX-RCP-DATA(X)
4
N.C.
5
TX-GND
6
UNREG-OUT
7
UNREG-GND
8
RCP-PIX-out
0
R2
0
R3
G/Y out
R/R-Y out
SYNC out
BNC-CN,RCP/MSU
B/B-Y out
(25MHz-6dB)
HIROSE-4P
VDA-62A
BNC,WFM,RCP
CN103
STAIR-CASE(G)-OUT
GND
RX-RCP-DATA(X)
GND
TX-RCP-DATA(X)
WFM-SEQ-ON/OFF-out
(PIX(X)-OUT)
SYNC-OUT(X)-out
UNREG-OUT
G/Y -out
RX-RCP-DATA(Y)
R/R-Y -out
B/B-Y -out
TX-RCP-DATA(Y)
(AUX)
SYNC-OUT(G)
UNREG-GND
STAIR-CASE(X)-out
GND
(GND)
15
16
6
18
1
3
2
10
11
17
14
5
9
7
19
4
12
20
8
13
CN-2653
CN5 CN901
IV-57A
CN6CN902 CN6 CN902
CN904(BNC)
RET2 INRET1 IN
CN903(BNC)
AU-300
CN902CN8CN102 CN8
(24CORE)
FLAT WIRE
FLEXIBLE
(16CORE)
FLAT WIRE
FLEXIBLE
CN-2647
MIC REMOTE (WF-RMT)
INCOM/TALLY/PGM
CN4 CN1
INCOM/TALLY/PGM
(Dsub-25P)
(D6893-24P-ST)
CN3
(D6893-16P-ST)
MIC REMOTE
CN2
1
2
MIC-Gain-Cont1-IN
3
MIC-Gain-Cont2-IN
4
MIC-Cont0-IN
5
ASPECT-Cont2
6
MIC-Cont1-IN
7
ASPECT-Cont1
8
MIC-Cont2-IN
9
ASPECT-RM-IN
10
R-TALLY-OUT
11
AUX 1
12
G-TALLY-OUT
13
TALLY-OUT
14
TALLY-GND
15
+5.5V-OUT
16
+5.5V-GND
1
ENG(R)(X)OUT
2
ENG(R)(Y)OUT
3
ENG(G)IN/OUT
4
ENG(T)(X)IN
5
ENG(T)(Y)IN
6
PGM1(X)IN
7
PGM1(Y)IN
8
PGM1(G)IN
9
GND
10
AUX3
12
R_TALLY(Y)IN
13
CHASSIS_GND
14
PROD(R)(X)OUT
15
PROD(R)(Y)OUT
16
PROD(G)IN/OUT
17
PROD(T)(X)IN
18
PROD(T)(Y)IN
19
PGM2(X)IN
11
R_TALLY(X)IN
20
PGM2(Y)IN
21
PGM2(G)IN
22
AUX4
23
AUX5
24
G_TALLY(X)IN
25
G_TALLY(Y)IN
1
G-TALLY(Y) IN
2
G-TALLY(X) IN
3
R-TALLY(Y) IN
4
R-TALLY(X) IN
5
AUX 5(U-Tally-Y)
6
AUX 4(U-Tally-X)
7
AUX 3
8
PGM2(Y) IN
9
PGM2(X) IN
10
PGM2(G)
11
PGM1(Y) IN
12
PGM1(X) IN
13
PGM1(G)
14
PROD(T-Y) IN
15
PROD(T-X) IN
16
GND
17
ENG(T-Y) IN
18
ENG(T-X) IN
19
PROD(G)
20
PROD(R-Y) OUT
21
PROD(R-X) OUT
22
ENG(G)
23
ENG(R-Y) OUT
24
ENG(R-X) OUT
1
+5.5V_OUT
2
TALLY_GND
3
G_TALLY_OUT
4
R_TALLY_OUT
5
MIC_CONT2_IN
6
MIC_CONT1_IN
7
MIC_CONT0_IN
8
MIC_GAIN_CONT1_IN
9
GND(+5.5V)
10
TALLY_OUT
11
AUX1
12
ASPECT_RM_IN
13
ASPECT_CONT1
14
ASPECT_CONT2
15
MIC_GAIN_CONT2_IN
Dsub25
(Dsub-15P)
18
9
15
25
13
1
14
(Back-side-view)
Dsub15
(Back-side-view)
CN3
INCOM/TALLY-PGM
CN2
MIC REMOTE
1
ENG(R-X) OUT
2
ENG(R-Y) OUT
3
ENG(G)
4
PROD(R-X) OUT
5
PROD(R-Y) OUT
6
PROD(G)
7
ENG(T-X) IN
8
ENG(T-Y) IN
9
GND
10
PROD(T-X) IN
11
PROD(T-Y) IN
12
PGM1(G)
13
PGM1(X) IN
14
PGM1(Y) IN
15
PGM2(G)
16
PGM2(X) IN
17
PGM2(Y) IN
18
AUX 3
19
AUX 4(U-Tally-X)
20
AUX 5(U-Tally-Y)
21
R-TALLY(X) IN
22
R-TALLY(Y) IN
23
G-TALLY(X) IN
24
G-TALLY(Y) IN
1
+5.5V-GND
2
+5.5V-OUT
3
TALLY-GND
4
TALLY-OUT
5
G-TALLY-OUT
6
AUX1
7
R-TALLY-OUT
8
ASPECT-Cont-ON/OFF-IN
9
MIC-Cont2-IN
10
ASPECT-Cont1-IN
11
MIC-Cont1-IN
12
ASPECT-Cont2-IN
13
MIC-Cont0-IN
14
MIC2-Cont-ON/OFF-IN
15
MIC1-Cont-ON/OFF-IN
16
5-1
CCU-TX50/V2 5-1
IndexIndex
Section 5
Board Layouts
Board Layouts Index
Page
A. AT-155 ................................................................ 5-3
AU-300 ............................................................... 5-6
C. CN-2474 ............................................................. 5-8
CN-2516 ............................................................. 5-9
CN-2647 ............................................................. 5-9
CN-2648 ............................................................. 5-10
CN-2649 ............................................................. 5-10
CN-2650 ............................................................. 5-10
CN-2653 ............................................................. 5-11
D. DM-140............................................................... 5-13
E. EN-156 ................................................................ 5-17
I. IO-214 ................................................................. 5-10
IV-57 ................................................................... 5-20
M. MB-1062 ............................................................. 5-23
S. SW-1257 ............................................................. 5-24
T. TR-133 ................................................................ 5-27
V. VDA-62 .............................................................. 5-30
5-3
CCU-TX50/V2 5-3
BT101 D4
C1 D2
C2 *B2
C3 E2
C4 H2
C5 B3
C6 *H2
C7 H4
C8 *C4
C9 B1
C10 *C2
C11 *C1
C12 *A2
C13 *A1
C14 *C2
C15 C2
C16 C1
C17 B2
C18 B1
C19 C2
C20 *B2
C21 *B1
C22 B2
C23 *C2
C24 *C1
C25 *C1
C26 C1
C27 *B2
C28 B2
C29 D2
C30 D1
C31 *D2
C32 *D1
C33 *B1
C34 *D2
C35 *C1
C36 B2
C37 *B1
C38 C2
C39 C1
C40 B2
C41 B1
C101 *D1
C102 *C4
C103 C3
C104 C3
C105 *C3
C106 *C3
C107 C4
C108 *C4
C109 C3
C110 C3
C111 *C3
C112 C3
C113 *C4
C114 *C3
C115 *J4
C116 *J4
C117 *C3
C118 *D4
C119 *D4
C120 *E3
C121 *E2
C122 *D3
C123 *F1
C124 *E1
C125 *F1
C126 *E2
C127 *D2
C128 *D2
C129 *D2
C130 *D3
C131 D4
C132 E4
C133 E3
C134 E3
C135 E3
C136 E4
C137 *E3
C138 *E4
C139 *C3
C140 E4
C141 *C2
C142 *C3
C143 *C3
C144 *E3
C145 *E4
C146 *C3
C147 *E2
C148 E1
C149 *E2
C150 E1
C151 *E2
C152 E1
C153 *D2
C154 D1
C155 *D2
C156 D1
C157 *E1
C158 E2
C159 *E1
C160 E2
C161 *E1
C162 *E1
C163 *D1
C164 *D1
C165 D1
C166 *E1
C168 *F2
C169 *F2
C170 *C2
C171 *C2
C172 *F4
C173 *G4
C174 *C2
C175 *C2
C176 *F3
C301 *C4
C302 *C4
C303 *C5
C304 *J3
C305 *H3
C306 *J3
C307 *J4
C308 *H2
C309 *J4
C310 *H3
C311 E4
C312 *E4
C313 *E4
C314 *H2
C315 *H2
C316 *G3
C317 *G3
C318 *J2
C319 *J2
C320 *G3
C321 *G3
C322 H2
C323 *G3
C324 *H2
C325 *G3
C326 *G3
C327 *G3
C328 *G3
C329 *G3
C330 *H3
C331 *H3
C332 *H3
C333 *H3
C334 *J2
C335 *H3
C336 *H3
C337 *H3
C338 *H3
C339 *H3
C340 *B5
C341 *H3
C342 *H2
C501 J4
C502 J4
C503 *J4
C504 *J5
C505 J5
C506 *J4
C507 *J4
C508 *J4
C509 *J5
C510 *J4
C511 *J5
C512 H5
C513 H4
C514 H5
C515 H4
C516 *H4
C517 *H4
C518 *H4
C519 H4
C520 *H4
C521 *H4
C522 H4
C523 H4
C524 H4
C525 *H4
C526 *H4
C527 G4
C528 H5
C529 H4
C530 H4
C531 G4
C532 H4
C533 *H4
C534 H4
C535 H4
C536 H4
C537 H4
C538 H4
C539 G4
C540 G4
C541 *G4
C542 G4
C543 H5
C544 *G4
C545 *G4
C546 *G4
C547 *G4
C548 *F4
C549 *F4
C550 F4
C551 *F4
C552 *F3
C553 *J4
C554 *G4
C555 F4
C556 F4
C557 H5
C558 *F4
C559 F4
C560 *F4
C561 F3
C562 *G3
C563 G3
C564 *F2
C565 F4
C566 *F3
C567 *F3
C568 E3
C569 *F2
C570 *F3
C571 *F3
C572 *F2
C573 *F2
C574 *J2
C575 *J2
C576 *J1
C577 *J1
C578 *J1
C579 *J4
C580 *H4
C581 *J4
C582 *H4
C583 *J4
C584 *J3
C585 *H3
C586 *H4
C587 *J3
C588 *J3
C589 *J3
C590 J3
C591 J3
C592 *G4
C593 *F3
C594 *F4
C595 *G4
C596 *G4
C597 *J3
C598 *G4
C701 A1
C702 *A1
C703 *E2
C704 A1
C705 *J1
C706 *H1
C707 *J1
C708 *H1
C709 *H1
C710 *H1
C711 *H2
C712 H1
C713 H1
C714 H1
C715 H1
C716 H2
C717 *G2
C718 *G2
C719 *G1
C720 *G1
C721 *F1
C722 *G1
C723 F1
C724 *F1
C725 F2
C726 *F2
C727 *F2
C728 *G2
C729 G1
C730 F1
C731 F2
C732 G2
C733 *F1
C734 *F1
C735 *F1
C736 *F1
C737 *F2
C738 *F2
C739 *F2
C740 *F2
C741 *F2
C742 *F2
C743 *F1
C744 *F1
CL1 B1
CL2 D2
CL3 D1
CL4 B1
CL5 B1
CL102 D4
CL103 D4
CL104 D4
CL105 D4
CN101 D1
CN102 B1
CN103 B2
CN104 F4
CN701 A1
CN901 J1
CN902 J3
COR101 E3
COR102 C3
D1 *B2
D2 *B1
D3 A2
D4 *D2
D101 *C4
D102 *C4
D103 *D4
D104 *C4
D105 *C2
D106 C3
D301 *B4
D302 *B4
D303 *B4
D304 *B4
D305 *B4
D306 *B4
D307 *B4
D308 *B4
D309 A3
D310 A4
D311 A2
D312 A3
D501 *G4
D502 F3
D503 *G3
D701 *J1
E1 A4
E2 F2
E3 G1
E4 *F2
IC1 *B2
IC2 *B2
IC3 *D1
IC4 *B1
IC101 C4
IC102 C3
IC103 *D4
IC104 *J4
IC105 *J4
IC106 *E3
IC107 D3
IC108 D4
IC109 E3
IC110 E4
IC111 *D3
IC112 C3
IC113 E4
IC114 *D3
IC115 *D4
IC116 *E2
IC117 E1
IC118 *E1
IC119 E2
IC120 *E1
IC121 *D1
IC122 D1
IC123 F3
IC124 *D3
IC125 E1
IC126 *C3
IC127 *C3
IC128 C3
IC129 *E1
IC130 *F1
IC131 C3
IC134 *C4
IC136 C3
IC139 E1
IC140 F1
IC141 *C2
IC142 D2
IC143 C2
IC144 C2
IC145 *C3
IC301 C4
IC302 *J3
IC303 J4
IC304 H3
IC305 E4
IC306 *E4
IC307 *E4
IC308 G3
IC309 *G3
IC310 H3
IC314 *H2
IC316 *J3
IC317 *J3
IC318 *C5
IC319 *C4
IC320 *G3
IC321 *H3
IC322 *B5
IC501 *J4
IC502 *H4
IC503 *H4
IC504 G4
IC505 G4
IC506 *F4
IC507 F4
IC508 G3
IC509 F3
IC510 J2
IC511 J1
IC512 J1
IC513 J3
IC515 G4
IC516 *H4
IC517 H4
IC518 *H4
IC519 G4
IC520 H5
IC521 *F4
IC523 G4
IC524 *G3
IC701 *A1
IC702 E2
IC703 *H1
IC704 *H1
IC705 *H1
IC706 *H2
IC707 H1
IC708 H1
IC709 H1
IC710 H2
IC711 G2
IC712 *F1
IC714 *J1
IC715 *A1
L1 B1
L2 B1
L3 D2
L101 *C1
L102 *C3
L103 *C3
L104 *C3
L105 *D4
L106 *B1
L107 E2
L108 E2
L109 *D1
L110 *F2
L111 *C2
L112 A2
L301 *J4
L302 *G2
L303 H2
L304 *H3
L501 J4
L502 J4
L503 *J4
L504 H4
L505 H4
L506 H4
L507 *H4
L508 *G4
L509 *H4
L510 H4
L511 H4
L512 *F4
L513 *G2
L514 *F3
L515 *F3
L516 *J2
L517 *J1
L518 *H4
L701 G1
L702 F1
L703 *F1
PH1 J3
PH301 H2
PH302 J2
Q1 *B2
Q2 *B1
Q3 *C2
Q4 *C1
Q5 *C2
Q6 *C2
Q7 *C1
Q8 J2
Q9 *A2
Q101 *C4
Q102 *D4
Q103 *E4
Q104 C2
Q105 C2
Q301 *A3
Q302 *A4
Q303 *J3
Q304 *J2
Q305 *J2
Q306 *J2
Q307 *J2
Q308 *J3
Q309 *J3
Q310 *J3
Q311 *A2
Q312 *A3
Q313 *A2
Q314 *A3
Q501 *H5
Q502 *H4
Q503 *H5
Q504 *G4
R1 B1
R2 B1
R3 B1
R4 *C2
R5 *C2
R6 *C2
R7 *C1
R8 *C1
R9 *B2
R10 *B1
R11 *C2
R12 *C2
R13 *C1
R14 *B2
R15 *B2
R16 *B2
R17 *D2
R18 *D2
R19 *D1
R20 *D1
R21 *B2
R22 *D2
R23 *D2
R24 *D2
R25 *D1
R26 *D1
R27 *D1
R28 *D1
R29 *B1
R30 *B1
R31 *B2
R32 *B2
R33 *B2
R34 *A2
R35 *A2
R36 *A2
R37 *A2
R38 *A2
R39 *A2
R40 *B2
R41 *B2
R42 *B2
R43 J3
R44 J3
R45 J3
R46 *B2
R47 *B2
R48 *B2
R49 *B2
R50 *A2
R51 *A2
R52 *A2
R53 *A2
R54 *C2
R55 *C2
R101 *D1
R102 *D1
R103 *C4
R104 *C4
R105 *C4
R106 C3
R107 C3
R108 C3
R109 *D4
R110 C3
R111 *C4
R112 C4
R113 C3
R114 *D4
R115 C3
R116 C3
R117 *C3
R118 *C4
R119 *J2
R120 *J2
R121 *J2
R122 *J4
R123 *J4
R125 J4
R126 *J4
R127 *J4
R128 *J2
R129 *J2
R130 *J2
R131 *J4
R132 *J4
R133 J4
R134 J4
R135 *J4
R136 *D4
R137 C4
R138 C4
R139 *D4
R140 *C3
R141 D3
R142 D3
R143 *D4
R144 *J4
R145 *J4
R146 C4
R147 C4
R148 *D4
R149 *D4
R150 *D3
R151 *J4
R152 *D3
R153 D3
R154 D3
R155 D3
R156 D3
R157 D3
R158 *F1
R159 *F1
R160 *B1
R161 *B1
R162 *B1
R163 *B1
R164 *B1
R165 *B1
R166 *B1
R167 E3
R168 E3
R169 E3
R170 E3
R171 *C3
R172 C3
R173 *C3
R174 *E3
R175 *E3
R176 E3
R177 E3
R178 F3
R180 E4
R181 *D3
R182 D4
R183 *C3
R184 *D3
R185 *C3
R186 *C3
R187 *E4
R188 *E4
R189 *C3
R190 *C3
R191 E1
R192 *C3
R193 *C3
R194 *J1
R195 *J1
R196 *E3
R197 C2
R198 C2
R199 D2
R200 *C2
R201 F3
R202 F3
R203 F3
R204 F3
R205 F3
R206 F3
R207 F3
R208 *D4
R209 *D4
R210 F3
R211 C2
R212 C2
R213 C2
R214 C2
R215 F4
R220 D3
R221 D3
R222 D3
R223 D3
R224 *D3
R225 *D4
R226 E5
R227 E4
R301 *A4
R302 *A4
R303 *A4
R304 *A5
R305 C4
R306 *A3
R307 *A4
R308 *A3
R309 *A4
R310 A3
R311 A4
R312 *J3
R313 J4
R314 *J2
R315 *J2
R316 *J2
R317 *J2
R318 *J3
R319 *J2
R320 *J3
R321 *J2
R322 *J3
R323 *J3
R324 *J2
R325 *J2
R326 *J2
R327 *J2
R328 *J2
R329 *J3
R330 *J3
R331 *J3
R332 *J3
R333 *J3
R334 *J2
R335 *J2
R336 *J2
R337 *J2
R338 *J3
R339 *J2
R340 *J4
R341 *J3
R342 *J3
R343 *J2
R344 *J2
R345 *J3
R346 *J3
R347 *J3
R348 *J2
R349 *J2
R350 *J2
R351 *J2
R352 *A2
R353 J4
R354 J4
R355 J4
R356 *H2
R357 *H2
R358 *H2
R359 *H2
R360 J4
R361 J4
R362 J4
R363 H3
R364 H3
R365 H3
R366 H3
R367 *H3
R368 *J4
R369 *J4
R370 *J4
R371 *J4
R372 *J4
R373 *J4
R374 *J4
R375 J4
R376 E5
R377 *C4
R378 *C4
R379 *C4
R380 *C4
R381 E4
R382 *A2
R383 *A3
R384 *A2
R385 *A3
R386 *A2
R387 *A3
R388 *A2
R389 *A3
R390 *E4
R391 *E4
R392 *A2
R393 *A3
R394 *A2
R395 *A3
R396 *H2
R397 *H2
R398 *H2
R399 *H2
R400 *H2
R401 *H2
R402 *H2
R403 *H2
R404 *J2
R405 *H2
R406 *J2
R407 *J2
R408 *G3
R409 *G3
R410 *G3
R411 *G3
R412 *G3
R413 *G3
R414 *G3
R415 *G3
R416 *G3
R417 *G3
R418 *G3
R419 *G3
R420 *G3
R421 *G3
R422 *J4
R423 *J4
R424 *J3
R425 *J3
R426 *G3
R427 *H3
R428 *J2
R429 *J2
R430 *J2
R431 H3
R432 *H3
R433 *G3
R434 *H3
R435 *G3
R436 H3
R437 *G3
R438 *G3
R439 *H3
R440 *H3
R441 *H3
R444 *J2
R445 J4
R446 *J3
R447 *J2
R448 *J2
R449 *J3
R450 *J3
R451 *J3
R452 *H3
R453 *H3
R454 *H3
R455 *H3
R501 *J4
R502 *J4
R503 *J4
R504 *J4
R505 *J5
R506 *J5
R507 *J4
R508 *H4
R509 *H4
R510 *H4
R511 *J5
R512 *H5
R513 *J5
R514 *J5
R515 *H5
R516 *H4
R517 *H5
R518 *H4
R519 *H5
R520 *H4
R521 *H4
R522 H4
R523 H4
R524 H4
R525 *H5
R526 *H4
R527 *H5
R528 *H5
R529 *H4
R530 *H4
R531 *H5
R532 *H4
R533 *H5
R534 H4
R535 *H5
R536 *H4
R537 *H4
R538 H4
R539 G4
R540 G4
R541 H5
R542 H4
R543 H4
R544 H4
R545 H4
R546 H4
R547 H4
R548 G4
R549 G5
R550 H5
R551 G4
R552 *G4
R553 *G4
R554 *G4
R555 G5
R556 *G4
R557 *G4
R558 *G4
R559 H4
R560 G4
R561 F4
R562 *F4
R563 G4
R564 F4
R565 *F4
R566 *F4
R567 F3
R568 F3
R569 F4
R570 *F4
R571 F4
R572 *F4
R573 F4
R574 F3
R575 F3
R576 F3
R577 E4
R578 E4
R579 G3
R580 G3
R581 E4
R582 G3
R583 G3
R584 E4
R585 E3
R586 E3
R587 G3
R588 G3
R589 G3
R590 G3
R591 G2
R592 G3
R593 G3
R594 F3
R595 F3
R596 J2
R597 F3
R598 H2
R599 F3
R600 F3
R601 F3
R602 H1
R603 H1
R604 H2
R605 J2
R606 J2
R607 J2
R608 *H2
R609 H1
R610 H1
R611 J1
R612 J1
R613 J2
R614 J2
R615 J2
R616 J2
R617 J2
R618 J4
R619 J4
R620 *J3
R621 *J3
R622 *J3
R623 H3
R624 H3
R625 J3
R626 J3
R627 J3
R628 J3
R629 J3
R630 J3
R631 J3
R632 J3
R633 *J3
R634 *J3
R635 H4
R636 H4
R637 *J3
R701 *A1
R702 *A1
R703 *A1
R704 *A1
R705 *A1
R706 A1
R707 E2
R708 *F2
R710 *F2
R711 *F2
R712 A1
R713 *J1
R714 *J1
R715 *J1
R716 *J1
R717 *H1
R718 *H1
R719 *H1
R720 *H2
R721 *H2
R722 *J1
R723 *J1
R724 H1
R725 H1
R726 H2
R727 H2
R728 H1
R729 H1
R732 *G1
R733 *G1
R734 *G2
R735 *G2
R736 *G2
R737 *G2
R738 *G1
R739 *G2
R740 *G1
R741 *F2
R742 *F2
R743 *F2
R744 A1
R745 A1
RB102 E2
RB103 E2
RB104 E2
RB105 E2
RB106 E2
RB107 E2
RB108 E3
RB109 E3
RB110 D3
RB111 D2
RB112 D2
RB113 D2
RB114 D2
RB115 D2
RB116 D2
RB117 *F3
RB118 D3
RB119 D3
RB301 *B3
RB302 *A3
RB303 *B3
RB304 *B4
RB305 *B4
RB308 J4
RB309 *J3
RB310 *J4
RB311 *J3
RB312 *H3
RB313 *H3
RB314 J4
RB315 F4
RB316 F4
RB317 E4
RB318 E4
RB319 *E4
RB320 *F4
RB321 *E4
RB322 *F4
RB501 F4
RB502 *F4
RB503 *F4
RB504 *F3
RB505 F3
RB506 *F3
RB507 H2
RB701 A1
RB702 *H1
RB703 *H1
RB704 *H1
RB705 *H1
RB706 *H1
RB707 *H2
RB708 *H2
RB709 *H2
RB710 H1
RB711 H1
RB712 H1
RB713 H1
RB714 H1
RB715 H2
RB716 H2
RB717 H2
RB718 G2
RB719 G2
RB720 G2
RB721 *G2
RB722 *G2
RB723 *G2
RB724 *G2
RB725 *G2
RB726 G1
RB727 *G2
RB728 F1
RB729 *F2
RB730 F1
RB731 *F2
RB732 F1
RB733 *F2
RB734 G1
RV101 C3
RV501 F3
S101 C4
S102 D4
S301 A4
S302 A4
S303 B3
S304 A3
S305 B3
S306 B4
S307 B4
S308 A4
S309 B4
S310 B4
S311 B4
S312 B4
THP1 J1
THP2 C1
THP3 J3
THP4 A2
THP5 C2
THP101 C2
TP301 G3
TP302 G3
TP303 H3
TP304 H3
TP501 J5
TP502 G5
TP503 F3
TP504 F3
TP505 F3
TP506 H2
TP701 G1
TP702 G1
TP703 G2
TP704 G2
X301 *H2
X501 G3
X502 H4
*:B SIDE
—————————————————————
AT-155 (1-865-024-11)
—————————————————————
AT-155AT-155
5-4 CCU-TX50/V2
5-4
AT-155AT-155
AT-155 -A SIDE-
SUFFIX: -11
BT101
C1
C103
C104
C107
C109
C110
C112
C131
C132
C133
C134
C135
C136
C140
C148
C15
C150
C152
C154
C156
C158
C16
C160
C165
C17 C18
C19
C22
C26
C28
C29
C3
C30
C311
C322
C36
C38 C39
C4
C40 C41
C5
C501
C502
C505
C512
C513
C514
C515
C519
C522 C523
C524
C527
C528
C529
C530
C531
C532
C534
C535
C536
C537
C538
C539
C540
C542
C543
C550
C555
C556
C557
C559
C561
C563
C565
C568
C590
C591
C7
C701
C704
C712
C713C714C715C716
C723C725
C729
C730
C731
C732
C9
CL1
CL102 CL103
CL104
CL105
CL2
CL3
CL4CL5
CN101
CN102
CN103
CN104
CN701
CN901CN902
COR101
COR102
D106
D3
D309D310
D311
D312
D502
E1
E2
E3
IC101
IC102
IC107
IC108
IC109
IC110
IC112
IC113
IC117
IC119
IC122
IC123
IC125
IC128
IC131
IC136
IC139
IC140
IC142
IC143
IC144
IC301
IC303
IC304
IC305
IC308
IC310
IC504
IC505
IC507
IC508
IC509
IC510 IC511
IC512
IC513
IC515
IC517
IC519
IC520
IC523
IC702
IC707IC708IC709IC710
IC711
L1
L107L108
L112
L2
L3
L303
L501L502
L504
L505
L506
L510
L511
L701
L702
PH1
PH301
PH302
Q104
Q105
Q8
R1
R106
R107
R108
R110
R112
R113
R115R116
R125
R133
R134
R137
R138
R141
R142
R146
R147
R153
R154
R155
R156
R157
R167
R168
R169
R170
R172
R176
R177
R178
R180
R182
R191
R197
R198
R199
R2
R201R202
R203
R204
R205
R206
R207
R210
R211
R212
R213
R214
R215
R220
R221
R222
R223
R226
R227
R3
R305
R310
R311
R313
R353
R354
R355
R360
R361
R362
R363
R364
R365
R366
R375
R376
R381
R43
R431
R436
R44
R445
R45
R522
R523
R524
R534
R538
R539
R540
R541
R542
R543R544
R545
R546
R547
R548
R549 R550
R551
R555
R559
R560
R561
R563
R564
R567R568
R569
R571
R573R574
R575
R576
R577
R578
R579R580
R581
R582R583
R584
R585
R586
R587R588
R589
R590
R591
R592
R593
R594
R595
R596
R597
R598
R599
R600 R601
R602
R603
R604 R605
R606
R607
R609
R610 R611
R612
R613
R614
R615
R616
R617
R618
R619
R623
R624
R625
R626
R627
R628
R629
R630
R631
R632
R635
R636
R706
R707
R712
R724
R725
R726
R727
R728
R729
R744
R745
RB102 RB103 RB104 RB105 RB106
RB107RB108RB109
RB110 RB111
RB112 RB113 RB114 RB115 RB116
RB118RB119
RB308 RB314
RB315 RB316
RB317RB318
RB501
RB505
RB507
RB701
RB710RB711RB712RB713RB714RB715RB716RB717
RB718 RB719 RB720
RB726RB728RB730RB732 RB734
RV101
RV501
S101 S102
S301
S302
S303
S304
S305S306
S307
S308
S309
S310S311
S312
THP1
THP101
THP2
THP3
THP4
THP5
TP301 TP302 TP303 TP304
TP501TP502
TP503
TP504
TP505
TP506
TP701TP702
TP703TP704
X501
X502
Components locations list; previous page
5-5
CCU-TX50/V2 5-5
AT-155AT-155
AT-155 -B SIDE-
SUFFIX: -11
C10
C101
C102
C105
C106
C108
C11
C111
C113
C114
C115
C116
C117
C118
C119
C12
C120
C121
C122
C123
C124
C125
C126 C127 C128
C129
C13
C130
C137
C138
C139
C14
C141
C142
C143
C144
C145
C146
C147
C149
C151
C153
C155
C157
C159
C161
C162
C163
C164
C166
C168
C169
C170
C171
C172C173
C174
C175
C176
C2
C20
C21
C23 C24
C25
C27
C301
C302
C303
C304
C305
C306
C307
C308
C309
C31
C310
C312
C313
C314
C315
C316
C317
C318
C319
C32
C320
C321
C323
C324
C325
C326
C327
C328
C329
C33
C330C331
C332
C333
C334
C335
C336
C337
C338
C339
C34
C340
C341C342
C35
C37
C503
C504
C506
C507
C508
C509
C510
C511
C516
C517
C518
C520
C521
C525
C526
C533
C541
C544
C545
C546
C547
C548
C549
C551
C552
C553
C554
C558
C560
C562
C564
C566
C567
C569
C570
C571
C572
C573
C574
C575
C576
C577
C578
C579
C580
C581
C582
C583
C584
C585
C586
C587
C588
C589
C592
C593
C594
C595
C596
C597
C598
C6
C702
C703
C705
C706
C707
C708C709C710C711
C717
C718
C719
C720
C721
C722
C724
C726
C727
C728
C733
C734
C735
C736
C737
C738
C739
C740
C741 C742 C743 C744
C8
D1
D101
D102
D103
D104
D105
D2
D301 D302
D303 D304 D305 D306
D307 D308
D4
D501
D503
D701
E4
IC1
IC103
IC104 IC105
IC106
IC111
IC114IC115
IC116
IC118
IC120
IC121
IC124 IC126
IC127
IC129
IC130
IC134
IC141
IC145
IC2
IC3
IC302
IC306 IC307
IC309
IC314
IC316
IC317
IC318
IC319
IC320
IC321
IC322
IC4
IC501
IC502
IC503
IC506
IC516
IC518
IC521
IC524
IC701
IC703IC704IC705IC706
IC712
IC714
IC715
L101
L102 L103
L104
L105
L106
L109
L110
L111
L301
L302
L304
L503
L507
L508
L509
L512
L513
L514
L515
L516
L517
L518
L703
Q1
Q101Q102
Q103
Q2
Q3
Q301
Q302
Q303
Q304
Q305
Q306
Q307
Q308
Q309
Q310
Q311
Q312
Q313
Q314
Q4
Q5
Q501
Q502
Q503
Q504
Q6
Q7
Q9
R10
R101
R102
R103
R104
R105
R109
R11
R111
R114
R117
R118
R119
R12
R120
R121
R122
R123
R126
R127
R128
R129
R13
R130
R131
R132
R135 R136
R139
R14
R140
R143
R144
R145
R148
R149
R15
R150
R151
R152
R158
R159
R16
R160
R161
R162
R163
R164
R165
R166
R17
R171
R173
R174
R175
R18
R181
R183
R184
R185
R186
R187
R188
R189
R19
R190
R192
R193
R194
R195
R196
R20
R200
R208
R209
R21
R22
R224R225
R23
R24
R25
R26
R27
R28
R29
R30
R301
R302
R303
R304
R306R307 R308R309
R31
R312
R314R315 R316R317R318
R319
R32
R320 R321
R322
R323
R324 R325R326
R327
R328
R329
R33
R330
R331
R332
R333
R334
R335R336R337
R338
R339
R34
R340
R341
R342
R343
R344
R345
R346
R347
R348
R349
R35
R350
R351
R352
R356
R357
R358
R359
R36
R367
R368
R369
R37
R370
R371
R372
R373
R374
R377
R378
R379
R38
R380
R382R383 R384R385
R386
R387
R388
R389
R39
R390
R391
R392R393 R394R395
R396
R397
R398
R399
R4
R40
R400
R401
R402
R403
R404
R405
R406
R407
R408
R409
R41
R410
R411
R412
R413
R414
R415
R416
R417
R418
R419
R42
R420
R421
R422
R423
R424
R425
R426
R427
R428R429
R430
R432
R433
R434
R435
R437
R438
R439
R440
R441
R444
R446
R447
R448
R449
R450
R451
R452
R453
R454
R455
R46 R47
R48R49
R5
R50
R501
R502
R503
R504
R505
R506
R507
R508
R509
R51
R510
R511 R512
R513
R514 R515
R516
R517
R518
R519
R52
R520
R521
R525
R526
R527 R528
R529
R53
R530
R531
R532
R533
R535
R536
R537
R54
R55
R552
R553 R554
R556
R557
R558
R562
R565R566
R570
R572
R6
R608
R620
R621
R622
R633
R634
R637
R7
R701
R702
R703
R704
R705
R708
R710
R711
R713
R714
R715R716
R717
R718
R719
R720
R721
R722
R723
R732
R733
R734
R735 R736
R737
R738
R739
R740
R741
R742R743
R8
R9
RB117
RB301 RB302
RB303
RB304 RB305
RB309
RB310
RB311
RB312RB313
RB319
RB320
RB321
RB322
RB502
RB503
RB504
RB506
RB702RB703RB704RB705RB706RB707RB708RB709
RB721
RB722
RB723
RB724
RB725
RB727 RB729 RB731 RB733
X301
5-6 CCU-TX50/V2
5-6
AU-300AU-300
C101
C102
C103
C104
C105 C106
C107
C108
C109
C110
C111
C15
C16
C21
C215C217
C22
C228
C230
C234
C235
C236
C237
C238C239
C244
C245
C246 C247
C248 C249
C25
C253
C254
C255
C256
C268C269 C277C278
C283C284 C285C286
C287
C288
C289
C290
C291 C292C293 C294
C295C296 C297C298
C299
C3
C30
C300
C301
C302
C303
C31
C32
C33
C34
C35
C36
C37
C39
C46
C47
C48
C49
C5
C54C55
C64
C65
C66
C67
C7
CL1
CL2 CL3
CL4
CL5
CL6
CN902
D12
D200
D202
D206
D207
D208
D209
D7
E1
E2
E3
IC100
IC101
IC105IC106
IC107
IC108
IC109
IC110
IC112
IC113IC114IC115IC116IC117
IC203
IC204
IC211 IC213
IC214
IC216 IC218
IC219
IC5
JC1
JC2
L1
L101
L2
L204
L205
L208L209 L210L211
L213
L214
L215
L216
L3
L4
L5L6
PH1
Q200 Q201Q202Q203 Q204Q205
Q206 Q207Q208Q209 Q210Q211Q215
Q216
Q217
Q218
R100
R101
R102
R103
R104
R120
R121
R122 R123
R124
R126
R127
R134
R136R137
R141
R142
R143
R144
R145
R146
R147
R148
R15
R157
R161
R167
R172
R18
R181
R182
R183
R184
R185
R208
R210
R212R214
R215
R220
R222
R224
R225
R230
R231
R234
R235
R236
R239
R240
R251
R261
R274
R30 R32
R337 R338
R339 R341
R343 R344
R345 R348
RB1RB2
RV101
RV102
RV200 RV201
RV202
RV203
RV204
S1 S2
S200
S201
S202 S203
S204 S205
S206 S207
S3 S4
T2
THP1
THP2
THP3
THP4
THP5
THP6
TP200TP201
TP202
TP203
TP204
TP205
TP206
TP207
TP208
TP209
TP210
AU-300 -A SIDE-
SUFFIX: -11, -12
C1 *C1
C2 *F1
C3 C2
C4 *F3
C5 C1
C6 *F3
C7 D1
C8 *F4
C9 *H5
C10 *J5
C11 *H4
C12 *J4
C13 *G3
C14 *G3
C15 G3
C16 G3
C17 *H4
C18 *G3
C19 *G3
C20 *H4
C21 G3
C22 G3
C23 *G3
C24 *G3
C25 J4
C26 *G4
C27 *G4
C28 *F3
C29 *F3
C30 G4
C31 G4
C32 F3
C33 F3
C34 G4
C35 G4
C36 F4
C37 F4
C38 *F4
C39 J4
C40 *F4
C41 *F4
C42 *H2
C43 *H2
C44 *H3
C45 *H3
C46 H2
C47 H2
C48 H3
C49 H3
C50 *H2
C51 *H2
C52 *H3
C53 *H3
C54 H2
C55 H3
C56 *H2
C57 *H3
C58 *H3
C59 *H2
C60 *H2
C61 *H2
C62 *H3
C63 *H3
C64 H2
C65 H2
C66 H3
C67 H3
C100 *C1
C101 C2
C102 C2
C103 C2
C104 C2
C105 C2
C106 C2
C107 B2
C108 B2
C109 B3
C110 B2
C111 B2
C112 *B1
C113 *C2
C114 *C2
C201 *G1
C202 *G1
C203 *G1
C204 *G1
C205 *G1
C206 *G1
C214 *D1
C215 D2
C217 D2
C221 *E3
C222 *E3
C225 *H1
C226 *H1
C228 E3
C229 *D1
C230 E3
C231 *F1
C232 *F1
C233 *C2
C234 F1
C235 F1
C236 D1
C237 D1
C238 E1
C239 E2
C240 *D1
C241 *D1
C242 *E2
C243 *E2
C244 E2
C245 E2
C246 E2
C247 F2
C248 E1
C249 F1
C250 *E4
C253 E4
C254 E5
C255 E3
C256 E4
C257 *E4
C258 *E4
C259 *E3
C260 *E4
C266 *E4
C267 *E4
C268 D4
C269 D5
C270 *A3
C271 *D4
C272 *D4
C273 *E5
C274 *A3
C275 *E4
C276 *E4
C277 D3
C278 D4
C279 *D3
C280 *D4
C281 *E4
C282 *E4
C283 C4
C284 C5
C285 C3
C286 C4
C287 D5
C288 D4
C289 D4
C290 D3
C291 B4
C292 B3
C293 B5
C294 B4
C295 B4
C296 B5
C297 B3
C298 B4
C299 C4
C300 C4
C301 C3
C302 C4
C303 A3
CL1 G2
CL2 F2
CL3 H2
CL4 H2
CL5 H3
CL6 H3
CN902 J3
D1 *J4
D2 *J4
D3 *J4
D4 *J4
D5 *H4
D6 *H4
D7 A2
D8 *G4
D9 *G4
D10 *G4
D11 *G4
D12 F4
D13 *F4
D14 *H2
D15 *H2
D16 *H3
D17 *H3
D200 G1
D201 *G1
D202 G1
D203 *G1
D204 *D1
D205 *D1
D206 E4
D207 E4
D208 E3
D209 E3
D210 *A3
E1 D2
E2 J1
E3 A3
E4 *F2
IC1 *G4
IC2 *G4
IC3 *H2
IC4 *H3
IC5 C1
IC6 *G3
IC7 *H2
IC100 C1
IC101 C2
IC102 *C2
IC104 *C2
IC105 A2
IC106 A2
IC107 B1
IC108 B1
IC109 B2
IC110 B1
IC111 *B1
IC112 A2
IC113 B2
IC114 B2
IC115 A2
IC116 A2
IC117 A2
IC203 G1
IC204 G1
IC205 *G1
IC206 *E2
IC207 *D1
IC208 *E1
IC209 *E1
IC210 *E2
IC211 E4
IC212 *E4
IC213 E4
IC214 A4
IC215 *C4
IC216 E4
IC217 *E3
IC218 E4
IC219 A4
IC220 *C4
IC221 *B4
IC222 *B4
IC223 *A3
JC1 D2
JC2 D2
JC3 *G1
JC4 *G1
JC5 *B4
JC6 *G1
L1 J4
L2 F2
L3 G4
L4 F4
L5 G2
L6 G2
L101 B2
L102 *B2
L103 *B3
L202 *F1
L203 *F1
L204 D1
L205 D1
L206 *F1
L207 *F1
L208 F4
L209 F5
L210 F3
L211 F4
L213 D4
L214 D5
L215 D4
L216 D3
PH1 H4
Q1 *G3
Q2 *G3
Q3 *G3
Q4 *G3
Q5 *H4
Q6 *H4
Q8 *F4
Q9 *F4
Q10 *H2
Q11 *H2
Q12 *H3
Q13 *H3
Q200 C4
Q201 C3
Q202 C4
Q203 C5
Q204 C3
Q205 C4
Q206 B4
Q207 B3
Q208 B4
Q209 B5
Q210 B3
Q211 B4
Q212 *E1
Q213 *E1
Q214 *E1
Q215 B4
Q216 C4
Q217 B3
Q218 C3
R1 *J4
R2 *J4
R3 *D1
R4 *D1
R5 *D1
R6 *D1
R7 *D1
R8 *D1
R9 *D1
R10 *D1
R11 *D1
R12 *H4
R13 *H4
R14 *H4
R15 H4
R16 *H4
R17 *H4
R18 H4
R19 *H4
R20 *H4
R21 *G3
R22 *G3
R23 *G3
R24 *G3
R25 *D1
R26 *D1
R27 *H4
R28 *G3
R29 *G3
R30 H5
R31 *D1
R32 H4
R34 *G3
R35 *G3
R36 *G3
R37 *G3
R38 *D1
R39 *D1
R40 *D1
R41 *G3
R42 *G3
R43 *G3
R44 *G3
R45 *G3
R46 *G3
R47 *G3
R48 *C1
R49 *C1
R50 *C1
R51 *C1
R52 *F4
R53 *F4
R54 *F4
R55 *F5
R56 *F4
R57 *H2
R58 *H2
R59 *H3
R60 *H3
R61 *H2
R62 *H2
R63 *H3
R64 *H3
R65 *H3
R66 *H2
R67 *H2
R68 *H3
R69 *H3
R70 *H3
R71 *H2
R72 *H3
R73 *H3
R74 *H2
R75 *H2
R76 *H2
R77 *G3
R78 *D1
R79 *H4
R80 *H4
R81 *H3
R100 C1
R101 C1
R102 C1
R103 C1
R104 C1
R114 *F1
R115 *G1
R118 *B1
R119 *C1
R120 J4
R121 J4
R122 J4
R123 J4
R124 J4
R126 C1
R127 C2
R128 *C2
R129 *C2
R130 *C2
R131 *C2
R132 *C2
R133 *C2
R134 C2
R135 *A2
R136 A2
R137 A2
R138 *A2
R139 *A2
R140 *C1
R141 B1
R142 B1
R143 B1
R144 B1
R145 B1
R146 B1
R147 B1
R148 B1
R149 *A2
R150 *A2
R151 *A2
R152 *A2
R153 *A2
R154 *A2
R155 *A2
R157 A3
R158 *A2
R159 *A2
R160 *B2
R161 B2
R162 *B2
R163 *B2
R164 *B1
R165 *B1
R166 *B1
R167 B1
R168 *A2
R169 *A2
R170 *A2
R171 *A2
R172 A2
R173 *A1
R174 *A2
R175 *A2
R176 *A1
R177 *A2
R178 *C3
R179 *C3
R180 *C3
R181 A3
R182 C1
R183 C1
R184 A2
R185 A1
R186 *A2
R187 *A2
R200 *G1
R201 *G1
R204 *G1
R205 *G1
R208 G1
R209 *G1
R210 G1
R211 *G1
R212 G1
R213 *G1
R214 G1
R215 G1
R216 *G1
R217 *G1
R220 G1
R221 *G1
R222 G1
R223 *G1
R224 G1
R225 G1
R226 *G1
R227 *G1
R230 G1
R231 G1
R232 *G1
R233 *G1
R234 D2
R235 H1
R236 H1
R237 *H1
R238 *H1
R239 H1
R240 H1
R241 *H1
R242 *H1
R243 *E3
R244 *E3
R245 *H1
R246 *H1
R247 *H1
R248 *H1
R249 *E3
R250 *E2
R251 E2
R252 *E3
R253 *E3
R254 *E2
R255 *E2
R256 *E2
R257 *E3
R258 *E3
R259 *F2
R260 *F3
R261 D2
R262 *E1
R263 *E1
R264 *D1
R265 *E1
R266 *E1
R267 *E2
R268 *E2
R269 *D1
R270 *E2
R271 *E2
R272 *E1
R273 *E1
R274 E2
R275 *E2
R276 *D1
R277 *E1
R278 *D1
R279 *D1
R280 *E1
R281 *E2
R282 *D1
R283 *E1
R284 *E1
R285 *D1
R286 *E2
R287 *E2
R288 *E1
R289 *E1
R290 *E1
R291 *E2
R292 *E2
R293 *E2
R294 *E2
R295 *F2
R296 *E1
R297 *E1
R298 *F2
R299 *F1
R300 *F1
R305 *E4
R306 *E4
R307 *E4
R308 *E3
R309 *E4
R310 *E3
R311 *E4
R312 *E4
R313 *E3
R314 *E3
R315 *E4
R316 *E3
R317 *E4
R318 *E3
R319 *E3
R320 *E4
R321 *E4
R322 *E4
R323 *C4
R324 *C3
R325 *C4
R326 *C3
R327 *C4
R328 *C5
R329 *C3
R330 *C4
R331 *C4
R332 *C5
R333 *C3
—————————————————————————
AU-300 (1-865-023-11,-12)
—————————————————————————
R334 *C4
R335 *C5
R336 *C4
R337 E4
R338 E3
R339 E4
R340 *C5
R341 E3
R342 *C4
R343 E4
R344 E3
R345 E4
R346 *C5
R347 *F3
R348 E3
R349 *C4
R350 *F4
R351 *D4
R352 *D4
R353 *C4
R354 *F3
R355 *C3
R356 *F3
R357 *F3
R358 *F4
R359 *A4
R360 *F4
R361 *F4
R362 *C4
R363 *F3
R364 *F3
R365 *A4
R366 *C3
R367 *A4
R368 *F4
R369 *F4
R370 *A4
R371 *A4
R372 *A4
R373 *F3
R374 *A4
R375 *A4
R376 *F4
R377 *A4
R378 *A4
R379 *A4
R380 *A4
R381 *F3
R382 *F4
R383 *A4
R384 *C5
R385 *C4
R386 *A3
R387 *C4
R388 *C3
R389 *A4
R390 *A4
R391 *A4
R392 *A4
R393 *A4
R394 *A4
R395 *A3
R396 *A3
R397 *A4
R398 *A4
R399 *A4
R400 *A4
R401 *D5
R402 *D4
R403 *D4
R404 *D3
R405 *A4
R406 *A4
R407 *A4
R408 *A4
R409 *B4
R410 *B3
R411 *B4
R412 *B3
R413 *B4
R414 *B4
R415 *B3
R416 *B4
R417 *B4
R418 *B4
R419 *B3
R420 *B4
R421 *B5
R422 *B4
R423 *B5
R424 *B4
R425 *B5
R426 *B4
R427 *B5
R428 *B5
R429 *B4
R430 *B4
R431 *B5
R432 *B5
R433 *B4
R434 *B4
R435 *C5
R436 *C4
R437 *B5
R438 *B4
R439 *A3
R440 *A3
R441 *A3
R442 *A3
R443 *A3
R444 *A3
R445 *E1
R446 *E1
R447 *E1
R448 *E1
R449 *E1
R450 *E1
R451 *A4
R452 *A4
R453 *A3
R454 *A4
RB1 C1
RB2 C1
RB3 *C1
RB4 *C1
RB5 *C2
RB6 *C2
RB7 *C2
RB8 *C2
RV101 A4
RV102 A3
RV200 D3
RV201 D2
RV202 D1
RV203 A4
RV204 A4
S1 J4
S2 J4
S3 H4
S4 H4
S200 H1
S201 H1
S202 E3
S203 E2
S204 A4
S205 A4
S206 D4
S207 D3
T2 G4
THP1 J3
THP2 J3
THP3 J2
THP4 J2
THP5 J3
THP6 J3
TP200 G1
TP201 G1
TP202 D1
TP203 F2
TP204 F3
TP205 F2
TP206 F1
TP207 F2
TP208 F2
TP209 E5
TP210 E4
*:B SIDE
5-7
CCU-TX50/V2 5-7
AU-300AU-300
C1
C10
C100
C11
C112
C113
C114
C12
C13
C14
C17
C18
C19
C2
C20
C201 C202
C203 C204
C205 C206
C214
C221C222
C225 C226
C229
C23
C231
C232
C233
C24
C240
C241
C242
C243
C250
C257
C258
C259
C26
C260
C266 C267
C27
C270
C271C272
C273
C274
C275 C276
C279
C28
C280
C281 C282
C29
C38
C4
C40C41
C42
C43
C44
C45
C50
C51
C52
C53
C56
C57
C58 C59
C6
C60
C61
C62
C63
C8
C9
D1
D10
D11
D13
D14
D15
D16
D17
D2
D201
D203 D204
D205
D210
D3 D4
D5 D6
D8
D9
E4
IC1
IC102
IC104
IC111
IC2
IC205
IC206
IC207IC208IC209
IC210
IC212
IC215
IC217
IC220
IC221
IC222
IC223
IC3
IC4
IC6
IC7
JC3
JC4
JC5
JC6
L102
L103
L202
L203
L206
L207
Q1
Q10Q11Q12Q13
Q2
Q212
Q213
Q214
Q3Q4
Q5 Q6
Q8
Q9
R1
R10
R11
R114
R115
R118R119
R12
R128
R129
R13
R130
R131R132
R133
R135
R138
R139
R14
R140
R149R150
R151
R152
R153
R154
R155
R158
R159
R16
R160
R162
R163
R164
R165
R166
R168
R169
R17
R170
R171
R173
R174
R175 R176
R177
R178
R179
R180
R186
R187
R19
R2
R20
R200 R201
R204
R205
R209
R21
R211
R213R216
R217
R22
R221
R223
R226
R227
R23
R232
R233
R237
R238
R24
R241
R242
R243
R244
R245
R246
R247
R248
R249
R25
R250
R252
R253
R254
R255
R256
R257
R258
R259
R26
R260
R262 R263
R264
R265
R266
R267
R268
R269
R27
R270
R271
R272 R273
R275
R276
R277
R278
R279
R28
R280
R281
R282
R283
R284
R285
R286
R287
R288
R289
R29
R290
R291
R292
R293
R294
R295
R296
R297
R298
R299
R3
R300
R305 R306
R307
R308
R309
R31
R310
R311
R312 R313
R314
R315 R316
R317
R318
R319
R320
R321
R322
R323
R324
R325
R326
R327R328 R329R330
R331R332 R333R334
R335 R336
R34
R340 R342
R346
R347
R349
R35
R350
R351 R352
R353
R354
R355
R356
R357
R358
R359
R36
R360R361
R362
R363
R364
R365
R366
R367
R368R369
R37
R370
R371
R372
R373
R374
R375
R376
R377
R378 R379
R38
R380
R381R382
R383
R384
R385
R386
R387
R388
R389
R39
R390
R391
R392
R393R394
R395R396
R397
R398
R399
R4
R40
R400
R401
R402
R403
R404
R405
R406
R407
R408
R409
R41
R410
R411
R412
R413R414 R415R416
R417R418 R419
R42
R420
R421
R422
R423
R424
R425
R426
R427
R428
R429
R43
R430
R431
R432
R433
R434
R435
R436
R437
R438
R439
R44
R440
R441
R442R443
R444
R445
R446R447
R448
R449
R45
R450
R451 R452
R453
R454
R46
R47
R48
R49
R5
R50
R51
R52
R53
R54
R55
R56
R57
R58
R59
R6
R60
R61
R62
R63
R64
R65
R66
R67
R68
R69
R7
R70
R71
R72R73
R74
R75R76
R77
R78
R79
R8
R80
R81
R9
RB3 RB4
RB5RB6
RB7 RB8
AU-300 -B SIDE-
SUFFIX: -11, -12
5-8 CCU-TX50/V2
5-8
CN-2474CN-2474
CN-2474 -B SIDE-
SUFFIX: -11
CN-2474 -A SIDE-
SUFFIX: -11
C10
C101
C11
C16
C17
C20
C21
C27
C28
C29
C3
C30
C33
C41
C42
C43
C44
C5
C51
C52
C53
C54
C61
C65
C9
CL1 CL11CL12
CN102
CN104 CN105
CN4
D101
D102
D103
D104
D105
D106
D107
D108
D109
D118
D119
D120
D121
D122
D123
D124
D125
E1
E2
IC101
IC105
IC41 IC51
L1
L11
L12
L41L42 L51
L52
L61
Q101
Q102
Q103
Q105
Q120
Q121
Q122
Q123
Q124
Q125
Q126
Q127
Q13
R101
R102
R103
R104
R105
R106
R107
R108
R109
R110
R111
R112
R113 R114
R118
R120R121R122 R123
R124R125 R126R127
R21R22
R23
R24
R41
R42
R43
R44
R45
R51
R53
R54
R55
R56
R78
RB101 RB102
RB103
RB104RB105
RB106
RB107RB108
RB113 RB114
THP101
C1
C12
C13
C14
C15
C18C19
C2
C22
C23 C24
C25
C26
C31
C32
C4
C6
C62C63
C64
C7
C71
C8
CN1
CN2
CN3
CN5
D11
D110D111
D112D113
D114D115
D116D117
D12
D31
IC102
IC103
IC104
IC11
IC61
Q1
Q104
Q11
Q12
Q130
Q131
Q132
Q133
Q134Q135
Q136 Q137
Q2
Q71
R1
R11
R115
R116
R117
R119
R12
R13
R130
R131R132
R133
R134
R135 R136
R137
R138
R139
R14
R15
R16
R17
R18R19
R2
R20
R3
R31
R32
R33
R34
R35
R36
R4
R46
R47
R5
R52
R57
R58
R6
R61
R62
R63
R64
R65
R66
R67
R68
R69
R7
R70
R71
R72
R73
R74
R75
R76
R77
R79
R8
R80
R81
RB109 RB110
RB111 RB112
C1 *C3
C2 *C3
C3 C3
C4 *C3
C5 C2
C6 *C2
C7 *C2
C8 *C2
C9 C2
C10 C2
C11 A3
C12 *C3
C13 *C3
C14 *C3
C15 *C3
C16 C3
C17 C3
C18 *C3
C19 *C3
C20 C2
C21 C2
C22 *C2
C23 *C2
C24 *C2
C25 *C2
C26 *C2
C27 C2
C28 C2
C29 C2
C30 C2
C31 *C2
C32 *C2
C33 A3
C41 C1
C42 C1
C43 C1
C44 C1
C51 B1
C52 B1
C53 B1
C54 B1
C61 B2
C62 *B2
C63 *B2
C64 *B2
C65 B2
C71 *A3
C101 A3
CL1 C2
CL11 C2
CL12 C2
CN1 *A2
CN2 *A3
CN3 *A3
CN4 C2
CN5 *A2
CN102 B3
CN104 C1
CN105 B1
D11 *C2
D12 *C2
D31 *C2
D101 B3
D102 A2
D103 A2
D104 A2
D105 A2
D106 A3
D107 A3
D108 A3
D109 A3
D110 *A2
D111 *A2
D112 *A2
D113 *A2
D114 *A2
D115 *A2
D116 *A2
D117 *A2
D118 B1
D119 B1
D120 B1
D121 B1
D122 A2
D123 A2
D124 A2
D125 A2
E1 B1
E2 C1
IC11 *C2
IC41 C1
IC51 B1
IC61 *B2
IC101 A3
IC102 *C2
IC103 *C2
IC104 *B2
IC105 A3
L1 C3
L11 C3
L12 C3
L41 C1
L42 C1
L51 B1
L52 B1
L61 B2
Q1 *C2
Q2 *C2
Q11 *C2
Q12 *C2
Q13 A3
Q71 *A3
Q101 B3
Q102 B3
Q103 B3
Q104 *B3
Q105 B3
Q120 A2
Q121 A2
Q122 A2
Q123 A2
Q124 A2
Q125 A2
Q126 A2
Q127 A2
Q130 *B2
Q131 *B2
Q132 *B2
Q133 *B2
Q134 *B2
Q135 *B2
Q136 *B2
Q137 *B2
R1 *C2
R2 *C2
R3 *C2
R4 *C2
R5 *C2
R6 *C2
R7 *C2
R8 *C2
R11 *C2
R12 *C2
R13 *C2
R14 *C2
R15 *C2
R16 *C2
R17 *C2
R18 *C2
R19 *C2
R20 *C2
R21 A3
R22 A3
R23 A3
R24 A3
R31 *C2
R32 *C2
R33 *C2
R34 *C2
R35 *C2
R36 *C2
R41 C1
R42 C1
R43 C1
R44 C1
R45 C1
R46 *C1
R47 *C1
R51 B1
R52 *B1
R53 B1
R54 B1
R55 B1
R56 B1
R57 *B1
R58 *B1
R61 *B2
R62 *B2
R63 *B2
R64 *B2
R65 *B2
R66 *B2
R67 *B2
R68 *B2
R69 *B2
R70 *B2
R71 *B2
R72 *B2
R73 *B2
R74 *B2
R75 *B2
R76 *B2
R77 *B2
R78 A3
R79 *A3
R80 *A3
R81 *A3
R101 A3
R102 A3
R103 B3
R104 B3
R105 B3
R106 B3
R107 B3
R108 B3
R109 A3
R110 B2
R111 A3
R112 A3
R113 A3
R114 A3
R115 *B3
R116 *B3
R117 *B3
R118 A3
R119 *B2
R120 A2
R121 A2
R122 A2
R123 A2
R124 A2
R125 A2
R126 A2
R127 A2
R130 *B2
R131 *B2
R132 *B2
R133 *B2
R134 *B2
R135 *B2
R136 *B2
R137 *B2
R138 *B2
R139 *B2
RB101 A3
RB102 A3
RB103 A3
RB104 A2
RB105 A2
RB106 A3
RB107 B2
RB108 B2
RB109 *A2
RB110 *A2
RB111 *B2
RB112 *B2
RB113 A2
RB114 A2
THP101 C3
*:B SIDE
——————————————————————
CN-2474 (1-865-031-11)
——————————————————————
5-9
CCU-TX50/V2 5-9
CN-2516, CN-2647CN-2516, CN-2647
CN-2516 -B SIDE-
SUFFIX: -11
CN-2516 -A SIDE-
SUFFIX: -11
C1
C10
C11
C12
C13
C14
C15
C16
C17
C18
C19
C2
C20
C21
C22
C23
C24
C25
C26
C27
C28
C29
C3
C30
C31
C32
C33
C34
C35
C36
C37
C38
C39
C4
C5
C6
C7
C8
C9
CN1
CN2
CN3CN4
L1
L2
L3
CN-2647 -B SIDE-
SUFFIX: -11
CN-2647 -A SIDE-
SUFFIX: -11
C1 B2
C2 A2
C3 A2
C4 A2
C5 B2
C6 A2
C7 A2
C8 A2
C9 C2
C10 C2
C11 C2
C12 C2
C13 C2
C14 B2
C15 A2
C16 A2
C17 A2
C18 B2
C19 A2
C20 A2
C21 A2
C22 C2
C23 C2
C24 C2
C25 C2
C26 C2
C27 B2
C28 A2
C29 A2
C30 A2
C31 A2
C32 A2
C33 C2
C34 C2
C35 C2
C36 C2
C37 C2
C38 B2
C39 B2
CN1 A1
CN2 A1
CN3 C2
CN4 A2
L1 A2
L2 C2
L3 C2
——————————————————————
CN-2647 (1-865-032-11)
——————————————————————
5-10 CCU-TX50/V2
5-10
CN-2648, CN-2649, CN-2650, IO-214CN-2648, CN-2649, CN-2650, IO-214
CN-2648 -B SIDE-
SUFFIX: -11
CN-2648 -A SIDE-
SUFFIX: -11
CN-2649 -B SIDE-
SUFFIX: -11
CN-2649 -A SIDE-
SUFFIX: -11
CN-2650 -B SIDE-
SUFFIX: -11
CN-2650 -A SIDE-
SUFFIX: -11
IO-214 -B SIDE-
SUFFIX: -11
IO-214 -A SIDE-
SUFFIX: -11
5-11
CCU-TX50/V2 5-11
C1
C10
C11
C12
C121
C122
C123
C124
C125
C126
C127
C128
C129
C13
C130
C131 C132
C133
C134
C14
C141C142
C2
C3
C4
C5
C6
C7
C8
C9
CL121 CL122
CN902
CN903 CN904
D1
D121 D122
D2
E1E2
IC1
IC102
IC103
IC121
IC2
L1
L121
L122
L2
L3
L4
Q1
Q121
Q122
Q123
Q2
Q3 Q4
Q5
Q6
R1
R10
R11
R12
R121
R122
R123
R124
R125
R126
R127
R128
R129
R13
R130
R14
R141
R142
R143 R144
R145
R146R147
R148
R149
R15
R150
R16 R17
R18
R19
R2
R20R21 R22R23
R24 R25
R26
R27
R28
R3
R4
R5
R6
R7
R8
R9
C1 C1
C2 B1
C3 C1
C4 C1
C5 B1
C6 B1
C7 B1
C8 B1
C9 B2
C10 B1
C11 B1
C12 B1
C13 C2
C14 B2
C121 A2
C122 B2
C123 B2
C124 B2
C125 B2
C126 B2
C127 B2
C128 B2
C129 B2
C130 B2
C131 C2
C132 A2
C133 C2
C134 A2
C141 C2
C142 C2
CL121 C2
CL122 A2
CN902 B2
CN903 C1
CN904 B1
D1 B1
D2 B1
D121 B2
D122 B2
E1 A2
E2 C2
IC1 B1
IC2 B1
IC102 C2
IC103 B2
IC121 B2
L1 C1
L2 A1
L3 C2
L4 A2
L121 B2
L122 B2
Q1 C1
Q2 B1
Q3 B1
Q4 B1
Q5 B1
Q6 B1
Q121 C2
Q122 B2
Q123 C2
R1 C1
R2 C1
R3 C1
R4 C1
R5 C1
R6 B1
R7 B1
R8 B1
R9 B1
R10 B1
R11 B1
R12 B1
R13 B1
R14 B1
R15 B1
R16 B1
R17 B1
R18 B1
R19 B1
R20 B1
R21 B1
R22 B1
R23 B1
R24 B1
R25 B1
R26 B1
R27 B1
R28 B2
R121 B2
R122 B2
R123 B2
R124 B2
R125 B2
R126 B2
R127 B2
R128 B2
R129 B2
R130 B2
R141 C2
R142 C2
R143 C2
R144 C2
R145 C2
R146 C2
R147 C2
R148 C2
R149 C2
R150 C2
——————————————————————
CN-2653 (1-865-029-11)
——————————————————————
CN-2653 -B SIDE-
SUFFIX: -11
CN-2653 -A SIDE-
SUFFIX: -11
CN-2653CN-2653
5-13
CCU-TX50/V2 5-13
DM-140DM-140
C1 *E2
C2 E2
C3 E2
C4 *E2
C5 *E2
C6 E2
C7 *E2
C8 *E2
C9 *E2
C10 *E2
C11 D2
C12 E2
C13 *D2
C14 *E2
C15 *E2
C16 *D2
C17 D2
C18 *D2
C19 C2
C61 *A1
C62 *A2
C63 A1
C64 *A2
C65 A1
C66 *H1
C67 *H1
C68 H1
C69 H1
C70 *B1
C71 *B1
C72 *B1
C73 *B1
C74 *B1
C75 B1
C76 *B1
C77 *A1
C78 *A1
C79 A1
C80 A1
C81 *A1
C101 C2
C102 C2
C103 *B1
C104 *B1
C105 *B1
C106 *C1
C107 *C1
C108 *C1
C109 *C1
C110 *C1
C111 *C1
C112 *C1
C113 *C1
C114 C1
C115 C1
C116 C1
C117 C1
C118 C1
C119 C1
C120 *C1
C121 *C1
C122 D2
C123 *C1
C124 C2
C125 *C1
C126 *C1
C127 *C1
C128 *C1
C129 *C1
C130 *C1
C131 *C1
C132 *C1
C133 *C1
C134 D1
C135 D1
C136 D1
C137 D1
C138 D1
C139 D1
C140 *D1
C141 *D1
C142 D2
C143 *D1
C144 D2
C145 *D1
C146 *D1
C147 *D1
C148 *D1
C149 *D1
C150 *D1
C151 *D1
C152 *D1
C153 *D1
C154 D1
C155 D1
C156 D1
C157 D1
C158 D1
C159 D1
C160 *D1
C161 *D1
C162 D2
C163 *D1
C164 D2
C165 *D1
C166 *D1
C167 *D1
C168 *D1
C169 *E1
C170 *E1
C171 *D1
C172 *E1
C173 *E1
C174 *E1
C175 E1
C176 E1
C177 E1
C178 E1
C179 E1
C180 E1
C181 *E1
C182 *E1
C183 E2
C184 *E1
C185 E2
C186 *E1
C187 *E1
C188 *E1
C189 *E1
C190 *E1
C191 *E1
C192 E1
C193 E1
C194 E1
C195 E1
C196 E1
C197 E1
C198 *E1
C199 *E1
C200 E2
C201 *E1
C202 E2
C203 *E1
C204 *E1
C205 E1
C206 E1
C207 *E1
C208 *E1
C209 *E1
C210 *F1
C211 *F1
C212 *F1
C213 F1
C214 F1
C215 *F1
C216 *F1
C217 F1
C218 F1
C219 E1
C220 *F1
C221 *F1
C301 C4
C302 C4
C303 *C3
C304 *C3
C305 *C3
C306 *C3
C307 *C3
C308 *C3
C309 *C3
C310 *C4
C311 *C4
C312 *C3
C313 *C4
C314 *C4
C315 C4
C316 C4
C317 C4
C318 C4
C319 *C4
C320 *C4
C321 D4
C322 *C3
C323 C4
C324 *C4
C325 *C3
C326 *C3
C327 *C3
C328 *C3
C329 *C4
C330 *C4
C331 *C3
C332 *C4
C333 *C4
C334 D4
C335 D4
C336 D4
C337 D4
C338 *D4
C339 *D4
C340 D4
C341 *D3
C342 D4
C343 *D4
C344 *D3
C345 *D3
C346 *D3
C347 *D3
C348 *D4
C349 *D4
C350 *D3
C351 *D4
C352 *D4
C353 D4
C354 D4
C355 D4
C356 D4
C357 *D4
C358 *D4
C359 D4
C360 *D3
C361 D4
C362 *D4
C363 *D3
C364 *D3
C365 *D3
C366 *E4
C367 *E4
C368 *D3
C369 *E4
C370 *D4
C371 *E4
C372 *E4
C373 E4
C374 E4
C375 E4
C376 E4
C377 *E4
C378 *E4
C379 E4
C380 *E3
C381 E4
C382 *E4
C383 *E4
C384 *E4
C385 *E3
C386 *E4
C387 *E4
C388 E4
C389 E4
C390 E4
C391 E4
C392 *E4
C393 *E4
C394 E4
C395 *E3
C396 E4
C397 *E3
C398 *E3
C399 E4
C400 E4
C401 *E3
C402 *E4
C403 *E3
C404 *F3
C405 *F3
C406 *F3
C407 *F4
C408 *E4
C409 *F4
C410 *F4
C411 *F4
C412 *F4
C413 *F4
C414 F4
C415 *F4
C416 *E4
C418 F4
C419 F3
C421 *F3
C422 *F3
C423 *F3
C450 *C4
C451 *D4
C452 *D4
C453 *E3
C501 *E3
C502 E3
C503 *E3
C504 E3
C505 *E3
C506 *E3
C507 *E3
C508 *E3
C509 *E3
C510 *E2
C511 E3
C512 *E3
C513 *E3
C514 *E3
C515 E3
C516 E3
C517 *E3
C518 E3
C519 D3
C520 E3
C521 *E3
C522 *E3
C523 *D3
C524 D3
C525 D3
C526 D3
C527 *D3
C528 *D3
C529 D3
C530 D3
C531 D3
C532 C3
C533 *D3
C534 *C3
C535 C3
C536 *C3
C571 H4
C572 H4
C573 *H3
C601 G2
C602 G2
C603 *F1
C604 *F1
C605 *F2
C606 *F2
C607 *F1
C608 *F1
C609 *G1
C610 G1
C611 *G1
C612 G1
C613 *G1
C614 *G2
C615 *G1
C616 *G1
C617 *G1
C618 *G1
C619 G1
C620 *G1
C621 G1
C622 *G1
C623 *E2
C624 E2
C625 *F2
C626 *F2
C627 *F2
C628 *F2
C701 G2
C702 G2
C703 *F2
C704 F2
C705 F2
C706 F2
C707 F2
C708 F2
C709 *F2
C710 *F2
C711 *F2
C712 *F2
C713 *G2
C714 *F2
C715 F2
C716 *G2
C717 *G2
C718 *G2
C719 *G2
C720 *G2
C721 *G2
C722 *G2
C723 *G2
C724 G2
C725 *G2
C726 G2
C727 *G2
C728 *G2
C729 G2
C730 *H2
C731 H2
C732 *G2
C733 *H2
C734 *G2
C735 G2
C736 H2
C737 *H2
C738 *G2
C739 G2
C740 G3
C801 G3
C802 G3
C803 *F3
C804 F3
C805 F3
C806 F3
C807 F3
C808 F3
C809 *F3
C810 *F3
C811 *F3
C812 *F3
C813 *G3
C814 *F3
C815 F3
C816 *G3
C817 *G3
C818 *G3
C819 *G3
C820 *G3
C821 *G3
C822 *G3
C823 *G3
C824 G3
C825 *G3
C826 G3
C827 G3
C828 G3
C829 H3
C830 *G3
C831 *G3
C832 H3
C833 *G3
C834 *H3
C835 *G3
C836 H3
C837 *E3
C838 E3
C839 *F3
C840 *F3
C841 *F3
C842 *F3
C843 *H3
C901 G4
C902 G4
C903 *F4
C904 F4
C905 F4
C906 F4
C907 F4
C908 *F4
C909 *F4
C910 F4
C911 *F4
C912 *F4
C913 *G4
C914 *G4
C915 *G4
C916 F4
C917 *G4
C918 *G4
C919 *G4
C920 *G4
C921 *G4
C922 *G4
C923 *G4
C924 *G4
C925 G4
C926 *G4
C927 G4
C928 G4
C929 G4
C930 *G4
C931 *H4
C932 H4
C933 *G4
C934 *H4
C935 *G4
C936 H4
C937 *F4
C938 *F4
C939 *F4
C940 *F4
C941 F4
C942 F3
C943 *H4
C998 E3
CL1 A2
CL2 A1
CL3 A1
CN1 H2
CN2 H1
CN101 B1
CN301 C2
CN902 H3
D1 *E2
D2 *E2
D3 *E2
D4 *D2
D5 *D2
D61 *A1
D62 *A1
D63 A4
D101 *C1
D102 *C1
D103 *C1
D104 *C1
D105 *D1
D106 *D1
D107 *D1
D108 *D1
D109 *E1
D110 *E1
D111 *E1
D112 *E1
D113 *F1
D301 *C3
D302 *C3
D303 *C3
D304 *C4
D305 *D3
D306 *D4
D307 *D3
D308 *D4
D309 *E4
D310 *E4
D311 *E4
D312 *E3
D313 *F3
D601 *G1
D701 *G2
D702 *G2
D801 *G3
D802 *F3
D901 *G4
D902 *F4
DL601 F2
E1 A3
E2 *E3
E101 F1
E301 F4
FL102 E1
FL103 B1
FL302 E3
FL303 C3
FL601 G1
FL602 F2
FL701 G2
FL801 G3
FL802 F2
FL901 G4
IC1 E2
IC2 E2
IC3 E2
IC4 E2
IC5 D2
IC6 *D2
IC7 *D2
IC8 *D2
IC9 C2
IC10 C2
IC11 C2
IC12 *C2
IC13 *C2
IC61 *A1
IC62 *B1
IC63 *A1
IC64 A1
IC101 *C1
IC102 *D1
IC103 *D1
IC104 *E1
IC105 *E1
IC106 F1
IC301 *C4
IC302 *D4
IC303 *D4
IC304 *E4
IC305 *E4
IC306 F3
IC501 E3
IC502 E3
IC503 D3
IC504 D3
IC505 D3
IC506 D3
IC507 *D3
IC508 *C3
IC601 *F1
IC602 *G1
IC603 *G1
IC701 *F2
IC702 *G2
IC703 *G2
IC704 *H2
IC705 *H2
IC801 *F3
IC802 *G3
IC803 *G3
IC804 *G3
IC901 *F4
IC902 *G4
IC903 *G4
IC904 *G4
IC905 *H4
IC906 H3
L1 *E2
L2 *E2
L61 H1
L62 H1
L101 *C1
L102 *C1
L103 *C1
L104 *C1
L105 *D1
L106 *C1
L107 *D1
L108 *D1
L109 *D1
L110 *D1
L111 *D1
L112 *D1
L113 *E1
L114 *E1
L115 *E1
L116 *E1
L117 *E1
L118 *E1
L119 *E1
L120 *E1
L121 *F1
L122 *E1
L123 *E1
L124 *F1
L301 *C4
L302 *C4
L303 *C3
L304 *C4
L305 *D4
L306 *C3
L307 *D4
L308 *D4
L309 *D3
L310 *D4
L311 *D4
L312 *D3
L313 *E4
L314 *E4
L315 *E4
L316 *E4
L317 *E4
L318 *E4
L319 *E4
L320 *E4
L321 *E4
L322 *E3
L323 *E3
L324 *F3
L501 *E3
L502 *E3
L601 *G1
L602 *G1
L603 *F2
L604 *F2
L701 *G2
L702 *G2
L703 *G2
L704 *G2
L801 *G3
L802 *G3
L803 *G3
L804 *G3
L805 *F3
L806 *F3
L901 *G4
L902 *G4
L903 *G4
L904 *G4
L905 *F4
L906 F4
L907 F4
LP1 C2
LP2 C4
LP3 A4
LV501 E3
Q1 *E2
Q2 *E2
Q3 *C2
Q61 *A1
Q62 *A1
Q63 *A1
Q64 *A1
Q65 *A1
Q101 *B1
Q102 *C1
Q103 *C1
Q104 *C1
Q105 *C1
Q106 *C1
Q107 *C1
Q108 *D1
Q109 *D1
Q110 *D1
Q111 *E1
Q112 *D1
Q113 *E1
Q114 *F1
Q115 *F1
Q116 F1
Q117 F1
Q118 F1
Q301 *C3
Q302 *C4
Q303 *C4
Q304 *C4
Q305 *C4
Q306 *C4
Q307 *C4
Q308 *C4
Q309 *C4
Q310 *D4
Q311 *D4
Q312 *D4
Q313 *D4
Q314 *E4
Q315 *E4
Q316 *D4
Q317 *E4
Q318 *F4
Q319 *F3
Q320 *F4
Q321 *F4
Q322 *F4
Q323 *F4
Q324 F4
Q325 F4
Q326 F3
Q501 *D3
Q502 *D3
Q503 *D3
Q504 *E3
Q601 *G1
Q602 *G1
Q603 *G1
Q604 *G2
Q605 *G2
Q606 *G1
Q607 *G1
Q608 *G1
Q609 *F2
Q610 *F2
Q611 *E2
Q612 *F2
Q613 *F2
Q614 *F2
Q703 *G2
Q704 *G2
Q705 G2
Q706 *G2
Q707 *H2
Q708 *G2
Q803 *G3
Q804 *G3
Q805 *G3
Q806 *H3
Q807 *G3
Q808 *F3
Q809 *F3
Q810 *F3
Q902 F4
Q905 *G4
Q906 *G4
Q907 *G4
Q908 *H4
Q909 *G4
Q910 F4
Q911 F3
R1 *E2
R2 *E2
R3 *E2
R4 *E2
R5 *E2
R6 *E2
R7 *E2
R8 *E2
R9 *E2
R10 E2
R11 *E2
R12 *E2
R13 *E2
R14 E2
R15 E2
R16 E2
R17 *E2
R18 *E2
R19 *E2
R20 *E2
R21 *E2
R22 *E2
R23 *E2
R24 *E2
R25 *E2
R26 *E2
R27 *E2
R28 *E2
R29 *E2
R30 *E2
R31 *D2
R32 E2
R33 E2
R34 *D2
R35 *D2
R36 *D2
R37 C2
R38 C2
R39 C2
R40 *D2
R41 *D2
R42 *D2
R43 *D2
R44 *D2
R45 *D2
R46 *D2
R47 *D2
R48 *D2
R49 *C2
R50 *C2
R51 *C2
R52 *C2
R53 *C2
R54 *D2
R55 C2
R56 C2
R57 C2
R58 C2
R59 C2
R60 C2
R61 *A1
R62 *A1
R63 *A1
R64 *A2
R65 *A2
R66 *A1
R67 *A1
R68 *A1
R69 *B1
R70 *B1
R71 *B1
R72 *B1
R73 *B1
R74 *B1
R75 *B1
R76 *B1
R77 *A1
R78 *A1
R79 *A1
R80 *A1
R81 *A1
R82 *A1
R83 A1
R84 A1
R85 A1
R86 *A1
R87 *A1
R88 *A1
R89 *A1
R90 *A1
R91 *C2
R92 *C2
R101 *B1
R102 *B1
R103 *B1
R104 *B1
R105 *C1
R106 *C1
R107 *C1
R108 *C1
R109 *C1
R110 *C1
R111 *C1
R112 *C1
R113 *C1
R114 *C1
R115 *C1
R116 *C1
R117 *C1
R118 C1
R119 C1
R120 C1
R121 C1
R122 C1
R123 C1
R124 *C1
R125 *C1
R126 *C1
R127 *C1
R128 *C1
R129 *C1
R130 *C1
R131 *C1
R132 *C1
R133 *C1
R134 *C1
R135 *C1
R136 *C1
R137 *C1
R138 *C1
R139 *C1
R140 *C1
R141 *C1
R142 *C1
R143 *C1
R144 *C1
R145 *C1
R146 *C1
R147 *C1
R148 *C1
R149 D1
R150 D1
R151 D1
R152 D1
R153 D1
R154 D1
R155 *D1
R156 *D1
R157 *D1
R158 *D1
R159 *D1
R160 *D1
R161 *D1
R162 *C1
R163 *D1
R164 *D1
R165 *D1
R166 *D1
R167 *D1
R168 *D1
R169 *D1
R170 *D1
R171 *D1
R172 *D1
R173 *D1
R174 *D1
R175 *D1
R176 *D1
R177 *D1
R178 *D1
R179 *D1
R180 D1
R181 D1
R182 D1
R183 D1
R184 D1
R185 D1
R186 *D1
R187 *D1
R188 *D1
R189 *D1
R190 *D1
R191 *D1
R192 *D1
R193 *D1
R194 *D1
R195 *D1
R196 *D1
R197 *D1
R198 *D1
R199 *E1
R200 *D1
R201 *E1
R202 *D1
R203 *E1
R204 *E1
R205 *D1
R206 *D1
R207 *D1
R208 *E1
R209 *E1
R210 *E1
R211 *E1
R212 E1
R213 E1
R214 E1
R215 E1
R216 E1
R217 E1
R218 *E1
R219 *E1
R220 *E1
R221 *E1
R222 *E1
R223 *E1
R224 *E1
R225 *E1
R226 *E1
R227 *E1
R228 *E1
R229 *E1
R230 *E1
R231 *E1
R232 E1
R233 E1
R234 E1
R235 E1
R236 E1
R237 E1
R238 *E1
R239 *E1
R240 *E1
R241 *E1
R242 *E1
R243 *E1
R244 *E1
R245 *E1
R246 *E1
R247 *E1
R248 *E1
R249 *E1
R250 *E1
R251 *E1
R252 *E1
R253 *E1
R254 *F1
R255 *F1
R256 *F1
R257 *F1
R258 *F1
R259 *F1
R260 *F1
R261 *F1
R262 *F1
R263 *F1
R264 *F1
R265 F1
R266 F1
R267 F1
R268 F1
R269 F1
R270 F1
R271 F1
R272 F1
R273 F1
R274 F1
R275 F1
R276 F1
R277 F1
R278 F1
R290 *C1
R301 *C3
R302 *C3
R303 *C3
R304 *C3
R305 *C3
R306 *C3
R307 *C4
R308 *C3
R309 *C3
R310 *C4
R311 *C3
R312 *C4
R313 *C3
R314 *C3
R315 *C4
R316 *C4
R317 *C4
R318 *C3
R319 *C3
R320 *C4
R321 *C4
R322 C4
R323 C4
R324 C4
R325 C4
R326 *C4
R327 *C4
R328 *C4
R329 *C4
R330 *C3
R331 *C3
R332 *C3
R333 *C3
R334 *C3
R335 *C4
R336 *C3
R337 *C4
R338 *C4
R339 *C4
R340 *C4
R341 *C4
R342 *C3
R343 *C3
R344 *C4
R345 *C3
R346 *C3
R347 *C4
R348 *C4
R349 *C4
R350 *C3
R351 *C3
R352 *C4
R353 *C4
R354 D4
R355 D4
R356 D4
R357 D4
R358 *D4
R359 *D4
R360 *D4
R361 *D4
R362 *D3
R363 *D3
R364 *D3
R365 *C3
R366 *D3
R367 *D4
R368 *D3
R369 *D4
R370 *D4
R371 *D4
R372 *D4
R373 *D4
R374 *D3
R375 *D3
R376 *D4
R377 *D3
R378 *D3
R379 *D4
R380 *D4
R381 *D4
R382 *D3
R383 *D3
R384 *D4
R385 *D4
R386 D4
R387 D4
R388 D4
R389 D4
R390 *D4
R391 *D4
R392 *D4
R393 *D4
R394 *D3
R395 *D3
R396 *D3
R397 *D3
R398 *D3
R399 *D3
R400 *D3
R401 *D3
R402 *D4
R403 *D3
R404 *E4
R405 *D4
R406 *E4
R407 *D3
R408 *E3
R409 *E4
R410 *D4
R411 *D4
R412 *D3
R413 *D4
R414 *D4
R415 *E4
R416 *D4
R417 *D4
R418 *E4
R419 *E4
R420 E4
R421 E4
R422 E4
R423 E4
R424 *E3
R425 *E3
R426 *E3
R427 *E4
R428 *E3
R429 *E4
R430 *E4
R431 *E4
R432 *E4
R433 *E4
R434 *E4
R435 *E4
R436 *E4
R437 *E4
R438 E4
R439 E4
R440 E4
R441 E4
R442 *E3
R443 *E3
R444 *E3
R445 *E4
R446 *E3
R447 *E4
R448 *E3
R449 *E3
R450 *E3
R451 *E3
R452 *E4
R453 *E3
R454 *E3
R455 *E4
R456 *E4
R457 *E3
R458 *F3
R459 *F3
R460 *F3
R461 *F3
R462 *F3
R463 *F3
R464 *F4
R465 *F4
R466 *F3
R467 *F3
R468 *F3
R469 *F3
R470 *F3
R471 *F4
R472 *F4
R473 *F4
R474 *F4
R475 *F4
R476 *F4
R477 *F4
R478 *F4
R479 *F4
R480 *F4
R481 *F4
R482 *F4
R483 *F4
R484 F4
R485 F4
R486 F4
R487 F4
R488 F4
R489 F4
R490 F3
R491 F3
R492 F3
R493 F3
R494 F3
R495 F3
R496 F3
R497 F3
R498 E3
R499 *E4
R501 *E3
R502 *E3
R503 *E3
R504 E3
R505 *E3
R506 *E3
R507 *E3
R508 *E3
R509 *E3
R510 *E3
R511 *E3
R512 *E3
R513 E3
R514 D3
R515 E3
R516 *D3
R517 *D3
R518 *D3
R519 *D3
R520 *D3
R521 D3
R522 D3
R523 *D3
R524 *D3
R525 *D3
R526 *D3
R527 *D3
R528 *D3
R529 D3
R530 D3
R531 *D3
R532 *D3
R533 *D3
R534 D3
R535 D3
R536 *D3
R537 *D3
R538 *D3
R539 D3
R540 C3
R541 C3
R542 *D3
R543 *D3
R544 *D3
R545 *D2
R546 C3
R547 C3
R548 C3
R549 C3
R550 *D3
R551 *C3
R552 *C3
R553 *C2
R571 H4
R572 H4
R573 H4
R574 H4
R575 H4
R576 H4
R577 H4
R578 H4
R579 H4
R580 H4
R581 *H4
R582 *H4
R583 *H3
R584 *H3
R585 *H3
R586 *H3
R587 H3
R588 H3
R589 H3
R590 H3
R601 *F1
R602 *F1
R603 *F1
R604 *F1
R605 *F1
R606 *F1
R607 *F1
R608 *F1
R609 *F1
R610 *F2
R611 *F1
R612 *F1
R613 *F1
R614 *F1
R615 *F2
R616 *F1
R617 *F2
R618 *F1
R619 *F1
R620 *F1
R621 *F1
R622 *G1
R623 *G1
R624 *G1
R625 *G1
R626 *G1
R627 *G1
R628 *G1
R629 *G1
R630 *G1
R631 *G1
R632 *G1
R633 *G1
R634 *G1
R635 *G1
R636 G1
R637 G1
R638 G1
R639 *G1
R640 *G1
R641 G1
R642 G1
R643 *G1
R644 *G1
R645 *G1
R646 *G2
R647 *G2
R648 *G2
R649 *G1
R650 *G1
R651 *G1
R652 *G1
R653 *G1
R654 *G1
R655 *G1
R656 *G1
R657 *G1
R658 *G1
R659 *G1
R660 *G1
R661 *G1
R662 *G1
R663 *G1
R664 G1
R665 G1
R666 G1
R667 *G1
R668 *G1
R669 *G1
R670 *G1
R671 *G1
R672 F2
R673 F2
R674 F2
R675 *F2
R676 *F2
R677 *F2
R678 *F2
R679 *F2
R680 *E2
R681 *E2
R682 *F2
R683 *F2
R684 *F2
R685 *F2
R686 F2
R687 F2
R688 *E2
R689 *E2
R690 *F2
R691 *F2
R692 *F2
R693 *F2
R694 *F2
R695 *F2
R696 F2
R701 *F2
R702 F2
R703 F2
R704 F2
R705 F2
R706 F2
R707 F2
R708 F2
R709 F2
R710 F2
R711 *F2
R712 F2
R713 F2
R714 F2
R715 F2
R716 *F2
R717 *F2
R718 *F2
R719 *F2
R720 *F2
R721 *G2
R723 *F2
R724 *F2
R725 *F2
R726 *F2
R727 *G2
R728 *G2
R729 *G2
R730 *F2
R731 *G2
R732 *F2
R733 *F2
R734 *G2
R735 *G2
R736 *G2
R737 *G2
R738 *G2
R739 *G2
R740 *G2
R742 G2
R743 *G2
R744 G2
R745 *G2
R746 *G2
R747 *G2
R748 *G2
R749 *G2
R750 *G2
R751 *G2
R752 *G2
R753 *G2
R754 *G2
R755 *G2
R756 *G2
R757 *G2
R758 *G2
R760 *G2
R761 *G2
R762 *G2
R763 *H2
R764 *H2
R765 *H2
R766 *H2
R767 *H2
R768 *H2
R769 *H2
R770 *H2
R772 *H2
R773 *H2
R774 *H2
R775 *H2
R776 *H2
R777 *H2
R778 *G2
R779 *G2
R780 H2
R781 H2
R782 H2
R783 H2
R784 H2
R785 *H2
R786 H2
R787 H2
R788 H2
R789 H2
R790 H2
R791 *H2
R792 *H2
R793 *H2
R794 *H2
R795 *H2
R796 *H2
R797 *E3
R798 *G2
R799 H2
R801 F3
R802 F3
R803 F3
R804 F3
R805 F3
R806 F3
R807 F3
R808 F3
R809 F3
R810 *F3
R811 F3
R812 F3
R813 F3
R814 F3
R815 *F3
R816 *F3
R817 *F3
R818 *F3
R819 *F3
R820 *H3
R821 *H3
R822 *F3
R823 *F3
R824 *F3
R825 *F3
R826 *G3
R827 *G3
R828 *G3
R829 *F3
R830 *G3
R831 *F3
R832 *F3
R833 *G3
R834 *G3
R835 *G3
R836 *G3
R837 *G3
R838 *G3
R841 *G3
R842 *G3
R843 *G3
R844 *G3
R845 *G3
R846 *G3
R847 *G3
R848 *G3
R849 *G3
R850 *G3
R851 *G3
R852 *G3
R853 *G3
R854 *G3
R855 *G3
R856 *G3
R857 *G3
R858 *G3
R859 *G3
R860 *G3
R861 *G3
R863 *G3
R864 *G3
R865 *G3
R866 *G3
R867 *G3
R868 *H3
R869 *G3
R870 *H3
R871 *H3
R872 *H3
R874 *G3
R875 *G3
R876 G3
R877 G3
R878 G3
R879 G3
R880 G3
R881 *H3
R882 *H3
R883 *F3
R884 *F3
R885 *F3
R886 *F3
R887 F3
R888 F3
R889 F3
R890 F3
R891 *E3
R892 *F3
R893 *F3
R894 *F3
R895 *F3
R896 *F3
R897 *H3
R898 *H3
R899 *H3
R900 *H3
R901 F4
R902 F4
R903 F4
R904 F4
R905 F4
R906 F4
R907 F4
R908 F4
R909 F4
R910 *F4
R911 F4
R912 F4
R913 F4
R914 F4
R915 F4
R916 F4
R917 *G4
R918 *G4
R919 *F4
R920 *H4
R921 *H4
R922 *H4
R923 *H4
R924 *F4
R925 *F4
R926 *F4
R927 *F4
R928 *G4
R929 *G4
R930 *G4
R931 *G4
R932 *G4
R933 *G4
R934 *G4
R935 *G4
R936 *G4
R937 *G4
R938 *G4
R939 *G4
R940 *G4
R943 *G4
R944 *G4
R945 *G4
R946 *G4
R947 *G4
R948 *G4
R949 *G4
R950 *G4
R951 *G4
R952 *G4
R953 *G4
R954 *G4
R955 *G4
R956 *G4
R957 *G4
R958 *G4
R959 *G4
R960 *G4
R961 *G4
R962 *G4
R964 *G4
R965 *G4
R966 *G4
R967 *G4
R968 *G4
R969 *H4
R970 *H4
R971 *H4
R972 *H4
R973 *H4
R975 *H4
R976 *G4
R977 H4
R978 G4
R979 G4
R980 H4
R981 H4
R982 G4
R983 *H4
R984 *H4
R985 *H4
R986 *F4
R987 *F4
R988 *F4
R989 *F4
R990 F4
R991 *F4
R992 F3
R993 *H4
R994 *H4
R995 *G3
R996 *G4
R1001 *C2
R1002 *C4
R1003 *E2
R1707 *G2
R1708 *G2
R1710 *G2
R1711 G3
R1712 G3
R1713 H3
R1807 *G3
R1808 *G3
R1907 *G4
R1908 *G4
RV161 F1
RV301 F4
RV501 D3
RV502 D3
RV503 D3
RV504 D3
RV601 G1
RV602 F2
RV603 F2
RV701 F2
RV702 A2
RV801 F3
RV802 A2
RV803 G3
RV804 F3
RV805 F3
RV901 F4
RV902 A2
RV903 G4
S1 D2
S101 F1
S301 F3
THP61 H1
THP62 H1
TP1 E2
TP101 F1
TP102 E1
TP301 F4
TP302 E3
TP501 E3
TP502 D3
TP503 D3
TP504 D3
TP505 D3
TP601 G2
TP602 F2
TP603 F2
TP701 A3
TP801 A3
TP802 F3
TP803 F3
TP901 A3
TP902 G4
X601 F2
X801 F3
*:B SIDE
—————————————————————
DM-140 (1-865-028-11)
—————————————————————
5-14 CCU-TX50/V2
5-14
DM-140DM-140
C101
C102
C11
C114
C115
C116
C117
C118
C119
C12
C122
C124
C134
C135
C136
C137
C138
C139
C142
C144
C154
C155
C156
C157
C158
C159
C162
C164
C17
C175
C176
C177
C178
C179
C180
C183
C185
C19
C192
C193
C194
C195
C196
C197
C2
C200
C202 C205
C206
C213
C214 C217
C218
C219
C3
C301
C302
C315
C316
C317
C318
C321
C323
C334
C335
C336
C337
C340
C342
C353
C354
C355
C356
C359
C361
C373
C374
C375
C376
C379
C381
C388
C389
C390
C391
C394
C396 C399
C400
C414 C418
C419
C502
C504
C511
C515
C516
C518
C519
C520
C524
C525
C526
C529
C530
C531
C532
C535
C571
C572
C6
C601
C602
C610
C612
C619
C621
C624
C63
C65
C68C69
C701
C702
C704
C705
C706 C707
C708
C715
C724
C726
C729
C731
C735
C736
C739
C740
C75
C79
C80
C801
C802
C804
C805
C806 C807
C808
C815
C824
C826
C827
C828
C829
C832
C836
C838
C901
C902
C904
C905
C906
C907
C910
C916
C925
C927
C928
C929
C932
C936
C941
C942
C998
CL1
CL2
CL3
CN1
CN101
CN2
CN301
CN902
D63
DL601
E1
E101
E301
FL102
FL103
FL302
FL303
FL601
FL602
FL701
FL801
FL802
FL901
IC1
IC10
IC106
IC11
IC2
IC3
IC306
IC4
IC5
IC501
IC502
IC503
IC504
IC505
IC506
IC64
IC9
IC906
L61
L62
L906
L907
LP1
LP2
LP3
LV501
Q116
Q117
Q118
Q324
Q325
Q326
Q705
Q902
Q910
Q911
R10
R118
R119
R120
R121
R122
R123
R14
R149
R15
R150
R151
R152
R153
R154
R16
R1711
R1712
R1713
R180
R181
R182
R183
R184
R185
R212
R213
R214
R215
R216
R217
R232
R233
R234
R235
R236
R237
R265
R266R267
R268R269
R270
R271
R272
R273
R274
R275
R276
R277
R278
R32
R322
R323
R324
R325
R33
R354
R355
R356
R357
R37
R38
R386
R387
R388
R389
R39
R420
R421
R422
R423
R438
R439
R440
R441
R484
R485R486
R487
R488
R489
R490
R491
R492
R493
R494
R495
R496
R497
R498
R504
R513
R514
R515
R521R522
R529
R530
R534
R535
R539
R540
R541
R546
R547
R548
R549
R55
R56
R57
R571
R572R573
R574
R575
R576
R577
R578R579
R58
R580
R587
R588
R589
R59
R590
R60
R636R637R638
R641
R642
R664
R665R666
R672
R673
R674
R686
R687
R696
R702
R703
R704
R705
R706
R707
R708
R709
R710
R712
R713R714
R715 R742
R744
R780
R781
R782
R783R784
R786
R787
R788
R789
R790
R799
R801
R802
R803
R804
R805
R806
R807
R808
R809
R811
R812R813
R814
R83R84
R85
R876
R877
R878
R879
R880
R887
R888
R889
R890
R901
R902
R903
R904
R905
R906
R907
R908
R909
R911
R912R913
R914
R915
R916
R977
R978
R979
R980
R981
R982
R990
R992
RV161
RV301
RV501
RV502
RV503
RV504
RV601
RV602
RV603
RV701
RV702
RV801
RV802
RV803
RV804
RV805
RV901
RV902
RV903
S1
S101
S301
THP61
THP62
TP1
TP101
TP102
TP301
TP302
TP501
TP502TP503
TP504 TP505
TP601
TP602 TP603
TP701
TP801
TP802 TP803
TP901
TP902
X601X801
DM-140 -A SIDE-
SUFFIX: -11
Components locations list; previous page
5-15
CCU-TX50/V2 5-15
DM-140DM-140
C1
C10
C103
C104
C105
C106
C107
C108
C109
C110
C111
C112
C113
C120
C121
C123
C125
C126
C127
C128
C129
C13
C130 C131
C132
C133
C14
C140
C141
C143
C145
C146
C147
C148
C149
C15
C150 C151
C152
C153
C16
C160
C161
C163
C165
C166
C167 C168
C169
C170
C171
C172C173
C174
C18
C181
C182 C184
C186
C187
C188 C189
C190
C191
C198
C199
C201
C203
C204
C207
C208
C209
C210
C211
C212
C215
C216
C220
C221
C303
C304
C305
C306
C307
C308
C309
C310 C311
C312
C313
C314
C319
C320 C322
C324
C325
C326C327
C328
C329
C330
C331
C332
C333
C338
C339 C341
C343
C344
C345C346
C347
C348
C349
C350
C351
C352
C357
C358 C360
C362
C363
C364C365
C366
C367
C368
C369
C370
C371
C372
C377
C378 C380
C382
C383
C384 C385
C386
C387
C392
C393
C395
C397
C398
C4
C401
C402
C403
C404
C405
C406 C407
C408
C409
C410
C411
C412
C413
C415
C416
C421
C422
C423
C450
C451
C452
C453
C5
C501
C503
C505 C506
C507
C508
C509
C510
C512
C513
C514
C517
C521
C522
C523
C527
C528 C533
C534
C536
C573
C603
C604
C605
C606
C607
C608
C609
C61
C611
C613
C614
C615
C616
C617 C618
C62
C620
C622
C623
C625
C626
C627
C628
C64
C66 C67
C7
C70
C703
C709
C71
C710
C711
C712
C713
C714
C716
C717
C718
C719
C72
C720
C721
C722
C723
C725
C727
C728
C73
C730
C732
C733
C734
C737
C738
C74
C76
C77 C78
C8
C803
C809
C81
C810
C811
C812
C813
C814
C816
C817
C818
C819
C820
C821
C822
C823
C825
C830
C831
C833
C834
C835
C837
C839
C840
C841 C842
C843
C9
C903
C908
C909 C911
C912
C913
C914
C915
C917
C918
C919
C920
C921
C922
C923
C924
C926
C930
C931
C933
C934
C935
C937
C938
C939
C940
C943
D1
D101 D102
D103
D104
D105
D106
D107
D108
D109
D110
D111
D112
D113
D2
D3
D301
D302
D303
D304
D305
D306
D307
D308
D309
D310
D311
D312
D313
D4
D5
D601
D61 D62
D701
D702
D801 D802
D901
D902
E2
IC101
IC102
IC103
IC104
IC105
IC12IC13
IC301IC302IC303
IC304
IC305
IC507
IC508
IC6
IC601
IC602 IC603
IC61
IC62
IC63
IC7
IC701
IC702
IC703
IC704IC705
IC8
IC801
IC802
IC803IC804
IC901
IC902
IC903IC904
IC905
L1
L101L102
L103
L104L105
L106
L107L108
L109
L110L111
L112
L113L114
L115
L116
L117
L118 L119
L120
L121
L122
L123
L124
L2
L301L302
L303
L304L305
L306
L307L308
L309
L310L311
L312
L313L314
L315
L316
L317
L318 L319
L320
L321
L322
L323
L324
L501 L502
L601
L602
L603
L604
L701
L702
L703
L704
L801
L802
L803
L804
L805
L806
L901
L902
L903
L904
L905
Q1
Q101
Q102
Q103
Q104
Q105
Q106
Q107
Q108
Q109
Q110
Q111
Q112
Q113
Q114
Q115
Q2
Q3
Q301
Q302
Q303
Q304
Q305
Q306
Q307
Q308
Q309
Q310
Q311
Q312
Q313
Q314
Q315
Q316
Q317
Q318 Q319
Q320
Q321
Q322
Q323
Q501
Q502
Q503
Q504
Q601
Q602
Q603
Q604
Q605
Q606
Q607 Q608
Q609
Q61
Q610
Q611
Q612
Q613
Q614
Q62
Q63
Q64
Q65
Q703
Q704
Q706
Q707
Q708
Q803
Q804
Q805
Q806
Q807
Q808
Q809
Q810
Q905
Q906
Q907
Q908
Q909
R1
R1001
R1002
R1003
R101
R102
R103
R104
R105
R106
R107
R108
R109
R11
R110R111
R112
R113
R114
R115
R116
R117
R12
R124
R125
R126 R127
R128
R129
R13
R130
R131
R132R133
R134R135
R136
R137
R138
R139
R140
R141R142
R143
R144
R145
R146
R147
R148
R155
R156
R157
R158
R159
R160R161
R162
R163R164
R165R166
R167
R168
R169
R17
R170
R1707
R1708
R171
R1710
R172R173
R174
R175
R176
R177
R178
R179
R18
R1807R1808
R186
R187
R188
R189
R19
R190
R1907R1908
R191R192
R193
R194
R195
R196
R197
R198
R199
R2
R20
R200
R201
R202
R203R204
R205R206R207
R208
R209
R21
R210
R211 R218
R219
R22
R220
R221
R222
R223
R224
R225
R226 R227
R228
R229
R23
R230
R231
R238
R239
R24
R240
R241
R242
R243R244 R245
R246
R247
R248
R249
R25
R250
R251
R252
R253R254
R255
R256
R257R258
R259
R26
R260
R261
R262
R263R264
R27R28
R29
R290
R3
R30
R301
R302
R303
R304
R305
R306
R307
R308R309
R31
R310
R311R312
R313
R314
R315
R316
R317
R318
R319
R320
R321
R326
R327
R328
R329
R330
R331
R332
R333
R334
R335
R336
R337
R338
R339
R34
R340
R341
R342
R343R344
R345
R346
R347
R348
R349
R35
R350
R351
R352
R353
R358
R359
R36
R360 R361
R362
R363
R364
R365
R366
R367
R368
R369
R370
R371
R372
R373
R374
R375R376
R377
R378
R379
R380
R381
R382
R383
R384
R385
R390
R391
R392
R393
R394
R395
R396
R397
R398
R399
R4
R40
R400
R401
R402
R403
R404
R405
R406
R407
R408R409
R41
R410R411R412
R413
R414
R415
R416
R417
R418
R419
R42
R424
R425
R426
R427
R428
R429
R43
R430
R431
R432 R433
R434
R435
R436
R437
R44
R442
R443
R444
R445
R446
R447R448 R449
R45
R450
R451
R452
R453R454
R455
R456
R457R458
R459
R46
R460
R461R462
R463
R464R465
R466
R467
R468
R469
R47
R470
R471R472
R473
R474
R475
R476
R477
R478
R479
R48
R480
R481
R482
R483
R49
R499
R5
R50
R501
R502R503
R505
R506R507
R508
R509
R51
R510
R511
R512
R516
R517
R518
R519
R52
R520
R523
R524
R525
R526
R527
R528
R53
R531
R532
R533
R536
R537
R538
R54
R542
R543
R544
R545
R550
R551
R552
R553
R581R582 R583R584 R585R586
R6
R601
R602
R603
R604
R605
R606
R607
R608
R609
R61
R610
R611
R612
R613
R614
R615R616
R617
R618
R619
R62
R620
R621
R622R623
R624
R625
R626
R627
R628R629
R63
R630R631
R632
R633R634
R635
R639
R64
R640
R643
R644
R645
R646R647
R648
R649
R65
R650
R651
R652
R653
R654 R655
R656
R657
R658
R659
R66
R660
R661
R662
R663
R667R668
R669
R67
R670R671
R675R676R677
R678
R679
R68
R680
R681
R682R683
R684
R685
R688
R689
R69
R690
R691
R692
R693
R694
R695
R7
R70
R701
R71
R711
R716
R717
R718
R719
R72
R720
R721
R723R724
R725
R726
R727
R728
R729
R73
R730
R731R732
R733R734
R735
R736
R737
R738
R739
R74
R740
R743
R745
R746
R747
R748
R749
R75
R750
R751R752
R753
R754
R755
R756
R757
R758
R76
R760
R761
R762
R763
R764
R765
R766
R767
R768
R769
R77
R770
R772
R773
R774
R775
R776
R777
R778
R779
R78
R785
R79
R791
R792
R793
R794
R795
R796
R797
R798
R8
R80
R81
R810
R815
R816
R817
R818
R819
R82
R820
R821
R822R823
R824
R825
R826
R827
R828R829
R830R831
R832R833
R834
R835
R836
R837
R838
R841
R842
R843
R844
R845
R846
R847
R848R849 R850
R851
R852
R853
R854
R855
R856
R857
R858
R859
R86
R860
R861
R863
R864
R865
R866
R867
R868
R869
R87
R870
R871
R872
R874
R875
R88
R881R882
R883
R884
R885R886
R89
R891
R892
R893
R894
R895
R896
R897
R898
R899
R9
R90
R900
R91
R910
R917R918
R919
R92
R920
R921
R922
R923
R924R925
R926
R927
R928
R929
R930R931
R932R933
R934R935
R936
R937
R938
R939
R940
R943
R944
R945
R946
R947
R948
R949
R950R951 R952
R953
R954
R955
R956
R957
R958
R959
R960
R961
R962
R964
R965
R966
R967
R968
R969
R970
R971
R972
R973
R975
R976
R983
R984R985
R986
R987
R988
R989
R991
R993
R994
R995
R996
DM-140 -B SIDE-
SUFFIX: -11
5-17
CCU-TX50/V2 5-17
EN-156EN-156
C1 H1
C2 *H4
C3 *H4
C4 *F3
C5 *F1
C6 *F4
C7 *A2
C8 *F4
C9 *J4
C11 *G1
C12 *G1
C13 *H2
C14 *H2
C15 G1
C16 F1
C17 G2
C18 H2
C19 *G4
C20 *G4
C22 G4
C23 H4
C25 *G2
C26 *G2
C27 *G2
C28 *F2
C30 F2
C31 *G2
C32 G2
C33 G2
C34 *G2
C35 *F2
C37 *G2
C40 *G1
C41 *G1
C42 *G2
C43 *G2
C44 G1
C45 G1
C47 G2
C48 G2
C49 G1
C101 H2
C102 H2
C103 *H2
C104 J2
C105 *H2
C108 *H2
C109 H1
C110 J1
C111 J2
C112 J2
C116 *C1
C117 *C2
C118 *D2
C119 *C2
C120 *D1
C121 *C1
C122 *D1
C123 *D2
C124 *D1
C125 D3
C126 E3
C127 *E3
C128 *E3
C129 *E4
C130 *E3
C131 *E3
C132 *E4
C133 *E3
C134 *E3
C135 *E3
C136 *E4
C137 *E4
C138 *E4
C139 *E3
C140 *E4
C141 *E4
C142 *F3
C143 *F3
C144 *F4
C145 *F3
C146 *F3
C147 *F4
C148 *F3
C149 *F3
C150 *F4
C151 *F3
C152 *F3
C153 *F4
C154 *F3
C155 *F3
C156 *F4
C157 *F4
C158 *F3
C159 *F4
C160 *F3
C161 *F3
C162 *F4
C163 G3
C164 G3
C165 G4
C166 G4
C167 G3
C168 *F3
C169 *F3
C170 *F4
C171 *F4
C172 G3
C173 *G3
C174 *G3
C175 *G4
C176 *G4
C177 *G3
C178 *G4
C179 *F3
C180 *F3
C181 *G3
C182 *G3
C183 *G4
C184 *C2
C185 *G3
C186 *G4
C187 *G4
C188 *G4
C189 *G3
C190 *G3
C191 *G4
C192 *G4
C301 *D3
C302 C2
C303 D2
C304 D2
C305 A3
C306 A3
C307 D2
C308 D2
C309 *C2
C310 *C2
C311 *C2
C312 *C2
C313 C2
C314 *B2
C315 B3
C316 B3
C317 *B3
C318 *B2
C319 *B2
C320 *B3
C321 C2
C322 C2
C323 C3
C324 C2
C325 C2
C326 C2
C327 C2
C328 *G3
C329 *H3
C330 *D3
C331 *H4
C332 H4
C333 *G4
C334 G4
C335 *G4
C336 D3
C337 D3
C338 D4
C339 D4
C340 D3
C341 D4
C342 D4
C343 D3
C344 *D3
C345 *D3
C346 D3
C347 D3
C348 D4
C349 D4
C350 D4
C351 D4
C352 D3
C353 D4
C354 D4
C355 D3
C356 D3
C357 D3
C358 D4
C359 D4
C360 D3
C361 D4
C362 D4
C363 D3
C364 D4
C365 D4
C366 E3
C367 D3
C368 D3
C369 D4
C370 D4
C371 D3
C372 D4
C373 D4
C374 *D3
C375 *D3
C376 *D4
C377 *D4
C378 *D4
C379 *D4
C380 *D3
C381 *D3
C382 *D4
C383 *D4
C384 *D4
C385 *D4
C386 *D3
C387 *D4
C388 *D4
C389 *D3
C390 D3
C391 *D4
C392 D4
C393 *D4
C394 D4
C395 D3
C396 *D3
C397 D4
C398 *D4
C399 D4
C400 *D4
C401 *E3
C402 *E4
C403 *E4
C404 A3
C405 *A2
C406 *A3
C407 C4
C408 C4
C409 C3
C410 C3
C411 *C3
C412 *C3
C413 *B3
C414 *B3
C415 C4
C416 C4
C417 *B3
C418 *B3
C419 *B4
C420 *B4
C421 *E3
C422 *E4
C423 *E4
C501 *B1
C502 *B1
C504 *B1
C509 *B1
C510 *E1
C511 *E1
C512 *E1
C513 *E2
C514 *E2
C515 *F2
C516 *E2
C517 *F2
C518 *F2
C519 *E1
C520 *F1
C521 *E1
C522 *E1
C523 *E2
C524 *E1
C525 *F1
C526 *F2
C527 *J2
C528 *J3
C529 *H2
C530 *H3
C531 H3
C532 H4
C533 *H3
C534 *J4
C535 *J3
C536 *J3
C537 *H2
C538 *H3
C539 *H3
C540 *H4
C541 *H3
C542 *H4
C543 *J3
C544 *J4
C545 *J3
C546 *J4
C547 *J2
C548 *J3
C549 *J2
C550 *H4
C551 *J3
C552 *J4
C553 *J2
C554 *J4
C555 *H3
C556 J3
C557 J3
C558 *H4
C559 J4
C560 J4
C561 J3
C562 H3
C563 J4
C564 H4
C565 J3
C566 J4
C567 J3
C568 J4
C569 J3
C570 *J3
C571 J4
C572 *J4
C573 G3
C574 *H3
C575 H3
C576 *G3
C577 *H3
C578 *H3
C579 *B1
C580 *B1
C581 B2
C582 *A2
C583 *B2
C584 B2
C585 B1
C586 *B2
C587 *B2
C588 *A2
C589 *A2
C590 *B1
C591 *B1
C592 *B1
C593 *B1
C735 *A1
C736 *A1
C737 *A1
C739 *A2
C744 *J4
C745 *B4
C746 J1
C747 *J4
C748 *C4
C749 *H4
C750 *B3
C751 B4
C752 *B4
C753 *H4
C754 *H4
C755 J4
CL1 G4
CL2 G4
CL3 G1
CL4 G1
CL6 G2
CL7 G2
CL301 B4
CL302 B4
CL303 C4
CL304 C4
CL305 B4
CL306 B4
CN701 A1
CN901 J1
CN902 J3
D1 *G2
D2 *G2
D4 A2
D101 A2
D102 A3
D103 *E3
D104 *F4
D105 *F3
D106 *F4
D301 *B2
D302 *C2
D701 *A4
D702 *A4
D703 *A4
D704 *A4
D705 *B4
D706 *A4
E1 C3
E2 F1
E3 E4
E4 *F2
FB501 *H3
FB502 *H4
FB503 *J2
FB504 *J4
FB701 C4
FB703 C4
FL101 F3
FL102 F4
FL103 F3
IC2 *G2
IC3 *F2
IC4 *G2
IC5 *H1
IC102 *H1
IC103 *J1
IC104 *J1
IC105 *J2
IC106 C1
IC107 E3
IC108 E3
IC109 E4
IC110 G3
IC111 G4
IC112 *F3
IC113 *F4
IC114 *F3
IC117 *D3
IC118 *D3
IC119 *C2
IC120 *H1
IC121 *H2
IC301 C3
IC302 A2
IC303 A3
IC304 A3
IC305 *C2
IC306 B2
IC308 *C3
IC309 *G4
IC310 G3
IC311 *C2
IC312 *C3
IC313 A3
IC314 *D3
IC315 *D4
IC316 *D4
IC317 *D3
IC318 *D3
IC319 *D4
IC320 *D4
IC322 B2
IC323 C2
IC324 D3
IC325 *A3
IC326 B3
IC502 E1
IC503 J3
IC504 J4
IC505 G3
IC506 *E1
IC508 G3
IC509 B2
IC702 *A2
IC703 *B4
IC706 *A1
IC708 A2
IC713 J1
IC714 *J4
IC715 *C4
IC716 H4
IC717 *B3
IC718 *C4
IC720 J4
IC721 H4
IC722 *B4
IC723 J4
L1 *G4
L2 *G4
L6 *G2
L7 F1
L8 G1
L101 *D1
L102 *D2
L103 *E3
L104 *E3
L105 *E4
L106 *F3
L107 *F3
L108 *F4
L109 G3
L110 *G3
L111 *G4
L112 *F3
L113 *F4
L114 *G3
L115 *F4
L116 *G3
L117 *G4
L301 C2
L302 D2
L303 C2
L304 *B2
L305 *C2
L306 C3
L307 C3
L308 *G4
L309 *G4
L310 *D3
L311 D3
L312 D4
L313 D4
L314 D3
L315 D4
L316 D4
L317 E3
L318 D3
L319 *D3
L320 *D4
L321 *D4
L322 D3
L323 D4
L324 D4
L325 D3
L326 D4
L327 D4
L501 *B1
L502 C1
L503 *J3
L504 *J4
Q1 *G2
Q2 *G2
Q3 *G1
Q4 *G1
Q5 *G2
Q6 *G2
Q8 *A2
Q101 H2
Q102 J2
Q103 *A2
Q104 *A3
Q105 G3
Q106 G3
Q301 *G3
Q302 *G3
Q303 *H3
Q501 *G3
Q502 *G3
Q503 *H3
Q504 *G3
Q505 *G3
Q506 *H3
Q701 *H4
Q702 *H4
Q703 *J4
R5 *G2
R6 *G2
R7 *G2
R8 *F2
R9 *G2
R10 *G2
R11 *G2
R12 *F2
R13 *G2
R14 *G2
R15 *G2
R16 *G2
R17 *G2
R18 *G2
R19 *G2
R20 *F2
R21 *F2
R26 *G2
R27 *G2
R28 *G2
R29 *F2
R30 *F2
R31 *G2
R32 *F2
R33 *F2
R34 *G2
R35 *G2
R36 *G2
R37 *G2
R38 *G2
R39 *G2
R40 *G2
R41 *G2
R42 *G2
R43 *G2
R44 *G2
R45 *G2
R46 *H2
R47 *H2
R49 *H2
R50 *H2
R51 *H2
R52 *H1
R53 *A2
R54 *A2
R55 *A2
R101 H2
R102 H2
R103 H2
R104 H2
R105 H2
R106 H2
R107 H2
R108 H2
R109 H2
R110 J2
R112 H1
R113 J1
R114 J2
R115 J2
R117 *H1
R118 *H1
R119 *H2
R120 *H2
R121 *H2
R122 *H2
R123 *H2
R124 *H2
R125 *H2
R126 *H2
R127 *H2
R128 *A2
R129 *A2
R130 *A2
R131 *A3
R132 *A3
R133 *A3
R134 C1
R135 *C2
R136 *C2
R137 *C2
R138 C1
R139 C1
R140 C1
R141 C1
R142 C1
R143 C2
R144 *C1
R145 C2
R146 C2
R147 C2
R148 C2
R149 C2
R150 *C2
R151 C2
R152 C2
R153 C2
R154 *C2
R155 *C2
R156 *C1
R157 C1
R158 *C2
R159 C1
R160 C1
R161 C1
R162 C1
R163 C1
R164 C1
R165 *C1
R166 D3
R167 D3
R168 D3
R169 E3
R170 D3
R171 D3
R172 D3
R173 D3
R174 E3
R175 E4
R176 E4
R177 *E4
R178 *E4
R179 *F3
R180 *E3
R181 *E3
R182 *F3
R183 *F4
R184 *F3
R185 *F3
R186 *E4
R187 *F4
R188 *F3
R189 *F3
R190 *F4
R191 *E4
R192 *E4
R193 *E4
R194 *E3
R195 *E3
R196 *E3
R197 *F3
R198 *F3
R199 *F3
R200 *F3
R201 *F3
R202 *F3
R203 *F4
R204 *F4
R205 *F4
R206 *F4
R207 *F3
R208 *F3
R209 *F4
R210 *G3
R211 G3
R212 *F4
R213 G3
R214 G3
R215 *F3
R216 *F4
R217 *F3
R218 *F4
R219 *G3
R220 *G3
R221 *G4
R222 *G4
R223 *G3
R224 *G4
R225 G3
R226 *G3
R227 *G3
R228 *G3
R229 *G4
R230 *G4
R231 *G4
R232 *F3
R233 G3
R234 G3
R235 G4
R236 *G3
R237 *G4
R238 *G3
R239 *F3
R240 *G4
R241 G3
R242 *G4
R243 *G3
R244 *G4
R245 *G4
R246 *G4
R247 *G4
R248 *G4
R249 *G4
R250 *G4
R251 *G4
R252 *F3
R253 *F4
R254 *G4
R255 *F4
R256 H2
R257 *F3
R258 *F3
R259 *F4
R260 *H1
R261 *H2
R262 *H1
R263 *H2
R264 *E3
R265 *E3
R266 *F3
R267 *F4
R268 *F4
R269 *E4
R270 G3
R271 G3
R272 G3
R273 G3
R274 G3
R275 G3
R276 G3
R277 G3
R278 G4
R279 G4
R280 G4
R281 G4
R282 G4
R283 G4
R284 G4
R285 G4
R301 A2
R302 D3
R303 A3
R304 A3
R305 *A3
R306 D2
R307 D2
R308 D2
R309 D2
R310 *C2
R311 *C2
R312 *C2
R313 *A3
R314 *A3
R315 *A3
R316 *A3
R317 *C2
R318 *C2
R319 *B2
R320 *B2
R321 *B2
R322 *B2
R323 *B2
R324 *B2
R325 B2
R326 C2
R327 *B2
R328 *B2
R329 B3
R330 B3
R331 *C3
R332 *B4
R333 *B3
R334 *B3
R335 *B3
R336 *B3
R337 *C3
R338 *C3
R339 *B3
R340 *B3
R341 *B4
R342 *B3
R343 C3
R344 *B3
R345 *B4
R346 B4
R347 *B4
R348 B4
R349 *C3
R350 *B2
R351 C2
R352 *B2
R353 *C3
R354 B2
R355 *G3
R356 *G3
R357 *G3
R358 C2
R359 C2
R360 C2
R361 *G3
R362 *G3
R363 C2
R364 C3
R365 C2
R366 C3
R367 *G3
R368 *G3
R369 *G3
R370 *G3
R371 *D2
R372 *G4
R373 *G3
R374 *H3
R375 *G3
R376 *G3
R377 *G3
R378 *G3
R379 *G4
R380 *G4
R381 *H4
R382 *H4
R383 *H4
R384 B3
R385 *B3
R386 *B3
R387 B4
R388 *B3
R389 *B3
R394 D3
R395 D3
R396 D3
R397 D4
R398 D4
R399 *D3
R400 *D3
R401 *D3
R402 D3
R403 *D3
R404 *E3
R405 D3
R406 D4
R407 D4
R408 *E3
R409 D3
R410 D4
R411 D4
R412 *D3
R413 *D4
R414 *D4
R415 *E3
R416 *D3
R417 *D3
R418 D3
R419 *D4
R420 *D4
R421 D4
R422 *D4
R423 *D4
R424 D4
R425 *E3
R426 *D3
R427 *D3
R428 *D4
R429 *D4
R430 *D4
R431 *D4
R432 *D3
R433 *D4
R434 *D4
R435 *D3
R436 *D4
R437 *D4
R438 *D3
R439 *D3
R440 *D4
R441 *D4
R442 *D4
R443 *D4
R444 *D3
R445 *D3
R446 *D3
R447 *D4
R448 *D4
R449 *D4
R450 *D4
R451 *D4
R452 *D4
R453 *E3
R454 *E4
R455 *E4
R456 *D3
R457 *D4
R458 *D4
R459 *E3
R460 *E4
R461 *E4
R462 *E3
R463 *E4
R464 *E4
R465 *D3
R466 A2
R467 *A4
R468 *A3
R469 *A3
R470 B3
R471 B3
R472 B3
R473 B3
R474 B3
R475 B3
R476 B4
R477 B4
R478 B4
R479 *C3
R480 *C3
R481 *C4
R482 C3
R483 C3
R484 D2
R485 *E3
R486 C2
R487 C2
R501 B2
R502 B2
R503 *B2
R504 *B1
R505 *B1
R506 C1
R508 B1
R509 B2
R510 B1
R520 *D2
R521 *D2
R522 *E2
R523 D1
R524 E1
R525 D1
R526 *E1
R527 D1
R528 D1
R529 *E1
R530 D1
R531 *E1
R532 D1
R533 E1
R534 E1
R536 *E1
R537 E1
R538 E1
R539 E2
R540 *E1
R541 *E1
R542 *E1
R543 *E1
R544 *E2
R545 *H4
R546 *H2
R547 *H2
R548 *H4
R549 *J2
R550 *J2
R551 *J3
R552 *J3
R553 J3
R554 J3
R555 J4
R556 J4
R557 *J3
R558 *J3
R559 *J3
R560 *J3
R561 *J4
R562 *J4
R563 *J4
R564 *J4
R565 H3
R566 *J3
R567 *J3
R568 J2
R569 H3
R570 H4
R571 *J4
R572 *J4
R573 J3
R574 J3
R575 H4
R576 J4
R577 J2
R578 J3
R579 J3
R580 G3
R581 J4
R582 H3
R583 J2
R584 J4
R585 *G3
R586 *G3
R587 *G3
R588 *G3
R589 *H3
R590 *H3
R591 *G3
R592 *G3
R593 *H3
R594 *H4
R595 *B2
R596 *B2
R597 *B2
R598 *B2
R599 *B2
R600 *B2
R601 *B2
R602 *B2
R603 *B2
R604 *B2
R605 *B2
R606 *B2
R607 *B2
R608 *B2
R609 *B2
R610 *B2
R611 *B2
R612 *B2
R613 *B2
R615 *B2
R616 *B2
R617 *B2
R618 *B2
R619 *B1
R620 *C1
R621 *H3
R622 *H4
R623 C1
R624 C1
R625 C1
R626 C1
R627 C1
R701 *A1
R702 *A1
R703 *A1
R704 *A1
R705 A1
R709 *A2
R711 *A2
R713 *A2
R715 *A2
R717 J1
R718 J4
R719 J4
R720 C4
R722 *B4
R723 *B4
R724 *C4
R725 C4
R728 *B3
R729 C4
R730 *C4
R732 *C4
R733 C4
R734 C4
R735 C4
R736 C4
R737 C4
R738 *H4
R739 *H4
R740 *H4
R741 *H4
R742 H4
R743 H4
R744 *H4
R745 *H4
R746 *H4
R747 *J4
R748 *J4
R749 *J4
R750 H4
R751 H4
R752 *J4
R753 *J4
R754 J4
R755 J4
R756 J4
R757 J4
RB101 *J1
RB102 *J1
RB103 *J1
RB104 *J1
RB105 *J1
RB106 *J2
RB107 *J2
RB108 *J2
RB109 *C1
RB110 *C1
RB111 *C1
RB112 *C1
RB113 *D1
RB114 *D1
RB115 *D1
RB116 *D1
RB117 E2
RB118 E3
RB119 E3
RB120 E3
RB121 E3
RB122 E4
RB123 E4
RB124 E4
RB125 E4
RB301 C3
RB302 C3
RB303 *B3
RB304 *B3
RB305 *B3
RB306 *C3
RB307 B3
RB308 B3
RB310 B3
RB311 B3
RB312 B4
RB313 B3
RB315 *C3
RB316 *C3
RB317 *C3
RB318 *C4
RB319 *C4
RB320 *C4
RB321 *C4
RB322 *C4
RB323 *C4
RB324 *A3
RB501 *B1
RB502 *B1
RB503 *B1
RB504 *B2
RB505 *B2
RB506 *B2
RB507 *B2
RB508 *B1
RB509 *B1
RB510 *E1
RB511 *E2
RB512 *E2
RB513 *E2
RB514 *E2
RB515 H2
RB516 H2
RB517 H2
RB518 H3
RB519 H3
RB520 H4
RB701 *A2
RB702 *A2
RB703 J4
RB705 *C4
RB706 *C4
RV101 E4
RV102 E3
RV103 E4
RV104 G3
RV105 G4
RV106 G4
RV301 G3
RV302 G3
RV303 D3
RV304 D4
RV305 D4
RV501 H3
RV502 H4
S301 H3
S701 A4
S702 A4
S703 A4
S704 A4
S705 A4
S706 A4
S707 B4
S708 B4
S709 B4
THP1 *G4
THP2 *H4
THP3 G1
THP4 H1
THP5 H1
THP7 H1
THP8 H2
TP101 H1
TP102 G3
TP103 G4
TP104 G4
TP301 C2
TP302 H3
TP303 E3
TP304 D3
TP305 D4
TP306 D4
TP501 B1
TP502 B1
TP503 J2
TP504 J3
*:B SIDE
—————————————————————
EN-156 (1-865-025-11)
—————————————————————
5-18 CCU-TX50/V2
5-18
EN-156EN-156
C1
C101
C102
C104
C109
C110
C111
C112
C125 C126
C15
C16
C163
C164
C165
C166
C167
C17
C172
C18
C22
C23
C30
C302
C303
C304
C305C306
C307
C308
C313
C315
C316
C32
C321
C322
C323
C324
C325
C326
C327
C33
C332
C334
C336
C337
C338
C339
C340
C341
C342
C343
C346
C347
C348
C349
C350
C351
C352
C353
C354
C355
C356
C357C358C359
C360C361C362
C363
C364
C365
C366
C367
C368
C369
C370
C371
C372
C373
C390C392C394
C395
C397
C399
C404
C407
C408
C409
C410
C415
C416
C44
C45
C47 C48
C49
C531C532
C556
C557
C559
C560 C561
C562
C563
C564
C565C566 C567C568 C569C571
C573
C575
C581
C584
C585
C746
C751
C755
CL1 CL2
CL3
CL301
CL302
CL303
CL304
CL305
CL306
CL4
CL6 CL7
CN701
CN901CN902
D101D102 D4
E1
E2
E3
FB701
FB703
FL101
FL102
FL103
IC106
IC107IC108IC109
IC110IC111
IC301
IC302
IC303IC304
IC306
IC310
IC313
IC322
IC323
IC324
IC326
IC502
IC503IC504
IC505
IC508
IC509
IC708
IC713
IC716
IC720
IC721
IC723
L109
L301
L302
L303
L306 L307
L311
L312
L313
L314L315L316
L317L318
L322
L323
L324
L325L326L327
L502
L7
L8
Q101
Q102
Q105
Q106
R101
R102
R103
R104
R105
R106
R107
R108
R109
R110
R112
R113
R114
R115
R134
R138
R139
R140
R141
R142
R143
R145
R146
R147
R148
R149
R151
R152
R153
R157
R159
R160
R161
R162
R163
R164
R166
R167 R168
R169
R170R171
R172 R173
R174
R175
R176
R211
R213
R214
R225
R233
R234
R235
R241
R256
R270
R271R272
R273
R274
R275
R276
R277
R278 R279
R280
R281
R282
R283
R284
R285
R301
R302
R303
R304
R306
R307
R308
R309
R325
R326
R329
R330
R343
R346
R348
R351
R354
R358
R359
R360
R363
R364
R365
R366
R384
R387
R394
R395
R396
R397
R398
R402
R405
R406
R407
R409
R410
R411
R418
R421
R424
R466
R470
R471
R472
R473
R474
R475
R476
R477
R478
R482
R483
R484
R486
R487
R501
R502
R506
R508R509 R510
R523
R524
R525
R527
R528
R530
R532
R533R534 R537R538
R539
R553
R554
R555
R556
R565
R568
R569
R570
R573
R574
R575
R576
R577R578 R579
R580
R581
R582
R583R584
R623
R624
R625
R626
R627
R705
R717
R718
R719
R720
R725
R729
R733
R734
R735
R736
R737
R742
R743
R750
R751
R754
R755R756R757
RB117
RB118RB119
RB120RB121RB122RB123RB124RB125
RB301 RB302
RB307
RB308 RB310 RB311RB312
RB313
RB515RB516RB517RB518RB519RB520
RB703
RV101
RV102
RV103
RV104RV105 RV106
RV301
RV302
RV303RV304RV305
RV501
RV502
S301
S701S702
S703S704
S705
S706
S707
S708
S709
THP3
THP4
THP5
THP7
THP8
TP101
TP102TP103 TP104
TP301
TP302
TP303
TP304
TP305
TP306
TP501 TP502
TP503TP504
EN-156 -A SIDE-
SUFFIX: -11
Components locations list; previous page
5-19
CCU-TX50/V2 5-19
EN-156EN-156
C103
C105
C108
C11
C116
C117
C118 C119
C12
C120 C121
C122
C123
C124
C127
C128
C129
C13
C130
C131
C132
C133
C134
C135
C136
C137
C138
C139
C14
C140
C141
C142C143C144
C145C146C147
C148
C149
C150
C151
C152
C153
C154
C155
C156
C157
C158
C159
C160
C161
C162
C168
C169
C170
C171
C173
C174
C175
C176
C177
C178
C179
C180
C181
C182
C183
C184
C185
C186
C187
C188
C189
C19
C190
C191
C192
C2
C20
C25
C26
C27 C28
C3
C301
C309
C31
C310
C311
C312
C314
C317
C318 C319
C320
C328
C329
C330
C331
C333
C335
C34
C344C345
C35
C37
C374
C375
C376
C377
C378
C379
C380
C381
C382
C383
C384
C385
C386
C387
C388
C389
C391
C393
C396C398
C4
C40
C400
C401C402C403
C405
C406
C41
C411
C412
C413
C414
C417
C418C419
C42
C420
C421C422C423
C43
C5
C501
C502
C504
C509
C510
C511
C512
C513
C514
C515 C516
C517 C518
C519
C520
C521 C522
C523
C524C525
C526
C527C528 C529C530
C533
C534 C535
C536
C537C538 C539C540
C541
C542
C543
C544
C545
C546
C547C548
C549
C550
C551C552
C553
C554
C555
C558
C570
C572
C574
C576
C577
C578
C579
C580
C582
C583
C586
C587
C588
C589
C590
C591
C592
C593
C6
C7
C735
C736
C737
C739
C744
C745
C747
C748
C749
C750
C752
C753
C754
C8
C9
D1
D103
D104
D105
D106
D2
D301
D302
D701 D702
D703 D704
D705
D706
E4
FB501
FB502
FB503
FB504
IC102
IC103IC104IC105
IC112
IC113
IC114
IC117
IC118
IC119
IC120
IC121
IC2 IC3
IC305
IC308
IC309
IC311
IC312
IC314IC315IC316
IC317
IC318IC319IC320
IC325
IC4
IC5
IC506
IC702
IC703
IC706
IC714
IC715
IC717
IC718
IC722
L1
L101L102
L103
L104
L105
L106L107L108
L110L111
L112L113
L114
L115
L116
L117
L2
L304
L305
L308
L309
L310
L319
L320
L321
L501
L503
L504
L6
Q1
Q103
Q104
Q2
Q3
Q301 Q302
Q303
Q4
Q5
Q501Q502
Q503
Q504Q505
Q506
Q6
Q701
Q702
Q703
Q8
R10
R11
R117
R118
R119 R12
R120
R121
R122
R123
R124
R125
R126
R127
R128
R129
R13
R130
R131
R132
R133
R135
R136
R137
R14
R144
R15
R150
R154
R155
R156
R158
R16
R165
R17
R177
R178
R179
R18
R180
R181
R182
R183
R184
R185
R186
R187
R188
R189
R19
R190
R191
R192
R193
R194
R195
R196
R197R198 R199
R20
R200R201 R202
R203R204 R205
R206
R207
R208
R209
R21
R210
R212 R215R216
R217
R218
R219R220
R221R222
R223
R224
R226R227
R228
R229R230
R231
R232
R236R237 R238
R239
R240
R242
R243
R244R245
R246
R247R248
R249
R250
R251
R252R253 R254
R255
R257
R258
R259
R26
R260
R261
R262
R263
R264
R265
R266R267R268
R269
R27R28 R29
R30
R305
R31
R310
R311
R312
R313
R314
R315
R316
R317
R318
R319
R32
R320 R321
R322
R323
R324
R327
R328
R33
R331
R332
R333
R334
R335
R336
R337
R338
R339
R34
R340
R341
R342
R344
R345R347
R349
R35
R350R352
R353
R355
R356
R357
R36
R361
R362
R367
R368
R369
R37
R370
R371
R372
R373
R374
R375
R376
R377
R378
R379
R38
R380
R381
R382
R383
R385
R386
R388
R389
R39
R399
R40
R400
R401
R403
R404
R408
R41
R412R413R414
R415
R416
R417
R419
R42
R420
R422
R423
R425
R426R427
R428R429
R43
R430R431
R432
R433
R434
R435R436R437
R438
R439
R44
R440
R441
R442
R443
R444
R445
R446
R447
R448
R449
R45
R450
R451
R452 R453R454R455 R456R457R458
R459
R46
R460
R461
R462
R463
R464
R465
R467R468
R469
R47
R479
R480
R481
R485
R49
R5
R50
R503
R504
R505
R51
R52
R520
R521
R522
R526
R529
R53
R531
R536
R54
R540
R541
R542
R543
R544
R545
R546
R547
R548
R549
R55
R550
R551
R552
R557
R558
R559
R560
R561
R562
R563
R564
R566
R567
R571
R572
R585
R586
R587
R588
R589
R590
R591
R592
R593
R594
R595
R596
R597
R598
R599
R6
R600 R601
R602 R603
R604 R605
R606 R607
R608 R609
R610 R611
R612 R613
R615R616
R617
R618
R619R620
R621
R622
R7
R701
R702
R703
R704
R709R711
R713
R715
R722
R723
R724
R728
R730
R732
R738
R739
R740
R741
R744
R745
R746
R747
R748
R749
R752
R753
R8
R9
RB101RB102RB103RB104RB105RB106RB107RB108
RB109
RB110
RB111
RB112
RB113
RB114
RB115
RB116
RB303RB304
RB305
RB306
RB315 RB316 RB317RB318 RB319 RB320RB321 RB322 RB323
RB324
RB501 RB502 RB503
RB504 RB505 RB506
RB507 RB508 RB509
RB510
RB511 RB512RB513RB514
RB701RB702
RB705RB706
THP1THP2
EN-156 -B SIDE-
SUFFIX: -11
5-20 CCU-TX50/V2
5-20
C1
C101 C102
C113
C115
C116
C118
C119
C120
C122
C123
C124
C125
C126
C127
C137
C14
C15C16
C165
C166
C167
C17
C170
C172
C174
C18
C183 C184 C185
C186 C187 C188
C197
C2
C200
C204
C26
C28C29
C300
C301
C302
C303
C304
C308 C309
C311
C312
C313
C321
C329
C333
C334
C338
C340
C341
C342
C343
C347
C348
C349
C350C352
C353
C354
C355
C40
C404
C41
C43
C44
C444
C445
C447
C450
C451
C452
C453
C454C455
C459
C464
C466
C467
C468
C470
C471
C473
C474
C476
C477
C479
C5
C8
C9
CL1
CL101
CL2
CL302
CL4
CL409
CL410
CL5
CN401
CN901CN902
D4
D953
E1
E2
E3
FB300
FB301
FL101
FL102
FL103
IC105
IC107
IC117 IC118IC119
IC127
IC128
IC300
IC302
IC306
IC307
IC309
IC311
IC403
IC408
IC409
IC412
IC416
IC417
JC101
JC102
JC103
L1
L101L102 L103L104 L105L106
L2
L300
L301
L302L303
L309
L401
L402
L405L406
L407
L6
L7
L8
L9
Q10
Q101
Q102
Q104
Q3Q4
Q401 Q402
Q403
R10
R101
R102
R103
R104
R105
R106
R107
R108
R110
R111
R112
R113
R114
R115
R119
R125
R126
R127
R128
R129
R130
R131
R132
R133
R134
R135
R241
R242
R243
R244
R250
R256R257
R258R259
R260R261
R304
R305R307
R31
R311
R312
R313
R329
R330
R331
R332
R333
R334
R336
R337
R338
R339
R34
R340
R341
R342
R343
R344
R345
R346
R347
R348
R349
R350
R351
R357
R358
R361
R362R363
R364
R365
R366
R367
R368
R369
R370
R371
R372
R376
R384
R385
R386
R387
R388
R389R390
R417
R418
R426
R427
R428
R429
R434
R435
R447
R449
R45
R450
R452
R453
R458
R46
R461
R463
R464
R468 R469
R470
R471
R472
R473
R474
R477
R478
R479
R483
R484
R485
R486
R487
R488
R489
R490
R491
R492
R493
R494
R495
R496
R497
R498
R499
R502
R504
R53
R8
RB101
RB102
RB103
RB105RB106
RB107 RB108
RB109
RB303
RB304
RB305
RB306
RB307RB308RB309
RB313
RB401
RB402
RB403
RB406
RB408
RB409
RB410RB411
RB412
RB413
RV101
RV102
RV103
RV104 RV105RV106
RV300
RV401
RV402
S101
S102S103
S104
S105
S106
S107
S108
THP1
THP2
THP3
THP5
THP6
TP101
TP102 TP103 TP104
TP300
TP401
IV-57IV-57
IV-57 -A SIDE-
SUFFIX: -11
C1 J2
C2 B4
C3 *H1
C4 *B2
C5 B1
C6 *F1
C7 *A2
C8 C3
C9 J4
C12 *C2
C13 *A3
C14 B3
C15 C2
C16 C2
C17 B3
C18 B3
C21 *B2
C22 *B2
C23 *B2
C24 *B2
C26 B3
C27 *B3
C28 B2
C29 B2
C30 *B2
C31 *B2
C33 *B3
C36 *B2
C37 *B2
C38 *A2
C39 *B3
C40 B2
C41 B2
C43 A3
C44 B3
C45 *C2
C101 F1
C102 F1
C103 *G1
C104 *G1
C111 *B4
C112 *B4
C113 C4
C114 *C4
C115 E1
C116 E1
C117 *E2
C118 E2
C119 F2
C120 F2
C121 *F2
C122 G3
C123 G4
C124 G3
C125 G3
C126 G2
C127 G2
C128 *G3
C129 *G4
C130 *G3
C131 *G3
C132 *G2
C133 *G2
C134 *G3
C135 *G4
C136 *F2
C137 F2
C138 *G4
C139 *G3
C140 *G2
C141 *G4
C142 *G3
C143 *G2
C144 *G4
C145 *G3
C146 *G2
C147 *F4
C148 *G3
C149 *G3
C150 *G2
C151 *F3
C152 *F4
C153 *F3
C154 *F2
C155 *F2
C156 *F4
C157 *F3
C158 *F3
C159 *F2
C160 *F4
C161 *F3
C162 *F3
C163 *F2
C164 *F3
C165 F4
C166 F2
C167 F3
C168 *F4
C169 *F2
C170 F4
C171 *F3
C172 F2
C173 *F3
C174 F3
C175 *F2
C176 *F4
C177 *F3
C178 *F2
C179 *F3
C180 *F3
C181 *F2
C182 *F3
C183 F3
C184 F3
C185 F2
C186 F3
C187 F3
C188 F2
C189 *D1
C190 *D1
C191 *E1
C192 *E1
C193 *E1
C195 *C5
C196 *C4
C197 G4
C198 *G3
C199 *F4
C200 G3
C201 *G3
C202 *F3
C203 *G2
C204 G2
C205 *F2
C206 *F2
C207 *G2
C208 *E2
C209 *F3
C300 H2
C301 H2
C302 H4
C303 H4
C304 H2
C305 *H2
C306 *H4
C307 *H5
C308 J3
C309 J3
C310 *H3
C311 J4
C312 J4
C313 J4
C314 *J3
C315 *J4
C316 *H3
C317 *H2
C318 *H3
C319 *H2
C320 *H3
C321 H3
C322 *H2
C323 *H4
C324 *H4
C325 *H3
C326 *J3
C327 *H5
C328 *H3
C329 H3
C330 *H3
C331 *H2
C332 *J4
C333 H4
C334 H3
C335 *H3
C336 *H3
C337 *H3
C338 H5
C339 *H4
C340 J3
C341 J3
C342 J3
C343 J3
C344 *H4
C345 *H2
C346 *H2
C347 H4
C348 H2
C349 H2
C350 H2
C351 *J2
C352 H2
C353 H2
C354 J2
C355 H2
C356 *J4
C357 *G1
C358 *C3
C359 *E2
C360 *E3
C361 *D1
C362 *E2
C363 *C2
C364 *D2
C365 *D3
C366 *D1
C367 *D3
C368 *D2
C369 *E2
C370 *D3
C371 *C3
C372 *D3
C373 *E2
C374 *C2
C375 *D2
C376 *D2
C377 *D2
C378 *D2
C379 *D2
C380 *D2
C381 *D2
C382 *E2
C383 *D2
C384 *D2
C385 *D2
C386 *D2
C387 *H4
C388 *H5
C389 *H5
C403 *C4
C404 C4
C435 *A1
C436 *A1
C437 *B1
C441 *D4
C443 *F4
C444 E4
C445 E5
C446 *F4
C447 E4
C448 *F5
C449 *F5
C450 G4
C451 G4
C452 G4
C453 G4
C454 G5
C455 G5
C456 *G5
C457 *G5
C458 *G4
C459 F4
C460 *G4
C461 *G4
C462 *G4
C463 *G4
C464 F5
C465 *G4
C466 E4
C467 F4
C468 E3
C469 *D4
C470 C4
C471 E4
C472 *D4
C473 C4
C474 D3
C475 *D4
C476 C3
C477 E5
C478 *D4
C479 C4
CL1 A2
CL2 A2
CL4 A3
CL5 C2
CL101 F1
CL302 E2
CL409 G4
CL410 G4
CN401 A1
CN901 J1
CN902 J3
D1 *A2
D2 *B2
D3 *B4
D4 B4
D300 *G4
D301 *E2
D953 B3
E1 H3
E2 G1
E3 B3
E4 *E3
FB300 C3
FB301 D1
FB302 *C3
FB303 *D3
FB304 *D3
FB305 *E2
FB401 *C4
FB403 *C4
FL101 F4
FL102 F2
FL103 F3
IC2 *B3
IC3 *B2
IC4 *B2
IC102 *F2
IC103 *B4
IC104 *C4
IC105 C4
IC106 *C4
IC107 F1
IC108 *G4
IC109 *G3
IC110 *G2
IC111 *F4
IC112 *F3
IC113 *F3
IC114 *F2
IC115 *F3
IC116 *F2
IC117 E4
IC118 E2
IC119 E3
IC120 *D1
IC121 *D1
IC122 *E1
IC123 *G3
IC124 *G2
IC125 *G3
IC126 *F4
IC127 E1
IC128 G1
IC129 *E1
IC130 *C4
IC131 *C4
IC132 *F2
IC300 H3
IC301 *H2
IC302 H4
IC303 *H2
IC304 *J4
IC305 *H1
IC306 C3
IC307 D2
IC308 *D2
IC309 H4
IC310 *H2
IC311 H4
IC402 *A1
IC403 D4
IC406 *D4
IC408 F4
IC409 F4
IC410 *F4
IC411 *G4
IC412 G4
IC413 *A1
IC414 *F4
IC415 *E4
IC416 F5
IC417 E4
IC418 *E4
JC101 E4
JC102 E2
JC103 E3
L1 H2
L2 H2
L6 A3
L7 C2
L8 A2
L9 A2
L101 G3
L102 G4
L103 G3
L104 G3
L105 G2
L106 G2
L300 H2
L301 H2
L302 J4
L303 J4
L304 *H3
L305 *H3
L306 *J4
L307 *J3
L308 *H4
L309 H2
L401 E4
L402 E5
L403 *F4
L404 *G4
L405 G5
L406 G5
L407 G4
Q1 *A3
Q2 *B3
Q3 B2
Q4 B2
Q5 *B2
Q6 *B2
Q7 *B3
Q8 *B4
Q10 B4
Q101 F1
Q102 F1
Q103 *E2
Q104 F2
Q300 *H4
Q301 *H2
Q302 *H4
Q303 *H2
Q401 G4
Q402 G4
Q403 F4
Q404 *G4
Q405 *G4
R8 B2
R9 *B1
R10 B2
R11 *B2
R12 *B3
R13 *B2
R17 *B2
R18 *B2
R19 *B3
R20 *B3
R24 *B3
R25 *B3
R26 *B3
R27 *B2
R28 *B2
R29 *B2
R30 *B2
R31 B3
R32 *B3
R33 *B4
R34 B4
R35 *B2
R36 *B2
R37 *B2
R38 *B2
R39 *B2
R40 *B3
R41 *B2
R42 *B2
R43 *B3
R44 *B3
R45 A3
R46 B4
R47 *B4
R50 *B4
R51 *B4
R52 *B4
R53 J2
R54 *J2
R55 *J2
R56 *J2
R101 F1
R102 F1
R103 F1
R104 F1
R105 F1
R106 J1
R107 G1
R108 F1
R109 *G1
R110 G1
R111 G1
R112 G1
R113 G1
R114 G1
R115 G1
R116 *G1
R118 *B4
R119 G1
R120 *B4
R121 *B4
R122 *B4
R125 F1
R126 F1
R127 F1
R128 F1
R129 F1
R130 F1
R131 E1
R132 E1
R133 F2
R134 F2
R135 F2
R136 *G3
R137 *G2
R138 *G2
R139 *G3
R140 *G4
R141 *F2
R142 *F2
R143 *G4
R144 *F2
R145 *F2
R146 *F2
R147 *F2
R148 *G4
R149 *F2
R150 *F2
R151 *G3
R152 *G3
R153 *G4
R154 *G4
R155 *G4
R156 *G4
R157 *G4
R158 *G3
R159 *G3
R160 *G2
R161 *G3
R162 *G2
R163 *G4
R164 *G2
R165 *G2
R166 *G3
R167 *G3
R168 *G4
R169 *G3
R170 *G2
R171 *G3
R172 *G2
R173 *G2
R174 *G3
R175 *G4
R176 *G4
R177 *G3
R178 *G3
R179 *G2
R180 *G2
R181 *G4
R182 *G4
R183 *F4
R184 *G3
R185 *G3
R186 *G2
R187 *G2
R188 *F4
R189 *F4
R190 *G3
R191 *F3
R192 *F2
R193 *G3
R194 *G2
R195 *F3
R196 *F2
R197 *F3
R198 *F2
R199 *F4
R200 *F4
R201 *F4
R202 *F3
R203 *F3
R204 *F3
R205 *F4
R206 *F4
R207 *F3
R208 *F2
R209 *F4
R210 *F3
R211 *F2
R212 *F2
R213 *F3
R214 *F4
R215 *F3
R216 *F2
R217 *F2
R218 *F4
R219 *F3
R220 *G2
R221 *G2
R225 *F2
R226 *F2
R227 *F3
R228 *F3
R229 *F4
R230 *F4
R231 *F2
R232 *F4
R233 *F3
R234 *F4
R235 *F2
R236 *F3
R237 *F4
R238 *F2
R239 *F4
R240 *F3
R241 E1
R242 E1
R243 E1
R244 E1
R245 *D1
R246 *D1
R247 *D1
R248 *E1
R249 *E1
R250 E1
R251 *C4
R252 *C5
R253 *C4
R254 *C4
R255 *C5
R256 B4
R257 B4
R258 B4
R259 B4
R260 B4
R261 B4
R262 *G4
R264 *G2
R265 *G2
R266 *G2
R268 *F2
R269 *F2
R270 *F2
R272 *F2
R300 *J4
R301 *H2
R302 *H4
R303 *H2
R304 H4
R305 J3
R306 *H4
R307 J3
R308 *H2
R309 *J4
R310 *H2
R311 J3
R312 H4
R313 J3
R314 *H4
R315 *H2
R316 *H3
————————————————————
IV-57 (1-865-026-11)
————————————————————
R317 *H3
R318 *H3
R319 *H2
R320 *H4
R321 *H3
R322 *H4
R323 *H3
R324 *H3
R325 *H2
R326 *H4
R327 *H2
R328 *H4
R329 H5
R330 H5
R331 H5
R332 H5
R333 H3
R334 J3
R335 *H4
R336 J3
R337 J3
R338 J3
R339 G4
R340 G4
R341 H2
R342 H2
R343 G4
R344 G4
R345 H2
R346 H2
R347 H3
R348 H2
R349 H2
R350 H2
R351 H3
R352 *H2
R353 *H2
R354 *H2
R355 *H2
R356 *H2
R357 J4
R358 J4
R359 *J5
R360 *H2
R361 C3
R362 C4
R363 C4
R364 C3
R365 E2
R366 E2
R367 E2
R368 E2
R369 D3
R370 D3
R371 D1
R372 D1
R373 *D3
R374 *D3
R375 *D3
R376 D1
R377 *D3
R378 *D2
R379 *D3
R380 *D2
R381 *D2
R382 *D2
R383 *D2
R384 E2
R385 E2
R386 E2
R387 E2
R388 E2
R389 J3
R390 J3
R391 *J3
R392 *J3
R401 *A1
R402 *A1
R403 *A1
R404 *A1
R405 *A1
R406 *B1
R407 *B1
R408 *B1
R409 *B1
R410 *B1
R414 *D4
R415 *D4
R416 *D4
R417 D3
R418 D3
R419 *D3
R420 *F4
R421 *F4
R422 *E4
R423 *F4
R424 *F5
R425 *E4
R426 F4
R427 F4
R428 F4
R429 F4
R430 *F5
R431 *G5
R432 *G4
R433 *G4
R434 G4
R435 G5
R436 *F5
R437 *F5
R438 *F4
R439 *F4
R440 *F4
R441 *F4
R442 *F4
R443 *G4
R444 *G4
R445 *G4
R446 *G4
R447 G4
R448 *G4
R449 G5
R450 G4
R451 *G4
R452 G4
R453 G4
R454 *G4
R455 *G5
R456 *G5
R457 *G4
R458 G4
R459 *G4
R460 *G4
R461 G4
R462 *G4
R463 E4
R464 E4
R465 *D4
R466 *G4
R467 *E4
R468 E4
R469 F4
R470 F4
R471 C3
R472 D3
R473 C3
R474 C4
R475 *D4
R476 *D4
R477 D5
R478 E4
R479 E4
R480 *E4
R481 *E4
R482 *D4
R483 E4
R484 E4
R485 E4
R486 E4
R487 E4
R488 E4
R489 E4
R490 E4
R491 E4
R492 E4
R493 E4
R494 E4
R495 E4
R496 E4
R497 E3
R498 E3
R499 F4
R500 *G4
R501 *G4
R502 F4
R503 *G4
R504 F4
RB101 B4
RB102 C4
RB103 C4
RB104 *C4
RB105 B4
RB106 B4
RB107 B4
RB108 B4
RB109 C4
RB110 *E3
RB111 *E4
RB112 *E4
RB113 *E3
RB114 *E3
RB115 *E3
RB116 *E2
RB117 *E2
RB118 *E2
RB119 *D1
RB120 *D1
RB121 *D1
RB122 *D1
RB123 *E1
RB124 *E1
RB125 *E1
RB126 *E1
RB300 *J4
RB301 *J4
RB302 *H1
RB303 E3
RB304 E3
RB305 E2
RB306 E3
RB307 E1
RB308 D1
RB309 D1
RB310 *D2
RB311 *D2
RB312 *D2
RB313 D3
RB401 D3
RB402 D3
RB403 D3
RB404 *D5
RB405 *D5
RB406 F5
RB407 *D5
RB408 D3
RB409 D3
RB410 D3
RB411 D3
RB412 D3
RB413 E4
RV101 A2
RV102 A3
RV103 A2
RV104 F4
RV105 F2
RV106 F3
RV300 J3
RV401 F4
RV402 G4
S101 A3
S102 B4
S103 A4
S104 B4
S105 A4
S106 A3
S107 A4
S108 A4
THP1 H1
THP2 H1
THP3 G1
THP5 H2
THP6 G2
TP101 G1
TP102 F3
TP103 F3
TP104 F2
TP300 H3
TP401 G4
*:B SIDE
5-21
CCU-TX50/V2 5-21
C103
C104
C111C112
C114
C117
C12
C121
C128
C129
C13
C130
C131
C132
C133
C134
C135
C136
C138
C139 C140C141
C142
C143
C144
C145
C146
C147
C148
C149
C150
C151
C152
C153
C154
C155
C156
C157
C158 C159
C160
C161
C162 C163C164
C168 C169C171
C173
C175
C176
C177
C178
C179
C180
C181
C182
C189
C190
C191
C192
C193
C195
C196
C198
C199
C201
C202
C203
C205
C206
C207
C208
C209 C21
C22
C23
C24
C27
C3
C30
C305
C306
C307
C31
C310
C314
C315
C316
C317
C318
C319
C320
C322
C323
C324
C325
C326
C327
C328
C33
C330
C331
C332
C335
C336
C337
C339
C344
C345
C346
C351
C356
C357
C358
C359
C36
C360
C361
C362
C363
C364
C365
C366
C367
C368
C369
C37
C370
C371
C372
C373
C374
C375
C376
C377
C378
C379
C38
C380C381
C382
C383
C384
C385 C386
C387
C388
C389
C39
C4
C403
C435
C436
C437
C441
C443
C446
C448C449
C45
C456 C457
C458
C460
C461
C462
C463
C465
C469
C472
C475
C478
C6
C7
D1
D2
D3
D300
D301
E4
FB302
FB303
FB304
FB305
FB401
FB403
IC102
IC103
IC104
IC106
IC108
IC109
IC110
IC111
IC112
IC113
IC114
IC115
IC116
IC120IC121IC122
IC123 IC124IC125
IC126
IC129
IC130
IC131
IC132
IC2
IC3
IC301
IC303
IC304
IC305
IC308
IC310 IC4
IC402
IC406
IC410
IC411
IC413
IC414 IC415
IC418
L304
L305
L306
L307
L308
L403
L404
Q1
Q103
Q2
Q300
Q301
Q302
Q303
Q404
Q405
Q5
Q6
Q7
Q8
R109
R11
R116
R118
R12
R120
R121
R122
R13
R136 R137
R138R139
R140
R141
R142
R143
R144
R145
R146
R147
R148
R149
R150
R151
R152
R153
R154
R155R156
R157
R158
R159 R160
R161
R162
R163
R164R165
R166R167
R168
R169
R17
R170
R171 R172
R173
R174
R175
R176
R177
R178
R179
R18
R180
R181
R182
R183
R184
R185
R186
R187
R188
R189
R19
R190
R191
R192
R193
R194
R195
R196
R197
R198
R199
R20
R200R201 R202
R203
R204
R205
R206
R207
R208
R209
R210
R211
R212
R213
R214 R215 R216
R217
R218 R219 R220R221
R225
R226
R227
R228
R229
R230
R231
R232
R233
R234 R235R236
R237
R238
R239
R24
R240
R245
R246
R247
R248
R249
R25
R251
R252
R253
R254
R255
R26
R262
R264
R265
R266
R268
R269
R27
R270
R272
R28
R29
R30
R300
R301
R302
R303
R306
R308
R309
R310
R314
R315
R316
R317
R318
R319
R32
R320
R321
R322
R323
R324
R325
R326
R327
R328
R33
R335
R35
R352
R353
R354
R355
R356
R359
R36
R360
R37
R373
R374
R375 R377
R378
R379
R38
R380
R381
R382
R383
R39
R391
R392
R40
R401
R402
R403
R404
R405
R406
R407
R408
R409
R41
R410
R414
R415
R416
R419
R42
R420R421
R422
R423
R424
R425
R43
R430
R431
R432
R433
R436
R437
R438
R439
R44
R440R441
R442
R443
R444
R445
R446
R448
R451
R454
R455R456
R457
R459
R460
R462
R465
R466
R467
R47
R475
R476
R480
R481
R482
R50
R500
R501 R503
R51
R52
R54
R55
R56
R9
RB104
RB110RB111RB112 RB113RB114RB115 RB116RB117RB118
RB119 RB120RB121 RB122RB123 RB124
RB125 RB126
RB300 RB301
RB302
RB310 RB311 RB312
RB404 RB405 RB407
IV-57IV-57
IV-57 -B SIDE-
SUFFIX: -11
5-23
CCU-TX50/V2 5-23
CN13 CN14
CN15 CN16
SL1 SL2
SL3 SL4
CN1
CN10
CN12
CN2
CN3CN4
CN5CN6
CN8
MB-1062MB-1062
MB-1062 -B SIDE-
SUFFIX: -11
MB-1062 -A SIDE-
SUFFIX: -11
——————————————————————
MB-1062 (1-865-022-11)
——————————————————————
CN1 *D1
CN2 *D2
CN3 *C1
CN4 *C2
CN5 *C1
CN6 *C2
CN8 *B2
CN10 *A2
CN12 *A2
CN13 D3
CN14 D1
CN15 A1
CN16 A1
SL1 D3
SL2 D3
SL3 D3
SL4 D3
*:B SIDE
5-24 (b) CCU-TX50/V2
5-24 (b)
SW-1257
SUFFIX: -12
SW-1257
SUFFIX: -12
SW-1257 -A SIDE-
SUFFIX: -12
C1
C10
C102
C103
C104
C105
C106
C107
C108
C11
C110
C112
C113
C114
C115
C116
C117
C118
C119
C12
C120
C121
C122
C123
C124
C125
C126
C127
C128
C129
C13
C130
C132
C14 C15
C16
C17
C18C19
C2
C20
C21
C22
C23 C24
C25
C26
C29
C3
C30 C31
C32C33 C34 C35 C36 C37
C4C5
C6
C7
C8
C9
CN2
D1
D100 D101
D102D103
D104
D105
D106
D107
D108
D109
D116
D117
D2D3
D4
E1
IC1
IC10
IC100
IC101
IC102
IC11
IC12
IC13
IC2
IC3
IC4
IC5
IC6
IC7
IC8
IC9
L1
L110
L111
L112
L113
L114
L115
L2
ND1
ND2
ND3
ND4
ND5
ND6
Q1
Q10
Q100
Q101
Q102
Q103
Q104 Q105Q106 Q107
Q108
Q109
Q11
Q12
Q13
Q14
Q15
Q16
Q17
Q18
Q19
Q2
Q20
Q21
Q22
Q23
Q24
Q25
Q26
Q27
Q28
Q29
Q3
Q30
Q31
Q32 Q33
Q34 Q35
Q36
Q37
Q38
Q39
Q4
Q40
Q41
Q42
Q43
Q44
Q45
Q46
Q47
Q48
Q49
Q5
Q50
Q51
Q52
Q53
Q54
Q55
Q56
Q57
Q58
Q59
Q6
Q60
Q61
Q62
Q63
Q64
Q65
Q66
Q67
Q68
Q69
Q7
Q8
Q9
R1
R10
R100
R101
R102
R103
R104
R105
R106
R107
R108
R109
R11
R110
R111
R112R113
R114
R115
R116
R117
R118
R119
R12
R120
R121
R122 R123
R124
R125
R126
R127
R128
R129
R13
R130
R131
R132
R133
R134
R135R136
R137 R138
R139
R14
R15
R16
R17
R18
R19
R2
R20
R202
R203
R204
R205
R206
R207
R208
R209
R21
R210
R211
R212
R213
R214
R215
R216
R217
R218
R219
R22
R220
R221
R222
R223
R224
R225
R228
R229
R23
R230
R231
R232
R233
R236
R237
R24
R240
R241
R242
R243
R244
R245
R246
R247
R248
R249
R25
R250R251 R252R253 R254
R255
R256
R257
R258
R259
R26
R260
R261
R262
R263R264
R27 R28
R29
R3
R30
R31
R32
R33
R34
R35
R36 R37
R38
R39
R4
R40
R41
R42
R43
R44
R45
R46
R47
R48
R49
R5
R50 R51
R52 R53
R54
R55
R56
R57
R58
R59
R6
R60
R61
R62
R63
R64 R65
R66 R67
R68 R69
R7
R70
R71 R72
R73
R74
R75
R76
R77
R78
R79
R8
R80
R81
R82
R83 R84
R85
R86
R87
R88
R89
R9
R90
R91
R92
R93
R94
R95 R96
R97
R98
R99
RB1 RB2
RB3
RB4
RB5RB6
RB7
RB8RB9
RV1
RV100
RV2
RV3 RV4
RV5 RV6
RV7 RV8
S1
S10
S100
S101
S102
S11
S12
S13
S14 S15 S16
S2S3 S4 S5 S6 S7 S8 S9
C1 B1
C2 C1
C3 C3
C4 C1
C5 C1
C6 B3
C7 D3
C8 B2
C9 D3
C10 C3
C11 D3
C12 C3
C13 C3
C14 D1
C15 D1
C16 B1
C17 C2
C18 C1
C19 C1
C20 B2
C21 B2
C22 C2
C23 B3
C24 B3
C25 B2
C26 B2
C29 C2
C30 C2
C31 C2
C32 B1
C33 B1
C34 B1
C35 B1
C36 C1
C37 C1
C102 A3
C103 A2
C104 A1
C105 A2
C106 A1
C107 A2
C108 A2
C110 A1
C112 A1
C113 A3
C114 A3
C115 B2
C116 B2
C117 B1
C118 B3
C119 B3
C120 B2
C121 B3
C122 B3
C123 C3
C124 B3
C125 B3
C126 B3
C127 B3
C128 B3
C129 A1
C130 A2
C132 B3
CL100 *B2
CL101 *B3
CN1 *A1
CN2 A3
D1 D3
D2 C2
D3 C3
D4 D2
D100 A1
D101 A1
D102 A1
D103 A2
D104 A1
D105 A1
D106 A1
D107 A1
D108 A1
D109 A1
D116 A3
D117 A3
E1 D2
IC1 C1
IC2 C3
IC3 C3
IC4 C3
IC5 C2
IC6 B1
IC7 D2
IC8 B1
IC9 B3
IC10 C2
IC11 C2
IC12 C2
IC13 C2
IC100 A1
IC101 B3
IC102 A2
L1 C3
L2 B2
L110 A2
L111 A1
L112 B2
L113 B3
L114 A1
L115 A2
ND1 B1
ND2 B1
ND3 B1
ND4 B1
ND5 C1
ND6 C1
Q1 D3
Q2 B1
Q3 B1
Q4 B1
Q5 B2
Q6 C1
Q7 B2
Q8 B2
Q9 B1
Q10 B2
Q11 B2
Q12 B2
Q13 B1
Q14 C1
Q15 C1
Q16 B2
Q17 B2
Q18 D1
Q19 D1
Q20 B2
Q21 B1
Q22 B2
Q23 C2
Q24 B2
Q25 B2
Q26 B1
Q27 C2
Q28 C2
Q29 C3
Q30 C2
Q31 C1
Q32 B1
Q33 B1
Q34 C2
Q35 C2
Q36 C2
Q37 C2
Q38 C2
Q39 C1
Q40 C2
Q41 C2
Q42 D2
Q43 C2
Q44 C1
Q45 C2
Q46 C2
Q47 D2
Q48 C2
Q49 C1
Q50 C2
Q51 C2
Q52 C1
Q53 C1
Q54 C2
Q55 C2
Q56 C1
Q57 C1
Q58 C2
Q59 C2
Q60 C1
Q61 C1
Q62 C2
Q63 C2
Q64 C1
Q65 C1
Q66 A1
Q67 A1
Q68 A1
Q69 A1
Q100 A1
Q101 A1
Q102 A1
Q103 A1
Q104 A1
Q105 A1
Q106 A1
Q107 A1
Q108 A3
Q109 A3
R1 B1
R2 B1
R3 B1
R4 C3
R5 C3
R6 C1
R7 C1
R8 D3
R9 C1
R10 C1
R11 B1
R12 C1
R13 B1
R14 C1
R15 C1
R16 C1
R17 B1
R18 B1
R19 B1
R20 B1
R21 B1
R22 B1
R23 B1
R24 B1
R25 D1
R26 D1
R27 D3
R28 D3
R29 C3
R30 D1
R31 C3
R32 C3
R33 C3
R34 D3
R35 C3
R36 D1
R37 D1
R38 C2
R39 D3
R40 C3
R41 B1
R42 B1
R43 B1
R44 B1
R45 B1
R46 B1
R47 B1
R48 B1
R49 C3
R50 D1
R51 D1
R52 B1
R53 B1
R54 C1
R55 C1
R56 C1
R57 C1
R58 C1
R59 B1
R60 B2
R61 B2
R62 B2
R63 B1
R64 C2
R65 D2
R66 B3
R67 B3
R68 B2
R69 B2
R70 D2
R71 B3
R72 B3
R73 C1
R74 C1
R75 C1
R76 C1
R77 C1
R78 C1
R79 C1
R80 C1
R81 C1
R82 C3
R83 B2
R84 B2
R85 C3
R86 C1
R87 D2
R88 C1
R89 C1
R90 C1
R91 C1
R92 C1
R93 C1
R94 C1
R95 C1
R96 C1
R97 C1
R98 C1
R99 C1
R100 C1
R101 C1
R102 C1
R103 C1
R104 C1
R105 C1
R106 C1
R107 C1
R108 C1
R109 C1
R110 C1
R111 C1
R112 D3
R113 D3
R114 B1
R115 C1
R116 B1
R117 C1
R118 B2
R119 B2
R120 A1
R121 A1
R122 A1
R123 A1
R124 A1
R125 B1
R126 B1
R127 B1
R128 B1
R129 C1
R130 C1
R131 C1
R132 D1
R133 D1
R134 D1
R135 B1
R136 B1
R137 C2
R138 D2
R139 D2
R202 A1
R203 A1
R204 A1
R205 A1
R206 A1
R207 A1
R208 A1
R209 A3
R210 A2
R211 A2
R212 A2
R213 A1
R214 A1
R215 A1
R216 A2
R217 A2
R218 A1
R219 A1
R220 A1
R221 A1
R222 A2
R223 A2
R224 A2
R225 A2
R228 A3
R229 A3
R230 B1
R231 B1
R232 B1
R233 B1
R236 A3
R237 B3
R240 B3
R241 B3
R242 B3
R243 B3
R244 B3
R245 B3
R246 B3
R247 B3
R248 B3
R249 B3
R250 A1
R251 A1
R252 A1
R253 A1
R254 A1
R255 A1
R256 A1
R257 A1
R258 A1
R259 A1
R260 B3
R261 A2
R262 B3
R263 A2
R264 A2
RB1 C1
RB2 C1
RB3 D2
RB4 C1
RB5 C1
RB6 C1
RB7 D2
RB8 D2
RB9 D2
RV1 D3
RV2 C3
RV3 D1
RV4 D1
RV5 B3
RV6 B3
RV7 B2
RV8 B2
RV100 A3
S1 C1
S2 B1
S3 B1
S4 B1
S5 C1
S6 C1
S7 C1
S8 D1
S9 D1
S10 C3
S11 C1
S12 B1
S13 B1
S14 C2
S15 C2
S16 D2
S17 *D2
S18 *A2
S100 A2
S101 A2
S102 A2
S103 *A3
S104 *A3
SL1 *D1
SL2 *D1
*:B SIDE
——————————————————————
SW-1257 (1-865-038-12)
——————————————————————
5-25 (b)
CCU-TX50/V2 5-25 (b)
SW-1257 -B SIDE-
SUFFIX: -12
CL100
CL101
CN1
S103S104
S17
S18
SL1 SL2
SW-1257
SUFFIX: -12
SW-1257
SUFFIX: -12
5-24 (a) CCU-TX50/V2
5-24 (a)
SW-1257
SUFFIX: -11
SW-1257
SUFFIX: -11
SW-1257 -A SIDE-
SUFFIX: -11
C1 B1
C2 C1
C3 C3
C4 C1
C5 C1
C6 B3
C7 D3
C8 B2
C9 D3
C10 C3
C11 D3
C12 C3
C13 C3
C14 D1
C15 D1
C16 B1
C17 C2
C18 C1
C19 C1
C20 B2
C21 B2
C22 C2
C23 B3
C24 B3
C25 B2
C26 B2
C29 C2
C30 C2
C31 C2
C32 B1
C33 B1
C34 B1
C35 B1
C36 C1
C37 C1
C102 A3
C103 A2
C104 A1
C105 A2
C106 A1
C107 A2
C108 A2
C109 A2
C110 A1
C111 A2
C112 A1
C113 A3
C114 A2
C115 B2
C116 B2
C117 B1
C118 B3
C119 B3
C120 B2
C121 B3
C122 B3
C123 B3
C124 B3
C125 B3
C126 B3
C127 A2
C128 A3
C129 A1
C130 A2
CL100 *B2
CL101 *B3
CN1 *A1
CN2 A3
D1 D3
D2 C2
D3 C3
D4 D2
D100 A1
D101 A1
D102 A1
D103 A2
D104 A1
D105 A1
D106 A1
D107 A1
D108 A1
D109 A1
D116 A2
D117 A2
E1 D2
IC1 C1
IC2 C3
IC3 C3
IC4 C3
IC5 C2
IC6 B1
IC7 D2
IC8 B1
IC9 B3
IC10 C2
IC11 C2
IC12 C2
IC13 C2
IC100 A1
IC101 A3
L1 C3
L2 B2
L110 A2
L111 A1
L112 B2
L113 B3
L114 A1
ND1 B1
ND2 B1
ND3 B1
ND4 B1
ND5 C1
ND6 C1
Q1 D3
Q2 B1
Q3 B1
Q4 B1
Q5 B2
Q6 C1
Q7 B2
Q8 B2
Q9 B1
Q10 B2
Q11 B2
Q12 B2
Q13 B1
Q14 C1
Q15 C1
Q16 B2
Q17 B2
Q18 D1
Q19 D1
Q20 B2
Q21 B1
Q22 B2
Q23 C2
Q24 B2
Q25 B2
Q26 B1
Q27 C2
Q28 C2
Q29 C3
Q30 C2
Q31 C1
Q32 B1
Q33 B1
Q34 C2
Q35 C2
Q36 C2
Q37 C2
Q38 C2
Q39 C1
Q40 C2
Q41 C2
Q42 D2
Q43 C2
Q44 C1
Q45 C2
Q46 C2
Q47 D2
Q48 C2
Q49 C1
Q50 C2
Q51 C2
Q52 C1
Q53 C1
Q54 C2
Q55 C2
Q56 C1
Q57 C1
Q58 C2
Q59 C2
Q60 C1
Q61 C1
Q62 C2
Q63 C2
Q64 C1
Q65 C1
Q66 A1
Q67 A1
Q68 A1
Q69 A1
Q100 A1
Q101 A1
Q102 A1
Q103 A1
Q104 A1
Q105 A1
Q106 A1
Q107 A1
R1 B1
R2 B1
R3 B1
R4 C3
R5 C3
R6 C1
R7 C1
R8 D3
R9 C1
R10 C1
R11 B1
R12 C1
R13 B1
R14 C1
R15 C1
R16 C1
R17 B1
R18 B1
R19 B1
R20 B1
R21 B1
R22 B1
R23 B1
R24 B1
R25 D1
R26 D1
R27 D3
R28 D3
R29 C3
R30 D1
R31 C3
R32 C3
R33 C3
R34 D3
R35 C3
R36 D1
R37 D1
R38 C2
R39 D3
R40 C3
R41 B1
R42 B1
R43 B1
R44 B1
R45 B1
R46 B1
R47 B1
R48 B1
R49 C3
R50 D1
R51 D1
R52 B1
R53 B1
R54 C1
R55 C1
R56 C1
R57 C1
R58 C1
R59 B1
R60 B2
R61 B2
R62 B2
R63 B1
R64 C2
R65 D2
R66 B3
R67 B3
R68 B2
R69 B2
R70 D2
R71 B3
R72 B3
R73 C1
R74 C1
R75 C1
R76 C1
R77 C1
R78 C1
R79 C1
R80 C1
R81 C1
R82 C3
R83 B2
R84 B2
R85 C3
R86 C1
R87 D2
R88 C1
R89 C1
R90 C1
R91 C1
R92 C1
R93 C1
R94 C1
R95 C1
R96 C1
R97 C1
R98 C1
R99 C1
R100 C1
R101 C1
R102 C1
R103 C1
R104 C1
R105 C1
R106 C1
R107 C1
R108 C1
R109 C1
R110 C1
R111 C1
R112 D3
R113 D3
R114 B1
R115 C1
R116 B1
R117 C1
R118 B2
R119 B2
R120 A1
R121 A1
R122 A1
R123 A1
R124 A1
R125 B1
R126 B1
R127 B1
R128 B1
R129 C1
R130 C1
R131 C1
R132 D1
R133 D1
R134 D1
R135 B1
R136 B1
R137 C2
R138 D2
R139 D2
R202 A1
R203 A1
R204 A1
R205 A1
R206 A1
R207 A1
R208 A1
R209 A2
R210 A2
R211 A2
R212 A2
R213 A1
R214 A1
R215 A1
R216 A2
R217 A2
R218 A1
R219 A1
R220 A1
R221 A1
R222 A2
R223 A2
R224 A2
R225 A2
R226 A2
R227 A2
R228 A3
R229 A2
R230 B1
R231 B1
R232 B1
R233 B1
R234 B2
R235 B2
R236 B3
R237 B3
R238 B2
R239 B2
R240 B3
R241 B3
R242 B3
R243 A3
R244 A3
R245 B3
R246 A2
R247 A2
R248 A3
R249 A3
R250 A1
R251 A1
R252 A1
R253 A1
R254 A1
R255 A1
R256 A1
R257 A1
R258 A1
R259 A1
R260 A3
RB1 C1
RB2 C1
RB3 D2
RB4 C1
RB5 C1
RB6 C1
RB7 D2
RB8 D2
RB9 D2
RV1 D3
RV2 C3
RV3 D1
RV4 D1
RV5 B3
RV6 B3
RV7 B2
RV8 B2
RV100 A3
S1 C1
S2 B1
S3 B1
S4 B1
S5 C1
S6 C1
S7 C1
S8 D1
S9 D1
S10 C3
S11 C1
S12 B1
S13 B1
S14 C2
S15 C2
S16 D2
S17 *D2
S18 *A2
S100 A2
S101 A2
S102 A2
S103 *A3
S104 *A3
SL1 *D1
SL2 *D1
*:B SIDE
——————————————————————
SW-1257 (1-865-038-11)
——————————————————————
C1
C10
C102
C103
C104
C105
C106
C107
C108
C109
C11
C110
C111
C112
C113
C114
C115
C116
C117
C118
C119
C12
C120
C121C122
C123
C124
C125
C126
C127
C128
C129
C13
C130
C14 C15
C16
C17
C18C19
C2
C20
C21
C22
C23 C24
C25
C26
C29
C3
C30 C31
C32C33 C34 C35 C36 C37
C4C5
C6
C7
C8
C9
CN2
D1
D100 D101
D102D103
D104
D105
D106
D107
D108
D109
D116
D117
D2D3
D4
E1
IC1
IC10
IC100
IC101
IC11
IC12
IC13
IC2
IC3
IC4
IC5
IC6
IC7
IC8
IC9
L1
L110
L111
L112
L113
L114
L2
ND1
ND2
ND3
ND4
ND5
ND6
Q1
Q10
Q100
Q101
Q102
Q103
Q104 Q105Q106 Q107
Q11
Q12
Q13
Q14
Q15
Q16
Q17
Q18
Q19
Q2
Q20
Q21
Q22
Q23
Q24
Q25
Q26
Q27
Q28
Q29
Q3
Q30
Q31
Q32 Q33
Q34 Q35
Q36
Q37
Q38
Q39
Q4
Q40
Q41
Q42
Q43
Q44
Q45
Q46
Q47
Q48
Q49
Q5
Q50
Q51
Q52
Q53
Q54
Q55
Q56
Q57
Q58
Q59
Q6
Q60
Q61
Q62
Q63
Q64
Q65
Q66
Q67
Q68
Q69
Q7
Q8
Q9
R1
R10
R100
R101
R102
R103
R104
R105
R106
R107
R108
R109
R11
R110
R111
R112R113
R114
R115
R116
R117
R118
R119
R12
R120
R121
R122 R123
R124
R125
R126
R127
R128
R129
R13
R130
R131
R132
R133
R134
R135R136
R137 R138
R139
R14
R15
R16
R17
R18
R19
R2
R20
R202
R203
R204
R205
R206
R207
R208
R209
R21
R210
R211
R212
R213
R214
R215
R216
R217
R218
R219
R22
R220
R221
R222
R223
R224
R225
R226
R227
R228
R229
R23
R230
R231
R232
R233
R234
R235
R236R237
R238
R239
R24
R240
R241
R242
R243
R244
R245
R246
R247
R248R249
R25
R250R251 R252R253 R254
R255
R256
R257
R258
R259
R26
R260 R27 R28
R29
R3
R30
R31
R32
R33
R34
R35
R36 R37
R38
R39
R4
R40
R41
R42
R43
R44
R45
R46
R47
R48
R49
R5
R50 R51
R52 R53
R54
R55
R56
R57
R58
R59
R6
R60
R61
R62
R63
R64 R65
R66 R67
R68 R69
R7
R70
R71 R72
R73
R74
R75
R76
R77
R78
R79
R8
R80
R81
R82
R83 R84
R85
R86
R87
R88
R89
R9
R90
R91
R92
R93
R94
R95 R96
R97
R98
R99
RB1 RB2
RB3
RB4
RB5RB6
RB7
RB8RB9
RV1
RV100
RV2
RV3 RV4
RV5 RV6
RV7 RV8
S1
S10
S100
S101
S102
S11
S12
S13
S14 S15 S16
S2S3 S4 S5 S6 S7 S8 S9
5-25 (a)
CCU-TX50/V2 5-25 (a)
SW-1257 -B SIDE-
SUFFIX: -11
SW-1257
SUFFIX: -11
SW-1257
SUFFIX: -11
CL100
CL101
CN1
S103S104
S17
S18
SL1 SL2
5-27
CCU-TX50/V2 5-27
TR-133TR-133
C1 *A2
C2 *A2
C3 *A2
C4 *A2
C5 *A2
C6 *A2
C7 *A2
C8 *A2
C9 A2
C10 A2
C11 A2
C12 *A2
C21 B2
C22 B2
C23 *A2
C24 *A2
C25 *A2
C26 *A2
C27 *A2
C28 *A2
C29 *A2
C30 *A2
C31 *A2
C32 A2
C33 A2
C34 *A2
C35 *A2
C41 *A3
C42 *A3
C43 *A3
C44 *A3
C45 *A3
C46 *A3
C47 *A3
C48 *A3
C49 A3
C50 A3
C51 *A3
C52 *A3
C61 *A3
C62 *A3
C63 *A3
C64 *A3
C65 *A3
C66 *A3
C67 *A3
C68 *A3
C69 A3
C70 A3
C71 *A3
C72 *A3
C81 *A3
C82 *A3
C83 *A3
C84 *A3
C85 *A3
C86 *A3
C87 *A3
C88 *A3
C89 A3
C90 A3
C91 *A3
C92 *A3
C93 *A3
C101 *A4
C102 *A4
C103 *A4
C104 *A4
C105 *A4
C106 *A4
C107 *A4
C108 *A4
C109 A4
C110 A4
C111 *A4
C112 *A4
C121 G3
C122 F3
C123 F3
C124 F3
C125 F4
C126 F4
C127 F3
C128 B2
C129 B2
C130 *B2
C131 *B2
C132 *B2
C133 *C2
C134 F3
C151 *G1
C152 *G1
C153 *G1
C154 *G1
C155 *G1
C156 *G1
C157 *G1
C158 *G1
C159 *G2
C160 G2
C161 *G1
C162 G1
C163 *G1
C164 G2
C165 G1
C166 *G1
C167 G1
C168 *G1
C169 G1
C170 *G1
C171 *G1
C172 G1
C173 *G1
C174 G1
C175 *G1
C176 *G1
C177 *G1
C178 G1
C179 *G3
C180 G3
C181 *G3
C182 G3
C201 C2
C202 *C2
C203 *C2
C204 C2
C205 *C2
C206 *C2
C207 D2
C208 C2
C209 C2
C210 D2
C211 D2
C212 D2
C213 D2
C214 D2
C215 D2
C216 D2
C217 *D2
C218 *D2
C219 *D2
C220 *D2
C221 *D2
C222 *D2
C223 *D2
C224 *E2
C225 *E2
C226 *E2
C227 *E2
C228 *E2
C229 *E2
C230 E2
C231 *E2
C232 *E2
C233 *E2
C234 *E2
C235 *E2
C236 *E2
C237 *E2
C238 *E2
C239 *F2
C240 *F2
C241 *F2
C242 *F2
C243 *F2
C244 *F2
C245 *F2
C246 E2
C247 E2
C248 E2
C249 E2
C250 E2
C251 F2
C252 F2
C253 *E2
C254 E2
C255 E2
C256 *F2
C257 *F2
C258 F2
C259 D2
C260 *D2
C301 C4
C302 *C4
C303 *C4
C304 C4
C305 *C4
C306 *D4
C307 *D4
C308 *D4
C309 *D4
C310 *C4
C311 E4
C312 *D4
C313 *C4
C314 *D4
C315 *D4
C316 *E4
C317 *E4
C318 *E4
C319 *E4
C320 *E4
C321 *E4
C322 *E4
C323 *E4
C324 E4
C325 E4
C326 *E4
C327 F4
C328 F4
C329 *E4
C330 *F4
C331 G3
C332 G3
C333 *G3
C361 *G4
C362 *F4
C363 F4
C364 *G4
C365 F4
C366 *F4
C367 *F4
C368 *F4
C401 C4
C402 *C3
C403 *C4
C404 C3
C405 *C4
C406 *D3
C407 *D3
C408 *D4
C409 *D4
C410 *C4
C411 E3
C412 *D4
C413 *C4
C414 *D3
C415 *D4
C416 *E4
C417 *E4
C418 *E4
C419 *E4
C420 *E3
C421 *E3
C422 *E3
C423 *E3
C424 *E3
C425 E4
C426 E4
C427 *E4
C428 F4
C429 F4
C430 *E3
C431 *F4
C432 F3
C433 F3
C434 G2
C435 *G3
C436 F3
C437 F3
C438 F3
C439 F3
C440 *F3
C441 *F3
C442 F3
C443 F3
C444 F3
C445 F3
C446 *F3
C501 C3
C502 *C3
C503 *C3
C504 C3
C505 *C3
C506 *D3
C507 *D3
C508 *D3
C509 *D3
C510 *C3
C511 E3
C512 *D3
C513 *C3
C514 *D3
C515 *D3
C516 *E3
C517 *E3
C518 *E3
C519 *E3
C520 *E3
C521 *E3
C522 *E3
C523 *E3
C524 *E3
C525 E3
C526 *E3
C527 E3
C528 *E3
C529 *E3
C530 *E3
C531 *E3
C532 *E3
C533 *F3
C534 *F3
C535 F3
C536 F3
C537 F3
C538 *F3
C539 *F3
C540 G2
C541 F2
C542 *F2
C543 *E3
C544 D3
C545 *E3
C601 C3
C602 *C3
C603 *C3
C604 C2
C605 *C3
C606 *D2
C607 *D2
C608 *D3
C609 *D3
C610 *C3
C611 E3
C612 *D3
C613 *C3
C614 *D2
C615 *D3
C616 *E3
C617 *E3
C618 *E3
C619 *E3
C620 *E3
C621 *E3
C622 *E3
C623 *E3
C624 *E2
C625 E3
C626 *E3
C627 E3
C628 *E3
C629 F3
C630 F3
C631 *E3
C632 *F3
C633 F2
C634 F2
C635 *G2
C636 F2
C637 F2
C638 F2
C639 F2
C640 *F2
C641 *F2
C642 F2
C643 F2
C644 F2
C645 F2
C646 *F2
C647 D3
C648 *E3
C701 C1
C702 C2
C703 *C1
C704 *C1
C705 *C1
C706 *C2
C707 *C2
C708 *C2
C709 *C2
C710 *C1
C711 *C2
C712 B1
C713 B1
C714 B1
C715 B1
C716 B1
C717 *B1
C718 *B1
C719 B1
C720 B1
C721 B1
C722 B1
C723 B1
C724 B1
C725 B1
C726 *B1
C727 *B1
C728 *B1
C729 B1
C730 B1
C731 B1
C732 B1
C733 B1
C734 B1
C735 *B1
C736 *B1
C737 B1
C738 B1
C739 B1
C801 F1
C802 F1
C803 *F1
C804 *F1
C805 *F1
C806 F1
C807 *F1
C808 *F1
C809 F1
C810 *F1
C811 *E2
C812 F1
C813 F1
C814 E1
C815 *F1
C816 *F1
C817 *F1
C818 *F1
C819 *F1
C820 *F1
C821 *F1
C822 *F1
C823 *F1
C824 E1
C825 *E1
C826 E1
C827 *E1
C828 *E1
C829 E1
C830 E1
C831 *E1
C832 E1
C833 E1
C834 *E1
C835 *E1
C836 E1
C837 E1
C838 E1
C839 *E1
C840 *E1
C841 F1
C842 *F1
C843 *F1
C844 F1
C845 F1
C846 F1
C847 F1
C901 *E2
C902 *D1
C903 *D1
C904 D1
C905 D1
C906 D1
C907 D1
C908 D1
C909 *D1
C910 D1
C911 D1
C912 D1
C913 D1
C914 D1
C915 D1
C916 D1
C918 D1
C919 D1
C920 D1
C921 D1
C922 D1
C923 D1
C924 D1
C925 D1
C926 C1
C927 *C1
C928 *C1
C929 *C1
C930 *C1
C931 *C1
C932 *C1
C933 *C1
C934 C1
C935 C1
C936 C1
C937 D1
CF41 B3
CF61 B3
CF81 B3
CF101 B4
CF201 C2
CF202 C2
CF301 C4
CF302 C4
CF401 C3
CF402 C3
CF501 C3
CF502 C3
CF601 C3
CF602 C3
CL151 G2
CL152 G1
CL153 G1
CL154 G3
CL155 G3
CN100 B4
CN701 A1
CN801 E1
CN902 G3
CT701 B1
D1 *A2
D2 A2
D21 *A2
D22 *A2
D23 *A2
D41 *A3
D42 *A3
D43 *A3
D61 *A3
D62 *A3
D63 *A3
D81 *A3
D82 *A3
D83 *A3
D101 *A4
D102 *A4
D103 *A4
D121 *B2
D122 *B2
D151 *G1
D152 *G1
D153 A4
D301 *D4
D302 *D4
D361 F4
D362 F4
D363 F4
D401 *D4
D501 E3
D502 *F3
D701 B1
D702 B1
D801 *F1
D802 *F1
E1 G2
E2 *D3
E100 C4
E101 A2
E102 B4
E300 F4
E400 F3
E701 A1
E801 E1
FB701 *B1
FB702 *B1
FB801 *E1
FB802 *E1
FB803 *E1
FB804 *E1
FL1 B2
FL21 B2
FL122 B3
FL701 C1
FL702 A1
FL801 F1
FL802 E1
FL901 C1
IC81 A3
IC82 A3
IC121 B2
IC151 *G1
IC152 *G1
IC153 *G1
IC154 *G2
IC201 C2
IC202 E2
IC203 E2
IC204 *E2
IC205 *E2
IC206 *F2
IC207 E2
IC208 *E2
IC209 F2
IC301 C4
IC302 *E4
IC303 *F4
IC361 G4
IC362 G4
IC363 G3
IC364 F4
IC365 *F4
IC367 *F4
IC368 F4
IC369 F4
IC370 F4
IC401 C4
IC402 *E4
IC403 *F3
IC404 *E4
IC405 G2
IC406 F3
IC501 C3
IC502 *E3
IC503 E3
IC504 *E3
IC505 *E3
IC506 F3
IC507 *E3
IC601 C3
IC602 *E3
IC603 E3
IC604 *D3
IC605 *F2
IC606 F2
IC701 *C2
IC801 *F1
IC802 *E2
IC803 F1
IC804 E1
IC805 E1
IC806 *F1
IC807 *E1
IC901 *E2
IC902 *D2
IC903 D1
IC904 *C1
IC905 *E2
L1 *A2
L21 *A2
L41 *A3
L61 *A3
L81 *A3
L82 *A3
L101 *A4
L121 F3
L122 *C2
L123 *C2
L151 *G2
L152 *G1
L201 *C2
L202 *E2
L203 *F2
L204 *F2
L301 *C4
L302 D4
L303 *F4
L304 *F4
L305 *G3
L361 *F4
L401 *C3
L402 D4
L403 *F3
L404 *F4
L405 *F3
L406 *F3
L501 *C3
L502 D3
L503 *F3
L504 *F3
L505 *F2
L601 *C2
L602 D3
L603 *F3
L604 *F2
L605 *F2
L606 *F2
L701 *C1
L702 *C2
L703 B1
L704 *B1
L705 B1
L706 B1
L801 *F1
L802 *F1
L803 *F1
L804 *F1
L805 E1
L806 F1
L901 D1
L902 D1
L905 *C1
L906 *C1
LP1 A4
LP2 C2
LV1 A2
LV21 A2
LV41 A3
LV61 A3
LV81 A3
LV101 A4
LV201 D2
LV301 D4
LV302 E4
LV401 D3
LV402 E3
LV501 D3
LV502 E3
LV601 D3
LV602 E3
LV901 D1
LV902 C1
Q1 *A2
Q2 *A2
Q21 *A2
Q22 *A2
Q41 A3
Q42 *A3
Q61 A3
Q62 *A3
Q81 A3
Q82 *A3
Q101 A4
Q102 *A4
Q121 G4
Q122 F4
Q123 F3
Q151 G2
Q152 *G2
Q153 *G1
Q154 *G1
Q155 G2
Q201 C2
Q202 C2
Q203 C2
Q204 *D2
Q205 *E2
Q208 E2
Q209 E2
Q301 C4
Q302 C4
Q303 C4
Q304 G3
Q305 G3
Q401 C4
Q402 C3
Q403 C3
Q404 *E3
Q405 *E3
Q406 F3
Q407 F3
Q501 C3
Q502 C3
Q503 C3
Q504 *E3
Q506 F2
Q507 F2
Q508 *F3
Q601 C3
Q602 C3
Q603 C3
Q604 *E3
Q605 *E2
Q606 F2
Q607 F2
Q701 *C2
Q702 *C1
Q703 *C1
Q704 *C1
Q705 B1
Q706 B1
Q707 B1
Q708 B1
Q709 B1
Q710 B1
Q711 B1
Q712 B1
Q713 B1
Q714 B1
Q801 G1
Q802 *F1
Q803 *E1
Q804 *E1
Q805 *E1
Q806 *E1
Q807 E1
Q808 E1
Q809 *E1
Q810 *E1
Q811 *E1
Q812 *E2
Q813 F1
Q901 *E2
Q902 *E2
Q903 *E1
Q904 *E1
Q905 *E1
Q906 *E1
Q907 D1
Q908 *C1
Q909 *C1
Q910 *C1
Q911 *C1
R1 B2
R2 *B2
R3 *A2
R4 *A2
R5 *A2
R6 *A2
R7 *A2
R8 *A2
R9 *A2
R10 *A2
R11 A2
R12 A2
R13 A2
R14 *A2
R15 *A2
R16 *A2
R20 *A2
R21 B2
R22 *B2
R23 *A2
R24 *A2
R25 *A2
R26 *A2
R27 *A2
R28 *A2
R29 *A2
R30 *A2
R31 *A2
R32 *A2
R33 *A2
R34 *A2
R35 A2
R36 A2
R37 *A2
R38 *A2
R39 *A3
R40 *A3
R41 B3
R42 A3
R43 A3
R44 *A3
R45 *A3
R46 *A3
R47 *A3
R48 *A3
R49 *A3
R50 *A3
R51 *A3
R52 *A3
R53 *A3
R54 *A3
R55 *A3
R56 *A3
R57 A3
R58 A3
R59 A3
R60 *A3
R61 B3
R62 A3
R63 A3
R64 *A3
R65 *A3
R66 *A3
R67 *A3
R68 *A3
R69 *A3
R70 *A3
R71 *A3
R72 *A3
R73 *A3
R74 *A3
R75 *A3
R76 *A3
R77 A3
R78 A3
R79 A3
R80 *A3
R81 B3
R82 A3
R83 A3
R84 *A3
R85 *A3
R86 *A3
R87 *A3
R88 *A3
R89 *A3
R90 *A3
R91 *A3
R92 *A3
R93 *A3
R94 *A3
R95 *A3
R96 *A3
R97 A3
R98 *A3
R99 A4
R100 A3
R101 B4
R102 A4
R103 A4
R104 *A4
R105 *A4
R106 *A4
R107 *A4
R108 *A4
R109 *A4
R110 *A4
R111 *A4
R112 *A4
R113 *A4
R114 *A4
R115 *A4
R116 *A4
R117 A4
R118 A4
R119 A4
R120 *A4
R121 G3
R122 G3
R123 G3
R124 G4
R125 G3
R126 G3
R127 G3
R128 F4
R131 F4
R132 F3
R133 B2
R134 C2
R135 C2
R136 C2
R137 B2
R138 B2
R143 A4
R149 B2
R150 *A3
R151 *G2
R152 *G1
R153 *G2
R154 *G1
R155 *G1
R156 *G1
R157 *G1
R158 *G1
R159 *G1
R160 *G1
R161 *G1
R162 *G1
R163 *G1
R164 *G1
R165 *G1
R166 *G1
R172 G2
R173 G2
R174 G2
R175 G2
R176 G2
R177 G2
R178 G2
R179 G2
R180 G2
R181 G2
R182 G2
R183 G2
R184 G2
R185 G2
R186 G2
R187 G2
R188 G2
R189 G2
R201 C2
R202 C2
R203 C2
R204 C2
R205 C2
R206 *C2
R207 *C2
R208 C2
R209 C2
R210 C2
R211 C2
R212 C2
R213 D2
R214 D2
R215 D2
R216 D2
R217 D2
R218 D2
R219 D2
R220 D2
R221 D2
R222 *D2
R223 *D2
R224 *D2
R225 *E2
R226 *E2
R227 E2
R228 E2
R229 *E2
R230 *E2
R231 *E2
R232 *E2
R233 *E2
R234 E2
R235 *E2
R236 *E2
R239 *E2
R240 *E2
R241 *E2
R242 *E2
R243 *F2
R244 *F2
R245 *F2
R250 E2
R251 E2
R252 *E2
R253 E2
R254 E2
R255 E2
R256 E2
R257 *E2
R258 D2
R259 D2
R260 *E2
R261 D2
R262 *E2
R263 E2
R264 E2
R265 E2
R301 C4
R302 C4
R303 C4
R304 *C4
R305 *C4
R306 C4
R307 C4
R308 *C4
R309 E4
R310 *D4
R311 *D4
R312 *D4
R313 *C4
R314 *D4
R315 *D4
R316 *E4
R317 *E4
R318 *E4
R319 *E4
R320 *E4
R321 *E4
R322 *E4
R323 E4
R324 *E4
R325 F4
R326 F4
R327 *E4
R328 F4
R329 F4
R330 *E4
R331 *E4
R332 *E4
R333 G3
R334 G3
R335 G3
R336 G3
R337 G3
R338 G3
R339 G3
R340 *D4
R341 G2
R342 G2
R343 G3
R344 E4
R345 D4
R346 D4
R347 D4
R353 G4
R354 G4
R355 G4
R356 G4
R357 G4
R358 G4
R359 G4
R360 G4
R361 *G4
R362 *G4
R363 *G3
R364 *G3
R365 *G3
R366 *G3
R367 F4
R371 F4
R372 F4
R373 F4
R374 *F4
R375 *F4
R376 F4
R377 F4
R378 *F4
R379 A2
R380 A2
R381 *F4
R382 *F4
R383 *F4
R384 *F4
R385 *G4
R386 *G4
R387 *G4
R388 *G4
R389 *G3
R390 *G3
R391 *G3
R392 *G3
R393 *G3
R394 *G3
R395 *G3
R396 *G3
R401 C3
R402 C4
R403 C3
R404 *C3
R405 *C4
R406 C4
R407 C3
R408 *C4
R409 E3
R410 E3
R411 *D4
R412 *D4
R413 *D3
R414 *D4
R415 *C3
R416 *D3
R417 *D4
R418 *E3
R419 *E4
R421 *E3
R422 *E3
R423 *E3
R425 *E3
R426 *E3
R428 E3
R429 *E4
R430 F4
R431 F4
R432 *E4
R433 F4
R434 F4
R435 *E3
R436 *E3
R437 *E3
R438 *G2
R439 *G2
R440 G2
R441 G2
R442 F3
R443 *G2
R444 *G2
R445 F3
R446 F3
R447 F3
R448 F3
R449 F3
R450 F3
R451 F3
R452 F3
R453 F3
R454 F3
R455 F3
R456 *G2
R457 *G2
R458 *D3
R459 D4
R461 D4
R501 C3
R502 C3
R503 C3
R504 *C3
R505 *C3
R506 C3
R507 C3
R508 *C3
R509 E3
R510 *D3
R511 *D3
R512 *D3
R513 *C3
R514 *D3
R515 *D3
R516 *E3
R517 *E3
R518 *E3
R519 *E3
R520 E3
R521 E3
R522 *E3
R523 *E3
R524 *E3
R525 *E3
R526 E3
R527 E3
R528 F3
R529 F3
R530 F3
R531 E3
R532 E3
R533 E3
R536 F2
R537 G2
R538 G2
R539 G2
R540 G2
R541 G2
R542 F2
R543 *D3
R544 *E3
R545 G2
R546 G2
R547 F2
R548 E3
R549 D3
R550 *F3
R551 *E3
R552 *E3
R553 D3
R601 C2
R602 C3
R603 C3
R604 *C2
R605 *C3
R606 C3
R607 C2
R608 *C3
R609 E3
R610 *D3
R611 *D3
R612 *D3
R613 *C3
R614 *D3
R615 *D3
R616 *E3
R617 *E3
R618 *E2
R619 *E2
R622 *E3
R623 *E3
R624 *E3
R625 *E3
R626 *E3
R627 E3
R628 E2
R629 *E3
R630 F3
R631 F3
R632 *E3
R633 F3
R634 F3
R635 *E3
R636 *E2
R637 *E2
R638 F2
R639 F2
R640 G2
R641 F2
R642 F2
R643 F2
R644 F2
R645 F2
R646 F2
R647 F2
R648 F2
R649 F2
R650 F2
R651 *G2
R652 *G2
R653 *G2
R654 *G2
R655 *D3
R656 *E3
R657 E3
R658 D2
R659 D3
R701 *C2
R702 *C2
R703 *C2
R704 *C1
R705 *C2
R706 C1
R707 C1
R708 *C1
R709 *C1
R710 *C1
R711 *C1
R712 *C1
R713 *C2
R714 C2
R715 *C2
R716 *C2
R717 *C2
R718 *C2
R719 *C2
R720 *C2
R721 *C2
R722 *C2
R723 *C2
R724 B2
R725 B2
R726 *B1
R727 *B1
R728 *B1
R729 *B1
R730 B1
R731 B1
R732 B1
R733 B1
R734 B1
R735 B1
R736 B1
R737 *B2
R738 *B1
R739 B1
R740 B1
R741 B1
R742 *B2
R743 *B1
R744 B1
R745 B1
R746 B1
R747 B1
R748 B1
R749 B1
R750 B1
R751 B1
R752 B1
R753 *B1
R754 *B1
R755 B1
R756 B1
R757 B1
R758 B1
R759 B1
R760 B1
R761 B1
R762 B1
R763 B1
R801 G1
R802 G1
R803 *F1
R804 G1
R805 F1
R806 *F1
R807 *F1
R808 *F1
R809 *F1
R810 *F1
R811 *F1
R812 *F1
R813 *F1
R814 *F1
R815 *F1
R816 *F1
R817 *F1
R818 *F1
R819 *F1
R820 F1
R821 F1
R822 *F1
R823 *F1
R824 *E1
R825 *E1
R826 *E2
R827 *E2
R828 *E1
R829 *E1
R830 E1
R831 *F1
R832 *F1
R833 E1
R834 E1
R835 E1
R836 E1
R837 E1
R838 E1
R839 E1
R840 E1
R841 E1
R842 E1
R843 *E1
R844 *E1
R845 E1
R846 E1
R847 E1
R848 E1
R849 E1
R850 *E1
R851 *E1
R852 *E1
R853 *E1
R854 *E1
R855 *E2
R856 *F1
R857 *F1
R858 F1
R859 F1
R860 F1
R861 F1
R862 E1
R863 E1
R864 E1
R865 E1
R901 *E2
R902 *E2
R903 *E1
R904 *E1
R905 *E1
R906 *E1
R907 D1
R908 D1
R909 D1
R910 D1
R911 D1
R912 *D1
R913 D1
R914 D1
R915 D1
R916 D1
R917 D1
R918 D1
R919 D1
R920 D1
R921 C1
R922 C1
R923 C1
R924 C1
R925 *C1
R926 *C1
R927 *C1
R928 *C1
R929 *C1
R930 *C1
R931 *C1
R932 *C1
R933 *C1
R934 *C1
R935 *C1
R936 *C1
R937 *C1
R938 *E2
R939 *E2
R940 *C1
R941 *C1
R942 D1
R943 D1
RB361 G4
RB362 G4
RB363 *G4
RB364 *G4
RB365 G3
RB366 G3
RB367 G3
RV41 A3
RV61 A3
RV81 A3
RV101 A4
RV201 E2
RV301 E4
RV401 E3
RV501 E3
RV601 E3
RV701 C2
RV801 E1
RV901 D1
RV902 C1
S1 A2
S2 G4
S361 F4
S362 G4
S363 F4
THP151 G3
THP152 G2
THP153 G2
THP154 G3
THP155 G3
TP1 B2
TP21 B2
TP41 B3
TP61 B3
TP81 B3
TP101 B4
TP201 D2
TP202 F2
TP301 E4
TP302 E4
TP401 E4
TP402 E3
TP501 E3
TP502 E3
TP601 E3
TP602 E3
TP701 A1
TP801 E1
TP901 C1
X801 F1
*:B SIDE
—————————————————————
TR-133 (1-865-027-11)
—————————————————————
5-28 CCU-TX50/V2
5-28
C10
C109
C11
C110
C121
C122
C123
C124
C125
C126
C127
C128
C129
C134
C160
C162
C164
C165
C167
C169
C172
C174
C178
C180
C182
C201
C204
C207
C208
C209
C21
C210
C211
C212
C213
C214
C215
C216
C22
C230
C246
C247
C248
C249
C250
C251
C252
C254
C255
C258
C259
C301
C304
C311
C32
C324
C325
C327
C328
C33
C331
C332
C363
C365
C401
C404
C411
C425
C426
C428
C429
C432
C433
C434
C436
C437
C438
C439 C442C443
C444
C445
C49
C50
C501
C504
C511
C525
C527
C535
C536
C537
C540
C541
C544
C601
C604
C611
C625
C627
C629
C630
C633
C634C636
C637
C638
C639 C642C643
C644
C645
C647
C69
C70
C701
C702
C712
C713
C714
C715
C716
C719
C720
C721
C722
C723
C724 C725
C729
C730 C731
C732
C733
C734
C737
C738
C739
C801
C802
C806
C809
C812 C813
C814
C824
C826
C829
C830
C832 C833
C836 C837
C838
C841
C844
C845
C846
C847
C89
C9
C90
C904
C905
C906
C907
C908
C910
C911
C912
C913
C914
C915
C916
C918
C919
C920
C921
C922
C923
C924
C925
C926
C934
C935
C936
C937
CF101
CF201
CF202
CF301
CF302
CF401
CF402
CF41
CF501
CF502
CF601
CF602
CF61
CF81
CL151
CL152
CL153
CL154
CL155
CN100
CN701
CN801
CN902
CT701
D153
D2
D361
D362
D363
D501
D701
D702
E1
E100
E101
E102
E300
E400
E701
E801
FL1
FL122
FL21
FL701
FL702
FL801
FL802
FL901
IC121
IC201 IC202
IC203
IC207
IC209
IC301
IC361
IC362
IC363
IC364
IC368
IC369
IC370
IC401
IC405
IC406
IC501
IC503
IC506
IC601
IC603
IC606
IC803
IC804
IC805
IC81
IC82
IC903
L121
L302 L402 L502 L602
L703
L705 L706
L805
L806
L901
L902
LP1
LP2
LV1
LV101
LV201
LV21
LV301 LV302
LV401 LV402
LV41
LV501 LV502
LV601 LV602
LV61
LV81
LV901
LV902
Q101
Q121
Q122
Q123
Q151
Q155
Q201
Q202
Q203
Q208
Q209
Q301
Q302
Q303
Q304
Q305
Q401
Q402
Q403
Q406
Q407
Q41
Q501
Q502
Q503
Q506
Q507
Q601
Q602
Q603
Q606
Q607
Q61
Q705
Q706
Q707
Q708
Q709
Q710
Q711 Q712
Q713
Q714
Q801
Q807
Q808
Q81
Q813
Q907
R1
R100
R101
R102
R103
R11
R117
R118
R119
R12
R121
R122
R123
R124 R125
R126
R127
R128
R13
R131
R132
R133
R134
R135
R136
R137
R138
R143
R149
R172
R173
R174
R175
R176
R177
R178R179 R180R181
R182
R183
R184
R185
R186
R187
R188 R189
R201
R202
R203R204 R205
R208 R209
R21
R210
R211
R212
R213
R214
R215
R216
R217
R218
R219
R220
R221
R227
R228 R234
R250
R251
R253
R254
R255
R256
R258
R259
R261
R263
R264
R265
R301
R302R303
R306 R307
R309
R323
R325
R326 R328
R329
R333
R334
R335
R336
R337
R338
R339
R341
R342
R343
R344
R345
R346 R347
R35
R353
R354
R355
R356
R357
R358
R359
R36
R360
R367
R371
R372
R373
R376
R377
R379 R380
R401
R402R403
R406 R407
R409
R41
R410
R42
R428
R43
R430
R431 R433
R434
R440
R441
R442
R445
R446
R447
R448
R449
R450
R451
R452
R453
R454
R455
R459 R461
R501
R502R503
R506 R507
R509
R520
R521
R526
R527
R528
R529
R530
R531
R532
R533
R536
R537
R538
R539
R540
R541
R542
R545
R546
R547
R548
R549
R553
R57
R58
R59
R601
R602R603
R606 R607
R609
R61
R62
R627
R628
R63
R630
R631 R633
R634
R638
R639
R640
R641
R642
R643
R644
R645
R646
R647
R648
R649
R650
R657
R658
R659
R706R707
R714
R724
R725
R730
R731R732
R733
R734
R735
R736
R739R740
R741
R744R745
R746
R747 R748
R749 R750
R751R752
R755
R756
R757
R758
R759
R760R761
R762
R763
R77
R78
R79
R801
R802
R804
R805
R81
R82
R820R821
R83
R830
R833
R834
R835
R836
R837
R838 R839
R840
R841
R842
R845R846
R847
R848
R849
R858
R859
R860
R861
R862
R863
R864
R865
R907
R908
R909
R910
R911
R913
R914
R915
R916R917
R918
R919
R920
R921
R922
R923R924
R942
R943
R97
R99
RB361RB362
RB365RB366RB367
RV101
RV201
RV301
RV401
RV41
RV501
RV601
RV61
RV701
RV801
RV81
RV901
RV902
S1
S2
S361 S362
S363
THP151
THP152
THP153
THP154
THP155
TP1
TP101
TP201
TP202
TP21
TP301
TP302
TP401
TP402
TP41
TP501
TP502
TP601
TP602
TP61
TP701
TP801
TP81
TP901
X801
TR-133TR-133
TR-133 -A SIDE-
SUFFIX: -11
Components locations list; previous page
5-29
CCU-TX50/V2 5-29
C1
C101
C102
C103
C104
C105
C106
C107
C108
C111
C112
C12
C130
C131
C132
C133
C151
C152
C153
C154
C155
C156
C157
C158
C159 C161
C163
C166
C168
C170
C171
C173
C175 C176
C177
C179
C181
C2
C202 C203
C205
C206
C217
C218
C219
C220
C221
C222
C223
C224C225
C226
C227
C228
C229
C23
C231
C232
C233
C234
C235
C236
C237
C238
C239
C24
C240
C241
C242
C243
C244
C245
C25
C253
C256
C257
C26
C260
C27
C28
C29
C3
C30
C302 C303
C305
C306
C307
C308 C309
C31
C310
C312 C313
C314
C315
C316
C317
C318
C319
C320
C321
C322
C323
C326
C329
C330
C333
C34
C35
C361
C362
C364
C366
C367
C368
C4
C402 C403
C405
C406
C407
C408 C409
C41
C410
C412 C413
C414
C415
C416
C417
C418
C419
C42
C420
C421
C422
C423
C424
C427
C43
C430
C431
C435
C44
C440
C441
C446
C45
C46
C47
C48
C5
C502 C503
C505
C506
C507
C508 C509
C51
C510
C512 C513
C514
C515
C516
C517
C518
C519
C52
C520
C521
C522
C523
C524
C526
C528
C529
C530
C531
C532
C533
C534
C538
C539
C542
C543
C545
C6
C602 C603
C605
C606
C607
C608 C609
C61
C610
C612 C613
C614
C615
C616
C617
C618
C619
C62
C620
C621
C622
C623
C624
C626
C628
C63
C631
C632
C635
C64
C640
C641
C646
C648
C65
C66
C67
C68
C7
C703
C704
C705
C706C707
C708
C709
C71
C710
C711
C717
C718
C72
C726
C727 C728
C735
C736
C8
C803
C804
C805
C807
C808
C81
C810
C811
C815
C816
C817
C818
C819
C82
C820
C821
C822
C823
C825
C827
C828
C83
C831
C834
C835
C839
C84
C840
C842
C843
C85
C86
C87
C88
C901
C902 C903
C909
C91
C92
C927
C928
C929
C93
C930
C931
C932
C933
D1
D101
D102
D103
D121
D122
D151 D152
D21
D22
D23
D301
D302
D401
D41
D42
D43
D502
D61
D62
D63
D801
D802
D81
D82
D83
E2
FB701
FB702
FB801
FB802
FB803
FB804
IC151
IC152
IC153
IC154
IC204
IC205
IC206
IC208
IC302
IC303
IC365
IC367
IC402
IC403
IC404
IC502
IC504
IC505
IC507
IC602
IC604
IC605
IC701
IC801
IC802
IC806
IC807
IC901
IC902
IC904
IC905
L1
L101
L122
L123
L151
L152
L201
L202
L203
L204
L21
L301
L303
L304
L305
L361
L401
L403
L404
L405
L406
L41
L501
L503
L504
L505
L601
L603
L604
L605
L606
L61
L701
L702
L704
L801
L802
L803 L804
L81
L82
L905 L906
Q1
Q102
Q152
Q153
Q154
Q2
Q204
Q205
Q21
Q22
Q404
Q405
Q42
Q504
Q508
Q604
Q605
Q62
Q701
Q702
Q703 Q704
Q802
Q803
Q804Q805
Q806
Q809
Q810
Q811
Q812
Q82
Q901
Q902
Q903
Q904 Q905
Q906
Q908
Q909 Q910
Q911
R10
R104R105
R106R107
R108
R109
R110
R111
R112
R113
R114
R115
R116
R120
R14
R15
R150
R151
R152
R153
R154
R155
R156
R157
R158
R159
R16
R160
R161
R162
R163 R164
R165
R166
R2
R20
R206
R207 R22
R222R223
R224
R225
R226
R229
R23
R230
R231
R232
R233
R235
R236
R239
R24
R240
R241
R242
R243R244
R245
R25
R252 R257
R26
R260
R262
R27
R28
R29
R3
R30
R304
R305
R308
R31
R310
R311 R312 R313R314
R315
R316
R317
R318
R319
R32
R320
R321
R322
R324
R327
R33
R330R331
R332
R34
R340
R361
R362
R363
R364
R365
R366
R37
R374
R375
R378
R38
R381
R382
R383
R384
R385
R386
R387
R388
R389
R39
R390
R391
R392 R393
R394 R395R396
R4
R40
R404
R405
R408R411R412
R413 R414 R415R416
R417
R418
R419
R421
R422
R423
R425
R426
R429
R432
R435R436
R437
R438
R439
R44
R443
R444
R45
R456
R457
R458
R46
R47
R48
R49
R5
R50
R504
R505
R508
R51
R510
R511 R512 R513R514
R515
R516
R517
R518
R519
R52
R522
R523
R524
R525
R53
R54
R543
R544
R55
R550
R551
R552
R56
R6
R60
R604
R605
R608
R610
R611 R612 R613R614
R615
R616
R617
R618
R619
R622
R623
R624
R625
R626
R629
R632
R635R636
R637
R64
R65
R651
R652
R653
R654
R655
R656
R66 R67
R68
R69
R7
R70
R701
R702R703
R704
R705
R708
R709
R71
R710
R711
R712
R713
R715
R716
R717
R718
R719
R72
R720
R721
R722R723
R726R727
R728R729
R73
R737
R738
R74
R742
R743
R75
R753R754
R76
R8
R80
R803R806
R807
R808
R809
R810R811
R812
R813
R814
R815
R816
R817
R818
R819
R822
R823
R824
R825
R826
R827
R828
R829
R831
R832
R84
R843
R844
R85
R850
R851
R852
R853
R854
R855
R856
R857
R86 R87
R88
R89
R9R90
R901
R902
R903
R904
R905
R906
R91
R912
R92
R925
R926R927
R928
R929
R93
R930
R931
R932
R933
R934
R935
R936
R937
R938
R939
R94
R940
R941
R95
R96
R98
RB363
RB364
TR-133TR-133
TR-133 -B SIDE-
SUFFIX: -11
5-30 CCU-TX50/V2
5-30
VDA-62VDA-62
VDA-62 -B SIDE-
SUFFIX: -11
VDA-62 -A SIDE-
SUFFIX: -11
C106
C107
C11
C14
C15
C20
C202
C203
C208
C209
C210
C211
C212
C22
C23
C251
C254
C256
C258
C261
C262
C263
C264
C304
C305
C306
C307
C308 C351
C352
C353
C354
C356
C358
C361
C362
C404
C405
C406
C407
C408
C42
C43
C451
C454
C455
C457
C459
C462
C463
C52
C53
C9
C94
C95
CN101
CN102
CN103
CN4
CN5
E1
E2
FL1
FL2
FL201
IC205
IC251
IC252
IC304
IC352
IC404
IC451
IC452
L1
L101
L11
L12
L41 L42
L51 L52
LP1
Q11
Q12
Q206
Q253
Q254
Q256
Q257
Q258
Q305
Q353
Q354
Q356
Q357
Q358
Q405
Q453
Q454
Q456
Q457
Q458
R101
R102R103
R104
R105
R106
R107
R108R109
R110R111
R114R115
R215
R217
R218
R219
R225
R226
R227
R228
R250
R251R252
R253
R257R258
R259 R260
R261R262
R263
R268
R270
R271
R272
R273
R275
R276
R277
R278
R279
R280
R281
R282
R283
R307
R309
R310
R311
R350
R351R352
R353
R354
R355
R356
R357R358
R359 R360
R361
R366
R368
R369
R370
R371
R373
R374
R375
R376
R377
R40
R407
R409
R410
R411
R450
R451R452
R453
R457R458
R459 R460
R461R462
R463
R468
R470
R471
R472
R473
R475
R476
R477
R478
R479
R48
R49
R50
R58
R69
R70
R72
R85R86
R88
RY1
C101C102
C103
C104C105
C12
C13
C16
C17
C18 C19
C2
C201
C204
C205
C206
C207
C21
C252
C253
C255
C257
C259
C260
C301
C302
C355
C357
C359
C36
C360
C37
C401
C402
C41
C44
C45
C452
C453
C456
C458
C460
C461
C51
C54
C55 C56
C71
C74
C75
C91
C92
C93
C96
CL11
CL12
CN901
D11
D150
D201
D39
FB251
FB252
FB351
FB451
FB452
IC1
IC2
IC201
IC203IC204
IC3
IC302IC303
IC4
IC402IC403
IC5
IC6
IC7
IC8
L201
L202
L203L204
L301L302
L401L402
L53
L91
L92
PH1
Q202
Q207
Q208 Q209
Q255
Q259
Q260
Q301
Q307
Q308 Q309
Q355
Q360
Q401
Q406
Q407 Q408
Q455
Q459
Q460
Q51Q52Q53
Q71
R11
R113
R12
R13
R14
R15
R16
R17 R18
R201
R202
R203
R204
R205
R206
R207R208
R209
R210
R211
R212
R213
R214
R216
R220
R221
R222
R223
R224
R254
R255
R256
R264
R265
R266
R267
R269
R274
R301
R302
R303
R304
R305
R306
R308
R31
R312
R313
R314
R315
R316
R32
R33
R34
R35
R362
R363
R364
R365
R367
R372
R38
R401
R402
R403
R404
R405
R406
R408
R41
R412
R413
R414
R415
R416
R42 R43
R44
R45
R454
R455
R456
R46
R464
R465
R466
R467
R469
R47
R474
R51
R52 R53
R54
R55R56 R57
R59
R60
R61
R62
R63
R64
R65
R66
R67
R68
R71
R73
R74
R75
R76 R77
R78
R79
R80
R81
R82
R83
R84
R87
R91
R92
R93
R94
R95
R96
C2 *A3
C9 A3
C11 B3
C12 *A3
C13 *A3
C14 A3
C15 A3
C16 *A2
C17 *A2
C18 *A2
C19 *A2
C20 A2
C21 *A2
C22 A2
C23 A2
C36 *A2
C37 *A2
C41 *B1
C42 A1
C43 A1
C44 *B1
C45 *B1
C51 *B1
C52 B1
C53 B1
C54 *B1
C55 *B1
C56 *B2
C71 *B2
C74 *B2
C75 *B2
C91 *B2
C92 *B2
C93 *B2
C94 B2
C95 B2
C96 *B2
C101 *E3
C102 *E3
C103 *E3
C104 *E3
C105 *E3
C106 D3
C107 E3
C201 *E3
C202 E3
C203 E3
C204 *E2
C205 *E3
C206 *D2
C207 *D2
C208 D1
C209 D2
C210 D1
C211 D2
C212 D1
C251 D2
C252 *D2
C253 *D2
C254 D2
C255 *D2
C256 D2
C257 *D2
C258 D1
C259 *D2
C260 *D2
C261 D1
C262 D1
C263 D2
C264 D2
C301 *E2
C302 *E2
C304 E2
C305 E1
C306 E2
C307 E1
C308 E1
C351 E2
C352 E2
C353 E2
C354 E2
C355 *E2
C356 E2
C357 *E2
C358 E1
C359 *E2
C360 *E2
C361 E1
C362 E1
C401 *C2
C402 *C2
C404 C2
C405 C1
C406 C2
C407 C1
C408 C1
C451 C2
C452 *C2
C453 *C2
C454 C2
C455 C2
C456 *C2
C457 C2
C458 *C2
C459 C1
C460 *C2
C461 *C2
C462 C1
C463 C1
CL11 *A2
CL12 *A2
CN4 B1
CN5 D1
CN101 B2
CN102 B2
CN103 E2
CN901 *B3
D11 *A2
D39 *A2
D150 *B1
D201 *D2
E1 B3
E2 E1
FB251 *D2
FB252 *D2
FB351 *E2
FB451 *C2
FB452 *C2
FL1 A2
FL2 B2
FL201 E3
IC1 *B1
IC2 *B1
IC3 *B2
IC4 *B2
IC5 *A2
IC6 *A2
IC7 *E3
IC8 *E3
IC201 *E2
IC203 *D2
IC204 *D2
IC205 D1
IC251 D2
IC252 D2
IC302 *E2
IC303 *E2
IC304 E1
IC352 E2
IC402 *C2
IC403 *C2
IC404 C1
IC451 C2
IC452 C2
L1 A3
L11 A3
L12 A3
L41 A1
L42 A1
L51 B1
L52 B1
L53 *B2
L91 *B2
L92 *B2
L101 E3
L201 *E2
L202 *E3
L203 *D2
L204 *D2
L301 *E2
L302 *E2
L401 *C2
L402 *C2
LP1 E3
PH1 *D3
Q11 A2
Q12 A2
Q51 *B2
Q52 *B2
Q53 *B2
Q71 *D3
Q202 *D2
Q206 D1
Q207 *D2
Q208 *D1
Q209 *D1
Q253 D2
Q254 D2
Q255 *D2
Q256 D1
Q257 D2
Q258 D1
Q259 *D2
Q260 *D2
Q301 *E2
Q305 E1
Q307 *E2
Q308 *E1
Q309 *E1
Q353 E2
Q354 E2
Q355 *E2
Q356 E1
Q357 E2
Q358 E1
Q360 *E2
Q401 *C2
Q405 C1
Q406 *C2
Q407 *C1
Q408 *C1
Q453 C2
Q454 C2
Q455 *C2
Q456 C1
Q457 C2
Q458 C1
Q459 *C2
Q460 *C2
R11 *A2
R12 *A2
R13 *A2
R14 *A2
R15 *A2
R16 *A2
R17 *A2
R18 *A2
R31 *A2
R32 *A2
R33 *A2
R34 *A2
R35 *A2
R38 *A2
R40 B3
R41 *B1
R42 *B1
R43 *B1
R44 *B1
R45 *B1
R46 *B1
R47 *B1
R48 B3
R49 B3
R50 B3
R51 *B1
R52 *B1
—————————————————————
VDA-62 (1-865-030-11)
—————————————————————
R53 *B1
R54 *B1
R55 *B1
R56 *B1
R57 *B1
R58 B3
R59 *B1
R60 *B1
R61 *B2
R62 *B2
R63 *B2
R64 *B2
R65 *B2
R66 *B2
R67 *B2
R68 *B1
R69 B3
R70 B3
R71 *B2
R72 B3
R73 *B2
R74 *B2
R75 *B2
R76 *B2
R77 *B2
R78 *B2
R79 *E2
R80 *D3
R81 *D3
R82 *E3
R83 *D3
R84 *D3
R85 E3
R86 E3
R87 *E3
R88 E3
R91 *B2
R92 *B2
R93 *B2
R94 *B2
R95 *B2
R96 *B2
R101 E3
R102 E3
R103 E3
R104 E3
R105 E3
R106 E3
R107 E3
R108 E3
R109 E3
R110 E3
R111 E3
R113 *D3
R114 E3
R115 E3
R201 *E3
R202 *E2
R203 *E3
R204 *E3
R205 *E2
R206 *E3
R207 *E3
R208 *E3
R209 *D2
R210 *D2
R211 *D2
R212 *D1
R213 *D1
R214 *D1
R215 D1
R216 *D1
R217 D1
R218 D1
R219 D1
R220 *D2
R221 *D1
R222 *D1
R223 *D1
R224 *D1
R225 B3
R226 B3
R227 B3
R228 B3
R250 D1
R251 D2
R252 D2
R253 D2
R254 *D2
R255 *D2
R256 *D2
R257 D2
R258 D2
R259 D2
R260 D2
R261 D2
R262 D2
R263 D2
R264 *D2
R265 *D2
R266 *D2
R267 *D2
R268 D2
R269 *D2
R270 D2
R271 D2
R272 D1
R273 D1
R274 *D2
R275 D1
R276 D1
R277 D1
R278 D1
R279 D1
R280 D2
R281 D2
R282 D2
R283 D2
R301 *E1
R302 *E2
R303 *E2
R304 *E2
R305 *E1
R306 *E1
R307 E1
R308 *E1
R309 E1
R310 E1
R311 E1
R312 *E2
R313 *E1
R314 *E1
R315 *E1
R316 *E1
R350 E1
R351 D2
R352 D2
R353 E2
R354 E2
R355 E2
R356 E2
R357 E2
R358 E2
R359 E2
R360 E2
R361 E2
R362 *E2
R363 *E2
R364 *E2
R365 *E2
R366 E2
R367 *E2
R368 E2
R369 E2
R370 E1
R371 E1
R372 *E2
R373 E1
R374 E1
R375 E1
R376 E1
R377 E1
R401 *C1
R402 *C2
R403 *C2
R404 *C2
R405 *C1
R406 *C1
R407 C1
R408 *C1
R409 C1
R410 C1
R411 C1
R412 *C2
R413 *C1
R414 *C1
R415 *C1
R416 *C1
R450 C1
R451 C2
R452 C2
R453 C2
R454 *C2
R455 *C2
R456 *C2
R457 C2
R458 C2
R459 C2
R460 C2
R461 C2
R462 C2
R463 C2
R464 *C2
R465 *C2
R466 *C2
R467 *C2
R468 C2
R469 *C2
R470 C2
R471 C2
R472 C1
R473 C1
R474 *C2
R475 C1
R476 C1
R477 C1
R478 C1
R479 C1
RY1 B1
*:B SIDE
CCU-TX50/V2
The material contained in this manual consists of
information that is the property of Sony Corporation.
Sony Corporation expressly prohibits the duplication of
any portion of this manual or the use thereof for any
purpose other than the operation or maintenance of the
equipment described in this manual without the express
written permission of Sony Corporation.
Le matériel contenu dans ce manuel consiste en
informations qui sont la propriété de Sony Corporation.
Sony Corporation interdit formellement la copie de
quelque partie que ce soit de ce manuel ou son emploi
pour tout autre but que des opérations ou entretiens de
l’équipement à moins d’une permission écrite de Sony
Corporation.
Das in dieser Anleitung enthaltene Material besteht aus
Informationen, die Eigentum der Sony Corporation sind.
Die Sony Corporation untersagt ausdrücklich die
Vervielfältigung jeglicher Teile dieser Anleitung oder den
Gebrauch derselben für irgendeinen anderen Zweck als
die Bedienung oder Wartung der in dieser Anleitung
beschriebenen Ausrüstung ohne ausdrückliche
schriftliche Erlaubnis der Sony Corporation.
Printed in Japan
Sony Corporation 2005. 1 08
B&P Company ©2005
CCU-TX50 (J, UC)
CCU-TX50P (CE) J, E
9-968-092-01
