Audio & Video Entry
2016
The installer’s choice
www.cdvi.co.uk
The 2EASY audio from CDVI oer convenient and high quality audio entry. Connecon throughout is 2-wire, non polarised, so installaon
and maintenance is simple and straighorward.
Robust door staons with stylish handsets - it all adds up to a sophiscated and exible audio entry system.
Narrow style, rugged door staon
Rugged cast construcon
2-wire non polarised connecon
2 lock outputs
Expandable to 4 entrances
Door staon rainshield included
Compable with 2Easy video system
(135 x 47 x 30mm)
CDV17-H2
Simple, stylish handset
Inner call intercom (broadcast)
2 lock release buons
Up to 4 handsets
Compable with 2Easy video system
(187 x 97 x 33mm)
CDV17-HFA
Simple hands-free audio phone
Inner call intercom
Lock control
4 ringtones
Compable with 2Easy video system
Up to 4 handsets
(110 x 85 x 20mm)
1-way audio entry
AUDIO ENTRY
Reference Descripon
CDV17-DSH2 1-way audio kit complete
CDV17-DS Addional door staon
CDV17-H2 Addional handset, 2 buons
CDV17-HFA Handsfree audio phone, 3 buons
CDV-PC6 Power-bus combinaon unit
CDV-DBC4A Bus splier for addional handsets or door staon
UKC8471 1 pair, 16AWG cable for 2Easy, 100M reel
2EASY Series
CDV17-DS
2www.cdvi.co.uk
01628 531300
3
www.cdvi.co.uk
01628 531300
VIDEO ENTRY
CDV96KP
CDV92
1 & 2-way video entry
2EASY Series
Choice of door staon:
Standard 1-way (179 x 90 x 23mm)
Standard 2-way (179 x 90 x 23mm)
Camera with integral keypad (179 x 90 x 28mm)
Robust
2 relays CDV91 & 92, 1 relay CDV96KP* & 96ID*
Expandable to 4 entrance panels
Compable with 2EASY audio handset
*2ndrelaywithCDV-RLC(oponal)
CDV91
Opcal glass lens for beer performance
Sensor LED for night view
Replaceable large nameplate with white background
Metal call buon with blue backlight
Tamper resistant xing screws
304 grade stainless steel
195 x 113 x 2mm (CDV91-SF & CDV92-SF)
220 x 120 x 2mm (CDV96KP-SF)
CDV91-SF CDV92-SF
Reference Descripon
CDV91 1-buon surface stainless steel door panel
CDV92 2-buon surface stainless steel door panel
CDV91-SF 1-buon ush stainless steel door panel
CDV92-SF 2-buon ush stainless steel door panel
CDV96KP 1-buon surface stainless steel door panel with integral keypad
CDV96KP-SF 1-buon ush stainless steel door panel with integral keypad
The 2EASY video entry systems from CDVI oer convenient and high quality video entry. Connecon throughout is 2-wire, non polarised,
so installaon and maintenance is simple and straighorward.
Robust door staons with the latest stylish LCD monitors - it all adds up to a sophiscated and exible video entry system.
CDV96KP-SF
4www.cdvi.co.uk
01628 531300
1-way kits are supplied in aracve
packaging for ease of use and
idencaon
VIDEO ENTRY
Reference Descripon
CDV47-B 7” TFT colour LCD monitor, black
CDV47-W 7” TFT colour LCD monitor, white
CDV24 4” TFT colour monitor with handset, white
CDV-DBC4A Bus distributor (required for addional monitors or door staons, max 4)
CDV-RLC Relay module (for CDV91-KP & CDV91-ID)
CDV-PC6 Power-bus combinaon unit
UKC8471 1 pair, 16AWG cable for 2Easy, 100M reel
CDV-B Monitor stand, desk mount, black
CDV-W Monitor stand, desk mount, white
CDV47-B
CDV47-W
Slim 7” TFT-digital monitor (225 x 131 x 18mm)
Touch screen technology
2-wire non polarised connecon
Call diverng via GSM module (oponal)
Built-in picture/video memory by SD card module
SOS SMS to mobile phone via GSM (oponal)
Call record management
Compable with all CDVI door staons
1 & 2-way video entry
2EASY SERIES
4″ digital monitor with handset (190 x 186 x 28mm)
Streamlined design
Touch sensor buon operaon
Digital, high resoluon TFT screen
Mulple languages
Compable with all CDVI outdoor staons
CDV24
CDV4791-B 1-way entry kit, black (1 x CDV91, 1 x CDV47-B, 1 x PC6)
CDV4791-W 1-way entry kit, white (1 x CDV91, 1 x CDV47-W, 1 x PC6)
CDV4796KP-B 1-way entry kit with keypad, black (1 x CDV96KP, 1 x CDV47-B, 1 x PC6)
CDV4796KP-W 1-way entry kit with keypad, white (1 x CDV96KP, 1 x CDV47-W, 1 x PC6)
CDV-W
CDV-B
1-WAY KITS for convenience
For a full list of accessories for 2EASY, please see pages 84 & 85
5
www.cdvi.co.uk
01628 531300
Up to 128-way
Integral prox reader & keypad
LCD screen 3.5”
Touch sensive icons
Resident name list on DDP (requires CDV-CONFIG)
Congurable welcome graphic
Programming wizard
Fully featured opons
Advanced debug tools
2-wire non polarised
Up to 4 entrances
Flush or surface
Oponal soware (CDV-CONFIG) for simple programming directly to
the digital door staon via pc/laptop etc
CDV-DDP
VIDEO ENTRY
Up to 128-way video entry
2EASY Series
CDV-CONFIG
CDV-MW4ID
Reference Descripon
CDV-DDP-F Digital door staon, up to 128 apartments/oces, ush
CDV-DDPRH Surface housing for digital CDV-DDP door staon
CDV-CONFIG Soware and cables for CDV-DDP/MW panels
CDV-MW4ID Tradional 4 buon door entrance staon, ush
CDV-MW8ID Tradional 8 buon door entrance staon, ush
CDV-MWRH Surface housing for 4-buon and 8-buon door staons
CDV-MW8ID
6www.cdvi.co.uk
01628 531300
VIDEO ENTRY
2EASY Series
Reference Descripon
CDV47-B 7” TFT colour LCD monitor, black
CDV47-W 7” TFT colour LCD monitor, white
CDV24 4” TFT colour monitor with handset, white
CDV-DBC4A Bus distributor (required for addional monitors or door staons, max 4)
CDV-PC6 Power-bus combinaon unit
CDV-BDU Bus amplier to extend system capacity & cable length
CDV-SCU CCTV interface, up to 4 cameras
CDV-RLC Relay module for 2nd lock
CDV-BUS Remote programmer for the CDV-CONFIG
CDV-ACC Wiegand signal converter for CDV-DDP
CDV-GSM GSM module for call divert (SIM not included)
CDV-B Monitor stand, desk mount, black
CDV-W Monitor stand, desk mount, white
UKC8471 1 pair, 16AWG cable for 2Easy, 100M reel
CDV-W
CDV-PC6
CDV-BDU
CDV-SCU
CDV-RLC
CDV-BUS
CDV-ACC
CDV47-B
CDV47-W
Slim 7” TFT-digital monitor (225 x 131 x 18mm)
Touch screen technology
2-wire non polarised connecon
Call diverng via GSM module (oponal)
Built-in picture/video memory by SD card module
SOS SMS to mobile phone via GSM (oponal)
Call record management
Compable with all CDVI door staons
4″ digital monitor with handset (190 x 186 x 28mm)
Streamlined design
Touch sensor buon operaon
Digital, high resoluon TFT screen
Mulple languages
Compable with all CDVI outdoor staons
CDV24
7
www.cdvi.co.uk
01628 531300
SYSTEM LAYOUT - 1 & 2-WAY VIDEO ENTRY & AUDIO ENTRY
2
2
2
2
2 2 2
Acombinaonofdoorentrance
staonsandaudiohandsetscan
beinstalledtoamaximummix
of4entrancesand4handsets.
Basic kit Expanded system - includes addional handsets and door staons
2 2
CDV-PC6 CDV-DBC4
Simple 2-wire system throughout
Non polarised, uncomplicated
Reduces installaon me and potenal for errors
2
2
2 2 2
Acombinaonofdoorentrance
staonsandhandsets/monitors
canbeinstalledtoamaximum
of4entrancesand4handsets/
monitors.
Expanded system - includes addional monitors and door staons
2 2
CDV-DBC4
Simple 2-wire system throughout
Non polarised, uncomplicated
Reduces installaon me and potenal for errors
CDV-PC6
CDV-PC6
8www.cdvi.co.uk
01628 531300
SYSTEM LAYOUT - MULTIWAY VIDEO ENTRY
UKC8471
˄
2
2
2
2
2
2
˄
2
2
2
2
2
2
2 2
Basic system Expanded system -includesaddional
monitors,doorstaonsandCCTV
Addional
monitors
Addional
monitors
OR
OR
OR
OR
Important note **
For opmum clarity of speech and video, it is strongly
recommended that this system is installed using a
twisted-pair cable (e.g. type UKC8741).
In most cases, cable length restricons should not
present a problem, however where longer lengths are
required please refer to CDVI technical for advice.
Connect all items by following the wiring diagrams
supplied with the products.
9
www.cdvi.co.uk
01628 531300
WIRING DETAIL - 1 & 2-WAY VIDEO ENTRY & AUDIO ENTRY
or
or or or or
Video monitors and audio handsets (devices)
can be mixed within an installaon, depending
on requirements.
*CDVI’s UKC8471 is a direct equivalent of the Belden 8471
10 www.cdvi.co.uk
01628 531300

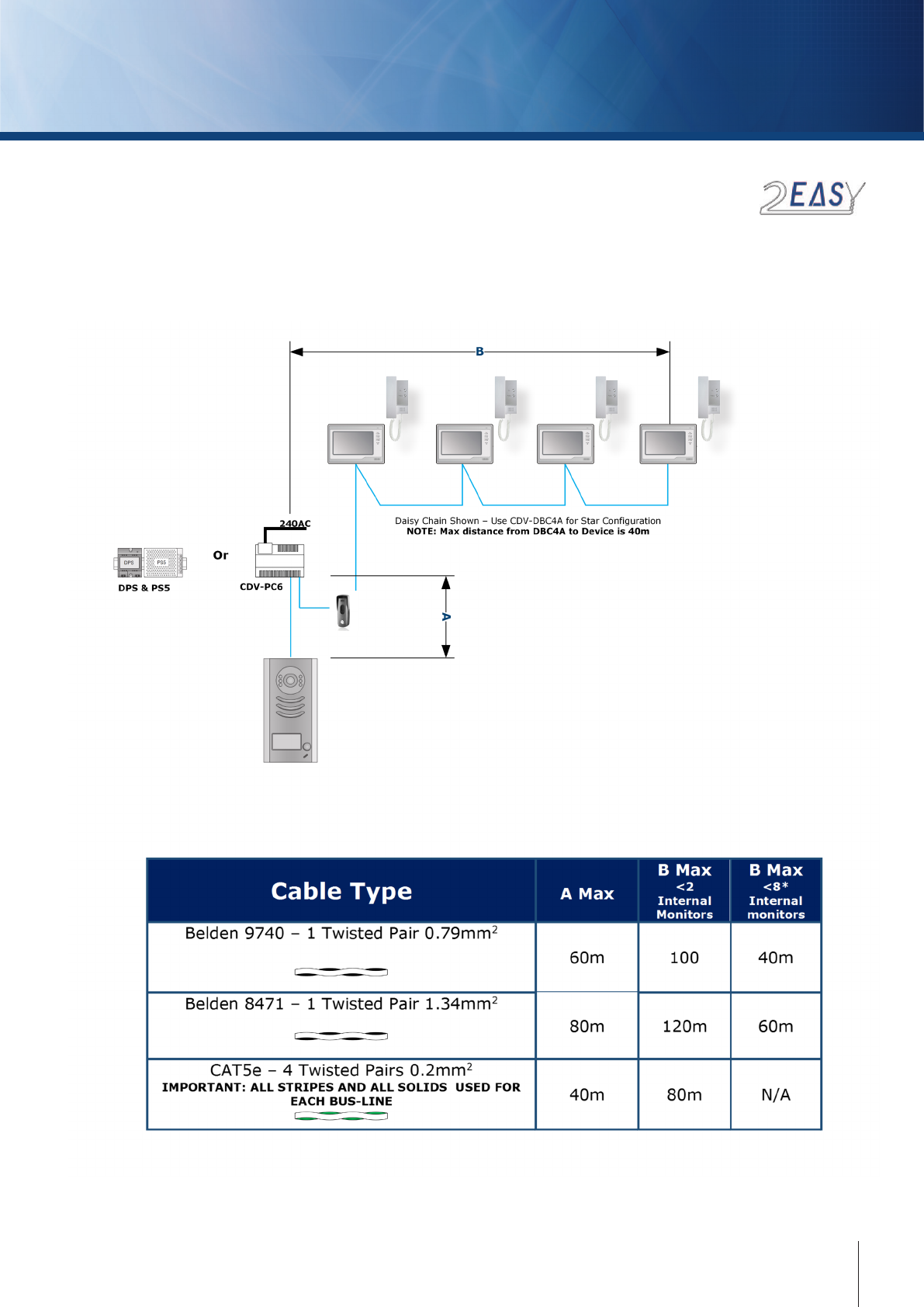

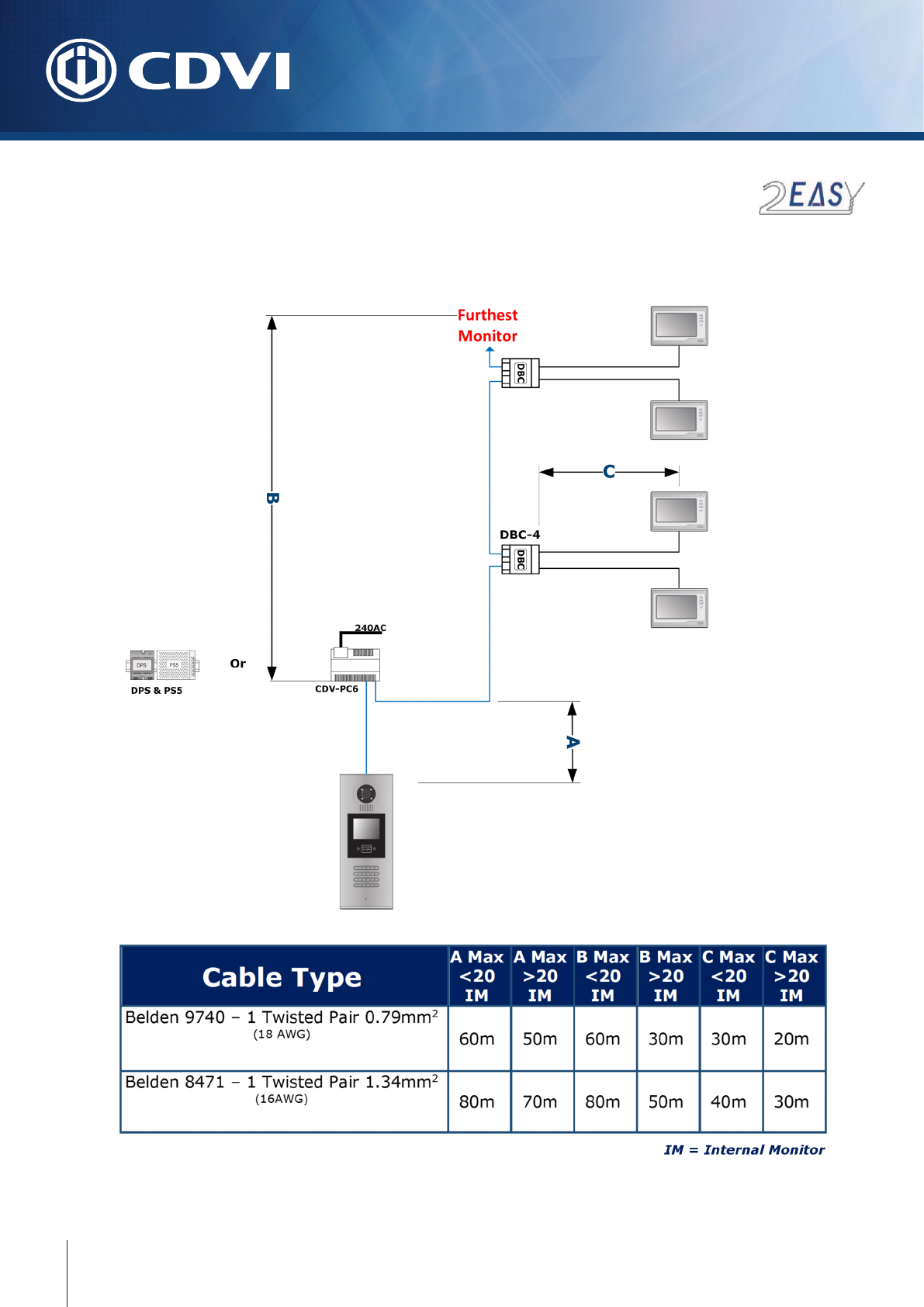

WIRING DETAIL - MULTIWAY VIDEO ENTRY
*CDVI’s UKC8471 is a direct equivalent of the Belden 8471
Video monitors and audio handsets (devices)
can be mixed within an installaon, depending
on requirements.
11
www.cdvi.co.uk
01628 531300
PERSONAL NOTES
CDVI LTD
[UNITED KINGDOM - IRELAND]
Unit B1, Knaves Beech Business Centre
Davies Way, Loudwater
High Wycombe
Bucks
HP10 9QR
Phone: 01628 531300
Fax: 01628 531003
Email: support@cdvi.co.uk
The installer’s choice
www.cdvi.co.uk
*Any specicaons within this document (photos, drawings, features and dimensions) may be changed without prior noce.
