CFS 717S
User Manual: CFS-717S
Open the PDF directly: View PDF
.
Page Count: 22
— 2 —
TABLE OF CONTENTS
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH
MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.

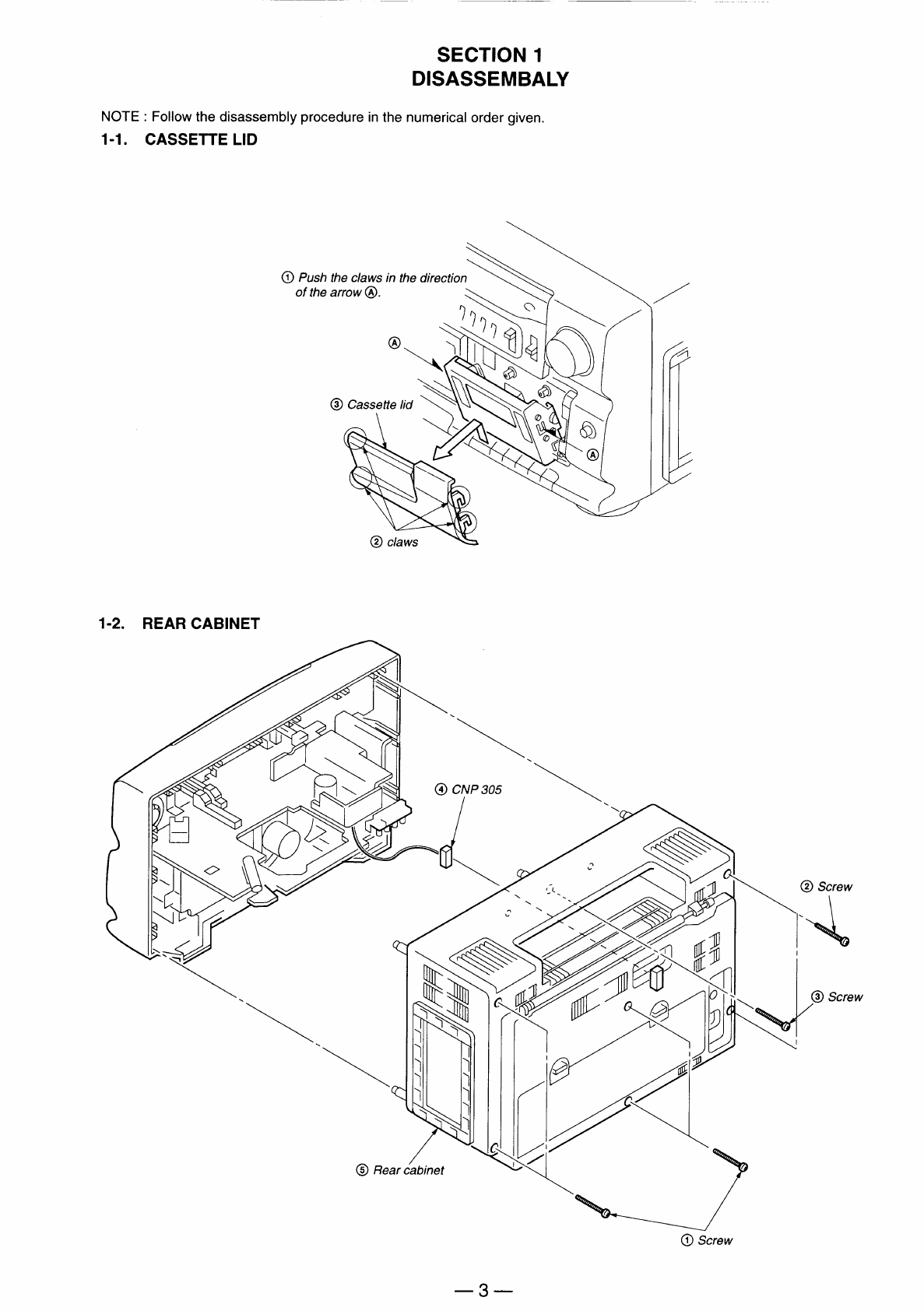

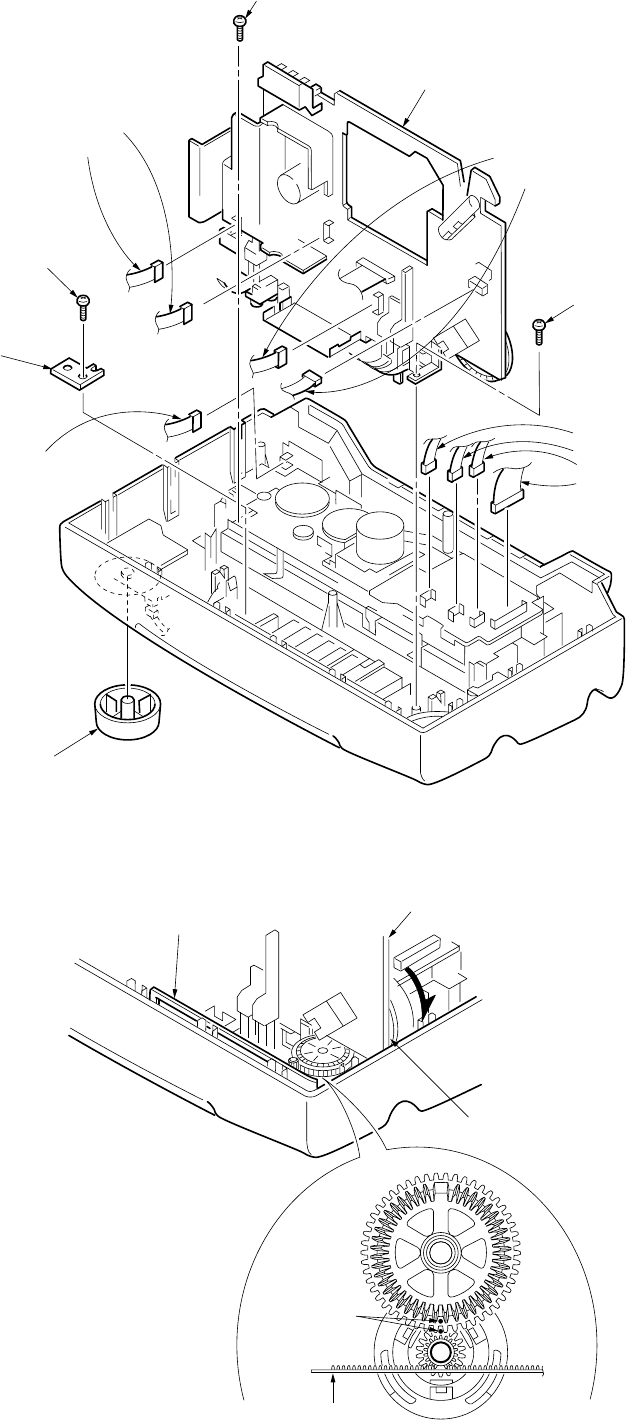

1. DISASSEMBLY
1-1. CASSETTE LID································································· 3
1-2. REAR CABINET ······························································· 3
1-3. MAIN BOARD ·································································· 4
1-4. POINTER SETTING ························································· 4
2. MECHANICAL ADJUSTMENTS............................ 5
3. ELECTRICAL ADJUSTMENTS
3-1. TAPE RECORDER SECTION ·········································· 5
3-2. RADIO SECTION ····························································· 6
4. DIAGRAMS
4-1. CIRCUIT BOARDS LOCAION ········································ 8
4-2. PRINTED WIRING BOARD ············································ 9

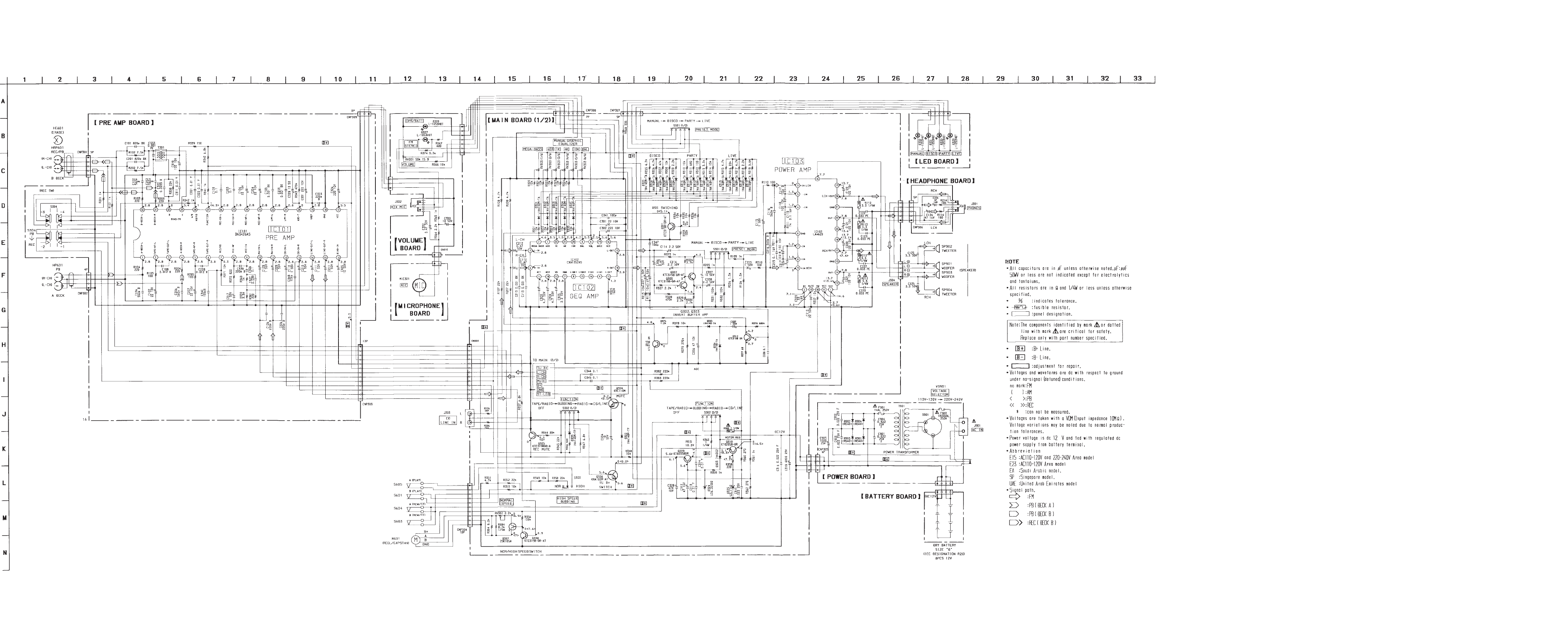

4-3. SCHEMATIC DIAGRAM — MAIN —·························· 13
4-4. SCHEMATIC DIAGRAM —TUNER — ························ 17
5. EXPLODED VIEWS
5-1. REAR CABINET SECTION ··········································· 20
5-2. FRONT CABINET SECTION ········································· 21
5-3. SPEAKER SECTION ······················································ 23

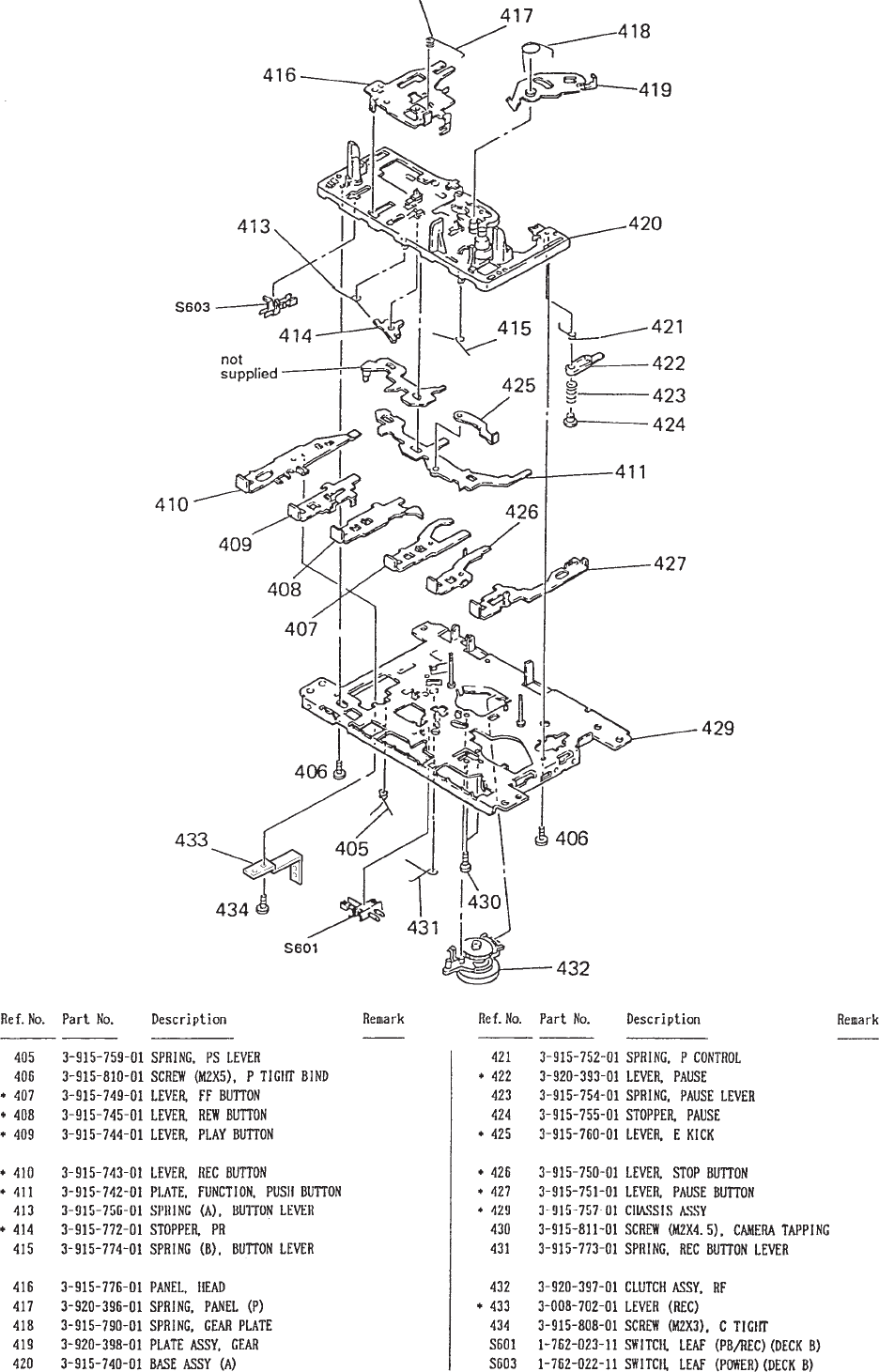

5-4. MECHANISM DECK SECTION-1 ································ 24

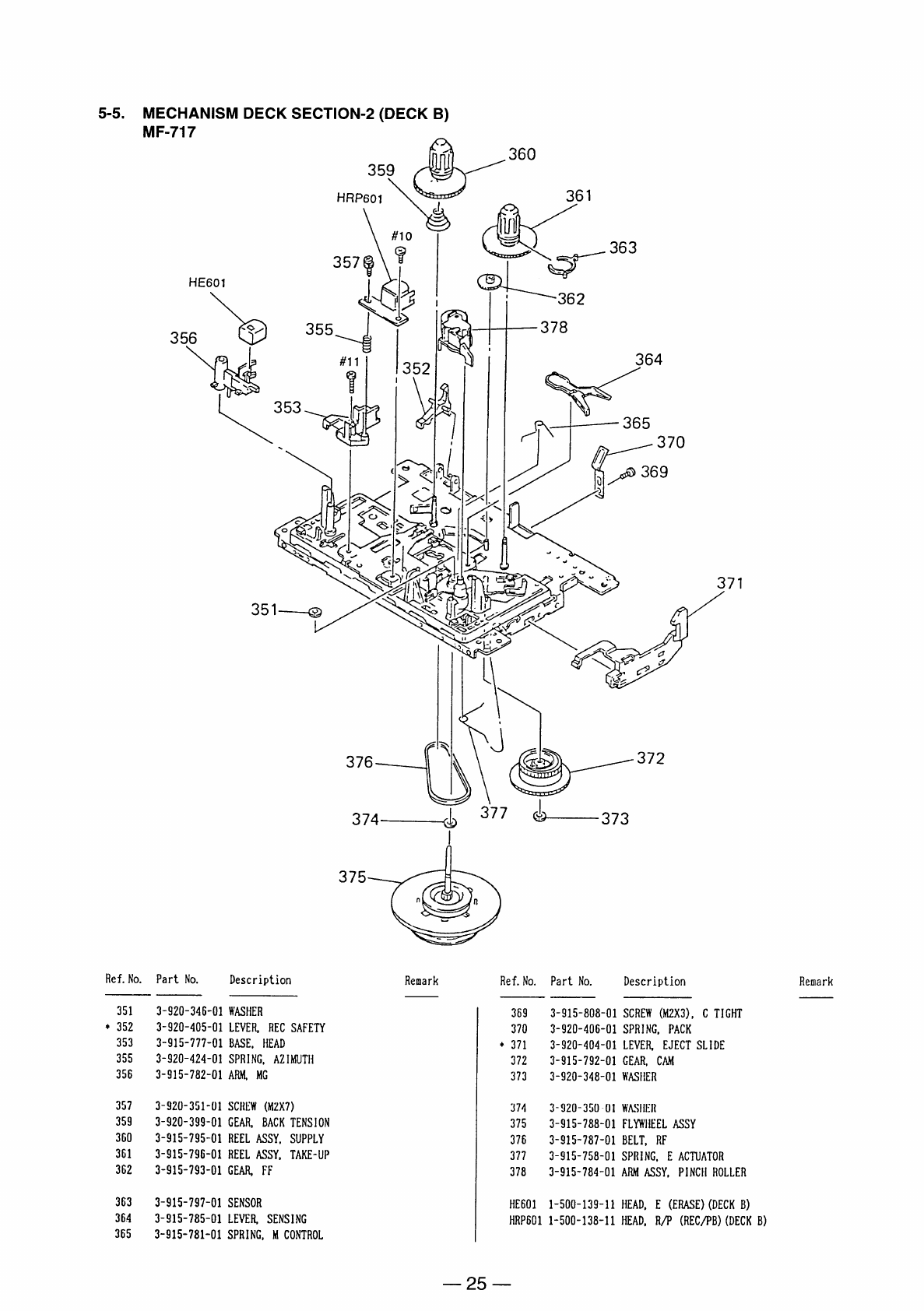

5-5. MECHANISM DECK SECTION-2 (DECK B) ·············· 25
5-6. MECHANISM DECK SECTION-3 (DECK B) ·············· 26

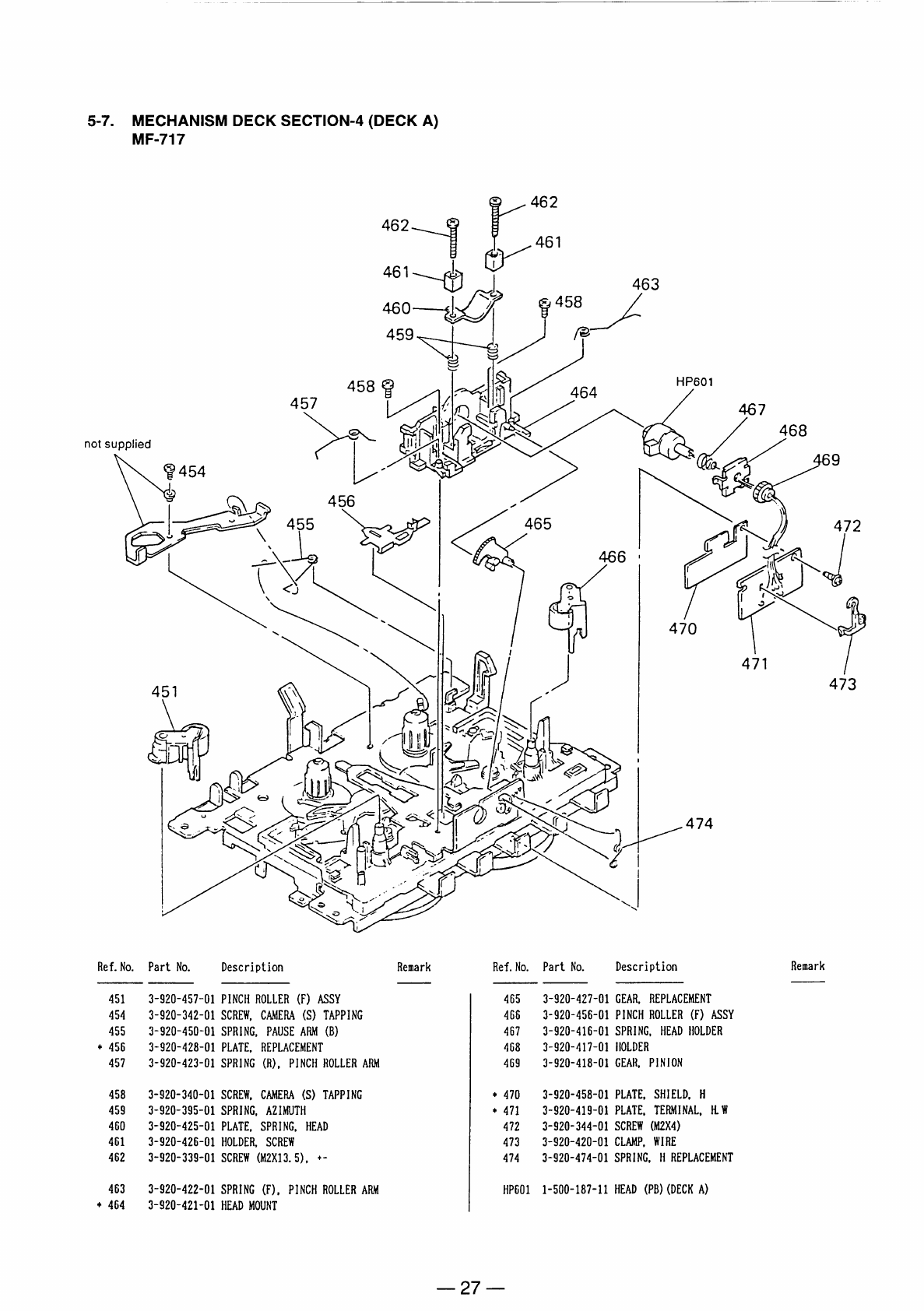

5-7. MECHANISM DECK SECTION-4 (DECK A) ·············· 27

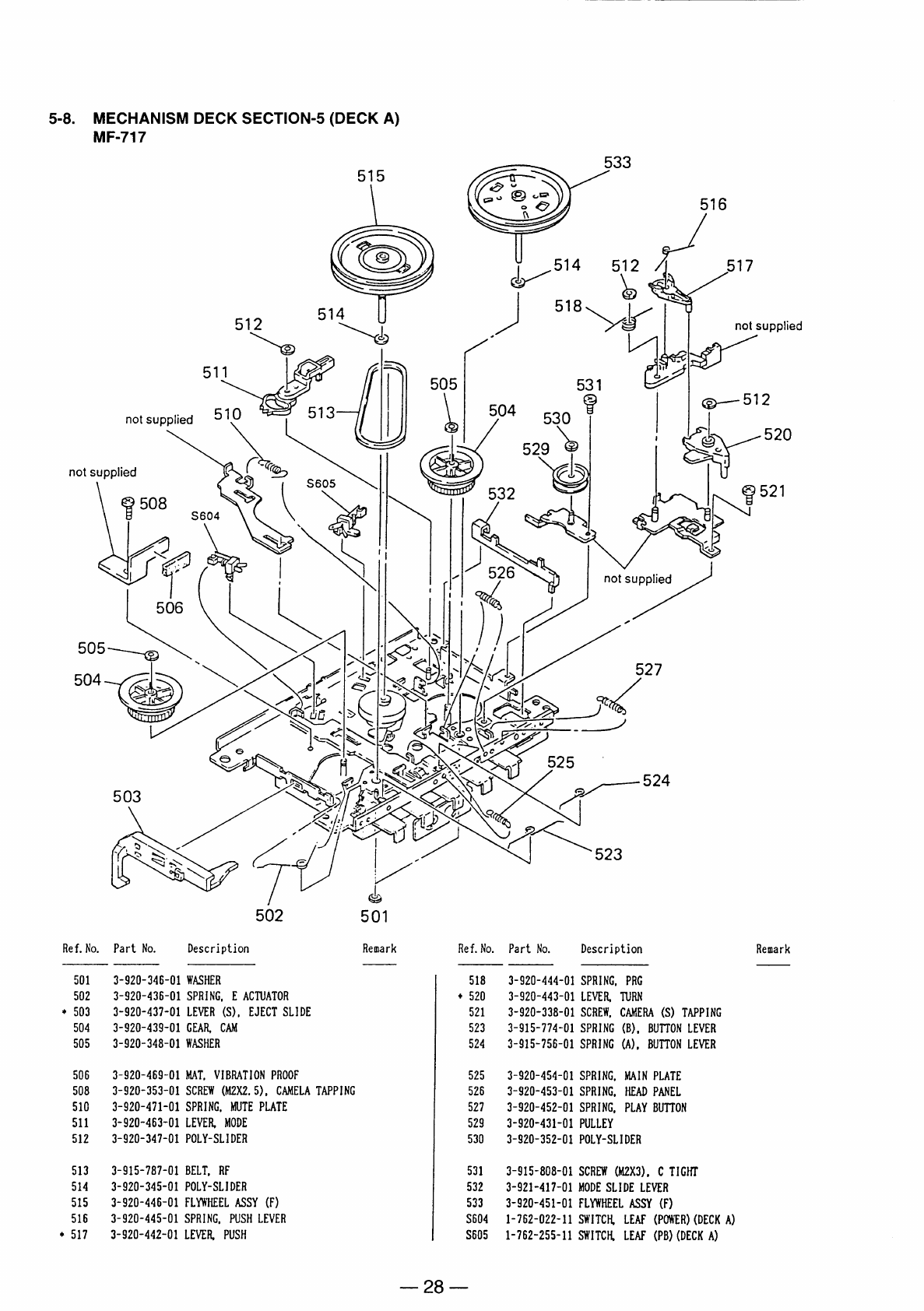

5-8. MECHANISM DECK SECTION-5 (DECK A) ·············· 28

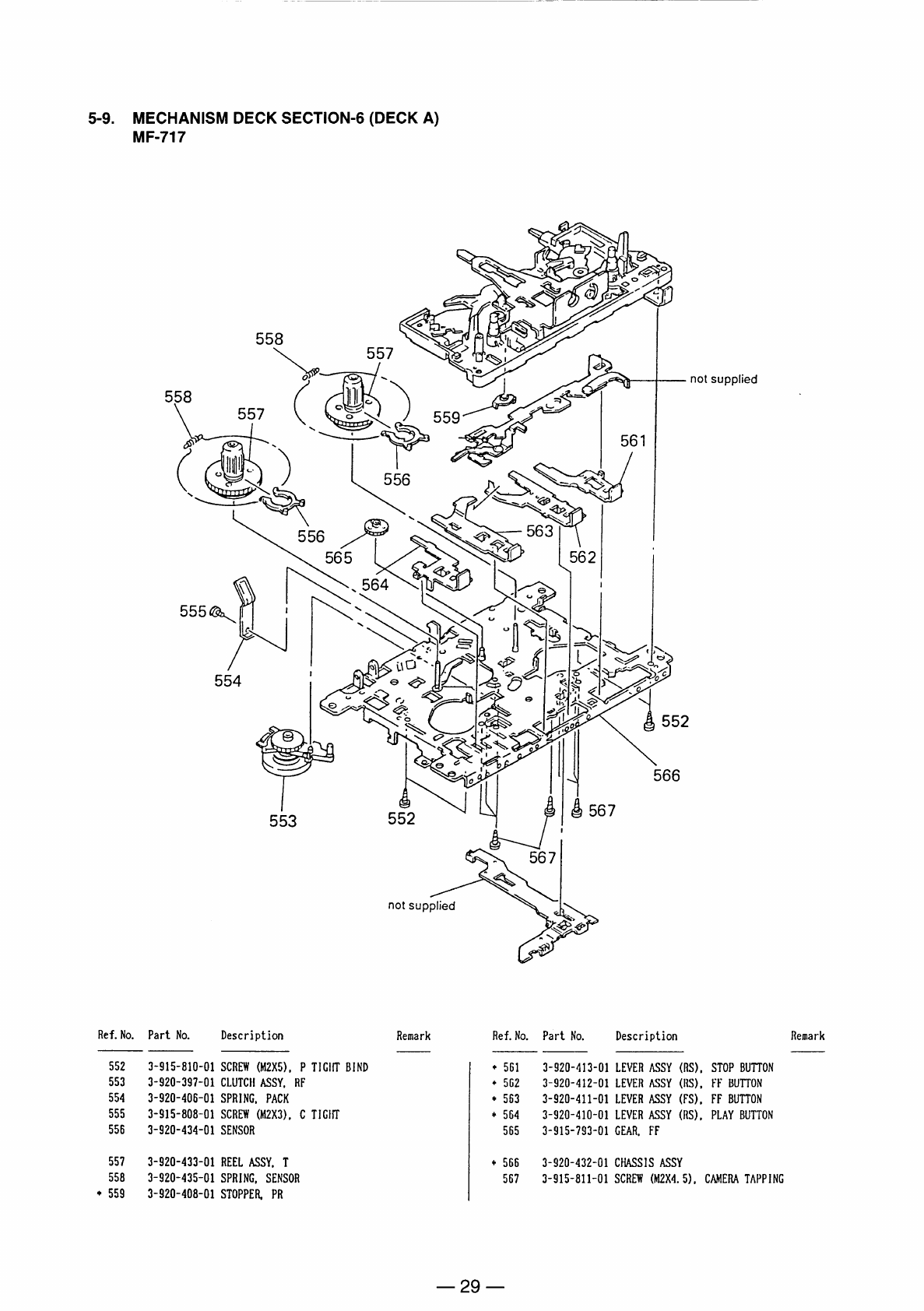

5-9. MECHANISM DECK SECTION-6 (DECK A) ·············· 29
5-10. MECHANISM DECK SECTION-7 (DECK A) ·············· 30
6. ELECTRICAL PARTS LIST ................................... 31

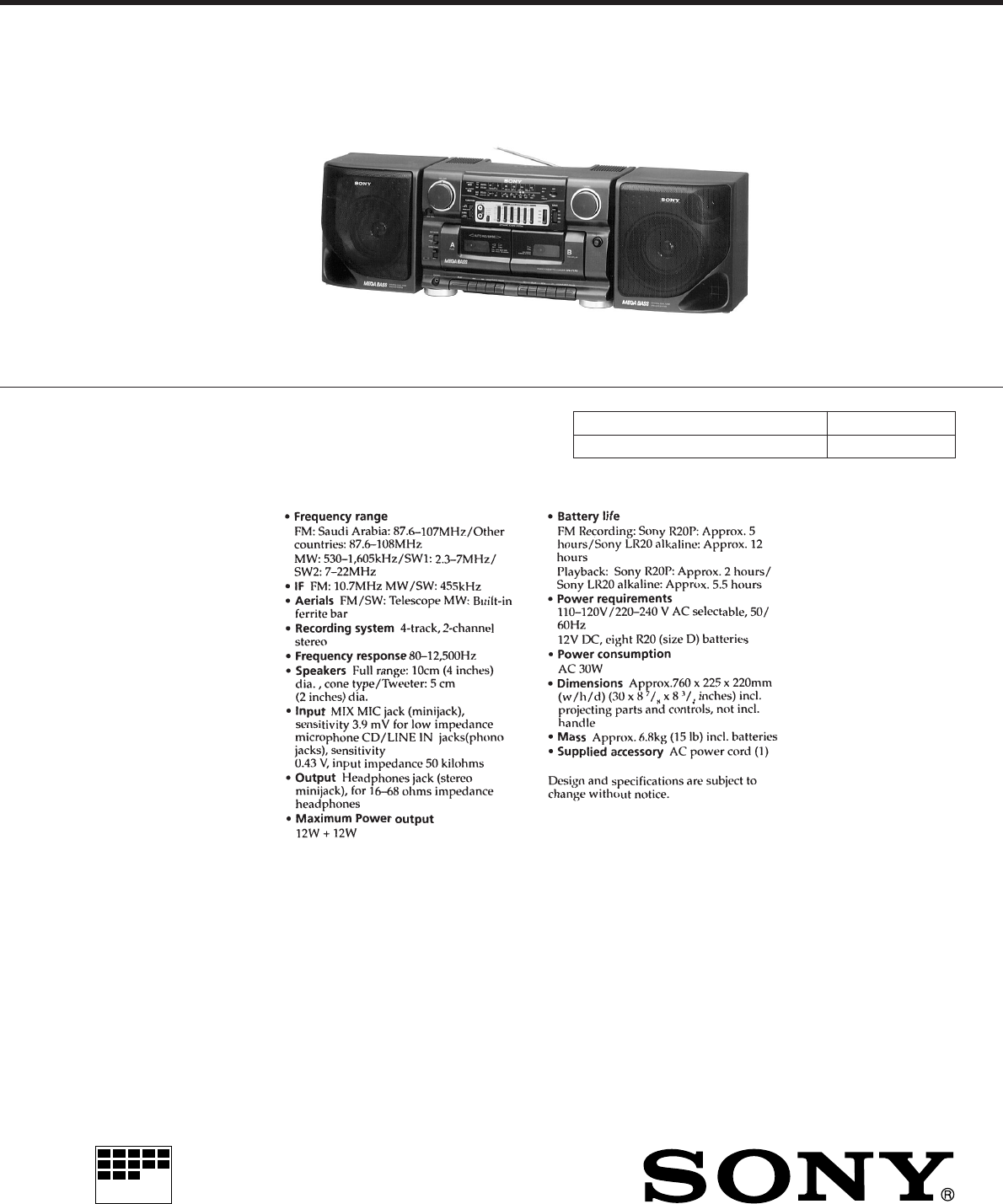

MODEL IDENTIFICATION
MODEL No. CFS-717S
RADIO CASSETTE-CODER
MODEL IDENTIFICATION

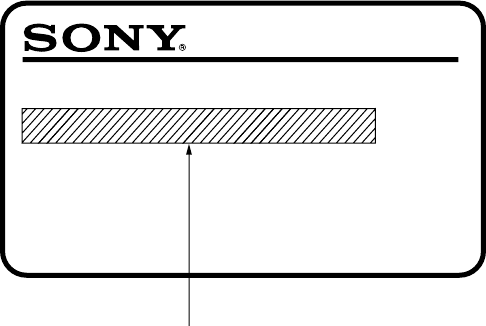

— Model Number Label —
E15, E23, EA, UAE, SP Model : Carved on cabinet (rear)
E15, E23, EA, UAE, SP model :
AC 110-120/220-240V ~ 50/60Hz 30W
• Abbreviations
E15 : AC 220-240V 110V-120V change over possible
Area model
E23 : AC 110-120V Area model
EA : Saudi Arabia model
UAE : United Arab Emirates model
SP : Singapore model
Ver 1.1 1999. 11
CFS-717S
— 9 — — 10 — — 11 — — 12 —

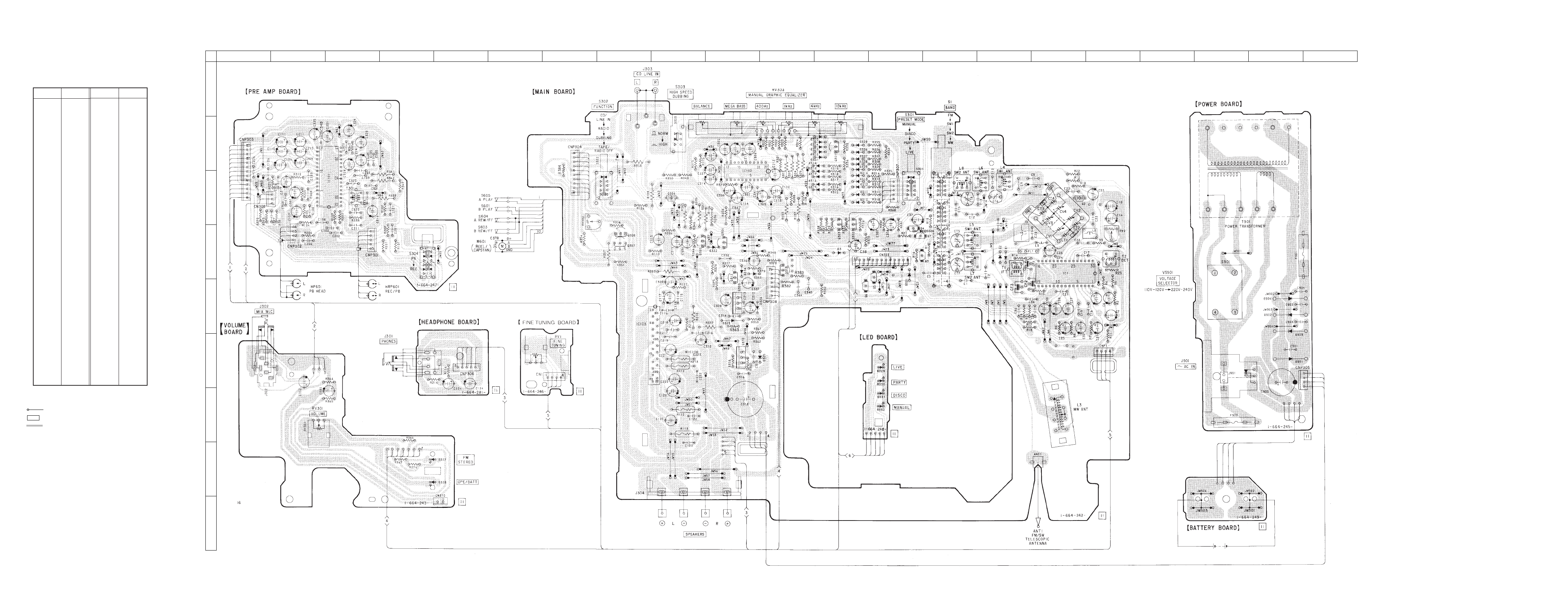

4-2. PRINTED WIRING BOARD
Ref. No. Location
D1 D-15
D2 D-15
D3 D-12
D301 B-12
D302 B-12
D303 B-12
D304 B-12
D305 B-12
D306 B-12
D307 B-12
D308 B-12
D309 C-12
D310 C-12
D311 C-12
D312 C-12
D313 C-12
D314 C-12
D315 C-12
D316 C-12
D317 C-12
D318 C-12
D319 C-12
D320 C-12
D321 E-13
D322 D-10
D323 E-10
D324 E-11
D325 F-11
D326 D-14
D333 E-11
D334 E-11
D335 C-9
D327 H-5
D328 H-5
D329 F-13
• Semiconductor
Location
Ref. No. Location
D330 F-13
D331 G-13
D332 G-13
D901 F-20
D902 E-20
D903 F-20
D904 E-20
IC1 D-16
IC101 C-3
IC102 C-10
IC103 E-9
Q2 C-17
Q3 D-14
Q4 D-14
Q5 E-13
Q6 E-13
Q7 D-14
Q301 B-12
Q302 D-12
Q303 D-12
Q304 D-10
Q305 D-9
Q306 C-9
Q307 D-8
Q308 D-8
Q309 E-10
Q310 F-10
Q312 E-10
Q313 D-11
Note :
• : parts extracted from the component side.
• : indicates side indentified with part number.
• : Pattern on the side which is seen.
12
A
B
C
D
E
F
G
H
I
3456789101112131415161718192021
Ver 1.1 1999. 11
CFS-717S
— 17 — — 18 — — 19 — — 20 —

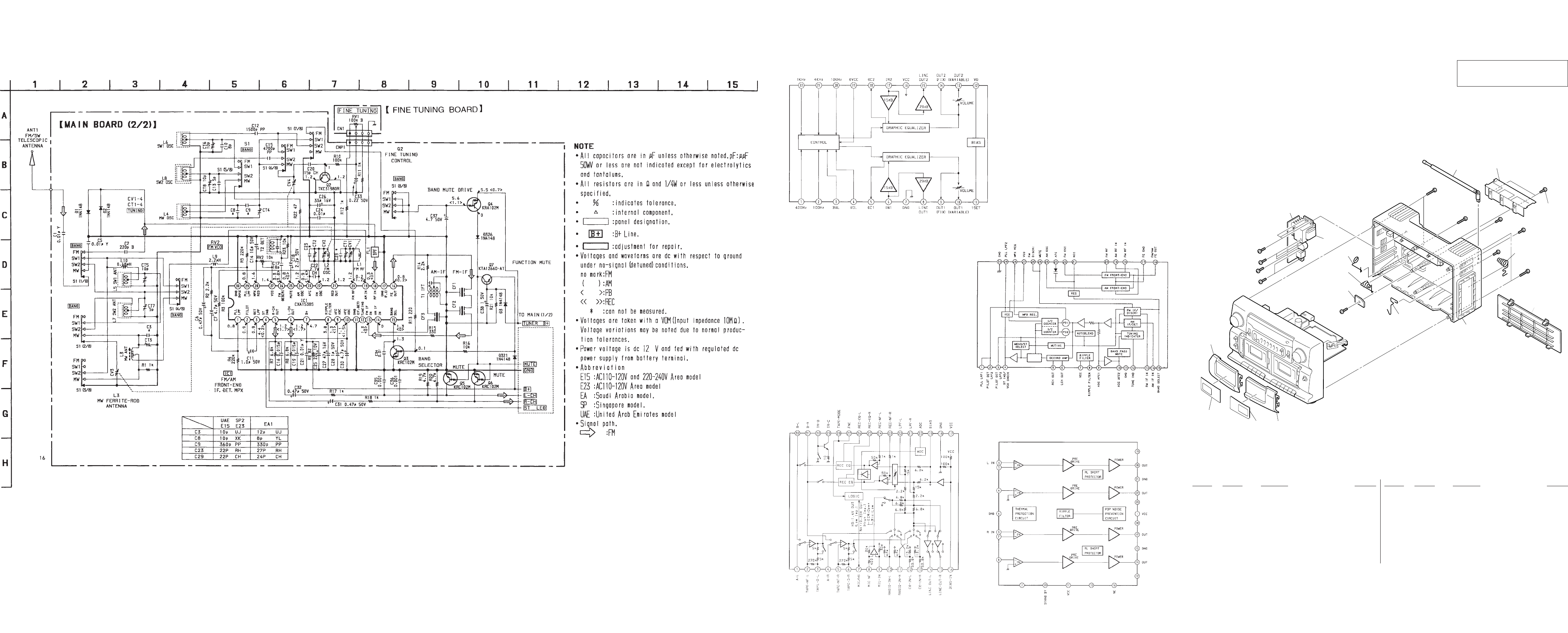

4-4. SCHEMATIC DIAGTAM — TUNER — • IC BLOCK DIAGRAM
SECTION 5
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
E15 : AC 220-240V110V-120V change
over possible Area model
E23 : AC 110-120V Area model
EA : Saudi Arabia model
UAE : United Arab Emirates model
SP : Singapore model
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
5-1. REAR CABINET SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 3-008-673-01 LID (L), CST
2 3-008-674-01 LID (R), CST
*3 1-664-245-11 POWER BOARD, COMPLETE
*4 1-664-249-11 BATTERY BOARD
5 3-389-406-01 SPRING (-), BATTERY
6 3-389-405-01 SPRING (+), BATTERY
7 3-389-404-01 SPRING (+-), BATTERY
8 3-389-436-11 LID, BATTERY CASE
9 3-008-672-01 CABINET (REAR) (SP)
9 3-008-672-11 CABINET (REAR) (UAE)
9 3-008-672-21 CABINET (REAR) (EA, E15, E23)
10 3-009-234-01 TERMINAL BOARD, ANTENNA
11 3-008-704-01 WINDOW (CST/R)
12 3-008-703-01 WINDOW (CST/L)
13 7-685-647-11 SCREW (3X10), +BVTP
14 3-008-717-01 HANDLE (GRIP)
ANT1 1-501-900-11 ANTENNA, TELESCOPIC
!T901 1-431-082-11 TRANSFORMER, POWER
IC102 CXA1352AS
IC103 LA4620
IC101 BA3426AS
IC1 CXA1538S
3
ANT 1
T901
7
14
13
8
9
10
4
5
6
1
2
11
12
{
#9
#5
#5
#3
#10
#5
#5
Ver 1.1 1999. 11

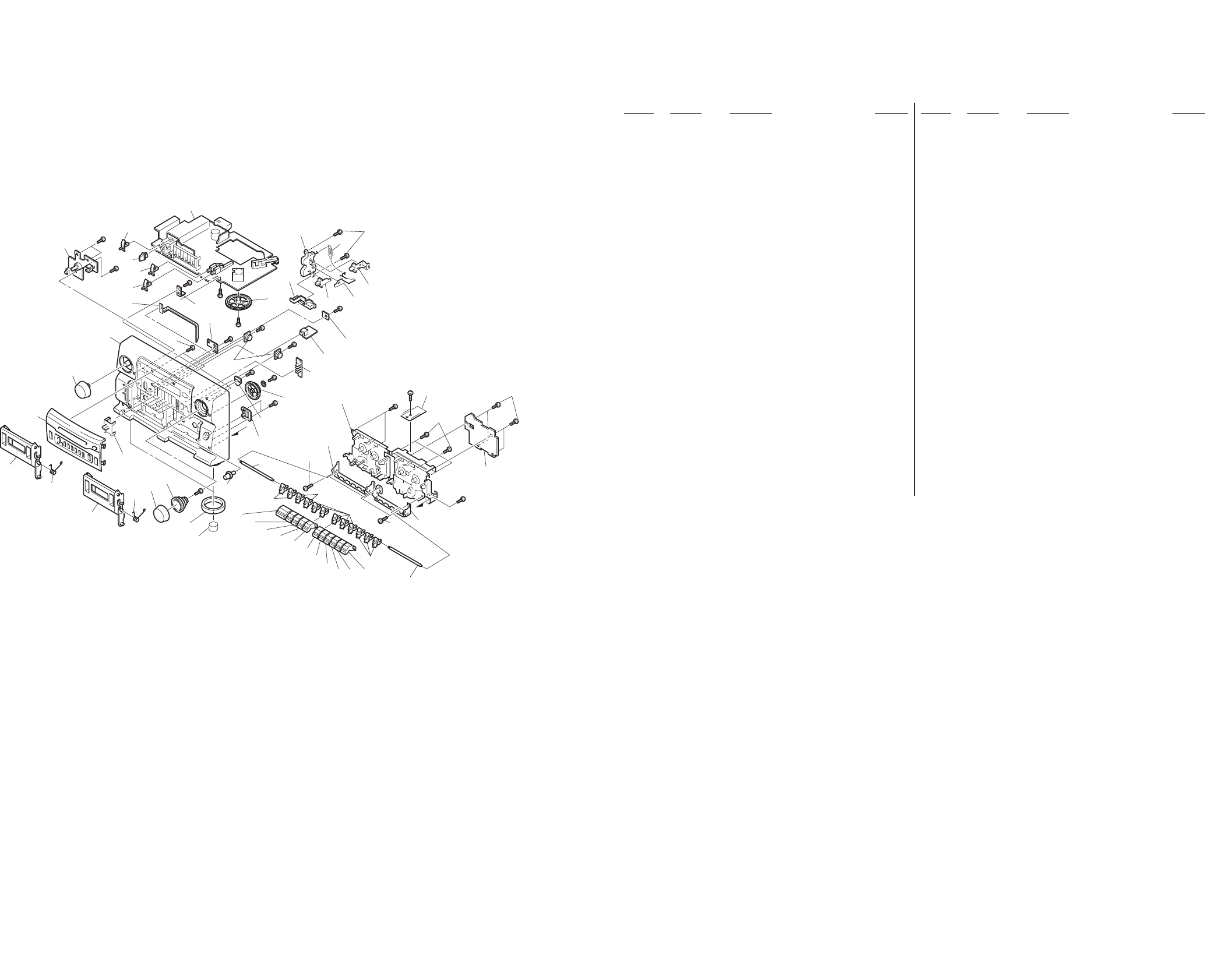

5-2. FRONT CABINET SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 21 — — 22 —
51 3-008-675-01 HOLDER, CST
52 3-008-714-01 SPRING (CST/R)
53 3-008-688-01 KNOB (VOL)
54 3-008-671-01 CABINET (FRONT)
*55 1-664-243-11 VOLUME BOARD
56 3-008-690-01 KNOB (FUNC)
57 3-908-999-01 FOOT
58 3-008-698-01 KNOB (DUB)
58 3-008-692-01 KNOB (MODE)
59 3-008-718-01 KNOB (DSS)
*60 A-3306-373-A MAIN BOARD, COMPLETE (EXCEPT EA)
*60 A-3306-408-A MAIN BOARD, COMPLETE (EA)
61 3-008-696-01 POINTER
62 3-008-695-01 GEAR (VARICON)
63 3-008-701-01 KNOB (DIR)
*64 A-3306-367-A PRE AMP BOARD, COMPLETE
*65 1-664-281-11 HEADPHONE BOARD
*66 1-664-248-11 LED BOARD
67 3-922-112-11 DAMPER
68 3-008-698-01 KNOB (DUB)
69 3-008-694-01 GEAR (IDL)
*70 1-664-246-11 TUNER BOARD
71 3-008-689-01 KNOB (FIN)
*72 3-389-396-11 ORNAMENT, FOOT
73 3-008-691-01 KNOB (TUN)
74 3-008-680-01 KNOB (ST/EJ)
75 3-008-677-01 KNOB (PLAY 1)
76 3-008-678-01 BUTTON (REW 1)
77 3-008-679-01 BUTTON (FF 1)
78 3-008-681-01 KNOB (PAUSE)
79 3-008-682-01 KNOB (REC)
80 3-008-683-01 KNOB (PLAY 2)
81 3-008-684-01 BUTTON (REW 2)
82 3-008-685-01 BUTTON (FF 2)
83 3-008-687-01 BUTTON (PAUSE 2)
84 3-008-686-01 BUTTON (ST/EJ 2)
85 3-008-699-01 DIAL, WINDOW (EXCEPT EA)
85 3-008-699-11 DIAL, WINDOW (EA)
86 3-008-713-01 LEVER (DIR)
87 3-008-693-01 GEAR (TUN)
88 3-008-697-01 KNOB (EQ)
89 4-951-620-01 SCREW (2.6X8), +BVTP
92 3-008-715-01 SPRING (DIR)
93 3-008-716-01 CHASSIS (DIR)
94 3-009-232-01 SLIDER (DIR)
95 3-009-233-01 SPRING (REC)
96 3-920-461-01 LEVER, OPERATION
97 3-920-462-01 LEVER, OPERATION
98 3-915-822-01 SHAFT, BUTTON LEVER
99 3-920-460-01 SHAFT, BUTTON LEVER
*100 3-920-464-01 FRAME, B
*101 3-920-459-01 FRAME, B
102 3-920-349-01 SCREW, CAMERA (S) TAPPING
103 3-920-343-01 SCREW, CAMERA (S) TAPPING
55
56
58
59
56
61 62
60
65
66
67
69
70
71
72
57
87
73
52
51
52
51
85
53
89
88
54
#9
#7
#9
#9
#1
#2
#9
#9
#9
#9
not
supplied
93 92
63 8668
#9
#9
#9
not supplied
not supplied
94
Mechanism deck
(MF-717)
64
95
#2
#9
#9
#6
#9
75767774
83
96
96
102 100
98
96
99
97
103101
84
82
81
80
79
78
Ver 1.1 1999. 11
— 23 — — 24 —

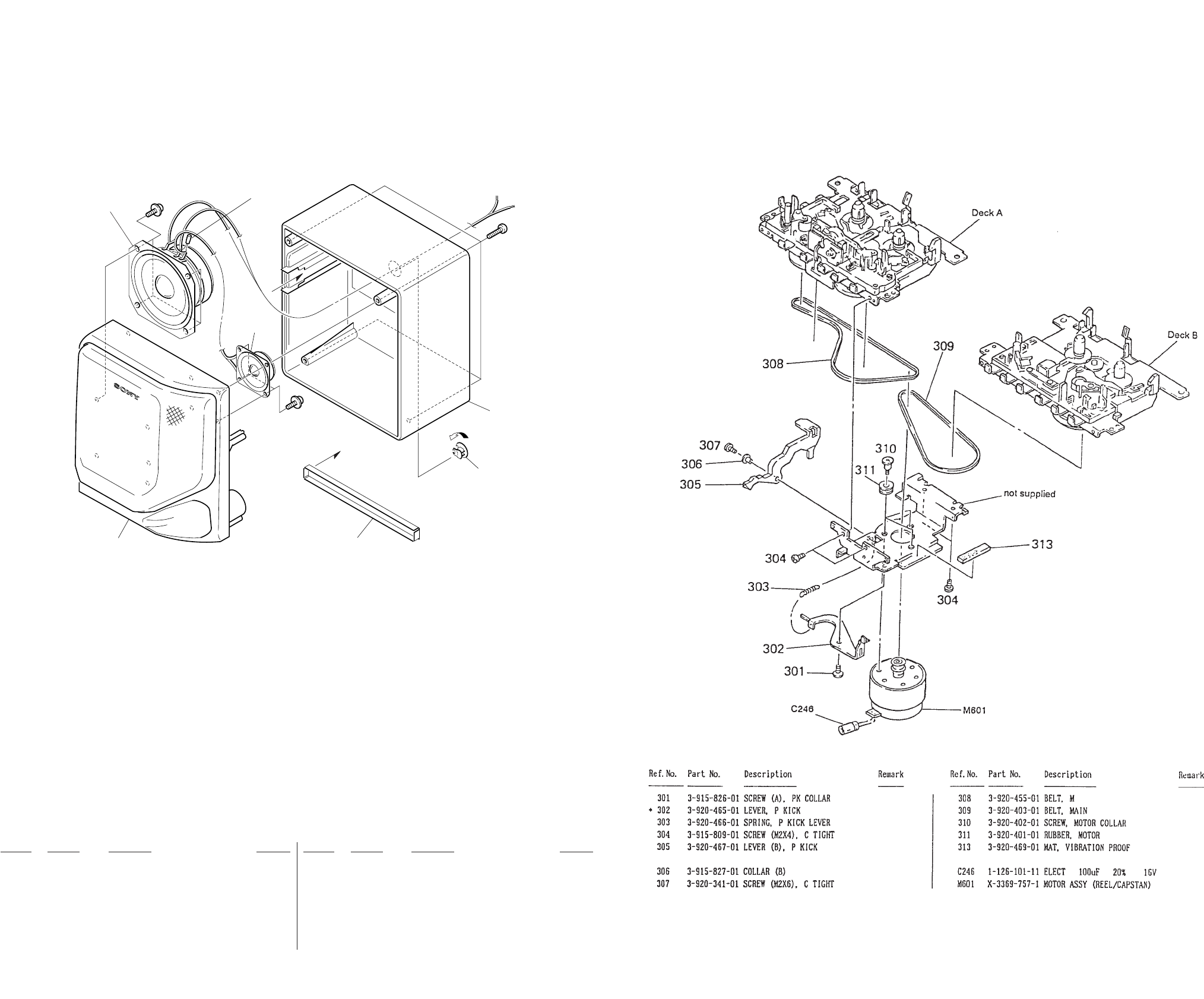

5-3. SPEAKER SECTION 5-4. MECHANISM DECK SECTION-1
MF-717
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 X-3373-527-1 SPEAKER BOX (FRONT)SUB ASSY(L)
101 X-3373-528-1 SPEAKER BOX (FRONT)SUB ASSY(R)
*102 3-008-700-01 STOPPER, CORD
103 3-008-707-01 CABINET (REAR) (L), SP
103 3-008-708-01 CABINET (REAR) (R), SP
104 3-908-999-01 FOOT
C125 1-123-546-11 CAP, ELECT (NON POLAR) 3.3uF
C225 1-123-546-11 CAP, ELECT (NON POLAR) 3.3uF
SP901 1-505-515-11 SPEAKER (10CM) (L WOOFER)
SP902 1-505-516-11 SPEAKER (5CM) (L TWEETER)
SP903 1-505-515-11 SPEAKER (10CM) (R WOOFER)
SP904 1-505-516-11 SPEAKER (5CM) (R TWEETER)
SP 901, SP903 #7 C125, C225
SP902,
SP904
#7
101
not supplied
102
103
#
8
Ver 1.1 1999. 11
NOTE: • Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• CAPACITORS:
uF: µF
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• COILS
uH: µH
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
When indicating parts by reference number,
please include the board name.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 31 —
SECTION 6
ELECTRICAL PARTS LIST
*1-664-249-11 BATTERY BOARD
**************
************************************************************
*1-664-281-11 HEADPHONE BOARD
*****************
< CAPACITOR >
C124 1-104-664-11 ELECT 47uF 20% 16V
C224 1-104-664-11 ELECT 47uF 20% 16V
< CONNECTOR >
CNP306 1-506-987-11 PIN, CONNECTOR (PC BOARD) 5P
< JACK >
J301 1-566-891-11 JACK (PHONES)
< RESISTOR >
R114 1-249-408-11 CARBON 180 5% 1/4W F
R214 1-249-408-11 CARBON 180 5% 1/4W F
************************************************************
*1-664-245-11 LED BOARD
**********
< DIODE >
D329 8-719-061-65 DIODE L-1053HDT (LIVE)
D330 8-719-061-65 DIODE L-1053HDT (PARTY)
D331 8-719-061-65 DIODE L-1053HDT (DISCO)
D332 8-719-061-65 DIODE L-1053HDT (MANUAL)
************************************************************
*A-3306-408-A MAIN BOARD, COMPLETE (EA)
*************************
*A-3306-373-A MAIN BOARD, COMPLETE (EXCEPT EA)
********************************
1-533-233-21 HOLDER, FUSE
3-008-690-01 KNOB (FUNC)
3-008-695-01 GEAR (VARICON)
3-008-698-01 KNOB (DUB)
3-008-718-01 KNOB (DSS)
*3-915-126-01 CAP, SHIELD COIL
7-621-770-87 SCREW +B 2.6X5
7-682-547-04 SCREW +B 3X6
7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
< CAPACITOR >
C1 1-162-306-11 CERAMIC 0.01uF 20% 16V
C2 1-162-286-31 CERAMIC 220PF 10% 50V
C3 1-102-949-00 CERAMIC 12PF 5% 50V (EA)
C3 1-102-947-00 CERAMIC 10PF 5% 50V
(EXCEPT EA)
C5 1-162-306-11 CERAMIC 0.01uF 20% 16V
C6 1-124-902-00 ELECT 0.47uF 20% 50V
C7 1-126-963-11 ELECT 4.7uF 20% 50V
C8 1-102-945-00 CERAMIC 8PF 0.5PF 50V (EA)
C8 1-102-947-00 CERAMIC 10PF 5% 50V
(EXCEPT EA)
C9 1-107-734-11 FILM 360PF 5% 100V
(EXCEPT EA)
C9 1-136-355-11 FILM 330PF 5% 100V
(EA)
C10 1-102-945-00 CERAMIC 8.0PF +-0.5PF 50V
C11 1-124-903-11 ELECT 1uF 20% 50V
C12 1-136-480-11 FILM 0.0015uF 5% 100V
C13 1-102-942-00 CERAMIC 5.0PF +-0.5PF 50V
C14 1-124-907-11 ELECT 10uF 20% 50V
C15 1-136-287-11 FILM 0.0047uF 5% 100V
C16 1-161-053-00 CERAMIC 0.015uF 10% 50V
C17 1-102-953-00 CERAMIC 18PF 5% 50V
C18 1-126-961-11 ELECT 2.2uF 20% 50V
C19 1-161-053-00 CERAMIC 0.015uF 10% 50V
C20 1-162-203-31 CERAMIC 15PF 5% 50V
C21 1-162-306-11 CERAMIC 0.01uF 20% 16V
C22 1-162-192-31 CERAMIC 2.7PF 10% 50V
C23 1-102-892-00 CERAMIC 22PF 5% 50V
(EXCEPT EA)
C23 1-102-883-00 CERAMIC 27PF 5% 50V (EA)
C24 1-162-306-11 CERAMIC 0.01uF 20% 16V
C25 1-104-666-11 ELECT 220PF 20% 10V
C26 1-104-663-11 ELECT 33uF 20% 16V
C27 1-104-664-11 ELECT 47uF 20% 16V
C28 1-124-903-11 ELECT 1uF 20% 50V
C29 1-102-514-11 CERAMIC 22PF 5% 50V
(EXCEPT EA)
C29 1-102-515-11 CERAMIC 24pCH 5% 50V (EA)
C30 1-126-963-11 ELECT 4.7uF 20% 50V
C31 1-124-902-00 ELECT 0.47uF 20% 50V
C32 1-124-902-00 ELECT 0.47uF 20% 50V
C33 1-126-957-11 ELECT 0.22uF 20% 50V
C34 1-162-306-11 CERAMIC 0.01uF 20% 16V
C35 1-162-294-31 CERAMIC 0.001uF 10% 50V
C36 1-162-294-31 CERAMIC 0.001uF 10% 50V
BATTERY HEADPHONE
LED MAIN
• Abbreviation
E15 : AC 220-240V110V-120V change
over possible Area model
E23 : AC 110-120V Area model
EA : Saudi Arabia model
UAE : United Arab Emirates model
SP : Singapore moadel
Ver 1.1 1999. 11
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 32 —
C37 1-126-963-11 ELECT 4.7uF 20% 50V
C38 1-124-903-11 ELECT 1uF 20% 50V
C112 1-124-902-00 ELECT 0.47uF 20% 50V
C113 1-162-294-31 CERAMIC 0.001uF 10% 50V
C114 1-126-961-11 ELECT 2.2uF 20% 50V
C115 1-124-903-11 ELECT 1uF 20% 50V
C116 1-162-291-31 CERAMIC 560PF 10% 50V
C117 1-162-282-31 CERAMIC 100PF 10% 50V
C118 1-124-443-00 ELECT 100uF 20% 10V
C119 1-162-851-11 CERAMIC 0.1uF 10% 16V
C120 1-124-443-00 ELECT 100uF 20% 10V
C121 1-124-443-00 ELECT 100uF 20% 10V
C122 1-130-489-00 MYLAR 0.033uF 5% 50V
C123 1-130-489-00 MYLAR 0.033uF 5% 50V
C124 1-104-664-11 ELECT 47uF 20% 16V
C125 1-123-546-00 ELECT 3.3uF 20% 50V
C127 1-124-903-11 ELECT 1uF 20% 50V
C212 1-124-902-00 ELECT 0.47uF 20% 50V
C213 1-162-294-31 CERAMIC 0.001uF 10% 50V
C214 1-126-961-11 ELECT 2.2uF 20% 50V
C215 1-124-903-11 ELECT 1uF 20% 50V
C216 1-162-291-31 CERAMIC 560PF 10% 50V
C217 1-162-282-31 CERAMIC 100PF 10% 50V
C218 1-124-443-00 ELECT 100uF 20% 10V
C219 1-162-851-11 CERAMIC 0.1uF 10% 16V
C220 1-124-443-00 ELECT 100uF 20% 10V
C221 1-124-443-00 ELECT 100uF 20% 10V
C222 1-130-489-00 MYLAR 0.033uF 5% 50V
C223 1-130-489-00 MYLAR 0.033uF 5% 50V
C224 1-104-664-11 ELECT 47uF 20% 16V
C225 1-123-546-00 ELECT 3.3uF 20% 50V
C227 1-124-903-11 ELECT 1uF 20% 50V
C301 1-126-783-11 ELECT 22uF 20% 10V
C302 1-104-666-11 ELECT 220uF 20% 10V
C303 1-126-963-11 ELECT 4.7uF 20% 50V
C304 1-126-963-11 ELECT 4.7uF 20% 50V
C305 1-126-961-11 ELECT 2.2uF 20% 50V
C306 1-124-902-00 ELECT 0.47uF 20% 50V
C307 1-124-907-11 ELECT 10uF 20% 50V
C308 1-126-961-11 ELECT 2.2uF 20% 50V
C309 1-104-663-11 ELECT 33uF 20% 16V
C310 1-126-965-11 ELECT 22uF 20% 50V
C312 1-104-664-11 ELECT 47uF 20% 16V
C313 1-162-306-11 CERAMIC 0.01uF 20% 16V
C314 1-162-306-11 CERAMIC 0.01uF 20% 16V
C315 1-161-494-00 CERAMIC 0.022uF 25V
C316 1-161-494-00 CERAMIC 0.022uF 25V
C318 1-126-946-11 ELECT 6800uF 20% 25V
C328 1-124-472-11 ELECT 470uF 20% 10V
C334 1-124-907-11 ELECT 10uF 20% 50V
C336 1-104-664-11 ELECT 47uF 20% 10V
C337 1-124-903-11 ELECT 1uF 20% 50V
C338 1-162-851-11 CERAMIC 0.1uF 10% 16V
C341 1-162-282-31 CERAMIC 100PF 10% 50V
C342 1-162-282-31 CERAMIC 100PF 10% 50V
C344 1-162-851-11 CERAMIC 0.1uF 10% 16V
C345 1-162-851-11 CERAMIC 0.1uF 10% 16V
C347 1-162-282-31 CERAMIC 100PF 10% 50V
C348 1-162-282-31 CERAMIC 100PF 10% 50V
< FILTER >
CF1 1-760-738-11 FILTER, CERAMIC
CF2 1-760-738-11 FILTER, CERAMIC
CF3 1-767-615-11 FILTER, CERAMIC
< CONNECTOR >
CNP1 1-506-986-11 PIN, CONNECTOR (PC BOARD) 4P
*CNP304 1-580-162-11 PIN, CONNECTOR(PC BOARD) 10P
CNP307 1-506-987-11 PIN, CONNECTOR (PC BOARD) 5P
*CNP308 1-580-159-11 PIN, CONNECTOR (PC BOARD) 7P
< TRIMMER >
CT1 1-151-693-11 CAP, VAR (TUNING)
CT2 1-151-693-11 CAP, VAR (TUNING)
CT3 1-151-693-11 CAP, VAR (TUNING)
CT4 1-151-693-11 CAP, VAR (TUNING)
CT5 1-115-501-11 CAP, ADJ 10PF
CT6 1-115-501-11 CAP, ADJ 10PF
CT7 1-141-485-11 CAP, ADJ 5PF
CT8 1-115-501-11 CAP, ADJ 10PF
< VARIABLE CAPACITOR >
CV1 1-151-693-11 CAP, VAR (TUNING)
CV2 1-151-693-11 CAP, VAR (TUNING)
CV3 1-151-693-11 CAP, VAR (TUNING)
CV4 1-151-693-11 CAP, VAR (TUNING)
< DIODE >
D1 8-719-987-63 DIODE 1N4148M
D2 8-719-987-63 DIODE 1N4148M
D3 8-719-987-63 DIODE 1N4148M
D301 8-719-987-63 DIODE 1N4148M
D302 8-719-987-63 DIODE 1N4148M
D303 8-719-987-63 DIODE 1N4148M
D304 8-719-987-63 DIODE 1N4148M
D305 8-719-987-63 DIODE 1N4148M
D306 8-719-987-63 DIODE 1N4148M
D307 8-719-987-63 DIODE 1N4148M
D308 8-719-987-63 DIODE 1N4148M
D309 8-719-987-63 DIODE 1N4148M
D310 8-719-987-63 DIODE 1N4148M
D311 8-719-987-63 DIODE 1N4148M
D312 8-719-987-63 DIODE 1N4148M
D313 8-719-987-63 DIODE 1N4148M
D314 8-719-987-63 DIODE 1N4148M
D315 8-719-987-63 DIODE 1N4148M
D316 8-719-987-63 DIODE 1N4148M
D317 8-719-987-63 DIODE 1N4148M
D318 8-719-987-63 DIODE 1N4148M
D319 8-719-987-63 DIODE 1N4148M
D320 8-719-987-63 DIODE 1N4148M
D321 8-719-987-63 DIODE 1N4148M
D322 8-719-987-63 DIODE 1N4148M
MAIN Ver 1.1 1999. 11
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 33 —
D323 8-719-904-02 DIODE 1N4002T
D324 8-719-010-46 DIODE UZ-6.2BSB
D325 8-719-001-54 DIODE UZL-11H2
D326 8-719-987-63 DIODE 1N4148M
D333 8-719-987-63 DIODE 1N4148M
D334 8-719-987-63 DIODE 1N4148M
D335 8-719-987-63 DIODE 1N4148M
< FILTER >
FL1 1-239-333-11 FILTER, BAND PASS
< IC >
IC1 8-752-056-23 IC CXA1538S
IC102 8-752-067-34 IC CXA1352AS
IC103 8-759-822-51 IC LA4620
< JACK >
J303 1-778-953-11 JACK (CD LINE IN)
J304 1-537-330-11 TERMINAL BOARD (SPEAKER)
< COIL >
L1 1-416-029-11 COIL, ANTENNA
L2 1-416-030-11 COIL, AIR-CORE (EA)
L2 1-416-333-11 COIL, AIR-CORE (EXCEPT EA)
L3 1-402-507-11 ANTENNA, FERRITE-ROD (MW)
L4 1-416-028-11 COIL, OSCILLATION
L5 1-415-999-11 COIL, ANTENNA
L6 1-416-025-11 COIL, OSCILLATION
L7 1-416-026-11 COIL, ANTENNA
L8 1-416-027-11 COIL, OSCILLATION
L9 1-414-146-31 INDUCTOR 2.2uH
L10 1-414-140-11 INDUCTOR 0.68uH
< TRANSISTOR >
Q2 8-729-036-89 TRANSISTOR KTC3198GR-AT
Q3 8-729-036-58 TRANSISTOR KRC102M-AT
Q4 8-729-037-29 TRANSISTOR KRA102M
Q5 8-729-036-58 TRANSISTOR KRC102M-AT
Q6 8-729-036-58 TRANSISTOR KRC102M-AT
Q7 8-729-037-01 TRANSISTOR KTA1266O-AT
Q301 8-729-036-89 TRANSISTOR KTC3198GR-AT
Q302 8-729-036-89 TRANSISTOR KTC3198GR-AT
Q303 8-729-036-89 TRANSISTOR KTC3198GR-AT
Q304 8-729-036-80 TRANSISTOR KRC110M
Q305 8-729-036-89 TRANSISTOR KTC3198GR-AT
Q306 8-729-037-29 TRANSISTOR KRA102M
Q307 8-729-115-30 TRANSISTOR 2SK105A-30
Q308 8-729-036-89 TRANSISTOR KTC3198GR-AT
Q309 8-729-037-09 TRANSISTOR KTD2058GR
Q310 8-729-037-09 TRANSISTOR KTD2058GR
Q312 8-729-036-89 TRANSISTOR KTC3198GR-AT
Q313 8-729-036-89 TRANSISTOR KTC3198GR-AT
< RESISTOR >
R1 1-249-417-11 CARBON 1K 5% 1/4W F
R2 1-249-421-11 CARBON 2.2K 5% 1/4W F
R3 1-249-441-11 CARBON 100K 5% 1/4W
R4 1-247-887-00 CARBON 220K 5% 1/4W
R5 1-247-887-00 CARBON 220K 5% 1/4W
R7 1-249-427-11 CARBON 6.8K 5% 1/4W F
R8 1-249-427-11 CARBON 6.8K 5% 1/4W F
R9 1-249-404-00 CARBON 82 5% 1/4W F
R10 1-249-441-11 CARBON 100K 5% 1/4W
R11 1-249-417-11 CARBON 1K 5% 1/4W F
R12 1-249-417-11 CARBON 1K 5% 1/4W F
R13 1-249-409-11 CARBON 220 5% 1/4W F
R14 1-249-421-11 CARBON 2.2K 5% 1/4W F
R15 1-249-411-11 CARBON 330 5% 1/4W
R16 1-249-429-11 CARBON 10K 5% 1/4W
R17 1-249-417-11 CARBON 1K 5% 1/4W F
(EXCEPT EA)
R18 1-249-417-11 CARBON 1K 5% 1/4W F
R19 1-249-425-11 CARBON 4.7K 5% 1/4W F
R20 1-249-425-11 CARBON 4.7K 5% 1/4W F
R21 1-249-429-11 CARBON 10K 5% 1/4W
R22 1-249-401-11 CARBON 47 5% 1/4W F
R23 1-249-429-11 CARBON 10K 5% 1/4W F
R106 1-249-438-11 CARBON 56K 5% 1/4W
R107 1-249-433-11 CARBON 22K 5% 1/4W
R108 1-249-425-11 CARBON 4.7K 5% 1/4W F
R109 1-249-417-11 CARBON 1K 5% 1/4W F
R110 1-247-807-31 CARBON 100 5% 1/4W
R111 1-249-417-11 CARBON 1K 5% 1/4W F
!R112 1-219-162-11 FUSIBLE 3.3 5% 1/4W F
!R113 1-219-162-11 FUSIBLE 3.3 5% 1/4W F
R115 1-249-429-11 CARBON 10K 5% 1/4W
R126 1-249-419-11 CARBON 1.5K 5% 1/4W F
R206 1-249-438-11 CARBON 56K 5% 1/4W
R207 1-249-433-11 CARBON 22K 5% 1/4W
R208 1-249-425-11 CARBON 4.7K 5% 1/4W F
R209 1-249-417-11 CARBON 1K 5% 1/4W F
R210 1-247-807-31 CARBON 100 5% 1/4W
R211 1-249-417-11 CARBON 1K 5% 1/4W F
!R212 1-219-162-11 FUSIBLE 3.3 5% 1/4W F
!R213 1-219-162-11 FUSIBLE 3.3 5% 1/4W F
R215 1-249-429-11 CARBON 10K 5% 1/4W
R226 1-249-419-11 CARBON 1.5K 5% 1/4W F
R301 1-249-429-11 CARBON 10K 5% 1/4W
R302 1-249-429-11 CARBON 10K 5% 1/4W
R303 1-249-429-11 CARBON 10K 5% 1/4W
R304 1-249-429-11 CARBON 10K 5% 1/4W
R305 1-249-429-11 CARBON 10K 5% 1/4W
R306 1-249-425-11 CARBON 4.7K 5% 1/4W F
R307 1-249-437-11 CARBON 47K 5% 1/4W
R308 1-249-429-11 CARBON 10K 5% 1/4W
R309 1-249-421-11 CARBON 2.2K 5% 1/4W F
R310 1-249-429-11 CARBON 10K 5% 1/4W
R311 1-249-415-11 CARBON 680 5% 1/4W F
R312 1-247-807-31 CARBON 100 5% 1/4W
R313 1-247-843-11 CARBON 3.3K 5% 1/4W
R314 1-249-431-11 CARBON 15K 5% 1/4W
R315 1-249-425-11 CARBON 4.7K 5% 1/4W
R316 1-249-433-11 CARBON 22K 5% 1/4W
R317 1-249-425-11 CARBON 4.7K 5% 1/4W F
R318 1-249-421-11 CARBON 2.2K 5% 1/4W F
MAIN
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
Ver 1.1 1999. 11
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 34 —
R319 1-249-426-11 CARBON 5.6K 5% 1/4W
R320 1-249-429-11 CARBON 10K 5% 1/4W
R321 1-249-429-11 CARBON 10K 5% 1/4W
R322 1-249-429-11 CARBON 10K 5% 1/4W
R323 1-249-429-11 CARBON 10K 5% 1/4W
R324 1-249-429-11 CARBON 10K 5% 1/4W
R325 1-247-884-11 CARBON 160K 5% 1/4W
R326 1-249-422-11 CARBON 2.7K 5% 1/4W F
R327 1-249-421-11 CARBON 2.2K 5% 1/4W F
R328 1-247-895-00 CARBON 470K 5% 1/4W
R329 1-249-421-11 CARBON 2.2K 5% 1/4W F
R330 1-249-422-11 CARBON 2.7K 5% 1/4W F
R331 1-249-441-11 CARBON 100K 5% 1/4W
R332 1-249-441-11 CARBON 100K 5% 1/4W
R333 1-249-441-11 CARBON 100K 5% 1/4W
R334 1-249-429-11 CARBON 10K 5% 1/4W
R335 1-249-429-11 CARBON 10K 5% 1/4W
R336 1-249-429-11 CARBON 10K 5% 1/4W
R337 1-249-429-11 CARBON 10K 5% 1/4W
R344 1-249-436-11 CARBON 39K 5% 1/4W
R345 1-249-433-11 CARBON 22K 5% 1/4W
R346 1-249-416-11 CARBON 820 5% 1/4W F
R347 1-249-427-11 CARBON 6.8K 5% 1/4W F
R348 1-249-429-11 CARBON 10K 5% 1/4W
R349 1-249-429-11 CARBON 10K 5% 1/4W
R350 1-249-433-11 CARBON 22K 5% 1/4W
R351 1-249-425-11 CARBON 4.7K 5% 1/4W F
R352 1-249-433-11 CARBON 22K 5% 1/4W
R353 1-249-429-11 CARBON 10K 5% 1/4W
R354 1-249-428-11 CARBON 8.2K 5% 1/4W
R355 1-249-425-11 CARBON 4.7K 5% 1/4W
R356 1-249-441-11 CARBON 100K 5% 1/4W
R357 1-249-427-11 CARBON 6.8K 5% 1/4W F
R358 1-249-409-11 CARBON 220 5% 1/4W F
R359 1-249-417-11 CARBON 1K 5% 1/4W F
R360 1-249-410-11 CARBON 270 5% 1/4W F
R361 1-249-417-11 CARBON 1K 5% 1/4W F
R362 1-249-410-11 CARBON 270 5% 1/4W F
R363 1-249-381-51 CARBON 1 5% 1/4W F
R365 1-249-417-11 CARBON 1K 5% 1/4W F
R366 1-249-429-11 CARBON 10K 5% 1/4W
R367 1-249-415-11 CARBON 680 5% 1/4W F
R368 1-249-411-11 CARBON 330 5% 1/4W
R369 1-249-417-11 CARBON 1K 5% 1/4W F
R373 1-249-417-11 CARBON 1K 5% 1/4W F
R374 1-247-843-11 CARBON 3.3K 5% 1/4W
R375 1-249-418-11 CARBON 1.2K 5% 1/4W F
R376 1-247-899-11 CARBON 680K 5% 1/4W
R377 1-249-403-11 CARBON 68 5% 1/4W F
R378 1-249-429-11 CARBON 10K 5% 1/4W
R379 1-247-889-00 CARBON 270K 5% 1/4W
!R380 1-212-934-00 FUSIBLE 1 5% 1/2W F
R382 1-247-887-00 CARBON 220K 5% 1/4W
R383 1-247-887-00 CARBON 220K 5% 1/4W
R384 1-249-428-11 CARBON 8.2K 5% 1/4W
< VARIABLE RESISTOR >
RV2 1-228-994-00 RES, ADJ, METAL 10K
RV302 1-228-991-00 RES, ADJ, METAL 2.2K
RV303 1-225-404-11 VOLUME, SLIDE (BLOCK TYPE)
(MANUAL GRAPHIC EQUALIZER)
< SWITCH >
S1 1-571-503-11 SWITCH, LEVER SLIDE (BAND)
S301 1-571-345-11 SWITCH, LEVER SLIDE (PRESET MODE)
S302 1-571-345-11 SWITCH, LEVER (FUNCTION)
S303 1-692-777-11 SWITCH, PUSH (1 KEY)(HIGH SPEED DUBBING)
< TRANSFORMER >
T1 1-416-032-11 COIL, IFT
T2 1-409-944-11 COIL (DET)
************************************************************
POWER BOARD, COMPLETE
***********************
1-533-233-21 HOLDER, FUSE
< CAPACITOR >
C901 1-101-005-00 CERAMIC 0.022uF 50V
C902 1-101-005-00 CERAMIC 0.022uF 50V
C903 1-101-005-00 CERAMIC 0.022uF 50V
C904 1-101-005-00 CERAMIC 0.022uF 50V
C905 1-124-557-11 ELECT 1000uF 20% 25V
< CONNECTOR >
*CNP305 PIN, CONNECTOR (PC BOARD) 4P
< DIODE >
D901 8-719-911-55 DIODE 1N5401
D902 8-719-911-55 DIODE 1N5401
D903 8-719-911-55 DIODE 1N5401
D904 8-719-911-55 DIODE 1N5401
< FUSE >
!F901 1-532-350-00 FUSE (T4AL/250V)
!F902 1-532-215-00 FUSE (T800mA/250V)
< JACK >
!J901 1-526-838-11 INLET, AC 2P (AC IN)
< SWITCH >
!S901 1-692-514-11 SWITCH (VOLTAGE SELECTION)
< TRANSFORMER >
!T901 1-431-082-11 TRANSFORMER, POWER
************************************************************
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
MAIN POWER Ver 1.1 1999. 11
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 35 —
*A-3306-367-A PRE AMP BOARD, COMPLETE
************************
< CAPACITOR >
C101 1-162-293-31 CERAMIC 820PF 10% 50V
C102 1-162-291-31 CERAMIC 560PF 10% 50V
C103 1-162-851-11 CERAMIC 0.1uF 10% 16V
C104 1-126-783-11 ELECT 22uF 20% 10V
C105 1-162-294-31 CERAMIC 0.001uF 10% 50V
C106 1-162-291-31 CERAMIC 560PF 10% 50V
C107 1-126-783-11 ELECT 22uF 20% 10V
C108 1-162-840-11 CERAMIC 0.012uF 10% 16V
C109 1-124-903-11 ELECT 1uF 20% 50V
C110 1-124-903-11 ELECT 1uF 20% 50V
C111 1-124-903-11 ELECT 1uF 20% 50V
C126 1-162-286-31 CERAMIC 220PF 10% 50V
C201 1-162-293-31 CERAMIC 820PF 10% 50V
C202 1-162-291-31 CERAMIC 560PF 10% 50V
C203 1-162-851-11 CERAMIC 0.1uF 10% 16V
C204 1-126-783-11 ELECT 22uF 20% 10V
C205 1-162-294-31 CERAMIC 0.001uF 10% 50V
C206 1-162-291-31 CERAMIC 560PF 10% 50V
C207 1-126-783-11 ELECT 22uF 20% 10V
C208 1-162-840-11 CERAMIC 0.012uF 10% 16V
C209 1-124-903-11 ELECT 1uF 20% 50V
C210 1-124-903-11 ELECT 1uF 20% 50V
C211 1-124-903-11 ELECT 1uF 20% 50V
C226 1-162-286-31 CERAMIC 220PF 10% 50V
C311 1-162-306-11 CERAMIC 0.01uF 20% 16V
C317 1-124-903-11 ELECT 1uF 20% 50V
C319 1-124-443-00 ELECT 100uF 20% 10V
C320 1-161-045-00 CERAMIC 0.0033uF 20% 16V
C321 1-162-306-11 CERAMIC 0.01uF 20% 16V
C322 1-162-306-11 CERAMIC 0.01uF 20% 16V
C323 1-162-286-31 CERAMIC 220PF 10% 50V
C324 1-104-666-11 ELECT 220uF 20% 10V
C325 1-124-907-11 ELECT 10uF 20% 50V
C326 1-162-851-11 CERAMIC 0.1uF 10% 16V
C327 1-161-020-11 CERAMIC 0.039uF 10% 16V
C329 1-124-907-11 ELECT 10uF 20% 50V
C331 1-104-666-11 ELECT 220uF 20% 10V
C333 1-137-387-11 PETP FILM 0.001uF 5% 100V
C339 1-162-286-31 CERAMIC 220PF 10% 50V
C340 1-162-282-31 CERAMIC 100PF 10% 50V
C348 1-162-282-31 CERAMIC 100PF 10% 50V
< CONNECTOR >
CNP301 1-506-987-11 PIN, CONNECTOR (PC BOARD) 5P
CNP302 1-506-986-11 PIN, CONNECTOR (PC BOARD) 4P
*CNP303 1-774-959-11 PIN, CONNECTOR (PC BOARD) 13P
*CNP309 1-580-155-11 PIN, CONNECTOR (PC BOARD) 3P
< IC >
IC101 8-759-457-58 IC BA3426AS
< RESISTOR >
R101 1-249-417-11 CARBON 1K 5% 1/4W F
R102 1-247-852-11 CARBON 7.5K 5% 1/4W
R103 1-249-409-11 CARBON 220 5% 1/4W F
R104 1-249-409-11 CARBON 220 5% 1/4W F
R105 1-247-807-31 CARBON 100 5% 1/4W
R201 1-249-417-11 CARBON 1K 5% 1/4W F
R202 1-247-852-11 CARBON 7.5K 5% 1/4W
R203 1-249-409-11 CARBON 220 5% 1/4W F
R204 1-249-409-11 CARBON 220 5% 1/4W F
R205 1-247-807-31 CARBON 100 5% 1/4W
R338 1-249-433-11 CARBON 22K 5% 1/4W
R339 1-249-811-11 CARBON 150 5% 1/4W F
R340 1-249-427-11 CARBON 6.8K 5% 1/4W F
R341 1-249-417-11 CARBON 1K 5% 1/4W F
R342 1-249-417-11 CARBON 1K 5% 1/4W F
R343 1-247-895-00 CARBON 470K 5% 1/4W
R369 1-249-417-11 CARBON 1K 5% 1/4W F
R370 1-247-843-11 CARBON 3.3K 5% 1/4W
R371 1-249-429-11 CARBON 10K 5% 1/4W
R372 1-249-416-11 CARBON 820 5% 1/4W F
R381 1-249-409-11 CARBON 220 5% 1/4W F
< SWITCH >
S304 1-572-325-11 SWITCH, SLIDE (REC)
< TRANSFORMER >
T301 1-433-346-11 TRANSFORMER, BIAS OSCILLATOR
************************************************************
*1-664-246-11 FINE TUNING BOARD
*****************
< VARIABLE RESISTOR >
RV1 1-225-432-11 VOLUME, FINE TUNING
************************************************************
*1-664-243-11 VOLUME BOARD
*************
*3-009-230-01 HOLDER (LED)
< CAPACITOR >
C330 1-124-907-11 ELECT 10uF 20% 50V
C332 1-124-902-00 ELECT 0.47uF 20% 50V
< DIODE >
D327 8-719-061-65 DIODE L-1053HDT (FM STEREO)
D328 8-719-061-65 DIODE L-1053HDT (OPR/BATT)
< JACK >
J302 1-573-191-11 JACK (MIX MIC)
TUNER VOLUME
PRE AMP
Ver 1.1 1999. 11
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 36 —
< RESISTOR >
R364 1-249-421-11 CARBON 2.2K 5% 1/4W F
R365 1-249-417-11 CARBON 1K 5% 1/4W F
R366 1-249-429-11 CARBON 10K 5% 1/4W
R367 1-249-415-11 CARBON 680 5% 1/4W F
R374 1-247-843-11 CARBON 3.3K 5% 1/4W
< VARIABLE RESISTOR >
RV301 1-225-431-11 VOLUME, MAIN (VOLUME)
************************************************************
MISCELLANEOUS
**************
ANT1 1-501-900-11 ANTENNA, TELESCOPIC
C125 1-123-546-00 CAP, ELECT (NONPOLAR) 3.3uF
C225 1-123-546-00 CAP, ELECT (NONPOLAR) 3.3uF
HE601 1-500-139-11 HEAD, E (ERASE) (DECK B)
HP601 1-500-187-11 HEAD, PB (DECK A)
HRP601 1-500-138-11 HEAD, RP (REC/PB) (DECK B)
M601 X-3369-757-1 MOTOR ASSY (REEL/CAPSTAN)
S601 1-762-023-11 SWITCH, LEAF (ERASE) (DECK B)
S603 1-762-022-11 SWITCH, LEAF (POWER) (DECK B)
S604 1-762-022-11 SWITCH, LEAF (POWER) (DECK A)
S605 1-762-255-11 SWITCH, LEAF (PB) (DECK A)
SP901 1-505-515-11 SPEAKER (10CM)
SP902 1-505-516-11 SPEAKER (5CM)
SP903 1-505-515-11 SPEAKER (10CM)
SP904 1-505-516-11 SPEAKER (5CM)
!T901 1-431-082-11 TRANSFORMER, POWER
************************************************************
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
CFS-717S
Sony Corporation
Personal A&V Products Company
97D1625-1
Printed in Japan © 1997.4
Published by Quality Engineering Dept.
(Shibaura)
9-923-164-11
VOLUME
ACCESSORIES & PACKING MATERIALS
*******************************
!1-551-983-00 CORD, POWER (E23)
!1-569-007-11 ADAPTOR, CONVERSION 2P (E23)
!1-569-008-11 ADAPTOR, CONVERSION 2P (EA)
!1-769-412-11 CORD, POWER (EXCEPT E23)
3-859-353-11 MANUAL, INSTRUCTION (ENGLISH)
3-859-353-21 MANUAL, INSTRUCTION (SPANISH,FRENCH)
************************************************************
**************
HARDWARE LIST
**************
#1 7-621-770-87 SCREW +B 2.6X5
#2 7-682-547-04 SCREW +B 3X6
#3 7-682-548-04 SCREW +B 3X8
#5 7-685-651-11 SCREW +BVTP 3X20 TYPE2 N-S
#6 7-685-781-09 SCREW +PTT 2X4 (S)
#7 7-685-903-31 SCREW +PTPWH 3X10 (TYPE2)
#8 7-685-648-79 SCREW +BVTP 3X12 TYPE2 SLIT
#9 7-685-647-11 SCREW +BVTP 3X10 TYPE2 N-S
#10 7-685-152-11 SCREW +P 3X25
Ver 1.1 1999. 11
