Revision 1.3 (08/2010)
User Manual
CG635
2.05 GHz Synthesized Clock Generator
CG635 Synthesized Clock Generator
Certification
Stanford Research Systems certifies that this product met its published specifications at the time
of shipment.
Warranty
This Stanford Research Systems product is warranted against defects in materials and
workmanship for a period of one (1) year from the date of shipment.
Service
For warranty service or repair, this product must be returned to a Stanford Research Systems
authorized service facility. Contact Stanford Research Systems or an authorized representative
before returning this product for repair.
Information in this document is subject to change without notice.
Copyright © Stanford Research Systems, Inc., 2005. All rights reserved.
Stanford Research Systems, Inc.
1290-C Reamwood Avenue
Sunnyvale, California 94089
Phone: (408) 744-9040
Fax: (408) 744-9049
www.thinkSRS.com
Printed in U.S.A.
Contents i
CG635 Synthesized Clock Generator
Contents
Contents i
Safety and Preparation for Use v
Specifications vii
Quick Start Instructions xi
Introduction 1
Feature Overview 1
Front-Panel Overview 2
Outputs 2
Output Levels 3
Display 4
Entry 4
Modify 6
Clock Status and Interface Indicators 7

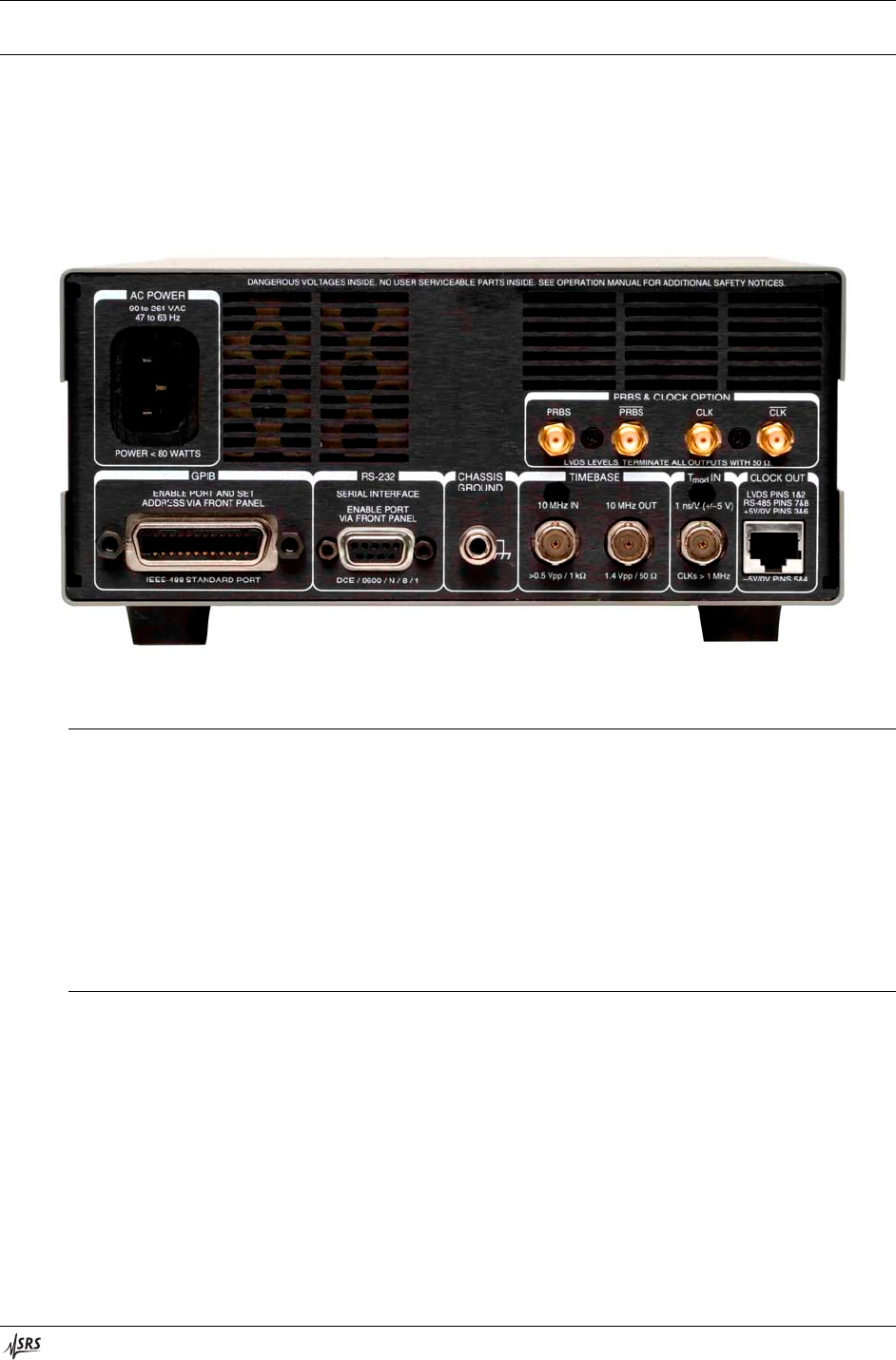

Rear-Panel Overview 8
AC Power 8
GPIB 8
RS-232 9
Chassis Ground 9
Timebase 9
Tmod Input 9
Clock Output 10
PRBS and Clock Option 11
Operation 13
Front-Panel User Interface 13
Power On 13
Displaying a Parameter 13
Changing a Parameter 14
Stepping a Parameter 14
Step Sizes of Exact Factors of Ten 14
Changing Units 15
Store and Recall Settings 15
Secondary Functions 15
Q and Q¯ Outputs 16
CMOS Output 17
Frequency 19
Phase 20
Secondary Functions 22
RUN, STOP, TOGGLE 22
INIT 22
Contents ii
CG635 Synthesized Clock Generator
STATUS 22
PRBS ON/OFF 24
FREQ/2, FREQx2 24
REL θ = 0 24
θ + 90° 24
GPIB 24
ADDRS 25
RS-232 25
DATA 25
Factory Default Settings 25
Troubleshooting 26
CG635 Remote Programming 29
Introduction 29
GPIB 29
RS-232 29
Front-Panel Indicators 29
Command Syntax 30
Index of Commands 31
Instrument Control Commands 31
Interface Commands 31
Status Reporting Commands 31
Instrument Control Commands 32
Interface Commands 36
Status Reporting Commands 38
Status Byte Definitions 40
Serial Poll Status Byte 40
Standard Event Status Register 41
Communication Error Status Register 41
Instrument Status Register 41
PLL Lock Status Register 42
Error Codes 43
Performance Evaluation 47
Overview 47
Equipment Required 47
CG635 Self Test 47
Output Level Tests 48
Q/Q¯ Level Tests 48
CMOS Level Tests 49
Transition Time Measurements 50
Frequency Synthesis Tests 52
Functional Tests 53
Time Modulation Test 55
Contents iii
CG635 Synthesized Clock Generator
Phase Noise Tests 56
Jitter Tests 58
Timebase Calibration 59
Timebase Calibration Test 60
Calibration 60
Circuit Description 61
Overview 61
Accuracy 61
Resolution 61
Phase Noise 61
Circuit Block Diagram 62
Timebase 62
Reference Synthesizer 62
Reference Synthesizer Clean-up 63
Time Modulation 63
RF Synthesizer 63
Programmable Dividers and Clock Fan-out 64
Determining Register Values 64
Phase adjustment 67
Detailed Circuit Description 69
Timebase 69
DDS and the 19.40/19.44 MHz Reference 71
Time Modulation 73
RF Synthesizer 74
ECL Dividers and Clock Multiplexer 75
Microcontroller 76
Rear-Panel RJ-45 Outputs 82
RS-232 and GPIB Interfaces 83
Power Supply Interface 83
Front-Panel Output Drivers 83
Front-Panel Q and Q¯ Drivers 84
Front-Panel CMOS Driver 84
Front-Panel Display and Keypad 85
Power Supply 85
Timebase Options 86
Optional PRBS Generator 86
Line Receiver Accessories 87
Contents iv
CG635 Synthesized Clock Generator
Parts List 93
Motherboard Assembly 93
Output Driver Assembly 102
Power Supply Assembly 106
Chassis and Front-Panel Assembly 107
Option 1 Assembly 109
Option 2 Assembly 111
Option 3 Assembly 111
Schematics 113
CG635 Schematic Diagram List 113
Safety and Preparation for Use v
CG635 Synthesized Clock Generator
Safety and Preparation for Use
Line Voltage
The CG635 operates from a 90 to 132 VAC or 175 to 264 VAC power source having a
line frequency between 47 and 63 Hz. Power consumption is less than 80 VA total. In
standby mode, power is turned off to the main board. However, power is maintained at all
times to any optional timebases installed. Thus, a unit with an optional rubidium or
ovenized quartz oscillator is expected to consume less than 25 VA and 15 VA of power,
respectively, in standby mode.
Power Entry Module
A power entry module, labeled AC POWER on the back panel of the CG635, provides
connection to the power source and to a protective ground.
Power Cord
The CG635 package includes a detachable, three-wire power cord for connection to the
power source and protective ground.
The exposed metal parts of the box are connected to the power ground to protect against
electrical shock. Always use an outlet which has a properly connected protective ground.
Consult with an electrician if necessary.
Grounding
A chassis grounding lug is available on the back panel of the CG635. Connect a heavy
duty ground wire, #12AWG or larger, from the chassis ground lug directly to a facility
earth ground to provide additional protection against electrical shock.
BNC shields are connected to the chassis ground and the AC power source ground via the
power cord. Do not apply any voltage to the shield.
Line Fuse
The line fuse is internal to the instrument and may not be serviced by the user.
Operate Only with Covers in Place
To avoid personal injury, do not remove the product covers or panels. Do not operate the
product without all covers and panels in place.
Serviceable Parts
The CG635 does not include any user serviceable parts inside. Refer service to a
qualified technician.
Safety and Preparation for Use vi
CG635 Synthesized Clock Generator

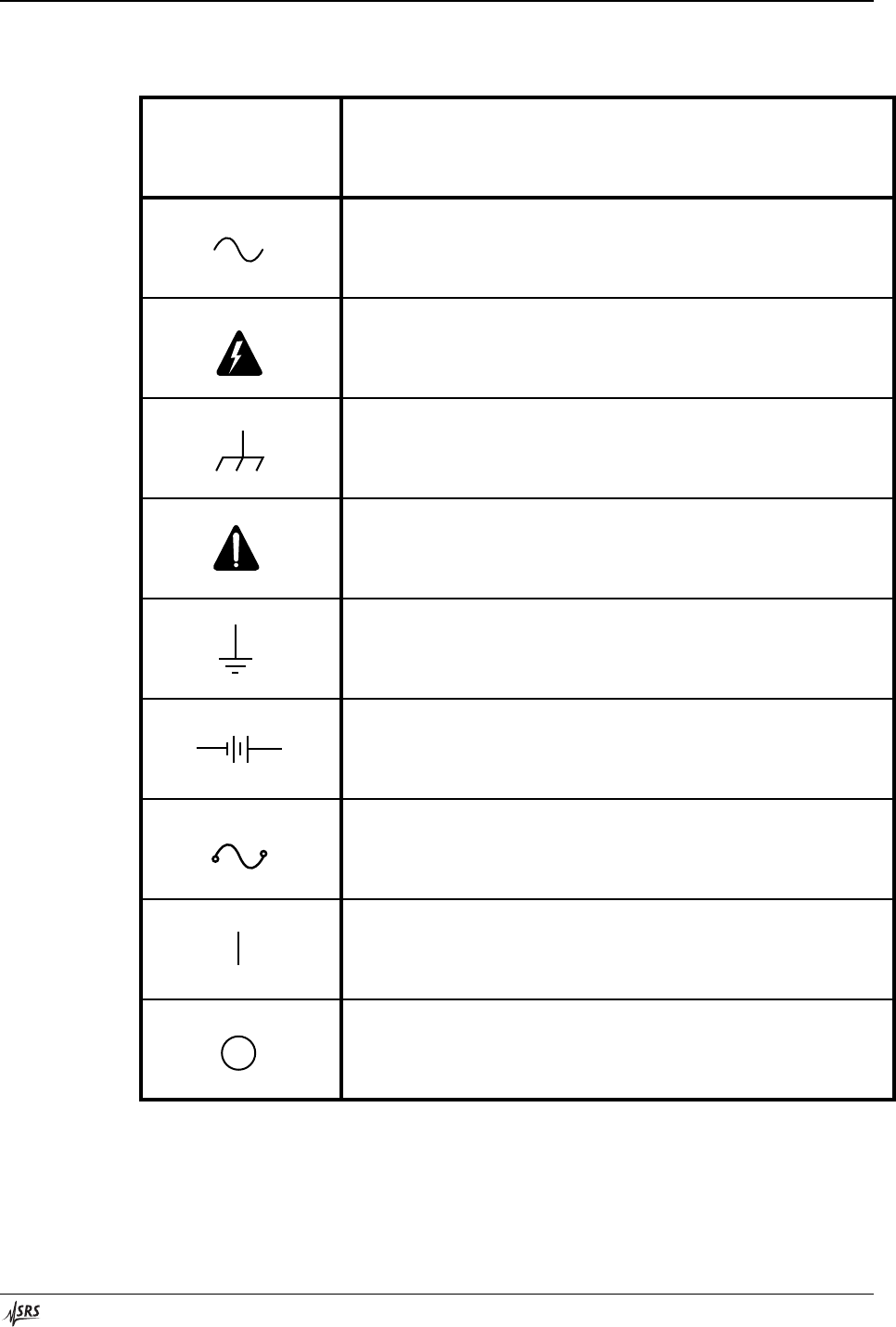

Symbols you may Find on SRS Products
Symbol Description
Alternating current
Caution - risk of electric shock
Frame or chassis terminal
Caution - refer to accompanying documents
Earth (ground) terminal
Battery
Fuse
On (supply)
Off (supply)
Specifications vii
CG635 Synthesized Clock Generator
Specifications
Frequency
Range 1 µHz to 2.05 GHz
Resolution
f < 10 kHz 1 pHz
f 10 kHz 16 digits
Accuracy f < ± (2×10-19 + timebase error) × f
Settling time <30 ms
Timebase (+20 °C to +30 °C ambient)
Stability
Std. timebase <5 ppm
Opt. 02 (OCXO) <0.01 ppm
Opt. 03 (Rb) <0.0001 ppm
Aging
Std. timebase <5 ppm/year
Opt. 02 (OCXO) <0.2 ppm/year
Opt. 03 (Rb) <0.0005 ppm/year
External Input 10 MHz ± 10 ppm, sine >0.5 Vpp, 1 k impedance
Output 10 MHz, 1.41 Vpp sine (+7 dBm) into 50
Noise & Spurs
Phase noise (at 622.08 MHz)
100 Hz offset <–90 dBc/Hz
1 kHz offset <–100 dBc/Hz
10 kHz offset <–100 dBc/Hz
100 kHz offset <–110 dBc/Hz

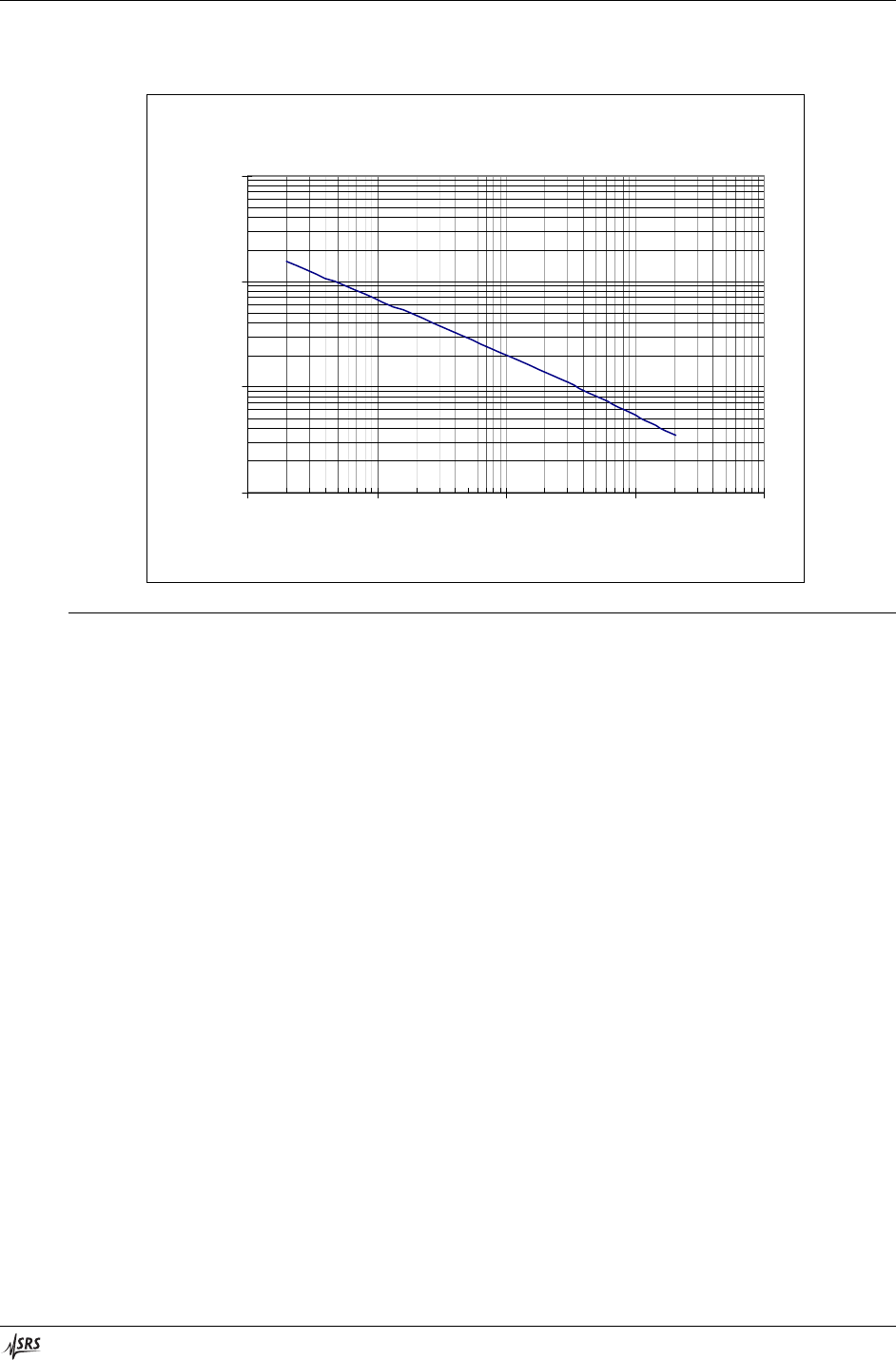

Phase noise vs. freq. 6 dB/oct. relative to 622.08 MHz
Spurious <–70 dBc (within 50 kHz of carrier)
Jitter and Wander
Jitter (rms) <1 ps (1 kHz to 5 MHz bandwidth)
Wander (p-p) <20 ps (10 s persistence)
Time Modulation
Rear-panel input BNC, DC coupled, 1 k
Sensitivity 1 ns/V, ±5 %
Range ±5 ns
Bandwidth DC to greater than 10 kHz
Specifications viii
CG635 Synthesized Clock Generator
Phase
Range ±720°
Resolution <20 ps
Maximum step size ±360°
Slew time (p > 0°) <300 ms
Q and Q¯ Outputs
Outputs Front-panel BNC connectors
Frequency range DC to 2.05 GHz
High level –2.00 V VHIGH +5.00 V
Amplitude 200 mV VAMPL 1.00 V (VAMPL VHIGH – VLOW)
Level resolution 10 mV
Level error <1 % + 10 mV
Transition time <100 ps (20 % to 80 %)
Symmetry <100 ps departure from nominal 50 %
Source impedance 50 (±1 %)
Load impedance 50 to ground on both outputs
Pre-programmed levels +5.0 V PECL, +3.3 V PECL, LVDS, +7 dBm, ECL
Protection Continuous to ground, momentary to +5 VDC
CMOS Output
Output Front-panel BNC
Frequency range DC to 250 MHz
Low level -1.00 V VLOW +1.00 V
Amplitude range 500 mV VAMPL 6.00 V (VAMPL VHIGH – VLOW)
Level resolution 10 mV
Level error <2 % of VAMPL + 20 mV
Transition time <1.0 ns (10 % to 90 %, with 12pF load at far end of 50 cable)
Symmetry <500 ps departure from nominal 50%
Source impedance 50 (reverse terminates cable reflection)
Load impedance Unterminated 50 cable of any length
Attenuation (50 load) Output levels are divided by 2
Preprogrammed levels VLOW = 0; VHIGH = 1.2, 1.8, 2.5, 3.3, or 5.0 V
Protection Continuous to ground, momentary to +5 VDC
RS-485 Output
Output Rear-panel RJ-45
Frequency range DC to 105 MHz
Clock output Pin 7 and pin 8 drive twisted pair
Transition time <800 ps (20% to 80%)
Source impedance 100 between pin 7 and pin 8
Load impedances 100 between pin 7 and pin 8
Logic levels VLOW = +0.9 V, VHIGH = +2.2 V
Recommended cable Straight-through Category-6
Protection Continuous to ground, momentary to +5 VDC
Specifications ix
CG635 Synthesized Clock Generator
LVDS Output (EIA/TIA-644)
Output Rear-panel RJ-45
Frequency range DC to 2.05 GHz
Clock output Pin 1 and pin 2 drive twisted pair
Transition time <100 ps (20% to 80%)
Source impedance 100 between pin 1 and pin 2
Load impedances 100 between pin 1 and pin 2
Logic levels VLOW = +0.96 V, VHIGH = +1.34 V
Recommended cable Straight-through Category-6
Protection Continuous to ground, momentary to +5 V
PRBS (Opt. 01) (EIA/TIA-644)
Frequency range DC to 1.55 GHz
Level LVDS on rear-panel SMA jacks
Outputs PRBS, –PRBS, CLK & –CLK
PRBS generator x7 + x6 + 1 for a length of 27 – 1 bits
Transition time <100 ps (20 % to 80 %)
Load impedance 50 to ground on all outputs
Accessory Power (on rear-panel RJ-45 connector)
+5 VDC Pin 3
–5 VDC Pin 5
Ground return Pin 4 and pin 6
Short circuit protection Current limited to 375 mA
Polarity clamps Diode clamps prevent polarity inversion
(2 ADC max., 120 A non-rep.)
General
Computer interfaces IEEE-488.2 and RS-232 standard. All instrument functions can be
controlled through the computer interfaces.
Non-volatile memory Ten sets of instrument configurations can be stored and recalled.
Line power Universal input, 90 to 264 VAC,
47 Hz to 63 Hz
Standby power <5 W (std. timebase)
<15 W (opt. 02, OCXO timebase)
<25 W (opt. 03, Rb timebase)
Operating power <30 W (std. timebase)
<40 W (opt. 02, OCXO timebase)
<50 W (opt. 03, Rb timebase)
Dimensions 8.5” × 3.5” × 13” (WHD)
Weight <9 lbs.
Warranty One year parts and labor on defects in materials and workmanship
Specifications x
CG635 Synthesized Clock Generator
Optional Receiver Modules
General
Inputs RJ-45. Connects to CG635 via standard Category-6 cable.
Outputs Q / Q¯ on SMA connectors
Dimensions 1 5/8” × 1” × 3” (WHD)
Models
Model Levels Source
Impedance Termination
Impedance Transition
Time (max) Fmax (2)
CG640 +5 V CMOS 50 High Z 2.0 ns 105 MHz(1)
CG641 +3.3 V CMOS 50 High Z 800 ps 250 MHz
CG642 +2.5 V CMOS 50 High Z 800 ps 250 MHz
CG643 +5 V PECL 50 High Z 800 ps 250 MHz
CG644 +3.3 V PECL 50 50 100 ps 2.05 GHz
CG645 +2.5 V PECL 50 50 100 ps 2.05 GHz
CG646 +7 dBm RF 50 50 100 ps 2.05 GHz
CG647 CML/NIM 50 50 100 ps 2.05 GHz
CG648 NEG ECL 50 50 100 ps 2.05 GHz
CG649 LVDS 50 50 100 ps 2.05 GHz
Notes: (1) Output is set to logic ‘0’ above Fmax.
(2) Except for the CG640, all outputs continue to operate above Fmax with reduced amplitude.
Maximum operating frequency is also limited by the CAT-6 cable length. At 2 GHz, cable
lengths up to 10 feet may be used. At 10 MHz, cable lengths of up to 200 feet may be used.
See Figure 3 on page 11 for the maximum recommended cable lengths at other frequencies.
Quick Start Instructions xi
CG635 Synthesized Clock Generator
Quick Start Instructions
Step by Step Example
1. With the power button in the Standby position, connect the CG635 to a grounded
outlet using the power cord provided.
2. Push in the power button to turn on the CG635. The CG635 will perform some
start up tests and then recall the instruments’ last known settings from non
volatile memory.
3. Reset the CG635 to its default state by pressing sequentially the following 3 keys
located in the ENTRY section of the front panel: ‘SHIFT’, ‘+/-’, ‘Hz’. This
performs the INIT function which resets the instrument to its default settings.
The INIT function will set the frequency to 10 MHz, set the phase to 0 degrees,
set the output levels for Q and Q¯ to LVDS, set the output levels for CMOS to
3.3 V, and select the frequency for display. The LVDS and +3.3 V LEDs in the
OUTPUT LEVELS section of the front panel should be on. The FREQ LED in
the DISPLAY section should be on. The seven segment display should show
10.000000000 and the MHz LED should be lit. This indicates that the frequency
is 10 MHz.
4. Connect the CMOS output to an oscilloscope with a high impedance input to see
that the output is indeed a 3.3 V square wave with a frequency of 10 MHz.
5. Adjust the frequency to 5 MHz by pressing the following keys sequentially: ‘5’,
‘MHz’. The display should change to 5.000000000 MHz. The oscilloscope
should now display a 5 MHz square wave with amplitude 3.3 V.
6. Adjust the CMOS output up to 5.0 V by pressing the CMOS key in the
OUTPUT LEVELS section of the front panel. The +3.3 V LED should turn off
and the +5.0 V LED should turn on. The oscilloscope should now display a
5 MHz square wave with amplitude 5.0 V.
7. Press the ‘CMOS HIGH’ key in the DISPLAY section of the front panel. The
CMOS HIGH LED should turn on and the seven segment display should show
5.00 VDC.
8. Adjust the CMOS output to 4.5 V by pressing the following keys sequentially in
the ENTRY section of the front panel: ‘4’, ‘.’, ‘5’, ‘VOLT’. The seven segment
display should now show 4.50 VDC. In the OUTPUT LEVELS section, the
+5.0 V and VAR LEDs should be lit. This indicates that the current CMOS
output voltage varies from, but is closest to the +5.0 V standard output level.
9. Press the CMOS key in the OUTPUT LEVELS section of the front panel. The
CMOS output changes to the nearest standard level in the direction of the
indicated key, which is 3.3 V in this case. The VAR LED should turn off,
indicating that the current output is at a standard level.
Quick Start Instructions xii
CG635 Synthesized Clock Generator
10. Press the ‘FREQ’ key in the DISPLAY section to display the current frequency.
The seven segment display should show 5.000000000 MHz.
11. Press the ‘STEP SIZE’ key in the MODIFY section of the front panel. The
display should now show 1.000 Hz, and the STEP LED should be lit. This
indicates that the current step size for frequency is 1.000 Hz.
12. Change the frequency step size to 1 kHz by pressing the following keys
sequentially in the ENTRY section of the front panel: ‘1’, ‘kHz’. The display
should now show 1.000000 kHz.
13. Switch back to the frequency display be pressing the ‘STEP SIZE’ key again.
The STEP LED should turn off, and the display should show the current
frequency of 5.000000000 MHz. The digit corresponding to 1 kHz should be
blinking, indicating that frequency steps will change that digit by one.
14. Step the frequency up by 1 kHz by pressing the MODIFY key. The frequency
should now display 5.001000000 MHz.
15. For more details about the operation of keys on the front panel, see the Front
Panel Overview (page 2) in the Introduction.
16. For more details about a particular feature, see the chapter Operation (page 13).
Introduction 1
CG635 Synthesized Clock Generator
Introduction
Feature Overview
The CG635 Synthesized Clock Generator provides precise, low-jitter digital clock signals
for applications ranging from the development of digital circuits to the testing of
communications networks.
The CG635 generates single ended and differential clocks from 1 µHz to 2.05 GHz with
sub-picosecond jitter. Clock frequencies may be set with up to 1 pHz resolution and
16 significant digits. Front-panel outputs have continuously adjustable offsets and
amplitudes, and may be set to standard logic levels including CMOS, PECL, ECL, and
LVDS. A rear-panel output delivers clocks at RS-485 and LVDS over twisted pairs.
Several instrument features support more complex tasks. The phase of the outputs may be
adjusted with nanodegree resolution at 2 Hz, and one-degree resolution at 2 GHz. The
timing of clock edges may be modulated over ±5 ns by an external analog signal. An
optional pseudo-random binary sequence (PRBS) generator (Opt. 01) provides clock and
data outputs at LVDS levels for eye-pattern testing of serial data channels. Edge
transition times are typically 80 ps.
The standard crystal oscillator timebase of the CG635 provides sufficient accuracy for
many applications. An optional ovenized crystal oscillator (Opt. 02), or rubidium
frequency standard (Opt. 03), may be added to improve frequency stability and reduce
aging. The CG635 may also be locked to an external 10 MHz timebase.
The CG635 delivers a low spurious output signal—better than most commercial
synthesizers. Phase noise for a 622.08 MHz carrier at 100 Hz offset is less than
–80 dBc/Hz, and the spurious response is better than –70 dBc.
All instrument functions may be controlled from the front panel or via the GPIB (IEEE-
488.2) or RS-232 interfaces. Up to ten complete instrument configurations can be stored
in non-volatile memory and recalled at any time. A universal input AC power supply
allows world-wide operation.
Several clock receiver modules are available which may be connected to the rear-panel
RS-485/LVDS output via Category-6 cable. These accessories provide complementary
high-speed transitions at standard logic levels on SMA connectors, and may be located at
a substantial distance from the instrument. CMOS (+5 V, +3.3 V, and +2.5 V), PECL
(+5 V, +3.3 V and +2.5 V), RF (+7 dBm), CML/NIM, ECL, and LVDS outputs are all
available.
Introduction 2
CG635 Synthesized Clock Generator
Front-Panel Overview
The front panel was designed to provide a simple, intuitive, user interface to all the
CG635 features (see Figure 1). The power switch is located in the lower right corner of
the front panel. Pushing the switch enables power to the instrument. Pushing the switch
again places the instrument in stand-by mode, where power is enabled only to optionally
installed timebases. Power to the main board is turned off in stand-by mode.
The front panel provides three output drivers for connecting the CG635 clock signals to
user applications via standard BNC cables. The two upper outputs are complementary,
high-speed, ECL compatible output drivers. The lower output is a CMOS output driver.
Keys on the front panel are divided into four sections to indicate their overall
functionality: OUTPUT LEVELS, DISPLAY, ENTRY, and MODIFY. Keys in the
OUTPUT LEVELS section modify the amplitude and offset of the clock signals provided
by the front panel output drivers. Keys in the DISPLAY section control what is shown in
the main display. The user can choose among six standard displays. Keys in the ENTRY
section are used for changing the currently displayed item to a specific value. This
section is also used to access secondary functions. Keys in the MODIFY section allow
the user to increment the currently displayed item by configurable steps.

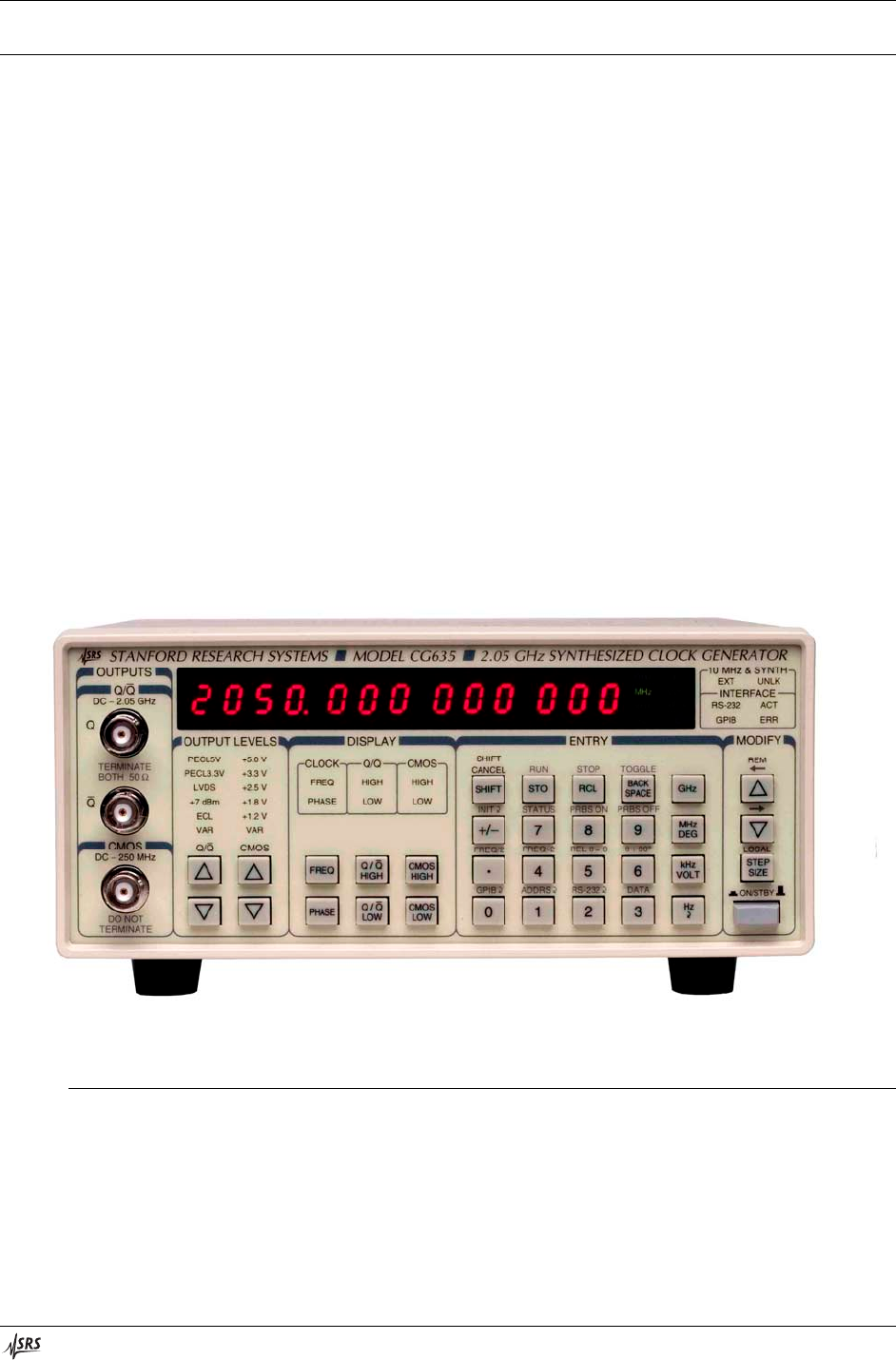

Figure 1: The CG635 Front Panel
Outputs
Q and Q¯
The CG635 front panel includes three BNC outputs. The upper two outputs, labeled Q
and Q¯ , are high-speed drivers that operate from DC to 2.05 GHZ. The outputs provide the
user with fast, complementary voltages at the selected frequency, amplitude, and offset.
Introduction 3
CG635 Synthesized Clock Generator
To operate at specification, BOTH outputs should be terminated into 50 , even if only
one output is used.
CMOS
The bottom output driver is a CMOS compatible driver that can operate from DC to
250 MHz. It drives the output at the selected frequency, amplitude and offset. At
frequencies above 250 MHz, the CMOS driver will be turned off and forced to a low
logic state. To operate at specification, the CMOS output driver should be terminated into
a high impedance input and NOT terminated into 50 .
Output Levels
Standard Levels
The CG635 provides a simple method for switching among five standard voltage levels
for the Q / Q¯ and CMOS outputs. The meaning of the five standard levels is summarized
in Table 1 and Table 2 below:
Table 1: Q / Q¯ Standard Output Levels
Label Description VHIGH (V) VLOW (V)
PECL5V ECL run on +5 VDC supply 4.00 3.20
PECL3.3V ECL run on +3.3 VDC supply 2.30 1.50
LVDS Low voltage differential signaling 1.43 1.07
+7 dBm 1 Vpp with 0.0 VDC offset 0.50 –0.50
ECL ECL run on negative supply –1.00 –1.80
Table 2: CMOS Standard Output Levels
Label Description VHIGH (V) VLOW (V)
+5.0V 5 V CMOS 5.00 0.00
+3.3V 3.3 V CMOS 3.30 0.00
+2.5V 2.5 V CMOS 2.50 0.00
+1.8V 1.8 V CMOS 1.80 0.00
+1.2V 1.2 V CMOS 1.20 0.00
VHIGH and VLOW indicate the voltage driven by the Q / Q¯ or CMOS outputs for the high
and low logic levels.
LEDs in the OUTPUT LEVELS section indicate the standard level that is currently being
driven on the output. Pressing the and keys in this section will move the standard
output level up and down in the table, respectively.
Variable Levels
A sixth LED, labeled VAR, turns on when the current output levels do not correspond to
any of the standard levels. In this case, the standard level LED indicates the standard
level that is closest to the current level. Pressing the and keys when the VAR LED
is on, forces the output to the closest standard output in the direction indicated by the key.
Introduction 4
CG635 Synthesized Clock Generator
Display
The DISPLAY section allows the user to select which values are reported in the main
front panel display. The LEDs in the display section indicate what is currently being
displayed or edited. The meaning of the LEDs and keys are summarized in Table 3.
Table 3: DISPLAY Section Keys
Label Value Shown in Main Display When Pressed
FREQ Current frequency
PHASE Current phase
Q / Q¯ HIGH Voltage for a Q / Q¯ logic high state
Q / Q¯ LOW Voltage for a Q / Q¯ logic low state
CMOS HIGH Voltage for a CMOS logic high state
CMOS LOW Voltage for a CMOS logic low state
The keys are used to change the main display to the indicated item. Pressing ‘FREQ’, for
example, will cause the CG635 to display the current frequency. The FREQ LED will
turn on, indicating that the current display is frequency.
Entry
Numeric Entry
The ENTRY section is used to modify the current settings of the CG635. In most cases,
the currently displayed item can be changed by entering a new value with the numeric
keys, and pressing an appropriate units key to complete the entry. For example, if the
frequency is currently being displayed, pressing the keys ‘1’, ‘MHz’, sequentially will
change the frequency to 1 MHz. Similarly, if the CMOS HIGH voltage is displayed,
pressing the keys ‘2’, ‘.’, ‘1’, ‘VOLT’ will set the CMOS logic high voltage to 2.1 VDC.
Store and Recall Settings
The ‘STO’ and ‘RCL’ keys are for storing and recalling instrument settings, respectively.
The instrument saves the frequency, phase, Q / Q¯ and CMOS output levels, all the
associated step sizes, the run/stop state, the PRBS state, and the current display. Up to ten
different instrument settings may be stored in the locations 0 to 9. To save the current
settings to location 5, press the keys ‘STO’, ‘5’, ‘Hz’, sequentially. To recall instrument
settings from location 5, press the keys ‘RCL’, ‘5’, ‘Hz’ sequentially.
Secondary Functions
Many of the keys have secondary functions associated with them. The names of these
functions are printed above the key. The ‘4’ key, for example, has FREQx2 above it. The
meaning of the secondary functions is summarized in Table 4.
Table 4: Secondary Functions
Label Function Description
RUN Enables the output. Drives the output at the current frequency.
STOP Stops the output. Forces the output to a logic low state.
Introduction 5
CG635 Synthesized Clock Generator
TOGGLE When stopped, toggles the logic state of the output
INIT Resets the instrument to its default settings
STATUS Displays instrument status
PRBS ON If installed, turns on the pseudo-random binary generator
PRBS OFF If installed, turns off the pseudo-random binary generator
FREQ/2 Divides the current frequency by 2 and displays frequency
FREQx2 Multiplies the current frequency by 2 and displays frequency
REL = 0 Defines the current phase to be 0 degrees and displays phase
+ 90° Increments the phase by 90 degrees and displays phase
GPIB Enables the GPIB remote interface. Disables RS-232.
ADDRS Displays / Sets the GPIB primary address for the CG635
RS-232 Enables the RS-232 remote interface. Disables GPIB.
DATA Displays the most recent data received over the remote interface
Increases the current step size by the next exact factor of ten
(Located in the MODIFY section.)
Decrease the current step size by the next exact factor of ten
(Located in the MODIFY section.)
A more detailed description of each of the secondary functions is given in the Secondary
Functions section of the Operation chapter (page 22).
The secondary functions can only be accessed when SHIFT mode is active, which is
indicated by the SHIFT LED being turned on. The SHIFT mode can be toggled on and
off by pressing the ‘SHIFT’ key. Therefore, to increase the frequency by a factor of four,
you would press the ‘SHIFT’ key to activate SHIFT mode, and then press ‘4’ twice to
execute FREQx2 twice. Pressing ‘SHIFT’ again toggles SHIFT mode off.
Most of the secondary functions will automatically toggle SHIFT mode off when
executed. FREQ/2, FREQx2, + 90°, and TOGGLE are exceptions to this rule. This
allows the user to easily sweep frequency or phase without having to continually
reactivate SHIFT mode.
Secondary functions that have an arrow ( ) printed after them, such as INIT, GPIB,
ADDRS, and RS-232, require that the user press the key ‘Hz’ to complete the action. For
example, to initialize the instrument to its default settings, you would sequentially press
‘SHIFT’, ‘INIT’, ‘Hz’.
Cancel
The ‘SHIFT’ key also functions as a general purpose CANCEL key. Any numeric entry
which has not been completed by pressing a units key, can be canceled by pressing the
‘SHIFT’ key. Because of the dual role played by the SHIFT key, the user may have to
press ‘SHIFT’ twice to reactivate SHIFT mode. The first key press cancels the current
action, and the second key press activates SHIFT mode.
Introduction 6
CG635 Synthesized Clock Generator
Modify
Stepping Up and Down
The MODIFY section is used to step the currently displayed item up or down by a
programmed amount. Each of the six standard display items listed in the DISPLAY
section has a step size associated with it. Normally, pressing the MODIFY and
keys causes the displayed item to increment and decrement, respectively, by the
associated step size.
Step Size
The step size for the current standard display can be viewed by pressing the ‘STEP SIZE’
key. Pressing ‘STEP SIZE’ a second time toggles the view back to the standard display.
When the step size is being viewed, the STEP LED in the main display will be turn on.
To view the frequency step size, press ‘FREQ’, ‘STEP SIZE’, sequentially. Pressing
‘FREQ’ ensures that frequency is the current standard display. Pressing ‘STEP SIZE’
then toggles the main display to the step size associated with frequency.
The step size can be changed in a number of ways. If the current step size is being
displayed, the user can modify the current step size in one of two ways. First, you can
enter a new value with the numeric keys in the ENTRY section and complete the entry by
pressing an appropriate units key. Second, you can increment and decrement the current
step size by exact factors of ten by pressing the MODIFY and keys, respectively.
For example, if the currently displayed frequency step size is 1.000 Hz, then the step size
can be increased to 10.000 Hz by pressing MODIFY once.
The step size can also be changed, even when the current step size is not being displayed.
This is accomplished by accessing the SHIFTED functions and shown above the
MODIFY and keys, respectively. For example, pressing ‘SHIFT’, MODIFY ,
sequentially will increase the associated step size to the next exact factor of ten.
When the step size of a standard display item is an exact factor of ten, the corresponding
digit in the main display will blink. This provides a convenient visual cue to let the user
know which digit will change when the user presses the MODIFY and keys. For
example, if the frequency step size is 1.000 Hz, and the displayed frequency is
123456.789 Hz, then the ‘6’ will be blinking. Pressing the MODIFY key will step the
frequency up 1 Hz to 123457.789 Hz.
Remote and Local Mode
The REM LED turns on when the CG635 is placed in remote mode by the GPIB bus. In
this mode, all the front panel keys are disabled and the instrument can only be controlled
via the GPIB bus. The user can return to normal, local mode by pressing the ‘STEP
SIZE’ key once. The ‘LOCAL’ label above the key indicates the dual functionality of the
‘STEP SIZE’ key.
Introduction 7
CG635 Synthesized Clock Generator
Clock Status and Interface Indicators
10 MHz & SYNTH
In the upper right portion of the front panel are two groups of LED indicators. The upper
group is labeled 10 MHz & SYNTH. This contains the EXT and UNLK LEDs. The EXT
LED indicates that the CG635 has detected an external 10 MHz reference at the 10 MHz
input BNC on the rear panel of the CG635. The CG635 will lock its internal clock to this
external reference.
The UNLK LED indicates that the output has not yet stabilized for some reason. This is
usually due to a user request to change frequency or phase. Frequency changes can take
roughly 30 ms to stabilize. A backward phase step of 360 degrees at 1 Hz can take as
long as 1.5 s to complete. The UNLK LED may also indicate that the internal clock has
not locked to the external reference.
INTERFACE
The lower group of LED indicators is labeled INTERFACE. These LEDs indicate the
current status of RS-232 or GPIB remote programming interfaces. The RS-232 LED is on
if the instrument is configured to accept commands over the RS-232 interface.
Alternately, the GPIB LED is on if the instrument is configured to accept commands over
the IEEE-488 port. When a character is received or sent over one of the interfaces, the
ACT LED will flash. This is helpful when troubleshooting communications problems. If
a command received over the remote interface fails to execute due to either a parsing
error or an execution error, the ERR LED will flash.
Introduction 8
CG635 Synthesized Clock Generator
Rear-Panel Overview
The rear panel provides connectors for AC power, GPIB/RS-232 computer interfaces,
chassis ground, external timing references, clock edge timing modulation, additional
clock outputs, and an optional, pseudo-random binary sequence generator (see Figure 2).
Figure 2: The CG635 Rear Panel
AC Power
The Power Entry Module is used to connect the CG635 to a power source through the
power cord provided with the instrument. The center pin is connected to the CG635
chassis so that the entire box is grounded.
The source voltage requirements are: 90 to 132 VAC or 175 to 264 VAC, 47 to 63 Hz (80
VA total).
Connect the CG635 to a properly grounded outlet. Consult an electrician if necessary.
GPIB
The CG635 comes standard with a GPIB (IEEE-488) communications port for
communications over a GPIB bus. The CG635 supports the IEEE-488.1 (1978) interface
standard. It also supports the required common commands of the IEEE-488.2 (1987)
standard.
Before attempting to communicate with the CG635 over the GPIB interface, the port
must be enabled via the front panel. Do this by sequentially pressing the following keys
located in the ENTRY section: ‘SHIFT’, ‘GPIB’, ‘Hz’. The GPIB address can be
changed by pressing the keys ‘SHIFT’, ‘ADDRS’. Use the MODIFY ‘UP’ and ‘DOWN’
keys to select the desired address. Press ‘Hz’ to complete change.
Introduction 9
CG635 Synthesized Clock Generator
A host computer interfaced to the CG635 can perform virtually any operation that is
accessible from the front panel. Programming the CG635 is discussed in the CG635
Remote Programming chapter.
RS-232
The CG635 comes standard with an RS-232 communications port. The RS-232 interface
connector is a standard 9 pin, type D, female connector configured as a DCE (transmit on
pin 3, receive on pin 2). The communication parameters are fixed at: 9600 Baud, 8 Data
bits, 1 Stop bit, No Parity, RTS/CTS Hardware Flow Control.
Before attempting to communicate with the CG635 over RS-232, the port must be
enabled via the front panel. Do this by sequentially pressing the following keys located in
the ENTRY section: ‘SHIFT’, ‘RS-232’, ‘Hz’.
A host computer interfaced to the CG635 can perform virtually any operation that is
accessible from the front panel. Programming the CG635 is discussed in the CG635
Remote Programming chapter.
Chassis Ground
Use this grounding lug to connect the CG635 chassis directly to facility ground
Timebase
10 MHz IN
The CG635 provides a 10 MHz BNC input for synchronizing its internal clock to an
external 10 MHz reference. The external reference should provide greater than 0.5 Vpp
into a 1 k impedance. The CG635 will automatically detect the presence of an external
10 MHz reference and lock to it if possible. If the CG635 is unable to lock to the external
reference, the front-panel UNLK LED will turn on and stay on until the CG635 either
successfully locks to the external reference or the reference is removed.
10 MHz OUT
The CG635 provides a 10 MHz BNC output for synchronizing other instrumentation to
the CG635’s timebase.
Tmod Input
The CG635 clock edges can be modulated over ±5 ns by providing a modulation voltage
to the Tmod BNC input. The input is calibrated to provide 1 ns of modulation for 1 volt of
input swing. The input can accept voltages of ±5 V. Positive inputs advance the clock
outputs, negative inputs retard the clock outputs.
The Tmod input can be very useful for characterizing a circuit’s susceptibility to
timing jitter.
Introduction 10
CG635 Synthesized Clock Generator
Clock Output
The CG635 interfaces to a number of optional clock receiver modules which can be used
to get a clock signal from the CG635 to where it is needed. The receiver modules
regenerate the clock locally providing the user with clean, fast clock edges, even if the
CG635 is several meters away. Receiver modules are available for generating most of the
standard CMOS and ECL signal levels.
All modules provide both +CLK and –CLK with a source impedance of 50 , and
connect to the rear-panel RJ-45 connector using standard Category-6 cable. Table 5
summarizes the features of the optional receiver modules offered by SRS. The maximum
frequency (Fmax) listed in the table for each module is the maximum frequency at which
the module operates at specification. With the exception of the CG640, the modules
continue to operate above Fmax, but with reduced amplitude.
Table 5: Optional Receiver Modules
Model Description Termination
Impedance Transition
Time(max)
Fmax (2)
CG640 CMOS (+5 Vcc) High Z 2.0 ns 105 MHz (1)
CG641 CMOS (+3.3 Vcc) High Z 800 ps 250 MHz
CG642 CMOS (+2.5 Vcc) High Z 800 ps 250 MHz
CG643 PECL (+5 Vcc) High Z 800 ps 250 MHz
CG644 PECL (+3.3 Vcc) 50 100 ps 2.05 GHz
CG645 PECL (+2.5 Vcc) 50 100 ps 2.05 GHz
CG646 RF (+7 dBm) 50 100 ps 2.05 GHz
CG647 CML/NIM 50 100 ps 2.05 GHz
CG648 ECL 50 100 ps 2.05 GHz
CG649 LVDS 50 100 ps 2.05 GHz
Notes: (1) Output is set to logic ‘0’ above Fmax.
(2) Maximum operating frequency is limited by the CAT-6 cable length.
The maximum frequency may also be limited by the CAT-6 cable length. At 2 GHz, the
cable may be up to 10 feet long. At 10 MHz, the cable may be up to 200 feet long.
Figure 3 summarizes the limitation on maximum frequency due to cable length.
If clock regeneration is not needed, the user can interface directly to the clock signals
provided on the various pins of the RJ-45 connector. The clock signals and pin
assignments are printed on the rear panel of the CG635 in the CLOCK OUT section.
Introduction 11
CG635 Synthesized Clock Generator
Figure 3: Maximum recommended CAT-6 cable length as a function frequency.
Maximum Recommended CAT-6 Cable Length vs. Frequency
1
10
100
1000
1 10 100 1000 10000
Frequenc y (MHz)
Maximum CAT-6 Cable (meters)
PRBS and Clock Option
An optional pseudo-random binary sequence generator for the CG635 is also available
from SRS. If installed, both the PRBS data and the clock are output as LVDS levels on
rear-panel SMA connectors.
A Pseudo-Random Binary Sequence (PRBS) generator is used for testing data
transmission systems. A typical arrangement is to display an “eye pattern” on an
oscilloscope by triggering the oscilloscope with the clock while displaying the (random)
data after it passes through the data transmission system. An “open” eye pattern is
necessary for reliable data transmission. The eye pattern “closes” from the left and right
with jitter, and from the top and bottom with insufficient channel bandwidth, increasing
the likelihood for transmission errors.
The most common way to create a PRBS generator is to use a linear shift-register,
feeding the input of the shift-register with the exclusive OR of two (particular) data bits
as they shift through the system. The CG635 uses a 7-bit ECL shift register that provides
a pseudo-random bit sequence which repeats after 27 – 1 = 127 clock cycles. The data bit
stream is described by the polynomial x7 + x6 + 1. It satisfies many criteria to qualify as
“random”; however, it does repeat itself (exactly) after 127 clock cycles. Another
departure from randomness is that the longest string of “1’s” is seven in a row, while the
longest string of “0’s” is six in a row.
Operation 13
CG635 Synthesized Clock Generator
Operation
Front-Panel User Interface
The previous chapter described the function of the front-panel keys based on their
location on the front panel. This section provides guidelines for viewing and changing
instrument parameters independent of their location on the front panel.
Power On
At power on, the CG635 performs a number of self tests to verify that various internal
components are operating correctly. If any of the tests fail, the CG635 will briefly display
“Failed” after the test. In such a case, consult the troubleshooting section later in this
chapter before contacting SRS or an authorized representative to repair the unit.
After the self tests have completed, the CG635 will recall the latest known instrument
settings from nonvolatile memory and be ready for use.
The CG635 continuously monitors front-panel key presses and will save the current
instrument settings to nonvolatile memory after approximately ten seconds of inactivity.
To prevent the nonvolatile memory from wearing out, however, the CG635 will not
automatically save instrument settings that change due to commands executed over the
remote interface. The remote commands *SAV and *RCL can be used to explicitly save
instrument settings over the remote interface, if desired. See the CG635 Remote
Programming chapter for more information about these commands.
The CG635 can be forced to boot up at factory default settings. This is accomplished by
pressing and holding the ‘BACK SPACE’ key during power up, until the initialization is
complete. All instrument parameters will be set back to their default values, including the
enabled remote interface and the GPIB address. See the Default Factory Settings section
later in this chapter for a listing of the default settings.
Displaying a Parameter
The CG635 has six main displays which are activated by pressing the keys in the
DISPLAY section of the front panel. The function of each key is summarized in Table 6.
Table 6: DISPLAY Section Keys
Label Value Shown in Main Display When Pressed
FREQ Current frequency
PHASE Current phase
Q / Q¯ HIGH Voltage for a Q / Q¯ logic high state
Q / Q¯ LOW Voltage for a Q / Q¯ logic low state
CMOS HIGH Voltage for a CMOS logic high state
CMOS LOW Voltage for a CMOS logic low state
Operation 14
CG635 Synthesized Clock Generator
Each of these parameters has an independent step size associated with it. When one of the
six main displays is active, the associated step size for the parameter can be displayed by
pressing the ‘STEP SIZE’ button in the MODIFY section of the front panel. Pressing the
‘STEP SIZE’ key again toggles the display back to the original parameter. When the step
size for a parameter is displayed, the STEP LED in the main display will be highlighted.
For example, to display the frequency, press the ‘FREQ’ key. Now that frequency is
displayed you can display the frequency step size by pressing the ‘STEP SIZE’ key. The
STEP LED should be highlighted in the main display. Pressing ‘STEP SIZE’ once more
toggles the display back to frequency. The STEP LED should now be off.
Changing a Parameter
To change a parameter, enter a new value using the numeric keys in the ENTRY section
of the front panel, and complete the entry by pressing an appropriate units key. Generally
speaking, only displayed parameters can be changed. For example, to change the
frequency to 10 kHz, press the following keys sequentially: ‘FREQ’, ‘1’, ‘0’, ‘kHz’.
Pressing ‘FREQ’ selects it for display and editing. Pressing ‘1’ initiates the parameter
change. Pressing ‘kHz’ completes the numeric entry and sets the frequency to 10 kHz.
The same techniques can be used to change the step size of a parameter. The only
difference is that the parameter step size must be displayed first, before entering a
new value.
If the user enters extra digits beyond the allowed resolution of a parameter, the extra
digits will be ignored. For example, the phase has a resolution of 1 degree at 1 GHz.
Entering a step size of 2.5 degrees will result in the step size being truncated to 2 degrees.
Stepping a Parameter
The six main parameters can be stepped up and down by their associated step sizes by
respectively pressing the and keys in the MODIFY section of the front panel. For
example, if frequency is currently being displayed as 10.000000000 MHz, and the
frequency step size is 1.000 Hz, then pressing MODIFY will change the frequency to
10.000001000 MHz. Pressing MODIFY will bring the frequency back to 10 MHz.
Step Sizes of Exact Factors of Ten
If a parameter’s step size is an exact factor of ten, then the corresponding digit in the
main display of the parameter will blink. This provides a visual cue to inform the user of
the digit that will change when the parameter is stepped up or down. For example, if the
frequency step size is 1.000 Hz, and the displayed frequency is 123456.789 Hz, then the
‘6’ will be blinking. Pressing the MODIFY key will step the frequency up 1 Hz to
123457.789 Hz.
When a parameter step size is being displayed, the user can increase or decrease the step
size to the nearest exact factor of ten by pressing the MODIFY and keys,
respectively. For example, if the current frequency step size is being displayed as
1.000 Hz, then pressing MODIFY will increase to the step size to 10.000 Hz.
Operation 15
CG635 Synthesized Clock Generator
The same behavior can also be achieved even when the current step size is NOT being
displayed. This is accomplished by accessing the SHIFTED functions and shown
above the MODIFY and keys, respectively. For example, if the frequency is being
displayed as 123456.789 Hz, and the frequency step size is 1 Hz, then sequentially
pressing ‘SHIFT’, MODIFY will increase the associated step size to 10 Hz. The ‘6’
will stop blinking and the ‘5’ will start blinking to indicate the new step size.
Changing Units
Frequency has the option of being displayed in units of GHz, MHz, kHz, or Hz. When the
user enters a frequency using the front panel, the CG635 will display the frequency in the
units used to complete the entry. For example, pressing the keys ‘FREQ’, ‘1’, ‘0’, ‘kHz’
sequentially, to change the frequency to 10 kHz, will cause the CG635 to display the
result as 10.000000 kHz. The user can change the displayed units by pressing a different
units key. Continuing with the previous example, if the user presses ‘Hz’, the CG635 will
change the display to 10000.000 Hz.
Store and Recall Settings
The ‘STO’ and ‘RCL’ keys are for storing and recalling instrument settings, respectively.
The instrument saves the frequency, phase, Q / Q¯ and CMOS output levels, all the
associated step sizes, the run/stop state, the PRBS state, and the current display. Up to ten
different instrument settings may be stored in the locations 0 to 9. To save the current
settings to location 5, for example, press the keys ‘STO’, ‘5’, ‘Hz’ sequentially. To recall
instrument settings from location 5, press the keys ‘RCL’, ‘5’, ‘Hz’ sequentially. The
user may also use the MODIFY and keys to select the desired location, rather than
enter the location directly with the numeric keys. The CG635 will remember the last
location used for store and recall. To reuse the remembered location, simply skip the
numeric entry when storing or recalling settings. For example, to recall settings from the
remembered location, the user should simply press ‘RCL’, ’Hz.’
Secondary Functions
Most of the keys in the ENTRY section of the front panel have secondary functions
associated with them. The names of these functions are printed above the key. The ‘4’
key, for example, has FREQx2 above it.
The secondary functions can only be accessed when SHIFT mode is active, which is
indicated by the SHIFT LED being turned on. The SHIFT mode can be toggled on and
off by pressing the ‘SHIFT’ key. Therefore, to increase the frequency by a factor of four,
you would press the ‘SHIFT’ key to activate SHIFT mode, and then press ‘4’ twice to
execute FREQx2 twice. Pressing ‘SHIFT’ again toggles SHIFT mode off.
Most of the secondary functions will automatically toggle SHIFT mode off when
executed. FREQ/2, FREQx2, + 90°, and TOGGLE are exceptions to this rule. This
allows the user to easily sweep frequency or phase without having to continually
reactivate SHIFT mode.
Secondary functions that have an arrow ( ) printed after them, such as INIT, GPIB,
ADDRS, and RS-232, require that the user press the key ‘Hz’ to complete the action. For
Operation 16
CG635 Synthesized Clock Generator
example, to initialize the instrument to its default settings, you would press ‘SHIFT’,
‘INIT’, ‘Hz’ sequentially.
Detailed descriptions of each of the secondary functions can be found later in this
chapter.
Q and Q¯ Outputs
The Q and Q¯ outputs on the front panel are high-speed, differential, ECL-compatible
drivers that operate from DC to 2.05 GHz with a nominal 50 % duty cycle. The rise and
fall times of these outputs are <100 ps. The outputs provide the user with fast,
complementary voltages at the selected frequency, amplitude, and offset. To operate at
specification, BOTH outputs should be terminated into 50 , even if only one output is
used.
The user can easily switch between five standard output voltage levels by pressing the Q /
Q¯ and keys in the OUTPUT LEVELS section of the front panel. When the Q / Q¯
outputs are at a standard level, the appropriate standard level LED will be highlighted.
The meaning of the five standard levels is summarized in Table 7.
Table 7: Q / Q¯ Standard Output Levels
Label Description VHIGH (V) VLOW (V)
PECL5V ECL run on +5 VDC supply 4.00 3.20
PECL3.3V ECL run on +3.3 VDC supply 2.30 1.50
LVDS Low voltage differential signaling 1.43 1.07
+7 dBm 1 Vpp with 0.0 VDC offset 0.50 –0.50
ECL ECL run on negative supply –1.00 –1.80
VHIGH and VLOW indicate the voltage driven by the Q and Q¯ outputs for the high and low
logic levels, respectively.
Various ECL logic families have different logic thresholds that may vary with
temperature. The ECL levels in the table above were chosen to lie between the levels for
the 10 k and 100 k ECL logic families when operated at 25 ºC. The differences are small:
at 25 ºC the typical VHIGH for an ECL part run off a negative supply is -0.945 V (for the
10 k series) and –1.020 V (for the 100 k series), while VLOW is –1.745 V (for the 10 k
series) and –1.820 V (for the 100 k series). As seen in Table 7, the CG635 will provide a
VHIGH of –1.00 V and a VLOW of –1.80 V.
The user also has the ability to set the Q / Q¯ outputs to nonstandard levels. When the
outputs differ from the standard levels, the Q / Q¯ VAR LED in the OUTPUT LEVELS
section will turn on. In this case, the highlighted standard LED indicates the standard
level nearest the current output levels. Pressing the Q / Q¯ and keys when the VAR
LED is on will force the outputs to the nearest standard level in the direction indicated by
the key.
The voltages for Q / Q¯ high and low states can be viewed in the main display by pressing
‘Q/Q¯ HIGH’ and ‘Q/Q¯ LOW’ keys in the DISPLAY section of the front panel.
Operation 17
CG635 Synthesized Clock Generator
The Q / Q¯ high and low voltages may be set to arbitrary values, or stepped up and down
by configurable step sizes by following the instructions described in the Front-Panel User
Interface section at the beginning of this chapter. However, the limits summarized in
Table 8 apply.
Table 8: Limits for Q / Q¯ High and Low Voltages
Parameter Minimum Maximum Resolution
Q / Q¯ HIGH (V
HIGH) –2.00 V 5.00 V 0.01 V
Q / Q¯ LOW (V
LOW) –3.00 V 4.80 V 0.01 V
Q / Q¯ Amplitude (VHIGH–VLOW) 0.20 V 1.00 V 0.01 V
Beware that a +5 V output will dissipate ½ watt into the target system’s 50
termination.
If the user tries to enter a value that violates the VHIGH or VLOW limit, the CG635 will
briefly display “Volt Error” and leave the current value unchanged. However, if the user
tries to enter a value that is valid in terms of the limits on VHIGH and VLOW, but violates
the amplitude limit, the CG635 will change both the requested voltage and its
complement. The requested voltage will be set to the desired level, and the
complementary voltage will be adjusted to satisfy the amplitude limits. The CG635 will
briefly display “lo is N.NN” or “hi is N.NN” to indicate the new complementary voltage
level. If VHIGH – VLOW would be > 1.00 V, VLOW will be set 1.00 V below VHIGH or VHIGH
will be set 1.00 V above VLOW. If VHIGH – VLOW would be < 0.20 V, VLOW will be set
0.20 V below VHIGH or VHIGH will be set 0.20 V above VLOW.
For example, if the outputs are currently at LVDS levels, setting VHIGH to 5.5 V will
cause the CG635 to briefly display “Volt Error” and leave the outputs unchanged,
because 5.5 V exceeds the upper limit for VHIGH. On the other hand, setting VHIGH to
5.0 V will cause the CG635 to briefly display “Lo is 4.00” and to set VHIGH and VLOW to
5.00 V and 4.00 V, respectively. VLOW is adjusted in addition to VHIGH in order to satisfy
the amplitude limits.
CMOS Output
The CMOS output provides CMOS compatible voltages at a 50 % duty cycle. The
transition times of this output are less than 1.0 ns (10% to 90%). It drives the output at the
selected frequency, amplitude and offset for frequencies ranging from DC to 250 MHz.
At frequencies above 250 MHz, the CMOS driver will be turned off and forced to a low
logic state.
Despite its relatively high speed, the CMOS output should not be terminated with a 50
load. Terminating the output will not harm the instrument but it will divide the output
voltage levels in half. The CMOS output has a 50 source impedance and so will
reverse terminate pulses which are reflected back from the user’s (unterminated) target
system. For CMOS levels below 2.50 V, the user may wish to terminate the CMOS
output with a 50 load and set the output levels to twice that required by the user’s
target system. Doing so will somewhat improve the rise time and reduce reflected clocks
edges on the output.
Operation 18
CG635 Synthesized Clock Generator
The user can easily switch between five standard output voltage levels by pressing the
CMOS and keys in the OUTPUT LEVELS section of the front panel. When the
CMOS output is at a standard level, the CG635 will highlight the appropriate standard
level LED. The meaning of the five standard levels is summarized in the Table 9.
Table 9: CMOS Standard Output Levels
Label Description VHIGH (V) VLOW (V)
+5.0V 5 V CMOS 5.00 0.00
+3.3V 3.3 V CMOS 3.30 0.00
+2.5V 2.5 V CMOS 2.50 0.00
+1.8V 1.8 V CMOS 1.80 0.00
+1.2V 1.2 V CMOS 1.20 0.00
VHIGH and VLOW indicate the voltage driven by the CMOS output for the high and low
logic levels, respectively.
The user also has the ability to set the CMOS output to nonstandard levels. When the
output differs from the standard levels, the CMOS VAR LED in the OUTPUT LEVELS
section will turn on. In this case, the highlighted standard LED indicates the standard
level nearest the current output level. Pressing the CMOS and keys when the VAR
LED is on will force the outputs to the nearest standard level in the direction indicated by
the key.
The voltages for CMOS high and low states can be viewed in the main display by
pressing ‘CMOS HIGH’ and ‘CMOS LOW’ keys in the DISPLAY section of the
front panel.
The CMOS high and low voltages may be set to arbitrary values, or stepped up and down
by configurable step sizes by following the instructions described in the Front-Panel User
Interface section at the beginning of this chapter. However, the limits summarized in
Table 10 apply.
Table 10: Limits for CMOS High and Low Voltages
Parameter Minimum
Maximum Resolution
CMOS HIGH (VHIGH) –0.50 V 6.00 V 0.01 V
CMOS LOW (VLOW) –1.00 V 1.00 V 0.01 V
CMOS Amplitude(VHIGH–VLOW) 0.50 V 6.00 V 0.01 V
If the user tries to enter a value that violates the VHIGH or VLOW limit, the CG635 will
briefly display “Volt Error” and leave the current value unchanged. However, if the user
tries to enter a value that is valid in terms of the limits on VHIGH and VLOW, but violates
the amplitude limit, the CG635 will change both the requested voltage and its
complement. The requested voltage will be set to the desired level, and the
complementary voltage will be adjusted to satisfy the amplitude limits. The CG635 will
briefly display “lo is N.NN” or “hi is N.NN” to indicate the new complementary voltage
level. If VHIGH – VLOW would be > 6.00 V, VLOW will be set 6.00 V below VHIGH or VHIGH
will be set 6.00 V above VLOW. If VHIGH – VLOW would be < 0.50 V, VLOW will be set
0.50 V below VHIGH or VHIGH will be set 0.50 V above VLOW.
Operation 19
CG635 Synthesized Clock Generator
For example, if the outputs are currently at +3.3 V CMOS levels, setting VHIGH to 6.5 V
will cause the CG635 to briefly display “Volt Error” and leave the outputs unchanged,
because 6.5 V exceeds the upper limit for VHIGH. On the other hand, setting VHIGH to
0.25 V will cause the CG635 to briefly display “Lo is -0.25” and to set VHIGH and VLOW to
0.25 V and –0.25 V, respectively. VLOW is adjusted in addition to VHIGH in order to satisfy
the amplitude limits.
Frequency
The CG635 can output frequencies in the range 1 µHz to 2.05 GHz with up to 1 pHz of
resolution and 16 significant digits. The frequency may be set to arbitrary values, or
stepped up and down by configurable step sizes by following the instructions described in
the Front-Panel User Interface section at the beginning of this chapter. All sixteen
significant digits can be entered via the front panel. If the user enters more than sixteen
digits, the result will be truncated to sixteen digits. If the user enters an invalid frequency,
the CG635 will briefly display “Freq Error” and leave the frequency unchanged.
While the frequency can be set to 16 significant digits, the CG635’s main display is only
13 digits wide. For most users, this will not be a problem because the extra digits will
usually be zero. Nevertheless, the user can view the extra significant digits by pressing
and holding the ‘FREQ’ key down. After a brief delay, the CG635 will display all
significant digits below 1 Hz. For example, if the frequency is 1234567890.123456 Hz,
the CG635’s main display for frequency will be 1234567890.123 Hz. If the user then
presses and holds the ‘FREQ’ key down, the display will show 0.123456 Hz after a
brief delay.
Similarly, the extra significant digits for the frequency step size can be viewed by first
pressing ‘FREQ’, and then pressing and holding ‘STEP SIZE’ down.
The frequency resolution is limited by the available significant digits. For frequencies
less than 10 kHz, the resolution is 1 pHz. Starting at 10 kHz, the resolution is reduced by
a factor of ten for each decade of frequency from 10 kHz to 1 GHz where the resolution
is 1 µHz.
The CG635 truncates both the frequency and the frequency step size to the available
resolution when the frequency changes. Thus, if the current step size is 1 pHz, and the
user changes the frequency to 1 GHz, the CG635 will also modify the frequency step size
to be 1 µHz, which is the minimum valid step size for frequencies of 1 GHz.
Normally, when the user steps the frequency up and down by a small amount, the CG635
will seamlessly slew the output to the new frequency. If the user crosses an octave
boundary, however, the CG635 will disable the output momentarily, forcing it low for
about 10 ms before re-enabling it at the new frequency. The octave boundaries are a
consequence of the fact that the CG635 generates all output frequencies by dividing
down the output of an RF VCO that operates from 960 MHz to 2.05 GHz, which is a little
more than one octave of tuning range.
An example should make the operation clear. When the frequency is 1.5 MHz, the
divider is 1024, and the RF VCO operates at 1024×1.5 MHz = 1.536 GHz. Now, suppose
you increase the frequency in steps of 0.1 MHz to 2.1 MHz. From 1.5 MHz to 2.0 MHz,
Operation 20
CG635 Synthesized Clock Generator
the divider remains at 1024 and the RF VCO increases in corresponding steps to
1024×2.0 MHz = 2.048 GHz. At 2.1 MHz, however, the CG635 crosses an octave
boundary because the RF VCO does not have the range to provide 1024×2.1 MHz =
2.1504 GHz. Therefore, the CG635 changes the divider to 512 and slews the RF VCO
back to 512×2.1 MHz = 1.0752 GHz.
The CG635 has fifty-one, overlapping octave bands. They are summarized in Table 11.
Table 11: CG635's Fifty-one, Overlapping Octave Bands
Band Divider Min Frequency (Hz) Max Frequency (Hz)
0 1 960,000,000 2,050,000,000
1 2 480,000,000 1,024,000,000
2 4 240,000,000 512,000,000
3 8 120,000,000 256,000,000
4 16 60,000,000 128,000,000
5 32 30,000,000 64,000,000
6 64 15,000,000 32,000,000
7 128 7,500,000 16,000,000
8 256 3,750,000 8,000,000
9 512 1,875,000 4,000,000
10 1024 937,500 2,000,000
11 2048 468,750 1,000,000
… … … …
49 249 0.000,001,705,302 0.000,003,637,978
50 250 0.000,000,852,651 0.000,001,818,989
When the user changes the frequency, the CG635 attempts to stay within the same
octave. If an octave switch is required, however, and the frequency is in one of the first
eleven bands, the CG635 will disable the output, forcing it low before changing the
divider and slewing the RF VCO to the new frequency. When the VCO has settled at the
new frequency, the output will be re-enabled in a “runtless” fashion. This is done to
protect the user’s application from spurious clock pulses and frequencies as the dividers
are changed.
For frequencies in bands eleven to fifty, the CG635 uses DDS technology to seamlessly
change dividers. Since no spurious pulses are generated, the output is not disabled.
In addition to the normal methods of stepping frequency by the current step size, the user
can also step the frequency by factors of two by accessing the secondary functions
FREQ/2 and FREQx2.
Phase
The CG635 can adjust the phase of the output by up to 360° per step. The phase may be
set to arbitrary values, or stepped up and down by configurable step sizes by following
the instructions described in the Front-Panel User Interface section at the beginning of
this chapter. If the user enters a phase that requires the output to adjust by more than
360°, the CG635 will briefly display “Step Error” and leave the phase unchanged.
Operation 21
CG635 Synthesized Clock Generator
The CG635 will integrate phase steps in the main display until the phase reaches ±720°,
at which point it will wrap the phase back to 0°. For example, if the current phase is 700°,
and the user steps the phase 90°, the CG635 will display 70°.
The phase resolution of the CG635 is frequency dependent and is summarized in
Table 12.
Table 12: Phase Resolution versus Frequency
Frequency Phase Resolution
200 MHz < f 2.05 GHz 1°
20 MHz < f 200 MHz 0.1°
2 MHz < f 20 MHz 0.01°
200 kHz < f 2 MHz 0.001°
20 kHz < f 200 kHz 0.0001°
2 kHz < f 20 kHz 0.00001°
200 Hz < f 2 kHz 0.000001°
20 Hz < f 200 Hz 0.0000001°
2 Hz < f 20 Hz 0.00000001°
1 µHz f 2 Hz 0.000000001°
If the user tries to enter a phase with more resolution than permitted, the CG635 will
truncate the result to the appropriate resolution.
When the user changes frequency, the CG635 will automatically reset the phase to 0°,
and truncate the phase step size to the resolution allowed at the new frequency. For
example, let the current phase and phase step size be 123.456° and 0.0001°, respectively.
If the user changes the frequency to 100 MHz, the CG635 will change the phase and
phase step sizes to 0.0° and 0.1°.
The user can define the current phase to be zero degrees by accessing the secondary
function REL = 0°. The secondary function, + 90°, is also available for advancing the
phase by 90°.
For frequencies greater than or equal to 1 Hz, the CG635 adjusts phase by increasing or
decreasing the frequency for a short interval of time to advance or retard the phase by the
desired amount. This is the case even when the phase step is 360°. Advancing phase by
360° results in one extra cycle being inserted over the time period of the phase shift.
Similarly, retarding phase by 360° results in one less cycle being inserted over the time
period of the phase shift.
In most cases, phase shifts take less than 150 ms to complete. At low frequencies,
however, backward phase shifts can take significantly longer. This is simply due to the
fact that the frequency can not be shifted below 0 Hz. Therefore, a backwards phase shift
of 360° at 1 Hz takes a minimum of one second to complete. Arming circuitry in the
CG635 may add an additional 0.5 seconds to that time.
For frequencies less than 1 Hz, the CG635 does “instantaneous” phase shifts using DDS
techniques. In contrast to phase shifts at frequencies above 1 Hz, a 360° phase shift at
Operation 22
CG635 Synthesized Clock Generator
frequencies less than 1 Hz is equivalent to doing nothing. Extra cycles are not inserted or
deleted as part of the phase shift.
The current phase is stored as part of the instrument settings when the user stores and
recalls settings. However, the current phase only has meaning at the current frequency.
Therefore, the phase will only be recalled if the recall of settings does not alter the
current frequency and does not result in a phase shift larger than 360°. Otherwise, the
phase will be simply set to zero.
Secondary Functions
Most of the keys in the ENTRY section of the front panel have secondary functions
associated with them. The names of these functions are printed above the key. The ‘4’
key, for example, has FREQx2 above it.
To access these secondary functions, follow the instructions described in the Front-Panel
User Interface section at the beginning of this chapter. Details about each of the
functions follow.
RUN, STOP, TOGGLE
Normally, the CG635 drives the front-panel outputs with square waves at the selected
frequency, phase, and amplitude settings. The STOP function causes the CG635 to
disable oscillation and force the outputs to a logic low state. When the outputs are in the
stopped state, the STOP LED will blink. Once outputs are stopped, the TOGGLE
function can be used to toggle the state of the outputs. The RUN function restores the
CG635 outputs to normal, running operation.
The run/stop state of the instrument is saved when instrument settings are saved.
INIT
The INIT function causes the CG635 to return to default settings. This function is not
executed until the user presses ‘Hz.’ Table 15 itemizes the CG635 default settings. The
remote interface, GPIB address, and power-on status clear are not affected by this
command, however.
STATUS
The STATUS function displays a number of instrument parameters which characterize
the current status of the CG635. The user can cycle through each of the parameters by
pressing the MODIFY and keys. The meaning of each of the parameters is
summarized in Table 13.
Table 13: Status Parameters
Label Description
STATUS CG635 serial poll status byte
SYNTH Current lock state of CG635
ERRORS Number of errors in the error buffer
Operation 23
CG635 Synthesized Clock Generator
R RF synthesizer R parameter
N RF synthesizer N parameter
D Divider = 2D
FT3 Bits 48-63 of the frequency tuning word
FT2 Bits 32-47 of the frequency tuning word
FT1 Bits 16-31 of the frequency tuning word
FT0 Bits 0-15 of the frequency tuning word
PRBS PRBS on/off/disabled status (if installed)
RB Rb stability (if installed)
The STATUS parameter displays the current value of the CG635 serial poll status byte.
This is the same value that is returned by the *STB? command. See the CG635 Remote
Programming chapter for information on how to interpret the status byte.
The SYNTH parameter displays the current lock status of CG635. The interpretation of
each lock status bit is summarized in Table 14. The red UNLK LED will be on when any
of these bits is set. If the SYNTH parameter is 3, for example, then the RF and 19 MHz
PLLs are currently unlocked.
Table 14: Synthesizer Lock Status
Bit Name Meaning
0 RF_UNLOCK RF PLL is unlocked.
1 19MHZ_UNLOCK 19 MHz PLL is unlocked
2 10MHZ_UNLOCK 10 MHz PLL is unlocked
3 RB_UNLOCK Optional Rb oscillator is unlocked
4 OUTPUT_DISABLED The output is disabled
5 PHASE_SHIFT The output is scheduled to shift phase.
6 Reserved
7 Reserved
The interpretation of the SYNTH parameter is similar to that of the lock status register
(LCKR? command). The difference is that the SYNTH parameter bits indicate the current
state of each bit, while the lock status register bits indicate whether the bits have been set
since the register was last read.
The ERRORS parameter displays the number of errors currently stored in the error
buffer. The errors may be retrieved one by one over the remote interface by repeatedly
sending the LERR? command. See the CG635 Remote Programming chapter for
information about the meaning of errors returned by the LERR? command.
The parameters R, N, D define the current state of the RF synthesizer. They satisfy the
equation,
OUT
D
DDS f
N
R
f2
=,
Operation 24
CG635 Synthesized Clock Generator
where fDDS is frequency being output by the DDS chip, and fOUT is the current output
frequency.
The parameters FT3, FT2, FT1, and FT0 define the current frequency tuning word for the
DDS chip. They satisfy the equation,
)MHz20(
2
0655361655362655363
64
23 ××
+×+×+×
=M
FTFTFTFT
fDDS ,
where M is the DDS clock multiplier which is normally set to 5. See the Circuit
Description chapter for more information about the operation of the RF synthesizer and
DDS chip.
PRBS ON/OFF
If the PRBS option is installed, the PRBS ON function enables the PRBS output, and the
PRBS OFF disables it. The CG635 will briefly display ‘PRBS on’ or ‘PRBS off’,
respectively, when the functions are accessed.
If the PRBS option is not installed, the CG635 will briefly display ‘no PRBS.’
The PRBS on/off state is saved when instrument settings are saved. If PRBS is installed,
the current status (on/off/disabled) of the PRBS can viewed via the STATUS function. A
status of ‘disabled’ indicates that the PRBS is requested on but disabled because the
current frequency is too high.
FREQ/2, FREQx2
The functions FREQ/2 and FREQx2 cause the CG635 to decrease or increase the current
frequency by a factor of two. They also force the CG635 to display frequency.
REL θ = 0
This function defines the current phase to be zero degrees. It does not affect the output. It
also forces the CG635 to display phase.
θ + 90°
This function advances the current phase by 90°. It also forces the CG635 to
display phase.
GPIB
This function enables the GPIB remote interface and disables the RS-232 remote
interface. The CG635 will briefly display ‘Enabled’ after enabling the interface. This
function is not executed until the user presses ‘Hz’. The GPIB LED in the INTERFACE
section of the front panel will be on when GPIB is the selected interface.
Operation 25
CG635 Synthesized Clock Generator
ADDRS
This function sets the CG635’s primary GPIB address. The user can enter an address
using the numeric keys or the MODIFY and keys. The address is not set until the
user presses the ‘Hz’ key. For example, to set the GPIB address to 23, press the keys
‘SHIFT’, ‘ADDRS’, ‘2’, ‘3’, ‘Hz’ sequentially. The CG635 will briefly display
‘Changed’ if the address changes.
The factory default GPIB address is 23.
RS-232
This function enables the RS-232 remote interface and disables the GPIB remote
interface. The CG635 will briefly display ‘Enabled’ after enabling the interface. This
function is not executed until the user presses ‘Hz’. The RS-232 LED in the
INTERFACE section of the front panel will be on when RS-232 is the selected interface.
The communication parameters are fixed at: 9600 Baud rate, 8 Data bits, 1 Stop bit, No
Parity, RTS/CTS Hardware Flow Control.
DATA
This function enables the user to see the most recent characters received by the CG635
over the remote interface. The characters are shown in hexadecimal format, with older
characters appearing to the left and newer characters appearing to the right. The last
character received is marked with the decimal point showing.
To move back and forth through the buffer, use the MODIFY and keys.
Factory Default Settings
The factory default settings are listed in Table 15. The CG635 may be forced to assume
its factor default settings by power cycling the unit with the ‘BACK SPACE’ key
depressed. The INIT secondary function and the *RST remote command reset all but the
communication parameters back to factory default settings.
Table 15: Factory Default Settings
Parameter Setting
Frequency 10 MHz
Frequency step size 1 Hz
Phase 0°
Phase step size 1°
Q / Q¯ high 1.43 V (LVDS)
Q / Q¯ high step size 0.1 V
Q / Q¯ low 1.07 V (LVDS)
Q / Q¯ low step size 0.1 V
CMOS high 3.3 V (+3.3 V CMOS)
CMOS high step size 0.1 V
CMOS low 0.0 V (+3.3 V CMOS)
CMOS low step size 0.1 V
Operation 26
CG635 Synthesized Clock Generator
PRBS Off
Run/stop state Running
Display Frequency
Display on/off state On
Enabled remote interface RS-232
GPIB address 23
Power-on Status Clear (*PSC) 1
Troubleshooting
The CG635 does not include any user serviceable parts inside. The line fuse is internal to
the instrument and may not be serviced by the user. In the event of instrument failure,
refer service to a qualified technician.
The CG635 performs several instrument tests during startup. The tests are described in
Table 16. In most cases the unit will have to be repaired by a qualified technician if the
unit fails one of these tests.
Table 16: Power-On Self Tests
Test Description Test Fail Symptoms
ROM ROM checksum Flash memory is corrupted. Unit may behave
unpredictably
1 24V Power Power supply is not providing stable 24 volts.
2 19.44 MHz tuning The crystal can’t tune to ±100 ppm. The CG635
may not be able to lock at all frequencies.
3 19.40 MHz tuning The crystal can’t tune to ±100 ppm. The CG635
may not be able to lock at all frequencies.
4 RF VCO The VCO can’t tune from 960MHz to 2.05 GHz.
The CG635 may not be able to lock at all
frequencies.
5 CMOS output The CG635 is unable to drive the front-panel
CMOS output to the correct voltage. Check that
the output is not connected to a voltage source.
6 Q / Q¯ outputs The CG635 is unable to drive the Q / Q¯ outputs to
the correct voltages. Check that the outputs are
terminated into 50 and not connected to a
voltage source.
7 Clock symmetry Output duty cycle is not 50 %. Output driver is
likely damaged.
8 Option detection Optional oscillator is installed, but not oscillating.
The CG635 will use its internal oscillator.
Table 17 contains a list of troubleshooting tips for various symptoms which may occur in
a normally functioning unit. Please consult this list before contacting SRS regarding a
potential instrument failure.
Operation 27
CG635 Synthesized Clock Generator
Table 17: Troubleshooting Tips
Symptom Resolution
STOP LED flashing and output
not oscillating Output is in stopped state. To put back into running
state, sequentially press ‘SHIFT’, ‘RUN’
CMOS output not oscillating The front-panel CMOS output is forced to a low
state at frequencies above 250 MHz. Try setting the
frequency below 250 MHz.
RS-485 output not oscillating The rear panel RS-485 output is disabled above
105 MHz. Try setting the frequency below
105 MHz.
PRBS outputs not functioning Make sure PRBS is enabled. Press ‘SHIFT’,
‘PRBS ON’ to enable. The PRBS is also disabled
above 1.55 GHz. Try setting the frequency below
1.55 GHz.
UNLK LED flashes once a
second An optional rubidium oscillator is installed but it is
not yet stable. Wait 10 minutes to give the
rubidium time to warm up and stabilize.
No GPIB communication Check that GPIB communication is enabled.
Sequentially press ‘SHIFT’, ‘GPIB’, ‘Hz’. Also
check that the GPIB address is set correctly. See
the ADDRS secondary function.
No RS-232 communication Check that RS-232 communication is enabled.
Sequentially press ‘SHIFT’, ‘RS-232’, ‘Hz’. Also
check that the communication parameters are set to
9600 baud, 8 bits, no parity, one stop bit and
RTS/CTS hardware flow control. When connecting
to a PC, make sure you are using a standard PC
serial cable, not a “null-modem” cable.
Doesn’t respond to key presses
and REM LED is on The CG635 has been placed in remote mode by the
GPIB bus. Press ‘STEP SIZE’ to put the CG635
back into local mode.
ERR LED flashes The CG635 has received characters over the
remote interface, but the command parser has
determined that the command is invalid. Check the
command syntax and make sure you are appending
a command terminator.
CG635 Remote Programming 29
CG635 Synthesized Clock Generator
CG635 Remote Programming
Introduction
The CG635 may be remotely programmed via the standard GPIB interface or the RS-232
serial interface. Any host computer interfaced to the CG635 can easily control and
monitor the operation of the CG635.
GPIB
The CG635 comes with an IEEE 488 standard port for communicating over GPIB. The
port is located on the rear panel of the CG635.
This interface is enabled via the front panel by pressing the keys ‘SHIFT’, ‘GPIB’, ‘Hz’.
The primary GPIB address of the instrument is also set via the front panel by pressing the
keys ‘SHIFT’, ‘ADDRS’, MODIFY or , ‘Hz’. Valid GPIB addresses range from 0
to 30. Enabling the GPIB interface causes the RS-232 interface to be disabled. The GPIB
LED in the INTERFACE section of the front panel will be on when GPIB is the
selected interface.
The factory default GPIB address is 23.
RS-232
The CG635 comes standard with an RS-232 communications port. The port is located on
the rear panel of the CG635.
The RS-232 interface connector is a standard 9 pin, type D, female connector configured
as a DCE (transmit on pin 3, receive on pin 2). The communication parameters are fixed
at: 9600 Baud rate, 8 Data bits, 1 Stop bit, No Parity, RTS/CTS Hardware Flow Control.
This interface is enabled via the front panel by pressing the keys ‘SHIFT’, ‘RS-232’,
‘Hz’. Enabling the RS-232 interface causes the GPIB interface to be disabled. The
RS-232 LED in the INTERFACE section of the front panel will be on when RS-232 is
the selected interface.
Front-Panel Indicators
To assist in programming, the CG635 has four front panel indicators located under the
INTERFACE section: RS-232, GPIB, ACT, and ERR. The RS-232 LED is on when the
CG635 is configured to accept commands over RS-232. The GPIB LED is on when the
CG635 is configured to accept commands over GPIB. The ACT LED serves as an
activity indicator that flashes every time a character is received or transmitted over one of
the remote interfaces. The ERR LED will flash when a remote command fails to execute
due to illegal syntax or invalid parameters.
CG635 Remote Programming 30
CG635 Synthesized Clock Generator
Command Syntax
Communications with the CG635 is done with ASCII characters. All commands are
4-characters long and are case-insensitive. Standard IEEE-488.2 defined commands
begin with the ‘*’ character followed by three letters. CG635 specific commands are
composed of four letters.
The four-letter mnemonic (shown in CAPS) in each command sequence specifies the
command. The rest of the sequence consists of parameters.
Commands may take either set or query form, depending on whether the ‘?’ character
follows the mnemonic. Set only commands are listed without the ‘?’, query only
commands show the ‘?’ after the mnemonic, and optionally query commands are marked
with a ‘(?)’.
Parameters shown in { } and [ ] are not always required. Parameters in { } are required to
set a value, and are omitted for queries. Parameters in [ ] are optional in both set and
query commands. Parameters listed without any surrounding characters are
always required.
Do NOT send () or {} or [] or spaces as part of the command.
The command buffer is limited to 255 bytes, with 25 byte buffers allocated to each of up
to three parameters per command. If the command buffer overflows, both the input and
output buffers will be flushed and reset. If a parameter buffer overflows, a command
error will be generated and the offending command discarded.
Commands are terminated by either a semicolon, a <CR> (ASCII 13), or a <LF> (ASCII
10). If the communications interface is GPIB, then the terminating character may
optionally be accompanied by an EOI signal. If the EOI accompanies a character other
than a <LF>, a <LF> will be appended to the command to terminate it. Execution of the
command does not begin until a command terminator is received.
Aside from communication errors, commands may fail due to either syntax or execution
errors. Syntax errors can be detected by looking at bit 5 (CME) of the event status
register (*ESR?). Execution errors can be detected by looking at bit 4 (EXE) of the event
status register. In both cases, an error code, indicating the specific cause of the error, is
appended to the error queue. The error queue may be queried with the LERR? command.
Descriptions of all error codes can be found in the Error Codes section starting on
page 43.
CG635 Remote Programming 31
CG635 Synthesized Clock Generator
Index of Commands
Instrument Control Commands
CMOS(?) i,{j} Page 32 CMOS Output
DISP(?){i} Page 32 Display
FREQ(?){i} Page 32 Frequency
PHAS(?){i} Page 32 Phase
PRBS(?){i} Page 32 Enable PRBS
QOUT(?) i,{j} Page 32 Q / Q¯ Output
RPHS Page 33 Relative Phase
RUNS(?){i} Page 33 Running State
SHDP(?){i} Page 33 Show Display
SLVL(?){i} Page 33 Stop Level
STDC(?){i} Page 33 Standard CMOS
STDQ(?){i} Page 33 Standard Q / Q¯
STPD i Page 34 Step Down
STPS(?) i,{j} Page 34 Step Size
STPU i Page 34 Step Up
TIMB? Page 34 Timebase
UNIT(?) i,{j} Page 34 Units Display
Interface Commands
*IDN? Page 36 Identification String
*OPC(?) Page 36 Operation Complete
*RCL i Page 36 Recall Instrument Settings
*RST Page 36 Reset the Instrument
*SAV i Page 36 Save Instrument Settings
*TST? Page 37 Self Test
*WAI Page 37 Wait for Command Execution
Status Reporting Commands
*CLS Page 38 Clear Status
*ESE(?){i} Page 38 Standard Event Status Enable
*ESR? Page 38 Standard Event Status Register
*PSC(?){i} Page 38 Power-on Status Clear
*SRE(?){i} Page 38 Service Request Enable
*STB? Page 38 Serial Poll Status Byte
CESE(?){i} Page 39 Communication Error Status Enable
CESR? Page 39 Communication Error Status Register
INSE(?){i} Page 39 Instrument Status Enable
INSR? Page 39 Instrument Status Register
LCKE(?){i} Page 39 PLL Lock Status Enable
LCKR? Page 39 PLL Lock Status Register
LERR? Page 39 Last Error
CG635 Remote Programming 32
CG635 Synthesized Clock Generator
Instrument Control Commands
CMOS(?) i,{j} CMOS Output
Set (query) the ith component of the CMOS output {to j}.
The parameter i selects the CMOS component.
i Value
0 CMOS low voltage
1 CMOS high voltage
Example
CMOS 1, 2.5<CR> Set CMOS high to 2.5 volts.
CMOS?0<CR> Query CMOS low voltage.
DISP(?){i} Display
Set (query) the current display value {to i}.
The parameter i selects the display type.
i Display
0 Frequency
1 Phase
2 Q / Q¯ high
3 Q / Q¯ low
4 CMOS high
5 CMOS low
6 Frequency step
7 Phase step
8 Q / Q¯ high step
9 Q / Q¯ low step
10 CMOS high step
11 CMOS low step
The query form returns –1 if the current display does not correspond to one of the
standard displays. This might occur, for example, if one of the status displays
were active.
FREQ(?){i} Frequency
Set (query) the frequency {to i}.
PHAS(?){i} Phase
Set (query) the phase {to i}. Note that this command is executed as an
overlapped operation. If necessary, use *OPC or *WAI to determine when the
operation is complete.
PRBS(?){i} Enable PRBS
Set (query) the PRBS enabled state {to i}. If i is 0, PRBS is disabled. If i is 1,
PRBS is enabled.
QOUT(?) i,{j} Q / Q¯ Output
Set (query) the ith component of the Q / Q¯ output {to j}.
The parameter i selects the Q / Q¯ component.
CG635 Remote Programming 33
CG635 Synthesized Clock Generator
i Value
0 Q / Q¯ low voltage
1 Q / Q¯ high voltage
Example
QOUT 1, 2.1<CR> Set Q / Q¯ high voltage to 2.1 volts.
QOUT?0<CR> Query Q / Q¯ low voltage.
RPHS Relative Phase
Define the current phase to be zero degrees. This command does not affect
the output.
RUNS(?){i} Running State
Set (query) the running state of outputs {to i}. If i is 0, the outputs are in the
stopped state. RUNS 0 stops the output and also sets stop level low. If i is 1, the
output is not stopped.
SHDP(?){i} Show Display
Set (query) the current state of the display. If i is 0, the display is turned off. If i
is 1, the display is turned on.
SLVL(?){i} Stop Level
Set (query) the level at the output in the stopped state {to i}. If i is 0, the stop
level is low. If i is 1, the stop level is high. If i is set to 2, the stop level
is toggled.
STDC(?){i} Standard CMOS
Set (query) the CMOS output {to i}.
The parameter i selects the standard level.
i Standard CMOS Level
0 1.2 V standard CMOS
1 1.8 V standard CMOS
2 2.5 V standard CMOS
3 3.3 V standard CMOS
4 5.0 V standard CMOS
The query form returns –1 if the current levels do not correspond to one of the
standard levels. This indicates that the VAR LED is on.
STDQ(?){i} Standard Q / Q¯
Set (query) the Q / Q¯ outputs {to i}.
The parameter i selects the standard level.
i Standard Q / Q¯ Level
0 ECL levels (–1.00/–1.80 V)
1 +7 dBm levels (+0.50/–0.50 V)
2 LVDS levels (1.43/1.07 V)
3 PECL 3.3 V levels (2.30/1.50 V)
4 PECL 5.0 V levels (4.00/3.20 V)
The query form returns 1 if the current levels do not correspond to one of the
standard levels. This indicates that the VAR LED is on.
CG635 Remote Programming 34
CG635 Synthesized Clock Generator
STPD i Step Down
Step down the ith component.
The parameter i selects the component to step.
i Value
0 Step the frequency
1 Step the phase
2 Step Q / Q¯ high
3 Step Q / Q¯ low
4 Step CMOS high
5 Step CMOS low
STPS(?) i,{j} Step Size
Set (query) the ith step size {to j}.
The parameter i selects the component.
i Value
0 Frequency step size in Hz
1 Phase step size in degrees
2 Q / Q¯ high step size in volts
3 Q / Q¯ low step size in volts
4 CMOS high step size in volts
5 CMOS low step size in volts
Example
STPS 1,2.0<CR> Set the phase step size to 1 degree.
STPS?0<CR> Query the frequency step size.
STPU i Step Up
Step up the ith component.
The parameter i selects the component to step.
i Value
0 Step the frequency
1 Step the phase
2 Step Q / Q¯ high
3 Step Q / Q¯ low
4 Step CMOS high
5 Step CMOS low
TIMB? Timebase
Query the current timebase for the CG635.
The returned value identifies the timebase.
Value Meaning
0 Internal timebase
1 OCXO timebase
2 Rubidium timebase
3 External timebase
UNIT(?) i,{j} Units Display
Set (query) the units for display value {to j}.
CG635 Remote Programming 35
CG635 Synthesized Clock Generator
The parameter i selects the item.
i Display Item
0 Frequency
1 Frequency Step
The parameter j selects the units.
j Display
0 Hz
1 kHz
2 MHz
3 GHz
CG635 Remote Programming 36
CG635 Synthesized Clock Generator
Interface Commands
*IDN? Identification String
Query the instrument identification string.
Example
*IDN?<CR> Returns a string similar to ‘Stanford Research
Systems,CG635,s/n004025,ver0.01’
*OPC(?) Operation Complete
The set form sets the OPC flag in the ESR register when all prior commands
have completed. The query form returns ‘1’ when all prior commands have
completed, but does not affect the ESR register.
*RCL i Recall Instrument Settings
Recall instrument settings from location i. The parameter i may range from
0 to 10. Locations 0 to 9 are for arbitrary use. Location 10 is reserved for the
instrument’s current settings. This location is automatically updated 60 seconds
after the user presses any key that modifies the current state of the instrument.
The following settings are recalled:
1. Current frequency and frequency step size.
2. Current phase and phase step size.
3. Q / Q¯ high and low levels and step sizes.
4. CMOS high and low levels and step sizes.
5. Current display selection.
6. PRBS on/off state
7. Run/stop state
8. Stop level
The display will be turned on when settings are recalled.
Example
*RCL 3<CR> Recall instruments settings from location 3.
*RST Reset the Instrument
Reset the instrument to default settings. This is equivalent to pressing the keys
‘SHIFT’, ‘INIT’, ‘Hz’ on the front panel. The factory default settings are listed in
Table 15. . The remote interface, GPIB address, and power-on status clear are not
affected by this command, however.
Example
*RST<CR> Resets the instrument to default settings
*SAV i Save Instrument Settings
Save instrument settings to location i. The parameter i may range from 0 to 10.
Locations 0 to 9 are for arbitrary use. Location 10 is reserved for the instrument’s
current settings. This location is automatically updated ten seconds after the user
presses any key that modifies the current state of the instrument. The following
settings are saved:
1. Current frequency and frequency step size.
2. Current phase and phase step size.
CG635 Remote Programming 37
CG635 Synthesized Clock Generator
3. Q / Q¯ high and low levels and step sizes.
4. CMOS high and low levels and step sizes.
5. Current display selection.
6. PRBS on/off state
7. Run/stop state
8. Stop level
Example
*SAV 3<CR> Save current settings to location 3.
*TST? Self Test
Runs the instrument self test and returns 0 if successful and 72
(EXE_FAIL_SELF_TEST) if unsuccessful. If unsuccessful, the error buffer will
include device dependent errors related to the parts of the self test that failed.
Example
*TST?<CR> Run the instrument self test and return the result.
*WAI Wait for Command Execution
The instrument will not process further commands until all prior commands
including this one have completed.
Example
*WAI<CR> Wait for all prior commands to execute before continuing.
CG635 Remote Programming 38
CG635 Synthesized Clock Generator
Status Reporting Commands
*CLS Clear Status
Clear Status immediately clears the ESR, CESR, LCKR, and INSR registers as
well as the LERR error buffer.
*ESE(?){i} Standard Event Status Enable
Set (query) the standard event status enable register {to i}. Bits set in this register
cause ESB in the serial poll status byte to be set when the corresponding bit is set
in the standard event status register.
*ESR? Standard Event Status Register
Query the standard event status register. The value returned is a decimal value
from 0 to 255. After executing a *ESR? query, the register is cleared. See the
Status Byte Definitions section for a description of each of the bits.
Example
*ESR?<CR> A return of ‘176’ would indicate that PON, CME, and EXE
are set.
*PSC(?){i} Power-on Status Clear
Set (query) the Power-on Status Clear flag {to i}. The Power-on Status Clear flag
is stored in nonvolatile memory in the CG635, and thus, maintains its value
through power-cycle events.
If the value of the flag is 0, then the Service Request Enable and Standard Event
Status Enable Registers (*SRE, *ESE) are stored in non-volatile memory, and
retain their values through power-cycle events. If the value of the flag is 1, then
these two registers are cleared upon power-cycle.
Example
*PSC 1<CR> Set the Power-on Status Clear to 1.
*PSC?<CR> Returns the current value of Power-on Status Clear.
*SRE(?){i} Service Request Enable
Set (query) the Service Request Enable register {to i}. Bits set in this register
cause the CG635 to generate a service request when the corresponding bit is set
in the serial poll status register.
*STB? Serial Poll Status Byte
Query the standard IEEE 488.2 serial poll status byte. The value returned is a
decimal value from 0 to 255. Reading this byte has no effect on its value. See the
Status Byte Definitions section for a description of each of the bits.
Example
*STB?<CR> A return of ‘114’ would indicate that LCKB, MAV, ESB, and
MSS are set. LCKB indicates that an enabled bit in LCKR is
set. MAV indicates that a message is available in the output
queue. ESB indicates that an enabled bit in ESR is set. MSS
reflects the fact that at least one of the summary bits is set.
CG635 Remote Programming 39
CG635 Synthesized Clock Generator
CESE(?){i} Communication Error Status Enable
Set (query) the communications error status enable register {to i}. Bits set in this
register cause CESB in the serial poll status byte to be set when the
corresponding bit is set in the communications error status register (CESR).
CESR? Communication Error Status Register
Query the communications error status register. The value returned is a decimal
value from 0 to 255. After executing a CESR? query, the register is cleared. See
the Status Byte Definitions section for a description of each of the bits.
Example
CESR?<CR> A return of ‘24’ would indicate that OR and OVFL bits are
set. OR indicates that a character was received over RS-232
before the microcontroller had time to process the previous
character. OVFL indicates that the input buffer overflowed.
INSE(?){i} Instrument Status Enable
Set (query) the instrument status enable register {to i}. Bits set in this register
cause INSB in the serial poll status byte to be set when the corresponding bit is
set in the instrument status register (INSR).
INSR? Instrument Status Register
Query the instrument status register. The value returned is a decimal value from
0 to 255. After executing a INSR? query, the register is cleared. See the Status
Byte Definitions section for a description of each of the bits.
Example
INSR?<CR> A return of ‘4’ would indicate that an eeprom write failed.
LCKE(?){i} PLL Lock Status Enable
Set (query) the PLL lock status enable register {to i}. Bits set in this register
cause LCKB in the serial poll status byte to be set when the corresponding bit is
set in the PLL lock status register (LKCR).
LCKR? PLL Lock Status Register
Query the PLL lock status register. The value returned is a decimal value from
0 to 255. After executing a LCKR? query, the register is cleared. See the Status
Byte Definitions section for a description of each of the bits.
Example
LCKR?<CR> A return of ‘3’ would indicate that the RF PLL and the
19 MHz PLL have come unlocked.
LERR? Last Error
Query the last error in the error buffer. After executing a LERR? query, the
returned error is removed from the error buffer. See the Error Codes section later
in this chapter for a description of the possible error codes returned by LERR?.
The error buffer has space to store up to 20 errors. If more than 19 errors occur
without being queried, the 20th error will be 254 (Too Many Errors) indicating
that errors were dropped.
CG635 Remote Programming 40
CG635 Synthesized Clock Generator
Status Byte Definitions
The CG635 reports on its status by means of the serial poll status byte and four event
status registers: the standard event status (*ESR), the communication error status
(CESR), the PLL lock status (LCKR), and the instrument event status (INSR). These
read-only registers record the occurrence of defined events inside the CG635. If the event
occurs, the corresponding bit is set to one. Bits in the status registers are latched. Once an
event bit is set, subsequent state changes do not clear the bit. Bits are cleared when the
registers are queried, with a *ESR?, for example. The bits are also cleared with the clear
status command, *CLS. The bits are not cleared, however, with an instrument reset
(*RST) or a device clear.
Each of the CG635’s four event status registers has an associated enable register. The
enable registers control the reporting of events in the serial poll status byte (*STB). If a
bit in the event status register is set and its corresponding bit in the enable register is set,
then the summary bit in the serial poll status byte (*STB) will be set. The enable registers
are readable and writable. Reading the enable registers or clearing the status registers
does not clear the enable registers. Bits in the enable registers must be set or cleared
explicitly. To set bits in the enable registers, write an integer value equal to the binary
weighted sum of the bits you wish to set.
The serial poll status byte (*STB) also has an associated enable register called the service
request enable register (*SRE). This register functions in a similar manner to the other
enable registers, except that it controls the setting of the master summary bit (bit 6) of the
serial poll status byte. It also controls whether the CG635 will issue a request for service
on the GPIB bus.
Serial Poll Status Byte
Bit Name Meaning
0 INSB An unmasked bit in the instrument status register (INSR) has
been set.
1 LCKB An unmasked bit in the PLL lock status register (LCKR) has
been set.
2 CESB An unmasked bit in the communications status register (CESR)
has been set.
3 Reserved
4 MAV The interface output buffer is non-empty.
5 ESB An unmasked bit in the standard event status register (*ESR)
has been set.
6 MSS Master summary bit. Indicates that the CG635 is requesting
service because an unmasked bit in this register has been set.
7 Reserved
The serial poll status byte may be queried with the *STB? command. The service request
enable register (*SRE) may be used to control when the CG635 asserts the request-for-
service line on the GPIB bus.
CG635 Remote Programming 41
CG635 Synthesized Clock Generator
Standard Event Status Register
Bit Name Meaning
0 OPC Operation complete. All previous commands have completed.
See command *OPC.
1 Reserved
2 QYE Query error occurred.
3 DDE Device dependent error.
4 EXE Execution error. A command failed to execute correctly
because a parameter was out of range.
5 CME Command error. The parser detected a syntax error
6 Reserved
7 PON Power on. The CG635 has been power cycled.
The standard event status register may be queried with the *ESR? command. The
standard event status enable register (*ESE) may be used to control the setting of the
ESB summary bit in the serial poll status byte.
Communication Error Status Register
Bit Name Meaning
0 PE Parity error. An RS-232 parity error was detected.
1 FE Framing error. An RS-232 framing error was detected.
2 NF Noise flag. An RS-232 character may have been received
incorrectly due to noise on the line.
3 OR Overrun error. An RS-232 character was received before the
CG635 had time to process the previous character.
4 OVFL The input buffer of the CG635 overflowed.
5 NL The CG635 was addressed to talk under GPIB, but there were
no listeners.
6 Reserved
7 DCAS Device clear active state. The CG635 received a device clear or
selected device clear command.
The communication error status register may be queried with the CESR? command. The
communication error status enable register (CESE) may be used to control the setting of
the CESB summary bit in the serial poll status byte.
Instrument Status Register
Bit Name Meaning
0 EE_BDRY Eeprom write occurred outside of eeprom.
1 EE_PROT Eeprom write occurred in protected eeprom.
2 EE_VERF Eeprom write failed to verify.
3 CMF_RESET A clock-monitor-fail reset has occurred.
4 COP_RESET A COP-timeout reset has occurred.
5 ILGL_RESET
An illegal-instruction reset has occurred.
6 RB_COMM An installed rubidium oscillator failed to communicate.
7 Reserved
CG635 Remote Programming 42
CG635 Synthesized Clock Generator
The instrument status register may be queried with the INSR? command. The instrument
status enable register (INSE) may be used to control the setting of the INSB summary bit
in the serial poll status byte.
PLL Lock Status Register
Bit Name Meaning
0 RF_UNLOCK The RF PLL has come unlocked.
1 19MHZ_UNLOCK
The 19 MHz PLL has come unlocked.
2 10MHZ_UNLOCK
The 10 MHz PLL has come unlocked.
3 RB_UNLOCK The optional rubidium oscillator has come unlocked.
4 OUT_DISABLED The output was disabled.
5 PHASE_SHIFT The output has or is scheduled to shift phase.
6 Reserved
7 Reserved
The PLL lock status register may be queried with the LCKR? command. The PLL status
enable register (LCKE) may be used to control the setting of the LCKB summary bit in
the serial poll status byte.
CG635 Remote Programming 43
CG635 Synthesized Clock Generator
Error Codes
The CG635 contains an error buffer that may store up to 20 error codes associated with errors
encountered during power-on self tests, command parsing, or command execution. The errors in the
buffer may be read one by one by executing successive LERR? commands. The meaning of each of the
error codes is described below.
Execution Errors
0 No Error
No more errors left in the queue.
10 Illegal Value
A parameter was out of range.
20 Frequency Error
The frequency or frequency step size was illegal.
30 Phase Error
The phase step size was illegal.
31 Phase Step Error
The phase could not be set because it would have caused a phase step larger than 360°.
40 Voltage Error
The voltage could not be set because it was out of range.
51 Q / Q¯ Low Changed
Q / Q¯ high was set to the requested value, but Q / Q¯ low was also changed in order to
satisfy the Q / Q¯ amplitude limits.
52 Q / Q¯ High Changed
Q / Q¯ low was set to the requested value, but Q / Q¯ high was also changed in order to
satisfy the Q / Q¯ amplitude limits.
61 CMOS Low Changed
CMOS high was set to the requested value, but CMOS low was also changed in order to
satisfy the CMOS amplitude limits.
62 CMOS High Changed
CMOS low was set to the requested value, but CMOS high was also changed in order to
satisfy the CMOS amplitude limits.
71 No PRBS
PRBS could not be enabled because it’s not installed.
CG635 Remote Programming 44
CG635 Synthesized Clock Generator
72 Failed Self Test
The self test failed. The device dependent errors that caused the self test to fail will
follow in the error buffer.
Query Errors
100 Lost Data
Data in the output buffer was lost. This occurs if the output buffer overflows, or if a
communications error occurs and data in output buffer is discarded.
102 No Listener
This is a communications error that occurs if the CG635 is addressed to talk on the GPIB
bus, but there are no listeners. The CG635 discards any pending output.
Parsing Errors
110 Illegal Command
The command syntax used was illegal. A command is normally a sequence of four letters,
or a ‘*’ followed by three letters.
111 Undefined Command
The specified command does not exist.
112 Illegal Query
The specified command does not permit queries
113 Illegal Set
The specified command can only be queried.
114 Null Parameter
The parser detected an empty parameter.
115 Extra Parameters
The parser detected more parameters than allowed by the command.
116 Missing Parameters
The parser detected missing parameters required by the command.
117 Parameter Overflow
The buffer for storing parameter values overflowed. This probably indicates a syntax
error.
118 Invalid Floating Point Number
The parser expected a floating point number, but was unable to parse it.
CG635 Remote Programming 45
CG635 Synthesized Clock Generator
120 Invalid Integer
The parser expected an integer, but was unable to parse it.
122 Invalid Hexadecimal
The parser expected hexadecimal characters, but was unable to parse them.
126 Syntax Error
The parser detected a syntax error in the command.
Device Dependent Errors
151 Failed ROM Check
The ROM checksum failed. The firmware code is likely corrupted.
152 Failed 24 V Out of Range
The CG635 24 V power is out of range.
153 Failed 19.44 MHz Low Rail
The 19.44 MHz crystal can not tune to low enough frequencies.
154 Failed 19.44 MHz High Rail
The 19.44 MHz crystal can not tune to high enough frequencies.
155 Failed 19.40 MHz Low Rail
The 19.40 MHz crystal can not tune to low enough frequencies.
156 Failed 19.40 MHz High Rail
The 19.40 MHz crystal can not tune to high enough frequencies.
157 Failed RF at 2 GHz
The RF VCO could not tune to 2 GHz.
158 Failed RF at 1 GHz
The RF VCO could not tune to 1 GHz.
159 Failed CMOS Low Spec.
The CMOS low output is out of specification.
160 Failed CMOS High Spec.
The CMOS high output is out of specification.
161 Failed Q / Q¯ Low Spec.
The Q / Q¯ low output is out of specification.
CG635 Remote Programming 46
CG635 Synthesized Clock Generator
162 Failed Q / Q¯ High Spec.
The Q / Q¯ high output is out of specification.
163 Failed Optional Timebase
An installed optional timebase is not oscillating.
164 Failed Clock Symmetry
The clock output symmetry is out of specification
Other Errors
254 Too Many Errors
The error buffer is full. Subsequent errors have been dropped.
Performance Evaluation 47
CG635 Synthesized Clock Generator
Performance Evaluation
Overview
The performance of a CG635 may be evaluated by running a series of tests designed to
measure the accuracy of its inputs and outputs and comparing the results with their
associated specifications. While the performance tests presented here are not as extensive
as the tests performed at the factory, one can nevertheless have confidence that a unit that
passes these tests is functioning properly and within specification.
The performance tests can be divided into three broad categories: output driver tests,
frequency synthesis tests, and timebase calibration tests. The output driver tests are
designed to test the integrity and accuracy of the front panel outputs by measuring the
accuracy with which its levels are generated and the speed with which it transitions
between levels. The frequency synthesis tests are designed to measure the stability of the
frequency synthesis by measuring the phase noise and jitter at specified frequencies.
Overall functionality is verified by measuring the frequency generation at various points
in the spectrum from DC to 2.05 GHz. Lastly, the timebase calibration tests evaluate the
accuracy and stability of the installed timebase.
Equipment Required
In addition to the CG635 under test, the following equipment will be required to carry out
the performance tests:
• Agilent 34401A digital multimeter
• HP 54120A digitizing oscilloscope with HP 54121A four channel input module
• CG646 +7 dBm RF receiver module
• FS725 rubidium frequency standard
• HP 89440A spectrum analyzer
• SR620/SR625 time interval counter (SR625 needed to test to 2 GHz)
Equivalent equipment may be substituted as desired as long as they have similar or
superior specifications. Standard SMA and BNC cables will be required to connect the
test equipment to the CG635. Additionally accessories required include, 50 terminators
for the CG635’s high frequency outputs and 20 dB DC to 18 GHz SMA attenuators for
the HP 54121A inputs.
CG635 Self Test
The CG635 includes a self test that checks the functional operation of several internal
components. If any of the tests fail, the CG635 will briefly display “Failed” after the test.
The tests are described in Table 16. In most cases the unit will have to be repaired by a
qualified technician if the unit fails one of these tests.
Performance Evaluation 48

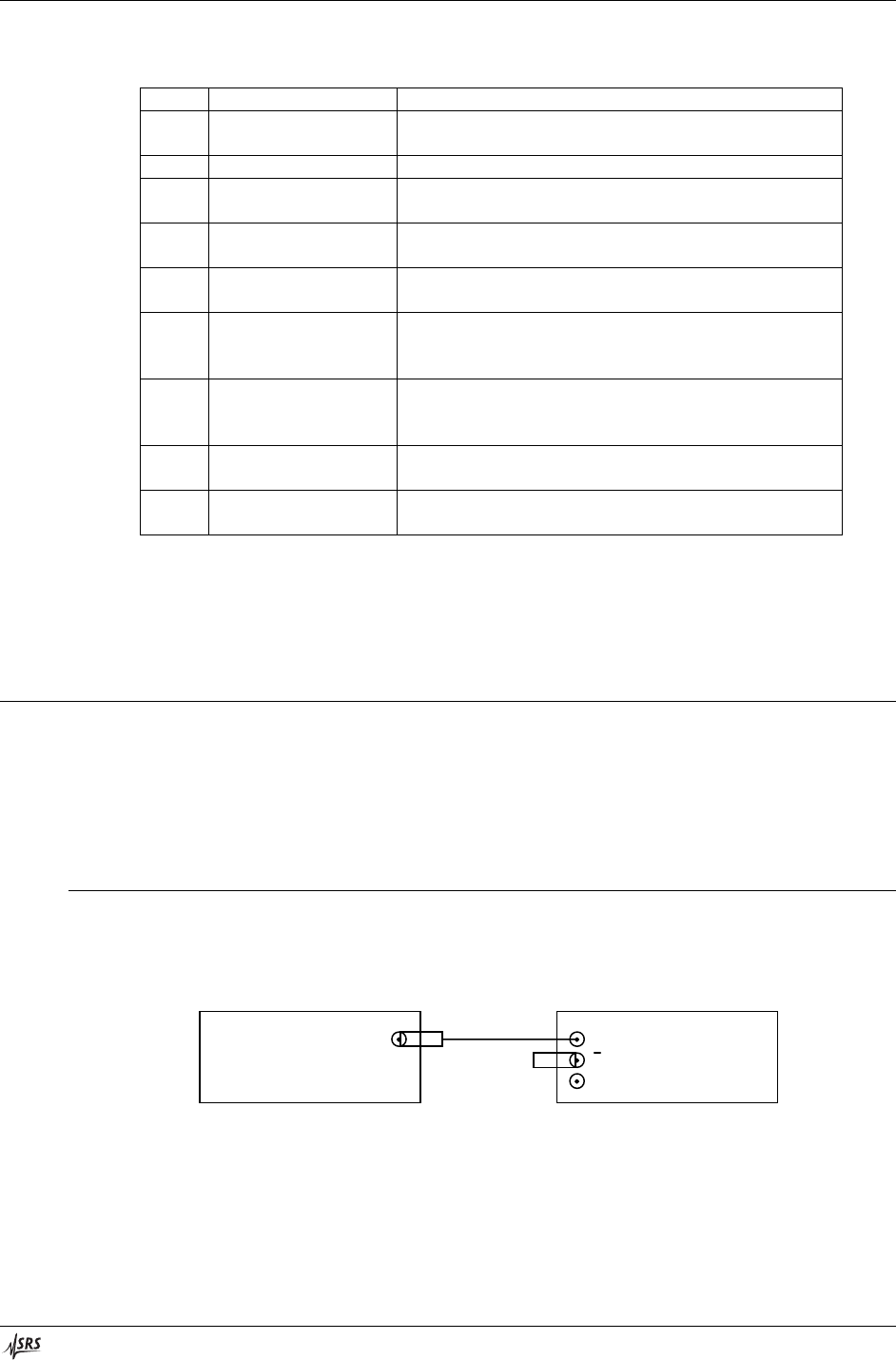

CG635 Synthesized Clock Generator
Table 18: Power-On Self Tests
Test Description Test Fail Symptoms
ROM ROM checksum Flash memory is corrupted. Unit may behave
unpredictably
1 24V Power Power supply is not providing stable 24 volts.
2 19.44 MHz tuning The crystal can’t tune to ±100 ppm. The CG635 may
not be able to lock at all frequencies.
3 19.40 MHz tuning The crystal can’t tune to ±100 ppm. The CG635 may
not be able to lock at all frequencies.
4 RF VCO The VCO can’t tune from 960MHz to 2.05 GHz. The
CG635 may not be able to lock at all frequencies.
5 CMOS output The CG635 is unable to drive the front-panel CMOS
output to the correct voltage. Check that the output is
not connected to a voltage source.
6 Q / Q¯ outputs The CG635 is unable to drive the Q/Q¯ outputs to the
correct voltages. Check that the outputs are terminated
into 50 and not connected to a voltage source.
7 Clock symmetry Output duty cycle is not 50 %. Output driver may be
damaged.
8 Option detection Optional oscillator is installed, but not oscillating. The
CG635 will use its internal oscillator.
The CG635 self test is automatically executed at power-on. It may also be executed by
sending the command *TST? over the remote interface. If the unit passes it will return 0
over the remote interface. If it fails, it will return 72. Refer to the user guide for more
information about communicating with the CG635 over a remote interface.
Output Level Tests
The output level tests are intended to test the accuracy and integrity of the CG635 output
drivers. They test the accuracy of the DC voltage levels at each of the supported
communication standards. They also test the speed with which transitions between levels
occurs.
Q/Q¯ Level Tests
The Q/Q¯ ouput level tests require the setup shown in Figure 4.
Figure 4: Q/Q¯ output level test setup
The Q/Q¯ outputs should be terminated into 50 . The terminator connected to the Agilent
DVM should be accurate to 1%. To test the Q output, configure the CG635 as follows:
1. Press ‘SHIFT’, ‘INIT’, ‘Hz’ to return the CG635 to default settings.
Q
Q
CMOS
CG635 Agilent 34401A
6½ Digit DVM
50 Ω termination
50 Ω termination
Performance Evaluation 49
CG635 Synthesized Clock Generator

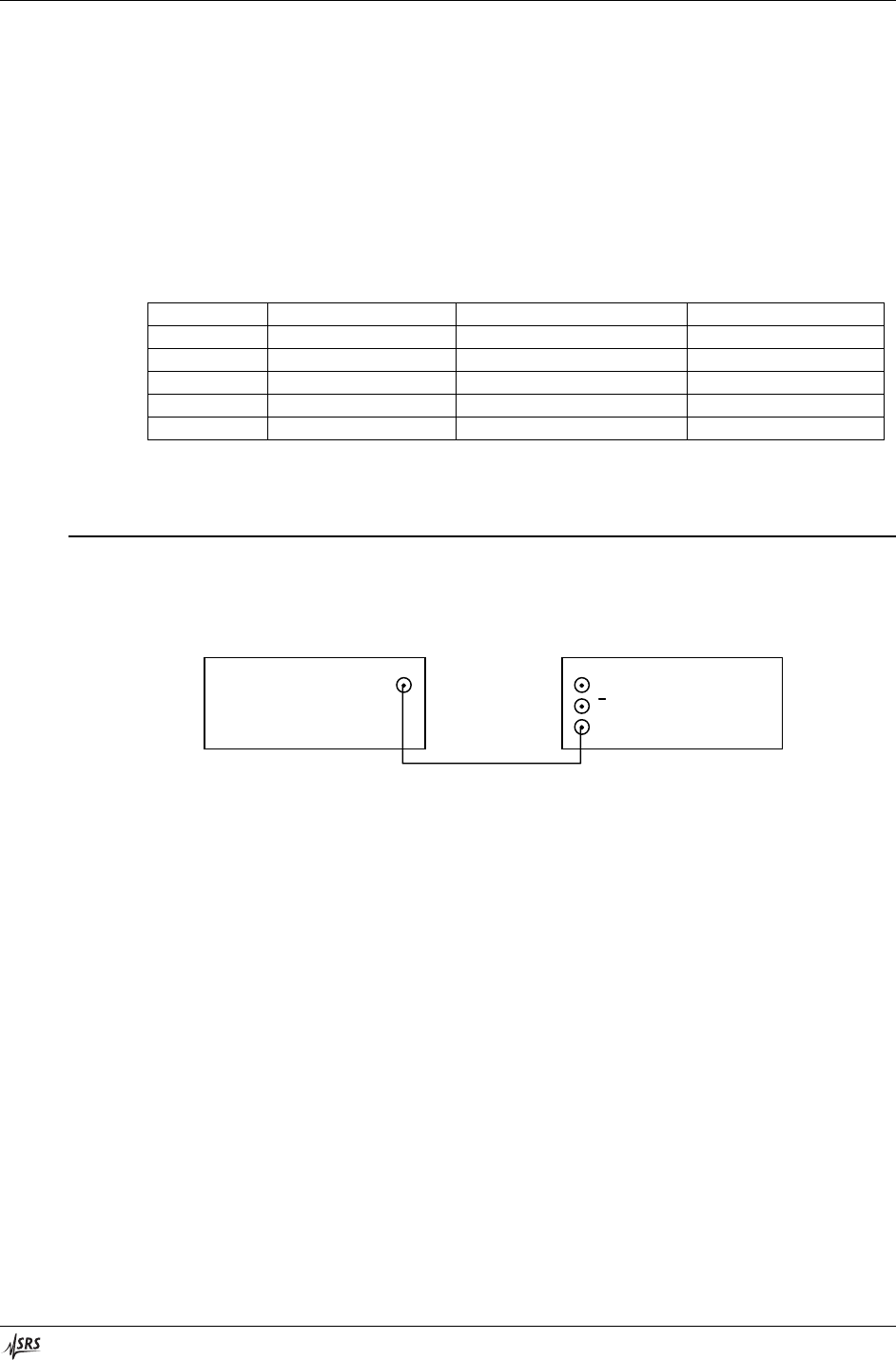

2. Press the Q/Q¯ and buttons to select the communication standard under test.
3. Press ‘SHIFT’, ‘STOP’ to stop the clock outputs at a low level.
4. Record Vlow as reported by the DVM.
5. Press ‘SHIFT’, ‘TOGGLE’, ‘SHIFT’ to toggle the clock outputs to a high level.
6. Record Vhigh as reported by the DVM.
The recorded values (Vlow, Vhigh) should fall between the minimum and maximum values
listed in Table 19 for each standard level.
Table 19: Minimum and Maximum allowed values for the Q/Q¯ outputs
Output Min. (Low, High) V Measured (Low, High) V Max. ( Low, High) V
ECL (–1.828, –1.020) (–1.772, –0.980)
+7 dBm (–0.515, 0.485) (–0.485, 0.515)
LVDS (1.049, 1.406) (1.091, 1.454)
PECL 3.3V (1.475, 2.267) (1.525, 2.333)
PECL 5V (3.158, 3.950) (3.242, 4.050)
To test the Q¯ output, configure the CG635 as in Figure 4, except swap the connections to
Q and Q¯. Repeat the steps above except record Vhigh in step 4 and record Vlow in step 6.
CMOS Level Tests
The CMOS output level tests require the setup shown in Figure 5.
Figure 5: CMOS output level test setup
To test the CMOS output, configure the CG635 as follows:
1. Press ‘SHIFT’, ‘INIT’, ‘Hz’ to return the CG635 to default settings.
2. Press the CMOS and buttons to select the communication standard under
test.
3. Press ‘SHIFT’, ‘STOP’ to stop the clock outputs at a low level.
4. Record Vlow as reported by the DVM.
5. Press ‘SHIFT’, ‘TOGGLE’, ‘SHIFT’ to toggle the clock outputs to a high level.
6. Record Vhigh as reported by the DVM.
The recorded values (Vlow, Vhigh) should fall between the minimum and maximum values
listed in Table 20 for each standard level.
Q
Q
CMOS
CG635 Agilent 34401A
6½ Digit DVM
Performance Evaluation 50
CG635 Synthesized Clock Generator
Table 20: Minimum and Maximum allowed values for the CMOS output
Output Min. (Low, High) V Measured (Low, High) V Max. ( Low, High) V
1.2 V (–0.044, 1.156) (0.044, 1.244)
1.8 V (–0.056, 1.744) (0.056, 1.856)
2.5 V (–0.070, 2.430) (0.070, 2.570)
3.3 V (–0.086, 3.214) (0.086, 3.386)
5.0 V (–0.120, 4.880) (0.120, 5.120)
Transition Time Measurements
The 20 % to 80 % output transition times of the CG635 are tested using the HP 54120A
Digitizing Oscilloscope with HP 54121A four channel input module. Configure the setup
as in Figure 6.
Figure 6: Transition time measurement setup
Connect 20 dB attenuators to the inputs of the HP 54121A. Use short, equal length SMA
cables with SMA to BNC adaptors to connect the CG635 to the HP 54121A.
Setup the CG635 as follows:
1. Press ‘SHIFT’, ‘INIT’, ‘Hz’ to return the CG635 to default settings.
2. Press the Q/Q¯ ▼ button to select +7 dBm output level for the Q/Q¯ outputs
3. Press the CMOS button to select +5.0 V output levels for the CMOS output
4. Press ‘FREQ’, ‘2’, ‘0’, ‘0’, ‘MHz’ to set the frequency to 200 MHz.
The same CG635 configuration is used for both the Q/Q¯ output timing measurements and
the CMOS output timing measurements.
Q/Q¯ Timing Measurements
For Q/Q¯ timing measurements, configure the HP 54120A digitizing scope as in Table 21.
Q
Q
CMOS
CG635
HP 54121A
HP 54120A
1 2 3 4 Trig
CG646
20 dB Attenuator
DC to 18 GHz
Ω
Performance Evaluation 51
CG635 Synthesized Clock Generator
Table 21: HP 54120A digitizing scope setup for Q/Q¯ timing
Parameter Setting
Trigger 0.0V level, positive slope, HF sens. off, HF reject off
Trig. Slope Positive
Volts/div 20 mV for channel 2 and 3
Offset 0.0 V for channel 2 and 3
Time/div 50 ps
Delay Reference at center, value adjusted to center transition in the display
Display Channels 2 and 3, averaged with count of 4
V Markers Marker 1: –30 mV
Marker 2: +30 mV
T Markers Start Marker: adjusted to time where Q/Q¯ waveform crosses V Marker 1
Stop Marker: adjusted to time where Q/Q¯ waveform crosses V Marker 2
The scope delay will have to be adjusted manually until the transitions from the 200 MHz
output are located. Once the delay is properly adjusted to center the transition on the
display, the complementary transition can be readily obtained by adding 2.5 ns to the
delay.
Measure the rise-time by adjusting the T Markers so that the Start Marker is located at the
point where the waveform crosses V Marker 1 and the Stop Marker is located at the point
where the waveform crosses V Marker 2. Record the t of the markers as the rise time of
the given waveform.
Measure the fall-time by adjusting the T Markers so that the Start Marker is located at the
point where the waveform crosses V Marker 2 and the Stop Marker is located at the point
where the waveform crosses V Marker 1. Record the t of the markers as the fall time of
the given waveform.
The rise-time of Q and the fall-time of Q¯ can be measured at one delay setting. The rise-
time of Q¯ and the fall-time of Q can be measured at a reference delay that is 2.5 ns later.
The measured transition times should meet the specifications given in Table 22.
Table 22: Maximum allowed transition times for Q/Q¯ outputs
Output Meas. (Rising, Falling) ps Max. ( Rising, Falling) ps
Q (100, 100)
Q¯ (100, 100)
CMOS Timing Measurements
For the CMOS output timing measurements, configure the HP 54120A digitizing scope
as in Table 23.
Performance Evaluation 52
CG635 Synthesized Clock Generator
Table 23: HP 54120A digitizing scope setup for CMOS timing
Parameter Setting
Trigger 0.0V level, positive slope, HF sens. off, HF reject off
Trig. Slope Positive
Volts/div 50 mV for channel 4
Offset 125 mV for channel 4
Time/div 200 ps
Delay Reference at center, value adjusted to center transition in the display
Display Channel 4, averaged with count of 4
V Markers Marker 1: 50 mV
Marker 2: 200 mV
T Markers Start Marker: adjusted to time where waveform crosses V Marker 1
Stop Marker: adjusted to time where waveform crosses V Marker 2
The scope delay will have to be adjusted manually until the rising edge of the CMOS
output transition from the 200 MHz output is located. Once the delay is properly adjusted
to center the transition on the display, the falling edge transition can be readily obtained
by adding 2.5 ns to the delay.
Measure the rise-time by adjusting the T Markers so that the Start Marker is located at the
point where the waveform crosses V Marker 1 and the Stop Marker is located at the point
where the waveform crosses V Marker 2. Record the t of the markers as the rise-time of
the given waveform.
Add 2.5ns to the reference delay to center the falling edge transition in the display.
Measure the fall-time by adjusting the T Markers so that the Start Marker is located at the
point where the waveform crosses V Marker 2 and the Stop Marker is located at the point
where the waveform crosses V Marker 1. Record the t of the markers as the fall-time of
the given waveform.
The measured transition times should meet the specifications given in Table 24.
Table 24: Maximum allowed transition times for CMOS output
Output Meas. (Rising, Falling) ps Max. ( Rising, Falling) ps
CMOS (1000, 1000)
Frequency Synthesis Tests
Basic functionality of the CG635 is verified by testing the generation of several specific
frequencies from DC to 2 GHz. This ensures that all the dividers are working properly.
Overall stability of the CG635 is tested by measuring the phase noise, jitter, and wander
at a couple of specific frequencies. The test points ensure that both crystals used in the
frequency generation are operating at specification. At the factory, we use a proprietary
mixer and filter which allows us to measure the jitter directly with a voltmeter. Here we
provide an alternative method which should provide equivalent results.
Performance Evaluation 53
CG635 Synthesized Clock Generator
Functional Tests
Functional tests verify that basic frequency synthesis of the CG635 is operating correctly.
This is accomplished by measuring the frequency of the CG635 at several specific
frequencies from DC to 2 GHz. The SR620 time interval counter is used to measure the
frequency output from the CG635. An SR625 is required to measure frequencies from
1 GHz to 2 GHz.
SR620/SR625 Configuration
Use the following procedure to set up the SR620/SR625:
1. With the power off hold down the ‘CLR’ button in the DISPLAY section and
turn the power on. This resets the SR620 to default settings.
2. Press MODE ▼ button three times to switch the mode from TIME to FREQ.
3. Press the GATE/ARM button two times to switch the gate to 1 s.
4. Press the SAMPLE SIZE ▼ button three times to set the sample size to 1.
5. Press DISPLAY ▼ button five times to set the display to TRIG.
6. Adjust the channel A trigger knob until the trigger level displayed for channel A
reads 0.00.
7. Press the DISPLAY button five times to set the display back to MEAN.
8. Press the channel A ‘AC/DC’ button once to switch to AC coupling
9. Press the channel A ‘INPUT’ button once to switch to 50 termination.
10. For frequency measurements between 100 MHz and 1 GHz, press the channel A
‘INPUT’ button once more to switch to 50 termination with UHF prescalers.
CG635 Configuration
Use the following procedure to configure the CG635 for frequency measurements:
1. Press ‘SHIFT’, ‘INIT’, ‘Hz’ to return the CG635 to default settings.
2. Press the Q/Q¯ ▼ button to select +7 dBm output level for the Q/Q¯ outputs.
3. For each frequency, use the number pad to enter in the desired frequency and
complete the entry with the appropriate units button.
Frequencies 1.0 to 2.0 GHz
Measuring frequencies above 1.3 GHz with the SR620 requires the UHF divide by 10
prescalers that come with an SR625. Use the setup shown in Figure 7.

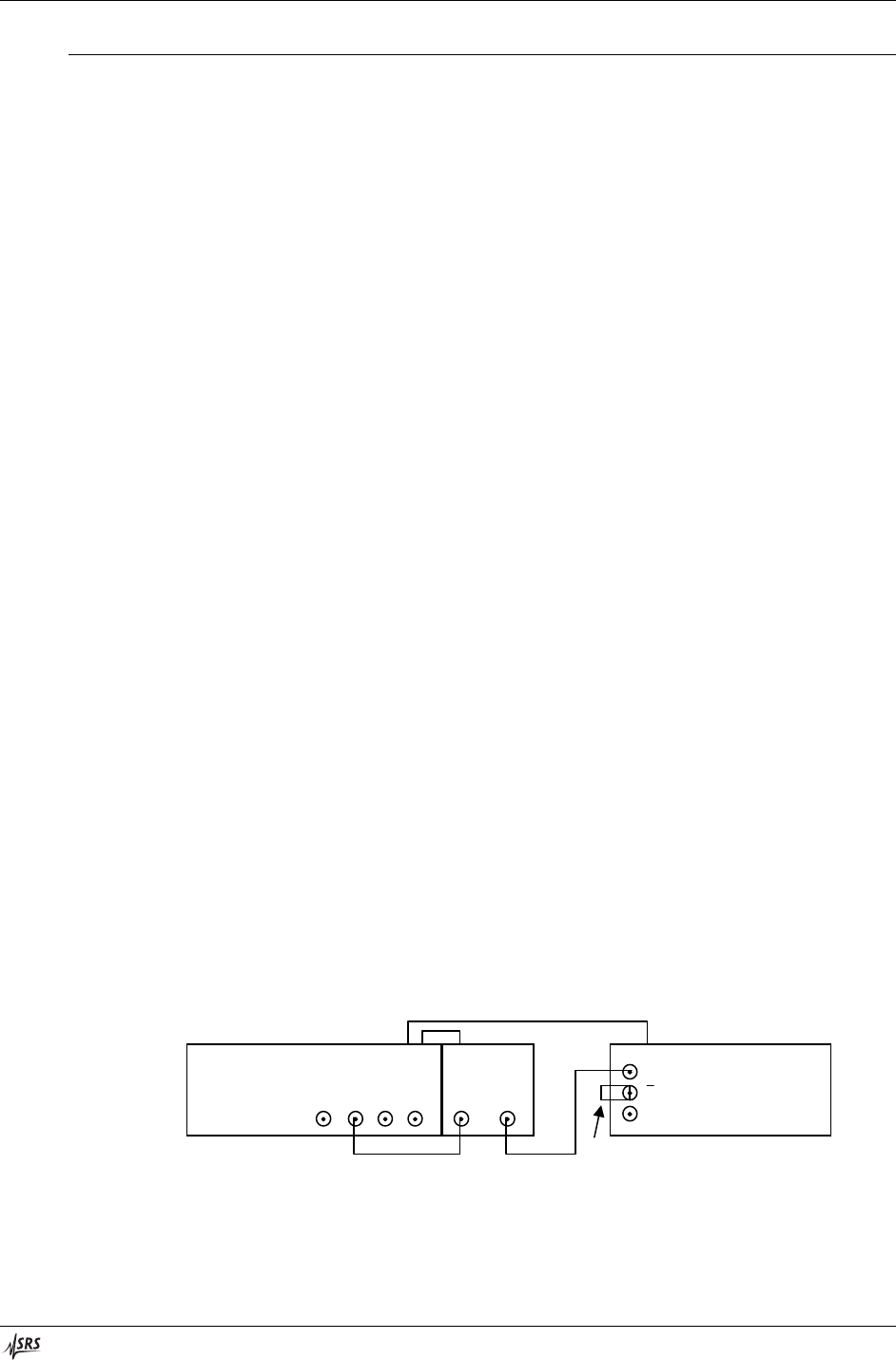

Figure 7: Setup for frequency measurements from 1.0 to 2.0 GHz.
The SR625 prescaler has a level adjustment knob. Adjust the level until the SR620
reports frequencies that are 1/10 of the set frequency. Set the frequency of the CG635 to
Q
Q
CMOS
CG635 SR620
EXT A B REF
SR625
OUT IN
10 MHz OUT
1
0 MHz IN
5
0 Ω
terminator
Performance Evaluation 54
CG635 Synthesized Clock Generator
each value given in Table 25. Record the frequency measured by the SR620. The actual
frequency is 10 times the reported frequency. Verify that the measured frequency is
within the limits specified in Table 25.
Table 25: Test frequencies from 1.0 to 2.0 GHz
Set Freq. (GHz) Min Freq. (Hz) Measured Freq. (Hz) Max Freq (Hz)
1.0 999,999,999.0 1,000,000,001.0
1.1 1,099,999,999.0 1,100,000,001.0
1.2 1,199,999,999.0 1,200,000,001.0
1.3 1,299,999,999.0 1,300,000,001.0
1.4 1,399,999,999.0 1,400,000,001.0
1.5 1,499,999,999.0 1,500,000,001.0
1.6 1,599,999,999.0 1,600,000,001.0
1.7 1,699,999,999.0 1,700,000,001.0
1.8 1,799,999,999.0 1,800,000,001.0
1.9 1,899,999,999.0 1,900,000,001.0
2.0 1,999,999,999.0 2,000,000,001.0
Frequencies 100 MHz to 1.0 GHz
The SR620 can measure frequencies below 1.0 GHz directly. Use the setup shown in
Figure 8 for frequencies from 100MHz to 1.0 GHz. Configure the SR620 as described
above. Make sure that the channel A input has the UHF prescaler activated.

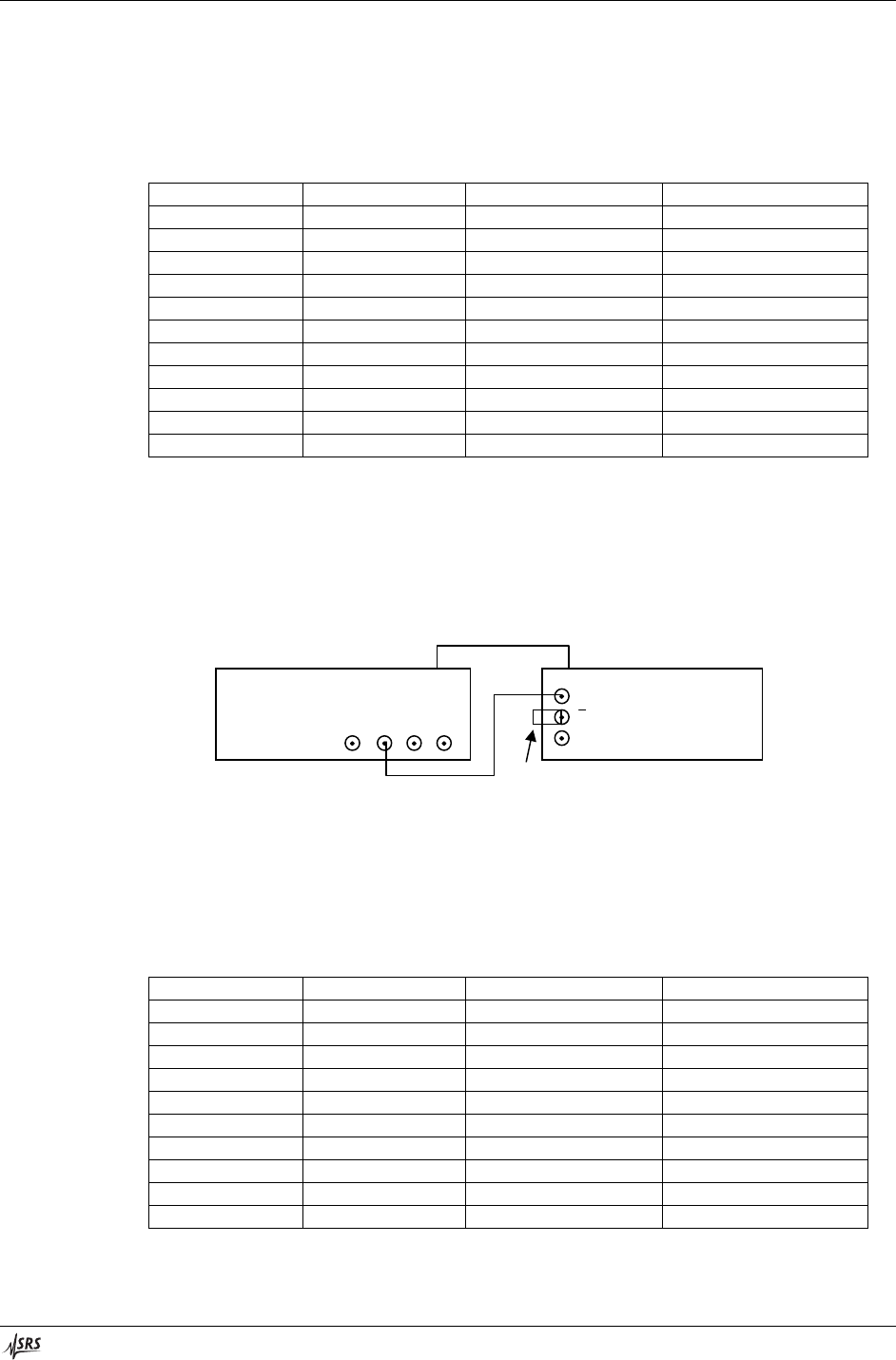

Figure 8: Setup for frequency measurements below 1.0 GHz.
Set the frequency of the CG635 to each value given in Table 26. Record the frequency
measured by the SR620. Verify that the measured frequency is within the limits specified
in Table 26.
Table 26: Test frequencies from 100 MHz to 1.0 GHz
Set Freq. (MHz) Min Freq. (Hz) Measured Freq. (Hz) Max Freq (Hz)
100.0 99,999,999.0 100,000,001.0
200.0 199,999,999.0 200,000,001.0
300.0 299,999,999.0 300,000,001.0
400.0 399,999,999.0 400,000,001.0
500.0 499,999,999.0 500,000,001.0
600.0 599,999,999.0 600,000,001.0
700.0 699,999,999.0 700,000,001.0
800.0 799,999,999.0 800,000,001.0
900.0 899,999,999.0 900,000,001.0
1000.0 999,999,999.0 1,000,000,001.0
Q
Q
CMOS
CG635 SR620
EXT A B REF
10 MHz OUT
1
0 MHz IN
5
0 Ω
terminator
Performance Evaluation 55
CG635 Synthesized Clock Generator
Frequencies Below 100 MHz
For frequencies below 100 MHz use the setup shown in Figure 8 again. Also use the
same SR620 configuration except make sure the channel A UHF prescaler is not
activated. Set the frequency of the CG635 to each value given in Table 27. Record the
frequency measured by the SR620. Verify that the measured frequency is within the
limits specified in Table 27.
Table 27: Test frequencies below 100 MHz
Set Freq. (MHz) Min Freq. (Hz) Measured Freq. (Hz) Max Freq (Hz)
0.1 99,999.999 100,000.001
0.2 199,999.999 200,000.001
0.5 499,999.999 500,000.001
1.0 999,999.999 1,000,000.001
2.0 1,999,999.990 2,000,000.010
5.0 4,999,999.990 5,000,000.010
10.0 9,999,999.990 10,000,000.010
20.0 19,999,999.900 20,000,000.100
50.0 49,999,999.900 50,000,000.100
100.0 99,999,999.900 100,000,000.100
Time Modulation Test
The time modulation test verifies that the time modulation input on the rear panel of the
CG635 is functioning properly. A voltage swing from –5 V to +5 V should modulate the
phase of the output by 10 ns. Use the setup shown in Figure 9 to test the time modulation
input.

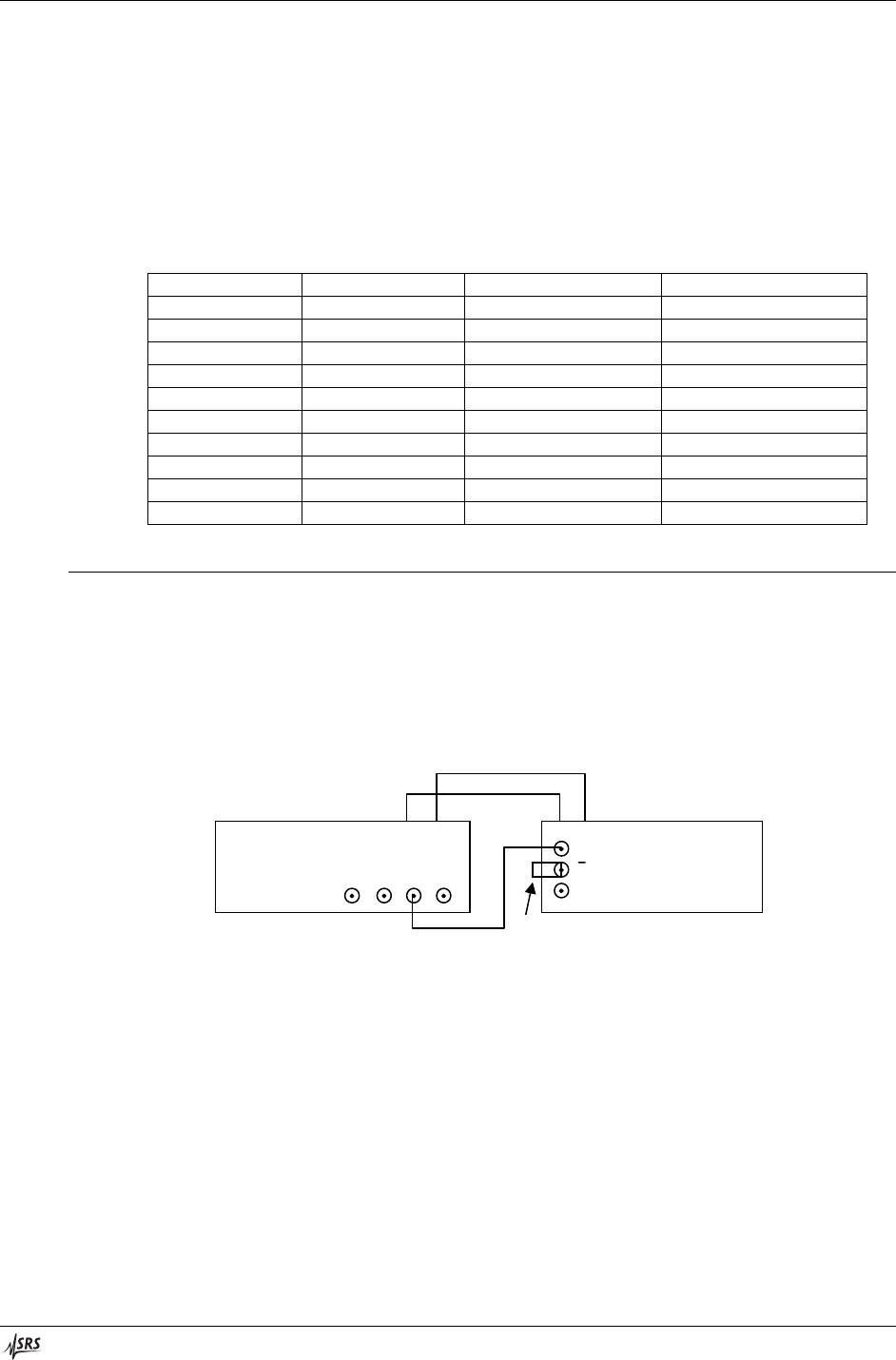

Figure 9: Setup for time modulation test.
CG635 Configuration
Use the following procedure to configure the CG635 for the time modulation test:
1. Press ‘SHIFT’, ‘INIT’, ‘Hz’ to return the CG635 to default settings.
2. Press the Q/Q¯ ▼ button to select +7 dBm output level for the Q/Q¯ outputs.
Time Modulation Test Procedure
Perform the following steps on the SR620 to test the time modulation input:
Q
Q
CMOS
CG635
SR620
EXT A B REF
1
0 MHz IN
5
0 Ω
terminator
1
0 MHz OUT
M
OD IN
D/A OUT 1
Performance Evaluation 56
CG635 Synthesized Clock Generator
1. With the power off hold down the ‘CLR’ button in the DISPLAY section and
turn the power on. This resets the SR620 to default settings.
2. Press SOURCE button two times to switch the start pulse to REF.
3. Press the SAMPLE SIZE button six times to set the sample size to 1000.
4. Press DISPLAY ▼ button five times to set the display to TRIG.
5. Adjust the channel B trigger knob until the trigger level displayed for channel B
reads 0.00.
6. Press the DISPLAY button five times to set the display back to MEAN.
7. Press the channel B ‘AC/DC’ button once to switch to AC coupling
8. Press the channel B ‘INPUT’ button once to switch to 50 termination.
9. Press ‘SEL’ in the CONFIG section until “SCN” is flashing
10. Press ‘SET’ in the CONFIG section until “DA Src chrt chrt” is displayed
11. Press SAMPLE SIZE ▼ once to change the display to “DA Src dac chrt”. This
configures the D/A output 1 to be sourced by the dac.
12. Press ‘SET’ in the CONFIG section once to display “DA 0.000 ---.---”
13. Press SAMPLE SIZE ▼ and to adjust the DAC voltage to –5.00 V.
14. Press DISPLAY to view the mean time interval.
15. Press ‘SET’ in the DISPLAY section to start showing relative measurements.
16. Press ‘SET’ in the CONFIG section until the display shows “DA –5.000 ---.---”
17. Press SAMPLE SIZE ▼ and to adjust the DAC voltage to +5.00 V.
18. Press DISPLAY to view the mean time interval.
19. Record the absolute value of the time interval as Tmod
Tmod should meet the specifications given in Table 28.
Table 28: Time Modulation Specification
Voltage Swing Min Mod. (ns) Measured Mod. (ns) Max Mod. (ns)
10 V 9.5 10.5
Phase Noise Tests
When making phase noise measurements, it is critical that the reference clock have
superior stability to that of the device under test. Use the setup shown in Figure 10 to
measure phase noise and jitter. Note that since the CG635 is locked to the FS725, this
setup will test the noise of the synthesizer alone, independent of the internal timebase.

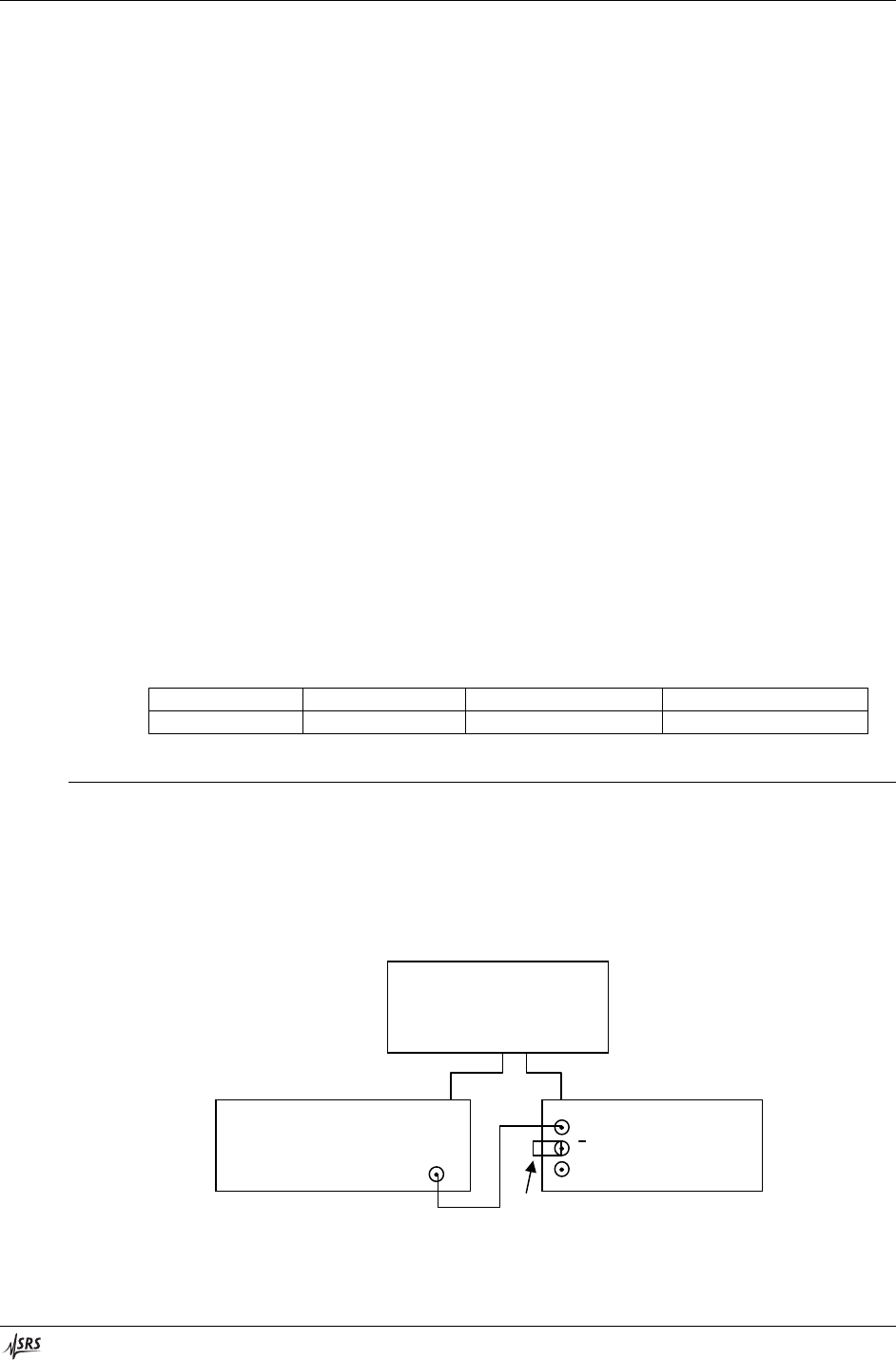

Figure 10: Setup for phase noise and jitter tests.
Q
Q
CMOS
CG635 HP 89440A
RF IN
1
0 MHz IN
5
0 Ω
terminator
10 MHz IN
F
S725
R
b Frequency Standard
Performance Evaluation 57
CG635 Synthesized Clock Generator
CG635 Configuration
Use the following procedure to configure the CG635 for the phase noise test:
1. Press ‘SHIFT’, ‘INIT’, ‘Hz’ to return the CG635 to default settings.
2. Press the Q/Q¯ ▼ button to select +7 dBm output level for the Q/Q¯ outputs.
3. Use the numeric key pads to enter the test frequency and press the appropriate
units key to complete the entry.
HP 89440A Configuration
First press the ‘Preset’ key to force the unit to default settings. Then enter the settings
detailed in Table 29.
Table 29: HP 89440A configuration for phase noise tests
Key Menu 2nd Menu Setting
Instrument Mode Inst Mode Demodulation
Demodulation Setup Ch1 Result PM
Auto carrier On
PM auto type Phase
Range Ch1 range 10 dBm
Measurement Data Meas Data PSD
Average Average On
Num averages 100
Frequency Center 622.08 MHz *
Span 400 Hz *
Marker Enter marker position 100 Hz *
The settings marked with a * will change at each test point as specified in Table 30
below.
Phase Noise Test Procedure
At each test point identified in Table 30, set the CG635 to the given frequency. Then set
the HP 89440A to the given center frequency, span, and marker position. Record S(f)
reported by the HP 89440A at the marker position in units of dBradrms2/Hz. Calculate
the phase noise from S(f) using the equation L(f) = S(f) – 3dB. For example, if the HP
reports that the noise at 100Hz offset is –91 dBradrms2/Hz, then S(100) = –91
dBradrms2/Hz. L(100) = S(100) – 3dB = –94 dBc/Hz. The measured phase noise should
be lower than the maximum phase noise specified in Table 30.
Table 30: Phase noise measurements
Frequency Span Marker S(f) L(f) = S(f) – 3dB Max L(f) (dBc/Hz)
622.08 MHz 400 Hz 100 Hz –90
4 kHz 1 kHz –100
40 kHz 10 kHz –100
400 kHz 100 kHz –110
620.80 MHz 400 Hz 100 Hz –90
4 kHz 1 kHz –100
40 kHz 10 kHz –100
400 kHz 100 kHz –110
Performance Evaluation 58
CG635 Synthesized Clock Generator
Jitter Tests
The CG635’s jitter can be inferred from its phase noise spectrum. Use the same setup
shown in Figure 10 to measure jitter. Use the HP 89440A band power markers to
measure the integrated rms noise of the spectrum. The CG635’s jitter is specified in a
bandwidth from 1 kHz to 5 MHz. The HP 89440A does not have adequate bandwidth to
measure out to 5 MHz. However, the spectrum of the noise from the CG635 is flat from
1 MHz to 5 MHz. Therefore, the jitter can be approximated by assuming that the rms
noise in the band from 1 MHz to 5 MHz is equal to 2 times the measured rms noise in the
band from 1 MHz to 2 MHz.
At SRS we use a proprietary mixer and filter that automatically filters the output to the
appropriate bandwidth and measures the rms jitter directly. The procedure given here,
however, should give a reasonable approximation of the jitter.
HP 89440A Configuration
First press the ‘Preset’ key to force the unit to default settings. Then enter the settings
detailed in Table 31.
Table 31: HP 89440A configuration for jitter tests
Key Menu 2nd Menu Setting
Instrument Mode Inst Mode Demodulation
Demodulation Setup Ch1 Result PM
Auto carrier On
PM auto type Phase
Range Ch1 range 10 dBm
Measurement Data Meas Data PSD
Average Average On
Num averages 100
Frequency Center 622.08 MHz *
Span 4 MHz
Marker function Band power markers Band pwr mkr On
Units Rms sqrt (pwr)
Band width 1 MHz
Band center 500 kHz *
The settings marked with a * will change depending on the frequency under test and the
band being measured. Take measurements at the frequencies and bands given in Table
32. For band 0 to 1 MHz, set the band center to 500 kHz and record the measured noise
as N0. For band 1 to 2 MHz, set the band center to 1.5 MHz and record the noise as N1.
Table 32: Jitter noise measurements
Frequency 0 to 1 MHz
N0 1 to 2 MHz
N1 Rms Noise
NT Jitter (ps)
NJ Max Jitter (ps)
622.08 MHz 1
620.80 MHz 1
Performance Evaluation 59
CG635 Synthesized Clock Generator
Calculate the rms noise, NT, using the equation NT = (N02 + 4N12)1/2 Calculate the rms
jitter, NJ, from the rms noise using the equation NJ = NT/2F, where F is the carrier
frequency.
For example, if N0 = 2.3 mradrms and N1 = 0.66 mradrms and F = 620.80 MHz, then
NT = (2.32 + 4×0.662)1/2 = 2.65 mradrms
and
NJ = 2.65×10-3/(2×3.14×620.80×106) = 0.68 ps.
The calculated jitter should be less than the maximum allowed jitter specified in Table
32.
Timebase Calibration
The accuracy of the internal timebase may be tested against a house reference if it is
known that the house reference has a superior stability and accuracy than the timebase
installed in the CG635. Use the setup shown in Figure 11 to test the accuracy of the
timebase.

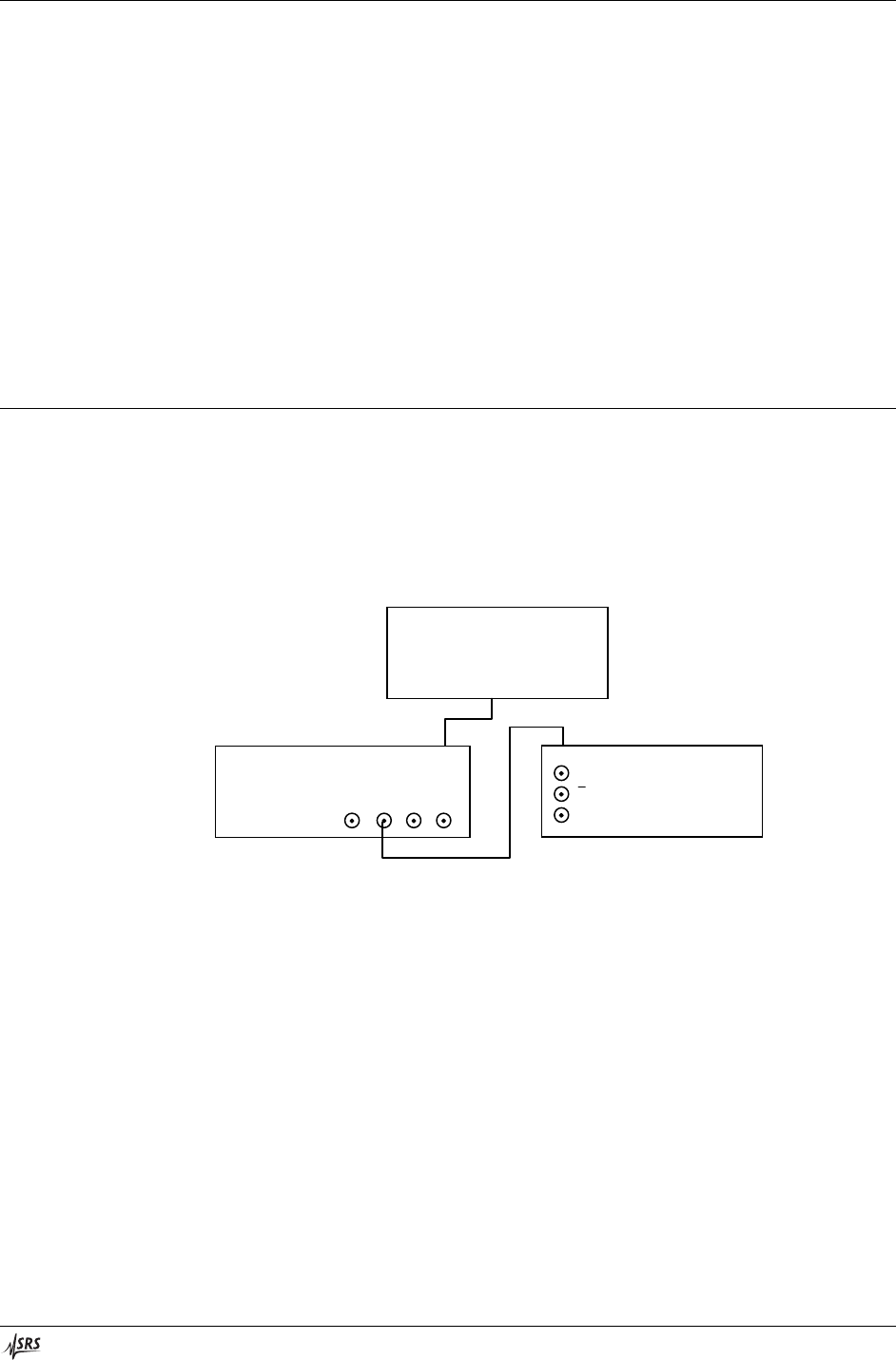

Figure 11: Setup for timebase calibration
The accuracy and stability of the CG635 timebase depends on the type of timebase
installed. An optional timebase, if installed, can be identified on the rear panel of CG635
under the serial number as Option 2, OCXO timebase, or Option 3, Rubidium timebase.
If the standard timebase or OCXO is installed, an FS725 Rb frequency standard may be
used as the 10 MHz reference. If a rubidium timebase is installed, a cesium based
reference will be required as a reference.
SR620 Configuration
Use the following procedure to set up the SR620:
1. With the power off hold down the ‘CLR’ button in the DISPLAY section and
turn the power on. This resets the SR620 to default settings.
Q
Q
CMOS
CG635
10 MHz
Reference
SR620
EXT A B REF
1
0 MHz IN
1
0 MHz OUT
Performance Evaluation 60
CG635 Synthesized Clock Generator
2. Press ‘SEL’ in the CONFIG section until “CAL” is flashing
3. Press ‘SET’ in the CONFIG section until “cloc Source” is displayed
4. Press SCALE in the SCOPE AND CHART section until “cloc Source rear” is
displayed
5. Press MODE ▼ button until the selected mode is FREQ.
6. Press ‘SEL’ in the CONFIG section until “OUT” is flashing
7. Press ‘SET’ in the CONFIG section until “Gate Scale” is displayed
8. Press SCALE in the SCOPE AND CHART section until 100 is displayed.
9. Press the DISPLAY to return to the normal display
10. Press the GATE/ARM button once to set the gate to 10 s
11. If a rubidium timebase is installed in the CG635, press the GATE/ARM
button once more to set the gate to 100 s
12. Press the SAMPLE SIZE ▼ button three times to set the sample size to 1.
13. Turn the trigger level knob above the channel A input counter clockwise until
AUTO is highlighted.
14. Press the channel A ‘INPUT’ button once to switch to 50 termination.
Timebase Calibration Test
It is critical that the timebase be fully warmed up before measurements are taken. Allow
at least 1 hour of warm-up for an OCXO or Rubidium timebase. Allow at least 30
minutes of warm-up for a standard timebase.
Record the timebase frequency reported by the SR620 and compare it to the stated one-
year accuracy shown in Table X for the installed timebase.
Table 33: Timebase calibration test
Timebase Min Freq. (Hz) Measured Freq. (Hz) Max Freq (Hz)
Standard 9,999,950.000,000 10,000,050.000,000
Opt 2: OCXO 9,999,998.000,000 10,000,002.000,000
Opt 3: Rubidium 9,999,999.995,000 10,000,000.005,000
Calibration
The CG635’s internal timebase may be calibrated using the measurements taken above if
communication over a remote interface is enabled. The process is iterative. Send the
query TCAL? to get the current value of the cal byte. If the measured frequency is low,
this number should be increased, otherwise it should be decreased. Send a new value by
sending the command TCAL dddd, where dddd is the new 4 digit cal byte. After sending
the new cal byte, measure the frequency again and continue iterating until calibration is
achieved to the desired accuracy.
Circuit Description 61
CG635 Synthesized Clock Generator
Circuit Description
Overview
The CG635 Synthesized Clock Generator was designed with several goals in mind:
1. Generation of square wave clocks from 1 µHz to 2050 MHz
2. Very high frequency resolution for long-term phase stability
3. Very low phase noise
4. Low cost
The design benefits from several frequency synthesis techniques while avoiding the
pitfalls of those same techniques. For example, the design uses direct digital synthesis
(DDS) for unlimited frequency resolution while avoiding the high spurs associated with
DDS. The design also employs dual-modulus synthesis without suffering from the high
phase noise that often accompanies high resolution (i.e., close channel spacing) designs.
The CG635 was primarily designed to provide convenient clock sources for the testing
and operation of digital circuits and systems. Clock frequencies of up to 2.05 GHz may
be synthesized. However, the high accuracy, high resolution, and low phase noise of the
synthesized clock source will recommend its use in more esoteric tasks such as signal
heterodyning, bit error rate and network synchronization testing.
Accuracy
The frequency accuracy depends on the accuracy of the internal timebase. The standard
timebase is a 20 MHz crystal oscillator which provides an aging of <5 ppm per year. The
20 MHz timebase may be phase locked to an optional internal timebase or to an external
10 MHz source. Option 2, an ovenized crystal oscillator, provides an aging of <0.2 ppm
per year, while Option 3, a rubidium frequency standard, provides an aging of <0.0005
ppm per year.
Resolution
The frequency resolution of the CG635 is determined by the frequency resolution of the
DDS frequency synthesizer used in the system. The CG635 uses a 48-bit DDS; however
the frequency resolution is extended to 64 bits by frequency-shift keying (FSK) the least
significant bit (LSB) of the DDS with a duty factor with 16 bits of resolution. With this,
the fractional frequency resolution is about 1 : 3.58×1018 providing an edge drift rate of
about 4.4 ps/year relative to a source with infinite resolution.
Phase Noise
Phase noise pitfalls are carefully avoided. The phase noise is essentially the multiplied
up (or divided down) phase noise of a fundamental mode, AT-cut crystal oscillator.
Circuit Description 62
CG635 Synthesized Clock Generator
Typical results are –130 dBc/Hz at 1 kHz offset from a 10 MHz carrier, or –95 dBc/Hz
at 1 kHz offset from a 622.08 MHz carrier.
Circuit Block Diagram
A block diagram of the frequency synthesizer for the CG636 Synthesized Clock
Generator is shown on the first page of the schematic diagrams: CG_BLK_D. A
description of this diagram follows.
Timebase
The timebase for the synthesizer is a 20 MHz VCXO. The circuit uses a 20 MHz, 3rd
overtone, AT-cut crystal. The VCXO will be phase locked to an external 10 MHz
reference if applied; otherwise, a digital-to-analog converter (DAC) provides an analog
voltage to calibrate the 20 MHz timebase. The 20 MHz timebase is used as a frequency
reference for the DDS which follows.
Reference Synthesizer
A 48-bit DDS uses the 20 MHz timebase as a reference to generate a frequency near
(i.e., within ±100 ppm) either 19,400,000 Hz or 19,440,000 Hz. The output of the DDS
synthesizer is used as a frequency reference for the RF synthesizer after being cleaned
up by a phase locked VCXO. The DDS has a clock multiplier which increases the
frequency sample clock by 5× to 100 MHz. The output frequency of the DDS is given
by the equation,
f DDS = sample clock × FTW / 264 = 100 MHz × FTW / 264
or
FTW = f DDS × 264 / 100 MHz
The frequency resolution of the DDS is extended to 64 bits by toggling between a 48-bit
frequency tuning word (FTW) of k and k+1 with a duty factor that has 16 bits of
resolution.
The output of the DDS is low-pass filtered and converted to a square wave by a high
speed comparator. While the in-close phase noise of this reference is very good, there is
a thick forest of spurious components in the broadband spectrum below –80 dBc. These
spurs must be eliminated in order for the frequency reference to be useful for
synthesizing an RF output.
Circuit Description 63
CG635 Synthesized Clock Generator
Reference Synthesizer Clean-up
The frequency reference from the DDS is “cleaned-up” by one of two VCXOs. One of
the VCXOs (either the 19,400,000 Hz VCXO or the 19,440,000 Hz VCXO) is selected
(by a procedure to be detailed later) and loosely phase locked to the DDS output. The
natural frequency of this PLL is only a few Hertz, and so the VCXO will not pass spurs
more than a few Hertz away from the carrier. The VCXO can lock to input frequencies
with a capture range of at least ±100 ppm (±1944 Hz). The output of the VCXO provides
a spur-free reference frequency to the RF synthesizer which follows.
Time Modulation
The output from the selected VCXO is converted to a triangle ramp and applied to the
input of a high speed comparator. The external “time modulation” input is applied to the
other input of the comparator, allowing the external modulation source to linearly delay
or advance the transitions at the output of the comparator. Since the RF synthesizer
phase locks the RF VCO to the reference, the RF VCO timing will follow the
modulation applied to the reference (up to the bandwidth of the RF PLL.)
RF Synthesizer
A dual-modulus RF frequency synthesizer is used to phase lock a 960-2050 MHz VCO
to the cleaned-up DDS reference. The RF frequency synthesizer divides the DDS
reference by a factor “R” (1 R 16,383), divides the VCO frequency by a factor “N”
(40 N 65591 with the restriction that N 46, 47 or 55…more on this quirky
numerology later), and compares the divided frequencies with a phase/frequency
detector. (The phase comparison frequency will be the DDS frequency / R.) The output
of the phase/frequency detector operates a charge pump which in turn controls the
frequency of the VCO to achieve phase lock.
For a low phase noise output, it is important that the R & N divisors be as small as
possible; the instrument’s output phase noise can be no better than the dividers’ and
phase detector’s phase noise floor (typically –159 dBc/Hz at 1 MHz) multiplied up from
the phase comparison frequency to the output frequency. (The output phase noise will
suffer 20 dB phase noise degradation per decade of frequency between the phase
comparison frequency and the output frequency.)
The R & N dividers are determined by enumeration, starting with R=1 and determining
if there is an N value that will provide the desired output frequency from a reference of
19,400,000 Hz ± 100 ppm or 19,440,000 Hz ± 100 ppm. Computer enumeration shows
that the average R value is 8 and no R value larger than 26 is required to synthesize any
frequency. (The R values with two VCXOs are about four times lower than they would
be with just one VCXO. The R values would be smaller if the tuning range of the
VCXOs was larger.)
A low pass filter (with a bandwidth that is decreased as the R divider is increased) filters
the dual modulus synthesizer’s phase detector output. The output of the filter controls
the VCO which can operate over the range of 960-2050 MHz.
Circuit Description 64
CG635 Synthesized Clock Generator
Programmable Dividers and Clock Fan-out
A high speed (>2 GHz) digital divider is used to scale the 960-2050 MHz clock to lower
frequencies. There are fifty-one, overlapping octave bands to span the frequency range
between 1 µHz and 2.05 GHz. If a new output frequency is specified, the firmware will
attempt to stay within the same octave band. If an octave switch is required, however,
and the frequency is in one of the first eleven octave bands, the output will go to a low
state until the VCO has settled, and then the output will be re-enabled in a “runtless”
fashion.
Table 34: CG635’s Fifty-one, Overlapping Octave Bands
Band Divider Min Frequency (Hz) Max Frequency (Hz)
0 1 960,000,000 2,050,000,000
1 2 480,000,000 1,024,000,000
2 4 240,000,000 512,000,000
3 8 120,000,000 256,000,000
4 16 60,000,000 128,000,000
5 32 30,000,000 64,000,000
6 64 15,000,000 32,000,000
7 128 7,500,000 16,000,000
8 256 3,750,000 8,000,000
9 512 1,875,000 4,000,000
10 1024 937,500 2,000,000
11 2048 468,750 1,000,000
… … … …
49 249 0.000,001,705,302 0.000,003,637,978
50 250 0.000,000,852,651 0.000,001,818,989
For frequencies in bands eleven to fifty, the CG635 uses DDS technology to seamlessly
change dividers. Since no spurious pulses are generated, the output is not disabled.
Determining Register Values
Definitions
fR = 20 MHz timebase reference (which can be locked to an external 10 MHz)
fDDS = DDS synthesizer output frequency (±100 ppm of 19.40 MHz or 19.44 MHz)
fVCXO = VCXO frequency (±100 ppm of 19.40 MHz or 19.44 MHz)
fU = upper tuning limit of fVCXO (100 ppm above fM)
fM = nominal fVCXO frequency (19,400,000 Hz or 19,440,000 Hz)
fL = lower tuning limit of fVCXO (100 ppm below fM)
fC = phase detector comparison frequency
Circuit Description 65
CG635 Synthesized Clock Generator
fVCO = RF VCO frequency
fO = output frequency
M = DDS clock multiplier (5×)
FTW = 64-bit DDS frequency tuning word
R = reference divider for dual modulus synthesizer. 1 R 16,383
N = VCO divider for dual modulus synthesizer. N = B×P + A with AB and P=8
D = output divider = 2n where 0 n 50
Calculations
Referring to the schematic diagram CG_BLK_C, the output frequency is given by:
fO = [ { fR × M × FTW / 264 } × N / R ] / D
Where the term: { fR × M × FTW / 264 } = fDDS which has the restriction that fL fDDS
fU (so that the VCXO can lock to the DDS.)
Given the desired output frequency (fO) the procedure to find all of the parameters (D, R,
N and FTW) is:
1. Use Table 34 to determine the output divider, “D”. If possible, stay within the
current band (i.e., use the current value for D).
2. Compute the required RF VCO frequency: fVCO = fO × D.
3. Find the lowest values for R & N (by enumeration, starting with R=1, and given
that fVCO fM × N / R) so that the desired fVCO can be generated consistent the
restriction that fL fVCXO fU (This loop is carried out for fM = 19,400,000 Hz
and 19,440,000 Hz. The first iteration to satisfy the loop conditions determines
which VCXO will be selected.)
a. Start with R=1
b. Compute the nearest N = INT(0.5 + fVCO × R / fM )
c. If N = 46, 47 or 55 (disallowed values) increment R and go to (b.)
d. Compute the required fVCXO = fVCO × R / N
e. Test if the computed fVCXO satisfies the condition fL fVCXO fU
f. If the test fails, increment R and go to (b.)
g. Parse N into A & B registers: B = INT(N/8) & A = N - 8×B
Circuit Description 66
CG635 Synthesized Clock Generator
h. Compute the FTW for the DDS with 64+ bits of resolution (rounding to the
nearest integer value): FTW = fO × D × R × 264 / (fR × M × N)
Example
A specific example: Synthesizer parameters to generate 750 MHz.
1. As 750 MHz lies between 480 MHz and 1024 MHz, using Table 1 we select an
output divider D = 2.
2. We compute fVCO = fO × D = 1500 MHz
3. Enumeration for R & N for fM = 19,400,000 Hz is shown in the table below:
R (try) Nearest N Required
VCXO(MHz) VCXO tuning
(ppm)
1 77 19.48051948 4150
2 155 19.35483871 –2328
3 232 19.39655172 –178
4 309 19.41747573 901
5 387 19.37984496 –1039
6 464 19.39655172 –178
7 541 19.40850277 438
8 619 19.38610662 –716
9 696 19.39655172 –178
10 773 19.40491591 253
11 851 19.38895417 –569
12 928 19.39655172 –178
13 1005 19.40298507 154
14 1082 19.40850277 438
15 1160 19.39655172 –178
16 1237 19.4017785 92
4. Enumeration for R & N for fM = 19,440,000 Hz is shown in the table below:
R (try) Nearest N Required
VCXO(MHz) VCXO tuning
(ppm)
1 77 19.48051948 2084
2 154 19.48051948 2084
3 231 19.48051948 2084
4 309 19.41747573 –1159
5 386 19.43005181 –512
6 463 19.43844492 –80
5. The first table shows that R=16 and N=1237 allows us to generate 750 MHz
with the VCXO running 92 ppm above its nominal value.
Circuit Description 67
CG635 Synthesized Clock Generator
6. The second table shows that R=6 and N=463 allows us to generate 750 MHz
with the VCXO running 80 ppm below its nominal value.
7. The value from the second table is preferred, as the lower N value will provide a
lower phase noise, and so the 19,440,000 Hz VXCO will be selected. The phase
comparison frequency in the RF PLL will be about 3.23 MHz.
8. For N=463, N = 8 × B + A, so the B counter will be loaded with 57 and the A
counter will be loaded with 7.
9. Finally, compute the DDS frequency tuning word:
FTW = fO × D × R × 264 / (fR × M × N)
= 750,000,000 × 2 × 6 × 264 / (20,000,000 × 5 × 463)
3.58 × 1018
The top 48-bits of the FTW are sent to the DDS synthesizer and the 16 LSBs are used to
control the FSK PWM. The FTW may only be correct to ½ LSB. This quantization error
leads to a frequency setting error of about ½ part in 3.58 × 1018, which would cause a
phase drift of about 4.4 ps/year relative to an ideal source.
Typical values for the R divider
A program was written to find R & N divider values for output frequencies in the top
band (960-2050 MHz). R & N dividers for the 1,090,000 frequencies spaced by 10 kHz
(10 ppm) were computed and statistics were complied. The following results were
obtained with available VCXO frequencies of 19,400,000 Hz and 19,440,000 Hz (with a
tuning range of ±100 ppm): Rmin = 1, Rmean = 8.02 and Rmax = 26. About 99.9% of the
computed R dividers were 20. The maximum R value of 26 provides a phase
comparison frequency of 747 kHz, where the phase noise floor of the dual modulus
synthesizer is typically –159 dBc/Hz. If this comparison frequency is being used to
generate an output frequency 1,000 × higher (i.e. at 747 MHz), one would expect an
output phase noise of approximately –159+60 = –99 dBc/Hz.
Phase adjustment
The CG635 allows the phase of the output to be viewed and adjusted from the front
panel or via the computer interface. Since the output edges are phase locked to the
internal DDS edges, output edges will move by the same amount of time as the DDS
edges. Therefore, the instrument can adjust the phase of its output by adjusting the
timing of the DDS edges.
The user enters a phase change in degrees and the instrument computes a corresponding
time change. For example, if the user requests a 90º phase change for an output at
622.08 MHz this corresponds to a time delay of:
T = (1/622.08×106) × (90º / 360º) 401.877 ps
Circuit Description 68
CG635 Synthesized Clock Generator
So, delaying the DDS edges by 401.877 ps will cause a 90º phase shift of a 622.08 MHz
output. In contrast, if the user requests a phase change of 360° for a 1 MHz output, the
DDS edges would have to be moved by 1 µs.
While the DDS has the capability to do phase-shift-keying, it cannot adjust the phase of
the output directly; instead, the edges of the DDS output will be moved by operating the
DDS at a nearby frequency for a short period of time.
If the frequency tuning word (FTW) of the DDS is changed from its value by FTW,
and the DDS is operated at this new frequency for a time tpwm, then the DDS edges will
advance in time by:
TDDS = (FTW/ FTW)× tpwm
There is an important restriction on the magnitude of FTW/FTW: the DDS frequency
change must not be so large as to cause the VCXO to come unlocked from the DDS. We
will restrict FTW/FTW to be less than ±10 ppm. This restriction requires a relatively
long phase slew interval in order to achieve the desired time shift.
There is another restriction: we need to make sure that the quantization error on TDDS
(due to the rounding in the calculation on the integer FTW) does not significantly
degrade the phase setting. Every cycle of the DDS (which occur at 100 MHz) may add
up to ½ LSB of error to the 48-bit phase accumulator. This accumulating error degrades
the accuracy with which we are setting the phase and so we must limit the number of
times that the ½ LSB error sums into the phase. This restriction is accommodated by
choosing a relatively short phase slew interval in order to limit the accumulated error.
Gratefully, there is an overlap between the long and the short restrictions on tpwm. The
tpwm FSK pulse is generated by a single pulse from the microcontroller’s PWM. The
pulse generator uses a clock with a period of 25.6 µs (ECLK/128 or XTAL/256.) The
pulse generator will be programmed to use 10 × D cycles of this clock to generate a
tpwm between 256 µs and 262,114 µs. (Recall D is the frequency synthesizer output
divider and D=1, 2, 4…1024.)
Given this, we can look at two limiting cases: (1) the frequency de-tuning required to
produce a phase step of 360° at 937.5 kHz (the largest phase step at the lowest frequency
which is adjusted in this manner) and (2) the accumulated phase error for a phase step at
2.05 GHz given a ½ LSB error in the calculation of FTW.
(1) The time delay required to phase shift 937.5 kHz by 360° is given by:
TDDS = (1/937.5×103) 1.06666 µs (one period for 360°)
At this frequency, the output divider D is 1024 and so tpwm will be 262,114 µs. In order
to slew by 1.06666 µs in an interval of 262,114 µs will require:
FTW/FTW = TDDS / tpwm = 1.06666 µs / 262,114 µs = 4.069476 ppm
So we see that tpwm is long enough to avoid having the VCXO come unlocked
(f 4 ppm), but not so long as to cause the user to grow impatient with the phase
Circuit Description 69
CG635 Synthesized Clock Generator
change (0.26 s). Note that at the top of this frequency band (at 2 MHz) the required f
for a 360° phase shift will be about 2 ppm.
(2) The accumulated phase error due to the rounding error in the computation of the
integer FTW at 2 GHz is equal to ½ LSB (max) × the number of DDS cycles during
the phase slew. In the top octave, where D=1, the tpwm will be 256 µs; hence, there are
100 MHz × 256 µs or 25,600 DDS cycles which can lead to a worst case phase error of
12,800 LSBs. This leads to a DDS output timing error of 12,800/248 periods or
16.4 nanodegrees at 2 GHz, which is very small compared to the 1° display resolution.
This method of phase slewing is quite satisfactory for high output frequencies, but can
take too long to execute at low frequencies. For example, a 360° phase shift at 1 Hz
would require 200,000 s (more than two days!) to perform if the frequency offset is
limited to 5 ppm. To overcome this restriction, output frequencies below 1 MHz are
sourced by a CMOS divider whose output can be quickly phase shifted by the CPU.
Phase shifts on outputs below 1 MHz can consist of two components: a small phase slew
component (which, as detailed above, is always used from high frequency phase
adjustments) and large phase jumps programmed into the CMOS divider.
Detailed Circuit Description
Note on reference designators: The hundreds digit of the reference designator indicates
the schematic sheet number. For example, R200 is a resistor on Sheet 2 and U500 is an
integrated circuit on Sheet 5.
Note on PECL logic: Most of the ECL logic used in this instrument is 100k series
operated from a +3.3 VDC power supply. The “high” level is +2.28 VDC and the “low”
level is +1.48 VDC, both of which follow the +3.3 VDC supply. An ECL output is
customarily terminated with a 50 resistor to a potential which is 2.0 V below the Vcc
power (i.e., a 50 resistor to +1.3 VDC.) Terminating both the Q & Q¯ outputs on each
device will reduce system noise and allows termination to a node connected to ground
through the paralleled combination of a 50 resistor and a 0.1 µF capacitor.
Timebase
Main Board, Schematic sheet “CG_MB1D”
The frequency reference for the CG635 Synthesized Clock Generator is a 20 MHz
Colpitts oscillator. The oscillator’s resonator (Y100) is a 3rd overtone AT-cut crystal
designed to operate at 20 MHz with a 20 pF load. The load capacitance is the series
combination of D100 (a dual varactor), C121 and C122 in parallel with L103. (The
oscillator will not operate at the fundamental mode of the resonator as the parallel
combination of C122 and L103 is inductive below 10.7 MHz.) Y100’s load capacitance
at 20 MHz is about 20 pF when the there is a reverse bias of 7 VDC across the dual
varactor. The bias to the varactor is provided by either a calibration voltage from a 12-bit
DAC or by a phase-lock loop (PLL) circuit if an external 10 MHz reference is applied or
if an optional 10 MHz reference is installed.
The 20 MHz sine output from the oscillator is converted to TTL logic levels by U112, an
AD8561 comparator. The 20 MHz square wave is used as the frequency reference for
Circuit Description 70
CG635 Synthesized Clock Generator
the clock synthesizer. The 20 MHz is also divided down to 10 MHz by U113, a dual
D-type flip-flop. One of the flip-flops, U113A, provides a 10 MHz clock for the
microcontroller, for the GPIB interface controller, and a 10 MHz reference for
phase-locking the 20 MHz timebase to a rear-panel 10 MHz input or to an optional
10 MHz reference oscillator (either an SC10 ovenized oscillator or a PRS10 rubidium
frequency standard.) The differential outputs of the other flip-flop, U113B, drive a
10 MHz tank circuit (T101, 47 pF internal to T101, C126 & C127) and an output filter
(C128, C129, C130 & L104) to provide a rear-panel 10 MHz sine wave output of 1.4 Vpp
amplitude into a 50 load via J101.
A rear-panel 10 MHz reference input is applied to a 10 MHz tank circuit (T100, 47 pF
internal to T100 and in parallel with C101) via R100 and C100. The input impedance for
frequencies much higher than 10 MHz is set by R100 (49.9 ) to provide a high return
loss for high frequency noise. The tank operates as a 2:1 auto-transformer, reducing the
amplitude of 10 MHz input by half and transforming the load (R101) by 4:1, so that the
input impedance is about 1 k at 10 MHz. The output of the tank is applied to U100, an
AD8561 comparator. The comparator’s inverting input is biased to +40 mV by R102 and
R103 so that its non-inverting output is low in the absence of a user-applied 10 MHz
reference input. When a 10 MHz signal is applied to the rear-panel timebase input, the
comparator will generate a TTL square-wave. The low-pass filter (R107/C108) allows
the microcontroller to measure the average value of this square wave via its A/D
converter and so determine the presence of an external 10 MHz reference.
Another comparator (U102) is used to convert the 10 MHz sine wave from an optional
internal timebase (either an SC10 ovenized oscillator or a PRS10 rubidium frequency
standard) into TTL logic levels. The low-pass filter (R109/C109) allows the
microcontroller to measure the average value of this square wave via its A/D converter
and so determine the presence of an optional 10 MHz reference.
The microcontroller will phase lock the 20 MHz timebase to an external 10 MHz
reference if one is supplied (by setting –EXT/OPT and DAC/-PLL low.) If no external
reference is applied, but an optional reference is installed, the microcontroller will phase
lock the 20 MHz timebase to the installed optional 10 MHz reference (by setting
–EXT/OPT high and DAC/–PLL low.) If neither is present, the microcontroller will
provide an analog voltage to the 20 MHz oscillator varactor via a 12-bit DAC to set the
frequency of the 20 MHz timebase per the last calibration (by setting DAC/–PLL high.)
The unused reference is gated “off” near the source (by U101 or U103) to avoid
crosstalk between the references.
The PLL circuit consists of the phase/frequency detector (U106A, U106B and U107), a
pre-filter (R111/C111 & R112/C112), and an integrating loop filter (U109A and
surrounding R’s and C’s). The phase/frequency detector compares the phase of the
selected reference (either external or optional) to the phase of the divided-by-two 20
MHz timebase. If the external (or optional) timebase leads in phase, then the output of
the phase/frequency detector will cause the integrating loop filter to ramp upward,
increasing voltage on the varactor (D100) and so increase the frequency of the 20 MHz
timebase until it is brought in-phase with the selected reference.
Minimum pulse widths will be seen at the Q outputs of U106A/B when the PLL circuit
achieves phase-lock. The pulse widths will be equal to the sum of the propagation delays
through the OR gate (U107, 0.9-3.6 ns) and the flip-flops (U106, 1.0-5.4 ns). Meta-
Circuit Description 71
CG635 Synthesized Clock Generator
stable resets are avoided by stretching the reset pulse with D101, C134 and R138. For
propagation delay sums between 1.9 ns and 9 ns, and a period of 100 ns, the duty cycle
of the 3.3 V pulse is between 1.9 % and 9.0 % leading to a voltage of 63 mV to 297 mV
on the pre-filter outputs (10MHZ_LEAD and 10MHZ_LAG.) Hence the criteria for
phase lock of the 20 MHz timebase to an external or optional frequency reference is that
10MHZ_LEAD and 10MHZ_LAG be between 50 mV and 350 mV and within 20 mV of
each other.
If neither an external 10 MHz reference is applied nor an optional frequency reference is
installed, the microcontroller will set DAC/-PLL “high”, disabling the PLL and
pre-charging the PLL integrator to 3.66 × CAL_20MHZ control voltage. When
DAC/–PLL is “high”, the analog switches (U108) disconnect the phase/frequency
detector from the PLL integrator, ground the inverting input to the integrator, and apply
a feedback signal to the non-inverting input of the integrator. The feedback signal is the
difference between the output of the integrator divided by 11 and the filtered
CAL_20MHZ signal divided by 3. The integrator output, pin 1 of U109A, will slew until
the feedback signal is zero (i.e., to where the integrator output is equal to CAL_20MHZ
×11 / 3). Since CAL_20MHZ can be set between 0 and 4.095 VDC, the integrator output
can be set from 0 to 15 VDC.
Using this approach, prior to applying the external 10 MHz reference, the PLL integrator
will be pre-charged to the voltage for which the 20 MHz timebase was last calibrated.
Also, the microcontroller can calibrate the 20 MHz timebase finding the value of
CAL_20MHZ which provides the same voltage seen on 10MHZ_VC when the 20 MHz
timebase is locked to an accurate external reference.
DDS and the 19.40/19.44 MHz Reference
Main Board, Schematic sheet “CG_MB2D”
Clock outputs from the CG635 are generated by dividing down the output of an RF
synthesizer. The RF synthesizer operates between 950 MHz and 2050 MHz and is used
without division to provide clock outputs in that range.
The RF synthesizer used in this instrument (see sheet “CG_MB3D”) requires one of two
low-noise reference frequencies: 19.40 MHz or 19.44 MHz. Both of these references
need to be tuned over a range of ±100 ppm and need to be set with a resolution of 1:264
(about 1:2×1019).
The purpose of the circuitry on this page of schematics is to provide a low noise
19.40 MHz or 19.44 MHz reference for the RF synthesizer which is tunable over ±100
ppm with very high resolution.
Direct Digital Synthesis (DDS) allows the generation of the reference frequency with
arbitrary precision. However, DDS synthesizers have a rich spur spectrum that makes
them unsuitable for multiplication to high frequencies. This design uses a voltage
controlled crystal oscillator (VCXO) phase locked to a DDS reference by a narrow
bandwidth PLL to simultaneously achieve high frequency resolution and low spurious
components. The low-noise VCXO is then frequency multiplied by the dual-modulus RF
synthesizer to generate high frequency, low-noise clock outputs.
Circuit Description 72
CG635 Synthesized Clock Generator
An integrated 48-bit DDS (U200) is used to generate tunable reference frequencies
around 19.40 MHz or 19.44 MHz. The DDS provides complementary 12-bit current
source outputs at a sampling rate of 100 MHz. The stair-stepped current sources are ac
coupled by T200 and low-pass filtered by C213-C218 and L202-204. The sine-wave
output of the low-pass filter is converted to a reference clock by the AD8561
comparator, U203. A 19.40 MHz or a 19.44 MHz VCXO will be phase locked to this
signal with a narrow bandwidth. Doing so provides a spur-free reference of a VCXO
with the arbitrarily high frequency precision of a DDS.
The B-Port of the microcontroller (see sheet “CG_MB5D”) is used to read and write
data to the DDS registers via the bidirectional level shifter U503. Address and read/write
control bits for the DDS arrive via U502. The 20 MHz clock comes from the 20 MHz
timebase on Sheet 1, and is multiplied by 5× by a clock multiplier in U200.
The DDS output frequency is controlled by the 48-bit Frequency Tuning Word (FTW)
loaded in the DDS registers. The DDS has a Frequency Shift Key (FSK) input which
allows the DDS to shift between two different FTWs. This feature is used to extend the
frequency resolution of the 48-bit DDS by 16 bits to 64 bits in the following manner:
Two 48-bit (FTWs) are loaded into the registers of U200, FTW and FTW+1. By
applying a Pulse Width Modulated (PWM) signal (with 16 bits of duty cycle resolution)
to the FSK input, the DDS can operate with any FTW (with 16 bits of resolution)
between FTW and FTW+1. The frequency error associated with a ±1/2 LSB
quantization error in the 16-bit duty cycle of the FSK will cause a clock output to time
shift by 7 ps/year relative to an ideal source (which is considered to be negligible).
The two VCXOs, one at 19.40 MHz and the other at 19.44 MHz, operate continuously.
When the user enters a new operating frequency, the microcontroller determines which
VCXO will allow the RF synthesizer to generate the required RF frequency with the
lowest divisors, consistent with the ±100 ppm tuning restriction of the VCXOs. The
comparator for that VCXO is enabled and the selected VCXO will be phase-locked to
the tunable DDS source.
The two VCXOs are nearly identical. The 19.40 MHz VCXO will be described here:
The VCXO uses a Colpitts configuration consisting of Y200 with the series load
consisting of capacitors C256, C242 and C243 and the dual varactor D200. The crystal is
a fundamental mode, AT-cut, designed to operate with a parallel load 20 pF. The sine
wave output of the VCXO is converted to TTL levels by U205, which is enabled when
the logic signal ALT_REF is set high. (When ALT_REF is high, the comparator for the
19.44 MHz reference is latched.)
The symmetry of the selected VXCO reference is controlled by the integrator U204B
which compares the filtered output of the selected reference to Vcc/2. If the duty cycle
of the selected reference is low, the integrator output will ramp upward, increasing the
bias at the inverting input to the comparators (U205 and U210), and so increase the duty
cycle of the inverted outputs from the comparators.
The selected VCXO is phase locked to the DDS reference by a PLL which consists of
the phase/frequency detector (U207A, U207B and U208), a pre-filter (R217/C247 &
R218/C248), and an integrating loop filter (U204A and surrounding R’s and C’s). The
phase/frequency detector compares the phase of the DDS to the phase of the selected
VCXO. If the DDS leads in phase, then the output of the phase/frequency detector will
Circuit Description 73
CG635 Synthesized Clock Generator
cause the integrating loop filter to ramp upward, increasing voltage on the varactor
(D200 or D201) and so increase the frequency of the VCXO until it is brought in-phase
with the DDS.
Minimum pulse widths will be seen at the Q outputs of U207A/B when the PLL circuit
achieves phase-lock. The pulse widths will be equal to the sum of the propagation delays
through the OR gate (U208, 0.9-3.6 ns) and the flip-flops (U207, 1.0-5.4 ns). For
propagation delay sums between 1.9 ns and 9 ns, and a period of 51.5 ns, the duty cycle
of the 3.3 V pulse is between 3.6 % and 17 % leading to a voltage of 118 mV to 561 mV
on the pre-filter outputs (19MHZ_LEAD and 19MHZ_LAG.) Hence the criteria for
phase lock of the VCXO to the DDS are that 19MHZ_LEAD and 19MHZ_LAG be
between 100 mV and 600 mV and within 20 mV of each other. The PLL bandwidth is
20 Hz.
The varactor voltage can operate between 0 and +15 VDC to tune the VCXO over a
range of about ±180 ppm. The frequency synthesizer design only requires a range of
±100 ppm; hence, the varactor voltage will not need to go to the rails. An attenuated and
filtered version of the varactor voltage (19 MHZ_VC) may be read via the
microcontroller’s ADC to verify the tuning range of the VCXO.
Time Modulation
Main Board, Schematic sheet “CG_MB3D”
The CG635 has a rear panel time-modulation input (J300) which allows an analog
voltage to modulate the timing of the clock outputs. This input is calibrated to have a
sensitivity of 1 ns/V and a full-scale range of ±5 ns. The input is DC coupled and so may
be used as a DC phase adjustment of the clock outputs. Broadband noise applied to this
input will cause broadband output jitter (within the bandwidth of the RF PLL).
The selected 19 MHz VCXO is used as a frequency reference to the dual-modulus RF
PLL synthesizer. Since the synthesizer phase locks its RF output to the reference input,
time-modulation of the reference will time-modulate the clock outputs. The frequency
reference is time modulated by converting the 19 MHz square wave from the output of
U213 to a linear ramp on C302, applying the linear ramp and the time-modulation signal
to the inputs of a fast comparator (U302), and using the output of the comparator as the
frequency reference for the RF synthesizer (U307).
The linear ramp on C302 is created by equal opposing current sources which are
alternately applied to C301 or C302 by the diode bridge (D300/D301). When the
19 MHz output from U301 is low, the current sourced by U300A via L300 and R304 is
shunted to C301, causing C302 to ramp down. When the 19 MHz output from U301 is
high, the current drawn by U300B via L301 and R305 is sourced by C301, causing C302
to ramp up. The positive current source (U300A) is controlled by the analog signal
CAL_TMOD so as to calibrate the rear panel time-modulation input sensitivity. The
negative current source (U300B) is configured to maintain the ramp on C302 so that it is
symmetrical about ground.
The time modulation input (J300) is filtered, attenuated and limited by R308-312, C307,
C308, and D302 before being applied to the comparator (U302). The input impedance of
Circuit Description 74
CG635 Synthesized Clock Generator
the time modulation input is 1 k for frequencies below 100 kHz, 50 for frequencies
above 1 MHz, and is bandwidth limited to 200 kHz.
RF Synthesizer
Main Board, Schematic sheet “CG_MB3D”
The RF synthesizer consists of a VCO (U310), a fast PECL comparator (U304B), a
dual-modulus synthesizer (U307), and a charge-pump loop filter (U309 and various R’s
and C’s). The VCO can be tuned over more than an octave (960-2050 MHz). The
dual-modulus synthesizer has a very low noise floor (typically –159 dBc/Hz at a
comparison frequency of 1 MHz). The low-noise loop filter has an adjustable
proportional gain to minimize timing jitter as synthesizer parameters are changed.
Several measures are used to reduce the disturbance of the RF PLL by external sources
of noise and interference: (1) the VCO is powered by a low noise op-amp whose output
is 2.5 × the (filtered) 4.096 V reference, (2) SPI clock and data to the RF PLL (U307)
are gated “off” by U306 unless U307 is the intended target of the data transfer, (3) a
low-dropout linear regulator is used to power the dual-modulus synthesizer, and (4) the
charge pump is powered by the +4.096 V reference.
Low clock jitter (which is close to, but not exactly the same as low phase noise) is an
important design goal for the RF synthesizer. The dual-modulus synthesizer is a PLL
that phase locks the VCO frequency (divided by an integer N) to the reference frequency
(divided by an integer R). The VCO output frequency, fvco, is therefore set by the choice
of reference frequency, fref, and the R and N divisors: fvco = fref × N / R. The phase noise
of the VCO output cannot be better than the “multiplied up” (i.e., degraded by 6
dB/octave or 20 dB/decade) phase noise floor of the synthesizer at the comparison
frequency. For example, with a reference frequency of 19 MHz (as we have here) and an
R divider of 19 (which is close to the worst case, as we shall see), the comparison
frequency is 1 MHz, for which the synthesizer noise floor is typically –159 dBc/Hz. If
we are generating an output frequency near 1 GHz, which is three decades above the 1
MHz comparison frequency, the best phase noise we can expect from the VCO is
–159 + 3 × 20 = –99 dBc/Hz. So a key goal here is to operate the dual-modulus
synthesizer with small R divisors so as to keep the comparison frequency high to keep
the phase noise low.
We also need to be able to generate all frequencies between 960 MHz and 2050 MHz
with 16 digits of resolution. Large values of R and N would be required to achieve this
high resolution if the reference frequency was not tunable. However, using just two
reference frequencies (either 19.40 MHz or 19.44 MHz) that are tunable over a range of
±100 ppm we have the following remarkable results: (1) any frequency in the range of
960 MHz to 2050 MHz may be generated, (2) the average R divisor will be 8, (3) the
largest R divisor will be 25, and (4) the prime factors of 19.44 MHz (27 × 35 × 54 ) are
such that many canonical frequencies can be generated with an R divisor of 1.
The output of the RF synthesizer is a complementary pair of +3.3 V PECL levels
(+RF_VCO and –RF_VCO) from U304B. These outputs have the following
characteristics: (1) Vhigh = +2.34 V, (2) Vlow = +1.55 V, (3) trise = 175 ps, (4) tfall = 140
ps, (5) tjitter < 1 psrms, (6) fmin = 960 MHz, and (7) fmax = 2050 MHz.
Circuit Description 75
CG635 Synthesized Clock Generator
ECL Dividers and Clock Multiplexer
Main Board, Schematic sheet “CG_MB4D”
The differential PECL clock from the RF synthesizer (+RF_VCO and –RF_VCO) is the
“top octave” clock that may be set from 960 MHz to 2050 MHz with 16 digits of
resolution. This clock is also used to clock ECL divider circuits that can divide the clock
by 2, 4, 8, 16, 32 … 1024. The output from the ECL divider may also be further divided
by U408, a programmable divider that has programmable phase jumps. An ECL 1:4
multiplexer (U404) is used to select one of four sources for output from the CG635: (1)
the undivided “top octave” clock, (2) the “top octave” clock divided by 2 by U400, (3)
the top octave clock divided by 4 × (256-ECL_DIV) where ECL_DIV is the 8-bit
“LOAD” value to the programmable counter, U401, or (4) the top octave clock divided
by 64 and further divided by a factor between 2n where 5 n 30 by U408. When the
“top octave” is selected, U411 disables the ECL dividers to reduce sub-harmonic
distortion. All clocks, both the inputs to and the outputs from the multiplexer U404, are
differential +3.3 V PECL levels.
The ECL programmable divider was designed to operate to >1 GHz. The –TC output
from U401 goes low on the terminal count (i.e. when the counter reaches 255) and will
load the ECL_DIV value synchronously with the next clock. The –TC output is
pipelined (to meet propagation delay constraints) and inverted by U402, a D-type
flip-flop. The output of U402 is applied to the J&K inputs of the J/K flip-flop, U403.
The J/K flip-flop will toggle states with a clock if the J&K inputs are both high, and will
not change if the J&K inputs are both low. Therefore, the output of the J/K flip-flop is at
a rate equal to the top octave clock divided by 4 × (256-ECL_DIV) = 4, 8, 12, 16,
..1024.
The ECL divider can be used to generate clock outputs as low as 960 MHz/1024 or
937.5 kHz. Output frequencies below 937.5 kHz are generated by the CMOS
programmable divider (U408) which is clocked by the RF/64 via the TTL
comparator U407.
For frequencies above 1 MHz, phase adjustments to the output are accomplished by
running the DDS synthesizer off-frequency by a small amount (less than 5 ppm, as
limited by the headroom available in the VCXO tuning characteristic) for an accurately
controlled interval of time. The maximum phase step is limited to ±360°. At 1 MHz, the
clock edges will have to move by 1 µs for a 360° step. Running off-frequency by 5 ppm
for 200 ms will accomplish this phase step. At 1 GHz, a 360° step can be accomplished
with a 0.05 ppm frequency offset for an interval of 20 ms. And so phase adjustments can
be done quickly at frequencies above 1 MHz, even with a limited frequency offset.
However at an output frequency of 1 Hz, a 360° step would require running off
frequency by 5 ppm for 200,000 s (more than two days) which is clearly not acceptable.
An alternate approach to phase stepping is used for output frequencies below 1 MHz to
overcome this limitation. The programmable divider in U408 may be jumped ahead (or
backward) by an integer number of clock cycles allowing large instantaneous phase
jumps. High resolution phase steps at low output frequencies are accomplished by
combining both methods (phase step in the CMOS divider and phase slew by running
the DDS off-frequency for an accurately determined interval of time).
Circuit Description 76
CG635 Synthesized Clock Generator
A differential clock fan-out driver (U405) is used to fan-out the selected clock to
multiple destinations: to (1) the front panel Q&Q¯ driver, (2) the front panel CMOS
driver, (3) a low pass filter to allow the microcontroller’s ADC to measure the
top-octave symmetry, (4) rear panel LVDS and RS485 clock outputs, and (5) an optional
pseudo-random binary sequence generator. The clock driver can select between two
clock sources: when the bit –RUN/STOP is “low”, the clock driver selects the CLK0
input which is the output of the 1:4 ECL multiplexer; when –RUN/STOP is “high”, the
clock driver selects the CLK1 input which is the STOP_LVL bit from the
microcontroller. This allows the microcontroller to set the outputs high or low for
“half-stepping” and for calibration purposes. The clock driver outputs are enabled when
the –EN_OUT is low. The selected clock is enabled synchronously with its own falling
edge, thereby eliminating runt pulses. (The synchronous enable will require the
microcontroller to toggle the state of the STOP_LVL bit before it appears at the outputs,
and will cause a one-cycle delay in the enabling of free-running clocks.)
The differential PECL clocks for the front panel outputs connect to the driver daughter
board via J400. This connector also passes amplitude and offset control voltages and
power supplies to the front panel output driver board.
Microcontroller
Main Board, Schematic sheet “CG_MB5D”
The microcontroller (U500) is a MC68HC912D60A. The important features used in this
design include (1) 16-bit device with hardware math operations, (2) 60k bytes of flash
ROM for program instructions, (3) 2k bytes of RAM for volatile storage, (4) 1k byte of
EEPROM for calibration constants, (5) dual serial communication interfaces for two
RS-232 channels, (6) serial peripheral interface for communications with system
components, (6) 16-bit pulse width modulator for extending the resolution of the DDS
via its FSK input, (7) sixteen channels of 10-bit A/D conversion for testing and
calibration, (8) real-time interrupt generator, and (9) myriad I/O port bits for
system integration.
Analog Inputs to the Microcontroller
There are 16 analog inputs to the microcontroller. The full-scale range is 0-4.096 VDC
and the inputs are digitized with 10 bits of resolution (4.00 mV per bit). Details for each
of the sixteen inputs are given below.
EXT_DET: Greater than 1.00 VDC indicates that an external 10 MHz reference has
been applied to the rear panel input and so the 20 MHz timebase should be phase-locked
to the external reference.
OPT_DET: Greater than 1.00 VDC indicates that an optional 10 MHz reference is
installed and operating and so the 20 MHz timebase should be phase-locked to the
optional timebase if an external reference is not present.
10MHZ_LEAD: Used to detect the phase-lock of the 20 MHz timebase to an external
or an optional timebase. 10MHZ_LEAD is a voltage proportional to the amount by
which the external reference or optional reference leads the 20 MHz timebase. The front-
panel UNLOCK LED will be lit if the instrument is trying to lock the 20 MHz timebase
Circuit Description 77
CG635 Synthesized Clock Generator
to either an external or an optional timebase and the 10MHZ_LEAD and 10MHZ_LAG
are not between 50 mV and 350 mV or not within 20 mV of each other.
10MHZ_LAG: Used to detect the phase-lock of the 20 MHz timebase to an external or
an optional timebase. 10MHZ_LAG is a voltage proportional to the amount by which
the external reference or optional reference lags the 20 MHz timebase. The front-panel
UNLOCK LED will be lit if the instrument is trying to lock the 20 MHz timebase to
either an external or an optional timebase and the 10MHZ_LEAD and 10MHZ_LAG are
not between 50 mV and 350 mV or not within 20 mV of each other.
10MHZ_VC: Scaled (by 0.285×) and filtered (with about 500 Hz bandwidth) version of
the varactor voltage that controls the frequency of the 20 MHz VCXO timebase. The
front-panel UNLOCK LED will be lit if the instrument is trying to lock the 20 MHz
timebase to either an external or an optional timebase and the 10MHZ_VC is less than
0.25 V or greater than 3.75 V. (These thresholds may change.)
19MHZ_LEAD: Used to detect the phase-lock of the 19.4 MHz timebase to the DDS.
19MHZ_LEAD is a voltage proportional to the amount by which DDS leads the
19.4 MHz VCXO. The front panel UNLOCK LED will be lit if 19MHZ_LEAD and
19MHZ_LAG are not between 100 mV and 600 mV or not within 20 mV of each other.
19MHZ_LAG: Used to detect the phase-lock of the 19.4 MHz timebase to the DDS.
19MHZ_LAG is a voltage proportional to the amount by which DDS lags the 19.4 MHz
VCXO. The front panel UNLOCK LED will be lit if 19MHZ_LEAD and 19MHZ_LAG
are not between 100 mV and 600 mV or not within 20 mV of each other.
19MHZ_VC: Scaled (by 0.285×) and filtered (with about 500 Hz bandwidth) version of
the varactor voltage that controls the frequency of the 19.4 MHz VCXO timebase. The
front panel UNLOCK LED will be lit if 19MHZ_VC is less than 0.25 V or greater than
3.75 V. (These thresholds may change.)
10mV/C: Analog voltage proportion to the PCB temperature in °C. Scale factor is
10 mV/°C with zero intercept. (Example: 300 mV at 30°C)
RF_VC: Scaled (by 0.210×) and filtered (with about 50 Hz bandwidth) version of the
varactor voltage that controls the frequency of the RF VCO. The front panel UNLOCK
LED will be lit if RF_VC is less than 0.20 V or greater than 3.00 V. (These thresholds
may change.)
+CLK_TST: Analog voltage equal to the average voltage (with 1 ms time constant) of
the non-inverted PECL clock source. The signal is useful for measuring the duty cycle of
the top octave clock signal when compared to –CLK_TST. The analog DAC voltage
CAL_SYM will be adjusted to equalize +CLK_TST and –CLK_TST to assure 50/50
duty cycle in the top octave.
-CLK_TST: Analog voltage equal to the average voltage (with 1 ms time constant) of
the inverted PECL clock source. The signal is useful for measuring the duty cycle of the
top octave clock signal when compared to +CLK_TST. The analog DAC voltage
CAL_SYM will be adjusted to equalize +CLK_TST and –CLK_TST to assure 50/50
duty cycle in the top octave.
Circuit Description 78
CG635 Synthesized Clock Generator
+Q_TST: Offset, scaled and filtered (with 180 Hz bandwidth) version of the front panel
Q output. Useful for testing and calibrating the amplitude and offset of the Q output
provided that the user load is disconnected from the instrument. Transfer function:
+Q_TST = 0.285 × (+Q_OUT + 4.096 V).
–Q_TST: Offset, scaled and filtered (with 180 Hz bandwidth) version of the front panel
Q¯ output. Useful for testing and calibrating the amplitude and offset of the Q¯ output
provided that the user load is disconnected from the instrument. Transfer function:
–Q_TST = 0.285 × (–Q_OUT + 4.096 V).
CMOS_TST: Offset, scaled and filtered (with 140 Hz bandwidth) version of the front
panel CMOS output. Useful for testing and calibrating the amplitude and offset of the
CMOS output provided that the user load is disconnected from the instrument. Transfer
function: CMOS_TST = 0.444 × CMOS_OUT + 0.455 V.
+24V_TST: Scaled and filtered (with 120 Hz bandwidth) version of the +24 V power
supply. +24V_TST = 0.130 × +24 V (unswitched) power supply. The scaling network
has a high impedance so as to source only 200 µA from the +24 V standby power supply
when the instrument is turned “off”.
RS-232 Interfaces
RTS_RS232: Request-to-Send input to CPU from the rear panel RS-232 interface.
RXD_RS232: Serial data input to CPU from the rear panel RS-232 interface.
RXD_RB: Serial data input to CPU from the optional rubidium timebase.
CTS_RS232: Clear-to-Send output from CPU to the rear panel RS-232 interface.
TXD_RS232: Serial data output from CPU to the rear panel RS-232 interface.
TXD_RB: Serial data output from CPU to the optional rubidium timebase.
Digital Inputs to Microcontroller
-DROPOUT: Status bit goes low to generate an –XIRQ (non-maskable interrupt
request) when the unit is turned “off” or when the power is removed.
-GPIB: Status bit goes low to generate an –IRQ (maskable interrupt request) when the
GPIB interface requires service.
10MHZ: 10 MHz square wave processor clock derived from the 20 MHz timebase.
KEY0-KEY4: Five key strobe lines. One of the five lines will go “high” when a front
panel key is pressed during the column strobe period for that key. All five inputs have
their active pull-downs enabled.
-DONE: This line goes low when the phase jump requested of U408 has been
completed.
Circuit Description 79
CG635 Synthesized Clock Generator
-RB_OPT: This line is pulled low when the optional rubidium timebase is installed.
(The active pull-up for this port bit is enabled.)
-OCXO_OPT: This line is pulled low when the optional Oven Controlled Crystal
Oscillator (OCXO) timebase is installed. (The active pull-up for this port bit is enabled.)
-PRBS_OPT: This line is pulled low when the optional PRBS generator is installed.
(The active pull-up for this port bit is enabled.)
RF_LOCK: This line goes high when the RF synthesizer has achieved phase-lock to the
19 MHz reference.
Microcontroller Outputs
PORT_A: Data bus (8-bits) supplies data to nine octal latches. There is a corresponding
port strobe for each of the nine latches (ex: -CS_LAMP or –CS_ODD or –CS_EVEN).
Data is latched on the rising edge of the port strobe. Latches are operated from either
+5 V or +3.3 V as required by the target.
-CS_GPIB_CTL: Port strobe for GPIB interface latch.
-CS_DDS_CTL: Port strobe for DDS interface latch.
-CS_DDS: Port strobe for DDS bi-directional (read or write) data transfer.
-CS_GPIB_CTL: Port strobe for GPIB interface latch.
-CS_STROBE: Port strobe for LED and KEY strobe line latch.
-CS_LAMP: Port strobe for lamp LEDs latch.
-CS_ODD: Port strobe odd-digit seven-segment LED display latch.
-CS_EVEN: Port strobe even-digit seven-segment LED display latch.
-CS_SYN: Chip select for dual-modulus synthesizer.
-CS_FLT: Port strobe for RF PLL bandwidth control (& misc) latch.
-CS_DIV: Port strobe for programmable ECL divider interface latch.
-CS_ECL: Port strobe for ECL logic control interface latch.
-CS_DAC: Port strobe for octal 12-bit DAC that supplies system analog voltages.
FSK_DDS: Pulse width modulated signal whose duty cycle is controlled with 16 bits of
resolution to extend the resolution of the 48-bit DDS to 64 bits.
SDO: Synchronous serial data output for data transfer to octal DAC and dual-modulus
synthesizer.
Circuit Description 80
CG635 Synthesized Clock Generator
SCK: Serial clock output for synchronous data transfer to octal DAC and dual-modulus
synthesizer.
DAC/–PLL: Controls the operation of the 20 MHz timebase. A high level allows the
frequency to be controlled by the CAL_10MHZ DAC output. A low level will cause the
20 MHz timebase to be phase locked to either an external 10 MHz input or to an
installed optional reference (rubidium or OCXO.)
–EXT/OPT: Controls which high-precision source (either the external 10 MHz or an
internal OCXO or rubidium) is used as a frequency reference for the synthesizer. The bit
–EXT/OPT is set low to select the external 10 MHz reference or set high to select the
optional OCXO or rubidium.
EN_PRBS: This bit is used to enable the optional PRBS generator. When low, the
PRBS shift register is loaded with all “ones”. When set high, the PRBS generates a
random binary sequence with a run-length of 127 bits.
Microcontroller Bi-directional Port
PORT_B: Port B is used as a bidirectional port for reading and writing data to the GPIB
and DDS. Level translation and direction control between the microcontroller and the
DDS is provided by U503. Data flow is controlled by the following: a data direction
register in the microcontroller, –CE_GPIB (U501), –WR_GPIB (U501), DBIN_GPIB
(U501), –WR_DDS (U502), –RD_DDS (U502) and –CS_DDS (U500).
Analog Control Voltages
An octal 12-bit DAC (U504) provides analog voltages for system control. The DAC
outputs have 1 mV resolution between 0 V and 4.095 VDC. The functions of the eight
control voltages are detailed here:
CAL_OPT: Used calibrate the frequency of an optional timebase (either rubidium or an
OCXO.) Nominal: +2.048 VDC. Scaled to 0 V to +5 V (for ± 0.02 Hz on PRS10) and 0
V to +10 V (for ±2.5 Hz on SC10-24-1-J-J-J-J)
CAL_20MHZ: Used calibrate the frequency of the standard 20 MHz timebase (which is
divided by two to provide the rear-panel 10 MHz timebase output.) This voltage controls
the frequency of the timebase when no external reference is applied and no optional
timebase is installed. Full-scale range is about ±20 ppm. Nominal: +2.048 VDC.
CAL_TMOD: Used to calibrate the sensitivity of the rear panel time modulation input
to 1 ns/V. Nominal: +2.048 VDC. Full scale range is approximately ±20 %.
CAL_SYM: Used to calibrate the symmetry of the top octave output clock as indicated
when the difference between +CLK_TST and –CLK_TST is zero. Increasing
CAL_SYM will decrease +CLK_TST and increase –CLK_TST. The required value
may be a function of frequency.
Q_AMPL: Controls the amplitude of the front panel Q & -Q outputs. The output
amplitude, QAMPL, is given by: QAMPL 0.276 × Q_AMPL.
Circuit Description 81
CG635 Synthesized Clock Generator
Q_OFFS: Controls the high level offset of the front panel Q & -Q outputs. The output
offset, QOFFS, is given by: QOFFS 1.834 × Q_OFFS – 2.150 V.
CMOS_AMPL: Controls the amplitude of the front panel CMOS output. The output
amplitude, CMOSAMPL, is given by: CMOSAMPL 1.648 ×CMOS_AMPL.
CMOS_OFFS: Controls the low level offset of the front panel CMOS output. The
output offset, CMOSOFFS, is given by: CMOSOFFS 0.519 × CMOS_OFFS – 1.063 V.
Microcontroller Output Latches
There are nine octal output latches to which the microcontroller writes data via the
Port-A bus to control the instrument. There are:
U501: GPIB register address and control latch.
U502: DDS register address and control latch.
U506: Front panel seven-segment (odd digit) segment enable latch.
U507: Front panel seven-segment (even digit) segment enable latch.
U508: Front panel display and keypad strobe latch.
U509: Front panel LED lamp enable latch.
U510: RF reference and RF PLL bandwidth control latch and CMOS enable.
U511: Programmable ECL divider load value.
U512: Band select, output enable, PRBS enable, LVDS enable
Microcontroller Display and Keypad Scanning
Four of the octal latches (U506-U509) are used to refresh the front panel LED displays
and scan the keypad for key presses. The front panel display and key pad scanning is
controlled by seven strobe lines: STB0 to STB6. Each strobe line enables two
seven-segment displays, up to six LED lamps and the scanning of up to six keys. The
display refresh consists of eight periods of 1 ms duration; seven periods to refresh the
entire display and scan the keypad and an eight period to intensify/blink one of the
seven-segment display digits to show which digit would be affected by a
step-up/step-down key press. The sequence of that operation is outlined here.
1. At the start of each 1 kHz real-time interrupt the microcontroller writes all zeros
to U508 to disable all of the displays.
2. Data for the next strobe interval is loaded into the U506 (odd digit segments),
U507 (even digit segments), and U509 (LED lamps.) Writing a “0” will turn
“on” the corresponding segment or lamp, writing a “1” will turn it “off”.
3. A single “1” is written to U508 to enable a single strobe line.
Circuit Description 82
CG635 Synthesized Clock Generator
4. Port-G is read to see if any keys have been pressed in the currently enabled
strobe column. Port-G is configured with active pull-downs to return the
KEY0-KEY5 to ground after the key is released.
5. The sequence terminates with a return from interrupt instruction.
NPN emitter followers (Q500-Q506) are used to provide the required strobe line current.
PNP emitter followers (Q507-Q512) are used to provide the required lamp drive current.
High efficiency seven-segment displays are driven directly by the octal latches and do
not require emitter followers. Current in the seven segment displays is limited by N500
and N501 and current in the LED lamps is limited by N504-N506.
The front panel LED refresh could cause substantial interference at harmonics of 125 Hz
due to the 8 ms refresh interval. A large power supply capacitor, C514, is used as a
source for this large periodic current and the ground return path for the LED currents is
isolated from the other circuit grounds. The capacitor is charged from the +5_digital
supply via a L501.
A 10 ms one-shot, U505A, is used to disable the LED current drive if the
microcontroller stops generating –CS_STROBE signals. This prevents damaging the
LEDs (which are normally operated with a 1/8th duty factor) should the microcontroller
stop operating. The second half of U505 is used to generate a key-click sound when the
MSB of U508 is set high.
Rear-Panel RJ-45 Outputs
Main Board, Schematic sheet “CG_MB6D”
The clock and ±5 VDC are made available on the rear-panel RJ-45 connector (J604).
Both LDVS (pins 1 & 2) and RS-485 levels (pins 7 & 8) are available on the RJ-45
connector. The outputs are intended to drive unshielded twisted pair (UTP) CAT-6 cable
with 100 terminations on the clock lines. The ±5 VDC supplies may be used to power
far-end line receivers. The current that may be drawn from these supplies is limited to
375 mA.
The RS-485 outputs are turned “off” above 105 MHz. The LVDS outputs operate up to
2.05 GHz. Internal PECL levels are translated to LVDS levels by the resistor networks
R622-R625. These resistor networks also reverse terminate the LVDS source with the
100 characteristic impedance of the UTP cable.
The PECL clock is also used to drive the differential inputs of the RS-485 line driver
(U607), converting the clock to TTL levels. The open-emitter clock outputs from U605
will only be active when -EN_RS485 is low. When –EN_RS485 is high, the rear-panel
RS-485 outputs will be turned “off”.
An N-channel MOSFET (U612) provides +5 VDC on the RJ-45 connector. The
MOSFET is turned “off” by U611A if the current seen in the shunt resistors (R617,
R618 & R641) exceeds 375 mA. A co-packaged Schottky diode in U612 prevents the +5
VDC from being pulled below ground.
Circuit Description 83
CG635 Synthesized Clock Generator
A P-channel MOSFET (U613) provides –5 VDC on the RJ-45 connector. The MOSFET
is turned “off” by U611B if the current seen in the shunt resistors (R637, R638 & R642)
exceeds 375 mA. A co-packaged Schottky diode in U613 prevents the –5 VDC from
being pulled above ground.
RS-232 and GPIB Interfaces
Main Board, Schematic sheet “CG_MB6D”
The TXD and CTS outputs from the microcontroller are converted to RS-232 levels by
U604. The received RS-232 signals, RXD and RTS, are converted to TTL levels for the
microcontroller by U604. U604 also provides an RS-232 high level for the CD and DSR
(carrier-detect and data-set-ready) lines on the RS-232 DB-9 connector (J603).
The GPIB interface (U601) is connected to the rear panel GPIB connector (J602) via the
buffers U602 and U603. Data is read and written to U601 via the bi-directional Port-B.
Other control lines for U601 come from U501. U601 indicates a need for service by
asserting –GPIB (the –IRQ maskable interrupt request) to the microcontroller.
Power Supply Interface
Main Board, Schematic sheet “CG_MB6D”
The CG635 uses a universal input switching power supply in a separate enclosure to
power the system. The power supply has a +24 V output which is “on” whenever the
instrument has line voltage (whether or not the power switch is “on”). This power supply
powers the optional timebase (an OCXO or rubidium) even while the instrument is
“off”. LED lamps on the main circuit board and in the modular power supply indicate
the presence of the +24 V supply. DC to DC inverters, which provide ±15 V, ±5 V, and
+3.3 V to power the instrument, are enabled when the –ENABLE pin on the modular
power supply is pulled to ground by the front panel power button.
A dual comparator (U600) is wire-or’d to alert the microcontroller via –DROPOUT that
the power switch has been turned “off” or that the +24 VDC main power supply is
coming out of regulation. The –DROPOUT asserts an –XIRQ to the microcontroller
which suspends operations until the +24 V recovers.
Front-Panel Output Drivers
To reduce the effect of circuit parasitics, components for the front-panel output drivers
(Q / Q¯ and CMOS) are located on a small circuit board directly behind the output BNCs.
The PCB and BNC block are secured to the front panel by two screws which hold the
connector block to the front panel. To remove the output drivers you must remove these
two screws, and the four side-panel screws, and tilt the front panel forward. The output
driver block may then be removed vertically.
A twenty-pin connector (J604 on the main PCB and J100 on the driver PCB) passes the
clock signals, amplitude and offset control voltages and the power supplies from the
main PCB to the driver PCB. The connectors are positioned so as to reduce the path
length for the fast signals.
Circuit Description 84
CG635 Synthesized Clock Generator
Front-Panel Q and Q¯ Drivers
Driver Board, Schematic sheet “CG_DR1F”
The Q and Q¯ outputs are high speed (DC-2.05 GHz with transitions times of <100 ps),
low amplitude (0.2 V to 1.0 V), differential outputs designed to be terminated into 50
loads. The outputs’ high level can be as high as +5 VDC or as low as –2 VDC to be
compatible with a variety of logic families (+5 V PECL, +3.3 V PECL, LVDS, RF,
ECL, RSECL, etc.) If either the Q or Q¯ output is used, both outputs should be terminated
with 50 to ground.
Each of the Q and Q¯ outputs consist of two series 24.9 resistors (to provide a source
impedance of 50 ) connected to a programmable voltage source (U100). The
programmable voltage source is set to twice the high level for the desired logic output.
This voltage source must always source current to operate properly. In the case of
negative output offsets it is necessary to load the voltage source, which is done by
U107B and Q101.
A fast, differential, current sink provided by U105 (MAX3737) alternates between the Q
and Q¯ outputs under the control of the ±Q_DRV clock signals. An output is pulled low
when current is drawn from that output by U105. The current source is programmed by
the analog control voltage Q_AMPL. Increasing the current source increases the
amplitude of the output clock signal.
The MAX3737 (U105) is a laser diode driver, and it is used in this application to provide
an extremely fast current switch. The 3.3V part has a very limited output voltage
compliance range, and so it is operated from two power supplies which track the
outputs’ high level. The ±Q_DRV clock signals which switch the fast current sink are
AC coupled to U105 via C111 and C112, and the DC levels for these logic signals are
maintained by the (slow) differential amplifiers U104A and U104B.
The MAX3737 has other features which are not used here but which need to be
accommodated so as to avoid apparent “fault” conditions. The transistor Q100 imitates a
laser diode’s photo monitor by providing small current that increases with the
MAX3737’s bias current generator. U106 provides a reset to U105 in the case that a
fault should occur.
The Q and Q¯ output levels may be sampled by the microcontroller via the ±Q_TST
outputs which are attenuated, offset and filtered versions of the Q and Q¯ outputs. These
test points allow the microcontroller to verify operation, check for user termination, and
calibrate the output amplitudes and offsets of the Q and Q¯ outputs.
Front-Panel CMOS Driver
Driver Board, Schematic sheet “CG_DR2F”
The front-panel CMOS driver is a high-level (up to 6 V), fast transition time (<1.0 ns),
cable driver with a 50 source impedance. The baseline for the output, which is
normally at 0 VDC, may be offset by ±1.00 VDC. This output is normally not
terminated with 50 . Doing so will not damage the output, and will improve the
Circuit Description 85
CG635 Synthesized Clock Generator
transition times, but terminating the output will reduce the output levels by a factor of
two.
The CMOS output offset and amplitude are controlled by the analog signals
CMOS_OFFS and CMOS_AMPL. The output is biased at the midpoint of the logic
transition by U200. The output may be offset from the midpoint by the CMOS_OFFS
signal, and the output is pulled above the midpoint (or pulled below it) by the outputs of
the fast differential current sink, U203. The ±CMOS_DRV PECL level signals are
terminated by R205 and R206 and drive the inputs to the fast current sink via the
cascode transistors Q200 and Q201.
The amplitude of the current sink is controlled by CMOS_AMPL. U205A servos U203
to provide the correct current by comparing the output current to CMOS_AMPL. When
the clock level is “0”, the OUT- output of U203 sinks current, drawing it from the
cascode transistor U206, pulling the output low. When the clock level is “1”, the OUT+
output of U203 sinks current, drawing it from the cascode transistor U205. The collector
current of Q205 is mirrored by the transistors Q203 and Q204, pulling the output high.
The CMOS output has a source impedance of 50 , consisting of the parallel
combination of R250-R252 in parallel with the series combination of R247-R249. The
parallel combination of L200 and R253 match return pulses into the collector
capacitance of Q204 and Q206, providing a high return loss at all frequencies.
Front-Panel Display and Keypad
Schematic sheet “CG_FP1B”
The front panel time-multiplexed display PCB has 13 digits, 34 lamps and 33 keys.
There are seven strobe lines, each of which allows up to two digits and six lamps to be
refreshed and up to six keys to be read during 1 ms intervals. An eighth time interval is
use to intensify/blink one of the 13 digits to indicate which digit would be affected by a
“modify up/down” key press. Details of the refresh operation are provided in the section
“Microcontroller Display and Keypad Scanning.”
Power Supply
Schematic sheet “CG_PS1B”
The modular power supply for the CG635 is in a separate shielded case inside the
instrument. The power supply consists of universal input, 60 W, +24 V, OEM switching
power supply which is “on” whenever power is applied to the unit (whether or not the
power switch is in the “on” position). This supply provides power to the optional
timebase whenever the unit is connected to the mains and provides power to two DC-DC
converters when the front panel power switch is pressed “on”.
One of the DC-DC converters is a switching power supply (U1) that operates at 260 kHz
to provide up to 3 A at +3.3 VDC with an efficiency of about 90 %. The input to this
Circuit Description 86
CG635 Synthesized Clock Generator
switcher is filtered by L2 and C2, to reduce crosstalk between the various supplies in the
system. U1 controls the duty cycle with which it connects the filtered +24 VDC power
supply to the input of L3 in order to regulate the output voltage to +3.3 VDC. The
flyback diode, D9, turns “on” when U1 disconnects L3 from the +24 V supply. The
output capacitor, C4, holds charge between switching cycles and the L4/C5 filter further
reduces the ripple
The second DC-DC converter (U4) operates at 100 kHz to generate unregulated ±8 VDC
and ±20 VDC. When enabled (by letting go of the soft-start node) the switching
controller drives the gates of the power MOSFETs, Q1 and Q2, with (nearly) 50 % duty
cycle square waves that are 180° out of phase. The MOSFETs drive the primaries of an
ungapped transformer, whose center tap is at +24 VDC. Full wave rectifiers (D3-D10)
drive the inputs to L/C filters (L5-L8 and C12, C15, C18 & C22). The outputs of these
filters are conditioned by linear regulators to provide clean voltages to the instrument.
Ordering diodes on the outputs, D11-D16, assure that load currents will not create
polarity inversions on these power supply outputs.
The DC-DC converters are enabled by the power switch which pulls the –ENABLE line
to ground. Doing so turns off the open collector outputs of U3 releasing the soft start
input to U4 and the ON/-OFF input to U1.
Timebase Options
Schematic sheet “CG_TB1B”
There are two timebase options: an OCXO (SRS p/n SC-10-24-1-J-J-J-J) and a rubidium
frequency standard (SRS p/n PRS10). The optional timebases are held by the same
mechanical bracket and connected to the system using the same adapter PCB.
The adapter PCB schematic is quite simple: J1 is the connector to the OCXO option, J2
is the connector to the rubidium option, and J3 is the connector to the main PCB. The op
amp U1 is used to scale the 0-4.095 VDC frequency calibration voltage (CAL_OPT) to
0-10 VDC for the OCXO or 0-5 VDC for the rubidium. The logic inverter, U2, is used to
invert the logic levels for the RS-232 communication between the microcontroller on the
main PCB and the PRS10 rubidium frequency standard.
Optional PRBS Generator
Schematic sheet “CG_PR1B”
A Pseudo-Random Binary Sequence (PRBS) generator is used for testing data
transmission systems. A typical arrangement is to display an “eye pattern” on an
oscilloscope by triggering the oscilloscope with the clock while displaying the (random)
data after it passes through the data transmission system. An “open” eye pattern is
necessary for reliable data transmission. The eye pattern “closes” from the left and right
with jitter, and from the top and bottom with insufficient channel bandwidth, increasing
the likelihood for transmission errors.
The most common way to create a PRBS generator is to use a linear shift-register,
feeding the input of the shift-register with the exclusive-or of two (particular) data bits as
they shift through the system. The CG635 uses a 7-bit ECL shift register that provides a
Circuit Description 87
CG635 Synthesized Clock Generator
pseudo-random bit sequence which repeats after 27 – 1 = 127 clock cycles. The data
stream satisfies many criteria to qualify as “random”, however it does repeat itself,
exactly, after 127 clock cycles. Another departure from randomness is that the longest
string of “1’s” is seven in a row while the longest string of “0’s” is six in a row.
The 7-bit PRBS generator consists of seven D-type flip-flops (U1-U7) and one
exclusive-or gate (U8). All clocks and data are passed differentially for lowest noise and
maximum speed. The exclusive-or of the 6th and 7th bits are feedback to the shift register
input. The 7th bit is used as the PRBS output (any bit would do) and it is buffered
by U10.
The critical timing path, which determines the highest clock frequency for which the
circuit will operate, is through the exclusive-or gate. The impact of the exclusive-or’s
propagation delay is reduced by phasing the clocks. Delaying the clock to U1 by 250 ps
effectively removes 250 ps of the exclusive-or’s 330 ps (worst case) propagation delay,
thereby allowing the circuit to operate above 2 GHz. The clock is advanced by 50 ps in
each successive stage so that the data meets the setup time for the un-delayed clock at
U6. The technique effectively spreads out the exclusive-or’s propagation delay over five
stages allowing the circuit to operate at a much higher frequency.
The layout of this circuit on the PCB is critical to its operation. The seven flip-flops are
arranged in a circle to minimize delays in the data path. Data propagates clockwise
around the circle. The clock is arranged to propagate counterclockwise along a
differential transmission line with a 20 impedance.
A control bit from the microcontroller, EN_PRBS, is set high to enable the PRBS.
Setting EN_PRBS low will force the input to U1 to be a “1”. Seven additional clock
cycles are required for the rear-panel PRBS output to go to “1” after EN_PRBS is set
low. The PRBS output will stay high until 7 clock cycles after the EN_PRBS goes
high again.
Both the PRBS data and the clock are output as LVDS levels on rear panel SMA
connectors. The PRBS data is buffered by the U10 and converted to LVDS levels by
R48-R53. The clock is buffered by the U11 and converted to LVDS levels by R54-R59.
These resistor networks also reverse terminate the LVDS source with the 100
characteristic impedance of the UTP cable.
Line Receiver Accessories
The rear-panel of the CG635 has an RJ-45 connector to provide clock signals at RS-485
and LVDS levels as well as ±5 VDC. A series of line receiver accessories are used to
receive the clock signals over an unshielded, four-pair, CAT-6 cable and convert the
clock to single-ended complementary logic outputs on SMA connectors. In addition to
being a useful accessory, these devices demonstrate the use of the RJ-45 outputs.
Ten different clock receivers are available as accessories to provide complementary
clock outputs on SMA connectors at standard logic levels. The SMA outputs are
intended to drive 50 coax cables terminated with 50 loads to ground (with the
exception of the CMOS and the +5 V PECL receivers, which are intended to drive
unterminated 50 coax cables.) The following types are available:
Circuit Description 88
CG635 Synthesized Clock Generator
SRS Model Logic output level
CG640 CMOS (+5.0 Vcc)
CG641 CMOS (+3.3 Vcc)
CG642 CMOS (+2.5 Vcc)
CG643 PECL (+5.0 Vcc, Vee=0)
CG644 PECL (+3.3 Vcc, Vee=0)
CG645 PECL (+2.5 Vcc, Vee=0)
CG646 RF (+7 dBm, ±0.5 Vdc)
CG647 CML/NIM (0 V / -0.8 V)
CG648 ECL (Vee<0, Vcc=0 )
CG649 LVDS
The CG640 +5 V CMOS receiver uses the RS-485 clock; all of the other receivers use
the LVDS clock. The maximum length of Category-6 cable that may be used with a
receiver will depend on the clock frequency and the type of Category-6 cable that is
used.
CG640 line receiver
Schematic sheet “CG_LR1B”
The CG640 line receiver converts the RS-485 differential clocks to complementary +5 V
CMOS outputs on SMA connectors.
The RS-485 level clock is received on the 7-8 pair of the RJ-45 connector (J400). The
differential signal is attenuated and terminated with 100 by R101-R104. Undesired
common mode signals are terminated by R105 and C100. The unused LVDS level
clocks are terminated by R100. The RS-485 clock is converted to 3.3 V CMOS levels by
U101, a dual LVDS to CMOS line receiver. One of the translators in U101 is connected
in a non-inverting configuration while the other is connected in an
inverting configuration.
The complementary outputs of U400 drive the inputs of the hex buffers, U102 and U103
(CDC329). The six outputs from the two buffers are wired together to drive the SMA
output via a 50 source impedance (R117-R122 or R123-R128). The 10.0 resistors
(R107, R108, R112 & R113) in series with the Vcc bypass capacitors (C105-C108)
reduce output overshoot.
The outputs are intended to drive any length of un-terminated 50 cable. The reflection
from the unterminated end is reverse terminated by the output’s 50 impedance. The
resistors in the ground leads of U102 & U103 allow the source impedance for logic “0”
outputs to be matched to the source impedance of logic “1” outputs, allowing for a high
return loss for both levels.Terminating the outputs will not damage the module, but
doing so will reduce the amplitude of the outputs by a factor of 2×.
CG641 and CG642 line receivers
Schematic sheet “CG_LR2B”
Circuit Description 89
CG635 Synthesized Clock Generator
The CG641 line receiver converts the LVDS differential clocks to complementary
+3.3 V CMOS outputs on SMA connectors. The CG642 line receiver converts the
LVDS differential clocks to complementary +2.5 V CMOS outputs on SMA connectors.
The LVDS level clock is received on the 1-2 pair of the RJ-45 connector, J200. The
differential signal is terminated with 100 by two resistor networks, N200 and N201.
Undesired common mode signals are terminated by the same networks together with
C207 and C208. The unused RS-485 level clocks on the 7-8 pair are terminated by
R200. The LVDS clocks are converted to complementary 3.3 V CMOS levels by U201
and U202, which are dual LVDS line receivers.
The complementary outputs of U201 and U202 drive the SMA outputs via a resistor
network. The resistor network provides a 50 source impedance to reverse terminate
reflected signal. The resistor network also provides attenuation in the CG642, which
provides 2.5 V CMOS output levels.
The outputs are intended to drive any length of un-terminated 50 cable. The reflection
from the unterminated end is reverse terminated by the output’s 50 impedance.
Terminating the outputs will not damage the module, but doing so will reduce the
amplitude of the outputs by a factor of 2×.
CG643-CG645 line receivers
Schematic sheet “CG_LR3B”
The CG643-CG645 line receivers convert differential LVDS clocks to complementary
PECL outputs on SMA connectors. These three line receivers use the same PCB and
circuit design. The voltage source for the logic “1” level (U300) is set for a particular
output logic level, as is the magnitude of the switched current which controls the
amplitude of the logic transition.
The LVDS level clock is received on the 1-2 pair of the RJ-45 connector, J300. The
differential signal is (primarily) terminated by R302 and R303. Undesired common
mode signals are terminated by R304 and C323. The unused RS-485 level clocks are
terminated by R300.
The LVDS clock input is AC coupled to an ECL line receiver, U303. The clocks’ DC
levels are summed with the AC levels by the (slow) differential amplifiers U302A and
U302B. The output of the line receiver is passed to a laser diode driver, U304 a
MAX3737, which provides fast ( 60 ps), switched, differential, programmable current
sources to drive the SMA outputs.
The MAX3737 has other features which are not used here but which need to be
accommodated so as to avoid apparent “fault” conditions. The transistor Q300 imitates a
laser diode’s photo monitor by providing small current that increases with the
MAX3737’s bias current generator. U305 provides a reset to U304 in the case that a
fault should occur. The magnitude of the current switched by U304 is controlled by
R308.
Both SMA outputs should be terminated with 50 loads. (Except for the CG643, which
provides +5 V PECL level outputs into unterminated 50 cables.)
Circuit Description 90
CG635 Synthesized Clock Generator
CG646 and CG647 line receivers
Schematic sheet “CG_LR4B”
The CG646-CG647 line receivers convert differential LVDS clocks to complementary
RF, CML, or NIM outputs on SMA connectors. These two line receivers use the same
PCB and circuit design. The voltage source for the logic “1” level is set for a particular
output logic level, as is the magnitude of the switched current which controls the
amplitude of the logic transition.
The LVDS level clock is received on the 1-2 pair of the RJ-45 connector, J400. The
differential signal is (primarily) terminated by R425 and R426. Undesired common
mode signals are terminated by R424 and C419. The unused RS-485 level clocks are
terminated by R400.
The LVDS clock input is AC coupled to an ECL line receiver, U401. The clocks’ DC
levels are summed with the AC levels by the (slow) differential amplifiers U400A and
U400B. The output of the line receiver is passed to a laser diode driver, U403 a
MAX3737, which provides fast ( 60 ps), switched, differential, programmable current
sources to drive the SMA outputs.
The MAX3737 has other features which are not used here but which need to be
accommodated so as to avoid apparent “fault” conditions. The transistor Q400 imitates a
laser diode’s photo monitor by providing small current that increases with the
MAX3737’s bias current generator. U404 provides a reset to U403 in the case that a
fault should occur. The magnitude of the current switched by U403 is controlled by
R413.
Both SMA outputs should be terminated with 50 loads.
CG648 line receiver
Schematic sheet “CG_LR5B”
The CG648 line receivers convert differential LVDS clocks to complementary negative
ECL outputs on SMA connectors.
The LVDS level clock is received on the 1-2 pair of the RJ-45 connector, J500. The
differential signal is (primarily) terminated by R502 and R503. Undesired common
mode signals are terminated by R504 and C501. The unused RS-485 level clocks are
terminated by R500.
The LVDS clock input is AC coupled to an ECL line receiver, U501. The clocks’ DC
levels are summed with the AC levels by the (slow) differential amplifiers U500A and
U500B. The output of the line receiver is passed to a laser diode driver, U503 a
MAX3737, which provides fast ( 60 ps), switched, differential, programmable current
sources to drive the SMA outputs.
The MAX3737 has other features which are not used here but which need to be
accommodated so as to avoid apparent “fault” conditions. The transistor Q500 imitates a
laser diode’s photo monitor by providing small current that increases with the
MAX3737’s bias current generator. U504 provides a reset to U503 in the case that a
Circuit Description 91
CG635 Synthesized Clock Generator
fault should occur. The magnitude of the current switched by U503 is controlled by
R510.
Both SMA outputs should be terminated with 50 loads.
CG649 line receiver
Schematic sheet “CG_LR6B”
The CG649 line receiver reconstructs the LVDS differential clocks to provide
complementary LVDS outputs on SMA connectors.
The LVDS level clock is received on the 1-2 pair of the RJ-45 connector, J600. The
differential signal is (primarily) terminated by R602 and R603. Undesired common
mode signals are terminated by R604 and C601. The unused RS-485 level clocks are
terminated by R600.
The LVDS clock input is AC coupled to an ECL line receiver, U602. The clocks’ DC
levels are summed with the AC levels by the (slow) differential amplifiers U601A and
U601B. The open emitter outputs of U602 are biased on and terminated by N601 and
subsequently drive the inputs to U603. The PECL outputs of U603 are converted to
LVDS levels by the resistor network R609-R614, which also provides a 50 source
impedance to drive the SMA outputs. Both U602 and U603 are powered by the low
dropout regulator U600, which provides +3.3 V.
The SMA outputs are intended to drive 50 loads to ground. Both outputs should be
terminated. (Without a terminator, the open emitter outputs of U202 will be biased “off”,
and there will be no clock at the SMA output.)
Parts List 93
CG635 Synthesized Clock Generator
Parts List
Motherboard Assembly
C 100 5-00387-552 1000P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 101 5-00368-552 27P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 102 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 103 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 104 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 105 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 106 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 107 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 108 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 109 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 110 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 111 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 112 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 113 5-00056-512 .1U Cap, Stacked Metal Film 50V 5% -40/+85c
C 114 5-00387-552 1000P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 115 5-00056-512 .1U Cap, Stacked Metal Film 50V 5% -40/+85c
C 116 5-00387-552 1000P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 117 5-00060-512 1.0U Cap, Stacked Metal Film 50V 5% -40/+85c
C 118 5-00298-568 .01U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 119 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 120 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 121 5-00372-552 56P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 122 5-00383-552 470P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 123 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 124 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 125 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 126 5-00372-552 56P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 127 5-00372-552 56P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 128 5-00379-552 220P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 129 5-00369-552 33P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 130 5-00379-552 220P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 131 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 132 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 133 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 134 5-00363-552 10P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 135 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 136 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 137 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 138 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 200 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 201 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 202 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 203 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 204 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 205 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 206 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 207 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 208 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 209 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 210 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 211 5-00298-568 .01U Cap, Ceramic 50V SMT (1206) +/-10% X7R
Parts List 94
CG635 Synthesized Clock Generator
C 212 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 213 5-00368-552 27P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 214 5-00368-552 27P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 216 5-00368-552 27P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 217 5-00368-552 27P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 218 5-00363-552 10P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 237 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 238 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 239 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 240 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 241 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 242 5-00371-552 47P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 243 5-00379-552 220P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 244 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 245 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 246 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 247 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 248 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 249 5-00623-554 1UF / 63V Capacitor, Polypropylene, Radial
C 250 5-00623-554 1UF / 63V Capacitor, Polypropylene, Radial
C 251 5-00387-552 1000P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 252 5-00387-552 1000P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 253 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 254 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 255 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 256 5-00387-552 1000P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 257 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 258 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 259 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 260 5-00387-552 1000P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 261 5-00371-552 47P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 262 5-00379-552 220P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 263 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 264 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 265 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 266 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 267 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 268 5-00363-552 10P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 270 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 271 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 272 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 273 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 274 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 300 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 301 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 302 5-00371-552 47P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 303 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 304 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 305 5-00375-552 100P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 307 5-00298-568 .01U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 308 5-00393-552 3300P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 310 5-00056-512 .1U Cap, Stacked Metal Film 50V 5% -40/+85c
C 311 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 313 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 315 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 316 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 319 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 320 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 322 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 323 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 324 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 325 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
Parts List 95
CG635 Synthesized Clock Generator
C 326 5-00375-552 100P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 327 5-00375-552 100P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 328 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 329 5-00393-552 3300P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 330 5-00059-512 .47U Cap, Stacked Metal Film 50V 5% -40/+85c
C 331 5-00318-569 2.2U/T35 Cap, Tantalum, SMT (all case sizes)
C 332 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 333 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 334 5-00393-552 3300P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 335 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 336 5-00318-569 2.2U/T35 Cap, Tantalum, SMT (all case sizes)
C 338 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 339 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 340 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 342 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 343 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 344 5-00298-568 .01U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 345 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 346 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 347 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 348 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 349 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 350 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 400 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 401 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 402 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 403 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 404 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 406 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 407 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 408 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 409 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 410 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 411 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 412 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 413 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 414 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 415 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 416 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 417 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 418 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 419 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 420 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 421 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 422 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 423 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 424 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 425 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 426 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 427 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 428 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 500 5-00318-569 2.2U/T35 Cap, Tantalum, SMT (all case sizes)
C 502 5-00060-512 1.0U Cap, Stacked Metal Film 50V 5% -40/+85c
C 503 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 504 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 505 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 506 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 507 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 509 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 510 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 511 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 512 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
Parts List 96
CG635 Synthesized Clock Generator
C 513 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 514 5-00516-526 330U HIGH RIPPL Capacitor, Electrolytic, 35V, 20%, Rad
C 515 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 516 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 517 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 518 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 519 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 520 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 521 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 522 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 523 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 600 5-00318-569 2.2U/T35 Cap, Tantalum, SMT (all case sizes)
C 601 5-00318-569 2.2U/T35 Cap, Tantalum, SMT (all case sizes)
C 602 5-00318-569 2.2U/T35 Cap, Tantalum, SMT (all case sizes)
C 603 5-00318-569 2.2U/T35 Cap, Tantalum, SMT (all case sizes)
C 604 5-00318-569 2.2U/T35 Cap, Tantalum, SMT (all case sizes)
C 605 5-00318-569 2.2U/T35 Cap, Tantalum, SMT (all case sizes)
C 606 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 607 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 608 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 609 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 610 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 611 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 612 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 613 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 614 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 615 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 616 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 617 5-00387-552 1000P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 618 5-00318-569 2.2U/T35 Cap, Tantalum, SMT (all case sizes)
C 619 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 622 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 623 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 624 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 626 5-00387-552 1000P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 627 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 628 5-00318-569 2.2U/T35 Cap, Tantalum, SMT (all case sizes)
C 629 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 630 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
D 100 3-00803-360 MMBV609 Integrated Circuit (Surface Mount Pkg)
D 101 3-00538-360 MMBD352L Integrated Circuit (Surface Mount Pkg)
D 200 3-00803-360 MMBV609 Integrated Circuit (Surface Mount Pkg)
D 201 3-00803-360 MMBV609 Integrated Circuit (Surface Mount Pkg)
D 202 3-00538-360 MMBD352L Integrated Circuit (Surface Mount Pkg)
D 203 3-00538-360 MMBD352L Integrated Circuit (Surface Mount Pkg)
D 204 3-00538-360 MMBD352L Integrated Circuit (Surface Mount Pkg)
D 300 3-00538-360 MMBD352L Integrated Circuit (Surface Mount Pkg)
D 301 3-00538-360 MMBD352L Integrated Circuit (Surface Mount Pkg)
D 302 3-00896-301 BAV99 Diode
D 600 3-00011-303 RED LED, T1 Package
J 100 1-00579-120 227677-1 Connector, BNC
J 101 1-00579-120 227677-1 Connector, BNC
J 300 1-00579-120 227677-1 Connector, BNC
J 400 1-00558-131 HEADER10X2 Connector, Female
J 401 1-00551-131 2MM 10PIN Connector, Female
J 500 1-00289-130 6 PIN DI TSW 07 Connector, Male
J 501 1-00038-130 40 PIN DIL Connector, Male
J 600 1-00555-133 10M156(LONG) Connector, Male, Right Angle
J 602 1-00160-162 IEEE488/STAND. Connector, IEEE488, Standard, R/A, Femal
J 603 1-01031-160 DEKL-9SAT-E Connector, D-Sub, Right Angle PC, Female
J 604 1-00518-100 RJ-45S Connector, Misc.
L 102 6-00236-631 FR47 Ferrite bead, SMT
Parts List 97
CG635 Synthesized Clock Generator
L 103 6-00650-609 .47UH - SMT Inductor, Fixed, SMT
L 104 6-00651-609 .82UH - SMT Inductor, Fixed, SMT
L 105 6-00236-631 FR47 Ferrite bead, SMT
L 106 6-00236-631 FR47 Ferrite bead, SMT
L 107 6-00236-631 FR47 Ferrite bead, SMT
L 200 6-00236-631 FR47 Ferrite bead, SMT
L 201 6-00236-631 FR47 Ferrite bead, SMT
L 202 6-00669-609 3.3UH - S1210 Inductor, Fixed, SMT
L 203 6-00670-609 3.9UH - S1210 Inductor, Fixed, SMT
L 204 6-00669-609 3.3UH - S1210 Inductor, Fixed, SMT
L 205 6-00236-631 FR47 Ferrite bead, SMT
L 206 6-00236-631 FR47 Ferrite bead, SMT
L 207 6-00236-631 FR47 Ferrite bead, SMT
L 210 6-00659-609 22UH -SMT Inductor, Fixed, SMT
L 211 6-00659-609 22UH -SMT Inductor, Fixed, SMT
L 212 6-00236-631 FR47 Ferrite bead, SMT
L 300 6-00659-609 22UH -SMT Inductor, Fixed, SMT
L 301 6-00659-609 22UH -SMT Inductor, Fixed, SMT
L 302 6-00236-631 FR47 Ferrite bead, SMT
L 303 6-00236-631 FR47 Ferrite bead, SMT
L 304 6-00236-631 FR47 Ferrite bead, SMT
L 305 6-00236-631 FR47 Ferrite bead, SMT
L 400 6-00236-631 FR47 Ferrite bead, SMT
L 401 6-00236-631 FR47 Ferrite bead, SMT
L 402 6-00236-631 FR47 Ferrite bead, SMT
L 500 6-00236-631 FR47 Ferrite bead, SMT
L 501 6-00647-601 47UH Inductor
L 502 6-00236-631 FR47 Ferrite bead, SMT
L 600 6-00236-631 FR47 Ferrite bead, SMT
L 601 6-00236-631 FR47 Ferrite bead, SMT
L 602 6-00236-631 FR47 Ferrite bead, SMT
L 603 6-00236-631 FR47 Ferrite bead, SMT
L 604 6-00236-631 FR47 Ferrite bead, SMT
L 605 6-00236-631 FR47 Ferrite bead, SMT
L 606 6-00236-631 FR47 Ferrite bead, SMT
N 500 4-01716-463 270X4 Resistor network, SMT, Leadless
N 501 4-01716-463 270X4 Resistor network, SMT, Leadless
N 502 4-01716-463 270X4 Resistor network, SMT, Leadless
N 503 4-01716-463 270X4 Resistor network, SMT, Leadless
N 504 4-01715-463 15X4 Resistor network, SMT, Leadless
N 505 4-01715-463 15X4 Resistor network, SMT, Leadless
N 506 4-01715-463 15X4 Resistor network, SMT, Leadless
PC1 7-01582-701 CG635 MAIN BD Printed Circuit Board
Q 100 3-00808-360 MMBT5179 Integrated Circuit (Surface Mount Pkg)
Q 201 3-00808-360 MMBT5179 Integrated Circuit (Surface Mount Pkg)
Q 202 3-00808-360 MMBT5179 Integrated Circuit (Surface Mount Pkg)
Q 400 3-01214-360 BFT92 Integrated Circuit (Surface Mount Pkg)
Q 500 3-01210-360 BC817 Integrated Circuit (Surface Mount Pkg)
Q 501 3-01210-360 BC817 Integrated Circuit (Surface Mount Pkg)
Q 502 3-01210-360 BC817 Integrated Circuit (Surface Mount Pkg)
Q 503 3-01210-360 BC817 Integrated Circuit (Surface Mount Pkg)
Q 504 3-01210-360 BC817 Integrated Circuit (Surface Mount Pkg)
Q 505 3-01210-360 BC817 Integrated Circuit (Surface Mount Pkg)
Q 506 3-01210-360 BC817 Integrated Circuit (Surface Mount Pkg)
Q 507 3-01209-360 BC807 Integrated Circuit (Surface Mount Pkg)
Q 508 3-01209-360 BC807 Integrated Circuit (Surface Mount Pkg)
Q 509 3-01209-360 BC807 Integrated Circuit (Surface Mount Pkg)
Q 510 3-01209-360 BC807 Integrated Circuit (Surface Mount Pkg)
Q 511 3-01209-360 BC807 Integrated Circuit (Surface Mount Pkg)
Q 512 3-01209-360 BC807 Integrated Circuit (Surface Mount Pkg)
Q 513 3-01210-360 BC817 Integrated Circuit (Surface Mount Pkg)
R 100 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
Parts List 98
CG635 Synthesized Clock Generator
R 101 4-01059-462 249 Thin Film, 1%, 50 ppm, MELF Resistor
R 102 4-01184-462 4.99K Thin Film, 1%, 50 ppm, MELF Resistor
R 103 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 104 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 105 4-01184-462 4.99K Thin Film, 1%, 50 ppm, MELF Resistor
R 106 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 107 4-01503-461 10K Thick Film, 5%, 200 ppm, Chip Resistor
R 108 4-01503-461 10K Thick Film, 5%, 200 ppm, Chip Resistor
R 109 4-01503-461 10K Thick Film, 5%, 200 ppm, Chip Resistor
R 110 4-01503-461 10K Thick Film, 5%, 200 ppm, Chip Resistor
R 111 4-01059-462 249 Thin Film, 1%, 50 ppm, MELF Resistor
R 112 4-01059-462 249 Thin Film, 1%, 50 ppm, MELF Resistor
R 113 4-01155-462 2.49K Thin Film, 1%, 50 ppm, MELF Resistor
R 114 4-01155-462 2.49K Thin Film, 1%, 50 ppm, MELF Resistor
R 115 4-01251-462 24.9K Thin Film, 1%, 50 ppm, MELF Resistor
R 116 4-01251-462 24.9K Thin Film, 1%, 50 ppm, MELF Resistor
R 117 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 118 4-01271-462 40.2K Thin Film, 1%, 50 ppm, MELF Resistor
R 119 4-01405-462 1.00M Thin Film, 1%, 50 ppm, MELF Resistor
R 120 4-01376-462 499K Thin Film, 1%, 50 ppm, MELF Resistor
R 121 4-01251-462 24.9K Thin Film, 1%, 50 ppm, MELF Resistor
R 122 4-01155-462 2.49K Thin Film, 1%, 50 ppm, MELF Resistor
R 123 4-01280-462 49.9K Thin Film, 1%, 50 ppm, MELF Resistor
R 124 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 125 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 126 4-01527-461 100K Thick Film, 5%, 200 ppm, Chip Resistor
R 127 4-01163-462 3.01K Thin Film, 1%, 50 ppm, MELF Resistor
R 128 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 129 4-00963-462 24.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 130 4-01059-462 249 Thin Film, 1%, 50 ppm, MELF Resistor
R 131 4-01059-462 249 Thin Film, 1%, 50 ppm, MELF Resistor
R 132 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 134 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 136 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 138 4-01479-461 1.0K Thick Film, 5%, 200 ppm, Chip Resistor
R 139 4-01280-462 49.9K Thin Film, 1%, 50 ppm, MELF Resistor
R 140 4-01280-462 49.9K Thin Film, 1%, 50 ppm, MELF Resistor
R 141 4-01251-462 24.9K Thin Film, 1%, 50 ppm, MELF Resistor
R 142 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 143 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 144 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 200 4-01128-462 1.30K Thin Film, 1%, 50 ppm, MELF Resistor
R 201 4-01050-462 200 Thin Film, 1%, 50 ppm, MELF Resistor
R 202 4-01050-462 200 Thin Film, 1%, 50 ppm, MELF Resistor
R 203 4-01175-462 4.02K Thin Film, 1%, 50 ppm, MELF Resistor
R 205 4-01079-462 402 Thin Film, 1%, 50 ppm, MELF Resistor
R 207 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 208 4-01280-462 49.9K Thin Film, 1%, 50 ppm, MELF Resistor
R 209 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 210 4-01338-462 200K Thin Film, 1%, 50 ppm, MELF Resistor
R 211 4-01527-461 100K Thick Film, 5%, 200 ppm, Chip Resistor
R 212 4-01184-462 4.99K Thin Film, 1%, 50 ppm, MELF Resistor
R 213 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 214 4-00963-462 24.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 216 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 217 4-01155-462 2.49K Thin Film, 1%, 50 ppm, MELF Resistor
R 218 4-01155-462 2.49K Thin Film, 1%, 50 ppm, MELF Resistor
R 219 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 220 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 221 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 222 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 223 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
Parts List 99
CG635 Synthesized Clock Generator
R 224 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 225 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 226 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 227 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 228 4-01271-462 40.2K Thin Film, 1%, 50 ppm, MELF Resistor
R 229 4-01503-461 10K Thick Film, 5%, 200 ppm, Chip Resistor
R 230 4-01503-461 10K Thick Film, 5%, 200 ppm, Chip Resistor
R 238 4-01479-461 1.0K Thick Film, 5%, 200 ppm, Chip Resistor
R 239 4-01338-462 200K Thin Film, 1%, 50 ppm, MELF Resistor
R 240 4-01280-462 49.9K Thin Film, 1%, 50 ppm, MELF Resistor
R 241 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 242 4-01527-461 100K Thick Film, 5%, 200 ppm, Chip Resistor
R 243 4-00963-462 24.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 244 4-01184-462 4.99K Thin Film, 1%, 50 ppm, MELF Resistor
R 245 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 246 4-01184-462 4.99K Thin Film, 1%, 50 ppm, MELF Resistor
R 247 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 248 4-01184-462 4.99K Thin Film, 1%, 50 ppm, MELF Resistor
R 249 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 251 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 252 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 253 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 254 4-01280-462 49.9K Thin Film, 1%, 50 ppm, MELF Resistor
R 255 4-01079-462 402 Thin Film, 1%, 50 ppm, MELF Resistor
R 256 4-01079-462 402 Thin Film, 1%, 50 ppm, MELF Resistor
R 300 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 301 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 302 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 304 4-01117-462 1.00K Thin Film, 1%, 50 ppm, MELF Resistor
R 305 4-01117-462 1.00K Thin Film, 1%, 50 ppm, MELF Resistor
R 307 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 308 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 309 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 311 4-01099-462 649 Thin Film, 1%, 50 ppm, MELF Resistor
R 312 4-01050-462 200 Thin Film, 1%, 50 ppm, MELF Resistor
R 316 4-01088-462 499 Thin Film, 1%, 50 ppm, MELF Resistor
R 317 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 318 4-01079-462 402 Thin Film, 1%, 50 ppm, MELF Resistor
R 319 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 320 4-01405-462 1.00M Thin Film, 1%, 50 ppm, MELF Resistor
R 321 4-01038-462 150 Thin Film, 1%, 50 ppm, MELF Resistor
R 322 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 323 4-01230-462 15.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 324 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 331 4-01527-461 100K Thick Film, 5%, 200 ppm, Chip Resistor
R 332 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 333 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 336 4-01184-462 4.99K Thin Film, 1%, 50 ppm, MELF Resistor
R 337 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 338 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 339 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 340 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 341 4-01137-462 1.62K Thin Film, 1%, 50 ppm, MELF Resistor
R 342 4-01108-462 806 Thin Film, 1%, 50 ppm, MELF Resistor
R 343 4-01079-462 402 Thin Film, 1%, 50 ppm, MELF Resistor
R 344 4-01045-462 178 Thin Film, 1%, 50 ppm, MELF Resistor
R 345 4-01009-462 75.0 Thin Film, 1%, 50 ppm, MELF Resistor
R 346 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 347 4-01117-462 1.00K Thin Film, 1%, 50 ppm, MELF Resistor
R 348 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 349 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 354 4-00963-462 24.9 Thin Film, 1%, 50 ppm, MELF Resistor
Parts List 100
CG635 Synthesized Clock Generator
R 355 4-00963-462 24.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 356 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 357 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 358 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 359 4-01326-462 150K Thin Film, 1%, 50 ppm, MELF Resistor
R 360 4-01271-462 40.2K Thin Film, 1%, 50 ppm, MELF Resistor
R 361 4-00963-462 24.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 362 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 363 4-01259-462 30.1K Thin Film, 1%, 50 ppm, MELF Resistor
R 364 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 365 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 366 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 367 4-01117-462 1.00K Thin Film, 1%, 50 ppm, MELF Resistor
R 368 4-01479-461 1.0K Thick Film, 5%, 200 ppm, Chip Resistor
R 369 4-01479-461 1.0K Thick Film, 5%, 200 ppm, Chip Resistor
R 370 4-01117-462 1.00K Thin Film, 1%, 50 ppm, MELF Resistor
R 371 4-01117-462 1.00K Thin Film, 1%, 50 ppm, MELF Resistor
R 372 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 400 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 401 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 402 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 403 4-00971-462 30.1 Thin Film, 1%, 50 ppm, MELF Resistor
R 404 4-00971-462 30.1 Thin Film, 1%, 50 ppm, MELF Resistor
R 405 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 406 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 407 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 408 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 409 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 410 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 411 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 412 4-01038-462 150 Thin Film, 1%, 50 ppm, MELF Resistor
R 413 4-01038-462 150 Thin Film, 1%, 50 ppm, MELF Resistor
R 414 4-01503-461 10K Thick Film, 5%, 200 ppm, Chip Resistor
R 415 4-01503-461 10K Thick Film, 5%, 200 ppm, Chip Resistor
R 417 4-01096-462 604 Thin Film, 1%, 50 ppm, MELF Resistor
R 418 4-01096-462 604 Thin Film, 1%, 50 ppm, MELF Resistor
R 419 4-01050-462 200 Thin Film, 1%, 50 ppm, MELF Resistor
R 420 4-01050-462 200 Thin Film, 1%, 50 ppm, MELF Resistor
R 421 4-01067-462 301 Thin Film, 1%, 50 ppm, MELF Resistor
R 422 4-01067-462 301 Thin Film, 1%, 50 ppm, MELF Resistor
R 431 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 432 4-01105-462 750 Thin Film, 1%, 50 ppm, MELF Resistor
R 433 4-01088-462 499 Thin Film, 1%, 50 ppm, MELF Resistor
R 434 4-00971-462 30.1 Thin Film, 1%, 50 ppm, MELF Resistor
R 500 4-01117-462 1.00K Thin Film, 1%, 50 ppm, MELF Resistor
R 501 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 502 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 503 4-01479-461 1.0K Thick Film, 5%, 200 ppm, Chip Resistor
R 504 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 506 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 507 4-00925-462 10.0 Thin Film, 1%, 50 ppm, MELF Resistor
R 600 4-01503-461 10K Thick Film, 5%, 200 ppm, Chip Resistor
R 601 4-01238-462 18.2K Thin Film, 1%, 50 ppm, MELF Resistor
R 602 4-01175-462 4.02K Thin Film, 1%, 50 ppm, MELF Resistor
R 603 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 604 4-01230-462 15.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 605 4-01503-461 10K Thick Film, 5%, 200 ppm, Chip Resistor
R 606 4-01479-461 1.0K Thick Film, 5%, 200 ppm, Chip Resistor
R 607 4-01503-461 10K Thick Film, 5%, 200 ppm, Chip Resistor
R 608 4-01503-461 10K Thick Film, 5%, 200 ppm, Chip Resistor
R 609 4-01045-462 178 Thin Film, 1%, 50 ppm, MELF Resistor
R 610 4-01050-462 200 Thin Film, 1%, 50 ppm, MELF Resistor
Parts List 101
CG635 Synthesized Clock Generator
R 611 4-00983-462 40.2 Thin Film, 1%, 50 ppm, MELF Resistor
R 612 4-00983-462 40.2 Thin Film, 1%, 50 ppm, MELF Resistor
R 616 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 617 4-01407-461 1.0 Thick Film, 5%, 200 ppm, Chip Resistor
R 618 4-01407-461 1.0 Thick Film, 5%, 200 ppm, Chip Resistor
R 619 4-01117-462 1.00K Thin Film, 1%, 50 ppm, MELF Resistor
R 620 4-01271-462 40.2K Thin Film, 1%, 50 ppm, MELF Resistor
R 622 4-00996-462 54.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 623 4-00996-462 54.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 624 4-01090-462 523 Thin Film, 1%, 50 ppm, MELF Resistor
R 625 4-01090-462 523 Thin Film, 1%, 50 ppm, MELF Resistor
R 626 4-01055-462 226 Thin Film, 1%, 50 ppm, MELF Resistor
R 627 4-01050-462 200 Thin Film, 1%, 50 ppm, MELF Resistor
R 634 4-01271-462 40.2K Thin Film, 1%, 50 ppm, MELF Resistor
R 636 4-01117-462 1.00K Thin Film, 1%, 50 ppm, MELF Resistor
R 637 4-01407-461 1.0 Thick Film, 5%, 200 ppm, Chip Resistor
R 638 4-01407-461 1.0 Thick Film, 5%, 200 ppm, Chip Resistor
R 639 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 640 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 641 4-01419-461 3.3 Thick Film, 5%, 200 ppm, Chip Resistor
R 642 4-01419-461 3.3 Thick Film, 5%, 200 ppm, Chip Resistor
SP500 6-00096-600 MINI Misc. Components
SW600 2-00023-218 DPDT Switch, Panel Mount, Power, Rocker
T 100 6-00195-610 10.7 MHZ Transformer
T 101 6-00195-610 10.7 MHZ Transformer
T 200 6-00671-610 TC1-1T Transformer
U 100 3-00653-360 AD8561AR Integrated Circuit (Surface Mount Pkg)
U 101 3-01269-360 74VHC1GT02 Integrated Circuit (Surface Mount Pkg)
U 102 3-00653-360 AD8561AR Integrated Circuit (Surface Mount Pkg)
U 103 3-01249-360 74VHC1GT08 Integrated Circuit (Surface Mount Pkg)
U 104 3-01204-360 SN74LVC1G32DBVR Integrated Circuit (Surface Mount Pkg)
U 105 3-01184-360 LP2985AIM5-3.3 Integrated Circuit (Surface Mount Pkg)
U 106 3-00978-360 74LVC74 Integrated Circuit (Surface Mount Pkg)
U 107 3-01204-360 SN74LVC1G32DBVR Integrated Circuit (Surface Mount Pkg)
U 108 3-00643-360 DG211BDY Integrated Circuit (Surface Mount Pkg)
U 109 3-00724-360 LF353 Integrated Circuit (Surface Mount Pkg)
U 110 3-01202-360 SN74LVC1G02DBVR Integrated Circuit (Surface Mount Pkg)
U 111 3-00773-360 LM358 Integrated Circuit (Surface Mount Pkg)
U 112 3-00653-360 AD8561AR Integrated Circuit (Surface Mount Pkg)
U 113 3-01271-360 74HCT74 Integrated Circuit (Surface Mount Pkg)
U 114 3-01269-360 74VHC1GT02 Integrated Circuit (Surface Mount Pkg)
U 200 3-01122-360 AD9852AST Integrated Circuit (Surface Mount Pkg)
U 203 3-00653-360 AD8561AR Integrated Circuit (Surface Mount Pkg)
U 204 3-00724-360 LF353 Integrated Circuit (Surface Mount Pkg)
U 205 3-00653-360 AD8561AR Integrated Circuit (Surface Mount Pkg)
U 206 3-01184-360 LP2985AIM5-3.3 Integrated Circuit (Surface Mount Pkg)
U 207 3-00978-360 74LVC74 Integrated Circuit (Surface Mount Pkg)
U 208 3-01204-360 SN74LVC1G32DBVR Integrated Circuit (Surface Mount Pkg)
U 210 3-00653-360 AD8561AR Integrated Circuit (Surface Mount Pkg)
U 211 3-01204-360 SN74LVC1G32DBVR Integrated Circuit (Surface Mount Pkg)
U 212 3-01269-360 74VHC1GT02 Integrated Circuit (Surface Mount Pkg)
U 213 3-01270-360 74VHC1GT32DTTI Integrated Circuit (Surface Mount Pkg)
U 214 3-01249-360 74VHC1GT08 Integrated Circuit (Surface Mount Pkg)
U 215 3-00773-360 LM358 Integrated Circuit (Surface Mount Pkg)
U 216 3-00773-360 LM358 Integrated Circuit (Surface Mount Pkg)
U 300 3-00581-360 AD822 Integrated Circuit (Surface Mount Pkg)
U 301 3-01249-360 74VHC1GT08 Integrated Circuit (Surface Mount Pkg)
U 302 3-00653-360 AD8561AR Integrated Circuit (Surface Mount Pkg)
U 303 3-00724-360 LF353 Integrated Circuit (Surface Mount Pkg)
U 304 3-01178-360 ADCMP567BCP Integrated Circuit (Surface Mount Pkg)
U 305 3-01184-360 LP2985AIM5-3.3 Integrated Circuit (Surface Mount Pkg)
U 306 3-01201-360 74LVC157AD Integrated Circuit (Surface Mount Pkg)
Parts List 102
CG635 Synthesized Clock Generator
U 307 3-01179-360 ADF4106BRU Integrated Circuit (Surface Mount Pkg)
U 308 3-01365-360 DG411DY Integrated Circuit (Surface Mount Pkg)
U 309 3-01426-360 AD797AR Integrated Circuit (Surface Mount Pkg)
U 310 6-00975-625 V585ME48 Voltage Controlled Crystal Oscillator
U 311 3-00773-360 LM358 Integrated Circuit (Surface Mount Pkg)
U 400 3-01195-360 MC100EP51D Integrated Circuit (Surface Mount Pkg)
U 401 3-01189-360 MC100EP016AFA Integrated Circuit (Surface Mount Pkg)
U 402 3-01195-360 MC100EP51D Integrated Circuit (Surface Mount Pkg)
U 403 3-01194-360 MC100EP35D Integrated Circuit (Surface Mount Pkg)
U 404 3-01197-360 MC100EP57DT Integrated Circuit (Surface Mount Pkg)
U 405 3-01193-360 MC100EP14DT Integrated Circuit (Surface Mount Pkg)
U 406 3-00751-360 74HC574 Integrated Circuit (Surface Mount Pkg)
U 407 3-01650-360 AD8611AR Integrated Circuit (Surface Mount Pkg)
U 408 3-00421-340 F107563FN Integrated Circuit (Thru-hole Pkg)
U 409 3-01382-360 74AC74 Integrated Circuit (Surface Mount Pkg)
U 410 3-01249-360 74VHC1GT08 Integrated Circuit (Surface Mount Pkg)
U 411 3-01202-360 SN74LVC1G02DBVR Integrated Circuit (Surface Mount Pkg)
U 500 3-01198-360 MC912D60ACPV8 Integrated Circuit (Surface Mount Pkg)
U 501 3-00751-360 74HC574 Integrated Circuit (Surface Mount Pkg)
U 502 3-01206-360 74LVC574ADW Integrated Circuit (Surface Mount Pkg)
U 503 3-01205-360 74LVC4245ADW Integrated Circuit (Surface Mount Pkg)
U 504 3-01185-360 LTC2620CGN Integrated Circuit (Surface Mount Pkg)
U 505 3-01467-360 74HC4538 Integrated Circuit (Surface Mount Pkg)
U 506 3-00751-360 74HC574 Integrated Circuit (Surface Mount Pkg)
U 507 3-00751-360 74HC574 Integrated Circuit (Surface Mount Pkg)
U 508 3-00751-360 74HC574 Integrated Circuit (Surface Mount Pkg)
U 509 3-00751-360 74HC574 Integrated Circuit (Surface Mount Pkg)
U 510 3-00751-360 74HC574 Integrated Circuit (Surface Mount Pkg)
U 511 3-01206-360 74LVC574ADW Integrated Circuit (Surface Mount Pkg)
U 512 3-01206-360 74LVC574ADW Integrated Circuit (Surface Mount Pkg)
U 513 3-01186-360 MAX6241BCSA Integrated Circuit (Surface Mount Pkg)
U 514 3-00581-360 AD822 Integrated Circuit (Surface Mount Pkg)
U 515 3-00903-360 MAX6348UR44 Integrated Circuit (Surface Mount Pkg)
U 516 3-00775-360 LM45CIM3 Integrated Circuit (Surface Mount Pkg)
U 600 3-00728-360 LM393 Integrated Circuit (Surface Mount Pkg)
U 601 3-00914-360 NAT9914 Integrated Circuit (Surface Mount Pkg)
U 602 3-00915-360 75ALS160 Integrated Circuit (Surface Mount Pkg)
U 603 3-00916-360 75ALS161 Integrated Circuit (Surface Mount Pkg)
U 604 3-01468-360 MAX232ACSE Integrated Circuit (Surface Mount Pkg)
U 605 3-01192-360 MC100EP11D Integrated Circuit (Surface Mount Pkg)
U 607 3-01188-360 MAX9113ESA Integrated Circuit (Surface Mount Pkg)
U 611 3-00773-360 LM358 Integrated Circuit (Surface Mount Pkg)
U 612 3-01181-360 IRF7353D2 Integrated Circuit (Surface Mount Pkg)
U 613 3-01180-360 IRF5803D2 Integrated Circuit (Surface Mount Pkg)
Y 100 6-00643-620 20,000,000HZ Crystal
Y 200 6-00641-620 19,400,000HZ Crystal
Y 201 6-00642-620 19,440,000HZ Crystal
Z 0 0-00237-016 F1404 Power Button
Z 0 0-00517-000 BINDING POST Hardware, Misc.
Output Driver Assembly
C 100 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 101 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 102 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 103 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 104 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 105 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 106 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 107 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 108 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
Parts List 103
CG635 Synthesized Clock Generator
C 109 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 110 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 111 5-00399-552 .01U Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 112 5-00399-552 .01U Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 113 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 114 5-00375-552 100P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 115 5-00375-552 100P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 116 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 117 5-00472-569 4.7U/T35 Cap, Tantalum, SMT (all case sizes)
C 118 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 119 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 120 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 121 5-00313-552 1P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 122 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 123 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 124 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 125 5-00387-552 1000P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 126 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 127 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 128 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 129 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 130 5-00375-552 100P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 131 5-00387-552 1000P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 132 5-00355-552 2.2P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 133 5-00298-568 .01U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 200 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 201 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 202 5-00313-552 1P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 203 5-00358-552 3.9P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 204 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 205 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 206 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 207 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 208 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 209 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 210 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 211 5-00387-552 1000P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 212 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 213 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 214 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 215 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 216 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 217 5-00611-578 4.7U - 16V X5R SMT Ceramic Cap, all sizes
C 218 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 219 5-00358-552 3.9P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 220 5-00375-552 100P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 221 5-00375-552 100P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 222 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 223 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 224 5-00472-569 4.7U/T35 Cap, Tantalum, SMT (all case sizes)
C 225 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 226 5-00387-552 1000P Capacitor, Chip (SMT1206), 50V, 5%, NPO
C 227 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
D 200 3-00896-301 BAV99 Diode
J 100 1-00556-130 EDGE20 Connector, Male
J 101 1-00003-120 BNC Connector, BNC
J 102 1-00003-120 BNC Connector, BNC
J 200 1-00003-120 BNC Connector, BNC
L 200 6-00265-609 .018UH - SMT Inductor, Fixed, SMT
N 100 4-01644-463 10KX8D Resistor network, SMT, Leadless
N 101 4-00906-463 100X4D Resistor network, SMT, Leadless
N 102 4-00911-463 4.7KX4D Resistor network, SMT, Leadless
Parts List 104
CG635 Synthesized Clock Generator
N 200 4-00906-463 100X4D Resistor network, SMT, Leadless
PC1 7-01583-701 SCG DRIVER PCB Printed Circuit Board
Q 100 3-00580-360 MMBT3906LT1 Integrated Circuit (Surface Mount Pkg)
Q 101 3-00601-360 MMBT3904LT1 Integrated Circuit (Surface Mount Pkg)
Q 102 3-00601-360 MMBT3904LT1 Integrated Circuit (Surface Mount Pkg)
Q 103 3-00601-360 MMBT3904LT1 Integrated Circuit (Surface Mount Pkg)
Q 200 3-01214-360 BFT92 Integrated Circuit (Surface Mount Pkg)
Q 201 3-01214-360 BFT92 Integrated Circuit (Surface Mount Pkg)
Q 202 3-00580-360 MMBT3906LT1 Integrated Circuit (Surface Mount Pkg)
Q 203 3-01211-360 BFG31 Integrated Circuit (Surface Mount Pkg)
Q 204 3-01211-360 BFG31 Integrated Circuit (Surface Mount Pkg)
Q 205 3-01212-360 BFG541 Integrated Circuit (Surface Mount Pkg)
Q 206 3-01212-360 BFG541 Integrated Circuit (Surface Mount Pkg)
R 100 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 101 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 102 4-01195-462 6.49K Thin Film, 1%, 50 ppm, MELF Resistor
R 103 4-01215-462 10.5K Thin Film, 1%, 50 ppm, MELF Resistor
R 104 4-01059-462 249 Thin Film, 1%, 50 ppm, MELF Resistor
R 105 4-01059-462 249 Thin Film, 1%, 50 ppm, MELF Resistor
R 106 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 107 4-01207-462 8.66K Thin Film, 1%, 50 ppm, MELF Resistor
R 108 4-01216-462 10.7K Thin Film, 1%, 50 ppm, MELF Resistor
R 109 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 110 4-01029-462 121 Thin Film, 1%, 50 ppm, MELF Resistor
R 111 4-01029-462 121 Thin Film, 1%, 50 ppm, MELF Resistor
R 112 4-01117-462 1.00K Thin Film, 1%, 50 ppm, MELF Resistor
R 113 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 114 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 115 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 116 4-01117-462 1.00K Thin Film, 1%, 50 ppm, MELF Resistor
R 117 4-01117-462 1.00K Thin Film, 1%, 50 ppm, MELF Resistor
R 118 4-01067-462 301 Thin Film, 1%, 50 ppm, MELF Resistor
R 119 4-01067-462 301 Thin Film, 1%, 50 ppm, MELF Resistor
R 120 4-01347-462 249K Thin Film, 1%, 50 ppm, MELF Resistor
R 121 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 122 4-01221-462 12.1K Thin Film, 1%, 50 ppm, MELF Resistor
R 123 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 124 4-01734-454 24.9/.5W Thick Film, 1%, 100ppm, Chip Res.(SMT)
R 125 4-01734-454 24.9/.5W Thick Film, 1%, 100ppm, Chip Res.(SMT)
R 126 4-01734-454 24.9/.5W Thick Film, 1%, 100ppm, Chip Res.(SMT)
R 127 4-01734-454 24.9/.5W Thick Film, 1%, 100ppm, Chip Res.(SMT)
R 128 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 129 4-01259-462 30.1K Thin Film, 1%, 50 ppm, MELF Resistor
R 130 4-01059-462 249 Thin Film, 1%, 50 ppm, MELF Resistor
R 131 4-01259-462 30.1K Thin Film, 1%, 50 ppm, MELF Resistor
R 132 4-01259-462 30.1K Thin Film, 1%, 50 ppm, MELF Resistor
R 133 4-01259-462 30.1K Thin Film, 1%, 50 ppm, MELF Resistor
R 134 4-01259-462 30.1K Thin Film, 1%, 50 ppm, MELF Resistor
R 135 4-01242-462 20.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 136 4-01242-462 20.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 137 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 138 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 139 4-01009-462 75.0 Thin Film, 1%, 50 ppm, MELF Resistor
R 200 4-01201-462 7.50K Thin Film, 1%, 50 ppm, MELF Resistor
R 201 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 202 4-01201-462 7.50K Thin Film, 1%, 50 ppm, MELF Resistor
R 203 4-01184-462 4.99K Thin Film, 1%, 50 ppm, MELF Resistor
R 204 4-01201-462 7.50K Thin Film, 1%, 50 ppm, MELF Resistor
R 205 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 206 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 207 4-01117-462 1.00K Thin Film, 1%, 50 ppm, MELF Resistor
R 208 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
Parts List 105
CG635 Synthesized Clock Generator
R 209 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 210 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 211 4-01009-462 75.0 Thin Film, 1%, 50 ppm, MELF Resistor
R 212 4-01192-462 6.04K Thin Film, 1%, 50 ppm, MELF Resistor
R 213 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 214 4-01242-462 20.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 215 4-01263-462 33.2K Thin Film, 1%, 50 ppm, MELF Resistor
R 216 4-01117-462 1.00K Thin Film, 1%, 50 ppm, MELF Resistor
R 217 4-01067-462 301 Thin Film, 1%, 50 ppm, MELF Resistor
R 218 4-01067-462 301 Thin Film, 1%, 50 ppm, MELF Resistor
R 219 4-01347-462 249K Thin Film, 1%, 50 ppm, MELF Resistor
R 220 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 221 4-01059-462 249 Thin Film, 1%, 50 ppm, MELF Resistor
R 222 4-01140-462 1.74K Thin Film, 1%, 50 ppm, MELF Resistor
R 223 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 224 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 225 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 226 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 227 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 228 4-00971-462 30.1 Thin Film, 1%, 50 ppm, MELF Resistor
R 229 4-01407-461 1.0 Thick Film, 5%, 200 ppm, Chip Resistor
R 230 4-01407-461 1.0 Thick Film, 5%, 200 ppm, Chip Resistor
R 231 4-01407-461 1.0 Thick Film, 5%, 200 ppm, Chip Resistor
R 232 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 233 4-00954-462 20.0 Thin Film, 1%, 50 ppm, MELF Resistor
R 234 4-00971-462 30.1 Thin Film, 1%, 50 ppm, MELF Resistor
R 235 4-00971-462 30.1 Thin Film, 1%, 50 ppm, MELF Resistor
R 236 4-01059-462 249 Thin Film, 1%, 50 ppm, MELF Resistor
R 237 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 238 4-00971-462 30.1 Thin Film, 1%, 50 ppm, MELF Resistor
R 239 4-00971-462 30.1 Thin Film, 1%, 50 ppm, MELF Resistor
R 240 4-01059-462 249 Thin Film, 1%, 50 ppm, MELF Resistor
R 241 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 242 4-00971-462 30.1 Thin Film, 1%, 50 ppm, MELF Resistor
R 243 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 244 4-01213-462 10.0K Thin Film, 1%, 50 ppm, MELF Resistor
R 245 4-01292-462 66.5K Thin Film, 1%, 50 ppm, MELF Resistor
R 246 4-01292-462 66.5K Thin Film, 1%, 50 ppm, MELF Resistor
R 247 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 248 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 249 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 250 4-01055-462 226 Thin Film, 1%, 50 ppm, MELF Resistor
R 251 4-01055-462 226 Thin Film, 1%, 50 ppm, MELF Resistor
R 252 4-01055-462 226 Thin Film, 1%, 50 ppm, MELF Resistor
R 253 4-00992-462 49.9 Thin Film, 1%, 50 ppm, MELF Resistor
R 254 4-01251-462 24.9K Thin Film, 1%, 50 ppm, MELF Resistor
R 255 4-01309-462 100K Thin Film, 1%, 50 ppm, MELF Resistor
R 256 4-01251-462 24.9K Thin Film, 1%, 50 ppm, MELF Resistor
R 257 6-00236-631 FR47 Ferrite bead, SMT
R 258 4-00925-462 10.0 Thin Film, 1%, 50 ppm, MELF Resistor
R 259 4-00925-462 10.0 Thin Film, 1%, 50 ppm, MELF Resistor
U 100 3-01281-360 LM317MDT Integrated Circuit (Surface Mount Pkg)
U 101 3-00724-360 LF353 Integrated Circuit (Surface Mount Pkg)
U 102 3-01282-360 LM337KTP Integrated Circuit (Surface Mount Pkg)
U 103 3-01184-360 LP2985AIM5-3.3 Integrated Circuit (Surface Mount Pkg)
U 104 3-00724-360 LF353 Integrated Circuit (Surface Mount Pkg)
U 105 3-01273-360 MAX3737ETJ Integrated Circuit (Surface Mount Pkg)
U 106 3-01274-360 74LVC2G14DBVR Integrated Circuit (Surface Mount Pkg)
U 107 3-00773-360 LM358 Integrated Circuit (Surface Mount Pkg)
U 200 3-00819-360 LM7171AIM Integrated Circuit (Surface Mount Pkg)
U 201 3-01281-360 LM317MDT Integrated Circuit (Surface Mount Pkg)
U 202 3-01184-360 LP2985AIM5-3.3 Integrated Circuit (Surface Mount Pkg)
Parts List 106
CG635 Synthesized Clock Generator
U 203 3-01273-360 MAX3737ETJ Integrated Circuit (Surface Mount Pkg)
U 204 3-01274-360 74LVC2G14DBVR Integrated Circuit (Surface Mount Pkg)
U 205 3-00773-360 LM358 Integrated Circuit (Surface Mount Pkg)
Z 0 7-01615-721 CG635 Machined Part
Power Supply Assembly
C 1 5-00612-509 1000U Capacitor, Electrolytic, 50V, 20%, Rad
C 2 5-00516-526 330U HIGH RIPPL Capacitor, Electrolytic, 35V, 20%, Rad
C 3 5-00288-528 .01U Cap, Mono. Ceramic, 50V, 10%, X7R RAD
C 4 5-00516-526 330U HIGH RIPPL Capacitor, Electrolytic, 35V, 20%, Rad
C 5 5-00516-526 330U HIGH RIPPL Capacitor, Electrolytic, 35V, 20%, Rad
C 6 5-00023-529 .1U Cap, Monolythic Ceramic, 50V, 20%, Z5U
C 7 5-00288-528 .01U Cap, Mono. Ceramic, 50V, 10%, X7R RAD
C 8 5-00023-529 .1U Cap, Monolythic Ceramic, 50V, 20%, Z5U
C 9 5-00049-566 .001U Cap, Polyester Film 50V 5% -40/+85c Rad
C 10 5-00612-509 1000U Capacitor, Electrolytic, 50V, 20%, Rad
C 11 5-00143-536 1200P Capacitor, Ceramic, 1000 VDCW
C 12 5-00516-526 330U HIGH RIPPL Capacitor, Electrolytic, 35V, 20%, Rad
C 13 5-00102-517 4.7U Capacitor, Tantalum, 35V, 20%, Rad
C 14 5-00143-536 1200P Capacitor, Ceramic, 1000 VDCW
C 15 5-00516-526 330U HIGH RIPPL Capacitor, Electrolytic, 35V, 20%, Rad
C 16 5-00102-517 4.7U Capacitor, Tantalum, 35V, 20%, Rad
C 17 5-00143-536 1200P Capacitor, Ceramic, 1000 VDCW
C 18 5-00516-526 330U HIGH RIPPL Capacitor, Electrolytic, 35V, 20%, Rad
C 19 5-00102-517 4.7U Capacitor, Tantalum, 35V, 20%, Rad
C 20 5-00102-517 4.7U Capacitor, Tantalum, 35V, 20%, Rad
C 21 5-00143-536 1200P Capacitor, Ceramic, 1000 VDCW
C 22 5-00516-526 330U HIGH RIPPL Capacitor, Electrolytic, 35V, 20%, Rad
C 23 5-00102-517 4.7U Capacitor, Tantalum, 35V, 20%, Rad
D 1 3-00226-301 1N5822 Diode
D 2 3-00226-301 1N5822 Diode
D 3 3-01208-301 MUR220 Diode
D 4 3-01208-301 MUR220 Diode
D 5 3-01208-301 MUR220 Diode
D 6 3-01208-301 MUR220 Diode
D 7 3-01208-301 MUR220 Diode
D 8 3-01208-301 MUR220 Diode
D 9 3-01208-301 MUR220 Diode
D 10 3-01208-301 MUR220 Diode
D 11 3-00516-301 1N5819 Diode
D 12 3-00516-301 1N5819 Diode
D 13 3-00516-301 1N5819 Diode
D 14 3-00516-301 1N5819 Diode
D 15 3-00516-301 1N5819 Diode
D 16 3-00516-301 1N5819 Diode
D 17 3-00011-303 RED LED, T1 Package
J 1 1-00250-116 2 PIN, WHITE Header, Amp, MTA-156
J 2 1-00554-150 HEADER10 Socket, THRU-HOLE
J 5 0-00176-031 4-40 X 1/4 Standoff
L 1 6-00646-601 10UH Inductor
L 2 6-00647-601 47UH Inductor
L 3 6-00648-601 54.81UH Inductor
L 4 6-00646-601 10UH Inductor
L 5 6-00647-601 47UH Inductor
L 6 6-00647-601 47UH Inductor
L 7 6-00646-601 10UH Inductor
L 8 6-00646-601 10UH Inductor
L 9 6-00646-601 10UH Inductor
N 1 4-00244-421 10KX4 Res. Network, SIP, 1/4W,2% (Isolated)
Parts List 107
CG635 Synthesized Clock Generator
PC1 7-01585-701 SCG P/S PCB Printed Circuit Board
Q 1 3-00283-340 IRF530/IRF532 Integrated Circuit (Thru-hole Pkg)
Q 2 3-00283-340 IRF530/IRF532 Integrated Circuit (Thru-hole Pkg)
R 1 4-00138-407 10.0K Resistor, Metal Film, 1/8W, 1%, 50PPM
R 2 4-00142-407 100K Resistor, Metal Film, 1/8W, 1%, 50PPM
R 3 4-00347-407 7.50K Resistor, Metal Film, 1/8W, 1%, 50PPM
R 4 4-00141-407 100 Resistor, Metal Film, 1/8W, 1%, 50PPM
R 5 4-00920-458 0.47/2W Resistor, Metal Oxide
R 6 4-00920-458 0.47/2W Resistor, Metal Oxide
R 7 4-00080-401 47 Resistor, Carbon Film, 1/4W, 5%
R 8 4-00080-401 47 Resistor, Carbon Film, 1/4W, 5%
T 1 6-00660-615 CG635 P/S Power Supply
U 1 3-01182-360 LM2676T-3.3 Integrated Circuit (Surface Mount Pkg)
U 2 3-00114-329 7815 Voltage Reg., TO-220 (TAB) Package
U 3 3-00143-340 LM393 Integrated Circuit (Thru-hole Pkg)
U 4 3-00634-340 3525A Integrated Circuit (Thru-hole Pkg)
U 5 3-00114-329 7815 Voltage Reg., TO-220 (TAB) Package
U 6 3-00120-329 7915 Voltage Reg., TO-220 (TAB) Package
U 7 3-00112-329 7805 Voltage Reg., TO-220 (TAB) Package
U 8 3-00112-329 7805 Voltage Reg., TO-220 (TAB) Package
U 9 3-00119-329 7905 Voltage Reg., TO-220 (TAB) Package
Z 0 0-00043-011 4-40 KEP Nut, Kep
Z 0 0-00050-011 8-32 KEP Nut, Kep
Z 0 0-00084-032 36154 Termination
Z 0 0-00177-002 6ESRM-3 Power Entry Hardware
Z 0 0-00185-021 6-32X3/8PP Screw, Panhead Phillips
Z 0 0-00187-021 4-40X1/4PP Screw, Panhead Phillips
Z 0 0-00210-020 4-40X5/16PF Screw, Flathead Phillips
Z 0 0-00222-021 6-32X1/4PP Screw, Panhead Phillips
Z 0 0-00231-043 1-32, #4 SHOULD Washer, nylon
Z 0 0-00243-003 TO-220 Insulators
Z 0 0-00271-000 BUMPER Hardware, Misc.
Z 0 0-00438-021 4-40X5/16PP Screw, Panhead Phillips
Z 0 0-00469-070 40MM 12V Fans, & Hardware
Z 0 0-00471-021 4-40X1"PP Screw, Panhead Phillips
Z 0 0-00634-032 2-520184-2 Termination
Z 0 0-01011-050 18" BLK #18 Wire #18 UL1007 Stripped 3/8x3/8 No Tin
Z 0 0-01012-050 18" WHITE #18 Wire #18 UL1007 Stripped 3/8x3/8 No Tin
Z 0 0-01014-050 4"GREEN W/YELL Wire #18 UL1007 Stripped 3/8x3/8 No Tin
Z 0 0-01098-055 4" #18 UL1007 Wire, Other
Z 0 0-01099-055 4" #18 UL1007 Wire, Other
Z 0 0-01100-055 4" #18 UL1007 Wire, Other
Z 0 0-01101-055 4" #18 UL1007 Wire, Other
Z 0 1-00120-113 3 PIN, 18AWG/OR Connector, Amp, MTA-156
Z 0 1-00275-131 2 PIN DIF #18GA Connector, Female
Z 0 1-00472-112 2 PIN, 24AWG/WH Connector, Amp, MTA-100
Z 0 1-00473-114 2 PIN, WHITE Header, Amp, MTA-100
Z 0 1-00496-113 6 POS 18GA ORNG Connector, Amp, MTA-156
Z 0 6-00655-615 24V - 60W Power Supply
Z 0 7-01612-720 CG635 Fabricated Part
Z 0 7-01613-720 CG635 Fabricated Part
Z 0 7-01656-720 CG635 Fabricated Part
Chassis and Front-Panel Assembly
D 1 3-00012-306 GREEN LED, Rectangular
D 2 3-00885-306 YELLOW LED, Rectangular
D 3 3-00012-306 GREEN LED, Rectangular
D 4 3-00012-306 GREEN LED, Rectangular
D 5 3-00012-306 GREEN LED, Rectangular
Parts List 108
CG635 Synthesized Clock Generator
D 6 3-00884-306 RED LED, Rectangular
D 7 3-00012-306 GREEN LED, Rectangular
D 8 3-00012-306 GREEN LED, Rectangular
D 9 3-00012-306 GREEN LED, Rectangular
D 10 3-00012-306 GREEN LED, Rectangular
D 11 3-00012-306 GREEN LED, Rectangular
D 12 3-00012-306 GREEN LED, Rectangular
D 13 3-00012-306 GREEN LED, Rectangular
D 14 3-00012-306 GREEN LED, Rectangular
D 15 3-00012-306 GREEN LED, Rectangular
D 16 3-00012-306 GREEN LED, Rectangular
D 17 3-00012-306 GREEN LED, Rectangular
D 18 3-00012-306 GREEN LED, Rectangular
D 19 3-00012-306 GREEN LED, Rectangular
D 20 3-00012-306 GREEN LED, Rectangular
D 21 3-00012-306 GREEN LED, Rectangular
D 22 3-00012-306 GREEN LED, Rectangular
D 23 3-00012-306 GREEN LED, Rectangular
D 24 3-00012-306 GREEN LED, Rectangular
D 25 3-00012-306 GREEN LED, Rectangular
D 26 3-00012-306 GREEN LED, Rectangular
D 27 3-00012-306 GREEN LED, Rectangular
D 28 3-00012-306 GREEN LED, Rectangular
D 29 3-00012-306 GREEN LED, Rectangular
D 30 3-00012-306 GREEN LED, Rectangular
D 31 3-00012-306 GREEN LED, Rectangular
D 32 3-00012-306 GREEN LED, Rectangular
D 33 3-00012-306 GREEN LED, Rectangular
D 34 3-00012-306 GREEN LED, Rectangular
D 35 3-00004-301 1N4148 Diode
D 36 3-00004-301 1N4148 Diode
D 37 3-00004-301 1N4148 Diode
D 38 3-00004-301 1N4148 Diode
D 39 3-00004-301 1N4148 Diode
D 40 3-00004-301 1N4148 Diode
JP1 1-00661-130 5 PIN SI - TIN Connector, Male
JP2 1-00661-130 5 PIN SI - TIN Connector, Male
JP3 1-00661-130 5 PIN SI - TIN Connector, Male
JP4 1-00661-130 5 PIN SI - TIN Connector, Male
JP5 1-00661-130 5 PIN SI - TIN Connector, Male
JP11 1-00052-171 40 COND Cable Assembly, Ribbon
PC1 7-01584-701 SCG F/P PCB Printed Circuit Board
U 1 3-00290-340 HDSP-A101 Integrated Circuit (Thru-hole Pkg)
U 2 3-00290-340 HDSP-A101 Integrated Circuit (Thru-hole Pkg)
U 3 3-00290-340 HDSP-A101 Integrated Circuit (Thru-hole Pkg)
U 4 3-00290-340 HDSP-A101 Integrated Circuit (Thru-hole Pkg)
U 5 3-00290-340 HDSP-A101 Integrated Circuit (Thru-hole Pkg)
U 6 3-00290-340 HDSP-A101 Integrated Circuit (Thru-hole Pkg)
U 7 3-00290-340 HDSP-A101 Integrated Circuit (Thru-hole Pkg)
U 8 3-00290-340 HDSP-A101 Integrated Circuit (Thru-hole Pkg)
U 9 3-00290-340 HDSP-A101 Integrated Circuit (Thru-hole Pkg)
U 10 3-00290-340 HDSP-A101 Integrated Circuit (Thru-hole Pkg)
U 11 3-00290-340 HDSP-A101 Integrated Circuit (Thru-hole Pkg)
U 12 3-00290-340 HDSP-A101 Integrated Circuit (Thru-hole Pkg)
U 13 3-00290-340 HDSP-A101 Integrated Circuit (Thru-hole Pkg)
Z 0 0-00048-011 6-32 KEP Nut, Kep
Z 0 0-00079-031 4-40X3/16 M/F Standoff
Z 0 0-00084-032 36154 Termination
Z 0 0-00150-026 4-40X1/4PF Screw, Black, All Types
Z 0 0-00179-000 RIGHT FOOT Hardware, Misc.
Z 0 0-00180-000 LEFT FOOT Hardware, Misc.
Z 0 0-00181-020 6-32X1/4PF Screw, Flathead Phillips
Parts List 109
CG635 Synthesized Clock Generator
Z 0 0-00185-021 6-32X3/8PP Screw, Panhead Phillips
Z 0 0-00187-021 4-40X1/4PP Screw, Panhead Phillips
Z 0 0-00204-000 REAR FOOT Hardware, Misc.
Z 0 0-00209-021 4-40X3/8PP Screw, Panhead Phillips
Z 0 0-00248-026 10-32X3/8TRUSSP Screw, Black, All Types
Z 0 0-00315-021 6-32X7/16 PP Screw, Panhead Phillips
Z 0 0-00326-026 8-32X1/4PP Screw, Black, All Types
Z 0 0-00371-026 4-40X3/16PF Screw, Black, All Types
Z 0 0-00416-020 8-32X1/4PF Screw, Flathead Phillips
Z 0 0-00438-021 4-40X5/16PP Screw, Panhead Phillips
Z 0 0-00472-018 1-329631-2 Jam Nut
Z 0 0-00500-000 554808-1 Hardware, Misc.
Z 0 0-00501-042 1-329632-2 Washer, lock
Z 0 0-00893-026 8-32X3/8PF Screw, Black, All Types
Z 0 7-00122-720 DG535-36 Fabricated Part
Z 0 7-00217-735 PS300-40 Injection Molded Plastic
Z 0 7-00259-720 SR560-28 Fabricated Part
Z 0 7-00260-720 SR560-27 Fabricated Part
Z 0 7-01594-709 CG635 Lexan Overlay
Z 0 7-01595-740 CG635 Keypad, Conductive Rubber
Z 0 7-01610-720 CG635 Fabricated Part
Z 0 7-01611-720 CG635 Fabricated Part
Z 0 7-01616-720 CG635 Fabricated Part
Option 1 Assembly
C 1 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 2 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 3 5-00528-568 2.2U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 4 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 5 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 6 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 7 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 8 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 9 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 10 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 11 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 12 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 13 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 14 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 15 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 16 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 17 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 18 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 19 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 20 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 21 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 22 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 23 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 24 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 25 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 26 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 27 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 28 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 29 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
C 30 5-00299-568 .1U Cap, Ceramic 50V SMT (1206) +/-10% X7R
J 2 1-00550-140 BULKHEAD JACK SMA Connector
J 3 1-00550-140 BULKHEAD JACK SMA Connector
J 4 1-00550-140 BULKHEAD JACK SMA Connector
J 5 1-00550-140 BULKHEAD JACK SMA Connector
Parts List 110
CG635 Synthesized Clock Generator
J 6 1-00553-133 2MM 10POS Connector, Male, Right Angle
J 7 1-00552-130 2MM 10POS Connector, Male
L 2 6-00236-631 FR47 Ferrite bead, SMT
L 3 6-00236-631 FR47 Ferrite bead, SMT
PC1 7-01623-701 CG635 OPTION Printed Circuit Board
Q 1 3-01214-360 BFT92 Integrated Circuit (Surface Mount Pkg)
R 1 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 2 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 3 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 4 4-00954-462 20.0 Thin Film, 1%, 50 ppm, MELF Resistor
R 5 4-00954-462 20.0 Thin Film, 1%, 50 ppm, MELF Resistor
R 6 4-00954-462 20.0 Thin Film, 1%, 50 ppm, MELF Resistor
R 7 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 8 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 9 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 10 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 11 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 12 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 13 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 14 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 15 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 16 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 17 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 18 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 19 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 20 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 21 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 22 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 23 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 24 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 25 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 26 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 27 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 28 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 29 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 30 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 31 4-01105-462 750 Thin Film, 1%, 50 ppm, MELF Resistor
R 32 4-01088-462 499 Thin Film, 1%, 50 ppm, MELF Resistor
R 33 4-00971-462 30.1 Thin Film, 1%, 50 ppm, MELF Resistor
R 42 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 43 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 44 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 45 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 46 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 47 4-01447-461 47 Thick Film, 5%, 200 ppm, Chip Resistor
R 48 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 49 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 50 4-01070-462 324 Thin Film, 1%, 50 ppm, MELF Resistor
R 51 4-01070-462 324 Thin Film, 1%, 50 ppm, MELF Resistor
R 52 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 53 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 54 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 55 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 56 4-01070-462 324 Thin Film, 1%, 50 ppm, MELF Resistor
R 57 4-01070-462 324 Thin Film, 1%, 50 ppm, MELF Resistor
R 58 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
R 59 4-01021-462 100 Thin Film, 1%, 50 ppm, MELF Resistor
U 1 3-01196-360 MC100EP52D Integrated Circuit (Surface Mount Pkg)
U 2 3-01196-360 MC100EP52D Integrated Circuit (Surface Mount Pkg)
U 3 3-01196-360 MC100EP52D Integrated Circuit (Surface Mount Pkg)
U 4 3-01196-360 MC100EP52D Integrated Circuit (Surface Mount Pkg)
U 5 3-01196-360 MC100EP52D Integrated Circuit (Surface Mount Pkg)
Parts List 111
CG635 Synthesized Clock Generator
U 6 3-01196-360 MC100EP52D Integrated Circuit (Surface Mount Pkg)
U 7 3-01196-360 MC100EP52D Integrated Circuit (Surface Mount Pkg)
U 8 3-01191-360 MC100EP08D Integrated Circuit (Surface Mount Pkg)
U 9 3-01199-360 NB6L11D Integrated Circuit (Surface Mount Pkg)
U 10 3-01200-360 NB6L16D Integrated Circuit (Surface Mount Pkg)
U 11 3-01200-360 NB6L16D Integrated Circuit (Surface Mount Pkg)
U 12 3-01199-360 NB6L11D Integrated Circuit (Surface Mount Pkg)
Z 0 0-00187-021 4-40X1/4PP Screw, Panhead Phillips
Z 0 7-01619-720 Fabricated Part
Option 2 Assembly
J 1 1-01078-150 SSW-107-01-S-S Socket, THRU-HOLE
J 3 1-01058-131 09-52-3101 Connector, Female
PC1 7-01586-701 SCG TIMEBASE Printed Circuit Board
R 1 4-00176-407 3.01K Resistor, Metal Film, 1/8W, 1%, 50PPM
R 2 4-00158-407 2.00K Resistor, Metal Film, 1/8W, 1%, 50PPM
R 3 4-00176-407 3.01K Resistor, Metal Film, 1/8W, 1%, 50PPM
R 4 4-00148-407 12.1K Resistor, Metal Film, 1/8W, 1%, 50PPM
U 1 3-00508-340 LM358 Integrated Circuit (Thru-hole Pkg)
Z 0 0-00048-011 6-32 KEP Nut, Kep
Z 0 0-00096-041 #4 SPLIT Washer, Split
Z 0 0-00241-021 4-40X3/16PP Screw, Panhead Phillips
Z 0 0-01090-031 3403 Standoff
Z 0 1-01057-130 26-48-1101 Connector, Male
Z 0 6-00051-622 10 MHZ Ovenized Crystal Oscillator
Z 0 7-01614-720 CG635 Fabricated Part
Option 3 Assembly
C 1 5-00023-529 .1U Cap, Monolythic Ceramic, 50V, 20%, Z5U
J 2 1-00342-165 10 PIN STRAIGHT Connector, D-Sub, Female
J 2A 1-00343-100 COAX CONTACT Connector, Misc.
J 3 1-01058-131 09-52-3101 Connector, Female
PC1 7-01586-701 SCG TIMEBASE Printed Circuit Board
R 1 4-00176-407 3.01K Resistor, Metal Film, 1/8W, 1%, 50PPM
R 2 4-00158-407 2.00K Resistor, Metal Film, 1/8W, 1%, 50PPM
R 3 4-00176-407 3.01K Resistor, Metal Film, 1/8W, 1%, 50PPM
R 4 4-00148-407 12.1K Resistor, Metal Film, 1/8W, 1%, 50PPM
U 1 3-00508-340 LM358 Integrated Circuit (Thru-hole Pkg)
U 2 3-00155-340 74HC04 Integrated Circuit (Thru-hole Pkg)
U 3 3-00116-325 78L05 Transistor, TO-92 Package
Z 0 0-00043-011 4-40 KEP Nut, Kep
Z 0 0-00096-041 #4 SPLIT Washer, Split
Z 0 0-00241-021 4-40X3/16PP Screw, Panhead Phillips
Z 0 0-00781-031 4-40X1/4 M/F Standoff
Z 0 1-01057-130 26-48-1101 Connector, Male
Z 0 6-00079-624 10 MHZ RUBIDIUM Oscillator, Misc.
Z 0 7-01614-720 CG635 Fabricated Part
Parts List 113
CG635 Synthesized Clock Generator
Schematics
CG635 Schematic Diagram List
Sheet Description Document
1 Block Diagram CG_BLK_D
2 Motherboard: Timebases CG_MB1D
3 Motherboard: DDS & VCXOs CG_MB2D
4 Motherboard: RF PLL CG_MB3D
5 Motherboard: Dividers and fanout CG_MB4D
6 Motherboard: Microcontroller CG_MB5D
7 Motherboard: Rear panel interfaces CG_MB6D
8 Front panel displays and keypad CG_FP1B
9 Output drivers: Q & -Q CG_DR1F
10 Output drivers: CMOS CG_DR2F
11 Power supply inverter CG_PS1B
12 PRBS Generator (Option 1) CG_PR1B
13 Timebase adapter (Options 2 & 3) CG_TB1B
14 Line receiver accessory : CG640 CG_LR1B
15 Line receiver accessory : CG641, CG642 CG_LR2B
16 Line receiver accessory : CG643, CG644, CG645 CG_LR3B
17 Line receiver accessory : CG646, CG647 CG_LR4B
18 Line receiver accessory : CG648 CG_LR5B
19 Line receiver accessory : CG649 CG_LR6B
