C IS3 0 0 — TWO -WAY C EILING
M O NITO R
The CIS300 is a compact two-way flush-
mount loudspeaker assembly designed
for fixed installations into typical ceiling
plenum spaces. Employing a modified HF
waveguide originally developed for use
in studio monitors, the CIS300 delivers
superior dispersion and pattern control
over conventional coaxial designs. The
waveguide integrates the HF driver
with a 4" LF driver optimized for smooth
frequency response and seamless
transition through the crossover point.
The result is acoustic performance not
generally associated with a commercial
ceiling speaker of this size or in this
price range.
The CIS300 is supplied fully assembled,
complete with a sealed zinc-coated
steel backcan and cam-style installation
clamps. The metal enclosure includes
a recessed Euroblock input connector
with detachable mating plug, concealed
behind a hinged metal cover plate.
A welded tab is provided for seismic
restraint. Two steel T-Bar support chan-
nels are provided to facilitate installation
to a standard tile ceiling. Also supplied
is a steel split C-ring, which serves to
disperse the clamping pressure of the
mounting cams.
The CIS300 is supplied with an integral
70/100V line transformer rated to a maxi-
mum of 30 watts. Power is adjustable by
means of a recessed rotary switch on
EAW Commercial | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX 425.485.1152 | Page 1 of 2
FEATURES
·· High-efficiency 4" polypropylene woofer
·· 140º x 124º constant directivity horn with
1" cloth dome tweeter
·· Built-in LICC low-inductance passive
crossover with high frequency dynamic
protection
·· Lightweight, UV/weather resistant, high
density polystyrene, flush-mounting
enclosure for multiple applications and
minimum visual intrusion
·· Integrated mounting system and hard-
ware included
·· UL/cUL/CE listed
APPLIC ATIO NS
·· Meeting Rooms
·· Hotels
·· Houses of Worship
·· Boardrooms
·· Courtrooms
·· Multizone Paging/Music Systems
·· Multi-Purpose Facilities
the front bezel, and allows selection of
30, 15, 7.5, and 3.7 watt taps. A second
recessed rotary switch is provided to
engage a 16-ohm tap for use with low-
impedance amplifiers, or a 150 Hz high-
pass filter.
The speaker assembly is shipped with a
detachable paper cover fitted over the
transducers inside the bezel. This protec-
tive cover protects the drivers from dam-
age during installation and also serves
as a paint cover, allowing convenient
spray painting to match interior décor. A
powder-coated perforated steel grille is
supplied, and easily installed once the
desired Tap Selector and Full-Range/
High-Pass switches have been set.
The entire assembly is fully tested at the
time of manufacture and is warranted
to be free from defects in materials and
workmanship for a period of five years
from the date of purchase. The speaker
is designed for use in ceiling plenum
spaces and meets UL 1480 and UL 2043
regulations governing signaling devices
and plenum applications.
CIS300
Two-Way Ceiling Monitor
LOUD Technologies Inc. continually engages in research related to product improvement. New material,
production methods, and design renements are introduced into existing products without notice as a routine
expression of that philosophy. For this reason, any current EAW Commercial and LOUD Technologies product
may differ in some respect from its published description, but will always equal or exceed the original design
specications unless otherwise stated. ©1999–2004 LOUD Technologies Inc. All rights reserved.
EAW Commercial is a trademark of LOUD Technologies Inc.
SPECIFICATIONS
SYSTEM
Freq. Range (–10 dB): 90 Hz–22 kHz
Freq. Response (–3 dB): 110 Hz–20 kHz
Horizontal Coverage Angle (–6 dB): 140° averaged
1 kHz to 6 kHz
Vertical Coverage Angle (–6 dB): 124° averaged
1 kHz to 6 kHz
System Sensitivity: 90 dB, 1W @ 1m
Rated Maximum SPL: 102 dB @ 1m
System Input Power Rating: 30W long term
Transformer Taps
70V: 3.7W, 7.5W, 15W, 30W,
100V: 7.5W, 15W, 30W
Control Features
Front-mounted Rotary Switch: Full Range (70/100 Volt Systems)
High Pass @ 150 Hz (70/100 Volt Systems)
16Ω (low-impedance operation)
Front-mounted Rotary Switch: Secondary Tap Positions
TRANSDUCERS
Low-Frequency: 4 in/102 mm polypropylene woofer
High-Frequency: 1 in/25 mm dome tweeter
PHYSICAL
Enclosure: 2-way, front loaded
Bezel Material: UL94V-0 rated material
Rear Enclosure Material: Steel
Grille: Perforated metal with weather-resistant
coating
Safety Features: Rear safety loop located at rear of
enclosure for attachment of load
bearing safety strap
Safety Agency Ratings
UL1480: General Signaling Fire Standard
UL2043: Fire Tests for Heat and Visible Smoke
Release for Discrete Products and Their
Accessories in Air-handling Spaces
Input/Output Connectors: Removable locking connector with
screw-down terminals.
Two input terminals and two loop-thru
output terminals.

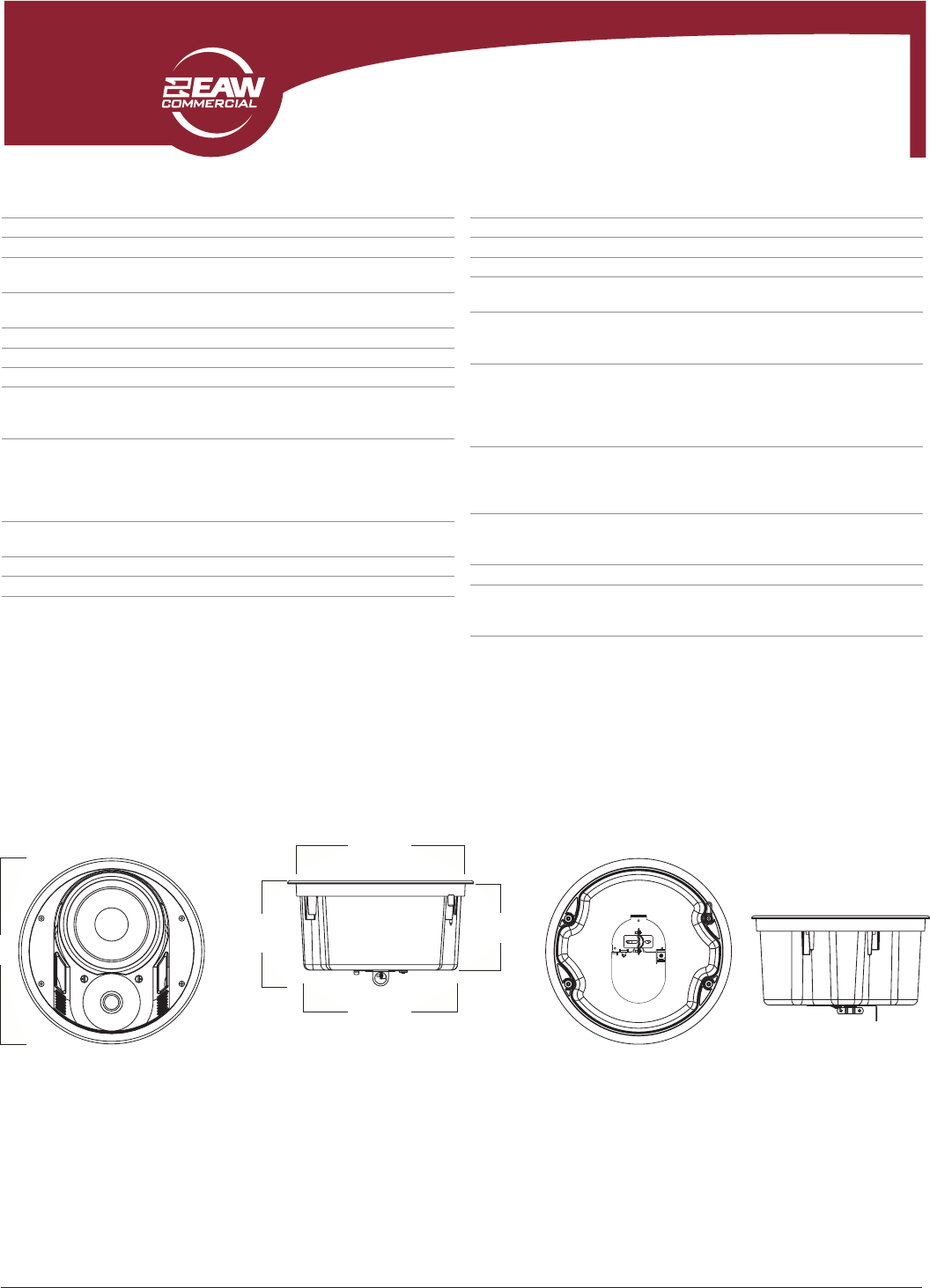

Dimensions (Diameter x Height): 8.7 in/221 mm x 5.7 in/144 mm
Front of Ceiling Tile to Back of Can: 4.6 in/116 mm
Cutout Size: 7.8 in/199 mm
Net Weight: 6.2 lb/2.8 kg
Included Accessories: Grille, Support Rails, C-Ring, Removable
Locking Connector, Cut-out Template,
Paint Shield
EAW Commercial | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX 425.485.1152 | Page 2 of 2
Part No. 0009731 Rev B 07/04
