» Technical Manual
March 2016
Author Tecnoteca srl
www.tecnoteca.com
ENG
www.cmdbuild.org
Version
2.4
Technical Manual
No part of this document may be reproduced, in whole or in part, without the express written permission
of Tecnoteca s.r.l.
CMDBuild ® uses many great technologies from the open source community:
PostgreSQL, Apache, Tomcat, Eclipse, Ext JS, JasperReports, IReport, Enhydra Shark, TWE, OCS
Inventory, Liferay, Alfresco, GeoServer, OpenLayers, Prefuse, Quartz, BiMserver.
We are thankful for the great contributions that led to the creation of these products.
CMDBuild ® is a project of Tecnoteca Srl. Tecnoteca is
responsible of software design and development, it's the official
maintainer and has registered the CMDBuild logo.
In the project also the Municipality of Udine was involved as the
initial customer.
CMDBuild ® is released under AGPL open source license (http://www.gnu.org/licenses/agpl-3.0.html)
CMDBuild ® is a registered trademark of Tecnoteca Srl.
Everytime the CMDBuild® logo is used, the official maintainer "Tecnoteca srl" must be mentioned; in
addition, there must be a link to the official website:
http://www.cmdbuild.org.
CMDBuild ® logo:
cannot be modified (color, proportion, shape, font) in any way, and cannot be integrated into
other logos
cannot be used as a corporate logo, nor the company that uses it may appear as author / owner
/ maintainer of the project
cannot be removed from the application, and in particular from the header at the top of each
page
The official website is http://www.cmdbuild.org
CMDBuild – Open Source Configuration and Management Database Page 2
Technical Manual
Contents
Introduction...................................................................................................................................... 5
CMDBuild modules...................................................................................................................................... 5
Available documentation.............................................................................................................................. 6
System configuration........................................................................................................................7
Hardware requirements............................................................................................................................... 7
Software requirements................................................................................................................................. 7
Client requirements.................................................................................................................................... 10
Installing CMDBuild using graphical interface ................................................................................11
Getting started........................................................................................................................................... 11
CMDBuild installation................................................................................................................................. 11
CMDBuild configuration............................................................................................................................. 11
Installing CMDBuild in manual mode..............................................................................................15
Getting started........................................................................................................................................... 15
Database installation................................................................................................................................. 15
Application configuration............................................................................................................................ 16
Configuration of the interface between CMDBuild and Together Workflow Server....................................16
Update of CMDBuild and Together Workflow Server......................................................................19
CMDBuild update....................................................................................................................................... 19
Update of Together Workflow Server......................................................................................................... 19
Configuration to access a DMS through CMIS...............................................................................21
Configuration for the categories management...........................................................................................21
Configuration for the metadata management.............................................................................................23
Configuration of the interface between CMDBuild and Alfresco................................................................28
Installing and using the system DMS Alfresco 3.4..........................................................................30
Basic configuration.................................................................................................................................... 30
Additional configurations............................................................................................................................ 32
Configuration for the metadata management.............................................................................................32
Configuration of the interface between CMDBuild and Alfresco................................................................32
Backup of CMDBuild data .............................................................................................................33
Backup of Alfresco data..................................................................................................................35
Backup schedule....................................................................................................................................... 36
Authentication modes.....................................................................................................................37
Introduction................................................................................................................................................ 37
Configuring authentication type.................................................................................................................37
Configuring Header Authentication............................................................................................................38
Configuring LDAP authentication...............................................................................................................38
Single sign on configuration through CAS................................................................................................. 39
Access to CMDBuild resources via URL........................................................................................41
Introduction................................................................................................................................................ 41
Examples of valid URL.............................................................................................................................. 41
Mobile interface activation..............................................................................................................42
Introduction................................................................................................................................................ 42
Components and Architecture................................................................................................................... 42
CMDBuild – Open Source Configuration and Management Database Page 3
Technical Manual
Compatibility.............................................................................................................................................. 43
Limitations of use....................................................................................................................................... 43
GUI Framework activation..............................................................................................................44
Introduction................................................................................................................................................ 44
Configuration............................................................................................................................................. 44
Liferay portlet activation..................................................................................................................46
Introduction................................................................................................................................................ 46
Installing Liferay portlet.............................................................................................................................. 46
CMDBuild configuration............................................................................................................................. 47
GeoServer...................................................................................................................................... 48
Introduction................................................................................................................................................ 48
Installing Geoserver................................................................................................................................... 48
Configuring CMDBuild............................................................................................................................... 48
BIMServer...................................................................................................................................... 49
General Information................................................................................................................................... 49
BIM IFC connector..................................................................................................................................... 49
Database design details.................................................................................................................51
Design Criteria........................................................................................................................................... 51
Inheritance................................................................................................................................................. 51
Primitive superclasses: "Class" and "Map"................................................................................................ 53
Metadata.................................................................................................................................................... 54
APPENDIX: Glossary.....................................................................................................................57
CMDBuild – Open Source Configuration and Management Database Page 4
Technical Manual Introduction
Introduction
CMDBuild is an Open Source web application designed to model and manage assets and services
controlled by the ICT Department, therefore it handles the related workflow operations, if
necessary according to ITIL best practices.
The management of a Configuration Database (CMDB) means keeping up-to-date, and available
to other processes, the database related to the components in use, their relations and their
changes over time.
With CMDBuild, the system administrator can build and extend its own CMDB (hence the project
name), modeling the CMDB according to the company needs; the administration module allows you to
progressively add new classes of items, new attributes and new relations. You can also define filters,
"views" and access permissions limited to rows and columns of every class.
CMDBuild provides complete support for ITIL best practices, which have become a "standard de
facto" by now, a non-proprietary system for services management with process-oriented criteria.
Thanks to the integrated workflow engine, you can create new workflow processes with external
visual editors, and import / execute them inside the CMDBuild application according to the
configured automatisms.
A task manager integrated in the user interface of the Administration Module is also available. It
allows to manage different operations (process starts, e-mail receiving and sending, connector
executions) and data controls on the CMDB (synchronous and asynchronous events). Based on
their findings, it sends notifications, starts workflows and executes scripts.
CMDBuild includes also JasperReports, an open source report engine that allows you to create
reports; you can design (with an external editor), import and run custom reports inside CMDBuild.
Then it is possible to define some dashboards made up of charts which immediately show the situation
of some indicators in the current system (KPI).
CMDBuild integrates Alfresco, the popular open source document management system. You can
attach documents, pictures and other files.
Moreover, you can use GIS features to georeference and display assets on a geographical map
(external map services) and / or an office plan (local GeoServer) and BIM features to view 3D
models (IFC format).
The system includes also a SOAP and a REST webservice, to implement interoperability solutions
with SOA.
CMDBuild includes two frameworks called Basic Connector and Advanced Connector, which are
able - through the SOAP webservice - to sync the information recorded in the CMDB with external
data sources, for example through automatic inventory systems (such as the open source OCS
Inventory) or through virtualization or monitoring systems.
Through the REST webservice, CMDBuild GUI Framework allows to issue custom webpages on
external portals able to interact with the CMDB.
A user interface for mobile tools (smartphones and tablets) is also available. It is implemented as
multi-platform app (iOS, Android) and linked to the CMDB through the REST webservice.
CMDBuild modules
The CMDBuild application includes two main modules:
CMDBuild – Open Source Configuration and Management Database Page 5
Technical Manual Introduction
the Administration Module, used to define the data model and set config options (classes
and relations, users and permissions, reports and workflows, main options and
preferences)
the Management Module, used to manage cards and relations, add attachments, run
workflow processes, visualize dashboards and execute reports
The Administration Module is available only to the users with the "administrator" role; the
Management Module is used by all the users to view and edit data.
Available documentation
This guide is intended for software engineers interested in installing the system and to know the
technical implementation of some of its components.
You can find all the manuals on the official website (http://www.cmdbuild.org):
system overview ("Overview Manual")
system usage (“User Manual”)
system administration ("Administrator Manual")
workflow configuration ("Workflow Manual")
webservice details and configuration (“Webservice Manual”)
connectors to sync data through external systems (“ConnectorsManual”)
CMDBuild – Open Source Configuration and Management Database Page 6
Technical Manual System configuration
System configuration
In order to install the CMDBuild system you can use either one server or more. On these servers
you install the components of the system:
web server
computing components
database
webservice
documents archive
In the following paragraphs we present the software requirements needed by the CMDBuild
system and how to install and configurate its components.
When planning the system configuration information security issues must be taken into account.
The activation of a web application like CMDBuild demands the availability of hardware and
network components with suitable levels of security. This is in order to avoid unwanted external
accesses (firewall, DMZ) and to deliver good system on-line availability and suitable response
times.
Hardware requirements
For the CMDBuild installation a physical or virtual server is required, with the following
characteristics:
recent generation CPU
minimum RAM 4 GB; 8 GB for instances used by several users
minimal disk storage 100 GB, it should be much higher if you need to manage extensive
archives of documents (fed by the management of the attachments).
We also advise that:
the disk storage should be in RAID configuration
the CMDBuild system data should be backed up daily
an UPS is employed in order to avoid sudden electric power failures
Software requirements
CMDBuild installation and use require the following software components.
1) Operating system
You can use any operating system supporting the software listed below (Linux operating system is
best because CMDBuild is more extensively tested on it).
2) Database
PostgreSQL 9.0 or more recent (best PostgreSQL 9.3).
You should check whether "plpgsql" is active and whether the database is set with UTF-8
encoding.
CMDBuild uses the library "tomcat-dbcp" to connect to the database, this library is distributed with
CMDBuild – Open Source Configuration and Management Database Page 7
Technical Manual System configuration
Tomcat but is not included in some Linux distributions. In such cases the library can be found in
the official Tomcat distribution or in the extras/tomcat-libs/{Tomcat version dir} folder inside the
CMDBuild zip file; the library must be placed in /usr/share/{Tomcat version dir}/lib.
CMDBuild supports only the PostgreSQL database, because it is the only one that implements the
functionality of "derivation" of tables in the "object oriented" meaning. This is used for managing
the subclasses and for managing the historicizing of cards.
If you use the GIS extensions of CMDBuild you have to instal also the PostGIS spatial extension in
the version 1.5.2 or 2.0. If you create a new database, you have to follow these operations (using
for example the “psql” tool):
$ psql ... cmdbuild
cmdbuild=# CREATE SCHEMA gis;
cmdbuild=# SET SEARCH_PATH TO gis, public;
cmdbuild=# \i ${POSTGIS_DIR}/postgis.sql
cmdbuild=# \i ${POSTGIS_DIR}/spatial_ref_sys.sql
cmdbuild=# \i ${POSTGIS_DIR}/legacy.sql (if you use PostGIS 2.0)
cmdbuild=# ALTER DATABASE your_database_name_here SET
search_path="$user", public, gis;
If you have to restore an existing database (using for example the “psql” tool):
$ psql ... cmdbuild
cmdbuild=# CREATE SCHEMA gis;
cmdbuild=# SET SEARCH_PATH TO gis, public;
cmdbuild=# \i ${POSTGIS_DIR}/postgis.sql
cmdbuild=# \i ${POSTGIS_DIR}/legacy.sql (if you use PostGIS 2.0)
cmdbuild=# ALTER DATABASE ${DB_NAME} SET search_path="$user", public, gis;
cmdbuild=# DROP TABLE gis.geometry_columns;
cmdbuild=# DROP TABLE gis.spatial_ref_sys;
Web site of reference: http://www.postgresql.org/
3) Servlet Container / Web Server
CMDBuild needs the Apache Tomcat 7.0.32 or more recent (best Tomcat 8.0). At the moment, for
issues derived from using Shark, you have to check whether Tomcat is carried out as "root" user
and not as not privileged user (e.g. “tomcat”).
In order to support the UTF-8 characters when using attachments (see Installation of DMS
system), edit the configuration file “server.xml” and specify the attribute URIEncoding="UTF-8" for
the main "Connector" element.
CMDBuild – Open Source Configuration and Management Database Page 8
Technical Manual System configuration
You can use the web server Apache 2.2 in order to access many CMDBuild instances through
virtual hosts supporting different domains.
Reference Web site for both: http://www.apache.org/
4) Document Management System (DMS)
It can be interfaced through the CMIS protocol (Alfresco in the last versions or other DMS systems
that support that protocol) or through FTP protocol and proprietary webservice (Alfresco 3.4)
In the first case, in order to use the function of managing the documents attached to the cards in
CMDBuild you need to install the document management system that supports the CMIS protocol,
preferably version 1.1. As for CMIS in Alfresco, it supports the version 4.2 or more recent.
In the second case, you can use the document management offered by Alfresco 3.4.
Reference website: http://www.alfresco.com/
5) Java Libraries
The Java Libraries are required by Apache Tomcat.
CMDBuild requires JDK 1.8 Oracle.
Reference website: http://www. oracle .com/
6) Libraries included in the release
The CMDBuild file downloadable from the project website contains some libraries already inside
the installation package, namely:
the library for the JDBC connection to the PostgreSQL database
the JasperReports libraries version 5.1.0 for the production of reports
(http://www.jasperforge.org/)
TWS Together Workflow Server 4.4 libraries which implement the workflow engine used by
CMDBuild (http://www.together.at/prod/workflow/tws)
the webservice available from the DMS Alfresco system in order to use its repository
(http://www.alfresco.com/)
the libraries ExtJS 4.1 version for the generation of the Ajax user interface (http://extjs.com/)
the server and client components for the publication of georeferenced cartography
(http://geoserver.org/ e http://openlayers.org/)
For designing custom reports you can use the visual editor iReport; it produces its descriptor in
compatible format with the JaspertReports engine (http://jasperforge.org/projects/ireport).
For designing personalized workflows we suggest using the visual editor TWE Together Workflow
Editor 4.4 (http://www.together.at/prod/workflow/twe). The editor produces in output a XPDL 2.0 file
compatible with the Together Workflow Server 4.4 engine.
For integrating systems of automatic inventory we suggest using the OCS Inventory version 1.3.3
(http://www.ocsinventory-ng.org/).
Some functionalities of CMDBuild can be integrated as portlets within systems compatible with
Portal JSR, among them Liferay version 6.0.6 or more recent (http://www.liferay.com/).
All software listed above are released with Open Source licence (the operating system is not
included if you choose to use not the Linux operating system).
CMDBuild – Open Source Configuration and Management Database Page 9
Technical Manual System configuration
Client requirements
CMDBuild is a web-based application, so both modules are available using a standard web
browser.
The system user has to arrange on his/her processor only an updated web browser (Mozilla
Firefox, from version 3.6 to version 45, Chrome, from version 9 to version 49, Microsoft Explorer,
from version 7 to version 10).
The web architecture ensures complete usability to any IT organization that operates in multiple
locations (ie collaborative workflow); any entrusted client can connect and interact with the system
using a standard web browser.
CMDBuild – Open Source Configuration and Management Database Page 10
Technical Manual Installing CMDBuild using graphical interface
Installing CMDBuild using graphical interface
Getting started
The installation of CMDBuild requires that you have already installed the basic products needed for
its operation, namely:
PostgreSQL database (it must be started and accessible)
Tomcat application server (not to be started)
the DMS Alfresco (or others supporting the CMIS protocol, if you intend to use the
management of attached documents)
the Java environment
As a first step is therefore necessary to ensure downloading and installing these products,
retrieving them from the links mentioned in the previous chapter.
Warning: you must to be careful to use directories not containing spaces within the entire path.
Then you start the PostgreSQL service and possibly (but it is not mandatory) the DMS service.
CMDBuild installation
After completion of the operations stated above, the installation and setup the standard CMDBuild
is very simple.
Order to install CMDBuild is sufficient:
downloading from the project site (http://www.cmdbuild.org/download) the compressed file
(ZIP file) corresponding to the last version released
copying the directory CMDBuild-{version}.war (it is in "root" of the ZIP file) in the directory
"webapps" of Tomcat, renaming cmdbuild.war
copying the directory CMDBuild-shark (found in the ZIP file in the directory "extras" of the
ZIP file) in the directory "webapps" of Tomcat
copying additional libraries for the chosen version of Tomcat (located in the directory
"extras / tomcat-libs") in the "lib" directory of Tomcat
Once you do this, and only at this point, it will be necessary to also start the Tomcat application
server.
CMDBuild configuration
The basic configuration is done using a few setup pages that CMDBuild presents automatically at
the first use.
To access the setup pages you need only to connect using your browser at
http://localhost:8080/cmdbuild (the address may vary depending on the Tomcat configuration).
CMDBuild – Open Source Configuration and Management Database Page 11
Technical Manual Installing CMDBuild using graphical interface
1) Language configuration

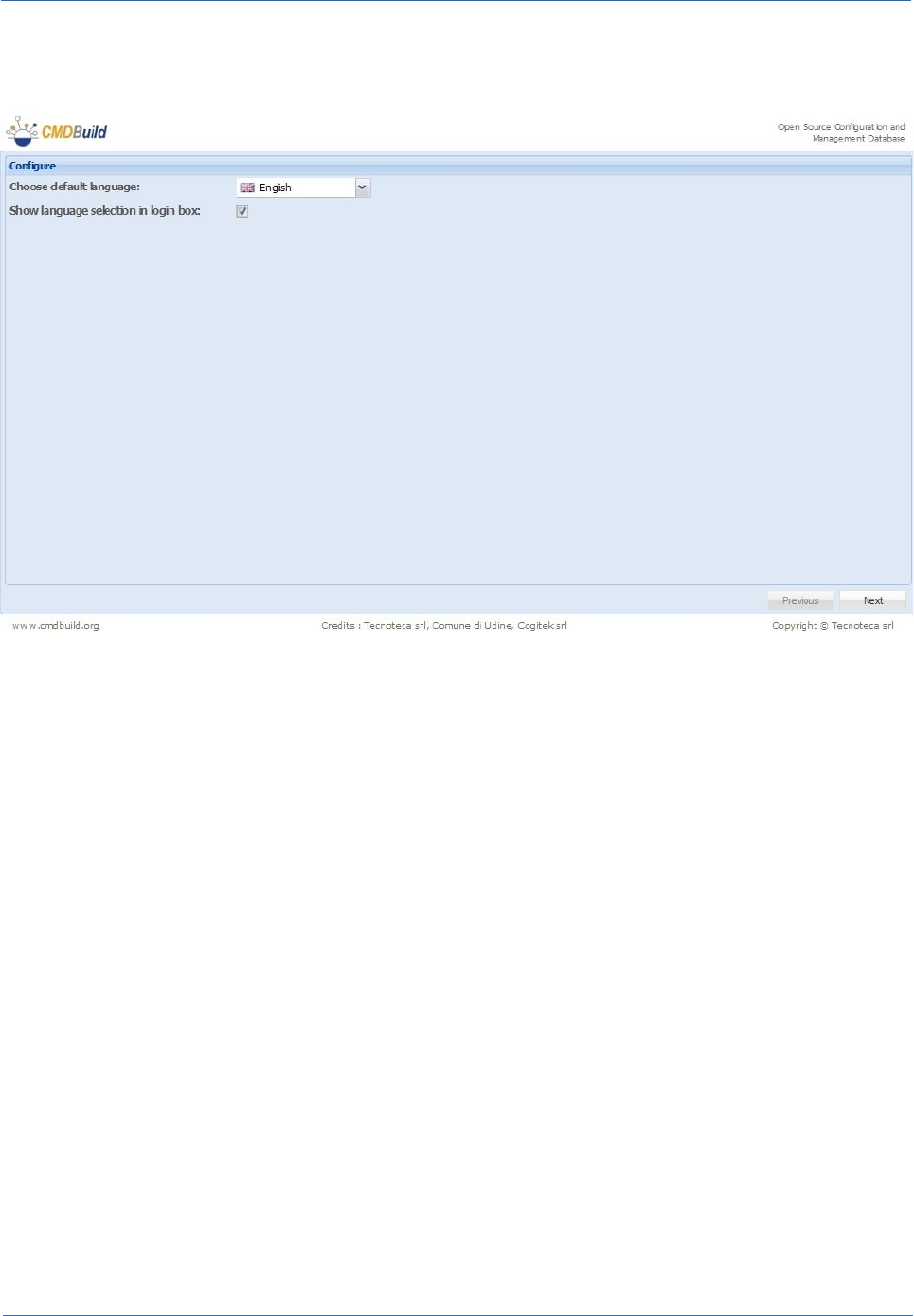

If the operations described above were carried out correctly it will appear the following screenshot:
From this screen you can set the language of the system.
Checking the "Show language choice in the login window" a language selection menu will be
presented in the login CMDBuild interface.
Once you made your selection, click Next.
2) Database configuration

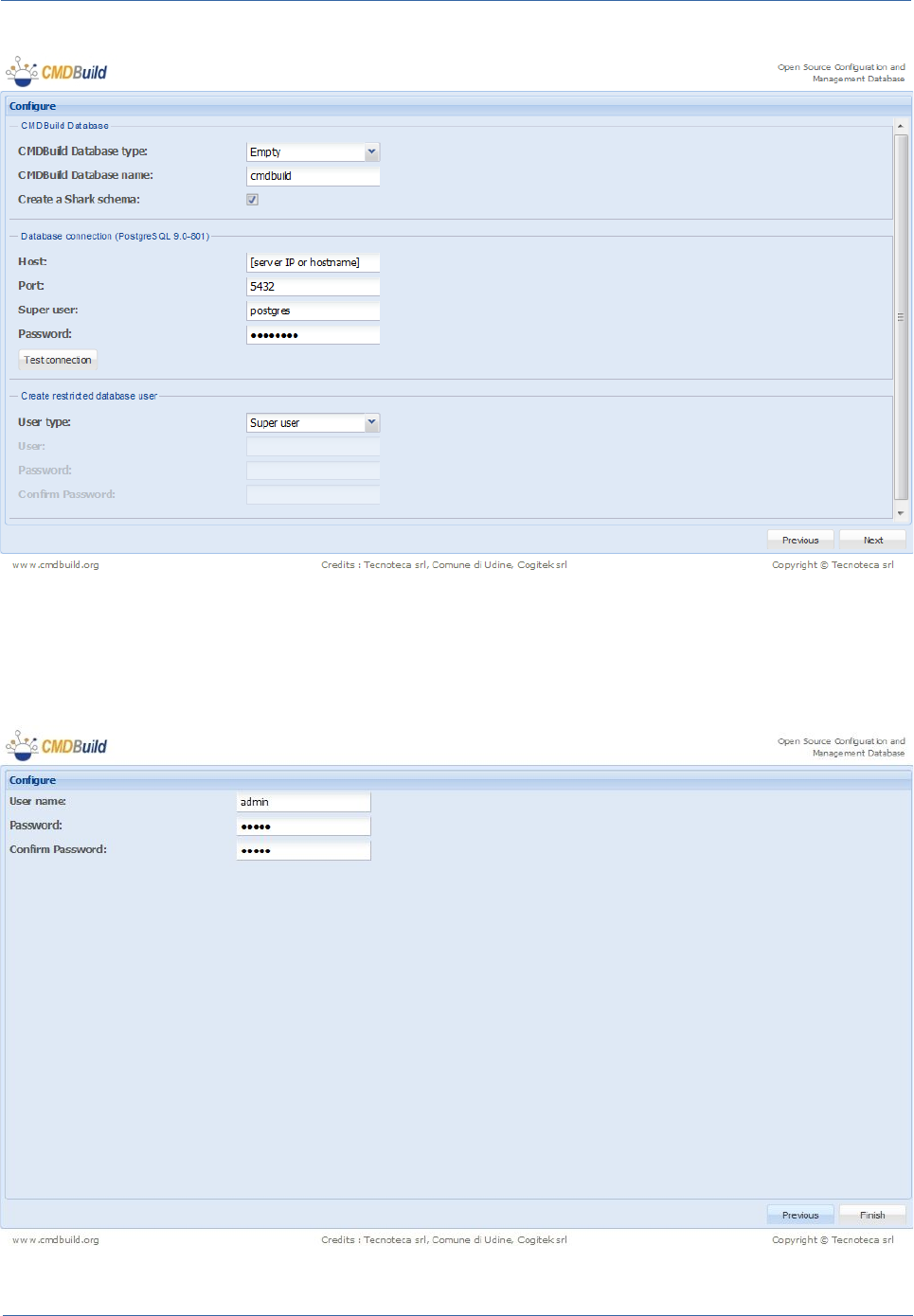

In the "Database connection" section you must specify:
the host (host name or IP address) that is hosting the PostgreSQL database
the PostgreSQL database port (the default port is 5432)
the username for accessing the database PostgreSQL (for DBA activities)
the password to access the PostgreSQL database (for DBA activities)
In the CMDBuild Database section you must specify:
the type of database to configure CMDBuild, choosing from:
creating an empty database
selecting an existing database compatible with CMDBuild 1.0
creation of a database with test data
the database name
CMDBuild – Open Source Configuration and Management Database Page 12
Technical Manual Installing CMDBuild using graphical interface
Selecting the checkbox "Create database user with limited privileges," a new PostgreSQL user is
created with all privileges as DBA, but only on the database that will be used / created in the
CMDBuild instance that you are currently configuring.
3) Configuring access credentials
CMDBuild – Open Source Configuration and Management Database Page 13
Technical Manual Installing CMDBuild using graphical interface
From the previous form you can specify the credentials that the user administrator (superuser) will
use to access CMDBuild (either to the Management Module and to the Administration Module).
Clicking on "Finish" you will be redirected to the interface system login.
CMDBuild – Open Source Configuration and Management Database Page 14
Technical Manual Installing CMDBuild in manual mode
Installing CMDBuild in manual mode
Getting started
Before you begin installing CMDBuild you need to unpack the directory cmdbuild.war.
To do this you must copy it in the webapps directory of Tomcat and wait for the application server
to create the cmdbuild directory.
Verify that in Tomcat is present the JDBC PostgreSQL driver.1
Note: In the following we denote:
{CMDBUILD}, the CMDBuild directory in webapps
{ALFRESCO}, the alfresco directory in webapps
{SHARK}, the Together Workflow Server in webapps
Warning: The following installation involves the creation of a new empty database. If you have a
pre-existing database go directly to "Configure the application" paragraph. If you already have a
CMDBuild database please move to "Application configuration" section.
Database installation
To manually install you must do the following:
using a tool with a graphical interface (for example pgAdmin3, a native PostgreSQL) or
from the command line, create the database by specifying a name, for example cmdbuild:
CREATE DATABASE cmdbuild
WITH OWNER cmdbuilduser
ENCODING = 'UTF8';
access the new database cmdbuild and create the language plpgsql:
CREATE LANGUAGE plpgsql;
to create a database with demo data, run the scripts in alphabetical order that you will find
in the directory {CMDBUILD}/WEB-INF/sql/base_schema, or alternatively the file
{CMDBUILD}/WEB-INF/sql/sample_schemas/demo_schema.sql
if you choose the empty database, you have to check the last available patch analysing the
directory
{CMDBUILD}/WEB-INF/patches
recording the name of the last patch (in alphabetical order and without extension, for
example “1.2.3”) and execute these orders:
SELECT cm_create_class('Patch', 'Class', 'DESCR: |MODE: reserved|STATUS: active|SUPERCLASS: false|
TYPE: class');
INSERT INTO "Patch" ("Code") VALUES ('1.2.3');
1 The JDBC driver can be downloaded at http://jdbc.postgresql.org/download.html
CMDBuild – Open Source Configuration and Management Database Page 15
Technical Manual Installing CMDBuild in manual mode
execute the following SQL commands to create the "Superuser" user (in the example with
username admin and password admin):
INSERT INTO "User" ("Status", "Username", "IdClass", "Password", "Description")
VALUES ('A', 'admin', '"User"', 'DQdKW32Mlms=', 'Administrator');
INSERT INTO "Role" ("Status", "IdClass", "Administrator", "Code", "Description")
VALUES ('A', '"Role"', true, 'SuperUser', 'SuperUser');
INSERT INTO "Map_UserRole" ("Status", "IdClass1", "IdClass2", "IdObj1", "IdObj2", "IdDomain")
VALUES ('A', '"User"'::regclass,'"Role"'::regclass, currval('class_seq')-2, currval('class_seq'), '"Map_UserRole"'::regclass);
At this point you have an empty database compatible with CMDBuild system.
Application configuration
You can manually configure the application modifying certain files. If Tomcat was already started,
you need to stop it and enter the directory {CMDBUILD}/WEB-INF/conf.
Then you have to do the following:
file cmdbuild.conf
open it with a text editor
select the default language of the system by modifying the "language" (the values are
IT and EN; selecting "true" the choice "languageprompt" in the login interface you can
select the language)
save and close the file
file database.conf
uncomment the three rows
indicate in "db.url" the name of the database to use
under "db.username" and "db.password" indicate the credentials to access the
database
save and close the file
The installation is now finished, restart Tomcat and login into CMDBuild.
Configuration of the interface between CMDBuild and Together Workflow
Server
You can configure Together Workflow Server modifying certain configuration files. If Tomcat was
already started, you need to stop it and execute the following operations:
1) Database address
In the file of the shark webapp {SHARK}/META-INF/context.xml you have to configure the
address of the database modifying the following row:
url="jdbc:postgresql://localhost/${cmdbuild}"
For example, if the database has the default name "cmdbuild" and the postgres server is working
on the same computer and uses the standard port, you will have:
CMDBuild – Open Source Configuration and Management Database Page 16
Technical Manual Installing CMDBuild in manual mode
url="jdbc:postgresql://localhost/cmdbuild"
2) URL and service user
In the file {SHARK}/conf/Shark.conf set correctly the following parameters:
# CMDBUild connection settings
org.cmdbuild.ws.url=http://localhost:8080/cmdbuild/
org.cmdbuild.ws.username=workflow
org.cmdbuild.ws.password=changeme
inserting the url related to CMDBuild, the username and the password of the ServiceUser used by
Together Workflow Server to use the CMDbuild services.
3) Setup of ServiceUser for Together Workflow Server
With a text editor, open the file {CMDBUILD}/WEB-INF/conf/auth.conf and uncomment the row
serviceusers.prigileged=workflow
If necessary, replacing to workflow the value inserted for the parameter org.cmdbuild.ws.username
at the previous point.
4) Starting the services
The Shark Tomcat service must already be active when you start operating across the workflows
using the CMDBuild user interface.
On Windows the path should be expressed with the bar reversed:
DatabaseManager.ConfigurationDir=C:/srv/tomcat/webapps/shark/conf/dods
or double
DatabaseManager.ConfigurationDir=C:\\srv\\tomcat\\webapps\\shark\\conf\\dods
One way to check the proper functioning of the Shark instance is to refer to the its log file.
Before pursuing the configuration, reboot the tomcat instance of CMDBuild.
5) Authorizations
From the Administration Module CMDBuild you have to enter the Setup menu and:
enable the workflow (with the appropriate checkbox)
set the URL to which the Shark service responds
6) Create the user in CMDBuild and grant privileges
From the Administration Module CMDBuild you have to enter the “Users and Groups” and:
under the heading Users, create a new user with user Name and Password corresponding
to the values defined with the parameters org.cmdbuild.ws.username and
org.cmdbuild.ws.password in item 2)
Add the user just created to a Group with administrative privileges (e.g. SuperUsers or a
group with the admin flag enabled)
CMDBuild – Open Source Configuration and Management Database Page 17
Technical Manual Installing CMDBuild in manual mode
CMDBuild – Open Source Configuration and Management Database Page 18
Technical Manual Update of CMDBuild and Together Workflow Server
Update of CMDBuild and Together Workflow Server
CMDBuild update
To update CMDBuild please follow the following steps:
1. turn off tomcat and backup the application and its database
2. save the configurations existing in ${tomcat_home_cmdbuild}/webapps/$
{cmdbuild_instance}/WEB-INF/conf
3. if you use the gis, you have to save the gis icons existing in: $
{tomcat_home_cmdbuild}/webapps/cmdbuild_instance}/upload/images/gis
4. delete the directory ${tomcat_home_cmdbuild}/webapps/${cmdbuild_instance}/
5. delete the content of the work directory in Tomcat
6. move the supplied war into the webapps directory of Tomcat and run Tomcat
7. connect CMDBuild and start the configuration specifying that the database already exists
and what its name is
8. if necessary, when the configuration ends, the system will warn that the database has to be
updated and, clicking on "confirm", the system will run the necessary patches.
9. when connecting with the updated CMDBuild, you are suggested to clean the browser
cache
Carried out these operations, the system will be updated. You are suggested to re-activate other
configurations (e.g. alfresco, workflow). We suggest you to copy the configuration files previously
saved.
It is not possible to overwrite files between this and the previous versions due to the variation in the
number of parameters contained.
You have to restart Tomcat every time you edit manually the configuration (from filesystem).
Update of Together Workflow Server
To update Shark please follow the following steps. The Shark version (Together Workflow Server)
and the CMDBuild one should always be coherent.
1. switch off Tomcat
2. save the files ${tomcat_home_shark}/webapps/${shark_instance}/META-INF/context.xml
and ${tomcat_home_shark}/webapps/${shark_instance}/conf/Shark.conf
3. remove the directory {tomcat_home_shark}/webapps/${shark_instance}/
4. delete the content of the work directory in Tomcat
5. copy the new war into the Tomcat webapps
6. start Tomcat and - when the server starts (check in the file catalina.out) - switch it off so
that the shark directory is created in the webapps directory. Otherwise you can simply
create a shark directory and decompress in it the war like any other file.
7. once tomcat is stopped, edit ${tomcat_home_shark}/webapps/${shark_instance}/META-
INF/context.xml e ${tomcat_home_shark}/webapps/${shark_instance}/conf/Shark.conf so
CMDBuild – Open Source Configuration and Management Database Page 19
Technical Manual Update of CMDBuild and Together Workflow Server
that they refer to the cmdbuild database and to the application, respectively (you can copy
the values from previously saved files without overwriting them)
8. if it exists, remove the file ${tomcat_home_shark}/conf/Catalina/localhost/
{nome_istanza_shark}.xml
9. restart Tomcat
We suggest you to remove or rename the extension of any war file existing in the webapps
directory of tomcat once the installation is completed.
Run this operation when Tomcat is switched off.
CMDBuild – Open Source Configuration and Management Database Page 20
Technical Manual Configuration to access a DMS through CMIS
Configuration to access a DMS through CMIS
CMDBuild allows the integration with other document systems through CMIS, an open standard to
exchange document data through the web protocol, supported by all main products of the sector
(e.g. Liferay, Sharepoint)
The acceptance of such protocol allows to support base features:
to attach any kind of file to any data card
to assign a category to every file
to display the uploaded files
N.B.: the management of categories and metadata is supported at the moment only for the
protocol CMIS 1.1. SO, you will be able to use even DMS based on CMIS 1.0, but you will not be
able to save information into CMDBuild, such as the author, the description and the category.
Configuration for the categories management
In this section you will learn how to configure a DMS that can support the protocol CMIS 1.1, in
order to manage the classification of attachments when updating and refreshing them on
CMDBuild cards.
The management of categories is completely included in the aspect files, defined according to the
requirements of the DMS.
Here's a sample of configuring Alfresco 5.0.
N.B.: the names used here are unbinding.
1) cmdbuild-model-context.xml
This file includes the definition of the aspect for saving the categories and it is structured as
follows:
<?xml version='1.0' encoding='UTF-8'?>
<!DOCTYPE beans PUBLIC '-//SPRING//DTD BEAN//EN' 'http://www.springframework.org/dtd/spring-
beans.dtd'>
<beans>
<!-- Registration of new models -->
<bean id="example.dictionaryBootstrap" parent="dictionaryModelBootstrap" depends-on="dictionaryBootstrap">
<property name="models">
<list>
<value>alfresco/extension/cmdbuildModel.xml</value>
</list>
</property>
</bean>
</beans>
CMDBuild – Open Source Configuration and Management Database Page 21
Technical Manual Configuration to access a DMS through CMIS
2) cmdbuildModel.xml
This file defines the usable categories
<?xml version="1.0" encoding="UTF-8"?>
<!-- The important part here is the name - Note: the use of the my: namespace which is defined further on in
the document -->
<model name="cmdbuild:module" xmlns="http://www.alfresco.org/model/dictionary/1.0">
<description>Custom Model for CMDBuild</description>
<author>CMDBuild Team</author>
<version>1.0</version>
<imports>
<!-- Import Alfresco Dictionary Definitions -->
<import uri="http://www.alfresco.org/model/dictionary/1.0" prefix="d" />
<!-- Import Alfresco Content Domain Model Definitions -->
<import uri="http://www.alfresco.org/model/content/1.0" prefix="cm" />
</imports>
<!-- Introduction of new namespaces defined by this model -->
<namespaces>
<namespace uri="org.cmdbuild.dms.alfresco" prefix="cmdbuild" />
</namespaces>
<aspects>
<aspect name="cmdbuild:classifiable">
<title>Classification</title>
<properties>
<property name="cmdbuild:classification">
<type>d:text</type>
</property>
</properties>
</aspect>
</aspects>
</model>
CMDBuild – Open Source Configuration and Management Database Page 22
Technical Manual Configuration to access a DMS through CMIS
Both files should be copied into the directory of the used DMS, for instance for the DMS Alfresco:
${ALFRESCO_HOME}/tomcat/shared/classes/alfresco/extension
As for Alfresco, the system should be restarted so that the changes can work.
Configuration for the metadata management
In this section you will learn how to configure the management of custom metadata in order to
manage additional information when updating and refreshing attachments on CMDBuild cards.
Even in this case, the aspects have to be defined according to the requirements of the DMS in use.
Here's a sample related to Alfresco.
1) Custom model definition
As provided for in Alfresco, you have to create a custom model where you will define metadata and
their groups.
You can find a sample of that in the CMDBuild files (dms/alfresco module).
The default name for this file is cmdbuildCustomModel.xml, but you can customize it specifying the
new name in the configuration file dms.conf of CMDBuild:
alfresco.custom.model.filename=anotherNameForCustomModel.xml
Sample of the file:
<?xml version="1.0" encoding="UTF-8"?>
<model
name="cmdbuild:customModule"
xmlns="http://www.alfresco.org/model/dictionary/1.0">
...
<namespaces>
<namespace uri="org.cmdbuild.dms.alfresco" prefix="cmdbuild" />
</namespaces>
<constraints>
<constraint name="cmdbuild:imageFormat" type="LIST">
<parameter name="allowedValues">
<list>
<value>bmp</value>
...
</list>
</parameter>
</constraint>
...
CMDBuild – Open Source Configuration and Management Database Page 23
Technical Manual Configuration to access a DMS through CMIS
</constraints>
<types>
<type name="cmdbuild:Document">
<title>Document</title>
<mandatory-aspects>
<aspect>cmdbuild:documentStatistics</aspect>
...
</mandatory-aspects>
</type>
...
</types>
<aspects>
<aspect name="cmdbuild:documentStatistics">
<title>Document Statistics</title>
<properties>
<property name="cmdbuild:characters">
<title>Number of characters</title>
<type>d:long</type>
</property>
...
</properties>
</aspect>
...
</aspects>
</model>
Namespace definition
You have to define a namespace as follows:
<namespaces>
<namespace uri="org.cmdbuild.dms.alfresco" prefix="cmdbuild" />
</namespaces>
CMDBuild – Open Source Configuration and Management Database Page 24
Technical Manual Configuration to access a DMS through CMIS
The above mentioned values are defaults, but you can customize them specifying the following
headings in the CMDBuild configuration file dms.conf:
alfresco.custom.uri=another.unique.uri
alfresco.custom.prefix=another_prefix
Please, pay attention to elements of the .xml document: most of their names are preceded by the
prefix here defined.
List of values definition
For certain aspect features (see "Aspect definition" in the next page), you can specify predefined
values that can be selected using a combobox.
<constraints>
<constraint name="cmdbuild:imageFormat" type="LIST">
<parameter name="allowedValues">
<list>
<value>bmp</value>
...
</list>
</parameter>
</constraint>
...
</constraints>
Please note: the name attribute of the constraint element must match with the name attribute of
the property element defined within the aspect (see "Aspect definition" in the next page).
Types definition
The types below are combined with categories defined and managed on the CMDBuild's side.
<types>
<type name="cmdbuild:Document">
<title>Document</title>
<mandatory-aspects>
<aspect>cmdbuild:documentStatistics</aspect>
...
</mandatory-aspects>
</type>
CMDBuild – Open Source Configuration and Management Database Page 25
Technical Manual Configuration to access a DMS through CMIS
...
</types>
In particular:
the definition of a type is necessary only if you have to match aspects (and therefore also
metadata) to documents managed with CMDBuild/Alfresco
the content of the title element must match with the Description attribute of a CMDBuild
Lookup (e.g. “Document”).
Aspect definition
Aspects group together several features, and different aspects can be applied to one single
document.
<aspects>
<aspect name="cmdbuild:documentStatistics">
<title>Document Statistics</title>
<properties>
<property name="cmdbuild:characters">
<title>Number of characters</title>
<type>d:long</type>
</property>
...
</properties>
</aspect>
...
</aspects>
In particular:
if you want to to apply aspects, they must match with a document type (see "Types
definition" in the next page)
features types that are currently managed are as follows: “text”, int”, “long”, “float”, “date”,
“datetime”, “boolean”, as defined by Alfresco
you can manage the list of text” values (see "List of values definition" in the previous
page).
2) Definition of autocompletion rules
You have to create an .xml file that will be interpreted by CMDBuild. Its information must allow the
metadata autocompletion, starting from the attributes of the card the document is attached to.
The default name for this file is metadataAutocompletion.xml, but you can customize it specifying
the new name in the configuration file dms.conf of CMDBuild:
CMDBuild – Open Source Configuration and Management Database Page 26
Technical Manual Configuration to access a DMS through CMIS
metadata.autocompletion.filename=anotherNameForAutocompletionRules.xml
Here is a sample:
<?xml version="1.0" encoding="UTF-8"?>
<autocompletion>
<metadataGroups>
<metadataGroup name="documentStatistics">
<metadata name="character">
<rules>
<rule classname="Employee" value="123" />
<rule classname="Asset" value="client:..." />
</rules>
</metadata>
...
</metadataGroup>
</metadataGroups>
</autocompletion>
In particular:
the file can be omitted if no autocompletion is required
the name attribute of the metadataGroup element represents the name (without the prefix)
of an aspect (see "Aspect definition" in the previous pages)
the attribute name of the metadata element represents the name (without the prefix) of an
aspect feature (see Aspect definition)
every rule element shows the way to complete the metadatum value, this value can be a fix
value or an expression managed with the Template Resolver (see the specific documents).
3) Installation
Given the following files:
cmdbuildCustomModel.xml
metadataAutocompletion.xml
Within the directory of the Alfresco extensions (e.g.
$ALFRESCO_HOME/tomcat/shared/classes/alfresco/extension):
copy the file cmdbuildCustomModel.xml
create a file cmdbuild-custom-model-context.xml built in this way (remember to specify the
file name of the right custom module)
CMDBuild – Open Source Configuration and Management Database Page 27
Technical Manual Configuration to access a DMS through CMIS
<?xml version='1.0' encoding='UTF-8'?>
<!DOCTYPE beans PUBLIC '-//SPRING//DTD BEAN//EN' 'http://www.springframework.org/dtd/spring-beans.dtd'>
<beans>
<!-- Registration of new models -->
<bean
id="extension.dictionaryBootstrap"
parent="dictionaryModelBootstrap"
depends-on="dictionaryBootstrap">
<property name="models">
<list>
<value>
alfresco/extension/cmdbuildCustomModel.xml
</value>
</list>
</property>
</bean>
</beans>
create a file web-client-config-custom.xml containing definitions that allow to view aspect
features within the web interface of Alfresco (see official documents)
start/reboot Alfresco so that changes have effects, check in the log any error definition of
the module
Within the CMDBuild configuration directory:
copy the file cmdbuildCustomModel.xml
copy the file metadataAutocompletion.xml
clear the server cache and then the client one
N.B.: the file names are unbinding.
Configuration of the interface between CMDBuild and Alfresco
1) Configuring the CMDBuild side
In order to configure the use of a DMS through CMIS with CMDBuild, enter the directory
{CMDBUILD}/WEB-INF/conf and open the file dms.conf with a text editor.
It is then necessary to perform the following operations:
set enabled=true
CMDBuild – Open Source Configuration and Management Database Page 28
Technical Manual Configuration to access a DMS through CMIS
set dms.service.type=cmis:
verify that in "dms.service.cmis.url" there is the url to reach the dms through cmis
set the authentication credentials to "dms.service.cmis.user"
"dms.service.cmis.password"
set the filesystem path to "dms.service.cmis.path"
set the model name to "dms.service.cmis.model"
specify the used CMDBuild category to "category.lookup"
2) Alfresco side configuration
Refer to the chapter "Installing and using the system DMS Alfresco 3.4"
CMDBuild – Open Source Configuration and Management Database Page 29
Technical Manual Installing and using the system DMS Alfresco 3.4
Installing and using the system DMS Alfresco 3.4
If you do not have a DMS supporting the protocol CMIS 1.1, you can upload the attachments and
their metadata and categories through FTP services and webservices offered by Alfresco 3.4.
Here you can learn how to install Alfresco 3.4 and how to upload and download files, in order to
classify them and to upload any custom metadata.
In Alfresco there is a wizard, both graphic and text, used to simplify installation and configuration of
basic settings.
In particular, you have to specify the following:
ports used by Tomcat
port used by the FTP server
settings related to the database
If you decide to proceed using the manual installation, you can refer to the following installation
notes, related to the installation of Alfresco 3.4.
Note: in the following we denoted {ALFRESCO} the alfresco installation directory (for example
/opt/alfresco).
Basic configuration
1) Configuring Tomcat
Configure the start of the Tomcat server used by Alfresco on ports different from the Tomcat server
used by CMDBuild.
Go to the directory
{ALFRESCO}/tomcat/conf
Open to edit the server.xml file and change the properties:
<Server port="8005" shutdown="SHUTDOWN">
...
<Connector port="8080" protocol="HTTP/1.1" ... />
...
<Connector port="8009" protocol="AJP/1.3" ... />
so as not to conflict with the instance of Tomcat used by CMDBuild.
For example you can use the following (always taking care to other instances of Tomcat in your
system):
<Server port="9005" shutdown="SHUTDOWN">
...
<Connector port="9080" protocol="HTTP/1.1" ... />
CMDBuild – Open Source Configuration and Management Database Page 30
Technical Manual Installing and using the system DMS Alfresco 3.4
...
<Connector port="9009" protocol="AJP/1.3" ... />
2) Configuring the repository and the database
Go to the directory {ALFRESCO}/tomcat/shared/classes/ and edit the file alfresco-
global.properties (if not present you may use a copy of the file alfresco-
global.properties.sample).
Change the following properties:
dir.root={REPOSITORY DIRECTORY}
to define the location of the repository where documents are stored (for example:
C:/alfresco/repository for Windows systems or /var/alfresco/repository per sistemi *nix).
Alfresco supports the following databases: HSQL (default), MySQL, Oracle, Sybase, SQLServer,
and PostgreSQL. We suggest addressing Alfresco to a new database managed by the same
PostgreSQL server used for CMDBuild. Since during installation it is not possible to make this
choice, you have to do it manually.
Set the following properties files in the same file alfresco-global.properties:
db.driver=org.postgresql.Driver
db.username=postgres
db.password=postgres
db.url=jdbc:postgresql://localhost:5432/alfresco
Copy the drivers to access the Postgres database (interface library in the directory /extras/tomcat-
libs/[TomcatVersion] of the CMDBuild distribution) into {ALFRESCO}/tomcat/lib.
Using a GUI tool (for example pgAdmin3 of PostgreSQL) or from the command line to create the
database using the name specified in the property "db.url" above referred (in the "alfresco"
example).
Also in the file alfresco-global.properties, edit the following lines to enable the FTP server:
ftp.enabled=true
ftp.port=1121
ftp.ipv6.enabled=false
Be careful if there is another FTP server on the same host, in this case you have to change the
port that the FTP server will run Alfresco.
The specified port must be equal to that specified in the file:
{CMDBUILD}\WEB-INF\conf\dms.conf
At the end, once the initial database creation is successful, stop the Alfresco and check if in the file
alfresco-global.properties the property "db.schema.update" is set to false (or possibly
commented out):
db.schema.update=false
CMDBuild – Open Source Configuration and Management Database Page 31
Technical Manual Installing and using the system DMS Alfresco 3.4
Additional configurations
Then you have to create in Alfresco the "space" intended to contain CMDBuild attachments and
the category associated with these documents.
At the end, you have to start Alfresco and, if there are no problems, after a few minutes you can
log in to Alfresco via web browser at:
http://{SERVER}:{PORT}/alfresco
The default credentials are "admin" both as the user name and the password.
In the "Navigator" go to "Company Home", then "User Homes" and create a space with the same
name as that specified in the file:
{CMDBUILD}\WEB-INF\conf\dms.conf (for example "cmdbuild")
Go now in the administration console of Alfresco (first icon on the upper bar), go to "Category
Management" and create a new category with the same name and description as specified in the
file:
{CMDBUILD}\WEB-INF\conf\dms.conf (for example "AlfrescoCategory")
At this point the configuration is complete. When you restart Tomcat, you can also handle
attachments CMDBuild.
Configuration for the metadata management
See the similar section in the chapter “Configuration to access a DMS through CMIS
Configuration of the interface between CMDBuild and Alfresco
1) Configuring the CMDBuild side
To configure the use of Alfresco Community 3.4 with CMDBuild enter the directory {CMDBUILD}/
WEB-INF/conf and open with a text editor the file dms.conf (legacydms.conf for CMDBuild
versions prior to 1.4).
It is then necessary to perform the following operations:
set enabled=true
set dms.service.type=cmis:
verify that in "server.url" there is the url to reach Alfresco through webservices
edit fileserver.port inserting the port number on which the Alfresco FTP service is running
(see next paragraph)
edit the entry "repository.fspath" with the path of the space of CMDBuild on Alfresco,
similar to the "repository.app"
specify the CMDBuild category used in Alfresco to "category.lookup"
2) Alfresco side configuration
Refer to the chapter "Installing and using the system DMS Alfresco 3.4"
CMDBuild – Open Source Configuration and Management Database Page 32
Technical Manual Backup of CMDBuild data
Backup of CMDBuild data
To backup data in CMDBuild you just have to backup the PostgreSQL database.
If you do not want to go on through graphical tools, like PgAdmin III, you can work on command
lines, specifying, for example:
pg_dump --host localhost --port 5432 --username "postgres" --format custom
--verbose --file /backup/cmdbuild/cmdbuild.backup cmdbuild_db
Such command will backup the db called “cmdbuild_db”, on the local listen server in the 5432 port
using the postgres username. The format will be pressed (--format custom) and written into the
directory /backup/cmdbuild/cmdbuild.backup. The command will also print the details of what it is
doing per video (--verbose).
To get more detailed explanations about the syntax of pg_dump, please read the records relating
to postgres (with Linux you can digit “man pg_dump” in order to have an excellent description of
this command).
An example file to backup databases:
#!/bin/sh
# Executes a backup of the specified postgresql databases
#
# Steps:
# - dumps (compressed) the database into the target directory
# - archive (tgz) the backup
# - removes the backup
PG_DUMP="pg_dump"
PG_DUMP_OPTS="-h localhost -p 5432 -U postgres -F c --column-inserts"
TIMESTAMP=`date +%Y%m%d%H%M%S`
BACKUP_ROOT="$1"
while [ $# -gt 1 ]
do
shift
DB_NAME="$1"
cd "${BACKUP_ROOT}"
DB_BACKUP="${DB_NAME}-${TIMESTAMP}.backup"
DB_ARCHIVE="${DB_BACKUP}.tar.gz"
CMDBuild – Open Source Configuration and Management Database Page 33
Technical Manual Backup of CMDBuild data
${PG_DUMP} ${PG_DUMP_OPTS} -f "${DB_BACKUP}" "${DB_NAME}"
if [ ! -r "${DB_BACKUP}" ];
then
logger "File '${DB_BACKUP}' not found"
else
tar -czf "${DB_ARCHIVE}" "${DB_BACKUP}"
logger "Database '${DB_NAME}' has been successfully backed up"
rm "${DB_BACKUP}"
fi
done
CMDBuild – Open Source Configuration and Management Database Page 34
Technical Manual Backup of Alfresco data
Backup of Alfresco data
To backup data in Alfresco you just have to backup the PostgreSQL database (hereafter we will
assume that it is in the database PostgreSQL).
As for CMDBuild, the command to backup the database on command line is as follows:
pg_dump --host localhost --port 5432 --username "postgres" --format custom
--verbose --file /backup/alfresco/alfresco.backup alfresco_db
It is also necessary backup - as zip or tar.gz file - also the whole directory containing the
repository where files are saved (e.g.: C:/alfresco/repository for Windows systems or
/var/alfresco/repository for *nix systems).
#!/bin/sh
ALFRESCO_SERVICE="/etc/init.d/alfresco"
TT_PG_BACKUP="/usr/local/bin/tt_pg_backup.sh"
BACKUP_HOME="/backup"
ALFRESCO_BACKUP_HOME="${BACKUP_HOME}/alfresco"
BACKUP_LOG="/var/log/cmdbuild/crontab-backup.log 2>&1"
ALFRESCO_DATABASE="alfresco"
ALFRESCO_DATA="/var/lib/alfresco/data"
TIMESTAMP=`date +%Y%m%d%H%M%S`
ALFRESCO_DATA_BACKUP="alfresco-data-${TIMESTAMP}.tar.gz"
logger "Stopping Alfresco service"
${ALFRESCO_SERVICE} stop
sleep 5
logger "Backupping Alfresco database"
${TT_PG_BACKUP} "${ALFRESCO_BACKUP_HOME}" "${ALFRESCO_DATABASE}" > ${BACKUP_LOG}
logger "Backupping Alfresco data"
tar czf "${ALFRESCO_BACKUP_HOME}/${ALFRESCO_DATA_BACKUP}" ${ALFRESCO_DATA}
logger "Alfresco database/data have been backed up."
logger "Starting Alfresco service"
CMDBuild – Open Source Configuration and Management Database Page 35
Technical Manual Backup of Alfresco data
${ALFRESCO_SERVICE} start
Backup schedule
To schedule a periodical data backup on Linux systems, we suggest you to go on as follows:
1. create a /etc/cron.d/backup file
2. insert the commands into the backup file, with the proper cron syntax.
For a more efficient cleaning we recommend you to create various single scripts, one for each
system, and call them in this file rather than write the commands directly into the cron file itself.
An example:
00 19 * * * root /usr/local/bin/tt_pg_backup.sh /backup/cmdbuild cmdbuild
&>> /var/log/cmdbuild/backup/backup.log
10 19 * * 7 root /usr/local/bin/alfresco-backup.sh &>>
/var/log/cmdbuild/backup/backup.log
CMDBuild – Open Source Configuration and Management Database Page 36
Technical Manual Authentication modes
Authentication modes
Introduction
Thanks to proper configurations of CMDBuild, you can delegate the authentication control to
access external services.
This possibility concerns the control of the account (username and password). Profiles and
permissions are still managed within the CMDBuild group to which the user belongs.
The parameters to configure the behavior of CMDBuild when authenticating are indicated in the file
auth.conf in the directory WEB-INF of the CMDBuild webapps within Tomcat.
From this file is possible.
The file is divided into 4 sections:
configuring the type of authentication
configuring header authentication
configuring LDAP authentication
Single sign on configuration through CAS
Configuring authentication type
Below are the parameters to be set during configuration and their meaning is specified.
1) auth.methods
With this parameter you can define the authentication "chain" of CMDBuild.
It is possible, i.e., to define in cascade which types of authentication you can use to allow access to
the user and set the priority.
Example
auth.methods=LdapAuthenticator,DBAuthenticator
The configuration in the previous example indicates that whenever a user logs into the system,
CMDBuild must first verify the credentials via LDAP, and if they fail, via the data base in CMDBuild.
The accepted parameters are:
HeaderAuthenticator (authentication via header control)
LdapAuthenticator (authentication via credential verification on LDAP)
CasAuthenticator (single sign through CAS)
DBAuthenticator (standard authentication)
2) serviceusers
With this parameter you can define the “service” users of CMDBuild. This kind of privileged users is
planned for the exclusive use of external systems such as, for example, Liferay portlet. So, the
interface login for that kind of users will be disabled.
CMDBuild – Open Source Configuration and Management Database Page 37
Technical Manual Authentication modes
3) force.ws.password.digest
If this parameter is set to "true", it forces the use of specific Username Token with password digest
for authenticating using webservice.
Setting that parameter to "false" you can also use plain text passwords for authentication via
Username Token. This can be useful combined with the use of LDAP for access control within
CMDBuild.
Configuring Header Authentication
From this section you can configure the authentication using the header verification.
To do this simply edit the file header.attribute.name and specify the name of the attribute present
in the HTTP header to be used to authenticate the user on CMDBuild.
This type of authentication requires the presence of an upstream authentication system, which
takes care of generating the specific headers that can then be used to authorize access to
CMDBuild.
Configuring LDAP authentication
This section documents how to configure authentication within CMDBuild via LDAP.
CMDBuild currently supports only authentication "simple bind". However, you can use the
'"anonymous bind" for the user search in the LDAP tree.
In order to manage the user permissions within CMDBuild is necessary that users that have to
access to CMDBuild they are also present within the webapp.
For example, if a user with LDAP UID j.doe needs accessing CMDBuild as a user of the
"technicians" group, you have to perform these steps:
user creation in j.doe CMDBuild with a default password (not necessarily that of LDAP)
creation of the Technical Group and definition of the relevant permits
adding user to group j.doe Technicians
At this point, when you authenticate j.doe, his credentials will be verified (using the authentication
chain defined in auth.methods) against the LDAP tree.
Below there is a description of the configuration parameters.
1) ldap.server.address
This attribute is used to specify the address to which you can reach the LDAP server.
Example:
ldap.server.address=localhost
2) ldap.server.port
This attribute is used to specify the port the LDAP server. The default is 389.
Example:
ldap.server.port=389
CMDBuild – Open Source Configuration and Management Database Page 38
Technical Manual Authentication modes
3) ldap.use.ssl
It specifies whether to use an encrypted connection to the LDAP server. The default is disabled.
Example:
ldap.use.ssl=true
4) ldap.basedn
This attribute indicates the Base DN that will be used to query the LDAP tree.
Example:
ldap.basedn=dc=example,dc=com
5) ldap.bind.attribute
This attribute indicates the attribute will be run on the bind user.
For example, as an attribute for specifying bind dn uid and considering the basis indicated above,
the LDAP query that will be generated uid = username, dc = example, dc = com.
Example:
ldap.bind.attribute=uid
6) ldap.search.filter
You can specify with this attribute, a search filter to be used for research.
Single sign on configuration through CAS
This section documents how to configure the single sign on (SSO) within CMDBuild via CAS.
The authentication runs as follows:
the user asks for the CMDBuild url
the CAS authenticator sends the request to the CAS server (${cas.server.url} + $
{cas.login.page}) specifying the CMDBuild access url (in the ${cas.service.param}
paramter)
the CAS server answers with a ticket (${cas.ticket.param} paramter) which you can extract
the username from
if the username is properly validated/extracted, then CMDBuild gets on with the login
In order to manage the user permissions within CMDBuild is necessary that users that have to
access to CMDBuild they are also present within the webapp.
Below there is a description of the configuration parameters.
1) cas.server.url
This attribute is used to specify the address to which you can reach the CAS server.
Example:
cas.server.url=https://cas.mycompany.com/cas
CMDBuild – Open Source Configuration and Management Database Page 39
Technical Manual Authentication modes
2) cas.login.page
This attribute is used to specify the CAS login page
Example:
cas.login.page=/login
3) cas.service.param
Name of the parameter that CAS uses to specify the url of the authentication service.
Example:
cas.service.param=service
4) cas.ticket.param
Name of the parameter that CAS uses to specify the ticket reference that it generates until the
authentication is valid.
Example:
cas.ticket.param=ticket
CMDBuild – Open Source Configuration and Management Database Page 40
Technical Manual Access to CMDBuild resources via URL
Access to CMDBuild resources via URL
Introduction
CMDBuild allows you to set oneself via URL on your resources.
At the moment "classes" resources are being managed, but in the future the mechanism will be
extended to manage filters, reports, etc.
In case of previous authentication of the user, the criteria-compatible URL query will cause a new
positioning on that asset. Alternatively you will be redirected to the login page and only later you
will be moved to the aforementioned asset.
The feature can be useful to insert into CMDBuild notifications the link to the ticket page, in order to
allow the management software of a telephone exchange to open a client card, to view an asset
card reading a code, etc.
Examples of valid URL
Samples of URL, valid according to the foreseen implementation criteria.
We remember you that placement URLs can be used on a class and on a card according to the
value of its key-field (the first three examples).
Further extensions will be gradually activated with next releases.
All URLs are related to the CMDBuild base address. In case of CMDBuild on-line demo instance,
the URL #classes/Employee/cards/ should be:
http://demo.cmdbuild.org/cmdbuild/index.jsp#classes/Employee/cards/
Some examples:
#classes/Employee/cards/
display of a class card
#classes/Building/cards/76/
card selection with specific “Id”
#classes/Employee/cards/TelephoneNumber~123456/
selection of a card from a telephone number using the simple filter
#classes/Employee/cards?clientFilter={"attribute":{"simple":{"attribute":"Phone","operator":"equal","value":["76543"]}}}
selection of a card from a telephone number
#classes/Building/cards?clientFilter={"attribute":{"simple":{"attribute":"Description","operator":"contain","value":
["Building"]}}}
selection of a card from a general filter
#classes/Building/cards/76/print?format=pdf
card print in PDF format
#classes/Building/print?format=csv
grid print of the class in CSV format
CMDBuild – Open Source Configuration and Management Database Page 41
Technical Manual Mobile interface activation
Mobile interface activation
Introduction
CMDBuild "mobile" is an interface that can be used on smartphones and tablets in order to run
useful application features during the activities in the field.
It is created with Sencha Touch (Javascript framework developed by Sencha, the same producer
of the Ext JS framework used by CMDBuild desktop) and it is able to interact with CMDBuild
through the REST webservice.
CMDBuild mobile implements the main features of the desktop interface: multilingual, multigroup
login, navigation menu, class management with relations and attachments, researches and filters,
workflow management with the most used widgets, report management, usefulness ("app" settings
and log management).
Components and Architecture
This APP is created using the following components:
Sencha Touch
framework Javascript created by Sencha
Cordova
framework mobile cross-platform
Deft JS
extension for mobile enterprise applications developed with Sencha Touch
log4javascript
javascript logging framework
Crosswalk (Android)
tool to deploy the application on the custom webview independent from the Android version
Siesta
library for unit tests / integration tests
Server-side the REST web service layer is developed using the CXF framework Apache, already
integrated in CDMBuild and used for the SOAP web service layer.
The system retraces the software architecture of the REST web service with the following features:
features divided in web resources
addressable resources (URI)
HTTP standard methods (GET, PUT, POST, DELETE)
JSON media type
link for the resource navigation
stateless

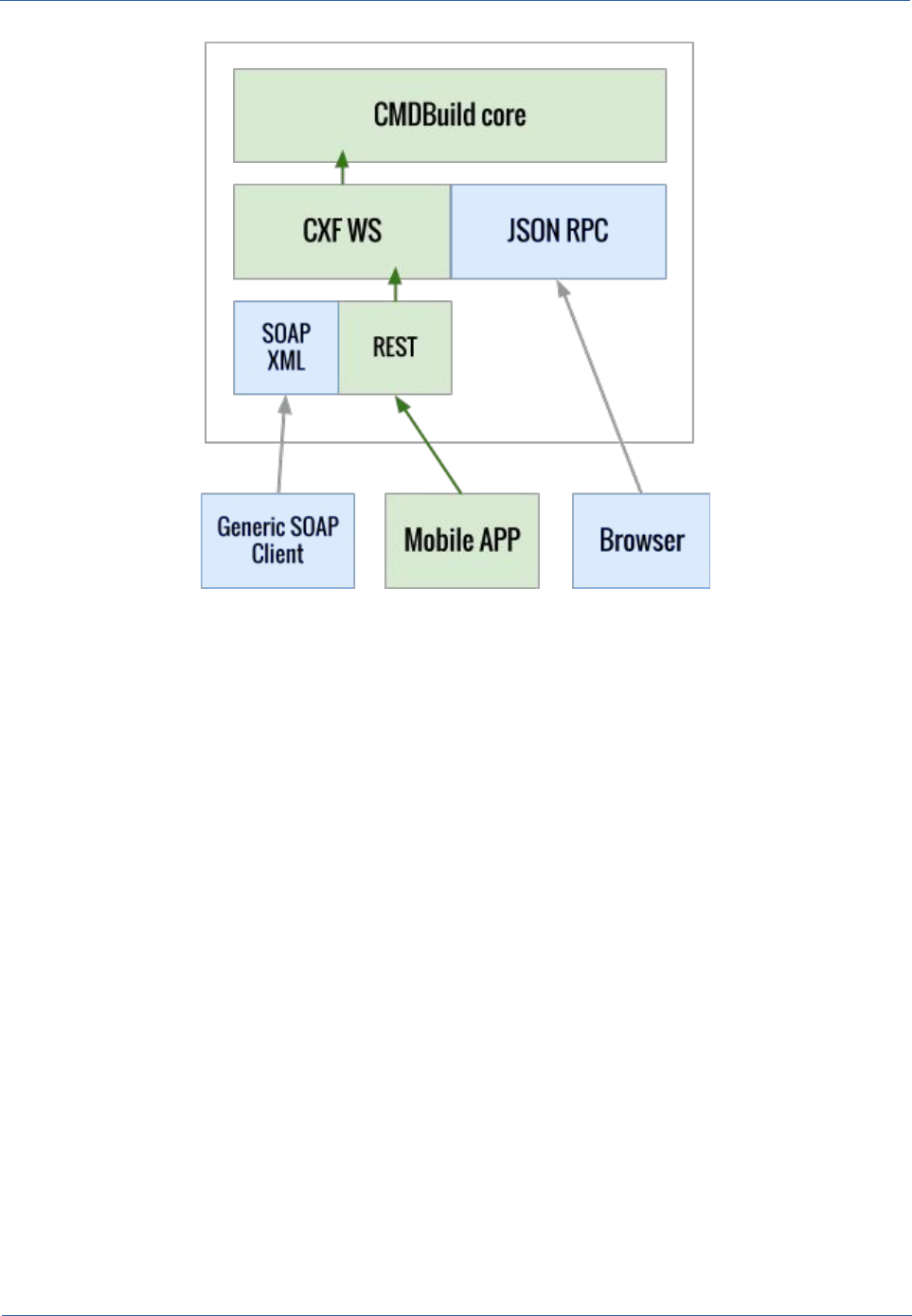

Architecture drawing:
CMDBuild – Open Source Configuration and Management Database Page 42
Technical Manual Mobile interface activation
Compatibility
Android 4.0.3 or more recent
iOS 6 or more recent
Limitations of use
The mobile interface is made available with non-open source license, which allows only those who
have signed with Tecnoteca srl a maintenance service for the CMDBuild application to use the
service, and only until that service is active, with a limited additional charge.
CMDBuild – Open Source Configuration and Management Database Page 43
Technical Manual GUI Framework activation
GUI Framework activation
Introduction
The GUI Framework makes available a simplified interface to non-technical staff.
The GUI Framework includes the following main features:
it can be activated in portals based on different technologies as it is developed in
javascript / JQuery environment
it allows an (almost) unlimited freedom when projecting the graphic layout, defined through
an XML descriptor and with the possibility of intervening on the CSS
it grants a quick configuration thanks to predefined functions (communication,
authentication logics, etc.) and to native graphic solutions (forms, grids, upload buttons and
other widgets)
it interacts with CMDBuild through the REST webservice
it is able to gather data from the database of other applications, allowing the management
of mix solutions
Configuration
The framework defines HTML pages starting from their definition in XML.
Such pages can be inserted into a HTML file, allowing the framework to insert into existing portals
access points to CMDBuild data.
The system configurability can be achieved through the definition of custom CSS and Javascript.
The element that should be inserted into the portal html is a html container (DIV, IFRAME ...) in the
following format:
<script src="//ajax.googleapis.com/ajax/libs/jquery/2.1.1/jquery.min.js"></script>
<script type="text/javascript" src="http://10.0.0.107:8080/cmdbuild-gui-framework/api/cmdbuildAP.js"></script>
<script type="text/javascript">
$( document ).ready(function(){
$("#cmdbuilForm").cmdbuildAP({
apiUrl : 'http://10.0.0.107:8080/cmdbuild/services/rest/',
appRootUrl : 'http://10.0.0.107:8080/cmdbuild-gui-framework/api/',
appConfigUrl : 'http://10.0.0.107:8080/cbap/cbap/config/bologna/',
cqlUrl : 'http://10.0.0.107:8080/cbap/cbap/cql/',
customjs : [
'backend/GUIForm.js',
'backend/Process.js'
],
start: "home.xml",
theme: [
"jquery-ui.theme-crt-toscana.min.css",
CMDBuild – Open Source Configuration and Management Database Page 44
Technical Manual GUI Framework activation
"custom.css"
],
});
});
</script>
<div id="cmdbuilForm"></div>
The style configuration is designated to CSS, which can directly uploaded from the Html tag. This
makes the GUI flexible, allowing the programmer to include it into the portal so that is does not look
like an unrelated element.
You can also define the servers that contain the CMDBuild system, the form configuration files and
the Cql engine, the native data query language in CMDBuild.
In the tag customjs some GUI customization files are inserted.
The tag uploads the GUI engine configuring it with the above-mentioned files.
The forms are defined in XML through a language that is similar to HTML, with the possibility of
defining data management forms directly linked to metadata defined in CMDBuild.
All GUI tags, commands and behaviours can be configured again by the programmer according to
the system criteria.
Since the library refers to JQuery, where the GUI Framework was developed, the programmer can
natively use every plugin compatible with JQuery, developing the available features.
Another element that marks the GUI operation is the "backend" mechanism, i.e. the Javascript
classes that link the GUI to the servers. In this way the application provides further freedom
provided by the possibility to define the data format the server is waiting for and the name of the
server you want to link to.
CMDBuild – Open Source Configuration and Management Database Page 45
Technical Manual Liferay portlet activation
Liferay portlet activation
Introduction
Even though it is a solution overreached by the GUI Framework, CMDBuild makes still available
JSR186 portlets through which you can export some of its features in compatible intranet portals
(the CMDBuild portlet is currently certified with the open source Liferay portal).
JSR168 Portlets are Java web components that can be used as a plug-in within "containers" such
as web portals compatible with this standard.
With this mechanism you can configure a custom portal by placing portlets in the pages of interest
and sharing some services of the host system including the authentication.
As in the previous paragraph CMDBuild portlets communicate through their webservice.
The CMDBuild portlet makes available some features to non-technical users, because would find
difficult to use the application standard interface.
The portlet includes the following functions:
management of a data sheet (insert, modify, delete)
initiation and progress of a process
running a report
The configuration includes two aspects:
configuration of CMDBuild portlets in Liferay
configuration of CMDBuild
The portlet CMDBuild JSR 168 includes three different management options:
access only to users registered as system users of CMDBuild
access also to users of "guest" type (i.e. not registered as system users of CMDBuild), but
included in a class "application" CMDBuild configured (e.g. employees, suppliers, etc.)
access also to users of "guest" type (ie not registered CMDBuild System), which are not
even included in an "application" class of CMDBuild (e.g. citizens, students, etc.)
Installing Liferay portlet
The configuration options are stored in two files:
portlet.properties (this file is a "template" and should not be changed)
portlet-ext.properties (overwrites the "template" file, all customizations are to be included in
this file)
The two files are stored in the directory:
WEB-INF/classes
within the portlet webapp.
CMDBuild – Open Source Configuration and Management Database Page 46
Technical Manual Liferay portlet activation
The main parameters are:
cmdbuild.url: URL of the CMDBuild webservice(default
http://localhost:8080/cmdbuild/services/soap/Private)
cmdbuild.user: user-id for accessing the webservice (default "portlet")
cmdbuild.password: password for accessing the webservice (default "portlet")
cmdbuild.group: the above user's group membership (default "Guest", you have to create
it in CMDBuild)
user.class: the "application" class of CMDBuild containing the list of users who will have
access to portlets
user.attribute.username: the attribute containing the username, in the class indicated in
the previous step (default "Username")
user.attribute.email: the attribute containing the email address, within the class specified
in the preceding paragraph (default Email)
auth.method: the authentication policy, which may take the value "username" or "email"
(default "email")
Example:
cmdbuild.url=http://localhost:8080/cmdbuild-test/services/soap/Private
user.class=Employee
These values override the default properties with a new URL and a new class name.
Warning
For the changes of the configuration parameters to take effect, you have to restart Liferay.
CMDBuild configuration
In the following we will refer with ${CMDBUILD} the directory containing the CMDBuild "webapp"
inside Tomcat.
Webservice user
You have to modify the file ${CMDBUILD}/WEB-INF/conf/auth.conf and change the property
serviceusers in accordance with the value defined for the property cmdbuild.user defined in the
portlet-ext.properties. For the change to take effect you have to restart CMDBuild.
Then, from within the CMDBuild Administration module, you have to:
create a new user (as defined in the cmdbuild.user property of the portlet-ext.properties
file)
create a new group (as defined in the cmdbuild.group property of the portlet-
ext.properties file)
add the new user to the new group
set the new group as a group "default login" for the new user (required for authentication
type "guest")
create a "custom" menu for the new group (optional)
CMDBuild – Open Source Configuration and Management Database Page 47
Technical Manual GeoServer
GeoServer
Introduction
CMDBuild includes the ability to manage the geo-reference of the assets or of other information
entities (customers, suppliers, locations, etc.) through visualization on maps and/or floor plans.
The geo-reference on the territory is made by integrating external services such as
OpenStreetMap, Google maps, etc., while the management of plans has been implemented by
using the GeoServer open source system.
Through the use of GeoServer you can add custom layers (e.g. plans) that you can use in the GIS
module.
Supported formats are:
Shape
GeoTiff
WorldImage.
Installing Geoserver
In order to install Geoserver it is necessary to:
download the application from the official website (http://geoserver.org/)
deploy the war file in Tomcat
log-in using the username admin and password geoserver
delete all preinstalled workspaces
create one workspace called, for example, "cmdbuild"
Configuring CMDBuild
Once you select the Administration Module of CMDBuild, you have to access the GIS page of the
Setup menu and to enable the GIS module.
In order to do so you access the GIS menu and set the following items:
External Services
enable GeoServer
specify the parameters related to the installation
specify the name of the workspace you created earlier
specify the credentials of the administrator
Geoserver layers
add the necessary layers, which are then stored in Geoserver
Layers order
specify the order of layers as will be presented in the Management Module
CMDBuild – Open Source Configuration and Management Database Page 48
Technical Manual BIMServer
BIMServer
General Information
CMDBuild includes the ability to manage the geo-reference of the assets through visualization with
BIM features (Building Information Modeling).
With the georeference onto BIM models (exported to the IFC standard) the external open source
BIMServer service -which should be set up separately - is integrated.
BIM IFC connector
CMDBuild integrates an IFC file viewer (ISO 16739:2013) and a connector to import automatically
data from IFC files.
The BIM module of CMDBuild is based on a bidirectional data exchange between CMDBuild and
the "BimServer" application (Open source Building Information Modelserver).
To configure the BIM features of CMDBuild follow the following steps:
activate a functioning installation of BimServer
configure the connection between CMDBuild and BimServer (Administration
Configuration → BIM)
create a project and upload an IFC file from the page Projects (Administration BIM
Projects)
define the class to link the IFC file (e.g. Building) from the page Levels (Administration
BIM → Levels) setting up Root = true
set up the connection between the project and the class card configured like Root at the
previous point
At this point you are able to open the viewer from the data management module.
In order to import automatically some entities defined in the IFC file, please follow these steps:
set up Active = true the classes where you want to import data from the Level page to
configure mapping criteria between IFC entities and CMDBuild classes inserting an xml
bloc into the column ImportMapping of the table _BimProject in the CMDBuild database; an
example of the format supported by this field is as follows:
<bim-conf>
<entity name="IfcBuilding" label="Building">
<attributes>
<attribute type="simple" name="Name" label="Code" />
<attribute type="simple" name="Description" label="Name" />
</attributes>
</entity>
</bim-conf>
where
CMDBuild – Open Source Configuration and Management Database Page 49
Technical Manual BIMServer
“IfcBuilding” is the ifc source type, “Building” is the CMDBuild target class
“Name” is the ifc source attribute, “Code” is the CMDBuild target attribute
“simple” is the IFC attribute type expected by the scheme that defines the IFC language
click on the button “Import IFC” in the Project page in order to start the import
CMDBuild – Open Source Configuration and Management Database Page 50
Technical Manual Database design details
Database design details
Design Criteria

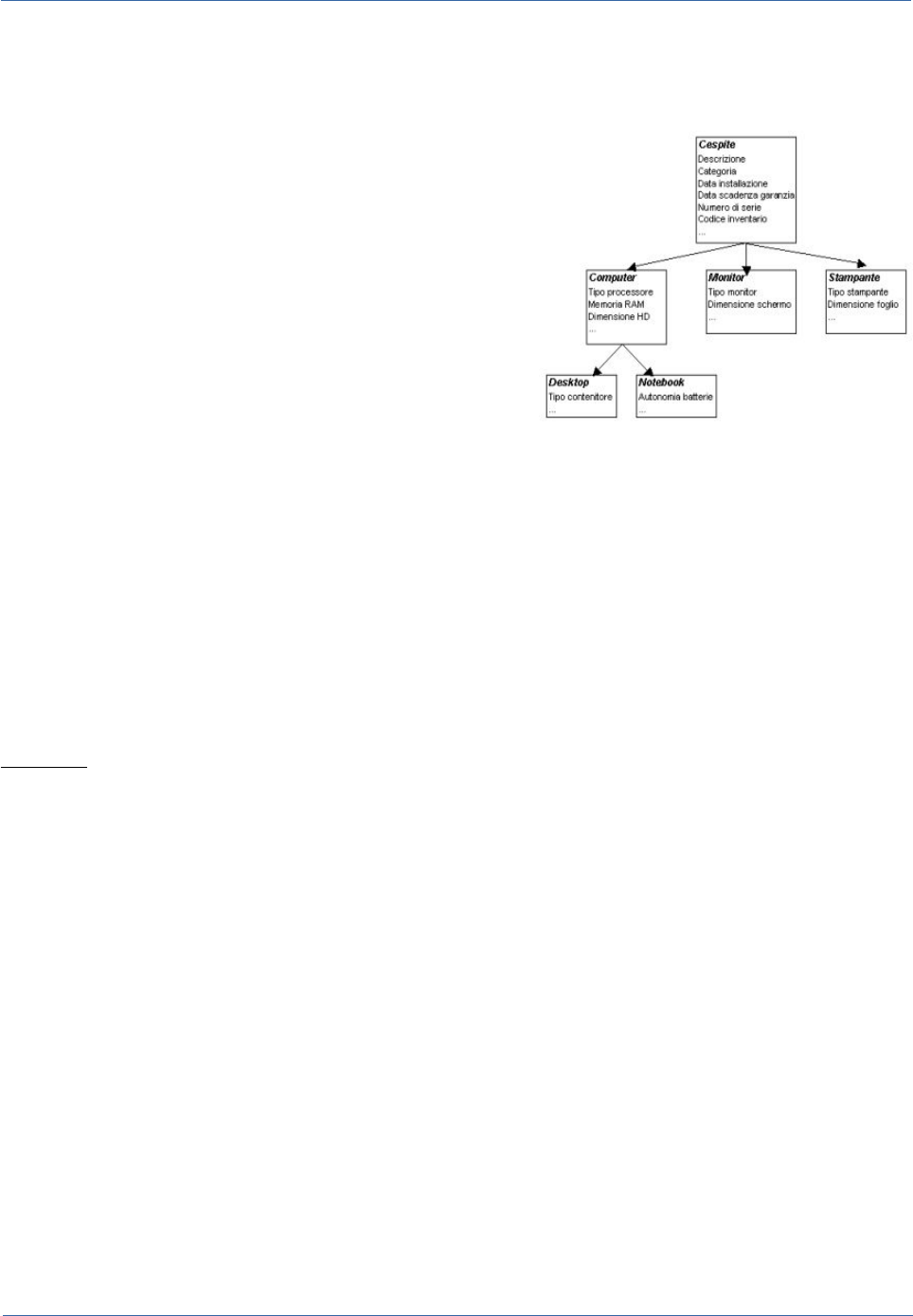

The database design had to respond to a set of basic
requirements:
managing the multi-level hierarchical structure of
classes (superclass / subclass), in order to
specialize a class while maintaining general
attributes in the superclasses
managing relationships "many to many" between
classes
tracing the complete history of data changes
over time and relationships
For all three requirements have been identified as particularly useful the mechanism of "derivation"
between classes made available by the open source object-relational database PostgreSQL.
It was therefore decided to use PostgreSQL as database support for CMDBuild, thereby designing
in an extremely natural way the structures described above.
Inheritance
1) Multi-level hierarchical structure
Using the keyword "inherits" it is possible to create a table in PostgreSQL that "specializes"
another, adding some specific attributes and finding all the attributes defined in the superclass.
Example:
CREATE TABLE "Asset"
(
"Id" integer NOT NULL DEFAULT nextval('Asset_SEQ'::text),
"Code" varchar(100),
"Description" varchar(250),
"SerialNo" varchar(40),
"VersionNo" varchar(32),
"InstallationDate" timestamp,
"WarrantyExpireDate" timestamp,
"State" varchar(16),
"StateDate" timestamp,
CONSTRAINT asset_pkey PRIMARY KEY ("Id")
)
CMDBuild – Open Source Configuration and Management Database Page 51
Technical Manual Database design details
CREATE TABLE "Monitor"
(
"MonitorType" varchar,
"ScreenSize" varchar(16),
"MaxScreenRes" varchar(16)
) inherits ("Asset")
2) "Many to many" relations
The different types of relationships between classes are implemented, each with a specific
relationship table "many to many", created by derivation from a superclass defined by default in
order to simplify the creation of subclasses and to ensure the structural homogeneity.
Example:
CREATE TABLE "Map"
(
"Id" integer NOT NULL DEFAULT nextval('Map_SEQ'::text),
"IdDomain" regclass,
"IdClass1" regclass,
"IdObj1" integer NOT NULL,
"IdClass2" regclass,
"IdObj2" integer NOT NULL,
"Status" character(1),
"User" character varying(40),
"BeginDate" timestamp without time zone NOT NULL DEFAULT now(),
"EndDate" timestamp without time zone,
CONSTRAINT map_pkey PRIMARY KEY ("Id")
)
CREATE TABLE " Map_aggregation"
(
) inherits ("Map")
3) Change history
The derivation mechanism of the classes in PostgreSQL is used also for the management of the
history of changes. In order to achieve this, we create a derived class for each type of object, in
which through special triggers the current record is stored in the database before changing its
attributes, associating the "Id" of the record, the modification date and the login of the operator who
made the change.
CMDBuild – Open Source Configuration and Management Database Page 52
Technical Manual Database design details
Example:
CREATE TABLE "Monitor"
(
"MonitorType" varchar,
"ScreenSize" varchar(16),
"MaxScreenRes" varchar(16)
) inherits ("Asset")
CREATE TABLE "Monitor_history"
(
"CurrentId" integer NOT NULL,
"EndDate" timestamp NOT NULL DEFAULT now()
) inherits ("Monitor")
Through the same mechanism we handle the story of changes in relationships, that is, by creating
a derived class for each type of relationship, in which through special database triggers records are
stored before deleting the current relationship. This is done by attaching the "Id" of the record, the
modification date and the login of the operator who made the change.
Primitive superclasses: "Class" and "Map"
On the basis of the philosophy described above we defined two system superclasses called
respectively:
"Class," which is the generic data class from which to derive the specific cards of the
different data models
"Map", which is the generic table of relationships between pairs of classes
The meaning of the attributes of both superclasses is described in the following table:
"Class" Superclass
Activity name SQL Type Description
Id integer table primary key
IdClass regclass Table OID
BeginDate timestamp insertion date
User varchar(40) the user who inserted the record
Status character(1) logical state of the record (A = active, deleted = N,
U = updated)
Code varchar(100) data field: it can be used to store the identifier of a
record (e.g. the serial number of a computer)
the "Code" field can be renamed (e.g. "VATCode"
in a class containing customers or suppliers) or it
can be disabled.
CMDBuild – Open Source Configuration and Management Database Page 53
Technical Manual Database design details
Description varchar(250) data field: is the description of the record
in CMDBuild it is very important since the value is
shown in the selection lists to set the "reference"
attributes (foreign keys of other classes)
Notes text free notes
"Map" Superclass
Activity name SQL Type Description
IdDomain regclass Table OID
IdClass1 regclass OID of the first class
idObj1 integer index of the object in relation for the first class
IdClass2 regclass OID of the second class
idObj2 integer index of the object in relation for the second class
User varchar(40) the user who inserted the record
Status character(1) logical state of the record (A = active, deleted = N,
U = updated)
BeginDate timestamp insertion date
EndDate timestamp insertion date
All the tables defined in the CMDBuild application inherit from the "Class" table. This table add
specific descriptive fields to the information the tables represent.
Derived tables can be "Super Class" or normal "Class". Only the latter contain data, the first are
used as a logical grouping of classes useful for defining attributes common to multiple classes and
domains in a more general way.
Each normal class in the database is accompanied by a further table, dedicated to the changed
data history, whose name is the same but completed with the suffix "_history". The "historical"
tables inherit from the tables and share all the fields with the tables from which they derive,
completed only with the link to the active card and with the link to the expiry date.
Each time a record of the main table undergoes a change or cancellation the original record is
moved to the history table. During this operation the values of the column "Status" (according to
the table above) and of the column "EndDate" (with the timestamp of the transaction) are updated.
Similarly, all domains between Classes or Super Classes inherit from the "Map" Table and each
inherited domain holds the corresponding table for versioning (with the same suffix "_history").
By convention all domains have the prefix "Map_".
Metadata
To define the data model CMDBuild uses a set of metadata, associated to the tables and their
attributes which extend the basic metadata managed by PostgreSQL.
For storing such metadata the comments associated with tables and columns are used. They are
stored in the system table "pg_description".
The metadata structure follows a strict and forced syntax, structured according to a key / value that
follows the syntax defined by the following regular expression:
CMDBuild – Open Source Configuration and Management Database Page 54
Technical Manual Database design details
(([A-Z0-9]+): ([#A-Za-z0&-9éèìùòà_\-\:\s]*)|+)*
For example, a comment can be:
MODE: read|DESCR: some text
The valid comments related to a class as a whole are:
Metadata for class definition
Key Meaning Possible values Notes
MODE access modes reserved|read|write mandatory
TYPE table type class|domain mandatory
SUPERCLASS indicates whether the
table is a superclass or
not
true|false default = false
DESCR description shown to
the user
any value mandatory
STATUS status of use of the
table
active|not active mandatory
All other keys are ignored by the system that interprets the metadata.
The valid comments related to an attribute are:
Attributes metadata
Key Meaning Possible values Notes
MODE access modes reserved|read|write mandatory
DESCR description shown to
the user on the
management form
(label)
any value mandatory
INDEX display order of the
attribute on the
management form
a number physical position in
the DB, if absent
BASEDSP indicates whether the
attribute is shown in the
"grid" display
true|false default = false
GROUP Display "page" of the
attribute (for paging)
a string containing
the label assigned
to the page
FIELMODE Field display mode write|hidden|read
REFERENCEDOM domain used to set a
reference field
a valid domain for
the class
not mandatory
REFERENCEDIRECT direction of the
relationship with
respect to the
corresponding domain
true|false Mandatory only if you
valorized
REFERENCEDOM
REFERENCETYPE reference type restrict Mandatory only if you
CMDBuild – Open Source Configuration and Management Database Page 55
Technical Manual Database design details
according to delete
operations
valorized
REFERENCEDOM
LOOKUP lookup list bound to the
attribute
a lookup list not mandatory
STATUS status of use of the
table
active|not active mandatory
All other keys are ignored by the system that interprets the metadata.
The users are advised not to intervene manually on such metadata, so as not to cause serious
malfunctions in the CMDBuild mechanisms and consequently in the consistency of the data stored
in the system.
CMDBuild – Open Source Configuration and Management Database Page 56
Technical Manual APPENDIX: Glossary
APPENDIX: Glossary
ATTACHMENT
An attachment is a file associated to a card.
Attachments containing text (PDF, Open Office, Microsoft Word, etc.) are indexed in full text mode
so that they can appear in search results.
WORKFLOW STEP
"Activity" means one of the steps of which the process consists.
An activity has a name, an executor, a type, possible attributes and methods with statements
(CMDBuild API) to be executed.
A process instance is a single process that has been activated automatically by the application or
manually by an operator.
See also: Process
ATTRIBUTE
The term refers to an attribute of a CMDBuild class.
CMDBuild allows you to create new attributes (in classes and domains) or edit existing ones.
For example, in "supplier" class the attributes are: name, address, phone number, etc..
Each attribute corresponds, in the Management Module, to a form field and to a column in the
database.
See also: Class, Domain, Report, Superclass, Attribute Type
BIM
Method with the aim to support the whole life cycle of a building: from its construction, use and
maintenance, to its demolition, if any.
The BIM method (Building Information Modeling) is supported by several IT programs that can
interact through an open format for data exchange, called IFC (Industry Foundation Classes).
See also: GIS
CI
We define CI (Configuration Item) each item that provides IT service to the user and has a
sufficient detail level for its technical management.
CI examples include: server, workstation, software, operating system, printer, etc.
See also: Configuration
CLASS
A Class is a complex data type having a set of attributes that describe that kind of data.
A Class models an object that has to be managed in the CMDB, such as a computer, a software, a
service provider, etc.
CMDBuild – Open Source Configuration and Management Database Page 57
Technical Manual APPENDIX: Glossary
CMDBuild allows the administrator - with the Administration Module - to define new classes or
delete / edit existing ones.
Classes are represented by cards and, in the database, by tables automatically created at the
definition time.
See also: Card, Attribute
CONFIGURATION
The configuration management process is designed to keep updated and available to other
processes the items (CI) information, their relations and their history.
It is one of the major ITIL processes managed by the application.
See also: CI, ITIL
DASHBOARD
In CMDBuild, a dashboard corresponds to a collection of different charts, in this way you can
immediately hold in evidence some key parameters (KPI) related to a particular management
aspect of the IT service.
See also: Report
DATABASE
The term refers to a structured collection of information, hosted on a server, as well as utility
software that handle this information for tasks such as initialization, allocation, optimization,
backup, etc..
CMDBuild relies on PostgreSQL, the most powerful, reliable, professional and open source
database, and uses its advanced features and object-oriented structure.
DOMAIN
A domain is a relation between two classes.
A domain has a name, two descriptions (direct and inverse), classes codes, cardinality and
attributes.
The system administrator, using the Administration Module, is able to define new domains or
delete / edit existing ones.
It is possible to define custom attributes for each domain.
See also: Class, Relation
DATA FILTER
A data filter is a restriction of the list of those elements contained in a class, obtained by specifying
boolean conditions (equal, not equal, contains, begins with, etc.) on those possible values that can
be accepted by every class attribute.
Data filters can be defined and used exceptionally, otherwise they can be stored by the operator
and then recalled (by the same operator or by operators of other user groups, which get the
permission to use them by the system Administrator)
See also: Class, View
CMDBuild – Open Source Configuration and Management Database Page 58
Technical Manual APPENDIX: Glossary
GIS
A GIS is a system able to produce, manage and analyse spatial data by associating geographic
elements to one or more alphanumeric descriptions.
GIS functionalities in CMDBuild allow you to create geometric attributes (in addition to standard
attributes) that represent, on plans / maps, markers position (assets), polylines (cable lines) and
polygons (floors, rooms, etc.).
See also: BIM
GUI FRAMEWORK
It is a user interface you can completely customise. It is advised to supply a simplified access to
the application. It can be issued onto any webportals and can be used with CMDBuild through the
standard REST webservice.
See also: Mobile, Webservice
ITIL
"Best practices" system that established a "standard de facto"; it is a non-proprietary system for the
management of IT services, following a process-oriented schema (Information Technology
Infrastructure Library).
ITIL processes include: Service Support, Incident Management, Problem Management, Change
Management, Configuration Management and Release Management.
For each process, ITIL handles description, basic components, criteria and tools for quality
management, roles and responsibilities of the resources involved, integration points with other
processes (to avoid duplications and inefficiencies).
See also: Configuration
LOOKUP
The term "Lookup" refers to a pair of values (Code, Description) set by the administrator in the
Administration Module.
These values are used to bind the user's choice (at the form filling time) to one of the preset
values.
With the Administration Module it is possible to define new "LookUp" tables according to
organization needs.
MOBILE
It is a user interface for mobile tools (smartphones and tablets). It is implemented as multi-platform
app (iOS, Android) and can be used with the CMDB through the REST webservice.
See also: GUI Framework, Webservice
PROCESS
The term "process" (or workflow) refers to a sequence of steps that realize an action.
Each process will take place on specific assets and will be performed by specific users.
A process is activated by starting a new process (filling related form) and ends when the last
workflow step is executed.
See also: Workflow step
CMDBuild – Open Source Configuration and Management Database Page 59
Technical Manual APPENDIX: Glossary
RELATION
A relation is a link between two CMDBuild cards or, in other words, an instance of a given domain.
A relation is defined by a pair of unique card identifiers, a domain and attributes (if any).
CMDBuild allows users, through the Management Module, to define new relations among the
cards stored in the database.
See also: Class, Domain
REPORT
The term refers to a document (PDF or CSV) containing information extracted from one or more
classes and related domains.
CMDBuild users run reports by using the Management Module; reports definitions are stored in the
database.
See also: Class, Domain, Database
CARD
The term "card" refers to an element stored in a class.
A card is defined by a set of values, i.e. the attributes defined for its class.
CMDBuild users, through the Management Module, are able to store new cards and update /
delete existing ones.
Card information is stored in the database and, more exactly, in the table/columns created for that
class (Administration Module).
See also: Class, Attribute
SUPERCLASS
A superclass is an abstract class used to define attributes shared between classes. From the
abstract class you can derive real classes that contain data and include both shared attributes
(specified in the superclass) and specific subclass attributes.
For example, you can define the superclass "Computer" with some basic attributes (RAM, HD,
etc.) and then define derived subclasses "Desktop", "Notebook", "Server", each one with some
specific attributes.
See also: Class, Attribute
ATTRIBUTE TYPE
Each attribute has a data type that represents attribute information and management.
The attribute type is defined using the Administration Module and can be modified within some
limitations, depending on the data already stored in the system.
CMDBuild manages the following attribute types: "Boolean", "Date", "Decimal", "Double", "Inet" (IP
address), "Integer", "Lookup" (lists set in "Settings" / "LookUp"), "Reference" (foreign key), "String",
"Text", "Timestamp".
See also: Attribute
VIEW
A view not only includes the whole content of a CMDB class, it is a group of cards defined in a
CMDBuild – Open Source Configuration and Management Database Page 60
Technical Manual APPENDIX: Glossary
logical way.
In particular, a view can be defined in CMDBuild by applying a filter to a class (so it will contain a
reduced set of the same rows) or specifying an SQL function which extracts attributes from one or
more related classes.
The first view type maintains all functionalities available for a class, the second one allows the sole
display and search with fast filter.
See also: Class, Filter
WEBSERVICE
A webservice is an interface that describes a collection of methods, available over a network and
working using XML messages.
With webservices, an application allows other applications to interact with its methods.
CMDBuild includes a SOAP and a REST webservice.
WIDGET
A widget is a component of a GUI that improves user interaction with the application.
CMDBuild uses widgets (presented as "buttons") that can be placed on cards or processes. The
buttons open popup windows that allow you to insert additional information, and then display the
output of the selected function.
CMDBuild – Open Source Configuration and Management Database Page 61

Navigation menu
