1⁄32 DIN Temperature, Process And Strain PID Controllers CNI32 Series

User Manual: CNI32

Open the PDF directly: View PDF PDF.
Page Count: 3

1

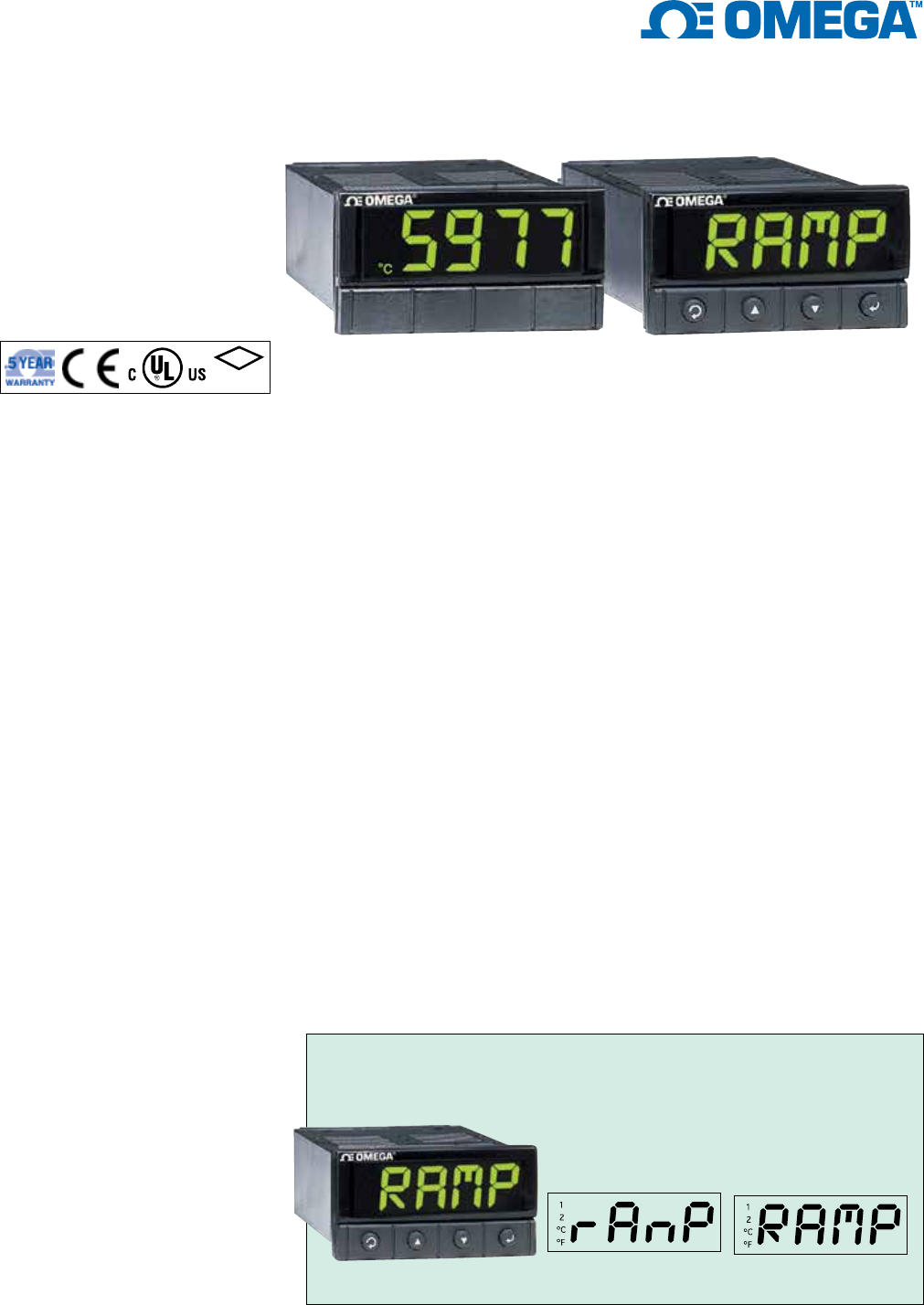

The iSeries displays feature unique 9‑segment LED characters, which greatly
improves alphanumeric representations. The 7‑segment LED characters found
on most instruments are adequate for presenting numbers, but not letters.
Words are easier to read with the unique
9‑segment LED characters on the iSeries,
which makes operating and programming
simpler and easier.
9-segment LED
9‑segment display
7‑segment display 9‑segment display
7‑segment display
The OMEGATM CNi32 is the iSeries
controller in the extremely compact
and increasingly popular 1⁄32 DIN size
(22.5 x 45 mm cutout). The CNi32 is
the most sophisticated and accurate
instrument available in the small
1⁄32 DIN package, yet is still easy
to configure.
The CNi32 handles more
thermocouple, RTD, process
voltage and current inputs than
any other 1⁄32 DIN controller.
The CNi32 is the first 1⁄32 DIN
controller with built‑in excitation
for transmitters or other devices,
24 Vdc @ 25 mA.
The CNiS32 has built‑in excitation
for bridge transducers, 5 Vdc @
40 mA or 10 Vdc @ 60 mA. When
communications options are
installed, external excitation may
be used and ratiometric operation
maintained by connecting the
external excitation to the sense
leads. Both 4‑ or 6‑wire bridge
configurations are supported for
internal or external excitation.
Non‑ratiometric operation is supported
for voltage and current transducers
and is also valuable in measuring
offset and millivolt output of bridge
devices during manufacturing and
calibration. This model also features
10‑point linearization which allows
the user to linearize the signal
input from extremely nonlinear
transducers of all kinds.
The CNi32 introduces a number of
unique features not yet found on any
other 1⁄32 DIN instrument. The CNi32
is the first 1⁄32 DIN controller with a
totally programmable display that
can change color between GREEN,
AMBER, and RED at any setpoint
or alarm point.The unique 9‑segment
LED characters greatly improves
alphanumeric representations.
The CNi32 is the first 1⁄32 DIN
controller offering 2 SPDT Form C
relays, instead of the single throw
relays on typical 1⁄32 DIN controllers.
The CNi32 is the first to offer
both RS232 and RS422/485 serial
communications in 1 instrument
(C24 option). The ASCII protocol is
selectable from the menu.
U High Accuracy: ±0.03%
Reading, 0.5°C (±0.9°F)
U Totally Programmable
Color Displays
U User-Friendly,
Simple to Configure
U Free Software
U Full Autotune
PID Control
U Universal Inputs:
Thermocouple RTD,
Process Voltage/
Current, Strain
U RS232 and RS485
Serial Communications
(Optional)
U Built-in Excitation
U Temperature Stability
±0.04°C/°C RTD and
±0.05°C/°C TC
@ 25°C (77°F)
U NEMA 4 (IP65)
Front Bezel
U 2 Control or Alarm
Outputs Optional:
DC Pulse, Solid State
Relays, Mechanical
Relays, Analog Voltage
and Current
U Front Removable and
Plug Connectors
CNi3233, smaller than actual size.
CNi32 Series
1⁄32 DIN Temperature,
Process and Strain PID Controllers
FM
APPROVED
For Temp. Units
2
22.50 +0.61/-0
(0.886 +0.024/-0.000) 45.00 +0.61/-0.00 (1.772 +0.024/-0.000)
PANEL THICKNESS
6.4 MAX
0.6 MIN
PANEL CUTOUT 1/32 DIN
Comes complete with DPi32-B-COVER and operator’s manual.
Ordering Examples: CNi3222-C24, 1⁄32 DIN PID controller with 2 solid-state relays for PID
control and serial communications, both RS232 and RS485.
CNiS322-AL, 1⁄32 DIN strain/process controller, limit alarm version with SSR output.
DPi32-B-COVER front
panel button cover
supplied with each
unit, standard.
CNi3233, shown smaller
than actual size.
CNi3244, shown smaller
than actual size.
To Order
Model No. Output 1 Output 2
Temperature/Pressure Input
CNi3222 0.5 A SSR 0.5 A SSR
CNi3223 0.5 A SSR Relay
CNi3224 0.5 A SSR DC pulse
CNi3233 Relay Relay
CNi3242 DC pulse 0.5 A SSR
CNi3243 DC pulse Relay
CNi3244 DC pulse DC pulse
CNi3252 Analog 0.5 A SSR
CNi3253 Analog Relay
CNi3254 Analog DC pulse
Strain/Process Input
CNiS3222 0.5 A SSR 0.5 A SSR
CNiS3223 0.5 A SSR Relay
CNiS3224 0.5 A SSR DC pulse
CNiS3233 Relay Relay
CNiS3234 Relay DC pulse
CNiS3242 DC pulse 0.5 A SSR
CNiS3243 DC pulse Relay
CNiS3244 DC pulse DC pulse
CNiS3252 Analog 0.5 A SSR
CNiS3253 Analog Relay
CNiS3254 Analog DC pulse
REAR VIEW
48.0 (1.89)
25.4 (1.00)
FRONT VIEW
48.0 (1.89)
25.4 (1.00)
Dimensions: mm (inch)
Options
Suffix Ordering Description
-AL Limit alarm version
(alarms only, no PID
control)2
-SM Simplified menu (on/
off control or alarms,
no PID)3
Network Options
-C24 Isolated RS232 and
RS485/422, 300 to
19.2 Kb1
Power Supply
-DC 12 to 36 Vdc,
24 Vac1
Factory Setup
-FS Factory setup and
configuration
-FS(RTD-1N) Customized CNiS
model for MIL‑T‑
7990B nickel RTD
input, 0 to 200°C
(32 to 392°F)
-FS(RTD-2N) Customized CNiS
model for MIL‑T‑
7990B nickel RTD
input, ‑40 to 300°C
(‑40 to 572°F)
Software (Requires Network Option)
Omega- Logging/Alarming/
Enterprise- Monitoring with
Gateway Integration
Capabilities
1 Excitation not available with “-DC” or
“-C24” options.
2 “-AL” option not available on models with
analog (option 5) output.
3 “-SM” option not available on CNiS strain/
process input models.
48.0
(1.89)
48.0
(1.89)
48.0
(1.89)
25.4 (1.00)
Model No. Description
DPP-1 1⁄32 DIN panel punch
EIT-W-485 Industrial iServer Microserver™, serves 32 devices
Accessory
25.4 (1.00)
Panel punches
available, visit
OMEGA
Universal Temperature and
Process Input (DPi/CNi Models)
Accuracy: ±0.5°C temp; 0.03% rdg
Resolution: 1°/0.1°; 10 µV process
Temperature Stability:
RTD: 0.04°C/°C
TC @ 25°C (77°F): 0.05°C/°C
Cold Junction Compensation
Process: 50 ppm/°C
NMRR: 60 dB
CMRR: 120 dB
A/D Conversion: Dual slope
Reading Rate: 3 samples/s
Digital Filter: Programmable
Display: 4‑digit 9‑segment LED
10.2 mm (0.40"); i32, i16, i16D, i8DV
21 mm (0.83"); i8 10.2 mm (0.40") and
21 mm (0.83"); i8DH RED, GREEN,
and AMBER programmable colors
for process variable, setpoint and
temperature units
Input Types: Thermocouple, RTD,
analog voltage, analog current
Thermocouple Lead Resistance:
100 Ω max
Thermocouple Types (ITS 90):
J, K, T, E, R, S, B, C, N, L (J DIN)
RTD Input (ITS 68): 100/500/1000 Ω
Pt sensor, 2‑, 3‑ or 4‑wire; 0.00385 or
0.00392 curve
Voltage Input: 0 to 100 mV, 0 to 1V,
0 to 10 Vdc
Input Impedance: 10 MΩ for 100 mV
1 MΩ for 1 or 10 Vdc
Current Input: 0 to 20 mA (5 Ω load)
Configuration: Single‑ended
Polarity: Unipolar
Step Response: 0.7 sec for 99.9%
Decimal Selection:
Temperature: None, 0.1
Process: None, 0.1, 0.01 or 0.001
Setpoint Adjustment:
‑1999 to 9999 counts
Span Adjustment:
0.001 to 9999 counts
Offset Adjustment: ‑1999 to 9999
Excitation (Not Included with
Communication): 24 Vdc @ 25 mA
(not available for low‑power option)
Universal Strain and Process
Input (DPiS/CNiS Models)
Accuracy: 0.03% reading
Resolution: 10/1µV
Temperature Stability: 50 ppm/°C
NMRR: 60 dB
CMRR: 120 dB
A/D Conversion: Dual slope
Reading Rate: 3 samples/s
Digital Filter: Programmable
Input Types: Analog voltage and current
Voltage Input: 0 to 100 mVdc,
‑100 mVdc to 1 Vdc, 0 to 10 Vdc
Input Impedance: 10 MΩ for 100 mV;
1 MΩ for 1V or 10 Vdc
Current Input: 0 to 20 mA (5 Ω load)
Linearization Points: Up to 10
Configuration: Single‑ended
Polarity: Unipolar
Step Response: 0.7 sec for 99.9%
Decimal Selection: None, 0.1, 0.01
or 0.001
Setpoint Adjustment:
‑1999 to 9999 counts
Span Adjustment: 0.001 to 9999 counts
Offset Adjustment: ‑1999 to 9999
Excitation (Optional In Place Of
Communication): 5 Vdc @ 40 mA;
10 Vdc @ 60 mA
Control
Action: Reverse (heat) or direct (cool)
Modes: Time and amplitude proportional
control; selectable manual or auto PID,
proportional, proportional with integral,
proportional with derivative and anti‑reset
Windup, and on/off
Rate: 0 to 399.9 s
Reset: 0 to 3999 s
Cycle Time: 1 to 199 s; set to 0 for on/off
Gain: 0.5 to 100% of span; setpoints 1 or 2
Damping: 0000 to 0008
Soak: 00.00 to 99.59 (HH:MM), or OFF
Ramp to Setpoint:
00.00 to 99.59 (HH:MM), or OFF
Auto Tune: Operator initiated from
front panel
Control Output 1 and 2
Relay: 250 Vac or 30 Vdc @ 3 A (resistive
load); configurable for on/off, PID and ramp
and soak
Output 1: SPDT, can be configured as
alarm 1 output
Output 2: SPDT, can be configured as
alarm 2 output
SSR: 20 to 265 Vac @ 0.05 to 0.5 A
(resistive load); continuous
DC Pulse: Non‑isolated; 10 Vdc @ 20 mA
Analog Output (Output 1 Only):
Non‑isolated, proportional 0 to 10 Vdc or
0 to 20 mA; 500 Ω max
Output 3 Retransmission:
Isolated Analog Voltage and Current
Current: 10 V max @ 20 mA output
Voltage: 20 mA max for 0 to 10 V output
Network and Communications
Ethernet: Standards compliance
IEEE 802.3 10 Base‑T
Supported Protocols:
TCP/IP, ARP, HTTPGET
RS232/RS422/RS485: Selectable from
menu; both ASCII and MODBUS protocol
selectable from menu; programmable
300 to 19.2 Kb; complete programmable
setup capability; program to transmit
current display, alarm status, min/max,
actual measured input value and status
Common Specifications (All
i/8, i/16, i/32 DIN)
RS485: Addressable from 0 to 199
Connection: Screw terminals
Alarm 1 and 2 (Programmable)
Type: Same as output 1 and 2
Operation: High/low, above/below,
band, latch/unlatch, normally open/
normally closed and process/deviation;
front panel configurations
Analog Output (Programmable):
Non‑isolated, retransmission 0 to 10 Vdc
or 0 to 20 mA, 500 Ω max (output 1 only);
accuracy is ± 1% of FS when following
conditions are satisfied: input is not scaled
below 1% of input FS, analog output is not
scaled below 3% of output FS
General
Power: 90 to 240 Vac ±10%, 50 to 400
Hz*, 110 to 300 Vdc, equivalent voltage
Low Voltage Power Option: 24 Vac**,
12 to 36 Vdc for DPi/CNi/DPiS/CNiS;
20 to 36 Vdc for dual display, ethernet
and isolated analog output from qualified
safety approved source
Isolation
Power to Input/Output: 2300 Vac
per 1 minute test
For Low Voltage Power Option:
1500 Vac per 1 minute test
Power to Relay/SSR Output:
2300 Vac per 1 minute test
Relay/SSR to Relay/SSR Output:
2300 Vac per 1 minute test
RS232/485 to Input/Output:
500 Vac per 1 minute test
Environmental Conditions:
All Models: 0 to 55°C (32 to 131°F)
90% RH non‑condensing
Dual Display Models:
0 to 50°C (32 to 122°F), 90% RH
non‑condensing (for UL only)
Protection:
DPi/CNi/DPiS/CNiS32,16,16D, 8C:
NEMA 4X/Type 4 (IP65) front bezel
DPi/CNi/DPiS/CNiS8, 8DH, 8DV:
NEMA 1/Type 1 front bezel
Approvals: UL, C‑UL, CE per
2014/35/EU, FM (temperature
units only)
Dimensions
i/8 Series: 48 H x 96 W x 127 mm D
(1.89 x 3.78 x 5")
i/16 Series: 48 H x 48 W x 127 mm D
(1.89 x 1.89 x 5")
i/32 Series: 25.4 H x 48 W x 127 mm D
(1.0 x 1.89 x 5")
Panel Cutout
i/8 Series: 45 H x 92 mm W
(1.772 x 3.622"), 1⁄8 DIN
i/16 Series: 45 mm (1.772") square,
1⁄16 DIN
i/32 Series: 22.5 H x 45 mm W
(0.886 x 1.772"), 1⁄32 DIN
Weight
i/8 Series: 295 g (0.65 lb)
i/16 Series: 159 g (0.35 lb)
i/32 Series: 127 g (0.28 lb)
* No CE compliance above 60 Hz.
** Units can be powered safely with 24 Vac
power, but no certification for CE/UL are claimed.
3
TM

Navigation menu
