rights reserved. Unauthorized copying and distribu-

tion is a violation of law.

ORDER NO. ACED070301C1

AUTOMOTIVE AFTERMARKET

CN-NVD905U

Dual DIN in-dash HDD Mobile Naviga-

tion System with 7”Widescreen Color

LCD Monitor/DVD Receiver

TABLE OF CONTENTS

PAGE PAGE

1 Service Navigation----------------------------------------------- 2

2 Specifications ----------------------------------------------------- 3

3 Features ------------------------------------------------------------- 4

4 Technical Descriptions ----------------------------------------- 5

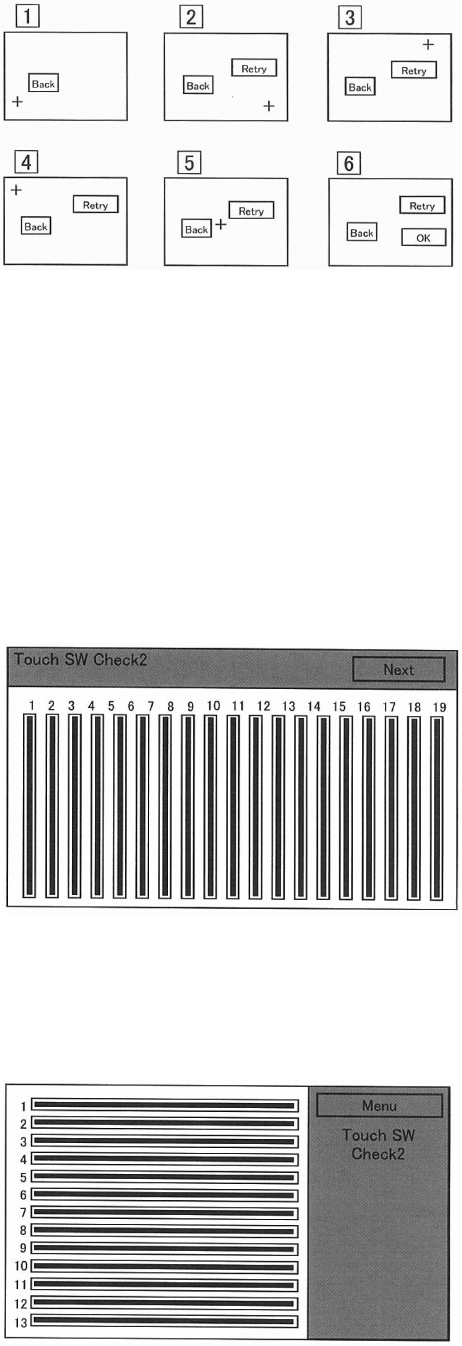

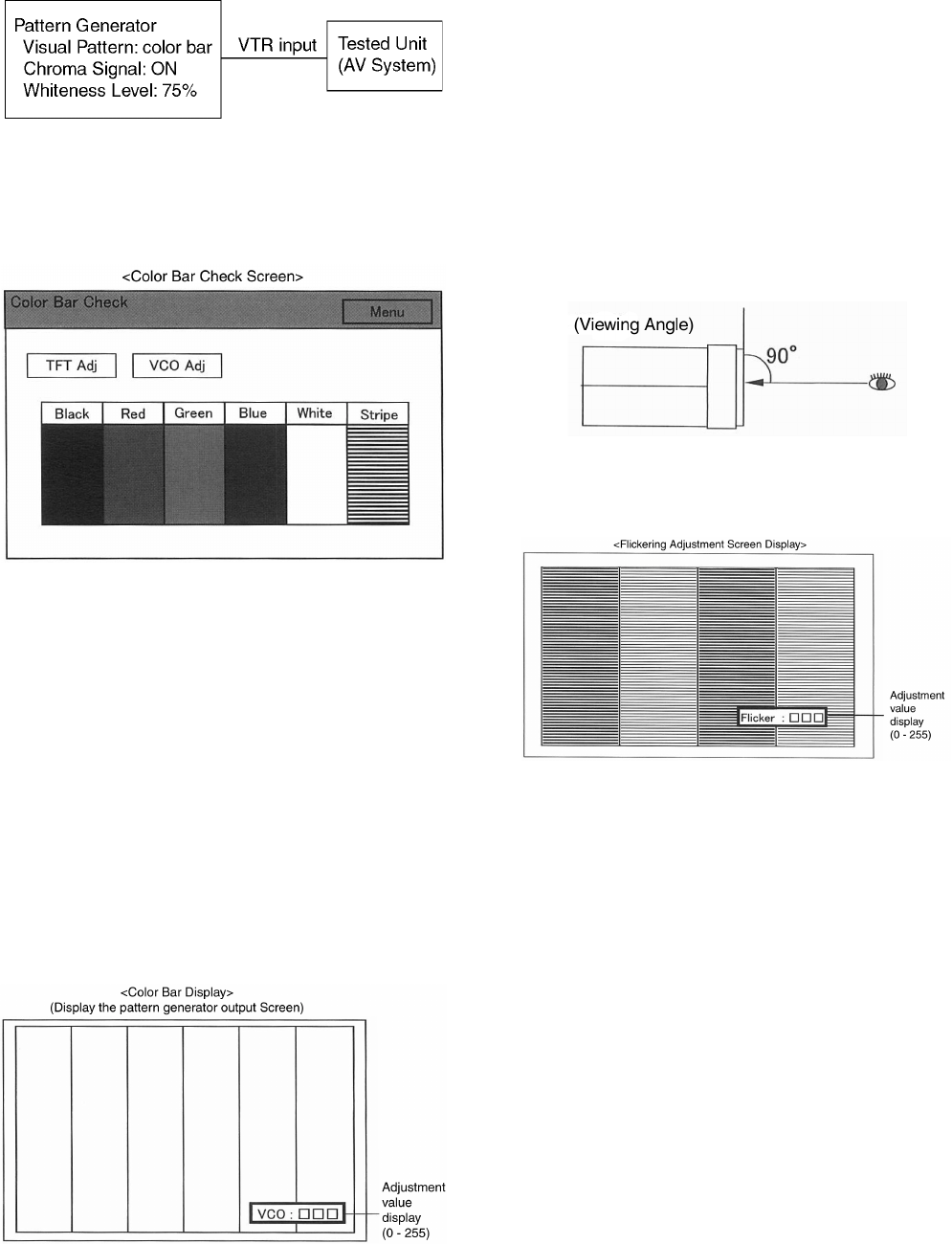

5 Adjustment --------------------------------------------------------22

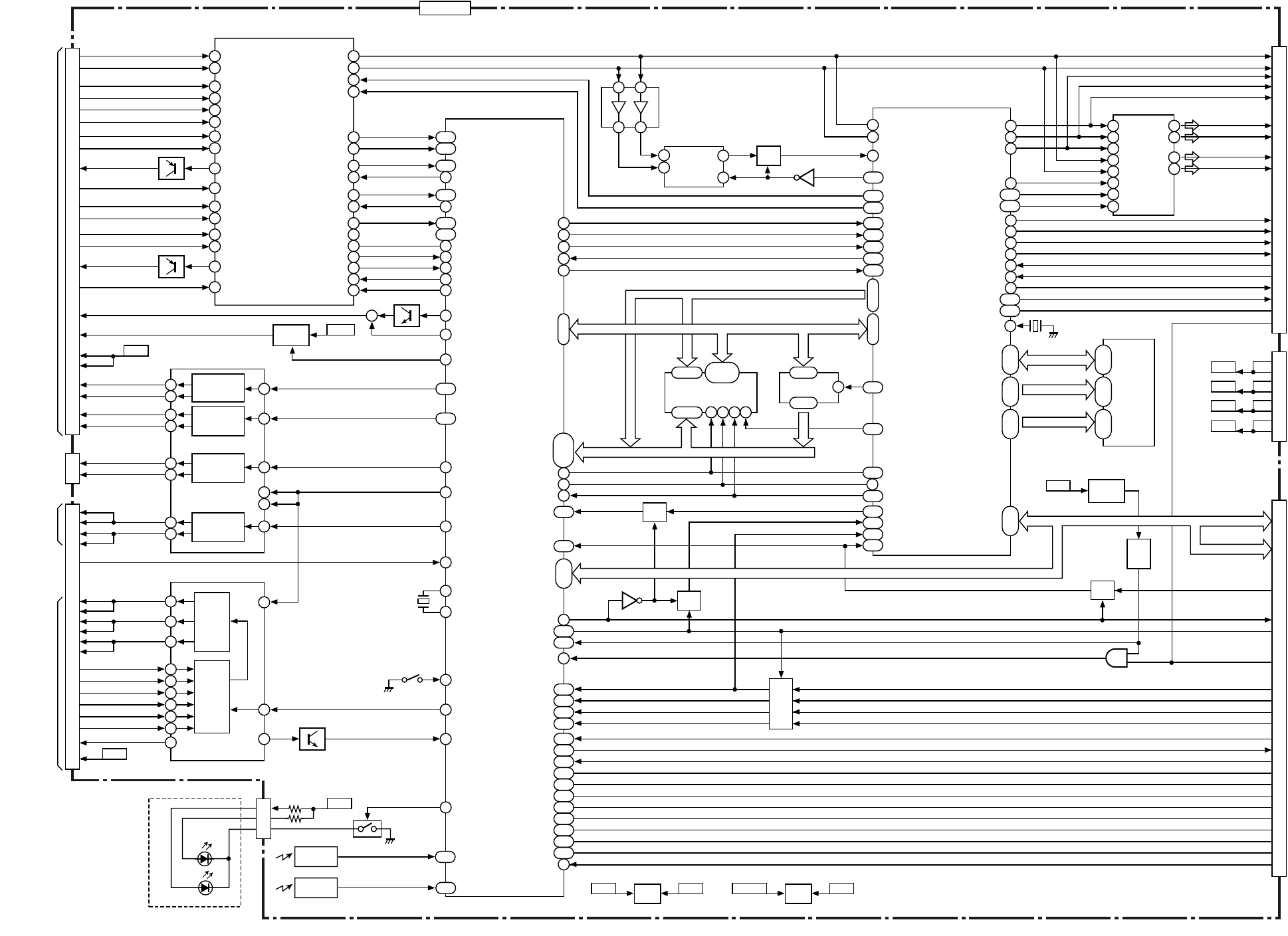

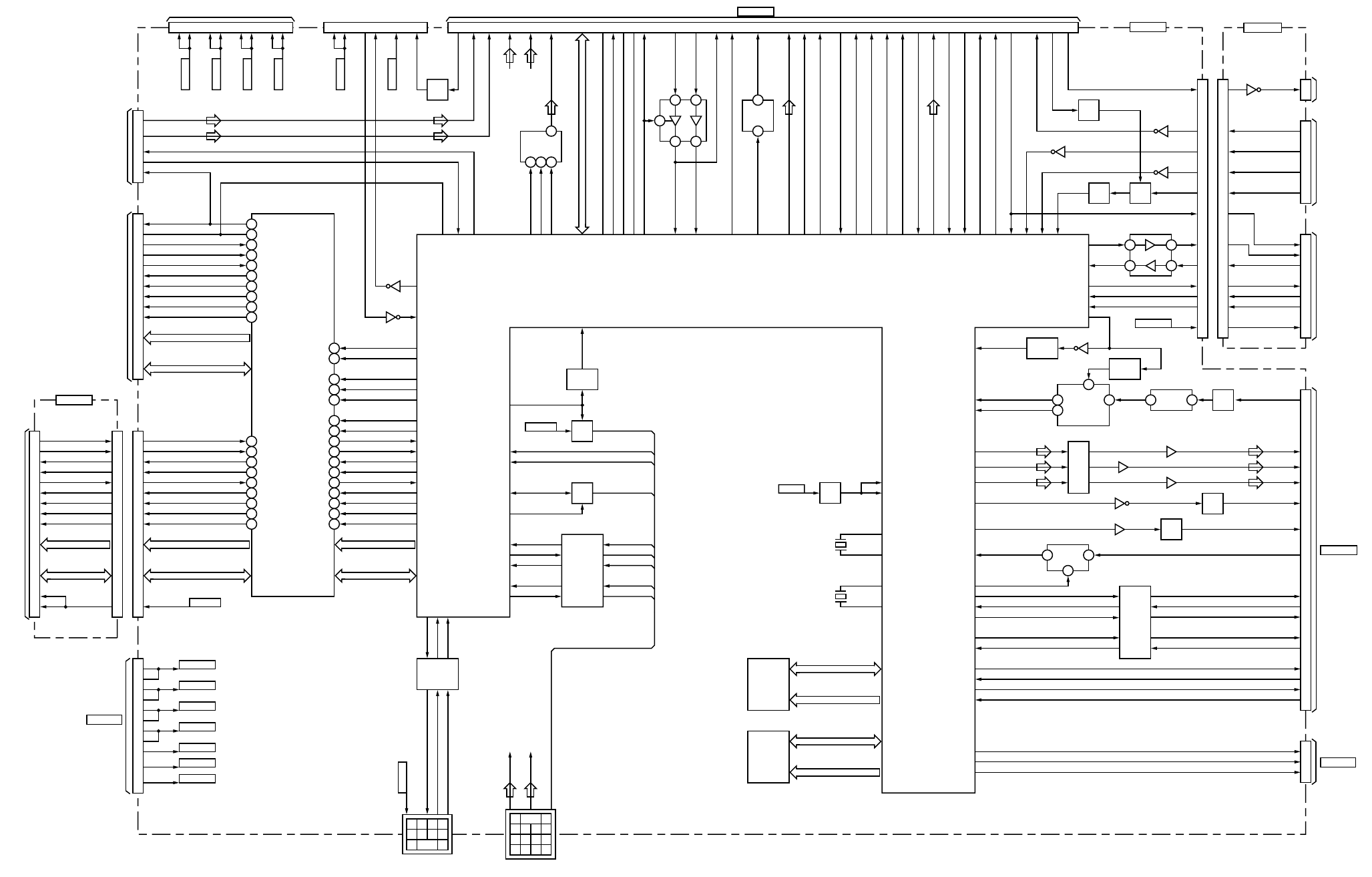

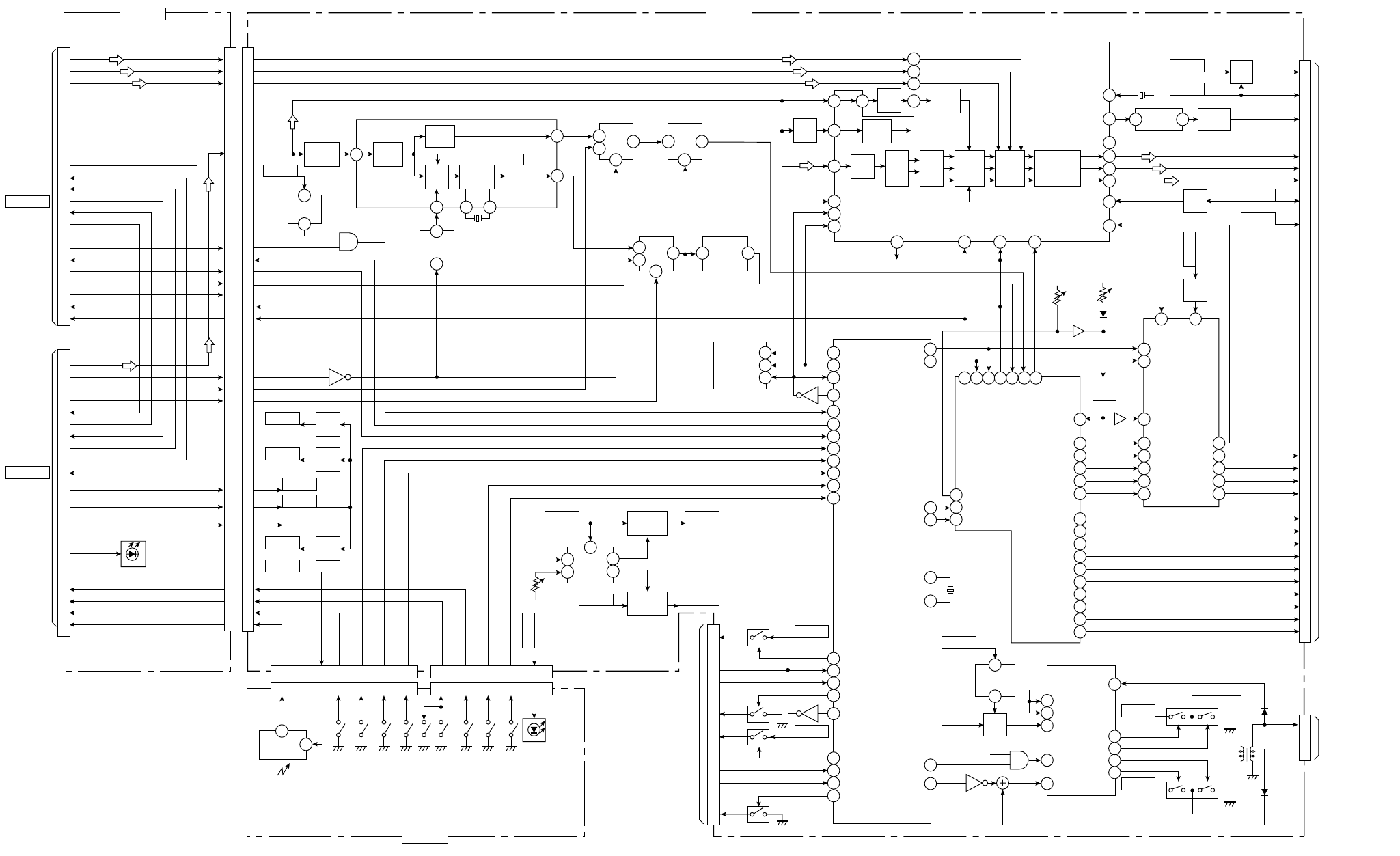

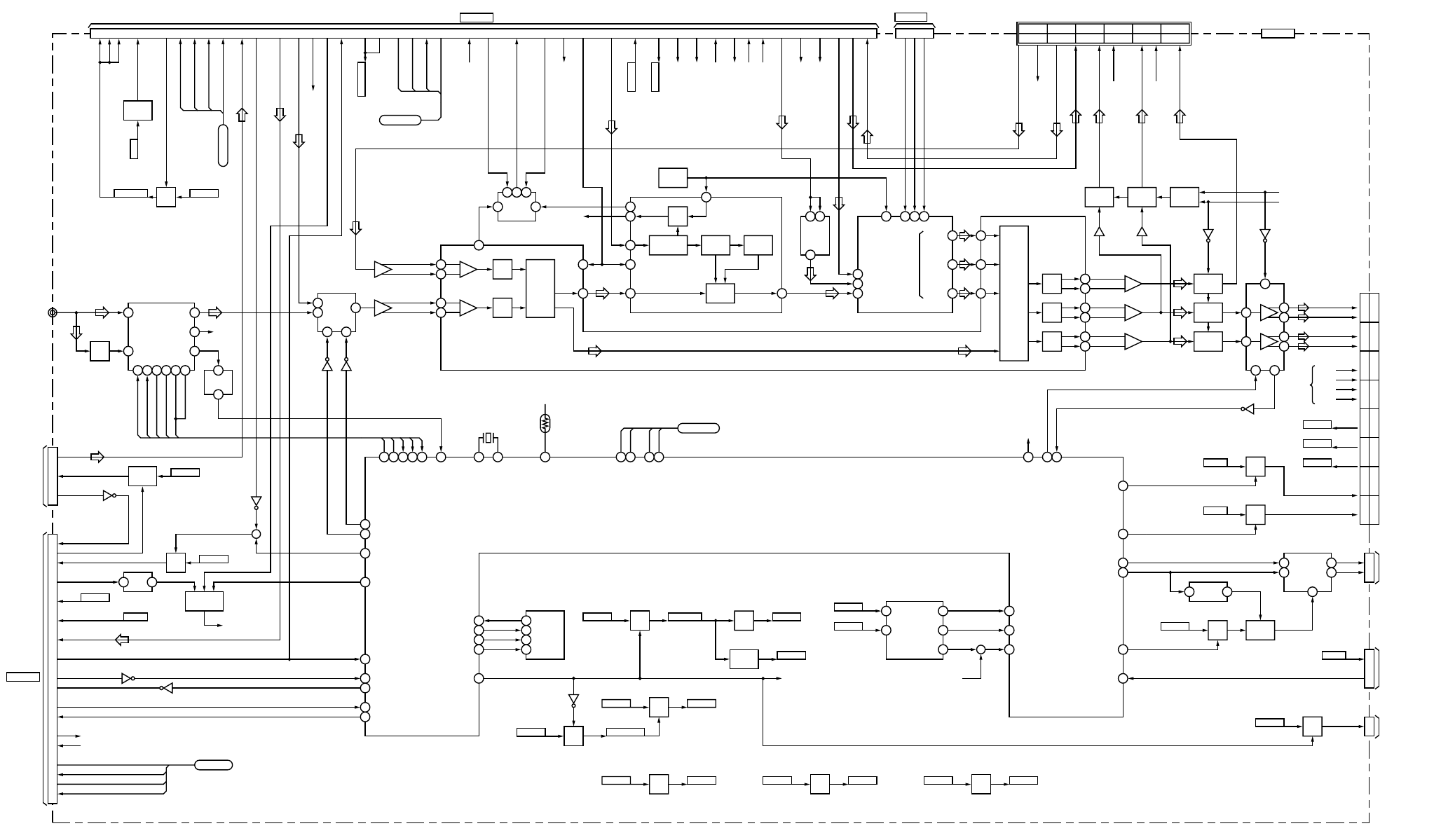

6 Block Diagram----------------------------------------------------24

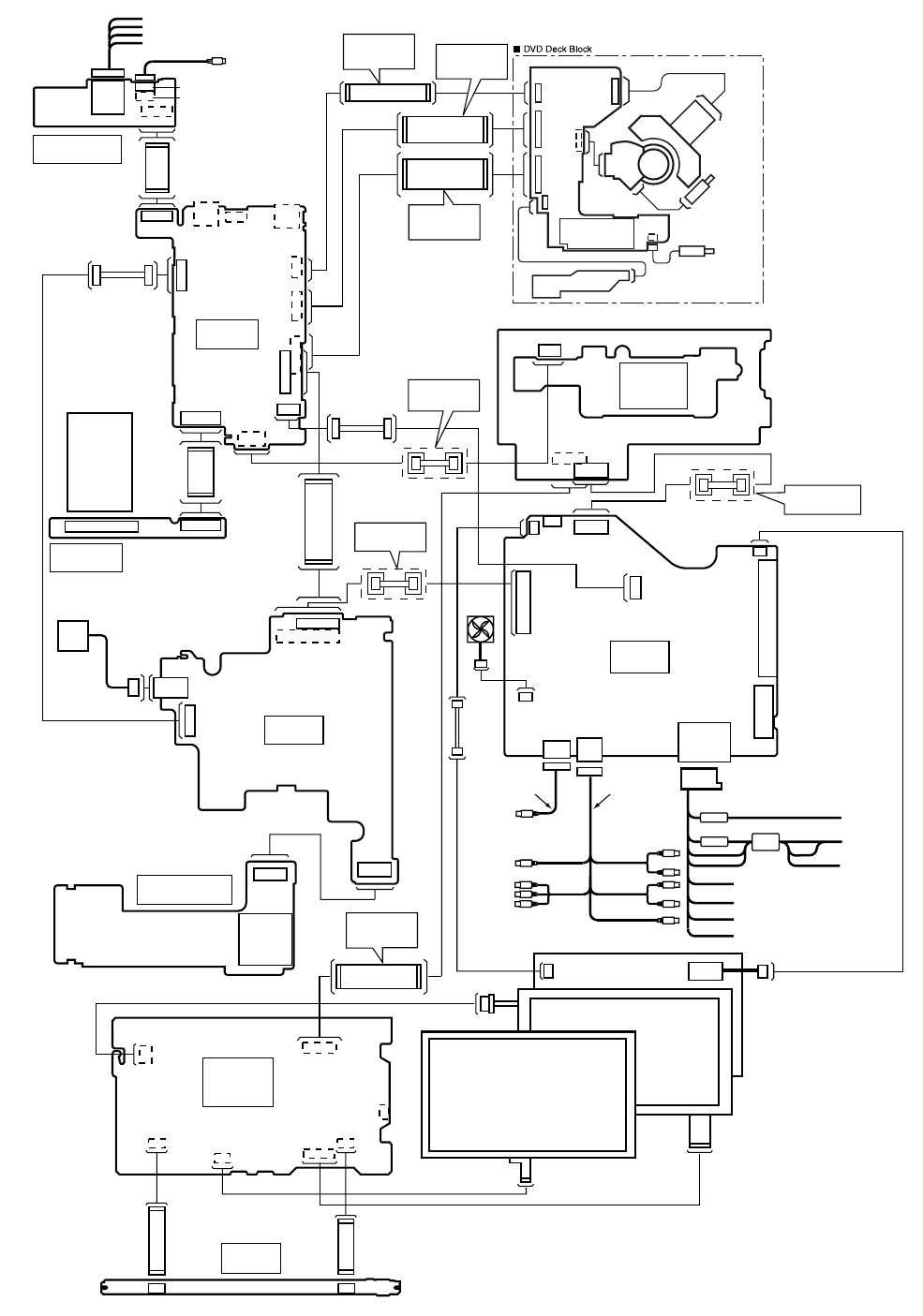

7 Wiring Connection Diagram ---------------------------------29

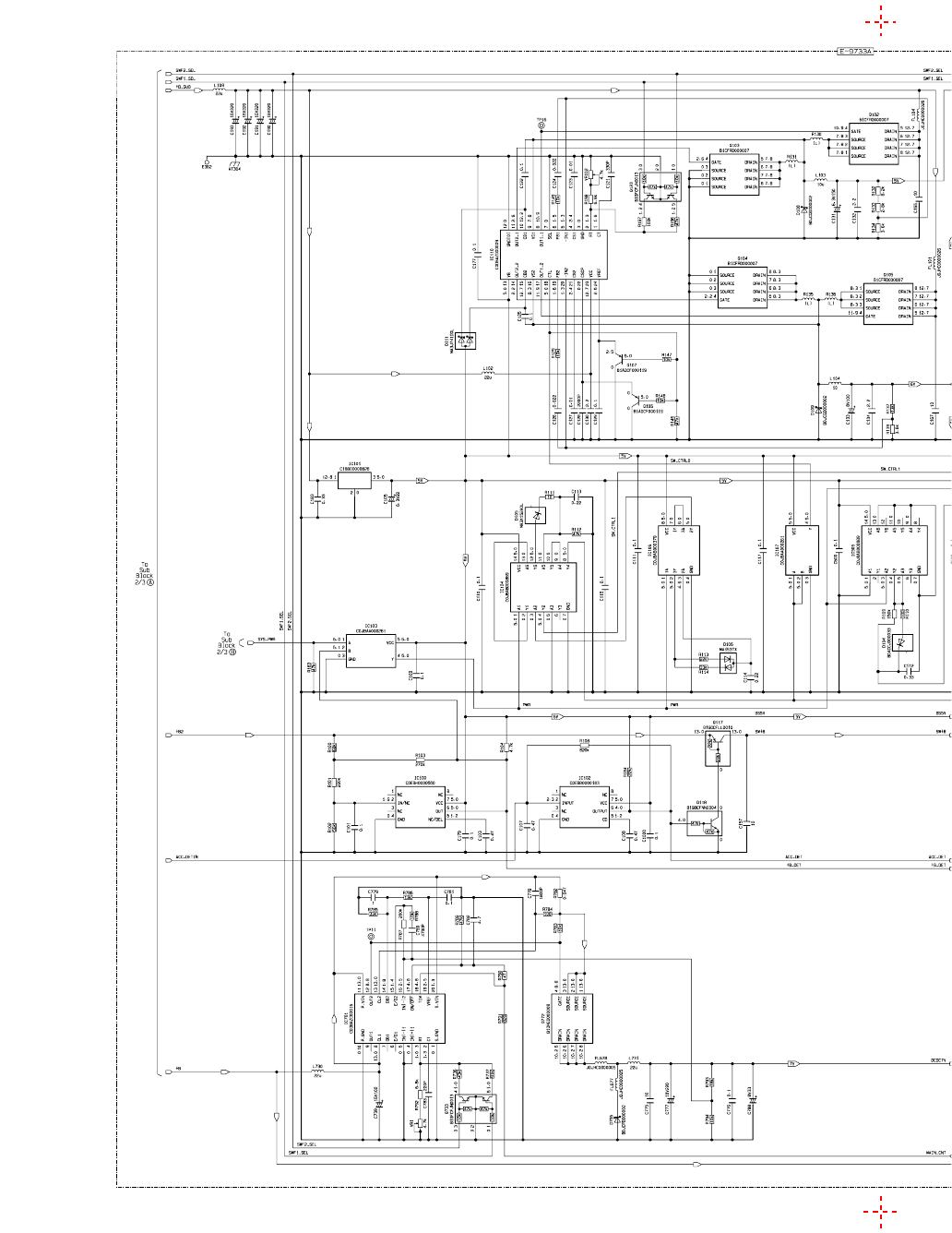

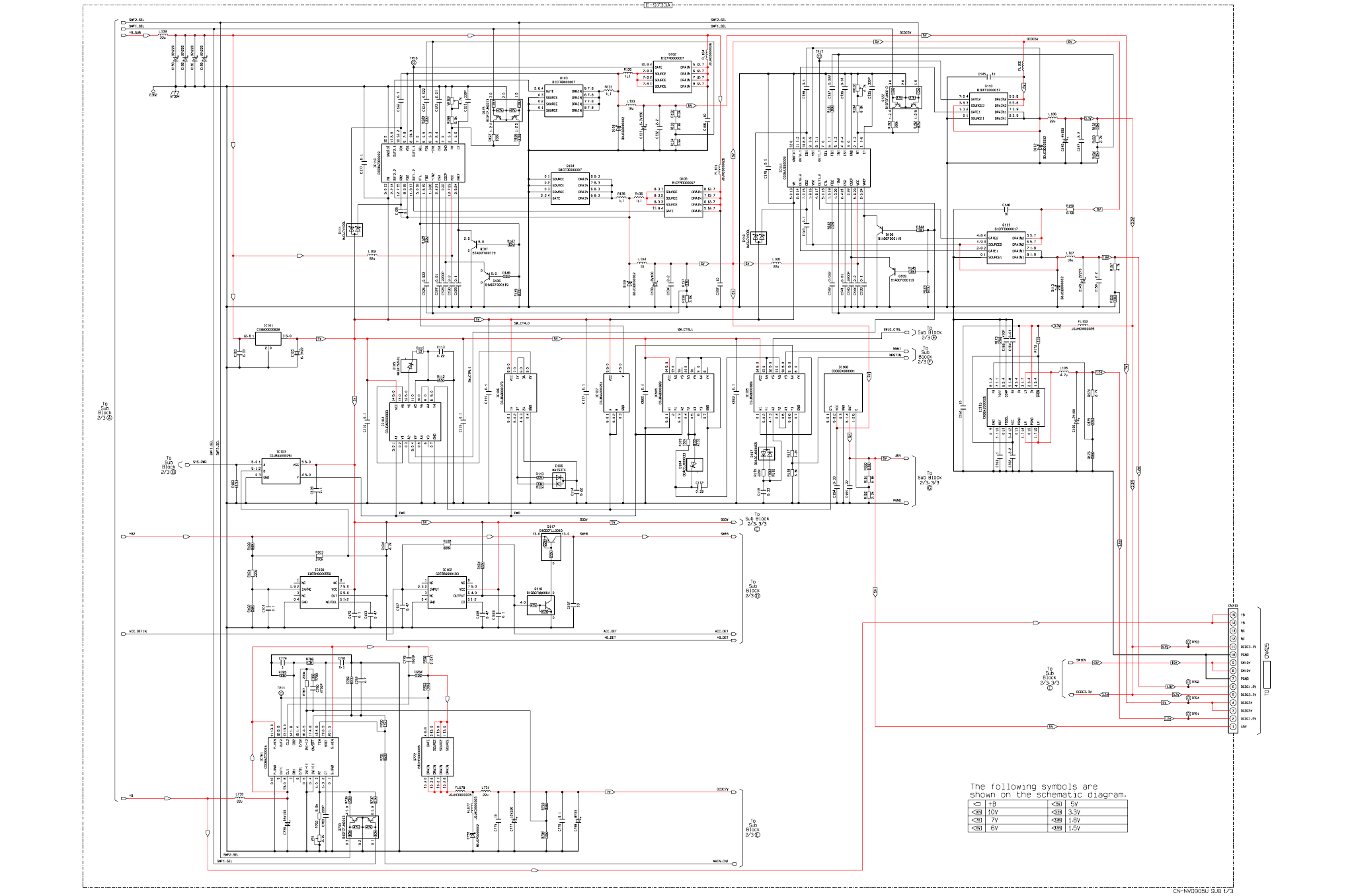

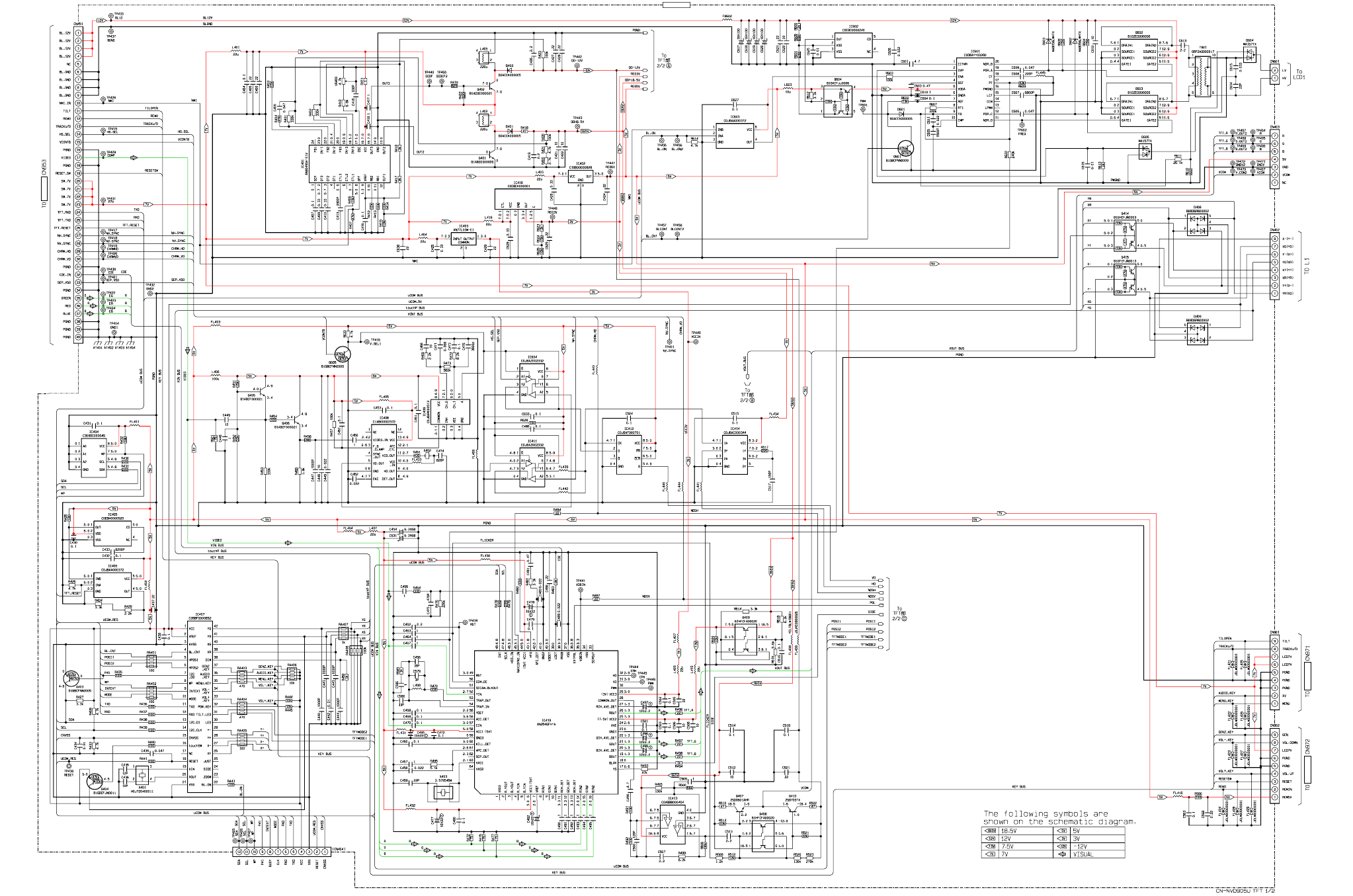

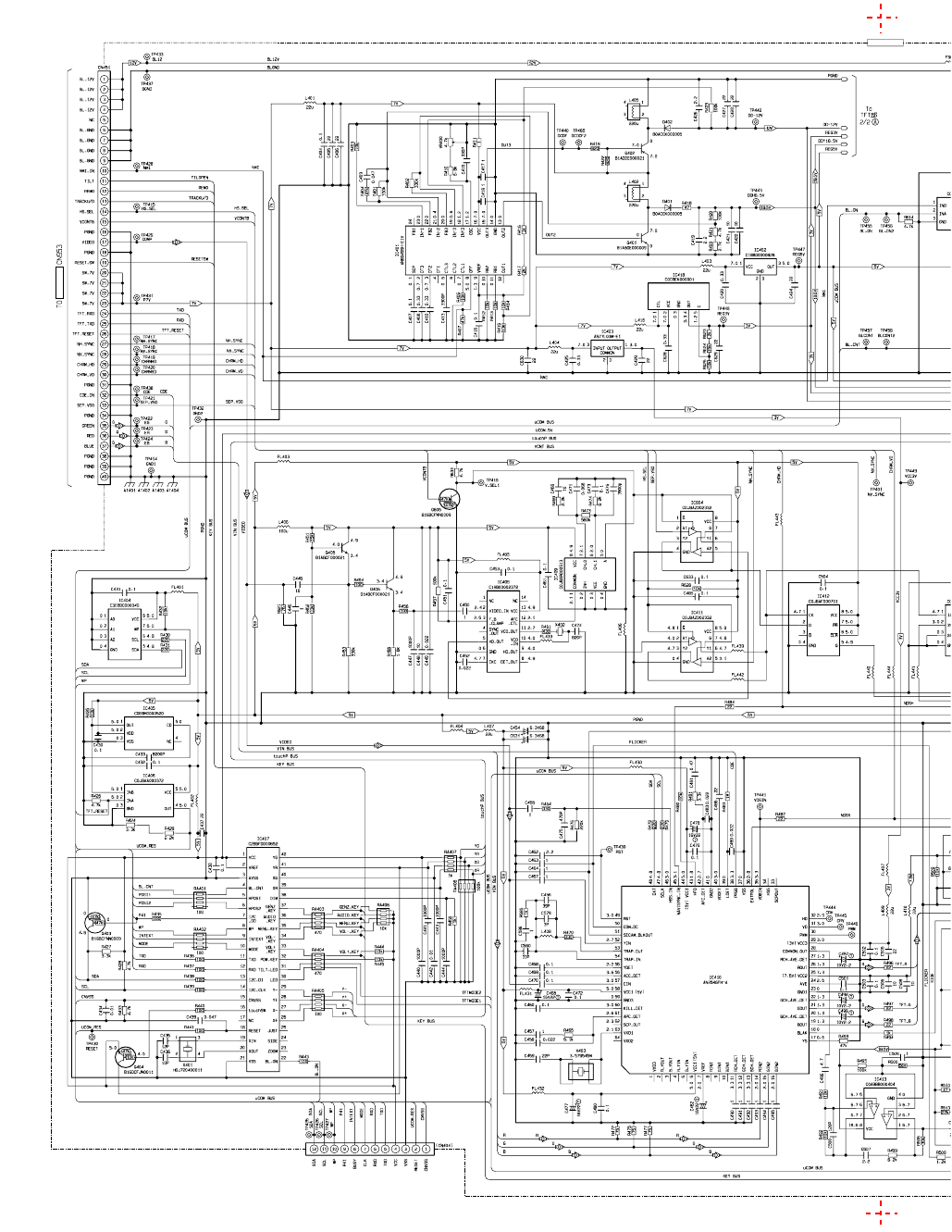

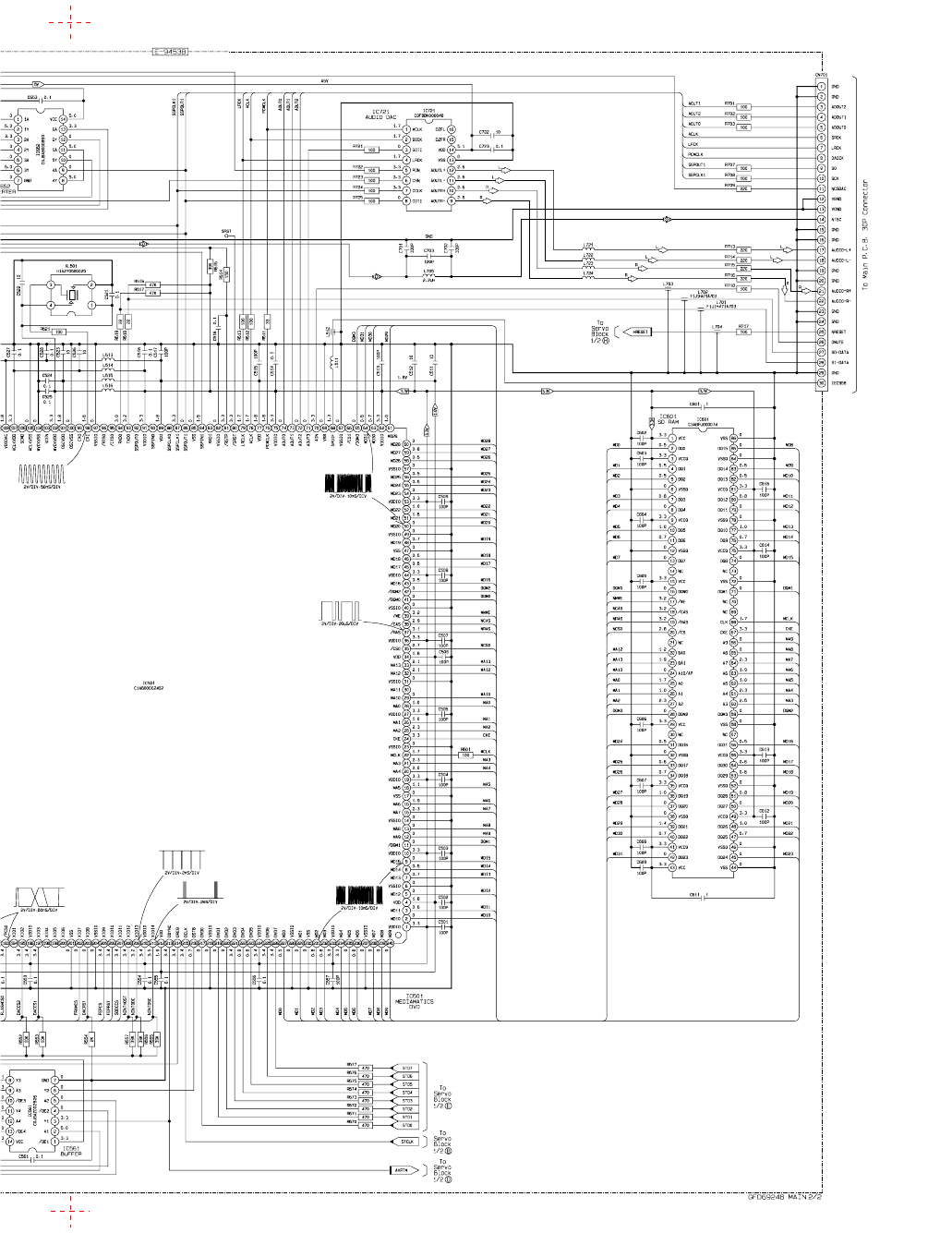

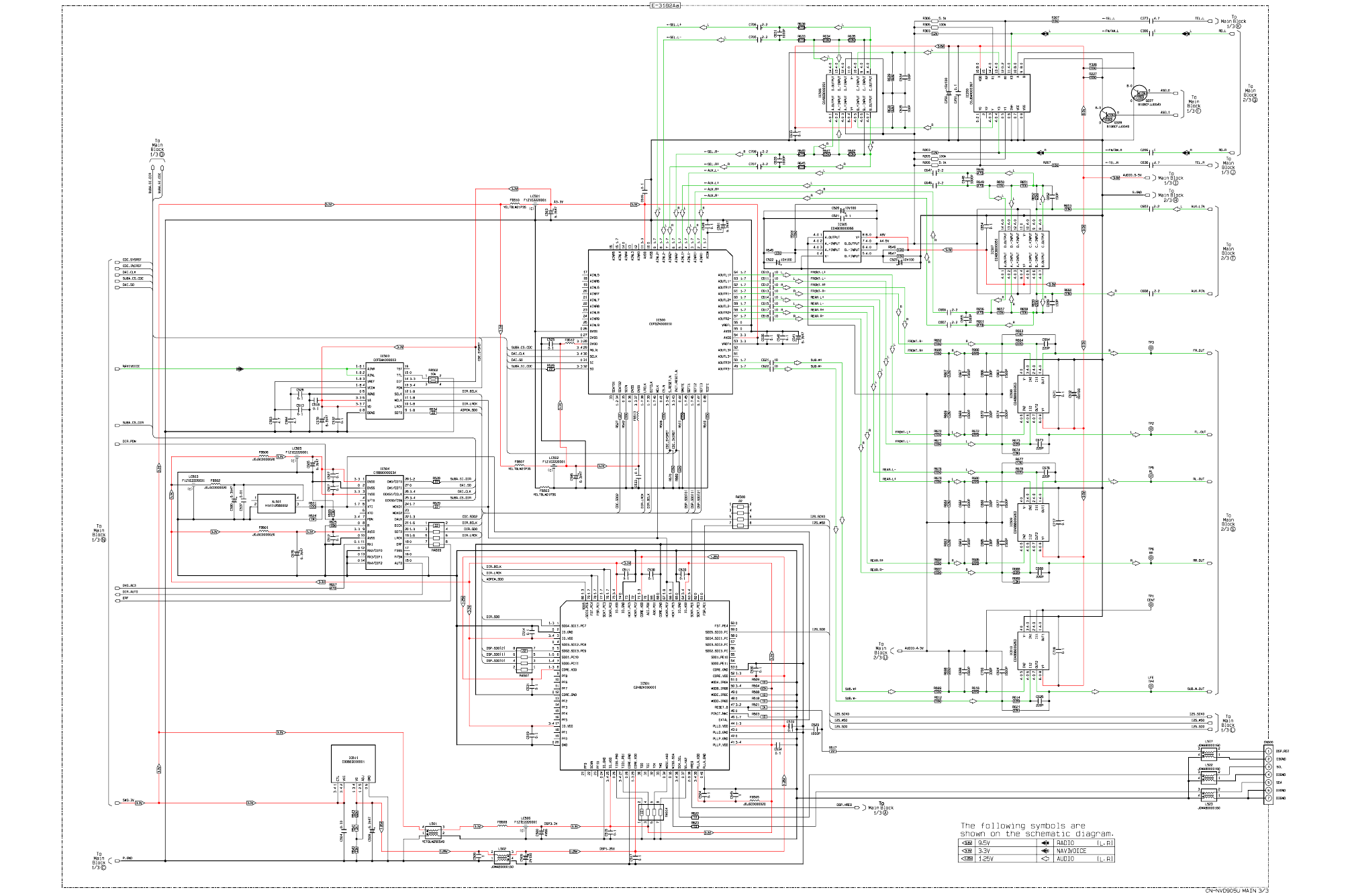

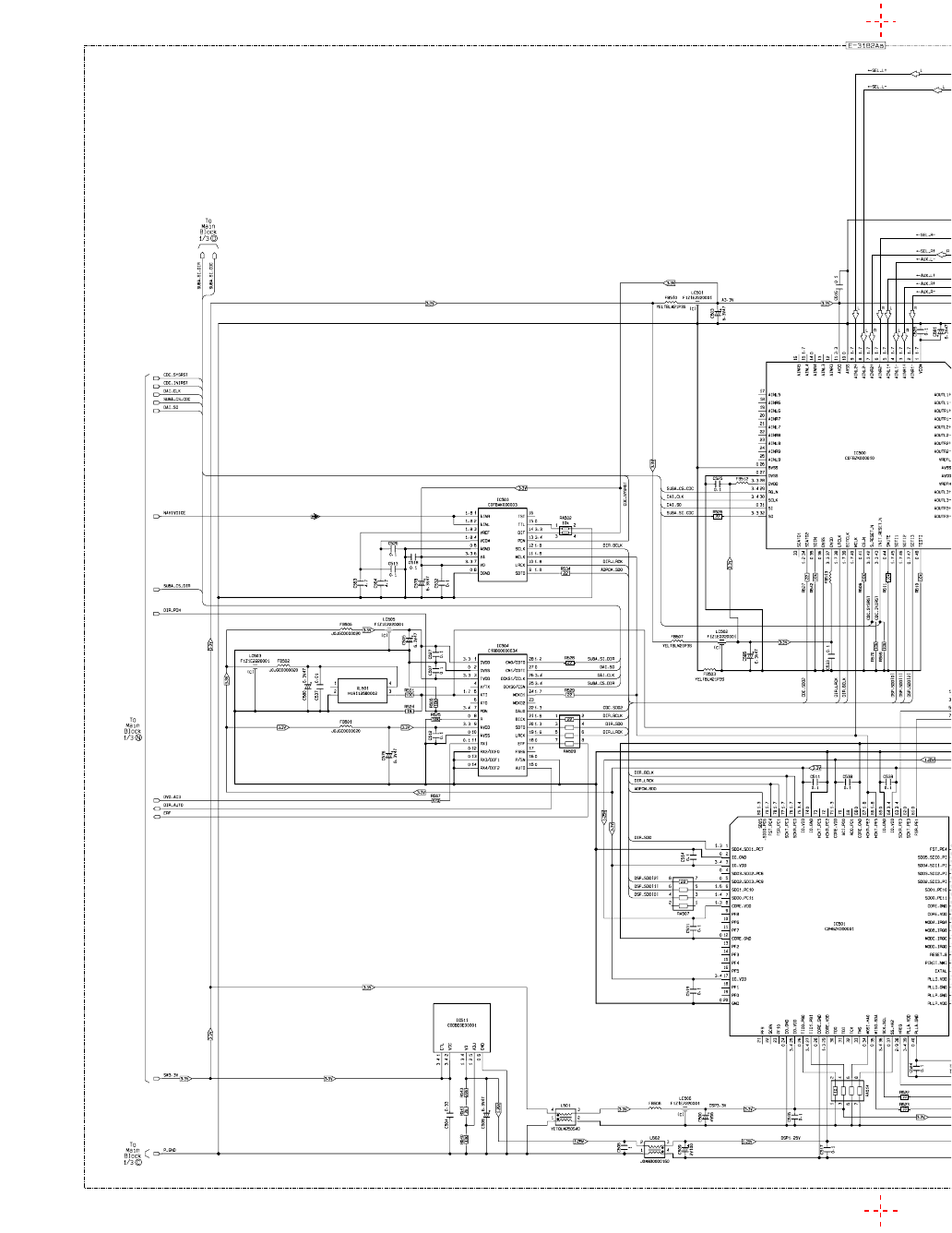

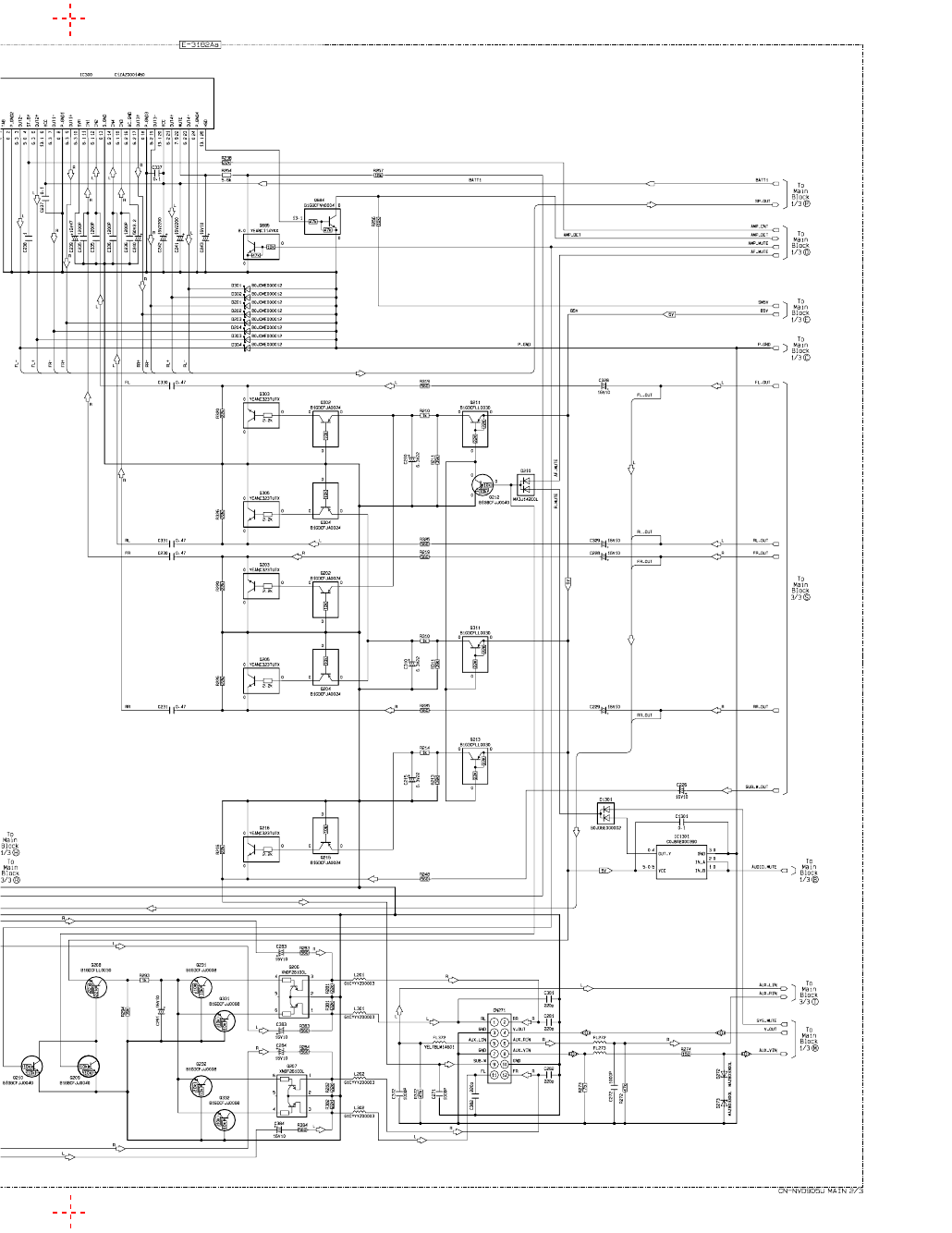

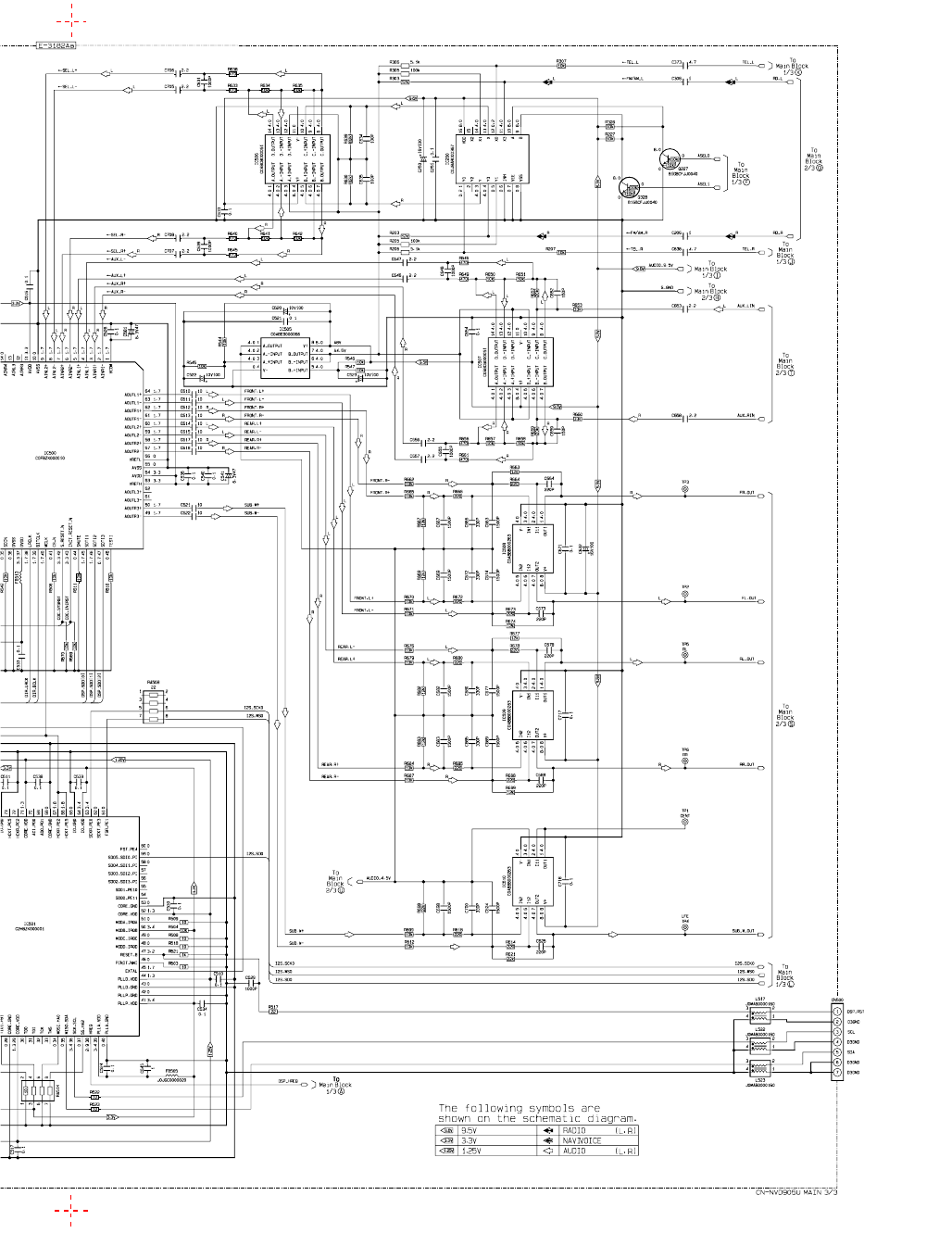

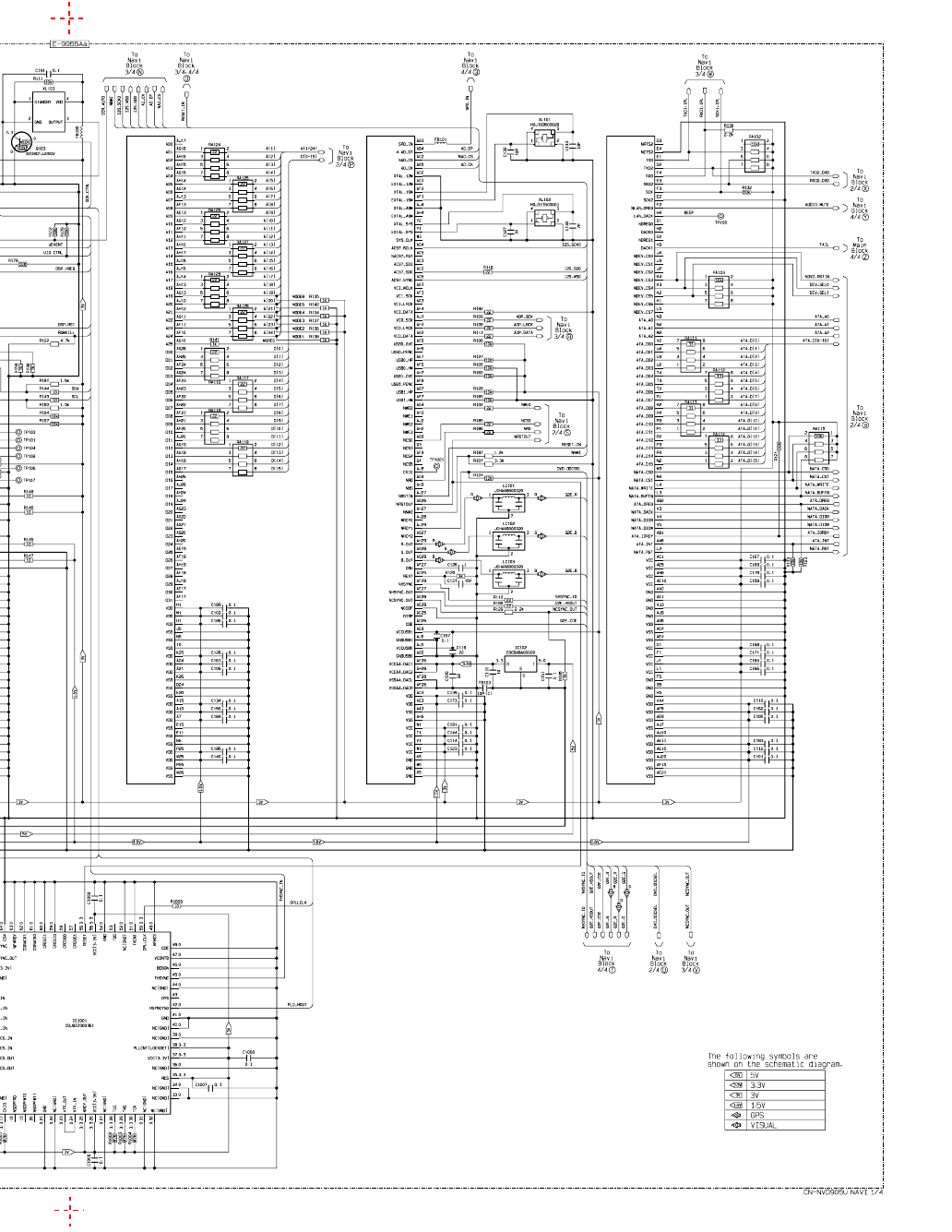

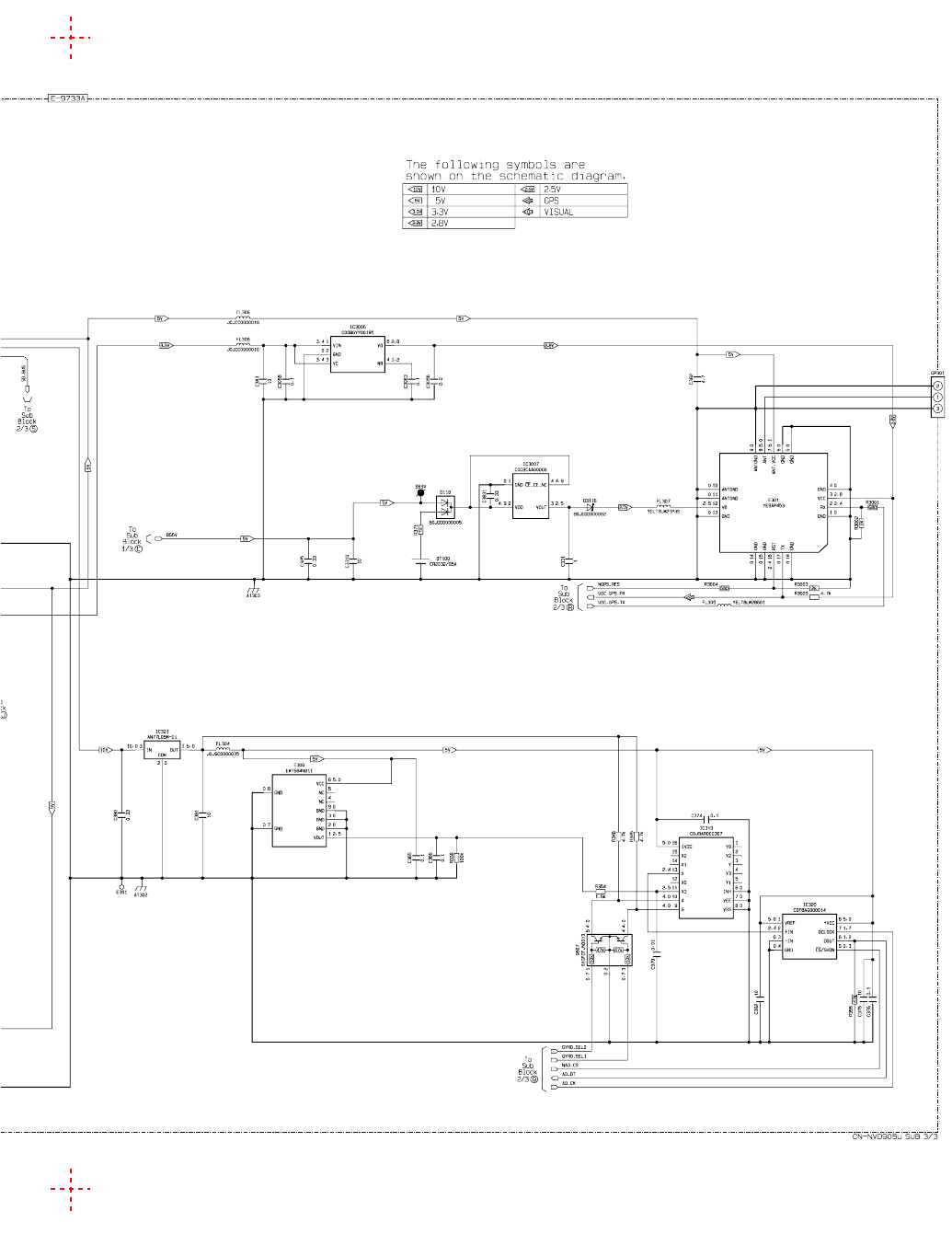

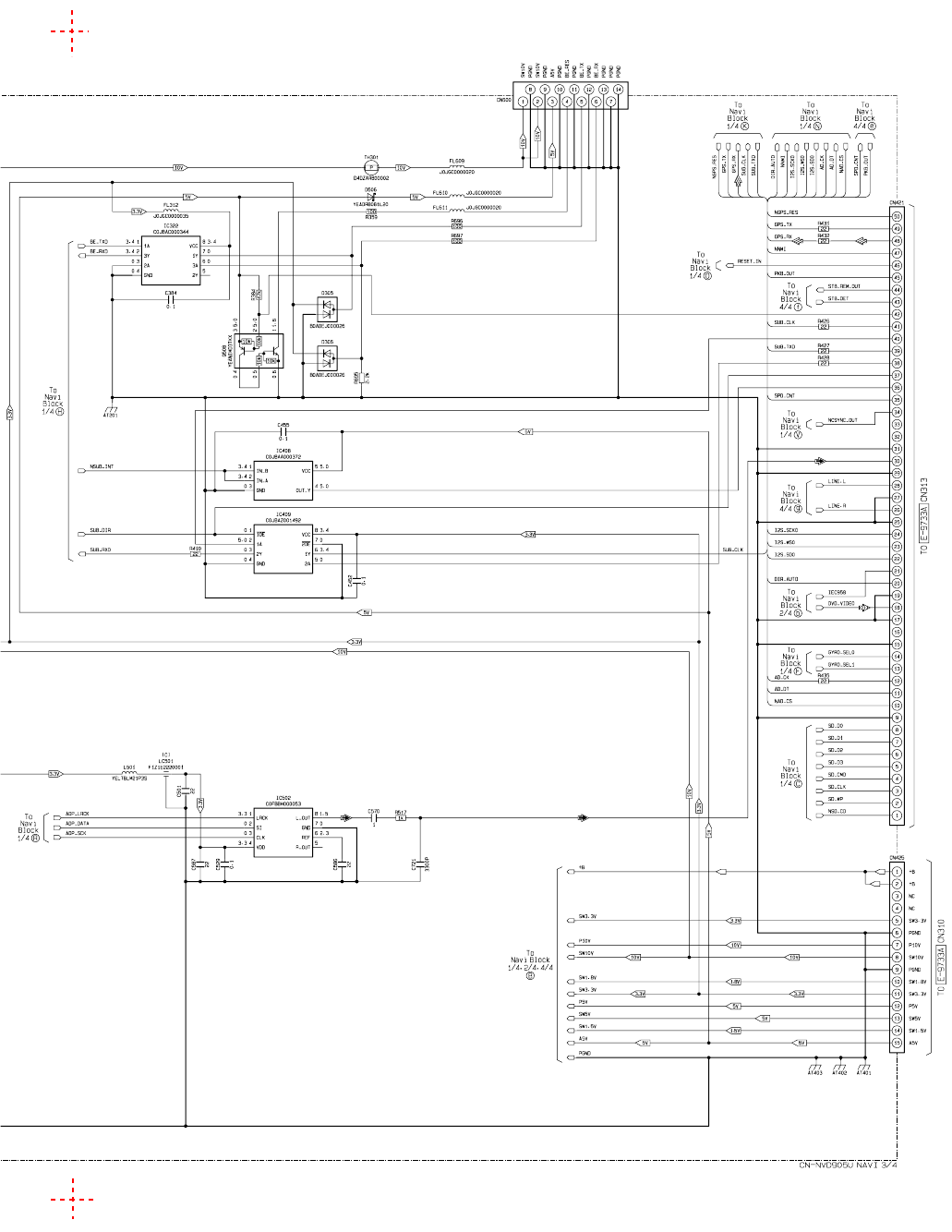

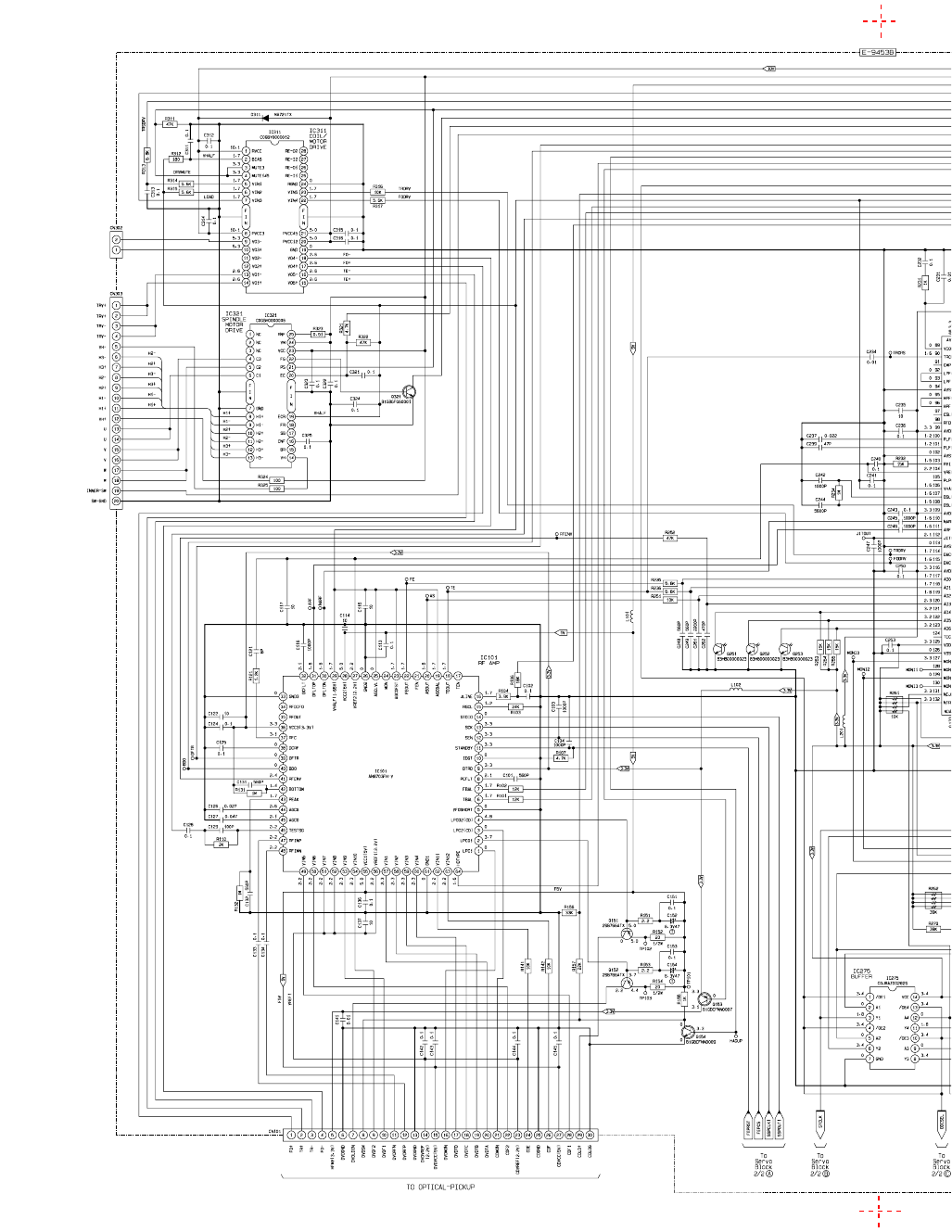

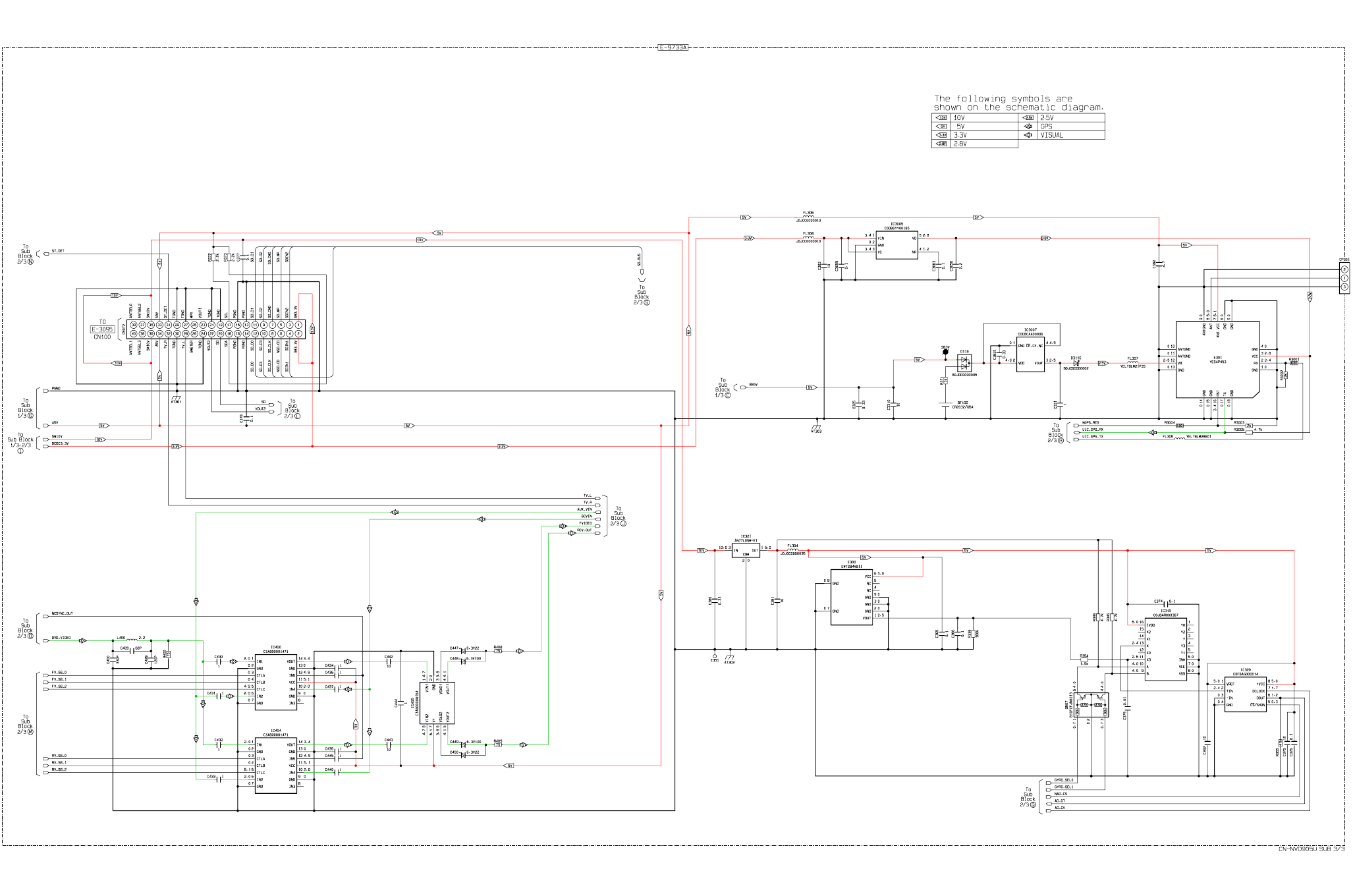

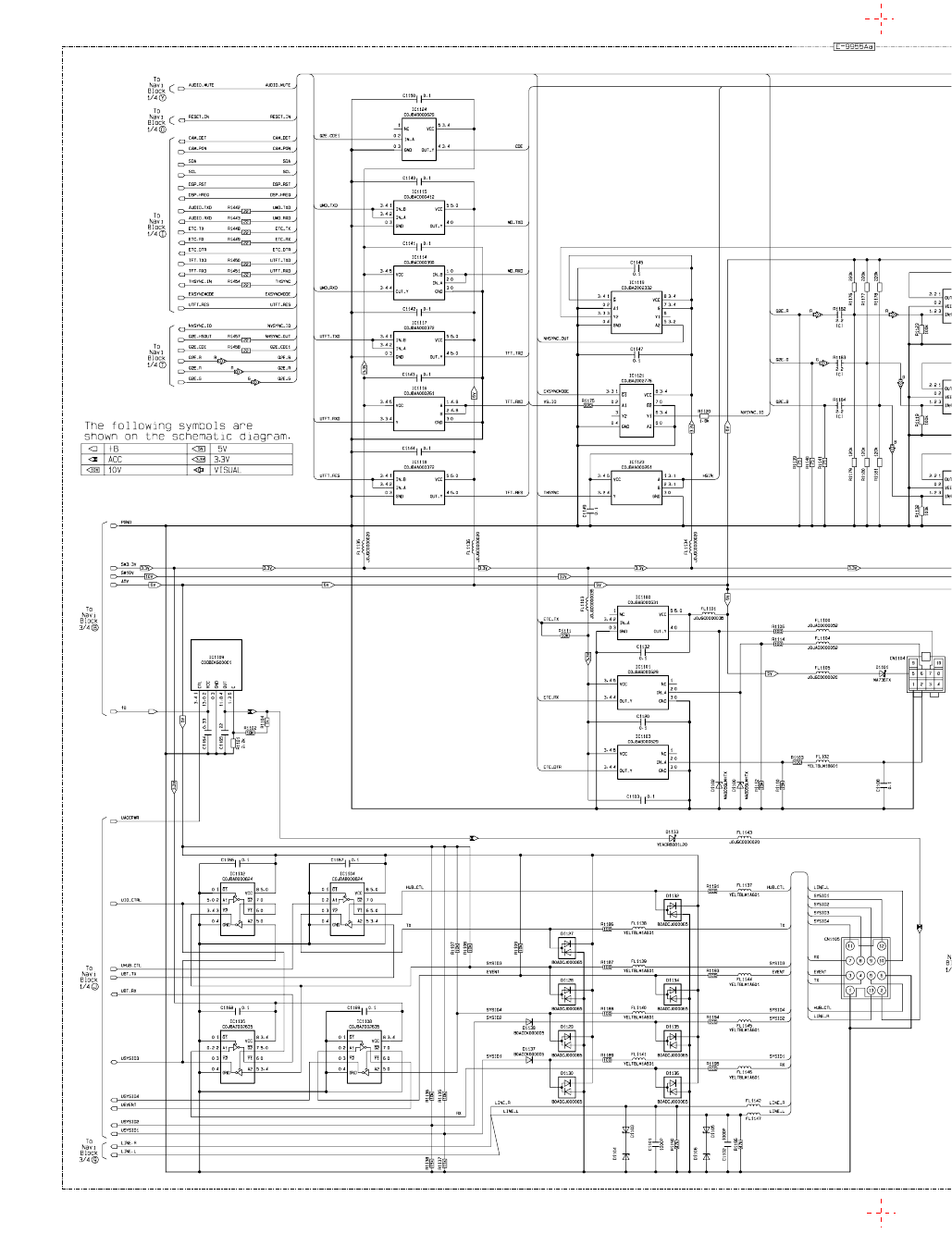

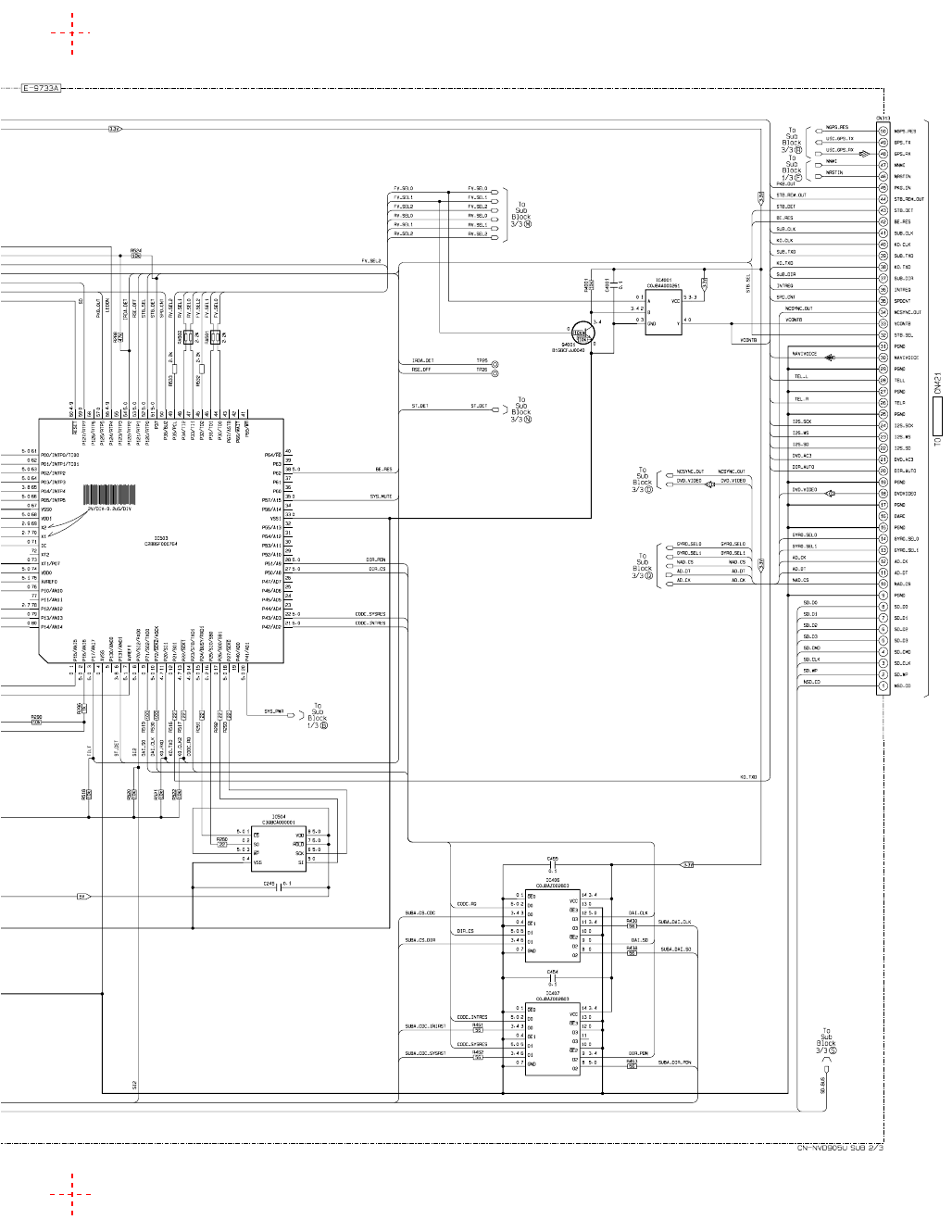

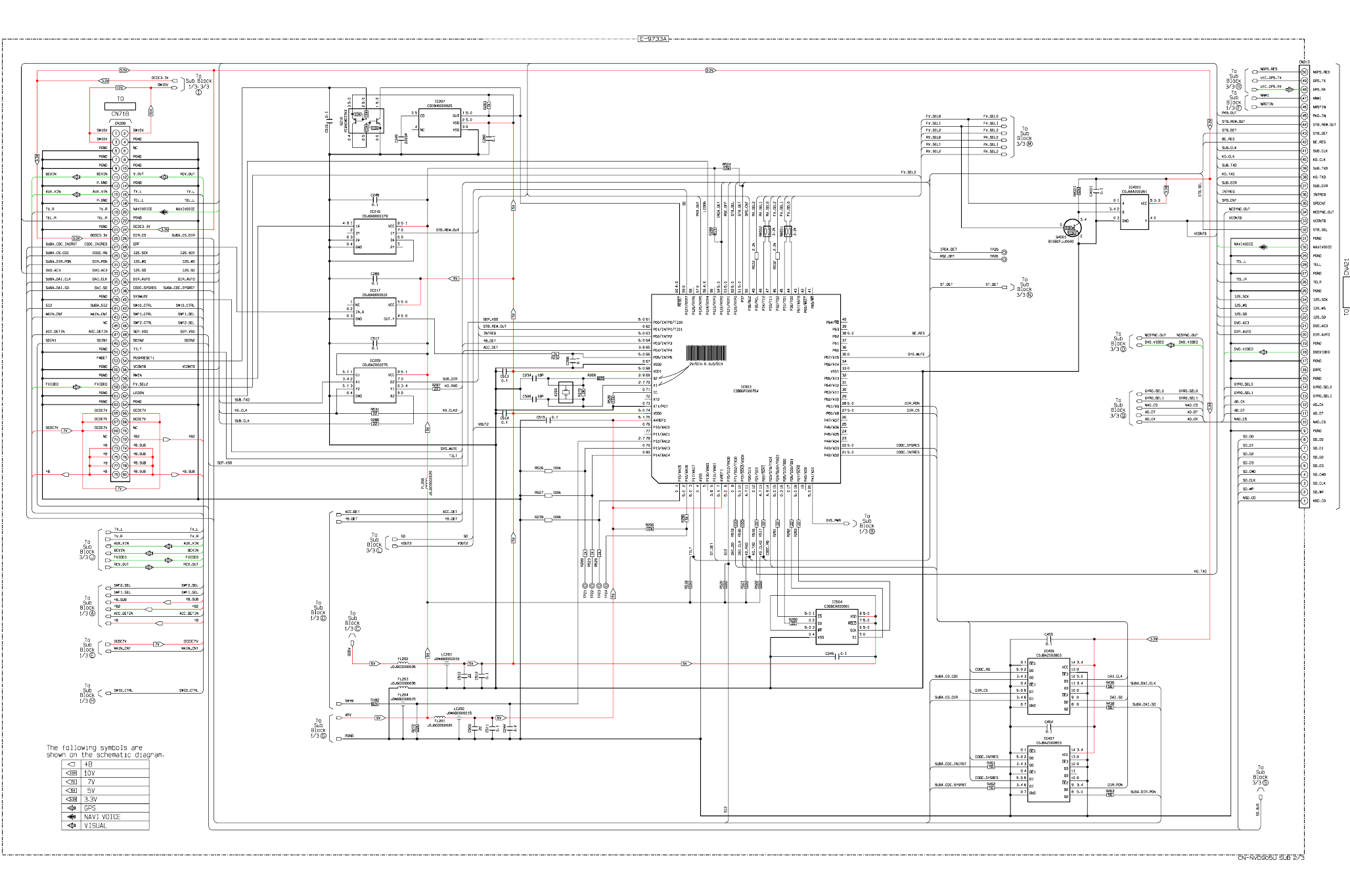

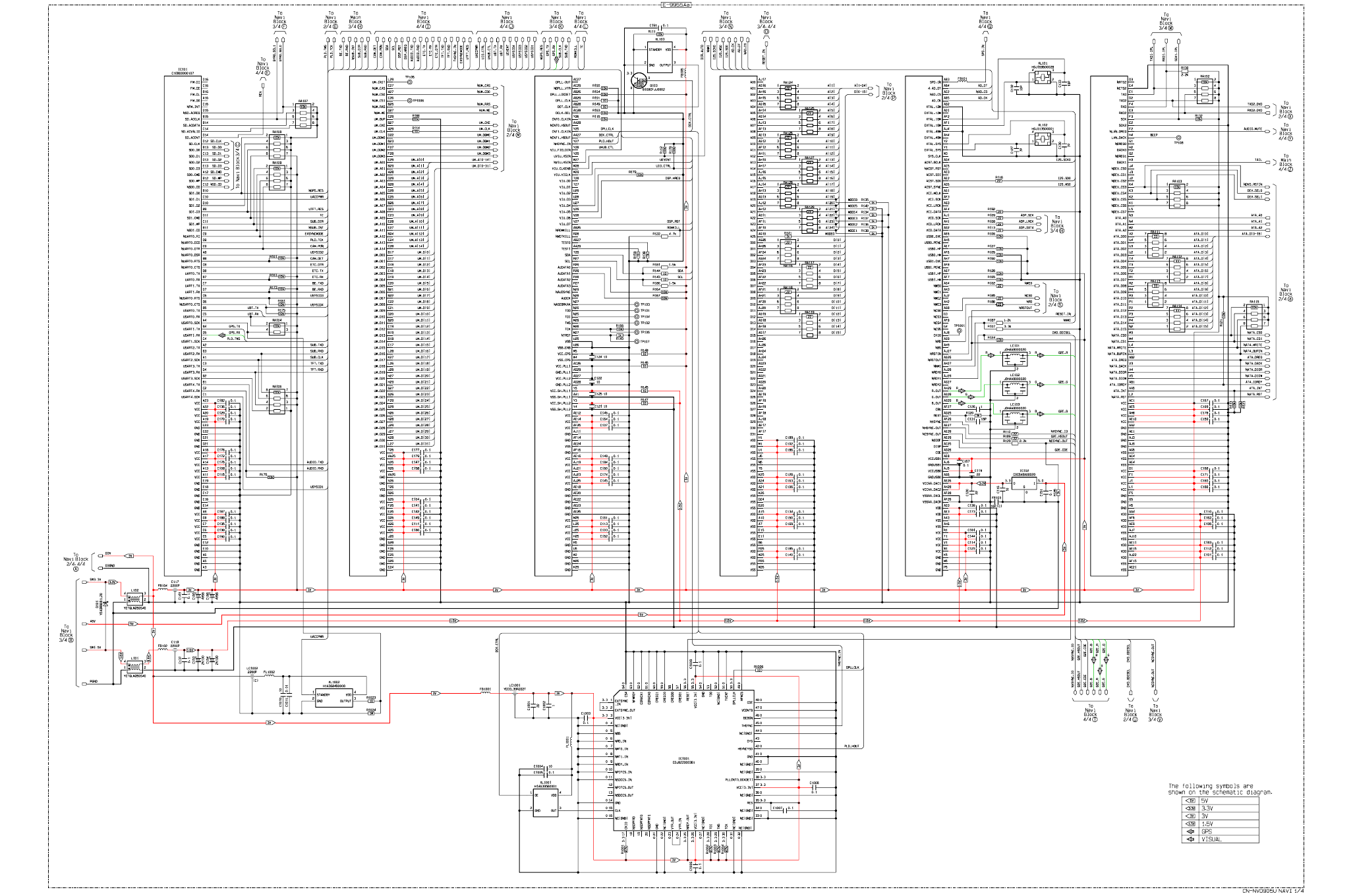

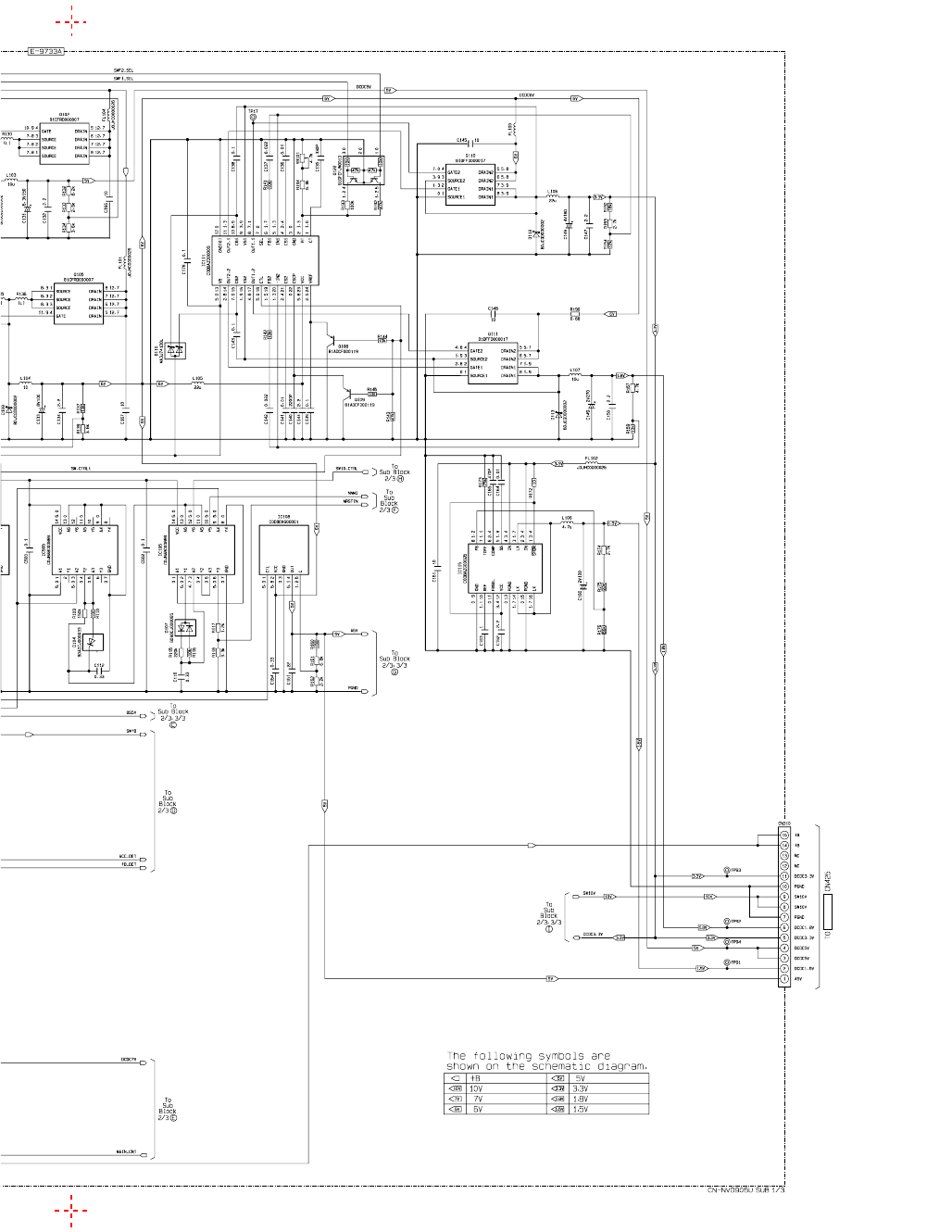

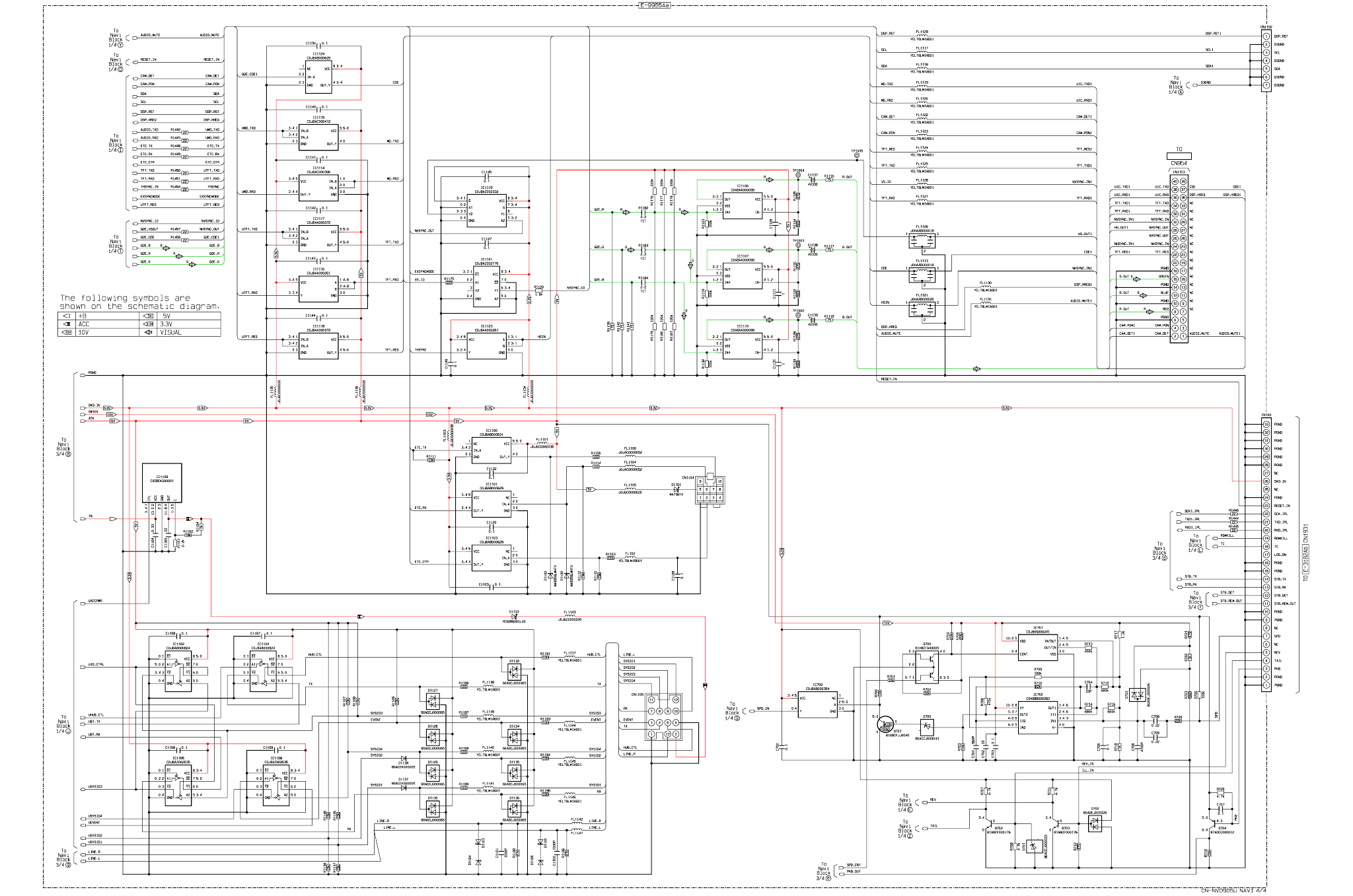

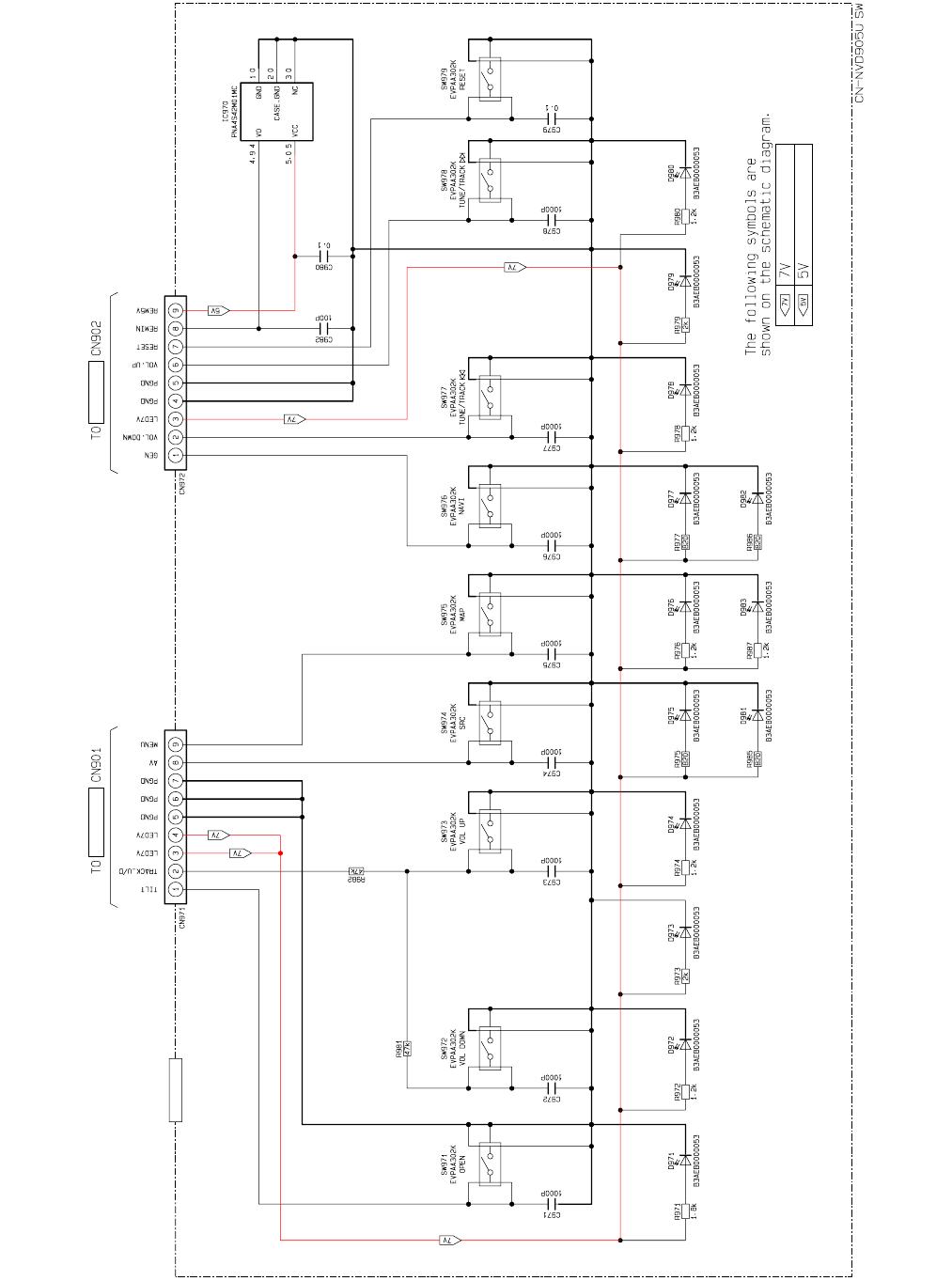

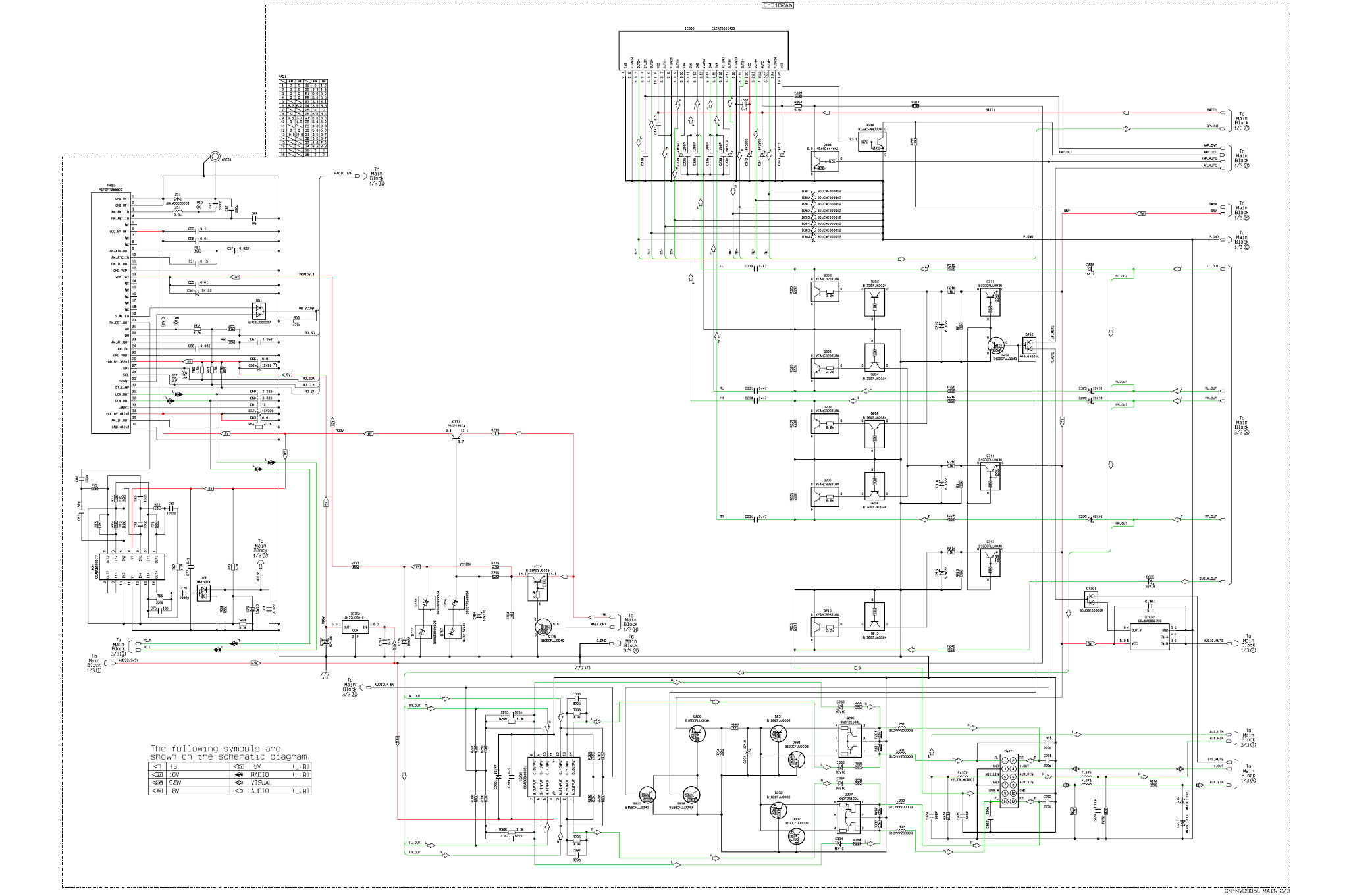

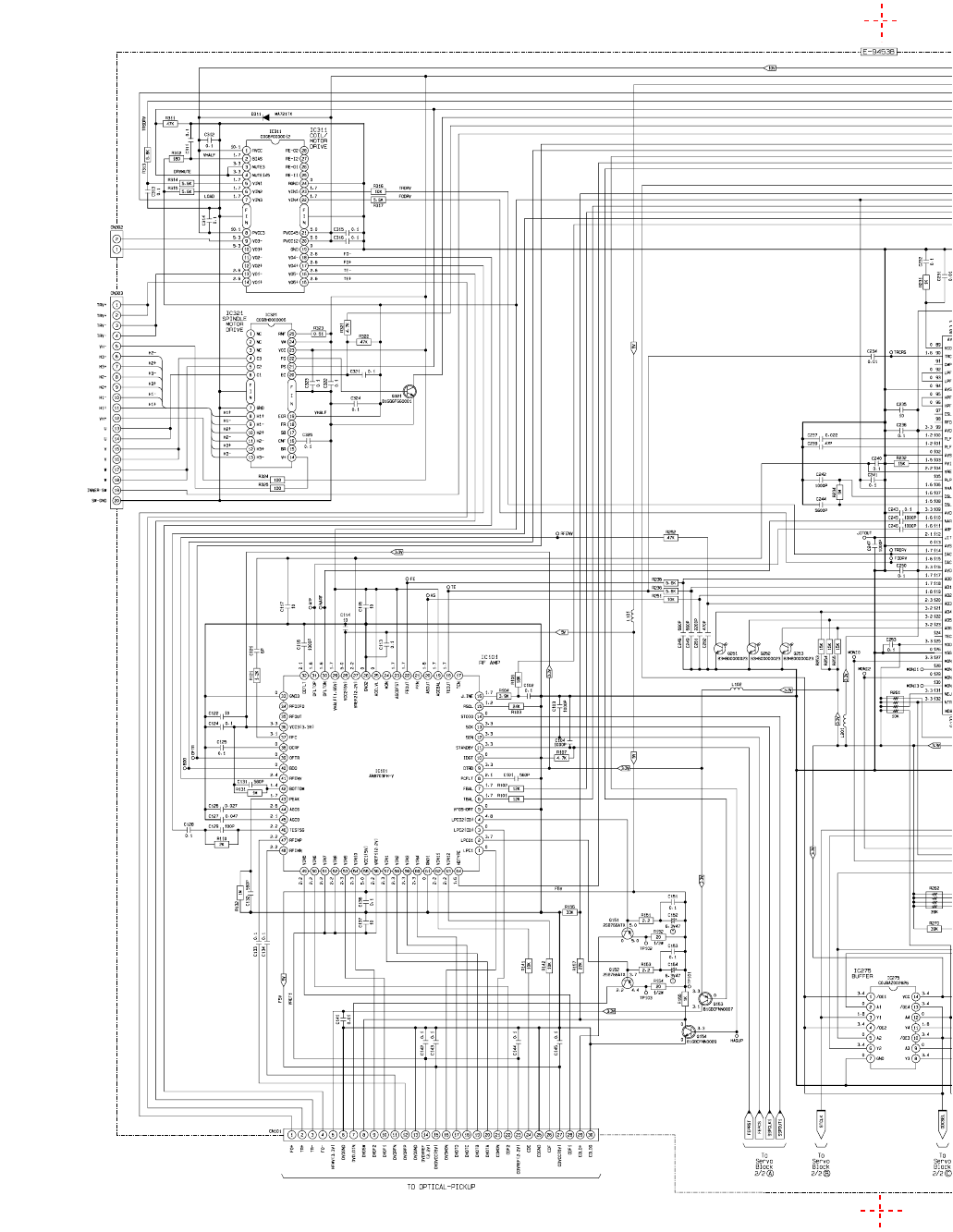

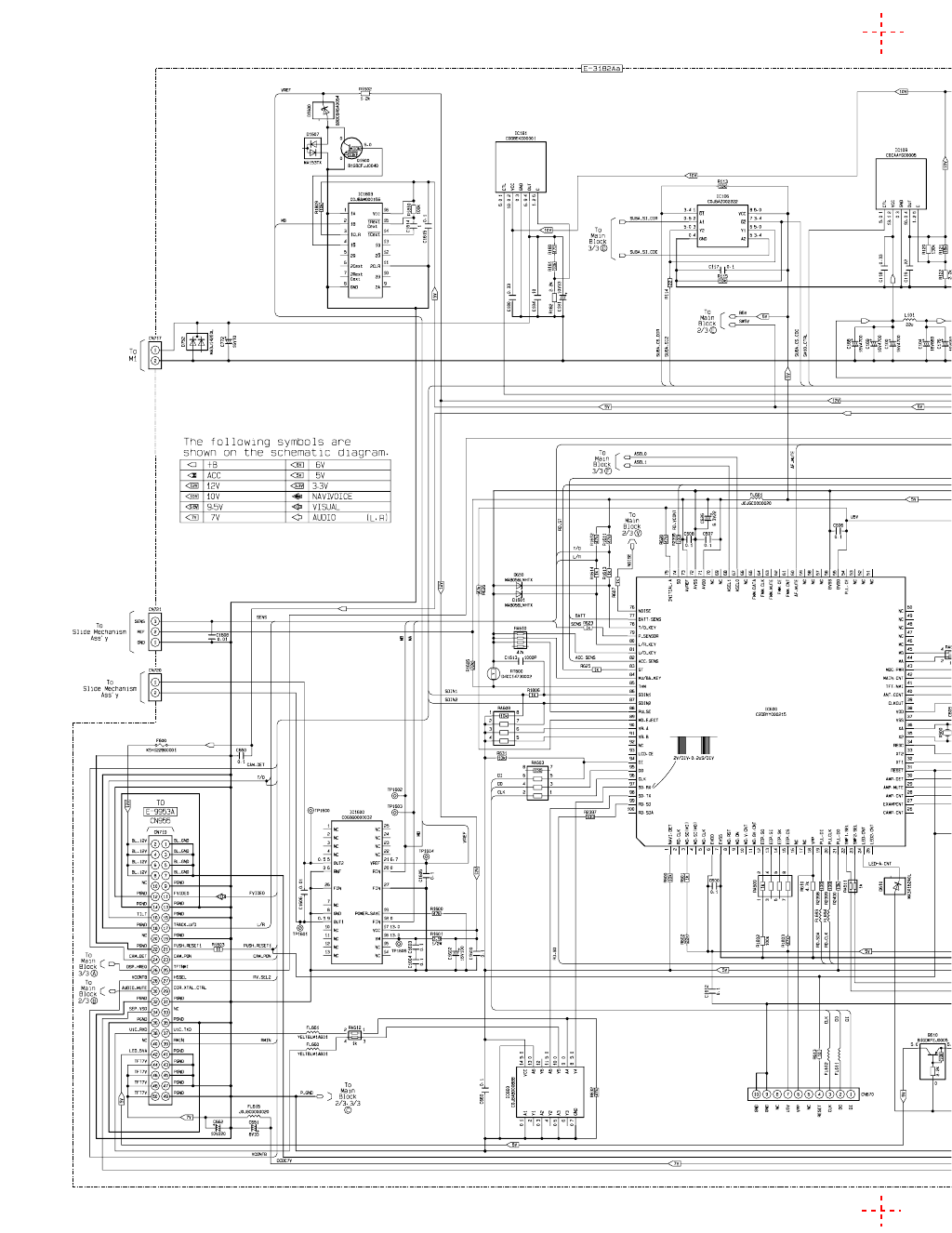

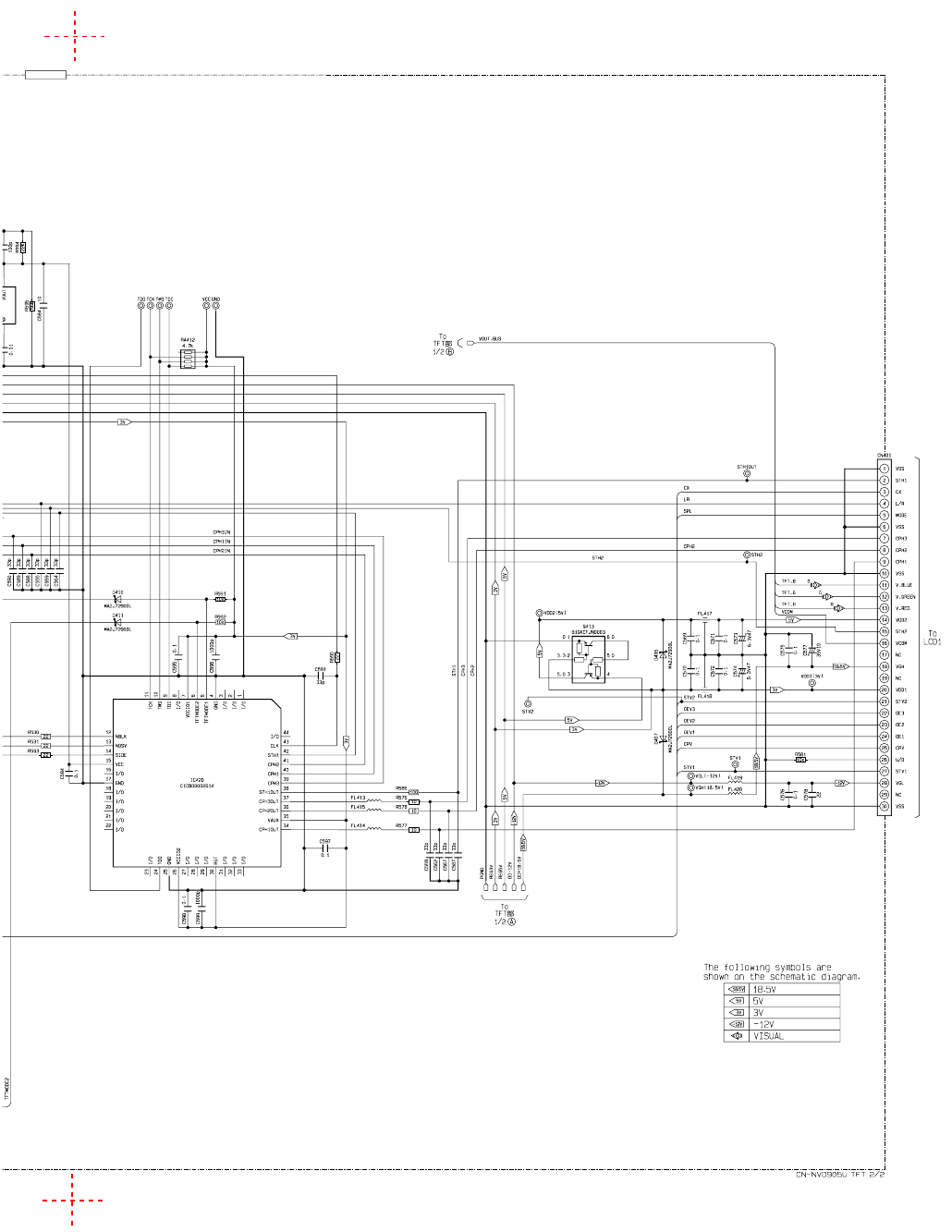

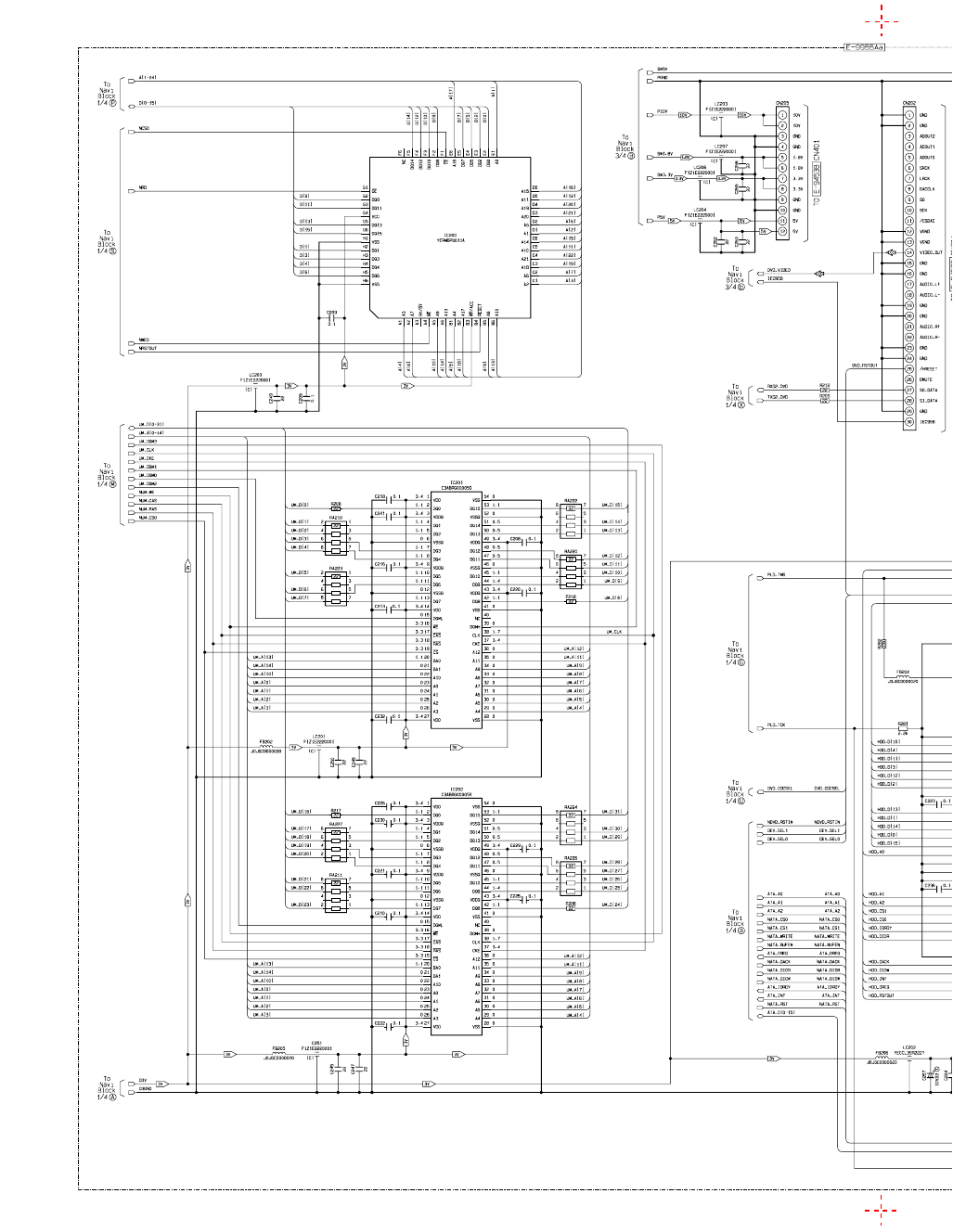

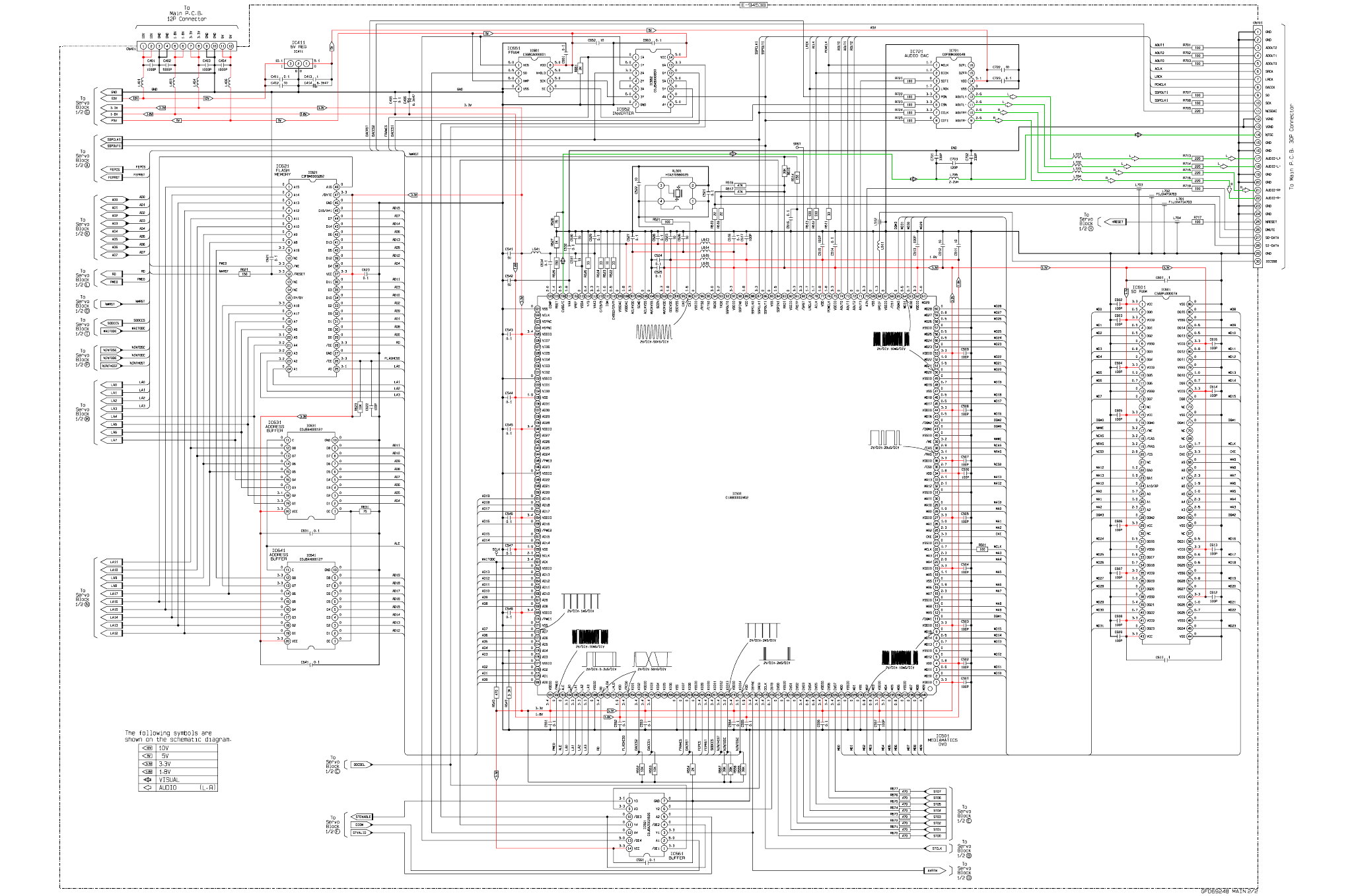

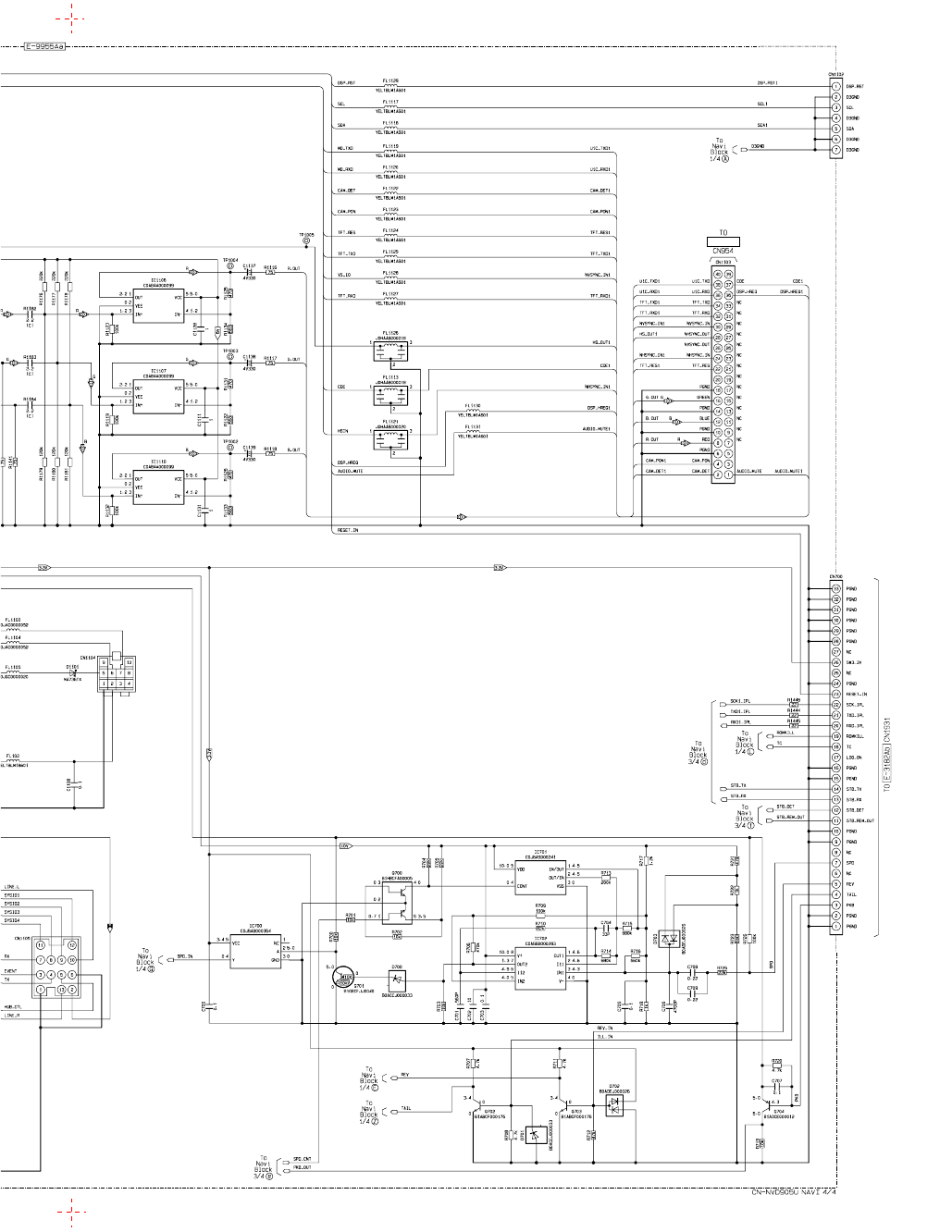

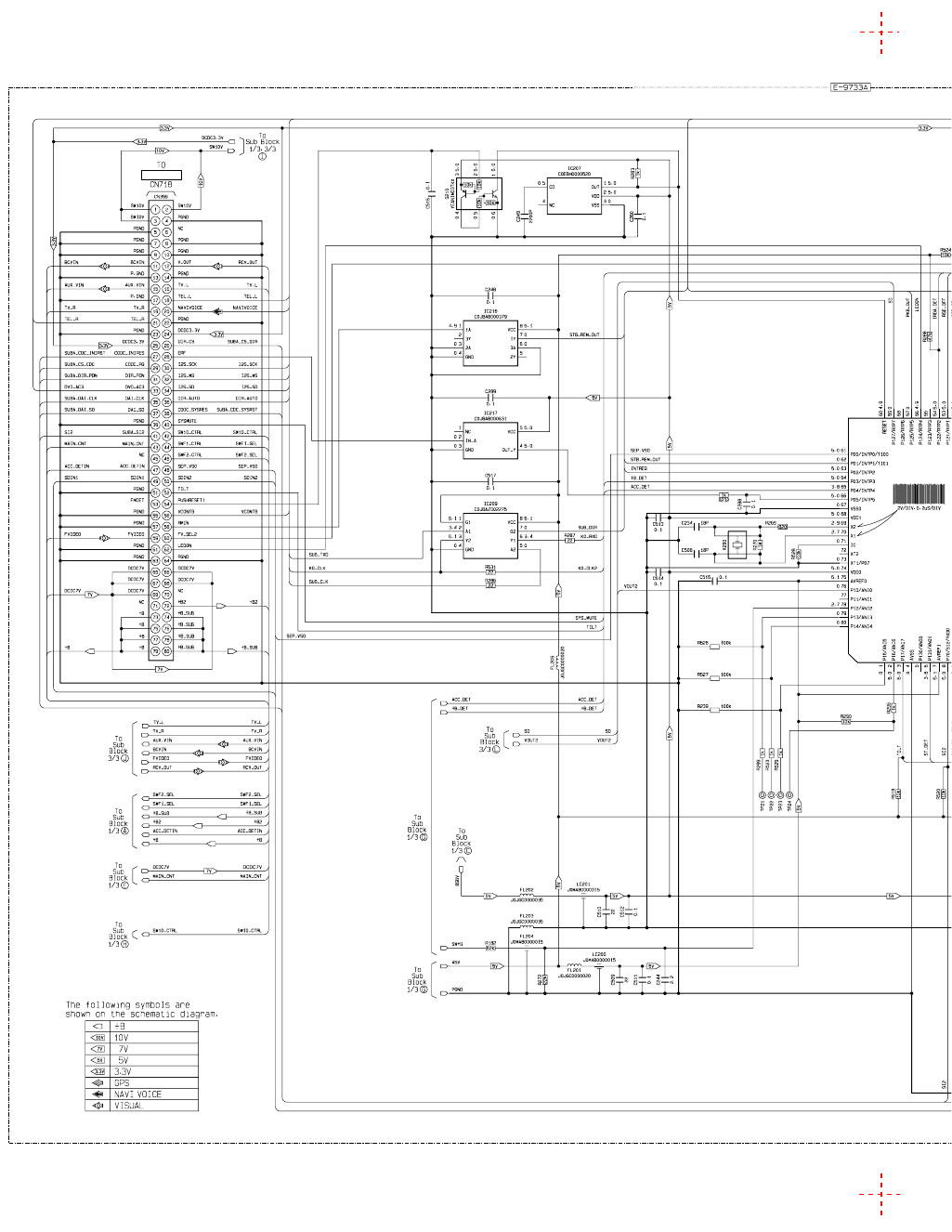

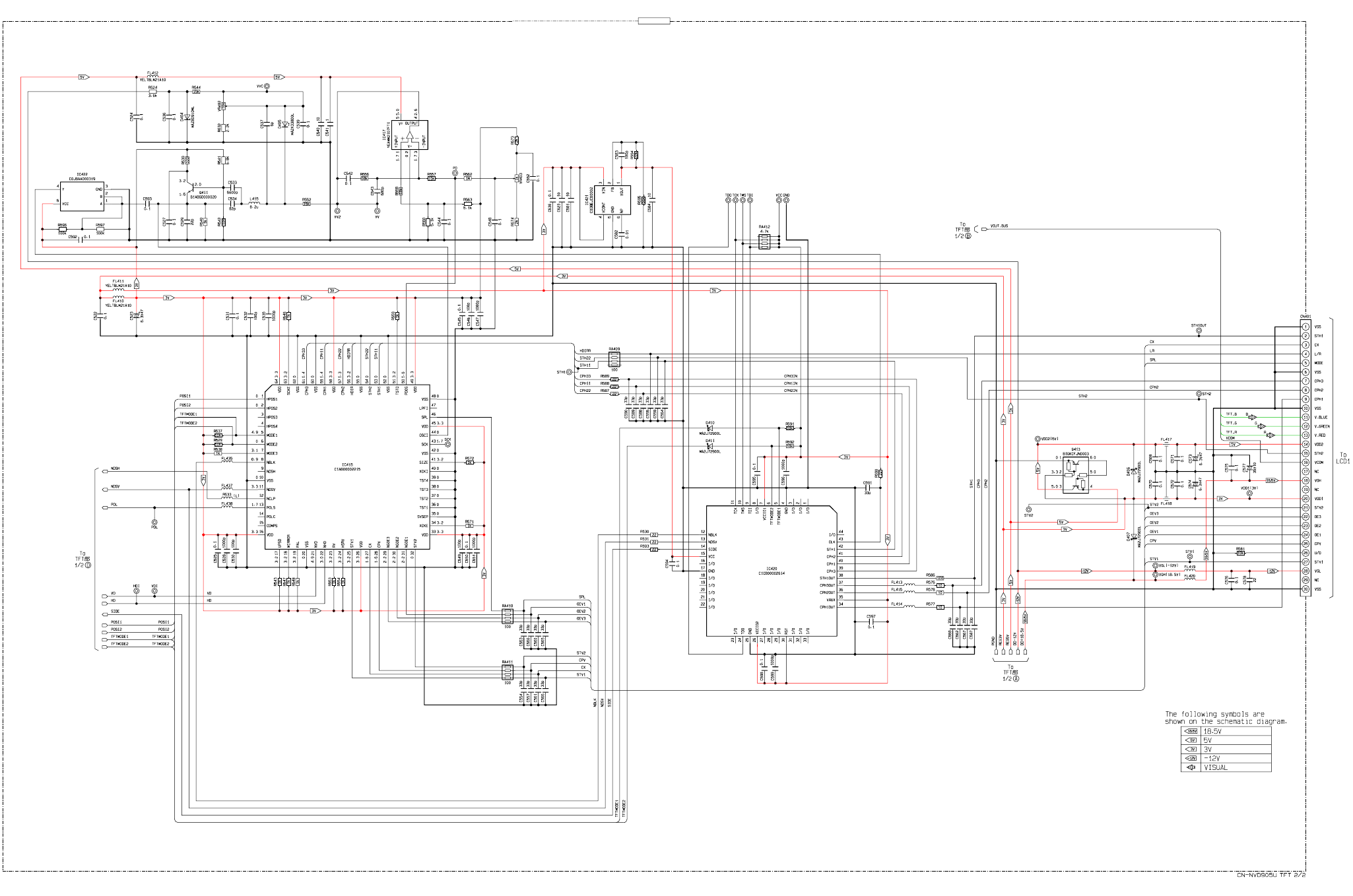

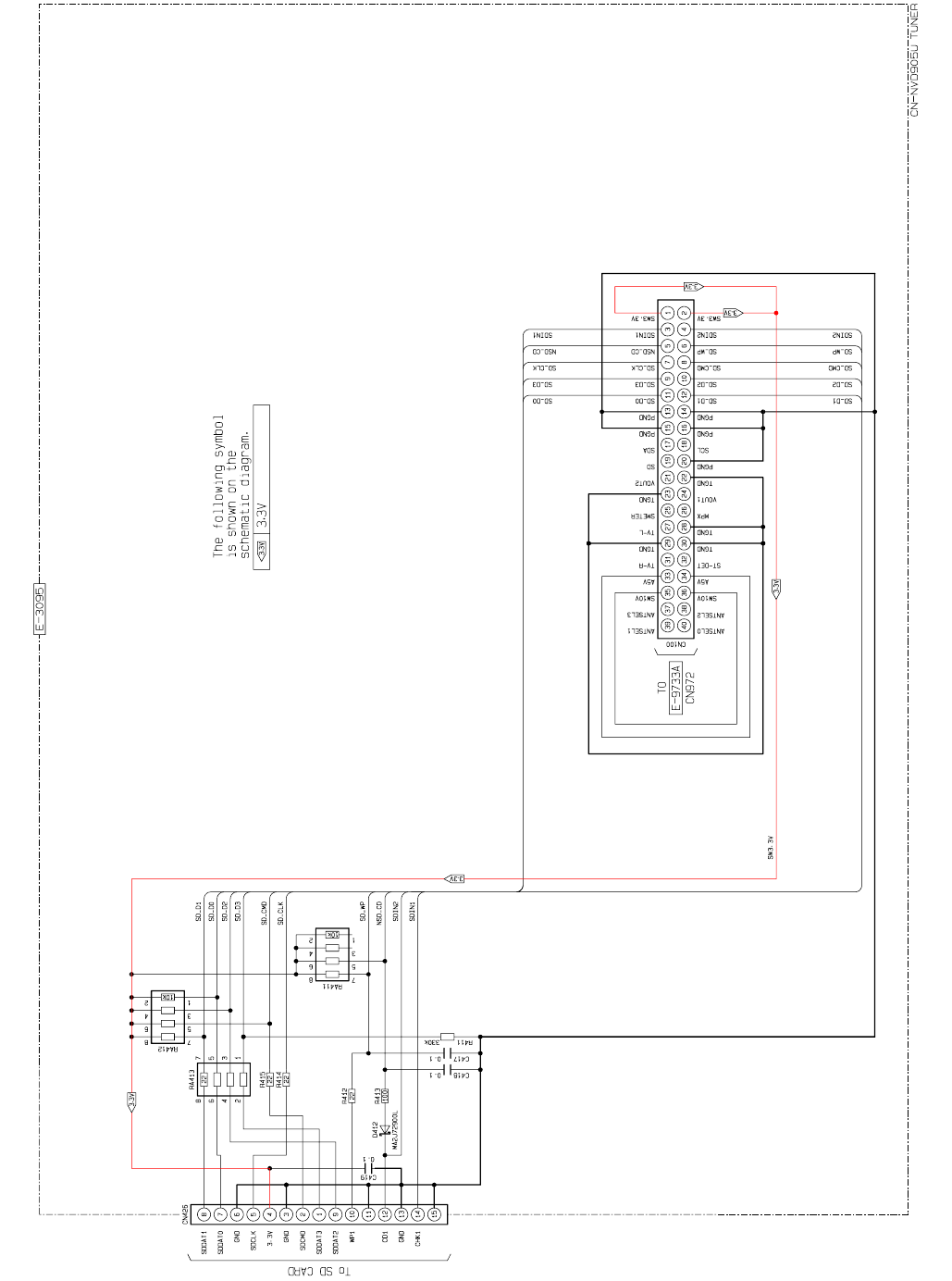

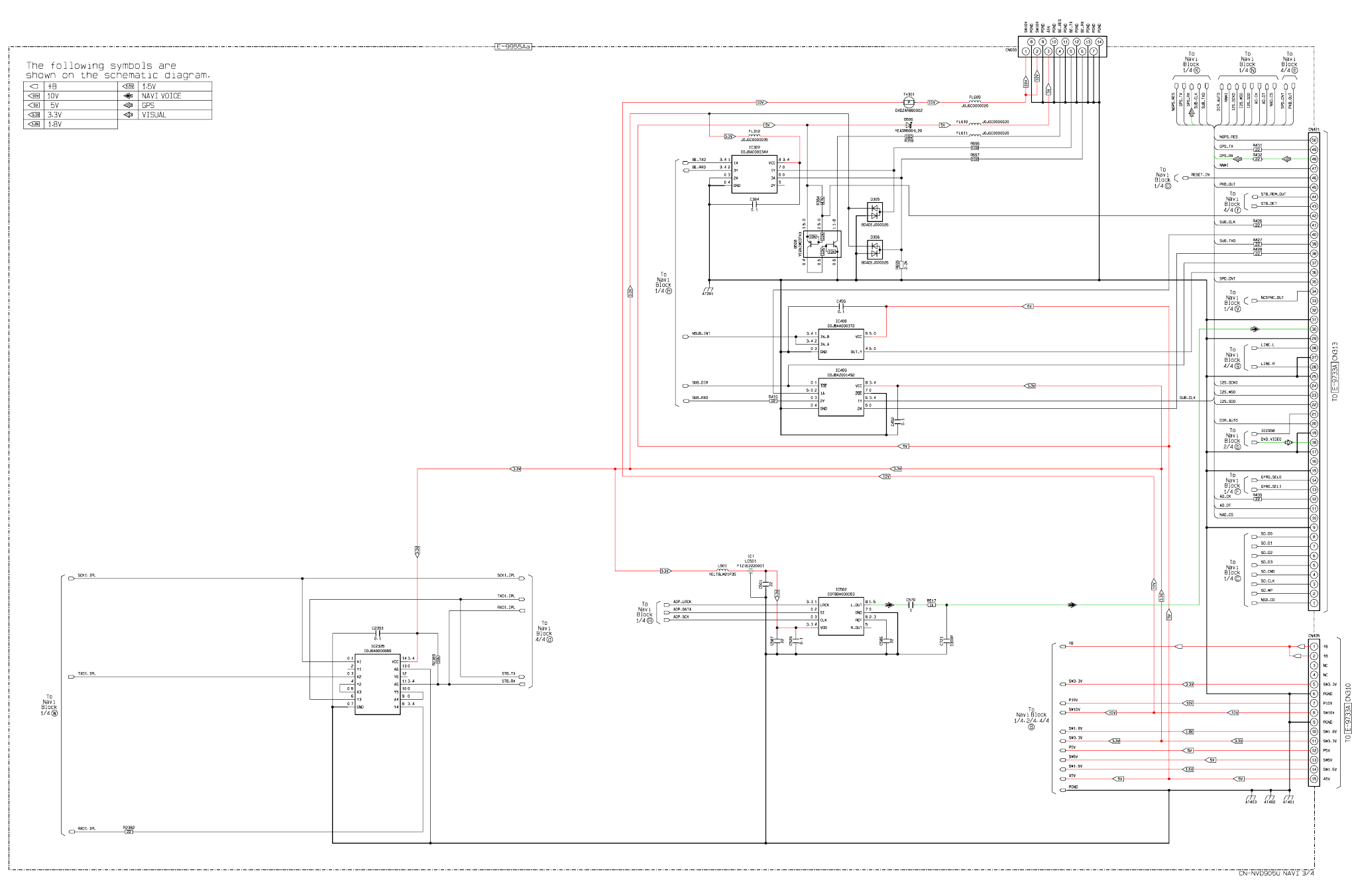

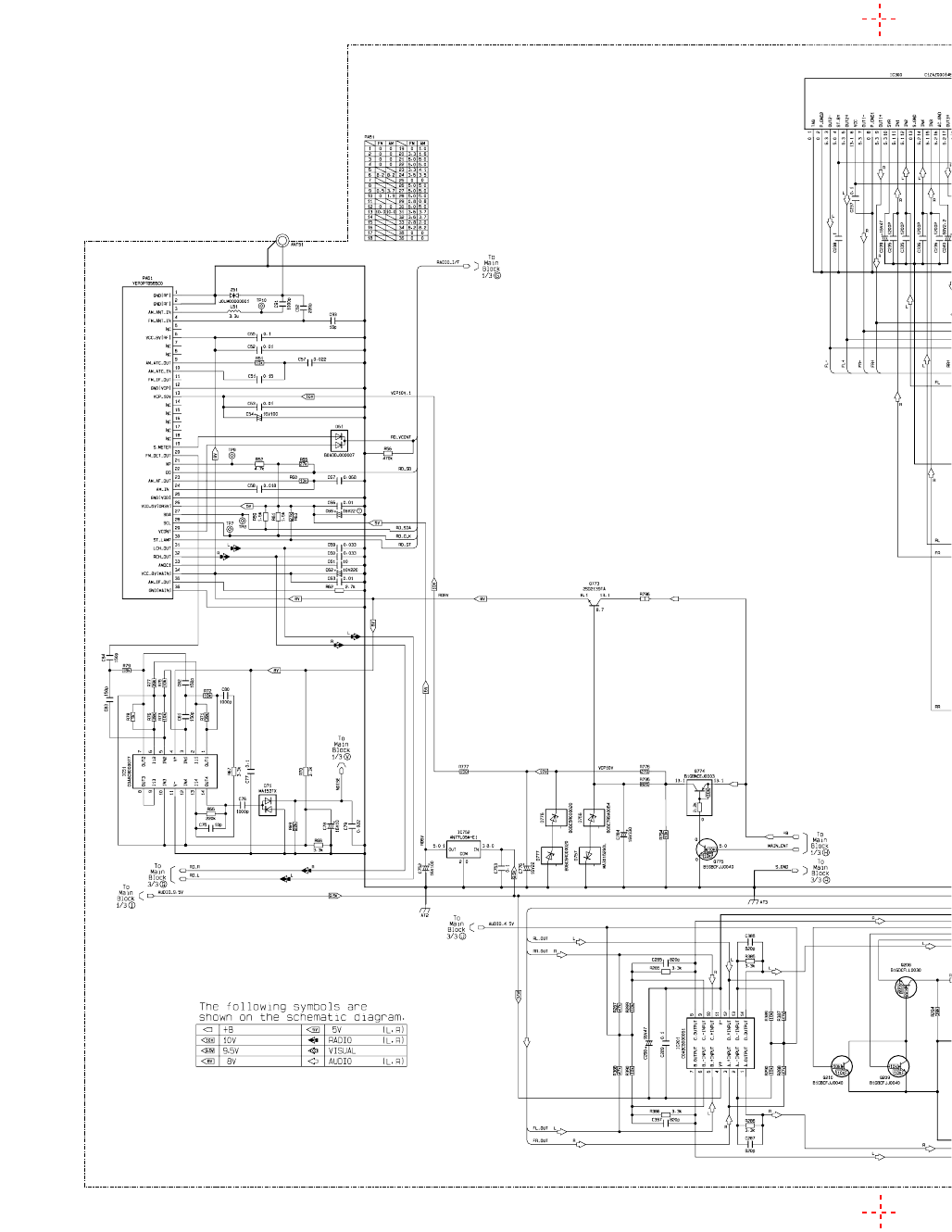

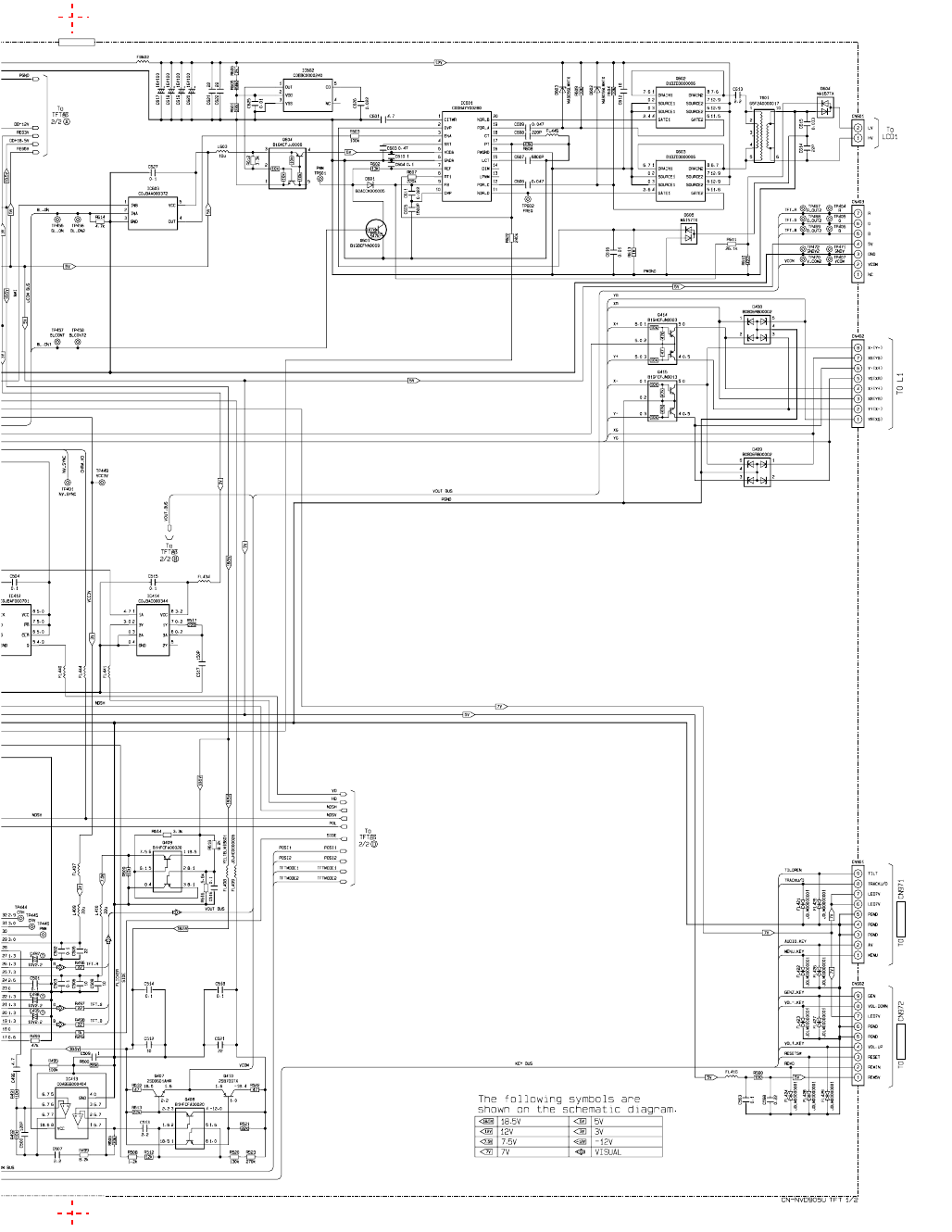

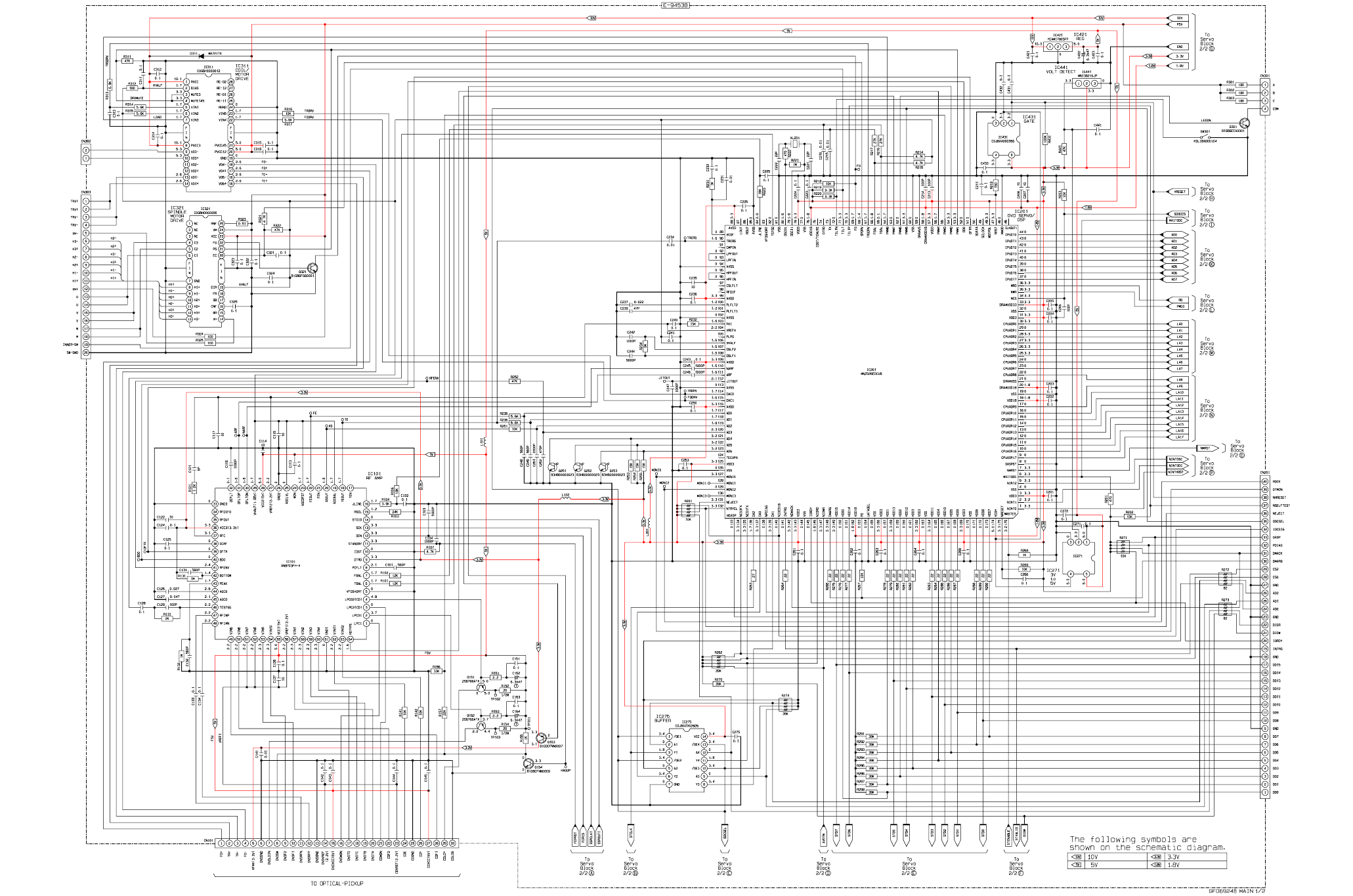

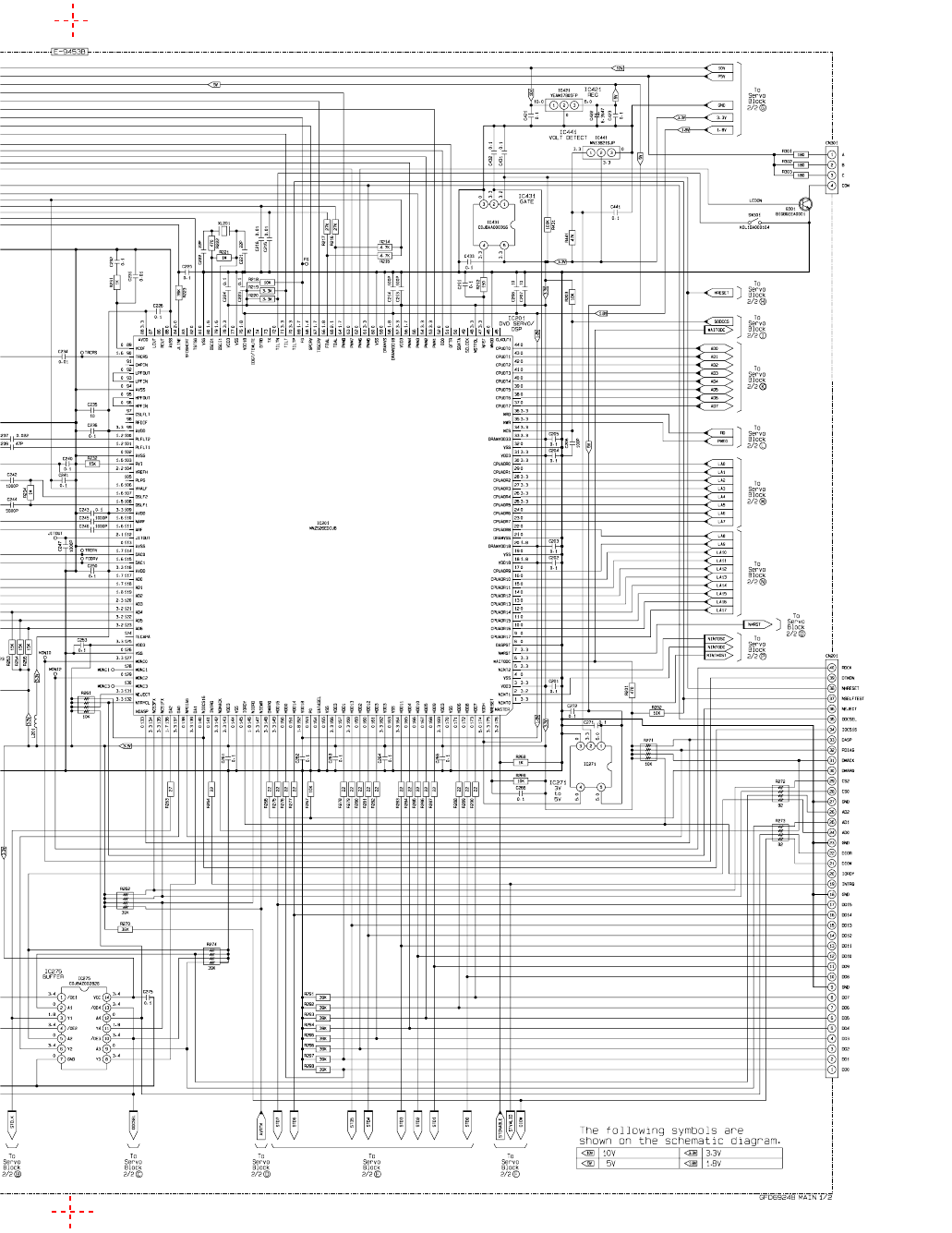

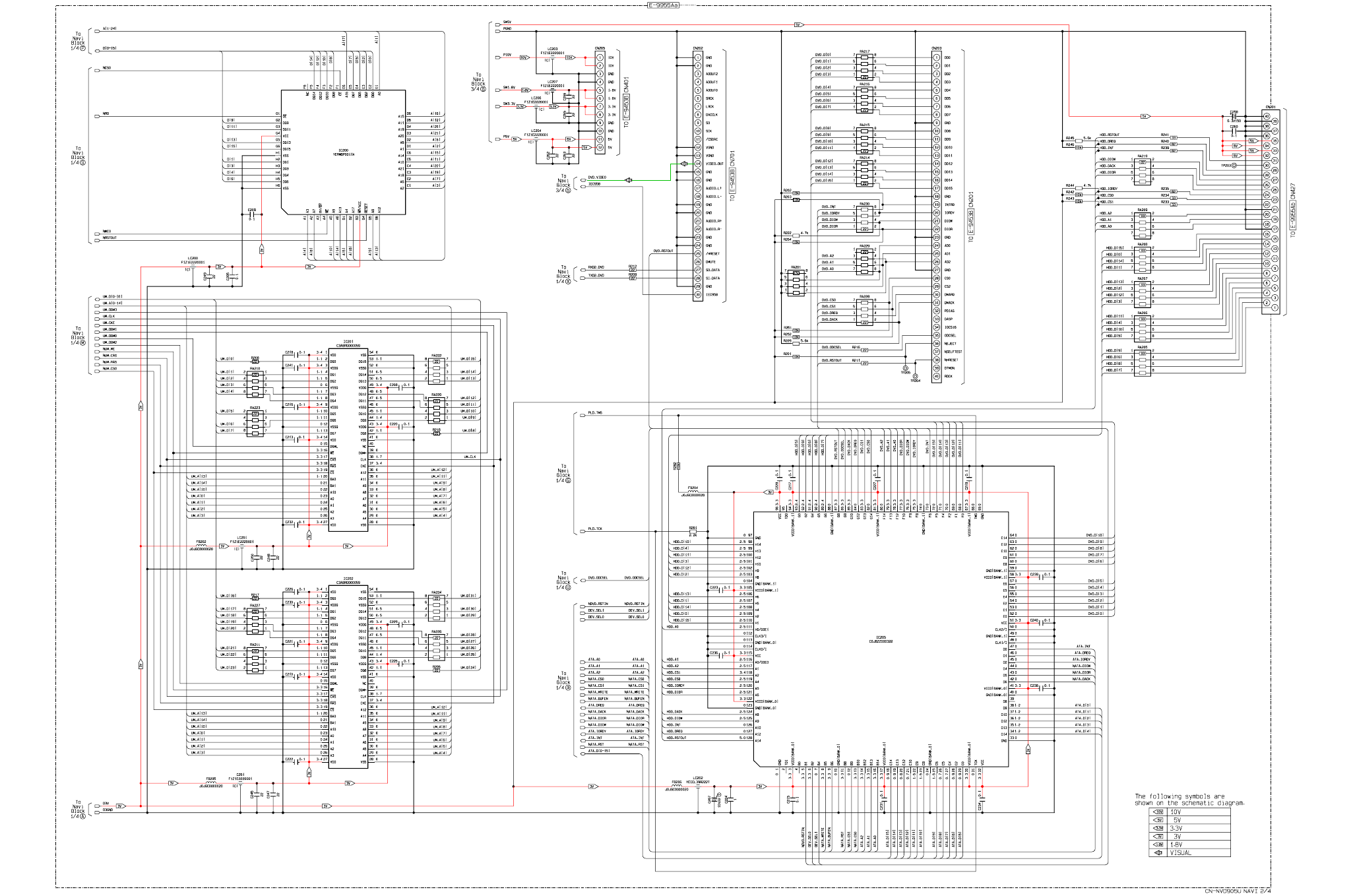

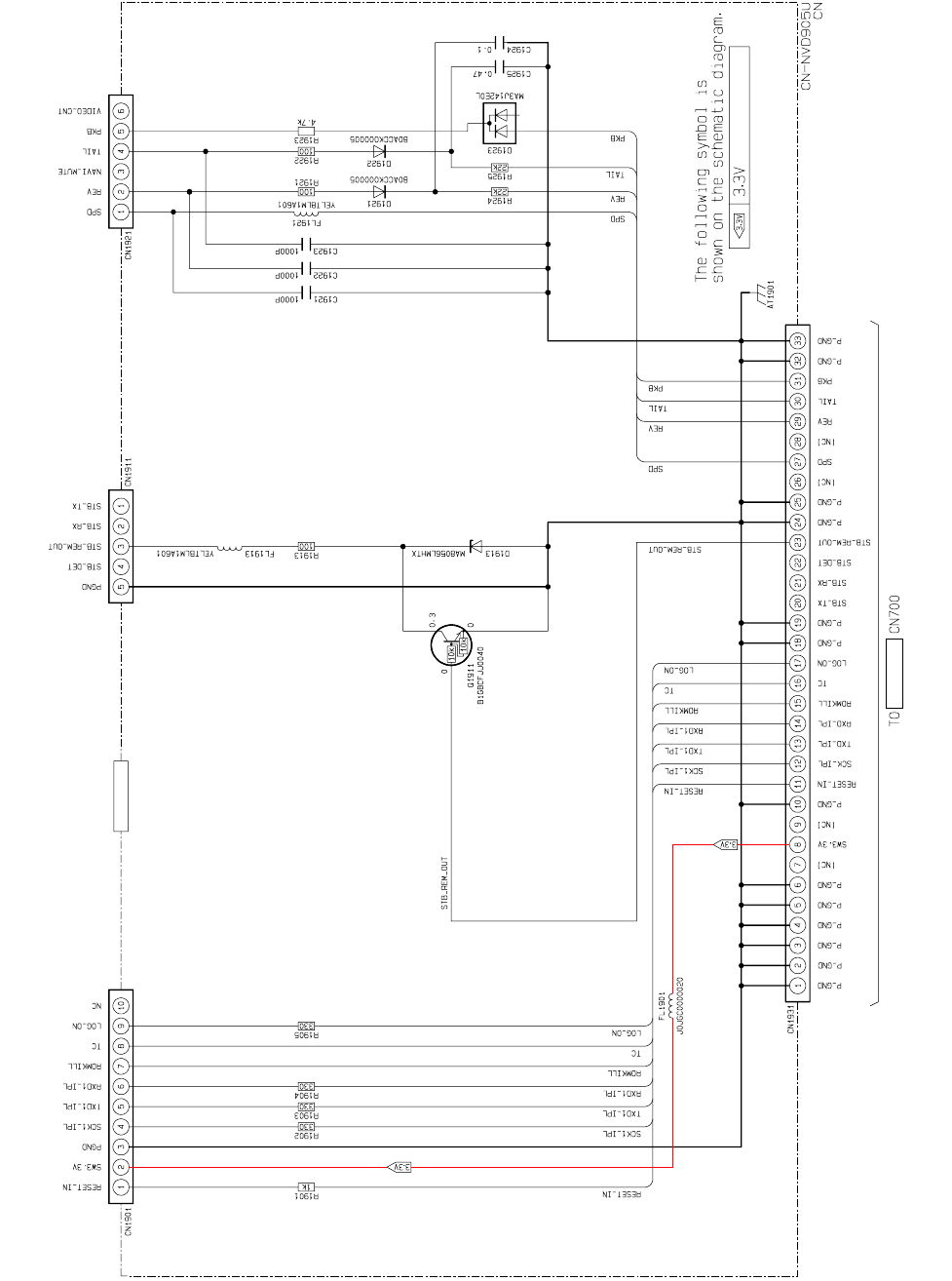

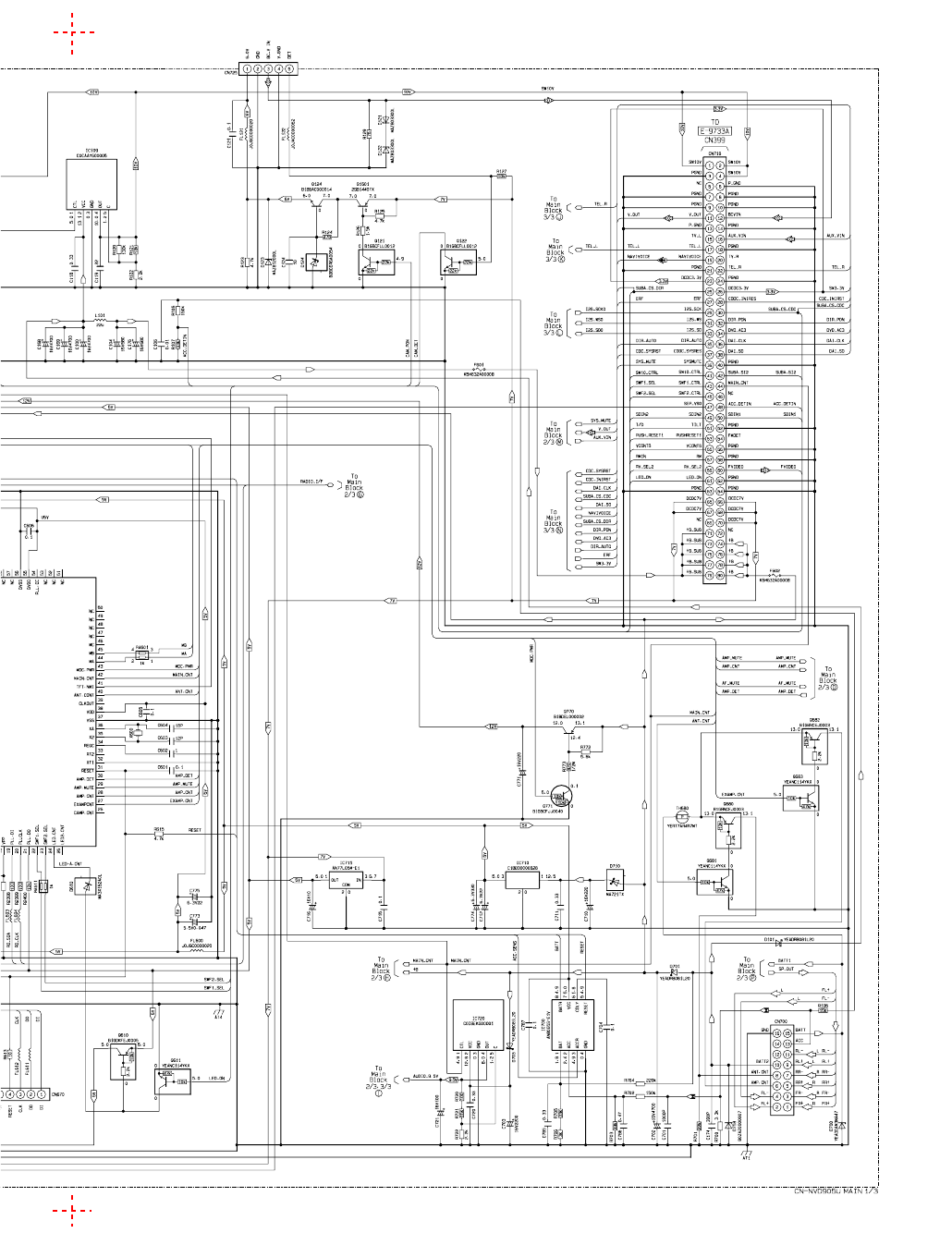

8 Schematic Diagram---------------------------------------------30

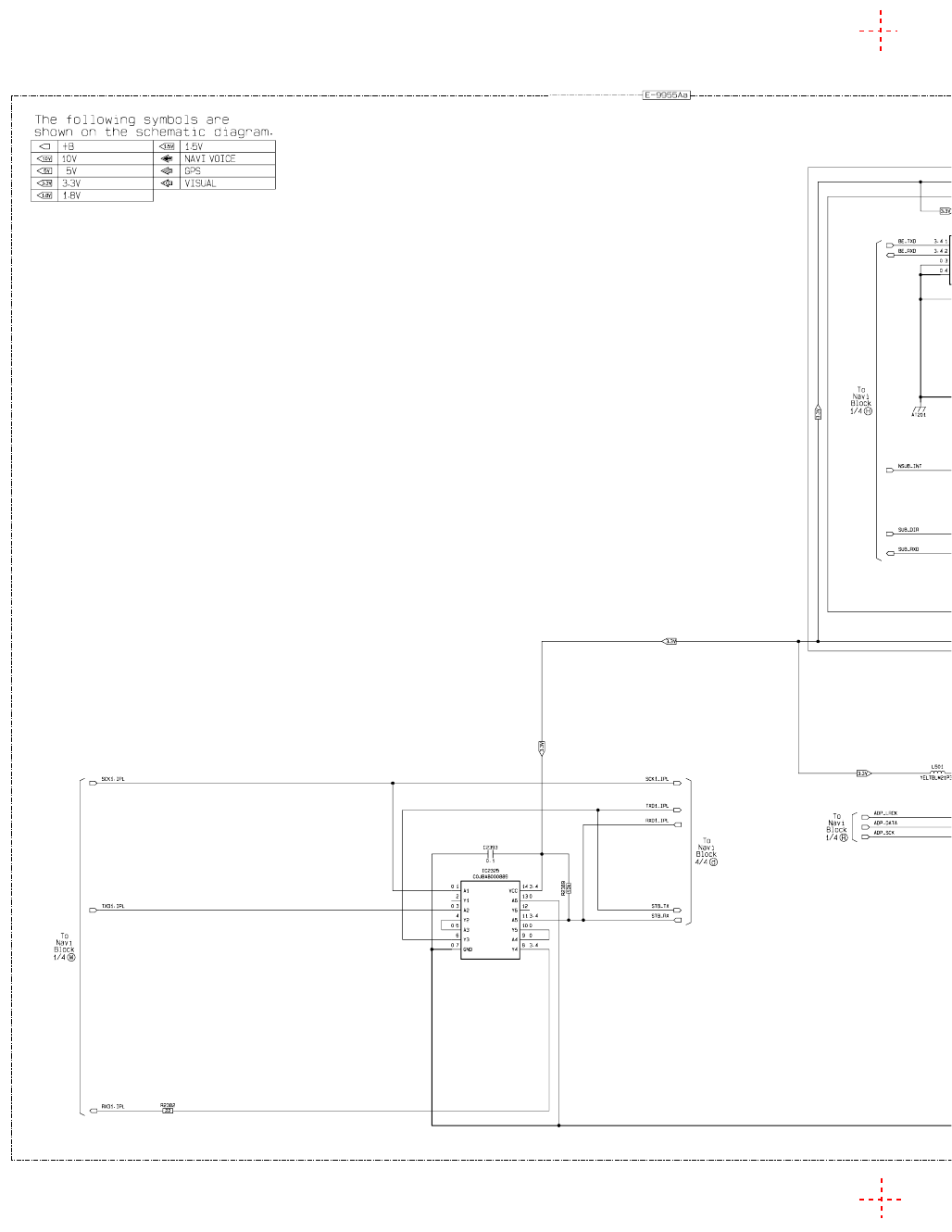

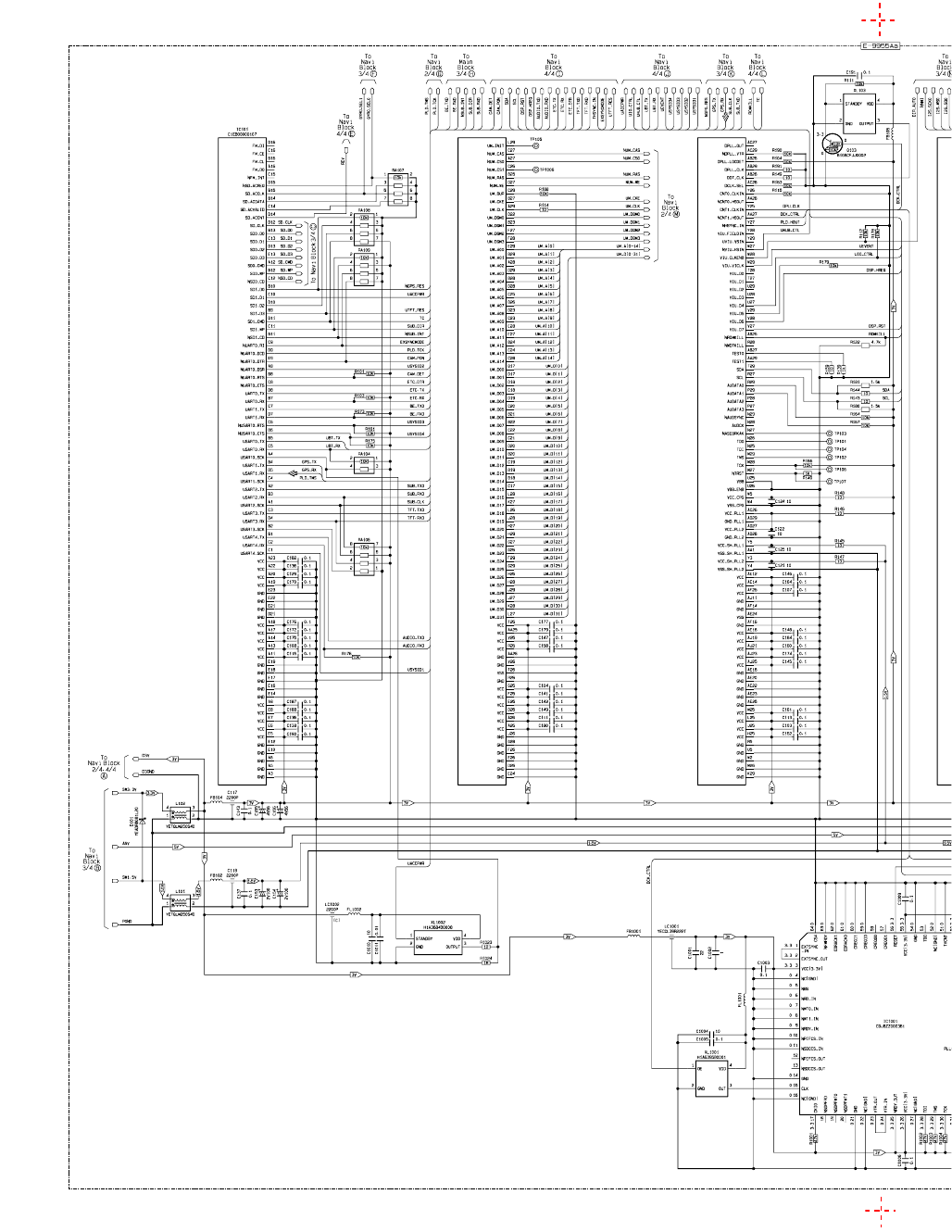

9 Schematic Diagram-2 ------------------------------------------44

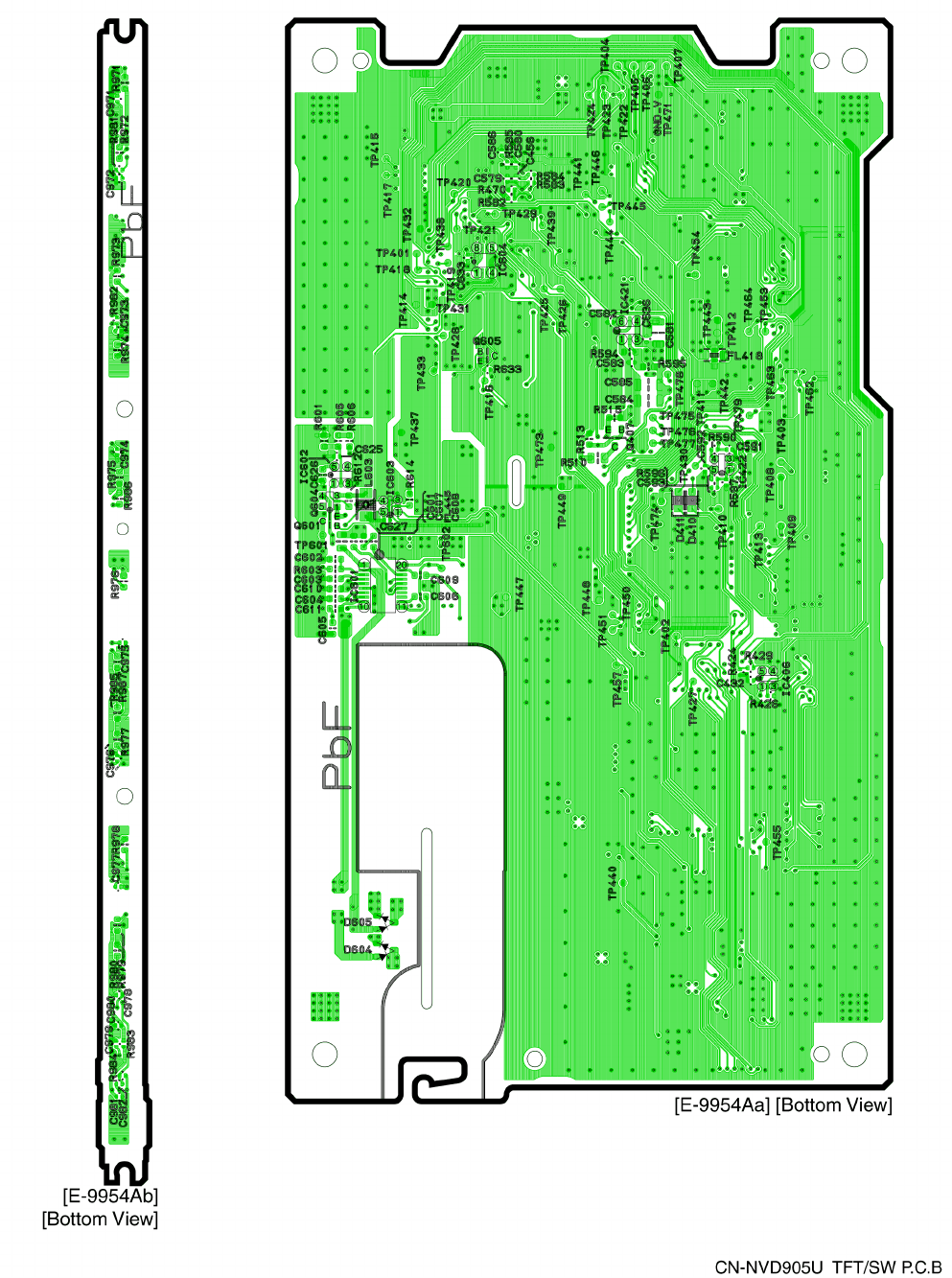

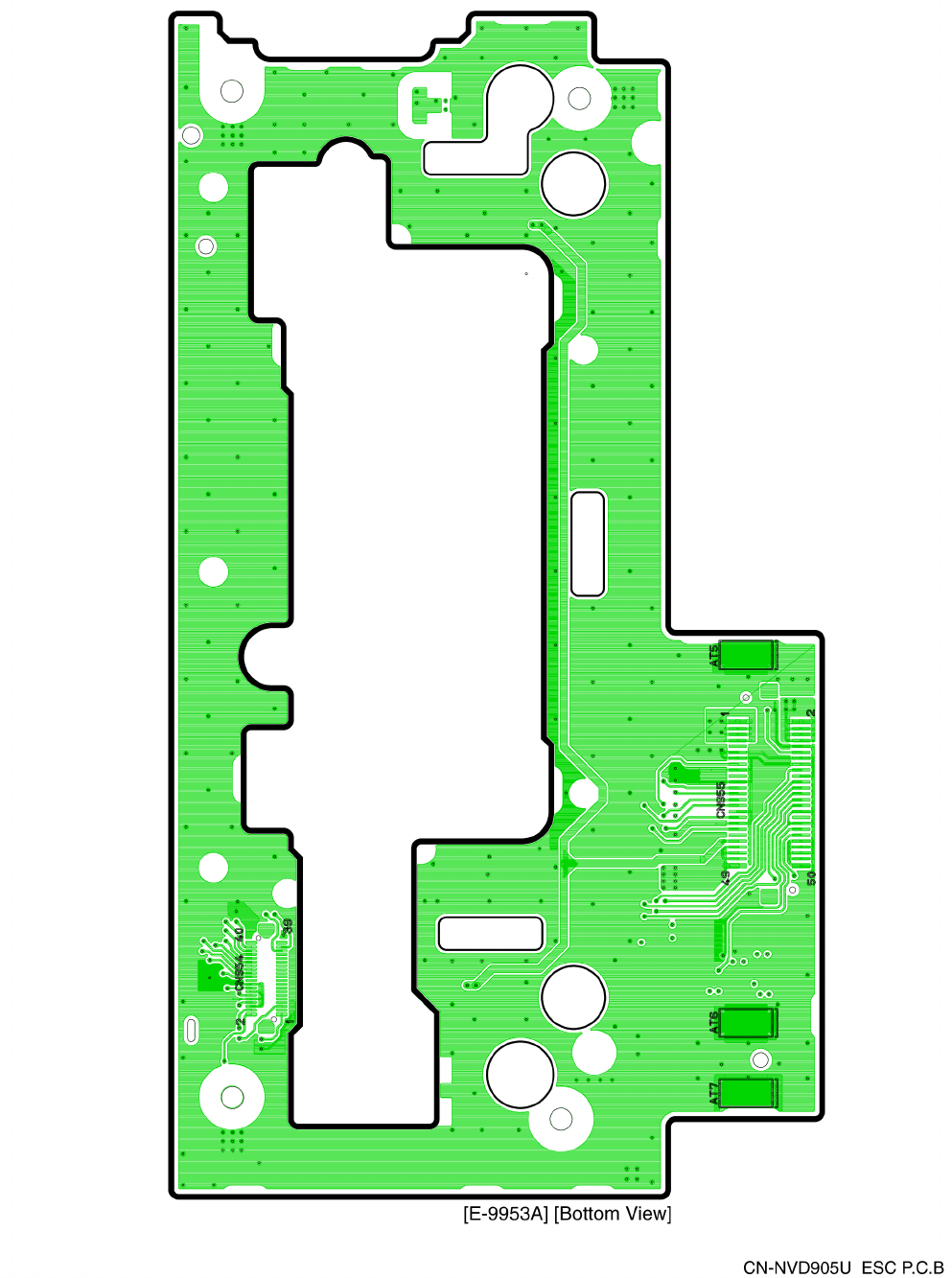

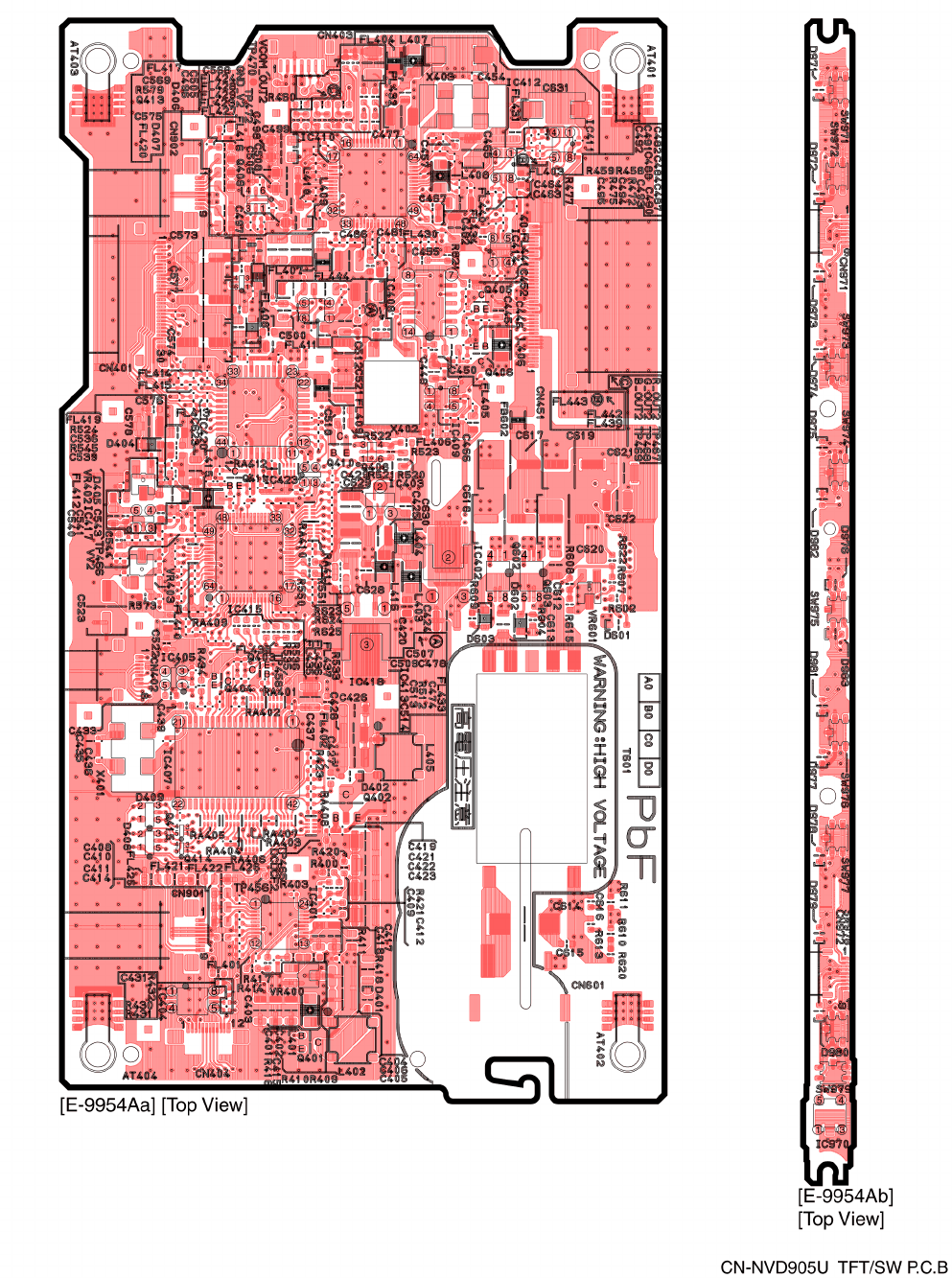

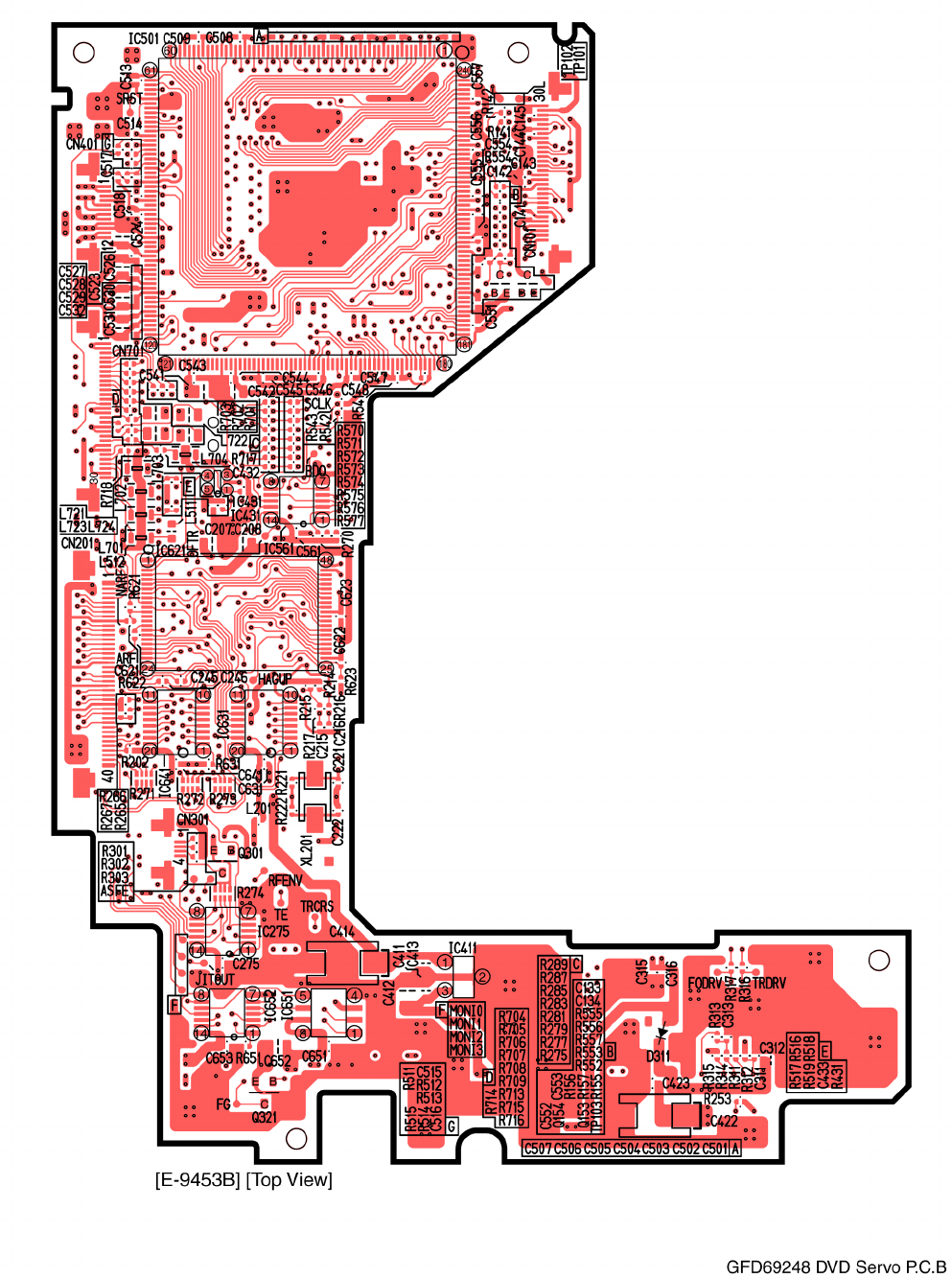

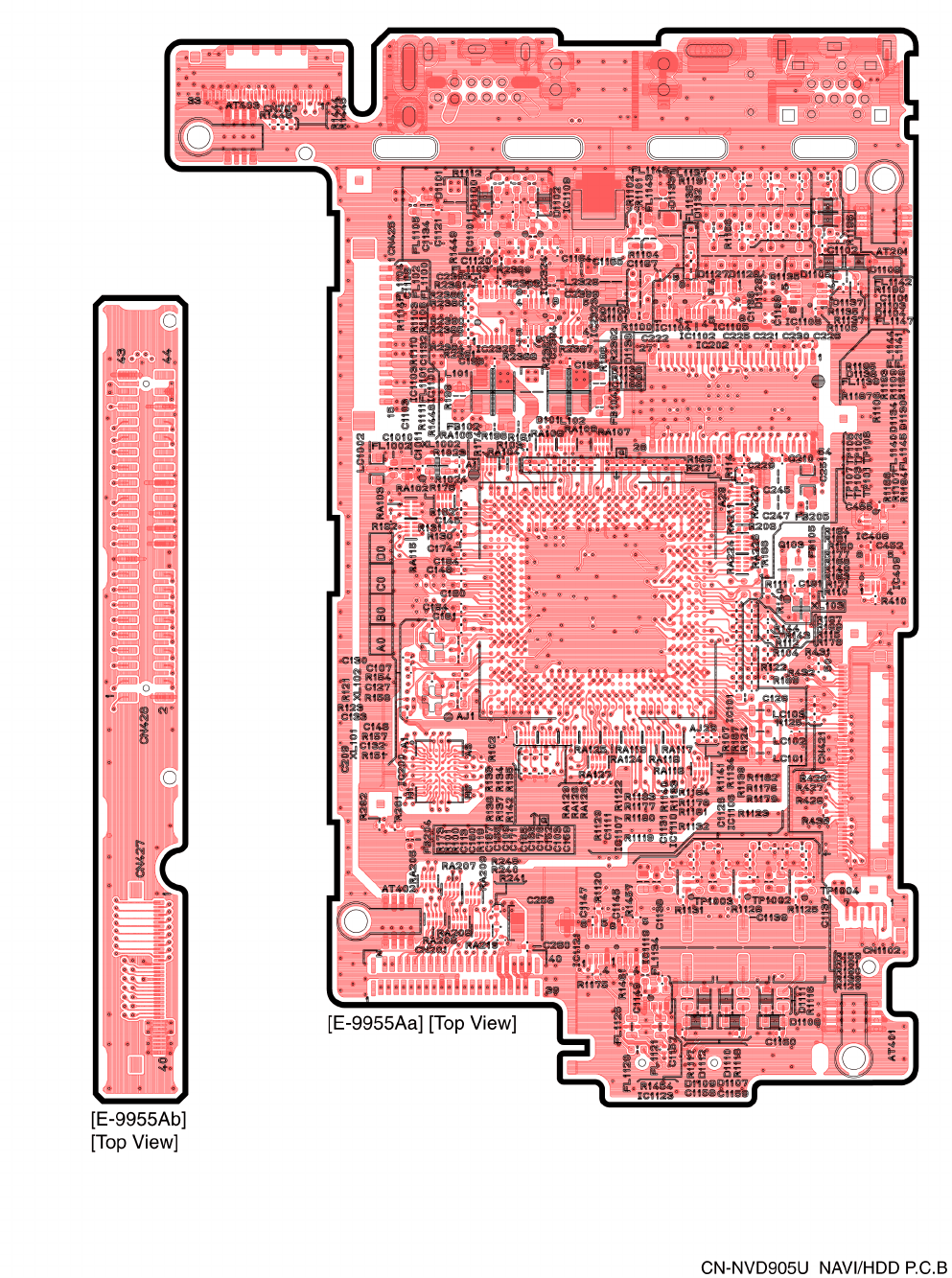

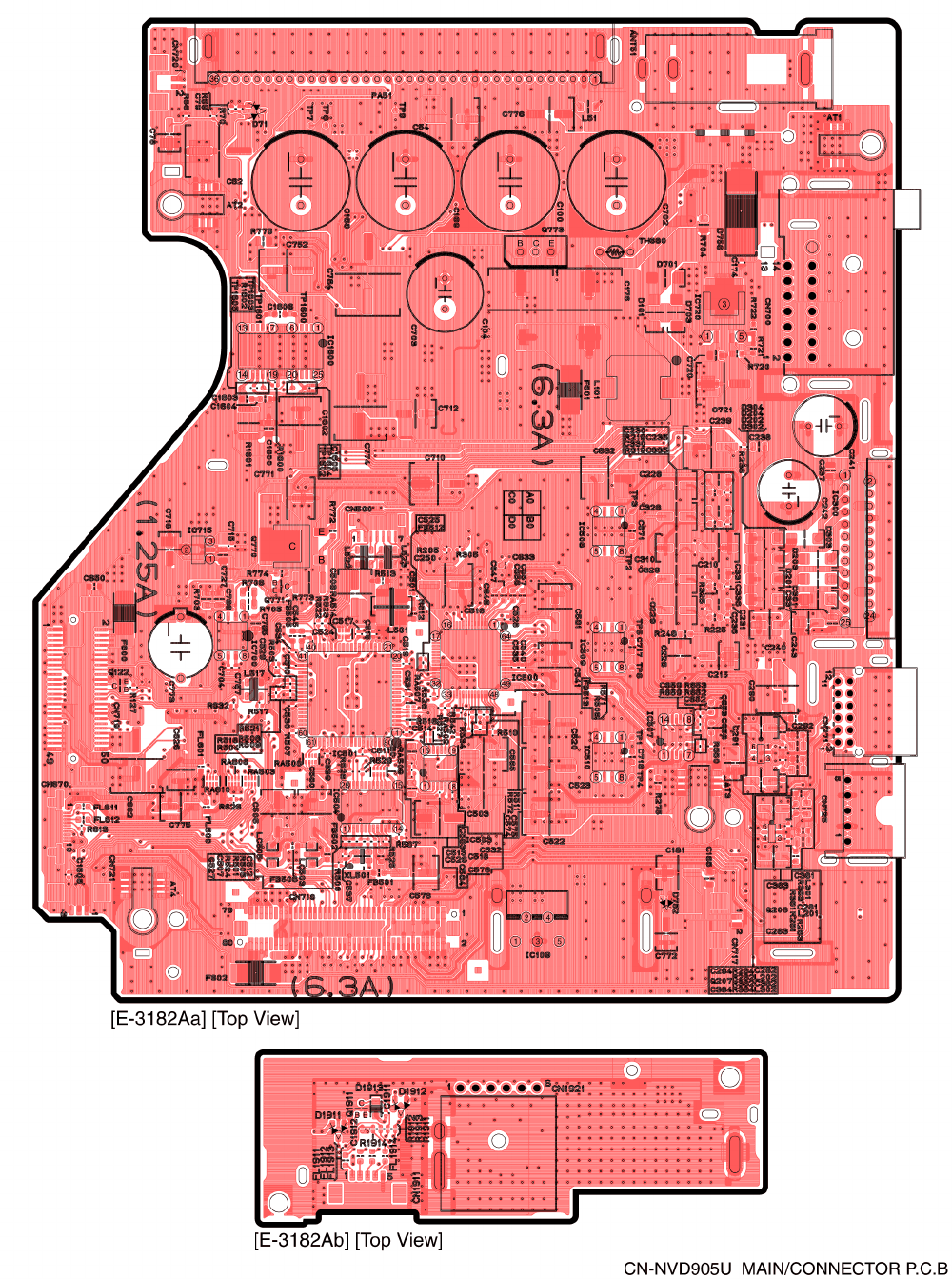

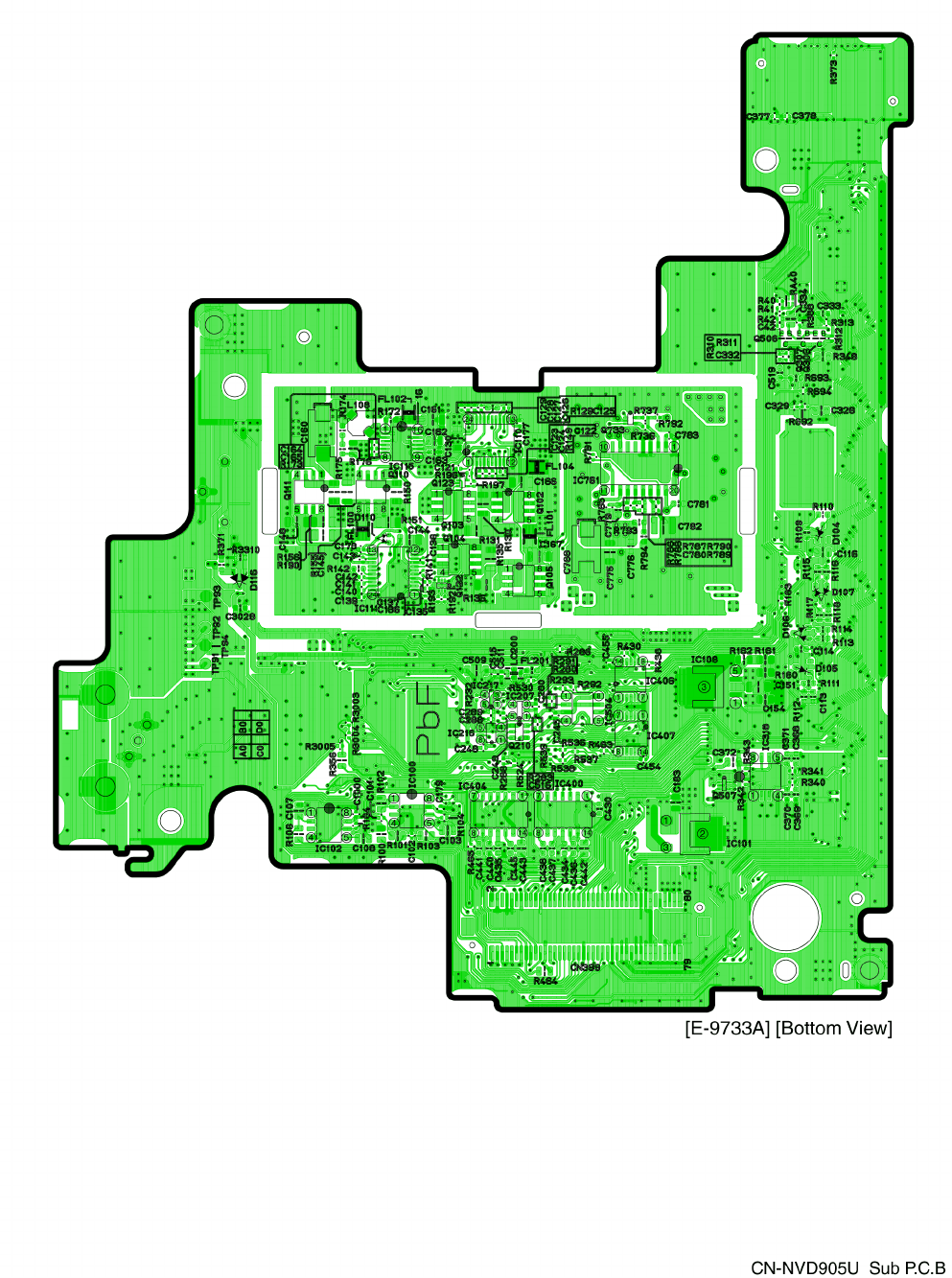

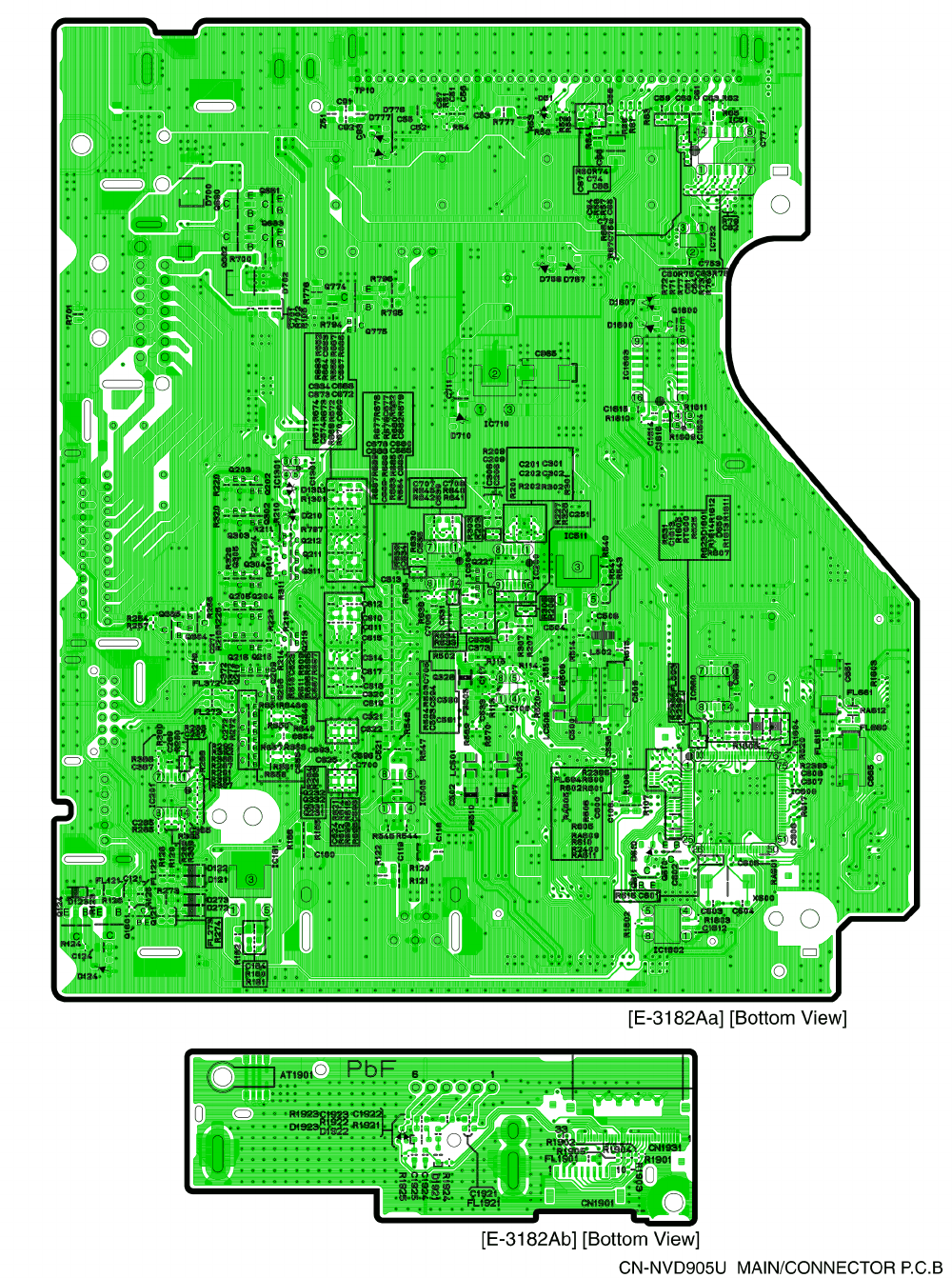

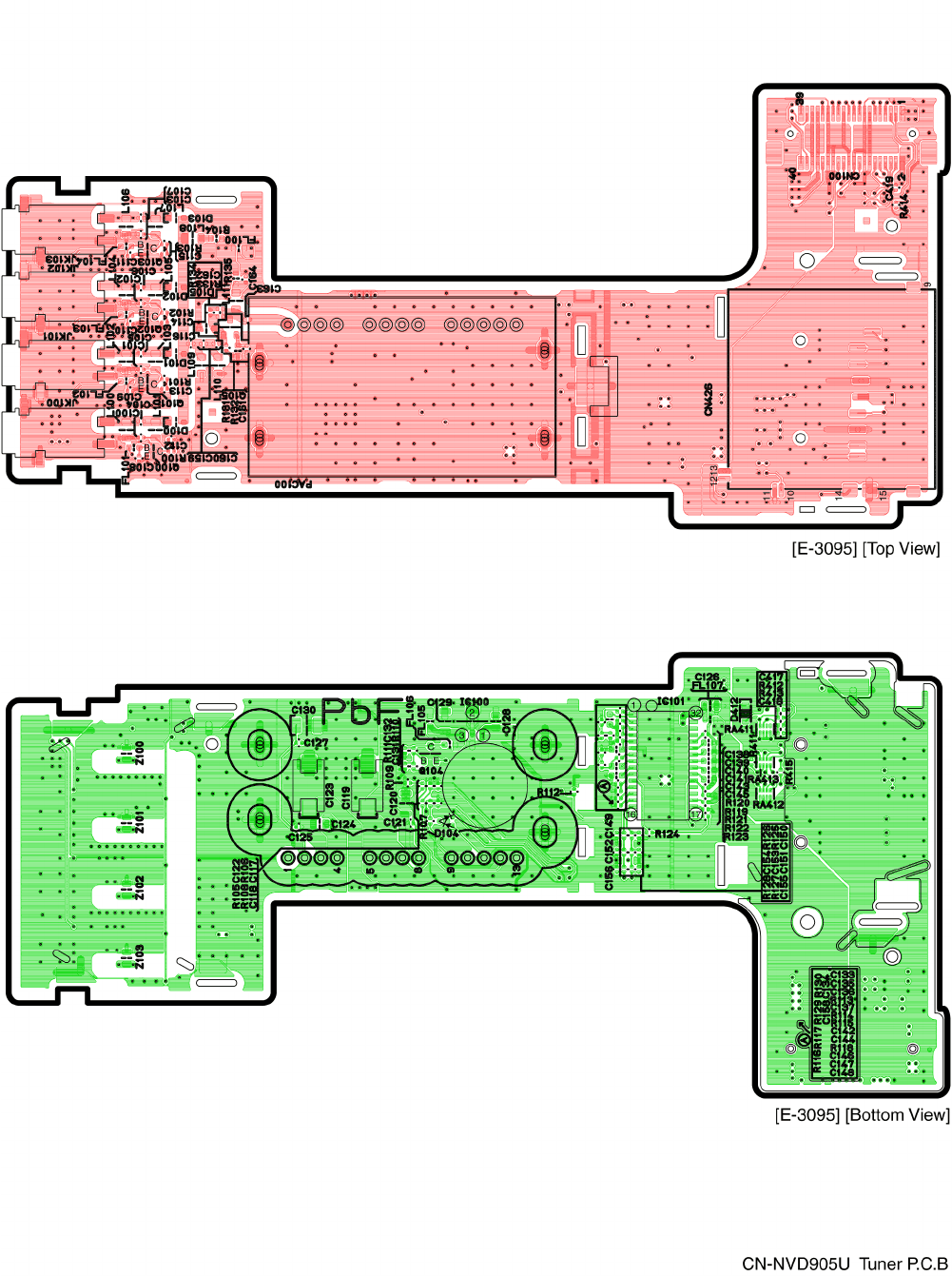

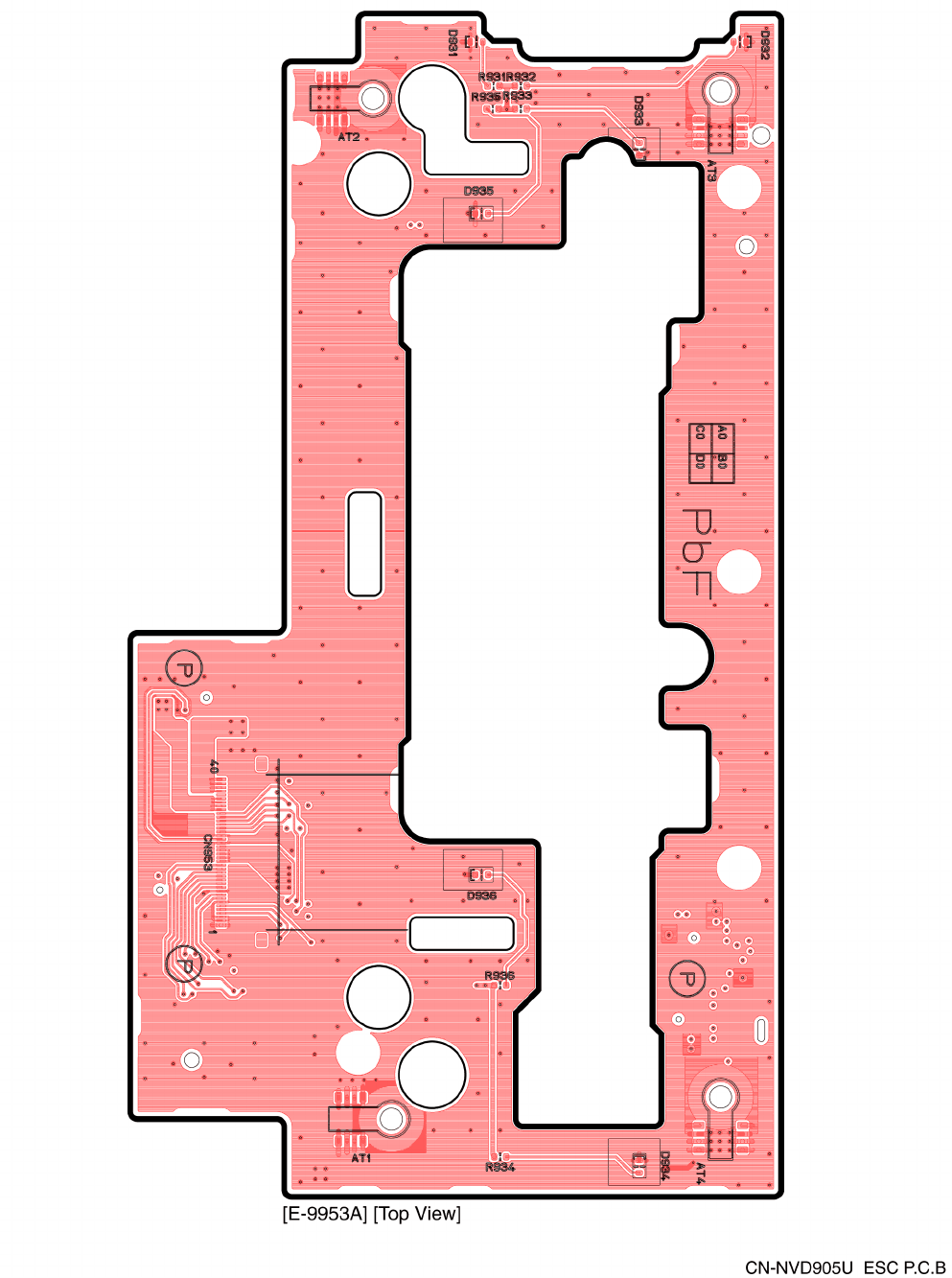

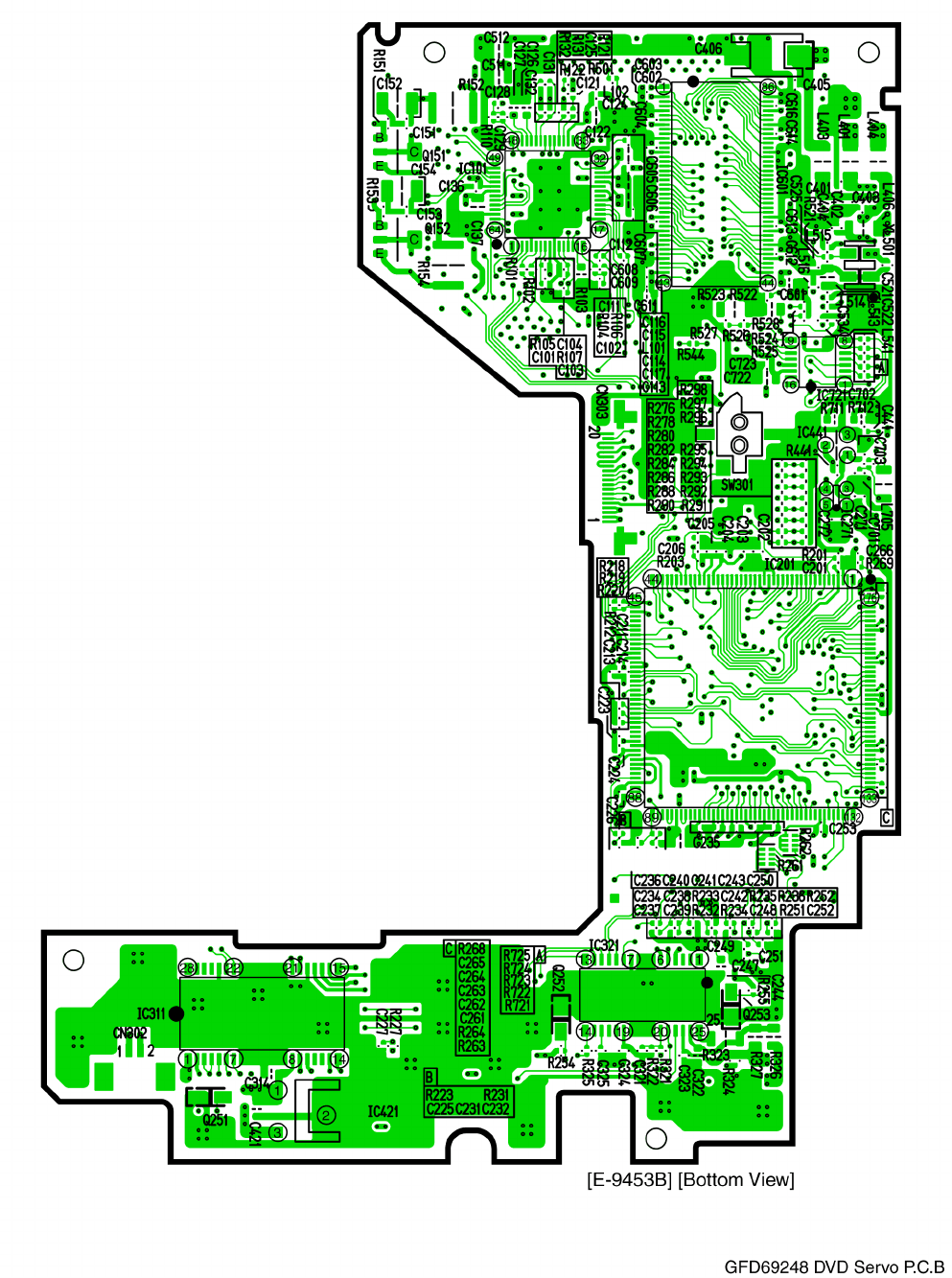

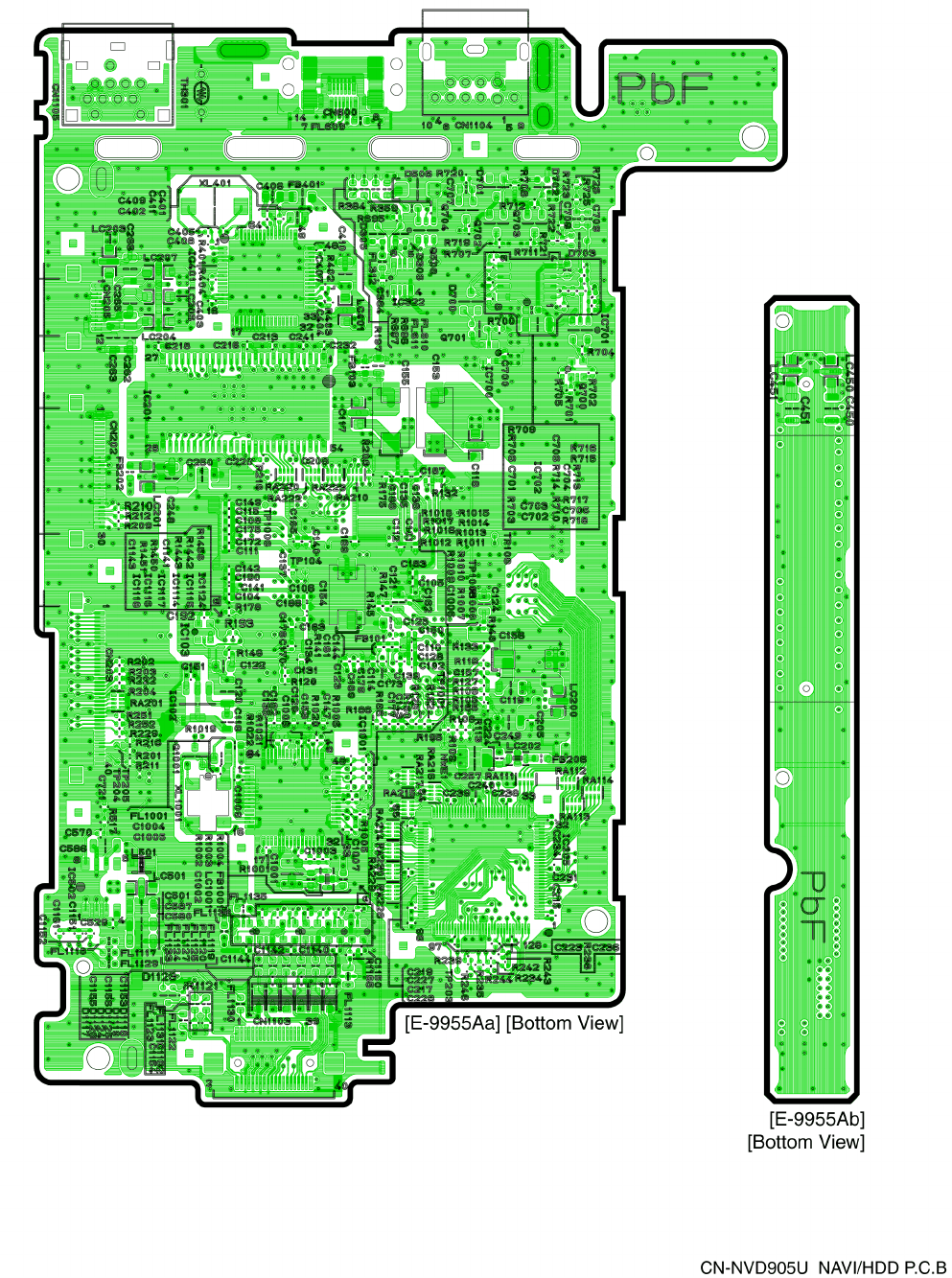

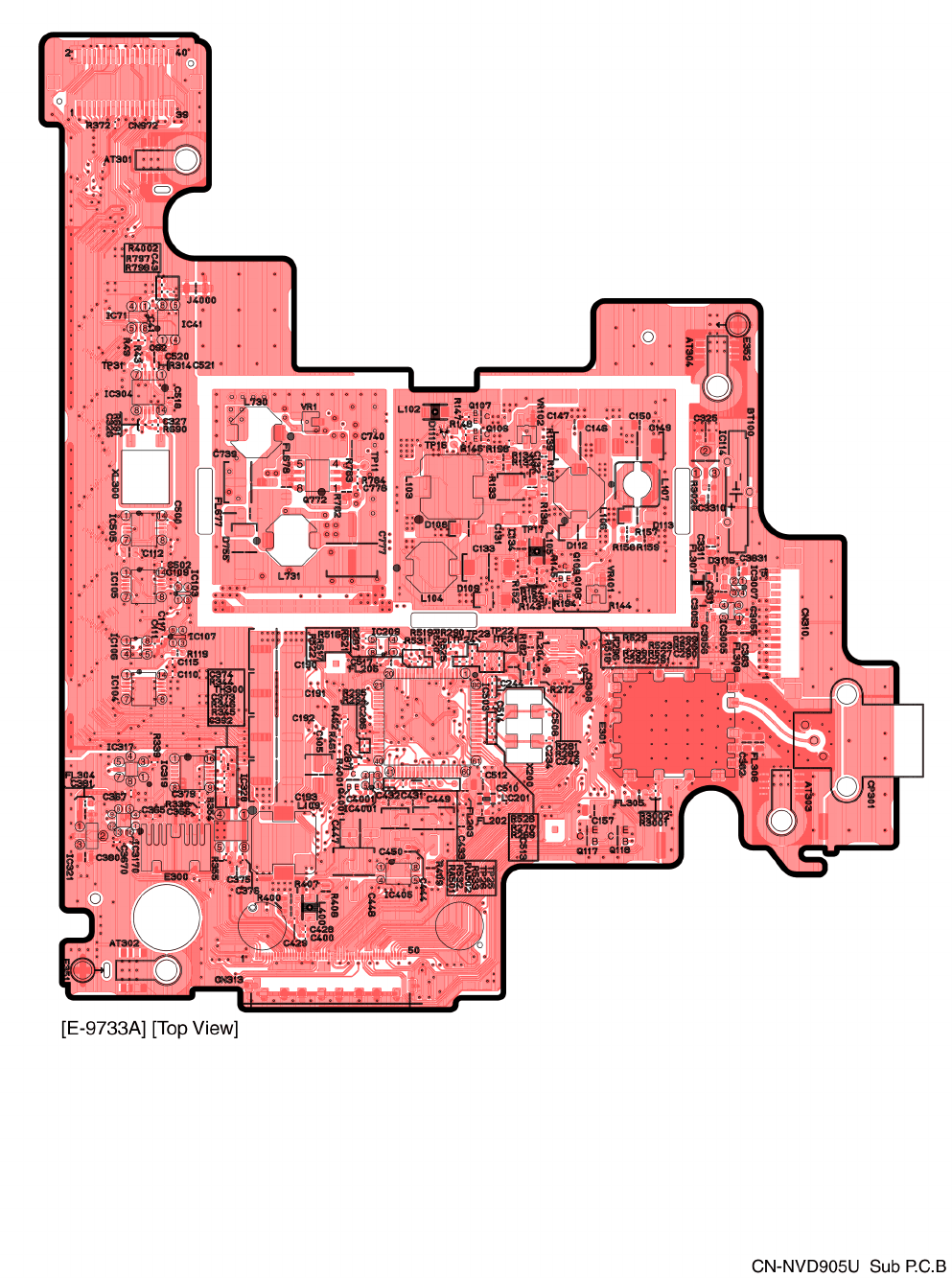

10 Printed Circuit Board-------------------------------------------49

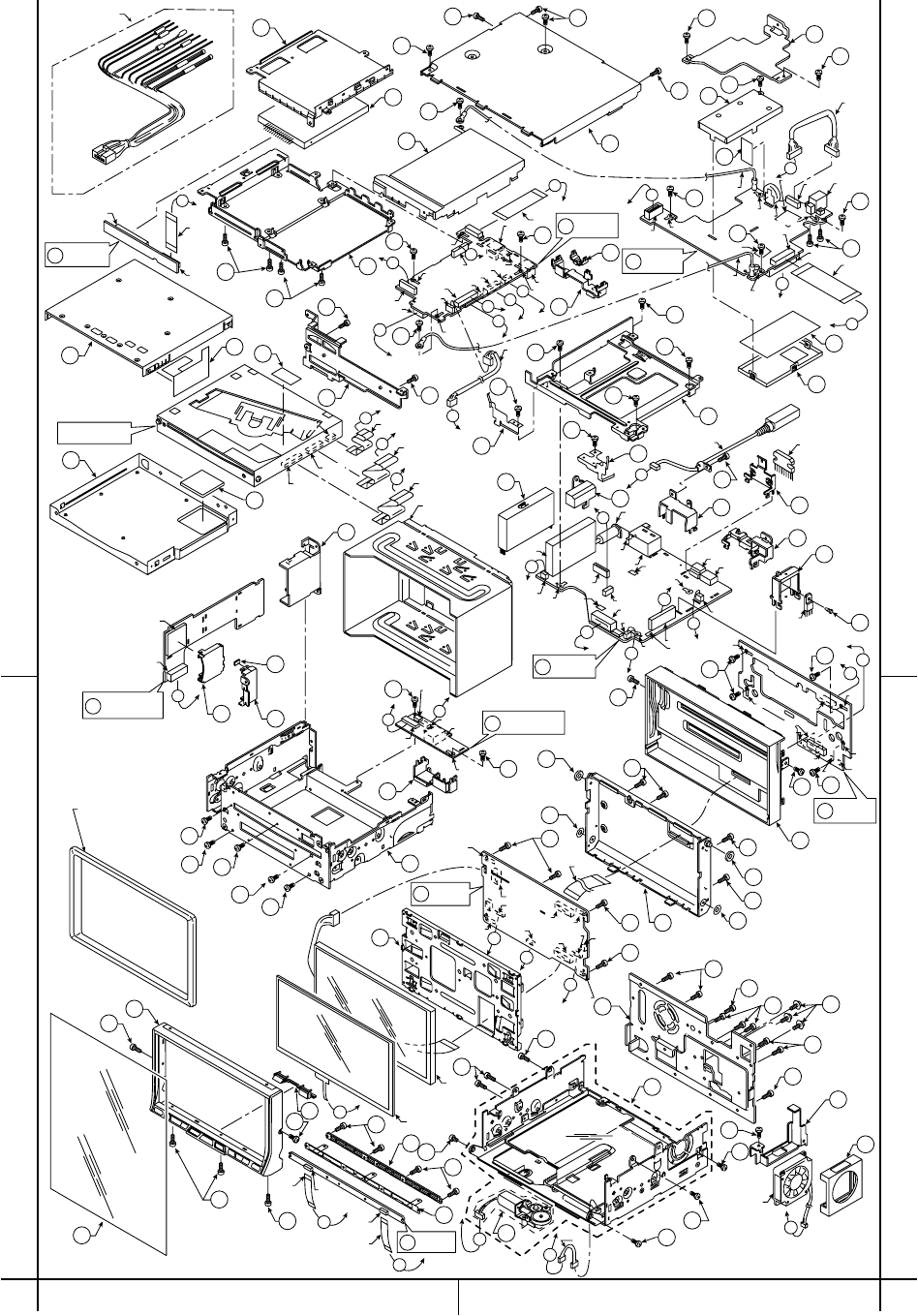

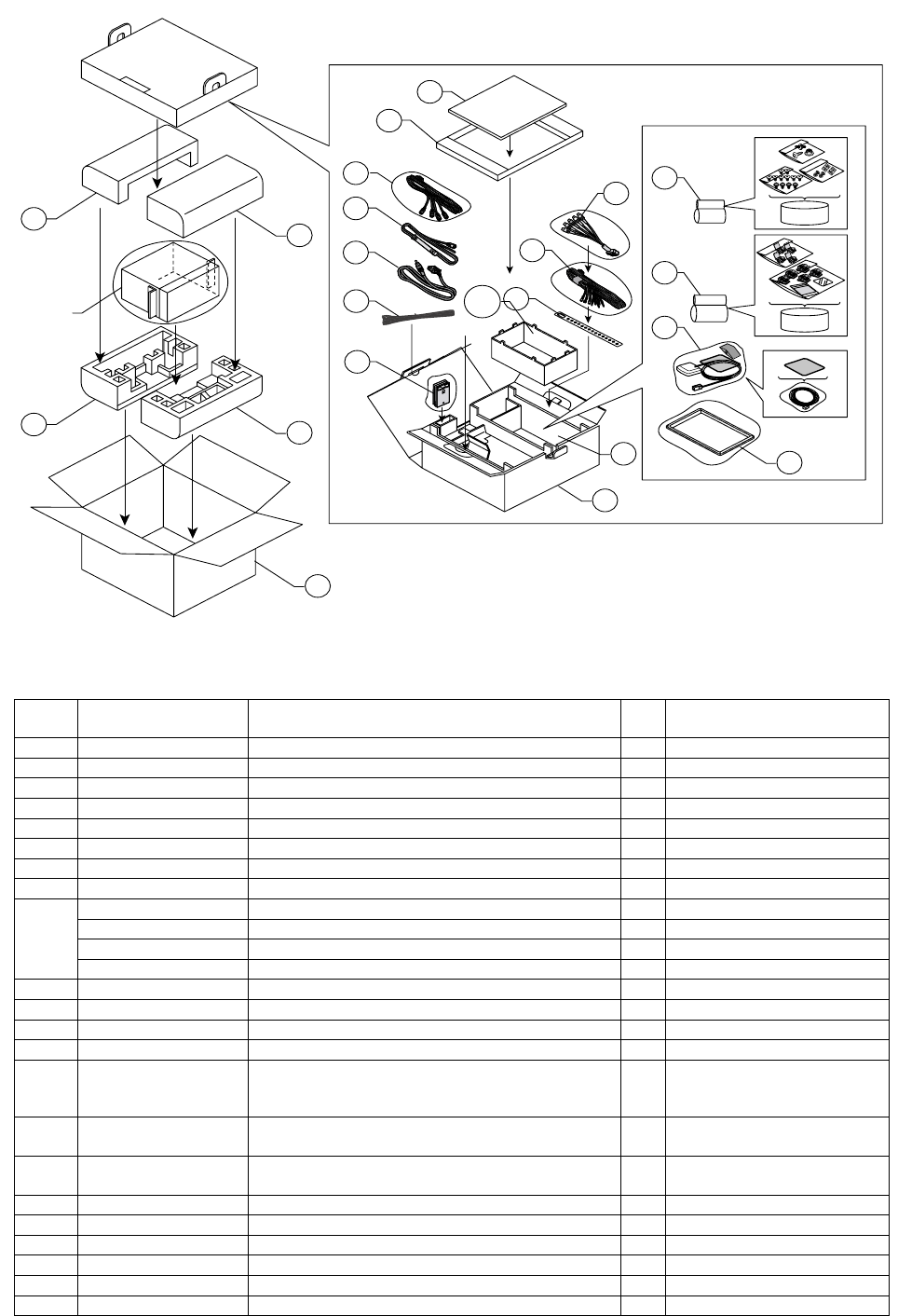

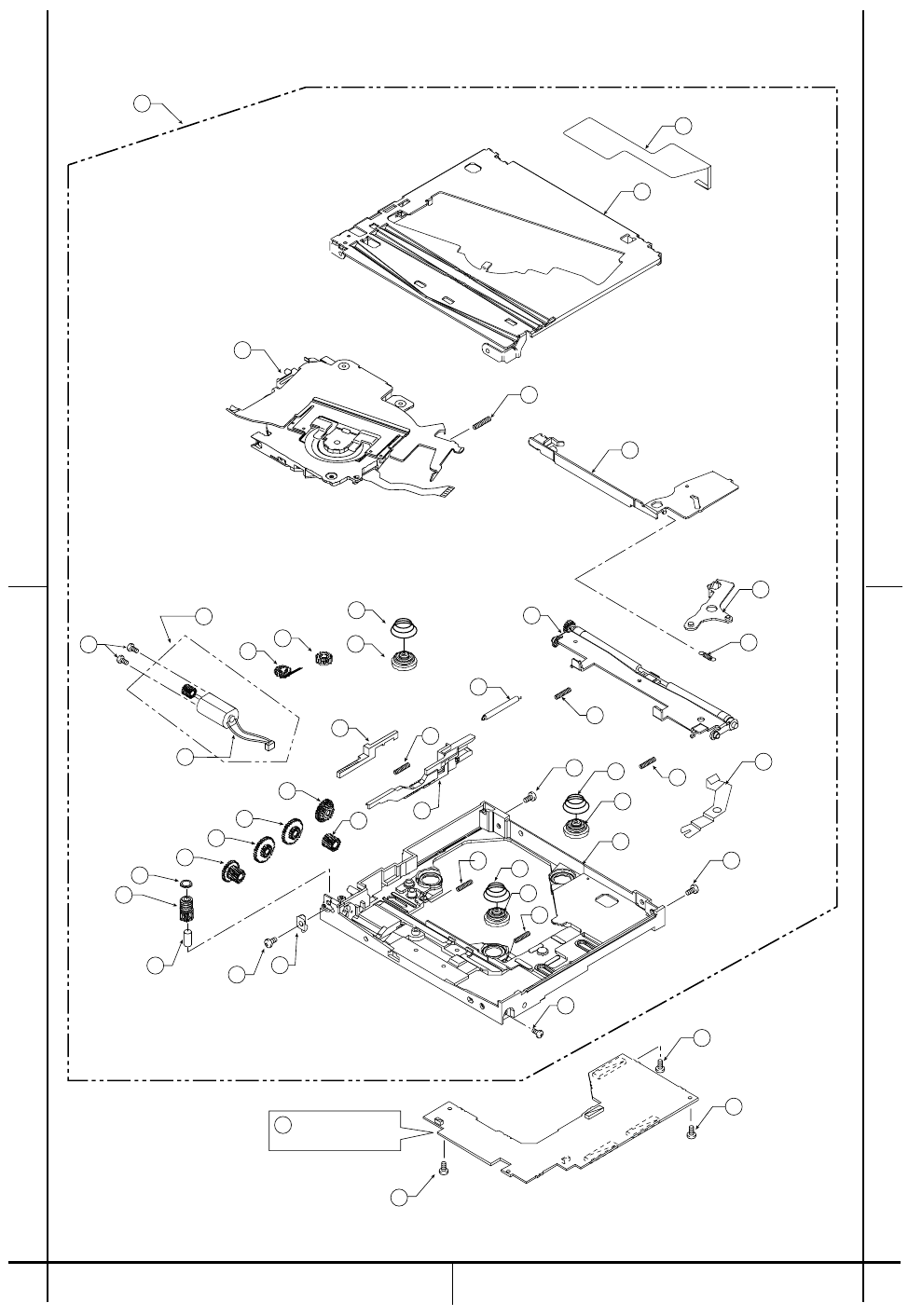

11 Exploded View and Replacement Parts List -----------62

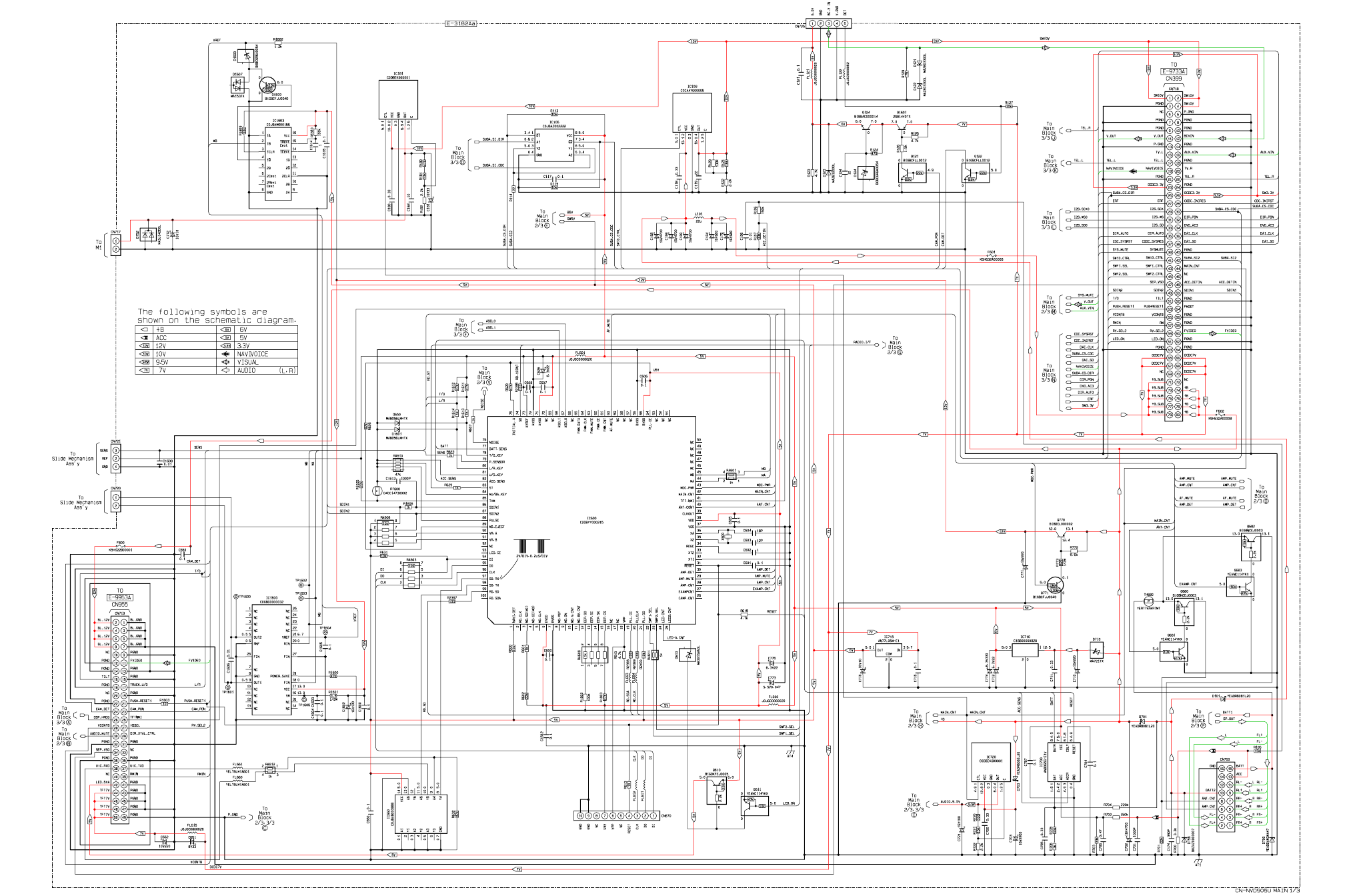

12 Schematic Diagram for Printing with Letter Size -----87

1 Service Navigation

1.1. About Lead Free Solder (PbF)

Distinction of PbF PCB :

• PCBs (manufactured) using lead free solder will have a PbF

stamp on the PCB.

Caution :

• Pb free solder has a higher melting point than standard sol-

der; Typically the melting point is 50 - 70°F (30 - 40°C)

higher. Please use a soldering iron with temperature control

and adjust it to 700 ± 20°F (370 ± 10°C). In case of using

high temperature soldering iron, please be careful not to

heat too long.

• Pb free solder will tend to splash when heated too high

(about 1100°F/600°C)

• This lead free solder will be used for the products after serial

No. 1,000,001.

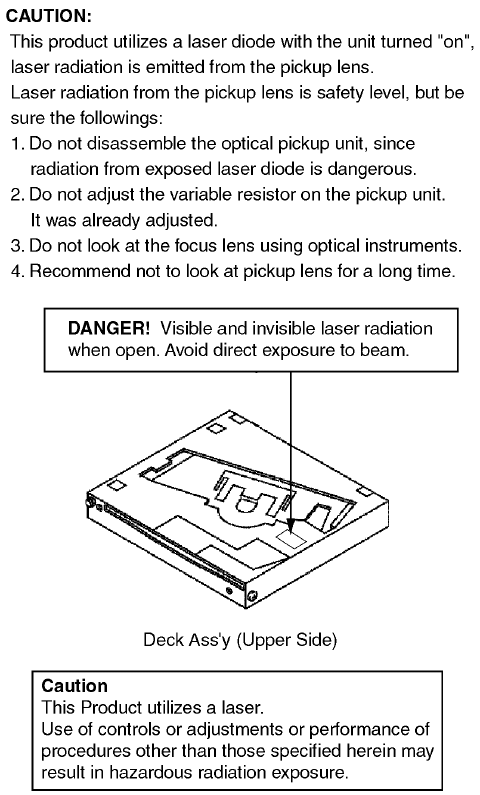

1.2. Laser Products

1.3. Replacing the Fuse

Use fuses of the same specified rating 15 amps. Using different

substitutes or fuses with higher ratings, or connecting the unit

directly without a fuse, could cause fire or damage to the stereo

unit.

1.4. Maintenance

Your product is designed and manufactured to ensure a mini-

mum of maintenance. Use a dry, a soft cloth for routine exterior

cleaning. Never use benzine, thinner or other solvents.

1.5. Notes

[RADIO BLOCK]

Do not align the AM/FM package block. When the package

block is necessary, it will be supplied already aligned at the fac-

tory.

[DVD DECK BLOCK]

This model has no servo alignment points because microcom-

puter controls the servo circuit.

2 Specifications

2.1. Specifications*

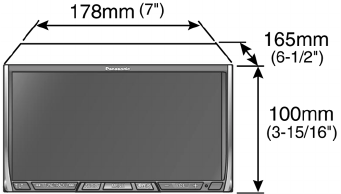

2.2. Dimensions

General

Power Supply DC 12V (11V - 16V)

Test Voltage 14.4V

Negative Ground

Current Consumption Less than 10A

Maximum Power Output 50W × 4ch

Compatible speaker imped-

ance

4Ω

Video input signal NTSC1.0 Vp-p

(75Ω RCA pin jack)

Audio input sensitivity Stereo 2.0 Vrms

(RCA pin jack)

Camera input NTSC1.0 Vp-p

(75Ω 5Pin connector)

Video output signal NTSC1.0 Vp-p

(75Ω RCA pin jack)

Pre-Amp output voltage 2.0 Vrms

Pre-amp Output impedance Less than 600 Ω

Dimensions (W×H×D)** 178×100×165mm

(7”×3-15/16"×6-1/2")

Weight** 3.1 kg (6 lbs. 14 oz)

Audio section

Output voltage/Impedance 2.0 Vrms/600Ω

Frequency characteristics

Front L/R, Center, Rear L/R

20 Hz -20 kHz (±1 dB)

Distortion 0.01 %

(1kHz, 0dB, PCM input)

Dynamic range 96 dB

S/N Ratio 100dB

FM tuner

Frequency Range 87.7 MHz - 107.9 MHz

Usable Sensitivity 12.2 dBf

S/N Ratio 63 dB

Stereo Separation 40 dB (at 1 kHz)

AM tuner

Frequency Range 530 kHz - 1710 kHz

Usable Sensitivity

(S/N Ratio 20dB)

26 dB/µV

Image Rejection Ratio 50 dB

Monitor

Liquid crystal panel 7” wide

Screen dimensions

(W × H × D)

156 × 82 × 176 mm

{6 1/8” × 3 3/16” × 6 7/8”}

Number of pixels 336 960 pixels

(234 vertical × 480 horizontal × 3)

Valid pixel ratio Over 99.99 %

Display method Transparent color filter format

Drive method TFT (Thin Film Transistor)

active matrix format

Light source Internal light (Built-in small uores-

cent lamp)

Touch Panel Pressure-sensitive touch panel, ana-

log type (film & glass)

GPS antenna

Type Microstrip

Cord length 6 m

Dimensions (W×H×D) 30.4×11.7×35.5mm

(1-13/64"×15/32"×1-13/32")

Weight (lncluding cord) 113g (4 oz)

Frequency Range 1,575.42MHz (C/A cord)

Receiving Sensitivity -130 dBm

Receiving method Parallel 8 ch

* Specifications and the design are subject to possible modification

without notice due to improvements.

** Dimensions and Weight shown are approximate.

** Above specifications comply with EIA standards.

3 Features

• High performance Navigation

- Near the intersection

- Add a destination

- Detour routes

- Autoroute

•Easy to use

- High usability and easy understand GUI

- Navigation menu

- Destination menu

- Information menu

- Setup menu

• AV features

- Various AV sources

- DVD/ CD/ MP3/ WMA/ FM/ AM

- Expansion Module (The optional Hub unit: CY-EM100U)

- Connectable Optional devices

- Controllable iPod/software version (Feb., 2007)

3rd generation iPod/ver. 2.2 - 2.3

4th generation iPod/ver. 3.0.2 - 3.1

5th generation iPod/ver. 1.0

(Video and photos cannot be displayed.)

iPod Photo/ver. 1.0 - 1.2

(Photos cannot be displayed.)

iPod mini/ver. 1.2 - 1.4

iPod nano/ver. 1.0

- Direct cable for iPod (CA-DC300U, option)

- Optional XM Satellite Radio Tuner (XMD1000)

- Optional Digital Adapter Cable (XMDPAN110)

- Optional SIRIUS Satellite Radio Tuner (SIR-PAN1)

- Bluetooth hands-free kit (CY-BT100U, option)

- Over-Head monitor (CY-VHD9401U, option)

- TV tuner (CY-TUN153U, option)

- Rear view camera

4 Technical Descriptions

4.1. Terminals Description

4.1.1. Main Block

IC600 : C2DBYY000215

Port Description I/O Vol [V]

FM AM CD DV

1NAVI

DET

Pulled up - 5.0 5.0 5.0 5.0 5.0 5.0

2 RD CLK Not connected - ------

3MD SO

(MI)

Pulled up - 4.6 4.6 0.3 0.3 0.3 0.3

4MD SI

(MO)

Not connected - ------

5 MD CLK Not connected - ------

6 EVDD +5V power supply - 555555

7EVSS Ground -000000

8 MD RST Not connected - ------

9 MD ON Not connected - ------

10 MD V

CNT

Not connected - ------

11 MD 8V

CNT

Not connected - ------

12 EEP SO Serial data from

EEPROM

I000000

13 EEP SI Serial data to

EEPROM

O000000

14 EEP SK Serial clock for

EEPROM

O000000

15 EEP CS Chip select of

EEPROM

O000000

16 NC Not connected - ------

17 NC Not connected - ------

18VPP VPP for Flash writer -000000

19 PLL DI Serial data to tuner

PLL

O 5.0 5.0 5.0 5.0 5.0 5.0

20 PLL CLK Clock for serial data

bus

O 5.0 5.0 5.0 5.0 5.0 5.0

21 PLL DO Tuned station detec-

tion

I------

22 SWF1

SEL

Frequency shift selec-

tion for DC/DC con-

verters 1

O000000

23 SWF2

SEL

Frequency shift selec-

tion for DC/DC con-

verters 2

O000000

24 LED CNT Panel LEDs control O 5.0 5.0 5.0 5.0 5.0 5.0

25 LED2

CNT

Not connected - ------

26 CAMP

CNT

Not connected - ------

27 EX AMP

CNT

External amplifier

power supply control

O 5.0 5.0 5.0 5.0 5.0 5.0

28 AMP

CNT

Power amplifier control O 5.0 5.0 5.0 5.0 5.0 5.0

29 AMP

MUTE

Mute for Power ampli-

fier

O000000

30 AMP DET Anomalous DC offset

detection of Power

amplifier

I000000

31 RESET Reset I 5.0 5.0 5.0 5.0 5.0 5.0

32XT1 Ground -000000

33 XT2 Not connected - ------

34 REGC Connected to capacitor - 3.3 3.3 3.3 3.3 3.3 3.3

35 X2 Crystal OSC

(16.8MHz)

- 1.5 1.5 1.5 1.5 1.5 1.5

36 XA Crystal OSC

(16.8MHz)

- 1.4 1.4 1.4 1.4 1.4 1.4

37 VSS Ground - 000000

38 VDD +5V power supply - 5.0 5.0 5.0 5.0 5.0 5.0

39 CLK OUT Not connected - - - - - - -

40 ANT

CONT

Antenna power supply

control

O 5.0 5.0 5.0 5.0 5.0 5.0

41 TFT NMI Power control in TFT

PCB

O 5.0 5.0 5.0 5.0 5.0 5.0

42 MAIN

CNT

Main power control O 4.9 4.9 4.9 4.9 4.9 4.9

43 MDC

PWR

Power control for

Panel motor

O 5.0 5.0 5.0 5.0 5.0 5.0

44 MA Panel motor control

(Forward)

O000000

45 MB Panel motor control

(Reverse)

O000000

46 MC Not connected - - - - - - -

47 NC Not connected - - - - - - -

48 NC Not connected - - - - - - -

49 NC Not connected - - - - - - -

50 NC Not connected - - - - - - -

51 NC Not connected - - - - - - -

52 NC Not connected - - - - - - -

53 NC Not connected - - - - - - -

54 PLL CE Not connected - - - - - - -

55 BVDD +5V power supply - 5.0 5.0 5.0 5.0 5.0 5.0

56 BVSS Ground - 000000

57 NC Not connected - - - - - - -

58 NC Not connected - - - - - - -

59 NC Not connected - - - - - - -

60AF MUTEAudio mute O000000

61 FMM

CNT

Not connected -------

62 FMM CE Not connected - - - - - - -

63 FMM

MUTE

Not connected -------

64 FMM

CLK

Not connected -------

65 FMM

DATA

Not connected -------

66 NC Not connected - - - - - - -

67 ASEL0 Analog audio line

selection 0

O000000

68 ASEL1 Analog audio line

selection 1

O000000

69 NC Not connected - - - - - - -

70 NC Not connected - - - - - - -

71 AVDD +5V power supply - 5.0 5.0 5.0 5.0 5.0 5.0

72 AVSS Ground - 000000

73 AVREF +5V power supply - 5.0 5.0 5.0 5.0 5.0 5.0

74 SD Signal level of AM and

I000000

75 INITIAL A Pulled up - 5.0 5.0 5.0 5.0 5.0 5.0

76 NOISE Tuner noise detection I 000000

77 BATT

SENS

Battery level check I 4.9 4.9 4.9 4.9 4.9 4.9

78 T/O KEY Tilt/Open key detection I 5.0 5.0 5.0 5.0 5.0 5.0

79 P SEN-

SOR

Position sensor of TFT

panel

I 0.1 0.8 0.8 0.8 0.8 0.8

80 L/R KEY Track up/down key

detection

I 4.9 4.9 4.9 4.9 4.9 4.9

81U/D KEYPulled down -000000

82 ACC

SENS

ACC level check I 4.9 4.9 4.9 4.9 4.9 4.9

83 ST FM stereo detection I 5.0 5.0 5.0 5.0 5.0 5.0

Port Description I/O Vol [V]

FM AM CD DV

4.1.2. Sub Block

IC503 : C2BBGF000764

84 MU/BA

KEY

Pulled down -000000

85 THM Temperature check I 2.6 2.6 2.6 2.6 2.6 2.6

86 SD IN1 From SD card I 5.0 5.0 5.0 5.0 5.0 5.0

87 SD IN2 From SD card I 5.0 5.0 5.0 5.0 5.0 5.0

88PUSLEPulled down -000000

89 MD

EJECT

Pulled up - 4.9 4.9 4.9 5.0 5.0 5.0

90 VR A Pulled up - 5.0 5.0 5.0 5.0 5.0 5.0

91 VR B Pulled up - 5.0 5.0 5.0 5.0 5.0 5.0

92 NC Not connected - ------

93 LCD CE Not connected - ------

94 DI Serial data from Flash

writer

I000000

95 DO Serial data to Flash

writer

O 5.0 5.0 5.0 5.0 5.0 5.0

96 CLK Serial clock of Flash

writer

O 5.0 5.0 5.0 5.0 5.0 5.0

97 SO RX Serial data from NAVI

PCB

I 5.0 5.0 5.0 5.0 5.0 5.0

98 SO TX Serial data to NAVI

PCB

O 5.0 5.0 5.0 5.0 5.0 5.0

99 RD SD Tuned station detec-

tion

I 5.0 5.0 5.0 5.0 5.0 5.0

100 RD SDA Not connected - ------

Port Description I/O Vol [V]

FM AM CD DV

1P15 Test terminal -000000

2 P16 Test terminal - 5.1 5.1 5.1 5.1 5.1 5.1

3 TILT OPEN key detection I 5.0 5.0 5.0 5.0 5.0 5.0

4 AVSS Ground - 000000

5 P130 Not connected -------

6 ST DET - - 3.8 3.8 3.8 3.8 3.8 3.8

7 AVREF1 +5V power supply - 5.1 5.1 5.1 5.1 5.1 5.1

8 SI2 Serial data from Digital

audio

I 5.0 5.0 5.0 5.0 5.0 5.0

9 DAI SO Serial data to Digital

audio

O000000

10 DAI CLK Clock for serial data

bus

O 5.0 5.0 5.0 5.0 5.0 5.0

11 KO RXD Serial data from NAVI

PCB

I 5.1 5.1 5.1 5.1 5.1 5.1

12 KO TXD Serial data to NAVI

PCB

O000000

13 KO CLK2 Clock for serial data

bus

I/O 5.1 5.1 5.1 5.1 5.1 5.1

14 CODC

CODEC (IC500)

request

O 5.0 5.0 5.0 5.0 5.0 5.0

15 P24 FRAM chip selection O 5.0 5.0 5.0 5.0 5.0 5.0

16SI0 Serial data from FRAMI000000

17SO0 Serial data to FRAM O000000

18 SCK0 Clock for FRAM O 5.0 5.0 5.0 5.0 5.0 5.0

19 P40 Not connected -------

20 SYS

PWR

System power control O 5.0 5.0 5.0 5.0 5.0 5.0

21 DCDC

INTRES

CODEC (IC500) initial

reset

O 5.0 5.0 5.0 5.0 5.0 5.0

22 DCDC

SYSRES

CODEC (IC500) sys-

tem reset

O 5.0 5.0 5.0 5.0 5.0 5.0

23 P44 Not connected -------

Port Description I/O Vol [V]

FM AM CD DV

24 P45 Not connected - - - ----

25 P46 Not connected - - - ----

26 P47 Not connected - - - ----

27 DIR CS DIR (IC504) chip select O 5.0 5.0 5.0 5.0 5.0 5.0

28 DIR PDN DIR (IC504) power-

down control

O 5.05.05.05.05.05.0

29 P52 Not connected - - - ----

30 P53 Not connected - - - ----

31 P54 Not connected - - - ----

32 P55 Not connected - - - ----

33 VSS1 Ground - 000000

34 P56 Not connected - - - ----

35 SYS

MUTE

System mute O 0 0 0 0 0 0

36 P60 Not connected - - - ----

37 P61 Not connected - - - ----

38 P62 Reset for beacon sys-

tem

O 5.05.05.05.05.05.0

39 P63 Not connected - - - ----

40 P64 Not connected - - - ----

41 P65 Not connected - - - ----

42 P66 Not connected - - - ----

43 P67 Not connected - - - ----

44 FV SEL0 Front video selection 0 O 000005.0

45 FV SEL1 Front video selection 1 O 000000

46 FV SEL2 Front video selection 2 O 5.0 5.0 0 0 5.0 0

47 RV SEL0 Rear video selection 0 O 000005.0

48 RV SEL1 Rear video selection 1 O 000000

49 RV SEL2 Rear video selection 2 O 5.0 5.0 0 0 5.0 0

50 SPD CNT Vehicle speed detec-

tion control

O000000

51 SPD DET - I 5.0 5.0 5.0 5.0 5.0 5.0

52 SPD SEL - O 0 0 0 0 0 0

53 RSE OFF - O 5.0 5.0 5.0 5.0 5.0 5.0

54 IRDA

DET

Pulled up - 5.0 5.0 5.0 5.0 5.0 5.0

55 P123 Not connected - - - ----

56 LEDON O 5.0 5.0 5.0 5.0 5.0 5.0

57 PKB OUT Parking brake detec-

tion

I 0 0 5.0 5.0 5.0 5.0

58 P126 Not connected - - - ----

59SD - -000000

60 RESET Reset I 5.0 5.0 5.0 5.0 5.0 5.0

61 SEP VS0 Separated vertical

sync.

I 5.05.05.05.05.05.0

62 STB REM

OUT

STB (Set Top Box)

remote control

I000000

63 INTREQ Interrupt request I 5.1 5.1 5.1 5.1 5.1 5.1

64 +B DET Battery level check I 5.1 5.1 5.1 5.1 5.1 5.1

65 ACC DET ACC detection I 4.0 4.0 4.0 4.0 4.0 4.0

66 P05 Error detection of

unlocked PLL

I 5.05.05.05.05.05.0

67 VSS0 Ground - 000000

68 VDD1 +5V power supply - 5.0 5.0 5.0 5.0 5.0 5.0

69 X2 Crystal OSC

(4.9152MHz)

I 2.92.92.92.92.92.9

70 X1 Crystal OSC

(4.9152MHz)

I 2.72.72.72.72.72.7

71 IC Pulled down - 0 0 0 0 0 0

72 XT2 Not connected - - - ----

73 XT1 Ground - 000000

74 VDD0 +5V power supply - 5.0 5.0 5.0 5.0 5.0 5.0

75 AVREF0 +5V power supply - 5.0 5.0 5.0 5.0 5.0 5.0

76VOUT2 - I 000000

77 ANI1 Not connected - - - ----

Port Description I/O Vol [V]

FM AM CD DV

4.1.3. TFT Block

IC407 : C2BBFD000652

78 P12 Switched battery

power supply

I 2.7 2.7 2.7 2.7 2.7 2.7

79P13 Test terminal -000000

80P14 Test terminal -000000

No.

Port Description I/O

1 VCC +5V power supply -

2 VREF +5V power supply -

3 AVSS Ground -

4 BL CNT TFT backlight control O

5 HPOS1 Horizontal display positive select 1 O

6 HPOS2 Horizontal display positive select 2 O

7 I2C DO Serial data to EEPROM O

8 WP Write protect for EEPROM O

9 INTEXT Internal or External for Flash writer O

10 MODE Mode control for Flash writer

11 TXD Serial data to NAVI PCB O

12 RXD Serial data from NAVI PCB I

13 I2C DI Serial data in TFT PCB I

14 I2C CLK Serial clock in TFT PCB O

15 CNVSS CNVSS from Flash writer I

16 TOUCH SW Touch switch control O

17 NC Not connected -

18 RESET Reset I

19 XIN Crystal OSC I

20 XOUT Crystal OSC O

21 VSS Ground -

22 BL ON Backlight power control O

23 ZOOM Not connected -

24 SIDE Not connected -

25 JUST Not connected -

26 X+ X-axis control for Touch panel O

27 X- X-axis control for Touch panel O

28 Y+ Y-axis control for Touch panel O

29 Y- Y-axis control for Touch panel O

30 LED TFT mode control O

31 TILT LED TFT mode control O

32 POW KEY Not connected -

33 VOL+ KEY Volume-up key detection I

34 VOL- KEY Volume-down key detection I

35 MENU KEY Map key detection I

36 AUDIO KEY Source key detection I

37 GENZ KEY Navigation key detection I

38 DIM Pulled down -

39 XR X-axis detection of Touch panel I

40 XG X-axis detection of Touch panel I

41 YR Y-axis detection of Touch panel I

42 YG Y-axis detection of Touch panel I

Port Description I/O Vol [V]

FM AM CD DV

4.1.4. DVD Servo Block

IC501 : C1AB00002402

Pin No Port Description I/O (V)

1 VDDIO I/O pad power (3.3V) - 3.3

2 MD10 SDRAM data bus I/O 0

3 MD11 SDRAM data bus I/O 0.6

4 VDD Core power (1.8V) - 1.8

5 MD12 SDRAM data bus I/O 0

6 VSSIO I/O pad ground - 0

7 MD13 SDRAM data bus I/O 0.7

8 MD14 SDRAM data bus I/O 0.5

9 MD15 SDRAM data bus I/O 0

10 VDDIO I/O pad power (3.3V) - 3.3

11 /DQM1 SDRAM data byte enable O 0

12 MA9 SDRAM address bus O 0

13 MA8 SDRAM address bus O 0

14 VSSIO I/O pad ground - 0

15 MA7 SDRAM address bus O 2.3

16 MA6 SDRAM address bus O 1.9

17 VSS Core ground - 0

18 MA5 SDRAM address bus O 1.1

19 VDDIO I/O pad power (3.3V) - 3.3

20 MA4 SDRAM address bus O 2

21 MA3 SDRAM address bus O 2.3

22 MCLK SDRAM clock O 1.7

23 VSSIO I/O pad ground - 0

24 CKE SDRAM clock enable O 3.3

25 MA2 SDRAM address bus O 2.3

26 MA1 SDRAM address bus O 1

27 VDDIO I/O pad power (3.3V) - 3.3

28 MA0 SDRAM address bus O 1

29 MA10 SDRAM address bus O 0

30 MA11 Not used - -

31 VSSIO I/O pad ground - 0

32 MA12 SDRAM address bus O 2.1

33 MA13 SDRAM address bus O 2.1

34 VDD Core power (1.8V) - 1.8

35 /CS0 SDRAM primary bank chip

select

O2.7

36 VDDIO I/O pad power (3.3V) - 3.3

37 /RAS SDRAM command bit O 3.1

38 /CAS SDRAM command bit O 2.9

39 /WE SDRAM command bit O 3.2

40 VSSIO I/O pad ground - 0

41 /DQM0 SDRAM data byte enable O 0

42 /DQM2 SDRAM data byte enable O 0

43 MD16 SDRAM data bus I/O 0.5

44 VDDIO I/O pad power (3.3V) - 3.3

45 MD17 SDRAM data bus I/O 0.5

46 MD18 SDRAM data bus I/O 0.5

47 VSS Core ground - 0

48 MD19 SDRAM data bus I/O 0.7

49 VSSIO I/O pad ground - 0

50 MD20 SDRAM data bus I/O 0

51 MD21 SDRAM data bus I/O 1.5

52 MD22 SDRAM data bus I/O 1

53 VDDIO I/O pad power (3.3V) - 3.3

54 MD23 SDRAM data bus I/O 0

55 MD24 SDRAM data bus I/O 0.5

56 MD25 SDRAM data bus I/O 0.5

57 VSSIO I/O pad ground - 0

58 MD26 SDRAM data bus I/O 0.5

59 MD27 SDRAM data bus I/O 0.8

60 MD28 SDRAM data bus I/O 0

61 MD29 SDRAM data bus I/O 1

62 VDDIO I/O pad power (3.3V) - 3.3

63 MD30 SDRAM data bus I/O 0.7

64 MD31 SDRAM data bus I/O 0.5

65 /DQM3 SDRAM data byte enable O 0

66 /CS1 Not used O -

67 VSSIO I/O pad ground - 0

68 SPDIF S/PDIF digital audio output O 1.3

69 VSS Core ground - 0

70 AIN Digital audio input for digital

micro

I3.3

71 AOUT3 Serial audio data (Left/Right CH) O 0

72 AOUT2 Serial audio data (Center/LFE

CH)

73 AOUT1 Serial audio data (Sound Left/

Right CH)

74 AOUT0 Serial audio data (Left/Right CH) O 0

75 VDDIO I/O pad power (3.3V) - 3.3

76 PCMCLK Audio DAC PCM sampling clock O 1.8

77 VDD Core power (1.8V) - 1.8

78 ACLK Audio interface serial data clock O 1.7

79 LRCLK Left/Right channel clock O 1.7

80 /SRST Reset signal O 3.3

81 /RSTP Power on reset I 3.3

82 VSSIO I/O pad ground - 0

83 RXD1 Not used - -

84 SSPIN1 SSP1 data in / UART1 16X clock I/O 15

85 VSS Core ground - 0

86 SSPOUT1 SSP1 sata out / UART1 DTR I/O 0

87 SSPCLK1 SSP1 clock / UART1 CTS I/O 3.3

88 SSPCLK0 Not used - -

89 VDD Core power (1.8V) - 1.8

90 SSIN0 Not used - -

91 VDDIO I/O pad power (3.3V) - 3.3

92 SSPOUT0 Not used - -

93 TXD0 UART0 serial data O 3.2

94 RXD0 UART0 serial data I 3

95 /CTS0 Not used - -

96 /RTS0 Not used - -

97 VSSIO I/O pad ground - 0

98 CXI Crystal Oscillator terminal I 1.6

99 CXO Not used - -

100 OSCVSS Oscillator ground - 0

101 OSCVDD Oscillator power (1.8V) - 1.8

102 MVCLVDD Main/Video clock PLL power

(3.3V)

-3.3

103 SCEN Not used - -

104 MVCKVSS Main/Video clock PLL Ground - 0

105 ACLKVSS Audio clock PLL ground - 0

106 SCMD Not used - -

107 ACLKVDD Audio clock PLL power - 3.3

108 VDDDAC DAC digital power (1.8V) - 1.8

109 VSSDAC DAC digital ground - 0

110 CVBS2/CR/R Composite Cr/Component Cr/

SCART Red

O0.5

111 IOM Cascaded DAC differential out-

put

112 C/CB/B Chrominance/Component Cb/

SCART Cb

O0.7

113 VAA3 DAC analog power (3.3V) - 3.3

114 Y/G Luminance/SCART G O 0.4

115 VSSA DAC analog ground - 0

116 VREF Not used - -

117 VAA - - 1.8

118 CVBS/C Composite/S-Video Chromi-

nance

O0.5

119 RSET Current setting resistor connec-

tion

O1.4

120 COMP Compensation capacitor con-

nection

121 VSS Core ground - 0

Pin No Port Description I/O (V)

122 VCLK Not used - -

123 VSYNC Not used - -

124 HSYNC Not used - -

125 VDDIO I/O pad power (3.3V) - 3.4

126-131 VI07-02 Not used - -

132 VSSIO I/O pad ground - 0

133 Not used - -

134 Not used - -

135 VDD Core power (1.8V) - 1.9

136-139 AD31-28 Not used - -

140 VDDIO I/O pad power (3.3V) - 3.4

141-144 AD27-24 Not used - -

145 /PWE3 Not used - -

146 AD23 Not used - -

147 VSSIO I/O pad ground - 0

148-150 AD22-20 Not used - -

151-153 AD19-17 Address/Data bus I/O 0

154 VDDIO I/O pad power (3.3V) - 3.4

155 AD16 Address/Data bus I/O 0

156 /PWE2 Not used - -

157,158 AD15,14 Address/Data bus I/O 0

159 VDD Core power (1.8V) - 1.9

160 SCLK External bus clock O 2.1

161 ACK Programmable WAIT/ACK/RDY

control

I3.4

162 VSSIO I/O pad ground - 0

163-168 AD13-08 Address/Data bus I/O 0

169 VDDIO I/O pad power (3.3V) - 3.4

170 /PWE1 Not used - -

171 VSS Core ground - 0

172-176 AD7-3 Address/Data bus I/O 0

177 VSSIO I/O pad ground - 0

178-180 AD02-00 Address/Data bus I/O 0

181 VDDIO I/O pad power (3.3V) - 3.4

182 /PWE0 Byte write enable O 0

183 ALE Address latch enable O 0

184-187 LA0-3 Latch address O 3.3

188 VSSIO I/O pad ground - 0

189 RD Read signal O 3.4

190 LHLDA Not used - -

191 LHLD Not used - -

192 VDD Core power (1.8V) - 1.9

193 /PCS0 Peripheral chip select 0 O 3.4

194 XI01 Not used - -

195 DACCS2 DAC output select 2 O 3.4

196 VDDIO I/O pad power (3.3V) - 3.4

197 DACCS1 DAC output select 1 O 3.4

198 NINTCPPM Not used - -

199 CPPMCS Not used - -

200 XI06 Not used - -

201 VSS Core ground - 0

202 FRAMCS FRAM chip selection O 0

203 DACRST DAC reset O 0

204 VSSIO I/O pad ground - 0

205 FEPCS Front End Pro. LSI chip select O 3.4

206 FEPRST Front End Pro. reset O 3.4

207 SODCCS SODC LSI chip selection O 3.4

208 NINTHOST HOST interrupt I 3.4

209 NINTDDC DDC interrupt I 3.2

210 VDDIO I/O pad power (3.3V) - 3.4

211 NINTDSC DSC interrupt I 3.5

212 VDD Core power (1.8V) - 1.9

213 DSYNV DVD parallel mode sector SYNC I 3.4

214 DREQ DVD parallel mode data request O 3.4

215 DCLK Data sampling clock I 3.4

216 DSTB Parallel mode data valid/Serial

mode clock

I0.7

Pin No Port Description I/O (V)

217 DVD0 DVD drive parallel data port I 0

218 VSSIO I/O pad ground - 0

219 DVD1 DVD drive parallel data port I 0

220 DVD2 DVD drive parallel data port I 0

221 DVD3 DVD drive parallel data port I 3.4

222 DVD4 DVD drive parallel data port I 0.8

223 DVD5 DVD drive parallel data port I 0.8

224 VDDIO I/O pad power (3.3V) - 3.4

225 DVD6 DVD drive parallel data port I 3.4

226 DVD7 DVD drive parallel data port I 3.4

227 MD0 SDRAM data bus I/O 0.5

228 VSSIO I/O pad ground - 0

229 MD1 SDRAM data bus I/O 0

230 VSS Core ground - 0

231 MD2 SDRAM data bus I/O 0.8

232 MD3 SDRAM data bus I/O 0.8

233 VDDIO I/O pad power (3.3V) - 3.3

234 MD4 SDRAM data bus I/O 3.3

235 MD5 SDRAM data bus I/O 0

236 MD6 SDRAM data bus I/O 0.8

237 VSSIO I/O pad ground - 0

238 MD7 SDRAM data bus I/O 0

239 MD8 SDRAM data bus I/O 0

240 MD9 SDRAM data bus I/O 0

Pin No Port Description I/O (V)

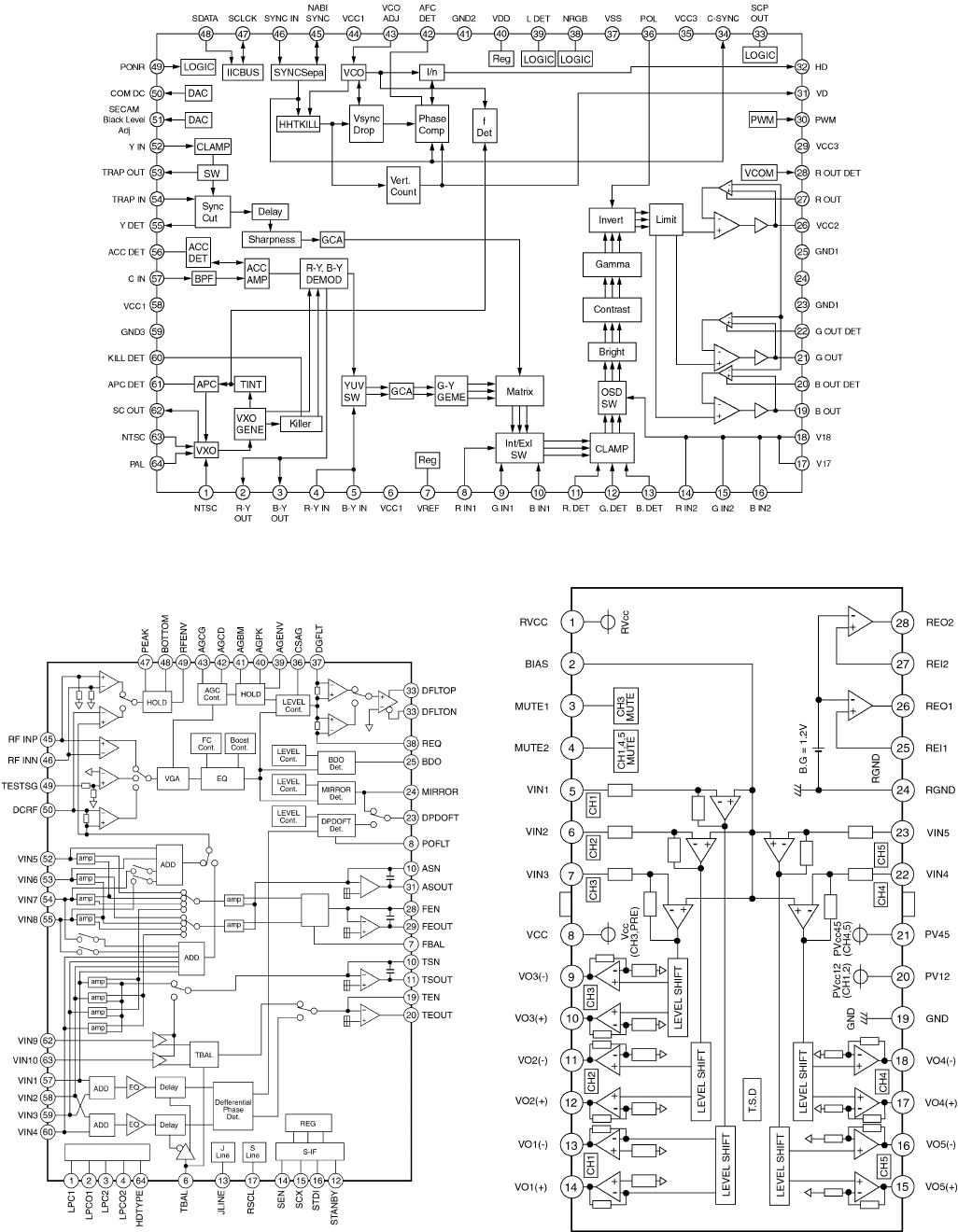

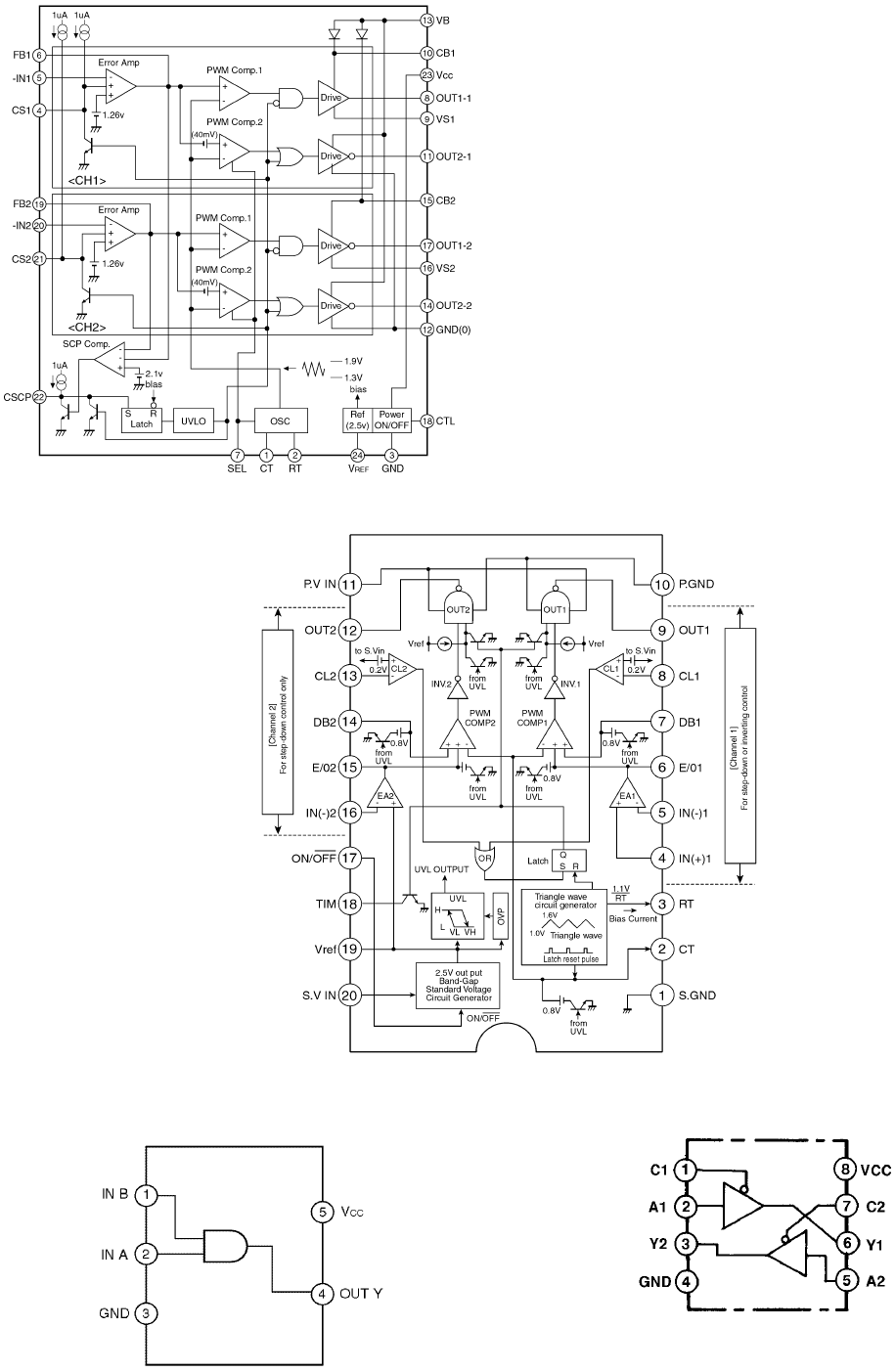

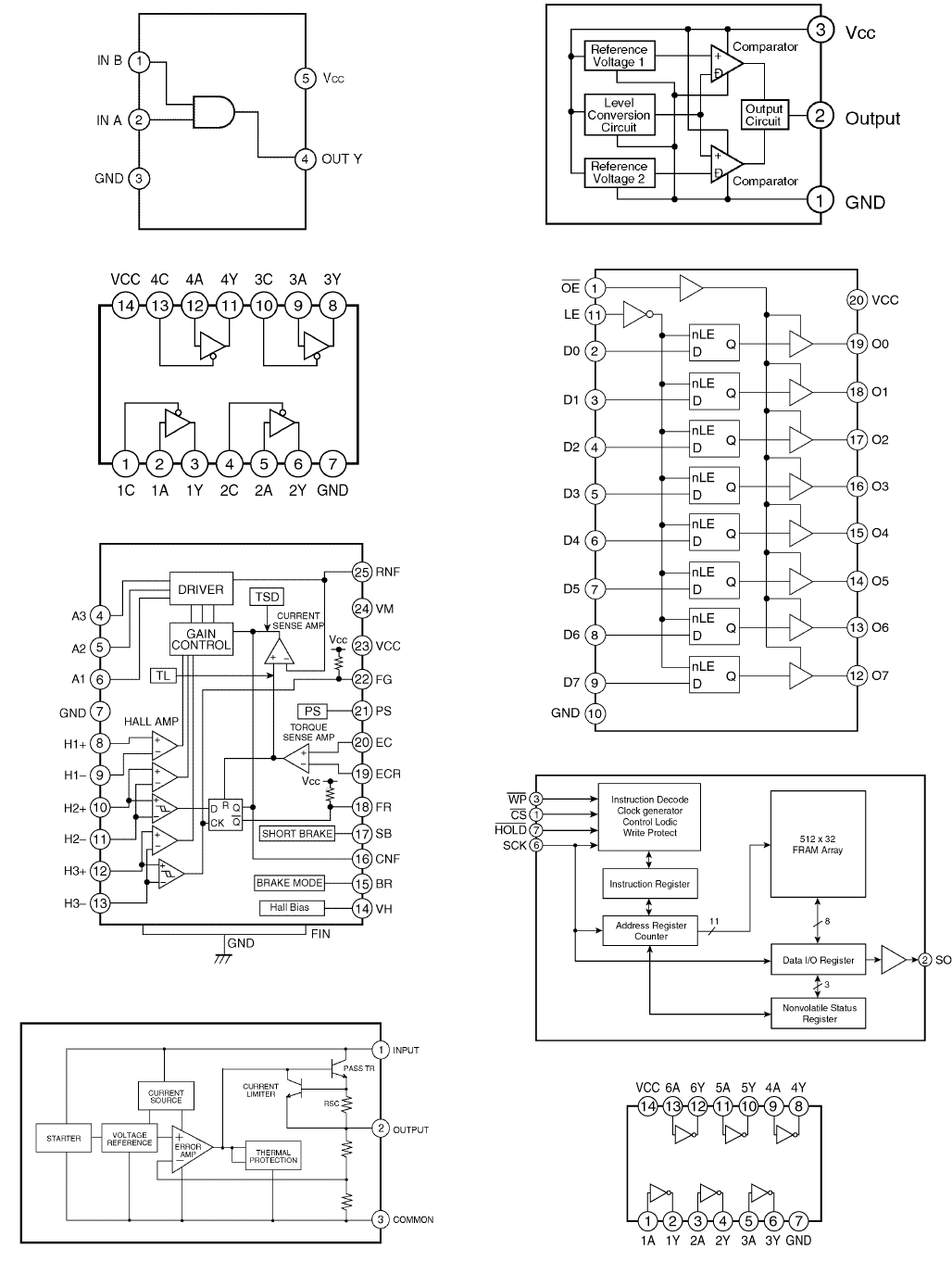

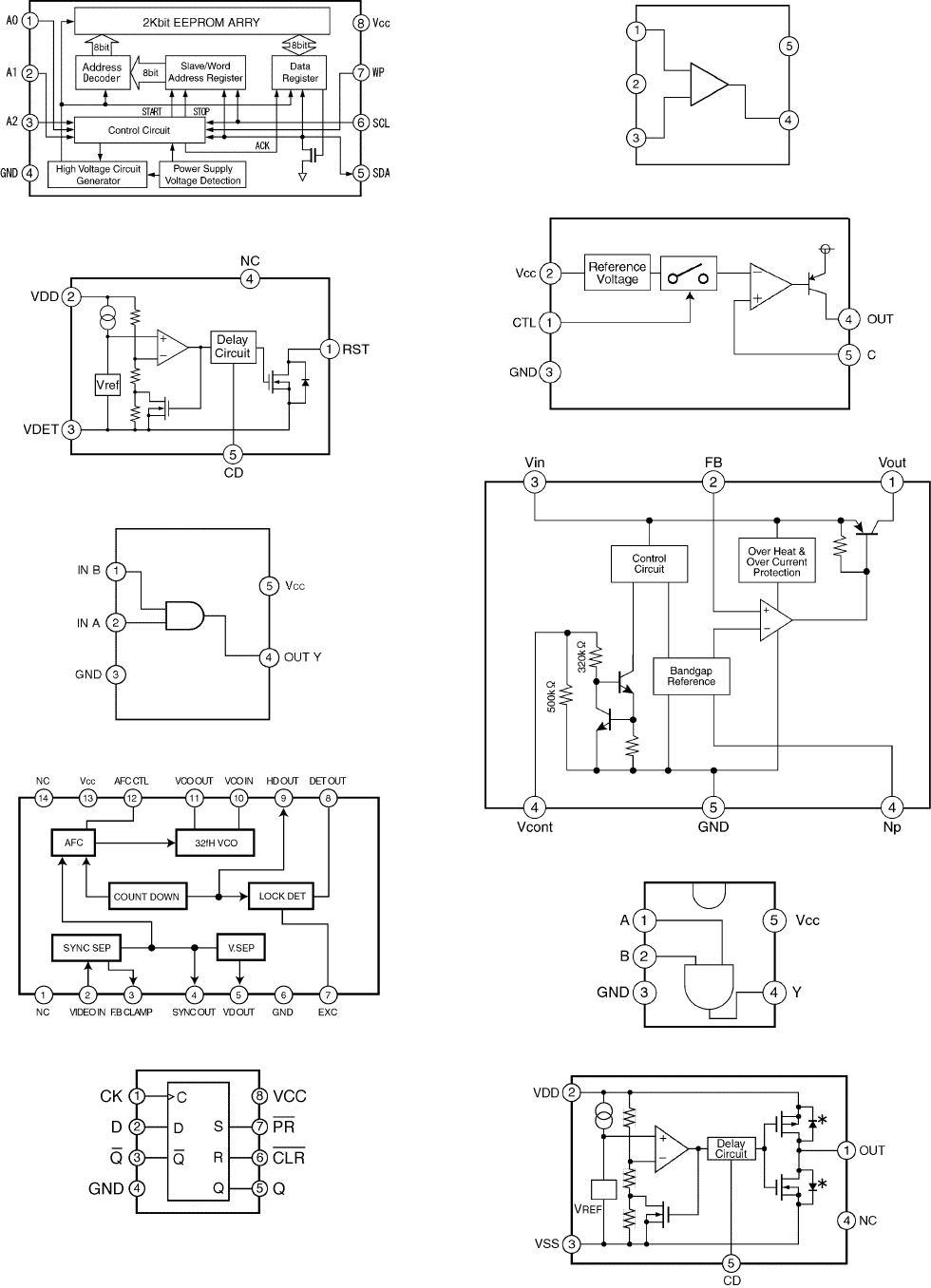

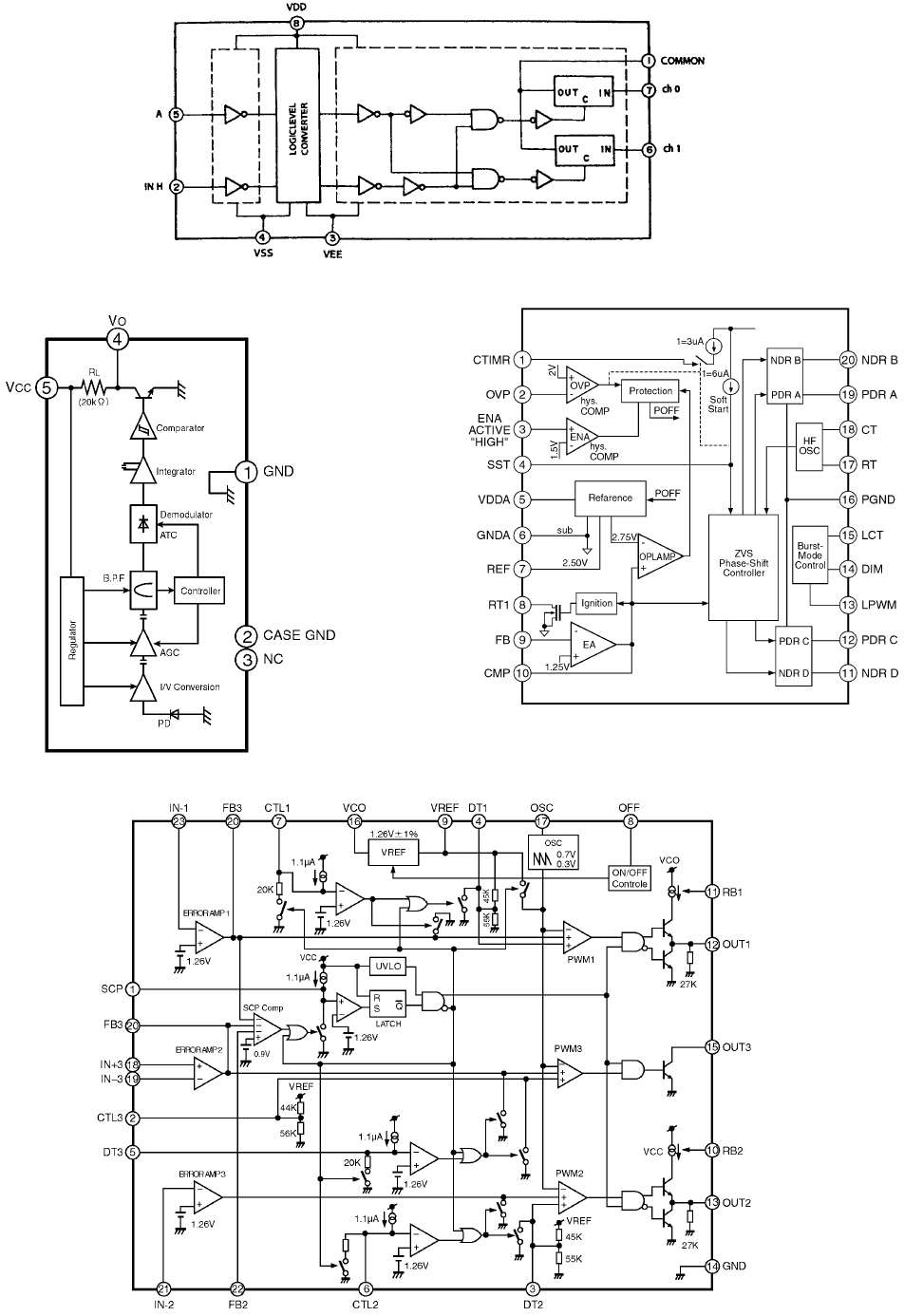

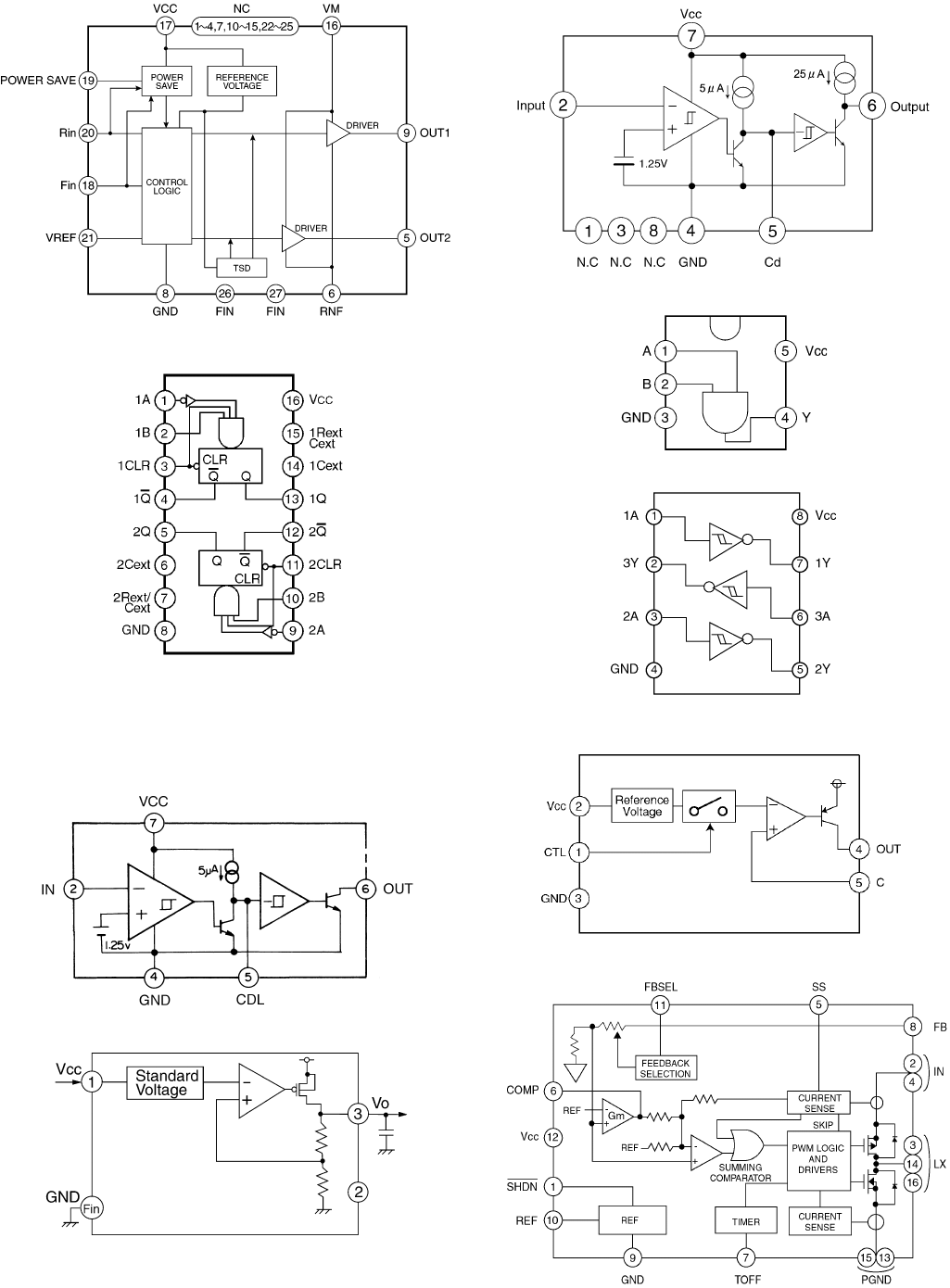

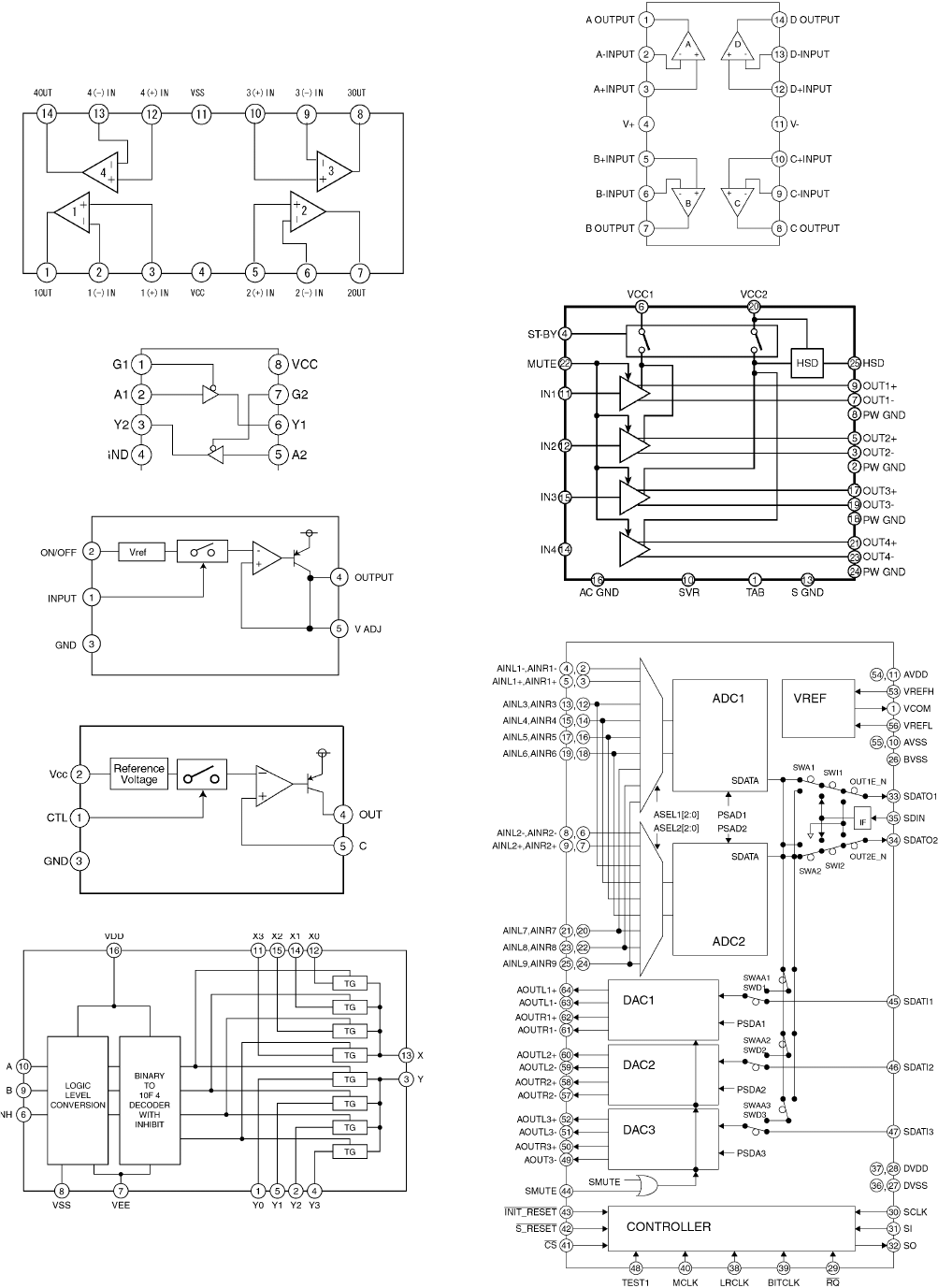

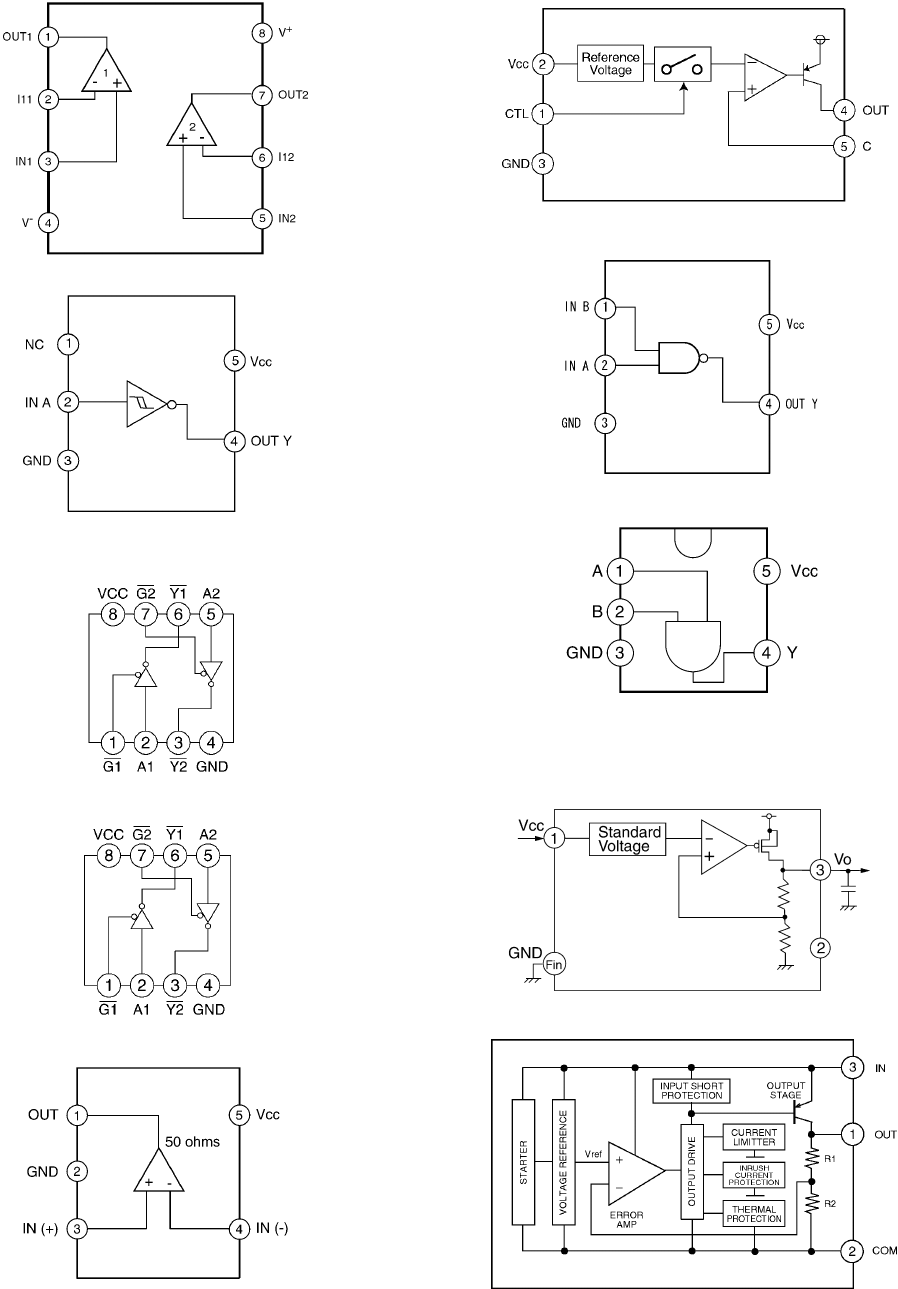

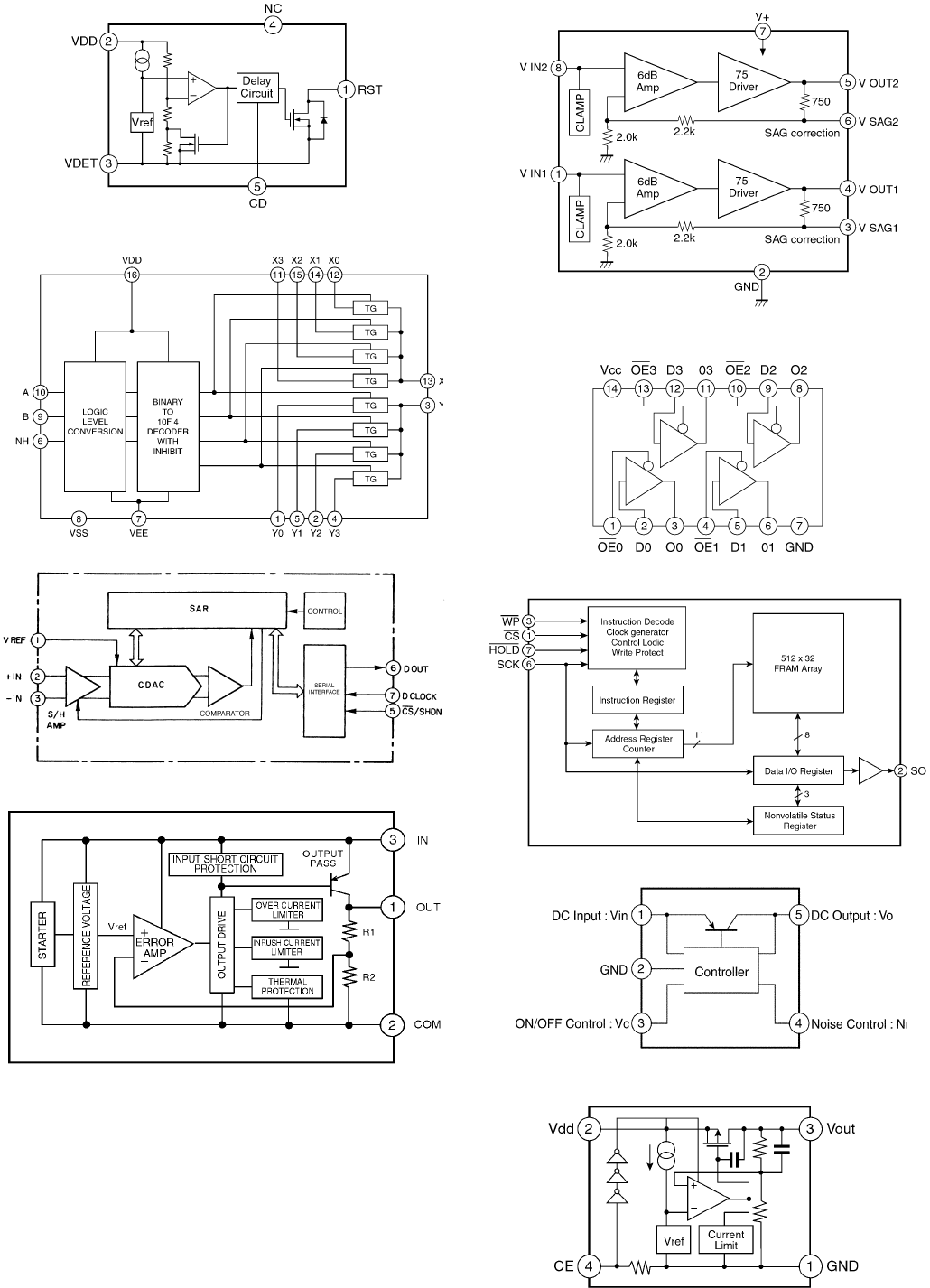

4.2. IC Block Diagram

4.2.1. Main Block

IC51 : C0ABCB000077

IC106 : C0JBAZ002222

IC109 : C0CAAYG00005

IC181,720 : C0DBEKG00001

IC200 : C0JBAR000367

IC201,506,507 : C0ABCB000051

IC300 : C1ZAZ0001450

IC500 : C0FBZK000010

IC503 : C0FBAK000003

IC504 : C1BB00000634

IC505 : C0ABEB000066

IC508-510 : C0ABBB000263

IC511 : C0DBEGE00002

IC660 : C0JBAB000888

IC700 : AN8065S-E1V

IC710 : C1BB00000828

IC715,752 : AN77L05M-E1

IC1600 : C0GBG0000032

IC1603 : C0JBAM000156

4.2.2. Sub Block

IC100 : C0EBH0000550

IC101 : C1BB00000828

IC102 : C0EBB0000183

IC103,107,4001 : C0JBAA000261

IC106,216 : C0JBAB000379

IC108 : C0DBEKG00001

IC115 : C0DBAZG00025

IC207 : C0EBH0000520

IC319 : C0JBAR000367

IC320 : C0FBAG000014

IC321 : AN77L05M-E1

IC405 : C1AB00000164

IC406,407 : C0JBAZ002803

IC504 : C3GBCA000001

IC3005 : C0DBGYY00185

IC3007 : C0CBCAA00006

IC110,111 : C0DBAZD00009

IC761 : C0DBAZC00016

4.2.3. Navi/HDD Block

IC408,1117,1118 : C0JBAA000372

IC409 : C0JBAZ001492

IC201,202 : C3ABRG000059

IC102 : C0CBABA00020

IC205 : C0JBZZ000322

IC502 : C0FBBH000053

IC700 : C0JBAB000354

IC701 : C0JBAS000241

IC702 : C0ABBB000283

IC1101,1103,1124 : C0JBAB000629

IC1102,1104 : C0JBAB000824

IC1105,1108 : C0JBAZ002635

IC1106,1107,1110 : C0ABAA000099

IC1109 : C0DBEKG00001

IC1115 : C0JBAC000412

IC1116,1123 : C0JBAA000261

4.2.4. TFT/SW Block

IC402 : C1BB00000828

IC403 : AN77L03M-E1

IC404 : C3EBDC000049

IC405 : C0EBH0000520

IC406,603 : C0JBAA000372

IC408 : C1AB00002372

IC412 : C0JBAF000701

IC417 : YEAMM2107FT1

IC418 : C0DBEKG00001

IC421 : C0DBEJC00002

IC422 : C0JBAA000319

IC602 : C0EBC0000240

IC409 :C0JBAR000513

IC970 : PNA4S42M01MC

IC601 : C0DBAYY00280

IC401 : AN8049SH-E1V

IC415 : C1AB00002215

IC407 : C2BBFD000652

IC410 : AN2546FH-A

4.2.5. DVD Deck Block

IC101 : AN8703FH-V IC311 : C0GBY0000012

IC271 : C0JBAA000372

IC275, IC561 : C0JBAZ002826

IC321 : C0GBH0000006

IC411 : C0CBADC00084

IC441 : MN13821SJP

IC631, IC641 : C0JBAH000127

IC651 : C3GBCA000001

IC652 : C0JBAB000890

5 Adjustment

5.1. VCO Adjustments

1) Turn the +B/ACC on

2) Move to [Diagnosis for Manufacturer] screen. (Refer to the

working instructions)

3) Touch the [Color Bar Check] on the screen

4) Touch the [VCO Adj] on the screen

5) Check if the color bar of the VTR input is appeared.

Press the [TUNE/TRCK UP/DOWN] key or [VOL UP/DOWN]

key and adjust so that the

color bar is displayed properly.

*The adjustment value is displayed on the screen

*The adjustment point is set at the center of the 3 points of the

adjustment values that

displays the color

6) Touch the screen

7) Return to [Color Bar Check] screen

*Always return by touching the screen

*If mis-operated, go back to 2) and readjust.

8) Touch the [VCO Adj] and check the adjustment value.

9) Touch the screen

10) Turn the +B/ACC off

5.2. Flicker Adjustments

1) Turn the +B/ACC on

2) Set to [Diagnosis for Manufacturer] screen

3) Touch the [Color Bar Check] on the screen

4) Select the [TFT adj] on the screen

5) Press the [TUNE/TRCK UP/DOWN] key or [VOL UP/DOWN]

key and adjust so that

the screen flickering will be at minimum.

*The viewing angle goes by the below diagram

*The adjustment value is displayed on the screen

6) Touch the screen Å® goes back to the color bar inspection

screen

* Always return by touching the screen

* If mis-operated, go back to 2) and readjust.

7) Touch the [TFT Adj] and check the adjustment value.

8) Touch the screen and return to [Color Bar Check] screen.

9) Turn the +B/ACC off

5.3. Calibration Adjustments

1) Turn the +B/ACC on

2) Move to [Diagnosis for Manufacturer] screen. (Refer to the

working instructions)

3) Touch the [Calibration Check] on the screen.

4) Press [VOL DOWN] or [TRCK UP] while pressing the "+" dis-

played on the screen.

Do the above operations as shown on the right diagram from

[1] to [5] in order and

finally press the OK key at [6]

5) Check if the screen returns to [Diagnosis for Manufacturer]

screen.

*At operation [6], must always return to [Diagnosis for Manufac-

turer] screen.

If mis-operated, go back to 2) and readjust.

6) Turn the +B/ACC off

5.4. Calibration Check

1) Turn the +B/ACC on

2) Set to [Diagnosis for Manufacturer] screen

3) Touch the [Color Palette Adj] on the screen

4) Touch the [Touch SW Check2] on the screen

5) Touch the vertical lines 1 and 19 on the screen and check if

the color reverses.

6) Touch [Next] on the screen.

7) Touch the horizontal lines 1 and 13 on the screen and check

if the color reverses.

8) Touch [Menu] on the screen.

Returns to the color palette adjustment screen.

9) Turn the +B/ACC off

6 Block Diagram

6.1. Main Block

121082

119753

15 16

E-3182Aa

To E-9955Aa CN1102

E-9953Aa

CN955

To E-9733Aa CN399 AV

CN718 124 48 4143455049 1261 60 17223951 2326 55595747 53 30 42 25 36 38 34 44 323527 19 29 31 331116 5312837 CN500 CN271

SW 10V

ACC DET

SW10 CTRL

SW1 SEL

SW2 SEL

SD IN1

SD IN2

BCV

LED ON

F VIDEO

TEL L

TEL R

R-CH

RUSH RESET

DAI CLK

CDC SYS RST

CDC INI RST

MAIN CNT

DIR PDN

DIR AUTO

ERF

I2S SCK

I2S WS

SYS MUTE

TILT

V CONT B

RVSEL2

RM IN

SEP VSO

SUBA CS CDC

SUBA SI2

SUBA CS DIR

DAI SO

BATT2

SW 7V

DVD AC3

NAVI VOICE

I2S SDO

AUX V IN

SDA

SCL

DSP RST

V OUT(RCV)

73~80

65~68

SUB CPU

ACC

SW 3.3V

SUB-TFT

AUX L

R-CH

AUX R

AUX V

V OUT

SUB W

LEVEL

CHECK

SW 10V BATT2

REG

IC109

ANT51

BPF

PA51

FM/AM TUNER

ANT

AM ANT

L CH

R CH R CH

DET

27 28 22 30 29 19 IC51

NOISE

DET

SDA

SCL

ST LAMP

V CONT

SMETER

CN725

BCV

DET

CAM DET

CAM PON

LED 5V

AUDIO MUTE

2,4

6,8

44,46,48,50

F VIDEO

TILT

UIC TXD

UIC RXD

TRACK U/D

TFT NMI

V CONT B

HS SEL(RV SEL2)

RM IN

SEP VSO

Q122

Q121,124,1601

REG SW 7V

CN719

REAR

VIEW

CAMERA

PUSH RESET

DSP HREQ

BATT2

SW 7V

IC1301

BUF

Q610

PWR

SW 5V2

AF MUTE

IC660

10 11

SUB-TFT

Q611

IC200

AUDIO

SEL

11 13

10 9

Q227 Q328

IC507

IC506

IC500

AUDIO CODEC

AUX L+

AUX L-

SEL L+

5EL L-

761

EEP SO

EEP SI

EEP SK

EEP CS

MAIN CNT

ASEL1

ASEL0

LED CNT

AF MUTE

41 TFT NMI

L/R KEY

SO TX

SO RX

T/O KEY

19 20 99 83 74 76 35 36 85 22 23 86 87 29 28 30

PLL DI

PLL CLK

RD SD

NOISE

THM

SW1 SEL

SW2 SEL

SD IN1

SD IN2

AMP CNT

AMP DET

X600

16.8MHz RT600

ADC

LINE

SEL

BUS

SEL

IC106

MCLK

CDC

SDO2

CD TO

CD TI

CLK

GEN

CLK

RECOVERY DAIF

DEC DE-

EMPHA

LINE

SEL

XL501

11.29M

SUB-CPU

IC602

EEPROM

Q775

BATT2 PWR

Q774

BATT2

VCP 10V

IC710

Q773

REG

REG B 5V SW 7V

IC715

REG SW 5V2 SW 3.3V

IC511

REG 1.25V

RD 8V

BATT2

IC720

REG AU 9.5V

IC752

REG

IC505

VREF VREF

RD 5V

BATT2

ACC

MAIN CNT

IC600

SYSTEM CONTROL

IC504

DIGITAL

AUDIO I/F

DIR

SDO 20

9IC503

AUDIO

ADC

45 35 36 47

SDO0

SDO1

SDO2

DSP

EXTAL

IC501

AUDIO

DSP

LINE

SEL

AMP MUTE

BATT SENS

ACC SENS

RESET

BATT R

ACC R

RESET

IC700

BATT/ACC CHECK,RESET

PUSH RESET

79P SENSOR

MDC PER

EX AMP CNT

ANT CNT

DAC

SW+ 5

SW-

FL+

FL-

RL+

RL-

IC510

IC201

14 IC201

IC508

IC509

Q201

332

Q206

331

SOFT

MUTE SOFT

MUTE MUTE

CONT

Q208~210

Q212 Q685

Q213

Q215,216

Q211

Q302,303

Q304

Q305,311

SOFT

MUTE

SOFT

MUTE

SOFT

MUTE

425

MUTE

STBY HSB

IC300

POWER AMP

AMP MUTE

AF MUTE

FL+

FL-

RL+

ANT CNT

AMP CNT

SENS

RL-

FR+

FR-

R-CH RR+

RR-

Q684

Q680,681

Q682,683

PWR

BATT

BATT2

ACC

IC1600

MOTOR DRIVE

VREF

CN720 To

Slide Mechanism

Ass'y

(PANEL MOTOR)

Slide Mechanism

Ass'y

(POSITION SENSOR)

IC1603

PULSE

SHAPE

Q770,771

PWR

BATT2

Q1600

SPEED

CONT

CN721

CN717

B 5V 2

IC181

REG

SW 10V FAN

CN700

CN-NVD905U MAIN BLOCK

6.2. Navi/HDD/Connector Block

5 6 7 8 11 12 1 2 1 2 6 5 3 4 42 18 21 28 26 30 5~8 4 3 2 1 37 40 38 41 39 36 22 24 23 11 12 10 14 13 20 34 47 48 49 50 46 45 35 44

DVD DECK DATA1

(For Future Device) To E-9733Aa CN313

CN205

SW 1.8V

CN600

SW 10V

A 5V

BE TXD

BE RES

DVD VIDEO

IEC 958

NAVI VOICE

SD CMD

SD CLK

SD WP

NSD CD

SUB DIR

KO CLK

KO TXDSUB RXD

SUB CLK

SUB TXD

INT REQ

I2S SD0

I2S SCK0

I2S WS0

AD DT

AD CK

NAD CS

GYRO SEL0

GYRO SEL1

DIR AUTO

NCSYNC OUT

NNMI

GPS RX

GPS TX

NGPS RES

RESET IN

PKB

SPD CNT

STB REM

SD 0~3

LINE L

NINE R

BE RXD

SW 3.3V

SW 5V

SW 10V

CN202

DVD

DECK

DVD

DECK

HDD

Unit

TXD2 DVD

RXD2 DVD

DVD RST

DVD VIDEO

IEC958

CN203

DVD DREQ

DVD IORDY

DVD INT

DVD DIOW

DVD DIOR

DVD CSO

DVD CSI

DVD DACK

HDD DREQ

HDD INT

HDD DACK

HDD RST

HDD IORDY

HDD DIOW

HDD DIOR

HDD CSO

HDD SSI

89~93

98~103

106~110

18~23

25~29

34~38

14~16

52~57

60~64

68~72

78~80

111,116,117

18~20

1~16

32~35

24~26

1~8,10~17

DVD RST

DVD ODC SEL

DVD A0~2

DVD D0~15

HDD A0~2

HDD D0~15

ATA A0~2

ATA D0~15

ATA DREQ

ATA INT

NATA DACK

NATA RST

ATA IORDY

NATA DIOW

NATA DIOR

NATA CSO

NATA CSI

33,35,36

3~18

18~20

1~16

32~35

ATA A0~2

ATA D0~15

SW 5V

CN201CN428 CN427

CN425

BATT2

SW 10V

SW 5V

SW 3.3V

SW 1.8V

SW 1.5V

A 5V

IC205

CPLD

127

126

124

128

120

125

121

119

118

IC322

C10

U27

W27

W29

AB2

AA5

AB1

N3,N4

IC322

PLD TMS

PLD TCK

DEV SEL0

DEV SEL1

NDVD RST IN

NATA BUFEN

NATA WRITE

ATA DREQ

ATA INT

NATA DACK

NATA RST

ATA IORDY

NATA DIOW

NATA DIOR

NATA CSO

NATA CSI

Q508

BUF

IC502 8

213

AUDIO

DAC

DVD

OCD SEL

RXD2 DVD

TXD2 DVD

ADP SCK

ADP LRCK

ADP DATA

CN421 E-9955Aa E-3182Ab

25 4

IC409

IC408

LEVEL

SHIFT

AJ29

AJ1

AH1

AG2

USART0

SCK

A12

D12

B12

C12

C11

B31

B11

AE2

AD4

AD5

AB4

AB5

AC2

D15

B15

W28

AE28

AH27

B10

AJ27

D14

AB3

AB25

D11

AA27

XL103 Q103 DCK CTRL

8.05M XL1001

63.9M

DPLL

IC1123 FL1121

LEVEL

SHIFT

AB28 DOT CLK

DPLL CLK

PLD HOUT

Q2E R

Q2E G

Q2E B

Q2E CDE1

Q2E HS OUT

N SYNC IO

EX SYNC MODE

AUDIO TXD

AUDIO RXD

CLK

THSYNC

Y25

Y27

AH29

AG28

AG29

AD26

AE27

AE26

AE28

AF2

AF1

AF29

V28

T29

R27

V27

B13,C13

D13,E13

IC101

SUPER I/O

IC1100

IC1101

IC1103 LEVEL

SHIFT

SW 5V

ETC TX

ETC RX

ETC DTR

LINE L

LINE R

CN1104 4321

876

11 12

710

1213

10 9

CN1105

SYSTEM-UP

DATA2

(To Future Device)

XL1002

3.69M

UACC PWR

UIO CTRL

UBT RX

UBT TX

SYS ID4

HUB CTL

EVENT

IC1109

ACC PWR

SYS ID1

SYS ID2

SYS ID3

BATT2 12V

REG

BUF

IC1102,1105

IC1104,1105,1108

LEVEL

SHIFT

(INV)

REG

IC102

A 5V

3.3V

SYS

XL102

31.333MHz

XL101

SYS

16M

IC201,202

UMD0~31

UMA0~14

D0~15

A1~22

SDRAM

IC200

FLASH

MEMORY

20~26

29~36

CN700 CN1931 CN1911

CN1921

CN1901

Q700

Q703

Q704

Q1911

Q702

BUF

IC700,Q701

IC701,702

IC2325

BUFFER

REV

TAIL

SPD

BUF SPD

DET

SW 3.3V

IC1001 15

45 4 1 LPF

CN1103

NH SYNC IN

NH SYNC OUT

NH SYNC IN

TFT TXD

TFT RXD

TFT RES

UIC TXD

UIC RXD

AUDIO MUTE

DSP MREQ

CAM PON

CAM DET

SDA

SCL

DSP RST

RED

GREEN

BLUE

CDE

E-9953Aa

CN954

E-9733Aa

CN310

E-3182Aa

CN500

CN1102

LC101~103

LPF

IC1106

IC1110

FL1113

LPF

FL1126

LPF

IC1121

LEVEL

SHIFT

IC1114~1118

LEVEL

SHIFT

IC1107

IC1124

IC1119

23 3

STB REM

PKB

REV

TAIL

SPD

RESET IN

TXD1 IPL

RXD1 IPL

SCK1 IPL

ROM KILL

SW 3.3V

IPL

VEHICLE

REMOTE OUT

(To TV Tuner)

E-9955Ab

CN-NVD905U NAVI /HDD /CONNECTOR BLOCK

6.3. Sub/Tuner Block

CARD

E-3095a

SD DAT0

SD DAT1

SD DAT2

SD DAT3

SD CLK

SD CMD

CD1

WP1

CHK1

CN426 CN100 CN972

GPS

ANT

CP301

ANT 817

E301

GPS

PAC K

CN313 48 49 50 8 7 6 5 3 4 1 2 39 37 41 11 12 10 45 35 36 42 47 4644 34 23 24 22 30 26 28 20 211814 1340 38 E-9733Aa

GPS RX

GPS TX

NGPS RES

SD D0

SD D1

SD D2

SD D3

SD CLK

SD SMD

NSD CD

SD WP

SUB TXD

SUB DIR

SUB CLK

KO CLK

KO TXD

AD DT

AD CK

NAD CS

GYRO SEL0

GYRO SEL1

PKB

SPD CNT

INT REQ

BE RES

STB REM

DVD VIDEO

NC SYNC

I2S WS

I2S SCK

I2S SD

NAVI VOICE

TEL R

TEL L

DIR AUTO

DVD AC3

NNMI

NRST IN

275

IC209

IC320

IC319

ADC

SEL

ANGULAR

RATE

SENSOR

E300

INV

Q507

SW 3.3V

SD IN2

SD IN1

CN310

E-9955Aa

CN425

BATT2

SW 10V

A 5V

SW 5V

SW 3.3V

SW 1.8V

SW 1.5V

SW 10V

IC321

REG SENS 5V

BATT2

IC101

REG BS 5V

IC3007

REG GPS 2.5V

BT100

PCNT1

BATT2

Q106,107

START

SET

IC110

DC/DC CONV.

CONTROL

23 VCC

CTL

VRE F

CSCP

FREQ

SHIFT VR102

Q123

BATT2

ON/OFF

DRIVE

ON/OFF

DRIVE

Q104,105

Q102,103

SW 6V

SW 5V

IC108

REG

PCNT2

A 5V

X200

4.9152MHz

70 69 11 13 12 17 16 18 15

5261

57 50 63 38 62 47 48 49 44 45 46

ACC DET

RESET

ERF

2064

KO RXD

KO CLK

KO TXD

PKB

SPD CNT

INT REQ

BE RES

STB REM

RV SEL0

RV SEL1

RV SEL2

FV SEL0

FV SEL1

FV SEL2

+B DET

SYS PWR

IC503

SUB CONTROL

PCNT3

Q108,109

START

SET

23 VCC

CTL

VREF

CSCP

SW 6V

IC111

DC/DC CONV.

CONTROL

FREQ

SHIFT

Q122

VR101

Q110

ON/OFF

DRIVE

ON/OFF

DRIVE

Q111

SW 6V

IC3005

REG

SW 3.3V

SW 1.8V

SW 2.8V

IC115

DC/DC

CONV. SW 1.5V

Q772

ON/OFF

DRIVE

BATT2 SW 7V

IC761

DC/DC CONV.

CONTROL

BATT2 112

ON/OFF

VR1 FREQ

SHIFT

Q773

BATT2

IC100

BATT

CHECK

IC103 IC505

4TIMING

DELAY

TIMING

DELAY

TIMING

DELAY

TIMING

DELAY

IC104

IC106

IC105

IC104

IC107

IC105

11 10

IC105

13 12

NNMI

PCNT2

PCNT1

NRST IN

PCNT3

CN399

DVD AC3

DIR AUTO

TEL L

TEL R

NAVI VOICE

I2S SD

I2S SCK

I2S WS

SD IN2

SD IN1

BCV IN

AUX VIN

F VIDEO

RCV

VCONT B

FV SEL

PM IN

65~69

72~80

ACC DET IN

PUSH RESET

ERF

TILT

SUBA SI2

DAI SO

DAI CLK

DIR CS

CODC RQ

1,2,3

DIR PDN

CODC INI RES

CODC SYS RES

LED ON

SYS MUTE

SEP VSO

SW 10 CTRL

MAIN CNT

SW F1 CNT

SW F2 CNT

SW 3.3V

SW 7V

SW 10V

IC406

BUF

IC407

BUF

SCK

IC504

FRAM

IC216

IC400,404 IC405

VIDEO AMP

VIDEO

SEL

IC4001,Q4001

Q117,118

Q210

PWR

BUF

SW +B BATT2

IC102

IC207

ACC

CHECK

DET

IC217

BS 5V

E-3182Aa

CN718

CN-NVD905U SUB/TUNER BIOCK

To E-9955Aa CN421

6.4. TFT/SW/ESC Block

8536

SYNC

SEP

32fH

VCO COUNT

DOWN

V SEP

IC408

SYNC SEPARATION

AFC

LPF

BEF

BPF R-Y

B-Y

DEN

G-Y

DEN

MATRIX BRIGHT,

CONTRAST,

GAMMA

SYNC

SEP

SYNC

CUT

OSD

IC410

VIDEO PROCESS

CLAMP

Q405,406

REG5V

CN954

CN955

CN451

VIDEO

CN953

IC420

ROUNDNESS

CORRECTION

LCD1

(LCD Back Light)

LCD1

(TFT Panel)

CN401

CN601

CN-NVD905U TFT/SW/DISPLAY

VCOM

RED

26 31 10

AUDIO MUTE

2CAM DET

DSP HREQ

UIC RXD

UIC TXD

UIC RXD

DSP HREQ

CAM PON

CAM DET

AUDIO MUTE

16 6 35

GREEN

F VIDEO

437

BLUE

22 15

TFT RST

34 16

TFT TXD

28 14

NH SYNC

1,3,5,7 BATT2 37-40

43,45,47,49

TFT NMI

15 30

TILT

18 28

TRACK U/D

22 22

PUSH RESET

40 29

REM IN

13 RESET SW

19 REMO

VOL DOWN

GENZ

TRACK U/D

TILT

AUDIO

SW979

SW978

(TUNE UP)

CN902

CN972 CN971

CN901

41 LED5V

SW7V 18-21

30 11

NV SYNC

24 12

NH SYNC

37 9

CDE

32 17

TFT RXD

27 V CONT B

33 SEP VSO

HS SEL

E-9953Aa

E-9955Aa

CN1103

E-3182Aa

CN719

E-9954Aa

E-9954Ab

2134

VOL UP

89762

D931-934

D971

-983

11 1012

Q605

IC404

Q403

IC407

TFT CPU

11IC406

TFT

RESET

TXD

RXD

NH SYNC

CHRM VD

CHRM HD

V CONT B

1IC603

Q604

IC601

DC/AC INVERTER

V DET

IC405

RECEIVE

IC970

AFC

CNT

LEVEL

CHECK

SEL

16 15

DC/DC

CONV-

CONT.

33 VOL +KEY

12 RXD

1 HPOS 1

50 PDOS

43 CLK

44OSCI

8NBLK

59CPH1

14SIDE

57CPH2

61CPH3

53STH1

CPH1

CPH2

CPH3

STH1

NBLK

CPH1

CPH2

CPH3

STH

54STH2

25STV1

32STV2

28CPV

31NGOE1

30NGOE2

29NGOE3

46SPL

56HDIR

OE1

OE2

OE3

MODE

L/R

27CX

11 TXD

18 RESET

13 I2C DI

14 I2C SCK

7WP

7 I2C DO

5HPOS1 2 HPOS 2

NDSV

VCC

TFT MODE1

VR402

D405

6 TFT MODE2

6HPOS2

19XIN

20XOUT

49BL CNT

22BL ON

(Touch Panel)

NMI

IC602

FB 12PDRC

11NDRD

20NDRB

3 ENA

5 VDDA

S BLK

8RTI

17 PT

30LED

TILT LED

34 VOL -KEY

37 GENZ KEY

36 AUDIO KEY

35 MENU KEY

X401

7.2MHz

IC415

TFT

CONTROL

X-

40 XG

39 XR

26 X+

16 TOUCH SW

X-

X+

SEL

IC411

21 PULSE

SHAPE

EEPROM

IC414

546

52 53

VXOI

COMMON

COM DC

+7.5V

BLAK

V BLUE

V GREEN

V RED

HSS C SYNC

PRGB

DAT

SCLK

EXT

POL

47 SECAM

BLK

S BLK

51 36

VDB

NAVI

SYNC

2F/F

IC412 16 VCOM

DRIVE VCOM

BIAS

PWR

REG

1.8V

REG

Q409

IC421

LPF

Q411

Q407,408,410

Q413

IC413

IC604

IC409 X402

500kHz

X403

3.58MHz

REG5V

1-4 BATT2

SW7V

20-23 SW7V

SW7V

IC401

NMI OSC

VR400

VCC

OUT3

OUT2

DD-12V

Q414(1/2)

Q414

(2/2)

Q404

Q415(2/2)

Y-

42 YG

141 YR

28 Y+

Y-

Q415

(1/2)

CN402

SW7V DD18.5V

REG5V

2Y+ REG5V

Q603

Q601

BATT2

Q602 T601

BATT2

ON/OFF

DRIVE

Q402

ON/OFF

DRIVE

Q401

NMI

REG

REG3V REG

VCC3V

REG5V

REG

IC402

IC418

IC403

SW977

(TUNE DOWN)

892

218

1 6,7

3,4

SW976

(NAVI)

SW971

(OPEN)

SW974

(SRC)

SW975

(MAP)

SW973

(VOL UP)

SW972

(VOL DOWN)

REG5V

BATT2

DVD18.5V

DD-12V

REG3V

19PDRA

2OVP

PWR

REG5V

VR403

IC407

IC422

NCLP

NDSV

MODE1

MODE2

POL

NVD

NHD

6.5. DVD Servo Block

CN101

DVD RPF RF INP

RF INN

VIN1

VIN2

VIN3

VIN4

VIN9

VIN10

DVD REN

DVD TA

DVD TB

DVD TC

DVD TD

DVD F1

DVD F2

DVD LDIN

DVD MON

DVD SW

HFMW(3.3V)

TR+

TRV+

TRV-

INTER SW

VH-

TR-

FO+

FO-

CD F1

CD F2

CD E

CD F

CD LD+

CD MON

LPCO1

LPC1

VIN5

VIN6

VIN11

VIN12

LPCO2

LPC2

IC101

RF AMP

OPTICAL

PICKUP

Ass'y

MOTOR

TRAVERSE

MOTOR

SPINDLE

MOTOR

Q152

Q151

Q153

Q154

POWER

A5V IC311

COIL / MOTOR DRIVE

IC321

SPINDLE MOTOR DRIVE

TRACKING

COIL

DRIVE

FOCUS

COIL

DRIVE

CN302

CN303

MOTOR

DRIVE

TRAVERSE

MOTOR

DRIVE

MUTE3

MUTE4,5

DRIVE

GAIN

CONT

PHOTO SENSOR LED

CN301

5V Q301 PWM6

AD4 TILTP

MONI0

MONI2

NDASP

NPDIAG

IORDY

NIOCS16

NCS3FX

NCS1TX

DMARQ

NDMACK

NTYCL

NIORD

DA0

DA1

DA2

VDDH

NRST

RWM5

INTRQ

AD6

Q251

Q321


SENSOR

Q253


SENSOR

SPDRV

TIL IN

OSCO1

80 61

NRD

XIO2

CVBS/C

SPDIF

A IN

RXD0

FRAMCS

FEPCS

FEPRST

NINTDSC

NINTHDST

NINTODC

SODCCS

RESET

9–17

22–30 37–44

NMRST

NER

OSCI1

TILT

TRS DRV

PWM1

PWM8

DAC1

DAC0

PWM7

PWM3

PWM2

PWM4

TBAL

FBAL

AD0

AD1

AD2

AD3

117

NARF

110

ARF

111

118

119

120

22–25 2–9

12–19

29–36

38–45

127

129

133

138

145

140

134

135

148

142

132

146

137

139

136

104

141

MASTER

176

115

114

AVRTM

147

121

123

XL201

16.89MHz

SW301

3.3V

FE OUT

F BAL

DFLTON

DFLTOP

STANDBY

SEN

SCK

STOIO

TE OUT

T BAL

AS OUT

RFENV

J LINE

OFTR

BDO

NINT2

NINT0

NINT1

NSC

WAIT ODC

IC621

FLASH

MEMORY

HDTYPE

TEST SG

E-9453B

IC201

DVD SERVO/DSP

IC652

IC651

FRAM IC561

IC652

BUF

SCK SO

XCS

12 11

106

AD0–7 AD0–14

LA0–3

AD0–15

LA0–3

AD4–19

LA4–19

LA0–17

HDD0–15

28 12 11 26

13 5

IC561

IC275

IC652

BUF

REG REG

IC421 IC411

A5V 10V 10VDAC5V

3.3V

DVD0–7 DD0–7

DD8–15

ODC SEL

DIOW

INTRQ

NHRESET

PCS0

PWE0

DREQ

DSTB

DCLK

DSYNC

RSTP

CONTROL

MD0–31

MA0–10,12,13

193

ALE

ACK

183

161

XIO11

207

XIO13

209

XIO12

208

XIO14

211

XIO10

206

XIO9

205

XIO7

202

SSPIN1

SSPOUT1

SSPCLK1

184–187

189

182

214

216

215

212

IC631,641

ADDRESS

BUFFER

195

XIO3

197

XIO8

203

116

AOUT0

AOUT1

AOUT2

AOUT3

LRCK

79 4

ACLK

PCM CLK

TXD0

IC501

MEDIAMATICS DVD

CN701

SCK

DACK

SRCK

LRCK

AUDIO L+

LRCK

BICK

MCLK

CCLK

CDTI

SDTI

CSN

PON

AUDIO L-

AUDIO R+

AUDIO R-

IC721

AUDIO DAC

AOUT0

AOUT2

AOUT1

SO DATA

SI DATA

DMUTE

TEC958

NRESET

CN401

NCSDAC

NTSC

CN201

1–810–17

10V

3.3V

1.8V

XL501

27MHz IC601

IC441

IC561

IC271

IC431

SDRAM

VOLT

CHECK

BUF

AD2 26

AD1

AD0

DIOR

NEJECT

DMACK

DMARQ

CS0

CS2

IOCS16

IORDY

PDIAG

DASP

RDCK

DTM ON

NSELFTEST

GFD69248 DVD DECK

7 Wiring Connection Diagram

CN101 30P

CN201

40P

CN303 20P

CN3014P CN701

30P CN401

12P

LED FPC

CN302

CN1921

CN1931

CN700 CN1104

CN1901

CN1911

33P

33 1

139

240

240 139

15 1

40 1

30 1

114

CN201 CN1102

CN427 40P

ANT51 PA51

CN719

CN953

CN955

40P

CN451

CN902

CN401

CN971 CN972

CN901

CN402

CN403

CN601

CN954

CN670

CN721 3P

CN718

CN399

CP301

CN720

CN717

CN428 40P

CN1103

CN425

CN310

CN205CN202

CN203

CN421

CN313

CN972

CN100

CN426

15P

CN600

10P

CN1105

13P

10P

Connector P.C.B

[E-3182Ab]

Navi P.C.B

[E-9955Aa]

HDD P.C.B

[E-9955Ab]

Tuner P.C.B

[E-3095]

TFT P.C.B

[E-9954Aa]

Bottom View

SW P.C.B

[E-9954Ab]

Main P.C.B

[E-3182Aa]

ESC P.C.B

[E-9953A]

Bottom View

Sub P.C.B

[E-9733A]

HDD Unit

CN700

CN271

CN725

CNP3

CNP7

CNP6

CNP5

CNP4

CNP8

CNP1

CNP9

CNP21

CNP22

AJ2

AJ9

AJ1

REMOTE OUT connector

Rear view

camera

Rear monitor

PRE-OUT

FRONT

PRE-OUT

REAR

SW-OUT

TV tuner

Video cassette

recorder

Vehicle signal connector

ILLUMINATION

SPEED

REVERSE

SIDE BRAKE

GPS antenna

LCD1

CN500

DVD Servo P.C.B

[E-9453B]

(Top View)

Loading Motor

Travers

Moter

Spindle

Moter

Optical Pic Up

A'ssy

802 791

50 1

115

240 139

401

130

9191

240

139

10 1

50 149

250 149

214

113

212

111

802 791

Slide Mechanism Ass'y Motor

VIDEO-OUT

Remote Out Connector AV Connector

VTR-IN

Power Connector

FUSE 5A

FUSE 3A

Battery

Ground

Power

External Amplifier Control Power

Motor Antenna Relay Control

Noise filter

Front SP

Rear SP

Flat Cable

Jig Part No.

[YESFZS2059]

Flat Cable

Jig Part No.

[YESFZS2071]

Flat Cable

Jig Part No.

[YESFZS2071]

Flat Cable

Jig Part No.

[YESFZS2058]

Jig Part No.

[YESFZN2247]

Jig Part No.

[YESFZN2248]

Jig Part No.

[YESFZN2249]

8 Schematic Diagram

8.1. Main Block-1

5.0

8.2. Main Block-2

4.0

8.2

4.0

8.0

4.0

5.0

5.0 0

5.0

8.3. Main Block-3

8.4. Navi Block-1

8.5. Navi Block-2

8.6. Navi Block-3

8.7. Navi Block-4

E-9953A

MA8056LMHTX

8.8. Sub Block-1

E-9955Aa

8.9. Sub Block-2

E-3182Aa

E-9955Aa

8.10. Sub Block-3

8.11. TFT Block-1

E-9954Aa

E-9953A

E-9954Ab E-9954Ab

0.5

5.0

4.8

5.0

4.9

4.8

4.6

5.0

2.2

2.4

8.12. TFT Block-2

E-9954Aa

3.3

1.7

1.3

1.4

3.3

0.4

3.3

0.8

3.3

0.8

1.8

8.13. DVD Servo Block-1

C0JBAA000372

8.14. DVD Servo Block-2

C0CBADC00084

9 Schematic Diagram-2

9.1. Connector Block

E-3182Ab

E-9955Aa

9.2. ESC Block

E-9953A

E-9954Aa

E-3182Aa

E-9955Aa

9.3. HDD Block

E-9955Ab

E-9955Aa

9.4. SW Block

E-9954Aa E-9954Aa

E-9954Ab

9.5. Tuner Block

10 Printed Circuit Board

10.1. Tuner Block

10.2. Main/Connector Block (Top View)

10.3. Main/Connector Block (Bottom View)

10.4. Navi/HDD Block (Top View)

10.5. Navi/HDD Block (Bottom View)

10.6. Sub Block (Top View)

10.7. Sub Block (Bottom View)

10.8. ESC Block (Top View)

10.9. ESC Block (Bottom View)

10.10. TFT/SW Block (Top View)

10.11. TFT/SW Block (Bottom View)

10.12. DVD Servo Block (Top View)

10.13. DVD Servo Block (Bottom View)

11 Exploded View and Replacement Parts List

11.1. Exploded View [CN-NVD905U]

2 2

CN-NVD905U

DVD Deck Ass'y

HDD P.C.B

E-9955Ab

Navi P.C.B

E-9955Aa

Tuner P.C.B

E-3095

SW P.C.B

E-9954Ab

TFT P.C.B

E-9954Aa

ESC P.C.B

E-9953A

33 34

78 78

78 54

78 78

Sub P.C.B

E-9733A

Main P.C.B

E-3182Aa

Connector P.C.B

E-3182Ab

CN972

CNP22

CNP21 CN971

CN601

CN901

LCD1

CNP9

CNP5

CNP4

CNP3

CNP6

AJ1

AT402

CN721

CN720

CN271

CN725

AT4

AT2

AT1

CN500

CN700

CN670

CN100

CNP7

CN427

CN428

CN717

CN718

AT3

ANT51

CN201

CN701

PA51

CN719 IC109

IC300

CNP1

CN310 CP301

AJ2

CN399

CN313

AT302

AT301

CN972

AT304

BT100 AT303

CN1911

CN1921

AT1901

CN1931

CNP8

CN955

AT2

AT3

AT4

AT1

CN954

CN953

CN401

CN402

AT403

CN902

AT401

AT404 CN451

CN401

CN205

CN202

CN203

CN600

CN1105

AT201

AT402

CN1104

CN700

AT403

CN425

CN201

CN421

CN1102

CN1103

AT401

AJ9

<Installation Parts

Power Connector>

To Main P.C.B

E-3182Aa

CN700

<Installation Parts

Trim Plate>

<Installation Parts

Mounting Collar>

CN426

E352

E351

E301

E300

F601

F600

F602

CN1901

CN403

AT7

AT5

AT6

11.2. Replacement Parts List [CN-NVD905U]

Notes :

1. Be sure to make your orders of replacement parts accord-

ing to this list.

2. Important safety notice: Components, identified by

mark have special characteristics important for safety.

When replacing any of these components, use only man-

ufacturer's specified parts.

3. Location keys in the remarks column indicates the gen-

eral location of the parts shown in the exploded drawing,

as in a road map.

4. The marking (RTL) indicates that Retention Time is lim-

ited for this item. After the discontinuation of assembly in

production, the item will continue to be available for a

specific period of time. The retention period of availability

is dependent on the type of assembly, and in accordance

with the laws governing part and product retention. After

the end of this period, the assembly will no longer be

available.

• Order intake period is basically six months after the first

shipment.

5. Reference materials of parts with the “TSN“ mark in the

remarks column are uploaded in the TSN (Technical Ser-

vice Navigation) system website. Please download from

that website for references.

Ref. No. Part No. Part Name & Description Remarks

[E3182A] Main/Connector Block

IC's AND TRANSISTORs

IC51 C0ABCB000077 IC

IC106 C0JBAZ002222 IC

IC109 C0CAAYG00005 IC

IC181 C0DBEKG00001 IC

IC200 C0JBAR000367 IC

IC201 C0ABCB000051 IC

IC300 C1ZAZ0001450 IC

IC500 C0FBZK000010 IC

IC501 C2HBZK000001 IC

IC503 C0FBAK000003 IC

IC504 C1BB00000634 IC

IC505 C0ABEB000066 IC

IC506 C0ABCB000051 IC

IC507 C0ABCB000051 IC

IC508 C0ABBB000263 IC

IC509 C0ABBB000263 IC

IC510 C0ABBB000263 IC

IC511 C0DBEGE00002 IC

IC600 C2DBYY000215 IC

IC660 C0JBAB000888 IC

IC700 AN8065S-E1V IC

IC710 C1BB00000828 IC

IC715 AN77L05M-E1 IC

IC720 C0DBEKG00001 IC

IC752 AN77L05M-E1 IC

IC1301 C0JBAE000390 IC

IC1600 C0GBG0000032 IC

IC1603 C0JBAM000156 IC

PA51 YEP0PTB555C0 Electronic Tuner

Q121 B1GBCFLL0012 Transistor

Q122 B1GBCFLL0012 Transistor

Q124 B1BBAC000014 Transistor

Q202 B1GDCFJA0024 Transistor

Q203 YEANC323TUTX Transistor

Q204 B1GDCFJA0024 Transistor

Q205 YEANC323TUTX Transistor

Q206 XN0F26100L Transistor

Q207 XN0F26100L Transistor

Q208 B1GDCFLL0030 Transistor

Q209 B1GBCFJJ0040 Transistor

Q210 B1GBCFJJ0040 Transistor

Q211 B1GDCFLL0030 Transistor

Q212 B1GBCFJJ0040 Transistor

Q213 B1GDCFLL0030 Transistor

Q215 B1GDCFJA0024 Transistor

Q216 YEANC323TUTX Transistor

Q227 B1GBCFJJ0040 Transistor

Q231 B1GDCFJJ0008 Transistor

Q232 B1GDCFJJ0008 Transistor

Q302 B1GDCFJA0024 Transistor

Q303 YEANC323TUTX Transistor

Q304 B1GDCFJA0024 Transistor

Q305 YEANC323TUTX Transistor

Q311 B1GDCFLL0030 Transistor

Q328 B1GBCFJJ0040 Transistor

Q331 B1GDCFJJ0008 Transistor

Q332 B1GDCFJJ0008 Transistor

Q610 B1GDKFEJ0005 Transistor

Q611 YEANC114YKX Transistor

Q680 B1GBNCEJ0003 Transistor

Q681 YEANC114YKX Transistor

Q682 B1GBNCEJ0003 Transistor

Q683 YEANC114YKX Transistor

Q684 B1GBCFNN0004 Transistor

Q685 YEANC114YKX Transistor

Q770 B1BDEL000002 Transistor

Q771 B1GBCFJJ0040 Transistor

Q773 2SD2139TA Transistor

Q774 B1GBNCEJ0003 Transistor

Q775 B1GBCFJJ0040 Transistor

Q1600 B1GBCFJJ0040 Transistor

Q1601 2SB1440TX Transistor

Q1911 B1GBCFJJ0040 Transistor

DIODEs

D51 B0ADDJ000007 Diode

D71 MA153TX Diode

D101 YEADRB081L20 Diode

D121 MAZ803300L Diode

D122 MAZ803300L Diode

D123 MAZ812000L Diode

D124 B0BC6R6A0054 Diode

D201 B0JCME000012 Diode

D202 B0JCME000012 Diode

D203 B0JCME000012 Diode

D204 B0JCME000012 Diode

D210 MA3J142E0L Diode

D272 MAZ803300L Diode

D273 MAZ803300L Diode

D301 B0JCME000012 Diode

D302 B0JCME000012 Diode

D303 B0JCME000012 Diode

D304 B0JCME000012 Diode

D610 MA3X152A0L Diode

D650 MA8056LMHTX Diode

D700

YEADDAM3MA47

Diode

D701 YEADRB081L20 Diode

D703 YEADRB081L20 Diode

D710 MA721TX Diode

D752 MA3J142E0L Diode

D756 B0BC7R9A0054 Diode

D757 MA3X152A0L Diode

D758 B0ZAZ0000007 Diode

D776 B0BC5R000020 Diode

D777 B0BC5R000020 Diode

D1301 B0JDBE000002 Diode

D1600 B0BC6R6A0054 Diode

D1601 MA8056LMHTX Diode

D1607 MA153TX Diode

D1913 MA8056LMHTX Diode

Ref. No. Part No. Part Name & Description Remarks

D1921 B0ACCK000005 Diode

D1922 B0ACCK000005 Diode

D1923 MA3J142E0L Diode

CAPACITORs

C51 F1H1A154A007 Ceramic, 0.15µF 10WV

C52 F1G1C1030008 Ceramic, 0.01µF 16WV

C53 F1G1C1030008 Ceramic, 0.01µF 16WV

C54 EEE1CA101WP Electrolytic, 100µF 16WV

C55 YECUS1C104KX Ceramic, 0.1µF 16WV

C57 F1G1C223A081 Ceramic, 0.022µF 16WV

C58 YECUZ1E183KX Ceramic, 0.018µF 25WV

C59 F1H1E3330003 Ceramic, 0.033µF 25WV

C60 F1H1E3330003 Ceramic, 0.033µF 25WV

C61 F1J1A106A023 Ceramic, 10µF 10WV

C62 EEEFK1A221P Electrolytic, 220µF 10WV

C63 F1G1C1030008 Ceramic, 0.01µF 16WV

C66 F1G1C1030008 Ceramic, 0.01µF 16WV

C67 F1H1C683A010 Ceramic, 0.068µF 16WV

C68 F3G1C226A027 Tantalum, 22µF 16WV

C75 F1G1H100A565 Ceramic, 10PF 50WV

C76 F1G1H1020008 Ceramic, 1000PF 50WV

C77 F1H1C1040012 Ceramic, 0.1µF 16WV

C78 F2G1C100A118 Electrolytic, 10µF 16WV

C79 F1G1C223A081 Ceramic, 0.022µF 16WV

C80 F1G1H1020008 Ceramic, 1000PF 50WV

C81 F1G1H151A566 Ceramic, 150PF 50WV

C82 F1G1H151A566 Ceramic, 150PF 50WV

C83 F1G1H151A566 Ceramic, 150PF 50WV

C84 F1G1H151A566 Ceramic, 150PF 50WV

C91 YECUZ1H102KX Ceramic, 1000PF 50WV

C92 YECUZ1H221JC Ceramic, 220PF 50WV

C93 YECUS1H180JC Ceramic, 18PF 50WV

C100 F2A1C4720025 Electrolytic, 4700µF 16WV

C104 EEEFC1C681P Electrolytic, 680µF 16WV

C106 F1G1E103A085 Ceramic, 0.01µF 25WV

C117 F1G1A1040006 Ceramic, 0.1µF 10WV

C118 F1J1C334A104 Ceramic, 0.33µF 16WV

C119 F1L1C2260011 Ceramic, 22µF 16WV

C121 YECUS1E104ZF Ceramic, 0.1µF 25WV

C124 F1J1A106A023 Ceramic, 10µF 10WV

C168 F2A1C4720025 Electrolytic, 4700µF 16WV

C169 F2A1C4720025 Electrolytic, 4700µF 16WV

C174 F1G1H391A571 Ceramic, 390PF 50WV

C176 EEEFC1C681P Electrolytic, 680µF 16WV

C180 F1J1C334A104 Ceramic, 0.33µF 16WV

C181 F2G1A330A090 Electrolytic, 33µF 10WV

C184 F1J1A106A023 Ceramic, 10µF 10WV

C206 F1H1A1050019 Ceramic, 1µF 10WV

C210 F2G0J220A102 Electrolytic, 22µF 6.3WV

C215 F2G0J220A102 Electrolytic, 22µF 6.3WV

C226 F2G1C100A118 Electrolytic, 10µF 16WV

C228 F2G1C100A132 Electrolytic, 10µF 16WV

C229 F2G1C100A132 Electrolytic, 10µF 16WV

C230 ECPU1C474MA5 Plastic film, 0.47µF 16WV

C231 ECPU1C474MA5 Plastic film, 0.47µF 16WV

C235 F1G1H122A635 Ceramic, 1200PF 50WV

C236 F1G1H122A635 Ceramic, 1200PF 50WV

C237 YECUS1E104ZF Ceramic, 0.1µF 25WV

C238 F1J1C1050013 Ceramic, 1µF 16WV

C239 F2G1C470A116 Electrolytic, 47µF 16WV

C240 F2G1H2R2A105 Electrolytic, 2.2µF 50WV

C241 F2A1C222A790 Electrolytic, 2200µF 16WV

C242 F2A1C222A790 Electrolytic, 2200µF 16WV

C243 F2G1C100A118 Electrolytic, 10µF 16WV

C250 F2G1C101A141 Electrolytic, 100µF 16WV

C251 YECUZ1C104KX Ceramic, 0.1µF 16WV

C271 F1H1E102A034 Ceramic, 1000PF 25WV

C272 F1G1H1020008 Ceramic, 1000PF 50WV

C281 YECUZ1H221JC Ceramic, 220PF 50WV

C282 YECUZ1H221JC Ceramic, 220PF 50WV

C283 F2G1C100A118 Electrolytic, 10µF 16WV

C284 F2G1C100A118 Electrolytic, 10µF 16WV

Ref. No. Part No. Part Name & Description Remarks

C285 F1G1H821A635 Ceramic, 820PF 50WV

C287 F1G1H821A635 Ceramic, 820PF 50WV

C289 F1H1C1040012 Ceramic, 0.1µF 16WV

C290 F2G1C470A116 Electrolytic, 47µF 16WV

C291 F2G1C100A118 Electrolytic, 10µF 16WV

C306 F1H1A1050019 Ceramic, 1µF 10WV

C310 F2G0J220A102 Electrolytic, 22µF 6.3WV

C328 F2G1C100A132 Electrolytic, 10µF 16WV

C329 F2G1C100A132 Electrolytic, 10µF 16WV

C330 ECPU1C474MA5 Plastic film, 0.47µF 16WV

C331 ECPU1C474MA5 Plastic film, 0.47µF 16WV

C335 F1G1H122A635 Ceramic, 1200PF 50WV

C336 F1G1H122A635 Ceramic, 1200PF 50WV

C337 YECUS1E104ZF Ceramic, 0.1µF 25WV

C372 F1G1H1020008 Ceramic, 1000PF 50WV

C373 F1H0J4750004 Electrolytic, 4.7µF 6.3WV

C381 YECUZ1H221JC Ceramic, 220PF 50WV

C382 YECUZ1H221JC Ceramic, 220PF 50WV

C383 F2G1C100A118 Electrolytic, 10µF 16WV

C384 F2G1C100A118 Electrolytic, 10µF 16WV

C385 F1G1H821A635 Ceramic, 820PF 50WV

C387 F1G1H821A635 Ceramic, 820PF 50WV

C500 EEFCD0G560R Electrolytic, 56µF 4WV

C503 F2G0J470A119 Electrolytic, 47µF 6.3WV

C504 F1J1C334A104 Ceramic, 0.33µF 16WV

C505 F2G0J470A119 Electrolytic, 47µF 6.3WV

C506 F1G0J1050005 Ceramic, 1µF 6.3WV

C507 F1G1A1040006 Ceramic, 0.1µF 10WV

C508 F2G0J470A119 Electrolytic, 47µF 6.3WV

C509 EEFCD0D101R Electrolytic, 100µF 2WV

C510 F1G1A1040006 Ceramic, 0.1µF 10WV

C511 F1G1A1040006 Ceramic, 0.1µF 10WV

C512 F1G1A1040006 Ceramic, 0.1µF 10WV

C513 F1G1A1040006 Ceramic, 0.1µF 10WV

C514 F1G1A1040006 Ceramic, 0.1µF 10WV

C515 F1G1A1040006 Ceramic, 0.1µF 10WV

C516 F1G1A1040006 Ceramic, 0.1µF 10WV

C517 F1G1A1040006 Ceramic, 0.1µF 10WV

C518 F1G1A1040006 Ceramic, 0.1µF 10WV

C519 F1G1A1040006 Ceramic, 0.1µF 10WV

C520 F2G1A101A079 Electrolytic, 100µF 10WV

C521 YECUZ1C104KX Ceramic, 0.1µF 16WV

C522 F2G1A101A079 Electrolytic, 100µF 10WV

C523 F2G1A101A079 Electrolytic, 100µF 10WV

C524 F1G1A1040006 Ceramic, 0.1µF 10WV

C525 F1G1A1040006 Ceramic, 0.1µF 10WV

C526 F1G1A1040006 Ceramic, 0.1µF 10WV

C527 F1G1A1040006 Ceramic, 0.1µF 10WV

C528 F1G1A1040006 Ceramic, 0.1µF 10WV

C529 F1H1H102A021 Ceramic, 1000PF 50WV

C530 F1G1A1040006 Ceramic, 0.1µF 10WV

C531 F1G1A1040006 Ceramic, 0.1µF 10WV

C532 F1G1A1040006 Ceramic, 0.1µF 10WV

C533 F1G1A1040006 Ceramic, 0.1µF 10WV

C534 F1G1A1040006 Ceramic, 0.1µF 10WV

C535 F1G1A1040006 Ceramic, 0.1µF 10WV

C537 F1G1C1030008 Ceramic, 0.01µF 16WV

C538 F1G1A1040006 Ceramic, 0.1µF 10WV

C539 F1G1A1040006 Ceramic, 0.1µF 10WV

C540 F1G1A1040006 Ceramic, 0.1µF 10WV

C541 F2G0J470A119 Electrolytic, 47µF 6.3WV

C545 F1H0J1050010 Ceramic, 1µF 6.3WV

C576 F2G0J470A119 Electrolytic, 47µF 6.3WV

C578 F2G0J470A119 Electrolytic, 47µF 6.3WV

C580 F2G0J470A119 Electrolytic, 47µF 6.3WV

C581 F2G0J470A119 Electrolytic, 47µF 6.3WV

C583 F1J0J4750003 Ceramic, 4.7µF 6.3WV

C584 F1J0J4750003 Ceramic, 4.7µF 6.3WV

C585 F2G0J470A119 Electrolytic, 47µF 6.3WV

C600 F1G1A1040006 Ceramic, 0.1µF 10WV

C601 F1G1A1040006 Ceramic, 0.1µF 10WV

C602 F1J1C1050013 Ceramic, 1µF 16WV

C603 F1H1H120A231 Ceramic, 12PF 50WV

C604 F1H1H180A231 Ceramic, 18PF 50WV

Ref. No. Part No. Part Name & Description Remarks

C605 F1G1A1040006 Ceramic, 0.1µF 10WV

C606 F1G1A1040006 Ceramic, 0.1µF 10WV

C607 F1G1A1040006 Ceramic, 0.1µF 10WV

C608 F1G1A1040006 Ceramic, 0.1µF 10WV

C610 F1J1A106A023 Ceramic, 10µF 10WV

C611 F1J1A106A023 Ceramic, 10µF 10WV

C612 F1J1A106A023 Ceramic, 10µF 10WV

C613 F1J1A106A023 Ceramic, 10µF 10WV

C614 F1J1A106A023 Ceramic, 10µF 10WV

C615 F1J1A106A023 Ceramic, 10µF 10WV

C617 F1J1A106A023 Ceramic, 10µF 10WV

C618 F1J1A106A023 Ceramic, 10µF 10WV

C621 F1J1A106A023 Ceramic, 10µF 10WV

C622 F1J1A106A023 Ceramic, 10µF 10WV

C624 F1G1H152A571 Ceramic, 1500PF 50WV

C625 F1G1E221A094 Ceramic, 220PF 25WV

C626 F2G0J220A102 Electrolytic, 22µF 6.3WV

C631 F1G1H1020008 Ceramic, 1000PF 50WV

C632 F2G1C101A141 Electrolytic, 100µF 16WV

C633 YECUZ1C104KX Ceramic, 0.1µF 16WV

C634 F1G1H101A566 Ceramic, 100PF 50WV

C635 F1G1H101A566 Ceramic, 100PF 50WV

C636 F1H0J4750004 Ceramic, 4.7µF 6.3WV

C639 F1G1H1020008 Ceramic, 1000PF 50WV

C646 F1H1A225A051 Ceramic, 2.2µF 10WV

C647 F1H1A225A051 Ceramic, 2.2µF 10WV

C648 F1G1H1020008 Ceramic, 1000PF 50WV

C650 YECUZ1E104ZF Ceramic, 0.1µF 25WV

C651 EEFCD0K330R Electrolytic, 33µF 8WV

C652 F1G1H151A566 Ceramic, 150PF 50WV

C653 F1H1A225A051 Ceramic, 2.2µF 10WV

C654 YECUZ1C104KX Ceramic, 0.1µF 16WV

C655 F1G1H1020008 Ceramic, 1000PF 50WV

C656 F1H1A225A051 Ceramic, 2.2µF 10WV

C657 F1H1A225A051 Ceramic, 2.2µF 10WV

C658 F1H1A225A051 Ceramic, 2.2µF 10WV

C659 F1G1H151A566 Ceramic, 150PF 50WV

C660 YECUZ1C104KX Ceramic, 0.1µF 16WV

C662 EEEFK1A221P Electrolytic, 220µF 10WV

C663 F1G1H152A571 Ceramic, 1500PF 50WV

C664 F1G1E221A094 Ceramic, 220PF 25WV

C666 F1G1H331A495 Ceramic, 330PF 50WV

C667 F1G1H152A571 Ceramic, 1500PF 50WV

C669 F1G1H152A571 Ceramic, 1500PF 50WV

C671 YECUZ1C104KX Ceramic, 0.1µF 16WV

C672 F1G1H331A495 Ceramic, 330PF 50WV

C673 F1G1E221A094 Ceramic, 220PF 25WV

C674 F1G1H152A571 Ceramic, 1500PF 50WV

C677 F1G1H152A571 Ceramic, 1500PF 50WV

C678 F1G1E221A094 Ceramic, 220PF 25WV

C680 F1G1H331A495 Ceramic, 330PF 50WV

C682 F1G1H152A571 Ceramic, 1500PF 50WV

C683 F1G1H152A571 Ceramic, 1500PF 50WV

C685 F1G1H331A495 Ceramic, 330PF 50WV

C688 F1G1E221A094 Ceramic, 220PF 25WV

C689 F1G1H152A571 Ceramic, 1500PF 50WV

C698 F1G1H152A571 Ceramic, 1500PF 50WV

C700 F1G1H331A495 Ceramic, 330PF 50WV

C701 YECUZ1H102KX Ceramic, 1000PF 50WV

C702 F2A1C4720025 Electrolytic, 4700µF 16WV

C703 F2A1C222A846 Electrolytic, 2200µF 16WV

C704 F1G1A1040006 Ceramic, 0.1µF 10WV

C705 F1H1A225A051 Ceramic, 2.2µF 10WV

C706 F1H1A225A051 Ceramic, 2.2µF 10WV

C707 F1H1A225A051 Ceramic, 2.2µF 10WV

C708 F1H1A225A051 Ceramic, 2.2µF 10WV

C710 EEEFK1C221XP Electrolytic, 220µF 16WV

C711 F1J1C334A104 Ceramic, 0.33µF 16WV

C712 F2G0J220A102 Electrolytic, 22µF 6.3WV

C715 F1G1A1040006 Ceramic, 0.1µF 10WV

C716 F2G1C100A118 Electrolytic, 10µF 16WV

C717 YECUZ1C104KX Ceramic, 0.1µF 16WV

C718 YECUZ1C104KX Ceramic, 0.1µF 16WV

C720 F1J1C334A104 Ceramic, 0.33µF 16WV

Ref. No. Part No. Part Name & Description Remarks

C721 F2G1C101A141 Electrolytic, 100µF 16WV

C752 F2G1C101A141 Electrolytic, 100µF 16WV

C753 YECUZ1E104ZF Ceramic, 0.1µF 25WV

C771 EEEFK1C221XP Electrolytic, 220µF 16WV

C772 F2G1C100A118 Electrolytic, 10µF 16WV

C773 EECS0HD473H Electrolytic, 0.047µF 5.5WV

C774 EEEFK0J331P Electrolytic, 330µF 6.3WV

C775 F2G0J220A102 Electrolytic, 22µF 6.3WV

C776 EEEHA1C220R Electrolytic, 22µF 6.3WV

C784 EEEFC1C331P Electrolytic, 330µF 16WV

C785 F1J1C334A104 Ceramic, 0.33µF 16WV

C786 F1J1C474A104 Ceramic, 0.47µF 16WV

C787 F1G1A1040006 Ceramic, 0.1µF 10WV

C1301 F1G1A1040006 Ceramic, 0.1µF 10WV

C1600 F1J1H1040014 Ceramic, 0.1µF 50WV

C1602 F2G1C101A141 Electrolytic, 100µF 16WV

C1603 YECUZ1C104KX Ceramic, 0.1µF 16WV

C1604 YECUZ1C104KX Ceramic, 0.1µF 16WV

C1605 F1G1A1040006 Ceramic, 0.1µF 10WV

C1606 F1H1H103A783 Ceramic, 0.01µF 50WV

C1608 F1G1C1030008 Ceramic, 0.01µF 16WV

C1612 YECUZ1C104KX Ceramic, 0.1µF 16WV

C1613 F1G1H1020008 Ceramic, 1000PF 50WV

C1614 F1H1A1050019 Ceramic, 1µF 10WV

C1615 YECUZ1C104KX Ceramic, 0.1µF 16WV

C1921 F1H1E102A034 Ceramic, 1000PF 25WV

C1922 F1H1E102A034 Ceramic, 1000PF 25WV

C1923 F1H1E102A034 Ceramic, 1000PF 25WV

C1924 F1H1E1040008 Ceramic, 0.1µF 25WV

C1925 F1H1E474A100 Ceramic, 0.47µF 25WV

LC501 F1Z1E2220001 Ceramic, 2200PF 25WV

LC502 F1Z1E2220001 Ceramic, 2200PF 25WV

LC503 F1Z1E2220001 Ceramic, 2200PF 25WV

LC505 F1Z1E2220001 Ceramic, 2200PF 25WV

LC506 F1Z1E2220001 Ceramic, 2200PF 25WV

RESISTORs

C693 ERJ2GE0R00X Chip, 0Ω 1/16W

C696 ERJ2GE0R00X Chip, 0Ω 1/16W

R51 ERJ2GEJ103X Chip, 10kΩ 1/16W

R52 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R53 ERJ6GEY0R00V Chip, 0Ω 1/10W

R54 ERJ2GE0R00X Chip, 0Ω 1/16W

R55 ERJ2GEJ273X Chip, 27kΩ 1/16W

R56 ERJ2GEJ474X Chip, 470kΩ 1/16W

R57 ERJ2GE0R00X Chip, 0Ω 1/16W

R58 ERJ2GE0R00X Chip, 0Ω 1/16W

R59 ERJ2GEJ152X Chip, 1.5kΩ 1/16W

R60 ERJ2GEJ103X Chip, 10kΩ 1/16W

R61 ERJ2GEJ152X Chip, 1.5kΩ 1/16W

R62 ERJ2GEJ272X Chip, 2.7kΩ 1/16W

R63 ERJ2GEJ273X Chip, 27kΩ 1/16W

R64 ERJ6GEY0R00V Chip, 0Ω 1/10W

R65 ERJ6GEY0R00V Chip, 0Ω 1/10W

R66 ERJ2GEJ224X Chip, 220kΩ 1/16W

R67 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

R68 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

R69 ERJ2GEJ223X Chip, 22kΩ 1/16W

R70 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

R71 ERJ2GEJ393X Chip, 39kΩ 1/16W

R72 ERJ2GEJ103X Chip, 10kΩ 1/16W

R73 ERJ2GEJ103X Chip, 10kΩ 1/16W

R74 ERJ2GE0R00X Chip, 0Ω 1/16W

R75 ERJ2GEJ103X Chip, 10kΩ 1/16W

R76 ERJ2GEJ393X Chip, 39kΩ 1/16W

R77 ERJ2GEJ393X Chip, 39kΩ 1/16W

R78 ERJ2GEJ102X Chip, 1kΩ 1/16W

R79 ERJ2GEJ183X Chip, 18kΩ 1/16W

R105 ERJ6ENF1502V Chip, 15kΩ 1/10W

R106 ERJ6ENF1503V Chip, 150kΩ 1/10W

R107 ERJ6ENF3302V Chip, 33kΩ 1/10W

R113 ERJ2GEJ103X Chip, 10kΩ 1/16W

R114 ERJ2GEJ220X Chip, 22Ω 1/16W

Ref. No. Part No. Part Name & Description Remarks

R115 ERJ2GEJ103X Chip, 10kΩ 1/16W

R120 ERJ6ENF1303V Chip, 130kΩ 1/10W

R121 ERJ6ENF1802V Chip, 18kΩ 1/10W

R122 ERJ6ENF2201V Chip, 2.2kΩ 1/10W

R123 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R124 ERJ2GEJ471X Chip, 470Ω 1/16W

R125 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R126 ERJ2GEJ152X Chip, 1.5kΩ 1/16W

R127 ERJ2GEJ103X Chip, 10kΩ 1/16W

R128 ERJ3GEY0R00V Chip, 0Ω 1/16W

R129 ERJ3GEYJ750V Chip, 75Ω 1/16W

R180 ERJ3GEYJ471V Chip, 470Ω 1/16W

R181 ERA3YED103V Metal Glaze, 10kΩ 1/16W

R182 ERA3YED222V Metal Glaze, 2.2kΩ 1/16W

R185 ERJ6GEY0R00V Chip, 0Ω 1/10W

R203 ERJ2GEJ123X Chip, 12kΩ 1/16W

R205 ERJ2GEJ104X Chip, 100kΩ 1/16W

R206 ERJ2GEJ512X Chip, 5.1kΩ 1/16W

R207 D0GB103JA049 Metal Film, 10kΩ 1/16W

R210 ERJ2GEJ102X Chip, 1kΩ 1/16W

R211 ERJ2GEJ393X Chip, 39kΩ 1/16W

R213 ERJ2GEJ393X Chip, 39kΩ 1/16W

R214 ERJ2GEJ102X Chip, 1kΩ 1/16W

R216 ERJ3GEYJ223V Chip, 22kΩ 1/16W

R219 D0GB561JA049 Metal Film, 560Ω 1/16W

R220 D0GB223JA049 Metal Film, 22kΩ 1/16W

R225 D0GB561JA049 Metal Film, 560Ω 1/16W

R226 D0GB223JA049 Metal Film, 22kΩ 1/16W

R227 ERJ2GEJ103X Chip, 10kΩ 1/16W

R238 ERJ2GEJ223X Chip, 22kΩ 1/16W

R248 ERJ3GEYJ561V Chip, 560Ω 1/16W

R254 ERJ2GEJ562X Chip, 5.6kΩ 1/16W

R256 ERJ2GEJ103X Chip, 10kΩ 1/16W

R257 ERJ2GEJ183X Chip, 18kΩ 1/16W

R272 ERJ2GEJ473X Chip, 47kΩ 1/16W

R273 ERJ6ENF75R0V Chip, 75Ω 1/10W

R274 ERJ3GEYJ151V Chip, 150Ω 1/16W

R275 ERJ3GEY0R00V Chip, 0Ω 1/16W

R281 ERJ2GEJ223X Chip, 22kΩ 1/16W

R282 ERJ2GEJ223X Chip, 22kΩ 1/16W

R283 ERJ3GEYJ561V Chip, 560Ω 1/16W

R284 ERJ3GEYJ561V Chip, 560Ω 1/16W

R285 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

R286 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

R287 ERJ2GEJ473X Chip, 47kΩ 1/16W

R288 ERJ2GEJ473X Chip, 47kΩ 1/16W

R289 ERJ2GEJ103X Chip, 10kΩ 1/16W

R290 ERJ2GEJ103X Chip, 10kΩ 1/16W

R291 ERJ2GE0R00X Chip, 0Ω 1/16W

R292 ERJ2GE0R00X Chip, 0Ω 1/16W

R293 ERJ2GEJ102X Chip, 1kΩ 1/16W

R294 ERJ2GEJ393X Chip, 39kΩ 1/16W

R303 ERJ2GEJ123X Chip, 12kΩ 1/16W

R305 ERJ2GEJ104X Chip, 100kΩ 1/16W

R306 ERJ2GEJ512X Chip, 5.1kΩ 1/16W

R307 D0GB103JA049 Metal Film, 10kΩ 1/16W

R310 ERJ2GEJ102X Chip, 1kΩ 1/16W

R311 ERJ2GEJ393X Chip, 39kΩ 1/16W

R319 D0GB561JA049 Metal Film, 560Ω 1/16W

R320 D0GB223JA049 Metal Film, 22kΩ 1/16W

R325 D0GB561JA049 Metal Film, 560Ω 1/16W

R326 D0GB223JA049 Metal Film, 22kΩ 1/16W

R328 ERJ2GEJ103X Chip, 10kΩ 1/16W

R372 ERJ2GEJ473X Chip, 47kΩ 1/16W

R381 ERJ2GEJ223X Chip, 22kΩ 1/16W

R382 ERJ2GEJ223X Chip, 22kΩ 1/16W

R383 ERJ3GEYJ561V Chip, 560Ω 1/16W

R384 ERJ3GEYJ561V Chip, 560Ω 1/16W

R385 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

R386 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

R387 ERJ2GEJ473X Chip, 47kΩ 1/16W

R388 ERJ2GEJ473X Chip, 47kΩ 1/16W

R389 ERJ2GEJ103X Chip, 10kΩ 1/16W

R390 ERJ2GEJ103X Chip, 10kΩ 1/16W

Ref. No. Part No. Part Name & Description Remarks

R391 ERJ2GE0R00X Chip, 0Ω 1/16W

R392 ERJ2GE0R00X Chip, 0Ω 1/16W

R501 ERJ2GEJ101X Chip, 100Ω 1/16W

R502 ERJ6GEY0R00V Chip, 0Ω 1/10W

R503 ERJ2GEJ100X Chip, 10Ω 1/16W

R504 ERJ2GEJ103X Chip, 10kΩ 1/16W

R505 ERJ2GEJ103X Chip, 10kΩ 1/16W

R506 ERJ2GEJ103X Chip, 10kΩ 1/16W

R507 ERJ2GE0R00X Chip, 0Ω 1/16W

R508 ERJ2GEJ100X Chip, 10Ω 1/16W

R509 ERJ2GEJ100X Chip, 10Ω 1/16W

R510 ERJ2GEJ103X Chip, 10kΩ 1/16W

R511 ERJ2GEJ103X Chip, 10kΩ 1/16W

R517 ERJ2GEJ220X Chip, 22Ω 1/16W

R518 ERJ2GEJ100X Chip, 10Ω 1/16W

R519 ERJ2GE0R00X Chip, 0Ω 1/16W

R520 ERJ2GE0R00X Chip, 0Ω 1/16W

R521 ERJ2GEJ102X Chip, 1kΩ 1/16W

R522 ERJ2GEJ100X Chip, 10Ω 1/16W

R523 ERJ2GEJ100X Chip, 10Ω 1/16W

R524 ERJ2GEJ105X Chip, 1MΩ 1/16W

R525 ERJ3EKF1802V Carbon, 18kΩ 1/16W

R526 ERJ2GEJ220X Chip, 22Ω 1/16W

R527 ERJ2GEJ220X Chip, 22Ω 1/16W

R528 ERJ2GEJ220X Chip, 22Ω 1/16W

R529 ERJ2GEJ220X Chip, 22Ω 1/16W

R534 ERJ2GEJ220X Chip, 22Ω 1/16W

R540 ERJ3EKF3302V Carbon, 33kΩ 1/16W

R541 ERJ3EKF2001V Carbon, 2kΩ 1/16W

R542 ERJ2GEJ103X Chip, 10kΩ 1/16W

R543 ERJ3EKF2202V Carbon, 22kΩ 1/16W

R544 D0GB103JA049 Metal Film, 10kΩ 1/16W

R545 D0GB103JA049 Metal Film, 10kΩ 1/16W

R546 D0GB103JA049 Metal Film, 10kΩ 1/16W

R547 D0GB103JA049 Metal Film, 10kΩ 1/16W

R567 ERJ2GEJ471X Chip, 470Ω 1/16W

R569 ERJ2GEJ103X Chip, 10kΩ 1/16W

R570 ERJ2GEJ103X Chip, 10kΩ 1/16W

R571 ERJ2GE0R00X Chip, 0Ω 1/16W

R572 ERJ2GE0R00X Chip, 0Ω 1/16W

R600 ERJ2GEJ103X Chip, 10kΩ 1/16W

R601 ERJ2GEJ102X Chip, 1kΩ 1/16W

R602 ERJ2GEJ223X Chip, 22kΩ 1/16W

R607 ERJ2GEJ102X Chip, 1kΩ 1/16W

R610 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R612 ERJ2GEJ103X Chip, 10kΩ 1/16W

R613 ERJ2GEJ100X Chip, 10Ω 1/16W

R614 ERJ2GEJ221X Chip, 220Ω 1/16W

R615 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R618 ERJ2GEJ221X Chip, 220Ω 1/16W

R620 ERJ2GEJ473X Chip, 47kΩ 1/16W

R621 ERJ2GEJ223X Chip, 22kΩ 1/16W

R623 ERJ2GEJ102X Chip, 1kΩ 1/16W

R625 ERJ3GEYJ102V Chip, 1kΩ 1/16W

R626 ERJ2GEJ473X Chip, 47kΩ 1/16W

R630 ERJ2GEJ823X Chip, 82kΩ 1/16W

R631 ERJ2GEJ103X Chip, 10kΩ 1/16W

R632 ERJ2GEJ473X Chip, 47kΩ 1/16W

R633 ERJ2GEJ471X Chip, 470Ω 1/16W

R634 ERJ2GEJ103X Chip, 10kΩ 1/16W

R635 ERJ2GEJ103X Chip, 10kΩ 1/16W

R638 ERJ2GEJ471X Chip, 470Ω 1/16W

R639 ERJ2GEJ823X Chip, 82kΩ 1/16W

R640 ERJ2GEJ471X Chip, 470Ω 1/16W

R641 ERJ2GEJ103X Chip, 10kΩ 1/16W

R642 ERJ2GEJ103X Chip, 10kΩ 1/16W

R645 ERJ2GEJ471X Chip, 470Ω 1/16W

R646 ERJ2GEJ471X Chip, 470Ω 1/16W

R649 ERJ2GEJ471X Chip, 470Ω 1/16W

R650 ERJ2GEJ103X Chip, 10kΩ 1/16W

R651 ERJ2GEJ103X Chip, 10kΩ 1/16W

R652 ERJ2GEJ203X Chip, 20kΩ 1/16W

R653 ERJ2GEJ623X Chip, 62kΩ 1/16W

R656 ERJ2GEJ471X Chip, 470Ω 1/16W

Ref. No. Part No. Part Name & Description Remarks

R657 ERJ2GEJ103X Chip, 10kΩ 1/16W

R658 ERJ2GEJ103X Chip, 10kΩ 1/16W

R659 ERJ2GEJ203X Chip, 20kΩ 1/16W

R660 ERJ2GEJ623X Chip, 62kΩ 1/16W

R661 ERJ2GEJ471X Chip, 470Ω 1/16W

R662 D0GB103JA049 Metal Film, 10kΩ 1/16W

R663 D0GB123JA049 Metal Film, 12kΩ 1/16W

R664 D0GB221JA049 Metal Film, 220Ω 1/16W

R665 D0GB103JA049 Metal Film, 10kΩ 1/16W

R666 D0GB221JA049 Metal Film, 220Ω 1/16W

R667 D0GB123JA049 Metal Film, 12kΩ 1/16W

R669 D0GB123JA049 Metal Film, 12kΩ 1/16W

R670 D0GB103JA049 Metal Film, 10kΩ 1/16W

R671 D0GB103JA049 Metal Film, 10kΩ 1/16W

R672 D0GB221JA049 Metal Film, 220Ω 1/16W

R673 D0GB221JA049 Metal Film, 220Ω 1/16W

R674 D0GB123JA049 Metal Film, 12kΩ 1/16W

R676 D0GB103JA049 Metal Film, 10kΩ 1/16W

R677 D0GB123JA049 Metal Film, 12kΩ 1/16W

R678 D0GB221JA049 Metal Film, 220Ω 1/16W

R679 D0GB103JA049 Metal Film, 10kΩ 1/16W

R680 D0GB221JA049 Metal Film, 220Ω 1/16W

R682 D0GB123JA049 Metal Film, 12kΩ 1/16W

R683 D0GB123JA049 Metal Film, 12kΩ 1/16W

R684 D0GB103JA049 Metal Film, 10kΩ 1/16W

R685 D0GB221JA049 Metal Film, 220Ω 1/16W

R687 D0GB103JA049 Metal Film, 10kΩ 1/16W

R688 D0GB221JA049 Metal Film, 220Ω 1/16W

R689 D0GB123JA049 Metal Film, 12kΩ 1/16W

R698 ERJ2GEJ223X Chip, 22kΩ 1/16W

R699 ERJ2GEJ103X Chip, 10kΩ 1/16W

R700 ERJ8GEYJ332V Chip, 3.3kΩ 1/8W

R701 ERJ6GEYJ223 Chip, 22kΩ 1/10W

R702 ERJ6ENF1503V Chip, 150kΩ 1/10W

R703 ERJ6ENF3302V Chip, 33kΩ 1/10W

R704 ERJ6ENF2203V Chip, 220kΩ 1/10W

R705 ERJ6ENF3302V Chip, 33kΩ 1/10W

R706 ERJ6ENF3001V Chip, 3kΩ 1/10W

R720 ERJ3GEYJ101V Chip, 100Ω 1/16W

R721 ERA3YED153V Metal Glaze, 15kΩ 1/16W

R722 ERA3YED222V Metal Glaze, 2.2kΩ 1/16W

R772 ERJ3GEYJ562V Chip, 5.6kΩ 1/16W

R773 ERJ12YJ821H Chip, 820Ω 1/2W

R774 ERJ3GEY0R00V Chip, 0Ω 1/16W

R776 ERJ8GEYJ271V Chip, 270Ω 1/8W

R777 ERJ6GEYJ151 Chip, 150Ω 1/10W

R794 ERJ6GEYJ103 Carbon, 10kW

R795 ERJ6GEYJ821 Chip, 820Ω 1/10W

R796 ERJ8GEYJ1R0V Chip, 1Ω 1/8W

R797 ERJ3GEY0R00V Chip, 0Ω 1/16W

R1600 ERJ2GEJ473X Chip, 47kΩ 1/16W

R1601 ERJ12YJ3R9H Chip, 3.9Ω 1/2W

R1602 ERJ2GEJ122X Chip, 1.2kΩ 1/16W

R1603 ERJ2GEJ100X Chip, 10Ω 1/16W

R1605 ERA3YEB223V Metal Oxide, 22kΩ 1/16W

R1611 ERJ2GEJ473X Chip, 47kΩ 1/16W

R1612 ERJ2GEJ473X Chip, 47kΩ 1/16W

R1613 ERJ2GEJ102X Chip, 1kΩ 1/16W

R1614 ERJ2GEJ102X Chip, 1kΩ 1/16W

R1802 ERJ2GEJ104X Chip, 100kΩ 1/16W

R1803 ERJ2GEJ473X Chip, 47kΩ 1/16W

R1806 ERJ2GEJ102X Chip, 1kΩ 1/16W

R1809 ERJ2GEJ103X Chip, 10kΩ 1/16W

R1810 ERJ2GEJ104X Chip, 100kΩ 1/16W

R1811 ERJ2GE0R00X Chip, 0Ω 1/16W

R1901 ERJ2GEJ102X Chip, 1kΩ 1/16W

R1902 ERJ2GEJ331X Chip, 330Ω 1/16W

R1903 ERJ2GEJ331X Chip, 330Ω 1/16W

R1904 ERJ2GEJ331X Chip, 330Ω 1/16W

R1905 ERJ2GEJ331X Chip, 330Ω 1/16W

R1913 ERJ2GEJ101X Chip, 100Ω 1/16W

R1921 ERJ3GEYJ101V Chip, 100Ω 1/16W

R1922 ERJ3GEYJ101V Chip, 100Ω 1/16W

R1923 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

Ref. No. Part No. Part Name & Description Remarks

R1924 ERJ2GEJ223X Chip, 22kΩ 1/16W

R1925 ERJ2GEJ223X Chip, 22kΩ 1/16W

R2395 ERJ2GEJ101X Chip, 100Ω 1/16W

R2397 ERJ2GEJ101X Chip, 100Ω 1/16W

R2398 ERJ2GEJ101X Chip, 100Ω 1/16W

R2399 ERJ2GEJ101X Chip, 100Ω 1/16W

R2400 ERJ2GEJ103X Chip, 10kΩ 1/16W

CONNECTORs

CN271 K1FB112B0003 Connector, 12P

CN500 K1KA07AA0051 Connector, 7P

CN670 K1MN10B00147 Connector, 10P

CN700 K1FA116B0028 Connector, 16P

CN717 K1KA02AA0229 Connector, 2P

CN718 K1KA80AA0562 Connector, 80P

CN719 K1KA50B00092 Connector, 50P

CN720 K1KA02AA0229 Connector, 2P

CN721 K1KA03AA0230 Connector, 3P

CN725 K1KA05BA0249 Connector, 5P

CN1901 K1KA10BA0014 Connector, 10P

CN1911 K1KA05BA0086 Connector, 5P

CN1921 YEAEAG5P06L Connector, 6P

CN1931 K1MN33BA0186 Connector, 33P

COILs

FB501 J0JGC0000020 Coil

FB502 J0JGC0000020 Coil

FB503 YELTBLM21P3S Coil

FB505 J0JGC0000020 Coil

FB506 J0JGC0000020 Coil

FB507 YELTBLM21P3S Coil

FB508 J0JGC0000020 Coil

FB510 YELTBLM21P3S Coil

FB512 J0JCC0000286 Coil

FB513 J0JCC0000286 Coil

FL121 J0JGC0000020 Coil

FL122 J0JAC0000052 Coil

FL272 YELTBLM1A601 Coil

FL273 J0JCC0000042 Coil

FL372 YELTBLM1A601 Coil

FL600 J0JGC0000020 Coil

FL601 J0JGC0000020 Coil

FL611 YELTBLM1A601 Coil

FL612 YELTBLM1A601 Coil

FL615 J0JGC0000020 Coil

FL660 YELTBLM1A601 Coil

FL661 YELTBLM1A601 Coil

FL693 J0JBC0000105 Coil

FL694 J0JBC0000105 Coil

FL1901 J0JGC0000020 Coil

FL1913 YELTBLM1A601 Coil

FL1921 YELTBLM1A601 Coil

L51 G1C3R3JA0061 Coil

L101 G1C220Z00005 Coil

L201 G1CYYYZ00003 Coil

L202 G1CYYYZ00003 Coil

L301 G1CYYYZ00003 Coil

L302 G1CYYYZ00003 Coil

L501 YETQLM250S40 Coil

CRYSTALs

X600 H0J167500013 Crystal Oscillator

XL501 H1A1125B0002 Crystal Oscillator

NETWORK RESISTORs

RA502 D1H410320002 Network Resistor

RA507 D1H822040002 Network Resistor

RA508 D1H822040002 Network Resistor

RA509 D1H822040002 Network Resistor

RA514 D1H810040004 Network Resistor

Ref. No. Part No. Part Name & Description Remarks

RA601 D1H410220001 Network Resistor

RA603 D1H810140004 Network Resistor

RA608 D1H81034A024 Network Resistor

RA609 D1H810240004 Network Resistor

RA610 D1H847340001 Network Resistor

RA611 D1H410220001 Network Resistor

RA612 D1H410220001 Network Resistor

FILTERs

L502 J0MAB0000160 Filter

L517 J0MAB0000160 Filter

L522 J0MAB0000160 Filter

L523 J0MAB0000160 Filter

Z51 J0LM00000001 Noise Filter

THERMISTORs

RT600 D4CC14730002 Thermistor

TH680 YERT7AR4R7MT Thermistor

[E9955A] Navi/HDD Block

IC's AND TRANSISTORs

IC101 C1EB00000107 IC

IC102 C0CBABA00020 IC

IC200 YERMBP0011A IC

IC201 C3ABRG000059 IC

IC202 C3ABRG000059 IC

IC205 C0JBZZ000322 IC

IC322 C0JBAC000344 IC

IC408 C0JBAA000372 IC

IC409 C0JBAZ001492 IC

IC502 C0FBBH000053 IC

IC700 C0JBAB000354 IC

IC701 C0JBAS000241 IC

IC702 C0ABBB000283 IC

IC1001 C0JBZZ000361 IC

IC1100 C0JBAB000631 IC

IC1101 C0JBAB000629 IC

IC1102 C0JBAB000824 IC

IC1103 C0JBAB000629 IC

IC1104 C0JBAB000824 IC

IC1105 C0JBAZ002635 IC

IC1106 C0ABAA000099 IC

IC1107 C0ABAA000099 IC

IC1108 C0JBAZ002635 IC

IC1109 C0DBEKG00001 IC

IC1110 C0ABAA000099 IC

IC1114 C0JBAC000390 IC

IC1115 C0JBAC000412 IC

IC1116 C0JBAA000261 IC

IC1117 C0JBAA000372 IC

IC1118 C0JBAA000372 IC

IC1119 C0JBAZ002332 IC

IC1121 C0JBAZ002776 IC

IC1123 C0JBAA000261 IC

IC1124 C0JBAB000629 IC

IC2325 C0JBAB000889 IC

Q103 B1GBCFJJ0002 Transistor

Q508 YEANIMD3TKX Transistor

Q700 B1HBCFA00005 Transistor

Q701 B1GBCFJJ0040 Transistor

Q702 B1ABCF000176 Transistor

Q703 B1ABCF000176 Transistor

Q704 B1ADCE000012 Transistor

DIODEs

D101 YEADRB081L20 Diode

D305 B0ADEJ000026 Diode

D306 B0ADEJ000026 Diode

D506 YEADRB081L20 Diode

Ref. No. Part No. Part Name & Description Remarks

D700 B0ACCJ000033 Diode

D701 B0ACCJ000033 Diode

D702 B0ADEJ000026 Diode

D703 B0ADEJ000026 Diode

D1100 MA8056LMHTX Diode

D1101 MA736TX Diode

D1102 MA8056LMHTX Diode

D1103 MA8056LMHTX Diode

D1104 MA8056LMHTX Diode

D1105 MA8056LMHTX Diode

D1106 MA8056LMHTX Diode

D1127 B0ADCJ000065 Diode

D1128 B0ADCJ000065 Diode

D1129 B0ADCJ000065 Diode

D1130 B0ADCJ000065 Diode

D1132 B0ADCJ000065 Diode

D1133 YEADRB081L20 Diode

D1134 B0ADCJ000065 Diode

D1135 B0ADCJ000065 Diode

D1136 B0ADCJ000065 Diode

D1137 B0ACCK000005 Diode

D1138 B0ACCK000005 Diode

CAPACITORs

C101 F1G1A1040006 Ceramic, 0.1µF 10WV

C102 F1G1A1040006 Ceramic, 0.1µF 10WV

C103 F1G1A1040006 Ceramic, 0.1µF 10WV

C104 F1G1A1040006 Ceramic, 0.1µF 10WV

C105 F1G1A1040006 Ceramic, 0.1µF 10WV

C106 F1G1A1040006 Ceramic, 0.1µF 10WV

C107 F1G1A1040006 Ceramic, 0.1µF 10WV

C108 F1G1A1040006 Ceramic, 0.1µF 10WV

C109 F1G1A1040006 Ceramic, 0.1µF 10WV

C110 F1G1A1040006 Ceramic, 0.1µF 10WV

C111 F1G1A1040006 Ceramic, 0.1µF 10WV

C112 F1G1A1040006 Ceramic, 0.1µF 10WV

C113 F1G1A1040006 Ceramic, 0.1µF 10WV

C114 F1G1A1040006 Ceramic, 0.1µF 10WV

C115 F1G1A1040006 Ceramic, 0.1µF 10WV

C116 F1J0J1060007 Ceramic, 10µF 6.3WV

C117 F1Z1E2220001 Ceramic, 2200PF 25WV

C118 F1Z1E2220001 Ceramic, 2200PF 25WV

C119 F1K0J2260004 Ceramic, 22µF 6.3WV

C120 F1K0J2260004 Ceramic, 22µF 6.3WV

C121 F1J0J1060007 Ceramic, 10µF 6.3WV

C122 F1J0J1060007 Ceramic, 10µF 6.3WV

C123 F1G1A1040006 Ceramic, 0.1µF 10WV

C124 F1J0J1060007 Ceramic, 10µF 6.3WV

C125 F1J0J1060007 Ceramic, 10µF 6.3WV

C126 F1H1A1050019 Ceramic, 1µF 10WV

C127 F1G1H7R00008 Ceramic, 7PF 50WV

C128 F1G1A1040006 Ceramic, 0.1µF 10WV

C129 F1G1A1040006 Ceramic, 0.1µF 10WV

C130 F1G1H7R00008 Ceramic, 7PF 50WV

C131 F1G1H150A566 Ceramic, 15PF 50WV

C132 F1G1H100A565 Ceramic, 10PF 50WV

C133 F1G1H100A565 Ceramic, 10PF 50WV

C134 F1G1A1040006 Ceramic, 0.1µF 10WV

C135 F1G1A1040006 Ceramic, 0.1µF 10WV

C136 F1G1A1040006 Ceramic, 0.1µF 10WV

C137 F1G1A1040006 Ceramic, 0.1µF 10WV

C138 F1G1A1040006 Ceramic, 0.1µF 10WV

C139 F1G1A1040006 Ceramic, 0.1µF 10WV

C140 F1G1A1040006 Ceramic, 0.1µF 10WV

C141 F1G1A1040006 Ceramic, 0.1µF 10WV

C142 F1G1A1040006 Ceramic, 0.1µF 10WV

C143 F1G1A1040006 Ceramic, 0.1µF 10WV

C144 F1G1A1040006 Ceramic, 0.1µF 10WV

C145 F1G1A1040006 Ceramic, 0.1µF 10WV

C146 F1G1A1040006 Ceramic, 0.1µF 10WV

C147 F1G1A1040006 Ceramic, 0.1µF 10WV

C148 F1G1A1040006 Ceramic, 0.1µF 10WV

C149 F1G1A1040006 Ceramic, 0.1µF 10WV

Ref. No. Part No. Part Name & Description Remarks

C150 F1G1A1040006 Ceramic, 0.1µF 10WV

C151 F1G1A1040006 Ceramic, 0.1µF 10WV

C152 F1G1A1040006 Ceramic, 0.1µF 10WV

C153 EEFCD0D101R Electrolytic, 100µF 2WV

C154 EEFCD0D101R Electrolytic, 100µF 2WV

C155 EEFCD0G560R Electrolytic, 56µF 4WV

C156 EEFCD0G560R Electrolytic, 56µF 4WV

C157 F1G1A1040006 Ceramic, 0.1µF 10WV

C158 F1G1A1040006 Ceramic, 0.1µF 10WV

C159 F1G1A1040006 Ceramic, 0.1µF 10WV

C160 F1G1A1040006 Ceramic, 0.1µF 10WV

C161 F1G1A1040006 Ceramic, 0.1µF 10WV

C162 F1G1A1040006 Ceramic, 0.1µF 10WV

C163 F1G1A1040006 Ceramic, 0.1µF 10WV

C164 F1G1A1040006 Ceramic, 0.1µF 10WV

C165 F1G1A1040006 Ceramic, 0.1µF 10WV

C166 F1G1A1040006 Ceramic, 0.1µF 10WV

C167 F1G1A1040006 Ceramic, 0.1µF 10WV

C168 F1G1A1040006 Ceramic, 0.1µF 10WV

C169 F1G1A1040006 Ceramic, 0.1µF 10WV

C170 F1G1A1040006 Ceramic, 0.1µF 10WV

C171 F1G1A1040006 Ceramic, 0.1µF 10WV

C172 F1G1A1040006 Ceramic, 0.1µF 10WV

C173 F1G1A1040006 Ceramic, 0.1µF 10WV

C174 F1G1A1040006 Ceramic, 0.1µF 10WV

C175 F1G1A1040006 Ceramic, 0.1µF 10WV

C176 F1G1A1040006 Ceramic, 0.1µF 10WV

C177 F1G1A1040006 Ceramic, 0.1µF 10WV

C178 F1G1A1040006 Ceramic, 0.1µF 10WV

C179 F1G1A1040006 Ceramic, 0.1µF 10WV

C180 F1G1A1040006 Ceramic, 0.1µF 10WV

C181 F1G1A1040006 Ceramic, 0.1µF 10WV

C182 F1G1A1040006 Ceramic, 0.1µF 10WV

C183 F1G1A1040006 Ceramic, 0.1µF 10WV

C184 F1G1A1040006 Ceramic, 0.1µF 10WV

C185 F1G1A1040006 Ceramic, 0.1µF 10WV

C186 F1G1A1040006 Ceramic, 0.1µF 10WV

C187 F1G1A1040006 Ceramic, 0.1µF 10WV

C188 F1G1A1040006 Ceramic, 0.1µF 10WV

C189 F1G1A1040006 Ceramic, 0.1µF 10WV

C190 F1G1A1040006 Ceramic, 0.1µF 10WV

C191 F1G1A1040006 Ceramic, 0.1µF 10WV

C205 F1G1A1040006 Ceramic, 0.1µF 10WV

C208 F1G1A1040006 Ceramic, 0.1µF 10WV

C209 F1G1A1040006 Ceramic, 0.1µF 10WV

C210 F1G1A1040006 Ceramic, 0.1µF 10WV

C213 F1G1A1040006 Ceramic, 0.1µF 10WV

C215 F1G1A1040006 Ceramic, 0.1µF 10WV

C216 F1G1A1040006 Ceramic, 0.1µF 10WV

C217 F1G1A1040006 Ceramic, 0.1µF 10WV

C218 F1G1A1040006 Ceramic, 0.1µF 10WV

C219 F1G1A1040006 Ceramic, 0.1µF 10WV

C220 F1G1A1040006 Ceramic, 0.1µF 10WV

C221 F1G1A1040006 Ceramic, 0.1µF 10WV

C222 F1G1A1040006 Ceramic, 0.1µF 10WV

C223 F1G1A1040006 Ceramic, 0.1µF 10WV

C224 F1H0J1050010 Ceramic, 1µF 6.3WV

C225 F1G1A1040006 Ceramic, 0.1µF 10WV

C226 F1G1A1040006 Ceramic, 0.1µF 10WV

C227 F1G1A1040006 Ceramic, 0.1µF 10WV

C228 F1G1A1040006 Ceramic, 0.1µF 10WV

C229 F1G1A1040006 Ceramic, 0.1µF 10WV

C230 F1G1A1040006 Ceramic, 0.1µF 10WV

C231 F1G1A1040006 Ceramic, 0.1µF 10WV

C232 F1G1A1040006 Ceramic, 0.1µF 10WV

C234 F1G1A1040006 Ceramic, 0.1µF 10WV

C236 F1G1A1040006 Ceramic, 0.1µF 10WV

C238 F1G1A1040006 Ceramic, 0.1µF 10WV

C239 F1G1A1040006 Ceramic, 0.1µF 10WV

C240 F1G1A1040006 Ceramic, 0.1µF 10WV

C241 F1G1A1040006 Ceramic, 0.1µF 10WV

C245 F1K0J2260001 Ceramic, 22µF 6.3WV

C247 F1K0J2260001 Ceramic, 22µF 6.3WV

C248 F1K0J2260001 Ceramic, 22µF 6.3WV

Ref. No. Part No. Part Name & Description Remarks

C249 F1K0J2260004 Ceramic, 22µF 6.3WV

C250 F1K0J2260001 Ceramic, 22µF 6.3WV

C251 F1Z1E2220001 Ceramic, 2200PF 25WV

C257 F3G1A226A019 Tantalum, 22µF 10WV

C258 EEFUE0J151R Electrolytic, 150µF 6.3WV

C260 F1G1A1040006 Ceramic, 0.1µF 10WV

C262 F1K0J2260004 Ceramic, 22µF 6.3WV

C263 F1K0J2260004 Ceramic, 22µF 6.3WV

C265 F1K0J2260004 Ceramic, 22µF 6.3WV

C266 F1K0J2260004 Ceramic, 22µF 6.3WV

C384 F1G1A1040006 Ceramic, 0.1µF 10WV

C450 F1K0J2260001 Ceramic, 22µF 6.3WV

C451 F1K0J2260001 Ceramic, 22µF 6.3WV

C452 F1G1A1040006 Ceramic, 0.1µF 10WV

C455 F1G1A1040006 Ceramic, 0.1µF 10WV

C501 F1K0J2260004 Ceramic, 22µF 6.3WV

C529 F1G1A1040006 Ceramic, 0.1µF 10WV

C570 F1G0J1050005 Ceramic, 1µF 6.3WV

C586 F1K0J2260004 Ceramic, 22µF 6.3WV

C587 F1K0J2260004 Ceramic, 22µF 6.3WV

C700 F1G1A1040006 Ceramic, 0.1µF 10WV

C701 F1G1H5610004 Ceramic, 560PF 50WV

C702 F1K1C1060001 Ceramic, 10µF 16WV

C703 YECUZ1C104KX Ceramic, 0.1µF 16WV

C704 F1G1H330A565 Ceramic, 33PF 50WV

C705 F1G1A1040006 Ceramic, 0.1µF 10WV

C706 YECUZ1H472KX Ceramic, 4700PF 50WV

C707 F1H1E1040008 Ceramic, 0.1µF 25WV

C708 YECUZ1A224KX Ceramic, 0.22µF 10WV

C709 YECUZ1A224KX Ceramic, 0.22µF 10WV

C721 F1G1H3320004 Ceramic, 3300PF 50WV

C1001 F1L0J2260004 Ceramic, 22µF 6.3WV

C1002 F1H0J1050010 Ceramic, 1µF 6.3WV

C1003 F1G1A1040006 Ceramic, 0.1µF 10WV

C1004 F1J0J1060007 Ceramic, 10µF 6.3WV

C1005 F1G1A1040006 Ceramic, 0.1µF 10WV

C1006 F1G1A1040006 Ceramic, 0.1µF 10WV

C1007 F1G1A1040006 Ceramic, 0.1µF 10WV

C1008 F1G1A1040006 Ceramic, 0.1µF 10WV

C1009 F1G1A1040006 Ceramic, 0.1µF 10WV

C1010 F1J0J106A014 Ceramic, 10µF 6.3WV

C1011 F1G1C1030008 Ceramic, 0.01µF 16WV

C1101 F1G1H1020008 Ceramic, 1000PF 50WV

C1102 F1G1H1020008 Ceramic, 1000PF 50WV

C1103 F1G1A1040006 Ceramic, 0.1µF 10WV

C1108 F1G1A1040006 Ceramic, 0.1µF 10WV

C1111 F1H0J1050010 Ceramic, 1µF 6.3WV

C1120 F1G1A1040006 Ceramic, 0.1µF 10WV

C1128 F1H0J1050010 Ceramic, 1µF 6.3WV

C1131 F1H0J1050010 Ceramic, 1µF 6.3WV

C1132 F1G1A1040006 Ceramic, 0.1µF 10WV

C1137 EEE0GA331WP Electrolytic, 330µF 4WV

C1138 EEE0GA331WP Electrolytic, 330µF 4WV

C1139 EEE0GA331WP Electrolytic, 330µF 4WV

C1140 F1G1A1040006 Ceramic, 0.1µF 10WV

C1141 F1G1A1040006 Ceramic, 0.1µF 10WV

C1142 F1G1A1040006 Ceramic, 0.1µF 10WV

C1143 F1G1A1040006 Ceramic, 0.1µF 10WV

C1144 F1G1A1040006 Ceramic, 0.1µF 10WV

C1145 F1G1A1040006 Ceramic, 0.1µF 10WV

C1147 F1G1A1040006 Ceramic, 0.1µF 10WV

C1149 F1G1A1040006 Ceramic, 0.1µF 10WV

C1150 F1G1A1040006 Ceramic, 0.1µF 10WV

C1164 F1J1C334A104 Ceramic, 0.33µF 16WV

C1165 F1L1C2260011 Ceramic, 22µF 16WV

C1166 F1G1A1040006 Ceramic, 0.1µF 10WV

C1167 F1G1A1040006 Ceramic, 0.1µF 10WV

C1168 F1G1A1040006 Ceramic, 0.1µF 10WV

C1169 F1G1A1040006 Ceramic, 0.1µF 10WV

C2393 F1G1A1040006 Ceramic, 0.1µF 10WV

FB103 F1H1H100A226 Ceramic, 10PF 50WV

LC200 F1Z1E2220001 Ceramic, 2200PF 25WV

LC201 F1Z1E2220001 Ceramic, 2200PF 25WV

LC203 F1Z1E2220001 Ceramic, 2200PF 25WV

Ref. No. Part No. Part Name & Description Remarks

LC204 F1Z1E2220001 Ceramic, 2200PF 25WV

LC206 F1Z1E2220001 Ceramic, 2200PF 25WV

LC207 F1Z1E2220001 Ceramic, 2200PF 25WV

LC450 F1Z1E2220001 Ceramic, 2200PF 25WV

LC451 F1Z1E2220001 Ceramic, 2200PF 25WV

LC501 F1Z1E2220001 Ceramic, 2200PF 25WV

LC1002 F1Z1E2220001 Ceramic, 2200PF 25WV

R1182 F1H0J2250006 Ceramic, 2.2µF 6.3WV

R1183 F1H0J2250006 Ceramic, 2.2µF 6.3WV

R1184 F1H0J2250006 Ceramic, 2.2µF 6.3WV

RESISTORs

R101 ERJ2GEJ103X Chip, 10kΩ 1/16W

R102 ERJ2GEJ220X Chip, 22Ω 1/16W

R103 ERJ2GEJ103X Chip, 10kΩ 1/16W

R104 ERJ2GEJ103X Chip, 10kΩ 1/16W

R105 ERJ2GEJ103X Chip, 10kΩ 1/16W

R106 ERJ2GEJ103X Chip, 10kΩ 1/16W

R107 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

R108 ERJ2GEJ220X Chip, 22Ω 1/16W

R109 ERJ2GEJ220X Chip, 22Ω 1/16W

R110 ERJ2GEJ220X Chip, 22Ω 1/16W

R111 ERJ2GEJ103X Chip, 10kΩ 1/16W

R112 ERJ2GEJ103X Chip, 10kΩ 1/16W

R113 ERJ2GEJ220X Chip, 22Ω 1/16W

R114 ERJ2GEJ100X Chip, 10Ω 1/16W

R115 ERJ2GEJ103X Chip, 10kΩ 1/16W

R118 ERJ2GEJ220X Chip, 22Ω 1/16W

R119 ERJ2GE0R00X Chip, 0Ω 1/16W

R120 ERJ2GEJ302X Chip, 3kΩ 1/16W

R121 ERJ2GEJ103X Chip, 10kΩ 1/16W

R122 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R123 ERJ2GEJ103X Chip, 10kΩ 1/16W

R124 ERJ2GEJ103X Chip, 10kΩ 1/16W

R125 ERJ2GEJ102X Chip, 1kΩ 1/16W

R127 ERJ2GEJ103X Chip, 10kΩ 1/16W

R128 ERJ2GEJ103X Chip, 10kΩ 1/16W

R129 ERJ2GEJ222X Chip, 2.2kΩ 1/16W

R130 ERJ2GEJ222X Chip, 2.2kΩ 1/16W

R132 ERJ2GEJ103X Chip, 10kΩ 1/16W

R133 ERJ2GEJ103X Chip, 10kΩ 1/16W

R134 ERJ2GEJ102X Chip, 1kΩ 1/16W

R135 ERJ2GEJ102X Chip, 1kΩ 1/16W

R136 ERJ2GEJ102X Chip, 1kΩ 1/16W

R137 ERJ2GEJ102X Chip, 1kΩ 1/16W

R138 ERJ2GEJ102X Chip, 1kΩ 1/16W

R139 ERJ2GEJ102X Chip, 1kΩ 1/16W

R140 ERJ2GEJ102X Chip, 1kΩ 1/16W

R141 ERJ2GEJ102X Chip, 1kΩ 1/16W

R142 ERJ2GEJ102X Chip, 1kΩ 1/16W

R143 ERJ2GEJ100X Chip, 10Ω 1/16W

R144 ERJ2GEJ100X Chip, 10Ω 1/16W

R145 ERJ2GEJ100X Chip, 10Ω 1/16W

R146 ERJ2GEJ100X Chip, 10Ω 1/16W

R147 ERJ2GEJ100X Chip, 10Ω 1/16W

R148 ERJ2GEJ100X Chip, 10Ω 1/16W

R149 ERJ2GEJ100X Chip, 10Ω 1/16W

R151 ERJ3GEY0R00V Chip, 0Ω 1/16W

R154 ERJ3GEY0R00V Chip, 0Ω 1/16W

R156 ERJ3GEY0R00V Chip, 0Ω 1/16W

R157 ERJ3GEY0R00V Chip, 0Ω 1/16W

R159 ERJ2GEJ100X Chip, 10Ω 1/16W

R160 ERJ2GEJ103X Chip, 10kΩ 1/16W

R161 ERJ2GEJ103X Chip, 10kΩ 1/16W

R163 ERJ2GEJ103X Chip, 10kΩ 1/16W

R164 ERJ2GEJ103X Chip, 10kΩ 1/16W

R165 ERJ2GEJ103X Chip, 10kΩ 1/16W

R166 ERJ2GEJ103X Chip, 10kΩ 1/16W

R167 ERJ2GEJ103X Chip, 10kΩ 1/16W

R173 ERJ2GEJ103X Chip, 10kΩ 1/16W

R175 ERJ2GEJ103X Chip, 10kΩ 1/16W

R176 ERJ2GEJ103X Chip, 10kΩ 1/16W

R178 ERJ2GEJ103X Chip, 10kΩ 1/16W

Ref. No. Part No. Part Name & Description Remarks

R179 ERJ2GEJ103X Chip, 10kΩ 1/16W

R180 ERJ2GEJ152X Chip, 1.5kΩ 1/16W

R181 ERJ2GEJ152X Chip, 1.5kΩ 1/16W

R185 ERJ2GEJ220X Chip, 22Ω 1/16W

R186 ERJ2GEJ220X Chip, 22Ω 1/16W

R187 ERJ2GEJ122X Chip, 1.2kΩ 1/16W

R188 ERJ2GEJ103X Chip, 10kΩ 1/16W

R189 ERJ2GEJ220X Chip, 22Ω 1/16W

R190 ERJ2GEJ103X Chip, 10kΩ 1/16W

R191 ERJ2GEJ100X Chip, 10Ω 1/16W

R192 ERJ2GEJ220X Chip, 22Ω 1/16W

R193 ERJ2GE0R00X Chip, 0Ω 1/16W

R201 ERJ2GEJ103X Chip, 10kΩ 1/16W

R202 ERJ2GEJ103X Chip, 10kΩ 1/16W

R203 ERJ2GEJ103X Chip, 10kΩ 1/16W

R204 ERJ2GEJ103X Chip, 10kΩ 1/16W

R206 ERJ2GEJ220X Chip, 22Ω 1/16W

R208 ERJ2GEJ220X Chip, 22Ω 1/16W

R209 ERJ2GEJ220X Chip, 22Ω 1/16W

R211 ERJ2GEJ220X Chip, 22Ω 1/16W

R212 ERJ2GEJ220X Chip, 22Ω 1/16W

R216 ERJ2GEJ220X Chip, 22Ω 1/16W

R217 ERJ2GEJ220X Chip, 22Ω 1/16W

R218 ERJ2GEJ220X Chip, 22Ω 1/16W

R222 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R229 ERJ2GEJ562X Chip, 5.6kΩ 1/16W

R233 ERJ2GEJ330X Chip, 33Ω 1/16W

R234 ERJ2GEJ330X Chip, 33Ω 1/16W

R235 ERJ2GEJ820X Chip, 82Ω 1/16W

R239 ERJ2GEJ820X Chip, 82Ω 1/16W

R240 ERJ2GEJ820X Chip, 82Ω 1/16W

R241 ERJ2GEJ330X Chip, 33Ω 1/16W

R242 ERJ2GEJ103X Chip, 10kΩ 1/16W

R243 ERJ2GEJ103X Chip, 10kΩ 1/16W

R244 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R245 ERJ2GEJ562X Chip, 5.6kΩ 1/16W

R246 ERJ2GEJ103X Chip, 10kΩ 1/16W

R251 ERJ2GEJ103X Chip, 10kΩ 1/16W

R252 ERJ2GEJ103X Chip, 10kΩ 1/16W

R281 ERJ2GEJ222X Chip, 2.2kΩ 1/16W

R282 ERJ2GEJ103X Chip, 10kΩ 1/16W

R359 ERJ3GEYJ101V Chip, 100Ω 1/16W

R384 ERJ2GEJ473X Chip, 47kΩ 1/16W

R410 ERJ2GEJ220X Chip, 22Ω 1/16W

R426 ERJ2GEJ220X Chip, 22Ω 1/16W

R427 ERJ2GEJ220X Chip, 22Ω 1/16W

R428 ERJ2GEJ220X Chip, 22Ω 1/16W

R431 ERJ2GEJ220X Chip, 22Ω 1/16W

R432 ERJ2GEJ220X Chip, 22Ω 1/16W

R435 ERJ2GEJ220X Chip, 22Ω 1/16W

R517 ERJ2GEJ102X Chip, 1kΩ 1/16W

R695 ERJ2GEJ222X Chip, 2.2kΩ 1/16W

R696 ERJ3GEYJ101V Chip, 100Ω 1/16W

R697 ERJ3GEYJ101V Chip, 100Ω 1/16W

R700 ERJ2GEJ103X Chip, 10kΩ 1/16W

R701 ERJ2GEJ103X Chip, 10kΩ 1/16W

R702 ERJ2GEJ103X Chip, 10kΩ 1/16W

R703 ERJ2GEJ103X Chip, 10kΩ 1/16W

R704 ERJ2GEJ223X Chip, 22kΩ 1/16W

R705 ERJ2GEJ223X Chip, 22kΩ 1/16W

R706 ERJ2GEJ474X Chip, 470kΩ 1/16W

R707 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R708 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R709 ERJ2GEJ104X Chip, 100kΩ 1/16W

R710 ERJ2GEJ823X Chip, 82kΩ 1/16W

R711 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R712 ERJ2GEJ473X Chip, 47kΩ 1/16W

R713 ERJ2GEJ204X Chip, 200kΩ 1/16W

R714 ERJ2GEJ684X Chip, 680kΩ 1/16W

R715 ERJ2GEJ684X Chip, 680kΩ 1/16W

R716 ERJ2GEJ564X Chip, 560kΩ 1/16W

R717 ERJ2GEJ122X Chip, 1.2kΩ 1/16W

R718 ERJ2GEJ102X Chip, 1kΩ 1/16W

R719 ERJ2GEJ103X Chip, 10kΩ 1/16W

Ref. No. Part No. Part Name & Description Remarks

R720 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R721 ERJ2GEJ471X Chip, 470Ω 1/16W

R722 ERJ2GEJ102X Chip, 1kΩ 1/16W

R723 ERJ2GEJ561X Chip, 560Ω 1/16W

R725 ERJ2GEJ223X Chip, 22kΩ 1/16W

R726 ERJ2GEJ104X Chip, 100kΩ 1/16W

R1001 ERJ2GEJ473X Chip, 47kΩ 1/16W

R1002 ERJ2GEJ473X Chip, 47kΩ 1/16W

R1003 ERJ2GEJ473X Chip, 47kΩ 1/16W

R1004 ERJ2GEJ473X Chip, 47kΩ 1/16W

R1005 ERJ2GE0R00X Chip, 0Ω 1/16W

R1006 ERJ2GEJ100X Chip, 10Ω 1/16W

R1007 ERJ2GE0R00X Chip, 0Ω 1/16W

R1009 ERJ2GE0R00X Chip, 0Ω 1/16W

R1016 ERJ2GE0R00X Chip, 0Ω 1/16W

R1017 ERJ2GE0R00X Chip, 0Ω 1/16W

R1018 ERJ2GE0R00X Chip, 0Ω 1/16W

R1020 ERJ2GE0R00X Chip, 0Ω 1/16W

R1021 ERJ2GE0R00X Chip, 0Ω 1/16W

R1022 ERJ2GE0R00X Chip, 0Ω 1/16W

R1023 ERJ2GEJ100X Chip, 10Ω 1/16W

R1024 ERJ2GEJ105X Chip, 1MΩ 1/16W

R1100 ERJ3GEY0R00V Chip, 0Ω 1/16W

R1101 ERJ6ENF2201V Chip, 2.2kΩ 1/10W

R1102 ERJ6ENF1802V Chip, 18kΩ 1/10W

R1103 ERJ2GEJ101X Chip, 100Ω 1/16W

R1104 ERJ6GEYJ102 Chip, 1kΩ 1/10W

R1106 ERJ2GEJ101X Chip, 100Ω 1/16W

R1107 ERJ2GEJ103X Chip, 10kΩ 1/16W

R1108 ERJ2GEJ103X Chip, 10kΩ 1/16W

R1109 ERJ2GEJ103X Chip, 10kΩ 1/16W

R1110 ERJ2GEJ153X Chip, 15kΩ 1/16W

R1111 ERJ2GEJ103X Chip, 10kΩ 1/16W

R1112 ERJ2GEJ153X Chip, 15kΩ 1/16W

R1114 ERJ2GEJ101X Chip, 100Ω 1/16W

R1116 ERJ6ENF75R0V Chip, 75Ω 1/10W

R1117 ERJ6ENF75R0V Chip, 75Ω 1/10W

R1118 ERJ6ENF75R0V Chip, 75Ω 1/10W

R1119 ERJ2GEJ104X Chip, 100kΩ 1/16W

R1120 ERJ2GEJ182X Chip, 1.8kΩ 1/16W

R1121 ERJ2GE0R00X Chip, 0Ω 1/16W

R1122 ERJ2GEJ561X Chip, 560Ω 1/16W

R1123 ERJ2GEJ104X Chip, 100kΩ 1/16W

R1125 ERJ2GEJ471X Chip, 470Ω 1/16W

R1128 ERJ2GEJ471X Chip, 470Ω 1/16W

R1129 ERJ6GEY0R00V Chip, 0Ω 1/10W

R1131 ERJ2GEJ471X Chip, 470Ω 1/16W

R1132 ERJ2GEJ104X Chip, 100kΩ 1/16W

R1133 ERJ2GEJ561X Chip, 560Ω 1/16W

R1134 ERJ2GEJ561X Chip, 560Ω 1/16W

R1135 ERJ2GEJ103X Chip, 10kΩ 1/16W

R1136 ERJ2GEJ103X Chip, 10kΩ 1/16W

R1137 ERJ2GEJ153X Chip, 15kΩ 1/16W

R1138 ERJ2GEJ153X Chip, 15kΩ 1/16W

R1139 ERJ2GEJ750X Chip, 75Ω 1/16W

R1140 ERJ2GEJ750X Chip, 75Ω 1/16W

R1141 ERJ2GEJ750X Chip, 75Ω 1/16W

R1175 ERJ2GEJ221X Chip, 220Ω 1/16W

R1176 ERJ2GEJ224X Chip, 220kΩ 1/16W

R1177 ERJ2GEJ224X Chip, 220kΩ 1/16W

R1178 ERJ2GEJ224X Chip, 220kΩ 1/16W

R1179 ERJ2GEJ124X Chip, 120kΩ 1/16W

R1180 ERJ2GEJ124X Chip, 120kΩ 1/16W

R1181 ERJ2GEJ124X Chip, 120kΩ 1/16W

R1185 ERJ2GE0R00X Chip, 0Ω 1/16W

R1186 ERJ2GEJ101X Chip, 100Ω 1/16W

R1187 ERJ2GEJ101X Chip, 100Ω 1/16W

R1188 ERJ2GEJ101X Chip, 100Ω 1/16W

R1189 ERJ2GEJ101X Chip, 100Ω 1/16W

R1190 ERJ2GEJ473X Chip, 47kΩ 1/16W

R1191 ERJ2GEJ101X Chip, 100Ω 1/16W

R1193 ERJ2GEJ101X Chip, 100Ω 1/16W

R1194 ERJ2GEJ101X Chip, 100Ω 1/16W

R1195 ERJ2GEJ101X Chip, 100Ω 1/16W

Ref. No. Part No. Part Name & Description Remarks

R1196 ERJ2GEJ473X Chip, 47kΩ 1/16W

R1442 ERJ2GEJ220X Chip, 22Ω 1/16W

R1443 ERJ2GEJ220X Chip, 22Ω 1/16W

R1444 ERJ2GEJ220X Chip, 22Ω 1/16W

R1445 ERJ2GEJ220X Chip, 22Ω 1/16W

R1446 ERJ2GEJ220X Chip, 22Ω 1/16W

R1448 ERJ2GEJ220X Chip, 22Ω 1/16W

R1449 ERJ2GEJ220X Chip, 22Ω 1/16W

R1450 ERJ2GEJ220X Chip, 22Ω 1/16W

R1451 ERJ2GEJ220X Chip, 22Ω 1/16W

R1454 ERJ2GEJ220X Chip, 22Ω 1/16W

R1457 ERJ2GEJ220X Chip, 22Ω 1/16W

R1458 ERJ2GEJ220X Chip, 22Ω 1/16W

R1461 ERJ2GE0R00X Chip, 0Ω 1/16W

R2380 ERJ2GE0R00X Chip, 0Ω 1/16W

R2381 ERJ2GE0R00X Chip, 0Ω 1/16W

R2382 ERJ2GEJ220X Chip, 22Ω 1/16W

R2384 ERJ2GE0R00X Chip, 0Ω 1/16W

R2386 ERJ2GE0R00X Chip, 0Ω 1/16W

R2388 ERJ2GE0R00X Chip, 0Ω 1/16W

R2389 ERJ2GEJ103X Chip, 10kΩ 1/16W

R2391 ERJ2GE0R00X Chip, 0Ω 1/16W

R2392 ERJ2GE0R00X Chip, 0Ω 1/16W

CONNECTORs

CN201 K1MN40AA0030 Connector, 40P

CN202 K1MN30BA0077 Connector, 30P

CN203 K1MN40BA0077 Connector, 40P

CN205 K1MN12BA0077 Connector, 12P

CN421 K1MN50BA0186 Connector, 50P

CN425 K1KA15AA0229 Connector, 15P

CN427 K1MN40BA0077 Connector, 40P

CN428 K1FB244D0001 Connector, 44P

CN600 K1FY114E0002 Connector, 14P

CN700 K1MN33BA0186 Connector, 33P

CN1102 K1KA07AA0051 Connector, 7P

CN1103 K1KB40B00029 Connector, 40P

CN1104 K1FY110B0004 Connector, 10P

CN1105 K1AA113B0002 Connector, 13P

COILs

FB101 J0JCC0000286 Coil

FB102 J0JGC0000020 Coil

FB104 J0JGC0000020 Coil

FB105 J0JGC0000020 Coil

FB202 J0JGC0000020 Coil

FB204 J0JGC0000020 Coil

FB205 J0JGC0000020 Coil

FB206 J0JGC0000020 Coil

FB1001 J0JGC0000020 Coil

FL102 YELTBLM1B601 Coil

FL312 J0JGC0000035 Coil

FL609 J0JGC0000020 Coil

FL610 J0JGC0000020 Coil

FL611 J0JGC0000020 Coil

FL1001 J0JGC0000035 Coil

FL1002 J0JGC0000020 Coil

FL1100 J0JAC0000052 Coil

FL1101 J0JGC0000035 Coil

FL1103 J0JGC0000035 Coil

FL1104 J0JAC0000052 Coil

FL1105 J0JGC0000020 Coil

FL1117 YELTBLM1A601 Coil

FL1118 YELTBLM1A601 Coil

FL1119 YELTBLM1A601 Coil

FL1120 YELTBLM1A601 Coil

FL1122 YELTBLM1A601 Coil

FL1123 YELTBLM1A601 Coil

FL1124 YELTBLM1A601 Coil

FL1125 YELTBLM1A601 Coil

FL1127 YELTBLM1A601 Coil

FL1128 YELTBLM1A601 Coil

Ref. No. Part No. Part Name & Description Remarks

FL1129 YELTBLM1A601 Coil

FL1130 YELTBLM1A601 Coil

FL1131 YELTBLM1A601 Coil

FL1134 J0JGC0000020 Coil

FL1135 J0JGC0000020 Coil

FL1136 J0JGC0000020 Coil

FL1137 YELTBLM1A601 Coil

FL1138 YELTBLM1A601 Coil

FL1139 YELTBLM1A601 Coil

FL1140 YELTBLM1A601 Coil

FL1141 YELTBLM1A601 Coil

FL1142 YELTBLM1A601 Coil

FL1143 J0JGC0000020 Coil

FL1144 YELTBLM1A601 Coil

FL1145 YELTBLM1A601 Coil

FL1146 YELTBLM1A601 Coil

FL1147 YELTBLM1A601 Coil

L101 YETQLM250S40 Coil

L102 YETQLM250S40 Coil

L501 YELTBLM21P3S Coil

CRYSTALs

XL101 H0J169500028 Crystal Oscillator

XL102 H0J313500001 Crystal Oscillator

XL103 H1A8054B0002 Crystal Oscillator

XL1001 H1A6395B0001 Crystal Oscillator

XL1002 H1A3684B0008 Crystal Oscillator

NETWORK RESISTORs

RA102 D1H810340005 Network Resistor

RA103 D1H810340005 Network Resistor

RA104 D1H410320002 Network Resistor

RA106 D1H810340005 Network Resistor

RA107 D1H810340005 Network Resistor

RA108 D1H810340005 Network Resistor

RA109 D1H810340005 Network Resistor

RA111 D1H83304A013 Network Resistor

RA112 D1H83304A013 Network Resistor

RA113 D1H83304A013 Network Resistor

RA114 D1H83304A013 Network Resistor

RA115 D1H810340005 Network Resistor

RA116 D1H822040002 Network Resistor

RA117 D1H822040002 Network Resistor

RA118 D1H822040002 Network Resistor

RA119 D1H822040002 Network Resistor

RA124 D1H822040002 Network Resistor

RA125 D1H822040002 Network Resistor

RA126 D1H822040002 Network Resistor

RA127 D1H822040002 Network Resistor

RA128 D1H822040002 Network Resistor

RA129 D1H822040002 Network Resistor

RA201 D1H847340001 Network Resistor

RA205 D1H83304A013 Network Resistor

RA206 D1H83304A013 Network Resistor

RA207 D1H83304A013 Network Resistor

RA208 D1H83304A013 Network Resistor

RA209 D1H83304A013 Network Resistor

RA210 D1H822040002 Network Resistor

RA211 D1H822040002 Network Resistor

RA214 D1H822040002 Network Resistor

RA215 D1H822040002 Network Resistor

RA216 D1H822040002 Network Resistor

RA217 D1H822040002 Network Resistor

RA219 D1H822040002 Network Resistor

RA220 D1H822040002 Network Resistor

RA222 D1H822040002 Network Resistor

RA223 D1H822040002 Network Resistor

RA224 D1H822040002 Network Resistor

RA226 D1H822040002 Network Resistor

RA227 D1H822040002 Network Resistor

RA228 D1H822040002 Network Resistor

RA229 D1H822040002 Network Resistor

Ref. No. Part No. Part Name & Description Remarks

RA230 D1H822040002 Network Resistor

FILTERs

FL1113 J0HAAB000018 Filter

FL1121 J0HAAB000020 Filter

FL1126 J0HAAB000018 Filter

LC101 J0HAAB000020 Filter

LC102 J0HAAB000020 Filter

LC103 J0HAAB000020 Filter

LC202 YECCL39R222T EMI Filter

LC1001 YECCL39R222T EMI Filter

THERMISTORs

TH301 D4DZAR800002 Thermistor

[E9733A] Sub Block

IC's AND TRANSISTORs

IC100 C0EBH0000550 IC

IC101 C1BB00000828 IC

IC102 C0EBB0000183 IC

IC103 C0JBAA000261 IC

IC104 C0JBAB000889 IC

IC105 C0JBAB000889 IC

IC106 C0JBAB000379 IC

IC107 C0JBAA000261 IC

IC108 C0DBEKG00001 IC

IC110 C0DBAZD00009 IC

IC111 C0DBAZD00009 IC

IC115 C0DBAZG00025 IC

IC207 C0EBH0000520 IC

IC209 C0JBAZ002275 IC

IC216 C0JBAB000379 IC

IC217 C0JBAB000631 IC

IC319 C0JBAR000367 IC

IC320 C0FBAG000014 IC

IC321 AN77L05M-E1 IC

IC400 C1AB00001471 IC

IC404 C1AB00001471 IC

IC405 C1AB00000164 IC

IC406 C0JBAZ002803 IC

IC407 C0JBAZ002803 IC

IC503 C2BBGF000764 IC

IC504 C3GBCA000001 IC

IC505 C0JBAB000889 IC

IC761 C0DBAZC00016 IC

IC3005 C0DBGYY00185 IC

IC3007 C0CBCAA00006 IC

IC4001 C0JBAA000261 IC

Q102 B1CFRD000007 Transistor

Q103 B1CFRD000007 Transistor

Q104 B1CFRD000007 Transistor

Q105 B1CFRD000007 Transistor

Q106 B1ADCF000119 Transistor

Q107 B1ADCF000119 Transistor

Q108 B1ADCF000119 Transistor

Q109 B1ADCF000119 Transistor

Q110 B1DFFD000017 Transistor

Q111 B1DFFD000017 Transistor

Q117 B1GDCFLL0010 Transistor

Q118 B1GBCFNN0004 Transistor

Q122 B1GFCFJN0013 Transistor

Q123 B1GFCFJN0013 Transistor

Q210 YEANIMD3TKX Transistor

Q507 B1GFCFJN0013 Transistor

Q733 B1GFCFJN0013 Transistor

Q772 B1DHED000008 Transistor

Q4001 B1GBCFJJ0040 Transistor

DIODEs

Ref. No. Part No. Part Name & Description Remarks

D104 B0ACCJ000033 Diode

D105 MA3X152A0L Diode

D106 MA153TX Diode

D107 B0ADCJ000065 Diode

D108 B0JCQD000002 Diode

D109 B0JCQD000002 Diode

D110 MA3J741D0L Diode

D111 MA3J741D0L Diode

D112 B0JCQD000002 Diode

D113 B0JCQD000002 Diode

D116 B0JDDD000005 Diode

D755 B0JCPD000002 Diode

D3116 B0JCGD000002 Diode

CAPACITORs

C101 F1G1A1040006 Ceramic, 0.1µF 10WV

C103 F1J1C474A104 Ceramic, 0.47µF 16WV

C105 F2G0J220A102 Electrolytic, 22µF 6.3WV

C107 F1J1C474A104 Ceramic, 0.47µF 16WV

C108 F1J1C474A104 Ceramic, 0.47µF 16WV

C109 F1G1A1040006 Ceramic, 0.1µF 10WV

C110 F1G1A1040006 Ceramic, 0.1µF 10WV

C111 F1G1A1040006 Ceramic, 0.1µF 10WV

C112 F1J1C334A104 Ceramic, 0.33µF 16WV

C113 YECUZ1A224KX Ceramic, 0.22µF 10WV

C114 YECUZ1A224KX Ceramic, 0.22µF 10WV

C115 F1G1A1040006 Ceramic, 0.1µF 10WV

C116 F1J1C334A104 Ceramic, 0.33µF 16WV

C117 F1G1A1040006 Ceramic, 0.1µF 10WV

C121 F1G1H331A495 Ceramic, 330PF 50WV

C122 F1G1A1040006 Ceramic, 0.1µF 10WV

C123 F1G1C1030008 Ceramic, 0.01µF 16WV

C124 F1G1C223A081 Ceramic, 0.022µF 16WV

C125 F1G1A1040006 Ceramic, 0.1µF 10WV

C126 F1G1C223A081 Ceramic, 0.022µF 16WV

C127 F1G1C1030008 Ceramic, 0.01µF 16WV

C128 F1G1H222A571 Ceramic, 2200PF 50WV

C129 F1G1A1040006 Ceramic, 0.1µF 10WV

C130 YECUV1C225KX Ceramic, 2.2µF 16WV

C131 EEFUE0J151R Electrolytic, 150µF 6.3WV

C132 F1J1A2250004 Ceramic, 2.2µF 10WV

C133 EEFUE0K101R Electrolytic, 100µF 8WV

C134 F1J1A2250004 Ceramic, 2.2µF 10WV

C135 F1G1H331A495 Ceramic, 330PF 50WV

C136 F1G1C1030008 Ceramic, 0.01µF 16WV

C137 F1G1C223A081 Ceramic, 0.022µF 16WV

C138 F1G1A1040006 Ceramic, 0.1µF 10WV

C139 F1G1A1040006 Ceramic, 0.1µF 10WV

C140 F1G1H222A571 Ceramic, 2200PF 50WV

C141 F1G1C1030008 Ceramic, 0.01µF 16WV

C142 F1G1C223A081 Ceramic, 0.022µF 16WV

C143 F1G1A1040006 Ceramic, 0.1µF 10WV

C144 YECUV1C225KX Ceramic, 2.2µF 16WV

C145 F1K1A106A008 Ceramic, 10µF 10WV

C146 EEFUE0G181R Electrolytic, 180µF 4WV

C147 F1J1A2250004 Ceramic, 2.2µF 10WV

C148 F1K1A106A008 Ceramic, 10µF 10WV

C149 EEFUE0D271R Electrolytic, 270µF 2WV

C150 F1J1A2250004 Ceramic, 2.2µF 10WV

C151 F1K0J2260004 Ceramic, 22µF 6.3WV

C154 F1J1C334A104 Ceramic, 0.33µF 16WV

C157 F1K1C1060001 Ceramic, 10µF 16WV

C160 EEFCD0D101R Electrolytic, 100µF 2WV

C161 F1K0J1060015 Ceramic, 10µF 6.3WV

C162 F1J1A2250004 Ceramic, 2.2µF 10WV

C163 F1H0J1050010 Ceramic, 1µF 6.3WV

C164 F1G1C1030008 Ceramic, 0.01µF 16WV

C165 F1G1H4710004 Ceramic, 470PF 50WV

C166 F1K1C1060001 Ceramic, 10µF 16WV

C167 F1K1C1060001 Ceramic, 10µF 16WV

C177 F1G1A1040006 Ceramic, 0.1µF 10WV

C178 F1G1A1040006 Ceramic, 0.1µF 10WV

C179 F1G1A1040006 Ceramic, 0.1µF 10WV

Ref. No. Part No. Part Name & Description Remarks

C183 F1J1C334A104 Ceramic, 0.33µF 16WV

C190 EEEFK1C221XP Electrolytic, 220µF 16WV

C191 EEEFK1C221XP Electrolytic, 220µF 16WV

C192 EEEFK1C221XP Electrolytic, 220µF 16WV

C193 EEEFK1C221XP Electrolytic, 220µF 16WV

C234 F1G1H180A566 Ceramic, 18PF 50WV

C244 YECUV1C225KX Ceramic, 2.2µF 16WV

C245 F1G1A1040006 Ceramic, 0.1µF 10WV

C248 F1G1A1040006 Ceramic, 0.1µF 10WV

C249 F1G1H222A571 Ceramic, 2200PF 50WV

C280 F1G1A1040006 Ceramic, 0.1µF 10WV

C288 F1G1A1040006 Ceramic, 0.1µF 10WV

C289 F1G1A1040006 Ceramic, 0.1µF 10WV

C325 F1J1C334A104 Ceramic, 0.33µF 16WV

C331 F1H0J1050010 Ceramic, 1µF 6.3WV

C365 F1G1A1040006 Ceramic, 0.1µF 10WV

C366 F1G1A1040006 Ceramic, 0.1µF 10WV

C374 F1G1A1040006 Ceramic, 0.1µF 10WV

C375 F1J0J1060007 Ceramic, 10µF 6.3WV

C376 F1G1A1040006 Ceramic, 0.1µF 10WV

C377 F1G1A1040006 Ceramic, 0.1µF 10WV

C378 F1G1A1040006 Ceramic, 0.1µF 10WV

C379 F1G1C1030008 Ceramic, 0.01µF 16WV

C380 F1J1C334A104 Ceramic, 0.33µF 16WV

C381 F1J0J1060007 Ceramic, 10µF 6.3WV

C382 F1J0J4750003 Ceramic, 4.7µF 6.3WV

C383 F1J1A106A023 Ceramic, 10µF 10WV

C392 F1J0J1060007 Ceramic, 10µF 6.3WV

C400 F1G1H331A495 Ceramic, 330PF 50WV

C428 F1G1H680A566 Ceramic, 68PF 50WV

C429 F1G1H121A566 Ceramic, 120PF 50WV

C430 F1H0J1050010 Ceramic, 1µF 6.3WV

C431 F1H0J1050010 Ceramic, 1µF 6.3WV

C432 F1H0J1050010 Ceramic, 1µF 6.3WV

C433 F1H0J1050010 Ceramic, 1µF 6.3WV

C434 F1H0J1050010 Ceramic, 1µF 6.3WV

C435 F1H0J1050010 Ceramic, 1µF 6.3WV

C436 F1H0J1050010 Ceramic, 1µF 6.3WV

C437 F1H0J1050010 Ceramic, 1µF 6.3WV

C440 F1H0J1050010 Ceramic, 1µF 6.3WV

C442 F1J0J1060007 Ceramic, 10µF 6.3WV

C443 F1J0J1060007 Ceramic, 10µF 6.3WV

C444 F1H0J1050010 Ceramic, 1µF 6.3WV

C445 F1H0J1050010 Ceramic, 1µF 6.3WV

C447 F2G0J220A102 Electrolytic, 22µF 6.3WV

C448 F2H0J101A024 Electrolytic, 100µF 6.3WV

C449 F2H0J101A024 Electrolytic, 100µF 6.3WV

C450 F2G0J220A102 Electrolytic, 22µF 6.3WV

C454 F1G1A1040006 Ceramic, 0.1µF 10WV

C455 F1G1A1040006 Ceramic, 0.1µF 10WV

C500 F1G1A1040006 Ceramic, 0.1µF 10WV

C502 F1G1A1040006 Ceramic, 0.1µF 10WV

C508 F1G1H180A566 Ceramic, 18PF 50WV

C509 F1K0J2260004 Ceramic, 22µF 6.3WV

C510 F1K0J2260004 Ceramic, 22µF 6.3WV

C511 F1G1A1040006 Ceramic, 0.1µF 10WV

C512 F1G1A1040006 Ceramic, 0.1µF 10WV

C513 F1G1A1040006 Ceramic, 0.1µF 10WV

C514 F1G1A1040006 Ceramic, 0.1µF 10WV

C515 F1G1A1040006 Ceramic, 0.1µF 10WV

C516 F1G1A1040006 Ceramic, 0.1µF 10WV

C517 F1G1A1040006 Ceramic, 0.1µF 10WV

C739 EEEFK1C101P Electrolytic, 100µF 16WV

C775 F1K1A106A008 Ceramic, 10µF 10WV

C776 YECUZ1C104KX Ceramic, 0.1µF 16WV

C777 EEEFK1A221P Electrolytic, 220µF 10WV

C778 F1G1H182A571 Ceramic, 1800PF 50WV

C779 F1H1A1050019 Ceramic, 1µF 10WV

C780 F1G1E472A086 Ceramic, 4700PF 25WV

C781 YECUZ1C104KX Ceramic, 0.1µF 16WV

C782 F1L1C4750006 Ceramic, 4.7µF 16WV

C783 F1G1E221A094 Ceramic, 220PF 25WV

C788 EEFCD0K330R Electrolytic, 33µF 8WV

C1000 F1G1A1040006 Ceramic, 0.1µF 10WV

Ref. No. Part No. Part Name & Description Remarks

C3055 F1G1A1040006 Ceramic, 0.1µF 10WV

C3056 F1J1A2250004 Ceramic, 2.2µF 10WV

C3063 F1G1A1040006 Ceramic, 0.1µF 10WV

C3310 F1J1A106A023 Ceramic, 10µF 10WV

C3831 F1J1C334A104 Ceramic, 0.33µF 16WV

C4001 F1G1A1040006 Ceramic, 0.1µF 10WV

RESISTORs

R100 ERJ6ENF6802V Chip, 68kΩ 1/10W

R101 ERJ6ENF2203V Chip, 220kΩ 1/10W

R102 ERJ6ENF5602V Chip, 56kΩ 1/10W

R103 ERJ6ENF2703V Chip, 270kΩ 1/10W

R104 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R108 ERJ6ENF8203V Chip, 820kΩ 1/10W

R109 ERJ3GEYJ154V Chip, 150kΩ 1/16W

R110 ERJ3GEYJ101V Chip, 100Ω 1/16W

R111 ERJ3GEYJ100V Chip, 10Ω 1/16W

R112 ERJ3GEYJ473V Chip, 47kΩ 1/16W

R113 ERJ3GEYJ223V Chip, 22kΩ 1/16W

R114 ERJ3GEYJ333V Chip, 33kΩ 1/16W

R115 ERJ3GEYJ224V Chip, 220kΩ 1/16W

R116 ERJ3GEYJ103V Chip, 10kΩ 1/16W

R117 ERJ3GEYJ122V Chip, 1.2kΩ 1/16W

R118 ERJ3GEYJ332V Chip, 3.3kΩ 1/16W

R119 ERJ3GEY0R00V Chip, 0Ω 1/16W

R129 ERJ3GEYJ103V Chip, 10kΩ 1/16W

R132 ERJ3GEYJ822V Chip, 8.2kΩ 1/16W

R133 ERJ3EKF2801V Carbon, 2.8kΩ 1/16W

R134 ERA3YED362V Metal Glaze, 3.6kΩ 1/16W

R137 ERJ3EKF1302V Carbon, 13kΩ 1/16W

R138 ERJ3GEY0R00V Chip, 0Ω 1/16W

R139 ERA3YED362V Metal Glaze, 3.6kΩ 1/16W

R141 ERJ2GEJ103X Chip, 10kΩ 1/16W

R142 ERJ3GEYJ103V Chip, 10kΩ 1/16W

R143 ERJ2GEJ473X Chip, 47kΩ 1/16W

R144 ERJ2GEJ103X Chip, 10kΩ 1/16W

R145 ERJ2GEJ103X Chip, 10kΩ 1/16W

R146 ERJ2GEJ473X Chip, 47kΩ 1/16W

R147 ERJ2GEJ103X Chip, 10kΩ 1/16W

R148 ERJ2GEJ103X Chip, 10kΩ 1/16W

R149 ERJ2GEJ103X Chip, 10kΩ 1/16W

R150 ERJ8GEY0R00 Chip, 0Ω 1/8W

R151 ERJ8GEY0R00 Chip, 0Ω 1/8W

R152 ERA3YED183V Metal Glaze, 18kΩ 1/16W

R153 ERA3YED272V Metal Glaze, 2.7kΩ 1/16W

R154 ERA3YED123V Metal Glaze, 12kΩ 1/16W

R155 ERJ8GEY0R00 Chip, 0Ω 1/8W

R156 ERJ8GEY0R00 Chip, 0Ω 1/8W

R157 ERA3YED472V Metal Glaze, 4.7kΩ 1/16W

R158 ERJ3GEY0R00V Chip, 0Ω 1/16W

R159 ERA3YED103V Metal Glaze, 10kΩ 1/16W

R160 ERJ6GEYJ151 Chip, 150Ω 1/10W

R161 ERJ6ENF6801V Chip, 6.8kΩ 1/10W

R162 ERJ6ENF2201V Chip, 2.2kΩ 1/10W

R172 ERJ3GEYJ100V Chip, 10Ω 1/16W

R173 ERJ2GEJ753X Chip, 75kΩ 1/16W

R174 ERA3YED272V Metal Glaze, 2.7kΩ 1/16W

R175 ERA3YED223V Metal Glaze, 22kΩ 1/16W

R176 ERJ6ENF5602V Chip, 56kΩ 1/10W

R182 ERJ3GEYJ823V Chip, 82kΩ 1/16W

R183 ERJ2GEJ473X Chip, 47kΩ 1/16W

R184 ERJ2GEJ223X Chip, 22kΩ 1/16W

R190 ERJ8GEYJR68V Chip, 0.68Ω 1/8W

R192 ERJ2GEJ473X Chip, 47kΩ 1/16W

R193 ERJ2GEJ104X Chip, 100kΩ 1/16W

R194 ERJ2GEJ682X Chip, 6.8kΩ 1/16W

R196 ERJ2GEJ473X Chip, 47kΩ 1/16W

R197 ERJ2GEJ104X Chip, 100kΩ 1/16W

R198 ERJ2GEJ682X Chip, 6.8kΩ 1/16W

R232 ERJ2GEJ102X Chip, 1kΩ 1/16W

R239 ERJ2GEJ104X Chip, 100kΩ 1/16W

R269 ERJ2GEJ821X Chip, 820Ω 1/16W

R270 ERJ2GEJ105X Chip, 1MΩ 1/16W

Ref. No. Part No. Part Name & Description Remarks

R272 ERJ3GEYJ223V Chip, 22kΩ 1/16W

R280 ERJ2GEJ220X Chip, 22Ω 1/16W

R283 ERJ2GEJ102X Chip, 1kΩ 1/16W

R286 ERJ2GEJ220X Chip, 22Ω 1/16W

R287 ERJ2GEJ220X Chip, 22Ω 1/16W

R288 ERJ2GEJ473X Chip, 47kΩ 1/16W

R290 ERJ2GEJ103X Chip, 10kΩ 1/16W

R291 ERJ2GEJ220X Chip, 22Ω 1/16W

R292 ERJ2GEJ220X Chip, 22Ω 1/16W

R293 ERJ2GEJ220X Chip, 22Ω 1/16W

R296 ERJ2GEJ102X Chip, 1kΩ 1/16W

R299 ERJ2GEJ102X Chip, 1kΩ 1/16W

R338 ERJ2GEJ104X Chip, 100kΩ 1/16W

R345 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R346 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R354 ERJ2GEJ152X Chip, 1.5kΩ 1/16W

R355 ERJ2GEJ473X Chip, 47kΩ 1/16W

R356 ERJ6GEY0R00V Chip, 0Ω 1/10W

R371 ERJ3GEYJ102V Chip, 1kΩ 1/16W

R372 ERJ2GEJ222X Chip, 2.2kΩ 1/16W

R373 ERJ2GEJ222X Chip, 2.2kΩ 1/16W

R400 ERJ6ENF75R0V Chip, 75Ω 1/10W

R408 ERJ6ENF75R0V Chip, 75Ω 1/10W

R409 ERJ6ENF75R0V Chip, 75Ω 1/10W

R430 ERJ2GEJ560X Chip, 56Ω 1/16W

R438 ERJ2GEJ560X Chip, 56Ω 1/16W

R461 ERJ2GEJ560X Chip, 56Ω 1/16W

R462 ERJ2GEJ560X Chip, 56Ω 1/16W

R463 ERJ2GEJ560X Chip, 56Ω 1/16W

R516 ERJ2GEJ220X Chip, 22Ω 1/16W

R517 ERJ2GEJ220X Chip, 22Ω 1/16W

R518 ERJ2GEJ103X Chip, 10kΩ 1/16W

R519 ERJ2GEJ101X Chip, 100Ω 1/16W

R520 ERJ2GEJ103X Chip, 10kΩ 1/16W

R521 ERJ2GEJ103X Chip, 10kΩ 1/16W

R522 ERJ2GEJ103X Chip, 10kΩ 1/16W

R523 ERJ2GEJ102X Chip, 1kΩ 1/16W

R524 ERJ2GEJ103X Chip, 10kΩ 1/16W

R526 ERJ2GEJ104X Chip, 100kΩ 1/16W

R527 ERJ2GEJ104X Chip, 100kΩ 1/16W

R528 ERJ2GEJ103X Chip, 10kΩ 1/16W

R529 ERJ2GEJ102X Chip, 1kΩ 1/16W

R530 ERJ2GEJ101X Chip, 100Ω 1/16W

R531 ERJ2GEJ220X Chip, 22Ω 1/16W

R532 ERJ2GEJ222X Chip, 2.2kΩ 1/16W

R533 ERJ2GEJ222X Chip, 2.2kΩ 1/16W

R736 ERJ2GEJ433X Chip, 43kΩ 1/16W

R737 ERJ2GEJ913X Chip, 91kΩ 1/16W

R782 D1BDR0470001 Chip, 0.047Ω 1/8W

R783 ERJ2GEJ103X Chip, 10kΩ 1/16W

R784 ERJ2GEJ101X Chip, 100Ω 1/16W

R785 ERJ2GEJ333X Chip, 33kΩ 1/16W

R786 ERJ2GEJ133X Chip, 13kΩ 1/16W

R787 ERJ2GEJ204X Chip, 200kΩ 1/16W

R788 ERJ2GEJ103X Chip, 10kΩ 1/16W

R789 ERJ2GEJ473X Chip, 47kΩ 1/16W

R790 ERJ2GEJ470X Chip, 47Ω 1/16W

R791 ERJ2GEJ821X Chip, 820Ω 1/16W

R792 ERJ2GEJ682X Chip, 6.8kΩ 1/16W

R793 ERJ3EKF1802V Carbon, 18kΩ 1/16W

R794 ERJ3EKF1002V Carbon, 10kΩ 1/16W

R3001 ERJ2GEJ681X Chip, 680Ω 1/16W

R3002 ERJ2GEJ202X Chip, 2kΩ 1/16W

R3003 ERJ2GEJ202X Chip, 2kΩ 1/16W

R3004 ERJ2GEJ681X Chip, 680Ω 1/16W

R3005 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R3028 ERJ3GEY0R00V Chip, 0Ω 1/16W

R4001 ERJ2GEJ103X Chip, 10kΩ 1/16W

CONNECTORs

CN310 K1KA15AA0229 Connector, 15P

CN313 K1MN50BA0186 Connector, 50P

CN399 K1KB80BA0055 Connector, 80P

Ref. No. Part No. Part Name & Description Remarks

CN972 K1KB40A00170 Connector, 40P

CP301 K1KY02B00003 Connector, 3P

COILs

FL100 J0JHC0000026 Coil

FL101 J0JHC0000026 Coil

FL102 J0JHC0000026 Coil

FL104 J0JHC0000026 Coil

FL201 J0JGC0000020 Coil

FL202 J0JGC0000035 Coil

FL203 J0JGC0000035 Coil

FL206 J0JGC0000020 Coil

FL304 J0JGC0000035 Coil

FL305 YELTBLM2B601 Coil

FL306 J0JCC0000010 Coil

FL307 YELTBLM21P3S Coil

FL308 J0JCC0000010 Coil

FL677 J0JHC0000005 Coil

FL678 J0JHC0000005 Coil

L102 G1C220JA0036 Coil

L103 G1A100HA0013 Coil

L104 G1C100ZA0059 Coil

L105 G1C220JA0036 Coil

L106 G1C220Z00008 Coil

L107 G1C100Z00021 Coil

L108 G1C4R7ZA0142 Coil

L109 G1C220Z00005 Coil

L400 G1C2R2JA0036 Coil

L730 G1C220Z00008 Coil

L731 G1C220Z00008 Coil

R130 J0JHC0000005 Coil

R131 J0JHC0000005 Coil

R135 J0JHC0000005 Coil

R136 J0JHC0000005 Coil

CRYSTALs

X200 H0J491400017 Crystal Oscillator

NETWORK RESISTORs

RA501 D1H422220001 Network Resistor

RA502 D1H422220001 Network Resistor

FILTERs

FL204 J0MAB0000015 Filter

LC200 J0MAB0000015 Filter

LC201 J0MAB0000015 Filter

VARIAVLE RESISTORs

VR1 D3EA3472A004 Variablr resistor

VR101 D3EA3472A004 Variablr resistor

VR102 D3EA3472A004 Variablr resistor

[E3095] Tuner Block

DIODEs

D412 MA2J72900L Diode

CAPACITORs

C417 F1G1A1040006 Ceramic, 0.1µF 10WV

C418 F1G1A1040006 Ceramic, 0.1µF 10WV

C419 F1G1A1040006 Ceramic, 0.1µF 10WV

RESISTORs

R411 ERJ2GEJ334X Chip, 330kΩ 1/16W

R412 ERJ2GEJ220X Chip, 22Ω 1/16W

R413 ERJ2GEJ101X Chip, 100Ω 1/16W

Ref. No. Part No. Part Name & Description Remarks

R414 ERJ2GEJ220X Chip, 22Ω 1/16W

R415 ERJ2GEJ220X Chip, 22Ω 1/16W

CONNECTORs

CN100 K1KA40BA0240 Connector, 40P

CN426 K1NA15E00001 Connector, 15P

NETWORK RESISTORs

RA411 D1H810340005 Network Resistor

RA412 D1H810340005 Network Resistor

RA413 D1H822040002 Network Resistor

[E9953A] ESC Block

DIODEs

D931 B3AEB0000053 Diode

D932 B3AEB0000053 Diode

D933 B3AEB0000053 Diode

D934 B3AEB0000053 Diode

RESISTORs

R931 ERJ3GEYJ471V Chip, 470Ω 1/16W

R932 ERJ3GEYJ471V Chip, 470Ω 1/16W

R933 ERJ3GEYJ471V Chip, 470Ω 1/16W

R934 ERJ3GEYJ471V Chip, 470Ω 1/16W

CONNECTORs

CN953 K1MN40B00044 Connector, 40P

CN954 K1KA40A00264 Connector, 40P

CN955 K1KB50A00132 Connector, 50P

[E9954A] TFT/SW Block

IC's AND TRANSISTORs

IC401 AN8049SH-E1V IC

IC402 C1BB00000828 IC

IC403 AN77L03M-E1 IC

IC404 C3EBDC000049 IC

IC405 C0EBH0000520 IC

IC406 C0JBAA000372 IC

IC407 C2BBFD000652 IC

IC408 C1AB00002372 IC

IC409 C0JBAR000513 IC

IC410 AN2546FH-A IC

IC411 C0JBAZ002332 IC

IC412 C0JBAF000701 IC

IC413 C0ABBB000404 IC

IC414 C0JBAC000344 IC

IC415 C1AB00002215 IC

IC417 YEAMM2107FT1 IC

IC418 C0DBEKG00001 IC

IC420 C1CB00002614 IC

IC421 C0DBEJC00002 IC

IC422 C0JBAA000319 IC

IC601 C0DBAYY00280 IC

IC602 C0EBC0000240 IC

IC603 C0JBAA000372 IC

IC604 C0JBAZ002332 IC

IC970 PNA4S42M01MC IC

Q401 B1ABGE000009 Transistor

Q402 B1ADDE000021 Transistor

Q403 B1GBCFNN0009 Transistor

Q404 B1GDCFJN0011 Transistor

Q405 B1ABCF000021 Transistor

Q406 B1ABCF000021 Transistor

Q407 2SD0601AHR Transistor

Q408 B1HFCFA00020 Transistor

Q409 B1HFCFA00020 Transistor

Ref. No. Part No. Part Name & Description Remarks

Q410 2SB709TX Transistor

Q411 B1ABGD000020 Transistor

Q413 B1GKCFJN0003 Transistor

Q414 B1GHCFJN0003 Transistor

Q415 B1GFCFJN0013 Transistor

Q601 B1GBCFNN0009 Transistor

Q602 B1DZED000006 Transistor

Q603 B1DZED000006 Transistor

Q604 B1GKCFJJ0006 Transistor

Q605 B1GBCFNN0009 Transistor

DIODEs

D401 B0ACCK000005 Diode

D402 B0ACCK000005 Diode

D404 MAZ80910ML Diode

D405 MA2X33800L Diode

D406 MA2J72900L Diode

D407 MA2J72900L Diode

D408 B0BD6R800002 Diode

D409 B0BD6R800002 Diode

D410 MA2J72900L Diode

D411 MA2J72900L Diode

D601 B0ACCK000005 Diode

D602 MA8056LMHTX Diode

D603 MA8056LMHTX Diode

D604 MA157TX Diode

D605 MA157TX Diode

D971 B3AEB0000053 Diode

D972 B3AEB0000053 Diode

D973 B3AEB0000053 Diode

D974 B3AEB0000053 Diode

D975 B3AEB0000053 Diode

D976 B3AEB0000053 Diode

D977 B3AEB0000053 Diode

D978 B3AEB0000053 Diode

D979 B3AEB0000053 Diode

D980 B3AEB0000053 Diode

D981 B3AEB0000053 Diode

D982 B3AEB0000053 Diode

D983 B3AEB0000053 Diode

CAPACITORs

C404 F1G1A1040006 Ceramic, 0.1µF 10WV

C405 F1L1C2260011 Ceramic, 22µF 16WV

C406 F1L1C2260011 Ceramic, 22µF 16WV

C407 F1G1A1040006 Ceramic, 0.1µF 10WV

C408 YECUS1C334KX Ceramic, 0.33µF 16WV

C409 F1H1C473A005 Ceramic, 0.047µF 16WV

C410 YECUS1C334KX Ceramic, 0.33µF 16WV

C413 F1G1H3320004 Ceramic, 3300PF 50WV

C415 F1G1H331A495 Ceramic, 330PF 50WV

C416 F1G1A1040006 Ceramic, 0.1µF 10WV

C417 F1K1C1050021 Ceramic, 1µF 16WV

C418 F1K1C1050021 Ceramic, 1µF 16WV

C419 F1L1E2250003 Ceramic, 2.2µF 25WV

C420 YECUS1C334KX Ceramic, 0.33µF 16WV

C421 F1L1E1060021 Ceramic, 10µF 25WV

C422 F1L1E1060021 Ceramic, 10µF 25WV

C424 F1L1C2260011 Ceramic, 22µF 16WV

C425 YECUS1C334KX Ceramic, 0.33µF 16WV

C426 YECUV1C225KX Ceramic, 2.2µF 16WV

C427 F1L1C2260011 Ceramic, 22µF 16WV

C428 F1L1C2260011 Ceramic, 22µF 16WV

C429 F1L1C2260011 Ceramic, 22µF 16WV

C430 F1G1A1040006 Ceramic, 0.1µF 10WV

C431 F1G1A1040006 Ceramic, 0.1µF 10WV

C432 F1G1A1040006 Ceramic, 0.1µF 10WV

C433 F1H1H822A190 Ceramic, 8200PF 50WV

C434 F1G1C1030008 Ceramic, 0.01µF 16WV

C435 F1G1H120A566 Ceramic, 12PF 50WV

C436 F1G1H100A565 Ceramic, 10PF 50WV

C437 F1L1C2260011 Ceramic, 22µF 16WV

Ref. No. Part No. Part Name & Description Remarks

C438 F1G1A1040006 Ceramic, 0.1µF 10WV

C439 F1H1C473A005 Ceramic, 0.047µF 16WV

C440 F1G1H1020008 Ceramic, 1000PF 50WV

C441 F1G1H1020008 Ceramic, 1000PF 50WV

C442 F1G1C1030008 Ceramic, 0.01µF 16WV

C443 F1G1H1020008 Ceramic, 1000PF 50WV

C444 F1G1H1020008 Ceramic, 1000PF 50WV

C445 F1J0J1060007 Ceramic, 10µF 6.3WV

C446 F1H0J1050010 Ceramic, 1µF 6.3WV

C447 F1G1H1020008 Ceramic, 1000PF 50WV

C448 F1J0J1060007 Ceramic, 10µF 6.3WV

C449 F1G1C223A081 Ceramic, 0.022µF 16WV

C450 YECUS1A105KX Ceramic, 1µF 10WV

C451 F1G1A1040006 Ceramic, 0.1µF 10WV

C452 YECUZ1E223KX Ceramic, 0.022µF 25WV

C453 F1G1A1040006 Ceramic, 0.1µF 10WV

C454 EEFCX0J101R Electrolytic, 100µF 6.3WV

C455 F1H0J1050010 Ceramic, 1µF 6.3WV

C456 F1G1H390A566 Ceramic, 39PF 50WV

C457 F1H0J1050010 Ceramic, 1µF 6.3WV

C458 F1G1C223A081 Ceramic, 0.022µF 16WV

C459 F1G1H220A566 Ceramic, 22PF 50WV

C460 F1G1A1040006 Ceramic, 0.1µF 10WV

C461 F1G1A1040006 Ceramic, 0.1µF 10WV

C462 YECUV1C225KX Ceramic, 2.2µF 16WV

C463 F1H0J1050010 Ceramic, 1µF 6.3WV

C464 F1H0J1050010 Ceramic, 1µF 6.3WV

C465 F3G1C226A027 Tantalum, 22µF 16WV

C466 F1J0J1060007 Ceramic, 10µF 6.3WV

C467 F1K1C1050021 Ceramic, 1µF 16WV

C468 F1G1A1040006 Ceramic, 0.1µF 10WV

C469 F1G1A1040006 Ceramic, 0.1µF 10WV

C470 F1G1A1040006 Ceramic, 0.1µF 10WV

C471 F1G1A6830003 Ceramic, 0.068µF 10WV

C472 F1G1A1040006 Ceramic, 0.1µF 10WV

C473 F1G1A1040006 Ceramic, 0.1µF 10WV

C474 F1H1H821A190 Ceramic, 820PF 50WV

C475 F1G1H4710004 Ceramic, 470PF 50WV

C476 F1G1H392A498 Ceramic, 3900PF 50WV

C477 F3G1C226A027 Tantalum, 22µF 16WV

C478 F3G1C226A027 Tantalum, 22µF 16WV

C479 F1G1A1040006 Ceramic, 0.1µF 10WV

C480 F1G1A1040006 Ceramic, 0.1µF 10WV

C481 F1H1A4740004 Ceramic, 0.47µF 10WV

C482 F3G1C226A027 Ceramic, 22µF 16WV

C483 F1G1C223A081 Ceramic, 0.022µF 16WV

C485 F1G1A1040006 Ceramic, 0.1µF 10WV

C486 F1L0J2260004 Ceramic, 22µF 6.3WV

C489 F1G1C223A081 Ceramic, 0.022µF 16WV

C490 F1H0J1050010 Ceramic, 1µF 6.3WV

C491 F1H0J1050010 Ceramic, 1µF 6.3WV

C492 F1H0J1050010 Ceramic, 1µF 6.3WV

C493 F1H0J1050010 Ceramic, 1µF 6.3WV

C494 F1H0J1050010 Ceramic, 1µF 6.3WV

C495 F1H0J1050010 Ceramic, 1µF 6.3WV

C496 YECUU1C475KX Tantalum, 4.7µF 16WV

C497 F3F1A225A024 Tantalum, 2.2µF 10WV

C498 F3F1A225A024 Tantalum, 2.2µF 10WV

C499 F3F1A225A024 Tantalum, 2.2µF 10WV

C500 YECUB1H121JC Ceramic, 120PF 50WV

C501 F1G1A1040006 Ceramic, 0.1µF 10WV

C502 F1G1A1040006 Ceramic, 0.1µF 10WV

C503 F1G1A1040006 Ceramic, 0.1µF 10WV

C504 F1G1A1040006 Ceramic, 0.1µF 10WV

C505 F1L0J2260004 Ceramic, 22µF 6.3WV

C506 F1K1A1060001 Ceramic, 10µF 10WV

C507 YECUV1C225KX Ceramic, 2.2µF 16WV

C508 F1K1A1060001 Ceramic, 10µF 10WV

C509 F1K1C1050021 Ceramic, 1µF 16WV

C512 F1L1E1060021 Ceramic, 10µF 25WV

C513 YECUV1C225KX Ceramic, 2.2µF 16WV

C514 YECUB1H104KX Ceramic, 0.1µF 50WV

C515 F1G1A1040006 Ceramic, 0.1µF 10WV

C516 F1G1A1040006 Ceramic, 0.1µF 10WV

Ref. No. Part No. Part Name & Description Remarks

C517 F1G1H151A566 Ceramic, 150PF 50WV

C518 YECUZ1C104KX Ceramic, 0.1µF 16WV

C521 F1L1C2260011 Ceramic, 22µF 16WV

C522 F1H1H104A783 Ceramic, 0.1µF 50WV

C523 EEEFC0J470R Electrolytic, 47µF 6.3WV

C524 F1G1A1040006 Ceramic, 0.1µF 10WV

C525 F1G1A1040006 Ceramic, 0.1µF 10WV

C527 F1G1A1040006 Ceramic, 0.1µF 10WV

C528 F1G1H1020008 Ceramic, 1000PF 50WV

C529 F1G1H220A601 Ceramic, 22PF 50WV

C530 F1G1H101A566 Ceramic, 100PF 50WV

C531 F1G1A1040006 Ceramic, 0.1µF 10WV

C532 F1G1H101A566 Ceramic, 100PF 50WV

C533 F1G1H562A498 Ceramic, 5600PF 50WV

C534 F1G1H820A601 Ceramic, 82PF 50WV

C535 F1G1H1020008 Ceramic, 1000PF 50WV

C536 F1H1H104A783 Ceramic, 0.1µF 50WV

C537 F1G1H6R0A564 Ceramic, 6PF 50WV

C539 F1H1H104A783 Ceramic, 0.1µF 50WV

C540 F1J0J1060007 Ceramic, 10µF 6.3WV

C541 F1H0J1050010 Ceramic, 1µF 6.3WV

C542 F1G1A1040006 Ceramic, 0.1µF 10WV

C543 F1H1H681A021 Ceramic, 680PF 50WV

C544 F1H1H104A783 Ceramic, 0.1µF 50WV

C545 F1G1A1040006 Ceramic, 0.1µF 10WV

C546 F1G1H101A566 Ceramic, 100PF 50WV

C547 F1G1H1020008 Ceramic, 1000PF 50WV

C548 F1G1A1040006 Ceramic, 0.1µF 10WV

C549 F1G1H101A566 Ceramic, 100PF 50WV

C550 F1G1A1040006 Ceramic, 0.1µF 10WV

C551 F1G1H1020008 Ceramic, 1000PF 50WV

C552 F1G1A1040006 Ceramic, 0.1µF 10WV

C553 F1G1H330A565 Ceramic, 33PF 50WV

C554 F1G1H330A565 Ceramic, 33PF 50WV

C555 F1G1H330A565 Ceramic, 33PF 50WV

C556 F1G1H330A565 Ceramic, 33PF 50WV

C557 F1G1H330A565 Ceramic, 33PF 50WV

C558 F1G1H330A565 Ceramic, 33PF 50WV

C559 F1G1H330A565 Ceramic, 33PF 50WV

C560 F1G1H330A565 Ceramic, 33PF 50WV

C561 F1G1H330A565 Ceramic, 33PF 50WV

C562 F1G1H330A565 Ceramic, 33PF 50WV

C563 F1G1A1040006 Ceramic, 0.1µF 10WV

C564 F1G1H330A565 Ceramic, 33PF 50WV

C565 F1G1H330A565 Ceramic, 33PF 50WV

C566 F1G1H330A565 Ceramic, 33PF 50WV

C567 F1G1H330A565 Ceramic, 33PF 50WV

C568 YECUZ1A224KX Ceramic, 0.22µF 10WV

C569 F1H1H104A783 Ceramic, 0.1µF 50WV

C570 F1G1A1040006 Ceramic, 0.1µF 10WV

C571 F1G1A1040006 Ceramic, 0.1µF 10WV

C572 F1G1A1040006 Ceramic, 0.1µF 10WV

C573 EEEFC0J470R Electrolytic, 47µF 6.3WV

C574 EEEFC0J470R Electrolytic, 47µF 6.3WV

C575 F1H1H104A783 Ceramic, 0.1µF 50WV

C576 F1H1H104A783 Ceramic, 0.1µF 50WV

C577 EEEFC1V100R Electrolytic, 10µF 35WV

C578 F1L1C2260011 Ceramic, 22µF 16WV

C579 F1G1H3R0A705 Ceramic, 3PF 50WV

C580 F1G1H330A565 Ceramic, 33PF 50WV

C581 F1K1A1060001 Ceramic, 10µF 10WV

C582 F1G1C1030008 Ceramic, 0.01µF 16WV

C583 F1G1H101A566 Ceramic, 100PF 50WV

C584 F1K1A1060001 Ceramic, 10µF 10WV

C586 F1G0J1050005 Ceramic, 1µF 6.3WV

C587 F1G1H330A565 Ceramic, 33PF 50WV

C588 F1G1H330A565 Ceramic, 33PF 50WV

C589 F1G1H330A565 Ceramic, 33PF 50WV

C590 F1G1H330A565 Ceramic, 33PF 50WV

C591 F1G1H330A565 Ceramic, 33PF 50WV

C592 F1G1C104A100 Ceramic, 0.1µF 16WV

C593 F1G1C104A100 Ceramic, 0.1µF 16WV

C594 F1G1A1040006 Ceramic, 0.1µF 10WV

C595 F1G1A1040006 Ceramic, 0.1µF 10WV

Ref. No. Part No. Part Name & Description Remarks

C596 F1G1H1020008 Ceramic, 1000PF 50WV

C597 F1G1A1040006 Ceramic, 0.1µF 10WV

C598 F1G1A1040006 Ceramic, 0.1µF 10WV

C599 F1G1H1020008 Ceramic, 1000PF 50WV

C601 F1J0J4750003 Ceramic, 4.7µF 6.3WV

C603 F1H1A4740004 Ceramic, 0.47µF 10WV

C604 YECUZ1C104KX Ceramic, 0.1µF 16WV

C605 F1H1H152A201 Ceramic, 1500PF 50WV

C606 F1H1C473A005 Ceramic, 0.047µF 16WV

C607 F1H1H682A190 Ceramic, 6800PF 50WV

C608 YECUZ1H221JC Ceramic, 220PF 50WV

C609 F1H1C473A005 Ceramic, 0.047µF 16WV

C610 F1H0J1050010 Ceramic, 1µF 6.3WV

C611 YECUZ1E223KX Ceramic, 0.022µF 25WV

C612 F1K1C1060001 Ceramic, 10µF 16WV

C613 YECUV1C225KX Ceramic, 2.2µF 16WV

C614 ECCT3G220JG2 Ceramic, 22PF 4kWV

C615 YECUZ1C333KX Ceramic, 0.033µF 16WV

C616 F1H1E103A011 Ceramic, 0.01µF 25WV

C617 EEE1CA101WP Electrolytic, 100µF 16WV

C618 EEE1CA101WP Electrolytic, 100µF 16WV

C619 EEE1CA101WP Electrolytic, 100µF 16WV

C620 EEE1CA101WP Electrolytic, 100µF 16WV

C621 F1L1C2260011 Ceramic, 22µF 16WV

C622 F1L1C2260011 Ceramic, 22µF 16WV

C623 F1K1A1060001 Ceramic, 10µF 10WV

C625 F1G1C1030008 Ceramic, 0.01µF 16WV

C626 YECUZ1E223KX Ceramic, 0.022µF 25WV

C627 F1G1A1040006 Ceramic, 0.1µF 10WV

C628 YECUS1C334KX Ceramic, 0.33µF 16WV

C629 F1L1C2260011 Ceramic, 22µF 16WV

C630 F1L1C2260011 Ceramic, 22µF 16WV

C631 EEFCX0J101R Electrolytic, 100µF 6.3WV

C633 F1G1A1040006 Ceramic, 0.1µF 10WV

C636 F1G1A1040006 Ceramic, 0.1µF 10WV

C971 F1G1H1020008 Ceramic, 1000PF 50WV

C972 F1G1H1020008 Ceramic, 1000PF 50WV

C973 F1G1H1020008 Ceramic, 1000PF 50WV

C974 F1G1H1020008 Ceramic, 1000PF 50WV

C975 F1G1H1020008 Ceramic, 1000PF 50WV

C976 F1G1H1020008 Ceramic, 1000PF 50WV

C977 F1G1H1020008 Ceramic, 1000PF 50WV

C978 F1G1H1020008 Ceramic, 1000PF 50WV

C979 F1G1A104A014 Ceramic, 0.1µF 10WV

C980 F1G1A1040006 Ceramic, 0.1µF 10WV

C982 F1G1H101A566 Ceramic, 100PF 50WV

RESISTORs

R400 D1BB2701A055 Chip, 2.7kΩ 1/16W

R401 ERJ2GEJ334X Chip, 330kΩ 1/16W

R402 ERJ2GEJ334X Chip, 330kΩ 1/16W

R403 ERJ2GEJ103X Chip, 10kΩ 1/16W

R404 ERJ2GEJ473X Chip, 47kΩ 1/16W

R406 ERJ2GEJ103X Chip, 10kΩ 1/16W

R407 ERJ2GEJ473X Chip, 47kΩ 1/16W

R410 ERJ3EKF6801V Carbon, 6.8kΩ 1/16W

R411 ERJ6GEYJ1R0V Chip, 1Ω 1/10W

R412 ERJ2GEJ103X Chip, 10kΩ 1/16W

R413 ERJ2GEJ103X Chip, 10kΩ 1/16W

R414 ERJ2GEJ103X Chip, 10kΩ 1/16W

R415 ERJ2GEJ103X Chip, 10kΩ 1/16W

R416 ERJ3EKF3001V Carbon, 3kΩ 1/16W

R417 ERJ3EKF2001V Carbon, 2kΩ 1/16W

R418 ERJ8GEYJ470V Chip, 47Ω 1/8W

R419 ERJ2GEJ821X Chip, 820Ω 1/16W

R420 ERJ3EKF1003V Carbon, 100kΩ 1/16W

R421 ERJ3EKF4701V Carbon, 4.7kΩ 1/16W

R422 ERJ2GEJ821X Chip, 820Ω 1/16W

R423 ERJ3EKF1003V Carbon, 100kΩ 1/16W

R424 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

R425 ERJ2GEJ103X Chip, 10kΩ 1/16W

R426 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R427 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

Ref. No. Part No. Part Name & Description Remarks

R428 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R429 ERJ2GEJ222X Chip, 2.2kΩ 1/16W

R430 ERJ2GEJ221X Chip, 220Ω 1/16W

R431 ERJ2GEJ221X Chip, 220Ω 1/16W

R432 ERJ2GEJ103X Chip, 10kΩ 1/16W

R433 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R434 ERJ3GEY0R00V Chip, 0Ω 1/16W

R435 ERJ2GEJ101X Chip, 100Ω 1/16W

R436 ERJ2GEJ101X Chip, 100Ω 1/16W

R437 ERJ2GEJ101X Chip, 100Ω 1/16W

R438 ERJ2GEJ101X Chip, 100Ω 1/16W

R439 ERJ2GEJ101X Chip, 100Ω 1/16W

R440 ERJ2GEJ101X Chip, 100Ω 1/16W

R441 ERJ2GEJ101X Chip, 100Ω 1/16W

R442 ERJ2GE0R00X Chip, 0Ω 1/16W

R443 ERJ2GEJ101X Chip, 100Ω 1/16W

R444 ERJ2GEJ103X Chip, 10kΩ 1/16W

R445 ERJ2GEJ103X Chip, 10kΩ 1/16W

R447 ERJ2GE0R00X Chip, 0Ω 1/16W

R450 ERJ2GEJ102X Chip, 1kΩ 1/16W

R451 ERJ2GEJ153X Chip, 15kΩ 1/16W

R452 ERJ2GEJ333X Chip, 33kΩ 1/16W

R453 ERJ2GEJ334X Chip, 330kΩ 1/16W

R454 ERJ2GEJ101X Chip, 100Ω 1/16W

R455 ERJ2GEJ182X Chip, 1.8kΩ 1/16W

R456 ERJ2GEJ391X Chip, 390Ω 1/16W

R457 ERJ2GEJ184X Chip, 180kΩ 1/16W

R458 ERJ3GEY0R00V Chip, 0Ω 1/16W

R459 ERJ3GEY0R00V Chip, 0Ω 1/16W

R460 ERJ3GEY0R00V Chip, 0Ω 1/16W

R461 ERJ2GEJ431X Chip, 430Ω 1/16W

R464 ERJ2GEJ331X Chip, 330Ω 1/16W

R465 ERJ2GEJ512X Chip, 5.1kΩ 1/16W

R469 ERJ2GEJ222X Chip, 2.2kΩ 1/16W

R470 ERJ2GEJ331X Chip, 330Ω 1/16W

R472 ERJ3GEYJ750V Chip, 75Ω 1/16W

R473 ERJ2GEJ564X Chip, 560kΩ 1/16W

R474 ERJ2GEJ822X Chip, 8.2kΩ 1/16W

R475 ERJ3GEYJ750V Chip, 75Ω 1/16W

R476 ERJ2GEJ224X Chip, 220kΩ 1/16W

R477 ERJ3GEYJ750V Chip, 75Ω 1/16W

R478 ERJ2GEJ221X Chip, 220Ω 1/16W

R479 ERJ2GEJ221X Chip, 220Ω 1/16W

R480 ERJ2GEJ103X Chip, 10kΩ 1/16W

R481 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

R483 ERJ2GEJ105X Chip, 1MΩ 1/16W

R484 ERJ2GEJ220X Chip, 22Ω 1/16W

R487 ERJ2GEJ220X Chip, 22Ω 1/16W

R491 ERJ2GEJ103X Chip, 10kΩ 1/16W

R492 ERJ2GEJ103X Chip, 10kΩ 1/16W

R493 ERJ2GEJ473X Chip, 47kΩ 1/16W

R494 ERJ2GEJ102X Chip, 1kΩ 1/16W

R495 ERJ2GEJ104X Chip, 100kΩ 1/16W

R496 ERJ2GEJ220X Chip, 22Ω 1/16W

R497 ERJ2GEJ220X Chip, 22Ω 1/16W

R498 ERJ2GEJ220X Chip, 22Ω 1/16W

R499 ERJ2GEJ822X Chip, 8.2kΩ 1/16W

R500 ERJ2GEJ563X Chip, 56kΩ 1/16W

R502 ERJ2GE0R00X Chip, 0Ω 1/16W

R506 ERJ2GEJ303X Chip, 30kΩ 1/16W

R508 ERJ2GEJ122X Chip, 1.2kΩ 1/16W

R509 ERJ2GEJ103X Chip, 10kΩ 1/16W

R510 ERJ6GEYJ470 Chip, 47Ω 1/10W

R512 ERA3YED123V Metal Glaze, 12kΩ 1/16W

R513 ERJ3GEYJ223V Chip, 22kΩ 1/16W

R514 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

R516 ERJ2GEJ562X Chip, 5.6kΩ 1/16W

R517 ERJ2GEJ221X Chip, 220Ω 1/16W

R518 ERJ2GEJ822X Chip, 8.2kΩ 1/16W

R520 ERA6YKD134V Metal Film, 130kΩ 1/10W

R521 ERJ3GEYJ223V Chip, 22kΩ 1/16W

R522 ERJ6GEYJ470 Chip, 47Ω 1/10W

R523 ERA3YKD274V Metal Glaze, 270kΩ 1/16W

R524 ERJ3GEYJ362V Chip, 3.6kΩ 1/16W

Ref. No. Part No. Part Name & Description Remarks

R529 ERJ2GEJ103X Chip, 10kΩ 1/16W

R530 ERJ2GEJ220X Chip, 22Ω 1/16W

R531 ERJ2GEJ220X Chip, 22Ω 1/16W

R532 ERJ2GE0R00X Chip, 0Ω 1/16W

R537 ERJ2GEJ103X Chip, 10kΩ 1/16W

R538 ERJ2GEJ102X Chip, 1kΩ 1/16W

R539 ERJ2GEJ101X Chip, 100Ω 1/16W

R540 ERJ2GEJ102X Chip, 1kΩ 1/16W

R541 ERJ2GEJ682X Chip, 6.8kΩ 1/16W

R542 ERJ2GEJ103X Chip, 10kΩ 1/16W

R543 ERJ2GEJ102X Chip, 1kΩ 1/16W

R544 ERJ2GEJ153X Chip, 15kΩ 1/16W

R546 ERJ2GEJ102X Chip, 1kΩ 1/16W

R547 ERJ2GEJ102X Chip, 1kΩ 1/16W

R548 ERJ2GEJ102X Chip, 1kΩ 1/16W

R552 ERJ2GEJ153X Chip, 15kΩ 1/16W

R553 ERJ2GEJ102X Chip, 1kΩ 1/16W

R554 ERJ2GEJ102X Chip, 1kΩ 1/16W

R556 ERJ2GEJ683X Chip, 68kΩ 1/16W

R557 ERJ2GEJ153X Chip, 15kΩ 1/16W

R558 ERJ2GEJ683X Chip, 68kΩ 1/16W

R559 ERJ2GEJ102X Chip, 1kΩ 1/16W

R560 ERJ2RHD512X Chip, 5.1kΩ 1/16W

R562 ERJ2GEJ105X Chip, 1MΩ 1/16W

R563 ERJ2RHD512X Chip, 5.1kΩ 1/16W

R565 ERJ2GE0R00X Chip, 0Ω 1/16W

R571 ERJ2GEJ102X Chip, 1kΩ 1/16W

R572 ERJ2GEJ102X Chip, 1kΩ 1/16W

R573 ERJ3GEYJ202V Chip, 2kΩ 1/16W

R574 ERJ2GEJ202X Chip, 2kΩ 1/16W

R576 ERJ2GEJ100X Chip, 10Ω 1/16W

R577 ERJ2GEJ100X Chip, 10Ω 1/16W

R578 ERJ2GEJ100X Chip, 10Ω 1/16W

R580 ERJ2GEJ101X Chip, 100Ω 1/16W

R581 ERJ2GEJ103X Chip, 10kΩ 1/16W

R584 ERJ2GE0R00X Chip, 0Ω 1/16W

R585 ERJ2GEJ102X Chip, 1kΩ 1/16W

R586 ERJ2GEJ101X Chip, 100Ω 1/16W

R587 ERJ2GEJ220X Chip, 22Ω 1/16W

R588 ERJ2GEJ220X Chip, 22Ω 1/16W

R589 ERJ2GEJ220X Chip, 22Ω 1/16W

R590 ERJ2GEJ220X Chip, 22Ω 1/16W

R591 ERJ2GEJ103X Chip, 10kΩ 1/16W

R592 ERJ2GEJ103X Chip, 10kΩ 1/16W

R593 ERJ2GEJ220X Chip, 22Ω 1/16W

R594 ERJ3EKF2202V Carbon, 22kΩ 1/16W

R595 ERJ3EKF5602V Carbon, 56kΩ 1/16W

R596 ERJ2GEJ104X Chip, 100kΩ 1/16W

R597 ERJ2GEJ104X Chip, 100kΩ 1/16W

R601 ERJ3RBD243V Metal Glaze, 24kΩ 1/16W

R602 ERJ3EKF1302V Carbon, 13kΩ 1/16W

R603 ERJ3GEYJ104V Chip, 100kΩ 1/16W

R604 ERJ3GEYJ103V Chip, 10kΩ 1/16W

R605 ERJ3RBD683V Metal Glaze, 68kΩ 1/16W

R606 ERJ3RBD202V Metal Glaze, 2kΩ 1/16W

R607 ERJ3EKF2203V Carbon, 220kΩ 1/16W

R608 ERJ3EKF4302V Carbon, 43kΩ 1/16W

R609 ERJ3GEYJ103V Chip, 10kΩ 1/16W

R610 ERJ3EKF4220V Carbon, 422Ω 1/16W

R611 ERJ3EKF2612V Carbon, 26.1kΩ 1/16W

R612 ERJ3GEYJ332V Chip, 3.3kΩ 1/16W

R613 ERJ3GEYJ105V Chip, 1MΩ 1/16W

R614 ERJ3GEYJ472V Chip, 4.7kΩ 1/16W

R615 ERJ3GEY0R00V Chip, 0Ω 1/16W

R620 ERJ3GEY0R00V Chip, 0Ω 1/16W

R621 ERJ3GEYJ750V Chip, 75Ω 1/16W

R622 ERJ3EKF2403V Carbon, 240kΩ 1/16W

R623 ERJ3EKF2001V Carbon, 2kΩ 1/16W

R624 ERA3YED153V Metal Glaze, 15kΩ 1/16W

R625 ERJ3EKF1002V Carbon, 10kΩ 1/16W

R628 ERJ2GEJ103X Chip, 10kΩ 1/16W

R632 ERJ2GEJ222X Chip, 2.2kΩ 1/16W

R633 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R971 ERJ3GEYJ182V Chip, 1.8kΩ 1/16W

Ref. No. Part No. Part Name & Description Remarks

R972 ERJ3GEYJ122V Chip, 1.2kΩ 1/16W

R973 ERJ3GEYJ202V Chip, 2kΩ 1/16W

R974 ERJ3GEYJ122V Chip, 1.2kΩ 1/16W

R975 ERJ3GEYJ821V Chip, 820Ω 1/16W

R976 ERJ3GEYJ122V Chip, 1.2kΩ 1/16W

R977 ERJ3GEYJ821V Chip, 820Ω 1/16W

R978 ERJ3GEYJ122V Chip, 1.2kΩ 1/16W

R979 ERJ3GEYJ202V Chip, 2kΩ 1/16W

R980 ERJ3GEYJ122V Chip, 1.2kΩ 1/16W

R981 ERJ2GEJ473X Chip, 47kΩ 1/16W

R982 ERJ2GEJ473X Chip, 47kΩ 1/16W

R983 ERJ2GE0R00X Chip, 0Ω 1/16W

R984 ERJ2GE0R00X Chip, 0Ω 1/16W

R985 ERJ3GEYJ821V Chip, 820Ω 1/16W

R986 ERJ3GEYJ821V Chip, 820Ω 1/16W

R987 ERJ3GEYJ122V Chip, 1.2kΩ 1/16W

CONNECTORs

CN401 K1MN30BA0036 Connector, 30P

CN402 K1MN08BA0189 Connector, 8P

CN403 K1KA07AA0051 Connector, 7P

CN451 K1MN40B00044 Connector, 40P

CN601 K1KA02B00250 Connector, 2P

CN901 K1MN09B00095 Connector, 9P

CN902 K1MN09B00095 Connector, 9P

CN971 K1MN09B00096 Connector,9P

CN972 K1MN09B00096 Connector, 9P

COILs

FB602 J0JHC0000026 Coil

FL401 J0JGC0000035 Coil

FL402 J0JGC0000020 Coil

FL403 J0JGC0000020 Coil

FL404 J0JHC0000026 Coil

FL405 YELTBLM1A601 Coil

FL406 YELTBLM1A601 Coil

FL407 J0JHC0000026 Coil

FL408 YELTBLM1B601 Coil

FL409 J0JHC0000026 Coil

FL410 YELTBLM21A10 Coil

FL411 YELTBLM21A10 Coil

FL412 YELTBLM21A10 Coil

FL413 J0JCC0000287 Coil

FL414 J0JCC0000287 Coil

FL415 J0JCC0000287 Coil

FL416 J0JGC0000035 Coil

FL419 YELTBLM21A10 Coil

FL420 YELTBLM21A10 Coil

FL430 J0JCC0000159 Coil

FL431 J0JCC0000159 Coil

FL432 J0JCC0000159 Coil

FL433 YELTBLM1A601 Coil

FL434 J0JGC0000020 Coil

FL435 J0JBC0000010 Coil

FL437 J0JBC0000010 Coil

FL438 J0JBC0000010 Coil

FL439 J0JCC0000286 Coil

FL440 J0JCC0000286 Coil

FL441 J0JCC0000286 Coil

FL442 J0JCC0000286 Coil

FL443 J0JCC0000286 Coil

FL444 J0JCC0000286 Coil

FL445 YELTBLM1A601 Coil

L401 G1C220K00023 Coil

L402 G1C221Z00004 Coil

L403 G1C220K00023 Coil

L404 G1C220K00023 Coil

L405 G1C221Z00004 Coil

L406 G1C101JA0036 Coil

L407 G1C220K00023 Coil

L408 G1C470JA0036 Coil

L409 ELJFC220JF Choke Coil

Ref. No. Part No. Part Name & Description Remarks

L410 ELJFC220JF Choke Coil

L415 G1C8R2JA0036 Coil

L416 G1C220K00023 Coil

L603 G1C100JA0036 Coil

R533 J0JBC0000010 Coil

SWITCHes

SW971 EVPAA302K PUSH SWITCH

SW972 EVPAA302K PUSH SWITCH

SW973 EVPAA302K PUSH SWITCH

SW974 EVPAA302K PUSH SWITCH

SW975 EVPAA302K PUSH SWITCH

SW976 EVPAA302K PUSH SWITCH

SW977 EVPAA302K PUSH SWITCH

SW978 EVPAA302K PUSH SWITCH

SW979 EVPAA302K PUSH SWITCH

CRYSTALs

X401 H0J720400011 Crystal Oscillator

X402 YEXLCSB500LC Crystal Oscillator

X403 H0J357400044 Crystal Oscillator

NETWORK RESISTORs

RA401 D1H810140004 Network Resistor

RA402 D1H810140004 Network Resistor

RA403 D1H84714A013 Network Resistor

RA404 D1H84714A013 Network Resistor

RA405 D1H81014A024 Network Resistor

RA406 D1H81034A024 Network Resistor

RA407 D1H81024A024 Network Resistor

RA408 D1H810440003 Network Resistor

RA409 D1H81014A024 Network Resistor

RA410 D1H81014A024 Network Resistor

RA411 D1H81014A024 Network Resistor

RA412 D1H84724A024 Network Resistor

FILTERs

FL417 J0MAB0000015 Filter

FL418 J0MAB0000015 Filter

FL421 J0LM00000001 Noise Filter

FL422 J0LM00000001 Noise Filter

FL423 J0LM00000001 Noise Filter

FL424 J0LM00000001 Noise Filter

FL425 J0LM00000001 Noise Filter

FL426 J0LM00000001 Noise Filter

FL427 J0LM00000001 Noise Filter

FL428 J0LM00000001 Noise Filter

FL429 J0LM00000001 Noise Filter

VARIAVLE RESISTORs

VR400 D3EA3472A004 Variablr resistor

VR402 D3EA3103A004 Variablr resistor

VR403 D3EA3102A004 Variablr resistor

TRANSFORMERs

T601 G5F2A0000017 Transformer

SWITCHes

L1 EMU601A2M044 Switch

LCD

LCD1 L5EDD1H00014 LCD

Ref. No. Part No. Part Name & Description Remarks

Accessories

PRINTINGs

- Quick Reference Guidebook TSN

- Operating Instructions TSN

- System Upgrade Guidebook TSN

- Installation Instructions TSN

INSTALLATION PARTs

YEFC041589B Trim Plate

YEFG013081A Mounting Collar

YEFX0052513 Mounting Spring

YEFG04019 Rear Support Strap

YEP0FZ5810 Bis kit (Mounting Bolt, Tapping Screw,

Hex. Nut)

YEP0FZ5811 Accessory Part or Tool

YEP0FZ5726 GPS Kit

YEAJ012837A Power Connector

YEAJ071554 Speed Pulse Cable

YEAJ071720 Vehicle signal connector

K1V912Y10001 AV connector

YEAJ071818 Rear view camera RCA conversion

cable

YEAJ09325 Ground connection cable

Mechanical Parts

MISCELLANEOUS

F600 K5H122B00001 Fuse, E3182A

F601 K5H632A00008 Fuse, E3182A

F602 K5H632A00008 Fuse, E3182A

BT100 CR2032/G5A Battery, E9733A

AJ1 YEAJ011672 Cable 3P

AJ2 YEAJ012876B Cable 15P

AJ9 YEAJ071824 Cable 7P

ANT51 YEAA10091 Ant Jack

AT1 K4CD01000015 Terminal, E3182A

AT1901 K4CD01000015 Terminal, E3182A

AT2 K4CD01000015 Terminal, E3182A

AT3 K4CD01000015 Terminal, E3182A

AT4 K4CD01000015 Terminal, E3182A

AT301 K4CD01000015 Terminal, E9733A

AT302 K4CD01000015 Terminal, E9733A

AT303 K4CD01000015 Terminal, E9733A

AT304 K4CD01000015 Terminal, E9733A

AT1 K4CD01000015 Terminal, E9953A

AT2 K4CD01000015 Terminal, E9953A

AT3 K4CD01000015 Terminal, E9953A

AT4 K4CD01000015 Terminal, E9953A

AT5 K4ZZ01000230 Terminal, E9953A

AT6 K4ZZ01000230 Terminal, E9953A

AT7 K4ZZ01000230 Terminal, E9953A

AT401 K4CD01000015 Terminal, E9954A

AT402 K4CD01000015 Terminal, E9954A

AT403 K4CD01000015 Terminal, E9954A

AT404 K4CD01000015 Terminal, E9954A

AT201 K4CD01000015 Terminal, E9955A

AT401 K4CD01000015 Terminal, E9955A

AT402 K4CD01000015 Terminal, E9955A

AT403 K4CD01000015 Terminal, E9955A

CNP1 K9ZZ00001707 FFC, 50P

CNP3 K9ZZ00001706 FFC, 33P

CNP4 K9ZZ00001558 FFC, 40P

CNP5 K9ZZ00001557 FFC, 30P

CNP6 K9ZZ00001556 FFC, 12P

CNP7 K9ZZ00001418 FFC, 40P

CNP8 K2KYYYY00015 Remote Out Connector

CNP9 K9ZZ00001491 FFC, 40P

CNP10 K9ZZ00001417 FFC, 9P

CNP21 K9ZZ00001417 FFC, 9P

CNP22 K9ZZ00001417 FFC, 9P

Ref. No. Part No. Part Name & Description Remarks

E300 EWTS84NB11 Sensor, E9733A

E301 YESAP453 GPS Pack, E9733A

E351 YEAJ09410 Cable, E9733A

E352 YEAJ09409 Cable, E9733A

M1 UDQFS2H53 Dc Motor

1 YEFV033986 Magnetic Shield (HDD)

2 YESSZHD2225 HDD Unit

3 YEFV033984 Magnetic Shield, Navi

4 YEFV033983 Magnetic Shield, HDD

5 YEFV033982A Magnetic Shield, DVD

6 YEFX0217435 DVD Bracket

7 YEFM031568 Deck Laser Seal

8 YEFX9995803 Pad, DVD

9 YEFV033981 Magnetic Shield, DVD

10 YEFX9995322 Pad, Tuner

11 YEFX0217442 Bracket, Tuner

12 YEP0PT9955A0 Navi/HDD PCB w/Component RTL

13 YEFV012630 Insulator, DVD

14 YEP0PT9733B0 SUB PCB w/Component RTL

15 YEFA032076 Upper Cover

16 YEFF012026A Heat Sink

17 YEFV033988 Magnetic Shield, Sub

18 YEFV012507 Insulator, BT100

19 YEFX9995802 Shield Plate, Sub

20 YEFV033989 Magnetic Shield ,Sub

21 YEFX0217142 Bracket, CN600

22 YEFX0217444A Bracket, CN1104,1105

23 YEFX0217502 Bracket, Main

24 YEFV033987 Magnetic Shield, ANT51

25 YEFV034173A Magnetic Shield, PA51

26 YEFX0217269 Bracket, CN700

27 YEFX0217438A Bracket, IC300

28 YEFX0217447 Bracket, CN271, CN725

29 YEFX0217439 Bracket, IC109, IC721

30 YEFJ05030 Rivet

31 YEFX0053120 Spring, L

32 YEFX0053119 Spring, R

33 YEFX0217299 Bracket, TV Tuner

34 YEFX0217448 Bracket, TV Tuner

35 YEP0PT3182A0 Main/Connector PCB w/Component RTL

37 YEFX0217440 Bracket, CN1921

38 YEFA012405B Chassis

39 YEFX9995455 Protecting seal

40 YEFC0266878 Escutcheon Ass'y

41 YEFX0217436 Bracket, SW

42 YEFK02062 Holder, SW

43 YEFE1311339A Button Block

44 YEFX0217629 Bracket

45 YEP0PT3095C0 TV Tuner PCB w/Component RTL

46 YEP0PT9954A0 TFT/SW PCB w/Component RTL

47 YEFC0267186 ESC Holder

48 YEFS04782 Packing Rubber

49 YEJW05167 Washer, L

50 YEJW05178 Washer, R

51 YEFA134208 Case, Rear

52 YEFF012088 Heat Sink, Rear

53 YEFX0217434 Bracket, M1

54 YEFS012376 Fan Pad

55 YEFA012488 Slide Mechanism Ass'y

56 YEAK01063 Dc Motor Ass'y

57 YEP0PT9953A0 ESC PCB w/Component RTL

71 YEJS06429 Binding Screw

72 YEJS06027A Binding Screw

75 YEJT01154A Machin Screw

76 YEJT03180A Tapping Screw

77 YEJT03321 Screw

78 YEJT03339A Tapping Screw

79 YEJT03340A Tapping Screw

80 YEJT03353A Tapping Screw

81 YEJS05105A Screw with Washer

81 YEJT03370 Tapping Screw

82 YEJT03319A Tapping Screw

Ref. No. Part No. Part Name & Description Remarks

11.3. Exploded View [DVD Deck]

2 2

41 82 48

DVD Servo P.C.B

E-9453B

GFD69248

2006.3.17

11.4. DVD PLAYER PARTS LIST

Notes :

1. Be sure to make your orders of replacement parts accord-

ing to this list.

2. Important safety notice: Components, identified by

mark have special characteristics important for safety.

When replacing any of these components, use only man-

ufacturer's specified parts.

3. Location keys in the remarks column indicates the gen-

eral location of the parts shown in the exploded drawing,

as in a road map.

4. The marking (RTL) indicates that Retention Time is lim-

ited for this item. After the discontinuation of assembly in

production, the item will continue to be available for a

specific period of time. The retention period of availability

is dependent on the type of assembly, and in accordance

with the laws governing part and product retention. After

the end of this period, the assembly will no longer be

available.

• Order intake period is basically six months after the first

shipment.

Ref. No. Part No. Part Name & Description Remarks

[E9453B] DVD Servo Block

IC's AND TRANSISTORs

IC101 AN8703FH-V IC

IC201 MNZS26EDCUB IC

IC271 C0JBAA000372 IC

IC275 C0JBAZ002826 IC

IC311 C0GBY0000012 IC

IC321 C0GBH0000006 IC

IC411 C0CBADC00084 IC

IC421 YEAM17805FP IC

IC431 C0JBAA000356 IC

IC441 MN13821SJP IC

IC501 C1AB00002402 IC

IC561 C0JBAZ002826 IC

IC601 C3ABPJ000074 IC

IC621 C3FBMD000282 IC

IC631 C0JBAH000127 IC

IC641 C0JBAH000127 IC

IC651 C3GBCA000001 IC

IC652 C0JBAB000890 IC

IC721 C0FBBK000048 IC

Q151 2SB766ATX Transistor

Q152 2SB766ATX Transistor

Q153 B1GDCFNN0007 Transistor

Q154 B1GBCFNN0009 Transistor

Q251 B3HB00000023 Transistor

Q252 B3HB00000023 Transistor

Q253 B3HB00000023 Transistor

Q301 B1GBGEEA0001 Transistor

Q321 B1GBGFGG0001 Transistor

DIODE

D311 MA721TX Diode

CAPACITORs

C101 F1G1H5610004 Ceramic, 560PF 50WV

C102 F1G1A104A014 Ceramic, 0.1µF 10WV

C103 F1G1H1020008 Ceramic, 1000PF 50WV

C104 F1G1H1020008 Ceramic, 1000PF 50WV

C113 F1G1A104A014 Ceramic, 0.1µF 10WV

C114 F1J0J106A014 Ceramic, 10µF 6.3WV

C115 F1J0J106A014 Ceramic, 10µF 6.3WV

C116 F1G1H1020008 Ceramic, 1000PF 50WV

C117 F1J0J106A014 Ceramic, 10µF 6.3WV

C121 F1G1H6R0A608 Ceramic, 6PF 50WV

C122 F1J0J106A014 Ceramic, 10µF 6.3WV

C124 F1G1A104A014 Ceramic, 0.1µF 10WV

C125 F1G1A104A014 Ceramic, 0.1µF 10WV

C126 F1H1E273A011 Ceramic, 0.027µF 25WV

C127 F1H1C473A005 Ceramic, 0.047µF 16WV

C128 F1G1A104A014 Ceramic, 0.1µF 10WV

C129 F1G1H101A566 Ceramic, 100PF 50WV

C131 F1G1H5610004 Ceramic, 560PF 50WV

C132 F1G1H5610004 Ceramic, 560PF 50WV

C133 F1G1A104A014 Ceramic, 0.1µF 10WV

C134 F1G1A104A014 Ceramic, 0.1µF 10WV

C136 F1G1A104A014 Ceramic, 0.1µF 10WV

C137 F1J0J106A014 Ceramic, 10µF 6.3WV

C141 F1G1C1030008 Ceramic, 0.01µF 16WV

C142 F1G1A104A014 Ceramic, 0.1µF 10WV

C143 F1G1A104A014 Ceramic, 0.1µF 10WV

C144 F1G1A104A014 Ceramic, 0.1µF 10WV

C145 F1G1A104A014 Ceramic, 0.1µF 10WV

C151 F1G1A104A014 Ceramic, 0.1µF 10WV

C152 YECSW0J476MS Tantalum, 47µF 6.3WV

C153 F1G1A104A014 Ceramic, 0.1µF 10WV

C154 YECSW0J476MS Tantalum, 47µF 6.3WV

C201 F1G1A104A014 Ceramic, 0.1µF 10WV

C202 F1G1A104A014 Ceramic, 0.1µF 10WV

C203 F1G1A104A014 Ceramic, 0.1µF 10WV

C204 F1G1A104A014 Ceramic, 0.1µF 10WV

C205 F1G1A104A014 Ceramic, 0.1µF 10WV

C206 F1G1H101A566 Ceramic, 100PF 50WV

C207 F1J0J106A014 Ceramic, 10µF 6.3WV

C208 F1J0J106A014 Ceramic, 10µF 6.3WV

C211 F1G1A104A014 Ceramic, 0.1µF 10WV

C213 F1G1H101A566 Ceramic, 100PF 50WV

C214 F1G1H101A566 Ceramic, 100PF 50WV

C215 F1G1C1030008 Ceramic, 0.01µF 16WV

C216 F1G1C1030008 Ceramic, 0.01µF 16WV

C221 F1G1H220A566 Ceramic, 22PF 50WV

C222 F1G1H220A566 Ceramic, 22PF 50WV

C223 F1G1A104A014 Ceramic, 0.1µF 10WV

C224 F1G1A104A014 Ceramic, 0.1µF 10WV

C225 F1G1A104A014 Ceramic, 0.1µF 10WV

C226 F1G1A104A014 Ceramic, 0.1µF 10WV

C231 F1G1C1030008 Ceramic, 0.01µF 16WV

C232 F1G1A104A014 Ceramic, 0.1µF 10WV

C234 F1G1C1030008 Ceramic, 0.01µF 16WV

C235 F1J0J106A014 Ceramic, 10µF 6.3WV

C236 F1G1A104A014 Ceramic, 0.1µF 10WV

C237 F1G1C223A081 Ceramic, 0.022µF 16WV

C239 F1G1H470A565 Ceramic, 47PF 50WV

C240 F1G1A104A014 Ceramic, 0.1µF 10WV

C241 F1G1A104A014 Ceramic, 0.1µF 10WV

C242 F1G1H1020008 Ceramic, 1000PF 50WV

C243 F1G1A104A014 Ceramic, 0.1µF 10WV

C244 YECUZ1H562KX Ceramic, 5600PF 50WV

C245 F1G1H1020008 Ceramic, 1000PF 50WV

C246 F1G1H1020008 Ceramic, 1000PF 50WV

C247 F1G1H1020008 Ceramic, 1000PF 50WV

C248 F1G1H5610004 Ceramic, 560PF 50WV

C249 F1G1H5610004 Ceramic, 560PF 50WV

C250 F1G1A104A014 Ceramic, 0.1µF 10WV

C251 F1G1H222A571 Ceramic, 2200PF 50WV

C252 F1G1H4710004 Ceramic, 470PF 50WV

C253 F1G1A104A014 Ceramic, 0.1µF 10WV

C261 F1G1A104A014 Ceramic, 0.1µF 10WV

C262 F1G1A104A014 Ceramic, 0.1µF 10WV

C263 F1G1A104A014 Ceramic, 0.1µF 10WV

C264 F1G1A104A014 Ceramic, 0.1µF 10WV

C265 F1G1A104A014 Ceramic, 0.1µF 10WV

C266 F1G1A104A014 Ceramic, 0.1µF 10WV

C271 F1G1A104A014 Ceramic, 0.1µF 10WV

C272 F1G1A104A014 Ceramic, 0.1µF 10WV

C275 F1G1A104A014 Ceramic, 0.1µF 10WV

C311 F1G1A104A014 Ceramic, 0.1µF 10WV

C312 F1H1H104A783 Ceramic, 0.1µF 50WV

Ref. No. Part No. Part Name & Description Remarks

C313 F1G1A104A014 Ceramic, 0.1µF 10WV

C314 F1H1H104A783 Ceramic, 0.1µF 50WV

C315 F1G1A104A014 Ceramic, 0.1µF 10WV

C316 F1G1A104A014 Ceramic, 0.1µF 10WV

C321 F1G1A104A014 Ceramic, 0.1µF 10WV

C322 F1H1H104A783 Ceramic, 0.1µF 50WV

C323 F1G1A104A014 Ceramic, 0.1µF 10WV

C324 F1G1A104A014 Ceramic, 0.1µF 10WV

C325 F1G1A104A014 Ceramic, 0.1µF 10WV

C401 F1G1H1020008 Ceramic, 1000PF 50WV

C402 F1G1H1020008 Ceramic, 1000PF 50WV

C403 F1G1H1020008 Ceramic, 1000PF 50WV

C404 F1G1H1020008 Ceramic, 1000PF 50WV

C405 F1G1A104A014 Ceramic, 0.1µF 10WV

C406 EEFCD0J470R Electrolytic, 47µF 6.3WV

C411 F1H1H104A783 Ceramic, 0.1µF 50WV

C412 F1K1C1060001 Ceramic, 10µF 16WV

C413 F1H1A1050019 Ceramic, 1µF 10WV

C414 EEFCD0J470R Electrolytic, 47µF 6.3WV

C421 F1H1H104A783 Ceramic, 0.1µF 50WV

C422 EEFCD0J470R Electrolytic, 47µF 6.3WV

C423 F1G1A104A014 Ceramic, 0.1µF 10WV

C431 F1G1A104A014 Ceramic, 0.1µF 10WV

C432 F1G1A104A014 Ceramic, 0.1µF 10WV

C433 F1G1A104A014 Ceramic, 0.1µF 10WV

C441 F1G1A104A014 Ceramic, 0.1µF 10WV

C501 F1G1H101A566 Ceramic, 100PF 50WV

C502 F1G1H101A566 Ceramic, 100PF 50WV

C503 F1G1H101A566 Ceramic, 100PF 50WV

C504 F1G1H101A566 Ceramic, 100PF 50WV

C505 F1G1H101A566 Ceramic, 100PF 50WV

C506 F1G1H101A566 Ceramic, 100PF 50WV

C507 F1G1H101A566 Ceramic, 100PF 50WV

C508 F1G1H101A566 Ceramic, 100PF 50WV

C509 F1G1H101A566 Ceramic, 100PF 50WV

C511 F1J0J106A014 Ceramic, 10µF 6.3WV

C512 F1J0J106A014 Ceramic, 10µF 6.3WV

C513 F1G1H101A566 Ceramic, 100PF 50WV

C514 F1G1A104A014 Ceramic, 0.1µF 10WV

C515 F1G1H101A566 Ceramic, 100PF 50WV

C516 F1G1A104A014 Ceramic, 0.1µF 10WV

C517 F1G1H101A566 Ceramic, 100PF 50WV

C518 F1G1A104A014 Ceramic, 0.1µF 10WV

C521 F1G1A104A014 Ceramic, 0.1µF 10WV

C522 F1J0J106A014 Ceramic, 10µF 6.3WV

C523 F1J0J106A014 Ceramic, 10µF 6.3WV

C524 F1G1A104A014 Ceramic, 0.1µF 10WV

C525 F1G1A104A014 Ceramic, 0.1µF 10WV

C526 F1J0J106A014 Ceramic, 10µF 6.3WV

C527 F1G1A104A014 Ceramic, 0.1µF 10WV

C528 F1G1A104A014 Ceramic, 0.1µF 10WV

C529 F1G1A104A014 Ceramic, 0.1µF 10WV

C530 F1J0J106A014 Ceramic, 10µF 6.3WV

C531 F1J0J106A014 Ceramic, 10µF 6.3WV

C532 F1G1A104A014 Ceramic, 0.1µF 10WV

C534 F1G1A104A014 Ceramic, 0.1µF 10WV

C541 F1J0J106A014 Ceramic, 10µF 6.3WV

C542 F1J0J106A014 Ceramic, 10µF 6.3WV

C543 F1G1A104A014 Ceramic, 0.1µF 10WV

C544 F1G1A104A014 Ceramic, 0.1µF 10WV

C545 F1G1A104A014 Ceramic, 0.1µF 10WV

C546 F1G1A104A014 Ceramic, 0.1µF 10WV

C547 F1G1A104A014 Ceramic, 0.1µF 10WV

C548 F1G1A104A014 Ceramic, 0.1µF 10WV

C551 F1G1A104A014 Ceramic, 0.1µF 10WV

C552 F1G1A104A014 Ceramic, 0.1µF 10WV

C553 F1G1A104A014 Ceramic, 0.1µF 10WV

C554 F1G1A104A014 Ceramic, 0.1µF 10WV

C555 F1G1A104A014 Ceramic, 0.1µF 10WV

C556 F1G1A104A014 Ceramic, 0.1µF 10WV

C557 F1G1H101A566 Ceramic, 100PF 50WV

C561 F1G1A104A014 Ceramic, 0.1µF 10WV

C601 F1H1A1050019 Ceramic, 1µF 10WV

C602 F1G1H101A566 Ceramic, 100PF 50WV

Ref. No. Part No. Part Name & Description Remarks

C603 F1G1H101A566 Ceramic, 100PF 50WV

C604 F1G1H101A566 Ceramic, 100PF 50WV

C605 F1G1H101A566 Ceramic, 100PF 50WV

C606 F1G1H101A566 Ceramic, 100PF 50WV

C607 F1G1H101A566 Ceramic, 100PF 50WV

C608 F1G1H101A566 Ceramic, 100PF 50WV

C609 F1G1H101A566 Ceramic, 100PF 50WV

C611 F1H1A1050019 Ceramic, 1µF 10WV

C612 F1G1H101A566 Ceramic, 100PF 50WV

C613 F1G1H101A566 Ceramic, 100PF 50WV

C614 F1G1H101A566 Ceramic, 100PF 50WV

C616 F1G1H101A566 Ceramic, 100PF 50WV

C621 F1G1A104A014 Ceramic, 0.1µF 10WV

C622 F1G1H101A566 Ceramic, 100PF 50WV

C623 F1G1A104A014 Ceramic, 0.1µF 10WV

C631 F1G1A104A014 Ceramic, 0.1µF 10WV

C641 F1G1A104A014 Ceramic, 0.1µF 10WV

C651 F1G1A104A014 Ceramic, 0.1µF 10WV

C652 F1J0J106A014 Ceramic, 10µF 6.3WV

C653 F1G1A104A014 Ceramic, 0.1µF 10WV

C701 F1G1H331A495 Ceramic, 330PF 50WV

C702 F1G1H331A495 Ceramic, 330PF 50WV

C703 F1G1H121A566 Ceramic, 120PF 50WV

C722 F1J0J106A014 Ceramic, 10µF 6.3WV

C723 F1G1A104A014 Ceramic, 0.1µF 10WV

L701 F1J1H471A703 Ceramic, 470PF 50WV

L702 F1J1H471A703 Ceramic, 470PF 50WV

RESISTORs

R101 ERJ2GEJ123X Chip, 12kΩ 1/16W

R102 ERJ2GEJ123X Chip, 12kΩ 1/16W

R103 ERJ3RBD243V Metal Glaze, 24kΩ 1/16W

R104 ERJ2GEJ392X Chip, 3.9kΩ 1/16W

R106 ERJ2GEJ183X Chip, 18kΩ 1/16W

R107 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R110 ERJ2GEJ202X Chip, 2kΩ 1/16W

R121 ERJ2GEJ122X Chip, 1.2kΩ 1/16W

R131 ERJ2GEJ105X Chip, 1MΩ 1/16W

R132 ERJ2GEJ105X Chip, 1MΩ 1/16W

R141 ERJ2GEJ103X Chip, 10kΩ 1/16W

R142 ERJ2GEJ103X Chip, 10kΩ 1/16W

R151 ERJ2GEJ2R2X Chip, 2.2Ω 1/16W

R152 ERJ12YJ200H Chip, 20Ω 1/2W

R153 ERJ2GEJ2R2X Chip, 2.2Ω 1/16W

R154 ERJ12YJ200H Chip, 20Ω 1/2W

R155 ERJ2GEJ102X Chip, 1kΩ 1/16W

R156 ERJ2GEJ333X Chip, 33kΩ 1/16W

R157 ERJ2GEJ223X Chip, 22kΩ 1/16W

R201 ERJ2GEJ471X Chip, 470Ω 1/16W

R202 ERJ2GEJ103X Chip, 10kΩ 1/16W

R203 ERJ2GEJ103X Chip, 10kΩ 1/16W

R212 ERJ2GEJ151X Chip, 150Ω 1/16W

R214 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R215 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R216 ERJ2GEJ273X Chip, 27kΩ 1/16W

R217 ERJ2GEJ273X Chip, 27kΩ 1/16W

R218 ERJ2GEJ103X Chip, 10kΩ 1/16W

R219 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

R220 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

R221 ERJ2GEJ105X Chip, 1MΩ 1/16W

R222 ERJ2GEJ471X Chip, 470Ω 1/16W

R223 ERJ2GEJ393X Chip, 39kΩ 1/16W

R227 ERJ2GE0R00X Chip, 0Ω 1/16W

R231 ERJ2GEJ102X Chip, 1kΩ 1/16W

R232 ERJ2GEJ153X Chip, 15kΩ 1/16W

R234 ERJ2GEJ105X Chip, 1MΩ 1/16W

R235 ERJ2GEJ562X Chip, 5.6kΩ 1/16W

R236 ERJ2GEJ562X Chip, 5.6kΩ 1/16W

R251 ERJ2GEJ103X Chip, 10kΩ 1/16W

R252 ERJ2GEJ473X Chip, 47kΩ 1/16W

R253 ERJ2GEJ153X Chip, 15kΩ 1/16W

R254 ERJ2GEJ153X Chip, 15kΩ 1/16W

R255 ERJ2GEJ153X Chip, 15kΩ 1/16W

Ref. No. Part No. Part Name & Description Remarks

R263 ERJ2GEJ270X Chip, 27Ω 1/16W

R264 ERJ2GEJ220X Chip, 22Ω 1/16W

R265 ERJ2GEJ220X Chip, 22Ω 1/16W

R266 ERJ2GE0R00X Chip, 0Ω 1/16W

R267 ERJ2GEJ103X Chip, 10kΩ 1/16W

R268 ERJ2GEJ102X Chip, 1kΩ 1/16W

R269 ERJ2GEJ103X Chip, 10kΩ 1/16W

R270 ERJ2GEJ393X Chip, 39kΩ 1/16W

R275 ERJ2GEJ220X Chip, 22Ω 1/16W

R276 ERJ2GEJ220X Chip, 22Ω 1/16W

R277 ERJ2GEJ220X Chip, 22Ω 1/16W

R278 ERJ2GEJ220X Chip, 22Ω 1/16W

R279 ERJ2GEJ220X Chip, 22Ω 1/16W

R280 ERJ2GEJ220X Chip, 22Ω 1/16W

R281 ERJ2GEJ220X Chip, 22Ω 1/16W

R282 ERJ2GEJ220X Chip, 22Ω 1/16W

R283 ERJ2GEJ220X Chip, 22Ω 1/16W

R284 ERJ2GEJ220X Chip, 22Ω 1/16W

R285 ERJ2GEJ220X Chip, 22Ω 1/16W

R286 ERJ2GEJ220X Chip, 22Ω 1/16W

R287 ERJ2GEJ220X Chip, 22Ω 1/16W

R288 ERJ2GEJ220X Chip, 22Ω 1/16W

R289 ERJ2GEJ220X Chip, 22Ω 1/16W

R290 ERJ2GEJ220X Chip, 22Ω 1/16W

R291 ERJ2GEJ393X Chip, 39kΩ 1/16W

R292 ERJ2GEJ393X Chip, 39kΩ 1/16W

R293 ERJ2GEJ393X Chip, 39kΩ 1/16W

R294 ERJ2GEJ393X Chip, 39kΩ 1/16W

R295 ERJ2GEJ393X Chip, 39kΩ 1/16W

R296 ERJ2GEJ393X Chip, 39kΩ 1/16W

R297 ERJ2GEJ393X Chip, 39kΩ 1/16W

R298 ERJ2GEJ393X Chip, 39kΩ 1/16W

R301 ERJ2GEJ181X Chip, 180Ω 1/16W

R302 ERJ2GEJ181X Chip, 180Ω 1/16W

R303 ERJ2GEJ181X Chip, 180Ω 1/16W

R311 ERJ2GEJ473X Chip, 47kΩ 1/16W

R312 ERJ2GEJ181X Chip, 180Ω 1/16W

R313 ERJ2GEJ682X Chip, 6.8kΩ 1/16W

R314 ERJ2GEJ562X Chip, 5.6kΩ 1/16W

R315 ERJ2GEJ562X Chip, 5.6kΩ 1/16W

R316 ERJ2GEJ103X Chip, 10kΩ 1/16W

R317 ERJ2GEJ562X Chip, 5.6kΩ 1/16W

R321 ERJ2GEJ472X Chip, 4.7kΩ 1/16W

R322 ERJ2GEJ473X Chip, 47kΩ 1/16W

R323 ERJ8GEYJR51V Chip, 0.51Ω 1/8W

R324 ERJ2GEJ101X Chip, 100Ω 1/16W

R325 ERJ2GEJ101X Chip, 100Ω 1/16W

R327 ERJ6GEY0R00V Chip, 0Ω 1/10W

R431 ERJ2GEJ104X Chip, 100kΩ 1/16W

R441 ERJ2GEJ473X Chip, 47kΩ 1/16W

R501 ERJ2GEJ101X Chip, 100Ω 1/16W

R511 ERJ2GEJ330X Chip, 33Ω 1/16W

R512 ERJ2GEJ101X Chip, 100Ω 1/16W

R513 ERJ2GEJ101X Chip, 100Ω 1/16W

R514 ERJ2GEJ151X Chip, 150Ω 1/16W

R515 ERJ2GEJ393X Chip, 39kΩ 1/16W

R516 ERJ2GEJ473X Chip, 47kΩ 1/16W

R517 ERJ2GEJ473X Chip, 47kΩ 1/16W

R518 ERJ2GEJ220X Chip, 22Ω 1/16W

R519 ERJ2GEJ220X Chip, 22Ω 1/16W

R521 ERJ2GEJ101X Chip, 100Ω 1/16W

R522 ERJ2GEJ330X Chip, 33Ω 1/16W

R523 ERJ8GEYJ100V Chip, 10Ω 1/8W

R524 ERJ2GEJ330X Chip, 33Ω 1/16W

R525 ERJ2GEJ330X Chip, 33Ω 1/16W

R526 ERJ2GEJ151X Chip, 150Ω 1/16W

R527 ERJ2RHD102X Chip, 1kΩ 1/16W

R528 ERJ6ENF75R0V Chip, 75Ω 1/10W

R541 ERJ2GEJ332X Chip, 3.3kΩ 1/16W

R543 ERJ2GEJ471X Chip, 470Ω 1/16W

R552 ERJ2GEJ103X Chip, 10kΩ 1/16W

R553 ERJ2GEJ103X Chip, 10kΩ 1/16W

R554 ERJ2GEJ202X Chip, 2kΩ 1/16W

R555 ERJ2GEJ393X Chip, 39kΩ 1/16W

Ref. No. Part No. Part Name & Description Remarks

R556 ERJ2GEJ393X Chip, 39kΩ 1/16W

R557 ERJ2GEJ393X Chip, 39kΩ 1/16W

R570 ERJ2GEJ471X Chip, 470Ω 1/16W

R571 ERJ2GEJ471X Chip, 470Ω 1/16W

R572 ERJ2GEJ471X Chip, 470Ω 1/16W

R573 ERJ2GEJ471X Chip, 470Ω 1/16W

R574 ERJ2GEJ471X Chip, 470Ω 1/16W

R575 ERJ2GEJ471X Chip, 470Ω 1/16W

R576 ERJ2GEJ471X Chip, 470Ω 1/16W

R577 ERJ2GEJ471X Chip, 470Ω 1/16W

R621 ERJ2GEJ151X Chip, 150Ω 1/16W

R623 ERJ2GEJ103X Chip, 10kΩ 1/16W

R631 ERJ2GEJ750X Chip, 75Ω 1/16W

R651 ERJ2GEJ202X Chip, 2kΩ 1/16W

R701 ERJ2GEJ101X Chip, 100Ω 1/16W

R702 ERJ2GEJ101X Chip, 100Ω 1/16W

R703 ERJ2GEJ101X Chip, 100Ω 1/16W

R704 ERJ2GE0R00X Chip, 0Ω 1/16W

R705 ERJ2GE0R00X Chip, 0Ω 1/16W

R706 ERJ2GE0R00X Chip, 0Ω 1/16W

R707 ERJ2GEJ101X Chip, 100Ω 1/16W

R708 ERJ2GEJ101X Chip, 100Ω 1/16W

R709 ERJ2GEJ221X Chip, 220Ω 1/16W

R711 ERJ3GEY0R00V Chip, 0Ω 1/16W

R712 ERJ3GEY0R00V Chip, 0Ω 1/16W

R713 ERJ2GEJ221X Chip, 220Ω 1/16W

R714 ERJ2GEJ221X Chip, 220Ω 1/16W

R715 ERJ2GEJ221X Chip, 220Ω 1/16W

R716 ERJ2GEJ221X Chip, 220Ω 1/16W

R717 ERJ2GEJ101X Chip, 100Ω 1/16W

R718 ERJ2GEJ101X Chip, 100Ω 1/16W

R721 ERJ2GEJ101X Chip, 100Ω 1/16W

R722 ERJ2GEJ101X Chip, 100Ω 1/16W

R723 ERJ2GEJ101X Chip, 100Ω 1/16W

R724 ERJ2GEJ101X Chip, 100Ω 1/16W

R725 ERJ2GEJ101X Chip, 100Ω 1/16W

CONNECTORs

CN101 K1MN30BA0112 Connector, 30P

CN201 K1MN40BA0195 Connector, 40P

CN301 K1MN04BA0111 Connector, 4P

CN302 K1KA02BA0085 Connector, 2P

CN303 K1MN20BA0111 Connector, 20P

CN401 K1MN12BA0111 Connector, 12P

CN701 K1MN30BA0112 Connector, 30P

COILs

L101 J0JCC0000152 Coil

L102 J0JCC0000152 Coil

L201 J0JCC0000152 Coil

L401 YELTBMHS800T Coil

L403 YELTBMHS800T Coil

L404 YELTBMHS800T Coil

L406 YELTBMHS800T Coil

L511 J0JCC0000042 Coil

L513 J0JCC0000152 Coil

L514 J0JCC0000152 Coil

L515 J0JCC0000152 Coil

L516 J0JCC0000152 Coil

L541 J0JCC0000152 Coil

L705 G1C2R2K00013 Coil

L721 J0JCC0000159 Coil

L722 J0JCC0000159 Coil

L723 J0JCC0000159 Coil

L724 J0JCC0000159 Coil

SWITCH

SW301 K0L1BA000104 Switch

Ref. No. Part No. Part Name & Description Remarks

CRYSTALs

XL201 H0J168500003 Crystal Oscillator

XL501 H1A2705B0025 Crystal Oscillator

NETWORK RESISTORs

R261 D1H810340005 Network Resistor

R262 D1H839340001 Network Resistor

R271 D1H810340005 Network Resistor

R272 D1H882040001 Network Resistor

R273 D1H882040001 Network Resistor

R274 D1H839340001 Network Resistor

FILTERs

L512 J0MAB0000134 Filter

L703 J0MAB0000015 Filter

L704 J0MAB0000015 Filter

Mechanical Parts

MISCELLANEOUS

1 YGP0FX13504 Deck Mechanism Ass'y

2 YGP0FX13507 Suspension Ass'y

26 YGFA012207 Upper Chassis

27 YGAP2890A Sensor FPC Ass'y

32 YGFX0052654 Earth Spring

33 YGFX0462197 Suspension Lock Lever (L)

35 YGFX0052630 Suspension Spring

36 YGFS04858 Damper

37 YGP0FX13498 Loading Motor Ass'y

38 K1LB02A00105 Connector w/Lead Wire

39 YGFX0031172 Lock Gear (1)

40 YGFX0031173 Lock Gear (2)

41 YGFW062772 Loading Gear Shaft

42 YGFX0031166A Laoding Gear (1)

43 YGFX0031167 Laoding Gear (2)

44 YGFX0031168 Laoding Gear (3)

45 YGFX0031169 Laoding Gear (4)

46 YGFX0031170 Laoding Gear (5)

47 YGFX0031171 Laoding Gear (6)

48 YGFX0052632 Worm Gear Housing Spring

49 YGFX0031178 Clamp Rack

50 YGFX0052633 Clamp Rack Spring

51 YGFX0462195B Slide Lever

52 YGFX0052711 Suspension Spring (F)

53 YGFX0052634 Slide Lever Spring

54 YGFX0052631 Offset Spring

55 YGFA012014D Main Chassis

56 YGFX0462196 Suspension Lock Lever (R)

57 YGFX0052635 Suspension Lock Lever L Spring

58 YGFX9995764 Load Gear 1 Collar

64 YGFX0052668 Feeder Spring (L)

65 YGFX0052669A Feeder Spring (R)

66 YGFX0052639 Upper Spring

71 YGP0FX5561 Feeder Arm Ass'y

72 YGP0PT9453F0 DVD Servo PCB w/Component RTL

81 YGJS06292 Screw

82 YEJT03152A Screw

83 YGJT01101 Screw

Ref. No. Part No. Part Name & Description Remarks

11.5. Packing Parts List

• Item numbers listed below should not order regular spare parts. (not available)

Unit

Item

No. Parts No. Part Name & Description Q'ty Remarks

1 - Inner Carton 1 Not available

2 - Packing Pad (Front_Under) 1 Not available

3 - Packing Pad (Rear_Under) 1 Not available

4 - Packing Pad (Front_Upper) 1 Not available

5 - Packing Pad (Rear_Upper) 1 Not available

6 - Packing Pad (A) 1 Not available

7 - Packing Pad (B) 1 Not available

8 - Packing Pad (C) 1 Not available

Quick Reference Guidebook (1) Not available

-Operating Instructions (1) Not available

-System Upgrade Guidebook (1) Not available

-Installation Instructions (1) Not available

10 YEFC041589B Trim Plate 1

11 YEFG013081A Mounting Collar 1

12 YEFX0052513 Mounting Spring 4

13 YEFG04019 Rear Support Strap 1

14 YEP0FZ5810 Bis kit (Mounting Bolt, Tapping Screw, Hex. Nut, Round

head Screw, Flat-Head Screw, Spacer, Double-Faced

Adhesive Tape)

15 YEP0FZ5811 Accessory Part Or Tool (Clip Connector, Protection

sheet, Cord clamper, wiping Cloth)

16 YEP0FZ5726 GPS Kit (GPS antenna, Rubber water seal, Metal

Sheet)

17 YEAJ012837A Power Connector 1

18 YEAJ071554 Speed Pulse Cable 1

19 YEAJ071720 Vehicle signal connector 1

20 K1V912Y10001 AV connector 1

21 YEAJ071818 Rear view camera RCA conversion cable 1

22 YEAJ09325 Ground connection cable 1

12 Schematic Diagram for Printing with Letter Size

12.1. Main Block-1 (Left Side)

5.0

12.2. Main Block-1 (Right Side)

12.3. Main Block-2 (Left Side)

4.0

8.2

4.0

8.0

4.0

5.0

5.0 0

5.0

12.4. Main Block-2 (Right Side)

5.0

5.0 0

5.0

12.5. Main Block-3 (Left Side)

12.6. Main Block-3 (Right Side)

12.7. Navi Block-1 (Left Side)

12.8. Navi Block-1 (Right Side)

12.9. Navi Block-2 (Left Side)

12.10. Navi Block-2 (Right Side)

12.11. Navi Block-3 (Left Side)

12.12. Navi Block-3 (Right Side)

12.13. Navi Block-4 (Left Side)

MA8056LMHTX

100

12.14. Navi Block-4 (Right Side)

E-9953A

101

12.15. Sub Block-1 (Left Side)

102

12.16. Sub Block-1 (Right Side)

E-9955Aa

103

12.17. Sub Block-2 (Left Side)

E-3182Aa

104

12.18. Sub Block-2 (Right Side)

E-9955Aa

105

12.19. Sub Block-3 (Left Side)

106

12.20. Sub Block-3 (Right Side)

107

12.21. TFT Block-1 (Left Side)

E-9954Aa

E-9953A

0.5

5.0

4.8

5.0

4.9

4.8

4.6

5.0

2.2

2.4

108

12.22. TFT Block-1 (Right Side)

E-9954Aa

E-9954Ab E-9954Ab

109

12.23. TFT Block-2 (Left Side)

E-9954Aa

0.8

3.3

0.8

1.8

110

12.24. TFT Block-2 (Right Side)

E-9954Aa

3.3

1.7

1.3

1.4

3.3

0.4

3.3

0.8

3.3

0.8

1.8

111

12.25. DVD Servo Block-1 (Left Side)

112

12.26. DVD Servo Block-1 (Right Side)

C0JBAA000372

113

12.27. DVD Servo Block-2 (Left Side)

114

12.28. DVD Servo Block-2 (Right Side)

115

Printed in Japan 2007.4 (K)

(Recycled Paper)

CNNVD905

Navigation menu

Versions of this User Manual:

Views

Navigation
