TECHNICAL DETAILS & SPECIAL FEATURES

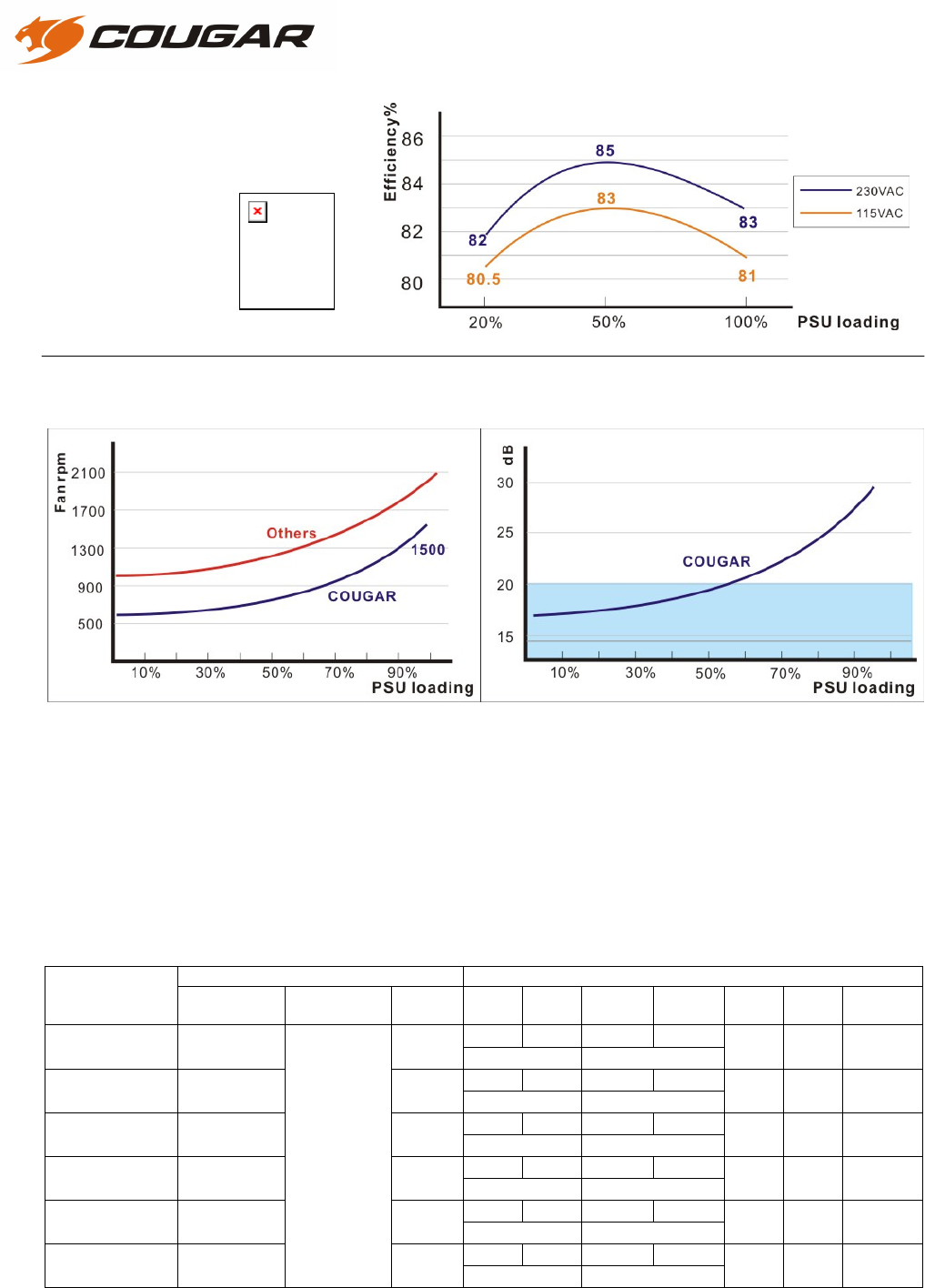

EXTREMELY HIGH EFFICIENCY
Up to 85% of efficiency, compliant with 80-PLUS
®
efficiency requirement .
ACTIVE POWER FACTOR CORRECTION (ACTIVE PFC)
PF value up to 99%, provides clean and reliable power
COMPATIBLE WITH LATEST PC-TECHNOLOGY
Supports the newest specifications of ATX12V
Created for usage with current and next-generation multi-core CPU platforms.
HIGHEST DURABLE & RELIABLE JAPANESE CAPACITORS
The best solution for a High-End PSU by using Japanese capacitors, Japanese capacitors provide
uncompromised performance and reliability.
ULTRA-QUIET & TEMPERATURE-CONTROLLED FAN
Extremely Low Noise Level, equipped with a large and ultra-quiet 120mm fan.
INTEGRATED AIR INLET DESIGN
Optimal air-dynamical design, lead to more silent operation
DYNAMIC DUAL 12V
Automatic dynamic load distribution on dual 12V line to provide power separately to the GPU and the CPU. If
you are not using all output lines, the PSU automatically reroutes needed power from unused lines. This
improves the performance of the 12V lines considerably for systems with high-end graphics cards in SLI® or
CrossFire® mode, and provide high voltage stability to keep components safe.
ALL IN ONE CABLE
SATA and MOLEX-Connector on one cable, provides neat and convenient installation
COMPLIANT WITH LATEST EUROPEAN DIRECTIVE 2009/125/EC (ErP)
Energy consumption in Standby is < 0.5W,
compliant with economy-friendly electrical equipment.
FULL PROTECTIONS WITH OCP, SCP, OVP, UVP, OPP
80 PLUS CERTIFICATION
Up to 85% of efficiency, compliant with
80-PLUS® efficiency requirement .
ULTRA-QUIET & TEMPERATURE-CONTROLLED FAN
All PSUs of the COUGAR® RS-series are equipped with quiet 120mm fan(super low voltage & super low
RPM), which adapts its rotating speed to the PSU temperature. Even on its highest rotating level the fan is still
quiet enough to be barely noticeable.
SPECIFICATION
RATING
Input Characteristics Output Characteristics
Item Name Voltage Frequency
Input
Current
+3.3V
+5V
+12V1
+12V2
-12V
+5Vsb
Total
output
21A
15A
11A 14A
RS300
CGR R-300
AC100- 240
5A 103W 228W 0.3A
2.5A
300W
21A
15A
14A 14A
RS350
CGR R-350
AC100- 240
6A 103W 276W 0.3A
2.5A
350W
24A
15A
20A 20A
RS400
CGR R-400
AC100- 240
8A 120W 384W 0.3A
2.5A
400W
24A
15A
22A 20A
RS450
CGR R-450
AC100- 240
8A 120W 420W 0.3A
2.5A
450W
24A
15A
28A 20A
RS550
CGR R-550
AC110- 240
10A 120W 480W 0.3A
3A 550W
24A
15A
30A 20A
RS650
CGR R-650
AC110- 240
50-60Hz
10A 130W 528W 0.3A
3A 650W

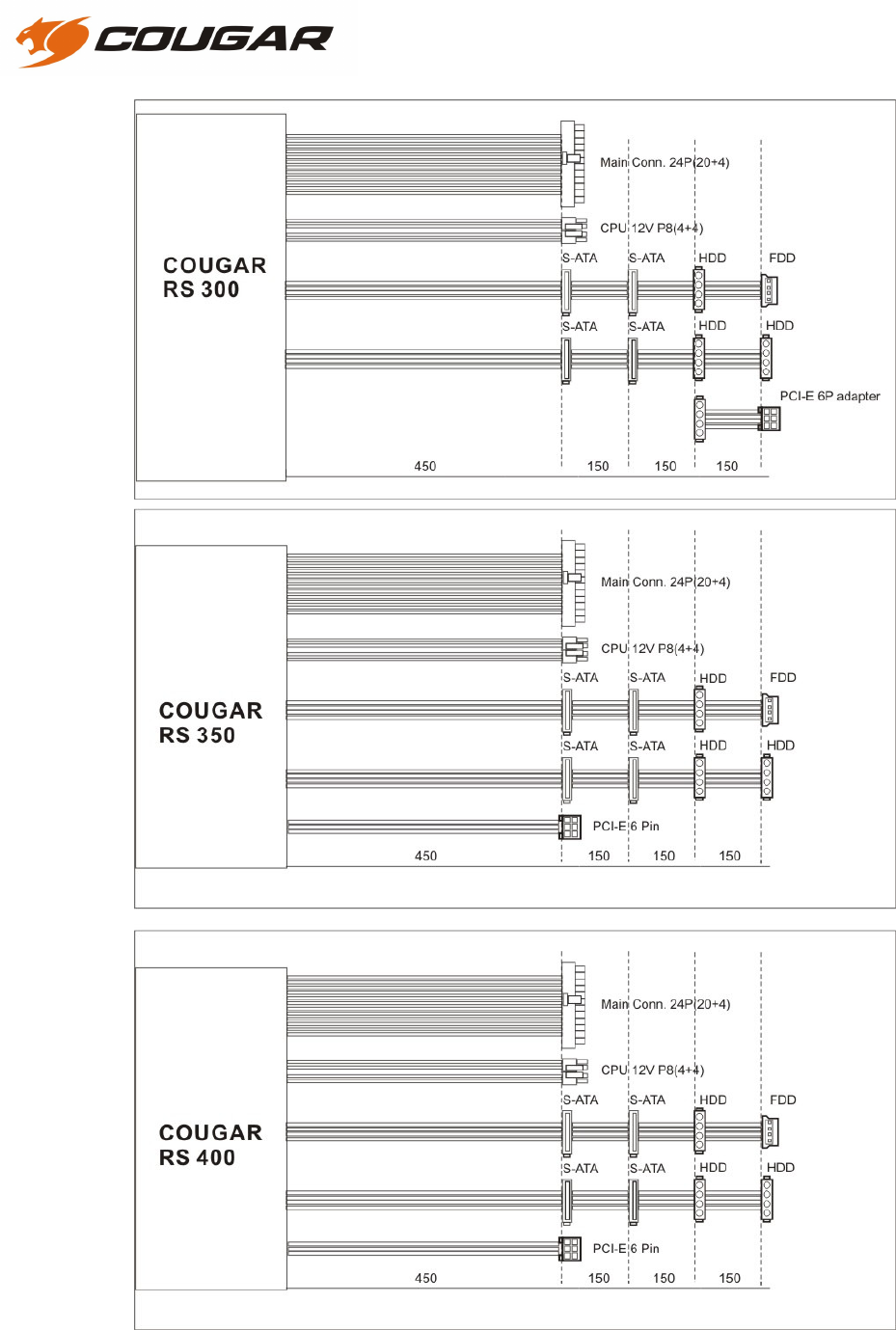

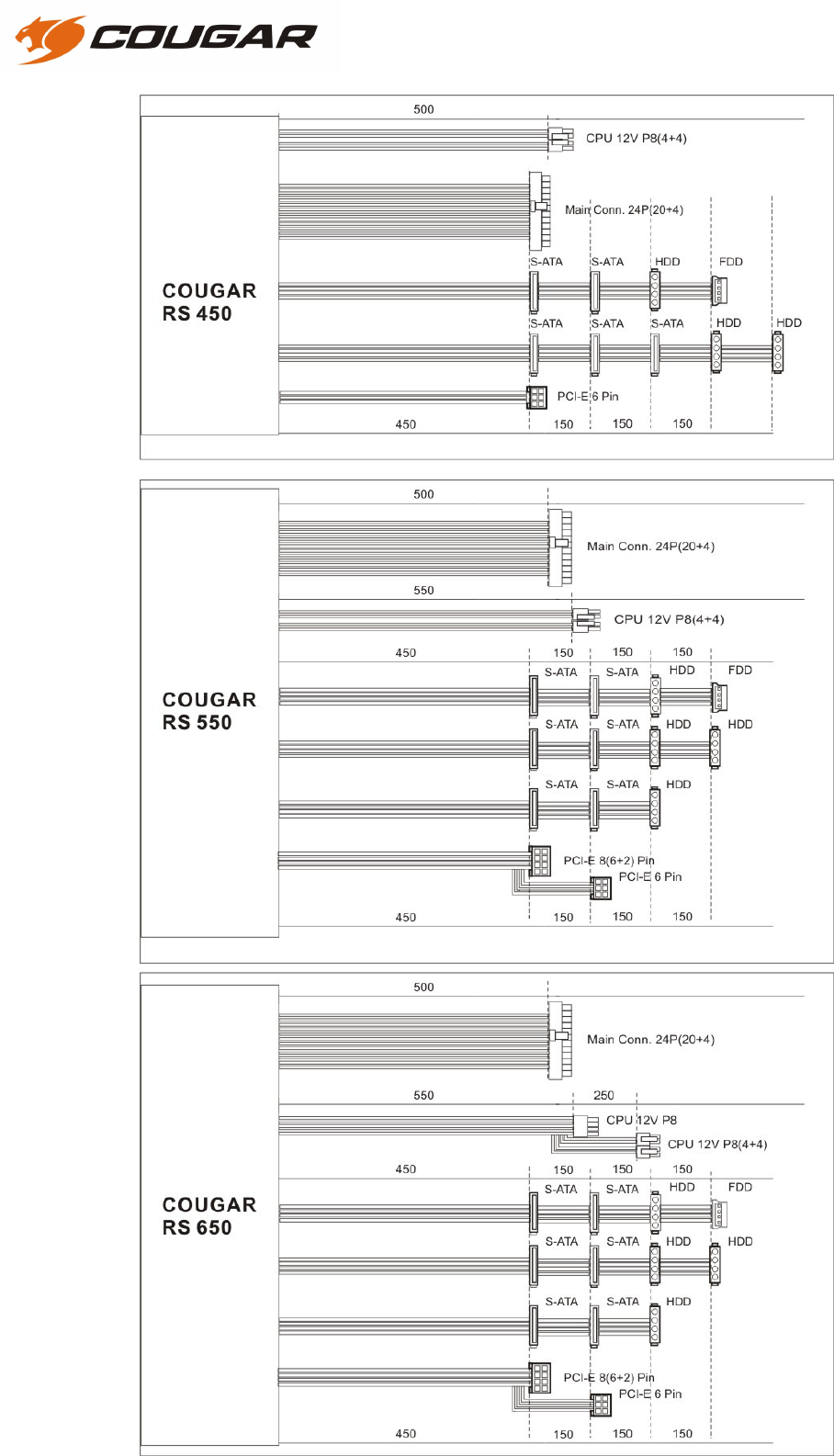

CABLES & CONNECTORS
Model Main
connector
CPU
connector
Floppy
connector
Peripheral
connector
S-ATA
connector
PCI-E 6pin
PCI-E 6+2pin
RS 300
1 4+4 1 3 4 1(adapter)
0
RS 350
1 4+4 1 3 4 1 0
RS 400
1 4+4 1 3 4 1 0
RS 450
1 4+4 1 3 5 1 0
RS 550
1 4+4 1 4 6 1 1
RS 650
1 4+4 & 8 1 4 6 1 1
DIMENSIONS
Dimension (L*W*H) mm 140 x 150 x 86
SAFETY FUNCTIONS
UVP (Undervoltage protection)
If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.
OVP (Overvoltage protection)
If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches
off.
SCP (Short-circuit protection)
In the case of a short-circuit this feature prevents damage to the core components of the PSU and its system
components.
OPP (Overload protection)
If the system is oversized and requires more power from the PSU than it can perform, this protection function
is activated.
OCP (Overcurrent protection)
If the load on a single line is higher than indicated, the PSU automatically switches off.
SAFETY & EMI CERTIFIED:
