Preface

Thank you for purchasing a Canon Document Scanner.

CapturePerfect 3.1 is an ISIS-compatible application program that enables the computer to acquire

images from the Canon Document Scanner. To fully understand the CapturePerfect 3.1 functions and to

be able to use them effectively, please read this guide and the ISIS/TWAIN Driver Help guide as well as

your scanner's operating manual.

About Trademarks

•ISIS

TM and MultiStreamTM are trademarks of EMC Corporation.

• Microsoft, Windows, SharePoint, PowerPoint, and Windows Live are registered trademarks of Microsoft

Corporation in the United States and are trademarks or registered trademarks of Microsoft Corporation in

other countries.

• Product names mentioned herein are for identification purposes only and may be trademarks and/or

registered trademarks of their respective companies.

• TM and ® are not set forth in this manual.

• libtiffs

Permission to use, copy, modify, distribute, and sell this software and its documentation for any purpose

is hereby granted without fee, provided that (i) the above copyright notices and this permission notice

appear in all copies of the software and related documentation, and (ii) the names of Sam Leffler and

Silicon Graphics may not be used in any advertising or publicity relating to the software without the

specific, prior written permission of Sam Leffler and Silicon Graphics.

THE SOFTWARE IS PROVIDED "AS-IS" AND WITHOUT WARRANTY OF ANY KIND, EXPRESS,

IMPLIED OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS BE LIABLE FOR ANY SPECIAL,

INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES

WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER OR NOT

ADVISED OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING OUT

OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

• libjpeg

Portions of this software are based in part on the work of the Independent JPEG Group.

Reproduction Warning

• Reproduction of documents such as the following is illegal and subject to penalty: paper currency and

other legal tender, valuable instruments and passports issued by a government, as well as licenses,

certificates, permits, official documents, and private records issued by a public or private entity.

• Reproduction of copyrighted materials, such as documentation, pictures, imprints, maps, and illustrations,

for purposes other than personal use is prohibited.

Disclaimer

• Reproduction of the contents of this guide, in part or in whole, without prior permission is prohibited.

• This guide is subject to change without notice.

• Every effort has been made to ensure the accuracy of the information in this guide. However, Canon

Electronics Inc. and its subsidiaries assume no responsibility for any errors or their consequences.

Contents

Preface..................................................................................................................... 2

Before Using ........................................................................................................... 5

About the CapturePerfect Window......................................................................................6

Scanner Selection and Settings........................................................................................15

About Saving Image Files .................................................................................................16

About File Naming.............................................................................................................25

About MultiStream Functions ............................................................................................30

About OCR Functions .......................................................................................................33

About Log Files .................................................................................................................36

About Barcode/OCR Modification .....................................................................................38

About Other Functions ......................................................................................................39

Scanning Methods................................................................................................46

Scan Page.........................................................................................................................47

Scan Batch to File (Saves scanned images to a specified file).........................................48

Scan Batch to Printer (Prints scanned images) ................................................................51

Scan Batch to Mail (Attaches scanned images to email) ..................................................53

Scan Batch to SharePoint (Sends scanned images to SharePoint server) ......................56

Scan Batch to Presentation (Displays scanned images full-screen).................................59

Job (Scan According to a Previously Registered Job) ......................................................62

Scanned Image Operations .................................................................................66

Displaying the Thumbnail Window ....................................................................................67

Split View ..........................................................................................................................68

Saving an Image ...............................................................................................................70

Opening an Image File......................................................................................................72

Printing an Image..............................................................................................................74

Adjusting Brightness of the Displayed Image....................................................................76

Inserting/Adding Pages to an Image File ..........................................................................77

Replacing a Page in an Image File ...................................................................................80

Setting PDF File Security Options.....................................................................................83

Index ...................................................................................................................... 85

Before Using

Please read the following descriptions before using CapturePerfect.

•About the CapturePerfect Window (→P. 6) : Describes the menus in the CapturePerfect window.

•Scanner Selection and Settings (→P. 15) : Describes scanner selection and setup procedures.

•About Saving Image Files (→P. 16) : Describes the file types that can be saved by CapturePerfect.

•About File Naming (→P. 25) : Describes the requirements of file names for files to be saved by

CapturePerfect.

•About MultiStream Functions (→P. 30) : Describes the MultiStream output functions.

•About OCR Functions (→P. 33) : Describes the OCR functions.

•About Log Files (→P. 36) : Describes how to save recognition results to a log file when using the barcode

detection function or OCR function.

•About Barcode/OCR Modification (→P. 38) : Describes how to verify and edit the log files in which

barcode and OCR recognition results are saved.

•About Other Functions (→P. 39) : Describes saving rotated images, saving split pages and capacity

warning settings for folders specified as save destinations.

Important

• Confirm that your scanner is properly connected to the computer. Refer to your scanner's operating

manual for details.

• Before using CapturePerfect, install the ISIS/TWAIN driver for the scanner. Refer to your scanner's

operating manual for ISIS/TWAIN driver installation.

About the CapturePerfect Window

The following window appears when CapturePerfect launches. The items in the window's menu and status

bar are described here.

File menu Scan menu Edit menu View menu Page menu Help menu Status Bar

File menu

File menu Scan menu Edit menu View menu Page menu Help menu Status Bar

Open

Opens saved image files. The following file types saved by CapturePerfect can be opened: TIFF (*.tif),

JPEG (*.jpg), BMP (*.bmp) and PDF (*.pdf) files. Opening an Image File (→P. 72)

Save

This procedure saves open image files.

Note

If security is enabled for a PDF file, you are required to enter a password to open the file. Setting PDF

File Security Options (→P. 83)

Save As

This procedure saves open image files with a specified name. Saving an Image (→P. 70)

Closes the open image file.

Close All the Files

Closes all open image files.

Image Info...

Displays information about the open image file.

Prints the image displayed in the window. Printing an Image (→P. 74)

Print Format

Selects an image size for printing from the submenu.

•Actual Size

Regardless of the printing paper size or scan resolution, the image prints at the same size as the

original document.

• Fit to Paper

Reduces or enlarges images so they fit the size of the paper, and then prints.

• Actual Pixel

The image is printed so that one image pixel corresponds to one printer pixel. So the size of the

printed image is smaller when printing to a high resolution printer with small dots.

Printer Setting

Configure printer settings for printing images.

Exit

Exits CapturePerfect.

Scan menu

File menu Scan menu Edit menu View menu Page menu Help menu Status Bar

Select Scanner

Selects the scanner to be used. Scanner Selection (→P. 15)

Scanner Setting or button

Sets up the scanner. Scanner Settings (→P. 15)

Scan Page

Scans and displays a single document page. Scan Page (→P. 47)

Scan Batch to File or button

Continuously scans multiple pages of a document and simultaneously saves the page images to a file or

files. Scan Batch to File (Saves scanned images to a specified file) (→P. 48)

Scan Batch to Printer

Prints the images as documents are scanned. Select whether or not to save scanned images when

Scan Batch to Printer finishes. Scan Batch to Printer (Prints scanned images) (→P. 51)

Scan Batch to Mail or button

Attaches scanned images to an email. Select whether or not to save scanned images when Scan Batch

to Mail finishes. Scan Batch to Mail (Attaches scanned images to email) (→P. 53)

Scan Batch to SharePoint

Sends scanned images to a SharePoint server. Select whether or not to save scanned images when

Scan Batch to SharePoint finishes. Scan Batch to SharePoint (Sends scanned images to SharePoint

server) (→P. 56)

Scan Batch To Presentation

CapturePerfect switches to full-screen display before scanning. Select whether or not to save scanned

images when Scan Batch To Presentation finishes. Scan Batch to Presentation (Displays scanned

images full-screen) (→P. 59)

Note

In an environment with a projector connected to the computer, such as a presentation meeting, paper

documents can be scanned and instantly projected onto the screen for description.

Select Job or button

Select a job title from in the tool bar (the Job list box) and click to execute

the job. You can select the job title by selecting Create/Delete Job in the Scan menu. Job (Scan

According to a Previously Registered Job) (→P. 62)

Create/Delete Job

You can create, edit, or delete the job. Job (Scan According to a Previously Registered Job) (→P. 62)

Cancel Scan

Interrupts the current scanning operation.

Edit menu

File menu Scan menu Edit menu View menu Page menu Help menu Status Bar

Undo

After performing a page operation (delete, insert/add or replace), undoes the change to revert to the

previous state.

Redo

Executes the operation that was last undone.

Brightness

Displays the Brightness dialog box for adjusting brightness and contrast of the displayed image.

Adjusting Brightness of the Displayed Image (→P. 76)

Rotate Left or button

Rotates the page image(s) specified in the submenu counterclockwise.

Rotate Right or button

Rotates the page image(s) specified in the submenu clockwise.

Copy

Copies the images selected by Select All or in the area specified by Pointer - Select the rectangle to the

clipboard.

Images copied to the clipboard can be pasted into other applications.

Select All

Selects all parts of the displayed image.

Pointer

Changes the pointer setting from the submenu when selecting a part of the displayed image area.

• Hand

The cursor changes to a hand shape when moving it over an image displayed in the image window.

When the image is magnified, the displayed area of the image can be moved by dragging.

• Select the rectangle

The cursor changes to a crosshair when moving it over an image displayed in the image window. By

dragging the crosshair cursor diagonally, the area dragged over is selected.

Password Settings

These settings determine password security when opening PDF files. Setting PDF File Security Options

(→P. 83)

Delete Password

When a PDF file with password security has been opened, this allows removing the security settings.

Canceling Security (→P. 84)

Modify Barcode/OCR

Activated when an image file is open, this option displays the Modify Barcode/OCR dialog box for

modifying the barcode or OCR recognition results. About Barcode/OCR Modification (→P. 38)

View menu

File menu Scan menu Edit menu View menu Page menu Help menu Status Bar

Toolbar

Switches display of the toolbar on and off.

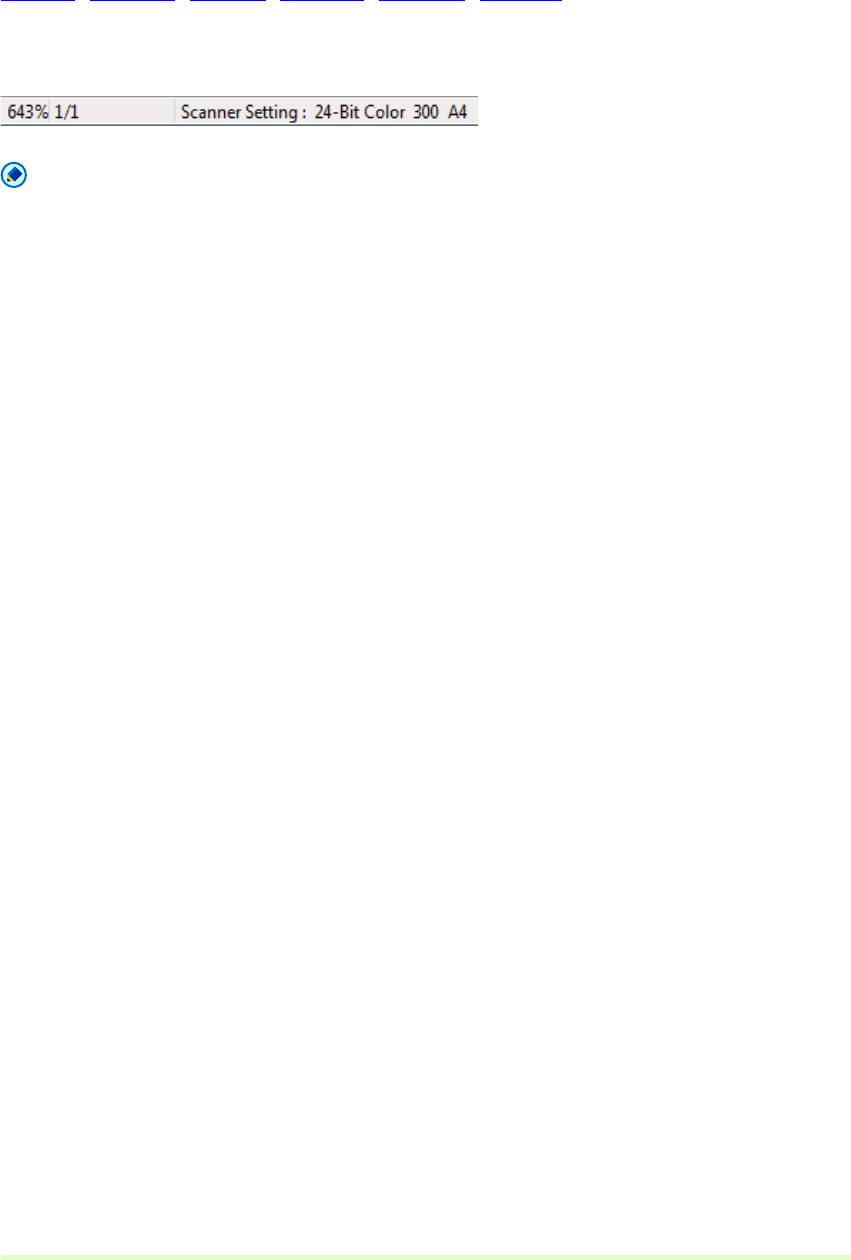

Statusbar

Switches the Status Bar (→P. 14) on and off.

Zoom In or button

Magnifies the view of the image.

Each time you select Zoom In in the View menu or click the Zoom In button, the view of the image is

magnified (Maximum 400%).

Zoom Out or button

Reduces the view of the image.

Each time you select Zoom Out in the View menu or click the Zoom Out button, the view of the image is

reduced (Minimum 10%).

Best Fit or button

Resizes the view of an image so that it all fits in the current window.

Fit to Width or button

Resizes the view of an image so that its width fits the current window.

One To One

Displays each image pixel as one pixel on the monitor. The image's actual displayed size depends on

the monitor size and resolution.

Split View

Splits the image display window into two or four screens. Split View (→P. 68)

Thumbnail

By opening the thumbnail window, open images can be viewed at reduced (thumbnail) size. Displaying

the Thumbnail Window (→P. 67)

Full Screen

Displays the open image on the full screen. With full screen display, the display status can be changed

from the submenu displayed by the right mouse button. Scan Batch to Presentation (Displays scanned

images full-screen) (→P. 59)

Page menu

File menu Scan menu Edit menu View menu Page menu Help menu Status Bar

Next page or button

Displays the image of the next page.

Prev. page or button

Displays the image of the previous page.

Last page

Displays the image of the last page.

First page

Displays the image of the first page.

Goto page

Displays the image on a specified page.

Delete Page

Deletes the open page.

Insert/Add pages

Inserts or adds a page to the open image file.

Added pages are read from the scanner or selected from existing files. Inserting/Adding Pages to an

Image File (→P. 77)

Replace Page

Replaces a page in the open image file.

Replacement pages are read from the scanner or selected from existing files. Replacing a Page in an

Image File (→P. 80)

Help menu

File menu Scan menu Edit menu View menu Page menu Help Status Bar

About

Shows CapturePerfect version information.

Help or button

Shows this Help for CapturePerfect.

Initialize

Selecting OK initializes all of setting values of CapturePerfect.

If you select OK with the Job can be initialized check box selected, all jobs except factory preset ones

are initialized.

Status Bar

File menu Scan menu Edit menu View menu Page menu Help menu Status Bar

The image's display zoom (%), page number and scanner settings (mode, resolution and paper size) are

displayed on the Status bar.

Note

When CapturePerfect starts, the Status bar is displayed as "---".

Scanner Selection and Settings

Scanner Selection

Before using CapturePerfect, follow the procedure below to select a scanner to use with it. The selected

scanner setting is retained until another scanner is selected.

Important

Verify that your scanner is properly connected to the computer, and that the scanner and computer are both

turned on. Refer to your scanner's operating manual for details.

1Click Select Scanner in the Scan menu.

The Select Scanner dialog box appears.

Note

If the name of the scanner does not appear in the dialog box, install the ISIS/TWAIN driver for the

scanner.

2Select the scanner to be used, and click the OK button.

The Select Scanner dialog box closes and scanner selection is complete.

Scanner Settings

Before scanning a document, set up the scan settings. Settings remain in effect until changed.

1Click Scanner Setting in the Scan menu, or click the button.

The scanner setting dialog box appears.

Note

• The settings dialog box displayed depends on your scanner model.

• Scanner settings can be made in the settings dialog box while scanning. Scanning Methods (→P. 46)

• In case of using the Long Document mode, some functions may be restricted.

2Make the appropriate settings for your scanning conditions.

For help related to these settings, click the Help button in the dialog box to refer to the driver help.

3Click the OK button to exit the settings dialog.

About Saving Image Files

Image file types, file name requirements and multi-page files that can be saved with CapturePerfect are

described here.

About File Types

Images scanned with CapturePerfect can be saved as TIFF (*.tif), BMP (*.bmp), JPEG (*.jpg), PDF (*.pdf),

or PowerPoint (* .pptx) files. However, please note that the JPEG file type can be selected only when the

specified scanning mode is 256-level Gray, 24-bit Color, or Detect Color or Binary Image.

Note

• The available scanning modes will differ depending on the scanner.

• When the file type is JPEG File (*.jpg), the image quality set by the Details of File Settings is applied.

Refer to Setting JPEG Compression (→P. 21) for details.

• When JPEG File (*.jpg) is selected as the file type with Detect Color or Binary Image as the scanning

mode, black and white images are saved as TIFF files using CCITT Group 4 compression, regardless of

the current TIFF file compression settings in the Options menu. Color images are saved as JPEG files

using the image quality settings by the Details of File Settings.

• When the file type is PDF File (*.pdf), the compression ratio set by the Details of File Settings is applied.

Refer to Setting PDF File Saving Options (→P. 19) for details.

File Type Settings

The following file-type-dependent settings are available. Settings are made by selecting the file type from

the Details of File Settings.

Scanning Mode File types that can be saved

TIFF BMP PDF JPEG PowerPoint

Black and White Yes Yes Yes No No

Error Diffusion Yes Yes Yes No No

Text Enhanced Yes Yes Yes No No

Advanced Text Enhancement Yes Yes Yes No No

Advanced Text Enhancement II Yes Yes Yes No No

High Speed Text Enhancement Yes Yes Yes No No

256-level Gray Yes Yes Yes Yes Yes

24-bit Color Yes Yes Yes Yes Yes

Detect Color or Binary Image Yes Yes Yes Yes No

Setting TIFF File Compression Options

When TIFF file (*.tif) is selected for the file type in Save As dialog box, the compression format specified

here is applied.

1Select TIFF tab in the Details of File Settings.

Note

Details of File Settings appears in the following screens.

• Scan Batch to File dialog box (→P. 48)

• Scan Batch to Mail dialog box (→P. 53)

• Scan Batch to SharePoint dialog box (→P. 56)

• Insert/Add the pages from the scanner dialog box (→P. 77)

• Replace the page from the scanner dialog box (→P. 80)

2Make the following settings:

• Compression

Select the compression format from the list box.

CCITT Group 4 can be selected when the image type is black and white, and OLD JPEG(6) or

JPEG(7) can be selected when the image type is grayscale or color. If compression is set to None,

saved files may be quite large.

Note

• CCITT Group 4

This compression format is used by faxes and other such devices for data transmission, and is used

to compress black and white images.

• OLD JPEG(6) and JPEG(7)

These compression formats are for saving grayscale and color images. When OLD JPEG(6) or

JPEG(7) is selected, the value set in the JPEG compression dialog box is applied.

Important

• OLD JPEG(6) is the JPEG format supported by Image Viewer that was bundled with Windows prior to

Windows 2000, and is no longer supported by the Windows Image and Fax Viewer bundled with

Windows XP.

• JPEG(7) is not supported by Image Viewer that was bundled with Windows prior to Windows 2000.

• The compression format supported by CapturePerfect may not be supported by other applications. If

a TIFF file saved by CapturePerfect cannot be opened by another application, set the compression to

None and save it again.

• JPEG compression

Select the image quality to be applied when OLD JPEG(6) or JPEG(7) is selected under the

Compression settings. Setting JPEG Compression (→P. 21)

3Click the OK button.

The Details of File Settings dialog box closes.

Setting PDF File Saving Options

When saving scanned images as PDF (*.pdf) files, set the compression and OCR object language saving

options.

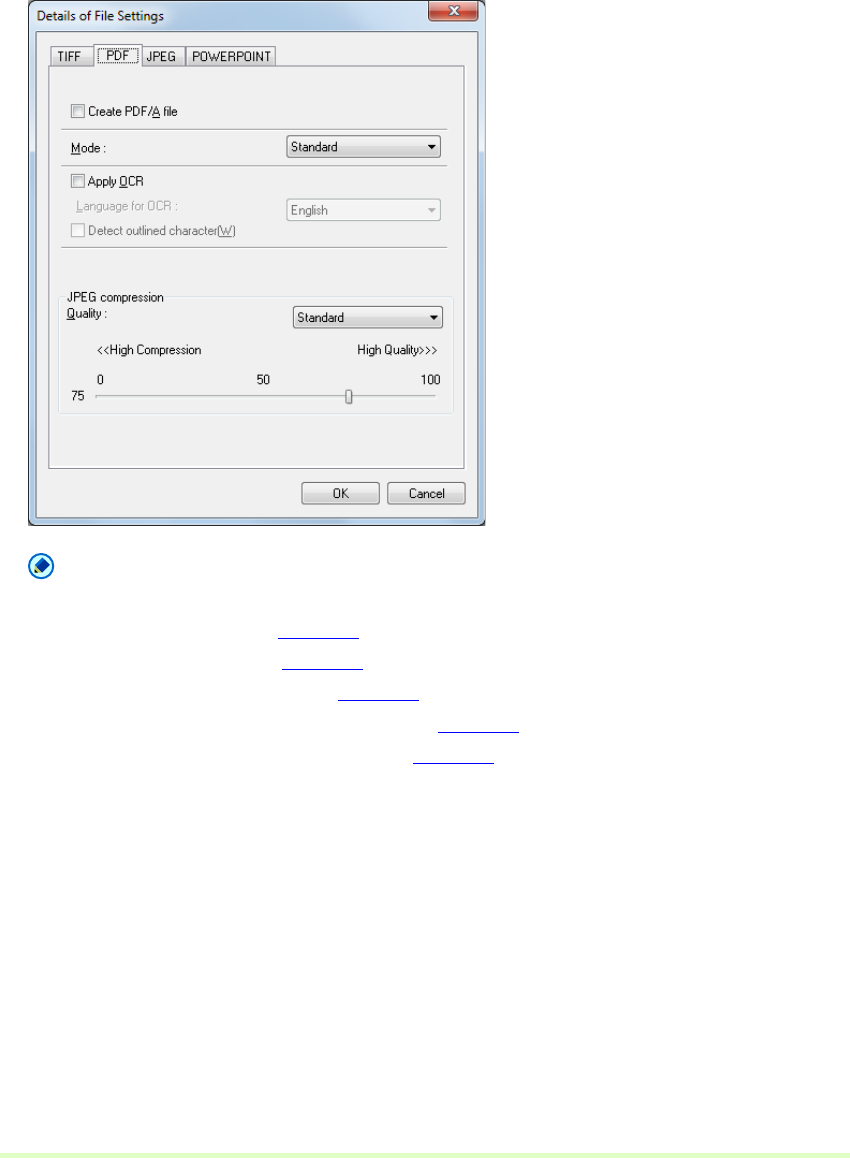

1Select PDF tab in the Details of File Settings.

Note

Details of File Settings appears in the following screens.

• Scan Batch to File dialog box (→P. 48)

• Scan Batch to Mail dialog box (→P. 53)

• Scan Batch to SharePoint dialog box (→P. 56)

• Insert/Add the pages from the scanner dialog box (→P. 77)

• Replace the page from the scanner dialog box (→P. 80)

2Make the following settings:

• Create PDF/A file

When this check box is selected, PDF/A file is created. Mode is fixed to Standard. If Japanese,

Japanese and English, Simplified Chinese or Traditional Chinese is selected for Language for OCR,

you cannot create a PDF/A file.

•Mode

Select the PDF file compression ratio.

– High Compression

Files are saved with high compression. Image quality is degraded, but the file size is smaller.

– Standard

Files are saved with standard compression.

– Character Precedence

To prevent character legibility from degrading, only non-character areas are compressed when files

are saved.

Note

The Mode setting is only valid when the specified scanning mode is 256-level Gray or 24-bit Color, or

when a color document is detected with Detect Color or Binary Image as the scanning mode. If the

scanning mode is a two-color mode such as Black and White, or Error Diffusion, the size of the file

depends on the size of the document.

• Apply OCR

Select this check box to cause printed characters in the image to be recognized and saved as text

data attached to the recognized area.

• Language for OCR

When the Apply OCR check box is selected, you can select from the list box the language of the text

to be scanned.

• Detect outlined character

This setting is enabled only when the Apply OCR check box is selected. When this check box is

selected, outlines letters in the image can be recognized for the language assigned in Language for

OCR.

Note

– For PDF files (*.pdf) with attached OCR information, document character strings scanned as

images are recognized as text and saved as text data.

– When the Apply OCR check box is selected, deskewing is performed regardless of the scanner

driver's Deskew setting. If you scan sizes smaller than the set scan size or you set the TWAIN driver

Margin to a large value, the image is moved to the upper-left corner.

– Depending on documents, some images may be truncated if the Apply OCR box is selected. If this

happens clear the Apply OCR check box.

– In case of using the Long Document mode etc., OCR recognition results may not be applied.

• Hi-speed transfer

Hi-speed transfer can be enabled if your scanner supports JPEG transfers. This option may not be

displayed or available depending on the scanner you select.

When the scanning mode specified during scanner setup is 256-level Gray or 24-bit Color, this feature

applies JPEG compression to images transferred from the scanner to the computer.

• JPEG compression

Selects the image quality when Hi-speed transfer is selected. Setting JPEG Compression (→P. 21)

3Click the OK button.

The Details of File Settings dialog box closes.

Setting JPEG Compression

Select the image quality to be applied when saving scanned images as JPEG files, when Hi-speed transfer

is enabled under the PDF file settings, or when OLD JPEG(6) or JPEG(7) is selected under the TIFF file

settings. The selected image quality will determine the file size. The setting here interlocks with the scanner

setting.

1Select JPEG tab in the Details of File Settings.

Note

Details of File Settings appears in the following screens.

• Scan Batch to File dialog box (→P. 48)

• Scan Batch to Mail dialog box (→P. 53)

• Scan Batch to SharePoint dialog box (→P. 56)

• Insert/Add the pages from the scanner dialog box (→P. 77)

• Replace the page from the scanner dialog box (→P. 80)

2Make the following settings:

Quality

Select the quality of files to be saved from the following choices. The slider position changes when an

item is selected from the list box.

Quality Setting Slider Value Image Quality File Size

High Quality 90 (Auto) High Large

Standard 75 (Auto) Standard Standard

High Compression 10 (Auto) Low Small

User Manual setting See Note See Note

Note

When High Quality is selected, the quality of saved images has priority, but files are large. When High

Compression is selected, the size of saved image has priority, but image quality is poorer.

3Click the OK button.

The Details of File Settings dialog box closes.

Setting PowerPoint File Saving Options

When saving scanned images as PowerPoint (*.pptx) files, set the OCR object language and file format for

image backup.

Note

• Only when the scanning resolution is set to 300 dpi, you can save the image as PowerPoint file.

• You can select up to A4 for paper size of PowerPoint file. However, if Match original size is selected for

paper size of the scanner settings, error may be occur even if the document is A4 size.

• If the scanner is set to any scanning mode other than 24-bit Color or 256-level Gray, you cannot save

scanned images in PowerPoint format.

1Select POWERPOINT tab in the Details of File Settings.

Note

Details of File Settings appears in the following screens.

• Scan Batch to File dialog box (→P. 48)

• Scan Batch to Mail dialog box (→P. 53)

• Scan Batch to SharePoint dialog box (→P. 56)

• Insert/Add the pages from the scanner dialog box (→P. 77)

• Replace the page from the scanner dialog box (→P. 80)

2Make the following settings:

• Apply OCR

Select this check box to cause printed characters in the image to be recognized and saved as text

data attached to the recognized area.

• Language for OCR

When the Apply OCR check box is selected, you can select from the list box the language of the text

to be scanned.

Note

– For PowerPoint files (*.pptx) with attached OCR information, document character strings scanned

as images are recognized as text and saved as text data.

– When the Apply OCR check box is selected, deskewing is performed regardless of the scanner

driver's Deskew setting. If you scan sizes smaller than the set scan size or you set the TWAIN driver

Margin to a large value, the image is moved to the upper-left corner.

– Depending on documents, some images may be truncated if the Apply OCR box is selected. If this

happens clear the Apply OCR check box.

• Back up image

When selected, creates the backup image file in addition to the PowerPoint file.

• File Type

When Back up image is selected, selects the type of backup image file (TIFF, BMP, PDF, JPEG).

However, JPEG is available when the Image Format is set to 256-level Gray or 24-bit Color.

If both of the following conditions are satisfied, the error message is displayed during scanning.

– BMP or JPEG is specified for back up image

– Multi Page (All Pages) or Multi Page (Specified Pages) is selected for MultiPage Settings.

• Hi-speed transfer

Hi-speed transfer can be enabled if your scanner supports JPEG transfers. This option may not be

displayed or available depending on the scanner you select.

When the scanning mode specified during scanner setup is 256-level Gray or 24-bit Color, this feature

applies JPEG compression to images transferred from the scanner to the computer.

3Click the OK button.

The Details of File Settings dialog box closes.

About Multi-Page Files

When scanning with Scan Batch to File (→P. 48) , Scan Batch to Mail (→P. 53) , or Scan Batch to

SharePoint (→P. 56) and when performing Save Open Image (→P. 70) , the Multi Page function can be

used to save multiple images to one TIFF or PDF file.

MultiPage Settings

MultiPage settings are made from a settings dialog box when Scan Batch to File (→P. 48) , Scan Batch to

Mail (→P. 53) , or Scan Batch to SharePoint (→P. 56) is selected for scanning.

Available MultiPage settings are determined by the file type (BMP, JPEG, TIFF, PDF or PowerPoint)

selected in the scan settings dialog box.

When BMP or JPEG is Selected

Only Single Page is available in the list box, and one image is saved per file. Besides, scanning information

can be included in the specified File Name by enabling Use Schema. About Schema (→P. 25)

When TIFF, PDF, or PowerPoint is Selected

• Single Page

Multiple scanned page images are saved as one image per file.

• Multi Page (All Pages)

All scanned page images are saved as one multi-page file.

• Multi Page (Specified Pages)

Page Number is enabled, and multiple scanned page images are saved to multiple multi-page files, each

with the specified number of pages.

When Multi Page (All Pages) or Multi Page (Specified Pages) is displayed in the list box, multiple page

images can be saved in one file.

Note

When Multi Page (Specified Pages) is selected, page images are saved to multiple multi-page files, divided

according to the number of pages specified in the Page Number field. Also, the batch separation type

specified in the Scan Batch to File (→P. 48) dialog box is changed to None.

About File Naming

Requirements and limitations of file names assigned to images scanned and saved by CapturePerfect are

described here.

About File Name Settings

After selecting the TIFF, PDF, or PowerPoint file type and specifying Multi Page (All Pages) or Multi Page

(Specified Pages) as the MultiPage Settings, multiple page images are saved in one file. About Multi-Page

Files (→P. 23)

About Schema

These settings are always applied to file/folder names saved when Single Page is selected as the

MultiPage Settings (→P. 24) . If no Schema settings have been made, a serial number consisting of four

digits (by default) is added to the specified file name. Example: docs0001.tif

File Name Settings

Selecting the check boxes in the Schema dialog box causes the checked information to be automatically

added to the names of files to be saved.

• The example file name reflects the effects selected by the check boxes.

• When Schema settings are performed with MultiStream settings, "Prim", "Seco", or “Tert” is added to the

specified file name.

The character strings to be added are as follows for each selected item:

• The Counter check mark cannot be cleared unless one of the following is selected: Barcode, Imprinter/

Addon, OCR, or Date.

• The Barcode, Imprinter/Addon and OCR check boxes cannot be selected at the same time.

• Barcode is valid when supported by the scanner, and when the Barcode Search scanner setting is

enabled. Up to four recognized barcode results can be added. However, the total number of characters

added cannot exceed 64.

• Selecting the OCR check box enables OCR recognition and adds the first 64 recognized characters to the

file name.

• If you use the value for Barcode or OCR, you can specify the way to add detected character strings to the

file name from the list box.

– Use detected string

Uses the detected strings as the file name. Invalid letters for file name are displayed in underscores.

– Use detected string of the back image if not detected

When no strings are detected, uses the strings detected in previous image. If there is no detected

strings in the first image, no strings are added.

– Follow conversion rule

Converts the detected strings following the conversion table made in advance, and creates the file

name using the converted strings.

– Undetected

When no strings are detected, specifies the strings of up to eight to add to the file name. This option

is available only when Use detected string is selected.

• Imprinter/Addon is valid when supported by the scanner, adding to the file name first 64 letters of the

character string that is printed with the imprinter, or the strings added on.

• Date adds the year, month, day, hour, minute, second, and millisecond of scanning as up to 17 digits. You

can select the date style to add from the list box.

• Scanning Side adds "Fron" or "Back" to the file name to indicate front-side and back-side images, respectively.

• The following character strings are added to the file name when selecting Image Type, Resolution and

DropOut.

• When performing Detect Color or Binary Image, a conversion example of the detected type is appended.

• If you select the Insert separator check box, you can insert the separating character you select from the

list box between the character strings added to the file name. However, you cannot select different

separating character for each item.

• The Counter item adds a serial counter specified by Digit Number, Start Value and Step Value.

• The counter starts from Start Value. When scanning with the "Add counter value automatically" check box

is selected, searches in the corresponding folder for the files whose part of names posterior to the counter

are completely-consistent, detects the biggest number, and adds the next number automatically.

File Name Settings Driver Setting Characters Appended to File Name

Image Type

Black and White Bina

Error Diffusion Erro

Text Enhanced Text

Advanced Text Enhancement ATex

Advanced Text Enhancement II ATx2

High Speed Text Enhancement FTex

256-level Gray Gray

24-bit Color Colo

Detect Color or Binary Image Bina, Colo or Gray

Resolution

100 dpi 100

150 dpi 150

200 dpi 200

240 dpi 240

300 dpi 300

400 dpi 400

600 dpi 600

1200 dpi 1200

Dropout

None None

Drop-out color Red DRed

Drop-out color Green DGre

Drop-out color Blue DBlu

Drop-out color Custom DCus

Red Enhance ERed

Green Enhance EGre

Blue Enhance EBlu

Custom Color Enhance ECus

Color Elimination DCol

Folder Name Settings

Selecting the check boxes in the Schema dialog box causes the checked information to be automatically

added to the names of folders to be saved.

• The example folder name reflects the effects selected by the check boxes.

The character strings to be added are as follows for each selected item:

• The Counter check mark cannot be cleared unless one of the following is selected; Barcode, OCR, or

Date.

• The Barcode and OCR check boxes cannot be selected at the same time.

• Barcode is valid when supported by the scanner, and when the Barcode Search scanner setting is

enabled. Up to four recognized barcode results can be added. However, the total number of characters

added cannot exceed 64.

• Selecting the OCR check box enables OCR recognition and adds the first 64 recognized characters to the

file name.

• If you use the value for Barcode or OCR, you can specify the way to add detected character strings to the

folder name from the list box.

– Use detected string

Uses the detected strings as the folder name. Invalid letters for folder name are displayed in

underscores. If you want to use the OCR recognition result for the document with the patch code

printed as the folder name, use the PATCH T (FILE A).

– Use detected string of the back image if not detected

When no strings are detected, uses the strings detected in previous image. If there is no detected

strings in the first image, no strings are added.

– Follow conversion rule

Converts the detected strings following the conversion table made in advance, and creates the

folder name using the converted strings.

– Undetected

When no strings are detected, specifies the strings of up to eight to add to the folder name. This

option is available only when Use detected string is selected.

• Date adds the year, month, day, hour, minute, second, and millisecond of scanning as up to 17 digits. You

can select the date style to add from the list box.

• If you select the Insert separator check box, you can insert the separating character you select from the

list box between the character strings added to the folder name. However, you cannot select different

separating character for each item.

• The Counter item adds a serial counter specified by Digit Number, Start Value and Step Value.

• The counter starts from Start Value. When scanning with the "Add counter value automatically" check box

is selected, searches in the corresponding folder for the files whose part of names posterior to the counter

are completely-consistent, detects the biggest number, and adds the next number automatically.

Conversion Settings

Converts the detected character string into another string and use it as the file/folder name. You can set the

rule for converting here.

• If the items checked in Detected string are detected, they are converted into the specified character

string. You can switch on/off for each item by selecting Check all or Clear all.

• If Create/Edit is selected, you can add character strings to conversion target ones, or you can edit the

existing character string. Up to 100 strings can be specified. You can delete the registered strings by

selecting Delete.

• Selecting Import loads the character strings data from the file which is created in predefined format.

• Selecting Export saves the character strings data in predefined format.

About File Name Limitations

The file name for a saved image file together with its folder path name constitute the absolute path name,

which may not exceed 200 characters. If the file name would cause the absolute path name to exceed 200

characters, the file cannot be saved with that name.

About MultiStream Functions

If your scanner supports MultiStream functions, you can scan different types of image data (such as color

and black and white or grayscale and black and white) at once, and output the different types of image data

for the front and back of a page.

The MultiStream settings dialog box is available if your scanner supports the MultiStream function, by

selecting MultiStream tab in the Option dialog box.

Note

MultiStream functions are disabled when Mode is set to Auto Color Detection or when Resolution is set to

Auto in the scanner settings.

About MultiStream Settings

1Select MultiStream tab in the Option.

Note

• If MultiStream is valid, settings for file type and multipage saving which are set in tabs except

MultiStream become invalid.

• Option settings appears by selecting Option in the following screens.

– Scan Batch to File dialog box (→P. 48)

– Scan Batch to Mail dialog box (→P. 53)

– Scan Batch to SharePoint dialog box (→P. 56)

– Insert/Add the pages from the scanner dialog box (→P. 77)

– Replace the page from the scanner dialog box (→P. 80)

– Continue Scanning dialog box (→P. 45)

2Make MultiStream output settings.

• Secondary image settings

Select the Use check box to enable secondary image output.

• Set the scanning conditions (Image Type, Resolution and Drop Out Color)

Scan conditions selections depend on the selected scanner. Refer to your scanner's ISIS/TWAIN

driver help for details.

• File Type

Select the type (TIFF, BMP, PDF or JPEG) for saving files. However, JPEG is displayed when the

Image Format is set to 256-level Gray or 24-bit Color. About Saving Image Files (→P. 16)

• Multi Page Settings

Set the Multi Page settings to suit the file type. MultiPage Settings (→P. 24)

• File name/folder name settings

You can set the rules for creating file/folder names by selecting Use Schema check box. Select

Schema to display the Schema dialog box. About File Naming (→P. 25)

3Click the OK button.

The MultiStream settings dialog box closes.

Note

• When you use MultiStream, the "Folio", "Skip blank page", "Prescan", "Text Orientation Recognition", and

"Patch Code (File Separator)" functions are disabled for some scanners.

• In the DR-7080C/DR-7090C scanner's settings, if Feeding Option is set to Standard Feeding, the

MultiStream output functions are not valid on images scanned from the flatbed. To enable the

MultiStream output functions on images scanned from the flatbed, select Panel-Feeding in the Feeding

Option list.

• The setting items for the scanner driver which supports the MultiStream dialog are as follows;

– Stream to sets

Specifies the stream.

– File Type

Select the type (TIFF, BMP, PDF or JPEG) for saving files. However, JPEG is displayed when the

Color mode is set to 256-level Gray or 24-bit Color. About Saving Image Files (→P. 16)

– Multi Page Settings

Set the Multi Page settings to suit the file type. MultiPage Settings (→P. 24)

–Use Schema

You can set the rules for creating file/folder names. About File Naming (→P. 25)

About OCR Functions

CapturePerfect provides OCR functions that can recognize characters in scanned images as text

information. Character recognition is set in the OCR Applied Area tab in the Option dialog box.

Note

• Refer to Setting PDF File Saving Options (→P. 19) or Setting PowerPoint File Saving Options (→P. 22)

for settings to add character information to PDF files or PowerPoint files.

• Refer to About Schema (→P. 25) for Schema settings.

• When both of the above functions are enabled, character recognition is performed twice on each scanned

image.

About OCR Settings

1Select OCR Applied Area tab in the Option.

Note

Option appears in the following screens.

• Scan Batch to File dialog box (→P. 48)

• Scan Batch to Mail dialog box (→P. 53)

• Scan Batch to SharePoint dialog box (→P. 56)

• Insert/Add the pages from the scanner dialog box (→P. 77)

• Replace the page from the scanner dialog box (→P. 80)

• Continue Scanning dialog box (→P. 45)

2Select the language of the text to be recognized from the list box.

Note

Chinese character recognition results display correctly only in environments with Chinese fonts installed.

3Enter the area in which to search for text.

4Load one document page on which character recognition is to be performed, and click the

Preview button.

The scanner scans the document.

Note

• The displayed image size can be changed by the Zoom In and Zoom Out buttons so that characters in

the image can be compared with recognition results.

• The area for OCR can be changed by dragging the mouse diagonally on the previewed image.

5Click the OK button to close each dialog box and finish OCR settings.

About Log Files

The results of recognition performed with the barcode detection function or OCR function can be saved as a

log file in the CSV format. Log files saving settings can be performed in the Log File tab in the Option dialog

box.

To save a log file, select both of the Write Barcode Log check box and Write OCR on a log file check box,

and then specify a destination log file.

Note

• The barcode tab is activated when the scanner supports barcode scanning.

• If editing (addition, deletion, replacement) is performed on the image file page for which a log file is saved,

the corresponding log file is also edited. In this case, depending on the size of the log file, it may take a

while for editing of the log file to finish.

• You can select Unicode or ANSI from the Character Code list box.

About Barcode/OCR Modification

The barcode and OCR recognition results are saved in a log file. About Log Files (→P. 36)

In the Modify Barcode/OCR dialog box, you can display and modify the recognition results stored in a log

file, as needed.

Note

• Modifications to the recognition results are applied to the log file.

• If the image file is moved to another storage location, the log file becomes invalid and barcode/OCR

modification cannot be performed.

• Barcode/OCR modification cannot be performed if the Write Barcode Log/Write OCR on a log file check

box is not selected in the Log File tab in the Option dialog box. About Log Files (→P. 36)

About Other Functions

Here, you are informed various settings in the Option dialog box.

Note

Option appears in the following screens.

• Scan Batch to File dialog box (→P. 48)

• Scan Batch to Mail dialog box (→P. 53)

• Scan Batch to SharePoint dialog box (→P. 56)

• Insert/Add the pages from the scanner dialog box (→P. 77)

• Replace the page from the scanner dialog box (→P. 80)

• Continue Scanning dialog box (→P. 45)

CapturePerfect provides the "Save Rotated Image" and "Save As Two Images" functions that save scanned

images after specified rotation, or after splitting into top and bottom or left and right halves, respectively.

Select the "Save Rotated Image" or "Save As Two Images" option before scanning so that scanned images

are processed efficiently. These settings can be performed in the Save Rotated Image tab or Save As Two

Images tab.

Also, in the Capacity Warning settings, you can specify a folder in which to save scanned images, and

specify the storage capacity for that folder. The Capacity Warning displays a message at scan start time or

while scanning if the preset capacity for the specified folder is exceeded. This setting can be performed in

the Capacity Warning tab.

Besides, there are other settings; batch separation setting in the Separator tab File Separator Settings

(→P. 43) and settings about the behavior during scanning in the Others tab Other Settings (→P. 45) .

Save Rotated Image

Save Rotated Image Save As Two Images Capacity Warning Settings File Separator Settings Other Settings

The Save Rotated Image function rotates scanned images 90 degrees counterclockwise (left) or clockwise

(right) before saving.

1Select Save Rotated Image tab in the Option.

2Select the rotation direction.

Rotate Left 90°: Scanned images are rotated 90° counterclockwise before saving.

Rotate Right 90°: Scanned images are rotated 90° clockwise before saving.

Rotate 180°: Scanned images are rotated 180° before saving.

3Select two-sided mode and click the OK button.

Book mode: Scans the document with top and bottom directed the same in both sides.

Calendar mode: Scans the document with top and bottom directed inversely in both sides. Scanned

image of the back side is rotated 180° and saved.

Save As Two Images

Save Rotated Image Save As Two Images Capacity Warning Settings File Separator Settings Other Settings

By splitting an image, two separate images are created from each one scanned, by splitting it either

horizontally or vertically before saving. This is useful for documents containing two pages per image, when

you want to save them as two images (one page per image).

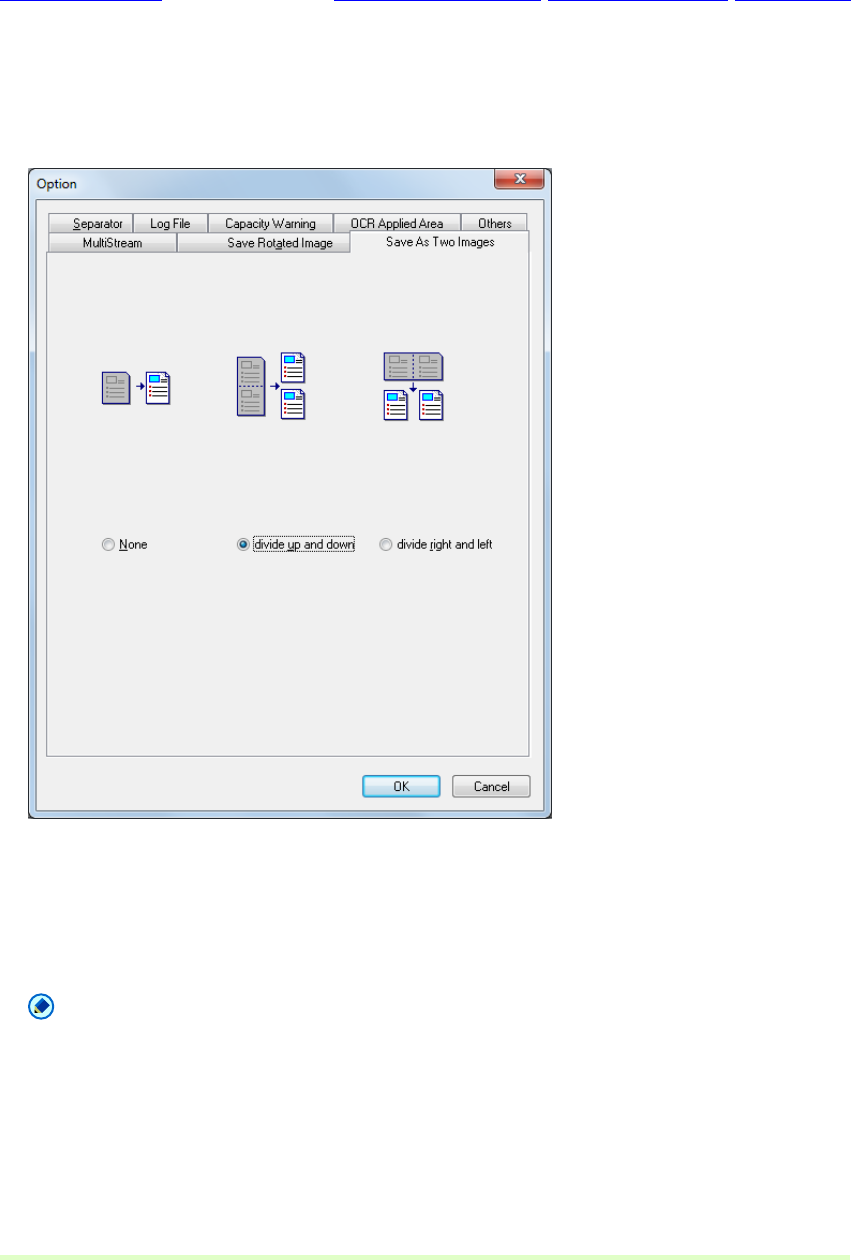

1Select Save As Two Images tab in the Option.

2Select the split orientation.

None: The image is not split when selected.

divide up and down: Splits the scanned image horizontally into two separate images.

divide right and left: Splits the scanned image vertically into two separate images.

Note

When saving split images, the names of the single-page files are applied in the order top-bottom or left-

right.

Capacity Warning Settings

Save Rotated Image Save As Two Images Capacity Warning Settings File Separator Settings Other Settings

After specifying the folder in which to save image files, the storage capacity of that folder can be specified

for Capacity Warning. A warning message then appears when starting to scan (or while scanning) if the

cumulative file size would exceed the specified capacity.

1Select Capacity Warning tab in the Option and click the Create/Edit button.

The Capacity Warning dialog box appears.

2Specify which folder to monitor.

3Enter the warning threshold (MB).

4Click the OK button to close the Capacity Warning dialog box.

Note

• When capacity warning is enabled and the total size of files in the specified folder would exceed the

specified threshold, the warning message appears when starting to scan (or while scanning), regardless

of scanning method.

• Files that are not normally displayed, such as hidden and system files, are not included in the capacity

warning threshold calculation (nor are folders).

• A maximum of 10 folders can be specified for capacity warning.

• When a warning is displayed, follow the message instructions to continue or change the save destination.

File Separator Settings

Save Rotated Image Save As Two Images Capacity Warning Settings File Separator Settings Other Settings

When scanning multiple pages, you can set how to separate the file or location to separate.

1Select Separator tab in the Option.

2Make the following settings;

Record the paper separated file: When selected, saves the patch code sheet or barcode sheet.

However, if the detected patch code is patchII, the sheet is saved regardless this item is checked or not.

Create folder: When selected, creates a folder if the file is separated by the barcode. However, if Single

Page is selected for Multi Page Settings, a folder is always created.

Add to existing file: When selected, adds to existing file. If not selected, adds the counter value

automatically and created a file with different name. (Only when the following conditions are satisfied)

– Multi Page (All Pages) or Multi Page (Specified Pages) is selected for MultiPage Settings.

– The file is separated by the barcode

– Barcode is selected for Use following values in the Schema settings.

If the following type of document is scanned, for example, batch separation will occur as follows depending

on the MultiPage Settings option selected in the Scan Batch to File dialog box.

Barcode string: January, February, March, and January barcodes inserted in order, every 2 pages

File name: imageXXXX

File format: TIFF

When MultiPage Settings is set to Single Page

Folders named after the barcode strings are created, regardless of the "Create folder" setting.

If Add to existing file is selected, the page separated by the same barcode is added to the same file and

saved. If not, the scanned image separated by the second appearence of a given barcode is overwritten or

saved with counter value added following the file name rules.

Note

• If more than one barcode is detected on a single page, all of the barcode strings will be used in the file

name, starting with the barcode that is closest to the top left corner of the page and with each barcode

string separated by a space.

• When Multi Page scan is performed while "Add to existing file" is enabled, and the file name that the

scanned images will be saved under already exists, the scanned images will be added to the existing file.

For instance, if an "imageJanuary.tif" file already exists in the example above, scanned images separated

by the "January" barcode will be added to that existing file.

When MultiPage Settings is set to Multi Page (Specified Pages)

Saves the scanned multipage images as the files separated for the numbers entered in Page Number. If

you select this item, batch separation setting becomes automatically None.

Other Settings

Save Rotated Image Save As Two Images Capacity Warning Settings File Separator Settings Other Settings

You can set the behavior during scanning.

1Select Others tab in the Option.

2Make the following settings;

Creates scanning file to Temp folder.: When selected, files under scanning are created in the Temp

folder. After scanning and creating of the files, the files are copied to the specified folder.

Displays the Continue Scanning dialog box: When selected, displays the Continue Scanning dialog

box after scanning and specifies whether to scan serial documents or not. However, during Scan Batch

to Printer, Replace the page from the scanner, and creating PowerPoint files, the dialog box cannot be

displayed even if you select this setting item.

Give priority to scanning speed: When selected, enhances the scanning speed by roughen the

preview image during scanning.

Scanning Methods

The following scanning methods are available with CapturePerfect. Select the scanning method as

occasion demands.

•Scan Page (→P. 47) : Scans a document to a single page image. The scanned image can be saved or

printed as needed.

•Scan Batch to File (→P. 48) : Scanned images are saved to the files specified when starting to scan.

•Scan Batch to Printer (→P. 51) : Scanned images are printed directly to the specified printer. (Scanned

images are saved after printing.)

•Scan Batch to Mail (→P. 53) : Attaches scanned images to an email. (Scanned images are saved after

sending the mail.)

•Scan Batch to SharePoint (→P. 56) : Sends scanned images to a SharePoint server. (Scanned images

are saved after sending to the SharePoint server.)

•Scan Batch to Presentation (→P. 59) : Scans with the CapturePerfect window set for full-screen display,

and retains full-screen display of scanned images. Scanned images are saved when you Scan Batch to

Presentation.

•Job (→P. 62) : Scanning conditions and post-scan processing are registered beforehand as a job, so that

scanning is performed according to the registered job settings. Jobs are executed from the tool bar.

Scan Page

Scan Page scans one page of a document. You can save or print the scanned image as needed. Saving an

Image (→P. 70) , Printing an Image (→P. 74)

1Select Scanner Setting in the Scan menu or click the button to open the scanner's setup

dialog box.

2Set the scan criteria and click the OK button.

For help related to these settings, click the Help button in the dialog box to see the driver help.

3Place a document in the scanner. Refer to the scanner's operating manual for details about

placing documents for scanning.

4Click Scan Page in the Scan menu.

One page is scanned, its image is displayed, and processing ends.

Scan Batch to File (Saves scanned images to a specified file)

Scan Batch to File saves scanned images to a file or files with a name and type specified before scanning.

Scan Batch to File is performed by the following steps:

1Click the button, or click Scan Batch to File in the Scan menu.

The Scan Batch to File dialog box appears.

2Select the file name and file type to be created.

Note

If the scanner is set to any scanning Mode other than 24-bit Color or 256-level Gray, you cannot save

scanned images in JPEG format. About File Types (→P. 16)

3Select Details of File Settings and set details for each type of file to save. File Type Settings

(→P. 16)

4Click the Scanner Setting button, and configure scan settings. Scan Condition Settings (→P. 15)

Note

You can configure batch separation settings from the scan conditon settings.

5When performing batch separation, configure the "Batch Separator".

• The "Batch Separator" settings are the same as those found in the scanner settings dialog box.

– If your scanner supports reading barcodes, you can select Barcode in addition to the setting value

for Batch Separation of the scanner. When you select this item, the batch is separated when the

barcode is detected.

– If your scanner supports reading patch codes, you can select Patchcode in addition to the setting

value for Batch Separation of the scanner. When you select this item, the batch is separated when

the patchcode is detected.

– When you select Automatic Feeding for feeding option of the scanner setting, you can select Auto in

addition to the setting value for Batch Separation of the scanner. When you select this item,

scanning continues as the batch is separated for each batch of documents.

– When you select Panel-Feeding for feeding option of the scanner setting, you can select Panel in

addition to the setting value for Batch Separation of the scanner. When you select this item, the

batch is separated when you press the batch separation button on the scan panel.

6Select the item for MultiPage Settings. MultiPage Settings (→P. 24)

7If you want to set the name of the saved file/folder, select Scheme and set the rule. About

Schema (→P. 25)

8Set the other settings to suit the documents to be scanned. About Other Functions (→P. 39)

9Place a document in the scanner. Refer to the operating manual of the scanner for details about

placing documents for scanning.

10 Click the Save button.

The documents are scanned.

When no documents remain in the scanner, scanning is interrupted and the Continue Scanning dialog

box appears.

Note

• If you select "* .pptx" as the saving format, Continue Scanning dialog box is not displayed.

• If the specified file name is the same as that of an existing file, a dialog box prompts to confirm

overwriting the existing file. Click the OK button to overwrite the file.

• When "Displays the Continue Scanning dialog box" is disabled (a check mark does not appear in front

of it) in Others tab in the Option dialog box, the scan procedure ends when no documents remain in

the scanner. Other Settings (→P. 45)

11 To continue scanning, load more documents in the scanner and click Continue Scanning. When

finished scanning, click the Cancel Scan button.

If you select "* .pptx" as the saving format, the application associated with "* .pptx" is activated after

scanning.

On CapturePerfect, the image whose format is specified in Back up image. Setting PowerPoint File

Saving Options (→P. 22)

Scan Batch to Printer (Prints scanned images)

With Scan Batch to Printer scanning, scanned images are printed directly to the specified printer. (Scanned

images are saved after printing.)

Scan Batch to Printer is performed by the following steps:

1Select Print Format in the File menu, and select a format.

•Actual Size

Regardless of the printing paper size or scan resolution, the image prints at the same size as the

original document.

• Fit to Paper

Reduces or enlarges images so they fit the size of the paper, and then prints.

• Actual Pixel

The image is printed so that one image pixel corresponds to one printer pixel. So the size of the

printed image is smaller when printing to a high resolution printer with small dots.

2Click Scan Batch to Printer in the Scan menu.

The Scan Batch to Print dialog box appears.

3Click Printer Setting to select the printer to use.

The Print dialog box appears.

Note

To set printer details, click the Properties button. The dialog box for the current printer driver appears.

For details about settings, refer to the user's manual for your printer driver.

4Click Scanner Setting and set the scan conditions.

For help related to these settings, press the Help button in the dialog box to see the driver help.

5Place a document in the scanner.

6Click OK.

Scanning begins, and soon afterwards, printing of the scanned image begins.

After printing, the message asking whether to save the image or not. Clicking Yes button saves the

image.

Scan Batch to Mail (Attaches scanned images to email)

Scan Batch to Mail attaches scanned images to email for sending. (Scanned images are saved after

sending the mail.)

Note

• To use Scan Batch to Mail, a MAPI (Microsoft Messaging Application Programming Interface) -compliant

email application program must be installed on the computer.

• Before using this operation, the e-mail software must be set to start by selecting it as follows; Start menu

- Control Panel - Network and Internet - Internet Options - Programs tab - Set programs of Internet

programs. (This example is for Windows 7: please follow the corresponding procedure for your operating

system.)

Use the following procedure to attach scanned images to email for sending:

1Click the button, or click Scan Batch to Mail in the Scan menu.

The Scan Batch to Mail dialog box appears.

2Select the file name and file type to be attached.

Note

• If the scanner is set to any scanning mode other than 24-bit Color or 256-level Gray and "jpg" or

"pptx" is selected for file type, error may occur while scanning. About File Types (→P. 16)

• Only when the scanning resolution is set to 300 dpi, you can save the image as PowerPoint file.

• You can select up to A4 for paper size of PowerPoint file. However, if Match original size is selected

for paper size of the scanner settings, error may be occur even if the document is A4 size.

• If the scanner is set to any scanning mode other than 24-bit Color or 256-level Gray, you cannot save

scanned images in PowerPoint format.

3Select Details of File Settings and set details for each type of file to save. File Type Settings

(→P. 16)

4Click Scanner Setting and set the scan conditions.

For help related to these settings, click the Help button in the dialog box to see the driver help.

5Select the item for MultiPage Settings. MultiPage Settings (→P. 24)

6If you want to set the name of the saved file/folder, select Use Schema and set the rule. About

Schema (→P. 25)

7Set the other settings to suit the documents to be scanned. About Other Functions (→P. 39)

8Place a document in the scanner. Refer to the operating manual of the scanner for details about

placing documents for scanning.

9Click the OK button.

The documents are scanned.

When no documents remain in the scanner, scanning is interrupted and the Continue Scanning dialog

box appears.

Note

• If you select "* .pptx" as the saving format, Continue Scanning dialog box is not displayed.

• When "Displays the Continue Scanning dialog box" is disabled (a check mark does not appear in front

of it) in Others tab in the Option dialog box, the scan procedure ends when no documents remain in

the scanner. In this case, skip to step 11.

10 To continue scanning, load more documents in the scanner and click Continue Scanning. When

finished scanning, click the Cancel Scan button.

11 When finished scanning, the scanned image files will ready as new e-mail attachments.

The e-mail software starts with the open message that has the attached image files.

Example with Windows Live.

12 Enter the address, subject and message text as needed, and click the Send button to send the e-

mail. Refer to your e-mail software's manual for details of the e-mail sending procedure.

After sending the mail, the message asking whether to save the image or not. Clicking Yes button and

selecting the saving location save the image.

Scan Batch to SharePoint (Sends scanned images to

SharePoint server)

"Scan Batch to SharePoint" sends scanned images to SharePoint server.

Scanned images are saved after all the pages are sent.

1Click Scan Batch to SharePoint in the Scan menu.

The Scan Batch to SharePoint dialog box appears.

2Enter SharePoint server URL and account information of destination folder.

3Click Browse button and select destination folder.

Note

• Entering URL enables Browse button.

• Entering account information, folder name and file name enable OK button.

4Click Properties setting button and set the file properties.

5Select file name and file type for a saved image file.

Note

• If the scanner is set to any scanning mode other than 24-bit Color or 256-level Gray, you cannot save

scanned images in JPEG format. About File Types (→P. 16)

• Only when the scanning resolution is set to 300 dpi, you can save the image as PowerPoint file.

• You can select up to A4 for paper size of PowerPoint file. However, if Match original size is selected

for paper size of the scanner settings, error may be occur even if the document is A4 size.

• If the scanner is set to any scanning mode other than 24-bit Color or 256-level Gray, you cannot save

scanned images in PowerPoint format.

6Select Details of File Settings and set details for each type of file to save. File Type Settings

(→P. 16)

7Click Scanner Setting and set the scan conditions.

For help related to these settings, click the Help button in the dialog box to see the driver help.

8Select Batch Separator. File Separator Settings (→P. 43)

9Select MultiPage Settings. MultiPage Settings (→P. 24)

10 If you want to set the name of the saved file/folder, select Use Schema and set the rule. About

Schema (→P. 25)

11 Set the other setting to suit the documents to be scanned. Other Settings (→P. 45)

12 Place a document in the scanner. Refer to the operating manual of the scanner for details about

placing documents for scanning.

13 Click the OK button.

Scanning begins, and the scanned images are sent to SharePoint server.

After all pages are sent, upload completed dialog box appears.

14 Click the OK button.

The message asking whether to save the image or not is displayed. Clicking Yes button and selecting

the saving location save the image.

Property Settings

You can set the property to the file you send to SharePoint server.

Selecting Properties setting in the Scan Batch to SharePoint dialog box displays the Detail Settings dialog

box.

This dialog box has following items;

• Check in comment

Enters comments about check-in setting of the file.

• Input of property information when uploading files

When selected, you can enter the file property information each time you send to SharePoint server.

• Automatic input of property information of files

When selected, stylized property information is entered automatically each time you send to SharePoint

server.

• Edit Properties

Enables to edit the property information automatically entered when Automatic input of property

information of files is selected.

Scan Batch to Presentation (Displays scanned images full-

screen)

Scan Batch to Presentation displays a scanned image full-screen. Useful in an environment where the

computer is connected to a big-screen display or projector, such as for presentations, documents can be

scanned and displayed as they are described.

Scan Batch to Presentation operates as follows.

Document Scanning

1Click Scan Batch to Presentation in the Scan menu.

The CapturePerfect window switches to full-screen display when starting Scan Batch to Presentation.

2Set a document according to the message.

Scan Batch to Presentation operates as follows.

Scan Conditions

Note

• Scan Batch to Presentation scans with the above scanning conditions regardless of ISIS driver settings.

• Depending on the scanner, the above scan conditions may not be supported.

Setting Item Value

Color mode 24-bit Color

Page Size Match original size

Resolution 200 dpi

Scan Sides Skip blank page

Feeding Option Automatic Feeding

Text Orientation Recognition Enabled

Deskew Enabled

• Actual performance of the "Skip blank page" function is affected by the ISIS driver's "Ratio of black

pixels" setting.

3When the loaded document is finished, scanning stops.

4To continue scanning, load another document. When finished, click "×" at the top right.

After scanning, the message asking whether to save the image or not. Clicking Yes button saves the image.

Note

You can press the ESC key on the keyboard to exit Scan Batch to Presentation.

Screen Operations with Full-Screen Display

Screen operations can be performed during full-screen display by right-clicking the mouse and using the

functions in the submenu that appears, or their assigned shortcut keys.

The functions and shortcut keys displayed in the submenu are as follows:

Exit Scan Batch to Presentation

Exit Scan Batch to Presentation mode by pressing the Esc key on the keyboard, or by clicking Exit Scan To

Presentation on the submenu.

When exiting Scan Batch to Presentation mode, a message asks if you want to save image files. Save the

image files as occasion demands.

Submenu Shortcut keys

Brightness Ctrl + Shift + B

Fit Window Ctrl + F

Fit Window Width Ctrl + W

Zoom In Ctrl + I

Zoom Out Ctrl + O

Rotate the current page to the left Ctrl + L

Rotate all the pages to the left Ctrl + Shift + L

Rotate the current page to the right Ctrl + R

Rotate all the pages to the right Ctrl + Shift + R

Next Page ENTER

Previous Page BS

Thumbnail Ctrl + T

Exit Scan To Presentation or Exit Full Screen ESC

Job (Scan According to a Previously Registered Job)

Job utilizes previously registered scan conditions and methods (Scan Batch to File, Scan Batch to Print or

Scan Batch to Mail) to scan according to the specified job.

Job Registration

Use the following procedure to register jobs for access by Select Job.

1Select Create/Delete Job in the Scan menu.

The Job dialog box appears.

Note

The following jobs have been registered in advance to 01 and 02.

2Select a No. to register a job, and click Create/Edit.

The Create/Edit dialog box appears.

No. Title Function

01 Color Document ScanToPC

02 Binary Document ScanToPC

3Enter a Title.

Note

Job titles may consist of up to 64 alphanumeric characters.

4Select a Function from the list box.

• Scan To PC: Scanned images are saved to the specified PC.

• Scan To Mail: Attaches scanned images to an e-mail.

• Scan To Print: Scanned images are printed by the specified printer.

5Click Detail Settings.

A setting dialog box appears according to the selected function.

• Scan To PC: Refer to Scan Batch to File (→P. 48) for setting details.

• Scan To Mail: Refer to Scan Batch to Mail (→P. 53) for setting details.

• Scan To Print: Refer to Scan Batch to Printer (→P. 51) for setting details.

Note

The Details of File Settings button appears in the Scan Batch to File, Scan Batch to Mail, and Scan

Batch to SharePoint dialog boxes. File Type Settings (→P. 16)

6Click the OK button (the Save button for Scan To PC) to close the settings dialog box.

Registered contents are displayed in the Job dialog box.

7Click the OK button to close the Create/Edit dialog box.

Note

• Up to 99 jobs can be registered.

• To modify the contents of a registered job, select it and click the Create/Edit button.

• To delete a registered job, click it and then click the Delete button.

• You can use registered jobs in other PC by outputting them into the file. Clicking Export button outputs all

registered jobs into the file. To import jobs, click Import button and select the file to import. All jobs are

overwritten by imported jobs.

Job Execution

1Register a job by clicking Create/Delete Job in the Scan menu. Job Registration (→P. 62)

2Select a job title from the list box on the tool bar.

Note

• Job titles highlighted in the Job dialog box appear in the list box.

• You can verify the registered contents of the job by selecting Create/Delete Job in the Scan menu.

You can also verify them by selecting Select Job in the Scan menu, selecting the job title, and then

selecting Edit.

3Place a document in the scanner. Refer to the scanner's operating manual for details about

placing documents for scanning.

4Click the button to scan according to the conditions registered for the job.

Note

You can select the job title by selecting Create/Delete Job in the Scan menu.

Scanned Image Operations

The operations you can perform on scanned or opened images are described here. The way scanned

images are viewed can be changed, and images can also be saved or printed.

•Displaying the Thumbnail Window (→P. 67) : Displays the thumbnail window.

•Split View (→P. 68) : Split the display window into two or four screens.

•Saving an Image (→P. 70) : Save the displayed image.

•Opening an Image File (→P. 72) : Opens saved images.

•Printing an Image (→P. 74) : Print the displayed image.

•Adjusting Brightness of the Displayed Image (→P. 76) : Adjusts brightness of the open image.

•Inserting/Adding Pages to an Image File (→P. 77) : Adds a page to the open image file.

•Replacing a Page in an Image File (→P. 80) : Replaces a page in the open image with the specified

image.

•Setting PDF File Security Options (→P. 83) : Sets security to restrict viewing and printing of PDF file.

Displaying the Thumbnail Window

Thumbnail (reduced) views of opened images are displayed in the Thumbnail window, and the selected

thumbnail in the Thumbnail window is displayed in the Image View window.

To turn display of the Thumbnail window on and off, click Thumbnail in the View menu.

Note

The thumbnail view state is retained upon closing CapturePerfect, so it will have the same view state when

next opened.

Split View

By splitting the display window, you can display multiple page images at once.

To split the display window, select Split View from the View menu. You can split the window into 2 or 4

screens.

Important

With split view, the size of images you display or the number of screens you display can use a lot of

memory. If a memory shortage occurs, refrain from using split view.

Note

• Split windows are displayed sequentially from left to right.

• Scanning can be performed with the split view enabled.

• The display method (magnification, reduction and rotation) of each image in the split view can be changed

independently.

• To return split view to a single image, select Split View from the View menu and specify 1 window.

• The split view state is kept upon closing CapturePerfect, hence the software will open the next time with

the same view state.

• If CapturePerfect is closed with the Split Screen feature enabled, a message appears warning that a

memory shortage might occur when CapturePerfect is restarted. Please bear this warning in mind when

shutting CapturePerfect down with Split Screen enabled.

Splitting the view into 2 or 4 screens

To split the view into 2 or 4 screens, select Split View from the View menu, and specify the number of

screens in the submenu.

Two-screen view

Four-screen view

Saving an Image

This procedure saves open image files with a specified name.

Note

If multiple image files are open, all pages are saved.

Important

• If several image files have been opened and a PDF file with password security is among them, you

cannot save files with a new name (Save As).

• If there is a PDF file without security setting among some image file opened, you can select only "* .pdf"

for File Type.

• Even if you open some files including PDF files and there is no PDF file in the range specified in the Page

Range, you can select only "* .pdf" for File Type.

1Click Save As in the File menu.

The Save As dialog box appears.

2Make the following settings:

• Save in

Select the folder in which to save the file.

• File name

Enter the file name for the image.

•

Save as type

Select a file type from TIFF File (*.tif), BMP File (*.bmp), JPEG File (*.jpg) or PDF File (*.pdf). The types

of files that can be saved depend on the scanning mode specified before scanning. Refer to

About

Saving Image Files (→P. 16)

for details.

Note

When scanned, the compression ratio set in the Details of File Settings dialog box is applied. Refer to

File Type Settings (→P. 16) for details.

Important

If you select JPEG File (*.jpg) when a black and white image file is open, it is saved as a Grayscale

Image.

3When saving a multi-page image file, set the page range to be saved.

Note

For a PDF file with password security, the Current Page and Goto Page options are disabled.

4When saving a multi-page image file as a single image file, select the Multi-page file check box.

Note

• When the Multi-page file check box is not selected, the image file is divided by page, and a four-digit

sequential number is appended to each new saved file. However, if the saved image file is only one

page, the four-digit sequential number is not appended to the file name.

• Only when the saved file type is TIFF or PDF, Multi Page (All pages) check box is available.

5Click the Save button.

The Save As dialog box closes and the image is saved.

Original image (Black & White) Image saved as a JPEG (Grayscale)

Opening an Image File

This procedure opens image files that were saved by CapturePerfect.

Note

The following file types saved by CapturePerfect can be opened: TIFF (*.tif), JPEG (*.jpg), BMP (*.bmp) and

PDF (*.pdf) files.

1Click Open in the File menu.

The Open dialog box appears.

2Select a file and click the Open button.

The selected image file appears on the screen.

Note

Multiple files can be selected to be opened together. By selecting one file and holding the Shift key while

selecting another file, all files in between are selected. Files can also be selected by holding the Ctrl key

while selecting each file.

Printing an Image

The following procedure prints the image displayed in the window:

1Click Printer Setting on the File menu.

The Print Setup dialog box appears.

2Select the printer, paper and printing orientation as needed, and click the OK button.

Note

To set printer details, click the Properties button. The dialog box for the current printer driver appears.

For details about settings, refer to the user's manual for your printer driver.

3Click Print Format on the File menu, and select the desired print format from the following:

•Actual Size

Regardless of the printing paper size or scan resolution, the image prints at the same size as the

original document.

• Fit to Paper

Reduces or enlarges images so they fit the size of the paper, and then prints.

• Actual Pixel

The image is printed so that one image pixel corresponds to one printer pixel. So the size of the

printed image is smaller when printing to a high resolution printer with small dots.

4Click Print in the File menu.

The Print dialog box appears.

5Verify the settings, and click the Print button.

Adjusting Brightness of the Displayed Image

You can adjust the brightness and contrast of the displayed image.

Select Brightness in the Edit menu to open the Brightness dialog box.

Moving the sliders left and right adjusts the brightness and contrast of the displayed image.

After adjusting, click the OK button.

Note

• For grayscale and color images, the image file can be re-saved with the adjusted brightness.

• For black and white images, brightness can be adjusted if the image is displayed as grayscale (other than

"100%" display). However, the image cannot be saved with adjusted brightness.

• Brightness can be adjusted for each page.

• When displaying a PDF file, you cannot save the brightness adjustments with the image.

Inserting/Adding Pages to an Image File

Pages can be inserted and added to TIFF or PDF files.

For the image to insert/add, you can specify an image from the scanner or a file saved with CapturePerfect.

1Open the TIFF or PDF file in which to insert the page.

Note

• Pages cannot be added to BMP or JPEG files.

• To add a page to an image currently saved as a BMP or JPEG file, first resave the image as a TIFF or

PDF file.

2Click Insert/Add pages in the Page menu to open the submenu.

3Select the source of the image to add or insert.

• from Scanner

Scans the image to add/insert.

• from File

Select the image to add/insert from saved image files.

4Add/insert a page.

When "from Scanner" is selected

1) The Insert/Add the pages from the scanner dialog box is displayed.

2) Select the location to add or insert the page, make the Scanner Settings, and click OK.

Scanning begins, and pages are added or inserted.

3) When there are no more documents, scanning stops.

When "from File" is selected

1) The Open dialog box is displayed.

2) Select the image file to add or insert, and click Open.

The Insert/Add the pages from the file dialog box appears.

3) Select the location to add or insert the page, the image file page to be inserted, and click OK.

5When finished inserting/adding the page, confirm that the page was added or inserted in the

specified location.

Note

• To save the image file with added or inserted pages, select Save As or Close from the File menu.

• When Close is selected, a message appears asking if you want to save the file. Click Yes to overwrite the

image file.

Replacing a Page in an Image File

You can replace a page in a saved multi-page TIFF or PDF file. For the replacement image, you can specify

an image from the scanner or a file saved with CapturePerfect.

1Open the TIFF or PDF file in which to insert the page.

2Click Replace Page in the Page menu to display the submenu.

3Select the source of the image to replace.

• from Scanner

Scans the image to replace.

• from File

Select the image to replace from saved image files.

Note

• When "from Scanner" is selected, pages following the displayed page are replaced by scanned

images.

• When "from File" is selected, pages following the displayed page are replaced by the selected

images.

4Replace the page.

When "from Scanner" is selected

1) The Replace the page from the scanner dialog box is displayed.

2) Set the Scanner Settings, and click OK.

Scanning begins, and pages following the displayed page are replaced.

3) When there are no more documents, scanning stops.

When "from File" is selected

1) The Open dialog box is displayed.

2) Select the image file containing the image to be replaced, and click Open.

The Replace the page from the file dialog box appears.

3) Confirm the replacement image(s) in the image file by clicking Next page and Prev. page, specify the

page range for replacement, and click OK.

Pages following the displayed page are replaced by the image(s) specified for the Page Range.

5When finished page replacement, confirm that the image(s) of the specified page(s) are replaced.

Note

• To save the image file with replaced pages, select Save As or Close from the File menu.

• When Close is selected, a message appears asking if you want to save the file. Click Yes to overwrite the

image file.

Setting PDF File Security Options

Set the security options to restrict viewing, printing and page editing of PDF files.

Security Settings

Open a PDF file, and click Password Settings in the Edit menu to open the Password Settings dialog box.

1Select check boxes to set passwords.

• Password to open document

The Document Open password is required to open the PDF file, and is entered in a dialog box that

appears when opening the PDF file.

• Password to change authority and password

The Permissions password restricts changing authority to print the file or edit a page, and is entered in

a dialog box that appears when attempting to change security settings.

Important

Always set the permissions password when setting permissions. If permissions are set only with the

Document Open password, security can be canceled merely by opening the document, so care should

be exercised.

Note

When adding, inserting or replacing pages, PDF files which have the user password set cannot be used

for addition or insertion.

2Set the password and enter the same password to confirm.

3Set the Authority.

• Encryption Level

Select the security encryption level. Available encryptions levels are High 128-bit (RC4) and Low 40-

bit (RC4), with the 40-bit (RC4) level providing weaker security than the 128-bit (RC4) level.

• Forbid users to Print

Prohibits printing of the PDF file.

• Forbid users to Edit

Prohibits page operations (add, insert and replace).

Important

When setting authority, set the Permissions Password to prevent users from canceling security.

4Click OK to activate security.

Note

Setting or canceling security takes effect regardless of whether the file has been saved.

Canceling Security

When opening a PDF file that has security set, Delete Password is enabled in the Edit menu. To cancel

security, click Delete Password and following the message instructions.

Note

• The Permissions Password must be entered if it has been set.

• If only the Document Open password has been set, clicking Delete Password displays a confirmation

message to cancel security. Click OK to cancel security.

Index

Adding (Pages) .................77

Adjusting Brightness .........76

Barcode/OCR

Modification...................38

Capacity Warning

Settings .........................42

Edit menu ............................9

File menu ............................6

File Name..........................25

File Name Limitations .29

File Types..........................16

Folder name ......................25

Full-Screen Display ...........60

Help menu.........................13

Image Operations

Opening ......................72

Printing........................74

Saving .........................70

Inserting (Pages)...............77

Inserting/Adding Pages.....77

Job ....................................62

Log Files............................36

Multi-Page Files................ 23

MultiStream ...................... 30

OCR Functions ................. 33

Opening............................ 72

Other Settings .................. 39

Page menu ....................... 12

Pointer setting .................. 10

Print Format........................ 7

Printing ............................. 74

Replacing (a Page)........... 80

Replacing a Page ............. 80

Save As Two Images ....... 41

Save Rotated Image......... 40

Saving .............................. 70

Scan Batch to File ............ 48

Scan Batch to Mail ........... 53

Scan Batch

to Presentation ............. 59

Scan Batch to Printer ....... 51

Scan Batch

to SharePoint................ 56

Scan menu ......................... 8

Scan Page........................ 47

Scanner Selection ............ 15

Scanner Settings .............. 15

Schema ............................ 25

Security Settings .............. 83

Canceling ................... 84

Setting

Capacity Warning ....... 42

JPEG Compression .... 21

PDF File...................... 19

Pointer ........................ 10

PowerPoint File .......... 22

Scanner ...................... 15

TIFF File ..................... 17

Setting JPEG

Compression ................ 21

Setting PDF File................ 19

Setting TIFF File ............... 17

Split View .......................... 68

Status Bar ......................... 14

Thumbnail ......................... 67

View menu ........................ 11

Capture Perfect 3.1 Operation Guide CAPTUREPERFECT CP31 OG

3.1 to the manual cd635c45-6697-4ed3-9dff-b2ff8e6850a1

Navigation menu

Versions of this User Manual:

Views

Navigation
