FRORU#WHOHYLVLRQ#
Fkdvvlv#= V98D+S,bHqfruh
Prgho###= FV5<]78KSV[QZW#
FRORU#WHOHYLVLRQ# IHDWXUHV
■■Slimfit(Low Depth) CRT
■SRS-TRUSURROUND
■
■Full 100Hz
VHUYLFH Pdqxdo
CS-29Z45HSQ
Refer to the service manual in the GSPN (see the rear cover) for the more information.
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
©Samsung Electronics Co., Ltd. Apr. 2007
Printed in Korea
AA82-04569A
Area Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast & Africa mea.samsungportal.com
GSPN (Global Service Partner Network)
Table of Contents
Chapter 1 Precaution
■1-1 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
■1-2 Servicing Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
■1-3 Static Electricity Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
■1-4 Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Chapter 2 Product Specification
■2-1 Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
■2-2 Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
■2-3 Specifications Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

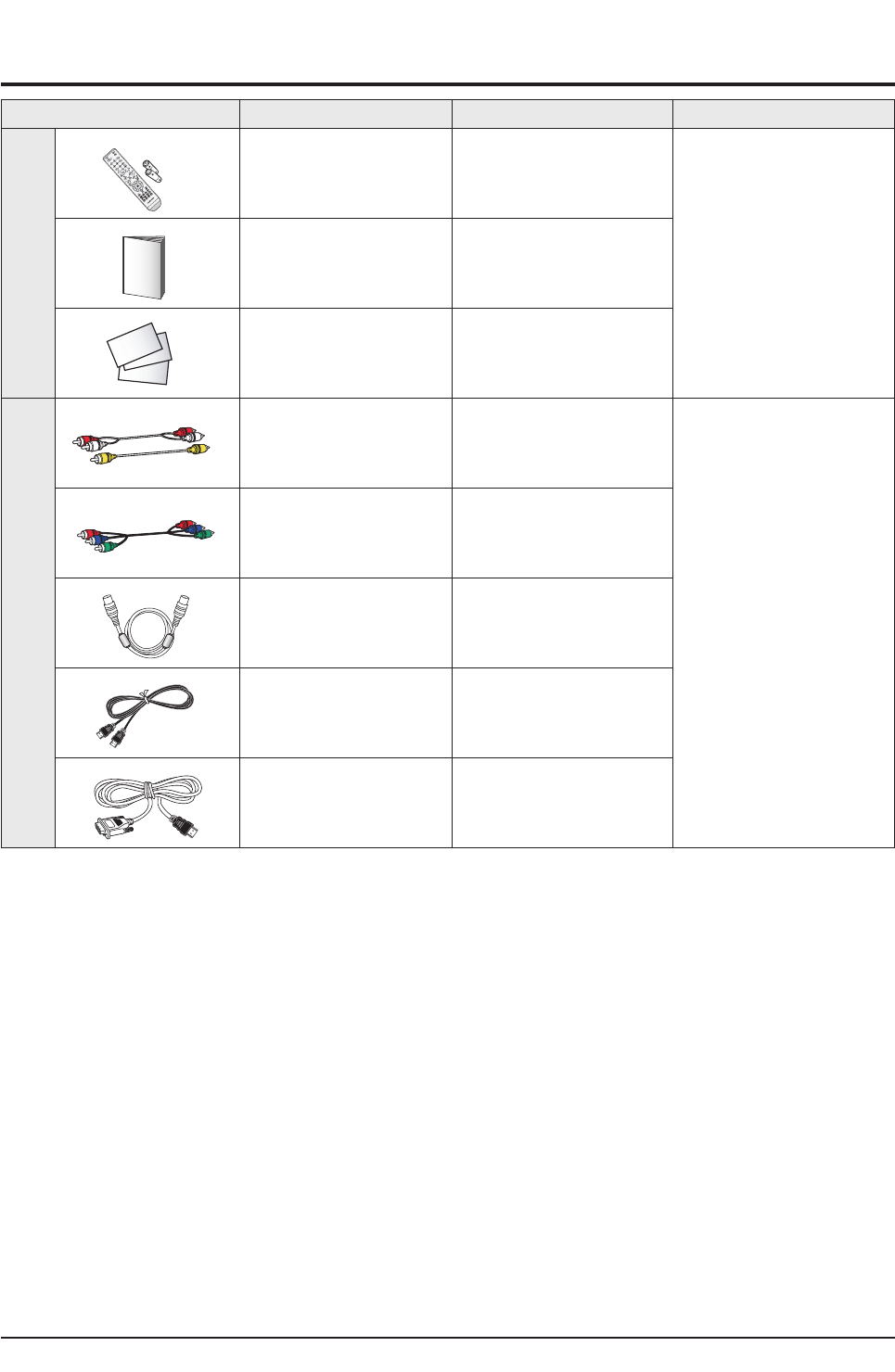

■2-4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Chapter 3 Alignment & Adjustment
■3-1 Service Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
■3-2 How to Access Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
■3-3 Factory Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

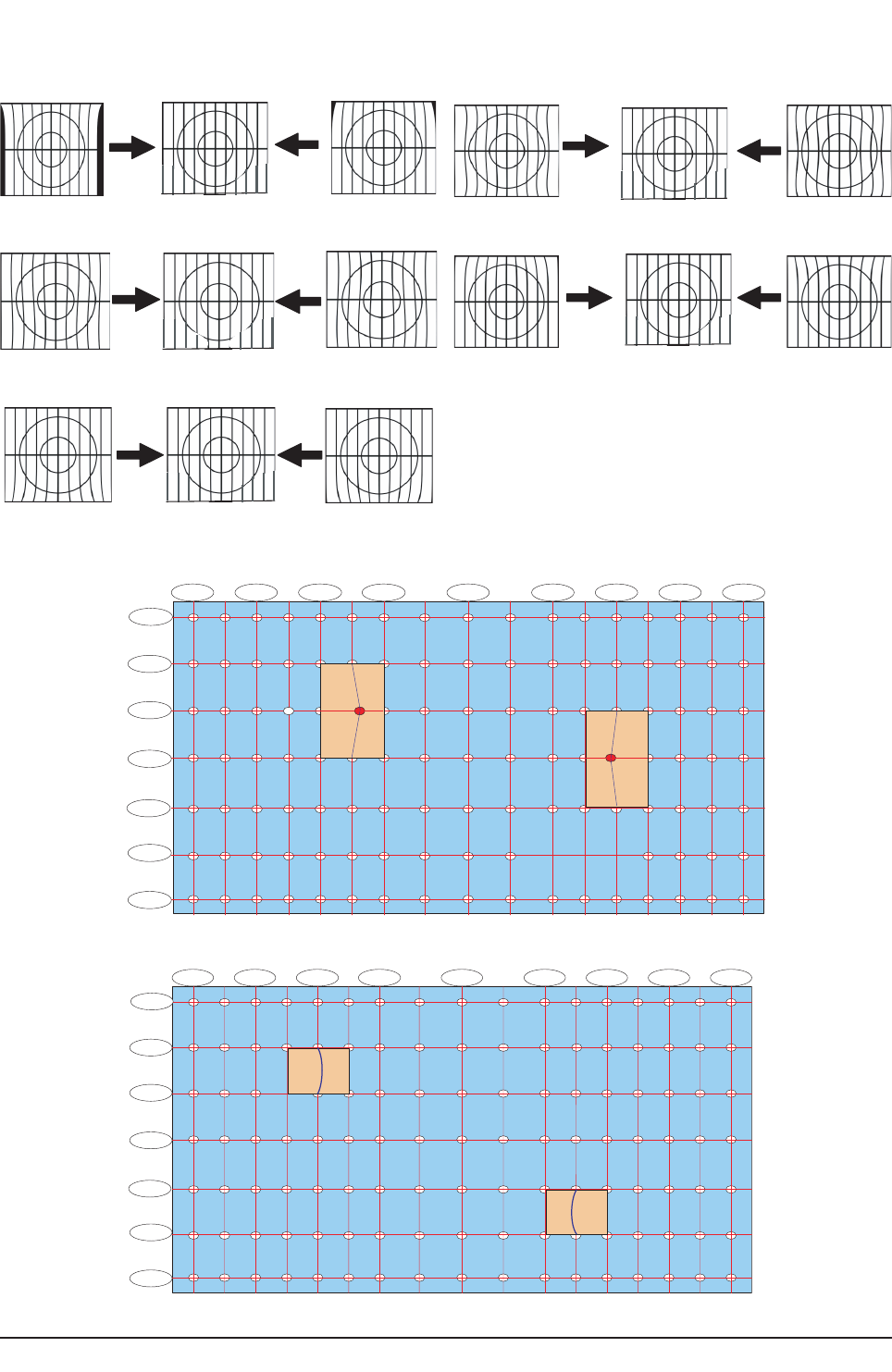

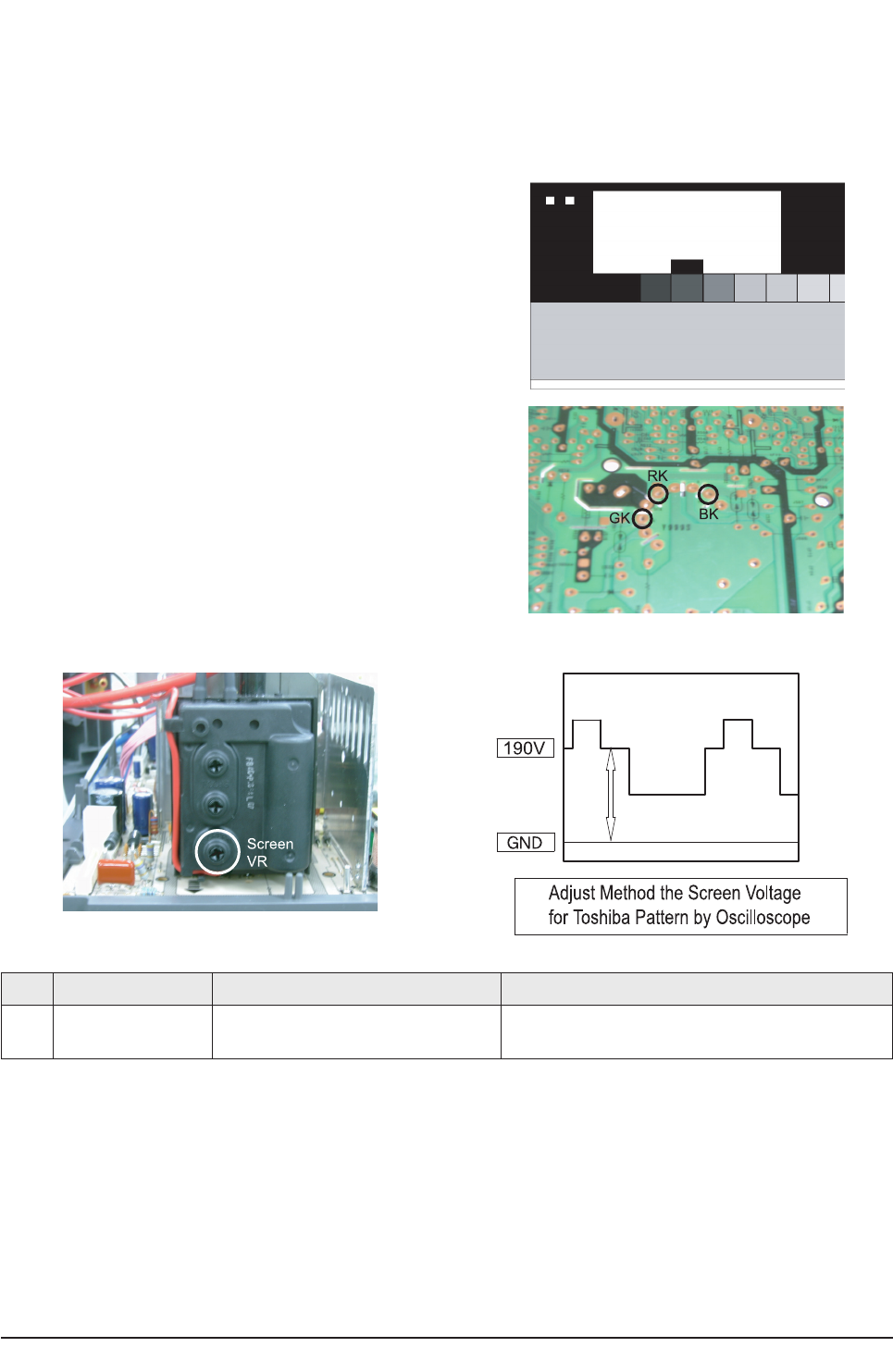

■3-4 Service Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22
■3-5 Replacements & Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
Chapter 4 Exploded View & Part List
■4-1 CS29Z45HPSXNWT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Chapter 5 Electrical Part List
■5-1 CS29Z45HPSXNWT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Chapter 6 Troubleshooting
■6-1 Checkpoints by Error Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
■6-2 Trouble-shooting with New Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

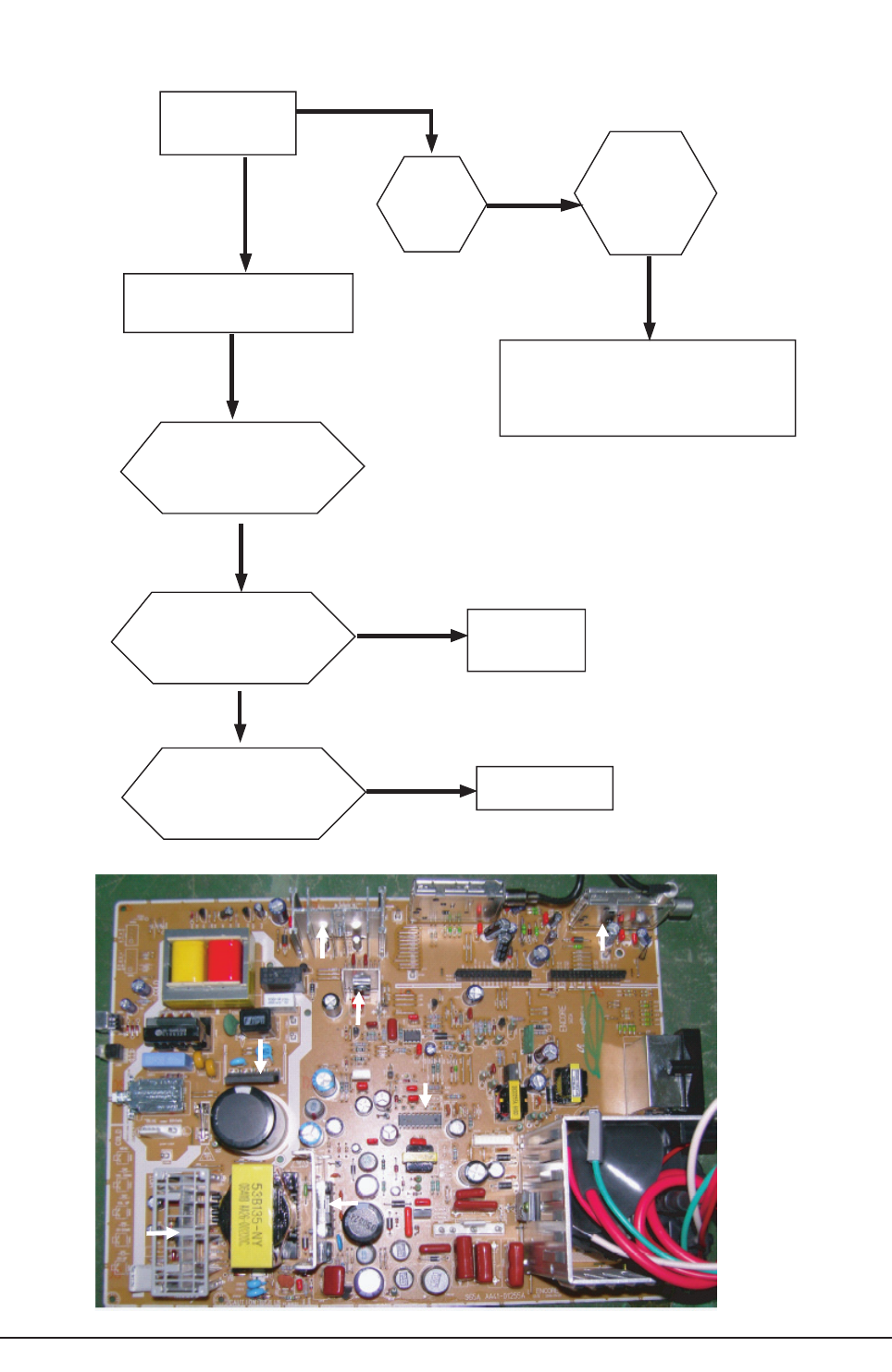

■6-3 Troubleshooting Procedures by Error Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
■6-4 Troubleshooting Procedures by ASS'Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Chapter 7 Block Diagram

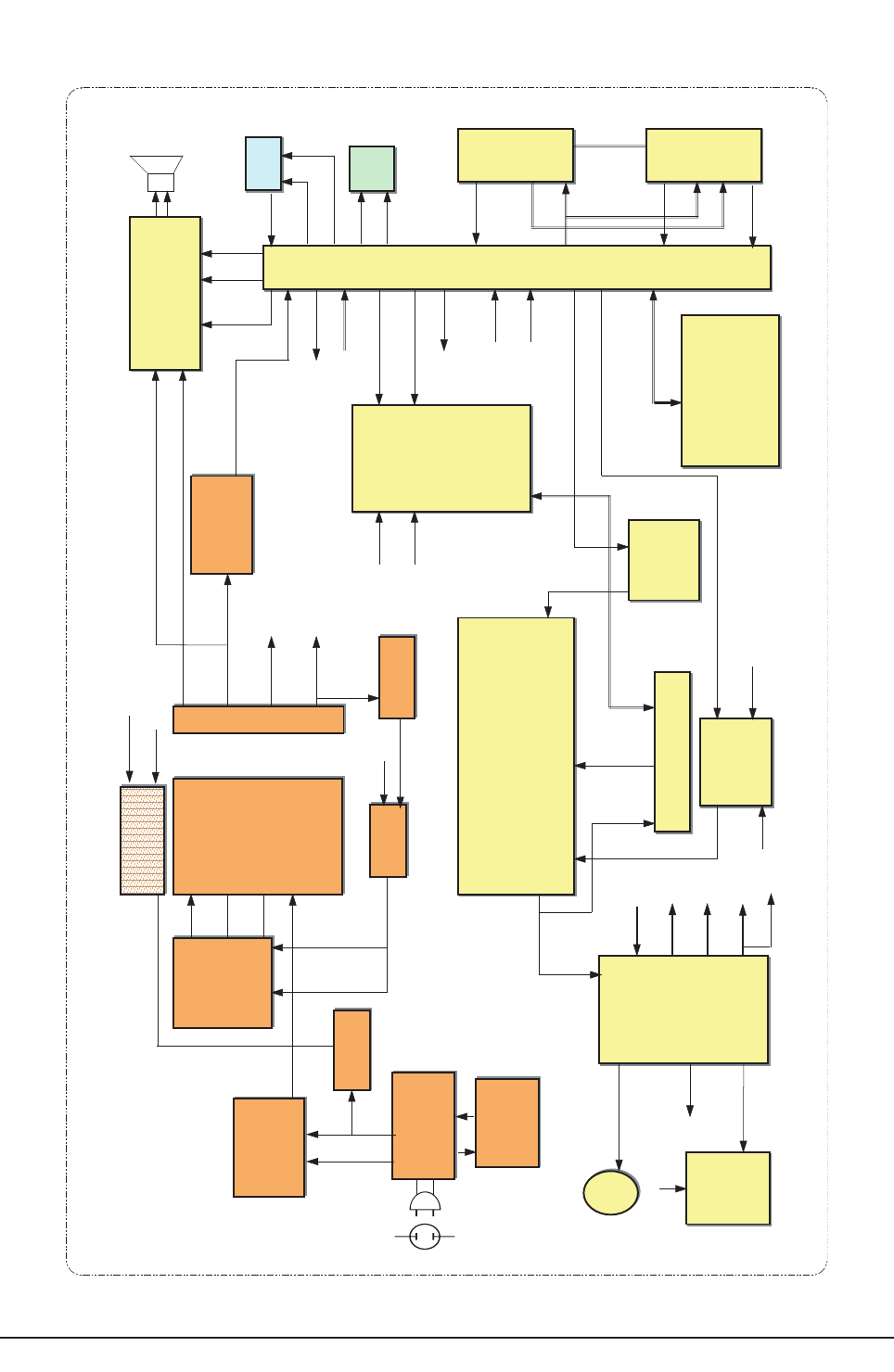

■7-1 Overall Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

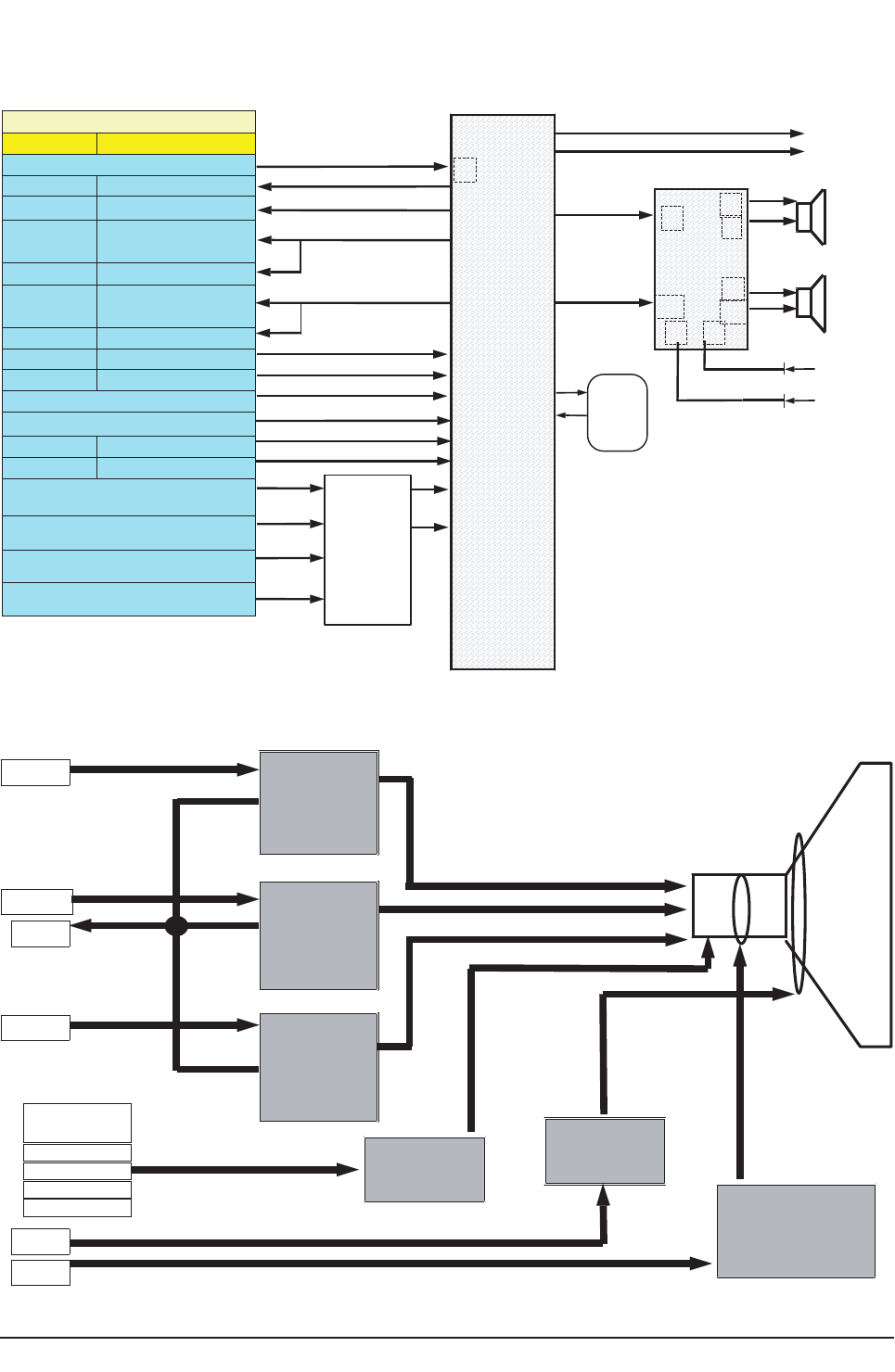

■7-2 Partial Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
■7-3 Power current block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Chapter 8 Wiring Diagram
■8-1 Overall Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
■8-2 Pin Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Chapter 9 PCB Diagram

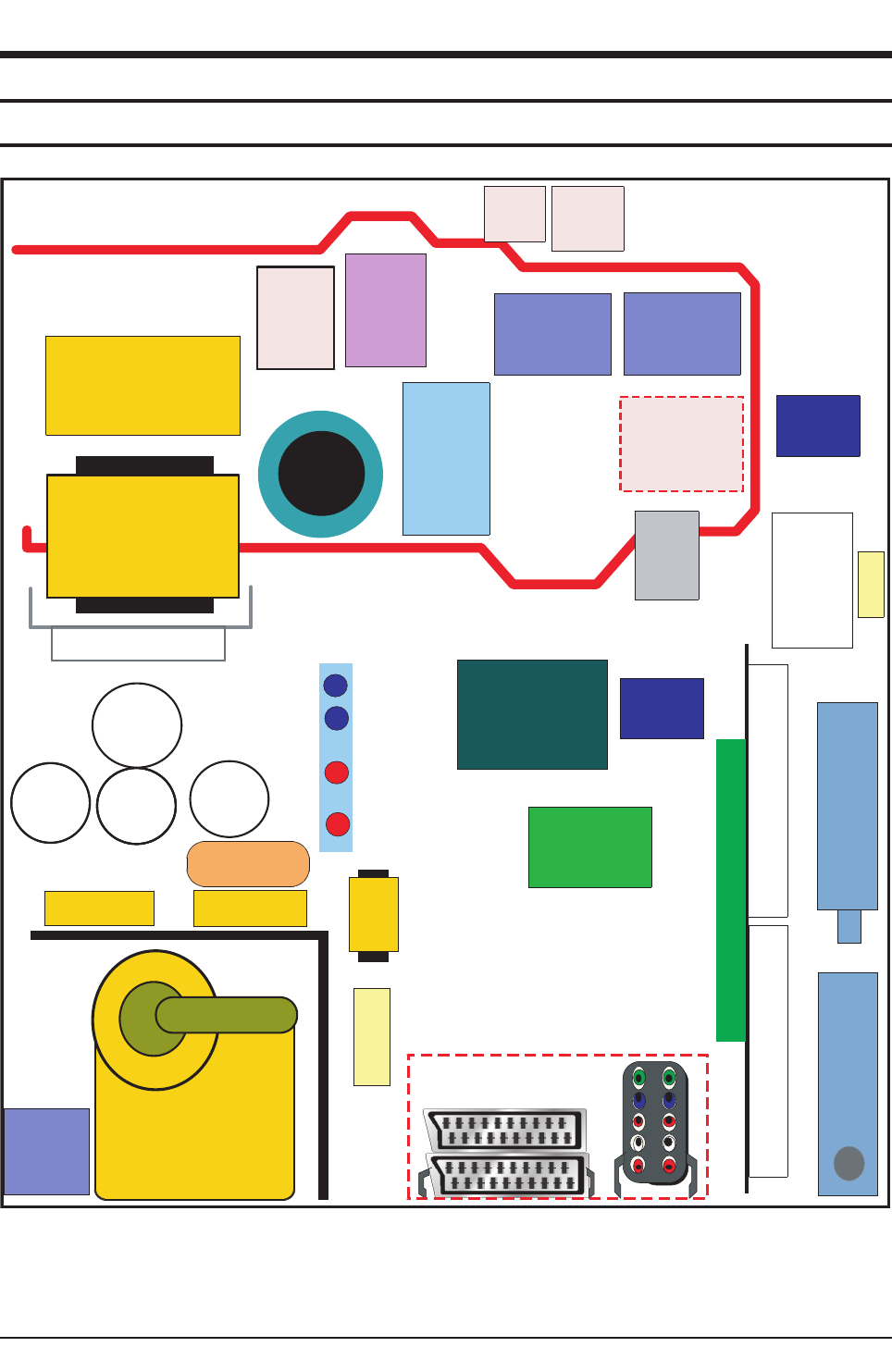

■9-1 Main Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
■9-2 Feature Box Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
■9-3 CRT Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
Chapter 10 Schematic Diagram
■10-1 MAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

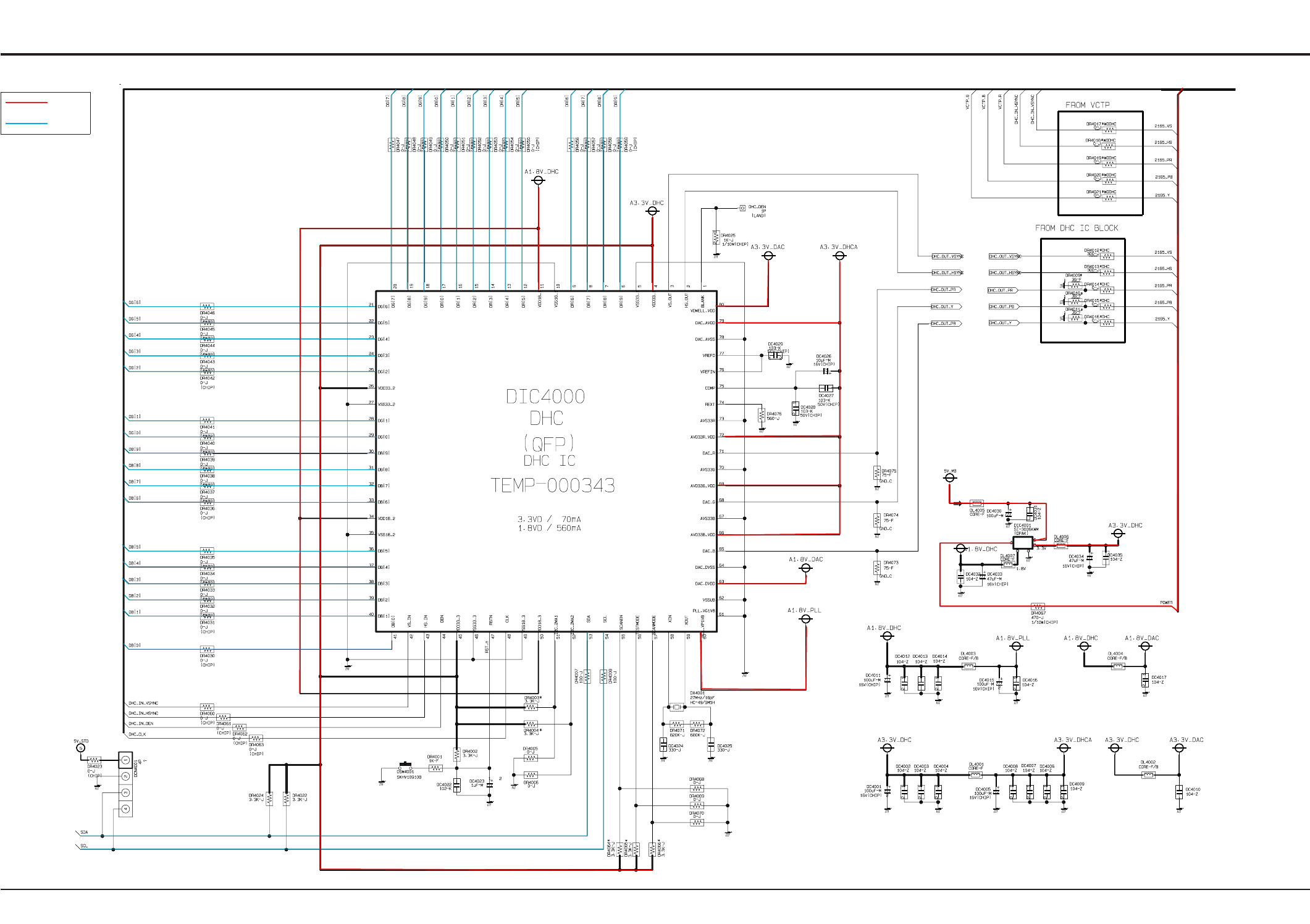

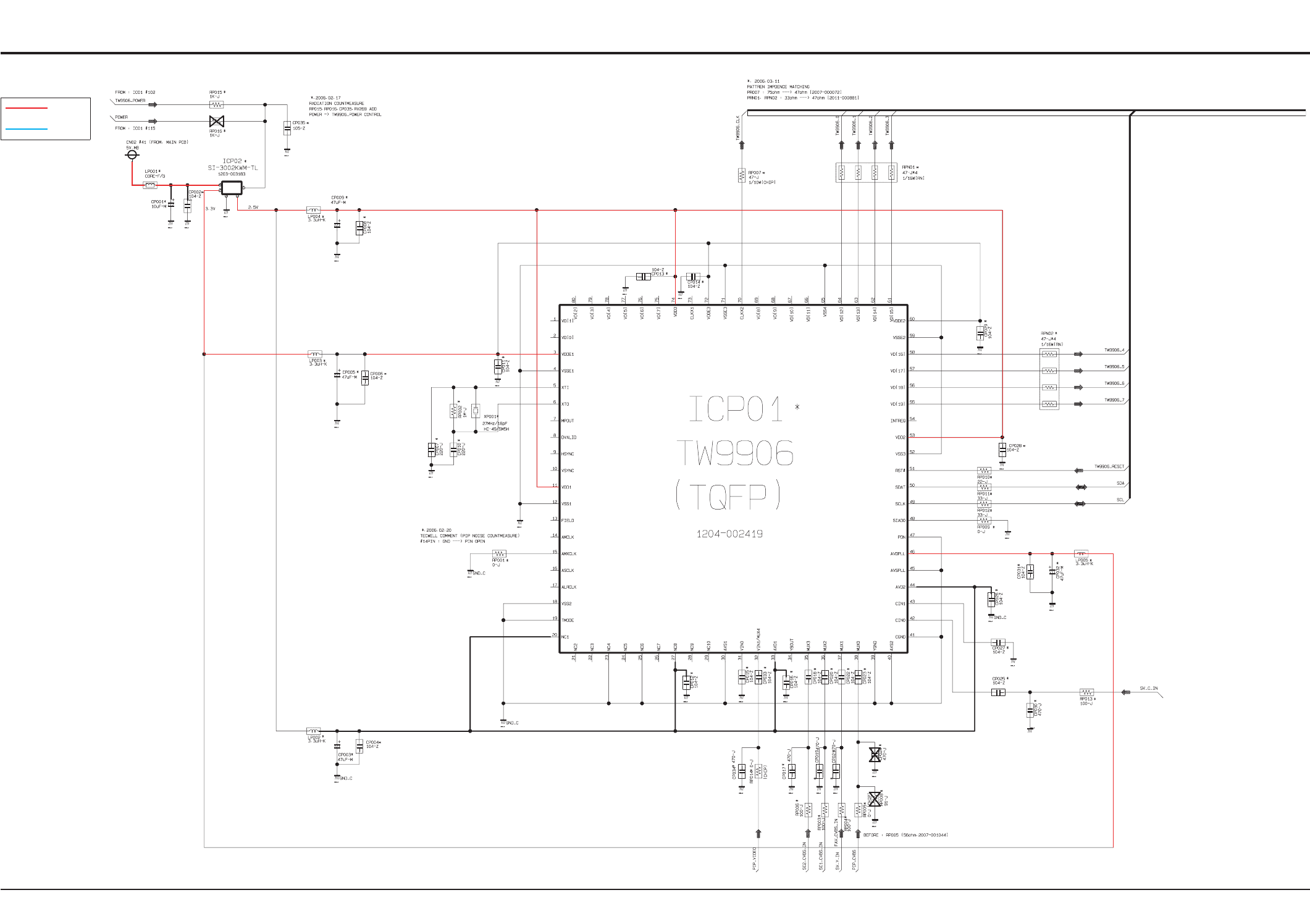

■10-2 Feature Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-4
■10-3 CRT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10

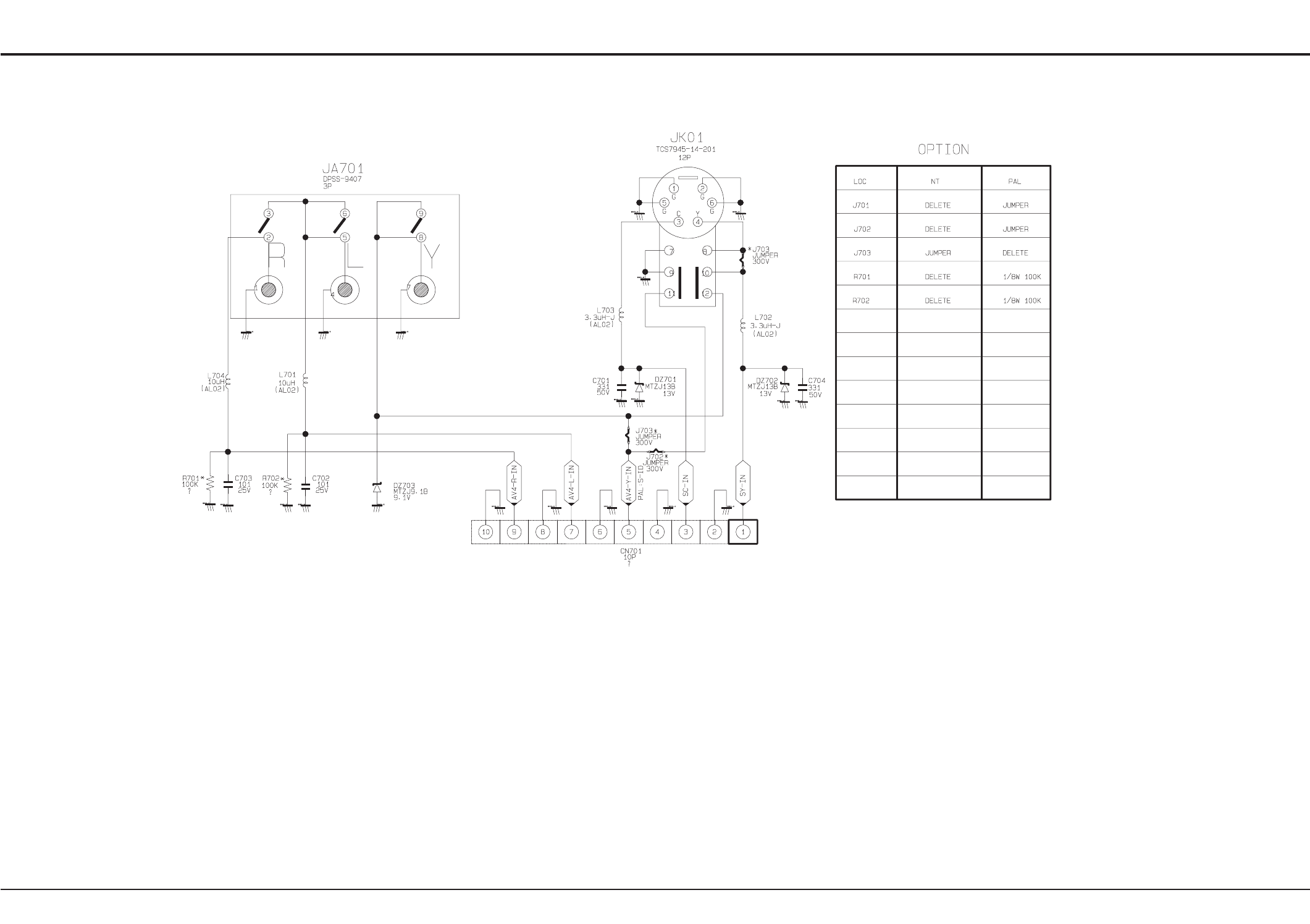

■10-4 AV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11

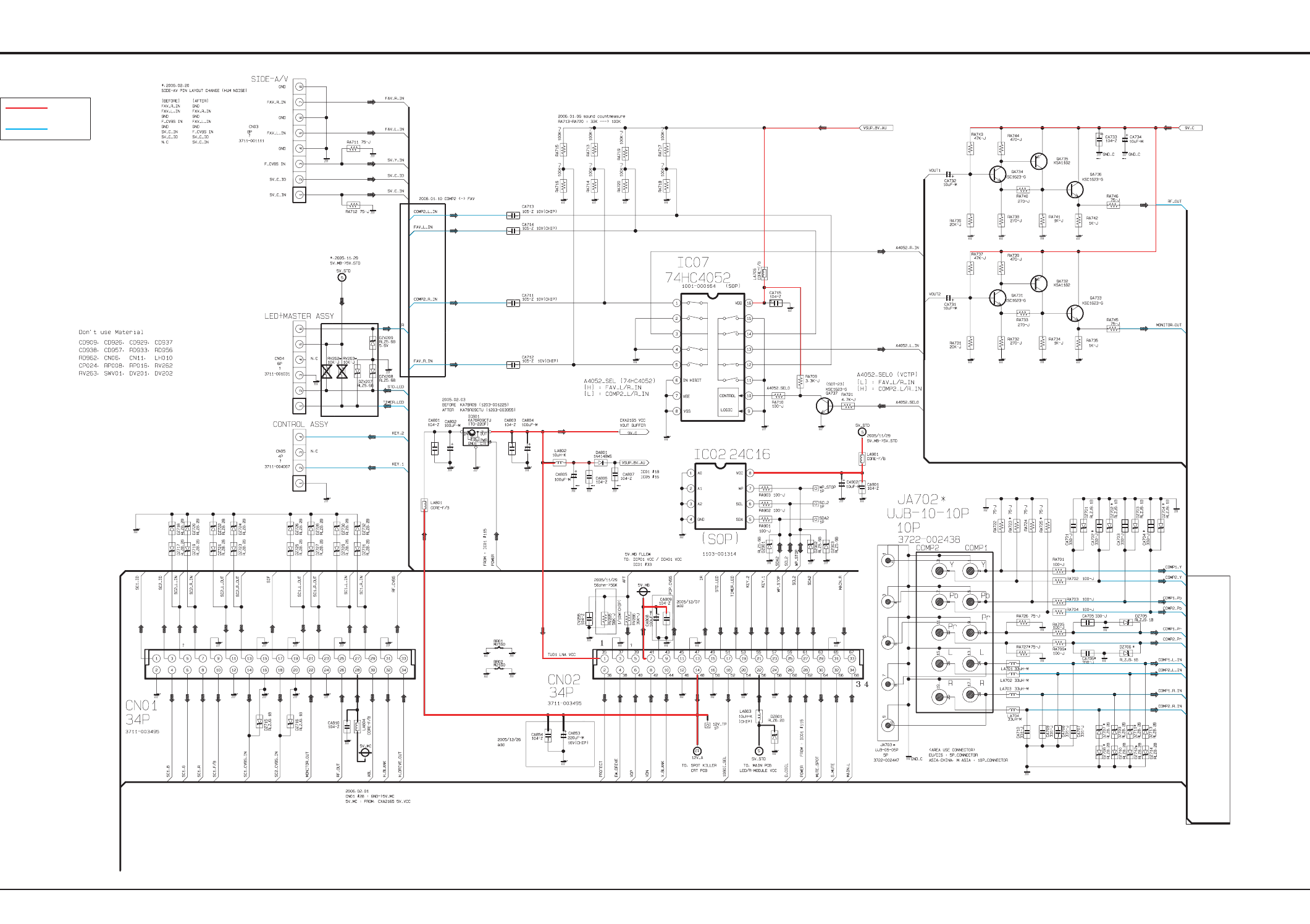

■10-5 CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12
Chapter 11 Operation Instruction & Installation
■11-1 Product Features and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
Chapter 12 Disassembly & Reassembly

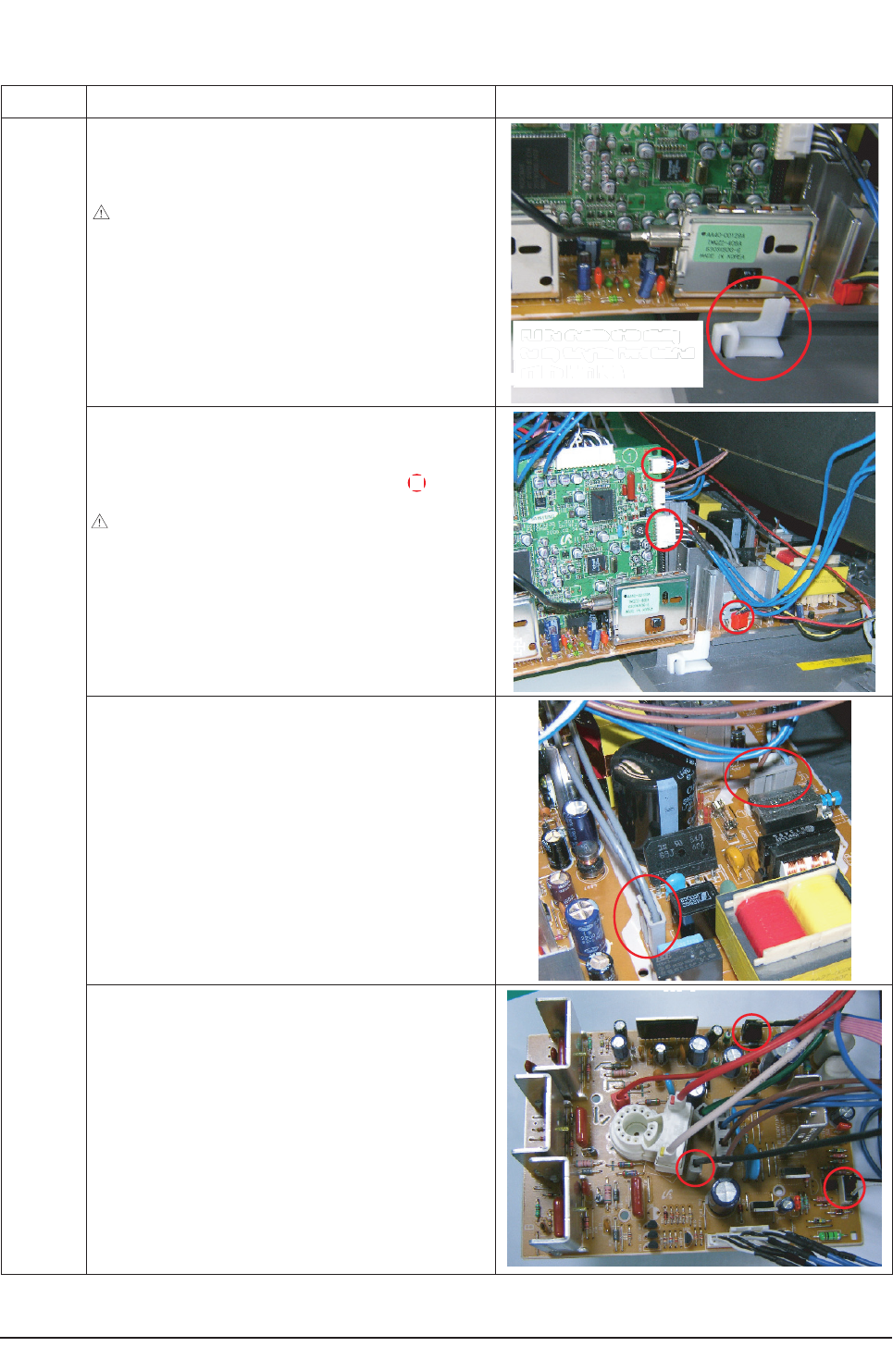

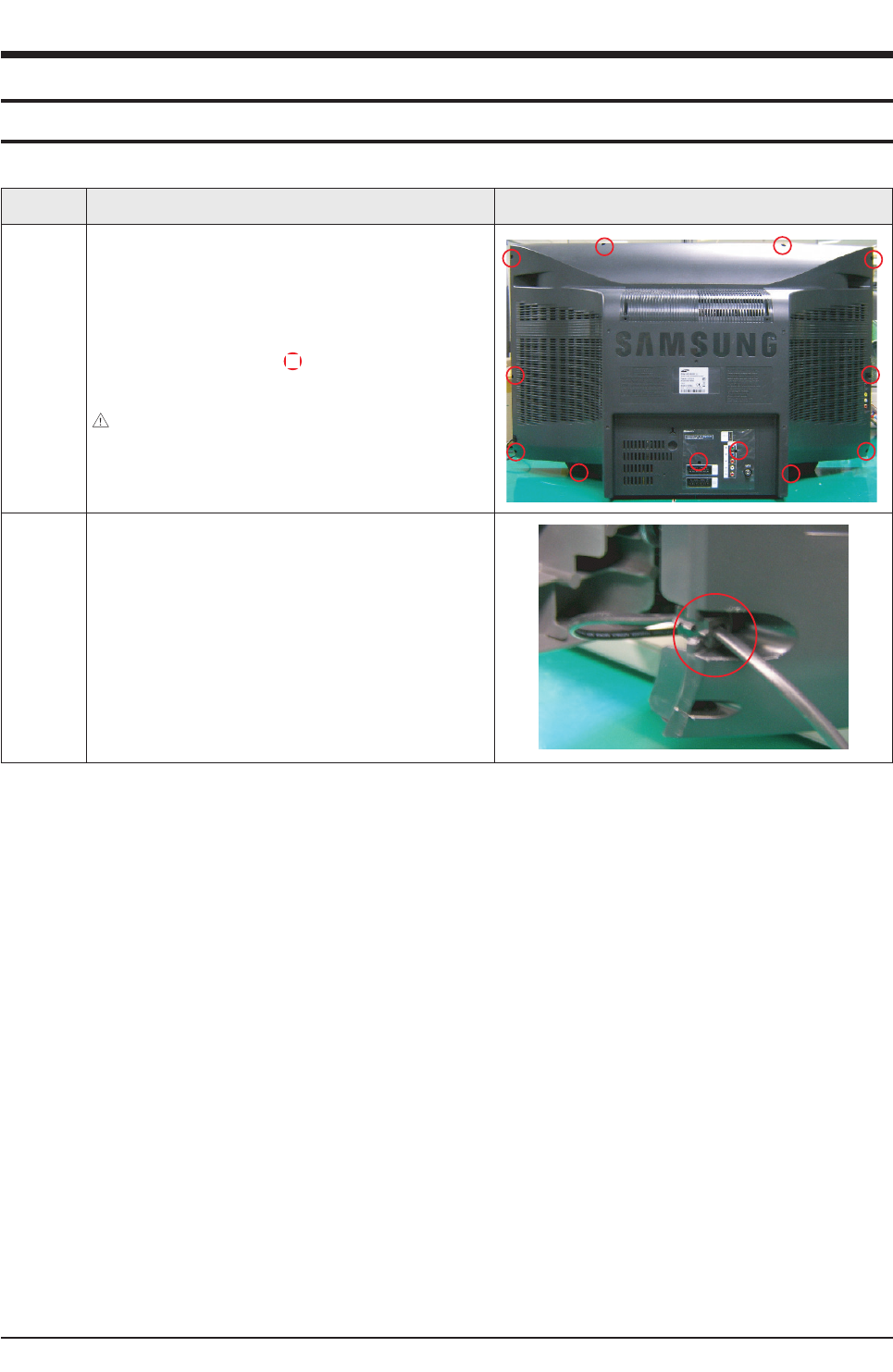

■12-1 Overhaul Disassembly & Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
Chapter 13 Circuit Description
■13-1 Overall Block Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1
■13-2 Partial Block Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-3
■13-3 IC Line up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-8
Chapter 14 Reference Information
■14-1 Other issues related to other products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1
■14-2 Technical Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-2
1. Make sure all protective devices are properly installed
including non-metallic handles and compartment covers
when installing or re-installing the chassis or chassis
assemblies.
2. Make sure that no gaps exist between the cabinets for
children to insert their fingers in to prevent children from
receiving electric shocks. Gaps mentioned above include
ventilation holes of a too great magnitude between the
vaccum tube and the cabinet mask, and the improper
installation of the rear cabinet.
Errors may occur when the resistance is below 1.0 ㏁or
over 5.2 ㏁.
In these cases, make sure that the device is repaired
before sending it back to the customer.

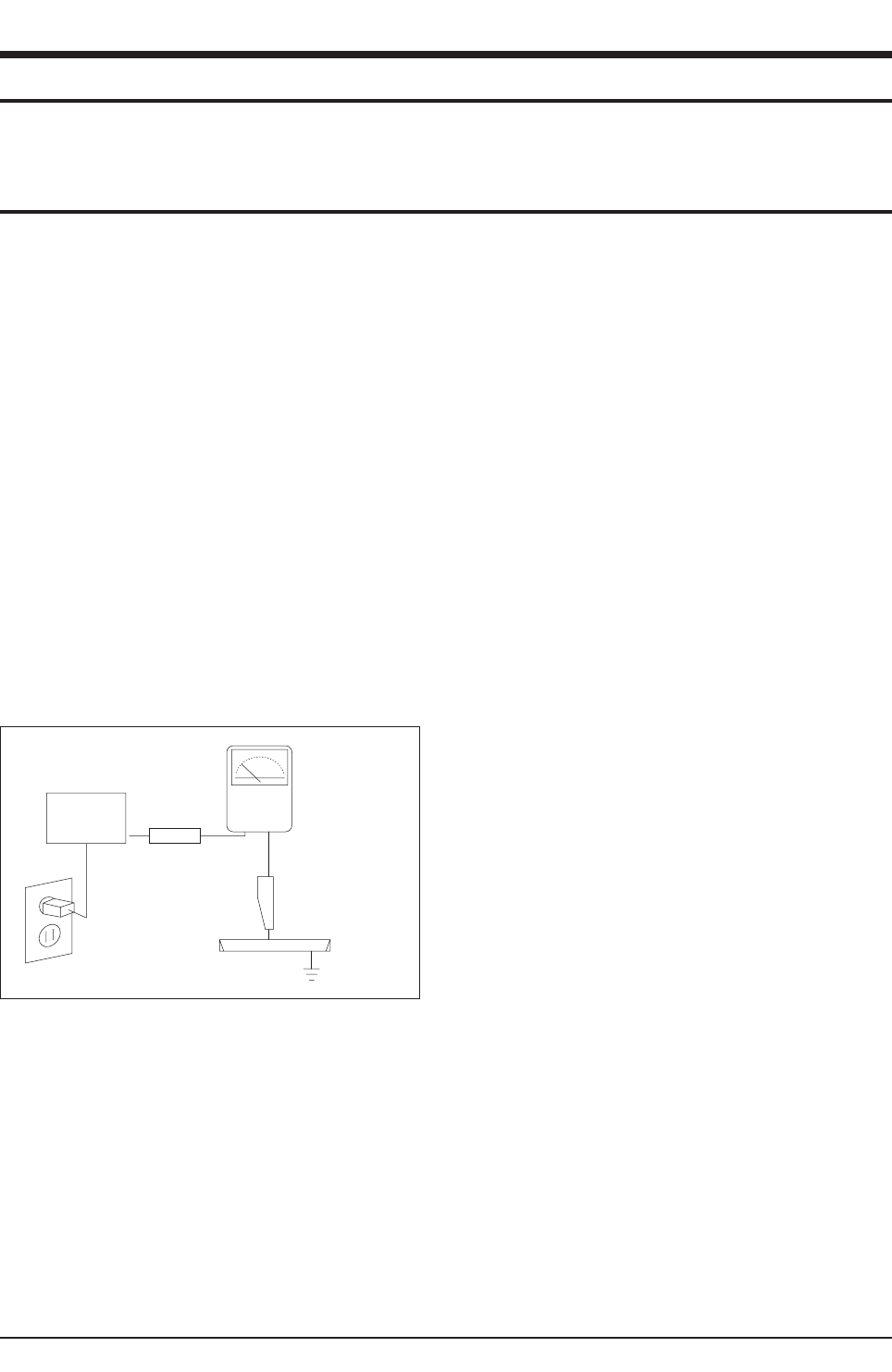

3. Check for Electricity Leakage (Figure 1-1)
Warning: Do not use an insulated transistor for checking
the leakage. Use only those current leakage testers or
mirroring systems that comply with ANSIC 101.1 and the
Underwriter Laboratory's specifications (UL1410, 59.7).
Fig. 1-1 AC Leakage Test
4. A high voltage is maintained within the specified limits
using safety parts, calibration and tolerances. When
voltage exceeds the specified limits, check each special
part.
5. Warning for Engineering Changes:
Never make any changes or additions to the circuit
design or the internal part for this product.
Ex: Do not add any audio or video accessory
connectors. This might cause physical damage.
Furthermore, any changes or additions to the original
design/engineering will invalidate the warranty.
6. Warning - Hot Chassis:
Some TV chassis are directly connected to one end of
the AC power cord for electrical reasons.
Without insulated transistors, the product can only be
repaired safely when the chassis is connected to the
earthed end of the AC power source.
To make sure the AC power cord is properly connected,
follow the instructions below. Use the voltmeter to
measure the voltage between the chassis and the
earthed ground. If the measurement is over 1.0V, unplug
the AC power cord and change the polarity before re-
inserting it. Measure the voltage between the chassis
and the ground again.
7. Some TV chassis are shipped with an additional
secondary grounding system. The secondary system is
adjacent to the AC power line. These two grounding
systems are separated in the circuit using an
unbreakable/unchangeable insulation material.
8. When any parts, material or wiring appear overheated or
damaged, replace them with new regular ones
immediately. When any damage or overheating is
detected, correct this immediately and make a regular
check of possible errors.
9. Check for the original shape of the lead, especially that
of the antenna wiring, any sharp edges, the AC power
and the high voltage power. Carefully check if the wiring
is too tight, incorrectly placed or loose. Never change the
space between the part and the printed circuit board.
Check the AC power cord for possible damages. Keep
the part or the lead away from any heat-emitting
materials.
Precaution
Samsung Electronics 1-1
LEAKAGE
CURRENT
TESTER
DEVICE
UNDER
TEST
TEST ALL
EXPOSED METAL
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED) EARTH
GROUND
(READING SHOULD
NOT BE ABOVE
0.5mA)
To avoid possible damages or electric shocks or exposure to radiation, follow the instructions below with regard to safety,
installation, service and ESD..
1. Precaution
1-1 Safety Precautions
10. Safety Indication:
Some electrical circuits or device related materials
require special attention to their safety features, which
cannot be viewed by the naked eye. If an original part is
replaced with another irregular one, the safety or
protective features will be lost even if the new one has a
higher voltage or more watts.
Critical safety parts should be bracketed with ( ).
Use only regular parts for replacements (in particular,
flame resistance and dielectric strength specifications).
Irregular parts or materials may cause electric shock or
fire.
Precaution
1-2 Samsung Electronics
!
1. The service instructions are printed on the cabinet, and
should be followed by any service personnel.
2. Make sure to unplug the AC power cord from the power
source before starting any repairs.
(a) Remove or re-install parts or assemblies.
(b) Disconnect the electric plug or connector, if any.
(c) Connect the test part in parallel with the electrolytic
capacitor.
3. Some parts are placed at a higher position than the
printed board. Insulated tubes or tapes are used for this
purpose. The internal wiring is clamped using buckles to
avoid contact with heat emitting parts. These parts are
installed back to their original position.
4. After the repair, make sure to check if the screws, parts
or cables are properly installed. Make sure no damage is
caused to the repaired part and its surroundings.
5. Check for insulation between the blade of the AC plug
and that of any conductive materials (i.e. the metal
panel, input terminal, earphone jack, etc).
6. Insulation Check Process: Unplug the power cord from
the AC source and turn the switch on. Connect the insu-
lating resistance meter (500v) to the AC plug blade.
The insulating resistance between the blade of the AC
plug and that of the conductive material should be more
than 1 ㏁.
7. Any B+ interlock should not be damaged.
If the metal heat sink is not properly installed, no
connection to the AC power should be made.
8. Make sure the grounding lead of the tester is connected
to the chassis ground before connecting to the positive
lead. The ground lead of the tester should be removed
last.
9. Beware of risks of any current leakage coming into
contact with the high-capacity capacitor.
10. The sharp edges of the metal material may cause
physical damage, so ensure wearing protective gloves
during the repair.
Precaution
Samsung Electronics 1-3
Warning 1: First carefully read the "Safety Instruction" in this service manual.
When there is a conflict between the service and the safety instructions, follow the safety instruction at all times.
Warning 2: Any electrolytic capacitor with the wrong polarity will explode.
1-2 Servicing Precautions
1-3 Static Electricity Precautions
1. Some semi-conductive ("solid state") devices are
vulnerable to static electricity. These devices are known
as ESD. ESD includes the integrated circuit and the field
effect transistor. To avoid any materials damage from
electrostatic shock, follow the instructions described
below.
2. Remove any static electricity from your body by
connecting the earth ground before handling any
semi-conductive parts or ass'ys. Alternatively, wear a
dischargeable wrist-belt.
(Make sure to remove any static electricity before
connecting the power source - this is a safety instruction
for avoiding electric shock)
3. Remove the ESD ass'y and place it on a conductive
surface such as aluminum foil to prevent accumulating
static electricity.
4. Do not use any Freon-based chemicals.
Such chemicals will generate static electricity that
causes damage to the ESD.
5. Use only grounded-tip irons for soldering purposes.
6. Use only anti-static solder removal devices.
Most solder removal devices do not support an
anti-static feature. A solder removal device without an
anti-static feature can store enough static electricity to
cause damage to the ESD.
7. Do not remove the ESD from the protective box until the
replacement is ready. Most ESD replacements are
covered with lead, which will cause a short to the entire
unit due to the conductive foam, aluminum foil or other
conductive materials.
8. Remove the protective material from the ESD
replacement lead immediately after connecting it to the
chassis or circuit ass'y.
9. Take extreme caution in handling any uncovered ESD
replacements. Actions such as brushing clothes or lifting
your leg from the carpet floor can generate enough static
electricity to damage the ESD.
Precaution
1-4 Samsung Electronics
CAUTION
These servicing instructions are for use by
qualified service personnel only.
To reduce the risk of electric shock do not
perform any servicing other than that contained in the
operating instructions unless you are qualified to do so.
Precaution
Samsung Electronics 1-5
1-4 Installation Precautions
1. For safety reasons, more than two people are required
for carrying the product..
2. Keep the power cord away from any heat emitting
devices, as a melted covering may cause fire or electric
shock.
3. Do not place the projector in areas with poor ventilation
such as a bookshelf or closet. The increased internal
temperature may cause fire.
4. Bend the external antenna cable when connecting it to
the product. This is a measure to protect it from being
exposed to moisture. Otherwise, it may cause a fire or
electric shock.
5. Make sure to turn the power off and unplug the power
cord from the outlet before removing the product. Also
check the antenna cable or the external connectors if
they are fully unplugged. Damage to the cord may cause
fire or electric shock.
6. Keep the antenna far away from any high-voltage cables
and install it firmly. Contacting the high-voltage cable or
the antenna falling over may cause fire or electric shock.
7. When connecting the RF antenna, check for a DTV
receiving system and install a separate DTV reception
antenna for areas with no DTV signal.
8. Check the basics of the screen test.
- Image position/size, Tilt adjustment
1-6 Samsung Electronics
MEMO
Product Specification
Samsung Electronics 2-1
2. Product Specification
2-1 Product Features
Block Specfication EU East asia/CIS Remark
CRT - Slimmer than existing CRTs
Existing: 495mm →Slimfit : 365mm Vixlim-ⅡCRT Vixlim-ⅡCRT
RF Part - Same as for the OZ(S63A) Model TMQZ2-402A, PAL-CW TMQZ2-401A, PAL-CS
Power - Input Voltage : AC 230V (Europe)
- Stand-By : Less than 3W STR-X6750 STR-X6750
Video - PAL/SECAM/NT4.43
- Progressive 100Hz(Full 100Hz)
VCT69xyP
CXA2165
VCT69xyP
CXA2165
Audio - Output : 10W x 2
- Function : SRS-TRUSURROUND VCT69xyP VCT69xyP
Cabinet
- New Front and Back Cabinets
- 184mm of saved space compared to
the existing model
A11:580mm →Z40:396mm
Z40/Z50 Design Applied
FPTV Looking Design
Black Bezel 2Tone
Color Design
Z40/Z50 Design Applied
FPTV Looking Design
Black Bezel 2Tone
Color Design
■Core Parts Functions

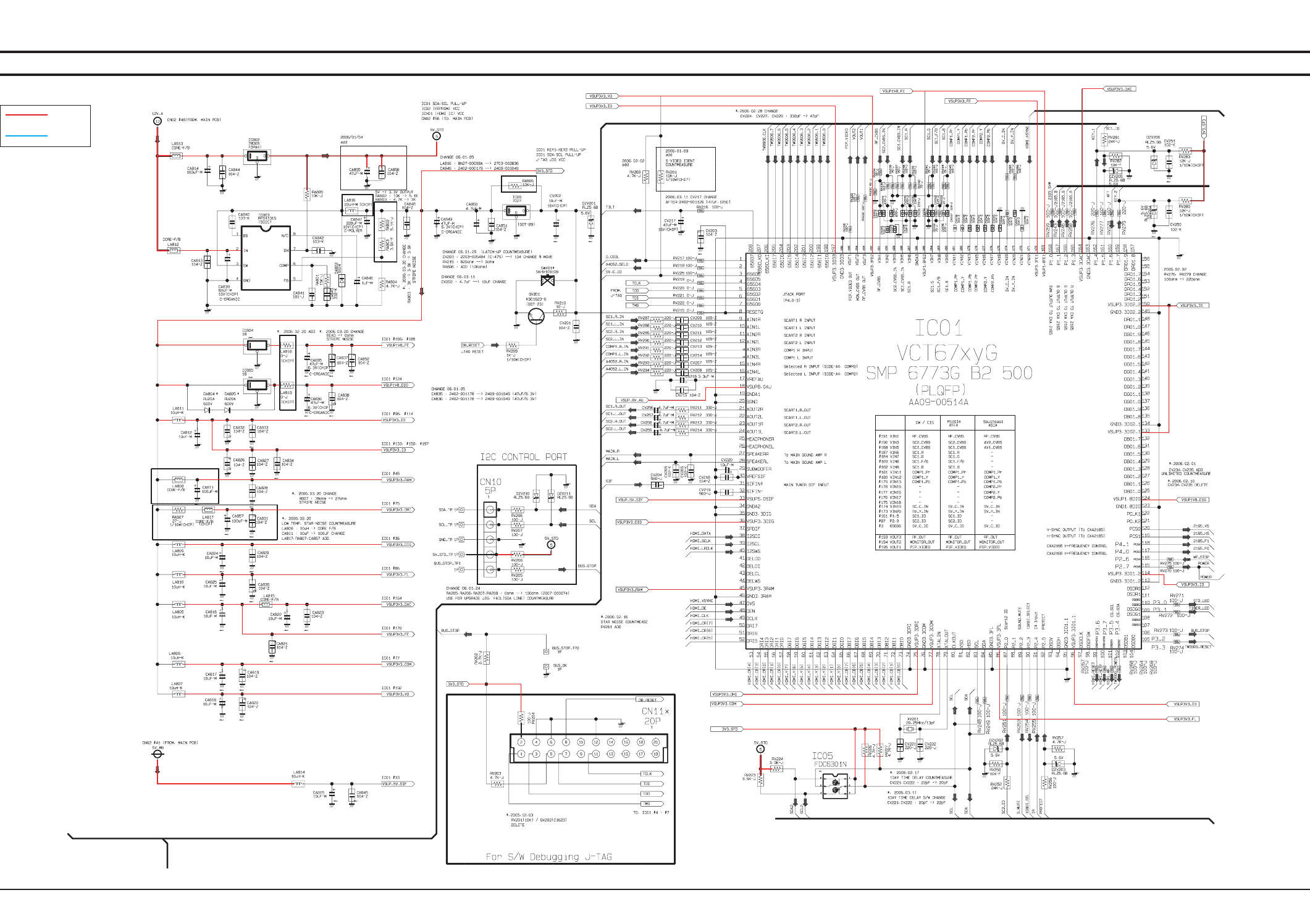

- VCT69xyP: RF-CVBS,EXT-CVBS,FRONT Y,C,SCART1 R/G/B input and Video Signal Processing.
Provides S-IF Analog audio And Digital audio signal input and decoding functions.
I2C-Comunication,Master Control Micom, Rom Micom

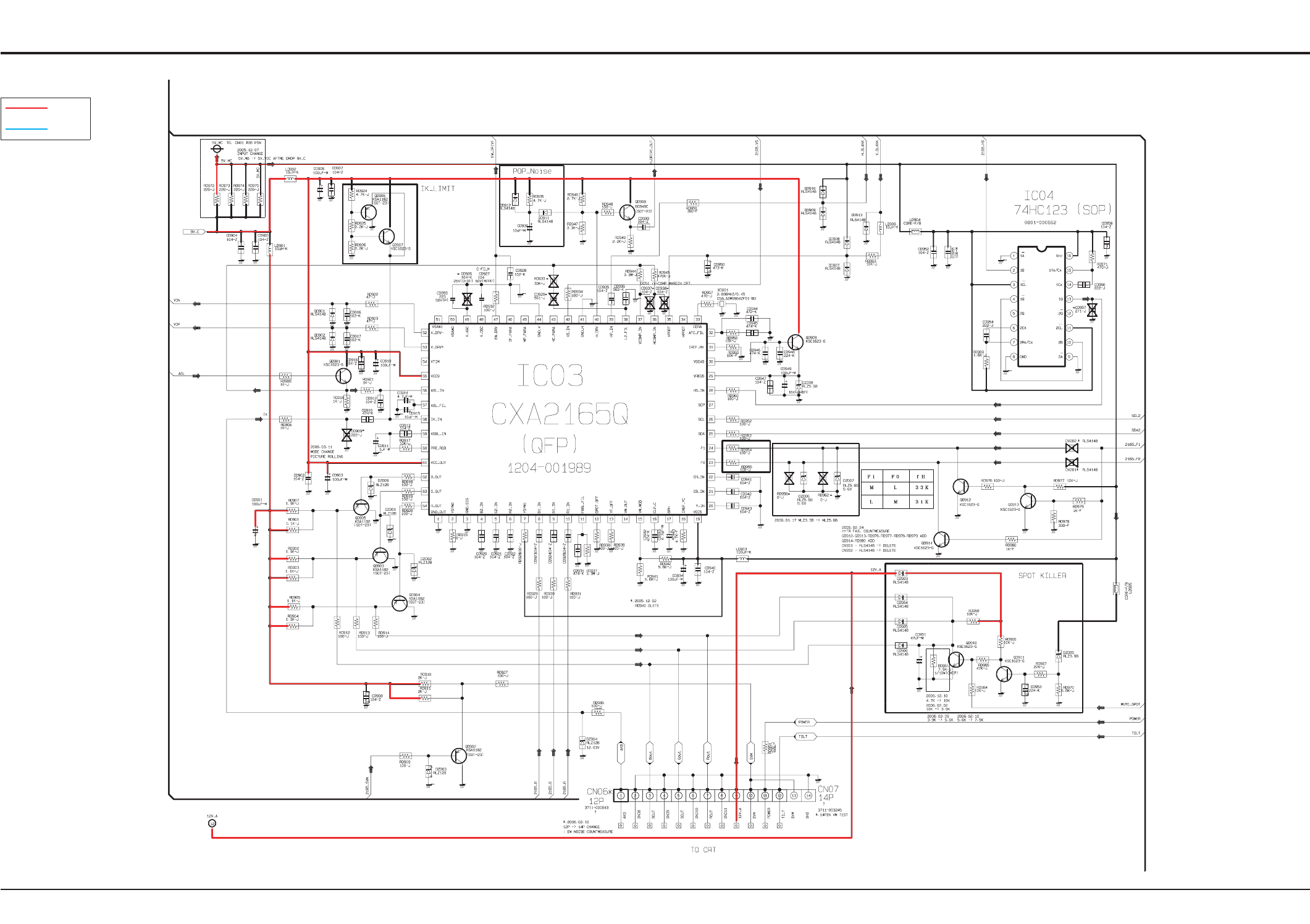

- CXA2165: H-out,VD-P,VD-N,RGB output,Video and Deflection Signal Processing.

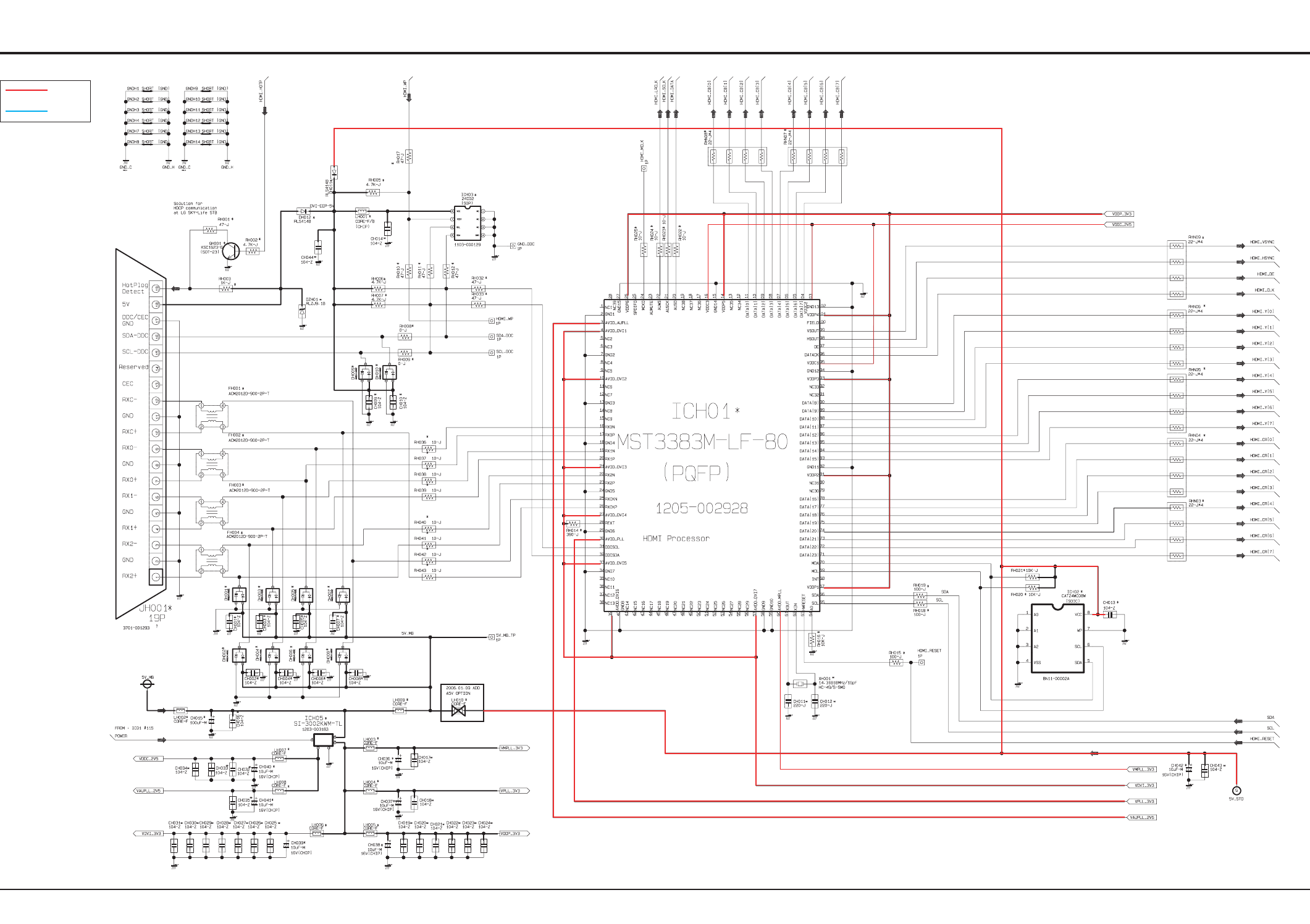

- MST3383M: HDMI decoding Functions
- TW9906: PIP Processor
- DHC IC: DHC-IC Control,Pixel Works
- TDA7297SA: Sound Amp
- STV9381A(KIP 20Pin): Vertical Amp
- STR-W6757: SMPS Controller
Product Specification
2-2 Samsung Electronics
2-2 Key Features
Model
WS32Z50 /WS32Z40/
CW29Z50/ CS29Z45
(Europe)
WS32Z50/WS32Z40/
CS29Z50/CW29Z50
(CIS,ASIA)
wsVoltage AC230V 160~300V
Frequency of Operation 50/60 Hz 50/60 Hz
Dimensions(mm)
934X399X568 (32Z50)
910X415X570(32Z40)
796X421X593 (29")
934X399X568 (32Z50)
910X415X570(32Z40)
796X421X593 (29")
Weight
54.5Kg (32Z50)
53.2Kg (32Z40)
43.0Kg (29")
54.5Kg (32Z50)
53.2Kg (32Z40)
43.0Kg (29")
■H/W Configuration
- Slimfit(Low Depth) CRT adopted
- Progressive 100Hz (Full 100Hz)
■S/W Configuration
- Multi System PAL/SECAM(CIS Option:NTSC4.43/NTSC3.58)
- ATS, Auto Wide, Pre Channel, On/Off Timer, Zoom, Blue Screen
■Picture
- System
Video : PAL/SECAM/ NTSC3.58(CIS Option)
Sound : B/G, D/K, I, L/L', M(CIS Option)
- Black Level expansion, CTI, VM, Dynamic focus
- AKB(Auto kinetic Bias)
- Still picture, Digital Noise reduction
- PIP (2Tuner) : Option

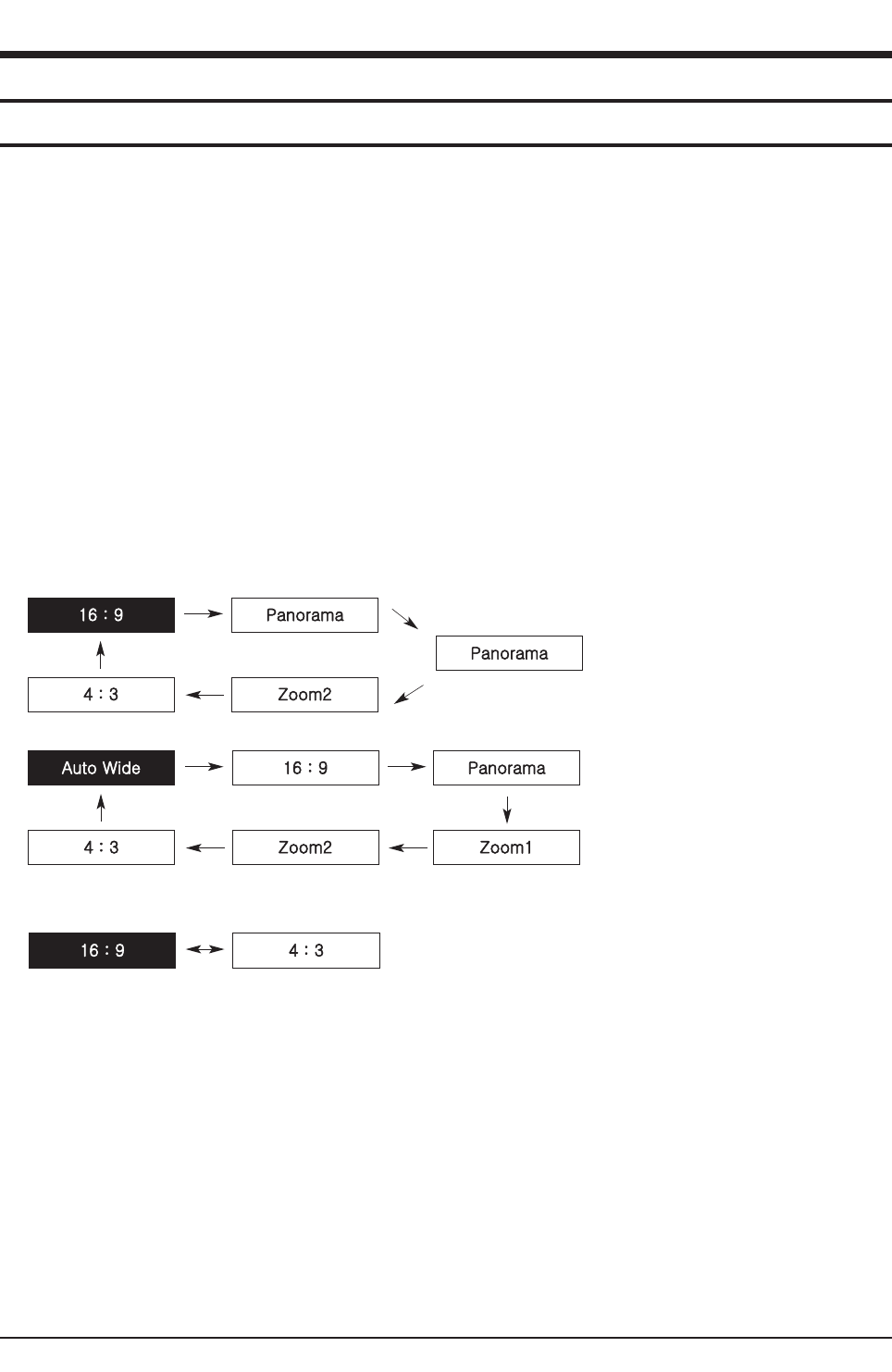

- Auto Wide
■Sound
- System : A2+Niacam Stereo, SRS Trusurround
- Output : 10W+10W
- Speaker : 2EA
- AVL, Melody, Auto Stereo, Auto Mute, Equalize

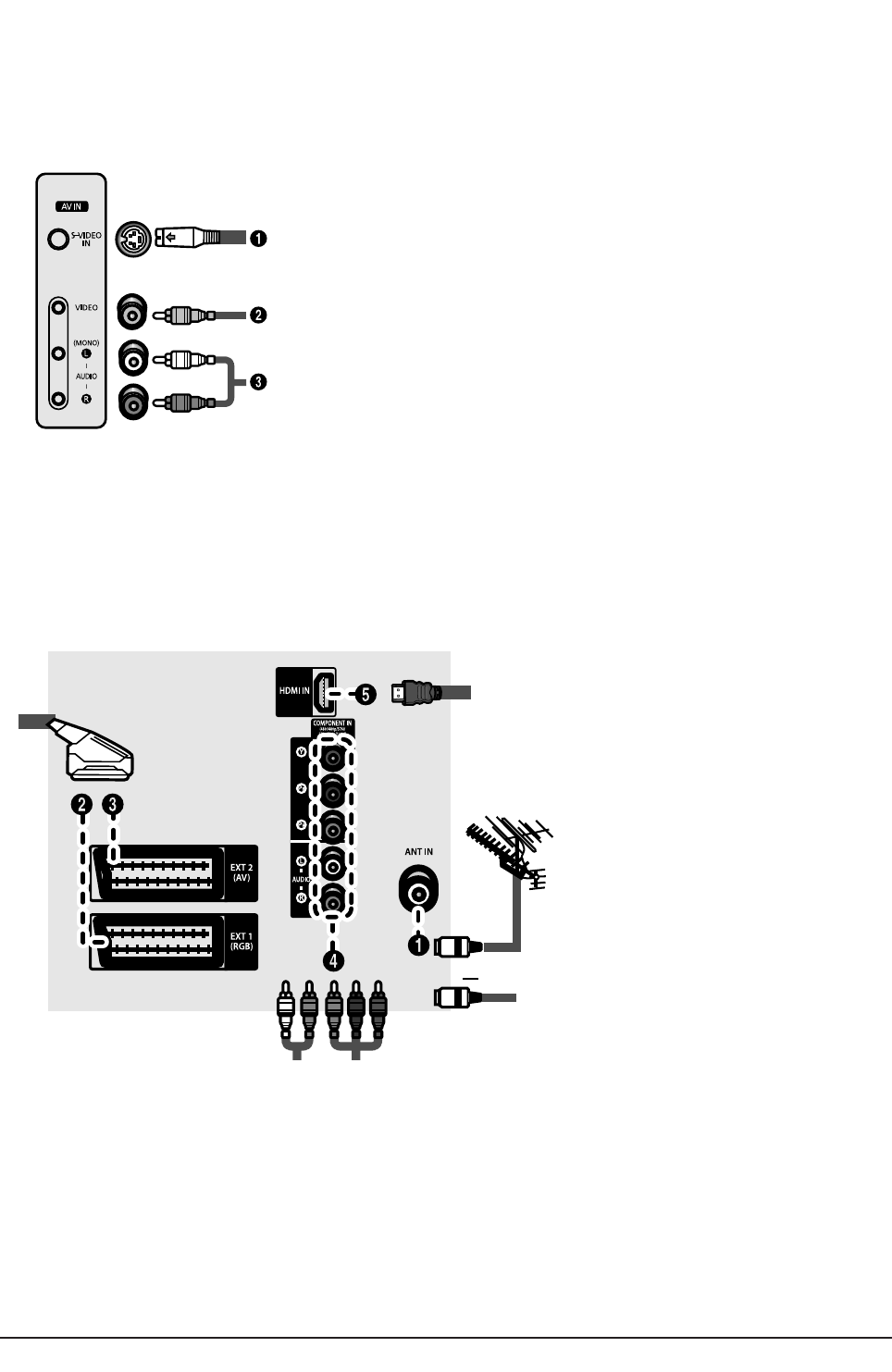

■In/Out Terminals
- Side : 1 CVBS Input, 1 S-Video Input, Sound L/R
- Rear : 2 Scart, 1 Component(480i/480P/576i/576P/720P/1080i/1080P 50Hz/60Hz), 1 HDMI Input(Option)
■Remocon : TM86
■Power Supply
- Europe(230V), CIS,ASIA(160V- 300V)
■Power Consumption
- Stand-by : 3W
- Max Power : 180W
Product Specification
Samsung Electronics 2-3
2-3 Specifications Analysis
Model WS32Z30/CW29Z30 WS32Z40/CW29Z40/CW29Z50/CS29Z50/CS29Z45
Chassis S63A S65A
Design
Basic
Product Type Slimfit CRT Slimfit CRT
Digital Display - -
Screen Size 32 / 29 inch 32 / 29 inch
Aspect Ratio 16:9 / 4:3 16:9 / 4:3
Visual Quality
Digital Comb Filter -O
Screen Pitch 0.73 0.73
AKB O O
Digital Noise Reduction O O
DNIe - -
3:2 Pull Down Support - -
Audio
Base/Treble/Balance - -
Equalizer 5 Band 5 Band
AVL O O
Surround SRS-WOW SRS-TRUSURROUND
Speaker System Direct Direct
Speaker Output 10W + 10W 10W + 10W
Function
Dual Screen Function - -
Double Screen - -
TTX 750page(Option) 750page(Option)
Still Picture O O
Auto Jack Recognition - -
Ports
Antenna In Rear : 1 Rear : 1
External In Rear:2, Side:1 Rear:2, Side:1
S-Video Side : 1 Side : 1
Y/Pb/Pr Rear : 1 Rear : 1
PC - -
DVI - -
HDMI Rear : 1 Rear : 1
Digital Audio Out - -
Video Out Rear : 1 Rear : 1
Audio Out - -
2-4 Accessories
Product Specification
2-4 Samsung Electronics
Accessories Item Item code Remark
Supplied Accessories
Remote Control
Batteries
AA59-00382A
4301-000121
Samsung Service centerOwner's Instructions AA68-03902A
Warranty Card
Registration Card
Safety Guide Manual
AA68-03724B
AA68-03576A
AA68-03242E
Accessories that can be
purchased additionally
Video Cable
Audio Cable -
Electronics Store/
Internal shopping mall
Component Cable(RCA) -
Antenna Cable -
HDMI Cable -
HDMI/DVI Cable -
Alignment & Adjustment
Samsung Electronics 3-1
3. Alignment & Adjustment
3-1 Service Instruction

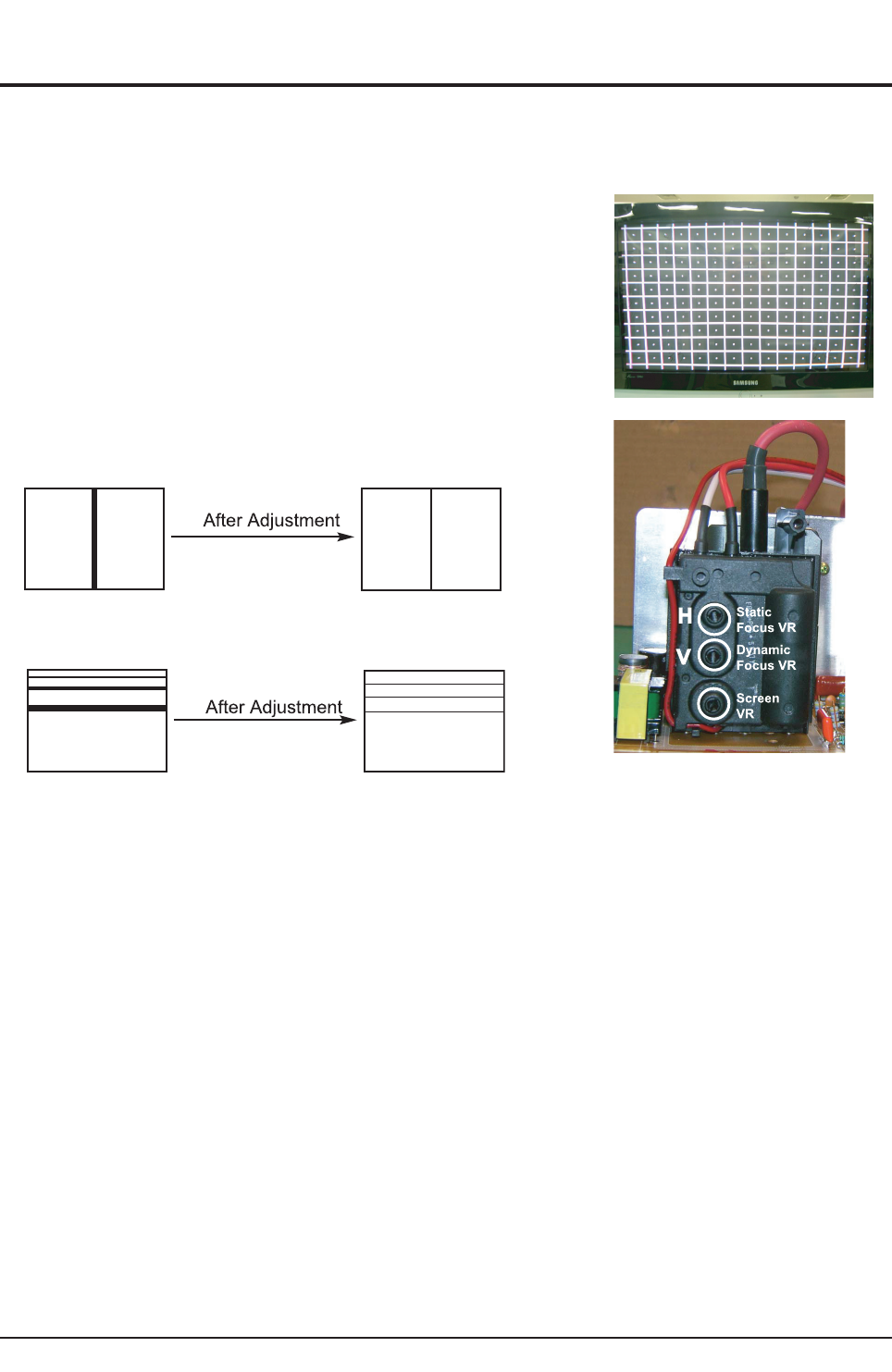

1. General Adjustment :
In general, a color TV can provide ideal visual quality by adjusting the basic settings such as the vertical size, horizontal size,
focus, etc.
Display a black and white picture on the screen to check if the picture is clearly displayed.
If there are some 'spotted' points on the screen when displaying a black and white picture, degauss the screen using the
degauss coil. If the spotted points remain, re-adjust the purity and the convergence. This completes the basic performance
examination.
Notice.
■These adjustments and the check list are only applied to S65A chassis-applied models.
■Only use 230V for the measurement set. It is recommended using an insulation transformer when supplying power to
the set so as to prevent shock to the set or to yourself.
■These adjustment specifications have been created on the basis of the domestic S65A chassis-applied remote control
model. Some of the contents may be changed subject to the sales location and the product specifications.

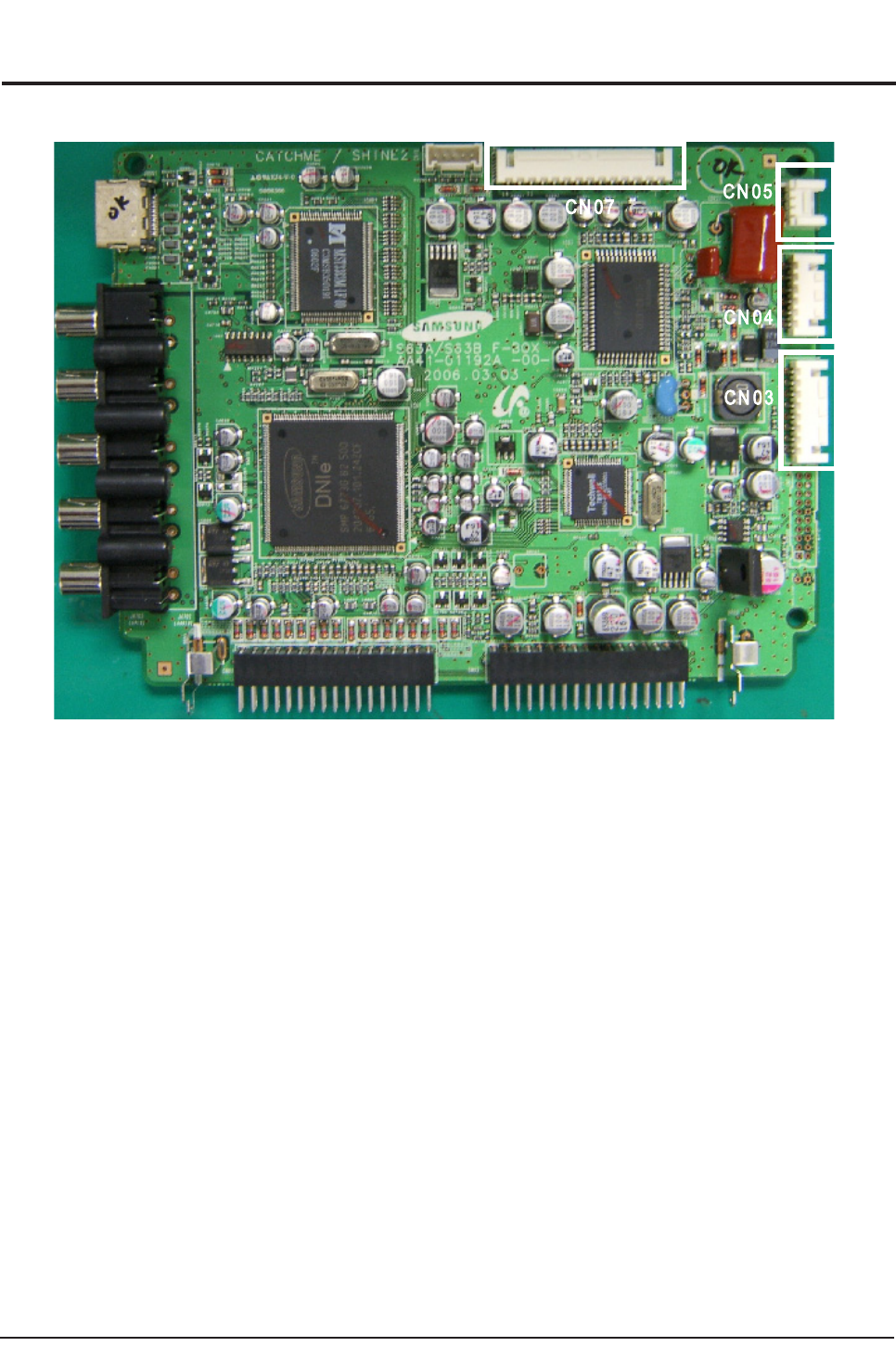

2. When replacing the F_Box Board :
Since the software is loaded to the EPROM of the F_box board, check the version of the
software of the EPROM.
To check the version of the software, Enter service mode presee the key on the reomte
control according to the following seguenu.
(in stand-by status) Info→Menu→Mute→Power→ON
The software information will then be displayed below the OSD menu.
The notation of the software information : For example, T_SHPEU_1009 refers to
"CORSET BASIC MODEL Europe. ver.1009".
Since the settings including the Channel
information, Deflection, etc. are saved to the
nvRAM, reconfigure these settings when
replacing the System Board

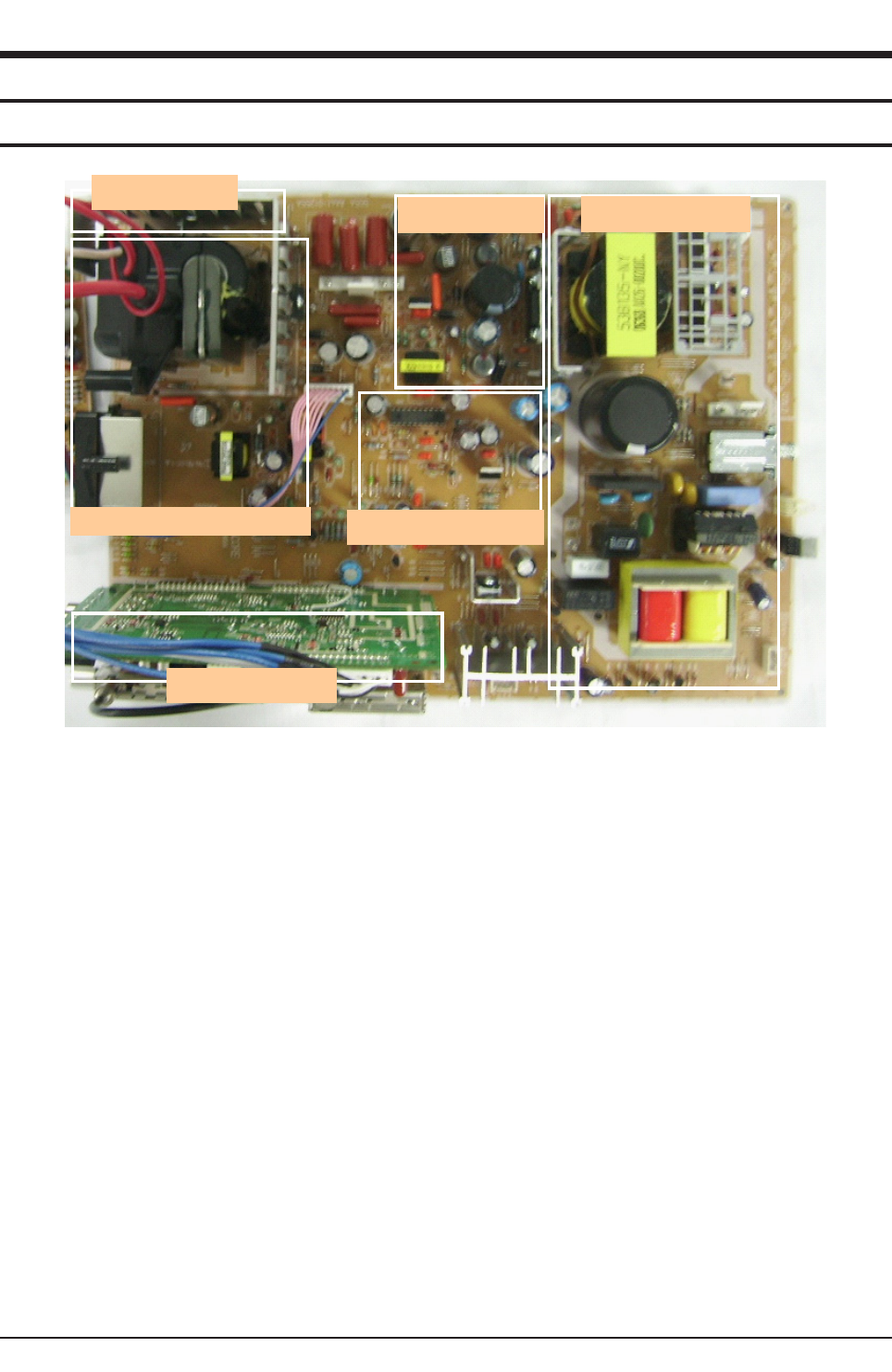

3. When replacing the Main Board : No adjustments required. Except that Tilt adjustment, focus adjustment, screen voltage
setting and W/B adjustment are all required.
4. When replacing the CRT Ass'y : No adjustments required.
5. When replacing the front panel master power switch : No adjustments required.
6. When replacing the Side AV : No adjustments required.
7. When replacing the control switch : No adjustments required.
Alignment & Adjustment
3-2 Samsung Electronics

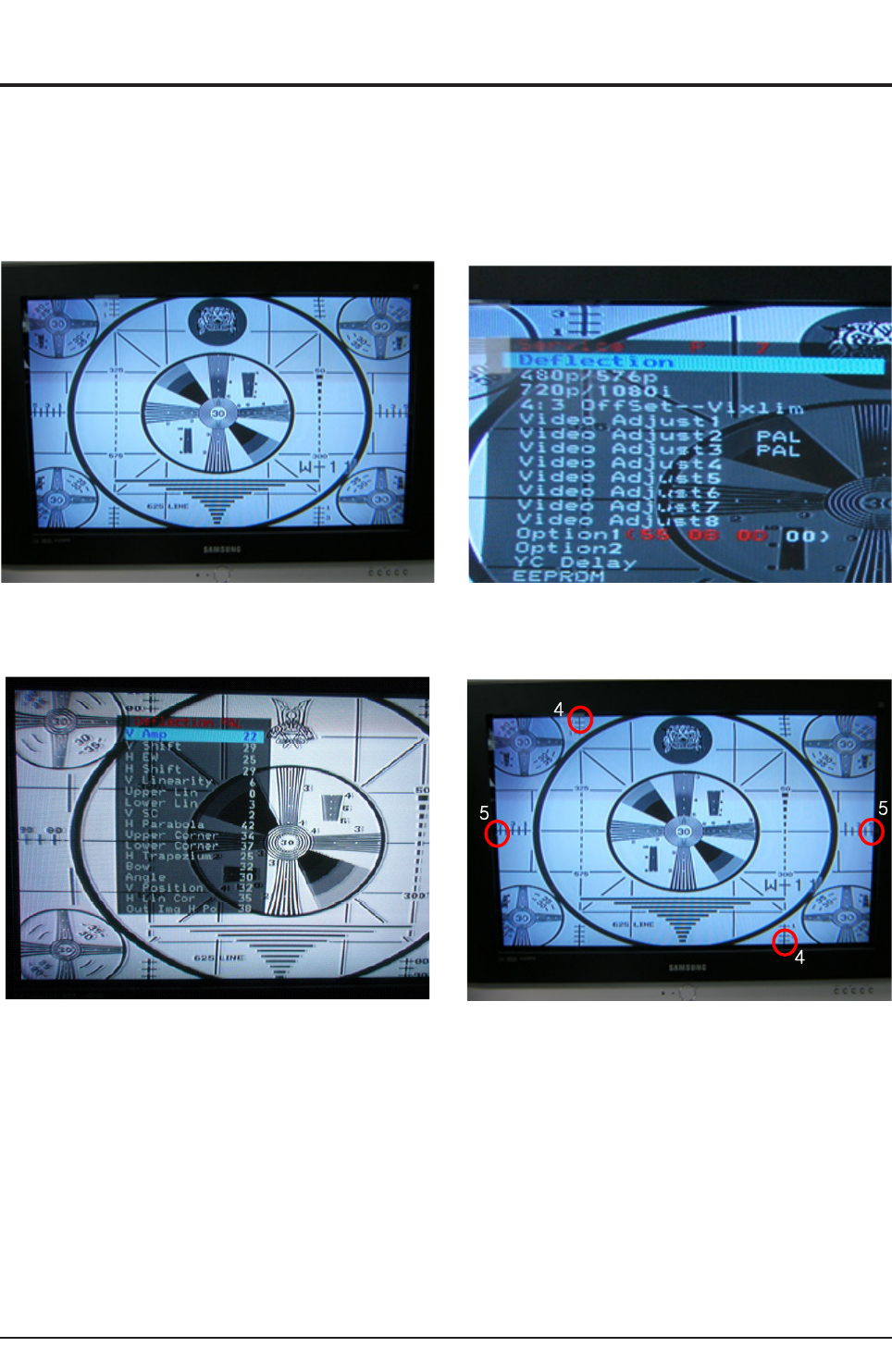

3-2 How to Access Service Mode
MENU Show all menus
▲/ ▼Move the cursor to select an item.
◀/ ▶Adjust the selected configuration value
1. To enter Service Mode, press the keys on the remote control according to the following sequence. (in Stand-by status)
Info →Menu →Mute →Power On
※When failing to enter Service Mode, repeat the procedure above.
2. The initial screen of Service Mode.
<Europe> <CIS>
3. Functions of the Keys within Service Mode
Service P 9
Deflection
480/576P
720P/1080i
DHC Control1
DHC Control2
DHC LocalCor
Video Adjust1
Video Adjust2
Video Adjust3
Video Adjust4
Video Adjust5
Video Adjust6
Video Adjust7
Video Adjust8
Optios:55 OE OD
EEPROM
Checksum 0000
Reset
T-encore eu 06-10-26
Service P 9
Deflection
480/576P
720P/1080i
DHC Control1
DHC Control2
DHC LocalCor
Video Adjust1
Video Adjust2
Video Adjust3 PAL
Video Adjust4 PAL
Video Adjust5
Video Adjust6
Video Adjust7
Video Adjust8
Optio1:55 OE OD
Optio2
YC Delay
EEPROM
Reset
T-ENCPAS-0001/06-12-26
Alignment & Adjustment
Samsung Electronics 3-3
3-3 Factory Data
■CIS/SE-A

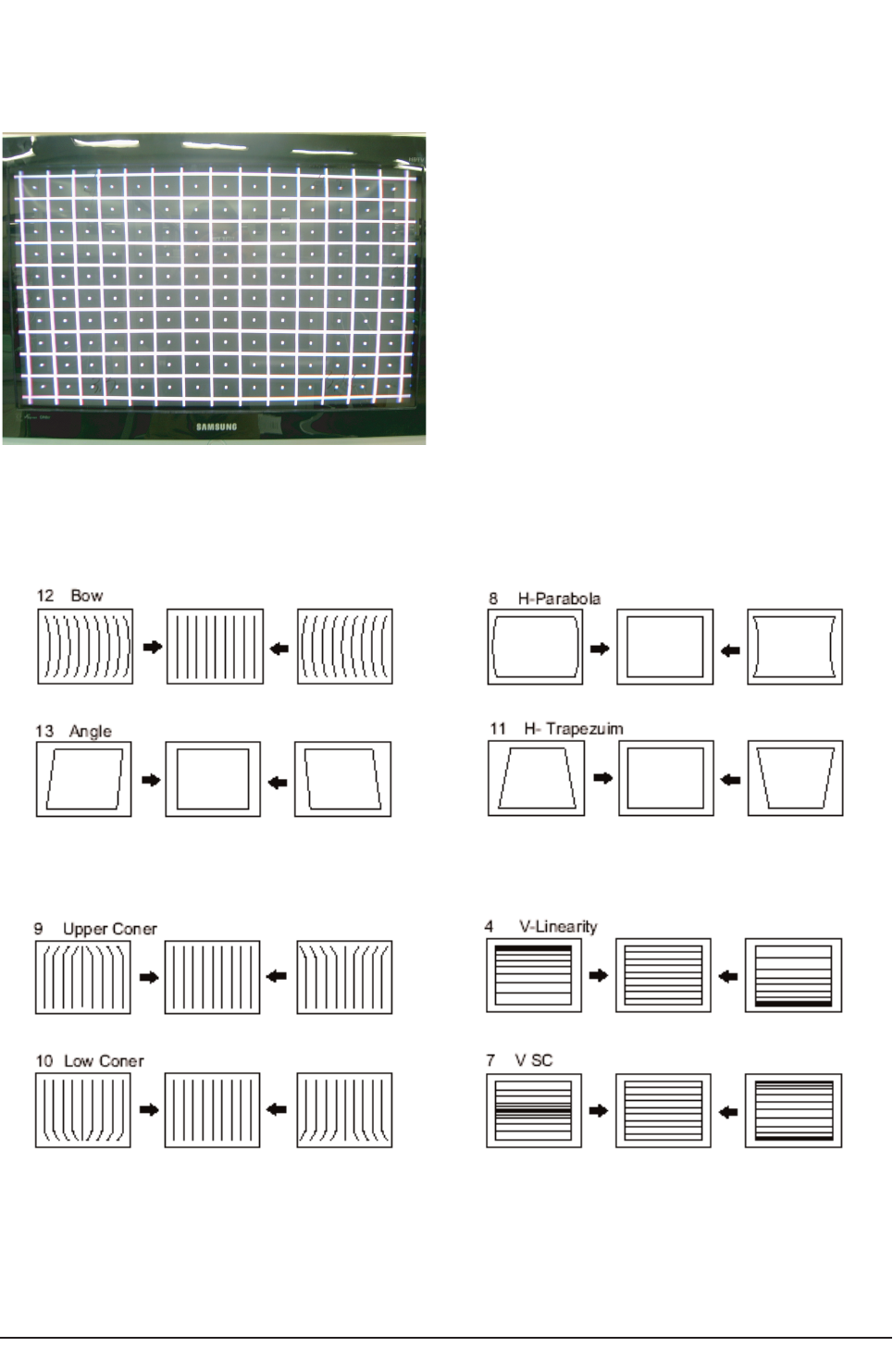

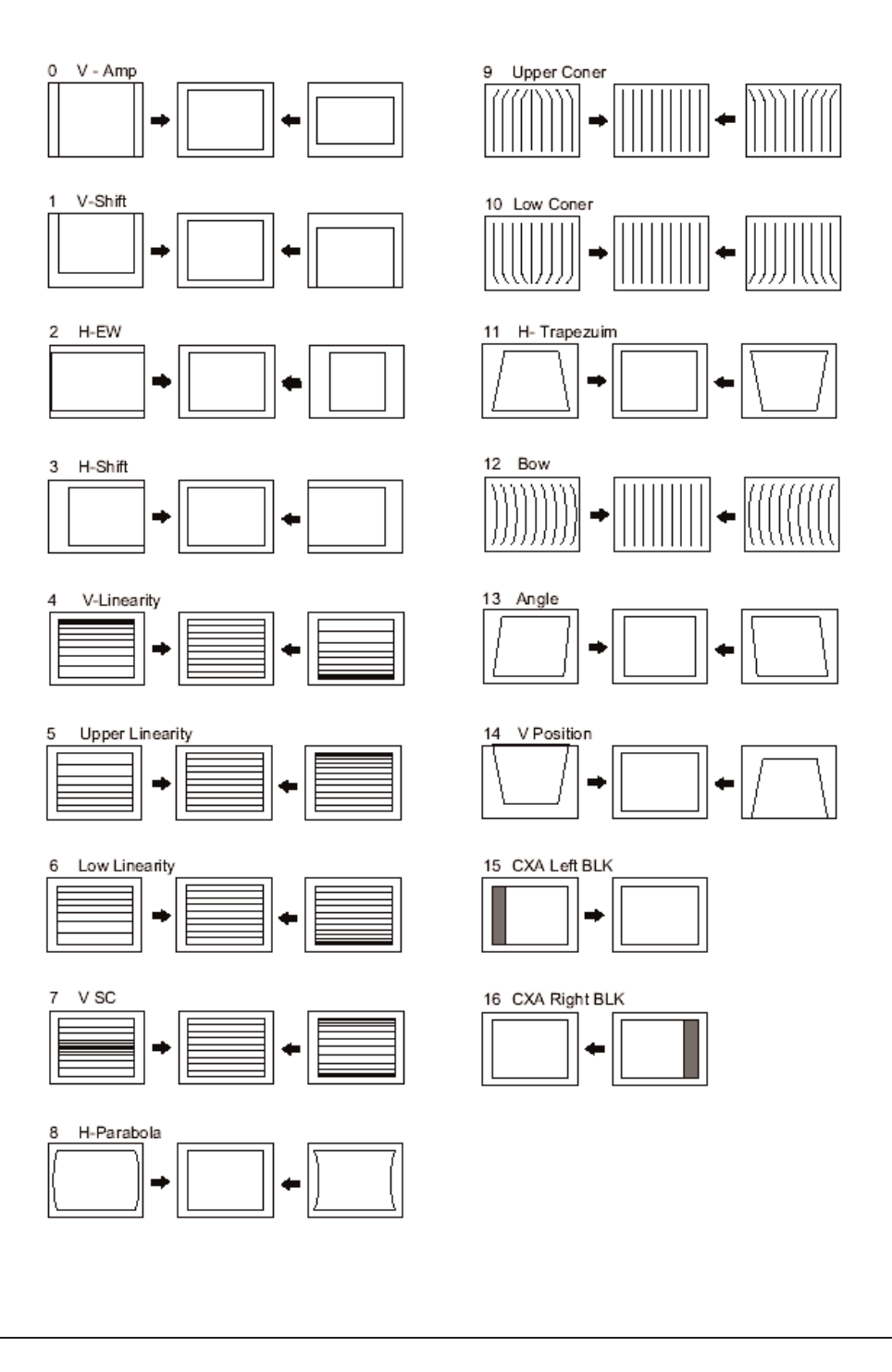

No item Register Range intial Remark
0V Amp 30 Adjust
1V Shift 26 Adjust
2H EW 30 Adjust
3H Shift 36 Adjust
4V Linearity 6 FIX
5Upper Linearity 0 FIX
6Lower Linearity 1 FIX
7V SC 3 FIX
8H Parabola 32 Adjust
9Upper Corner 37 Adjust
10 Lower Corner 34 Adjust
11 H Trapezium 40 Adjust
12 Bow 32 Adjust
13 Angle 30 Adjust
14 V Position 32 FIX
15 H Lin Cor hc_lcorr (0x41[7:0]) -128 ~ 127 0 FIX
16 Out Img H Pos hposition (0x2a[6:0]) 0 Adjust
1. DEFLECTION(PAL)
No item Register Range intial Remark
0V Amp Adjust 7
1V Shift Adjust -6
2H EW Adjust 0
3H Shift Adjust -4
4V Linearity Adjust 0
5Upper Linearity FIX 0
6Lower Linearity FIX 0
7V SC FIX 0
8H Parabola Adjust 0
9Upper Corner Adjust 0
10 Lower Corner Adjust 0
11 H Trapezium Adjust 4
12 Bow Adjust 0
13 Angle Adjust 0
14 V Position FIX 0
15 H Lin Cor hc_lcorr (0x41[7:0]) FIX 0
16 Out Img H Pos hposition (0x2a[6:0]) Adjust 0
2. DEFLECTION(NTSC)
Alignment & Adjustment
3-4 Samsung Electronics
Alignment & Adjustment
Samsung Electronics 3-5
3. DTV DEFLECTION OFFSET(480P)
4. DTV DEFLECTION OFFSET(576P)
No item Register Range intial Remark
0V Amp 0 FIX
1V Shift 0 FIX
2H EW 0 FIX
3H Shift 0 FIX
4V Linearity 0 FIX
5Upper Linearity 0 FIX
6Lower Linearity 0 FIX
7V SC 0 FIX
8H Parabola 0 FIX
9Upper Corner 0 FIX
10 Lower Corner 0 FIX
11 H Trapezium 0 FIX
12 Bow 0 FIX
13 Angle 0 FIX
14 V Position 0 FIX
15 H Lin Cor hc_lcorr (0x41[7:0]) 0 FIX
16 Out Img H Pos hposition (0x2a[6:0]) 0 FIX
No item Register Range intial Remark
0V Amp 0 FIX
1V Shift 0 FIX
2H EW 0 FIX
3H Shift 0 FIX
4V Linearity 0 FIX
5Upper Linearity 0 FIX
6Lower Linearity 0 FIX
7V SC 0 FIX
8H Parabola 0 FIX
9Upper Corner 0 FIX
10 Lower Corner 0 FIX
11 H Trapezium 0 FIX
12 Bow 0 FIX
13 Angle 0 FIX
14 V Position 0 FIX
15 H Lin Cor hc_lcorr (0x41[7:0]) 0 FIX
16 Out Img H Pos hposition (0x2a[6:0]) 0 FIX
Alignment & Adjustment
3-6 Samsung Electronics
5. DEFLECTION OFFSET(720P)
6. DEFLECTION OFFSET(1080I)
No item Register Range intial Remark
0V Amp 0 FIX
1V Shift 0 FIX
2H EW 0 FIX
3H Shift 0 FIX
4V Linearity 0 FIX
5Upper Linearity 0 FIX
6Lower Linearity 0 FIX
7V SC 0 FIX
8H Parabola 0 FIX
9Upper Corner 0 FIX
10 Lower Corner 0 FIX
11 H Trapezium 0 FIX
12 Bow 0 FIX
13 Angle 0 FIX
14 V Position 0 FIX
15 H Lin Cor hc_lcorr (0x41[7:0]) 0 FIX
16 Out Img H Pos hposition (0x2a[6:0]) 0 FIX
No item Register Range intial Remark
0V Amp -7 Adjust
1V Shift -4 Adjust
2H EW 6 Adjust
3H Shift 0 Adjust
4V Linearity 0 FIX
5Upper Linearity 0 FIX
6Lower Linearity 0 FIX
7V SC 0 FIX
8H Parabola 0 Adjust
9Upper Corner -2 Adjust
10 Lower Corner 0 Adjust
11 H Trapezium 0 Adjust
12 Bow 0 Adjust
13 Angle 0 Adjust
14 V Position 0 FIX
15 H Lin Cor hc_lcorr (0x41[7:0]) 0 Adjust
16 Out Img H Pos hposition (0x2a[6:0]) 0 FIX
Alignment & Adjustment
Samsung Electronics 3-7
7. DHC Control1
8. DHC Control2 (SD MODE)
No item Register Range intial Remark Fix
0Brt Com Ena Hc_bcen(0x08[1]) 0 FIX
1Brit Com H-Gain Hc_Hgain(0x05[5:0]) 63 FIX
2Brit Com V-Gain Hc_Vgain(0x06[5:0]) 63 FIX
3Global Cont Hc_con(0x07[5:0]) 32 FIX 63
4Ref. Lin OnOff Hc_lineen(0x08[0]) 0 FIX
5Inner Cor Ena Hc_innhcen(0x08[2]) 1 FIX
6Sym Cor Ena Hc_symhcen(0x08[3]) 1 FIX
7Local Cor Ena Hc_localhcen(0x08[4]) 1 FIX
8H Cor Ena Hc_en(0x08[5]) 1 FIX
9In Format inputfm (0x26[3:0]) 7 FIX
10 In Img WidX20 inwidth(0x20[7:0]) 160 FIX
11 In Img WidX24 inwidth(0x24[3:0]) 5 FIX
12 In Img HeitX21 inheight(0x21[7:0]) 32 FIX
13 In Img HeitX24 inheight(0x24[5:4]) 1 FIX
14 In HBlk PrdX23 hblank (0x23[7:0]) 8 FIX
15 In HBlk PrdX24 hblank (0x24[6]) 1 FIX
16 In VBlk Prd vblank (0x25[6:0]) 18 FIX
17 Test Patt Ena tpen (0x27[4]) 0 FIX
18 Test Patt Form tpfm (0x27[3:0]) 2 FIX 6
19 Out Format outputfm (0x26[6:4]) 3 FIX
20 Out Img WidX28 outwidth (0x28[7:0]) 160 FIX
21 Out Img WidX29 outwidth (0x29[5:0]) 5 FIX
22 DHC Ref. Line FIX
No item Register Range intial Remark Fix
0H Size Cor hc_size (0x31[7:0]) -7 Adjust 62
1H Key Cor hc_key (0x32[7:0]) -4 Adjust 0
2H Pin Cor hc_pin (0x33[7:0]) 6 Adjust -12
3H PinS Cor hc_pins (0x34[7:0]) 0 Adjust 0
4H PinW Cor hc_pinw (0x35[7:0]) 0 FIX 0
5H TopCor Cor hc_tcor (0x36[7:0]) 0 FIX 0
6H BottCor Cor hc_bcor (0x37[7:0]) 0 FIX 0
7H In Pin Cor hc_innerpin (0x3b[7:0]) 0 FIX -20
8H In Pinw Cor hc_innerpinw (0x3c[7:0]) 0 Adjust 0
9H In PinS Cor hc_innerpins (0x3d[7:0]) -2 Adjust 0
10 H In TopCorner hc_inntcor (0x3e[7:0]) 0 Adjust 6
11 H In BotCorner hc_innbcor (0x3f[7:0]) 0 Adjust 3
12 H Lin-S Cor hc_scorr (0x40[7:0]) 0 Adjust 72
13 H Lin-M Cor hc_mcorr (0x41[7:0]) 0 Adjust 0
DHC Local Cor Adjust
Alignment & Adjustment
3-8 Samsung Electronics
9. VIDEO ADJUST 1
No item Register Range intial Remark Fix
0R CutOff 20 Adjust
1G CutOff 20 FIX
2B CutOff 20 Adjust
3Color On/Off CXA2165 [1E(7:4)] 1 Fix
4R Drive 32 Adjust
5G Drive 32 FIX
6B Drive 32 Adjust
7Sub Bright 25 Adjust
8Sub Contrast 9 Adjust
9Bright VCTP 140 FIX
10 Contrast VCTP 30 FIX 35
11 Tint VCTP 11 FIX
12 SC_RGB_BRTADJ 128 FIX
13 SC_RGB_CONADJ 45 FIX
14 SC_RGB_USATADJ 52 FIX
15 SC_RGB_VSATADJ 0 FIX 52
16 RGB24_BRTADJ 16 FIX
17 RGB24_CONADJ 28 FIX
18 RGB24_ USATADJ 30 FIX
19 RGB24_ VSATADJ 30 FIX
20 RGB24_BR_HD 16 FIX
21 RGB24_CO_HD 28 FIX
22 RGB24_ USA_HD 30 FIX
23 RGB24_ VSA_HD 30 FIX
24 CR OffSet CXA2165 [OF(7:2)] 32 FIX 28
25 CB OffSet CXA2165 [10(7:2)] 32 FIX 28
26 Sub Color CXA2165 [03(7:2)] 11 FIX 12
27 Sub Tint CXA2165 [02(7:2)] 29 FIX
28 Sub Color Secam CXA2165 [03(7:2)] 5 FIX
Alignment & Adjustment
Samsung Electronics 3-9
10. VIDEO ADJUST 2
No item Register Range intial Remark Fix
0 ABL Mode 3 FIX
1 Gamma 0 FIX
2 ABL TH 3 FIX
3AKB Time CXA2165 [1E(7:4)] 15 FIX
4S ABL 3 FIX
5 P ABL 7 FIX
6 VSU 0 FIX
7 LNA EXE 3 FIX
8 H_EHT comp 2 FIX 3
9 V_EHT comp 5 FIX
10 PIN EHT comp 3 FIX
11 AFC EHT comp 0 FIX
12 Sync Phase 0 FIX
13 Sync Phase (480p) 1 FIX
14 Sync Phase (576p) 0 FIX
15 Sync Phase (720p) 1 FIX
16 Sync Phase (1080i) 0 FIX
17 DPIC Level CXA2165 [0B(1:0)] 2 FIX 3
18 DC Trans CXA2165 [0C(1:0)] 2 FIX
19 VM Level CXA2165 [11(3:2)] 1 FIX
20 VM Coring CXA2165 [13(7:6)] 2 FIX 0 -> 2
21 VM f0 CXA2165 [13(5:4)] 3 FIX 0 -> 2
22 VM Limit CXA2165 [13(3:2)] 2 FIX 0 -> 3
23 VM Delay CXA2165 [13(1:0)] 1 FIX 2 -> 0
24 SHP CD CXA2165 [12(7:6)] 1 FIX
25 SHP f0 CXA2165 [11(1)] 1 FIX
26 SHP f1 & P/O CXA2165 [12(3:0)] 8 FIX 11
27 CTI Level CXA2165 [03(1:0)] 1 FIX
28 COL AXIS CXA2165 [02(1:0)] 1 FIX
29 LTI Mode CXA2165 [0A(1:0)] 1 FIX
30 LTI Level CXA2165 [05(1:0)] 3 FIX 1
Alignment & Adjustment
3-10 Samsung Electronics
11. VIDEO ADJUST 3
No item Register Range intial Remark Fix
0TNR Enable 1 FIX
1TNR Chroma 11 FIX
2TNR Luma 11 FIX
3LTI Enable 1 FIX
4LTI Gain 15 FIX
5LTI Gain x2 1 FIX
6LTI Coring 2 FIX
7Lmix gain 3 FIX
8Lmix offset 13 FIX
9Peak Center Freq 3 FIX 2
10 Peaking Coring 2 FIX
11 CTI BW 1 FIX
12 CTI LP 1 FIX
13 CTI Gain 5 FIX
14 CTI Coring 2 FIX
15 V Peaking 3 FIX
16 V Peak Coring gain 0 FIX
17 V Peak high gain 0 FIX
18 V Peak coring high 0 FIX
19 IF Comp Filter 4 FIX
20 DHYAPRESC 2 FIX
21 DHCAPRESC 2 FIX
22 Neg Peaking 11 FIX 5
23 DCE Gain 45 FIX
24 CORBP 0 FIX
12. VIDEO ADJUST 4
No item Register Range intial Remark Fix
1OSD Contrast 30 FIX
2OSD Bright 127 FIX
3TTX Contrast 17 FIX 20
4TTX Bright 127 FIX
5Melody Volume 10 FIX
6VCR Mode Cnt 30 FIX
7 SLLTHD 2 FIX
8 SLLTHDV 3 FIX
9 THRSEL 0 FIX
10 LPCDEL 0 FIX
11 Pilot High 13 FIX
12 Pilot Low 7 FIX
13 AM Prescale 22 FIX
14 VCTP_FECA 2 FIX
Alignment & Adjustment
Samsung Electronics 3-11
13. Video Adjust5 (60i/100i)
No item Register Range intial Remark Fix
0 HORWIDTHP_H 5 FIX
1 HORWIDTHP_L 50 FIX
2 VERIWDTHP_H 1 FIX
3 VERIWDTHP_L 26 FIX
4 HORPOSP_H 1 FIX
5 HORPOSP_L 65 FIX
6 VERPOSP_H 0 FIX
7 VERPOSP_L 29 FIX
8 NAPPLIP_H 2 FIX
9 NAPPLIP_L 94 FIX
10 NALPFIP_H 0 FIX
11 NALPFIP_L 18 FIX
12 HSCPOSC_H 8 FIX
13 HSCPOSC_L 70 FIX
14 VSCPOSC_H 31 FIX
15 VSCPOSC_L 100 FIX
16 HORWIDTH_M_H 5 FIX
17 HORWIDTH_M_L 50 FIX
18 VERWIDTH_M_H 1 FIX
19 VERWIDTH_M_L 39 FIX
20 HORPOS_M_H 1 FIX
21 HORPOS_M_L 60 FIX
22 VERPOS_M_H 0 FIX
23 VERPOS_M_L 23 FIX
24 VSCPRESC_H 0 FIX
25 VSCPRESC_L 0 FIX
26 SD_BRTADJ 128 FIX
27 SD_CONADJ 32 FIX
28 SD_USATADJ 32 FIX
29 SD_VSATADJ 32 FIX
Alignment & Adjustment
3-12 Samsung Electronics
14. Video Adjust5 (NTSC)
No item Register Range intial Remark Fix
0 HORWIDTHP_H 5 FIX
1 HORWIDTHP_L 75 FIX 50
2 VERIWDTHP_H 1 FIX
3 VERIWDTHP_L 235 FIX
4 HORPOSP_H 1 FIX
5 HORPOSP_L 60 FIX 55
6 VERPOSP_H 0 FIX
7 VERPOSP_L 30 FIX
8 NAPPLIP_H 2 FIX
9 NAPPLIP_L 18 FIX
10 NALPFIP_H 0 FIX
11 NALPFIP_L 10 FIX
12 HSCPOSC_H 8 FIX
13 HSCPOSC_L 55 FIX
14 VSCPOSC_H 16 FIX
15 VSCPOSC_L 0 FIX
16 HORWIDTH_M_H 5 FIX
17 HORWIDTH_M_L 50 FIX 90
18 VERWIDTH_M_H 2 FIX
19 VERWIDTH_M_L 5 FIX
20 HORPOS_M_H 1 FIX
21 HORPOS_M_L 30 FIX
22 VERPOS_M_H 0 FIX
23 VERPOS_M_L 15 FIX
24 VSCPRESC_H 0 FIX
25 VSCPRESC_L 0 FIX
26 SD_BRTADJ 128 FIX
27 SD_CONADJ 32 FIX
28 SD_USATADJ 32 FIX
29 SD_VSATADJ 32 FIX
Alignment & Adjustment
Samsung Electronics 3-13
15. Video Adjust5 (576i)
No item Register Range intial Remark
0 HORWIDTHP_H 5 FIX
1 HORWIDTHP_L 50 FIX
2 VERIWDTHP_H 1 FIX
3 VERIWDTHP_L 30 FIX
4 HORPOSP_H 1 FIX
5 HORPOSP_L 65 FIX
6 VERPOSP_H 0 FIX
7 VERPOSP_L 26 FIX
8 NAPPLIP_H 1 FIX
9 NAPPLIP_L 184 FIX
10 NALPFIP_H 0 FIX
11 NALPFIP_L 16 FIX
12 HSCPOSC_H 8 FIX
13 HSCPOSC_L 150 FIX
14 VSCPOSC_H 31 FIX
15 VSCPOSC_L 100 FIX
16 HORWIDTH_M_H 5 FIX
17 HORWIDTH_M_L 50 FIX
18 VERWIDTH_M_H 1 FIX
19 VERWIDTH_M_L 38 FIX
20 HORPOS_M_H 1 FIX
21 HORPOS_M_L 65 FIX
22 VERPOS_M_H 0 FIX
23 VERPOS_M_L 23 FIX
24 VSCPRESC_H 0 FIX
25 VSCPRESC_L 0 FIX
26 SD_BRTADJ 145 FIX
27 SD_CONADJ 45 FIX
28 SD_USATADJ 52 FIX
29 SD_VSATADJ 54 FIX
Alignment & Adjustment
3-14 Samsung Electronics
16. Video Adjust5 (480i)
No item Register Range intial Remark Fix
0 HORWIDTHP_H 5 FIX
1 HORWIDTHP_L 48 FIX
2 VERIWDTHP_H 1 FIX
3 VERIWDTHP_L 246 FIX
4 HORPOSP_H 1 FIX
5 HORPOSP_L 60 FIX
6 VERPOSP_H 0 FIX
7 VERPOSP_L 21 FIX
8 NAPPLIP_H 1 FIX
9 NAPPLIP_L 101 FIX
10 NALPFIP_H 0 FIX
11 NALPFIP_L 16 FIX
12 HSCPOSC_H 8 FIX
13 HSCPOSC_L 148 FIX 130
14 VSCPOSC_H 16 FIX
15 VSCPOSC_L 0 FIX
16 HORWIDTH_M_H 5 FIX
17 HORWIDTH_M_L 48 FIX
18 VERWIDTH_M_H 1 FIX
19 VERWIDTH_M_L 241 FIX
20 HORPOS_M_H 1 FIX
21 HORPOS_M_L 41 FIX
22 VERPOS_M_H 0 FIX
23 VERPOS_M_L 31 FIX
24 VSCPRESC_H 0 FIX
25 VSCPRESC_L 0 FIX
26 SD_BRTADJ 146 FIX
27 SD_CONADJ 45 FIX
28 SD_USATADJ 52 FIX
29 SD_VSATADJ 52 FIX
Alignment & Adjustment
Samsung Electronics 3-15
17. Video Adjust6 (comp_HD)
No item Register Range
intial
Remark Fix
480P_HD 576P_HD 720P50_
HD
720P60_
HD
1080i50_
HD
1080i60_
HD
0 HORWIDTHP_H 5 5 5 4 4 5 FIX
1 HORWIDTHP_L 80 20 226 225 220 30 FIX
2 VERWIDTHP_H 1 2 2 2 2 2 FIX
3 VERWIDTHP_L 226 68 125 16 129 17 FIX
4 HORPOSP_H 1 1 1 1 0 0 FIX
5 HORPOSP_L 54 85 50 53 250 180 FIX
6 VERPOSP_H 0 0 0 0 0 0 FIX
7 VERPOSP_L 26 26 26 26 26 26 FIX
8 DHSCPRESC_H 11 11 2 3 15 14 FIX
9 DHSCPRESC_L 100 205 30 210 30 130 FIX
10 DNAPPLIP_H 1 1 0 0 0 0 FIX
11 DNAPPLIP_L 11 35 240 214 0 100 FIX
12 DVOFPOSC 128 100 128 128 128 128 FIX
13 VERPOS_S 6 5 6 24 7 6 FIX
14 VEROFFS_S 0 6 0 0 0 0 FIX
15 HORPOS_S_H 1 1 1 0 0 0 FIX
16 HORPOS_S_L 41 1 9 240 131 190 FIX
17 HPULLINMODE 0 0 1 1 1 1 FIX
18 DVSCPOSC_HI 64 64 71 85 53 64 FIX
19 DVSCPOSC_LO_H 131 66 60 90 69 0 FIX
20 DVSCPOSC_LO_L 17 203 178 255 255 183 FIX
21 DHSCPOSC_HI 14 14 15 14 13 14 FIX
22 DHSCPOSC_LO 255 215 255 162 246 66 FIX
23 HD_BRTADJ 145 146 142 142 143 143 FIX
24 HD_CONADJ 45 46 50 50 49 49 FIX
25 HD_USATADJ 52 53 50 50 50 50 FIX
26 HD_VSATADJ 52 54 50 50 50 50 FIX
Alignment & Adjustment
3-16 Samsung Electronics
18. Video Adjust7 (color tone setting)
19. Video Adjust 8
No item Register Range intial Remark Fix
0R drive offset Warm2 8 FIX
1B drive offset Warm2 -9 FIX
2R cutoff offset Warm2 6 FIX
3B cutoff offset Warm2 -11 FIX
4R drive offset Warm1 4 FIX
5B drive offset Warm1 -3 FIX
6R cutoff offset Warm1 4 FIX
7B cutoff offset Warm1 -3 FIX
8R drive offset Normal 0 FIX
9B drive offset Normal 0 FIX
10 R cutoff offset Normal 0 FIX
11 B cutoff offset Normal 0 FIX
12 R drive offset Cool 1 -5 FIX
13 B drive offset Cool 1 4 FIX
14 R cutoff offset Cool 1 0 FIX
15 B cutoff offset Cool 1 6 FIX
16 R drive offset Cool 2 -2 FIX
17 B drive offset Cool 2 6 FIX
18 R cutoff offset Cool 2 0 FIX
19 B cutoff offset Cool 2 9 FIX
No item Register Range intial Remark Fix
0LTI Gain NTSC 15 FIX
1 Peak_f0_NTSC 3 FIX
2 Peak_cor_NTSC 2 FIX
3 CTI_gain_NTSC 5 FIX
4Lmix gain_NTSC 3 FIX
5Lmix offset_NT 13 FIX
6LTI Gain AV 15 FIX
7 Peak_f0_AV 3 FIX
8 Peak_cor_AV 2 FIX
9 CTI_gain_AV 5 FIX
10 Lmix gain_AV 3 FIX
11 Lmix offset_AV 13 FIX
12 LTI Gain SD 15 FIX
13 Peak_f0_SD 0 FIX
14 Peak_cor_SD 2 FIX
15 CTI_gain_SD 1 FIX
16 Lmix gain_SD 3 FIX
17 Lmix offset_SD 13 FIX
18 LTI Gain HD 15 FIX
19 Peak_f0_ HD 3 FIX
20 Peak_cor_ HD 2 FIX
21 CTI_gain_ HD 5 FIX
22 Lmix gain_ HD 3 FIX
23 Lmix offset_ HD 13 FIX
Alignment & Adjustment
Samsung Electronics 3-17
20. YC Delay
No item Register Range intial Remark Fix
0P.YC (AV) Delay 2 FIX
1S.YC (AV) Delay 0 FIX -2
2N.YC (AV) Delay 0 FIX
3P.BG.YC Delay 4 FIX
4P.DK.YC Delay 4 FIX
5P.I.YC Delay 2 FIX
6P.M.YC Delay 0 FIX
7P.L.YC Delay 3 FIX
8S.BG.YC Delay 3 FIX
9S.DK.YC Delay -1 FIX
10 S.I.YC Delay -1 FIX
11 S.M.YC Delay 0 FIX
12 S.L.YC Delay 0 FIX
13 N.M.YC Delay 2 FIX
14 SD YFDEL 60 FIX
15 SD_UVDEL 60 FIX
16 RGB Y_Delay 118 FIX
17 RGB UV_Delay 118 FIX
18 HD_DELB 0 FIX
19 HD_DELG 0 FIX
20 HD_DELR 0 FIX
Alignment & Adjustment
3-18 Samsung Electronics
21. EEPROM
No item Register Range intial Remark Fix
0 System 15 FIX
1 System_480 3 FIX
2 System_1080 2 FIX
3Dynamic Contrast 5 FIX
4Dynamic Brightness 3 FIX
5Dynamic Shapness 13 FIX
6Dynamic Color 15 FIX
7Dynamic Tint 3 FIX
8Dynamic Color Tone 2 FIX
9Standard Contrast 5 FIX
10 Standard Brightness 3 FIX
11 Standard Shapness 13 FIX
12 Standard Color 15 FIX
13 Standard Tint 0 FIX
14 Standard Color Tone 2 FIX
15 Movie Contrast 1 FIX
16 Movie Brightness 3 FIX
17 Movie Shapness 13 FIX
18 Movie Color 15 FIX
19 Movie Tint 3 FIX
20 Movie Color Tone 2 FIX
21 Left _Blank 5 FIX
22 Right_Blank 3 FIX
23 Left Blanking (480) 13 FIX
24 Right Blanking (480) 44 FIX
25 Left Blanking (720) 25 FIX
26 Right Blanking (720) 44 FIX
27 Left Blanking (1080) 25 FIX
28 Right Blanking (1080) 0 FIX
29 RGB Tint 0 FIX
30 DVD Tint 0 FIX
31 Bypass Deint 1 FIX
32 SLMCSW 255 FIX
33 DCE Gain 41 FIX 30
34 TTX V-Position 222 FIX
35 TTX H-Position FIX
37~63 VIDEO ADJUST6 1080I 50 FIX
64 TTX_Bow offset -1 FIX
65 TTX_H_Para offset -1 FIX
66 TTX_Up corner offset -1 FIX
67 TTX_Low corner offset -1 FIX
68 SECAM Dr 1 FIX
69 SECAM Db 2 FIX
70~71 Non Use FIX
72 PIP-Threshold 255 FIX 45
73
74 480P_Sub_color 11 FIX
Alignment & Adjustment
Samsung Electronics 3-19
No item Register Range intial Remark Fix
75 576P_Sub_color 11 FIX
76 1080I_Sub_color 11 FIX
77 720P_Sub_color 11 FIX
78 AV_Sub_color 11 FIX
79
80 R drive offset 1080P 0 FIX
81 G drive offset 1080P 0 FIX
82 R cutoff offset 1080P 7 FIX
83 G cutoff offset 1080P 6 FIX
84 R drive offset 1080i 0 FIX
85 G drive offset 1080i 0 FIX
86 R cutoff offset 1080i 7 FIX
87 G cutoff offset 1080i 6 FIX
88 R drive offset 720P-60HZ 0 FIX
89 G drive offset 720P-60HZ 0 FIX
90 R cutoff offset 720P-60HZ 7 FIX
91 G cutoff offset 720P-60HZ 6 FIX
92 R drive offset 720P-50HZ 0 FIX
93 G drive offset 720P-50HZ 0 FIX
94 R cutoff offset 720P-50HZ 7 FIX
95 G cutoff offset 720P-50HZ 6 FIX
96 R drive offset 480P 0 FIX
97 G drive offset 480P 0 FIX
98 R cutoff offset 480P 0 FIX
99 G cutoff offset 480P 0 FIX
100 R drive offset 576P 0 FIX
101 G drive offset 576P 0 FIX
102 R cutoff offset 576P 0 FIX
103 G cutoff offset 576P 0 FIX
104 R drive offset 480i 0 FIX
105 G drive offset 480i 0 FIX
106 R cutoff offset 480i 0 FIX
107 G cutoff offset 480i 0 FIX
108 R drive offset 576i 0 FIX
109 G drive offset 576i 0 FIX
110 R cutoff offset 576i 0 FIX
111 G cutoff offset 576i 0 FIX
112 H_EHT comp_720p 1 FIX
113 V_EHT comp_720p 5 FIX
114 PIN EHT comp_720p 1 FIX
115 ABL TH_1080i 3 FIX
116 Color On_NTSC 255 FIX 2
117 Color Killer Threshold_NTSC 255 FIX 210
118 ACC Limitation_NTSC 255 FIX 16
119 Color Killer Threshold_AV 230 FIX 230
120 EEP_VM_LEVEL_480P 1 FIX
121 EEP_VM_LEVEL_576P 1 FIX
Alignment & Adjustment
3-20 Samsung Electronics
No item Register Range intial Remark Fix
122 EEP_VM_LEVEL_1080P 1 FIX
123 EEP_VM_LEVEL_720P 1 FIX
124 EEP_VM_CORING_480P 2 FIX
125 EEP_VM_CORING_576P 2 FIX
126 EEP_VM_CORING_1080P 2 FIX
127 EEP_VM_CORING_720P 2 FIX
128 EEP_VM_F0_480P 3 FIX
129 EEP_VM_F0_576P 3 FIX
130 EEP_VM_F0_1080P 3 FIX
131 EEP_VM_F0_720P 3 FIX
132 EEP_VM_LIMIT_480P 2 FIX
133 EEP_VM_LIMIT_576P 2 FIX
134 EEP_VM_LIMIT_1080P 2 FIX
135 EEP_VM_LIMIT_720P 2 FIX
136 EEP_VM_DELAY_480P 1 FIX
137 EEP_VM_DELAY_576P 1 FIX
138 EEP_VM_DELAY_1080P 1 FIX
139 EEP_VM_DELAY_720P 1 FIX
140 EEP_SHP_CD_480P 1 FIX
141 EEP_SHP_CD_576P 1 FIX
142 EEP_SHP_CD_1080P 1 FIX
143 EEP_SHP_CD_720P 1 FIX
144 EEP_SHP_F0_480P 1 FIX
145 EEP_SHP_F0_576P 1 FIX
146 EEP_SHP_F0_1080P 1 FIX
147 EEP_SHP_F0_720P 1 FIX
148 EEP_SHP_F1_PREOVER_480P 8 FIX
149 EEP_SHP_F1_PREOVER_576P 8 FIX
150 EEP_SHP_F1_PREOVER_1080P 8 FIX
151 EEP_SHP_F1_PREOVER_720P 8 FIX
152 EEP_COL_AXIS_480P 1 FIX
153 EEP_COL_AXIS_576P 1 FIX
154 EEP_COL_AXIS_1080P 1 FIX
155 EEP_COL_AXIS_720P 1 FIX
156 EEP_LTI_LEVEL_480P 3 FIX
157 EEP_LTI_LEVEL_576P 3 FIX
158 EEP_LTI_LEVEL_1080P 3 FIX
159 EEP_LTI_LEVEL_720P 3 FIX
160
164
162
163
164
165
166
167
168~186 480P DEFLECTION FIX
Alignment & Adjustment
Samsung Electronics 3-21
No item Register Range intial Remark Fix
187~205 576P DEFLECTION FIX
206~224 720P DEFLECTION FIX
225~243 1080I DEFLECTION FIX
244 PIP CONT FIX
245 PIP-Bright 128 FIX 125
246 PIP-SCURVE 245 FIX 255
247 PIP-CTI 1 FIX
248 PIP-Sharp 2 FIX
249 PIP-Tint 0 FIX
250 0 FIX
251
252 255 FIX
253 0 FIX
254 0 FIX
255 HD_P-ABL 255 FIX
Alignment & Adjustment
3-22 Samsung Electronics
3-4 Service Adjustment
3-4-1 Adjusting the Picture Size
■Since the S65A chassis has the deflection settings data within the Factory Data, the picture size has to be adjusted when
replacing the System Board or the Deflection Board, according to the following procedures.
①Display the Lion pattern. ②Press "Info →Menu →Mute →Power On"
using the remote control and enter Factory Mode.
③Enter Deflection Mode. ④Adjust the V-AMP, V-SHIFT, H-AMP and H-SHIFT items so
that the width becomes 5 and the height becomes 4.
Alignment & Adjustment
Samsung Electronics 3-23

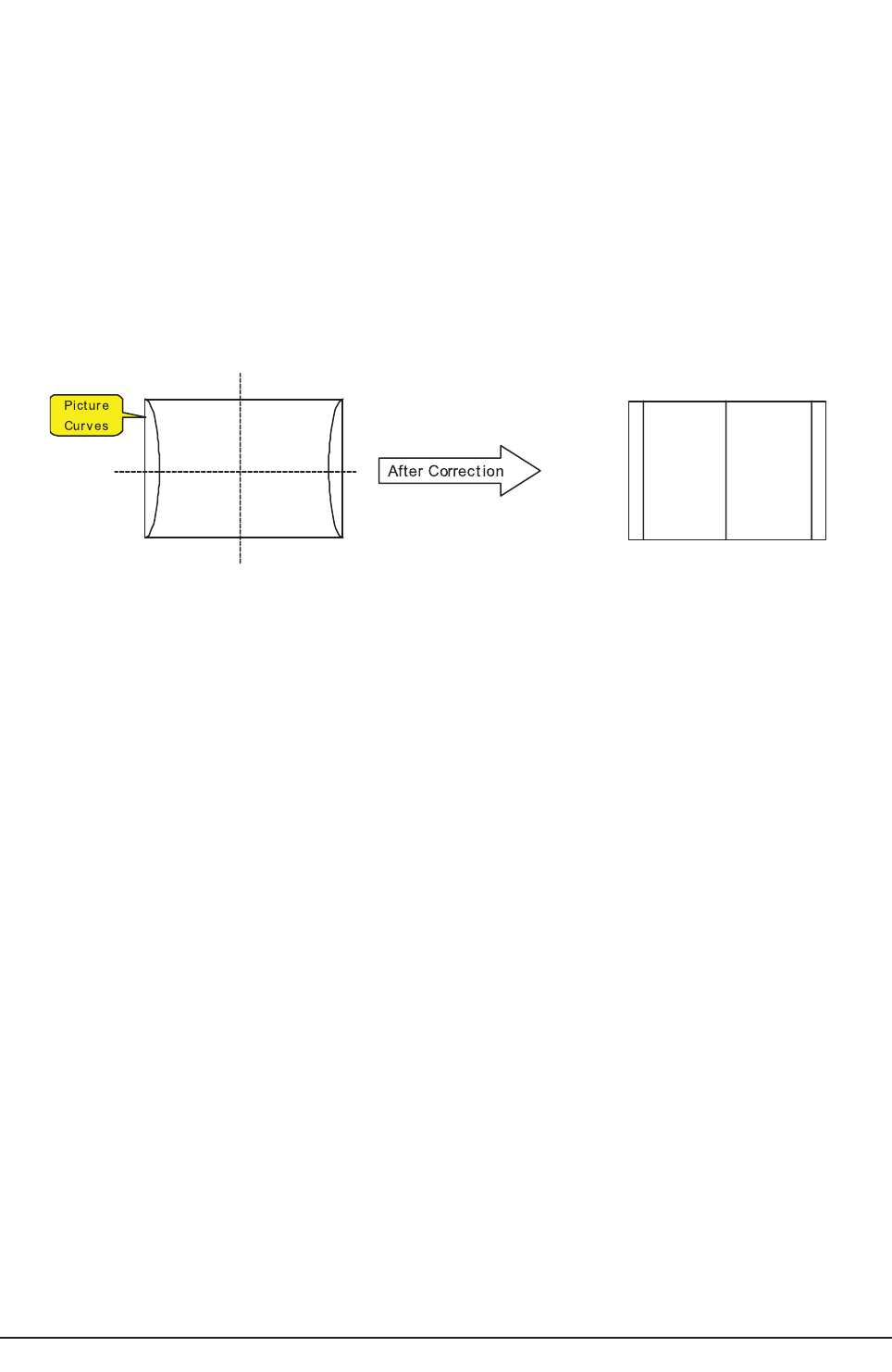

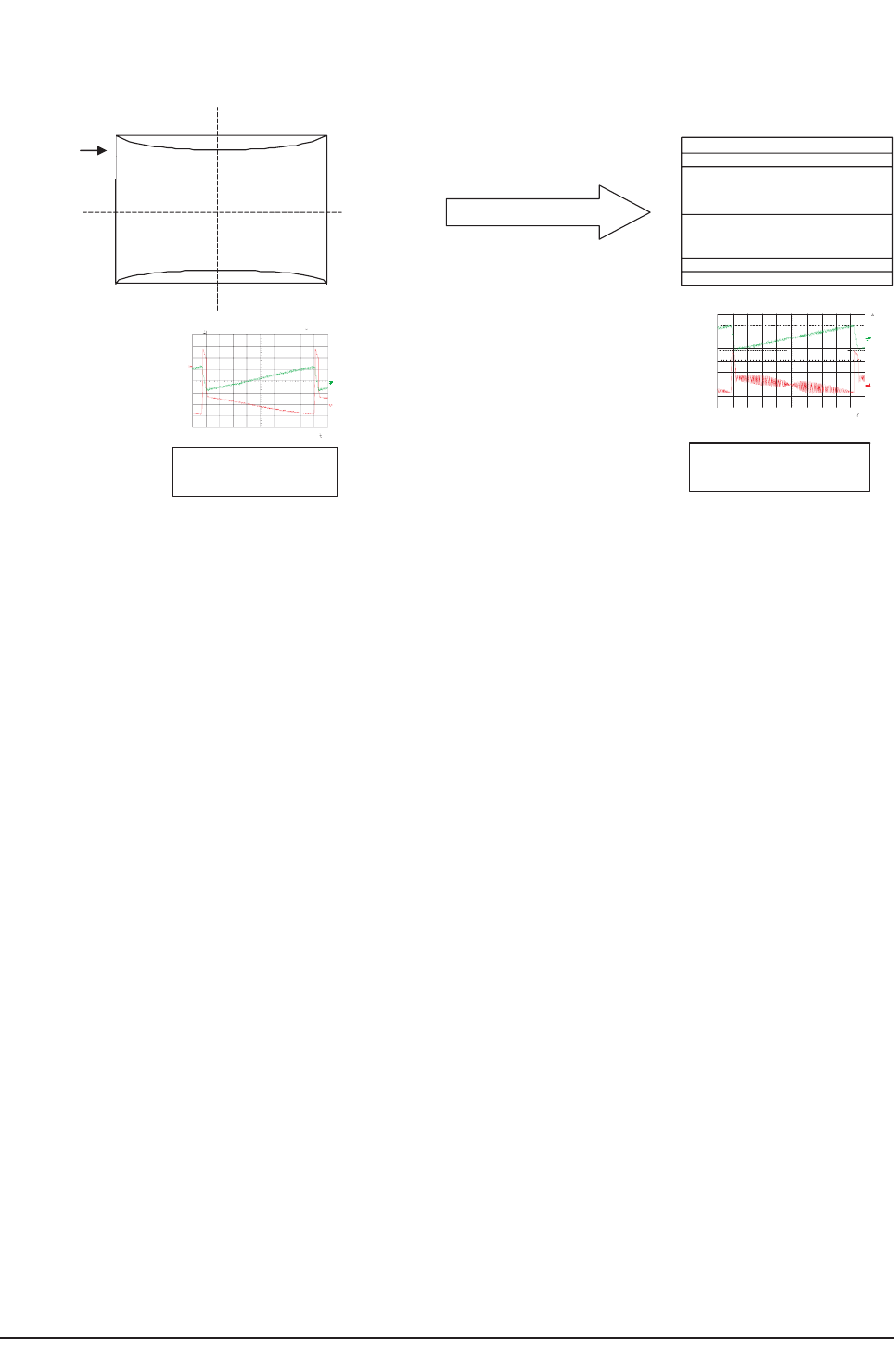

3-4-2 Adjusting the Picture Straight Lines
①Display the Cross Hatch pattern.
②Adjust settings other than V-AMP, V-SHIFT, H-AMP and H-SHIFT so that straight lines are displayed without curves.
⑦When the adjustments are complete, display the Lion pattern and check that the picture size has not been changed.
If there is no change, finish the adjustments.
③Adjust BOW and the Angle settings so that the center line
becomes a straight line.
④Adjust the H-Parabola and H-Trapezium settings so that
the left and right lines become straight.
⑤Adjust the Upper Corner and the Low Corner settings so that
the end of the lines become straight.
⑥Adjust the V-Linearity and V-SC settings so that the
intervals of the horizontal lines become uniform.
Alignment & Adjustment
3-24 Samsung Electronics

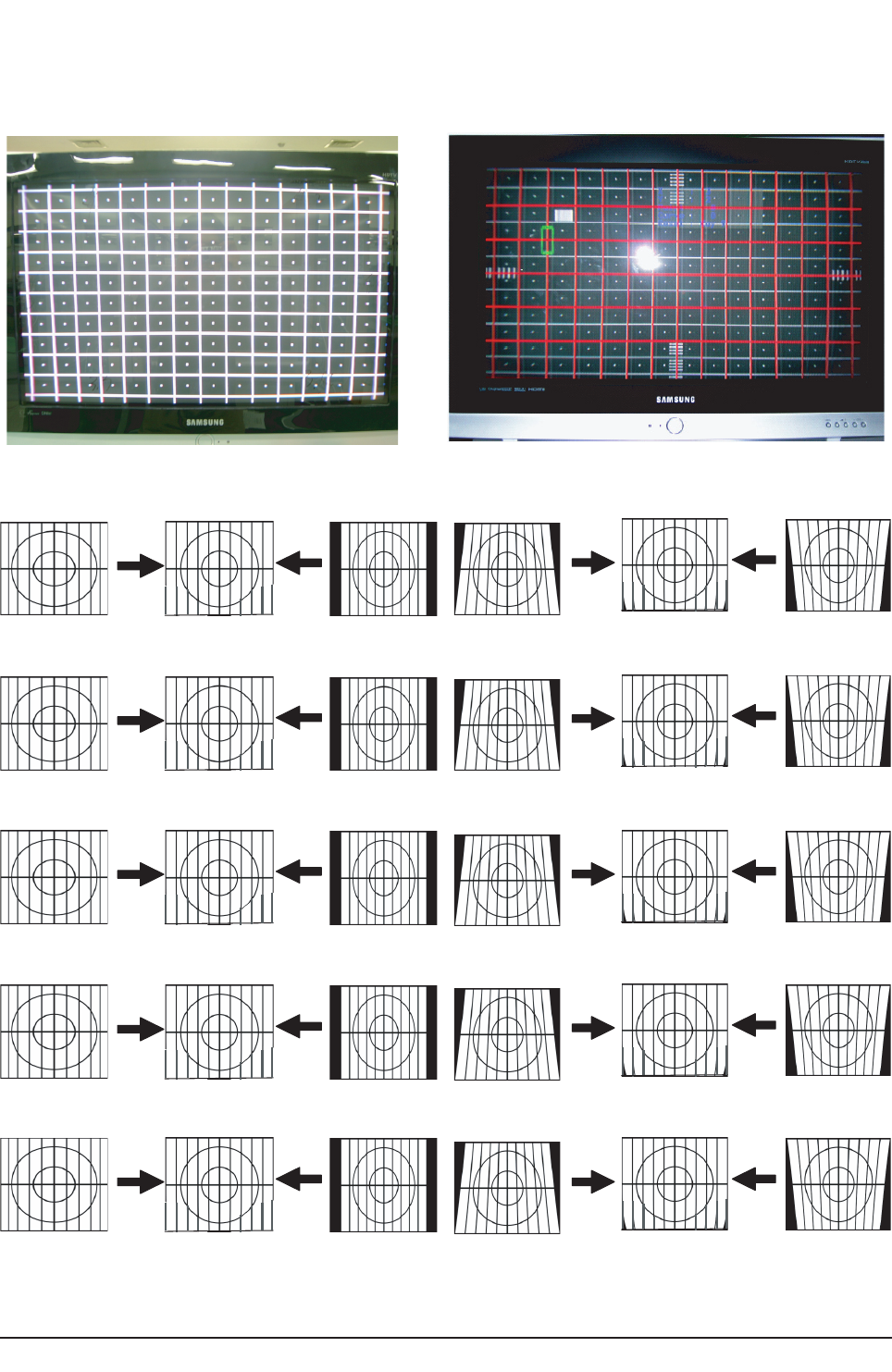

3-4-3 DHC Adjust
①Display the Cross Hatch pattern.
②Adjust DHC as follows.
(a) Size (b) Keystone
(c) Pincushion (d) Top corner
(e) Bottom corner (f) Pincushion S
(g) Pincushion W (a) Horizontal linearity
(b) Horizontal S (c) Horizontal M
Alignment & Adjustment
Samsung Electronics 3-25
(d) Inner pincushion (e) Inner pincushion W
(f) Inner pincushion S (g) Inner top corner
(h) Inner bottom corner
③Adjust detail line straight
▶Each point’s position can be adjusted independently, the affected region is limited by neighboring lines
h1 h3 h5 h7 h9 h11 h13 h15 h17
v1
v2
v3
v4
v5
v6
v7
Affected
region
Affected
region
▶The curvature of each line section can be adjusted independently, the affected region is limited by neighboring lines
h1 h3 h5 h7 h9 h11 h13 h15 h17
v1
v2
v3
v4
v5
v6
v7
Affected
region
Affected
region
Alignment & Adjustment
3-26 Samsung Electronics
3-5 Replacements & Calibration
3-5-1 Adjusting the Focus
■Since the S65A chassis has a built-in dynamic focus circuit, take care when adjusting the focus. When the CRT PCB, FBT or
CRT has been replaced, the focus has to be adjusted according to the following procedures.
1. Display the CROSS Hatch pattern.
2. Set the Screen Adjustment to "View as Standard".
3. Turn the Static Focus VR clockwise to the maximum position.
(End of clockwise direction)
4. Turn the Dynamic Focus VR counter clockwise to the maximum position.
(End of counter clockwise direction)
5. Slowly turn the Static Focus VR counter clockwise so that the center vertical line
is the most clearly displayed.
6. Slowly turn the Dynamic Focus VR clockwise so that the 2nd line is the most clearly
displayed.
7. Check the entire screen focus and repeat steps 3 to 6, if necessary.
H
V
1
2
3
Alignment & Adjustment
Samsung Electronics 3-27
3-5-2 Adjusting the Screen Voltage
1. Select "Info →Menu →Mute →Power On" to enter Service Mode.
2. Initialize all settings to the values appropriate to the corresponding model.
3. Display the Toshiba pattern.
4. Using an Oscilloscope, measure the size of RK, BK and GK to the
Pedestal Level.
5. Adjust the Screen VR of FEB so that the highest point of the Pedestal Level is 190V. (29" : 180V)
※Screen Voltage Measurement Data
No Item Data Required Adjustment
1Screen Voltage The Highest Voltage among RK, GK and
BK 190Vp-p-3V Screen Voltage
Alignment & Adjustment
3-28 Samsung Electronics

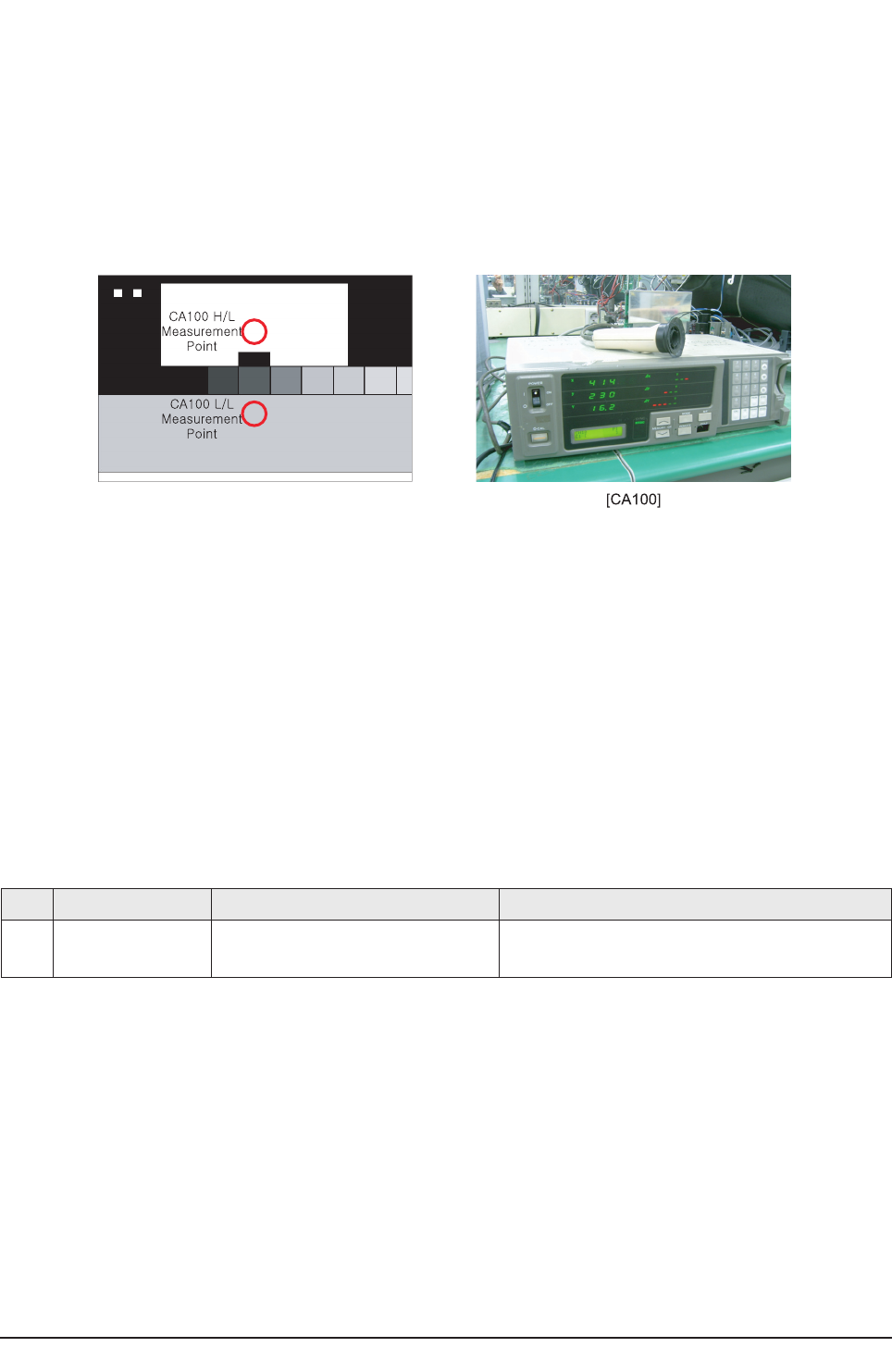

3-5-3 Adjusting the White Balance
1. Initialize all settings to the values appropriate to the corresponding model.
2. Select "Info →Menu →Mute →Power On" to enter Service Mode.
3. Initialize all settings to the values appropriate to the corresponding model.
4. Display the Toshiba pattern and adjust the White Balance using CA100 with the coordinates of the corresponding model.
5. Enter Video Adjust1 of Service Mode. Adjust Low/Light.
- Adjust Sub Bright to set Y.
- Adjust B Cutoff to set y.
- Adjust R Cutoff to set x.
6. Enter Video Adjust1 of Service Mode. Adjust High/Light.
- Adjust Sub Contrast to set Y.
- Adjust B Drive to set y.
- Adjust R Drive to set x.
7. Check Low/Light and readjust it if its value has been changed.
8. If you have readjusted Low/Light, readjust High/Light until the two values are identical to the coordinates of the corresponding
model.
※White Balance Standard Data
3-5-4 Check List for the Screen Voltage and White Balance Adjustment
1. The Screen Voltage and White Balance are connected each other, and both of them have to be configured to the correct values.
2. Adjust the White Balance after the Screen Voltage was adjusted, and check if the Screen Voltage is normal after adjusting the
White Balance.
3. If the White Balance is readjusted, check the Screen Voltage again.
4. When the adjustment is finished, check the following checklist.
- If there is a spot on the screen when turning the TV set off/on, adjust the Screen Voltage again.
- If there is a ghost line on the screen, adjust the Screen Voltage again.
No Item Data Required Adjustment
1White
Balance
x:282±3/ y:290±3/ 40± 3(High)
x:282±3/ y:290±3/ 2.5±0.2(Low) White Balance (Europe)
4. Exploded View & Part List
Exploded View & Part List
Samsung Electronics 4-1
T0074 T0066
T0091
M0112
T0003
T0175
T0175
T0299
T0607
T0057
T0054
CIS7
T0023
T0098
T0022
T0063
M0006
M0014
4-1 CS29Z45HPSXNWT
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
CIS7 AA61-60003J SPRING ETC-CS -,SUS304,-,-,OD6,N7,OD6,-, 1 S.N.A
M0006 AA63-01509B COVER-REAR 29Z45(100HZ),HIPS,2.5,V2 1 S.A
M0014 AA94-16175B ASSY PCB MAIN CS29Z45HPSXNWT,S65A 1 S.A
M0112 AA63-01508B COVER-FRONT 29Z45,CIS,HIPS,HB,GR503,SV01 1 S.N.A
T0003 AA96-04358E ASSY COVER P-FRONT 29Z45,CIS,HIPS,HB,GR5 1 S.A
T0022 AA64-04406A KNOB-CONTROL 29Z45,ABS,HB,GR515,SVM3012 1 S.N.A
T0023 AA64-04404A KNOB POWER 29Z45,ABS,HB,GR515,BKN3576 1 S.N.A
T0054 AA64-04405A KNOB-DECORATION 29Z45,ABS,HB,GR515,AL 1 S.N.A
T0057 AA64-01062B BADGE-BRAND ALL,AL,T1.5,10.6,L65,BLK.SIL 1 S.N.A
T0063 AA03-00530A CRT COLOR A68QFZ893X502,+380mG,0.260,13. 1 S.A
T0066 AA96-20109H ASSY POWER CORD -,CP2/NO(4.0),H/C 600mm, 1 S.N.A
T0074 AA59-00382A REMOCON Shine2/Catch Me,TM86,SAMSUNG,44, 1 S.A
T0091 AA94-15824A ASSY PCB MISC-A/V SIDE WS32Z409D8XXEU,S6 1 S.N.A
T0098 AA94-16049A ASSY PCB MISC-CONTROL CS29Z45,S63A,100HZ 1 S.N.A
T0175 AA96-02375A ASSY SPEAKER P 8ohm,3001-001535,15W,250m 2 S.A
T0175 AA96-04765A ASSY SPEAKER P 8ohm,10W,900mm,600mm,200m 1 S.A
T0299 AA64-04408A WINDOW-RMC LED 29Z45,PC,CLEAR 1 S.N.A
T0607 AA61-40113A STOPPER-PCB 501H,HIPS,-,-,HB,NTR,- 1 S.N.A
5-1Samsung Electronics
Electrical Part List
ASSY CHASSIS
M0017 AA91-10763B ASSY CHASSIS CS29Z45HPSXNWT,S65A 1 S.N.A
T0091 AA94-15824A ASSY PCB MISC-A/V SIDE WS32Z409D8XXEU,S6 1 S.N.A
C701 2202-000279 C-CERAMIC,MLC-AXIAL 47pF,5%,50V,SL,TP,3. 1 S.A
C702 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C703 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C704 2202-000279 C-CERAMIC,MLC-AXIAL 47pF,5%,50V,SL,TP,3. 1 S.A
DZ701 0403-000708 DIODE-ZENER MTZJ13B,12.55-13.21V,500mW,D 1 S.A
DZ702 0403-000708 DIODE-ZENER MTZJ13B,12.55-13.21V,500mW,D 1 S.A
DZ703 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ704 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500mW,DO 1 S.A
DZ705 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500mW,DO 1 S.A
DZ706 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500mW,DO 1 S.A
DZ707 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500mW,DO 1 S.A
JA332 3722-000544 JACK-VHS 4P,AG,BLK,STRAIGHT 1 S.A
JA333 3722-001663 JACK-PIN 3P,NI,RED/WHT/YEL,STRAIGHT 1 S.A
L701 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L702 2701-000168 INDUCTOR-AXIAL 3.3UH,5%,2534 1 S.A
L703 2701-000168 INDUCTOR-AXIAL 3.3UH,5%,2534 1 S.A
L704 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
M2893 AA39-00381A LEAD CONNECTOR CS29M6SPNX/BWT,UL1185#26, 1 S.A
PCB AA41-01211C PCB SUB-SIDE A/V WS32Z31,FR-1,1,C,1.6T,3 1 S.N.A
R701 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R702 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
T0245 0202-001492 SOLDER-WIRE FLUX HSE-02 LFM48 SR-34 S,-, 0.001 S.N.A
T0569 AA97-16541A ASSY AUTO-A/V SIDE WS32Z409D8XXEU,S64A,U 1 S.N.A
T0098 AA94-16049A ASSY PCB MISC-CONTROL CS29Z45,S63A,100HZ 1 S.N.A
CY04 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A
LY01 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
M0119 AA41-01177D PCB CONTROL CS29Z45SH,FR-1,1,A,1.6,245*2 1 S.N.A
M2893 BH39-00419A LEAD CONNECTOR CT-32Z32HD,UL1007#26,UL/C 1 S.A
RY02 2001-000577 R-CARBON 2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
RY03 2001-000007 R-CARBON 3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
RY04 2001-000878 R-CARBON 6.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
RY05 2001-000009 R-CARBON 20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
T0022 AA64-04406A KNOB-CONTROL 29Z45,ABS,HB,GR515,SVM3012 1 S.N.A
T0057 AA97-16841A ASSY AUTO-CONTROL CS29Z45,100HZ,S63A 1 S.N.A
T0245 0202-001492 SOLDER-WIRE FLUX HSE-02 LFM48 SR-34 S,-, 0.003 S.N.A
T0313 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A
T0313 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A
T0313 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A
T0313 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A
T0313 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A

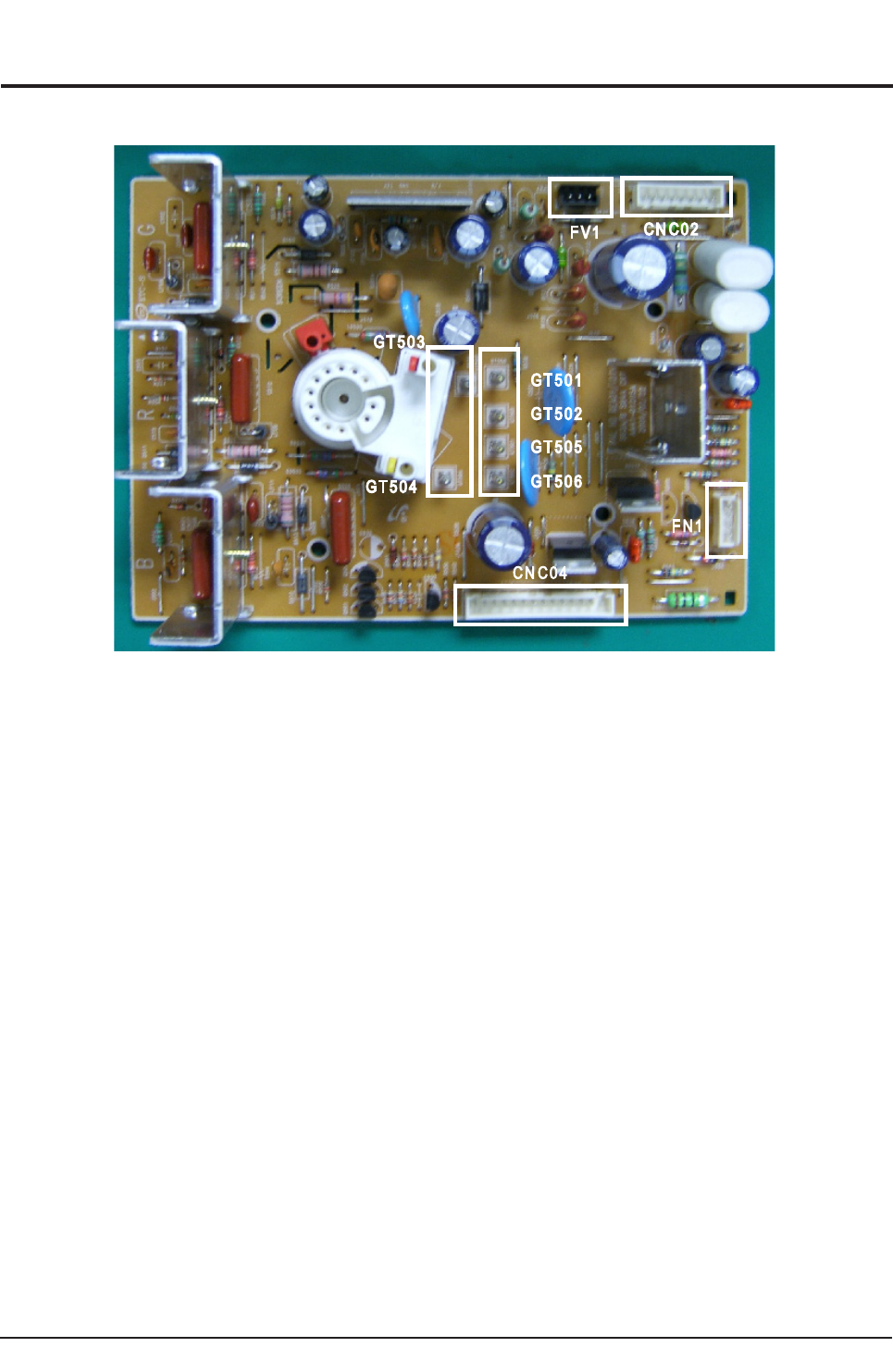

T0065 AA94-16153B ASSY PCB CRT CS29Z40HSSXBWT,S65A 1 S.A
C501 2201-000193 C-CERAMIC,DISC 0.01nF,0.25pF,50V,C0G,-,4 1 S.A
C504 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A
C505 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A
C506 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A
C507 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A
C508 2301-001211 C-FILM,LEAD-PPF 22nF,5%,400V,TP,20x7x14m 1 S.A
C509 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A
C511 2301-001211 C-FILM,LEAD-PPF 22nF,5%,400V,TP,20x7x14m 1 S.A
C512 2301-001211 C-FILM,LEAD-PPF 22nF,5%,400V,TP,20x7x14m 1 S.A
C513 2201-000600 C-CERAMIC,DISC 0.56NF,10%,50V,Y5P,TP,5X3 1 S.A
C514 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A
C515 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
5. Electrical Part List
5-1 CS29Z45HPSXNWT
C516 2401-000302 C-AL 100uF,20%,25V,GP,TP,6.3x11,5 1 S.A
C517 2201-000173 C-CERAMIC,DISC 10NF,10%,500V,Y5P,BK,16X4 1 S.A
C518 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C519 2401-000430 C-AL 10uF,20%,250V,GP,TP,10x16mm,5m 1 S.A
C520 2401-000703 C-AL 2200uF,20%,25V,GP,-,12.5x25mm, 1 S.A
C521 2201-000173 C-CERAMIC,DISC 10NF,10%,500V,Y5P,BK,16X4 1 S.A
C522 2201-002117 C-CERAMIC,DISC 4.7nF,20%,3000V,Y5U,-,16x 1 S.A
C526 2301-001211 C-FILM,LEAD-PPF 22nF,5%,400V,TP,20x7x14m 1 S.A
C528 2401-000832 C-AL 220uF,20%,25V,GP,TP,8x11.5,5 1 S.A
C532 2401-001563 C-AL 47uF,20%,400V,GP,TP,16x25,7.5 1 S.A
C533 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C534 2401-000832 C-AL 220uF,20%,25V,GP,TP,8x11.5,5 1 S.A
C536 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C537 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C538 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
CF01 2401-000025 C-AL 100uF,20%,16V,GP,TP,6.3x11,5 1 S.A
CF02 2201-000017 C-CERAMIC,DISC 1nF,10%,50V,Y5P,-,5x3.5mm 1 S.A
CF04 2401-000045 C-AL 10uF,20%,160V,GP,TP,10x16,5 1 S.A
CF05 2201-000019 C-CERAMIC,DISC 10nF,+80-20%,500V,Y5V,-,1 1 S.A
CF06 2201-002103 C-CERAMIC,DISC 0.015NF,5%,500V,C0G,TP,6. 1 S.A
CF07 2201-000604 C-CERAMIC,DISC 0.056nF,+100-0%,500V,SL,- 1 S.A
CF71 2401-000318 C-AL 100uF,20%,25V,LZ,TP,8x11.5,5 1 S.A
CF73 2401-000045 C-AL 10uF,20%,160V,GP,TP,10x16,5 1 S.A
CF74 2401-000287 C-AL 100uF,20%,16V,WT,TP,6.3x11,5 1 S.A
CF75 2401-000287 C-AL 100uF,20%,16V,WT,TP,6.3x11,5 1 S.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.001 S.N.A
CN330 3711-000654 HEADER-BOARD TO CABLE BOX,12P,1R,2.5MM,S 1 S.A
CN330 3711-001084 HEADER-BOARD TO CABLE BOX,8P,1R,2.5MM,ST 1 S.A
CN330 3711-002642 HEADER-BOARD TO CABLE BOX,3P,1R,2.5mm,ST 1 S.A
CN330 3711-002643 HEADER-BOARD TO CABLE BOX,4P,1R,2.5mm,ST 1 S.A
D501 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D502 0402-000493 DIODE-RECTIFIER 1R5GU41,400V,1.5A,DO-15L 1 S.A
D504 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A
D509 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D510 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D511 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D512 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D513 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D514 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
DF08 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
DU410 1201-000010 IC-OP AMP 2030,PENTAWATT,5P,-,SINGLE,-,C 1 S.A
DZ501 0403-000708 DIODE-ZENER MTZJ13B,12.55-13.21V,500mW,D 1 S.A
DZ502 0403-000708 DIODE-ZENER MTZJ13B,12.55-13.21V,500mW,D 1 S.A
DZ503 0403-000509 DIODE-ZENER MTZJ5.6B,5.4-5.7V,500mW,DO-3 1 S.A
DZ504 0403-000698 DIODE-ZENER TZP12A,5%,1000mW,DO-41,TP 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,3.5x5mm,TP,- 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,3.5x5mm,TP,- 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,3.5x5mm,TP,- 1 S.A
GT501 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT502 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT503 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT504 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT505 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT506 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
IC063 AA13-00111A IC HYBRID STK396-130,WT-32A20HD,12,105C, 1 S.A
IC501 AA96-03027A ASSY HEAT SINK P AA62-00147A,TDA6111Q,HE 1 S.N.A
IC502 AA96-03027A ASSY HEAT SINK P AA62-00147A,TDA6111Q,HE 1 S.N.A
IC503 AA96-03027A ASSY HEAT SINK P AA62-00147A,TDA6111Q,HE 1 S.N.A
IC504 BH99-00038K ASSY HEAT/SINK BH62-00041A,SCREW,TDA2030 1 S.N.A
IC506 0502-000006 TR-POWER KSC1507,NPN,15W,TO-220,TP,120- 1 S.A
L501 2701-001040 INDUCTOR-AXIAL 10UH,10%,4514 1 S.A
L502 2701-000178 INDUCTOR-AXIAL 33UH,10%,3070 1 S.A
LF03 2701-000112 INDUCTOR-AXIAL 100UH,10%,3070 1 S.A
LX085 AA27-90001B COIL-SPARK,GAP S-23,1.5KV,-,-,-,-,-,-,-, 1 S.A
M0081 6003-000334 SCREW-TAPTITE RH,+,-,2S,M3,L6,ZPC(WHT),S 1 S.N.A
M0081 6003-000334 SCREW-TAPTITE RH,+,-,2S,M3,L6,ZPC(WHT),S 1 S.N.A
M2893 BP39-00055D LEAD CONNECTOR V18C,UL1007#26,UL/CSA,8P, 1 S.A
PCB AA41-01205A PCB CRT WS32Z40,FR-1,1L,A,1.6T,245X330,S 1 S.N.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
Samsung Electronics5-2
Electrical Part List
5-3Samsung Electronics
Electrical Part List
Q501 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A
Q502 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A
Q503 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A
Q504 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A
Q505 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
R501 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R502 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R504 2004-001390 R-METAL(S) 1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 1 S.A
R505 2004-001390 R-METAL(S) 1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 1 S.A
R506 2004-001373 R-METAL(S) 100Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A
R507 2001-000472 R-CARBON 2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R508 2001-000995 R-CARBON 820OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R509 2008-000205 R-FUSIBLE(S) 10ohm,5%,1/2W,AF,TP,2.5x6.5 1 S.A
R510 2004-001373 R-METAL(S) 100Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A
R511 2004-001373 R-METAL(S) 100Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A
R512 2004-001390 R-METAL(S) 1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 1 S.A
R513 2002-001102 R-COMPOSITION 510OHM,10%,1/2W,AA,TP,3.3X 1 S.A
R514 2002-001102 R-COMPOSITION 510OHM,10%,1/2W,AA,TP,3.3X 1 S.A
R515 2002-001102 R-COMPOSITION 510OHM,10%,1/2W,AA,TP,3.3X 1 S.A
R519 2001-000397 R-CARBON 180KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R520 2001-000563 R-CARBON 27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R522 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R523 2001-000890 R-CARBON 6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R525 2002-001006 R-COMPOSITION 4.7Kohm,15%,1/2W,AA,TP,3.7 1 S.A
R527 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R528 2008-000205 R-FUSIBLE(S) 10ohm,5%,1/2W,AF,TP,2.5x6.5 1 S.A
R529 2008-000264 R-FUSIBLE(S) 1ohm,5%,1W,AF,TP,3.9x10mm 1 S.A
R530 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R531 2001-000009 R-CARBON 20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R532 2004-001893 R-METAL(S) 22Kohm,1%,1/2W,AA,TP,2.5x6.5m 1 S.A
R533 2001-000066 R-CARBON(S) 10KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R534 2004-004097 R-METAL 1.6Kohm,2%,1/2W,AA,TP,2.4X6.4mm 1 S.A
R535 2001-001103 R-CARBON(S) 20KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R536 2001-000085 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R537 2001-001196 R-CARBON(S) 9.1KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R538 2001-001062 R-CARBON(S) 10MOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R540 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R541 2008-001053 R-FUSIBLE 22ohm,5%,1/2W,AF,TP,2.5x6.5mm 1 S.A
R554 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R555 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R556 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R559 2008-001110 R-FUSIBLE(S) 68ohm,5%,2W,AG,TP,3.9X12mm 1 S.A
R560 2001-000052 R-CARBON(S) 3.3KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R561 2001-001126 R-CARBON(S) 300OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R562 2001-000085 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R563 2001-000085 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R564 2001-000066 R-CARBON(S) 10KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R565 2001-001071 R-CARBON(S) 12KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R566 2001-001040 R-CARBON(S) 0.68OHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R567 2006-001081 R-CEMENT 82ohm,5%,5W,CJ,TP,14x10x27mm 1 S.A
R568 2006-001081 R-CEMENT 82ohm,5%,5W,CJ,TP,14x10x27mm 1 S.A
RF11 2001-001175 R-CARBON(S) 62OHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A
RF12 2003-001093 R-METAL OXIDE(S) 12Kohm,5%,2W,AF,TP,3.9x 1 S.A
RF13 2008-000292 R-FUSIBLE(S) 3.3ohm,5%,2W,AF,TP,3.9x10mm 1 S.A
RF20 2003-001042 R-METAL OXIDE(S) 5.6Kohm,5%,2W,AF,TP,3.9 1 S.A
RF21 2003-001042 R-METAL OXIDE(S) 5.6Kohm,5%,2W,AF,TP,3.9 1 S.A
RF22 2003-000995 R-METAL OXIDE(S) 3.3Kohm,5%,2W,AF,TP,3.9 1 S.A
RF35 2003-001024 R-METAL OXIDE(S) 150ohm,5%,2W,AF,TP,3.9x 1 S.A
T0074 1201-001131 IC-VIDEO AMP 6111,SIP,9P,-,SINGLE,-,PLAS 1 S.A
T0081 BH62-00041A HEAT SINK-TR PN17LT,A1050S,T1.0,50,23,WH 1 S.N.A
T0087 1203-003951 IC-POSI.FIXED REG. KA7812ETSTU,TO-220,3P 1 S.A
T0100 AA97-17047B ASSY AUTO-CRT CS29Z40HSSXBWT,S65A 1 S.N.A
T0175 AA62-00147A HEAT SINK-PS K62A,A1050,T2.0,35mm,40mm,W 1 S.N.A
T0245 0202-001492 SOLDER-WIRE FLUX HSE-02 LFM48 SR-34 S,-, 0.01 S.N.A
T0245 AA39-20010D LEAD CONNECTOR-ASSY ,1P,400,YFH800-01,S, 1 S.A
T0297 AA39-00331D CABLE FORM CONN.COAX WS32Z409P,UL1185#26 1 S.A
T0310 4715-001036 SURGE ABSORBER 500V,20%,-,-,TP 1 S.A
T0310 4715-001036 SURGE ABSORBER 500V,20%,-,-,TP 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
T0310 4715-001036 SURGE ABSORBER 500V,20%,-,-,TP 1 S.A
V999S1 3704-001197 SOCKET-CRT 8P+SEN,29PI,22.5PI,NI+SN,- 1 S.A
M0014 AA94-16175B ASSY PCB MAIN CS29Z45HPSXNWT,S65A 1 S.A
C101 2401-000025 C-AL 100uF,20%,16V,GP,TP,6.3x11,5 1 S.A
C102 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C103 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C104 2401-003578 C-AL 1000uF,20%,10V,GP,TP,8x20mm,5 1 S.A
C105 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C106 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 1 S.A
C107 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C108 2401-003578 C-AL 1000uF,20%,10V,GP,TP,8x20mm,5 1 S.A
C109 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C110 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A
C111 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 1 S.A
C112 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C113 2202-000216 C-CERAMIC,MLC-AXIAL 0.027NF,5%,50V,SL,TP 1 S.A
C114 2202-000216 C-CERAMIC,MLC-AXIAL 0.027NF,5%,50V,SL,TP 1 S.A
C116 2401-003578 C-AL 1000uF,20%,10V,GP,TP,8x20mm,5 1 S.A
C301 2401-003139 C-AL 1000uF,20%,25V,WT,TP,10*20,5mm 1 S.A
C302 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A
C303 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C304 2401-003139 C-AL 1000uF,20%,25V,WT,TP,10*20,5mm 1 S.A
C305 2305-000149 C-FILM,LEAD-PEF 100nF,5%,100V,TP,12x12.5 1 S.A
C306 2305-000149 C-FILM,LEAD-PEF 100nF,5%,100V,TP,12x12.5 1 S.A
C308 2305-000237 C-FILM,LEAD-PEF 1uF,5%,63V,TP,7.5x15.5mm 1 S.A
C309 2401-000365 C-AL 100uF,20%,50V,WT,TP,10x12.5mm, 1 S.A
C310 2201-000532 C-CERAMIC,DISC 4.7NF,10%,50V,Y5P,TP,8X3. 1 S.A
C311 2305-000285 C-FILM,LEAD-PEF 220NF,5%,100V,TP,10.5X5. 1 S.A
C312 2201-000119 C-CERAMIC,DISC 100NF,+80-20%,50V,Y5V,TP, 1 S.A
C314 2401-003743 C-AL 1UF,20%,50V,WT,TP,5X11MM,2 1 S.A
C315 2301-000010 C-FILM,LEAD-PEF 100nF,5%,100V,TP,11.5x12 1 S.A
C316 2305-000285 C-FILM,LEAD-PEF 220NF,5%,100V,TP,10.5X5. 1 S.A
C401 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C402 2401-001397 C-AL 470uF,20%,25V,GP,TP,10x16,5 1 S.A
C403 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C404 2401-001838 C-AL 470uF,20%,25V,WT,TP,10x16,5 1 S.A
C405 2401-001838 C-AL 470uF,20%,25V,WT,TP,10x16,5 1 S.A
C406 2303-000163 C-FILM,LEAD-PPF 2.2nF,5%,800V,TP,15x13x8 1 S.A
C407 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm 1 S.A
C408 2301-001083 C-FILM,LEAD-PPF 27nF,5%,400V,TP,20x7.5x1 1 S.A
C409 2301-001083 C-FILM,LEAD-PPF 27nF,5%,400V,TP,20x7.5x1 1 S.A
C410 2301-000342 C-FILM,LEAD-PEF 2.2nF,5%,50V,TP,7.4x3.9x 1 S.A
C411 2301-000160 C-FILM,LEAD-PEF 12nF,5%,50V,TP,11.0x6.0x 1 S.A
C412 2301-000383 C-FILM,LEAD-PEF 10nF,5%,50V,TP,6x7x3.2mm 1 S.A
C413 2401-001363 C-AL 470uF,20%,16V,GP,TP,10x12.5,5 1 S.A
C414 2401-003139 C-AL 1000uF,20%,25V,WT,TP,10*20,5mm 1 S.A
C416 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C417 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C418 2401-000010 C-AL 220uF,20%,16V,GP,-,6.3x11mm,2.5 1 S.A
C419 2301-001083 C-FILM,LEAD-PPF 27nF,5%,400V,TP,20x7.5x1 1 S.A
C420 2301-000213 C-FILM,LEAD-PEF 220nF,5%,250V,TP,21.5x11 1 S.A
C421 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A
C422 2401-000040 C-AL 47UF,20%,250V,WT,TP,12.5X25MM,5 1 S.A
C423 2306-000248 C-FILM,LEAD-PPF 680nF,5%,250V,BK,26.5x16 1 S.A
C426 2301-001271 C-FILM,LEAD-PPF 510nF,5%,400V,BK,26x13.5 1 S.A
C428 2301-000213 C-FILM,LEAD-PEF 220nF,5%,250V,TP,21.5x11 1 S.A
C441 2401-000493 C-AL 10uF,20%,50V,LZ,TP,5x11mm,5mm 1 S.A
C448 2401-000787 C-AL 220uF,20%,160V,GP,BK,16x31.5mm,7.5 1 S.A
C607 2301-000192 C-FILM,LEAD-PEF 1nF,5%,50V,TP,5.3x10mm,5 1 S.A
C608 2301-000192 C-FILM,LEAD-PEF 1nF,5%,50V,TP,5.3x10mm,5 1 S.A
C609 2401-003743 C-AL 1UF,20%,50V,WT,TP,5X11MM,2 1 S.A
C610 2401-003743 C-AL 1UF,20%,50V,WT,TP,5X11MM,2 1 S.A
C615 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C616 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C619 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C621 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C628 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
Samsung Electronics5-4
Electrical Part List
5-5Samsung Electronics
Electrical Part List
C629 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C630 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C634 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A
C640 2401-002075 C-AL 4.7uF,20%,50V,GP,TP,5x11,5 1 S.A
C642 2401-001998 C-AL 1000uF,20%,25V,GP,TP,10x20,5mm 1 S.A
C648 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C801 2401-000703 C-AL 2200uF,20%,25V,GP,-,12.5x25mm, 1 S.A
C802 2401-003026 C-AL 330uF,20%,200V,GP,ST,22x35,10 1 S.A
C803 2401-002227 C-AL 330uF,20%,450V,GP,BK,35x45,10 1 S.A
C804 2401-000039 C-AL 1000uF,20%,16V,GP,TP,10x16,5 1 S.A
C805 2401-000142 C-AL 1000uF,20%,16V,WT,TP,10x20,5 1 S.A
C806 2306-000112 C-FILM,LEAD-PPF 100nF,20%,250V,BK,-,15mm 1 S.A
C807 2301-001435 C-FILM,LEAD-PPF 1.5nF,5%,1.2kV,TP,15x8x1 1 S.A
C808 2401-001561 C-AL 47uF,20%,35V,WT,TP,8x11.5,5 1 S.A
C809 2201-000863 C-CERAMIC,DISC 0.68NF,10%,50V,Y5P,TP,5X3 1 S.A
C810 2201-000406 C-CERAMIC,DISC 0.27NF,10%,2KV,Y5P,TP,6.3 1 S.A
C811 2401-002075 C-AL 4.7uF,20%,50V,GP,TP,5x11,5 1 S.A
C812 2401-000611 C-AL 1uF,20%,50V,WT,TP,5x11,5 1 S.A
C813 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A
C814 2401-000010 C-AL 220uF,20%,16V,GP,-,6.3x11mm,2.5 1 S.A
C816 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A
C817 2305-000289 C-FILM,LEAD-PEF 220nF,5%,63V,TP,-,5mm 1 S.A
C818 2301-001194 C-FILM,LEAD-PPF 470nF,5%,250V,TP,18x16x8 1 S.A
C819 2201-000374 C-CERAMIC,DISC 0.22NF,5%,50V,C0G,TP,10.5 1 S.A
C820 2301-000192 C-FILM,LEAD-PEF 1nF,5%,50V,TP,5.3x10mm,5 1 S.A
C821 2301-000356 C-FILM,LEAD-PEF 47nF,5%,50V,TP,7.5x4.0x6 1 S.A
C822 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A
C823 2401-000698 C-AL 2200uF,20%,16V,WT,TP,12.5x25,5 1 S.A
C824 2201-000332 C-CERAMIC,DISC 2.2nF,20%,250V,Y5U,-,9x4m 1 S.A
C826 2201-000332 C-CERAMIC,DISC 2.2nF,20%,250V,Y5U,-,9x4m 1 S.A
C827 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C828 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C829 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A
C838 2401-000689 C-AL 2200uF,20%,16V,GP,TP,13x25,5 1 S.A
C839 2401-000039 C-AL 1000uF,20%,16V,GP,TP,10x16,5 1 S.A
C901 2401-000302 C-AL 100uF,20%,25V,GP,TP,6.3x11,5 1 S.A
C902 2401-002594 C-AL 220uF,20%,16V,GP,TP,8x11.5,5 1 S.A
CA701 2203-000815 C-CER,CHIP 0.033nF,5%,50V,C0G,1608 1 S.A
CA703 2203-000815 C-CER,CHIP 0.033nF,5%,50V,C0G,1608 1 S.A
CA705 2203-000815 C-CER,CHIP 0.033nF,5%,50V,C0G,1608 1 S.A
CA707 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A
CA708 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A
CA709 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A
CA710 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A
CA711 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CA712 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CA713 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CA714 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CA715 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA731 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA732 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA733 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA734 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA801 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA802 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
CA803 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA804 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
CA805 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
CA806 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA807 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA808 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
CA809 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA810 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA811 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
CA812 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA813 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA814 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
CA815 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
CA816 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA817 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA818 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA819 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA820 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA821 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA822 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA823 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA824 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA825 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CA826 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA827 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA828 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA829 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA830 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA831 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA832 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA833 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA834 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA835 2409-001085 C-ORGANIC 47UF,20%,10V,WT,TP,5*5.7MM,1.4 1 S.A
CA836 2409-001085 C-ORGANIC 47UF,20%,10V,WT,TP,5*5.7MM,1.4 1 S.A
CA837 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA838 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA839 2409-001065 C-ORGANIC 82uF,20%,16V,WT,TP,8X6.9mm,- 1 S.A
CA840 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A
CA841 2203-000405 C-CER,CHIP 0.18nF,5%,50V,C0G,1608 1 S.A
CA842 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A
CA843 2203-000715 C-CER,CHIP 3.3nF,10%,50V,X7R,1608 1 S.A
CA844 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA845 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA846 2402-001158 C-AL,SMD 1UF,20%,50V,WT,TP,4X5.2MM 1 S.A
CA847 2409-001114 C-POLYMER ,CHIP 220UF,20%,10V,LR,TP,7343 1 S.A
CA848 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA849 2409-001085 C-ORGANIC 47UF,20%,10V,WT,TP,5*5.7MM,1.4 1 S.A
CA850 2402-001165 C-AL,SMD 4.7UF,20%,35V,WT,TP,4X5.8MM 1 S.A
CA851 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA852 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA853 2402-001259 C-AL,SMD 220uF,20%,16V,WT,REEL,8X10 1 S.A
CA854 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA855 2402-001129 C-AL,SMD 47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A
CA856 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA857 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
CA901 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CA902 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CD901 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
CD902 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD903 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
CD904 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD905 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD906 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
CD907 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD908 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD910 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A
CD911 2402-001238 C-AL,SMD 1uF,20%,50V,HR,TP,4.3x4.3x5.2mm 1 S.A
CD912 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD913 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD914 2402-001165 C-AL,SMD 4.7UF,20%,35V,WT,TP,4X5.8MM 1 S.A
CD915 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CD916 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A
CD917 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A
CD918 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD919 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
CD920 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD921 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD922 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD923 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD924 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD925 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
Samsung Electronics5-6
Electrical Part List
5-7Samsung Electronics
Electrical Part List
CD927 2301-001664 C-FILM,LEAD-OTHER 100nF,3%,50V,TP,20x16x 1 S.A
CD928 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A
CD930 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CD931 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A
CD932 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A
CD933 2402-001165 C-AL,SMD 4.7UF,20%,35V,WT,TP,4X5.8MM 1 S.A
CD934 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
CD935 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD936 2203-001034 C-CER,CHIP 5.6nF,10%,50V,X7R,1608 1 S.A
CD939 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD940 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD941 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD942 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD943 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD944 2203-000888 C-CER,CHIP 4.7nF,10%,50V,X7R,1608 1 S.A
CD945 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A
CD946 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A
CD947 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD948 2203-006170 C-CER,CHIP 220nF,10%,16V,X7R,1608 1 S.A
CD949 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
CD950 2203-000975 C-CER,CHIP 47nF,10%,25V,X7R,TP,1608,- 1 S.A
CD951 2402-001129 C-AL,SMD 47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A
CD952 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD953 2203-006170 C-CER,CHIP 220nF,10%,16V,X7R,1608 1 S.A
CD954 2203-001397 C-CER,CHIP 2.2nF,5%,50V,NP0,1608 1 S.A
CD955 2203-006333 C-CER,CHIP 10000nF,20%,16V,X5R,TP,3216 1 S.A
CD956 2203-001397 C-CER,CHIP 2.2nF,5%,50V,NP0,1608 1 S.A
CD958 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CD959 2301-000224 C-FILM,LEAD-PEF 22nF,5%,50V,TP,7.4x3.9x1 1 S.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.2 S.N.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.4 S.N.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.1 S.N.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.2 S.N.A
CIS1 0205-001154 OIL-SILICON G746,-,- 0.4 S.N.A
CIS3 AA40-00130A TUNER TMQZ2-401A,PAL-CS,PAL Hyper,38.9MH 1 S.A
CIS3 AA40-00132A TUNER TMQZ2-410A,PAL-CS,PAL Hyper,38.9MH 1 S.A
CN01 3711-003495 HEADER-BOARD TO BOARD NOWALL,34P,2R,2.54 1 S.A
CN02 3711-003495 HEADER-BOARD TO BOARD NOWALL,34P,2R,2.54 1 S.A
CN301 AA60-40012F PIN-GT 4P,2.36PI,6/12/14mm,NYLON66,LOCKI 1 S.N.A
CN330 3711-001084 HEADER-BOARD TO CABLE BOX,8P,1R,2.5MM,ST 1 S.A
CN330 3711-003043 HEADER-BOARD TO CABLE BOX,4P,1R,2.5MM,ST 1 S.A
CN330 3711-000058 HEADER-BOARD TO CABLE BOX,4P,1R,2.5MM,AN 1 S.A
CN330 3711-000643 HEADER-BOARD TO CABLE BOX,12P,1R,2.5MM,A 1 S.A
CN330 3711-001031 HEADER-BOARD TO CABLE BOX,6P,1R,2.5MM,AN 1 S.A
CN330 3711-001111 HEADER-BOARD TO CABLE BOX,8P,1R,2.5MM,AN 1 S.A
CN330 3711-004067 HEADER-BOARD TO CABLE BOX,4P,1R,2mm,ANGL 1 S.A
CN330 3711-004484 HEADER-BOARD TO CABLE BOX,5P,1R,2mm,STRA 1 S.A
CN802 AA60-40012G PIN-GT 3P,2.36PI,10/5mm,NYLON66,LOCKING 1 S.N.A
CN909 AA37-00001A CONNECTOR-FBT FIX PIN JM-3500,CPTTV,0.36 1 S.A
CN909 AA37-00001A CONNECTOR-FBT FIX PIN JM-3500,CPTTV,0.36 1 S.A
CP001 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CP002 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP003 2402-001150 C-AL,SMD 47UF,20%,16V,-,TP,6.3X5.8MM 1 S.A
CP004 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP005 2402-001150 C-AL,SMD 47UF,20%,16V,-,TP,6.3X5.8MM 1 S.A
CP006 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP007 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,1608 1 S.A
CP008 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP009 2402-001150 C-AL,SMD 47UF,20%,16V,-,TP,6.3X5.8MM 1 S.A
CP010 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,1608 1 S.A
CP011 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP012 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP013 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP014 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP015 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP016 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP017 2203-000998 C-CER,CHIP 0.047nF,5%,50V,C0G,1608 1 S.A
CP018 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
CP019 2203-000998 C-CER,CHIP 0.047nF,5%,50V,C0G,1608 1 S.A
CP020 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP021 2203-000998 C-CER,CHIP 0.047nF,5%,50V,C0G,1608 1 S.A
CP022 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP023 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP025 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP026 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP027 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP028 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP029 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP030 2203-000998 C-CER,CHIP 0.047nF,5%,50V,C0G,1608 1 S.A
CP031 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP032 2402-001150 C-AL,SMD 47UF,20%,16V,-,TP,6.3X5.8MM 1 S.A
CP033 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CP034 2203-000998 C-CER,CHIP 0.047nF,5%,50V,C0G,1608 1 S.A
CR405S 2306-000353 C-FILM,LEAD-PPF 6.3nF,5%,1.6KV,BK,26.5x8 1 S.A
CR406S 2303-000282 C-FILM,LEAD-PPF 6nF,5%,1.6KV,TP,29*23*8. 1 S.A
CR407S 2301-001418 C-FILM,LEAD-PPF 1.5nF,5%,2kV,TP,29x7x13. 1 S.A
CV201 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV202 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CV203 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV204 2203-001071 C-CER,CHIP 0.056nF,5%,50V,C0G,1608 1 S.A
CV205 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A
CV206 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A
CV207 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CV208 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CV209 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CV210 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CV211 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CV212 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CV213 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CV214 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A
CV215 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV216 2402-001159 C-AL,SMD 3.3UF,20%,50V,WT,TP,4X5.2MM 1 S.A
CV217 2402-001129 C-AL,SMD 47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A
CV218 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV219 2203-001071 C-CER,CHIP 0.056nF,5%,50V,C0G,1608 1 S.A
CV220 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
CV221 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,1608 1 S.A
CV222 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,1608 1 S.A
CV223 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV224 2203-000998 C-CER,CHIP 0.047nF,5%,50V,C0G,1608 1 S.A
CV225 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV226 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV227 2203-000998 C-CER,CHIP 0.047nF,5%,50V,C0G,1608 1 S.A
CV228 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV229 2203-000998 C-CER,CHIP 0.047nF,5%,50V,C0G,1608 1 S.A
CV230 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV231 2203-000681 C-CER,CHIP 0.027nF,5%,50V,C0G,1608 1 S.A
CV232 2203-000681 C-CER,CHIP 0.027nF,5%,50V,C0G,1608 1 S.A
CV233 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV236 2203-000681 C-CER,CHIP 0.027nF,5%,50V,C0G,1608 1 S.A
CV237 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV238 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV239 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV240 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV241 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV242 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV243 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV244 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV245 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV247 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV249 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV250 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A
CV251 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A
CV255 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
CV256 2402-001006 C-AL,SMD 4.7uF,20%,25V,GP,TP,3.6x6.3x3. 1 S.A
CV257 2402-001006 C-AL,SMD 4.7uF,20%,25V,GP,TP,3.6x6.3x3. 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
Samsung Electronics5-8
Electrical Part List
5-9Samsung Electronics
Electrical Part List
CV258 2402-001006 C-AL,SMD 4.7uF,20%,25V,GP,TP,3.6x6.3x3. 1 S.A
CV259 2402-001006 C-AL,SMD 4.7uF,20%,25V,GP,TP,3.6x6.3x3. 1 S.A
CX801S 2306-000318 C-FILM,LEAD-PPF 220nF,20%,275V,BK,26x7x1 1 S.A
CY801S 2201-000987 C-CERAMIC,DISC 2.2NF,20%,400V,Y5U,BK,12. 1 S.A
CY802S 2201-000963 C-CERAMIC,DISC 1NF,20%,400V,Y5U,TP,9.5X6 1 S.A
D0254 0402-000553 DIODE-SCHOTTKY SS24/B240,40V,2000mA,DO-2 1 S.A
D401 0402-001295 DIODE-RECTIFIER GUR460L-5700,600V,4A,DO- 1 S.A
D402 0402-000540 DIODE-RECTIFIER RU20A,600V,1.5A,-,TP 1 S.A
D403 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A
D404 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D405 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D406 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D407 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D408 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A
D410 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D411 0402-000534 DIODE-RECTIFIER RG10V,400V,1.2A,DO-201,T 1 S.A
D412 0402-000534 DIODE-RECTIFIER RG10V,400V,1.2A,DO-201,T 1 S.A
D413 0402-000534 DIODE-RECTIFIER RG10V,400V,1.2A,DO-201,T 1 S.A
D604 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D609 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D801 0401-000006 DIODE-SWITCHING BAV21,250V,200mA,DO-35,T 1 S.A
D801S 0402-001399 DIODE-BRIDGE GSIB660,600V,6A,SIP-4,BK 1 S.A
D802 0401-000006 DIODE-SWITCHING BAV21,250V,200mA,DO-35,T 1 S.A
D803 0401-000006 DIODE-SWITCHING BAV21,250V,200mA,DO-35,T 1 S.A
D804 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A
D805 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A
D808 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A
D901 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
D902 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
DA801 0401-001099 DIODE-SWITCHING 1N4148WS,75V,150mA,SOD-3 1 S.A
DC4001 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
DC4002 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4003 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4004 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4005 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
DC4006 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4007 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4008 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4009 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4010 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4011 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
DC4012 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4013 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4014 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4015 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
DC4016 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4017 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4024 2203-000815 C-CER,CHIP 0.033nF,5%,50V,C0G,1608 1 S.A
DC4025 2203-000815 C-CER,CHIP 0.033nF,5%,50V,C0G,1608 1 S.A
DC4026 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A
DC4027 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A
DC4028 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A
DC4029 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A
DC4030 2402-001128 C-AL,SMD 100¥ìF,20%,16V,-,TP,6.3X5.7mm 1 S.A
DC4031 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4032 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4033 2402-001150 C-AL,SMD 47UF,20%,16V,-,TP,6.3X5.8MM 1 S.A
DC4034 2402-001150 C-AL,SMD 47UF,20%,16V,-,TP,6.3X5.8MM 1 S.A
DC4035 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A
DC4036 2203-000357 C-CER,CHIP 0.15nF,5%,50V,C0G,1608 1 S.A
DC4037 2203-000357 C-CER,CHIP 0.15nF,5%,50V,C0G,1608 1 S.A
DC4038 2203-000357 C-CER,CHIP 0.15nF,5%,50V,C0G,1608 1 S.A
DC4039 2203-000357 C-CER,CHIP 0.15nF,5%,50V,C0G,1608 1 S.A
DC4040 2203-000357 C-CER,CHIP 0.15nF,5%,50V,C0G,1608 1 S.A
DC4041 2203-000357 C-CER,CHIP 0.15nF,5%,50V,C0G,1608 1 S.A
DC4042 2203-000357 C-CER,CHIP 0.15nF,5%,50V,C0G,1608 1 S.A
DC4043 2203-000357 C-CER,CHIP 0.15nF,5%,50V,C0G,1608 1 S.A
DC4044 2203-000357 C-CER,CHIP 0.15nF,5%,50V,C0G,1608 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
DD901 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A
DD902 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A
DD903 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A
DD904 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A
DD905 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A
DD906 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A
DD907 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A
DD908 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A
DD909 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A
DD910 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A
DD911 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A
DD912 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A
DD913 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A
DR4005 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
DR4006 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
DR4007 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
DR4008 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
DR4009 2007-007947 R-CHIP 36ohm,1%,1/10W,TP,1608 1 S.A
DR4010 2007-007947 R-CHIP 36ohm,1%,1/10W,TP,1608 1 S.A
DR4011 2007-007947 R-CHIP 36ohm,1%,1/10W,TP,1608 1 S.A
DR4012 2007-000729 R-CHIP 300ohm,5%,1/10W,TP,1608 1 S.A
DR4013 2007-000729 R-CHIP 300ohm,5%,1/10W,TP,1608 1 S.A
DR4014 2007-007947 R-CHIP 36ohm,1%,1/10W,TP,1608 1 S.A
DR4015 2007-007947 R-CHIP 36ohm,1%,1/10W,TP,1608 1 S.A
DR4016 2007-007947 R-CHIP 36ohm,1%,1/10W,TP,1608 1 S.A
DR4022 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 1 S.A
DR4023 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
DR4024 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 1 S.A
DR4025 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A
DR4067 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A
DR4068 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
DR4069 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
DR4070 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
DR4071 2007-001196 R-CHIP 820Kohm,5%,1/10W,TP,1608 1 S.A
DR4072 2007-001114 R-CHIP 680Kohm,5%,1/10W,TP,1608 1 S.A
DR4076 2007-000119 R-CHIP 560ohm,5%,1/10W,TP,1608 1 S.A
DX4001 2801-003954 CRYSTAL-SMD 27MHz,30ppm,28-AAN,16pF,50oh 1 S.A
DZ301 0403-000699 DIODE-ZENER TZP27B,27-30.8V,1000mW,DO-41 1 S.A
DZ302 0403-000699 DIODE-ZENER TZP27B,27-30.8V,1000mW,DO-41 1 S.A
DZ303 0403-001329 DIODE-ZENER MTZJ24B,22.75-23.73V,500mW,D 1 S.A
DZ304 0403-000700 DIODE-ZENER TZP33A,5%,1000mW,DO-41,TP 1 S.A
DZ305 0403-001221 DIODE-ZENER UZ39BSB,35.36-37.19V,500mW,D 1 S.A
DZ402 0403-000708 DIODE-ZENER MTZJ13B,12.55-13.21V,500mW,D 1 S.A
DZ403 0403-001325 DIODE-ZENER MTZJ15C,14.42-15.02V,500MW,D 1 S.A
DZ404 0403-001325 DIODE-ZENER MTZJ15C,14.42-15.02V,500MW,D 1 S.A
DZ405 0403-000700 DIODE-ZENER TZP33A,5%,1000mW,DO-41,TP 1 S.A
DZ701 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A
DZ703 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A
DZ705 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A
DZ709 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ710 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ713 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ714 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ715 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A
DZ716 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A
DZ717 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ718 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ719 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ720 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ721 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ722 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ723 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ724 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ725 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ726 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ727 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ728 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ729 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
Samsung Electronics5-10
Electrical Part List
5-11Samsung Electronics
Electrical Part List
DZ730 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ731 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ732 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A
DZ801 0403-001016 DIODE-ZENER RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A
DZ802 0403-000718 DIODE-ZENER MTZJ6.8B,6.52-6.79V,500mW,DO 1 S.A
DZ803 0403-000700 DIODE-ZENER TZP33A,5%,1000mW,DO-41,TP 1 S.A
DZ804 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A
DZ805 0403-001320 DIODE-ZENER MTZJ6.2C,6.16-6.4V,500mW,DO- 1 S.A
DZ806 0403-001321 DIODE-ZENER MTZJ6.8C,6.7-6.97V,500mW,DO- 1 S.A
DZ807 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A
DZ808 0403-000717 DIODE-ZENER MTZJ5.1B,4.94-5.2V,500mW,DO- 1 S.A
DZ809 0403-000717 DIODE-ZENER MTZJ5.1B,4.94-5.2V,500mW,DO- 1 S.A
DZ901 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZ901 0403-000509 DIODE-ZENER MTZJ5.6B,5.4-5.7V,500mW,DO-3 1 S.A
DZ902 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZ903 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZD01 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500mW,LL 1 S.A
DZD02 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500mW,LL 1 S.A
DZD03 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500mW,LL 1 S.A
DZD04 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500mW,LL 1 S.A
DZD05 0403-000746 DIODE-ZENER RLZ3.9B,3.89-4.16V,500mW,LL- 1 S.A
DZD06 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZD07 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZD08 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZD09 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500mW,LL 1 S.A
DZS01 0403-000367 DIODE-ZENER UZ7.5BSC,7.3-7.7V,500mW,DO-3 1 S.A
DZV201 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZV202 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZV203 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZV204 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZV205 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZV206 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZV207 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZV208 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZV209 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZV210 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZV211 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
DZV212 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A
EL401 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL410 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL412 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL413 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL810 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL811 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL812 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL813 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL815 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL816 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EL817 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A
EY401 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY402 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY403 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY404 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY405 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY406 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY408 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY409 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY410 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY412 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY413 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY414 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY415 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY416 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY417 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY418 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY419 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY420 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY421 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
EY422 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY423 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY424 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY425 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY426 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY427 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY429 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY430 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY431 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY435 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY442 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY443 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY446 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY448 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY449 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY450 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY451 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY458 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY459 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY610 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY611 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY612 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY613 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY801 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY814 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY815 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY816 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY817 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY818 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY819 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY820 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY821 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY822 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY823 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY824 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY825 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY826 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY827 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY828 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY829 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY830 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY831 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY832 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY833 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY834 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY835 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY836 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY837 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY838 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY839 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY840 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY841 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY842 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY843 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY844 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY845 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY846 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY847 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY848 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY849 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY850 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY851 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY852 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY853 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY854 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY855 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
EY856 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,3.5x5mm,TP,- 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
Samsung Electronics5-12
Electrical Part List
5-13Samsung Electronics
Electrical Part List
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,3.5x5mm,TP,- 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,3.5x5mm,TP,- 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,3.5x5mm,TP,- 1 S.A
F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,3.5x5mm,TP,- 1 S.A
F801A 3602-000114 FUSE-HOLDER -,-,30mohm 1 S.A
F801B 3602-000114 FUSE-HOLDER -,-,30mohm 1 S.A
FD801S 3601-001086 FUSE-AXIAL LEAD 125V,5A,FAST-ACTING,GLAS 1 S.A
FD802 3601-000414 FUSE-CARTRIDGE 250V,5A,SLOW-BLOW,GLASS,5 1 S.A
FD802S 3601-001065 FUSE-AXIAL LEAD 125V,3.5A,FAST-ACTING,CE 1 S.A
FD804S 3601-001086 FUSE-AXIAL LEAD 125V,5A,FAST-ACTING,GLAS 1 S.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A
GT101 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT102 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT401 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT804 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT805 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT806 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
GT901 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A
H/S AA61-01390A BRACKET CT-29A20HR,SECC,T1.0 1 S.N.A
HC401 AA96-04710B ASSY HEAT SINK P AA62-00159B,SCREW,0402- 1 S.N.A
HC801 BP96-00006E ASSY HEAT SINK P BP62-00001A,SCREW,SLA10 1 S.N.A
IC012 1203-000162 IC-POSI.ADJUST REG. 317,TO-220,3P,-,PLAS 1 S.A
IC012 1203-001217 IC-POSI.ADJUST REG. 431,TO-92,3P,4.58MIL 1 S.A
IC06 1203-001211 IC-VOL. DETECTOR 7027,SOT-89,3P,-,PLASTI 1 S.A
IC062 1203-003172 IC-MULTI REG. SI-3006KWM,DPAK,5P,6.6X6.1 1 S.A
IC062 1203-003183 IC-MULTI REG. SI-3002KWM-TL,DPAK,5P,6.6X 1 S.A
IC063 AA13-00114A IC HYBRID STR-X6750F,EMPEROR,7,-20~+125, 1 S.A
IC063 AA13-00094A IC HYBRID -,DDRI001A,SIP,5P,-,TP 1 S.A
IC07 1001-000164 IC-ANALOG MULTIPLEX 74HC4052,CMOS,SOP,16 1 S.A
IC104 0801-000662 IC-CMOS LOGIC 74HC123,MULTIVIBATOR,SOP,1 1 S.A
IC112 1103-001279 IC-EEPROM 24C32,32Kbit,4Kx8Bit,SOP,8P,5x 1 S.A
IC118 1204-001989 IC-VIDEO PROCESS CXA2165Q,QFP,64P,20X14M 1 S.A
IC118 1204-002732 IC-VIDEO PROCESS PW9050L,LQFP,80P,10x10m 1 S.A
IC401 1202-000103 IC-VOLTAGE COMP. 393,DIP,8P,300MIL,DUAL, 1 S.A
IC602 BP96-00418B ASSY HEAT SINK P AA62-30182F,SCREW,TDA72 1 S.N.A
IC801S AA96-04018A ASSY HEAT SINK P AA62-30181X,SCREW,AA13- 1 S.N.A
IC803 1203-003015 IC-DC/DC CONVERTER MP1410ES,SOIC,8P,4.9x 1 S.A
IC803S BP96-00020N ASSY HEAT SINK P HS TR,SCREW,278R05,OIL 1 S.N.A
ICP01 1204-002419 IC-VIDEO DECODER TW9906,TQFP,80P,12x12mm 1 S.A
JA333 3722-002447 JACK-PIN 5P,SN,GN/BU/RD/WT/RD,ANGLE 1 S.A
JA701 3722-001884 JACK-SCART 42P,SnPb,BLK 1 S.A
L101 2701-000115 INDUCTOR-AXIAL 10UH,10%,3070 1 S.A
L103 2701-000115 INDUCTOR-AXIAL 10UH,10%,3070 1 S.A
L105 2701-000115 INDUCTOR-AXIAL 10UH,10%,3070 1 S.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A
L2514 3301-001223 BEAD-AXIAL 62ohm,3.5x0.8x5mm,TP,-,- 1 S.A
L2514 3301-001223 BEAD-AXIAL 62ohm,3.5x0.8x5mm,TP,-,- 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
L2514 3301-001223 BEAD-AXIAL 62ohm,3.5x0.8x5mm,TP,-,- 1 S.A
L2514 3301-001223 BEAD-AXIAL 62ohm,3.5x0.8x5mm,TP,-,- 1 S.A
L402 2701-000178 INDUCTOR-AXIAL 33UH,10%,3070 1 S.A
L403 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
L611 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A
L612 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A
L613 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A
L614 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A
L615 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A
L616 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A
L617 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A
L618 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A
LA818 2007-000029 R-CHIP 0ohm,5%,1/8W,TP,2012 1 S.A
LA819 2007-000029 R-CHIP 0ohm,5%,1/8W,TP,2012 1 S.A
LD901 AA96-00461A ASSY LED GUIDE -,-,SL-255D,RED/GRN 1 S.N.A
LX801S AA29-30002N FILTER LINE NOISE -,16MH,1.5A,AC100~260V 1 S.A
M0014 AA97-17081B ASSY AUTO-MAIN CS29Z45HPSXNWT,S65A 1 S.N.A
M0018 AA97-17134A ASSY MICOM T- ENCPAS -0019,S65A,VCTp,07- 1 S.A
M0081 6003-000333 SCREW-TAPTITE RH,+,-,2S,M3,L10,ZPC(WHT), 1 S.N.A
M0081 6003-000333 SCREW-TAPTITE RH,+,-,2S,M3,L10,ZPC(WHT), 3 S.N.A
M0081 6003-000335 SCREW-TAPTITE RH,+,-,2S,M3,L8,ZPC(WHT),S 1 S.N.A
M0081 6003-000335 SCREW-TAPTITE RH,+,-,2S,M3,L8,ZPC(WHT),S 1 S.N.A
M0081 6003-000333 SCREW-TAPTITE RH,+,-,2S,M3,L10,ZPC(WHT), 2 S.N.A
M0107 AA61-10068A BRACKET-PCB M2160,SPTE,T0.3,-,-,-,- 1 S.N.A
M0107 AA61-10068A BRACKET-PCB M2160,SPTE,T0.3,-,-,-,- 1 S.N.A
M2893 AA39-20010B LEAD CONNECTOR ,1P,500,YFH800-01,S,1617# 1 S.A
P803T 1404-001154 THERMISTOR-PTC 4.5OHM,+30%/-20%,220V,270 1 S.A
PC801S 0604-001038 PHOTO-COUPLER TR,130-260%,200mW,DIP-4,ST 1 S.A
PCB AA41-01254A PCB-F BOX ENCORE,FR-4,4,A,1.6T,180X245,2 1 S.N.A
PFC01S AA27-00269A COIL CHOKE-PFC 35MH,CPTTV,35MH,10%,2.0OH 1 S.A
Q409 0505-001116 FET-SILICON BUZ73A,N,200V,22A,0.6ohm,40W 1 S.A
Q409 0505-001723 FET-SILICON FQP630TSTU,N,200V,9A,0.4OHM, 1 S.A
Q409 0505-001679 FET-SILICON FDC6301N,N,25V,0.22A,5OHM,0. 1 S.A
Q409 0505-001679 FET-SILICON FDC6301N,N,25V,0.22A,5OHM,0. 1 S.A
Q409 0505-000109 FET-SILICON 2N7000,N,60V,200mA,5ohm,400m 1 S.A
Q603 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
Q604 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
Q801 0501-000369 TR-SMALL SIGNAL KSC2331-Y,NPN,1000mW,TO- 1 S.A
Q802 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
Q803 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
Q804 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
QA731 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A
QA732 0501-000280 TR-SMALL SIGNAL KSA1182,PNP,150MW,SOT-23 1 S.A
QA733 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A
QA734 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A
QA735 0501-000280 TR-SMALL SIGNAL KSA1182,PNP,150MW,SOT-23 1 S.A
QA736 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A
QA737 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A
QD901 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A
QD902 0501-000280 TR-SMALL SIGNAL KSA1182,PNP,150MW,SOT-23 1 S.A
QD903 0501-000280 TR-SMALL SIGNAL KSA1182,PNP,150MW,SOT-23 1 S.A
QD904 0501-000280 TR-SMALL SIGNAL KSA1182,PNP,150MW,SOT-23 1 S.A
QD905 0501-000280 TR-SMALL SIGNAL KSA1182,PNP,150MW,SOT-23 1 S.A
QD906 0501-000280 TR-SMALL SIGNAL KSA1182,PNP,150MW,SOT-23 1 S.A
QD907 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A
QD908 0501-000727 TR-SMALL SIGNAL BC848C,NPN,310mW,SOT-23, 1 S.A
QD909 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A
QD910 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A
QD911 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A
QD912 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A
QD913 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A
QD914 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A
QS01 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A
QV201 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A
R101 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
R102 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
R103 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
R106 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
Samsung Electronics5-14
Electrical Part List
5-15Samsung Electronics
Electrical Part List
R107 2001-000869 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R114 2001-000969 R-CARBON 75OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R303 2004-001394 R-METAL(S) 2Kohm,1%,1/2W,AA,TP,2.4x6.4mm 1 S.A
R304 2004-001970 R-METAL(S) 1.8Kohm,1%,1/2W,AA,TP,6.5x2.5 1 S.A
R305 2001-001045 R-CARBON(S) 1.2KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R306 2001-000008 R-CARBON 15KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R307 2004-001369 R-METAL(S) 1.2Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A
R310 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R312 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R313 2003-002296 R-METAL OXIDE(S) 820OHM,5%,2W,AF,TP,4X12 1 S.A
R315 2003-000652 R-METAL OXIDE(S) 330ohm,5%,2W,AF,TP,4x12 1 S.A
R316 2009-001109 R-TEMPERATURE 240ohm,5%,1/4W,AA,TP,2.3x6 1 S.A
R317 2009-001109 R-TEMPERATURE 240ohm,5%,1/4W,AA,TP,2.3x6 1 S.A
R318 2003-002009 R-METAL OXIDE(S) 390ohm,5%,2W,AF,TP,3.9x 1 S.A
R319 2004-004087 R-METAL(S) 1.5ohm,1%,1/2W,AA,TP,2.5x6.5m 1 S.A
R322 2004-000687 R-METAL 2ohm,1%,1/4W,AA,TP,2.4x6.4mm 1 S.A
R401 2003-001025 R-METAL OXIDE(S) 15Kohm,5%,2W,AF,TP,3.9x 1 S.A
R402 2003-001025 R-METAL OXIDE(S) 15Kohm,5%,2W,AF,TP,3.9x 1 S.A
R403 2003-000713 R-METAL OXIDE(S) 47ohm,5%,2W,AF,TP,4x12m 1 S.A
R406 2004-005051 R-METAL(S) 2.2KOHM,1%,1/2W,AA,TP,2.4X6.4 1 S.A
R408 2008-000206 R-FUSIBLE(S) 1ohm,5%,1/2W,AF,TP,2.5x6.5m 1 S.A
R409 2003-000998 R-METAL OXIDE 300ohm,5%,2W,AF,TP,3.9x10m 1 S.A
R410 2003-000998 R-METAL OXIDE 300ohm,5%,2W,AF,TP,3.9x10m 1 S.A
R411 2004-000698 R-METAL 3.3Kohm,1%,1/4W,AA,TP,2.4x6.4m 1 S.A
R412 2003-000762 R-METAL OXIDE(S) 6.8ohm,5%,2W,AF,TP,4x12 1 S.A
R413 2004-004015 R-METAL(S) 9.1Kohm,1%,1/2W,AA,TP,2.5x6.5 1 S.A
R414 2004-004072 R-METAL(S) 3Kohm,1%,1/2W,AA,TP,2.5x6.5mm 1 S.A
R415 2001-000109 R-CARBON(S) 470OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R417 2004-001022 R-METAL 5.6Kohm,1%,1/4W,AA,TP,2.4x6.4m 1 S.A
R418 2001-000028 R-CARBON(S) 100OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R419 2001-001142 R-CARBON(S) 3KOHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A
R420 2001-001070 R-CARBON(S) 120OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R421 2001-001112 R-CARBON(S) 24KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R422 2008-001149 R-FUSIBLE(S) 0.22OHM,5%,2W,AF,TP,3.8X11M 1 S.A
R423 2004-001371 R-METAL(S) 1.5Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A
R424 2008-000264 R-FUSIBLE(S) 1ohm,5%,1W,AF,TP,3.9x10mm 1 S.A
R425 2008-000264 R-FUSIBLE(S) 1ohm,5%,1W,AF,TP,3.9x10mm 1 S.A
R428 2004-000698 R-METAL 3.3Kohm,1%,1/4W,AA,TP,2.4x6.4m 1 S.A
R430 2004-000531 R-METAL 20Kohm,1%,1/2W,AA,TP,2.3x6.5mm 1 S.A
R431 2004-002016 R-METAL(S) 15Kohm,1%,1/2W,AA,TP,2.5x6.5m 1 S.A
R433 2001-000085 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R434 2001-001155 R-CARBON(S) 5.6KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R435 2003-000540 R-METAL OXIDE(S) 1Kohm,5%,2W,AF,TP,4x12m 1 S.A
R436 2001-001088 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A
R437 2008-000204 R-FUSIBLE(S) 0.22ohm,10%,1/2W,AF,TP,2.5x 1 S.A
R438 2001-001054 R-CARBON(S) 1.6KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R440 2004-000412 R-METAL 18Kohm,1%,1/4W,AA,TP,2.4x6.4mm 1 S.A
R441 2003-001025 R-METAL OXIDE(S) 15Kohm,5%,2W,AF,TP,3.9x 1 S.A
R446 2003-002102 R-METAL OXIDE(S) 68Kohm,5%,2W,AF,TP,4x12 1 S.A
R448 2008-001149 R-FUSIBLE(S) 0.22OHM,5%,2W,AF,TP,3.8X11M 1 S.A
R453 2004-001394 R-METAL(S) 2Kohm,1%,1/2W,AA,TP,2.4x6.4mm 1 S.A
R454 2004-001394 R-METAL(S) 2Kohm,1%,1/2W,AA,TP,2.4x6.4mm 1 S.A
R455 2001-000780 R-CARBON 470OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R621 2001-000577 R-CARBON 2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R622 2001-000577 R-CARBON 2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R623 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R626 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R627 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R633 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R636 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R646 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R647 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R670 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R671 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R801 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R803 2001-001153 R-CARBON(S) 47ohm,5%,1/2W,AA,TP,2.4x6.4m 1 S.A
R805 2001-001088 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A
R807 2001-000037 R-CARBON(S) 330OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
R810 2001-001097 R-CARBON(S) 2.4KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
R811 2009-001001 R-METAL PLATE 0.12ohm,10%,5W,CL,TP,5x14x 1 S.A
R812 2001-000522 R-CARBON 22KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R813 2001-000780 R-CARBON 470OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R814 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R815 2001-001131 R-CARBON(S) 33KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R816 2004-001983 R-METAL(S) 2.49Kohm,1%,1/2W,AA,TP,2.4x6. 1 S.A
R817 2001-001088 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A
R818 2004-004089 R-METAL(S) 123Kohm,1%,1/2W,AA,TP,2.5x6.5 1 S.A
R819 2004-001390 R-METAL(S) 1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 1 S.A
R820 2001-001131 R-CARBON(S) 33KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R821 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R823 2003-000586 R-METAL OXIDE(S) 22Kohm,5%,2W,AF,TP,4x12 1 S.A
R824 2003-000586 R-METAL OXIDE(S) 22Kohm,5%,2W,AF,TP,4x12 1 S.A
R825 2003-000586 R-METAL OXIDE(S) 22Kohm,5%,2W,AF,TP,4x12 1 S.A
R832 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R833 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R834 2001-000037 R-CARBON(S) 330OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
R838 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
R907 2001-000020 R-CARBON(S) 22OHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A
R908 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A
RA701 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RA702 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RA703 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RA704 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RA705 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RA709 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 1 S.A
RA710 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RA711 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A
RA712 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A
RA713 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A
RA714 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A
RA715 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A
RA716 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A
RA717 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A
RA718 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A
RA719 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A
RA720 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A
RA721 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A
RA722 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A
RA724 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A
RA726 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A
RA731 2007-000093 R-CHIP 20Kohm,5%,1/10W,TP,1608 1 S.A
RA732 2007-000643 R-CHIP 270ohm,5%,1/10W,TP,1608 1 S.A
RA733 2007-000643 R-CHIP 270ohm,5%,1/10W,TP,1608 1 S.A
RA734 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A
RA735 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A
RA736 2007-000093 R-CHIP 20Kohm,5%,1/10W,TP,1608 1 S.A
RA737 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 S.A
RA738 2007-000643 R-CHIP 270ohm,5%,1/10W,TP,1608 1 S.A
RA739 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A
RA740 2007-000643 R-CHIP 270ohm,5%,1/10W,TP,1608 1 S.A
RA741 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A
RA742 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A
RA743 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 S.A
RA744 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A
RA745 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A
RA746 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A
RA801 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 1 S.A
RA802 2007-000965 R-CHIP 5.1Kohm,5%,1/10W,TP,1608 1 S.A
RA803 2007-000083 R-CHIP 3Kohm,5%,1/10W,TP,1608 1 S.A
RA804 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A
RA805 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A
RA806 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A
RA807 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RA901 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RA902 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RA903 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
Samsung Electronics5-16
Electrical Part List
5-17Samsung Electronics
Electrical Part List
RD901 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A
RD902 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A
RD903 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A
RD904 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A
RD905 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A
RD906 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A
RD907 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A
RD908 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A
RD909 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD910 2007-000080 R-CHIP 2Kohm,5%,1/10W,TP,1608 1 S.A
RD911 2007-000080 R-CHIP 2Kohm,5%,1/10W,TP,1608 1 S.A
RD912 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD913 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD914 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD915 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RD916 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A
RD917 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A
RD918 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD919 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD920 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD921 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A
RD922 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A
RD923 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A
RD924 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A
RD925 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 1 S.A
RD926 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 1 S.A
RD927 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD928 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RD932 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD934 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD935 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A
RD936 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD937 2007-000691 R-CHIP 3.3Mohm,5%,1/10W,TP,1608 1 S.A
RD938 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD939 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD941 2007-000086 R-CHIP 5.6Kohm,5%,1/10W,TP,1608 1 S.A
RD942 2007-000086 R-CHIP 5.6Kohm,5%,1/10W,TP,1608 1 S.A
RD943 2007-000869 R-CHIP 4.7Kohm,1%,1/10W,TP,1608 1 S.A
RD944 2007-000691 R-CHIP 3.3Mohm,5%,1/10W,TP,1608 1 S.A
RD945 2007-000107 R-CHIP 470Kohm,5%,1/10W,TP,1608 1 S.A
RD946 2007-000081 R-CHIP 2.7Kohm,5%,1/10W,TP,1608 1 S.A
RD947 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 1 S.A
RD948 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD949 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 1 S.A
RD950 2007-000821 R-CHIP 390ohm,1%,1/10W,TP,1608 1 S.A
RD951 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD952 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD953 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD954 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD955 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD957 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A
RD958 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 1 S.A
RD959 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608 1 S.A
RD960 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD961 2007-000088 R-CHIP 7.5Kohm,5%,1/10W,TP,1608 1 S.A
RD963 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A
RD964 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A
RD965 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 S.A
RD966 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A
RD967 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608 1 S.A
RD968 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A
RD969 2007-000259 R-CHIP 1.6Kohm,5%,1/10W,TP,1608 1 S.A
RD970 2007-000087 R-CHIP 6.8Kohm,5%,1/10W,TP,1608 1 S.A
RD971 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A
RD972 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A
RD973 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A
RD974 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A
RD975 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
RD976 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RD977 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A
RD978 2007-000763 R-CHIP 330ohm,1%,1/10W,TP,1608 1 S.A
RD979 2007-000043 R-CHIP 1Kohm,1%,1/10W,TP,1608 1 S.A
RD980 2007-000043 R-CHIP 1Kohm,1%,1/10W,TP,1608 1 S.A
RD981 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RD982 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RD983 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RD987 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RD988 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RD989 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RL801S 3501-001053 RELAY-POWER 5Vdc,530mW,10000mA,1FormA,15 1 S.A
RM901 AA32-00015A Module Remocon FRP-3521H31,38KHZ,940MM,M 1 S.A
RP001 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RP002 2007-000109 R-CHIP 1Mohm,5%,1/10W,TP,1608 1 S.A
RP003 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RP004 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RP005 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RP006 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RP007 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A
RP009 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RP010 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 S.A
RP011 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A
RP012 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A
RP013 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RP014 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RP015 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A
RPN01 2011-000585 R-NET 47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A
RPN02 2011-000585 R-NET 47ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A
RR430S 2004-001390 R-METAL(S) 1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 1 S.A
RS01 2001-001103 R-CARBON(S) 20KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
RS02 2001-000002 R-CARBON(S) 200KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
RS03 2004-001382 R-METAL(S) 13Kohm,1%,1/2W,AA,TP,2.4x6.4m 1 S.A
RS04 2001-001168 R-CARBON(S) 6.8KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A
RS05 2001-001108 R-CARBON(S) 22KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A
RV201 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A
RV202 2007-000081 R-CHIP 2.7Kohm,5%,1/10W,TP,1608 1 S.A
RV203 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A
RV204 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV205 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV206 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV207 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV208 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV209 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A
RV210 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A
RV211 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 1 S.A
RV212 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 1 S.A
RV213 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 1 S.A
RV214 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 1 S.A
RV215 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RV216 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV217 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV218 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV219 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RV220 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RV221 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RV222 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A
RV223 2007-000125 R-CHIP 3.9Kohm,5%,1/10W,TP,1608 1 S.A
RV224 2007-000125 R-CHIP 3.9Kohm,5%,1/10W,TP,1608 1 S.A
RV225 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV226 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A
RV227 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A
RV228 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV229 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV230 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV231 2007-000073 R-CHIP 91ohm,5%,1/10W,TP,1608 1 S.A
RV232 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A
RV233 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
Samsung Electronics5-18
Electrical Part List
5-19Samsung Electronics
Electrical Part List
RV234 2007-001044 R-CHIP 56ohm,5%,1/10W,TP,1608 1 S.A
RV235 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A
RV236 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV237 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A
RV238 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV239 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV240 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A
RV241 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A
RV242 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV243 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV244 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A
RV245 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV246 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV248 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV249 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV250 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608 1 S.A
RV251 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV252 2007-000616 R-CHIP 24Kohm,5%,1/10W,TP,1608 1 S.A
RV253 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV254 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV255 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV256 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV257 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A
RV258 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV259 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV260 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A
RV264 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV265 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV266 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV267 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV268 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV269 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV270 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV271 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV272 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV273 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV274 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV276 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A
RV277 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV278 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RV279 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A
RV280 2007-000091 R-CHIP 12Kohm,5%,1/10W,TP,1608 1 S.A
RV281 2007-000616 R-CHIP 24Kohm,5%,1/10W,TP,1608 1 S.A
RV282 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608 1 S.A
RV283 2007-000091 R-CHIP 12Kohm,5%,1/10W,TP,1608 1 S.A
RV285 2007-000098 R-CHIP 56Kohm,5%,1/10W,TP,1608 1 S.A
RV286 2007-000130 R-CHIP 39Kohm,5%,1/10W,TP,1608 1 S.A
RV287 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A
RV288 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A
RV289 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A
RV290 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A
RV291 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A
RV292 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A
RV293 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A
RV294 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A
RV295 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A
RV296 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 S.A
RV297 2007-000071 R-CHIP 22ohm,5%,1/10W,TP,1608 1 S.A
RV298 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A
RV299 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A
RV300 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A
RV301 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A
RVN01 2011-000002 R-NET 22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A
RVN02 2011-000002 R-NET 22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A
RVN03 2011-000002 R-NET 22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A
RVN04 2011-000002 R-NET 22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A
RVN05 2011-000002 R-NET 22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A
RVN06 2011-000002 R-NET 22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
RVN07 2011-000002 R-NET 22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A
RX801S 2002-001010 R-COMPOSITION 1.8Mohm,5%,1/2W,AA,TP,3.7x 1 S.A
RY801S 2002-001012 R-COMPOSITION 8.2Mohm,5%,1/2W,AA,TP,3.7x 1 S.A
SUB05 0202-001477 SOLDER-CREAM LST309-M,-,D20~45§-,96.5Sn/ 1.212 S.N.A
SW801S 3403-000179 SWITCH-PUSH 250V,5A,DPST,-,JPW-2104B 1 S.A
T0010 AA27-00414A COIL CHOKE DR 10X12(L81,YL9N),CT-32Z50HD 1 S.A
T0010 AA27-00414A COIL CHOKE DR 10X12(L81,YL9N),CT-32Z50HD 1 S.A
T0010 AA27-10002L COIL CHOKE -,24uH,K,-,2A,-,24UH-K,10x10m 1 S.A
T0010 AA27-10002L COIL CHOKE -,24uH,K,-,2A,-,24UH-K,10x10m 1 S.A
T0010 AA27-10002L COIL CHOKE -,24uH,K,-,2A,-,24UH-K,10x10m 1 S.A
T0010 AA61-01341A HOLDER 32A10,ABS 1 S.N.A
T0010 BH27-00163A COIL CHOKE CH-0825,KS19CNJ,1mH,¡¾10%,1.5 1 S.A
T0010 AA27-00416A COIL CHOKE DR 15X27.5(L-81,YL9N),CS32Z40 1 S.A
T0052 2703-000125 INDUCTOR-SMD 10uH,10%,2012 1 S.A
T0052 2703-000125 INDUCTOR-SMD 10uH,10%,2012 1 S.A
T0052 2703-000125 INDUCTOR-SMD 10uH,10%,2012 1 S.A
T0052 2703-000125 INDUCTOR-SMD 10uH,10%,2012 1 S.A
T0052 2703-000125 INDUCTOR-SMD 10uH,10%,2012 1 S.A
T0052 2703-000125 INDUCTOR-SMD 10uH,10%,2012 1 S.A
T0052 2703-000125 INDUCTOR-SMD 10uH,10%,2012 1 S.A
T0052 2703-000125 INDUCTOR-SMD 10uH,10%,2012 1 S.A
T0052 2703-000125 INDUCTOR-SMD 10uH,10%,2012 1 S.A
T0052 2703-000185 INDUCTOR-SMD 3.3uH,10%,2012 1 S.A
T0052 2703-000185 INDUCTOR-SMD 3.3uH,10%,2012 1 S.A
T0052 2703-000185 INDUCTOR-SMD 3.3uH,10%,2012 1 S.A
T0052 2703-000185 INDUCTOR-SMD 3.3uH,10%,2012 1 S.A
T0052 2703-000398 INDUCTOR-SMD 10uH,10%,3225 1 S.A
T0052 2703-000398 INDUCTOR-SMD 10uH,10%,3225 1 S.A
T0052 2703-000398 INDUCTOR-SMD 10uH,10%,3225 1 S.A
T0052 2703-001070 INDUCTOR-SMD 100uH,10%,4532 1 S.A
T0052 2703-001079 INDUCTOR-SMD 220nH,5%,2012 1 S.A
T0052 2703-001079 INDUCTOR-SMD 220nH,5%,2012 1 S.A
T0052 2703-001079 INDUCTOR-SMD 220nH,5%,2012 1 S.A
T0052 2703-001802 INDUCTOR-SMD 33uH,20%,2012 1 S.A
T0052 2703-001802 INDUCTOR-SMD 33uH,20%,2012 1 S.A
T0052 2703-001802 INDUCTOR-SMD 33uH,20%,2012 1 S.A
T0052 2703-001802 INDUCTOR-SMD 33uH,20%,2012 1 S.A
T0052 2703-002836 INDUCTOR-SMD 22uH,20%,10x10.2mm 1 S.A
T0066 AA62-30181X HEAT SINK-ES WS32Z409P,AL6063,T2.0,64,40 1 S.N.A
T0066 AA62-30182F HEAT SINK-ES CS29M6,A6063S,T2.0,26.2,52. 1 S.N.A
T0077 AA41-01255B PCB MAIN ENCORE,FR-1,1,B,1.6,330 X 245,S 1 S.N.A
T0085 1201-002118 IC-AUDIO AMP TDA7297SA,ZIP,15P,-,DUAL,32 1 S.A
T0087 1203-003955 IC-POSI.FIXED REG. KA78R09CTU,TO-220F,4P 1 S.A
T0087 1203-002186 IC-POSI.FIXED REG. 18,DPAK,3P,240MIL,PLA 1 S.A
T0087 1203-002186 IC-POSI.FIXED REG. 18,DPAK,3P,240MIL,PLA 1 S.A
T0087 1203-002699 IC-POSI.FIXED REG. 78D05,DPAK,3P,6.6X6.1 1 S.A
T0087 1203-003958 IC-POSI.FIXED REG. KA278R05CTU,TO-220F,4 1 S.A
T0088 1204-002538 IC-VERTICAL DEF. STV9381,DIP,20P,26.16x6 1 S.A
T0098 BP62-00001A HEAT SINK COMMANDO,A1050P,T2.0,W62.0,H50 1 S.N.A
T0105 AA60-30001A WASHER-PLATE M3,ID3.5,15X8.5,T1.0,SBHG 2 S.N.A
T0119 AA09-00528A IC MICOM S63A,VCT67XYG_B3,QFP,TR,28X28 1 S.N.A
T0122 2802-001177 RESONATOR-CERAMIC 2.696MHZ,0.4%,BK,10X4. 1 S.A
T0175 AA62-00045A HEAT SINK-PS -,-,T1.0,-,-,DREAM,-,-,-,-, 1 S.N.A
T0175 AA62-00159B HEAT SINK-PS TXT3093WHX,A1050S,T2.0,90*8 1 S.N.A
T0198 AA95-03502E ASSY SUB PCB-FEATURE BOX PIP,SCART,NO HD 1 S.A
T0245 0202-001492 SOLDER-WIRE FLUX HSE-02 LFM48 SR-34 S,-, 0.025 S.N.A
T0245 0202-001492 SOLDER-WIRE FLUX HSE-02 LFM48 SR-34 S,-, 0.025 S.N.A
T0568 AA39-30007B CBF IF -,T,150mm,1365#26 1 S.A
T0568 3301-001082 BEAD-SMD 60ohm,3225,TP,43ohm/40MHz,83ohm 1 S.N.A
T0568 3301-001569 BEAD-SMD 600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A
T0592 AA97-17070E ASSY SMD-F/BOX ENCORE,S65A 1 S.N.A
T0900 1404-001045 THERMISTOR-NTC 4.7ohm,4.565A,2900K,-,-,- 1 S.A
T401 AA26-00255A TRANS-H.DRIVE EI2218,P60A,4,6.0 mH,12V,4 1 S.A
T444 AA26-00287A TRANS FBT FUH29T002B,CTV,2.00 mH ¡¾7%,UY 1 S.A
T801S AA26-00200E TRANS SWITCHING 53B135-NY,ENCORE,AC160~3 1 S.A
VP801S 1405-000187 VARISTOR 615Vdc,1250A,12.5x7mm,TP 1 S.A
VX801S 1405-000187 VARISTOR 615Vdc,1250A,12.5x7mm,TP 1 S.A
XP001 2801-003954 CRYSTAL-SMD 27MHz,30ppm,28-AAN,16pF,50oh 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
Samsung Electronics5-20
Electrical Part List
5-21Samsung Electronics
Electrical Part List
XV201 2801-004004 CRYSTAL-SMD 20.25MHz,20ppm,28-AAN,13pF,2 1 S.A
0402-001230 DIODE-RECTIFIER FMG-G2CS,1000V,3A,DO-41, 1 S.A
0402-001596 DIODE-RECTIFIER SLA1004,200/700,3.5A,-,S 1 S.A
0402-001296 DIODE-RECTIFIER FMP-3FU,1.5KV,5A,DO-201A 1 S.A
0502-001294 TR-POWER 2SC5793,NPN,95000mW,TO-3PMLH,ST 1 S.A
ASSY P/MATERIAL
M0113 AA92-11817A ASSY P/MATERIAL CS29Z45ZQTXBWT 1 S.N.A
T0376 6902-000001 BAG AIR LDPE,T0.2,L1800,W1000,TRP,,,LDPE 0.015 S.N.A
T0524 6902-000007 BAG PE HDPE/NITRON/HDPE,T0.015/T0.5/T0.0 1 S.N.A
T0376 6902-000061 BAG AIR LDPE,T0.2,L1000,W500,TRP,,, 0.05 S.N.A
T0214 AA60-40006A PIN-STAPLE AUTO,33X17.8X2.4,H18,33X17.8X 6 S.N.A
ASSY BOX
M0003 AA92-11901M ASSY BOX CS29Z45HPSXNWT 1 S.N.A
AA69-03614G BOX-01,SET 29Z45(OVERSEA),CB,DY-06,AB,YE 1.01 S.N.A
ASSY LABEL
M0019 AA92-12010B ASSY LABEL CS29Z45HPSXNWT,S65A 1 S.N.A
ASSY ACCESSORY
M0045 AA92-12047A ASSY ACCESSORY WS32Z40HPSXNWT,NWT,PIP,S6 1 S.N.A
M0045 AA96-04744A ASSY ACCESSORY WS32Z40HPSXNWT,NWT,RU,UK, 1 S.N.A
T0524 6902-000009 BAG PE HDPE,T0.03,L400,W240,TRP,8,2,PE M 1 S.N.A
T0074 AA59-00382A REMOCON Shine2/Catch Me,TM86,SAMSUNG,44, 1 S.A
ACCESSORY AA68-03242E MANUAL FLYER-02 SAFETY GUIDE,All Model,S 1 S.N.A
ACCESSORY AA68-03576A MANUAL FLYER-01,REGISTRATION C BWT,RU,RU 1 S.N.A
ACCESSORY AA68-03777A MANUAL USERS-CARD,05 comm,Samsung,Englis 1 S.N.A
M0284 AA68-03902A MANUAL USERS-02 Comm,Samsung,RUS,CIS,W/P 1 S.N.A
M0284 AA68-03902B MANUAL USERS-02 Comm,Samsung,UKR,CIS,W/P 1 S.N.A
T0238 AA68-03724B MANUAL FLYER-WARRANTY CARD comm,Samsung, 1 S.N.A
ASSY COVER REAR
M0002 AA90-05607L ASSY COVER REAR 29Z45,HIPS,V2,BK500,S63A 1 S.N.A
T0069 AA60-00091J SPACER-FELT -,FELT,330X10,-,-,BLK,T0.5,- 4 S.N.A
T0066 AA64-04331B INLAY-BACK Z40,PAL,PS SHEET,T0.5,S63A,SC 1 S.N.A
T0522 AA65-30008A CLAMPER CORE-CORD -,PE,HB,-,BLK,- 1 S.N.A
M0013 AA96-04454H ASSY COVER P-REAR 29Z45,HIPS,V2,BK500,S6 1 S.A
M0006 AA63-01509B COVER-REAR 29Z45(100HZ),HIPS,2.5,V2 1 S.A
T0578 AA64-04297P INLAY AV Z30,32,40,PS,SHEET,T0.5,BLK,SI4 1 S.N.A
ASSY COVER FRONT
M0001 AA90-05746M ASSY COVER FRONT CS29Z45HPSXNWT 1 S.N.A
T0081 6002-000522 SCREW-TAPPING TH,+,2,M4,L15,ZPC(BLK),SWR 2 S.N.A
M0081 6003-001019 SCREW-TAPTITE RH,+,-,B,M4,L12,ZPC(BLK),S 2 S.A
M0081 6003-001026 SCREW-TAPTITE RH,+,B,M4,L15,ZPC(BLK),SWR 2 S.A
M0081 6003-001026 SCREW-TAPTITE RH,+,B,M4,L15,ZPC(BLK),SWR 7 S.A
M0081 6003-001268 SCREW-TAPTITE TH,+,-,B,M4,L12,ZPC(WHT),S 1 S.N.A
T0609 AA60-00095C SPACER-GUM,CRT 2160(TTSEC),-,20MM,5MM,BL 4 S.N.A
T0238 AA60-10050V BOLT-HEX -,SWRCH18A,M6,L30,HH,+,WC,-,Z 4 S.N.A
AA61-01316A BRACKET 29 ALL,STS304,T0.5,,,, 2 S.N.A
T0003 AA96-04358E ASSY COVER P-FRONT 29Z45,CIS,HIPS,HB,GR5 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
M0081 6003-001019 SCREW-TAPTITE RH,+,-,B,M4,L12,ZPC(BLK),S 1 S.A
M0081 6003-001019 SCREW-TAPTITE RH,+,-,B,M4,L12,ZPC(BLK),S 4 S.A
T0069 AA60-00091J SPACER-FELT -,FELT,330X10,-,-,BLK,T0.5,- 1 S.N.A
T0069 AA60-00091R SPACER-FELT ,FELT,250X10,,,BLK,T0.5,, 2 S.N.A
M0081 AA60-10002A SCREW-TAPTITE RH,+,-,-,M4,L12,ZPC(WHT),S 4 S.N.A
T0245 AA61-00711D HOLDER-PCB 29U1,U2,HIPS VO,-,-,-,BK502(H 1 S.N.A
T0607 AA61-40113A STOPPER-PCB 501H,HIPS,-,-,HB,NTR,- 1 S.N.A
CIS7 AA61-60003J SPRING ETC-CS -,SUS304,-,-,OD6,N7,OD6,-, 1 S.N.A
M0112 AA63-01508B COVER-FRONT 29Z45,CIS,HIPS,HB,GR503,SV01 1 S.N.A
T0057 AA64-01062B BADGE-BRAND ALL,AL,T1.5,10.6,L65,BLK.SIL 1 S.N.A
T0023 AA64-04404A KNOB POWER 29Z45,ABS,HB,GR515,BKN3576 1 S.N.A
T0054 AA64-04405A KNOB-DECORATION 29Z45,ABS,HB,GR515,AL 1 S.N.A
AA64-04407A KNOB-SUB POWER 29Z45(SUB-POWER),ABS,HB,B 1 S.N.A
T0299 AA64-04408A WINDOW-RMC LED 29Z45,PC,CLEAR 1 S.N.A
T0527 AA65-00011C CLAMPER CORE-WIRE ALL MODEL,NYLON 66,V2, 1 S.N.A
T0527 AA65-30105A CLAMPER CORE-WIRE ALL MODEL,NYLON 66,V2, 1 S.N.A
T0175 AA96-02375A ASSY SPEAKER P 8ohm,3001-001535,15W,250m 2 S.A
T0382 BP61-00509C HOLDER-CARE PJT,ACRYL-FOAM,T0.25,W20.0mm 0.28 S.N.A
T0175 AA96-04765A ASSY SPEAKER P 8ohm,10W,900mm,600mm,200m 1 S.A
T0382 BP61-00495C HOLDER-CARE PJT,ACRYL-FOAM,T0.25,W30.0mm 0.2 S.N.A
ASSY CPT
T0521 AA91-10658G ASSY CPT 29Z45,A68QFZ893X202,,380MG,INVA 1 S.N.A
T0090 AA27-00314A COIL DEGAUSSING-TILT TILT,CPTTV,33.5mH,2 1 S.A
T0089 AA27-00343C COIL DEGAUSSING COOLRUNNING,60Turns,4.5o 1 S.A
T0527 AA65-00056A CLAMPER CORE-WIRE 32Z30,NYLON-66,V0,NTR 4 S.N.A
T0527 AA65-00061A CLAMPER CORE-D,COIL NYLON-66,VO,NTR 2 S.N.A
M0909 AA72-00030A SPONGE 29Z30,CR VO BLK,T2.0,10,540 2 S.N.A
T0603 AA96-03677A ASSY TBC WIRE P K62A,29,NTSC,2P 1 S.N.A
T0063 AA03-00530A CRT COLOR A68QFZ893X502,+380mG,0.260,13. 1 S.A
ASSY FIXING
T0892 AA91-10667B ASSY FIXING CS29Z40HSSXBWT,S65A 1 S.N.A
T0121 3301-001201 CORE-FERRITE AE,21x11x32mm,1500,280G 1 S.A
T0527 AA65-00029A CLAMPER CORE-WIRE PJTV,NYLON66,OD24,DONG 1 S.N.A
T0016 AA65-30009A CLAMPER CORE-FBT -,ABS,V0,-,BLK,- 1 S.N.A
T0527 AA65-30018A CLAMPER CORE-WIRE DONG-A,NYLON-66,-,-,-, 2 S.N.A
T0066 AA96-20109H ASSY POWER CORD -,CP2/NO(4.0),H/C 600mm, 1 S.N.A
T0061 3811-001609 WIRE-PVC CU BCWA,300V,ROLL,-,#22,BLK 0.15 S.N.A
T0268 AA39-10006X CBF-POWER CORD -,-,KKP419C,3P,-,-,BLK,-, 1 S.A
T0010 AA61-20284A HOLDER P-CORD,PP,-,-,-,BLK,VO,KE-002 1 S.N.A
T0121 3301-001305 CORE-FERRITE AE,30X15X34(39)MM,1500,2800 1 S.A
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
Samsung Electronics5-22
Electrical Part List
Troubleshooting
Samsung Electronics 6-1
6. Troubleshooting
6-1 Checkpoints by Error Mode
■Power LED: Check that the LED works when turning the Master Switch ON/OFF
■LED Indicators: See table 6-2-1 Basic Troubleshooting: LED Diagnosis on the Front Panel.
■In case of a power failure or abnormal screen, check the following items.
1) Check that the power cord is correctly connected to a 220V wall outlet.
2) Check that the Master Switch has been pressed.
3) Check that the transmitter is turned on.
4) Check that transmitter device selection is set to TV.
5) Check that the signal cable is properly connected.
6) Check that channel setting has been set.
Troubleshooting
6-2 Samsung Electronics
6-1-1 Basic Approaches for Troubleshooting
■Troubleshooting Mechanism :
- The Main Board has Power part which supplies power to Deflection and Feature Box.
- The Feature Box receives all signal inputs,the signal-processed signal is sent to CRT Ass'y.
- Deflection and Focus are controlled by the Main Board.
■Troubleshooting by Modules
1) Enter Service Mode
(In SET Stand-By Status,if you press "Info"→"Menu"→"Mute" and "Power" button in sequence on the remote control, the
screen is turned on and the Service Mode screen appears.)
2) Check if the System Board is out of order.
Press OPTION →TEST PATTERN →Right direction key:
The COLOR BAR, BLACK pattern and WHITE pattern are displayed on the screen.
If the pattern is not displayed or is displayed abnormally, Feature Box is out of order.
3) Check if the Power part of the Main Board Board, which supplies power to Feature Box, is out of order.
If you cannot turn the screen on by pressing the POWER ON/OFF button or the screen repeatedly turns on and off when
pressing the POWER ON/Off button, check if the Power part of the Main Board is out of order. (Refer to the circuit diagram)
4) Check if the Deflection part of the Main Borad is out of order.
When the screen is not properly displayed and the left or right side of the picture is shrunk, or the top or bottom of the screen
is expanded or shrunk, check if the Deflection Board is out of order.
Troubleshooting
Samsung Electronics 6-3

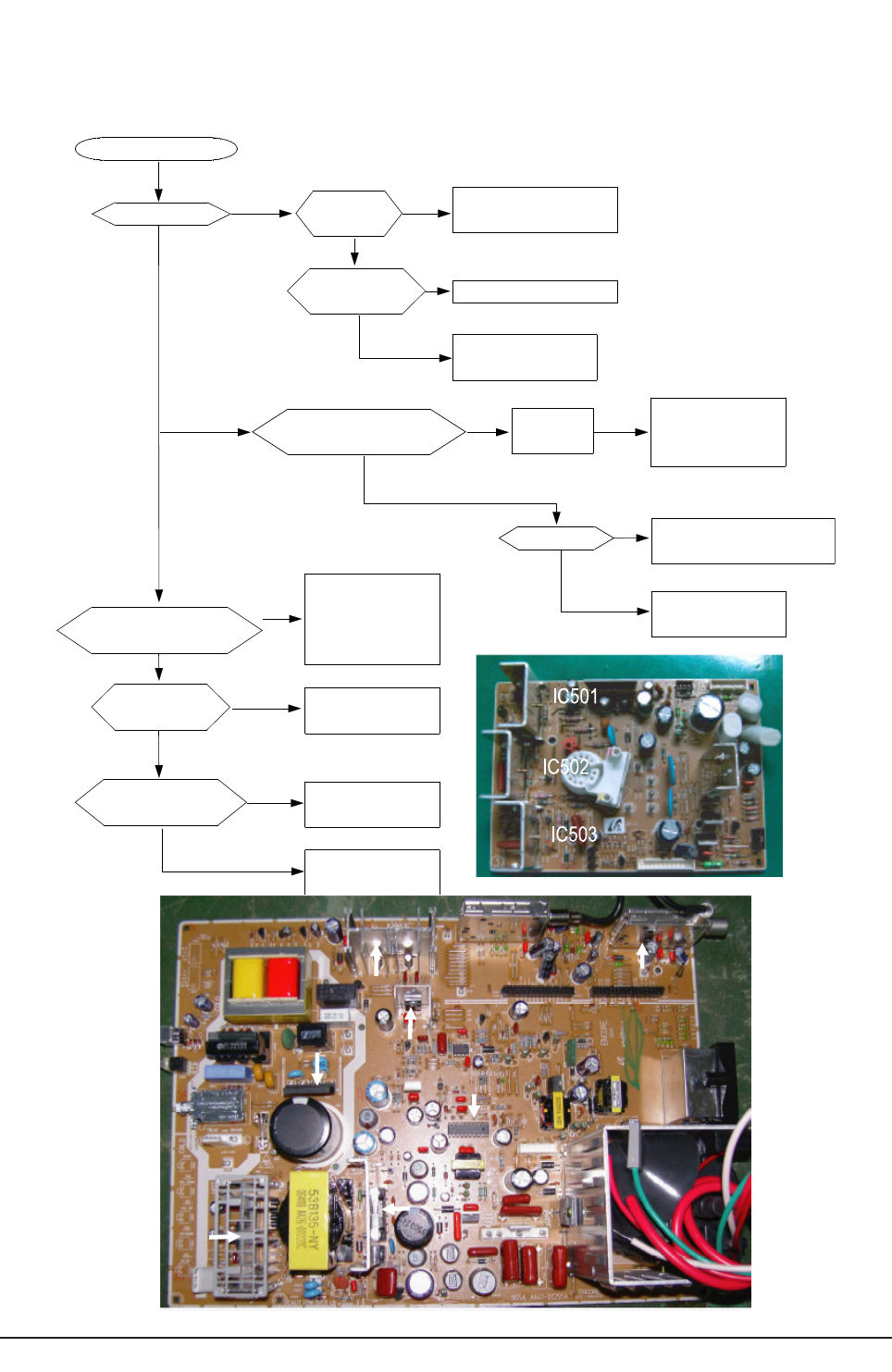

6-1-2 Flow Chart for Malfunction
Does t h e T V work ?
Is there
something on
the Screen
Does t he OSD
menu on the
screen work ?
Is the power cord or the
master switch out of order ?
Is t he cable connect ing
t he Power Board and the
Deflec t ion Board p roper ly
connected?
Is a CRT high vol tage
been me asured?
NO
YES
YES
Check that the ca bles are properl y
connected to Main Board.
Replace t he Feat ure Box, i f necessar y.
NO
NO
NO
NO
Connect the cable
NO
NO
Repl ac e t he
Main Board
Is the cable from the
Main Board to the CRT
Ass'y prope r ly connect ed ?
IC602
IC803
IC301
IC801S HC401
TU01S
D801S
Troubleshooting
6-4 Samsung Electronics
6-2 Trouble-shooting with New Features
6-2-1 Installation & Connection
Problem Solution
The power does not turn on. Check if the power cord is properly connected.
Air broadcasting does not work. Check if the antenna is properly installed.
Cable broadcasting does not
work. Subscribe to a local cable broadcasting firm and get support.
Satellite broadcasting does not
work. Install a satellite antenna (Parabola) and connect it to the TV.
6-2-2 Menu & Remote Control
Problem Solution
The remote control does not
work.
■Press the Select Device button to select the TV or external device.
■Replace the battery of the remote control with a new one.
■Insert the battery making sure the polarity (+,-) is correct.
■Check if the angle or the distance is sufficient, or if there is any interference between the
product and the remote control.
■Make sure the user has pressed the correct button.
■To avoid direct sunlight to the receiving panel of the TV, remove any indoor lighting or
change the location of the TV.
■Check if the power switch at the back left of the TV is turned on.
Cannot change the channel with
the remote control.
■Press the Select Device button to select the TV.
■Change the channel using the remote control of the cable or satellite receiver.
Cannot select an A/V channel. Press the TV/AV button and check if the AV item is grayed out. When the AV item is grayed
out, you cannot select an A/V channel. Check if the connector is properly connected.
Cannot select a menu. Check if the menu is grayed out. If a menu is grayed out, it cannot be selected.
Troubleshooting
Samsung Electronics 6-5
6-2-3 Screen
Problem Solution
The screen is black and there is
no sound.
■Check if the power cord is properly connected.
■Turn on the power.
■Select an AV channel that corresponds to the external device.
Only the screen is blank/it is dark
or too bright. Adjust the screen brightness.
The screen is blue/the external
channel is not displayed.
■Check if the connector is properly installed.
■Select an AV channel that corresponds to the external device.
The screen overlaps
(double/triple).
■Check if the antenna is properly installed.
■Adjust the position, angle or direction of the antenna.
The screen is snowy or unclear.
The picture quality gets worse
when it is windy
■Check if the antenna has been bent or moved by the wind.
■Check the antenna for its lifetime. (Normally 3 - 5 years, 1-2 years near the coast)
Dotted or semi-dotted lines are
displayed on the screen. Install the antenna as far away from the road as possible.
The screen is black and white. ■Adjust the color density.
■Check if the connector is properly installed.
The colors of the screen are
odd/strange. Adjust the color tones.
Unusual lines appear on the
screen. Keep the antenna away from the power cord or connectors if possible.
Unusual lines appear on the
screen when watching or
recording to video.
Keep the video player as far away from the TV as possible.
6-2-4 Sound
Problem Solution
There is no sound. ■Increase the volume.
■Press the Mute button.
The sound is very low. ■Increase the volume.
■Set the auto volume control to ON.
There is a lot of noise. Keep the antenna away from the power cord or connectors if possible.
The selected language does not
appear. Press the Multiplex button to select the TV.
Troubleshooting
6-6 Samsung Electronics
6-2-5 Channel
Problem Solution
There are no channels available.
■Check if the antenna is properly installed.
■Press the Auto Channel button to store channels.
■Contact your local broadcasting service station.
Some channels are not available.
■Adjust the position, angle or direction of the antenna.
■Activate the Reception Sensitivity Boost feature.
■Contact your local broadcasting service station.
■Use the number keys to select a specific channel and press Store/Clear to memorize it.
Only the UHF (14-69) channels
are not available. Check if the antenna is able to receive UHF signals.
6-2-6 Others
Problem Solution
The TV makes a noise as if
something is dropping inside.
This noise may occur when the plastic material inside the TV expands or contracts according
to the seasonal temperature or humidity. This is like the noise from a furniture/cabinet/sink
unit, and there is no need for concern.
Troubleshooting
Samsung Electronics 6-7
6-3 Troubleshooting Procedures by Error Modes

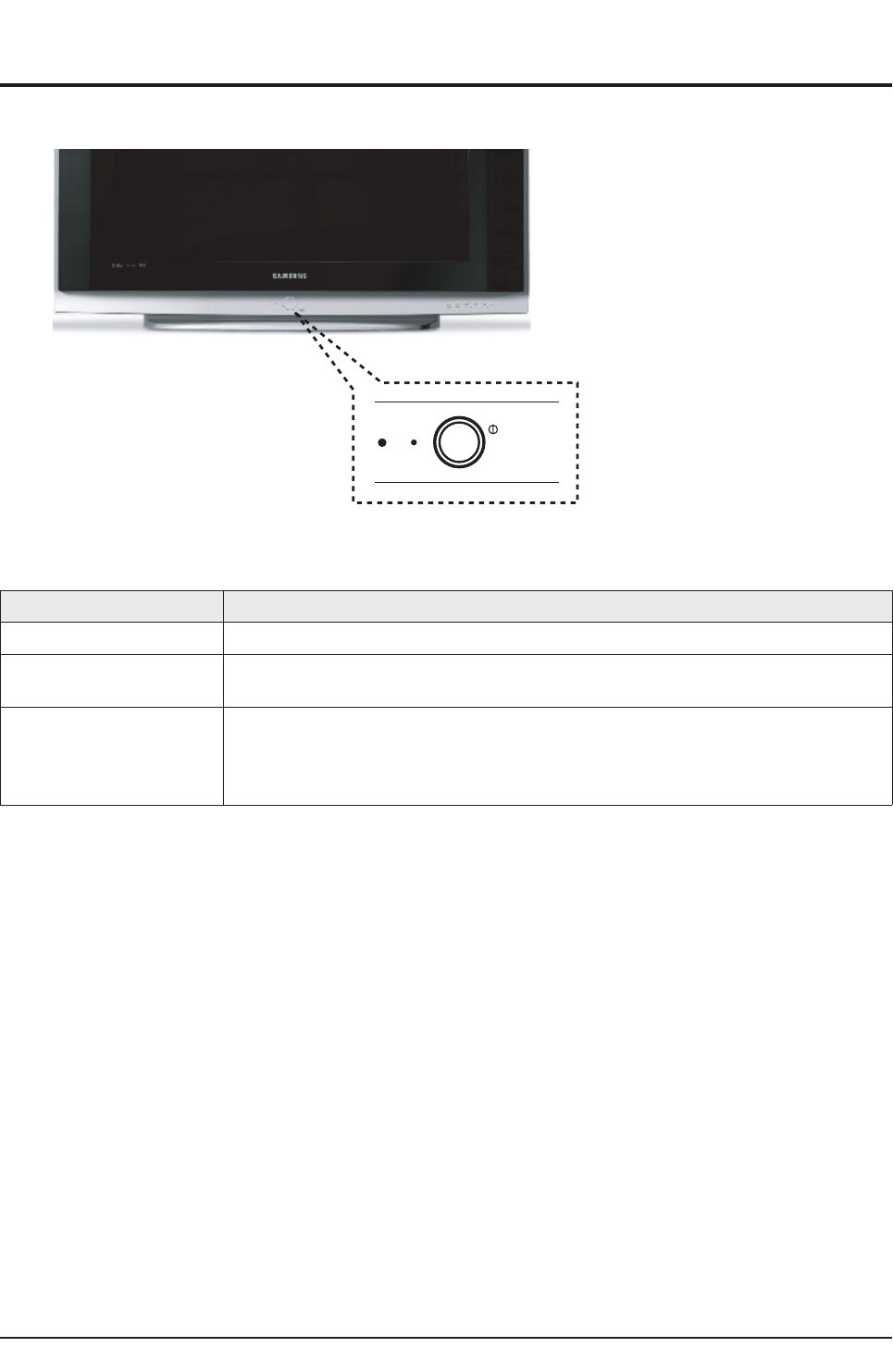

6-3-1 Basic Troubleshooting: Diagnosis of LED on the Front Panel
6-3-2 Troubleshooting by the Checksum
■Diagnosis of trouble by the checksum is neither reliable nor convenient.
You can only use the checksume of the current direct-view TV to determine whether the software is corrupted or not.
The Checksum value is determined according to the version of the software loaded on the set.
Therefore, you can determine whether the software has been properly downloaded, if you know the correct checksum for that
version of the software.
You can check the checksum according in the following order.
Factory Mode →Checksum →Right Button →Calculate Checksum →Output Checksum (e.g. 0xab2b)
■Checksum Examples
T_COREOAKR1_1010 : checksum = 0xab2b
T_COREOAKR1_1014 : checksum = 0x4faa
Power Description
○This happens when the Master Switch is not pressed or the power cord is disconnected.
●This happens when the power cord is connected and the power switch is pressed.
If you cannot set the power switch on by pressing it, check the power switch Ass'y.
○→◑→●
If you press the power switch of the transmitter or the channel key on the remote control when in
St-BY status, the screen will be turned on.
If the LED blinks and the screen is not displayed, check the connection between the Power and
the System Board.
●: Light is On
◑: Light is Blinking
○: Light is Off
Troubleshooting
6-8 Samsung Electronics
6-4 Troubleshooting Procedures by ASS'Y

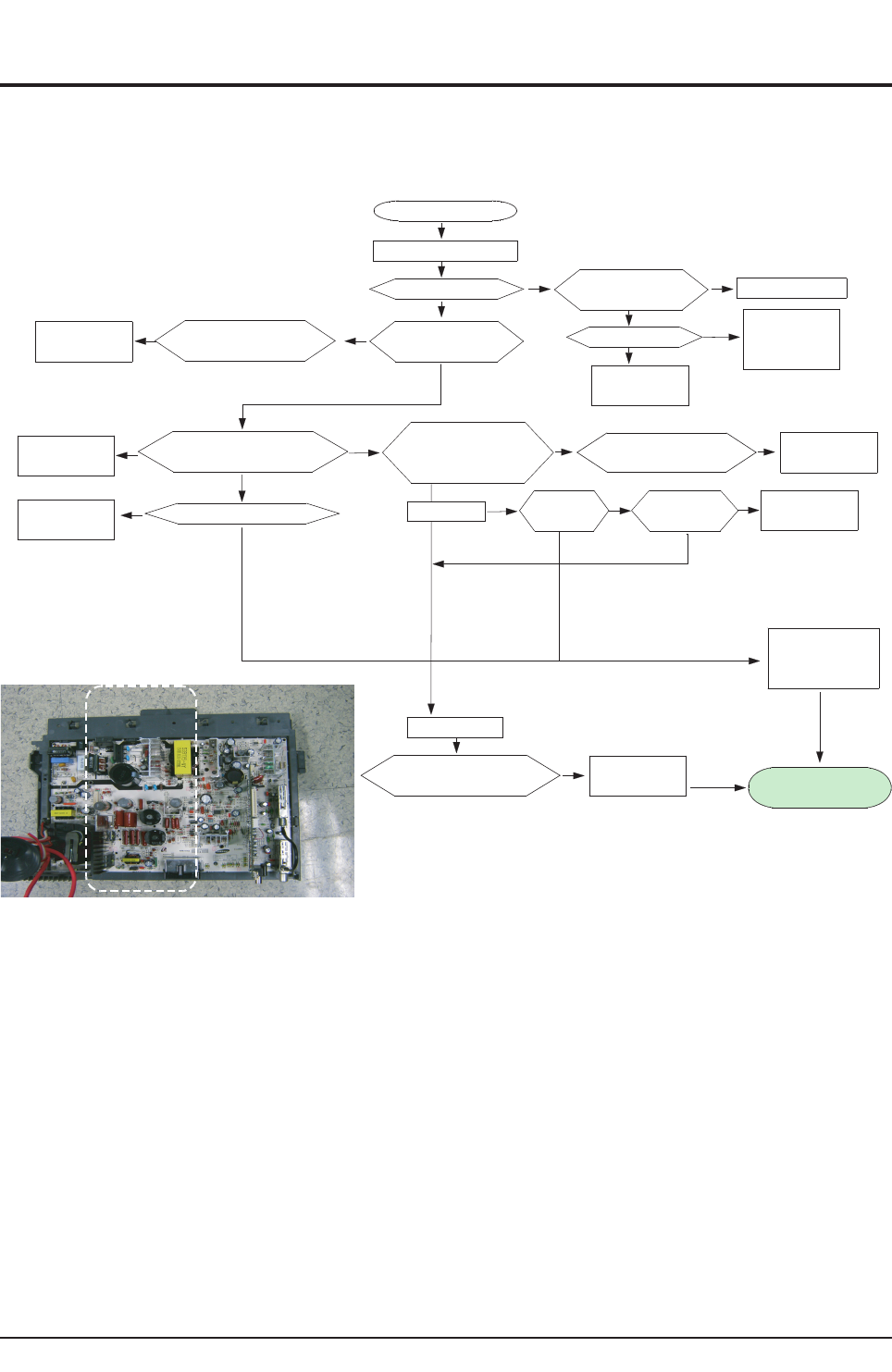

6-4-1 NO Power
1. Power part of the Main Board Check
No-Power
AC Voltage Impress
IC801S #1 CHECK FP801S FUSE
CHECK AC FUSE CHANGE
D801S CHECK
D801S
BRIGE DIODE
CHANGE
IC801S
STR IC CHANGE
IC801S #4 CHECK
DC : 16 ~ 24V
CHECK HOT BLOCK
Materials
C802(B+) Voltage check
DC :135V
F/back Line Check
■ 135V F/B Line
■12VLine
L804 Open
B+ check
R817 Line
Check
Change
Materials
F-Box Check
and Change the
Module
NG
OVER
OK NG
OK
OK
NG
Change
Materials
NG
OK
12V Line
NG
NG NG
B+(132V) Line
OK OK
F/BACK LINE CHECK
PC801S/DZ801/Q803...
Change
Materials
NG
No-Power
Repair End
OK or Low
HC401 H-OUT TR Cehck
FD801S/FD802S FUSE/
Diode Check
Change
Materials
Change
Materials
Change
Materials
NG
NG
OK
NG
IC801S
Troubleshooting
Samsung Electronics 6-9

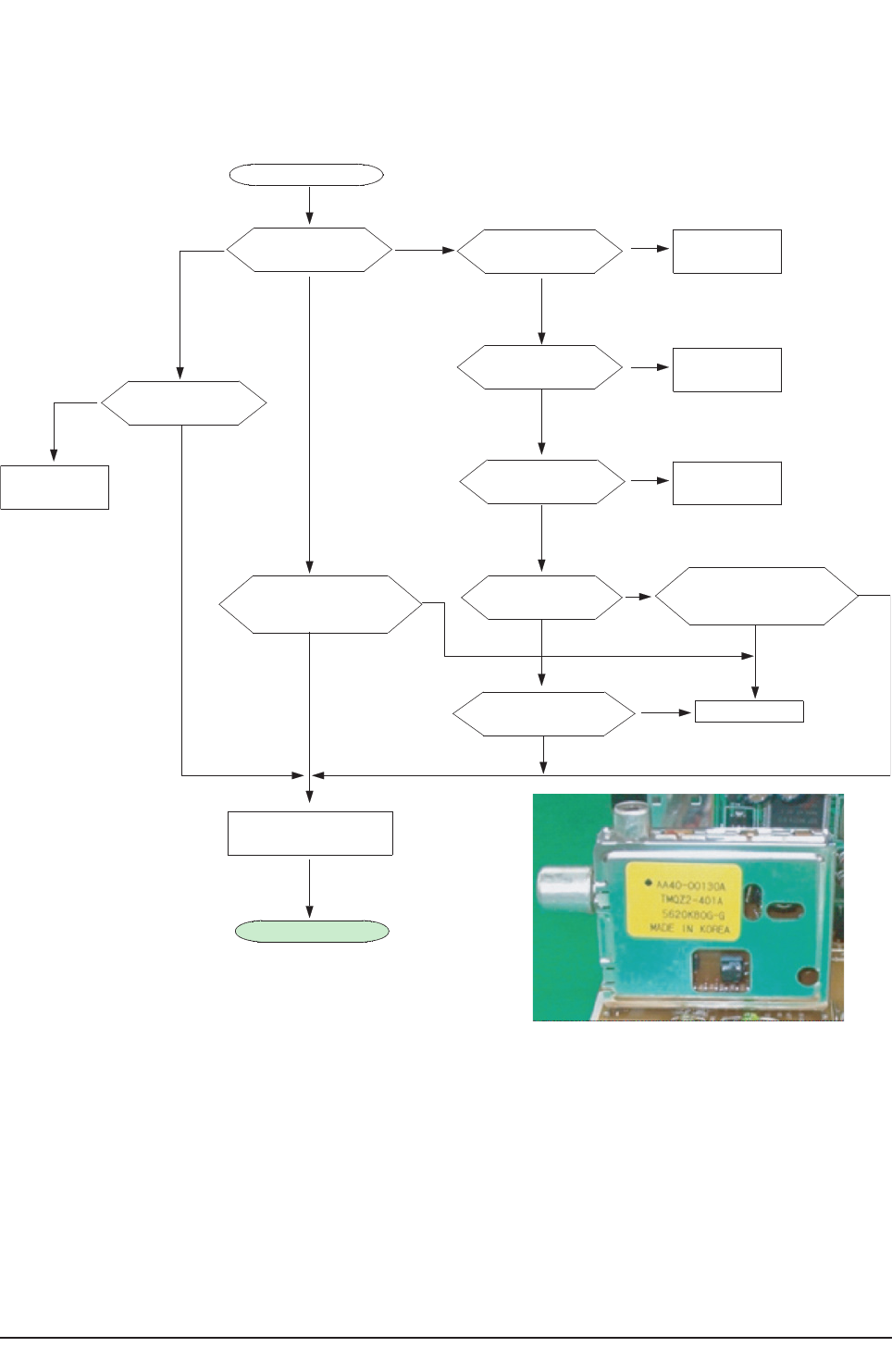

6-4-2 NO Video
1. when the power is normal
No-Signal
RF,VIDEO
CEHCK
TU01
9V check
SCART1/SCART2
CVBS Check
TU01
5V check
TU01
33V check
TU01 SDA/SCL
check
C117 CVBS
CHECK
F-Box Module
Change
IC801 78R09
CHANGE
IC803S 78R05
CHANGE
OPEN Tuer SDA/SCL
PIN
Check SCL/SDA
Tuner Change
DZ405 TZP33A
Change
OPEN Tuer SDA/SCL
PIN
Check SCL/SDA
Repair End
EXT :No
RF :Ok
EXT :Ok
RF :No
Video:No
RF:No
Cehck A/V
Cabile
NG
NG
NG
NG
NG
NG
NG
NG
OK
OK
OK
OK OK
OK
OK
OK
TU01
Troubleshooting
6-10 Samsung Electronics

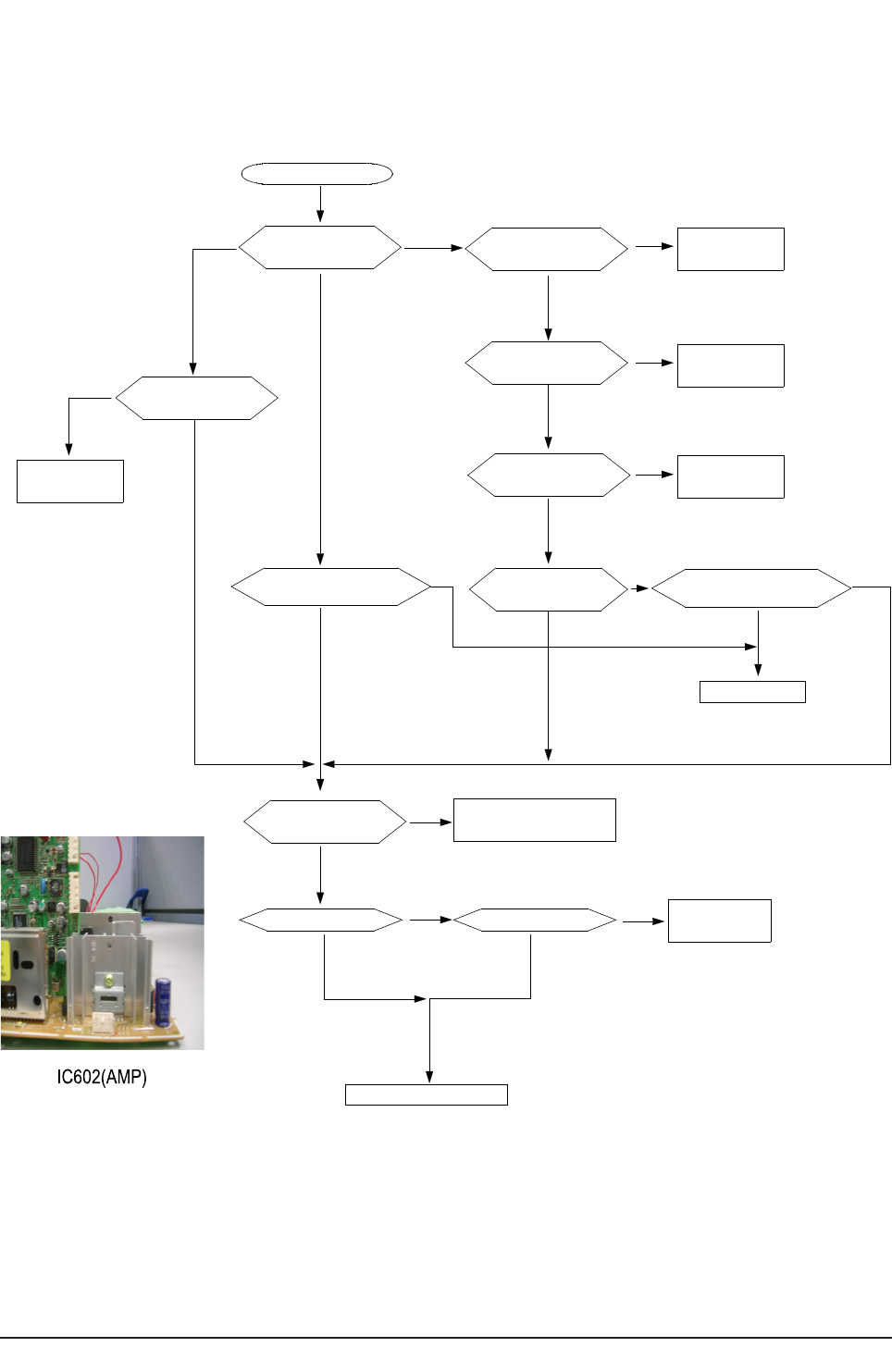

6-4-3 No Sound
1. when the power is normal
NG
Cehck A/V
Cabile
EXT :No
RF :No
EXT :Ok
RF :No
EXT :No
RF :Ok
OK
OK
OK
OK
OK
OK
NG
OPEN Tuer SDA/SCL PIN
Check SCL/SDA
OK
NG
NG
NG
NG
NG
DZ405 TZP33A
Change
OPEN Tuer SDA/SCL PIN
Check SCL/SDA
Tuner Change
IC803S 78R05
CHANGE
IC801 78R09
CHANGE
F-Box Module
R/L-OUT Check
TU01 SDA/SCL
check
TU01
33V check
TU01
5V check
SCART1/SCART2
CVBS Check
TU01
9V check
RF,EXT-IN
CEHCK
No-Signal
F-Box Module
Change
NG
OK
AMP B+ Check NG FD801S CEHCK Change
Materials
NG
AMP CHANGE
OK
OK
Troubleshooting
Samsung Electronics 6-11

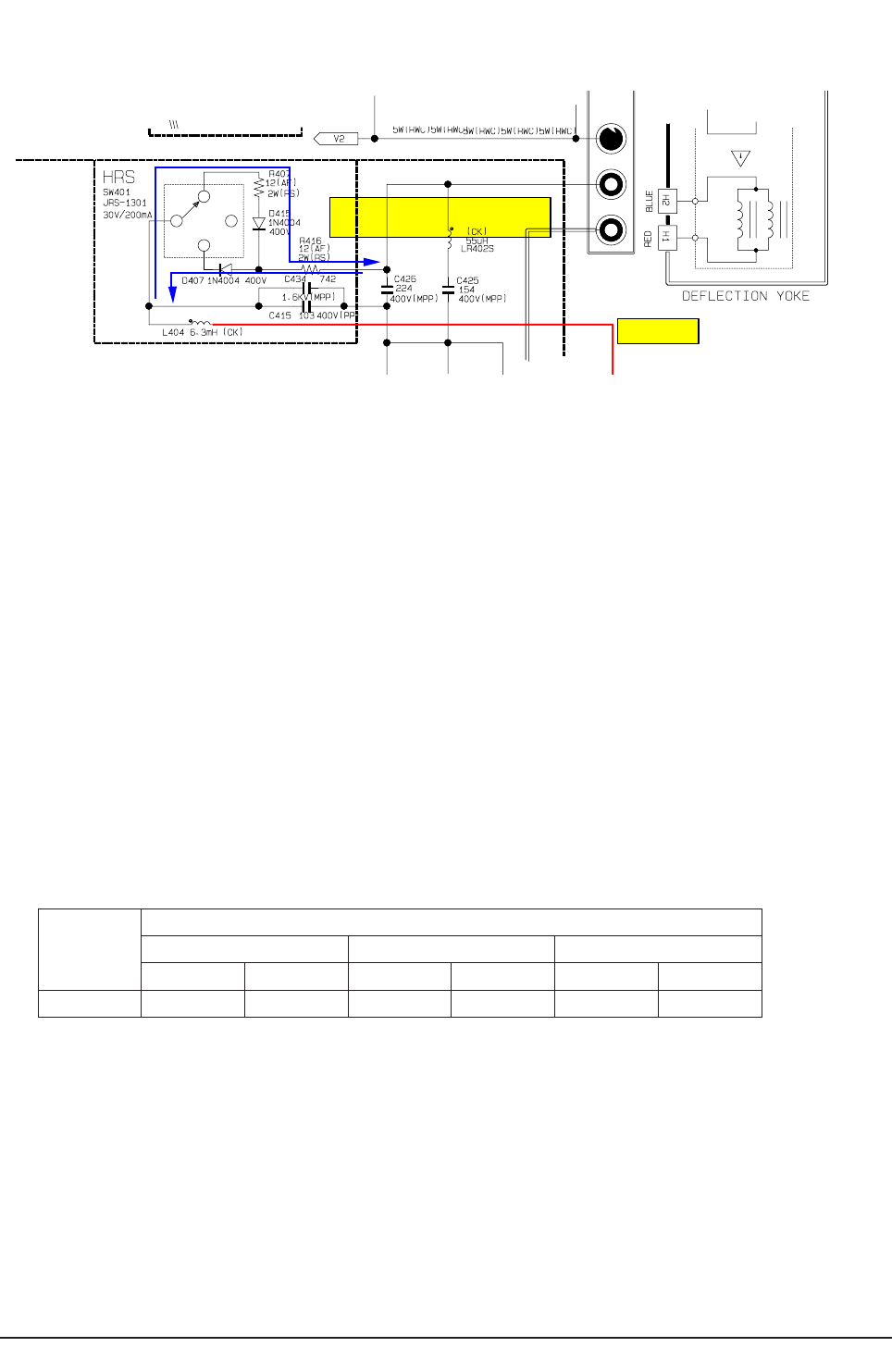

6-4-4 No Raster
1. when the H/V is normal
No-Raster
FBT Screen VR MAX
And Screen check
CRT ASSY
CHECK
Heater Line
Fusible Resistor
change
FBT 16.5V/-16.5V
Line Diode and
Fusible Resistor
check and Change
Raster Check IC501 B+
CHECK
IC501 B+ Line Check and
Materials change
IC501 Output
Signal Check IC501 TDA6111Q change
RGB Line Materials
Check and Change
Raster
Black or
Horizetal line in
middle of screen
NG
OK
NG
OK
Black
Raster
Black
FBT 16.5/-16.5V
CHECK
Go to the No-Video check
Flow Chart
NG
IC301 #4,#5
V-Sync Check
F-BOX Module
Change
NG
OK
hori
Vertical Block
Materials Check
F-BOX Module
Change
NG
Verticla IC
LA7845 Change
OK
OK
OSD Check OK
NG
F-BOX Module
Change
IC602
IC803
IC301
IC801S HC401
TU01S
D801S
6-12 Samsung Electronics
MEMO
Block Diagram
Samsung Electronics 7-1
7. Block Diagram
7-1 Overall Block Diagram
SM PS
B l o c k C A P
B RID G E
D IO D E
PFC
( O p tio n )
LINE FILTER
MAIN
TRANS RELAY
AC
INPU T
AUDIO
AMP 4P
8P
LED
O p t io n
M AIN
TU N ER
PIP
TU N ER
34P
34P
F
E
A
T
U
R
E
B
O
X
M u lti D IO D E
5V
Re g ula to r
5V
Re g ula to r
EW
IC
(KA39 3 )
F B T
Vertic al
Am p
H - O UT TR
D am p e r H D T
Dyn am ic
Fo c u s
TRANS
REM O C O N
M O D U LE
MASTER
S/ W LINE FILTER
Ct / C s
C o nd en se r
Linearity
C o il
In n er
C o il
EW
C o il
EW
C o il
EW
C o il
In n er
C o il
W id t h
C o il
Block Diagram
7-2 Samsung Electronics
tupniCA
-
R
TS
F
0
576X W/S
SNART
Y321CP
yaleR
5487AL
pmA
noitcelfeD&TUO-H
kcolB
-H
EVIRD
W/E
P
MA-
PMA-S
7927ADT
c
i
many
D
SUCO
F
-
S444T
TBF
V
04
1
V
5
.6
1
V5.31-
V002
suc
o
F
V
5.
6
1
/F
B
O
X
P24TRACS
P9ACR
niaM
renuT
-buS
renuT
SC 1/ SC2
AV IN- O U T
yb-ts
ger-v5
V041
A-V21
V7
V61
P
-
DV
N-DV
RL
FI
SBVC
Y
.
D
2V.1V
2H.1H
TUO-H
V5.61
V5.31-
LBA
A-V21
V
5
.
61
LIOC-D
C-V5
A-V21
L
I
O
C-
D
V33/V5
SC L/ SD A
V
33
etuM-S
1etum-S
A-
V
21
p
m
A-E
D
I
O
D
E
D-V5
D-V5
tu
o-
WE
e
n
i
L
retliF
eg
dirB
edoiD
D
PVO
PCO
CFP
LIO
C
lioC-D
P4
P5
ev
i
rd
-
H
cnyS-H
cnyS-V
R
I
1yeK
2yeK
DEL
-
T
D
E
L
-S
C
G
A
KPS
TRC
e
d
onA
DR
AOBNIAM
Block Diagram
Samsung Electronics 7-3
7-2-1 F-Box Block Diagram
HDMIBLOCK
I
I
CH0 1
M ST 9 8 8 3
(H D M I )
-5 V - B
IC 0 5
T W 9 9 0 6
(PIP)
- 2 .5 V / 3 .3 V
IC 0 3
C X A 2 1 6 5 Q
- 9 V / 5 V
-
I C0 1
VCT69 x y P
-1.8V / 3.3V
-Mi c om / So u n d
- Sc a le r
- Sw it c hing
IC02
24C32
(EEPROM)
1ADS,1LC
S
Y_I
MD
H
b
P_I
MD
H
r
P
_IMD
H
NI_GI
D
_IMDH
V3.3_CC
V
A
V8.
1
_CCVD
V
8.
1_C
CV
C
V3
.
3_CC
V
O
V3.
3
_CCVP
ataD_PIP
)
ti
b7
~0
(
V5
.
2_A
AV AD
S,L
CS
2
,1
TR
ACS
F
R
SB
V
C-P
I
P
RESET
SCL,
,
SDA
KCO
L
C
SCL,SDA
AKB
LBA _
V
/
H
K
N
A
L
B
PDV/NDV
B/G/R
TUO
CRT CONNECTOR
)rP/b
P
/Y(1PMOC
)
rP
/bP
/
Y(2
P
MOC
IC04
74HC4 052
(S_
S/W)
HDM
I
JACK
COMP
JACK
Y
E
K
2
/
1
2
ETU
M
_S
O
P
RE
W
D-
L
IOC _T
DEL
_VAF
SB
VC
/Y
D
T
S
D
E
L
_
EDIS
N
I_R
/L
SIDE
A V
R
/L_2
P
MOC
R
/L
_1P
M
OC
W.
S
1t
rS
R
/
L
2trS
R/
L
FIS
R
/
L-
L
E
S
S- 2ETUM
_2
/1
tra
c
S
TUO
/
NI
F
R
NIB.G
.
R
tracS
DI -2/1
V
-ed
i
S
)t
i
b7~0(ata
D
IC06
74HC123
-5
V
0F/1F
VM
12V- A
IC802
78R05
IC803
DC- DC
CON
DTS-V5
IC801
78R09
V
3.3
5V- B
ICP02
MULTI -
-
REG
2. 5V
3.3V
ylnO+BCIPIP
B-V8
IC06
7027
IC804
Regul
IC805
Regul
teseR
V
8.1
V8.1
12V
A Connect or B Connect or
F
R
SB
VC
B
G
R
t
i
B01
tuO
C
L
K
DIC 4 0 00
D H C - I C
G D - C o nt r o l
IC
SVS
HNI-CHD
NE
D
-
S
HSH
S
V
NI
-
Y
NI-bP
NI
-
rP
CHD-V3.3A
CHD
-V
3.
3A
DIC4001
Multi-Reg
BM-
V5
CH
D-
V8.
1A
C
H
D-V
8.
1A
LL
P
-V8.1A
1F/
0
F
LBA
WE
TLIT REWOP
TLIT
W
E
N
DV
PD
VL
B
A
REWOP
A-V21
B
-V
5
50NC
lort
n
o
C
V52K1K
SCL, SDA
H-DRIVE
7-2 Partial Block Diagram
Block Diagram
7-4 Samsung Electronics
7-2-2 Sound Block Diagram
V
C
T
6
9
x
y
P
31
6
2
14
4
12
7
1
15
INPUT SO U RCE
RCA JACK SC ART
MAIN SIF INPUT
S1 RF O UT - R
S1 RF O UT - L
M O N ITO R
O U T- R S2 M O N IT O R O U T- R
S2 LINE O U T- R
M O NITO R
O U T- L S2 M O N ITO R O UT- L
S2LINE O UT-L
AV1 IN - L S1 AUDIO IN - L
AV1 IN - RS1 AU D IO IN - R
Side - A/ V(AV3 ) IN - L
Sid e - A/ V( AV3) IN - R
AV2 IN - L S2 AUD IO IN -L
AV2 IN - R S 2 A U D IO IN - R
D VD 1 (D TV) IN - L
D VD 1 (D TV) IN - R
H D M I/ DVD(D TV)2 IN - L
H D M I/ D VD (D TV) 2 IN- R
MAIN- L
O U T
MAIN- R
O U T
SO UND
AMP
TD A7297
S-M U TE1
Fro m B +
S- M U TE2
Fro mM ic o m
# 49
MAIN
SPK- L
MAIN
SPK- R
L +
L-
R
+
R
-
SC L
SD A
16V
PQ F P
20 8P
20. 2 5
X
Mhz
Mhz
- TAL
●
●
21
22
23
24
9
10
11
12
Au d io
S/ W IC
7 4H C
4052
12
13
14
15
16
1
15
2
28
27
79
78
83
84
7-2-3 CRT Diagram
Q1116ADT
EVIR
D-
R
)Q1116(
EVIRD-R
Q1116ADT
EVIRD-G
)Q1116(
Q1116ADT
EVIRD-B
)Q1116(
0302ADT
)$5.0(TLIT
E
V
I
RD
-
G
E
VI
RD
-B
BK
A
T
LIT
M
V
MV
TIUCRIC
)DIRBYH(
,OE
D
IV
R
OFV
2
1
T
LIT
tl
i
TRO
FV
21-
TROPREW
OP
OE
D
IV
RO
FV0
0
2
R
ETR
A
EH
TOPS
RELLIK
Block Diagram
Samsung Electronics 7-5
PMABGR
V541
retaeHTPC
V42.6
V33 V33renuT
V5.61 pmAlacitreV A0839VTS
)A4
4
.1(A
8
0.1/V21
A
0
.
2/
V
5
1pmAdnuoS
V3.3 CD-CD
ROTREVNOC
PT
CV
Pyx96
V5.61-
DE
L/RI
100IRDD/TDH
Am0
45/V
3.3
Am
005/V
8.
1
A6.1/V0.7
XOB-F
50R87
Am0
63/V
8.
1
ITLUM
1
-
'G
E
R
IMDH
M3833TSM
5612AXC
MORPEE/2504
5
0R
87
2
V3.3/V5renuT
Am0
5
1
/
V3.
3
Am071/V5.2
33MR87
Am01
1
/V5ren
u
T
Am061/V3.3renuT
Am
0
88/V0
.7
Am351/V5
A
m
02/V5
90R87
713 evirD-WE
V21
V21
A
m
91/V8
Am
02
/
V
9
Am3
47
/
V5
Am051/V5
V5
Am011/V5
81
81
V002
syawlA
BM_V5
AM_V5
A_V21
F
B
T
S
M
P
S
7-3 Power Current Block Diagram
7-6 Samsung Electronics
MEMO
Wiring Diagram
Samsung Electronics 8-1
8. Wiring Diagram

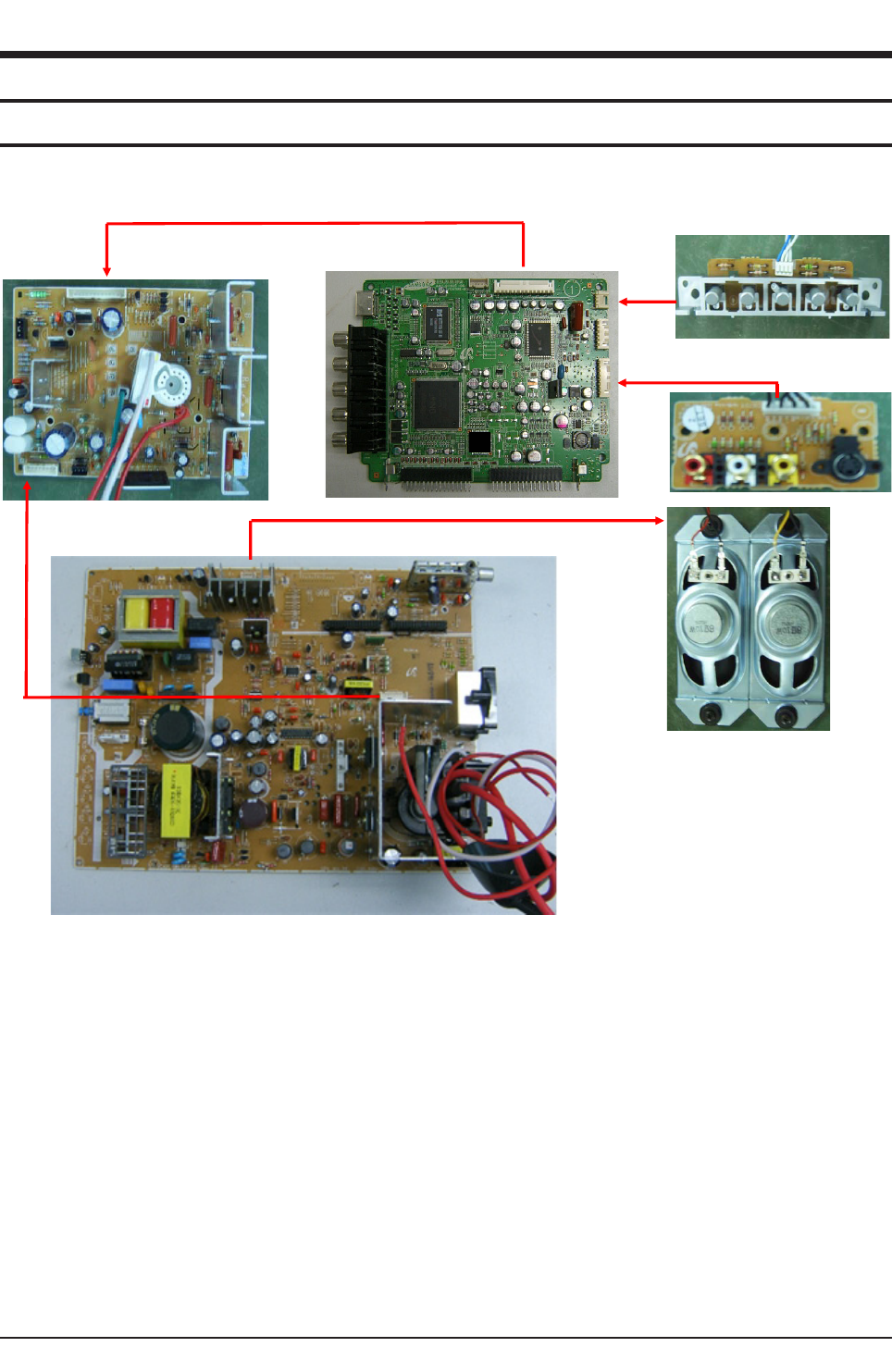

8-1 Overall Wiring
CRT PCB Signal
Control
AV Input
CRT Power Supply Sound Out put
Wiring Diagram
8-2 Samsung Electronics
8-2 Pin Connection
TO SPK
L-
L+
R-
R+
4
3
2
1
SI DE A V
GND
F- CVBS- IN
FAV- L- IN
SV- C- ID
SV- C- IN
FAV- R- IN
GND
7
6
5
4
3
2
1
GND8
FRONT
CONT ROL
TO CRT
GND
BOUT
GOUT
GND
AKB
ROUT
GND
7
6
5
4
3
2
1
POWER
12V- A
GND
12
11
10
9
8
MAIN F- Box
AFT
GND
GND
H- BLANK
ABL
GND
PIP- CVBS
WP- STOP
KEY- 1
TIMER- LED
STD- LED
13
11
9
7
5
3
1
23
21
19
17
15
14
12
10
8
6
4
2
24
22
20
18
16
MUTE- SPOT
POWER
S- MU TEe
D- COIL
GND
EW - D RIVE
VC C- 12V- A
GND
1080i
V- BLANK
MAIN- L
VD P
25 26
28
29 30
31 32
33 34
27
GND
Power
S- Mute2
D- Coil
S- Mute1
Main- Lout
SCART1- R
5V- C
RF- CVBS
GND
SCART1- R- IN
SCART1- L- IN
13
11
9
7
5
3
1
23
21
19
17
15
14
12
10
8
6
4
2
24
22
20
18
16
RF- OUT
GND
SC ART2- CVB S- IN
SC ART1- CVB S- IN
GND
SC ART1- F/ B
SCART1- G
25 26
28
29 30
31 32
33 34
27
GND
GND
SDA2
MAIN- R
SCL2
VC C - 5V- B
IR
VCC- 5V- A
GND
GND
GND
GND
GND
GND
VD N
PROTECT
SCART1- B
SCART1- R
GND
GND
MONITOR- OUT
VCC - 5V- C
H- DRIVE- OUT
VC C- 9V- C
KEY- 2
GND
GND
HEATER
-16.5V
NC
200V
NC
+16.5V
7
5
3
1
8
6
4
2
3
4
2
1GND
KEY- 1
NC
KEY- 2
14
13
GND
SVM
SVM
TILT
AFT
GND
GND
GND
PIP- CVBS
WP- STOP
KEY- 1
TIMER- LED
STD- LED
13
11
9
7
5
3
1
23
21
19
17
15
14
12
10
8
6
4
2
24
22
20
18
16
MUTE- SPOT
POWER
S- MU TEe
D- COIL
GND
EW - D RIVE
VC C- 12V- A
GND
1080i
V- BLANK
MAIN- L
VD P
25 26
28
29 30
31 32
33 34
27
GND
GND
SDA2
MAIN- R
SCL2
VC C - 5V- B
IR
VCC- 5V- A
GND
VD N
PROTECT VC C- 9V- C
KEY- 2
H- BLANK
ABL
Power
S- Mute2
D- Coil
S- Mute1
Main- Lout
SCART1- R
5V- C
RF- CVBS
GND
SCART1- R- IN
SCART1- L- IN
13
11
9
7
5
3
1
23
21
19
17
15
14
12
10
8
6
4
2
24
22
20
18
16
RF- OUT
GND
SC ART2- CVB S- IN
SC ART1- CVB S- IN
GND
SC ART1- F/ B
SCART1- G
25 26
28
29 30
31 32
33 34
27
GND
GND
GND
GND
GND
GND
SCART1- B
SCART1- R
GND
GND
MONITOR- OUT
VCC - 5V- C
H- DRIVE- OUT
TO CRT
Wiring Diagram
Samsung Electronics 8-3
8-2-1 Main Board Connector Pin
CN401
Connected to the CRT Board
Pin No. Pin Name
1 200V
2 NC
3 Heater
4 GND
5 -16.5V
6 +16.5V
7 GND
8 NC
Pin No. Pin Name
1 R+
2 R-
3 L+
4 L-
CN601
Connected to the Speaker Port
8-2-2 Feature Box Board Connector Pin
CN07
Connected to the CRT Ass'y
Pin No. Pin Name
1 AKB
2 GND
3 B-OUT
4 GND
5 G-OUT
6 GND
7 R-OUT
8 GND
9 12V_A
10 SVM
11 POWER
12 TILT
CN04
Connected to the Master Ass'y
Pin No. Pin Name
1 TIMER-LED
2 STD-LED
3 GND
4 NC
5 5V-STD
6 IR
CN03
Connected to the Side AV Port
Pin No. Pin Name
1 SV-C-IN
2 SV-C-ID
3F-CVBS IN
4 GND
5 FAV-L-IN
6 GND
7 FAV-R-IN
8 GND
Pin No. Pin Name
1 GND
2 KEY-1
3 NC
4 KEY-2
CN05
Connected to the Control Ass'y
Wiring Diagram
8-4 Samsung Electronics
8-2-3 CRT Board Connector Pin
CNC04
Connected to R/G/B signal from the Feature Box
Pin No. Pin Name
1 AKB
2 GND
3 B-OUT
4 GND
5 G-OUT
6 GND
7 R-OUT
8 GND
9 12V_A
10 SVM
11 POWER
12 TILT
FV1
Connected the VM signal to the DY Ass'y
Pin No. Pin Name
1 VM
2 NC
3 VM
FN1
Connects the signal to the Tilt Coil
Pin No. Pin Name
1 GND
2 GND
3 TILT
4 TILT
Pin No. Pin Name
1 200V
2 NC
3 Heater
4 GND
5 -16.5V
6 +16.5V
CNC02
Connects the power from the Main Board
PCB Diagram
Samsung Electronics 9-1
9. PCB Diagram
9-1 Main Board
1
11
FF-- BBooxx
CCNN6600
GGTT880055
GGTT880066
CCNN440033
GGTT8800
CCNN8800
44
22
9-1-1 Assy Main Board
■The System Board that Controls Various Signals for Video Signal Processing and Product Operations
9-1-2 Names & Roles of Key Parts
＊CN601 : This is a 4 pin port connected to the Speaker, and sends the signal from the AMP to the speakers.
＊CN403 : This is a 8 pin port connected to the CRT Board and supplies 200V, +16V, -16V and Heater voltage.
＊GT804 : This is a ground port to prevent high voltage due to lighting.
＊CN802 : This is a 3 pin port connected to the AC power cable. It is connected to the power cable socket.
＊GT805, GT806 : This is a port connected to the D-Coil surrounding the CRT.
PCB Diagram
9-2 Samsung Electronics
9-2 Feature Box Board
9-2-1 Assy Feature Box Board
■This controls the path of the electron beams from the CRT electron guns using the deflection coil.
9-2-2 Names & Roles of Key Parts
* CN07 : This is a 12 pin port connected to the CRT Assy's, and outputs final R/G/B signals to the CRT Ass'y.
In addition, it outputs the Tilt, VM, and Power signals for the CRT Drive.
* CN05 : This is a 4 pin port connected to the Control Ass'y, and receives TV/Video, Menu, Ch Up/Down and Vol -/+ signals.
* CN04 : This is a 6 pin port connected to the Master Ass'y, and receives Master Power On/Off, and IR signals.
* CN03 : This is a 8 pin port connected to the Side AV, and receives S-Video2 and AV4 external inputs.
PCB Diagram
Samsung Electronics 9-3
9-3 CRT Board
9-3-1 Assy CRT Board
■CRT Drive
This supplies the final R/G/B signal from the F-Box and the CRT deflection signal to the CRT
9-3-2 Names & Roles of Key Parts
*GT501, GT502, GT505, GT506 : This is a port connected to the TBC-Wire and plays the role of CRT ground.
*GT503, GT504 : This is a port for countermeasures against compulsory discharges and is connected to the Main Board.
*CNC04 : This is a port to receive the R/G/B output signals from the Feature Box.
*CNC02 : This is a port that receives power for the CRT and AMP from the Main Board.
*FV1 : A port to connect the VM signal to the DY Ass'y.
*FN1 : A port to connect signals to the Tilt Coil and is regured for the screen slant adjustment.
9-4 Samsung Electronics
MEMO
10. Schematic Diagram
Samsung Electronics
Schematic Diagram
10-1
TP01
TP02
TP03
TP04
TP05
TP08
TP07
TP06

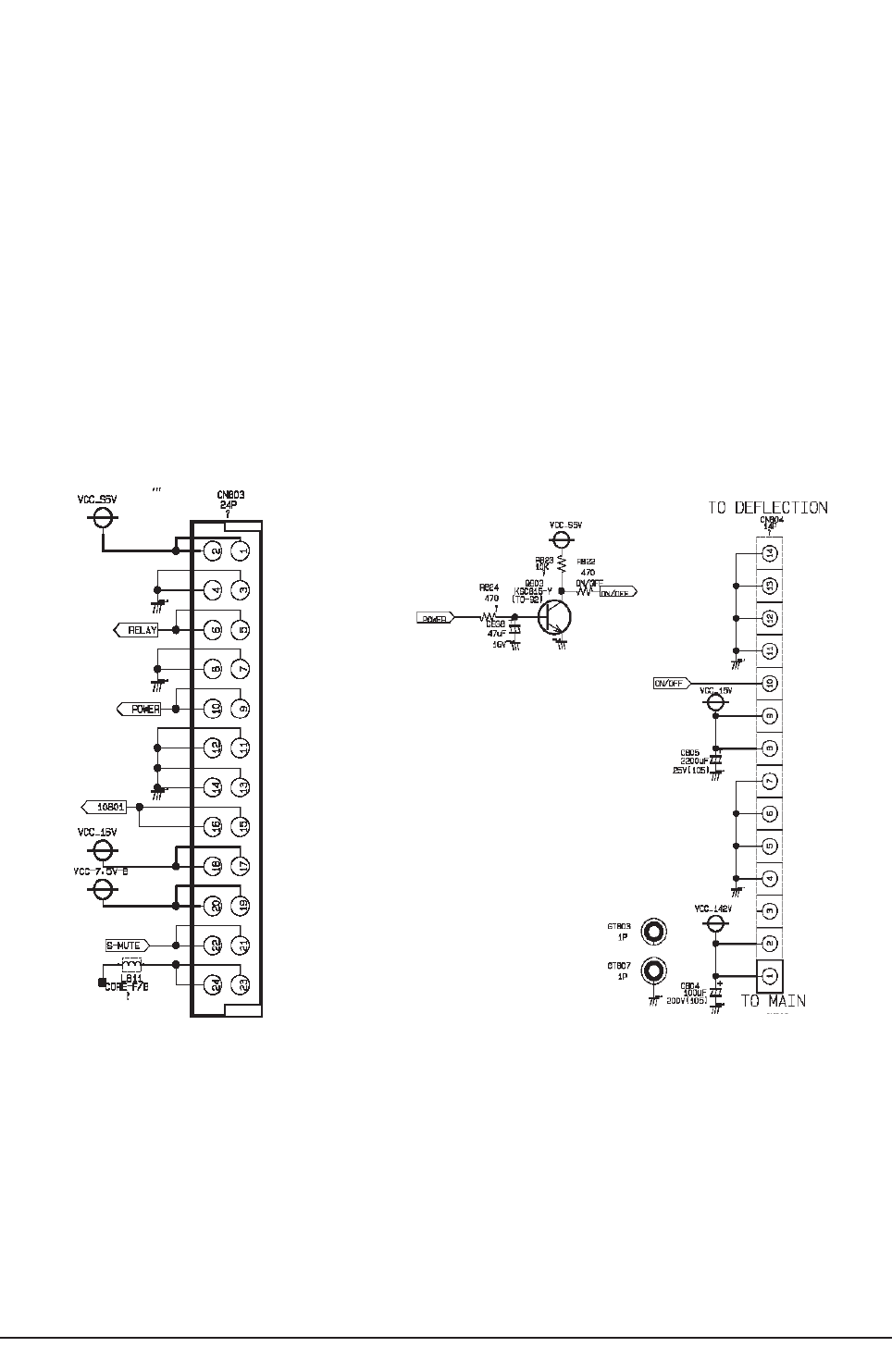

10-1 MAIN
This Document can not be used without Samsung’s authorization.

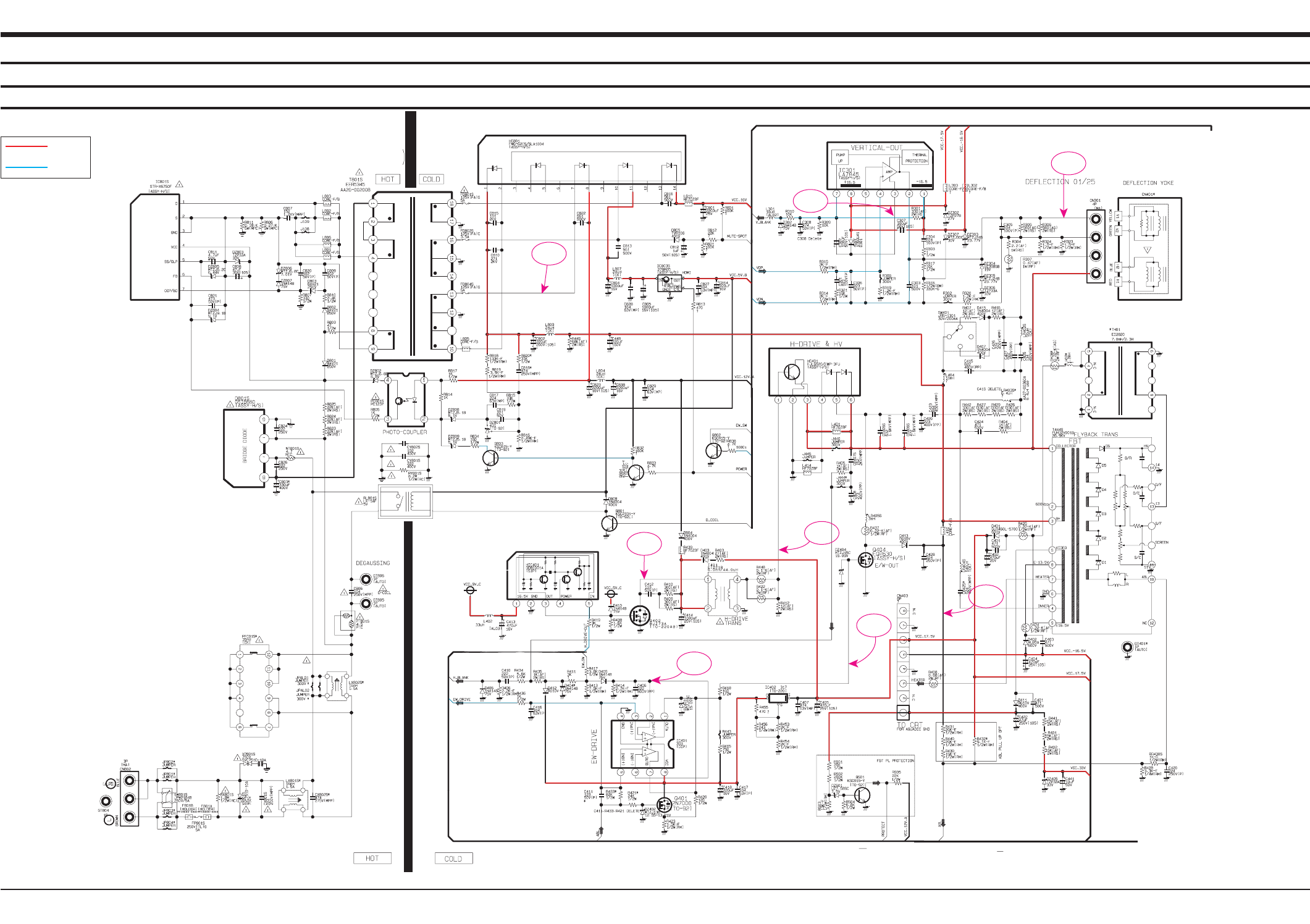

10-1-1 MAIN 1
Power
Signal
Schematic Diagram
10-2 Samsung Electronics
TP09
TP10
TP12
TP13
TP14
TP15
TP16
TP17
TP18
TP19
TP11
This Document can not be used without Samsung’s authorization.

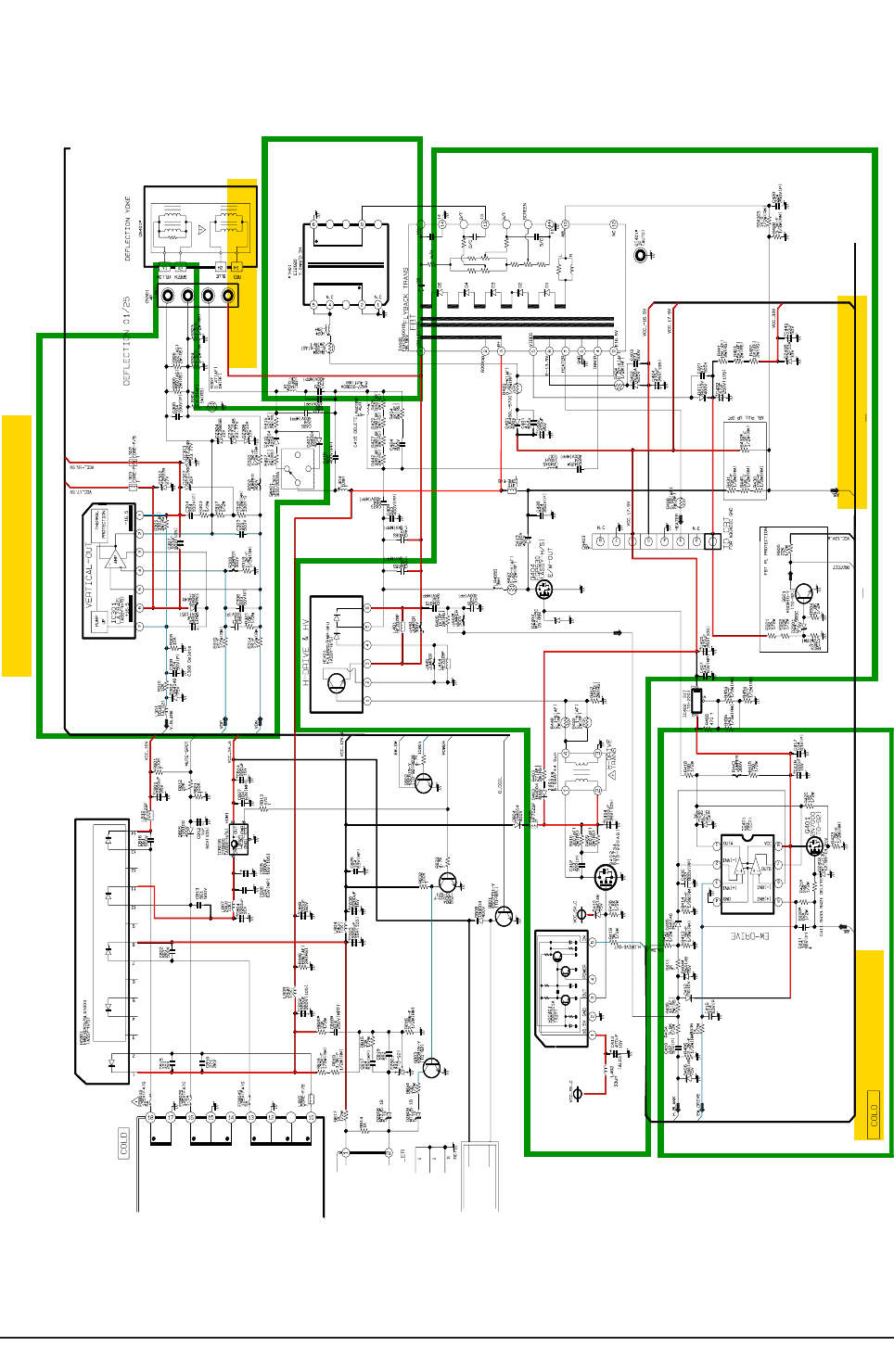

10-1-2 MAIN 2
Power
Signal
Samsung Electronics
Schematic Diagram
10-3

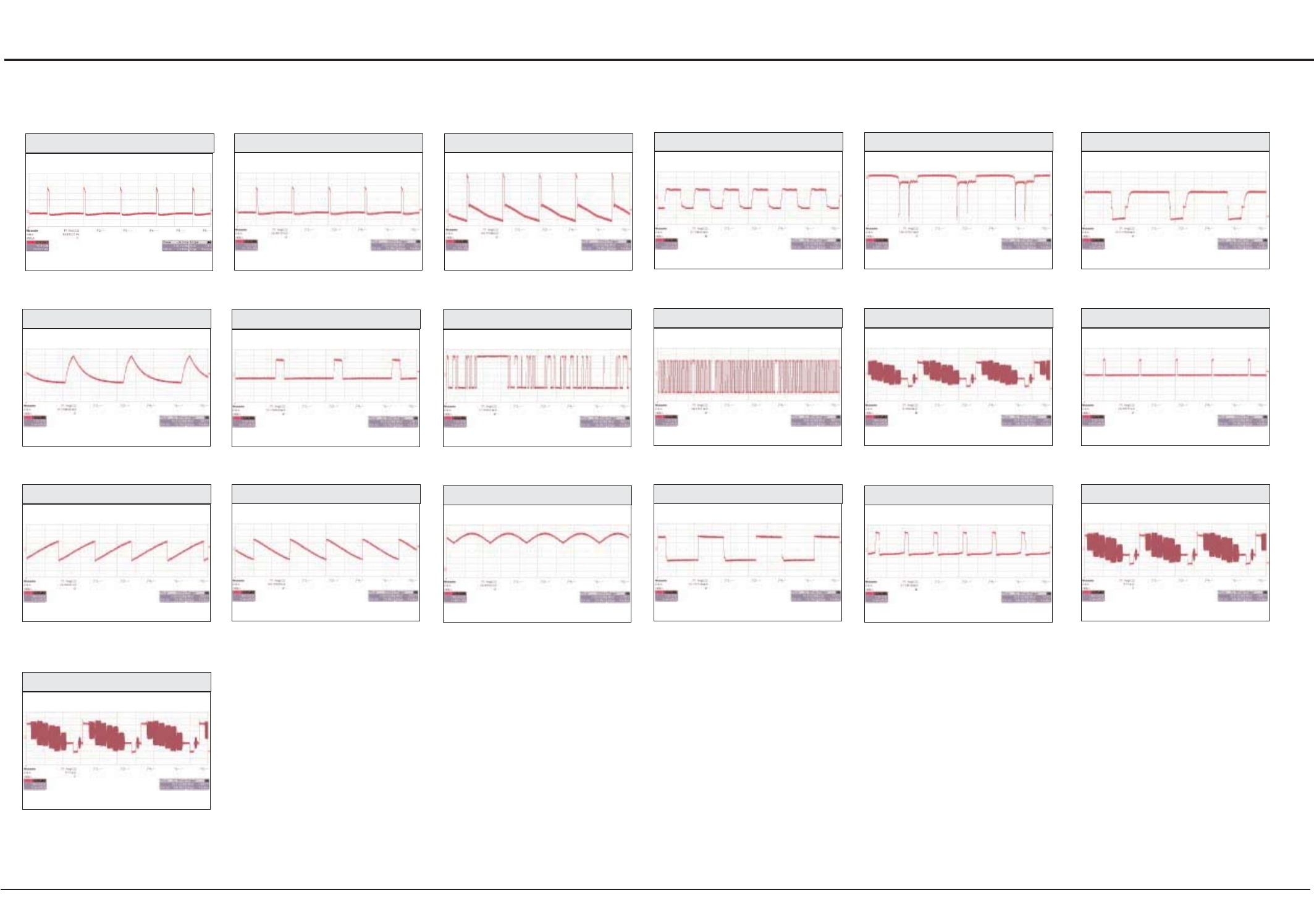

WAVEFORM
TP01
TP07
TP13
TP02
TP08
TP14
TP03
TP09
TP15
TP04
TP10
TP16
TP05
TP011
TP17
TP06
TP12
TP18
TP19
Schematic Diagram
10-4 Samsung Electronics
10-2 Feature Box
This Document can not be used without Samsung’s authorization.
10-2-1 Feature Box 1
Power
Signal
Samsung Electronics
Schematic Diagram
10-5
10-2-2 Feature Box 2
This Document can not be used without Samsung’s authorization.
Power
Signal
Schematic Diagram
10-6 Samsung Electronics
10-2-3 Feature Box 3
This Document can not be used without Samsung’s authorization.
Power
Signal
Samsung Electronics
Schematic Diagram
10-7
10-2-4 Feature Box 4
This Document can not be used without Samsung’s authorization.
Power
Signal
Schematic Diagram
10-8 Samsung Electronics
10-2-5 Feature Box 5
This Document can not be used without Samsung’s authorization.
Power
Signal
Samsung Electronics
Schematic Diagram
10-9
10-2-6 Feature Box 6
This Document can not be used without Samsung’s authorization.
Power
Signal
Schematic Diagram
10-10 Samsung Electronics

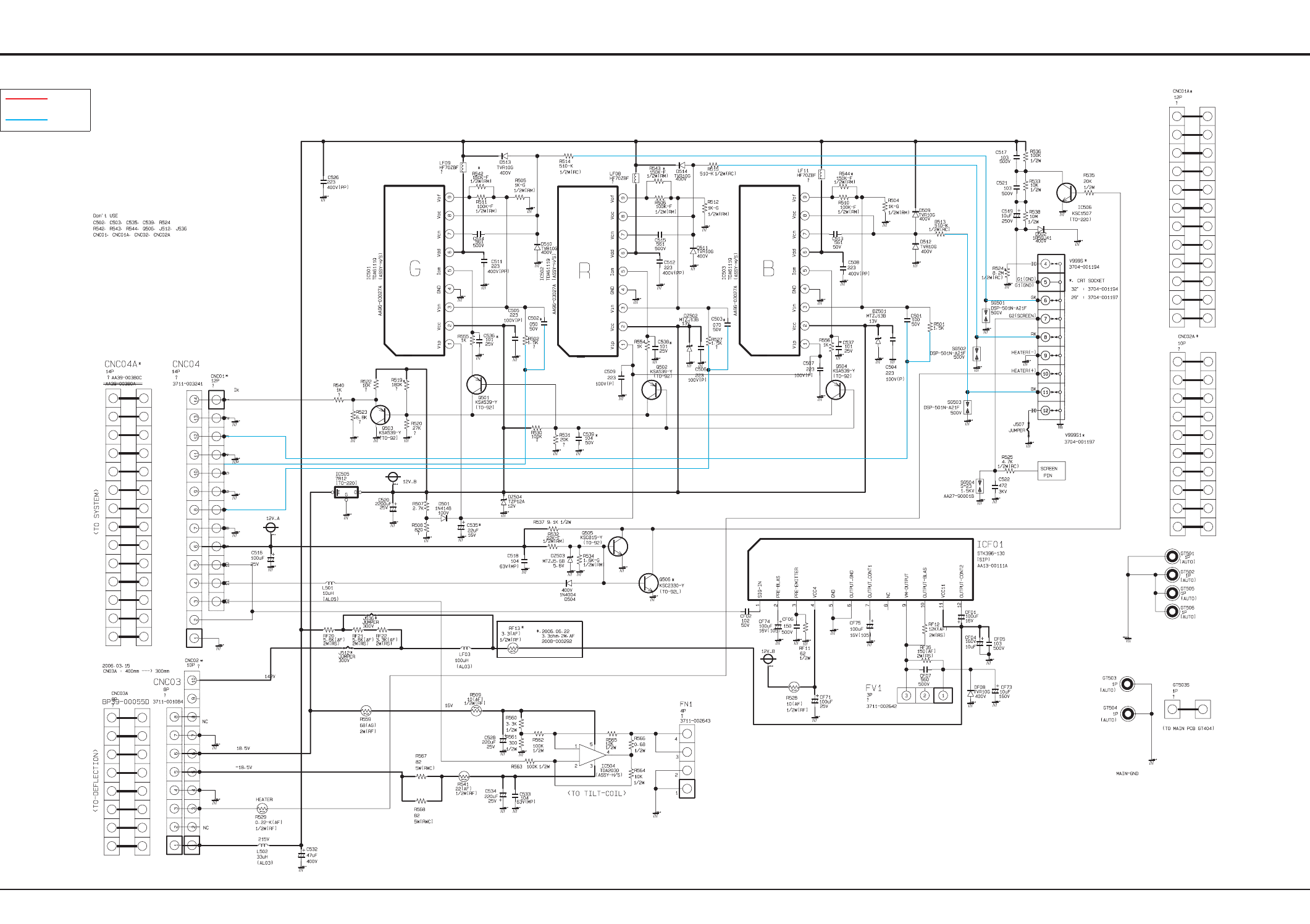

10-3 CRT
This Document can not be used without Samsung’s authorization.
Power
Signal
Samsung Electronics
Schematic Diagram
10-11

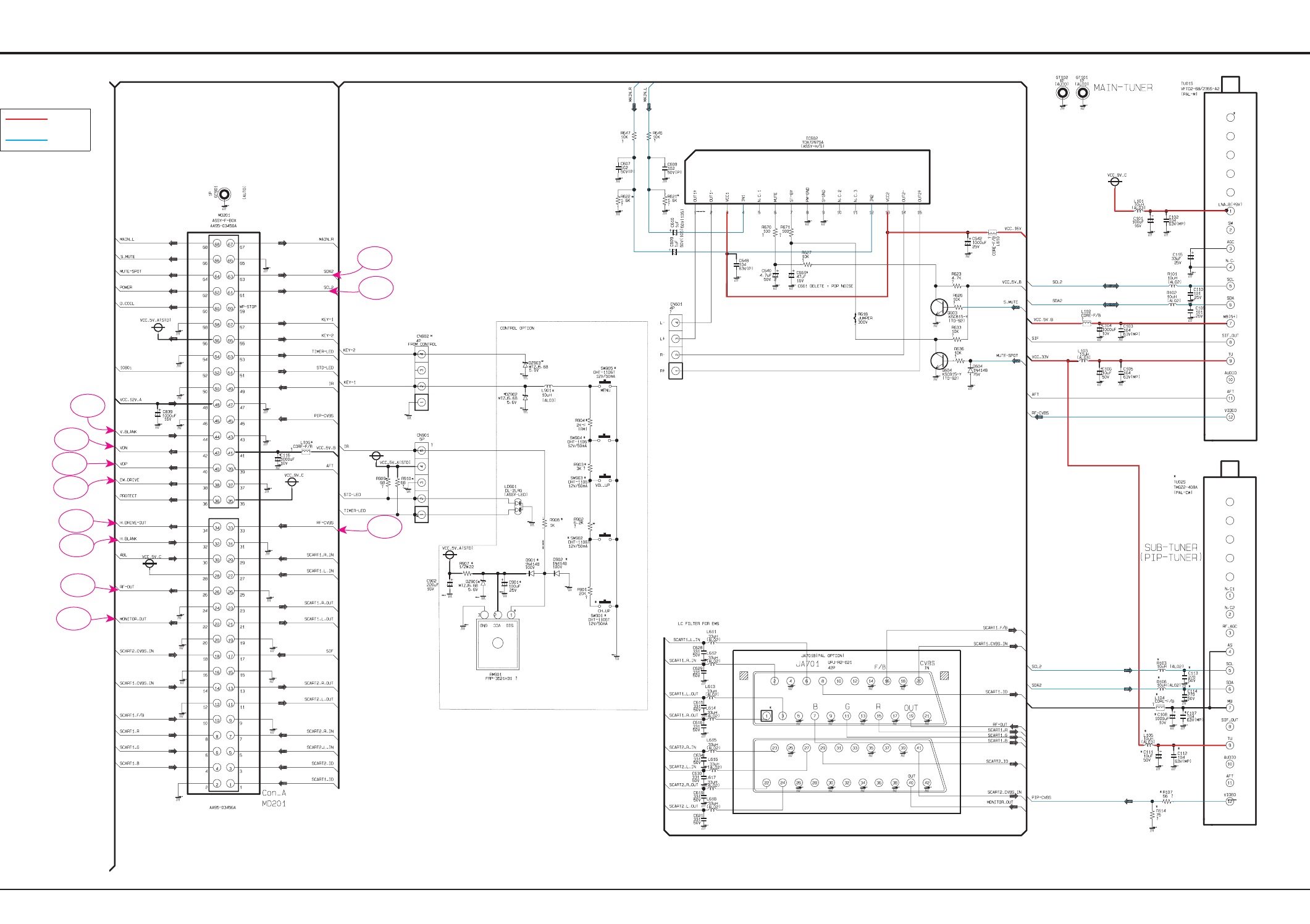

10-4 AV
This Document can not be used without Samsung’s authorization.
Schematic Diagram
10-12 Samsung Electronics

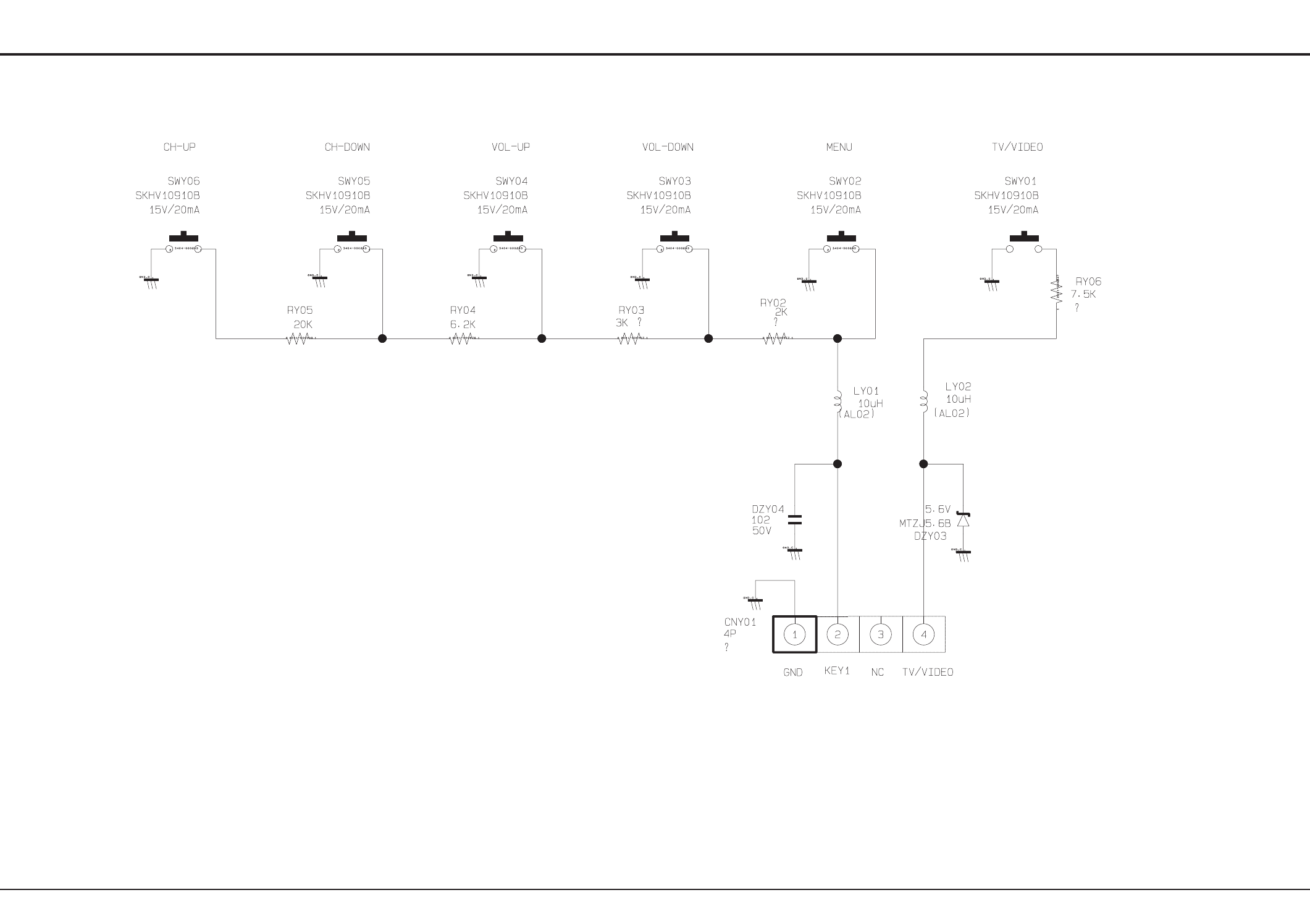

10-5 CONTROL
This Document can not be used without Samsung’s authorization.
Operation Instruction & Installation
Samsung Electronics 11-1
11. Operation Instruction & Installation
11-1 Product Features and Functions

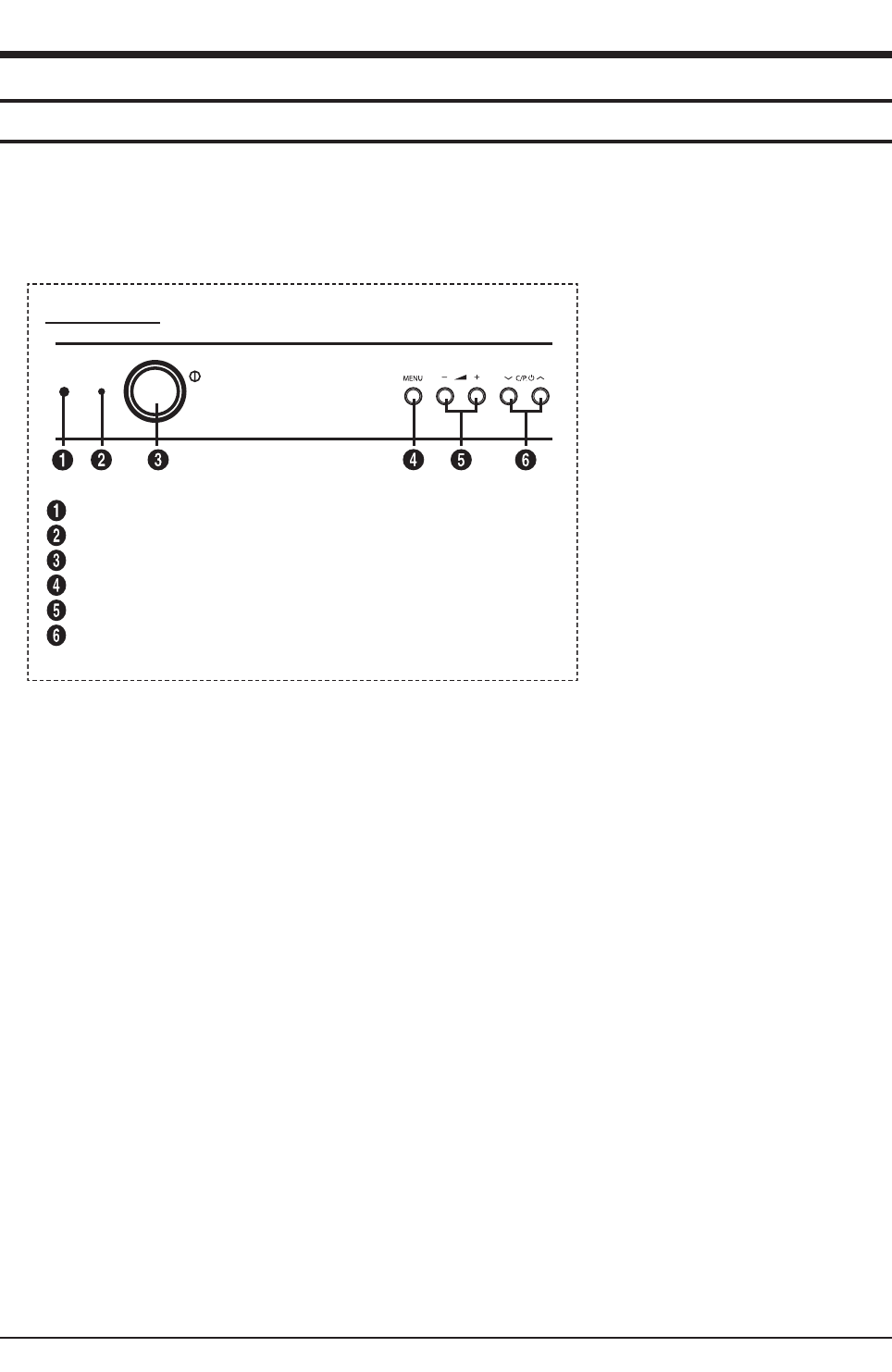

11-1-1 Control Buttons
You can control your TV's basic features, including the on-screen menu.
To use the more advanced features, you must use the remote control.
Front Panel
Remote control sensor
Standby indicator
Power on/off
On-screen menu display
Volume adjustment
Channel selection
Operation Instruction & Installation
11-2 Samsung Electronics
11-1-3 Connection Jacks (Rear)
Use the rear panel jacks to connect an A/V component that will be connected continuously, such as a VCR or a DVD player.
Because there are three sets of input jacks, you can connect three different A/V components (i.e., a VCR and a DVD, 2 VCRs,
etc.)
or
cable television
network
11-1-2 Side Panel Jacks
You can use the side panel jacks to connect an A/V component that is used only occasionally, such as a camcorder or video game.
①S-VIDEO INPUT
Connect a S-video signal from a camcorder or video game.
②
②VIDEO INPUT
Used to connect a video signal from a camcorder or video
game.
③AUDIO INPUT
Connect the audio signals from a camcorder or video game.
Operation Instruction & Installation
Samsung Electronics 11-3
11-1-4 Remote Control
You can use the remote control up to about 23 feet from the TV. When using the remote, always point it directly at the TV.
You can also use your remote control to operate your VCR, DVD, Cable box, and Samsung Set-top Boxes.
POWER
Used to switch the TV on
and off.
Numeric buttons
Used to select channels
directly.
Used to select a channel
numbered ten or over.
Press this button, then
“--” symbol is displayed.
Enter the two-digit
channel number.
CH MGR
Used to display channel
lists on the screen.
TV
Used to return to the
TV mode when it is in
external input mode.
/
Used to increase or
decrease the volume.
MENU
Used to display the
on-screen menu or return
to the previous menu.
Used to control the cursor
in the menu.
INFO
Used to view the channel
information and setting
status you selected.
S.MODE
Used to select the sound
effect.
P.MODE
Used to select the picture
effect.
DUAL I-II
Used to select the sound
mode.
TURBO
Used to select the turbo
sound option.
SOURCE
Used to display all of the
available video sources.
PRE-CH
Used to switch repeatedly
between the last two
channels displayed.
SLEEP
Used to select a preset
time interval for automatic
turn off.
SRS
Used to select the SRS
TruSurround XT mode.
P / P
Used to display the
next or previous stored
channel.
EXIT
Used to exit from any
display or return to
normal viewing.
MUTE
Used to switch the sound
off temporarily. To turn
the sound back on, press
the MUTE, , or
button.
ENTER
While using the on-screen
menus, press the ENTER
button to activate (or
change) a particular item.
STILL
Used to freeze the
current picture.
P. S I Z E
Used to change the
screen size.
11-4 Samsung Electronics
MEMO
Disassembly & Reassembly
Samsung Electronics 12-1
12. Disassembly & Reassembly
12-1 Overhaul Disassembly & Reassembly
12-1-1 Disassembling the Cabinet
Part Name Description Description Photo
Back
Cover
①Remove the 12 screws fixing the Back Cover.
: RH, +, B, M4, L15, ZPC(BLK), SWRCH18A
②Tap the upper part of the Back Cover 2 or 3 times and pull
the Back Cover to separate it from the unit.
③Lift the fixing Chassis up at and pull the Back Cabinet to
separate it from the unit.
Notice: Disassemble the product after disconnecting the
power cord and discharge the unit to prevent an electric
shock and damage to the product due to static electricity.
Power
Cord
①Remove the power cord fixing the Back Cover
Disassembly & Reassembly
12-2 Samsung Electronics
Part Name Description Description Photo
Chassis ①Separate the Main chassis from the Front Cabinet.
②Pull the Chassis lifting the fixing clip up.
Notice: Pulling the Chassis by force may damage the clip or
the connector. Pull the Chassis just until the clip comes off
the hole.
①Separate the Speakers, the Side AV Wire, the Front Control
from the Feature Box Board.
②Separate the wire from the Wire fixing holder at .
Notice: Since there is a clip to connect the Connector Header
in the Wire Connector, pulling it by force may damage the clip
or the connector. Press the clip down completely and pull the
connector.
①Separate the D-Coil and power cable from the Front Cabinet
and Power Board.
②To separate the power cord, slide the fixing clip and lift the
cable up.
①Separate the CRT Ass'y from the CRT
②Separate the TBC wire, GND, VM and Tilt cables from the
CRT Ass'y sequentially.
Pull the chassis while raising
the clip fixing the Front Cabinet
and the Main PCB.
12-1-2 Disassembling the CRT and Chassis
Disassembly & Reassembly
Samsung Electronics 12-3

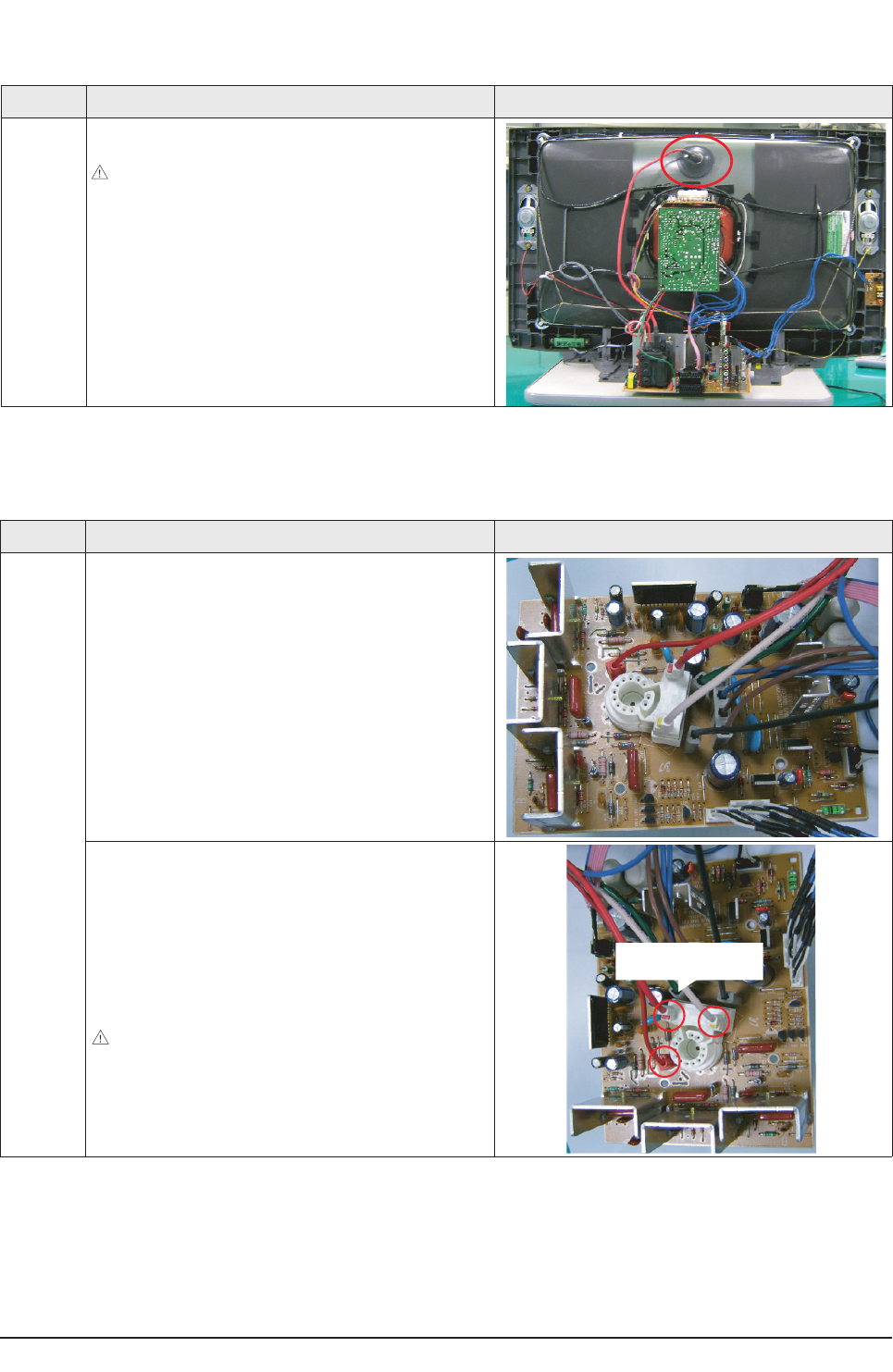

Part Name Description Description Photo
CRT
Ass'y
①Separate the cables from the Feature Box/Main Board and
CRT Ass'y.
①Separate the wires from the FBT of the Deflection Board and
the CRT Ass'y.
②To separate the thick red and white wires, pull the wires while
pressing the push-type clip at the connector.
③To separate the thin red wire, insert a pin in the small hold
next to the hole and pull the wire.
Notice: Take care when separating the wires because pulling
the wires by force may damage the socket. In addition, sepa-
rate the wires on a flat and clean surface so as to prevent
scratching of the material and the PCB.
Part Name Description Description Photo
Chassis
Holder
①Separate the cables connecting the FBT and the CRT.
Notice: Since there may be a remaining high-voltage current
within the CRT, take care not to touch the CRT hole with
metal or a part of yourself when separating the cables.
Pull the wires while
pressing on the fixing dip
12-1-3 Disassembling the CRT Ass'y
Disassembly & Reassembly
12-4 Samsung Electronics

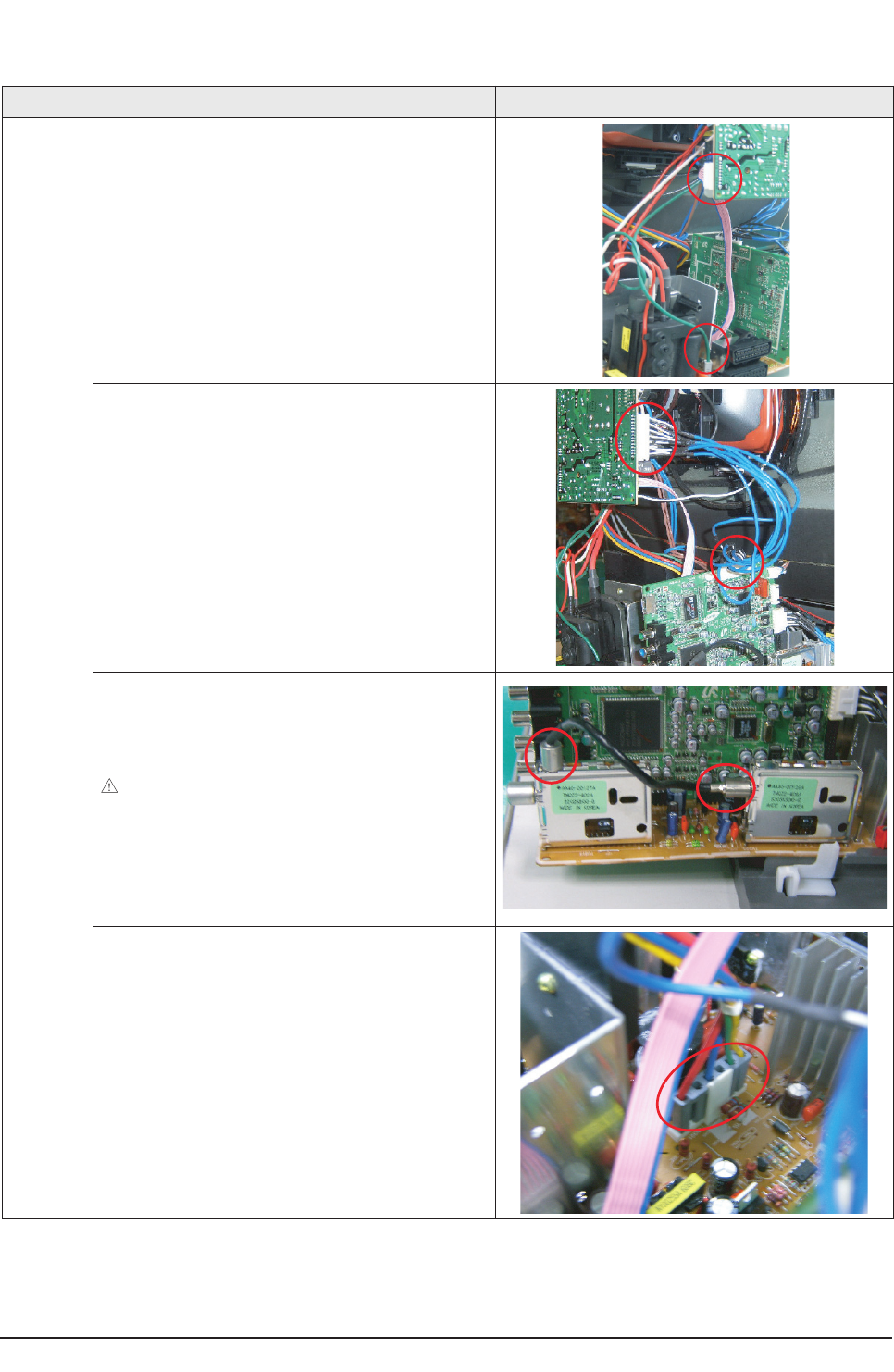

Part Name Description Description Photo
Deflection
Board
①Separate the 8 pin cable from the CRT Assy's.
①Separate the 14 pin cable from the Feature Box.
①Separate the cable from the Splitter and the Tuner.
②First separate the cable from the Splitter using a tool such
as nippers.
Notice: Since pulling the wire by force may damage the
coating of the wire, separate the wire holding the metal part
with the tool.
①Remove the DY Connector from the Main Board.
12-1-4 Disassembling the Deflection Board
Circuit Description
Samsung Electronics 13-1
13. Circuit Description
13-1 Overall Block Description
Horizontal & HRS Circuit
F-Box Circuit
F-Box Circuit
Power Circuit
EW Circuit
Vertical Circuit
Horizontal&HRS Circuit
D/F Circuit
※Bias Circuit structure of S65A sis the same as the existing S63A Circuit.
■Circuit Constitution.
1. Horizontal Bias Part
- Controls the high voltage generation and horizontal bias.. FBT, HDT, CT condenser etc.
2. Vertical Bias & Vertical (North / South) Correction Circuit
- While mostly controlling the vertical bias, also corrects the picture lowering of top and bottom. ..LA7845, Vertical TRANS, etc.
3. HRS (Horizontal Raster Shift) Correction Circuit
- A correction circuit of Linearity distortion on the left and right side of a picture which is caused by awry electron beam from an
electron gun.. Correction S/W and surrounding circuits.
4. D/F (Dynamic Focus) Correction Circuit.
- Improved Focus feature circuit due to the widened angle of a picture¡¦..D/F Trans, Vertical/Horizontal circuit
5. E/W (East / West) Correction Circuit.
- A circuit for correcting the spool shape which appears on the left and right part of a picture. This is caused by the difference
between the distances from the center of a picture to each corner. KA393, FQP630 etc. (Adopt PWM circuit)
Circuit Description
13-2 Samsung Electronics
V
V
er t ic a l B i as C or r e c t io n C i r c u i t
D/ F C o rre c t ion Circ u it
Horizo n t al & HR S C ir c u it
E/ W Cor r ection Ci r c uit
Circuit Description
Samsung Electronics 13-3
13-2 Partial Block Description
13-2-1 Vertical & Vertical Correction Circuit
V1
V2
ⓐUnderstanding of Vertical Circuit and Operation Principle.
▶What is a Vertical correction circuit?
- If the bias angle of a picture widens, the distance from the center of a picture to each corner becomes farther as it moves to
periphery. This causes the picture being distorted (Picture Lowering) vertically in a shape of a spool because of the strong
bias at four corners which are the farthest from the center.
Correction effect to the amount of a correction signal can be made by crossing Parabolic current of a vertical period over the
vertical bias current and applying it.
▶Vertical Circuit Constitution and Operation Principle.
- Consists of L304, C305, C439, R312. Symmetrize the up and down amplitude using the saturable reactor of L304 and adjust
Vertical Gain by controlling the capacity value of C305 and C439
If the correction vector is excessive, one can slightly reduce the resistance of R312
Circuit Description
13-4 Samsung Electronics
de
ppotS
6
2
:
2
4
:
90 4
0
/
5
0
/
4
00
2 v
i
d/sm
2
s
/Sk0
0
2
:
MRON
V0
1
=1H
C
1
:
001 C
D
Vm
0
1=
2
HC
1
:
1
CD
=
re
t
liF
=
N
O
:
g
n
i
h
t
o
o
mS L
L
UF : WB
=
te
s
ff
O
=
V
0
.
0
:
1
HC V000
0
.0 :
2
HC
V
0
.
0
:
3
HC
V
0
:
4
HC
=
h
t
gn
eL
dr
o
ceR
=
K
01
:
n
i
aM K4 : mo
o
Z
=
r
e
gg
ir
T
=
OT
UA
:
e
d
oM
1H
C
E
GDE
:
ep
y
T
s
n
8
.
0
:
yaleD
MUM
I
NI
M
: f
f
odloH
=1
e
car
T
=
V08.6
5
P-
P
V0
0
.
8
4
xaM
V42.
1
1
smR z
H
5
9
.
95
qer
F
=2e
c
arT
=
Vm
0
2.1
2
P
-P Vm04.
2
1 x
aM
Vm
80
8
.
6
sm
R
su
0.0
04
l
l
a
F
de
pp
ot
S
2
1
:53
:
41 41/
1
0
/
5
00
2v
i
d
/
sm2s
/
S
k0
0
5
:MR
ON
V
0
2
=1H
C
1
:
0
01 CD
Vm
0
1
=2H
C
1:
1 CD
V
m
06.12
)
2
(
V
=r
e
t
l
i
F
=
NO
:
g
nihto
om
S
LLUF : WB
=
t
e
s
f
fO
=
V0.0
: 1H
C
V
0
0
0
0
.
0
: 2HC
V0.0
: 3H
C
V0.0
:
4H
C
=
h
t
g
ne
L
dro
c
e
R
=
K
0
01
: n
i
aM
K
0
1 : mooZ
=r
eg
g
ir
T
=
O
T
U
A
:
e
doM
1HC
EG
D
E :
epyT
sn0
.
0
:
y
a
l
e
D
MUM
IN
IM
:
f
f
o
d
l
o
H
After correction
e
rutc
iP
no
i
t
r
o
ts
id
<NormalVertical
Signal>
<Vert ical Wave form
after correct i
i
on >
S
d
e
p
pot
41
/
10
/
500
221:5
3:
41
vid
/s
m2
O
N:
MR/
S
k00
5s
HCV02=1
D C1:001
H
CVm01=2
D C:11
V(
2
tli
F=r
e=
o
t gnih:NO
F
UL L
f
f
O==
t
e
s
HC1: V0.0
H
C2: V0000.0
HC3: V0
.0
HC4: V0.0
=
htgn
e
L droceR
=
niaM: K00
1
moo
Z:K
01
rT=reggi=
edo
M:U
AOT
:
epy
TEG
D
E C 1
H
yale
D: sn0.
0
fodloH: fM INIMUM
e
r
utciP
noitrotsiD
ⓑComparison before and after of Vertical signal correction
Circuit Description
Samsung Electronics 13-5
13-2-2 HRS Correction
145V
: 145 . 0 5 V
:145 . 1 0 V
Right side
Left side
ⓐUnderstanding and Constitution of HRS Correction
▶What is HRS (Horizontal Raster Shift) circuit?
- When electron BEAM emanates from CRT, it must form the image evenly on the center of a screen. However, the left-right
linearity can be awry due to the micro-distortion of horizontal angle while producing CRT. HRS is a compensatory circuit
which crosses DC voltage over CS condenser on horizontal output board to correct the distortion.
ⓑHRS Circuit Operation and Picture Movement
▶Operational Principle.
- HRS circuit consists of R407, D415, D407, SW401, C415, L404. If switch SW401
(Service S/W) to the direction of R407, it raises the C426 CS condenser voltage through D415 and the picture moves to
right. If switch SW401 to the direction of D417, the picture moves to left.
C415 is functioning as a condenser which stops generating current. It can control the left-right movement since the
rechargeable voltage varies as the condenser capacity value varies.
That is, the larger the C415 capacity value becomes, the bigger the left-right movement will be.
▶Picture Movement during 0HRS Connection
* Direction of SW407 Switch .... Center : Not corrected.
.... D415 : moves to the right of a picture
.... D417 : moves to the left of a picture
Condition
Total Length of a Picture Moved (m/m)
Left Center Right
To Left To Right To Left To Right To Left To Right
After 5.5 6.5 1.5 2 6.5 6
Circuit Description
13-6 Samsung Electronics
13-2-3 E/W Circuit Block
EHT Correction Circuit
ⓐUnderstanding of E/W Circuit
▶What is an E/W (East / West) Correction Circuit?
- If the bias angle of a picture widens, the distance from the center of a picture to each corner becomes farther as it moves to
periphery. This causes the picture being distorted (Picture Lowering) horizontally in a shape of a spool because of the strong
bias at four corners where are the farthest from the center. E/W is a circuit which corrects the spool-shape on the left and right
part by crossing Parabollic wave form over the horizontal output board and controls the current which flows through terminal
no.47. Parabollic wave comes out from terminal no.47 of CXA2165 CHROMA IC(IC31)
It also controls the horizontal-related factors of Factory data such as picture size, size change and Parabola gain change. It
has an essential role of minimizing the picture swaying (High Voltage Regulation)

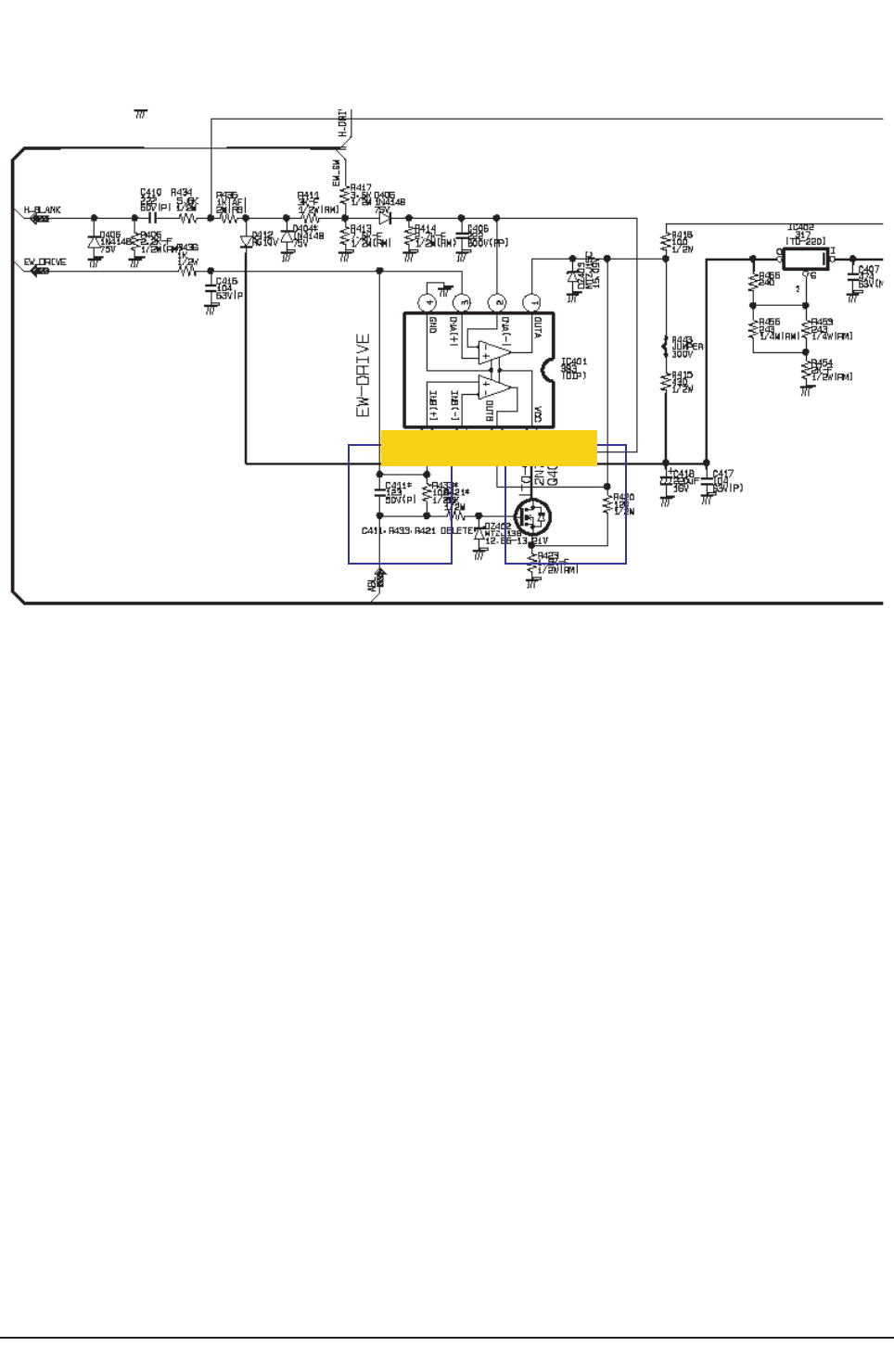

ⓑE/W Circuit Constitution and Operation
▶E/W Circuit Constitution and Operation Principles.
- E/W circuit consists of KA393(comparator), FQP630(output TR), and other parts. This uses a method in which PWM controls
the circuit using a comparator. The advantage of this PWM Control method is that POWER Loss hardly occurs and
generates little heat when using low H/S.
Input E/W signal to terminal no 3,5 of IC401(KA393) and carrier wave to terminal no 2,6. Carrier wave can be made by
reducing the horizontal collector voltage and integrating the wave form using D405,R414 and C406.
Then the carrier wave is compared with E/W signal in IC401 and outputs PWM(Pulse Width Modulation) wave form. Bias
current shall be controlled using Q404.
Picture swaying occurs as the picture brightness varies. To correct this, control the high voltage regulation using
Q401(1N7000), R433 and C411 That is, Q401 is a circuit for correcting Static Regulation and used to prevent the picture
size changing as the picture brightness varies.
It detects the ABL voltage and inputs to Q401 Gate through R423 resistance. Then the ABL voltage change is sent to
IC401(KA393) output and controls the DC of Q404(FQP630) Gate terminal, to keep the picture size from changing.
Circuit Description
Samsung Electronics 13-7
▶E/W Circuit Constitution and Operation Principle.
Also, E/W circuit functions as a compensatory circuit against the picture shaking by reversely compensating the picture
swaying. This is possible by inputting ABL voltage to E/W using R433 as the picture brightness varies.
There are H,V, PIN-COMP as well in Factory data and these correct the high voltage regulation. If the H-COMP capacity
value increases, correction vector increases too and this causes a strong picture swaying. On the other hand, if the H-COMP
capacity value decreases, correction vector decreases causing extensive picture size change. V-COMP, likewise, controls the
vertical correction vector and operates in the same mechanism as H-COMP.
PIN-COMP is a function which corrects the movement of four corners of a picture. If the capacity value is excessive, a picture
curves outwards when the picture is bright. COMP capacity value, therefore, should be varied +/- 1step from the factory-
adjusted condition, since a gain widely varies dependant on the SET distribution.
▶Before and After of E/W Circuit Correction
Circuit Description
13-8 Samsung Electronics
13-3 IC Line up
■F-Box Board
Items Descriptions Remarks
Micom, Scaler, Switching,
Sound Processor VCT69xyP
Deflection Processor CX2165
PIP Processor TW9906
HDMI IC MST3383
DC/DC Converter MP1410ES
EEPROM 24C02 2Kbit
EEPROM 24C16 16Kbit
Regulator SI-3002KWM-TL Multi Regulator
Regulator KA78R09CTU 9V Regulator
Regulator 78D05 5V Regulator
DHC IC PW9050L 80Pin
■Main Board
Items Descriptions Remarks
BRIDGE DIODE GSIB660
Didode SLA1004L
Trans Switching 53B135-SC
Trans Switching-ST BY EE2020
STR STR-6759 (Asia)
STR STR-6750 (Europe/CIS)
EW Driver KA393
Vertical Focus MC4558C
FET FQP630
Horizontal DEF FJ6920, FMP3FU
■CRT Board
Items Descriptions Remarks
DRIVE IC TDA6111Q
IC HYBRID STK396-130
AMP TDA2030
Reference Information
Samsung Electronics 14-1
14. Reference Information
14-1 Other issues related to other products
■SD/HD broadcasts and the TV's display capability are related
1. A digital broadcast should be transmitted in wide screen (an aspect ratio of 16:9) HD. If the broadcasting station converts a
conventional program created in normal screen (aspect ratio of 4:3) into a digital signal and broadcasts the signal, the left and
right of the picture will not be displayed.
This symptom also appears in other manufacturer's TV's. The three appliance companies are trying to resolve the problem
through the Ministry of Information and Communication.
＊When watching an SD (normal) broadcast through a Digital (Wide) TV (480P normal broadcast)
＊When watching an SD (normal) broadcast through a Digital Ready (Wide) TV (Using a set-top-box)
＊When watching an analog (normal) broadcast through a wide TV
(When watching a broadcast after changing the aspect ratio of the TV from 16:9 (wide screen) to 4:3)
2. When watching a DVD title or video tape in wide screen (21:9) through a wide (16:9) TV, watching video from a computer or
game console by selecting the aspect ratio to 4:3, or watching video from a DVD, VCR, computer or game console through a
wide TV by selecting the aspect ratio to normal (4:3) or wide (21:9), the left and right, or top and bottom of the picture will not be
displayed.
This symptom appears in other manufacturer's TV's. The three appliance companies are trying to resolve the problem through
the Ministry of Information and Communication.
■Changing the Order of the Picture Size for 16:9 Display Devices
■Changing the Order of the Picture Size for DTV 1080i/720p Sources
■Restrictions
1. When you want to change the picture size in PIP 'ON', you must turn the PIP off before changing the size.
However, you can change the main picture size even in PIP ON for products with no restrictions.
2. When the picture size is not Normal (4:3 for 4:3 display devices, 16:9 for 16:9 display devices) and you turn PIP on, the picture
size is changed to Normal.
However, you can turn PIP on without changing the picture size for products with no restrictions.
3. In the OSD notation for the picture size, 16:9 is represented as "Wide" instead of "16:9" for devices other than with 16:9 dis
plays.
Ex: For LCD 15:9 devices, "Wide" is displayed on the OSD instead of "16:9".
4. The picture size can be changed even in the blue screen.
However, the picture size should be controlled by the product specifications if the change is impossible due to hardware
restrictions.
Reference Information
14-2 Samsung Electronics
Analog Broadcast
Analog Broadcast is a television broadcasting signal transmit-
ted according to the NTSC standard.
Anynet
Anynet is an AV network system that enables the easy-to-use
AV interface for users by controlling connected AV devices
through the Anynet menu when AV devices of Samsung
Electronics are connected.
ANTENNA Terminal
A port to connect the TV aerial using a coaxial cable. It is gen-
erally used to watch public broadcast programs.
Audio Multimix
Audio Multimix provides 2 languages for audio when broadcast-
ing a foreign movie, drama, news, etc. You can select and lis-
ten to one of the supported languages or you can select and
listen to both languages simultaneously.
Cable Broadcast
Cable Broadcast transmits programs via cable instead of radio
wave. To view a cable broadcast, you need to subscribe to your
local cable broadcast service provider and install an additional
receiver.
Component Terminal (Green, Blue, Red)
The Component Port separately transmits the luminance signal
and provides the best quality of all video connection types.
Digital Broadcast
Digital Broadcast is a television broadcasting signal digitized
and transmitted according to the United States' terrestrial digital
broadcast standard, or ATSC.
DVD (Digital Versatile Disc)
DVD is a large capacity media that can save multimedia con-
tent such as video, game, audio applications, etc. using MPEG-
2 video compression technology on a CD-sized disc.
English Caption
A function that shows English caption or text information includ-
ed in the broadcasting signal or video tape. You can use this
function to study English by watching AFKN or CC marked
video tapes.
External Source
External Input is connecting video devices such as a VCR,
camcorder, DTV receiver, DVD, etc. as a video source.
HDMI (High Definition Multimedia Interface)
An interface into which the digital signals as well as the high
quality image data can be connected with one cable. There is
no need to compress the bit rate.
Mono
A type of audio interface that transmits audio signals through a
single channel.
Through a mono interface, it is hard to experience stereophonic
sound and sound is played only by one speaker.
Reception Sensitivity Amplification
A signal amplification technique that amplifies weak broadcast-
ing signals by applying satellite technology to provide a better
visual quality even for users in regions where only weak broad-
casting signals are available.
Satellite Broadcast
Satellite Broadcast transmits programs via satellite so that the
broadcast is viable in all areas at a high visual and sound quali-
ty. It provides approximately 100 channels including public
broadcast channels. To view satellite broadcast, you have to
install an additional receiver.
S-VIDEO Terminal
This is called super video. S-Video is a type of video signal
which has the video luminance and color signals separated in
order to provide a better visual quality.
Stereo
A type of audio interface that transmits audio signals through 2
channels.
Stereo transmits audio signals for the right and left channels so
that you can experience stereophonic sound, and the sound is
played with 2 speakers.
Tuner
A device that enables selecting a specific frequency for a chan-
nel on a TV or radio.
VHF/UHF
VHF refers to TV channels 2 to 13, and UHF refers to TV chan-
nels 14 to 69.
Video/Audio Terminal
You may experience poor visual and audio quality when watch-
ing a video tape on channel 3 or 4 through the antenna cable.
You can experience better visual and audio quality connecting
the TV and VCR through the Video/Audio ports. The video port
is distinguished by the color yellow, and the audio ports are dis-
tinguished by the white (left) and red colors (right).
Wired Broadcast
Satellite Broadcast refers to movie, entertainment and educa-
tional programs transmitted by the broadcasting station in a
hotel or school.
14-2 Technical Terms

Navigation menu
