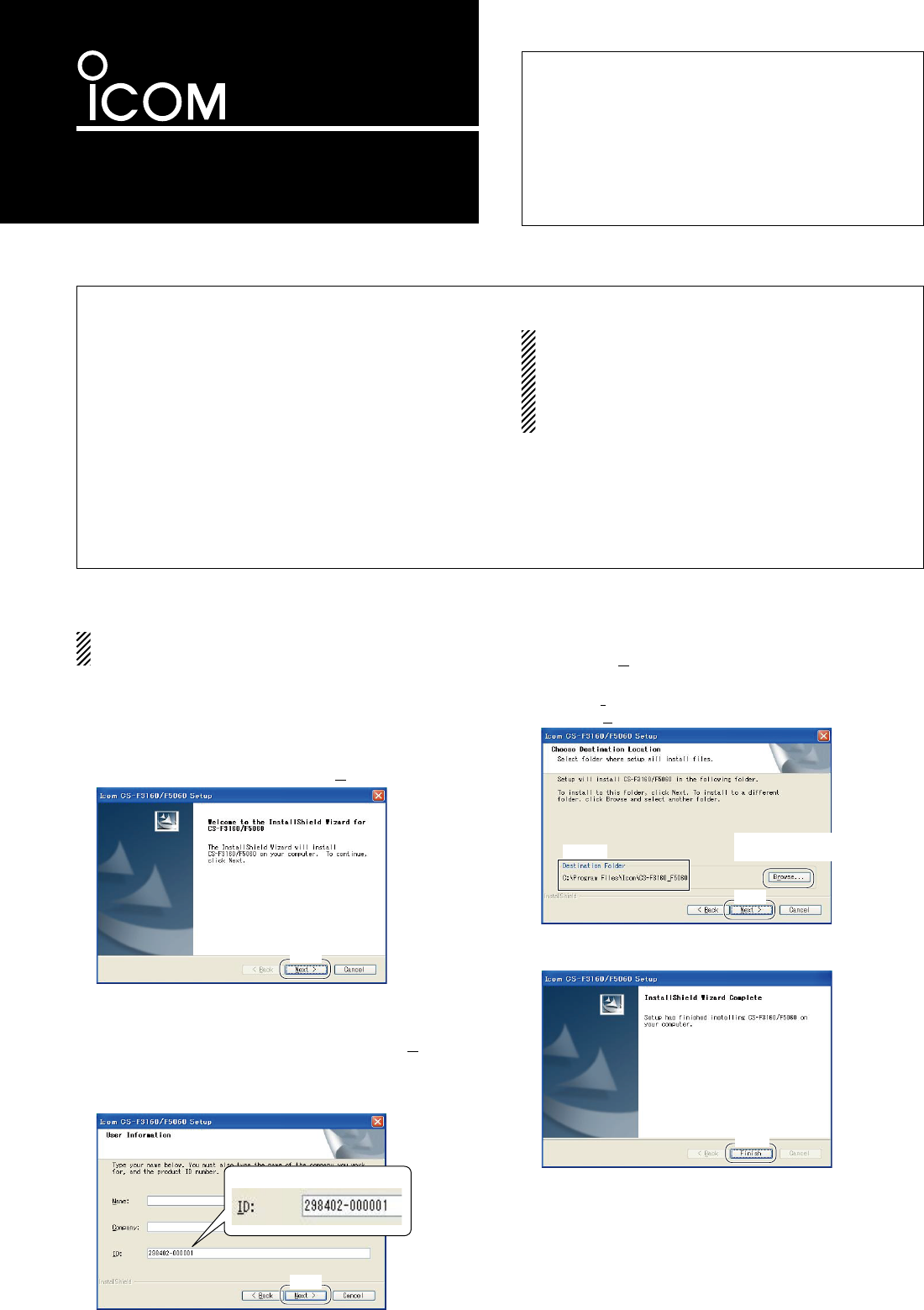

INSTRUCTIONS
CLONING SOFTWARE
CS-F3160/F5060
■ Getting started
D This cloning software is designed to perform
data setting and cloning for the IC-F3160/F4160
series VHF/UHF HANDHELD TRANSCEIVERS, or IC-F5060/
F6060 series VHF/UHF MOBILE TRANSCEIVERS.
D
HELP WINDOW: CS-F3160/F5060 has a help
window to describe functions and operation.
■ Software installation
When installing into a Windows XP or Windows 2000
environment, log in as the administrator.
q Quit all applications when Windows is running.
w Insert the CD into the appropriate CD drive.
e Double-click the “Setup.exe” contained in the CD.
r The “Welcome to the InstallShield Wizard for CS-F3160/
F5060” will appear as below. Click [Next>].
Click
t The “User Information” will appear as below, then type
your name, your company name and the product ID
number with the following manner. Then click [Next >].
• ID number: 298402-(6 digit serial number)
• e.g. the serial number on the CD is 000001, enter “298402-
000001” as the ID number.
Example:
Click
y
The “Choose Destination Location” will appear as below.
Then click [Next>] to install the software to the destination
folder. (e.g. C:\Program Files\Icom\CS-F3160_F5060)
• Click [Browse...] to select another destination folder before
clicking [Next >], if desired.
Click
Click to select another
destination folder.
Confirm
u
After the installation is completed, the “InstallShield Wizard
Complete” will appear as below. Then click [Finish].
Click
i Eject the CD.
o Program group ‘CS-F3160_F5060’ appears in the
‘Programs’ folder of the start menu, and ‘CS-F3160_F5060’
short cut icon appears on the desktop screen.
• To uninstall the cloning software, select the “Control Panel” in
the start menu, and click the “Add or Remove Programs.”
Then, select the program group ‘Icom CS-F3160/F5060’ and
click [Remove].
■ System requirement
To use this program, the following hardware and software
are required:
PC
• Microsoft® Windows® 98SE/Me/2000/XP is installed
• With RS-232C serial port (D-sub 9-pin) or USB port
Other item
• For IC-F3160/F4160 series
Optional OPC-966 CLONING CABLE (RS-232C type) or OPC-
966U CLONING CABLE (USB type)
• For IC-F5060/F6060 series
Optional OPC-1122 CLONING CABLE (RS-232C type) or OPC-
1122U CLONING CABLE (USB type)
NOTE:
When using the OPC-966U/1122U, USB type cloning
cable, USB driver installation is necessary. The driver
is supplied with the OPC-966U/1122U. See the OPC-
966U/1122U instruction manual for the installation
details.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan A-6637W-1EX Printed in Japan
©2007 Icom Inc.
NOTE: The left instructions are for reference only. Please
refer to the HELP file of the cloning software when you
don’t understand the function or setting meaning.
■ Connections
All cloning operations are performed from the computer’s keyboard— the operation required on the transceiver side is;
For IC-F3160/F4160 series
q First, connect the cloning cable as illustrated below.
w While pushing and holding [P0], rotate [VOL] to turn power ON.
For IC-F5060/F6060 series
q First, connect the cloning cable as illustrated below.
w And then push [POWER] to turn power ON.
■ Programming information
• We recommend that you should read out all the
transceiver's data before start entering/editing parameters
even when the transceiver is factory fresh.
• Select the model type which you are going to clone from
LMR (Land Mobile Radio) and PMR (Private Mobile
Radio).
• Double click the desired cell in the
contents list screen directory, or
rightclick the cell to display the edit
menu. Then click [Edit... Enter]
to select and change the setting
depends on the item.
• Click [Help] to display the help
screen for the item.
(Edit menu)
Icom, Icom Inc. and the logo are registered trademarks of Icom
Incorporated (Japan) in the United States, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
Microsoft and Windows are registered trademarks of Microsoft Corporation in
the United States and/or other countries.
All other products or brands are registered trademarks or trademarks of their
respective holders.
to the MIC
connector
IC-F5060/F6060 series
TRANSCEIVER
[POWER]
OPC-1122U
(USB type)
OPC-1122
(RS-232C type)
to RS-232C port
to USB port
DB9 Female /
DB25 Male cable
PC
D-sub 9-pin
female plug
[VOL]
[P0]
IC-F3160/F4160 series
TRANSCEIVER
Detaching:
Unscrew (e),
then detach the
connector cover
(r).
Attaching:
Attach the
connector cover
(q), then
tighten the
screw (w).
q
w
e
r
to RS-232C port
to USB port
DB9 Female /
DB25 Male cable
OPC-966U
(USB type)
PC
D-sub 9-pin
female plug
OPC-966
(RS-232C type)
