TWOWAY6BUTTONLCDAUTOMATIC/MANUALTRANSMISSION

REMOTESTARTERSYSTEMWITHFULLALARMSYSTEM

CT-5472TW

User Guide

WARNING!

It is the responsibility of the vehicle operator to ensure that their vehicle is parked in

a safe and responsible manner.

1. a) Manual transmission: When leaving the vehicle, it is the user’s responsibility

to ensure that the gearshift lever is in the NEUTRAL position and the parking

brake is engaged in order to avoid accidents upon remote starting.

b) Automatic transmission: When leaving the vehicle, it is the user’s

responsibility to ensure that the gearshift lever is in “Park” in order to avoid

accidents upon remote starting.

(Note: Make sure that the automatic vehicle cannot start in "Drive".)

2. It is the user's responsibility to ensure that the remote starter is disabled or put

into valet mode before servicing.

The Transmitter’s Battery:

Depending on the usage, the transmitter’s battery can last between 3 to 6 months. When the battery is low, the

transmitter will emit two “beeps” in a repetitive cycle. At that point the batteries should be replaced. We

recommend keeping a spare battery somewhere handy such as inside the glove compartment.

P.2

User Guide

Table of Content

INTRODUCTION WITH SMARTSTART™ .............................................................................. 3

VEHICLE PRESETS .......................................................................................................................... 3

EATER

EATED

EAT

................................................................................................................. 3

INDSHIELD

IPERS

ADIO

EADLIGHTS

..................................................................................... 3

USING THE REMOTE CONTROL ..................................................................................................... 3

LCD

EMOTE

UNCTIONS

................................................................................................................ 3

ASIC

EHICLE

PERATIONS

............................................................................................................ 4

RANSMITTER

ODE

ELECTION

...................................................................................................... 4

OW TO ACCESS REMOTE

’

S FUNCTION MENUS

: ................................................................................... 5

IMER

OUNTDOWN

DJUSTMENT

.................................................................................................... 5

REMOTE-STARTING YOUR VEHICLE ............................................................................................. 6

ETTING

OUR

EHICLE

NTO

EADY

ODE

...................................................................................... 6

EMOTE

STARTING

.......................................................................................................................... 6

RIVING

................................................................................................................................... 7

ARMING AND DISARMING OF THE SYSTEM................................................................................. 7

REMOTE STARTER FEATURES ...................................................................................................... 7

EMOTE

OOR

OCKS

..................................................................................................................... 7

EMOTE

RUNK

ELEASE

................................................................................................................ 8

DLE

ODE

...................................................................................................................................... 8

ALET

ODE

................................................................................................................................... 8

ANIC

ODE

................................................................................................................................. 10

UICK

OCKOUT

™ ........................................................................................................................ 10

OLD

EATHER

ODE

.................................................................................................................. 10

XTENDED

IME

..................................................................................................................... 10

NTRUSION

ODES VIA

LED

LIGHT

................................................................................................... 11

INDER

.................................................................................................................................. 11

EMPORARY

HIRP

ELETE

........................................................................................................... 11

MISSING A START OR A STOP CONFIRMATION ........................................................................ 11

ADVANCED FEATURES: INSTALLATION-PROGRAMMABLE OPTIONS .................................. 12

GNITION

CONTROLLED

OOR

OCKS

.............................................................................................. 12

ECURE

OCK

............................................................................................................................... 12

“H

OME

ALET

”

ODE

................................................................................................................. 12

AFE

TART

.................................................................................................................................. 12

NGINE

IME

......................................................................................................................... 13

URBO

ODE

................................................................................................................................ 13

IREN

HIRPS

............................................................................................................................... 13

RMING

........................................................................................................................................ 14

HOCK

ENSE

ARN

WAY SENSE

............................................................................................. 14

RIORITY DOOR

: ............................................................................................................................ 14

ULTI

CAR

PERATION

.................................................................................................................. 14

ELOCK

........................................................................................................................................ 15

MULTI-LEVEL FEATURES ............................................................................................................. 15

DIAGNOSTICS – PARKING LIGHT FLASH TABLE ...................................................................... 17

POOR TRANSMITTING RANGE ISSUES....................................................................................... 18

PROSTART LIMITED LIFETIME WARRANTY ............................................................................... 19

User guide

P.3

IntroductionwithSmartStart™

This is a state-of-the-art remote car starter system. The system is packed with advanced features

such as priority access to the driver’s door (commodity features), the Safe Start children safety

feature and SmartStart™.

SmartStart™ is a groundbreaking technology that enables your remote starter features to be

accessed by your smartphone. Features include keyless entry, trunk release, panic, remote

start/stop toggle and alarm notifications

. Note: SmartStart™ must be professionally installed. For

more information, see your nearest authorised Directed Canada dealer.

With many advanced functions, this product will satisfy any one of your expectations from high-end

commodity and security systems, without neglecting any standard feature commonly offered by

entry-level starters.

VehiclePresets

Heater&HeatedSeat

When leaving the vehicle it is recommended to preset the accessory controls in preparation for the

next remote start. Settings for the blower motor (fan), front and rear, as well as heated seats (if

equipped) should not be left on HIGH. It is recommended to leave the settings on LOW or

MEDIUM instead.

WindshieldWipers,Radio&Headlights

Certain vehicles require the radio and / or windshield wipers and / or headlights circuits to become

energized while running under remote start. When leaving the vehicle you must ensure that the

windshield wipers and headlights switches are OFF. Leaving the headlights switch ON on certain

types of vehicles could cause them to remain ON even after remote starter shutdown, resulting in a

dead battery.

UsingtheRemoteControl

Your remote car starter is equipped with a 6-button multi-channel remote control. It can operate

two independent vehicles equipped with a remote car starter.

LCDRemoteFunctions

The transmitter offers several command-confirmation and timer features. This section explains

some of the key functions available. The next section gives a summary of the button combinations

used to access the functions.

Note: If you wish to exit a function while still in the process of accessing it, simply stops and wait at

least 10 seconds: the transmitter will return to its normal state.

Certain conditions apply. See your authorised Directed Canada dealer.

P.4 User Guide

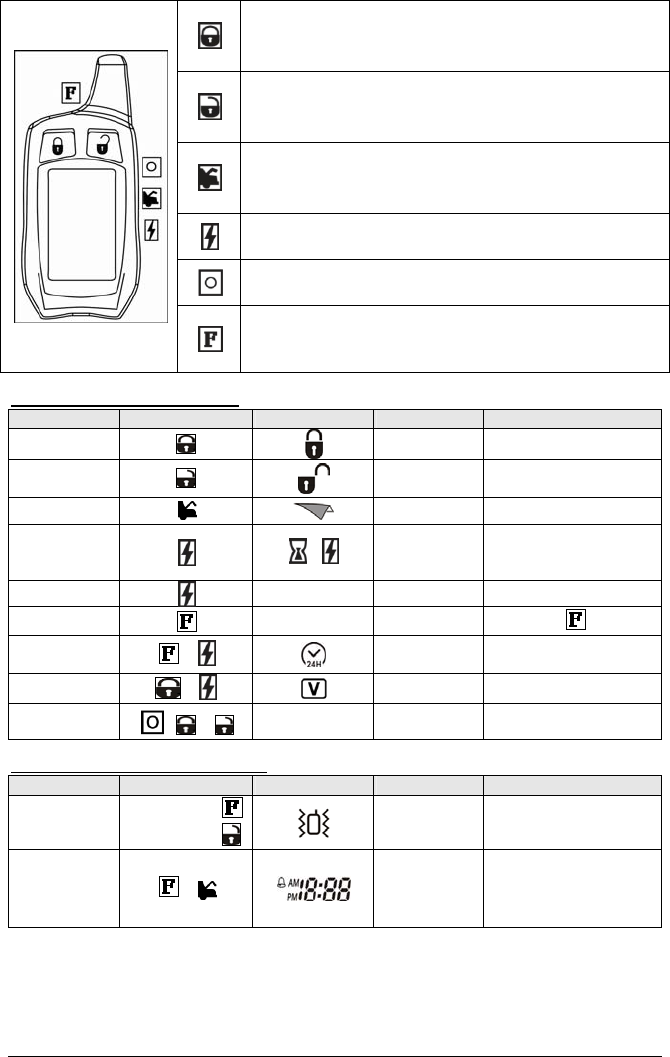

The functions of the transmitter are as follows:

LOCK:

Locks the doors and arms the system. Arms the Starter Kill (if

installed).

UNLOCK:

Unlocks the doors and disarms the system. Disarms the

Starter Kill (if installed).

TRUNK:

Opens the TRUNK and disarms the system.

Note: Trunk option must be installed.

START/STOP:

Remote starts or stops the engine.

AUX button:

Activates Panic mode.

FUNCTION button

Turns the backlight ON, allows access to the Multi-level

functions and to the Menu.

BasicVehicleOperations

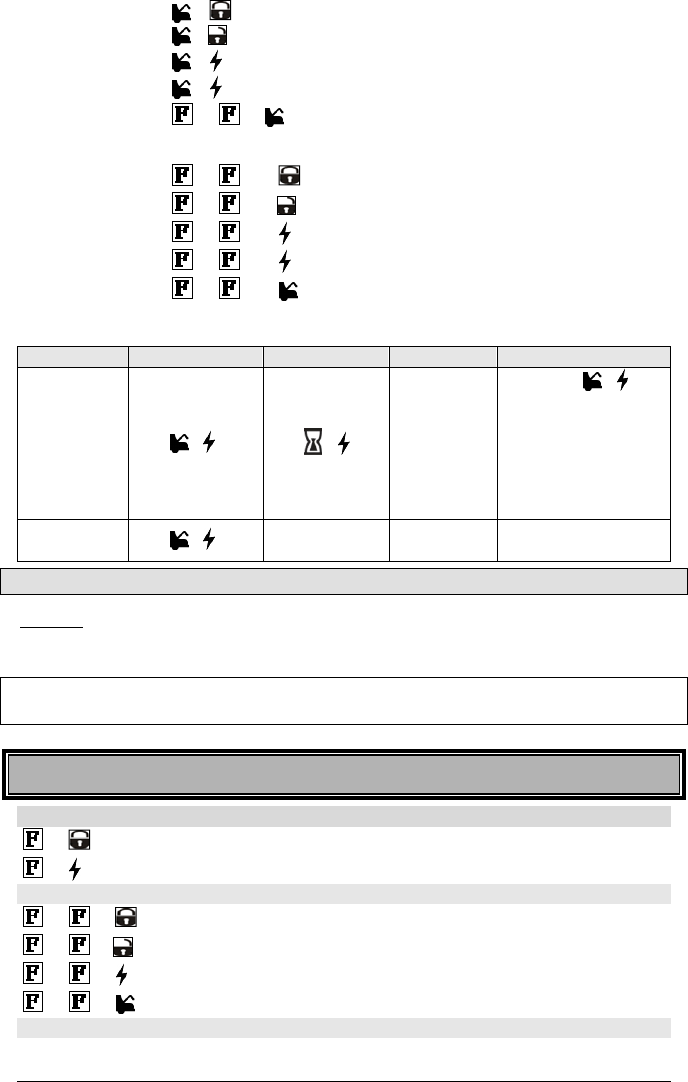

Function Button pressed

Icon

Sound

Instructions /description

Lock

1 beep Lock and arm the system

Unlock

2 beeps Unlock and disarm the

system

Trunk or aux 3 1 beep Trunk output

Start *

(see runtime

options below) + Melody Start the engine

Stop None Melody Stop the engine

Back light On for 5 seconds Press once

Cold weather + 1 beep See Cold Weather Mode

section

Remote valet + 1 beep See Vale mode section

Panic , or None 1 beep See Panic Mode section

TransmitterModeSelection

Function Button pressed

Icon

sound

Instructions /description

Vibration mode Press and hold

and then press Vibrates 4x

larm clock mode

on/off + Melody

z Press once to have

alarm clock on

z Press twice to have

alarm clock off



User guide P.5

Howtoaccessremote’sfunctionmenus:

User

Transmitter

1. Press until the remote beeps once Î appears on screen.

2. Press a 2nd time for 2 second and release Î Remote beeps once and

appears on screen.

3. Press a 3rd time for 2 second and release Î Remote beeps once and

appears on screen.

4. Press and hold button a 4th time until 2

beeps are heard. Î You have now accessed the first

function of the remote.

Press the button to toggle between remote’s functions:

a. Press the button to increase the value or to activate or deactivate a function or to toggle

through the melodies.

b. Press the to decrease the value or to activate or deactivate a function or to toggle through

the melodies.

c. To save modifications, do not touch any buttons for approx 5 to 10 seconds. There will be a

beep and the display will return to the time.

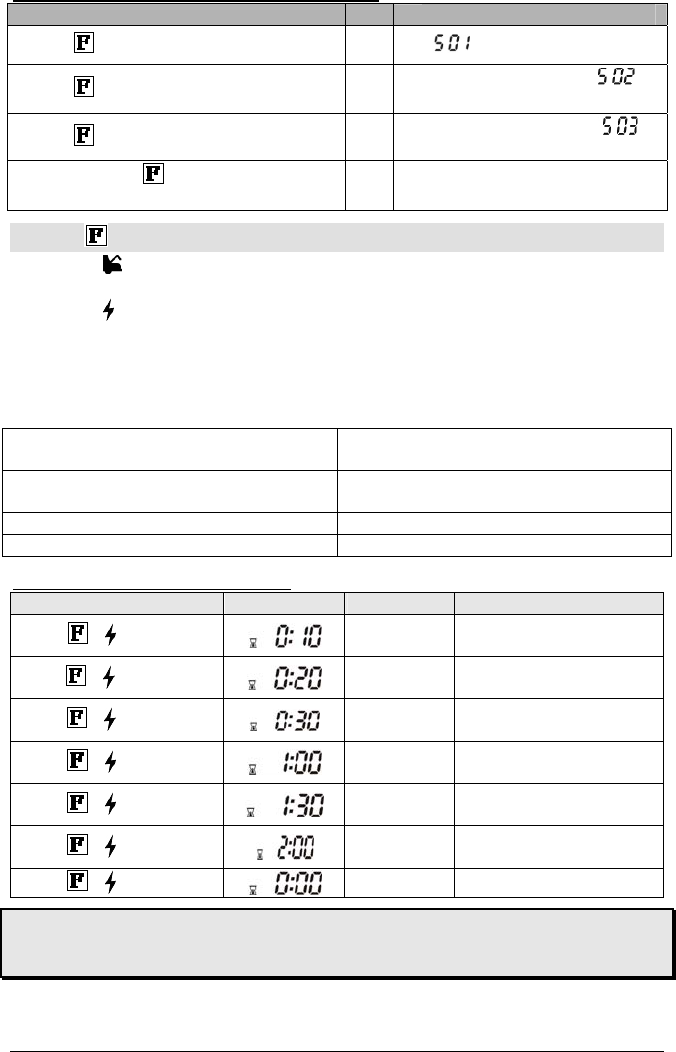

Function Menu Table:

Function 1:

djust clock time (hour and

minutes) Function 5: Timer countdown

Function 2:

djust alarm clock (hour and

minutes) Function 6:

Melody selection for timer

countdown

Function 3:

Melody selection for the alarm

Function 7:

Turn ON/OFF timer countdown

Function 4: Turn ON/OFF alarm cloc

TimerCountdownAdjustment

By pressing Icon

Sound

Instructions / description

+ 1

st time Melody 10 min parking countdown

mode

+ 2

nd time Melody 20 min parking countdown

mode

+ 3

rd time Melody 30 min parking countdown

mode

+ 4

th time Melody 60 min parking countdown

mode

+ 5

th time Melody 90 min parking countdown

mode

+ 6

th time Melody 120 min parking countdown

mode

+ 7

th time

Melody Parking countdown off mode

Once the Countdown is activated it will continue counting down until reaching 0:00. If the Timer has

not reached 0:00 and you are starting the vehicle, you should reset your Countdown Timer to 0:00

before starting your vehicle as to avoid being startled.

P.6 User Guide

RemoteStartingYourVehicle

SettingYourVehicleIntoReadyMode

If your vehicle has a manual transmission you must read the following indications. The unit must

first be set to Ready Mode in order to start the vehicle by remote. If the unit is not set to Ready

Mode, it cannot remote start the vehicle.

Please note that Ready Mode can be enabled by the remote or the handbrake, depending on the

option that was selected by your installer. Therefore, you must follow the appropriate procedure

between the two described below in order to set your vehicle into Ready Mode.

Once the system is set to Ready Mode, the vehicle can be remote started and stopped at any time.

The system will exit Ready Mode if a door, the hood or the trunk is opened, if the brake pedal is

pressed, if the parking brake is disengaged or if the ignition key is turned to the IGNITION ON

(RUN) position.

To set the system to Ready Mode:

If Ready Mode is enabled by remote If Ready Mode is enabled by handbrake

1. Ensure that all the doors, hood and trunk are closed. Make sure that the gear selector is in the

neutral position.

2. With the engine running, apply the parking

brake once and release the brake pedal.

3. Within 20 sec. of engaging the parking

brake, press and hold , or on

the transmitter (SmartStart™ uses only the

SmartStart™ icon).

The parking lights will flash 3 times quickly

and remain lit. Release the button.

2. With the engine running, apply the parking

brake twice within 10 sec.

3. Make sure to release the brake pedal.

The parking lights will flash 3 times quickly

and remain lit.

4. Remove the key: the engine will keep on running.

5. Exit the vehicle. All doors should be closed, including the hood and trunk.

The engine keeps going until you press either;

• to lock the doors and shut down the engine;

• to unlock the doors and shut down the engine;

• to shut down the engine without affecting the doors.

WARNING: Engine runs until the pre-programmed run time expires.

6. The Parking lights will flash twice and the icon will appear on screen to indicate Ready

mode is set. If the icon doesn’t appear, refresh the screen by pressing .

Remotestarting

Press the button for approximately 1 second. The remote will beep once. Approximately

5 seconds later, the remote will play a start melody and the engine will start. The parking lights will

remain ON during the pre-programmed run time of the engine.

If your vehicle does not start at the first attempt, the system will shut down, wait a few seconds and

try to start the engine again. There will be 3 start attempts before the system gives up.

User guide P.7

DrivingOff

With the vehicle running remotely, press the button to disarm the starter kill (if installed) and

unlock the doors. Enter the vehicle and do the following:

1. Turn the ignition key to the IGNITION ON (RUN) position. (Do not turn the key to the CRANK

position while the engine is running. This would cause the starter motor to re-engage.)

2. Press the brake pedal to disengage the remote starter unit.

You are now ready to drive off.

ArminganddisarmingoftheSystem

The Alarm can be configured by the installer either to Passive Mode (so as to arm automatically)

or Active Mode (so as to require the user’s intervention for arming). By default, the Remote Car

Starter is configured to Passive Mode

Passive mode:

To arm the alarm, press the button on the transmitter, OR

1. In Passive Mode, the alarm will automatically arm 30sec once the last door is closed.

2. The LED on the antenna will flash quickly during the countdown preceding the activation

of the system.

3. Once the activation countdown expires, the siren will chirp once and the LED will flash

slowly to indicate that the alarm is now armed.

To disarm the alarm, press the button on the transmitter.

1. The LED on the antenna will flash quickly during the countdown preceding the activation

of the system.

2. The alarm will automatically rearm itself after 30sec if no door is left opened and the

ignition is not turned ON.

Active Mode:

To arm the alarm, press the button on the transmitter.

1. The siren will chirp once.

2. The LED on the antenna will flash slowly.

To disarm the Alarm, press the button on the transmitter.

1. The siren will chirp twice.

2. The LED on the antenna will remain OFF.

RemoteStarterFeatures

RemoteDoorLocks

If your system was installed with the Remote Door Locks option, you will have the convenience of

remote keyless entry.

To UNLOCK your doors and DISARM the system:

1. Press and hold the button for approx. 1 sec

2. The icon will appear on the remote’s LCD screen

3. The siren will chirp twice to confirm that the doors have been unlocked, the Starter Kill

feature is disarmed (if it was installed) and that the Alarm is disabled.

P.8 User Guide

To LOCK your doors and ARM the system:

1. Press and hold the button for approx. 1 sec.

2. The icon will appear on the remote’s LCD screen

3. The siren will chirp once to confirm that the doors have been locked, the Starter Kill

feature is enabled (if it was installed) and that the Alarm is armed.

RemoteTrunkRelease

If your system was installed with the Remote Trunk Release option, you can open your trunk by

pressing the button until the remote displays on the screen. In addition, this will also

disarm the alarm.

IdleMode

Convenience feature: Idle Mode allows you to keep the engine running and the doors locked

while you stop, for example, at a convenience store or for a short delivery.

This feature allows you to let the remote starter take over control of the vehicle (i.e. no Key in the

Ignition Switch) while the engine is running.

Activating Idle mode (Automatic transmission):

1. With the engine running, make sure to release the brake pedal and press the ,

or button on the transmitter until the parking lights come ON.

Note: SmartStart™ can be setup to use the SmartStart™ icon to activate Idle mode.

2. Remove the ignition key from the ignition switch.

The engine will continue running.

3. Exit the vehicle. All doors, the hood and trunk should be closed

4. Press the button to lock the doors, to arm the starter kill and to arm the alarm (if

available). The engine will continue running.

a. When re-entering the vehicle, the user must reinsert the key into the ignition and

turn it to the ON position (not Crank) without pressing on the brake.

b. Once the key is in the ON position, press on the brake pedal to put the

transmission in gear. Pressing the brake pedal at this step will cancel the remote

starter takeover.

c. Drive off.

If your vehicle has a manual transmission, Idle Mode can be activated through the same routine as

that used for Ready Mode (page 6); at the last step, press the button to lock the doors, arm

the system and leave the engine running.

Note 1: The engine will continue running until the user re-enters the vehicle or until the expiration

of the run time.

Note 2: If the pre-programmed run-time expires or if the user shuts down the engine remotely, the

vehicle will enter Ready Mode automatically (manual transmissions only).

Caution!! Do not leave children or pets unattended in a vehicle standing in Idle Mode.

ValetMode

When the vehicle is in Valet Mode, the remote starter and alarm functionalities are disabled. If the

vehicle needs to be serviced, or if you park it indoors, Valet Mode will prevent the engine from

being remote-started accidentally.

Any of the following features will put the remote car starter into Valet Mode:

User guide P.9

Ignition Valet: This feature allows you to set Valet Mode using the ignition key.

Remote valet: This feature allows you to set Valet Mode using the transmitter.

Valet switch: This feature allows you to set Valet Mode using a push button switch (optional).

To put the system into Valet Mode

Using the KEY (Ignition Valet Mode):

1. Insert the ignition key into the ignition switch. Within 10 sec., cycle the ignition key to the

IGNITION/RUN and OFF positions 5 times until the parking lights flash 3 times.

2. Turn the ignition OFF.

3. The LED on the antenna will stay ON indicating that the vehicle has successfully entered

Valet mode.

4. The icon will appear on the LCD display.

Using the TRANSMITTER (Remote Valet Mode):

1. Press the and buttons simultaneously until the icon appears on the LCD display.

2. The LED on the antenna will stay ON indicating that the vehicle has successfully entered

Valet mode.

Using the PUSH-BUTTON SWITCH (Valet Switch Mode):

1. Insert the ignition key into the ignition switch.

2. Turn the key to the ON position

3. Within 5 seconds, press the push-button switch until the parking lights flash 3 times.

4. Release the push-button and turn the ignition to the OFF position.

5. The LED on the antenna will stay ON indicating that the vehicle has successfully entered

Valet mode.

6. The icon will appear on the LCD display.

To take the system out of Valet Mode

Using the KEY (Ignition Valet Mode):

1. Insert the ignition key into the ignition switch. Within 10 sec., cycle the ignition key to the

IGNITION/RUN and OFF positions 5 times until the parking lights flash twice.

2. Turn the ignition OFF.

3. The LED on the antenna will switch OFF indicating that the vehicle is now out of Valet mode.

4. The icon will disappear from the LCD display.

Using the TRANSMITTER (Remote Valet Mode):

1. Press the and buttons simultaneously until the icon disappears from the LCD

display.

2. The LED on the antenna will switch OFF indicating that the vehicle is now out of Valet mode.

Using the PUSH BUTTON SWITCH (Valet Switch Mode):

1. Insert the ignition key into the ignition switch.

2. Turn the key to the ON position.

3. Press the push-button switch until the Parking lights flash twice.

4. Release the push-button and turn the ignition to the OFF position.

5. The LED on the antenna will switch OFF indicating that the vehicle is now out of Valet mode.

6. The icon will disappear on the LCD display.

If someone attempted to remote-start the vehicle while in Valet Mode; the parking lights will turn

ON, then OFF, then will flash twice.

P.10 User Guide

PanicMode

In an emergency situation, you can activate panic mode by pressing and holding the , or

button until the siren starts to sound.. If the vehicle is under a remote start, the engine will

shutdown automatically before setting off the Siren. You can stop the Siren by pressing:

(this will lock your doors and deactivate panic mode), or

(this will unlock your doors and deactivate panic mode).

Furthermore, the panic mode can be stopped by activating Valet Mode (page 8)

* Panic Mode will automatically shut down after 30sec.

QuickLockout™

(Also called Secure Panic.) For fast protection in emergency situations, the system will LOCK all

doors when you press the brake pedal while you hear the Siren sounding. (Quick Lockout is only

available when Panic mode has been triggered.)

ColdWeatherMode

If the vehicle has a manual transmission, Ready mode (page 6) should be set before entering

Cold Weather mode. When Cold Weather Mode is active, the engine starts every 2 hours and runs

for 3 minutes (or for 8 or 20 minutes with diesel engines). Cold Weather Mode automatically ends

after 24 hours (or 12 starts).

To enter Cold Weather Mode:

1. Press the for 1 second and release. The remote will beep once and will

appear on the display.

2. Press and hold the button until the icon will appear on the display.

To exit Cold Weather Mode, do any one of the following actions:

• Open the hood.

• Start the engine by remote.

• Turn the ignition key to the IGNITION ON (RUN) position.

• Press the for 1 second and release. The remote will beep once and will

appear on the display.

Press and hold the button until the icon will disappear on the display.

To verify whether the system is in cold weather mode:

• The icon should appear on your remote display.

• (Automatic transmissions only) Press the brake pedal: If the vehicle is in Cold

Weather mode, the parking lights will remain ON while the brake pedal is pressed.

ExtendedRunTime

While the vehicle is running remotely, press and hold the button until the remote plays the start

melody. This will reset the run time counter to zero and restart the run time cycle from the

beginning.

Note: The extended run time procedure can only be carried out once per remote start.

To stop the vehicle, at any moment, simply press and release the button.

User guide P.11

Example: If your remote car starter is programmed for a run time of 3 minutes and your vehicle

has been running for 2 minutes already, pressing the button will reset the counter to zero and

allow the engine to run for another cycle (in this case, 3 minutes).

IntrusionCodesviaLEDlight

The system monitors the following:

• Any vibrations sensed by the shock sensor such as someone breaking of the window,

windshield, etc.

• Doors

• Ignition

• Trunk

• Hood

Note: If an intrusion has occurred the siren will sound for a maximum of 1minute.

When an intrusion has occurred, pressing unlock will make the siren chirps four times. The

antenna’s LED will provide an intrusion code corresponding to the type of the intrusion that

occurred. The LED intrusion codes are flashed in continuous loops.

2x = Doors intrusion 5x = Panic

3x = Shock Sense 6x = Ignition

4x = Hood 7x = Trunk

CarFinder

When enabled, the Car Finder option will help you locate your vehicle by sending a pulsating signal

through the siren. The siren will chirp once each time the and are pressed simultaneously.

TemporaryChirpDelete

To temporarily disable the chirp confirmations of the siren upon arming and disarming (e.g. in a

quiet neighbourhood):

• Press the button. The remote will beep once.

• Within 3 sec., press the or button to arm or disarm system without any chirp.

MissingaStartoraStopConfirmation

If you have not received a Start or the Stop confirmation after pressing the button, pressing the

button within range of the remote starter’s signal will refresh the display and will confirm if the

vehicle was started or stopped.

If no Start Confirmation Was Received:

• Press the button:

¾ The remote’s icon will start flashing

¾ The icon and runtime time countdown will be displayed.

If no Stop Confirmation Was Received:

• Press the button:

¾ The will be displayed

¾ The remote’s icon and the runtime countdown will disappear.

P.12 User Guide

AdvancedFeatures:InstallationprogrammableOptions

The Remote Car Starter was designed with flexibility and OEM integration in mind. With its

programmable options, this unit can single-handedly control nearly any electrical system in your

vehicle.

Caution: The programming of your system should be left to a professional. Changing any

one of the settings may affect the operation of your Remote Car Starter. Please note that the

following programmable options may require additional parts and labor.

IgnitioncontrolledDoorLocks

This is an added security feature. If your Remote Car Starter was installed with the Ignition-

Controlled Door Locks option, the doors will automatically lock as soon as the ignition key is turned

to the IGNITION ON (RUN) position while the brakes are pressed. The remote car starter will also

lock any door that was unlocked and opened (then closed) the next time the brake pedal is pressed

(only when doors are monitored). When the key is turned to the OFF position, the doors will

automatically be unlocked.

SecureLock

(Disabled by default.) Before your vehicle can be remote-started, the factory security system must

first be disarmed. The Secure Lock feature may be required on certain vehicle models with factory

security systems that automatically unlock the doors when the security system is disarmed.

To keep your vehicle protected when the factory security system is disarmed for a remote start,

Secure Lock will relock your doors as soon as the vehicle is started. Once the engine is shut down

by remote or after its runtime has expired, Secure Lock will also rearm your factory security system

and relock the doors.

“HomeValetTM”Mode

If configured at installation, this feature will remotely set the vehicle to a no-remote-start mode: if

the vehicle is parked indoors there is no danger of it starting accidentally by remote control. If the

vehicle has a manual transmission, it should be set into ready mode before activating the Home

Valet™.

Note: Once the Home Valet Mode is activated, the vehicle will not start by remote, but the

alarm functions will remain active.

To take the system into home valet mode:

• Press the or button.

• Within 3 seconds, press the and buttons simultaneously

• The transmitter will beep once and the icon will display.

To take the system out of home valet mode:

• Turn the ignition key to the IGNITION ON (RUN) position.

The system will warn you if someone attempts to start your vehicle while it stands in home valet

mode. The parking lights will:

i. Turn ON then OFF; then

ii. Flash twice, pause; then

iii. Flash twice again.

SafeStart

This feature will eliminate accidental remote starts, e.g. when children are playing with the

transmitter.

User guide P.13

Safe start enabled: If this feature is enabled, the user must press the button twice within

3 seconds to remote-start the vehicle.

Swap start: If this feature is enabled;

1. Press the for 1 second and release.

2. The remote will beep once and will appear on the display.

3. Press to remote start the vehicle.

The AUX 2 output can be activated by pressing the button.

EngineRunTime

If you have a gas engine, your Remote Car Starter can be programmed to run the engine for 3, 15,

or 25 minutes (15 minutes by default). If you have a diesel engine, the Remote Car Starter can be

programmed to run the engine for 8, 20, or 30 minutes (20 minutes default).

TurboMode

If Turbo Mode is configured at installation, it will allow a turbocharger to idle down after the user

leaves the vehicle: the unit will take over the vehicle and keep it running for 60 seconds (or until it

is shut down by remote control), then shut down the engine.

If your vehicle has an automatic transmission, proceed as follows to set the system to Turbo

Mode:

1. With the engine running, make sure to release the brake pedal and press the ,

or button on the transmitter until the parking lights come ON.

Note: SmartStart™ can be setup to use the SmartStart™ icon to activate Turbo mode.

2. Remove the ignition key from the ignition switch.

The engine will continue running.

3. Exit the vehicle and close all doors, hood and trunk.

4. Press the button; this will lock the doors, arm the system alarm and confirm that the

vehicle is in Turbo Mode.

5. The engine will shut down after 60 seconds.

If your vehicle has a manual transmission, follow all steps of the Ready Mode routine (page 6) to

activate Turbo Mode. At the last step,

• Press to lock the doors and have the engine shut down after 60 seconds;

The parking lights will flash 3 times and remain lit.

The alarm and starter kill will be armed.

• Press to unlock the doors and have the engine shut down after 60 seconds;

The parking lights will flash 3 times and remain lit.

• Press To shut down the engine without affecting the doors.

Note: The vehicle will enter Ready Mode once the engine run time expires.

SirenChirps

The siren will chirp to confirm the system‘s basic operations:

• By default, when the doors are being locked, the siren will give 1 chirp if all the doors,

the hood and the trunk are closed.

• If one of the doors, the hood or the trunk is open as the doors are being locked, the

siren will chirp 3 times.

• When the doors are being unlocked, the siren will give 2 chirps if no intrusion was

detected.

P.14 User Guide

• If an intrusion was detected, the siren will 4 times if is pressed.

The system can alternatively be set to: (must be configured by the installer)

• Warning Mode (no chirp during lock/unlock – unless one of the doors, the hood or the

trunk is open. In this case there will be 3 chirp when is pressed. – Or unless the

alarm was triggered, in which case there will be 4 chirps when is pressed.

• Open Zone Notification (the system will warn for doors opened up to 10 seconds after

arming).

• No Chirp (the vehicle will not chirp under any circumstance).

Arming

Arming of the system can be program by your installer into 4 different options. By default, your

system is programmed to “passive arming – 2 stage disarm”:

• Active arming: The system will only arm if button is pressed

• Passive arming (2 stage disarm): The system will automatically arm itself 30 seconds

after all doors, hood and trunk are closed.

Note: If an alarm is triggered, pressing the button will stop the siren while keeping

the doors locked and the system armed.

• Passive arming (1 stage disarm): The system will automatically arm itself 30 seconds

after all doors, hood and trunk are closed

Note: If an alarm is triggered, pressing the button will stop the siren and unlock the

doors.

• Active arming with disarm notification: This feature will notify the user when the

vehicle is left disarmed after Ignition is turned off, or when the Module is disarmed after

being previously armed, the opening or closing of a Door will cause the Horn or the

Siren to sound once after 10 sec. to warn the user that the vehicle was left

unprotected. Pressing or will cancel this timer.

ShockSense&WarnAwaysense

If somebody hits, jostles or otherwise moves your car, the shock sensor sends a signal to the brain

indicating the intensity of the motion. Depending on the severity of the shock, the system can react

to a full shock by triggering the alarm or it can also respond to a lighter shock (30 % of the strength

of a full shock) by giving a warn-away (without triggering an Alarm condition). However, when the

Engine is running after a remote start the full shock is disabled but will still give a warning sound if

warn-away is enabled.

Note: Refer to your installer if you wish to disable the shock sensor permanently.

Prioritydoor:

This great feature allows the user to unlock solely the driver’s door with a single press of the

button on the transmitter, and to unlock the other doors, if desired, by pressing the button for a

second time.

MulticarOperation

This option allows the owner of two vehicles, both equipped with the same remote starter model, to

control both systems with a single remote control. To control the second vehicle:

User guide P.15

• Press + : ................................................................ LOCK

• Press + : .................................................................. UNLOCK

• Press + : ................................................................... START

• Press + : ................................................................... STOP

• Press ¾ + : .................................................... TRUNK

• Press ¾ ¾ + : ............................................... LOCK

• Press ¾ ¾ + : ................................................. UNLOCK

• Press ¾ ¾ + : .................................................. START

• Press ¾ ¾ + : .................................................. STOP

• Press ¾ ¾ + : ................................................. TRUNK

Start/Stop While in Safe Start Mode

Function Button press

Icon

Sound

Description

Start on safe

start mode +x 2 + Melody

Press +

simultaneously twice

within 3 seconds. Press

for 1 sec- a beep will be

heard- then press 1sec

and a melody will be

heard again.

Stop on safe

start mode + None Melody

Note: Your remote control must be configured for second car operation by the installer.

Relock

If you unlock the doors with the remote transmitter, but do not open any doors, hood or trunk, or

turn ignition within 30 seconds, the doors will automatically relock and rearm the system.

Note: When the system is in active arming mode and the relock mode is enabled, the doors will

relock but the system will not rearm.

MultiLevelFeatures

Basic Features Level 1

¾ : ................................................................................................................................. AUX 2

¾ : ......................................................................................................................................... cold weather

Multi-Car Operation Level 2

¾ ¾ : ............................................................................................................. 2nd car lock

¾ ¾ : ......................................................................................................... 2nd car unlock

¾ ¾ : ....................................................................................................... 2nd car start/stop

¾ ¾ : ............................................................................................................. 2nd car trunk

Customized Features Level 3

(May not be compatible with some vehicles)

P.16 User Guide

Your installer can add customized features such as turning on the radio, opening sliding doors, etc.

¾ ¾ ¾ : .................................................................................. customized feature 1

¾ ¾ ¾ : .................................................................................... customized feature 2

¾ ¾ ¾ : ................................................................................... customized feature 3

¾ ¾ ¾ : ..................................................................................... customized feature 4

Accessing the Multi-Level Features and Other Transmitter Functions

x To access a Level 1 feature, press and hold the button until you hear a “beep”; within three

seconds of hearing the “beep”, release the button. will be displayed. This display

means that you are now in Level 1. Simply press the corresponding button to access the

desired feature.

x To access a Level 2 feature, press and hold the button until you hear a “beep within three

seconds of hearing the “beep”, release the button and press and release the button

once more. will be displayed. This display means that you are now in Level 2. Simply

press the corresponding button to access the desired feature.

x To access a Level 3 feature, press and hold the button until you hear a “beep”; within three

seconds of hearing the “beep”, release the button and press and release the button two

more times. will be displayed. This display means that you are now in Level 3. Simply

press the corresponding button to access the desired feature.

x To access the transmitter functions (clock and alarm adjustments), press and hold the

button until you hear a “beep”; within three seconds of hearing the “beep”, release the

button and press and release the button three more times. There will be two quick “beeps”

indicating that you are now in the transmitter functions adjustment menu. The Hour position will

be flashing. Simply press and release the button until you reach the desired location and

proceed with the adjustment by pressing the or buttons.

Your installer can customize the system as to personalize these multi-level features in an order that

best suits you. Your options are:

Option 1:

Level 1 (requires pressing the button 1X) Æ Multi car operation

Level 2 (requires pressing the button 2X) Æ Basic features

Level 3 (requires pressing the button 3X) Æ Customized features

Option 2 (by default):

Level 1 (requires pressing the button 1X) Æ Basic features

Level 2 (requires pressing the button 2X) Æ Multi car operation

Level 3 (requires pressing the button 3X) Æ Customized features

Option 3:

Level 1 (requires pressing the button 1X) Æ Customized features

Level 2 (requires pressing the button 2X) Æ Multi car operation

Level 3 (requires pressing the button 3X) Æ Basic features

Option 4:

User guide P.17

Level 1 (requires pressing the button 1X) Æ Basic features

Level 2 (requires pressing the button 2X) Æ Customized features

Level 3 (requires pressing the button 3X) Æ Multi car operation

Example: If the multi-level features was set to option 3, the setup would be as follows:

For “basic features”:

- To access the aux. 2 feature, the user needs to press on the button three (3) times followed

by the button.

- To access cold weather mode, the user needs to press on the button three (3) times followed

by the button.

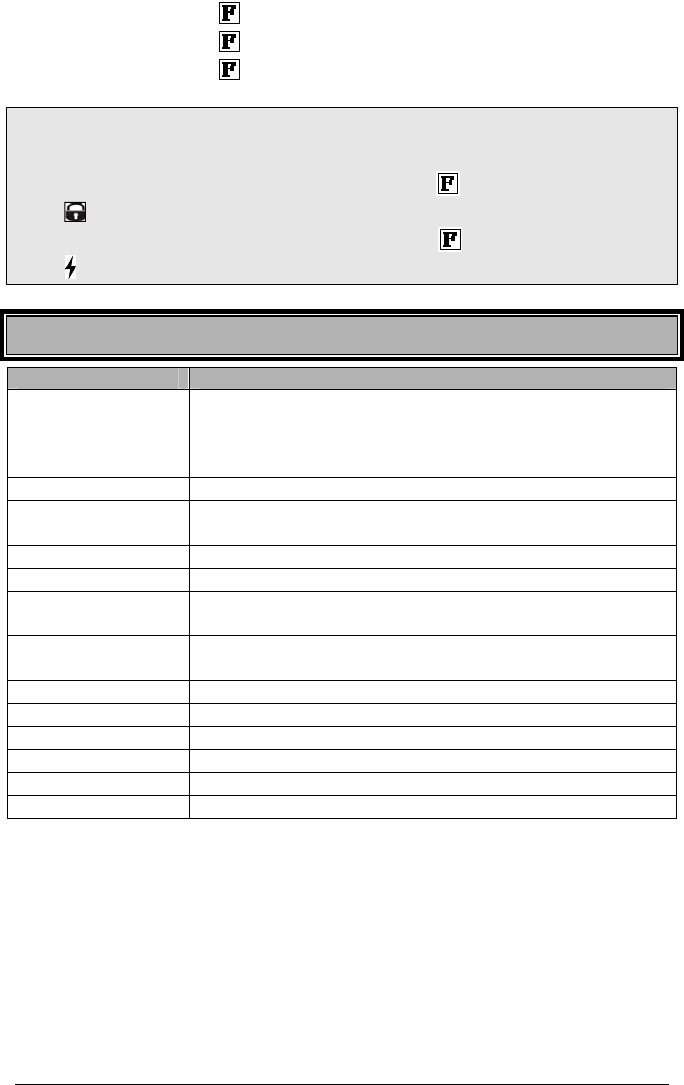

Diagnostics–ParkingLightFlashTable

Parking lights flashes Description

• Doors locked.

• Trunk released.

• Start signal received from the remote.

• Runtime has expired

2 slow • Shutdown by remote

2 fast • Doors unlocked

• Valet mode is deactivated

3 slow • Runtime is extended.

3 fast • Valet mode activated.

4 fast • Shutdown by brake

• A remote start was attempted while the brake pedal is engaged.

10 fast • Shutdown by hood

• A remote start was attempted while the hood is open.

ON Î twice • Cold weather mode deactivated

ON Î 3 times • Cold weather mode activated.

Solid ON • Engine is running under remote start.

Flash for 30 sec. • Panic mode is triggered.

Flash for 60 sec. • Alarm is triggered.

ON Î twice Î twice • A remote start was attempted while the system is in home valet.

P.18 User Guide

PoorTransmittingRangeIssues

Many factors may affect the operating range of the transmitter. Some of these are:

• The condition of the battery in the transmitter.

• The operating environment (for example: downtown radio-frequency noise, airports, cellular

phone towers…)

• Metal: any type of metal will affect operating range. This includes the metal in the car.

• The shape of the vehicle can affect range as well; vans in general have an especially poor

range.

• The shape of the roof and A-pillars brings about considerable radio-frequency deflection (in this

case the signal from the remote control). As a result, the direction in which the vehicle is facing

in relation to the remote control can affect the range. Straight on – standing in front of the

vehicle – generally gives you the greatest range; the second best performance is from the back.

Using the remote control from either side of the vehicle will usually give the lowest range.

• The range will be significantly lower in a crowded parking lot than in open space.

• Always hold the transmitter high, approximately at shoulder height.

• The operating range will be somewhat lower on vehicles equipped with an aftermarket or factory

alarm.

• Windows and windshields tinted with lead or metallic tints will decrease the operating range.

User guide P.19

PROSTART LIMITED LIFETIME WARRANTY

REMOTE STARTERS:

As the manufacturer, DIRECTED ELECTRONICS, CANADA INC. (“Directed”) warrants to the original consumer purchaser only (non-transferable)

that the remote starter module (control box) shall be free from defects in materials and workmanship for as long as the original consumer

purchaser continuously owns the vehicle in which the remote starter was originally installed, as specified below:

1) For the first year after the date of purchase, as specified by the date on the original proof of purchase, Directed will replace the

remote starter module free of charge with a new remote starter module. Consumers shall provide a copy of the proof of purchase at

the point of purchase for the exchange to take place. The remainder of the coverage period of the original warranty will apply to the

new module.

2) For the second year after the date of purchase, as specified by date on the original proof of purchase, Directed will replace the

remote starter module free of charge with a repaired or refurbished remote starter module. All product returns to Directed for

warranty service require a Return Merchandise Authorization (RMA). This RMA must be issued prior to returning product to

Directed. Products returned without this RMA number will be refused & returned to you at your expense. Consumers shall send the

module (only) and a copy of the proof of purchase, freight prepaid, along with their name, address and telephone number, to the

PROSTART SERVICE CENTER for the exchange to take place. MODULES RETURNED TO THE POINT OF PURCHASE AFTER

THE ONE-YEAR REPLACEMENT PERIOD WILL NOT BE ACCEPTED. A module will be returned to the consumer, freight collect,

within 4 weeks of receipt of the module. The remainder of the coverage period of the original warranty will apply to the exchanged

module. Directed will not be held responsible for modules sent without a proof of purchase. Directed will not be held responsible for

modules lost or damaged while in transit.

3) For the third year and any consecutive year after the date of purchase, as specified by the date on the original proof of purchase,

Directed will provide to the original consumer purchaser a repaired or refurbished remote starter module, for a repair and

shipping/handling charge of $45.00 plus applicable taxes, a cheque or money order made payable to DIRECTED ELECTRONICS,

CANADA INC must accompany the remote starter module. A module will be returned to the consumer, freight prepaid, within 4

weeks of receipt of the module. Directed will not be held responsible for modules sent without a cheque or money order and/or proof

of purchase. The consumer should follow the same procedure as in (2), and all conditions apply as in (2).

ACCESSORIES:

Directed warrants to the original consumer purchaser only (non-transferable) that it will replace any Directed accessory part for a one-year period

from date of purchase. Accessories will only be replaced if proven defective in material or workmanship, and if, when the accessory is returned to the

point of purchase, the retailer is provided with a copy of the proof of purchase.

THE WARRANTY IS VOID IF:

1) The product has been damaged, altered in any way or tampered with, without the explicit written consent of a

Directed technician. For remote starter modules, this includes the opening or removal of the plastic covering of the

module, or the removal or alteration of the barcode label on the plastic covering of the module.

2) The product is damaged due to accident, fire, flood, shipping and handling, misuse, neglect, or other conditions

beyond the control of Directed.

3) The product has been installed or repaired by anyone other than a certified technician.

4) The product has been improperly installed or used.

THE WARRANTY DOES NOT COVER:

1) Batteries.

2) Scratched or worn transmitter cases.

3) Installation and/or removal charges for all remote starter modules and accessories.

4) Shipping and handling charges incurred for product exchange or replacement.

5) Any material damages other than to the product itself.

6) Harnessing, LED lights, switches, inverters, relays, etc.

THIS LIMITED LIFETIME WARRANTY SHALL CONSTITUTE THE SOLE LIABILITY OF DIRECTED FOR OUR PRODUCTS, AND IS IN LIEU OF

ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. THERE ARE NO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE. NO PERSON, FIRM OR CORPORATION IS AUTHORIZED TO ASSUME FOR AUTOSTART ANY OTHER LIABILITY

WITH RESPECT TO THE SALE OR USE OF OUR PRODUCTS. DIRECTED’S LIABILITY, WHETHER BASED ON CONTRACT, TORT,

WARRANTY, STRICT LIABILITY, OR ANY OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT

FOR DAMAGE IS THE BASIS OF THE CLAIM. UNDER NO CIRCUMSTANCE WILL AUTOSTART, ITS DISTRIBUTORS OR THEIR AGENTS

BEAR ANY LIABILITY WHATSOEVER FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

The parties hereto elect that any dispute regarding the present document be submitted to the appropriate Court located in the Province of Quebec,

District of Montreal. The parties hereto agree that this document is governed by and interpreted in accordance with the law of Quebec. If the

purchaser is located in a province of Canada other than Quebec, all matters dealing with the warranty of quality will be governed by and interpreted

in accordance with the law of Ontario. If the purchaser is located outside Canada, all matters dealing with the warranty of quality will be governed by

and interpreted in accordance with the United Nations Convention on Contracts for the International Sale of Goods (the “Vienna Convention”).

PROSTART SERVICE CENTRE / WARRANTY PROGRAM

2750, Alphonse-Gariépy ave

Lachine, QC, H8T 3M2,

Canada

Phone: 1-800-361-7271 (Return Merchandise Authorization and/ or Warranty- related questions only)

CT 5472TW_ug_en_h45s41_110829x Two Way 6 Button LCD Automatic Transmission Remote Starter With Full Alarm System 5472TW Ug En H53s41

Navigation menu

Versions of this User Manual:

Views

Navigation
