COLOR TELEVISION RECEIVER

Chassis : S61B(P)_Negotiator-2

Model : CW29M066V7XXEC

COLOR TELEVISION RECEIVER FEATURES

■■SRS, WOW(NICAM/STEREO)

■Simple 100Hz SCAN

■

■2SCARTS / HALF TONE OSD

■10Page TTX

SERVICE Manual

CW-29M066V

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

©Samsung Electronics Co., Ltd. Sep. 2005

Printed in Korea

AA82-02990A

ELECTRONICS

Table of Contents

Chapter 1 Precaution

■1-1 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

■1-2 Servicing Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

■1-3 Static Electricity Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

■1-4 Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Chapter 2 Product Specification

■2-1 Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

■2-2 Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

■2-3 Specifications Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

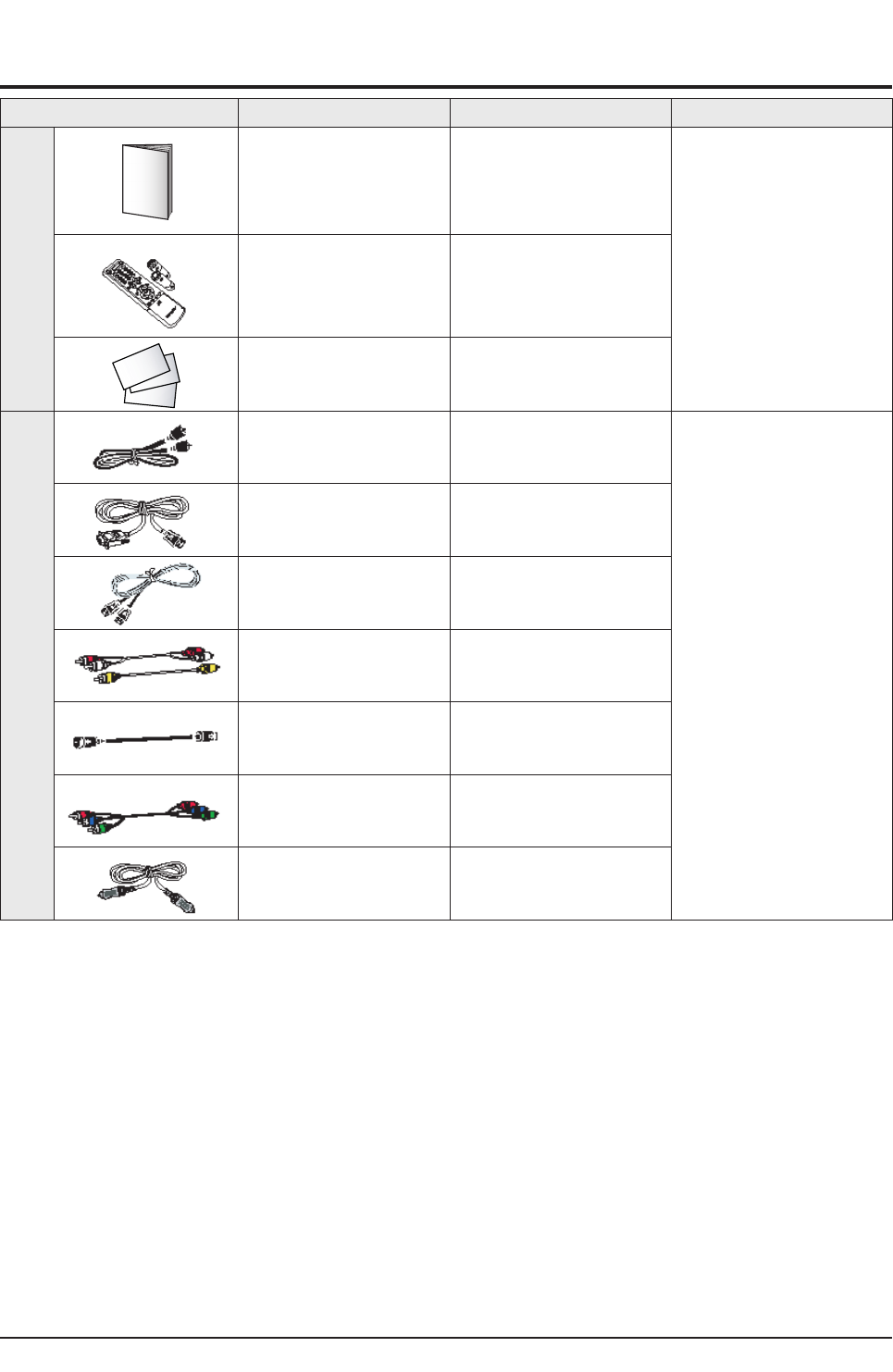

■2-4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Chapter 3 Alignment & Adjustment

■3-1 Service Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

■3-2 How to Access Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

■3-3 Factory Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

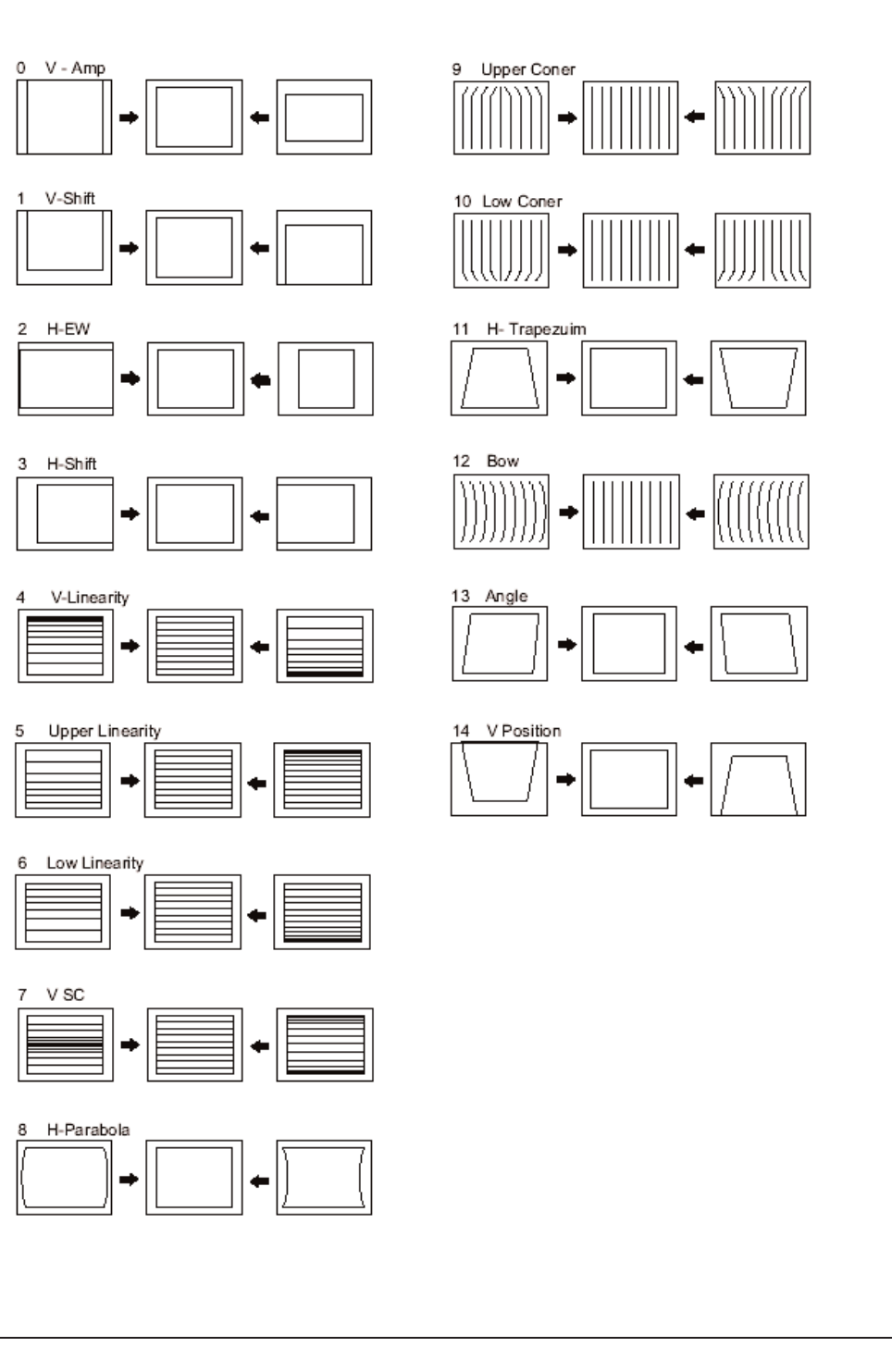

■3-4 Service Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

■3-5 Replacements & Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23

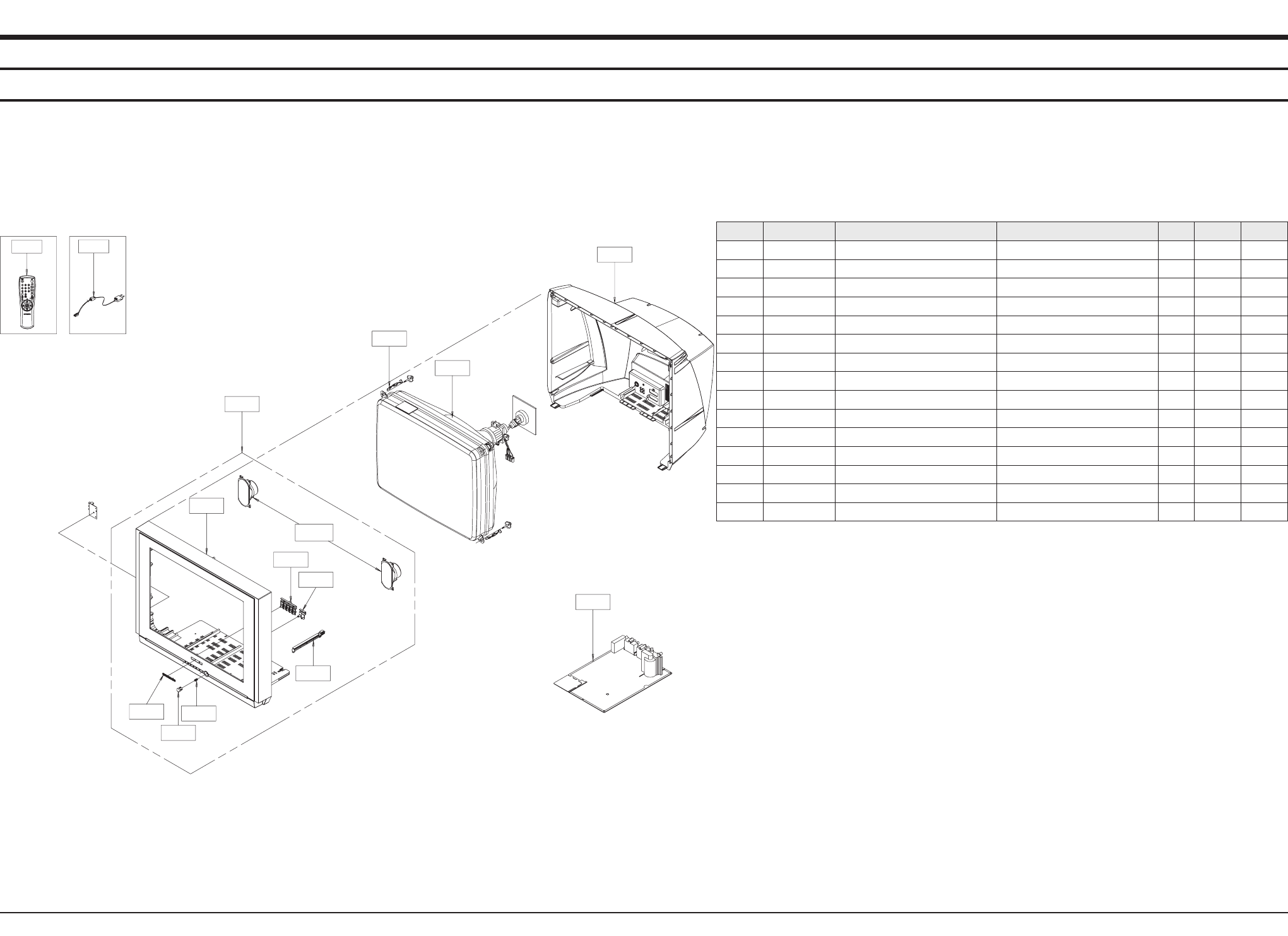

Chapter 4 Exploded View & Part List

■4-1 CW29M066V7XXEC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Chapter 5 Electrical Part List

■5-1 CW29M066V7XXEC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Chapter 6 Troubleshooting

■6-1 Checkpoints by Error Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

■6-2 Troubleshooting Procedures by Error Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

■6-3 Troubleshooting Procedures by ASS'Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

■6-4 Troubleshooting by Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Chapter 7 Block Diagram

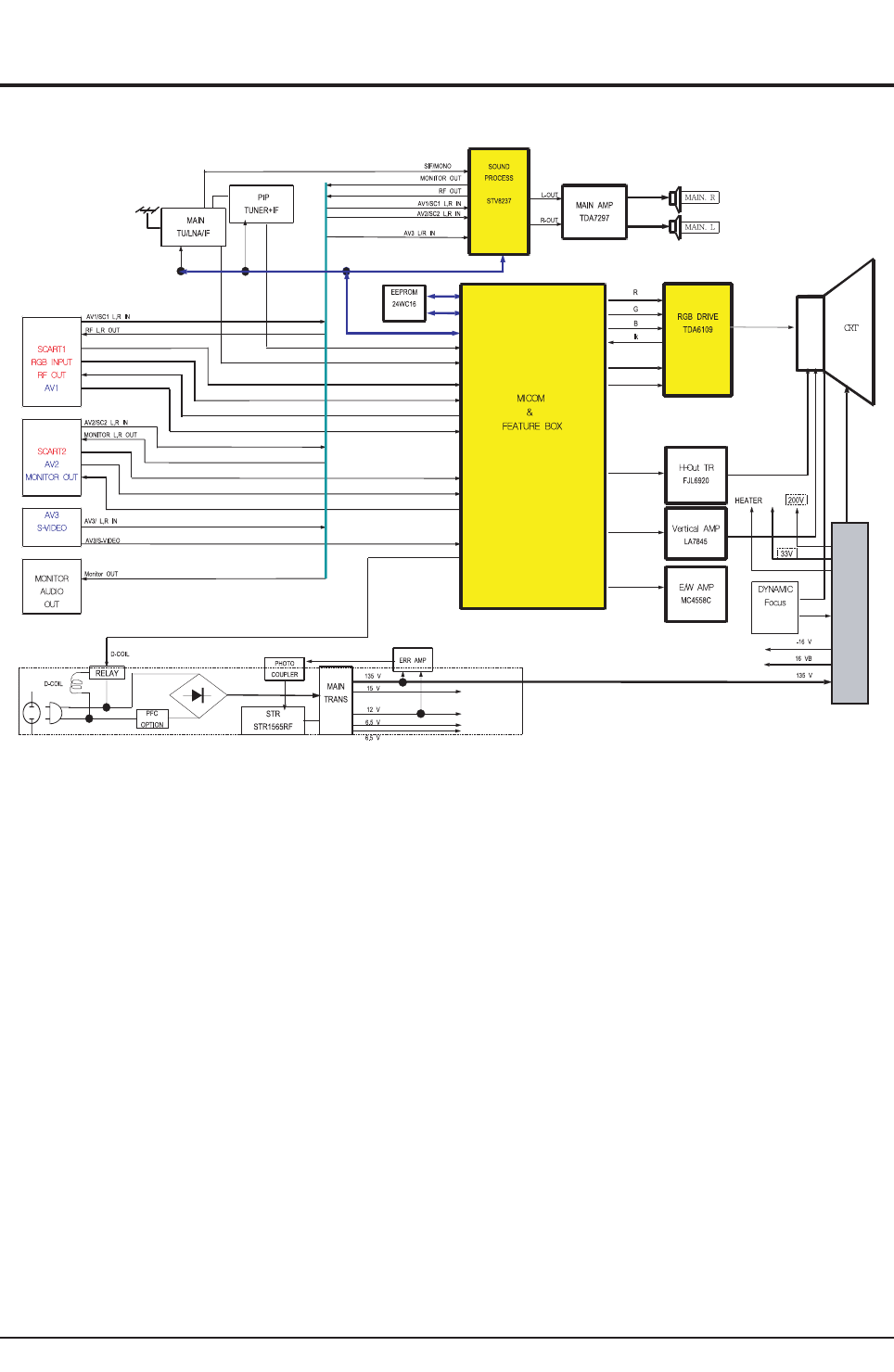

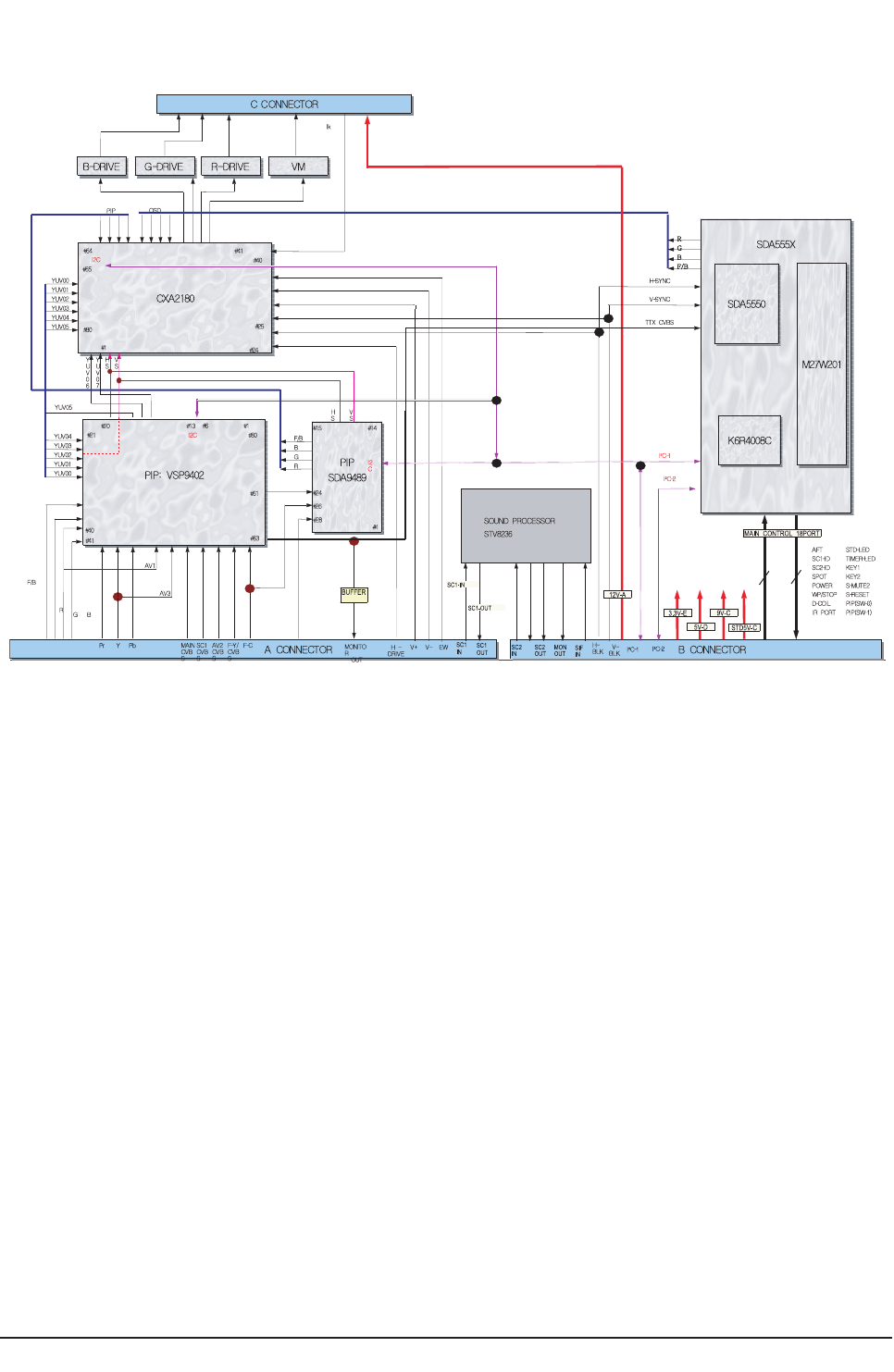

■7-1 Overall Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

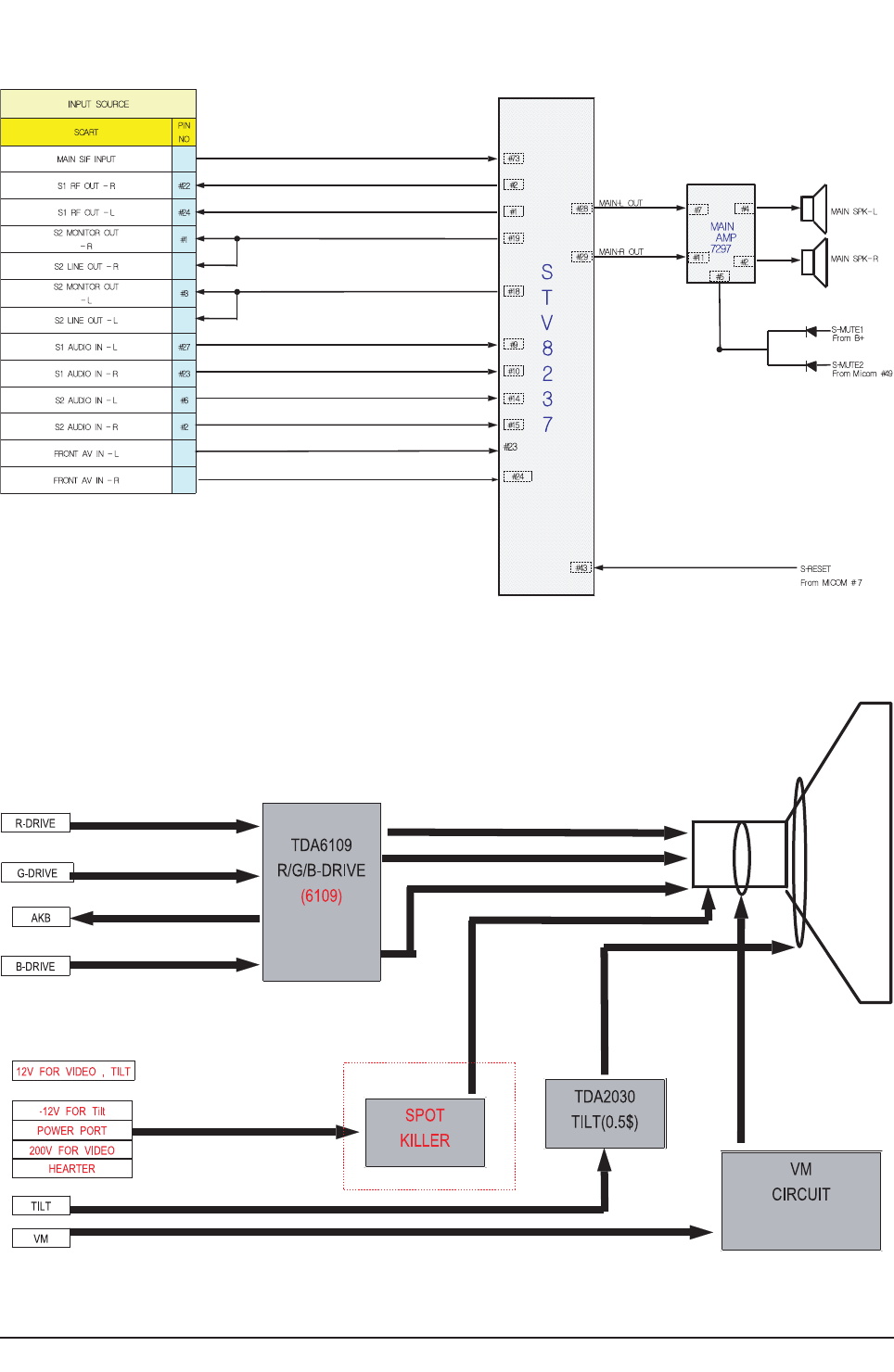

■7-2 Partial Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

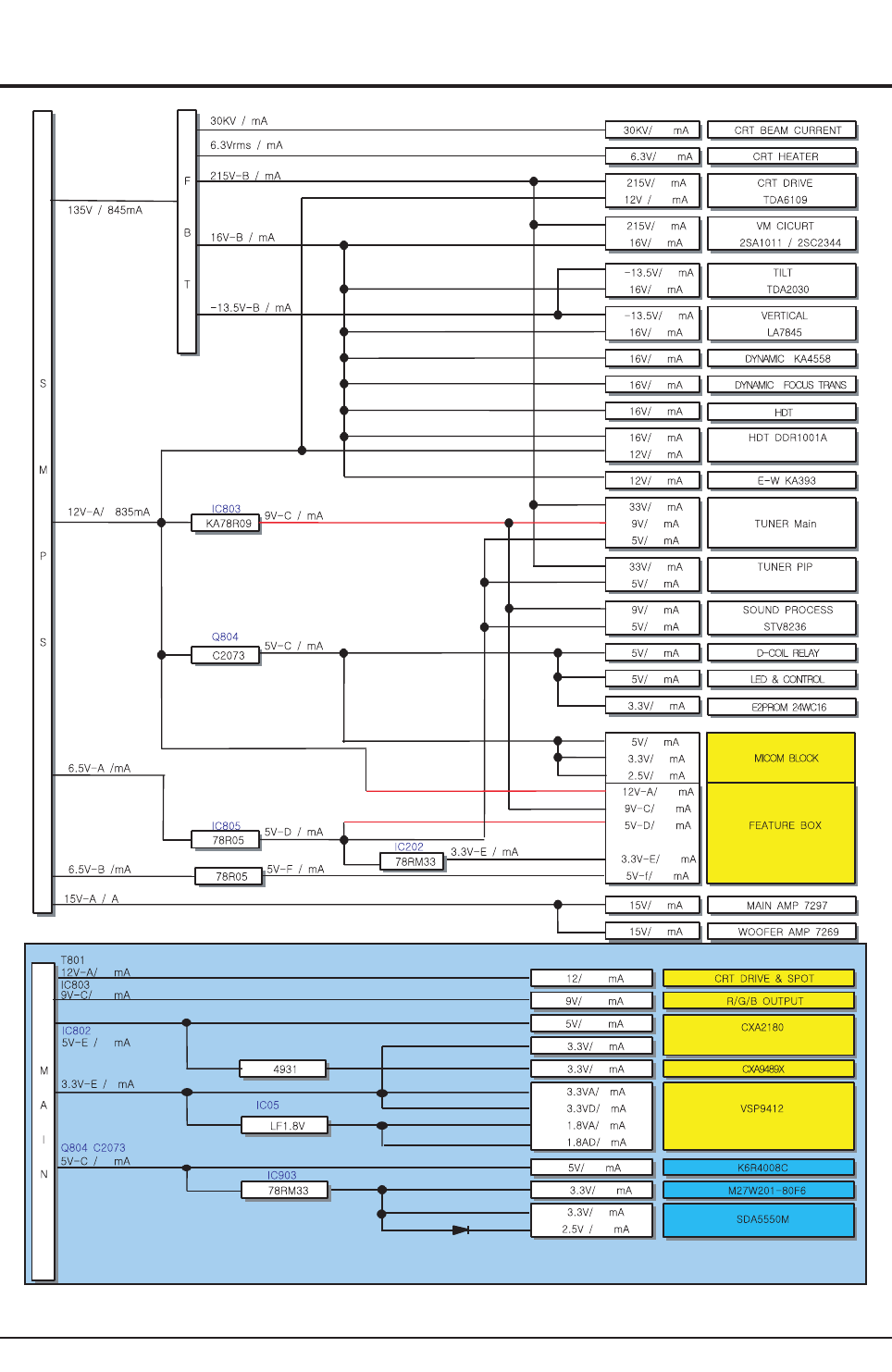

■7-3 Power Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5

Chapter 8 Wiring Diagram

■8-1 Overall Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

■8-2 Pin Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

Chapter 9 PCB Diagram

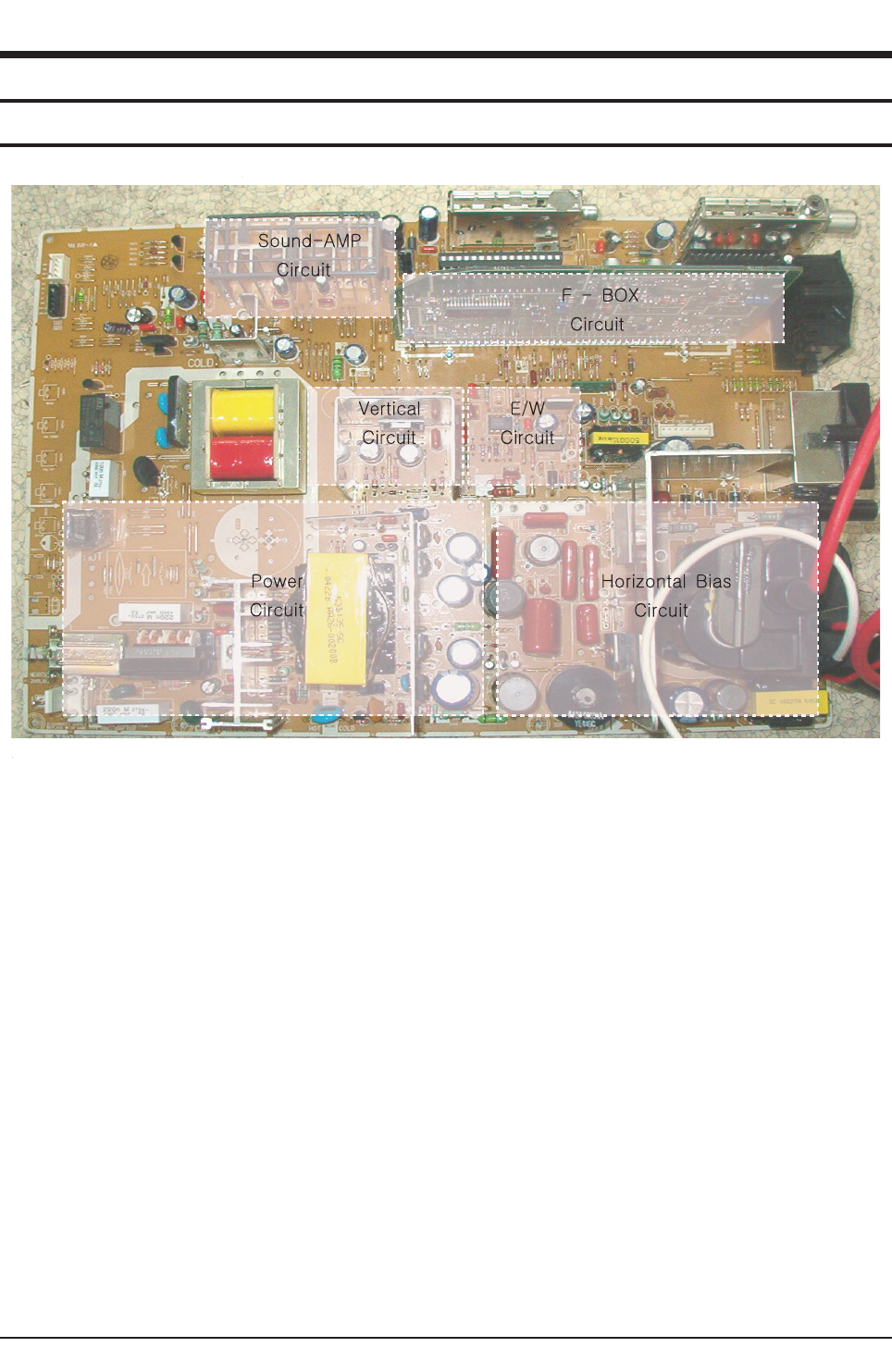

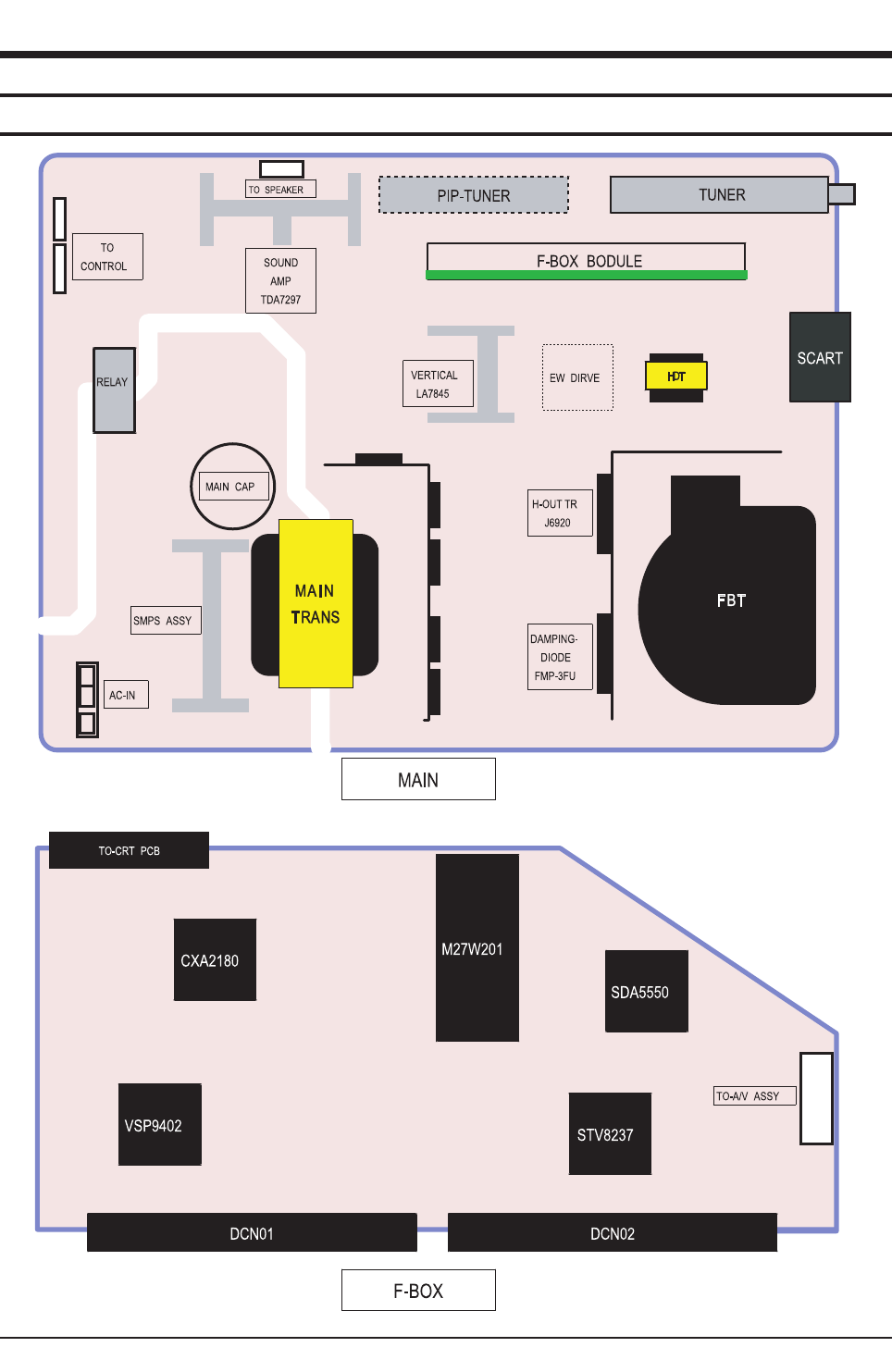

■9-1 Main Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

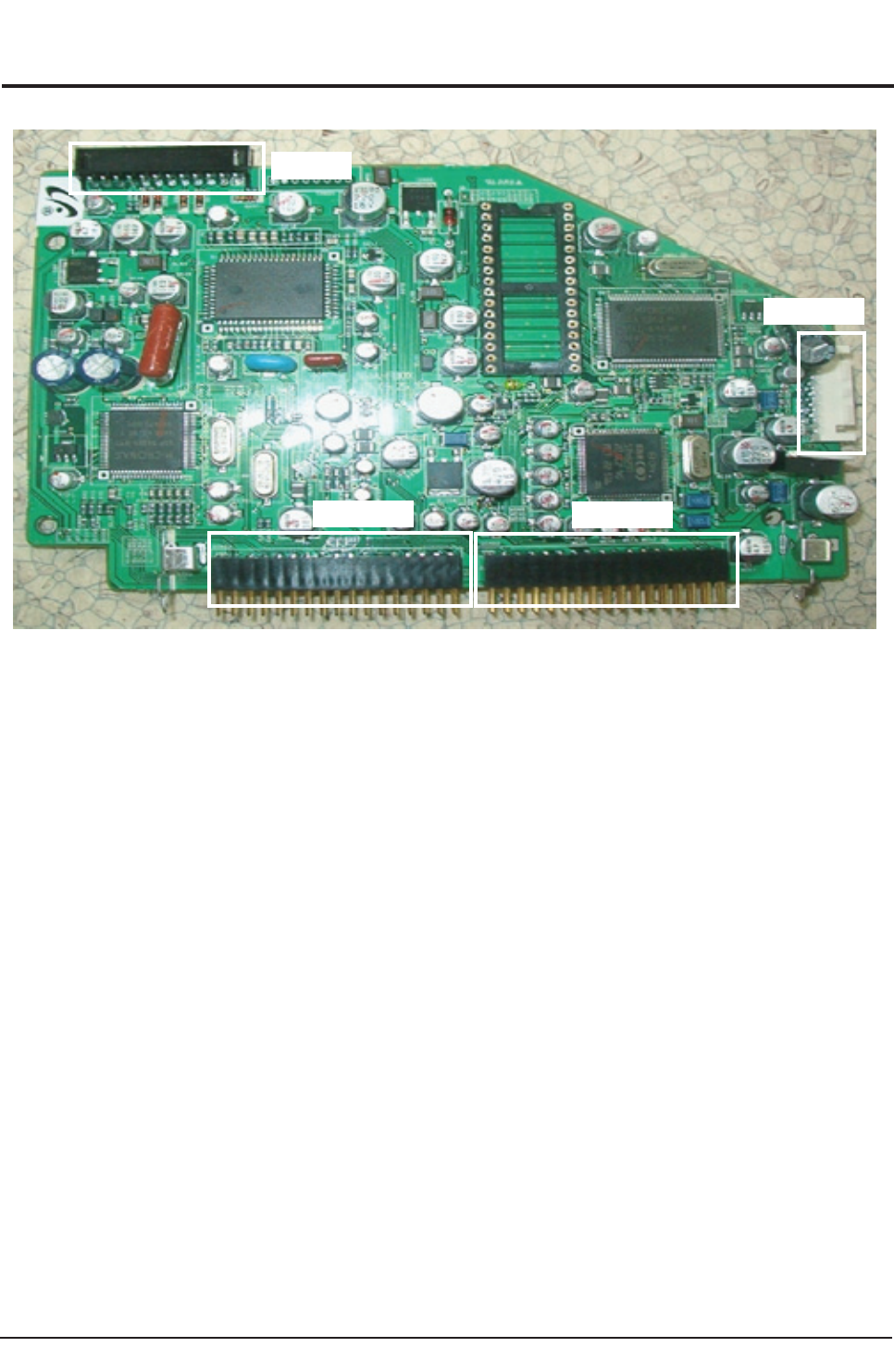

■9-2 F/BOX Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

■9-3 CRT Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5

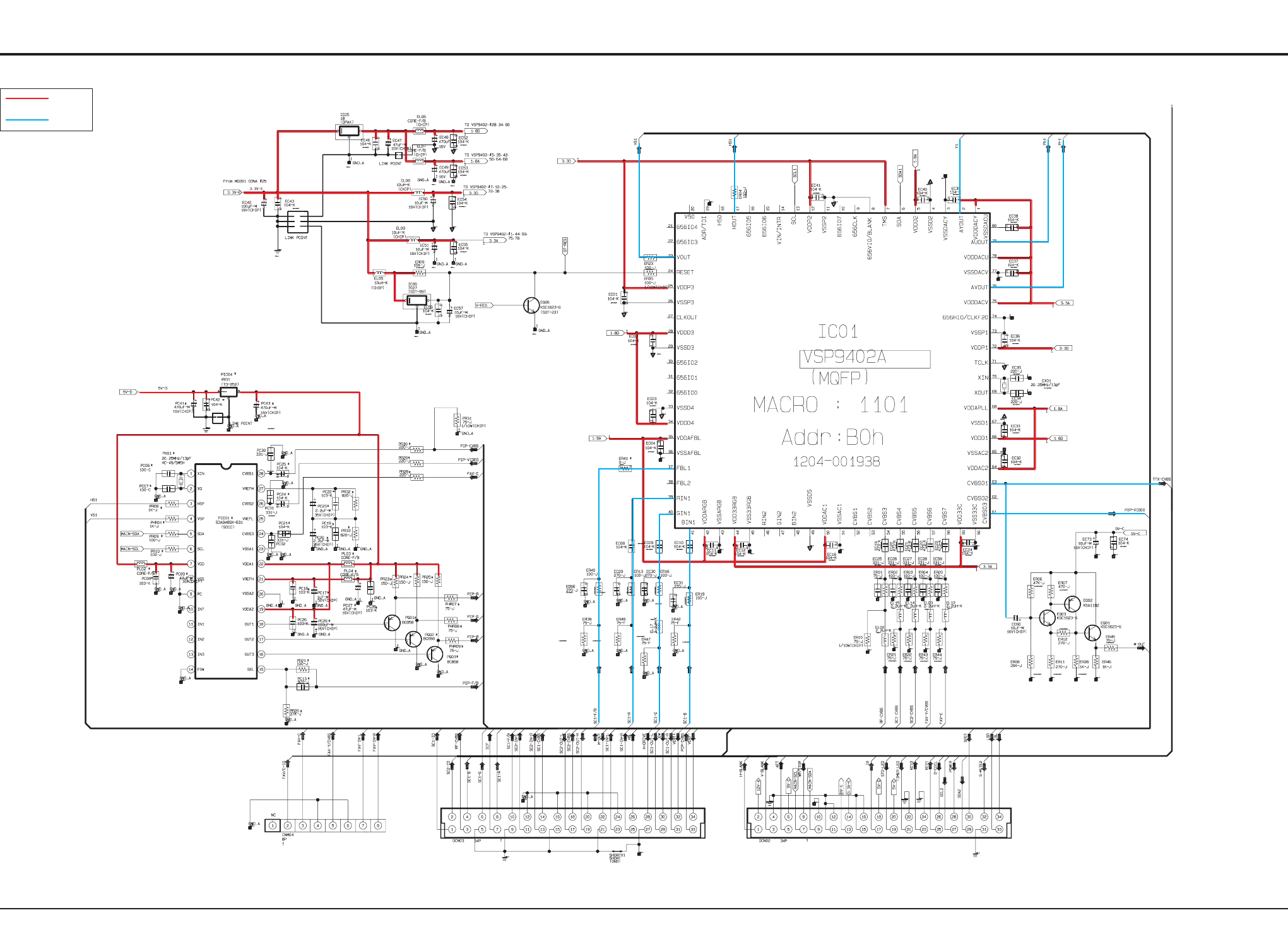

Chapter 10 Schematic Diagram

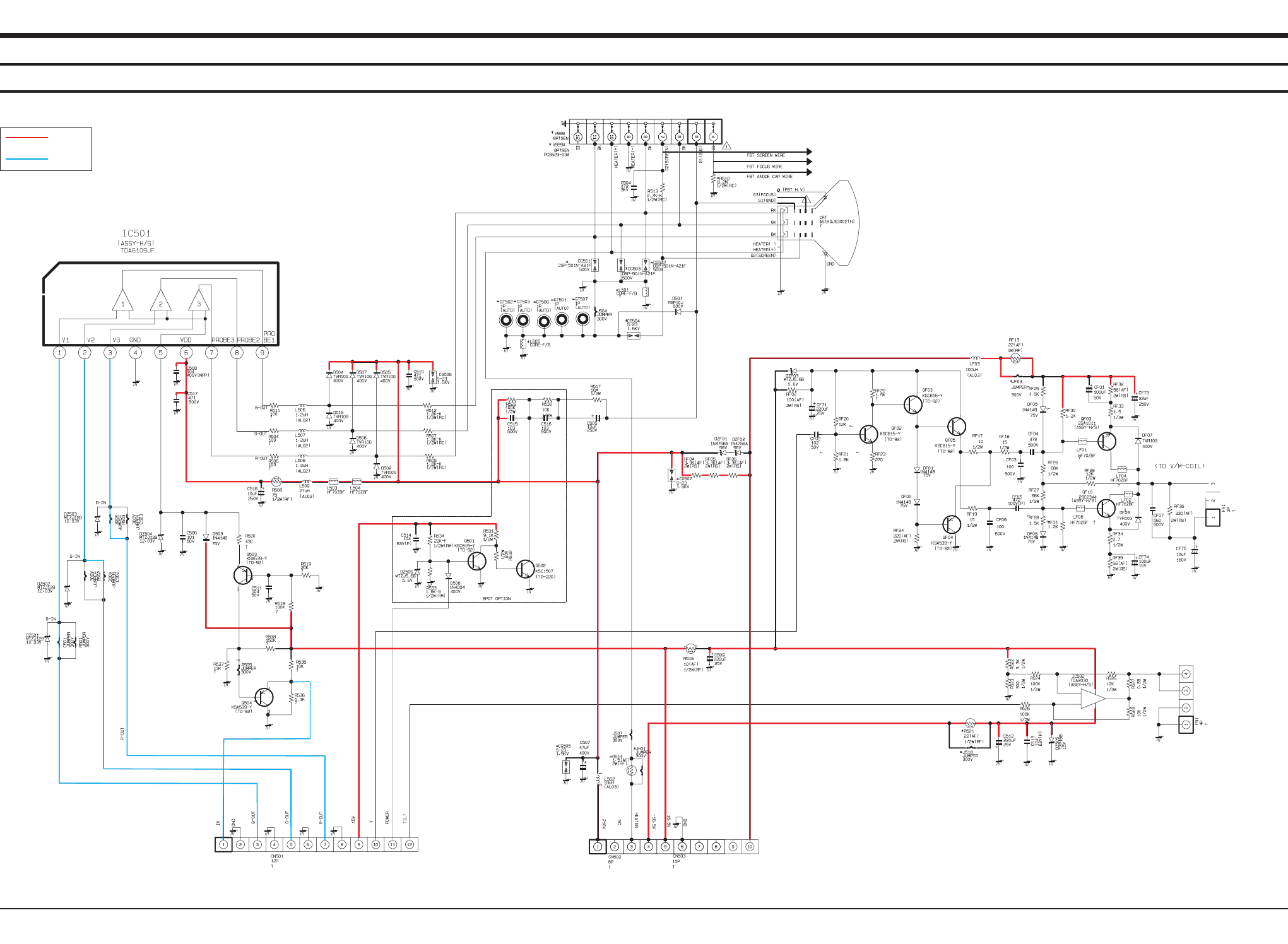

■10-1 CRT DRIVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

■10-2 MICOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2

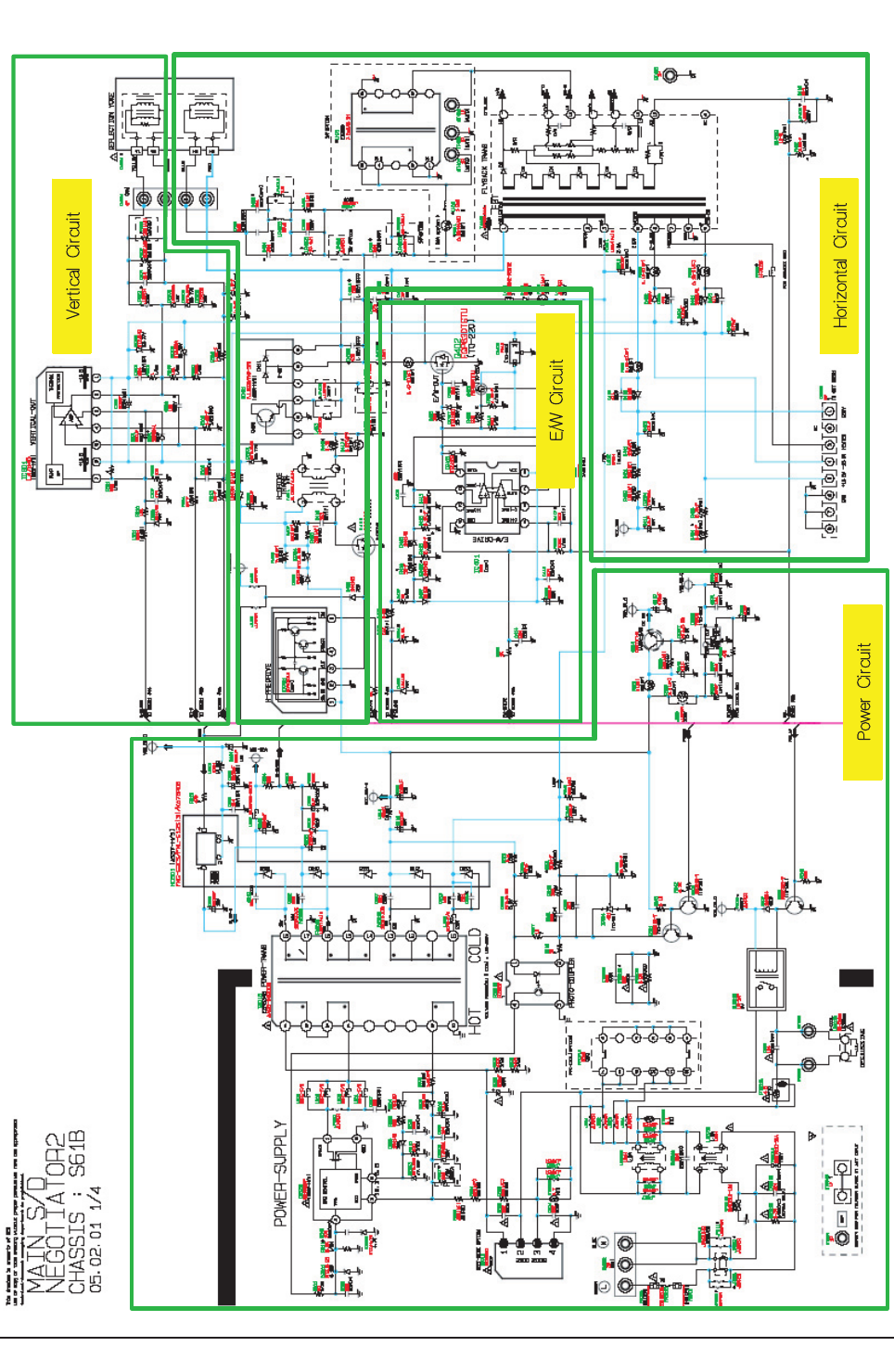

■10-3 Power & Deflection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3

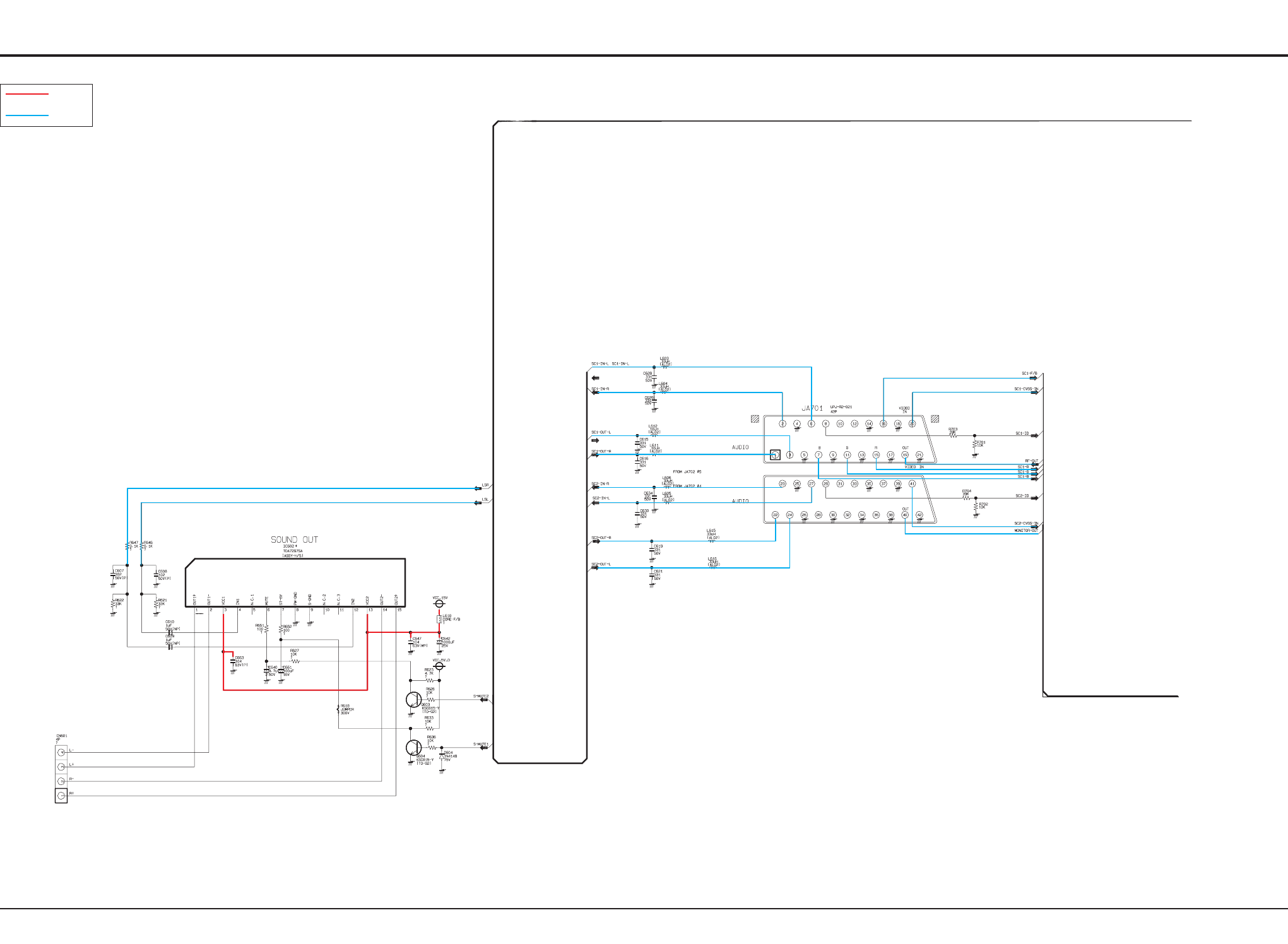

■10-4 Sound & Scart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-4

■10-5 Sound processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-5

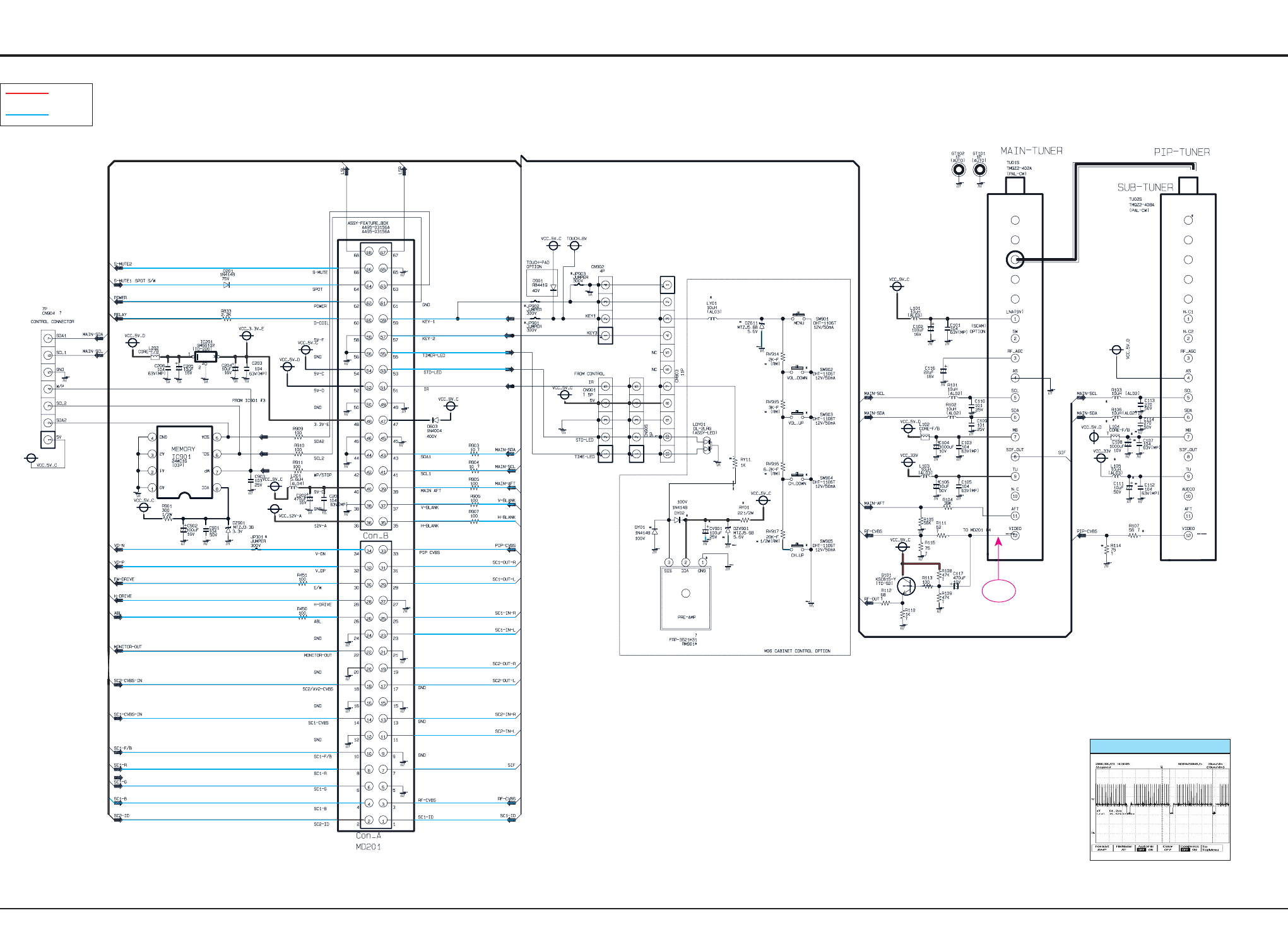

■10-6 Tuner & F_box Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-6

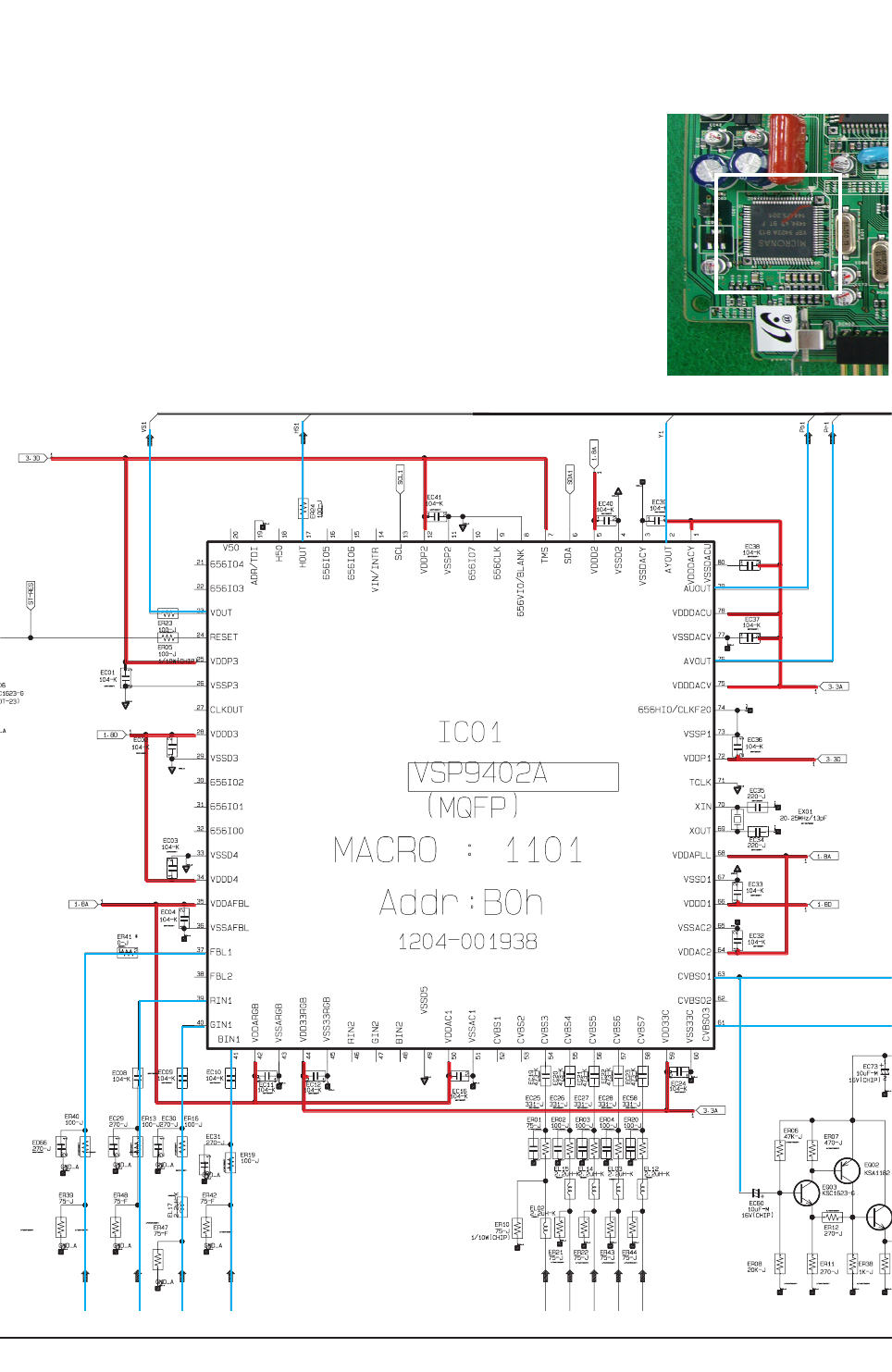

■10-7 Video processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-7

■10-8 Video SW & AD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8

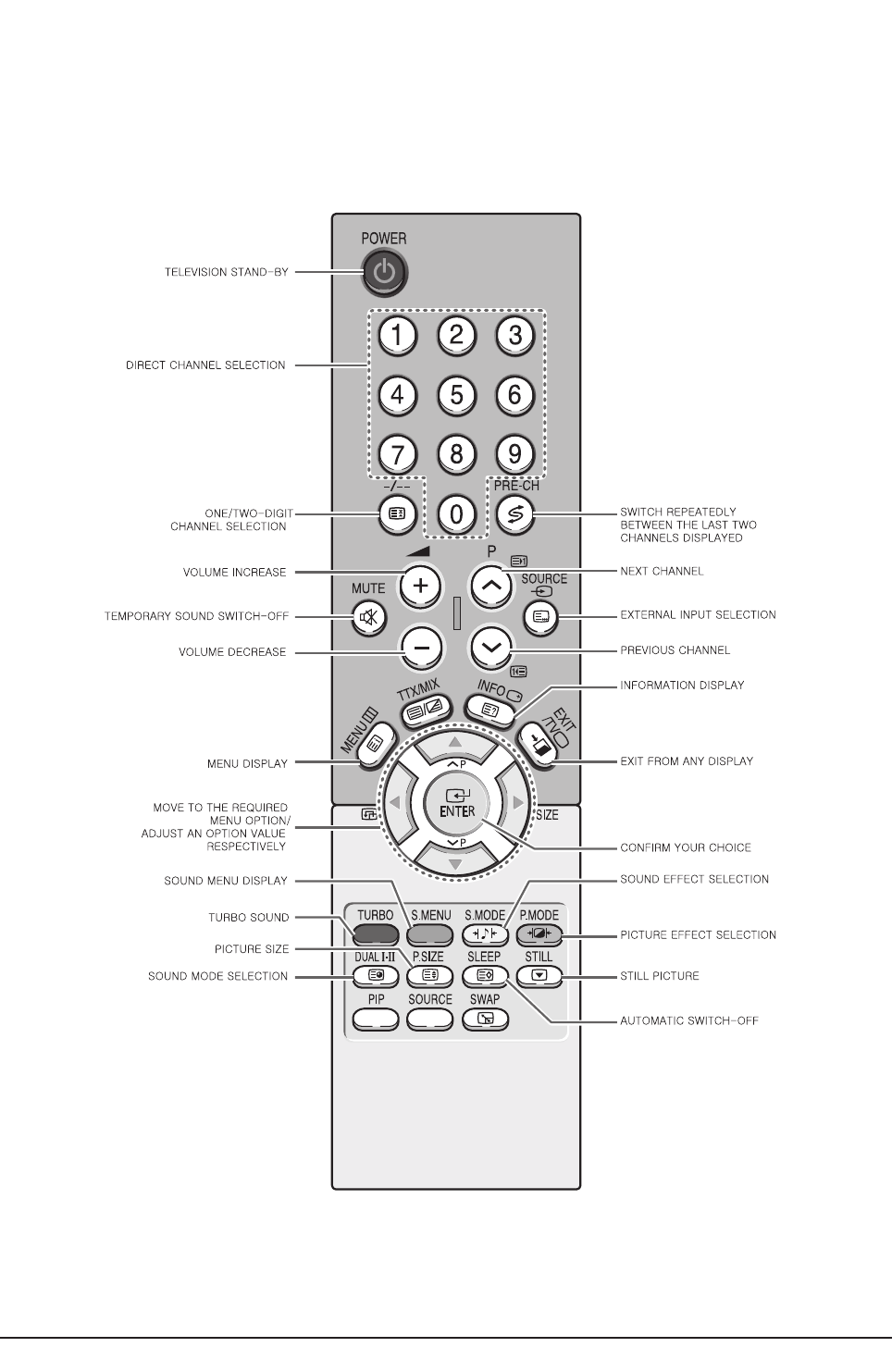

Chapter 11 Operation Instruction & Installation

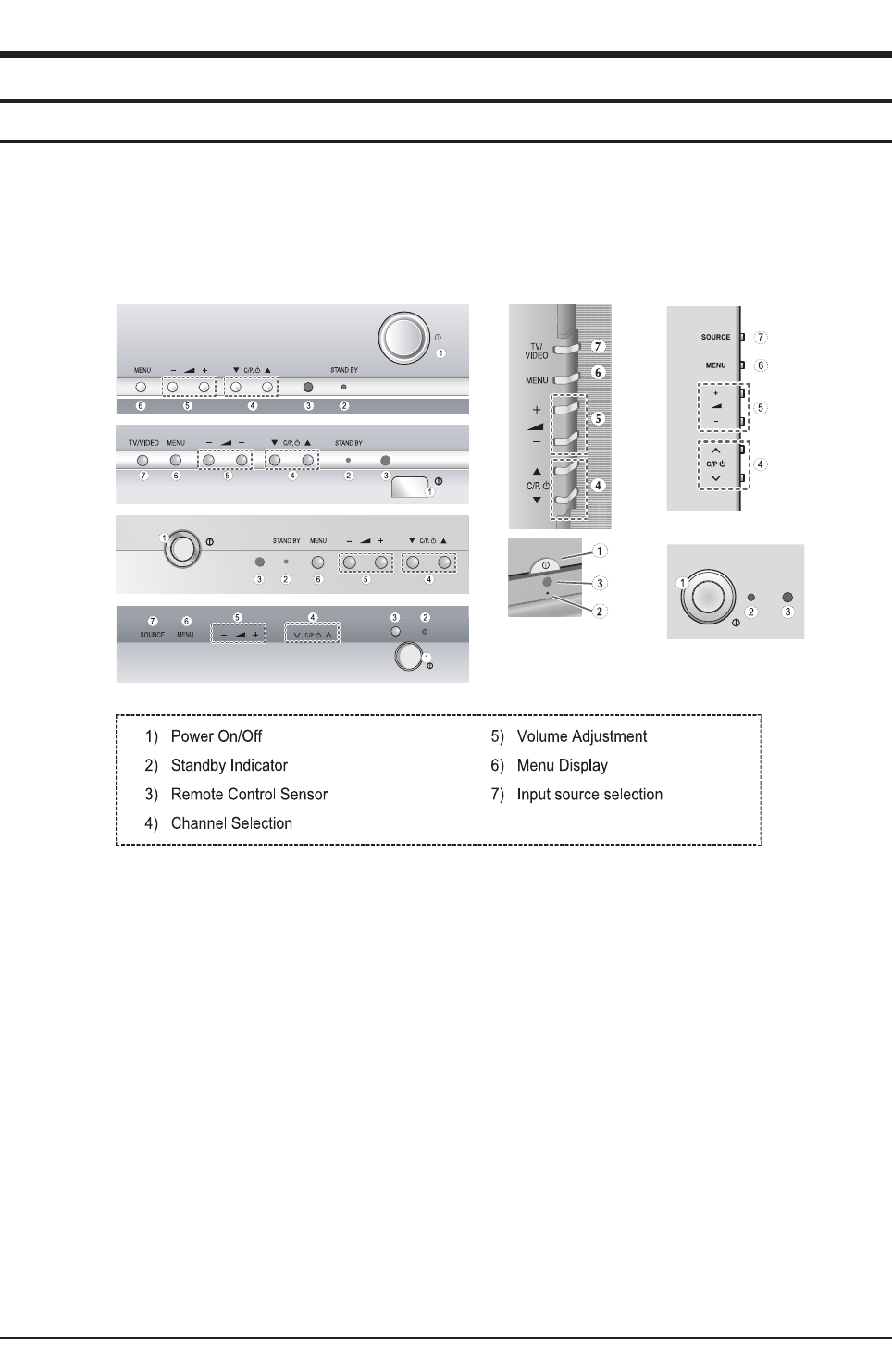

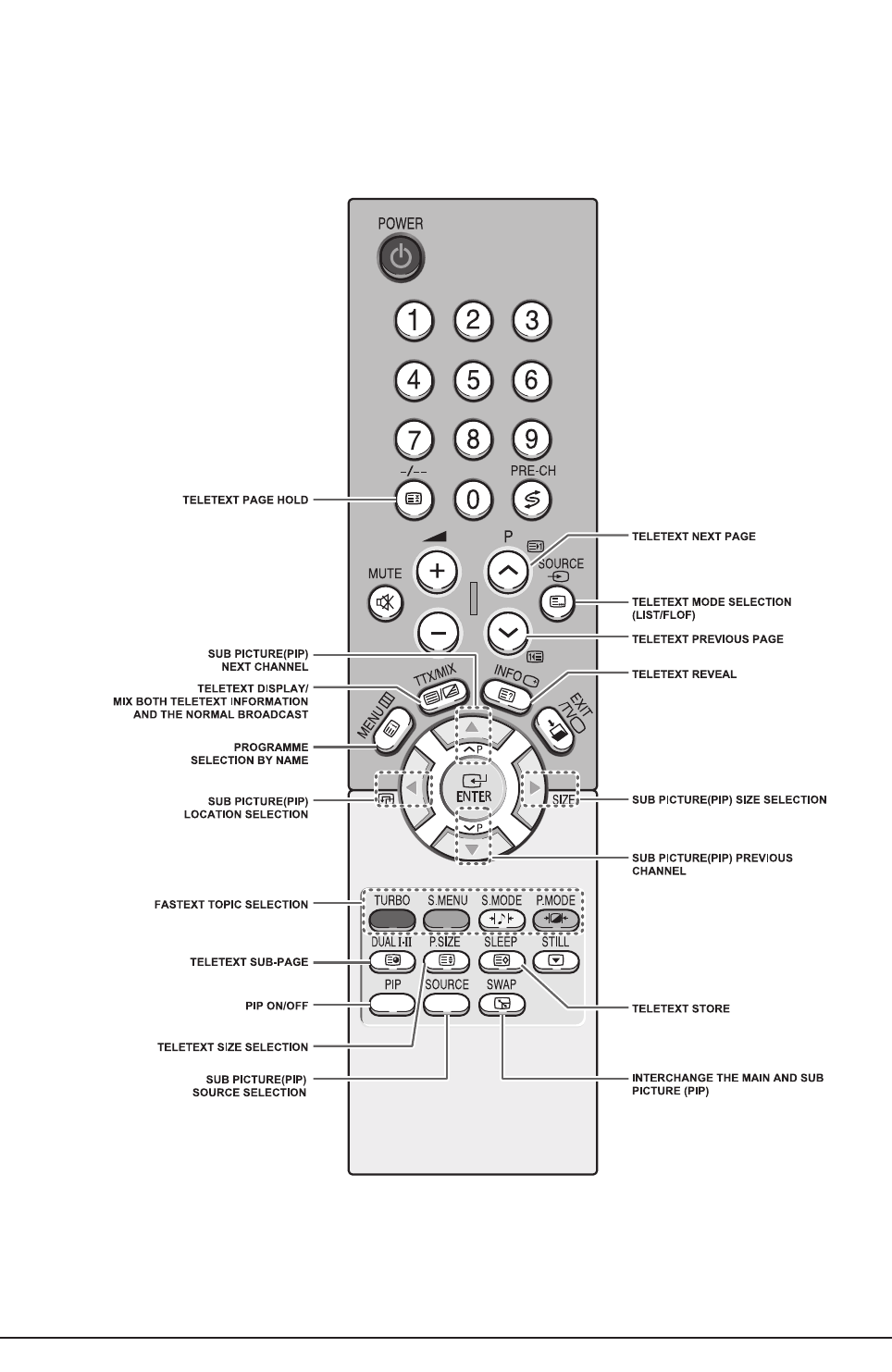

■11-1 Product Features and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

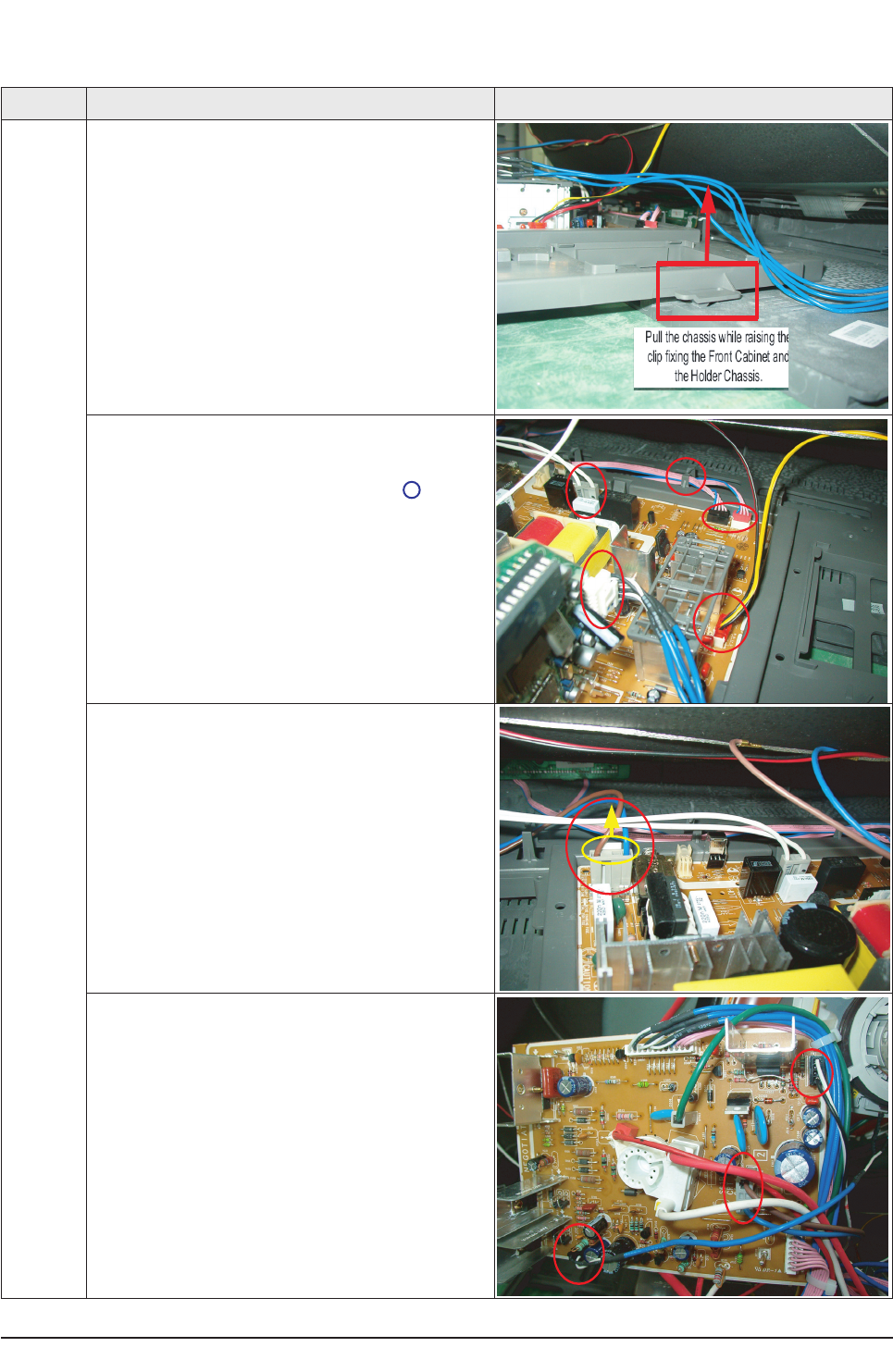

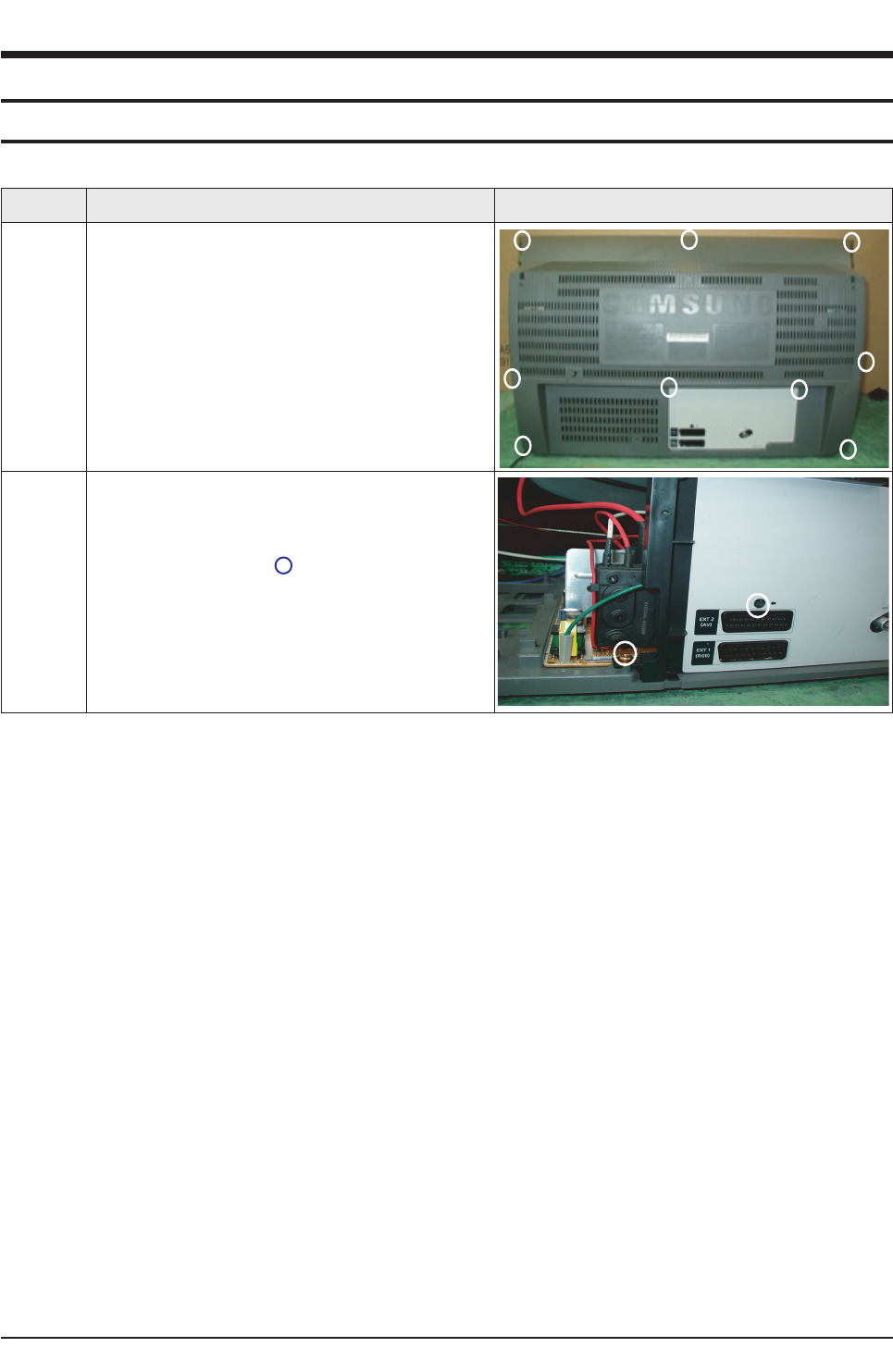

Chapter 12 Disassembly & Reassembly

■12-1 Overhaul Disassembly & Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Chapter 13 Circuit Description

■13-1 Overall Block Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

■13-2 IC Line up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-3

Chapter 14 Reference Information

■14-1 Other issues related to other products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

■14-2 Technical Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-2

1. Make sure all protective devices are properly installed

including non-metallic handles and compartment covers

when installing or re-installing the chassis or chassis

assemblies.

2. Make sure that no gaps exist between the cabinets for

children to insert their fingers in to prevent children from

receiving electric shocks. Gaps mentioned above include

ventilation holes of a too great magnitude between the

vaccum tube and the cabinet mask, and the improper

installation of the rear cabinet.

Errors may occur when the resistance is below 1.0 ㏁or

over 5.2 ㏁.

In these cases, make sure that the device is repaired

before sending it back to the customer.

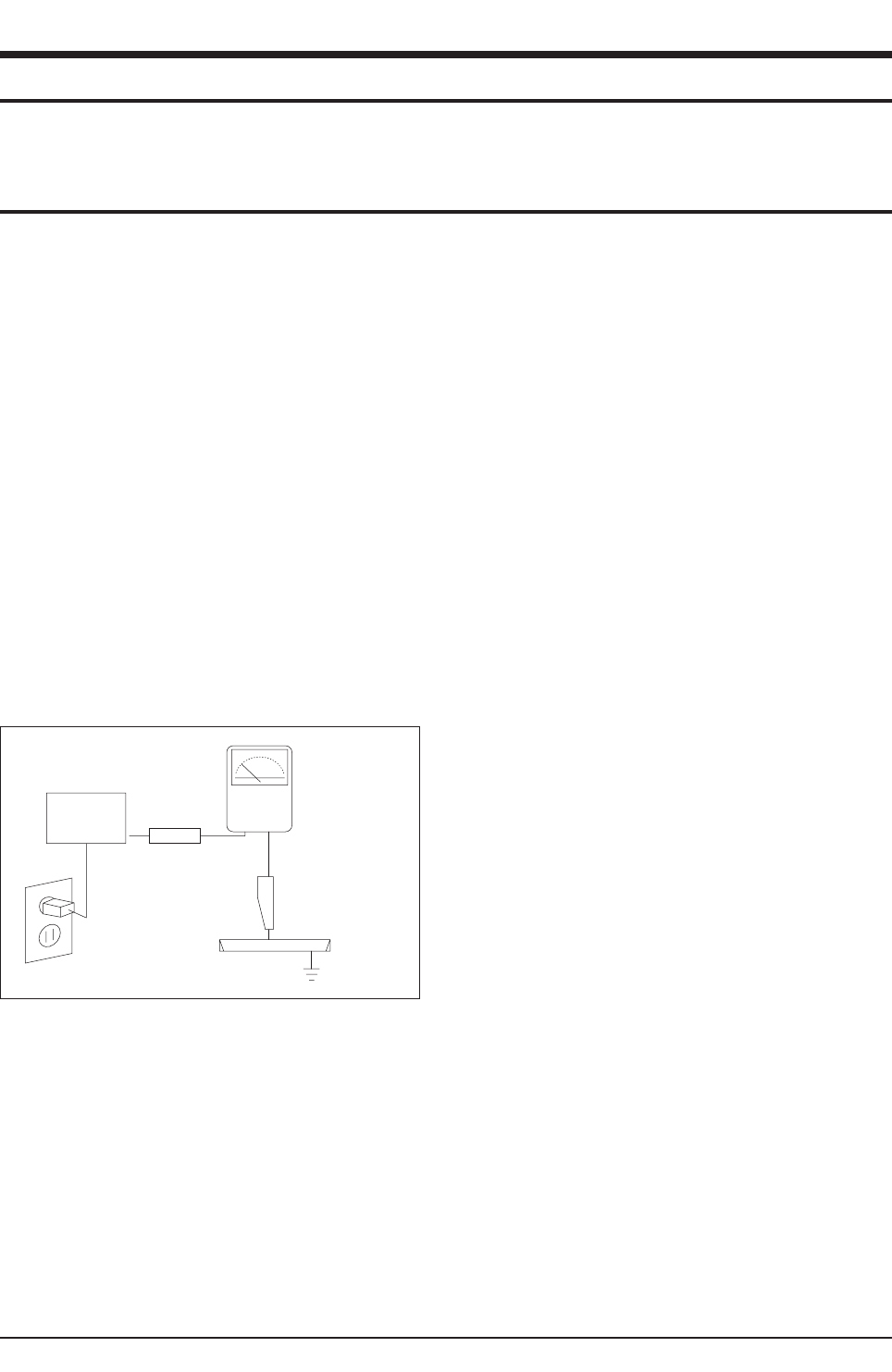

3. Check for Electricity Leakage (Figure 1-1)

Warning: Do not use an insulated transistor for checking

the leakage. Use only those current leakage testers or

mirroring systems that comply with ANSIC 101.1 and the

Underwriter Laboratory's specifications (UL1410, 59.7).

Fig. 1-1 AC Leakage Test

4. A high voltage is maintained within the specified limits

using safety parts, calibration and tolerances. When

voltage exceeds the specified limits, check each special

part.

5. Warning for Engineering Changes:

Never make any changes or additions to the circuit

design or the internal part for this product.

Ex: Do not add any audio or video accessory

connectors. This might cause physical damage.

Furthermore, any changes or additions to the original

design/engineering will invalidate the warranty.

6. Warning - Hot Chassis:

Some TV chassis are directly connected to one end of

the AC power cord for electrical reasons.

Without insulated transistors, the product can only be

repaired safely when the chassis is connected to the

earthed end of the AC power source.

To make sure the AC power cord is properly connected,

follow the instructions below. Use the voltmeter to

measure the voltage between the chassis and the

earthed ground. If the measurement is over 1.0V, unplug

the AC power cord and change the polarity before re-

inserting it. Measure the voltage between the chassis

and the ground again.

7. Some TV chassis are shipped with an additional

secondary grounding system. The secondary system is

adjacent to the AC power line. These two grounding

systems are separated in the circuit using an

unbreakable/unchangeable insulation material.

8. When any parts, material or wiring appear overheated or

damaged, replace them with new regular ones

immediately. When any damage or overheating is

detected, correct this immediately and make a regular

check of possible errors.

9. Check for the original shape of the lead, especially that

of the antenna wiring, any sharp edges, the AC power

and the high voltage power. Carefully check if the wiring

is too tight, incorrectly placed or loose. Never change the

space between the part and the printed circuit board.

Check the AC power cord for possible damages. Keep

the part or the lead away from any heat-emitting

materials.

Precaution

Samsung Electronics 1-1

LEAKAGE

CURRENT

TESTER

DEVICE

UNDER

TEST

TEST ALL

EXPOSED METAL

SURFACES

2-WIRE CORD

ALSO TEST WITH

PLUG REVERSED

(USING AC ADAPTER

PLUG AS REQUIRED) EARTH

GROUND

(READING SHOULD

NOT BE ABOVE

0.5mA)

To avoid possible damages or electric shocks or exposure to radiation, follow the instructions below with regard to safety,

installation, service and ESD..

1. Precaution

1-1 Safety Precautions

10. Safety Indication:

Some electrical circuits or device related materials

require special attention to their safety features, which

cannot be viewed by the naked eye. If an original part is

replaced with another irregular one, the safety or

protective features will be lost even if the new one has a

higher voltage or more watts.

Critical safety parts should be bracketed with ( ).

Use only regular parts for replacements (in particular,

flame resistance and dielectric strength specifications).

Irregular parts or materials may cause electric shock or

fire.

Precaution

1-2 Samsung Electronics

1. The service instructions are printed on the cabinet, and

should be followed by any service personnel.

2. Make sure to unplug the AC power cord from the power

source before starting any repairs.

(a) Remove or re-install parts or assemblies.

(b) Disconnect the electric plug or connector, if any.

capacitor.

3. Some parts are placed at a higher position than the

printed board. Insulated tubes or tapes are used for this

purpose. The internal wiring is clamped using buckles to

avoid contact with heat emitting parts. These parts are

installed back to their original position.

4. After the repair, make sure to check if the screws, parts

or cables are properly installed. Make sure no damage is

caused to the repaired part and its surroundings.

5. Check for insulation between the blade of the AC plug

and that of any conductive materials (i.e. the metal

panel, input terminal, earphone jack, etc).

6. Insulation Check Process: Unplug the power cord from

the AC source and turn the switch on. Connect the insu-

lating resistance meter (500v) to the AC plug blade.

The insulating resistance between the blade of the AC

plug and that of the conductive material should be more

than 1 ㏁.

7. Any B+ interlock should not be damaged.

If the metal heat sink is not properly installed, no

connection to the AC power should be made.

8. Make sure the grounding lead of the tester is connected

to the chassis ground before connecting to the positive

lead. The ground lead of the tester should be removed

last.

9. Beware of risks of any current leakage coming into

contact with the high-capacity capacitor.

10. The sharp edges of the metal material may cause

physical damage, so ensure wearing protective gloves

during the repair.

Precaution

Samsung Electronics 1-3

Warning 1: First carefully read the "Safety Instruction" in this service manual.

When there is a conflict between the service and the safety instructions, follow the safety instruction at all times.

Warning 2: Any electrolytic capacitor with the wrong polarity will explode.

1-2 Servicing Precautions

1-3 Static Electricity Precautions

1. Some semi-conductive ("solid state") devices are

vulnerable to static electricity. These devices are known

as ESD. ESD includes the integrated circuit and the field

effect transistor. To avoid any materials damage from

electrostatic shock, follow the instructions described

below.

2. Remove any static electricity from your body by

connecting the earth ground before handling any

semi-conductive parts or ass'ys. Alternatively, wear a

dischargeable wrist-belt.

(Make sure to remove any static electricity before

connecting the power source - this is a safety instruction

for avoiding electric shock)

3. Remove the ESD ass'y and place it on a conductive

surface such as aluminum foil to prevent accumulating

static electricity.

4. Do not use any Freon-based chemicals.

Such chemicals will generate static electricity that

causes damage to the ESD.

5. Use only grounded-tip irons for soldering purposes.

6. Use only anti-static solder removal devices.

Most solder removal devices do not support an

anti-static feature. A solder removal device without an

anti-static feature can store enough static electricity to

cause damage to the ESD.

7. Do not remove the ESD from the protective box until the

replacement is ready. Most ESD replacements are

covered with lead, which will cause a short to the entire

unit due to the conductive foam, aluminum foil or other

conductive materials.

8. Remove the protective material from the ESD

replacement lead immediately after connecting it to the

chassis or circuit ass'y.

9. Take extreme caution in handling any uncovered ESD

replacements. Actions such as brushing clothes or lifting

your leg from the carpet floor can generate enough static

electricity to damage the ESD.

Precaution

1-4 Samsung Electronics

CAUTION

These servicing instructions are for use by

qualified service personnel only.

To reduce the risk of electric shock do not

perform any servicing other than that contained in the

operating instructions unless you are qualified to do so.

Precaution

Samsung Electronics 1-5

1-4 Installation Precautions

1. For safety reasons, more than two people are required

for carrying the product..

2. Keep the power cord away from any heat emitting

devices, as a melted covering may cause fire or electric

shock.

3. Do not place the projector in areas with poor ventilation

such as a bookshelf or closet. The increased internal

temperature may cause fire.

4. Bend the external antenna cable when connecting it to

the product. This is a measure to protect it from being

exposed to moisture. Otherwise, it may cause a fire or

electric shock.

5. Make sure to turn the power off and unplug the power

cord from the outlet before removing the product. Also

check the antenna cable or the external connectors if

they are fully unplugged. Damage to the cord may cause

fire or electric shock.

6. Keep the antenna far away from any high-voltage cables

and install it firmly. Contacting the high-voltage cable or

the antenna falling over may cause fire or electric shock.

7. When connecting the RF antenna, check for a DTV

receiving system and install a separate DTV reception

antenna for areas with no DTV signal.

8. Check the basics of the screen test.

- Image position/size, Tilt adjustment

1-6 Samsung Electronics

MEMO

Product Specification

Samsung Electronics 2-1

2. Product Specification

2-1 Product Features

Block Specfication Remark

CRT

34" FLAT CRT

32" FLAT CRT

29" FLAT GREEN CRT(H/V:26.5kV)

29" FLAT CRT(H/V 30kV)

28" FLAT CRT

25" FLAT CRT

RF Part - LNA & 2TUNER PIP F/S TUNER TUNER(PIP,LNA) OPTION

Power - WORLD WIDE INPUT VOLTAGE RANGE

- STD-BY : 3W UNDER STR-W6750F

Video - PAL/SECAM/NT(CIS MODEL)

- BASIC 100Hz

SDA5550

VSP9402

CXA2180Q

SOUND

- Output : 10W X2

- Function : NICAM/A2 STEREO,

SRS,WOW

TURBO

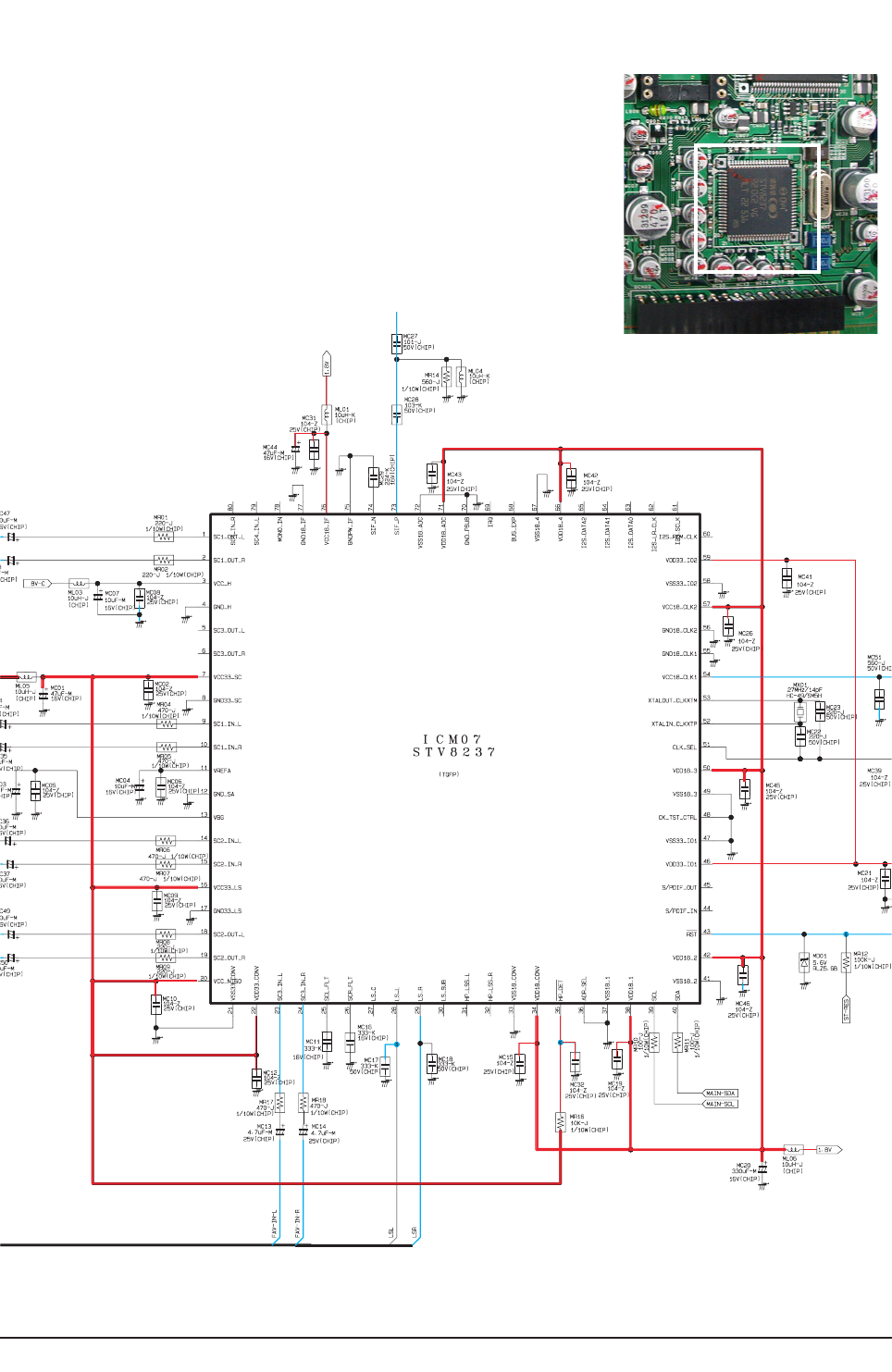

STV8237, TDA7297SA

■Core Parts Functions

- VSP9402 : RF-CVBS, EXT-CVBS, FRONT Y,C,SCART1 R G B, Video Signal Processing.

- CXA2180Q : H-out, VD-P, VD-N, RGB out, Video and Deflection Signal Processing.

- SDA5550M : IIC-Comunication, Master Control Micom

- M27W201 : ROM MICOM

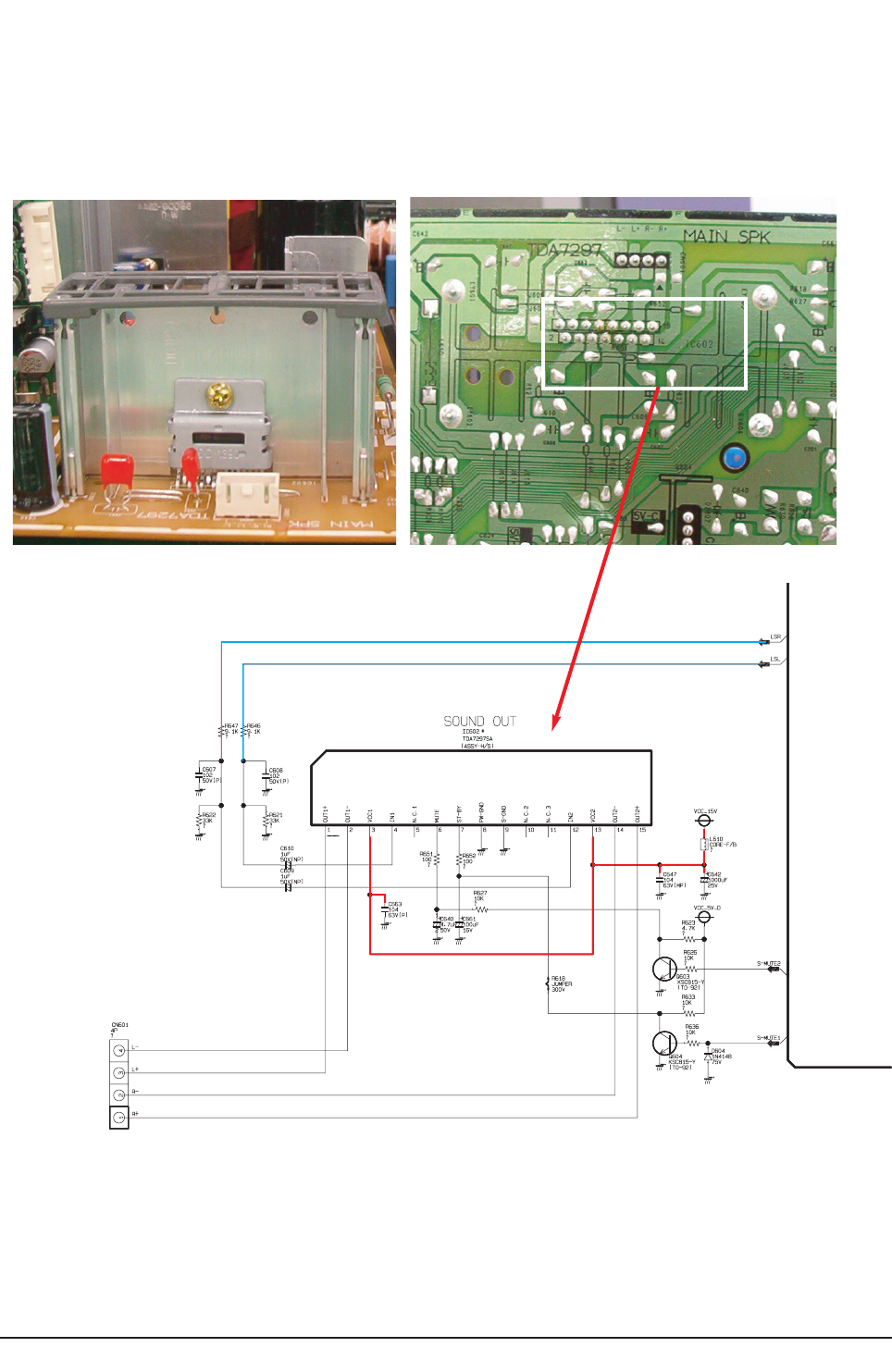

- TDA7266SA : 10W Sound Output BTL AMP

- LA7845 : Vertical Deflection AMP

- TDQ-6F(or 6L) : F/S PAL Tuner(LNA Option)

- TDA6109JF : R/G/B Drive AMP IC

Product Specification

2-2 Samsung Electronics

2-2 Key Features

Model CW-29M066V

Voltage 220 V

Frequency of Operation 50 Hz

Dimensions(mm) 730X485X575

Weight 43.5Kg

■H/W Configuration

- 480i 60/50Hz

- Multi System

- Digital 100Hz

- Multi PIP

■S/W Configuration

- 200 Page TTX(EAST, ASIA, CIS), 10page TTX(EAST ASIA, CIS)

- Multi System PAL/SECAM/NTSC4.43/NTSC3.58

- Auto wide, CM Label, Pre channel, On/off timer

- New LTI OSD

■Picture

- System : PAL/SECAM/NTSC4.43/NTSC3.58

- Digital 100Hz

- Black Level expantion, CTI, VM, LTI

- AKB(Auto kinetic Bias)

- Still picture, Digital Noise reduction

- Panorama : Wide Model

■Sound

- Sound System : A2, Nicam Stereo

- SRS WOW

- Output : 10W+10W

- AVL, Melody, Auto Stereo, Auto Mute, Equalizer

■Feature

- Picture Size : 16:9/Panorama/Zoom1/Zoom2/4:3

- Auto Program

- Sleep Timer : 180 Min.

- Clock

- Zoom, Previous channel, White Screen, Color Tone

- Multi PIP

Product Specification

Samsung Electronics 2-3

■In/Out Terminals

- Side : 1 CVBS Input, 1 S-VHS Input

- Rear

*EU, CIS : 42p 2-SCART Input/Output (SCART1 RGB Input)

■Remocon

- Universal : TM76

■Power Supply

- AC230 50Hz/60Hz (Europe)

- AC100-240V 50Hz/60Hz (East Asia)

- AC160-300 50Hz/60Hz (CIS)

■Power Comsumption

- Standy-by : 3W

Product Specification

2-4 Samsung Electronics

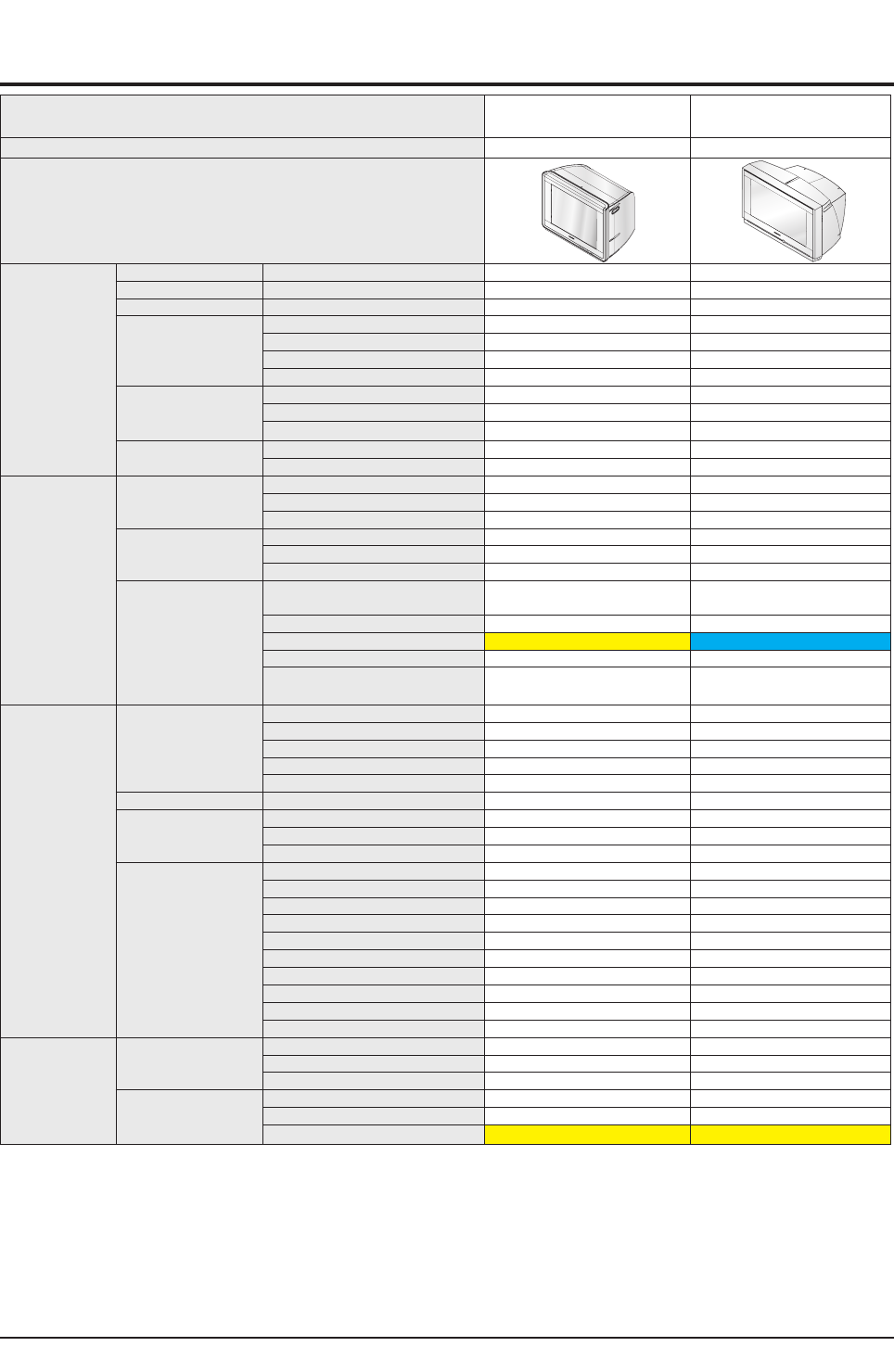

2-3 Specifications Analysis

Model WS-32M30SSPN

Negotiator

CW-29M166V

Negotiator2

Chassis S61A S61B

Design


DNIe DNIe/DNIe Jr -/- -/-

Noise Reduction NR / DNR DNR DNR

Low Noise Amplifier LNA O O

Picture Control

Color Tone O O

Auto White Balance Control - -

Tilt Control MoO O

Scan Mode Selection - -

Display

Screen Aspect Ratio(16:9/4:3) 16:9 16:9

Visible Diagonal 32" 32"

Type (Flat / Curved) Flat Flat

Picture Function 3:2 Pull Down - -

Auto Knietic Bias(AKB) O O

Sound

Stereo Type

Nicam / A2 Stereo O/O O/O

Line Stereo (AV Stereo) / Mono O/O O/O

Pseudo (Except Mono type) O O

Sound Control

Auto Stereo O O

Base/ Treble/ Balance -/-/O -/-/O

Sound Equalizer O O

Sound Effect System

(Surround System)

DTS (Digital Theater Sound) /

Dolby Digital (AC3) - -

Dolby Prologic / Dolby Prologic 2 - -

Virtual Dolby Virtual Dolby SRS WOW

BBE - -

Samsung Sound Effect (Turbo/Turbo

Plus/MDB, ETC) Turbo Turbo

Features

ATM (ATS) - -

Channel Skip O O

Channel Add/Erase O/O O/O

Channel Labeling O O

Previous Channel O O

PIP PIP Channel Scan - X

Timer

On/Off Timer O O

Sleep Timer O O

Auto Clock Set/manual clock set -/O -/O

TeleText

Teletext 10P 10P

Blue Screen On/Off O O

Melody On-Off O O

Plug & Play O O

Absent Power Off O O

Auto Power Off O O

Picture Size Control(Zoom&Wide/Zoom) O/- O/-

Picture Mode Select (5mode / 3mode) 4 mode 4 mode

Auto Wide O O

Help(on OSD Menu) O O

Terminals

Side In & Out Jacks

Composite (AV) O O

Y/C (S-Video) O O

Headphone(Earphone) - -

Rear Input Jacks

ANT.(RF) O O

Euro Scart 2 Scart 2 Scart

Audio Monitor Out O -

Product Specification

Samsung Electronics 2-5

2-4 Accessories

Accessories Item Item code Remark

Supplied Accessories

User Manual -

Samsung Service Center

Remote Control/

Alkaline Battery

(1.5V AAA)2EA

AA59-00370B/

4301-000121

Warranty Card -

Accessories that can be

purchased additionally

Coaxial Cable -

Internal shopping mall

HDMI/DVI Cable -

HDMI Cable -

Video/Audio Cable -

S-Video Cable -

Component Cable -

Optical Cable -

2-6 Samsung Electronics

MEMO

Alignment & Adjustment

Samsung Electronics 3-1

3. Alignment & Adjustment

3-1 Service Instruction

1. General Adjustment :

In general, a color TV can provide ideal visual quality by adjusting the basic settings such as the vertical size, horizontal size,

focus, etc. Display a black and white picture on the screen to check if the picture is clearly displayed.

If there are some 'spotted' points on the screen when displaying a black and white picture, degauss the screen using the

degauss coil. If the spotted points remain, re-adjust the purity and the convergence. This completes the basic performance

examination.

Notice.

■These adjustments and the check list are only applied to S61B chassis-applied models.

■Only use 230V for the measurement set. It is recommended using an insulation transformer when supplying power to

the set so as to prevent shock to the set or to yourself.

■These adjustment specifications have been created on the basis of the domestic S61B chassis-applied remote control

Smodel. Some of the contents may be changed subject to the sales location and the product specifications.

2. When replacing the Deflection Board:

Tilt adjustment, focus adjustment, screen voltage setting and W/B adjustment are all required

3. When replacing the F-box Board :

Since the software is loaded to the flash memory of F-box board, check the version of the software after replacing the board.

To check the version of the software, Enter service mode press the key on the remote control according to the

following seguenu.(in stand-by status) Info→Menu→Mute→Power→ON

The software information will then be displayed below the OSD menu.The notation of the software information

: For example T_NGTPEU1_0006Since the settings including the Channel information, Deflection, etc. are saved to the

nvRAM, reconfigure these settings when replacing the F-box Board.

4. When replacing the CRT Ass'y : No adjustments required.

5. When replacing the front panel master power switch : No adjustments required.

6. When replacing the Side AV : No adjustments required.

7. When replacing the control switch : No adjustments required.

Alignment & Adjustment

3-2 Samsung Electronics

3-2 How to Access Service Mode

1. To enter Service Mode, press the keys on the remote control according to the following sequence. (in Stand-by status)

Info →Menu →Mute →Power On

※When failing to enter Service Mode, repeat the procedure above.

2. The initial screen of Service Mode.

3. Functions of the Keys within Service Mode

Service/T-NG2PEU_XXX

Option(XX XX XX)

Deflection

Video Adjust 1

Video Adjust 2

Video Adjust 3

Video Adjust 4

Video Adjust 5

YC Delay

EEPROM

Checksum(0000)

Reset/XX-XX-XX XXPage

MENU Show all menus

▲/ ▼Move the cursor to select an item.

◀/ ▶Adjust the selected configuration value

Alignment & Adjustment

Samsung Electronics 3-3

3-3 Factory Data ★The underlined are items applied during the service adjustment. None of the others should be adjusted.

1. Option Byte1 (Russia)

No Item

25"[0.315mH] 25"[0.315mH] 25"[0.315mH] 29" [0.28mH] 29" [0.28mH] 29" [0.28mH] 32"[0.28mH] 32"[0.28mH]

CS25M6SPQ CS25M6SSQ CS25M6SQQ

CS29M6SPQ

CS29A11SPQ

CS34A11SPQ

CS29M6SSQ

CS29A11SSQ

CS34A11SSQ

CS29M6SQQ WS32A11SPQ WS32A11SSQ

1 CRT 4:3 4:3 4:3 4:3 4:3 4:3 WIDE WIDE

2Osd Group CIS CIS CIS CIS CIS CIS CIS CIS

3Osd Language CIS CIS CIS CIS CIS CIS CIS CIS

4 AV-Jack Scart Scart Scart Scart Scart Scart Scart Scart

5 DTV Off Off Off Off Off Off Off Off

6 PIP 2-TUNER Off Off 2-TUNER Off Off 2-TUNER Off

7 LNA On On On On On On On On

8 Search_LNA On On On On On On On On

9 SOUND SRS SRS A2/NICAM SRS SRS A2/NICAM SRS SRS

10 Auto FM On On On On On On On On

11 Carrier mute Off Off Off Off Off Off Off Off

12 HIGH Deviation Off Off Off Off Off Off Off Off

13 Woofer Off Off Off Off Off Off Off Off

14 TTX Group Russia Russia Russia Russia Russia Russia Russia Russia

15 TTX LIST PRI Off Off Off Off Off Off Off Off

16 TTX ON/OFF On On On On On On On On

17 DTV1080I 50HZ 50HZ 50HZ 50HZ 50HZ 50HZ 50HZ 50HZ

18 Digital NR On On On On On On On On

19 AGC Off Off Off Off Off Off Off Off

20 Tilt Off Off Off On On On On On

21 Speaker Non Dome Non Dome Non Dome Non Dome Non Dome Non Dome Non Dome Non Dome

22 HOTEL MODE OFF OFF OFF OFF OFF OFF OFF OFF

Alignment & Adjustment

3-4 Samsung Electronics

2. Deflection Adiustment (PAL)

No Item

CS25M6SPQ

CS25M6SSQ

CS25M6SQQ

CS29M6SPQ

CS29M6SSQ

CS29M6SQQ

WS32A11SPQ

WS32A11SSQ

CS34A11SPQ

CS34A11SSQ Remark

25" 29" 32" 34"

0 V Amp 45 23 20 23->29 Adjust

1 V_SHIFT 30 22 29 25->23 Adjust

2H EW 33 40 40 30->28 Adjust

3H Shift 35 22 36 20->21 Adjust

4V Linearity 4 6 11 7 FIX

5 Upper-Linearity 8 8 10 6 FIX

6 Lower-Linearity 4 4 0 2 FIX

7V SC 5 5 0 5 FIX

8H Parablar 32 33 38 33->20 Adjust

9Upper Corner 32 34 21 37->34 Adjust

10 Lower Corner 32 34 33 41->40 Adjust

11 H Trapezium 32 41 15 20->26 Adjust

12 Bow 32 31 31 32->30 Adjust

13 Angle 31 31 32 32 Adjust

14 V Position 40 40 40 40 FIX

15 CXA 2151 Sub01 68 68 68 68 FIX

16 CXA 2151 Sub01 1 1 1 1 FIX

3. Deflection Adiustment (NTSC)

No Item

CS25M6SPQ

CS25M6SSQ

CS25M6SQQ

CS29M6SPQ

CS29M6SSQ

CS29M6SQQ

WS32A11SPQ

WS32A11SSQ

CS34A11SPQ

CS34A11SSQ Remark

25" 29" 32" 34"

0 V Amp cc 0 0 -2 Adjust

1 V_SHIFT 2 3 3 2 Adjust

2H EW 1 1 0 0 Adjust

3H Shift 9 6 6 6 Adjust

4V Linearity 2 2 2 1 FIX

5 Upper-Linearity 1 1 1 1 FIX

6 Lower-Linearity -1 -1 -1 -2 FIX

7V SC 0 0 0 0 FIX

8H Parablar 0 1 -1 1 Adjust

9Upper Corner 2 0 0 -2 Adjust

10 Lower Corner 0 2 0 2 Adjust

11 H Trapezium -8 -5 -4 -12 Adjust

12 Bow 1 1 1 0 Adjust

13 Angle -3 2 -2 -1 Adjust

14 V Position 0 0 0 0 FIX

15 CXA 2151 Sub01 68 68 68 68 FIX

16 CXA 2151 Sub01 1 1 1 1 FIX

Alignment & Adjustment

Samsung Electronics 3-5

Alignment & Adjustment

3-6 Samsung Electronics

4. Video Adjustment 1

No Item

CS25M6SPQ

CS25M6SSQ

CS25M6SQQ

CS29M6SPQ

CS29M6SSQ

CS29M6SQQ

WS32A11SPQ

WS32A11SSQ

CS34A11SPQ

CS34A11SSQ Remark

25" 29" 32" 34"

0 R_CUTOFF 34 40 49 50 s Adjust

1 G_CUTOFF 25 25 25 25 FIX

2 B_CUTOFF 26 26 31 38 Adjust

3Color On / Off 1 1 1 1 FIX

4CR Offset 35 35 35 35 Adjust

5CB Offest 25 25 25 25 Adjust

6R Drive 37 39 26 45 Adjust

7G Drive 25 25 25 25 FIX

8B Drive 29 26 19 27 Adjust

9Sub Bright 37 46 51 48 Adjust

10 Sub Contrast 4 7 6 10 Adjust

11 Sub Color 20 20 20 20 FIX

12 Secam sub color 2 2 2 2 FIX

13 Sub Tint 28 28 28 28 FIX

14 CTI Level 2 2 2 2 FIX

15 R-Y/R 15 15 15 15 FIX

16 R-Y/B 15 15 15 15 FIX

17 G-Y/R 9 9 9 9 FIX

18 G-Y/B 6 6 6 6 FIX

19 LTI Level 0 0 0 0 FIX

20 VSU 2 2 2 2 FIX

21 Melody volume 9 9 9 9 FIX

22 Video mute time 6 6 6 6 Adjust

Alignment & Adjustment

Samsung Electronics 3-7

5. Video Adjustment 2

No Item

CS25M6SPQ

CS25M6SSQ

CS25M6SQQ

CS29M6SPQ

CS29M6SSQ

CS29M6SQQ

WS32A11SPQ

WS32A11SSQ

CS34A11SPQ

CS34A11SSQ Remark

25" 29" 32" 34"

0 ABL Mode 3 3 3 3 FIX

1 Gamma 2 2 3 3 FIX

2DPIC Level 2 2 2 2 FIX

3DC Trans 2 2 2 2 FIX

4 ABL-TH 14 14 14 14 FIX

5 VM-Level 1 1 1 1 FIX

6 VM-F0 0 0 0 0 FIX

7 VM-Delay 3 3 3 3 FIX

8 SHP-F0 0 0 0 0 FIX

9PRE Over 0 0 0 0 FIX

10 AKB Time 15 15 13 15 FIX

11 Coring 00 00 00 00 FIX

12 Bandpass 7 7 7 7 FIX

13 Highpass 8 8 8 8 FIX

14 Bandpass_AV 6 6 6 6 FIX

15 Highpass_AV 7 7 7 7 FIX

16 FLCOL_SW 1 1 1 1 FIX

17 FLCOL 0 0 0 0 FIX

6. Video Adjustment 3

No Item

CS25M6SPQ

CS25M6SS7Q

CS25M6SQQ

CS29M6SPQ

CS29M6SSQ

CS29M6SQQ

WS32A11SPQ

WS32A11SSQ

CS34A11SPQ

CS34A11SSQ Remark

25" 29" 32" 34"

0 H_EHT comp 4 5 7 2 FIX

1 V_EHT comp 4 6 6 2 FIX

2NR OFF Value 6 6 6 6 FIX

3 PIP Contrast 13 13 13 13 FIX

4 PIP Bright 0 0 0 0 FIX

5 PIP Tint 63 63 63 63 FIX

6 PIP Color 7 7 7 7 FIX

7PIP Pal V Pos 28 28 28 28 FIX

8PIP NTSC V Pos 25 25 25 25 FIX

9PIP H Pos 34 34 34 34 FIX

10 PIP R Cut off 0 0 0 0 FIX

11 PIP G Cut off 0 0 0 0 FIX

12 PIP B Cut off 0 0 0 0 FIX

13 PIP R Drive 56 56 56 56 FIX

14 PIP G Drive 56 56 56 56 FIX

15 PIP B Drive 56 56 56 56 FIX

16 PIP VSP Delay 5 5 5 5 FIX

Alignment & Adjustment

3-8 Samsung Electronics

7. Video Adjustment 4

No Item

CS25M6SPQ

CS25M6SSQ

CS25M6SQQ

CS29M6SPQ

CS29M6SSQ

CS29M6SQQ

WS32A11SPQ

WS32A11SSQ

CS34A11SPQ

CS34A11SSQ Remark

25" 29" 32" 34"

03Pip Pal V position 12 12 11 12 Adjust

13Pip Pal H Position 13 13 12 13 Adjust

23Pip Ntsc V Position 11 11 11 11 Adjust

33Pip Ntsc H Position 19 19 19 19 Adjust

4Sync Phase (480p) 0 0 0 0 FIX

5Sync Phase (576p) 1 1 1 1 FIX

6Sync Phase (1080i) 0 0 0 0 FIX

8. YC DELAY

No Item

CS25M6SP7X/BWT

CS25M6SS7X/BWT

CS25M6SQ7S/ELD

CS29M6SP7X/BWT

CS29M6SS7X/BWT

CS29M6SQ7S/ELD

WS32A11SP7XBWT

WS32A11SS7XBWT

CS34A11SP7SBWT

CS34A11SS7SBWT Remark

25" 29" 32" 34"

0P.YC (AV) Delay -9 -9 -9 -9 FIX

1S.YC (AV) Delay -8 -8 -8 -8 FIX

2N.YC (AV) Delay -8 -8 -8 -8 FIX

3P.BG.YC Delay -8 -8 -8 -8 FIX

4P.DK.YC Delay -10 -10 -10 -10 FIX

5P.I.YC Delay -10 -10 -10 -10 FIX

6P.M.YC DELAY -9 -9 -9 -9 FIX

7P.L.YC Delay -8 -8 -8 -8 FIX

8S.BG.YC Delay -6 -6 -6 -6 FIX

9S.DK.YC Delay -8 -8 -8 -8 FIX

10 S.I.YC Delay -10 -10 -10 -10 FIX

11 S.M4.43.YC DELAY -10 -10 -10 -10 FIX

12 S.L.YC Delay -5 -5 -5 -5 FIX

13 N.M.YC Delay -7 -7 -7 -7 FIX

Alignment & Adjustment

Samsung Electronics 3-9

9.EEPROM

No Item 25" 29" 32" 34" Remark

0 System 0 0 0 0 FIX

1System (VGA) 0 0 0 0 FIX

2System (480p) 0 0 0 0 FIX

3System (1080i) 0 0 0 0 FIX

4Dynamic Contrast 90 90 90 90 FIX

5Dynamic Brightness 50 50 50 50 FIX

6Dynamic Shapness 55 55 55 55 FIX

7Dynamic Color 35 35 35 35 FIX

8Dynamic Tint 50 50 50 50 FIX

9Dynamic Color Tone 2 2 2 2 FIX

10 Standard Contrast 70 70 70 70 FIX

11 Standard Brightness 50 50 50 50 FIX

12 Standard Shapness 50 50 50 50 FIX

13 Standard Color 50 50 50 50 FIX

14 Standard Tint 50 50 50 50 FIX

15 Standard Color Tone 2 2 2 2 FIX

16 Movie Contrast 40 40 40 40 FIX

17 Movie Brightness 50 50 50 50 FIX

18 Movie Shapness 40 40 40 40 FIX

19 Movie Color 45 45 45 45 FIX

20 Movie Tint 50 50 50 50 FIX

21 Movie Color Tone 2 2 2 2 FIX

22 Left Blanking (PAL) 255 255 255 255 FIX

23 Right Blanking (PAL) 255 255 255 255 FIX

24 Left Blanking (VGA) 255 255 255 255 FIX

25 Right Blanking (VGA) 255 255 255 255 FIX

26 Left Blanking (480p) 215 215 215 215 FIX

27 Right Blanking(480p) 105 105 105 105 FIX

28 Left Blanking(1080i) 141 141 141 141 FIX

29 Right Blanking(1080i) 109 109 109 109 FIX

30 Brightness (RGB) 236 236 236 236 FIX

31 Contrast (RGB) 165 165 169 169 FIX

32 U Saturation (RGB) 94 94 94 94 FIX

33 V Saturation (RGB) 36 36 36 36 FIX

34 DVD Brightness (YPbPr) 255 255 255 255 FIX

35 DVD Contrast (YPbPr) 160 160 160 160 FIX

36 DVD U Saturation (YPbPr) 230 230 230 230 FIX

37 DVD V Saturation (YPbPr) 38 38 38 38 FIX

38 9402 Y Gain 200 200 200 200 FIX

39 9402 U Gain 85 85 85 85 FIX

40 - 255 255 255 255 FIX

41 9402 V Gain 75 75 75 75 FIX

42 CrCb Gain (480p) 119 119 119 119 FIX

43 CrCb Gain (1080i) 119 119 119 119 FIX

44 LTI Mode 2 2 2 2 FIX

45 LTI Mode (VGA) 255 255 255 255 FIX

Alignment & Adjustment

3-10 Samsung Electronics

No Item 25" 29" 32" 34" Remark

46 LTI Mode (480p) 1 1 1 1 FIX

47 LTI Mode (1080i) 1 1 1 1 FIX

48 NR ON value1 85 85 85 85 FIX

49 NR ON value2 85 85 85 85 FIX

50 NR OFF value1 68 68 68 68 FIX

51 NR OFF value2 68 68 68 68 FIX

52 NR ON value3 170 170 170 170 FIX

53 NR ON value4 170 170 170 170 FIX

54 NR OFF value3 34 34 34 34 FIX

55 NR OFF value4 34 34 34 34 FIX

56 - 255 255 255 255 FIX

57 SECAM °¨µµ 28 28 28 28 FIX

58 Range of R Gain 32 32 32 32 FIX

59 Range of G Gain 32 32 32 32 FIX

60 Range of B Gain 32 32 32 32 FIX

61 Range of F/B Gain 23 23 23 23 FIX

62 - 255 255 255 255 FIX

63 TTX V-Position 40 40 40 40 FIX

64 TTX H-Position 180 180 180 180 FIX

65 - 255 255 255 255 FIX

66 - 255 255 255 255 FIX

67 wide model 4:3 Normal Parabola 0 0 0 0 FIX

68 1080i 50HZ Trepezium 255 255 255 255 FIX

69 1080i 60HZ Trepezium 255 255 255 255 FIX

70 UP-UCG (Up Corner Semi Control) 0 0 0 0 FIX

71 LO-UCG (Low Corner Semi Control) 0 0 0 0 FIX

72 Vertical Slicing Level 15 15 15 15 FIX

73 Vertical Sync Lowpass-Filter 13 13 13 13 FIX

74 Amplifier Current Setting of Oscillator ad 2 2 2 2 FIX

75 PAL 185 185 185 185 FIX

76 Chroma (PAL) 215 215 215 215 FIX

77 Chroma PLLuto PLL 1 1 1 1 FIX

78 AV PAL 200 200 200 200 FIX

79 NT left blank 127 127 127 127 FIX

80 NT Right blank 126 126 126 126 FIX

81 Progressive TTX V Position 255 255 255 255 FIX

82 Progressive TTX H-Position 255 255 255 255 FIX

83 3Pip Pal V position 46 12 12 12 FIX

84 3Pip Pal H Position 35 13 13 13 FIX

85 3Pip Ntsc V Position 43 11 11 11 FIX

86 3Pip Ntsc H Position 30 30 30 30 FIX

87 - 22 22 22 22 FIX

88 - 27 27 27 27 FIX

89 - 255 255 255 255 FIX

90 RF SubBright 124 124 124 124 FIX

91 TTX Sub Brightness 235 235 235 235 FIX

92 Left Blanking 141 141 141 141 FIX

Alignment & Adjustment

Samsung Electronics 3-11

No Item 25" 29" 32" 34" Remark

93 Right Blanking 153 153 153 153 FIX

94 S - ABL 0 0 0 0 FIX

95 P - ABL 48 48 48 0 FIX

96 Picture Limit Level 3 3 3 3 FIX

97 OSD Level (LRGB2_LEV) 5 5 5 5 FIX

98 TTX Level (LRGB2_LEV) 3 3 3 3 FIX

99 AGCADJ1 230 230 230 230 FIX

100 AGCADJ2 110 110 110 110 FIX

101 ON TIMER CH memory 1 1 1 1 FIX

102 COMPONENT2 OSD Brightness 10 10 10 10 FIX

196 TNR1 207 207 207 207 FIX

197 TNR2 175 175 175 175 FIX

198 TNR3 149 149 149 149 FIX

199 TNR4 127 127 127 127 FIX

200 TNR5 99 99 99 99 FIX

201 TNR6 31 31 31 31 FIX

205 TNR1 156 156 156 156 FIX

206 TNR2 76 76 76 76 FIX

207 TNR3 64 64 64 64 FIX

250 EEPROM check sum 171 171 171 171 FIX

252 IKR Count 250 250 250 250 FIX

253 Start 40 40 40 40 FIX

254 End 150 150 150 150 FIX

Alignment & Adjustment

3-12 Samsung Electronics

1. Option Byte2 (Europe)

No Item

SDI CRT(0.28mH) SDI CRT(0.28mH) SDI CRT(0.28mH)

Remark29" 28" 32"

CW29M206P7XXEC WS28M206P7XXEC WS32M206P7XXEC

0 V Amp 30 40 25 Adjust

1 V_SHIFT 25 25 25 Adjust

2H EW 35 30 30 Adjust

3H Shift 35 25 25 Adjust

4V Linearity 11 6 11 FIX

5 Upper-Linearity 10 6 10 FIX

6 Lower-Linearity 0 3 0 FIX

7V SC 0 3 0 FIX

8H Parablar 35 32 25 Adjust

9Upper Corner 20 32 20 Adjust

10 Lower Corner 30 32 25 Adjust

11 H Trapezium 20 32 28 Adjust

12 Bow 33 32 32 Adjust

13 Angle 30 32 31 Adjust

14 V Position 40 40 40 FIX

2. Deflection Adiustment (PAL)

oItem

SDI CRT(0.28mH) SDI CRT(0.28mH) SDI CRT(0.28mH)

29" 28" 32"

CW29M206P7X CW29M206T(V)7X WS28M2O6P7XXEC WS28M2O6T(V)7X WS32M2O6P7XXEC WS32M2O6T(V)7X

0 CRT 4;3 4;3 Wide Wide Wide Wide

1 AV-Jack Scart Scart Scart Scart Scart Scart

2 DTV OFF OFF OFF OFF OFF OFF

3 PIP 2-tuner off 2-tuner off 2-tuner off

4 LNA On off On off On off

5 SEARCH_LNA On off On off On off

6 SOUND SRS SRS SRS SRS SRS SRS

7Auto FM On On On On On On

8Tilt on/off Off Off ON ON ON ON

9HIGH Deviation Off Off Off Off Off Off

10 Woofer Off Off Off Off Off Off

11 TTX Group Osd Language Osd Language Osd Language Osd Language Osd Language Osd Language

12 TTX LIST OFF OFF OFF OFF OFF OFF

13 Digital NR On On On On On On

14 AGC on/off Off Off Off Off Off Off

Alignment & Adjustment

Samsung Electronics 3-13

3. Deflection Adiustment (NTSC)_Offset

No Item

SDI CRT(0.28mH) SDI CRT(0.28mH) SDI CRT(0.28mH)

Remark29" 28" 32"

CW29M206P7XXEC WS28M206P7XXEC WS32M206P7XXEC

0 V Amp 0 0 0 Adjust

1 V_SHIFT -1 -1 -1 Adjust

2H EW 1 1 1 Adjust

3H Shift 6 6 6 Adjust

4V Linearity -4 -4 -4 FIX

5 Upper-Linearity -1 -1 -1 FIX

6 Lower-Linearity 3 3 3 FIX

7V SC 0 0 0 FIX

8H Parablar 10→0 10→0 10→0 Adjust

9Upper Corner 2 2 2 Adjust

10 Lower Corner -2 -2 -2 Adjust

11 H Trapezium 9→5 9→5 9→5 Adjust

12 Bow 0 0 0 Adjust

13 Angle 0 0 0 Adjust

14 V Position 0 0 0 FIX

4. Video Adjustment 1

No Item

SDI CRT(0.28mH) SDI CRT(0.28mH) SDI CRT(0.28mH)

Remark29" 28" 32"

CW29M206P7XXEC WS28M206P7XXEC WS32M206P7XXEC

0 R_CUTOFF, 40 40 40 Adjust

1 G_CUTOFF, 25 25 25 Adjust

2 B_CUTOFF, 35 35 35 Adjust

3Color On / Off 01 01 01 FIX

4CR Offset 35 35 35 Adjust

5CB Offest 25 25 25 Adjust

6R Drive 37 37 37 Adjust

7G Drive 32 32 32 Adjust

8B Drive 29 29 29 Adjust

9Sub Bright 45 45 45 Adjust

10 Sub Contrast 4 4 4 Adjust

11 Sub Color 9 9 9 FIX

12 Secam sub color 5 5 5 FIX

13 Sub Tint 28 28 28 FIX

14 CTI Level 2 2 2 FIX

15 R-Y/R 15 15 15 FIX

16 R-Y/B 15 15 15 FIX

17 G-Y/R 9 9 9 FIX

18 G-Y/B 6 6 6 FIX

19 LTI Level 0 0 0 FIX

20 VSU 2 2 2 FIX

21 Melody volume 9 9 9 Adjust

22 Video mute time 6 6 6

Alignment & Adjustment

3-14 Samsung Electronics

5. Video Adjustment 2

No Item

SDI CRT(0.28mH) SDI CRT(0.28mH) SDI CRT(0.28mH)

Remark29" 28" 32"

CW29M206P7XXEC WS28M206P7XXEC WS32M206P7XXEC

0 ABL Mode 3 3 3 FIX

1 Gamma 2 3 3 FIX

2DPIC Level 2 2 2 FIX

3DC Trans 2 2 2 FIX

4 ABL-TH 14 14 14 FIX

5 VM-Level 1 1 1 FIX

6 VM-F0 0 0 0 FIX

7 VM-Delay 3 3 3 FIX

8 SHP-F0 0 0 0 FIX

9PRE Over 0 0 0 FIX

10 AKB Time 15 13 13 FIX

11 Coring 00 00 00 FIX

12 Bandpass 7 7 7 FIX

13 Highpass 8 8 8 FIX

14 Bandpass_AV 6 6 6 FIX

15 Highpass_AV 7 7 7 FIX

16 FLCOL_SW 1 1 1 FIX

17 FLCOL 0 0 0 FIX

18 TRUBASS_CTRL(0XBA) O8 O8 O8 FIX

19 TRUBASS_LEVEL(0XBB) 1A 1A 1A FIX

20 NICAM MAE VALUE 255 255 255 FIX

Alignment & Adjustment

Samsung Electronics 3-15

6. Video Adjustment 3

No Item

SDI CRT(0.28mH) SDI CRT(0.28mH) SDI CRT(0.28mH)

Remark29" 28" 32"

CW29M206P7XXEC WS28M206P7XXEC WS32M206P7XXEC

0 H_EHT comp 9 7 7 FIX

1 V_EHT comp 8 6 6 FIX

5NR Value 6 6 6 FIX

6 PIP Contrast 8 8 8 FIX

7 PIP Bright 0 0 0 FIX

8 PIP Tint 52 52 52 FIX

9 PIP Color 10 10 10 FIX

10 PIP Pal V Pos 28 28 28 FIX

11 PIP NTSC V Pos 25 25 25 FIX

12 PIP H Pos 34 34 34 FIX

13 PIP R Cut off 0 0 0 FIX

14 PIP G Cut off 0 0 0 FIX

15 PIP B Cut off 0 0 0 FIX

16 PIP R Drive 75 75 75 FIX

17 PIP G Drive 75 75 75 FIX

18 PIP B Drive 75 75 75 FIX

19 PIP VSP Delay 5 5 5 FIX

7. Video Adjustment 4

No Item

SDI CRT(0.28mH) SDI CRT(0.28mH) SDI CRT(0.28mH)

Remark29" 28" 32"

CW29M206P7XXEC WS28M206P7XXEC WS32M206P7XXEC

03Pip Pal V position 11 11 11 Adjust

13Pip Pal H Position 12 12 12 Adjust

23Pip Ntsc V Position 11 11 11 Adjust

33Pip Ntsc H Position 19 19 19 Adjust

4Sync Phase (480p) - - - FIX

5Sync Phase (576p) - - - FIX

6Sync Phase (1080i) - - - FIX

Alignment & Adjustment

3-16 Samsung Electronics

8. Video Adjustment 5

No Item

SDI CRT(0.28mH) SDI CRT(0.28mH) SDI CRT(0.28mH)

Remark29" 28" 32"

CW29M206P7XXEC WS28M206P7XXEC WS32M206P7XXEC

0 R-DRIVE_Cool2 -2 -2 -2 FIX

1 B-DRIVE_Cool2 5 5 5 FIX

2 R-CUT OFF_Cool2 -8 -8 -8 FIX

3 B-CUT OFF_Cool2 8 8 8 FIX

4 R-DRIVE_Cool1 0 0 0 FIX

5 B-DRIVE_Cool1 2 2 2 FIX

6 R-CUT OFF_Cool1 -6 -6 -6 FIX

7 B-CUT OFF_Cool1 3 3 3 FIX

8 R-DRIVE_Normal 0 0 0 FIX

9 B-DRIVE_Normal 0 0 0 FIX

10 R-CUT OFF_Normal 0 0 0 FIX

11 B-CUT OFF_Normal 0 0 0 FIX

12 R-DRIVE_Warm1 3 3 3 FIX

13 B-DRIVE_Warm1 -5 -5 -5 FIX

14 R-CUT OFF_Warm1 -1 -1 -1 FIX

15 B-CUT OFF_Warm1 -6 -6 -6 FIX

16 R-DRIVE_Warm2 7 7 7 FIX

17 B-DRIVE_Warm2 -11 -11 -11 FIX

18 R-CUT OFF_Warm2 3 3 3 FIX

19 B-CUT OFF_Warm2 -17 -17 -17 FIX

Alignment & Adjustment

Samsung Electronics 3-17

9. YC DELAY

No Item

SDI CRT(0.28mH) SDI CRT(0.28mH) SDI CRT(0.28mH)

Remark29" 28" 32"

CW29M206P7XXEC WS28M206P7XXEC WS32M206P7XXEC

0P.YC (AV) Delay -6 -6 -6 FIX

1S.YC (AV) Delay -5 -5 -5 FIX

2N.YC (AV) Delay -8 -8 -8 FIX

3P.BG.YC Delay -6 -6 -6 FIX

4P.DK.YC Delay -5 -5 -5 FIX

5P.I.YC Delay -8 -8 -8 FIX

6P.M.YC DELAY - - - FIX

7P.L.YC Delay -8 -8 -8 FIX

8S.BG.YC Delay -2 -2 -2 FIX

9S.DK.YC Delay -6 -6 -6 FIX

10 S.I.YC Delay -10 -10 -10 FIX

11 S.M4.43.YC DELAY - - - FIX

12 S.L.YC Delay -5 -5 -5 FIX

13 N.M.YC Delay -7 -7 -7 FIX

Alignment & Adjustment

3-18 Samsung Electronics

10. EEPROM

No Item

SDI CRT(0.28mH) SDI CRT(0.28mH) SDI CRT(0.28mH)

Remark29" 28" 32"

CW29M206P7XXEC WS28M206P7XXEC WS32M206P7XXEC

0 System 0 0 0 FIX

1System (VGA) 0 0 0 FIX

2System (480p) 0 0 0 FIX

3System (1080i) 0 0 0 FIX

4Dynamic Contrast 90 100 100 FIX

5Dynamic Brightness 50 50 50 FIX

6Dynamic Shapness 50 50 50 FIX

7Dynamic Color 50 50 50 FIX

8Dynamic Tint 50 50 50 FIX

9Dynamic Color Tone 2 2 2 FIX

10 Standard Contrast 70 70 70 FIX

11 Standard Brightness 50 50 50 FIX

12 Standard Shapness 50 50 50 FIX

13 Standard Color 50 50 50 FIX

14 Standard Tint 50 50 50 FIX

15 Standard Color Tone 2 2 2 FIX

16 Movie Contrast 40 40 40 FIX

17 Movie Brightness 50 50 50 FIX

18 Movie Shapness 40 40 40 FIX

19 Movie Color 45 45 45 FIX

20 Movie Tint 50 50 50 FIX

21 Movie Color Tone 2 2 2 FIX

22 Left Blanking (PAL) FIX

23 Right Blanking (PAL) FIX

24 Left Blanking (VGA) FIX

25 Right Blanking (VGA) FIX

26 Left Blanking (480p) 215 215 215 FIX

27 Right Blanking(480p) 169 169 169 FIX

28 Left Blanking(1080i) 141 141 141 FIX

29 Right Blanking(1080i) 109 109 109 FIX

30 Brightness (RGB) 238 238 238 FIX

31 Contrast (RGB) 165 165 165 FIX

32 U Saturation (RGB) 94 94 94 FIX

33 V Saturation (RGB) 36 36 36 FIX

34 DVD Brightness (YPbPr) 221 221 221 FIX

35 DVD Contrast (YPbPr) 166 166 166 FIX

36 DVD U Saturation (YPbPr) 122 122 122 FIX

37 DVD V Saturation (YPbPr) 57 57 57 FIX

38 9402 Y Gain 200 200 200 FIX

39 9402 U Gain 85 85 85 FIX

40 - FIX

41 9402 V Gain 75 75 75 FIX

42 CrCb Gain (480p) 119 119 119 FIX

43 CrCb Gain (1080i) 119 119 119 FIX

44 LTI Mode 2 2 2 FIXss

Alignment & Adjustment

Samsung Electronics 3-19

No Item

SDI CRT(0.28mH) SDI CRT(0.28mH) SDI CRT(0.28mH)

Remark29" 28" 32"

CW29M206P7XXEC WS28M206P7XXEC WS32M206P7XXEC

45 LTI Mode (VGA) FIX

46 LTI Mode (480p) 1 1 1 FIX

47 LTI Mode (1080i) 1 1 1 FIX

48 NR ON value1 85 85 85 FIX

49 NR ON value2 85 85 85 FIX

50 NR OFF value1 68 68 68 FIX

51 NR OFF value2 68 68 68 FIX

52 NR ON value3 170 170 170 FIX

53 NR ON value4 170 170 170 FIX

54 NR OFF value3 34 34 34 FIX

55 NR OFF value4 34 34 34 FIX

56 - FIX

57 SECAM senstivity 28 28 28 FIX

58 Range of R Gain 32 32 32 FIX

59 Range of G Gain 32 32 32 FIX

60 Range of B Gain 32 32 32 FIX

61 Range of F/B Gain 23 23 23 FIX

62 - FIX

63 TTX V-Position 40 40 40 FIX

64 TTX H-Position 190 190 190 FIX

65 - FIX

66 - ss FIX

67 wide model 4:3 Normal Parabola 0 0 0 FIX

68 1080i 50HZ Trepezium FIX

69 1080i 60HZ Trepezium FIX

70 UP-UCG (Up Corner Semi sntrol) 0 0 0 FIX

71 LO-UCG (Low Corner Semi Control) 0 0 0 FIX

72 Vertical Slicing Level 15 15 15 FIX

73 Vertical Sync Lowpass-Filter 13 13 13 FIX

74 Amplifier Current Setting of Oscillator Pad 2 2 2 FIX

75 PAL senstivitys 185 185 185 FIX

76 Chroma senstivity (PAL) 215 215 215 FIX

77 Chroma PLL 1 1 1 FIX

78 WSS 4:3 Panorama FIX

79 NT left blank 79 79 79 FIX

80 NT Right blank 126 126 126 FIX

81 Progressive TTX V Position FIX

82 Progressive TTX H-Position FIX

83 3Pip Pal V position FIX

84 3Pip Pal H Position FIX

85 3Pip Ntsc V Position FIX

86 3Pip Ntsc H Position FIX

87 - FIX

88 - FIX

89 - FIX

90 RF SubBrights 124 124 124

Alignment & Adjustment

3-20 Samsung Electronics

No Item

SDI CRT(0.28mH) SDI CRT(0.28mH) SDI CRT(0.28mH)

Remark29" 28" 32"

CW29M206P7XXEC WS28M206P7XXEC WS32M206P7XXEC

91 TTX Sub Brightness 235 235 235 FIX

92 Left Blanking 141 141 141 FIX

93 Right Blanking 153 153 153 FIX

94 S - ABL 0 0 0 FIX

95 P - ABL 48 48 48 FIX

96 Picture Limit Level 3 3 3 FIX

97 OSD Level (LRGB2_LEV) 5 5 5 FIX

98 TTX Level (LRGB2_LEV) 7 7 7 FIX

99 AGCADJ1 230 230 230 FIX

100 AGCADJ2 110 110 110 FIX

101 ON TIMER CH memory 1 1 1 FIX

102 COMPONENT2 OSD Brightness 10 10 10 FIX

196 TNR1 207 207 207 FIX

197 TNR2 149 149 149 FIX

198 TNR3 95 95 95 FIX

199 TNR4 63 63 63 FIX

200 TNR5 47 47 47 FIX

201 TNR6 31 31 31 FIX

202 FIX

203 FIX

204 FIX

205 HPLL timing 156 156 156 FIX

206 SECAM MODE INITIAL DATA 76 76 76 FIX

207 SECAM MODE INITIAL DATA 64 64 64 FIX

250 EEPROM check sum 81 81 81 FIX

252 IKR Count 250 250 250 FIX

253 Start 40 40 40 FIX

254 End 150 150 s 150 FIX

Alignment & Adjustment

Samsung Electronics 3-21

3-4 Service Adjustment

3-4-1 Adjusting the Picture Size

■Since the S61B chassis has the deflection settings data within the Factory Data, the picture size has to be adjusted when

replacing the System Board or the Deflection Board, according to the following procedures.

①Display the Lion pattern. ②Press "Info →Menu →Mute →Power On"

using the remote control and enter Factory Mode.

③Enter Deflection Mode. ④Adjust the V-AMP, V-SHIFT, H-AMP and H-SHIFT items so

that the width becomes 5 and the height becomes 4.

Alignment & Adjustment

3-22 Samsung Electronics

3-4-2 Adjusting the Picture Straight Lines

①Display the Cross Hatch pattern.

②Adjust settings other than V-AMP, V-SHIFT, H-AMP and H-SHIFT so that straight lines are displayed without curves.

⑦When the adjustments are complete, display the Lion pattern and check that the picture size has not been changed.

If there is no change, finish the adjustments.

③Adjust BOW and the Angle settings so that the center line

becomes a straight line.

④Adjust the H-Parabola and H-Trapezium settings so that

the left and right lines become straight.

⑤Adjust the Upper Corner and the Low Corner settings so that

the end of the lines become straight.

⑥Adjust the V-Linearity and V-SC settings so that the

intervals of the horizontal lines become uniform.

Alignment & Adjustment

Samsung Electronics 3-23

3-5 Replacements & Calibration

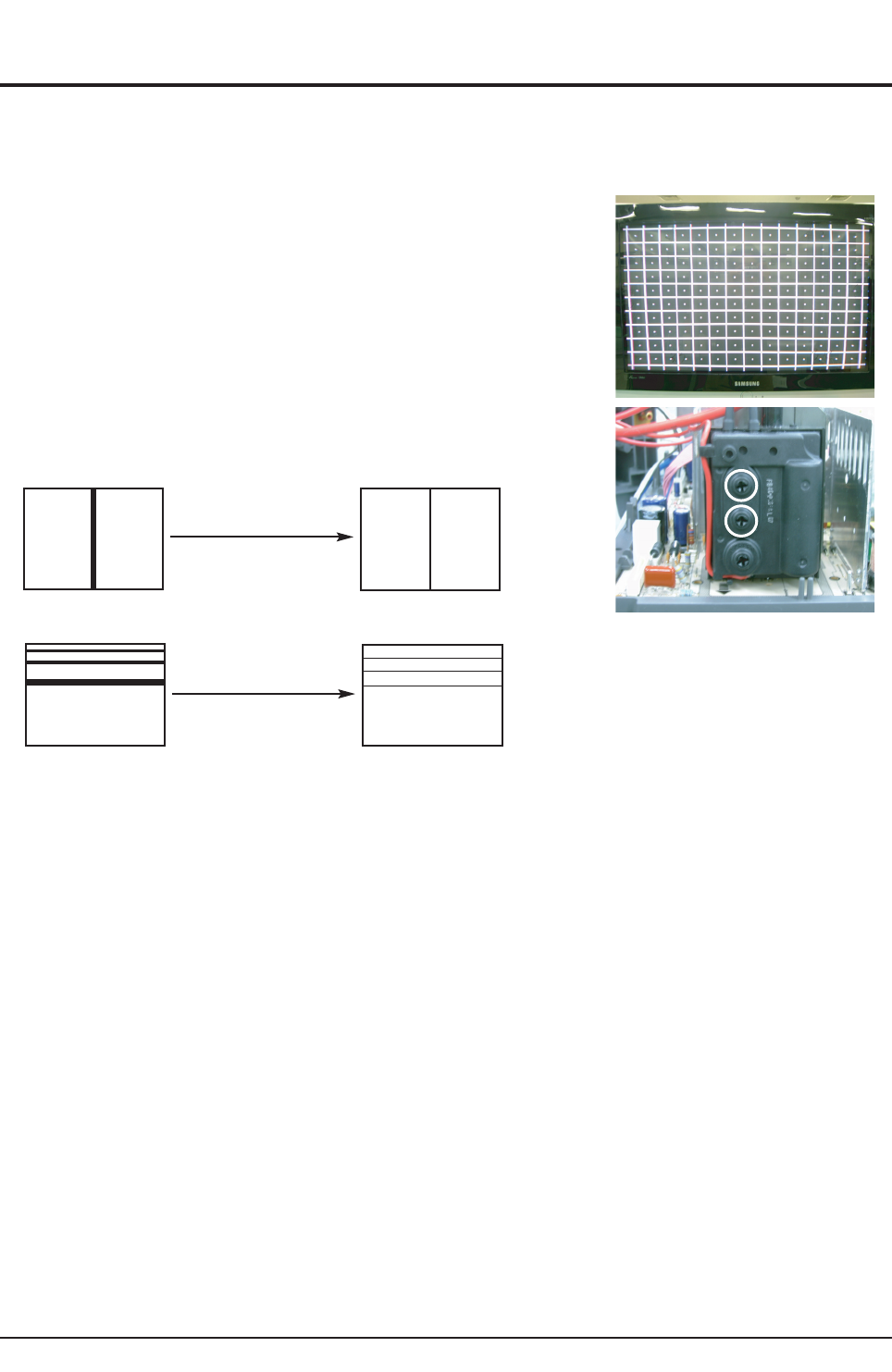

3-5-1 Adjusting the Focus

■Since the S61B chassis has a built-in dynamic focus circuit, take care when adjusting the focus. When the CRT PCB, FBT or

CRT has been replaced, the focus has to be adjusted according to the following procedures.

1. Display the Cross Hatch pattern.

2. Set the Screen Adjustment to "Standard".

3. Turn the Static Focus VR clockwise to the maximum position.

(End of clockwise direction)

4. Turn the Dynamic Focus VR counter clockwise to the maximum position.

(End of counter clockwise direction)

5. Slowly turn the Static Focus VR counter clockwise so that the center vertical line

is the most clearly displayed.

6. Slowly turn the Dynamic Focus VR clockwise so that the 2nd line is the most clearly displayed.

7. Check the entire screen focus and repeat steps 3 to 6, if necessary.

Static

Focus VR

Dynamic

Focus VR

After Adjustment

3After Adjustment

Alignment & Adjustment

3-24 Samsung Electronics

3-5-2 Adjusting the Screen Voltage

1. Select "Info →Menu →Mute →Power On" to enter Service Mode.

2. Initialize all settings to the values appropriate to the corresponding model.

3. Display the Toshiba pattern.

4. Using an Oscilloscope, measure the size of RK, BK and GK to the

Pedestal Level.

5. Adjust the Screen VR of FEB so that the highest point of the Pedestal Level is 175V.

※Screen Voltage Measurement Data

Screen

175V

Adjust Method the Screen Voltage

for Toshiba Pattern by Oscilloscope

No Item Data Required Adjustment

1Screen Voltage The Highest Voltage among RK, GK and BK

145Vp-p-3V Screen Voltage

Alignment & Adjustment

Samsung Electronics 3-25

3-5-3 Adjusting the White Balance

1. Select "Info →Menu →Mute →Power On" to enter Service Mode.

2. Initialize all settings to the values appropriate to the corresponding model.

3. Display the Toshiba pattern and adjust the White Balance using CA100 with the coordinates of the corresponding model.

4. Enter Video Adjust1 of Service Mode. Adjust Low/Light.

- Adjust Sub Bright to set Y.

- Adjust B Cutoff to set y.

- Adjust R Cutoff to set x.

5. Enter Video Adjust1 of Service Mode. Adjust High/Light.

- Adjust Sub Contrast to set Y.

- Adjust B Drive to set y.

- Adjust R Drive to set x.

6. Check Low/Light and readjust it if its value has been changed.

7. If you have readjusted Low/Light, readjust High/Light until the two values are identical to the coordinates of the corresponding

model.

※White Balance Standard Data

3-5-4 Check List for the Screen Voltage and White Balance Adjustment

1. The Screen Voltage and White Balance are connected each other, and both of them have to be configured to the correct values.

2. Adjust the White Balance after the Screen Voltage was adjusted, and check if the Screen Voltage is normal after adjusting the

White Balance.

3. If the White Balance is readjusted, check the Screen Voltage again.

4. When the adjustment is finished, check the following checklist.

- If there is a spot on the screen when turning the TV set off/on, adjust the Screen Voltage again.

- If there is a ghost line on the screen, adjust the Screen Voltage again.

No Item Data Required Adjustment

1White

Balance

H/LIGHT x:286±3 y:290±3 Y:35±3

L/LIGHT x:286±3 y:290±3 Y:1.0±0.3 White Balance (Europe)

3-26 Samsung Electronics

MEMO

4. Exploded View & Part List

Exploded View & Part List

Samsung Electronics 4-1

T0074 T0268

T0003

T0527

T0063

T0015

M0014

M0112

T0022

T0299

T0082

T0023

T0057

T0245

CIS7

You can search for the updated part code through ITSELF web site.

URL:http://itself.sec.samsung.co.kr

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

CIS7 AA61-60003J SPRING ETC-CS -,SUS304,-,-,OD6,N7,OD6,-, 1 S.N.A

M0014 AA94-15644A ASSY PCB MAIN 29M166V7X 1 S.A

M0112 AA63-01269A COVER-FRONT 29M06,S61B,SRS,HIPS,HB,SV012 1 S.N.A

T0003 AA96-02033B ASSY COVER P-FRONT 29M06,S61B,HIPS,HB,SV 1 S.A

T0015 AA64-04015A CABINET BACK 29M06,HIPS,HB 1 S.A

T0022 AA64-04011A KNOB CONTROL M06,HIPS,HB,SV012P,ALL,SEH 1 S.N.A

T0023 AA64-04012A KNOB POWER M06,HIPS,HB,SV012P,ALL,SEH 1 S.N.A

T0057 AA64-70117B BADGE-BRAND ,AL,T1.5,10.6,L65,BLK,SILVER 1 S.A

T0063 AA03-00451A CRT COLOR A68QFN793X002,380mG,0.28mH,11. 1 S.A

T0074 AA59-00370B REMOCON SAMSUNG,TM79,175*44*23,SAMSUNG 1 S.A

T0082 3001-001092 SPEAKER 10W,8OHM,87DB,150HZ 2 S.A

T0245 HA61-00711C HOLDER-PCB 29K8,HIPS,HB,GRY 1 S.N.A

T0268 AA39-10001M CBF-POWER CORD -,KJP-140,KLCE-2F,2.4m,HO 1 S.A

T0299 AA64-04013A WINDOW-RMC,LED M06,ACRYL,HB,CLEAR,SEH 1 S.N.A

T0527 AA61-01373C HOLDER-D COIL NYLON,W31MM,WHT,SEH 4 S.N.A

4-1 CW29M066V7XXEC

5-1Samsung Electronics

Electrical Part List

ASSY CHASSIS

M0017 AA91-09644A ASSY CHASSIS 29M166V7X 1 S.N.A

M0014 AA94-15644A ASSY PCB MAIN 29M166V7X 1 S.A

0 AA41-01162A PCB-F/BOX CW29M16,FR-4,4,A,1.6T,150 X 23 1 S.N.A

C101 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C102 2401-000025 C-AL 100uF,20%,16V,GP,TP,6.3x11,5 1 S.A

C103 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C104 2401-003578 C-AL 1000uF,20%,10V,GP,TP,8x20mm,5 1 S.A

C105 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C106 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 1 S.A

C109 2202-000121 C-CERAMIC,MLC-AXIAL 100pF,10%,50V,Y5P,TP 1 S.A

C110 2202-000121 C-CERAMIC,MLC-AXIAL 100pF,10%,50V,Y5P,TP 1 S.A

C116 2401-000913 C-AL 22uF,20%,16V,GP,TP,5x11,5 1 S.A

C117 2401-001363 C-AL 470uF,20%,16V,GP,TP,10x12.5,5 1 S.A

C201 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C202 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A

C203 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C204 2401-000050 C-AL 10uF,20%,16V,GP,TP,5x11,2.5 1 S.A

C205 2401-000050 C-AL 10uF,20%,16V,GP,TP,5x11,2.5 1 S.A

C206 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C301 2401-000365 C-AL 100uF,20%,50V,WT,TP,10x12.5mm, 1 S.A

C302 2201-000192 C-CERAMIC,DISC 0.01NF,0.25PF,500V,C0G,TP 1 S.A

C303 2305-000285 C-FILM,LEAD-PEF 220NF,5%,100V,TP,10.5X5. 1 S.A

C304 2305-000289 C-FILM,LEAD-PEF 220nF,5%,63V,TP,-,5mm 1 S.A

C305 2301-000160 C-FILM,LEAD-PEF 12nF,5%,50V,TP,11.0x6.0x 1 S.A

C306 2401-000365 C-AL 100uF,20%,50V,WT,TP,10x12.5mm, 1 S.A

C307 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm 1 S.A

C401 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A

C402 2401-001397 C-AL 470uF,20%,25V,GP,TP,10x16,5 1 S.A

C403 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A

C404 2401-002288 C-AL 470uF,20%,25V,WT,TP,10x20,5 1 S.A

C407 2301-001401 C-FILM,LEAD-PPF 27nF,5%,630V,TP,19x11x17 1 S.A

C408 2301-001268 C-FILM,LEAD-PPF 33nF,5%,630V,TP,20x11x17 1 S.A

C409 2201-000600 C-CERAMIC,DISC 0.56NF,10%,50V,Y5P,TP,5X3 1 S.A

C410 2301-000383 C-FILM,LEAD-PEF 10nF,5%,50V,TP,6x7x3.2mm 1 S.A

C411 2401-000493 C-AL 10uF,20%,50V,LZ,TP,5x11mm,5mm 1 S.A

C412 2401-000832 C-AL 220uF,20%,25V,GP,TP,8x11.5,5 1 S.A

C413 2301-000342 C-FILM,LEAD-PEF 2.2nF,5%,50V,TP,7.4x3.9x 1 S.A

C414 2305-000149 C-FILM,LEAD-PEF 100nF,5%,100V,TP,12x12.5 1 S.A

C415 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C416 2401-000832 C-AL 220uF,20%,25V,GP,TP,8x11.5,5 1 S.A

C417 2301-000383 C-FILM,LEAD-PEF 10nF,5%,50V,TP,6x7x3.2mm 1 S.A

C418 2301-000213 C-FILM,LEAD-PEF 220nF,5%,250V,TP,21.5x11 1 S.A

C419 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A

C420 2401-001527 C-AL 47uF,20%,250V,HR,TP,13x25mm,5m 1 S.A

C421 2306-000272 C-FILM,LEAD-PPF 820NF,5%,400V,BK,29X25.5 1 S.A

C422 2201-000930 C-CERAMIC,DISC 0.22NF,10%,500V,Y5P,TP,5. 1 S.A

C424 2306-000188 C-FILM,LEAD-PPF 330NF,5%,400V,BK,26X19.5 1 S.A

C425 2301-001259 C-FILM,LEAD-PPF 100nF,5%,400V,TP,19x8x16 1 S.A

C426 2301-000342 C-FILM,LEAD-PEF 2.2nF,5%,50V,TP,7.4x3.9x 1 S.A

C430S 2306-000353 C-FILM,LEAD-PPF 6.3nF,5%,1.6KV,BK,26.5x8 1 S.A

C431S 2306-000329 C-FILM,LEAD-PPF 7NF,3%,1.6KV,BK,28.5X18. 1 S.A

C432S 2301-001418 C-FILM,LEAD-PPF 1.5nF,5%,2kV,TP,29x7x13. 1 S.A

C607 2301-000192 C-FILM,LEAD-PEF 1nF,5%,50V,TP,5.3x10mm,5 1 S.A

C608 2301-000192 C-FILM,LEAD-PEF 1nF,5%,50V,TP,5.3x10mm,5 1 S.A

C609 2401-001914 C-AL 1uF,20%,50V,BP,TP,5x11,5 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

5-1 CW29M066V7XXEC

You can search for the updated part code through ITSELF web site.

URL:http://itself.sec.samsung.co.kr

5. Electrical Part List

C610 2401-001914 C-AL 1uF,20%,50V,BP,TP,5x11,5 1 S.A

C615 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C616 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C619 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C621 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C628 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C629 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C630 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C634 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C640 2401-001271 C-AL 4.7uF,20%,50V,GP,TP,5x11mm,5 1 S.A

C642 2401-001998 C-AL 1000uF,20%,25V,GP,TP,10x20,5mm 1 S.A

C647 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C661 2401-002009 C-AL 100uF,20%,16V,GP,TP,6.3x7,5 1 S.A

C663 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C801 2401-000133 C-AL 1000uF,20%,16V,GP,TP,10x20,5 1 S.A

C802 2301-000235 C-FILM,LEAD-PEF 3.9nF,5%,50V,TP,6.5x3.0x 1 S.A

C803 2401-003025 C-AL 330uF,20%,400V,GP,BK,30x40,10 1 S.A

C804 2201-000332 C-CERAMIC,DISC 2.2NF,20%,250V,Y5U,TP,9X4 1 S.A

C805 2201-000332 C-CERAMIC,DISC 2.2NF,20%,250V,Y5U,TP,9X4 1 S.A

C806 2306-000112 C-FILM,LEAD-PPF 100nF,20%,250V,BK,-,15mm 1 S.A

C807 2301-001342 C-FILM,LEAD-PPF 1.5nF,5%,800V,TP,15x6.5x 1 S.A

C808 2401-003046 C-AL 47uF,20%,50V,WT,TP,6.3x11,2.5 1 S.A

C809 2301-000224 C-FILM,LEAD-PEF 22nF,5%,50V,TP,7.4x3.9x1 1 S.A

C810 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A

C813 2201-000131 C-CERAMIC,DISC 0.1NF,10%,2KV,Y5P,TP,6.3X 1 S.A

C815 2401-000787 C-AL 220uF,20%,160V,GP,BK,16x31.5mm,7.5 1 S.A

C816 2401-000262 C-AL 100uF,20%,160V,HR,TP,16x25,7.5 1 S.A

C817 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A

C818 2401-000689 C-AL 2200uF,20%,16V,GP,TP,13x25,5 1 S.A

C819 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A

C820 2401-000703 C-AL 2200uF,20%,25V,GP,-,12.5x25mm, 1 S.A

C821 2301-000224 C-FILM,LEAD-PEF 22nF,5%,50V,TP,7.4x3.9x1 1 S.A

C822 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A

C823 2401-000039 C-AL 1000uF,20%,16V,GP,TP,10x16,5 1 S.A

C825 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C826 2401-000698 C-AL 2200uF,20%,16V,WT,TP,12.5x25,5 1 S.A

C828 2201-000374 C-CERAMIC,DISC 0.22NF,5%,50V,C0G,TP,10.5 1 S.A

C831 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C832 2401-000493 C-AL 10uF,20%,50V,LZ,TP,5x11mm,5mm 1 S.A

C833 2401-002619 C-AL 47uF,20%,25V,GP,TP,5x11,5 1 S.A

C834 2401-003034 C-AL 220uF,20%,16V,WT,TP,8x11.5,5 1 S.A

C835 2401-000689 C-AL 2200uF,20%,16V,GP,TP,13x25,5 1 S.A

C837 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C838 2401-001513 C-AL 47uF,20%,16V,WT,TP,5x11,5 1 S.A

C840 2401-001513 C-AL 47uF,20%,16V,WT,TP,5x11,5 1 S.A

C841 2401-000611 C-AL 1uF,20%,50V,WT,TP,5x11,5 1 S.A

C843 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C844 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C901 2202-000632 C-CERAMIC,MLC-AXIAL 100nF,20%,50V,Z5U,TP 1 S.A

C901 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

C902 2401-000025 C-AL 100uF,20%,16V,GP,TP,6.3x11,5 1 S.A

C902 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A

C903 2202-000127 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,25V,Y5V 1 S.A

C903 2203-001103 C-CER,CHIP 6.8nF,10%,50V,X7R,1608 1 S.A

C904 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

C905 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A

C906 2203-000357 C-CER,CHIP 0.15NF,5%,50V,C0G,TP,1608 1 S.A

C912 2402-000173 C-AL,SMD 4.7uF,20%,35V,GP,TP,4.3x4.3x5.4 1 S.A

C925 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

CIS3 AA40-00128A TUNER TMQZ2-407A,PAL-CW,PAL Hyper,38.9MH 1 S.A

CM01 2203-001628 C-CER,CHIP 0.03nF,5%,50V,NP0,1608 1 S.A

CM02 2203-001628 C-CER,CHIP 0.03nF,5%,50V,NP0,1608 1 S.A

CM03 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

CM04 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

CM05 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

CM06 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

CM07 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

CM08 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-2

Electrical Part List

5-3Samsung Electronics

Electrical Part List

CM09 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

CM10 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

CM11 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

CM12 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

CM13 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

CM14 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

CM15 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 1 S.A

CM20 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

CM21 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

CM23 2402-000173 C-AL,SMD 4.7uF,20%,35V,GP,TP,4.3x4.3x5.4 1 S.A

CM24 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

CM25 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

CM26 2402-001033 C-AL,SMD 220uF,20%,16V,GP,TP,8.3x8.3x10 1 S.A

CM27 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

CM28 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

CN03 3711-003601 HEADER-BOARD TO CABLE BOX,12P,1R,2.5mm,A 1 S.A

CN301 AA60-40012F PIN-GT 4P,2.36PI,6/12/14mm,NYLON66,LOCKI 1 S.N.A

CN502 3711-003051 HEADER-BOARD TO CABLE BOX,8P,1R,2.5MM,ST 1 S.A

CN601 3711-003043 HEADER-BOARD TO CABLE BOX,4P,1R,2.5MM,ST 1 S.A

CN802 AA60-40012G PIN-GT 3P,2.36PI,10/5mm,NYLON66,LOCKING 1 S.N.A

CN904 3711-002646 HEADER-BOARD TO CABLE BOX,7P,1R,2.5mm,ST 1 S.A

CN909 AA37-00001A CONNECTOR-FBT FIX PIN JM-3500,CPTTV,0.36 1 S.A

CNM04 3711-001111 HEADER-BOARD TO CABLE BOX,8P,1R,2.5MM,AN 1 S.A

CV901 2401-000302 C-AL 100uF,20%,25V,GP,TP,6.3x11,5 1 S.A

CX801S 2306-000318 C-FILM,LEAD-PPF 220NF,20%,250V,BK,-,22.5 1 S.A

CX802S 2306-000318 C-FILM,LEAD-PPF 220NF,20%,250V,BK,-,22.5 1 S.A

CY802S 2201-000446 C-CERAMIC,DISC 3.3NF,20%,400V,Y5U,BK,15X 1 S.A

D0254 AA32-00015A MODULE REMOCON FRP-3521H31,38KHZ,940MM,M 1 S.A

D201 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

D202 0401-000133 DIODE-SWITCHING RLS4148,75V,150MA,LL-34, 1 S.A

D301 0402-000493 DIODE-RECTIFIER 1R5GU41,400V,1.5A,DO-15L 1 S.A

D302 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

D401 0402-000493 DIODE-RECTIFIER 1R5GU41,400V,1.5A,DO-15L 1 S.A

D402 0402-000534 DIODE-RECTIFIER RG10V,400V,1.2A,DO-201,T 1 S.A

D403 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A

D404 0402-000534 DIODE-RECTIFIER RG10V,400V,1.2A,DO-201,T 1 S.A

D405 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

D406 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A

D407 0402-000534 DIODE-RECTIFIER RG10V,400V,1.2A,DO-201,T 1 S.A

D408 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

D409 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

D410 0402-000534 DIODE-RECTIFIER RG10V,400V,1.2A,DO-201,T 1 S.A

D603 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A

D604 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

D801S 0402-001399 DIODE-BRIDGE GSIB660,600V,6A,SIP-4,BK 1 S.A

D803 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,T 1 S.A

D804 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,T 1 S.A

D805 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

D807 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A

D808 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,T 1 S.A

D904 0401-000133 DIODE-SWITCHING RLS4148,75V,150MA,LL-34, 1 S.A

DC01 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A

DC02 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A

DC05 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC06 2402-000173 C-AL,SMD 4.7uF,20%,35V,GP,TP,4.3x4.3x5.4 1 S.A

DC07 2203-000491 C-CERAMIC,CHIP 2.2nF,10%,50V,X7R,TP,1608 1 S.A

DC08 2203-002494 C-CERAMIC,CHIP 470nF,10%,16V,X7R,TP,2012 1 S.A

DC11 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC12 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

DC13 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

DC14 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC15 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC16 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC17 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC18 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC19 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC20 2203-002494 C-CERAMIC,CHIP 470nF,10%,16V,X7R,TP,2012 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

DC21 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC22 2203-002494 C-CERAMIC,CHIP 470nF,10%,16V,X7R,TP,2012 1 S.A

DC23 2402-000173 C-AL,SMD 4.7uF,20%,35V,GP,TP,4.3x4.3x5.4 1 S.A

DC24 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

DC25 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC26 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC27 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC28 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC29 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC30 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

DC33 2203-002494 C-CERAMIC,CHIP 470nF,10%,16V,X7R,TP,2012 1 S.A

DC34 2203-000888 C-CER,CHIP 4.7nF,10%,50V,X7R,TP,1608 1 S.A

DC35 2203-000975 C-CERAMIC,CHIP 47nF,10%,25V,X7R,TP,1608, 1 S.A

DC36 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 1 S.A

DC37 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC38 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC39 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

DC40 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A

DC41 2301-000224 C-FILM,LEAD-PEF 22nF,5%,50V,TP,7.4x3.9x1 1 S.A

DC43 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

DC44 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC45 2203-000575 C-CER,CHIP 220nF,10%,25V,X7R,2012 1 S.A

DC48 2203-000575 C-CER,CHIP 220nF,10%,25V,X7R,2012 1 S.A

DC49 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

DC50 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

DC52 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

DC57 2203-001052 C-CERAMIC,CHIP 0.56nF,10%,50V,X7R,TP,160 1 S.A

DC58 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

DC59 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC60 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC61 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC62 2301-001664 C-FILM,LEAD-OTHER 100nF,3%,50V,TP,20x16x 1 S.A

DC63 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DC64 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

DCN02 3711-003495 HEADER-BOARD TO BOARD NOWALL,34P,2R,2.54 1 S.A

DCN03 3711-003495 HEADER-BOARD TO BOARD NOWALL,34P,2R,2.54 1 S.A

DD01 0401-000133 DIODE-SWITCHING RLS4148,75V,150MA,LL-34, 1 S.A

DD02 0401-000133 DIODE-SWITCHING RLS4148,75V,150MA,LL-34, 1 S.A

DD03 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500MW,LL 1 S.A

DD04 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500MW,LL 1 S.A

DD05 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500MW,LL 1 S.A

DD06 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500MW,LL 1 S.A

DD07 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500MW,LL 1 S.A

DD08 0401-000133 DIODE-SWITCHING RLS4148,75V,150MA,LL-34, 1 S.A

DD09 0401-000133 DIODE-SWITCHING RLS4148,75V,150MA,LL-34, 1 S.A

DD10 0401-000133 DIODE-SWITCHING RLS4148,75V,150MA,LL-34, 1 S.A

DD11 0403-000746 DIODE-ZENER RLZ3.9B,3.89-4.16V,500MW,LL- 1 S.A

DD13 0401-000133 DIODE-SWITCHING RLS4148,75V,150MA,LL-34, 1 S.A

DD14 0401-000133 DIODE-SWITCHING RLS4148,75V,150MA,LL-34, 1 S.A

DD15 0401-000133 DIODE-SWITCHING RLS4148,75V,150MA,LL-34, 1 S.A

DD16 0401-000133 DIODE-SWITCHING RLS4148,75V,150MA,LL-34, 1 S.A

DD17 0401-000133 DIODE-SWITCHING RLS4148,75V,150MA,LL-34, 1 S.A

DD18 0401-000133 DIODE-SWITCHING RLS4148,75V,150MA,LL-34, 1 S.A

DD19 0401-000133 DIODE-SWITCHING RLS4148,75V,150MA,LL-34, 1 S.A

DM01 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A

DQ01 0501-000434 TR-SMALL SIGNAL KTC3875S-GR,NPN,150mW,SO 1 S.A

DQ02 0501-000669 TR-SMALL SIGNAL KTA1505Y,PNP,150mW,SOT-2 1 S.A

DQ03 0501-000669 TR-SMALL SIGNAL KTA1505Y,PNP,150mW,SOT-2 1 S.A

DQ04 0501-000669 TR-SMALL SIGNAL KTA1505Y,PNP,150mW,SOT-2 1 S.A

DQ05 0501-000669 TR-SMALL SIGNAL KTA1505Y,PNP,150mW,SOT-2 1 S.A

DQ06 0501-000434 TR-SMALL SIGNAL KTC3875S-GR,NPN,150mW,SO 1 S.A

DQ07 0501-000434 TR-SMALL SIGNAL KTC3875S-GR,NPN,150mW,SO 1 S.A

DQ09 0501-000727 TR-SMALL SIGNAL BC848C,NPN,310mW,SOT-23, 1 S.A

DQ10 0501-000669 TR-SMALL SIGNAL KTA1505Y,PNP,150mW,SOT-2 1 S.A

DQ11 0501-000434 TR-SMALL SIGNAL KTC3875S-GR,NPN,150mW,SO 1 S.A

DR03 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR04 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR05 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-4

Electrical Part List

5-5Samsung Electronics

Electrical Part List

DR06 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR07 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

DR08 2007-000691 R-CHIP 3.3Mohm,5%,1/10W,TP,1608 1 S.A

DR09 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR10 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR11 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR15 2007-000869 R-CHIP 4.7Kohm,1%,1/10W,TP,1608 1 S.A

DR18 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR19 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR21 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR23 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608 1 S.A

DR24 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 1 S.A

DR25 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

DR27 2007-000107 R-CHIP 470Kohm,5%,1/10W,TP,1608 1 S.A

DR28 2007-000691 R-CHIP 3.3Mohm,5%,1/10W,TP,1608 1 S.A

DR29 2007-000118 R-CHIP 390ohm,5%,1/10W,TP,1608 1 S.A

DR30 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR31 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 1 S.A

DR32 2007-000081 R-CHIP 2.7Kohm,5%,1/10W,TP,1608 1 S.A

DR33 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 1 S.A

DR34 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 1 S.A

DR35 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR36 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR37 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 1 S.A

DR38 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 1 S.A

DR39 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 1 S.A

DR40 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR41 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR43 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

DR44 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

DR45 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

DR46 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

DR49 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR50 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR51 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR52 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A

DR53 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A

DR54 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A

DR55 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A

DR56 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A

DR57 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A

DR58 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR59 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR60 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR61 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608 1 S.A

DR62 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608 1 S.A

DR63 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 1 S.A

DR64 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608 1 S.A

DR65 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR66 2007-000088 R-CHIP 7.5Kohm,5%,1/10W,TP,1608 1 S.A

DR68 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

DR69 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

DR70 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

DR80 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608 1 S.A

DR81 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 S.A

DR82 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608 1 S.A

DR86 2007-000080 R-CHIP 2Kohm,5%,1/10W,TP,1608 1 S.A

DR87 2007-000080 R-CHIP 2Kohm,5%,1/10W,TP,1608 1 S.A

DR88 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR89 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

DR93 2007-000096 R-CHIP 30Kohm,5%,1/10W,TP,1608 1 S.A

DY01 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

DY02 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

DZ301 0403-001329 DIODE-ZENER MTZJ24B,22.75-23.73V,500MW,D 1 S.A

DZ302 0403-001329 DIODE-ZENER MTZJ24B,22.75-23.73V,500MW,D 1 S.A

DZ303 0403-001221 DIODE-ZENER UZ39BSB,35.36-37.19V,500MW,D 1 S.A

DZ304 0403-001329 DIODE-ZENER MTZJ24B,22.75-23.73V,500MW,D 1 S.A

DZ305 0403-000700 DIODE-ZENER TZP33A,5%,1000MW,DO-41,TP 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

DZ306 0403-001330 DIODE-ZENER MTZJ30A,26.99-28.39V,500MW,D 1 S.A

DZ401 0403-001325 DIODE-ZENER MTZJ15C,14.42-15.02V,500MW,D 1 S.A

DZ402 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

DZ404 0403-000508 DIODE-ZENER MTZJ5.6B,5.45-5.73V,500MW,DO 1 S.A

DZ407 0403-001325 DIODE-ZENER MTZJ15C,14.42-15.02V,500MW,D 1 S.A

DZ611 0403-000508 DIODE-ZENER MTZJ5.6B,5.45-5.73V,500MW,DO 1 S.A

DZ801 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500MW,DO 1 S.A

DZ802 0403-000716 DIODE-ZENER MTZJ4.7B,4.59-4.77V,500MW,DO 1 S.A

DZ803 0403-001327 DIODE-ZENER MTZJ18A,16.22-17.06V,500MW,D 1 S.A

DZ804 0403-000700 DIODE-ZENER TZP33A,5%,1000MW,DO-41,TP 1 S.A

DZ805 0403-000508 DIODE-ZENER MTZJ5.6B,5.45-5.73V,500MW,DO 1 S.A

DZ806 0403-000700 DIODE-ZENER TZP33A,5%,1000MW,DO-41,TP 1 S.A

DZ807 0403-000508 DIODE-ZENER MTZJ5.6B,5.45-5.73V,500MW,DO 1 S.A

DZ901 0403-000714 DIODE-ZENER MTZJ3.3B,3.32-3.53V,500MW,DO 1 S.A

DZV901 0403-000508 DIODE-ZENER MTZJ5.6B,5.45-5.73V,500MW,DO 1 S.A

EC01 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC02 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC03 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC04 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC08 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

EC09 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

EC10 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

EC11 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC12 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC16 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC19 2203-000975 C-CERAMIC,CHIP 47nF,10%,25V,X7R,TP,1608, 1 S.A

EC20 2203-000975 C-CERAMIC,CHIP 47nF,10%,25V,X7R,TP,1608, 1 S.A

EC21 2203-000975 C-CERAMIC,CHIP 47nF,10%,25V,X7R,TP,1608, 1 S.A

EC22 2203-000975 C-CERAMIC,CHIP 47nF,10%,25V,X7R,TP,1608, 1 S.A

EC23 2203-000975 C-CERAMIC,CHIP 47nF,10%,25V,X7R,TP,1608, 1 S.A

EC24 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC25 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A

EC26 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A

EC27 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A

EC28 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A

EC29 2203-000681 C-CER,CHIP 0.027nF,5%,50V,C0G,1608 1 S.A

EC30 2203-000681 C-CER,CHIP 0.027nF,5%,50V,C0G,1608 1 S.A

EC31 2203-000681 C-CER,CHIP 0.027nF,5%,50V,C0G,1608 1 S.A

EC32 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC33 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC34 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,1608 1 S.A

EC35 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,1608 1 S.A

EC36 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC37 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

EC38 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

EC39 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

EC40 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC41 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC42 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

EC43 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC46 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC47 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

EC48 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A

EC49 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A

EC50 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

EC51 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

EC52 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC53 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC54 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC55 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC56 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

EC57 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

EC58 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A

EC60 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

EC73 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

EC74 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

ED66 2203-000681 C-CER,CHIP 0.027nF,5%,50V,C0G,1608 1 S.A

EL205 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-6

Electrical Part List

5-7Samsung Electronics

Electrical Part List

EL206 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL207 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL208 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL301 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL302 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL401 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL402 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL403 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL404 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL803 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL804 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL805 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL806 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EQ01 0501-000434 TR-SMALL SIGNAL KTC3875S-GR,NPN,150mW,SO 1 S.A

EQ02 0501-000669 TR-SMALL SIGNAL KTA1505Y,PNP,150mW,SOT-2 1 S.A

EQ03 0501-000434 TR-SMALL SIGNAL KTC3875S-GR,NPN,150mW,SO 1 S.A

EQ06 0501-000434 TR-SMALL SIGNAL KTC3875S-GR,NPN,150mW,SO 1 S.A

ER01 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608 1 S.A

ER02 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

ER03 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

ER04 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

ER05 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

ER06 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 S.A

ER07 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

ER08 2007-000093 R-CHIP 20Kohm,5%,1/10W,TP,1608 1 S.A

ER09 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608 1 S.A

ER10 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608 1 S.A

ER11 2007-000643 R-CHIP 270ohm,5%,1/10W,TP,1608 1 S.A

ER12 2007-000643 R-CHIP 270ohm,5%,1/10W,TP,1608 1 S.A

ER13 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

ER16 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

ER19 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

ER20 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

ER21 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608 1 S.A

ER22 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608 1 S.A

ER23 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

ER24 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

ER38 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

ER39 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608 1 S.A

ER40 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

ER41 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

ER42 2007-001164 R-CHIP 75ohm,1%,1/10W,TP,1608 1 S.A

ER43 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608 1 S.A

ER44 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608 1 S.A

ER45 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608 1 S.A

ER46 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

ER47 2007-001164 R-CHIP 75ohm,1%,1/10W,TP,1608 1 S.A

ER48 2007-001164 R-CHIP 75ohm,1%,1/10W,TP,1608 1 S.A

EX01 2801-004004 CRYSTAL-SMD 20.25MHz,20ppm,28-AAN,13pF,2 1 S.A

EY01 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY02 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY03 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY04 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY05 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY06 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY401 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY403 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY404 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY405 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY406 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY407 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY408 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY409 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY410 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY411 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY412 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY413 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY414 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

EY415 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY416 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY417 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY418 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY419 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY420 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY423 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY424 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY425 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY426 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY427 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY428 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY429 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY430 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY431 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY432 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY433 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY434 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY435 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY436 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY437 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY438 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY439 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY440 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY442 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY601 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY602 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY603 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY604 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY800 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY801 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY802 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY803 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY804 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY805 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY806 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY807 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY808 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY809 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY810 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY811 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY812 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY813 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY814 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY815 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY816 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY817 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY818 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY819 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY820 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY821 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY822 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY823 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY824 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY825 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY826 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY827 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY832 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY833 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY834 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY835 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY836 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY837 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY838 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY839 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY840 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY841 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY842 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-8

Electrical Part List

5-9Samsung Electronics

Electrical Part List

EY843 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY844 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY845 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY846 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY847 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY848 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY851 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY852 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY853 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY854 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,-,3.5x5,TP,- 1 S.A

F101 2901-000299 FILTER-EMI ON BOARD -,6A,UL/CSA,-,9x7.5, 1 S.A

F801A 3602-000114 FUSE-HOLDER -,-,30mohm 1 S.A

F801B 3602-000114 FUSE-HOLDER -,-,30mohm 1 S.A

FA801S 3601-001086 FUSE-AXIAL LEAD 125V,5A,FAST-ACTING,GLAS 1 S.A

FA802S 3601-001086 FUSE-AXIAL LEAD 125V,5A,FAST-ACTING,GLAS 1 S.A

FA803S 3601-001228 FUSE-AXIAL LEAD 125V,10A,FAST-ACTING,EPO 1 S.A

FD802 3601-000414 FUSE-CARTRIDGE 250V,5A,SLOW-BLOW,GLASS,5 1 S.A

G101 3301-001324 CORE-FERRITE BEAD AB,15OHM,2X1.25X0.9MM, 1 S.N.A

GT101 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT102 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT403 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT804 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT805 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT806 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

H/S 0402-000233 DIODE-RECTIFIER FML-G12S,200V,5A,-,- 3 S.A

H/S 0402-001230 DIODE-RECTIFIER FMG-G2CS,1000V,3A,DO-41, 1 S.A

HC401 AA96-00310B ASSY HEAT SINK P SCREW,PLATE,AA62-00062A 1 S.N.A

HC801 AA96-00475K ASSY HEAT SINK P SCREW,AA62-00066B,FMG-G 1 S.N.A

IC01 1204-001948 IC-VIDEO DECODER VSP9402A,MQFP,80P,14X14 1 S.A

IC012 1203-001217 IC-POSI.ADJUST REG. 431,TO-92,3P,4.58MIL 1 S.A

IC06 1203-001211 IC-VOL. DETECTOR 7027,SOT-89,3P,-,PLASTI 1 S.A

IC063 AA13-00094A IC HYBRID -,DDRI001A,SIP,5P,-,TP 1 S.A

IC104 0801-000662 IC-CMOS LOGIC 74HC123,MULTIVIBATOR,SOP,1 1 S.A

IC112 1103-001177 IC-EEPROM 24WC16,2Kx8,DIP,8P,9.2x6mm,1.8 1 S.A

IC118 1204-002446 IC-VIDEO PROCESS CXA2180Q,QFP,64P,20x14m 1 S.A

IC301 AA96-50381A ASSY HEAT SINK P ,AA62-30180B,LA7845 1 S.N.A

IC401 1202-000103 IC-VOLTAGE COMP. 393,DIP,8P,300MIL,DUAL, 1 S.A

IC602 AA96-02371A ASSY HEAT SINK P AA62-30181S,SCREW,TDA72 1 S.N.A

IC801S AA96-50371H ASSY HEAT SINK P -,SMPS,AA62-30181H,5Q15 1 S.N.A

IC902 1102-001133 IC-EPROM M27W201-80B6,256KX8BIT,DIP,32P, 1 S.A

ICM01 1204-001912 IC-DECODER SDA5550M,P-MQFP,100P,-,PLASTI 1 S.A

ICM04 1203-001814 IC-VOL. DETECTOR 7025,SOT-89,4P,98MIL,PL 1 S.A

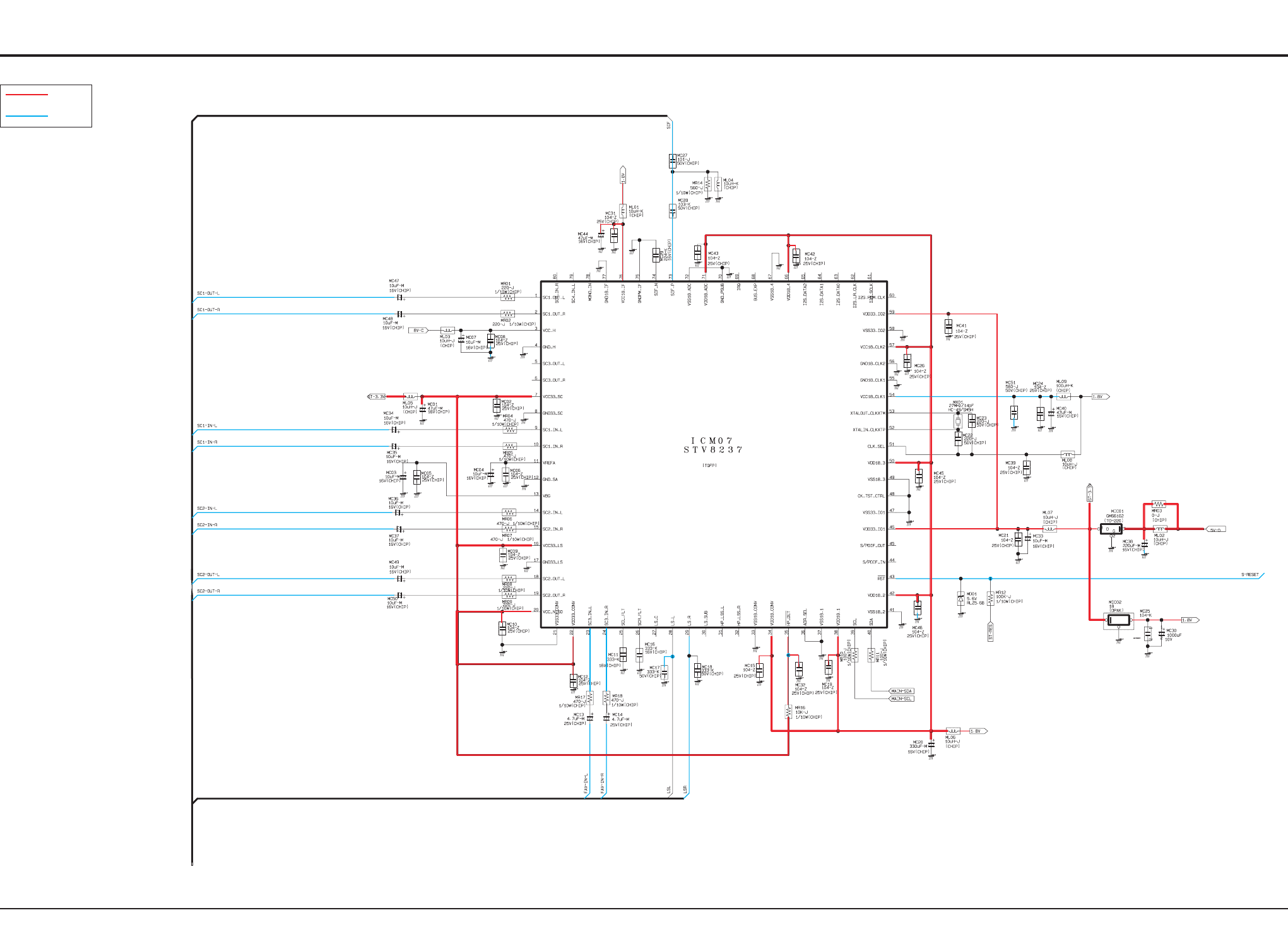

ICM07 1204-002462 IC-AUDIO PROCESSOR STV8237,TQFP,80P,14x1 1 S.A

INK HA83-00052A LP-TAPE-INK ,WIDTH 55 MM 0.01 S.N.A

JA701 3722-001884 JACK-SCART 42P,-,SNPB,BLK,- 1 S.A

L101 2701-000115 INDUCTOR-AXIAL 10UH,10%,3070 1 S.A

L103 2701-000115 INDUCTOR-AXIAL 10UH,10%,3070 1 S.A

L201 2701-000200 INDUCTOR-AXIAL 5.6UH,10%,4298 1 S.A

L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A

L2514 3301-001223 BEAD-AXIAL 62ohm,3.5x0.8x5mm,,TP,,, 1 S.N.A

L301 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A

L603 2701-000180 INDUCTOR-AXIAL 33UH,5%,2534 1 S.A

L604 2701-000180 INDUCTOR-AXIAL 33UH,5%,2534 1 S.A

L605 2701-000180 INDUCTOR-AXIAL 33UH,5%,2534 1 S.A

L606 2701-000180 INDUCTOR-AXIAL 33UH,5%,2534 1 S.A

L611 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A

L612 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A

L615 2701-000180 INDUCTOR-AXIAL 33UH,5%,2534 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

L616 2701-000180 INDUCTOR-AXIAL 33UH,5%,2534 1 S.A

L811 2701-001030 INDUCTOR-AXIAL 43UH,10%,4514 1 S.A

L812 2701-001007 INDUCTOR-AXIAL 24UH,10%,4514 1 S.A

L813 2701-001040 INDUCTOR-AXIAL 10UH,10%,4514 1 S.A

L906 2701-000215 INDUCTOR-AXIAL 8.2UH,10%,2534 1 S.A

LDY01 AA96-00461A ASSY LED GUIDE -,-,SL-255D,RED/GRN 1 S.A

LX801S AA29-30002N FILTER LINE NOISE -,16MH,1.5A,AC100~260V 1 S.A

LX802S AA29-30002N FILTER LINE NOISE -,16MH,1.5A,AC100~260V 1 S.A

LY01 2701-000115 INDUCTOR-AXIAL 10UH,10%,3070 1 S.A

M0014 AA97-16317A ASSY AUTO-MAIN 29M166V/T7X 1 S.N.A

M0018 AA97-16333A ASSY MICOM S61B,SDA55XX,T_NG2PEU_1003,20 1 S.A

M0081 6003-000334 SCREW-TAPTITE RH,+,2S,M3,L6,ZPC(YEL),SWR 1 S.N.A

M0081 6003-000334 SCREW-TAPTITE RH,+,2S,M3,L6,ZPC(YEL),SWR 2 S.N.A

M0081 6003-000334 SCREW-TAPTITE RH,+,2S,M3,L6,ZPC(YEL),SWR 5 S.N.A

M0081 6003-000333 SCREW-TAPTITE RH,+,2S,M3,L10,ZPC(YEL),SW 1 S.N.A

M0107 AA61-10068A BRACKET-PCB M2160,SPTE,T0.3,-,-,-,- 1 S.N.A

MC01 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

MC02 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC03 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

MC04 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

MC05 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC06 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC07 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

MC08 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC09 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC10 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC11 2203-000798 C-CER,CHIP 33nF,10%,16V,X7R,TP,1608,- 1 S.A

MC12 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC13 2402-001006 C-AL,SMD 4.7uF,20%,25V,GP,TP,3.6x6.3x3. 1 S.A

MC14 2402-001006 C-AL,SMD 4.7uF,20%,25V,GP,TP,3.6x6.3x3. 1 S.A

MC15 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC16 2203-000798 C-CER,CHIP 33nF,10%,16V,X7R,TP,1608,- 1 S.A

MC17 2203-000802 C-CER,CHIP 33nF,10%,50V,X7R,2012 1 S.A

MC18 2203-000802 C-CER,CHIP 33nF,10%,50V,X7R,2012 1 S.A

MC19 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC20 2402-001160 C-AL,SMD 330UF,20%,16V,WT,TP,1008 1 S.A

MC21 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC22 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,1608 1 S.A

MC23 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,1608 1 S.A

MC24 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC25 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

MC26 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC27 2203-000236 C-CERAMIC,CHIP 0.1nF,5%,50V,NP0,TP,1608 1 S.A

MC28 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 1 S.A

MC29 2203-006170 C-CER,CHIP 220nF,10%,16V,X7R,1608 1 S.A

MC30 2401-003578 C-AL 1000uF,20%,10V,GP,TP,8x20mm,5 1 S.A

MC31 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC32 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC33 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

MC34 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

MC35 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

MC36 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

MC37 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

MC38 2402-001033 C-AL,SMD 220uF,20%,16V,GP,TP,8.3x8.3x10 1 S.A

MC39 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC40 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

MC41 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC42 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC43 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC44 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

MC45 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC46 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,TP,1608 1 S.A

MC47 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

MC48 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

MC49 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-10

Electrical Part List

5-11Samsung Electronics

Electrical Part List

MC50 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

MC51 2203-001077 C-CER,CHIP 0.056nF,5%,50V,NP0,TP,2012 1 S.A

MD01 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL- 1 S.A

MR01 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

MR02 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

MR04 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

MR05 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

MR06 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

MR07 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

MR08 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

MR09 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

MR10 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

MR11 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

MR12 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A

MR14 2007-000119 R-CHIP 560ohm,5%,1/10W,TP,1608 1 S.A

MR16 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608 1 S.A

MR17 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

MR18 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

MX01 2801-004222 CRYSTAL-SMD 27MHZ,30PPM,28-AAN,14PF,50OH 1 S.A

P803T 1404-001154 THERMISTOR-PTC 4.5OHM,+30%/-20%,220V,270 1 S.A

PC41 2402-001257 C-AL,SMD 470uF,20%,16V,-,TP,8.3*10 1 S.A

PC801S 0604-001038 PHOTO-COUPLER TR,130-260%,200mW,DIP-4,ST 1 S.A

PFC01S AA27-00269A COIL CHOKE-PFC 35MH,CPTTV,35MH,10%,2.0OH 1 S.A

Q101 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

Q409 0505-001116 FET-SILICON BUZ73A,N,200V,22A,0.6ohm,40W 1 S.A

Q409 0505-001723 FET-SILICON FQP630TSTU,N,200V,9A,0.4OHM, 1 S.A

Q409 0505-000109 FET-SILICON 2N7000,N,60V,200mA,5ohm,400m 1 S.A

Q409 0505-001679 FET-SILICON FDC6301N,N,25V,0.22A,5OHM,0. 1 S.A

Q603 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

Q604 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

Q801 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

Q802 0501-000369 TR-SMALL SIGNAL KSC2331-Y,NPN,1000mW,TO- 1 S.A

Q803 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

Q804 AA96-00243G ASSY HEAT SINK P -,POWER,AA62-00045A,C20 1 S.N.A

Q901 0501-000434 TR-SMALL SIGNAL KTC3875S-GR,NPN,150mW,SO 1 S.A

Q907 0501-000434 TR-SMALL SIGNAL KTC3875S-GR,NPN,150mW,SO 1 S.A

Q908 0501-000434 TR-SMALL SIGNAL KTC3875S-GR,NPN,150mW,SO 1 S.A

R101 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A

R102 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A

R104 2001-000702 R-CARBON 39KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R105 2001-000864 R-CARBON 56KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R108 2001-000786 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R109 2001-000786 R-CARBON 47KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R110 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R111 2001-000869 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R112 2001-000869 R-CARBON 56OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R113 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R301 2001-001163 R-CARBON(S) 560OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R302 2004-001369 R-METAL(S) 1.2Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A

R303 2001-000016 R-CARBON(S) 1OHM,5%,1/2W,AA,TP,2.4X6.4MM 1 S.A

R304 2004-004087 R-METAL(S) 1.5ohm,1%,1/2W,AA,TP,2.5x6.5m 1 S.A

R305 2001-001048 R-CARBON(S) 1.2OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R307 2003-002205 R-METAL OXIDE(S) 330ohm,5%,2W,AG,TP,3.9X 1 S.A

R308 2004-001369 R-METAL(S) 1.2Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A

R309 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R310 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R313 2001-000577 R-CARBON 2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R314 2001-000577 R-CARBON 2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R315 2001-001129 R-CARBON(S) 330KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R316 2001-000066 R-CARBON(S) 10KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R401 2003-001025 R-METAL OXIDE(S) 15Kohm,5%,2W,AF,TP,3.9x 1 S.A

R402 2003-001025 R-METAL OXIDE(S) 15Kohm,5%,2W,AF,TP,3.9x 1 S.A

R403 2003-000493 R-METAL OXIDE(S) 12ohm,5%,2W,AF,TP,4x12m 1 S.A

R404 2001-000449 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R405 2008-000266 R-FUSIBLE(S) 1ohm,5%,2W,AF,TP,3.9x10mm 1 S.A

R406 2003-000998 R-METAL OXIDE 300ohm,5%,2W,AF,TP,3.9x10m 1 S.A

R407 2003-000998 R-METAL OXIDE 300ohm,5%,2W,AF,TP,3.9x10m 1 S.A

R408 2001-000028 R-CARBON(S) 100OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

R409 2003-000493 R-METAL OXIDE(S) 12ohm,5%,2W,AF,TP,4x12m 1 S.A

R410 2008-001018 R-FUSIBLE(S) 0.47ohm,10%,2W,AF,TP,3.9x10 1 S.A

R411 2008-000253 R-FUSIBLE(S) 0.47ohm,5%,1W,AF,TP,3.9x10m 1 S.A

R412 2004-004072 R-METAL(S) 3Kohm,1%,1/2W,AA,TP,2.5x6.5mm 1 S.A

R413 2001-001163 R-CARBON(S) 560OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R414 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R415 2004-004083 R-METAL(S) 3.6Kohm,2%,1/2W,AA,TP,2.5x6.5 1 S.A

R416 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R417 2008-001149 R-FUSIBLE(S) 0.22OHM,5%,2W,AF,TP,3.8X11M 1 S.A

R418 2004-001987 R-METAL(S) 4.3Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A

R419 2008-001011 R-FUSIBLE(S) 0.18ohm,10%,2W,AF,TP,3.9x10 1 S.A

R420 2008-001011 R-FUSIBLE(S) 0.18ohm,10%,2W,AF,TP,3.9x10 1 S.A

R421 2003-002071 R-METAL OXIDE 560ohm,5%,2W,AF,TP,3.9x10m 1 S.A

R422 2004-000698 R-METAL 3.3Kohm,1%,1/4W,AA,TP,2.4x6.4m 1 S.A

R423 2004-005059 R-METAL(S) 2.7KOHM,1%,1/2W,AA,TP,6.4X2.4 1 S.A

R424 2004-004048 R-METAL(S) 3.9Kohm,1%,1/2W,AA,TP,2.5x6.5 1 S.A

R426 2001-000085 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R427 2001-001088 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A

R428 2003-002064 R-METAL OXIDE(S) 7.5OHM,5%,2W,AF,TP,3.9X 1 S.A

R429 2001-001155 R-CARBON(S) 5.6KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R431 2004-002016 R-METAL(S) 15Kohm,1%,1/2W,AA,TP,2.5x6.5m 1 S.A

R432 2004-001371 R-METAL(S) 1.5Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A

R433 2001-001114 R-CARBON(S) 270OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R440 2003-002181 R-METAL OXIDE(S) 68Kohm,5%,2W,AG,TP,3.9x 1 S.A

R441 2003-001025 R-METAL OXIDE(S) 15Kohm,5%,2W,AF,TP,3.9x 1 S.A

R442 2001-003218 R-CARBON(S) 0.18ohm,10%,1/2W,AA,TP,2.4x6 1 S.A

R450 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R451 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R452 2008-001011 R-FUSIBLE(S) 0.18ohm,10%,2W,AF,TP,3.9x10 1 S.A

R621 2001-000660 R-CARBON 33KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R622 2001-000660 R-CARBON 33KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R623 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R626 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R627 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R633 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R636 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R646 2001-001015 R-CARBON 9.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R647 2001-001015 R-CARBON 9.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R651 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R652 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R701 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R702 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R703 2001-000702 R-CARBON 39KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R704 2001-000702 R-CARBON 39KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R801 2001-000019 R-CARBON(S) 10OHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A

R802 2003-000586 R-METAL OXIDE(S) 22Kohm,5%,2W,AF,TP,4x12 1 S.A

R803 2003-000586 R-METAL OXIDE(S) 22Kohm,5%,2W,AF,TP,4x12 1 S.A

R804 2003-000586 R-METAL OXIDE(S) 22Kohm,5%,2W,AF,TP,4x12 1 S.A

R805 2001-001150 R-CARBON(S) 470KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R806 2001-001150 R-CARBON(S) 470KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R807 2001-001103 R-CARBON(S) 20KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R808 2001-001178 R-CARBON(S) 680OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R809 2003-002064 R-METAL OXIDE(S) 7.5OHM,5%,2W,AF,TP,3.9X 1 S.A

R810 2001-000109 R-CARBON(S) 470OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R811 2001-001188 R-CARBON(S) 8.2KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R812 2001-000780 R-CARBON 470OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R813 2001-000780 R-CARBON 470OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R816 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R817 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R818 2001-001131 R-CARBON(S) 33KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R819 2004-001983 R-METAL(S) 2.49Kohm,1%,1/2W,AA,TP,2.4x6. 1 S.A

R820 2001-001096 R-CARBON(S) 2.2OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R821 2004-001889 R-METAL(S) 127Kohm,1%,1/2W,AA,TP,2.5x6.5 1 S.A

R822 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R823 2001-000522 R-CARBON 22KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R824 2001-000633 R-CARBON 30KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R828 2008-001088 R-FUSIBLE(S) 1ohm,5%,2W,AG,TP,3.9x12mm 1 S.A

R830 2003-002157 R-METAL OXIDE 220OHM,5%,2W,AG,TP,6X16MM 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-12

Electrical Part List

5-13Samsung Electronics

Electrical Part List

R833 2001-000449 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R841 2001-000800 R-CARBON 5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R842 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R843 2001-000522 R-CARBON 22KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R901 2001-001126 R-CARBON(S) 300OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R901 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 1 S.A

R902 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

R903 2001-000302 R-CARBON 10OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R903 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 1 S.A

R904 2001-000302 R-CARBON 10OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R904 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 1 S.A

R905 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R905 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

R906 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R906 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 1 S.A

R907 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R908 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 1 S.A

R909 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R910 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R910 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

R911 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R911 2007-000729 R-CHIP 300ohm,5%,1/10W,TP,1608 1 S.A

R912 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608 1 S.A

R913 2007-000088 R-CHIP 7.5Kohm,5%,1/10W,TP,1608 1 S.A

R916 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

R919 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

R920 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

R921 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

R922 2007-000120 R-CHIP 680ohm,5%,1/10W,TP,1608 1 S.A

R923 2007-000120 R-CHIP 680ohm,5%,1/10W,TP,1608 1 S.A

R924 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 1 S.A

R925 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

R926 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

R927 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 1 S.A

R928 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 1 S.A

R930 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

R932 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608 1 S.A

R935 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608 1 S.A

R936 2007-000080 R-CHIP 2Kohm,5%,1/10W,TP,1608 1 S.A

R938 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 1 S.A

R940 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

R941 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

R942 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

R945 2007-000125 R-CHIP 3.9Kohm,5%,1/10W,TP,1608 1 S.A

R946 2007-000125 R-CHIP 3.9Kohm,5%,1/10W,TP,1608 1 S.A

R947 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

R948 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

R949 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608 1 S.A

R951 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

R952 2007-000125 R-CHIP 3.9Kohm,5%,1/10W,TP,1608 1 S.A

R953 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608 1 S.A

R958 2007-000125 R-CHIP 3.9Kohm,5%,1/10W,TP,1608 1 S.A

R960 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 S.A

R961 2007-000134 R-CHIP 33Kohm,5%,1/10W,TP,1608 1 S.A

R962 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

R964 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608 1 S.A

R965 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608 1 S.A

RL801S 3501-001053 RELAY-POWER 5VDC,530MW,10000MA,1FORMA,15 1 S.A

RM01 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RM02 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

RM03 2007-000090 R-CHIP 10KOHM,5%,1/16W,DA,TP,1608 1 S.A

RM04 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

RM07 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

RR430S 2004-001390 R-METAL(S) 1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 1 S.A

RV914 2004-000680 R-METAL 2Kohm,1%,1/8W,AA,TP,1.8x3.2mm 1 S.A

RV915 2004-000869 R-METAL 3Kohm,1%,1/8W,AA,TP,1.8x3.2mm 1 S.A

RV916 2004-001126 R-METAL 6.2Kohm,1%,1/8W,AA,TP,1.8x3.2m 1 S.A

RV917 2004-000531 R-METAL 20Kohm,1%,1/2W,AA,TP,2.3x6.5mm 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

RX801S 2002-001011 R-COMPOSITION 3.3Mohm,5%,1/2W,AA,TP,3.7x 1 S.A

RY01 2001-000020 R-CARBON(S) 22OHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A

RY11 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

RY801S 2002-001012 R-COMPOSITION 8.2Mohm,5%,1/2W,AA,TP,3.7x 1 S.A

SC19 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

SC20 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

SC47 2203-000491 C-CERAMIC,CHIP 2.2nF,10%,50V,X7R,TP,1608 1 S.A

SC48 2203-000491 C-CERAMIC,CHIP 2.2nF,10%,50V,X7R,TP,1608 1 S.A

SC49 2203-000204 C-CER,CHIP 100nF,10%,25V,X7R,TP,2012 1 S.A

SMD AA97-15880B ASSY SMD-F/BOX NON PIP,10P,S61B,NEGO2,6V 1 S.N.A

SR35 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

SR36 2007-000259 R-CHIP 1.6Kohm,5%,1/10W,TP,1608 1 S.A

SR37 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

SR39 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

SR40 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

SR41 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

SR42 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

SR43 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

SW801 3403-001134 SWITCH-PUSH 250V,5A,DPST,ON-OFF,- 1 S.A

SW901 3404-001252 SWITCH-TACT 12VDC,50MA,130GF,7.5X7.1,1 1 S.A

SW902 3404-001252 SWITCH-TACT 12VDC,50MA,130GF,7.5X7.1,1 1 S.A

SW903 3404-001252 SWITCH-TACT 12VDC,50MA,130GF,7.5X7.1,1 1 S.A

SW904 3404-001252 SWITCH-TACT 12VDC,50MA,130GF,7.5X7.1,1 1 S.A

SW905 3404-001252 SWITCH-TACT 12VDC,50MA,130GF,7.5X7.1,1 1 S.A

T0010 AA27-00017A COIL CHOKE -,4MH,14X20 C:6.0,11MM,BK 1 S.A

T0010 AA27-00031A COIL CHOKE -,140UH,AR 8X20,0.8MM,BK 1 S.A

T0010 AA27-00105B COIL CHOKE 55uH,DR 15X27.5,BK,31.5T 1 S.A

T0052 2703-000125 INDUCTOR-SMD 10uH,10%,2012 1 S.A

T0052 2703-000392 INDUCTOR-SMD 10uH,5%,4532 1 S.A

T0052 2703-000398 INDUCTOR-SMD 10uH,10%,3225 1 S.A

T0052 2703-001070 INDUCTOR-SMD 100uH,10%,4532 1 S.A

T0052 2703-001229 INDUCTOR-SMD 2.2uH,10%,1608 1 S.A

T0066 AA62-30181S HEAT SINK-ES CS29K10PF,A6063S,T2.0,26.2, 1 S.N.A

T0066 AA62-30197D HEAT SINK-ES DP,-,-,-,AA62-30181H,-,-,- 1 S.N.A

T0066 AA62-30180B HEAT SINK-ES -,A6063 EXTR.,2,WHT,70MM,-, 1 S.N.A

T0077 AA41-01141A PCB MAIN CS29M06,FR-1,1,A,1.6T,245*330,S 1 S.N.A

T0085 1201-002118 IC-AUDIO AMP TDA7297SA,ZIP,15P,-,DUAL,32 1 S.A

T0086 1203-002512 IC-PWM CONTROLLER KA5Q1565RF-YDTU,TO-3PF 1 S.A

T0087 1203-000243 IC-POSI.FIXED REG. 7812,TO-220,3P,-,PLAS 1 S.A

T0087 1203-001225 IC-POSI.FIXED REG. 78R09,TO-220,4P,-,PLA 1 S.A

T0087 1203-003196 IC-POSI.FIXED REG. GM66102,TO-220,3P,12. 1 S.A

T0087 1203-002587 IC-POSI.FIXED REG. KA278R05TU,TO-220,4P, 1 S.A

T0087 1203-003196 IC-POSI.FIXED REG. GM66102,TO-220,3P,12. 1 S.A

T0087 1203-002186 IC-POSI.FIXED REG. 18,DPAK,3P,240MIL,PLA 1 S.A

T0087 1203-002302 IC-POSI.FIXED REG. 78RM33D,D-PAK,3P,-,PL 1 S.A

T0088 1204-000517 IC-VERTICAL DEF. LA7845,SIP,7P,-,PLASTIC 1 S.A

T0098 AA62-00127A HEAT SINK DP, AA62-00066B,-,-,-,-,-,P55A 1 S.N.A

T0105 AA60-30001A WASHER-PLATE M3,ID3.5,15X8.5,T1.0,SBHG 1 S.N.A

T0122 2802-001177 RESONATOR-CERAMIC 2.696MHZ,0.4%,BK,10X4. 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-14

Electrical Part List

5-15Samsung Electronics

Electrical Part List

T0175 AA62-00065A HEAT SINK-PS DP,-,-,-,AA62-00045A,-,-,-, 1 S.N.A

T0175 AA62-00062A HEAT SINK-PS -,-,T2.0,SILVER,-,-,-,-,108 1 S.N.A

T0239 BH73-00028B SILICON/RUBBER-HS TV ALL,SILICON,26*30*T 1 S.N.A

T0245 0202-001366 SOLDER-WIRE FLUX -,RS60S,D1.2,63Sn/37Pb, 0.02 S.N.A

T0245 0202-001366 SOLDER-WIRE FLUX -,RS60S,D1.2,63Sn/37Pb, 0.03 S.N.A

T0296 AA27-00347A COIL LINEARITY 10.4uH,+7A/32uH,-7A/4.5uH 1 S.A

T0522 0205-001153 GREASE-SILICON SC102,JAPAN,- 0.09 S.N.A

T0522 0205-001153 GREASE-SILICON SC102,JAPAN,- 0.3 S.N.A

T0522 0205-001153 GREASE-SILICON SC102,JAPAN,- 0.6 S.N.A

T0522 0205-001153 GREASE-SILICON SC102,JAPAN,- 0.2 S.N.A

T0522 0205-001153 GREASE-SILICON SC102,JAPAN,- 0.18 S.N.A

T0522 0205-001153 GREASE-SILICON SC102,JAPAN,- 0.09 S.N.A

T0523 AA95-03417B ASSY SUB PCB-F/BOX NON PIP,10P,S61B,NEGO 1 S.N.A

T0568 3301-001082 BEAD-SMD 60ohm,3225,1500mA,TP,43ohm/40MH 1 S.N.A

T0607 AA61-01390B BRACKET-IC NEO,SPC,T1.0,Sn 1 S.N.A

T0900 1404-001045 THERMISTOR-NTC 4.7ohm,15%,2900K,35.0mW,T 1 S.A

T401 AA26-50001S TRANS-HORIZ.DRIVE -,-,-,6.0mH,-,-,44uH,- 1 S.A

T444S AA26-00223B TRANS FBT 1402.4001C,CPTTV SEH,1.931mH,F 1 S.A

T801S AA26-00200B TRANS SWITCHING 53B135-SC,WS32A20HE,AC16 1 S.A

VP801S 1405-000187 VARISTOR 750V,1250A,12.5x7mm,TP 1 S.A

VX801S 1405-000187 VARISTOR 750V,1250A,12.5x7mm,TP 1 S.A

XM01 2801-004117 CRYSTAL-SMD 6MHZ,30PPM,28-ABX,20PF,150OH 1 S.A

ZM03 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500MW,LL- 1 S.A

0502-001007 TR-POWER KSC2073-H2,NPN,25W,TO-220,ST,6 1 S.A

0402-001296 DIODE-RECTIFIER FMP-3FU,1.5KV,5A,DO-201A 1 S.A

0502-001230 TR-POWER FJL6920YDTU,N,200000MW,TO-264 F 1 S.A

AA61-11028A BRACKET -,SECC,T1.0,-,-,-,- 1 S.N.A

0202-001375 SOLDER-CREAM RMA-20-21L,S63,-,Sn63/Pb36. 2.75 S.N.A

T0239 AA96-03661A ASSY PCB P-CRT AA94-15207B 1 S.N.A

C504 2201-000723 C-CERAMIC,DISC 4.7NF,20%,3KV,Y5U,TP,16X5 1 S.A

C505 2401-000430 C-AL 10uF,20%,250V,GP,TP,10x16mm,5m 1 S.A

C506 2201-000138 C-CERAMIC,DISC 0.1NF,10%,50V,Y5P,TP,4X4M 1 S.A

C507 2401-001563 C-AL 47uF,20%,400V,GP,TP,16x25,7.5 1 S.A

C508 2301-001259 C-FILM,LEAD-PPF 100nF,5%,400V,TP,19x8x16 1 S.A

C509 2401-000832 C-AL 220uF,20%,25V,GP,TP,8x11.5,5 1 S.A

C511 2201-000119 C-CERAMIC,DISC 100NF,+80-20%,50V,Y5V,TP, 1 S.A

C512 2401-000832 C-AL 220uF,20%,25V,GP,TP,8x11.5,5 1 S.A

C513 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C514 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C515 2201-000173 C-CERAMIC,DISC 10NF,10%,500V,Y5P,BK,16X4 1 S.A

C516 2201-000173 C-CERAMIC,DISC 10NF,10%,500V,Y5P,BK,16X4 1 S.A

C517 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A

C518 2401-000430 C-AL 10uF,20%,250V,GP,TP,10x16mm,5m 1 S.A

C519 2301-001259 C-FILM,LEAD-PPF 100nF,5%,400V,TP,19x8x16 1 S.A

CF01 2401-000360 C-AL 100uF,20%,50V,GP,TP,8x11.5,5 1 S.A

CF02 2201-000017 C-CERAMIC,DISC 1nF,10%,50V,Y5P,-,5x3.5mm 1 S.A

CF03 2201-000192 C-CERAMIC,DISC 0.01NF,0.25PF,500V,C0G,TP 1 S.A

CF04 2201-000516 C-CERAMIC,DISC 4.7NF,+100-0%,500V,Y5U,TP 1 S.A

CF05 2301-000261 C-FILM,LEAD-PEF 4.7nF,5%,100V,TP,10.5x12 1 S.A

CF06 2201-000192 C-CERAMIC,DISC 0.01NF,0.25PF,500V,C0G,TP 1 S.A

CF07 2201-000604 C-CERAMIC,DISC 0.056NF,+100-0%,500V,SL,T 1 S.A

CF71 2401-000832 C-AL 220uF,20%,25V,GP,TP,8x11.5,5 1 S.A

CF73 2401-000927 C-AL 22uF,20%,250V,GP,TP,13x20,5 1 S.A

CF74 2401-000025 C-AL 100uF,20%,16V,GP,TP,6.3x11,5 1 S.A

CF75 2401-000045 C-AL 10uF,20%,160V,GP,TP,10x16,5 1 S.A

CN501 3711-003974 HEADER-BOARD TO CABLE BOX,12P,1R,2.5mm,S 1 S.A

CN502 3711-003051 HEADER-BOARD TO CABLE BOX,8P,1R,2.5MM,ST 1 S.A

CN504 3711-002643 HEADER-BOARD TO CABLE BOX,4P,1R,2.5mm,ST 1 S.A

CN505 3711-002642 HEADER-BOARD TO CABLE BOX,3P,1R,2.5mm,ST 1 S.A

D501 0402-000254 DIODE-RECTIFIER RGP10J,600V,1A,DO-41,TP 1 S.A

D502 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,T 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

D503 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

D504 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,T 1 S.A

D505 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,T 1 S.A

D506 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,T 1 S.A

D507 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,T 1 S.A

D508 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A

D516 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,T 1 S.A

DF01 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

DF02 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

DF05 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

DF06 0401-000005 DIODE-SWITCHING 1N4148,75V,150MA,DO-35,T 1 S.A

DF07 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,T 1 S.A

DF08 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41,T 1 S.A

DU410 1201-000010 IC-OP AMP 2030,PENTAWATT,5P,-,SINGLE,-,C 1 S.A

DZ501 0403-001211 DIODE-ZENER MTZJ12B,11.8-12.3V,500MW,DO- 1 S.A

DZ502 0403-001211 DIODE-ZENER MTZJ12B,11.8-12.3V,500MW,DO- 1 S.A

DZ503 0403-001211 DIODE-ZENER MTZJ12B,11.8-12.3V,500MW,DO- 1 S.A

DZ504 0403-001211 DIODE-ZENER MTZJ12B,11.8-12.3V,500MW,DO- 1 S.A

DZ505 0403-000734 DIODE-ZENER TZP15B,14.7-16.5V,1000MW,DO- 1 S.A

DZ506 0403-000508 DIODE-ZENER MTZJ5.6B,5.45-5.73V,500MW,DO 1 S.A

DZF03 0403-000508 DIODE-ZENER MTZJ5.6B,5.45-5.73V,500MW,DO 1 S.A

EL07 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL08 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL09 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL10 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EY02 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

EY03 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.N.A

F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,-,3.5x5,TP,- 1 S.A

GT501 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT502 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT503 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT506 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT507 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

IC501 AA96-03645A ASSY H/S AA96-03027C 1 S.N.A

IC502 AA96-03636A ASSY H/S BH99-00038E 1 S.N.A

INK HA83-00052A LP-TAPE-INK ,WIDTH 55 MM 0.01 S.N.A

L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A

L502 2701-000178 INDUCTOR-AXIAL 33UH,10%,3070 1 S.A

L506 2701-000101 INDUCTOR-AXIAL 1.2UH,10%,2534 1 S.A

L507 2701-000101 INDUCTOR-AXIAL 1.2UH,10%,2534 1 S.A

L508 2701-000101 INDUCTOR-AXIAL 1.2UH,10%,2534 1 S.A

L509 2701-000163 INDUCTOR-AXIAL 27UH,10%,3070 1 S.A

LF03 2701-000112 INDUCTOR-AXIAL 100UH,10%,3070 1 S.A

LX085 AA27-90001B COIL-SPARK,GAP S-23,1.5KV,-,-,-,-,-,-,-, 1 S.A

M0081 6003-000334 SCREW-TAPTITE RH,+,2S,M3,L6,ZPC(YEL),SWR 1 S.N.A

M0144 BH61-00004A SPRING ETC-TR CDA,CDB,SUS304,-,-,-,-,-,T 1 S.N.A

PCB AA41-01142A PCB CRT CS29M06,FR-1,1,A,245*330,S61B,4, 1 S.N.A

Q501 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

Q502 0502-000006 TR-POWER KSC1507,NPN,15W,TO-220,TP,120- 1 S.A

Q503 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A

Q504 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A

QF02 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

QF03 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

QF04 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A

QF05 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

QF09 AA96-03644A ASSY H/S AA96-00243M 1 S.N.A

QF10 AA96-03643A ASSY H/S AA96-00243L 1 S.N.A

R504 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R506 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-16

Electrical Part List

5-17Samsung Electronics

Electrical Part List

R507 2002-001008 R-COMPOSITION 1.8Kohm,10%,1/2W,AA,TP,3.7 1 S.A

R508 2008-001026 R-FUSIBLE 75ohm,5%,1/2W,AA,TP,2.5x6.5mm 1 S.A

R509 2002-001008 R-COMPOSITION 1.8Kohm,10%,1/2W,AA,TP,3.7 1 S.A

R511 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R512 2002-001008 R-COMPOSITION 1.8Kohm,10%,1/2W,AA,TP,3.7 1 S.A

R513 2002-001009 R-COMPOSITION 2.7Kohm,10%,1/2W,AA,TP,3.7 1 S.A

R514 2008-000290 R-FUSIBLE(S) 2.4ohm,5%,2W,AF,TP,3.9x10mm 1 S.A

R516 2008-000205 R-FUSIBLE(S) 10ohm,5%,1/2W,AF,TP,2.5x6.5 1 S.A

R517 2001-001062 R-CARBON(S) 10MOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R518 2001-000837 R-CARBON 51KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R519 2001-000331 R-CARBON 12KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R520 2001-000761 R-CARBON 430OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R521 2008-001053 R-FUSIBLE 22ohm,5%,1/2W,AF,TP,2.5x6.5mm 1 S.A

R522 2001-000052 R-CARBON(S) 3.3KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R523 2001-001126 R-CARBON(S) 300OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R524 2001-000085 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R525 2001-000085 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R526 2001-001071 R-CARBON(S) 12KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R527 2001-001040 R-CARBON(S) 0.68OHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R528 2001-000066 R-CARBON(S) 10KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R529 2001-000085 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R530 2001-000066 R-CARBON(S) 10KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R531 2001-001196 R-CARBON(S) 9.1KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R532 2001-001103 R-CARBON(S) 20KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R533 2004-005059 R-METAL(S) 2.7KOHM,1%,1/2W,AA,TP,6.4X2.4 1 S.A

R534 2004-001893 R-METAL(S) 22Kohm,1%,1/2W,AA,TP,2.5x6.5m 1 S.A

R535 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R536 2001-000800 R-CARBON 5.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R537 2001-000347 R-CARBON 13KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R538 2001-000011 R-CARBON 75KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

RF02 2003-000458 R-METAL OXIDE(S) 100ohm,5%,2W,AF,TP,4x12 1 S.A

RF04 2003-000995 R-METAL OXIDE(S) 3.3Kohm,5%,2W,AF,TP,3.9 1 S.A

RF05 2003-000995 R-METAL OXIDE(S) 3.3Kohm,5%,2W,AF,TP,3.9 1 S.A

RF06 2003-000995 R-METAL OXIDE(S) 3.3Kohm,5%,2W,AF,TP,3.9 1 S.A

RF13 2008-001014 R-FUSIBLE(S) 22ohm,5%,1W,AF,TP,3.2x10mm 1 S.A

RF17 2001-000019 R-CARBON(S) 10OHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A

RF18 2001-001079 R-CARBON(S) 15OHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A

RF19 2001-001079 R-CARBON(S) 15OHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A

RF20 2001-000331 R-CARBON 12KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

RF21 2001-000258 R-CARBON 1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

RF22 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

RF23 2001-000554 R-CARBON 270OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

RF24 2003-001018 R-METAL OXIDE(S) 220ohm,5%,2W,AF,TP,3.9x 1 S.A

RF25 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

RF26 2001-001179 R-CARBON(S) 68KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

RF27 2001-001179 R-CARBON(S) 68KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

RF28 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

RF29 2001-001071 R-CARBON(S) 12KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

RF30 2001-000221 R-CARBON 1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

RF31 2001-000221 R-CARBON 1.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

RF32 2003-000746 R-METAL OXIDE(S) 56ohm,5%,2W,AF,TP,4x12m 1 S.A

RF33 2001-001053 R-CARBON(S) 1.5OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

RF34 2001-001100 R-CARBON(S) 2.7OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

RF35 2003-000746 R-METAL OXIDE(S) 56ohm,5%,2W,AF,TP,4x12m 1 S.A

RF36 2003-000652 R-METAL OXIDE(S) 330ohm,5%,2W,AF,TP,4x12 1 S.A

T0074 1201-002114 IC-VIDEO AMP TDA6109JF,SDIP,9P,18.5mm,-, 1 S.A

T0081 BH62-00041A HEAT SINK-TR PN17LT,A1050S,T1.0,50,23,WH 1 S.N.A

T0100 AA97-16252A ASSY AUTO-CRT AA97-15879B,S61B,29M20 1 S.N.A

T0175 AA62-00065A HEAT SINK-PS DP,-,-,-,AA62-00045A,-,-,-, 1 S.N.A

T0175 AA62-00147A HEAT SINK-PS K62A,A1050,T2.0,35mm,40mm,W 1 S.N.A

T0245 0202-001366 SOLDER-WIRE FLUX -,RS60S,D1.2,63Sn/37Pb, 0.01 S.N.A

T0245 AA39-00088A LEAD CONNECTOR-ASSY HERCULES,UL1007/1185 1 S.A

T0245 AA39-00127A LEAD CONNECTOR-ASSY ,8P,400MM,35155-0800 1 S.A

T0245 AA39-20010B LEAD CONNECTOR-ASSY ,1P,500,YFH800-01,S, 1 S.A

T0310 4715-001036 SURGE ABSORBER 500V,20%,-,-,TP 1 S.N.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

T0522 0205-001153 GREASE-SILICON SC102,JAPAN,- 0.1 S.N.A

T0522 0205-001153 GREASE-SILICON SC102,JAPAN,- 0.09 S.N.A

T0603 AA63-10002A BAND-TIE NYLON66 V2,L100,NTR 2 S.N.A

V999 3704-001197 SOCKET-CRT 8P+SEN,29PI,22.5PI,NI+SN,- 1 S.A

0502-000153 TR-POWER 2SC2344-D,NPN,1.2W,TO-220,-,60 1 S.A

0502-000131 TR-POWER 2SA1011-D,PNP,1.2W,TO-220,-,60 1 S.A

AA96-03733A ASSY PCB P-A/V AA94-14090N 1 S.N.A

C703 2202-000121 C-CERAMIC,MLC-AXIAL 100pF,10%,50V,Y5P,TP 1 S.A

C705 2202-000121 C-CERAMIC,MLC-AXIAL 100pF,10%,50V,Y5P,TP 1 S.A

C706 2202-002008 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,50V,Y5V 1 S.A

C707 2202-002008 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,50V,Y5V 1 S.A

JA701 3722-001031 JACK-PIN 3P,3.6mm,#18,AU 1 S.A

JA702 3722-001163 JACK-VHS 4P,AU,BLK,ANGLE 1 S.A

L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A

M2893 MD39-00097B LEAD CONNECTOR S59B,UL1007#26,8P,600mm,# 1 S.A

PCB AA41-01018B PCB SUB-A/V CS29M6,FR-2,1,01,1.6,245*197 1 S.N.A

R706S 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R707S 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

T0238 AA97-16273A ASSY AUTO AA97-14919A 1 S.N.A

T0245 0202-001366 SOLDER-WIRE FLUX -,RS60S,D1.2,63Sn/37Pb, 0.01 S.N.A

ASSY PACKING

AA90-03236A ASSY PACKING 29M6 1 S.N.A

T0524 6902-000006 BAG PE HDPE/NITRON/HDPE,T0.02/T0.5/T0.2, 1 S.N.A

T0214 AA60-40006A PIN-STAPLE AUTO,33X17.8X2.4,H18,33X17.8X 24 S.N.A

HA83-00058A LP-RESIN-EPS ,CHEIL SF-301V,WHT 0.77 S.N.A

HA83-00046A LP-TAPE INK ,WIDTH 105 MM 0.22 S.N.A

ASSY COVER FRONT

M0001 AA90-04970B ASSY COVER FRONT 29M06,S61B,SEH 1 S.N.A

T0081 6002-000515 SCREW-TAPPING RH,+,2,M4,L15,ZPC(WHT),SWR 7 S.A

M0081 6003-001019 SCREW-TAPTITE RH,+,B,M4,L12,ZPC(BLK),SWR 1 S.N.A

M0081 6003-001268 SCREW-TAPTITE TH,+,B,M4,L12,ZPC(YEL),SWR 2 S.N.A

CRT+CF AA60-10050V BOLT-HEX -,SWRCH18A,M6,L30,HH,+,WC,-,Z 4 S.N.A

CIS1 AA65-30110A CLAMPER CORE-WIRE ALL MODEL,NYLON 66,V2, 1 S.N.A

AA81-00129A A/S-TAPE-INK ALL,BLK,W100MM 0.055 S.N.A

T0003 AA96-02033B ASSY COVER P-FRONT 29M06,S61B,HIPS,HB,SV 1 S.A

T0082 3001-001092 SPEAKER 10W,8OHM,87DB,150HZ 2 S.A

M0081 6003-001019 SCREW-TAPTITE RH,+,B,M4,L12,ZPC(BLK),SWR 8 S.N.A

M0081 6003-001019 SCREW-TAPTITE RH,+,B,M4,L12,ZPC(BLK),SWR 1 S.N.A

T0245 AA39-00102A LEAD CONNECTOR-ASSY ,4P,900,700MM,35155- 1 S.A

CIS7 AA61-60003J SPRING ETC-CS -,SUS304,-,-,OD6,N7,OD6,-, 1 S.N.A

M0112 AA63-01269A COVER-FRONT 29M06,S61B,SRS,HIPS,HB,SV012 1 S.N.A

AA81-00106A A/S-MARKING PAINT ,P432U,DARK GREY,TPC 0.08 S.N.A

T0091 HA83-00006A LP-RESIN HIPS ,BASF495F,NTR,HB 2.361 S.N.A

T0084 HA83-00011A LP-RESIN ,M BATCH,WILSON 6007-GY-60,GRY 0.048 S.N.A

HA83-00040B LP-MARKING PAINT ,METALLIC SILVER,SV-012 0.145 S.N.A

T0022 AA64-04011A KNOB CONTROL M06,HIPS,HB,SV012P,ALL,SEH 1 S.N.A

T0091 HA83-00006A LP-RESIN HIPS ,BASF495F,NTR,HB 0.001 S.N.A

T0084 HA83-00011A LP-RESIN ,M BATCH,WILSON 6007-GY-60,GRY 0.001 S.N.A

HA83-00040B LP-MARKING PAINT ,METALLIC SILVER,SV-012 0.001 S.N.A

T0023 AA64-04012A KNOB POWER M06,HIPS,HB,SV012P,ALL,SEH 1 S.N.A

T0091 HA83-00006A LP-RESIN HIPS ,BASF495F,NTR,HB 2.16 S.N.A

T0084 HA83-00011A LP-RESIN ,M BATCH,WILSON 6007-GY-60,GRY 0.04 S.N.A

HA83-00040B LP-MARKING PAINT ,METALLIC SILVER,SV-012 0.001 S.N.A

T0299 AA64-04013A WINDOW-RMC,LED M06,ACRYL,HB,CLEAR,SEH 1 S.N.A

T0084 HA83-00010A LP-RESIN ,OROGLAS,VM-100 ZHN 2 0.001 S.N.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-18

Electrical Part List

5-19Samsung Electronics

Electrical Part List

T0057 AA64-70117B BADGE-BRAND ,AL,T1.5,10.6,L65,BLK,SILVER 1 S.A

CIS1 AA65-30105A CLAMPER CORE-WIRE ALL MODEL,NYLON 66,V2, 1 S.N.A

T0245 HA61-00711C HOLDER-PCB 29K8,HIPS,HB,GRY 1 S.N.A

T0091 HA83-00006A LP-RESIN HIPS ,BASF495F,NTR,HB 24.8 S.N.A

T0084 HA83-00011A LP-RESIN ,M BATCH,WILSON 6007-GY-60,GRY 0.5 S.N.A

HA83-00049A LP-ADHESIVE-HM 12MM,NTR 0.28 S.N.A

qms HA83-00052A LP-TAPE-INK ,WIDTH 55 MM 0.032 S.N.A

ASSY COVER REAR

M0002 AA90-04980B ASSY COVER REAR 29M06,K55A,SEH 1 S.N.A

T0015 AA64-04015A CABINET BACK 29M06,HIPS,HB 1 S.A

T0098 AA81-00096A RESIN-A VL-1823,G5433,A ,253.020 S.N.A

T0522 AA65-30008A CLAMPER CORE-CORD -,PE,HB,-,BLK,- 1 S.N.A

T0016 AA65-30109A CLAMPER CORE-FBT -,NYLON-66,V2,-,BLK,- 1 S.N.A

ASSY FIXING

T0892 AA91-09574A ASSY FIXING M06,M16,S61B,XEC,SEH 1 S.N.A

T0121 3301-001201 CORE-FERRITE AE,21x11x32mm,1500,280G 1 S.A

T0268 AA39-10001M CBF-POWER CORD -,KJP-140,KLCE-2F,2.4m,HO 1 S.A

T0603 AA63-10002A BAND-TIE NYLON66 V2,L100,NTR 1 S.N.A

CIS1 AA65-30105A CLAMPER CORE-WIRE ALL MODEL,NYLON 66,V2, 5 S.N.A

ASSY CPT

T0521 AA91-09603A ASSY CPT 29,A68QFM793X002 1 S.N.A

T0063 AA03-00451A CRT COLOR A68QFN793X002,380mG,0.28mH,11. 1 S.A

T0090 AA27-00314A COIL DEGAUSSING-TILT TILT,CPTTV,33.5mH,1 1 S.A

T0089 AA27-00317A COIL DEGAUSSING 29,CPTTV,10%,35T,4.5OHM 1 S.A

T0603 AA98-70011A ASSY TBC WIRE P ,29,NTSC,PAL,2P,UL1015#2 1 S.N.A

T0527 AA61-01373C HOLDER-D COIL NYLON,W31MM,WHT,SEH 4 S.N.A

ASSY LABEL

M0019 AA92-11168B ASSY LABEL WS28M206V7XXEC,S61B,NEGOTIATO 1 S.N.A

AA81-00129A A/S-TAPE-INK ALL,BLK,W100MM 0.055 S.N.A

HA83-00052A LP-TAPE-INK ,WIDTH 55 MM 0.032 S.N.A

ASSY ACCESSORY

M0045 AA92-11228A ASSY ACCESSORY WS32Z306VBXXEC,S61B,SHINE 1 S.N.A

HA83-00047A LP-TAPEACETATE T0.1MM,W20MM,L200MM 0.065 S.N.A

T0074 AA59-00370B REMOCON SAMSUNG,TM79,175*44*23,SAMSUNG S 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

MEMO

Samsung Electronics5-20

Troubleshooting

Samsung Electronics 6-1

6. Troubleshooting

6-1 Checkpoints by Error Mode

■Power LED: Check that the LED works when turning the Master Switch ON/OFF

■LED Indicators: See table 6-2-1 Basic Troubleshooting: LED Diagnosis on the Front Panel.

■In case of a power failure or abnormal screen, check the following items.

1) Check that the power cord is correctly connected to a 220V wall outlet.

2) Check that the Master Switch has been pressed.

3) Check that the transmitter is turned on.

4) Check that transmitter device selection is set to TV.

5) Check that the signal cable is properly connected.

6) Check that channel setting has been set.

Troubleshooting

6-2 Samsung Electronics

6-1-1 Basic Approaches for Troubleshooting

■Troubleshooting Mechanism :

- 6-1 Check to determine whether the display is operating properly using the troubleshooting procedures.

- When the master switch is turned on, the secondary side of the power transformer supplies power to the Deflection/F-BOX.

- The F-BOX receives all signals, and processed signals are sent to CRT Ass'y. The Deflection/Focus is controlled by the

Main Board.

■Troubleshooting by Modules

1) Check if the main secondary side voltage is abnormal.

Check if the master switch works, if the screen turns on and off by using the Picture ON/OFF switch, if the screen

repeatedly turns on and off, and if the power port, which is output from the Stand-By circuit and the Micom, is normal.

(☞See the circuit diagram in the Service Manual)

2) Check if the Deflection Block is out of order.

Check if the Deflection Block is out of order when a picture is displayed abnormally, i.e. when the picture curls up

horizontally, shrinks horizontally or vertically, or extends horizontally or vertically.

(☞See the circuit diagram in the Service Manual)

3) Check if the F-box Block is out of order

Check if the F-box Block is out of order when the display or sound is out of order or the unit malfunctions even if the unit

is turned on properly (☞See the circuit diagram in the Service Manual)

4) Check if the Deflection Board is out of order.

When the screen is not properly displayed and the left or right side of the picture is shrunk, or the top or bottom of the screen

is expanded or shrunk, check if the Deflection Board is out of order.

Troubleshooting

Samsung Electronics 6-3

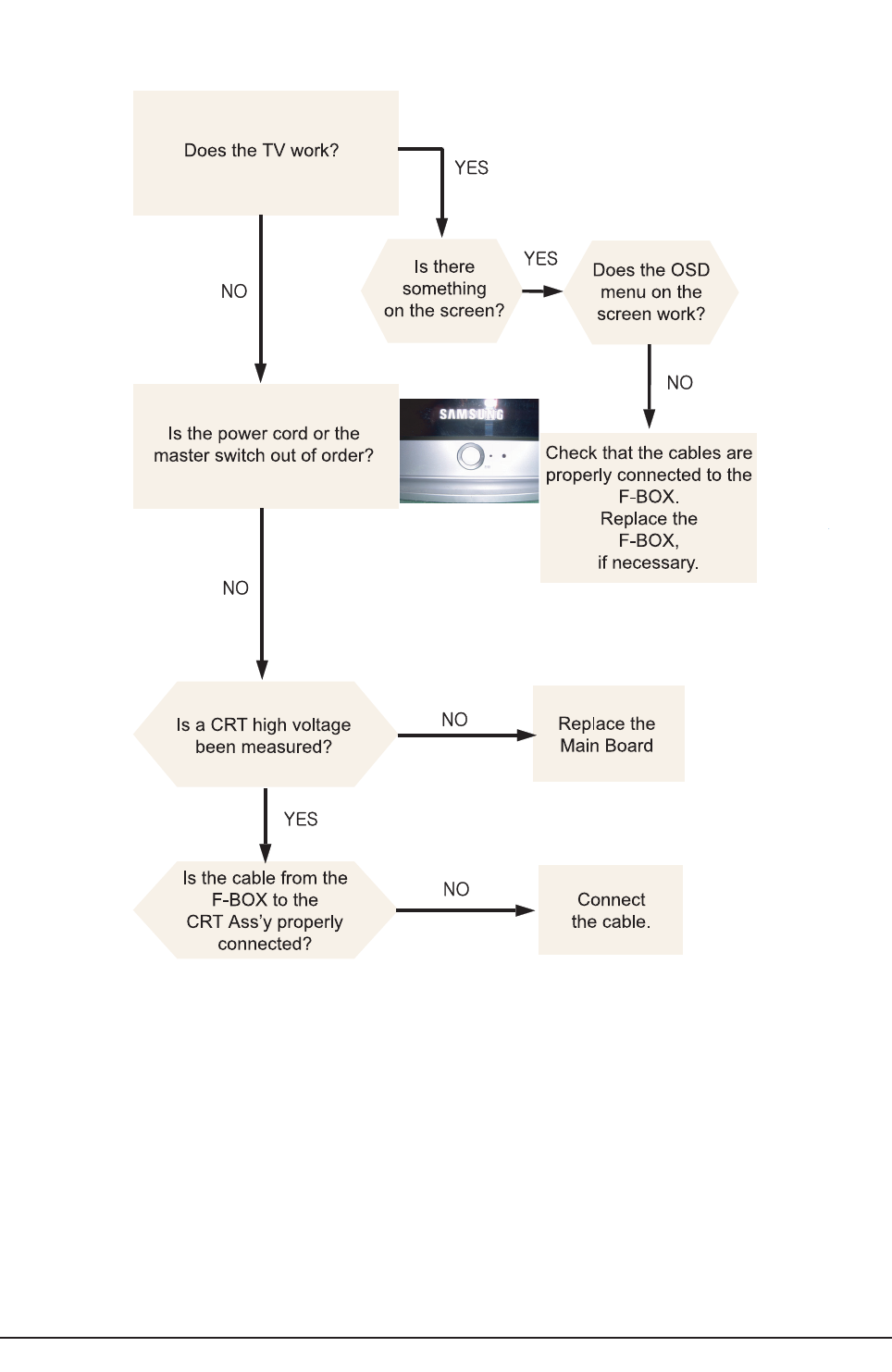

6-1-2 Flow Chart for Malfunction

Troubleshooting

6-4 Samsung Electronics

6-2 Troubleshooting Procedures by Error Modes

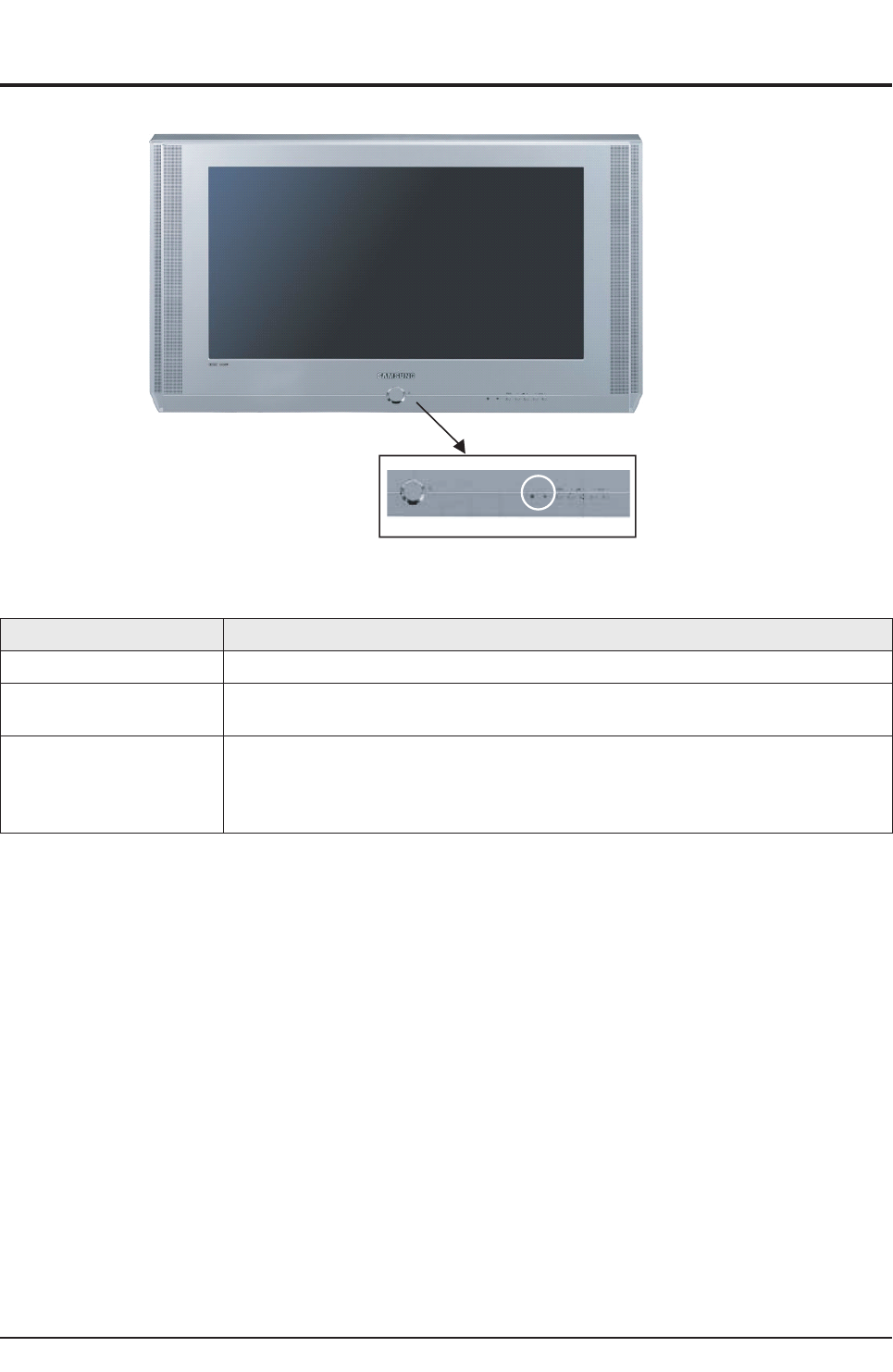

6-2-1 Basic Troubleshooting: Diagnosis of LED on the Front Panel

6-2-2 Troubleshooting by the Checksum

■Diagnosis of trouble by the checksum is neither reliable nor convenient.

You can only use the checksume of the current direct-view TV to determine whether the software is corrupted or not.

The Checksum value is determined according to the version of the software loaded on the set.

Therefore, you can determine whether the software has been properly downloaded, if you know the correct checksum for that

version of the software.

You can check the checksum according in the following order.

Factory Mode →Checksum →Right Button →Calculate Checksum →Output Checksum (e.g. 0xab2b)

■Checksum Examples

T_NG2PEU_1001 : checksum = 0xab2b

Power Description

○This happens when the Master Switch is not pressed or the power cord is disconnected.

●This happens when the power cord is connected and the power switch is pressed.

If you cannot set the power switch on by pressing it, check the power switch Ass'y.

○→◑→●

If you press the power switch of the transmitter or the channel key on the remote control when in

St-BY status, the screen will be turned on.

If the LED blinks and the screen is not displayed, check the connection between the Power and

the System Board.

●: Light is On

◑: Light is Blinking

○: Light is Off

Troubleshooting

Samsung Electronics 6-5

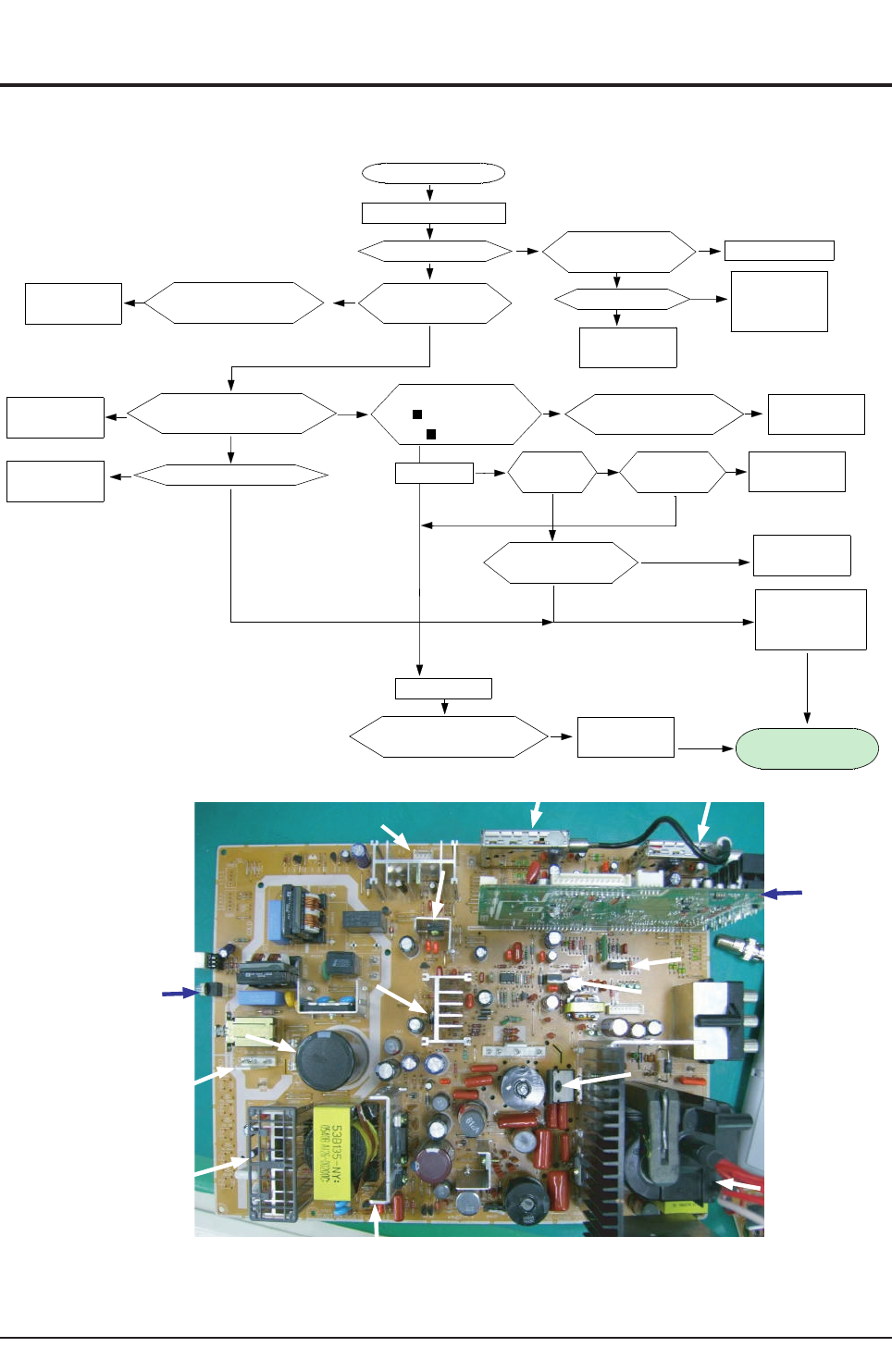

6-3 Troubleshooting Procedures by ASS'Y

No-Power

AC Voltage Impress

I #1 CHECK FP801S FUSE

CHECK AC FUSE CHANGE

D801S CHECK

D801S

BRIGE DIODE

CHANGE

SPS IC CHANGE

I #4 CHECK

DC : 16 ~ 24V

CHECK HOT BLOCK

Materials

C815(B+) Voltage check

DC :132V

F/back Line Check

132V F/B Line

12V Line

L811 Open

B+ check

R820 Line

Check

Q804 (VCC_5V_C)

Regulator Check

Change

Materials

Change

Materials

F-Box Check

and Change the

Module

Over

OK NG

Change

Materials

12V Line

NG NG

B+(132V) Line

OK OK

F/BACK LINE CHECK

PC801S/IC804/Q801...

Change

Materials

No-Power

Repair End

OK or Low

Q406 H-OUT TR Cehck

FA801S/FA802S FUSE/

Diode Check

Change

Materials

Change

Materials

Change

Materials

C801S

IC601

D809A

TU02 TU01

F/BOX

IC802

IC803

Q401

IC301

LED

FP801S

POWER CORD

IC801

D801S

T444

6-3-1 NO POWER

Troubleshooting

6-6 Samsung Electronics

6-3-2 NO Signal

1. When the Power Board is normal

No-Signal

RF,VIDEO

CEHCK

TU01

9V check

SCART1/SCART2

CVBS Check

TU01

5V check

TU01

33V check

TU01 SDA/SCL

check

C117 CVBS CHECK

F-Box Module

Change

IC803 78R09

CHANGE

IC802 78R05

CHANGE

OPEN Tuer SDA/SCL PIN

Check SCL/SDA

Tuner Change

DZ804 TZP33A

Change

OPEN Tuer SDA/SCL PIN

Check SCL/SDA

Repair End

EXT :No

RF :Ok

EXT :Ok

RF :No

Video:No

RF :No

Cehck A/V

Cabile

Troubleshooting

Samsung Electronics 6-7

6-3-3 No Sound

1. When the Power Board is normal

Cehck A/V

Cabile

EXT :No

RF :No

EXT :Ok

RF :No

EXT :No

RF :Ok

OPEN Tuer SDA/SCL PIN

Check SCL/SDA

DZ804 TZP33A

Change

OPEN Tuer SDA/SCL PIN

Check SCL/SDA

Tuner Change

IC802 78R05

CHANGE

IC803 78R09

CHANGE

F-Box Module

R/L-OUT Check

TU01 SDA/SCL

check

TU01

33V check

TU01

5V check

SCART1/SCART2

CVBS Check

TU01

9V check

RF,EXT-IN

CEHCK

No-Signal

F-Box Module

Change

AMP B+ Check

FA803S CEHCK Change

Materials

AMP CHANGE

Troubleshooting

6-8 Samsung Electronics

6-3-4 No Raster

1. When the Power Board is normal

No-Raster

FBT Screen VR MAX

And Screen check

CRT ASSY

CHECK

Heater Line

Fusible Resistor

change

FBT 16V/-16V Line

Diode and Fusible

Resistor check.

and Change

Raster Check IC501 B+

CHECK

IC501 B+ Line Check and

Materials change

IC501 Output

Signal Check IC501 TDA6109 change

RGB Line Materials

Check and Change

Raster

Black or

Horizetal line in

middle of screen

Black

Raster

Black

FBT 16/-16V CHECK

Go to the No-Video check

Flow Chart

IC301 #4,#5

V-Sync Check F-BOX Module Change

Horizetal line

in middle of

screen

Vertical Block

Materials Check F-BOX Module Change

Verticla IC

LA7845 Change

OSD Check OK

F-BOX Module Change

Troubleshooting

Samsung Electronics 6-9

6-4 Troubleshooting by Blocks

6-4-1 Troubleshooting System Boards

1. Tuner Diagnosis

If no signal is received even though the RF signal from the external

aerial is connected to the MAIN Board Tuner, check the following items.

- Supply Power: 5V, 9V, 33V

- Check for an RF defect: Check the CVBS output

- Check for an AUDIO defect: Check the SiF Signal output

TP09

Troubleshooting

6-10 Samsung Electronics

2. External Input Diagnosis

It receives the EXT1/EXT2/signal and consists of monitor output (video and audio).

The signal is input to VSP9402 through the port.

If no signal input/output is detected, check the following items

- Power supply : VSP9402(3.3V,1.8V) , CXA2180(5V)

- Check if the input and output jacks are defectivek

Troubleshooting

Samsung Electronics 6-11

3. TDA7297(Audio AMP) Diagnosis

The signal is received from the Audio Processor (MSP3421G) and sound is output at 10W + 10W power.

- Power supply : 15V

- Check for input defects : L/R

- Check for output defects : L+, L-, R+, R-

Troubleshooting

6-12 Samsung Electronics

4. STV8237(Audio Processor) Diagnosis

It processes the SIF and SCL 1/2 signal output from the Tuner.

- Power supply : 3.3V,1.8V,9V , 5V

- Check for input defects :SIF, SCL1/2-IN,SCL1/2-OUT

- Check for output defects : SOUND L/R

Troubleshooting

Samsung Electronics 6-13

5. VSP9402 Diagnosis

TIt receives RF, AV1/2/3 and S-VHS (Y,C) signals and outputs to Y/Pb/Pr of CXA2180Q,M-OUT and V-OUT through internal

switching.

- Power supply : 1.8V, 3.3V

- Check for input defects : RF, SCL1/2,S-VHS(Y,C)

- Check for output defects : M-OUT,Y,Pb,Pr,HS1,VS1

Troubleshooting

6-14 Samsung Electronics

6. CXA2180 Diagnosis

The Y/Pb/Pr signal is received from VSP9405B and CXA2151Q and the signal is output as R/G/B. It also outputs the V/H Drive,

E/W and performs the ABL and EHT operation.

If V-Drive output is not detected, check for an IC defect.

- Power supply : 5V, 9V

- Check for input defects :Y/Pb/Pr, H/V

- Check for output defects :R/G/B, ABL, EW, V/H-DRIVE

Block Diagram

Samsung Electronics 7-1

7. Overall Block Diagram

7-1 Overall Block Diagram

Block Diagram

7-2 Samsung Electronics

7-2-1 Main Block Diagram

7-2 Partial Block Diagram

Block Diagram

Samsung Electronics 7-3

7-2-2 F-Box Block( Simple 100) : Negotiator2

Block Diagram

7-4 Samsung Electronics

7-2-4 CRT Drive Signal Diagram

7-2-3 Sound Signal Diagram

Block Diagram

Samsung Electronics 7-5

7-3 Power Block Diagram

7-6 Samsung Electronics

MEMO

Wiring Diagram

Samsung Electronics 8-1

8. Wiring Diagram

8-1 Overall Wiring

LANGISBCPTRC

TUODNUOS

LORTNOC-YEK

NI-CA

TRESNIXOB-F

NI-V/A

REWOPBCPTRC

Wiring Diagram

8-2 Samsung Electronics

8-2 Pin Connection

thpu

wpu uU w

uhtl

XyR

YyT

ZsR

[sT

wpu uU w uhtl

Xz{kTslk

Y {ptlTslk

Znuk

[ }jjT\}OhP

\py

wpu uU w uhtl

Xnuk

Ynuk

ZrlTpuX

[rlTpuZ

wpu uU w uhtl

Xsp}l

Y u|{|yhs

Z u|{|yhs

wpu uU w uhtl

Xnuk

Ynuk

ZRX]U\}

[TX]U\}

\ olh{ly

]uj

^iRYWW}

wpu uU w uhtl

X}X

Y}Y

ZoX

[oY

zjYTpk Y XzjXTpk

zjhy{XTi [ZymTj}iz

zjhy{XTn ]\zpm

zjhy{XTy _^nuk

zjhy{X mViX XW ` zjhy{Y puTs

nuk XY XX zjhy{Y puTy

zjhy{X j}iz X[ XZ nuk

nuk X] X\ zjhy{Y v|{Ts

zjhy{Y j}iz X_ X^ zjhy{Y v|{Ty

nuk YW X` nuk

tvup{vy v|{ YY YX zjhy{X puTs

nuk Y[ YZ zjhy{X puTy

his Y] Y\ nuk

oTkyp}l Y_ Y^ zjhy{X v|{Ts

lV~ ZW Y` zjhy{X v|{Ty

}kw ZY ZX nuk

}ku Z[ ZZ wpwTj}iz

XY}Th 21 H_Blank

nuk 43 V_Blank

`}Tj 65MAINAFT

WP/STOP 8 7 zjsX

N.C 10 9SDA1

N.C 12 11 N.C

ZUZ}Tl 14 13 9V

nuk 16 15 N.C

\}Tk 18 17 IR

z{k \}Tj 20 19 STD-LED

nuk 22 21 TIMER-LED

\}Tm 24 23 KEY2

D-COIL 26 25 KEY1

POWER 28 27 zjsY

S-MUTE 30 29 SDA2

S-MUTE2T 32 31 GND

LSL 34 33 LSR

Wiring Diagram

Samsung Electronics 8-3

j jOjy{P

1IK

2GND

3B-OUT

4GND

5G-OUT

6GND

7R-OUT

8GND

912V-A

10 SVM

11 POWER PORT

12 TILT

zjYTpk YXzjXTpk

zjhy{XTi [ZymTj}iz

zjhy{XTn ]\zpm

zjhy{XTy _^nuk

zjhy{X mViX XW ` zjhy{Y puTs

nuk XY XX zjhy{Y puTy

zjhy{X j}iz X[ XZ nuk

nuk X] X\ zjhy{Y v|{Ts

zjhy{Y j}iz X_ X^ zjhy{Y v|{Ty

nuk YW X` nuk

tvup{vy v|{ YY YX zjhy{X puTs

nuk Y[ YZ zjhy{X puTy

his Y] Y\ nuk

oTkyp}l Y_ Y^ zjhy{X v|{Ts

lV~ ZW Y` zjhy{X v|{Ty

}kw ZY ZX nuk

}ku Z[ ZZ wpwTj}iz

XY}Th 21 H_Blank

nuk 43 V_Blank

`}Tj 65MAINAFT

WP/STOP 8 7 zjsX

N.C 10 9SDA1

N.C 12 11 N.C

ZUZ}Tl 14 13 9V

nuk 16 15 N.C

\}Tk 18 17 IR

z{k \}Tj 20 19 STD-LED

nuk 22 21 TIMER-LED

\}Tm 24 23 KEY2

D-COIL 26 25 KEY1

POWER 28 27 zjsY

S-MUTE 30 29 SDA2

S-MUTE2T 32 31 GND

LSL 34 33 LSR

1A-L

2A-R

3GND

4Y/CVBS

5GND

6 C-ID

7GND

8NC

mTiv

Wiring Diagram

8-4 Samsung Electronics

1IK

2GND

4GND

6GND

8GND

915V

10 Y

11 POWER

12 TILT

1 A-L

2A-R

3 GND

4 Y/CVBS

5 GND

6 C-ID

7 GND

8NC TILT

jy{

PCB Diagram

Samsung Electronics 9-1

9. PCB Diagram

9-1 Main Board

CN502

CN501

CN601

CN902

CN903

CN802

9-1-1 ASS'Y Main Board

9-1-2 Names & Roles of Key Parts

＊CN802 : A 3 pin port connected to the MASTER ASS'Y, which handles MASTER POWER ON/OFF.

＊CN902 : A 4 pin port connected to the CONTROL ASSY, which delivers the necessary signal to KEY-IN1, KEY-IN3 CONTROL.

＊CN903 : A 5 pin port connected to the CONTROL ASSY, which delivers the necessary signal to the remote control and the

LED CONTROL.

＊CN601 : 4 pin port connected to the SPEAKER port, which delivers the signal from the AMP to the speakers.

＊CN502 : A 8 pin port connected to the CRT ASS'Y. Through this port, the power from the DEFLECTION BLOCK is supplied

to drive the CRT and AMP.

＊CN501 : A 4 pin port connected to the DY.

PCB Diagram

9-2 Samsung Electronics

CN502

Connected to the CRT Ass'y

9-1-3 Main Board Connector Pin

CN602

Connected to the Speaker Port

Pin No. Pin Name

1 GND

2 GND

3 +16.5V

4 -16.5V

5 HEATER

6 NC

7 B+200V

CN903

Connected to the Control Ass'y

CN902

Connected to the Control Ass'y

Pin No. Pin Name

1 STD-LED

2 TIME-LED

3 GND

4 VCC-5V(A)

5 IR

CN501

Connected to the CRT Ass'y

Pin No. Pin Name

1 GND

2 GND

3 KEY-IN1

4 KEY-IN3

CN802

Connected to the PIP Module

Pin No. Pin Name

1 V1

2 V2

3 H1

4 H2

Pin No. Pin Name

1 LIVE

2 NUTURAL

3 NUTURAL

Pin No. Pin Name

1 R+

2 R-

3 L+

4 L-

PCB Diagram

Samsung Electronics 9-3

9-2 F/BOX Module

9-2-1 F/BOX Module

CN03

CNM03 CNM02

CNM04

■Signal Controls

9-2-2 Names & Roles of Key Parts

* CNM02 : The 34-pin terminal that is inserted into MAIN ASS'y and connects the DATA/CLK and power lines from MAIN.

* CNM03 : The 34-pin terminal that is inserted into the MAIN ASS'y and connects various signals such as the SCART1, SCART

2 and CVBS signals.

* CN03 : The 12-pin terminal that is connected to the CRT ASS'y and connects the RGB and AK signals.

* CNM04 : The 8-pin terminal that is connected to the SIDE A/V and connects the AV and S-Video signals to the SIDE.

PCB Diagram

9-4 Samsung Electronics

CNM03

9-2-3 F-Box Board Connector Pin

CN03

Pin Name PIN No. Pin Name

SC2-ID 2 1 SC1-ID

SCART1-B 4 3 RF-CVBS

SCART1-G 6 5 SIF

SCART1-R 8 7 GND

SCART1 F/B1 10 9 SCART2 IN-L

GND 12 11 SCART2 IN-R

SCART1 CVBS 14 13 GND

GND 16 15 SCART2 OUT-L

SCART2 CVBS 18 17 SCART2 OUT-R

GND 20 19 GND

MONITOR OUT 22 21 SCART1 IN-L

GND 24 23 SCART1 IN-R

ABL 26 25 GND

H-DRIVE 28 27 SCART1 OUT-L

E/W 30 29 SCART1 OUT-R

V_DP 32 31 GND

V_DN 34 33 PIP-CVBS

CNM02

Pin No Pin Name

1 IK

2 GND

3 B-OUT

4 GND

5 G-OUT

6 GND

7 R-OUT

8 GND

9 12V-A

10 SVM

11 POWER PORT

12 TILT

Pin Name Pin No. Pin Name

12V-A 2 1 H_Blank

GND 4 3 V_Blank

9V-C 6 5 MAIN AFT

WP/STOP 8 7 SCL1

N.C 10 9 SDA1

N.C 12 11 N.C

3.3V-E 14 13 9V

GND 16 15 N.C

5V-D 18 17 IR

STD 5V-C 20 19 STD-LED

GND 22 21 TIMER-LED

5V-F 24 23 KEY2

D-COIL 26 25 KEY1

POWER 28 27 SCL2

S-MUTE 30 29 SDA2

S-MUTE2T 32 31 GND

LSL 34 33 LSR

CNM04

Pin No Pin Name

1 A-L

2 A-R

3 GND

4 Y/CVBS

5 GND

6 C-ID

7 GND

8 NC

PCB Diagram

Samsung Electronics 9-5

9-3 CRT Board

9-3-1 CRT Board

CN503

GT503

GT502

CN502

GT501

FV1

FN1

■The board that receives power and signals from MAIN and F/BOX, drives the CRT, and displays pictures on the screen.

9-3-2 Names & Roles of Key Parts

*GT501 & GT503 : The TBC-WIRE connection terminal that plays the role of CRT Ground.

*CN503 : Supplies the final R/G/B signal and the signal required for CRT deflection control, from the F/BOX Deflection IC to

the CRT RGB Drive IC.

*FV1 : The pin that connects the signal from the image contour correction circuit, which is called the VM signal.

*FN1 : The pin connecting the Tilt Coil.

CN503

9-3-3 CRT Board Connector Pin

Pin No Pin Name

1 IK

2 GND

3 B

4 GND

5 G

6 GND

7 R

8 GND

9 15V

10 Y

11 POWER

12 TILT

9-6 Samsung Electronics

MEMO

10. Schematic Diagram

Samsung Electronics

Schematic Diagram

10-1

10-1 CRT DRIVE

This Document can not be used without Samsung’s authorization.

Power

Signal

Schematic Diagram

10-2 Samsung Electronics

TP07

TP08

10-2 MICOM

This Document can not be used without Samsung’s authorization.

Power

Signal

TP07

TP08

Samsung Electronics

Schematic Diagram

10-3

TP02

TP03

TP01

TP06

TP04

TP05

10-3 Power & Deflection

This Document can not be used without Samsung’s authorization.

Power

Signal

TP01

TP02

TP03

TP04

TP05

TP06

Schematic Diagram

10-4 Samsung Electronics

10-4 Sound & Scart

This Document can not be used without Samsung’s authorization.

Power

Signal

Samsung Electronics

Schematic Diagram

10-5

10-5 Sound processor

This Document can not be used without Samsung’s authorization.

Power

Signal

Schematic Diagram

10-6 Samsung Electronics

TP09

10-6 Tuner & F_box Interface

This Document can not be used without Samsung’s authorization.

Power

Signal

TP09

Samsung Electronics

Schematic Diagram

10-7

10-7 Video processor

This Document can not be used without Samsung’s authorization.

Power

Signal

Schematic Diagram

10-8 Samsung Electronics

This Document can not be used without Samsung’s authorization.

10-8 Video SW & AD

Power

Signal

Operation Instruction & Installation

Samsung Electronics 11-1

11. Operation Instruction & Installation

11-1 Product Features and Functions

11-1-1 Control Panels

Operation Instruction & Installation

11-2 Samsung Electronics

11-1-3 Connection Jacks (Rear)

11-1-2 Side Panel Jacks

Operation Instruction & Installation

Samsung Electronics 11-3

11-1-4 Remote Control

Operation Instruction & Installation

11-4 Samsung Electronics

Disassembly & Reassembly

Samsung Electronics 12-1

12. Disassembly & Reassembly

12-1 Overhaul Disassembly & Reassembly

12-1-1 Disassembling the Cabinet

Part Name Description Description Photo

Back

Cover

①Remove the 9 screws fixing the Back Cover.

: RH, +, B, M4, L15, ZPC(BLK), SWRCH18A

②Tap the upper part of the Back Cover 2 or 3 times

and pull the Back Cover to separate it from the unit.

Notice: Disassemble the product after disconnecting the

power cord and discharge the unit to preventan

electric shock and damage to the productdue

to static electricity.

Terminal

Board

①Remove the 2 screws fixing the Terminal

Board and the Jacks.

: RH, +, B, M4, L15, ZPC(BLK), SWRCH18A

②Lift the fixing holder up at and pull the Terminal

Board to separate it from the unit.

Disassembly & Reassembly

12-2 Samsung Electronics

Part Name Description Description Photo

Chassis

Holder

①Separate the Ass'y Holder chassis from the Front Cabinet.

②Pull the Chassis Holder lifting the fixing clip up.

Notice: Pulling the Chassis Holder by force may

damage the clip or the connector.

Pull the Chassis Holder just until the clip

comes off the hole.

①Separate the Speakers, the Side AV Wire,

the Control from the Front Cabinet

②Eparate the wire from the Wire fixing holder at .

Notice: Since there is a clip to connect the Connector

Header in the Wire Connector, pulling it by force

may damage the clip or the connector. Press the

clip down completely and pull the connector.

①Separate power cable from the Front Cabinet and Power

Board.

②To separate the power cord, slide the fixing clip and lift the

cable up.

①Separate the CRT Ass'y from the CRT

②Separate the TBC wire, GND, VM and Tilt cables from the

CRT Ass'y sequentially

12-1-2 Disassembling the CRT and Chassis

Disassembly & Reassembly

Samsung Electronics 12-3

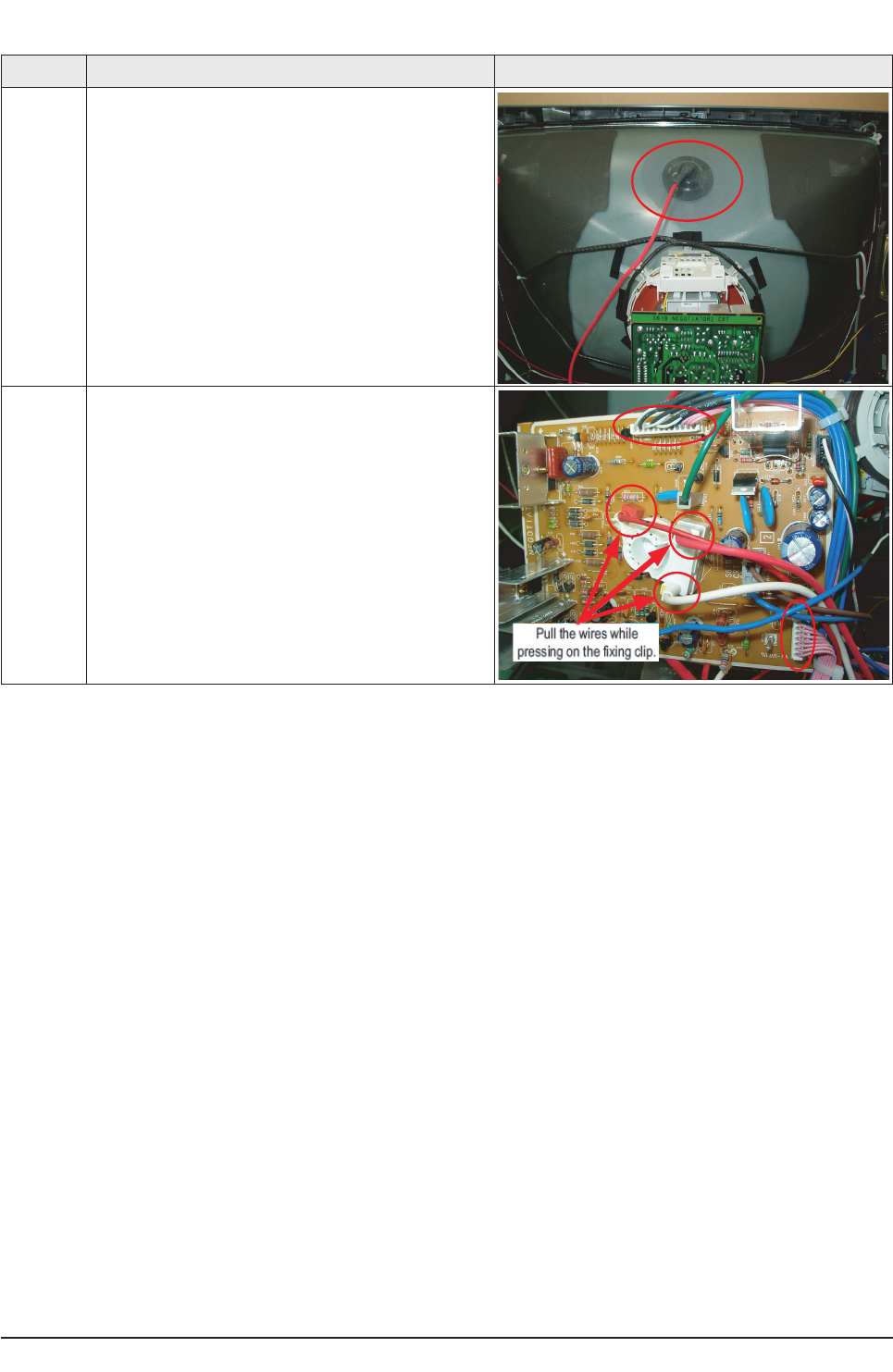

Part Name Description Description Photo

Chassis

Holder

①Separate the cables connecting the FBT and the CRT.

Notice: Since there may be a remaining high-voltage

cur rentwith in the CRT, take care not to touch

the CRT hole with metal or a part of yourself

when separating the cables.

CRT

Ass'y

①Separate the cables from the F-box Board and CRT Ass'y.

12-4 Samsung Electronics

MEMO

Circuit Description

Samsung Electronics 13-1

13. Circuit Description

13-1 Overall Block Description

■Circuit Constitution.

1. Horizontal Bias Part

- Controls the high voltage generation and horizontal bias.. FBT, HDT, CT condenser etc.

2. Vertical Bias Circuit

- While mostly controlling the vertical bias.LA7845,etc.

3. E/W (East / West) Correction Circuit.

- A circuit for correcting the spool shape which appears on the left and right part of a picture.

This is caused by the difference between the distances from the center of a picture to each corner.

KA393, FQP630 etc. (Adopt PWM circuit)

Circuit Description

13-2 Samsung Electronics

Circuit Description

Samsung Electronics 13-3

13-2 IC Line up

Block Item

F-BOX

NAME FUNCTION MAKER BOARD

VSP9412 DEC,SRC MICRONAS

F- box

CXA2180 MATRIX,DEFLECTION SONY

SDA9489X PIP MICRONAS

74HC123D Logic

SDA55XX ROM Version MICRONAS

SDA5550M ROM LESS MICRONAS

M27W201-80F6 EPROM 256K STM

K6R4008C SRAM 512K SEC

SOUND STV8237 MULTI SOUND

PROCESSOR ST

MAIN

TDA7297 Main BTL THOMSON

Tuner

CW SPT MAIN TMQZ2-402A ALPS

CS LNA MAIN TMQZ6-405A ALPS

CW SUB TMQZ2-408A ALPS

CS SUB TMQZ6-404A ALPS

CW MAIN TMQZ2-407A ALPS

CS MAIN TMQZ6-406A ALPS

CRT DRIVE TDA6109 R.G.B DRIVE PHILIPS CRT DRIVE

13-4 Samsung Electronics

MEMO

Reference Information

Samsung Electronics 14-1

14. Reference Information

14-1 Other issues related to other products

Problem Descriptions

A fixed screen can cause

permanent damage to the TV

Braun tube.

Braun, PDP and LCD TVs can all be damaged. When a still image is displayed in a sequence,

this can leave stains or after-images due to the characteristics of the panel.

However, the DLP TV has the advantage that no stains or after-images are left on the screen.

The DLP TV has mirror pixels on the DMD panel that project the beam onto the screen, in

which the mirror is a digital representation of 0s and 1s, leaving no trace of light.

The mirror returns to a blank state so that no stains or after-images are left.

When a digitally distributed TV

user receives HD-rated

broadcasts:

The digital distributed TV (Ready Technique) can render HD sources as HD-rated.

However, you need to install a set-top box for this purpose. The digital TV alone cannot render

HD broadcasting as HD-rated. Install the formal set-top box for HD broadcasts.

When a digital distributed TV

user selects normal size (4:3) to

receive SD-rated digita

broadcasts:

The digitally distributed TV (Ready Technique) renders any broadcasting service as SD-rated.

However, when connected to a set-top box, the digital TV renders HD broadcasts as HD-rated

and renders SD as SD-rated. The screen size is scaled to 4:3.

Reference Information

14-2 Samsung Electronics

Mono

A type of audio interface that transmits audio signals through a

single channel.

Through a mono interface, it is hard to experience stereophonic

sound and sound is played only by one speaker.

Stereo

A type of audio interface that transmits audio signals through 2

channels.

Stereo transmits audio signals for the right and left channels so

that you can experience stereophonic sound, and the sound is

played with 2 speakers.

Analog Broadcast

Analog Broadcast is a television broadcasting signal transmit-

ted according to the NTSC standard.

ANTENNA IN Port

A port to connect the TV aerial using a coaxial cable. It is gen-

erally used to watch public broadcast programs.

English Caption

A function that shows English caption or text information includ-

ed in the broadcasting signal or video tape. You can use this

function to study English by watching AFKN or CC marked

video tapes.

Video/Audio Ports

You may experience poor visual and audio quality when watch-

ing a video tape on channel 3 or 4 through the antenna cable.

You can experience better visual and audio quality connecting

the TV and VCR through the Video/Audio ports. The video port

is distinguished by the color yellow, and the audio ports are dis-

tinguished by the white (left) and red colors (right).

External Input

External Input is connecting video devices such as a VCR,

camcorder, DTV receiver, DVD, etc. as a video source.

Satellite Broadcast

Satellite Broadcast transmits programs via satellite so that the

broadcast is viable in all areas at a high visual and sound quali-

ty. It provides approximately 100 channels including public

broadcast channels. To view satellite broadcast, you have to

install an additional receiver.

Wired Broadcast

Satellite Broadcast refers to movie, entertainment and educa-

tional programs transmitted by the broadcasting station in a

hotel or school.

Audio Multimix

Audio Multimix provides 2 languages for audio when broadcast-

ing a foreign movie, drama, news, etc. You can select and lis-

ten to one of the supported languages or you can select and

listen to both languages simultaneously.

Component Port (Green, Blue, Red)

The Component Port separately transmits the luminance signal

and provides the best quality of all video connection types.

Cable Broadcast

Cable Broadcast transmits programs via cable instead of radio

wave. To view a cable broadcast, you need to subscribe to your

local cable broadcast service provider and install an additional

receiver.

Tuner

A device that enables selecting a specific frequency for a chan-

nel on a TV or radio.

DVD (Digital Versatile Disc)

DVD is a large capacity media that can save multimedia con-

tent such as video, game, audio applications, etc. using MPEG-

2 video compression technology on a CD-sized disc.

S-VIDEO IN Port

This is called super video. S-Video is a type of video signal

which has the video luminance and color signals separated in

order to provide a better visual quality.

VHF/UHF

VHF refers to TV channels 2 to 13, and UHF refers to TV chan-

nels 14 to 69.

14-2 Technical Terms

L62b N Cover CW29M066V7

Navigation menu

Versions of this User Manual:

Views

Navigation
