CXT-125

Smith Machine Attachment

(CXT-100 Option)

AmericA’s Premier exercise equiPment

OWNER’S MANUAL

DO NOT DISCARD THIS MANUAL

HOME LIFETIME WARRANTY

TuffStuff products are warranted to the retail purchaser to be free from defects in materials and workmanship.

TuffStuff exclusive Home Lifetime Warranty coverage extends for the life of the product while owned by the

original retail purchaser, and used only in a home or residential setting unless otherwise noted in the owner’s

manual.

This warranty does not cover:

1. TuffStuff products sold for and used in a commercial or institutional setting.

2. Any damage, failure or loss caused by accident, misuse, neglect, abuse, improper assembly, improper

maintenance, or failure to follow instructions or warnings in the owner’s manual and warning labels

posted on the machine.

3. Use of products in a manner for which they were not designed.

4. Original product that is altered, or the use of replacement parts and components of another manufac-

turer other than TuffStuff.

Limitations:

The foregoing shall constitute the sole remedy of the purchaser and the sole liability of TuffStuff with regard to

warranty, whether express or implied by operation of law or otherwise, including but not limited to any implied

warranties of merchantability or fitness. TuffStuff shall in no event be liable for incidental or consequential

losses, damages or expenses in connection with exercise products. TuffStuff’s liability hereunder is expressly

limited to the repairs or replacements of warranted defective parts.

Procedures:

Warranty service will be performed at TuffStuff’s facility in Pomona, California. TuffStuff will have the option of

either repair or replacement at no charge for any defective product. Purchaser is responsible for installation of

repaired or replaced parts and all transportation and insurance costs on returned or replaced equipment to and

from TuffStuff’s facility in Pomona.

This warranty gives you specific legal rights and you may also have other rights, which may vary from state to

state. Effective July 1, 2004.

This warranty is the final, complete and exclusive agreement of the parties with respect to the quality or performance of the equipment

and no action for breach of this written warranty or any implied warranty shall be commenced more than one (1) year after the accrual

of the cause of action. No modification of this warranty or waiver of its terms shall be binding on either party unless approved in

writing by an authorized representative of the party. Contact TuffStuff at 1325 E. Franklin Avenue, Pomona, California 91766, before

returning any defective equipment.

Note: Retain your sales receipt and be sure to mail in the warranty registration card to insure that a

permanent record of your purchase is on file with the factory and to avoid unnecessary delays in

warranty service.

TuffStuff Fitness Equipment, Inc.

1325 E. Franklin Avenue

Pomona, CA 91766, USA

Ph: 909-629-1600 Fax: 909-629-4967

E-mail: service@tuffstuff.net Net: www.tuffstuff.net

CXT-125 Rev1

Revision Date 3-08-2007

67"

135"

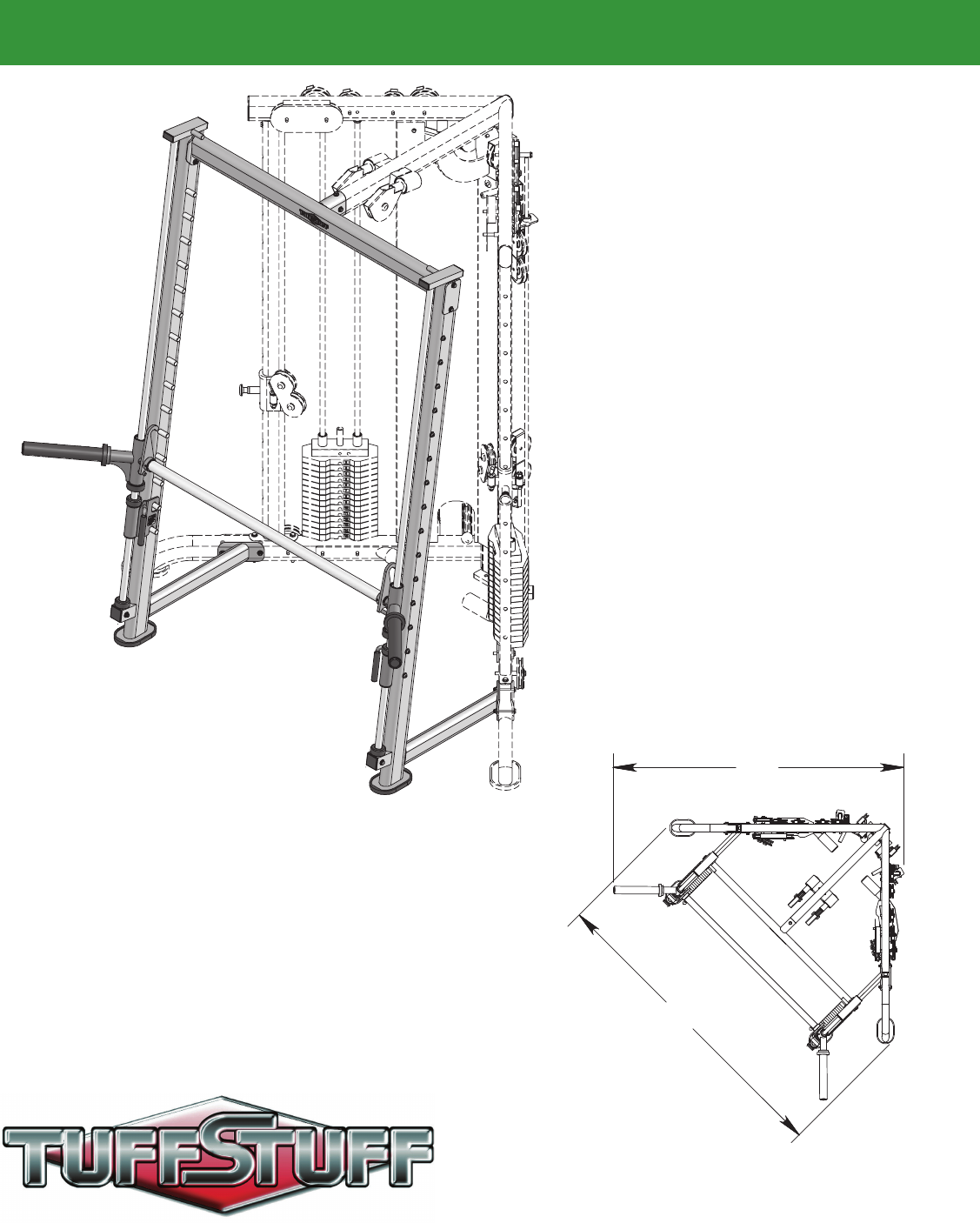

CXT-100 + CXT-125

L 67" W 80" H 84 3/4"

About the Smith Machine Attachment CXT-125

Congratulations on your new purchase of the Smith Machine

Attachment (CXT-100 Option). We hope you are completely

satised with this product and wish you many years of enjoyment.

Tuff Stuff Equipment

This Tuffstuff product has been built to precise quality standards

and has been carefully packaged to ensure that damage will not

occur during shipment. The Home Lifetime Warranty and signature

indicating nal inspection has been conducted by our line foreman,

is an expression of our condence in the completeness, the

materials, and workmanship of this product.

Warranty

SEE A COPY OF WARRANTY ON BACK PAGE.

Registration Card

To avoid unnecessary delays in warranty service and to insure that

a permanent record of your purchase is on le with our factory,

be sure to complete the warranty registration card and send it to

TuffStuff Fitness Equipment today.

Prior to the Assembly of the Smith Machine Attachment

1. We advise you to consult your local Tuff Stuff retailer if you should

have a question or problem regarding the proper assembly of

this unit.

Tool Requirements

1. One 9/16” combination wrench

2. One ratchet

3. One 9/16” socket

4. One rubber mallet

5. Windex or household glass cleaner

6. Measuring tape

7. Utility knife

SCREW WIDTH

WASHERDIAMETER

NUTDIAMETER

SCREWLENGTH

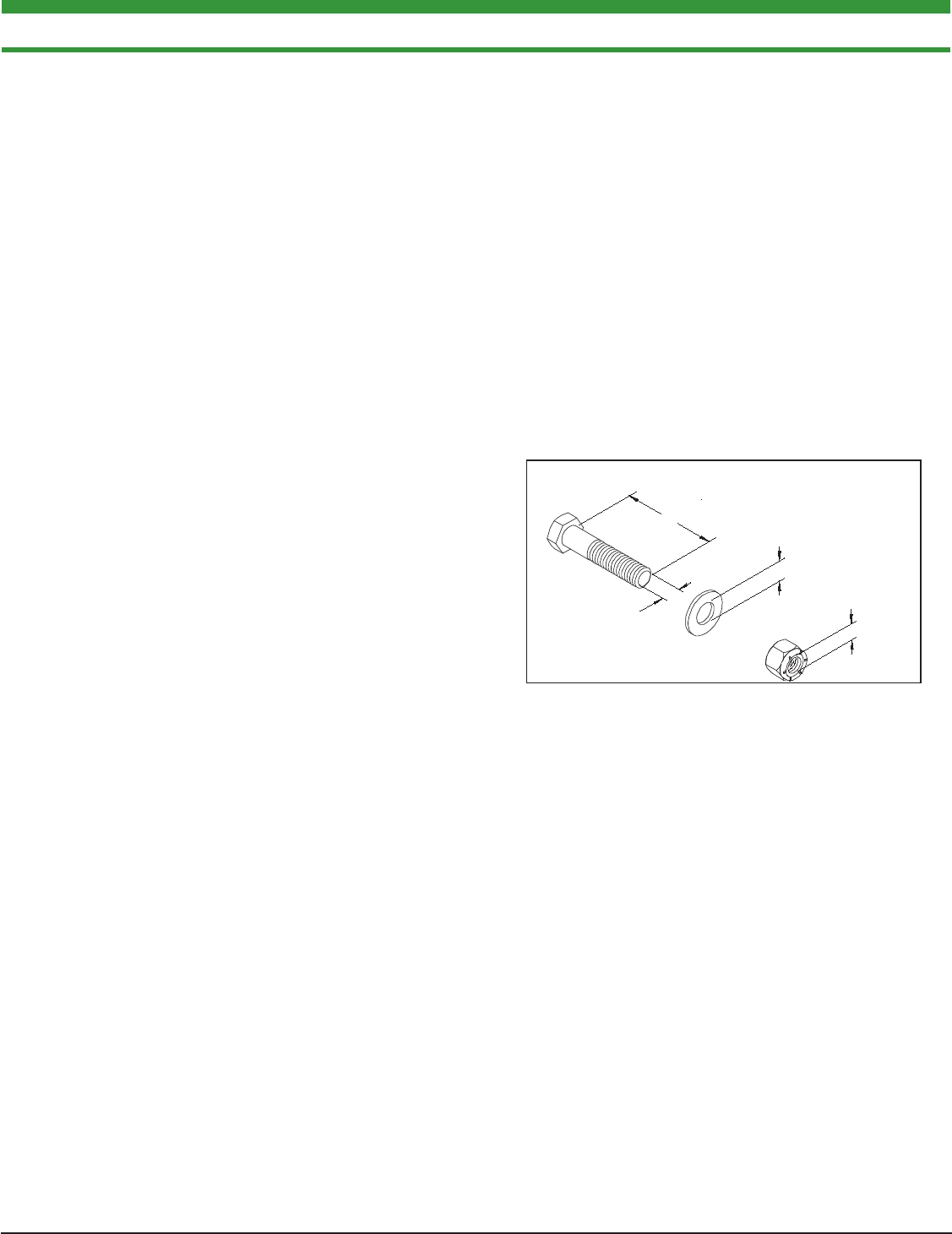

Hardware Measurement Diagram

Safety First

Regardless of how enthusiastic you may be about getting on

your equipment and exercising, take the time to ensure that your

safety is not jeopardized. A moment’s lack of attention can result

in an accident, as can failure to observe certain simple safety

precautions.

1. Read, study and understand the Owner’s Manual and all the

warning labels on this product. Furthermore, it is recommended

to familiarize yourself and others with the proper operation and

workout recommendations for this Tuff Stuff product prior to

use.

2. It is imperative that you retain this Owner’s Manual and be sure

all warning labels are legible and intact. Replacement Owner’s

Manual and labels are available from your local Tuff Stuff

retailer.

3. Consult with your physician before beginning any exercise

program.

4. Use proper discretion when children are present.

5. Keep hands, limbs, loose clothing and long hair well out of the

way of moving parts.

6. Do not attempt to lift more weight than you can control safely.

7. Inspect the Unit for any sign of wear on parts, hardware becoming

loose or cracks on welds. If a problem is found do not use or

allow the machine to be used until the defective part is repaired

or replaced.

Safety Precautions

Note: Due to continuing product improvements, specications and designs are subject to change

without notice.

Specications

1. Maximum Wt. Capacity - 250 lbs.

2. Total Machine Weight - 175 lbs.

3. Footprint (LWH) - See Front Cover.

Introduction

Part Three: Lubrication

Bearing and linear bearings systems have advanced over the years but they must be maintained on a regu-

lar basis if you expect them to last and perform efciently. TuffStuff uses only the highest quality bearings

and linear motion components that are virtually trouble-free but requires the regular preventive maintenance

to insure long-lasting performance.

1. Bronze and nylon bushings, we recommend on a monthly basis to spray a teon-base lubricant

(silicone-free) directly onto the shaft as it passes through these bushings. Spray a small amount

onto the shaft and rotate it through its complete movement and wipe off any excess.

2. Weight stack guide rods and bushings, again use teon spray lubricant and this time spray onto

a rag and wipe the guide rods down with this rag on a weekly basis. Do not use WD-40 or other

lubricants as they attract dirt and will crate a mess between the weight plates and bushings.

3. Sealed bearings pivot points, as the name implies are protected from the outside environment

and require no lubrication. During the machine wipe down, wipe the external bearing surfaces

with the damp rag and dried to prevent the build up of dust and sweat.

4. Linear bearing systems are precision, high load components that require regular maintenance.

Dirt and corrosion are the major culprits in linear bearing failure. The hardened shafts must be

wiped down weekly and lubricated with a light layer of teon grease. We recommend a teon-

base (silicone-free) gel/grease for this purpose. Lack of care and maintenance will result in cor-

rosion of the linear shaft causing the bearings to clogged and jammed.

If you religiously perform the maintenance procedures, you will increase the life of the machine and ulti-

mately lower your maintenance costs with fewer replaced components and downtime.

Any doubts, equipment with mechanical problems should be placed “Out-of-Service” until all problems are

corrected. If replacement parts are required or maintenance questions, please contact:

TuffStuff Fitness Equipment, Inc.

Service Department

1325 E. Franklin Avenue

Pomona, CA 91766

1-800-961-9377

e-mail: service@tuffstuff.net

Maintenance

9CXT-125 Smith Machine Attachment (CXT-100 Option)2CXT-125 Smith Machine Attachment (CXT-100 Option)

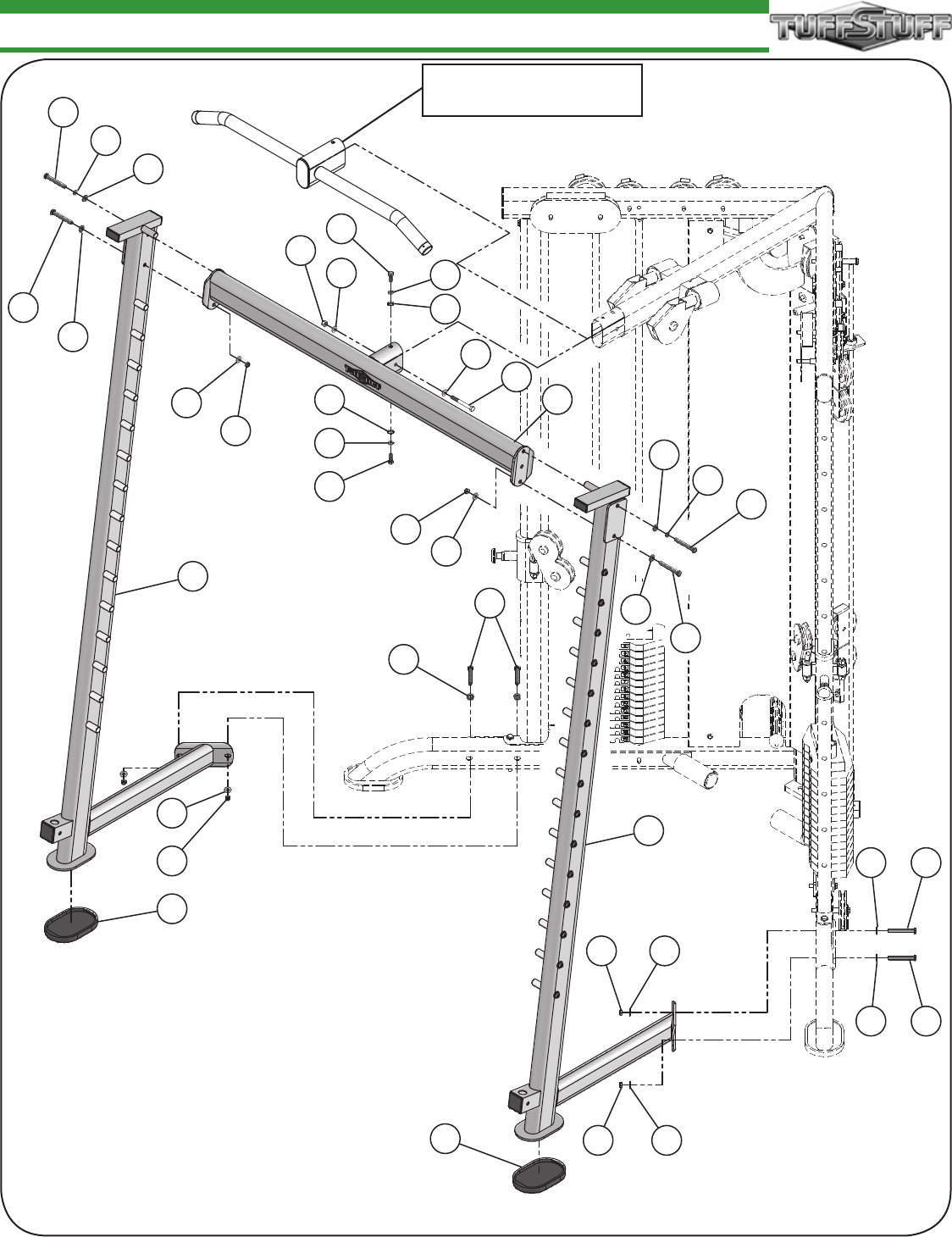

Step 1 Afx Side Frames to the CXT-100

3CXT-125 Smith Machine Attachment (CXT-100 Option)6CXT-125 Smith Machine Attachment (CXT-100 Option)

REV1

ITEM DESCRIPTION REV PART NO. QTY ITEM DESCRIPTION PART NO. QTY

1 LINEAR SHAFT 1 X 79 1/2 0 UP3875 2 23 FLAT WASHER SAE B/O 3/8" BNH0239 50

2 SAFETY SPOTTER LT 1 UP3868 1 24 NYLON BUSHING 1 X 1 1/2 X 7/8 X 1 3/4 X 1/8 BNH0531 4

3 SAFETY SPOTTER RT 1 UP3867 1 25 GLIDE STOPPER Ø2.559 X .945 BNH1932 2

4 SIDE FRAME LT 0 UP3865 1 26 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 BNH0275 2

5 SIDE FRAME RT 0 UP3864 1 27 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 2 1/2 BNH0276 3

6 STOPPER PRONG Ø3/4 X 3 1/2 0 UP3874 30 28 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 BNH0282 8

7 TOP CROSS BRACE 0 UP3866 1 29 HEX KEY ALLOY 5/32" BNH0373 1

8 WEIGHT LIFT BAR 0 UP3873 1 30 HEX KEY ALLOY 7/32" BNH0575 1

9 WEIGHT LIFT BAR HOOK LT 0 UP3872 1 31 INTERNAL RETAINING RING Ø40 mm BNH1923 4

10 WEIGHT LIFT BAR HOOK RT 0 UP3871 1 32 LINEAR BEARING SUPER SMART SSU16-RP BNH0770 4

11 WEIGHT PRONG LT 0 UP3870 1 33 NYLON INSERT JAM LOCK NUT B/O 3/8-16 BNH0365 9

12 WEIGHT PRONG RT 0 UP3869 1 34 PLASTIC INSERT CAP 1 5/8" RD 10-14 GA BNH1910 2

13 ABS SLEEVE 1 5/8 X 12 BNH1927 2 35 PLASTIC INSERT CAP 1" X 2"_ 10-14 GA BNH0005 4

14 BLACK RUBBER GRIP 1/2 X 4 7/8 BNH1818 2 36 PLASTIC INSERT CAP 2" SQ 10-14 GA BNH0012 2

15 BRONZE BUSHING Ø25 X Ø19 X 20 mm BNH1926 2 37 ROLL PIN Ø6 mm X 14 mm BNH1924 4

16 BRONZE BUSHING Ø31 X Ø25.4 X Ø19 X 20 mm BNH1925 2 38 RUBBER FOOT FOR 6 X 4 1/4 PLATE BNH1647 2

17 BUTTON HEAD SOC CAP SCREW B/O 3/8-16 X 1 BNH0115 30 39 RUBBER STOPPER Ø63.5 X Ø25 X 26 mm BNH1930 4

18 DECAL-DANGER ENGAGE SAFETY SPOTTER… BNH1848 2 40 RUBBER WASHER 1 7/8 ID X 3 OD X 19/32 TK BNH1909 2

19 DECAL-DECAL-NUMBERS 1-15 TEFLON BNH1898 2 41 SOCKET SET SCREW ALLOY 5/16-18 X 5/16 BNH1453 2

20 DECAL-EXERCISE CHART (CXT-125) BNH1901 1 42 SPLIT LOCK WASHER B/O 3/8" BNH0658 34

21 DECAL-IMPORTANT FOR BEST PERFORMANCE.. BNH1894 2 43 TUFFSTUFF LOGO ALUMINUM SMALL BNH1323 1

22 FLAT PHILLIPS SCREW ZINC # 2 X 1/2 BNH1480 2 44 NYLON STEM BUTTON (26 X 9.5 X 3.17 X 12.6) mm BNH0547 2

CXT-125

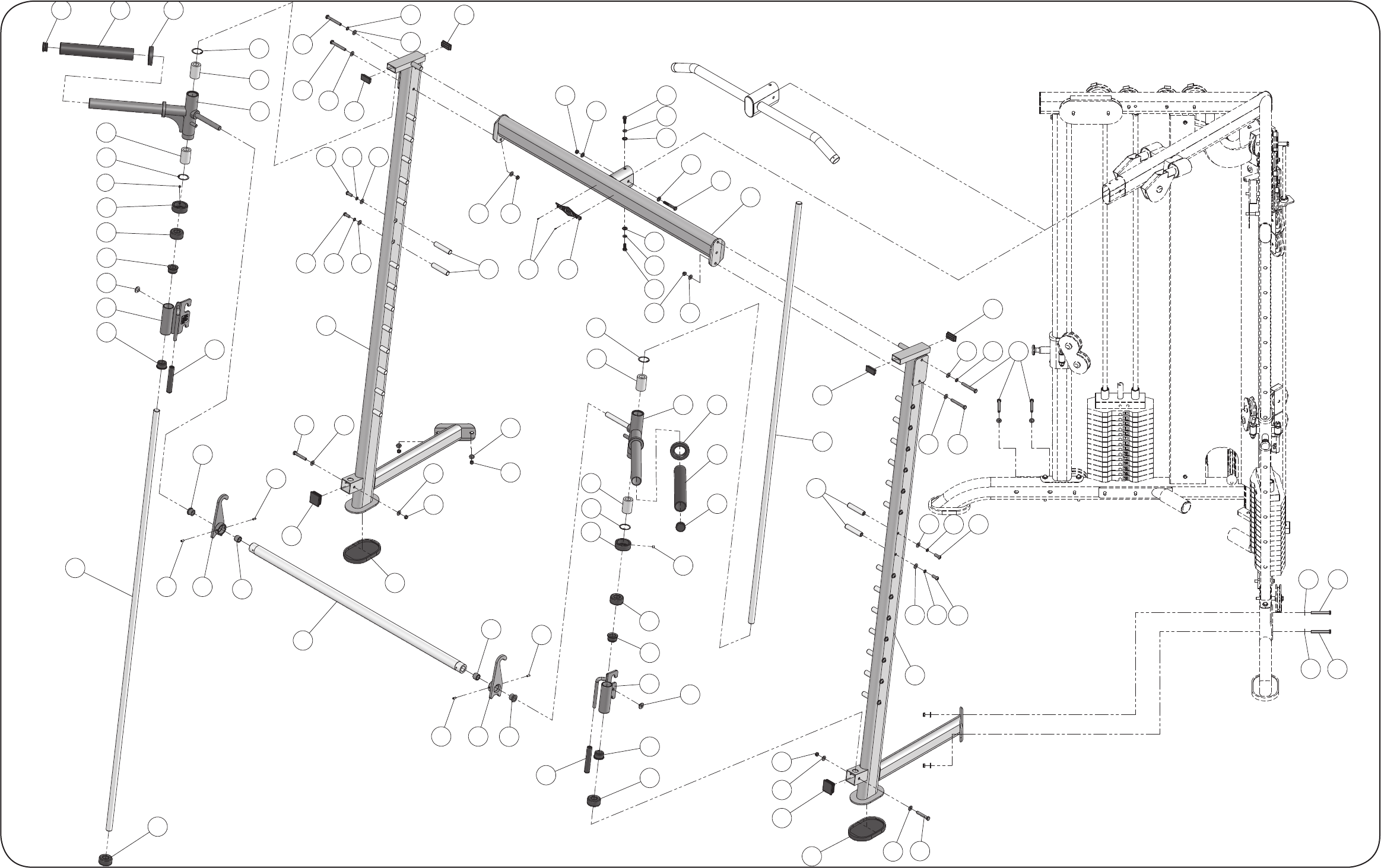

Parts List

COLOR CHART

BOLD FONT = SUB-ASSEMBLY PARTS

BLACK= HARDWARE

38 33 23

2333

23 28

Remove CXT-100

Chin-up Bar

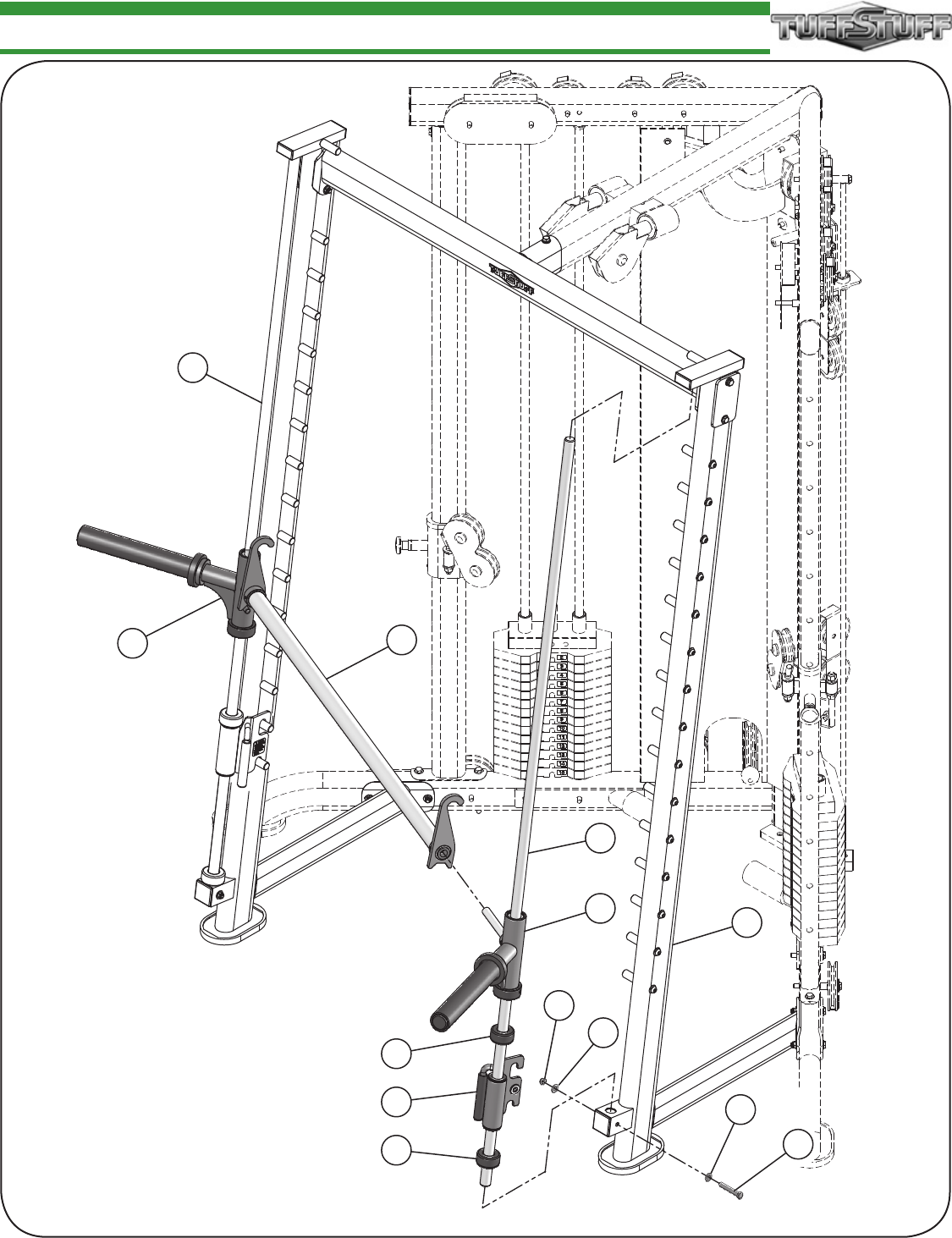

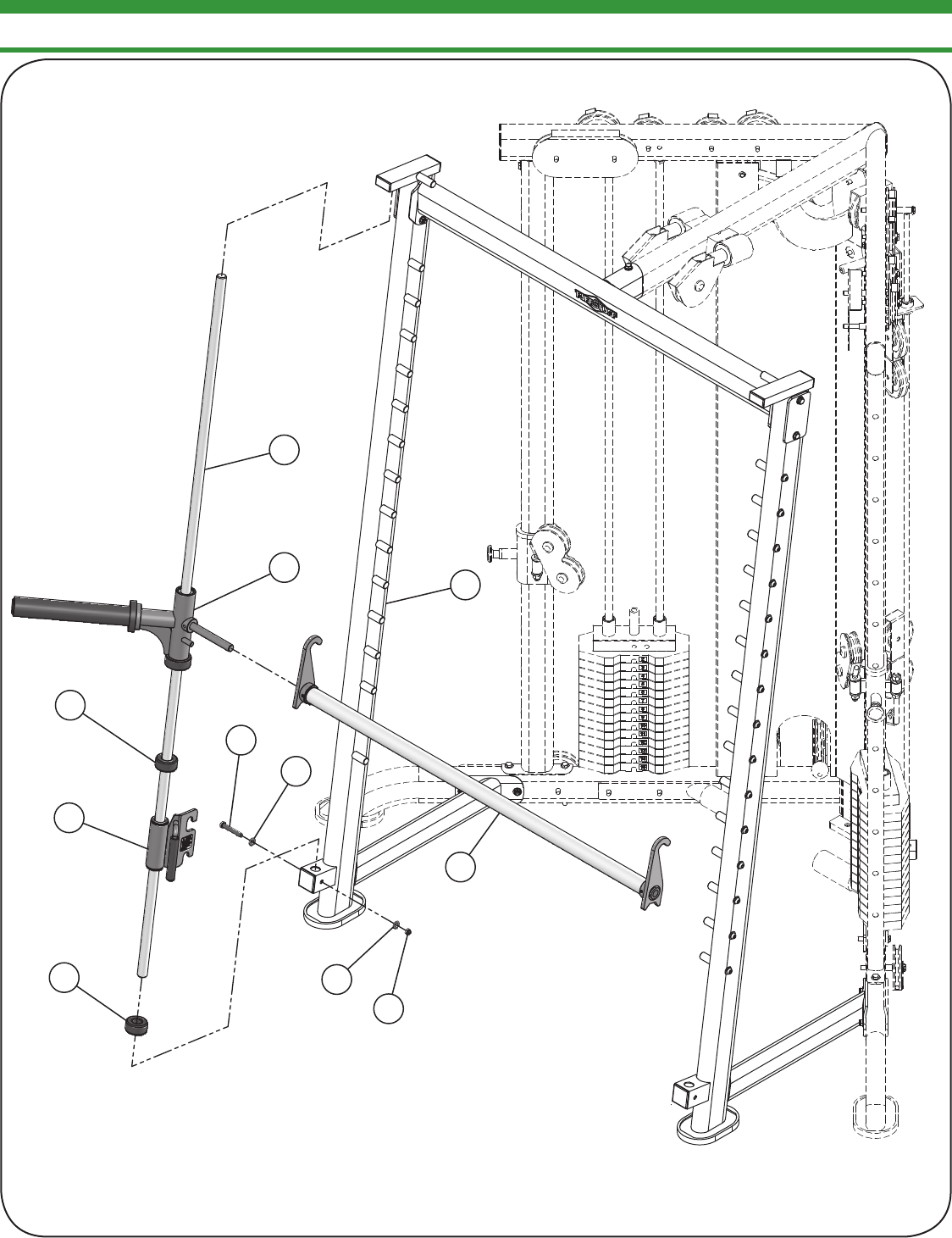

Step 3 Conclude the Assembly of the Weight Lifting BarStep 2 Begin the Assembly of the Weight Lifting Bar

5CXT-125 Smith Machine Attachment (CXT-100 Option)4CXT-125 Smith Machine Attachment (CXT-100 Option)

12 8

Step 3 Conclude the Assembly of the Weight Lifting BarStep 2 Begin the Assembly of the Weight Lifting Bar

5CXT-125 Smith Machine Attachment (CXT-100 Option)4CXT-125 Smith Machine Attachment (CXT-100 Option)

12 8
