Camera User Guide

ENGLISH

CDI-E072

• Please read the Read This First section (p. 7).

• Please refer to the Software Starter Guide for

information on installing the software and

downloading images.

• Please also read the printer user guide included with

your Canon printer.

DIGITAL CAMERA

00-124usCUGE_00_cov14_GM.p65 7/26/02, 11:04 AM1

This Guide

Shooting with the Camera

Software Starter Guide

Installing the Software

This Guide

Connecting the Camera to a Computer

Software Starter Guide

Downloading Images to a Computer

Printer User Guide

Using the Printer and Printing

Precautions

This digital camera is designed to perform optimally when used

with genuine Canon-brand digital camera accessories (“Canon

Brand Accessories”).

You may use non-Canon brand accessories with this digital

camera. However, Canon makes no warranties concerning, and is

not responsible for damages resulting from, use of non-Canon

brand accessories.

Flowchart and Reference Guides

01-124usCUGE_00_cov23_GM.p65 7/26/02, 11:06 AM148

Camera Body Temperature

If your camera is used for prolonged periods, the camera body may

become warm. Please be aware of this and take care when operating

the camera for an extended period.

About the LCD Monitor

The LCD monitor is produced with extremely high-precision

manufacturing techniques. More than 99.99% of the pixels operate

to specification. Less than 0.01% of the pixels may occasionally

misfire or appear as red or black dots. This has no effect on the

recorded image and does not constitute a malfunction.

Video Format

Please set the camera’s video signal format to the one used in your

region before using it with a TV monitor (p. 124).

Charging the Date/ Time Battery

• The camera has a built-in rechargeable lithium battery that maintains

the date, time and other camera settings. This battery recharges when

the main battery pack is inserted into the camera. When you first

purchase the camera, place a charged battery pack in it or use the AC

adapter kit (sold separately) for at least 4 hours to charge the date/time

battery. It will charge even when the camera power is set to Off.

• If the Set Date / Time menu appears when the camera power is turned

on, it means that the date/time battery charge is depleted. Recharge it

as described above.

02-124usCUGE_001_025_GM.p65 7/26/02, 11:07 AM1

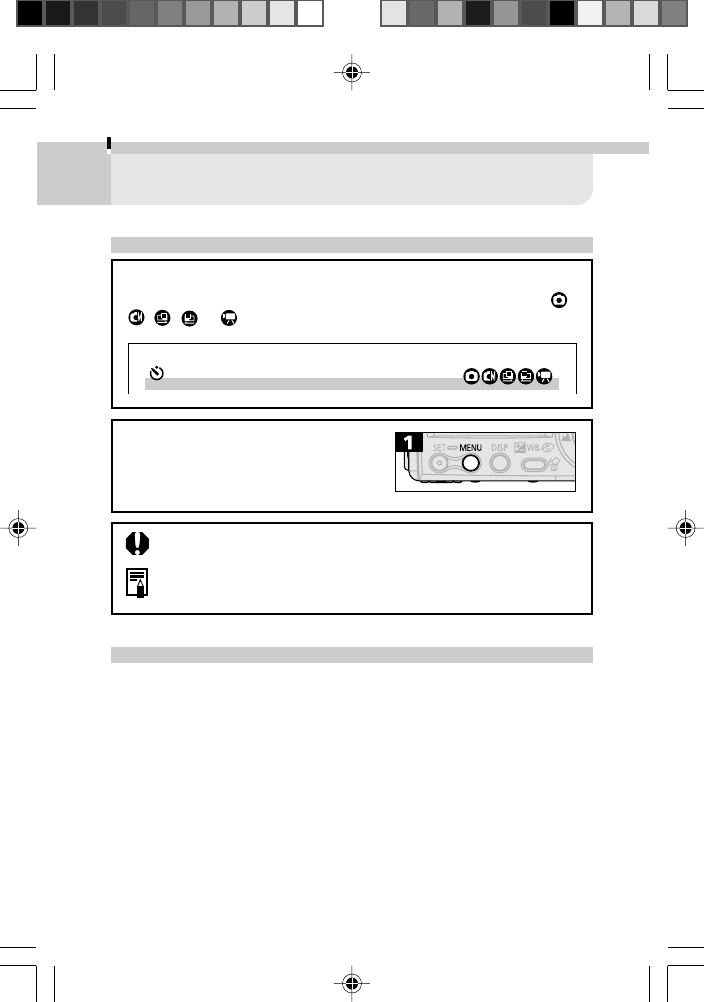

Conventions Used in the Text

Icons on the right end of title bars show the applicable operating

modes. As in the example below, the mode dial should be set to ,

, , or .

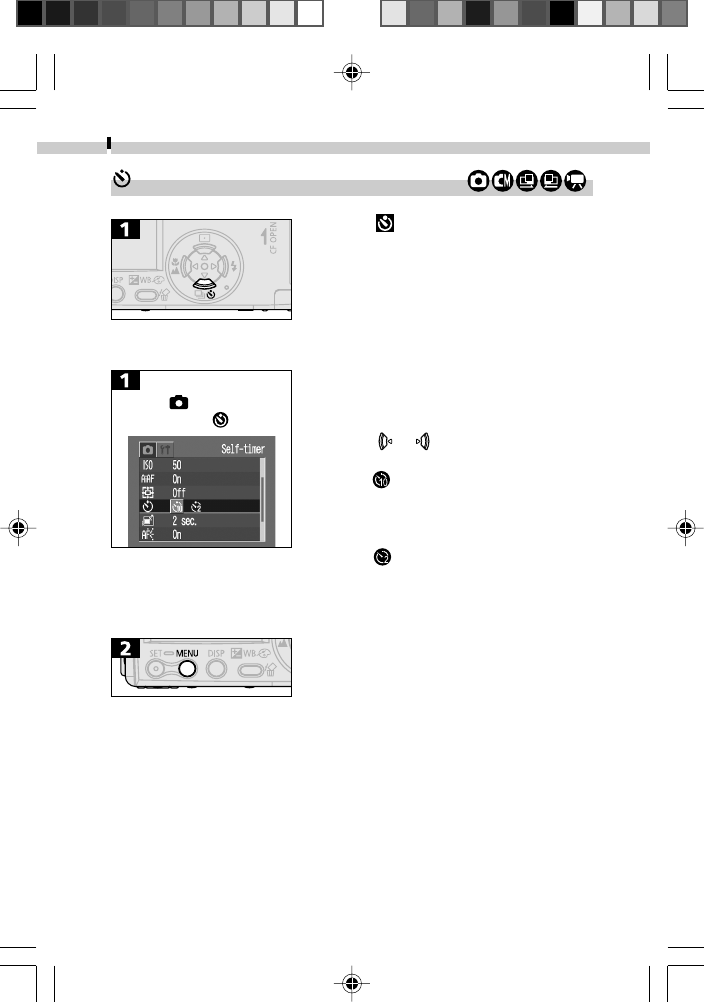

Using the Self-timer

White buttons indicate the button that

will be pushed in the particular procedure.

In the example here, for instance, you

should press the

button.

This mark denotes issues that may affect the camera’s operation.

This mark denotes additional topics that complement the basic

operating procedures.

Question? Look Here First

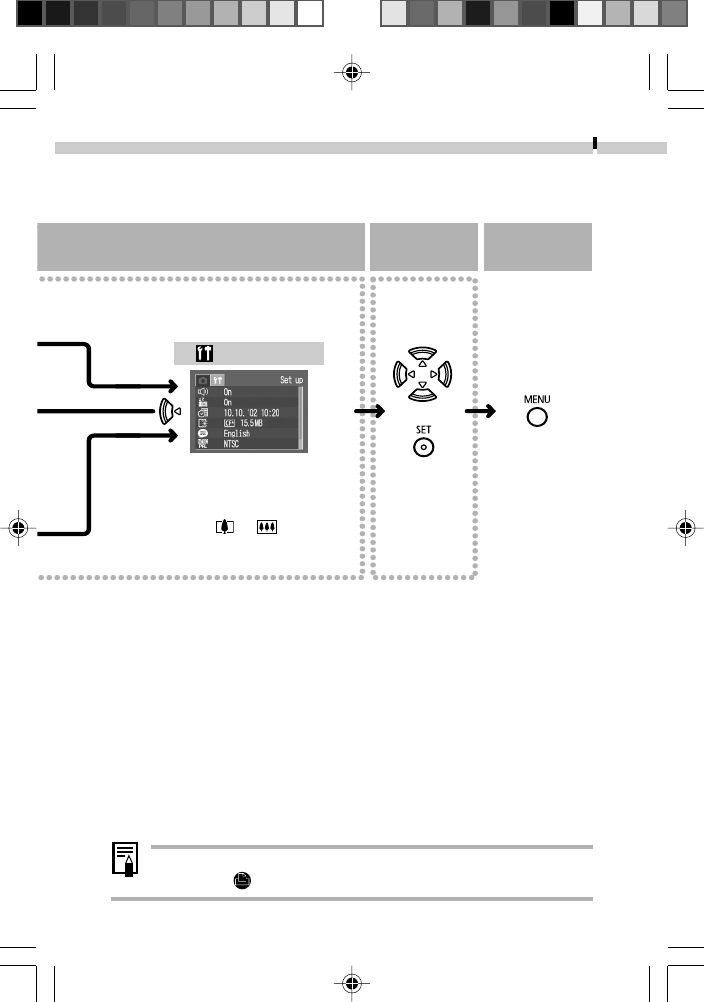

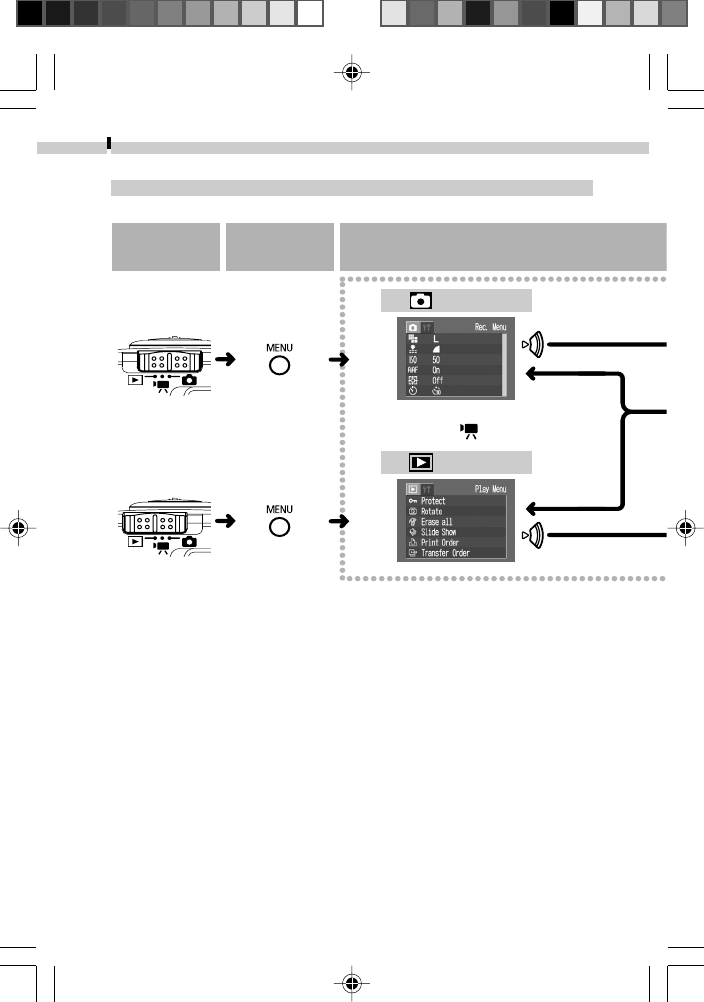

■How do I navigate the Menu?

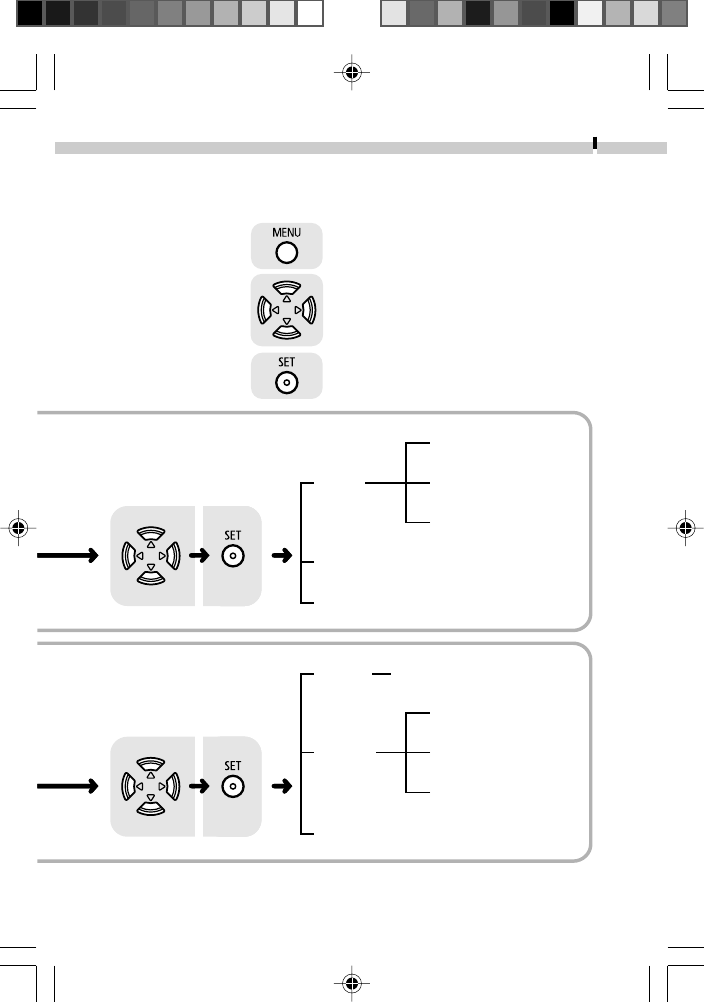

Selecting Menus and Settings (p. 37)

■What settings are available under each function?

and

Will my settings remain in effect even after I’ve turned the camera off?

Functions Available in Each Shooting Mode (p. 148)

■How do I go about printing?

About Printing (p. 90)

■What functions are available through the menu?

Rec. Menu (p. 118)

Play Menu (p. 121)

Set up Menu (p. 123)

About This Guide

02-124usCUGE_001_025_GM.p65 7/26/02, 11:07 AM2

Table of Contents

Items marked with

■

are lists or charts that summarize camera

functions or procedures.

Read This First

Please Read .......................................................................... 7

Safety Precautions ............................................................... 7

Preventing Malfunctions ................................................... 11

Quick Start Section

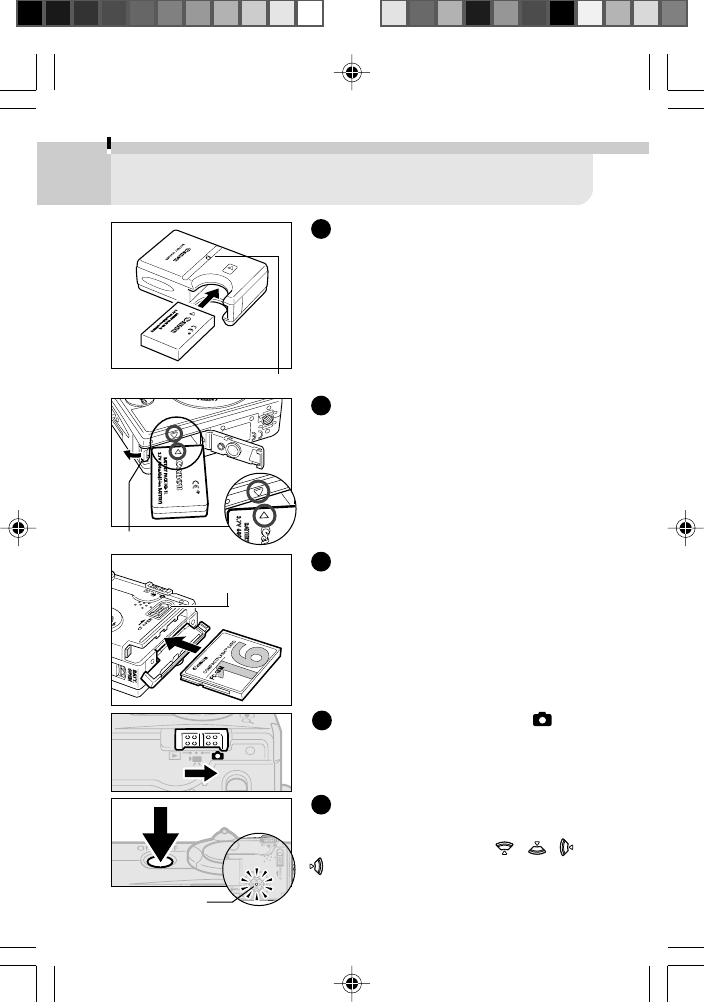

Quick Start Section ............................................................ 12

Components Guide

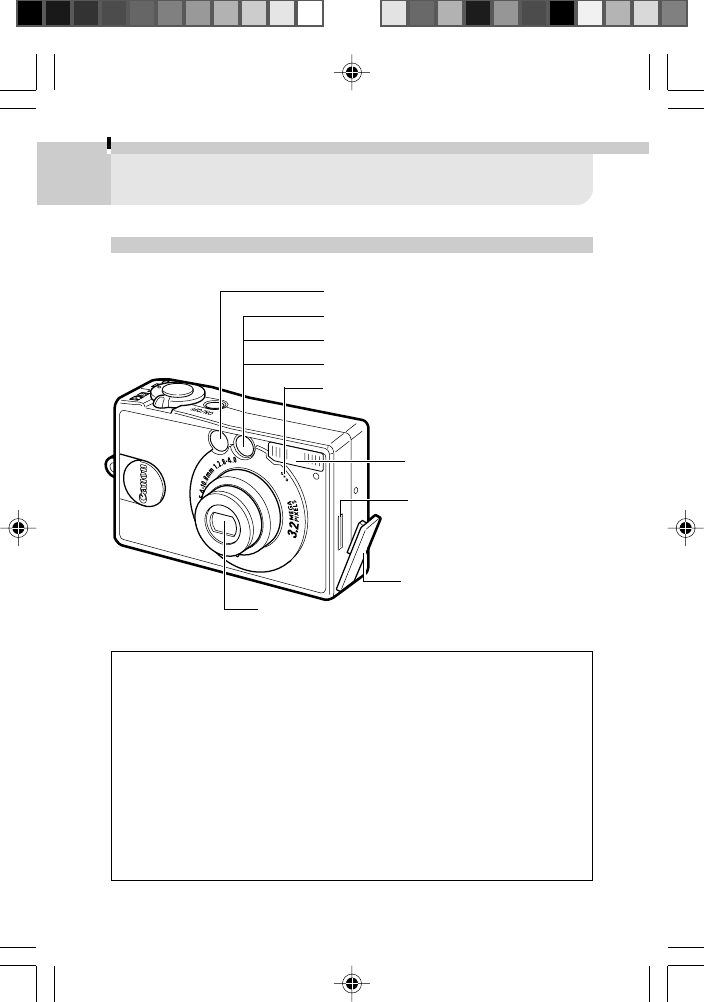

Front View ......................................................................... 14

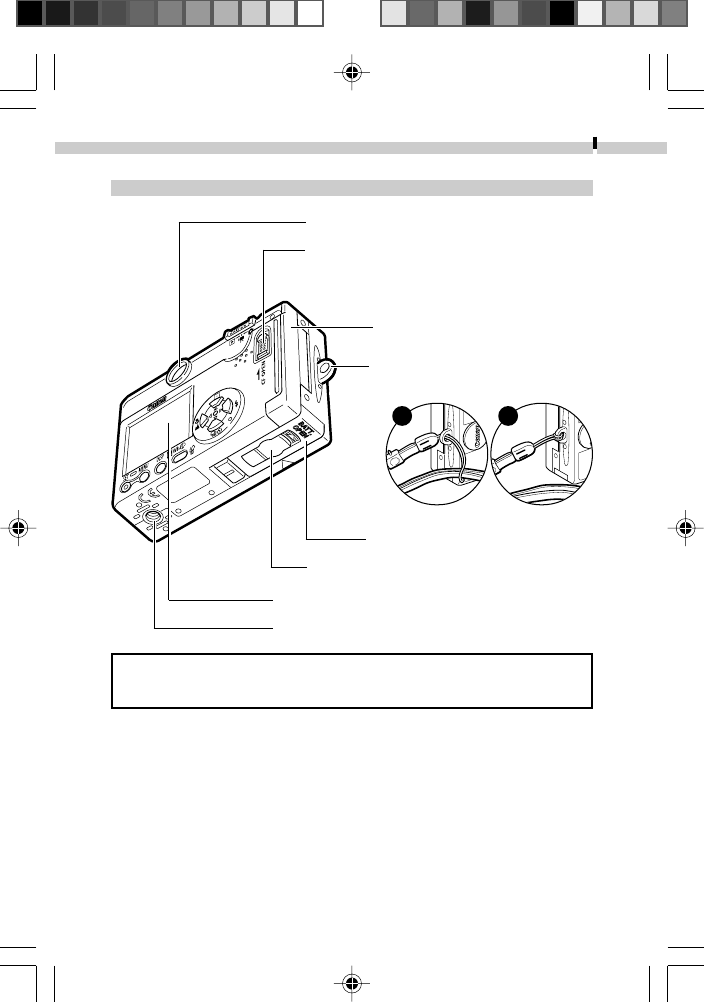

Back View .......................................................................... 15

Operation Panel ................................................................ 16

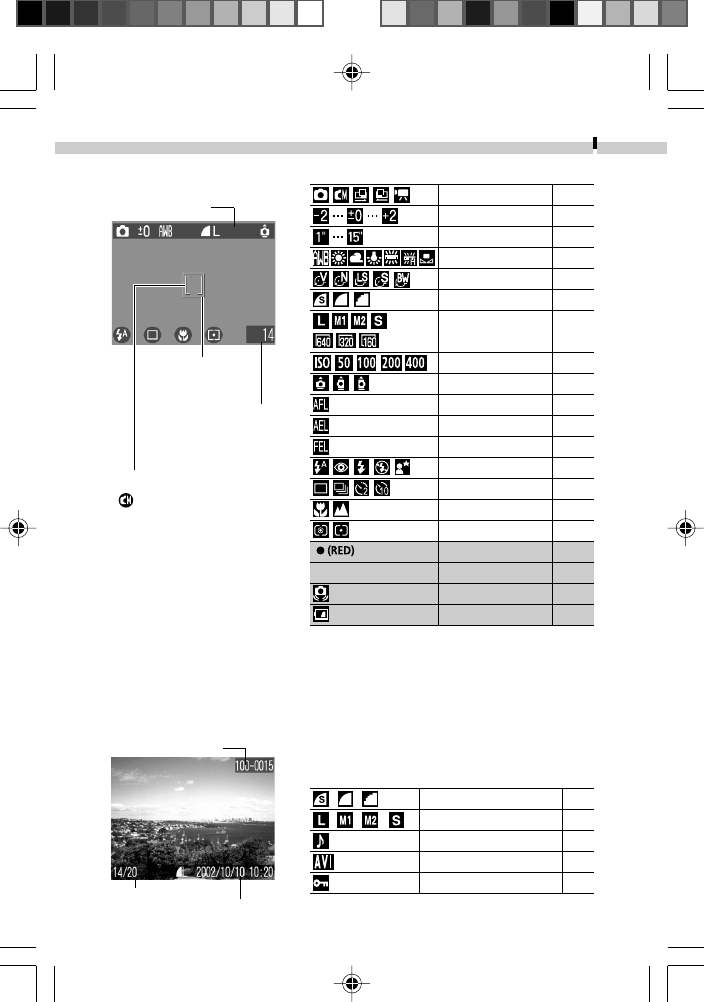

Indicators ........................................................................... 17

Preparing the Camera

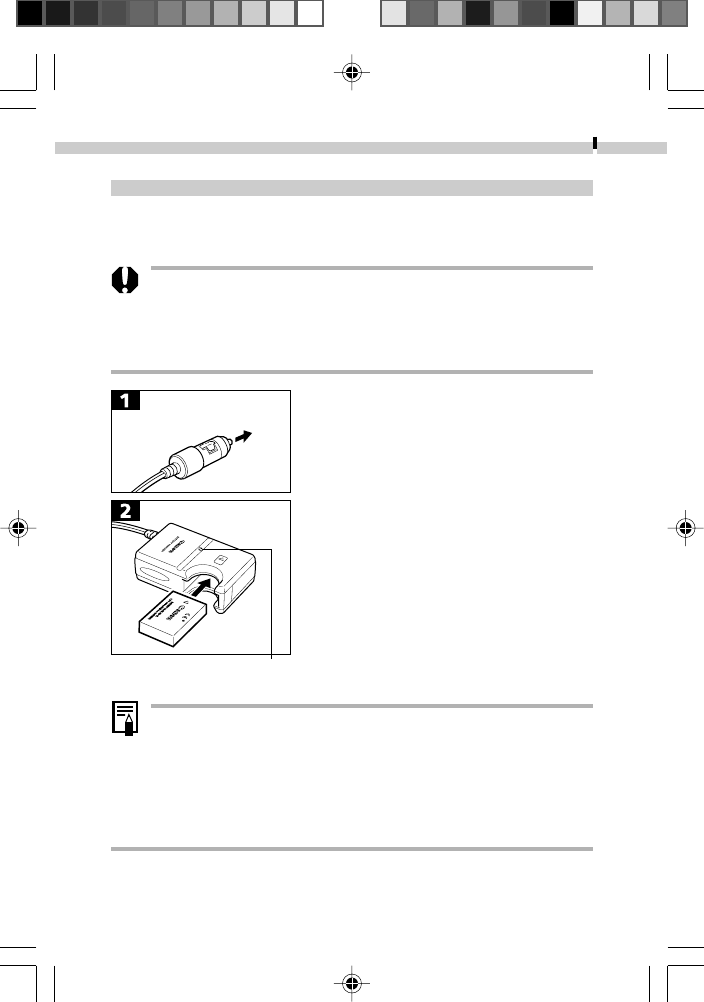

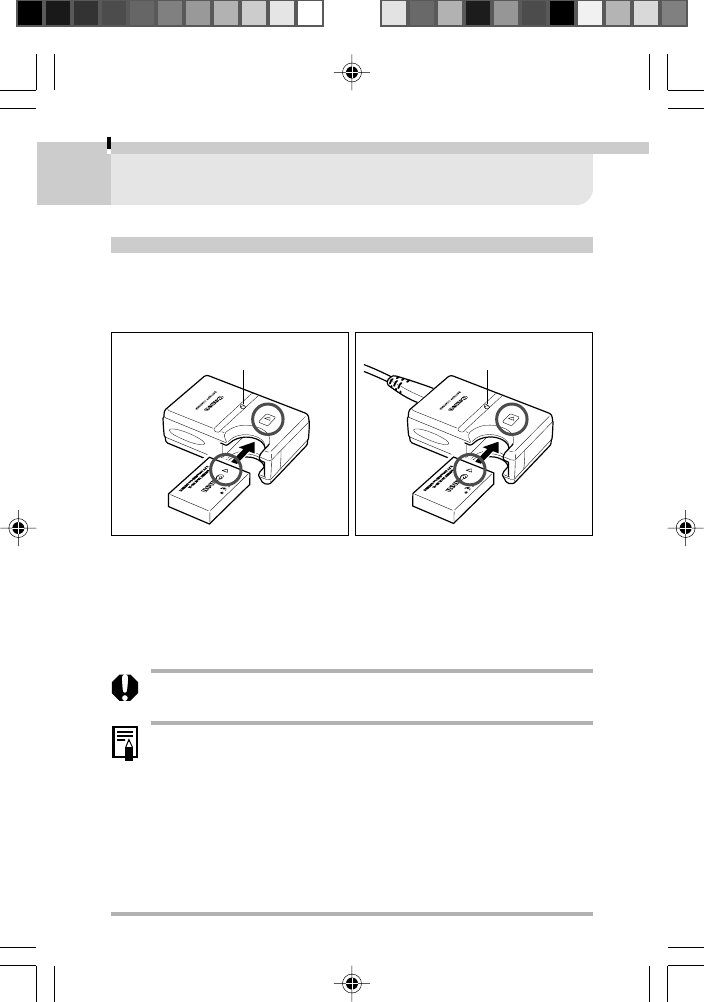

Charging the Battery Pack ................................................ 18

Installing the Battery Pack ................................................ 20

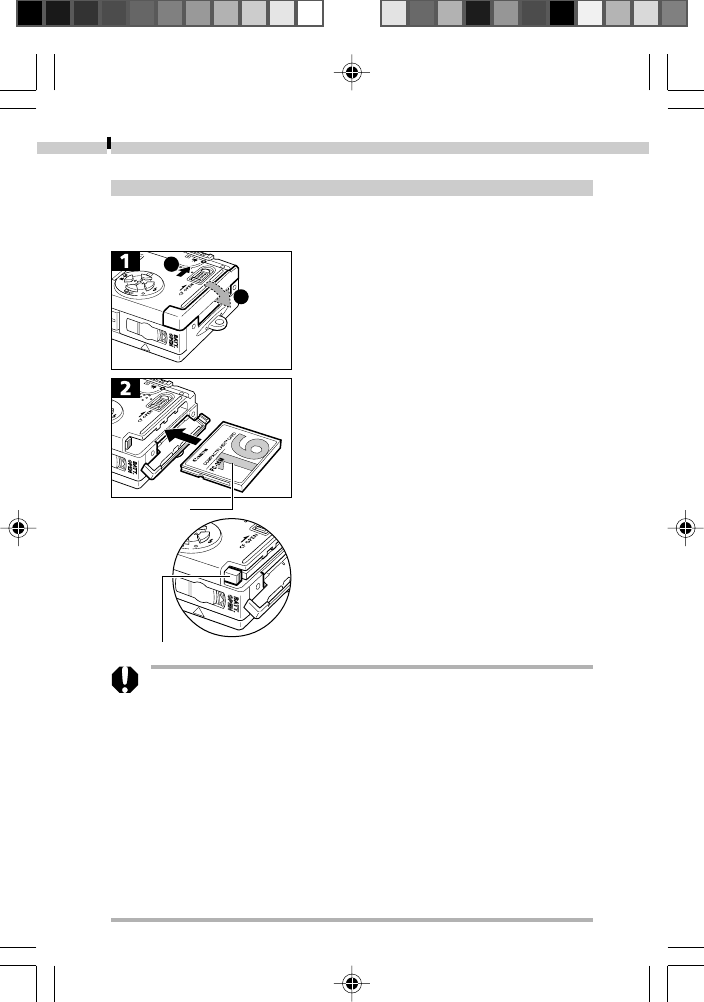

Installing a CF Card ........................................................... 22

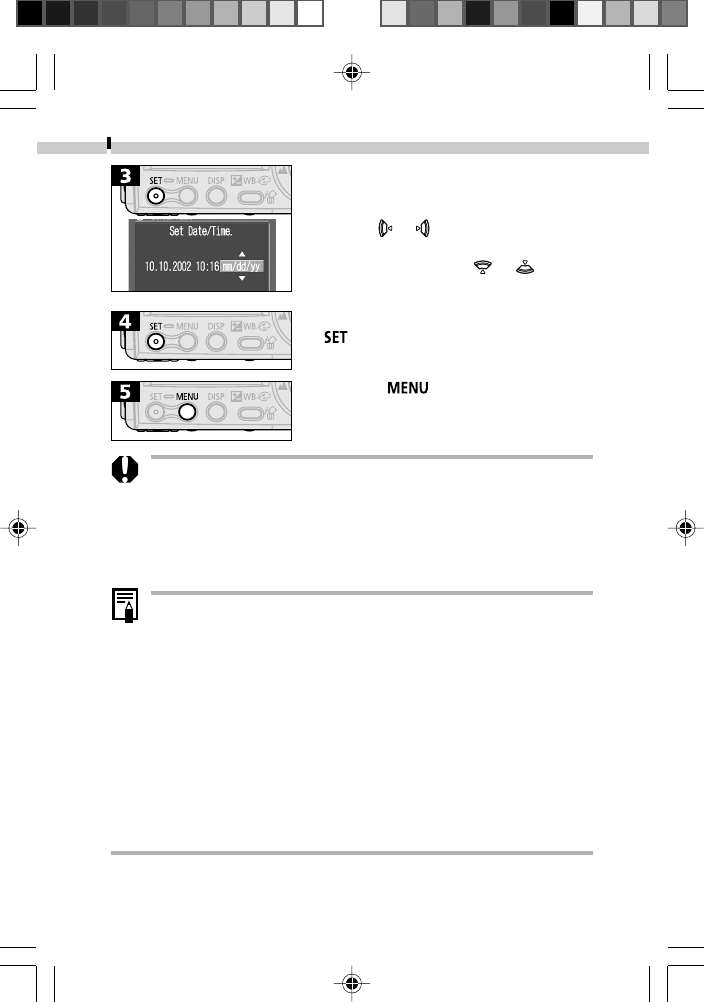

Setting the Date and Time ................................................ 23

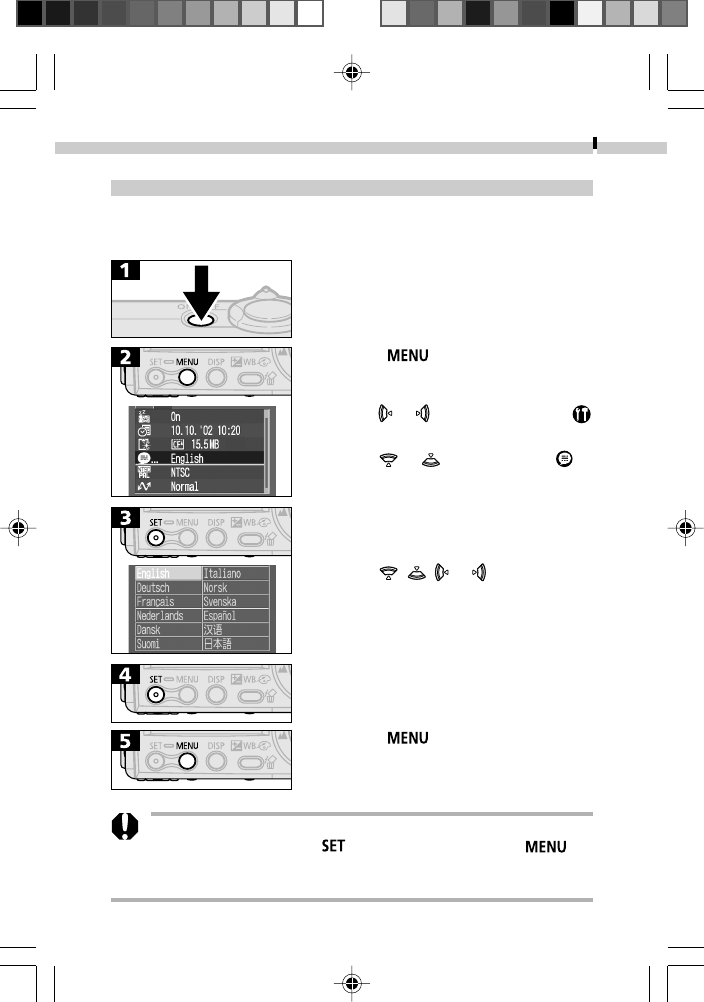

Setting the Language ....................................................... 25

Basic Functions

Turning the Power On / Off ............................................... 26

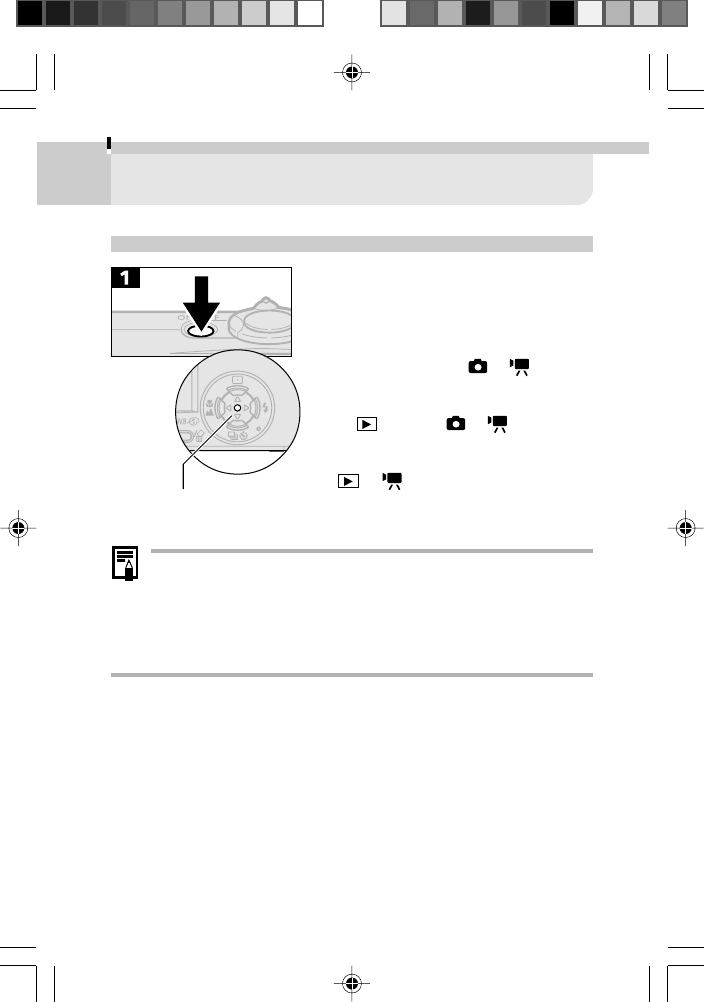

Switching between Shooting /Replay ............................... 28

Using the LCD Monitor ..................................................... 29

Using the Viewfinder ........................................................ 33

Pressing the Shutter Button .............................................. 34

Using the Zoom ................................................................. 36

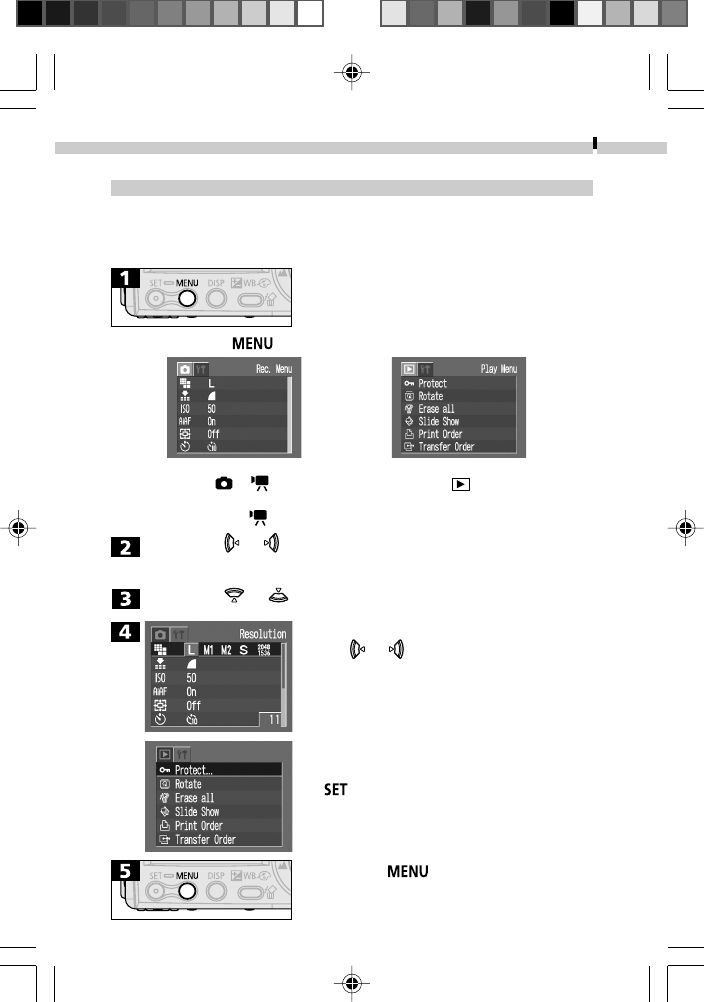

Selecting Menus and Settings ......................................... 37

02-124usCUGE_001_025_GM.p65 7/26/02, 11:07 AM3

Table of Contents

Shooting

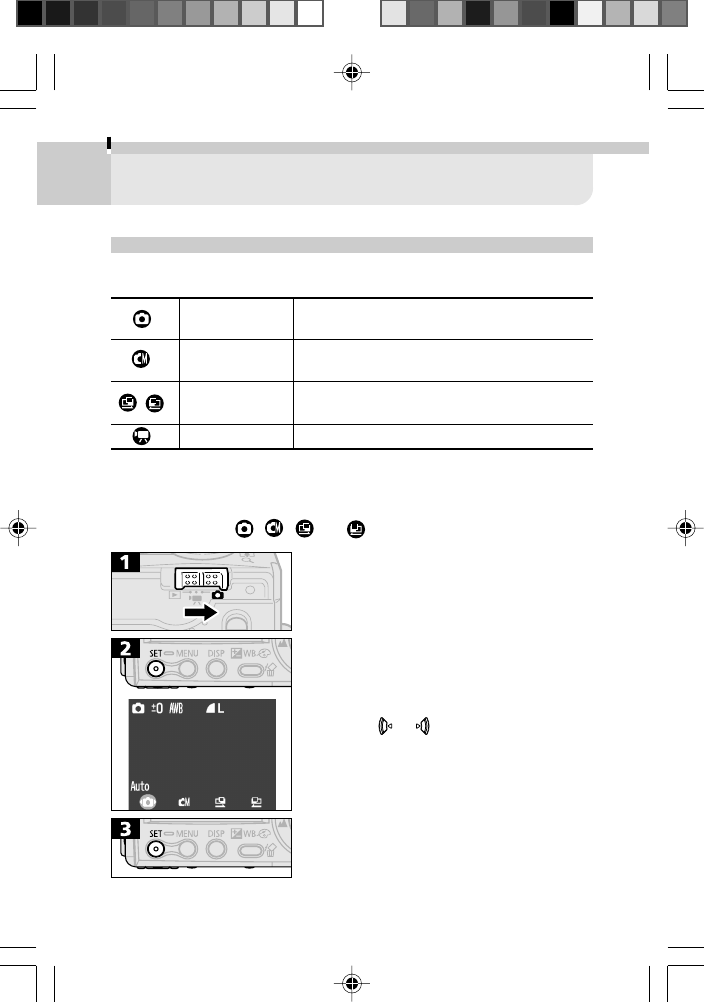

Selecting a Shooting Mode ............................................... 42

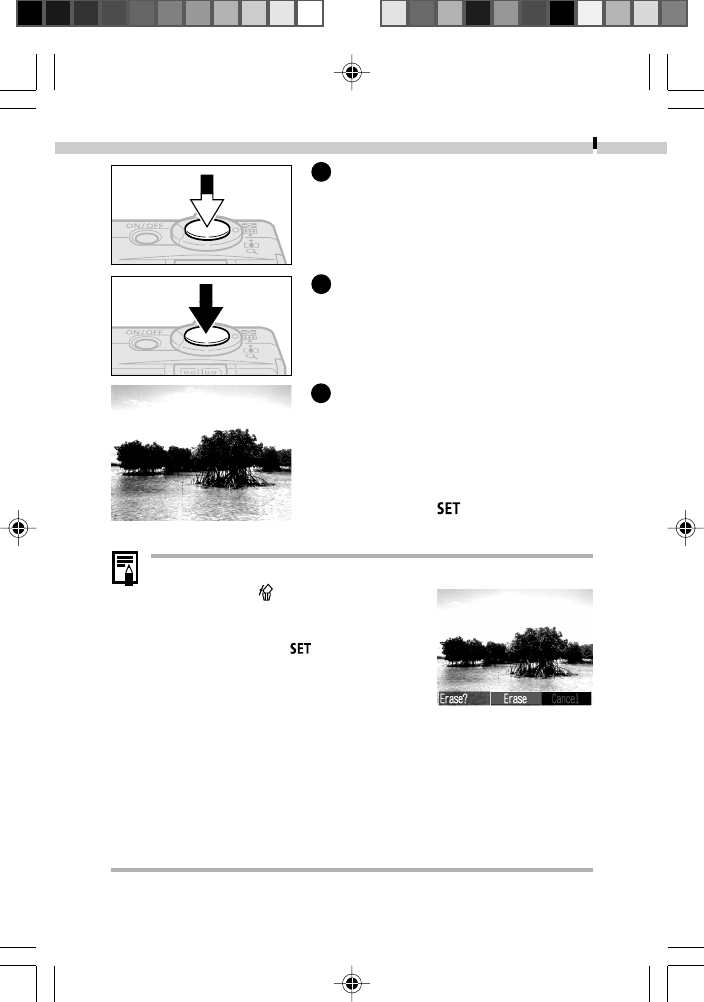

Reviewing an Image Right after Shooting ....................... 44

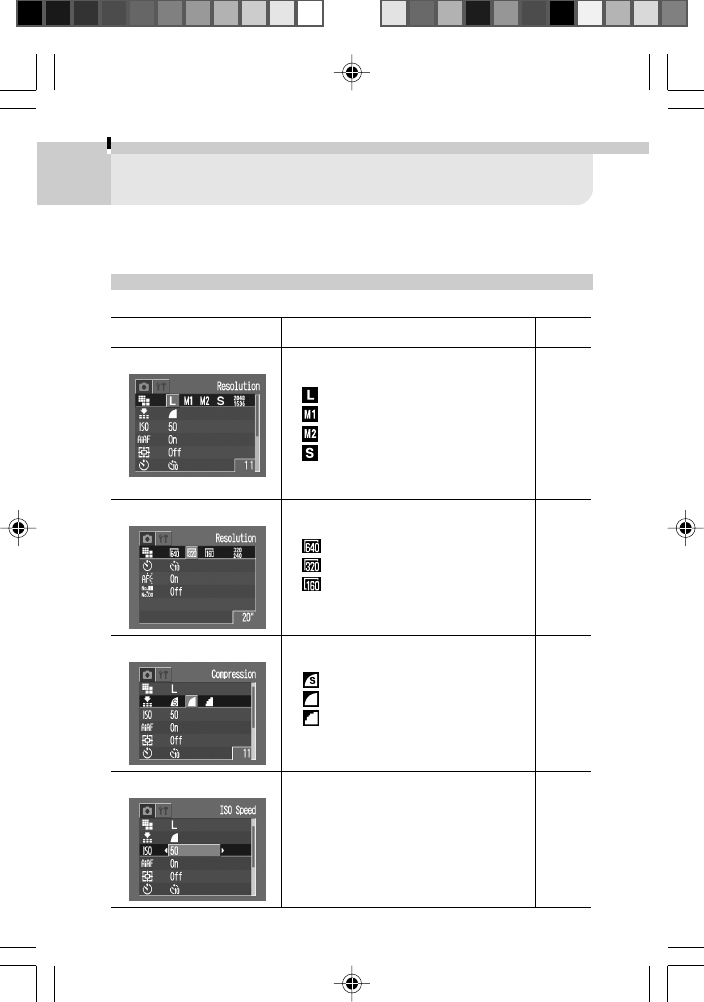

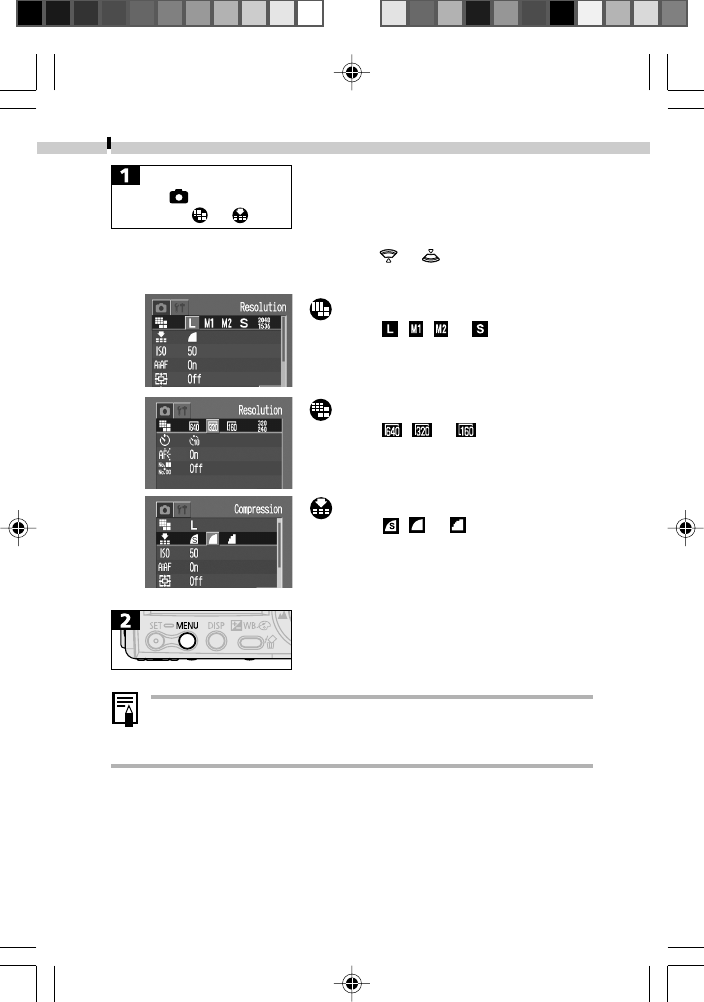

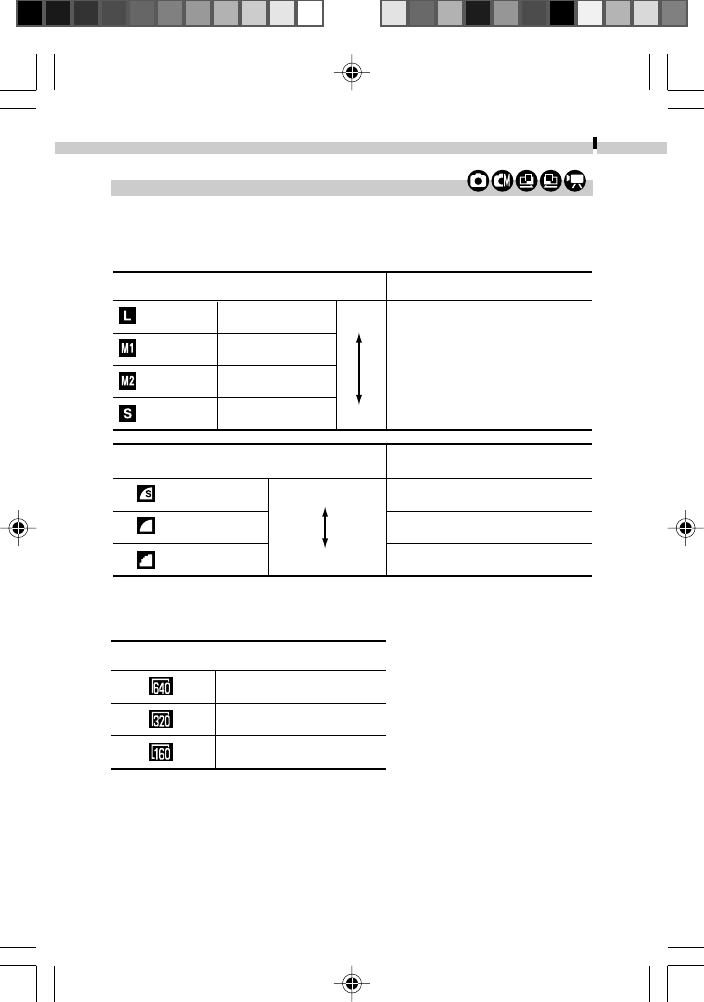

Changing Resolution/Compression Settings ..................... 45

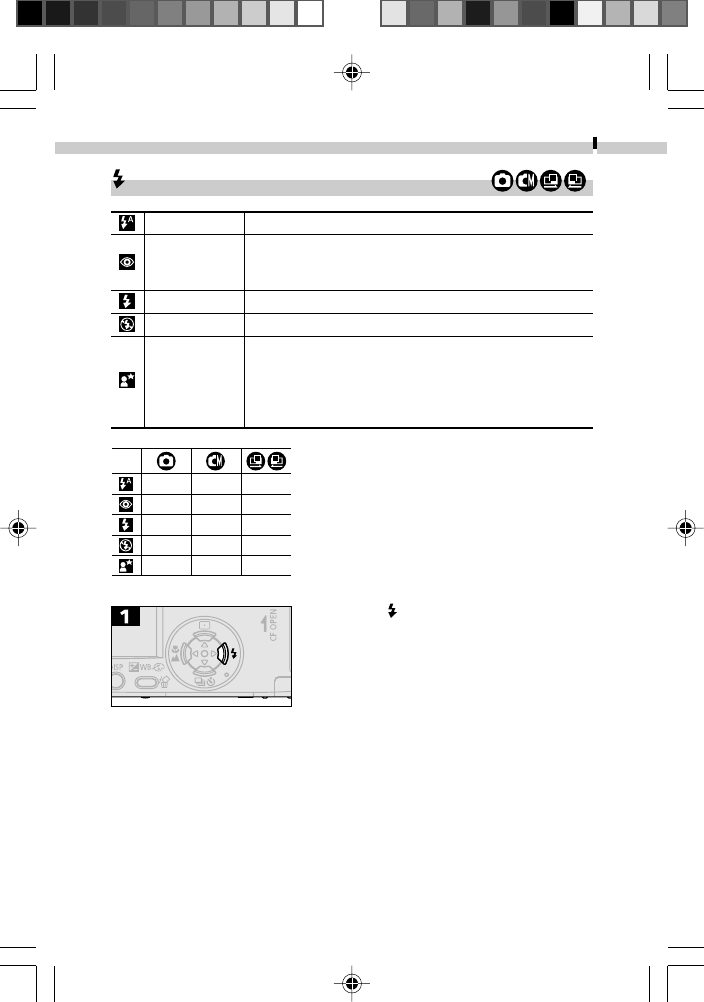

Using the Flash ............................................................. 47

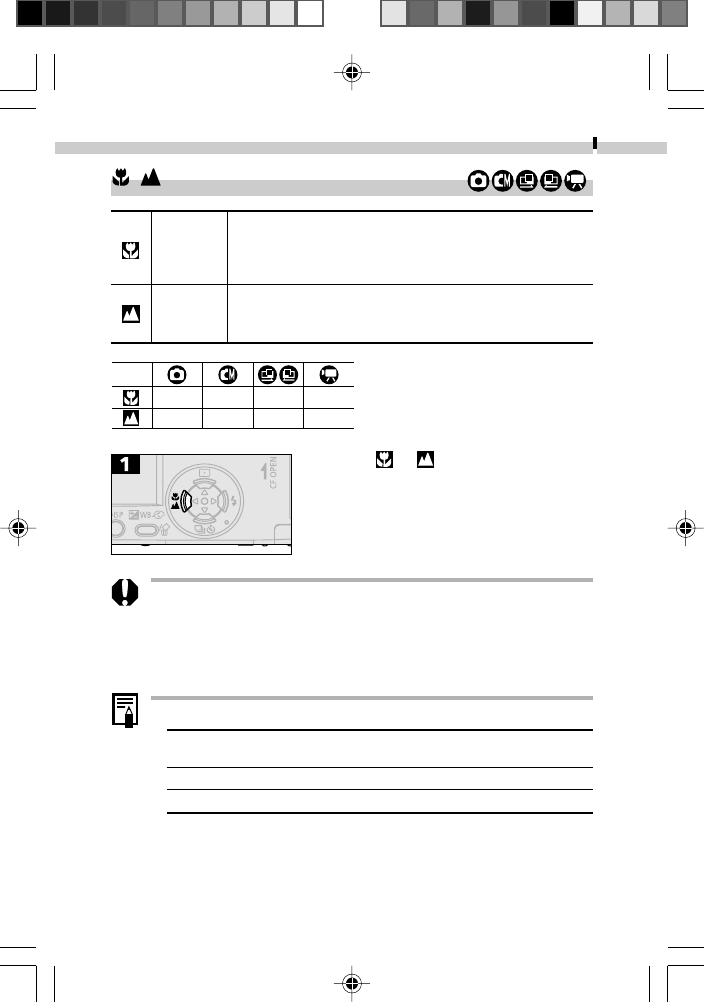

Shooting Close-Ups/Infinity Shots ........................ 49

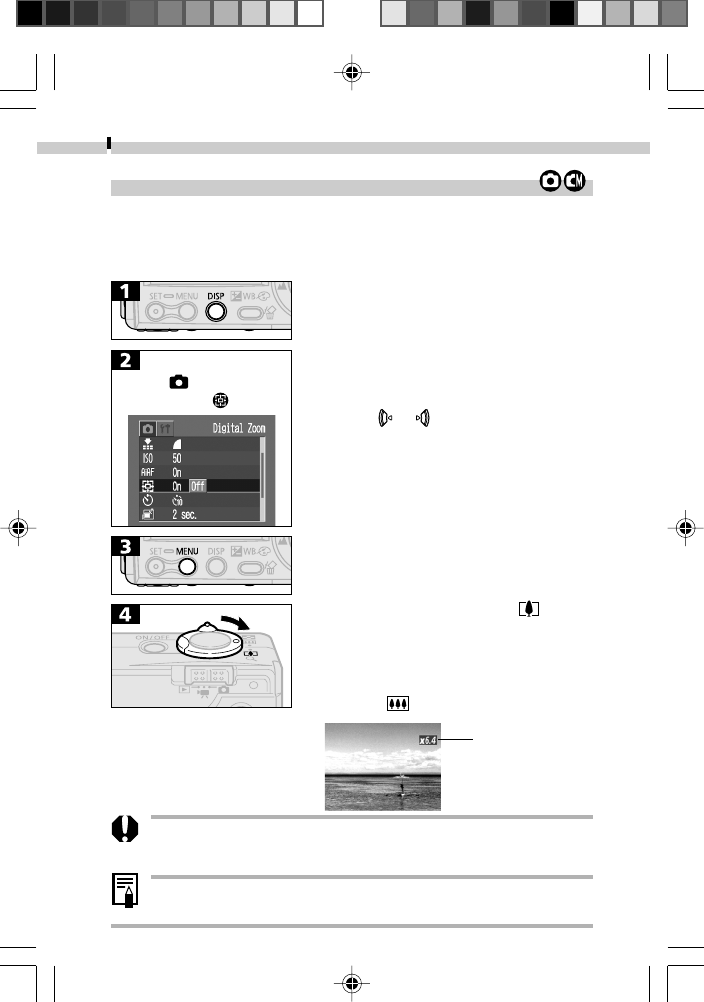

Using the Digital Zoom ..................................................... 50

Continuous Shooting ................................................. 51

Using the Self-timer .................................................... 52

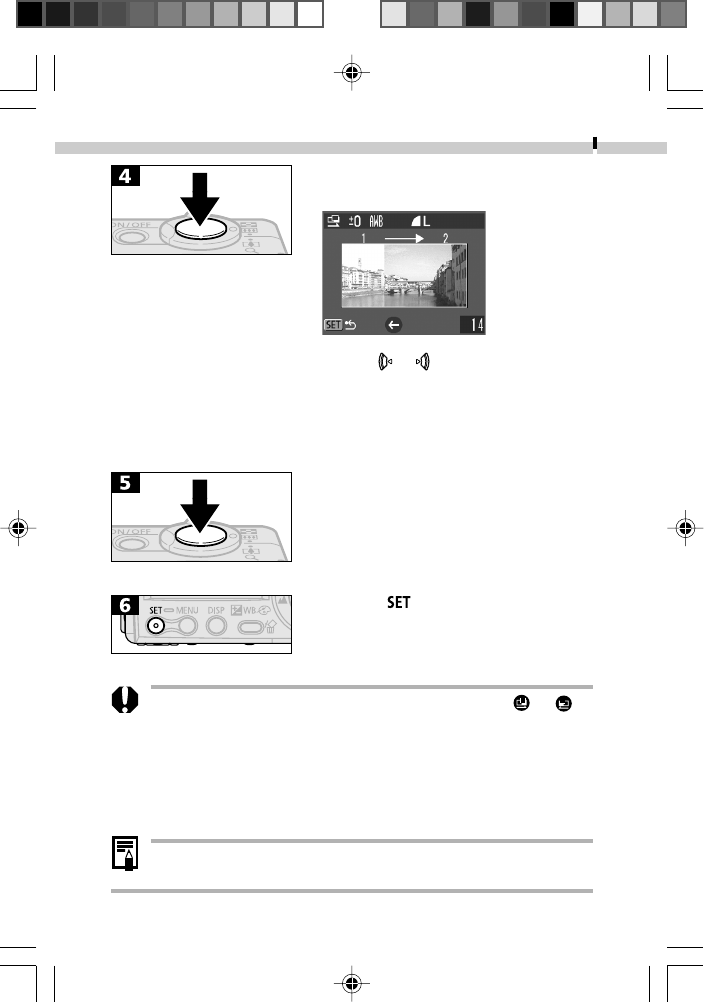

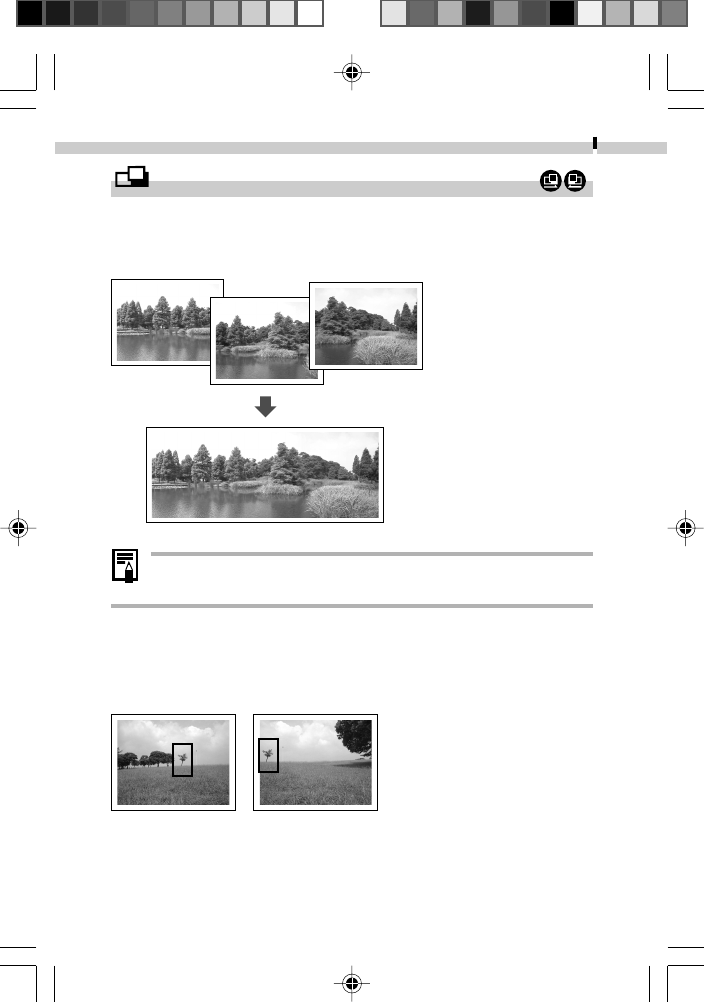

Shooting in Stitch Assist Mode ................................ 53

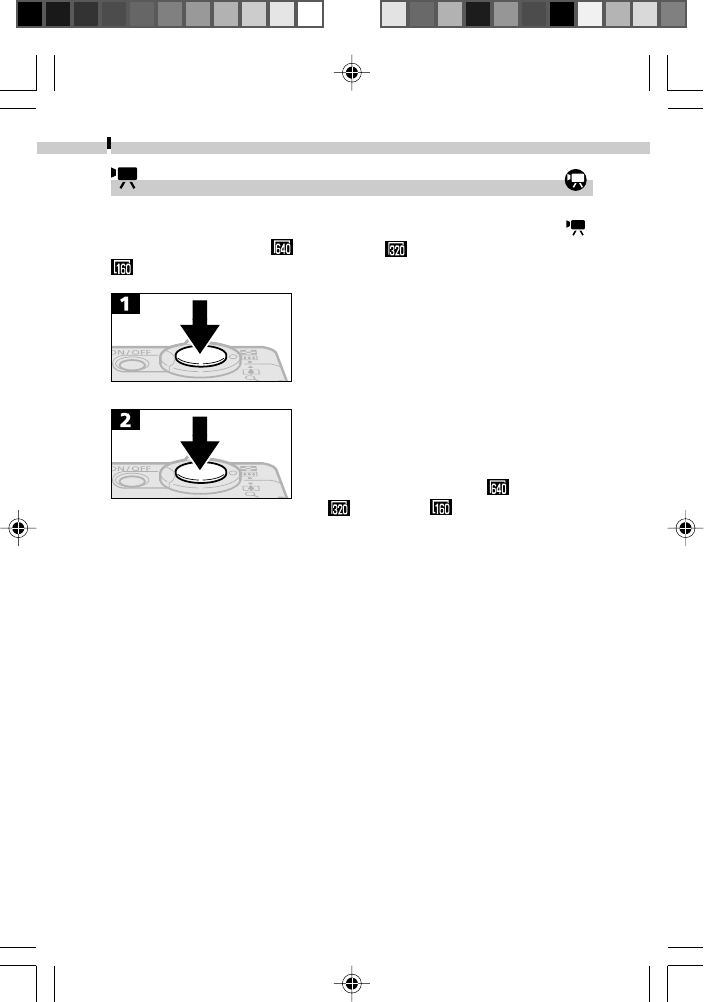

Shooting a Movie ....................................................... 56

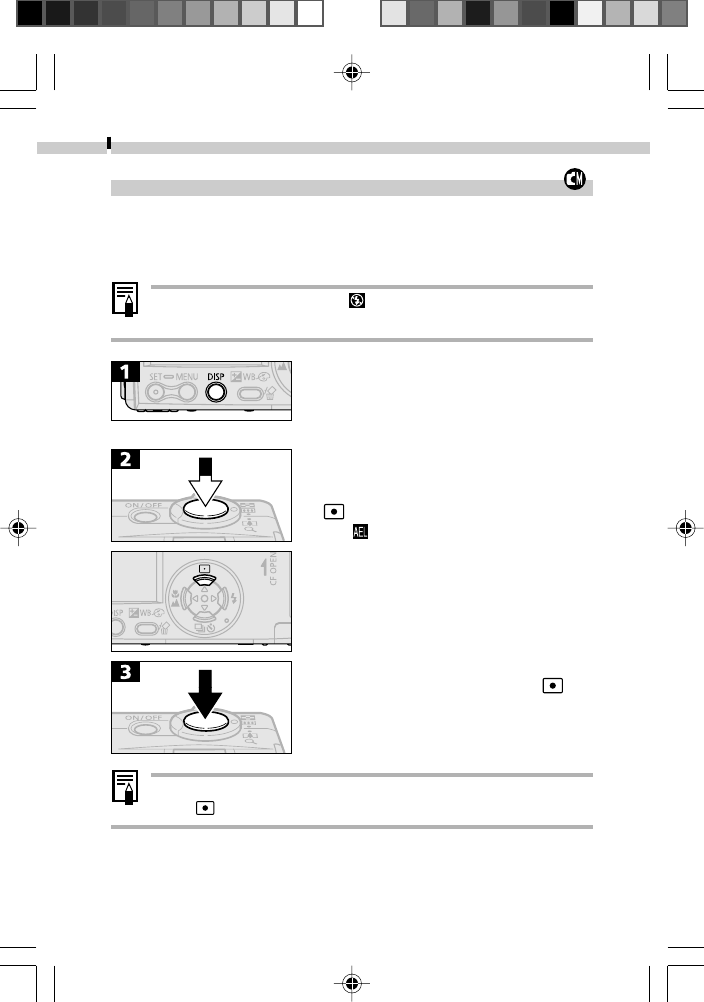

Locking the Focus (AF Lock) .............................................. 58

Locking the Exposure Setting (AE Lock) ........................... 60

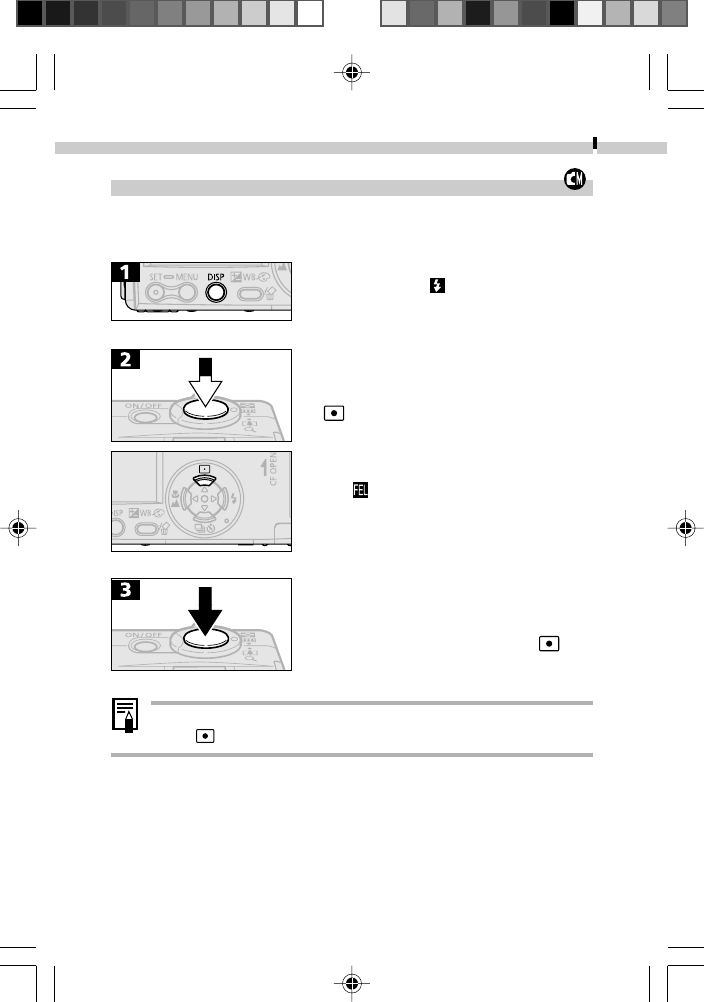

Locking the Flash Exposure Setting (FE Lock) .................. 61

Switching between Autofocus Modes ............................. 62

Switching between Light Metering Modes ............... 63

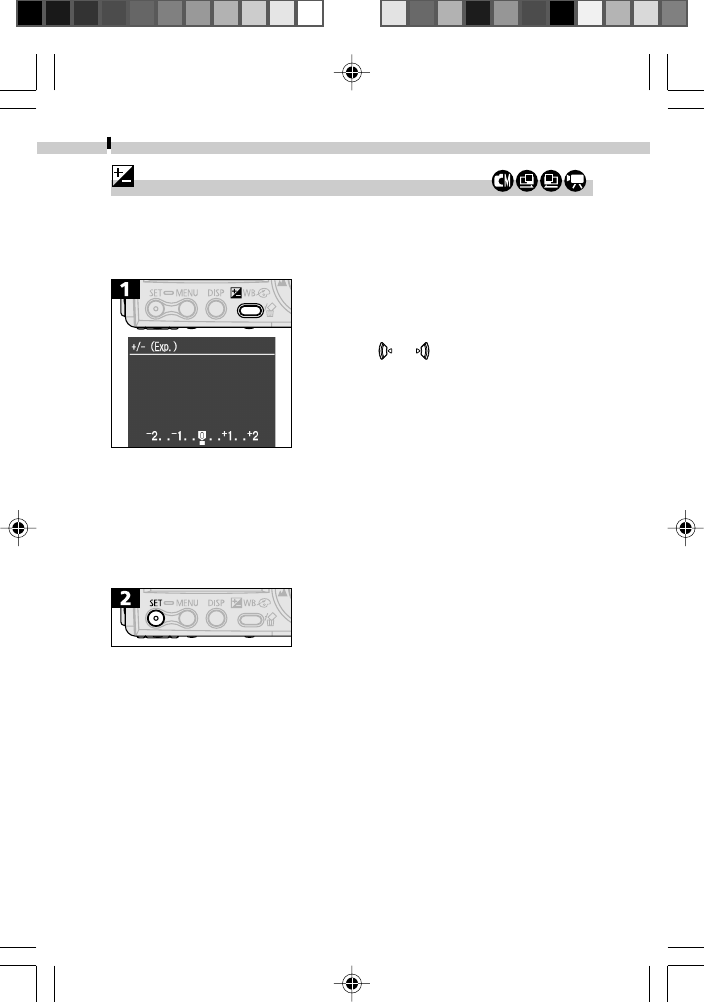

Adjusting the Exposure Compensation ....................... 64

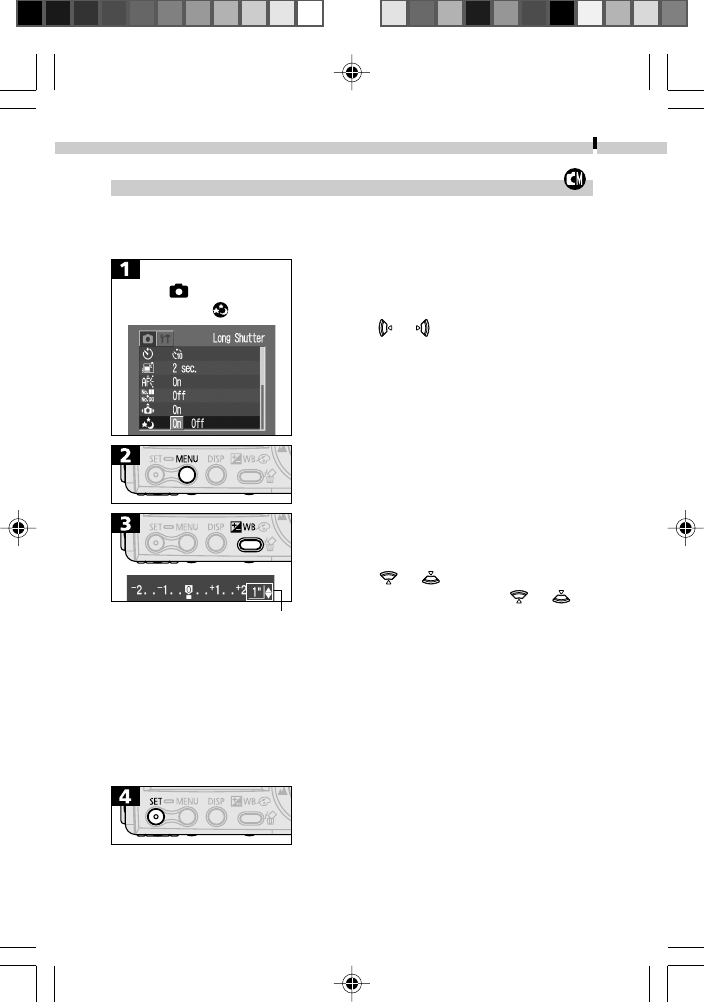

Shooting in Long Shutter Mode ....................................... 65

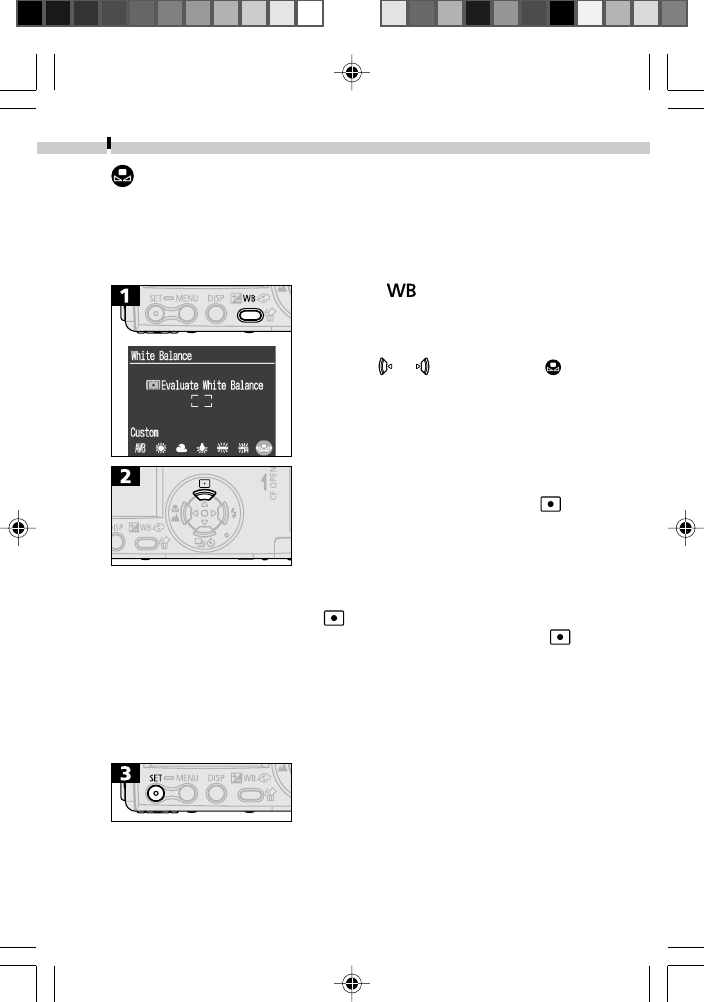

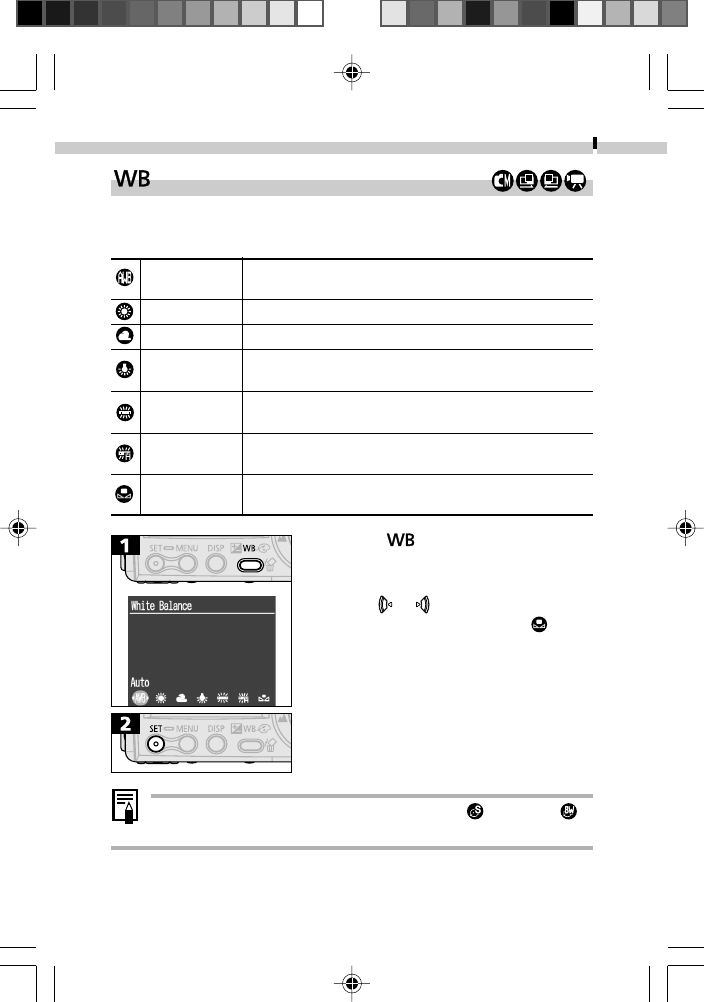

Setting the White Balance ......................................... 67

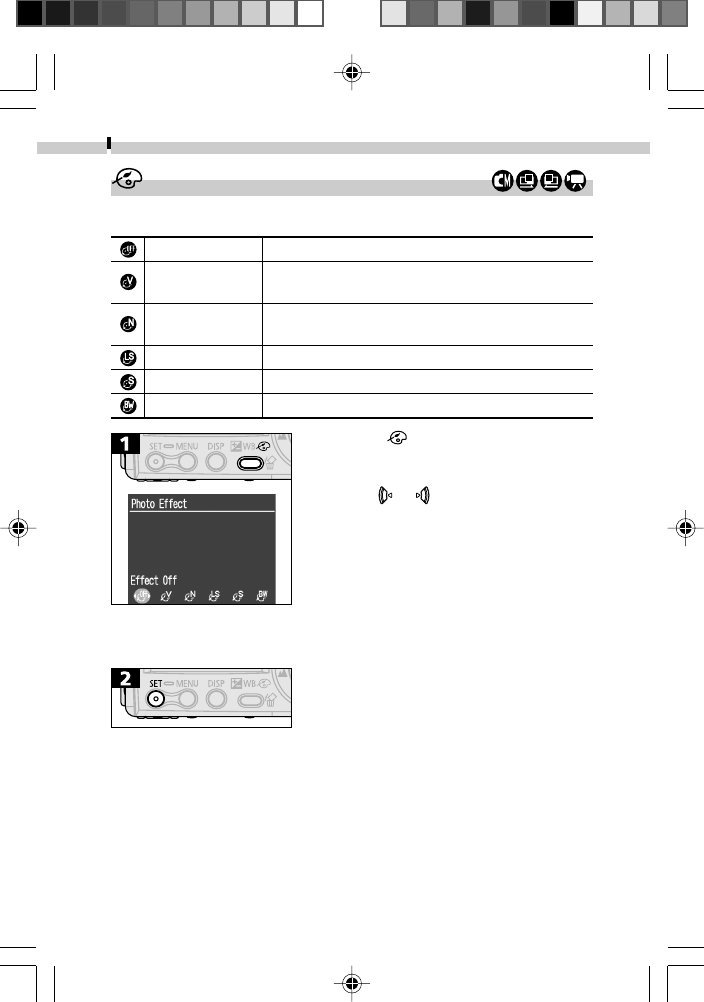

Changing the Photo Effect ........................................ 70

Adjusting the ISO Speed ................................................... 71

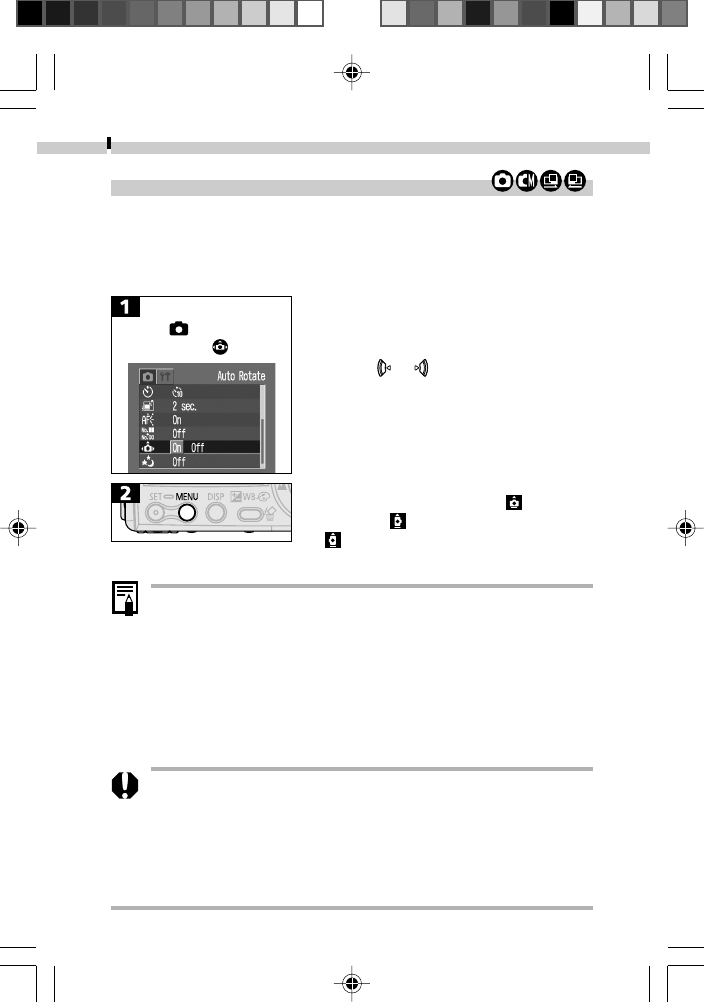

Setting the Auto Rotate Function .................................... 72

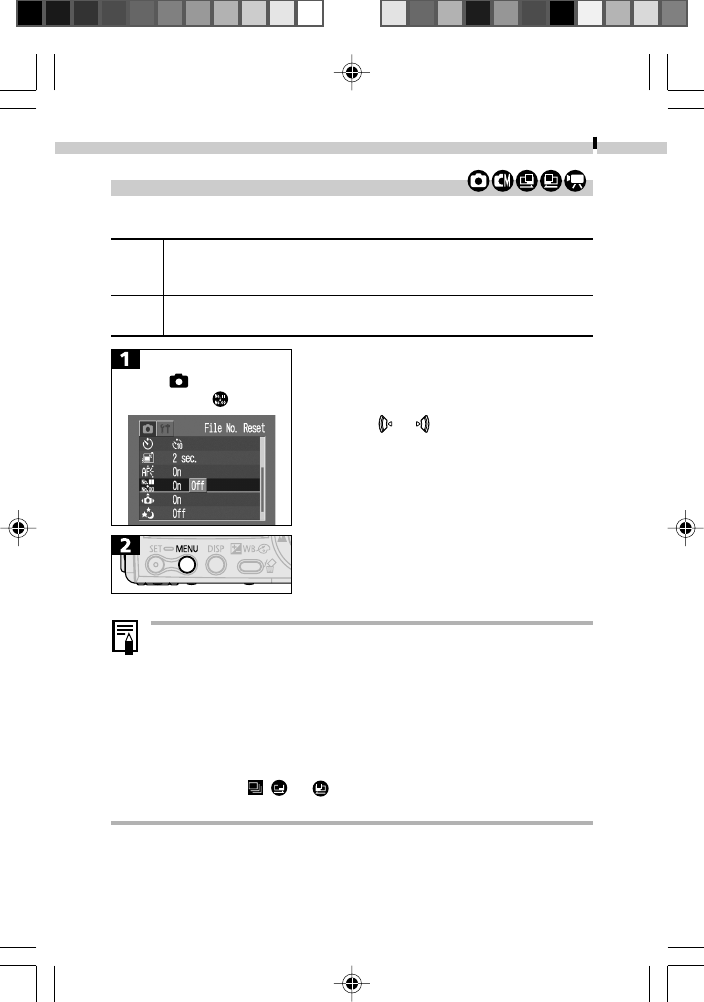

Resetting the File Number ................................................ 73

Replaying

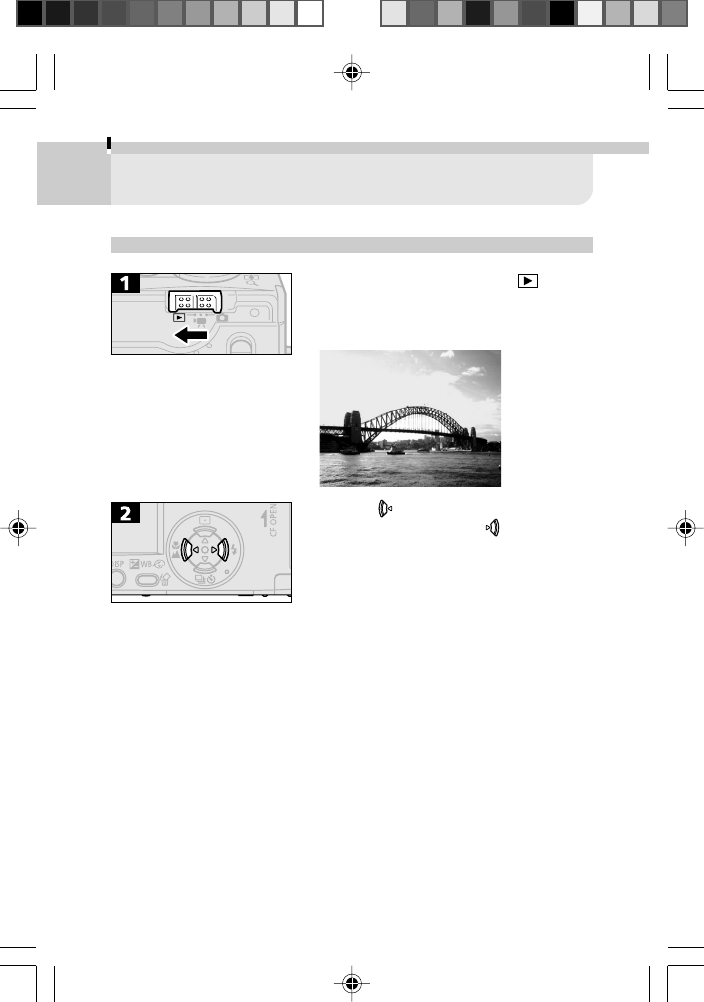

Displaying Images Individually ......................................... 74

Magnifying Images ..................................................... 75

Viewing Images in Sets of Nine (Index Replay) ......... 76

Viewing Movies ................................................................. 77

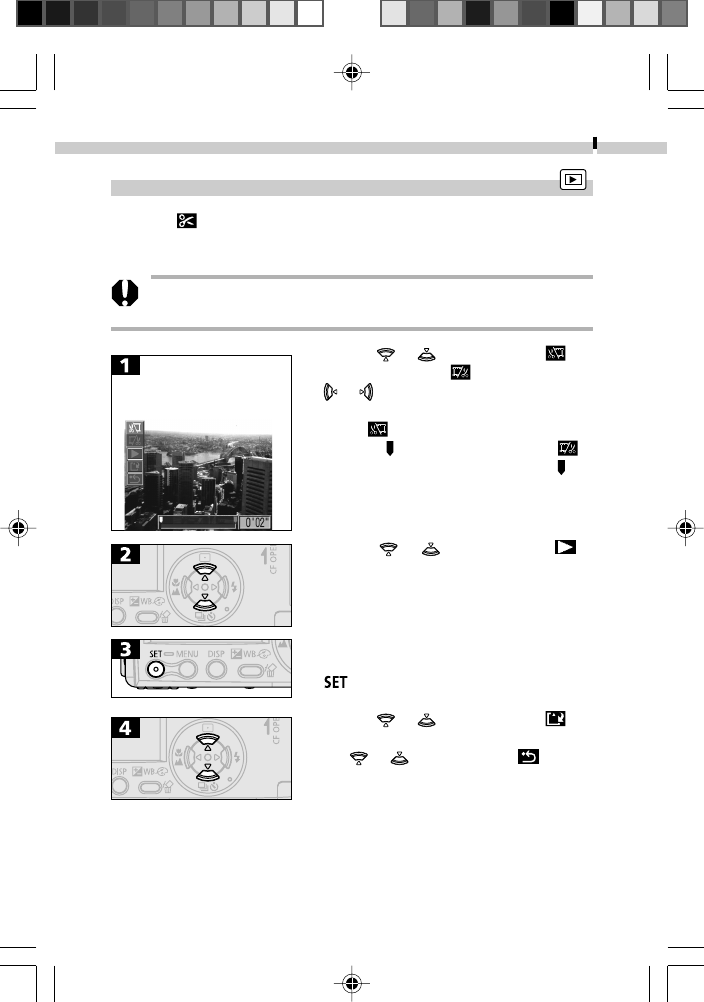

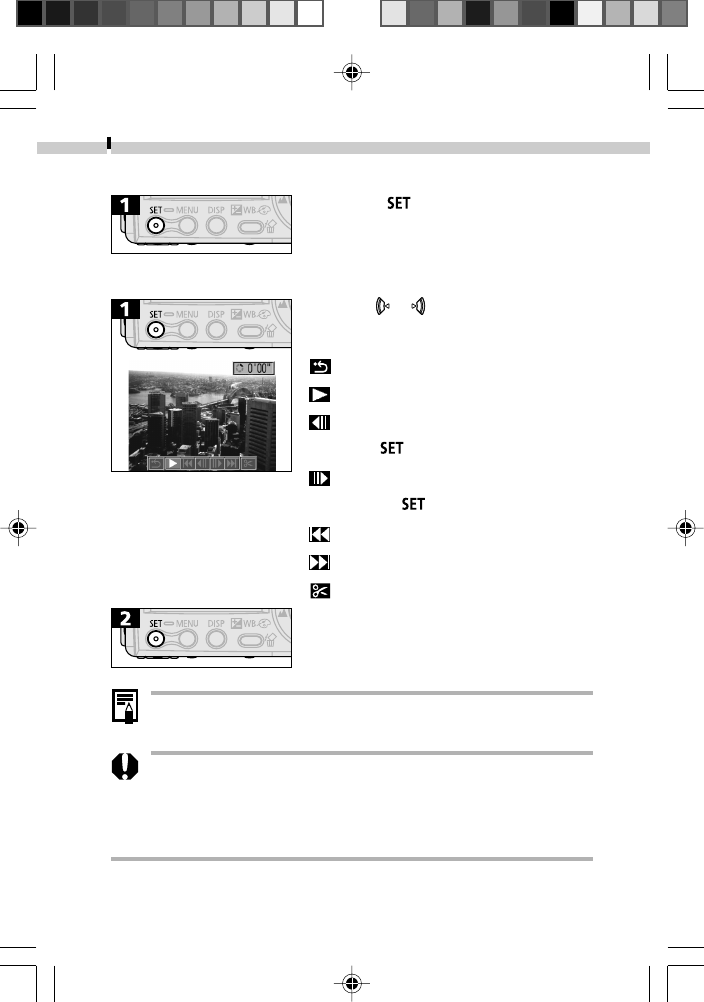

Editing Movies ................................................................... 79

Rotating Images in the Display ......................................... 81

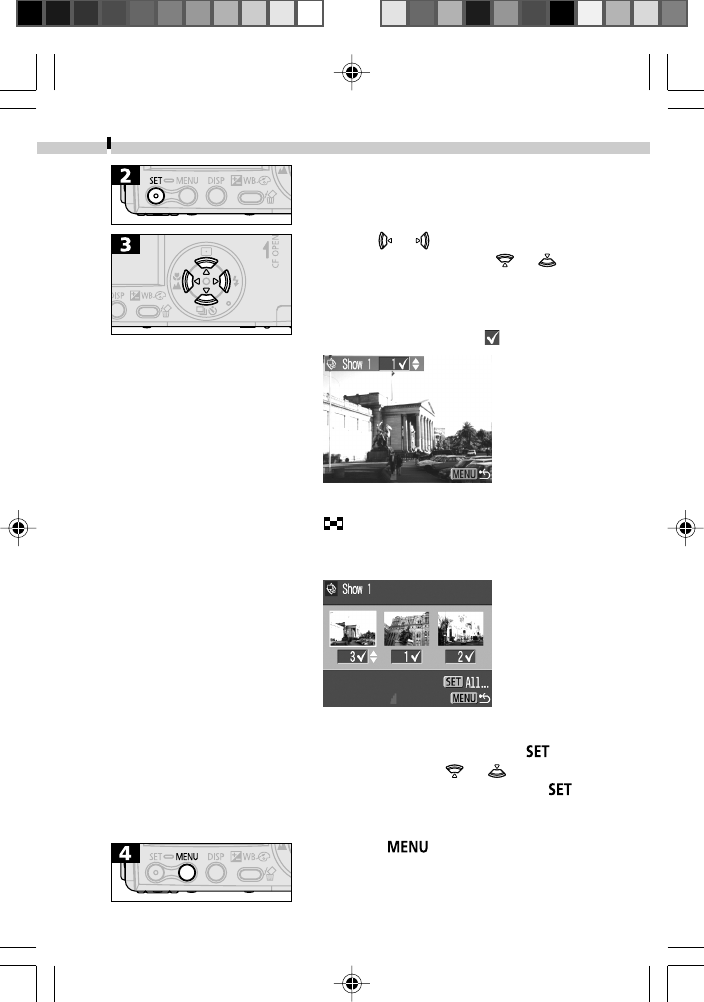

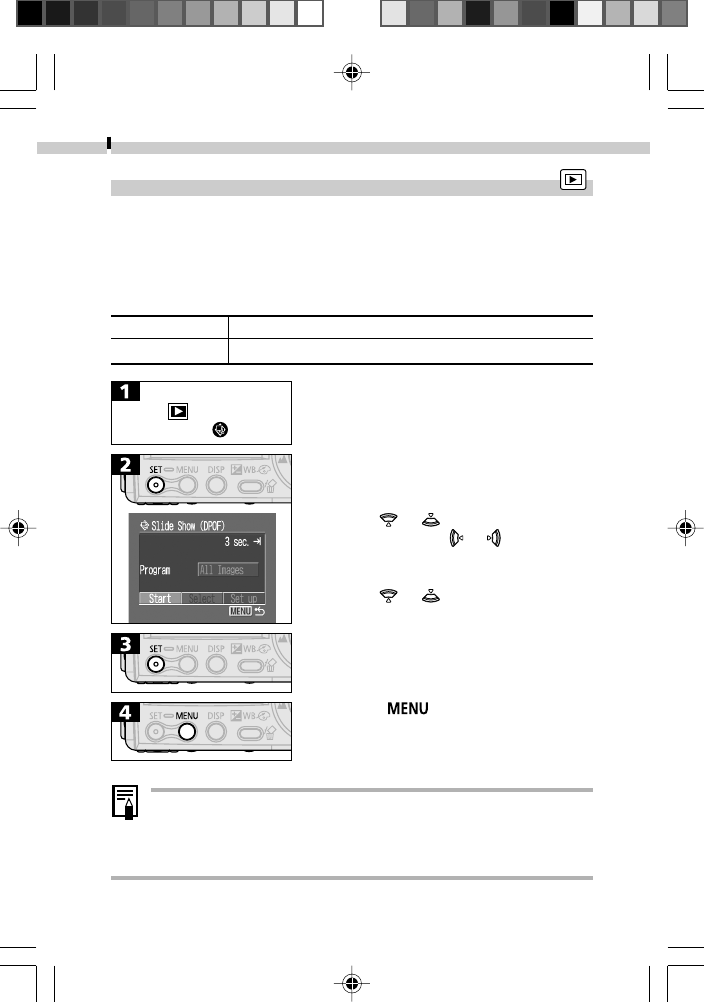

Automated Playback (Slide Shows) .................................. 82

Protecting Images ............................................................. 86

02-124usCUGE_001_025_GM.p65 7/26/02, 11:07 AM4

Table of Contents

Erasing

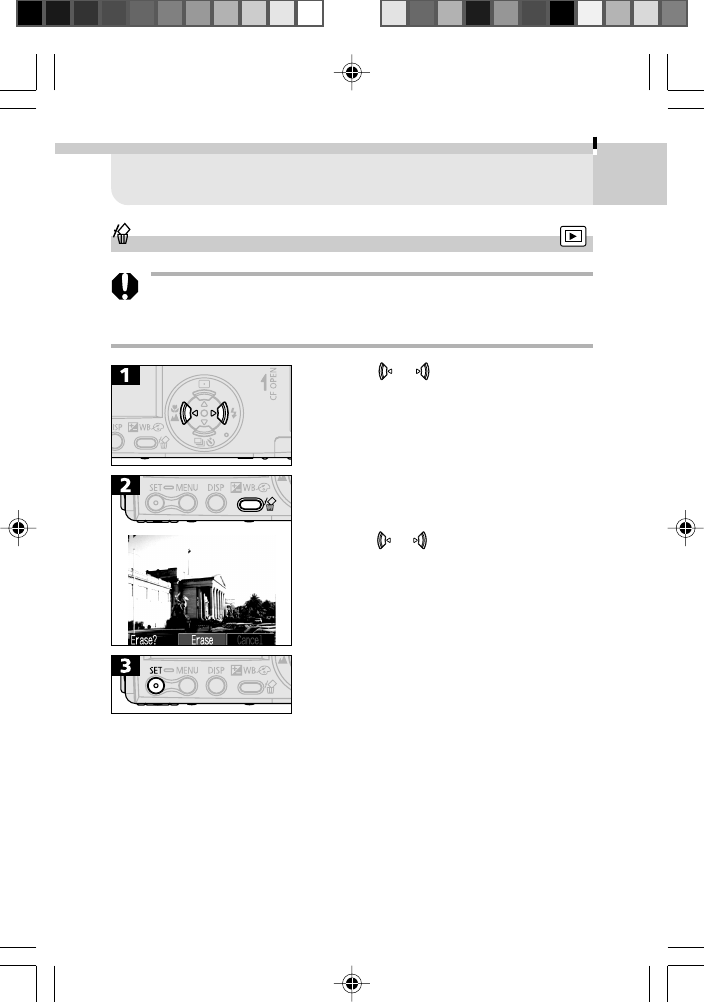

Erasing Single Images ................................................. 87

Erasing All Images ............................................................. 88

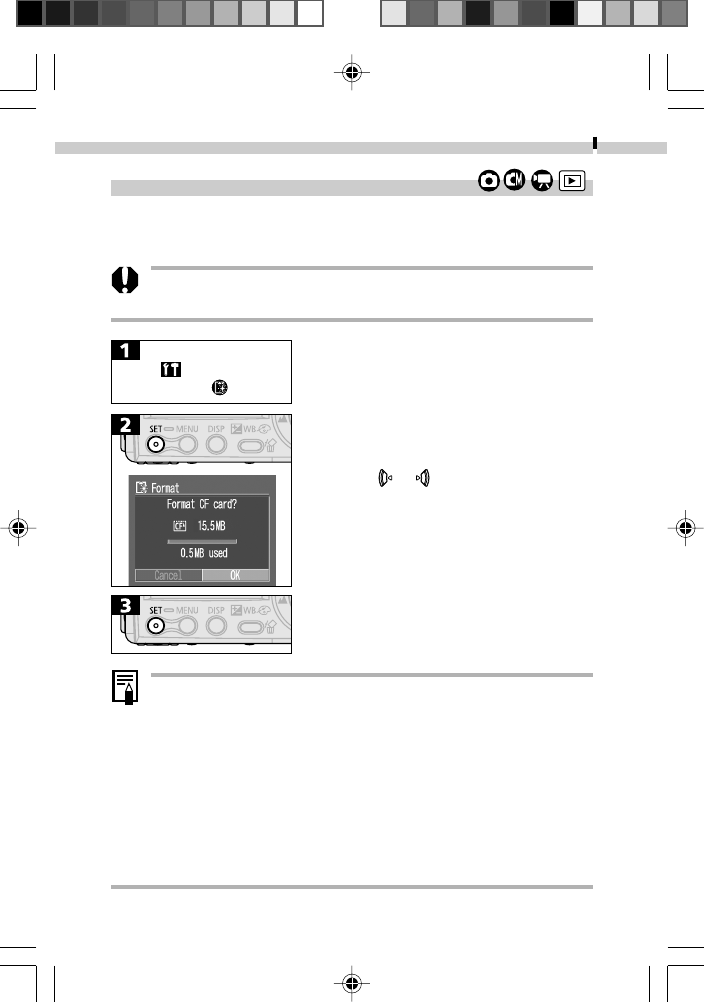

Formatting CF Cards .......................................................... 89

Printing

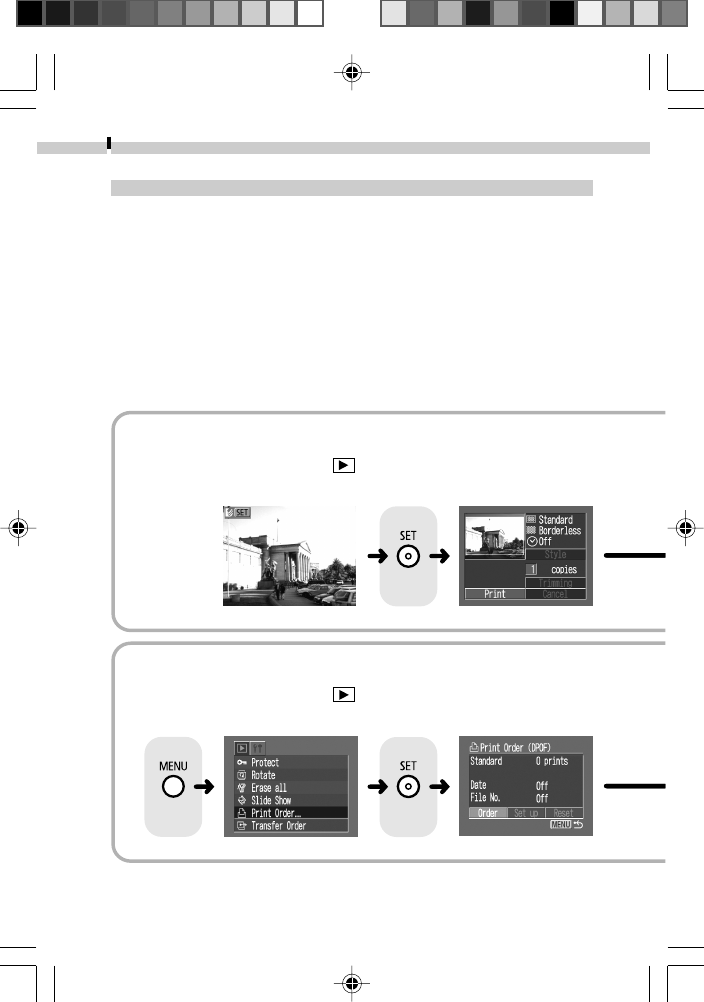

About Printing ................................................................. 90

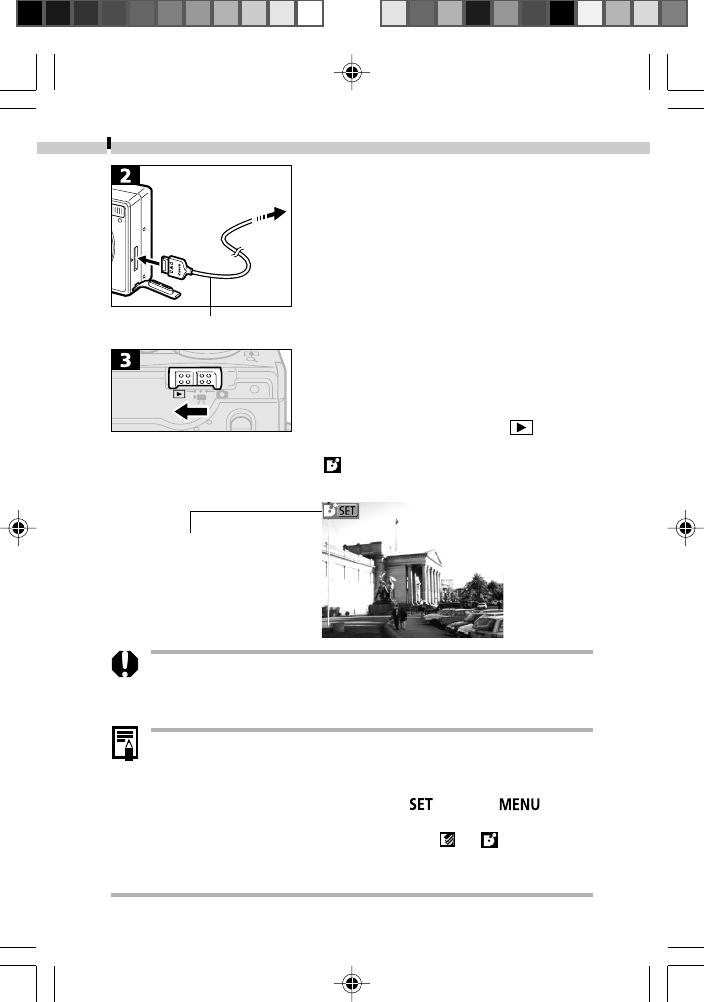

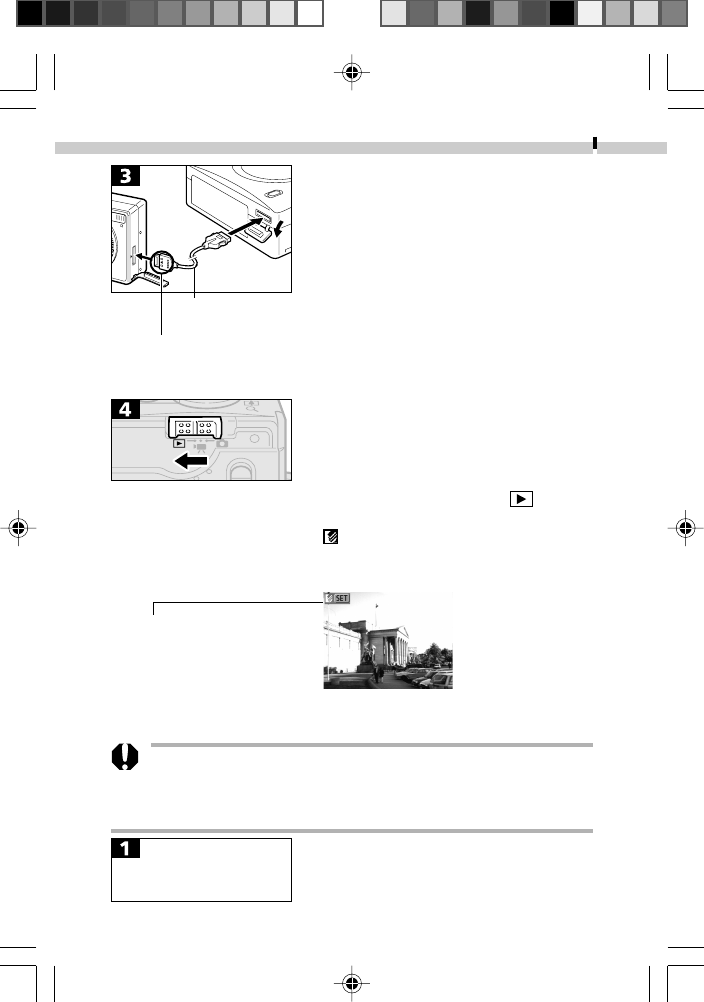

Connecting a Printer ......................................................... 94

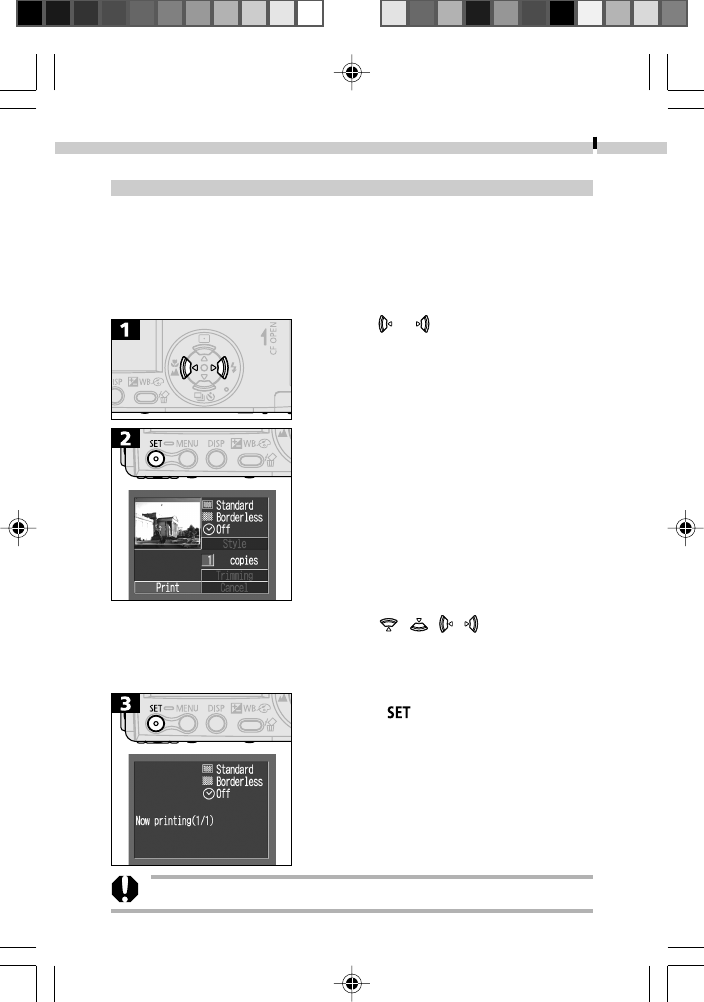

Printing .............................................................................. 97

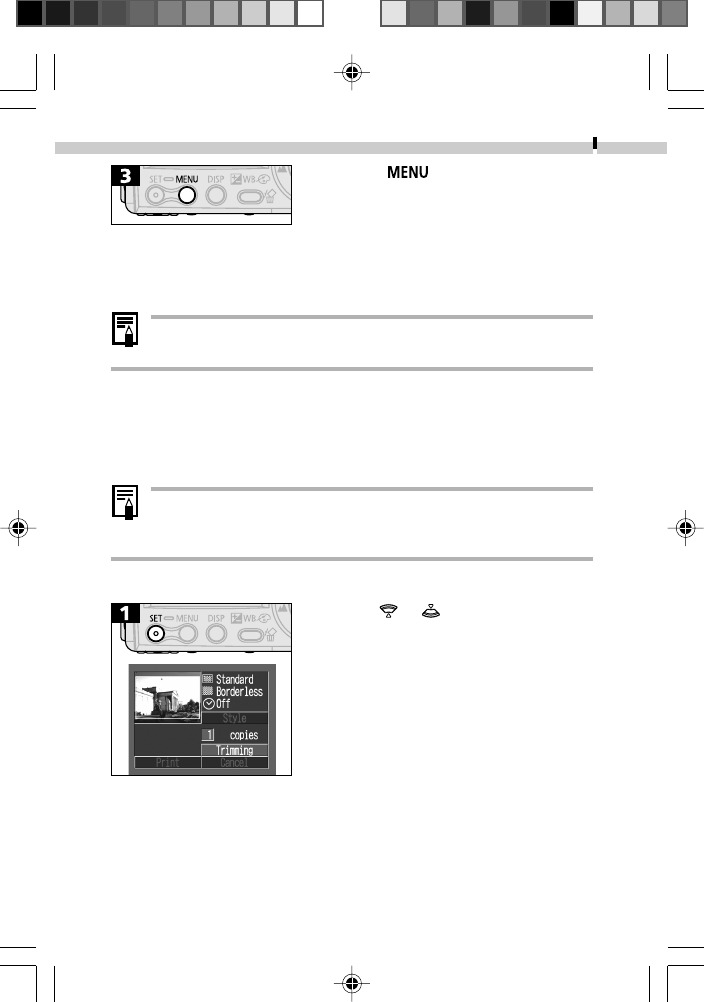

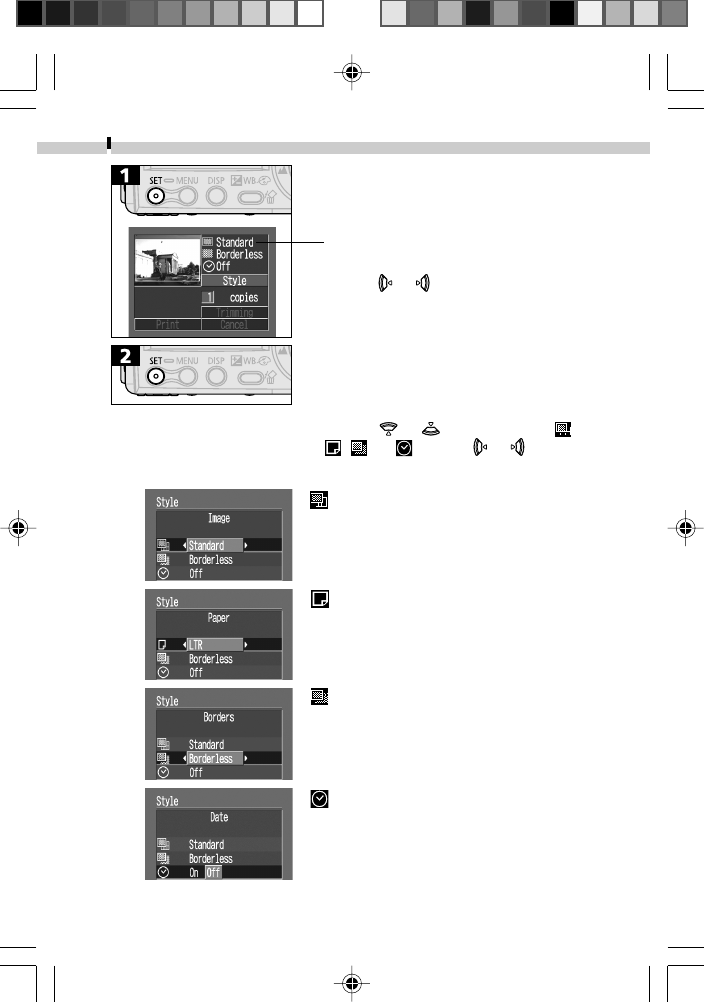

Setting the Print Settings (Direct Print function) ............. 99

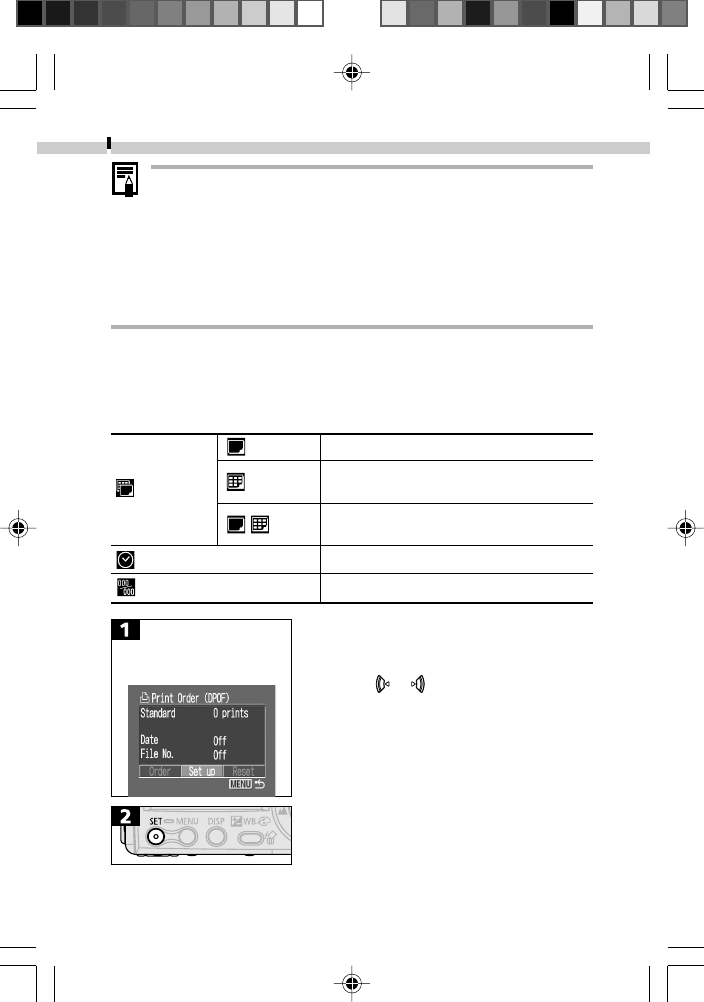

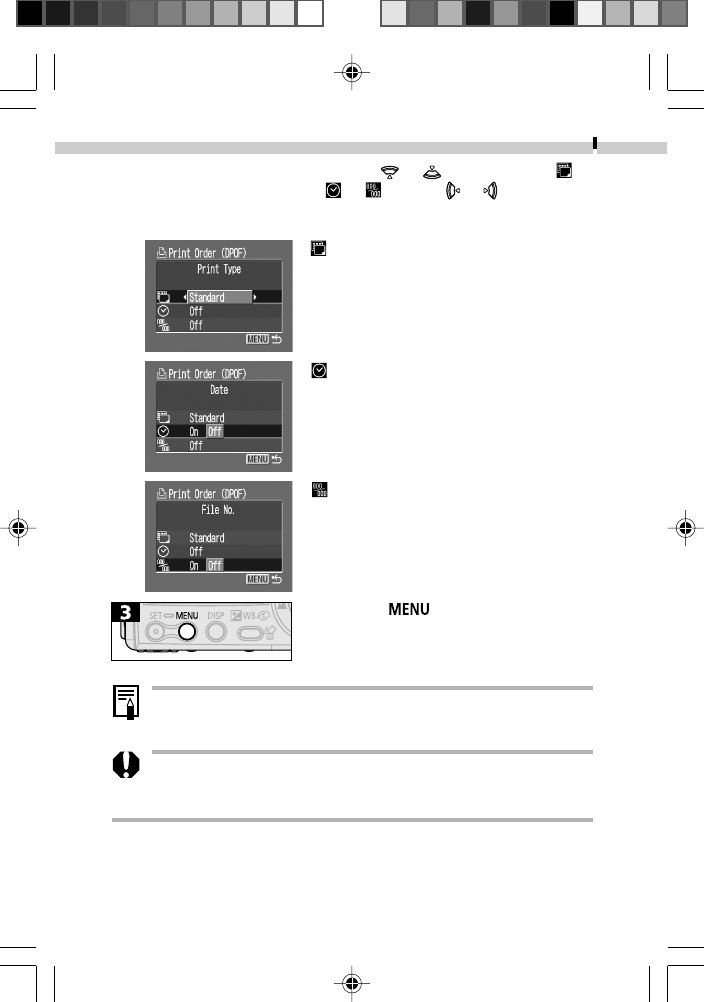

Setting the DPOF Print Settings ...................................... 103

Image Transmission Settings (DPOF Transfer Order)

Selecting Images for Transferring ................................... 111

Shooting/Replaying with a TV

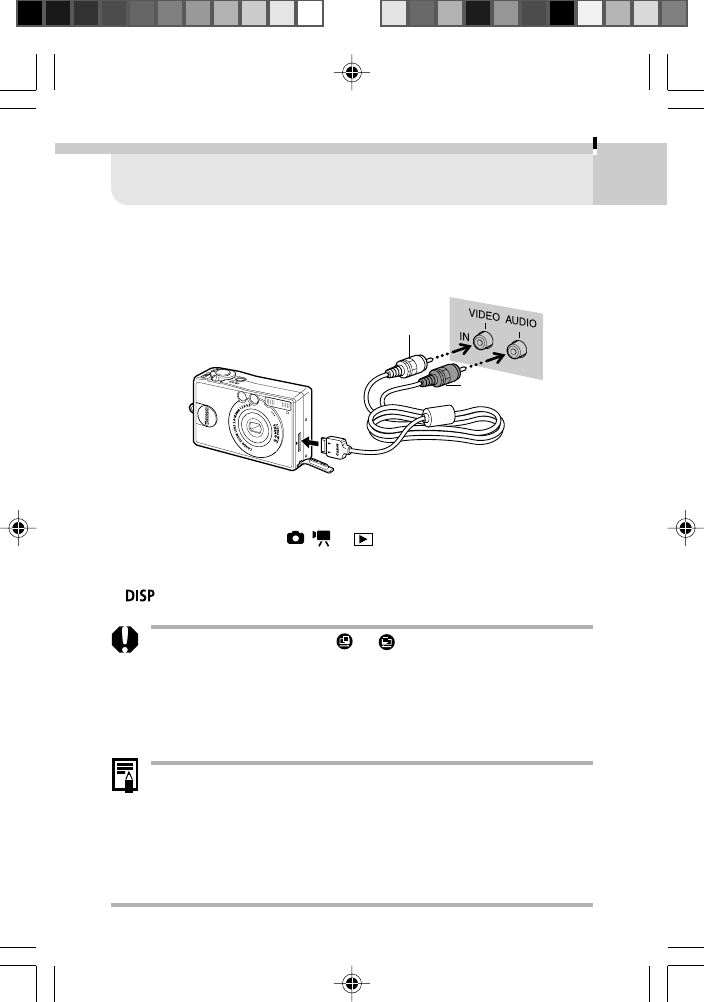

Shooting / Replaying with a TV ....................................... 113

Downloading Images to a Computer

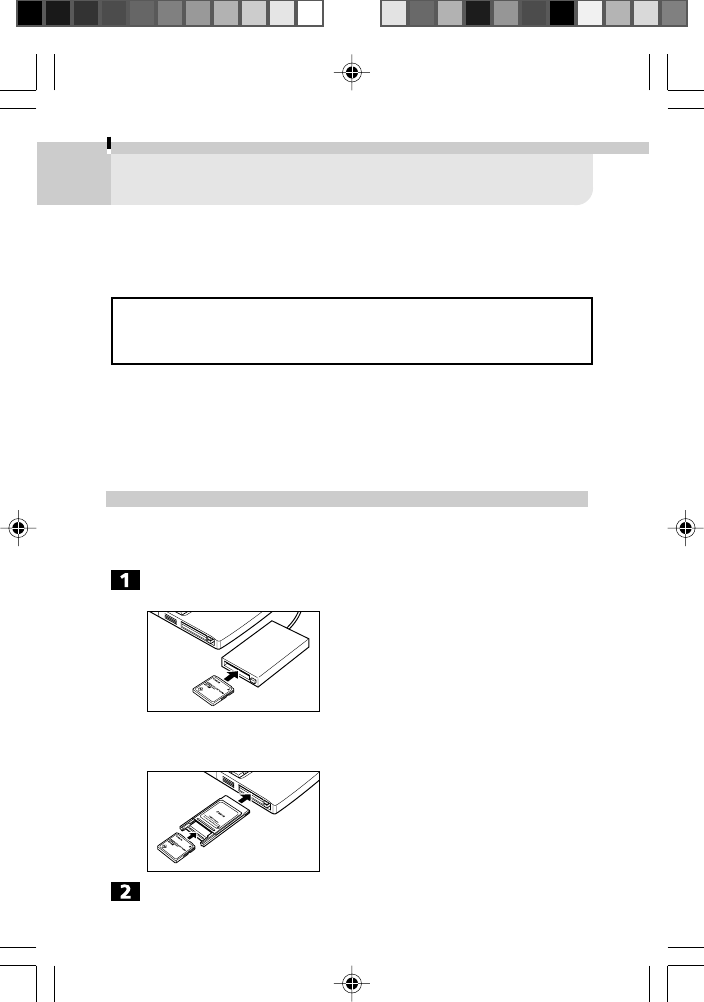

Downloading Directly from a CF Card ............................ 114

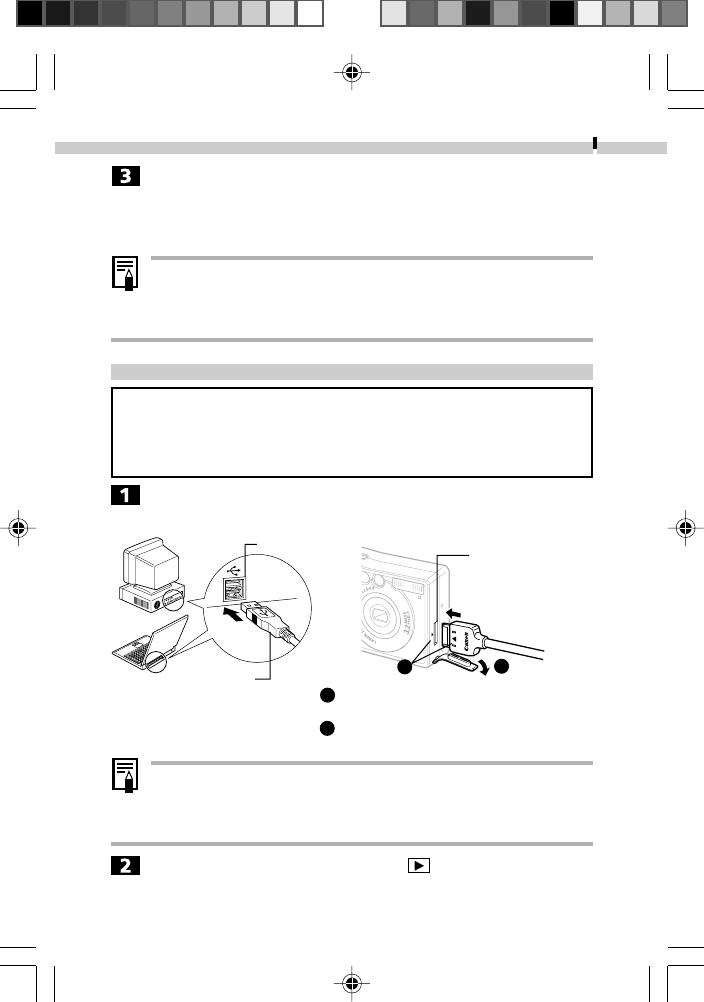

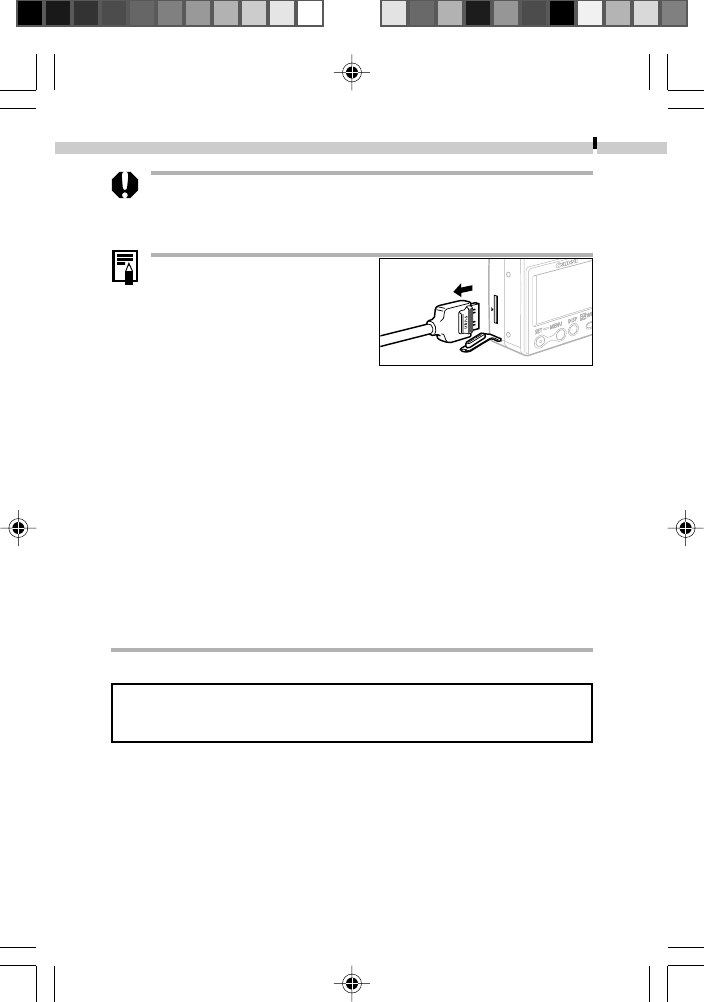

Connecting the Camera to a Computer

with a USB Cable .......................................... 115

Lists of Menu Options and Messages

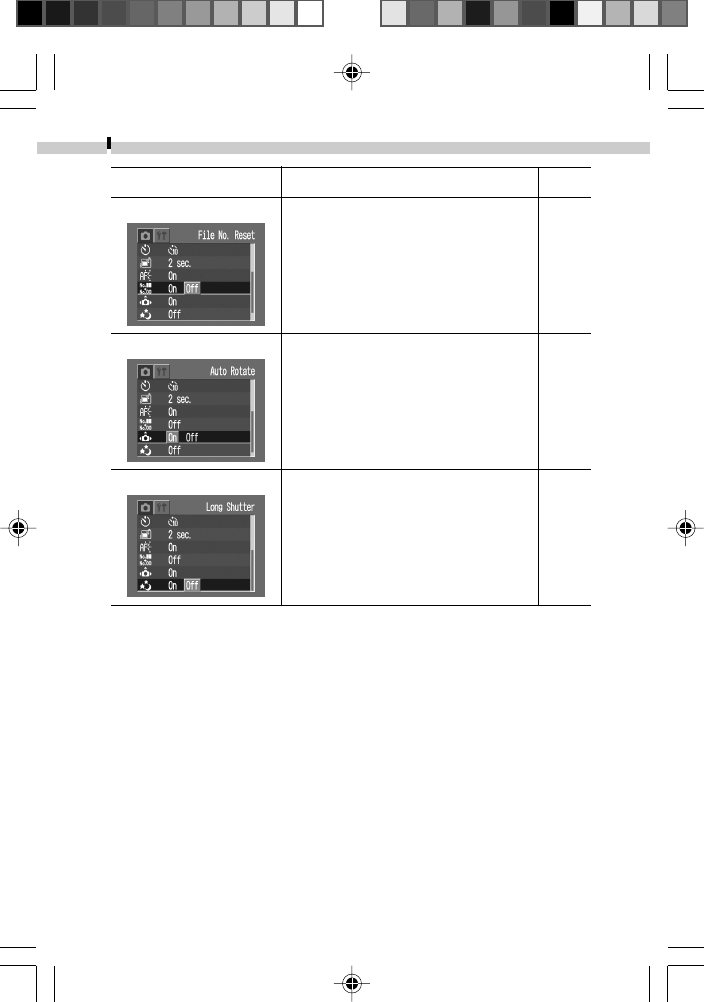

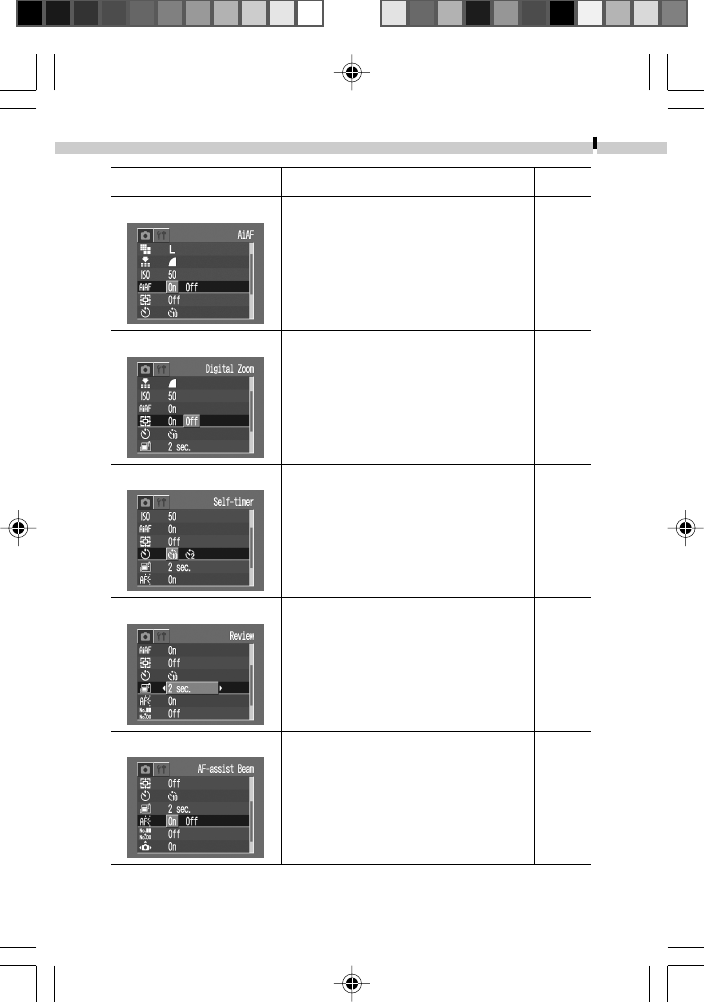

Rec. Menu ....................................................................... 118

Play Menu ....................................................................... 121

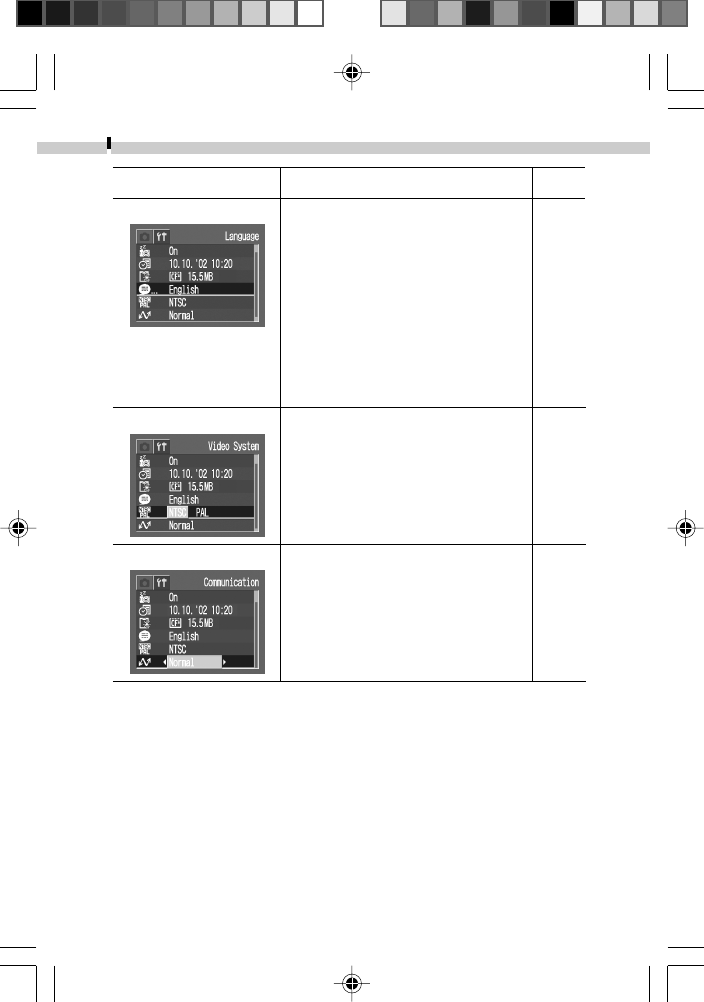

Set up Menu ................................................................... 123

Resetting Settings to Their Default Values ..................... 125

List of Messages ............................................................... 126

02-124usCUGE_001_025_GM.p65 7/26/02, 11:07 AM5

Table of Contents

Appendices

Using an AC Adapter Kit ................................................. 130

Using a Car Battery Charger ........................................... 131

Camera Care and Maintenance ...................................... 132

Troubleshooting .............................................................. 133

Specifications

Specifications ................................................................... 137

Index

Index ............................................................................ 143

List of Functions

Functions Available in Each Shooting Mode ................. 148

02-124usCUGE_001_025_GM.p65 7/26/02, 11:07 AM6

Please Read

Test Shots

Before you try to photograph important subjects, we highly recommend

that you shoot several trial images to confirm that the camera is operating

and being operated correctly. Please note that Canon, its subsidiaries and

affiliates, and its distributors are not liable for any consequential damages

arising from any malfunction of a camera or accessory, including

CompactFlash™ cards, that results in the failure of an image to be recorded

or to be recorded in a format that is machine readable.

Warning Against Copyright Infringement

Please note that Canon digital cameras are intended for personal use and

should never be used in a manner that infringes upon or contravenes

international or domestic copyright laws and regulations. Please be advised

that in certain cases the copying of images from performances, exhibitions, or

commercial properties by means of a camera or other device may contravene

Warranty Limitations

This camera’s warranty is only effective in the country of sale. If a problem

arises while the camera is in use abroad, please convey it back to the country

of sale before proceeding with a warranty claim to a Canon Customer

Support Help Desk.

For Canon Customer Support contacts, please see the Canon

Limited Warranty supplied with your camera.

Safety Precautions

•Before using the camera, please ensure that you read and understand

the safety precautions described below. Always ensure that the camera

is operated correctly.

•The safety precautions noted on the following pages are intended to

instruct you in the safe and correct operation of the camera and its

accessories to prevent injuries or damage to yourself, other persons

and equipment.

•In the next few pages, the term “equipment” refers primarily to the

camera and its power supply accessories, such as the battery charger

and optional compact power adapter or car battery charger.

Read This First

02-124usCUGE_001_025_GM.p65 7/26/02, 11:07 AM7

Read This First

Warnings

•Do not aim the camera directly into the sun or at other intense light

sources that could injure your eyesight.

•Do not trigger the flash in close proximity to human or animal eyes.

Exposure to the intense light produced by the flash may injure eyesight.

In particular, remain at least one meter (39 inches) away from infants

when using the flash.

•Store this equipment out of the reach of children and infants.

Accidental damage to the camera or batteries by a child could result in

serious injury. In addition, placement of the strap around the child’s

neck could result in asphyxiation.

•Do not attempt to disassemble or alter any part of the equipment that is

not expressly described in this guide. Disassembly or alteration may result

in high-voltage electrical shock. Internal inspections, alterations and

repairs should be conducted by qualified service personnel authorized by

your camera distributor or a Canon Customer Support Help Desk.

•To avoid the risk of high-voltage electrical shock, do not touch the flash

portion of the camera if it has been damaged. Similarly, never touch

internal portions of the equipment that become exposed as a result of

damage. There is a risk of high-voltage electrical shock. Please take the

first opportunity to consult your camera distributor or the closest Canon

Customer Support Help Desk.

•Stop operating the equipment immediately if it emits smoke or noxious

fumes. Failure to do so may result in fire or electrical shock. Immediately

turn the camera’s power off, remove the camera battery and unplug the

power cable from the power outlet. Confirm that smoke or fume

emissions have ceased. Please consult your camera distributor or the

closest Canon Customer Support Help Desk.

•Stop operating the equipment if it is dropped or the casing is damaged.

Failure to do so may result in fire or electrical shock. Immediately turn the

camera’s power off, remove the camera battery and unplug the power

cable from the power outlet. Please consult your camera distributor or

the closest Canon Customer Support Help Desk.

02-124usCUGE_001_025_GM.p65 7/26/02, 11:07 AM8

Read This First

•Do not allow the equipment to come into contact with, or become

immersed in, water or other liquids. Do not allow liquids to enter the

interior. The camera has not been waterproofed. If the exterior comes

into contact with liquids or salt air, wipe it dry with a soft, absorbent

cloth. If water or other foreign substances enter the interior, immedi-

ately turn the camera’s power off and remove the camera battery or

unplug the power cable from the power outlet. Continued use of the

equipment may result in fire or electrical shock. Please consult your

camera distributor or the closest Canon Customer Support Help Desk.

•Do not use substances containing alcohol, benzene, thinners or other

flammable substances to clean or maintain the equipment. The use of

these substances may lead to fire.

•Remove the power cable on a regular periodic basis and wipe away the

dust and dirt that collects on the plug, the exterior of the electrical

outlet and the surrounding area. In dusty, humid or greasy environ-

ments, the dust that collects around the plug over long periods of time

may become saturated with humidity and short-circuit, leading to fire.

•Do not cut, damage, alter or place heavy items on the power adapter

cable. Any of these actions may cause an electrical short circuit, which

may lead to fire or electrical shock.

•Do not handle the power cable if your hands are wet. Handling it with

wet hands may lead to electrical shock. When unplugging the cable,

ensure that you hold the solid portion of the plug. Pulling on the

flexible portion of the cable may damage or expose the wire and

insulation, creating the potential for fires or electrical shocks.

•Use of power sources not expressly recommended for this equipment

may lead to overheating, distortion of the equipment, fire, electrical

shock or other hazards. Use only the recommended power accessories.

•Do not place the batteries near a heat source or expose them to direct

flame or heat. Neither should you immerse them in water. Such

exposure may damage the batteries and lead to the leakage of

corrosive liquids, fire, electrical shock, explosion or serious injury.

•Do not attempt to disassemble, alter or apply heat to the batteries.

There is serious risk of injury due to an explosion. Immediately flush

with water any area of the body - including the eyes and mouth, or

clothing - that comes into contact with the inner contents of a battery.

If the eyes or mouth contact these substances, immediately flush with

water and seek medical assistance.

02-124usCUGE_001_025_GM.p65 7/26/02, 11:07 AM9

Read This First

•Avoid dropping or subjecting the batteries to severe impacts that could

damage the casings. It could lead to leakage and injury.

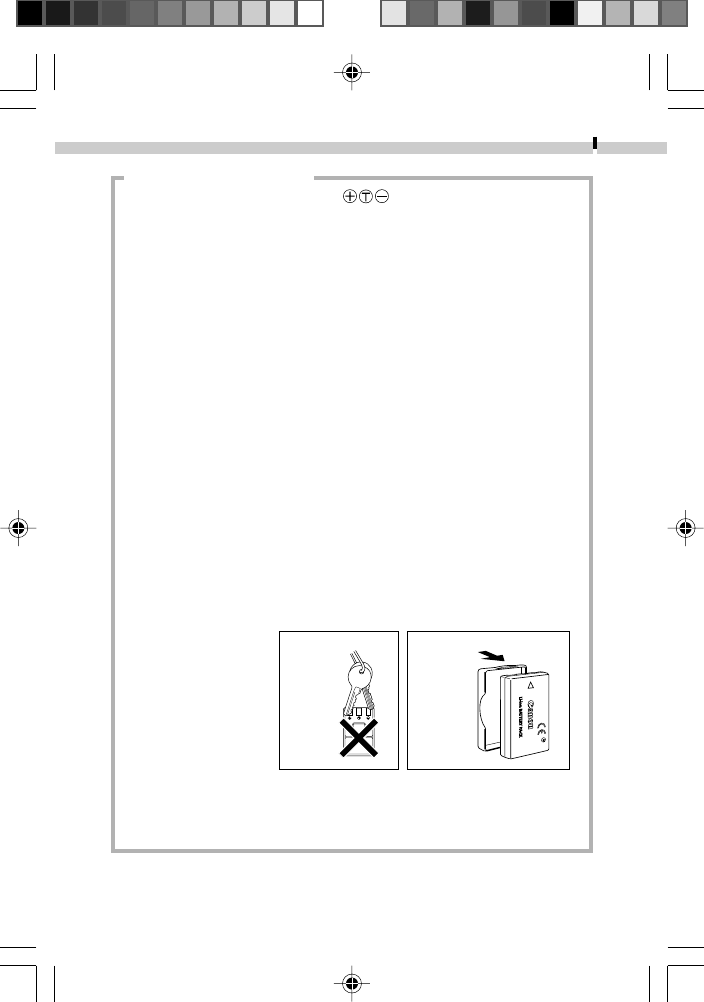

•Do not short-circuit the battery terminals with metallic objects, such as

key holders. It could lead to overheating, burns and other injuries. Use

the supplied terminal cover or battery case to transport or store the

battery pack.

•Before you discard a battery, cover the terminals with tape or other

insulators to prevent direct contact with other objects. Contact with

the metallic components of other materials in waste containers may

lead to fire or explosions. Discard the batteries in specialized waste

facilities if available in your area.

•Use of batteries not expressly recommended for this equipment may

cause explosions or leaks, resulting in fire, injury and damage to the

surroundings. Use only recommended batteries and accessories.

•Use the specified battery charger to charge Battery Pack NB-1LH or

NB-1L. Use of other chargers may lead to overheating, distortion of the

equipment, fire or electrical shock.

•Disconnect the battery charger and compact power adapter from both

the camera and the power outlet after recharging and when they are

not in use to avoid fire and other hazards. Continuous use over a long

period may cause a unit to overheat and distort, resulting in fire.

•The camera terminal of the supplied compact power cord is designed

for exclusive use with your camera. Do not use it with other products

or batteries. There is a risk of fire and other hazards.

Cautions

•Avoid using, placing or storing the equipment in places subject to

strong sunlight or high temperatures, such as the dashboard or trunk

(boot) of a car. Exposure to intense sunlight and heat may cause the

batteries to leak, overheat or explode, resulting in fire, burns or other

injuries. High temperatures may also cause deformation of the casing.

Ensure that there is good ventilation when using the compact power

adapter to charge the battery pack or power the camera.

•Do not store the equipment in humid or dusty areas. Storage in such

areas could lead to fire, electrical shock or other damage.

•Be careful not to bang the camera or subject it to strong impacts or

shocks that could lead to injury or damage the equipment when

wearing or holding it by the strap.

02-124usCUGE_001_025_GM.p65 7/26/02, 11:07 AM10

Read This First

•Be careful not to cover the flash with your fingers when shooting. In

addition, do not touch the surface of the flash after taking several

pictures in rapid succession. Either action could result in burns.

•If your camera is used for prolonged periods, the camera body may

become warm. Please take care when operating the camera for

extended periods as your hands may experience a burning sensation.

Preventing Malfunctions

Avoid Strong Magnetic Fields

Never place the camera in close proximity to electric motors or other

equipment generating strong electromagnetic fields. Exposure to

strong magnetic fields may cause malfunctions or corrupt image data.

Avoid Condensation Related Problems

Moving the equipment rapidly between hot and cold temperatures

may cause condensation (water droplets) to form on its external and

internal surfaces. You can avoid this by placing the equipment in an

airtight, resealable plastic bag and letting it adjust to temperature

changes slowly before removing it from the bag.

If Condensation Forms Inside the Camera

Stop using the camera immediately if you detect condensation.

Continued use may damage the equipment. Remove the CF card and

battery or Compact Power Adapter (if connected) from the camera and

wait until the moisture evaporates completely before resuming use.

Extended Storage

When not using the camera for extended periods of time, remove the

battery pack and store the equipment in a safe place. Storing the

camera for extended periods with a battery pack installed will run

down the battery pack and may damage the camera. Please note,

however, that the date, time and other camera settings may reset to

the default settings if the battery pack has been removed for more

than three weeks. Follow the instructions in this guide to reset the

desired settings.

02-124usCUGE_001_025_GM.p65 7/26/02, 11:07 AM11

Charge the Battery Pack (p. 18).

Place the battery pack in the battery

charger and plug the charger into a

power

outlet. The charge indicator lights

red while charging and changes to green

when the battery pack is charged.

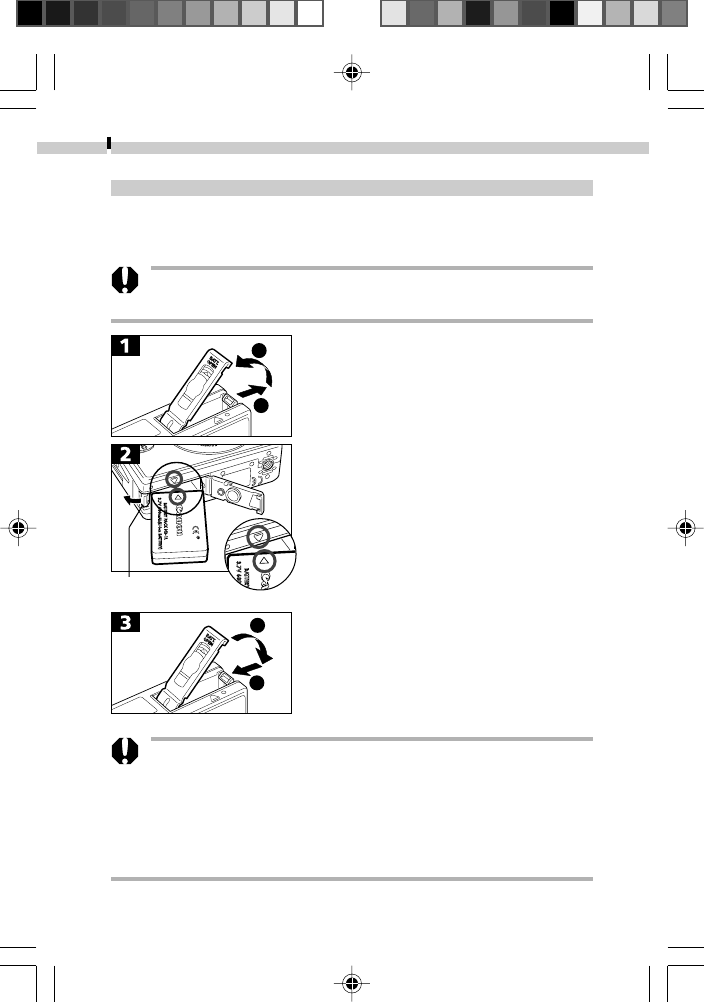

Install the Battery Pack (p. 20).

Slide the battery cover open and press the

battery lock while you insert the battery

pack. Insert the battery pack correctly by

aligning the arrows on the camera and

battery pack.

Install the CF Card (p. 22).

Slide the lock on the CF card cover to

open it and insert the CF card.

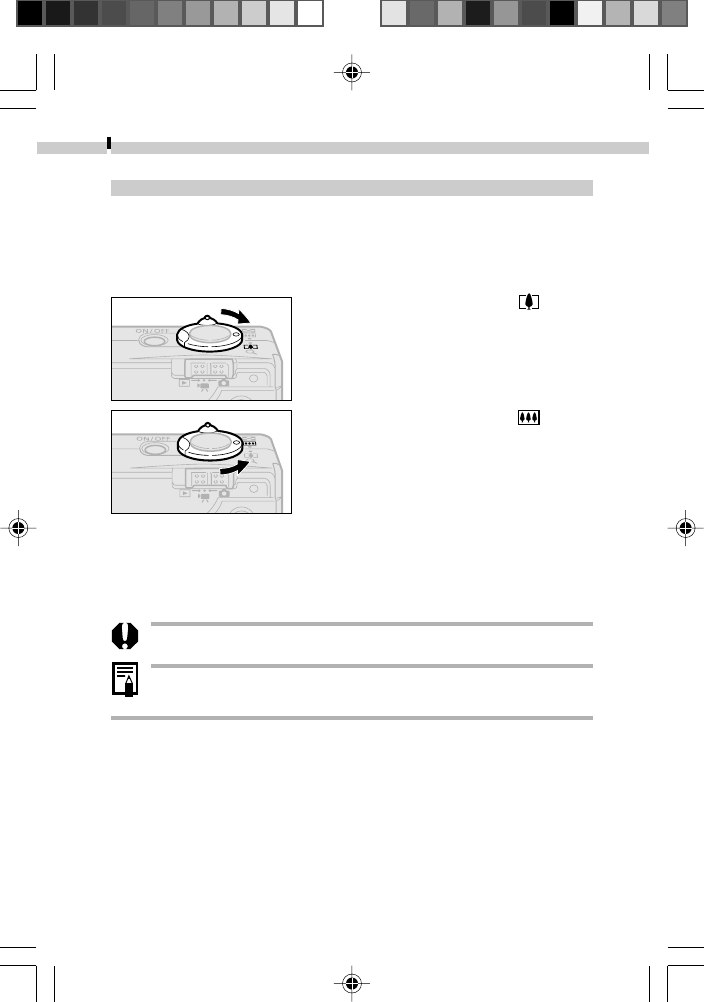

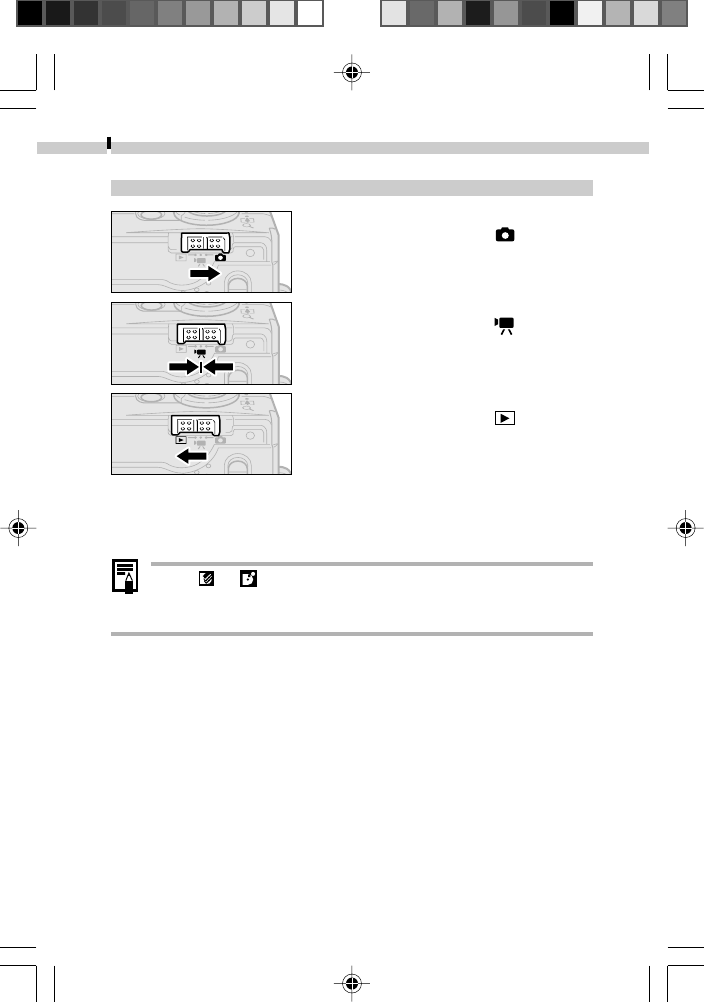

Set the Mode Switch to

(Shooting) (p. 42).

Turn on the Power (p. 26).

Press the ON/OFF Button until the power

lamp in the center of the 4 / / /

buttons lights.

Quick Start Section

Lock for the CF Card

Slot Cover

Charge Indicator

Battery Lock

Power Lamp

02-124usCUGE_001_025_GM.p65 7/26/02, 11:07 AM12

Quick Start

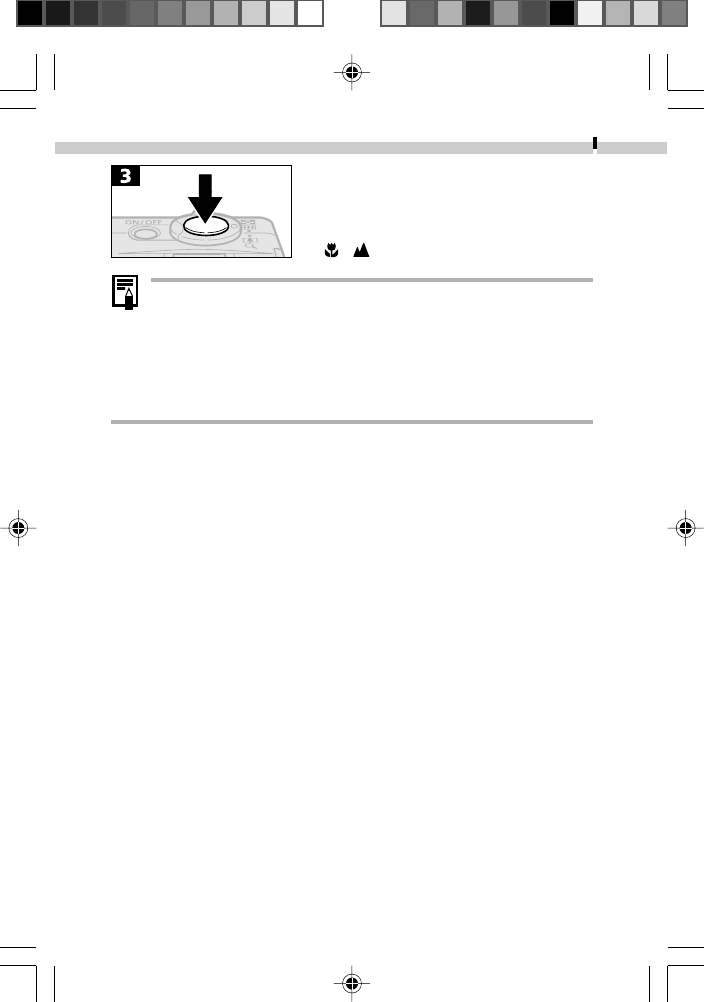

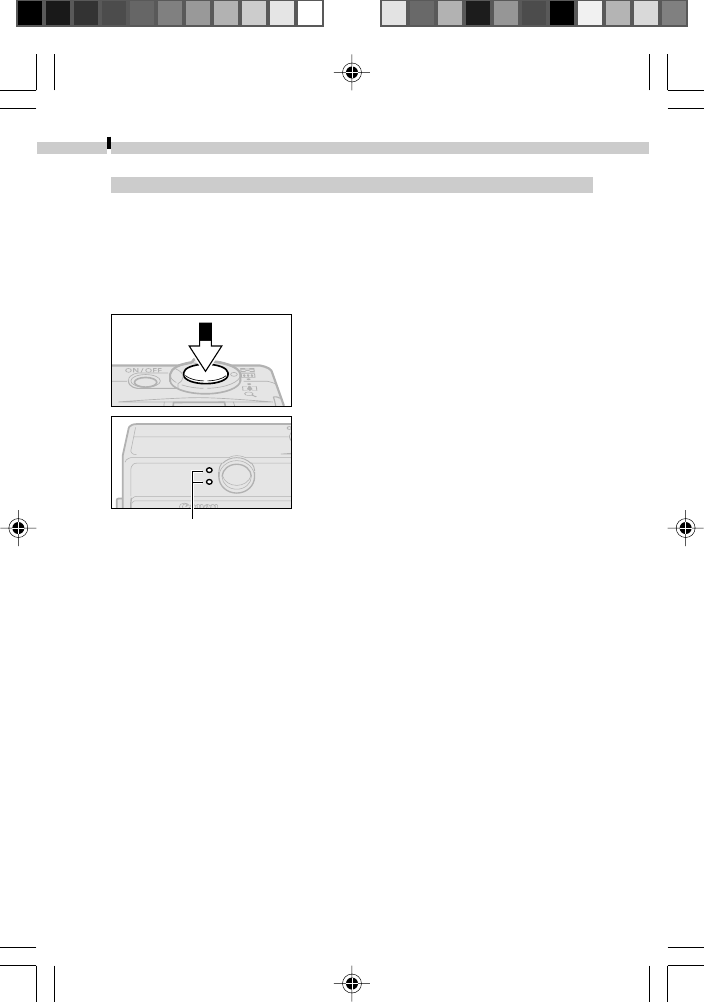

Focus (p. 34).

Aim the camera and lightly press (halfway)

the shutter button. Two beeps will sound

when the autofocus is set.

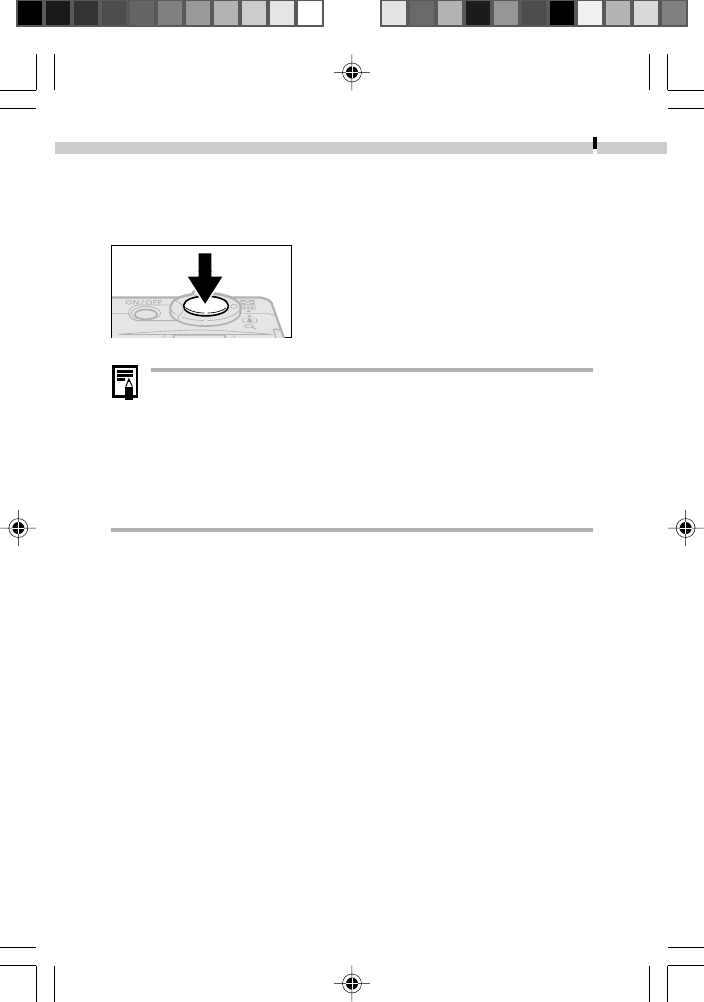

Shoot (p. 35).

Press the shutter button all the way. One

beep will sound when the shot is

complete.

View the Recorded Image

(p. 44).

The recorded image displays for

approximately 2 seconds. To continue

displaying the image, keep the shutter

button pressed or hold the shutter button

until you press the button and then

release both.

• To Immediately Delete the Displayed Image

1. Press the button while the

image is displayed.

2. Confirm that [Erase] is selected

and press the button.

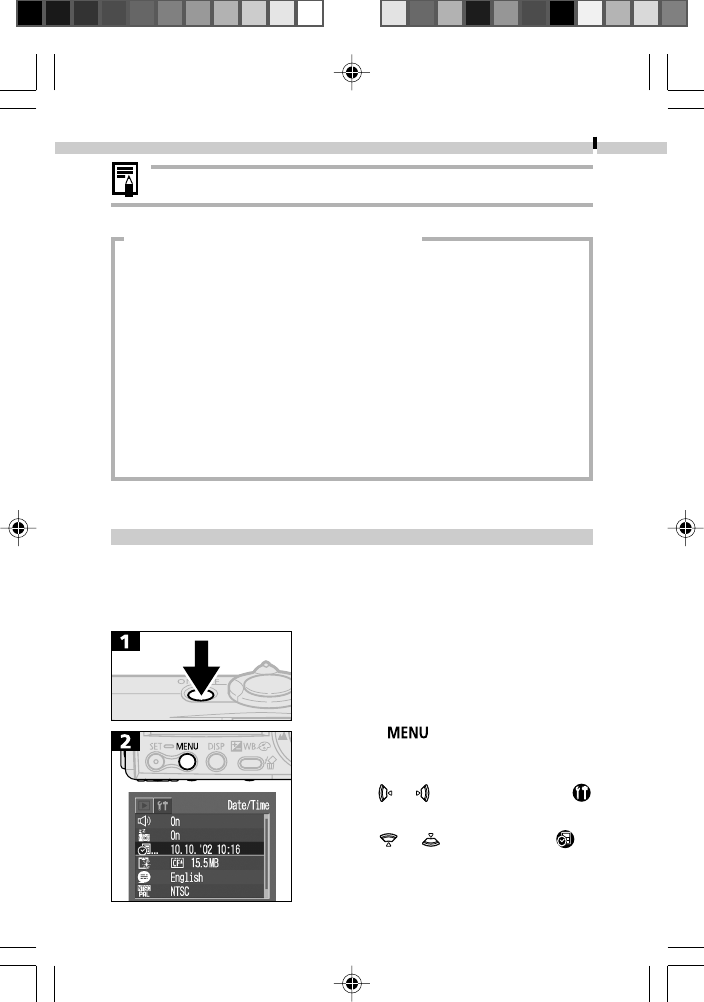

• Set the date and time if the Set Date /Time menu appears

(p. 23).

• You can change the language in which menus are displayed

(p. 25).

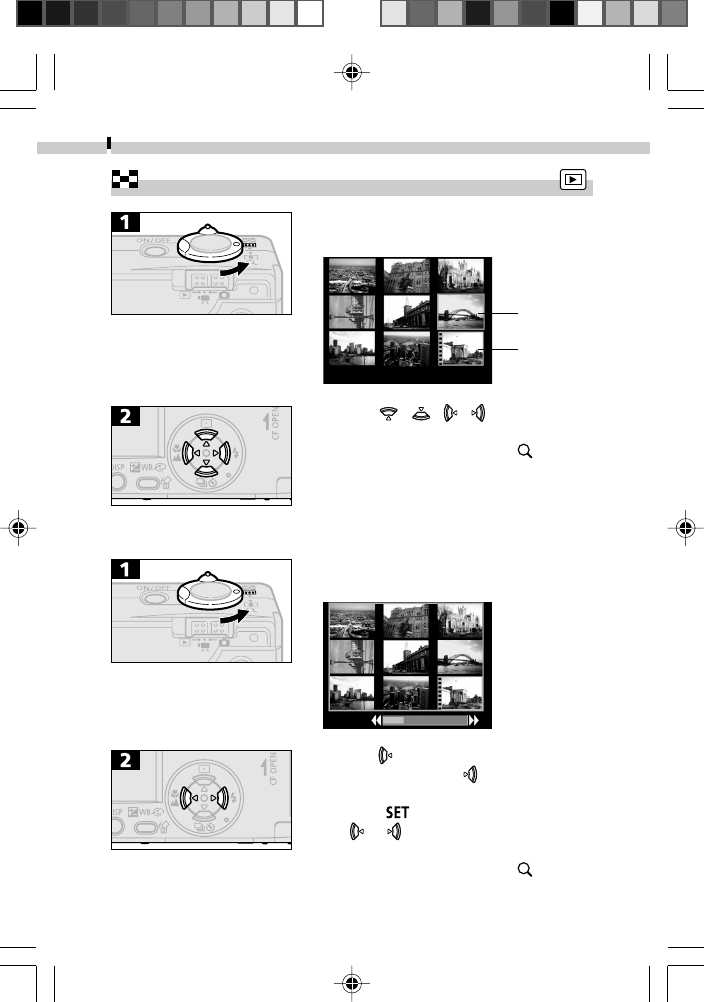

• To view the other images you have photographed, refer to

the Replaying section (p. 74).

• After you finish using the camera, press the ON/OFF Button

to shut the power off.

02-124usCUGE_001_025_GM.p65 7/26/02, 11:07 AM13

Components Guide

Front View

●

Optical Viewfinder Window (p. 33)

●

AF-assist Beam (p. 35)

●

Red-Eye Reduction Lamp (p. 48)

●

Self - timer Lamp (p. 52)

●

Microphone

●

Lens

●

Flash (p. 47)

●

DIGITAL • A /V OUT

(Digital Audio/ Video

Output) Terminal

(pp. 95, 96, 113, 115)

●

Terminal Cover

• The following cables are used to connect the camera to a

computer or printer.

- Computer (p. 115)

USB Interface Cable IFC-200PCU (supplied with camera)

- Direct Print Function Compatible Printer (sold separately) (p. 94)

Direct Interface Cable DIF-200 (supplied with printer)

- Direct Print Function Compatible Bubble Jet Printer

(sold separately) (p. 95)

Please refer to your Bubble Jet Printer user guide.

Please refer to the System Map supplied with the camera for direct

print function compatible printers.

02-124usCUGE_001_025_GM.p65 7/26/02, 11:07 AM14

Components Guide

Back View

●

Viewfinder (p. 33)

●

Lock for the CF Card Slot Cover (p. 22)

●

Battery Cover (p. 20)

●

DC Coupler Terminal Cover (p. 130)

●

CF Card Slot Cover (p. 22)

●

Wrist Strap Mount

Attaching the Wrist Strap*

●

LCD Monitor (p. 29)

●

Tripod Socket

* Be careful not to wave the camera about or catch it on other items

when dangling it from the wrist strap.

1 2

02-124usCUGE_001_025_GM.p65 7/26/02, 11:08 AM15

Components Guide

Operation Panel

●

Indicators

●

Power Lamp

Lights when the power is on or transmission preparations

are complete when connected to a computer

●

Zoom Lever

Shooting: (Telephoto)/

(Wide Angle) (p. 36)

Replay: (Magnify) (p. 75) /

(Index) (p. 76)

●

ON/OFF Button (p. 26)

●

(Light Metering) (p. 63)/ Button

●

(Flash) (p. 47) / Button

●

(Continuous) (p. 51) / (Self-timer) (p. 52) /

Button

●

(Macro) / (Infinity) (p. 49) / Button

●

Mode Switch (p. 42)

●

(Exposure) (p. 64) / (White Balance) (p. 67) /

(Photo Effects) (p. 70) / (Single Image Erase)

(p. 87) Button

●

(Display) Button

●

(Menu) Button

●

(Set) Button

●

Shutter Button (p. 34)

02-124usCUGE_001_025_GM.p65 7/26/02, 11:08 AM16

Components Guide

Indicators

The indicators light or blink when the ON/ OFF Button or shutter

button is pressed.

Upper Indicator

Green: Ready to shoot / Connection preparations complete

(during a computer connection)

Blinking Green: Initializing camera / Recording to CF card / Reading

CF card / Erasing from CF card/Transmitting data

(during a computer connection)

Orange: Ready to shoot with slow shutter speed (flash on)

Blinking Orange: Ready to shoot but shutter speed is slow (camera

shake warning)

Lower Indicator

Yellow: Macro mode / Infinity mode/ Focus lock (Method 2,

p. 58)

Blinking Yellow: Focusing difficulty (1 beep sounds).

Although you can press the shutter button, you are

recommended to use the focus lock (p. 58).

02-124usCUGE_001_025_GM.p65 7/26/02, 11:08 AM17

Preparing the Camera

Charging the Battery Pack

Use the following procedures to charge the battery pack the first time you

use the camera or when the “Change the battery pack” message displays.

Battery charger model names and types vary by region.

•Insert the battery pack all the way into the battery charger as shown and

insert the charger’s plug into a power outlet.

•Align the battery pack correctly with the arrows on it and the charger.

•The charge indicator will light red while the battery pack is charging. It

will change to green when the charge is complete.

•After charging, unplug the battery charger and remove the battery pack.

•To protect the battery pack and prolong its life, do not charge

it for longer than 24 hours continuously.

•Since this is a lithium ion battery pack, you need not completely

discharge it before recharging. It can be recharged at any point.

•It takes approximately 130 minutes to fully charge the battery

pack from a fully discharged state (based on Canon’s testing

standard). Please charge it at an ambient temperature ranging

between 5º and 40º C (41º and 104º F).

•Charge times may vary according to the ambient temperature

and the battery pack’s charge state.

•See Battery Capacity (p. 139).

•You may hear a noise during charging. This is not a malfunction.

CB-2LS Charge Indicator CB-2LSE Charge Indicator

02-124usCUGE_001_025_GM.p65 7/26/02, 11:08 AM18

Preparing the Camera

Handling Precautions

•Keep the battery pack terminals ( ) clean at all times. Dirty

terminals may cause poor contact between the battery pack and

camera. Polish the terminals with a tissue or a dry cloth before charging

or using the battery pack.

•Do not rapidly overturn or wave the battery charger around when it

contains the battery pack. The battery pack could fly out.

•At low temperatures, battery pack performance may be reduced and the

low battery icon may appear earlier than usual. Under these conditions,

resuscitate the battery pack by warming it in a pocket immediately

before use. However, ensure that there are no metallic items in the

pocket that could cause a short circuit, such as a key holder, etc.

•Do not place anything, such as tablecloths, carpets, bedding or cushions,

on top of the battery charger while it is charging. Heat will build up and

could result in a fire.

•Do not charge batteries other than Battery Pack NB-1LH or NB-1L in this

charger.

•The battery pack continues to discharge a minimal portion of its power

while installed in the camera, even with the power off, or in the charger.

This will shorten battery life.

•Do not allow any metal objects such as keyrings to touch the “+” and “-”

terminals (Fig. A), as this can damage the battery pack. To carry the

battery pack or store it during periods of disuse, always replace the

terminal cover (Fig.B) or place it in the supplied case and store it in a cool,

dry place. Recharge it fully before using it again.

•If the performance of the battery pack diminishes substantially even

when it is fully charged, its life has been exceeded and it should be

replaced.

Fig. A Fig. B

02-124usCUGE_001_025_GM.p65 7/26/02, 11:08 AM19

Preparing the Camera

Battery Lock

Installing the Battery Pack

Install Battery Pack NB-1LH (supplied) as shown below. Battery Pack

NB-1L (optional) can also be used with the camera.

•Please recharge the battery pack (p. 18) before you use it

for the first time.

•Slide the battery cover in the direction

of the arrows.

•Press the battery lock while inserting

the battery pack all the way in until the

lock clicks.

•Insert the battery pack correctly by

aligning the arrows on the camera and

the battery pack.

•To remove the battery pack, press the

battery lock and pull the battery pack out.

•Slide the battery cover closed.

•Do not turn off the power or open the battery cover while the

camera’s indicator blinks green. The camera is writing, reading,

erasing or transmitting an image to or from the CF card.

•Remove the battery pack when the camera is not in use.

Please note, however, that the date, time and other camera

settings may reset to the default settings if the battery pack

has been removed for more than three weeks.

02-124usCUGE_001_025_GM.p65 7/26/02, 11:08 AM20

Preparing the Camera

Battery Pack Charge

The following icons and messages will display when the battery pack

charge is low.

Battery pack charge is low. Recharge it as soon as possible

before it is required for an extended period.

When the LCD monitor is off, this icon will display when you

press the , / , /

, or

button ( mode).

Battery charge is insufficient to operate the camera. Replace

the battery pack immediately.

•See Battery Capacity (p. 139).

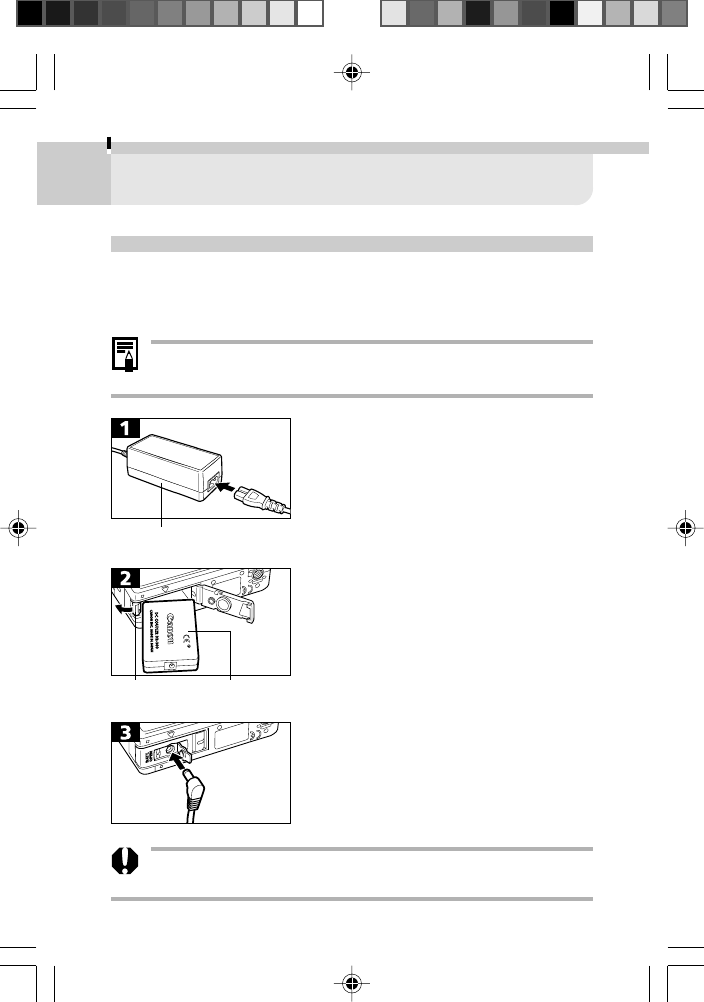

•Please use an AC Adapter Kit ACK500 (sold separately) for

extended use of the camera (p. 130).

Change the

battery pack

02-124usCUGE_001_025_GM.p65 7/26/02, 11:08 AM21

Preparing the Camera

Installing a CF Card

Turn the camera power off and insert the CF card with the following

procedures.

•Slide the lock up and open the CF card

slot cover.

•Insert the CF card with its label facing

upward until the slot’s eject button fully

extends. Close the CF card slot cover.

•To remove the CF card, push the eject

button and pull the CF card out.

CF Card Eject Button

•Since the camera is writing, reading, erasing or transmitting

data to or from the CF card when the indicator blinks green,

never perform the following actions during this time. It

could corrupt the image data.

- Subject the camera body to vibration or shocks.

- Turn the camera’s power off, or open the battery cover

or CF card slot cover.

•Please note that CF cards formatted with other manufacturers’

cameras or a computer, or formatted or edited with application

programs, may not operate correctly in the camera.

•You are recommended to use CF cards that have been

formatted in your camera (p. 89). The card supplied with the

camera may be used without further formatting.

Label

02-124usCUGE_001_025_GM.p65 7/26/02, 11:08 AM22

Preparing the Camera

Handling Precautions for CF Cards

•CF cards are high-precision electronic devices. Do not bend them,

apply force to them, or subject them to shocks or vibration.

•Do not attempt to disassemble or alter a CF card.

•Moving a CF card rapidly between temperature extremes will cause

condensation to form in the card and lead to a malfunction. To avoid

condensation, place the CF card in a sealed plastic bag before moving

it into a different temperature zone and allow it to adjust slowly to the

new temperature. If condensation forms on the CF card, store it at

room temperature until the water droplets have evaporated naturally.

•Do not use or store CF cards in the following types of location.

- Locations subject to dust or sand

- Locations subject to high humidity and high temperatures

•See CF Cards and Estimated Capacities (p. 140).

Setting the Date and Time

The Set Date/Time menu will appear the first time the camera power is

turned on or whenever the built-in rechargeable lithium battery charge

is low. Start from Step 3 to set the date and time.

•Press the ON/OFF Button until the

power lamp lights.

•Press the button to display the

Rec. or Play menu.

•Use the or button to select the

(Set up) menu.

•Use the or button to select .

02-124usCUGE_001_025_GM.p65 7/26/02, 11:08 AM23

Preparing the Camera

•Use the or button to select a field

(year, month, day, hour, minute and

date format), and the or button

to change its value.

•To put the settings into effect, press the

button after setting the date

format.

•Press the button to redisplay the

Rec. or Play screen.

•Please note that the date and time settings may reset to

the default settings if the camera battery has been

removed for more than three weeks. Reset them when this

occurs.

•Setting the date and time settings does not cause the date/

time stamp to appear on images.

•

Charging the Date/Time Battery

- The camera has a built-in rechargeable lithium battery

for saving settings such as the date and time. This

battery is recharged by the battery pack while it is in the

camera. Right after purchasing the camera, leave a

charged battery pack in the camera, or plug in AC

Adapter Kit ACK500, for about 4 hours to charge the

date/time battery. It will charge even when the camera’s

power switch is off.

- If the Set Date/Time menu appears when the camera

power is turned on, the date/time battery charge is low.

Use the above method to recharge it.

•You can print the date on images (p. 99).

02-124usCUGE_001_025_GM.p65 7/26/02, 11:08 AM24

Preparing the Camera

Setting the Language

The language in which menus and messages are displayed can be

selected with this function.

•Press the ON/OFF Button until the

power lamp lights.

•Press the button to display the

Rec. or Play menu.

•Use the or button to select the

(Set up) menu.

•Use the or button to select .

•Use the , , or button to

select a language.

•Press the button to redisplay the

Rec. or Play screen.

•The Language menu can also be displayed in replay mode

by holding down the button and pressing the

button. However, language settings cannot be adjusted

while a printer is connected.

02-124usCUGE_001_025_GM.p65 7/26/02, 11:08 AM25

Basic Functions

Turning the Power On / Off

• Press the ON/OFF Button until the

green power lamp lights.

- The upper indicator beside the

viewfinder will blink green.

- The lens will extend when the mode

switch is set to the or position.

- The lens will retract approximately 1

minute after the mode switch is set

to from the or position.

- The LCD monitor will always turn on

when the mode switch is set to the

or position.

• Press the ON/OFF Button again to turn

off the power.

• The Set Date/Time menu will appear the first time the

camera power is turned on or whenever the charge of the

built-in rechargeable lithium date/time battery is low. Reset

the date and time when this occurs (p. 23).

• If the power-saving function activates, press the ON/OFF

Button to restore power.

Power Lamp

03-124usCUGE_026_041_GM.p65 7/26/02, 11:09 AM26

Basic Functions

• Power-Saving Function

This camera is equipped with a power-saving function. The

power will automatically shut down under the following

circumstances when this function is set to On. Press the ON/

OFF Button to restore power.

Shooting Mode

Powers down approximately 3 minutes after the last

control is accessed on the camera. (The LCD monitor

automatically turns off 3 minutes after the last control is

accessed even if this function is set to Off. Press any

button except the ON/ OFF Button to turn the LCD

monitor back on.)

Replay Mode

Powers down approximately 5 minutes after the last

control is accessed on the camera.

Connected to a Printer (optional)

Powers down approximately 5 minutes after the last

control is accessed on the camera or something is

printed on a connected printer.

Connected to a Computer

A warning message displays on the computer screen

approximately 5 minutes after the last control is

accessed. Powers down approximately 1 minute later if

no control is accessed.

• The power-saving function will not activate while

the Communication mode is set to PTP (p. 116).

• The power-saving function will not activate during a

slide show.

• The camera’s settings can be changed to turn off the

power-saving function (p. 123).

03-124usCUGE_026_041_GM.p65 7/26/02, 11:09 AM27

Basic Functions

Switching between Shooting / Replay

•To Shoot Still Images (Shooting Mode)

Slide the mode switch to .

•To Shoot Movies (Movie Mode)

Slide the mode switch to .

•To Replay Images (Replay Mode)

Slide the mode switch to .

- Recorded images can be printed

when a printer (sold separately) is

connected (p. 90).

- Recorded images can be downloaded

to and viewed with a computer when

it is connected (p. 115).

•The or icon displays on the LCD monitor when a

connection to a printer is opened.

•The LCD monitor shuts off while a computer is connected.

03-124usCUGE_026_041_GM.p65 7/26/02, 11:09 AM28

Basic Functions

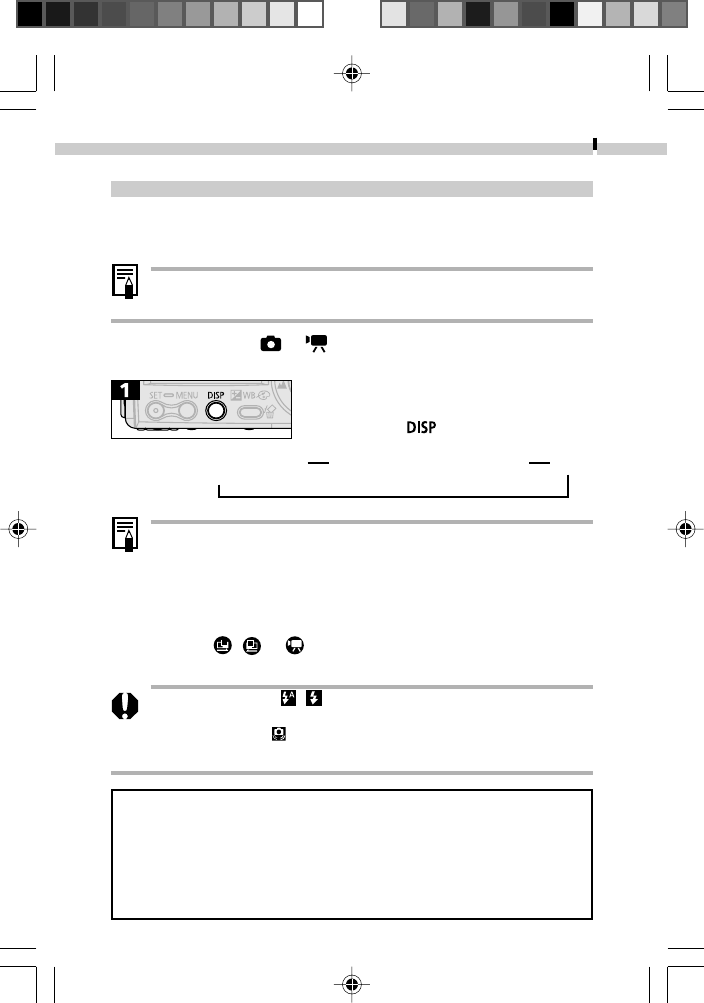

Using the LCD Monitor

The LCD monitor can be used to compose images while shooting,

adjust settings menus and replay images.

• The image in the LCD monitor will darken in strong sunlight

or bright light. This does not constitute a malfunction.

Shooting Mode ( or on the mode switch)

• The LCD monitor turns on or changes

the display mode as follows with each

press of the button.

Standard (No Information) Detailed (Information View) Off

• The LCD monitor setting (On or Off) is saved by the camera

when the power is turned off so that the same setting is

automatically available when the power is turned on again.

However, the setting may be lost when the power has been

turned off after the “Change the battery pack” message has

displayed, while the LCD monitor was on in shooting mode.

• In the , or mode, the LCD monitor turns on

regardless of its On/Off setting.

• Set the flash to , or affix the camera to a tripod when

the upper indicator blinks orange and the camera shake

warning icon ( ) appears in the LCD monitor after the

metering preparations are complete.

Notice Concerning Shooting

When using this camera to shoot scenes containing extremely bright subjects, a

vertical, red bar of light may appear on the LCD monitor. This is a normal

occurrence in devices containing CCDs and does not constitute a malfunction.

This red bar of light will not be recorded when shooting still photos, but it will

be recorded when shooting movies.

▼

03-124usCUGE_026_041_GM.p65 10/9/02, 5:56 PM29

Basic Functions

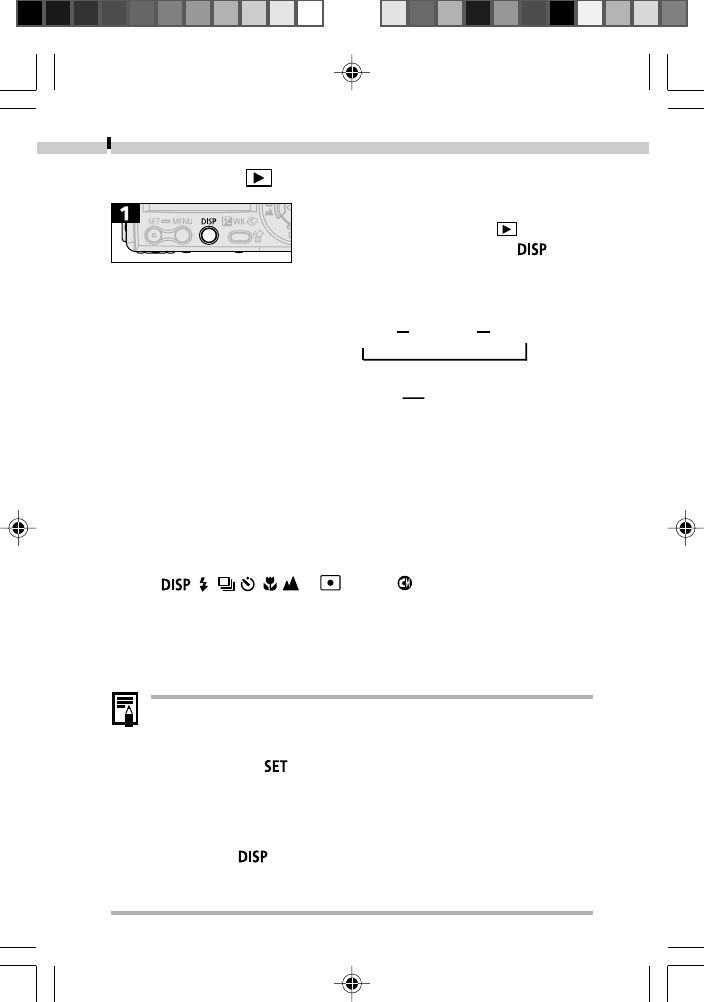

Replay Mode ( on the mode switch)

•The LCD monitor will turn on when the

mode switch is set to the position.

•In replay mode, pressing the

button cycles the information view

mode each time the button is pressed.

Single Image Replay (p. 74)

Standard Detailed No Display

Multi Image Replay (9 Images) (p. 76)

Standard No Display

Information Displayed on the LCD Monitor

Shooting Mode

In shooting mode, information about the current settings and

remaining image capacity will display on the LCD monitor for

approximately six seconds when the actions below are taken,

regardless of whether the LCD monitor is set to On or Off.

•The power is turned on.

•The , , /, / or button ( mode) is pressed.

•The camera settings are changed.

•The Set up menu is closed.

While this information is displayed, you may set the flash,

continuous mode, self-timer, macro and infinity settings.

•After you press the shutter button and take a shot, the

recorded image appears on the LCD monitor for 2 - 10

seconds (1-second increments). It will continue to display if

you press the button while it is shown on the screen. See

Changing the Review Duration (p. 44) .

•While a recorded image is displayed on the LCD monitor,

you can check the exposure with the graph (see Histogram,

p. 32) that shows the distribution of the brightness data.

(Press the button if the histogram and other

information is not shown) If the exposure requires

adjustment, set the exposure compensation and reshoot.

▼

03-124usCUGE_026_041_GM.p65 7/26/02, 11:09 AM30

Basic Functions

Information Displayed

Recordable Images

or Recordable

Movie Time (sec.)

In movie mode, only the

resolution shows (not

compression).

p. 42

p. 64

p. 65

p. 67

p. 70

p. 45

p. 71

p. 72

p. 58

p. 60

p. 61

p. 47

p. 51-52

p. 49

p. 63

p. 56

p. 50

p. 29

p. 21

Shooting Mode

Exposure Compensation

Long Shutter Mode

White Balance

Photo Effects

Compression

Resolution

ISO Speed

Auto Rotate

Focus Lock

AE Lock

FE Lock

Flash

Shooting Method

Macro/Infinity

Metering Mode

Movie Recording

Digital Zoom

Camera Shake Warning

Low Battery

x2.6 x3.2 x4.0 x 4.9 x6.4

•The icons in the shaded boxes above display

regardless of the selected display mode.

•Zoom powers reflect the optical and digital

zoom functions in combination. These figures

display when the digital zoom is activated.

Replay Mode (Standard Display)

File Number

Image Number

Shooting Date

The following information is displayed in

standard display mode.

p. 45

p. 57

p. 86

Compression

Resolution (still image)

Wave Format Sound

Movie

Protection Status

AF Frame

(p. 62)

Spot AE Point Frame

( mode)

03-124usCUGE_026_041_GM.p65 7/26/02, 11:09 AM31

Basic Functions

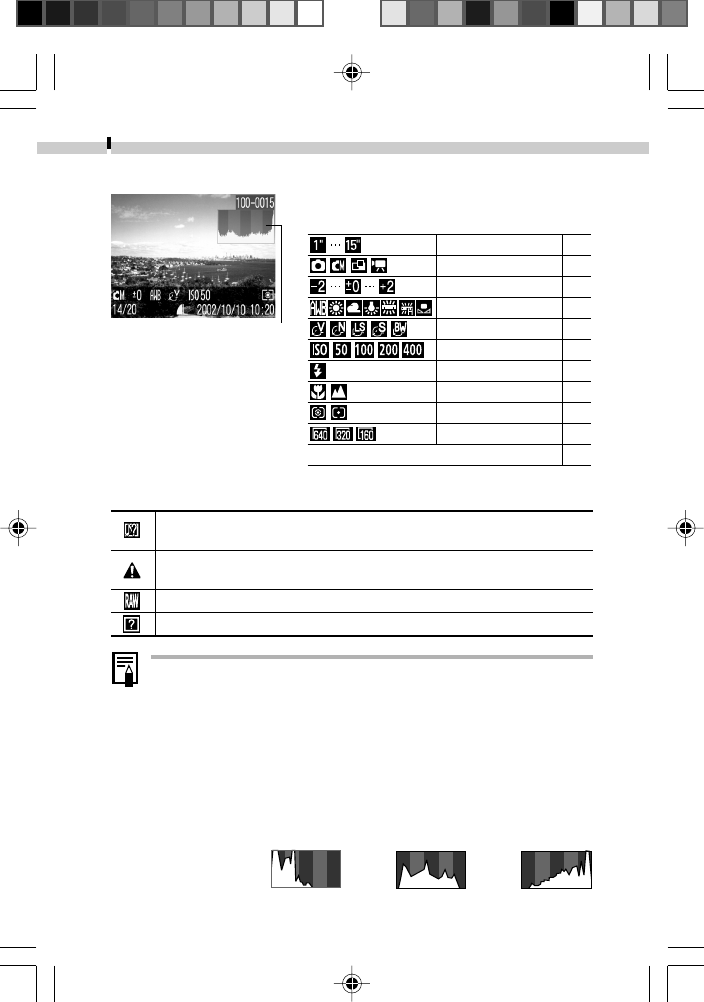

Replay Mode (Detailed Display)

Histogram

In detailed display mode, the following

supplementary information is displayed.

p. 65

p. 42

p. 64

p. 67

p. 70

p. 71

p. 47

p. 49

p. 63

p. 45

p. 56

Long Shutter Mode

Shooting Mode

Exposure Compensation

White Balance

Photo Effects

ISO Speed

Flash

Macro/Infinity

Metering Method

Resolution (Movie)

Movie Length Shown on Movie Files

The following information may also be displayed with some images.

A sound file in a format other than the WAV format is attached or the

file format is not recognized.

JPEG file with format not conforming to Design rule for Camera File

System Standards

RAW format file

File with unrecognized format

•The image information may not display correctly if images

shot with this camera are replayed on other cameras or

images from other cameras are replayed on this camera.

•Histogram Function

The histogram is a graph that allows you to judge the

brightness of the recorded image. The greater the bias toward

the left, the darker the image. The more it trends to the right,

the brighter the image. If the image is dark, adjust the

exposure to a positive value. Similarly, adjust the exposure to a

negative value to darken a bright image (p. 64).

Histogram

Examples

Dark Image Balanced Image Bright Image

03-124usCUGE_026_041_GM.p65 7/26/02, 11:09 AM32

Basic Functions

Viewfinder

•About the Autofocus Function

This camera employs AiAF (artificial intelligence autofocus)

technology which uses a broad metering field to calculate

the focal distance with high precision. It delivers a crisp focus

even when the photographic subject is slightly off-center.

The AiAF function can be turned off so that the autofocus

is metered from a fixed AF frame at the center of the field

to accommodate difficult shooting conditions (p. 62).

•Image Seen in Viewfinder vs. Recorded Image

Please note that the actual image may differ from the

image seen in the optical viewfinder due to the physical

separation between the viewfinder and lens. This is called

the parallax phenomenon and is more noticeable the closer

the subject is to the lens. In some cases, portions of images

shot up close that appear in the viewfinder will not appear

in the recorded image. You are recommended to use the

LCD monitor to shoot images up close.

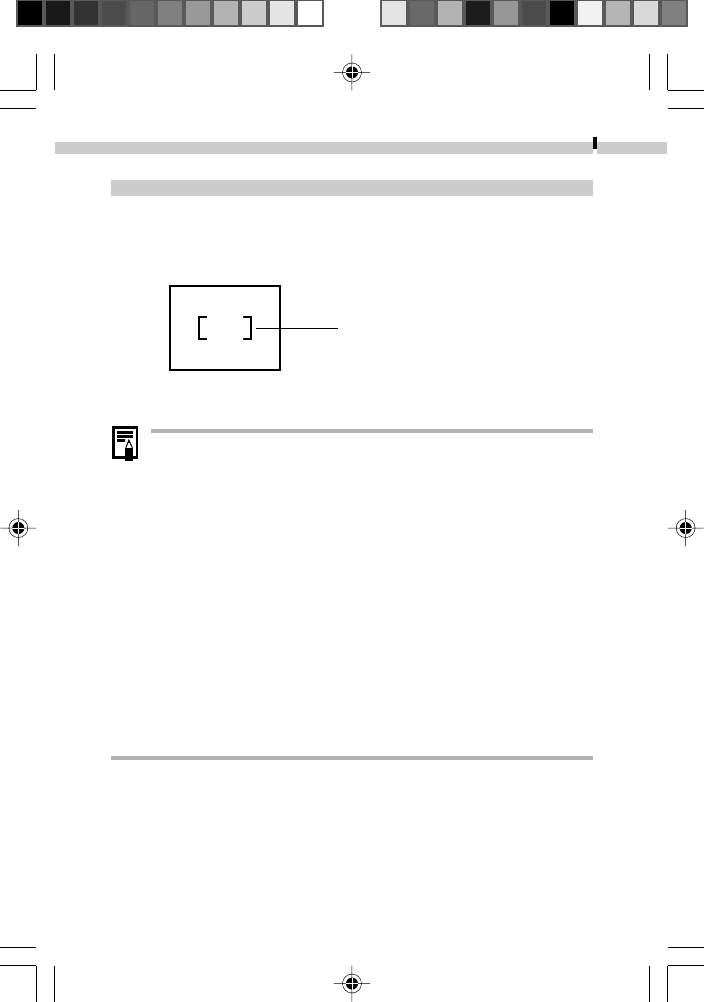

Using the Viewfinder

The optical viewfinder can be used to conserve power by setting the

LCD monitor to Off (p. 29) while shooting. The field of vision is

approximately 82% at the telephoto end setting.

Shows the center of the image

03-124usCUGE_026_041_GM.p65 7/26/02, 11:09 AM33

Basic Functions

Pressing the Shutter Button

The shutter button features a two -stage action.

Pressing Halfway

Pressing halfway automatically sets the exposure, focus and white

balance.

•Indicator Status

Upper Indicator

- Green: Metering complete (two

beeps sound)

- Orange: Flash will fire

- Blinking Orange:

Camera shake warning/

Insufficient exposure

Lower Indicator

- Yellow: Macro mode/Infinity

mode / Focus lock

(Method 2, p. 58)

- Blinking Yellow:

Focusing difficulty*

(single beep sounds)

* When the indicator blinks yellow, lock

the focus before shooting (p. 58).

•AF Frame Status (LCD Monitor On)

AiAF On

- Green Frame:

Metering complete (AF

frame when focus

achieved)

- No Frame: Focusing difficulty

AiAF Off (Center AF Frame)

- Green Frame:

Metering complete

- Yellow Frame:

Focusing difficulty

Indicator

03-124usCUGE_026_041_GM.p65 7/26/02, 11:09 AM34

Basic Functions

Pressing Fully

Pressing the shutter button down fully activates the shutter and causes

one shutter sound to sound.

•While the image is being recorded to

the CF card, the indicator blinks green.

•AF-assist Beam

- The AF-assist Beam will sometimes emit when the

shutter button is pressed halfway to assist focusing in

certain conditions, i.e., dark conditions.

- The AF-assist Beam can be turned off (p. 119). If animals

are your subject, turn off the beam when shooting in

the dark to avoid startling them (this may however,

make it more difficult for the camera to focus).

03-124usCUGE_026_041_GM.p65 7/26/02, 11:09 AM35

Basic Functions

Using the Zoom

The zoom can be adjusted from 35 mm to 70 mm in 35 mm film

equivalent terms.

Telephoto / Wide Angle

•Press the zoom lever toward to

zoom in (telephoto).

•Press the zoom lever toward to

zoom out (wide angle).

Digital Zoom

When the LCD monitor is on, you can shoot with a combined optical

and digital zoom factor of up to 6.4 (p. 50).

•The digital zoom is unavailable in some modes (p. 148).

•Please note that the image appears grainier, the more the

image is digitally zoomed.

03-124usCUGE_026_041_GM.p65 7/26/02, 11:09 AM36

Basic Functions

Selecting Menus and Settings

Menus are used to adjust shooting and replay settings. The procedures

for using menus are shown below. For a complete list of the settings

and options, please see Menu Settings and Factory Defaults (p. 40).

•Press the button.

•Use the or buttons to select the Rec., Play or Set up

menu.

•Use the or buttons to select an option.

•With some Rec./ Set up menu items,

the or buttons select the options

for the items.

•With some Play/ Set up menu items, a

submenu appears after you press the

button.

•Press the button.

The menu will close.

•Menu when the mode switch is

set to or .

(* The menu will appear slightly

different in mode.)

•Menu when the mode switch

is set to .

03-124usCUGE_026_041_GM.p65 7/26/02, 11:09 AM37

Basic Functions

Play Menu

Rec. Menu

Selecting

a Mode

Selecting

a Menu

Switching between the Rec.,

Play and Set up Menus

Selecting Menus and Settings (Cont’d)

* The menu will appear slightly

different in mode.

03-124usCUGE_026_041_GM.p65 7/26/02, 11:10 AM38

Basic Functions

Set up Menu

Setting

Options

Completing

the Procedure

•See Print Menu Settings (p. 92) for the procedures used

with the (Print Order) item in the Play menu.

* You can switch between

menus at any time simply

by pressing the zoom lever

toward or button.

03-124usCUGE_026_041_GM.p65 7/26/02, 11:10 AM39

Basic Functions

p. 45

p. 71

p. 62

p. 50

p. 52

p. 44

pp. 35, 119

p. 73

p. 72

p. 65

p. 86

p. 81

p. 88

p. 82

p. 92

p. 111

2048 x 1536* / 1600 x 1200

/ 1024 x 768 / 640 x 480

640 x 480 / 320 x 240* / 160 x 120

Superfine / Fine* / Normal

50* / 100 / 200 / 400 / AUTO

On*/Off

On/Off*

Off/2*-10 sec.

On*/Off

On/Off*

On*/Off

On/Off*

Turns image protection On/Off.

Rotates the image in the display.

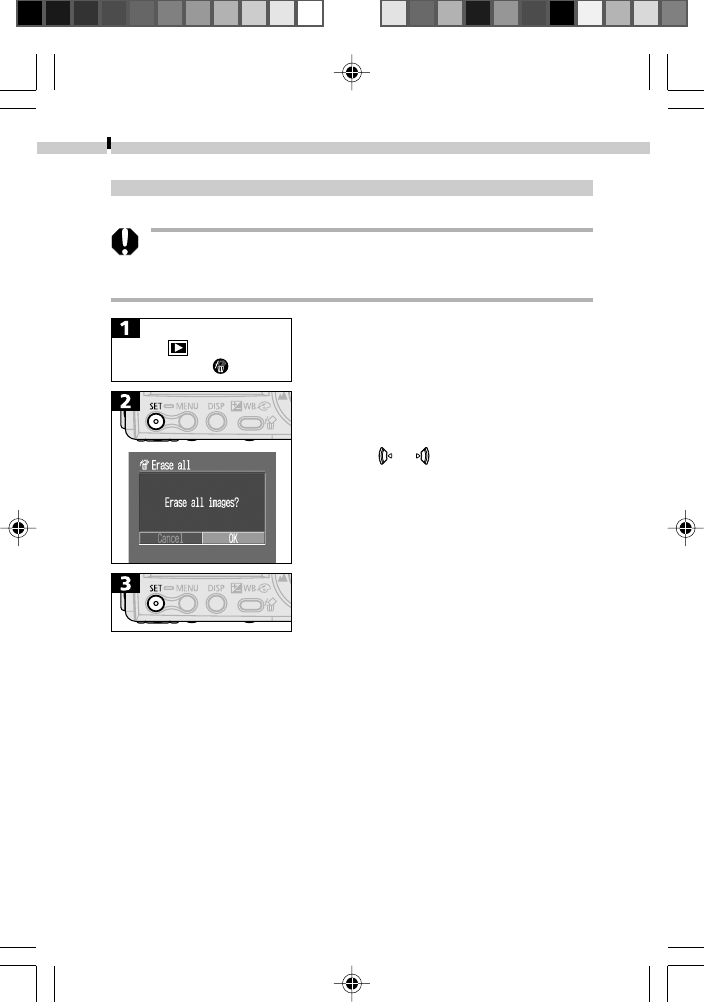

Erases all images on the CF card.

Replays selected images in a slide show.

Sets the print settings.

Sets the transfer settings.

Resolution

(Still images)

Resolution (Movies)

Compression

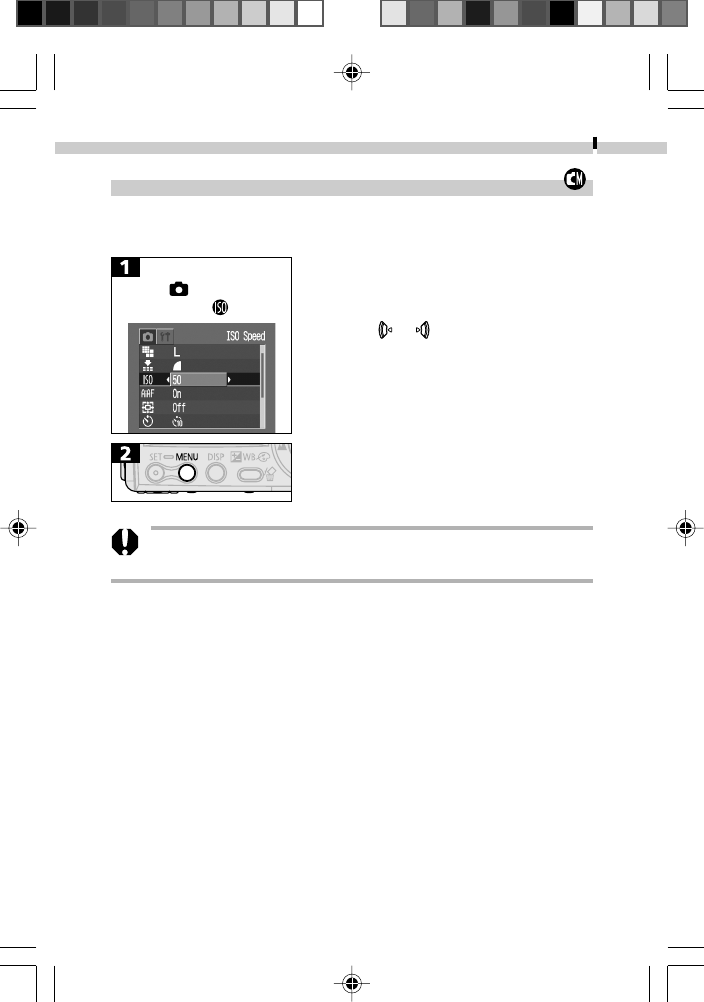

ISO Speed

AiAF

Digital Zoom

Self-timer

Image Review

AF-assist Beam

File No. Reset

Auto Rotate

Long Shutter

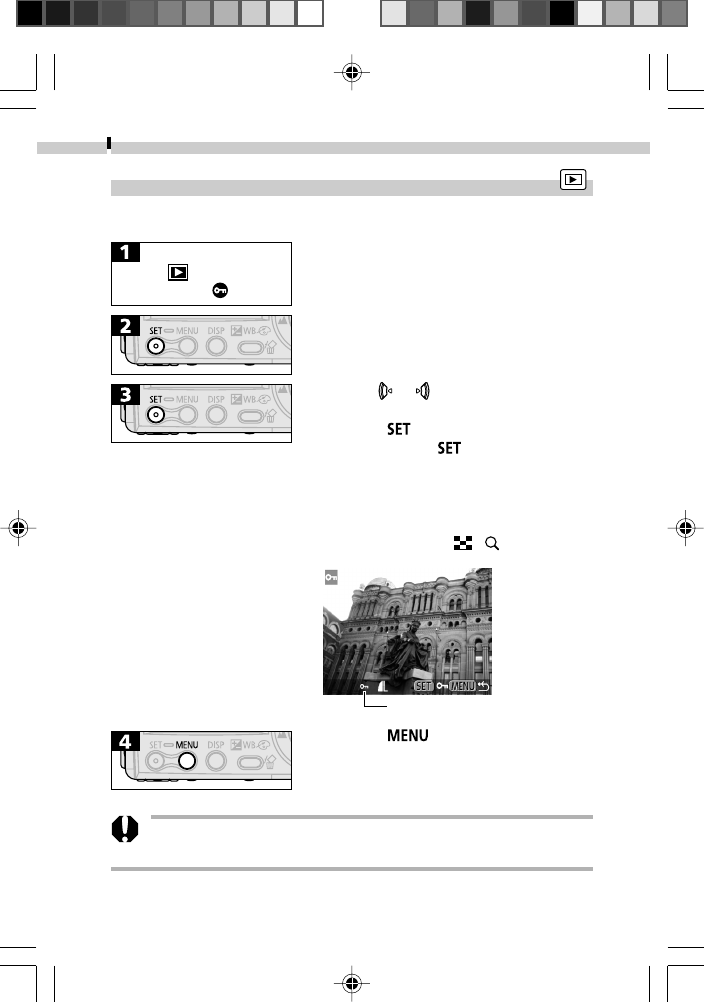

Protect

Rotate

Erase all

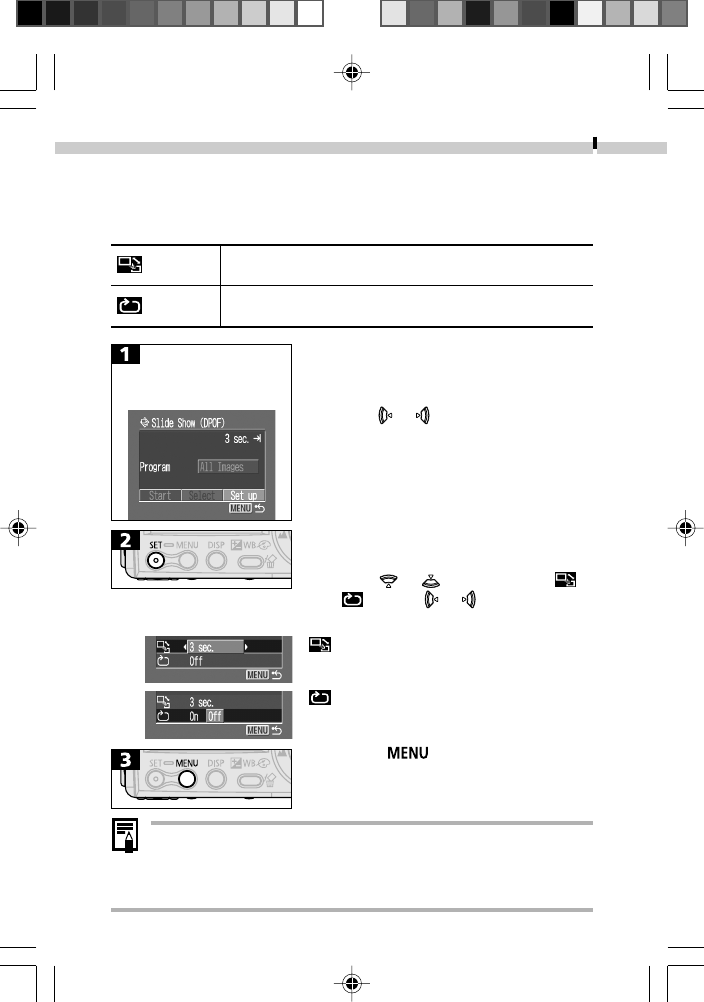

Slide Show

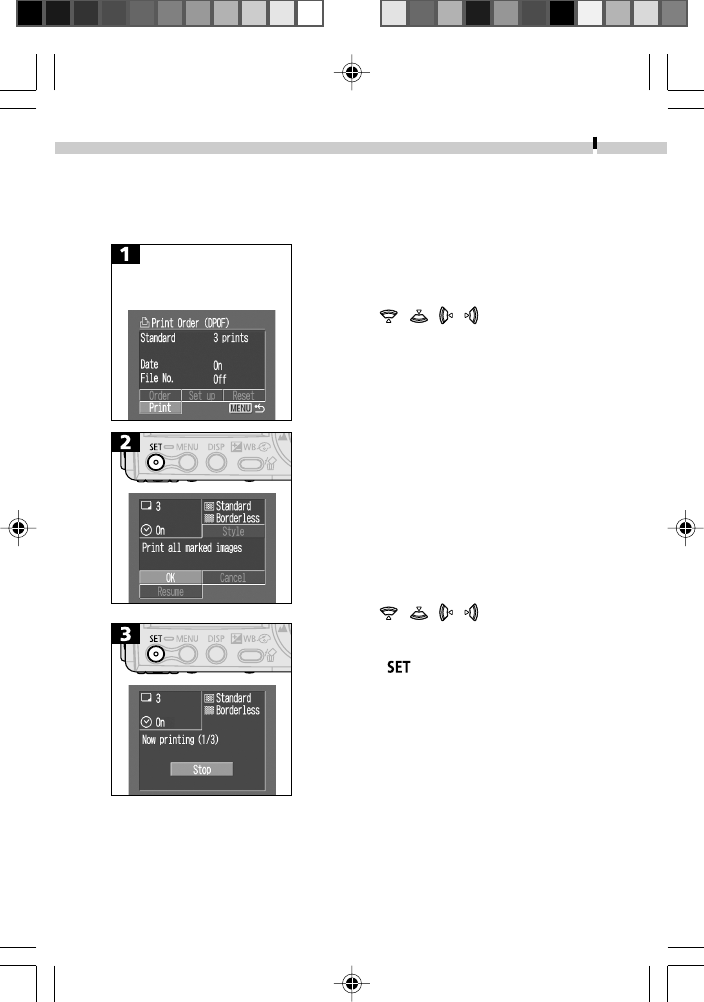

Print Order

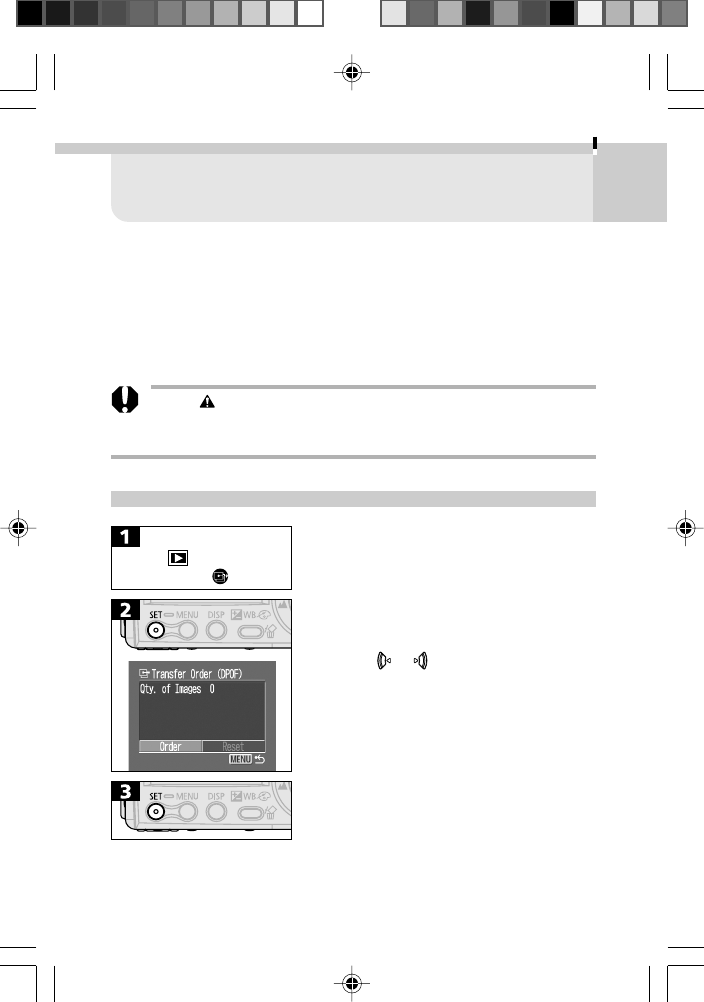

Transfer Order

Menu Item Reference

Page

Available Settings

Rec.

(Red)

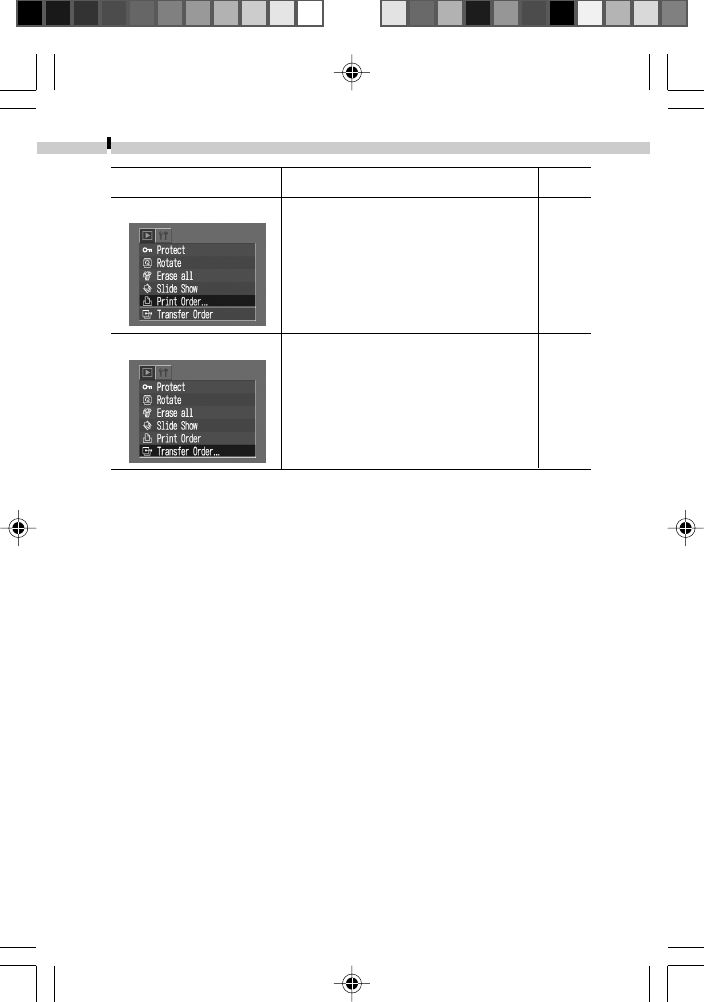

Play

(Blue)

Menu Settings and Factory Defaults

This chart shows the options and default settings for each menu.

03-124usCUGE_026_041_GM.p65 7/26/02, 11:10 AM40

Basic Functions

* Default setting. Default video system setting varies between regions.

•Some menu items are not available in certain shooting modes.

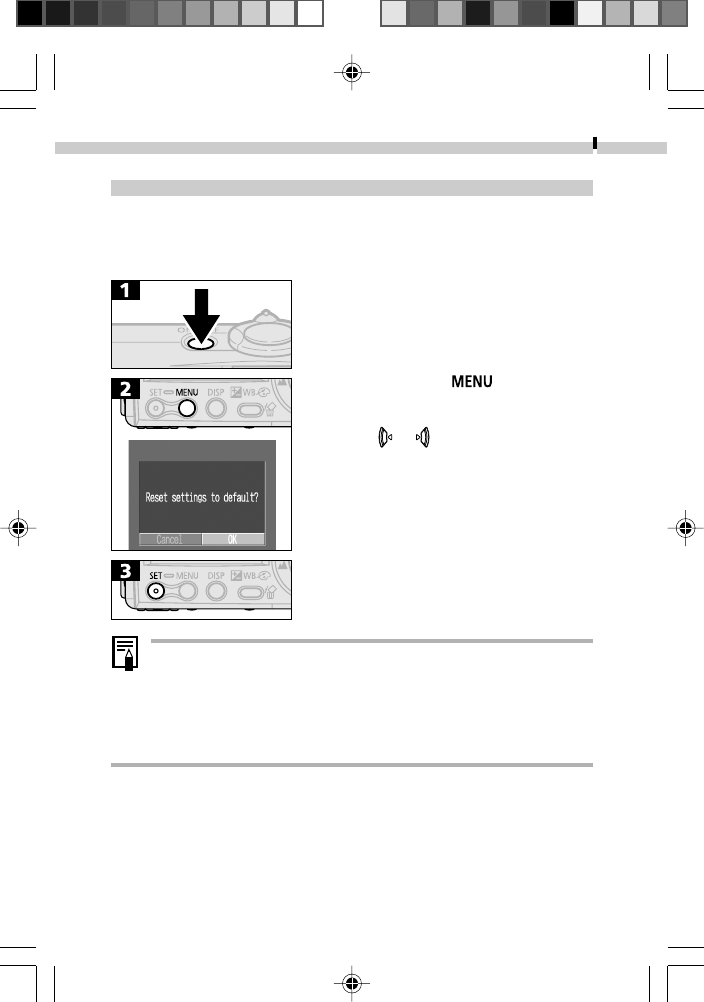

•With the exception of the [Date / Time], [Language] and [Video System]

settings, all the other menu settings and changes made with the camera

buttons can be reset to the default values in a single operation (p. 125).

p. 123

p. 27

p. 23

p. 89

p. 25

p. 113

p. 116

On*/Off

Sets the date and time

Formats (initializes) the CF card

English*/ Deutsch / Français / Nederlands /

Dansk / Suomi / Italiano / Norsk / Svenska /

Español / Chinese / Japanese

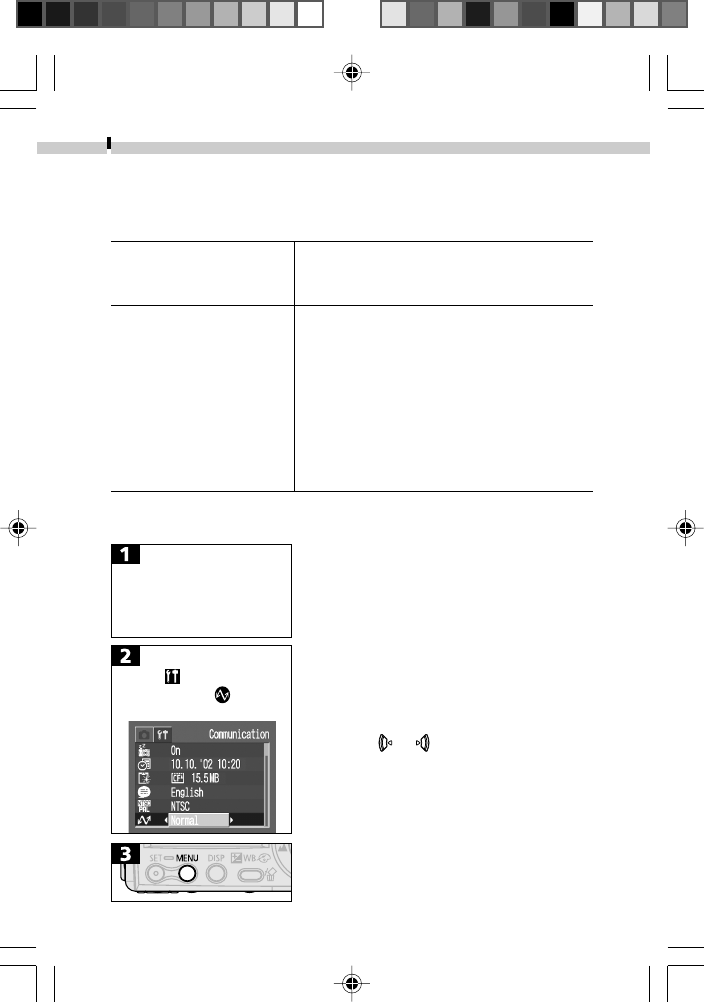

NTSC/PAL

Normal*/PTP

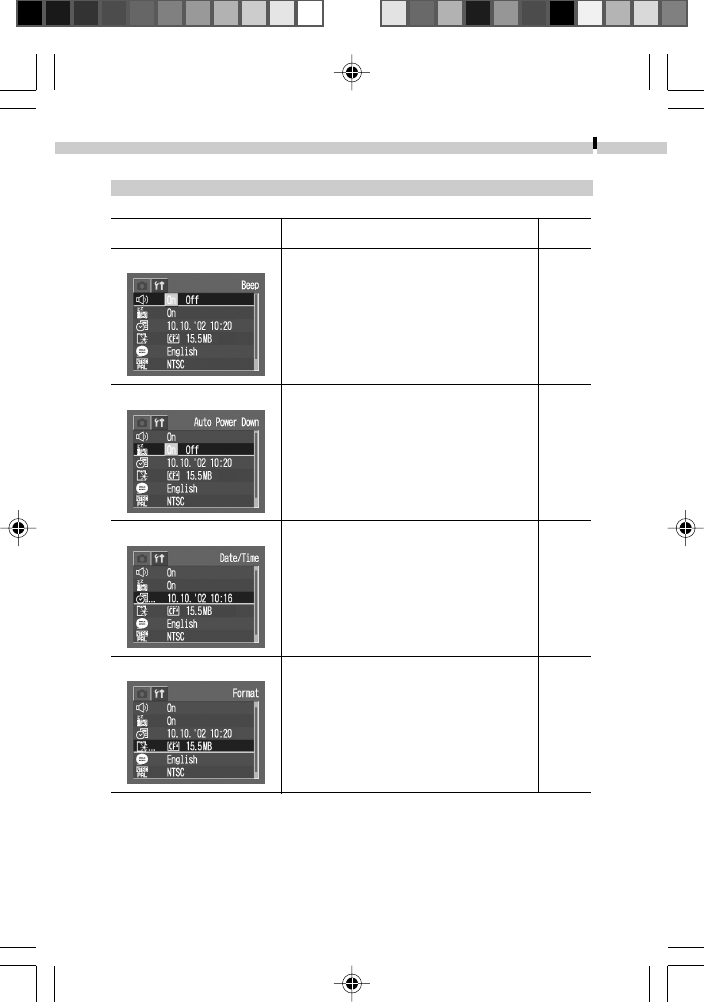

Beep

Power Save

Date/Time

Format

Language

Video System

Communication

Menu Item Reference

Page

Available Settings

Set up

(Yellow)

03-124usCUGE_026_041_GM.p65 7/26/02, 11:10 AM41

Selecting a Shooting Mode

The camera features the following shooting modes.

Auto Most settings are automatically selected by

the camera.

Manual The exposure compensation, white balance

and other settings can be manually selected.

Stitch Assist Images are shot in overlapping series to

create single panoramic images.

Movie Shoots movie clips.

• Some settings selected in each shooting mode are saved when the

power is turned off (p. 148).

Selecting the , , or mode

• Use the or button to select a

shooting mode.

Shooting

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM42

Shooting

Selecting the mode

In the descriptions of the shooting functions that follow, the icons

beside the titles indicate the applicable shooting modes. Before you

proceed with Step 1 in each case, set the camera to one of the

shooting modes indicated by the icons in the title (p.2).

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM43

Shooting

Reviewing an Image Right after Shooting

Right after a shot is taken, the image appears in the LCD monitor for 2

seconds even if you release the shutter button regardless of whether the LCD

monitor is on or off. You can also review it with the following procedures.

•By keeping the shutter button pressed after a shot.

•By pressing the button while the image is displayed on the LCD

monitor. Press the shutter button halfway to stop displaying it.

• You can do the following while the image is displayed.

- Check the image brightness in the histogram (p. 32).

- Erase the image (p. 87).

Zoom the image in the display (p. 75).

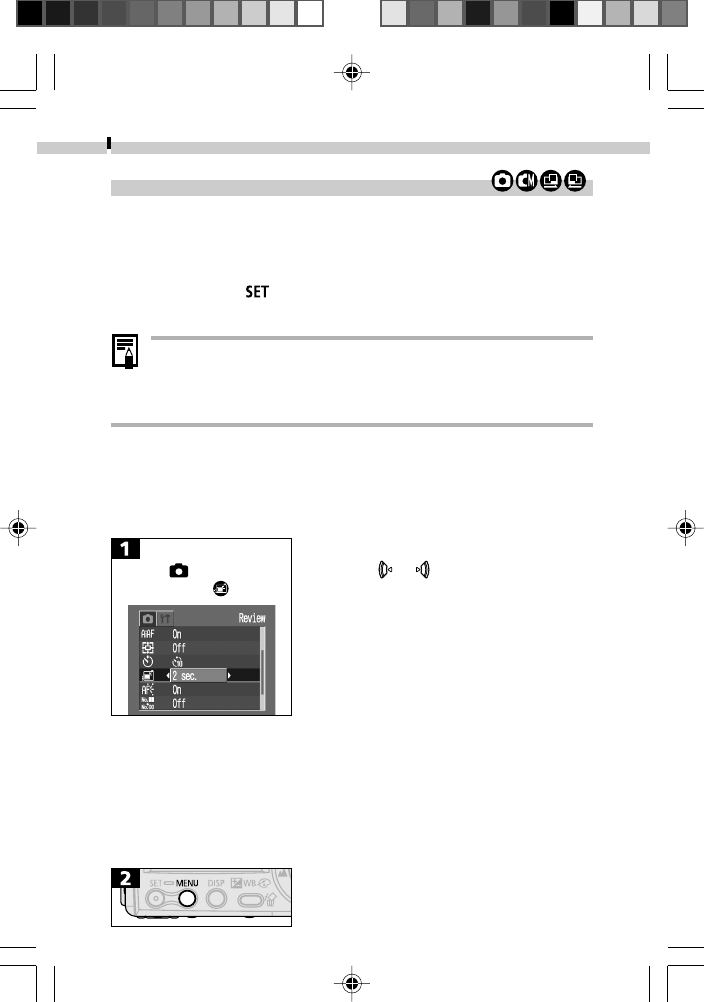

Changing the Review Duration

The default review time is 2 seconds.

The review function can be set to Off or changed to any time in the

range of 2 to 10 seconds in one-second increments.

•See

Selecting Menus and Settings

(p. 37).

•Use the or button to select [Off],

or a time from [2 sec.] to [10 sec.].

•With the Off option, the image will not

automatically display. However, if you

keep the shutter button fully pressed

after a shot, the image will display.

•In the [2 sec.] to [10 sec.] range, the

image will continue to display for the

specified time even if the shutter

button is released. You can display the

image for longer than the set duration

by keeping the shutter button pressed

all the way.

•Another picture can be taken even

while the last is displayed.

•The display will return to the Rec. screen.

In the (Rec.) menu,

select .

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM44

Shooting

- Print large prints

Send images as e-mail attachments

- S

hoot more images

- Print on small labels

(Large)

(Medium 1)

(Medium 2)

(Small)

- Shoot higher quality images

- Shoot normal quality images

- Shoot more images

Superfine

Fine

Normal

High Quality

Normal

High

Low

2048 x 1536 pixels

1600 x 1200 pixels

1024 x 768 pixels

640 x 480 pixels

Resolution

Compression

Purpose

640 x 480 pixels

320 x 240 pixels

160 x 120 pixels

Resolution

Changing Resolution / Compression Settings

You can change the resolution and compression (excluding movies)

settings to suit the purpose of the image you are about to shoot.

Movies can be shot with the following resolution.

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM45

Shooting

•See Selecting Menus and Settings (p. 37).

•Use the or button to select an

option.

Resolution (Still Images)

Select , , or .

Resolution (Movies)

Select , or .

Compression

Select , or .

•The display will return to the Rec.

screen.

•See Functions Available in Each Shooting Mode (p. 148).

•See Image File Sizes (p. 140).

•See CF Cards and Estimated Capacities (p. 140).

In the (Rec.) menu,

select or .

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM46

Shooting

Auto The flash fires automatically as required by the light level.

Red-Eye

The red-eye reduction lamp fires with each shot,

Reduction

automatically adjusting the intensity to suit lighting

Auto

levels.

Flash On The flash fires with every shot.

Flash Off The flash will not fire.

Slow-Synchro

The flash timing is adjusted to slow shutter speeds. This

reduces the chance that the background will be dark

when shots are taken at night or in rooms with artificial

lighting. The red-eye reduction lamp fires with each

shot. Use of a tripod is recommended.

Using the Flash

●Setting available

▲Can be selected for the first

image only.

•Press the button to cycle through the

flash settings.

●

▲

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM47

Shooting

•When you use flash photography at higher ISO speeds, the

chances of white streaks appearing in the image increase

the closer you approach to the subject.

•Since a slow shutter speed is selected in dark places when

the flash is set to Off or Slow-Synchro, take care to avoid

blurring the image.

- Shooting in Mode

Be careful to hold the camera still to avoid camera shake.

- Shooting in

or Mode

Fix the camera to a tripod to shoot in these modes since

the shutter speed will be slower than in the mode. If

an image is dark in mode, reshooting it in mode

will make it brighter.

•When shooting with the flash, light may reflect off dust

particles or insects in the air and appear as white spots or

white asterisks on the image. This occurs more frequently with

wide-angle shots. This phenomenon is common to digital

cameras and does not indicate a malfunction.

•The flash can be fired when the upper indicator lights a steady

orange.

•The flash may take up to approximately 10 seconds to charge.

The recharging time will vary with such factors as the shooting

conditions and battery charge.

•The flash fires twice. The main flash follows a preparatory pre-

flash. The exposure reading obtained from the subject with the

pre-flash is used to set the optimal flash intensity for the main

flash, which is used to capture the image.

Red-Eye Reduction

•Light reflecting back from eyes can make them appear red when

the flash is used in dark areas. Under these conditions, use the red-

eye reduction mode. For this mode to be effective, the subject

must be looking right at the red-eye reduction lamp. Try asking

them to look directly at the lamp. Even better results can be

obtained by shooting with the lens set to a wide angle, increasing

the lighting in indoor settings or approaching closer to the subject.

•The shutter will not activate for approximately 1 second after

the red-eye reduction lamp fires in order to improve the

effect. If you want a more immediate shutter response, set the

flash to , or .

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM48

Shooting

•Display or .

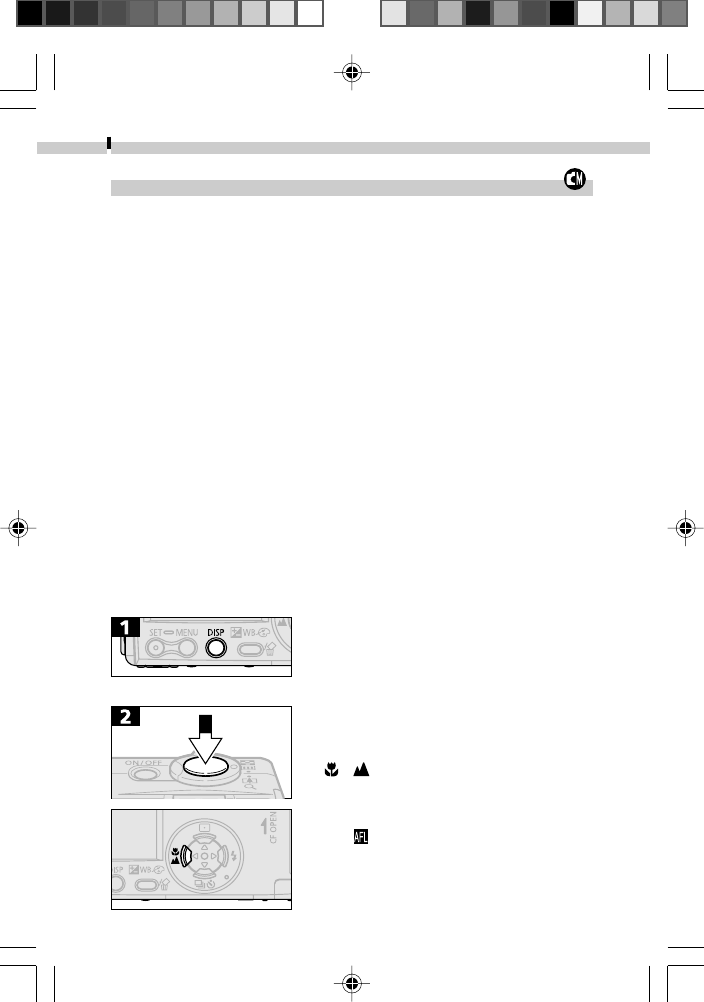

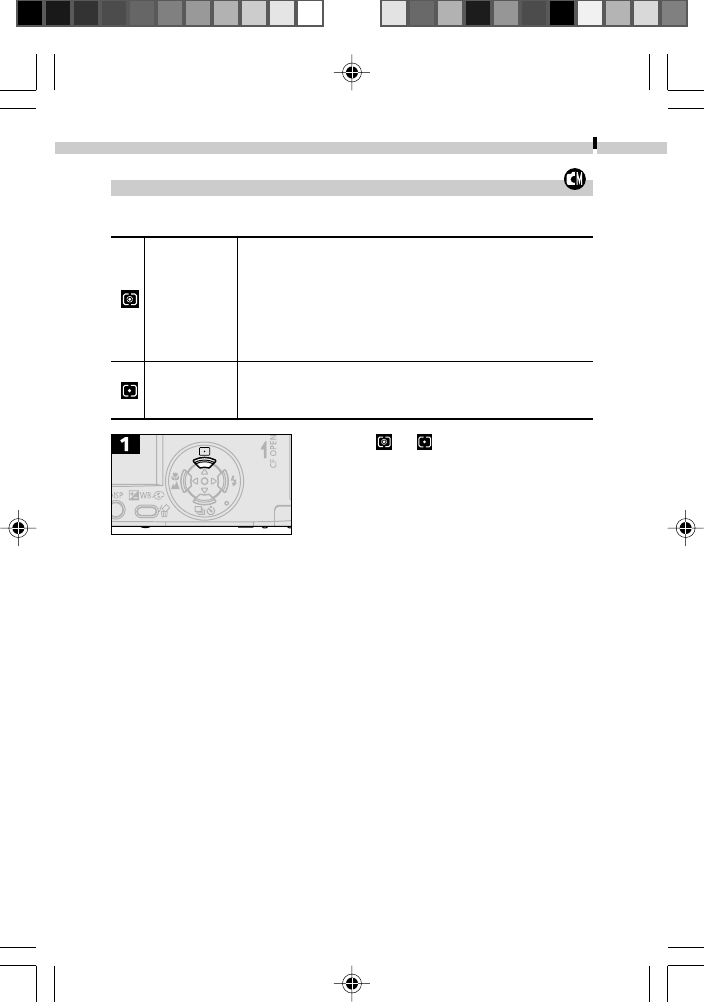

Shooting Close-Ups / Infinity Shots

Macro

Use this mode to record subjects in the range of 10 to 47

cm (3.9 in. to 1.5 ft.) from the lens tip when at wide-angle

end and in the range of 27 to 47 cm (10.6 in. to 1.5 ft.)

when at the telephoto end setting.

Infinity

Use this mode to record landscapes and distant objects.

It can also be used for compositions combining both near

and distant objects.

Distance from Image Area

Lens to Subject

Telephoto End 27 cm (10.6 in.) 138 x 103 mm (5.4 x 4.1 in.)

Wide-Angle End 10 cm (3.9 in.) 102 x 76 mm (4.0 x 3.0 in.)

•Use the LCD monitor to compose close-ups in macro mode

since the parallax phenomenon may cause images composed

with the optical viewfinder to be off-center. (p. 33)

•The exposure may not be optimal when the flash is used in

macro mode in the range of 10 to 27 cm (3.9 to 10.6 in.).

• Image Area in Macro Mode

●

Setting available.

▲

Selectable for first image only.

●

▲

●

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM49

Shooting

Using the Digital Zoom

When the LCD monitor is on, images can be zoomed to approximately

2.6, 3.2, 4.0, 4.9 or 6.4 times with the combined optical and digital

zoom functions.

•Turn the LCD monitor on.

•See Selecting Menus and Settings (p. 37).

•Use the or button to select [On].

•The display will return to the Rec.

screen.

•Press the zoom lever toward until

the lens reaches the maximum optical

telephoto setting and stops. Press it

again to activate the digital zoom and

to advance through the settings.

•Press the button to zoom back out.

The combined

optical and

digital zoom

factor displays.

•The digital zoom cannot be used when the LCD monitor is

turned off.

•Images become coarser the more they are digitally

zoomed.

In the (Rec.) menu,

select .

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM50

Shooting

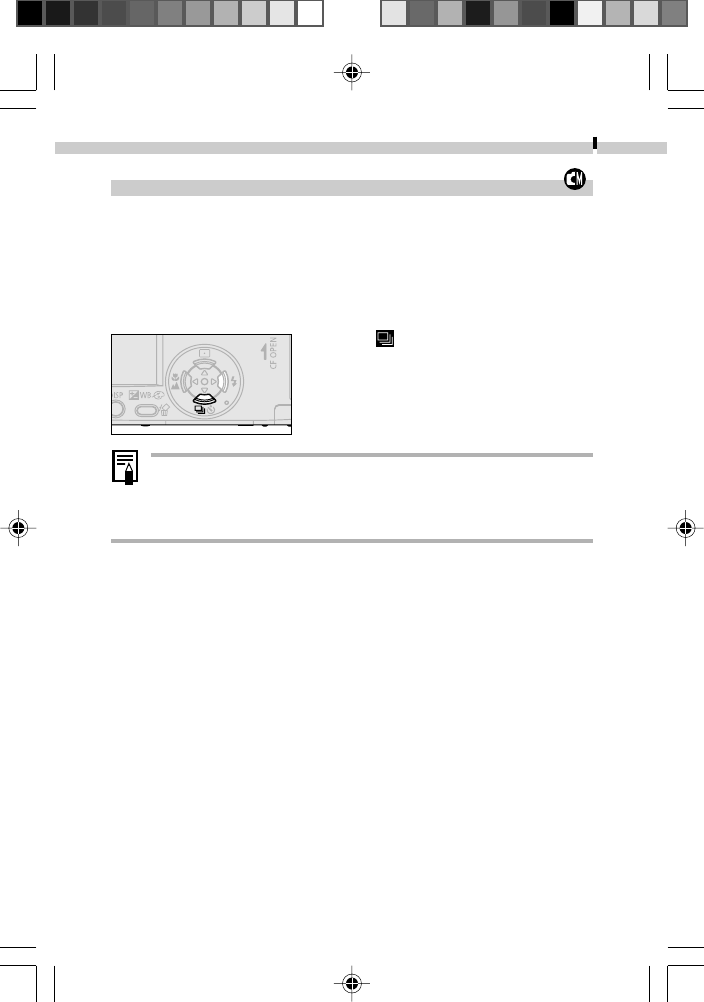

Continuous Shooting

In this mode, the camera shoots continuously at approximately 2 images

per second* (Large/Fine, LCD monitor off) while the shutter button is

held down. Recording ceases when the shutter button is released.

* This figure reflects standard shooting criteria established by Canon. Actual

figures may vary according to the subject and shooting conditions.

•Display .

•The interval between shots may lengthen slightly when the

camera’s built-in memory fills.

•If the flash is firing, the interval between shots will lengthen

to accommodate the flash’s charging requirements.

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM51

Shooting

Using the Self-timer

•Display .

•When the shutter button is pressed, the

self-timer will activate and the self-timer

lamp will blink.

Changing the Self-timer Countdown Time

•See Selecting Menus and Settings (p. 37).

•Use the or button to select [10

sec.] or [2 sec.]

•When [ (10 sec.)] is selected, the self-

timer sounds and the blinking gets

faster 2 seconds before the shutter

activates.

•When [ (2 sec.)] is selected, the self-

timer sounds at the same time as the

shutter button is pressed. The shutter

activates in 2 seconds.

•The display will return to the Rec.

screen.

In the (Rec.) menu,

select .

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM52

Shooting

Shooting in Stitch Assist Mode

Stitch Assist mode can be used to shoot overlapping images that can

later be merged (stitched) to create one panoramic image on a

computer.

•To merge the images on a computer, use PhotoStitch, one

of the supplied programs.

Framing a Subject

The PhotoStitch program detects the overlapping portions of adjoining

images and merges them. When shooting, try to include a distinctive

item (landmark) in the overlapping portions.

•Compose each frame so that it overlaps 30 - 50% of the adjoining

image. Try to keep the vertical misalignment to less than 10% of the

image height.

•Do not include moving items in the overlap.

The overlapping seams of

several adjacent images can be

joined into a single panoramic

image.

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM53

Shooting

• Do not try to stitch images that include both distant and close items.

These items may appear warped or doubled up in the merged image.

• Make the brightness in each image consistent. The final image will

appear unnatural if the contrast in brightness is too great.

• To shoot landscapes, swivel (pan) the camera around its own vertical

axis.

• To shoot close-ups, slide the camera over the subject, keeping it

parallel to the subject as you move it.

Shooting

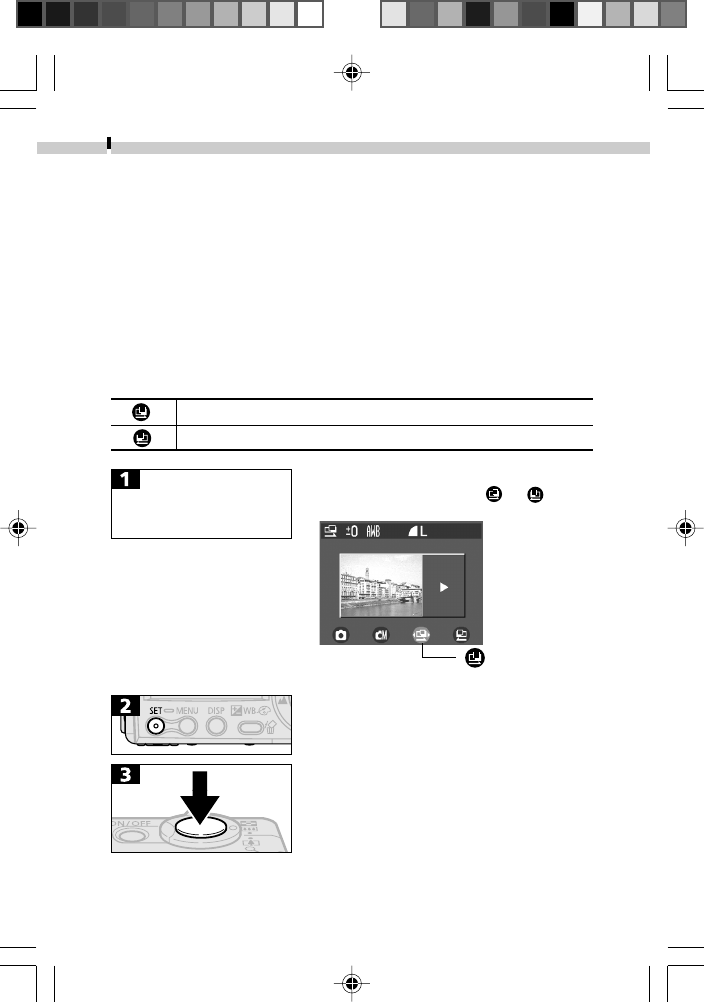

Images can be shot in two sequences in Stitch Assist mode.

• The LCD monitor turns on when the

shooting mode is set to or .

• Shoot the first frame in the sequence.

• The exposure and white balance are set

and locked with the first image.

Successive images use the same

settings.

Left to right horizontally

Right to left horizontally

Select the shooting

mode (p. 42).

Left to right

horizontally

04-124usCUGE_042_059_GM.p65 8/7/02, 1:16 PM54

Shooting

•Compose the second image so that it

overlaps a portion of the first and shoot.

•Use the or button to check or

retake the recorded images.

•Minor discrepancies in the overlapping

portions can be corrected when the

images are stitched together.

•Repeat the procedure for additional

images. A sequence may contain up to

26 images.

•Press the button to close Stitch

Assist mode.

• A custom white balance setting cannot be set in or

mode. To use a custom white balance setting, first set it in

another shooting mode (p. 68).

• The settings for the first image are used to take subsequent

images in the sequence.

• It is not possible to display images on the TV when shooting

in Stitch Assist mode.

• See the Functions Available in Each Shooting Mode (p. 148).

Second Image

Third Image

04-124usCUGE_042_059_GM.p65 8/7/02, 1:16 PM55

Shooting

Shooting a Movie

Use the movie mode to shoot movie clips. Select a resolution in the

(Movie) menu from the (640 x 480), (320 x 240, Default) and

(160 x 120) options (p. 45).

•Press the shutter button fully to start

recording images and sounds.

•During shooting the recording time (in

seconds) and a red circle appear on the

LCD monitor.

•Press the shutter button again to stop

recording.

•The maximum length of a movie clip (at

approximately 15 frames/sec.) is

approximately 30 sec.* ( ), 3 min.

() or 3 min. ( ) according to

Canon’s testing standard.

* Using an optional Canon FC-256MH CF

Card (not sold in some regions)

When using the CF card supplied with the

camera, the maximum length is

approximately 14 sec.

These times may vary with the subject

and shooting conditions. Recording will

automatically stop when the maximum

is reached or when the CF card runs

out of free capacity.

Filming may stop unexpectedly with

certain types of CF card (if it is a slow-

recording card, if it has been formatted

on a different camera or a computer, or

if images have been shot and erased

repeatedly).

04-124usCUGE_042_059_GM.p65 8/7/02, 1:16 PM56

Shooting

•You are recommended to use a CF card that has been

formatted in your camera to shoot movies (p. 89). The card

supplied with the camera may be used without further

formatting. In addition, you are recommended to use the

optional FC-256MH CF Card (not sold in some regions)

to shoot

movies with the setting.

•Be careful not to touch the microphone while recording.

•The AE, AF, white balance and zoom settings remained fixed

for subsequent frames at the values selected for the first frame.

•After a clip is shot, the upper indicator will blink green while

the clip is being written to the CF card. You cannot shoot

again until the blinking stops.

•See the Functions Available in Each Shooting Mode (p. 148).

•Sound is recorded monaurally.

•The shutter sound will not sound when you fully press the

shutter button to record a movie clip.

•QuickTime 3.0 or later is required to replay movie files (AVI/

Motion JPEG) on a computer. QuickTime (for Windows) is

included on the Canon Digital Camera Solution Disk. On

the Macintosh platform, this program is generally bundled

with Mac OS 8.5 or later operating systems.

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM57

Shooting

Locking the Focus (AF Lock)

It may be difficult to focus on the following types of subjects. Use the

focus lock in these situations.

•Subjects with extremely low contrast to the surroundings

•Subjects with extremely bright objects at the center of the

composition

•Subjects that are moving quickly

•Subjects through glass :

Try to shoot as close to the glass as possible to reduce the chances

of light reflecting back off the glass.

Shooting with the Focus Lock

Method 1

1. Aim the camera so that an object at the same focal distance as the

main subject is centered in the AF frame in the viewfinder or LCD

monitor.

2. Press the shutter button halfway and wait until two beeps sound.

3. Re-aim the camera to compose the shot as desired and press the

shutter button all the way.

Method 2

•Turn the LCD monitor on.

•Aim the camera so that an object at the

same focal distance as the main subject

is centered in the AF frame.

•Press and hold the shutter button

halfway until two beeps sound.

Without releasing your finger, press the

/ button.

•The icon will display and the lower

indicator will light yellow.

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM58

Shooting

•Re-aim the camera to compose the shot

as desired and press the shutter button

all the way.

•Release the focus lock by pressing the

/ button.

•Method 2 is convenient because you can let go of the

shutter button to recompose the image. Moreover, the

focus remains locked after the picture is taken, allowing

you to capture a second image with the same focus.

•In Method 2, pressing the zoom lever, MENU button or

DISP button, or changing the shooting mode also releases

the focus lock.

04-124usCUGE_042_059_GM.p65 7/26/02, 11:13 AM59

Shooting

Locking the Exposure Setting (AE Lock)

You can set the exposure and focus separately. This is effective when

the contrast is too strong between the subject and background or

when a subject is backlit.

• You must set the flash to . The AE lock cannot be set if

the flash fires.

• Turn on the LCD monitor.

• Focus the camera on the subject on

which you wish to lock the exposure

setting.

• Press the shutter button halfway and

wait until two beeps sound.

• Without releasing your finger, press the

button.

•The icon will display.

• Re-aim the camera to compose the shot.

• To release the AE lock, press the

button.

• The AE lock may release if you press any button other than

the button.

05-124usCUGE_060_073_GM.p65 7/26/02, 11:15 AM60

Shooting

Locking the Flash Exposure Setting (FE Lock)

You can lock the flash exposure so that the exposure settings are

correctly set for a particular portion of your subject.

•Turn on the LCD monitor.

•Set the flash to and focus on the

part of the subject on which you wish

to lock the flash exposure setting.

•Press the shutter button halfway and

wait until two beeps sound.

•Without releasing your finger, press the

button.

•The flash will fire a pre-flash and lock

the flash exposure to the required

intensity to illuminate the subject.

•The icon will display.

•Re-aim the camera to compose the shot

and press the shutter button all the

way.

•To release the FE lock, press the

button.

•The FE lock may release if you press any button other than

the button.

05-124usCUGE_060_073_GM.p65 7/26/02, 11:15 AM61

Shooting

•See Selecting Menus and Settings (p. 37).

•Use the or button to select [On] or

[Off].

•A shot can be taken immediately after.

•The display will return to the Rec.

screen.

The camera detects the subject and highlights the AF frames,

from 9 available points, that it will use to determine the focus.

The camera focuses using the center AF frame. This is

convenient for focusing on a specific part of a subject with

greater certainty.

Off

• The symbol represents the AF frames as they appear in the LCD monitor.

No frame

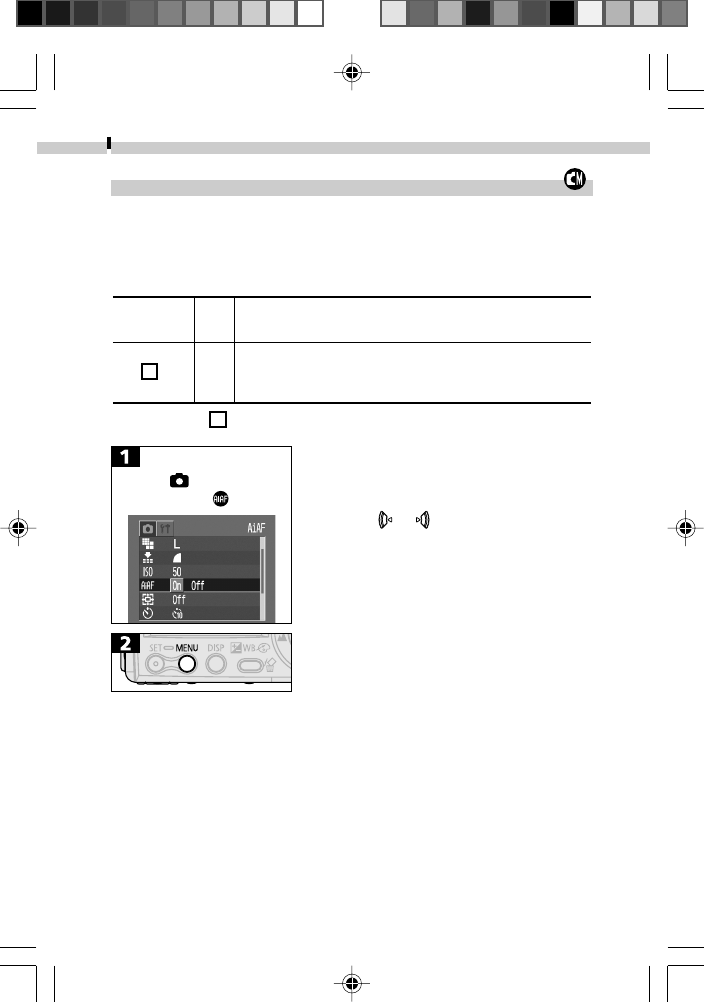

Switching between Autofocus Modes

Although the autofocus function is preset to the AiAF setting (nine AF

frames), you can set the AF frame to center-point. When center-point is

selected, the AF frame will appear in the LCD monitor if it is turned on

(p. 29). The AF frame will not appear when AiAF is selected.

In the (Rec.) menu,

select .

05-124usCUGE_060_073_GM.p65 7/26/02, 11:15 AM62

Shooting

Switching between Light Metering Modes

You can switch between metering modes to shoot.

Appropriate for standard shooting conditions,

including backlit scenes. The camera divides images

into several zones for light metering. It evaluates the

complex lighting conditions, such as the position of the

subject, the brightness, the direct light, and the

backlighting, and adjusts the settings to the correct

exposure for the main subject.

Meters the area within the spot AE point at the center

of the LCD monitor. Use this mode when the subject is

backlit or surrounded by strong light.

Evaluative

Light

Metering

Spot AE

Point

•Display or .

05-124usCUGE_060_073_GM.p65 7/26/02, 11:15 AM63

Shooting

Adjusting the Exposure Compensation

Adjust the exposure compensation setting to avoid making the subject

too dark when it is backlit or shot against a bright background or to

avoid making lights appear too bright in night shots.

•Use the or button to adjust the

exposure compensation.

•The settings can be adjusted in ±2 stops

in 1/3-stop increments.

•You can confirm the effect of the

exposure compensation setting in the

LCD monitor when the LCD monitor is

on.

•A shot can be taken immediately after.

The menu will reappear after the shot,

allowing you to further adjust the

setting.

•Reset the exposure compensation by

returning the setting to 0.

05-124usCUGE_060_073_GM.p65 7/26/02, 11:16 AM64

Shooting

Shooting in Long Shutter Mode

You can set the shutter speed to a slow setting to make dark subjects

appear brighter.

•See Selecting Menus and Settings (p. 37).

•Use the or button to select [On].

•The display will return to the Rec.

screen.

•Use the or button to select the

long shutter menu and the or

button to select a shutter speed.

•A shot can be taken immediately after.

The menu will reappear after the shot,

allowing you to further adjust the

setting.

•While the menu is displayed, press the

long shutter mode and finish the

procedure.

In the (Rec.) menu,

select .

Long Shutter Menu

05-124usCUGE_060_073_GM.p65 7/26/02, 11:16 AM65

Shooting

•The nature of CCD image sensors is such that noise in the

recorded image increases at long shutter speeds. This

camera, however, applies special processing to images shot

at shutter speeds slower than 1.3 seconds to eliminate the

noise, thereby producing high-quality images.

Nevertheless, a certain amount of processing time may be

required before the next image can be shot.

•Use the LCD monitor to confirm that the image was

recorded at the desired brightness.

•Use of the flash may result in an over-exposed image. If

that occurs, shoot with the flash set to .

•The following are unavailable:

- Exposure Compensation

- Light Metering

- AE Lock

- ISO speed [AUTO]

•Available Shutter Speeds

The following shutter speeds (in seconds) are available.

1, 1.3, 1.6, 2, 2.5, 3.2, 4, 5, 6, 8, 10, 13, 15

05-124usCUGE_060_073_GM.p65 7/26/02, 11:16 AM66

Shooting

Setting the White Balance

When the white balance mode is set to match the light source, the

camera reproduces colors more accurately.

Auto The camera sets the white balance automatically

according to shooting conditions.

Daylight For recording outdoors on a bright day.

Cloudy For recording under overcast, shady or twilight skies.

Tungsten For recording under tungsten and bulb-type 3-

wavelength fluorescent lighting.

Fluorescent For recording under warm-white, cool-white or warm-

white (3-wavelength) fluorescent lighting.

Fluorescent H For recording under daylight fluorescent, or daylight

fluorescent-type 3-wavelength fluorescent lighting.

Custom For setting a custom value with a white sheet of paper, etc.,

to obtain the optimal white balance for the conditions.

•Press the button repeatedly until

the White Balance Settings menu

displays.

•Use the or button to select a

setting. (See the next page for .)

•You can confirm the effect of the

setting in the LCD monitor when the

LCD monitor is on.

•A shot can be taken immediately after.

The menu will reappear after the shot,

allowing you to further adjust the

setting.

•This setting cannot be adjusted when the (Sepia) or

(B/W) photo effects are selected.

05-124usCUGE_060_073_GM.p65 7/26/02, 11:16 AM67

Shooting

Setting a Custom White Balance

You can set a custom white balance to obtain the optimal setting for

the shooting conditions by having the camera evaluate an object, such

as a piece of white paper or cloth, or a photo-quality gray card that you

wish to establish as the standard white color.

•Press the button repeatedly until

the White Balance Settings menu

displays.

•Use the or button to select .

•Aim the camera at the white paper,

cloth or gray card and press the

button.

•Aim the camera so that the white

paper, cloth or gray card completely fills

the frame on the LCD monitor or the

entire viewfinder before pressing the

button. The camera reads the white

balance data when you press the

button.

•A shot can be taken immediately after.

The menu will reappear after the shot,

allowing you to further adjust the

setting.

05-124usCUGE_060_073_GM.p65 7/26/02, 11:16 AM68

Shooting

•You are recommended to set the shooting mode to and

the exposure compensation setting to zero (±0) before

setting a custom white balance. The correct white balance

may not be obtained when the exposure setting is incorrect

(image appears completely black or white).

•It is also advisable to use the LCD monitor to compose the

shot and to zoom in to the telephoto end setting.

•Since the white balance data cannot be read in

and

mode, preset the white balance in another shooting mode

first before selecting the

mode.

•Set the flash on or off when setting a custom white balance.

The white balance may not be accurate if the setting

conditions and shooting conditions are not the same.

If the flash fires when setting a custom white balance with

the flash set to or , ensure that you also use the flash

when you go to shoot.

05-124usCUGE_060_073_GM.p65 7/26/02, 11:16 AM69

Shooting

Changing the Photo Effect

You can shoot with different photo effects.

•Press the button repeatedly until

the Photo Effect Setup menu displays.

•Use the or button to select [Photo

Effect].

•You can confirm the photo effect in

the LCD monitor when the LCD

monitor is on.

•A shot can be taken immediately after.

The menu will reappear after the shot,

allowing you to further adjust the

setting.

Photo Effect Off Records with no effect.

Vivid Emphasizes the contrast and color saturation to record

bold colors.

Neutral Tones down the contrast and color saturation to

record neutral hues.

Low Sharpening Records subjects with softened outlines.

Sepia Records in sepia tones.

B/W Records in black and white.

05-124usCUGE_060_073_GM.p65 7/26/02, 11:16 AM70

Shooting

Adjusting the ISO Speed

Adjust the ISO speed when you wish to shoot in a dark area or use a

fast shutter speed.

• See Selecting Menus and Settings (p. 37).

• Use the or button to select a

setting.

• The display will return to the Rec. screen.

• Higher ISO speeds increase image noise. To take clean

images, use as low an ISO speed as possible.

In the (Rec.) menu,

select .

05-124usCUGE_060_073_GM.p65 10/7/02, 5:28 PM71

Shooting

In the (Rec.) menu,

select .

Setting the Auto Rotate Function

Your camera is equipped with an Intelligent Orientation sensor that

detects the orientation of an image shot with the camera on end and

automatically rotates it to the correct viewing orientation in the display.

You can set this function on / off.

•See Selecting Menus and Settings (p. 37).

•Use the or button to select [On] or

[Off].

•The display will return to the Rec. screen.

•When the Auto Rotate function is set to

On and the LCD monitor is set to the

detailed display mode, the icon

(normal), icon (right end is down) or

icon (left end is down) will appear in

the upper right of the display.

•When the camera is held on end to shoot, the Intelligent

Orientation sensor judges the upper end to be “up” and the

lower end to be “down.” It then regulates the optional white

balance, exposure and focus for vertical photography. This

function operates regardless of the On/Off status of the Auto

Rotate function.

•When changing the camera’s orientation between the horizontal

and vertical positions, you may hear noise coming from the

orientation detection mechanism. This is not a malfunction.

•This function may not operate correctly when the camera

is pointed straight up or down. Check that the arrow is

pointing in the right direction and if it is not, then set the

Auto Rotate function to [Off].

•Even if the Auto Rotate function is set to on, the

orientation of images downloaded to a computer will

depend upon the software used to download the images.

05-124usCUGE_060_073_GM.p65 7/26/02, 11:16 AM72

Shooting

In the (Rec.) menu,

select .

Resetting the File Number

You can select the way file numbers are assigned.

•See Selecting Menus and Settings (p. 37).

•Use the or button to select [On] or

[Off].

•The display will return to the Rec. screen.

•Setting the File No. Reset to Off is useful for avoiding file

name duplication when images are downloaded to a

computer.

• About File Numbers

Images are assigned file numbers from 0001 to 9900 and

organized in folders generally containing up to 100 images.

Folders are assigned numbers from 100 to 998 (a folder with

99 in the last two digits cannot be created). Since images

shot in the , or mode are always saved in the same

folder, some folders may contain 101 or more images.

The file number is reset to the start (100-0001) each time a new CF

card is inserted. New images recorded on CF cards with existing files

are assigned the next available number.

The file number of the last image to be shot is memorized so that

images recorded to a new CF card start from the next number.

Off

05-124usCUGE_060_073_GM.p65 7/26/02, 11:16 AM73

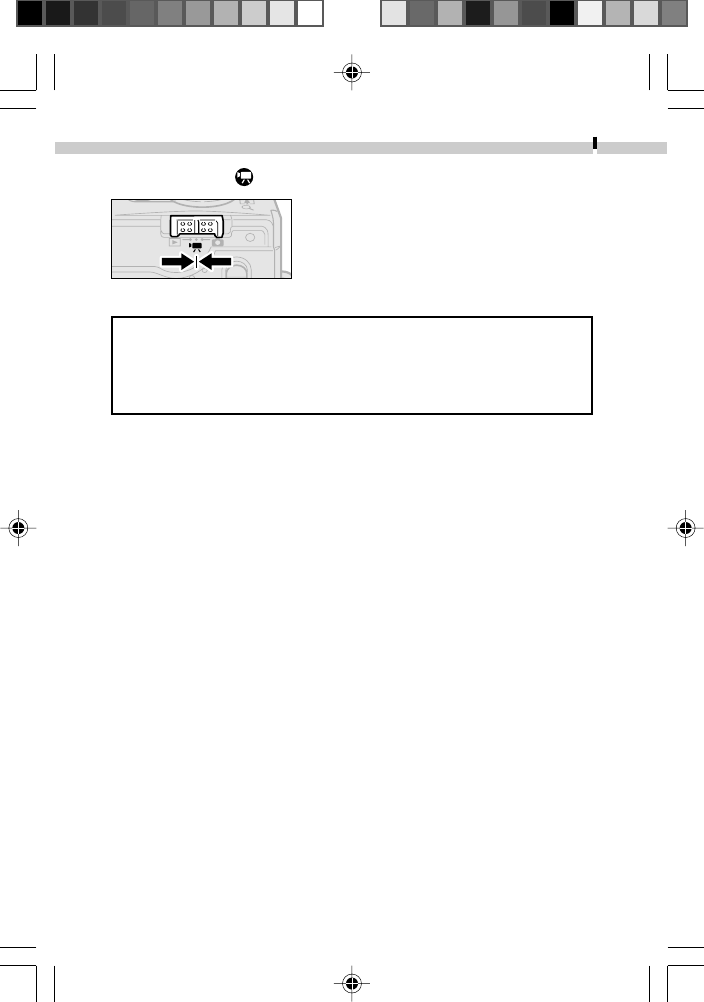

Displaying Images Individually

• Turn the mode switch to the

position.

• The last recorded image will appear in

the display (single image replay).

• Use the button to move to the

previous image and the button to

move to the next. Holding the button

down advances the images more

rapidly, but the images will not appear

as clearly.

Replaying

06-124usCUGE_074_089_GM.p65 7/26/02, 11:19 AM74

Replaying

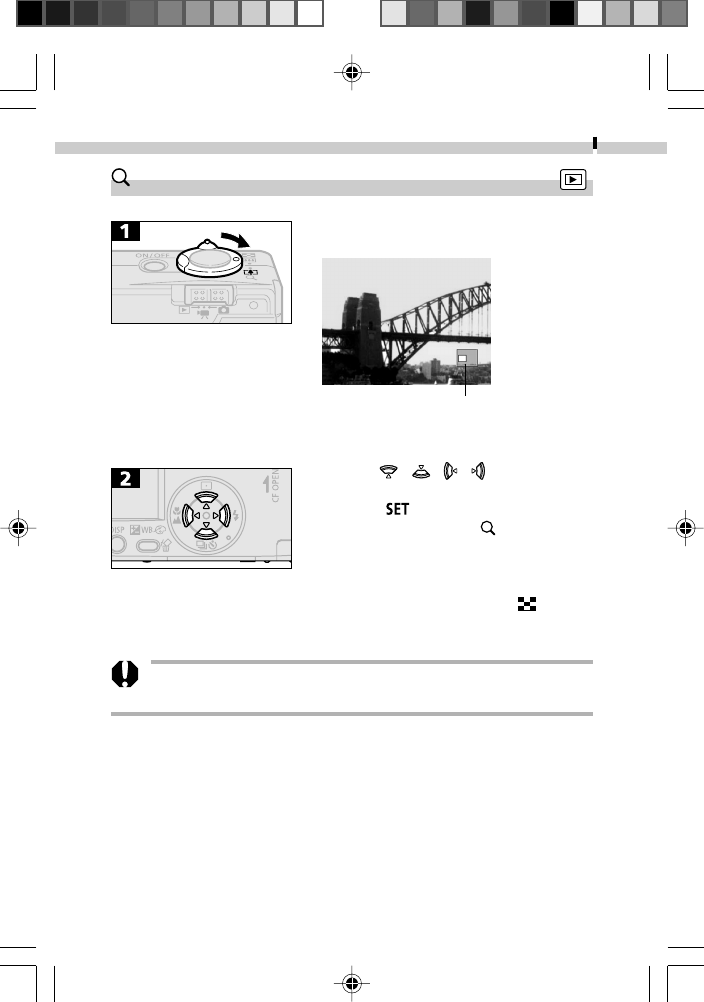

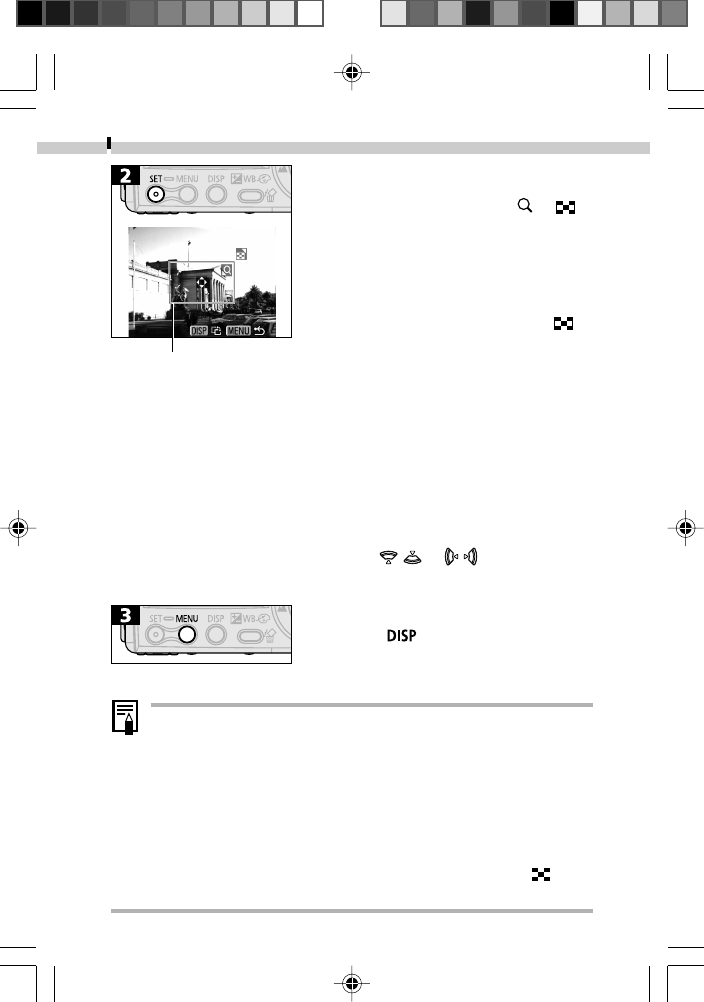

Magnifying Images

•Images can be magnified up to

approximately 10 times.

•Use the / / / buttons to

move around the image.

•Hold the button down and press

the zoom lever toward to cycle

through each setting, from approxi-

mately 2.5 times, to approximately 5

and 10 times.

•Press the zoom lever toward to

cease magnifying the image.

Approximate Location

of the Magnified Area

• Movie frames and index replayed images cannot be

magnified.

06-124usCUGE_074_089_GM.p65 7/26/02, 11:19 AM75

Replaying

Viewing Images in Sets of Nine (Index Replay)

•Up to nine images can be viewed at

once in index replay.

•Use the / / / buttons to

change the image selection.

•Press the zoom lever toward to

display the selected image in single

image replay.

Switching between Sets of Nine Images

•Successive sets of nine images can be

shown in the display.

•Use the button to move to the

previous set and the button to move

to the next.

•Hold the button down and press

the or button to jump to the first

or last set.

•Press the zoom lever toward to

return to standard index replay.

Selected


Movie

06-124usCUGE_074_089_GM.p65 7/26/02, 11:19 AM76

Replaying

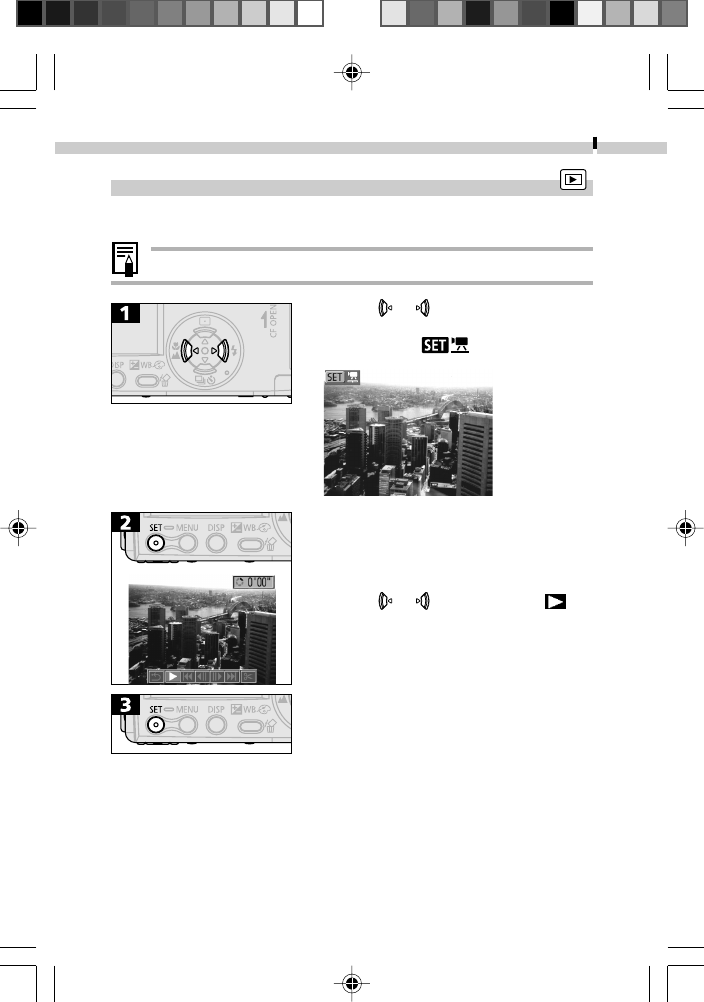

Viewing Movies

Movie clips can be replayed with the following procedures.

•Movies cannot be played in the index replay mode.

•Use the or button to select a

movie.

•Images with a icon are movies.

•The movie control panel will display.

•Use the or button to select

(Play).

•The movie images will play.

•When a movie is finished, it stops and

displays its last frame.

06-124usCUGE_074_089_GM.p65 7/26/02, 11:19 AM77

Replaying

Fast Forwarding / Rewinding

•Use the or button to select one of

the following.

Return to Single Image View

Play

Previous Frame

[Rewinds if button is held down]

Next Frame

[Fast Forwards if

button is held down]

First Frame

Last Frame

Switch to Movie Editing Mode (p. 79)

•The sound can also be played when a movie is displayed on

a TV (p. 113).

•You may experience frame dropping and audio breakup

when replaying a movie on a computer with insufficient

system resources.

•Movies shot with other cameras may not replay on this

camera. See the List of Messages (p. 126).

Pausing and Resuming Play

•Press the button to pause the

movie. Press it again to resume.

06-124usCUGE_074_089_GM.p65 7/26/02, 11:19 AM78

Replaying

Editing Movies

Selecting (Edit) in the movie control panel enables you to cut

unwant portions at the start or end of a movie clip.

•Protected movies and movies less than 1 second in duration

cannot be edited.

•Use the or button to select

(Cut Beginning) or (Cut End) and the

or button to set the portion to

which the cut is applied.

•When (Cut Beginning) is selected, the

left hand cursor moves and when

(Cut End) is selected, the right hand

cursor moves.

•Use the or button to select

(Play).

•A preview of the temporarily edited

movie clip plays. To stop it, press the

button again.

•Use the or button to select

(Save) to keep the edits (p. 80). If you use

the or button to select (Close

Movie Editing/Return to Movie Control

Panel), the edits are not saved and the

editing mode is canceled.

Switch to the movie

editing mode (p. 78).

06-124usCUGE_074_089_GM.p65 7/26/02, 11:20 AM79

Replaying

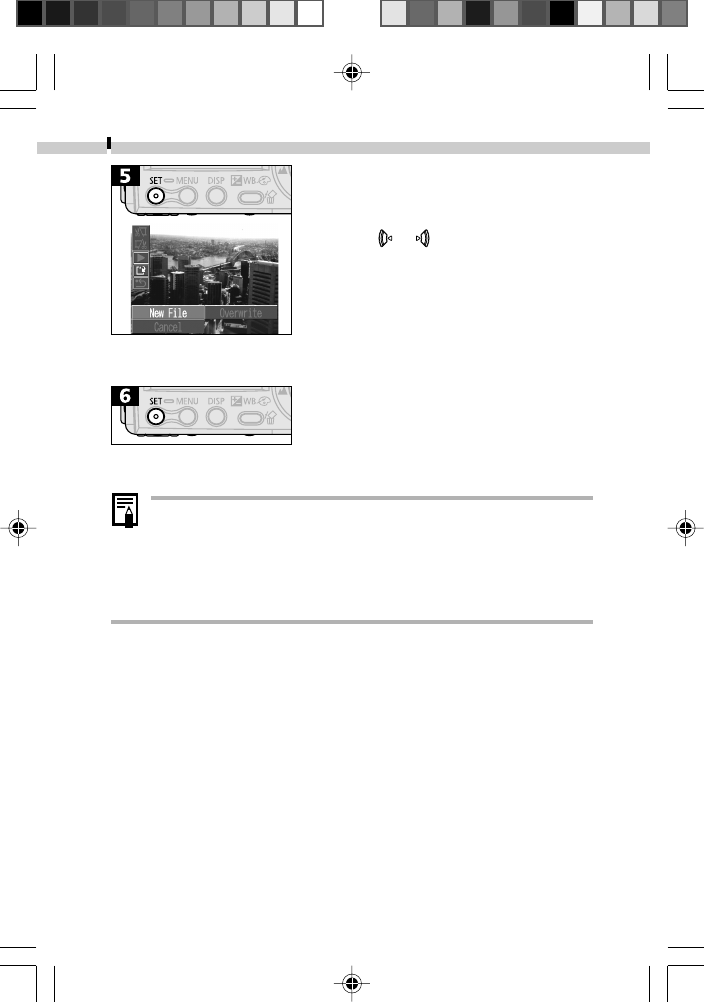

•Use the or button to select [New

File] or [Overwrite].

- [New File] saves the edited movie

under a new file name. The pre-edit

data is left unchanged.

- [Overwrite] saves the edited movie

with its original file name. The pre-

edit data is lost.

•When the CF card lacks sufficient space

to create a new file, only [Overwrite] can

be selected. A small ▲ symbol will

appear in the time display on the movie

in that case.

•The minimum duration of an edited movie is 1 second.

•It may take approximately 3 minutes to save an edited

movie. If the battery pack runs out of charge partway

through, edited movie clips cannot be saved. When editing

movies, use a fully charged battery pack or the optional AC

Adapter Kit ACK500 (P. 130).

06-124usCUGE_074_089_GM.p65 7/26/02, 11:20 AM80

Replaying

In the (Play) menu,

select .

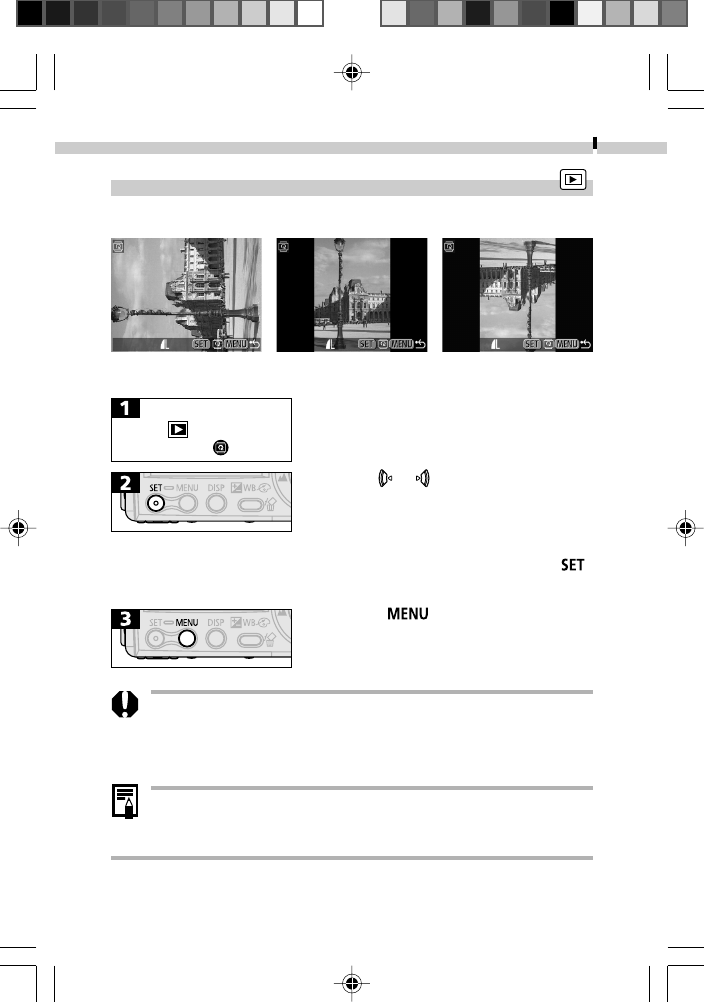

Rotating Images in the Display

Images can be rotated clockwise 90 º or 270º in the display.

0º(Original) 90º270º

•See Selecting Menus and Settings (p. 37).

•Use the or button to select the

image to be rotated.

•Cycle through the 90º/270º/0º

orientations with each press of the

button.

•Press the button repeatedly until

the replay screen reappears to finish the

procedure.

•Movies cannot be rotated.

•When images are downloaded to a computer, the

orientation of images rotated by the camera will depend

upon the software used to download the images.

•Images taken vertically with the Auto Image Rotate (p. 72)

set to [On] will automatically be rotated to the vertical

position when viewed on the camera’s LCD monitor.

06-124usCUGE_074_089_GM.p65 7/26/02, 11:20 AM81

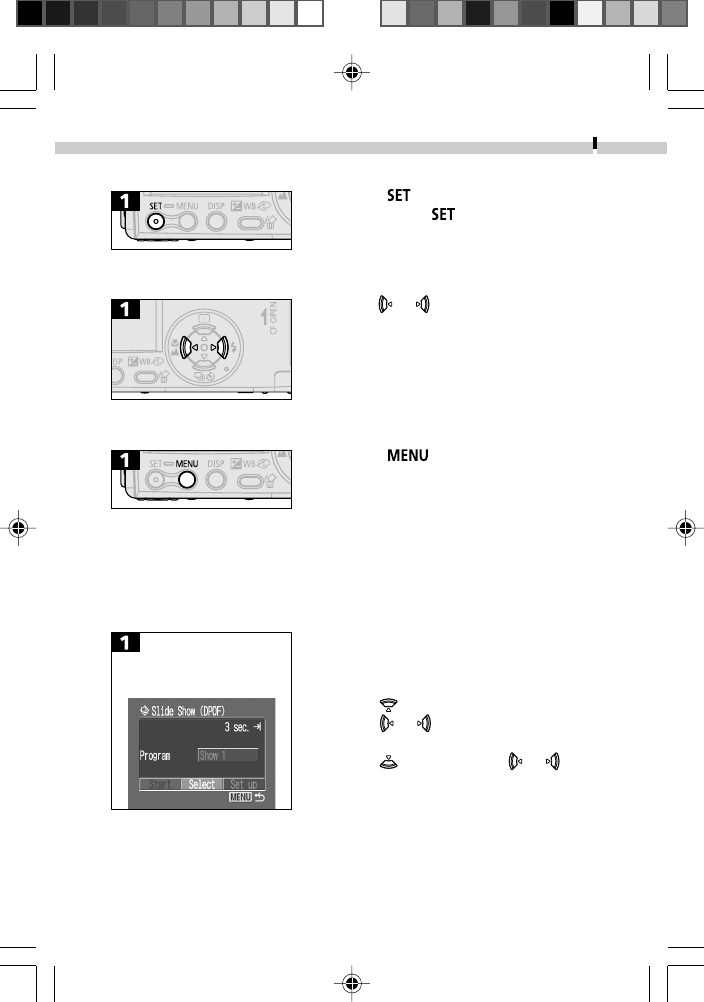

Replaying

•See Selecting Menus and Settings (p. 37).

•The Slide Show menu will display.

•Use the or button to select

[Program] and the or button to

select [All Images], [Show 1], [Show 2]

or [Show 3].

•Use the or button to select

[Start].

•The slide show will start and automati-

cally stop at the end of the show.

•Press the button repeatedly until

the replay screen reappears to finish the

procedure.

•Movies play for their entire recorded length regardless of

the time set in the slide show settings.

•The power-saving function does not activate during a slide

show (p. 27).

Automated Playback (Slide Shows)

Starting a Slide Show

A selection of images or all the images on a CF card can be displayed

one-by-one in an automated slide show.

Slide show image settings are based on DPOF standards (p. 90).

All Images Plays all images on the CF card in order.

Slide Show 1-3 Plays the images selected for each slide show in order.

In the (Play) menu,

select .

06-124usCUGE_074_089_GM.p65 7/26/02, 11:20 AM82

Replaying

Pausing /Resuming a Slide Show

•Press the button to pause the slide

show. Press the button again to

restart it.

Fast Forwarding/Rewinding a Slide Show

•Use the or button to display the

previous or next image. Hold down the

button to advance through the images

more rapidly.

Stopping a Slide Show

•Press the button to stop the slide

show and redisplay the Slide Show

menu.

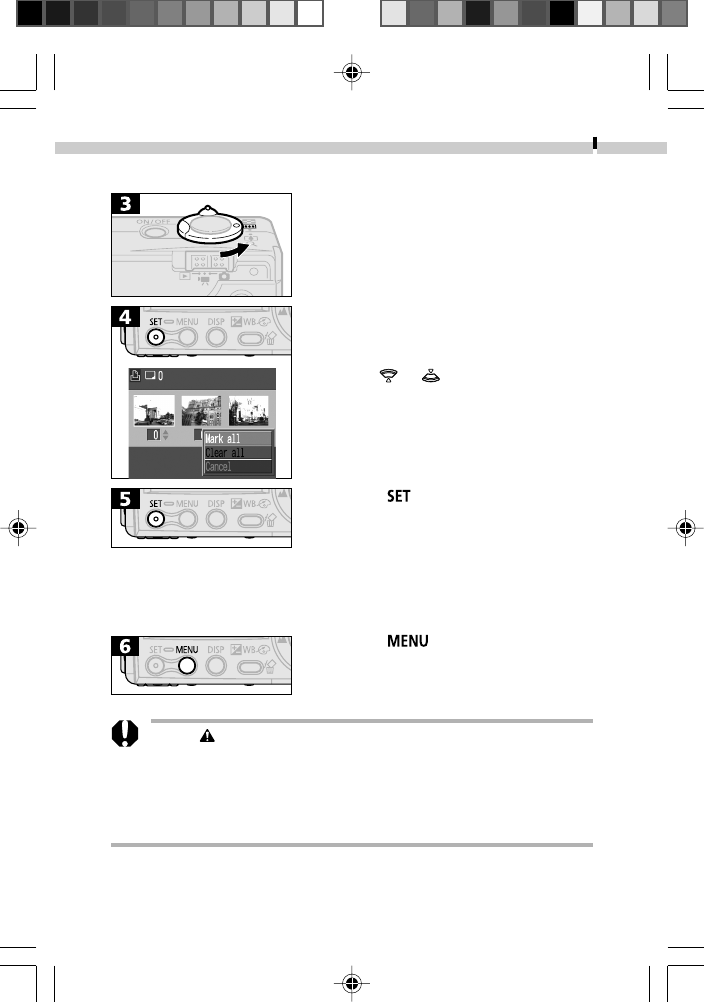

Selecting Images for Slide Shows

You can mark images for inclusion in slide shows 1-3. Up to 998

images may be marked per slide show. Images display in the order of

their selection.

•Use the button to select [Program]

and the or button to select [Show

1], [Show 2] or [Show 3].

•Use the button and the or

button to choose [Select].

Display the Slide Show

menu (p. 82).

06-124usCUGE_074_089_GM.p65 7/26/02, 11:20 AM83

Replaying

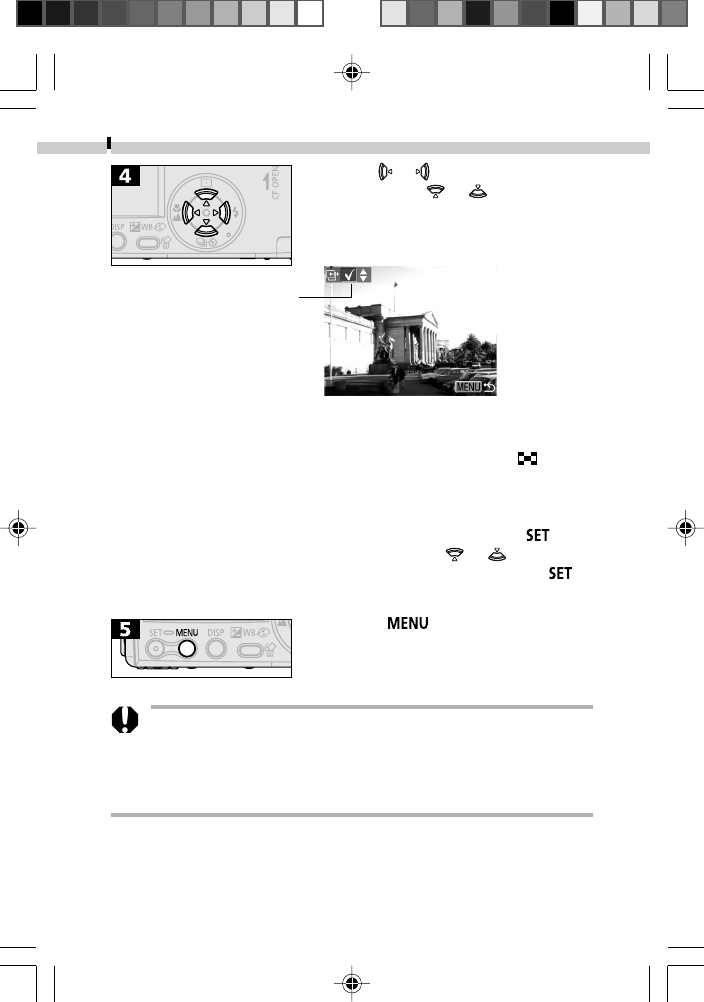

•A white checkmark will appear beside a

show already containing images.

•Use the or button to move

between images and the or

button to select or deselect them.

Selected images display a number

corresponding to their selection order

and a white checkmark .

•You can press the zoom lever toward

to switch to the index mode (3

images) and use the same procedures

to select images.

•While in index replay, you can clear all

of the images by pressing the

button, using the or button to

select [Clear all] and pressing the

button again.

•Press the button repeatedly until

the replay screen reappears to finish the

procedure.

06-124usCUGE_074_089_GM.p65 7/26/02, 11:20 AM84

Replaying

Adjusting the Play Time and Repeat Settings

You can change the play time for all the images in a show and have the

show repeat continuously.

Play Time Sets the duration that each image displays. Choose between

3-10 seconds, 15 seconds, 30 seconds and Manual.

Repeat Sets whether the slide show stops when all the slides have

been displayed or continues until stopped.

•Use the or button to select [Set

up].

•Use the or button to select

or and the or button to select

an option.

Select a play time.

Select [On] or [Off].

•Press the button repeatedly until

the replay screen reappears to finish the

procedure.

•The display interval may vary slightly from the set time for

some images when played.

•Slide shows are easy to arrange on a computer with the

supplied software. See the Software Starter Guide.

Display the Slide Show

menu (p. 82).

06-124usCUGE_074_089_GM.p65 7/26/02, 11:20 AM85

Replaying

Protecting Images

You can protect important images from accidental erasure.

•See Selecting Menus and Settings (p. 37).

•Use the or button to select an

image to protect.

•Press the button to protect the

image. Press the button again to

remove the protection.

•You can make the selection of images

easier by toggling between single image

replay and index replay by pressing the

zoom lever toward / .

•Press the button repeatedly until

the replay screen reappears to finish the

procedure.

•Please note that formatting (initializing) a CF card erases all

data, including protected images.

In the (Play) menu,

select .

Protection Icon

06-124usCUGE_074_089_GM.p65 7/26/02, 11:20 AM86

Erasing

Erasing Single Images

•Please note that erased images cannot be recovered.

Exercise adequate caution before erasing a file.

•Protected images cannot be erased with this function.

•Use the or button to select an

image for deletion.

•Use the or button to select [Erase].

•To exit instead of erasing, select

[Cancel].

06-124usCUGE_074_089_GM.p65 7/26/02, 11:20 AM87

Erasing

Erasing All Images

•Please note that erased images cannot be recovered.

Exercise adequate caution before erasing a file.

•Protected images cannot be erased with this function.

•See Selecting Menus and Settings (p. 37).

•Use the or button to select [OK].

•To exit instead of erasing, select

[Cancel].

In the (Play) menu,

select .

06-124usCUGE_074_089_GM.p65 7/26/02, 11:20 AM88

Erasing

Formatting CF Cards

New CF cards must be formatted with the following procedures

before use.

•Please note that formatting (initializing) a CF card erases all

data, including protected images and other file types.

•See Selecting Menus and Settings (p. 37).

•Use the or button to select [OK].

•To exit instead of formatting, select

[Cancel].

•When the camera is malfunctioning, a corrupted CF card

might be the cause. Reformatting the CF card may solve

the problem.

•When a non-Canon brand CF card is malfunctioning,

reformatting it may solve the problem.

•CF cards formatted in other cameras, computers, or

peripheral devices may not operate correctly in this camera.

When that happens, reformat the CF card with this camera.

If formatting in the camera doesn’t work properly, turn the

camera off and re-insert the CF card. Then turn the camera

back on and format again.

In the (Set up) menu,

select .

In the (Set up) menu,

select .

06-124usCUGE_074_089_GM.p65 7/26/02, 11:20 AM89

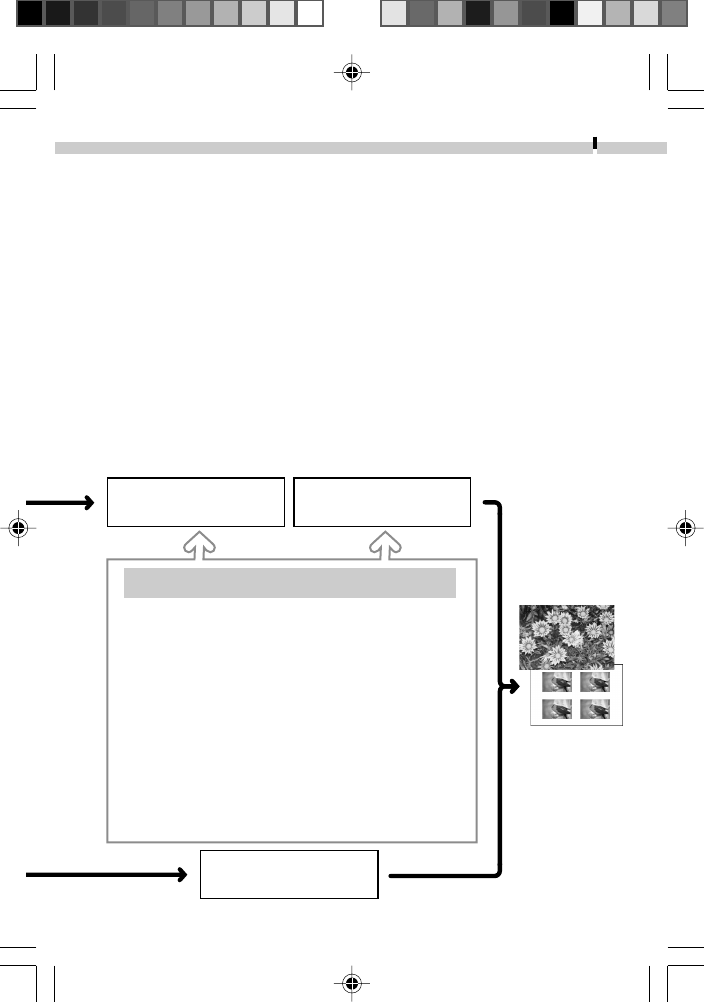

Printing

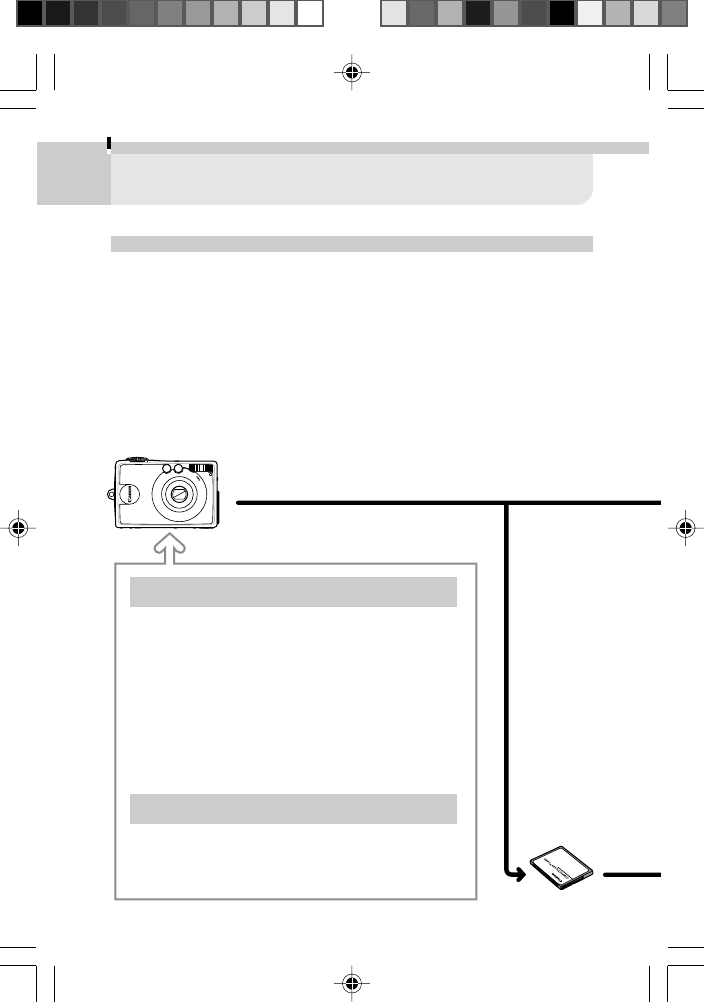

About Printing

This camera supports direct printing. By connecting the camera to an

optional printer or Bubble Jet printer (sold separately) that supports the

camera’s direct print function, you can send the images from the CF

card directly to the printer using the camera buttons. In addition, you

can have prints made to specification by a photo developing service by

sending your CF card with the DPOF (Digital Print Order Format ) print

settings set in advance on your camera.

Please refer to the System Map supplied with your camera for direct

print function compatible printer information.

DPOF Print Settings

• Select the images you wish to print (p. 103).

▼

• Set the number of print copies (p. 104).

▼

• Set the print style (p. 106).

- Standard/Index.

- Date: On / Off.

- File Numbers: On / Off.

DPOF Transfer Order

• Select the images to send by email (p. 111)

Software that supports DPOF transfer order

settings is required

CF Card

Digital Camera

07-124usCUGE_090_110_GM.p65 7/26/02, 11:23 AM90

Printing

BJ Printer with

direct print function

Printer with

direct print function

Setting Print Settings for Direct Printing

• Setting the Number of Print Copies (p. 99)

▼

• Setting the Print Style (p. 99)

- Standard/Multiple

(Direct Print Function Compatible Printer)

- Paper: Card #1/Card #2/Card #3/LTR / A4

(Direct Print Function Compatible BJ Printer)

- Bordered/Borderless

- Date: On / Off

▼

• Setting the Printing Area (Trimming) (p. 101)

Photo Developing

Service

07-124usCUGE_090_110_GM.p65 7/26/02, 11:23 AM91

Printing

Print Menu Settings

Use the Print menu to set print related settings. The following diagrams

illustrate how to use the Print menu.

DPOF Print Settings

Set the Mode Switch to

Direct Print Function

Set the Mode Switch to

07-124usCUGE_090_110_GM.p65 7/26/02, 11:23 AM92

Printing

Turn the menu On /Off.

Selects items and settings.

Sets items and settings.

Print Type (p. 106)

Date (p. 106)

File No. (p. 106)

Order Number of Copies (p. 104)

Set up

Reset (p. 108)

Style

Number of Copies (p. 99)

Trimming (p. 101)

Image (p. 99)

Borders (p. 99)

Date (p. 99)

07-124usCUGE_090_110_GM.p65 7/26/02, 11:23 AM93

Printing

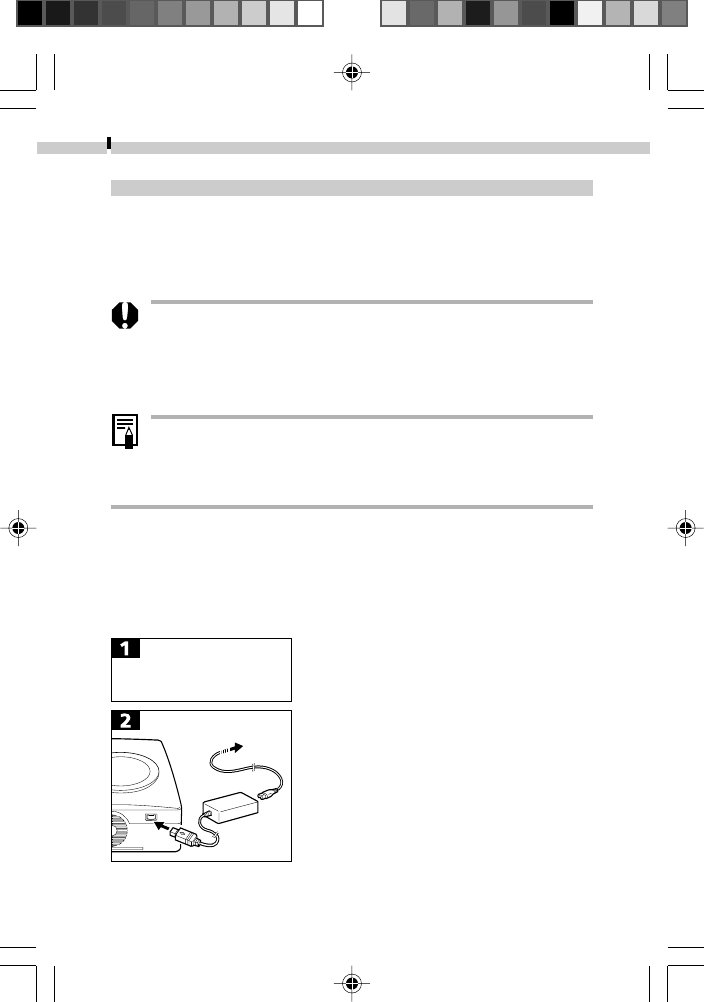

Connecting a Printer

You can make clear prints swiftly and easily when you connect the

camera to a direct print function compatible printer (sold separately) or

a direct print function compatible BJ printer (sold separately). You can

also print using DPOF print settings.

•You are recommended to use the optional AC Adapter Kit

ACK500 (sold separately) rather than the battery pack to

power the camera when it is connected to a printer. If you

do use a battery pack, ensure that it is fully charged and

monitor the battery charge while printing.

•Please see the System Map supplied with your camera for

the list of direct print function compatible printers.

•Please see your printer’s user guide for information about

installing paper and ink cassettes/ tanks.

Connecting to a Direct Print Function Compatible Printer

Your printer should come equipped with two direct interface cables. To

connect to this camera, please use the cable (DIF-200) that has the

symbol on its connector.

•Attach the power cable to the printer

and insert its plug into a power outlet.

•You can also power the printer with a

rechargeable battery if it is so equipped.

Please see your printer’s user guide.

Shut the camera’s

power off (p. 26).

To an Electrical

Outlet

▲

07-124usCUGE_090_110_GM.p65 7/26/02, 11:23 AM94

Printing

•Attach the direct interface cable to the

printer.

•Open the terminal cover on the camera

and insert the cable’s connector into

the camera’s DIGITAL • A/ V OUT

terminal. Orient the cable so that the

connector’s

symbol faces the

camera’s front panel.

•Press the printer’s ON/OFF button to

turn on its power. (If you are using Card

Photo Printer CP-10, the printer’s power

will turn on in Step 2 when printer and

power cable are connected.)

•Set the mode switch to the position

and turn on the camera’s power.

• will display when the printer is

correctly connected.

Connecting to a Bubble Jet Printer

•Please read the Quick Start Guide supplied with your BJ

printer to see if it is compatible with the camera’s direct print

function, and for instructions regarding the connection cables

and the printer’s general operation.

Direct Interface

Cable (DIF-200)

Align the symbols on

the camera and cable to

connect them.

This shows when a

direct print function

compatible printer is

connected.

▲

Shut the camera’s

power off (p. 26).

07-124usCUGE_090_110_GM.p65 7/26/02, 11:23 AM95

Printing

•Turn the BJ printer’s power on after you

have connected the power cord to the

BJ printer and inserted the other end in

a power outlet.

•Attach the interface cable to the BJ

printer.

•Open the terminal cover on the camera

and insert the cable’s connector into

the camera’s DIGITAL • A / V OUT

terminal. Orient the cable so that the

word Canon on the connector faces the

camera’s front panel.

•Set the mode switch to the position

and turn on the camera’s power.

• will display when the printer is

correctly connected.

This shows when

a BJ printer is

connected.

Interface Cable

•Ensure that you push the [Push] button on the connector to

remove the cable from the camera’s DIGITAL • A / V OUT

terminal.

•The following cannot be conducted while the printer is

connected.

- Playing movies

- Setting the language with the and the

button combination.

•When the printer is disconnected, the or symbol will

disappear from the LCD monitor and the camera will revert

to the standard replay mode.

To the BJ Printer

07-124usCUGE_090_110_GM.p65 7/26/02, 11:23 AM96

Printing

•The following illustrations show examples from a direct print function

compatible printer. Options for the Style category will differ slightly for

BJ printers.

Print images displayed in single image replay or index replay mode.

•Use the or button to select the

images you wish to print.

•Specify the number of print copies,

print style and print area as required.

- Setting the Number of Print Copies

(p. 99)

- Setting the Print Style (p. 99)

- Setting the Printing Area (Trimming)

(p. 101)

•Use the / / / buttons to

select [Print].

•To quit the procedure instead, select

[Cancel].

•Press the button to start printing.

•The replay screen will reappear when

printing is successfully concluded.

•Movies cannot be printed.

07-124usCUGE_090_110_GM.p65 7/26/02, 11:23 AM97

Printing

• Canceling Printing

Press the button to stop printing. A confirmation

message will display. Use the or button to select [OK]

and press the button.

• Direct Print Function Compatible Printers

A print in progress cannot be stopped. The printer will

stop after the current print is complete and the camera

will display its replay screen at that point.

• BJ Printers

The printer will stop printing the current image and

eject the paper.

• Printing Errors

An error message will display if an error occurs while

printing (p. 128, 129). Use the or button to select

[Stop] or [Resume] and press the button. (With a BJ

printer, the print will automatically restart if the error is

resolved.)

• Direct Print Function Compatible Printers

The Resume option may not appear with some types of

error. In that case, select Stop.

• BJ Printers

The type of error will determine whether the Continue

or Stop options appear. An error number will appear on

the BJ printer’s operation panel. See the printer’s user

guide for the recommended course of action for each

error type.

07-124usCUGE_090_110_GM.p65 7/26/02, 11:23 AM98

Printing

Standard Prints one image per page.

Image Multiple* Prints eight copies of the same image

on one page.

Borders

Borderless Prints right to the edges of the paper.

Bordered Prints with a border.

Date Prints the image’s creation date.

Setting the Print Settings (Direct Print Function )

Setting the Number of Print Copies

•Use the or button to select

[Copies] and the or button to

select the number. Up to 99 copies may

be specified.

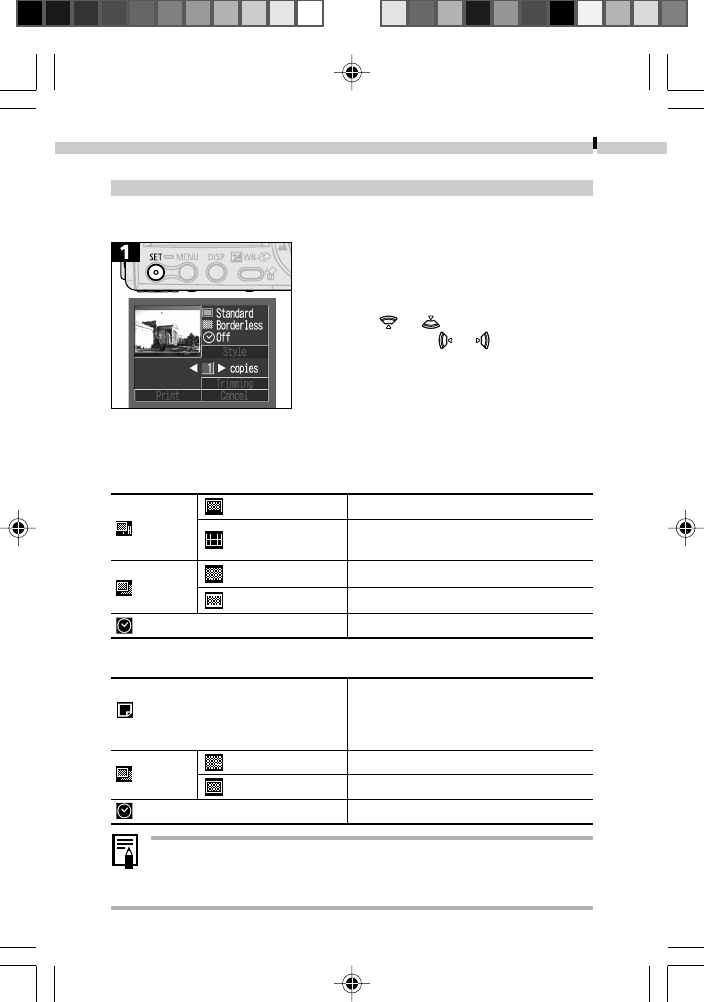

Setting the Print Style

You can select from among the following print styles.

Direct Print Function Compatible Printer

BJ Printer

Paper

Select a paper size from the following:

Card #1, Card #2, Card #3, LTR and

A4. See the printer’s user guide for its

media specifications.

Borders Borderless Prints right to the edges of the paper.

Bordered Prints with a border.

Date Prints the image’s creation date.

* This option is only available for printing on card-size paper.

•If you are using a direct print function compatible printer, the

date and borders settings cannot be selected when the Multiple

option is selected. (Images are printed without a date or border.)

07-124usCUGE_090_110_GM.p65 7/26/02, 11:23 AM99

100

Printing

•Use the or button to select [Style].

•Use the or button to select ,

, , or and the or button

to select an option.

(Image Settings)

(Direct Print Function Compatible Printer)

Select [Standard] or [Multiple].

(Paper)

(BJ Printer)

Select [Card #1], [Card #2], [Card #3],

[LTR] or [A4].

(Borders)

Select [Borderless] or [Bordered].

(Date)

Select [On] or [Off].

Current print style selection

07-124usCUGE_090_110_GM.p65 7/26/02, 11:24 AM100

Printing

101

•Press the button to finish the

procedure.

•Practically all of the image area is

printed on Bordered prints.

•With borderless or multiple prints, the

image is printed with its top, bottom

and sides trimmed.

•The date settings are overridden by the DPOF print settings

if you are using them to print (p. 106).

Setting the Printing Area (Trimming)

You can print a portion of an image.

•The shape of the trimming frame is determined by the

print style selection (image, paper, borders, date). Set the

print style before setting the printing area (p. 99).

•Use the or button to select

[Trimming].

07-124usCUGE_090_110_GM.p65 7/26/02, 11:24 AM101

102

Printing

Changing the Size of the Trimming Frame

•Press the zoom lever toward or .

•The trimming frame can be resized to

approximately half the image size at

minimum and practically as large as the

image at maximum.

•You can cancel the trimming setting by

sliding the zoom lever toward the

again when the trimming frame is

already set to the maximum size.

•When printing an image that has been

magnified using the trimming option,

the image quality may become coarser

and grainier depending on the

magnifying rate. With direct print

function compatible printers, the

trimming frame displays in red.

Moving the Trimming Frame

•Use the or button to set

the trimming frame’s position.

Rotating the Trimming Frame

•Press the button to rotate the

trimming frame.

•The trimming frame will appear on images that have

already had one assigned.

•Trimming settings can only be set for one image.

•Trimming settings are canceled with the following

operations:

- When the trimming settings are set for another image.

- When the print mode is closed (camera power shut off,

mode dial turned, or direct interface cable detached).

- When the zoom lever is pressed further toward with

the trimming frame at its maximum.

Trimming Frame

07-124usCUGE_090_110_GM.p65 7/26/02, 11:24 AM102

Printing

103

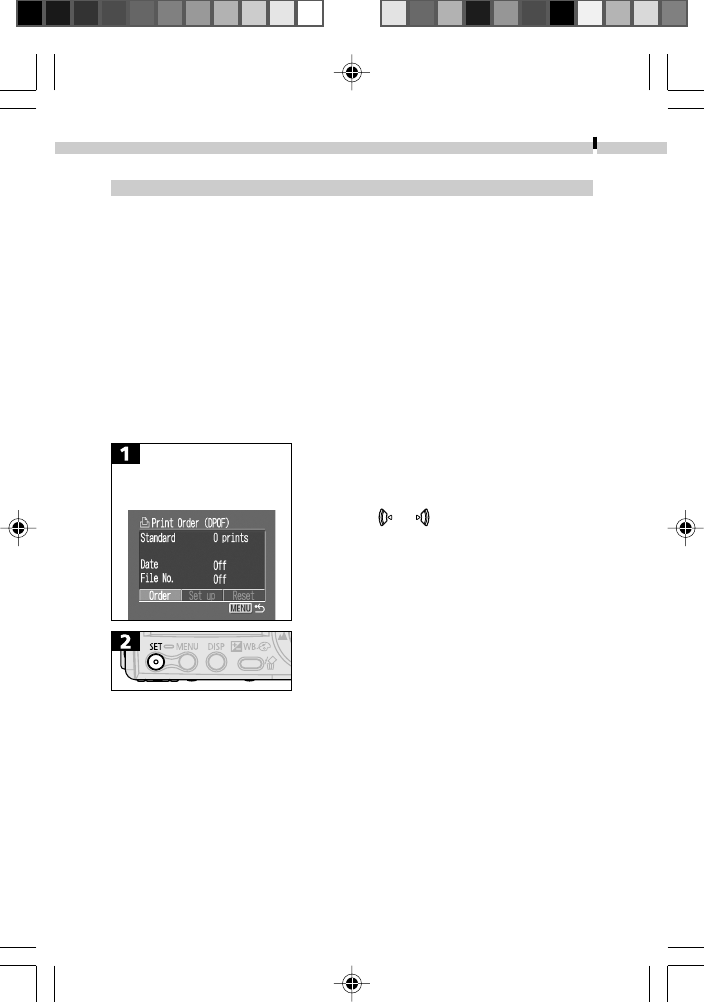

Setting the DPOF Print Settings

You can select images on a CF card for printing and specify the number

of print copies in advance using the camera. This is extremely

convenient for sending the images to a photo developing service or for

printing on a direct print function compatible printer or a direct print

function compatible BJ printer.

Selecting Images for Printing

There are two ways to select images.

•Singly

•All images on a CF card (the number of print copies is set to one

per image)

•See Print Menu Settings (p. 92).

•Use the or button to select [Print

Order].

Display the Print Order

Menu.

07-124usCUGE_090_110_GM.p65 7/26/02, 11:24 AM103

104

Printing

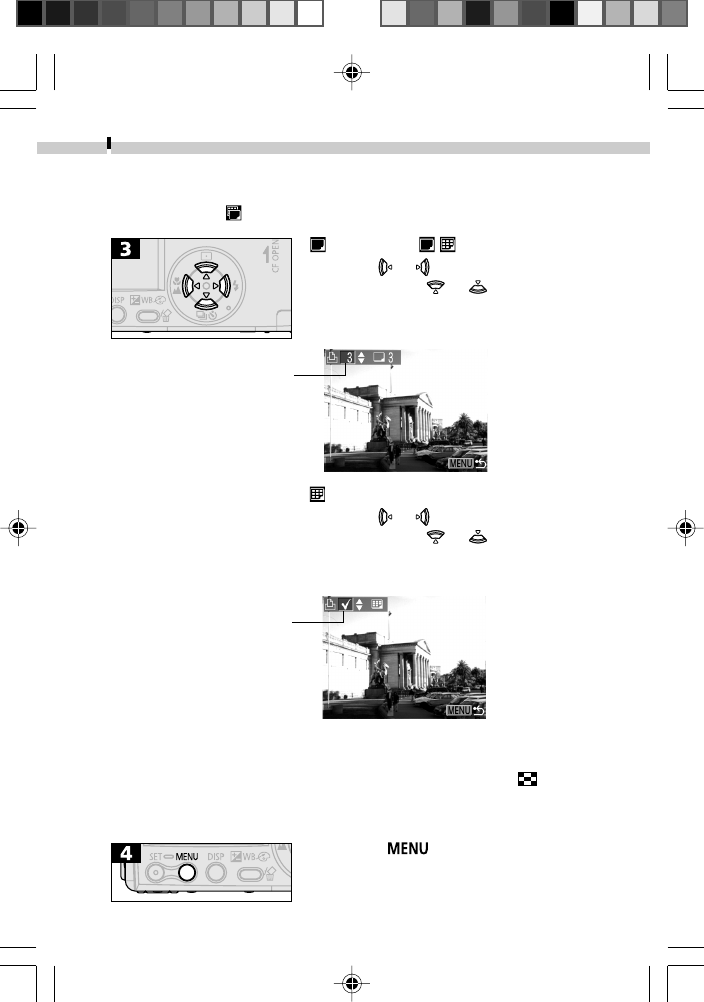

Single Images

•As shown below, selection methods differ according to the options

chosen for the (Print Type) settings (p. 106).

(Standard)/ (Both)

•Use the or button to select an

image and the or button to

select the number of print copies (up to

maximum of 99).

(Index)

•Use the or button to move to an

image and the or button to

select or deselect it. A checkmark

displays on selected images.

•You can use the same procedures to

select images in index replay (3 images).

Press the zoom lever toward to

switch between single image replay and

index replay.

•Press the button repeatedly until

the replay screen reappears to complete

the procedure.

Number of Print Copies

Selected for

an Index Print

07-124usCUGE_090_110_GM.p65 7/26/02, 11:24 AM104

Printing

105

All the Images on a CF Card

•Switch to index replay (3 images).

•Use the or button to select

[Mark all].

•Selecting [Mark all] selects all of the

card’s images.

•Press the button to set the number

of print copies to 1 for each image.

•When the print type is set to Standard

or Both, the number of print copies can

be set individually for each image.

When Index is selected, the print

settings can be deleted (p. 104).

•Press the button repeatedly until

the replay screen reappears to complete

the procedure.

•The symbol will display on images that have had print

settings set by other DPOF-compliant cameras. These

settings will be overwritten by those set by your camera.

•The output of some printers or photo developing services

may not reflect the specified print settings.

•Print settings cannot be set for movie images.

07-124usCUGE_090_110_GM.p65 7/26/02, 11:24 AM105

106

Printing

Setting the Print Style

Set the print style after selecting the image to print.

The following print settings can be selected.

•See Print Menu Settings (p. 92).

•Use the or button to select [Set up].

•Images are printed in order from oldest to newest by the

shooting date.

•A maximum of 998 images can be selected per CF card.

•When [Both] is selected, the number of print copies can be

set, but it applies to Standard prints only. The Index setting

only produces one print copy.

•Print settings can also be assigned to images with the

bundled software on a computer.

Standard Prints one image per page.

Print Type Index Prints the selected images together at a

reduced size in an index format.

Both Prints the images in both the standard and

index formats.

Date Adds the date to the print.

File No. Adds the file number to the print.

Display the Print Order

Menu.

07-124usCUGE_090_110_GM.p65 7/26/02, 11:24 AM106

Printing

107

•Use the or button to select ,

or , and the or button to

select an option.

(Print Type)

•Select [Standard], [Index] or [Both].

(Date)

•Select [On] or [Off].

(File No.)

•Select [On] or [Off].

•Press the button repeatedly until

the replay screen reappears to

complete the procedure.

•The date prints as the date and time in the format

specified in the Set Date / Time menu (p. 23).

•When the print type is set to [Index], only one or the other

of the [Date] and [File No.] options can be set to [On] at

the same time.

07-124usCUGE_090_110_GM.p65 7/26/02, 11:24 AM107

108

Printing

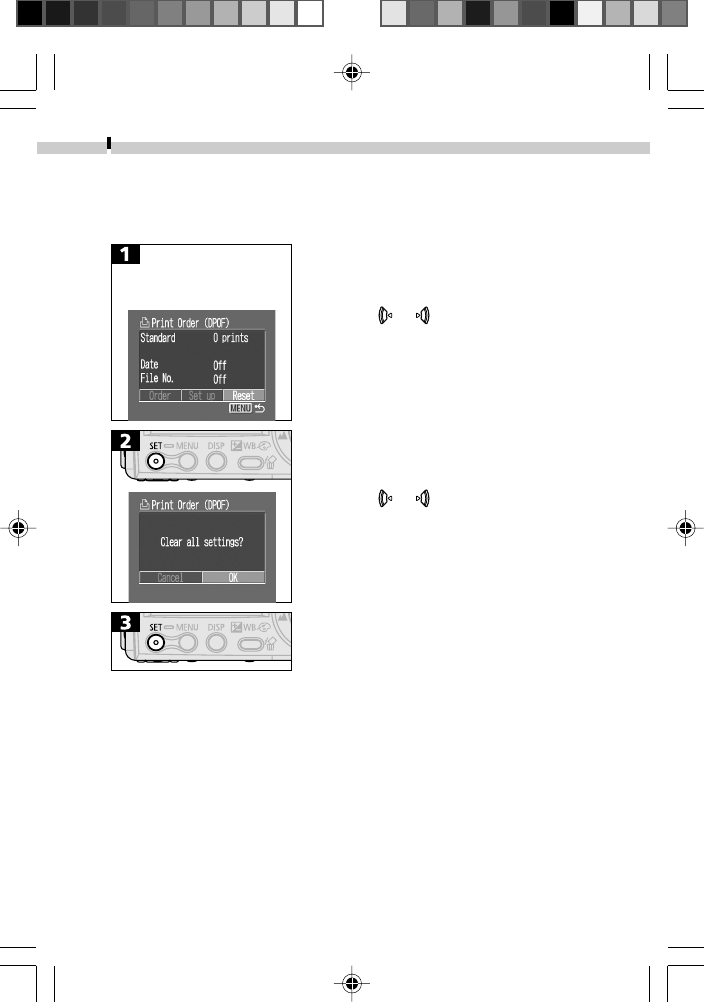

Resetting the Print Settings

The print settings can all be removed at once. The print type resets to

Standard and the Date and File No. options to Off.

•See Print Menu Settings (p. 92).

•Use the or button to select

[Reset].

•Use the or button to select [OK].

•To exit without resetting, select

[Cancel].

Display the Print Order

Menu.

07-124usCUGE_090_110_GM.p65 7/26/02, 11:24 AM108

Printing

109

Printing with DPOF Print Settings

The DPOF print settings can be used to print on a direct print function

compatible printer or a direct print function compatible BJ printer.

•See Print Menu Settings (p. 92).

•Use the / / / button to select

[Print].

•Set the print style as required (p. 106).

•The print style cannot be set for images

that have had the print type set to

Index in the DPOF print settings. (You

can also select the type of paper when

printing with a BJ printer.)

•Use the / / / buttons to

select [OK].

•Press the button to start printing.

•The replay screen will reappear when

printing is successfully concluded.

Display the Print Order

Menu.

07-124usCUGE_090_110_GM.p65 7/26/02, 11:24 AM109

110

Printing

•To include the date in the prints, set the Date setting in the Set up menu

in Step 1 above to [On]. You cannot set the date to print with the Style

menu in Step 2 above. Please note however, that the date will not print

if the print type is set to Index even if it is turned On in Step 1.

•When the print type is set to [Both], it is possible to have both the [Date]

and [File No.] options set to [On], but only the file number will print on

the Index print.

(BJ printers cannot print the date or file

number on Index prints.)

•When the print type is set to [Standard], file numbers will not be

printed even if they are set to [On].

•The maximum number of images printed on one page in the Index

print type depends upon the selected paper size.

- Card Size: 20 images

- L Size: 42 images

- Postcard Size: 63 images

(Please refer to your Bubble Jet Printer Quick Start Guide for an

explanation of the number of images printed with a Bubble Jet Printer.)

•Canceling Printing

See page 98.

•Restarting Printing

In the Print Order menu, use the or button to select [Resume] and

press the button. The remainder of the selected images will print.

Printing cannot be resumed under the following circumstances:

- If the print settings were changed before printing is restarted,

- If images with print settings were deleted before printing is restarted,

- If there was insufficient spare capacity on the CF card when printing

was halted.

Under these circumstances, you can select [OK] in the Print menu and

reprint starting from the first image.

If printing was stopped because of a low battery charge, you are

recommended to resume printing using the AC Adapter Kit

ACK500 (sold separately). If you do use a battery pack, ensure

that it is fully charged. Remember to turn the camera power on

again before printing.

•Printing Errors

See page 98.

07-124usCUGE_090_110_GM.p65 7/26/02, 11:24 AM110

111

In the (Play) menu,

select .

Image Transmission Settings

(DPOF Transfer Order)

You can use the camera to specify settings for images that you wish to

send by email. Please use the software supplied with the camera to

actually transfer the images to an email program. Please read the

Software Starter Guide for image transfer instructions.

The settings used on the camera comply with the Digital Print Order

Format (DPOF) standards.

• The symbol will display on images that have had print

settings set by other DPOF-compliant cameras. These

settings will be overwritten by those set by your camera.

Selecting Images for Transferring

• See Selecting Menus and Settings (p. 37).

• The Transfer Order menu will display.

• Use the or button to select [Order].

• Pressing [Reset] cancels the transfer

settings for all images on the CF card.

08-124usCUGE_111-129_GM.p65 7/26/02, 11:25 AM111

112

Image Transmission Settings (DPOF Transfer Order)

•Use the or button to move to an

image and the or button to

select or deselect it. A checkmark

displays on selected images.

•You can use the same procedures to

select images in index replay (3 images).

Press the zoom lever toward to

switch between single image replay and

index replay.

•While in index replay, you can select all

of the images by pressing the

button, using the or button to

select [Mark all] and pressing the

button again.

•Press the button to complete the

transfer settings and redisplay the

Transfer Order menu.

•Images are transferred in order from oldest to newest by

the shooting date.

•A maximum of 998 images can be selected per CF card.

•Transfer settings can also be assigned to images with the

supplied software programs on a computer.

Selected for Transfer

08-124usCUGE_111-129_GM.p65 7/26/02, 11:25 AM112

113

Shooting / Replaying with a TV

You can use a video-compatible television as a monitor to shoot or

replay images when it is connected to the camera with the supplied AV

Cable AVC-DC200. You must shut the TV and camera power off

before you attach or detach the AV cable.

•After you have attached the AV cable at both ends, turn on the TV

and set its TV/Video switch to Video.

•Set the mode switch to , or and turn the camera power on.

You can shoot or replay images using the normal procedures.

•If the images are not appearing on the TV when shooting, press the

button.

•A TV cannot be used in or mode.

•No image will appear on the LCD monitor when the

camera is connected to a TV.

•If the TV is a stereo model, you can plug the audio plug

into either the left or right Audio In jack. Please refer to

the TV’s manual for details.

•The video output signal can be switched (NTSC or PAL) to

accommodate different regional standards. The default

setting varies between regions.

NTSC: Japan, U.S.A., Canada, Taiwan, etc.

PAL: Europe, Asia (excluding Taiwan), Oceania, etc.

If the video system is set incorrectly, the camera output may

not display properly.

Yellow

Black

08-124usCUGE_111-129_GM.p65 7/26/02, 11:25 AM113

114

Downloading Images to a Computer

Download images taken with the camera to a computer in one of the

following ways:

•Directly from the CF card.

•By connecting the camera to a computer with the USB cable.

You must install the software and USB driver bundled on the

Canon Digital Camera Solution Disk before connecting the

camera to the computer.

After installing the supplied software, download images

automatically by simply connecting the camera to a computer with

the supplied USB cable.

- Please refer to the Software Starter Guide for installation instructions,

image download instructions and system requirements.

Downloading Directly from a CF Card

Images can be loaded directly from a CF card if you have a slot-equipped

notebook computer, a PC card reader or a CF card reader.

Eject the CF card from the camera and insert it into a CF card

reader connected to the computer.

If you are using a PC card reader, first insert the CF card into a PC

card adapter (optional), and then insert the PC card adapter into

the computer’s PC card reader.

Double-click the icon of the drive containing the CF card.

08-124usCUGE_111-129_GM.p65 7/26/02, 11:25 AM114

Downloading Images to a Computer

115

Copy the CF card’s images to the desired folder on the hard disk.

The images are contained in the [XXXCANON] folder, which is a

subfolder of the [DCIM] folder on the CF card. The XXX represents

a number from 100 to 998.

•Some computers or memory card readers require the

power to be off when the CF card is inserted into the slot.

Since this requirement varies between products, please

consult the manual for your equipment.

Connecting the Camera to a Computer with a USB Cable

You must install the software and USB driver bundled on the

Canon Digital Camera Solution Disk before connecting the

camera to the computer. Please refer to the Software Starter

Guide for installation instructions.

Use the supplied USB cable to connect the computer’s USB port

to the DIGITAL • A / V OUT Terminal on the camera.

•You do not need to shut off the camera or computer to

attach or detach USB interface cables.

•Please refer to your computer’s manual for the locations of

the computer’s USB ports.

Set the camera’s mode switch to the position.

The LCD monitor will turn on in replay mode and then blank out

when the connection to the computer is complete.

USB Port

USB Cable

Slip a fingernail under the upper edge of

the terminal cover to open it.

Insert the connector with the symbols

on the camera and cable aligned.

DIGITAL • A/V

OUT Terminal

▲

08-124usCUGE_111-129_GM.p65 7/26/02, 11:25 AM115

116

Downloading Images to a Computer

• Setting the Communication Mode

Sets the communication mode when downloading images with a

camera connected to the computer.

Usual setting. You must install the USB driver

bundled on the Canon Digital Camera Solution

Disk before using this mode.

The following functions are available even if the

software and USB driver bundled on the Canon

Digital Camera Solution Disk have not been installed.

- Viewing the camera's images

Downloading the camera's images to a computer

- Deleting the camera's images

These functions are available with Windows XP or

Mac OS X (10.1)*.

*Select the [Normal] option for all other

operating systems.

Normal (Default)

PTP (Picture Transfer Protocol)

*With any other OS, [PTP] cannot be used. Please select [Normal].

• See Selecting Menus and Settings (p. 37)

• Use the or button to select

[Normal] or [PTP].

In the (Set up) menu,

select .

Check that the camera

is not connected to the

computer.

08-124usCUGE_111_129_GM.p65 10/7/02, 5:33 PM116

Downloading Images to a Computer

117

•Some problems may occur when downloading images to a

computer in the PTP mode with certain file types. Please refer

to the supplied Picture Transfer Protocol (PTP) Mode leaflet.

•Ensure that you push the

[Push] button on the

connector to remove the

USB cable from the

camera’s DIGITAL•A/ V OUT

terminal.

•It is recommended to power the camera from a household

power outlet with the optional AC Adapter Kit ACK500

when connected to a computer (p. 130).

•If the USB cable is detached while the camera power is on,

the camera will power down.

•When the camera is connected to a computer, a warning

displays on the computer display after 5 minutes if the

camera is not used. The camera shuts down if a further

minute passes without a button being pressed. (Except

when the camera’s power-saving function is set to off) To

restore power, press the main switch again. However, the

power-saving function will not activate if the

Communication mode is set to [PTP].

•All procedures performed with a connection to a USB 2.0

compliant board are not guaranteed.

Please refer to the Software Starter Guide for the subsequent

procedures.

08-124usCUGE_111-129_GM.p65 7/26/02, 11:25 AM117

118

Lists of Menu Options and Messages

The following charts list the various menu contents. See Selecting Menus

and Settings (p. 37) to learn how to select a setting.

Rec. Menu

Item/Menu Screen Options

Reference

Page

Sets the relative compression ratio used to

record images to CF cards.

• Superfine

• Fine*

• Normal

Sets the sensitivity at which images are

recorded.

• 50*

• 100

• 200

• 400

• AUTO

Sets the number of pixels used to record

movies to CF cards.

• 640 x 480 pixels

• 320 x 240 pixels*

• 160 x 120 pixels

Sets the number of pixels used to record

images to CF cards.

• (Large)* 2048 x 1536 pixels

• (Medium 1) 1600 x 1200 pixels

• (Medium 2) 1024 x 768 pixels

• (Small) 640 x 480 pixels

* Default setting

p. 45

p. 71

Resolution (Stills)

Resolution (Movies)

Compression

ISO Speed

p. 45

08-124usCUGE_111-129_GM.p65 7/26/02, 11:25 AM118

List of Menu Options and Messages

119

Item/Menu Screen Options

Reference

Page

Sets whether or not the optical zoom is

supplemented by digital processing.

• On

• Off*

Digital Zoom

Self-timer

Review

AF-assist Beam

AiAF

Sets whether or not the camera

automatically selects one of nine AF frames

or a fixed center AF frame.

• On*

• Off

Sets the duration before the selftimer

releases the shutter.

• 10 seconds*

• 2 seconds

Sets the duration images display on the LCD

monitor after the shutter button releases.

• Off

• 2*-10 seconds (1-second increments)

Sets the AF-assist Beam to on or off.

• On*

• Off p. 35

p. 44

p. 52

p. 50

p. 62

08-124usCUGE_111-129_GM.p65 7/26/02, 11:25 AM119

120

List of Menu Options and Messages

Item/Menu Screen Options

Reference

Page

Sets how file numbers are assigned to

images when new CF cards are inserted.

• On

• Off*

Long Shutter

File No. Reset

Auto Rotate

Sets whether or not images shot with the

camera on end are automatically rotated in

the display.

• On*

• Off

Sets the shutter speed to slow settings.

• On

• Off*

p. 73

p. 72

p. 65

08-124usCUGE_111-129_GM.p65 7/26/02, 11:25 AM120

List of Menu Options and Messages

121

Item/Menu Screen Options

Reference

Page

Protect

Rotate

p. 86

p. 81

p. 88

Erase all

Slide Show

Protects images from accidental erasure.

Rotates images clockwise 90º or 270 º in the

display.

Deletes all images from a CF card (except for

protected images).

Plays images in automated slide shows.

p. 82

Play Menu

08-124usCUGE_111-129_GM.p65 7/26/02, 11:25 AM121

122

List of Menu Options and Messages

Item/Menu Screen Options

Reference

Page

Print Order

Transfer Order

p. 103

p. 111

Selects images and the number of print

copies for output to a DPOF - compatible

printer or a photo developing service.

Selects the images that will be transferred to

your email software.

08-124usCUGE_111-129_GM.p65 7/26/02, 11:25 AM122

List of Menu Options and Messages

123

Set up Menu

Item/Menu Screen Options

Reference

Page

p. 34

Beep

Sets whether or not a beep sounds when

the shutter button is pressed or a menu

operation is performed.

• On*

• Off

A beep still sounds to warn of errors even

when Off is selected.

Sets whether or not the camera

automatically powers down after a set

period of time elapses without something

being pressed.

• On*

• Off

Sets the date and time and the date format.

p. 27

p. 23

p. 89

Power Save

Date / Time

* Default setting

Format

Formats (initializes) CF cards.

08-124usCUGE_111-129_GM.p65 7/26/02, 11:26 AM123

124

List of Menu Options and Messages

Item/Menu Screen Options

Reference

Page

Sets the video output signal standard.

• NTSC

• PAL p. 113

Sets the language used in menus and

messages on the LCD monitor.

• English* • Italiano

• Deutsch • Norsk

• Français • Svenska

• Nederlands • Español

• Dansk • Chinese

• Suomi • Japanese

You can also change the language in replay

mode by holding the SET button and

pressing the MENU button.

Language

Video System

p. 25

Sets the camera and computer

communication settings.

• Normal*

• PTP p. 116

Communication

08-124usCUGE_111-129_GM.p65 7/26/02, 11:26 AM124

List of Menu Options and Messages

125

Resetting Settings to Their Default Values

You can reset the menu and button settings to the default settings in

one operation except for the Date/ Time, Language and Video System

settings.

•Press the ON / OFF button until the

green power lamp lights.

•Set the mode switch to any position.

•Press and hold the button for

more than 5 seconds.

•Use the or button to select [OK].

•To exit without resetting, select

[Cancel].

•White balance data recorded with the custom white

balance function is not reset by this function (p. 68).

•Settings cannot be reset when the camera is connected to a

computer, to a direct print function compatible printer

(optional) or to a direct print function compatible BJ

printer (optional).

08-124usCUGE_111-129_GM.p65 7/26/02, 11:26 AM125

126

List of Menu Options and Messages

List of Messages

The following messages may appear on the LCD monitor while

shooting or replaying.

Busy... Image is being recorded to, or read

from, CF card

No CF card You attempted to shoot or replay

images without a CF card installed.

Cannot record! You attempted to shoot an image

without a CF card installed.

CF card error! CF card has experienced an anomaly.

CF card full CF card is too full to accommodate

more images or print settings.

Naming error! The file could not be created because

there is a file with the same name as the

directory that the camera is attempting

to create, or the highest possible file

number has already been reached. In

the Rec. Menu, set the File Reset option

to On. Save all the images you wish to

retain onto a computer, then reformat

the CF card. Please note that formatting

will erase all the existing images and

other data.

Change the battery pack Battery charge is insufficient to operate

the camera. Replace it at once with a

charged one or recharge the battery

pack.

No image No images recorded on CF card.

Image too large You attempted to replay an image

larger than 3200 x 2400 pixels or a

movie clip recorded by another camera.

Incompatible JPEG format You attempted to replay an incompatible

JPEG file.

08-124usCUGE_111-129_GM.p65 7/26/02, 11:26 AM126

List of Menu Options and Messages

127

Corrupted Data You attempted to replay an image with

corrupted data.

RAW You attempted to replay an image

recorded in the RAW format.

Unidentified Image You attempted to replay an image that

was recorded in a special format

(proprietary format used by the camera

of another manufacturer, etc.) or a

movie clip recorded by another camera.

Cannot magnify! You attempted to magnify an image

which was photographed with another

camera, recorded in a different format, or

edited on a computer.

Cannot rotate You attempted to rotate an image which

was photographed with another camera,

recorded in a different format, or edited

on a computer.

Protected! You attempted to erase a protected image.

Too many marks Too many images have been marked with

print settings, transfer settings or slide

show settings. Cannot process any more.

Unselectable image You attempted to set the print settings

for a non-JPEG file.

Exx: (xx: number) Camera malfunction. Turn

the power off and then back on, then

shoot or replay. A problem exists if the

error code reappears. Note the number

and contact your Canon Customer

Support Help Desk. If an error code

displays directly after taking a picture,

the shot may not have been recorded.

Check image in replay mode.

08-124usCUGE_111-129_GM.p65 7/26/02, 11:26 AM127

128

List of Menu Options and Messages

List of Messages Displayed

while a Direct Print Function Compatible Printer is Connected

The following messages may appear on the camera’s LCD monitor while

a direct print function compatible printer (sold separately) is connected.

No Paper Paper cassette is empty or incorrectly

installed. Paper feed may not be

operating correctly.

No Ink The ink cassette is empty or missing.

Incompatible paper size You attempted to print with a paper

size incompatible with this camera.

Incompatible ink size You attempted to print with an ink

cartridge type incompatible with this

camera.

Ink Cassette Error There is a problem with the ink cassette.

Paper and ink do not match The paper and ink are from different

sets.

Paper Jam Paper jammed during printing.

Paper has been changed The paper size was changed between

the time the Print Style menu was

displayed and the time printing started.

Recharge the printer battery The printer’s battery is out of power.

Communication Error A communication error has occurred.

Reajust trimming You attempted to print the image with

a different style than the one used

when the trimming settings were set.

Cannot print! You attempted to print an image shot by

a different camera, one recorded in an

incompatible format, or one downloaded

to and edited with a computer.

Could not print XX images You attempted to print XX number of

images with DPOF print settings that were

shot by a different camera, recorded in an

incompatible format, or downloaded to

and edited with a computer.

08-124usCUGE_111-129_GM.p65 7/26/02, 11:26 AM128

List of Menu Options and Messages

129

List of Messages Displayed while a Direct Print Function

Compatible Bubble Jet Printer is Connected

The following messages may appear on the camera’s LCD monitor while

a direct print function compatible Bubble Jet printer (sold separately) is

connected.

Check the error number displayed on the control panel of Bubble

Jet printer and refer to the Bubble Jet Printer Quick Start Guide.

Printer in use Printer is busy printing from a memory

card in computer or printer. Printer will

automatically start printing from camera

when the current print queue empties.

Printer warming up Printer is warming up. When it is ready,

the printer will start printing automati-

cally.

No printhead No printhead installed in printer.

Printer cover open Secure the printer front cover.

Media type error You selected a paper type incompatible

with the printer. Select a compatible

paper type in the Print Style menu.

Paper lever error Adjust the paper thickness lever to the

proper position.

Low ink level Ink tank needs replacement soon.

Prepare a new ink tank. Select [Continue]

in the error message to resume printing.

Waste tank full Restart printing by pressing RESUME/

CANCEL button on printer, but request

a replacement waste ink tank from your

retailer or service center (see printer

Quick Start Guide or the Contact List

provided with the printer) soon.

Printer error Turn printer off and on again. If error

persists, consult service center listed in

printer Quick Start Guide or in the

Contact List provided with the printer.

08-124usCUGE_111-129_GM.p65 7/26/02, 11:26 AM129

130

Appendices

Using an AC Adapter Kit (Sold Separately)

It is best to power the camera with AC Adapter Kit ACK500 (sold

separately) when you are using it for long periods of time or connect-

ing it to a computer.

• Turn the camera power off before connecting or

disconnecting the AC adapter.

• Connect the power cord to the

compact power adapter first and then

plug the other end into the power

outlet.

• Open the battery cover and press the

battery lock in the direction shown

while inserting DC Coupler DR-500.

Insert the DC coupler all the way in

until the battery lock clicks. Slide the

battery cover closed.

• Open the DC coupler terminal cover

and attach the cord to the DC terminal.

• After you have finished using the

camera, unplug the AC adapter from

the power outlet.

• Use of an AC adapter kit other than ACK500 may cause a

malfunction in the camera or kit.

DC Coupler

DR-500

Battery

Lock

Compact Power Adapter

CA-PS500

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM130

Appendices

131

Using a Car Battery Charger (Optional)

Car Battery Charger CBC-NB1 (sold separately) can be used to charge

battery packs from an automobile’s cigarette lighter socket.

•Always ensure that the automobile’s engine is running

when you use the car battery charger. Use of it with the

engine off may flatten the battery in some automobiles.

Always unplug the car battery charger before turning off

the engine.

•With the engine running, plug the car

battery cable into the cigarette lighter

socket and the battery charger.

•Insert the battery pack all the way into

the battery charger as shown.

•The charge indicator will light red while

the battery pack is charging. It will

change to green when the charge is

complete.

•After charging, unplug the car battery

cable from the cigarette lighter socket

and remove the battery pack.

•The battery will stop charging whenever you turn the

engine off, so be sure to unplug the car battery cable from

the cigarette lighter socket.

•Wait until the engine is running again to plug the car

battery cable into the cigarette lighter socket.

•The car battery charger can only be used in a negative

ground car. It cannot be used in a positive ground car.

To the cigarette

lighter socket

Charge Indicator

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM131

132

Appendices

Camera Care and Maintenance

Use the following procedures to clean the camera body, lens,

viewfinder and LCD monitor.

•Never use thinners, benzene, synthetic cleansers or water

to clean the camera. These substances may distort or

damage the equipment.

Camera Body

Gently wipe dirt off the camera body with a soft cloth or eyeglass lens

wiper.

Lens

First use a lens blower brush to remove dust and dirt, then remove any

remaining dirt by wiping the lens lightly with a soft cloth.

•Never use synthetic cleansers on the camera body or lens.

•If dirt remains, contact the closest Canon Customer Support

Help Desk as listed on the separate Canon Customer

Support leaflet.

Viewfinder and LCD Monitor

Use a lens blower brush to remove dust and dirt. If necessary, gently

wipe with a soft cloth or an eyeglass lens wiper to remove stubborn dirt.

•Never rub or press strongly on the LCD monitor. These

actions may damage it or lead to other problems.

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM132

Appendices

133

•Press the ON/OFF button for a

moment.

•Confirm that the battery cover

and CF card slot cover are

securely closed.

•Insert a fully charged battery

into the camera.

•Use the AC Adapter Kit

ACK500 (sold separately).

•Wipe the terminals with a clean

dry cloth.

•Turn the mode dial to the

or position.

•Wait until the flash charges.

You can press the shutter

button when the indicator lights

orange.

•Insert a new CF card.

•If required, download the

images to a computer and erase

them from the CF card to make

space.

•Format CF card (See Formatting

CF Cards p. 89).

•If reformatting doesn’t work,

the CF card logic circuits may be

damaged. Consult the nearest

Canon Customer Support Help

Desk.

Power is not

turned on

Battery cover or

CF card slot cover

is open

Insufficient battery

voltage

Poor contact

between camera

and battery

terminals

Mode switch is set

to (Replay)

Flash is charging

CF card is full

CF card is not

formatted correctly

Problem Cause Solution

Camera will not

operate

Camera will not

record

Troubleshooting

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM133

134

Appendices

•First close the battery cover or

CF card slot cover and then turn

the power off.

•First close the battery cover or

CF card slot cover and then turn

the power off.

•Replace the battery pack with a

new one.

•Replace the battery pack with a

new one.

•Insert battery pack securely into

battery charger.

•Ensure that battery charger plug

is securely plugged into the

power outlet.

•Be careful not to move the

camera while pressing the

shutter button.

•Be careful not to block the AF-

assist Beam with fingers or other

items.

Problem Cause Solution

Lens will not

retract

Battery pack

consumed quickly

Battery pack will

not charge

Image is blurred

or out of focus

Battery cover or

CF card slot cover

was opened with

power on

Battery cover or

CF card slot cover

was opened while

recording to the

CF card (warning

signal sounds)

Battery life

exceeded if

battery pack loses

its charge quickly

at normal

temperature (23º

C/73º F)

Battery pack life

exceeded

Poor contact

between battery

pack and battery

charger

Camera moved

Autofocus

function

hampered by

obstruction to AF-

assist Beam

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM134

Appendices

135

•Set the AF-assist Beam to on.

(p. 119)

•Ensure there is at least 47 cm

(1.5 ft.) between the camera

lens and subject.

•Use the Macro mode to shoot

close-ups between 10 and 47

cm (3.9 in. to 1.5 ft.) from the

lens when set to wide angle and

between 27 and 47 cm (10.6 in.

to 1.5 ft.) when set to telephoto.

•Use the Infinity mode to shoot

distant subjects.

•Set the flash to on.

•Set the exposure compensation

to a positive (+) setting or use

the spot metering function.

•Shoot within 3 m (9.8 ft.) of the

subject at the maximum wide

angle or 2 m (6.6 ft.) of the

subject at the telephoto end

setting when using the flash.

•When using the flash, stay at

least 27 cm (10.6 in.) from the

subject.

•Set the exposure compensation

to a negative (-) setting or use

the spot metering function.

Problem Cause Solution

Image is blurred or

out of focus

Subject in recorded

image is too dark

Subject in recorded

image is too bright

AF-assist Beam is

set to off

Subject is out of

focal range

Insufficient light

for shooting

Subject is dark in

contrast to the

background

Subject is too far

away for flash to

reach

Subject is too

close, making the

flash too strong

Subject is bright in

contrast to the

background

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM135

136

Appendices

Subject in recorded

image is too bright

Flash does not fire

Image not showing

on TV monitor

Zoom does not

work

Reading images

from CF card is

slow

Recording images

to CF card takes a

long time

•Change the shooting angle.

•Set the flash to off.

•Set the flash to on.

•Set the video system to the

appropriate setting, NTSC or

PAL, for your TV (p. 124).

•The output will not appear on a

TV in or (Stitch Assist)

mode. Shoot in a different

mode.

•Adjust the zoom before

shooting a movie.

•Use a CF card formatted in your

camera. See Formatting CF

Cards (p. 89).

Problem Cause Solution

Light is shining

directly on the

subject or reflected

off the subject into

the camera

Flash is set to on

Flash is set to off

Incorrect video

system setting

Shooting mode set

to or (Stitch

Assist)

Zoom lever

pressed during

movie recording

CF card was

formatted in

another device

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM136

137

Specifications

All data is based on Canon’s standard testing methods.

Subject to change without notice.

PowerShot S230 DIGITAL ELPH / DIGITAL IXUS v

Camera Effective Pixels: Approx. 3.2 million

Image Sensor: 1/2.7 in. CCD

(Total number of pixels: approx. 3.3 million)

Lens: 5.4 (W) - 10.8 (T) mm

(35 mm film equivalent: 35-70mm)

F2.8 (W) - 4 (T)

Digital Zoom: Maximum 3.2 x (Maximum 6.4 x with optical zoom)

Optical Viewfinder: Real-image optical zoom viewfinder

LCD Monitor: 1.5 in. low-temperature polycrystalline silicon TFT

color LCD, approx. 120,000 pixels

Autofocus: TTL 9-point AiAF/TTL 1-point center AF

Focus lock possible

Focusing Range: Normal: 47 cm (1.5 ft.) - ∞

Macro AF: 10-47 cm (3.9 in. -1.5 ft.) (W)

27-47 cm (10.6 in.-1.5 ft.) (T)

Shutter: Mechanical + electronic

Shutter Speed: 15-1/1500 sec.

• 1-1 / 6 sec. possible at flash-off or slow-synchro

in manual mode

• 15- 1 sec. possible in long shutter mode

• Noise reduction processing on speeds between

15 - 1.3 sec.

Light Metering System: Evaluative metering (linked to focusing point)/

Spot metering

Exposure Control: Program AE

Exposure Compensation: +/- 2 stops in 1/3-stop increments

Sensitivity: ISO 50/100/200/400 equivalent and Auto

(W): wide angle (T): telephoto

09-124usCUGE_130_148_GM.p65 10/7/02, 5:34 PM137

138

Specifications

White Balance: TTL auto / preset (daylight, cloudy, tungsten,

fluorescent, fluorescent H) or custom white balance

Flash: Red-eye reduction auto/auto/on/off/slow-synchro

Flash Shooting Range: Normal mode: 47 cm - 3.0 m (1.5- 9.8 ft.) (W)

47 cm - 2.0 m (1.5-6.6 ft.) (T)

Macro Mode: 27-47 cm (10.6 in.-1.5 ft.) (W/T)

Shooting Modes: Auto/ manual / stitch assist / movie

Continuous Shooting: Approx. 2 images/sec.

(Large/Fine mode, LCD monitor off)

Self-timer: Shoots after approx. 10 sec. or approx. 2 sec.

PC Connected Shooting: Available (USB connection only. Exclusive software

program “RemoteCapture” is included in the

camera kit.)

Recording Media: CompactFlash™ card (Type I)

File Format: Design rule for Camera File System, DPOF-compliant

Image Recording Format Still images: JPEG (Exif 2.2)*1

Movies: AVI - Image data: Motion JPEG

- Audio data: WAVE (monaural)

Compression: Superfine / fine / normal

Number of Recording Pixels: Still images: large 2048 x 1536 pixels

medium 1 1600 x 1200 pixels

medium 2 1024 x 768 pixels

small 640 x 480 pixels

Movies: 640 x 480 pixels (Approx. 30 sec.)*2

320 x 240 pixels (Approx. 3 min.)

160 x 120 pixels (Approx. 3 min.)

Approx. 15 frames / sec.

•The data in parentheses refer to the

maximum movie length per clip.

Replay Modes: Single image view / index view (9 thumbnails)/

zoomed view (LCD monitor zooms images up to

10 x) / slide show / printing with Card Photo Printer

CP-100, CP-10 or Bubble Jet Printer (Direct Print)

Display Languages: English, Deutsch, Français, Nederlands, Dansk,

Suomi, Italiano, Norsk, Svenska, Español, Chinese

and Japanese

Interface: USB (Normal or PTP selectable), Audio / Video

output (NTSC or PAL selectable, Monaural audio)

(W): wide angle (T): telephoto

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM138

Specifications

139

Power Source: Rechargeable Lithium-ion battery

(type: NB-1LH / NB-1L)

AC Adapter Kit ACK500

Car Battery Charger CBC-NB1

Operating Temperatures: 0º- 40º C (32º- 104º F)

Operating Humidity: 10% - 90%

Dimensions (w x h x d): 87.0 x 57.0 x 26.7 mm (3.4 x 2.2 x 1.1 in.)

(excluding protrusions)

Weight: Approx. 180 g (6.4 oz.)

(camera body only)

1This digital camera supports Exif 2.2 (also called “Exif Print”). Exif Print is a standard

for enhancing the communication between digital cameras and printers. By

connecting to an Exif Print-compliant printer, the camera’s image data at the time

of shooting is used and optimized, yielding extremely high quality prints.

2This is the maximum recording time per movie clip for the optional Canon FC-256MH

CF card (not sold in some regions).

Battery Capacity

Battery Pack NB-1LH (fully charged)

•Excludes movie data.

•At low operating temperatures, the battery performance may drop and the

low battery icon may appear sooner than at high temperature. To improve

performance at these temperatures, warm the battery in your pocket just

before using it in the camera.

Test Criteria

Shooting: Normal temperature (23º C/73º F), alternating between wide

angle and telephoto every 20 seconds, flash used one in four

shots, power turned off and on again after every eighth shot.

Replaying: Normal temperature (23º C/73º F), continuous replay at 3

seconds per image.

Number of recordable images LCD monitor on Approx. 170 images

LCD monitor off Approx. 420 images

Replay Approx. 130 minutes

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM139

140

Specifications

FC-16M FC-32M FC-64M FC-128M FC-256MH

8 18 38 76 154

(

2048 x 1536 pixels

)

16 33 68 137 276

32 67 136 274 548

14 30 61 122 246

(

1600 x 1200 pixels

)

26 54 109 219 440

52 108 217 435 868

25 53 107 215 431

(

1024 x 768 pixels

)46 94 189 379 762

84 174 349 700 1390

58 120 241 482 962

(

640 x 480 pixels

)94 196 393 788 1563

165 337 676 1355 2720

(

640 x 480 pixels

) 14 sec. 30 sec. 61 sec. 124 sec. 249 sec.

MOVIE (

320 x 240 pixels

) 44 sec. 91 sec. 183 sec. 368 sec. 735 sec.

(

160 x 120 pixels

)118 sec. 242 sec. 486 sec. 973 sec. 1954 sec.

CF Cards and Estimated Capacities (Recordable Images)

•The maximum movie clip length is approximately 30 sec. ( )* or 3min. ( , ).

The times shown are the maximum continuous recording times.

* When used with the FC-256MH CF card (sold separately).

• (Large), (Medium 1), (Medium 2), (Small), , and indicate the

recording resolution.

• (Superfine), (Fine) and (Normal) indicate the compression setting.

•The FC-256 MH CF card is not sold in some regions.

Compression

Resolution

(2048 x 1536 pixels) 1602 KB 893 KB 445 KB

(1600 x 1200 pixels) 1002 KB 558 KB 278 KB

(1024 x 768 pixels) 570 KB 320 KB 170 KB

(640 x 480 pixels) 249 KB 150 KB 84 KB

(640 x 480 pixels) 990 KB/ sec.

Movies (320 x 240 pixels) 330 KB/ sec.

(160 x 120 pixels) 120 KB/ sec.

Image File Sizes (Estimated)

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM140

Specifications

141

CompactFlash™ Card

Card Slot Type: Type I

Dimensions: 36.4 x 42.8 x 3.3 mm (1.4 x 1.7 x 0.1 in.)

Weight: Approx. 10 g (0.4 oz.)

Battery Pack NB-1LH

Type: Rechargeable Lithium Ion Cell

Nominal Voltage: 3.7 V

Typical Capacity: 840 mAh

Cycle Life: Approx. 300 times

Operating Temperatures: 0 -40 ºC (32-104 ºF)

Dimensions: 32.3 x 49.8 x 10.6 mm (1.3 x 1.9 x 0.4 in.)

Weight: Approx. 29 g (1.0 oz.)

Battery Charger CB-2LS/CB-2LSE

Rated Input: 100-240 V AC (50 / 60 Hz)

0.075 A (100 V) - 0.045 A (240 V)

Rated Output: 4.2 V DC / 0.5 A

Charging Time: Approx. 130 minutes*

Operating Temperatures: 0 -40 ºC (32-104 ºF)

Dimensions: 90.4 x 56.0 x 28.0 mm (3.6 x 2.2 x 1.1 in.)

Weight: Approx. 78 g (2.8 oz.)

When charging Battery Pack NB-1LH

Compact Power Adapter CA-PS500

(Included with the optional AC Adapter Kit ACK500)

Rated Input: 100 - 240 V AC (50 / 60 Hz)

0.17 A

Rated Output 4.3 V DC / 1.5 A

Operating Temperatures: 0 -40 ºC (32- 104 ºF)

Dimensions: 42.6 x 104.4 x 31.4 mm (1.7 x 4.1 x 1.2 in.)

Weight: Approx. 180 g (6.3 oz.)

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM141

142

Specifications

Car Battery Charger CBC-NB1 (Optional)

Rated Input: DC 12-24 V, 4.3 W

Rated Output: 4.2 V DC, 0.55 A

Charging Time: Approx. 130 minutes*

Operating Temperatures: 0-40ºC (32-104 ºF)

Dimensions: 90.4 x 56.0 x 28.0 mm (3.6 x 2.2 x 1.1 in.)

Weight: Approx. 106 g (3.7 oz.)

When charging Battery Pack NB-1LH

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM142

143

Index

AC Adapter Kit (ACK500) 130

AE Lock 60

AF Frame 31, 62

AF-assist Beam 35

AF Lock 58

AiAF 33

Autofocus 33, 62

Autofocus Lock 58

Auto Mode 42

Auto Rotate 72

AV Cable AVC-DC200 113

Battery

Battery Pack Charge 18

Capacity 139

Handling 19

Installing 20

Recharging 18

Battery Pack 18

Care and Maintenance 132

CF Card

Capacities 139

Formatting 89

Handling 23

Installing 22

Car Battery Charger 131

Communication mode 116

Compression 45

Continuous Shooting 51

Custom White Balance 68

Date / Time 23

DIGITAL • A / V OUT Terminal 95, 96,

115

Digital Zoom 36, 50

Direct Interface Cable

DIF-200 94

Direct Print function Compatible BJ

Printer 95

Direct Print function Compatible

Printer 94

Direct Printing 90

DPOF 90, 92, 103, 111

DPOF Print Order 90

Printing 104

Print Style 106

Resetting 108

Selecting Images 103

DPOF Transfer Order 111

Downloading Images to a Computer

114

Erasing

All Images 88

Single Images 87

Exposure 60, 64

FE Lock 61

File Number 73

File Sizes 140

Flash 47

Focus Lock 58

Formatting 89

Functions Available in Each Shooting

Mode 148

Histogram 32

Image File Sizes 140

Index Replay 76

Indicator 17

ISO Speed 71

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM143

144

Index

Language 25

LCD Monitor

Information Displayed 30

Using the LCD Monitor 29

Macro Mode 49

Magnify 75

Manual Mode 42

Play 121

Rec. 118

Set up 123

Messages

List of Messages 126

Messages Displayed while a Direct

Print Compatible Bubble Jet

Printer is Connected 129

Messages Displayed while a Direct

Print Compatible Printer is

Connected 128

Metering Method 63

Mode Switch 16, 42

Movie

Movie Mode 28, 56

Replaying 77

Editing 79

On / Off Button 26

Optical Viewfinder 33

Photo Effect 70

Play Menu 121

Power On/ Off 26

Power Lamp 16

Power Save 27

Print Settings (Direct Print Printers)

Number of Print Copies 99

Print Area (Trimming) 101

Print Style 99

Selecting Images 97

Protect 86

Rec. Menu 118

Red-Eye Reduction Function 48

Replay Mode 28

Resolution 45

Review Duration 44

Rotate 81

Self-Timer 52

Set up Menu 123

Shooting Mode 28, 42

Shutter Button 34

Pressing Fully 35

Pressing Halfway 34

Shutter Speed 65

Single Image Replay 74

Slide Show 82

Play Time 85

Repeat Settings 85

Spot AE Point Frame 31, 63

Stitch Assist Mode 53

Telephoto 36

USB Cable 115

Video Output System 113

Viewfinder 33

Viewing

Single Image

Replay

Index Replay 76

White Balance 67

Wide Angle 36

Wrist Strap 15

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM144

145

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM145

146

Disclaimer

•While every effort has been made to ensure that the information contained in this

guide is accurate and complete, no liability can be accepted for any errors or

omissions. Canon reserves the right to change the specifications of the hardware

and software described herein at any time without prior notice.

•No part of this guide may be reproduced, transmitted, transcribed, stored in a

retrieval system, or translated into any language in any form, by any means,

without the prior written permission of Canon.

•Canon makes no warranties for damages resulting from corrupted or lost data

due to a mistaken operation or malfunction of the camera, the software, the

CompactFlash™ cards (CF cards), personal computers, peripheral devices, or use

of non-Canon CF cards.

Trademark Acknowledgments

•Canon and PowerShot are trademarks of Canon, Inc.

•CompactFlash is a trademark of SanDisk Corporation.

•iBook and iMac are trademarks of Apple Computer, Inc.

•Macintosh, PowerBook, Power Macintosh and Quick Time are trademarks of Apple

Computer, Inc., registered in the United States and other countries.

•Microsoft, Windows and Windows NT are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries.

•Other names and products not mentioned above may be registered trademarks or

trademarks of their respective companies.

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM146

147

FCC Notice

(Digital Camera, Model PC1037)

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions;

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for Class B

digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

•Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

The cable with the ferrite core provided with the digital camera must be used with

this equipment in order to comply with Class B limits in Subpart B of Part 15 of the

FCC rules.

Do not make any changes or modifications to the equipment unless otherwise

specified in the manual. If such changes or modifications should be made, you could

be required to stop operation of the equipment.

Canon U.S.A. Inc.

One Canon Plaza, Lake Success, NY 11042, U.S.A.

Tel No. (516) 328-5600

Canadian Radio Interference Regulations

THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN

INTERFERENCE CAUSING EQUIPMENT REGULATIONS.

Réglementation canadienne sur les interférences radio

CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU

REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM147

148

Functions Available in Each Shooting Mode

The chart below is a reference for the settings available for various shooting

conditions. The settings selected in each shooting mode are saved after you

finish shooting.

p. 45

p. 47

p. 49

p. 58

p. 60

p. 61

p. 51

p. 52

p. 62

Reference

Page

Resolution

Compression

Flash

Macro Mode

Infinity Mode

Focus Lock

AE Lock

FE Lock

Shooting

Method

Autofocus Modes

Large

Medium 1

Medium 2

Small

Movie

Superfine

Fine

Normal

Auto

Red-Eye Reduction Auto

Off

Slow-Synchro

Single

Continuous

Self-timer

Function Auto Manual Stitch

Assist Movie

●

▲

09-124usCUGE_130_148_GM.p65 7/26/02, 11:27 AM148

149

p. 35

p. 63

p. 50

p. 64

p. 65

p. 67

p. 70

p. 71

p. 72

Reference

Page

AF-assist Beam

Light Metering

Digital Zoom

Exposure Compensation

Long Shutter

White Balance

Photo Effect

ISO Speed

Auto Rotate

Function Auto Manual Stitch

Assist Movie

●

●(1)

●

(2)

●

(2)

▲

(2)

▲

* Default setting.

●Setting available.

▲Setting can only be selected for the first image.

■

(Shaded Area): Setting is memorized even when the camera power is

shut off.

•With the exception of the [Date / Time], [Language] and [Video System]

settings, all the other menu settings and changes made with the camera

buttons can be reset to the default values in a single operation. (p. 125)

(1)

The ISO speed cannot be set to [AUTO].

(2)

The ISO speed is automatically set.

01-124usCUGE_00_cov23_GM.p65 7/26/02, 11:06 AM149
