COMPANY PROFILE

+1 (416) 663-6963

www.newcon-optik.com

Newcon Optik, headquartered in Toronto, Canada, is a world leader in the design and manufacture of precision electro-optical

devices. Our product portfolio is comprised of industry-leading thermal imagers, image intensified night vision systems, laser

rangefinders, laser aimers & illuminators and tactical optics systems. With a dealer network present on five continents, Newcon

Optik's products are relied upon in more than 60 countries.

By working closely with our customers and partners, Newcon Optik consistently produces technologically advanced products that

serve the needs of military, law enforcement, search & rescue, surveillance, hunting, camping and marine professional users around

the globe.

Since 1992, Newcon Optik has been home to innovation in research, design and manufacturing of electro-optical devices. A

Canadian defense industry success!

Although most of our R&D, manufacturing and assembly is done in Canada, globalization allows Newcon Optik to source high-

quality, competitively priced components from acknowledged leaders in the optical industry throughout the world. Our success is

based on four key factors:

1. CAPABILITY

2. QUALITY

3. SERVICE

4. PRICE

Newcon Optik products meet and exceed all applicable rigorous industry standards, including military standards. All products are

covered by a comprehensive one year warranty.

Commitment to the highest quality standards, reliable on-time delivery, competitive pricing, and ensuring client satisfaction on every

order have made Newcon Optik an internationally recognized leader in the electro-optical market.

Thermal Imaging Systems Laser Rangefinders Tactical Optics

Observation Systems OEM modules for system integrators Gyrostabilized Binocualrs

Ground Systems Binoculars and monoculars Sniper Detection

Weapon Systems Laser speed detectors Riflescopes

Spotting Scopes

Night Vision Laser Aimers and Illuminators Binocular Systems

Aviation Systems Visible and Infrared Holographic Sights

Ground Systems

Weapon Systems

Image Intensifier Tubes

Newcon Optik’s Major Product Lines:

Manufacturing Excellence

Customer Service Focus

Our dedicated R&D team is focused on setting the standard of innovation in design. Highly trained specialists working in our

state of the art manufacturing facility assure that our entire design, assembly and testing process delivers superior

electro-optical products. Our manufacturing processes use the most advanced technologies available in laser, night vision and

optical testing technology. An in-house modern SMT line allows speedy prototyping and large quantity production.

Cutting-edge technologies, modern machinery and testing equipment enable us to manufacture complex optical, electronic, and

mechanical parts for devices designed to operate under the most extreme conditions. All products undergo a triple

quality assurance inspection. Newcon Optik is certified to ISO 9001:2008 standards.

Full service on Newcon Optik’s products is conducted by factory-trained technicians and engineers at our facility in Toronto,

Canada, where all necessary spare parts are kept in stock to expedite repairs and maintenance. For prompt shipment we keep

in excess of $1 million worth of inventory stocked in our warehouse.

Because we control the manufacturing process from beginning to end we are able to control our cost and pass the reduced

savings to you, our customer.

+1 (416) 663-6963

www.newcon-optik.com

THERMAL IMAGING SYSTEMS

TVS 13M 4

TVS 7N 5

TVS 11 / TVS 12C 6

SENTINEL 7

NIGHT VISION SYSTEMS

NVS 14 8

NVS 14-3GCS 9

NVS 7 10

NVS 7 BINOCULARS 11

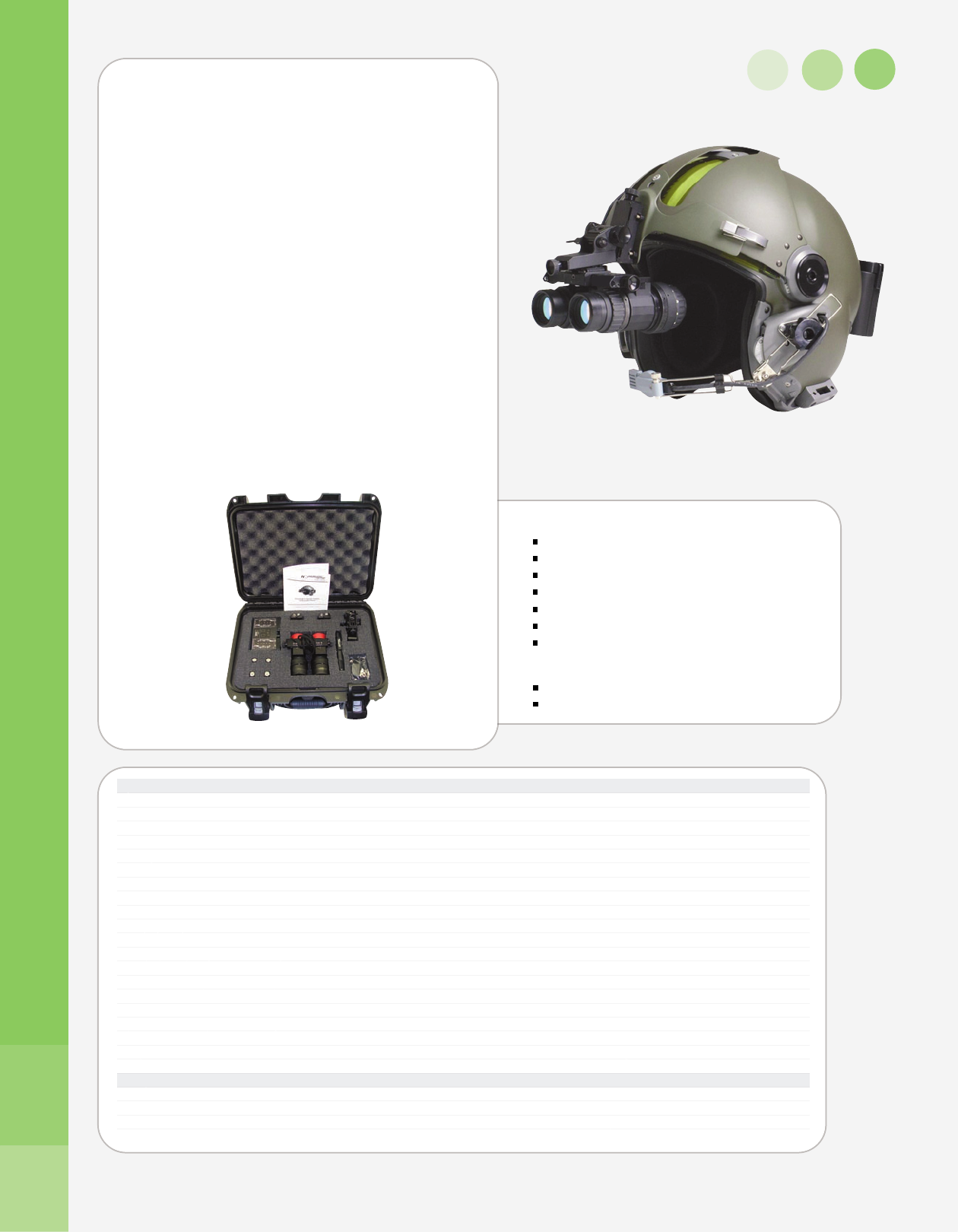

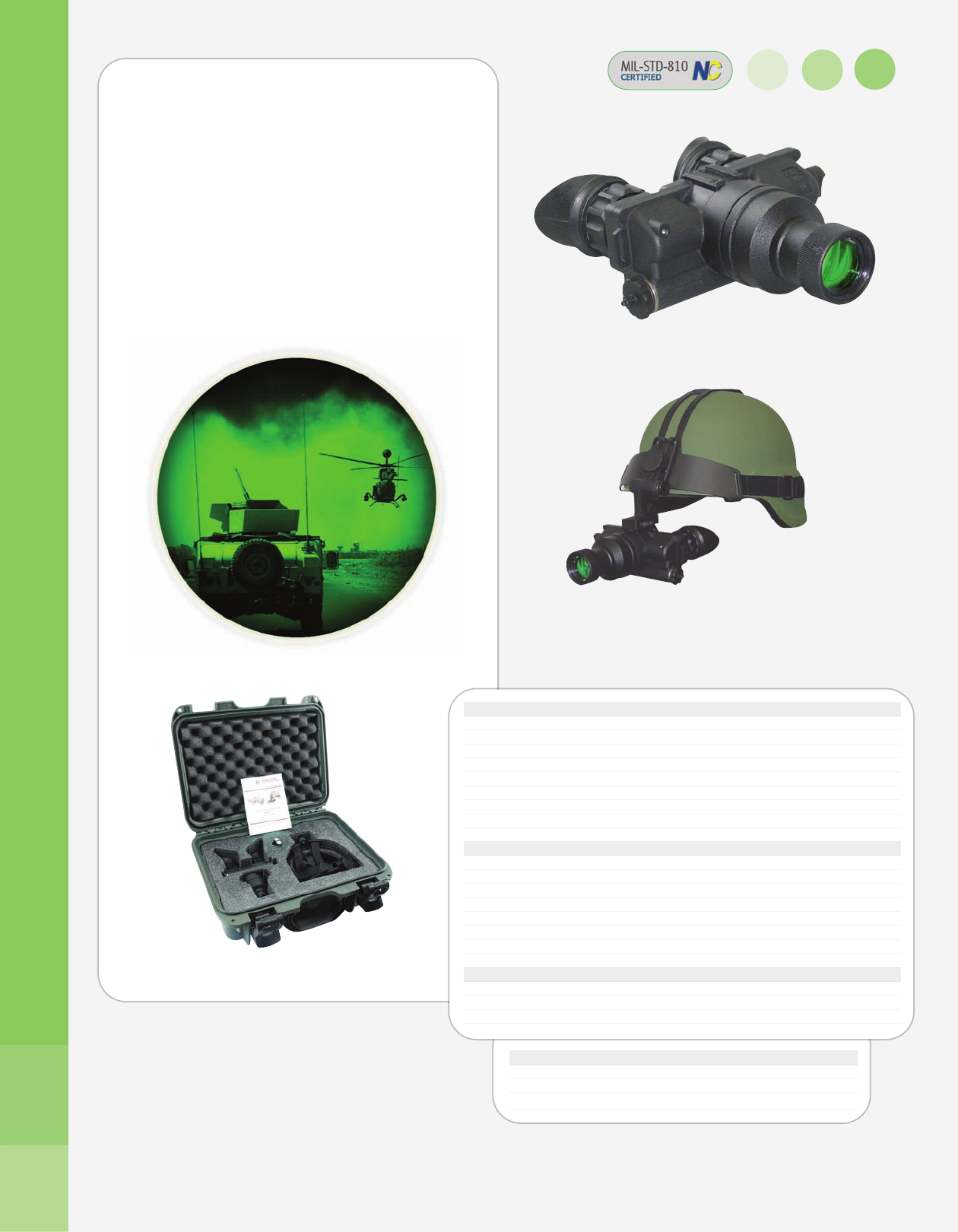

NVS 6 AVIATOR GOGGLES 12

NIGHT WITNESS M3 13

DN 462 / 463 RIFLESCOPE SERIES 14

DN 483 RIFLESCOPE 15

DN 533 RIFLESCOPE 16

NVS 10MG / 10MGM RIFLESCOPE SERIES 17

NVS 33 WEAPON SCOPE ATTACHMENT 18

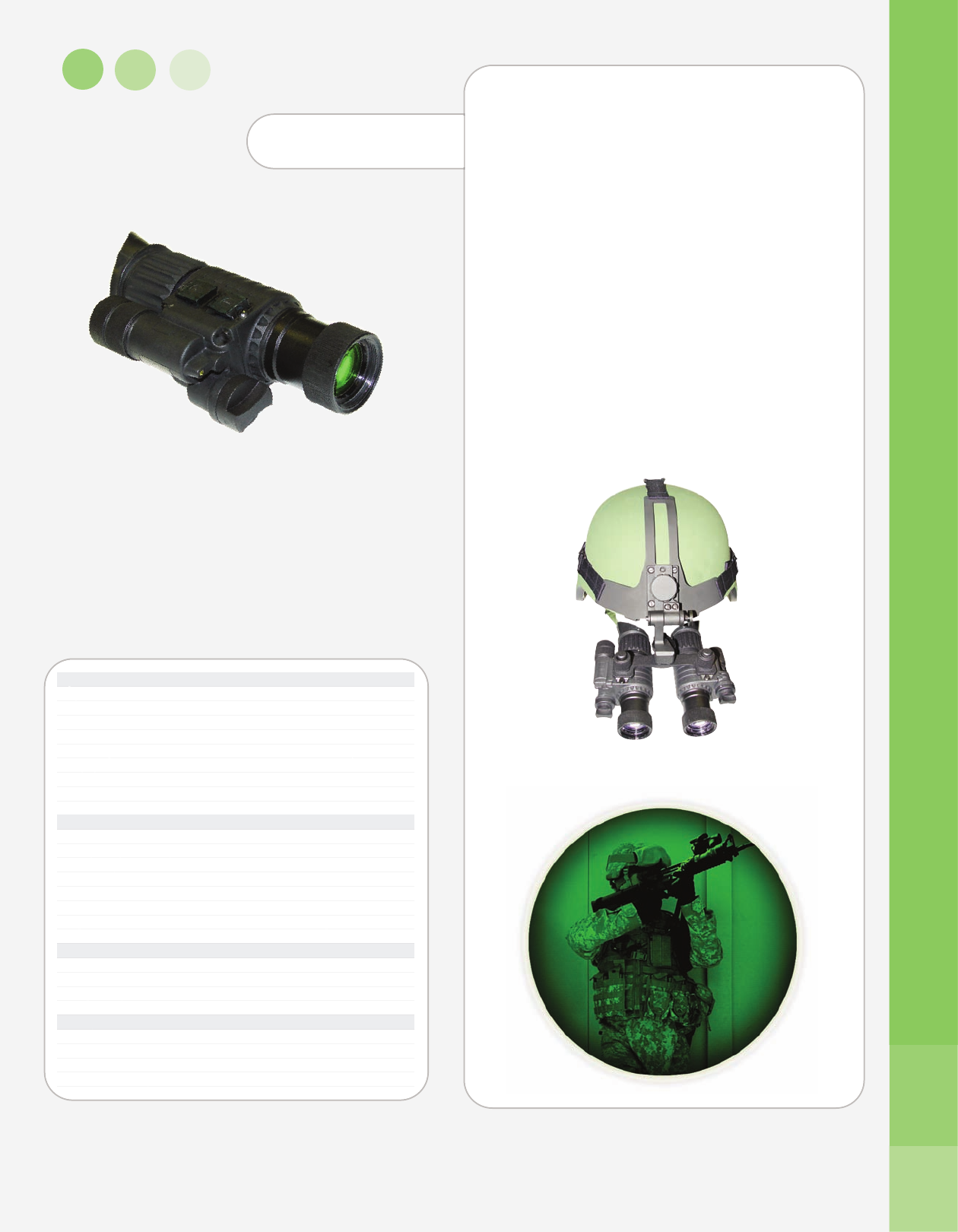

NV207-G2 MONOCULAR 19

NV66-G2 GOGGLES 20

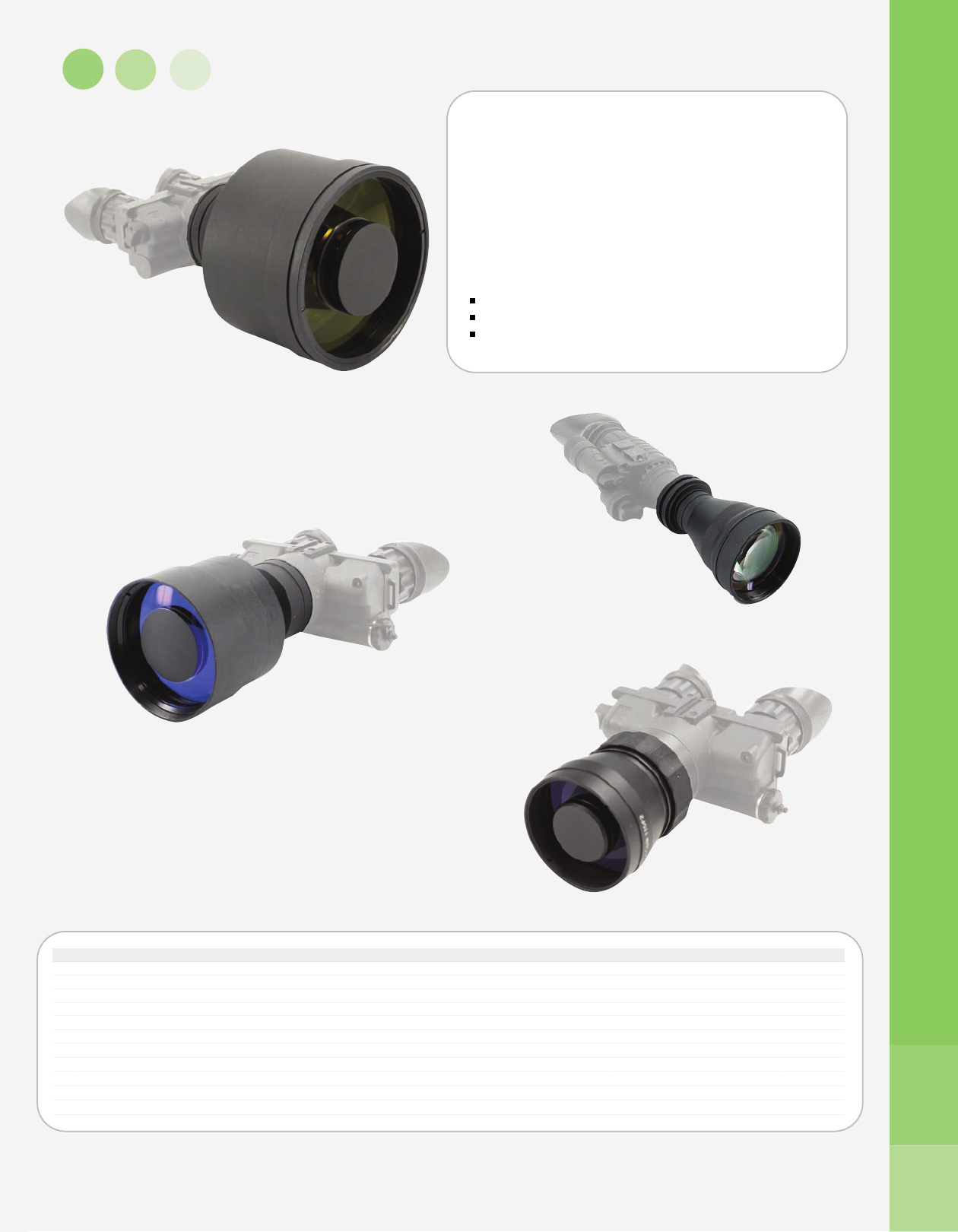

NVS LENSES 21

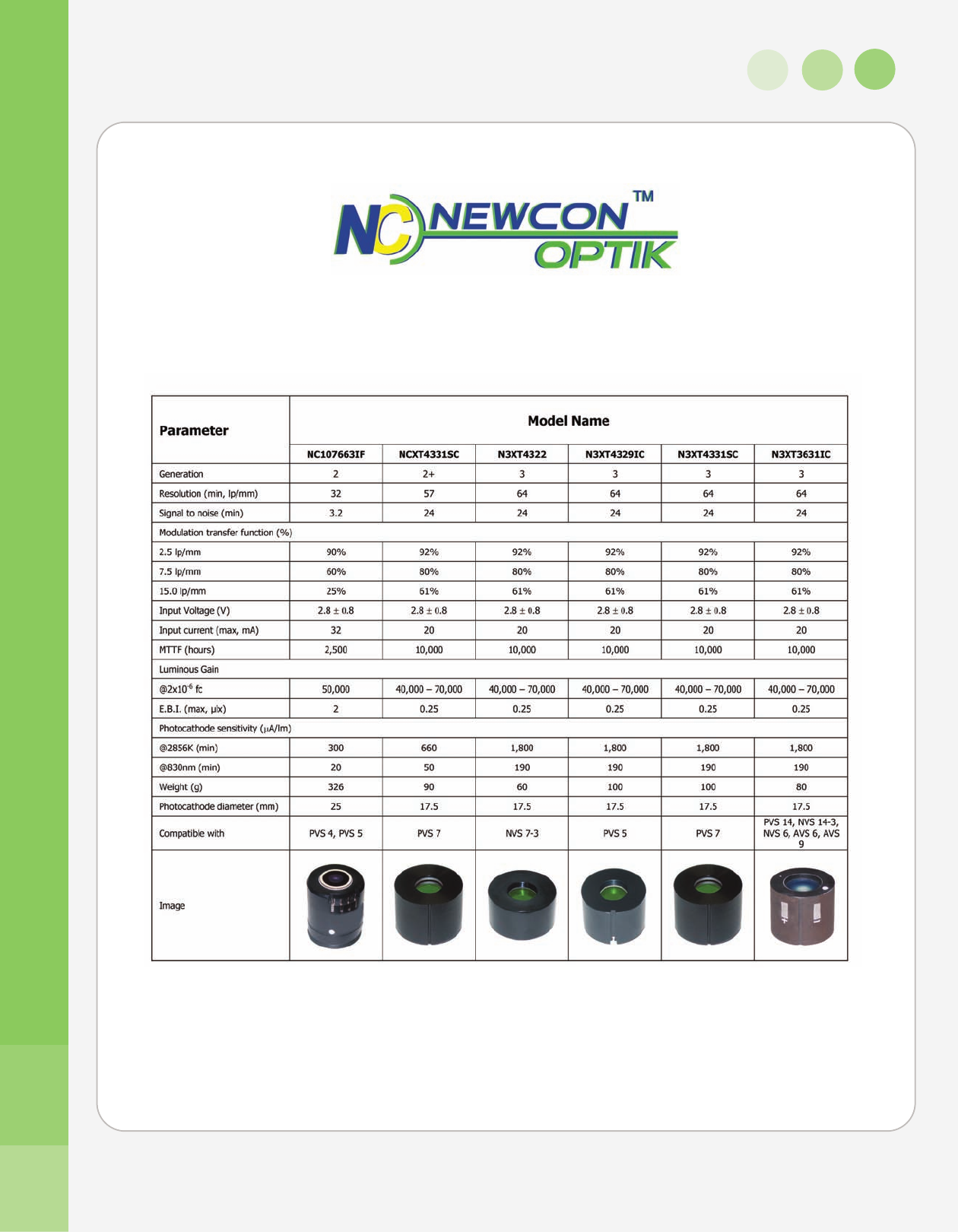

IMAGE INTENSIFIER TUBES 22

LASER RANGEFINDERS

LRB 12K 23

LRM 1500M / 1800S / 2200SI SERIES 24

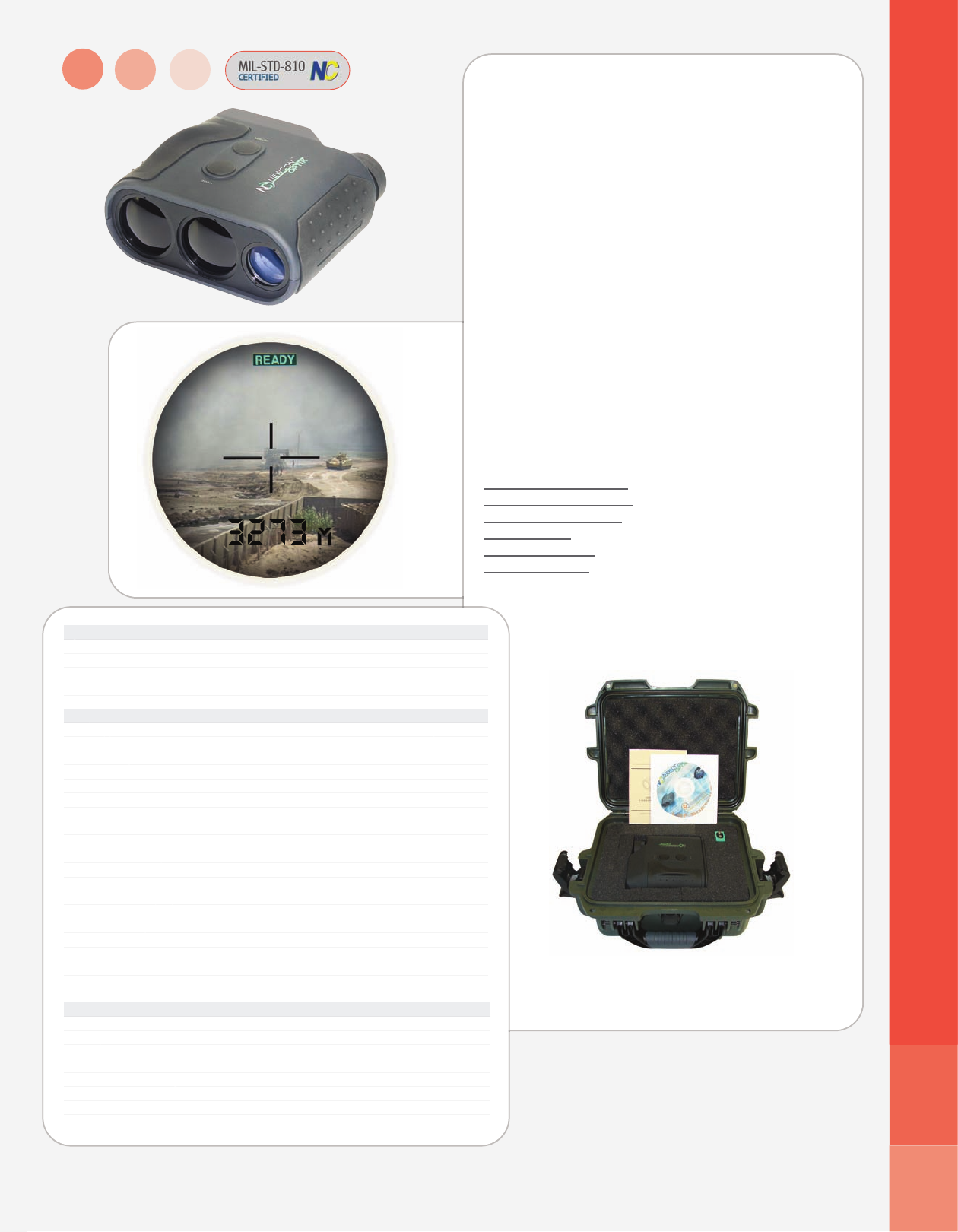

LRM 3500CI 25

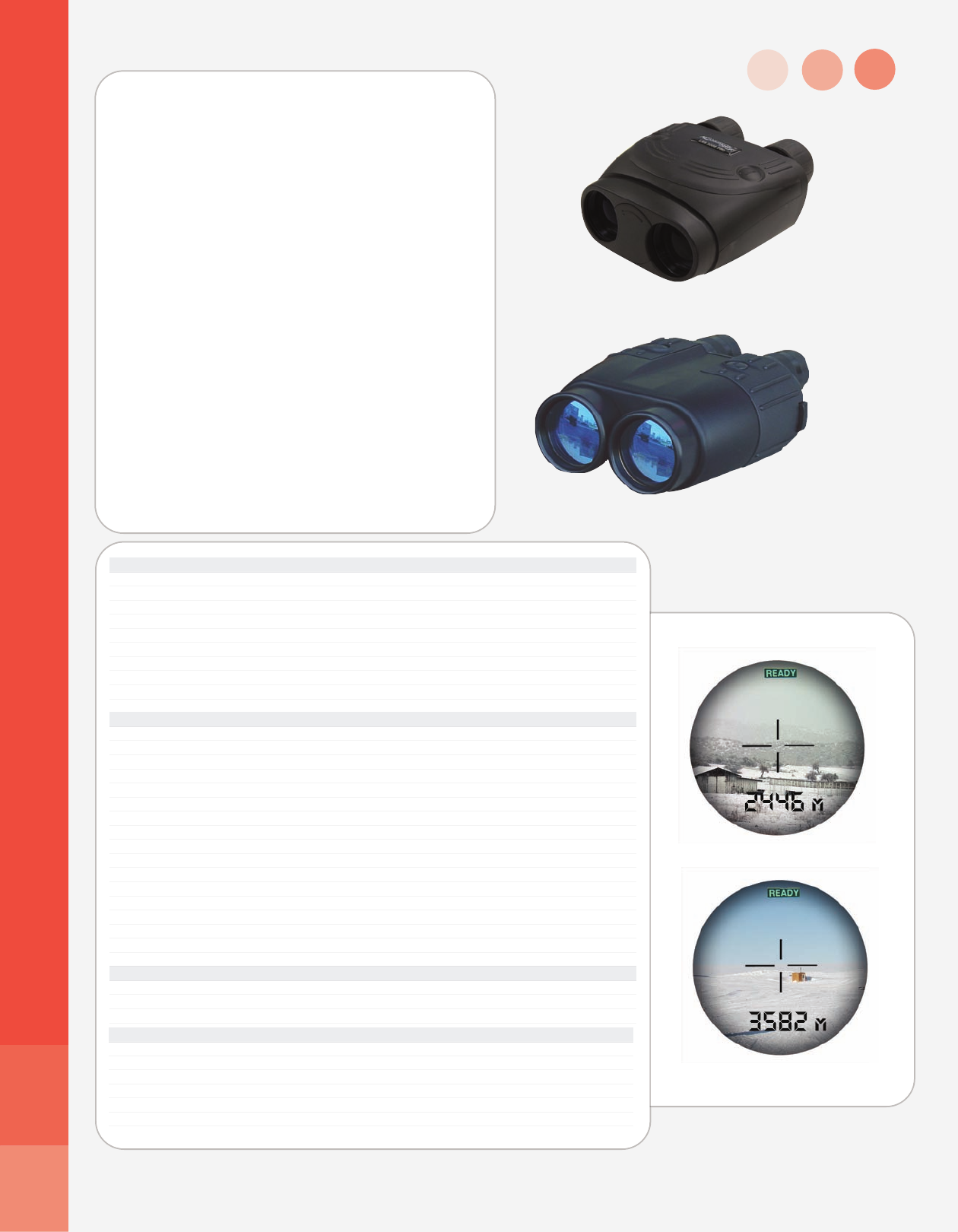

LRB 3000PRO / LRB 4000CI 26

LRB 6000CI 27

LRB 20000C 28

LRB 21K / LRB 25000 29

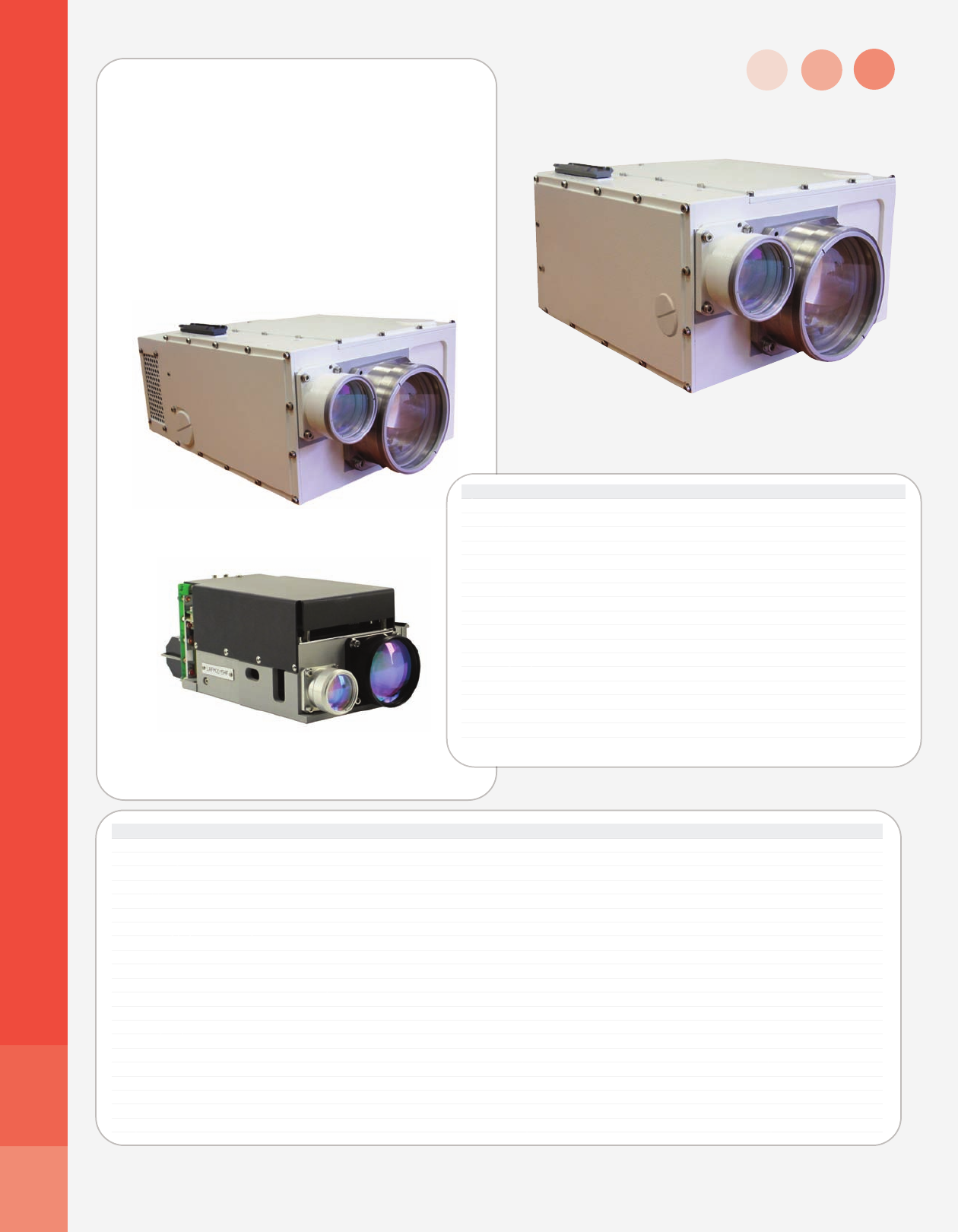

LRF MOD 2 / 2CI / 3 / 3CI 30

LRF MOD 4EC / 6EC 31

LRF MOD 15HF / 25HF / 25HFLC 32

LASER AIMERS

LAM 3 IR 33

LAM 2 / LAM 10M/ LAM 10M 3A 34

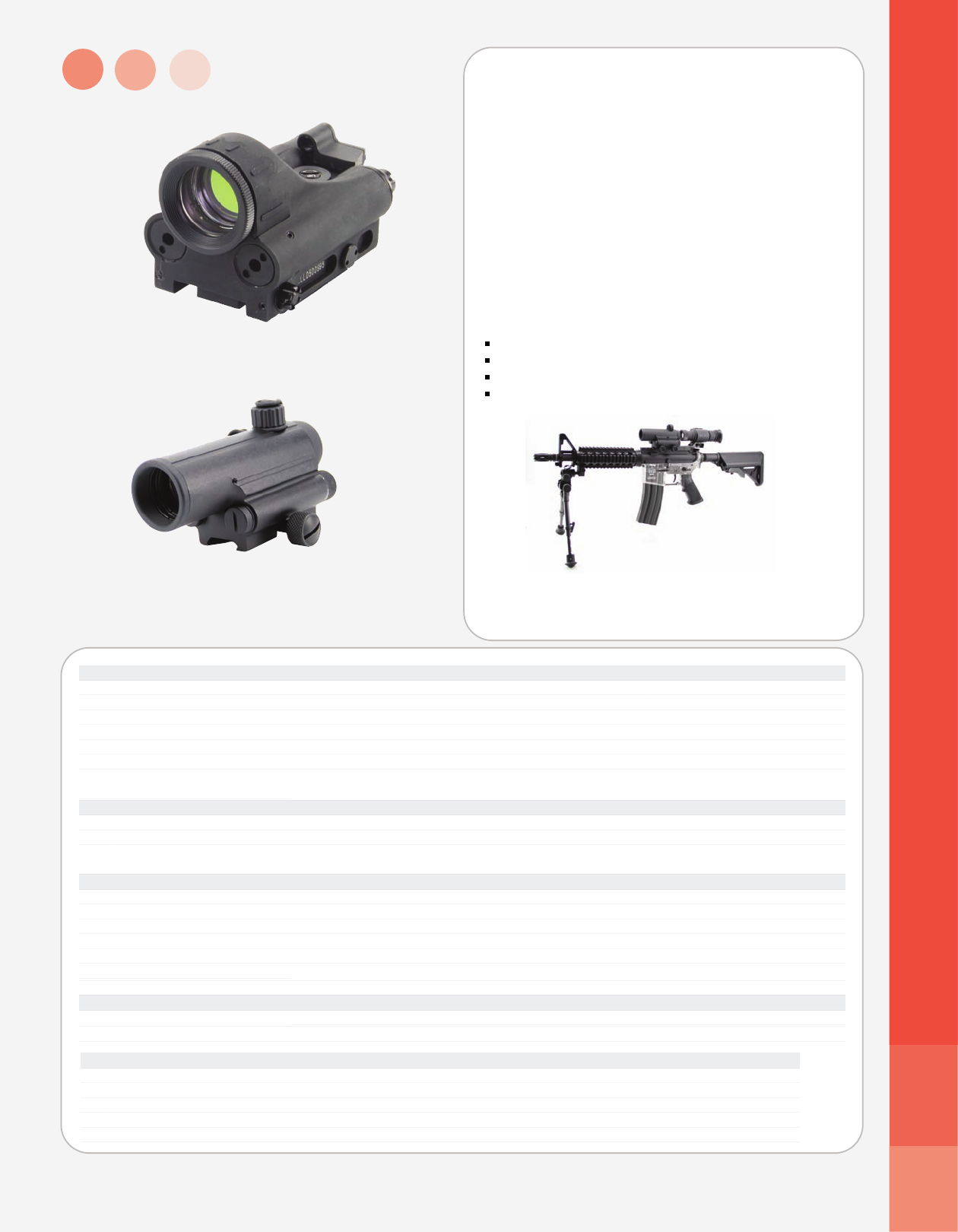

RLS / HDS 3 RED DOT SIGHTS 35

TACTICAL OPTICS

LAS-1000 SNIPER DETECTOR 36

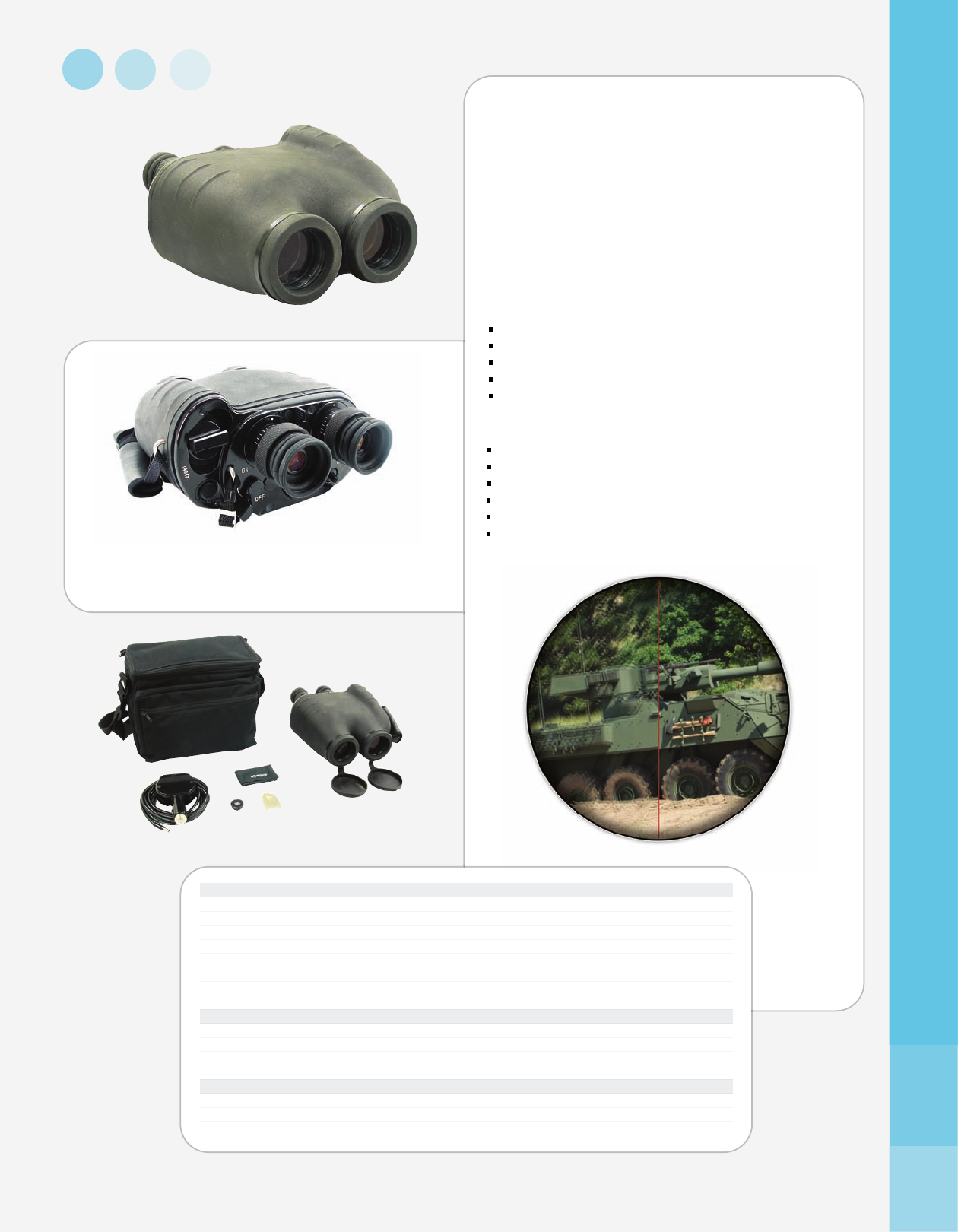

SIB 16x40 WP STABILIZED BINOCULARS 37

AN 8X30 M22 / AN 7X50 MC SERIES BINOCULARS 38

AN 7X50 M22 / AN 10X50 M22 SERIES BINOCULARS 39

NC 3-12x50 / NC 5-20x56 RIFLESCOPES 40

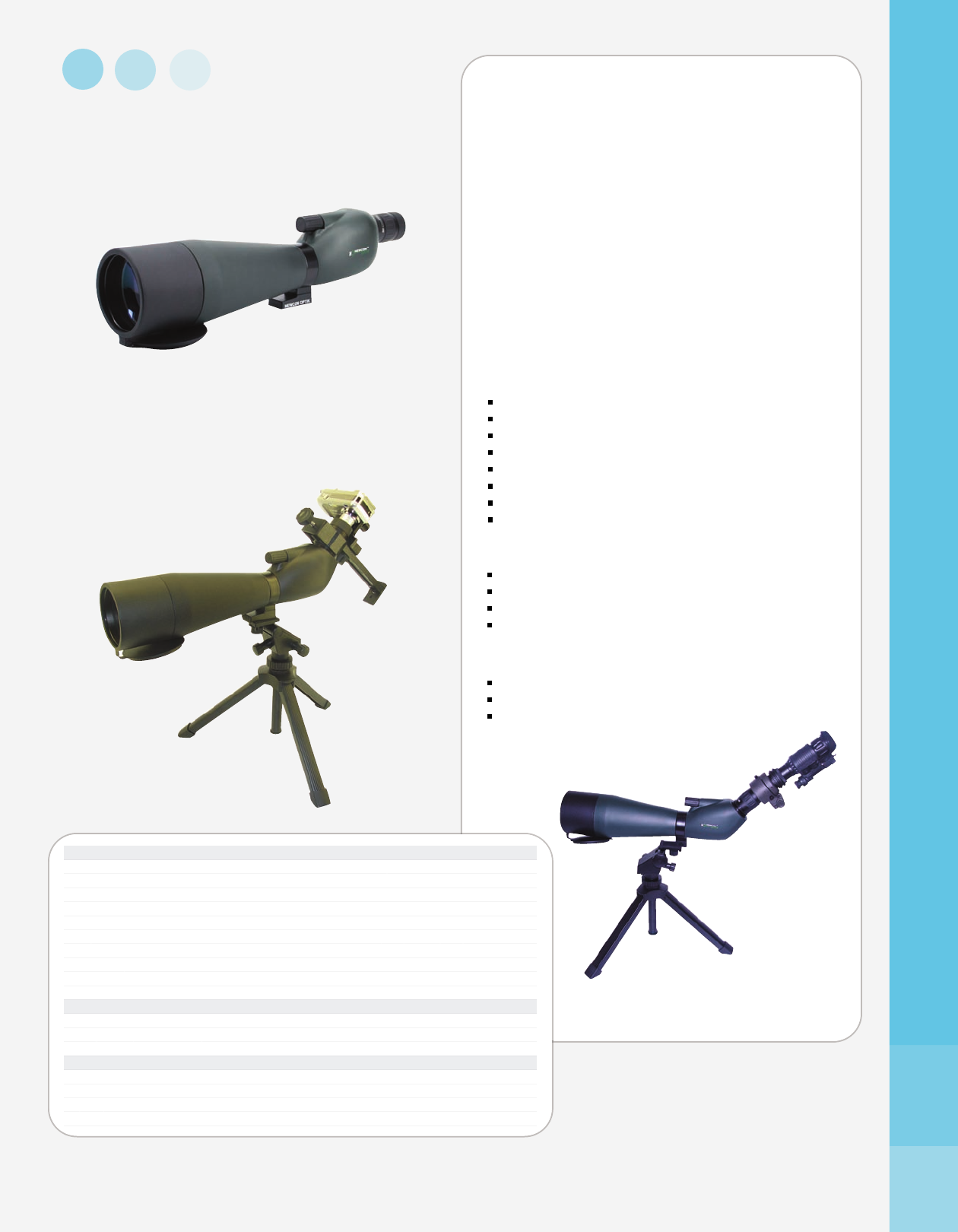

SPOTTER NC SPOTTING SCOPE 41

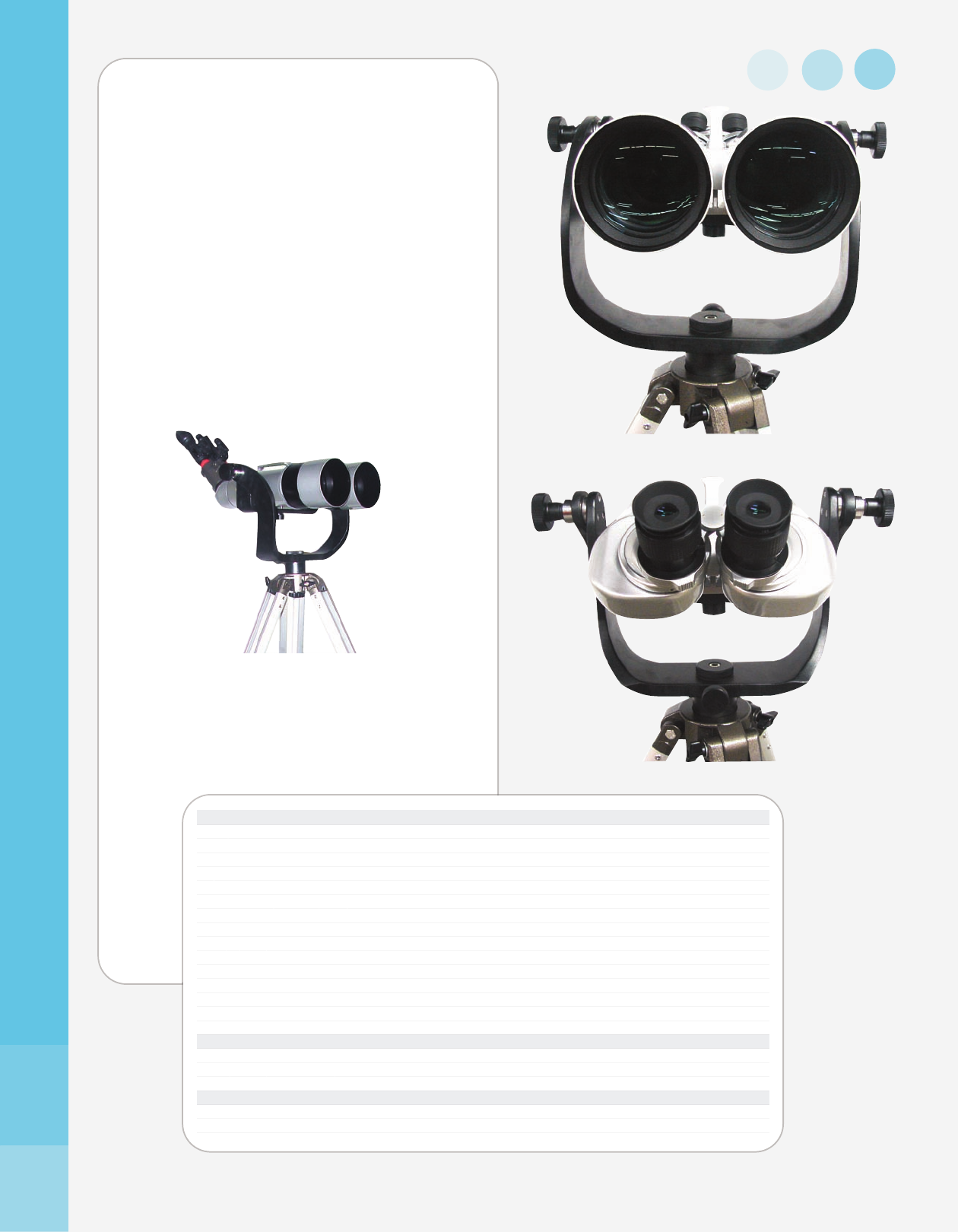

BIG EYE 20x40x100 BINOCULARS 42

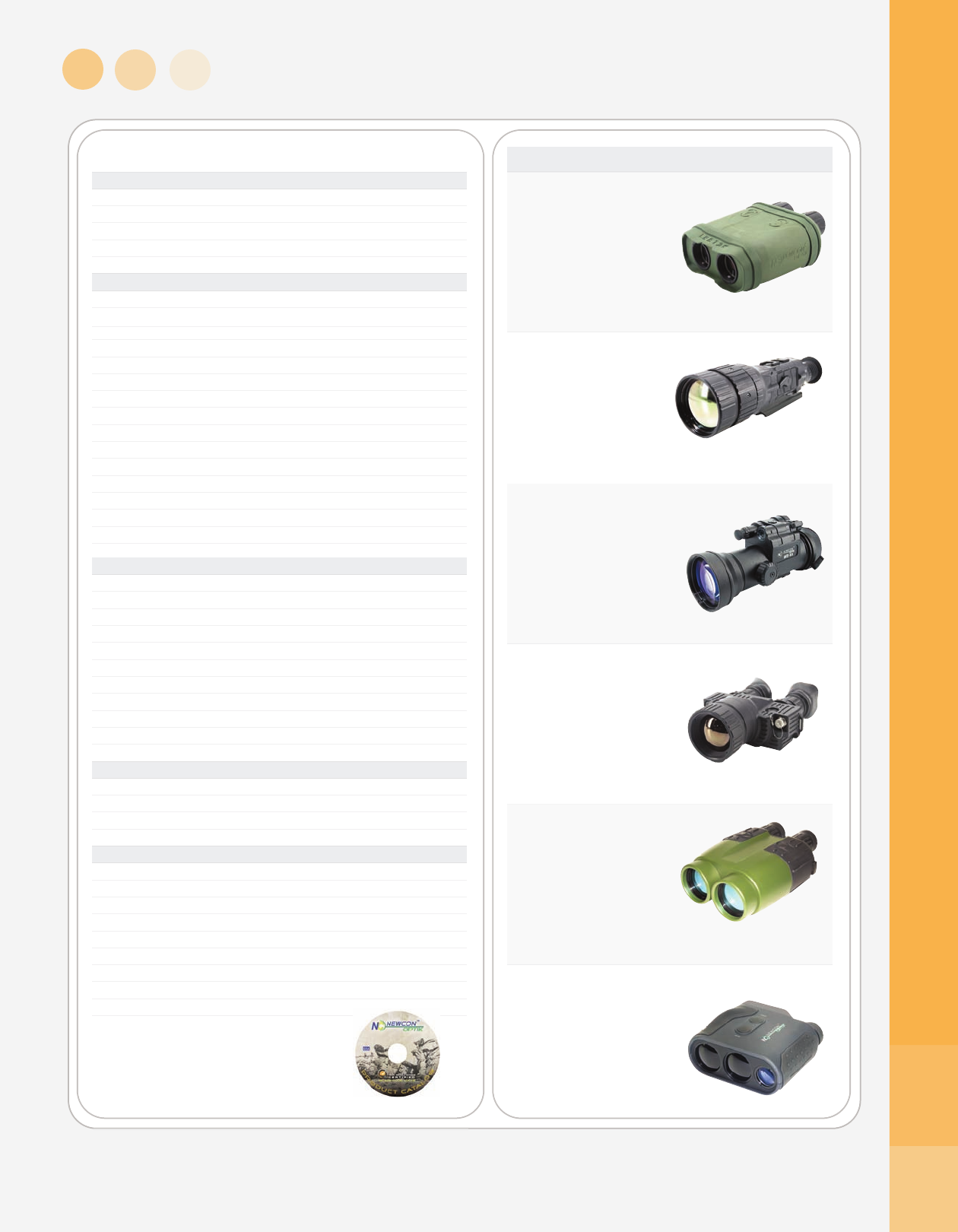

FEATURED PRODUCTS FOR 2012

PRODUCT INDEX

NEW

TVS 13M THERMAL

RIFLESCOPE

- PAGE 4

FEATURED

NVS 33 WEAPON SCOPE

ATTACHMENT

- PAGE 18

NEW

SENTINEL THERMAL

BINOCULAR

- PAGE 7

FEATURED

LRB 6000CI MEDIUM RANGE

BINOCULAR RANGEFINDER

- PAGE 27

FEATURED

LRM 3500CI MEDIUM RANGE

MONOCULAR RANGEFINDER

- PAGE 25

NEW

LRB 12K LONG RANGE

BINOCULAR RANGEFINDER

- PAGE 23

NEWCON OPTIK CD CATALOGUE

A DIGITAL COPY OF THIS CATALOGUE AND

A COMPANY PRESENTATION CAN BE

FOUND ON OUR CD LOCATED ON THE

LAST PAGE

- PAGE 43

THERMAL IMAGIING SYSTEMS

The TVS 13M Tactical Thermal Riflescope offers

outstanding performance, impressive features and rugged

mil-spec construction. Designed to increase performance in

the most demanding situations facing border patrol, law

enforcement, tactical teams and special operations forces.

The TVS 13M is ideal for medium and long range

observation, reconnaissance, border protection and tactical

operations.

The TVS 13M comes standard with a MIL-STD-1913 mount

and can also be used as a hand-held device. The latest

achievements in thermal technology and OLED display

were integrated in this device letting users distinguish target

objects from their immediate surroundings. Unlike

traditional night vision devices, the TVS 13M operates 24

hours a day without any degradation in performance when

used in daylight, smoke or fog. Available in 320 or 640 res-

olution.

TVS 13M THERMAL RIFLESCOPE

TVS 13M - Display

TVS 13M - Delivery Set

+1 (416) 663-6963

www.newcon-optik.com

Detector

Model 336-60 336-75 640-60 640-75

Resolution (pixels) 336 x 256 336 x 256 640 x 512 640 x 512

Full frame rates 30 Hz (NTSC); 25 Hz (PAL) 30 Hz (NTSC); 25 Hz (PAL) 30 Hz (NTSC); 25 Hz (PAL) 30 Hz (NTSC); 25 Hz (PAL)

Pixel size 17 μ 17 μ 17 μ 17 μ

Operating wavelength 7.5 - 13.5 μm 7.5 - 13.5 μm 7.5 - 13.5 μm 7.5 - 13.5 μm

Sensitivity (milikelvin) <50mK <50mK <50mK <50mK

DRI range (meters)* 2,000 / 510 / 190 2,500 / 650 / 330 2,000 / 510 / 255 2,500 / 650 / 330

Optics

Objective lens diameter 60 mm 75 mm 60 mm 75 mm

Objective F number 1.25 1.0 1.25 1.0

Field of view 5.5°x4.2° 8.2°x6.5° 10.4°x8.3° 9.5°x7.5°

Eye relief 30 mm 30 mm 30 mm 30 mm

Dioptric correction -6 ... +2 -6 ... +2 -6 ... +2 -6 ... +2

Electronics

Video output PAL and NTSC PAL and NTSC PAL and NTSC PAL and NTSC

Display (pixels) MOLED, 800x600 MOLED, 800x600 MOLED, 800x600 MOLED, 800x600

Video interface RCA RCA RCA RCA

Stored reticles 6 options 6 options 6 options 6 options

Stored ballistic profiles ≤10 ≤10 ≤10 ≤10

Mechanical

Operating temperature range -40 to +50 °C -40 to +50 °C -40 to +50 °C -40 to +50 °C

Shock resistance 300g 300g 300g 300g

Battery type 6 x AA 8 hours6 x AA 6 x AA 6 x AA

Continuous battery life 8 hours 8 hours 8 hours 8 hours

Dimensions 280x68x78 mm 380x90x90 mm 280x68x78 mm 380x90x90 mm

Weight with batteries 0.950kg 1.45kg 0.950kg 1.45kg

* Detection, Recognition, Identification range to a human sized target

FEATURES:

Start-up in less than 3 seconds

2x - 4x digital zoom

10 stored ballistic profile

Video output

TVS 13M (336-75)

THERMAL IMAGING SYSTEMS

+1 (416) 663-6963

www.newcon-optik.com

Detector

Model 336-35 640-35

Resolution (pixels) 336 x 256 640 x 512

Full frame rates 30 Hz (NTSC); 25 Hz (PAL) 30 Hz (NTSC); 25 Hz (PAL)

Pixel size 17 μ 17 μ

Operating wavelength 7.5 - 13.5 μm 7.5 - 13.5 μm

Sensitivity (milikelvin) <50 mK <50 mK

DRI range (meters)* 1280 / 320 / 160 1280 / 320 / 160

Optics

Objective lens diameter 35 mm 35 mm

Objective F number 1.2 1.2

Field of view 9.3°x7.1° 18°x14°

Eye relief 25 mm 25 mm

Dioptric correction -6 ... +2 -6 ... +2

Electronics

Video output PAL and NTSC PAL and NTSC

Display (pixels) MOLED, 800x600 MOLED, 800x600

Video interface RCA RCA

Mechanical

Interpupillary distance 54 mm - 72 mm 54 mm - 72 mm

Operating temperature range -40°C to +50°C -40°C to +50°C

Shock resistance 300g 300g

Battery type 4 x AA 4 x AA

Continuous battery life 10 hours 10 hours

Dimensions 130x146x68 mm 130x146x68 mm

Weight with batteries 575g 575g

* Detection, Recognition, Identification range to a human sized target

FEATURES:

Start-up in less than 3 seconds

Handheld or helmet/head mountable

Video output

White hot, black hot, sepia, amber image polarity

TVS 7N (640-35)

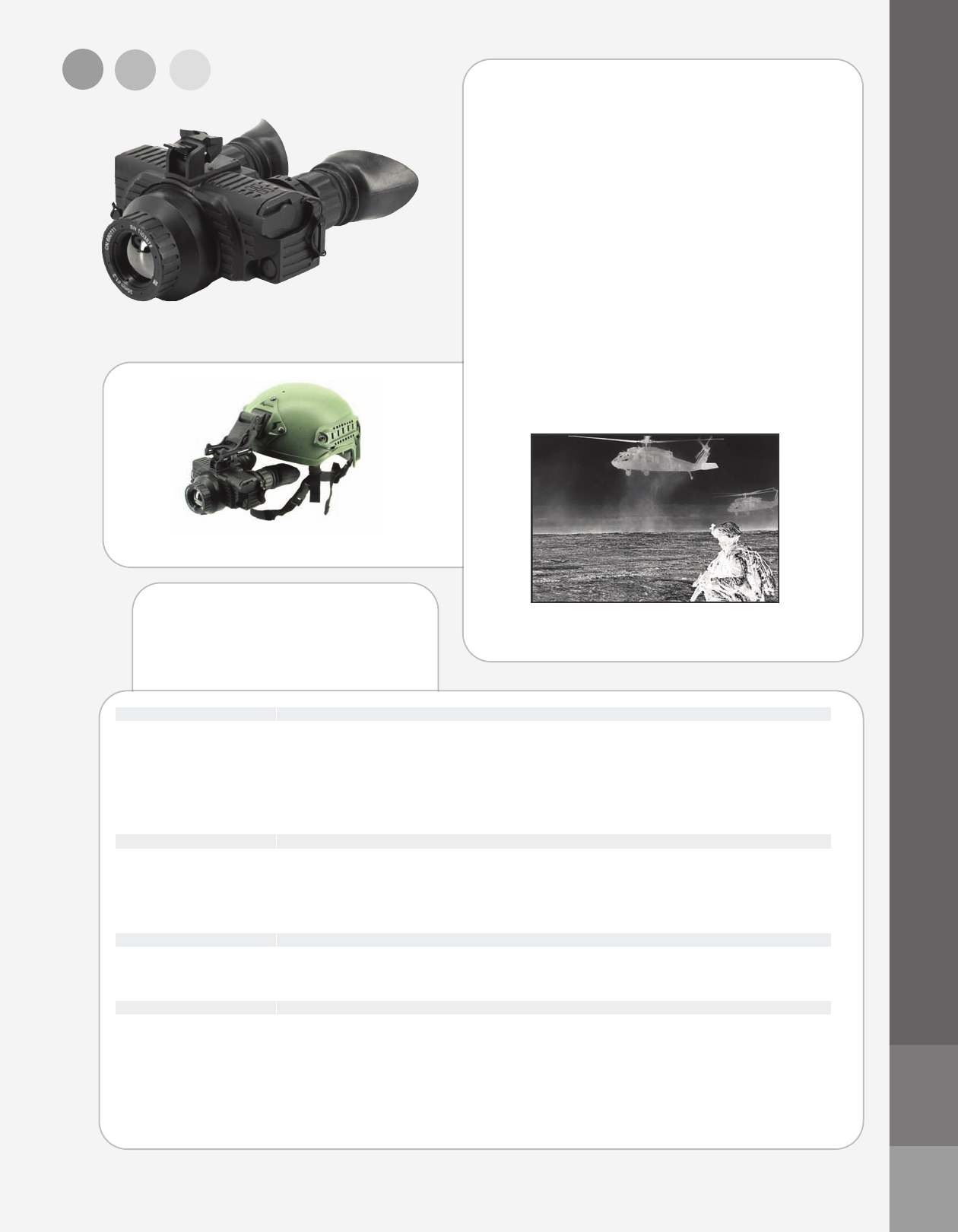

The TVS 7N thermal goggle is designed for surveillance

and observation in any light level, even with

limited visibility (smoke, fog, vegetation or camouflage).

These binoculars can be used for search and rescue

operations, energy audits, monitoring industrial equipment

and power transmission lines.

The TVS 7N is housed in a shock-resistant, waterproof

housing. The controls are user-friendly and situated

comfortably on the outer housing. It is equipped with a

video output and can be powered using four AA internal

batteries or an external power supply. Outfitted with 2x and

4x digital zoom, it also features manual focus, brightness

and contrast adjustments. All values are programmable

and will be suspended in “off” mode and automatically

re-activate after the unit is turned “on” again. Available in

320 or 640 resolution.

TVS 7N

TVS 7N - Display

TVS 7N (640-35) - Shown on helmet

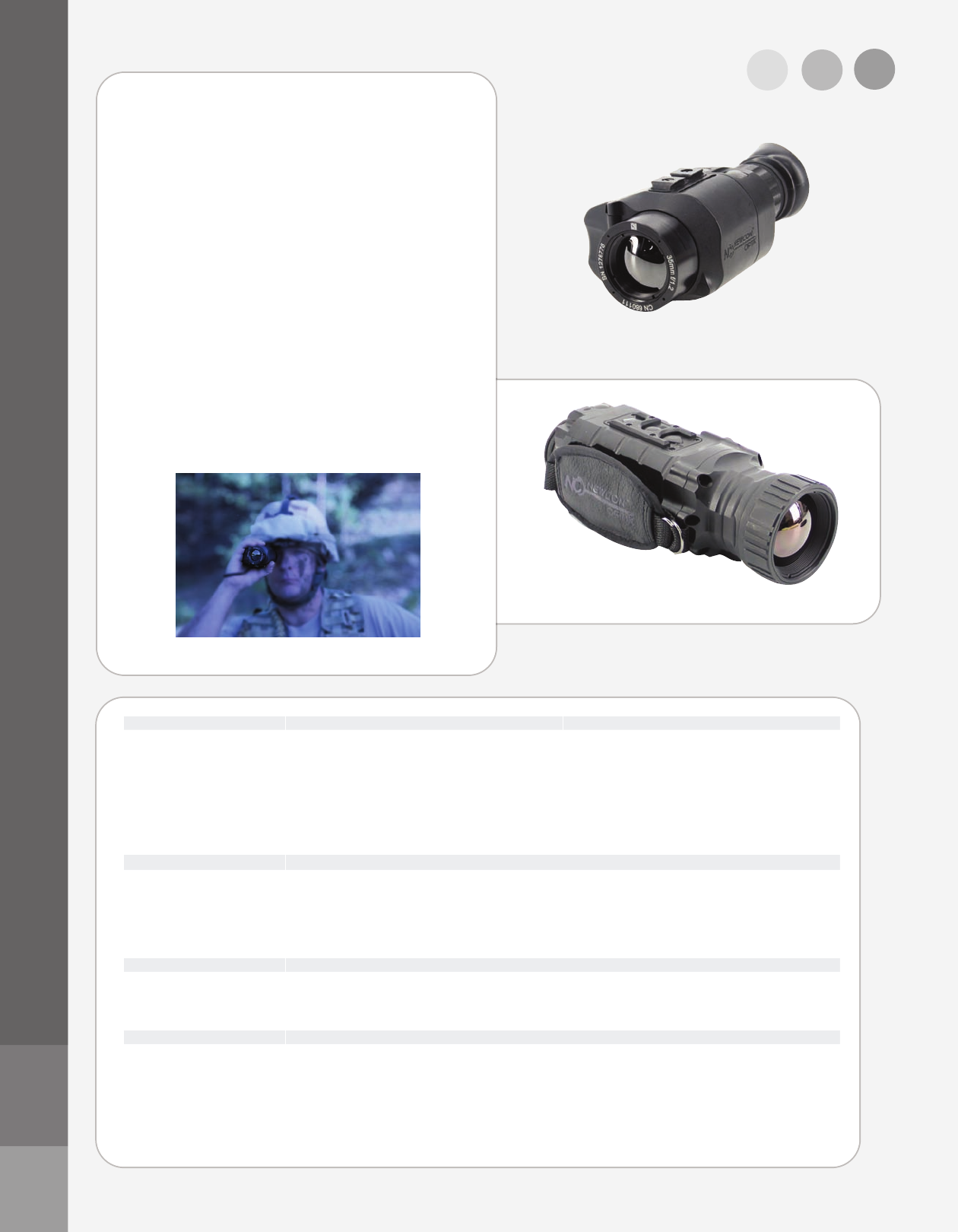

The TVS 11 and TVS 12C are thermal monoculars

designed for handheld use. Both devices are well suited to

a variety of law enforcement, search and rescue and

industrial applications. Both devices utilize passive infrared

sensing technology allowing users to detect extremely small

differences in the temperature of objects, people and other

heat sources within the field of view.

Unlike traditional night vision devices, the TVS 11 and TVS

12C can be operated 24 hours a day, in daytime and at

night, even in the total darkness of an enclosed space. Both

devices can also see through smoke, fog and other

obscurants. Both units feature “black hot” and “white hot”

image polarity, while the TVS 12C has additional display

colour options. Both units can also be connected to

external display devices via external interface.

The TVS 11 is ideal for observational situations requiring a

lightweight, compact unit. In situations requiring rugged

design features, the TVS 12C is ideal. Both models are

available in 320 and 640 resolution.

TVS 11 / TVS 12C

TVS 11 - In Action

THERMAL IMAGIING SYSTEMS

+1 (416) 663-6963

www.newcon-optik.com

Detector TVS11 TVS 12C

Model 336-35 640-35 336-60 640-60

Resolution (pixels) 336 x 256 640 x 512 336 x 56 640 x 512

Full frame rate 30 Hz (NTSC)

25 Hz (PAL)

30 Hz (NTSC)

25 Hz (PAL)

30 Hz (NTSC)

25 Hz (PAL)

30 Hz (NTSC)

25 Hz (PAL)

Pixel size 17 μ 17 μ 17 μ 17 μ

Operating wavelength 7.5 - 13.5 μm 7.5 - 13.5 μm 7.5 - 13.5 μm 7.5 - 13.5 μm

Sensitivity (milikelvin) <50 mK <50 mK <50 mK <50 mK

DRI range (meters)* 280 / 320 / 160 1280 / 320 / 160 2,000 / 510 / 255 2,000 / 510 / 255

Optics

Objective lens diameter 35 mm 35 mm 60 mm 60 mm

Objective F number 1.2 1.2 1.25 1.0

Field of view 13°x10° 18°x14° 7.6°x5.7° 9.5°x7.5°

Eye relief 25 mm 25 mm 30 mm 30 mm

Dioptric correction -6 ... +2 -6 ... +2 -6 ... +2 -6 ... +2

Electronics

Video output PAL and NTSC PAL and NTSC PAL and NTSC PAL and NTSC

Video Interface RCA RCA RCA RCA

Display (pixels) MOLED, 800x600 MOLED, 800x600 MOLED, 800x600 MOLED, 800x600

Mechanical

Operating temperature range -40 to +80 °C -40 to +80 °C -40 to +80 °C -40 to +80 °C

Shock resistance 300g 300g 300g 300g

Battery type 2 x CR123 Lithium 2 x CR123 Lithium 6 x AA 6 x AA

Continuous battery life 8 hours 8 hours 8 hours 8 hours

Dimensions 135x80x55 mm 135x80x55 mm 280x68x78 mm 280x68x78 mm

Weight with batteries 400g 400g 750g 750g

* Detection, Recognition, Identification range to a human sized target

TVS 11 (640-35)

TVS 12C (640-60)

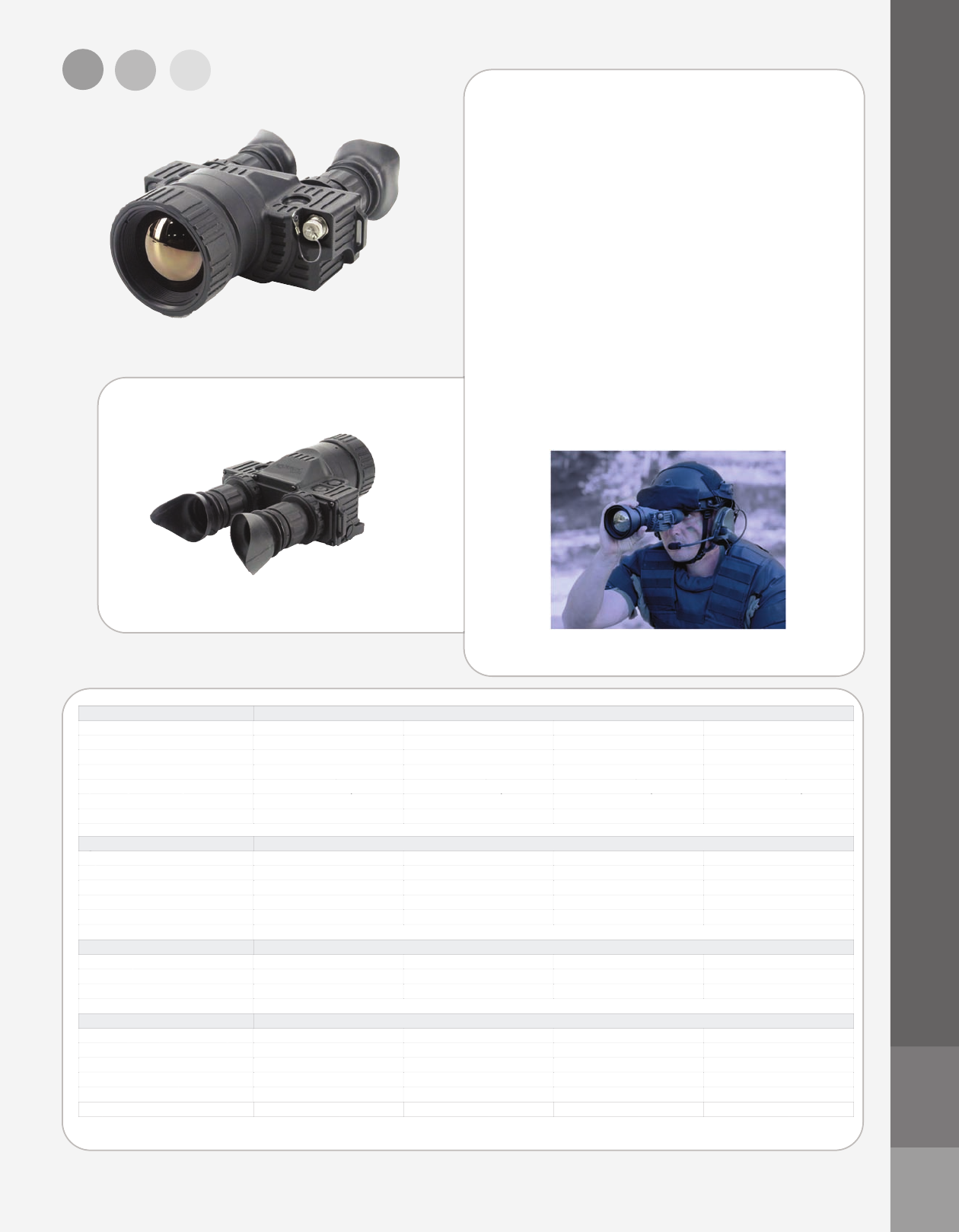

The Sentinel thermal imaging binocular is a technically-

advanced device for observation and perimeter security.

The Sentinel utilizes a sensitive, high-resolution uncooled

bolometer to perceive differences in the

thermal signature of objects within the field of view.

The device is intended for detection and recognition of

objects at remote distances around the clock day or night,

through smoke, fog or camouflage. The Sentinel can detect

objects at up to 8 km with an optional 115 mm lens.

The Sentinel thermal imaging binocular is a powerful tool for

commercial and hunting applications as well as law

enforcement, military and security professionals. Available

in 320 or 640 resolution.

SENTINEL

Sentinel - In Action

Sentinel Rear View

THERMAL IMAGING SYSTEMS

+1 (416) 663-6963

www.newcon-optik.com

* Detection, Recognition, Identification range to a human sized target

Detector

Model 336-60 336-75 640-60 640-75

Resolution (pixels) 336 x 256 336 x 256 640 x 512 640 x 512

Full frame rates 30 Hz (NTSC); 25 Hz (PAL) 30 Hz (NTSC); 25 Hz (PAL) 30 Hz (NTSC); 25 Hz (PAL) 30 Hz (NTSC); 25 Hz (PAL)

Pixel size 17 μ 17 μ 17 μ 17 μ

Operating wavelength 7.5 - 13.5 μm 7.5 - 13.5 μm 7.5 - 13.5 μm 7.5 - 13.5 μm

Sensitivity (milikelvin) <50mK <50mK <50mK <50mK

DRI range (meters)* 2,000 / 510 / 255 2,500 / 650 / 330 2,000 / 510 / 255 2,500 / 650 / 330

Optics

Objective lens diameter 60 mm 75 mm 60 mm 75 mm

Objective F number 1.25 1.0 1.25 1.0

Field of view 5.5°x4.2° 8.2°x6.5° 10.4°x8.3° 9.5°x7.5°

Eye relief 30mm 30mm 30mm 30mm

Dioptric correction -6 ... +2 -6 ... +2 -6 ... +2 -6 ... +2

Electronics

Video output PAL and NTSC PAL and NTSC PAL and NTSC PAL and NTSC

Display (pixels) MOLED, 800x600 MOLED, 800x600 MOLED, 800x600 MOLED, 800x600

Video interface RCA RCA RCA RCA

Mechanical

Operating temperature range -40 to +50 °C -40 to +50 °C -40 to +50 °C -40 to +50 °C

Shock resistance 300g 300g 300g 300g

Battery type 4 x AA 4 x AA 4 x AA 4 x AA

Continuous battery life 10 hours 10 hours 10 hours 10 hours

Dimensions 150x146x72 mm 181x146x90 mm 150x146x72 mm 181x146x90 mm

Weight with batteries 775g 970g 775g 970g

Sentinel Front View (640-60)

NVS 14 SERIES

The battle-tested NVS 14 night vision monocular meets any

military or law enforcement observational need under the

darkest conditions. This model is in service with many

militaries around the world. The device is manufactured with

either a Gen.3 ANVIS-size image intensifier tube. Extreme

durability and a crisp, clear image has earned the NVS 14

an impeccable reputation.

The NVS 14 is one of the smallest and lightest products of

its kind, while being made of durable materials to meet

military specifications. The NVS 14 can be handheld,

mounted on a weapon, head or helmet. An optional afocal

lens turns this monocular into a 3x night vision sight.

The head mount enables the user to flip the monocular from

one eye to the other or to turn it upright for unobstructed

vision. In “Auto” mode the NVS 14 automatically switches

off when turned upright. When the unit is head/helmet

mounted this feature reduces the chance of the user being

detected and extends battery life. Two monoculars with a

dual mount adapter form wide angle goggles.

The NVS 14-3XT is the first mass produced Gen. 3 night

vision monocular with FOM>1400, that is not subject to US

export restrictions.

Image Intensifier Tube

Generation 3

IIT model N3XT3631IC

IIT resolution (minimum) 64 lp/mm

NVS 14

Full Delivery Set Shown

Optical

Magnification 1x

Field of view 40°

Objective F number F1.17

Objective focal length 27.5 mm

Focus range 0.25 m - infinity

Exit pupil 21 mm

Eye relief 25 mm

Diopter range +5 to - 6

Environmental

Waterproof MIL-STD-810

Operating temperature -50°C … +55°C

Storage temperature -50°C … +70°C

Mechanical

Battery 1 AA or 1 CR123

Battery life Over 40 hr without IR, over 20 hr with IR

Low battery indicator V

IR ON indicator V

Auto shut off V

Dimensions 118x48x69 mm

Weight 300 g

NIGHT VISION SYSTEMS8

+1 (416) 663-6963

www.newcon-optik.com

+1 (416) 663-6963

www.newcon-optik.com

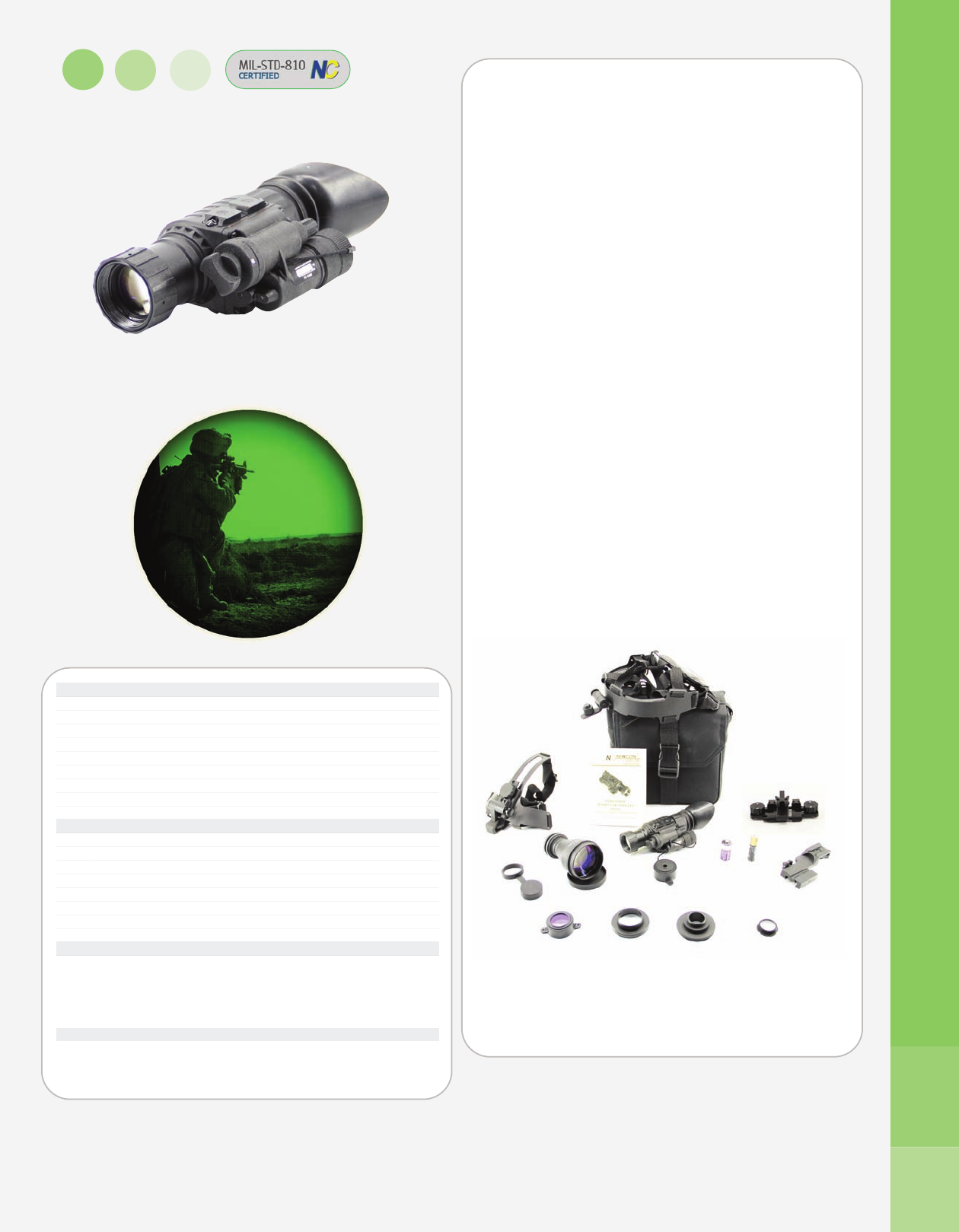

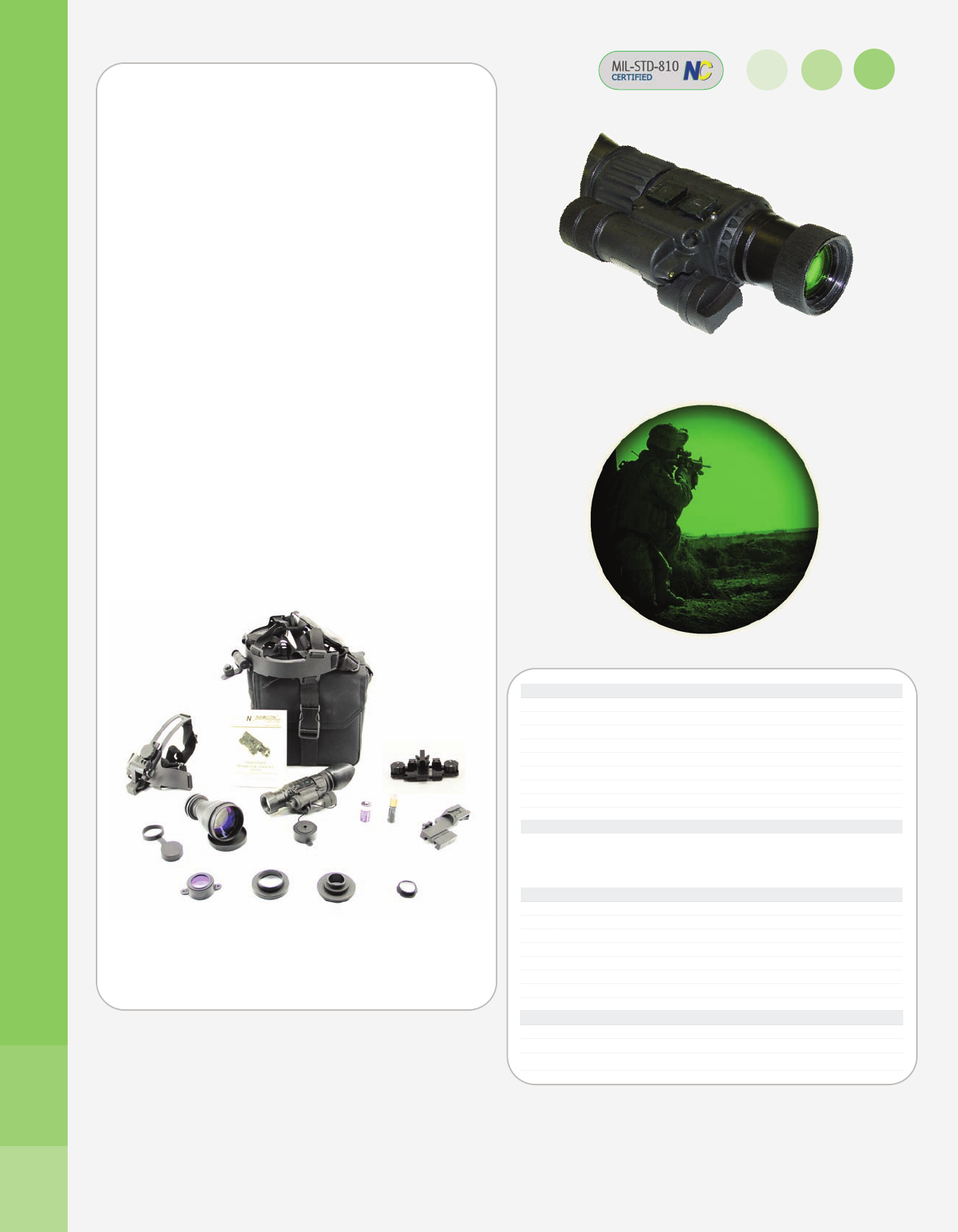

The NVS 14-3GCS night vision monocular meets the most

demanding needs of both military and law enforcement

users. This model is manufactured with Gen. 3 ANVIS-size

image intensifier tubes. It is waterproof up to 20 metres and

features a manual gain control that allows extensive usage

under changing light conditions from dusk to dawn. Extreme

durability and extended operating time combined with a

crisp, clear image make this model indispensible for every

situation and type of operation encountered by Special

Forces professionals.

Like all other models in the NVS 14 family, the NVS

14-3GCS can be used as a handheld unit or it can be

mounted on a weapon, head or helmet. An optional afocal

lens turns the monocular into a 3x night vision sight.

The head mount enables the user to flip the monocular from

left to right eye and to turn it upright for unobstructed vision.

In “Auto” mode, the NVS 14-3GCS automatically switches

off when turned upright. When the unit is head/helmet-

mounted, this feature extends battery life and

eliminates the risk of user-detection. Two monoculars with a

dual mount adapter form true stereoscopic night vision

goggles. With optional add-on afocal lenses, the device is

transformed into night vision binoculars. The product is

video camera adaptable.

The NVS 14-3GCS is the first mass-produced 3rd

generation night vision device with FOM>1600 that is not

subject to any US export restrictions.

Optical

Magnification 1x

Field of view 40°

Objective F number F1.17

Objective focal length 27.5 mm

Focus range 0.25 m - infinity

Exit pupil 21 mm

Eye relief 25 mm

Diopter adjustment range +5 to - 6

Mechanical

Battery 1 AA or 1 CR123

Battery life Over 40 hr without IR, over 20 hr with IR

Low battery indicator V

IR ON indicator V

Auto shut off V

Dimensions 118x48x69 mm

Weight 320 g

Environmental

Waterproof 20m, 30 minutes

Operating humidity 98%

Operating temperature -50°C … +55°C

Storage temperature -50°C … +70°C

Image Intensifier Tube

Generation 3

IIT model N3XT3631IC

IIT resolution (minimum) 64 lp/mm

NVS 14-3GCS

Full Delivey Set including optional accessories

NIGHT VISION SYSTEMS

10 NIGHT VISION SYSTEMS

+1 (416) 663-6963

www.newcon-optik.com

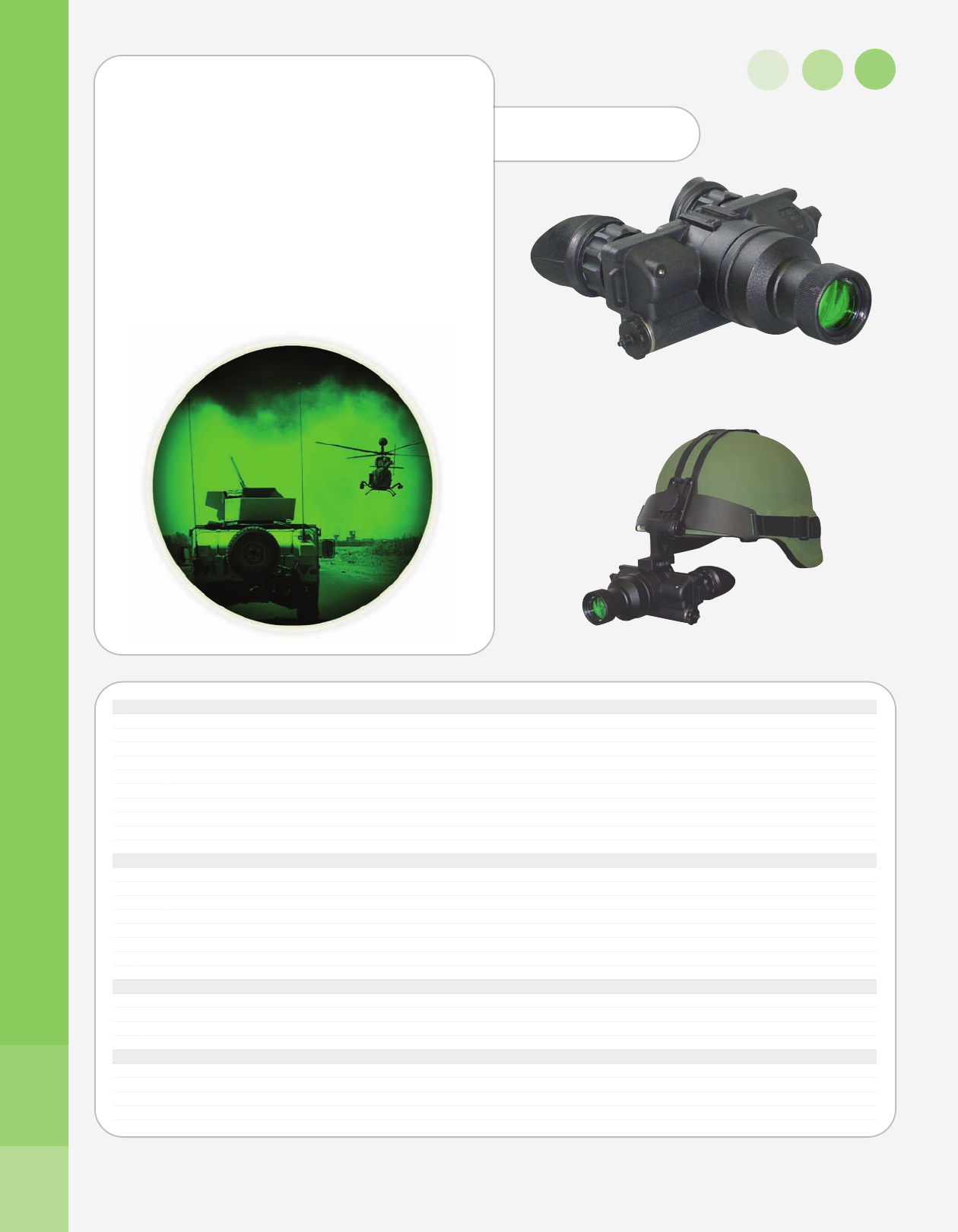

NVS 7 (NSN# 5855-20-000-8284)

Image Intensifer Tube

Generation 3

IIT model N3XT4322

IIT resolution (minimum) 64 lp/mm

NVS 7 mounted on a helmet

Optional Hard Case Shown

NVS 7

Optical

Magnification 1x

Field of view 40°

Objective F / T number F1.2 / T 1.25

Objective focal length 27.5 mm

Focus range 0.25 m - infinity

Eye relief 25 mm

Diopter adjustment range +5..-6

Interpupillary distance 57-73 mm

Mechanical

Battery 2 AA

Battery life Over 80 hr without IR; over 30 hr with IR

Low battery indicator V

IR ON indicator V

Auto shut off No

Dimensions 150x120x55 mm

Weight 480 g

Environmental

Waterproof MIL-STD-810

Operating temperature -50°C … +55°C

Storage temperature -50°C … +70°C

These battle-tested NVS 7 goggles meet all military and law

enforcement requirements for night observation. Currently

in service in more than 40 militaries around the world, a

variety of models are available to satisfy any user need.

Waterproof, lightweight and compact, this advanced system

is also the most affordable on the world market.

The NVS 7 is the first mass produced Gen. 3 night vision

goggle with FOM>1250 that is not subject to US export

restrictions. Optional 3x, 4x, 5x and 8x easy-to-attach

lenses further extend viewing capability.

11 NIGHT VISION SYSTEMS

+1 (416) 663-6963

www.newcon-optik.com

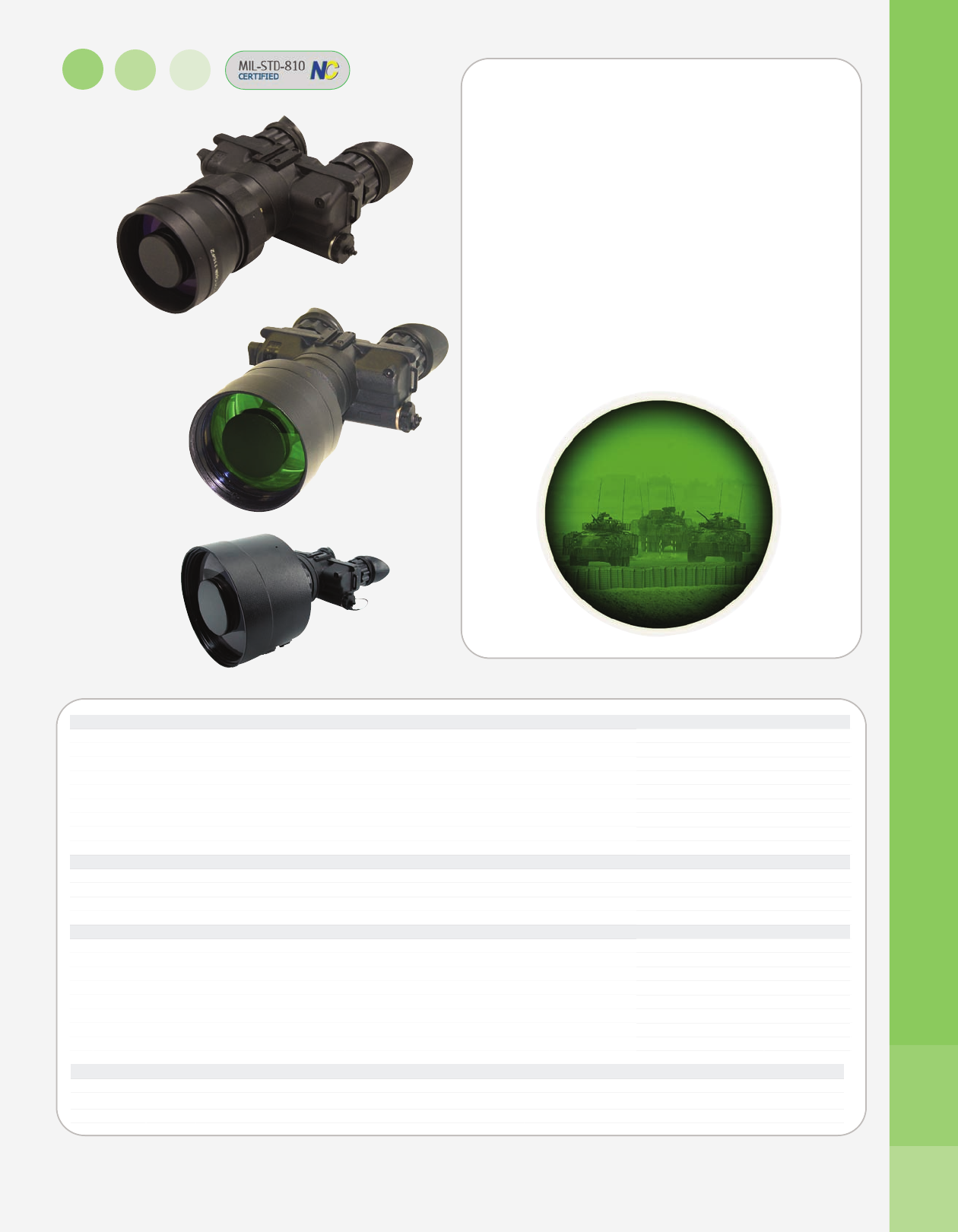

NVS 7 BINOCULAR SERIES

The battle-tested NVS 7 binoculars, based on the popular

NVS 7 goggles, are suitable for defence, marine and SAR

operations under the darkest conditions.

They are available in 4x, 5x and 8x magnification

configurations. NVS 7/4x is the smallest and lightest

handheld night vision binocular in its class. The NVS 7/5x

provides an excellent visibility range while remaining

compact and functional.

The NVS 7/8x incorporates a unique catadioptric lens with

a large aperture, which makes this device indispensable for

long range observation at night. It is recommended to use

the NVS 7/8x model with a tripod. It is equipped with a

standard ¼” tripod socket.

Optical

Magnification 4x 5x 8x

Field of view 10° 8° 5°

Objective F number 1.5 2.3 2.0

Objective lens focal length 100 mm 130 mm 216.4 mm

Focus range 10 m - infinity 10 m - infinity 20 m - infinity

Eye relief 25 mm 25 mm 25 mm

Diopter correction +5..-6 +5..-6 +5..-6

Interpupillary distance 57-73 mm 57-73 mm 57-73 mm

Environmental

Waterproof MIL-STD-810

Operating temperature –50°C … +55°C

Storage temperature –50°C … +70°C

Mechanical

Battery 2 AA 2 AA 2 AA

Battery life Over 80 hr without IR, over 30 hr with IR

Low battery indicator V V V

IR ON indicator V V V

Auto shutoff No No No

¼" tripod socket No No Yes

Dimensions 165x120x70 mm 230x136x82 mm 240x130x130 mm

Weight 0.690 kg 0.800 kg 1.470 kg

Image Intensifier Tube

Generation 3

IIT model N3XT4322

IIT resolution (minimum) 64 lp/mm

NVS 7/8x

NVS 7/5x

NVS 7/4x

NIGHT VISION SYSTEMS12

+1 (416) 663-6963

www.newcon-optik.com

Advanced Gen. 3 image intensifier tubes

Stereo vision

Flip up/Flip down button release

Vertical and fore-and-aft adjustments

Quick detachment

Automatic brightness control

Lightweight

FEATURES:

Class A/B (minus blue) and leaky green filters

Head Mount Assembly

OPTIONAL ACCESSORIES:

The NVS 6 aviator night vision goggles feature binocular

viewing and were designed specifically for use by

helicopter pilots during night flight missions. Whether the

mission involves fixed or rotary wing aircraft, flight crews

can now benefit from the NVS 6 aviator system,

developed specifically for their needs. The goggles allow

aviators to navigate at the nap of the earth, take off, land

and perform other operations that are practically impossible

or extremely dangerous at night without the use of a light

source.

Improved situational awareness and system performance,

in addition to ergonomic and technological enhancements,

will benefit both law enforcement and civil aviators.

Adjustable 25 mm eyepieces provide improved eye relief

enabling excellent viewing regardless of the eyepiece

positioning. Ergonomically designed interface controls

including interpupillary adjustments and vertical, fore-aft,

and tilt adjustments allow improved viewing of the entire

system field of view (40 degrees). The lightweight goggles

can be mounted to a variety of aviator helmets.

NVS 6 AVIATOR GOGGLES

Specifications

IIT type Gen. 3

Resolution at optimal light level 1.1 cy/mr

Light gain min 35,000

IIT resolution 57-64 lp/mm

ITT signal to noise ratio 20-24

Magnification 1x

Field of view 40°

Objective lens 27 mm, F 1.23

Focus range 0.25 m - infinity

Exit pupil/Eye relief Full-field: 6 mm @ 25 mm distance

Diopter adjustment range -5...+2

Interpupillary adjustment range 52 mm ... 72 mm

Vertical adjustment range 18 mm - standard (25 mm - optional)

Fore-and-aft adjustment range 27 mm

Tilt adjustment range min 10°

Power supply 2xAA

Operational temperature range -32°C ... +52°C

Dimensions, WxHxD, with mount 126 x 128 x 111 mm

Weight 550 g

Image Intensifier Tube

Generation 3

IIT model N3XT3631IC

Resolution 64 lp/mm

13 NIGHT VISION SYSTEMS

+1 (416) 663-6963

www.newcon-optik.com

NIGHT WITNESS M3

The Night Witness M3 is designed for conducting

surveillance and intelligence gathering activities under the

cover of night. This device is the ideal night vision system

for law enforcement, private security, search and rescue

and professional photography.

The Night Witness M3 can be mounted on a variety of

optical systems allowing the user to capture high quality

true night vision images in low light conditions. Based on

Newcon Optik’s popular NVS 14 night vision monocular, this

device unitilizes a Gen. 3 image intensifer tube.

Designed with modularity in mind, the objective lens

interface on the Night Witness M3 is compatible with any C-

mount lens.

Night Witness M3 Delivery Set

Optical

Magnification 1x

Focal length / F number 25 mm/F1.4

Field of view 40°

Focus range 3 m - infinity

Eyepiece

Focal length 20 mm

Eye relief 16 mm

Exit pupil 7 mm

Diopter adjustment range -4 ... +4

Environmental

Operational -40°C ...+55°C

Storage temperature -40°C ... +65°C

Relative humidity Up to 98%

Image Intensifier Tube

Generation 18 mm, Gen. 3

IIT model N3XT3631IC

Resolution (minimum) 64 lp/mm

Mechanical

Lens mount C-mount, 1” – 32 TPI

Power supply 1xAA or external power supply 3.5-15 V, 50 mA

Battery life at 20°C 10 hours (5 hours with infrared illuminator)

Tripod socket standard 1/4”, 20 TPI

Dimensions 115x70x45 mm

Weight with battery 328 g

Night Witness M3 with video being recorded

Night Witness M3 attached to HD Camcorder

Night Witness M3

+1 (416) 663-6963

www.newcon-optik.com

NIGHT VISION SYSTEMS14

Optical

Model DN 462 / DN 463

Objective F Number F1.68

Magnification 4x

Field of view 11

Focus range 8 m - infinity

Objective lens diameter 60 mm

Eye relief distance 50 mm

Diopter correction ±3.5

Mechanical

Adjustment mechanism, step 0.45 MOA

Adjustment mechanism, range 0.4435” @ 100 yards

Battery 1xAA / 1xCR123 Lithium

Voltage 1.5V / 3V

Dimensions 310x95x103 mm

Weight 1,000 g

Environmental

Waterproof MIL-STD-810

Operating temperature -30°C …+40°C

Configuration

Generation 2+ / 3

Resolution 46-64 lp/mm

Fine image quality and resolution

LED-lit Mil-Dot reticle

Shock proof, built for use with heavy recoil weapons

Stabilized power supply

Low battery indicator

Remote control with secure attachment

Shock resistant lightweight armored carbon plastic body

Powerful infrared illuminator

Carrying case

FEATURES:

The DN 462 / DN 463 is designed to excel in modern

warfare. Utilizing a military-style design and offering

maximum functionality, the DN 462 / DN 463 is the right

choice for anyone operating in dark environments.

DN 462 / DN 463 RIFLESCOPE SERIES

This riflescope It is fully weatherproof, with a nitrogen filled

optical channel rated to IP 66, and can be used virtually

anywhere (arctic ice fields, desert sands, humid tropical

forests).

The body design and high grade image intensifier tubes

(“IIT”) ensure the riflescope is shockproof to heavy

calibers, including 9.3x62, 9.3x74 and 375 H&H.

The Gen. 2+ / Gen.3 IIT has Automatic Brightness Control

(ABC) and a high quality, wide-aperture lens, that provides

a sharp and clear picture. The high light gain allows

operation even in situations of critically low night

illumination (down to 10-4 lx – overcast starlight).

The DN 462 / DN 463 is equipped with a LED-lit Mil-Dot

reticle. The voltage stabilization system eliminates reticle

shift even with an almost discharged battery. All main

controls are located on top of the unit allowing for ease of

access.

+1 (416) 663-6963

www.newcon-optik.com

NIGHT VISION SYSTEMS

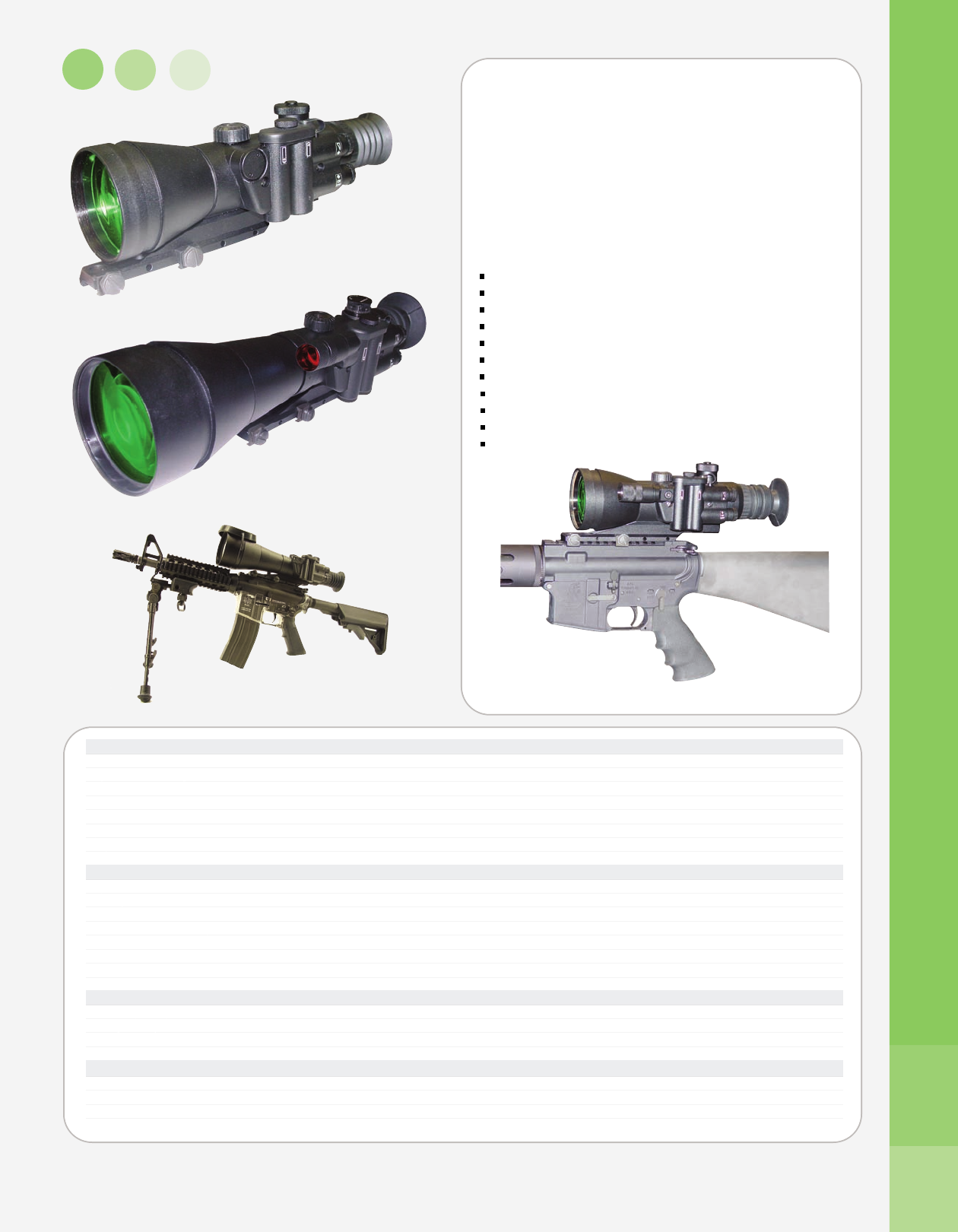

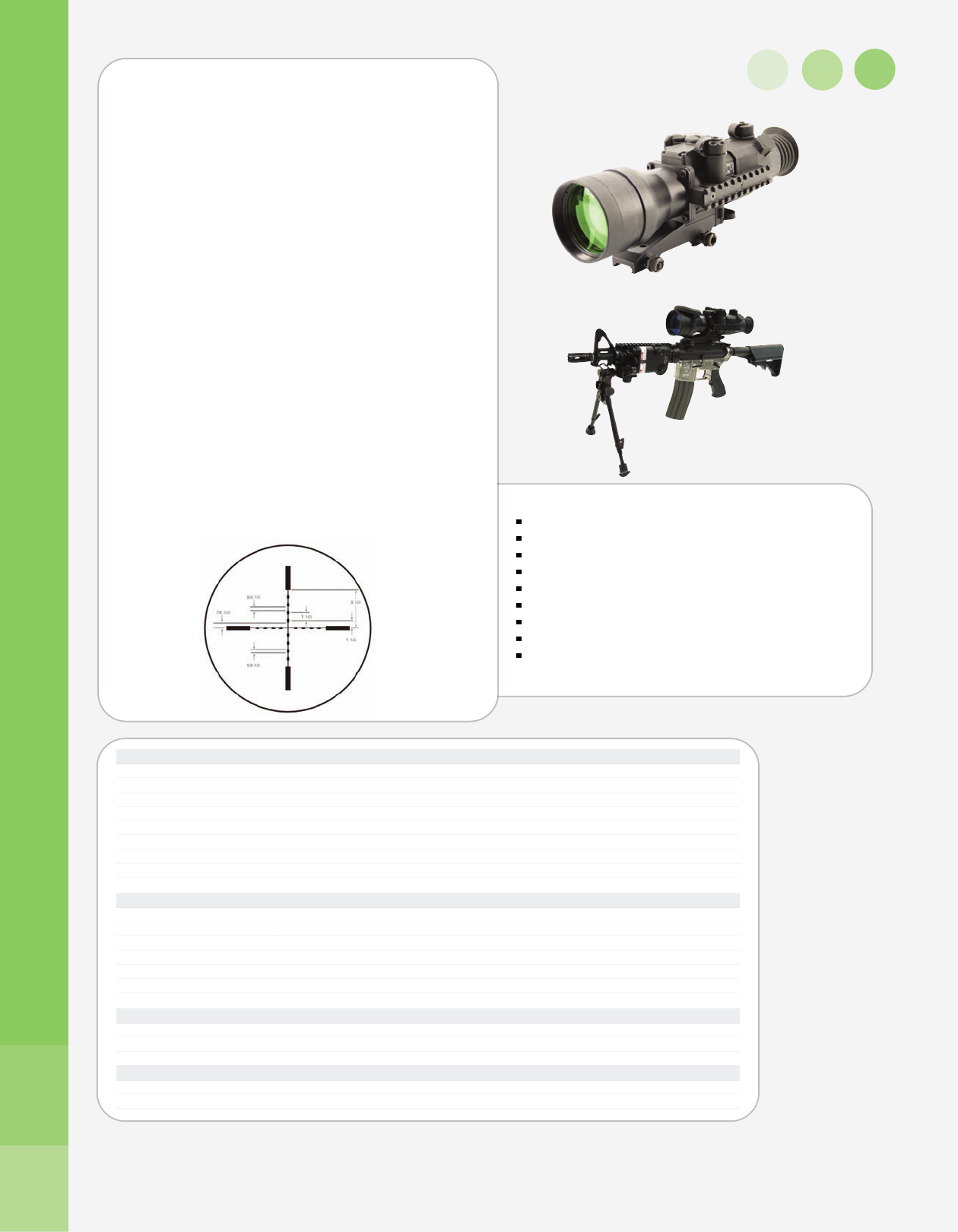

DN 483 RIFLESCOPE

The DN 483 is a modern multi-purpose night vision

riflescope built to accommodate the most demanding

military specifications. Large quantities of DN 483 are in

service with militaries around the world. This scope is easy

to service and maintain.

The body of the scope is made of lightweight composite

materials and is compatible with 4x and 6x objective lenses.

FEATURES:

Long observation range

Various weapon mounts available (including European mount)

Shockproof, built for use with heavy recoil weapons

Automatic brightness control

Illuminated Mil-dot reticle with adjustable brightness

Reticle color (red or yellow) selectable

Long eye relief

Accurate windage/elevation adjustment with audible clicks

Lightweight reinforced plastic body

Powerful infrared illuminator (optional)

Camera/video adapter (optional)

DN 483 on AR-15 type rifle

DN 483 - 4x

DN 483 - 6x

DN 483 on assault rifle

Optical

Model 4X 6X

Objective focus length / F number 110mm / F 1.6 165 mm / F 2.0

Magnification 3.7x 6.1x

Field of view 10° 6.25°

Focus range 10 m to infinity 30 m to infinity

Eye relief 45 mm 45 mm

Diopter correction -4 … +3 -4 … +3

Mechanical

Adjustment windage/elevation, step 1 click = 10mm / 100m

Battery 2xAA

Voltage 1.5V

Battery life (minimum) 60 hours

Dimensions 280x85x75 mm 360x90x110 mm

Length without eye cup 220 mm 310 mm

Weight 0.870 kg 1.05 kg

Environmental

Operating temperature -40°C ... +55°C

Storage temperature -45°C ... +65°C

Relative humidity Up to 98 %

Configurations

Generation 3

IIT model N3XT3631IC

Resolution 57-64 lp/mm

NIGHT VISION SYSTEMS16

+1 (416) 663-6963

www.newcon-optik.com

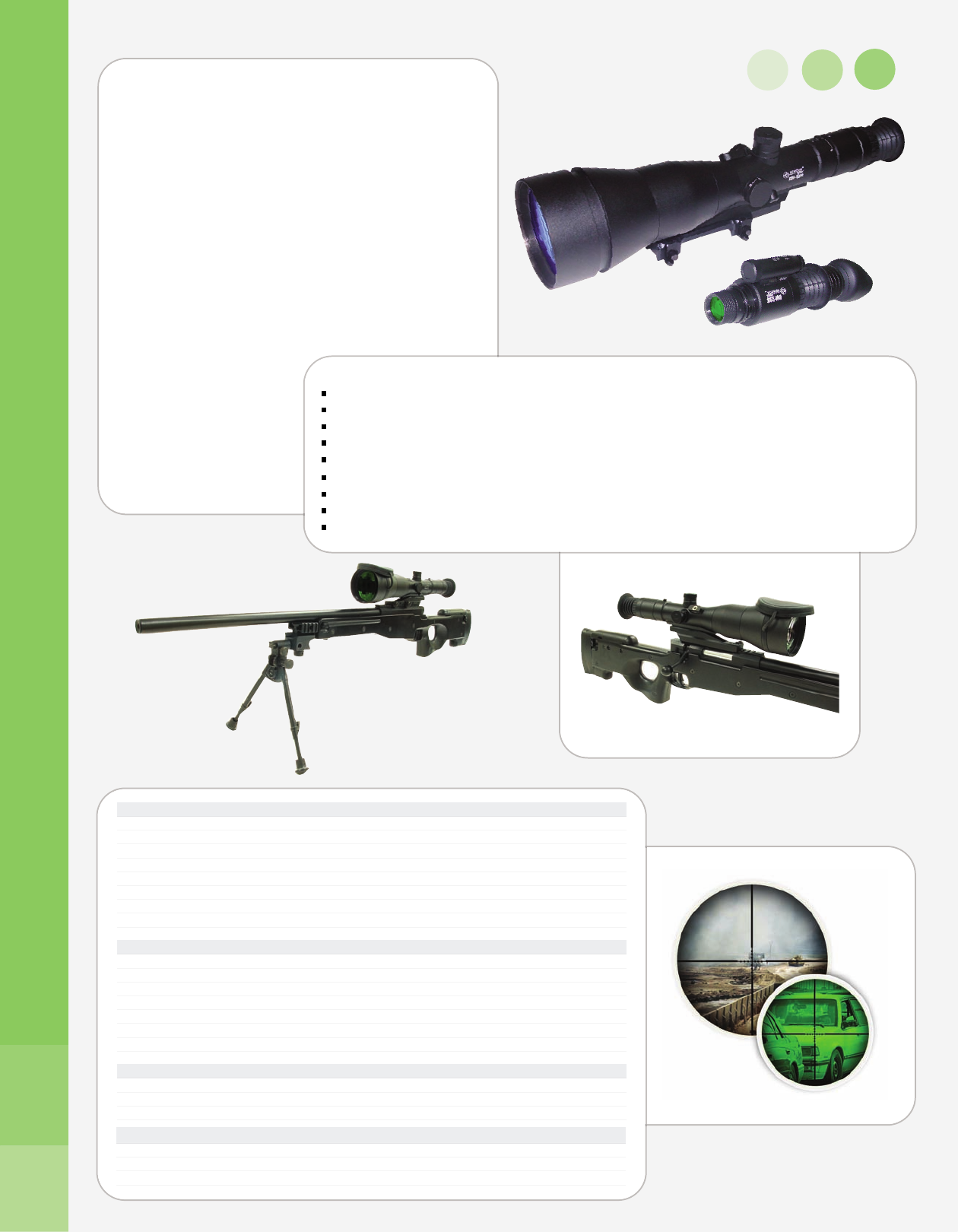

DN 533 RIFLESCOPE

A unique Gen 3 universal day / night riflescope, featuring

two interchangeable eyepieces for day and night use.

Replace the daytime eyepiece with the night vision

aperature and the scope is ready for action with no re-

zeroing or tools required. The DN 533 is offered with either

7x or 11x magnification. Used with the optional IR

illuminator the DN 533 enables shooting in total darkness.

The DN 533 night vision eyepiece can also be used as a

stand alone 1x night vision monocular. With an add-on 3x

NVS lens the monocular turns into a 3x observation device.

Built-in windage and elevation adjustment

mechanisms, matte-black body finish and water resistant

design makes these scopes indispensable when 24/7

operability is required.

APPLICATIONS:

Night surveillance / Hunting

Police / Law Enforcement

Patrol / Search and Rescue

Optical

Magnification 7x 11x

Objective focus length / F number 100 / F1.5 166 / F2.0

Magnification (day / night) 7.0x / 3.7x 11.2x / 6.0x

Field of view (day / night) 3.7 / 7.4 2.3 / 4.6

Focus range (minimum) 20 m

Objective lens diameter 66 mm 83 mm

Eye relief 60 mm 60 mm

Diopter correction - 4 …+ 2 - 4 …+ 2

Mechanical

Adjustment mechanism, step 1/4 MoA ( 7.27 mm / 100 m )

Adjustment mechanism, range 120 MoA ( ±1.75 m / 100 m )

Battery 1xCR123 Lithium

Voltage 3 V

Battery life (minimum) 40 hours

Dimensions 340x82x82 mm 440x83x83 mm

Weight (day/night) 0.99kg / 1.05 kg 1.17 kg / 1.23 kg

Environmental

Operating temperature -40°C ... +55°C

Storage tepmerature -45°C ... +65°C

Relative humidity Up to 98%

FEATURES:

Interchangeable day / night eyepieces - keep rifle zeroed day and night

Vision range is 400-1000 m in daytime and 100-250 m in total darkness (with optional IR illuminator)

Night eyepiece also works as a stand alone 1x monocular (or 3x with optional lens)

Unique high-quality day/night optics (100 mm / F1.5 or 166 mm / F2.0)

Wide field of view

Wide range of focus adjustment

Accurate internal windage / elevation adjustment knobs with tactile audible clicks and true 1/4 MoA step

Water resistant

Optional powerful IR illuminator (75 or 200 mW)

Night time eyepiece

Configurations

Generation 3

IIT model N3XT3631IC

Resolution 57-64 lp/mm

+1 (416) 663-6963

www.newcon-optik.com

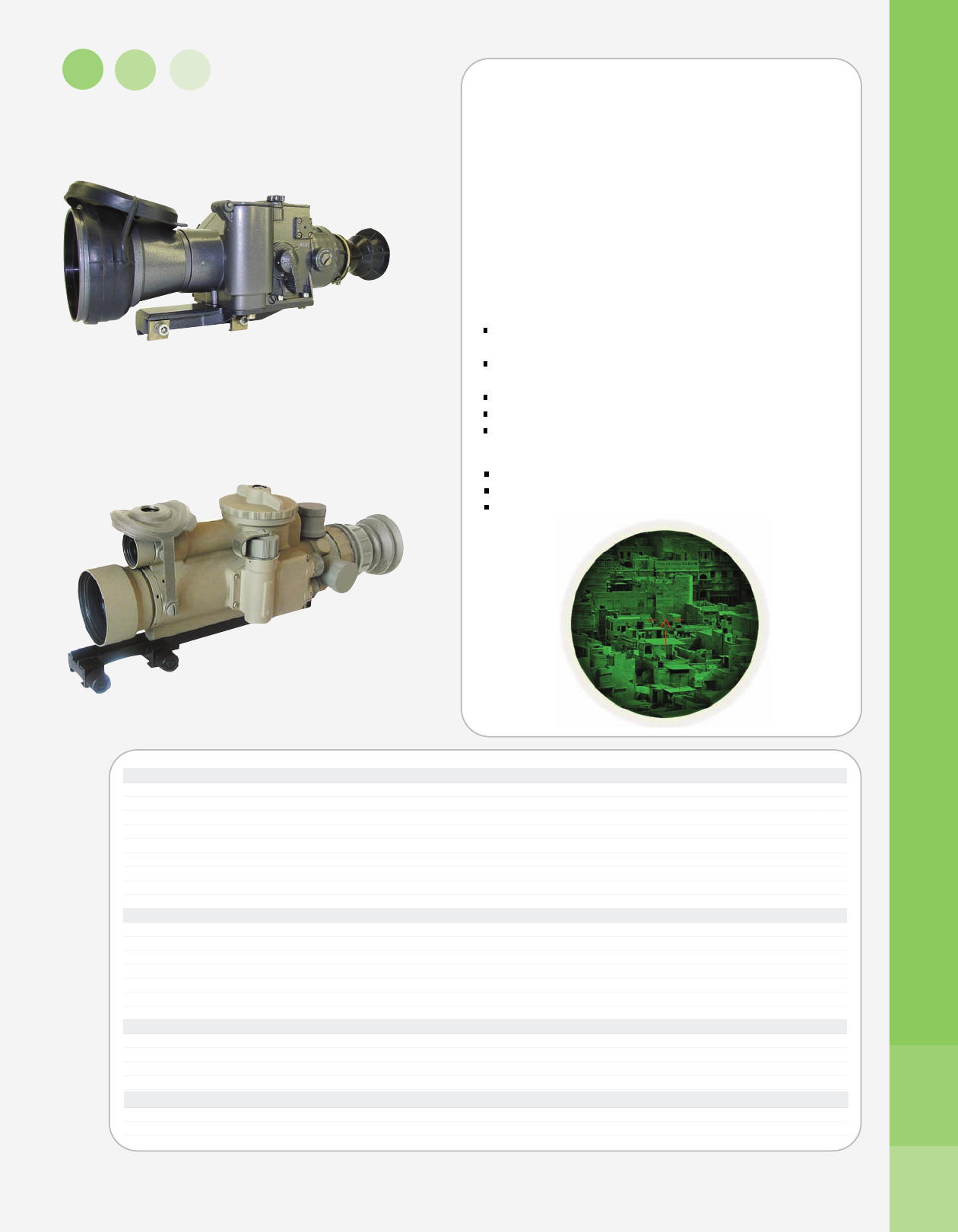

NVS 10MG / 10MGM RIFLESCOPE SERIES

NIGHT VISION SYSTEMS

The NVS 10MG and the NVS 10MGM are integrated day /

night riflescopes. The user can easily switch between day

and night modes, eliminating the need to carry separate

night and day scopes. No re-zeroing is required when

switching between day and night mode.

The scope fits various weapons, including machine guns,

anti-tank guns, grenade launchers, etc. This scope features

an adjustable illuminated tactical reticle. The reticle can be

changed (at the factory) to match the particular weapon /

ammunition combination.

NVS 10MG

NVS 10MGM

Fits a variety of weapons, including M16, AK-47, Carl Gustaf

Grenade Launcher, RPG, various machine guns

Can be supplied with Picatinny mount (MIL-STD-1913), side

mount or a custom mount

Accurate internal windage / elevation adjustment mechanism

Lit tactical reticle with adjustable brightness

Automatic brightness protection

FEATURES:

Optical NVS 10MG NVS 10MGM

Magnification 4x 3x

Objective focal length / F number 108 mm / F1.5 80 mm/F3.8 (day) / 80 mm/F1.6 (night)

Field of view 9° (day) / 14° (night) 12°

Objective lens diameter 72 mm 21 mm (day) / 52 mm (night)

Focus range 50 m – infinity 50 m – infinity

Eye relief 40 mm 50 mm

Exit pupil diameter 6 mm 7 mm

Diopter correction Fixed -0.5 ... -1 -4 ... +5

Mechanical

Windage / Elevation adjustment range ±34 MoA 36 MoA

Windage / Elevation step 0.7 MoA 0.35 MoA

Battery 2xAA 1xAA

Battery life (minimum) 60 hours 16 hours, with IR 3.5 hours

Dimensions 255x88x80 mm 322x87x131 mm

Weight 1.6 kg 1.64 kg

Environmental

Operating temperature -55°C …+55°C -40°C …+40°C

Storage temperature -55°C … +70°C -50°C …+50°C

Waterproof MIL-STD-810 (506.5) MIL-STD-810

Relative humidity ≤95% ≤95%

Carrying case

Manual

Warranty card

ACCESSORIES:

Configurations

Generation 3

IIT model N3XT4322

Resolution 64 lp/mm

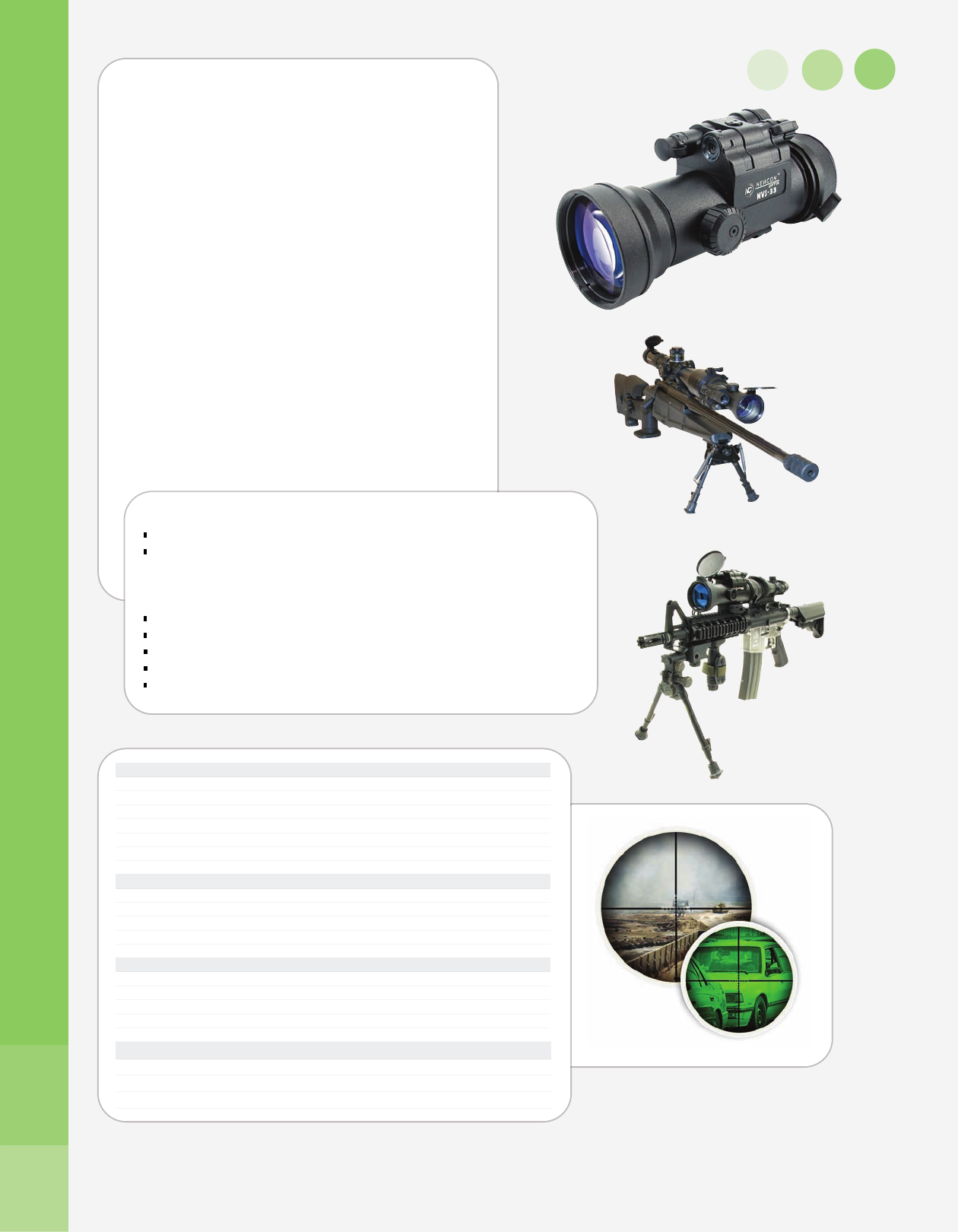

The NVS 33 is a high-resolution night vision attachment that

is designed to mount in front of virtually any daytime

weapon scope. A variety of mounting options that include a

Picatinny rail and a scope ring adaptor mount with different

size inserts for various scope objectives are available.

The NVS 33 can be used with daytime scopes with 1x to

20x magnifications (3x to 12x recommended), adding night

vision capabilities to daytime target acquisition platforms.

The NVS 33 utilizes a Gen. 3 image intensifier tube and fast

f/1.6 optics for a brighter and sharper image.

The unit is installed, operated, and removed without tools

and without affecting the alignment of the daytime scope.

The unit can be mounted on a spotting scope for long range

reconnaissance, used hand-held as a night observation

device, or used in other night-time operations requiring

night vision capabilities. The NVS 33 night sight attachment

can be mounted to a variety of handheld weapons including

medium-range sniper weapons and assault rifles.

NVS 33 WEAPON SCOPE ATTACHMENT

NIGHT VISION SYSTEMS18

+1 (416) 663-6963

www.newcon-optik.com

Optical

Magnification 1x

Field of view 8.8º

Objective lens focal length / F number 78 mm / F1.5

Focus range 10 m to infinity

Magnification of day scope, recommended 3-12x

Magnification of day scope, maximum 1-20x

Environmental

Operating temperature -50ºC ... +55ºC

Storage temperature -55ºC ... +65ºC

Relative humidity Up to 98 %

Waterproof MIL-STD-810

Mechanical

Battery 1x CR123 Lithium or 1x AA

Battery life 40-60 hours

Dimensions 180x75x60 mm

Weight 615 g

Configuration

Generation 3

IIT model N3XT3631IC

Resolution (minimum) 64 lp/mm

FEATURES:

In-line with rifle sight attachment

Three different methods of mounting:

- Picatinny (MIL-STD-1913) mount

- Compatible riflescope thread

- Riflescope mount with several ring sizes

Works in combination with any daytime scope with 1x to 20x magnification

Works with reflex sights (ACOG, Aimpoint, Elcan, etc.)

MIL-Spec design

Powerful IR illuminator

Optional attachment to convert into a night vision monocular

Optical

Magnification 1x

Field of view 40°

Objective F number F1.17

Objective focal length 27.5 mm

Focus range 0.25 m - infinity

Exit pupil 21 mm

Eye relief 25 mm

Diopter range +5 to - 6

Mechanical

Battery 1 AA or 1 CR123

Battery life (minimum) Over 40 hr without IR, 20 hr with IR

Low battery indicator V

IR ON indicator V

Auto shut off V

Dimensions 118x48x69 mm

Weight 300 g

Environmental

Waterproof 1 m / 30 minutes

Operating temperature -50°C …+50°C

Storage temperature -50°C …+70°C

Configurations

Model NV207-G2

Generation 2 +

IIT model EPM207-G2-11-13

IIT resolution range 43-51 lp/mm

Export License

NOT REQUIRED

The NV207-G2 monocular provides the ability to observe

terrain under the darkest conditions. The

NV207-G2 uses the same approach to night vision as our

popular battle-tested NVS 14 night vision monocular but

places it within the financial reach of night vision

enthusiasts. The unit is one of the smallest and lightest

products in its category.

A large variety of available accessories allows the unit to be

used as a night vision video/camera attachment, or as a 3x

magnification night scope. The head mount enables the

user to flip the monocular from left to right eye or turn

upright for unobstructed vision. In “Auto” mode the unit

automatically switches off when turned upright.

NV207-G2 MONOCULAR

NV207-G2 Binocular

Configuration

+1 (416) 663-6963

www.newcon-optik.com

NIGHT VISION SYSTEMS

NV66-G2 mounted

on a helmet

NV66-G2

Optical

Magnification 1x

Field of view 40°

Objective F / T number F1.2 / T 1.25

Objective focal length 27.5 mm

Focus range 0.25 m - infinity

Exit pupil 18.5 mm

Eye relief 25 mm

Diopter range +5 ..-6

Interpupillary distance 57-73 mm

Mechanical

Battery 2 AA

Battery life (minimum) Over 80 hr without IR ; 30 hr with IR

Low battery indicator V

IR ON indicator V

Auto shut off No

Dimensions 150x120x55 mm

Weight 480 g

Environmental

Waterproof 1 m / 30 minutes

Operating temperature -50°C … +50°C

Storage temperature -50°C … +70°C

Configurations

Model NV66-G2

Generation 2+

IIT model EPM66G-2

IIT resolution range 43-51 lp/mm

Export License

NOT REQUIRED

NV66-G2 GOGGLES

The NV66-G2 goggles provide the ability to observe terrain

under the darkest conditions. This model uses the same

approach to night vision as our popular battle-tested NVS 7

goggles, but places it within reach of night vision

enthusiasts. Waterproof, lightweight and compact this is

one of the most affordable systems on the market. An

excellent choice for recreational or professional use.

Optional 3x or 5x easy-to-attach lenses further extend

viewing capability.

NIGHT VISION SYSTEMS20

+1 (416) 663-6963

www.newcon-optik.com

NVS LENSES

These high performance 3x, 4x, 5x and 8x lenses easily

mount to the objective lens of many night vision devices.

The lenses can be threaded or snapped onto the objective

lenses, depending on the lens magnification. Each unit

includes a convenient flip-up objective lens cover,

removable rear lens cap and carrying case. Each NVS lens

is water resistant.

Soft carrying case

Lens cover

Cleaning cloth

ACCESSORIES:

4x Lens

5x Lens

3x Lens

Specifications

Model NVS 3X NVS 4X NVS 5X NVS 8X

Magnification 3x 4x 5x 8x

Field of view 13° 10° 8° 5°

Objective lens focal length 55 mm 100 mm 130 mm 216.4 mm

Focus range 5 m - infinity 10 m - infinity 10 m - infinity 20 m - infinity

Objective F number 1.5 1.5 2.3 2.0

Dimensions 70x68x88 mm 65x65x80 mm 84x84x95 mm 140x132x130 mm

Weight 228 g 240 g 385 g 1200 g

Compatible with NVS 7 / NVS 14 NVS 7 NVS 7 / NVS 14 NVS 7

PVS 7 / PVS 14

8x Lens

+1 (416) 663-6963

www.newcon-optik.com

NIGHT VISION SYSTEMS

+1 (416) 663-6963

www.newcon-optik.com

IMAGE INTENSIFIER TUBES22

IMAGE INTENSIFIER TUBES

23 LASER RANGEFINDERS

+1 (416) 663-6963

www.newcon-optik.com

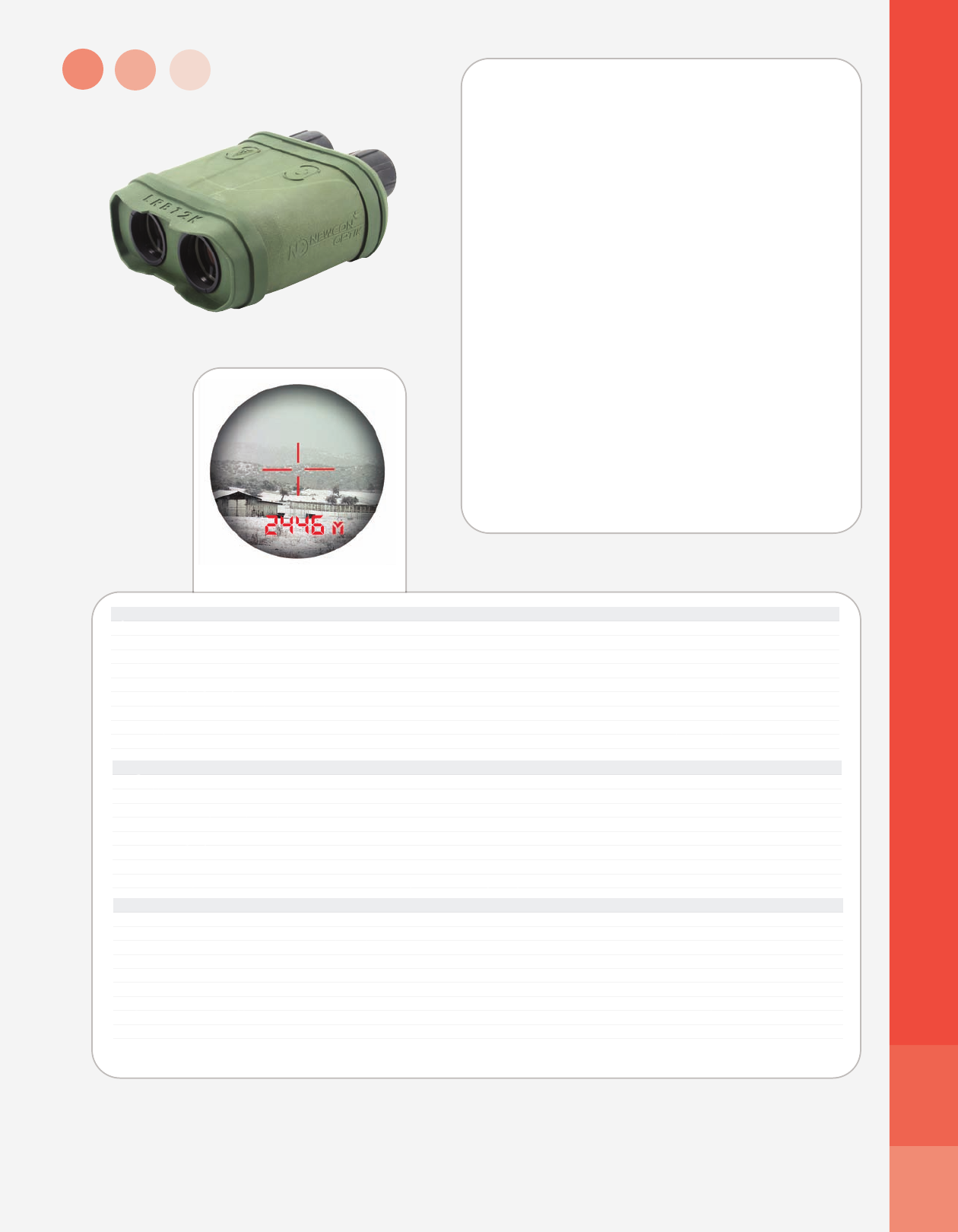

LRB 12K

This long range laser rangefinder binocular is an essential

tool on the battlefield, at sea and on the worksite. This fully

MIL-SPEC device not only ranges out to 12 kilometers,

certified to a NATO-standard target) but also measures:

• Azimuth and inclination

• Horizontal and vertical distance from target

• Speed of target

• GPS coordinates of the user

• GPS coordinates of the target

• Distance between two targets

• Azimuth and inclination differential of two targets

• Horizontal and vertical distance between two targets

• And more…

The LRB 12K utilizes an eye-safe laser to deliver the most

accurate range measurements in the market. With a built-

in GPS receiver, 3-axis compass and crystal clear 7x42

binocular optics all in a 1.5 kg package, the LRB 12K can

replace several pieces of kit, reducing overall weight load

for users in the field.

The LRB 12K – NITE configuration is the only Gen 3 night

vision laser rangefinder binocular available for export.

LRB 12K - Display

Optics

Magnification (x) 7

Objective lens diameter (mm) 42

Exit pupil diameter (mm) 6

Eye relief (mm) 2

Field of view (degrees) 6

Interpupillary distance (mm) 58 to 72

Diopter adjustment range (dpt) >±5

Reticle type Glass Reticle (optional) plus OLED

Display type Matrix OLED

Mechanical

Power supply 6V lithium battery 2CR5. 4-6V external

Measurement quantity with one battery (shots) 5,000

Built-in compass type 3 axes

Built-in GPS module Yes

PC communication RS232 and USB

Dimensions (mm) 210x160x85 mm

Weight with battery (kg) 1.65 kg

Operational temperature -40°C … +60°C

Storage temperature -50°C … +55°C

Rangefinder

Laser type Pulse

Wavelength (nm) 1550 ± 20

Laser beam divergence (mrad) 0.51

Maximum range (Km) 12

Minimum range (m 20

Range accuracy (m) +/- 1.0

Acquisition time (sec) 0.5

Automatic adaptation for different weather conditions (rain, snow, fog, etc) Yes

*Target: NATO target, 2.3m x 2.3m, albedo 0.3, visibility over 20km.

+1 (416) 663-6963

www.newcon-optik.com

LASER RANGEFINDERS

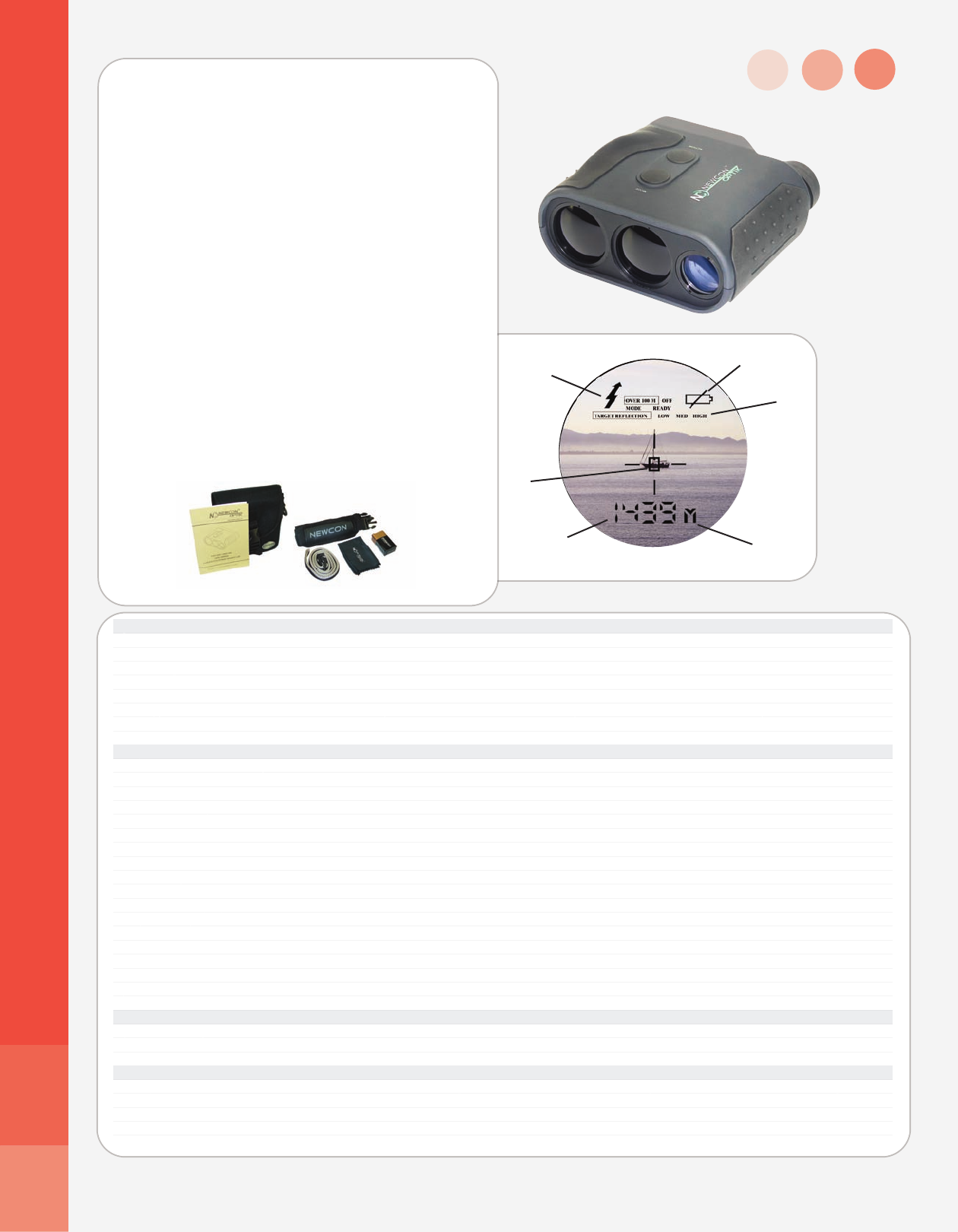

The LRM 1500M, 1800S and 2200SI are Newcon Optik’s

newest laser rangefinder monoculars. Each device is the

result of many years of research and development and is

designed to address the requirements of thousands of LRM

users around the world.

The LRM 1500M is for users requiring basic functionality

and high reliability. It features a true measurement range of

1,500m (NATO target) and can recall 10 measurements

from device memory.

The LRM 1800S features a true measurement range of

1,800m (NATO standard target) and performs accurate

speed measurement. For border patrol, law enforcement

and other professionals tasked with perimeter control, the

LRM 1800S is an invaluable tool.

The LRM 2200SI features a true measurement range of

2,200m (NATO standard target) and is reliable in practically

all weather conditions. A built-in high quality compass and

inclinometer enable speed, elevation and azimuth

measurements.

LRM 1500M/1800S/2200SI

Delivered Set

Specifications

Model LRM 1500M LRM 1800S LRM 2200SI

Magnification 7x 7x 7x

Beam divergence 2.0 mrad 2.0 mrad 2.0 mrad

Objective lens diameter 25 mm 25 mm 25 mm

Field of view 8° 8° 8°

Laser type Eye-safe 905 nm Eye-safe 905 nm Eye-safe 905 nm

Diopter adjustment range ±4 ±4 ±4

Rangefinder

Distance measurement range* 10-1,500 m 10-1,800 m 10-2,200 m

Azimuth measurement range - - 6,400 mils / 360º

Elevation measurement range - - ±80º

Distance accuracy ±1 m ±1 m ±1 m

Azimuth accuracy - - ±2º

Elevation accuracy - - ±1º

Distance resolution 1 m 1 m 1 m

Measuring time (seconds) 0.5 sec 0.5 sec 0.5 sec

First/Last logic - - V

Gating capability/Step - - V

Metres/Yards display V V V

Computer output - - -

Last 10 readings recall V V V

Reticle shape selection (+ or []) V V V

Target quality indicator V V V

Scan mode V V V

Speed detector - V V

Environmental

Operational temperature -25°C ... +50°C -25°C ... +50°C -25°C ... +50°C

Storage temperature -45°C ... +65°C -45°C ... +65°C -45°C ... +65°C

Miscellaneous

Battery 9V Lithium non-magnetic 9V Lithium non-magnetic 9V Lithium non-magnetic

Tripod socket V V V

Weight without battery 445 g 445 g 450 g

Dimensions 127x125x60 mm 127x125x60 mm 127x125x60 mm

*Target: NATO target, 2.3m x 2.3m, albedo 0.3, visibility over 20km.

LRM 3500CI

The LRM 3500CI combines excellent optics with the latest

advanced range finding technology. Revised approaches in

optical and electronic engineering that incorporate many

years in development of laser range finding technology

allow target acquisition at longer distances with better

reliability under a wide range of weather conditions.

The LRM 3500CI allows users to observe distant objects

with excellent image quality while measuring distance to the

object (up to 3.5 kilometres), its elevation, azimuth and

speed simultaneously.

The LRM 3500CI is equipped with a computer output that

allows immediate data acquisition by any system with a

standard RS-232 interface, including various GPS models.

The device has gating capability and a variable logic of

target selection.

FEATURES:

The customer has a choice of several factory preset menus. The

unit will operate in accordance with expressed preferences.

Main features are:

Angular measurements: mils, degrees

Distance measurements: metres, yards

Speed measurements: KM/H, MPH

Digital output: RS-232

GPS compatibility: Protocol level

Gating capability: 100 metres step

First, last and automatic target acquisition

Specifications

Magnification 7x

Objective lens 25 mm

Field of view 8º

Diopter adjustment range ±4

Rangefinder

Laser type 905 nm class 1 eye-safe

Measuring distance range* 1-3,500 m

Beam divergence 2.0 mrad

Measuring azimuth range 6,400 mils / 360º

Measuring elevation range ±60º

Distance accuracy (meters) ±1

Azimuth and elevation accuracy ±1º

Distance resolution 1

Measurement time (seconds) 0.5

First/Last/Auto logic V

Gating capability (meters) 100 - 3500

Gating step (meters) 100 m

Meters/Yards display V

Computer output RS232

Last 10 readings recall V

Reticle shape selection ( + or [] ) V

GPS (optional) V

Scan mode V

Speed detector V

Miscellaneous

Power supply 9V lithium non-magnetic

Battery life >5,000 measurments

Low battery indicator V

Rubber armour V

Water resistant design V

Tripod socket 1/4"

Dimensions 127x125x60 mm

Weight 460 g

25 LASER RANGEFINDERS

+1 (416) 663-6963

www.newcon-optik.com

*Target: NATO target, 2.3m x 2.3m, albedo 0.3, visibility over 20km.

Delivered Set

LASER RANGEFINDERS26

+1 (416) 663-6963

www.newcon-optik.com

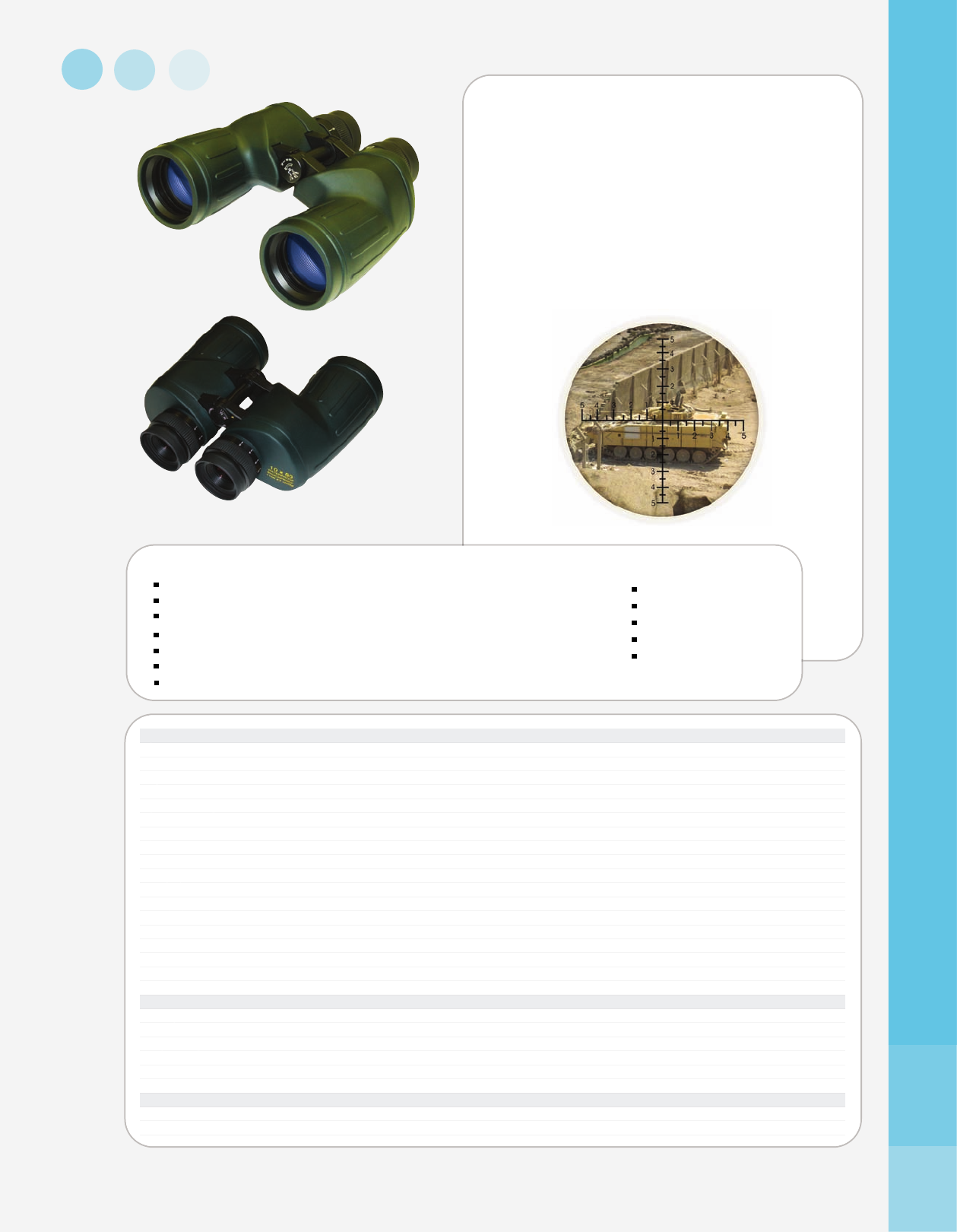

LRB 3000PRO

LRB 4000CI (NSN# 1240-20-001-9644)

The LRB 3000PRO and LRB 4000CI medium range laser

rangefinder binoculars incorporate the latest

achievements in optronics, laser technology and electronics

in their design. These binoculars combine uncompromised

optics with advanced data processing algorithms. Both

models instantly measure distance and speed using the

highly accurate time-of-flight delay method. The LRB

3000PRO measures azimuth with a built-in digital compass.

An advanced digital compass with inclinometer built into

LRB 4000CI enables accurate height, azimuth and

elevation measurement.

The LRB 4000CI also features the RS-232 interface, which

enables immediate data acquisition by computers and

various GPS receivers. The adaptive algorithm

implemented in LRB 4000CI dramatically improves

reliability of measurement in unfavourable measurement

conditions (rain, snow, bushes, wires, etc). Low power

consumption (one battery for over 5000 measurements),

ergonomic rubber-armoured body, long eye relief, simple

two-button operation and wide objective lens make obser-

vation and distance measurement with these binoculars

accurate and comfortable. LRB 4000CI

LRB 3000PRO

Specifications

Model LRB 3000PRO LRB 4000CI

Magnification 7x 7x

Beam divergence 1.2 mrad 1.0 mrad

Objective lens 40 mm 50 mm

Exit pupil diameter 5.7 mm 7.1 mm

Eye relief 20 mm 25 mm

Field of view 6º 5º

Interpupillary distance 60-70 mm 58-72 mm

Diopter adjustment range ±4 ±4

Rangefinder

Laser type Eye safe 905 nm Eye safe 905 nm

Distance measurement range* 10-3,000 m 10-4,000 m

Azimuth measurement range 6,400 mils / 360º 6,400 mils / 360º

Elevation measurement range -±60º

Distance measurement accuracy ±1 m ±1 m

Azimuth measurement accuracy ±2º ±1º

Elevation measurement accuracy - ±1º

Range measurement time 0.5 sec 0.5 sec

First / Last logic V V

Gating capability / step - 100-3900 m / 100 m

Metres / Yards display V V

Computer output - RS232

Last 10 readings recall V V

Reticle shape selection ( + or [] ) V V

Scan mode V V

Speed detector V V

Environmental

Operating temperature range -25°C ... +50°C -25°C ... +50°C

Storage temperature range -25°C ... +65°C -25°C ... +65°C

Water resistant V V

Mechanical

Power supply 9V Lithium non-magnetic 9V Lithium non-magnetic

Battery life >5,000 measurments >5,000 measurments

Low battery indicator V V

Tripod socket 1/4" 1/4"

Dimensions 158x145x69 mm 210x150x80 mm

Weight 970 g 1.3 kg

*Target: NATO target, 2.3m x 2.3m, albedo 0.3, visibility over 20km.

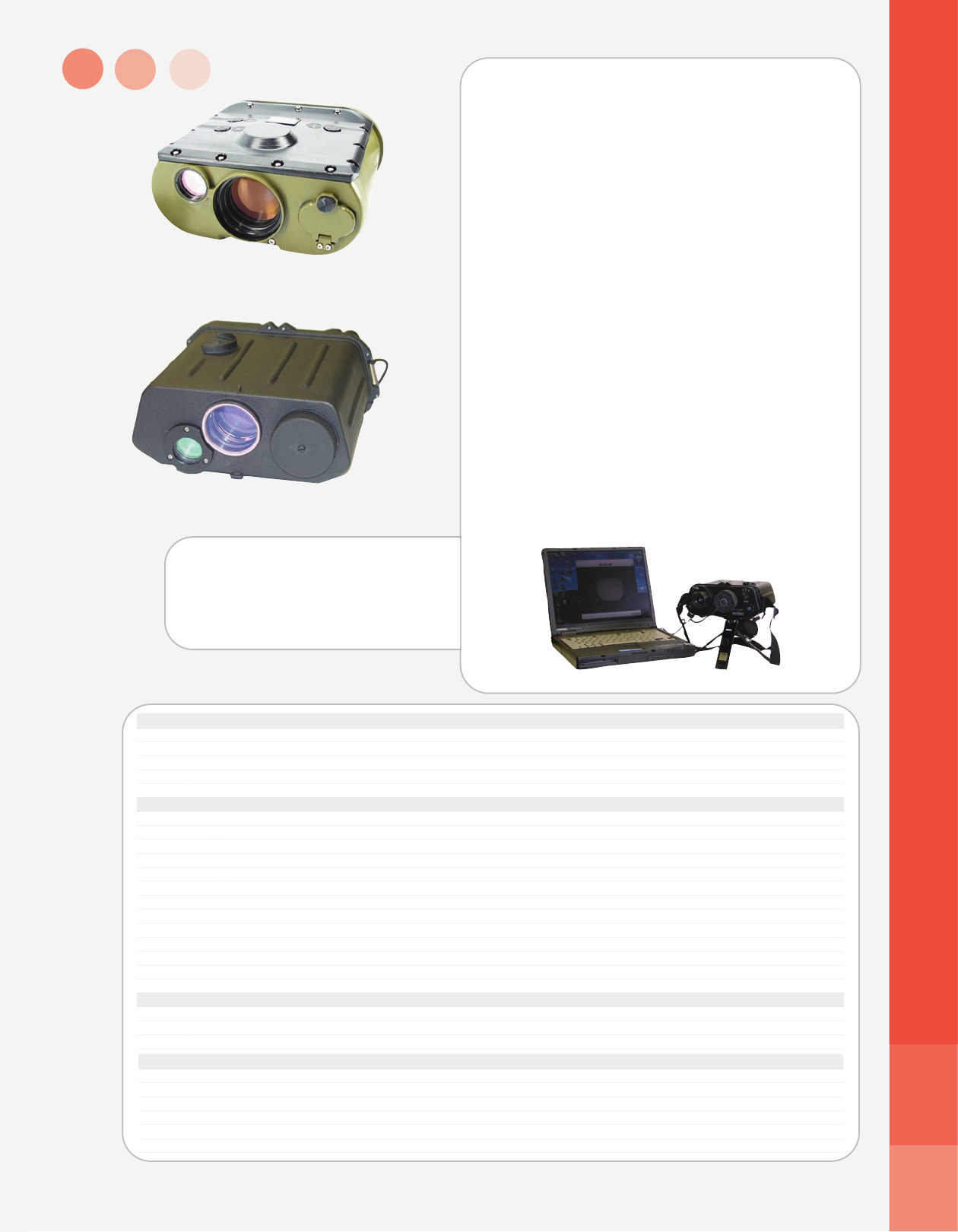

LRB 6000CI

The LRB 6000CI combines excellent optics with the latest

advanced optronics and laser technology. Revised

approaches in optical and electronic engineering that

incorporate many years of development in laser range

finding technology allows for target acquisition at longer

distances with better reliability under a wider range of

weather conditions. This model allows users to observe

distant objects with excellent image quality while measur-

ing the distance to the object (up to 6 kilometres),

its elevation, azimuth and speed simultaneously.

The LRB 6000CI is equipped with a computer output that

allows immediate data acquisition by any system with a

standard RS-232 interface, including various GPS models.

The device also has gating capability and variable logic of

target selection.

Delivered Set

LRB 6000CI

FEATURES:

Angular measurements: mils, degrees

Distance measurements: metres, yards

Speed measurements: KM/H, MPH

Digital output: RS-232

GPS compatibility: Protocol level

Gating capability: 100 metres step

First, last and automatic target acquisition

Other features include: rubberized finish,

aluminum frame, foldable eyepieces, shockproof,

water resistant, wide operational range of climatic

and atmospheric conditions.

Specifications

Magnification 7x

Objective lens 50 mm

Exit pupil diameter 7.1 mm

Eye relief 25 mm

Field of view 5º

Interpupillary distance 58-72 mm

Diopter adjustment range ±4

Rangefinder

Laser type 905 nm class 1 eye-safe

Measuring distance range* 1-6,500

Measuring azimuth range 6,400 mils / 360º

Measuring elevation range ±60º

Distance measurment accuracy ±1 m

Azimuth and elevation accuracy ±1º

Distance resolution (metres) 1

Measurement time (seconds) 0.5

First / Last / Auto logic V

Gating capability (metres) 100 - 4000

Gating step (metres) 100 m

Meters / Yards display V

Computer output RS232

Last 10 readings recall V

Reticle shape selection ( + or [] ) V

GPS (optional) V

Scan mode V

Speed detector V

Mechanical

Power supply 9V Lithium non-magnetic

Battery life >5,000 measurments

Low battery indicator V

Rubber armour V

Tripod socket 1/4"

Dimensions 210x150x80 mm

Weight 1.3 kg

Environmental

Operational temperature -25°C … +50°C

Storage temperature -25°C … +65°C

Water resistant design V

27 LASER RANGEFINDERS

+1 (416) 663-6963

www.newcon-optik.com

*Target: NATO target, 2.3m x 2.3m, albedo 0.3, visibility over 20km.

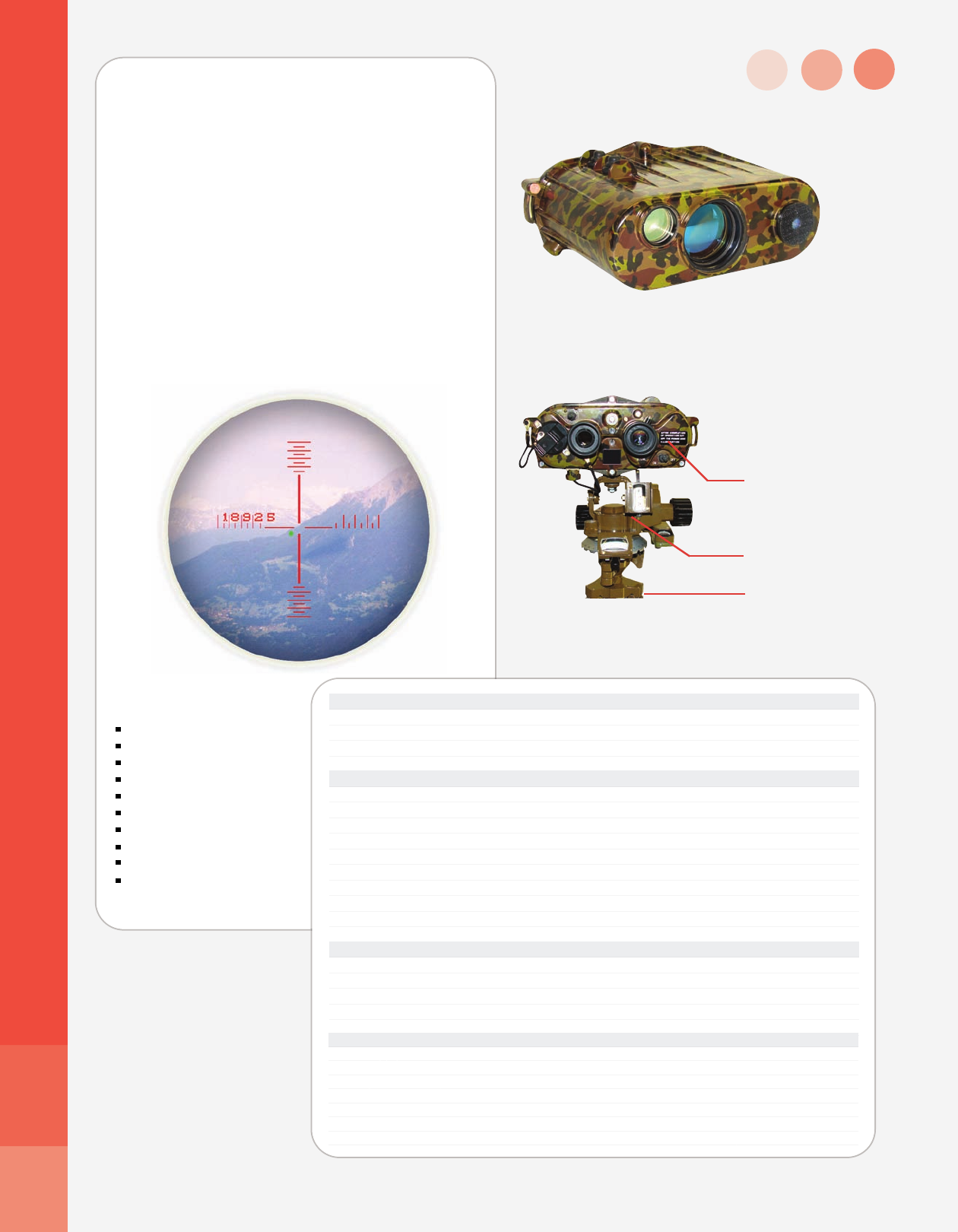

LRB 20000C

The LRB 20000C Long Range LRF is a professional

bi-ocular laser rangefinder designed for ground surveil-

lance, target observation and distance measurement up to

20 km. This rangefinder employs a proven time-of-flight

delay algorithm to ensure accuracy and a single strong

impulse to minimize exposure time. With an optional

angular mount it can also measure horizontal angles and

magnetic azimuth as well as vertical angles. The result of

distance measurements is displayed through the eyepiece

and can be transferred for processing via computer output.

The unit can be remotely triggered via RS-232.

This robust rangefinder can be used in geological and

engineering surveying, construction and repair works,

maritime navigation, meteorology and other activities that

require accurate long range distance measuring.

Specifications

Magnification 7x

Field of view 6.7°

Laser wavelength 1060 nm

Rangefinder

Distance measurement range 100-20,000 m

Range measurement accuracy ±5 m

Diopter correction, visual channel ± 5

Diopter correction, LED display -0.6 … -1.5

Pulse power 15 mJ

Minimum eye-safe distance 2,000 m

Pulse width 6 ns

Beam divergence 0.6 mrad

Bidirectional RS-232 communication V

Environmental

Operating temperature range -40°C …+55°C

Storage temperature range -40°C …+55°C

Water resistant MIL-STD-810G, Method 506.5

Shock resistant V

Mechanical

Power supply 12-14.5V DC or 22-29V DC

Battery life 200 - 250 measurements

Rechargeable battery V

Angular mount (optional) Azimuth/Elevation accuracy not more than 1°

Dimensions 225x215x110 mm

Weight, rangefinder only 2.1 kg

Weight with case and accessories 17 kg

1 - Rangefinder

2 - Angular mount

3 - Tripod

Framed lens

Eye shield

Coordinate converter

Cables

Rechargeable battery

Software

Battery charger

Tripod (optional)

Angular mount (optional)

Hard case (optional)

ACCESSORIES:

LRB 20000C

LASER RANGEFINDER28

+1 (416) 663-6963

www.newcon-optik.com

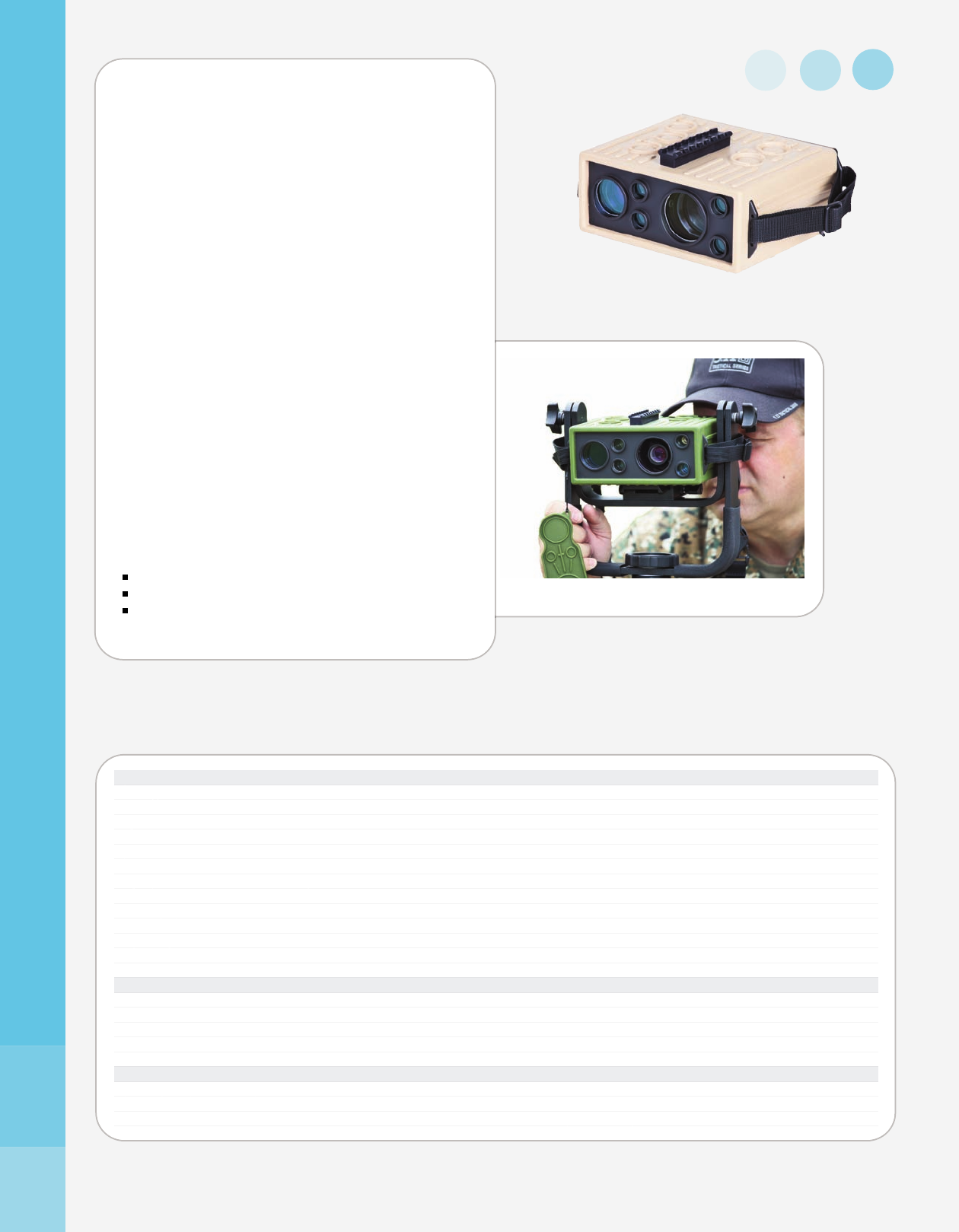

The LRB 21K is a new long range bi-ocular rangefinder

encased in a fully waterproof modern housing with a bright-

lit multi-line display. This model has additional capabilities

when compared to the LRB 25000. It delivers an impressive

set of add-on features that include a precise 3-axis

compass and/or embedded GPS receiver. The GPS

receiver component allows instant calculations of target

coordinates.

The LRB 25000 is a long range laser rangefinder capable of

measuring distance up to 25 kilometres utilizing a time-of-

flight delay algorithm and single-pulse laser

technology. The LRB 25000 features a 1540 nanometre

laser and is Class 1 eye-safe.

The measurement result is displayed through the eyepiece

and can be transferred for processing through a computer

port (RS-232). The LRB 25000 can be remotely activated

and operated. This instrument has a comprehensive digital

display and variable range settings. Compact and

lightweight and designed to withstand a wide range of

environmental conditions, this binocular is well suited for

topography, geodesy, marine navigation, highway and

power line construction, airborne altimetry and location,

meteorology and other professional activities.

LRB 21K / LRB 25000

FEATURES:

First/Last target selection

High fog/smoke penetration

Invisible to night vision devices

LRB 21K

LRB 25000

Specifications LRB 21K LRB 25000

Magnification 8x 7.5x

Field of view 7° 5.5°

Laser wavelength 1540 nm 1540 nm

Laser type Erbium Glass Erbium Glass

Rangefinder

Photo detector type APD APD

Measuring range 50-21,000 m 60-25,000 m

Accuracy ± 5 m ± 5 m

Gating range 100-6,000 m 60-4,500 m

Gating accuracy 100 m 20 m

Laser beam divergence (at 80% of power level) 1.0 mrad 1.0 mrad

Pulse repetition rate 0.2 Hz 0.15 Hz

Diopter adjustment ± 4 ± 4

Visual channel objective lens aperture 43 mm 43 mm

Bidirectional interface RS232 RS232

GPS target coordinate V -

3-axis digital compass V -

Environmental

Operating humidity ≤98% ≤98%

Operating temperature range -35°C … +50°C -20°C … +50°C

Storage temperature range -30ºC ... +60ºC -30ºC ... +60ºC

Miscellaneous

Power supply Non-magnetic 6V DC 12V / NiCd battery

External power supply V -

Protective filter against non eye-safe lasers Optional Optional

Tripod socket ¼" Optional Optional

Dimensions 225x220x110 mm 220x200x90 mm

Weight 2.2 kg 1.9 kg

29 LASER RANGEFINDERS

+1 (416) 663-6963

www.newcon-optik.com

LRF MOD 2/2CI / LRF MOD 3/3CI

Newcon Optik’s LRF modules use the same electronics

and optics as our rangefinder monoculars. These modules

can add various range finding capabilities to bigger

systems: distance and speed measurement (all modules)

as well as azimuth, elevation and height measurement

(CI modification).

All modules support the RS-232 interface. The modules

have a built-in computer interface, which enables immedi-

ate data acquisition by any system with a standard serial

interface as well as remote operation.

Other features include gating capability, fast scan mode,

speed measurement, object selection and more.

Thermal imagers

Day/night surveillance systems

Airborne optical systems

Typical uses of rangefinder modules:

* Image courtesy of IEC infrared systems

Typical use of Laser Rangefinder Module

LASER RANGEFINDERS30

+1 (416) 663-6963

www.newcon-optik.com

** Optional PC output only

Specifications

Model LRF MOD 2 / MOD 3 LRF MOD 2CI / MOD 3CI

Laser type Eye-safe 905 nm Eye-safe 905 nm

Measuring range (metres)* 10 - 2,000 / 1-3,000 10 - 2,000 / 1-3,000

Distance measurement accuracy ±1 m ±1 m

Azimuth measurement range - 6,400 mils / 360º

Elevation measurement range - ±60º

Azimuth measurement accuracy - ±1º

Elevation measurement accuracy - ±1º

Distance resolution 1 m (Optional 0.1 MOD 3 only)** 1 m (Optional 0.1 MOD 3CI only)**

Measurement time 0.5 s 0.5 s

Beam divergence 2.0 mrad 2.0 mrad

First/Last target logic V V

Gating capability V V

Interface RS232 RS232

Environmental

Operating temperature range -40°C ... +50°C -40°C ... +50°C

Storage temperature range -45°C ... 65°C -45°C ... +65°C

Mechanical

Power source 9V DC 9V DC

Alignment Mechanical Mechanical

Dimensions 98x88x48 mm 98x88x50 mm

Weight 180 g 185 g

*Target: NATO target, 2.3m x 2.3m, albedo 0.3, visibility over 20km.

LRF MOD 4EC / LRF MOD 6EC

The new MOD 4EC and MOD 6EC were designed

specifically for remotely operated small platforms.

In addition to their outstanding functionality, these new

modules can be attached to Mini-Typhoon, CLAWS and

other systems with a quick release mount. The unit is

designed to endure the harsh operating conditions of the

real world.

The unit can withstand high vibration, a wide temperature

range, dust, rain and RF jammers. MOD 4EC/6EC

provides distance, speed, azimuth and elevation

measurements. Other features include gating, fast scan and

target selection.

Both units can be integrated with other systems and

communicate via RS-232. In designing the LRF Modules for

precision target acquisition, special attention was given to

the ability to boresight the unit with an existing system.

A removable visual eyepiece and a video camera

attachment are provided to enable quick boresight and

visual integration with other observation systems.

Front View

Typical use of

LRF MOD 6EC

Delivery Set

Specifications

Model MOD 4EC MOD 6EC

Laser type 905 nm, eye-safe 905 nm, eye-safe

Beam divergence 1.0 mrad 1.0 mrad

Measurement range* 10 - 4,000 m 1- 6,000 m

Distance measurement accuracy ±1 m ±1 m

Azimuth measurement range 6,400 mils / 360º 6,400 mils / 360º

Elevation measurement range ±60º ±60º

Azimuth measurement accuracy ±1º ±1º

Elevation measurement accuracy ±1º ±1º

Distance resolution 1 m / (0.1)** 1 m / (0.1)**

Measurement time 0.5 s 0.5 s

Beam divergence 1 mrad 1 mrad

Environmental

Operating temperature range -40°C ... +50°C -40°C ... +50°C

Storage temperature range -45°C ... +65°C -45°C ... +65°C

Environmental protection Shockproof Shockproof

Waterproof IP 66 / IP 67 (optional) IP 66 / IP 67 (optional)

Mechanical

Power source 9V DC 9V DC

Dimensions 230x210x95 mm 230x210x95 mm

Weight 2.6 kg 2.6 kg

** Optional PC output only

31 LASER RANGEFINDERS

+1 (416) 663-6963

www.newcon-optik.com

*Target: NATO target, 2.3m x 2.3m, albedo 0.3, visibility over 20km.

LRF MOD 15HF / 25HF / 25HFLC

These high frequency laser rangefinder modules enable

highly accurate range acquisition of low reflection targets at

ranges of up to 25 kilometres.

The modules can be effectively used in marine navigation,

long-range reconnaissance, naval and coast guard

patrol and other similar navigational tasks. A liquid cooling

system, built into the 25HFLC model enables higher

frequency data acquisition. The 25HF model utilizes air

cooling only.

Specifications

Model MOD 25HF MOD 25HFLC

Beam divergence 0.8±0.1 mrad 0.8±0.1 mrad

NOHD (meters) 100 m 100 m

Laser type and class YAG, Class 3B YAG, Class 3B

Wavelength 1570 nm 1570 nm

Pulse repetition rate up to 5 Hz up to 12.5 Hz (15 Hz optional)

Pulse energy (@1570 nm) 15...25 mJ 20...35 mJ

Range 200 - 25,000 m 200 - 25,000 m

Accuracy ±1 ±1

Target discrimination range 15 m 15 m

Number of simultaneously detected targets 3 3

Gating capability V V

Interface RS 422, RS 232 RS 422, RS 232

Receiving objective lens diameter 90 mm 90 mm

Laser beam divergence 0.7 mrad 0.7 mrad

Shock 10 g 10 g

Alignment Mechanical (removable scope) Mechanical (removable scope)

Operating temperature range -32...+55C -32...+55C

Power source 22...30V DC 22...30V DC

Dimensions 145x200x290 mm 145x250x390 mm

Weight 8.6 kg 16 kg

MOD 15HF

MOD 25HFLC

MOD 25HF

Specifications

Model MOD 15HF

Laser Type and Class YAG, Class 1M

Wavelength 1576 nm

Pulse repetition rate 1 Hz

Pulse radiation energy per pulse 12±2 mJ

Range (maximum) 30,000 m

Accuracy ±1

Target discrimination range 15 m

Number of simultaneously detected targets 3

Gating capability V

Interface RS 422

Receiving objective lens diameter 55 mm

Laser beam divergence 1.7 mrad

Alignment Mechanical

Power source 22...30V DC

Dimensions 100x110x250 mm

Weight 3 kg

LASER RANGEFINDERS32

+1 (416) 663-6963

www.newcon-optik.com

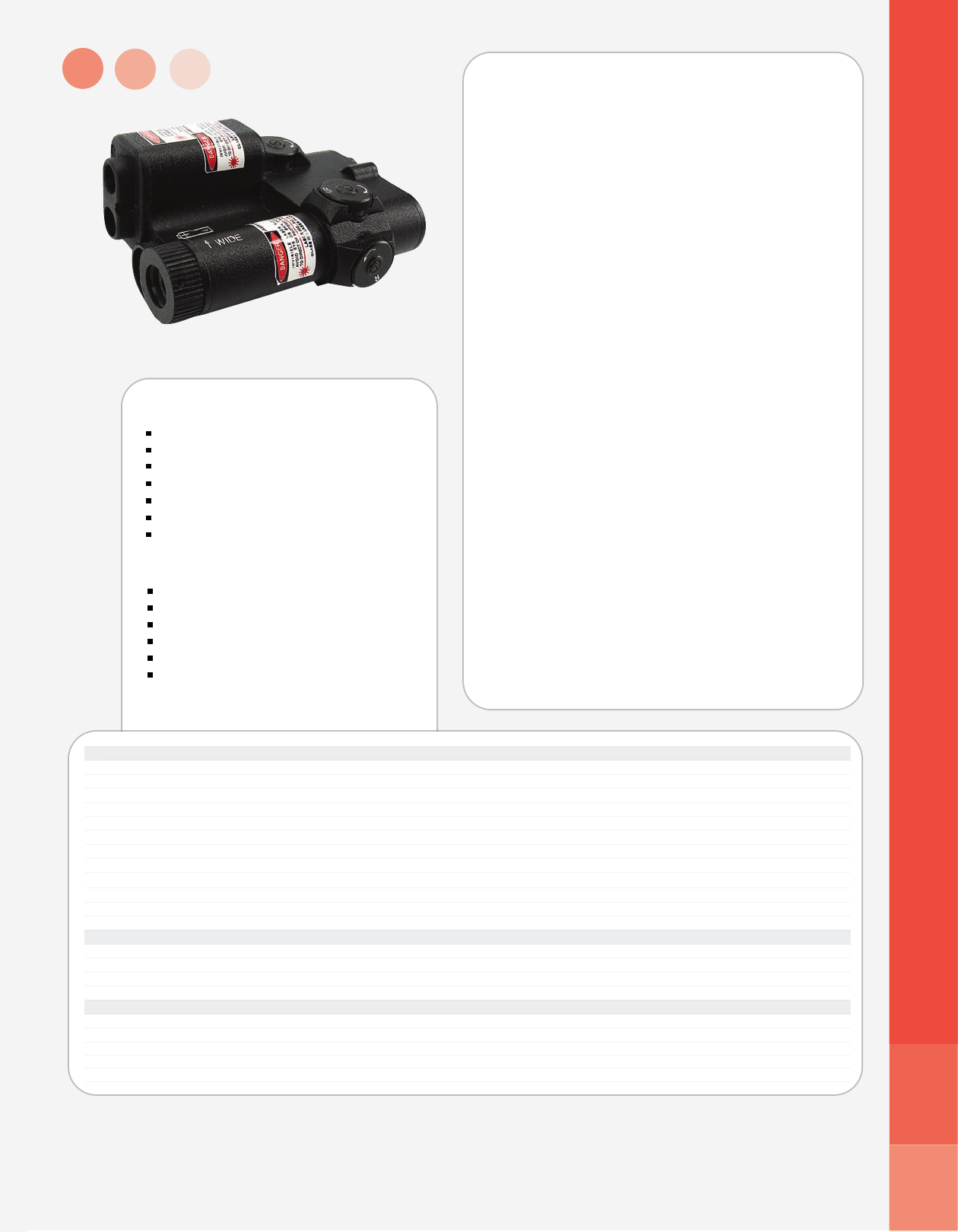

LAM 3 IR

This infrared instrument provides an instant visible or

invisible (infrared) dot for firing without eyesight strain, and

can be simultaneously used as an infrared illuminator. The

unit is designed for precise aiming when shooting from a

weapon equipped with a Picatinny rail in conditions of night

illumination. Infrared channels are invisible to the naked eye

and can be used only in conjunction with night vision

devices. Fire adjustments (windage/elevation) are

performed with a simple and reliable mechanism

separately for visible and invisible channels. The unit meets

full military specifications and can be mounted on practical-

ly any hand-held weapon.

The unit can be controlled from the mode selector switch

and the remote membrane switch, which is fixed on the rifle

in a manner that is convenient for the shooter. The

membrane type button allows momentary operation so that

the operator can utilize this function only when needed. This

mode saves battery life and decreases the probability that

the shooter will be discovered by enemies using night vision

devices. When the LAM 3 IR is controlled from the mode

switch only the shooter keeps both hands free. This is

critical in real combat operations. The illuminator beam can

be adjusted in a wide variety of angles. The small aimer

spot is located inside the larger illuminator spot.

Three independent laser channels

Variable size of illumination spot

Long-range pointer

Full mil-spec, waterproof and shockproof

Compact size, lightweight

Two channel windage / elevation adjustment

Remote control (membrane type switch)

FEATURES:

Case

Quick release weapon mount (MIL-STD-1913)

Velcro tape

Battery

Warranty card

Manual

ACCESSORIES:

Specifications IR Illuminator IR Aimer Red Aimer

Output power, mW, H mode 25 20 4

Output power, mW, L mode (maximum) 2 1 -

Beam divergence 3-105 mrad 0.5 mrad 0.5 mrad

Wavelength 810-850 nm 810-850 nm 625-645 nm

Laser class III b III b III b

Windage / Elevation adjustment range ±20 mrad

Step of adjustment, mm / 100m 50 (0.5 ±0.05 mrad)

Adjustment accuracy after 1000 shots 0.5 mrad

Adjustment accuracy after 100 'install/remove' operations 1 mrad

Battery 3V (CR123 Lithium)

Current consumption 70-330 mA

Environmental

Operating temperature range -40°C …+60°C

Storage temperature range -45°C …+65°C

Waterproof Submersion in 2 m (13 feet) for 7 hours or 10 m (33 feet) for 2 hours

Mechanical

Weight 380g

Dimensions 105x75x55mm

Shockproof, up to 0.5 mrad of adjustment accuracy 500 g x 0.4 ms

Drop rating 1 m onto solid surface

MTBF 5000 hrs

LAM 3 IR

33 LASER AIMERS

+1 (416) 663-6963

www.newcon-optik.com

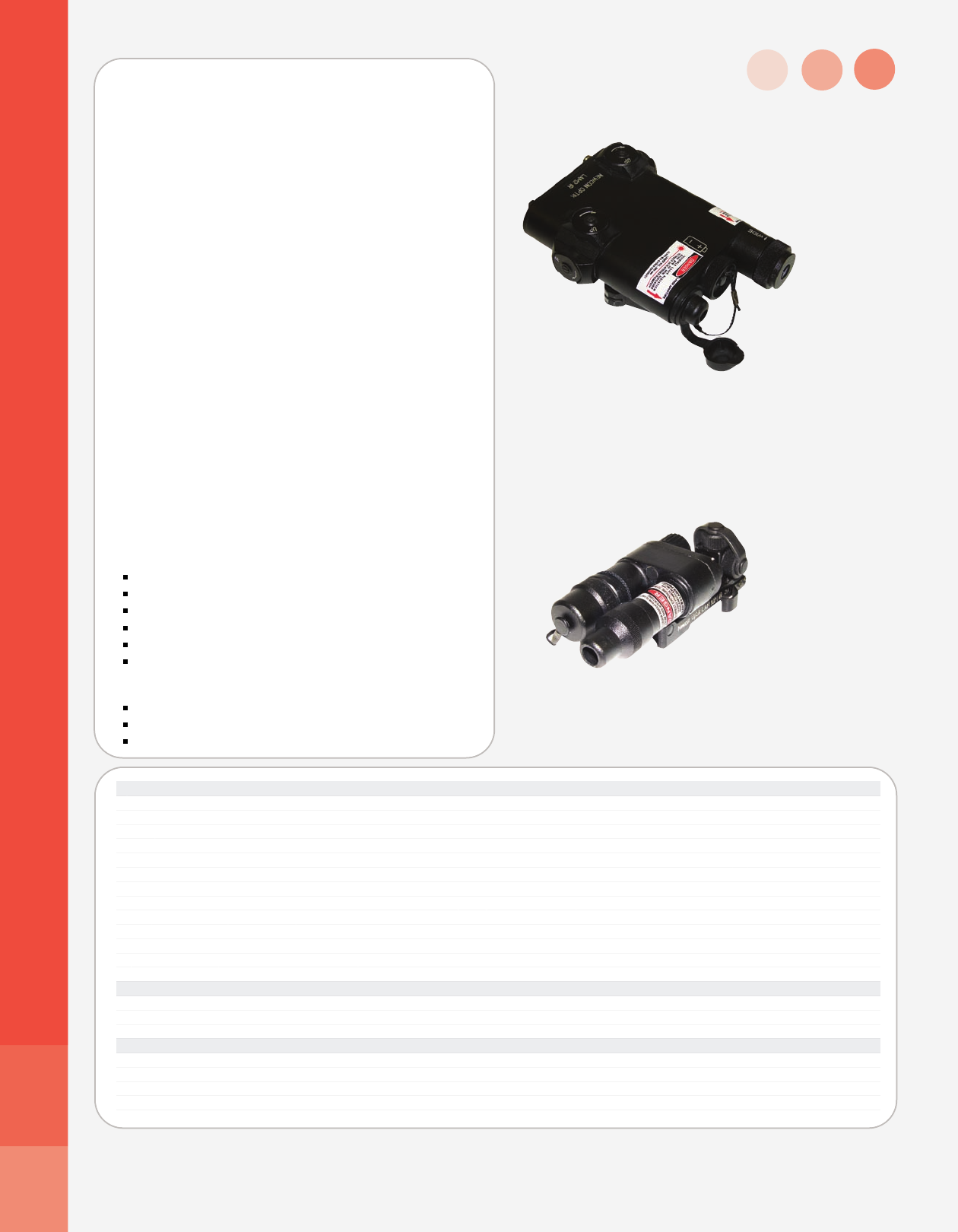

LAM 2 IR

LAM 2 IR/LAM 10M/LAM 10M 3A

The unique infrared or visible laser light instruments of the

LAM series provide an instant aiming dot for accurate firing.

A sturdy, waterproof metal body houses powerful long-

range lasers. The LAM 10M is an eye-safe aimer that

reaches targets 200 metres away. The LAM 10M 3A and

LAM 2 IR use a more powerful non eye-safe laser that

reaches targets as far as 2 kilometres away.

Both LAMs can be momentarily turned on or off with a

remote membrane switch, which can be attached to a

convenient place on a weapon with velcro tape. Using

the momentary switch saves battery life and decreases the

time the shooter can be seen through night vision devices.

A simple reliable mechanism enables precise windage and

elevation beam adjustment. Both Picatinny and barrel

mounts are available. LAM 2 IR provides the utility and

operational effectiveness of the aimer and variable spot

scene illuminator combined in one compact device, that can

be quickly mounted on a weapon. The short range mode of

the LAM 2 IR is designed for force on force training. A

mechanical safety block protects the user from an

unintended switch into non-eye-safe long range mode. All

models meet full military specifications. Compact but

robust, precise and lightweight these aimers are the best

choice for night missions.

LAM 10M

Specifications

Model LAM 2 IR LAM 10M LAM 10M 3A

Type Illuminator Aimer Aimer Aimer

Visibility distance 2,000 m 2,000 m >200 m >1,000 m

Beam divergence (mrad) 3-105 0.3 0.5 0.5

Wavelength 850 nm 830-850 nm 830-850(IR) or 650 (visible)

Spot size at 100 m >10.5 m 30 mm 50 mm 50 mm

Eye-safety Short range mode – eye-safe Eye-safe Non eye-safe

Long range mode – not eye-safe

Windage/Elevation adjustment range ±20 mrad ±20 mrad ±20 mrad ±20 mrad

Adjustment step 50 mm/100 m (0.5 mrad) 50 mm/100 m (0.5 mrad)

Adjustment accuracy after 1000 measurements 0.5 mrad 0.5 mrad 0.1 mrad 0.1 mrad

Adjustment accuracy after 100 install/remove operations 0.25 mrad 0.25 mrad 1.0 mrad 1.0 mrad

Environmental

Operating temperature range -40°C …+60°C

Storage temperature range -45°C …+65°C

Mechanical

Battery type CR123 Lithium CR123 Lithium CR123 Lithium or AA

Battery life (hours of continuous operation) >10 hrs >10 hrs >30 hrs >10 hrs

Dimensions 122x81x41 mm 122x81x41 mm 113x45x32 mm 113x45x32 mm

Weight 300 g 300 g 150 g 150 g

Case

Weapon mount (MIL-STD-1913)

Allen wrench

ACCESSORIES:

Full military specifications

Compact, lightweight

Quick release mount (LAM 2 only)

Windage / Elevation adjustment mechanism

Remote control (membrane type switch)

'Laser On' warning indicator

FEATURES:

LASER AIMERS34

+1 (416) 663-6963

www.newcon-optik.com

RLS / HDS 3 - RED DOT SIGHTS

The RLS and HDS 3 red dot sights were designed and built

for tactical law enforcement and military applications. Both

sights allow rapid, accurate target acquisition for close-

quarters combat. Both the RLS and HDS 3 are built with

rugged, durable single-piece frames.

The RLS features two integrated laser channels—1 visible

laser pointer for normal use and 1 infrared laser pointer for

use with image intensified night vision devices.

The HDS 3 is ideal for the severe environmental conditions

present in desert and mountainous regions.

FEATURES:

Unlimited Field of View

Mechanical switch for speed and reliability

Reduces training time and saves ammunition

Waterproof and fog proof

Specifications RLS HDS 3

System Parallax Free, Reflex, Collimator System

Magnification No Magnification (1X)

Eye relief Unlimited, No centering required

Red dot size 3 MOA, 5 MOA, 6 MOA, Circle Dot 2 MOA, 3 MOA, 5 MOA

Field of view (FOV) 23.3 m @ 100 m

Objective lens 28.3 mm 32 mm

Optical coating Anti-Reflex Coating All Surfaces, Multi-Layer Coating for Reflection of Red Light

Electronic Data

Battery One CR 123A 3V Lithium Battery

Battery life 700 hours

Dot brightness adjustment 12 Settings : 1 off, 5 daylight, 3 twilight, 3 nightvision

Mechanical Data

Housing material High Strength Aluminum

Surface finish Hard Anodized, Matte

Mountings For MIL-STD-1913 Picatinny Rail

Click adjustment 1 click = 3 mm at 100 m (For red dot only) 1 click = 8 mm at 100 m (For red dot only)

Dimensions 130x65x62 mm 134x75x75 mm

Weight 360 g (with Mount)

Environmental

Operating temperature range -41°C ... +71°C -51°C ... +71°C

Storage temperature range -45°C ... +75°C -55°C ... +75°C

RLS

HDS 3 with NVS 14

Mounted on Assault Rifle

HDS 3

35 LASER AIMERS

+1 (416) 663-6963

www.newcon-optik.com

Laser Data Visible pointer IR pointer -

Power output 30 mW 30 mW -

Wavelength 650 nm 850 nm -

Range / Visibility 300 metres / 25 metres Over 2 km -

Laser class IIIb IIIb -

Beam diameter 8 mm @ 25 m 8 mm @ 25 m -

Specifications

Laser type 910 nm

Optical object detection range 60 - 1,000 m

Angular field of view 6ºh x 3.7ºv

Exit pupil 5.7 mm

Eye relief 22 mm

Distance measurement accuracy ±10 m

Target position measurement accuracy 0.1ºx0.1º

Detection zone (horizontal x vertical) 0.1ºx1.8º

Scanning speed up to 45º per second

Optical magnification 7x

Diopter adjustment ±4

Video output NTSC or PAL

Mechanical

Power source 6xAA

Battery life 5 hours at 20±5ºC

Dimensions 177x177x89 mm

Weight 1.8 kg

Environmental

Operating temperature range -20...+50ºC

Storage temperature range -40...+65ºC

Environmental protection Shockproof, waterproof

TACTICAL OPTICS36

+1 (416) 663-6963

www.newcon-optik.com

LAS - 1000 SNIPER DETECTOR

The LAS-1000 sniper detector is capable of detecting

various passive optical and electro-optical devices including

binoculars, night vision devices, weapon sights, range

poles, datum optical markers and levelling rods equipped

with optical reflectors. Utilizing an eye-safe laser scanner,

the LAS-1000 detects lenses and reflectors in its line of site

even if these objects are covered behind bushes, windows

or windshields. The detector can be handheld or mounted

on a tripod. When an optical reflector of any kind is

detected, its position is marked with a red dot visible

through the viewfinder of the LAS-1000. For added

convenience, an audio signal can be activated. The

detected object’s distance from the detector is then

measured, displayed and can be verbally dictated to the

operator. Equipped with an IR as well as a green laser

illuminator, the LAS-1000 can reliably detect snipers and

other optical equipment in a variety of tactical situations.

The LAS-1000 has two modes of operation: long range field

mode and detailed city mode. Additional viewfinder lighting

can be activated at low light. Through a Picatinny mount the

detector can be combined with night vision, thermal and

other observational devices. The LAS-1000 may be

effectively used to provide security to various objects and

VIPs.

IR Illuminator

Green laser illuminator

Two modes of operation

FEATURES:

LAS 1000

LAS 1000 Tripod-mounted

The SIB16x40 WP gyro stabilized binoculars incorporate

gyroscopic image stabilization technology that enables the

user to observe distant objects from moving platforms

without image resolution degradation caused by

mechanical vibration or natural hand tremor. Combining

fully coated optics with a high-speed gyro stabilizing

system, the SIB 16x40 WP binoculars are the ultimate

instrument for long-range observation, tracking and

surveillance.

SIB 16x40 WP Rear View

SIB 16x40 WP Delivery Set

SIB 16x40 WP Front View

Stabilized image

Rigid construction

Weather proof

Surveillance under any motion condition

Wide angle image

FEATURES:

Carrying case

Strap

DC power regulator

Night vision eyepiece (optional)

Warranty card

Manual

ACCESSORIES:

Before After

SIB 16x40 WP GYRO BINOCULARS

Specifications

Model SIB 16x40 WP

Magnification 16x

Field of view 3.4°

Minimum focus 30 m

Compensation angle ±5°

Stabilization system gyroscope

Centre resolution 10”

Environmental

Operating temperature range -30°C … +55°C

Storage temperature range -35°C … +60°C

Relative humidity (at +25°C) up to 98%

Mechanical

Battery 6xAA or 12V DC

Dimensions 230x190x120 mm

Weight 2.205 kg

37 TACTICAL OPTICS

+1 (416) 663-6963

www.newcon-optik.com

AN 8X30 M22 / AN 7X50 MC SERIES

The AN series of binoculars incorporates BAK-4 roof prisms

and multi-coated lenses, delivering impressive light

transmission and resolution for brilliantly clear vision.

Non-slip UV-resistant rubber armouring makes these

binoculars comfortable to operate even in cold weather.

They are waterproof and shockproof, feature a military

reticle and compass (AN 7x50 MC only) and adhere to the

latest military standards while remaining light and compact.

Case

Straps

Manual

Warranty card

Lens cleaning cloth

ACCESSORIES:

Lightweight

Nitrogen-filled

Long eye relief and large eyepiece

Rangefinder reticle

Individual focusing or centre focusing

Illuminated compass (AN 7x50 MC only)

FEATURES:

AN 8x30 M22

Display

AN 7x50 MC Display

with Compass

AN 8x30 M22

AN 7x50 MC

with Compass

Specifications

Model AN 8x30 M22 AN 7x50 MC

Magnification 8x 7x

Objective lens diameter 30 mm 50 mm

Field of view 8° 7.5°

Field of view @1000 meters 141 m 132 m

Field of view @1000 yards 423 ft 396 ft

Apparent field of view 64° 52.5°

Prisms BAK-4 BAK-4

Coating FMC FMC

Dioptric correction ± 5 ± 5

Exit pupil diameter 3.8 mm 7.14 mm

Brightness index 14 51

Interpupillary adjustment distance 56-74 mm 56-74 mm

Eye relief 17 mm 23 mm

Focus 3 m - infinity 5 m - infinity

Illuminated compass - V

M22 reticle Yes Yes

Environmental

Operating temperature range –40°C … +70°C –40°C … +70°C

Storage temperature range –45°C … +75°C –45°C … +75°C

Drop test (height) 1.6 m 1.6 m

Waterproof MIL-STD-810 MIL-STD-810

Shockproof MIL-STD-810 MIL-STD-810

Mechanical

Dimensions 110x156x55 mm 209x157x85 mm

Weight 545 g 1.150 kg

TACTICAL OPTICS38

+1 (416) 663-6963

www.newcon-optik.com

The AN series of binoculars incorporates BAK-4 roof prisms

and multi-coated lenses, delivering impressive light

transmission and resolution for brilliantly clear vision.

Non-slip UV-resistant rubber armouring makes these

binoculars comfortable to operate even in cold weather.

They are waterproof and shockproof and adhere to the

latest military standards while remaining light and compact.

AN 7X50 M22/AN 10X50 M22 SERIES

AN 7x50 M22

AN 10x50 M22

Lightweight metal body with rubber armour for sure grip and durability

Specially designed shockproof prism system

Fully broadband multi-layer coating optics

The image is flat fielded, distortion free, and equally sharp from center to edge

Long eye relief

Nitrogen-filled

Anti-laser protection

FEATURES:

Case

Straps

Manual

Warranty card

Lens cleaning cloth

ACCESSORIES:

Specifications

Model AN 7X50 M22 AN 10X50 M22

Magnification 7x 10x

Objective lens diameter 50 mm 50 mm

Prisms BAK-4 BAK-4

Optics coating FMC FMC

Field of view 7.5° 6.5°

Apparent field of view 53° 65°

Field of view @1000 m 131 m 114 m

Field of view @1000 yd 393 ft 341 ft

Exit pupil diameter 7.14 mm 5 mm

Brightness index 51 25

Interpupillary adjustment distance 56-74 mm 56-74 mm

Eye relief 23 mm 18.5 mm

Focus 5 m - infinity 6 m - infinity

M22 reticle V V

Anti-laser protection with OD ≥ 5 at 1064nm optional optional

Dioptric correction ± 5 ± 5

Environmental

Waterproof MIL-STD-810 MIL-STD-810

Shockproof MIL-STD-810 MIL-STD-810

Drop rating 1.6 m 1.6 m

Operating temperature range –40°C … +70°C –40°C … +70°C

Storage temperature range –45°C … +75°C –45°C … +75°C

Mechanical

Dimensions 200x195x70 mm 195x180x70 mm

Weight 1.55 kg 1.55 kg

39 TACTICAL OPTICS

+1 (416) 663-6963

www.newcon-optik.com

TACTICAL OPTICS

NC 3-12x50 / NC 5-20x56 RIFLESCOPES

The NC 3-12x50 and NC 5-20x56 are daytime riflescopes,

both of which feature variable magnification and are

designed for use on various weapons. Both riflescopes

feature a Mil-dot reticle positioned in the focal plane of the

eyepiece (second focal plane), which ensures permanent

sizing of the reticle regardless of variable magnification

setting being utilized. The reticle is LED-lit with 7 brightness

levels available.

Ideal for acquiring small targets at long distances, the

riflescope is equipped with a central system parallax

adjustment, effective for ranges of 50 metres to infinity.

Both riflescopes incorporate windage adjustment (the multi-

revolving scheme) and elevation adjustment (single-revolv-

ing scheme), allowing users to adjust shooting.

Specifications

Magnification (variable) 3-12x 5-20x

Effective objective lens 50 mm 56 mm

Field of view 6.8-1.7° 4.0-0.9°

Diopter setting +3 ... -3 +3 ... -3

Eye relief distance 100 mm 90-110 mm

Tactical windage / elevation adjustment per click 10 mm / 100 m 10 mm / 100 m

Elevation / windage adjustment range 3.4 /100 m / 1.2 m/100 m 3.3m/100m / 1.8m/100m

Environmental Data

Waterproof MIL-STD-810 MIL-STD-810

Operating temperature -50 to +50 °C -50 to +50 °C

Relative humidity up to 98 % up to 98 %

Mechanical

Dimensions (w/o mount) 347x77x77 mm 386x85x83 mm

Weight (w/o mount) 0.78 kg 0.90 kg

Case

Scope rings (optional)

Batteries

Manual

Cleaning cloth

ACCESSORIES:

LED-lit Mil-Dot reticle

with adjustable brightness

NC 3-12x50 shown on

L96 Magnum rifle

NC 3-12x50 shown in conjunction with

NVS 33 Night Vision Attachment

NC 5-20x56 General View

+1 (416) 663-6963

www.newcon-optik.com

SPOTTER NC SPOTTING SCOPE

Spotting scope users demand top quality optics that

perform flawlessly under all weather conditions. Whether at

the range or in the field, the NC 20-60 x 80 brings your

target into clear, consistently-sharp, high-contrast focus,

especially at the kind of distances that overwhelm lesser

optics.

The angled eyepiece position permits a lower scope

mounting height, which allows better stability and user

comfort. Scopes are nitrogen-filled, waterproof and shock-

resistant.

All Newcon Optik spotting scopes feature powerful lenses,

and come standard with a durable, padded field carrying

case.

ED Glass in polycarbonate rubber armoured body

BAK-4 prisms

Long eye relief

Objective lens and eyepiece protective caps

Sliding dew shield reduces glare

Waterproof and nitrogen-filled

Fogproof

Lightweight and shock resistant

FEATURES:

Case

Lens cleaning cloth

Manual

Warranty card

ACCESSORIES:

Universal Digital Adapter

OPTIONAL:

Spotter NC with NVS 14

Night Vision Monocular

Specifications

Model Spotter NC

Magnification 20x – 60x

Objective lens diameter 80 mm

Field of view (@1000 yards) 89 - 44 ft

Eye relief 18 - 15 mm

Twilight factor 16.5 (20x), 1.8 (60x)

Brightness 39.7 (20x), 69.3 (60x)

Dioptric adjusment ± 7

Pressure resistance (minimum) 0.5 Bar

Environmental

Operating temperature range -30°C … +60°C

Storage temperature range -30°C … +60°C

Mechanical

Dimensions 335 x 170 x 95 mm

Tripod mount, height ¼ inch , 250 mm / 10”

Tripod pan, tilt 360°, – 60° / +90°

Weight 1.3 kg

Spotter NC

with Camera Attachment

Spotter NC with straight eyepiece

NVG Adapter

Tripod

41 TACTICAL OPTICS

+1 (416) 663-6963

www.newcon-optik.com

+1 (416) 663-6963

www.newcon-optik.com

BIG EYE 20x40x100 BINOCULARS

TACTICAL OPTICS

Rear View

Front View

The Big Eye 20x40x100 Binoculars are designed to meet

the most demanding specifications and are

capable of withstanding maritime weather. They are useful

as marine binoculars, a border guarding instrument, or with

other applications where long-range viewing is required.

The 20x and 40x Big Eye binoculars have massive

objective lenses, BAK-6 prisms and precision ground, multi-

coated optics. One can note the incredible optical quality

with extraordinary edge-to-edge image clarity. Oversized,

individually focusing ocular lenses are set at an angle for

comfortable viewing, and have foldable eyecups. The

mounted device swivels a full 360º horizontally and 135º

vertically. The instrument is nitrogen-filled to prevent

fogging. A convenient holder is attached to a tripod to keep

spare eyepieces. Binoculars are supplied in a hard case

equipped with a lock.

Specifications

Configuration 20x Eyepiece 40x Eyepiece

Magnification 20x 40x

Near Focus 25 m 25 m

Objective lens diameter 100 mm 100 mm

Field of view 2.5º±15’ 1.5º±15’

Field of view (@1000 yards) 131 ft 79 ft

Field of view (@1000 meters) 44 m 26 m

Eye relief 20.5±2 mm 14.5±2 mm

Interpupillary distance 55-72 mm 55-72 mm

Angle of eyepiece disposition 60º 60º

Prisms BAK-6 BAK-6

Coating FMC FMC

Horizontal swivel 360º 360º

Vertical swivel 90º up, 45º down 90º up, 45º down

Environmental

Operating temperature range +25°C ... -35°C +25°C ... -35°C

Storage temperature range +25°C ... -35°C +25°C ... -35°C

Mechanical

Dimensions 420x257x125 mm 420x257x125 mm

Weight (without tripod) 7 kg 7 kg

BIG EYE 20x40x100

with NVS 14 Attached

NEWCON OPTIK CD CATALOGUE

For the latest product updates and specifications visit our website: www.newcon-optik.com

105 Sparks Avenue Toronto, Ontario M2H 2S5 Canada

newconsales@newcon-optik.com http://www.newcon-optik.com

Tel: (416) 663-6963 Fax: (416) 663-9065

EVERY EFFORT HAS BEEN MADE TO ENSURE THE ACCURACY OF DETAILS CONTAINED HEREIN,

HOWEVER, WE RESERVE THE RIGHT TO VARY, MODIFY OR IMPROVE ANY SPECIFICATION AND/OR

DESIGN AT ANY TIME WITHOUT PRIOR NOTICE. WE ARE NOT RESPONSIBLE FOR PRINTING ERRORS.

Catalog Layout_left_laser LAM 3 IR Catalog2012

Navigation menu

Versions of this User Manual:

Views

Navigation
