Implementation Guide Introduction
This Implementation Guide contains information for Independent Software Vendors (ISVs)
wishing to integrate HPE StoreOnce Catalyst into their backup application software using
the HPE StoreOnce Catalyst Software Development Kit (SDK).
It provides information on the StoreOnce Catalyst concepts and technology and has
example code snippets as well as integration requirements.
Example code is syntactically highlighted for readability and is displayed in a blue box as
below.
int main(int argc, char *argv[])
{
printf("Hello Catalyst Application!")
}
To ensure readability some code examples will require other sections in the guide to fully
implement.
The SDK includes OSCLT_Interface.h, OSCMN_Types.h and
OSCLI_ErrorCodes.h with ExampleCode.c for a working demonstration of the SDK.
This document is provided under a HPE Confidential Disclosure Agreement
Page 6 of 125
Section 1: StoreOnce Catalyst Concepts
This document is provided under a HPE Confidential Disclosure Agreement
Page 7 of 125
1.1 Introduction to StoreOnce Catalyst
The StoreOnce Catalyst API provides an advanced RPC based interface through which
applications can have a rich interaction with StoreOnce appliances. The benefits of using
an RPC based interface instead of SCSI, CIFS or NFS is that the calling application can have a
much richer interaction with the storage device.
Capabilities that were previously beyond view of the backup application, such as data
deduplication and replication are now presented in a manner which allows the backup
applications to present their users with more information and also to make decisions based
on the information returned.
Backup ServersStoreOnce Backup System
StoreOnce Catalyst Server
Command Sessions
Data Sessions
Catalyst Store
Catalyst
Item
Catalyst
Item
Catalyst
Item
Catalyst Store
Catalyst
Item
Catalyst
Item
Catalyst
Item
Backup Application Media Agent
StoreOnce Catalyst Client Library
Clients
Backup Application Disk Agent

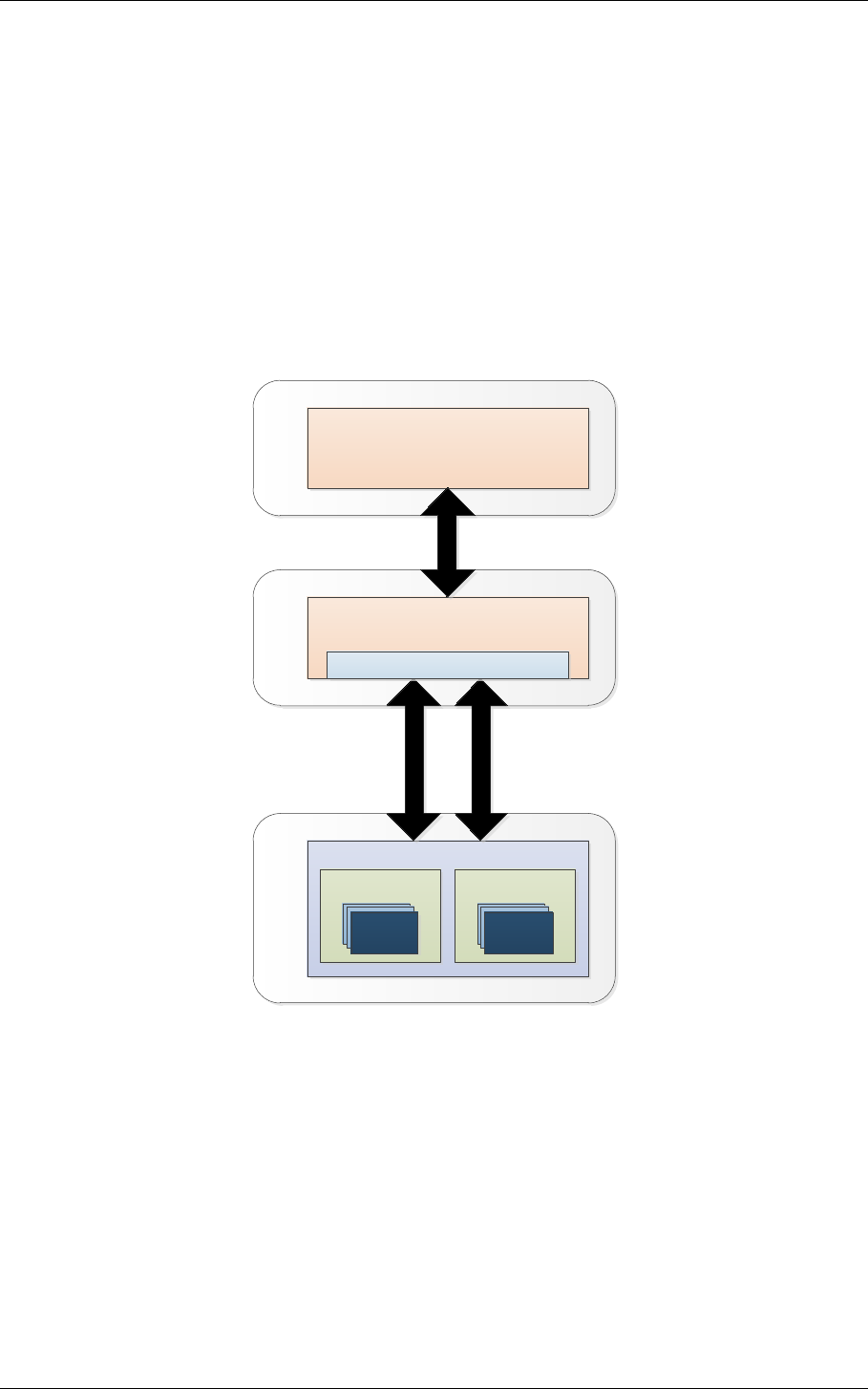

Figure 1 - HPE StoreOnce Catalyst Client Deployment
The Catalyst Client Library should be distributed as part of the backup application and will
typically be included in any backup application components that would interact directly
with a target storage device. Figure 1 shows, for example, how the client library is
embedded within the backup application media agent, allowing the media agent to
communicate directly with the Catalyst Stores on the StoreOnce Backup System.
1.1.1 Overview of ISV Integration with HPE StoreOnce Catalyst
StoreOnce Catalyst targets should be thought of as a new device type that has been
optimized for the purposes of data protection. StoreOnce Catalyst should not be used as
This document is provided under a HPE Confidential Disclosure Agreement
Page 8 of 125
general purpose storage as the data deduplication data paths will most commonly have
sub-optimal throughput performance for more random access workloads.
For data protection there are four basic use cases:
• Backup
o Create objects on the storage target and populate them with data.
o Perform bandwidth efficient backups over LAN, WAN and Fibre Channel.
• Clone
o Clone data from a previous object into a new backup object
• Restore
o Recover data from objects on the storage target.
• Copy
o Create independent redundant copies of data on multiple storage targets.
o Perform bandwidth efficient copies over both LAN and WAN.
o Copies are managed by 3rd party software but data transfer is directly
between the storage targets.
Despite StoreOnce Catalyst targets being a disk based solution, when designing and
integrating with 3rd party software it is often useful to think of the Catalyst Item as an
advanced tape drive. This means that you should aim to write to the Catalyst Item in a
sequential manner with a single data stream per Catalyst Item. Unlike tape however,
Catalyst Items have additional properties such as metadata, descriptive tags, data
deduplication and the ability to perform bandwidth efficient copies between storage
targets.
Copying Catalyst Items between storage targets is controlled by the 3rd party software, this
allows the software to control when copies are made and how many copies are made. The
key benefit being that the 3rd party software is aware of all the copies of the data that exist
and can therefore control their lifecycles.
Additionally the 3rd party software may specify the copy to be a region within a Catalyst
Item rather than the whole Catalyst Item. This allows the 3rd party software, for example,
to create copies that have unique header information. An example flow chart showing the
copy process can be found in page 104.
StoreOnce Catalyst integration is commonly achieved in one of two ways:
1) By creating a specific new type of storage target within the 3rd party software that
presents the full range of StoreOnce Catalyst functionality to the user. The benefit
of this approach is that a much richer user experience where data management is
viewed in a consistent way through both the 3rd party software and the storage
target.
2) By creating a generic storage target type within the 3rd party software and
integrating with StoreOnce Catalyst through a plug-in architecture. This caters for
frameworks where the 3rd party software integrates with multiple storage target
vendors, such as Symantec OpenStorage.
This document is provided under a HPE Confidential Disclosure Agreement
Page 9 of 125
1.2 StoreOnce Catalyst Terminology
Backup ServersStoreOn ce Backup Syste m
StoreOnce Catalyst Server
Catal yst Store
Catal yst
I te m
Catal yst
I te m
Catal yst
I te ms
Catal yst Store
Catal yst
I te m
Catal yst
I te m
Catal yst
I te ms
Backup Application Media Agent
StoreOnce Catalyst Client Library
Command Sessions
Data Sessions

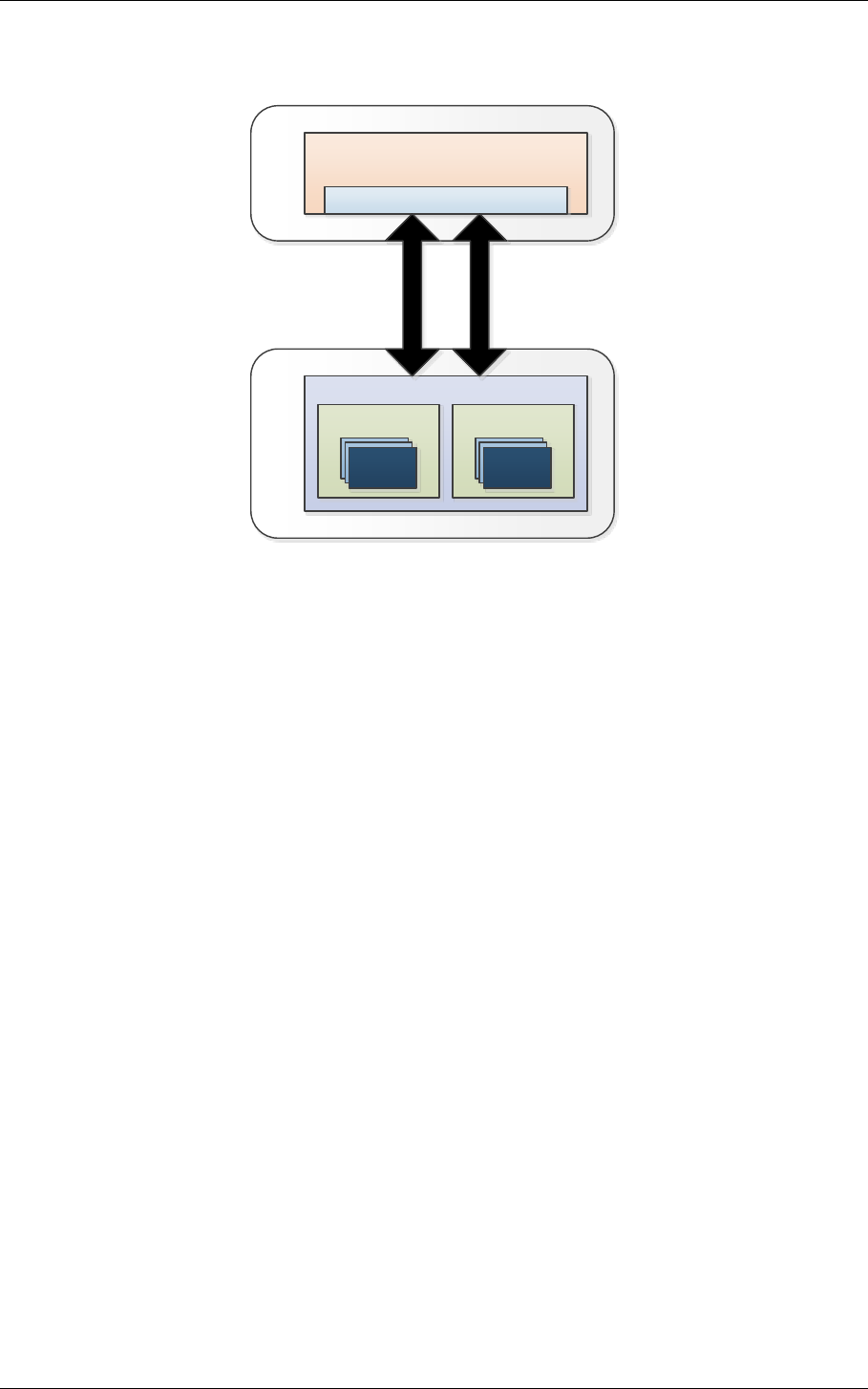

Figure 2 - StoreOnce Catalyst
1.2.1 Catalyst Client
A Catalyst Client is the name used to describe any application used to connect to the
Catalyst Server using the Catalyst Client API. A typical Catalyst Client would be a data
backup application that is using the Catalyst Server as a target for the backup data.
Catalyst Clients are described in more detail in the Catalyst Clients section on page 51.
1.2.2 Catalyst Server
A Catalyst Server is the name used to describe any target appliance that has StoreOnce
Catalyst capabilities, for example the HPE StoreOnce 6500. The Catalyst Server is
responsible for the management of Catalyst Client connections to Catalyst Stores and
Catalyst Items, as well as the control of asynchronous copy operations between Catalyst
Stores.
A Catalyst Server provides access to state information that a backup application may
request. This includes the number of Catalyst Client sessions that can be opened to the
Catalyst Server, the number of Catalyst Stores configured and capacity utilisation. Each
Catalyst Server may host one or more Catalyst Stores.
Catalyst Servers are described in more detail in the Catalyst Servers section on page 54.
This document is provided under a HPE Confidential Disclosure Agreement
Page 10 of 125
P rope rt i es:
• Serial Number
• Free Command Sessions
• Free Data Se ssions
• Number of Catalyst Stores
• Syste m Tim e
• Storage Capacity
• Storage Free Capacity
• Li ce ns ed
• Copy Job Bla ckout Window Policy
• Copy J ob Bandwid t h Li mitation Wi ndow Po li cy
Catalyst Server
Store
Store
Store
Figure 3 - Catalyst Server overview
1.2.3 Catalyst Store
A Catalyst Store is a container in which multiple Objects may be stored. If the Catalyst
Store supports deduplication, then all Objects written to this Catalyst Store will have their
data content deduplicated to reduce the amount of storage capacity required for the
Catalyst Item. Deduplication only occurs across Objects within the same Catalyst Store.
Each Catalyst Store has a unique identifier known as a Key. The Key must be unique within
the scope of the Catalyst Server and cannot be altered after creation. An optional
description may also be provided.
Information such as the number of Objects within the Catalyst Store, the deduplication
efficiency within the Catalyst Store and the number of running data and copy jobs are all
reported when the Catalyst Store is queried.
Catalyst Stores are described in more detail in the Catalyst Stores section on page 65.
P rope rt i es:
• Key
• D esc ri pt io n
• Ver si on
• Created Date
• User Data Stored
• Dedupe Ratio
• Numb er of It ems
• Number of Data Jobs
• Numb er of Copy Jobs
• Health St atus
Catalyst Store
Catalyst
I te m
Catalyst
I te m
I te m
Catalyst
I te m
Catalyst
I te m
I te m
Catalyst
I te m
Catalyst
I te m
I te m
Catalyst
I te m
Catalyst
I te m
I te m
Catalyst
I te m
Catalyst
I te m
I te m
Catalyst
I te m
Catalyst
I te m
I te m
Catalyst
I te m
Catalyst
I te m
I te m
Catalyst
I te m
Catalyst
I te m
I te m
Figure 4 - Catalyst Store overview
1.2.4 Catalyst Item
Items (also referred to as Objects in the SDK) consist of three elements:
• Catalyst Item Properties
• Meta Data
• Catalyst Item Data
This document is provided under a HPE Confidential Disclosure Agreement
Page 11 of 125
Each Catalyst Item within a Catalyst Store must have a unique identifier, known as a Key,
which shall be supplied when the Catalyst Item is created. Once a Catalyst Item is created,
the Key may not be modified. The Catalyst Item Key must be specified whenever a data
connection is opened.
Information such as the Created Date and the Last Modified Date are set by the Catalyst
Server and are stored as UTC timestamps. These timestamps may not be manually
modified by the Catalyst Client.
A Tag List property allows series of text identifiers to be associated with a Catalyst Item.
Tags may be specified at Catalyst Item creation time and modified at any time using the
osCltCmd_ModifyObjectMeta operation. For more details see Tag Lists on page 77.
The State property indicates the current state of a Catalyst Item and under normal
operation shall always have a state of OSCMN_CONFIG_STATE_CONFIGURED. When
creating or deleting a Catalyst Item the state will be
OSCMN_CONFIG_STATE_CREATING or OSCMN_CONFIG_STATE_DELETING
respectively. States when the Catalyst Item is non-operational are
OSCMN_CONFIG_STATE_UNCONFIGURED,
OSCMN_CONFIG_STATE_FAILED_TO_CREATE and
OSCMN_CONFIG_STATE_FAILED_TO_DELETE. The State property is fixed by the
Catalyst Server and may not be modified by the Catalyst Client.
The Storage Mode provides information about whether the Catalyst Item was stored using
variable block deduplication or fixed block deduplication. When creating a Catalyst Item
the storage mode selected must match a storage mode supported by the Catalyst Store.
This Storage Mode information is important when copying data between Objects as the
Objects must have the same Storage Mode. For more details see Storage Mode on page 77.
Meta Data may be stored in a Catalyst Item by a client caller. For more information about
Meta data see Metadata on page 78.
The Catalyst Item data part of a Catalyst Item is where the user data is located and can only
be accessed using a data session. There is no limited to the amount of data that can be
stored in a Catalyst Item but a Catalyst Store may have a storage quota applied.
When listing Items in a Catalyst Store, all of the properties will be returned in an array. The
caller may also optionally request metadata be included in the response but Catalyst Item
data is not returned during a list operation.
Catalyst Items are described in more detail in the
This document is provided under a HPE Confidential Disclosure Agreement
Page 12 of 125
Catalyst Items section on page 76.
P rope rt i es:
• Key
• Ver si on
• Created Date
• La st Modi fie d Dat e
• Item Data Size
• Tag Li st
• Sta te
• Storage Mod e
Meta Data
Item Data
Catalyst I tem
Figure 5 - Catalyst Item overview
1.2.5 Command Sessions
A command session is a socket connection established between a Catalyst Client and a
Catalyst Server for the purposes of managing Catalyst Servers, Catalyst Stores and
Catalyst Items.
Command Sessions are described in more detail in the
This document is provided under a HPE Confidential Disclosure Agreement
Page 13 of 125
Command Sessions section on page 19.
1.2.6 Data Sessions
A data session is a socket connection established between a Catalyst Client and a Catalyst
Item for the purposes of data transfer, such as writing and/or reading data.
Data Sessions are described in more detail in the Data Sessions section on page 30.
1.2.7 Data Job Records
For every data session opened, a new data job record will be created. A data job record
details the meaningful events that were performed during a data session. Their purpose is
to allow Catalyst users the ability to review information about their data session. An
example use would be for a Catalyst object which is created and then written to via a data
session. A data job record will be created listing the object name, client IP address from
which the session was written, the amount of data written, dedupe ratio; among others.
Data job records are also created for read data operations.
Data jobs records have an expiration period. This expiration period is defined at a per
Catalyst store level. The client should can set the retention period via
OSCMN_sJobRetentionPolicyType. It should be set to the default
OSCMN_JOB_RETENTION_POLICY_DEFAULT_DAYS (90 days) unless the user selects
otherwise. The Retention periods must be between 1 and
MaximumJobRetentionPeriod in Server Capabilities.
Data Jobs are described in more detail on page 94.
1.2.8 Copy Job Records
Similar to data job records, every Catalyst Copy operation will create a copy job record. A
copy job record details the meaningful information about a Catalyst copy session. Their
purpose is to allow Catalyst users the ability to review information about their Catalyst
copy session. An example use would be for a Catalyst Item which is copied from source to
target. Both the source and target Catalyst Items will have copy job records created. The
source will create an “Outbound Copy Job” record and the target an “Inbound Copy Job”
record. The information recorded is similar to the above Data Job Records, including: name,
client IP address from which the session was written, the amount of data written, dedupe
ratio; among others.
Copy jobs records have an expiration period. This expiration period is defined at a per
Catalyst store level. The client can set the retention period via
OSCMN_sJobRetentionPolicyType. It should be set to the default
OSCMN_JOB_RETENTION_POLICY_DEFAULT_DAYS (90 days) unless the user selects
otherwise. The Retention periods must be between 1 and
MaximumJobRetentionPeriod in Server Capabilities.
This document is provided under a HPE Confidential Disclosure Agreement
Page 14 of 125
Copy Jobs are described in more detail on page 98.
1.2.9 Federated Catalyst
Within a multi-node StoreOnce appliance, such as the HPE StoreOnce 6500, the maximum
size of a Catalyst Store will be limited by the capacity available behind each couplet of the
cluster. This means that users must configure multiple Catalyst Stores across the cluster
and define within their backup software which backups will be directed to which Catalyst
Stores, in order to address all available storage.

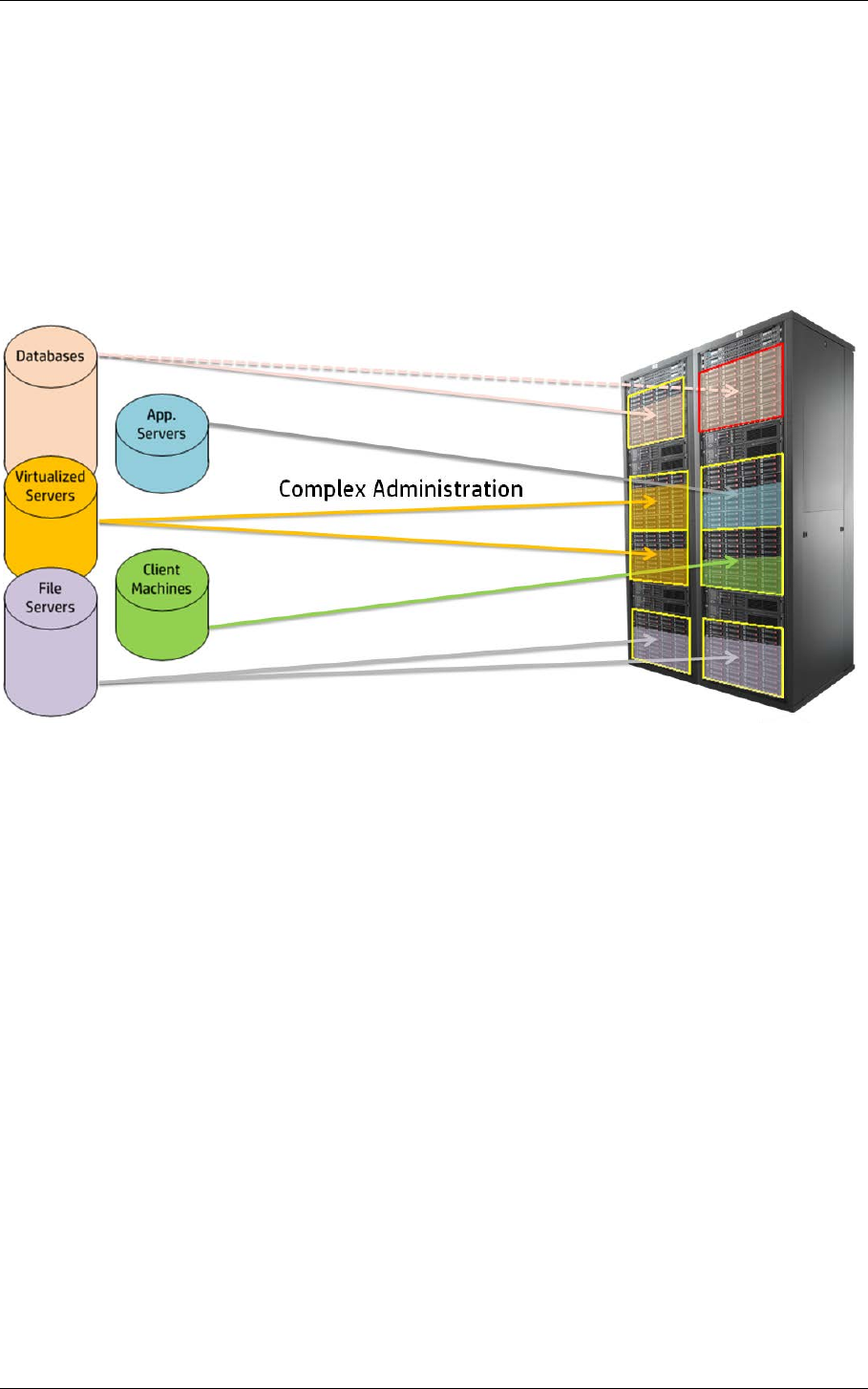

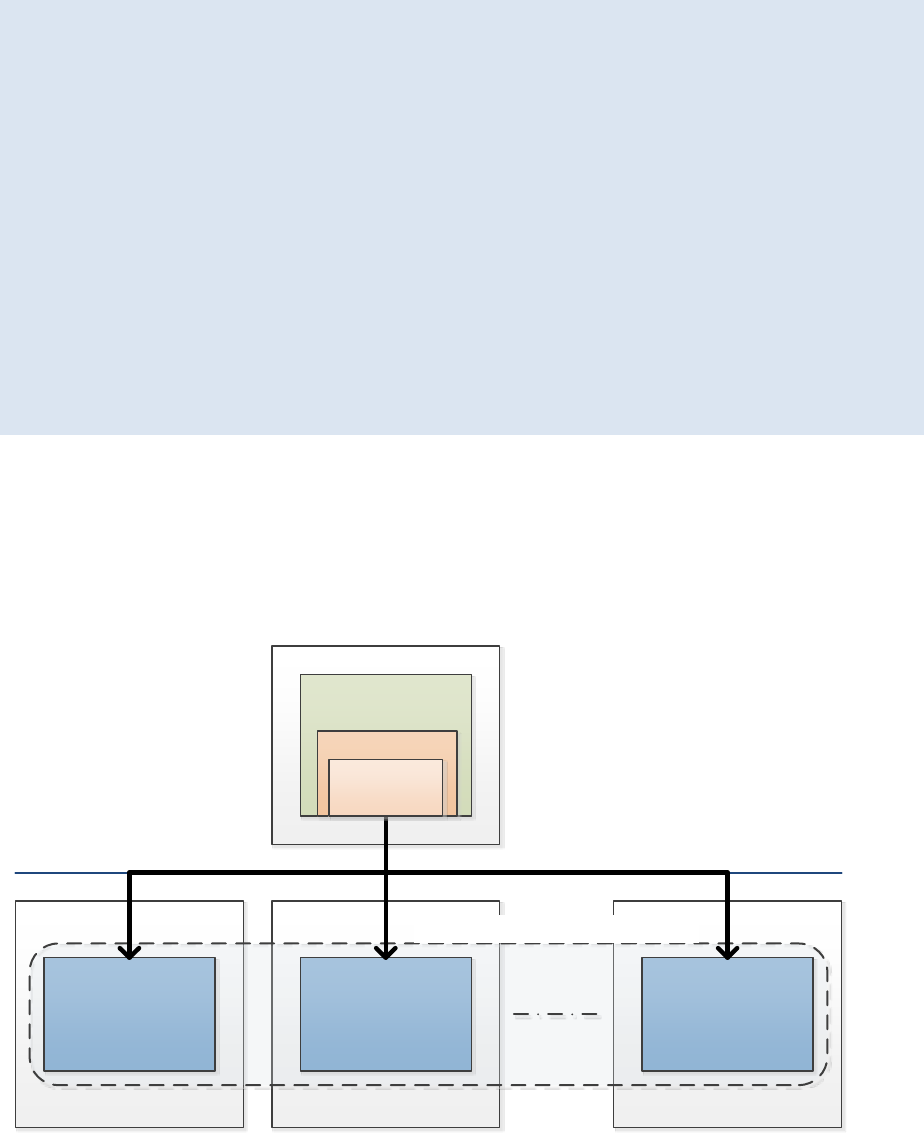

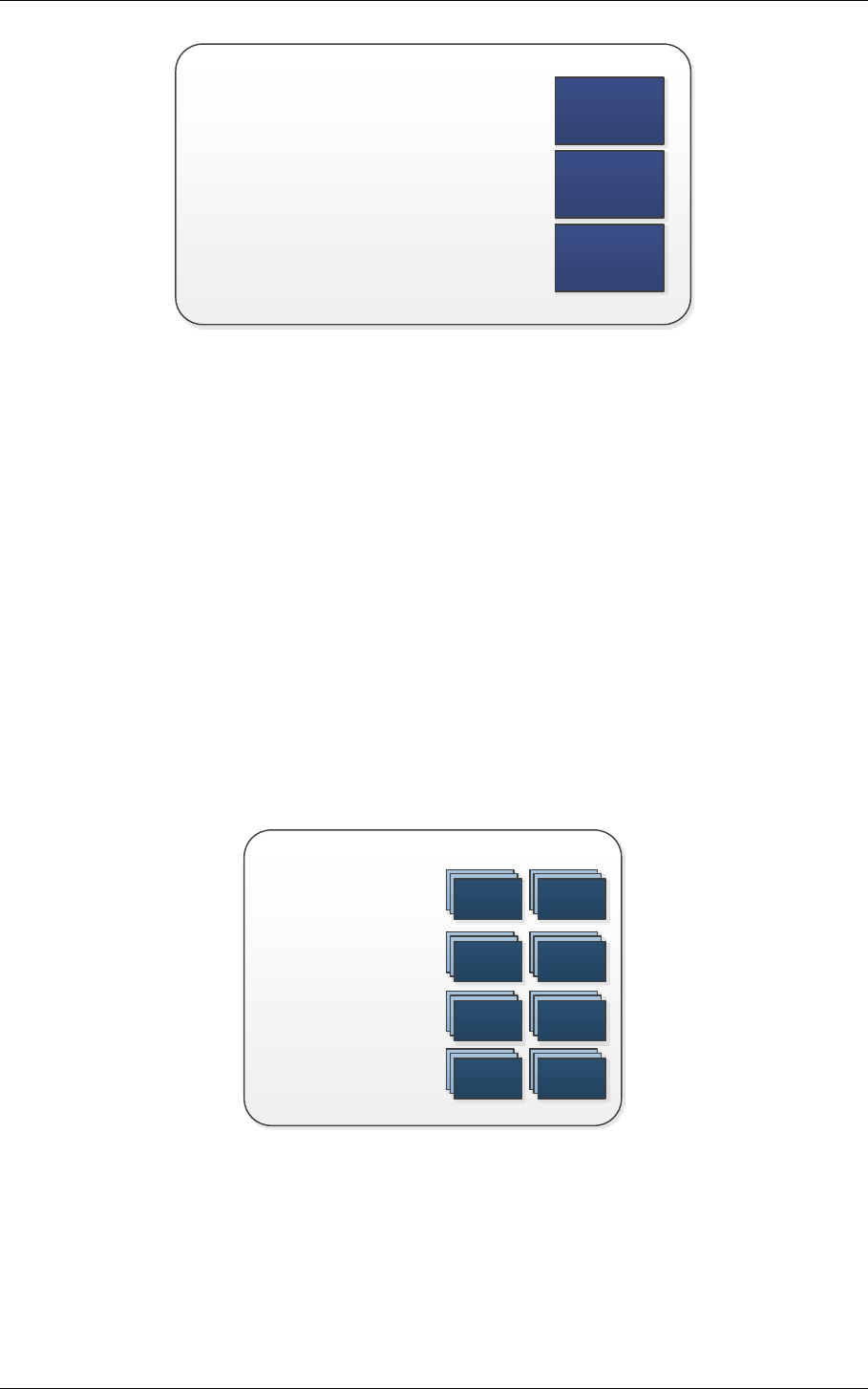

Figure 6 - Individual Pools of Storage in a Cluster
Federated Catalyst introduces a new capability to the StoreOnce Catalyst API whereby a
logical Catalyst Store may now be created across multiple nodes within a cluster. This
removes the need for customer to configure multiple Catalyst Stores across the cluster and
complex policies within their backup software.
This document is provided under a HPE Confidential Disclosure Agreement
Page 15 of 125

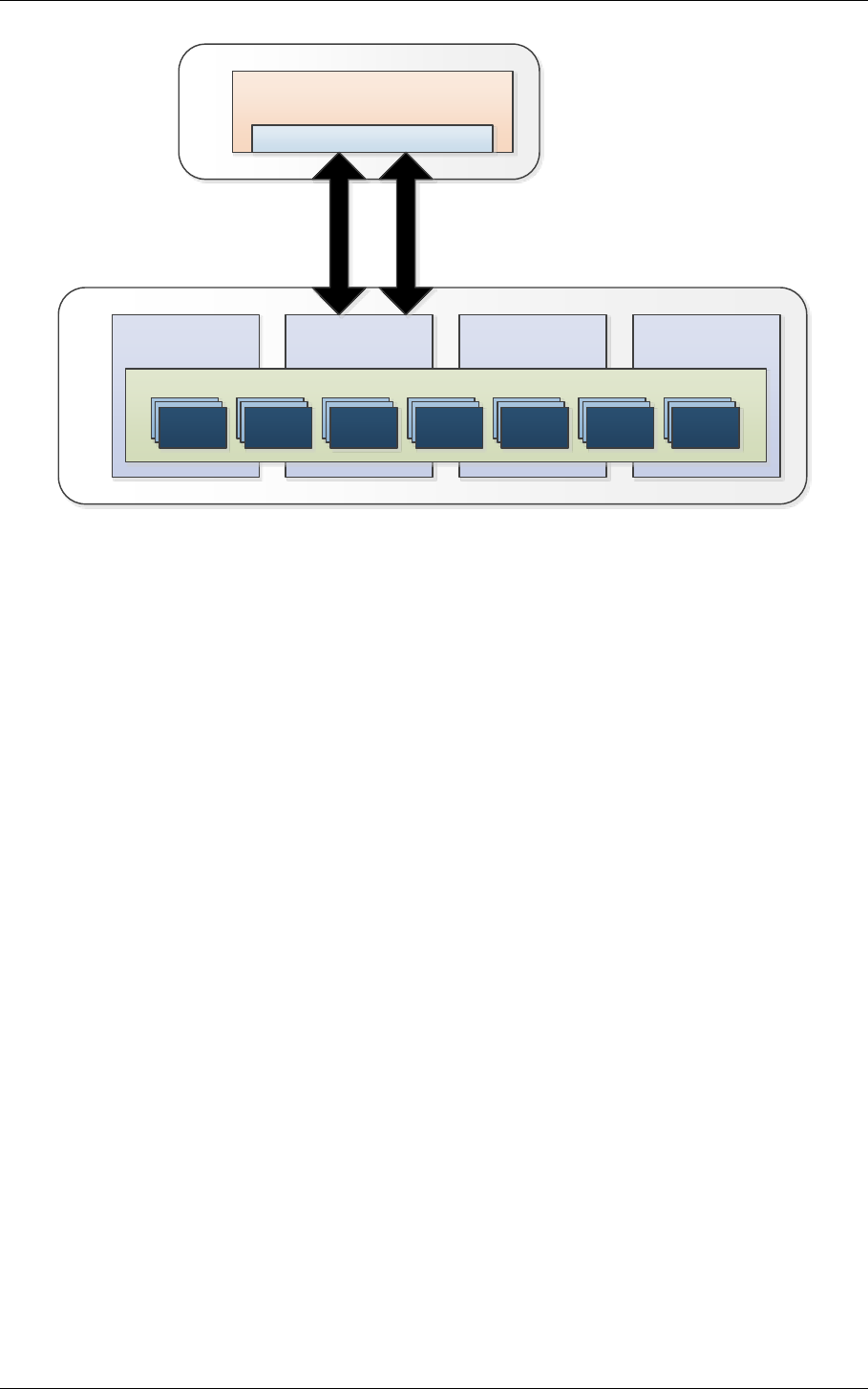

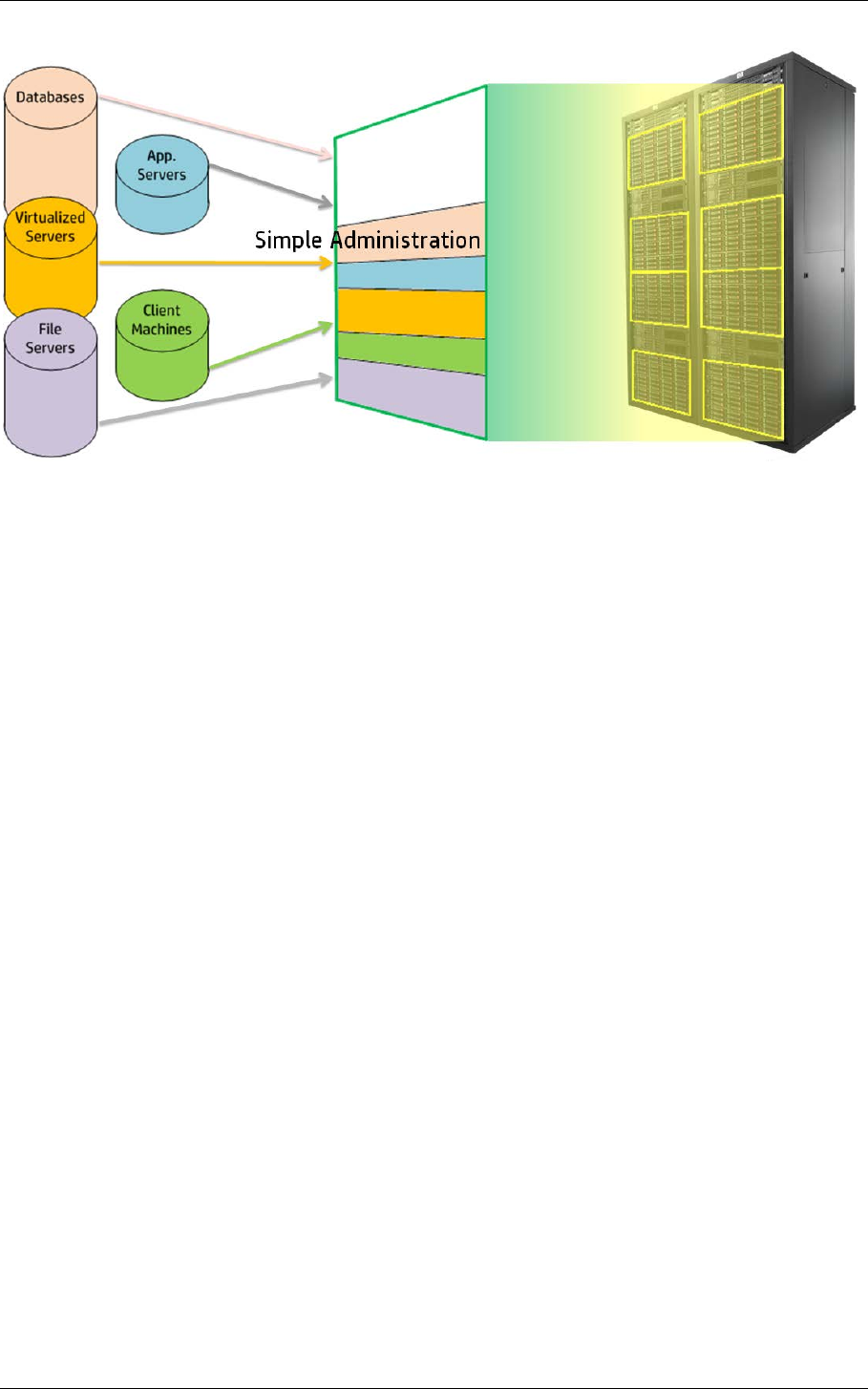

Figure 7 - Federated Pools of Storage in a Cluster
Backup applications integrating with StoreOnce Catalyst are able to support Federated
Catalyst Stores with only a few minor changes, described in more detail later in this
document.
1.2.10 Federated Catalyst Store
A Federated Catalyst Store comprises of individual Catalyst Stores configured across
multiple nodes. Each of the individual Catalyst Stores that make up the federation will
store a portion of the data written to the Federated Catalyst Store. Storage utilisation
across the nodes is then managed by the Catalyst Client.
The Catalyst Client interacts with the Federated Catalyst Store by establishing connections
to each individual Catalyst Stores and routing requests to the appropriate nodes on behalf
of the backup application. This means that a backup application does not need to manage
the complexities of device management but instead can continue to address a single target
device.
This document is provided under a HPE Confidential Disclosure Agreement
Page 16 of 125
StoreOnce Backu p System
StoreOnce
Catal yst Server
StoreOnce
Catal yst Server
StoreOnce
Catal yst Server
StoreOnce
Catal yst Server
Federated Catal yst Store
Catal yst
I te m
Catal yst
I te m
Catal yst
I te ms
Catal yst
I te m
Catal yst
I te m
Catal yst
I te ms
Catal yst
I te m
Catal yst
I te m
Catal yst
I te ms
Catal yst
I te m
Catal yst
I te m
Catal yst
I te ms
Catal yst
I te m
Catal yst
I te m
Catal yst
I te ms
Catal yst
I te m
Catal yst
I te m
Catal yst
I te ms
Catal yst
I te m
Catal yst
I te m
Catal yst
I te ms
Backup Servers
Backup Application Media Agent
StoreOnce Catalyst Client Library
Command Sessions
Data Sessions

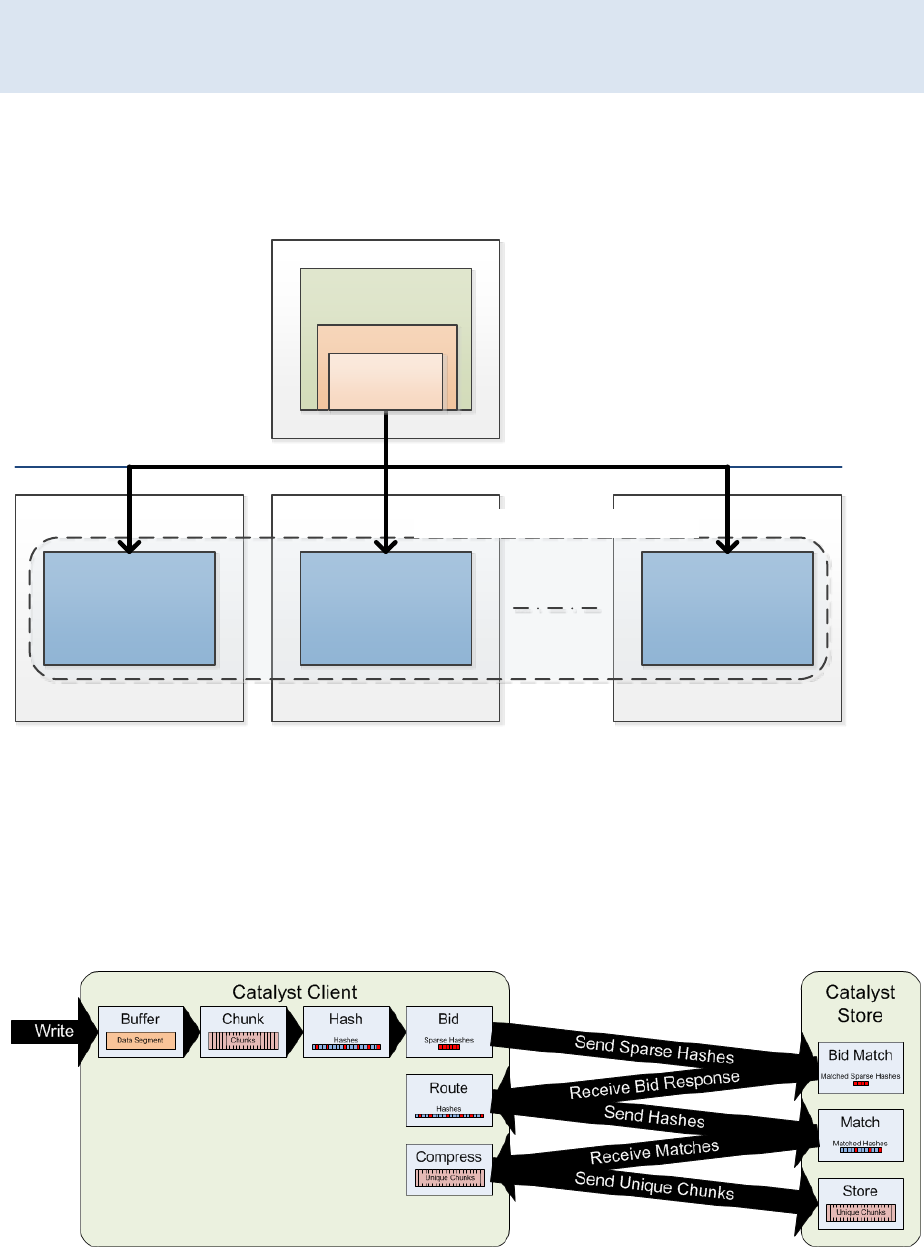

Figure 8 - Federated Catalyst
More detail on how to integrate with Federated Catalyst Stores can be found in the Catalyst
Stores on page 65.
1.2.11 Federated Catalyst Item
Federated Catalyst Items (also referred to as Objects in the SDK) are the same as regular
Catalyst Items with the exception that they exist in Federated Catalyst Stores. In most
cases, when a Catalyst Item is created in a Federated Catalyst Store it will be created on
each individual federation member. Each of these Catalyst Items will then hold a portion of
the data written to the Federated Catalyst Item.
Federated Catalyst Items are described in more detail in Federated Catalyst Items on page
88.
1.2.12 Catalyst Over Fibre Channel
Catalyst Over Fibre Channel allows a backup application to use the Catalyst software over a
fibre channel connection by opening a command or data session using a Catalyst Over Fibre
Channel identifier (prepended with “COFC-“) rather than an IP address. The Catalyst Client
from protocol v6 automatically handles the fibre channel protocol internally and so the
same client functions can be used as Catalyst over Ethernet except for Copyjobs that are
allowed over FC from protocol v9 onwards.
1.2.13 StoreOnce Catalyst Customer and API Reference
Table 1 provides a cross reference between the StoreOnce Catalyst terminology used in the
customer viewable interface such as the appliance management interface and the internal
ObjectStore API that is used by integrators in the SDK.
This document is provided under a HPE Confidential Disclosure Agreement
Page 17 of 125
Table 1 – Terminology references
Customer Terminology
SDK Terminology
HPE StoreOnce Catalyst Server
ObjectStore Server
HPE StoreOnce Catalyst Store
ObjectStore
HPE StoreOnce Catalyst Item
Object
HPE StoreOnce Federated Catalyst Store
Teamed ObjectStore
HPE StoreOnce Federated Catalyst Item
Teamed Object
This document is provided under a HPE Confidential Disclosure Agreement
Page 18 of 125
Section 2: StoreOnce Catalyst Command
Sessions
This document is provided under a HPE Confidential Disclosure Agreement
Page 19 of 125
2.1 Command Sessions
A command session is established between the Catalyst Client and the Catalyst Server
using the osCltCmd_OpenCommandSession operation. This will return a session
handle that should then be passed with subsequent command operations. The session is
closed by calling the osCltCmd_CloseCommandSession operation.
The number of concurrent command sessions that a Catalyst Server can support is not
without limit and therefore a Catalyst Client should take care to minimize the number of
open command sessions open to a given Catalyst Server. This is best achieved by only
maintaining a command session for the duration of a single command operation.
A typical command session would be as follows:
• osCltCmd_OpenCommandSession
• osCltCmd_GetServerProperties
• osCltCmd_CloseCommandSession
It should also be noted that inactive command sessions will timeout after five minutes.
A command session handle must not be shared between overlapping command session
operations.
The command operations available are:
Table 2 - Command session supported protocols
Command
Protocol
v4
Protocol
v5
Protocol
v6
Protocol
v7
Protocol
v8
Protocol
v9
osCltCmd_OpenCommandSession
osCltCmd_CloseCommandSession
osCltCmd_GetServerProperties
osCltCmd_ListObjectStores
osCltCmd_CreateObjectStore
osCltCmd_ModifyObjectStore
osCltCmd_DeleteObjectStore
osCltCmd_ListObjects
osCltCmd_ListObjectsCount
osCltCmd_CreateObject
osCltCmd_ModifyObjectMeta
osCltCmd_DeleteObject
osCltCmd_ListObjectDataJobs
osCltCmd_ListObjectDataJobsCount
osCltCmd_QueueObjectCopyJob
osCltCmd_ListOriginObjectCopyJobs
osCltCmd_ListOriginObjectCopyJobsCount
osCltCmd_ListDestinationObjectCopyJobs
osCltCmd_ListDestinationObjectCopyJobsCount
osCltCmd_CancelOriginObjectCopyJob
osCltCmd_CancelDestinationObjectCopyJob
osCltCmd_SetServerProperties
osCltCmd_SetClientPermissionsChecking
osCltCmd_ListClientPermissions
osCltCmd_CreateClientPermissions
osCltCmd_ModifyClientPermissions
osCltCmd_ModifyClientPassword
This document is provided under a HPE Confidential Disclosure Agreement
Page 21 of 125
osCltCmd_DeleteClientPermissions
osCltCmd_ListObjectStoreClientPermissions
osCltCmd_AddObjectStoreClientPermission
osCltCmd_RemoveObjectStoreClientPermission
osCltCmd_SetServerProperties
osCltCmd_SetClientPermissionsChecking
osCltCmd_ListClientPermissions
osCltCmd_CreateClientPermissions
osCltCmd_OpenTeamedCommandSession
osCltCmd_TeamedExpandObjectStore
osCltCmd_TeamedContractObjectStore
osCltCmd_TeamedExpandObject
osCltCmd_TeamedContractObject
* Protocol v5 returns Federated (Teaming) values in structures but they will always be false.
Full details of the command session operations can be found in OSCLT_Interface.h.
2.1.1 Opening a Command Session
Command Sessions should be opened on demand, to issue a command or short burst of
commands, and then closed again. In many cases it will be preferential to create a wrapper
function around the osCltCmd_OpenCommandSession and
osCltCmd_OpenTeamedCommandSession operations which are able to manage the
resource allocation and retry logic.
When opening a command session via osCltCmd_OpenCommandSession the client
should specify logging information. The client should specify the log session ID
(OSCLT_sSessionLogIdType), log path (OSCLT_sPathnameType), log level
(osClt_SessionLogLevel) and maximum log file size. Error Logging is described in
more detail in the Error Logs section on page 45.
2.1.1.1 Code Example – Open a Command Session
#define OBJSDK_CMD_SESSION_ID "OBJSDK_CMD"
int objSDKPrv_OpenCmdSession(const char *pServerAddress,
OSCLT_sSessionHandleType *pCmdSessionHandle)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
int retryCount = 0;
int sleepSeconds = 2;
OSCLT_sSessionLogIdType sessionLogID;
OSCMN_sAddressPortType serverAddr;
OSCLT_sPathnameType logPath;
OSCMN_sCredentialsType cred;
OSCLT_sSessionLogDescriptorType sessionLogDescriptor;
OSCLT_sSessionOptionsType sessionOptions;
// << Memset all structures>>
strncpy(sessionLogID.String,
OBJSDK_CMD_SESSION_ID,
sizeof(sessionLogID.String));
if (sessionLogID.String[sizeof(sessionLogID.String) - 1])
{
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
sessionLogID.StringSize = strlen(sessionLogID.String);
strncpy(serverAddr.Address.String,
pServerAddress,
sizeof(serverAddr.Address.String));
if (serverAddr.Address.String[sizeof(serverAddr.Address.String) - 1])
{
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
serverAddr.Address.StringSize = strlen(serverAddr.Address.String);
serverAddr.PortNumber = OSCLT_DEFAULT_COMMAND_PORT;
Page 23
// <<Set credentials | See ‘Client Authentication’ section>>
// <<Set logging | See ‘Error Logging’ section>>
while (retryCount < 33)
{
callStatus = osCltCmd_OpenCommandSession(&sessionLogDescriptor,
&sessionOptions,
&serverAddr,
&cred,
pCmdSessionHandle);
// <<If connection unsuccessful, retry | See 'Command Session
//Retries' section>>
if (callStatus == OSCLT_ERR_MAXIMUM_SESSIONS)
{
sleep(sleepSeconds);
if (sleepSeconds < 30)
{
sleepSeconds = sleepSeconds * 2;
sleepSeconds = (sleepSeconds > 30)? 30 : sleepSeconds;
}
}
else
{
break;
}
retryCount++;
}
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Unable to open command session, error : %s.\n",
objSDKPrv_ErrorNumToString(callStatus));
returnStatus = callStatus;
return returnStatus;
}
return returnStatus;
}
Within the shipping application, for debug / support purposes the backup application is
recommended to expose a means of increasing the log level and log file size, on a
temporary basis. This may be within a configuration file or within the application interface.
The levels of available logging are:
OSCLT_LOG_LEVEL_EXTENDED_DEBUG
OSCLT_LOG_LEVEL_DEBUG
OSCLT_LOG_LEVEL_TRACE
OSCLT_LOG_LEVEL_INFO
OSCLT_LOG_LEVEL_QUIET
OSCLT_LOG_LEVEL_ERROR
During application development it may be useful for the client to run in
OSCLT_LOG_LEVEL_INFO mode, but the level should be set to
OSCLT_LOG_LEVEL_ERROR before shipping to customers. Debug and extended debug
are very verbose and should only be used if instructed by HP.
Page 24
If an Open Session operation does not return OSCLT_ERR_SUCCESS then it will free up
all resources it may have used (sockets, mallocs, etc). Close Session does not need to be
called for such session, and must not be called as the Session Handle (out parameter) will
be invalid (see above). Using the session handle parameter will almost certainly result in a
segv.
2.1.2 Command Session Retries
Catalyst Servers support a limited number of concurrent command sessions. An indicator
to the number of available command sessions is returned by
osCltCmd_GetServerProperties in FreeCommandSessions. This value should
only be treated as a guide however due to the very short life of command sessions and
therefore the backup application should include logic to retry the opening of command
sessions if the open fails with an error of OSCLT_ERR_MAXIMUM_SESSIONS.
It is recommended that a retry mechanism be written such that successive retry would
progressive increase the delay between retry attempts. For example, on the first retry
attempt the delay would be 2 seconds. On the second retry the delay would increase to 4
seconds and one the third retry the delay would increase to 8 seconds. The increasing
delay should be capped at 30 second intervals, as shown in Table 3.
Table 3 - Recommended Command Session Retry Delays
Retry Attempt
Retry Delay (Sec)
1
2
2
4
3
8
4
16
5 – 33
30
After all the retries have been attempted (15 minutes), the operation should fail and the
backup application should make a decision about how to proceed. For example, the backup
application could reschedule the backup jobs to run at another time.
2.1.3 Closing a Command Session
Users of the API are expected to be responsible citizens and close sessions when they have
finished with them. This way the Server is able to service many more clients than it has
worker threads available as clients will time slice on a Command Session by Command
Session basis.
For both Command Sessions and Federated Command Sessions,
osCltCmd_CloseCommandSession should be called to close the session.
If osCltCmd_CloseSession returns an error, it will still free up all resources used by
that session. osCltCmd_CloseSession does not need to be called again for that
session, and must not be called as the Session Handle will have been invalidated by the
initial osCltCmd_CloseSession operation. Using the session handle parameter after a
close will almost certainly result in a segv.
Page 25
Command Sessions which are not explicitly closed by the Catalyst Client will timeout after 5
minutes of inactivity and will be forcibly closed by the Catalyst Server.
2.1.3.1 Code Example – Close a Command Session
int objSDKPrv_CloseCmdSession(OSCLT_sSessionHandleType *pCmdSessionHandle)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
if (pCmdSessionHandle)
{
callStatus = osCltCmd_CloseCommandSession(pCmdSessionHandle);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Unable to close command session.\n");
return returnStatus;
}
}
return returnStatus;
}
2.1.4 Federated Command Sessions
A Federated Command Session provides the Catalyst Client with a method of performing
the same command session task or query across a federation of Catalyst Servers. This
ensures consistency across the federation when performing such tasks as creating Catalyst
Items, as well as proving consolidated results when performing lists of Catalyst Items or
Data Jobs.
Catalyst Server #NCatalyst Server #2Catalyst Server #1
Cata lyst Store #1
(Federated Member)
Cata lyst Store #2
(Federated Member)
Cata lyst Store #N
(Federated Member)
TCP/IP
Network
Federated Catalyst Store
Backup
Application
Plug-In
Cata lyst
Client
Backup App. Server
Figure 9 - Federated Members
Only a subset of commands may be run from a Federated Command Session:
• osCltCmd_GetServerProperties
Page 26
• osCltCmd_ListObjectStores (only if key filter is provided with ExactMatchOnly)
• osCltCmd_CreateObjectStore
• osCltCmd_ModifyObjectStore
• osCltCmd_DeleteObjectStore
• osCltCmd_ListObjects
• osCltCmd_CreateObject
• osCltCmd_ModifyObjectMeta
• osCltCmd_DeleteObject
• osCltCmd_ListObjectDataJobs
When calling any of the commands above, the request will be applied to all Federated
Members and any response will be a merged response from all Federated Members. This
means, for example, when listing data jobs in a Federated Catalyst Store the job details will
show the combined data job records from each of the Federated Members.
Unlike a non-federated command session, a Federated Command Session is bound to the
Federated Store, so the caller must have permission to access the Federated Store to be
able to open the session. Federated command sessions can be opened in two modes:
• Bootstrap Mode
• Normal Mode
2.1.4.1 Bootstrap Mode
'Bootstrap' mode is where a blank store key is provided to the open Federated Command
Session operation. It is used for Federated Store creation, expansion, and contraction
operations (and can be used for store modification).
A Federated policy is provided in the create/expand/contract operation, which contains,
amongst other things, the address for all Federation Members. This is needed because a
backup application typically only allows for a single address to be provided for a backup
target device, which is the server address passed into the open Federated session
operation. The Federation policy can then be consulted by the client API so it can internally
connect to all the other Federation members. Once the create/modify/expand/contract
operation is completed the session becomes a normal command session. If the operation
fails, the bootstrap session is locked down, and should be closed using
osCltCmd_CloseCommandSession.
2.1.4.2 Normal Mode
'Normal' mode is where a non-blank Federated Store key is provided in the open Federated
command session operation. It is used for all Federated command session operations other
than store creation, expansion and contraction.
The client API pulls the Federation policy from the Federated member whose server
address is provided in the open, and then consults this so it can internally connect to all the
other Federated Members.
Page 27
Store modification is usually done in a ‘normal’ Federated Command Session, but can
optionally be done in bootstrap mode if a Federated Member has changed its address (so
opening a normal Federated Command Session won't work as the Federated Member
address details stored in the Federate Policy on the server are wrong).
There is no bootstrap Federated store delete. Instead, each individual single Federate
Member store can be deleted via a normal command session.
2.1.4.3 Code Example – Open a Teamed Command Session
int objSDKPrv_OpenTeamedCmdSession(const char *pServerAddress,
OSCLT_sSessionHandleType *pCmdSessionHandle, const char *pStoreKey)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
int retryCount = 0;
int sleepSeconds = OBJSDK_CMD_SESSION_RETRY_SLEEP_SECONDS_MIN;
//<<Setup as in objSDKPrv_OpenCmdSession>>
OSCMN_sKeyType teamedObjectStoreKey;
OSCLT_sTeamMemberConnectionStatusType teamMemberConnectionStatus;
if (pStoreKey == NULL) // Open connection in bootstrap mode
{
memset(&teamedObjectStoreKey, 0, sizeof(teamedObjectStoreKey));
}
else // Storekey is defined - open connection in non-bootstrap mode
{
memset(&teamedObjectStoreKey,
0,
sizeof(teamedObjectStoreKey));
strncpy(teamedObjectStoreKey.String,
pStoreKey,
sizeof(teamedObjectStoreKey.String));
if (teamedObjectStoreKey.String[sizeof(teamedObjectStoreKey.String)
- 1])
{
printf("Error : Unable to set Teamed Store Key %s\n",
teamedObjectStoreKey.String);
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
teamedObjectStoreKey.StringSize = strlen
(teamedObjectStoreKey.String);
}
while (retryCount < 33)
{
callStatus = osCltCmd_OpenTeamedCommandSession(
&sessionLogDescriptor,
&sessionOptions,
&serverAddr,
&cred,
&teamedObjectStoreKey,
pCmdSessionHandle,
&teamMemberConnectionStatus);
//<<Use same retry logic as objSDKPrv_OpenCmdSession>>
Page 28
}
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Unable to open teamed command session for "
"server, error : %s.", objSDKPrv_ErrorNumToString(callStatus));
returnStatus = callStatus;
return returnStatus;
}
return returnStatus;
}
2.2 Section Summary and recommendated best practises
• The number of available Catalyst command sessions is limited and is different
across the StoreOnce appliance range. Implement command session retry logic
when OSCLT_ERR_MAXIMUM_SESSIONS is received and do not keep command
sessions open for excessive periods. They should be short lived.
• Always close any command session opened by the application.
• There are 2 types of command sessions; teamed command sessions and non-
teamed command sessions.
• Set an appropriate logging level when opening a command session.
• Expose a method within the backup application to increase log levels and log sizes
Page 29
Section 3: StoreOnce Catalyst Item Data
Sessions
Page 30
3.1 Data Sessions
A data session is established between the Catalyst Client and a Catalyst Item using the
osCltData_OpenObjectDataSession operation. The Catalyst Item must therefore
already exist before the data session is opened. On open, a session handle is returned that
should then be passed with subsequent data operations. The session is closed by calling
the osCltData_CloseObjectDataSession operation.
Prior to StoreOnce 3.15, each Catalyst Item can only have a single data session open to it at
any one time. Multi-read support of Catalyst items is supported post StoreOnce 3.15. Data
sessions are typically maintained for the duration of a backup or restore operation
however to avoid orphaned sessions caused by such things as loss of connectivity, inactive
sessions will timeout after a period of four hours.
A data session handle must not be shared between overlapping data session operations.

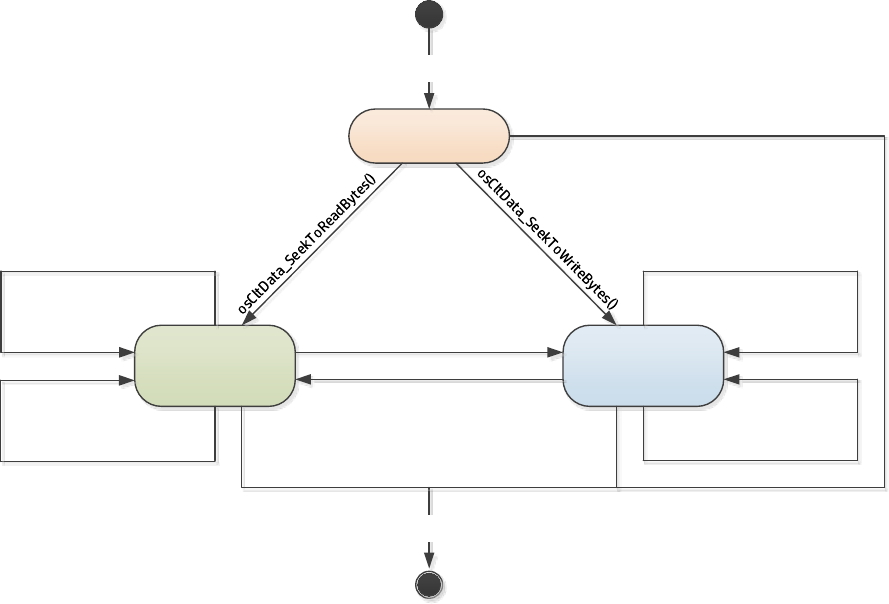

A typical data session would be as follows:
osCltData_OpenObjectDataSession
osCltData_SeekToWriteBytes
osCltData_WriteBytes
osCltData_WriteBytes
osCltData_WriteBytes
osCltData_Flush
osCltData_WriteBytes
osCltData_WriteBytes
osCltData_Flush
…
osCltData_CloseObjectDataSession
The supported data session operations are as follows:
Table 4 - Data Session supported protocols
Command
Protocol
v4
Protocol
v5
Protocol
v6
Protocol
v7
Protocol
v8
Protocol
v9
osCltData_OpenObjectDataSession
osCltData_CloseObjectDataSession
osCltData_SeekToWriteBytes
osCltData_SeekToReadBytes
osCltData_WriteBytes
osCltData_ReadBytes
osCltData_Flush
osCltData_SeekToCloneExtents
osCltData_OpenParent
osCltData_CloseParent
osCltData_CloneExtent
osCltData_SeekToWriteSections
osCltData_SeekToReadSections
osCltData_MatchSectionManifest
osCltData_StoreSection
osCltData_GetSectionManifest
osCltData_GetSectionChunks
osCltData_OpenTeamedObjectDataSession
osCltData_TeamedObjectGetExtentRegions
osCltData_GetClientThroughputStatistics
osCltData_SeekToReadParentExtents
osCltData_ReadParentExtent
Protocol v5 returns Federated (Teaming) values in structures but they will always be false.
3.1.1 Opening a Catalyst Item Data Session
Catalyst Item Data Sessions are required when writing to or reading from Catalyst Items. In
many cases it will be preferential to create wrapper functions around the
osCltData_OpenObjectDataSession and
osCltData_OpenTeamedObjectDataSession operations, which are able to
manage the resource allocation and retry logic.
Before opening a Catalyst Item Data Session it is recommended that the backup application
checks the IsTeamed flag for the Catalyst Store being accessed. If the IsTeamed flag is
true, the backup application must open a command session using
osCltData_OpenTeamedObjectDataSession whereas if the IsTeamed flag is
false the backup application should open the command session using
osCltData_OpenTeamedObjectDataSession.
When opening a data session via osCltData_OpenObjectDataSession the client
must specify logging parameters. The client should specify the log session ID
(OSCLT_sSessionLogIdType), log path (OSCLT_sPathnameType), log level
(osClt_SessionLogLevel) and maximum log file size.
3.1.1.1 Code Example – Open an Item
int objSDKPrv_OpenObject(const char *pServerAddress, const char *pStoreKey,
const char *pObjectKey, bool writeMode, uint64_t seekToOffset,
OSCLT_sSessionHandleType *pDataSessionHandle, OSCMN_IdType *pJobID)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCMN_sKeyType objKey;
OSCMN_sKeyType storeKey;
OSCMN_sAddressPortType serverAddr;
OSCMN_sCredentialsType cred;
OSCMN_sServerPropertiesType serverProperties;
OSCMN_sObjectStoreType objectStore;
OSCMN_sObjectType object;
OSCLT_sSessionLogDescriptorType sessionLogDescriptor;
OSCLT_sSessionOptionsType sessionOptions;
OSCMN_sStringType jobReference;
// <<Memset structs>>
// <<Set logging | See 'Error Logging' section>>
// <<Set credentials | See 'Client Authentication' section>>
// <<Set server address | Setting data port>>
serverAddr.PortNumber = OSCLT_DEFAULT_DATA_PORT;
strncpy(jobReference.String,
"A Job Reference Id",
sizeof(jobReference.String));
if (jobReference.String[sizeof(jobReference.String) - 1])
{
printf("Error : Unable to set Job Reference %s\n",
jobReference.String);
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
Page 33
return returnStatus;
}
jobReference.StringSize = strlen(jobReference.String);
strncpy(storeKey.String,
pStoreKey,
sizeof(storeKey.String));
if (storeKey.String[sizeof(storeKey.String) - 1])
{
printf("Error : Unable to set Store Key %s\n", storeKey.String);
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
storeKey.StringSize = strlen(storeKey.String);
strncpy(objKey.String,
pObjectKey,
sizeof(objKey.String));
if (objKey.String[sizeof(objKey.String) - 1])
{
printf("Error : Unable to set Object Key %s\n", objKey.String);
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
objKey.StringSize = strlen(objKey.String);
// Open data session
callStatus = osCltData_OpenObjectDataSession (&sessionLogDescriptor,
&sessionOptions,
&serverAddr,
&cred,
&storeKey,
&objKey,
&jobReference,
pDataSessionHandle,
&serverProperties,
&objectStore,
&object,
pJobID);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Unable to open data session to object '%s' in "
"store '%s', error : %s.\n", pObjectKey, pStoreKey,
objSDKPrv_ErrorNumToString(callStatus));
returnStatus = callStatus;
return returnStatus;
}
return returnStatus;
}
For debug purposes the client is recommended to expose a means of increasing the log
level and log file size, on a temporary basis. The levels of available log debug are:
OSCLT_LOG_LEVEL_EXTENDED_DEBUG
OSCLT_LOG_LEVEL_DEBUG
OSCLT_LOG_LEVEL_TRACE
OSCLT_LOG_LEVEL_INFO
OSCLT_LOG_LEVEL_QUIET
OSCLT_LOG_LEVEL_ERROR
Page 34
During development it is recommended the client be run in OSCLT_LOG_LEVEL_INFO
mode, but the level should be set to OSCLT_LOG_LEVEL_ERROR before shipping to
customers. See comment on page 24.
If an Open Catalyst Item Data Session operation does not return OSCLT_ERR_SUCCESS
then it will free up all resources it may have used (sockets, mallocs, etc).
osCltData_CloseObjectDataSession does not need to be called for that session,
and must not be called as the Session Handle (out parameter) will be invalid (see above).
Using the session handle parameter will almost certainly result in a segv.
Rea d Mode Wri te Mo d e
Idle Mode
osCltData_Wr i te Byte s()
osCltData_SeekToWriteBytes()
osCltData_SeekToWriteBytes()
osCltData_SeekToReadBytes()
osCltData_ReadBytes()
osCltData_SeekToReadBytes()
osCltData_OpenObjectDa taSession()
osCltData_CloseObje ctDa ta Session()
Figure 10 - Catalyst Item Data Session State Diagram
Full details of the Catalyst Item data session operations can be found in
OSCLT_Interface.h.

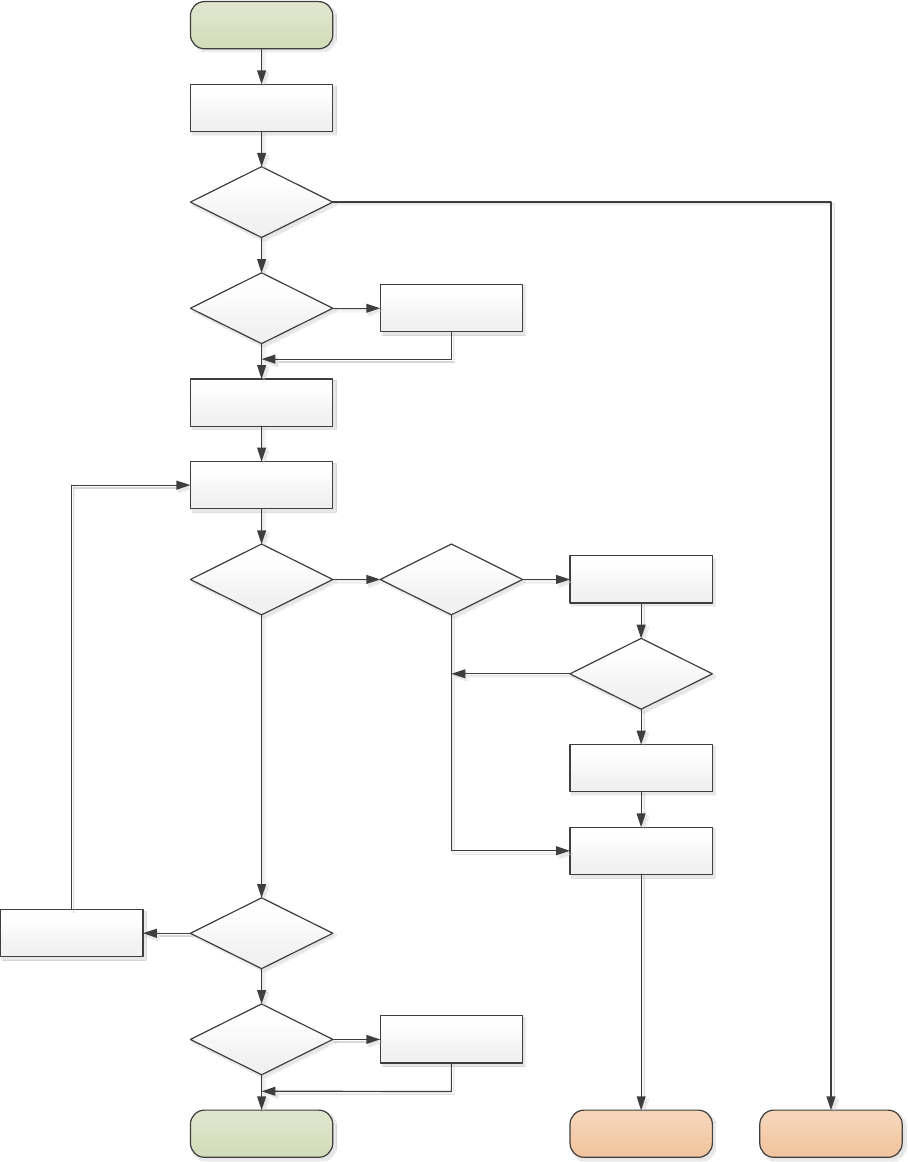

3.1.2 Catalyst Item Data Session Retries
Catalyst Servers support a limited number of concurrent Catalyst Item data sessions. An
indicator to the number of available Catalyst Item data sessions is returned by
osCltCmd_GetServerProperties in FreeDataSessions and additionally the
ObjectLockResourcesUnavailable flag will indicate whether the Catalyst Server
has available resources. These values should only be treated as a guide however as their
state could change before the Catalyst Item data session is successfully opened.
If a Catalyst Item data session fails to open with an error of either
OSCLT_ERR_MAXIMUM_SESSIONS or OSCLT_ERR_MAXIMUM_LOCKS, it is
Page 35
recommended that the backup application should internally queue the backup job to run
again at a later time. Additional logic could be included in the backup application to retry
the job as it detects other backup jobs have completed or when the FreeDataSessions
property and ObjectLockResourcesUnavailable flag indicate resources are now
available.
3.1.3 Closing a Catalyst Item Data Session
Users of the API are expected to be responsible citizens and close sessions when they have
finished with them. Only once a Catalyst Item Data Session to a Catalyst Item is closed is
the Catalyst Item lock freed so that it may be accessed by another process, such as the
copy engine.
For both Catalyst Item Data Sessions and Federated Catalyst Item Data Sessions,
osCltData_CloseObjectDataSession should be called to close the session.
If osCltData_CloseObjectDataSession returns an error, it will still free up all
resources used by that session. Close Session does not need to be called again for that
session, and must not be called as the Session Handle will have been invalidated by the
Close Session operation. Using the session handle parameter after a close will almost
certainly result in a segv.
Catalyst Item Data Sessions which are idle and are not closed will timeout after 4 hours of
inactivity and will be forcibly closed by the Catalyst server. This timeout ensures that
Catalyst Items do not become locked indefinitely. If the backup application is expected to
have known idle periods of longer than 4 hours then they should implement keep alive
functionality to keep the data session active. An example keep alive would be to issue an
osCltData_Flush after 30 minutes of data session inactivity. The application is
responsible for maintaining such a counter between operations.
3.1.3.1 Code Example – Close an Item
int objSDKPrv_CloseObject(OSCLT_sSessionHandleType *pDataSessionHandle)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCMN_sObjectDataJobType objectDataJob;
memset(&objectDataJob,
0,
sizeof(objectDataJob));
callStatus = osCltData_CloseObjectDataSession(pDataSessionHandle,
&objectDataJob);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Unable to close data session, error : %s.\n",
objSDKPrv_ErrorNumToString(callStatus));
returnStatus = callStatus;
return returnStatus;
Page 36
}
return returnStatus;
}
3.1.4 Federated Catalyst Item Data Sessions
A Federated Catalyst Item data session provides the Catalyst client with a data path to
Catalyst Items in Federated Catalyst Stores. Using this connection the backup software can
write and read in the same way as a regular Catalyst Store.
Catalyst Server #NCatalyst Server #2Catalyst Server #1
Cata lyst Store #1
(Federated Member)
Cata lyst Store #2
(Federated Member)
Cata lyst Store #N
(Federated Member)
TCP/IP
Network
Federated Catalyst Store
Backup
Application
Plug-In
Cata lyst
Client
Backup App. Server
Figure 11 - Federated Catalyst Data Session to all Federated Members
3.1.4.1 Bidding and Routing
Each team member is an independent Catalyst Store with its own backend deduplication
store and associated sparse index. In order to maintain deduplication across multiple
independent stores a suitable Catalyst routing algorithm must be used to ensure similar
data is always sent to the same backend StoreOnce node and that unmatched data is load
balanced across the remaining storage. This is handled within the Catalyst Client and is not
the responsibility of a backup application.

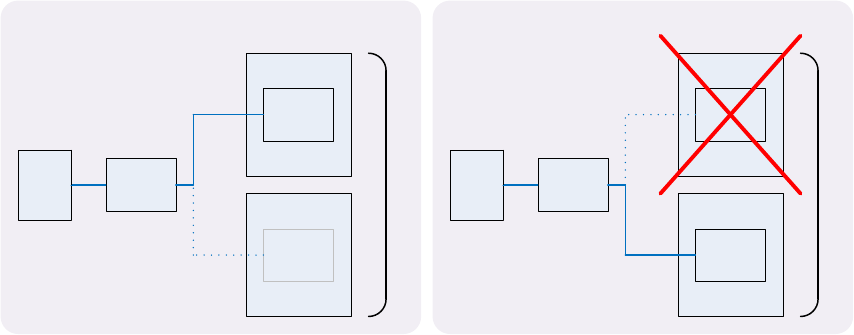

Figure 12 - Bidding and Routing
Page 37
3.1.4.2 Code Example – Open a Teamed Item
Federated Data Sessions are similar in their implementation to regular Data Sessions with
additional structures for OSCMN_sObjectDataJobTeamingType and
OSCLT_sTeamMemberConnectionStatusType.
int objSDKPrv_OpenTeamedObject(const char *pServerAddress, const char
*pStoreKey, const char *pObjectKey, bool writeMode, uint64_t seekToOffset,
OSCLT_sSessionHandleType *pDataSessionHandle)
{
//<<Set up as in objSDKPrv_OpenObject>>
OSCMN_sObjectDataJobTeamingType objectDataJobTeaming;
OSCLT_sTeamMemberConnectionStatusType teamMemberConnectionStatus;
memset(&objectDataJobTeaming,
0,
sizeof(objectDataJobTeaming));
memset(&teamMemberConnectionStatus,
0,
sizeof(teamMemberConnectionStatus));
callStatus = osCltData_OpenTeamedObjectDataSession(
&sessionLogDescriptor,
&sessionOptions,
&address,
&cred,
&objStoreKey,
&objKey,
&jobReference,
pDataSessionHandle,
&teamMemberConnectionStatus,
&serverProperties,
&objectStore,
pObject,
&objectDataJobTeaming);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Unable to open data session to object '%s' in "
"store '%s', error : %s.\n", pObjectKey, pStoreKey,
objSDKPrv_ErrorNumToString(callStatus));
returnStatus = callStatus;
return callStatus;
// Can also check the teamMemberConnectionStatus structure to
// determine on which team member(s) the error occurred
}
return returnStatus;
}
3.1.4.3 Multi-reader Functionality
From StoreOnce 3.15 it is possible to have multiple read concurrent data sessions open to a
single Catalyst object. Prior to this release, a request to open a subsequent data session
would have resulted in OSCLT_ERR_OBJECT_LOCK_FAILED. Multiple sessions can
only be opened when only read operations have been performed on an object. Once a clone
or write operation is performed the object will be exclusively locked to that single data
session.
Page 38
Multi-reader functionality is provided to support the use case where multiple copies or
multiple restores need to be performed from an object.
Applications can query whether a Catalyst store supports multiple readers by querying the
SupportMultipleObjectOpeners in
OSCMN_sObjectStoreCapabilitiesType which is returned by a call to
osCltCmd_ListObjectStores.
3.2 Section Summary and recommendated best practises
• The number of available Catalyst data sessions is limited and is different across the
StoreOnce appliance range. Implement data session retry logic when
OSCLT_ERR_MAXIMUM_SESSIONS.
• Always close any data session opened by the application.
• There are 2 types of data sessions; teamed data sessions and non-teamed data
sessions.
• Set an appropriate logging level when opening a data session.
• A data session will be closed on the Catalyst server if it is idle for 4 hours. Catalyst
integrators should implement a keep alive mechanism if it is expected to have long
periods of idle operation.
Page 39
Section 4: StoreOnce Catalyst Transfer
Policies
Page 40
4.1 Bandwidth Optimized Data Transfer
One of the many features of StoreOnce Catalyst is the ability to be able to specify that data
transferred between a Catalyst Client and a Catalyst Server is done in a bandwidth efficient
way. Bandwidth efficiency is achieved by performing some of the deduplication process
within the Catalyst Client. This processing of the data ensures that only unique chunks of
data are transferred between the Catalyst Client and the Catalyst Server, thus reducing
network load and potentially increasing overall throughput.
Data transfer that does not utilise the bandwidth efficient transfer mode is known as High
Bandwidth and data transfer that does utilise the bandwidth efficient transfer mode is
known as Low Bandwidth.
Catalyst Server
Chunk StoreCompressMatchHash
Catalyst Client
Write
Buffer
Send All Data
Data Segment Chunks Hashes Unique Chunks Unique ChunksHashes

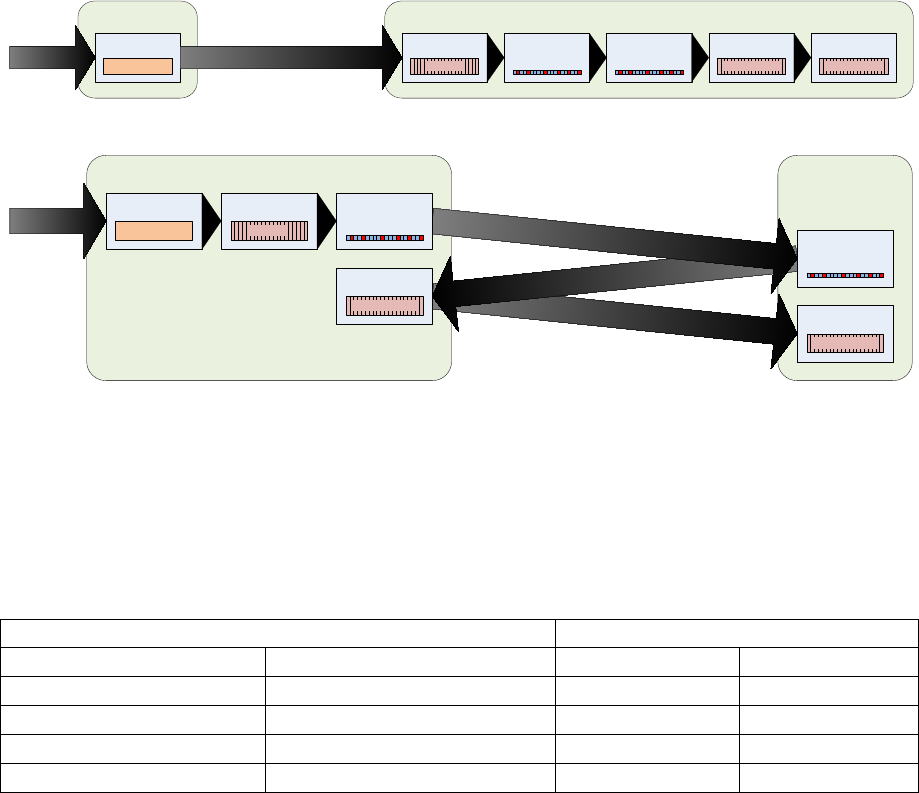

Figure 13 - High Bandwidth Data Transfer Process
Catalyst Client Catalyst
Server
Chunk
Write
Send Unique Chunks
Buffer
Data Segment Chunks
Receive Matches
Send Hashes
Compress
Hash
Hashes
Unique Chunks
Store
Match
Unique Chunks
Hashes
Figure 14 - Low Bandwidth Data Transfer Process
Catalyst Stores are configured with a primary and secondary transfer policy. These policies
specify which data transfer modes may be used by Catalyst Clients that open data sessions
to Objects within a Catalyst Store. Table 5 shows that if a transfer mode is not selected in
either the primary or secondary transfer policy, the Catalyst Client will not be permitted to
utilise this transfer mode.
Table 5 – Permitted Transfer Modes
Catalyst Store Settings
Catalyst Client Data Transfer
Primary Transfer Policy
Secondary Transfer Policy
High Bandwidth
Low Bandwidth
High Bandwidth
Low Bandwidth
Low Bandwidth
High Bandwidth
High Bandwidth
High Bandwidth
Low Bandwidth
Low Bandwidth
Bandwidth optimized data transfer between the Catalyst Client and the Catalyst Server is
only available when performing the osCltData_WriteBytes operation. During the
osCltData_ReadBytes operation, all data transfer is done in a high bandwidth mode.
Selecting either high bandwidth or low bandwidth data transfer is done each time the
osCltData_SeekToWriteBytes operation is called. This allows callers to select a
data transfer mode appropriately for the data to be transferred and also the ability to
Page 41
change the mode based on other factors, such as load on the media server, data transfer
statistics or data type.
If the client application does not expose options allowing the user to specify a bandwidth
option the application should query the Catalyst store properties
(OSCMN_sObjectStoreType) to get the OSCMN_sWritePolicyType. This will
query the transfer policy value set within the StoreOnce GUI. Setting the transfer policy via
the StoreOnce GUI is the recommended approach,
The available OSCMN_eWriteBandwidthModeType enums are:
• OSCMN_WRITEBANDWIDTHMODE_HIGH_ONLY
• OSCMN_WRITEBANDWIDTHMODE_LOW_ONLY
• OSCMN_WRITEBANDWIDTHMODE_BOTH_DEFAULT_HIGH
• OSCMN_WRITEBANDWIDTHMODE_BOTH_DEFAULT_LOW
Bandwidth optimized data transfer also caters for performing data transfer over a WAN
connection, for example between a remote small office and a data centre. When
performing data transfer over a WAN, it is recommended that the maximum data buffer
size is used. This maximum permissible size is reported as
MaximumLowBandwidthDataBufferSize
when calling
osCltCmd_GetClientProperties.
OSCLT_sSessionOptionsType sessionOptions;
memset(&sessionOptions,
0,
sizeof(sessionOptions));
sessionOptions.PayloadChecksumsDisabled = true;
It should be noted that Federated Catalyst only supports Low Bandwidth.
OSCMN_sWritePolicyType writePolicy;
memset(&writePolicy,
0,
sizeof(writePolicy));
writePolicy.WriteBandwidthMode = OSCMN_WRITEBANDWIDTHMODE_BOTH_DEFAULT_LOW;
4.1.1 Target Deduplication
Target Deduplication is a High Bandwidth Data Transfer where all data is sent from the
Media Server to the StoreOnce Backup System to be deduplicated. As deduplication has
high resource requirements it may be better suited to offload the deduplication process to
the StoreOnce Backup System in certain use cases with lower powered Clients and Media
Servers or clients already under load.
Page 42
Client Backup
Application
Media Server
StoreOnce
Backup
System
Target
Deduplication

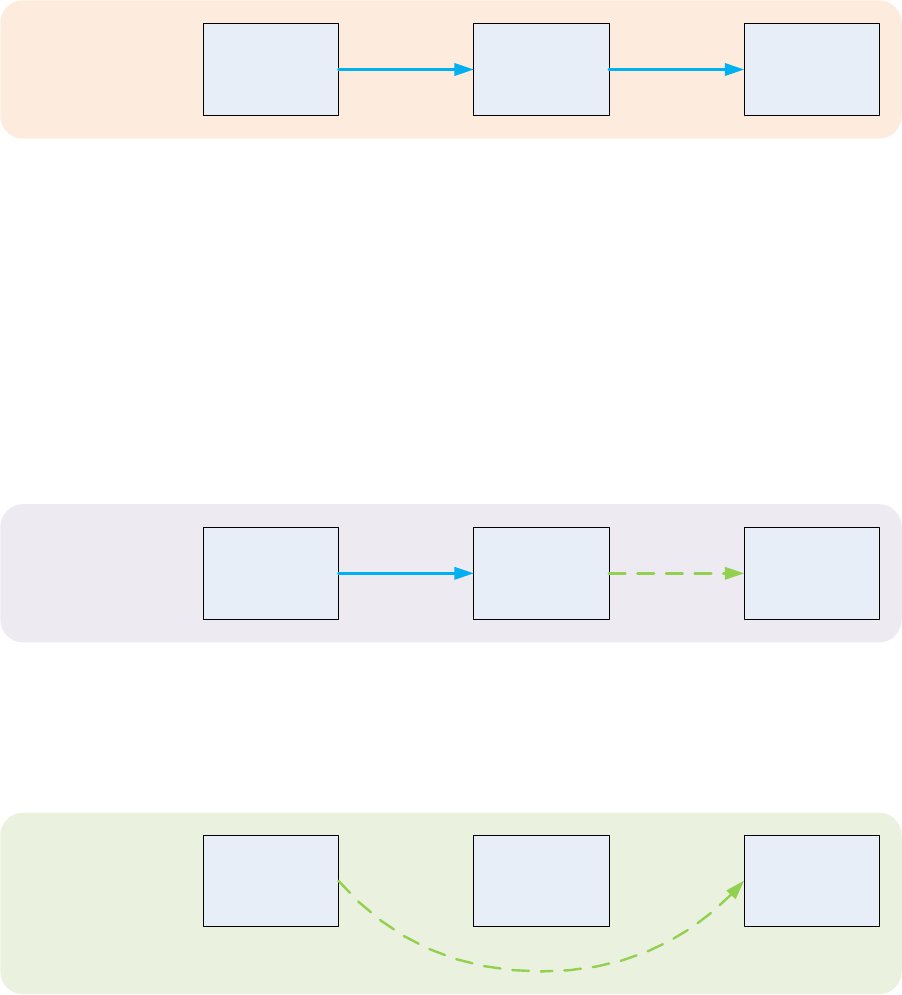

Figure 15 - Target Deduplication process
4.1.2 Backup Server Deduplication
Backup Server Deduplication is a High Bandwidth Data Transfer from the Client to the
Backup Application Media Server where the deduplication occurs before performing a Low
Bandwidth Data Transfer between the Media Server and the StoreOnce Backup System. As
deduplication has high resource requirements it may be better suited to offload the
deduplication process to a Media Server which can then transfer only unique data to a
StoreOnce Backup System.
This low bandwidth transfer policy is the recommended default for Catalyst integrations.
Client Backup
Application
Media Server
StoreOnce
Backup
System
Backup
Server
Deduplication
Figure 16 - Backup Server Deduplication process
4.1.3 Application Source Deduplication
Application Source Deduplication is a Low Bandwidth Data Transfer where the Client is
capable of performing the deduplication process itself and sending the deduplicated data
to the StoreOnce Backup System, removing the need for multiple Media Servers.
Client Backup
Application
Media Server
StoreOnce
Backup
System
Application
Source
Deduplication
Figure 17 - Application Source Deduplication
4.2 Catalyst Network Compression and Checksums
By default, data sent via a Catalyst data session will be compressed when sent over the
network and will have checksums created. This is to account for the worst case scenario
where customers are backing up over a Wide Area Network (WAN), since bandwidth will be
limited and WAN checksums have low levels of integrity. It is recommended to expose the
ability to enable and disable payload checksums to customers, for example via a config file
or via a backup application GUI option.
Page 43
The recommended values are Catalyst compression and checksums are as follows:
Compression
Network Checksums
Catalyst over FC
DISABLE
DISABLE
Low Bandwidth (WAN)
ENABLE
ENABLE
Low Bandwidth (LAN)
DISABLE
DISABLE
High Bandwidth (LAN only)
DISABLE
DISABLE
Where possible, the simplest way to achieve the above is to expose a method to allow the
user to specify whether they are transferring over WAN; if not, this checksums and
compression can be disabled.
4.3 Section Summary and recommendated best practises
• Low bandwidth and High bandwidth data transfer policies are available
• Select high or low bandwidth based on the Catalyst store property in the StoreOnce
GUI
• Expose a method for Catalyst network compression and checksums to be enabled
disabled
Page 44
Section 5: StoreOnce Catalyst Error
Reporting
Page 45
5.1 Error Logs
5.1.1 Catalyst Client Log Files
The Catalyst Client provides a logging facility that must be configured for each command or
data session. The logging facility takes the following parameters:
• Log File Location
• Maximum Log File Size
• Log Level
• Session Log ID
5.1.1.1 Log File Location
The log file is written in a thread safe manner and therefore a single log file may be
specified for all command and data sessions of an individual client. It is recommended that
the Catalyst Client log file be co-located with any other log files being generated by the
calling application.
5.1.1.2 Maximum Log file Size
A maximum size for the log file should be provided and the Catalyst Client will ensure that
the log file does not exceed this size. The maximum log file size must be consistent
between all callers who specify the same log file. Failure to do so will result in the existing
contents of the log file being truncated. The recommended log file size during
development is 200MB. In a production environment it is recommended that the maximum
log file size is reduced to 10MB.
Log file size should be consistent within a session to avoid unexpected truncation.
The log file size provided for the log file should be externally configurable to allow for
greater verbosity in the unlikely event that a failure cannot be identified using the default
log file size.
The the backup application creates a support ticket if should include the Catalyst log files,
including the .cofc file.
5.1.1.3 Log Level
The verbosity of the information included in the log file should be specified. The
recommended log level during development is OSCLT_LOG_LEVEL_INFO as this will
contain enough information to assist with debug investigations without logging
unnecessary additional information. In a production environment it is recommended that
the log level is changed to OSCLT_LOG_LEVEL_ERROR so that logging only occurs
during unexpected behaviour.
The log level provided for the log file should be externally configurable to allow for greater
verbosity in the unlikely event that a failure cannot be identified using the default log level.
It is recommended to expose the ability to configure Catalyst log levels independently of
Page 46
the backup application log level. All log levels exposed in the Catalyst API should be
configurable.
Increasing the log level to OSCLT_LOG_LEVEL_DEBUG and above will have a significant
impact on performance.
5.1.1.4 Session Log ID
With multiple operations being logged to the same Catalyst Client log file it is important to
be able to correlate between external operations and the API calls logged. To do this, the
Session Log ID has been provided. The Session Log ID is a string passed by the caller that
will prepend any log entries written during the duration of the session. If the caller
provides a Session Log ID that can be associated to an operation within the calling
application, it will be possible to align log file entries.
For example, if the calling application were to have a unique identifier for a backup job such
as a Job ID. This Job ID could be passed as the Session Log ID, and therefore all entries in
the Catalyst Client log file that are associated with the backup job will be prepended with
the unique Job ID of the backup.
5.1.2 Catalyst over Fibre Channel Log File
Events logged whilst using Catalyst over Fibre Channel are saved to a separate log file with
the log file name appended with ‘.cofc’ which is identical in format and use to a normal log
file. The .cofc file will be created next to the default standard Catalyst log.
If the backup application creates a support ticket if should include the Catalyst log files,
including the .cofc file.
5.1.3 Complete Code Example – Error Logging
Logging parameters are defined via an OSCLT_sSessionLogDescriptorType struct,
which is passed in when opening command and data sessions. The following is an example
of constructing the struct:
#define OBJSDK_DEFAULT_LOG_SIZE ( 10 * MB)
#define OBJSDK_DEFAULT_LOG_PATH "ObjectStoreSDK.log"
OSCLT_eLogLevelType OBJSDK_LOG_LEVEL = OSCLT_LOG_LEVEL_INFO;
OSCLT_sPathnameType logPath;
OSCLT_sSessionLogDescriptorType sessionLogDescriptor;
memset(&sessionLogID,
0,
sizeof(sessionLogID));
memset(&sessionLogDescriptor,
0,
sizeof(sessionLogDescriptor));
memset(&logPath,
0,
sizeof(logPath));
Page 47
strncpy(sessionLogID.String,
OBJSDK_CMD_SESSION_ID,
sizeof(sessionLogID.String));
if (sessionLogID.String[sizeof(sessionLogID.String) - 1])
{
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
sessionLogID.StringSize = strlen(sessionLogID.String);
strncpy(logPath.String,
OBJSDK_DEFAULT_LOG_PATH,
sizeof(logPath.String));
if (logPath.String[sizeof(logPath.String) - 1])
{
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
logPath.StringSize = strlen(logPath.String);
sessionLogDescriptor.SessionLogId = sessionLogID;
sessionLogDescriptor.LogLevel = osClt_SessionLogLevel(OBJSDK_LOG_LEVEL);
// Should be run time configurable for customers to alter
sessionLogDescriptor.LogFile = logPath;
sessionLogDescriptor.MaxLogfileSize = OBJSDK_DEFAULT_LOG_SIZE;
5.1.4 Backup application Error Reporting
The aim of client error reporting and checking should be to allow customers to quickly and
easily self-diagnose failures. By doing so, customers can quickly rectify mistakes or if
technical support is required turnaround time can be reduced when errors are easily
identifiable. The Catalyst client therefore implements a set of functions (see Table 6 – Error
reporting supported protocols) which can be used to convert error numbers into error
codes that should be translated to the customer as a human readable error message.
Where errors are logged to file it is recommended that the error code is passed through
these funtions and the error code be logged along with the error number.
The supported error convertion functions are as follows:
Table 6 – Error reporting supported protocols
Command
Protocol
v4
Protocol
v5
Protocol
v6
Protocol
v7
Protocol
v8
Protocol
v9
osClt_ErrorNumToString
osClt_JobReasonToString
osClt_ConfigStateToString
5.1.4.1 Code Example – Converting Error Numbers to Strings
const char * objSDKPrv_ErrorNumToString(int errorNum)
{
return osClt_ErrorNumToString(errorNum);
}
// Example output
printf("Error number: %d, error string: %s\n", -1404,
objSDKPrv_ErrorNumToString(-1404));
printf("Error number: %d, error string: %s\n", -1900,
objSDKPrv_ErrorNumToString(-1900));
printf("Error number: %d, error string: %s\n", -2004,
objSDKPrv_ErrorNumToString(-2004));
See OSCLT_ErrorCodes.h for the full error numbers/codes.
Within the shipping application, for debug / support purposes the client is recommended to
expose a means of increasing the log level and log file size, on a temporary basis. This may
be within a configuration file or within the application interface. The levels of available
logging are:
• OSCLT_LOG_LEVEL_EXTENDED_DEBUG
• OSCLT_LOG_LEVEL_DEBUG
• OSCLT_LOG_LEVEL_TRACE
• OSCLT_LOG_LEVEL_INFO
• OSCLT_LOG_LEVEL_QUIER
• OSCLT_LOG_LEVEL_ERROR
During development it would be useful for the client to run in OSCLT_LOG_LEVEL_INFO
mode, but the level should be set to OSCLT_LOG_LEVEL_ERROR before shipping to
customers. See comment on page 24.
5.2 Section Summary and recommendated best practises
• The client application should set the default logging level as
OSCLT_LOG_LEVEL_ERROR
• A method of increasing the log level should be exposed within the client application
in order allow triage of errors. The log file size should also be exposed as a
customer configurable parameter.
Page 50
Section 6: StoreOnce Catalyst Client and
Server
Page 51
6.1 Catalyst Clients
6.1.1 Getting Client Properties
Details of the client library being used by the backup application may be acquired by calling
osClt_GetClientProperties. This includes version information and details of the
client libraries capabilities. Unlike all other command session operations,
osClt_GetClientProperties does not require a command session handle be
passed when calling.
It is recommended that backup applications retrieve this information from the client when
they first load the client library. The returned information includes for example the
minimum and maximum data buffer size that can be used with the client library. These
capabilities should be stored in an internal structure so that they may be directly
referenced by other operations during use.
The capabilities returned via a call to osClt_GetClientProperties over the different protocol versions:
Table 7 - Client Capabilities Protocol Support
Client Capability
(OSCLT_sClientCapabilitiesType)
Protocol
v4
Protocol
v5
Protocol
v6
Protocol
v7
Protocol
v8
Protocol
v9
SupportUserDataSizeQuotas
SupportDedupedDataSizeOnDiskQuotas
SupportPerStoreEncryptedStorage
SupportClientPermissions
SupportDedupeStoreSelection
SupportObjectCopy
SupportObjectCopyDestinationCredentials
SupportDataSessionModesForStorageModeVariableBlock
SupportDataSessionModesForStorageModeFixedBlock
SupportDataSessionModesForStorageModeNoDedupe
SupportJobReference
SupportClientCredentialsPassword
SupportListIncreasingOrder
SupportKeyTaglistExtendedCharSet
SupportNegativeTaglistFilter
SupportModifyServerProperties
SupportClientPermissionsManagement
SupportListCounts
SupportSecureErase
SupportTeaming
SupportTeamingObjectCopy
SupportTeamingDataSessionModesForStorageModeVariableBlock
SupportTeamingDataSessionModesForStorageModeFixedBlock
SupportTeamingDataSessionModesForStorageModeNoDedupe
SupportTeamingAddTeamMembers
SupportTeamingRemoveTeamMembers
Page 53
SupportTeamingDegradedOperation
SupportTeamingRedundancy
MinimumHighBandwidthDataBufferSize
MaximumHighBandwidthDataBufferSize
MinimumLowBandwidthDataBufferSize
MaximumLowBandwidthDataBufferSize
MinimumRawReadWriteNominalSectionSize
MaximumRawReadWriteNominalSectionSize
MinimumRawReadWriteOverlappingSections
MaximumRawReadWriteOverlappingSections
MinimumProtocolVersion
MaximumProtocolVersion
MinimumSessionThreads
DefaultSessionThreads
MaximumSessionThreads
SupportObjectCopyUsingRawReadWrite
SupportRawReadWrite *
SupportObjectCopy *
SupportCloneExtent *
SupportLowBWForObjectStorageModeVariableBlockDedupe *
SupportLowBWForObjectStorageModeFixedBlockDedupe *
MinimumLowBandwidthChunkerWriteThreads *
MaximumLowBandwidthChunkerWriteThreads *
* Deprecated in v5. Protocol v5 will return Federated (Teaming) values in structures but they will always be false.
For a full list of reported client capabilities, see osCLT_sClientCapabilitiesType in OSCLT_Interface.h
osClt_GetClientProperties can also be used to query the client software version, as shown in the code example below.
6.1.1.1 Code Example – Getting Client Properties
OSCLT_sClientPropertiesType clientProp;
memset(&clientProp,
0,
sizeof(clientProp));
callStatus = osClt_GetClientProperties(&clientProp);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Failed to get client properties : %s.\n",
objSDKPrv_ErrorNumToString(callStatus));
return 0;
}
clientCap = clientProp.ClientCapabilities;
printf("Client Software Version \t\t: '%s'\n",
clientProp.ClientSoftwareVersion.String);
printf("Minimum High Bandwidth Data Buffer Size : %u\n",
clientCap.MinimumHighBandwidthDataBufferSize);
printf("Maximum High Bandwidth Data Buffer Size : %u\n",
clientCap.MaximumHighBandwidthDataBufferSize);
6.2 Catalyst Servers
P rope rt i es:
• Serial Number
• Free Command Sessions
• Free Data Se ssions
• Number of Catalyst Stores
• Syste m Tim e
• Storage Capacity
• Storage Free Capacity
• Li ce ns ed
• Copy Job Bla ckout Window Policy
• Copy J ob Bandwid t h Li mitation Wi ndow Po li cy
ObjectStore Server
Ob je ct Sto re
Ob je ct Sto re
Ob je ct Sto re
Figure 18 – Catalyst Server Properties
6.2.1 Getting Server Properties
The Catalyst Server properties provide a wealth of information about a storage device,
including its capabilities, status and capacity.
When a Catalyst Server is first contacted by a backup application, it is recommended that
server properties are requested so that the backup application can identify the capabilities
and limits of the storage device. For example, the maximum number of objects that can be
listed on a single osCltCmd_ListObjects operation. These capabilities should be
stored in an internal structure so that they may be directly referenced by other operations
during use.
Server properties returned via a call to osCltCmd_GetServerProperties include:
Table 8 - Server Properties Protocol Support
Server Property
(OSCMN_sServerPropertiesType)
Protocol
v4
Protocol
v5
Protocol
v6
Protocol
v7
Protocol
v8
Protocol
v9
SoftwareVersion
SerialNumber
ManagementAddress
NegotiatedProtocolVersion
FreeCommandSessions
FreeOriginCopySessions
OriginCopySessionsLimit
FreeDataSessions
DataSessionsLimit
ObjectLockResourcesUnavailable
NumObjectStores
FreeObjectStores
FreeDedupeStores
SystemTimeUTC
SystemTimeLocal
DiskCapacity
DiskSpaceFree
IsClientLicensed
IsClientTeamedLicensed
IsClientCoFCLicensed
CanClientCreateObjectStores
CanClientSetServerProperties
CanClientManageClientPermissions
ServerCapabilities
CopyJobBlackoutPolicy
Page 56
CopyJobThrottlePolicy
IsCurrentlyInCopyJobBlackout
CurrentCopyJobThrottleBytesPerSecond
IsClientPermissionsCheckingEnabled
IsServerStorageEncrypted
Capabilities returned in the ServerCapabilities structure include:
Table 9 - Server Capabilities Protocol Support
Server Capabilities
(OSCMN_sServerCapabilitiesType)
Protocol
v4
Protocol
v5
Protocol
v6
Protocol
v7
Protocol
v8
Protocol
v9
SupportUserDataSizeQuotas
SupportDedupedDataSizeOnDiskQuotas
SupportPerStoreEncryptedStorage
(v4 : SupportEncryptedStorage)
SupportClientPermissions
SupportDedupeStoreSelection
SupportObjectCopy
SupportObjectCopyDestinationCredentials
SupportDataSessionModesForStorageModeVariableBlock
SupportDataSessionModesForStorageModeFixedBlock
SupportDataSessionModesForStorageModeNoDedupe
SupportJobReference
SupportClientCredentialsPassword
SupportListIncreasingOrder
SupportKeyTaglistExtendedCharSet
SupportNegativeTaglistFilter
SupportModifyServerProperties
SupportClientPermissionsManagement
SupportListCounts
SupportSecureErase
Page 57
SupportTeaming
SupportTeamingObjectCopy
SupportTeamingDataSessionModesForStorageModeVariableBlock
SupportTeamingDataSessionModesForStorageModeFixedBlock
SupportTeamingDataSessionModesForStorageModeNoDedupe
SupportTeamingAddTeamMembers
SupportTeamingRemoveTeamMembers
SupportTeamingDegradedOperation
SupportTeamingRedundancy
MinimumHighBandwidthDataBufferSize
MaximumHighBandwidthDataBufferSize
MinimumLowBandwidthDataBufferSize
MaximumLowBandwidthDataBufferSize
MinimumRawReadWriteNominalSectionSize
MaximumRawReadWriteNominalSectionSize
MinimumRawReadWriteOverlappingSections
MaximumRawReadWriteOverlappingSections
MinimumProtocolVersion
MaximumProtocolVersion
MaximumObjectStoresPerListIteration
MaximumObjectsPerListIteration
MaximumObjectsPerObjectStore
MaximumJobsPerListIteration
MaximumMetadataSizePerObject
MaximumMetadataSizePerListIteration
MaximumDatabaseSizePerObjectStore
MaximumJobRetentionPeriod
MaximumClientsPermissionsPerListIteration
MaximumFixedChunkSize
MaximumOpenParentsPerCloneSession
Page 58
MaximumParentObjectExtentsPerCloneRequest
MaximumRegionsPerGetExtentRegionsIteration
MaximumCommandSessions
MaximumOriginCopySessions
MaximumDataSessions
* Protocol v5 will return Federated (Teaming) values in structures but they will always be false.
The resources available including storage utilisation are periodically updated and therefore should not be requested more frequently than
once every 5 minutes. If the information is required on a more frequent basis then a cached structure should be held in memory and updated
only when the information has aged 5 minutes or a change has been made that will knowingly have made a change to the Catalyst Server
Properties.
6.2.2 Setting Server Properties
Server settings are most commonly managed through the web management interface of
the StoreOnce appliance. However a StoreOnce appliance, which supports StoreOnce
Catalyst v5 or above, may be configured so that some server settings may be remotely
managed by software that integrates StoreOnce Catalyst.
The server settings that can be modified are:
• Maximum Concurrent Data and Inbound Copy Jobs
• Maximum Concurrent Outbound Copy Jobs
• Outbound Copy Job Blackout Windows and Blackout Override
• Outbound Copy Job Bandwidth Throttling Windows and General Bandwidth
Throttling Limit
Software wishing to provide this remote management of server will need to support the
osCltCmd_SetServerProperties function.
Support of this function in a backup application is considered advanced integration and is
not undertaken by the majority of integrators.
6.2.2.1 Checking Remote Management Capability
A backup application can check whether it has been granted permission to remotely
manage server settings by checking the CanClientSetServerProperties Boolean
returned by osCltCmd_GetServerProperties.
If CanClientSetServerProperties is true, then the software is able to use the
command listed above, otherwise the function will return permission denied when called.
6.2.2.2 Updating Server Properties
A backup application is able to update Catalyst Server properties by modifying the policy
structs or setting valid integer values. Please see OSCMN_sBlackoutPolicyType and
OSCMN_sThrottlePolicyType in OSCMN_Types.h for more information.
As the osCltCmd_SetServerProperties function will update each property, if there
is a setting which should remain unchanged it is necessary to pull the existing server
properties and resend them with the newly modified properties, merged.
6.2.2.3 Complete Code Example – Setting Server Properties
int objSDKPrv_SetServerProp(const char *pServerAddress)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = NULL;
OSCMN_sServerPropertiesType serverProp;
OSCMN_sBlackoutPolicyType blackoutPolicy;
OSCMN_sThrottlePolicyType throttlePolicy;
uint64_t originCopySessionsLimit = 0;
uint64_t dataSessionsLimit = 0;
// <<Memset policy structs>>
Page 60
// <<Open command sessions>>
// <<Get current server properties>>
// Get current server properties
blackoutPolicy = serverProp.CopyJobBlackoutPolicy;
throttlePolicy = serverProp.CopyJobThrottlePolicy;
originCopySessionsLimit =
serverProp.ServerCapabilities.MaximumOriginCopySessions;
dataSessionsLimit =
serverProp.ServerCapabilities.MaximumDataSessions;
// Change blackout policy to enable
blackoutPolicy.IsBlackoutNowOverrideInPlace = true;
// Change data sessions limit to 1
dataSessionsLimit = 4;
// Set server properties (including unchanged properties)
callStatus = osCltCmd_SetServerProperties (pCmdSessionHandle,
&blackoutPolicy,
&throttlePolicy,
originCopySessionsLimit,
dataSessionsLimit);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Failed to set server properties : %s.\n",
objSDKPrv_ErrorNumToString(callStatus));
// <<Close command session>>
return callStatus;
}
printf("Blackout Now Override In Place set.\nMax number of Data"
"And Destination CopyJobs set to 4.\n");
// <<Close command session>>
return returnStatus;
}
6.3 ObjectStores
This section only gives details about the ObjectStores capabilities. ObjectStores are
described in more detail in Section 7: StoreOnce Catalyst Stores.
6.3.1 Getting ObjectStore Capabilities
Details of the ObjectStores use by the backup application may be acquired by calling
osCltCmd_ListObjectStores. This includes details of the ObjectStores capabilities.
It is recommended that backup applications retrieve this information before starting a
backup in order to verify the supported capabilities of the ObjectStore used for the
backups. These capabilities should be stored in an internal structure so that they may be
directly referenced by other operations during use.
The capabilities returned via a call to osCltCmd_ListObjectStores over the different protocol versions:
Table 10 – ObjectStore Capabilities Protocol Support
ObjectStore Capabilities
(OSCMN_sObjectStoreCapabilitiesType)
Protocol
v4
Protocol
v5
Protocol
v6
Protocol
v7
Protocol
v8
Protocol
v9
SupportStorageModeVariableBlockDedupe
SupportStorageModeFixedBlockDedupe
SupportStorageModeNoDedupe
SupportWriteSparse
SupportWriteInPlace
SupportRawReadWrite
SupportMultipleObjectOpeners
SupportMultipleObjectWriters
SupportCloneExtent
6.4 Merging Client, Server and ObjectStore Capabilities
The overall capabilities available to the backup application will be the most restrictive
combination of both the Catalyst Client capabilities and the Catalyst Server capabilities. For
example, if the Catalyst Client capabilities set SupportClientPermissions to true
but the Catalyst Server capabilities set SupportClientPermissions to false, the
combined capability would be false; Client Permissions would not be supported. These
capabilities can be different depending on the ObjectStore policy, i.e. low bandwidth
transfer policy might support some datapath operation that high bandwith doesn’t, that’s
why the ObjectStore capabilities and transfer policy should also be taken into
consideration.
The backup application should always merge the client, server and ObjectStore capabilities
in order to determine this most restrictive combination. Failure to merge cababilities can
result in the client attempting to perform an operation which the server does not support.
6.4.1 Merging Client and Server Capabilities
In older version of the Catalyst Client API the merge operation was implemented on ISV
space, from v7 a new function osClt_CombineCapabilities is provided to merge
these capabilities.
Please note that this function will merge all the capabilities and provide a merge version of
them except for the following ObjectStore capabilities:
• SupportWriteSparse
• SupportWriteInPlace
• SupportMultipleObjectOpeners
• SupportMultipleObjectWriters
6.4.2 Code Example – Merging Client and Server Capabilities (for versions older than v7)
int main(int argc, char *argv[])
{
const char *pServerIP = "127.0.0.1";
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sClientPropertiesType clientProp;
OSCMN_sServerPropertiesType serverProp;
bool teamingSupported = false;
bool permissionChecking = false;
//<<Memset structs>>
callStatus = osClt_GetClientProperties(&clientProp);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Failed to get client properties : %s.\n",
objSDKPrv_ErrorNumToString(callStatus));
return 0;
}
callStatus = objSDKPrv_GetServerProp(pServerIP, &serverProp);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Failed to get server properties : %s.\n",
Page 63
objSDKPrv_ErrorNumToString(callStatus));
return 0;
}
printf("----- Comparing Client and Server Capabilities -----\n");
printf("\t\t\tClient\t\tServer\n");
printf("Min Protocol \t:\t%"PRIu32"\t\t%"PRIu64"\n",
clientProp.ClientCapabilities.MinimumProtocolVersion,
serverProp.ServerCapabilities.MinimumProtocolVersion);
printf("Max Protocol \t:\t%"PRIu32"\t\t%"PRIu64"\n",
clientProp.ClientCapabilities.MaximumProtocolVersion,
serverProp.ServerCapabilities.MaximumProtocolVersion);
printf("Object Copy \t:\t%s\t\t%s\n",
clientProp.ClientCapabilities.SupportObjectCopy ? "Yes" : "No",
serverProp.ServerCapabilities.SupportObjectCopy ? "Yes" : "No");
printf("Support Teaming :\t%s\t\t%s\n",
clientProp.ClientCapabilities.SupportTeaming ? "Yes" : "No",
serverProp.ServerCapabilities.SupportTeaming ? "Yes" : "No");
if (clientProp.ClientCapabilities.SupportTeaming &&
serverProp.ServerCapabilities.SupportTeaming)
{ // Teaming is supported - Store internally for later use
teamingSupported = true;
}
if(clientProp.ClientCapabilities.SupportClientPermissions &&
serverProp.IsClientPermissionsCheckingEnabled)
{ // Client permissions are supported - Store for later use
permissionChecking = true;
}
printf("\n");
}
6.4.3 Other Supported Capabilities
The reason for having some capabilities that are not merged is because they don’t depend
on the client version. If one of these capabilities is supported by the specific ObjectStore
then it can be used without taking into consideration the version of the client.
Out of all the mentioned capabilities on 6.4.1 the only that is supported in any of the HPE
StoreOnce product versions is SupportMultipleObjectOpeners, support for this
feature was added in server version 3.15.0.
6.5 Section Summary and recommendated best practises
• Always merge the client and server properties to obtain the properties which are
common between the server and client versions
• Use default client and server properties rather than overriding defaults unless
advised to do so by your integration HPE contact.
Page 64
Section 7: StoreOnce Catalyst Stores
Page 65
7.1 Catalyst Stores
P rope rt i es:
• Key
• D esc ri pt io n
• Ver si on
• Created Date
• User Data Stored
• Dedupe Ratio
• Numb er of It ems
• Number of Data Jobs
• Numb er of Copy Jobs
• Health St atus
Ob je ct Sto re
Catalyst
I te m
Catalyst
I te m
Obje ct
Catalyst
I te m
Catalyst
I te m
Obje ct
Catalyst
I te m
Catalyst
I te m
Obje ct
Catalyst
I te m
Catalyst
I te m
Obje ct
Catalyst
I te m
Catalyst
I te m
Obje ct
Catalyst
I te m
Catalyst
I te m
Obje ct
Catalyst
I te m
Catalyst
I te m
Obje ct
Catalyst
I te m
Catalyst
I te m
Obje ct
Figure 19 - Catalyst Store properties
7.1.1 Properties
Each Catalyst store has associated properties. These include:
Table 11 - Store Properties Supported Protocols
Store Property
(OSCMN_sObjectStoreType)
Protocol
v4
Protocol
v5
Protocol
v6
Protocol
v7
Protocol
v8
Protocol
v9
Id
ConfigState
Key
Description
Version
SecureEraseOverwriteCount
CreationDateUTC
LastModifiedDateUTC
Capabilities
WritePolicy
QuotaPolicy
JobRetentionPolicy
StorageEncryptionPolicy
TeamingPolicy
Status
ObjectStoreTeaming
* Protocol v5 will return Federated (Teaming) values in structures but they will always be false.
7.1.2 Listing Catalyst Stores
When listing the available Catalyst Stores on a Catalyst Server the backup application can
specify a subset of the Catalyst Stores by specifying a filter. High level information is
returned for each Catalyst Store in the list. Only Catalyst Stores to which the client is
allowed access by the Catalyst Server will be returned in the list and the list will be returned
in order of the Catalyst Store creation date.
Depending on the number of Catalyst Stores it might not be possible to return the
information for all requested Catalyst Stores in one operation. The maximum number
supported is based on the number of Catalyst Store records the client, the Client API, and
the server can handle in one Operation. If the full list cannot be returned in one operation,
Page 66
PartialData will be returned as true. The caller can call again with the ListHandle
set to the value returned in the previous call to continue the returned List from where the
previous called reached. If this is not a follow-on call, the ListHandle should be blank.
To keep the requests to a minimum it is recommended that when calling
osCltCmd_ListObjectStores the objectStoreArraySize should be set to
MaximumObjectStoresPerListIteration as reported by
osCltCmd_GetServerProperties. The list returned will only contain Catalyst Stores
for which the Client has access.
All stores/objects/datajob records in V2 Catalyst Stores are assigned partially ordered
UUIDs and these are used for list result ordering in Federated Command Sessions. These
UUIDs are assigned during creation and when the record is modified. Bitmasks of the
Federated Members involved in the creation/modification are also assigned at the same
time.
The UUIDs enable consistency to be checked and the bitmasks enable completeness to be
checked. UUIDs are retrieved by the client API from the team member it initially connected
to. In order to ensure that the time element of UUIDs retrieved from different team
members does not skew too much, the client API checks on the open teamed
command/data session that the UTC clocks on the time members are within 5 seconds of
each other. The expectation is that all team members will be NTP synchronised.
Stores which return IsTeamed should be relisted using a Federated command session to
get rolled up statistics. Integrators are not recommended to store details of whether a
Catalyst store is Federated or non-federated, because it is possible to expand a non-
federated Catalyst store to be Federated, and vice versa, a Federated store can be
contracted to become a non-Federated store. The application should instead query
whether a store IsTeamed or not, when opening sessions.
7.1.2.1 Code Example – List All Stores from Server
int objSDKPrv_ListAllStoresFromServer(const char *pServerAddress)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
OSCMN_sServerPropertiesType serverProp;
bool partialData = true;
uint32_t i, numStoresReturned = 0;
OSCLT_sCompoundListHandleType listHandle;
OSCMN_sObjectStoreListFilterType objStoreListFilter;
OSCMN_sObjectStoreType *pStoreList = 0;
OSCLT_sObjectStoreTeamingListConsistencyStatusType
*pObjStoreTeamingListConsistencyStatusArray = NULL;
//<<Memset structs - Setting empty filter will match all stores>>
callStatus = objSDKPrv_GetServerProp(pServerAddress,
&serverProp);
if (callStatus != OSCLT_ERR_SUCCESS)
{
Page 67
printf("Error : Unable to get server '%s' properties.\n",
pServerAddress);
returnStatus = callStatus;
return returnStatus;
}
// Allocate space for list stores
if (pStoreList = (OSCMN_sObjectStoreType *) calloc(
serverProp.ServerCapabilities.
MaximumObjectStoresPerListIteration,
sizeof(OSCMN_sObjectStoreType)) == NULL)
{
printf("Error : Unable to allocate space for '%"PRIu64
"' stores.\n",
serverProp.ServerCapabilities.
MaximumObjectStoresPerListIteration);
returnStatus = callStatus;
return returnStatus;
}
printf("List all stores from server : %s\n", pServerAddress);
//<<Open command session>>
do
{
callStatus = osCltCmd_ListObjectStores(pCmdSessionHandle,
&objStoreListFilter,
serverProp.ServerCapabilities.
MaximumObjectStoresPerListIteration,
pStoreList,
pObjStoreTeamingListConsistencyStatusArray,
&listHandle,
&partialData,
&numStoresReturned);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Listing stores from server '%s' failed"
"with error : %s.\n", pServerAddress,
objSDKPrv_ErrorNumToString(callStatus));
//<<Close command session>>
returnStatus = callStatus;
if (pStoreList)
{
free(pStoreList);
}
return returnStatus;
}
for (i = 0; i < numStoresReturned; i++)
{
// Print Store Properties
printf("\tName : %s\n", pStoreList[i].Key.String);
printf("\tDescription : %s\n",
pStoreList[i].Description.String);
printf("\tTeamed : %s\n",
pStoreList[i].TeamingPolicy.IsTeamed ? "Yes" : "No");
printf("\n");
}// Loop until partial data set to true
} while (partialData);
//<<Close command session>>
//<<Free memory allocation>>
return returnStatus;
}
Page 68
7.1.3 Creating a Catalyst Store
Creating a Store in a backup application is considered advanced integration and is not
undertaken by the majority of integrators.
In addition to the user creating Catalyst Stores through the HPE StoreOnce web interface,
the Catalyst Client library provides the capability to create Catalyst Stores on the Catalyst
Server directly from the backup application.
When using this feature the backup application must ensure that the client identifier
strings used to open the command session has authorisation on the Catalyst Server to
create Catalyst Stores. See the Client Authentication section of this guide.
The creation of Catalyst Stores is an asynchronous task and therefore once the request has
been made the backup application should monitor for the Catalyst Store coming into an
online state. This is done by periodically calling osCltCmd_ListObjectStores using
an ObjectStoreKeyFilter for the Catalyst Store to be monitored. When
OSCMN_sObjectStoreType.Status.IsOnline is TRUE, the Catalyst Store is online
and is ready to be used. The recommended polling frequency when waiting for a store to
come online is once per minute.
7.1.3.1 Code Example – Create a Store
int objSDKPrv_CreateStore(const char *pServerAddress, const char
*pStoreKey, const char *pStoreDescription)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
OSCMN_sKeyType storeKey;
OSCMN_sStringType storeDescription;
OSCMN_sWritePolicyType writePol;
OSCMN_sQuotaPolicyType quotaPol;
OSCMN_sJobRetentionPolicyType jobReten;
OSCMN_sStringType dedupeStore;
OSCMN_sStorageEncryptionPolicyType storageEncryptionPolicy;
OSCMN_sTeamingPolicyType teamingPolicy;
// <<Memset structs>>
// <<Set Store Key and Store Description Strings>>
writePol.WriteBandwidthMode =
OSCMN_WRITE_POLICY_DEFAULT_BANDWIDTHMODE;
jobReten.DataJobRetentionDays =
OSCMN_JOB_RETENTION_POLICY_DEFAULT_DAYS;
jobReten.OriginCopyJobRetentionDays =
OSCMN_JOB_RETENTION_POLICY_DEFAULT_DAYS;
jobReten.DestinationCopyJobRetentionDays =
OSCMN_JOB_RETENTION_POLICY_DEFAULT_DAYS;
// <<Open command session>>
callStatus = osCltCmd_CreateObjectStore (pCmdSessionHandle,
&storeKey,
&storeDescription,
&writePol,
&quotaPol,
&jobReten,
&storageEncryptionPolicy,
Page 69
&teamingPolicy,
if (callStatus != OSCLT_ERR_SUCCESS) // Failed to create store
{
if (callStatus != OSCLT_ERR_DUPLICATE_OBJECTSTORE_KEY)
{ // Unexpected error
printf("Error : Failed to create store '%s'. Error : %s.\n",
pStoreKey, objSDKPrv_ErrorNumToString(callStatus));
// <<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
if (callStatus == OSCLT_ERR_DUPLICATE_OBJECTSTORE_KEY)
{ // Store already exists on server
printf("Store '%s' exists on server '%s'.\n",
pStoreKey, pServerAddress);
}
}
else
{ // Store created
printf("Created store '%s' in server '%s'.\n",
pStoreKey, pServerAddress);
}
// <<Close command session>>
// Wait for store to come online
callStatus = objSDKPrv_WaitForStore(pServerAddress,
pStoreKey,
true);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Store '%s' failed to come online.\n",
pStoreKey);
returnStatus = callStatus;
return returnStatus;
}
return returnStatus;
}
7.1.3.2 Catalyst Store Encryption
When creating a Catalyst Store it is possible to set the Store to encrypt data that is stored
in it. A backup application should check that the Catalyst Server supports encryption by
getting the Catalyst Server properties and checking its capabilities. If
IsServerStorageEncrypted is set to true then the server is already encrypting the
data for the Catalyst Store and setting the Catalyst Store Encryption Policy to true would be
superfluous. Please see the Getting Client Properties section on page 51.
A Catalyst Store can only be encrypted when it is first created, if after creation the
customer wishes to encrypt the data it should be copied to a newly created encrypted
Catalyst Store.
7.1.4 Modifying a Catalyst Store
Modifying a Catalyst Store in a backup application is considered advanced integration and is
not undertaken by the majority of integrators.
After a Catalyst Store has been created the Catalyst Client library provides the capability to
further modify it using the osCltCmd_ModifyObjectStore method. If Client
Page 70
Permissions checking is enabled on the Catalyst Server then the backup application must
have permission to access the Catalyst Store otherwise an error will be returned. Client
Permissions are explained further in the Client Authentication section on page 109.
The Catalyst Store Properties that can be modified are:
• Store description
• Write policy
• Quote policy
• Job log retention period
When a Catalyst Store is to be modified the backup application should get the capabilities
of the Catalyst Server to ensure invalid values are not set. Please see Getting Client
Properties section on page 51.
Federated Stores can be modified using a normal or bootstrap command session. Store
modification using bootstrap command session is less secure, so it should only be used to
update a Federated Member Address. All the Federated Member Stores must be configured
but do not have to be online before modification can occur. See Federated Command
Sessions section on page 25 for more information on normal and bootstrap sessions.
As the osCltCmd_ ModifyObjectStore function will update each property if there is
a setting which should remain unchanged it is necessary to pull the existing store
properties and resend them with the newly modified properties, merged.
7.1.4.1 Modifying Description
A backup application is able to update the description of a Catalyst Store by modifying the
OSCMN_sStringType struct.
7.1.4.2 Modifying Write Policy
A backup application is able to update the write bandwidth mode in the write policy of a
Catalyst Store by updating the OSCMN_sWritePolicyType struct.
7.1.4.3 Modifying Quota Policy
A backup application is able to update the data size quotas applied to a Catalyst Store by
updating the OSCMN_sQuotaPolicyType struct.
7.1.4.4 Complete Code Example – Modify an existing Store
int objSDKPrv_ModifyStore(const char *pServerAddress, const char
*pStoreKey)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = NULL;
OSCMN_sObjectStoreType store;
OSCMN_sKeyType storeKey;
OSCMN_sStringType storeDescription;
OSCMN_sWritePolicyType writePol;
OSCMN_sQuotaPolicyType quotaPol;
OSCMN_sJobRetentionPolicyType jobReten;
OSCMN_sTeamingPolicyType teamingPolicy;
memset(&storeKey,
Page 71
0,
sizeof(storeKey));
memset(&storeDescription,
0,
sizeof(storeDescription));
memset(&writePol,
0,
sizeof(writePol));
memset(&quotaPol,
0,
sizeof(quotaPol));
memset(&jobReten,
0,
sizeof(jobReten));
memset(&teamingPolicy,
0,
sizeof(teamingPolicy));
// <<Get Store | See 'Listing Catalyst Stores'>>
// <<Set Store Key>>
// <<Set new values>>
writePol.WriteBandwidthMode = OSCMN_WRITEBANDWIDTHMODE_LOW_ONLY;
// Use old valyes
storeDescription = store.Description;
jobReten = store.JobRetentionPolicy;
teamingPolicy = store.TeamingPolicy;
// <<Open command session>>
callStatus = osCltCmd_ModifyObjectStore(pCmdSessionHandle,
&storeKey,
&storeDescription,
&writePol,
&quotaPol,
&jobReten,
&teamingPolicy);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Unable to modify store : %s.\n",
objSDKPrv_ErrorNumToString(callStatus));
returnStatus = callStatus;
// <<Close command session>>
return returnStatus;
}
// <<Close command session>>
return returnStatus;
}
7.1.5 Deleting a Catalyst Store
Deleting a Store is considered advanced integration. Backup applications supporting this
functionality should ensure that appropriate warning is given to the user if they request to
delete a store. Store deletion is non-reversible and will result in dataloss.
Page 72
The deletion of Catalyst Stores is an asynchronous task and therefore once the request has
been made the backup application should monitor for the Catalyst Store no longer being
listed in response to osCltCmd_ListObjectStores. The Catalyst Store deletion may
take many minutes as the data is removed from the Catalyst Server. Therefore the
recommended polling frequency when waiting for a Catalyst Store to be deleted is once
every minute.
7.1.5.1 Code Example – Delete a Store
int objSDKPrv_DeleteStore(const char *pServerAddress, const char
*pStoreKey)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
OSCMN_sKeyType storeKey;
//<<Set store key>>
//<<Open command session>>
callStatus = osCltCmd_DeleteObjectStore(pCmdSessionHandle,
&storeKey);
if (callStatus != OSCLT_ERR_SUCCESS)
{
if (callStatus != OSCLT_ERR_OBJECTSTORE_KEY_NOT_FOUND)
{
printf("Error : Failed to delete store '%s'. "
"Error : %s.\n", pStoreKey,
objSDKPrv_ErrorNumToString(callStatus));
}
else
{
printf("Error : Store '%s' does not exist. "
"Error : %s.\n", pStoreKey,
objSDKPrv_ErrorNumToString(callStatus));
}
//<<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
//<<Close command session>>
printf("Deleted store '%s' from server '%s'.\n",
pStoreKey, pServerAddress);
// Wait for store to go offline to ensure we report on success
callStatus = objSDKPrv_WaitForStore(pServerAddress,
pStoreKey,
false);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Failed to delete Store '%s'.\n", pStoreKey);
returnStatus = callStatus;
return returnStatus;
}
return returnStatus;
}
Page 73
7.1.6 Wait for a Catalyst Store
When creating or deleting a Catalyst Store it is recommended to monitor the status to
ensure the action is completed successfully.
7.1.6.1 Code Example – Wait for a Catalyst Store
int objSDKPrv_WaitForStore(const char *pServerAddress, const char
*pStoreKey, bool waitForOnline)
{
int returnStatus = OBJSDK_ERR_SUCCESS;
int callStatus = OBJSDK_ERR_SUCCESS;
int waitCounter = 0;
OSCMN_sObjectStoreType store;
printf("Wait for store '%s' to %s.\n", pStoreKey, waitForOnline?
"come online" : "be deleted");
do
{
callStatus = objSDKPrv_GetStoreByKey(pServerAddress,
pStoreKey,
&store);
if (callStatus != OBJSDK_ERR_SUCCESS)
{
// Check if we are waiting for store to be deleted
if (callStatus == OBJSDK_ERR_KEY_NOT_EXIST &&
!waitForOnline)
{
// Store was deleted successfully, return success
break;
}
// Error while waiting for store to come online
printf("Error : Failed to get store '%s' properties from"
" server '%s'. Error : %s\n", pStoreKey,
pServerAddress,
objSDKPrv_ErrorNumToString(callStatus));
returnStatus = callStatus;
return returnStatus;
}
// Check if we are waiting for store to be created
if (waitForOnline && store.Status.IsOnline)
{
break;
}
// Keep waiting
waitCounter++;
printf(".");
fflush(stdout);
// Sleep one second
sleep(1);
} while (waitCounter < 60);
printf("\n");
if (waitCounter < 60)
{
printf("Store '%s' is %s.\n", pStoreKey, waitForOnline?
"ready" : "gone");
}
else
{
printf("Error : Store '%s' failed to %s.\n", pStoreKey,
waitForOnline? "come online" : "be deleted");
}
Page 74
return returnStatus;
}
7.2 Section Summary and recommendated best practises
• Catalyst stores cannot to renamed after creation
• Whether a Catalyst store is teamed or non-teamed should not be persisted to an
application config because stores can be contracted / expanded to be teamed / non-
teamed.
• Defer store creation to the StoreOnce GUI rather than exposing store creation within
the backup application.
Page 75
Section 8: StoreOnce Catalyst Items
Page 76
8.1 Catalyst Items
Catalyst Items are stored in Catalyst Stores and are containers for storing customers
backed up data, typically from one backup job. Each Item can only have a maximum of one
concurrent write data job runningto it; otherwise an error will be returned. To allow
customers to perform backups using multiple streams it is necessary to create multiple
Items and perform the backup to those multiple items.
P rope rt i es:
• Key
• Ver si on
• Created Date
• La st Modi fie d Dat e
• Item Data Size
• Tag Li st
• Sta te
• Storage Mod e
Meta Data
Item Data
Catalyst I tem
Figure 20 - Catalyst Item properties
Catalyst Items consist of three elements:
• Properties
• Meta Data
• Data
8.1.1 Properties
Each Catalyst Item has the following properties:
Table 12 - Item Properties Supported Protocol
Object Property
(OSCMN_sObjectType)
Protocol
v4
Protocol
v5
Protocol
v6
Protocol
v7
Protocol
v8
Protocol
v9
Id
ConfigState
Key
Version
DataSize
DataStored
CreationDateUTC
MetaLastModifiedDate
UTC
DataLastModifiedDate
UTC
(LastModi
fied
DateUTC)
StorageMode
TagList
ObjectMeta
ObjectTeaming
* Protocol v5 will return Federated (Teaming) values in structures but they will always be false.
8.1.1.1 Name
The name of a Catalyst Item must be unique within a Catalyst Store and therefore it is
referred to as the Key, it cannot be altered after creation. The Key must be provided
whenever a session is interacting with a Catalyst Item. Valid characters are:
Page 77
• v4: ASCII char. Only [a-z][A-Z][0-9][_-.+]
• v5: ASCII char. Only [a-z][A-Z][0-9][_-.+(){}:#$*;=?@[]^|~]
See SupportKeyTaglistExtendedCharSet capability to verify if v5 charset is supported.
8.1.1.2 Version
The elements and properties of a Catalyst Item may change in the future and therefore the
version number refers to the structure used for the Catalyst Item.
8.1.1.3 Data Size
There are two data sizes recorded for each Catalyst Item:
• Data Size
• Data Stored
The Data Size is the total size of the Catalyst Item including any sparse regions. The Data
Stored is the amount of user data stored in the Item (not including any sparse regions).
Catalyst Items stored in Federated Stores return the sizes of the Item across all Federated
Members when opened in a Federated Session.
8.1.1.4 Timestamps
There are three timestamps recorded for each Catalyst Item:
• Creation Date
• Metadata Last Modified Date
• Data Last Modified Date
The timestamps are localised to the UTC time zone. The Creation Date is the timestamp
when the Catalyst Item was first created and will not change. The timestamps for Metadata
Last Modified and Data Last Modified will be updated when either metadata or user data is
updated.
8.1.1.5 Storage Mode
The storage mode of a Catalyst Item is the method of deduplication that will be applied to
any data stored in the data element of the Catalyst Item. There are three potential storage
modes, although not all Catalyst Stores supports all storage modes:
• No Deduplication
• Variable Block Deduplication
• Fixed Block Deduplication
For more information on Storage Modes see the Data information below (page 80)
8.1.1.6 Tag Lists
Objects have a tag list property which is a space separated list of strings used to describe
the Catalyst Item. The strings included in the tag list are displayed in the StoreOnce GUI
and therefore it is recommended that user interpretable tags are used whenever possible.
Examples of useful tags could include:
• Application (e.g. SymantecNetBackup)
• Source of backup data (e.g. mssqlserver.hp.com)
• Source data type (e.g. SQLBackup)
• Backup type (e.g. FullBackup)
Page 78
• Backup policy name (e.g. BackupClients)
Additionally it is also recommended that a further tag of either “Incomplete” or “Complete”
also be used. The intention being that a Catalyst Item has a tag of “Incomplete” when it is
first created and once all the intended data has been written to the Item, the tag is updated
to be “Complete”. Having this status tag will provide users with the ability to identify items
which are not yet completed backups. In the rare scenario where a backup fails and the
Catalyst Item is orphaned, the user will be able to identify the Catalyst Item and manual
delete it through a management interface, such as the StoreOnce GUI.
The tag list is first defined when creating a Catalyst Item using the
osCltCmd_CreateObject operation. The tag list may be modified at any time by
calling the osCltCmd_ModifyObjectMeta operation. Valid characters for tags are
[a-z][A-Z][0-9][_-.+(){}:#$*;=?@[]^|~] with space being used as the delimiter
between tags.
Tag list strings are returned for each Catalyst Item when the osCltCmd_ListObjects
operation is called. The osCltCmd_ListObjects operation also allows for a Tag List
Filter to be supplied which may be used to specifically limit the returned items to those
with particular tags. A tag list filter may be applied in one of two ways, either Objects with
any matching tags are returned or Objects where only all tags match are returned. The
method of matching is specified using the AllMatch Boolean when defining the Tag List
Filter.
It is recommended that as a minimum, the Application tag be used for all items. And when
performing the osCltCmd_ListObjects a Tag List Filter is used with the Application
tag defined. This will ensure that the calling application only ever lists Objects that it has
created.
8.1.2 Metadata
Each Catalyst Item may also optionally contain associated metadata for the purposes of
the calling application. Example uses of this metadata could include:
• Application Revisions
• Individual Component Revisions
• Byte offsets for catalogue information
Metadata may be written to a Catalyst Item when it is first created using the
osCltCmd_CreateObject operation and it may be subsequently updated by calling
the osCltCmd_ModifyObjectMeta operation. In both cases the operation should be
passed the buffer location and size of the metadata to be stored within the Catalyst Item.
Metadata for a Catalyst Item is optionally returned when the osCltCmd_ListObjects
operation is called. For metadata to be returned a buffer must be supplied into which the
Page 79
metadata will be copied and the includemeta Boolean flag must be set when the
osCltCmd_ListObjects operation is called.
To allow HPE Support to be able to identify which applications have created particular
Objects it is recommended that all metadata that is written uses JSON encoding using the
following structure:
{
"Common": {
"FormatVersion": 0,
"ClientSoftwareVersion": "WIN_x64_5_4.0.4",
"ISVInfo": {
"Name": "HPE Data Protector",
"Version": "7.00",
"Platform": "Microsoft Window 2008 R2 (x86_64)"
}
},
"ISV": {
"FormatVersion": 0,
"Data": {
<Base64 encoded data>
}
}
}
This JSON data structure consists of two distinct sections; Common metadata and ISV
metadata.
8.1.2.1 Common Metadata
The Common metadata structure should be used to track information about the Catalyst
Client and backup application that created the Catalyst Item. The Catalyst Client Software
Version that should be included is the value returned by the
osClt_GetClientProperties operation. The backup application name, version and
platform should be provided by the calling application. Backup applications are advised to
keep this information up to date as new versions are published.
8.1.2.2 ISV Metadata
The ISV metadata may be used as the calling application requires. For basic string
information standard key:value pairs should be used but binary data should be string
encoded using base64 or similar. It is recommended that a version number is also applied
to the backup application metadata to allow for future metadata structure enhancements.
The maximum size of metadata that can be written per Catalyst Item is defined as the
MaximumMetadataSizePerObject value as returned in
OSCMN_sServerCapabilitiesType by the osCltCmd_GetServerProperties
operation. The maximum metadata size returned does not account for JSON or other
encoding and so the caller should allow for such overheads in their internal data structures.
8.1.2.3 Code Example
Printing metadata is demonstrated in the List all Items
(objSDKPrv_ListAllObjectsFromStore) example on page 85.
Page 80
8.1.3 Data
Data written to a Catalyst Item can be deduplicated using Variable Block chunks or Fixed
Block chunks depending on the Object Storage mode setting for the Item and the modes
supported by the Server and Store. Where Fixed Block Deduplication breaks the stream
based on a ISV specified offset starting at the end of the file, Variable Block Deduplication
splits the data stream into chunks based on the data itself by performing a small rolling
calculation across a window of the data. If the integrator knows that data is Fixed block
aligned, such as certain databases, then it is highly recommended to use Fixed block
chunking; this method will result in better deduplication ratios, performance and client side
resource utilisation. Items should be created as using either the
OSCMN_DEDUPEMODE_FIXED_BLOCK_DEDUPE
mode or
OSCMN_DEDUPEMODE_VARIABLE_BLOCK_DEDUPE of OSCMN_eDedupeModeType.
When creating as fixed block integrators must ensure that write offsets, write sizes and
write buffers are block aligned. Also, when performing read operations the operations
must also be block aligned to the alignment size used to write the Catalyst item. It is
advisable to store the block size within the item meta.
Data must be written to an Item in a sequential manner as write in place is unsupported at
this time. It is also recommended to read data sequentially to improve performance.
Catalyst Items do not have a maximum data size; however the Catalyst Store containing
the Item can have a quota applied to it for both physical data stored and logical data stored
for Data Size and Data Stored so this setting should be taken into account.
It is highly recommended behaviour to have separate Catalyst Items for each data session,
i.e. – each backup job should be saved to a new Item and so a backup application should
default to this.
8.1.4 Creating a Catalyst Item
Before a backup application can write backup data to a Catalyst Store is must create a
Catalyst Item into which the data will be written. A backup job may create one or more
Objects to store the backup data but it is recommended that multiple backup jobs do not
share Objects as this allows for improved resolution when expiring data.
When creating a Catalyst Item the backup application should set the initial tag list and
metadata. The tag list should contain a tag of “Incomplete” and as minimum the metadata
should include the Common information.
When calling the osCltCmd_CreateObject operation the Catalyst Store into which the
Catalyst Item will created, must be supplied. If the client does not have access to that store
the request will fail with error OSCLT_ERR_PERMISSION_DENIED.
Additionally the backup application must supply the storage method which the Catalyst
Item will be stored. Possible options are reported in the Catalyst Store capabilities
Page 81
returned by osCltCmd_ListObjectStores. Once a Catalyst Item has been created
the storage mode may not be modified.
When creating the Catalyst Item it is also possible for the backup application to provide
metadata to associate with the Catalyst Item. The metadata may be modified later using
the osCltCmd_ModifyObjectMeta operation.
8.1.4.1 Code Example – Create an Item
int objSDKPrv_CreateObject(const char *pServerAddress, const char
*pStoreKey, const char *pObjectKey, const char *pObjectTags, char
*pMetaData, uint32_t metaDataSize)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
OSCMN_sKeyType storeKey;
OSCMN_sKeyType objKey;
OSCMN_sObjectStorageModeType objectStorageMode;
OSCMN_sTagListType objectTagList;
OSCMN_sObjectMetaType objectMetaBuffer;
//<<Memset all structs>>
//<<Set Store Key>>
//<<Set Object Key>>
// Set dedupe mode
objectStorageMode.DedupeMode = OSCMN_DEDUPEMODE_VARIABLE_BLOCK_DEDUPE;
if (pObjectTags)
{
memset(&objectTagList,
0,
sizeof(objectTagList));
strncpy(objectTagList.String,
pObjectTags,
sizeof(objectTagList.String));
if (objectTagList.String[sizeof(objectTagList.String) - 1])
{
printf("Error : Unable to set Object Tags %s\n",
objectTagList.String);
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
objectTagList.StringSize = strlen(objectTagList.String);
}
// Metadata provided?
if (pMetaData && metaDataSize) {
objectMetaBuffer.MetaSize = metaDataSize;
objectMetaBuffer.pMetaData = (uint8_t *) pMetaData;
}
//<<Open command session>>
callStatus = osCltCmd_CreateObject(pCmdSessionHandle,
&storeKey,
&objKey,
Page 82
&objectStorageMode,
&objectTagList,
&objectMetaBuffer);
if (callStatus != OSCLT_ERR_SUCCESS) {
printf("Error : Creating object '%s' in store '%s' failed "
"with error : %s.\n",
pObjectKey, pStoreKey,
objSDKPrv_ErrorNumToString(callStatus));
returnStatus = callStatus;
//<<Close command session>>
return returnStatus;
}
printf("Created object '%s' in store '%s'.\n", pObjectKey,
pStoreKey);
//<<Close command session>>
return returnStatus;
}
8.1.5 Listing Catalyst Items
Catalyst Stores may contain millions of Catalyst Items and although it is possible to list
every Catalyst Item within a Catalyst Store, during normal usage it is not recommended.
When the purpose of the list is to retrieve Catalyst Item properties or metadata for a
specific Catalyst Item, the osCltCmd_ListObjects operation should be called with an
ObjectKeyFilter provided. This will return the details of the single Catalyst Item
specified by the ObjectKeyFilter.
When the properties or metadata for multiple Objects needs to be retrieved, the
osCltCmd_ListObjects should be called with one or more of the following filters
applied:
• A Catalyst Item Key Filter with exact match disabled.
• Tag List Filter
• Created Date Period Filter
• Modified Date Period Filter
The Catalyst Store shall respond with a list of all Objects that match all the filters applied.
If there are more matching Objects to list than can be returned in the buffers provided, the
PartialData flag shall be set to indicate that more Catalyst Item listing is available to
be retrieved.
In order to retrieve the next batch of the Catalyst Item listings, the backup application
should repeat the osCltCmd_ListObjects operation passing back the ListHandle
returned in the previous response. The backup application should repeat this sequence
until all the required Objects have been listed and the PartialData flag is set to false.
It is important to note that the ListHandle must be memset to zero whenever the first
osCltCmd_ListObjects call is made to avoid getting incomplete list responses.
8.1.5.1 Code Example - List Item by Key
int objSDKPrv_GetObjectByKey(const char *pServerAddress, const char
*pStoreKey, const char *pObjectKey, OSCMN_sObjectType *pObject, char
*pMetaData, uint32_t metaDataSize)
Page 83
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
OSCMN_sKeyType storeKey;
OSCMN_sBufferType objectMetaBuffer;
OSCMN_sObjectListFilterType objectListFilter;
OSCLT_sCompoundListHandleType listHandle;
OSCLT_sObjectTeamingListConsistencyStatusType
*pObjectTeamingListConsistencyStatusArray = NULL;
bool includeMeta = false;
bool partialData = false;
uint32_t numObjectsReturned = 0;
//<<Memset all structs>>
//<<Set Store Key>>
// Match the object using key
objectListFilter.KeyFilter.ExactMatchOnly = true;
strncpy(objectListFilter.KeyFilter.KeyFilter.String,
pObjectKey,
sizeof(objectListFilter.KeyFilter.KeyFilter.String));
if (objectListFilter.KeyFilter.KeyFilter.String[
sizeof(objectListFilter.KeyFilter.KeyFilter.String) - 1])
{
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
objectListFilter.KeyFilter.KeyFilter.StringSize =
strlen(objectListFilter.KeyFilter.KeyFilter.String);
// Get metadata details?
if (pMetaData && metaDataSize)
{
includeMeta = true;
objectMetaBuffer.BufferSize = metaDataSize;
objectMetaBuffer.pBufferLocation = (uint8_t *) pMetaData;
}
//<<Open command session>>
callStatus = osCltCmd_ListObjects (pCmdSessionHandle,
&storeKey,
&objectListFilter,
includeMeta,
false /* increasingOrder */,
1,
pObject,
pObjectTeamingListConsistencyStatusArray,
&objectMetaBuffer,
&listHandle,
&partialData,
&numObjectsReturned);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Listing object '%s' from store '%s' failed with "
"error : %s.\n", pObjectKey, pStoreKey,
objSDKPrv_ErrorNumToString(callStatus));
//<<Close command session>>
returnStatus = callStatus;
return returnStatus;
Page 84
}
if (numObjectsReturned != 1)
{
// numObjectsReturned is zero and partialData not set then
// object not found, otherwise some other issue
//<<Close command session>>
returnStatus = (numObjectsReturned == 0 && !partialData)?
OSCLT_ERR_OBJECTSTORE_KEY_NOT_FOUND :
OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
//<<Close command session>>
return returnStatus;
}
8.1.5.2 Code Example - List Item by Tags
int objSDKPrv_GetObjectByTags(const char *pServerAddress, const char
*pStoreKey, const char *pObjectTags, OSCMN_sObjectType *pObject, char
*pMetaData, uint32_t metaDataSize)
{
//<<As objSDKPrv_GetObjectByKey | Use TagListFilter instead
// of KeyFilter>>
objectListFilter.TagListFilter.AllMatchOnly = true;
strncpy(objectListFilter.TagListFilter.TagListFilter.String,
pObjectTags,
sizeof(objectListFilter.TagListFilter.TagListFilter.String));
if (objectListFilter.TagListFilter.TagListFilter.String
[sizeof(objectListFilter.TagListFilter.TagListFilter.String)
- 1])
{
printf("Error : Unable to set Object Filter %s\n",
objectListFilter.TagListFilter.TagListFilter.String);
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
objectListFilter.TagListFilter.TagListFilter.StringSize =
strlen(objectListFilter.TagListFilter.TagListFilter.String);
}
8.2 Section Summary and recommendated best practises
• Catalyst objects cannot to renamed after creation
• Catalyst integratoers are recommended to implement object metadata using the
example JSON metadata encoding provided in the section example. This allows
common support across all Catalyst implementations.
• Add “Complete” / “Incomplete” tags to backup items where possible.
Page 85
8.2.1.1 List all Items with Metadata
int objSDKPrv_ListAllObjectsFromStore(const char *pServerAddress, const
char *pStoreKey, char *pMetaData, uint32_t metaDataSize)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
OSCMN_sServerPropertiesType serverProp;
OSCMN_sKeyType storeKey;
OSCMN_sBufferType objectMetaBuffer;
OSCMN_sObjectListFilterType objectListFilter;
OSCLT_sCompoundListHandleType listHandle;
OSCMN_sObjectType *pObjectList = 0;
bool includeMeta = false;
bool partialData = false;
uint32_t i, numObjectsReturned = 0;
OSCLT_sObjectTeamingListConsistencyStatusType
*pObjectTeamingListConsistencyStatusArray = NULL;
// <<Get server properties and allocate memory for list>>
memset(&objectMetaBuffer,
0,
sizeof(objectMetaBuffer));
// Empty filter (list all objects)
memset(&objectListFilter,
0,
sizeof(objectListFilter));
memset(&listHandle,
0,
sizeof(listHandle));
// Get metadata details?
if (pMetaData && metaDataSize)
{
includeMeta = true;
objectMetaBuffer.BufferSize = metaDataSize;
objectMetaBuffer.pBufferLocation = (uint8_t *) pMetaData;
}
// <<Set Store key>>
printf("List all objects from store : %s\n", pStoreKey);
// <<Open command session>>
do
{
callStatus = osCltCmd_ListObjects(pCmdSessionHandle,
&storeKey,
&objectListFilter,
includeMeta,
false /* increasingOrder */,
serverProp.ServerCapabilities.
MaximumObjectsPerListIteration,
pObjectList,
pObjectTeamingListConsistencyStatusArray,
&objectMetaBuffer,
&listHandle,
&partialData,
&numObjectsReturned);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Listing objects from store '%s' failed"
"with error : %s.\n", pStoreKey,
Page 86
objSDKPrv_ErrorNumToString(callStatus));
// <<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
for (i = 0; i < numObjectsReturned; i++)
{
// Print Object Properties
printf("\tName : %s\n",
pObjectList[i].Key.String);
printf("\tTags : %s\n",
pObjectList[i].TagList.String);
printf("\tDataSize : %"PRIu64"\n",
pObjectList[i].DataSize);
printf("\tMetaSize : %u\n",
pObjectList[i].ObjectMeta.MetaSize);
printf("\tMetaData : %.*s\n",
pObjectList[i].ObjectMeta.MetaSize,
pObjectList[i].ObjectMeta.pMetaData);
printf("\n");
}
} while (partialData);// Loop until partial data set to true
// <<Close command session>>
// <<Free object list>>
return returnStatus;
}
8.2.2 Modifying Catalyst Item Meta Data
The metadata of a Catalyst Item, including tag lists, may be updated at any time using the
osCltCmd_ModifyObjectMeta operation. This operation is atomic and does not
require a Catalyst Item be locked in order for it to be called. This means that the metadata
can be updated whilst a Catalyst Item is open with a Catalyst Item Data Session and is being
written to.
The Tag List section on page 77 recommends “Incomplete” and “Complete” tags is used to
identify Objects. Calling osCltCmd_ModifyObjectMeta is the operation that should
be used to change these tag lists.
8.2.2.1 Code Example – Modify Item Meta Data
int objSDKPrv_ModifyObjectMeta(const char *pServerAddress, const char
*pStoreKey, const char *pObjectKey, const char *pObjectTags, char
*pMetaData, uint32_t metaDataSize)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
OSCMN_sKeyType storeKey;
OSCMN_sKeyType objKey;
OSCMN_sTagListType objectTagList;
OSCMN_sObjectMetaType objectMetaBuffer;
//<<Memset all structs>>
//<<Set Store Key>>
//<<Set Object Key>>
if (pObjectTags)
Page 87
{
strncpy(objectTagList.String,
pObjectTags,
sizeof(objectTagList.String));
if (objectTagList.String[sizeof(objectTagList.String) - 1])
{
printf("Error : Unable to set Object Tags %s\n",
objectTagList.String);
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
objectTagList.StringSize = strlen(objectTagList.String);
}
// Metadata provided?
if (pMetaData && metaDataSize)
{
objectMetaBuffer.MetaSize = metaDataSize;
objectMetaBuffer.pMetaData = (uint8_t *) pMetaData;
}
//<<Open command session>>
callStatus = osCltCmd_ModifyObjectMeta(pCmdSessionHandle,
&storeKey,
&objKey,
&objectTagList,
&objectMetaBuffer);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Modifying object '%s' in store '%s' failed "
"with error : %s.\n", pObjectKey, pStoreKey,
objSDKPrv_ErrorNumToString(callStatus));
//<<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
printf("Modified object '%s' in store '%s' with new meta/tags.\n",
pObjectKey, pStoreKey);
//<<Close command session>>
return returnStatus;
}
8.2.3 Deleting a Catalyst Item
When a backup expires the Catalyst Item containing the data should be deleted. A backup
application may choose to batch multiple Catalyst Item deletion jobs and run them at
predefined times. It is recommended where possible that delete operations are performed
after backup jobs at least once per day. This ensures that matching data in the dedupe
store is first referenced before being dereferenced by the delete and the disk space is freed
up regularly.
If the client does not have access to that store the request will fail with error
OSCLT_ERR_PERMISSION_DENIED.
8.2.3.1 Code Example – Delete an Item
int objSDKPrv_DeleteObject(const char *pServerAddress, const char
*pStoreKey, const char *pObjectKey)
{
int returnStatus = OSCLT_ERR_SUCCESS;
Page 88
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
OSCMN_sKeyType storeKey;
OSCMN_sKeyType objKey;
//<<Memset all structs>>
//<<Set Store Key>>
//<<Set Object Key>>
//<<Open command session>>
callStatus = osCltCmd_DeleteObject(pCmdSessionHandle,
&storeKey,
&objKey);
if (callStatus != OSCLT_ERR_SUCCESS)
{
if (callStatus != OSCLT_ERR_OBJECT_KEY_NOT_FOUND)
{
printf("Error : Deleting object '%s' from store '%s'"
"failed with error : %s.\n", pObjectKey, pStoreKey,
objSDKPrv_ErrorNumToString(callStatus));
}
else
{
printf("Error : Object '%s' does not exist in store"
" '%s'.\n", pObjectKey, pStoreKey);
}
//<<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
printf("Deleted object '%s' from store '%s'.\n", pObjectKey,
pStoreKey);
//<<Close command session>>
return returnStatus;
}
8.2.4 Federated Catalyst Items
A Federated Catalyst Item created in a Federated Catalyst Store has the exact same
properties and behaviours as a regular Catalyst Item in a regular Catalyst Store. Federated
Catalyst Items should be interacted with using Federated Command Sessions and
Federated Catalyst Item Data Sessions. For more information see the Federated Command
Sessions section on page 25 and Federated Catalyst Item Data Sessions section on page 36.
8.3 Writing to Catalyst Items
8.3.1 Writing to a Catalyst Item
When writing to a Catalyst Item the typical sequence will be as follows:
osCltData_OpenObjectDataSession
osCltData_SeekToWriteBytes
osCltData_WriteBytes
osCltData_WriteBytes
osCltData_Flush
…
osCltData_WriteBytes
Page 89
osCltData_Flush
osCltData_CloseObjectDataSession
Before opening the Catalyst Item data session to the Catalyst Item, the backup application
should define the most appropriate values for the following settings:
• Bandwidth Mode
• Data Buffer Size (Recommend to use default)
• Payload Checksums
o If the Catalyst Server address starts “COFC-“ to transport over Fibre Channel
Payload Checksums should be disabled.
o If the backup will be performed over LAN checksums should be disabled
o If the backup will be performed over WAN checksums should be enabled
• Compression
o If the Catalyst Server address starts “COFC-“ to transport over Fibre Channel
Payload Compression should be disabled.
o If the backup will be performed over LAN compression should be disabled
o If the backup will be performed over WAN compression should be enabled
The bandwidth mode used should normally be specifiable by the backup application user.
In cases where this is not possible the backup application should default to using the
preferred mode as reported in OSCMN_sWritePolicyType when calling
osCltData_OpenObjectDataSession.
Payload checksums are recommended when writing data to a Catalyst Store that resides on
a different network segment, for example in a remote data centre. When writing data to a
Catalyst Store that is accessible locally, payload checksums are not required and may be
disabled to improve throughput performance, though this is not recommended.
Performing osCltData_Flush at frequent intervals during the backup allows a backup
application to define checkpoints at which data will be confirmed to have been committed
to disk. Knowing these checkpoints a backup application could restart a failed backup from
a known point. It is recommended that the frequency of the flush occur no more often than
each 10GB of data written, whichever occurs first. If osCltData_Flush is not called a
default implicit flush frequency of 10GB will be used (1GB for server releases older than
3.16).
Once the backup application has selected the most appropriate values for the data session
it should first check if the Catalyst Item already exists and if it does not it should create it
with the tag of “Incomplete” and begin the backup. If the Catalyst Item does already exist
then the backup application should check that the Items Storage Mode matches the
intended write mode, it should also check if there are enough free sessions and lock
resources available to the Item by getting the Catalyst Server Properties (page 54).
In the event that a backup application need to restart a backup from a known checkpoint
the backup application should to open the session to the Catalyst Item and seek to write
bytes at the offset of the known checkpoint and with the truncate flag set.
Page 90
Once the backup is complete the Catalyst Item tag list and metadata should be updated
using osCltCmd_ModifyObjectMeta. The “Incomplete” tag should be replaced with a
tag of “Complete” and optionally the metadata content may be updated.
Note that the StoreOnce data immutability (WORM) mechanism uses the
“Incomplete”/”Complete” tags in the object to know if it is immutable (only supported from
server version 3.16). Integrators are encouraged to implement the Incomplete / Complete
functionality when performing backups.
8.3.1.1 Code Example – Write Data to an Item
int objSDKPrv_WriteData(OSCLT_sSessionHandleType *pDataSessionHandle, char
*pBuffer, uint32_t bufferSize)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCMN_sBufferType suppliedData;
memset(&suppliedData,
0,
sizeof(suppliedData));
suppliedData.BufferSize = bufferSize;
suppliedData.pBufferLocation = (uint8_t *) pBuffer;
callStatus = osCltData_WriteBytes(pDataSessionHandle,
&suppliedData);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Unable to write data of '%u' bytes in object,"
"error : %s.\n", suppliedData.BufferSize,
objSDKPrv_ErrorNumToString(callStatus));
returnStatus = callStatus;
return returnStatus;
}
return returnStatus;
}
int objSDKPrv_WriteGeneratedDataToObject(const char *pServerAddress, const
char *pStoreKey, const char *pObjectKey, uint64_t generatedDataSize)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType dataSessionHandle;
int i;
char *pBuffer = 0;
uint64_t buffSize, bytesYetToWrite, bytesToWrite;
OSCMN_IdType dataJobID;
OSCMN_sObjectType object;
buffSize = 2 * MB;
pBuffer = (char *) malloc(buffSize);
if (pBuffer == 0)
{
printf("Error : Unable to allocate memory for write "
Page 91
"buffer.\n");
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
// <<Open Object for Write>>
printf("Write '%"PRIu64"' bytes of random data into source object
"'%s' (store : %s) for copy.\n", generatedDataSize,
pObjectKey, pStoreKey);
i = 0;
bytesYetToWrite = generatedDataSize;
while(bytesYetToWrite)
{
bytesToWrite = (buffSize < bytesYetToWrite)?
buffSize : bytesYetToWrite;
// <<Get data to write in pBuffer of side bytesToWrite>>
// Write Data
callStatus = objSDKPrv_WriteData(&dataSessionHandle, pBuffer,
bytesToWrite);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Unable to write random data to '%s'.\n",
pObjectKey);
// <<Close object and free buffer>>
return returnStatus;
}
bytesYetToWrite -= bytesToWrite;
if ((i % 5) == 0)
{
printf(".");
(void) fflush(stdout);
}
i++;
}
// <<Close object and free buffer>>
return returnStatus;
}
8.3 Reading from Catalyst Items
8.3.2 Reading from a Catalyst Item
When reading from a Catalyst Item the typical sequence will be as follows:
osCltData_OpenObjectDataSession
osCltData_SeekToReadBytes
osCltData_ReadBytes
osCltData_ReadBytes
…
osCltData_ReadBytes
osCltData_CloseObjectDataSession
Before opening the Catalyst Item data session to the Catalyst Item, the backup application
should define the most appropriate values for the following settings:
• Data Buffer Size (Recommend default)
Page 92
• Payload Checksums
o If the Catalyst server address starts “COFC-“ to transport over Fibre Channel
Payload Checksums should be disabled.
o If the backup will be performed over LAN checksums should be disabled
o If the backup will be performed over WAN checksums should be enabled
• Compression
o If the Catalyst server address starts “COFC-“ to transport over Fibre Channel
Payload Compression should be disabled.
o If the backup will be performed over LAN compression should be disabled
o If the backup will be performed over WAN compression should be enabled
In normal operation the data buffer size that is specified should be
OSCLT_HIGH_BW_DATA_BUFFER_DEFAULT_SIZE. However when reading data over
a WAN connection it is recommended to increase the data buffer size to
MaximumLowBandwidthDataBufferSize as returned by
osCltCmd_GetServerProperties.
Payload checksums are recommended when reading data from a Catalyst Store that
resides on a different network segment, for example in a remote data centre. When
reading data from a Catalyst Store that is accessible locally, payload checksums are not
required and may be disabled to improve throughput performance, though this is not
recommended.
Read operations perform most efficiently when requested sequentially as so the backup
application should aim to read from Objects sequentially starting at a defined offset.
Backup applications that repeatedly seek and read small amounts of data will find that
throughput performance is sub-optimal.
8.3.2.1 Code Example – Read Data from an Item
static int objSDKPrv_ReadObjectToFile(const char *pServerAddress, const
char *pStoreKey, const char *pObjectKey)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
int i;
char *pRestoredData = 0;
OSCMN_sObjectType object;
OSCMN_IdType readDataJobID;
OSCLT_sSessionHandleType dataSessionHandle;
char *pFileName = pObjectKey;
uint64_t buffSize, bytesYetToRead, bytesToRead;
buffSize = 2 * MB;
pRestoredData = (char *) malloc(buffSize);
if (pRestoredData == 0)
{
printf("Error : Unable to allocate read buffer.\n");
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
Page 93
}
// <<List object using Key>>
printf("Open Object for Read.\n");
// Open Object for Read
callStatus = objSDKPrv_OpenObject(pServerAddress,
pStoreKey,
pObjectKey,
false,
0,
&dataSessionHandle,
&readDataJobID);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Unable to open object '%s' for read.\n",
pObjectKey);
returnStatus = callStatus;
// <<Free restored data buffer>>
return returnStatus;
}
// Open file
FILE *file = fopen(pFileName, "w+");
i = 0;
bytesYetToRead= object.DataSize;
while(bytesYetToRead)
{
// Get size of data to read
bytesToRead = (buffSize < bytesYetToRead) ?
buffSize : bytesYetToRead;
// Read data
callStatus = objSDKPrv_ReadData(&dataSessionHandle,
(uint8_t *) pRestoredData,
&bytesToRead);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Unable to read from '%s'.\n",
pObjectKey);
// <<Close object and close file>>
// <<Free restore data buffer>>
returnStatus = callStatus;
return returnStatus;
}
// Write data to file
callStatus = fprintf(file, pRestoredData);
if (callStatus < 1)
{
printf("Error : Unable to write data (of size : %lu) "
"to file %s.\n",
sizeof(pRestoredData), pFileName);
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
// <<Close object and close file>>
// <<Free restore data buffer>>
return returnStatus;
}
Page 94
bytesYetToRead -= bytesToRead;
if ((i % 5) == 0)
{
printf(".");
(void) fflush(stdout);
}
i++;
}
printf("\n");
// <<Close object and close file>>
// <<Free restore buffer>>
return returnStatus;
}
8.4 Cloning Data from a Catalyst Object
As well as writing new data via the backup application to a Catalyst object it is possible to
clone data from previous Catalyst objects (referred to as parents) into a new Catalyst
object (referred to a child). Cloning from previous objects allows a backup application to
implement advanced functionality such as synthetic backups without needing to send all
backup data from a client to StoreOnce when little data has changed since the previous
backup. A typical workflow might be as follows where new and old data are considered:
osCltData_OpenObjectDataSession
osCltData_SeekToWriteBytes
osCltData_WriteBytes
osCltData_WriteBytes
osCltData_OpenParent
osCltData_SeekToCloneExtents
osCltData_CloneExtent
osCltData_CloneExtent
osCltData_SeekToWriteBytes
osCltData_WriteBytes
…
osCltData_Flush
osCltData_CloseObjectDataSession
Parent objects will be implicitly closed by the Catalyst server when the child data session is
closed. However, it is best practise for to explicitly close parents, by calling
osCltData_CloseParent.
Integrators are advised that there is overhead associated with switching between write and
clone operations so switching modes should be limited, where possible. It is advised to
supply large clone sizes where possible.
It is possible to open multiple parents to be used for cloning within a single data session.
The maximum number of parents supported can be queried by merging the
MaximumOpenParentsPerCloneSession client and server capability.
Page 95
There may be cases where ISV’s wish to check the integrity of a parent object prior to
cloning from it. Where required the function
osCltData_SeekToReadParentExtents and osCltData_ReadParentExtent
can be used for such purposes.
8.5 Getting Data Transfer Information
Each Catalyst Item Data Session stores detailed statistics that may be queried by the
backup application. This information includes for example transfer efficiency statistics that
could be displayed to the user following a low bandwidth backup.
In order to retrieve the data job statistics, the backup application should use the
osCltCmd_ListObjectDataJobs operation. It is recommended that the backup
application calls this after each backup or restore, passing the JobID of each Catalyst Item
Data Session that was used. The returned list of data jobs can then be parsed to provide
the user with a consolidated efficiency metric.
If required a backup application may also request a list of data jobs using one or more of
the following filters (see OSCMN_sObjectDataJobListFilterType definition for a
full detailed list of available filters):
• Catalyst Item Key Filter
• Started Date Period Filter
• Stopped Date Period Filter
• Client Identifier Filter
• Client IP Address Filter
• Status Filter
The Catalyst Store shall respond with a list of all data job statistics that match all the filters
applied. If there are more matching data job statistics to list than can be returned in the
buffers provided, the PartialData flag shall be set to indicate that more data job listing is
available to be retrieved.
In order to retrieve the next batch of the data job statistics, the backup application should
repeat the osCltCmd_ListObjectDataJobs operation passing back the
ListHandle returned in the previous response. The backup application should repeat
this sequence until all the required data job statistics have been listed and the
PartialData flag is set to false.
It is important to note that the ListHandle must be memset to zero whenever the first
osCltCmd_ListObjectDataJobs call is made to avoid getting incomplete list
responses.
The properties returned for a Data Job are:
Table 13 Dat Job Properties Supported Protocol
Property
(OSCMN_sObjectDataJobType)
Protocol
v4
Protocol
v5
Protocol
v6
Protocol
v7
Protocol
v8
Protocol
v9
DataJobId
ObjectKey
JobReference
DebugInfo
JobReceivedFromCredentials
JobReceivedFromAddress
JobStartedDateUTC
JobStoppedDateUTC
JobStatus
JobStatusCode
JobObjectDataSize
JobObjectDataStored
JobStatistics
ClientPipelineStatistics
JobCancellationReason
PayloadChecksumsDisabled
BodyAndPayloadCompressionEnabled
DataJobTeaming
TransportProtocol
8.5.1.1 Code Example – Get Job Status String
The Job Status should be translated to a user friendly string.
const char * objSDKPrv_GetJobStatusString(OSCMN_eJobStatusType jobStatus)
{
switch (jobStatus)
{
case OSCMN_JOB_STATUS_PENDING :
return "Pending";
case OSCMN_JOB_STATUS_COMPLETED :
return "Completed";
case OSCMN_JOB_STATUS_RUNNING :
return "Running";
case OSCMN_JOB_STATUS_PAUSED :
return "Paused";
case OSCMN_JOB_STATUS_CANCELLED :
return "Cancelled";
case OSCMN_JOB_STATUS_INTERRUPTED :
return "Interrupted";
case OSCMN_JOB_STATUS_FROZEN :
return "Frozen";
default :
return "Unknown";
}
}
8.5.1.2 Code Example – List all Data Jobs from a Store
int objSDKPrv_ListAllDataJobsFromStore(const char *pServerAddress, const
char *pStoreKey)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
OSCMN_sServerPropertiesType serverProp;
OSCMN_sKeyType storeKey;
OSCLT_sCompoundListHandleType listHandle;
OSCMN_sObjectDataJobListFilterType objectDataJobListFilter;
OSCMN_sObjectDataJobType *pJobList = 0;
OSCLT_sObjectDataJobTeamingListConsistencyStatusType
*pObjDataJobTeamingListConsistencyStatusArray = NULL;
bool partialData = false;
uint32_t i, numObjectDataJobsReturned = 0;
// <<Memset all structs | Setting Filter to list all jobs>>
// <<Get sever properties>>
// Allocate space for list jobs
if ((pJobList = (OSCMN_sObjectDataJobType *) calloc(1,
sizeof(OSCMN_sObjectDataJobType) *
serverProp.ServerCapabilities.
MaximumJobsPerListIteration)) == NULL)
{
printf("Error : Unable to allocate space for '%"PRIu64"'"
"data jobs.\n",
serverProp.ServerCapabilities.
MaximumJobsPerListIteration);
returnStatus = callStatus;
return returnStatus;
}
// <<Set Store Key>>
printf("List all data jobs from store : %s\n", pStoreKey);
Page 98
// <<Open command session>>
do
{
callStatus = osCltCmd_ListObjectDataJobs (pCmdSessionHandle,
&storeKey,
&objectDataJobListFilter,
false /* increasingOrder */,
serverProp.ServerCapabilities.
MaximumJobsPerListIteration,
pJobList,
pObjDataJobTeamingListConsistencyStatusArray,
&listHandle,
&partialData,
&numObjectDataJobsReturned);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Listing jobs from store '%s' failed"
"with error : %s.\n",
pStoreKey,
objSDKPrv_ErrorNumToString(callStatus));
// <<Close command session & free list>>
returnStatus = callStatus;
return returnStatus;
}
for (i = 0; i < numObjectDataJobsReturned; i++)
{
// Print Object Properties
printf("\t\tID:%"PRIu64", Object : %s, Status : %s.",
pJobList[i].DataJobId,
pJobList[i].ObjectKey.String,
objSDKPrv_GetCopyJobStatusString(
pJobList[i].JobStatus));
}
} while (partialData);
// <<Close command session>>
// <<Free list>>
return returnStatus;
}
8.6 Copying a Catalyst Item
A Catalyst Item may be copied between Catalyst Stores in order to allow backup application
to keep additional copies of backup data in multiple locations. These copies are performed
asynchronously by the Catalyst Server in a bandwidth efficient way ensuring that only
unique data is transmitted between locations.
A typical sequence would be:
• Create an empty Catalyst Item in the destination Catalyst Store using
osCltCmd_CreateObject.
• Queue the asynchronous copy using osCltCmd_QueueObjectCopyJob.
• Monitor copy progress using osCltCmd_ListOriginObjectCopyJobs.
Copy jobs can be performed over Fibre Channel or Ethernet.
See Catalyst Item Copy Job Process () on page 103 for the process flow of a Catalyst Item
Copy Job.
Page 99
8.6.1 Queuing a Catalyst Item Copy Job
A backup application requests a Catalyst Item is copied using the
osCltCmd_QueueObjectCopyJob operation. This will return an
OriginObjectCopyJobId and add the copy request to a queue to be processed when
resources permit. The backup application should then poll the Catalyst Server using the
osCltCmd_ListOriginObjectCopyJobs operation, passing back an array of
OriginObjectCopyJobId’s to track. The backup application can then collate the
progress of the copy jobs and report back to the user as appropriate.
8.6.1.1 Code Example – Queue a Copy Job
int objSDKPrv_QueueCopy(const char *pSrcServerAddr, const char
*pSrcStoreKey, const char *pSrcObjectKey, uint64_t srcExtOffset, uint64_t
srcExtLength, const char *pDesServerAddr, const char *pDesStoreKey, const
char *pDesObjectKey, uint64_t desOffset, OSCMN_IdType *pCopyJobID)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
const char *pServerAddress = 0;
OSCMN_sKeyType srcStoreKey;
OSCMN_sKeyType srcObjectKey;
OSCMN_sKeyType desStoreKey;
OSCMN_sKeyType desObjectKey;
OSCMN_sAddressType desAddress;
OSCMN_sExtentType srcObjExtent;
OSCMN_sStringType pJobRef;
// <<Memset all structs>>
// <<Set Source Catalyst Server Address, Item Key,
// Extent Offset, Extent Length>>
// <<Set Destination Catalyst Server Address, Store Key, Item Key>>
memset(&pJobRef,
0,
sizeof(pJobRef));
strncpy(pJobRef.String,
OBJSDK_JOB_REF,
sizeof(pJobRef.String));
if (pJobRef.String[sizeof(pJobRef.String) - 1])
{
printf("Error : Unable to set Job Reference %s\n",
pJobRef.String);
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
pJobRef.StringSize = strlen(pJobRef.String);
// <<Open command session>>
callStatus = osCltCmd_QueueObjectCopyJob(pCmdSessionHandle,
&srcStoreKey,
&srcObjectKey,
&srcObjExtent,
&desAddress,
OSCLT_DEFAULT_COMMAND_PORT,
OSCLT_DEFAULT_DATA_PORT,
&desStoreKey,
Page 100
&desObjectKey,
desOffset,
&pJobRef,
pCopyJobID);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Queuing copy job from object '%s' (store : %s)"
"to object '%s' (store : %s) failed with error : %s.\n",
pSrcObjectKey, pSrcStoreKey, pDesObjectKey,
pDesStoreKey, objSDKPrv_ErrorNumToString(callStatus));
// <<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
// <<Close command session>>
return returnStatus;
}
8.6.2 Catalyst Item Copy Job Records
When polling the Catalyst Store for copy job status information using the
osCltCmd_ListOriginObjectCopyJobs operation, it will return a
SuggestedSecondsWaitBeforeNextPoll value. This value is calculated by the
Catalyst Server and it represents the next time at which any of the queried copy jobs are
expected to have changed state or updated progress. It is recommended that a backup
application waits the suggested period before polling for status information again. This
will avoid putting unnecessary load on the Catalyst Server when no change of state or
progress is expected to have occurred.
Copy Job’s will be on one of the following states:
Table 14 - Possible Copy Job Status
Copy Job Status
Description
Pending
The copy job is queued but has not yet started.
Running
The copy job is currently running.
Paused The copy job was started but is no longer running. It will back to a
running state when resources allow.
Cancelled The copy job was cancelled either because it was cancelled by the user
or because it was an invalid request.
Completed
The copy job completed successfully.
Interrupted The copy job was interrupted (by a power failure). This is a transitional
state and will change to Paused/Cancelled once the Catalyst Store
comes online.
All copy jobs will eventually move to a Cancelled or Completed state. If a copy job is in a
Cancelled state the backup application should check the LastJobPauseCancelReason
value returned to identify the cause of the cancellation and report back to the user an
appropriate error message.
8.6.2.1 Code Example – Get Copy Job Record from ID
int objSDKPrv_GetCopyJobByID(const char *pServerAddress, const char
*pStoreKey, bool storeIsOrigin, OSCMN_IdType copyJobID,
OSCMN_sObjectCopyJobType *pCopyJob, uint32_t *pSuggestedWaitForNextPoll)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
Page 101
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
OSCMN_sKeyType storeKey;
OSCMN_sObjectCopyJobListFilterType objCopyJobListFilter;
OSCMN_sListHandleType listHandle;
uint32_t numJobsReturned;
bool partialData;
// <<Memset all structs>>
// <<Set Store Key>>
// <<Open command session>>
if (storeIsOrigin)
{
// List at origin
objCopyJobListFilter.OriginObjectCopyJobIdFilterArray[0] =
copyJobID;
callStatus = osCltCmd_ListOriginObjectCopyJobs(
pCmdSessionHandle,
&storeKey,
&objCopyJobListFilter,
false /* increasingOrder */,
1,
pCopyJob,
&listHandle,
&partialData,
&numJobsReturned,
pSuggestedWaitForNextPoll);
}
else
{
// List at Destination
objCopyJobListFilter.DestinationObjectCopyJobIdFilterArray[0] =
copyJobID;
// NOTE : List at destination don't suggest next poll time
callStatus = osCltCmd_ListDestinationObjectCopyJobs(
pCmdSessionHandle,
&storeKey,
&objCopyJobListFilter,
false /* increasingOrder */,
1 ,
pCopyJob,
&listHandle,
&partialData,
&numJobsReturned);
}
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Listing copy job from store '%s' failed"
"with error : %s.\n", pStoreKey,
objSDKPrv_ErrorNumToString(callStatus));
// <<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
if (partialData)
{
printf("Error : Listing copy job using ID from store '%s'"
"returned with partialData set to true.\n", pStoreKey);
// <<Close command session>>
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
Page 102
return returnStatus;
}
if (numJobsReturned != 1)
{
printf("Error : Listing copy job using ID from store '%s'"
"returned '%u' jobs.\n", pStoreKey, numJobsReturned);
// <<Close command session>>
returnStatus = OSCLT_ERR_INTERNAL_ERROR;
return returnStatus;
}
// <<Close command session>>
return returnStatus;
}
8.6.3 Cancelling Catalyst Item Copy Jobs
If the copy job is not in a Completed state the backup application may cancel a copy job by
issuing osCltCmd_CancelOriginObjectCopyJob to the Catalyst Store from which
the copy is being sent. And if the copy job had started the backup application should also
issue ocCltCmd_CancelDestinationObjectCopyJob to the Catalyst Store to
which the copy was being sent. This will ensure that the Inbound Copy Job record on the
destination Catalyst Store is appropriately set to a cancelled state.
Once the backup application has issued the request to cancel the copy job, it should
continue to poll the copy job waiting for the state to change to cancelled. Depending on the
link speed, it may take several minutes to change state. Once the copy job is in a cancelled
state, the Catalyst Item lock will be released and the backup application should delete the
destination Catalyst Item. Failure to delete the cancelled destination Catalyst Item will
result in orphaned Objects which a user will manually have to remove.
If required a backup application may choose to only copy a specific section of a Catalyst
Item, for example, copy the user data region of a Catalyst Item but skip the header
information. In these instances the backup application should still create the destination
Catalyst Item but at this stage may also write new header information to it. Then when
calling osCltCmd_QueueObjectCopyJob the backup application should provide an
offset for the source and destination Objects that defines the start of the region to be
copied.
8.6.3.1 Code example – Cancelling a Copy Job
int objSDKPrv_CancelCopy(const char *pServerAddress, const char *pStoreKey,
bool storeIsOrigin, OSCMN_IdType copyJobID)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
OSCMN_sKeyType storeKey;
OSCMN_sObjectCopyJobType copyJob;
uint32_t suggestedWaitForNextPoll;
// <<Memset all structs>>
// <<Set Store Key>>
Page 103
// <<Open command session>>
// <<Get Copy Job Details | See 'Catalyst Items Copy Jobs Record'>>
if (copyJob.JobStatus == OSCMN_JOB_STATUS_COMPLETED ||
copyJob.JobStatus == OSCMN_JOB_STATUS_CANCELLED)
{
printf("Error : Job can't be cancelled, job is"
"in '%s' state.\n", objSDKPrv_GetCopyJobStatusString(
copyJob.JobStatus));
// <<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
// Now, Cancel the job
if (storeIsOrigin)
{
// Cancel at Origin
callStatus = osCltCmd_CancelOriginObjectCopyJob(
pCmdSessionHandle,
&storeKey,
copyJobID);
}
else
{
// Cancel at Destination
callStatus = osCltCmd_CancelDestinationObjectCopyJob(
pCmdSessionHandle,
&storeKey,
copyJob.DestinationObjectCopyJobId);
}
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Failed to cancel copy job at %s store '%s', "
"error : %s.", storeIsOrigin? "origin" : "destination\n",
pStoreKey, objSDKPrv_ErrorNumToString(callStatus));
// <<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
// <<Close command session>>
return returnStatus;
}
8.6.4 Catalyst Item Copy Job Process
Shows the process of starting a Catalyst Item Copy Job and the possible states it can end it.
Page 104
Start Copy Job
Create Object in
Destination Store
Suc cessful?
Custom Object
Header Required?
Write to Object in
Destination Store
Queue Object Copy Job
on Origin Store &
Rec ord Jo b ID
Return Failure:
Unable to Create
Destination Object
List O ri gi n Ob ject Co py
Jobs Filteri ng by Job ID
Job Cancelled?Wa s Job St a rted?
List Destination Object
Copy Jobs Filtering by
Job ID
Destination
Job Cancelled
or Completed?
Ca ncel De sti nati on
Obj ect C opy Job
Delete Object in
Destination Store
Return Failure:
Copy Job Cancelled
Job C omple te?
Custom Object
Footer Re quired?
Write to Object in
Destination Store
Wait Recommended
Polling Time
Return Succe ss:
Copy Complete
Yes
No
No
Yes
No
Yes
No
Yes
No
Yes
Yes
No
No
Yes
Figure 21 - Catalyst Item Copy Operation Flow Diagram
8.6.5 Copy Job Records
Every Catalyst Copy operation will create a copy job record. A copy job record details the
meaningful information about a Catalyst copy session. Their purpose is to allow Catalyst
users the ability to review information about their Catalyst copy session. An example use
Page 105
would be for a Catalyst object which is copied from source to target. Both the source and
target Catalyst objects will have copy job records created. The source will create an
“Outbound Copy Job” record and the target an “Inbound Copy Job” record. The information
recorded is similar to the above Data Job Records, including: object name, client IP address
from which the session was written, the amount of data written, dedupe ratio; among
others.
Copy jobs records have an expiration period. This expiration period is defined at a per
Catalyst store level. The client can set the retention period via
OSCMN_sJobRetentionPolicyType. It should be set to the default
OSCMN_JOB_RETENTION_POLICY_DEFAULT_DAYS (90 days) unless the user selects
otherwise. The Retention periods must be between 1 and
MaximumJobRetentionPeriod in Server Capabilities.
The Catalyst Server stores the following details for Copy Jobs that are in progress or have ended:
Table 15 - Copy Job Properties Supported Protocol
Property
(OSCMN_sObjectCopyJobType)
Protocol
v4
Protocol
v5
Protocol
v6
Protocol
v7
Protocol
v8
Protocol
v9
OriginObjectCopyJobId
DestinationObjectCopyJobId
OriginServerAddress
OriginServerSerialNumber
OriginObjectStoreKey
OriginObjectKey
OriginObjectDataSize
OriginObjectLastModifiedDateUTC
OriginObjectStorageMode
OriginObjectExtent
DestinationServerAddress
DestinationServerSerialNumber
DestinationServerCommandPort
DestinationServerDataPort
DestinationCredentials
DestinationObjectStoreKey
DestinationObjectKey
DestinationObjectOffset
JobReference
JobQueuedFromCredentials
JobQueuedFromAddress
JobQueuedDateUTC
JobStartedDateUTC
JobStoppedDateUTC
JobStatus
JobStatusCode
JobObjectDataSize
JobBytesCopied
Page 107
JobPercentageComplete
JobStatistics
OriginServerTransportStatistics
LastJobPauseCancelReason
LastJobFailedRunReason
NumberOfFailedRunAttemptsSinceLastRun
LastFailedRunAttemptDateUTC
NextRunAttemptDateUTC
IsMarkedForCancellation
EstimatedCompletionDateUTC
BodyAndPayloadCompressionEnabled
TeamedOriginObjectDataJobUUID
TeamedDestinationObjectDataJobUUID
TransportProtocol
OriginWIPOffset
DestinationWIPOffset
* Protocol v5 will return Federated (Teaming) values in structures but they will always be false.
Section 9: StoreOnce Catalyst
Authentication
Page 109
9.1 Client Authentication
9.1.1 Client Access Permissions
There are two factors that affect access permissions:
• Vendor Licensing
• Client Permissions
If Client Access Permission Checking is not enabled on the Catalyst Server, then all clients
are allowed to access all Catalyst Stores, create new Catalyst Stores, modify server
properties, and manage client permissions. If the Catalyst Server administrator does not
want clients to have this level of access, they should enable client permissions and lock
down the permissions for different clients (based on Client Identifier) as desired.
When permissions checking is first enabled a guest Client Access Permission record is
created and given permission to create new Catalyst Stores, modify server properties, and
manage client permissions, so if the Catalyst Server administrator does not want all clients
to inherit these permissions, they should remove them from guest. This enables the server
to be managed by a client if desired, and the client can then lock down permissions
appropriately. If the server administrator does not want clients to be able to manage the
server, they should enable permissions via the server's management interface and lock
down permissions from there.
When establishing a command or data session a caller must supply credentials. The
credentials consist of three strings; a vendor string, an identifier string and a password.
9.1.1.1 Vendor String
The vendor string is a fixed string that identifies the application to the Catalyst Server. The
vendor string will be provided by Hewlett-Packard Enterprise and should not be modified.
Failure to pass the vendor string to the Catalyst Server may limit or prevent access to
Catalyst Stores.
When a command session has been established with the server it is recommended to check
whether the vendor is licensed by getting the server properties and checking the returned
Booleans for IsClientLicensed, IsClientTeamedLicensed and
IsClientCoFCLicensed. See Getting Server Properties on page 54.
9.1.1.2 Identifier String
The identifier string is a text string used to identify one or more Catalyst Clients. Using
these identifier strings it is possible within the Catalyst Server GUI to control individual
access to each of the Catalyst Stores. Within the Catalyst Server GUI this is called Client
Permissions.
By default, client permissions are not enabled and therefore all Catalyst Stores are
considered to be accessible by guests. A Catalyst Client passing an empty string as an
Identifier is also considered to be a guest and will therefore have full access to the Catalyst
Stores.
Page 110
Once client permissions are enabled, only Catalyst Stores for which the Catalyst Client is
listed as having access and Catalyst Stores marked for guest access will be accessible.
The calling application should provide a capability to their users to allow them to specify
which Identifier String to use for connections. The user should create a new client identifier
string within the Catalyst Server GUI and then supply the same identifier string to the
backup application.
9.1.1.3 Password String
The password string is a text string used to authenticate a Catalyst Client. The password
can be any UTF8 non control character and has a maximum length of 256 characters.
9.1.1.4 Complete Code Example – Authenticating the Client
#define OBJSDK_DEFAULT_VENDOR_NAME "HPD2DTools"
#define OBJSDK_DEFAULT_IDENTIFIER "SDKExampleCode"
OSCMN_sCredentialsType cred;
memset(&cred, 0, sizeof(cred));
strncpy(cred.VendorString, OBJSDK_DEFAULT_VENDOR_NAME,
sizeof(cred.VendorString));
cred.VendorString[sizeof(cred.VendorString) - 1] = 0;
cred.VendorStringSize = strlen(cred.VendorString);
strncpy(cred.IdentifierString, OBJSDK_DEFAULT_IDENTIFIER,
sizeof(cred.IdentifierString));
cred.IdentifierString[sizeof(cred.IdentifierString) - 1] = 0;
cred.IdentifierStringSize = strlen(cred.IdentifierString);
9.1.2 Managing Access Permission
Client access permissions are most commonly managed through the web management
interface of the StoreOnce appliance. However a StoreOnce appliance, which supports
StoreOnce Catalyst v5 or above, may be configured so that client access permissions may
be remotely managed using software that integrates StoreOnce Catalyst. Software
wishing to provide this remote management of client access permissions will need to
support the following functions:
• osCltCmd_SetClientPermissionsChecking
• osCltCmd_ListClientPermissions
• osCltCmd_CreateClientPermissions
• osCltCmd_ModifyClientPermissions
• osCltCmd_ModifyClientPassword
• osCltCmd_DeleteClientPermissions
• osCltCmd_ListObjectStoreClientPermissions
• osCltCmd_AddObjectStoreClientPermission
• osCltCmd_RemoveObjectStoreClientPermission
Support of these functions with a backup application is considered advanced integration
and is not undertaken by the majority of integrators.
Page 111
9.1.2.1 Checking Remote Management Capability
A backup application can check whether it has been granted permission to remotely
manage client access permissions by checking the
CanClientManageClientPermissions Boolean returned by
osCltCmd_GetServerProperties.
If CanClientManageClientPermissions is true, then the software is able to use
the commands listed above, otherwise the functions will return permission denied when
called.
9.1.2.2 Enabling/Disabling Client Permissions Checking
To determine whether client permissions checking is enable, a backup application should
check the IsClientPermissionsCheckingEnabled Boolean returned by
osCltCmd_GetServerProperties.
To enable or disable client permissions checking the
osCltCmd_SetClientPermissionsChecking function should be called with the
IsClientPermissionsCheckingEnabled input set to True to enable client
permission checking or False to disable client permissions checking.
9.1.2.2.1 Code Example – Enabling or Disabling Client Permission Checking
int objSDKPrv_SetClientPermissionChecking(const char *pServerAddress, bool
clientPermissionChecking)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
//<<Open command session>>
callStatus = osCltCmd_SetClientPermissionsChecking(
pCmdSessionHandle,
clientPermissionChecking);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Failed to set client permission : %s.\n",
objSDKPrv_ErrorNumToString(callStatus));
//<<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
//<<Close command session>>
return returnStatus;
}
9.1.2.3 List Client Permissions Records
To allow customers to manage client permissions it is necessary to list all client permission
records configured on the Catalyst Server. The backup application must have permission to
manage client permissions.
Listing all client permissions can only be done using a non-federated command session.
Depending on the number of client permission records it might not be possible to return
the entire list in one operation, if the full list cannot be returned Partial Data will be
returned as true. The called can then call again with the List Handle set to the value
Page 112
returned in the previous call to continue the returned list from where the previous call
reached.
9.1.2.3.1 Code Example – Listing Client Permission Records on Server
int objSDKPrv_ListClientPermissions(const char *pServerAddress)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType *pCmdSessionHandle = 0;
bool partialData = true;
uint32_t i, numClientPermissionsReturned = 0;
OSCMN_sListHandleType listHandle;
int maxClientPermissions = 10;
OSCMN_sClientPermissionsType *pClientPermissions = NULL;
memset(&listHandle,
0,
sizeof(listHandle));
//<<Calloc pClientPermissions>>
printf("List all permissions from server : %s\n", pServerAddress);
do
{
//<<Open command session>>
callStatus = osCltCmd_ListClientPermissions(pCmdSessionHandle,
maxClientPermissions,
pClientPermissions,
&listHandle,
&partialData,
&numClientPermissionsReturned);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Listing permissions from server failed"
"with error : %s.\n",
objSDKPrv_ErrorNumToString(callStatus));
// <<Close command session>>
// <<Free pClientPermissions>>
returnStatus = callStatus;
return returnStatus;
}
// <<Close command session>>
for (i = 0; i < numClientPermissionsReturned; i++)
{
// Print permissions list
printf("Identifier \t\t\t: %s\n",
pClientPermissions[i].ClientIdentifier.StringSize
== 0 ? "GUEST" :
pClientPermissions[i].ClientIdentifier.String);
printf("Description \t\t\t: %s\n",
pClientPermissions[i].Description.String);
printf("Create ObjStores \t\t: %s\n",
pClientPermissions[i].CanCreateObjectStores ?
"Yes" : "No");
printf("Set Server Properties \t\t: %s\n",
pClientPermissions[i].CanSetServerProperties ?
"Yes" : "No");
printf("Manage Permissions \t\t: %s\n",
pClientPermissions[i].CanManageClientPermissions ?
"Yes" : "No");
Page 113
printf("\n");
}
// Loop until partial data set to true
} while (partialData);
//<<Free pClientPermissions>>
return returnStatus;
}
9.1.2.4 List Catalyst Store Access Permissions
The backup application may allow customers to view the client permissions that currently
have access to a specific Catalyst Store. The backup application must have permission to
manage client permissions.
9.1.2.4.1 Code Example – Listing Client Store Permissions on Server
int objSDKPrv_ListClientStorePermissions(const char *pServerAddress, const
char *pStoreKey)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
bool partialData = true;
uint32_t i, numClientPermissionsReturned = 0;
OSCMN_sListHandleType listHandle;
int maxClientPermissions = 10;
OSCMN_sClientPermissionsType *pClientPermissions = NULL;
OSCMN_sKeyType storeKey;
OSCMN_sStringType *pClientIdentifiers = NULL;
// <<Memset list handle and Store Key>>
// <<Malloc pClientPermissions and pClientIdentifiers>>
// <<Set Store Key>>
printf("List all permissions for store : %s\n", pStoreKey);
do
{
// <<Open command session>>
pCmdSessionHandle = &cmdSessionHandle;
callStatus = osCltCmd_ListObjectStoreClientPermissions(
pCmdSessionHandle,
&storeKey,
maxClientPermissions,
pClientIdentifiers,
&listHandle,
&partialData,
&numClientPermissionsReturned);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Listing permissions for store '%s'"
"failed with error : %s.\n", pStoreKey,
objSDKPrv_ErrorNumToString(callStatus));
// <<Close command session>>
// <<Free memory allocations>>
returnStatus = callStatus;
return returnStatus;
}
// <<Close command session>>
for (i = 0; i < numClientPermissionsReturned; i++)
{
// Print permissions list
printf("Identifier \t\t\t: %s\n",
pClientPermissions[i].ClientIdentifier.StringSize
Page 114
== 0 ? "GUEST" :
pClientPermissions[i].ClientIdentifier.String);
printf("Description \t\t\t: %s\n",
pClientPermissions[i].Description.String);
printf("Create ObjStores \t\t: %s\n",
pClientPermissions[i].CanCreateObjectStores ?
"Yes" : "No");
printf("Set Server Properties \t\t: %s\n",
pClientPermissions[i].CanSetServerProperties ?
"Yes" : "No");
printf("Manage Permissions \t\t: %s\n",
pClientPermissions[i].CanManageClientPermissions ?
"Yes" : "No");
printf("\n");
}
// Loop until partial data set to true
} while (partialData);
// <<Free memory allocations>>
return returnStatus;
}
9.1.2.5 Creating a Client Permissions Record
The backup application may allow customers to create client permissions on the Catalyst
Server. The backup application must have permission to manage client permissions.
Creating a client permission record can only be done using a non-federated command
session.
9.1.2.5.1 Code Example – Creating a new Client Permission Record
int objSDKPrv_CreateClientPermissions(const char *pServerAddress,
OSCMN_sClientPermissionsType clientPermissions, OSCMN_sStringType
clientPassword)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
printf("Creating permissions for %s using password : \"%s\"\n",
clientPermissions.ClientIdentifier.String,
clientPassword.String);
//<<Open command session>>
callStatus = osCltCmd_CreateClientPermissions(pCmdSessionHandle,
&clientPermissions,
&clientPassword);
if (callStatus != OSCLT_ERR_SUCCESS && callStatus !=
OSCLT_ERR_DUPLICATE_CLIENT_IDENTIFIER)
{
printf("Error : Creating permissions on server '%s'"
"failed with error : %s.\n", pServerAddress,
objSDKPrv_ErrorNumToString(callStatus));
//<<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
if (callStatus == OSCLT_ERR_DUPLICATE_CLIENT_IDENTIFIER)
{
printf("%s already exists\n",
clientPermissions.ClientIdentifier.String);
Page 115
}
if (callStatus == OSCLT_ERR_SUCCESS)
{
printf("Permissions successfully created for %s\n",
clientPermissions.ClientIdentifier.String);
}
//<<Close command session>>
return returnStatus;
}
9.1.2.6 Modifying a Client Permissions Record
The backup application may allow customers to modify previously configured client
permissions on the Catalyst Server. The backup application must have permission to
manage client permissions. Modifying a client permission record can only be done using a
non-federated command session.
9.1.2.6.1 Code Example – Modify an existing Client Permission Record
int objSDKPrv_ModifyClientPermissions(const char *pServerAddress,
OSCMN_sClientPermissionsType clientPermissions)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
printf("Changing permissions for %s\n",
clientPermissions.ClientIdentifier.String);
//<<Open command session>>
callStatus = osCltCmd_ModifyClientPermissions(pCmdSessionHandle,
&clientPermissions);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Changing permissions on server '%s'"
"failed with error : %s.\n", pServerAddress,
objSDKPrv_ErrorNumToString(callStatus));
//<<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
printf("Permissions successfully changed\n\n");
//<<Close command session>>
return returnStatus;
}
9.1.2.7 Modifying a Client Password
The backup application may allow customers to modify the password of a previously
configured client permission on the Catalyst Server. The backup application must have
permission to manage client permissions. Modifying the password can only be done using a
non-federated command session.
9.1.2.7.1 Code Example – Modifying a Client Permission Records Password
int objSDKPrv_ModifyClientPassword(const char *pServerAddress,
OSCMN_sStringType clientIdentifier, OSCMN_sStringType clientPassword)
{
int returnStatus = OSCLT_ERR_SUCCESS;
Page 116
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
//<<Open command session>>
callStatus = osCltCmd_ModifyClientPassword(pCmdSessionHandle,
&clientIdentifier,
&clientPassword);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Changing password on server '%s' failed"
"with error : %s.\n", pServerAddress,
objSDKPrv_ErrorNumToString(callStatus));
//<<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
printf("Password successfully changed\n\n");
//<<Close command session>>
return returnStatus;
}
9.1.2.8 Delete a Client Permissions Record
The backup application may allow customers to delete configured client permission
records on the Catalyst server. The backup application must have permission to manage
client permissions. Deleting a client permission record can only be done using a non-
federated command session.
9.1.2.8.1 Code Example – Delete a Client Permission Record
int objSDKPrv_DeleteClientPermissions(const char *pServerAddress,
OSCMN_sStringType clientIdentifier)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
//<<Open command session>>
callStatus = osCltCmd_DeleteClientPermissions(pCmdSessionHandle,
&clientIdentifier);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Deleting %s's permissions failed"
"with error : %s.\n", pServerAddress,
objSDKPrv_ErrorNumToString(callStatus));
//<<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
printf("Successfully deleted %s\n\n", clientIdentifier.String);
//<<Close command session>>
return returnStatus;
}
9.1.2.9 Enabling Catalyst Store Access
The backup application may allow customers to give a client access to a specific Catalyst
Store. The backup application must have permission to manage client permissions.
Assigning permissions can only be done using a non-federated command session.
9.1.2.9.1 Code Example – Enabling a Client Permission Records access to a Store
int objSDKPrv_AddObjectStorePermissions(const char *pServerAddress, const
Page 117
char *pObjectStoreKey, OSCMN_sStringType clientIdentifier)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
OSCMN_sKeyType objStoreKey;
//<<Set ObjectStore key>>
printf("Adding %s permissions to store %s\n",
clientIdentifier.String, objStoreKey.String);
//<<Open command session>>
callStatus = osCltCmd_AddObjectStoreClientPermission(
pCmdSessionHandle,
&objStoreKey,
&clientIdentifier);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Adding %s's permissions failed with"
"error : %s.\n", pServerAddress,
objSDKPrv_ErrorNumToString(callStatus));
//<<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
printf("Successfully added %s to %s\n\n", clientIdentifier.String,
objStoreKey.String);
//<<Close command session>>
return returnStatus;
}
9.1.2.10 Disabling Catalyst Store Access
The backup application may allow customers to disable a clients access to a specific
Catalyst Store. The backup application must have permission to manage client
permissions. Deleting permissions can only be done using a non-federated command
session.
9.1.2.10.1 Code Example – Disabling a Client Permission Records access to a Store
int objSDKPrv_RemoveObjectStorePermissions(const char *pServerAddress,
const char *pObjectStoreKey, OSCMN_sStringType clientIdentifier)
{
int returnStatus = OSCLT_ERR_SUCCESS;
int callStatus = OSCLT_ERR_SUCCESS;
OSCLT_sSessionHandleType cmdSessionHandle, *pCmdSessionHandle = 0;
OSCMN_sKeyType objStoreKey;
//<<Set ObjectStore key>>
printf("Remove %s permissions from store %s\n",
clientIdentifier.String, objStoreKey.String);
//<<Open command session>>
callStatus = osCltCmd_RemoveObjectStoreClientPermission(
pCmdSessionHandle,
&objStoreKey,
&clientIdentifier);
if (callStatus != OSCLT_ERR_SUCCESS)
{
printf("Error : Removing %s's permissions failed with"
Page 118
"error : %s.\n", pServerAddress, .
objSDKPrv_ErrorNumToString(callStatus));
//<<Close command session>>
returnStatus = callStatus;
return returnStatus;
}
printf("Successfully removed %s from %s\n\n",
clientIdentifier.String, objStoreKey.String);
//<<Close command session>>
return returnStatus;
}
Page 119
Section 10: StoreOnce Autonomic Failover
Page 120
10.1 Multi-Node StoreOnce Appliance Failover
HPE StoreOnce multi-node appliances have a failover feature which ensures high
availability of Catalyst Stores within the cluster. Failover is provided at a node level, with
each node being assigned to a couplet. Catalyst Stores hosted on a node are part of a
Service Set (collection of services), when failover occurs the Service Set will move from its
primary node to the secondary node within the couplet.
From a backup applications point of view, a failover over event will be seen as the Catalyst
Stores going offline and then coming back online again a few minutes later. The Catalyst
Server address and Catalyst Store name will remain the same and so no reconfiguration is
required within the backup application.
Data Center
Media Server
Node #1
Catalyst
Store
File
Server
Node #2
Catalyst
Store
Multi-Node Couplet
Data Center
Media Server
Node #1
Catalyst
Store
File
Server
Node #2
Catalyst
Store
Multi-Node Couplet
As failover may occur during a backup, it is recommended that at minimum backup
applications should implement automated retries of failed jobs with retry logic that will
wait a period of time before retrying a failed job. For write operations this should include
cleaning up any partially written Catalyst Items.
Advanced failover integration can be achieved by creating regular checkpoints during write
operations. Following a failover event a backup application would then be able to restart
the write operation from the most recent known good checkpoint. See Writing to a Catalyst
Item on page 88 for more information on how to reopen Catalyst Items for writing.
Page 121
Section 11: Compiling with StoreOnce
Catalyst
Page 122
11.1 Catalyst Client Library
11.1.1 Supported Platforms
Table 16 shows the platforms that are supported and compiler versions used to build the
Catalyst Client Library.
Table 16 - Supported Platforms and Compilers
Supported Operating System
Build Platform
Compiler
Catalyst Client Library
Windows Server 2008 (x64)
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016 (x64)
Windows
Server 2008 R2
(x64)
VS2008 libobjstoreclient.lib
cofclib.lib
libjansson.lib
lzo2.lib
SuSE Linux Enterprise Server 11 (x64)
SuSE Linux Enterprise Server 12 (x64)
RedHat
Enterprise
Linux 5 (x64)
GCC 4.1.2
libobjstoreclient.a
libjansson.a
liblzo2.a
libhpcofcp.a
HP-UX 11.23 (IA-64)
HP-UX 11.31 (IA-64)
HP
-UX (IA64)
11.31
libobjstoreclient.a
libjansson.a
liblzo2.a
libhpcofcp.a
Solaris 10 ( x86)
Solaris 10
(
x86)
Solaris Studio
12.3 (Sun C 5.12)
libobjstoreclient.a
libjansson.a
liblzo2.a
libhpcofcp.a
Solaris 10 (SPARC-64)
Solaris 11 (SPARC-64)
Solaris 10
(SPARC
-64)
Solaris Studio
12.3 (Sun C 5.12)
libobjstoreclient.a
libjansson.a
liblzo2.a
libhpcofcp.a
AIX 6.1 (PowerPC)
AIX 7.1 (PowerPC)
AIX 6.1
(PowerPC)
GCC 4.8.1 libobjstoreclient.a
libjansson.a
liblzo2.a
libhpcofcp.a
Page 123
Section 12: StoreOnce Catalyst Server and
Client Version Release Notes
Page 124
12.1 StoreOnce Release
This section will detail the client and server Catalyst features which were added per major
StoreOnce release. It details from StoreOnce 3.15 onwards.
12.1.1 StoreOnce 3.15
Introduces v8 Catalyst protocol. The maximum supported protocol version is v8.
12.1.1.1 Multi-reader Functionality
It is now possible to have multiple read concurrent data sessions open to a single Catalyst
object. Prior to this release, a request to open a subsequent data session would have
resulted in OSCLT_ERR_OBJECT_LOCK_FAILED. Multiple sessions can only be
opened when only read operations have been performed on an object. Once a clone or write
operation is performed the object will be exclusively locked to that single data session.
Multi-reader functionality is provided to support the use case where multiple copies or
multiple restores need to be performed from an object.
Applications can query whether a Catalyst store supports multiple readers by querying the
SupportMultipleObjectOpeners in
OSCMN_sObjectStoreCapabilitiesType which is returned by a call to
osCltCmd_ListObjectStores.
This is server functionality and does not require an updated Catalyst client
12.1.1.2 Catalyst over Fibre Channel multiple devices on Linux
Prior to the StoreOnce 3.15 version of the Catalyst client a Linux based client ignored the
Catalyst over Fibre Channel setting of “number of devices per login” in the StoreOnce GUI.
With this new client version the setting also now applies to Linux, as well as Windows, HP-
UX, AIX and Solaris.
12.1.1.3 Quality Fixes / Performance Improvements
A number of small quality improvements have been made, especially in the area of Catalyst
over Fibre Channel.
Improves random read performance on the server.
Improves Catalyst clone performance on the server.
12.1.2 StoreOnce 3.16
The maximum supported protocol version is v9.
Page 125
12.1.2.1 Catalyst Copy over Fibre Channel
Prior to StoreOnce 3.16 Catalyst copy was supported over Ethernet only. An attempt to
initiate a Catalyst copy over FC would previously have resulted in an
OSCLT_ERR_INVALID_ADDRESS error being returned to the Catalyst client. As of 3.16
it is possible to perform Catalyst copies over Fibre Channel between StoreOnce appliances
which are running StoreOnce 3.16 and higher, and support CoFC. The primary use cases
remain the same as Catalyst Copy over Ethernet - this implementation is also transparent
to backup applications, who simply now provide a COFC- address to
osCltCmd_QueueObjectCopyJob inplace of an IP address / FQDN.
12.1.2.2 Write In Place
StoreOnce 3.16 adds support for Catalyst Copy of Write In Place (WIP) data. This requires
both a server and client update.
12.1.2.3 Copy Job Destination Credentials
The v9 Catalyst client now supports different credentials being provided to a copy job for
the origin and destination servers. OSCMN_sObjectCopyJobType now accepts a
DestinationCredentials field. To determine whether the client are servers support
destination credentials the SupportObjectCopyDestinationCredentials
property of OSCLT_sClientCapabilitiesType and
OSCLT_sServerCapabilitiesType should be merged.
12.1.2.4 Catalyst over Fibre Channel
StoreOnce 3.16 increases the number of supported Catalyst over Fibre Channel devices per
FC client login to 256.
12.1.2.5 Bug / Quality Fixes
A number of small quality improvements have been made, especially in the area of Catalyst
over Fibre Channel.
Improves Catalyst clone performance on the server.

Navigation menu
