Inline, Ceiling and Sidewall Exhaust

Model SP and CSP Direct Drive

Centrifugal ceiling and inline fans are designed for clean air applications

where low sound levels are desired.

Greenheck Fan Corporation certiﬁes

that the Model SP shown herein is

licensed to bear the AMCA seal. The

ratings shown are based on tests and

procedures performed in accordance

with AMCA Publication 211 and

AMCA Publication 311 and comply

with the requirements of the AMCA

Certiﬁed Ratings Program.

UL/cUL 507 - E33599 - Ceiling Exhaust Fans

Model SP-A390 and smaller and SP-B are

UL/cUL Listed for above bathtub/shower with

GFCI branch protected circuit.

Model SP-C is UL/cUL Listed

Greenheck Fan Corporation certiﬁes

that the Model CSP shown herein is

licensed to bear the AMCA seal. The

ratings shown are based on tests and

procedures performed in accordance

with AMCA Publication 211 and

comply with the requirements of the

AMCA Certiﬁed Ratings Program.

UL/cUL 507 - Cabinet Fans - E33599

Model CSP-A and CSP-B are UL/cUL Listed.

CSP

Model

Best

Available

Program

SP-C50

SP-B50 through B200

SP-A50 through A1550

SP-80-VG, SP-80L-VG

SP-110-VG, SP-110L-VG In Stock

CSP-B110 through B200

CSP-A110 through A1550

CSP-A1750 through A3600 1 Day

Best Available are 115 volt.

Standard Construction SP Ceiling CSP Inline

ABC

VG AB

Housing - galvanized steel   

Housing - low proﬁle  

Housing - insulated 

Wheel - forward-curved   

Access panel   

Electrical disconnect   

Electrical knockouts   

Electrical junction box    

Mounting brackets   

Backdraft damper   

Flanges - inlet and outlet 

Designer grille - up through size 390 

Aluminum grille - sizes 410 and larger 

Grille assembly - SP80 and 110-VG only 

Lighted grille assembly - SP-80L and 110L-VG only 

Options and Accessories Stock SP Ceiling CSP Inline

ABC

VG AB

Discharge accessory - transitions

Available as standard on select sizes 9   

Discharge accessories - roof, wall 9  

Electrical accessories - speed control,

motion detector, time delay 9  

Transformer 9  

Switches - 1 or 2 function   

Firestat 9  

Isolators - hanging 9  

Grille - decorative, stainless steel, aluminum 9

Lighted grille - SP-A, sizes 50 thru 390

SP-B, sizes 50 thru 200

- Bulbs - incandescent, compact ﬂuorescent

- Lens - frosted, prismatic

 

Filters 9

Ceiling radiation damper 9 

Contractor 4 Packs

- housing and motor packs separate 9

Motor

- 50 or 60 Hz (select sizes)

- 115 or 277 volt (select sizes)

  

UL/cUL Listed 507 is standard on In Stock models.

www.greenheck.com

Ceiling and Cabinet

Fans

For comprehensive product information,

including performance, access the product

catalog found on www.greenheck.com or

contact your local Greenheck representative.

Select sizes and models with the Vari-Green®

motor are available in stock.

Model SP, CSP

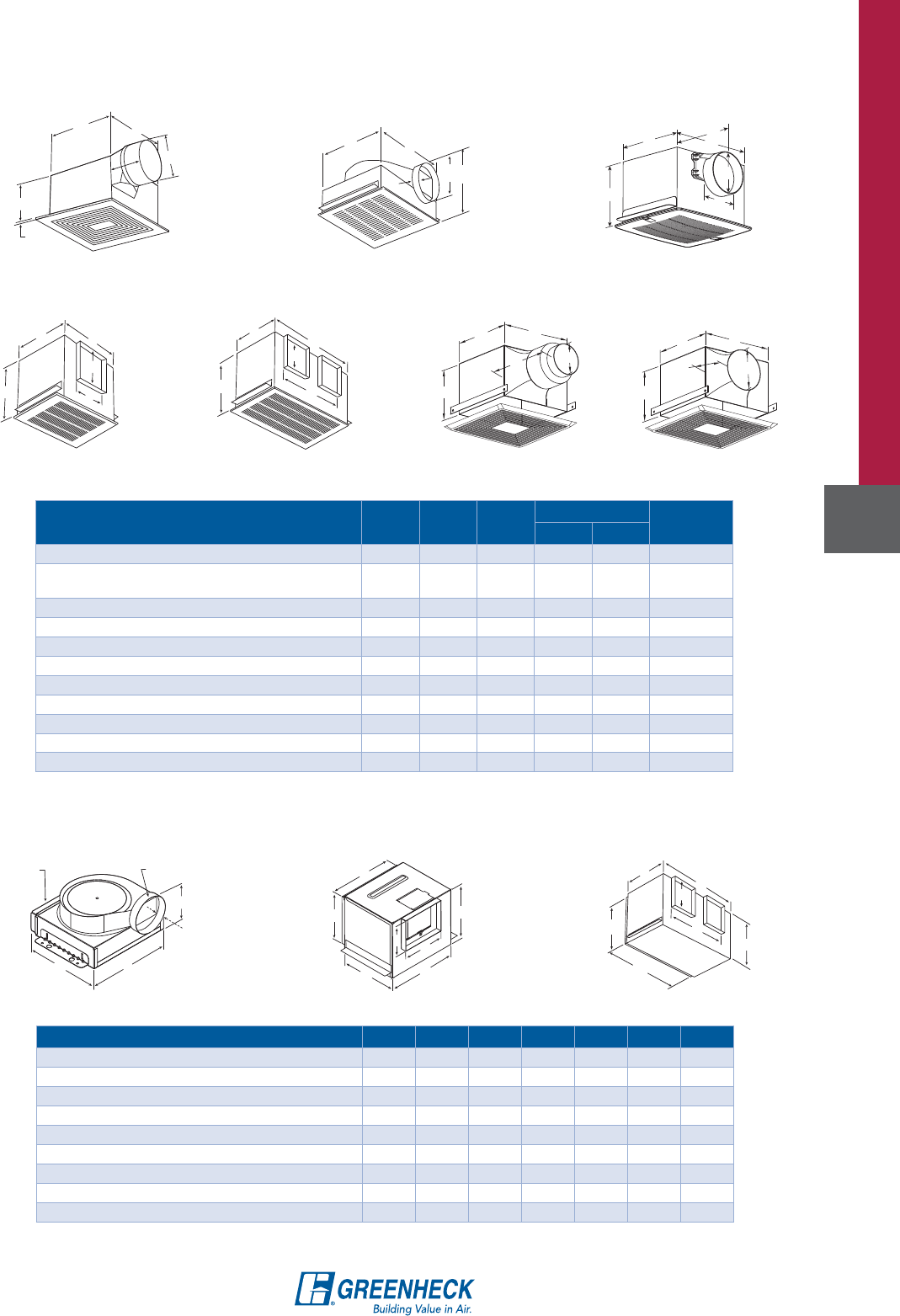

Dimensions for SP

Model Size A B C Outlet Grille

Size*

SP-C50 71⁄271⁄235⁄831

5⁄891⁄4 x 9

SP-B50, SP-B70, SP-B80, SP-B90,

SP-B110, SP-B150, SP-B200 137⁄8111⁄2761

1⁄4147⁄8 x 131⁄4

SP-A50, SP-A70, SP-A90 131⁄4105⁄896614

7⁄8 x 131⁄4

SP-A110, SP-A125, SP-A190 131⁄4105⁄898614

7⁄8 x 131⁄4

SP-A200, SP-A250, SP-A290, SP-A390 14 117⁄8111⁄48814

7⁄8 x 131⁄4

SP-A410, SP-A510 18 143⁄8141⁄28819

3⁄8 x 163⁄8

SP-A700 235⁄8115⁄8115⁄8191⁄2825

1⁄8 x 131⁄2

SP-A710, SP-A780 18 143⁄8141⁄210 8 193⁄8 x 163⁄8

SP-A900, SP-A1050, SP-A1410, SP-A1550 233⁄4143⁄8141⁄2183⁄48 25 x 163⁄8

SP-80-VG, SP-80L-VG 101⁄2113⁄475⁄868

1⁄213 x 133⁄4

SP-110-VG, SP-110L-VG 101⁄2113⁄475⁄86 4 13 x 133⁄4

All dimensions are in inches.

* Grille dimensions are for the designer grille except on model SP-C50 where the dimensions are shown for the decorative grille and the

SP-VG models where the dimensions are for the grille assembly.

SP-C

1/2 in.

SP-B

SP-A700,

SP-A900 thru 1550

SP-80, 80L-VG SP-110, 110L-VG

SP-A110 thru 510

SP-A710 & 780

SP-A50-90

315/16 in.

Dimensions for CSP

Model Size A B C D E F G

CSP-B110, CSP-B150, CSP-B200 137⁄8111⁄2761

1⁄4131⁄231⁄4

CSP-A110, CSP-A125, CSP-A190 131⁄4105⁄8986129

1⁄4

CSP-A200, CSP-A250, CSP-A290, CSP-A390 14 117⁄8111⁄48812

7⁄810

CSP-A410, CSP-A510 18 143⁄8141⁄28816

7⁄8131⁄4

CSP-A700 235⁄8115⁄8115⁄8191⁄2822

5⁄8101⁄2

CSP-A710, CSP-A780 18 143⁄8141⁄210 8 167⁄8131⁄4

CSP-A900, CSP-A1050, CSP-A1410, CSP-A1550 233⁄4143⁄8141⁄2183⁄4822

5⁄8131⁄4

CSP-A1750, CSP-A2150 35 143⁄4143⁄428 6 323⁄413

CSP-A3600 451⁄2161⁄2161⁄240 11 431⁄4145⁄8

All dimensions are in inches.

CSP-A110-510

Inlet

CSP-A700-3600

D (diameter)

Inlet

FxG

CSP-B110-200

Model SP, CSP

Performance for SP

Model

Size

Energy

Star

Qualiﬁed

RPM *Amps *Watts Sones

@ 0 in.

CFM / Static Pressure in inches wg Quick

Build In Stock

0 .1 .125 .25 .375 .5 .625 .75 1 Best

Available

SP-C50 1680 0.80 46.0 3.0 52 49 49 47 44 38 29 1 Day SP-C50-QD

SP-B50 625 0.50 37.8 1.2 67 54 51 40 29 1 Day SP-B50-QD

SP-B70 675 0.53 45.1 1.2 77 71 68 57 49 39 1 Day SP-B70-QD

SP-B80 900 0.60 54.3 2.0 87 80 78 68 61 54 44 30 1 Day SP-B80-QD

SP-B90 700 0.65 49.7 1.5 101 89 88 75 59 45 30 1 Day SP-B90-QD

SP-B110 950 1.14 80.2 1.5 133 114 110 97 95 94 91 85 51 1 Day SP-B110-QD

SP-B150 1050 1.70 128 2.5 160 156 155 154 152 149 147 138 92 1 Day SP-B150-QD

SP-B200 1100 2.20 172 3.5 197 195 194 191 187 184 181 166 128 1 Day SP-B200-QD

SP-A50 700 0.31 18.3 0.5 76 51 48 31 1 Day SP-A50-QD

SP-A70 850 0.27 20.2 0.8 83 70 67 42 1 Day SP-A70-QD

SP-A90 900 0.34 29.4 0.8 99 88 84 61 25 1 Day SP-A90-QD

SP-A110 950 0.58 48.7 0.8 119 110 106 88 1 Day SP-A110-QD

SP-A125 1100 0.62 52.5 0.9 135 123 121 104 1 Day SP-A125-QD

SP-A190 1400 1.30 113 2.5 216 197 192 167 133 1 Day SP-A190-QD

SP-A200 900 0.43 48.2 1.4 247 225 220 196 172 142 105 67 1 Day SP-A200-QD

SP-A250 1000 0.77 83.1 2.5 272 251 246 227 210 185 157 119 1 Day SP-A250-QD

SP-A290 1050 0.72 80.7 2.5 315 293 287 257 231 207 175 124 1 Day SP-A290-QD

SP-A390 1350 1.34 135 4.5 410 395 391 368 345 325 307 279 1 Day SP-A390-QD

SP-A410 1000 1.74 121 3.5 443 413 405 351 306 1 Day SP-A410-QD

SP-A510 1070 3.30 224 5.0 557 512 501 439 392 325 1 Day SP-A510-QD

SP-A700 1100 3.20 350 5.0 757 730 723 700 679 649 613 560 396 1 Day SP-A700-QD

SP-A710 1080 4.40 285 6.0 752 714 701 653 588 486 320 1 Day SP-A710-QD

SP-A780 1600 3.30 348 8.5 812 782 775 741 704 665 625 581 1 Day SP-A780-QD

SP-A900 950 4.00 285 4.0 955 907 896 841 773 701 1 Day SP-A900-QD

SP-A1050 1095 6.30 420 6.0 1125 1059 1043 964 885 796 662 1 Day SP-A1050-QD

SP-A1410 1450 7.40 786 10.0 1455 1415 1404 1353 1307 1262 1218 1174 1 Day SP-A1410-QD

SP-A1550 1610 8.60 818 10.5 1607 1558 1558 1506 1449 1407 1369 1323 1 Day SP-A1550-QD

SP-80-VG 935 0.10 6.1 <0.3 80 80 80 80 78 64 37 1 Day SP-80-VG-QD

SP-80L-VG 980 0.80 6.7 <0.3 80 80 80 79 79 70 37 1 Day SP-80L-VG-QD

SP-110-VG 940 0.20 8.4 <0.3 110 110 110 109 100 62 28 1 Day SP-110-VG-QD

SP-110L-VG 980 0.90 9.3 0.3 110 110 110 110 93 57 22 1 Day SP-110L-VG-QD

*Amp and watt draw are approximate and may vary based on motor manufacturer.

Performance certified is for installation type B: Free inlet, Ducted outlet. Performance ratings include the effects of an inlet grille and backdraft damper. Speed (rpm) shown

is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness values in spherical fan sones at 5 ft. (1.5 m) in a spherical free field

calculated per Annex B of AMCA 311. Values are for installation type B: free inlet spherical sone levels. Ratings are based on 10 ft. of insulated duct.

Fans that are ENERGY STAR® qualiﬁed include:

SP-B50, 70, 80 and 90

SP-A50, 70, 90, 110, 125, 190, 200, 250, 290 and 410

SP-80, 80L, 110, 110L-VG

Products that earn the ENERGY STAR® prevent

greenhouse gas emissions by meeting strict energy

efﬁciency guidelines set by the U.S. Environmental

Protection Agency and the U.S. Department of Energy.

Model SP, CSP

Performance for CSP

Model

Size RPM *Amps *Watts Sones

@ 0 in.

CFM / Static Pressure in inches wg Quick

Build In Stock

0 .125 .25 .375 .5 .75 1 Best

Available

CSP-B110 950 1.14 80.0 1.5 103 100 98 97 96 86 1 Day CSP-B110-QD

CSP-B150 1050 1.70 129 2.0 151 149 148 144 146 135 1 Day CSP-B150-QD

CSP-B200 1100 2.20 173 3.0 186 184 182 181 179 170 1 Day CSP-B200-QD

CSP-A110 950 0.62 48.7 0.8 124 110 102 77 1 Day CSP-A110-QD

CSP-A125 1100 0.63 52.5 1.1 138 124 114 91 1 Day CSP-A125-QD

CSP-A190 1400 1.10 100 2.0 215 198 180 159 121 1 Day CSP-A190-QD

CSP-A200 900 0.43 48.2 0.6 254 226 203 178 145 70 1 Day CSP-A200-QD

CSP-A250 1000 0.79 82.7 0.9 266 241 221 205 187 132 1 Day CSP-A250-QD

CSP-A290 1050 0.71 80.7 1.1 318 292 265 248 229 144 1 Day CSP-A290-QD

CSP-A390 1350 1.33 140 2.0 412 397 382 363 339 309 1 Day CSP-A390-QD

CSP-A410 1000 1.87 135 1.5 447 403 364 317 217 1 Day CSP-A410-QD

CSP-A510 1070 3.11 217 2.5 545 506 464 405 324 1 Day CSP-A510-QD

CSP-A700 1100 3.20 350 2.0 766 752 739 726 702 635 418 1 Day CSP-A700-QD

CSP-A710 1080 4.40 325 2.5 737 688 635 567 475 1 Day CSP-A710-QD

CSP-A780 1600 3.77 405 3.0 813 777 742 707 672 603 527 1 Day CSP-A780-QD

CSP-A900 950 4.87 328 1.4 908 841 782 715 631 1 Day CSP-A900-QD

CSP-A1050 1095 6.65 455 2.5 1182 1093 1013 922 832 1 Day CSP-A1050-QD

CSP-A1410 1450 7.80 822 3.5 1584 1533 1483 1439 1395 1293 1181 1 Day CSP-A1410-QD

CSP-A1550 1610 8.32 830 5.0 1672 1604 1543 1484 1427 1307 1172 1 Day CSP-A1550-QD

CSP-A1750 1130 6.60 550 5.0 1842 1749 1619 1464 1284 772 1 Day —

CSP-A2150 1100 7.80 735 5.0 2249 2156 2044 1900 1701 1114 1 Day —

CSP-A3600 1100 7.10 1330 5.0 3778 3622 3460 3280 3091 2551 1750 1 Day —

*Amp and watt draw are approximate and may vary based on motor manufacturer.

Performance certified is for installation type D: Ducted inlet, Ducted outlet. Performance ratings include the effects of a backdraft damper. Speed (rpm) shown is nominal.

Performance is based on actual speed of test. The sound ratings shown are loudness values in spherical fan sones at 5 ft. (1.5 m) in a spherical free field calculated per

Annex B of AMCA 311. Values shown are for installation type D: ducted inlet spherical sone levels. Ratings do not include the effect of duct end correction. The AMCA

Certified Ratings Seal applies to air performance only.

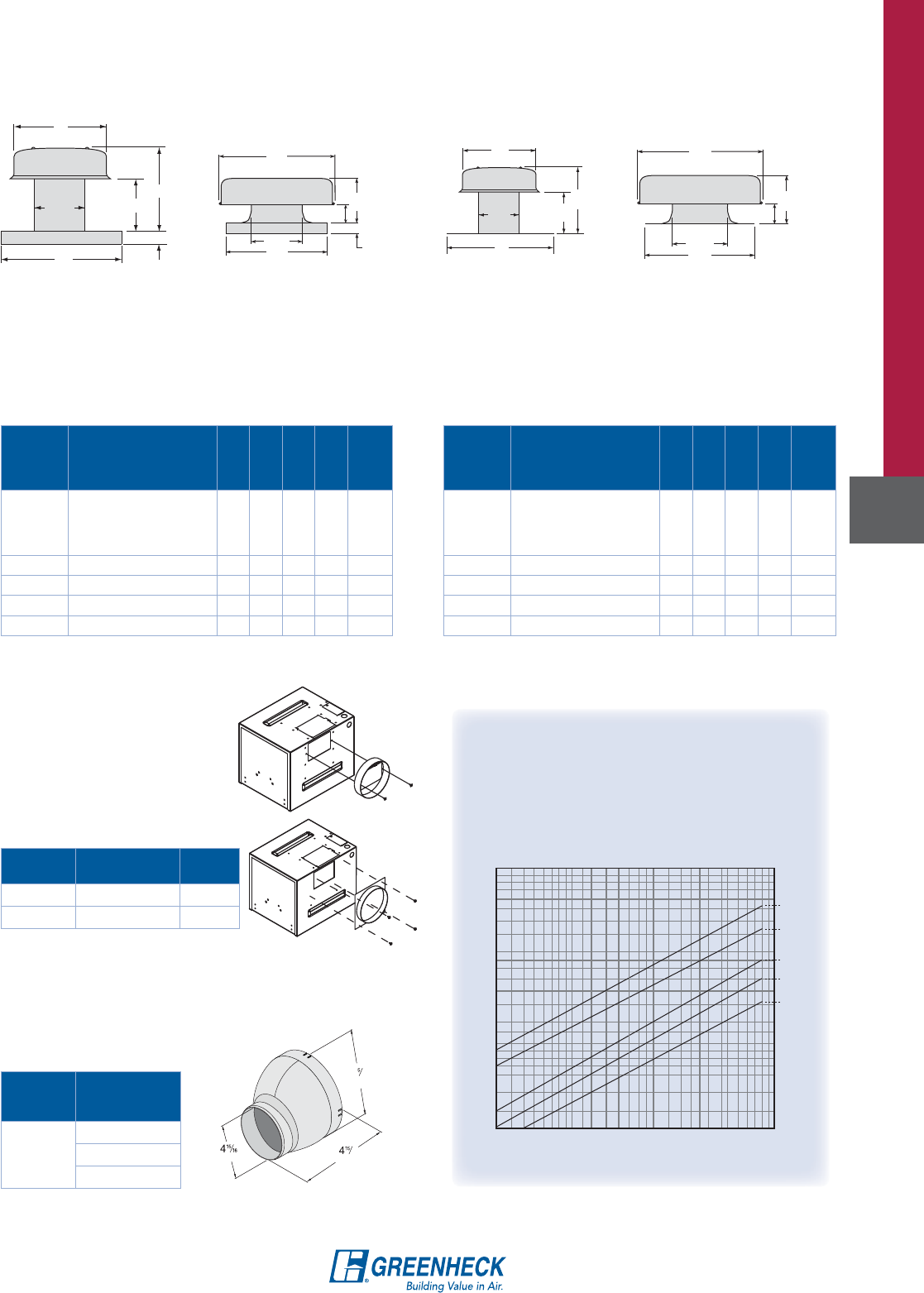

Model SP, CSP

Model RJ

Pitched Roof Cap

• Steel construction with black enamel ﬁnish

• Integral ﬂashing ﬂange

• Built-in birdscreen and damper

Model EL-10x3

Elbow Discharge with Grille

• Designed for installation under roof eaves

• Painted steel louvered grille

• Built-in damper

• For SP-C/SP-B/SP-A, sizes 50 - 290

• For SP-80, 80L, 110, 110L-VG

• For CSP-B/CSP-A, sizes 110 - 290

Model

For use with

SP-C, SP-B, SP-A

SP-VG

CSP-B, CSP-A

A B C D E Throat

RJ-4

Size C50,

Size B50 - 80

Size 80, 80L

11 91⁄481⁄455⁄16 41⁄24 in. dia.

RJ-6 x 9

Size B90 - 200

Size A50 - 390

Size 110, 110L

183⁄4141⁄4141⁄2103⁄861⁄26 x 9

RJ-10 x 10 Size A410 - 1050 181⁄2271⁄2153⁄4235⁄891⁄210 x 10

All dimensions are in inches.

3½

(89)

(254)

6½

(165)

(42)

(238)

11½

(292)

(130)

(86)

(73)

RJ-4 and

RJ-6x9 C

RJ-10x10

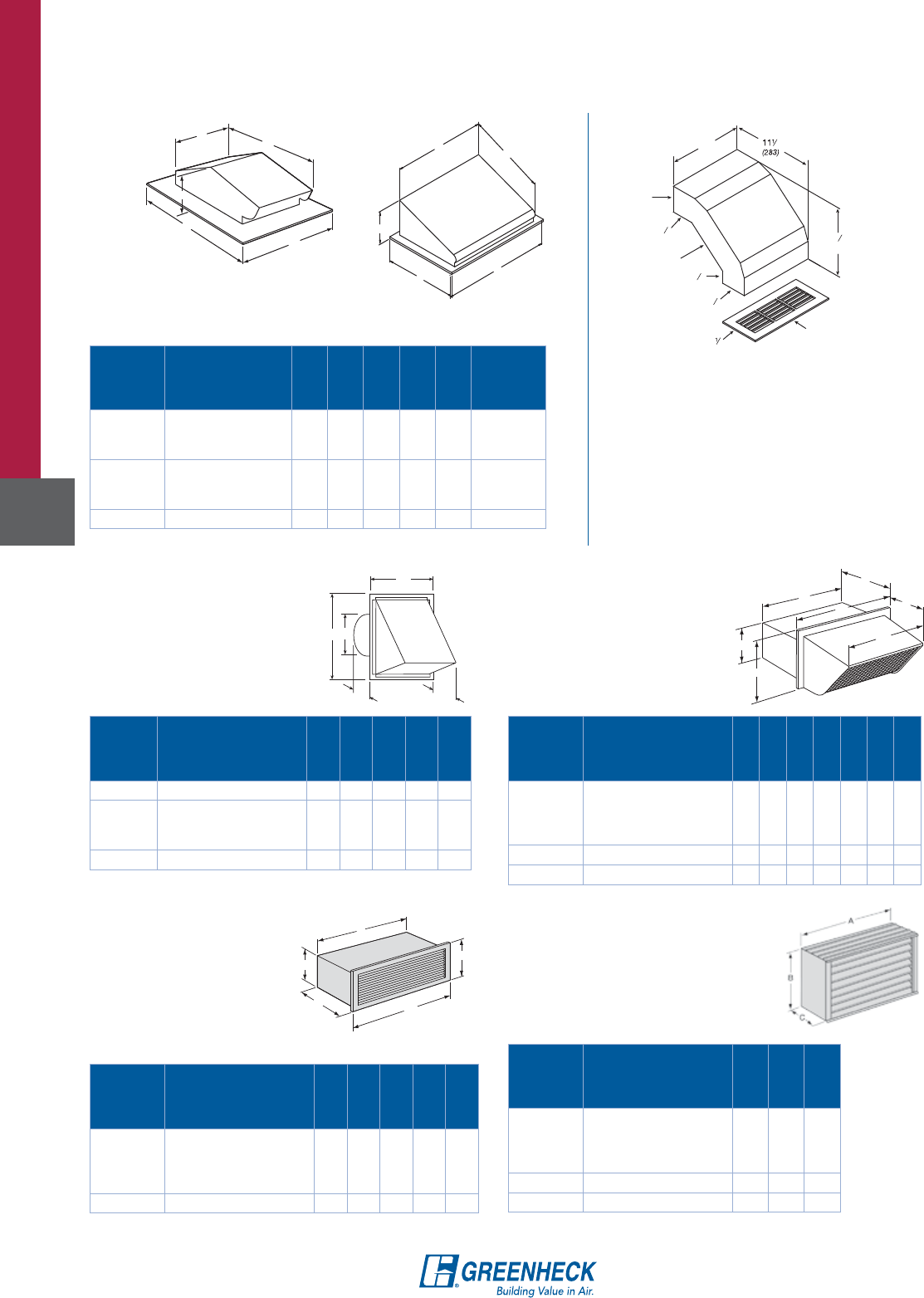

Discharge Accessories for SP and CSP

Model WL

Wall Louvered Discharge

• Anodized aluminum grille

• Built-in damper

• Not recommended for

exterior applications

exposed to severe weather

conditions. An external wall

louver is recommended for such applications.

Model WC

Round Connection

Hooded Wall Cap

• Aluminum construction -

aluminum ﬁnish

• For outside wall applications

• Built-in birdscreen (not available

on WC-4) and damper

Model BVE

Brick Vent

• Designed for installation in masonry

walls

• Anodized aluminum construction

• Built-in aluminum mesh insect screen

Model

For use with

SP-C, SP-B, SP-A

SP-VG

CSP-B, CSP-A

ABCDE

WC-4 Size C50 61⁄2642

3⁄45

WC-6

Size B50 - 200

Size A50 - 190

Size 80, 80L, 110, 110L

8864

1⁄85

WC-8 Size A200 - 510 11 11 8 51⁄831⁄2

All dimensions are in inches.

Model

For use with

SP-C, SP-B, SP-A

SP-VG

CSP-B, CSP-A

ABC

BVE808

Size C50

Size B50 - 200

Size A50 - 290

Size 80, 80L, 110, 110L

81⁄873⁄44

BVE128 Size A390 - 510 12 73⁄44

BVE157 Size A700 - 1050 155⁄873⁄44

All dimensions are in inches.

Model WC

Square/Rectangular Connections

Hooded Wall Cap

• Steel construction with black

enamel ﬁnish

• For outside wall applications

• Built-in birdscreen and

damper

Model

For use with

SP-C, SP-B, SP-A

SP-VG

CSP-B, CSP-A

ABCDEFG

WC-10 x 3

Size C50

Size B50 - 200

Size A50 - 290

Size 80, 80L, 110, 110L

51⁄2123⁄431⁄2101⁄4111⁄841⁄45

WC-8 x 8 Size A390 - 510 101⁄4101⁄481⁄481⁄481⁄463⁄45

WC-18 x 8 Size A700 - 1550 101⁄4201⁄481⁄4181⁄4181⁄463⁄45

All dimensions are in inches.

Model

For use with

SP-C, SP-B, SP-A

SP-VG

CSP-B, CSP-A

ABCDE

WL-10 x 3

Size C50

Size B50 - 200

Size A50 - 290

Size 80, 80L, 110, 110L

12 51⁄410 73⁄431⁄2

WL-18 x 6 Size A390 - 1550 193⁄48189 6

All dimensions are in inches.

All dimensions are in inches (millimeters).

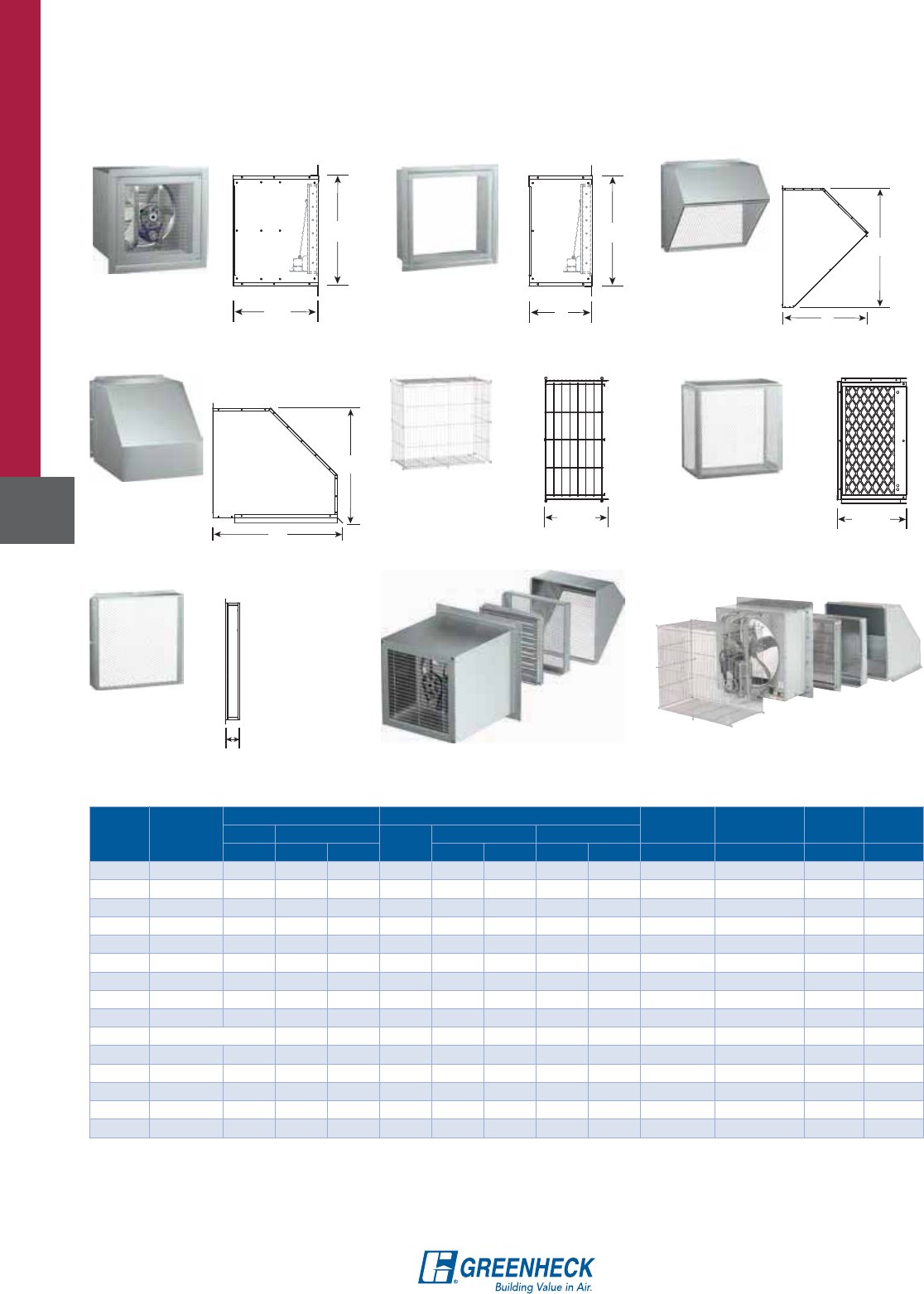

Discharge Accessories for SP and CSP

Model RCC-7

• Weathertight aluminum

construction

• Integral birdscreen

• Built-in curb cap

• Requires roof curb

Model GRS

• All aluminum exterior

construction

• Galvanized steel internal

supports

• Integral birdscreen

• Built-in curb cap

• Requires roof curb

Curb Cap Flashing Flange

Model RFC-7

• Weathertight aluminum

construction

• Integral birdscreen

• Built-in ﬂashing ﬂange

Model GRSF

• All aluminum exterior

construction

• Galvanized steel internal

supports

• Integral birdscreen

• Built-in ﬂashing ﬂange

Model

For use with

SP-C, SP-B, SP-A

SP-VG

CSP-B, CSP-A

A B C D Dia.

RCC-7

Size C50

Size B50 - 200

Size A50 - 390

Size 80, 80L, 110, 110L

15 12 10 63⁄87

GRS-10 Size A410 - 710 19 201⁄273⁄4210

1⁄4

GRS-12 Size A780 - 1050 22 29 10 31⁄2121⁄4

GRS-16 Size A1410 - 2150 26 29 11 41⁄4165⁄16

GRS-20 Size A3600 30 351⁄2111⁄433⁄4205⁄16

All dimensions are in inches.

Model

For use with

SP-C, SP-B, SP-A

SP-VG

CSP-B, CSP-A

A B C D Dia.

RFC-7

Size C50

Size B50 - 200

Size A50 - 390

Size 80, 80L, 110, 110L

18 12 10 63⁄87

GRSF-10 Size A410 - 710 23 201⁄273⁄4210

1⁄4

GRSF-12 Size A780 - 1050 26 29 10 31⁄2121⁄4

GRSF-16 Size A1410 - 2150 30 29 11 41⁄4165⁄16

GRSF-20 Size A3600 34 351⁄2111⁄433⁄4205⁄16

All dimensions are in inches.

Dia. D

Dia.

A1¾ in.

Dia. D

1½ in.

Discharge Accessories for SP and CSP

Model For use with

SP-A, CSP-A Dia.

RDC-6 Size A110 - 190 6

RDC-8 Size A200 - 510 8

All dimensions are in inches.

Model 473324

6x4 Transition Duct Reducer

• Reduces duct from 6 to 4 inches.

• Durable plastic construction

Model

For use with

SP-B, SP-A

CSP-B, CSP-A

473324

Size B50 - 200

Size A50 - 90

Size A110 - 190*

All dimensions are in inches.

*Used in conjunction with RDC-6

Model RDC

Round Duct Connector

• Replaces the standard square

discharge duct connector and

damper.

• Uses existing mounting holes

• Galvanized steel construction

• RDC-6 includes a damper

• RDC-8 does not include a damper

RDC-6

RDC-8

(157) (114)

(157)

.01 .02 .03 .04 .05 .06

.07 .08 .09

.10

.2 .3 .4 .5 .6

Pressure Drop in Inches of Water Gauge

Above accessories tested with 4 feet of inlet duct

WC-10x3

WC-6

RJ-6x9

EL-10x3

WL-10x3

BVE-808

RFC-7

RCC-7

BVE-128

WC-8x8

WC-8

BVE-157

WC-18x8

RJ-10x10

WL-18x6

CFM x 100

Accessory Pressure Drops

The chart below can be used with all of the

discharge accessories shown on these two

pages. Speciﬁc pressure drop values for

these accessories must be included in total

system calculations for proper fan selection.

Discharge Accessories for SP and CSP

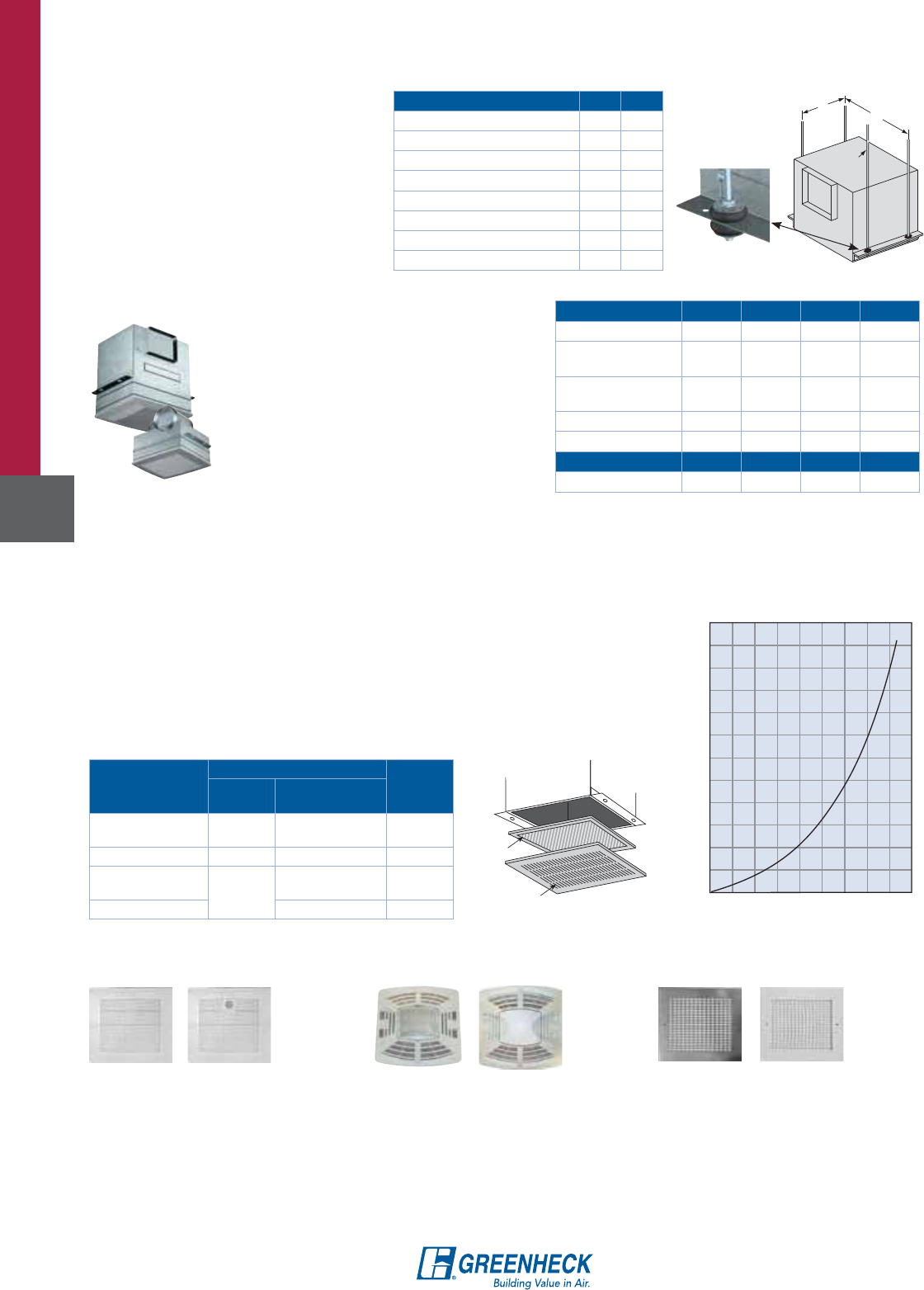

Vibration isolator kits are available

for suspended installations. Kits

include all hardware necessary to

mount one unit, with the exception of

1/4-20 threaded rod to be supplied by

others. Fan mounting brackets include

prepunched mounting holes for ease

of installation.

Model Size A B

B50 - B200 41⁄2155⁄8

A50 - A190 51⁄2145⁄8

A200 - A390 63⁄4151⁄2

A410 - A510, A710 - A780 91⁄4195⁄8

A700 51⁄2251⁄8

A900 - A1050, A1410 - A1550 91⁄4253⁄8

A1750, A2150 91⁄4363⁄4

A3600 91⁄4485⁄8

All dimensions are in inches.

1/4-20 hanging

support rod

by others

Hanging Vibration Isolators

Mesh

Filter

Grille 0 1 2 3 4 5 6 7 8 9

Velocity FPM x 100

.24

.22

.20

.18

.16

.14

.12

.10

.08

.06

.04

.02

.00

Resistance in w.c.

Filter Loss Chart

SP Model

Filter Model Filter

Area (ft2)

Designer

Grille

Stainless Steel or

Aluminum Grille

SP-B50 - B200,

A200 - A390 F-200 F-220 0.911

SP-A50 - A190 F-200 F-210 0.739

SP-A410 - A510

SP-A710 - A780 Not

Available

F-250 1.518

SP-A900 - A1550 F-260 2.078

Filters

Fans used in most applications, even where air is not excessively dirty, will collect airborne dirt on wheels and

motors over time. Accumulations of dirt on the fan wheel will sharply reduce performance and cause imbalance.

Dirt buildup on the motor can cause it to overheat. All of these conditions will shorten the life of the fan. To help

reduce this accumulation, washable aluminum mesh ﬁlters are available to

trap dirt before it enters the fan. These ﬁlters should be regularly cleaned to

maintain performance. The Filter Loss Chart shows the effect the ﬁlter will

have on performance. To determine the added resistance, divide the desired

cfm by the ﬁlter area (ft2). This will give FPM. Use this with the ﬁlter loss chart

to determine the added resistance.

In addition to reducing dirt accumulations on the motor and wheel, ﬁlters also

reduce sound levels.

SP Model CRD Length Width Height

A50 - A190 310 131⁄2111⁄83

B50 - B200

A200 - A390 320 143⁄8121⁄43

A410 - A510

A710 - A780 350 187⁄16 1415⁄16 3

A-700 700 243⁄16 121⁄43

A900 - A1550 360 243⁄16 1415⁄16 3

SP Model Part # Length Width Height

80, 80L, 110, 110L 453096 115⁄8103⁄43

All dimensions are in inches.

Ceiling Radiation Dampers

The Greenheck SP-A and SP-B

ceiling radiation dampers are UL/

cUL Classiﬁed, rated at three to four

hours ﬁre resistance, and are available

on all SP-A and SP-B fans and fan/

light combinations. This design saves

space by allowing the dampers to be

mounted directly beneath the fan.

Grilles for Model SP

Designer

Standard on B50-B200, A50-A390

White polystyrene ﬁnish. With or

without motion detector or time

delay.

Decorative

Optional on B50-B200, A50-A390

White plastic ﬁnish, with or without

light, motion detector or time

delay. Lighted grille optional with

prismatic or frosted lens.

Stainless Steel

Optional on B50-B200, A50-A390

Polished stainless steel ﬁnish.

Aluminum

Standard on A410 - A1550

Optional on B50-B200, A50-A390

White enamel ﬁnish.

Isolators, Ceiling Radiation Dampers, Filters, Grilles

school support

Complete, cost-effective air systems.

School air control needs are complex and interrelated. When you

equip for all applications — classrooms, labs, kitchen, cafeteria,

pool, auditorium, gym — mixing and matching HVAC brands is

not a value proposition. Greenheck products are designed to work

together in complete, integrated systems that deliver value — quick,

cost-saving installation; energy efficiency; quiet operation; comfort

for staff and students; and results that school boards love. Our

extensive testing ensures that you can select more products with

certifications from AMCA, UL, ETL, AHRI and CSA than from any

other manufacturer. Engineering expertise and industry knowledge

deliver value you can depend on, every school day. Contact your

Greenheck representative today.

Learn more at

greenheck.com/4schools

Fans & Ventilators | Centrifugal & Vane Axial Fans | Energy Recovery Ventilators

Packaged Ventilation Systems | Make-up Air Units | Kitchen Ventilation Systems

Dampers | Louvers | Lab Exhaust Systems | Coils

Energy Recovery

Ventilator

Roof Upblast

Louvered Gravity

Ventilator

Equipment Screen

Laboratory Exhaust

System

Spun Aluminum

Roof Exhaust

Hooded Gravity

Ventilator

Centrifugal Inline Fan

Ceiling Exhaust Fan

Louver

Intake Damper

Utility Fan

Make-Up Air Unit

Upblast Roof Exhaust

Kitchen Hood

Scan code to

learn more about

school system

ventilation.

715.359.6171

greenheck.com

1 in.

Greenheck Fan Corporation certiﬁes

that the Model BCF shown herein is

licensed to bear the AMCA seal. The

ratings shown are based on tests and

procedures performed in accordance

with AMCA Publication 211 and

comply with the requirements of the

AMCA Certiﬁed Ratings Program.

UL/cUL 705 Power Ventilators

E40001 - BCF with TEFC motors

E40001 - BDF with TEFC motors

Dimensions for BCF

Top horizontal discharge

Model

Size AB CEF

106 20 231⁄411 12 6

107 23 29 13 15 8

108 26 32 16 18 10

110 32 36 19 24 12

112 36 42 23 28 14

206 34 231⁄411 26 6

207 38 29 13 30 8

208 44 32 16 36 10

210 48 36 19 40 12

212 58 42 23 50 14

All dimensions are in inches.

Best

Available

Program

3 Days

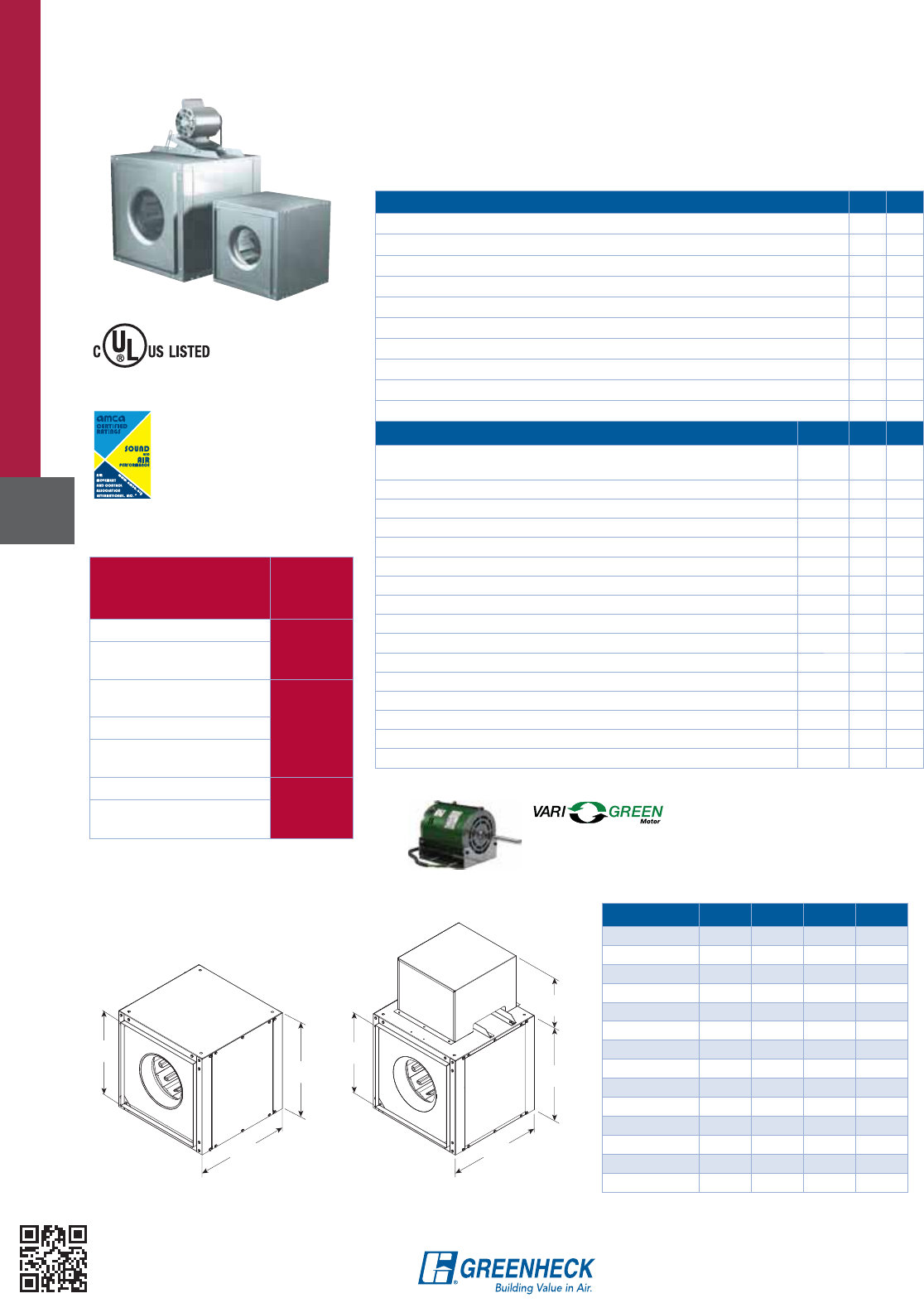

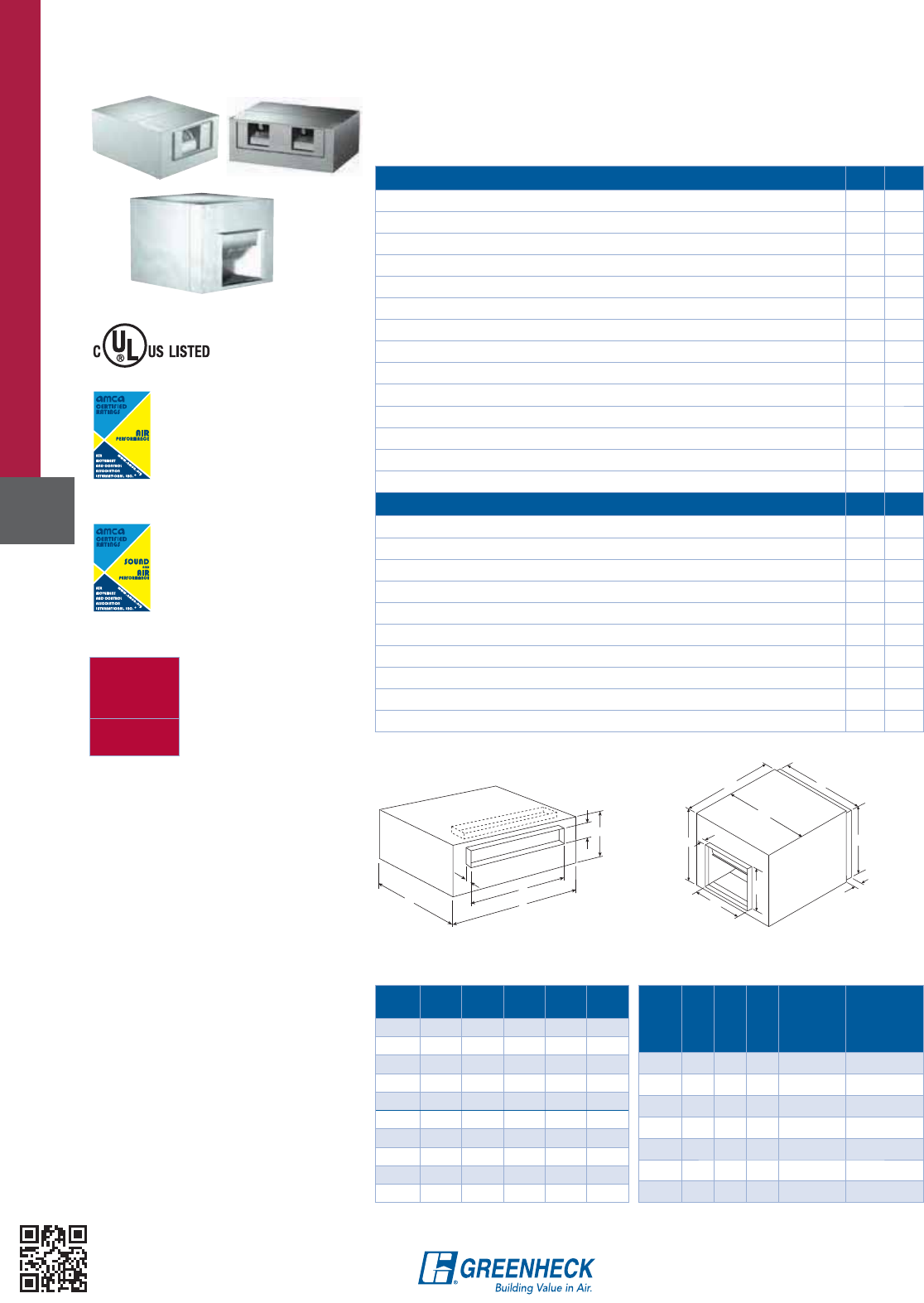

Model BCF and BDF Belt Drive

Centrifugal duct fans are designed for clean air inline exhaust or supply

applications.

1 in.

2 in.

DAMPER OUTLET

OPENING

INLET

OPENING

Dimensions for BDF

Bottom horizontal discharge

Model

Size AB C

Damper

Outlet

Opening

(W x H)

Inlet

Opening

(D x E)

80 231⁄4181⁄2157⁄893⁄4 x 87⁄8153⁄16 x 1211⁄16

90 241⁄4211⁄4183⁄4121⁄4 x 101⁄2181⁄4 x 157⁄8

100 261⁄4223⁄4203⁄4133⁄4 x 117⁄8193⁄4 x 177⁄8

120 33 271⁄4223⁄416 x 133⁄8241⁄8 x 197⁄8

150 343⁄4325⁄8273⁄4191⁄8 x 163⁄8285⁄8 x 237⁄8

180 401⁄4413⁄4313⁄4221⁄2 x 187⁄8371⁄2 x 277⁄8

200 501⁄4491⁄4393⁄4231⁄8 x 251⁄4451⁄8 x 36

All dimensions are in inches.

Greenheck Fan Corporation certiﬁes

that the Model BDF shown herein is

licensed to bear the AMCA seal. The

ratings shown are based on tests and

procedures performed in accordance

with AMCA Publication 211 and

Publication 311 and comply with the

requirements of the AMCA Certiﬁed

Ratings Program.

Standard Construction BCF BDF

Housing - galvanized steel 

Housing - low proﬁle 

Housing - square 

Drive frame secured to housing 

Wheel - forward-curved, galvanized steel 

Motor and scroll - mounted to drive frame 

Access door - bolted, removable (BCF-108/208 and larger, all BDF) 

Access door - hinged (BCF-106, 107, 206 and 207) 

Corrosion-resistant fasteners 

NEMA-1 disconnect switch 

Ball bearing motor - 1/4 hp and larger 

Double-studded vibration isolators 

Flanges - inlet and outlet 

Adjustable motor pulley 

Options and Accessories BCF BDF

Damper 

Isolators 

Insulation 

Filter box* - ﬁlters are throwaway (pleated) or permanent (aluminum mesh) 

Mixing box 

NEMA rated disconnect switch 

Dual drives 

Multiple discharge positions* 

Decorative or protective powder coating 

UL/cUL Listed Power Ventilators 

*see page 53 for additional information

www.greenheck.com

Centrifugal Inline

Fans

BCF

BDF

For comprehensive product information,

including performance, access the product

catalog found on www.greenheck.com or

contact your local Greenheck representative.

Model BCF, BDF

Performance for BCF

Model

Size CFM RPM / Static Pressure in inches wg Max

BHP

Sones

@ .25

Quick Build

.125 .25 .375 .5 .625 .75 1 1.25 1.5 1.75 Best Available

106

230 834 1036 1219 1392 1547 1687 0.05 4.9

3 Days

410 1202 1335 1465 1586 1701 1811 2024 2219 2416 2599 0.22 6.2

590 1635 1724 1815 1908 2000 2089 2259 2420 0.28 8.4

770 2086 2153 2223 0.34 11.1

107

360 596 726 851 0.05 5.0

3 Days

630 882 962 1038 1111 1188 1260 1411 0.22 6.8

900 1201 1258 1313 1369 1423 1476 1577 1686 1787 1597 0.59 9.2

1170 1531 1575 1619 1662 1703 1747 1832 0.76 12.3

108

890 651 748 840 924 1008 1084 1223 0.27 5.2

3 Days

1250 848 916 985 1054 1121 1185 1305 1423 1531 1630 0.67 6.8

1610 1057 1110 1164 1217 1270 1324 1429 0.72 9.3

1850 1200 1247 1292 1339 0.78 11.0

110

1140 586 671 750 819 882 941 1053 1151 0.36 6.4

3 Days

1700 817 863 916 975 1031 1084 1181 1269 1349 1430 0.84 8.8

1980 941 976 1017 1063 1113 1164 1257 1342 1420 1494 1.08 10.4

2260 1066 1092 1128 1163 1204 1248 1.00 12.5

112

1410 543 608 667 720 770 821 915 1004 1088 1166 0.65 9.9

3 Days

2130 760 808 852 895 937 976 1049 1118 1183 1251 1.13 13.7

2850 990 1025 1061 1095 1128 1161 1224 1284 1.66 19.4

3330 1146 1176 1206 1237 1266 1.95 24

206

740 1128 1285 1416 1533 1639 1747 0.22 8.0

3 Days

950 1362 1494 1616 1725 1823 1915 2084 2252 2407 0.48 8.8

1160 1612 1719 1826 1927 2023 2110 0.51 10.4

1300 1783 1877 1972 0.49 11.8

207

760 623 742 867 0.09 6.2

3 Days

1210 858 946 1028 1103 1176 1257 1411 0.38 8.5

1660 1116 1185 1250 1313 1373 1430 1539 1649 1763 1875 0.93 11.6

2260 1474 1527 1.03 16.7

208

1150 541 669 0.10 6.0

3 Days

1840 721 817 903 984 1061 1132 0.55 9.7

2530 929 1000 1071 1138 1201 1261 1377 1489 1592 1.30 11.5

3450 1222 1274 1326 1379 1430 1.53 16.1

210

1660 501 590 676 755 0.23 6.1

3 Days

2485 665 734 796 854 915 972 1077 1188 0.87 11.1

3310 839 898 950 999 1046 1091 1179 1267 1351 1429 1.67 13.4

4410 1078 1128 1174 1215 1253 1291 2.05 17.7

212

2810 549 608 665 718 767 813 902 994 1077 1.22 8.2

3 Days

3950 729 773 814 857 899 938 1012 1082 1148 1209 2.12 12.2

5090 916 950 985 1018 1049 1082 1148 1210 1269 1324 3.27 17.3

5850 1043 1073 1103 1133 1162 1189 3.05 21

Performance certified is for installation type D: Ducted inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings

do not include the effects of appurtenances (accessories). The AMCA Certified Ratings Seal applies to air performance only.

Performance for BDF

Model

Size CFM RPM / Static Pressure in inches wg Max

BHP

Sones

@ .25

Quick Build

.125 .25 .375 .5 .75 1 1.5 2 2.5 3 Best Available

400 546 717 0.03 4.7

3 Days

700 772 857 949 1051 1244 0.15 6.4

1000 1024 1100 1165 1220 1348 1490 1762 0.50 9.4

1300 1287 1351 1409 0.50 14.0

800 465 584 689 0.09 4.1

3 Days

1140 569 660 748 827 975 0.26 6.0

1820 805 874 934 991 1106 1213 1409 1.00 11.2

2500 1077 1112 1.02 17.4

100

1000 413 521 615 0.12 5.0

3 Days

1400 498 581 660 735 869 0.33 6.1

2000 666 710 768 826 937 1041 1231 1.05 9.9

2600 851 872 907 948 0.99 14.7

120

1600 370 456 535 604 726 0.37 6.3

3 Days

2500 504 554 608 666 771 866 1033 1.33 9.6

3400 677 689 721 766 847 930 1.44 14.8

4000 796 802 814 1.54 18.6

150

2500 374 406 457 517 0.42 7.0

3 Days

3160 449 483 508 544 637 714 1.00 9.7

4480 611 637 664 685 720 770 902 1010 3.15 16.5

5800 780 797 816 2.91 24

180

5080 358 400 439 479 553 621 738 2.19 10.8

3 Days

6700 450 480 513 544 603 662 770 868 954 4.85 17.9

8320 546 570 594 621 671 717 814 5.00 21

9400 612 632 654 675 722 5.00 24

200

6000 304 340 377 413 480 538 1.77 13.1

3 Days

9000 425 449 473 498 546 596 689 770 846 7.11 17.6

12000 553 571 589 607 644 680 754 827 896 961 11.92 25

15000 682 697 712 726 756 783 843 899 14.90 35

Performance certified is for installation type D: Ducted inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings

do not include the effects of appurtenances (accessories). The sound ratings shown are loudness values in fan sones at 5 ft. (1.5 m) from the test inlet

duct in a hemispherical free field calculated per AMCA International Standard 301. Values shown are for installation type D: ducted inlet, ducted outlet.

Ratings do not include the effects of duct end correction.

Model BCF, BDF

Model SQ Direct Drive and

BSQ Belt Drive

Centrifugal inline fans are designed for clean air exhaust or supply

applications.

Greenheck Fan Corporation certiﬁes

that the Model SQ and BSQ shown

herein are licensed to bear the AMCA

seal. The ratings shown are based on

tests and procedures performed in

accordance with AMCA Publication

211 and AMCA Publication 311 and

comply with the requirements of the

AMCA Certiﬁed Ratings Program.

UL/cUL 705 Power Ventilators

E40001 - SQ and BSQ

Model

Best

Available

Program

SQ-75 through 120 and 140

In Stock

BSQ-70 through 120,

140 through 180 and 240

SQ-60 through 70,

130 and 160

1 DayBSQ-130 and 200

High Pressure

BSQ-130HP through 240HP

BSQ-300 through 420

3 Days

High Pressure

BSQ-300HP and 360HP

Dimensions for SQ, BSQ

Model Size A B Sq. C D*

SQ-60-75 13 12 87⁄8—

SQ-80-95 16 15 117⁄8—

BSQ-70-90 21 15 117⁄8121⁄2

SQ/BSQ-100 21 17 137⁄8121⁄2

SQ/BSQ-120 21 19 157⁄8121⁄2

SQ/BSQ-130 21 21 177⁄8121⁄2

SQ/BSQ-140 22 23 197⁄8121⁄2

SQ/BSQ-160 26 26 227⁄8133⁄8

BSQ-180 28 28 237⁄8133⁄4

BSQ-200 32 32 277⁄816

BSQ-240 34 39 347⁄819

BSQ-300 38 46 417⁄818

BSQ-360 42 52 477⁄818

BSQ-420 50 58 537⁄818

All dimensions are in inches.

*Dimension may be greater depending on motor

SQ BSQ

Standard Construction SQ BSQ

Housing - galvanized 

Wheel - backward-inclined, aluminum 

Access panel - bolted, removable 

Corrosion-resistant fasteners 

NEMA-1 disconnect switch 

Ball bearing motor - 1/4 hp and larger 

Three speed motor - sizes 60 through 95 

Adjustable motor plate 

Flanges - inlet and outlet 

Adjustable motor pulley 

Options and Accessories Stock SQ BSQ

Vari-Green® motor - 80% turndown, 85% efﬁcient

Available as standard on select sizes 9

Damper 9

Aluminum housing 

Motor cover 

Guards - inlet, outlet 

Speed control 9

Isolators - external 9

Insulation - housing and motor cover 

Filter box* - slide out 

NEMA rated disconnect switch 

Dual drives 

Relubricatable bearings 

Multiple discharge positions* 

Decorative or protective powder coating 

Certiﬁed for seismic applications 

UL/cUL Listed Power Ventilators 

*see page 53 for additional information

Select sizes and models with the Vari-Green®

motor are available in stock.

UL/cUL Listed 705 is standard on In Stock models.

BSQ

www.greenheck.com

Centrifugal Inline

Fans

For comprehensive product information,

including performance, access the product

catalog found on www.greenheck.com or

contact your local Greenheck representative.

Model SQ, BSQ

Performance for SQ

Model

Size

CFM / Static Pressure in inches wg Motor

Max

Fan

RPM

Max

Bhp

Sones

@ .125

Quick Build

In Stock

0 .125 .25 .375 .5 .625 .75 1 1.5 Best

Available

126 63 1/140 1050 .007 1.8

1 Day —

156 109 37 1/80 1300 .013 2.5

186 145 105 31 1/40 1550 .022 4.0

207 170 136 85 1/6 1725 .030 5.0

154 79 1/100 1050 .009 1.9

1 Day —

191 137 52 1/50 1300 .017 2.9

228 184 128 46 1/30 1550 .028 4.0

254 216 170 111 1/6 1725 .040 5.7

212 118 1/100 1050 .009 1.5

1 Day —

262 190 77 1/50 1300 .018 3.3

313 252 189 67 1/30 1550 .030 5.1

348 295 240 171 1/6 1725 .040 6.6

241 146 1/100 1050 .011 2.8

1 Day SQ-75-DGEX-QD298 224 133 1/50 1300 .021 3.7

356 294 229 137 1/30 1550 .035 5.4

396 341 285 223 1/6 1725 .050 8.0 —

306 225 104 1/40 1050 .017 3.6

1 Day SQ-80-DGEX-QD378 312 244 140 1/20 1300 .032 5.4

451 394 342 280 201 1/12 1550 .055 7.3

503 451 405 350 294 219 1/6 1725 .080 8.5 SQ-80-VG6X-QD

357 272 142 1/40 1050 .018 3.9

1 Day SQ-85-DGEX-QD442 377 298 185 1/20 1300 .034 5.3

528 474 413 343 254 1/12 1550 .057 7.4

588 540 488 429 362 1/6 1725 .080 8.6 —

500 369 188 1/50 1050 .021 3.9

1 Day SQ-90-DGEX-QD619 519 397 245 1/25 1300 .040 5.4

738 654 564 457 334 1/10 1550 .068 7.5

821 748 669 579 481 366 1/6 1725 .090 8.8 SQ-90-VG6X-QD

623 475 274 1/30 1050 .031 4.5

1 Day SQ-95-DGEX-QD771 659 522 352 1/15 1300 .059 6.7

919 829 720 603 461 276 1/8 1550 .100 9.3

1024 948 850 751 641 507 1/6 1725 .140 11.0 —

100

725 611 1/8 860 .030 3.7

1 Day

—

961 881 785 657 1/6 1140 .071 6.5

1454 1402 1349 1292 1227 1156 1077 830 1/4 1725 .250 12.4 SQ-100-AX-QD

SQ-100-VG4X-QD

120

971 843 704 1/8 860 .059 4.1

1 Day —

1287 1189 1094 992 873 692 1/6 1140 .140 7.2

1948 1883 1818 1754 1692 1628 1562 1416 1/2 1725 .480 14.1 SQ-120-VG5X-QD

130

1180 1048 890 1/8 860 .078 5.2

1 Day —1564 1471 1366 1248 1104 865 1/4 1140 .180 8.3

2368 2307 2247 2174 2105 2038 1961 1791 3/4 1725 .630 17.6

140

1637 1487 1316 1033 1/8 860 .130 6.2

1 Day

—

2170 2061 1942 1818 1666 1446 1121 1/3 1140 .300 10.5

2855 2772 2690 2598 2506 2412 2307 2029 3/4 1500 .680 15.6 SQ-140-VG7X-QD

3283 3212 3139 3065 2985 2905 2825 2645 2085 1 1725 1.03 19.7 —

160

2506 2334 2147 1913 1605 1/4 860 .240 7.7

1 Day —

3322 3194 3061 2922 2773 2587 2388 1808 1/2 1140 .560 13.4

3788 3600 3562 3415 3320 3198 3033 2685 1 1300 .840 15.0

5027 4942 4856 4772 4683 4596 4504 4312 3845 2 1725 1.95 25

Performance certified is for installation type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances (accessories). The sound ratings

shown are loudness values in fan sones at 5 ft. (1.5 m) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are for installation

typeB: free inlet hemispherical sone levels.

Model SQ, BSQ

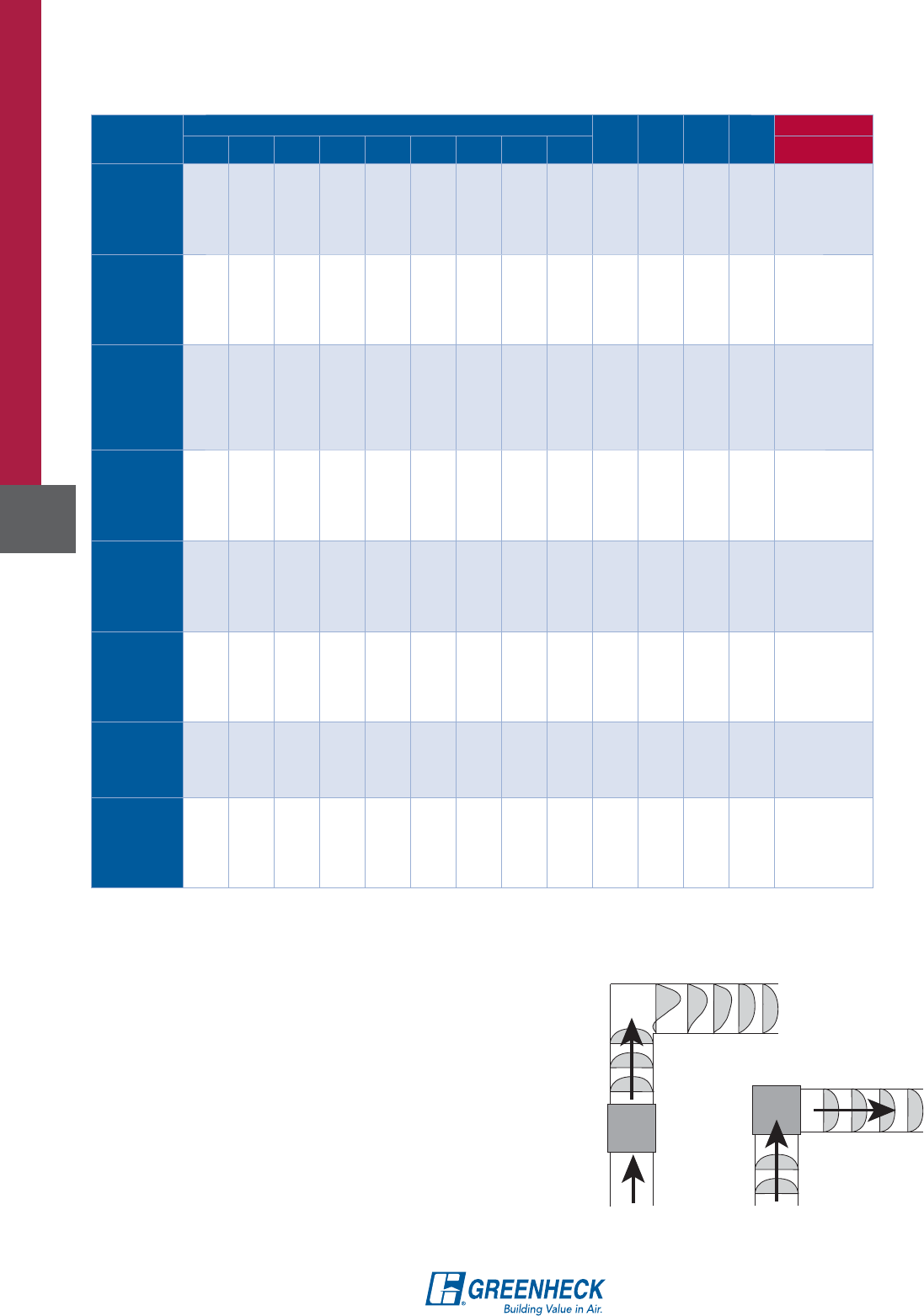

Performance for BSQ

Model

Size

CFM / Static Pressure in inches wg Motor

Max

Fan

RPM

Max

Bhp

Sones

@ .25

Quick

Build In Stock

.125 .25 .5 .75 1 1.25 1.5 1.75 2 Best

Available

405 384 331 273 212 142 1/4 1972 0.26 19.1

1 Day

BSQ-70-4X-QD

450 431 387 335 282 224 161 1/3 2172 0.35 21 —

521 504 468 426 380 334 287 232 176 1/2 2486 0.52 25

720 687 613 524 424 1/4 1833 0.26 16.9

1 Day

BSQ-80-4X-QD

799 769 704 630 545 452 269 1/3 2018 0.35 19.5

—924 897 842 784 716 643 563 445 1/2 2310 0.52 23

1065 1041 995 945 894 835 773 705 635 3/4 2645 0.79 28

965 914 798 654 437 1/4 1694 0.26 15.8

1 Day

BSQ-90-4X-QD

1072 1028 926 808 657 1/3 1866 0.35 17.3

—

1239 1202 1118 1024 917 789 638 1/2 2136 0.52 21

1429 1396 1326 1249 1167 1073 976 844 707 3/4 2445 0.79 25

1579 1549 1488 1420 1347 1271 1186 1097 987 1 2691 1.05 28

100

1265 1207 1088 917 1/4 1609 0.26 15.0

1 Day BSQ-100-LMDX-QD

1405 1352 1247 1110 939 1/3 1772 0.35 16.4

1623 1577 1484 1396 1262 1119 1/2 2029 0.52 19.6

1871 1830 1749 1668 1591 1472 1358 1197 3/4 2323 0.79 23

2066 2029 1956 1882 1810 1734 1626 1522 1402 1 2556 1.05 26

120

1471 1392 1226 1020 1/4 1367 0.26 11.0

1 Day BSQ-120-LMDX-QD

1636 1564 1418 1252 1027 1/3 1506 0.35 12.5

1892 1830 1703 1571 1423 1241 1/2 1724 0.52 15.7

2183 2129 2020 1908 1791 1663 1518 1307 3/4 1974 0.78 19.1

2413 2364 2264 2164 2062 1953 1836 1712 1553 1 2172 1.05 23

2779 2737 2651 2563 2475 2387 2294 2198 2093 11⁄22490 1.58 30

130

1652 1563 1328 958 1/4 1293 0.26 11.6

1 Day —

1838 1754 1568 1299 1/3 1424 0.35 13.3

2126 2050 1908 1714 1468 1121 1/2 1630 0.52 15.6

2448 2389 2266 2128 1949 1740 1462 3/4 1866 0.78 19.5

2702 2655 2537 2426 2286 2117 1926 1686 1319 1 2053 1.05 22

3112 3074 2971 2877 2777 2659 2514 2359 2189 11⁄22355 1.58 28

140

1927 1810 1538 1/4 1076 0.26 10.7

1 Day BSQ-140-LMDX-QD

2142 2039 1807 1463 1/3 1185 0.35 11.9

2476 2392 2197 1979 1636 1/2 1356 0.52 13.9

2858 2787 2626 2449 2253 1964 1447 3/4 1553 0.79 16.0

3159 3094 2953 2798 2635 2451 2177 1752 1 1709 1.05 18.0

3633 3576 3461 3330 3193 3050 2894 2705 2457 11⁄21956 1.57 23

4009 3958 3856 3741 3622 3494 3365 3225 3078 2 2153 2.10 30

160

2373 2209 1759 1/4 873 0.26 8.6

1 Day BSQ-160-LMDX-QD

2643 2504 2150 1/3 962 0.35 9.6

3061 2944 2665 2301 1/2 1101 0.52 12.1

3538 3436 3212 2946 2611 2071 3/4 1261 0.78 15.1

3911 3818 3628 3402 3146 2815 2311 1 1387 1.04 17.5

4503 4422 4259 4079 3880 3656 3389 3055 2566 11⁄21588 1.56 22

4973 4899 4751 4603 4425 4240 4037 3802 3528 2 1748 2.09 27

5713 5648 5519 5390 5260 5103 4946 4774 4596 3 2001 3.14 38

180

3051 2845 2217 1/3 791 0.35 10.9

1 Day BSQ-180-LMDX-QD

3546 3366 2928 2175 1/2 905 0.52 12.1

4109 3955 3616 3179 2432 3/4 1037 0.79 14.2

4549 4412 4127 3760 3290 2523 1 1141 1.04 16.1

5242 5128 4878 4610 4281 3884 3332 11⁄21306 1.57 19.5

5790 5686 5463 5236 4964 4662 4298 3814 3106 2 1437 2.09 22

6656 6566 6377 6179 5981 5744 5485 5216 4866 3 1645 3.14 28

200

3315 3018 2042 1/3 660 0.34 11.2

1 Day —

3867 3624 3036 1/2 756 0.52 12.0

4484 4285 3812 3239 3/4 865 0.79 13.7

4972 4796 4391 3916 3203 1 952 1.05 15.5

5741 5587 5253 4874 4452 3878 11⁄21090 1.56 18.9

6350 6210 5920 5597 5233 4836 4316 2 1200 2.09 22

7314 7192 6948 6677 6396 6076 5753 5379 4862 3 1375 3.15 27

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include

the effects of appurtenances (accessories). The sound ratings shown are loudness values in fan sones at 5 ft. (1.5 m) in a hemispherical free field calculated per AMCA

International Standard 301. Values shown are for installation type B: free inlet hemispherical sone levels.

Model SQ, BSQ

Performance for BSQ

Model

Size

CFM / Static Pressure in inches wg Motor

Max

Fan

RPM

Max

Bhp

Sones

@ .25

Quick

Build In Stock

.125 .25 .5 .75 1 1.25 1.5 1.75 2 Best

Available

240

5269 4833 3685 1/2 569 0.51 11.8

1 Day BSQ-240-LMDX-QD

6132 5768 4946 3/4 651 0.78 13.9

6816 6498 5782 4884 1 717 1.03 15.9

7935 7680 7086 6425 5604 11⁄2826 1.59 19.5

8720 8488 7960 7384 6756 5889 2 903 2.09 22

10048 9845 9409 8936 8421 7881 7219 6268 3 1034 3.14 27

11973 11802 11460 11070 10671 10245 9804 9345 8797 5 1225 5.22 40

300

7693 7033 4827 3/4 449 0.78 11.6

3 Days —

8598 7982 6450 1 494 1.04 13.8

10022 9469 8363 6662 11⁄2566 1.57 16.6

11129 10636 9676 8418 2 623 2.09 19.0

12862 12446 11588 10703 9547 7803 3 713 3.13 23

15380 15041 14307 13604 12860 11957 10839 9309 5 845 5.23 27

17693 17396 16776 16124 15526 14888 14171 13273 12242 71⁄2967 7.85 33

360

10039 9008 1 376 1.04 12.5

3 Days —

11720 10872 8980 11⁄2431 1.55 14.7

13018 12323 10736 8489 2 474 2.09 16.6

15081 14544 13112 11627 9553 3 543 3.12 19.6

18041 17587 16511 15327 14081 12560 5 643 5.19 27

20802 20407 19615 18505 17515 16475 15153 13704 71⁄2737 7.84 31

22967 22607 21888 21011 19986 19146 18195 16996 15786 10 811 10.45 34

420

15275 14340 12132 2 389 2.09 12.3

3 Days —

17704 16910 15188 12941 3 445 3.12 19.5

21244 20625 19231 17747 15850 13154 5 528 5.24 24

24459 23950 22762 21502 20206 18533 16581 71⁄2604 7.84 30

27237 26778 25749 24660 23491 22322 20793 19111 16873 10 670 10.71 37

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include

the effects of appurtenances (accessories). The sound ratings shown are loudness values in fan sones at 5 ft. (1.5 m) in a hemispherical free field calculated per AMCA

International Standard 301. Values shown are for installation type B: free inlet hemispherical sone levels.

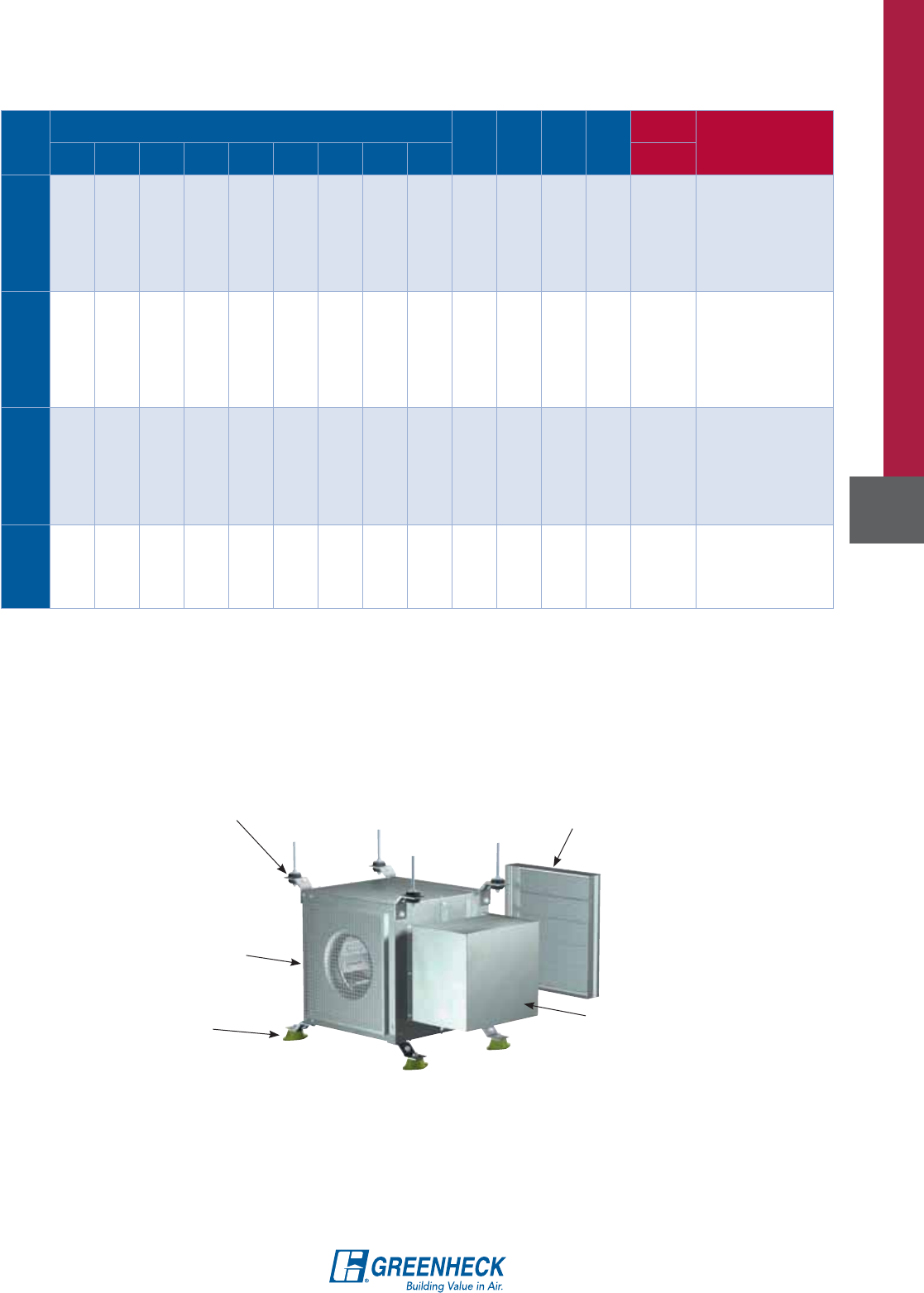

Base Vibration Isolator

Model BVI

Backdraft Damper

Model WD-330

Hanging Vibration Isolator - Model HVI

(Hanging rods supplied by others)

Inlet Guard

Motor Cover

SQ and BSQ Options and Accessories

Model SQ, BSQ

Performance for High Pressure BSQ

Model Size

CFM / Static Pressure in inches wg Motor

Max

Fan

RPM

Max

Bhp

Sones

@ .5

Quick Build

.5 .75 1 1.25 1.5 1.75 2 2.5 3 Best Available

130HP

1014 884 670 1/4 1520 0.26 11.4

1 Day

1161 1048 930 700 1/3 1674 0.35 12.4

1380 1294 1192 1091 925 680 1/2 1916 0.52 14.6

1621 1555 1477 1388 1297 1203 1033 3/4 2194 0.78 19.2

1808 1749 1685 1614 1532 1448 1369 1080 1 2414 1.04 22

2108 2056 2005 1950 1888 1825 1750 1608 1421 11⁄22770 1.56 27

140HP

1449 1281 1058 1/3 1453 0.35 13.3

1 Day

1742 1607 1456 1264 800 1/2 1664 0.52 16.5

2057 1954 1832 1701 1548 1363 3/4 1905 0.79 19.7

2298 2211 2108 1998 1878 1741 1581 1 2096 1.05 24

2676 2603 2525 2437 2339 2244 2134 1882 1381 11⁄22399 1.57 30

2973 2907 2841 2768 2688 2599 2512 2319 2088 2 2641 2.10 33

160HP

1844 1533 1/3 1116 0.35 8.6

1 Day

2237 2020 1731 1305 1/2 1277 0.52 10.8

2664 2497 2299 2050 1720 3/4 1462 0.79 14.1

2986 2845 2688 2497 2269 1993 1601 1 1609 1.05 17.8

3488 3377 3248 3115 2954 2773 2570 2013 11⁄21842 1.56 25

3881 3780 3676 3555 3434 3290 3135 2763 2248 2 2027 2.09 28

4499 4411 4322 4234 4129 4024 3918 3660 3351 3 2321 3.14 36

180HP

2636 2364 1984 1/2 1083 0.57 12.1

1 Day

3169 2964 2724 2406 1945 3/4 1249 0.87 14.7

3428 3247 3032 2782 2458 1513 1 1332 1.06 16.3

3931 3782 3614 3423 3212 2944 2622 11⁄21498 1.51 19.9

4425 4298 4158 4003 3833 3648 3429 2859 2 1664 2.07 24

5155 5050 4938 4816 4691 4545 4396 4058 3620 3 1913 3.14 33

200HP

2724 2258 1/2 880 0.52 12.8

1 Day

3327 3003 2556 3/4 1009 0.78 15.6

3787 3495 3179 2732 1 1111 1.05 16.9

4466 4235 3979 3716 3379 2808 11⁄21271 1.57 18.8

4998 4803 4578 4344 4108 3802 3409 2 1399 2.09 21

5823 5659 5489 5291 5089 4883 4669 4089 2894 3 1602 3.15 26

240HP

4643 4149 3492 1 820 1.04 15.2

1 Day

5552 5159 4721 4161 11⁄2939 1.57 18.1

6251 5909 5533 5128 4609 3727 2 1033 2.09 20

7336 7046 6747 6419 6073 5714 5209 3 1183 3.13 25

8848 8657 8405 8152 7897 7614 7327 6721 5790 5 1402 5.24 33

10232 10066 9896 9675 9455 9234 9007 8512 7987 71⁄21605 7.84 43

300HP

6610 6001 5168 3452 11⁄2694 1.53 16.5

3 Days

7641 7151 6556 5799 4740 2 777 2.15 19.3

9492 9142 8746 8281 7752 7130 6393 3 934 3.74 26

11297 11010 10710 10371 10006 9601 9149 8055 6257 5 1091 5.95 29

12489 12228 11966 11681 11372 11047 10677 9853 8840 71⁄21196 7.85 30

360HP

7012 6115 4672 11⁄2545 1.55 17.6

3 Days

8000 7272 6410 4868 2 600 2.09 18.4

9463 8955 8277 7528 6453 4479 3 687 3.12 19.5

11576 11150 10740 10198 9593 8954 8138 4978 5 815 5.20 21

13487 13108 12740 12382 11939 11443 10909 9748 7674 71⁄2933 7.86 27

14975 14631 14286 13957 13631 13240 12806 11838 10796 10 1026 10.46 33

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do

not include the effects of appurtenances (accessories). The sound ratings shown are loudness values in fan sones at 5 ft. (1.5 m) in a hemispherical free field

calculated per AMCA International Standard 301. Values shown are for installation type B: free inlet hemispherical sone levels.

Side Discharge

The side discharge option provides several advantages from

removing a system effect problem, to increasing performance

and even reducing installation labor.

The most notable is reducing system effect. Refer to Figure 1.

It shows the air being discharged into the corner. It will take

several duct lengths before the airﬂow becomes laminar or

smooth again after making the turn.

In Figure 2, the fan is placed in the corner using a side

discharge. In this conﬁguration the airﬂow pattern at discharge is

smooth and supports a more predictable system. Remember the

duct length on the discharge side should be approximately two

to three wheel diameters to achieve catalog performance.

Figure 1

Fan

Figure 2

Fan

Model SQ, BSQ

Filter Box

Filter boxes incorporate a V-bank

design constructed of galvanized

steel. Filters are available in 1 or

2 inch throwaway (pleated) or

permanent (washable aluminum

mesh). Side access panels are

standard for easy maintenance.

Insulated Housing

The interior of the fan housing and ﬁlter box can be lined with a ﬁberglass duct liner

for noise reduction and condensation control. The duct liner can be utilized to reduce

radiated noise from inline fan housings. It is recommended for applications when fans

are placed in acoustically sensitive locations. The duct liner also reduces the noise

radiating from the inlet and outlet of the fan.

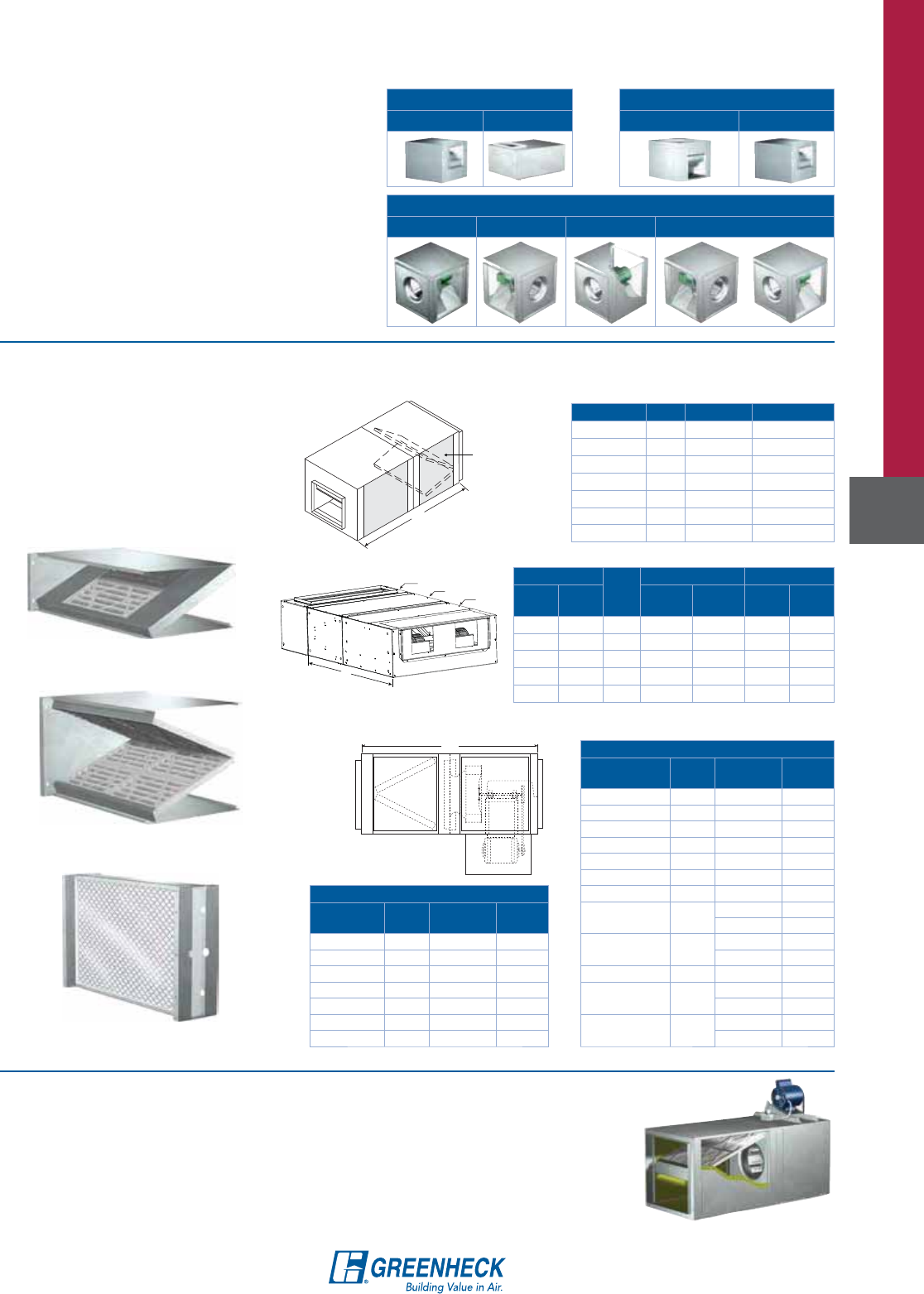

Multiple Discharge Positions

BCF fans are available with either top horizontal

or upblast discharge positions.

BDF fans have been designed for horizontal

mounting and are standard with a bottom

horizontal discharge. Optional top horizontal

discharge is also available.

SQ and BSQ fans are available with right side

discharge, left side discharge, inline discharge

positions, or a combination of right, left and

inline positions.

SQ and BSQ Discharge Positions

Right Side Left Side Inline Combination

BDF Discharge Positions

Bottom Horizontal Top Horizontal

BCF Discharge Positions

Top Horizontal Upblast

Double V-Bank Filter

Slanted Filter

Aluminum Mesh Filter

All dimensions are in inches.

The K dimension equals the length of fan and ﬁlter box combined.

Fan

Access

Panel

Filter Box

Access Panel

Model Size K Filter Size No. of Filters

80 493⁄416 x 20 2

90 547⁄820 x 25 2

100 517⁄820 x 20 2

120 639⁄16 12 x 25 4

150 621⁄16 16 x 20 8

180 753⁄820 x 25 6

200 851⁄416 x 25 12

BDF

Mixing Box

Filter Box

Fan

Model Size

Filter Size No. of Filters

Single

Fan

Double

Fan

Single

Fan

Double

Fan

Single

Fan

Double

Fan

106 206 451⁄216 x 20 20 x 20 1 1

107 207 52 16 x 20 16 x 20 1 2

108 208 56 16 x 20 16 x 20 2 4

110 210 61 20 x 20 20 x 20 2 4

112 212 65 16 x 20 20 x 25 4 4

For slide-out filter box information, refer to BCF catalog.

BCF

Model Size K Filter Size No. of

Filters

60-75 221⁄810 x 12 1

80-95 455⁄814 x 25 1

100 471⁄416 x 20 2

120 523⁄16 16 x 25 2

130 463⁄820 x 20 2

140 523⁄820 x 25 2

160 513⁄820 x 20 4

BSQ

Model Size K Filter Size No. of

Filters

70 - 80 - 90 505⁄814 x 25 1

100 471⁄416 x 20 2

120 523⁄16 16 x 25 2

130 - 130HP 463⁄820 x 20 2

140 - 140HP 523⁄820 x 25 2

160 - 160HP 513⁄820 x 20 4

180 - 180HP 551⁄16 20 x 25 4

200 - 200HP 6611⁄16 12 x 25 3

16 x 25 3

240 - 240HP 687⁄820 x 25 4

16 x 25 4

300 - 300HP 721⁄820 x 25 8

360 - 360HP 791⁄416 x 25 10

20 x 25 5

420 931⁄816 x 25 5

20 x 25 10

SQ, BSQ K

Discharge Positions, Filter Box, Insulated Housing

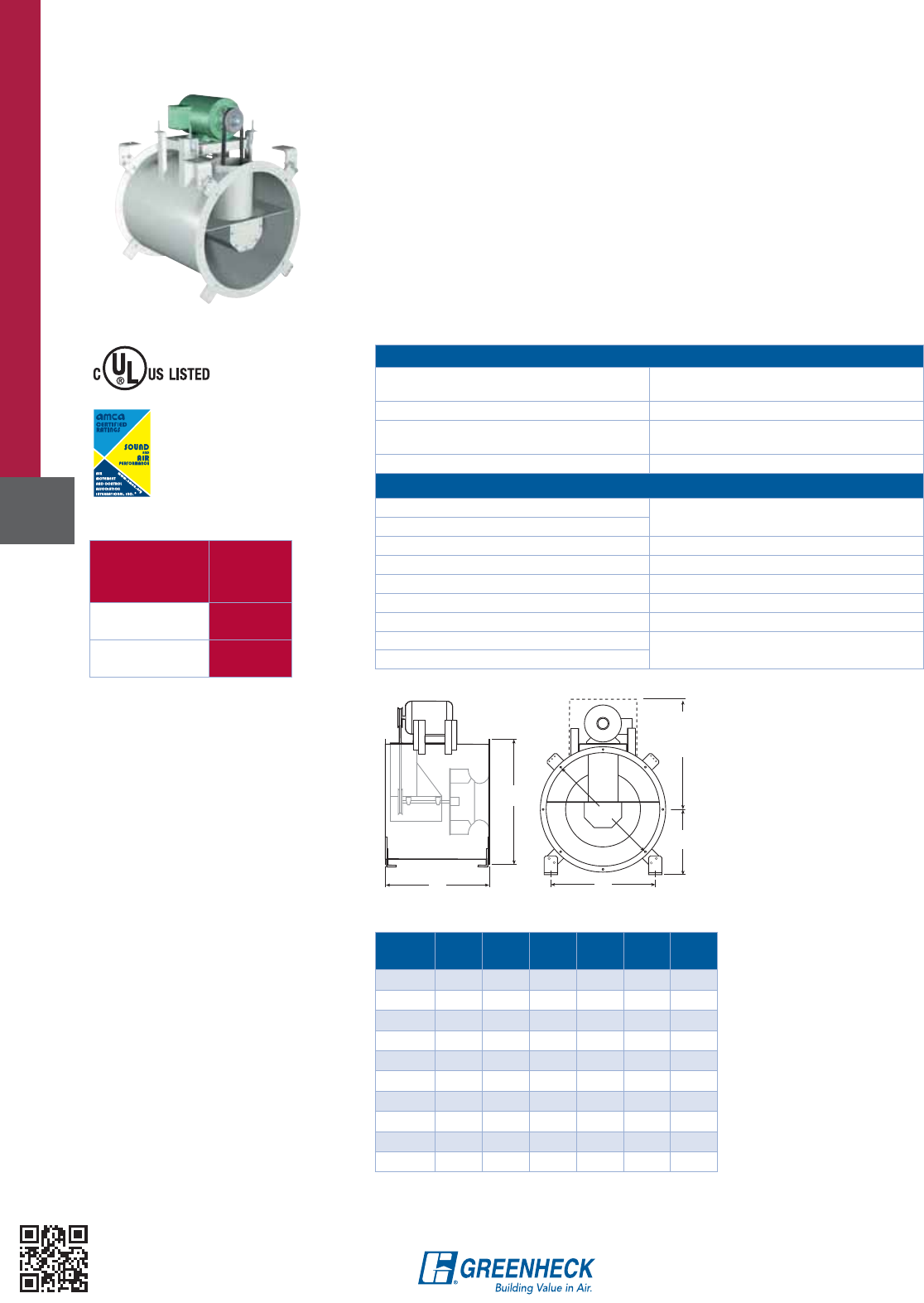

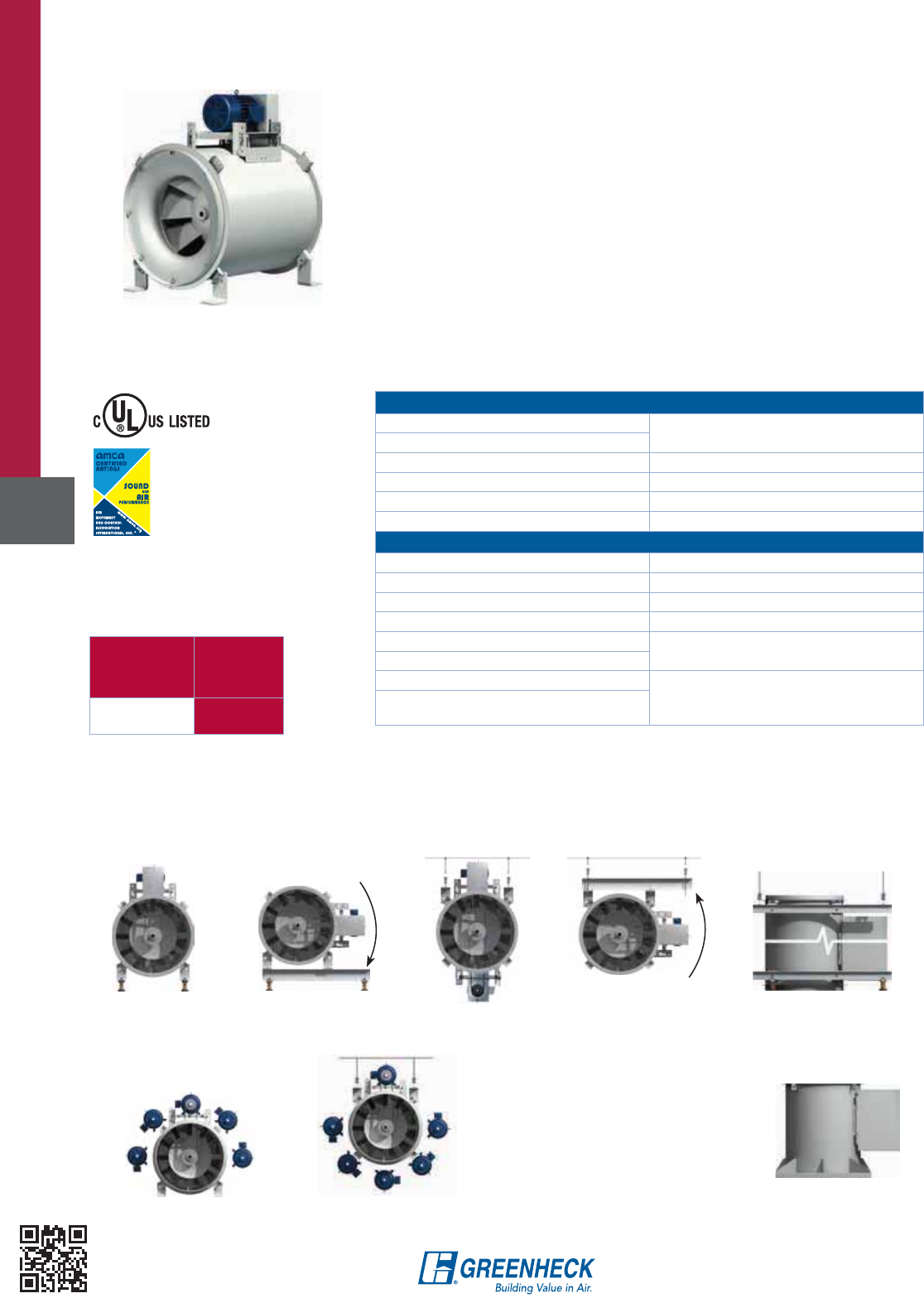

Model TCB Belt Drive

Tubular centrifugal inline fans are the ideal choice for installations with

straight-through airﬂow in ducted systems. The centrifugal wheels used

in this design provide higher efﬁciencies and lower sound levels than axial

type inline fans when used in medium pressure ducted systems. These

fans can be mounted in any position from horizontal to vertical, allowing

installation in the smallest possible space at the lowest installation cost.

Also available in roof supply and roof exhaust conﬁgurations.

Performance

Capacities range from 360 to 24,000 cfm and up to 4.5in. wg of static

pressure.

Standard Construction

Housing - continuously welded, steel Minimum bearing life of L10 80,000 hours

(Average life - L50 400,000 hours)

Wheel - backward-inclined, aluminum Spark B resistant construction

Flanges - inlet and outlet with mounting

holes Extended lube lines

Aluminum rub ring Permatector™ protective powder coating

Options and Accessories

All aluminum construction Inspection section with removable

access panel

Motor cover

Belt guard NEMA rated disconnect switch

Guards - inlet, outlet Dual drives

Companion ﬂanges - inlet, outlet Mounting rails

Inlet vane damper Decorative or protective powder coating

Isolators - base, hanging UL/cUL Listed Power Ventilators

Easy access construction - bolted UL Listed Power Ventilators for Restaurant

Exhaust Appliances

Inspection door - bolted, hinged

Greenheck Fan Corporation certiﬁes

that the Model TCB shown herein is

licensed to bear the AMCA seal. The

ratings shown are based on tests and

procedures performed in accordance

with AMCA Publication 211 and

Publication 311 and comply with the

requirements of the AMCA Certiﬁed

Ratings Program.

UL/cUL 705 Power Ventilators

E40001 - TCB

UL 762 Power Ventilators for Restaurant Exhaust

Appliances - MH11745 - TCB

Construction

Best

Available

Program

Standard 10 Days

With UL 762 15 Days

Maximum with

Motor Cover

Dimensions for TCB

Model

Size ABCD*E H

92321

5⁄8131⁄4213⁄4175⁄8183⁄8

10 23 215⁄8131⁄4213⁄4175⁄8183⁄8

12 23 215⁄8131⁄4213⁄4175⁄8183⁄8

13 241⁄2235⁄8137⁄8231⁄419 203⁄8

16 281⁄2275⁄8161⁄826 217⁄8243⁄8

18 31 335⁄8183⁄8291⁄4261⁄8303⁄8

22 351⁄2395⁄8221⁄2333⁄4301⁄2363⁄8

24 42 453⁄4245⁄8371⁄4343⁄4421⁄2

30 481⁄2523⁄4291⁄2423⁄442 481⁄2

36 54 591⁄4313⁄4471⁄4463⁄455

All dimensions are in inches.

*Dimension may vary depending on motor.

www.greenheck.com

Tubular Centrifugal

Fans

For comprehensive product information,

including performance, access the product

catalog found on www.greenheck.com or

contact your local Greenheck representative.

Model TCB

Performance for TCB

Model

Size Level CFM Sones

@ .125

RPM / Static Pressure in inches wg Quick Build

.125 .25 .5 1234Best Available

1360 5.3 846 999 1260

10 Days

840 11.0 1688 1752 1882 2142 2629

2560 8.6 1379 1480 1686 2059 2671

1040 18.0 2431 2482 2590 2810 3251 3648 4027

1480 4.9 858 1011 1253

10 Days

960 9.7 1441 1541 1716 2023 2506

2700 8.3 1359 1453 1630 1966 2560

1500 18.4 2754 2797 2883 3063 3398 3721 4026

1700 6.2 853 958 1158 1518

10 Days

1600 13.4 1729 1781 1886 2084 2436

2900 5.8 1009 1119 1315 1648 2182

1650 13.6 1715 1767 1887 2127 2534 2903 3233

1600 4.1 660 792 1019

10 Days

1800 11.2 1552 1613 1729 1935 2293

21200 5.6 964 1048 1206 1479 1961

2000 12.8 1510 1565 1669 1868 2217 2531 2836

11000 3.7 507 612 802

10 Days

3750 18.5 1491 1530 1599 1725 1956

21800 6.7 777 843 969 1208 1616

3600 16.4 1456 1486 1553 1686 1939 2188 2416

11500 4.3 486 568 724

10 Days

4200 14.6 1139 1175 1244 1366 1599

22100 10.1 696 752 857 1045 1369

4200 19.9 1302 1331 1391 1505 1715 1906 2090

11600 3.2 388 477

10 Days

4400 10.9 831 869 943 1082 1340

23000 7.7 574 620 705 863 1127

5500 16.5 987 1015 1069 1167 1353 1525 1682

12500 3.3 355 416 536

10 Days

7500 19.1 865 892 946 1045 1212

24900 10.2 520 555 623 743 949

8400 20 849 871 914 994 1145 1283 1407

13750 4.4 293 343

10 Days

9750 15.0 629 655 704 788 940

25600 8.1 427 461 527 644 844

10400 18.5 746 765 803 877 1017 1142 1259

15600 5.4 273 311 379

10 Days

12800 19.1 545 565 603 673 796

29600 12.9 397 420 467 556 721

15600 19.0 620 635 664 722 837 943 1045

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance

ratings do not include the effects of appurtenances (accessories). The sound ratings shown are loudness values in fan sones at 5 ft. (1.5 m) in

a hemispherical free field calculated per AMCA International Standard 301. Values shown are for installation type B: free inlet fan sone levels.

Model TCB

Model QEI-L, QEI-I/II Belt Drive

Mixed ﬂow fans are for use in commercial and industrial applications that

demand quiet, efﬁcient and reliable air movement. Typical applications

include ofﬁce buildings, concert halls, libraries, parking garages,

educational facilities and dormitories. Models can be used in exhaust,

supply, and return-air, clean or contaminated air ventilation installations

with continuous airstream temperatures up to 200°F. Units may be ceiling

hung or ﬂoor mounted.

Performance

QEI-L capacities range from 700 to 40,000 cfm and up to 5 in. wg of static

pressure.

QEI-I/II capacities range from 500 to 115,000 cfm and up to 8.5 in. wg of

static pressure.

Standard Construction

Housing - continuously welded, steel Minimum bearing life of L10 80,000 hours

(Average life - L50 400,000 hours)

Wheel - mixed ﬂow with steel blades

Straightening vanes Universal mounting system (sizes 9 - 27)

Access door - bolted Final assembly vibration analysis

Slip-ﬁt collar for duct connection Extended lube lines

Belt guard Permatector™ protective powder coating

Options and Accessories

Totally enclosed belt guard Copper lube lines

Motor cover Roof upblast options available (sizes 9 - 54)

Guards - inlet, outlet Decorative or protective powder coating

Flanges - inlet, outlet UL/cUL Listed Power Ventilators

Isolators - base, hanging UL/cUL Listed Power Ventilators for

Restaurant Exhaust Appliances

Belt tube

NEMA rated disconnect switch UL/cUL Listed Power Ventilators for

Smoke Control Systems

Mounting rails

- horizontal and all vertical applications

Greenheck Fan Corporation certiﬁes

that the Model QEI-L and QEI-I/II

shown herein are licensed to bear

the AMCA seal. The ratings shown

are based on tests and procedures

performed in accordance with

AMCA Publication 211 and AMCA

Publication 311 and comply with the

requirements of the AMCA Certiﬁed

Ratings Program.

AMCA Licensed Sound and Air

Performance is found in Greenheck’s

QEI-L, QEI, and QEID catalog,

00.CVI.1018 R8 10-2013

Model

Best

Available

Program

QEI-L, QEI-I/II

All sizes 10 Days

UL/cUL 705 Power Ventilators

E40001 - QEI-L, QEI-I/II

UL/cUL 762 Power Ventilators for Restaurant Exhaust

Appliances - MH11745 - QEI-I/II

UL/cUL Power Ventilators for Smoke Control Systems

MH17511 - QEI-I/II

Patented QEI

USA Patent No. 7048499

China (P.R.) Patent No. CN1294361C

Mexico Patent No. 243465

Horizontal Base Mount Horizontal Ceiling Hung

Vertical Base Mount

Vertical Ceiling Hung

Vertical Upblast

Horizontal Base Mount Horizontal Ceiling Hung

Horizontal Base Mount

with motor at C or G position

Optional Mounting Rails

Horizontal Ceiling Hung

with motor at C or G position

Optional Mounting Rails

www.greenheck.com

Mixed Flow

Fans

Universal Mounting

Universal QEI fans can be mounted vertically (ceiling hung or base mount) for either upward or downward airﬂow. Optional mounting rails are

suggested for any vertical installation.

Sizes 9-27

One conﬁguration for base mounting or ceiling hung applications.

Allows for ﬁeld rotation of motor position.

Sizes 30-60

Available in horizontal and vertical conﬁgurations. Horizontal

applications allow for ﬁeld rotation of motor position.

Motor Positions

determined from the discharge end Vertical Mounting

Vertical mounting conﬁgurations,

upblast or downblast, are provided

with heavy-duty steel brackets

welded to both ends. These

brackets permit either ﬂoor or

ceiling mounting on the same

unit. Optional mounting rails

are suggested for any vertical

installation for sizes 9-27.

For comprehensive product information,

including performance, access the product

catalog found on www.greenheck.com or

contact your local Greenheck representative.

Model QEI-L, QEI-I/II

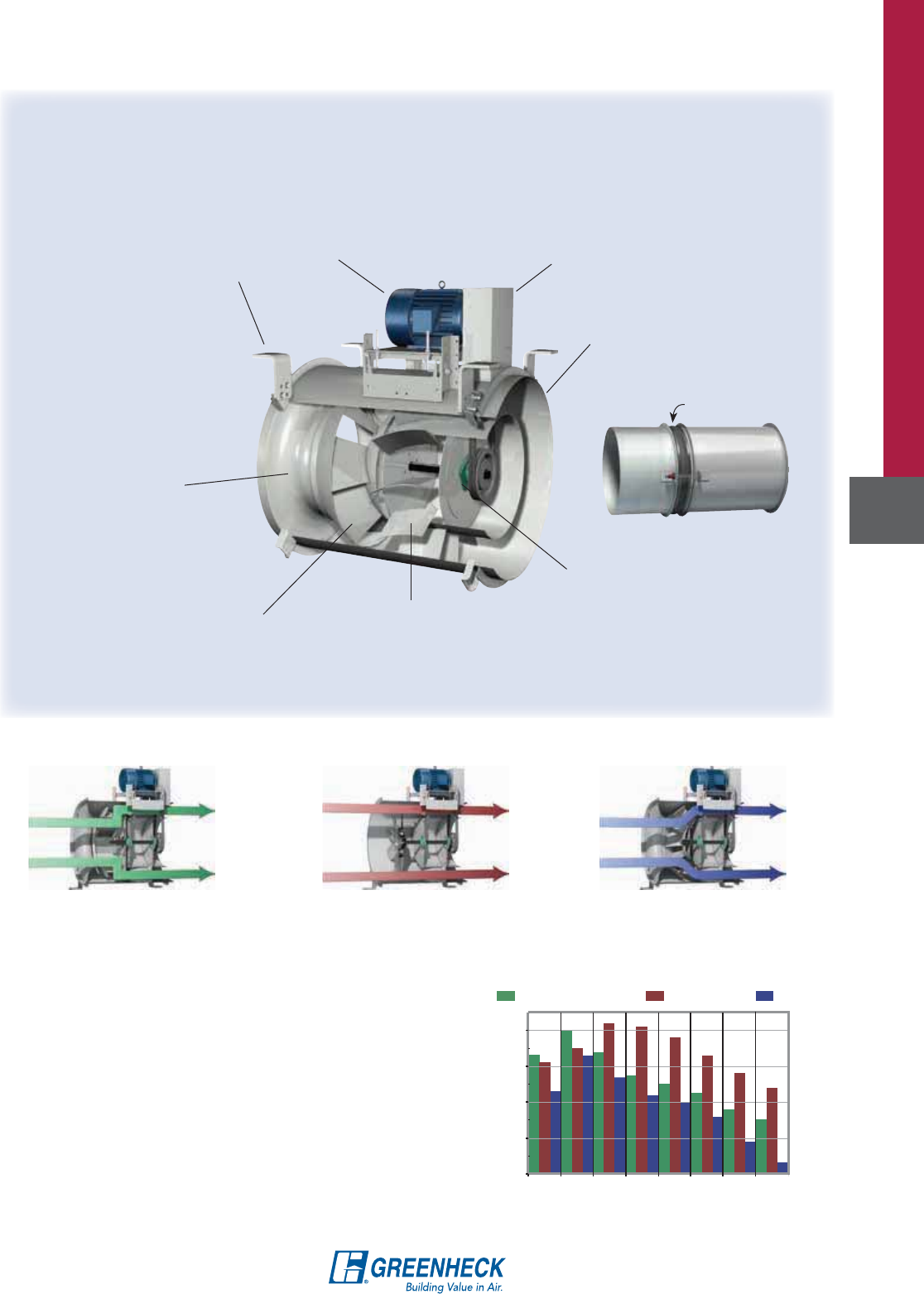

Axial Fan: Straight-through, nearly

linear airﬂow.

Centrifugal Fan: Two 90° deflections,

before airflow exits the fan.

Mixed Flow QEI Fan: Slight airﬂow

defection from straight-through.

Airﬂow Proﬁles

Integral, spun inlet cone

provides even airﬂow into the

wheel in ducted or non-ducted

applications and helps to reduce

system effects associated with

uneven duct velocity proﬁles.

Aerodynamically designed

straightening vanes improve

performance by converting

kinetic energy of swirling air

into useful static pressure.

Extended collar on inlet and outlet

allow for quick and easy slip-ﬁt

duct connections to ductwork or

plenum wall.

Cast, ﬂange-mounted bearings

are air-handling quality and use

concentric bore locking systems

for smooth operation. Bearings

are selected for a minimum L10 life

in excess of 80,000 hours at the

maximum fan class RPM. (Average

life - L50 400,000 hours)

Mixed ﬂow wheels are designed with

single-thickness, cambered blades

to maximize free area and efﬁciency.

Tight wheel to cone tolerances further

improve the mechanical efﬁciency.

Flexible Universal Mounting System

allows for ﬁeld rotation of motor

location.

Sealed belt guard protects personnel

and minimizes air leakage around

motor shaft.

All motors are mounted on adjustable

pivot bases for easy adjustments.

Permatector™ coating is an

industrial grade, electrostatic

powder paint. Provides a

durable, long lasting ﬁnish for

interior or exterior applications.

Fan Duct

Flexible Sleeve

Lower Sound Power, Better Sound Quality

The sound quality of the QEI is as beneﬁcial to low sound

design as is the reduced overall sound power. The sound chart

compares units of similar outer tube diameters at an operating

point of 20,000cfm with 1.5 inches wg of static pressure (Ps).

Tubular centrifugals (green) have dominant tones in the 63 Hz

through 250Hz octave bands, while vane axials (red) have more

mid to high frequency sound. The QEI does not have a dominant

tone. A bystander would hear a more bland sound that is quieter

than a tubular centrifugal or vane axial. 60

100

62 125 250 500 1000 2000 4000 8000

Frequency, Hz

Sound Power, dB

Typical Tubular Centrifugal Typical Vane Axial QEI

Mixed Flow - QEI-L, QEI-I/II

The mixed ﬂow fan is a quiet, highly efﬁcient alternative for inline ventilation. The unique axial/centrifugal

hybrid wheel design captures the highly efﬁcient

“

straight-through” airﬂow of vane axials and the lower

sound levels of tubular centrifugal fans to provide an energy efﬁcient product that won’t be a distraction in

your ventilation system.

Model QEI-L, QEI-I/II

Greenheck Fan Corporation certiﬁes

that the Model TDI and TBI-CA

shown herein are licensed to bear

the AMCA seal. The ratings shown

are based on tests and procedures

performed in accordance with AMCA

Publication 211 and comply with the

requirements of the AMCA Certiﬁed

Ratings Program.

Greenheck Fan Corporation certiﬁes

that the Model TBI-FS shown herein is

licensed to bear the AMCA seal. The

ratings shown are based on tests and

procedures performed in accordance

with AMCA Publication 211 and

Publication 311 and comply with the

requirements of the AMCA Certiﬁed

Ratings Program.

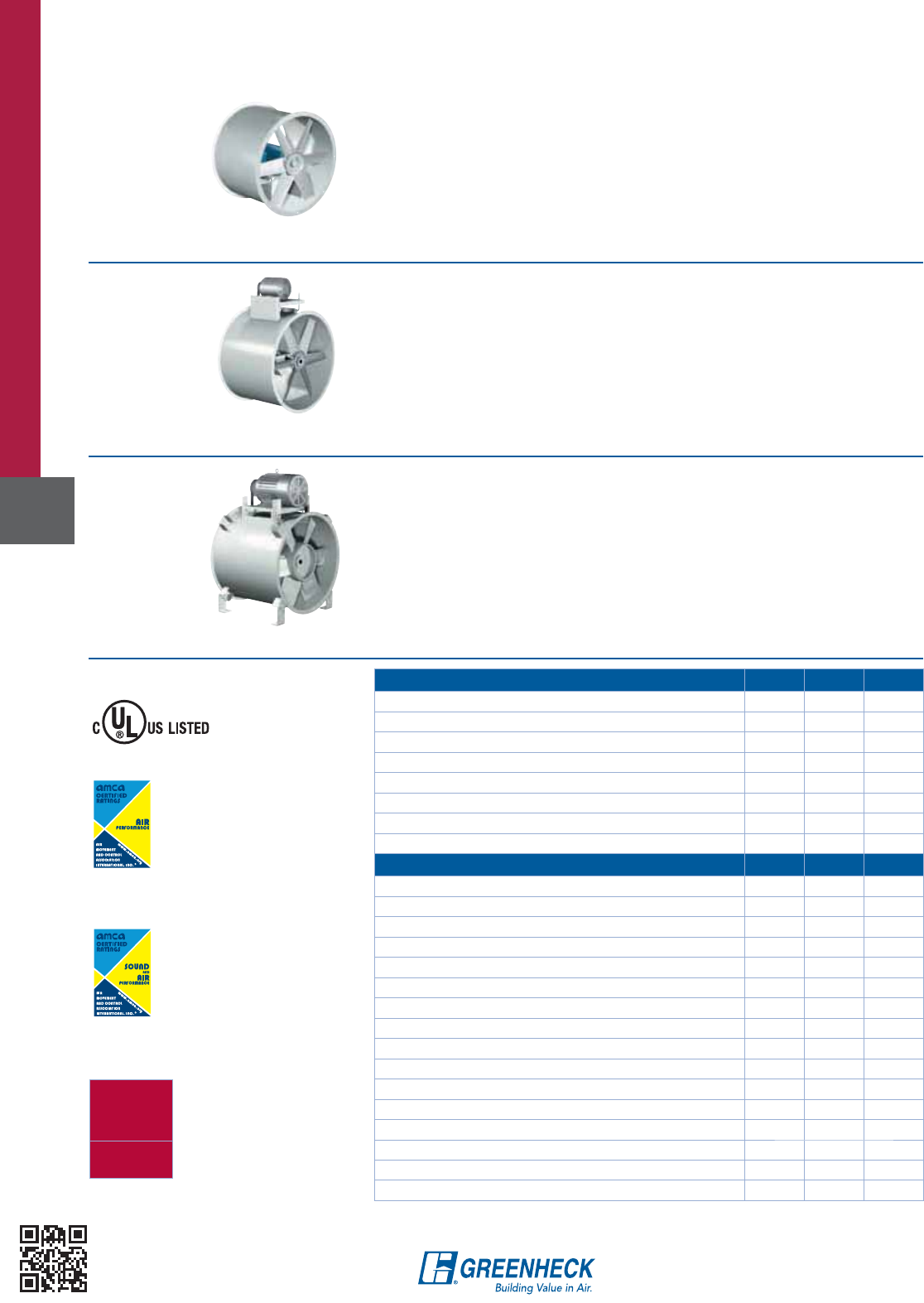

Model TDI Direct Drive

Model TDI direct drive tube axial fans are best suited for applications

moving relatively clean, dry and cool air in commercial and industrial

applications.

Performance

Capacities range from 2,100 to 48,400 cfm and up to 0.875 in. wg of

static pressure.

Model TBI-CA Belt Drive

Model TBI-CA belt drive is a good selection where the motor must be

mounted out of the airstream. Used with temperatures up to 200°F or

contaminated air. Three levels of construction available.

Performance

Capacities range from 1,400 to 96,000 cfm and up to 1.25 in. wg of static

pressure.

Applications:

• Clean Air

• Fume Exhaust

• Spark Resistant Construction

Applications:

• Clean Air

• Fume Exhaust

• Spark Resistant Construction

Model TBI-FS Belt Drive

Model TBI-FS belt drive fans have motors out of the airstream. They are a

good choice for clean or contaminated airstreams with temperatures up to

400°F. Three levels of construction available.

Performance

Capacities range from 3,900 to 76,000 cfm and up to 4 in. wg of

staticpressure.

Applications:

• Industrial Space

• Contaminated Air

• High Temperature Process

• UL/cUL Emergency Smoke

Best

Available

Program

10 Days

Standard Construction TDI TBI-CA TBI-FS

Housing - continuously welded, steel 

Cast aluminum hub and blades - airfoil 

Fabricated steel hub and blades - airfoil 

Belt tube and bearing cover 

Minimum bearing life of L10 80,000 hours 

Universal mounting system 

Extended lubrication lines 

Permatector™ protective powder coating 

Options and Accessories TDI TBI-CA TBI-FS

Motor cover 

Guards - inlet, outlet 

Belt guard 

Companion ﬂanges 

Isolators - base, hanging, spring 

Easy access construction - bolted 

Inspection door - bolted, hinged 

Inspection section with removable access panel 

NEMA rated disconnect switch 

Mounting rails 

Shaft seal 

Inlet bell 

Decorative or protective powder coating 

Continuous Duty High Temperature 

UL/cUL Listed Power Ventilators 

UL/cUL Power Ventilators for Smoke Control Systems 

UL/cUL 705 Power Ventilators

E40001 - TDI and TBI-CA

UL/cUL Power Ventilators for Smoke Control Systems

MH17511 - TBI-FS

www.greenheck.com

Tube Axial

Fans

For comprehensive product information,

including performance, access the product

catalog found on www.greenheck.com or

contact your local Greenheck representative.

Model TDI, TBI-CA, TBI-FS

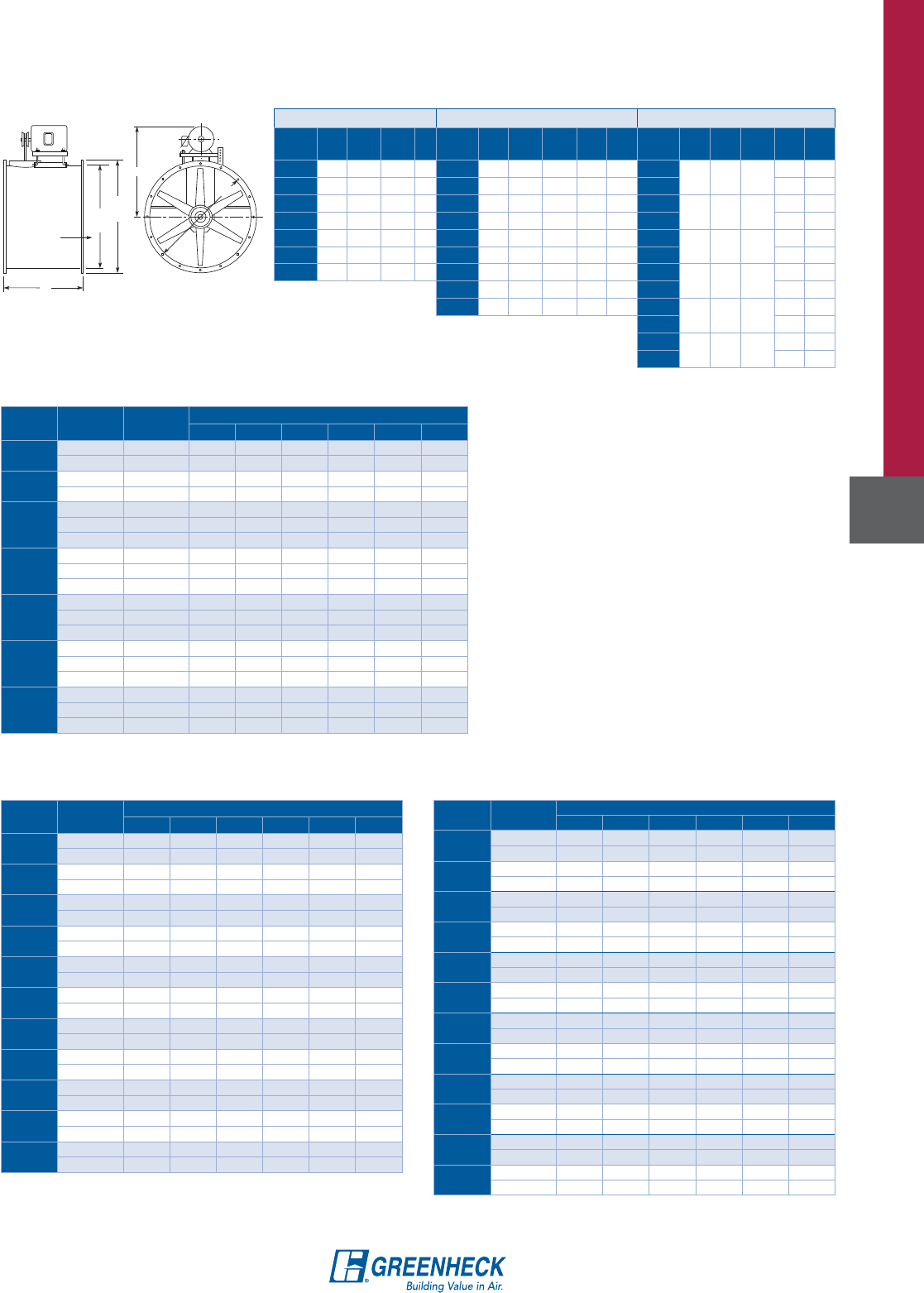

I.D.

Airﬂow

O.D.

Performance for TDI • Level 3

Model

Size

Blades

Pitch

Min/Max

RPM

CFM / Static Pressure in inches wg

0 .125 .25 .5 .75 .875

18 06-30 1140 3566 3230

06-34 1725 5873 5657 5417 4748

20 03-35 1140 4758 4103 3279

04-29 1725 7018 6682 6354 5594

06-30 860 6215 5391 4313

06-35 1140 9028 8398 7667

06-31 1725 12599 12226 11837 10922 9919 9380

06-33 860 12478 11175 9659

06-30 1140 15599 14762 13793

04-28 1725 20633 19895 19174 17717 15818

06-39 860 21839 20153 18236

06-30 1140 26098 24952 23759 21095

04-26 1725 33394 32488 31582 29765 27576 26395

06-35 680 24214 21392 18361

06-25 860 27069 25358 23243 17849

06-35 1140 40594 39128 37337 34109

06-30 680 32194 28973 24774

06-24 860 38105 35525 32712 25851

06-21 1140 48407 46587 44918 41348

Performance certified is for installation type B: Free inlet, Ducted outlet.

Performance ratings do not include the effects of appurtenances (accessories).

Performance for TBI-CA • Level 3

Model

Size

Min/Max

RPM

CFM / Static Pressure in inches wg

.125 .25 .5 .75 1 1.25

3L18 1890 1914 1659

3000 3225 3103 2825 2427 1868 1253

3M18 1610 2171 1937

2710 3874 3758 3502 3209 2832

3H18 1189 2698 2331

2290 5583 5450 5152 4781 4358

3H20 1056 3126 2618

2225 7186 7032 6673 6234 5761 5483

3H24 977 4931 4223

1990 10858 10619 10085 9422 8718 7926

3H30 848 7473 6405

1815 17648 17222 16278 15321 14327 13167

3H36 763 10388 8620

1710 25929 25301 23973 22609 21122 19364

3H42 594 13266 10728

1326 32585 31815 30334 28652 26506 23892

3H48 490 16808 14083

1024 38804 37720 35371 33046 30421 25718

3H54 476 27099 23391

910 56134 54567 51229 47707 42975

3H60 507 37656 33757

970 76735 74906 71249 67412 62911 57746

Performance certified is for installation type B: Free inlet, Ducted outlet.

Performance ratings do not include the effects of appurtenances (accessories).

Performance for TBI-FS • Levels 3 and 4

Model

Size

Min/Max

RPM

CFM / Static Pressure in inches wg

.125 .5 1.5 2 3 4

3L24 971 5425

3H24 1988 9990 9416 6827

4L24 1122 5439

4H24 2707 12829 11825 11228 9161 5907

3L30 794 8256

3H30 1834 14545 13838 11006

4L30 870 7653

4H30 2306 20075 18271 17201 13614 9546

3L36 660 11834

3H36 1476 23800 22460 16514

4L36 782 11824

4H36 1824 27723 25857 24376 20432 13643

3L42 611 16553

3H42 1271 26614 25157 17430

4L42 689 15343

4H42 1607 33454 30713 29526 24753 15561

3L48 479 18483

3H48 1039 30969 28139

4L48 795 29849

4H48 1509 47501 44702 42568 37957 30148

3L54 423 25121

3H54 999 48511 46357 35171

4L54 675 39677

4H54 1337 61340 57710 56126 48925 36972

Performance certified is for installation type B: Free inlet, Ducted outlet.

Performance ratings do not include the effects of appurtenances (accessories).

Dimensions for TDI, TBI-CA, TBI-FS

TDI • Level 3 TBI-CA • Level 3 TBI-FS • Levels 3 and 4

Model

Size

(ID)

(OD)

(BC) DModel

Size

(ID)

(OD)

(BC) DE

Model

Size

(ID)

(OD)

(BC) DE

18 183⁄8211⁄16 193⁄418 18 183⁄8215⁄8193⁄422 213⁄43H24 243⁄8275⁄8253⁄4

23 26

20 203⁄8231⁄16 213⁄419 20 203⁄8235⁄8213⁄422 233⁄44H24 28 28

24 243⁄8271⁄16 253⁄419 24 243⁄8275⁄8253⁄423 26 3H30 303⁄8335⁄832 24 291⁄4

30 303⁄8339⁄16 32 21 30 303⁄8335⁄832 24 291⁄44H30 33 323⁄4

36 363⁄8399⁄16 38 21 36 363⁄8395⁄838 29 333⁄43H36 363⁄8395⁄838 29 333⁄4

42 421⁄2453⁄4443⁄16 27 42 421⁄2453⁄4441⁄430 371⁄44H36 34 351⁄4

48 481⁄2523⁄4503⁄427 48 481⁄2523⁄4503⁄433 401⁄23H42 421⁄2453⁄4441⁄4

30 371⁄4

54 55 591⁄4571⁄4371⁄2471⁄44H42 39 40

All dimensions are in inches. 60 61 651⁄4631⁄440 503⁄43H48 481⁄2523⁄4503⁄4

33 401⁄2

ID = Inside Diameter

OD = Outside Diameter

BC = Bolt Center

4H48 44 451⁄2

3H54 55 591⁄4571⁄4

371⁄2471⁄4

4H54 48 491⁄4

Model TDI, TBI-CA, TBI-FS

Optional

Bell Vane

Axial Fan

Airﬂow

Optional

Inlet/Outlet

Cone

Inlet

Dimensions for VAB

Model

Size ABCD

18 183⁄8213⁄4131⁄232

20 203⁄8233⁄415 32

24 243⁄8273⁄4171⁄236

30 303⁄8333⁄4211⁄440

36 363⁄8393⁄425 40

42 421⁄247 29 44

48 481⁄253 34 48

All dimensions are in inches.

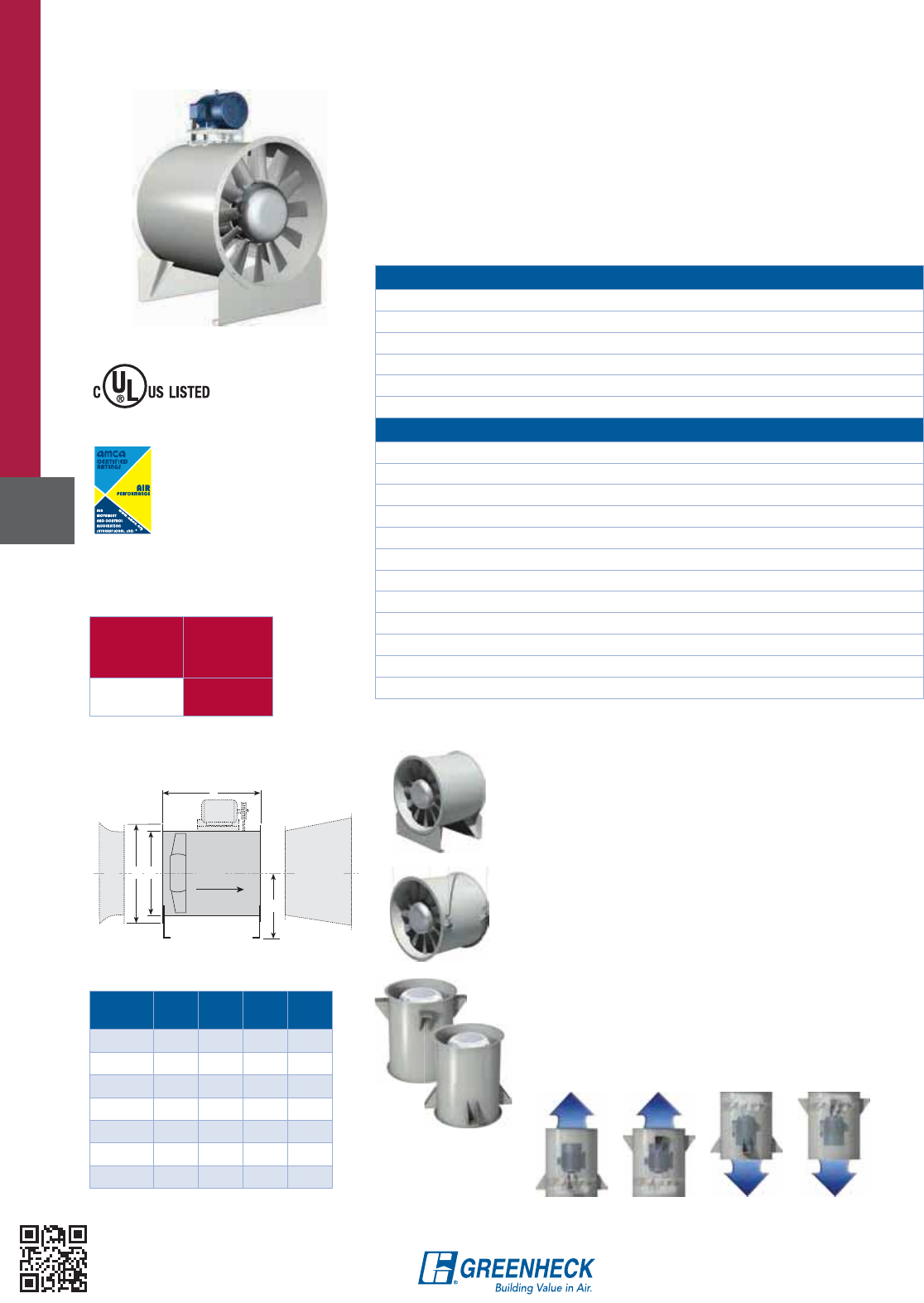

Model VAB Belt Drive

Vane axial fans feature the advantages of ﬁnal system balancing, motor

access, manually adjustable blade pitch, economical future upgrading,

and the capability to operate in airstream temperatures up to 200°F.

Performance

Capacities range from 2,000 to 70,000 cfm and up to 7 in. wg of static

pressure.

Greenheck Fan Corporation certiﬁes

that the Model VAB shown herein is

licensed to bear the AMCA seal. The

ratings shown are based on tests and

procedures performed in accordance

with AMCA Publication 211 and

comply with the requirements of the

AMCA Certiﬁed Ratings Program.

AMCA Licensed Air Performance

is found in Greenheck’s Vane

Axial Performance Supplement,

00.CVI.NB004 R3 8-2011

Vertical Base or Suspension Brackets

Brackets welded to the fan housing for vertical base mount

or vertical ceiling hung applications are punched to accept

vibration isolators. Customer must specify one of the

mounting arrangements shown below.

Horizontal Mounting Legs

Heavy-gauge steel support legs welded to the fan are

punched to accept neoprene or spring vibration isolators.

Horizontal Suspension Brackets

Brackets welded to the fan housing for horizontal ceiling

hung applications are punched to accept hanging neoprene

or spring isolators.

Mounting Options

UBFM UBCH DBFM DBCH

Model

Best

Available

Program

Class I

Sizes 18 - 48 10 Days

Standard Construction

Housing - continuously welded, steel

Cast aluminum hub and blades

Straightening vanes

Final assembly vibration analysis

Extended lubrication lines

Permatector™ protective powder coating

Options and Accessories

Motor cover

Guards - inlet, outlet

Belt guard

Companion ﬂanges - inlet, outlet

Inlet/outlet cone

Isolators

Inspection section

NEMA rated disconnect switch

Inlet bell

Horizontal or vertical mounting options

Decorative or protective powder coating

UL/cUL Listed Power Ventilators

UL/cUL 705 Power Ventilators

E40001 - VAB

www.greenheck.com

Vane Axial High Pressure

Fans

Arrangement 9

For comprehensive product information,

including performance, access the product

catalog found on www.greenheck.com or

contact your local Greenheck representative.

Model VAB

whole health.

Efﬁcient air systems for sustainable hospitals.

Learn more at greenheck.com/4hospital

Fans & Ventilators | Centrifugal & Vane Axial Fans | Energy Recovery Ventilators

Packaged Ventilation Systems | Make-up Air Units | Kitchen Ventilation Systems

Dampers | Louvers | Lab Exhaust Systems | Coils

715.359.6171

greenheck.com

Mixed Flow Fan

Combination Louver/

Damper

Utility Fan

Spun Aluminum

Roof Exhaust

Packaged Ventilation

System

Laboratory Exhaust System

Centrifugal Inline Fan

Energy Recovery Ventilator

Spun Aluminum

Upblast Exhaust Fan

Centrifugal Supply Fan

Louvered Equipment Screen

Make-Up Air

Centrifugal Inline Fan/

Fire Smoke Damper

Kitchen Hood

Utility Distribution System

Today’s hospital ventilation needs are more dynamic and demanding

than ever, with increased focus on energy efficiency and sustainable

building design concepts. To meet complex and interrelated demands

throughout a medical facility, you must equip for a wide variety of

critical, specialized applications — public areas, offices, surgery suites,

highly sensitive equipment, patient rooms, laboratories, kitchen and

cafeteria. Only an integrated HVAC system can provide the reliability and

performance a hospital needs. Greenheck offers a comprehensive line

of products, designed to work together, effectively, with energy efficiency

and quiet operation, and the added benefit of simplified installation to

save time and costs. We offer more products with certifications from

AMCA, UL, ETL, AHRI and CSA than any other manufacturer. And,

many Greenheck products can help attain LEED credits. Take a

holistic and sustainable approach for your hospital project — contact

your Greenheck representative today.

Scan code to

learn more about

hospital system

ventilation.

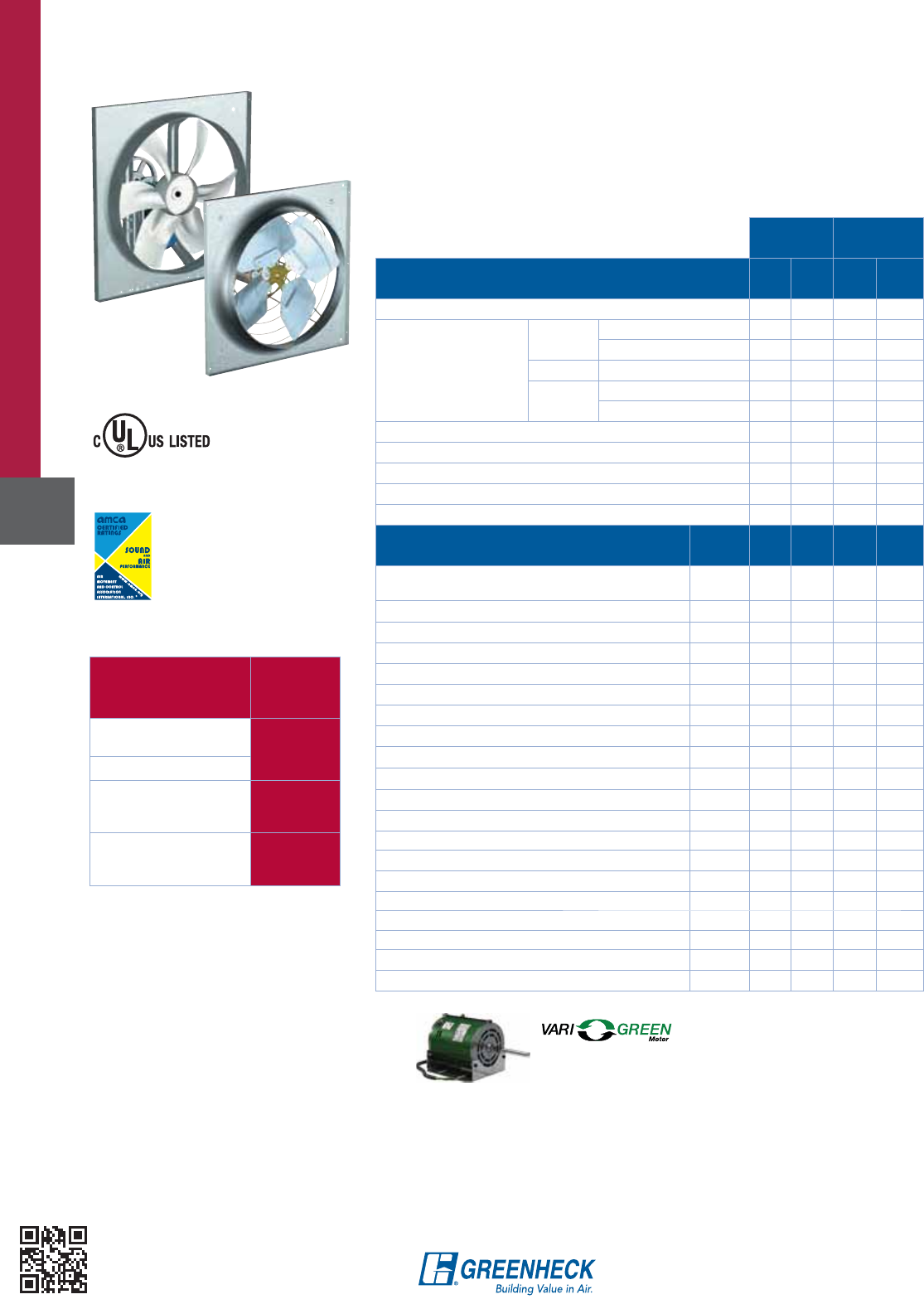

Model SE, SS, SCE, SCS Direct Drive and

SBE, SBS, SBCE, SBCS Belt Drive

Sidewall propeller fans are designed to exhaust or supply high volumes

of air from commercial and industrial buildings. Fan panels allow for

electrical passage to either side of panel for easy wiring.

Greenheck Fan Corporation certiﬁes

that the Model S1, S2, SC3, SB and

SBC shown herein are licensed to

bear the AMCA seal. The ratings

shown are based on tests and

procedures performed in accordance

with AMCA Publication 211 and

AMCA Publication 311 and comply

with the requirements of the AMCA

Certiﬁed Ratings Program.

UL/cUL 705 Power Ventilators

E40001 - SE1/SS1, SE2/SS2, SCE3/SCS3, SBE/SBS,

SBCE/SBCS

Model

Best

Available

Program

SE-8 through 12,

16 and 20 In Stock

SBE-24 through 36

All SE/SS, SCE/SCS,

SBE/SBS, SBCE/SBCS

up through size 48

3 Days

All SE/SS, SCE/SCS,

SBE/SBS, SBCE/SBCS

sizes 54 and larger

5 Days

Direct

Drive

Belt

Drive

Standard Construction SE

SCE

SCS

SBE

SBS

SBCE

SBCS

Fan panel and drive frame - galvanized steel  

Propeller construction

Level 1 Stamped aluminum 

Fabricated steel 

Level 2 Fabricated steel 

Level 3 Fabricated steel 

Cast aluminum 

Corrosion-resistance fasteners  

Reversible 

Ball bearing motor - 1/4 hp and larger  

Three speed motor (sizes 8 through 12) 

Adjustable motor pulley 

Options and Accessories Stock SE

SCE

SCS

SBE

SBS

SBCE

SBCS

Vari-Green® motor - 80% turndown, 85% efﬁcient

Available as standard on select sizes 9

Dampers 9 

Wall housing - up through size 24 9 

Wall collar - up through size 36 9 

Weatherhood 45° - up through size 24 and size 36 9 

Weatherhood 90° - up through size 16 and size 24 9 

Motor side guard - size 20 through 30 9 

OSHA motor side guard - size 16 9 

Louver/Fire damper - size 20 through 42 

Damper guard  

Horizontal mounting  

Wiring - pigtails  

Lube lines 

Filters - 2 inch aluminum, washable - supply only  

NEMA rated disconnect switch  

Dual drives 

Relubricatable bearings 

OSHPD rated  

Decorative or protective powder coating  

UL/cUL Listed Power Ventilators  

Select sizes and models with the Vari-Green®

motor are available in stock.

Direct Drive

Belt Drive

UL/cUL Listed 705 is standard on In Stock SE1 and

SBE models.

www.greenheck.com

Sidewall Propeller

Exhaust Fans

For comprehensive product information,

including performance, access the product

catalog found on www.greenheck.com or

contact your local Greenheck representative.

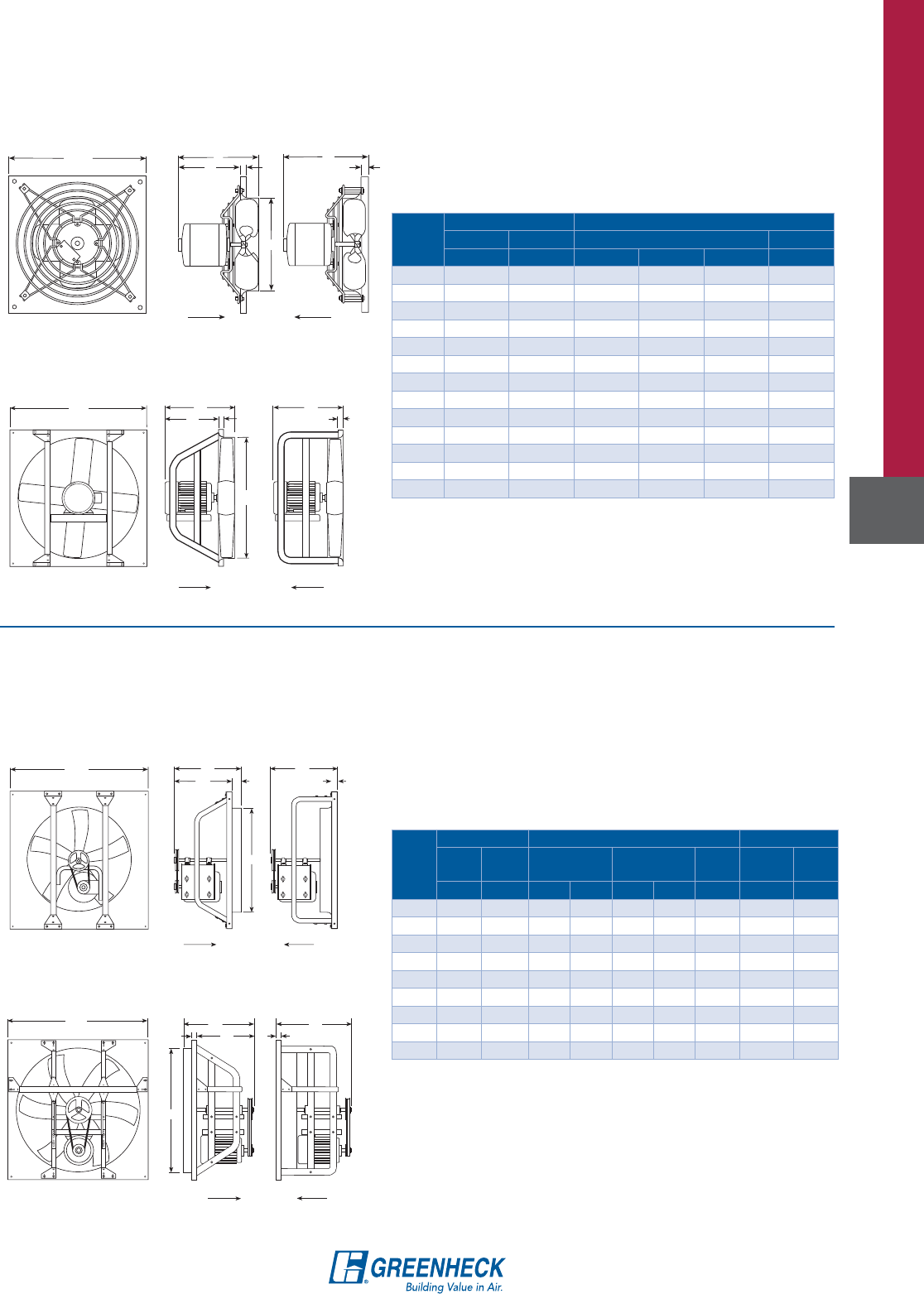

Model SE, SS, SCE, SCS, SBE, SBS, SBCE, SBCS

C* D

Airﬂow

Exhaust

Airﬂow

Supply

Level 1: Size 12-24

Level 2: Sizes 16-54

Level 3: Sizes 20-54

C* D

Airﬂow

Exhaust

Airﬂow

Supply

Level 1: Size 8-12

Airﬂow

Exhaust

Airﬂow

Supply

C* D D

Level 1: Sizes 20-54

Level 2: Sizes 20-60

Level 3: Sizes 24-30

Airﬂow

Exhaust

Airﬂow

Supply

Level 3: Sizes 36-72

Direct Drive

Belt Drive

Dimensions for Direct Drive

Model

Size

Fan Panel Airﬂow

A D Exhaust Supply

Sq. Size Flange B* C* E F*

8131758

3⁄88

10 15 1 83⁄4510

3⁄88

12 18 1 103⁄481⁄4123⁄8131⁄8

14 20 1 111⁄481⁄2143⁄8141⁄4

16 22 1 131⁄2101⁄4163⁄814

18 24 1 14 107⁄8183⁄8141⁄4

20 26 1 171⁄4131⁄2201⁄218

24 32 11⁄420 131⁄2245⁄821

30 38 11⁄4201⁄2163⁄8305⁄8213⁄4

36 44 2 201⁄2163⁄8365⁄828

42 50 2 26 181⁄4425⁄828

48 56 2 265⁄8205⁄8491⁄4281⁄2

54 62 2 28 227⁄16 553⁄8301⁄8

All dimensions are in inches.

*Varies with motor selection.

Dimensions for Belt Drive

Model

Size

Fan Panel Exhaust Supply

Sq.

Size Flange Levels

1 and 2

Level

All

Levels

1 and 2

Level

A D B* C* B* C* E F* F*

20 26 1 191⁄2161⁄4——20

1⁄220 —

24 32 11⁄4191⁄2161⁄819 155⁄8245⁄820 201⁄2

30 38 11⁄4211⁄2171⁄4211⁄2171⁄4305⁄821 20

36 44 2 211⁄2161⁄228 23 365⁄822 27

42 50 2 2520282342

3⁄4251⁄2291⁄4

48 56 2 25 19 311⁄2271⁄2483⁄4251⁄2301⁄2

54 62 2 26 201⁄2353⁄4301⁄4551⁄424 361⁄4

60 68 2 28 217⁄16 35 287⁄16 611⁄424 351⁄2

72 82 21⁄8— — 35 281⁄4731⁄4—35

1⁄2

All dimensions are in inches.

* Varies with motor selection.

Model SE, SS, SCE, SCS, SBE, SBS, SBCE, SBCS

Dimensions

Model

Size

Wall

Opening*

Wall Housing & Collars Weatherhood Motor Side

Guard

OSHA Motor

Side Guard Damper Damper

Guard

Square Length Width 45° 90°

++ C D E F G Depth Depth Square Depth

814

1⁄4131⁄419 161⁄8101⁄2131⁄4111⁄4163⁄812 — 95⁄810 51⁄2

10 161⁄4151⁄419 161⁄8121⁄2147⁄8133⁄8181⁄214 — 10 12 61⁄2

12 191⁄4181⁄423 161⁄8141⁄2163⁄8155⁄8203⁄8163⁄8—12145

3⁄8

14 211⁄4201⁄426 183⁄8161⁄2171⁄2175⁄8221⁄2183⁄8—12166

3⁄8

16 231⁄4221⁄427 183⁄8181⁄2193⁄8195⁄825 203⁄8—12186

3⁄4

18 251⁄4241⁄428 183⁄8201⁄222 215⁄8271⁄2223⁄8—12206

20 271⁄4261⁄432 183⁄8221⁄2243⁄4235⁄8293⁄4243⁄8173⁄8173⁄422 61⁄2

24 333⁄4321⁄437 183⁄8291⁄8267⁄8303⁄836 313⁄4191⁄220 26 63⁄8

30 393⁄4381⁄438 183⁄8351⁄8291⁄8361⁄2401⁄8377⁄8221⁄2213⁄432 61⁄2

36 453⁄4441⁄439 183⁄4411⁄833 421⁄2451⁄2437⁄8237⁄8241⁄438 63⁄4

42 513⁄4503⁄844 183⁄4471⁄8353⁄4481⁄2491⁄4497⁄8257⁄8281⁄244 10

48 573⁄4563⁄844 187⁄8531⁄4403⁄8545⁄8551⁄256 287⁄8281⁄450 9

54 633⁄4623⁄852 201⁄8591⁄2443⁄4607⁄8611⁄4621⁄4—34

1⁄456 71⁄2

60 693⁄4683⁄854 21 655⁄8483⁄867 661⁄2683⁄8—34

1⁄462 71⁄4

72 843⁄4831⁄860 22 781⁄8531⁄4791⁄2721⁄8807⁄8—34

1⁄474 71⁄2

All dimensions are in inches.

*Opening is for fan and accessories to fit.

++Indicates short wall housing dimension. Add 6 inches for long wall housing. Add 10 inches for louver/fire damper.

OSHA Motor

Side Guard Depth

B++

Wall Housing

Wall Collar

Depth

Motor Side

Guard

Motor Side Guards

Depth

Damper Guard

45º Weatherhood

90º Weatherhood

Optional

Direct Drive

Conﬁguration

Optional

Belt Drive

Conﬁguration

Options and Accessories for Sidewall Propeller Fans

Performance for SE, SS • Levels 1, 2 Exhaust and Supply

Performance for SCE, SCS • Level 3 Exhaust and Supply

Model

Size

Level

Blades

Pitch

CFM / Static Pressure in inches wg Motor

Fan

RPM

Max

BHP

Sones

@ 0

Quick

Build In Stock

0 .1 .125 .2 .25 .375 .5 .625 .75 1 Best

Available Direct Drive

81-440

311 126 100 1/100 1050 50W 1.5

3 Days SE1-8-DGEX-QD399 256 198 138 1/40 1350 55W 3.5

459 351 307 198 167 1/25 1550 75W 4.9

511 435 387 261 220 1/6 1750 32.8 7.6 —

10 1-440

626 361 1/40 1050 105W 3.2

3 Days SE1-10-DGEX-QD804 655 615 1/20 1350 135W 4.9

924 800 763 641 1/12 1550 170W 5.9

1029 921 889 792 707 1/6 1750 73.1 6.9 —

12 1-432

981 744 678 463 383 1/20 1050 125W 4.3

3 Days SE1-12-DGEX-QD

1262 1097 1037 886 798 540 1/12 1350 170W 6.0

1449 1309 1271 1129 1042 860 614 478 1/8 1550 190W 7.5

1636 1515 1481 1365 1282 1085 947 706 585 1/4 1750 0.27 8.7

1-436 1621 1513 1471 1346 1230 639 1/4 1750 0.13 17.0 —

14 1-440

1189 919 711 551 408 1/8 860 0.07 5.9

3 Days —

1604 1406 1350 1207 908 720 1/6 1160 0.15 7.3

2386 2234 2205 2119 2048 1877 1435 1282 1163 828 1/2 1750 0.55 11.0

1-436 2734 2615 2585 2487 2422 2192 1829 1220 1/3 1750 0.39 14.8

1-436 2003 1732 1621 1037 849 1/8 860 0.12 5.0

3 Days —

2-435 2522 2239 2150 1732 1434 1/6 1160 0.20 11.6

1-436 2702 2512 2461 2281 2067 1359 1049 1/4 1160 0.29 9.5

2-430 3531 3344 3297 3155 3058 2750 2303 1642 1/2 1750 0.56 23

1-436 4076 3954 3923 3828 3760 3591 3349 2902 2298 3/4 1750 0.89 16.6 SE1-16-VG7X-QD

1-436 2778 2319 2102 1385 1108 912 1/6 860 0.19 9.2

3 Days —

2-435 3658 3311 3208 2850 2556 1/3 1160 0.35 16.2

1-436 3747 3466 3370 3034 2732 1727 1363 1/3 1160 0.45 12.6

2-421 4177 4015 3975 3807 3683 3416 3059 2558 1/2 1750 0.59 22

1-429 4885 4729 4690 4565 4460 4196 3926 3460 2984 3/4 1750 0.88 17.4

1-436 3888 3523 3420 2918 2237 1873 1/4 860 0.29 11.7

3 Days

—

2-430 4468 4087 3989 3626 3281 1/3 1160 0.40 18.6

3-630 4394 4115 4049 3809 3635 3039 1/2 1160 0.55 25

1-436 5245 4991 4926 4697 4525 3863 2920 2650 1/2 1160 0.70 14.4

1-420 6005 5797 5745 5564 5434 5106 4739 4327 3763 1 1750 1.26 42 SE1-20-VG10X-QD

1-432 7115 6962 6924 6809 6733 6518 6292 6016 5688 11⁄21750 1.73 26 —

2-435 7266 6980 6909 6691 6543 6115 5453 4658 11⁄21750 1.76 35

3-630 5924 5401 5252 4653 4184 1/2 860 0.45 18.2

3 Days —

1-437 6136 5764 5631 5150 4720 1/2 860 0.58 11.6

2-630 6439 5768 5599 4993 4387 1/2 860 0.54 18.8

1-432 6745 6399 6313 6064 5830 5007 3/4 1160 0.83 14.7

2-625 7917 7491 7391 7060 6781 6035 4850 2745 1 1160 1.13 25

3-630 7991 7644 7535 7206 6984 6203 5304 1 1160 1.10 28

2-615 9537 9310 9253 9083 8961 8646 8315 7915 7508 6559 2 1750 2.28 41

3-620 9721 9501 9446 9281 9159 8844 8488 8126 7757 6886 2 1750 2.37 53

3-627 11192 10384 10182 9484 8897 6869 1 860 1.01 23

3 Days —

2-635 13290 12505 12291 11647 11060 7951 11⁄2860 1.80 32

2-620 13905 13434 13316 12939 12665 11954 11144 10136 8640 2 1160 2.29 33

3-625 14779 14160 14005 13537 13220 12376 11276 9927 2 1160 2.32 40

2-617 15162 14491 14324 13810 13442 12117 10512 7704 5270 11⁄2860 1.61 31

3 Days —

3-627 19898 18735 18408 17299 16428 13942 2 860 2.30 31

2-614 18400 17945 17832 17490 17263 16517 15787 15003 13722 10993 3 1160 3.29 40

3-617 21781 20957 20751 20134 19710 18607 17398 15999 14133 3 1160 3.54 49

3-629 23088 21265 20790 19236 18050 2 690 2.40 31

3 Days —3-620 24242 23108 22791 21840 21181 19111 16580 12206 3 860 3.11 36

2-627 28811 27924 27702 27037 26533 25261 24002 22494 20376 13589 5 860 5.95 41

3-625 32762 30379 29640 27385 25882 20889 3 690 3.29 41

3 Days —2-422 34332 33166 32874 31944 31257 29594 27990 25869 23518 5 860 5.91 53

3-630 43290 41324 40745 38989 37745 34864 30731 71⁄2860 7.66 53

2-420 41542 39736 39284 38011 37177 34995 32089 28911 25289 14535 5 690 5.76 52

5 Days —

3-328 44402 41230 40512 38189 36133 30263 22490 5 690 5.82 40

2-416 45612 44465 44179 43319 42745 40967 39103 37130 34973 30171 71⁄2860 8.68 54

3-323 51206 48980 48424 46616 45404 42712 39307 35027 29939 71⁄2860 9.00 50

Performance certified is for installation type A: Free inlet, Free outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories). *Speed (RPM) shown is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness values in

fan sones at 5 ft. (1.5 m) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are for installation type A: free inlet hemispherical

sone levels.

Model SE, SS, SCE, SCS, SBE, SBS, SBCE, SBCS

Performance for SBE, SBS • Levels 1L, 2L, 3L Exhaust and Supply

Model

Size Level CFM / Static Pressure in inches wg Motor

Fan

RPM

Max

BHP

Sones

@ FA

Quick Build In Stock

0 .1 .125 .2 .25 .375 .5 .625 .75 Best Available Belt Drive

4404 3795 3672 1/4 861 0.30 14.3

3 Days —

4844 4271 4156 3648 1/3 947 0.40 16.1

5550 5021 4919 4621 4269 1/2 1085 0.60 17.9

2L 5550 5021 4919 4621 4269 1/2 1085 0.60 17.9

6348 5853 5764 5496 5325 4479 3/4 1241 0.90 22

5569 4803 4551 1/4 593 0.30 11.8

3 Days

SBE-1L24-LMDX-QD

6133 5466 5256 1/3 653 0.40 12.8

7025 6455 6300 5723 4939 1/2 748 0.60 14.8

7598 7079 6935 6454 5948 3/4 809 0.76 17.4

7025 6455 6300 5723 4939 1/2 748 0.60 14.8

—

8039 7555 7419 6989 6654 3/4 856 0.90 21

8847 8409 8294 7925 7643 6476 1 942 1.20 28

9260 8842 8738 8385 8139 7205 11⁄2986 1.37 33

3L 8062 7592 7463 7034 6634 5492 3/4 1024 0.90 24

8873 8454 8337 7977 7686 6668 5569 1 1127 1.20 27

7860 6394 5880 1/4 475 0.30 11.6

3 Days

SBE-1L30-LMDX-QD

8654 7427 6970 1/3 523 0.40 13.0

9895 8898 8583 7366 1/2 598 0.60 15.5

11335 10496 10253 9332 8622 3/4 685 0.90 18.7

11517 10696 10456 9570 8874 1 696 0.94 19.2

11335 10496 10253 9332 8622 3/4 685 0.90 18.7

—

12477 11736 11519 10806 10175 1 754 1.20 21

14297 13650 13489 12923 12522 11132 11⁄2864 1.81 27

15720 15132 14985 14503 14152 13039 11760 2 950 2.41 32

3L 15222 14568 14404 13905 13549 12519 10795 2 961 2.40 29 —

17423 16852 16709 16281 15991 15201 14241 12775 11254 3 1100 3.61 41

11078 8915 8018 1/3 384 0.41 11.8

3 Days

SBE-1L36-LMDX-QD

12636 10809 10290 1/2 438 0.61 13.6

14425 12890 12435 10808 8915 3/4 500 0.90 15.3

15896 14558 14146 12908 11731 1 551 1.21 17.7

15867 14525 14113 12873 11682 1 550 1.21 17.6

—18204 17113 16759 15680 14959 12176 11⁄2631 1.81 22

19993 18999 18744 17762 17106 15154 2 693 2.41 27

3L 19709 18646 18404 17438 16759 14576 2 716 2.41 22 —

22544 21590 21378 20658 20081 18511 16505 3 819 3.60 28

13701 10026 1/3 294 0.40 11.1

3 Days

—

15612 12415 11671 1/2 335 0.60 13.0

17942 15273 14451 11298 3/4 385 0.92 15.8

19759 17478 16705 14777 1 424 1.21 18.8

—

22555 20599 20064 18117 17086 11⁄2484 1.80 23

24792 23046 22560 20881 17957 16579 2 532 2.40 27

28474 26984 26586 25316 24279 21952 18527 3 611 3.65 31

33693 32435 32120 31102 30386 28275 26322 24165 5 723 6.00 39

3L 27349 25968 25623 24537 23737 21321 17720 3 640 3.61 26 —

32563 31403 31113 30243 29634 27942 25934 23434 5 762 6.01 33

18171 14077 11902 1/2 282 0.60 10.5

3 Days

—20877 17700 16601 3/4 324 0.91 13.0

22875 20096 19220 14778 1 355 1.20 15.4

—

26226 23841 23203 20720 17923 11⁄2407 1.80 18.9

28868 26733 26154 24229 22469 2 448 2.40 21

33056 31241 30735 29218 28043 23721 3 513 3.60 28

39177 37652 37271 36010 35157 32745 29209 5 608 5.99 36

33257 31277 30810 29181 27830 23228 3 506 3.61 25

—39435 37765 37347 36157 35241 32427 28734 5 600 6.02 33

45088 43627 43262 42175 41495 39429 36866 33882 71⁄2686 9.00 44

23892 19346 17418 3/4 272 0.92 12.7

5 Days

—26352 22515 21155 1 300 1.21 14.1

30129 26851 26014 21850 16537 11⁄2343 1.83 17.3

30129 26851 26014 21850 11⁄2343 1.81 17.3

—

33379 30420 29680 26821 23826 2 380 2.46 19.6

38035 35439 34789 32810 30926 3 433 3.61 26

44623 42410 41857 40196 39088 35194 28363 5 508 5.97 44

36557 33708 32974 30005 27535 3 415 3.61 27

—

43339 40968 40348 38489 36778 31783 26116 5 492 6.02 44

49594 47550 47008 45384 44301 40440 36084 30683 71⁄2563 9.03 49

54526 52685 52198 50721 49736 46840 42826 39077 10 619 12.0 56

35628 28888 26731 11⁄2267 1.80 16.7

5 Days

—

39231 33280 31524 2 294 2.41 20

44969 39902 38533 33664 3 337 3.63 25

53242 49009 47929 44361 41676 5 399 6.02 31

—60982 57286 56362 53476 51359 45184 71⁄2457 9.05 56

67120 63762 62923 60374 58582 53530 10 503 12.1 72

72 3L

50841 46713 45654 40999 3 288 3.61 22

5 Days —

60197 56743 55852 53170 50373 5 341 6.01 29

69024 66011 65258 62930 61371 55346 71⁄2391 9.03 38

75909 73169 72484 70395 68977 64603 58769 10 430 12.1 45

86854 84459 83861 82065 80838 77740 73537 68410 15 492 18.0 57

Performance certified is for installation type A: Free inlet, Free outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories). *Speed (RPM) shown is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness values in

fan sones at 5 ft. (1.5 m) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are for installation type A: free inlet hemispherical

sone levels.

Model SE, SS, SCE, SCS, SBE, SBS, SBCE, SBCS

Performance for SBE, SBS • Levels 1H, 2H, 3H Exhaust and Supply

Model

Size Level CFM / Static Pressure in inches wg Motor

Fan

RPM

Max

BHP

Sones

@ FA

Quick Build

0 .1 .125 .2 .25 .375 .5 .625 .75 1 Best Available

3581 3247 3148 2769 2469 1160 657 1/4 953 0.30 16.2

3 Days

3904 3608 3517 3212 2954 2037 1064 603 1/3 1039 0.40 17.2

4587 4339 4277 4049 3873 3333 2514 1456 1064 1/2 1221 0.60 20

2H 4587 4339 4277 4049 3873 3333 2514 1456 1064 1/2 1221 0.60 20

5226 5008 4954 4774 4639 4244 3741 3005 1886 1138 3/4 1391 0.90 25

4105 3618 3445 2848 2105 1133 444 1/4 785 0.30 13.3

3 Days

4586 4157 4041 3564 3179 1845 1108 491 1/3 877 0.36 16.1

5281 4920 4819 4471 4193 3093 2108 1439 904 1/2 1010 0.60 19.9

2H 5281 4920 4819 4471 4193 3093 2108 1439 904 1/2 1010 0.60 19.9

6003 5685 5606 5340 5122 4502 3343 2510 1853 910 3/4 1148 0.90 25

3H 6937 6650 6576 6337 6174 5721 5195 4494 3495 3/4 1330 0.90 24

7746 7489 7425 7216 7073 6704 6271 5793 5208 3470 1 1485 1.28 28

6970 6129 5860 4743 1/4 610 0.30 12.6

3 Days

7713 6950 6763 5939 5160 1/3 675 0.41 14.1

8787 8112 7949 7376 6876 1/2 769 0.60 16.9

10078 9484 9342 8914 8560 7424 3/4 882 0.90 22

11061 10519 10385 9996 9736 8847 7570 1 968 1.20 26

12683 12211 12092 11747 11521 10901 10090 9019 11⁄21110 1.80 31

13951 13522 13414 13095 12889 12374 11734 10955 9980 2 1221 2.40 36

3H 13351 13030 12950 12708 12510 12015 11376 10705 9980 8065 2 1260 2.46 38

15173 14891 14820 14609 14468 14036 13586 13022 12446 11176 3 1432 3.53 49

10572 8812 8290 1/3 481 0.41 12.1

3 Days

12220 10729 10328 8958 1/2 556 0.63 14.9

13802 12520 12156 11035 10205 3/4 628 0.90 18.2

15253 14135 13798 12824 12111 9875 1 694 1.23 20

17407 16519 16198 15316 14753 13170 11⁄2792 1.80 27

19121 18388 18096 17259 16736 15389 13871 2 870 2.40 34

17429 16877 16739 16313 16003 15059 13876 12427 10502 2 967 2.40 33

19935 19452 19331 18968 18721 18044 17147 16121 15045 11743 3 1106 3.60 40

23810 23405 23304 23001 22799 22277 21711 21007 20233 18473 5 1321 6.00 59

12744 10191 9283 1/3 369 0.40 12.6

3 Days

14712 12605 11980 1/2 426 0.61 16.3

16646 14868 14327 12592 10507 3/4 482 0.90 20

18408 16849 16388 14900 13752 1 533 1.22 21

18408 16849 16388 14900 13752 1 533 1.22 22

20998 19701 19302 18053 17182 14193 11⁄2608 1.81 26

23243 22131 21771 20682 19906 17893 2 673 2.41 31

26455 25479 25235 24298 23664 21961 20125 16908 3 766 3.61 40

31324 30500 30294 29630 29095 27738 26299 24797 22915 5 907 5.95 56

3H 24197 23301 23090 22471 22059 20878 19377 17765 15725 3 800 3.60 31

28764 28010 27822 27286 26939 26072 25063 23863 22589 19606 5 951 6.00 43

17349 14214 13047 1/2 341 0.61 12.3

3 Days

19995 17450 16655 13052 3/4 393 0.93 15.5

21827 19513 18907 16322 13506 1 429 1.21 19.3

24981 22990 22460 20671 19129 11⁄2491 1.81 22

27474 25681 25206 23761 22529 18065 2 540 2.41 24

31442 29875 29484 28236 27395 24703 20285 3 618 3.61 29

37344 36025 35695 34700 33991 32220 29911 26937 22215 5 734 6.05 39

28700 27492 27190 26184 25479 23333 20969 17480 3 634 3.62 33

34132 33116 32862 32100 31530 30047 28205 26350 24136 5 754 6.01 44

39021 38132 37910 37244 36800 35546 34248 32623 30989 27200 71⁄2862 9.01 54

22867 19233 18136 3/4 299 0.91 13.4

5 Days

25161 21986 21010 1 329 1.21 15.6

28832 26243 25408 22802 19924 11⁄2377 1.82 19.0

31662 29444 28684 26374 24628 2 414 2.41 22

36250 34402 33873 31882 30526 26145 3 474 3.61 30

42980 41422 41032 39618 38498 35655 32079 5 562 6.03 40

33776 31946 31609 30565 29698 26933 3 526 3.62 38

39684 38044 37683 36823 36250 34451 32025 28547 5 618 6.02 52

45591 44164 43807 42943 42444 41121 39515 37449 34796 71⁄2710 9.02 63

50022 48721 48396 47487 47032 45895 44548 43085 41129 35732 10 779 12.0 75

30561 27858 27152 24458 21479 11⁄2348 1.81 25

5 Days

33635 31095 30577 28558 26588 2 383 2.41 28

38465 36115 35664 34128 32978 28368 3 438 3.60 34

45754 43590 43208 42072 41233 38708 34835 5 521 6.01 47

52253 50358 49884 48855 48192 46261 43933 40629 35715 71⁄2595 9.00 56

57873 56163 55735 54653 54054 52537 50625 48395 45470 10 659 12.0 70

72 3H

48947 45342 44616 41829 39112 3 324 3.61 30

5 Days

58465 55195 54588 52646 51074 45737 5 387 6.03 39

66773 63726 63155 61559 60428 56986 51688 71⁄2442 9.01 50

73421 70649 69945 68496 67529 64622 60962 55889 10 486 12.0 57

84449 82039 81436 79872 79030 76927 74244 71276 67313 15 559 18.1 75

Performance certified is for installation type A: Free inlet, Free outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include

the effects of appurtenances (accessories). *Speed (RPM) shown is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness

values in fan sones at 5 ft. (1.5 m) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are for installation type A: free inlet

hemispherical sone levels.

Model SE, SS, SCE, SCS, SBE, SBS, SBCE, SBCS

Performance for SBCE, SBCS • Level 3L Exhaust and Supply

Model

Size Level CFM / Static Pressure in inches wg Motor

Fan

RPM

Max

BHP

Sones

@ FA

Quick Build

0 .1 .2 .25 .375 .5 .625 .75 1 Best Available

24 3L

5704 5156 4346 3836 1/3 828 0.40 14.6

3 Days

6531 6070 5474 5073 3825 1/2 948 0.60 18.0

7475 7092 6622 6349 5463 3/4 1085 0.90 21

8225 7892 7469 7253 6527 5677 1 1194 1.20 24

30 3L

9585 8388 6798 1/2 695 0.60 16.6

3 Days

10964 9966 8700 7988 3/4 795 0.90 20

12067 11169 10081 9486 7440 1 875 1.20 23

13818 13038 12168 11672 10388 11⁄21002 1.80 28

15211 14504 13762 13329 12162 10837 2 1103 2.40 32

17404 16786 16159 15835 14881 13842 12738 11164 3 1262 3.60 40

36 3L

14577 12834 10267 3/4 630 0.90 21

3 Days

16034 14528 12409 1 693 1.20 24

18348 17064 15395 14424 11⁄2793 1.80 28

20199 19058 17658 16812 14506 2 873 2.41 32

23092 22127 21006 20343 18470 16315 3 998 3.61 39

27372 26559 25670 25194 23837 22246 20647 5 1183 6.01 51

42 3L

18297 15764 1 536 1.20 18.1

3 Days

20925 18692 16364 14566 11⁄2613 1.80 21

23042 21097 19068 17750 2 675 2.40 25

26387 24729 22864 22051 18935 3 773 3.61 31

31269 29920 28347 27517 25762 23038 5 916 6.01 42

48 3L

26730 23117 11⁄2531 1.80 24

3 Days

29448 26249 22640 2 585 2.41 27

33676 30972 27904 26301 3 669 3.61 32

39918 37729 35144 33810 30464 5 793 6.01 41

45707 43860 41690 40528 37736 34664 71⁄2908 9.02 50

54 3L

29752 26685 22822 2 425 2.41 22

5 Days

34092 31897 28420 26637 3 487 3.62 28

40393 38690 35716 34451 30778 5 577 6.02 38

46203 44715 42720 41165 38347 34940 71⁄2660 9.01 49

50894 49542 48191 46850 43846 41235 37872 10 727 12.0 61

60 3L

36192 31785 23150 2 363 2.42 22

5 Days

41377 37510 32117 27497 3 415 3.62 28

49054 45784 42555 40364 30638 5 492 6.02 36

56133 53276 50438 49031 43088 34085 71⁄2563 9.03 46

61816 59221 56632 55354 52119 44587 10 620 12.1 56

72 3L

50891 41519 26696 3 338 3.60 27

5 Days

60376 53221 42331 35746 5 401 6.01 37

69109 63324 55204 49816 35555 71⁄2459 9.02 45

76035 70697 63628 60117 47224 10 505 12.01 54

87026 82239 77299 73547 64621 53266 42050 15 578 18.00 72

Performance SBCE, SBCS • Level 3H Exhaust and Supply

Model

Size Level CFM / Static Pressure in inches wg Motor

Fan

RPM

Max

BHP

Sones

@ FA

Quick Build

0 .1 .2 .25 .375 .5 .625 .75 1 Best Available

24 3H

5518 5046 4531 4251 3338 1239 1/3 968 0.40 16.7

3 Days

6317 5917 5466 5244 4621 3734 1589 878 1/2 1108 0.60 20

7229 6881 6498 6301 5800 5243 4536 2159 917 3/4 1268 0.90 23

7958 7643 7306 7126 6684 6208 5685 5051 1966 1 1396 1.20 26

30 3H

8610 7863 7098 6696 5288 1/2 890 0.60 19.1

3 Days

9848 9190 8544 8201 7277 5927 3/4 1018 0.90 23

10845 10242 9665 9362 8572 7667 6305 1 1121 1.20 26

12412 11886 11375 11122 10458 9762 8982 7921 11⁄21283 1.80 34

13660 13182 12712 12483 11898 11279 10645 9926 7863 2 1412 2.40 39

15634 15216 14798 14596 14096 13579 13041 12487 11270 3 1616 3.60 47

36 3H

13442 12239 10951 10296 7708 3/4 786 0.90 21

3 Days

14793 13713 12595 11952 10148 6816 1 865 1.20 24

16948 16024 15038 14565 13209 11486 8916 11⁄2991 1.81 29

18641 17801 16902 16471 15285 14101 12341 9976 2 1090 2.41 35

21343 20609 19850 19449 18503 17426 16390 15077 10981 3 1248 3.60 43

25311 24692 24073 23751 22909 22117 21253 20313 18538 5 1480 6.01 58

42 3H

17185 15919 14411 13492 10692 1 736 1.20 27

3 Days

19660 18600 17329 16671 14556 11992 11⁄2842 1.80 31

21645 20721 19576 18987 17308 15214 12754 2 927 2.40 36

24774 23980 23026 22526 21236 19699 17881 15890 3 1061 3.61 44

29397 28728 28011 27590 26536 25446 24224 22881 19615 5 1259 6.01 57

48 3H

25650 23608 21313 20083 15959 11⁄2691 1.80 31

3 Days

28249 26368 24434 23316 20084 15370 2 761 2.41 35

32332 30648 29133 28230 25779 22761 19268 3 871 3.61 43

38308 36841 35553 34913 33002 30995 28669 25923 16703 5 1032 6.00 59

43876 42596 41415 40859 39461 37668 35918 34068 29382 71⁄21182 9.01 75

54 3H

29370 27282 24696 23254 18049 2 501 2.41 26

5 Days

33591 31765 29731 28536 25299 20153 3 573 3.61 31

39864 38325 36748 35851 33382 30664 27125 21725 5 680 6.02 41

45609 44264 42919 42229 40269 38025 35671 33163 23604 71⁄2778 9.03 53

50182 48959 47737 47126 45432 43599 41507 39367 33873 10 856 12.03 61

60 3H

34870 31476 27574 25189 2 453 2.40 27

5 Days

39950 36909 33845 32059 26478 3 519 3.61 32

47340 44661 42374 40977 37234 32691 25081 5 615 6.01 42

54190 51775 49746 48747 45736 42385 38434 33206 71⁄2704 9.01 54

59656 57462 55532 54624 52131 49309 46183 42537 31181 10 775 12.02 63

72 3H

49824 45755 41527 39012 29847 3 465 3.61 37

5 Days

59039 55683 52112 50384 44927 37456 5 551 6.00 52

67611 64754 61587 60049 56106 51062 44626 36346 71⁄2631 9.01 65

74361 71806 68944 67504 64053 60168 55291 49391 10 694 12.00 77

85183 82953 80547 79290 76179 73186 69826 65974 55871 15 795 18.04 104

Performance certified is for installation type A: Free inlet, Free outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories). *Speed (RPM) shown is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness values in

fan sones at 5 ft. (1.5 m) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are for installation type A: free inlet hemispherical

sone levels.

Model SE, SS, SCE, SCS, SBE, SBS, SBCE, SBCS

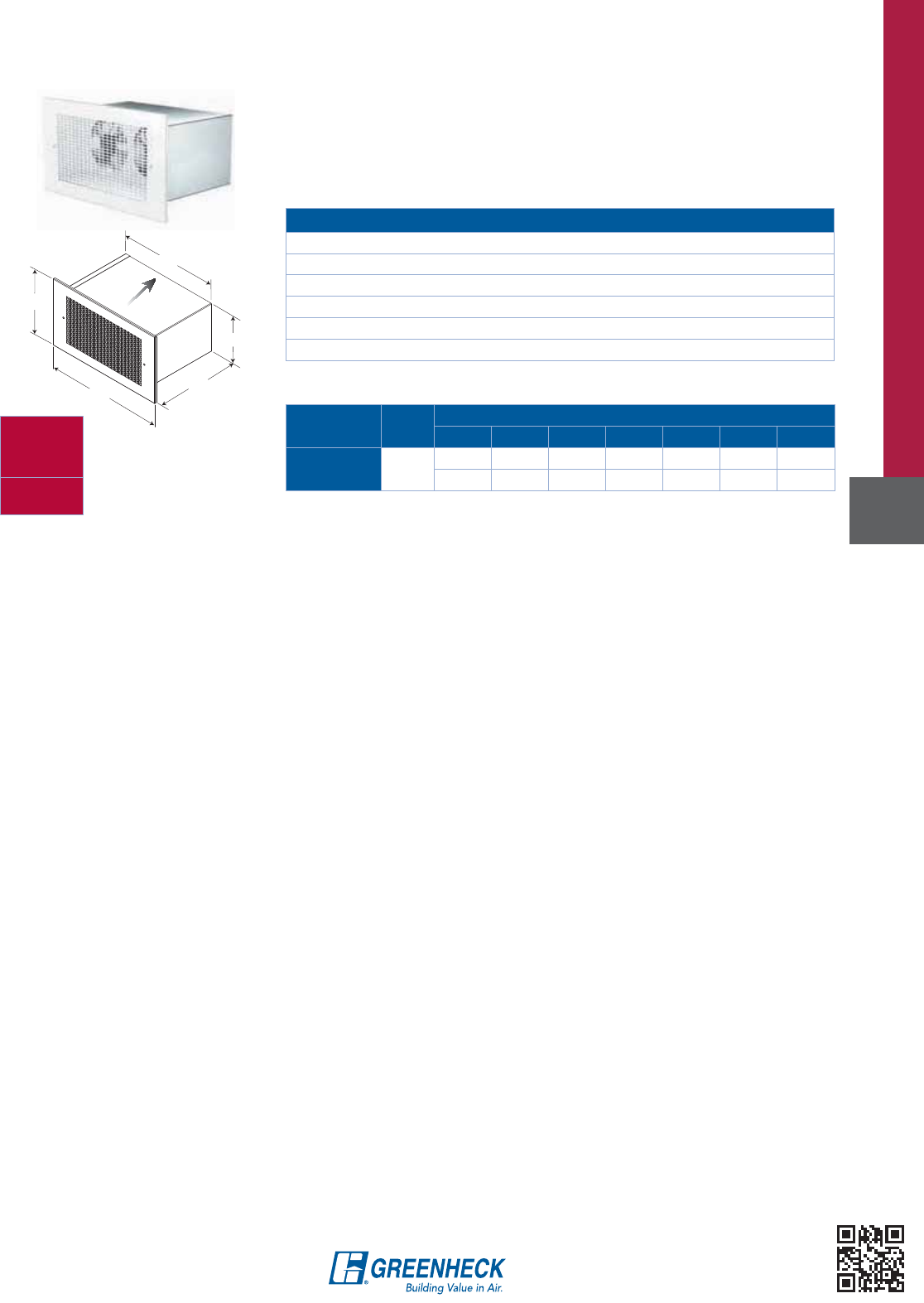

Performance for CBF

Model Amps CFM / Static Pressure in inches wg

0 .1 .125 .25 .375 .4

CBF-205-QD 1.0 CFM 500 465 453 390 320 300

Sones 8.3 8.3 8.1 7.8 7.5 9.4

Model CBF Direct Drive

Cement block fans are designed for economy and reliability in small size,

high volume applications. Efﬁcient propeller, venturi, and motor design

results in low sound levels with minimal restriction to airﬂow. Works great

for ventilating equipment rooms, plumbing and electrical chases.

Standard Construction

Housing - galvanized steel

Fits in place of a standard 16 by 8 inch concrete block

Mountable in any wall construction

Mounting ﬂanges for easy installation

Grille - galvanized steel

UL/cUL Recognized motor

Best

Available

Program

In Stock

18.5

10.5

12.0

7.625

15.625

Airﬂow

All dimensions

are in inches.

www.greenheck.com

Sidewall Propeller

Exhaust Fans

For comprehensive product information,

including performance, access the product

catalog found on www.greenheck.com or

contact your local Greenheck representative.

Model CBF

SP A700 Ceiling&Cabinet

Navigation menu

Versions of this User Manual:

Views

Navigation
