CeleX-5 SDK Getting Started Guide Version1.0
CeleX-5 SDK User Manual
CelePixel Technology Co. Ltd.
CeleX-5 SDK Getting Started Guide Version1.0
Content
1 User Steps of CeleX-5 SDK ...................................................................................................... 3
1.1 Install MIPI to USB3.0 Driver .................................................................................. 3
1.2 Run CeleX Demo GUI .............................................................................................. 5
1.3 Compile CeleX-5 Library Source Code .................................................................... 5
1.4 Compile Source Code of CeleX Demo GUI ............................................................. 6
1.5 Generate FPN file ...................................................................................................... 7
2 The Functions of CeleX-5 Demo Kit GUI ................................................................................ 8
2.1 Change Sensor Mode ................................................................................................ 9
2.2 Record Raw Data of Sensor (Bin Files) .................................................................... 9
2.3 Playback Recorded Raw Data of Sensor (Bin Files) ............................................... 10
2.4 Generate FPN file .................................................................................................... 10
CeleX-5 SDK Getting Started Guide Version1.0
1 User Steps of CeleX-5 SDK
1.1 Install MIPI to USB3.0 Driver
1.1.1 Windows
Please install the driver from following folder:
Driver/Windows
Installation Steps:
(1) Connect the CeleX-5 Sensor to the PC via the USB cable, double-click “zadig-2.4.exe” to
pop up the interface shown in Fig. 2-1.
(2) Select Options → List All Devices (Fig. 2-2), then select device FX3 (Fig. 2-3).
(3) Click “Install Driver” or “Reinstall Driver” (Fig. 2-4) to install the driver. After the
installation is successful, Figure 2-5 will be shown.
Notes: The data cable must be connected to the USB 3.0 port on the PC.
Fig. 2-1
Fig. 2-2
CeleX-5 SDK Getting Started Guide Version1.0

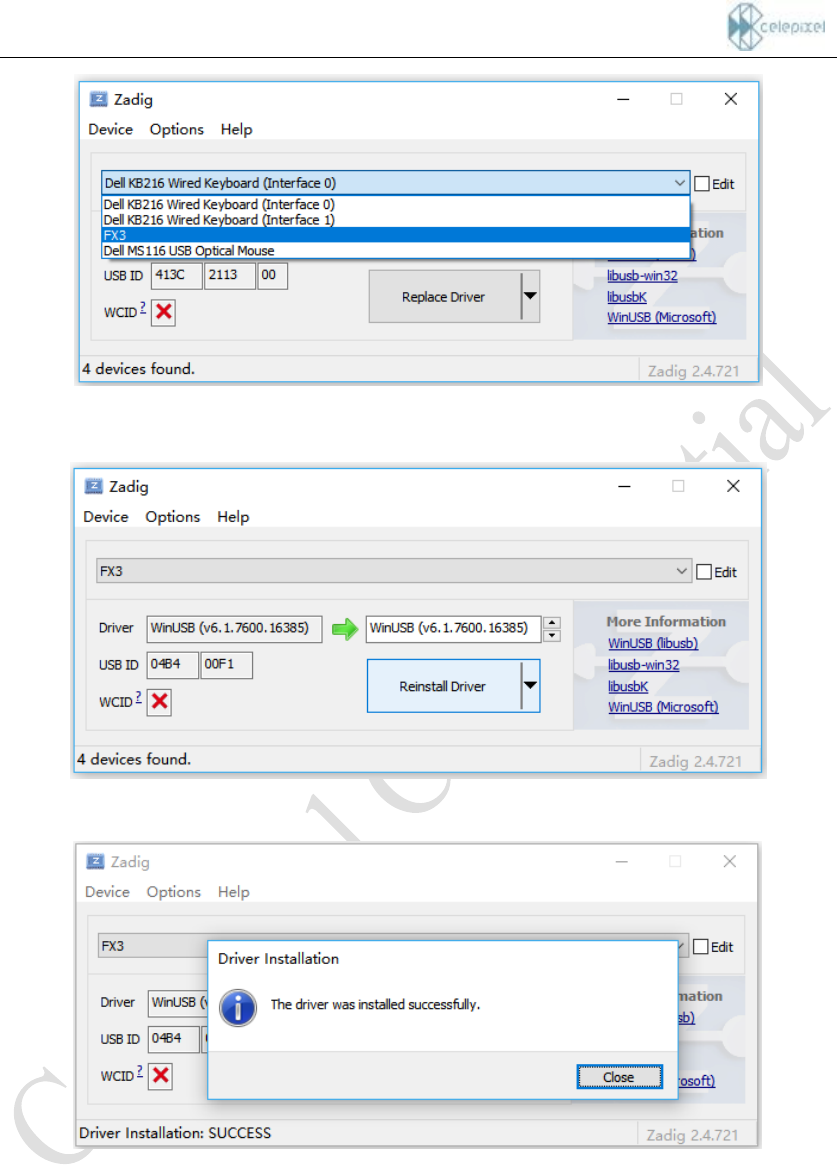

Fig. 2-3
Fig. 2-4
Fig. 2-5
1.1.2 Linux
Please install the driver from following folder:
Driver/Linux
You can choose one of these drivers to install according to the platform system.
For Ubuntu 16.04LTS-x64, choose CeleDriver-Ubuntu16.04LTS-x64.tar.gz, after extracting, open
CeleX-5 SDK Getting Started Guide Version1.0
the terminal, enter the directory where install.sh is located, and input the following command to
install the driver:
1.2 Run CeleX Demo GUI
1.2.1 Windows
After installing the Driver, user could open the Demo GUI from following folder:
Double-click "CeleXDemo.exe" to open the CeleX-5 Demo GUI, as shown in Figure 3-2 in
Chapter 2.
Note: If the software cannot be opened and some windows message box popped out saying some
dynamic library files was missing, which may be caused by lacking of Visual C++ supporting
package. You can install the “vc_redist.x86.exe” under the folder <Drives/Windows> and try it
again, the software should be working properly.
1.2.2 Linux
After installing the Driver, user could open the Demo GUI from following folder:
Open a terminal and enter the following command to open the Demo GUI，as shown in Figure 2-2
in Chapter 3.
1.3 Compile CeleX-5 Library Source Code
CeleX-5 SDK Getting Started Guide Version1.0
The OpenCV library (Version 3.3.0) is involved in the CeleX-5 API to develop some interfaces, so
you need to install OpenCV and configure its development environment before compiling the
source code of CeleX-5 library.
1.3.1 Windows
On the Windows platform, a VS2015 project file is provided to compile the source code, and the
build library (CeleX.dll and CeleX.lib) will be imported into the directory build/Windows.
1.3.2 Linux
On the Linux platform, a Makefile is provided to compile the source code, and the shared library
(libCeleX.so) will be generated in the current directory.
1.4 Compile Source Code of CeleX Demo GUI
Development Environment：Qt5.6.3 + OpenCV3.3.0
You could open the project in the following directory and compile it using Qt Creator easily.
CeleX-5 SDK Getting Started Guide Version1.0
Notes: It needs to modify the INCLUDEPATH and LIBS of OpenCV in the file CeleXDemo.pro.
Problems that may occur during compilation (Linux):
Cannot find -lGL
Solution:
sudo apt-get install libgl1-mesa-dev
1.5 Generate FPN file
FPN (Fixed Pattern Noise) is the term given to a particular noise pattern on digital imaging
sensors often noticeable during longer exposure shots where particular pixels are susceptible to
giving brighter intensities above the general background noise. To get rid of FPN, we need to
create FPN files for CeleX-5 Sensor. Each sensor requires its own FPN, and steps for generating
FPN are illustrated in section 2.4.
CeleX-5 SDK Getting Started Guide Version1.0

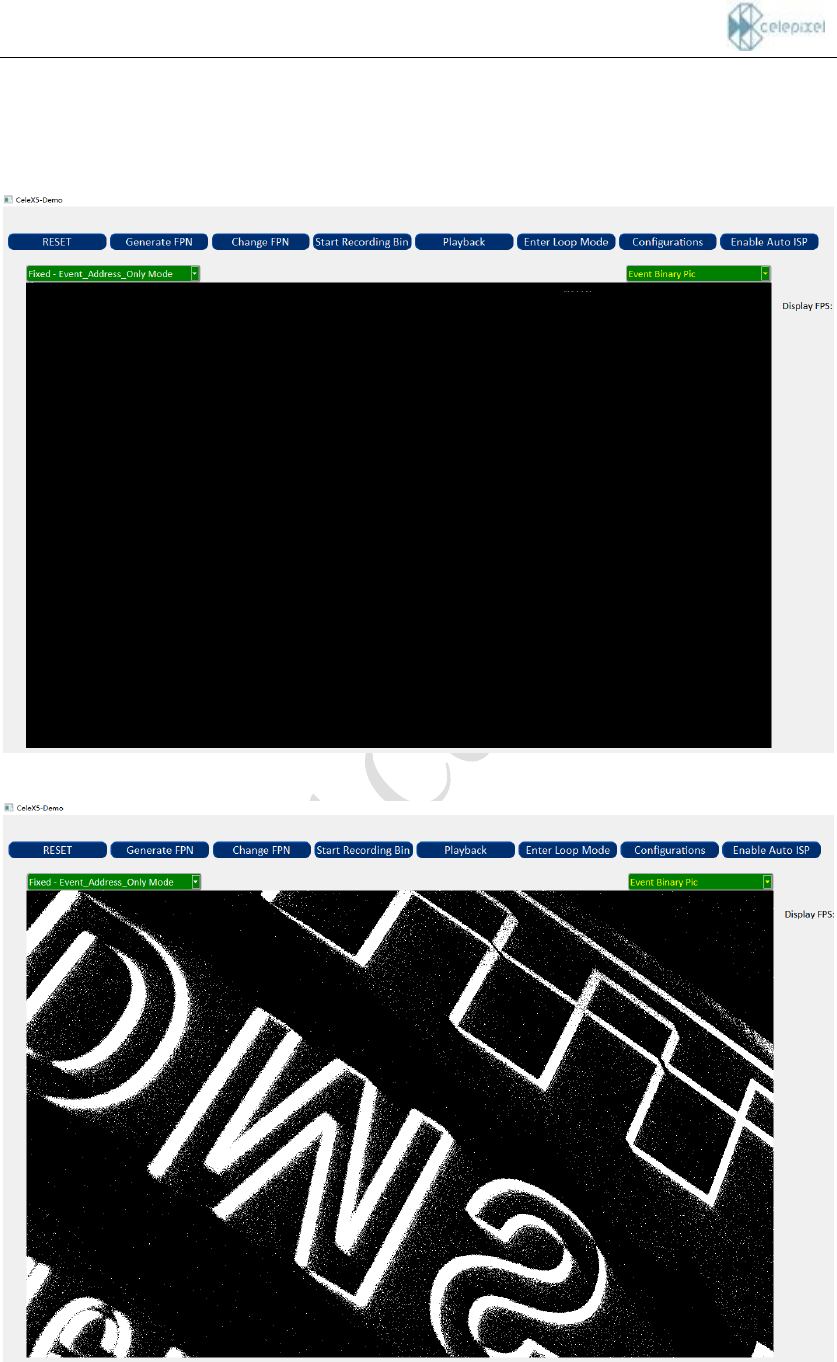

2 The Functions of CeleX-5 Demo Kit GUI
If there is no sensor device connected, the interface screen is shown as Fig.2-1, when there is a
sensor device connected, the interface screen is shown as Fig.2-2.
Fig. 2-1
Fig. 2-2
CeleX-5 SDK Getting Started Guide Version1.0

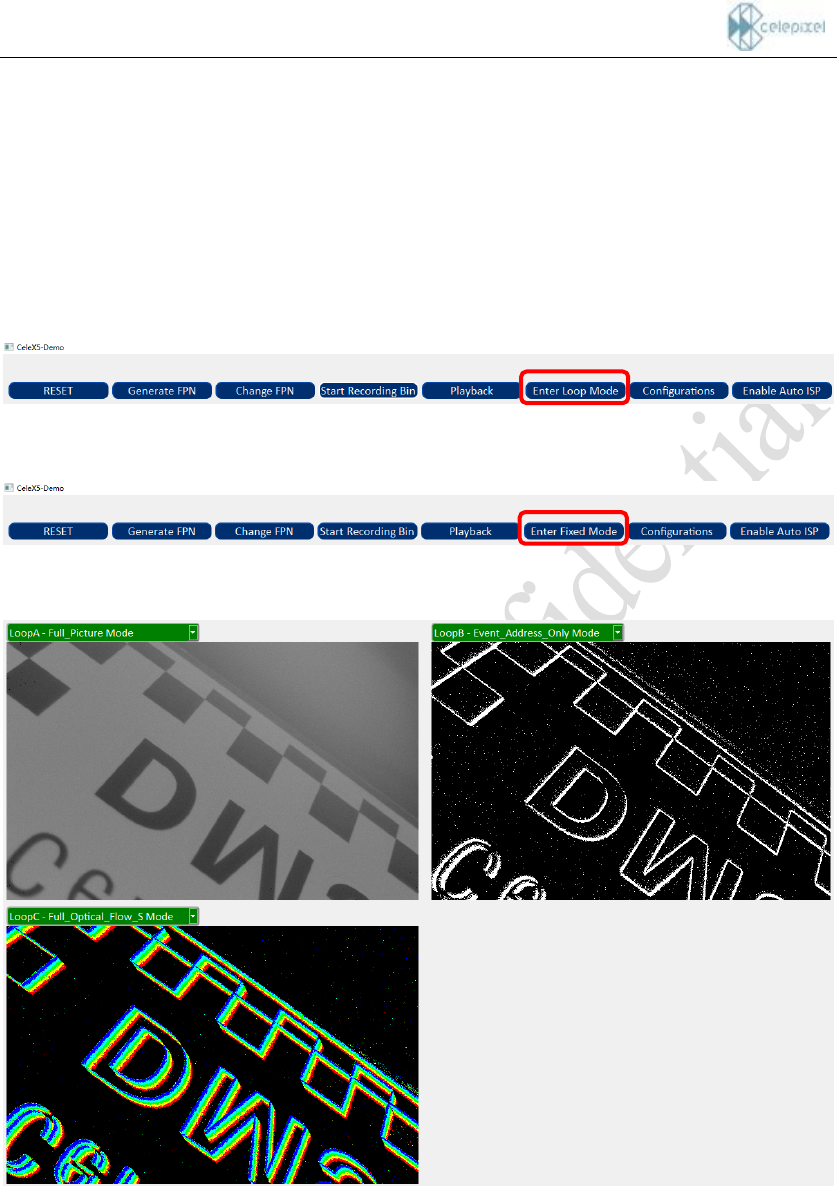

2.1 Change Sensor Mode
In the Fixed Mode, click the button “Enter Loop Mode” shown in Figure 2-3-1 to enter the Loop
Mode. The images of Loop Mode are displayed as shown in Figure 2-4. Loop A is the first loop, its
mode is Full-frame Picture mode, Loop B is the second loop, its mode is Event mode, and Loop C
is the third loop, its mode is Full-frame Optical-flow mode.
In the Loop Mode, click the button “Enter Fixed Mode” shown in Figure 2-3-2 to switch to the
Fixed mode (the default mode is Event mode).
Fig. 2-3-1
Fig. 2-3-2
Fig. 2-4 Sensor works in Event Mode

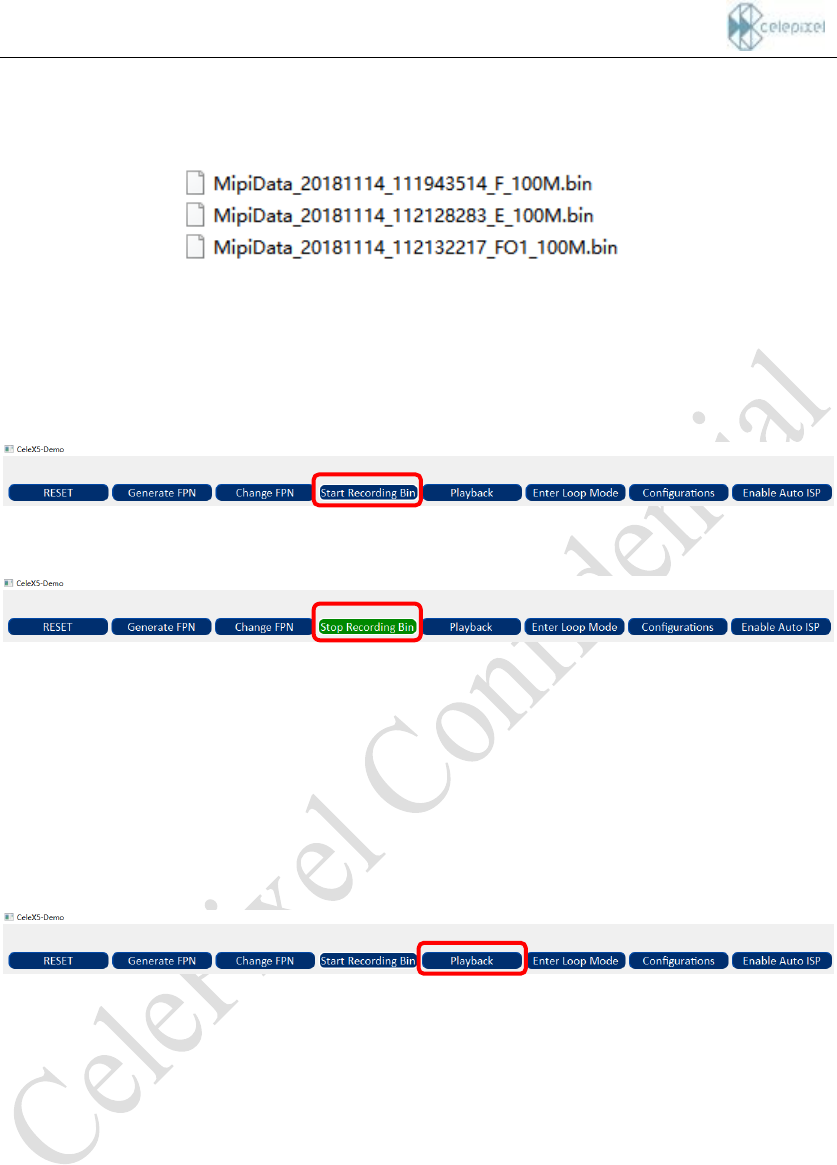

2.2 Record Raw Data of Sensor (Bin Files)
Click the "Start Recording Bin" button in Figure 2-5-1 to start recording bin data, then the text on
the button will change to "Stop Recording Bin" as shown in Figure 2-5-2.
Click the "Stop Recording Bin" button to stop recording bin data. The recorded bin file will store
CeleX-5 SDK Getting Started Guide Version1.0
in the same directory as CeleXDemo.exe and is named in the form of
MipiData_YYYYMMDD_HHMMSSSSS_SensorMode_ClockRate.bin, as follow:
F: Full-frame Picture mode,
E: Event mode
FO1: Single Full-frame Optical-flow mode
100MHz: The operating frequency of the Sensor is 100MHz
Fig. 2-5-1
Fig. 2-5-2
2.3 Playback Recorded Raw Data of Sensor (Bin Files)
Click the "Playback" button to select a bin file to play, the image displayed in the interface is
related to the Sensor mode when you record the bin data.
2.4 Generate FPN file
Each sensor requires its own FPN, and steps for generating FPN are illustrated as below:
1) Switch the Sensor operating mode into " Full-frame Picture Mode".
CeleX-5 SDK Getting Started Guide Version1.0
2) Since the FPN should be conducted under the condition of uniform illumination, we could
use the way of removing optical lens and covering a piece of white paper (thin tissue or A4
paper) over the exposed Sensor. Make sure that paper completely covers the sensor and sheet
is stationary. NOTE: the effect will be better if you operate in natural light rather than
the LED lamp.
3) Before generating FPNs, please check the image screen and make sure it is normal, which is
neither too dark nor too bright. Then, you could adjust the amount of paper over the Sensor
or switch the " Brightness " slider in the GUI to change the luminance. NOTE: the 3rd
figure is the right luminance among the three figures below.
CeleX-5 SDK Getting Started Guide Version1.0
4) Click the “Generate FPN " button in GUI. Then, you could see the FPN.txt file in assigned
direction after FPN file was successfully generated.
5) It will automatically use the new generated FPN file after restarting the GUI terminal. You
should be able to see the differences of image quality then.
