CircuiTikZ
version 0.3.0
Massimo A. Redaelli
December 30, 2012
Contents
1 Introduction 2
1.1 About................................... 3
1.2 Loadingthepackage........................... 3
1.3 License .................................. 3
1.4 Feedback ................................. 3
1.5 Requirements .............................. 3
1.6 Incompatible packages . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.7 Introduction to version 0.3.0 . . . . . . . . . . . . . . . . . . . . . . 3
1.8 Introduction to version 0.2.3 . . . . . . . . . . . . . . . . . . . . . . 4
1.9 ConT
EXtcompatibility.......................... 4
2 Options 5
3 The components 6
3.1 Monopoles ................................ 7
3.2 Bipoles .................................. 8
3.2.1 Instruments ........................... 8
3.2.2 Basic resistive bipoles . . . . . . . . . . . . . . . . . . . . . . 8
3.2.3 Resistors and the like . . . . . . . . . . . . . . . . . . . . . . 9
3.2.4 Stationary sources . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2.5 Diodesandsuch......................... 12
3.2.6 Basic dynamical bipoles . . . . . . . . . . . . . . . . . . . . . 13
3.2.7 Sinusoidal sources . . . . . . . . . . . . . . . . . . . . . . . . 15
3.2.8 Squaresources.......................... 15
3.2.9 Switch .............................. 15
3.3 Tripoles.................................. 15
3.3.1 Controlled sources . . . . . . . . . . . . . . . . . . . . . . . 15
3.3.2 Transistors............................ 17
3.3.3 Switch .............................. 19
3.3.4 Other bipole-like tripoles . . . . . . . . . . . . . . . . . . . . 20
3.3.5 Misc ............................... 20
3.4 Doublebipoles .............................. 20
3.5 Logicgates ................................ 21
3.6 Amplifiers ................................ 23
3.7 Supportshapes.............................. 24
1
4 Usage 24
4.1 Labels................................... 25
4.2 Currents ................................. 26
4.3 Voltages ................................. 27
4.3.1 Europeanstyle.......................... 27
4.3.2 Americanstyle.......................... 27
4.4 Nodes................................... 28
4.5 Specialcomponents ........................... 28
4.6 Integration with siunitx ........................ 30
4.7 Mirroring................................. 31
4.8 Putting them together . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5 Not only bipoles 32
5.1 Anchors.................................. 32
5.1.1 Logicalports........................... 32
5.1.2 Transistors............................ 32
5.1.3 Othertripoles .......................... 34
5.1.4 Operational amplifier . . . . . . . . . . . . . . . . . . . . . . 35
5.1.5 Doublebipoles.......................... 36
5.2 Transistorpaths ............................. 36
6 Customization 37
6.1 Parameters................................ 37
6.2 Componentssize............................. 38
6.3 Colors................................... 39
7 FAQ 41
8 Examples 42
9 Revision history 45
Index of the components 48
1 Introduction
After two years of little exposure only on my personal website
1
, I did a major rehaul-
ing of the code of CircuiTikZ, fixing several problems and converting everything to
TikZ version 2.0.
I
’
m not too sure about the result, because my (La)T
E
X skills are much to be
improved, but it seems it’s time for more user feedback. So, here it is…
I know the documentation is somewhat scant. Hope to have time to improve it a
bit.
1
Now the package is moved to its own git repository:
https://github.com/mredaelli/
circuitikz. Contributions are welcome.
2
1.1 About
This package provides a set of macros for naturally typesetting electrical and (some-
what less naturally, perhaps) electronical networks.
It was born mainly for writing my own exercise book and exams sheets for the
Elettrotecnica courses at Politecnico di Milano, Italy. I wanted a tool that was easy
to use, with a lean syntax, native to L
A
T
E
X, and supporting directly PDF output format.
So I based everything with the very impressive (if somewhat verbose at times)
TikZ package.
1.2 Loading the package
\usepackage{circuitikz}
TikZ will be automatically loaded.
1.3 License
Copyright © 2007
–
2011 Massimo Redaelli. This package is author-maintained. Per-
mission is granted to copy, distribute and/or modify this software under the terms
of the L
A
T
E
XProject Public License, version 1.3.1, or the GNU Public License. This soft-
ware is provided
‘
as is
’
, without warranty of any kind, either expressed or implied,
including, but not limited to, the implied warranties of merchantability and fitness
for a particular purpose.
1.4 Feedback
Much appreciated:
k
mailto:m.redaelli@gmail.com. Although I don
’
t guarantee
quick answers.
1.5 Requirements
•tikz, version ≥2;
•xstring, not older than 2009/03/13;
•siunitx, if using siunitx option.
1.6 Incompatible packages
None, as far as I know.
1.7 Introduction to version 0.3.0
Probably nobody is hoping or caring for a new version of the package at this point,
seeing how long it took me for this next release. But here it is, fixing a big problem
(voltage labels in the wrong place, in some cases) and adding several components.
Thanks for bug reporting and suggesting improvements.
3
1.8 Introduction to version 0.2.3
Having waited a long time before updating the package, many feature requests piled
on my desk. They should all be implemented now.
There are a number of backward incompatibilities
—
I
’
m sorry, but I had to make
a choice in order not to have a schizophrenic interface. They are mostly, in my
opinion, minor problems that can be dealt with with appropriate package options:
•potentiometer
is now the standard resistor-with-arrow-in-the-middle; the
old potentiometer is now known as
variable resistor
(or
vR
), similarly to
variable inductor and variable capacitor;
•american inductor
was not really the standard american inductor. The old
american inductor has been renamed cute inductor;
•transformer
,
transformer core
and
variable inductor
are now linked
with the chosen type of inductor;
•
styles for selecting shape variants (like
[american resistors]
) are now in
the plural to avoid conflict with paths (like to[american resistor]).
1.9 ConT
EXt compatibility
As requested by some users, I fixed the package for it to be compatible with ConT
E
Xt.
Just use
\usemodule[circuitikz]
in your preamble and include the code between
\startcircuitikz
and
\endcircuitikz
. Please notice that the package
siunitx
in not available for ConT
E
Xt: the option
siunitx
simply defines a few measurement
units typical in electric sciences.
In actually using CircuiTikZ with TikZ version 2 in ConT
E
Xt an error comes up,
saying something like
! Undefined control sequence.
\tikz@cc@mid@checks -> \pgfutil@ifnextchar!
The solution has been suggested to me by Aditya Mahajan, and involves modifying
a file in TikZ:
Here is the fix. In tikzlibrarycalc.code.tex change
\def\tikz@cc@mid@checks{
\pgfutil@ifnextchar !{%AM: Added space
\tikz@cc@mid%
}{%
\advance\pgf@xa by\tikz@cc@factor\pgf@xb%
\advance\pgf@ya by\tikz@cc@factor\pgf@yb%
\tikz@cc@parse% continue
}%
}
\def\tikz@cc@mid !{%AM Added space
\pgfutil@ifnextchar({%
\tikz@scan@one@point\tikz@cc@project%
4
}{%
\tikz@cc@mid@num%
}%
}
As far as I know, this is a bug in TikZ, and I notified the author, but until he fixes
it, you know the workaround.
2 Options
•europeanvoltages
: uses arrows to define voltages, and uses european-style
voltage sources;
•americanvoltages
: uses
−
and
+
to define voltages, and uses american-style
voltage sources;
•europeancurrents: uses european-style current sources;
•americancurrents: uses american-style current sources;
•europeanresistors
: uses rectangular empty shape for resistors, as per eu-
ropean standards;
•americanresistors
: uses zig-zag shape for resistors, as per american stan-
dards;
•europeaninductors
: uses rectangular filled shape for inductors, as per eu-
ropean standards;
•americaninductors
: uses
”
4-bumps
”
shape for inductors, as per american
standards;
•cuteinductors
: uses my personal favorite,
”
pig-tailed
”
shape for inductors;
•americanports: uses triangular logic ports, as per american standards;
•europeanports: uses rectangular logic ports, as per european standards;
•european
: equivalent to
europeancurrents
,
europeanvoltages
,
europeanresistors
,
europeaninductors,europeanports;
•american
: equivalent to
americancurrents
,
americanvoltages
,
americanresistors
,
americaninductors,americanports;
•siunitx
: integrates with
SIunitx
package. If labels, currents or voltages are
of the form #1<#2> then what is shown is actually \SI{#1}{#2};
•nosiunitx: labels are not interpreted as above;
•fulldiodes
: the various diodes are drawn and filled by default, i.e. when
using styles such as
diode
,
D
,
sD
,
…
Un-filled diode can always be forced with
Do,sDo, …
•emptydiodes
: the various diodes are drawn but not filled by default, i.e. when
using styles such as
diode
,
D
,
sD
,
…
Filled diode can always be forced with
D*
,
sD*, …
5
•arrowmos
: pmos and nmos have arrows analogous to those of pnp and npn
transistors;
•noarrowmos
: pmos and nmos do not have arrows analogous to those of pnp
and npn transistors;
•straighlabels
: labels on bipoles are always printed straigh up, i.e. with
horizontal baseline;
•rotatelabels
: labels on bipoles are always printed aligned along the bipole;
•smartlabels
: labels on bipoles are rotated along the bipoles, unless the
rotation is very close to multiples of 90°.
The old options in the singular (like
american voltage
) are still available for
compatibility, but are discouraged.
Loading the package with no options is equivalent to my own personal liking,
that is to the following options:
[europeancurrents, europeanvoltages, americanresistors, cuteinductors,
americanports, nosiunitx, noarrowmos, smartlabels].
In ConT
E
Xt the options are similarly specified:
current=european|american
,
voltage=european|american
,
resistor=american|european
,
inductor=cute|american|european
,
logic=american|european,siunitx=true|false,arrowmos=false|true.
3 The components

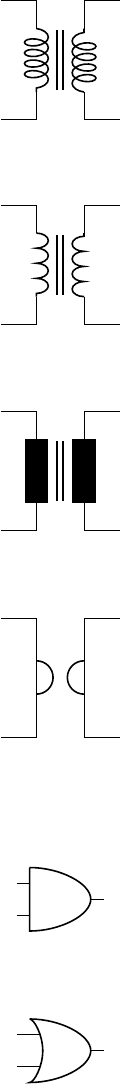

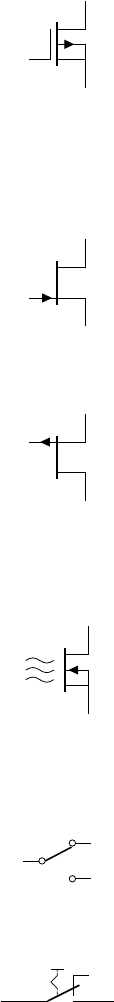

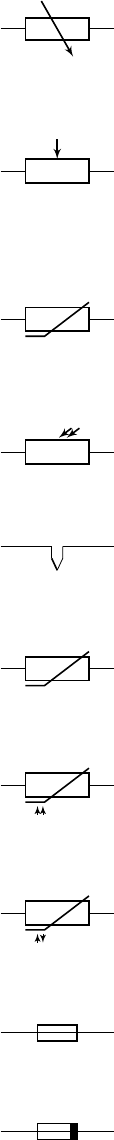

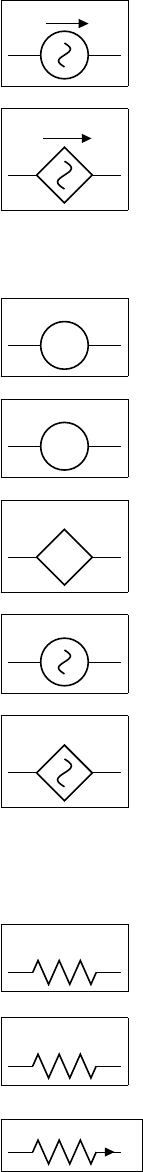

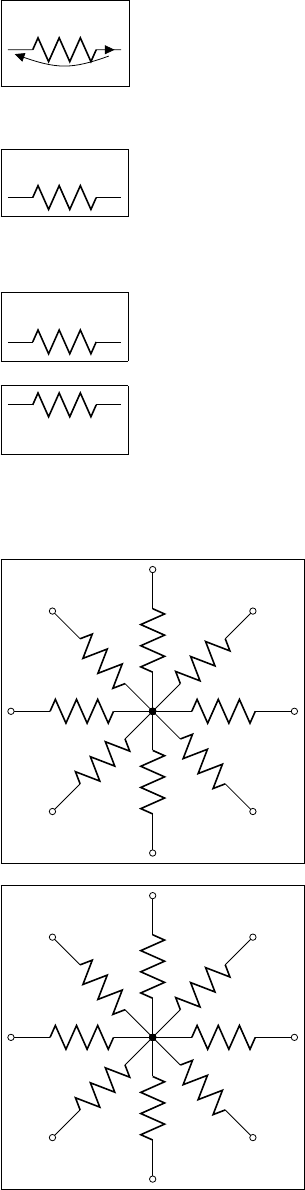

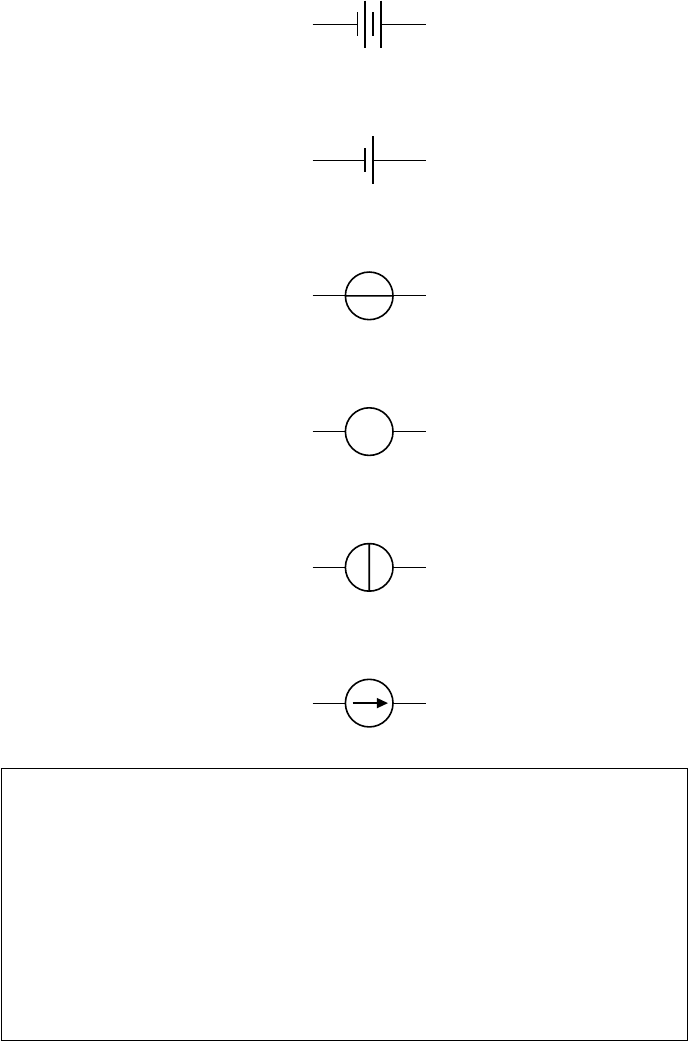

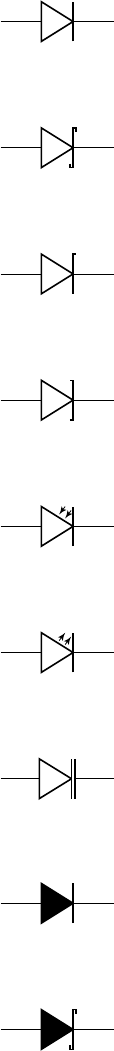

Here follows the list of all the shapes defined by CircuiTikZ. These are all
pgf
nodes,
so they are usable in both pgf and TikZ.
Each bipole (plus triac and thyristors) are shown using the following command,
where #1 is the name of the component2:
\begin{center}\begin{circuitikz} \draw
(0,0) to[ #1 ] (2,0)
; \end{circuitikz} \end{center}
The other shapes are shown with:
\begin{center}\begin{circuitikz} \draw
(0,0) node[ #1 ] {}
; \end{circuitikz} \end{center}
Please notice that for user convenience transistors can also be inputted using
the syntax for bipoles. See section 5.2.
If using the
\tikzexternalize
feature, as of Tikz 2.1 all pictures must end
with
\end{tikzpicture}
. Thus you cannot use the
circuitikz
environment.
Which is ok: just use tikzpicture: everything will work there just fine.
2If #1 is the name of the bipole/the style, then the actual name of the shape is #1shape.
6

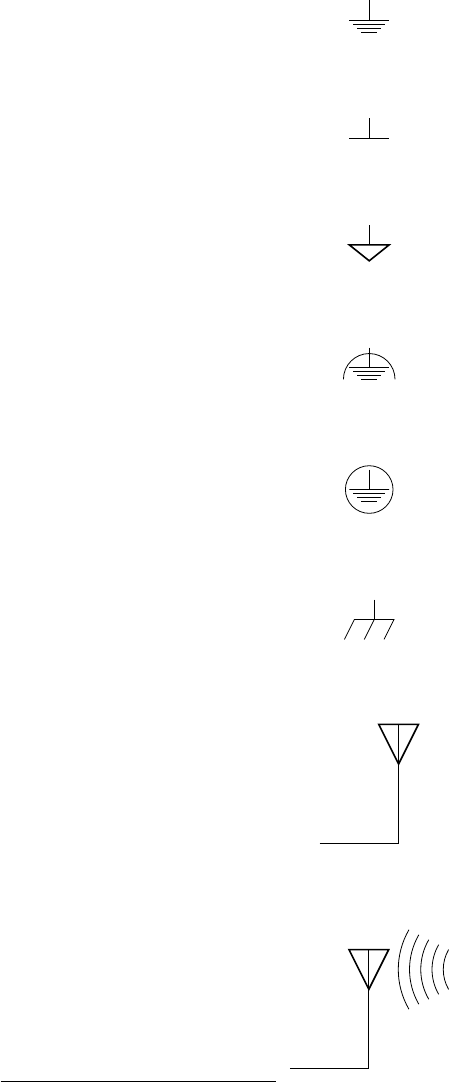

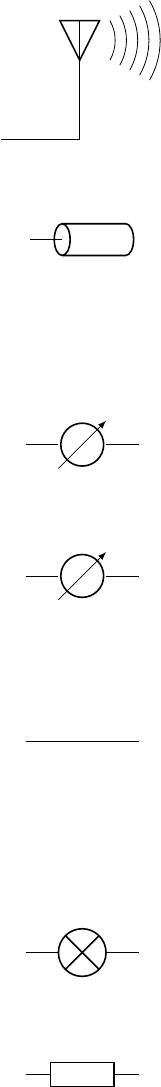

• Receiving antenna (txantenna)
• Transmission line stub (tlinestub)
3.2 Bipoles
3.2.1 Instruments
• Ammeter (ammeter)
A
• Voltmeter (voltmeter)
V
3.2.2 Basic resistive bipoles
• Short circuit (short)
• Open circuit (open)
• Lamp (lamp)
• Generic (symmetric) bipole (generic)
• Tunable generic bipole (tgeneric)
8
• Generic asymmetric bipole (ageneric)
• Generic asymmetric bipole (full) (fullgeneric)
• Tunable generic bipole (full) (tfullgeneric)
• Memristor (memristor, or Mr)
3.2.3 Resistors and the like
If (default behaviour)
americanresistors
option is active (or the style
[american
resistors] is used), the resistor is displayed as follows:

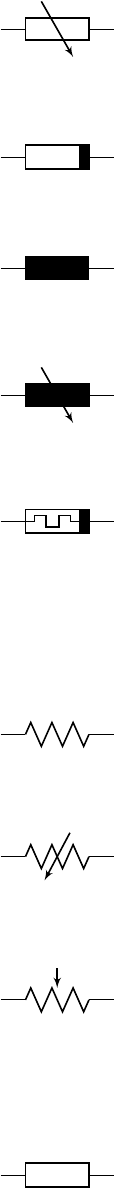

• Resistor (R, or american resistor)
• Variable resistor (vR, or american variable resistor)
• Potentiometer (pR, or american potentiometer)
If instead
europeanresistors
option is active (or the style
[european resistors]
is used), the resistors, variable resistors and potentiometers are displayed as follows:
• Resistor (R, or european resistor)
9
• Variable resistor (vR, or european variable resistor)
• Potentiometer (pR, or european potentiometer)
Other miscellaneous resistor-like devices:
• Varistor (varistor)
U
• Photoresistor (phR, or photoresistor)
• Thermocouple (thermocouple)
• Thermistor (thR, or thermistor)
• PTC thermistor (thRp, or thermistor ptc)
ϑ
• NTC thermistor (thRn, or thermistor ntc)
ϑ
• Fuse (fuse)
• Asymmetric fuse (afuse, or asymmetric fuse)
10
3.2.4 Stationary sources
• Battery (battery)
• Single battery cell (battery1)
• Voltage source (european style) (european voltage source)
• Voltage source (american style) (american voltage source)
+
−
• Current source (european style) (european current source)
• Current source (american style) (american current source)
If (default behaviour)
europeancurrents
option is active (or the
style
[european currents]
is used), the shorthands
current source
,
isource
, and
I
are equivalent to
european current source
. Otherwise, if
americancurrents
option is active (or the style
[american currents]
is
used) they are equivalent to american current source.
Similarly, if (default behaviour)
europeanvoltages
option is active (or
the style
[european voltages]
is used), the shorthands
voltage source
,
vsource
, and
V
are equivalent to
european voltage source
. Otherwise, if
americanvoltages
option is active (or the style
[american voltages]
is
used) they are equivalent to american voltage source.
11
3.2.5 Diodes and such
• Empty diode (empty diode, or Do)
• Empty Schottky diode (empty Schottky diode, or sDo)
• Empty Zener diode (empty Zener diode, or zDo)
• Empty tunnel diode (empty tunnel diode, or tDo)
• Empty photodiode (empty photodiode, or pDo)
• Empty led (empty led, or leDo)
• Empty varcap (empty varcap, or VCo)

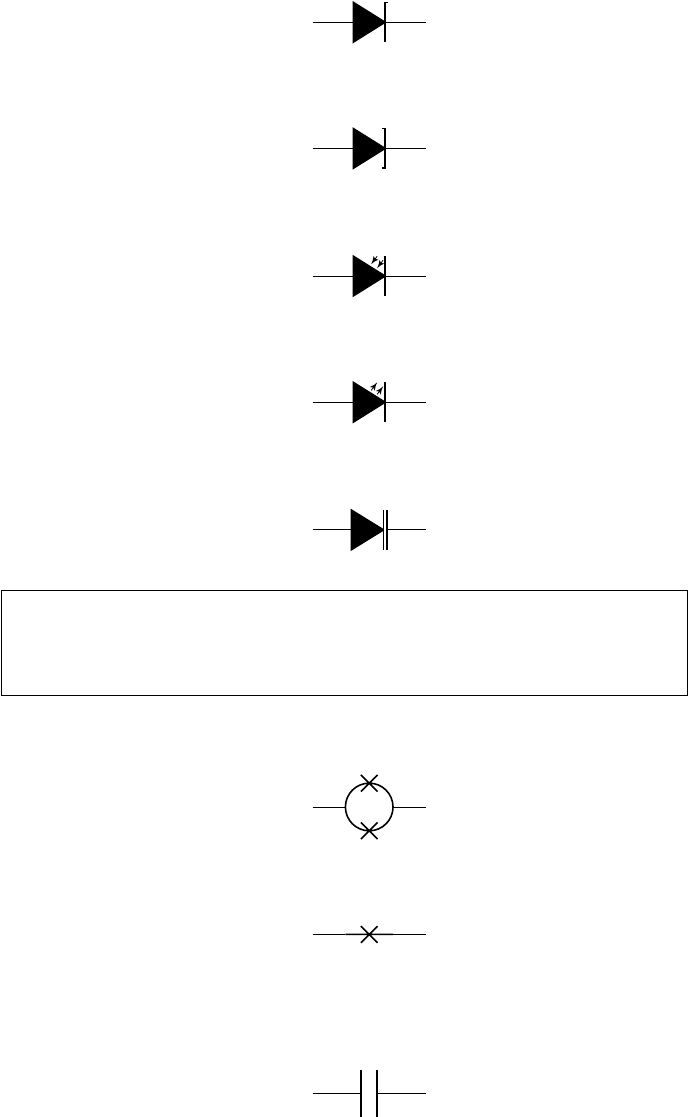

• Full diode (full diode, or D*)
• Full Schottky diode (full Schottky diode, or sD*)
• Full Zener diode (full Zener diode, or zD*)
12
• Full tunnel diode (full tunnel diode, or tD*)
• Full photodiode (full photodiode, or pD*)
• Full led (full led, or leD*)
• Full varcap (full varcap, or VC*)
The options
fulldiodes
and
emptydiodes
(and the styles
[full diodes]
and
[empty diodes]
) define which shape will be used by abbreviated com-
mands such that D,sD,zD,tD,pD,leD, and VC.
• Squid (squid)
• Barrier (barrier)
3.2.6 Basic dynamical bipoles

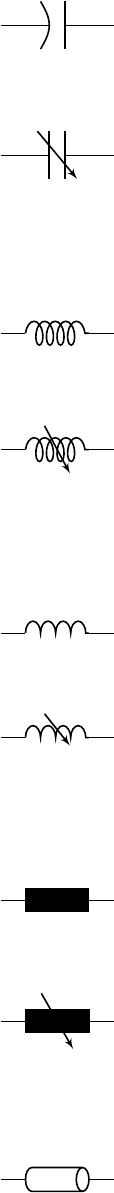

• Capacitor (capacitor, or C)
• Polar capacitor (polar capacitor, or pC)
13
• Variable capacitor (variable capacitor, or vC)
If (default behaviour)
cuteinductors
option is active (or the style
[cute inductors]
is used), the inductors are displayed as follows:
• Inductor (L, or cute inductor)
• Variable inductor (vL, or variable cute inductor)
If
americaninductors
option is active (or the style
[american inductors]
is
used), the inductors are displayed as follows:
• Inductor (L, or american inductor)
• Variable inductor (vL, or variable american inductor)
Finally, if
europeaninductors
option is active (or the style
[european inductors]
is used), the inductors are displayed as follows:
• Inductor (L, or european inductor)
• Variable inductor (vL, or variable european inductor)
There is also a transmission line:
• Transmission line (TL, or transmission line, tline)
14

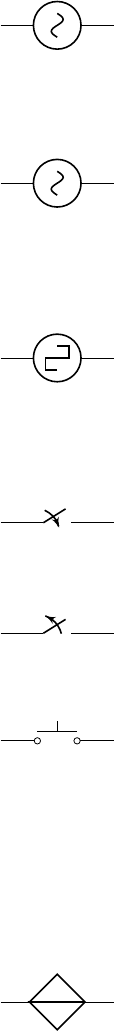

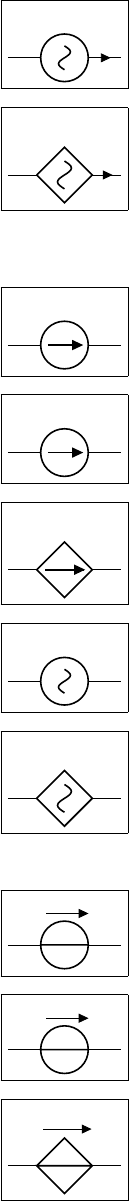

3.2.7 Sinusoidal sources
Here because I was asked for them. But how do you distinguish one from the other?!
•
Sinusoidal voltage source (
sinusoidal voltage source
, or
vsourcesin,
sV)
•
Sinusoidal current source (
sinusoidal current source
, or
isourcesin,
sI)
3.2.8 Square sources
•
Square voltage source (
square voltage source
, or
vsourcesquare, sqV
)
3.2.9 Switch
• Closing switch (closing switch, or cspst)
• Opening switch (opening switch, or ospst)
• Push button (push button)
3.3 Tripoles

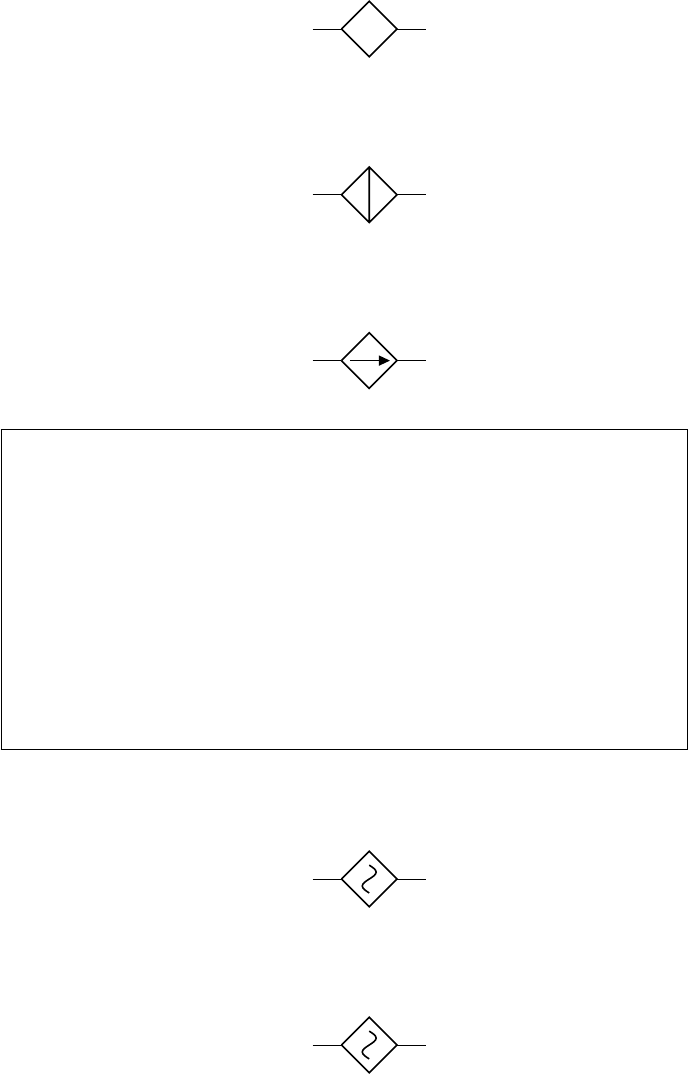

3.3.1 Controlled sources
Admittedly, graphically they are bipoles. But I couldn’t…
•
Controlled voltage source (european style) (
european controlled voltage
source)
15
•
Controlled voltage source (american style) (
american controlled voltage
source)
+
−
•
Controlled current source (european style) (
european controlled current
source)
•
Controlled current source (american style) (
american controlled current
source)
If (default behaviour)
europeancurrents
option is active (or the
style
[european currents]
is used), the shorthands
controlled current
source
,
cisource
, and
cI
are equivalent to
european controlled current
source
. Otherwise, if
americancurrents
option is active (or the style
[american currents]
is used) they are equivalent to
american controlled
current source.
Similarly, if (default behaviour)
europeanvoltages
option is active (or the
style
[european voltages]
is used), the shorthands
controlled voltage
source
,
cvsource
, and
cV
are equivalent to
european controlled voltage
source
. Otherwise, if
americanvoltages
option is active (or the style
[american voltages]
is used) they are equivalent to
american controlled
voltage source.
•
Controlled sinusoidal voltage source (
controlled sinusoidal voltage
source, or controlled vsourcesin, cvsourcesin, csV)
•
Controlled sinusoidal current source (
controlled sinusoidal current
source, or controlled isourcesin, cisourcesin, csI)
16

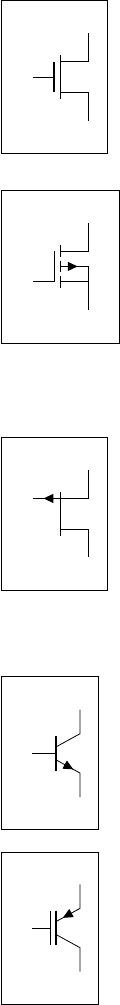

3.3.2 Transistors
• nmos (nmos)
• pmos (pmos)
• npn (npn)
• pnp (pnp)
• npigbt (nigbt)
• pigbt (pigbt)
If the option
arrowmos
is used (or after the commant
\ctikzset{tripoles/mos style/arrows}
is given), this is the output:
• nmos (nmos)
17
• pmos (pmos)
nfets and pfets have been incorporated based on code provided by Clemens
Helfmeier and Theodor Borsche:
• nfet (nfet)
• nigfete (nigfete)
• nigfetd (nigfetd)
• pfet (pfet)
• pigfete (pigfete)
18
• pigfetd (pigfetd)
njfet and pjfet have been incorporated based on code provided by Danilo Piazza-
lunga:
• njfet (njfet)
• pjfet (pjfet)
isfet
• isfet (isfet)
3.3.3 Switch
• spdt (spdt)
• Toggle switch (toggle switch)
19
3.3.4 Other bipole-like tripoles
The following tripoles are entered with the usual command of the form

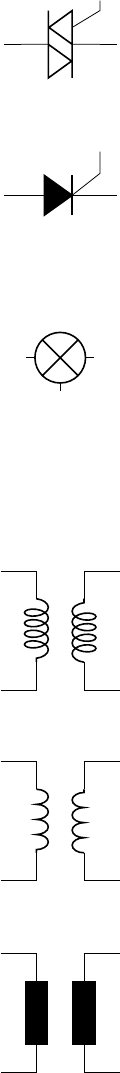

• triac (triac, or Tr)
• thyristor (thyristor, or Ty)
3.3.5 Misc
• Mixer (mixer)
3.4 Double bipoles
Transformers automatically use the inductor shape currently selected. These are
the three possibilities:
• Transformer (cute inductor) (transformer)
• Transformer (american inductor) (transformer)
• Transformer (european inductor) (transformer)
20
Transformers with core are also available:
• Transformer core (cute inductor) (transformer core)
• Transformer core (american inductor) (transformer core)
• Transformer core (european inductor) (transformer core)
• Gyrator (gyrator)

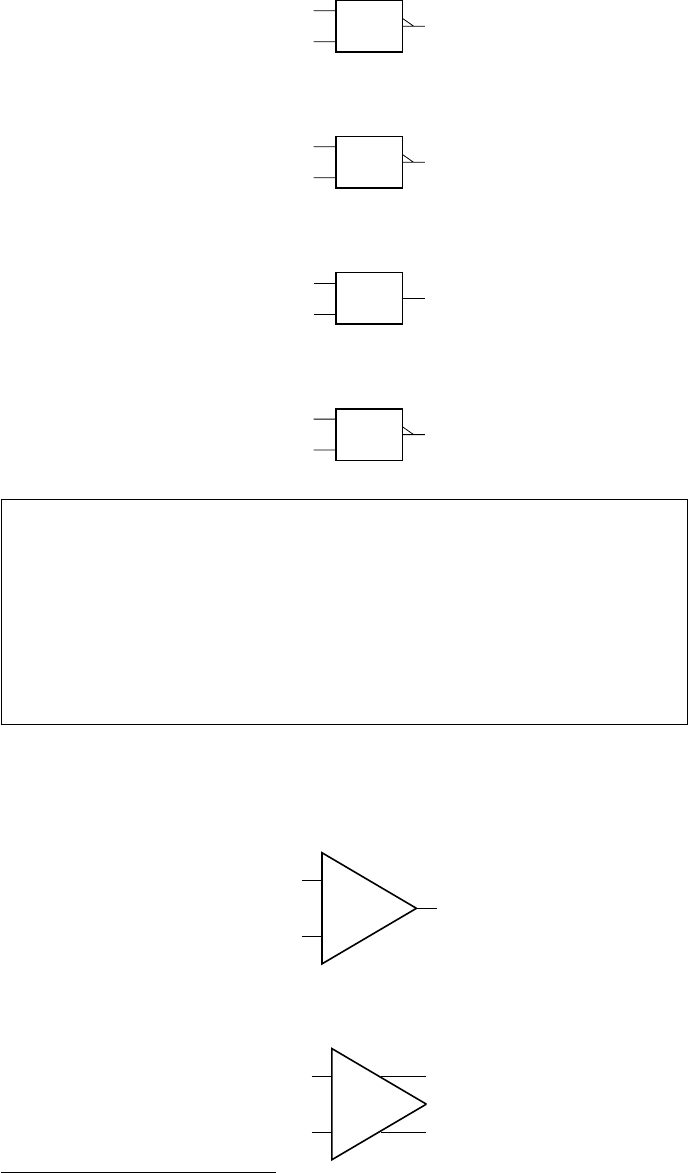

3.5 Logic gates
• American and port (american and port)
• American or port (american or port)
21

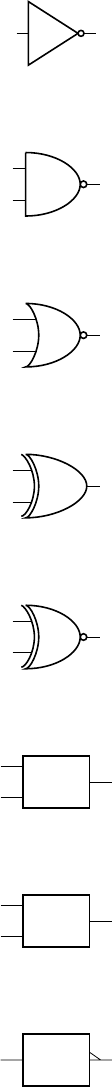

• American not port (american not port)
• American nand port (american nand port)
• American nor port (american nor port)
• American xor port (american xor port)
• American xnor port (american xnor port)
• European and port (european and port)
&
• European or port (european or port)
≥1
• European not port (european not port)
1
• European nand port (european nand port)
22
&
• European nor port (european nor port)
≥1
• European xor port (european xor port)
= 1
• European xnor port (european xnor port)
= 1
If (default behaviour)
americanports
option is active (or the style
[american ports]
is used), the shorthands
and port
,
or port
,
not port
,
nand port
,
not port
,
xor port
, and
xnor port
are equivalent to the ameri-
can version of the respective logic port.
If otherwise
europeanports
option is active (or the style
[european
ports]
is used), the shorthands
and port
,
or port
,
not port
,
nand port
,
not port
,
xor port
, and
xnor port
are equivalent to the european version
of the respective logic port.

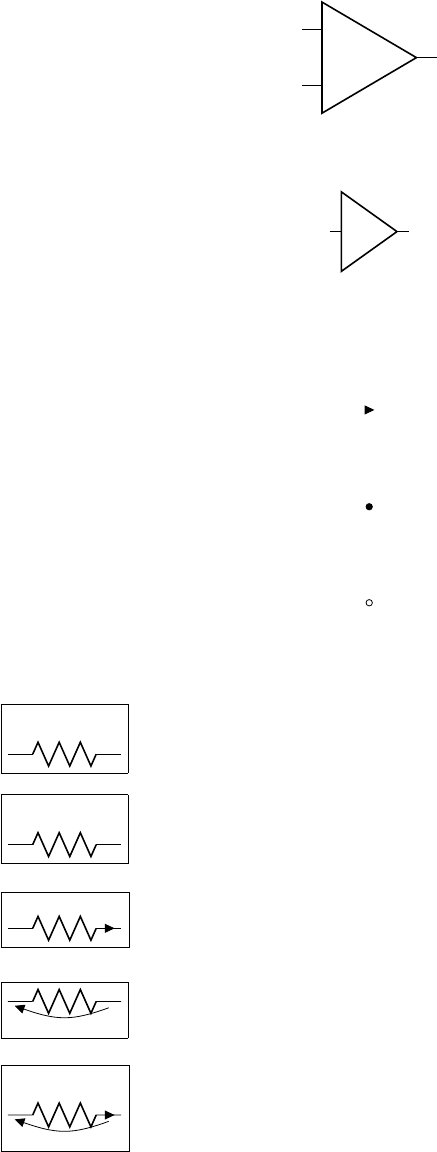

3.6 Amplifiers
• Operational amplifier (op amp)
−
+
• Fully differential operational amplifier4(fd op amp)
−
+
−
+
4Contributed by Kristofer M. Monisit.
23
• Plain amplifier (plain amp)
• Buffer (buffer)
3.7 Support shapes

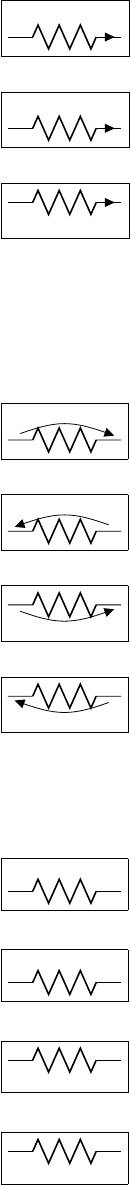

• Arrows (current and voltage) (currarrow)
• Connected terminal (circ)
• Unconnected terminal (ocirc)
4 Usage
R1
1\begin{ circuitikz }
2\draw (0,0) to[R, l=$R_1$] (2,0);
3\end{circuitikz }
R1
1\begin{ circuitikz }
2\draw (0,0) to[R=$R_1$] (2,0);
3\end{circuitikz }
i1
1\begin{ circuitikz }
2\draw (0,0) to[R, i=$i_1$] (2,0);
3\end{circuitikz }
v1
1\begin{ circuitikz }
2\draw (0,0) to[R, v=$v_1$] (2,0);
3\end{circuitikz }
R1
v1
i1
1\begin{ circuitikz }
2\draw (0,0) to[R=$R_1$, i=$i_1$, v=$v_1$] (2,0);
3\end{circuitikz }
24
R1
v1
i1
1\begin{ circuitikz }
2\draw (0,0) to[R=$R_1$, i=$i_1$, v=$v_1$] (2,0);
3\end{circuitikz }
Long names/styles for the bipoles can be used:
1 kΩ 1\begin{ circuitikz }\draw
2(0,0) to[ resistor =1<\kilo\ohm>] (2,0)
3;\end{ circuitikz }
4.1 Labels
R1
1\begin{ circuitikz }
2\draw (0,0) to[R, l^=$R_1$] (2,0);
3\end{circuitikz }
R1
1\begin{ circuitikz }
2\draw (0,0) to[R, l_=$R_1$] (2,0);
3\end{circuitikz }

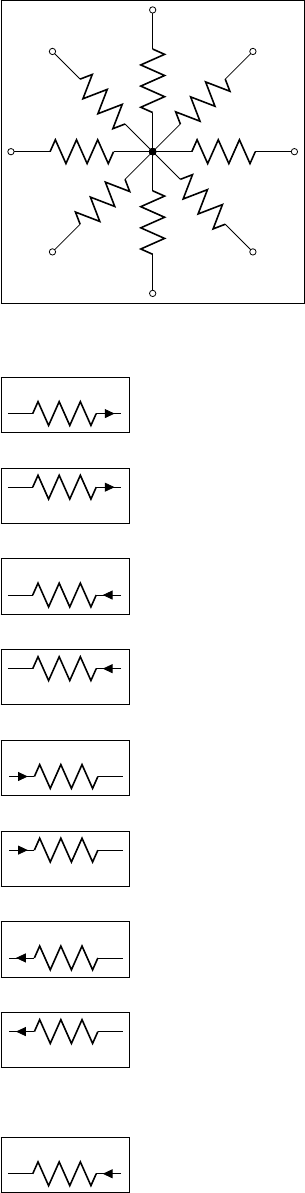

The default orientation of labels is controlled by the options
smartlabels
,
rotatelabels
and
straightlabels
(or the corresponding
label/align
keys). Here are examples
to see the differences:
0
45
90
135
180
-90
-45
-135
1\begin{ circuitikz }
2\ ctikzset { label /align = straight }
3\def\DIR{0,45,90,135,180,−90,−45,−135}
4\foreach \iin \DIR {
5\draw (0,0) to[R=\i, *−o] (\i:2.5);
6}
7\end{circuitikz }
0
45
90
135
180
-90
-45
-135
1\begin{ circuitikz }
2\ ctikzset { label /align = rotate }
3\def\DIR{0,45,90,135,180,−90,−45,−135}
4\foreach \iin \DIR {
5\draw (0,0) to[R=\i, *−o] (\i:2.5);
6}
7\end{circuitikz }
25
0
45
90
135
180
-90
-45
-135
1\begin{ circuitikz }
2\ ctikzset { label /align = smart}
3\def\DIR{0,45,90,135,180,−90,−45,−135}
4\foreach \iin \DIR {
5\draw (0,0) to[R=\i, *−o] (\i:2.5);
6}
7\end{circuitikz }
4.2 Currents
i1
1\begin{ circuitikz }
2\draw (0,0) to[R, i^>=$i_1$] (2,0);
3\end{circuitikz }
i1
1\begin{ circuitikz }
2\draw (0,0) to[R, i_>=$i_1$] (2,0);
3\end{circuitikz }
i1
1\begin{ circuitikz }
2\draw (0,0) to[R, i^<=$i_1$] (2,0);
3\end{circuitikz }
i1
1\begin{ circuitikz }
2\draw (0,0) to[R, i_<=$i_1$] (2,0);
3\end{circuitikz }
i1
1\begin{ circuitikz }
2\draw (0,0) to[R, i>^=$i_1$] (2,0);
3\end{circuitikz }
i1
1\begin{ circuitikz }
2\draw (0,0) to[R, i>_=$i_1$] (2,0);
3\end{circuitikz }
i1
1\begin{ circuitikz }
2\draw (0,0) to[R, i<^=$i_1$] (2,0);
3\end{circuitikz }
i1
1\begin{ circuitikz }
2\draw (0,0) to[R, i<_=$i_1$] (2,0);
3\end{circuitikz }
Also
i1
1\begin{ circuitikz }
2\draw (0,0) to[R, i<=$i_1$] (2,0);
3\end{circuitikz }
26
i1
1\begin{ circuitikz }
2\draw (0,0) to[R, i>=$i_1$] (2,0);
3\end{circuitikz }
i1
1\begin{ circuitikz }
2\draw (0,0) to[R, i^=$i_1$] (2,0);
3\end{circuitikz }
i1
1\begin{ circuitikz }
2\draw (0,0) to[R, i_=$i_1$] (2,0);
3\end{circuitikz }
4.3 Voltages
4.3.1 European style
The default, with arrows. Use option
europeanvoltage
or style
[european voltages]
.
v11\begin{ circuitikz }[european voltages]
2\draw (0,0) to[R, v^>=$v_1$] (2,0);
3\end{circuitikz }
v11\begin{ circuitikz }[european voltages]
2\draw (0,0) to[R, v^<=$v_1$] (2,0);
3\end{circuitikz }
v1
1\begin{ circuitikz }[european voltages]
2\draw (0,0) to[R, v_>=$v_1$] (2,0);
3\end{circuitikz }
v1
1\begin{ circuitikz }[european voltages]
2\draw (0,0) to[R, v_<=$v_1$] (2,0);
3\end{circuitikz }
4.3.2 American style
For those who like it (not me). Use option
americanvoltage
or set
[american voltages]
.
−+
v11\begin{ circuitikz }[american voltages]
2\draw (0,0) to[R, v^>=$v_1$] (2,0);
3\end{circuitikz }
+−
v11\begin{ circuitikz }[american voltages]
2\draw (0,0) to[R, v^<=$v_1$] (2,0);
3\end{circuitikz }
−+
v1
1\begin{ circuitikz }[american voltages]
2\draw (0,0) to[R, v_>=$v_1$] (2,0);
3\end{circuitikz }
+−
v1
1\begin{ circuitikz }[american voltages]
2\draw (0,0) to[R, v_<=$v_1$] (2,0);
3\end{circuitikz }
27

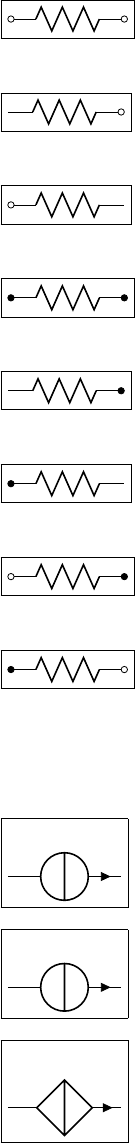

4.4 Nodes
1\begin{ circuitikz }
2\draw (0,0) to[R, o−o] (2,0);
3\end{circuitikz }
1\begin{ circuitikz }
2\draw (0,0) to[R, −o] (2,0);
3\end{circuitikz }
1\begin{ circuitikz }
2\draw (0,0) to[R, o−] (2,0);
3\end{circuitikz }
1\begin{ circuitikz }
2\draw (0,0) to[R, *−*] (2,0);
3\end{circuitikz }
1\begin{ circuitikz }
2\draw (0,0) to[R, −*] (2,0);
3\end{circuitikz }
1\begin{ circuitikz }
2\draw (0,0) to[R, *−] (2,0);
3\end{circuitikz }
1\begin{ circuitikz }
2\draw (0,0) to[R, o−*] (2,0);
3\end{circuitikz }
1\begin{ circuitikz }
2\draw (0,0) to[R, *−o] (2,0);
3\end{circuitikz }
4.5 Special components
For some components label, current and voltage behave as one would expect:
a11\begin{ circuitikz }
2\draw (0,0) to[ I=$a_1$] (2,0);
3\end{circuitikz }
a11\begin{ circuitikz }
2\draw (0,0) to[ I , i=$a_1$] (2,0);
3\end{circuitikz }
k·a11\begin{ circuitikz }
2\draw (0,0) to[ cI=$k\cdot a_1$] (2,0);
3\end{circuitikz }
28
a11\begin{ circuitikz }
2\draw (0,0) to[ sI=$a_1$] (2,0);
3\end{circuitikz }
k·a11\begin{ circuitikz }
2\draw (0,0) to[ csI=$k\cdot a_1$] (2,0);
3\end{circuitikz }
The following results from using the option
americancurrent
or using the style
[american currents].
a11\begin{ circuitikz }[american currents]
2\draw (0,0) to[ I=$a_1$] (2,0);
3\end{circuitikz }
a11\begin{ circuitikz }[american currents]
2\draw (0,0) to[ I , i=$a_1$] (2,0);
3\end{circuitikz }
k·a11\begin{ circuitikz }[american currents]
2\draw (0,0) to[ cI=$k\cdot a_1$] (2,0);
3\end{circuitikz }
a11\begin{ circuitikz }[american currents]
2\draw (0,0) to[ sI=$a_1$] (2,0);
3\end{circuitikz }
k·a11\begin{ circuitikz }[american currents]
2\draw (0,0) to[ csI=$k\cdot a_1$] (2,0);
3\end{circuitikz }
The same holds for voltage sources:
a11\begin{ circuitikz }
2\draw (0,0) to[V=$a_1$] (2,0);
3\end{circuitikz }
a11\begin{ circuitikz }
2\draw (0,0) to[V, v=$a_1$] (2,0);
3\end{circuitikz }
k·a11\begin{ circuitikz }
2\draw (0,0) to[cV=$k\cdot a_1$] (2,0);
3\end{circuitikz }
29
a11\begin{ circuitikz }
2\draw (0,0) to[sV=$a_1$] (2,0);
3\end{circuitikz }
k·a11\begin{ circuitikz }
2\draw (0,0) to[csV=$k\cdot a_1$] (2,0);
3\end{circuitikz }
The following results from using the option
americanvoltage
or the style
[american voltages].
+
−
a11\begin{ circuitikz }[american voltages]
2\draw (0,0) to[V=$a_1$] (2,0);
3\end{circuitikz }
+
−
a11\begin{ circuitikz }[american voltages]
2\draw (0,0) to[V, v=$a_1$] (2,0);
3\end{circuitikz }
+
−
k·a11\begin{ circuitikz }[american voltages]
2\draw (0,0) to[cV=$k\cdot a_1$] (2,0);
3\end{circuitikz }
a11\begin{ circuitikz }[american voltages]
2\draw (0,0) to[sV=$a_1$] (2,0);
3\end{circuitikz }
k·a11\begin{ circuitikz }[american voltages]
2\draw (0,0) to[csV=$k\cdot a_1$] (2,0);
3\end{circuitikz }
4.6 Integration with siunitx
If the option
siunitx
is active (and not in ConT
E
Xt), then the following are equivalent:
1 kΩ 1\begin{ circuitikz }
2\draw (0,0) to[R, l=1<\kilo\ohm>] (2,0);
3\end{circuitikz }
1 kΩ 1\begin{ circuitikz }
2\draw (0,0) to[R, l=$\SI {1}{\ kilo\ohm}$] (2,0);
3\end{circuitikz }
1 mA 1\begin{ circuitikz }
2\draw (0,0) to[R, i=1<\milli\ampere>] (2,0);
3\end{circuitikz }
30
1 mA 1\begin{ circuitikz }
2\draw (0,0) to[R, i=$\SI {1}{\ milli \ampere}$] (2,0);
3\end{circuitikz }
1 V
1\begin{ circuitikz }
2\draw (0,0) to[R, v=1<\volt>] (2,0);
3\end{circuitikz }
1 V
1\begin{ circuitikz }
2\draw (0,0) to[R, v=$\SI {1}{\ volt }$] (2,0);
3\end{circuitikz }

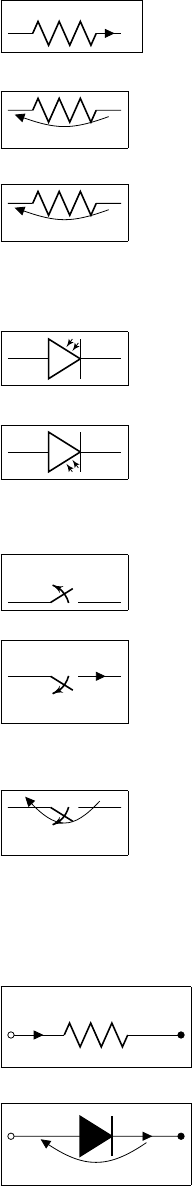

4.7 Mirroring
1\begin{ circuitikz }
2\draw (0,0) to[pD] (2,0);
3\end{circuitikz }
1\begin{ circuitikz }
2\draw (0,0) to[pD, mirror] (2,0);
3\end{circuitikz }
At the moment, placing labels and currents on mirrored bipoles works:
T1\begin{ circuitikz }
2\draw (0,0) to[ospst=T] (2,0);
3\end{circuitikz }
T
i11\begin{ circuitikz }
2\draw (0,0) to[ospst=T, mirror, i=$i_1$] (2,0);
3\end{circuitikz }
But voltages don’t:
T
v1\begin{ circuitikz }
2\draw (0,0) to[ospst=T, mirror, v=v] (2,0);
3\end{circuitikz }
Sorry about that.
4.8 Putting them together
1 kΩ
1 mA
1\begin{ circuitikz }
2\draw (0,0) to[R=1<\kilo\ohm>,
3i>_=1<\ milli\ampere>, o−*] (3,0);
4\end{circuitikz }
vD
1 mA 1\begin{ circuitikz }
2\draw (0,0) to[D*, v=$v_D$,
3i=1<\ milli \ampere>, o−*] (3,0);
4\end{circuitikz }
31
5 Not only bipoles
Since only bipoles (but see section 5.2) can be placed
”
along a line
”
, components
with more than two terminals are placed as nodes:

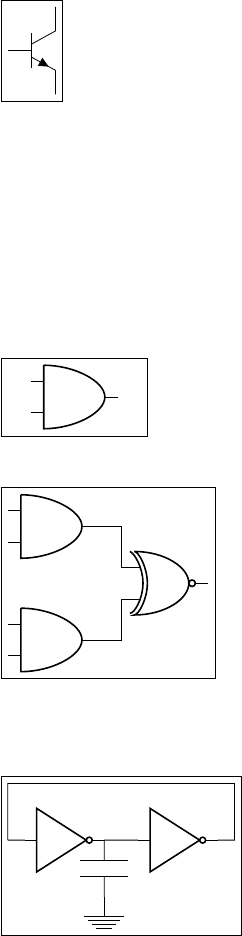

1\tikz \node[npn] at (0,0) {};
5.1 Anchors
In order to allow connections with other components, all components define anchors.
5.1.1 Logical ports
All logical ports, except not, have two inputs and one output. They are called
respectively in 1,in 2,out:
1
23
1\begin{ circuitikz } \draw
2(0,0) node[and port] (myand) {}
3(myand.in 1) node[anchor=east] {1}
4(myand.in 2) node[anchor=east] {2}
5(myand.out) node[anchor=west] {3}
6;\end{ circuitikz }

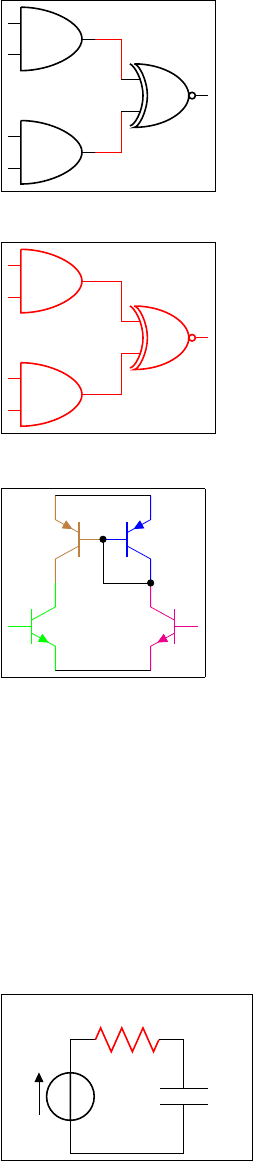

1\begin{ circuitikz } \draw
2(0,2) node[and port] (myand1) {}
3(0,0) node[and port] (myand2) {}
4(2,1) node[xnor port] (myxnor) {}
5(myand1.out) −| (myxnor.in 1)
6(myand2.out) −| (myxnor.in 2)
7;\end{ circuitikz }
In the case of not, there are only
in
and
out
(although for compatibility reasons
in 1 is still defined and equal to in):
1\begin{ circuitikz } \draw
2(1,0) node[not port] (not1) {}
3(3,0) node[not port] (not2) {}
4(0,0) −− (not1.in)
5(not2.in) −− (not1.out)
6++(0,−1) node[ground] {} to[C] (not1.out)
7(not2.out) −| (4,1) −| (0,0)
8;\end{ circuitikz }
5.1.2 Transistors
For nmos, pmos, nfet, nigfete, nigfetd, pfet, pigfete, and pigfetd transistors one has
base
,
gate
,
source
and
drain
anchors (which can be abbreviated with
B
,
G
,
S
and
D):
32
B
G
D
S
1\begin{ circuitikz } \draw
2(0,0) node[nmos] (mos) {}
3(mos.base) node[anchor=west] {B}
4(mos.gate) node[anchor=east] {G}
5(mos.drain) node[anchor=south] {D}
6(mos.source) node[anchor=north] {S}
7;\end{ circuitikz }
B
G
D
S
1\begin{ circuitikz } \draw
2(0,0) node[pigfete] ( pigfete ) {}
3( pigfete .B) node[anchor=west] {B}
4( pigfete .G) node[anchor=east] {G}
5( pigfete .D) node[anchor=south] {D}
6( pigfete .S) node[anchor=north] {S}
7;\end{ circuitikz }
Similarly njfet and pjfet have
gate
,
source
and
drain
anchors (which can be
abbreviated with G,Sand D):
G
D
S1\begin{ circuitikz } \draw
2(0,0) node[pjfet ] ( pjfet ) {}
3( pjfet .G) node[anchor=east] {G}
4( pjfet .D) node[anchor=north] {D}
5( pjfet .S) node[anchor=south] {S}
6;\end{ circuitikz }
For npn, pnp, nigbt, and pigbt transistors the anchors are
base
,
emitter
and
collector anchors (which can be abbreviated with B,Eand C):
B
C
E
1\begin{ circuitikz } \draw
2(0,0) node[npn] (npn) {}
3(npn.base) node[anchor=east] {B}
4(npn. collector ) node[anchor=south] {C}
5(npn.emitter) node[anchor=north] {E}
6;\end{ circuitikz }
B
C
E1\begin{ circuitikz } \draw
2(0,0) node[pigbt] (pigbt) {}
3(pigbt .B) node[anchor=east] {B}
4(pigbt .C) node[anchor=north] {C}
5(pigbt .E) node[anchor=south] {E}
6;\end{ circuitikz }

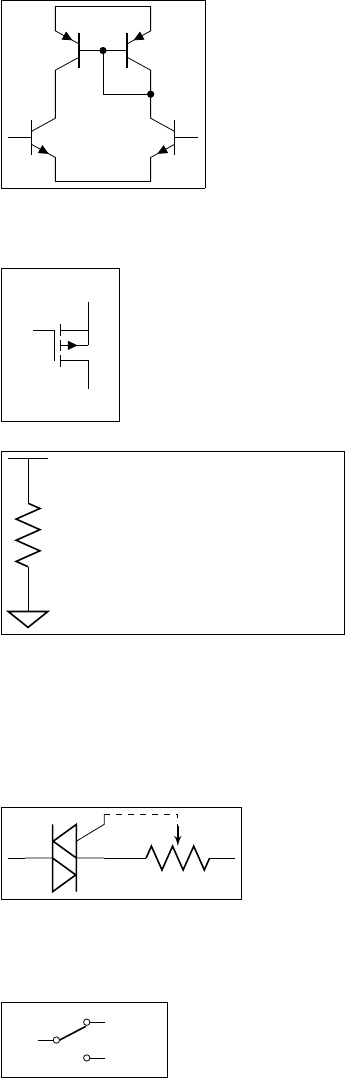

Here is one composite example (please notice that the
xscale=-1
style would
also reflect the label of the transistors, so here a new node is added and its text is
used, instead of that of pnp1):
33
2
1
1\begin{ circuitikz } \draw
2(0,0) node[pnp] (pnp2) {2}
3(pnp2.B) node[pnp, xscale=−1, anchor=B] (pnp1) {}
4(pnp1) node {1}
5(pnp1.C) node[npn, anchor=C] (npn1) {}
6(pnp2.C) node[npn, xscale=−1, anchor=C] (npn2) {}
7(pnp1.E) −− (pnp2.E) (npn1.E) −− (npn2.E)
8(pnp1.B) node[circ] {} |−(pnp2.C) node[circ] {}
9;\end{ circuitikz }
Similarly, transistors and other components can be reflected vertically:
B
G
D
S1\begin{ circuitikz } \draw
2(0,0) node[pigfete , yscale=−1] ( pigfete ) {}
3( pigfete .B) node[anchor=west] {B}
4( pigfete .G) node[anchor=east] {G}
5( pigfete .D) node[anchor=north] {D}
6( pigfete .S) node[anchor=south] {S}
7;\end{ circuitikz }
R1
1\begin{ circuitikz }
2\draw (0,2)
3node[rground, yscale=−1] {}
4to[R=$R_1$] (0,0)
5node[sground] {};
6\end{circuitikz }
5.1.3 Other tripoles
When inserting a thrystor, a triac or a potentiometer, one needs to refer to the third
node
—
gate (
gate
or
G
) for the former two; wiper (
wiper
or
W
) for the latter one.
This is done by giving a name to the bipole:
1\begin{ circuitikz } \draw
2(0,0) to[Tr, n=TRI] (2,0)
3to[pR, n=POT] (4,0);
4\draw[dashed] (TRI.G) −| (POT.wiper)
5;\end{ circuitikz }
As for the switches:
in out 1
out 2
1\begin{ circuitikz } \draw
2(0,0) node[spdt] (Sw) {}
3(Sw.in) node[left ] {in}
4(Sw.out 1) node[right] {out 1}
5(Sw.out 2) node[right] {out 2}
6;\end{ circuitikz }
34

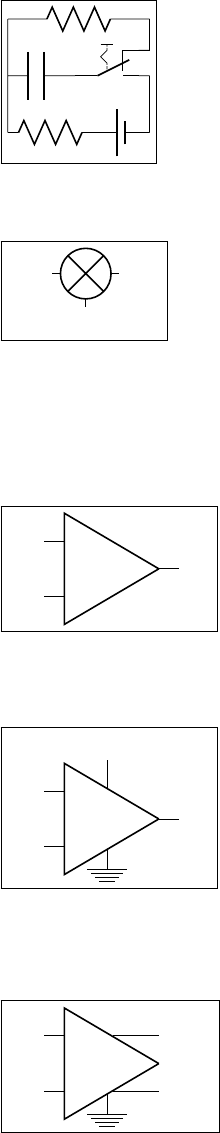

1\begin{ circuitikz } \draw
2(0,0) to[C] (1,0) to[toggle switch , n=Sw] (2.5,0)
3−− (2.5,−1) to[battery1] (1.5,−1) to[R] (0,−1) −| (0,0)
4(Sw.out 2) −| (2.5, 1) to[R] (0,1) −− (0,0)
5;\end{ circuitikz }
And the mixer:
in 1
in 2
out
1\begin{ circuitikz } \draw
2(0,0) node[mixer] (mix) {}
3(mix.in 1) node[left ] {in 1}
4(mix.in 2) node[below] {in 2}
5(mix.out) node[right] {out}
6;\end{ circuitikz }
5.1.4 Operational amplifier
The op amp defines the inverting input (
-
), the non-inverting input (
+
) and the
output (out) anchors:
−
+
v+
v−
vo
1\begin{ circuitikz } \draw
2(0,0) node[op amp] (opamp) {}
3(opamp.+) node[left ] {$v_+$}
4(opamp.−) node[left] {$v_−$}
5(opamp.out) node[right] {$v_o$}
6;\end{ circuitikz }
There are also two more anchors defined, up and down, for the power supplies:
−
+
v+
v−
vo
12 V
1\begin{ circuitikz } \draw
2(0,0) node[op amp] (opamp) {}
3(opamp.+) node[left ] {$v_+$}
4(opamp.−) node[left] {$v_−$}
5(opamp.out) node[right] {$v_o$}
6(opamp.down) node[ground] {}
7(opamp.up) ++ (0,.5) node[above] {\SI {12}{\ volt }}
8−− (opamp.up)
9;\end{ circuitikz }
The fully differential op amp defines two outputs:
−
+
−
+
v+
v−out +
out -
1\begin{ circuitikz } \draw
2(0,0) node[fd op amp] (opamp) {}
3(opamp.+) node[left ] {$v_+$}
4(opamp.−) node[left] {$v_−$}
5(opamp.out +) node[right] {out +}
6(opamp.out −) node[right] {out −}
7(opamp.down) node[ground] {}
8;\end{ circuitikz }
35
5.1.5 Double bipoles
All the (few, actually) double bipoles/quadrupoles have the four anchors, two for
each port. The first port, to the left, is port
A
, having the anchors
A1
(up) and
A2
(down); same for port B. They also expose the base anchor, for labelling:
A1
A2
B1
B2
K
1\begin{ circuitikz } \draw
2(0,0) node[transformer] (T) {}
3(T.A1) node[anchor=east] {A1}
4(T.A2) node[anchor=east] {A2}
5(T.B1) node[anchor=west] {B1}
6(T.B2) node[anchor=west] {B2}
7(T.base) node{K}
8;\end{ circuitikz }
A1
A2
B1
B2
K
1\begin{ circuitikz } \draw
2(0,0) node[gyrator] (G) {}
3(G.A1) node[anchor=east] {A1}
4(G.A2) node[anchor=east] {A2}
5(G.B1) node[anchor=west] {B1}
6(G.B2) node[anchor=west] {B2}
7(G.base) node{K}
8;\end{ circuitikz }
5.2 Transistor paths
For syntactical convenience transistors can be placed using the normal path notation
used for bipoles. The transitor type can be specified by simply adding a
“
T
”
(for
transistor) in front of the node name of the transistor. It will be placed with the
base/gate orthogonal to the direction of the path:
1
231\begin{ circuitikz } \draw
2(0,0) node[njfet ] {1}
3(−1,2) to[ Tnjfet =2] (1,2)
4to[ Tnjfet =3, mirror] (3,2);
5;\end{ circuitikz }
Access to the gate and/or base nodes can be gained by naming the transistors
with the nor name path style:
36
1\begin{ circuitikz } \draw[yscale =1.1, xscale =.8]
2(2,4.5) −− (0,4.5) to[Tpmos, n=p1] (0,3)
3to[Tnmos, n=n1] (0,1.5)
4to[Tnmos, n=n2] (0,0) node[ground] {}
5(2,4.5) to[Tpmos,n=p2] (2,3) to[short, −*] (0,3)
6(p1.G) −− (n1.G) to[short, *−o] ($(n1.G )+(3,0)$)
7(n2.G) ++(2,0) node[circ] {} −| (p2.G)
8(n2.G) to[short, −o] ($(n2.G )+(3,0)$)
9(0,3) to[short, −o] (−1,3)
10 ;\end{ circuitikz }
The
name
property is available also for bipoles, although this is useful mostly for
triac, potentiometer and thyristor (see 3.3.4).
6 Customization
6.1 Parameters
Pretty much all CircuiTikZ relies heavily on
pgfkeys
for value handling and con-
figuration. Indeed, at the beginning of
circuitikz.sty
a series of key definitions
can be found that modify all the graphical characteristics of the package.
All can be varied using the \ctikzset command, anywhere in the code.
Shape of the components (on a per-component-class basis)
1 Ω
1 Ω
1\tikz \draw (0,0) to[R=1<\ohm>] (2,0); \par
2\ ctikzset { bipoles/ resistor /height=.6}
3\tikz \draw (0,0) to[R=1<\ohm>] (2,0);
1\tikz \draw (0,0) node[nand port] {}; \par
2\ ctikzset { tripoles /american nand port/input height=.2}
3\ ctikzset { tripoles /american nand port/port width=.2}
4\tikz \draw (0,0) node[nand port] {};
Thickness of the lines (globally)
1 F
1 F
1\tikz \draw (0,0) to[C=1<\farad>] (2,0); \par
2\ ctikzset { bipoles/thickness=1}
3\tikz \draw (0,0) to[C=1<\farad>] (2,0);
37

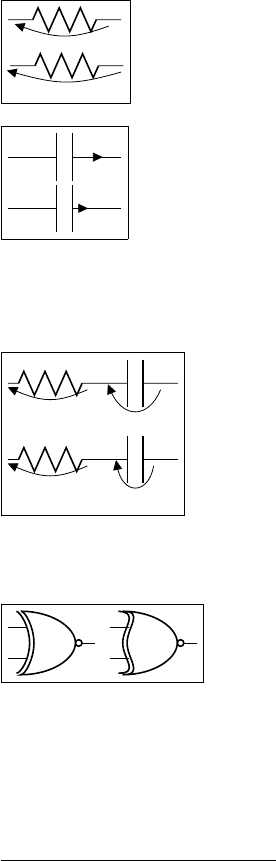

Global properties Of voltage and current
1 V
1 V
1\tikz \draw (0,0) to[R, v=1<\volt>] (2,0); \par
2\ ctikzset {voltage/distance from node=.1}
3\tikz \draw (0,0) to[R, v=1<\volt>] (2,0);
ı
ı
1\tikz \draw (0,0) to[C, i=$\imath$] (2,0); \par
2\ ctikzset {current/distance = .2}
3\tikz \draw (0,0) to[C, i=$\imath$] (2,0);
However, you can override the properties
voltage/distance from node5
,
voltage/bump b6
and voltage/european label distance7on a per-component basis, in order to
fine-tune the voltages:
1 V 2 V
1 V 2 V
1\tikz \draw (0,0) to[R, v=1<\volt>] (1.5,0)
2to[C, v=2<\volt>] (3,0); \par
3\ ctikzset { bipoles/capacitor/voltage/%
4distance from node/. initial =.7}
5\tikz \draw (0,0) to[R, v=1<\volt>] (1.5,0)
6to[C, v=2<\volt>] (3,0); \par
Admittedly, not all graphical properties have understandable names, but for the
time it will have to do:
1\tikz \draw (0,0) node[xnor port] {};
2\ ctikzset { tripoles /american xnor port/aaa=.2}
3\ ctikzset { tripoles /american xnor port/bbb=.6}
4\tikz \draw (0,0) node[xnor port] {};

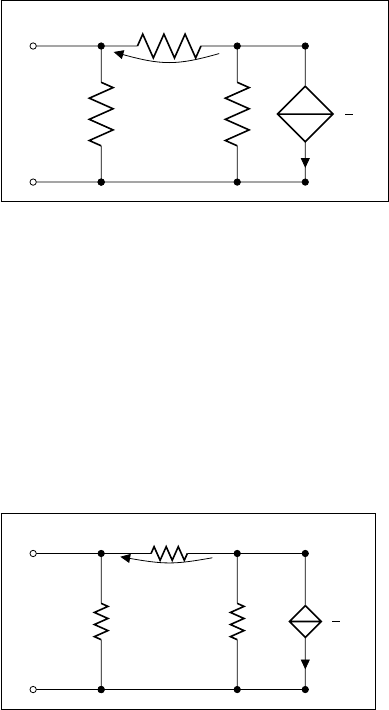

6.2 Components size
Perhaps the most important parameter is
\circuitikzbasekey/bipoles/length
,
which can be interpreted as the length of a resistor (including reasonable connec-
tions): all other lenghts are relative to this value. For instance:
5That is, how distant from the initial and final points of the path the arrow starts and ends.
6Controlling how high the bump of the arrow is — how curved it is.
7Controlling how distant from the bipole the voltage label will be.
38
B
20 Ω
10 Ω
vx
S
5vx
5 Ω
A
1\ ctikzset { bipoles/length=1.4cm}
2\begin{ circuitikz }[ scale =1.2]\ draw
3(0,0) node[anchor=east] {B}
4to[short, o−*] (1,0)
5to[R=20<\ohm>, *−*] (1,2)
6to[R=10<\ohm>, v=$v_x$] (3,2) −− (4,2)
7to[ cI=$\frac{\ si {\siemens}}{5} v_x$, *−*] (4,0) −− (3,0)
8to[R=5<\ohm>, *−*] (3,2)
9(3,0) −− (1,0)
10 (1,2) to[short, −o] (0,2) node[anchor=east]{A}
11 ;\end{ circuitikz }
B
20 Ω
10 Ω
vx
S
5vx
5 Ω
A
1\ ctikzset { bipoles/length=.8cm}
2\begin{ circuitikz }[ scale =1.2]\ draw
3(0,0) node[anchor=east] {B}
4to[short, o−*] (1,0)
5to[R=20<\ohm>, *−*] (1,2)
6to[R=10<\ohm>, v=$v_x$] (3,2) −− (4,2)
7to[ cI=$\frac{\siemens}{5} v_x$, *−*] (4,0) −− (3,0)
8to[R=5<\ohm>, *−*] (3,2)
9(3,0) −− (1,0)
10 (1,2) to[short, −o] (0,2) node[anchor=east]{A}
11 ;\end{ circuitikz }
6.3 Colors
The color of the components is stored in the key
\circuitikzbasekey/color
.
CircuiTikZ tries to follow the color set in TikZ, although sometimes it fails. If you
change color in the picture, please do not use just the color name as a style, like
[red], but rather assign the style [color=red].
Compare for instance
39
1\begin{ circuitikz } \draw[red]
2(0,2) node[and port] (myand1) {}
3(0,0) node[and port] (myand2) {}
4(2,1) node[xnor port] (myxnor) {}
5(myand1.out) −| (myxnor.in 1)
6(myand2.out) −| (myxnor.in 2)
7;\end{ circuitikz }
and
1\begin{ circuitikz } \draw[color=red]
2(0,2) node[and port] (myand1) {}
3(0,0) node[and port] (myand2) {}
4(2,1) node[xnor port] (myxnor) {}
5(myand1.out) −| (myxnor.in 1)
6(myand2.out) −| (myxnor.in 2)
7;\end{ circuitikz }
One can of course change the color in medias res:
1\begin{ circuitikz } \draw
2(0,0) node[pnp, color=blue] (pnp2) {}
3(pnp2.B) node[pnp, xscale=−1, anchor=B, color=brown] (pnp1) {}
4(pnp1.C) node[npn, anchor=C, color=green] (npn1) {}
5(pnp2.C) node[npn, xscale=−1, anchor=C, color=magenta] (npn2) {}
6(pnp1.E) −− (pnp2.E) (npn1.E) −− (npn2.E)
7(pnp1.B) node[circ] {} |−(pnp2.C) node[circ] {}
8;\end{ circuitikz }

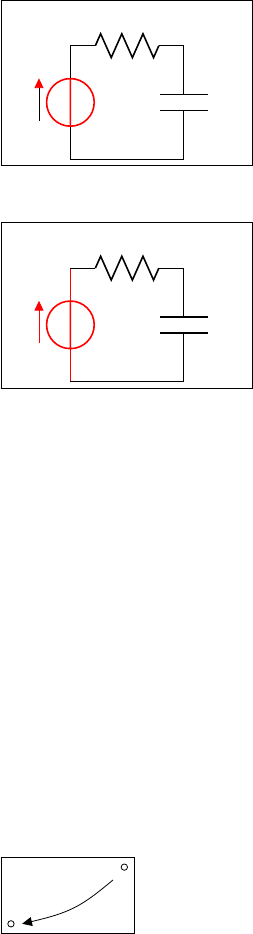

The all-in-one stream of bipoles poses some challanges, as only the actual body
of the bipole, and not the connecting lines, will be rendered in the specified color.
Also, please notice the curly braces around the to:
1 V
1 Ω
1 F
1\begin{ circuitikz } \draw
2(0,0) to[V=1<\volt>] (0,2)
3{ to[R=1<\ohm>, color=red] (2,2) }
4to[C=1<\farad>] (2,0) −− (0,0)
5;\end{ circuitikz }
Which, for some bipoles, can be frustrating:
40
1 V
1 Ω
1 F
1\begin{ circuitikz } \draw
2(0,0){ to[V=1<\volt>, color=red] (0,2) }
3to[R=1<\ohm>] (2,2)
4to[C=1<\farad>] (2,0) −− (0,0)
5;\end{ circuitikz }
The only way out is to specify different paths:
1 V
1 Ω
1 F
1\begin{ circuitikz } \draw[color=red]
2(0,0) to[V=1<\volt>, color=red] (0,2);
3\draw (0,2) to[R=1<\ohm>] (2,2)
4to[C=1<\farad>] (2,0) −− (0,0)
5;\end{ circuitikz }
And yes: this is a bug and not a feature…
7 FAQ
Q: When using \tikzexternalize I get the following error:
! Emergency stop.
A: The TikZ manual states:
Furthermore, the library assumes that all L
A
T
E
X pictures are ended
with \end{tikzpicture}\verb.
Just substitute every occurrence of the environment
circuitikz
with
tikzpicture
.
They are actually pretty much the same.
Q: How do I draw the voltage between two nodes?
A: Between any two nodes there is an open circuit!
v
1\begin{ circuitikz } \draw
2node[ocirc] (A) at (0,0) {}
3node[ocirc] (B) at (2,1) {}
4(A) to[open, v=$v$] (B)
5;\end{ circuitikz }
Q: I cannot write to[R = $R_1=12V$] nor to[ospst = open, 3s]: I get errors.
A: It is a limitation of the TikZ parser. Use
to[R = $R_1{=}12V$]
and
to[ospst = open{,} 3s]
instead.
41

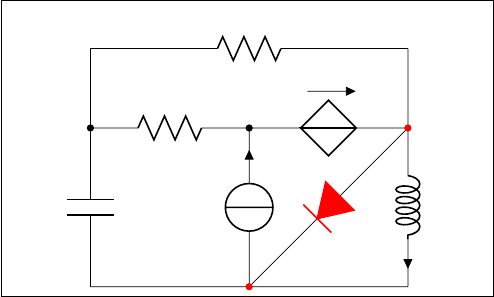

8 Examples
10 µF
2.2 kΩ
12 mH
i1
1 kΩ
0.3 kΩi1
1 mA
1\begin{ circuitikz }[ scale =1.4]\ draw
2(0,0) to[C, l=10<\micro\farad>] (0,2) −− (0,3)
3to[R, l =2.2<\ kilo\ohm>] (4,3) −− (4,2)
4to[L, l=12<\ milli\henry>, i=$i_1$] (4,0) −− (0,0)
5(4,2) { to[D*, *−*, color=red] (2,0) }
6(0,2) to[R, l=1<\kilo\ohm>, *−] (2,2)
7to[cV, v=$\SI {.3}{\ kilo\ohm} i_1$] (4,2)
8(2,0) to[ I , i=1<\milli\ampere>, −*] (2,2)
9;\end{ circuitikz }
42

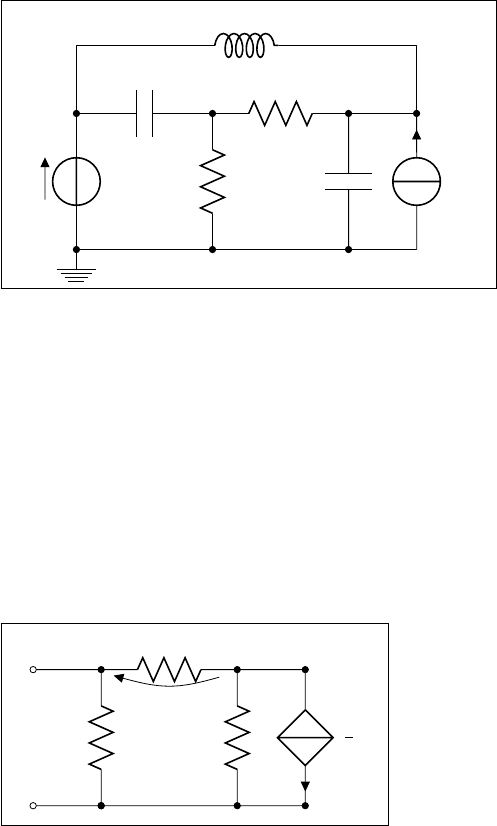

e(t)
4 nF
0.25 kΩ
1 kΩ
2 nF a(t)
2 mH
1 2 3
1\begin{ circuitikz }[ scale =1.2]\ draw
2(0,0) node[ground] {}
3to[V=$e(t )$, *−*] (0,2) to[C=4<\nano\farad>] (2,2)
4to[R, l _=.25<\ kilo\ohm>, *−*] (2,0)
5(2,2) to[R=1<\kilo\ohm>] (4,2)
6to[C, l_=2<\nano\farad>, *−*] (4,0)
7(5,0) to[ I , i_=$a(t )$, −*] (5,2) −− (4,2)
8(0,0) −− (5,0)
9(0,2) −− (0,3) to[L, l=2<\milli \henry>] (5,3) −− (5,2)
10
11 {[anchor=south east] (0,2) node {1} (2,2) node {2} (4,2) node {3}}
12 ;\end{ circuitikz }
B
20 Ω
10 Ω
vx
S
5vx
5 Ω
A
1\begin{ circuitikz }[ scale =1.2]\ draw
2(0,0) node[anchor=east] {B}
3to[short, o−*] (1,0)
4to[R=20<\ohm>, *−*] (1,2)
5to[R=10<\ohm>, v=$v_x$] (3,2) −− (4,2)
6to[ cI=$\frac{\siemens}{5} v_x$, *−*] (4,0) −− (3,0)
7to[R=5<\ohm>, *−*] (3,2)
8(3,0) −− (1,0)
9(1,2) to[short, −o] (0,2) node[anchor=east]{A}
10 ;\end{ circuitikz }
43

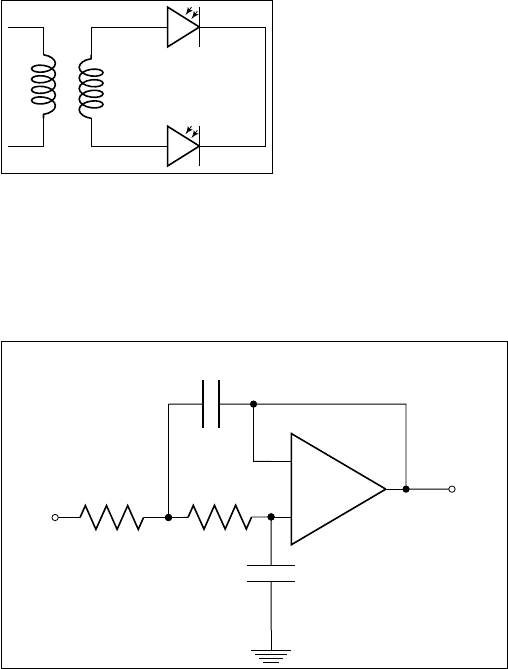

1\begin{ circuitikz }[ scale =1]\draw
2(0,0) node[transformer] (T) {}
3(T.B2) to[pD] ($(T.B 2)+(2,0)$) −| (3.5, −1)
4(T.B1) to[pD] ($(T.B 1)+(2,0)$) −| (3.5, −1)
5;\end{ circuitikz }
−
+
Uwe
RdRd
Cd2
Cd1
Uwy
1\begin{ circuitikz }[ scale =1]\draw
2(5,.5) node [op amp] (opamp) {}
3(0,0) node [ left ] {$U_{we}$} to [R, l=$R_d$, o−*] (2,0)
4to [R, l=$R_d$, *−*] (opamp.+)
5to [C, l_=$C_{d2}$, *−] ($(opamp.+)+(0,−2)$) node [ground] {}
6(opamp.out) |−(3.5,2) to [C, l_=$C_{d1}$, *−] (2,2) to [short] (2,0)
7(opamp.−)−| (3.5,2)
8(opamp.out) to [short, *−o] (7,.5) node [right ] {$U_{wy}$}
9;\end{ circuitikz }
44

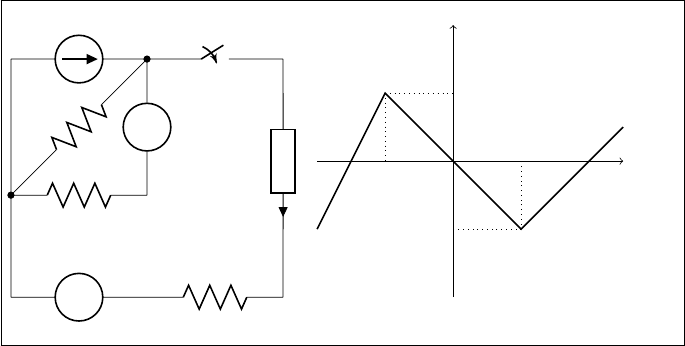

1 mA
2 kΩ
2 kΩ
+
−
2 V
t0
+
−
v1
i1
+
−
4 V
1 kΩ
v1/V
i1/mA
-2
2
4
-4
4
-3
1\begin{ circuitikz }[ scale =1.2, american]\draw
2(0,2) to[ I=1<\ milli \ampere>] (2,2)
3to[R, l_=2<\kilo\ohm>, *−*] (0,0)
4to[R, l_=2<\kilo\ohm>] (2,0)
5to[V, v_=2<\volt>] (2,2)
6to[ cspst , l=$t_0$] (4,2) −− (4,1.5)
7to [generic, i=$i _1$, v=$v_1$] (4,−.5) −− (4,−1.5)
8(0,2) −− (0,−1.5) to[V, v_=4<\volt>] (2,−1.5)
9to [R, l=1<\kilo\ohm>] (4,−1.5);
10
11 \begin{scope}[ xshift =6.5cm, yshift =.5cm]
12 \draw [−>] (−2,0) −− (2.5,0) node[anchor=west] {$v_1/\volt$};
13 \draw [−>] (0,−2) −− (0,2) node[anchor=west] {$i_1/\SI {}{\ milli \ampere}$} ;
14 \draw (−1,0) node[anchor=north] {−2} (1,0) node[anchor=south] {2}
15 (0,1) node[anchor=west] {4} (0,−1) node[anchor=east] {−4}
16 (2,0) node[anchor=north west] {4}
17 (−1.5,0) node[anchor=south east] {−3};
18 \draw [thick] (−2,−1) −− (−1,1) −− (1,−1) −− (2,0) −− (2.5,.5);
19 \draw [dotted] (−1,1) −− (−1,0) (1,−1) −− (1,0)
20 (−1,1) −− (0,1) (1,−1) −− (0,−1);
21 \end{scope}
22 \end{circuitikz }
9 Revision history
version 0.3.0 (20121229)
1. fixed gate node for a few transistors
2. added mixer
3. added fully differential op amp (by Kristofer M. Monisit)
4.
now general settings for the drawing of voltage can be overridden for
specific components
45
5.
made arrows more homogeneous (either the current/voltage one, or
latex’ by pgf)
6. added the single battery cell
7. added fuse and asymmetric fuse
8. added toggle switch
9. added varistor, photoresistor, thermocouple, push button
10. added thermistor, thermistor ptc, thermistor ptc
11. fixed misalignment of voltage label in vertical bipoles with names
12. added isfet
13.
added noiseless, protective, chassis, signal and reference grounds (Luigi
Luigi «Liverpool»)
version 0.2.4 (20110911).
1. added square voltage source (contributed by Alistair Kwan)
2. added buffer and plain amplifier (contributed by Danilo Piazzalunga)
3. added squid and barrier (contributed by Cor Molenaar)
4. added antenna and transmission line symbols contributed by Leonardo
Azzinnari
5.
added the changeover switch spdt (suggestion of Fabio Maria Antoniali)
6. rename of context.tex and context.pdf (thanks to Karl Berry)
7. updated the email address
8.
in documentation, fixed wrong (non-standard) labelling of the axis in an
example (thanks to prof. Claudio Beccaria)
9. fixed scaling inconsistencies in quadrupoles
10. fixed division by zero error on certain vertical paths
11. introduced options straighlabels, rotatelabels, smartlabels
version 0.2.3 (20091118).
1. fixed compatibility problem with label option from tikz
2. Fixed resizing problem for shape ground
3. Variable capacitor
4. polarized capacitor
5. ConTeXt support (read the manual!)
6.
nfet, nigfete, nigfetd, pfet, pigfete, pigfetd (contribution of Clemens
Helfmeier and Theodor Borsche)
7. njfet, pjfet (contribution of Danilo Piazzalunga)
8. pigbt, nigbt
9.
backward incompatibility potentiometer is now the standard resistor-with-
arrow-in-the-middle; the old potentiometer is now known as variable
resistor (or vR), similarly to variable inductor and variable capacitor
10. triac, thyristor, memristor
46
11. new property ”name” for bipoles
12. fixed voltage problem for batteries in american voltage mode
13. european logic gates
14.
backward incompatibility new american standard inductor. Old american
inductor now called ”cute inductor”
15.
backward incompatibility transformer now linked with the chosen type of
inductor, and version with core, too. Similarly for variable inductor
16.
backward incompatibility styles for selecting shape variants now end are
in the plural to avoid conflict with paths
17. new placing option for some tripoles (mostly transistors)
18. mirror path style
version 0.2.2 (20090520).
1. Added the shape for lamps.
2.
Added options
europeanresistor
,
europeaninductor
,
americanresistor
and americaninductor, with corresponding styles.
3. Fixed
: error in transistor arrow positioning and direction under negative
xscale and yscale.
version 0.2.1 (20090503).
1. Op-amps added.
2. Added options arrowmos and noarrowmos.
version 0.2 First public release on CTAN (20090417).
1. Backward incompatibility
: labels ending with
:
angle are not parsed for
positioning anymore.
2. Full use of TikZ keyval features.
3.
White background is not filled anymore: now the network can be drawn
on a background picture as well.
4.
Several new components added (logical ports, transistors, double bipoles,
…).
5. Color support.
6. Integration with siunitx.
7. Voltage, american style.
8. Better code, perhaps. General cleanup at the very least.
version 0.1 First public release (2007).
47
Index of the components
afuse, 10
ageneric, 9
american and port, 21
american controlled current source,
16
american controlled voltage source,
16
american current source, 11
american inductor, see L
american nand port, 22
american nor port, 22
american not port, 22
american or port, 21
american potentiometer, see pR
american resistor, see R
american variable resistor, see vR
american voltage source, 11
american xnor port, 22
american xor port, 22
ammeter, 8
antenna, 7
asymmetric fuse, see afuse
barrier, 13
battery, 11
battery1, 11
buffer, 24
C, see capacitor
capacitor, 13
cground, 7
circ, 24
cisourcesin, see controlled sinusoidal
current source
closing switch, 15
controlled isourcesin, see controlled
sinusoidal current source
controlled sinusoidal current source,
16
controlled sinusoidal voltage source,
16
controlled vsourcesin, see controlled
sinusoidal voltage source
csI, see controlled sinusoidal current
source
cspst, see closing switch
csV, see controlled sinusoidal voltage
source
currarrow, 24
cute inductor, see L
cvsourcesin, see controlled sinusoidal
voltage source
D*, see full diode
Do, see empty diode
empty diode, 12
empty led, 12
empty photodiode, 12
empty Schottky diode, 12
empty tunnel diode, 12
empty varcap, 12
empty Zener diode, 12
european and port, 22
european controlled current source,
16
european controlled voltage source,
15
european current source, 11
european inductor, see L
european nand port, 22
european nor port, 23
european not port, 22
european or port, 22
european potentiometer, see pR
european resistor, see R
european variable resistor, see vR
european voltage source, 11
european xnor port, 23
european xor port, 23
fd op amp, 23
full diode, 12
full led, 13
full photodiode, 13
full Schottky diode, 12
full tunnel diode, 13
full varcap, 13
full Zener diode, 12
fullgeneric, 9
fuse, 10
generic, 8
ground, 7
gyrator, 21
isfet, 19
48
isourcesin, see sinusoidal current
source
L, 14
lamp, 8
leD*, see full led
leDo, see empty led
memristor, 9
mixer, 20
Mr, see memristor
nfet, 18
nground, 7
nigbt, 17
nigfetd, 18
nigfete, 18
njfet, 19
nmos, 17
npn, 17
ocirc, 24
op amp, 23
open, 8
opening switch, 15
ospst, see opening switch
pC, see polar capacitor
pD*, see full photodiode
pDo, see empty photodiode
pfet, 18
pground, 7
photoresistor, see phR
phR, 10
pigbt, 17
pigfetd, 19
pigfete, 18
pjfet, 19
plain amp, 24
pmos, 17, 18
pnp, 17
polar capacitor, 13
pR, 9, 10
push button, 15
R, 9
rground, 7
rxantenna, 7
sD*, see full Schottky diode
sDo, see empty Schottky diode
sground, 7
short, 8
sI, see sinusoidal current source
sinusoidal current source, 15
sinusoidal voltage source, 15
spdt, 19
square voltage source, 15
squid, 13
sqV, see square voltage source
sV, see sinusoidal voltage source
tD*, see full tunnel diode
tDo, see empty tunnel diode
tfullgeneric, 9
tgeneric, 8
thermistor, see thR
thermistor ntc, see thRn
thermistor ptc, see thRp
thermocouple, 10
thR, 10
thRn, 10
thRp, 10
thyristor, 20
TL, 14
tline, see TL
tlinestub, 8
toggle switch, 19
Tr, see triac
transformer, 20
transformer core, 21
transmission line, see TL
triac, 20
txantenna, 8
Ty, see thyristor
variable american inductor, see vL
variable capacitor, 14
variable cute inductor, see vL
variable european inductor, see vL
varistor, 10
vC, see variable capacitor
VC*, see full varcap
VCo, see empty varcap
vL, 14
voltmeter, 8
vR, 9, 10
vsourcesin, see sinusoidal voltage
source
vsourcesquare, see square voltage
source
zD*, see full Zener diode
zDo, see empty Zener diode
49
